Newsmay AC8F-POE 评测:一款支持 PoE 和 Intel N100 的迷你 PC,适用于专业环境

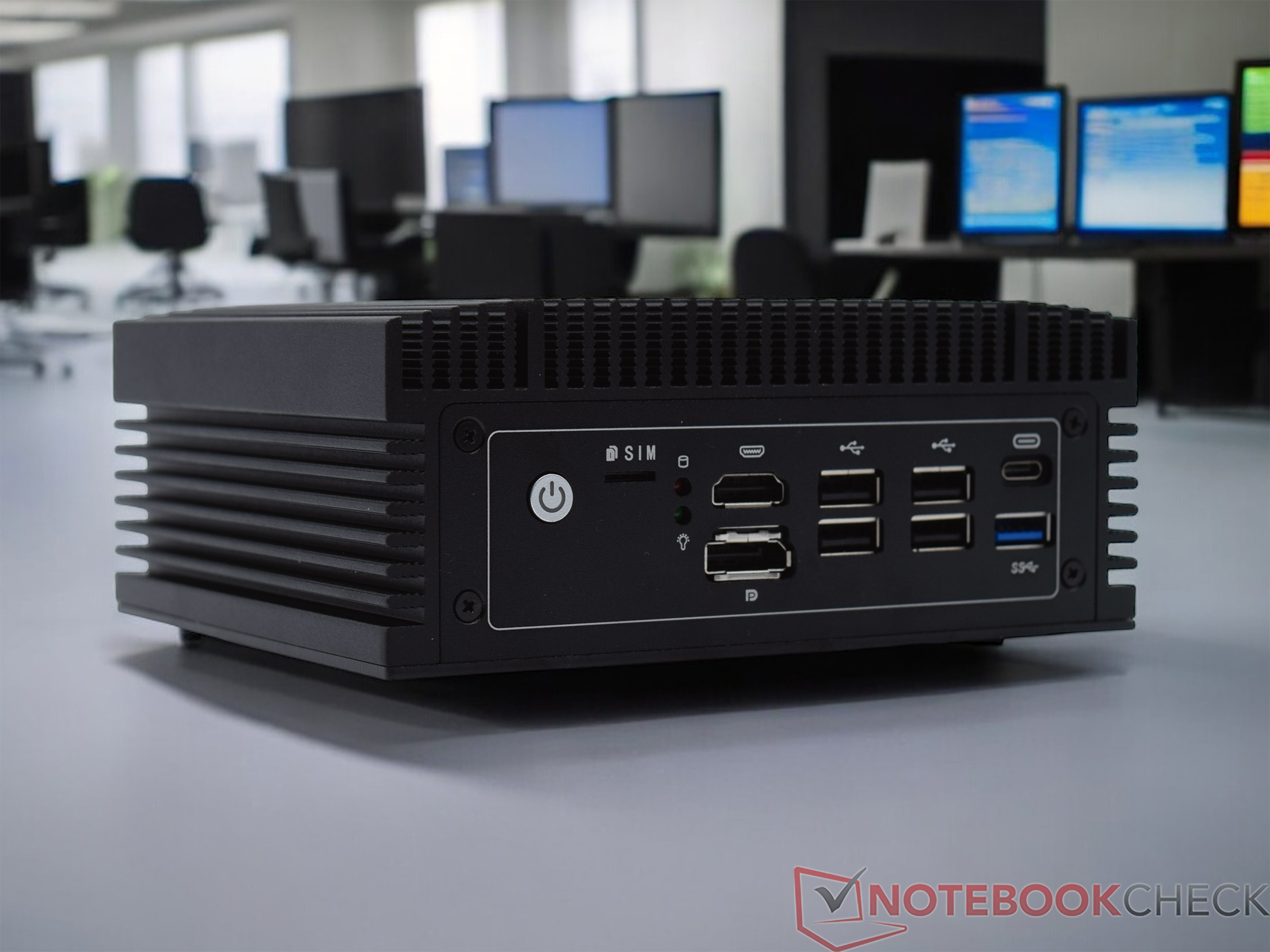

Newsmay 是一家专门生产特种 PC 的中国系统制造商。纽仕迈 AC8F-POE 是一款工业用迷你 PC,既可用作防火墙,也可用作移动路由器。无风扇概念体现在其视觉外观上,这也是纽仕迈 AC8F-POE 从视觉角度上区别于其他大多数微型 PC 的原因。采用 英特尔 N100新美 AC8F-POE 配备了已被广泛采用的 SoC,长期以来,该芯片在许多测试中都取得了经济实惠、性能卓越的优异成绩。内存为 16 GB,大容量存储由 128 GB 的小型 SSD 提供。
在我们进行评测时,该设备目前的售价为 295 美元,同时也可以在亚马逊上订购。除了我们评测的规格外,纽仕迈还提供配备其他两种处理器的 AC8F-POE。您可以选择 英特尔 N95或 英特尔 N97.为了说明其他迷你 PC 的性能,在本次评测中,纽仕迈 AC8F-POE 必须与性能类似的设备进行比较,以证明自己的实力。竞争对手列表见下表。
» Notebookcheck多媒体笔记本电脑Top 10排名
» Notebookcheck游戏笔记本电脑Top 10排名
» Notebookcheck低价办公/商务笔记本电脑Top 10排名
» Notebookcheck高端办公/商务笔记本电脑Top 10排名
» Notebookcheck工作站笔记本电脑Top 10排名
» Notebookcheck亚笔记本电脑Top 10排名
» Notebookcheck超级本产品Top 10排名
» Notebookcheck变形本产品Top 10排名
» Notebookcheck平板电脑Top 10排名
» Notebookcheck智能手机Top 10排名
» Notebookcheck评测过最出色的笔记本电脑屏幕
» Notebookcheck售价500欧元以下笔记本电脑Top 10排名
» Notebookcheck售价300欧元以下笔记本电脑Top 10排名
潜在的竞争对手比较
Bew. | Version | Datum | Model | PL2 | PL1 | Gewicht | Preis |
---|---|---|---|---|---|---|---|
61.3 % | v8 | 07/2024 | Newsmay AC8F-POE N100, UHD Graphics 24EUs (Alder Lake-N) | 25 | 10 | 1.2 kg | 295 EUR |
65.8 % | v8 | 06/2024 | Minisforum Venus Series UN100D N100, UHD Graphics 24EUs (Alder Lake-N) | 18 | 9 | 367 g | 219 EUR |
77.4 % | v7 (old) | 11/2023 | Geekom MiniAir 12 N100, UHD Graphics 24EUs (Alder Lake-N) | 25 | 15 | 453 g | 279 EUR |
75.8 % | v7 (old) | 03/2024 | Acemagic S1 N97, UHD Graphics 24EUs (Alder Lake-N) | 25 | 25 | 450 g | 249 EUR |
73.5 % | v7 (old) | 09/2023 | Blackview MP80 N95, UHD Graphics 24EUs (Alder Lake-N) | 15 | 15 | 214 g | 250 EUR |
73.2 % | v7 (old) | 01/2024 | Asus ExpertCenter PN42-BBN200MV N200, UHD Graphics Xe 750 32EUs | 25 | 6 | 828 g | 299 EUR |
71.1 % | v7 (old) | 08/2023 | BOSGAME N95 N95, UHD Graphics 24EUs (Alder Lake-N) | 35 | 15 | 392 g | 179 EUR |
注:我们更新了评级系统,这意味着第 8 版的结果无法与第 7 版的结果进行比较。更多信息请参见 这里.

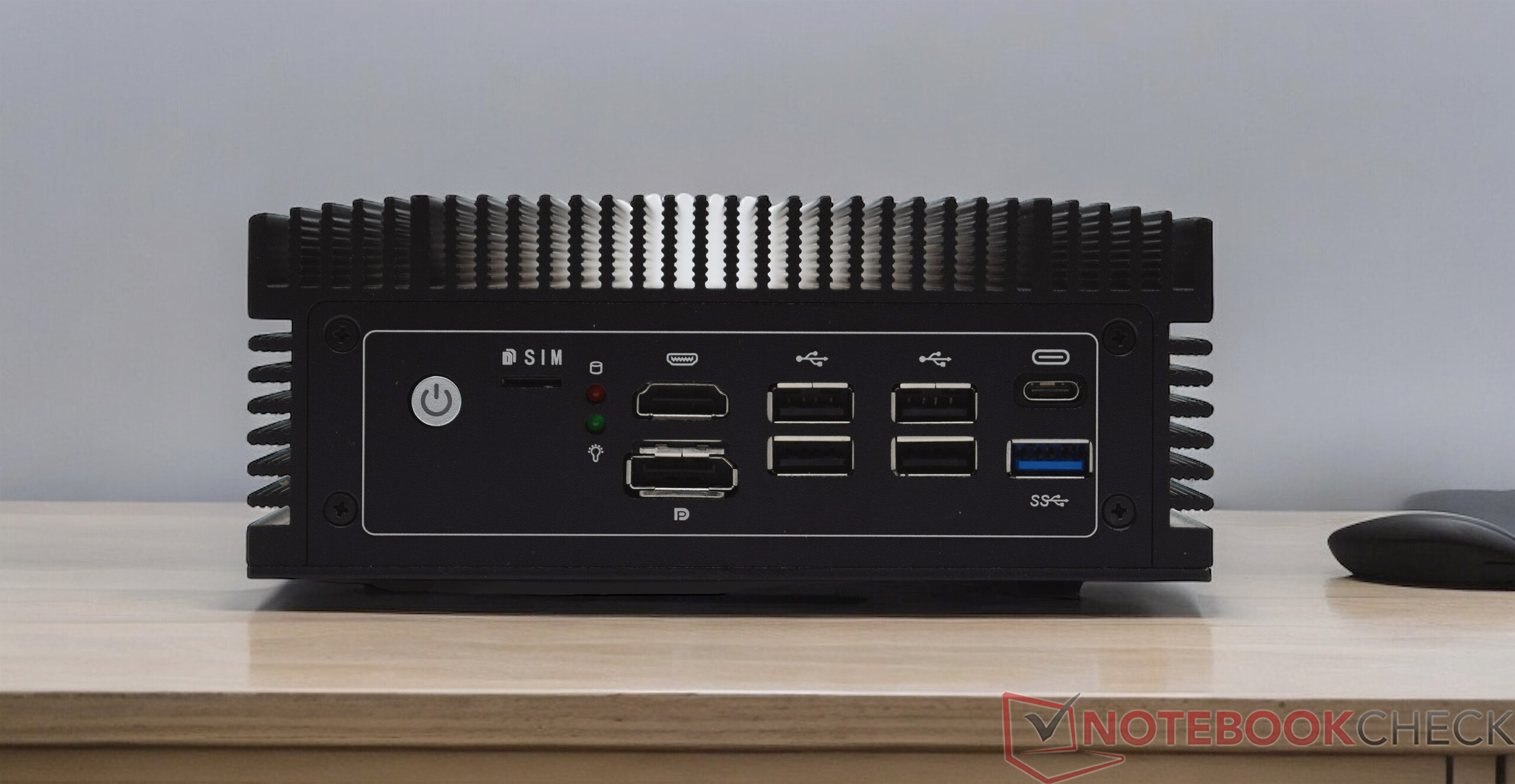

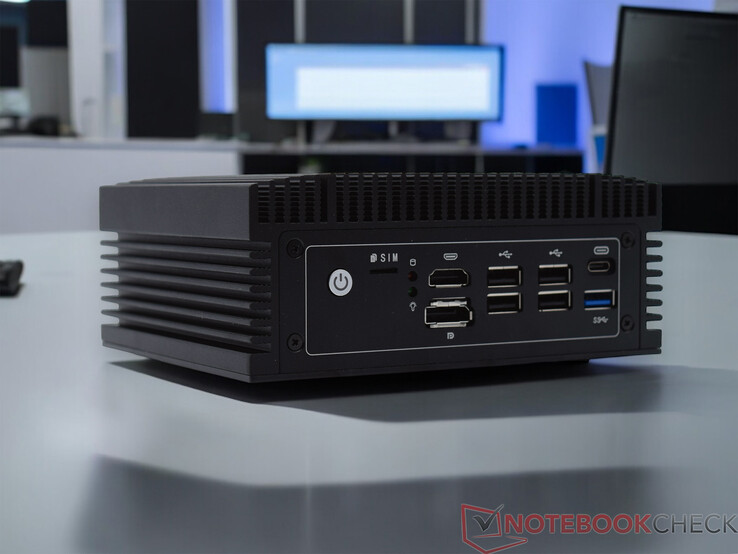

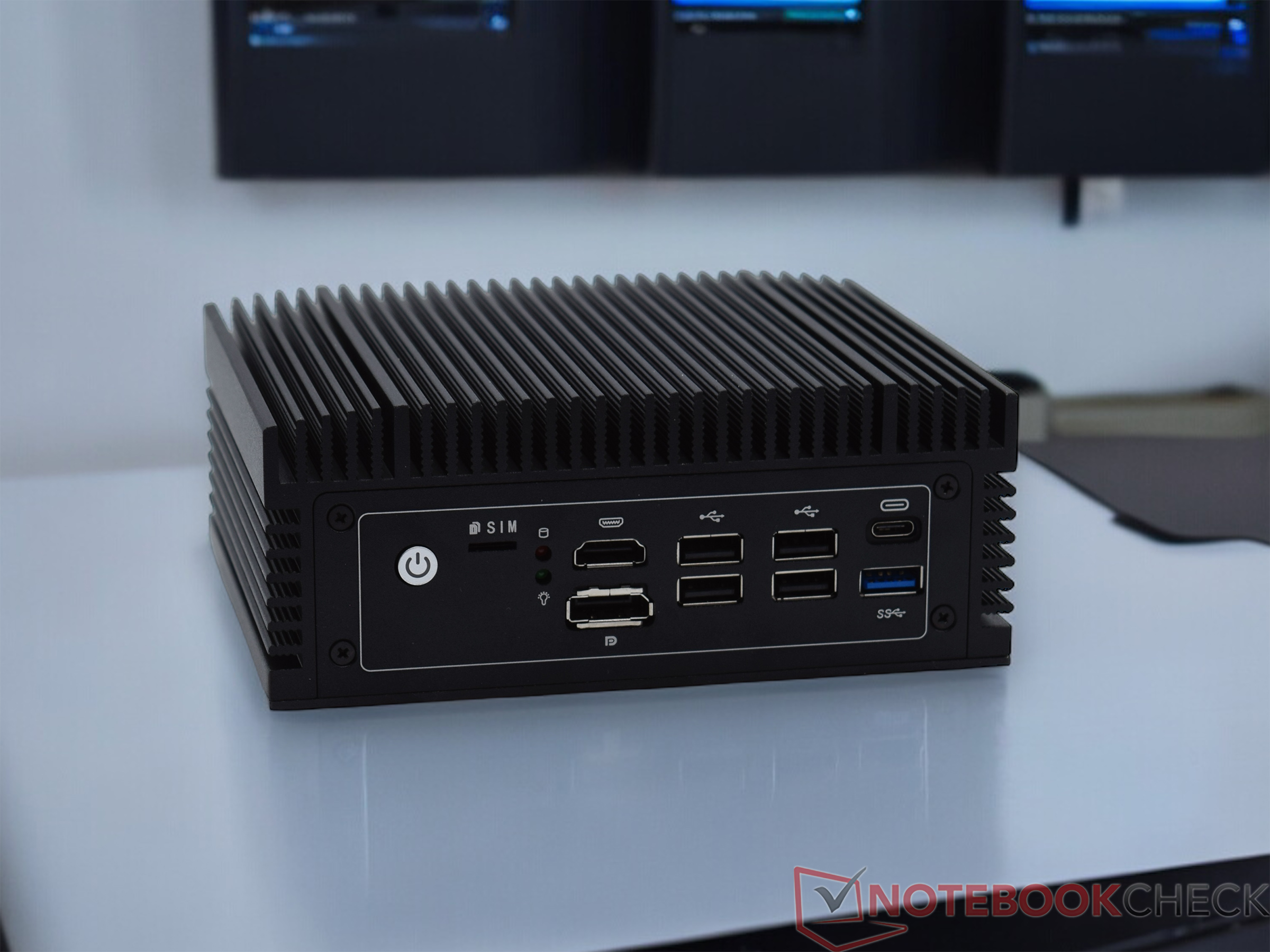

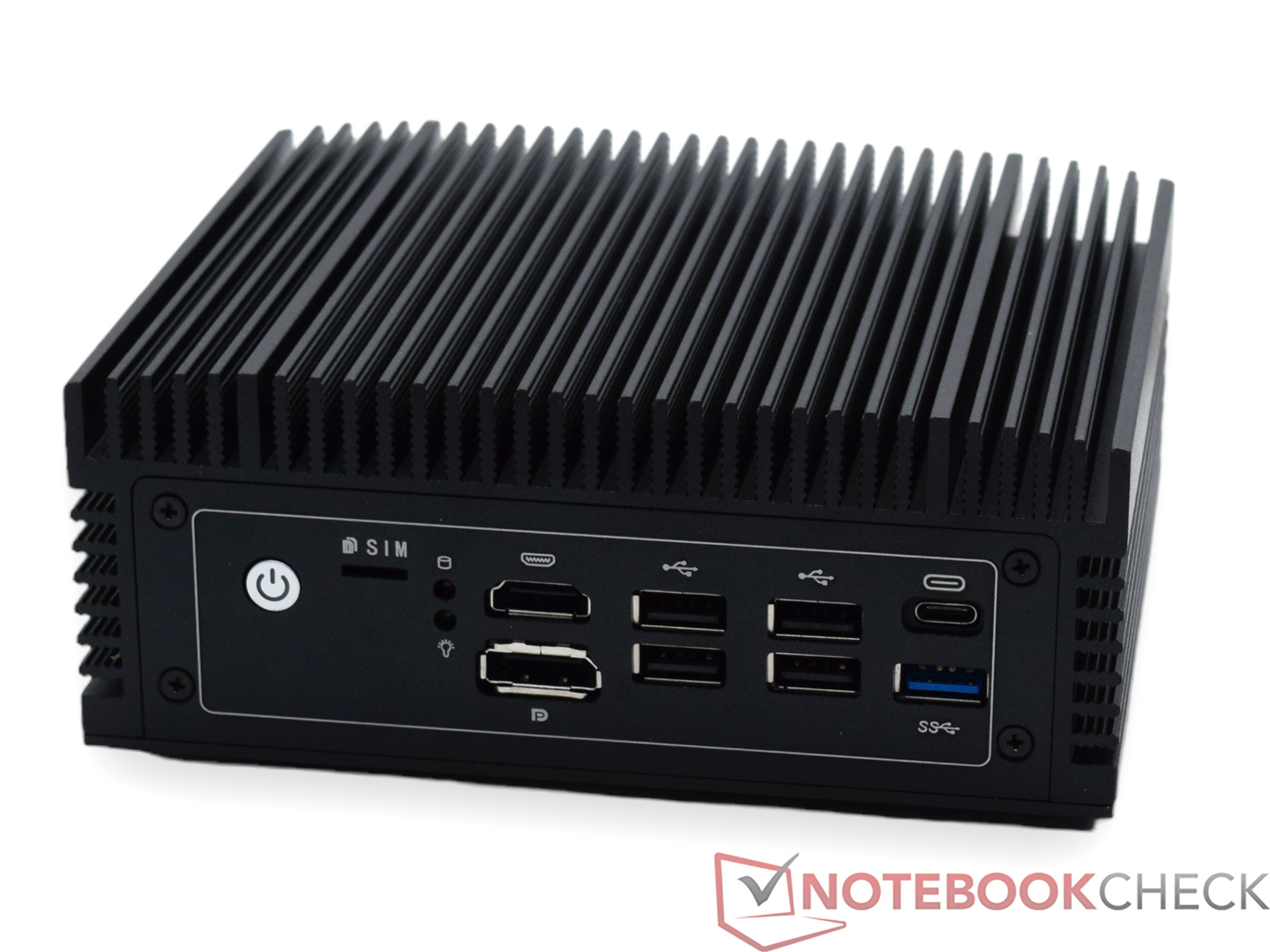

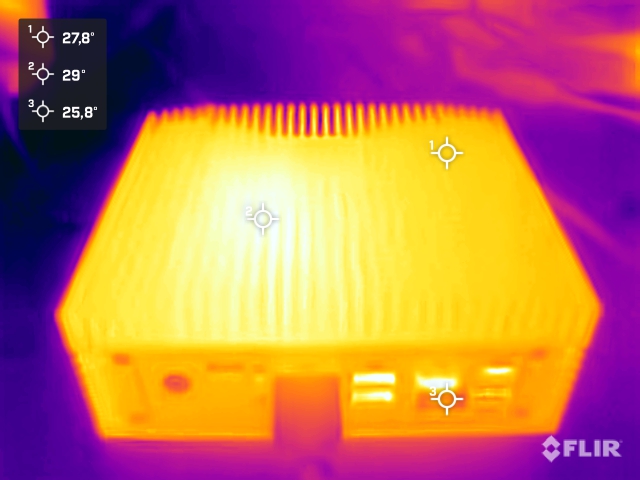

外壳 - 坚固的金属外壳可用作冷却元件

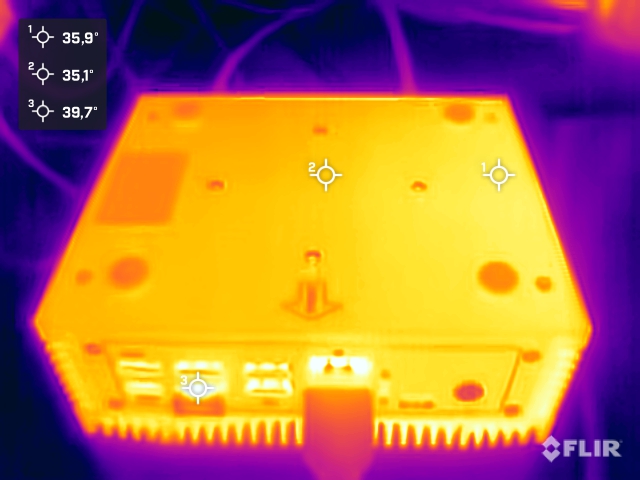

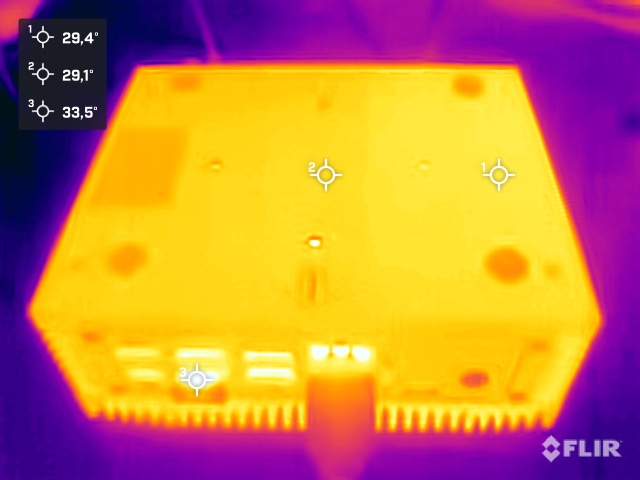

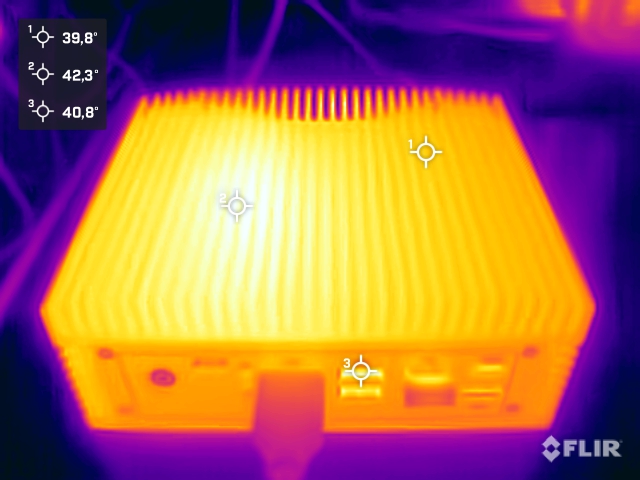

纽仕迈 AC8F-POE 的散热概念是这款迷你 PC 外观的主要原因。由于制造商选择了被动散热,因此机箱也被用来散热。我们可以看到,在实际使用中,效果非常出色。机箱完全由金属组成,拆卸起来相当方便。在机身顶部和两侧,安装了大型散热通风口,以便大面积散发热量。这一概念的一个缺点是重量,评测样品的重量为 1.2 千克,比较合适。此外,Newsmay 还比竞争对手占用更多空间。装配和外观都很好,所有部件都能和谐地结合在一起。唯一需要批评的是散热片的边缘有些锋利。

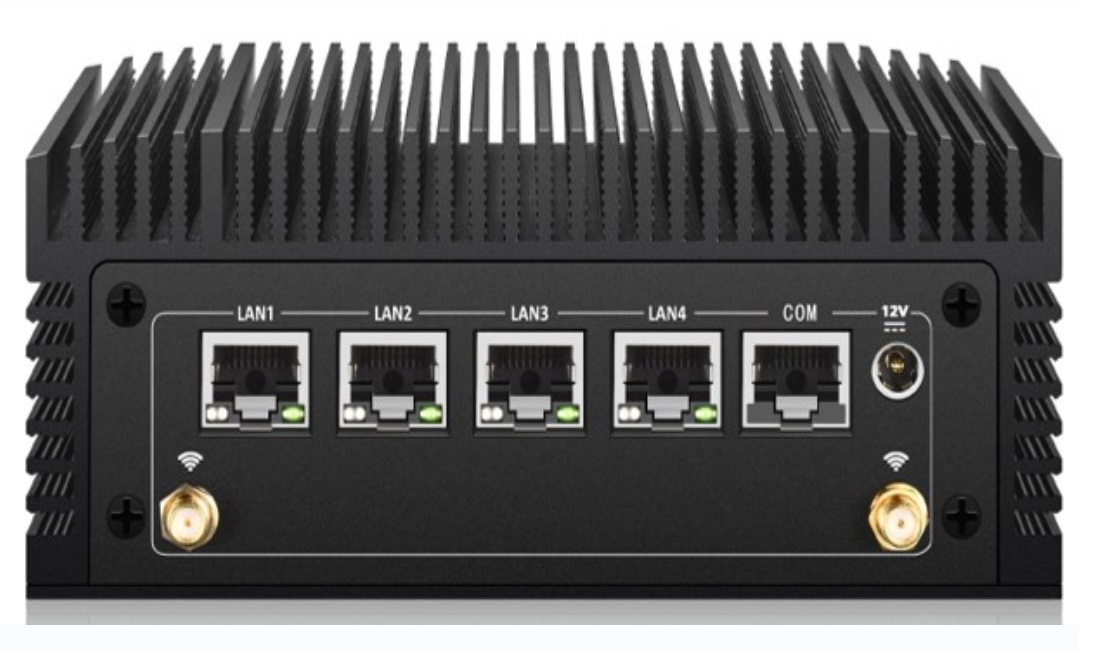

特点

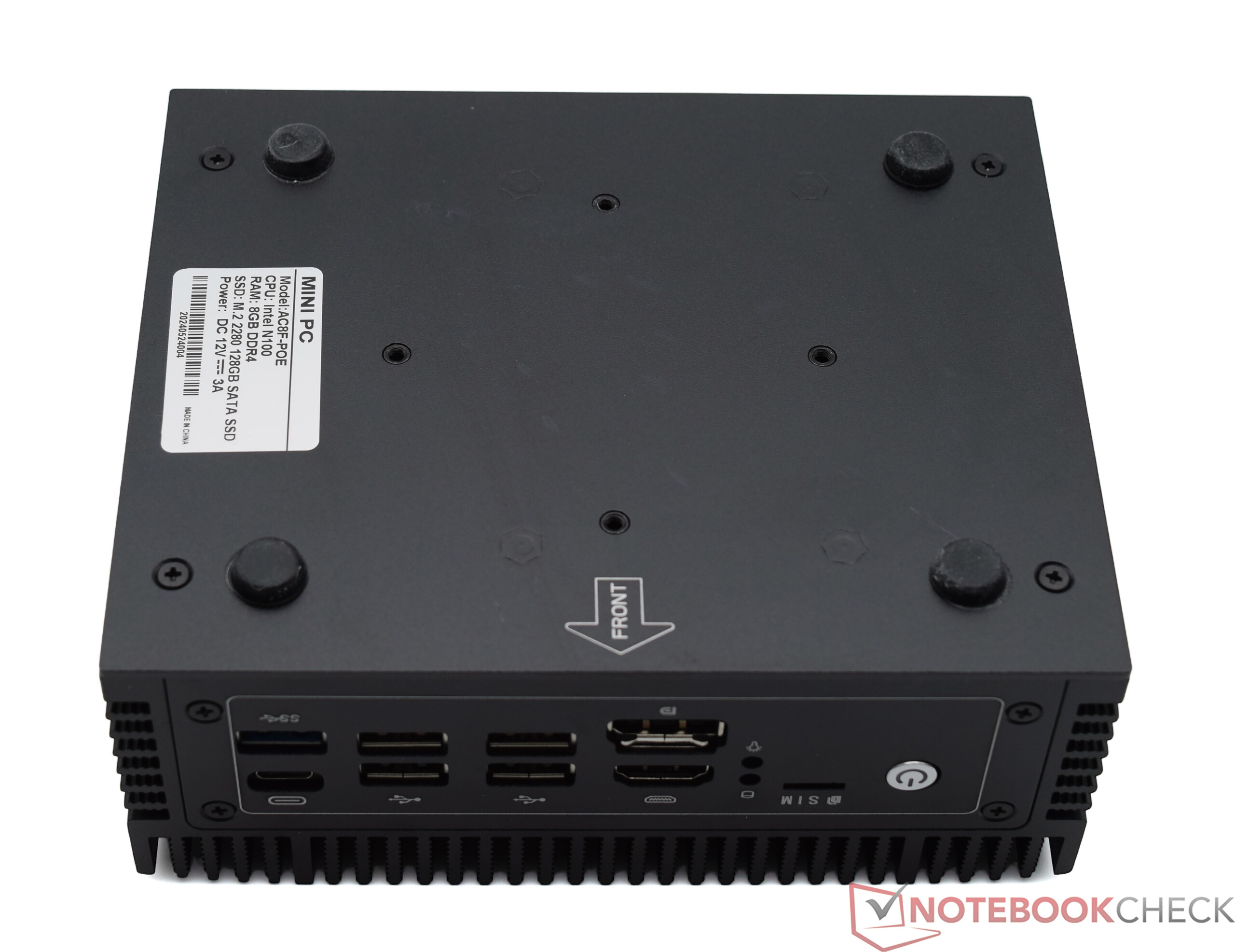

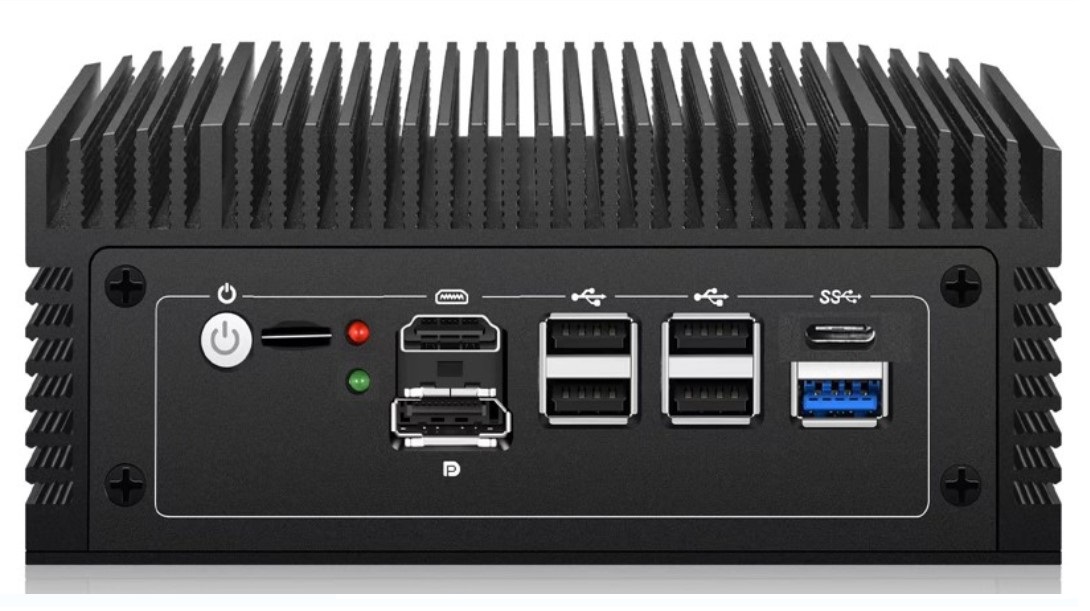

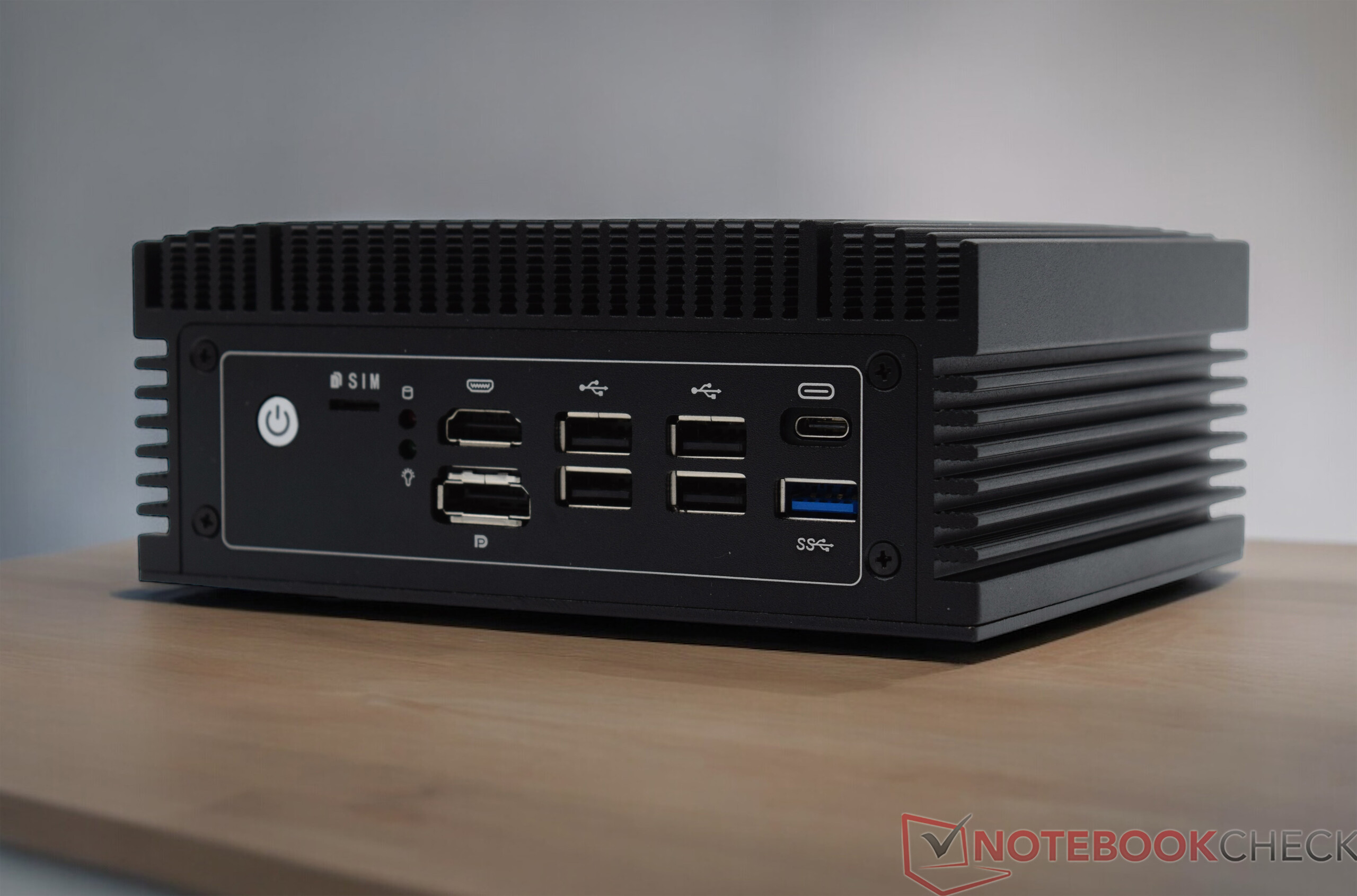

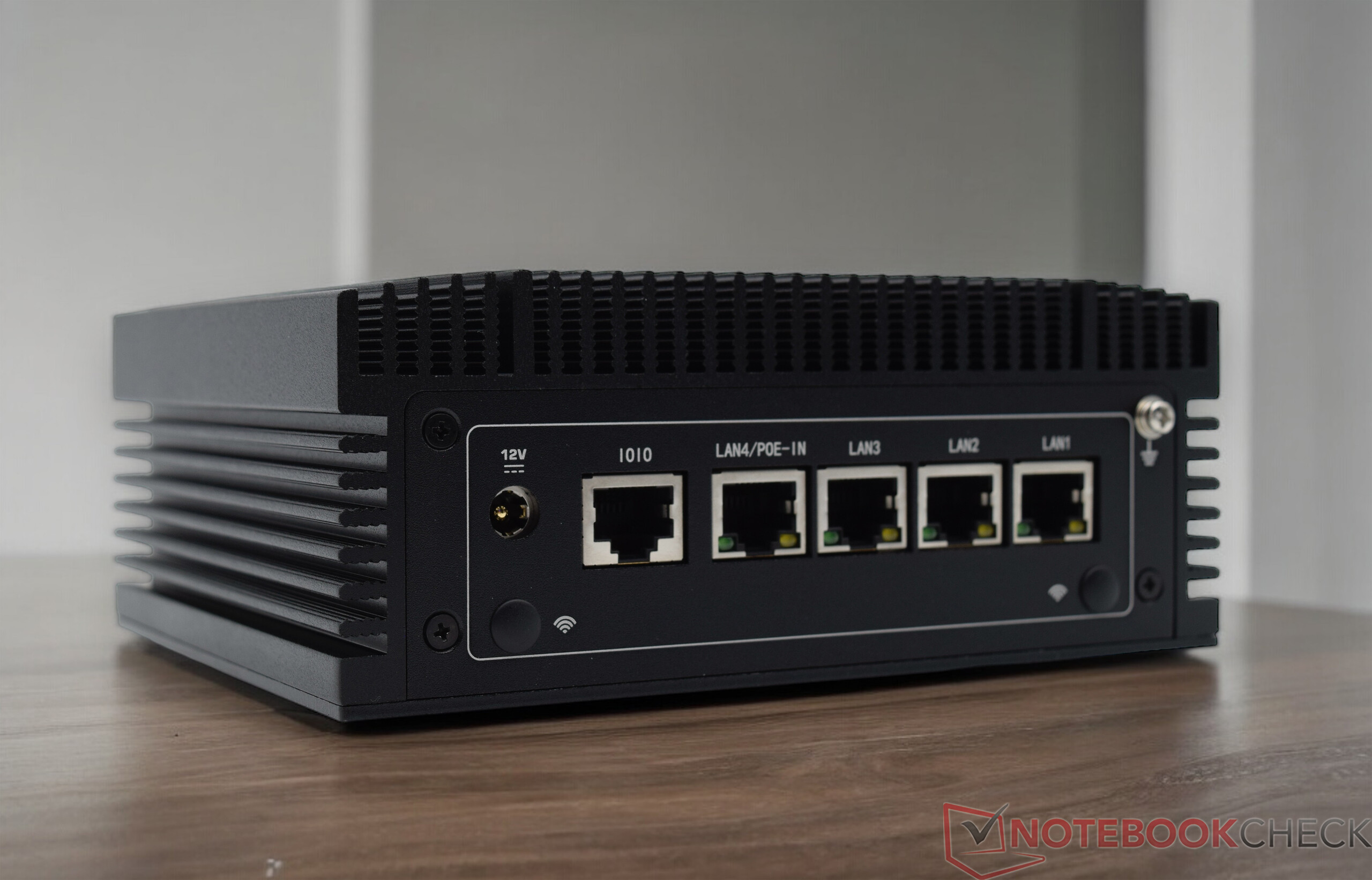

Newsmay AC8F-POE 提供了符合预期用途的多种端口选择。首先映入眼帘的是许多 LAN 端口,它们可以作为各种网络的接口。例如,LAN 端口 4 可为设备供电,因此无需使用 PSU。拥有 PoE 选件的迷你 PC 并不多,这也是纽仕迈 AC8F-POE 的独特卖点。不过,由于我们目前没有支持 PoE 的交换机,因此无法进行测试。除了众多 USB 端口(其中两个仅为 2.0 端口)外,正面还有一个 HDMI 端口和一个用于传输图像的 DisplayPort 接口。同样,还有一个 SIM 卡插槽,不过该设备没有配备内置 4G 或 5G 模块。由于纽仕迈 AC8F-POE 也没有安装 Wi-Fi 模块,因此两个 Wi-Fi 天线端口的承诺都大于实际效果。在这种情况下,本评测中就没有了下一部分关于通信的内容。不过,您可以在设备上安装 Wi-Fi 模块。
配件

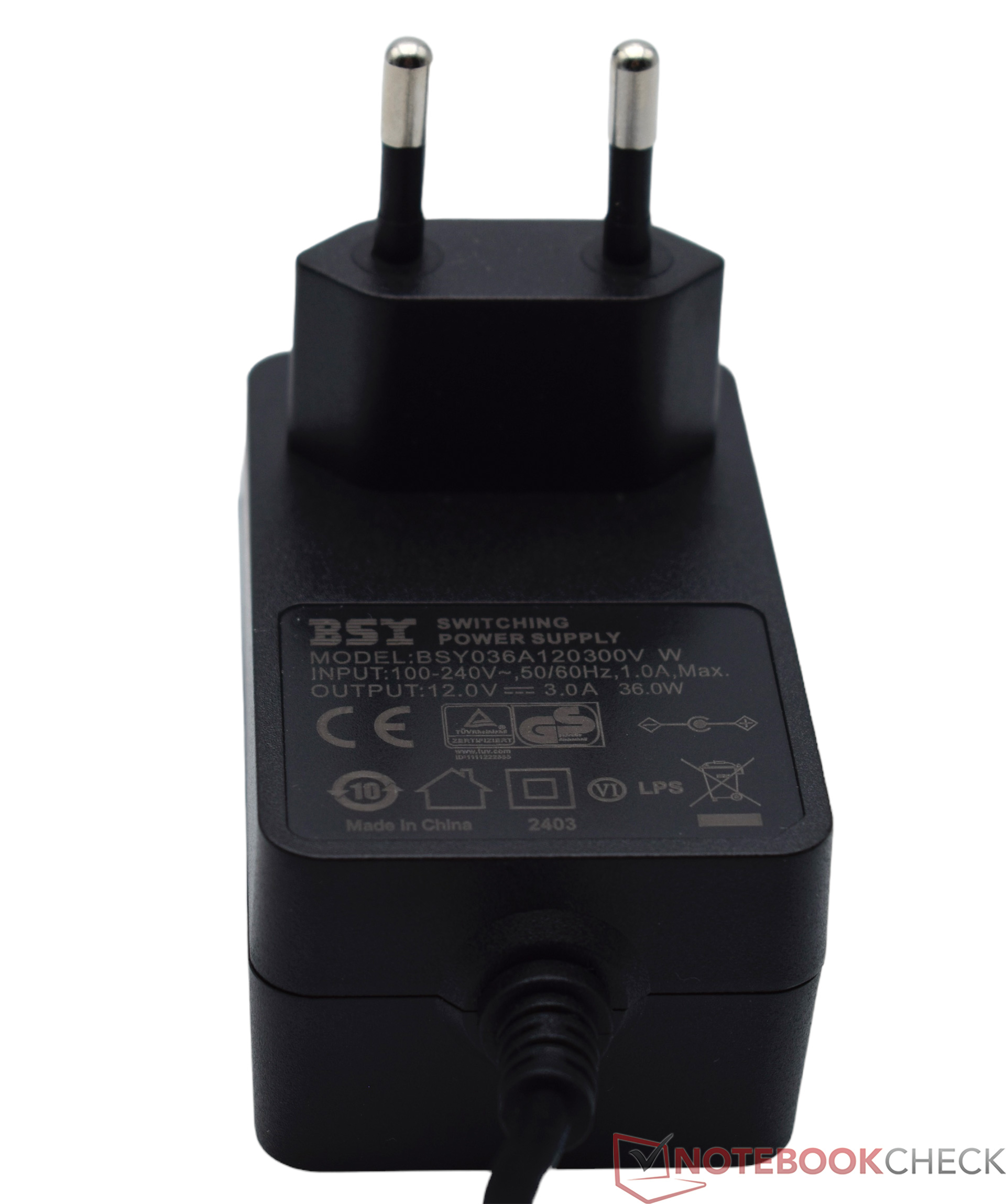

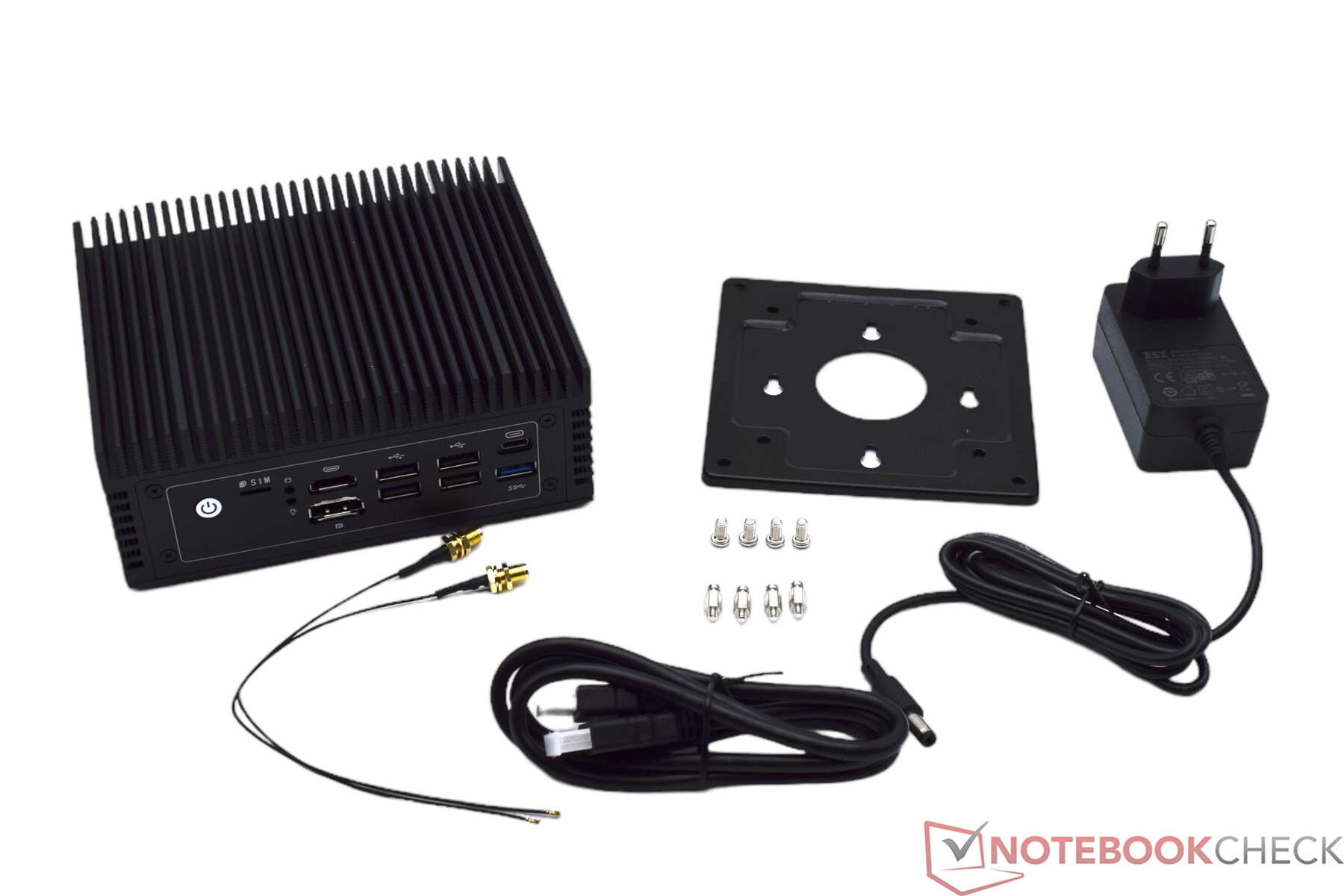

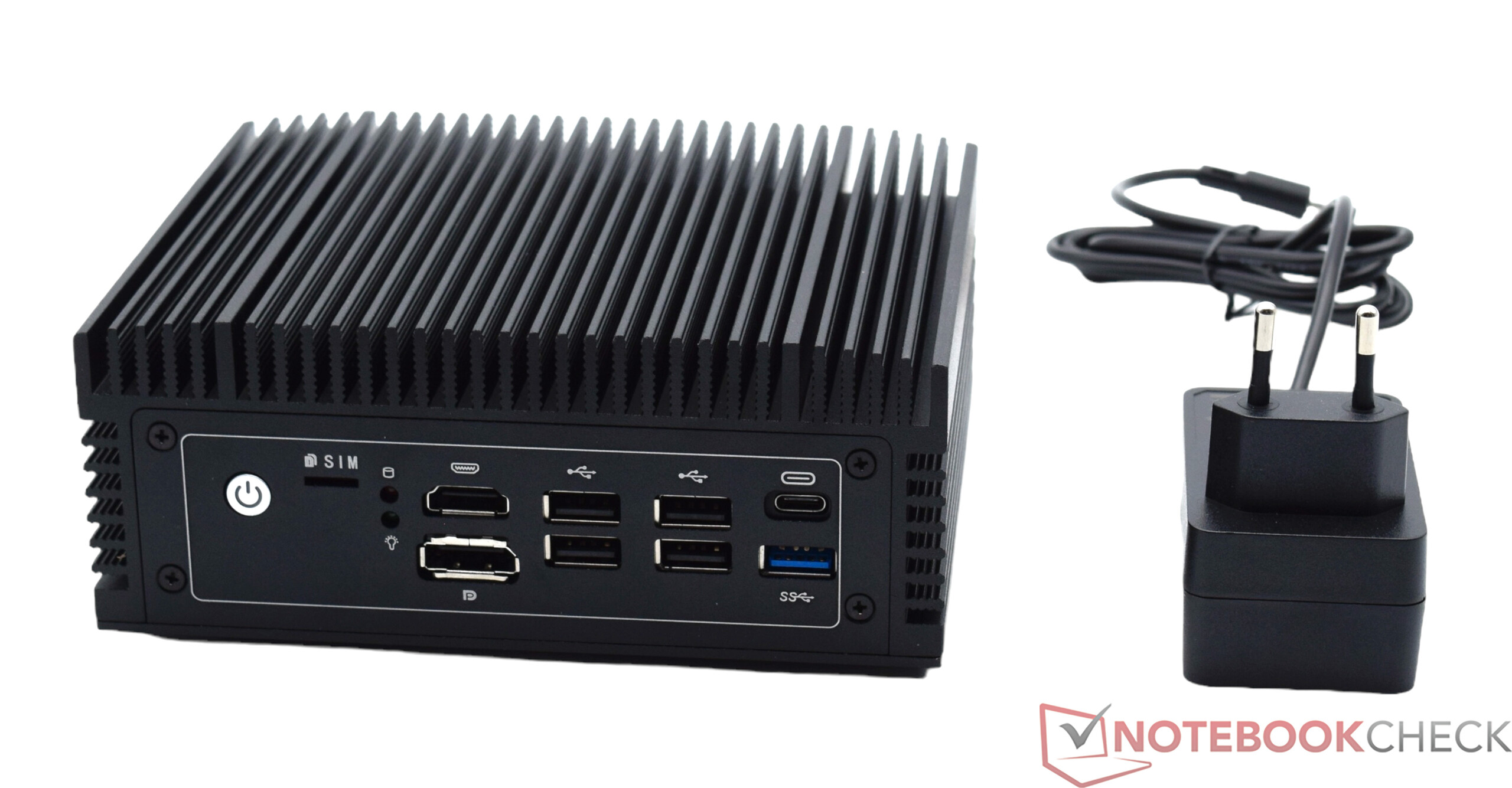

迷你 PC 包装简洁、朴实。包装盒内有一条 HDMI 电缆和 35 瓦 PSU。纽仕迈 AC8F-POE 还可安装在 VESA 支架上。包装中还附带了一个安装板和安装材料。同样,包装内还附带了两条用于连接机箱的 Wi-Fi 天线线缆。不过,没有外置 Wi-Fi 天线。设备中已安装了用于选配 2.5 英寸大容量存储器的连接线。

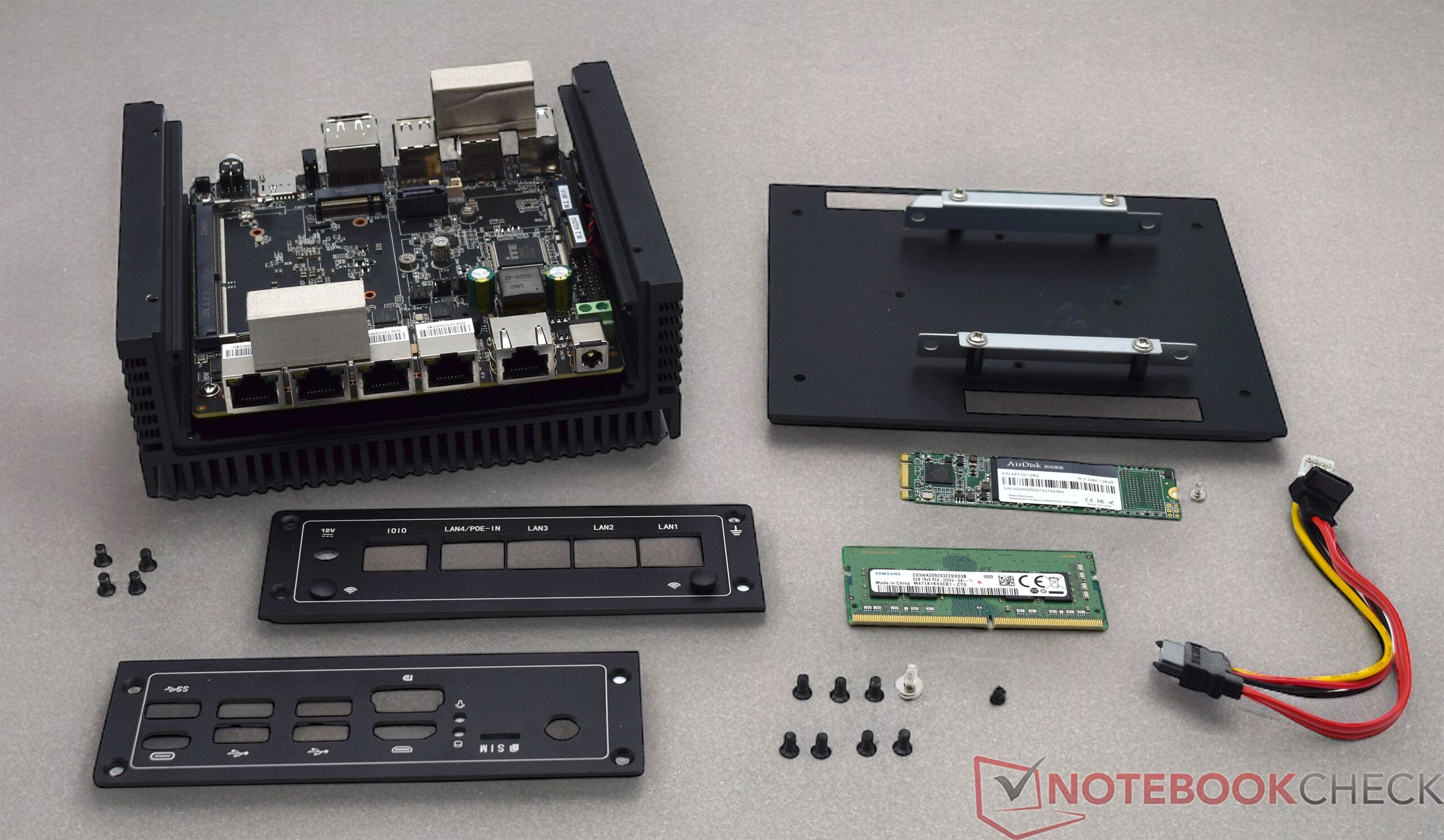

维护

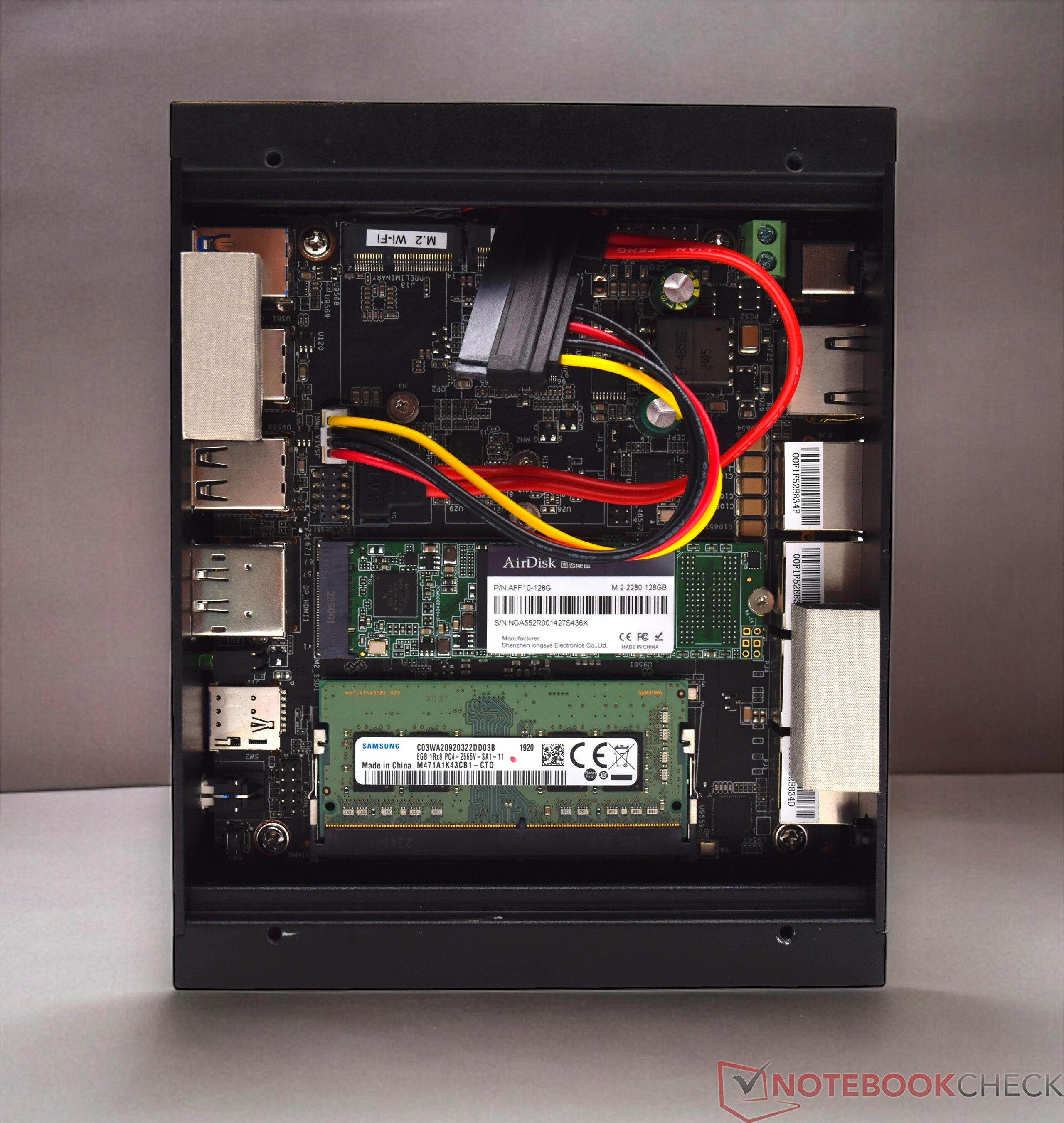

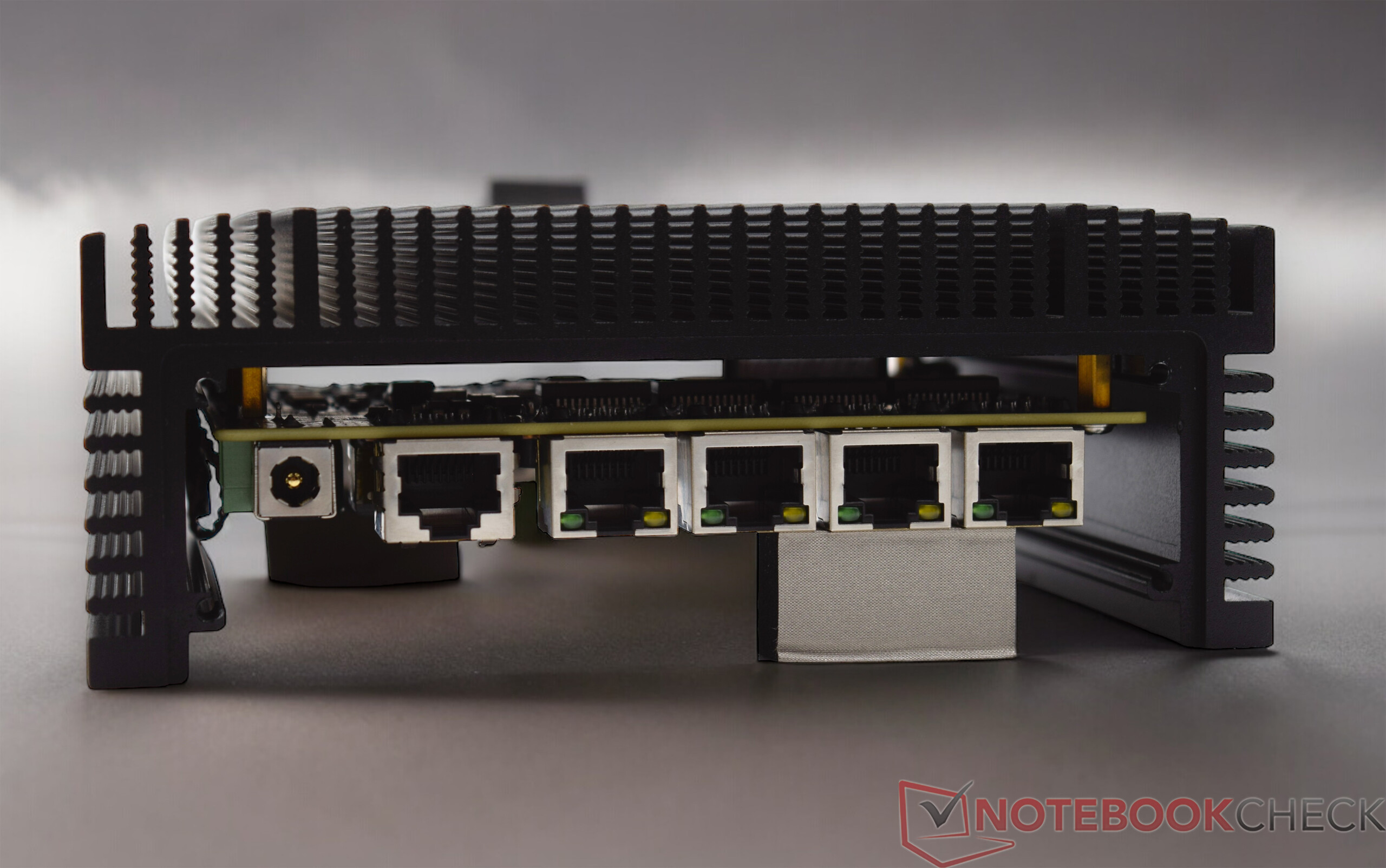

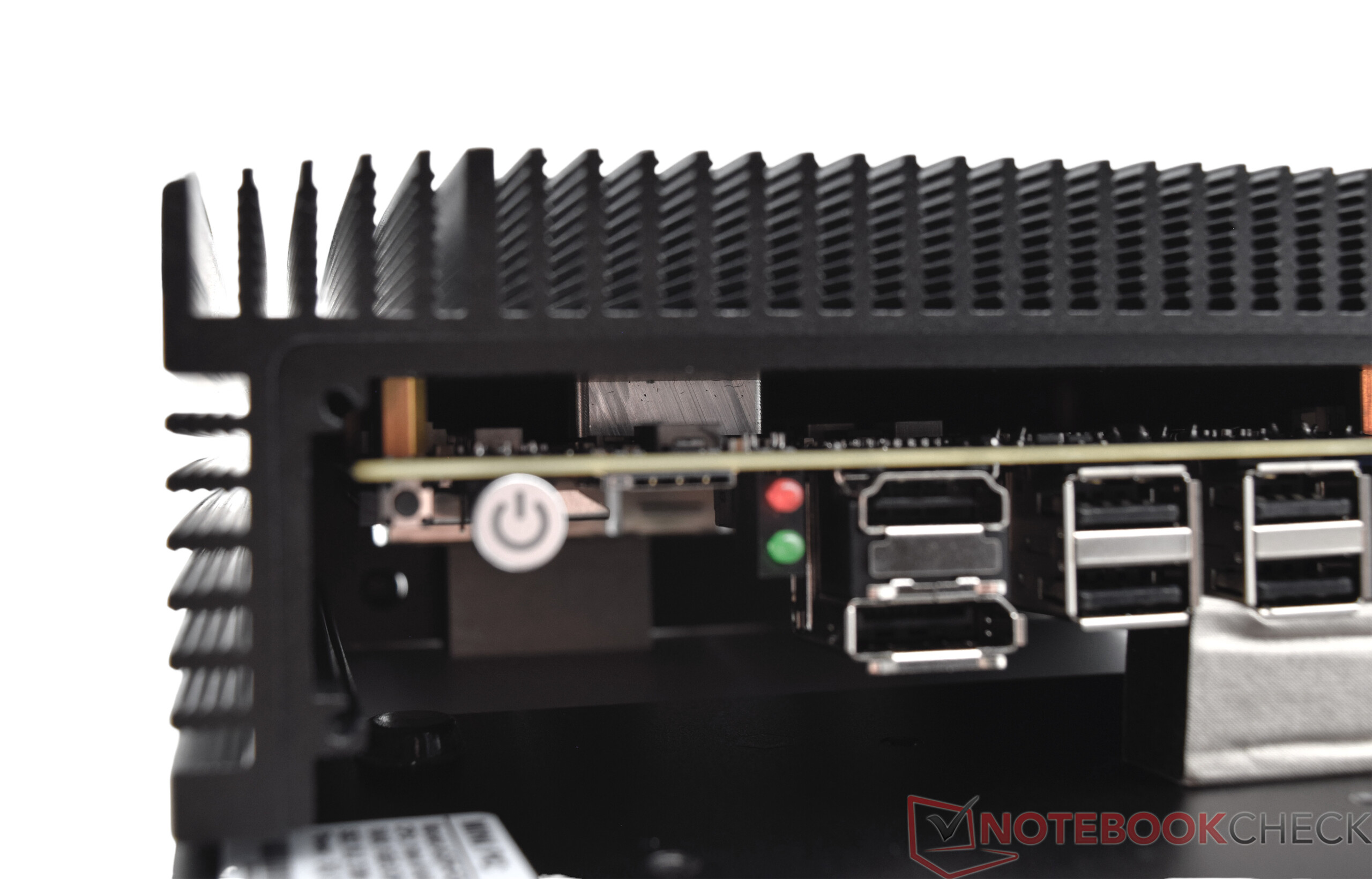

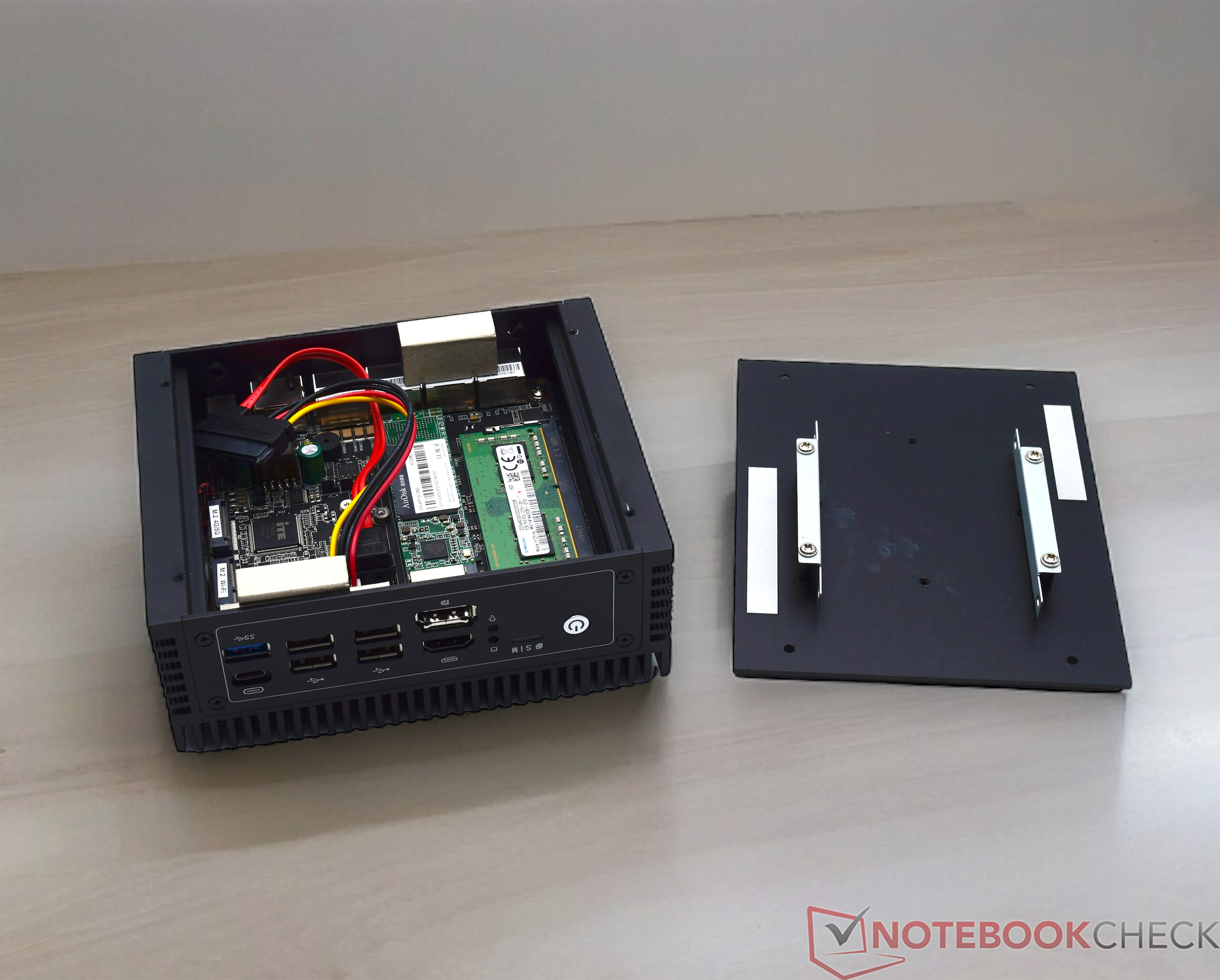

Newsmay AC8F-POE 在销售时已配备内存和大容量存储器,这意味着在首次使用该设备之前无需进行升级工作。不过,坚固的金属外壳可以在设备底座上轻松打开。只需拧下四颗螺丝即可拆卸底板。幸运的是,这些螺丝没有像其他制造商那样被橡胶脚垫覆盖。在我们的案例中,可以安装额外的 2.5 英寸数据存储设备。同样,还有一个空闲的 Wi-Fi 模块插槽。被动式设计意味着无需清洁风扇。从长远来看,这意味着系统本身不会积聚大量灰尘。
可持续性
从外观上看,纽仕迈 AC8F-POE 的包装中规中矩。但是,从内部可以看出使用了大量塑料。独立包装的线缆是不必要的,而且会污染环境,因此在这方面还有改进的余地。设备本身基本上没有使用塑料,这一点很好。不过,我们没有关于环境足迹的其他数据。
性能 - 配备四个内核的被动冷却型英特尔 N100
与此同时,英特尔 N100 是一款广泛使用的 SoC,拥有四个原生处理单元,属于 Alder Lake 系列。该 SoC 于 2023 年初推出,主要用于经济型设备。由于功耗低,该处理器也适用于被动散热设备。纽仕迈 AC8F-POE 仅有 8 GB 内存,在与 Windows 操作系统结合使用时略显不足。不过,日后可以进行扩展。
测试条件
我们使用 "最高性能 "节能设置进行了所有性能测试。不同的节能方案仅在功耗和噪音测量中发挥作用。有关测试标准的其他细节汇总如下 此处.

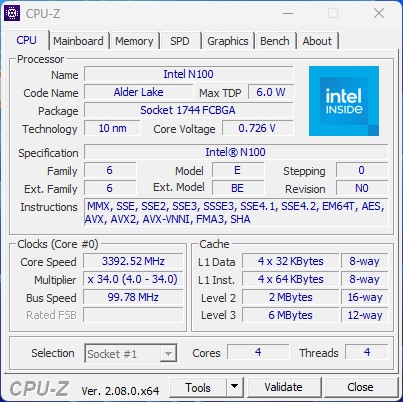

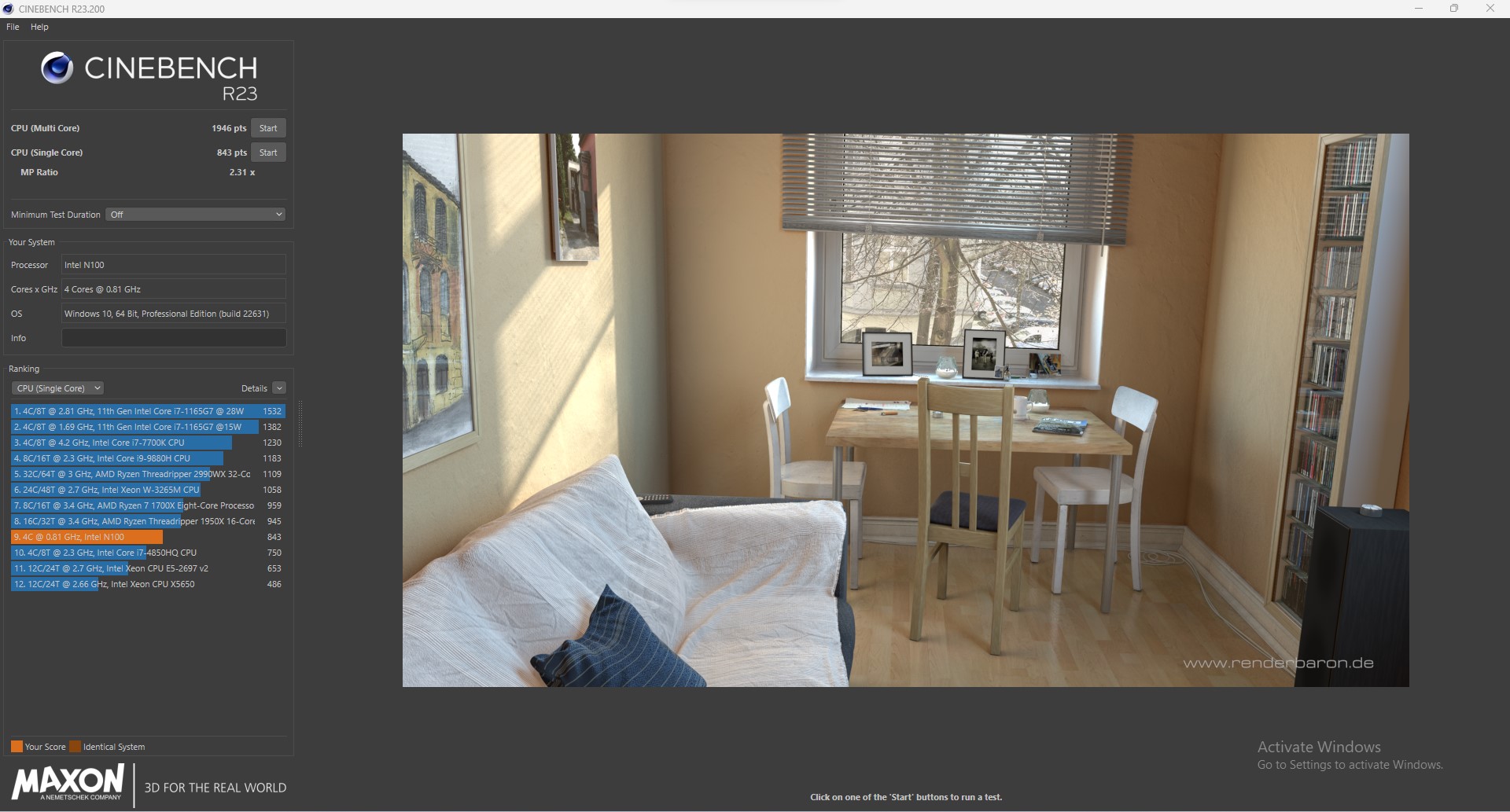

处理器

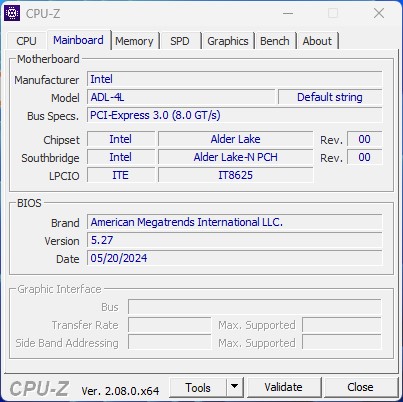

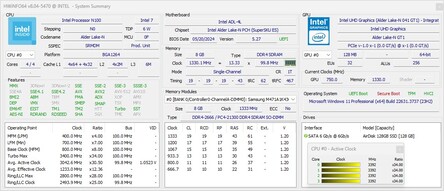

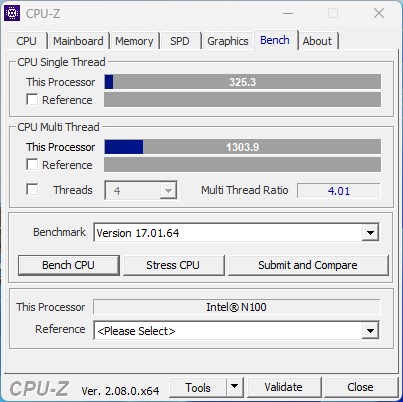

英特尔 英特尔 N100是一款采用 Alder Lake 架构的四核处理器。与 N95和 N97型号相同,三种型号之间只有微弱的性能差异。这正是 Newsmay 在 AC8F-POE 中提供的三种型号。不过,从规格书中可以看出,处理器在功耗方面的表现各不相同。我们评测系统中的英特尔 N100 的 PL1 为 10 瓦。英特尔 N97 的 PL1 为 12 瓦,而英特尔 N95 的 PL1 为 15 瓦。因此,这两款替代 SoC 都能实现更好的多核性能。在性能比较中,我们的评测设备排名倒数第二。只有采用类似被动冷却方式的 华硕 PN42更差。不过,与其他采用主动散热的竞争对手相比,差距很小,只有个位数百分比的差距。
更多处理器基准测试可在 这里.
Performance Rating - Percent | |
Acemagic S1 | |
Geekom MiniAir 12 | |
Blackview MP80 | |
BOSGAME N95 | |
Minisforum Venus Series UN100D | |
Newsmay AC8F-POE | |
Asus ExpertCenter PN42-BBN200MV |
Cinebench R10 | |
Rendering Single CPUs 64Bit | |
Acemagic S1 | |
Geekom MiniAir 12 | |
Blackview MP80 | |
Minisforum Venus Series UN100D | |
BOSGAME N95 | |
Newsmay AC8F-POE | |
Asus ExpertCenter PN42-BBN200MV | |
Rendering Multiple CPUs 64Bit | |
Acemagic S1 | |
Geekom MiniAir 12 | |
BOSGAME N95 | |
Blackview MP80 | |
Minisforum Venus Series UN100D | |
Newsmay AC8F-POE | |
Asus ExpertCenter PN42-BBN200MV |
Blender - v2.79 BMW27 CPU | |
Asus ExpertCenter PN42-BBN200MV | |
Newsmay AC8F-POE | |
Minisforum Venus Series UN100D | |
Blackview MP80 | |
BOSGAME N95 | |
Geekom MiniAir 12 | |
Acemagic S1 |
WinRAR - Result | |
Minisforum Venus Series UN100D | |
Geekom MiniAir 12 | |
BOSGAME N95 | |
Acemagic S1 | |
Blackview MP80 | |
Newsmay AC8F-POE | |
Asus ExpertCenter PN42-BBN200MV |
3DMark 11 - 1280x720 Performance Physics | |
Acemagic S1 | |
Geekom MiniAir 12 | |
Blackview MP80 | |
BOSGAME N95 | |
Minisforum Venus Series UN100D | |
Newsmay AC8F-POE | |
Asus ExpertCenter PN42-BBN200MV |
HWBOT x265 Benchmark v2.2 - 4k Preset | |
Acemagic S1 | |
Geekom MiniAir 12 | |
Blackview MP80 | |
BOSGAME N95 | |
Minisforum Venus Series UN100D | |
Newsmay AC8F-POE | |
Asus ExpertCenter PN42-BBN200MV |
R Benchmark 2.5 - Overall mean | |
Asus ExpertCenter PN42-BBN200MV | |
Newsmay AC8F-POE | |
Minisforum Venus Series UN100D | |
BOSGAME N95 | |
Geekom MiniAir 12 | |
Blackview MP80 | |
Acemagic S1 |
LibreOffice - 20 Documents To PDF | |
Asus ExpertCenter PN42-BBN200MV | |
Newsmay AC8F-POE | |
Minisforum Venus Series UN100D | |
Acemagic S1 | |
BOSGAME N95 | |
Geekom MiniAir 12 | |
Blackview MP80 |
WebXPRT 3 - Overall | |
Acemagic S1 | |
Blackview MP80 | |
Geekom MiniAir 12 | |
BOSGAME N95 | |
Asus ExpertCenter PN42-BBN200MV | |
Minisforum Venus Series UN100D | |
Newsmay AC8F-POE |
Mozilla Kraken 1.1 - Total | |
Asus ExpertCenter PN42-BBN200MV | |
Newsmay AC8F-POE | |
BOSGAME N95 | |
Blackview MP80 | |
Minisforum Venus Series UN100D | |
Geekom MiniAir 12 | |
Acemagic S1 |
Super Pi mod 1.5 XS 1M - 1M | |
Newsmay AC8F-POE | |
Blackview MP80 | |
Geekom MiniAir 12 | |
Minisforum Venus Series UN100D | |
Asus ExpertCenter PN42-BBN200MV | |
BOSGAME N95 | |
Acemagic S1 |
Super Pi mod 1.5 XS 2M - 2M | |
Asus ExpertCenter PN42-BBN200MV | |
Newsmay AC8F-POE | |
Blackview MP80 | |
Geekom MiniAir 12 | |
Minisforum Venus Series UN100D | |
BOSGAME N95 | |
Acemagic S1 |
Super Pi Mod 1.5 XS 32M - 32M | |
Asus ExpertCenter PN42-BBN200MV | |
Newsmay AC8F-POE | |
BOSGAME N95 | |
Blackview MP80 | |
Geekom MiniAir 12 | |
Minisforum Venus Series UN100D | |
Acemagic S1 |
* ... smaller is better
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
Performance Rating | |
Average of class Mini PC | |
Acemagic S1 | |
Minisforum Venus Series UN100D | |
Newsmay AC8F-POE | |
Asus ExpertCenter PN42-BBN200MV | |
Geekom MiniAir 12 | |
Blackview MP80 | |
BOSGAME N95 |
AIDA64 / FP32 Ray-Trace | |
Average of class Mini PC (561 - 51004, n=120, last 2 years) | |
Acemagic S1 | |
Minisforum Venus Series UN100D | |
Newsmay AC8F-POE | |
Asus ExpertCenter PN42-BBN200MV | |
Geekom MiniAir 12 | |
Blackview MP80 | |
BOSGAME N95 |
AIDA64 / FPU Julia | |
Average of class Mini PC (3604 - 214250, n=120, last 2 years) | |
Acemagic S1 | |
Minisforum Venus Series UN100D | |
Newsmay AC8F-POE | |
Asus ExpertCenter PN42-BBN200MV | |
Geekom MiniAir 12 | |
BOSGAME N95 | |
Blackview MP80 |
AIDA64 / CPU SHA3 | |
Average of class Mini PC (225 - 9399, n=120, last 2 years) | |
Acemagic S1 | |
Minisforum Venus Series UN100D | |
Newsmay AC8F-POE | |
Asus ExpertCenter PN42-BBN200MV | |
Geekom MiniAir 12 | |
BOSGAME N95 | |
Blackview MP80 |
AIDA64 / CPU Queen | |
Average of class Mini PC (8172 - 184747, n=120, last 2 years) | |
Asus ExpertCenter PN42-BBN200MV | |
Acemagic S1 | |
Minisforum Venus Series UN100D | |
Newsmay AC8F-POE | |
Geekom MiniAir 12 | |
Blackview MP80 | |
BOSGAME N95 |
AIDA64 / FPU SinJulia | |
Average of class Mini PC (408 - 29064, n=120, last 2 years) | |
Acemagic S1 | |
Minisforum Venus Series UN100D | |
Newsmay AC8F-POE | |
Asus ExpertCenter PN42-BBN200MV | |
Geekom MiniAir 12 | |
BOSGAME N95 | |
Blackview MP80 |
AIDA64 / FPU Mandel | |
Average of class Mini PC (1958 - 113499, n=120, last 2 years) | |
Acemagic S1 | |
Minisforum Venus Series UN100D | |
Newsmay AC8F-POE | |
Asus ExpertCenter PN42-BBN200MV | |
Geekom MiniAir 12 | |
BOSGAME N95 | |
Blackview MP80 |
AIDA64 / CPU AES | |
Average of class Mini PC (3691 - 325960, n=120, last 2 years) | |
Acemagic S1 | |
Minisforum Venus Series UN100D | |
Newsmay AC8F-POE | |
Asus ExpertCenter PN42-BBN200MV | |
Geekom MiniAir 12 | |
Blackview MP80 | |
BOSGAME N95 |
AIDA64 / CPU ZLib | |
Average of class Mini PC (74.8 - 2039, n=120, last 2 years) | |
Acemagic S1 | |
Minisforum Venus Series UN100D | |
Newsmay AC8F-POE | |
Asus ExpertCenter PN42-BBN200MV | |
Geekom MiniAir 12 | |
Blackview MP80 | |
BOSGAME N95 |
AIDA64 / FP64 Ray-Trace | |
Average of class Mini PC (308 - 26952, n=120, last 2 years) | |
Acemagic S1 | |
Minisforum Venus Series UN100D | |
Newsmay AC8F-POE | |
Asus ExpertCenter PN42-BBN200MV | |
Geekom MiniAir 12 | |
BOSGAME N95 | |
Blackview MP80 |
AIDA64 / CPU PhotoWorxx | |
Average of class Mini PC (4408 - 50500, n=120, last 2 years) | |
Minisforum Venus Series UN100D | |
Acemagic S1 | |
Newsmay AC8F-POE | |
Asus ExpertCenter PN42-BBN200MV | |
Blackview MP80 | |
Geekom MiniAir 12 | |
BOSGAME N95 |

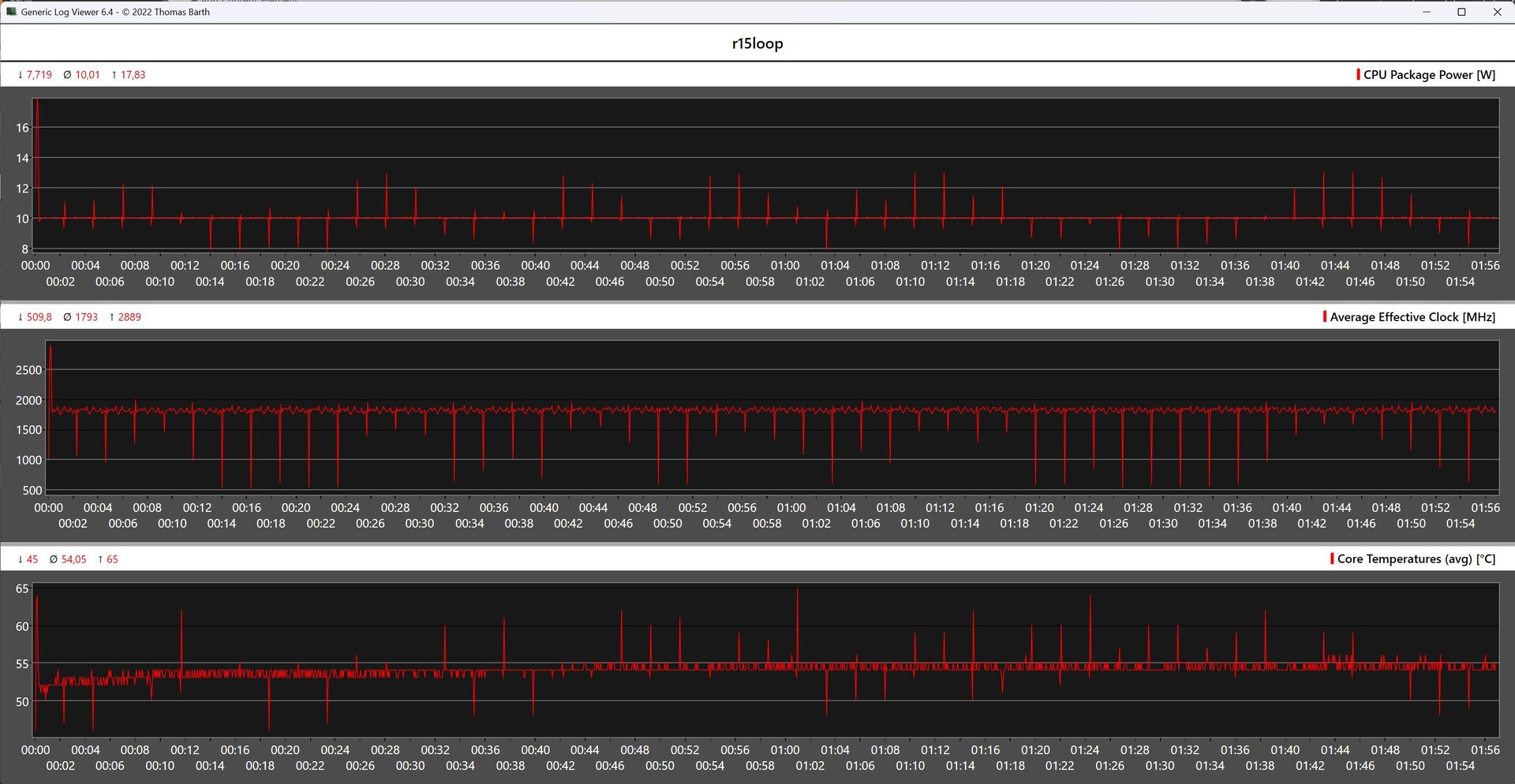

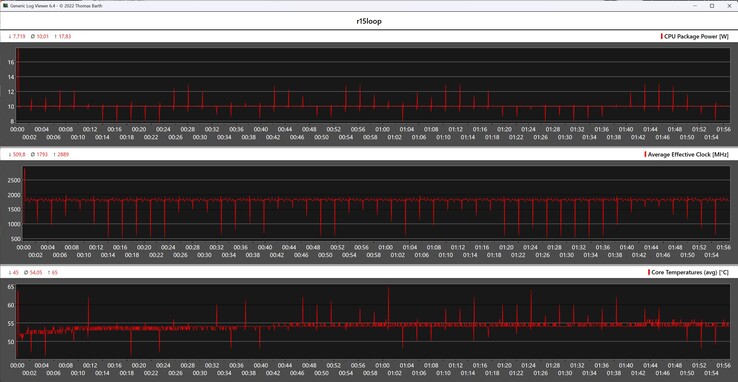

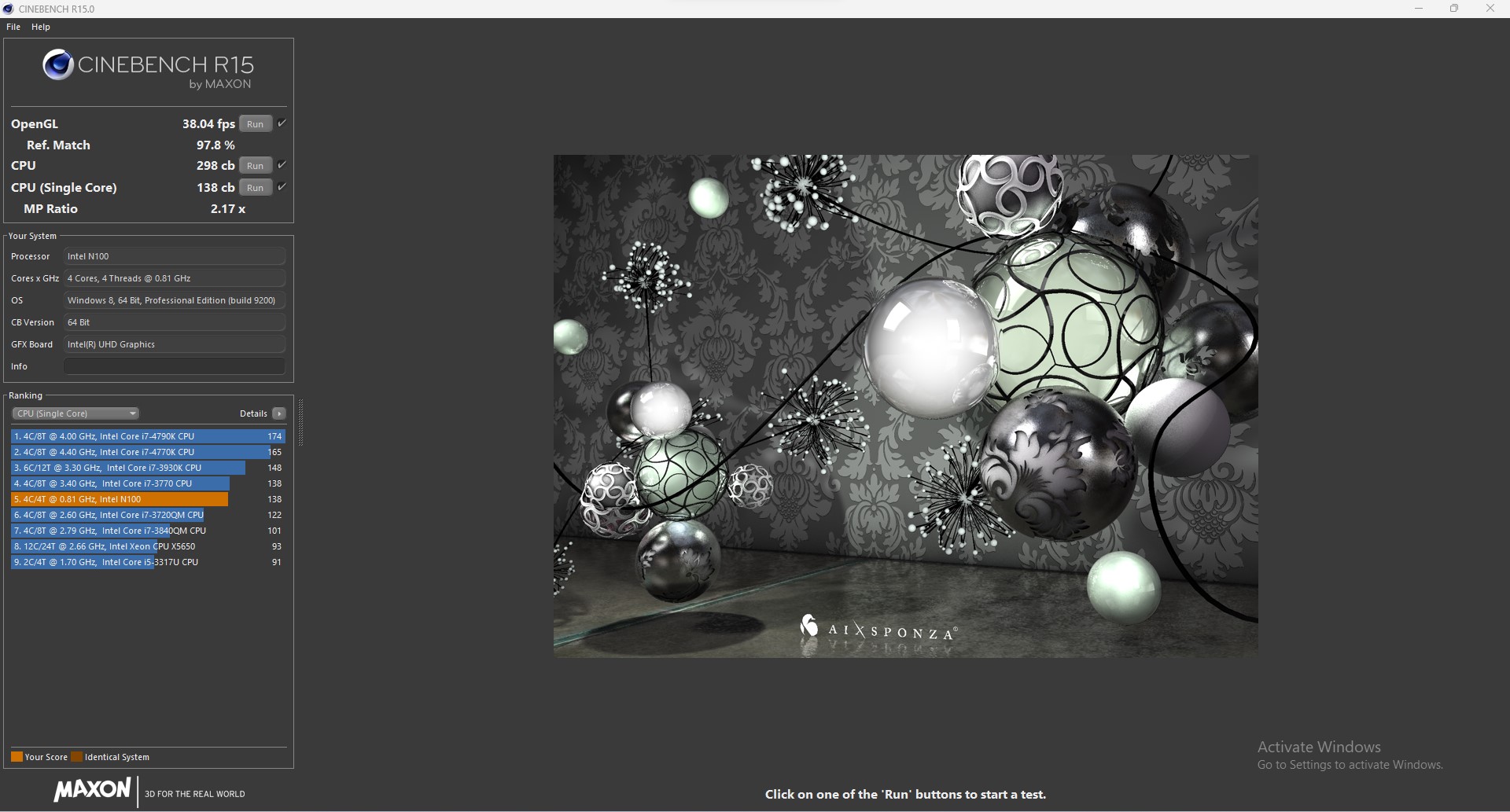

Cinebench R15 多连续测试
尽管采用了无风扇设计,但 Newsmay AC8F-POE 在 Cinebench R15 连续循环测试中表现出色。不过,由于没有持续使用涡轮增压,英特尔 N100 的性能基本保持稳定。由于最高温度仅为 65 °C,SoC 在任何时候都不会达到临界值,因此其性能几乎与某些主动冷却型号相似。
系统性能

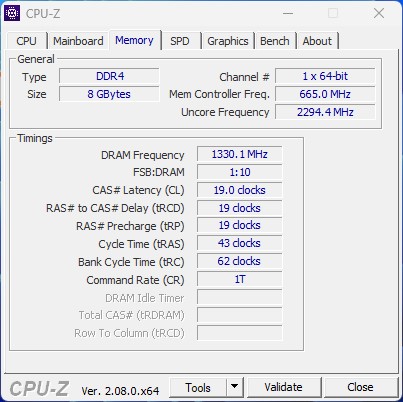

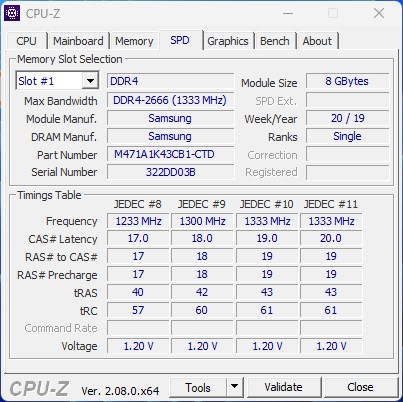

系统性能主要受 CPU 性能和内存的影响。后者在 8GB 的情况下略显不足,这在日常情况下有时会凸显出来。因此,不要指望纽仕迈 AC8F-POE 能够同时处理太多的需求。考虑到这一点,该系统运行良好。尽管如此,我们还是建议您直接选择 16 GB 内存模块,以获得足够的资源。
AIDA64 / Memory Copy | |
Average of class Mini PC (6481 - 76462, n=120, last 2 years) | |
Minisforum Venus Series UN100D | |
Acemagic S1 | |
Asus ExpertCenter PN42-BBN200MV | |
Newsmay AC8F-POE | |
Blackview MP80 | |
Geekom MiniAir 12 | |
BOSGAME N95 |
AIDA64 / Memory Read | |
Average of class Mini PC (6914 - 83287, n=120, last 2 years) | |
Minisforum Venus Series UN100D | |
Acemagic S1 | |
Newsmay AC8F-POE | |
Asus ExpertCenter PN42-BBN200MV | |
Geekom MiniAir 12 | |
Blackview MP80 | |
BOSGAME N95 |
AIDA64 / Memory Write | |
Average of class Mini PC (6862 - 89318, n=120, last 2 years) | |
Minisforum Venus Series UN100D | |
Acemagic S1 | |
Asus ExpertCenter PN42-BBN200MV | |
Newsmay AC8F-POE | |
Blackview MP80 | |
Geekom MiniAir 12 | |
BOSGAME N95 |
AIDA64 / Memory Latency | |
Geekom MiniAir 12 | |
Blackview MP80 | |
BOSGAME N95 | |
Average of class Mini PC (44.9 - 184.8, n=120, last 2 years) | |
Asus ExpertCenter PN42-BBN200MV | |
Minisforum Venus Series UN100D | |
Newsmay AC8F-POE | |
Acemagic S1 |
* ... smaller is better

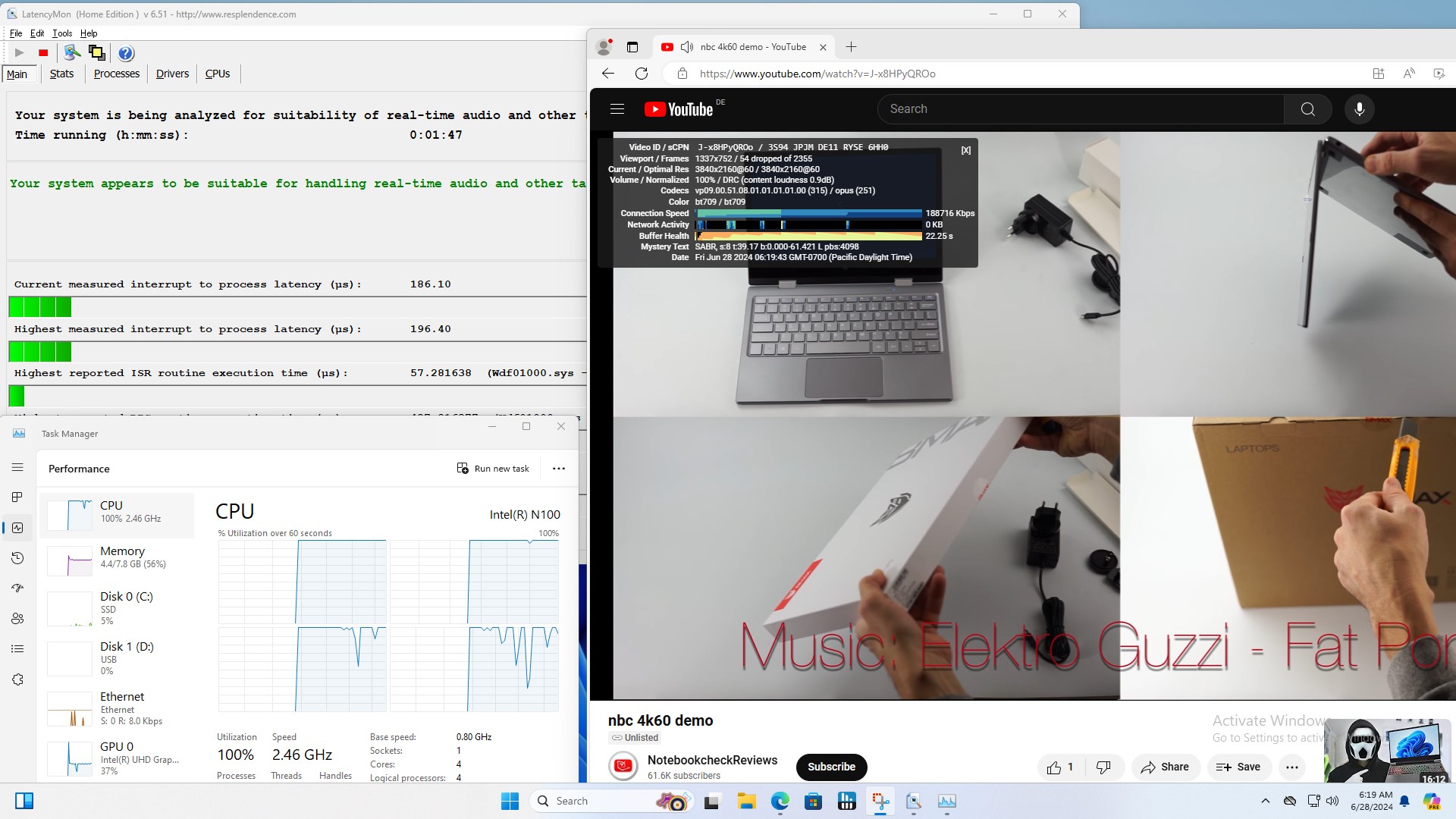

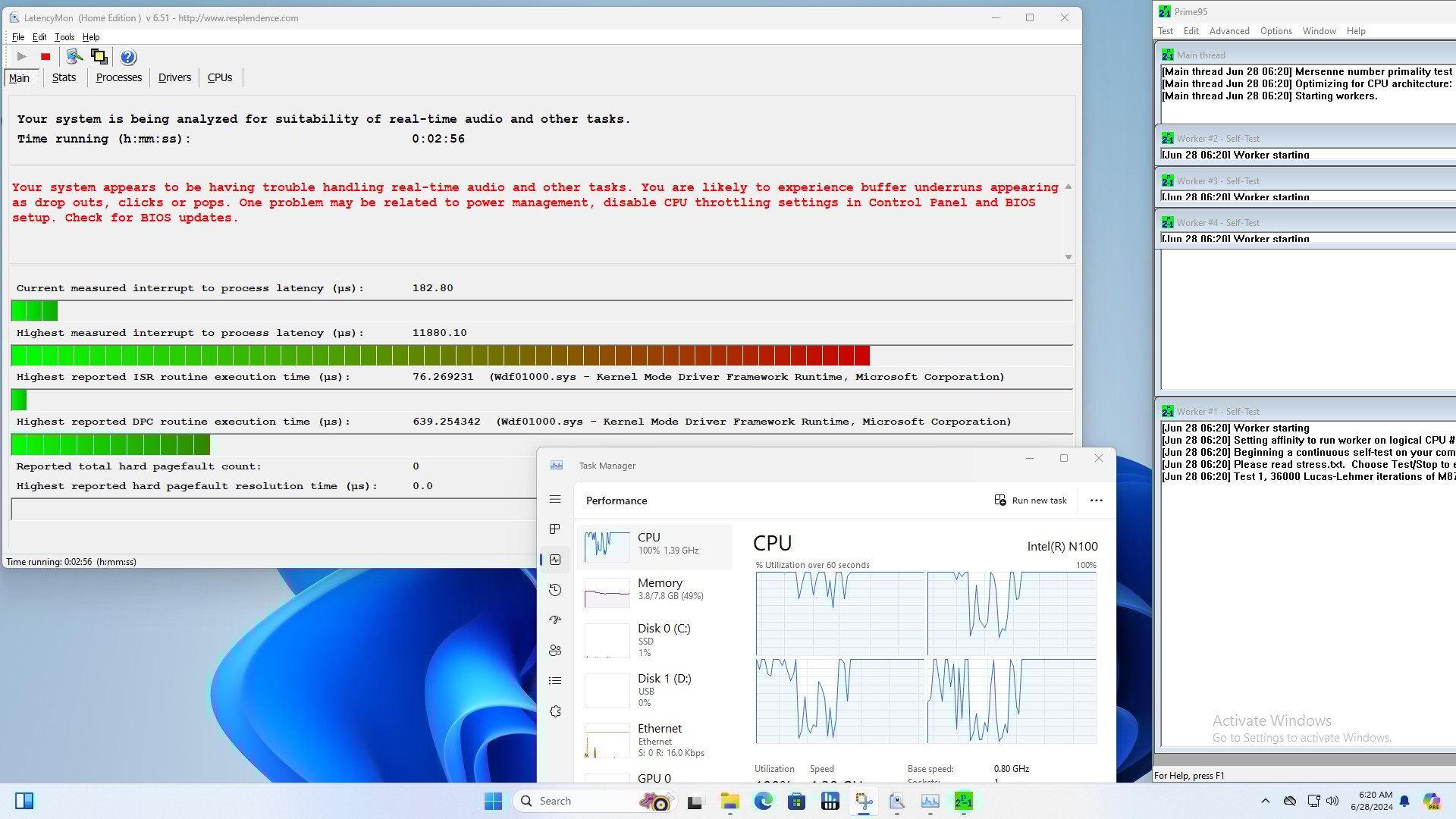

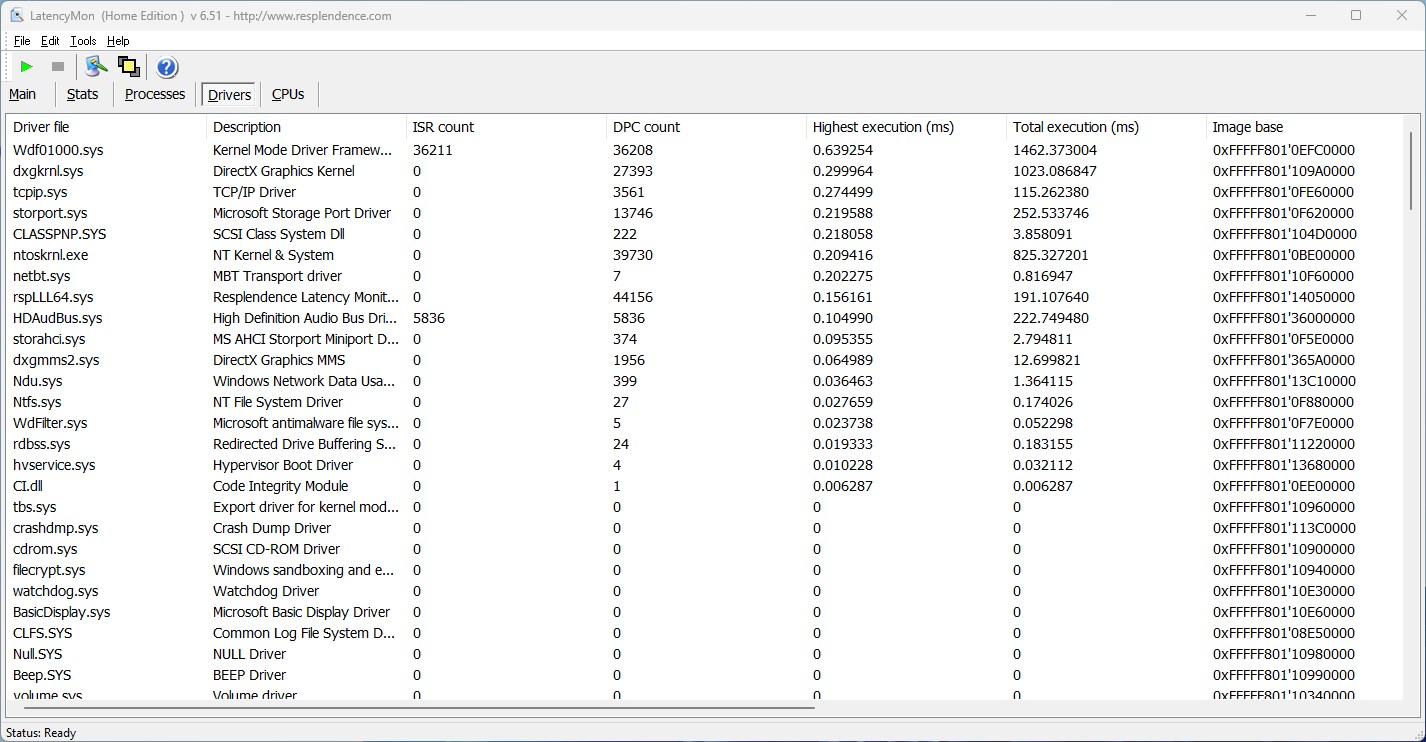

DPC 延迟
乍一看,记录的 DPC 延迟时间还可以接受。相比之下,我们的评测设备表现非常出色,再次稳居中游。在上网和播放 4K 视频材料时,我们测得的直流延迟并不高,只有在播放 Prime95 时才会增加。此外,在播放 4K 测试视频时,我们还记录了一些跳帧。
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95 | |
Asus ExpertCenter PN42-BBN200MV | |
Minisforum Venus Series UN100D | |
BOSGAME N95 | |
Blackview MP80 | |
Newsmay AC8F-POE | |
Acemagic S1 | |
Geekom MiniAir 12 |
* ... smaller is better

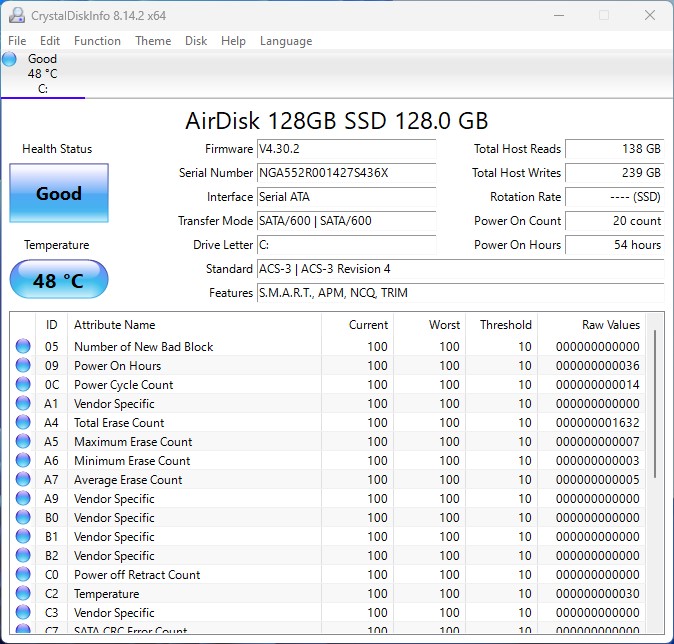

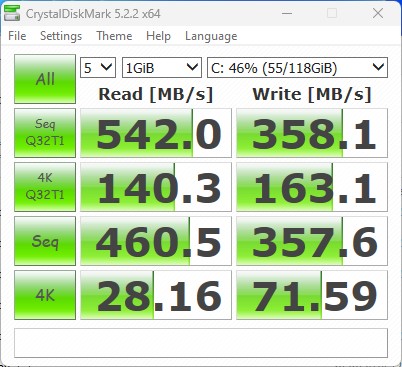

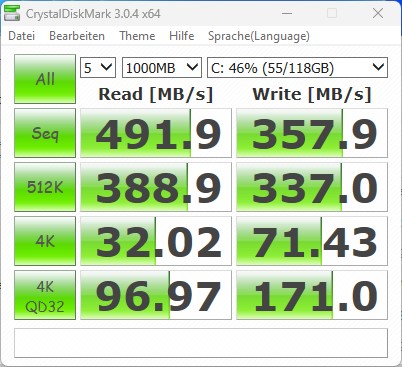

大容量存储器

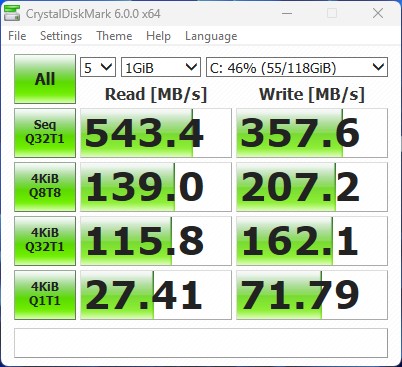

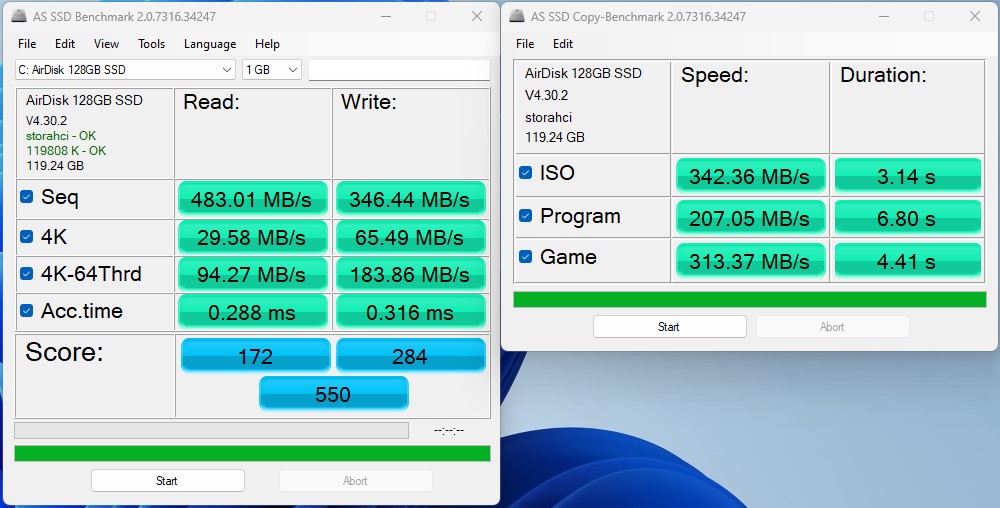

安装的固态硬盘是直接以 SATA 速度运行的 M.2 固态硬盘。因此,AirDisk 型号只能提供较低的传输速度,不如这里列出的所有其他竞争型号。尽管如此,该固态硬盘仍能很好地应对日常使用。预装型号只有 128 GB,存储空间不大。减去安装的 Windows 系统后,你可能只能使用 96 GB 的存储空间,但你仍然可以安装第二个存储设备。选配的 2.5 英寸存储设备的电缆连接器已安装在设备中。
更多比较和基准测试请参阅我们的 比较表.
Drive Performance Rating - Percent | |
Average of class Mini PC | |
Geekom MiniAir 12 | |
Acemagic S1 | |
Minisforum Venus Series UN100D | |
Asus ExpertCenter PN42-BBN200MV | |
BOSGAME N95 | |
Blackview MP80 | |
Newsmay AC8F-POE |
* ... smaller is better
Continuous Performance Read: DiskSpd Read Loop, Queue Depth 8

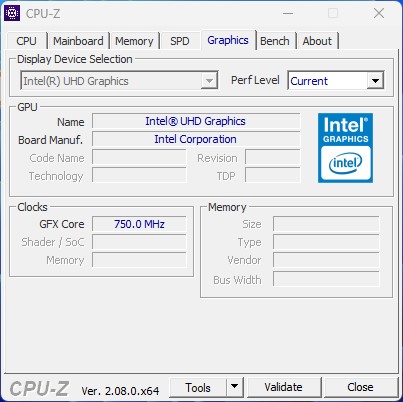

图形卡

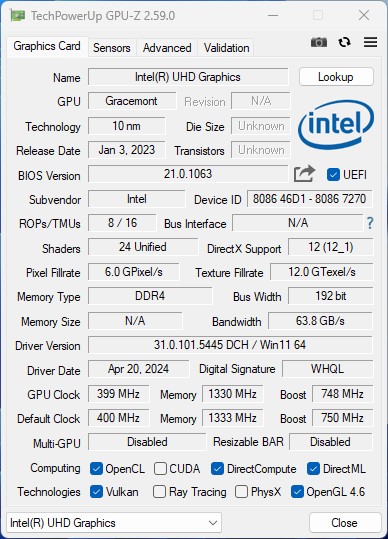

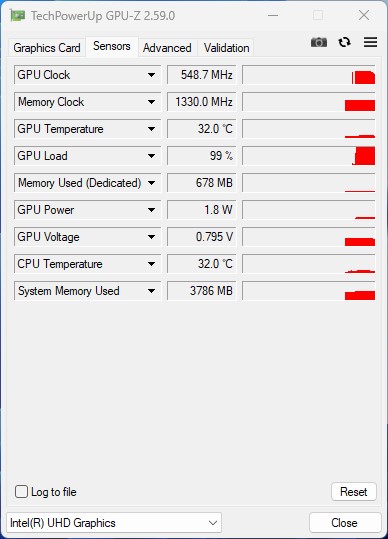

英特尔 N100 只有一个简单的 iGPU,名称为英特尔UHD Graphics 。iGPU 仅配备 24 个 EU,只能提供低级 3D 性能。与竞争对手相比,纽仕迈 AC8F-POE 的性能相差无几,没有突出的负面或正面表现。只有 Acemagic S1 的英特尔 N97 因其较高的功耗限制而取得了显著的领先优势。不过,我们与可用的游戏性能相差甚远。
更多英特尔UHD Graphics 基准测试请访问移动显示芯片——基准测试成绩列表 。
3DMark Performance Rating - Percent | |
Acemagic S1 | |
Geekom MiniAir 12 | |
Minisforum Venus Series UN100D | |
Blackview MP80 | |
Asus ExpertCenter PN42-BBN200MV | |
BOSGAME N95 | |
Newsmay AC8F-POE |
3DMark 11 - 1280x720 Performance GPU | |
Acemagic S1 | |
BOSGAME N95 | |
Blackview MP80 | |
Geekom MiniAir 12 | |
Minisforum Venus Series UN100D | |
Newsmay AC8F-POE | |
Asus ExpertCenter PN42-BBN200MV |
Unigine Valley 1.0 | |
1920x1080 Extreme HD DirectX AA:x8 | |
Acemagic S1 | |
Blackview MP80 | |
Geekom MiniAir 12 | |
Minisforum Venus Series UN100D | |
BOSGAME N95 | |
Newsmay AC8F-POE | |
Asus ExpertCenter PN42-BBN200MV | |
1920x1080 Extreme HD Preset OpenGL AA:x8 | |
Blackview MP80 | |
Geekom MiniAir 12 | |
Minisforum Venus Series UN100D | |
Acemagic S1 | |
BOSGAME N95 | |
Newsmay AC8F-POE | |
Asus ExpertCenter PN42-BBN200MV |
Affinity Photo 2 - Combined (Single / Multi GPU) | |
Geekom MiniAir 12 | |
Minisforum Venus Series UN100D | |
Newsmay AC8F-POE |
3DMark 05 Standard | 12765 points | |
3DMark 06 Standard Score | 9253 points | |
3DMark Vantage P Result | 5578 points | |
3DMark 11 Performance | 1626 points | |
3DMark Ice Storm Standard Score | 43011 points | |
3DMark Cloud Gate Standard Score | 6053 points | |
3DMark Fire Strike Score | 1055 points | |
3DMark Time Spy Score | 345 points | |
Help |
排放 - 无噪音、无温度问题
噪音排放
由于没有主动冷却组件,纽仕迈 AC8F-POE 始终保持静音运行。其 维纳斯系列 UN100D让人印象深刻的是,Minisforum 证明了主动散热并不一定需要很大的噪音。
Noise Level
Idle |
| 24.8 / 24.8 / 24.8 dB(A) |
Load |
| 24.9 / 25 dB(A) |
| ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min: , med: , max: Earthworks M23R (15 cm distance) environment noise: 24.8 dB(A) |
Newsmay AC8F-POE N100, UHD Graphics 24EUs (Alder Lake-N) | Minisforum Venus Series UN100D N100, UHD Graphics 24EUs (Alder Lake-N) | Geekom MiniAir 12 N100, UHD Graphics 24EUs (Alder Lake-N) | Acemagic S1 N97, UHD Graphics 24EUs (Alder Lake-N) | Blackview MP80 N95, UHD Graphics 24EUs (Alder Lake-N) | Asus ExpertCenter PN42-BBN200MV N200, UHD Graphics Xe 750 32EUs | BOSGAME N95 N95, UHD Graphics 24EUs (Alder Lake-N) | |
---|---|---|---|---|---|---|---|
Noise | 0% | -11% | -18% | -14% | -1% | -22% | |
off / environment * | 24.8 | 24.4 2% | 24.8 -0% | 24.9 -0% | 25.2 -2% | 25 -1% | 29.7 -20% |
Idle Minimum * | 24.8 | 24.4 2% | 24.8 -0% | 25.8 -4% | 25.4 -2% | 25 -1% | 30.2 -22% |
Idle Average * | 24.8 | 24.5 1% | 28.6 -15% | 25.9 -4% | 25.5 -3% | 25 -1% | 30.2 -22% |
Idle Maximum * | 24.8 | 24.5 1% | 28.7 -16% | 26 -5% | 25.5 -3% | 25 -1% | 30.2 -22% |
Load Average * | 24.9 | 24.9 -0% | 29 -16% | 34.5 -39% | 32.3 -30% | 25 -0% | 30.4 -22% |
Load Maximum * | 25 | 25.9 -4% | 30.2 -21% | 38.2 -53% | 36.4 -46% | 25 -0% | 31.4 -26% |
* ... smaller is better
温度

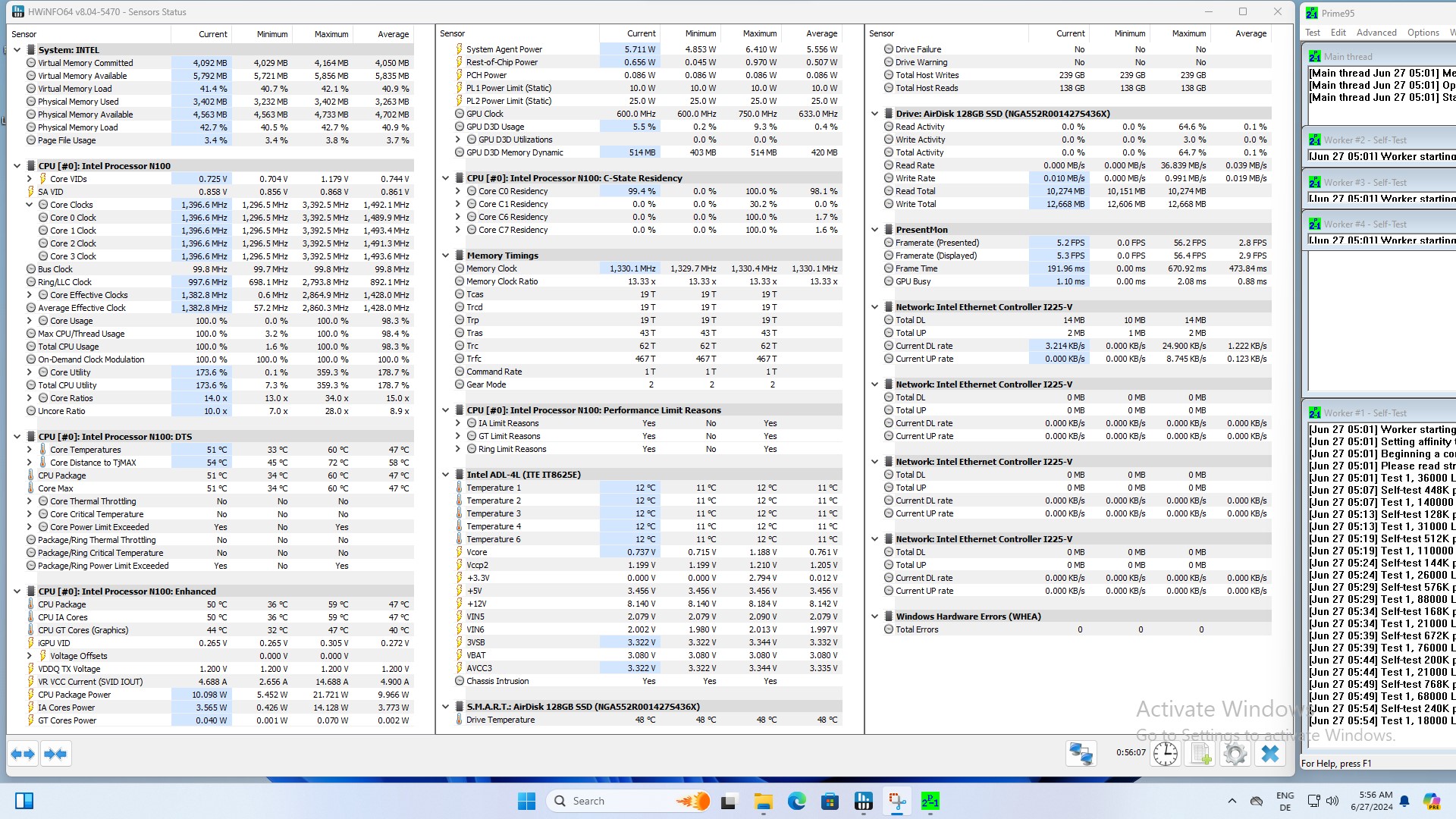

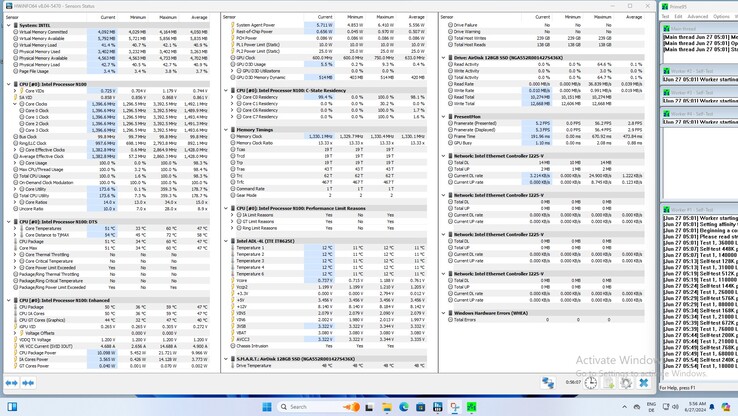

在我们的评测设备中,由于采用了散热概念,机箱温度大多略高于同类产品。散热效果非常好,没有明显的直接热点。在与处理器接触面的图片中可以看到。英特尔 N100 的峰值温度仅为 59 °C,保持了相当低的温度,尤其是考虑到英特尔为该 SoC 设定的热极限为 105 °C。在较长的时间内,制造商设法确保了 10 瓦功率下的稳定性能。在短时间内,SoC 的功耗达到了 21 瓦,这并不完全符合 PL2 的规定。
关于机箱温度,值得注意的是,这与设备的安装位置有很大关系。通风良好的地方可以确保相对较低的表面温度。我们在环境温度为 20 至 21 °C 的空调房间内记录了温度。
(±) The maximum temperature on the upper side is 42.2 °C / 108 F, compared to the average of 35.7 °C / 96 F, ranging from 24 to 69.5 °C for the class Mini PC.
(+) The bottom heats up to a maximum of 39.9 °C / 104 F, compared to the average of 36.3 °C / 97 F
(+) In idle usage, the average temperature for the upper side is 30.6 °C / 87 F, compared to the device average of 32 °C / 90 F.
能源管理
纽仕迈 AC8F-POE 的能源管理有两种方式。一种方法是使用随附的 36 瓦 PSU,不过,如果网络结构可用,也可以使用 PoE(802.3 bt/at)。在比较中,除 Acemagic S1 外,我们评测设备的耗电量比其他设备都要高一些,但这仍然是可以接受的。Newsmay 在这方面没有任何重大失误。随机提供的电源始终能提供充足的电力,而且在测试期间,我们没有遇到任何有关电源的问题。
Off / Standby | 2.2 / 2.3 Watt |
Idle | 7.9 / 10.1 / 10.3 Watt |
Load |
17.3 / 31.6 Watt |
Newsmay AC8F-POE N100, UHD Graphics 24EUs (Alder Lake-N) | Minisforum Venus Series UN100D N100, UHD Graphics 24EUs (Alder Lake-N) | Geekom MiniAir 12 N100, UHD Graphics 24EUs (Alder Lake-N) | Acemagic S1 N97, UHD Graphics 24EUs (Alder Lake-N) | Blackview MP80 N95, UHD Graphics 24EUs (Alder Lake-N) | Asus ExpertCenter PN42-BBN200MV N200, UHD Graphics Xe 750 32EUs | BOSGAME N95 N95, UHD Graphics 24EUs (Alder Lake-N) | Average Intel UHD Graphics 24EUs (Alder Lake-N) | Average of class Mini PC | |
---|---|---|---|---|---|---|---|---|---|
Power Consumption | 17% | 12% | -36% | 19% | 22% | 33% | 10% | -101% | |
Idle Minimum * | 7.9 | 5.8 27% | 5.9 25% | 9.8 -24% | 4.9 38% | 4.4 44% | 3.5 56% | 6.15 ? 22% | 9.48 ? -20% |
Idle Average * | 10.1 | 6.4 37% | 7 31% | 12 -19% | 7.1 30% | 6 41% | 3.6 64% | 7.64 ? 24% | 11.4 ? -13% |
Idle Maximum * | 10.3 | 10.1 2% | 9.3 10% | 13.5 -31% | 7.3 29% | 9.7 6% | 6.2 40% | 9.46 ? 8% | 14.8 ? -44% |
Load Average * | 17.3 | 15.7 9% | 18.9 -9% | 27.6 -60% | 20.6 -19% | 14.6 16% | 20.4 -18% | 19.1 ? -10% | 56.6 ? -227% |
Load Maximum * | 31.6 | 28.1 11% | 30 5% | 46.2 -46% | 26.2 17% | 30.2 4% | 25 21% | 30.3 ? 4% | 95.6 ? -203% |
* ... smaller is better
Power consumption with an external monitor
Power consumption with an external monitor
Pros
Cons
结论 - 适用于特殊任务的特殊迷你 PC
Newsmay AC8F-POE 肯定不是一款适合日常办公使用的经典迷你 PC,尽管该设备基本上配备了与其竞争对手类似的硬件组件。英特尔 英特尔 N100英特尔 N100 芯片组绝对是一个不错的选择,即使该芯片组在一年多前才首次亮相。在我们的评测中,这款被动冷却的 SoC 性能稳定。在低功耗的情况下,散热装置的表现非常出色,而且在散热方面,纽仕迈 AC8F-POE 从未出现过任何问题。在端口方面,很明显,纽仕迈 AC8F-POE 是一款专为特殊使用情况而设计的迷你 PC。许多 2.5G LAN 端口提供了同时管理各种网络的可能性,这意味着该设备可以用作防火墙。结合移动数据连接,该电脑还可用作移动路由器。不过,这需要额外的硬件,因为没有 4G 或 5G 模块。
纽仕迈 AC8F-POE 提供了许多其他微型电脑所不具备的功能。能够通过局域网供电是与其他迷你 PC 相比的最大优势之一。
由于纽仕迈 AC8F-POE 主要使用小型 Linux 发行版,因此 RAM 和大容量存储器的大小就显得尤为重要。与 Windows 相比,经过专门调整的 Linux 版本对硬件的要求更低,所需的资源也更少。我们所使用系统的 8 GB 内存和 128 GB 存储空间根本不够用。幸运的是,这些关键部件并非固定安装,可以快速交换或扩展。
坚固的工业外观机箱做工精良,被动散热元件也令人印象深刻。因此,纽仕迈本可以为英特尔 N100 提供更多性能。15 瓦的持续功率可以让你获得更多的性能,而不会因为散热装置的噪音过大而烦恼。Newsmay AC8F-POE 的坚固散热元件当然有足够的性能储备。
价格和供应情况
纽仕迈 AC8F-POE 已在亚马逊上市。如果您计划将该设备进口到欧盟,额外的税费将大大增加设备的总成本。
注:我们更新了评级系统,这意味着第 8 版的结果无法与第 7 版的结果进行比较。更多信息请参见 这里.
Newsmay AC8F-POE
-
07/01/2024 v8
Sebastian Bade
Transparency
The present review sample was given to the author by the manufacturer free of charge for the purposes of review. There was no third-party influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review.
