评测华硕 ExpertCenter PN42 裸机配备了节俭的英特尔 N200 和 DDR4 内存

Name: Asus ExpertCenter PN42-BBN200MV
Brand: Asus

SoC 功能较弱。

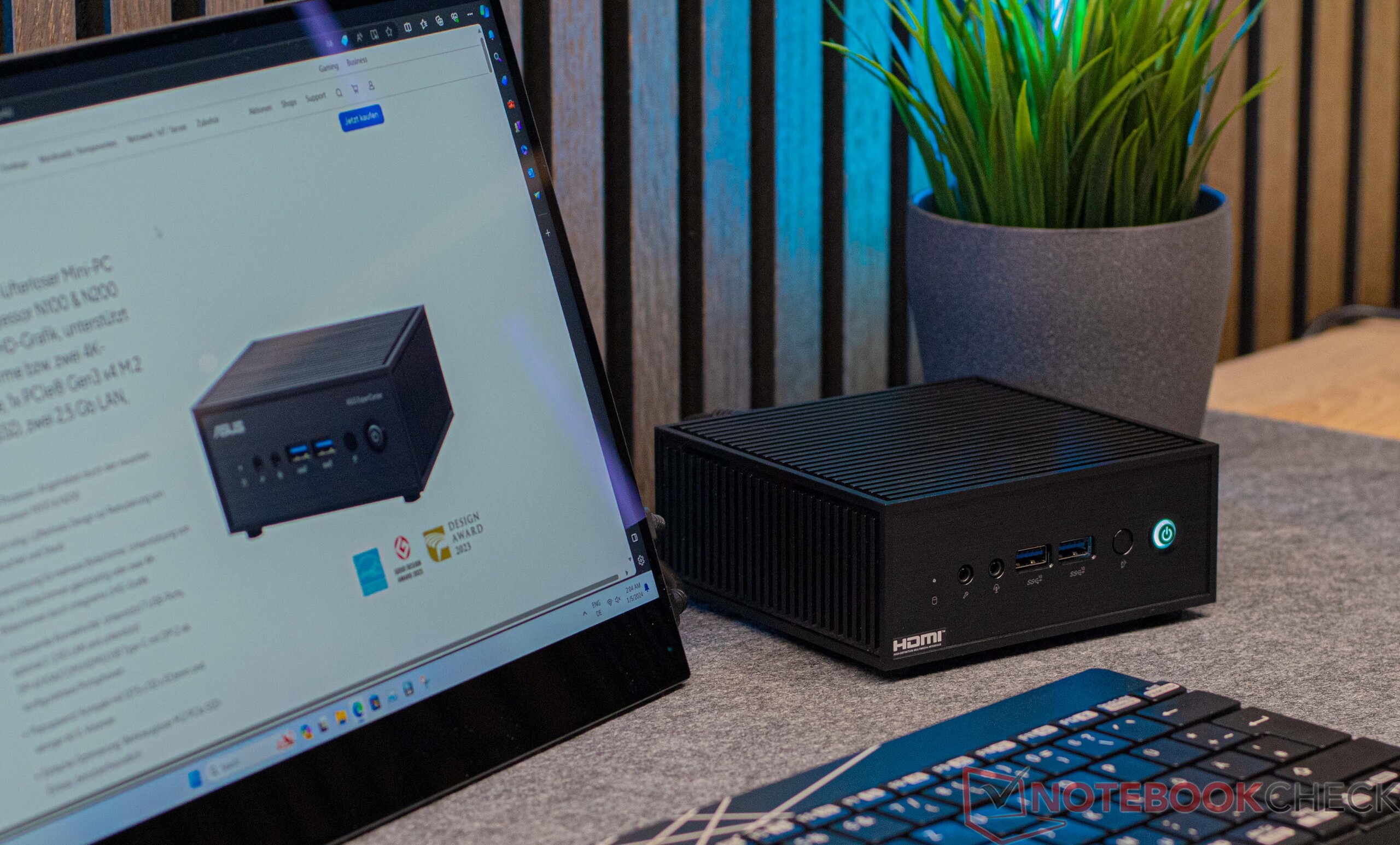

华硕 ExpertCenter PN42 是一款迷你 PC，配备了英特尔 N200 等处理器。SoC 采用被动冷却方式，这既有优点也有缺点。在这篇评测中，我们将分析华硕这样做是否有失偏颇，并将借助各种测量和基准测试来考察该设备的性能，同时将其与配置类似的微型 PC 进行比较。

Sebastian Bade (translated by DeepL / Ninh Duy), Published 01/09/2024 🇺🇸 🇩🇪 ...

Mini PC Desktop Alder Lake Intel

华硕的 ExpertCenter 型号是作为用途广泛的多功能迷你 PC 推向市场的。从外观上看，不同型号几乎完全相同。从性能的角度来看，你可以选择配备节俭型 SoC 的设备，也可以选择性能更强的设备。不过，在本次评测中，我们将对 ExpertCenter PN42 进行更深入的了解，因为它是一款裸机。这意味着必须自行安装内存和存储设备。对于那些对内存和固态硬盘有特殊要求的用户来说，这可能更物有所值。我们的测试样本安装了英特尔 N200目前售价为 220 美元。

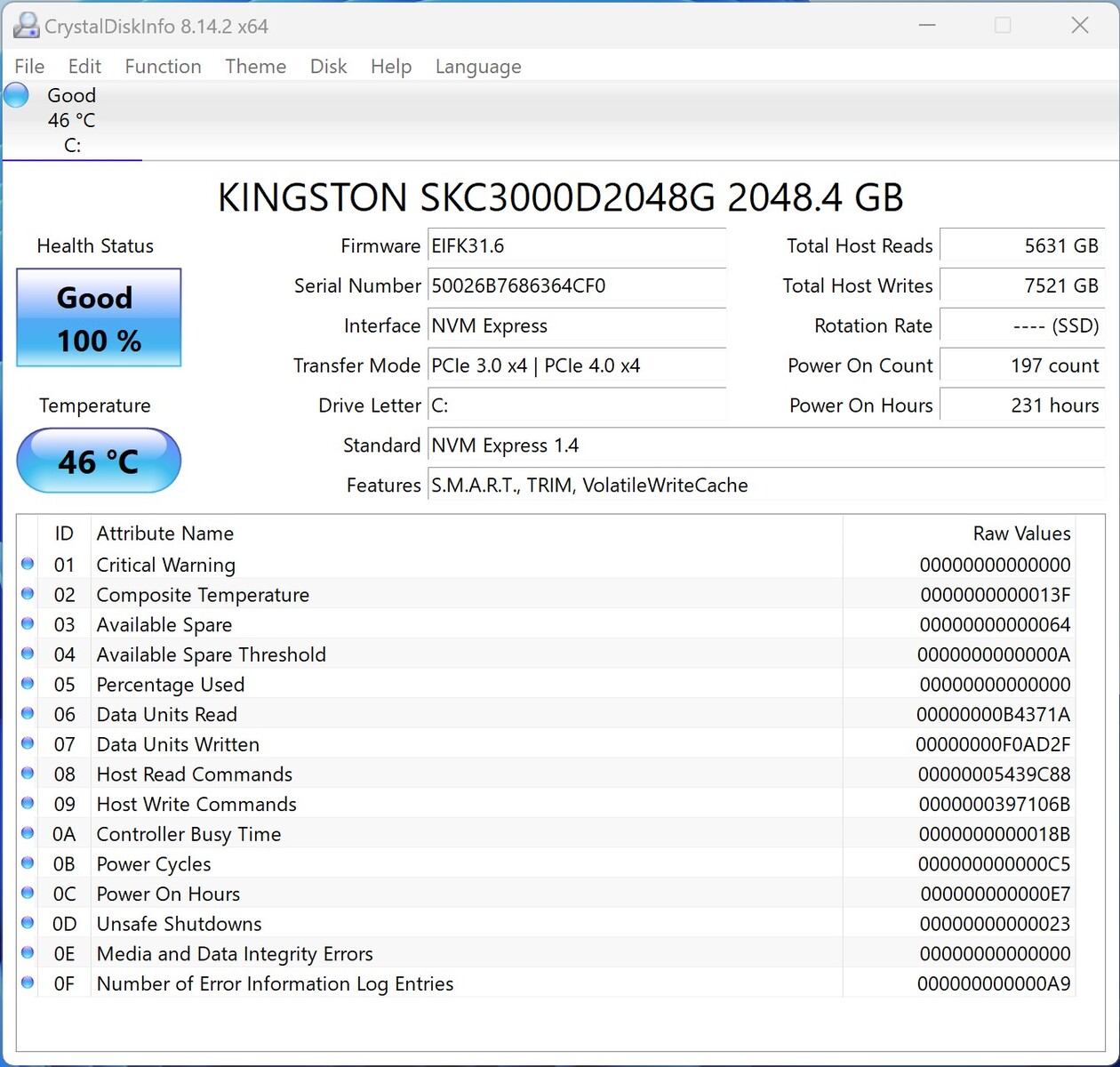

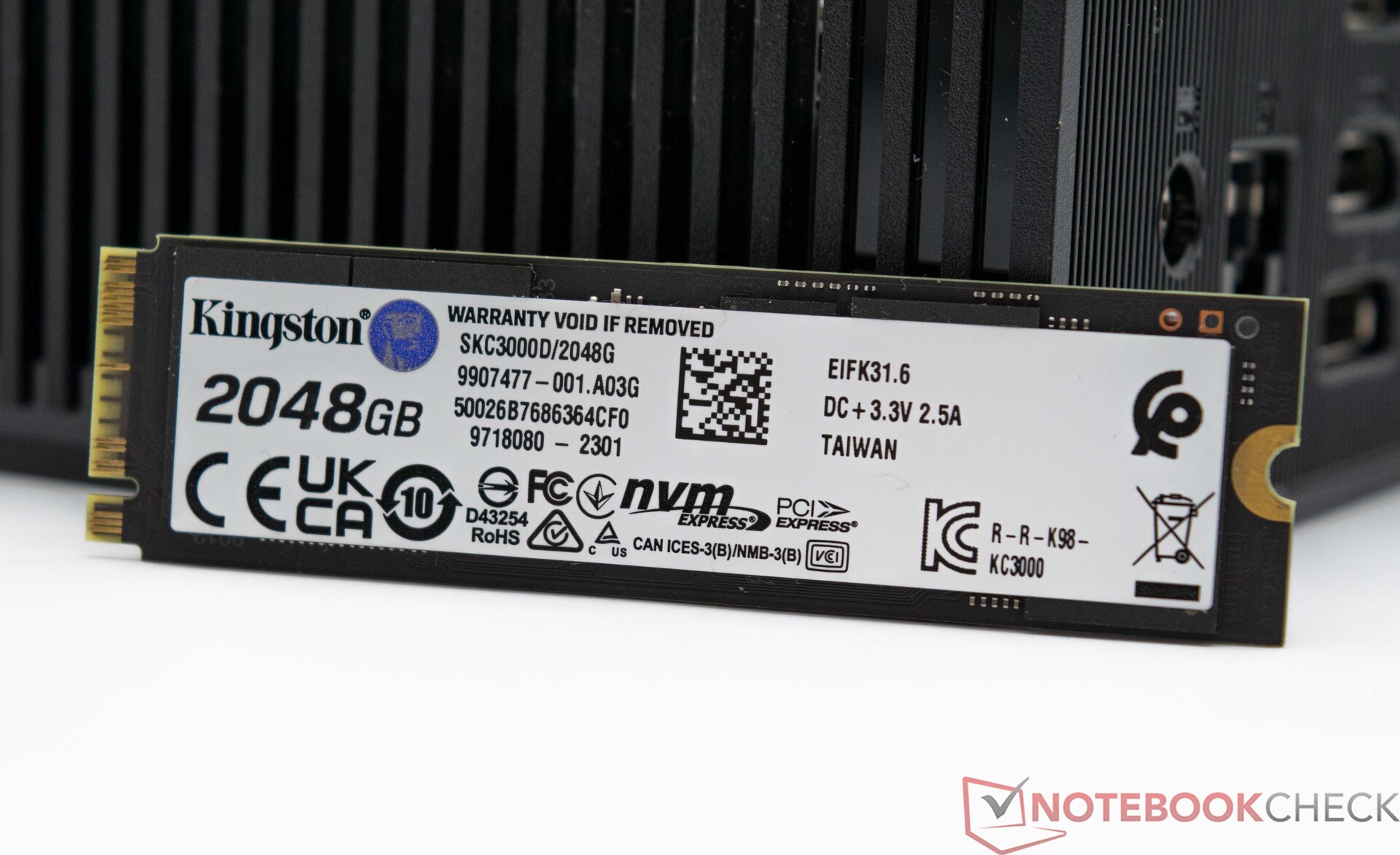

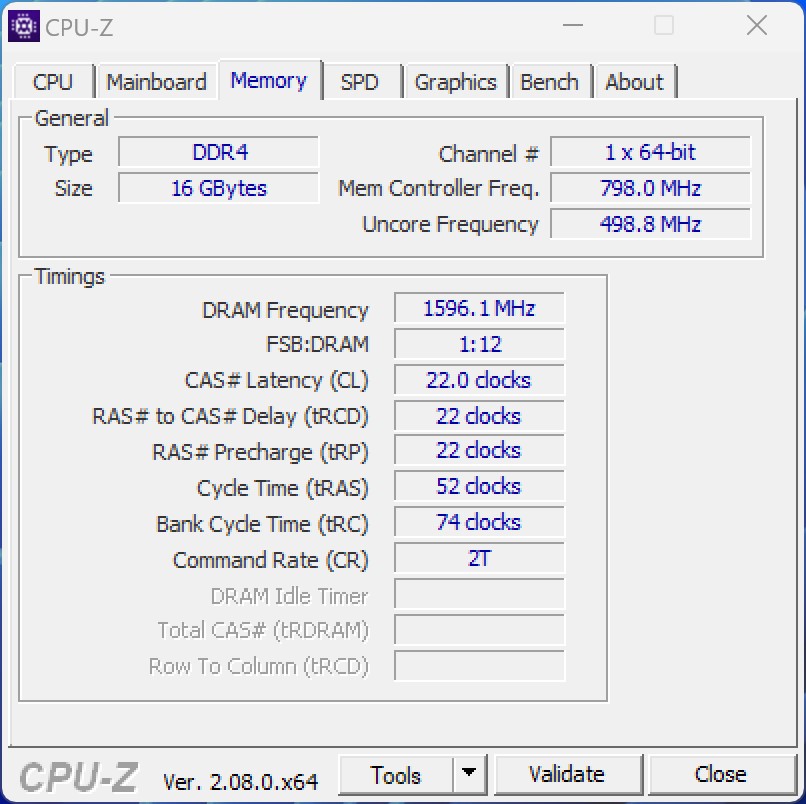

在本次测试中，我们为华硕ExpertCenter PN42配备了库存组件，即16 GB DDR4内存和2 TB固态硬盘。这些都不包括在前面提到的价格中。在本次评测中，我们将把华硕ExpertCenter PN42与配置类似的竞争对手进行对比--所有这些竞争对手我们都曾仔细研究过。您可以在下面找到所有这些对比设备的概览。

Test device courtesy of Asus Deutschland

Download your licensed rating image as PNG / SVG

Asus ExpertCenter PN42-BBN200MV

Processor

Intel Processor N200 4 x 1 - 3.7 GHz, 25 W PL2 / Short Burst, 6 W PL1 / Sustained, Alder Lake-N

Graphics adapter

Intel UHD Graphics Xe 750 32EUs (Rocket Lake), 31.0.101.4972 DCH

Memory

16 GB

, DDR4-3200, Single-Channel

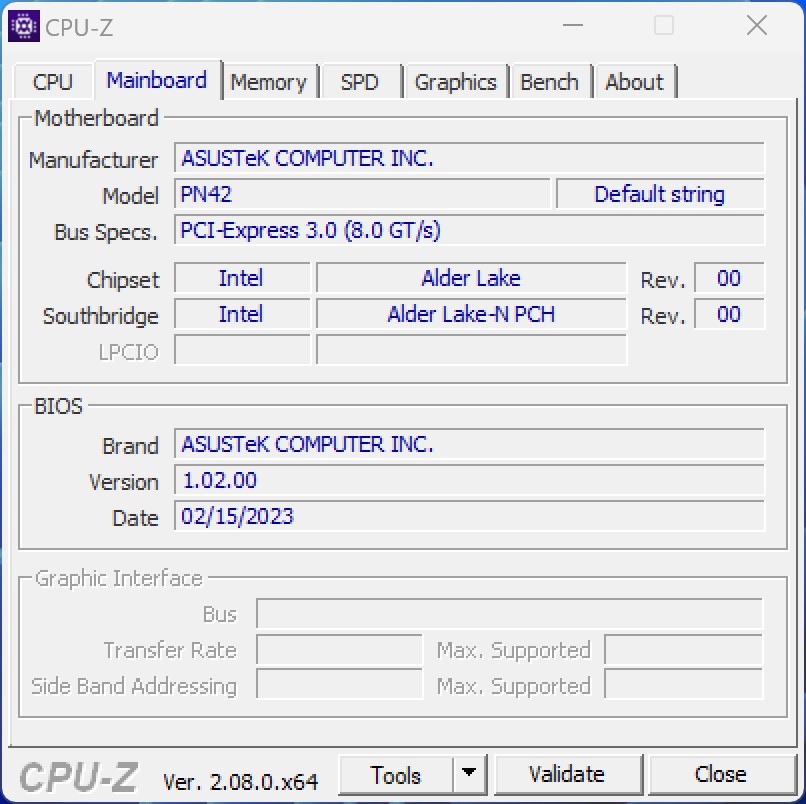

Mainboard

Intel Alder Lake-N PCH

Storage

Kingston KC3000 2048G SKC3000D2048G, 2048 GB

Soundcard

Intel Alder Lake-N PCH - cAVS

Connections

3 USB 2.0, 2 USB 3.0 / 3.1 Gen1, 2 USB 3.1 Gen2, 1 VGA, 1 HDMI, 1 DisplayPort, 1 Kensington Lock, Audio Connections: 3.5mm Klinke

Networking

Realtek RTL8125 2.5GBe Family Ethernet Controller (10/100/1000/2500MBit/s), Intel Wi-Fi 6 AX201 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/), Bluetooth 5.2

Size

height x width x depth (in mm): 57.6 x 132 x 127.5

Additional features

65-Watt power supply, VESA mount, 24 Months Warranty

Weight

828 g, Power Supply: 165 g

Price

299 EUR

Links

Asus homepage
Asus notebook section

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

潜在的竞争对手比较

Rating	Date	Model	Weight	Price
73.2 % v7 ^(old)	01 / 2024	Asus ExpertCenter PN42-BBN200MV N200, UHD Graphics Xe 750 32EUs	828 g	299 EUR
74.1 % v7 ^(old)	11 / 2023	Acemagic S1 N95, UHD Graphics 24EUs (Alder Lake-N)	440 g	239 EUR
73.5 % v7 ^(old)	09 / 2023	Blackview MP80 N95, UHD Graphics 24EUs (Alder Lake-N)	214 g	250 EUR
71.1 % v7 ^(old)	08 / 2023	BOSGAME N95 N95, UHD Graphics 24EUs (Alder Lake-N)	392 g	179 EUR
70.1 % v7 ^(old)	11 / 2023	Trigkey G4 N100, UHD Graphics 24EUs (Alder Lake-N)	272 g	189 EUR
68.2 % v7 ^(old)	03 / 2023	Minipc Union NiPoGi GK3PLUS - N95 N95, UHD Graphics 24EUs (Alder Lake-N)	381 g	399 EUR
65.9 % v7 ^(old)	01 / 2023	Minipc Union Ace Magician T8Pro Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	209 g	280 EUR

华硕专家中心 PN42 详细介绍

外壳 - 坚固的塑料外壳

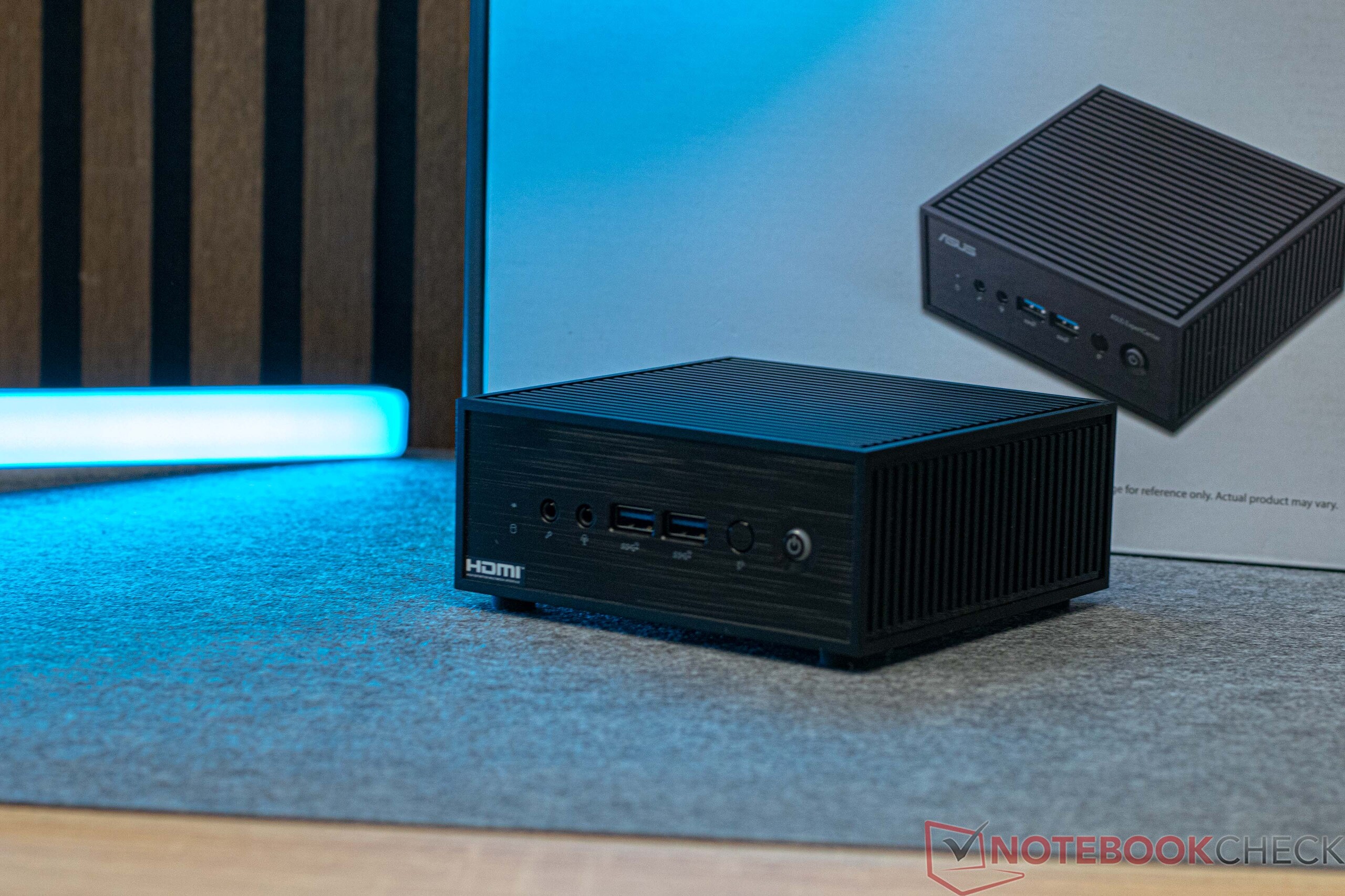

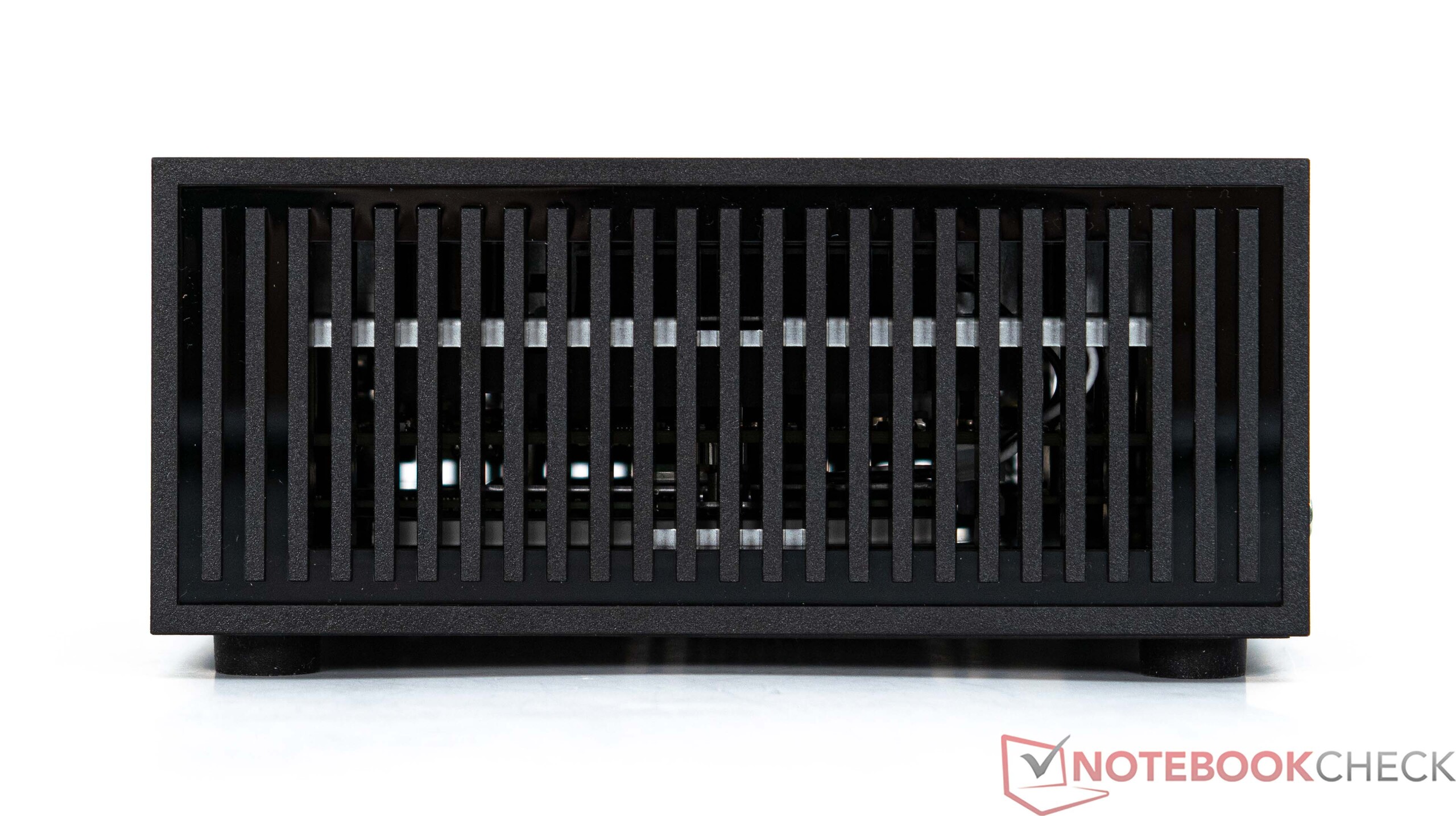

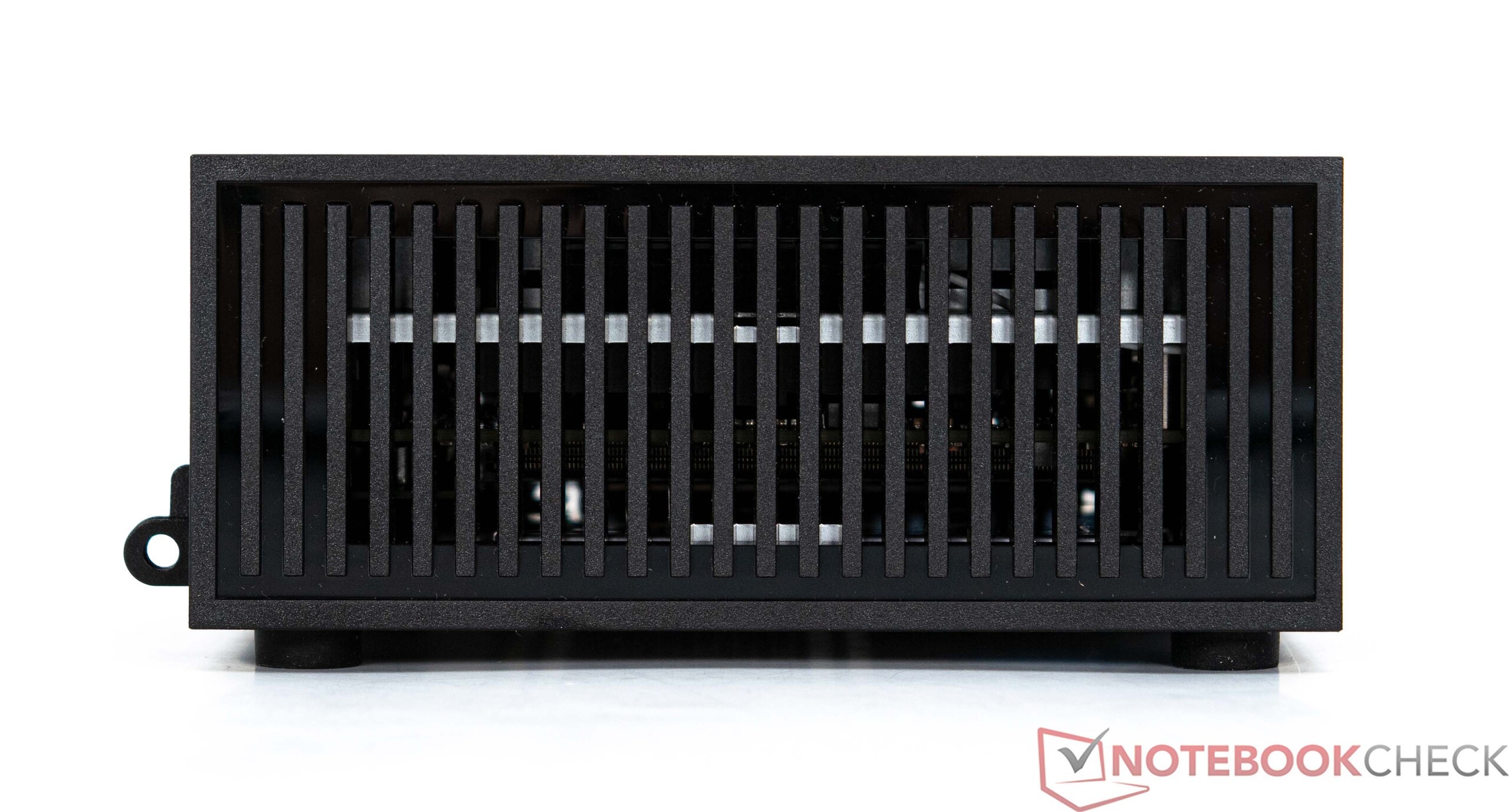

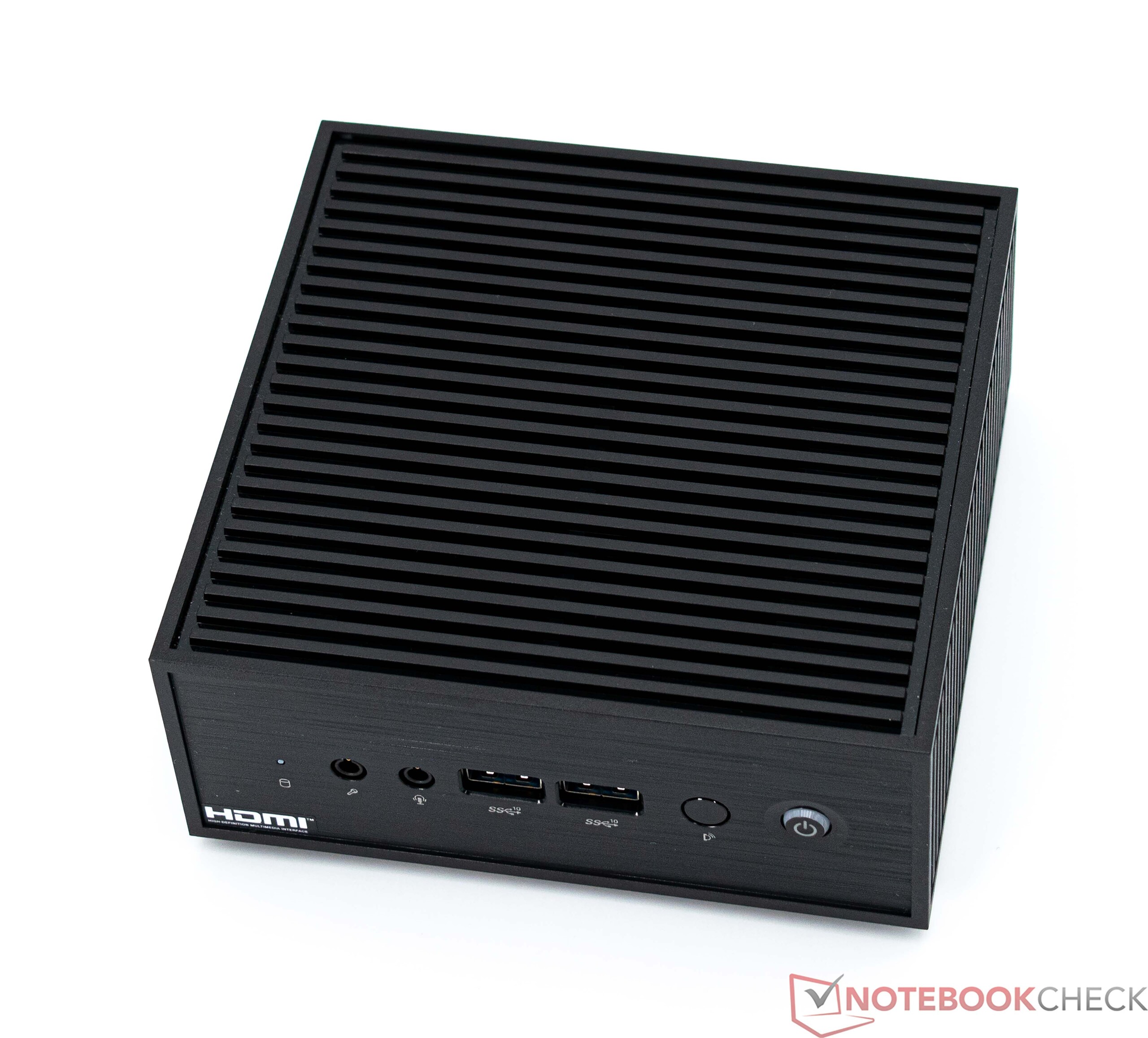

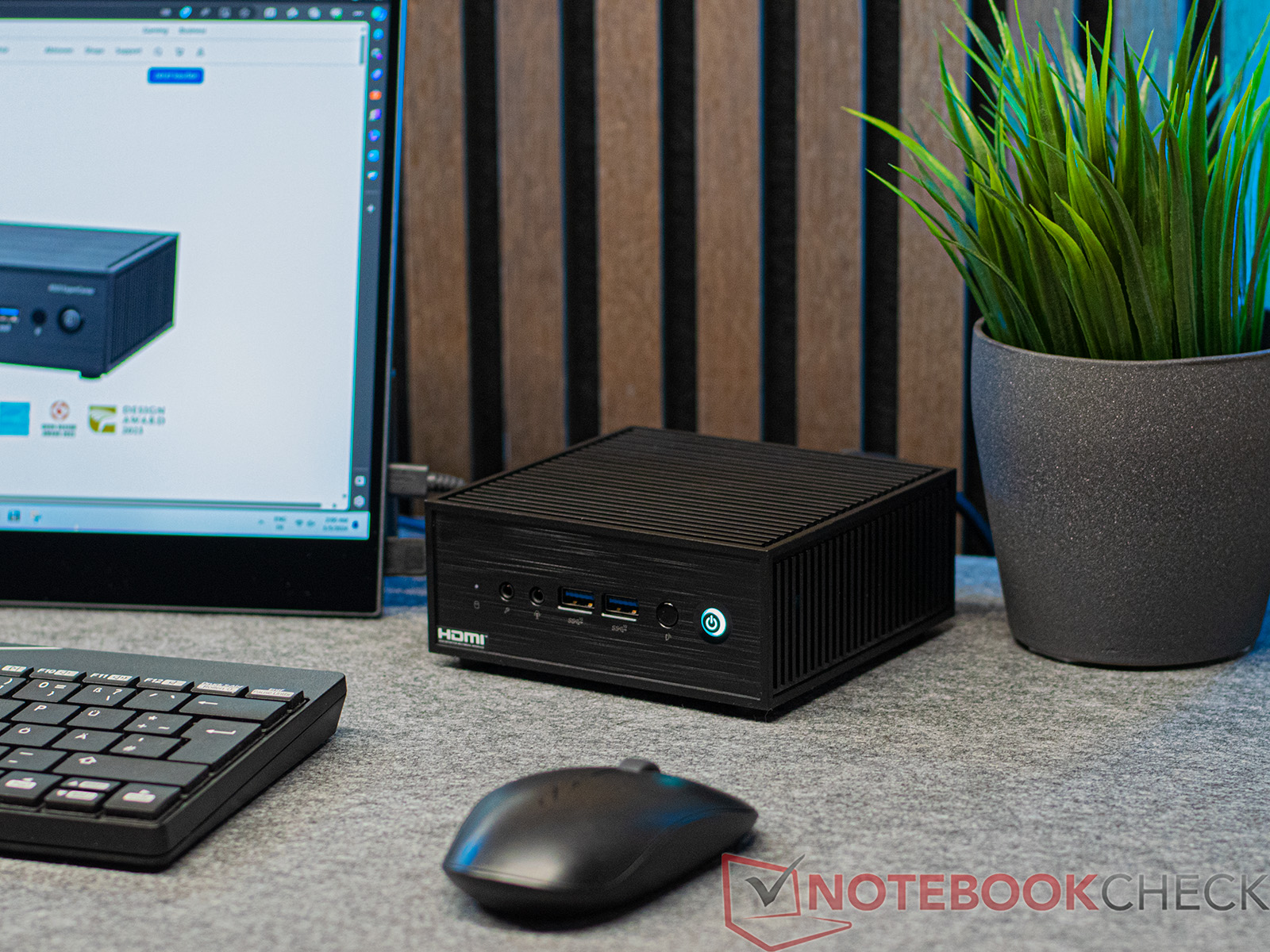

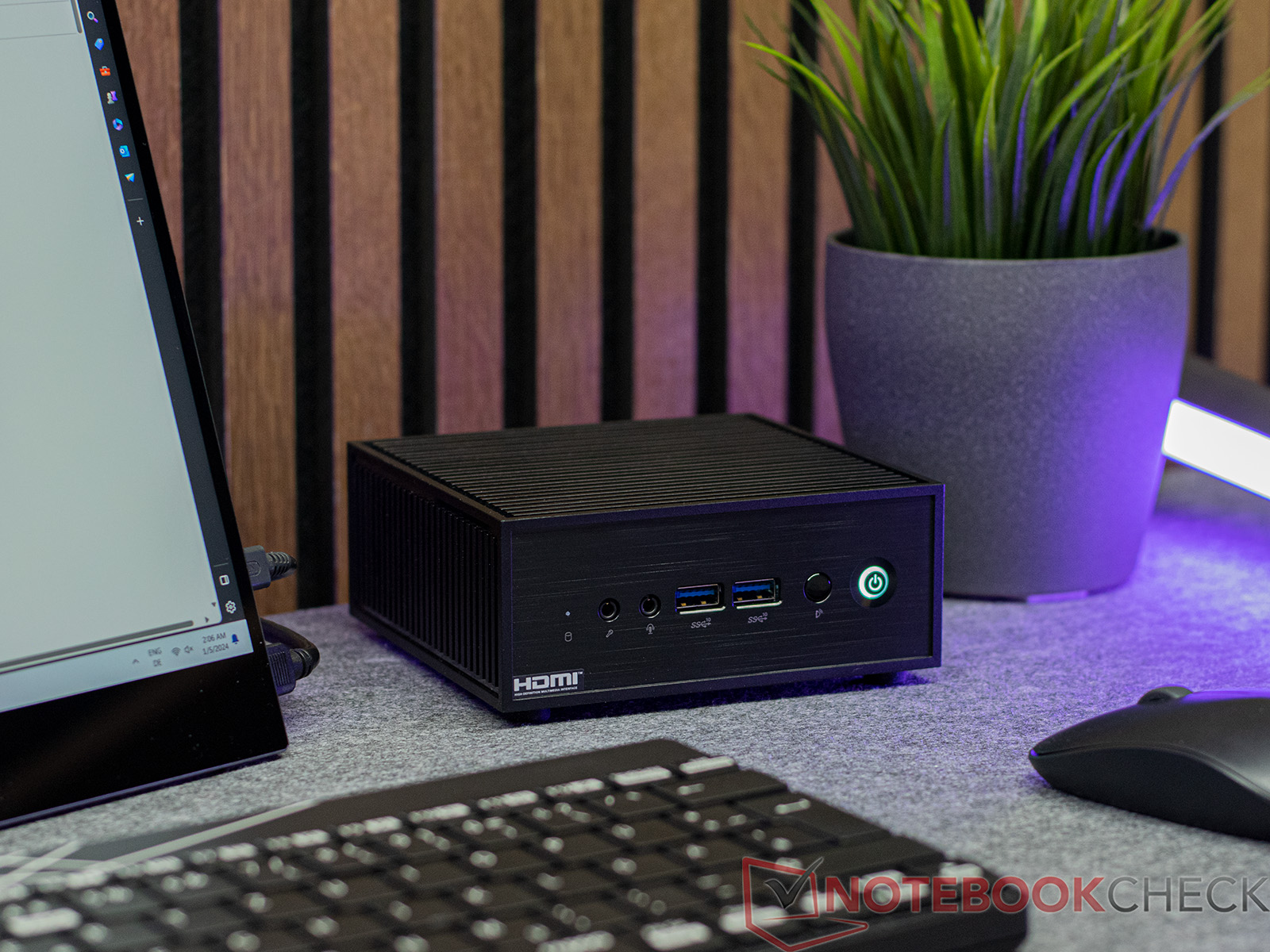

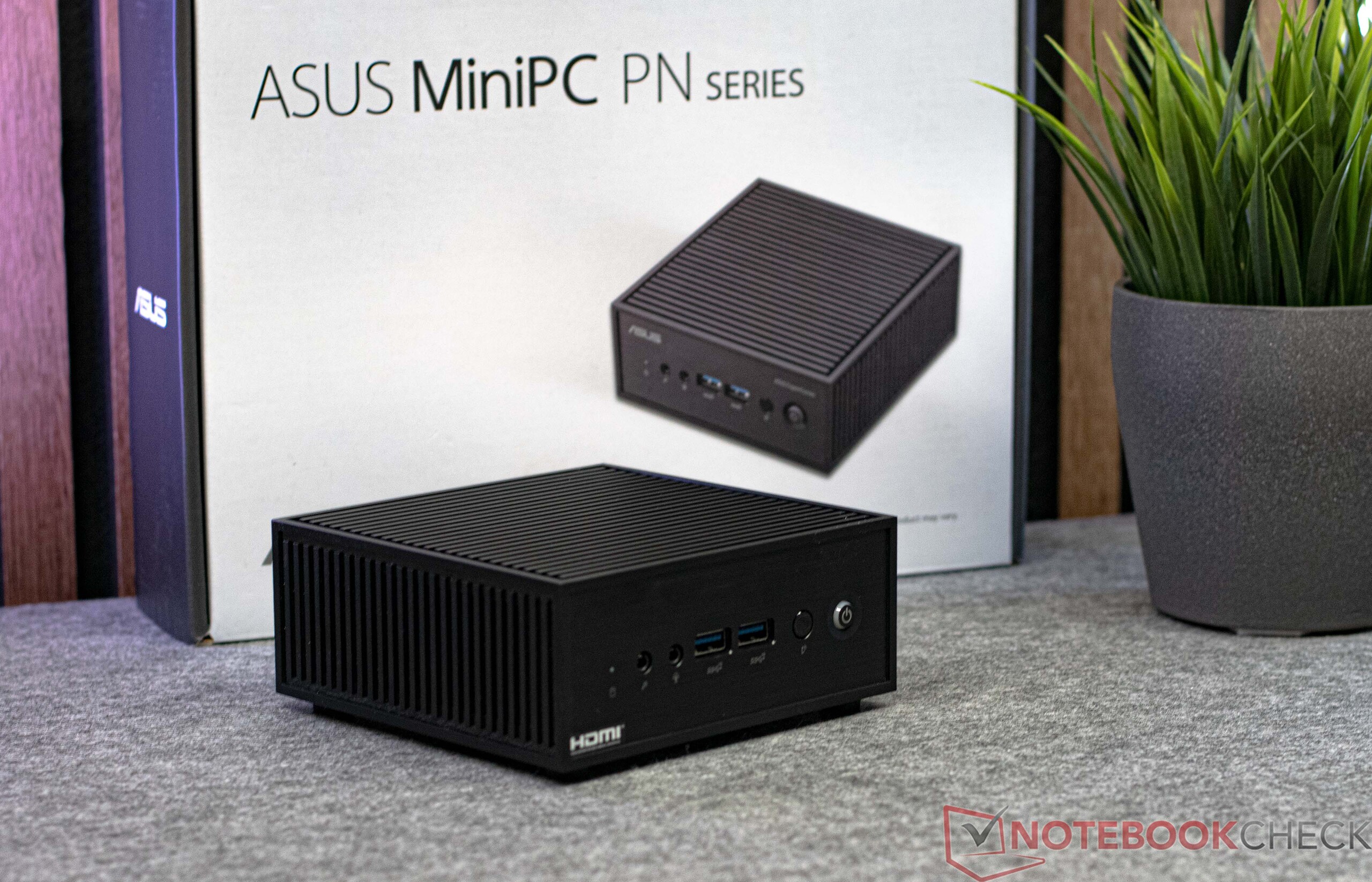

从外观上看，华硕 ExpertCenter PN42 比较不起眼。它的外壳主要由黑色塑料制成，每一面都有风扇出风口。在内部，该设备由金属笼固定，具有良好的稳定性。它的占地面积为 13.2 × 12.7 厘米，体积相当小巧，不过市场上肯定有更小巧的设备。例如 Blackview MP80 和 Ace Magicician T8Pro。我们的测试设备做工精良，没有发现任何尖角或安装误差。与其他微型电脑类似，华硕 ExpertCenter PN42 也可以使用 VESA 支架（在本例中是随机提供的）连接到显示器上。

尺寸比较

Asus ExpertCenter PN42-BBN200MV Minipc Union NiPoGi GK3PLUS - N95 Acemagic S1 BOSGAME N95 Minipc Union Ace Magician T8Pro Blackview MP80 Trigkey G4 DIN A5 ❌

连接性

华硕 ExpertCenter PN42 拥有丰富的连接选项：它共有 7 个 USB 端口，这并不是迷你 PC 的标准配置。此外，还有一个模拟显示器连接端口，可用于非常特殊的外围设备。当然，该电脑还配备了 HDMI 和 DisplayPort 等现代端口，因此您可以不受任何限制地使用当前的显示器。此外，该设备前部还配有一个红外线传感器，可与可选的遥控器配对使用。

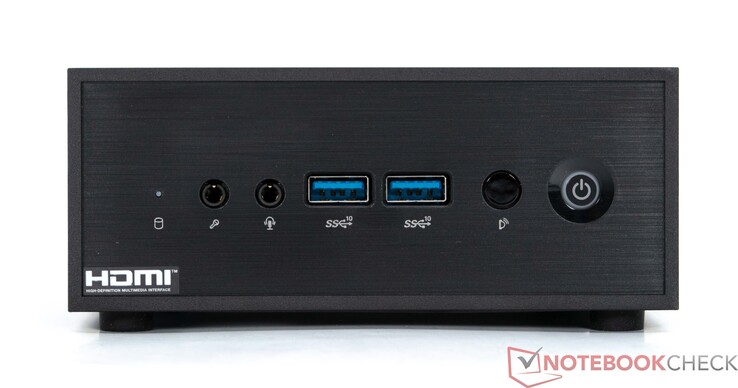

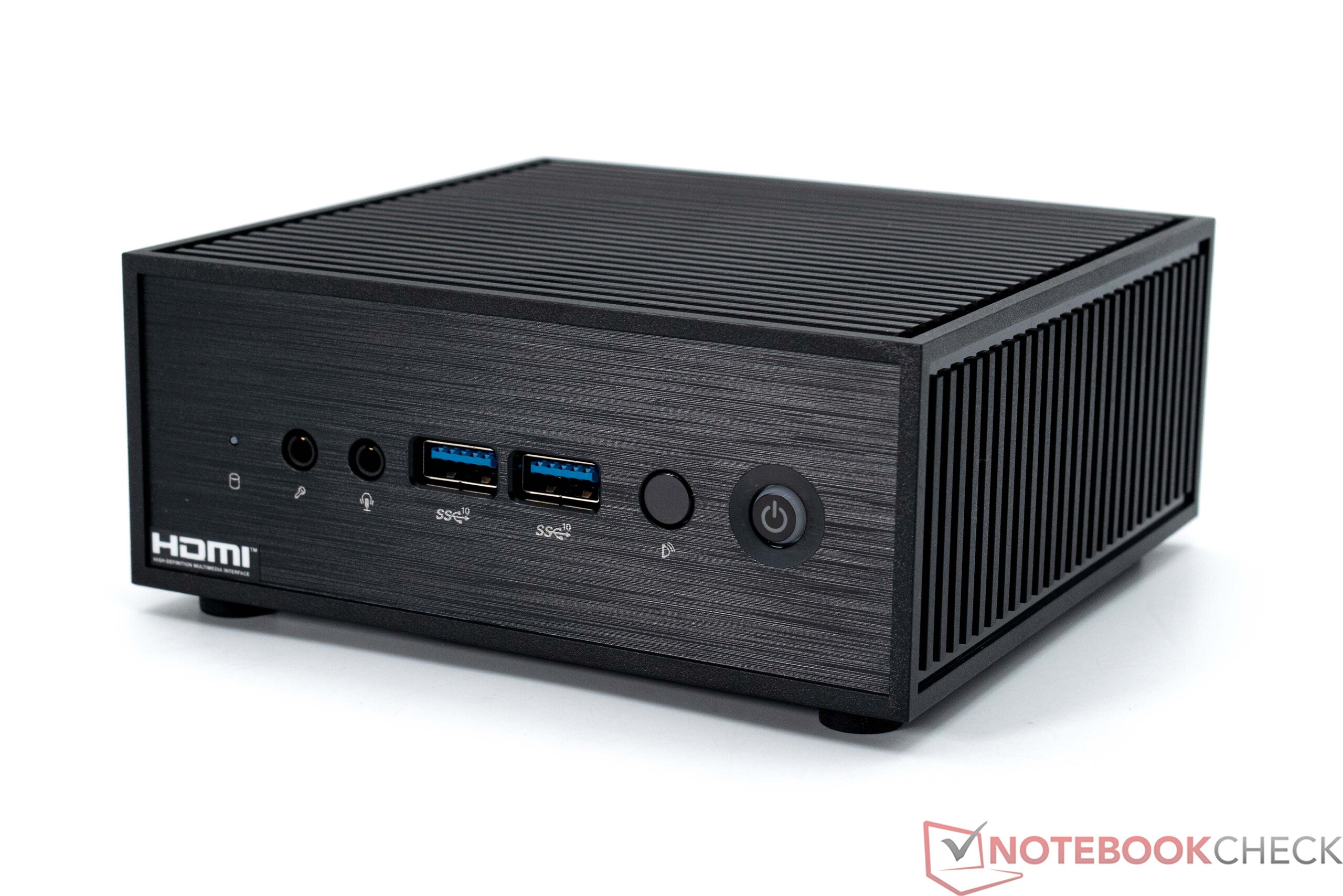

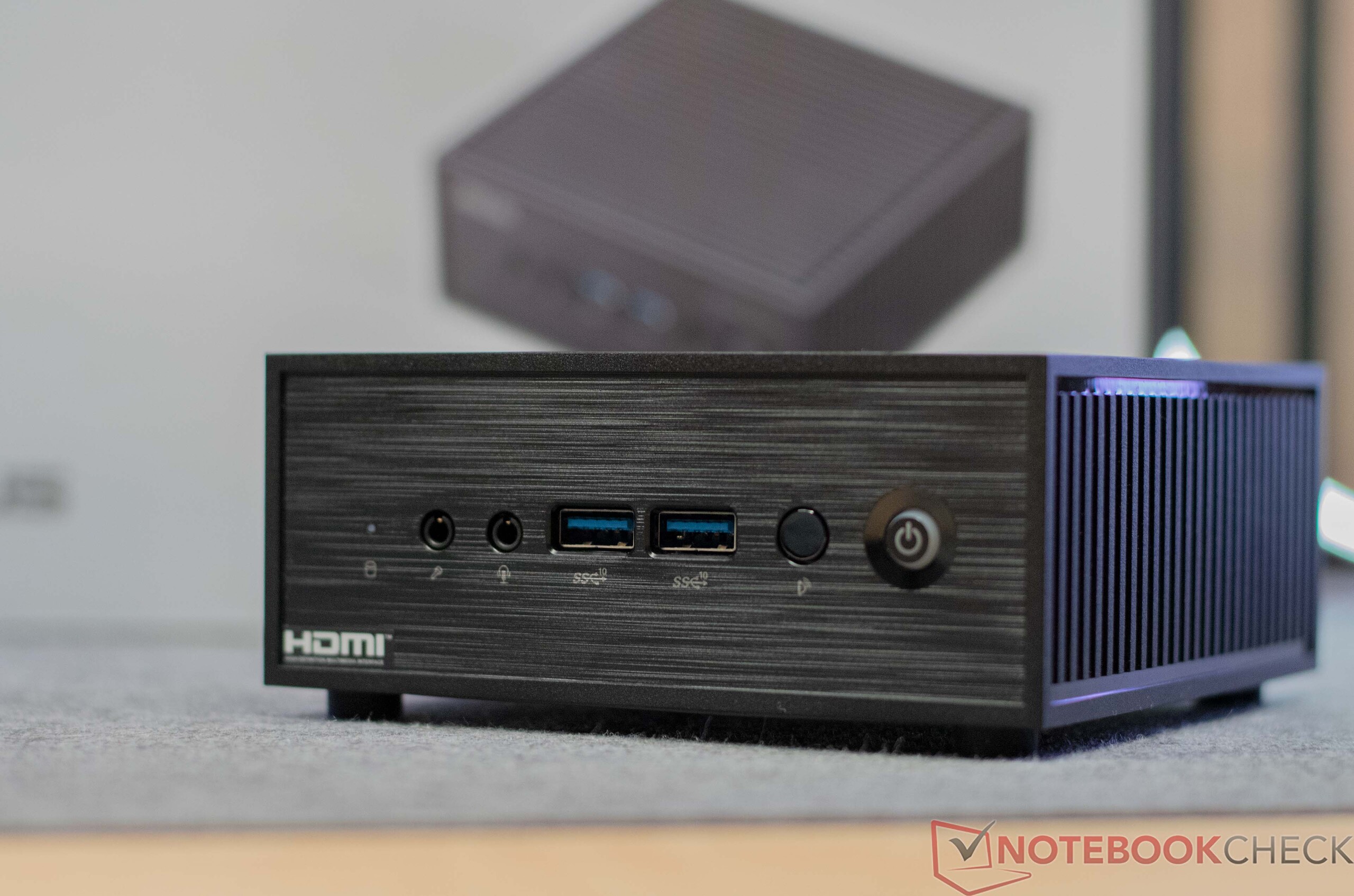

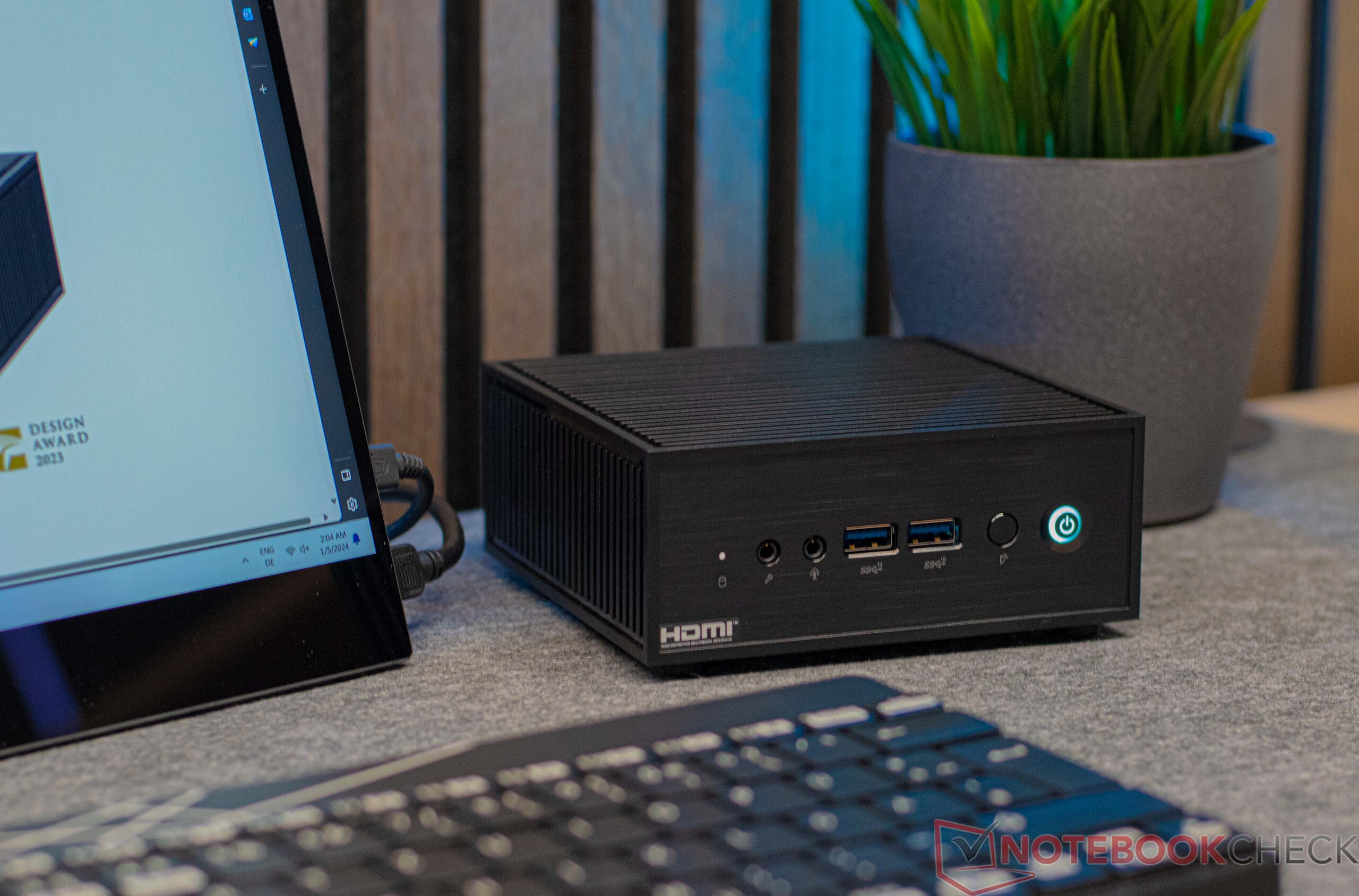

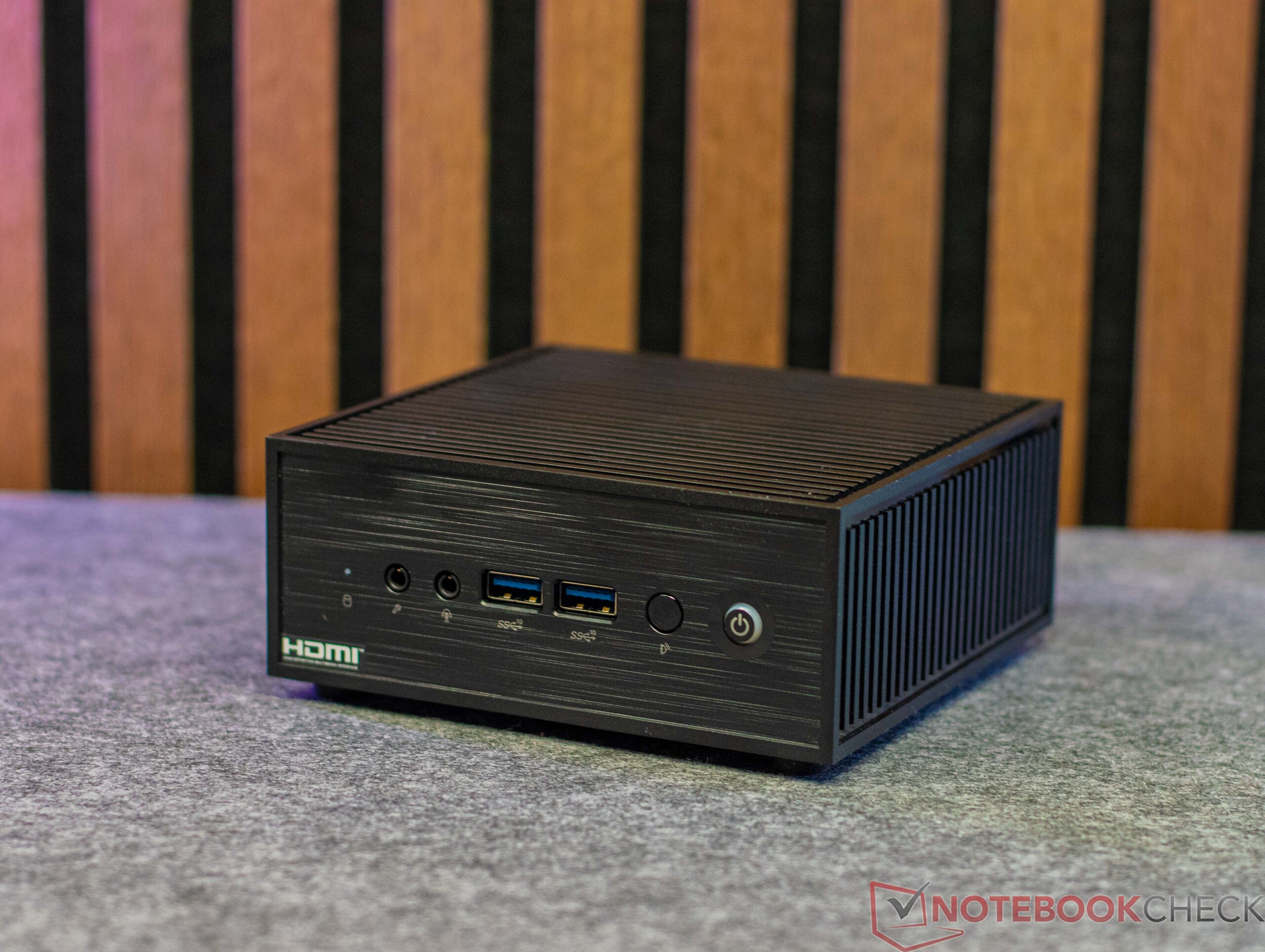

正面：2 个 3.5 毫米插孔、2 个 USB-A 3.2 Gen 2、红外传感器、电源开关

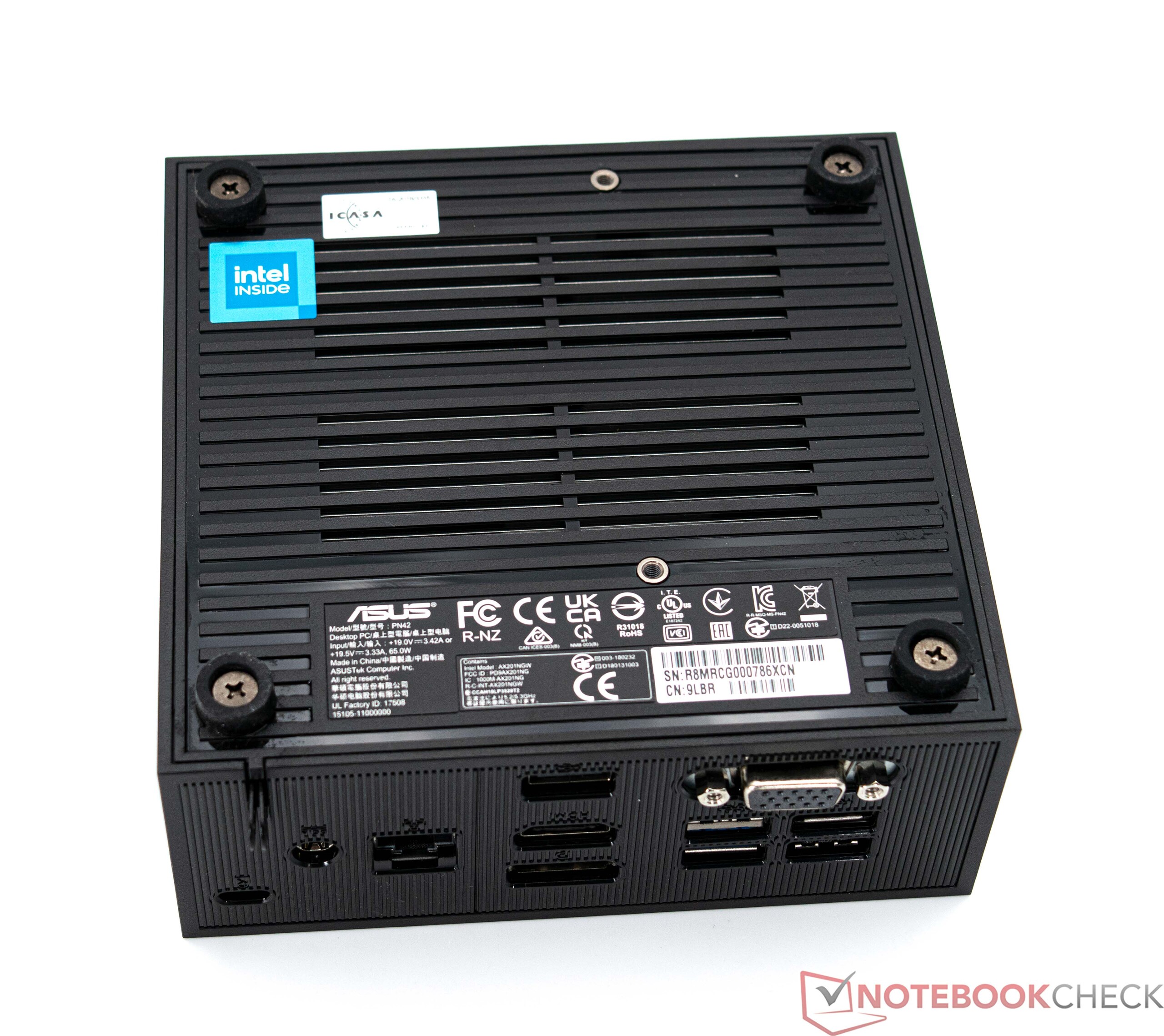

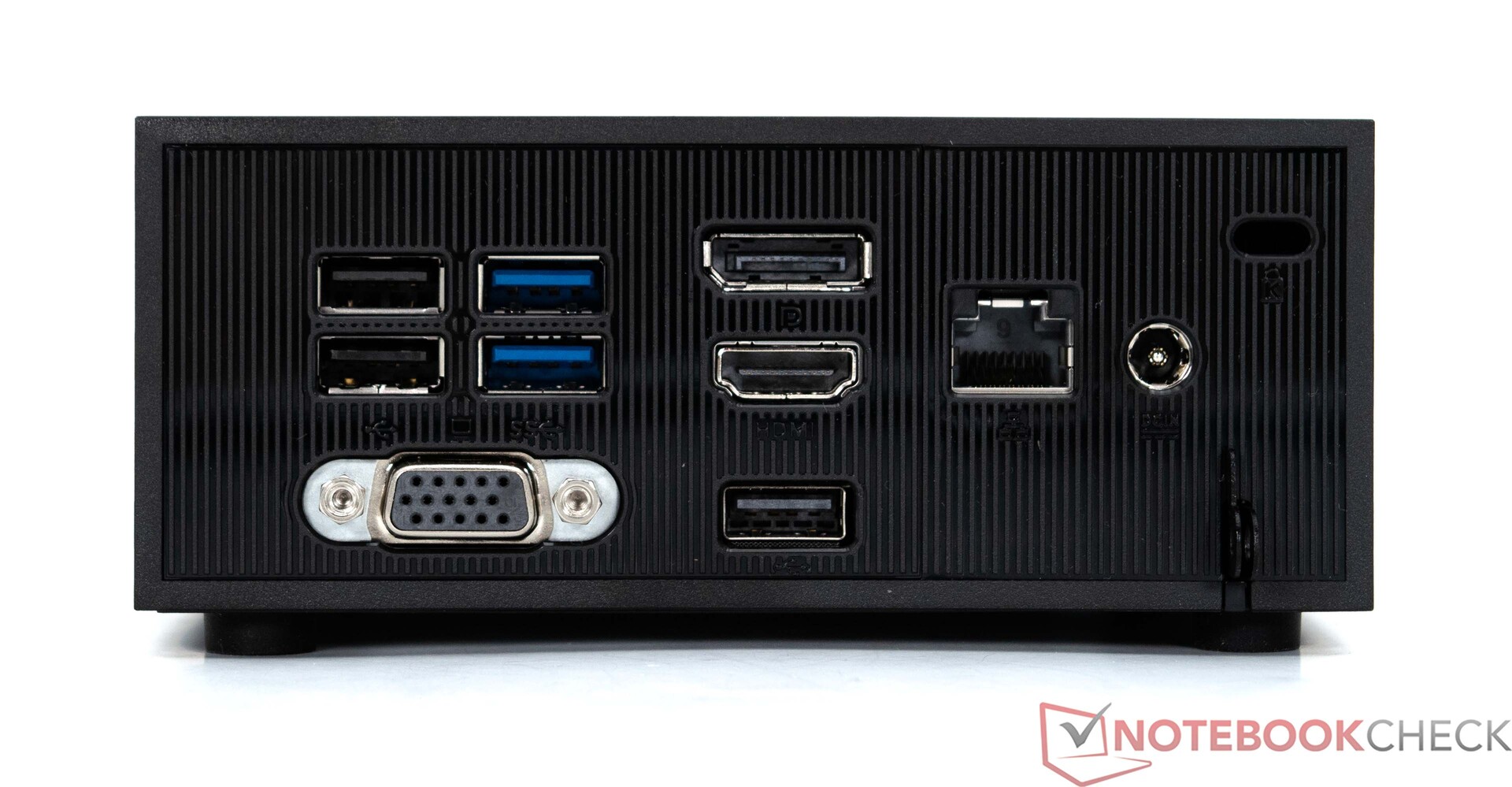

背面：3x USB-A 2.0、2x USB-A 3.2 Gen 1、VGA、DisplayPort、HDMI、2.5-G LAN、电源连接、Kensington 锁连接

交流

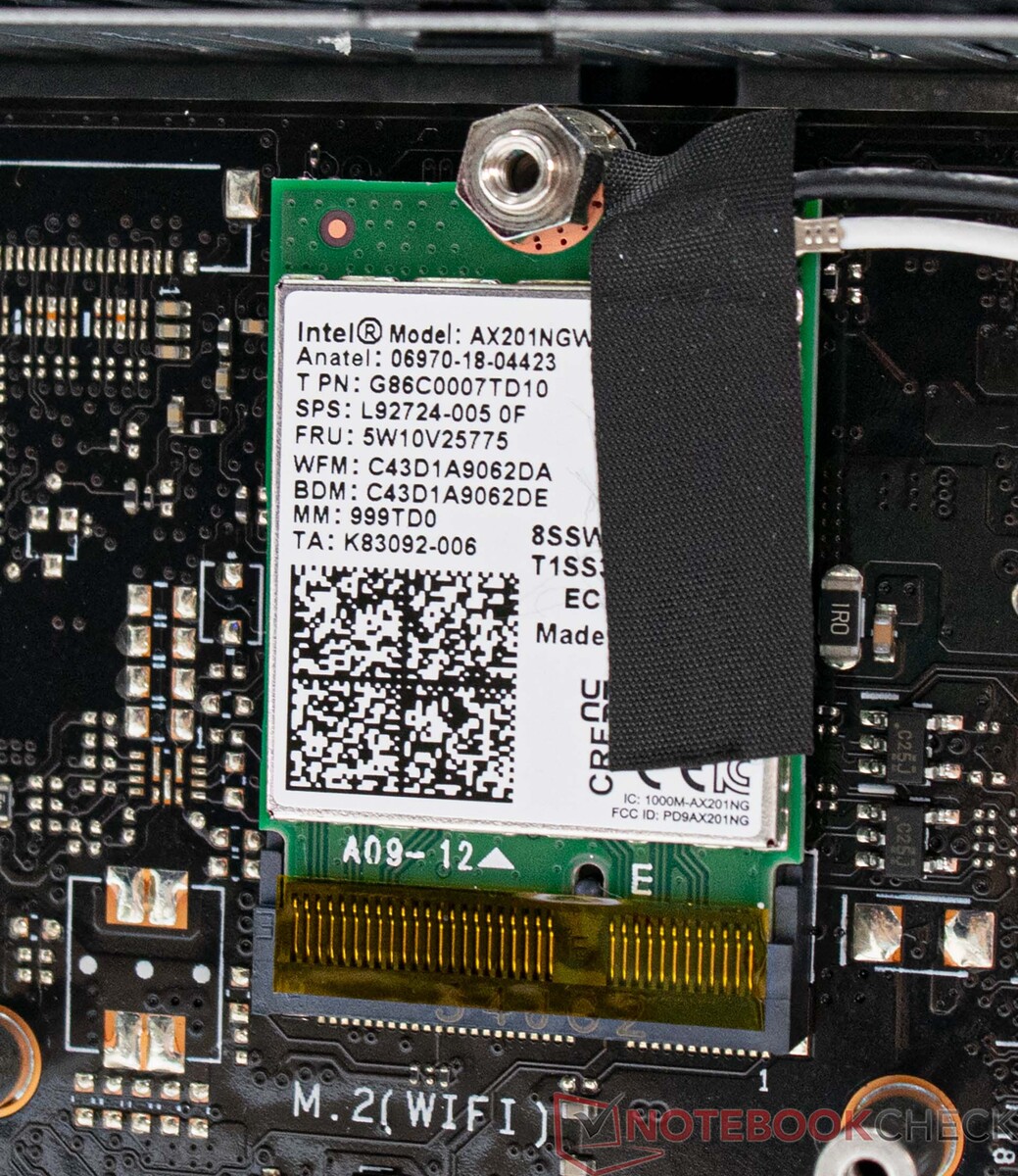

安装在华硕专家中心 PN42 上的英特尔 Wi-Fi 6 AX201 模块带来了令人印象深刻的效果。在这次比较中，没有一个竞争对手能赶上我们的测试样品。此外，我们还注意到，在发送和接收信号时没有出现任何性能下降，一致性非常好。在这次测试中，我们使用华硕 ROG Rapture GT-AXE11000 作为测试路由器。如果您喜欢有线连接，也可以使用 ExpertCenter PN42 的 2.5-G LAN 端口连接网络。

Networking
iperf3 receive AXE11000
Asus ExpertCenter PN42-BBN200MV Intel Wi-Fi 6 AX201	1684 (1645^min - 1707^max) MBit/s
Average Intel Wi-Fi 6 AX201 (390 - 1734, n=76)	1421 MBit/s -16%
Average of class Mini PC (192.9 - 1796, n=112, last 2 years)	933 MBit/s -45%
BOSGAME N95 Intel Dual Band Wireless-AC 8265	719 (702^min - 729^max) MBit/s -57%
Acemagic S1 Realtek RTL8852BE	503 (357^min - 676^max) MBit/s -70%
Trigkey G4 Intel Wi-Fi 6 AX101	491 (483^min - 495^max) MBit/s -71%
Minipc Union Ace Magician T8Pro Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC	363 (359^min - 365^max) MBit/s -78%
Blackview MP80 Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC	361 (326^min - 365^max) MBit/s -79%
Minipc Union NiPoGi GK3PLUS - N95 Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC	358 (180^min - 362^max) MBit/s -79%
iperf3 transmit AXE11000
Asus ExpertCenter PN42-BBN200MV Intel Wi-Fi 6 AX201	1527 (1473^min - 1571^max) MBit/s
Average Intel Wi-Fi 6 AX201 (438 - 1715, n=71)	1287 MBit/s -16%
Average of class Mini PC (184.1 - 1776, n=112, last 2 years)	866 MBit/s -43%
Acemagic S1 Realtek RTL8852BE	536 (515^min - 553^max) MBit/s -65%
BOSGAME N95 Intel Dual Band Wireless-AC 8265	519 (510^min - 547^max) MBit/s -66%
Trigkey G4 Intel Wi-Fi 6 AX101	487 (459^min - 504^max) MBit/s -68%
Blackview MP80 Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC	274 (266^min - 281^max) MBit/s -82%
Minipc Union NiPoGi GK3PLUS - N95 Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC	269 (136^min - 276^max) MBit/s -82%
Minipc Union Ace Magician T8Pro Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC	184.1 (94^min - 191^max) MBit/s -88%

Asus ExpertCenter PN42-BBN200MV Intel Wi-Fi 6 AX201; iperf3 receive AXE11000; iperf 3.1.3: Ø1684 (1645-1707)

Acemagic S1 Realtek RTL8852BE; iperf3 receive AXE11000; iperf 3.1.3: Ø503 (357-676)

Asus ExpertCenter PN42-BBN200MV Intel Wi-Fi 6 AX201; iperf3 transmit AXE11000; iperf 3.1.3: Ø1527 (1473-1571)

Acemagic S1 Realtek RTL8852BE; iperf3 transmit AXE11000; iperf 3.1.3: Ø536 (515-553)

配件

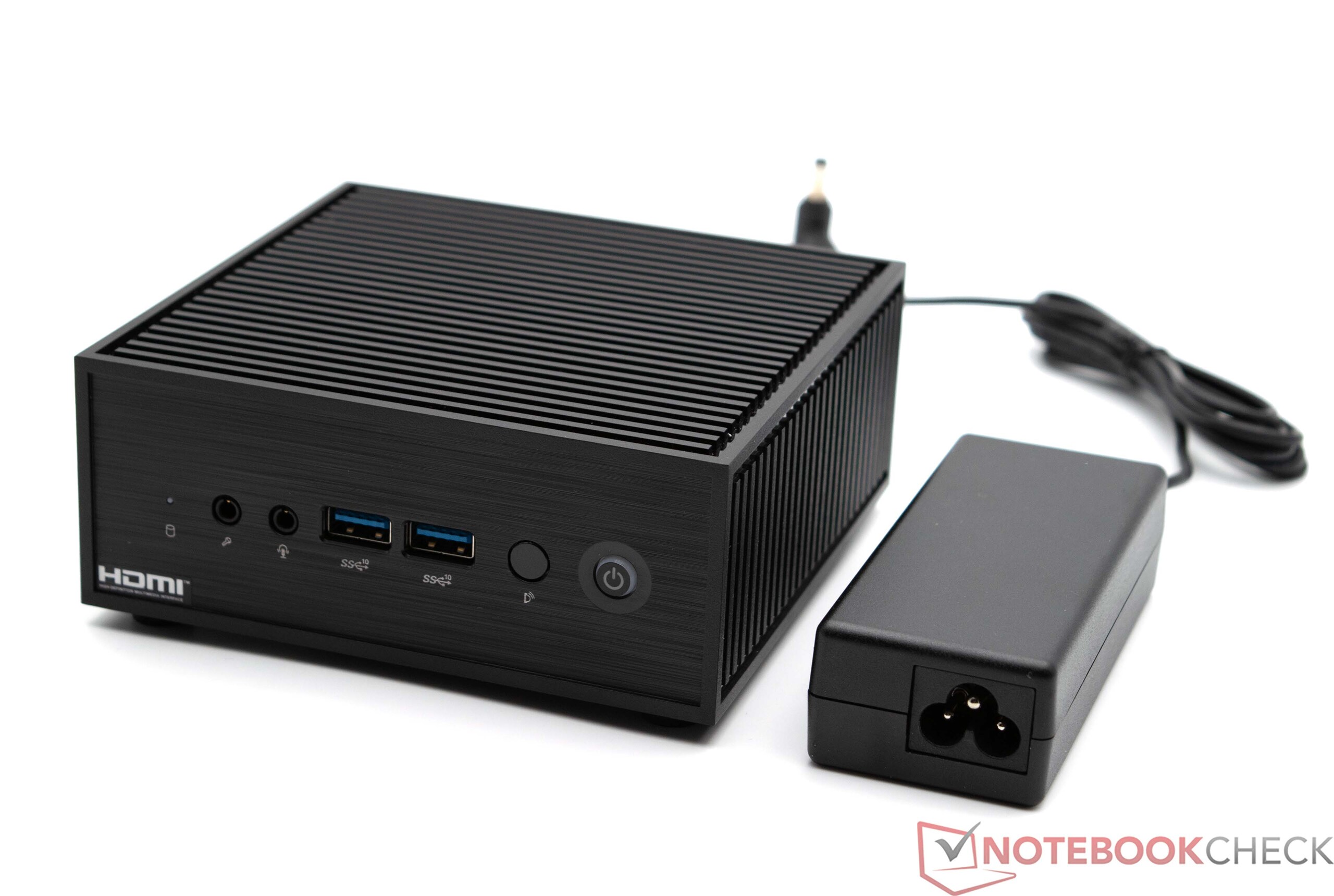

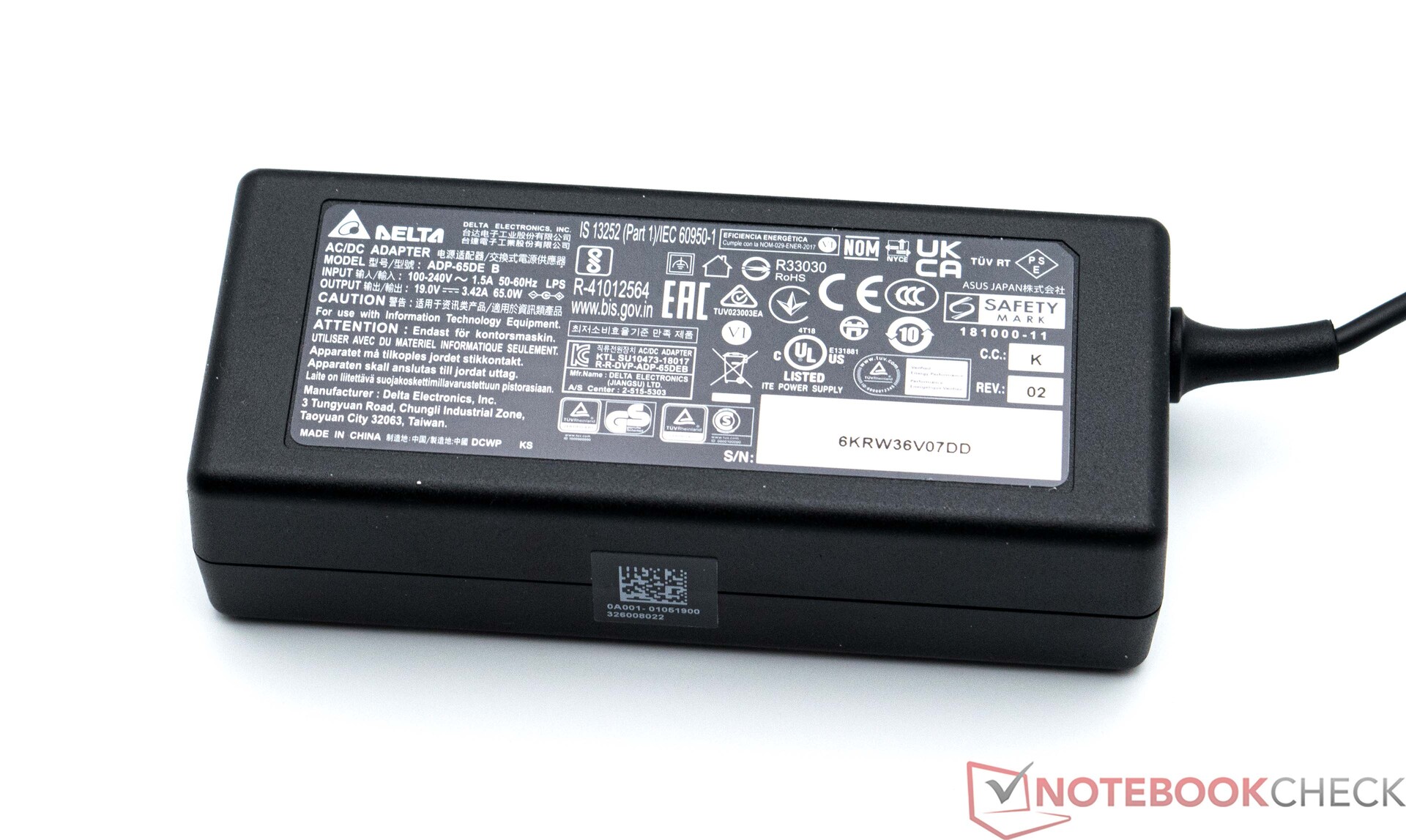

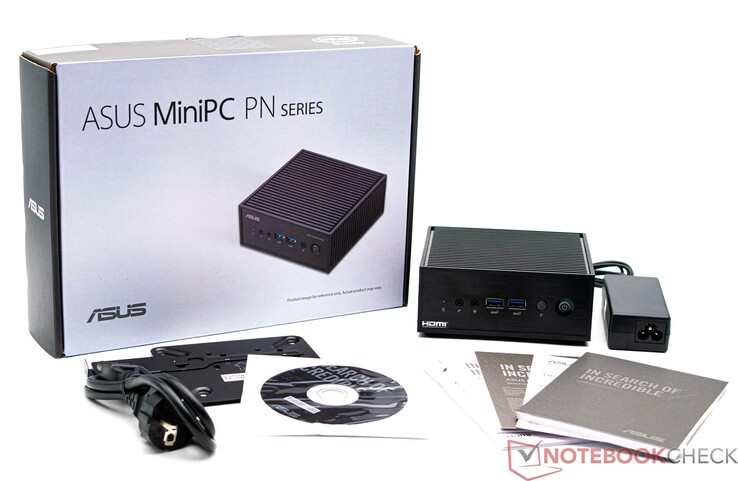

除了设备本身，华硕 ExpertCenter PN42 的供货范围还包括一个 65 瓦的电源接口、一些信息宣传单以及一个 VESA 安装板。

维护

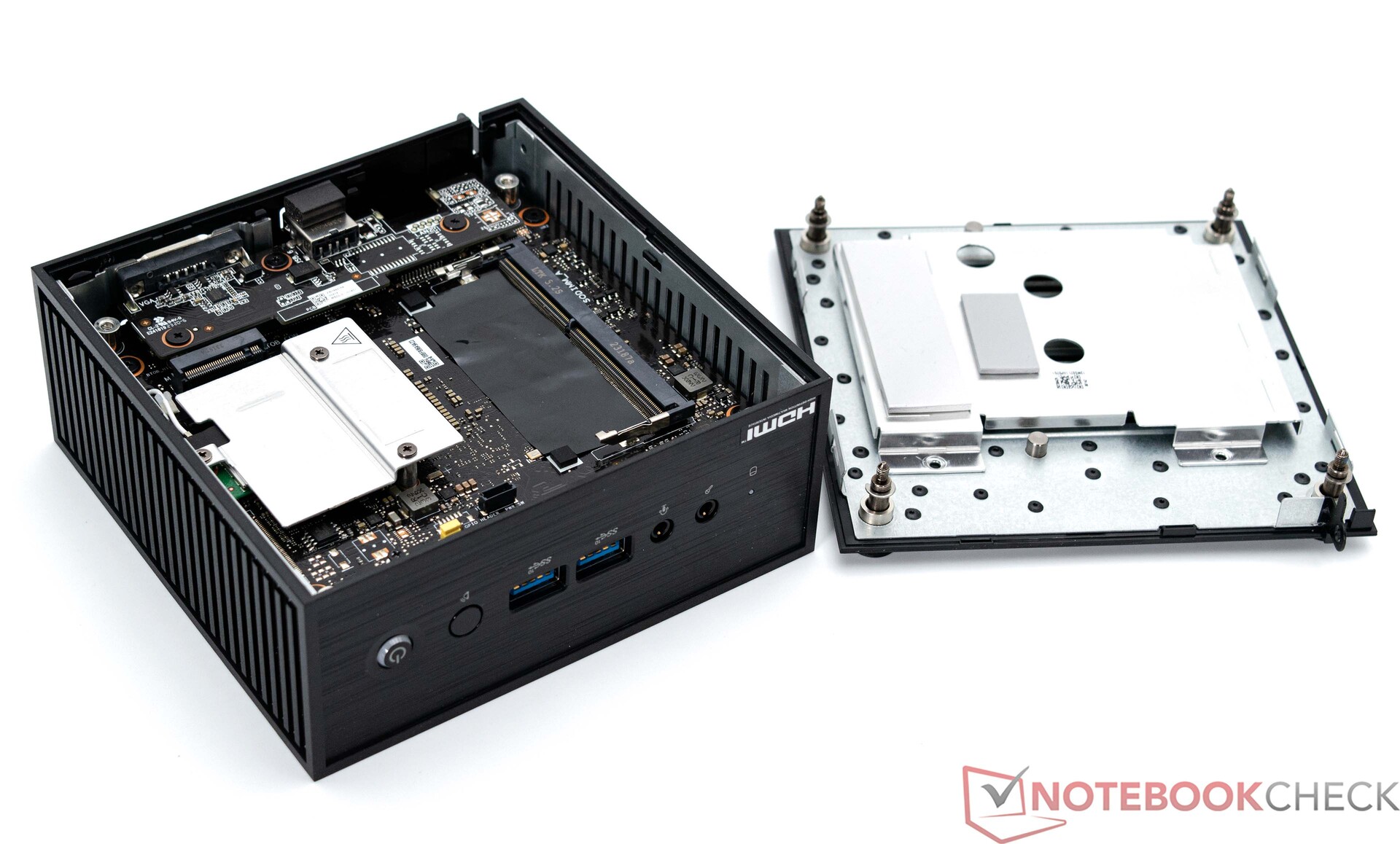

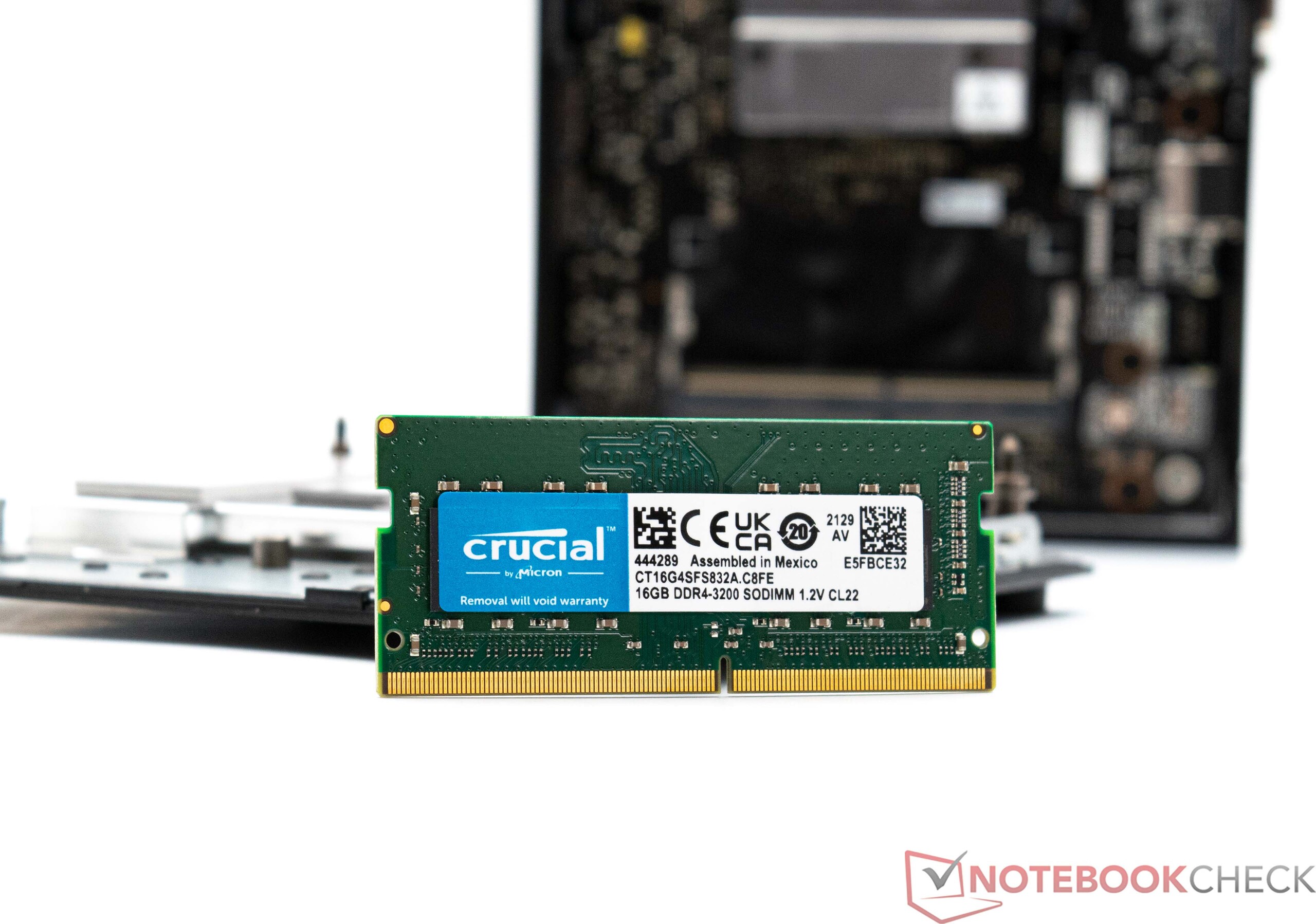

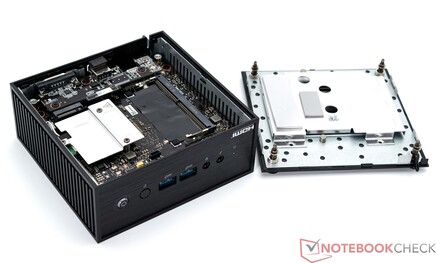

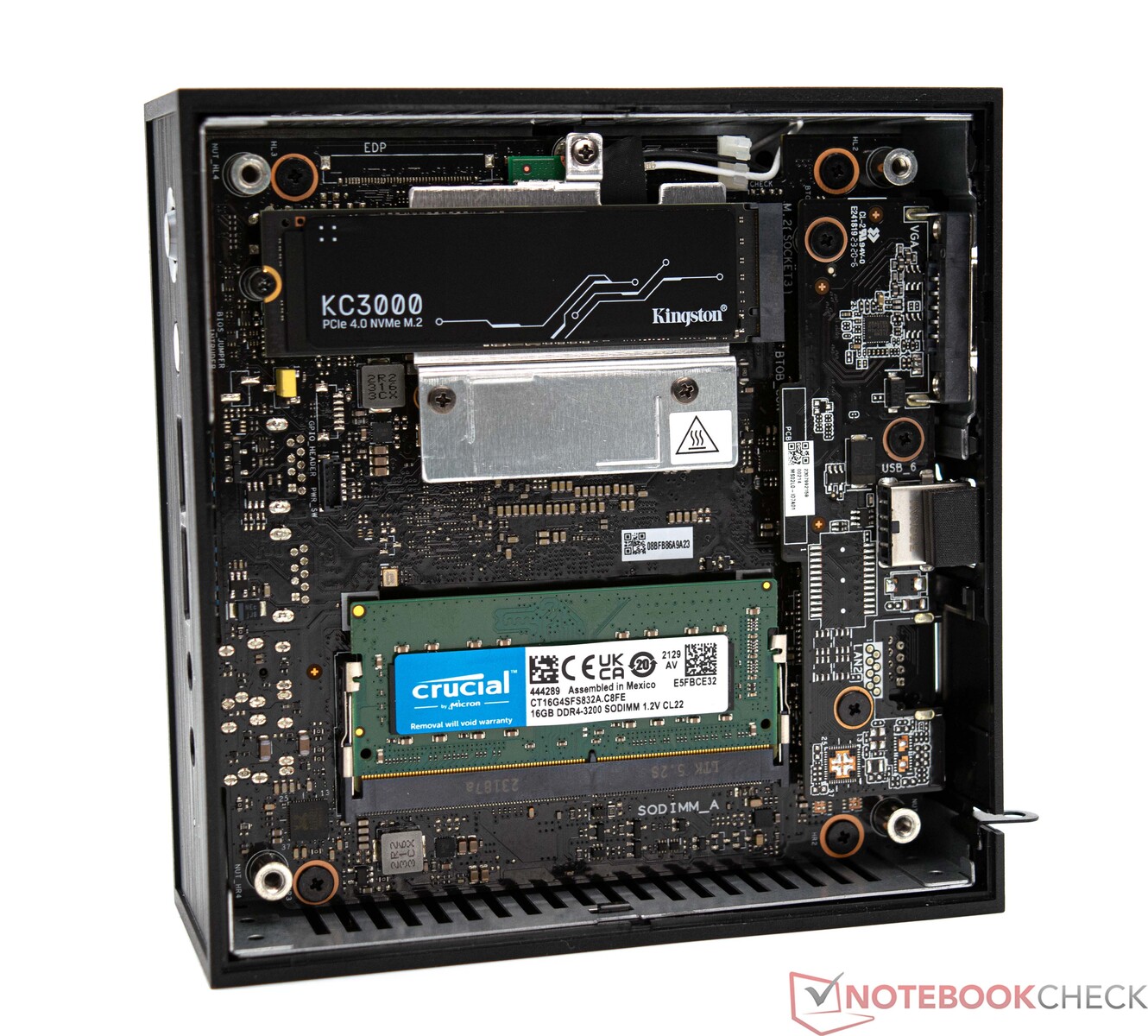

由于您可以选择购买华硕 ExpertCenter PN42 的裸机型号，因此必须能够轻松打开设备，以便安装内存和固态硬盘组件。为此，您只需取下底板，这一点很容易做到。华硕 ExpertCenter PN42 只能配备一个 SO-DIMM 模块和一个 NVMe 固态硬盘。在本次测试中，我们使用了 16 GB DDR4 内存和 2 TB SSD（金士顿 KC3000）。

性能 - 配备四个内核的英特尔 N200

该系统芯片配备了英特尔 N200，具有四个本地计算内核，但遗憾的是，这些内核只能在低功耗的情况下工作。功耗限制为 6 至 25 瓦。然而，在我们的测试中，它甚至没有达到 25 瓦，这意味着处理器无法充分发挥其潜力。与 SoC 配套的是 16GB DDR4 内存模块和 2TB 固态硬盘。

测试条件

我们使用平衡能耗曲线进行了所有性能测试。只有在功耗测量和噪声排放测量中才使用了偏离的省电配置文件。有关测试标准的更多信息的更多信息。

处理器

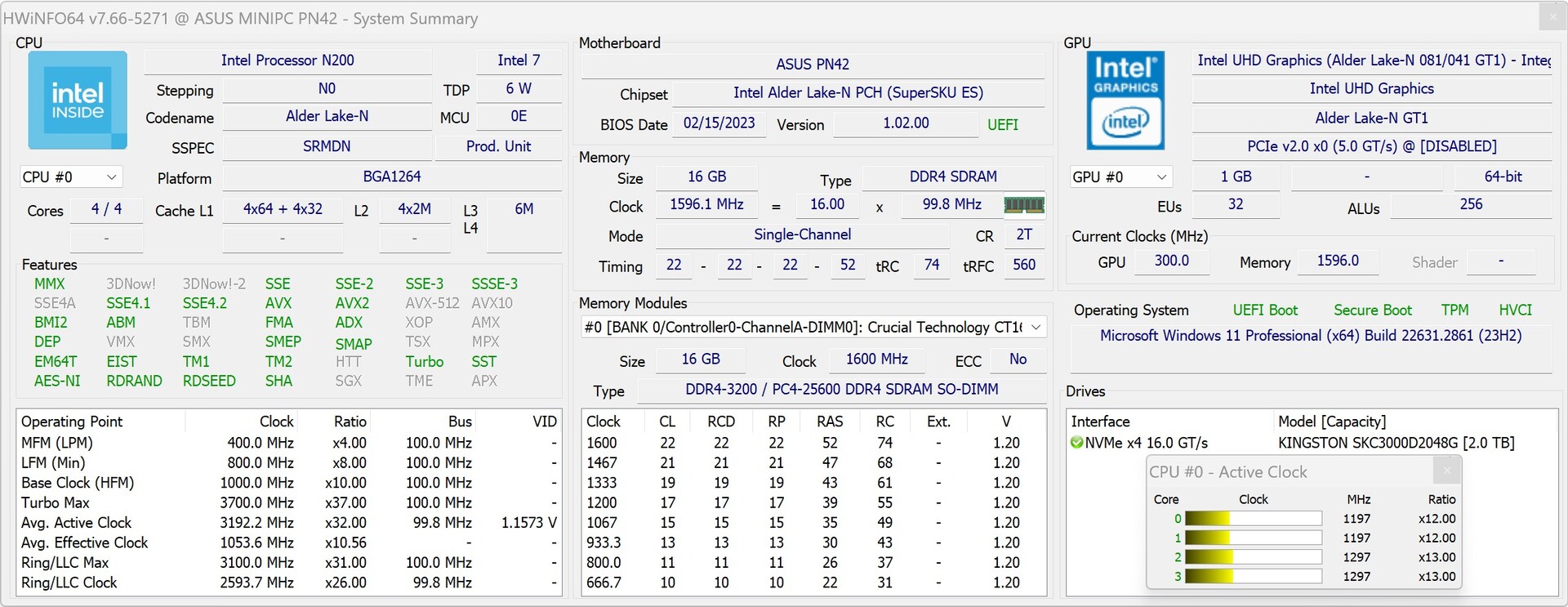

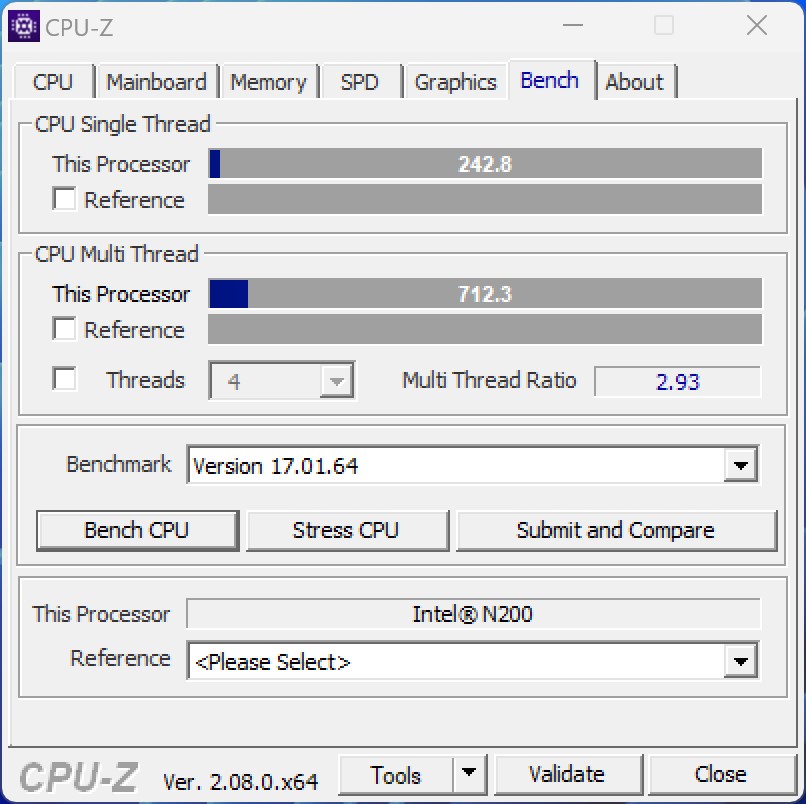

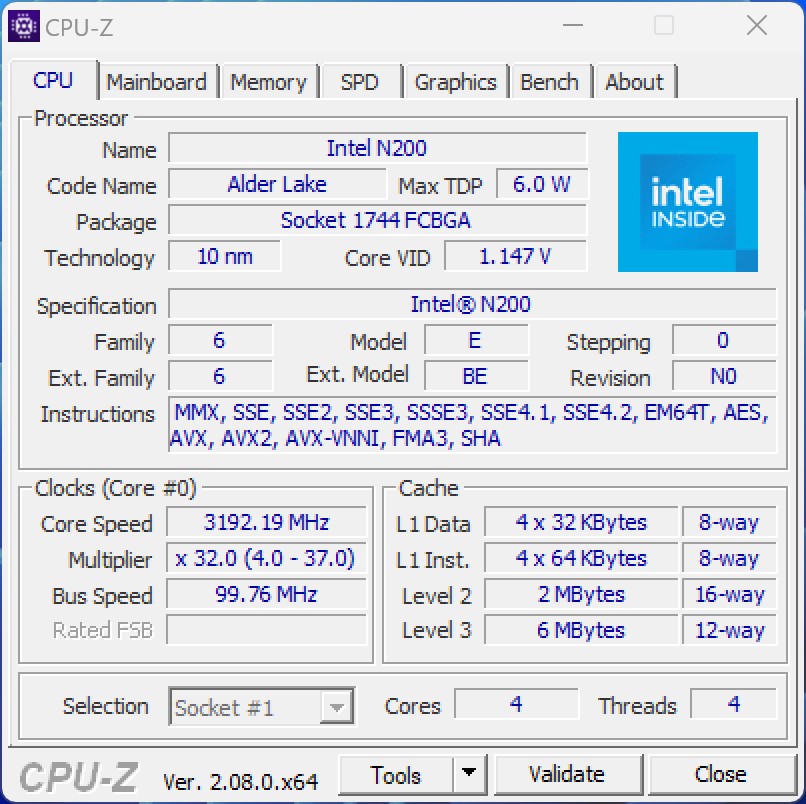

英特尔英特尔 N200是华硕 ExpertCenter PN42 的动力之源。该处理器基于 Alder Lake，提供四个原生内核，时钟频率高达 3.7 GHz。根据其规格，SoC 的运行功率可达 25 瓦，符合其短期 PL 2（功率限制）的要求。在我们的测试系统中，SoC 采用的是被动散热方式，这可能是这款本应更快的处理器无法赶上竞争对手的部分原因。与 Trigkey G4的英特尔 100的 Trigkey G4 相比，我们的测试样品在性能评级中输掉了 19%。华硕 ExpertCenter PN42 的内存仅使用 DDR4 标准。英特尔 N200 可以很容易地与速度稍快的 DDR5 内存相结合。不过，英特尔 N200 也只能使用单通道内存。只有新的流星湖处理器才有可能改变这一状况。

更多处理器基准测试这里。

Performance Rating - Percent
Trigkey G4 Intel Processor N100, 1000 MHz	31.5 pt
Blackview MP80 Intel Processor N95, MHz	31 pt
BOSGAME N95 Intel Processor N95, MHz	30.9 pt
Acemagic S1 Intel Processor N95, MHz	30.8 pt
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	28.3 pt
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 1000 MHz	26.6 pt
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	25.9 pt

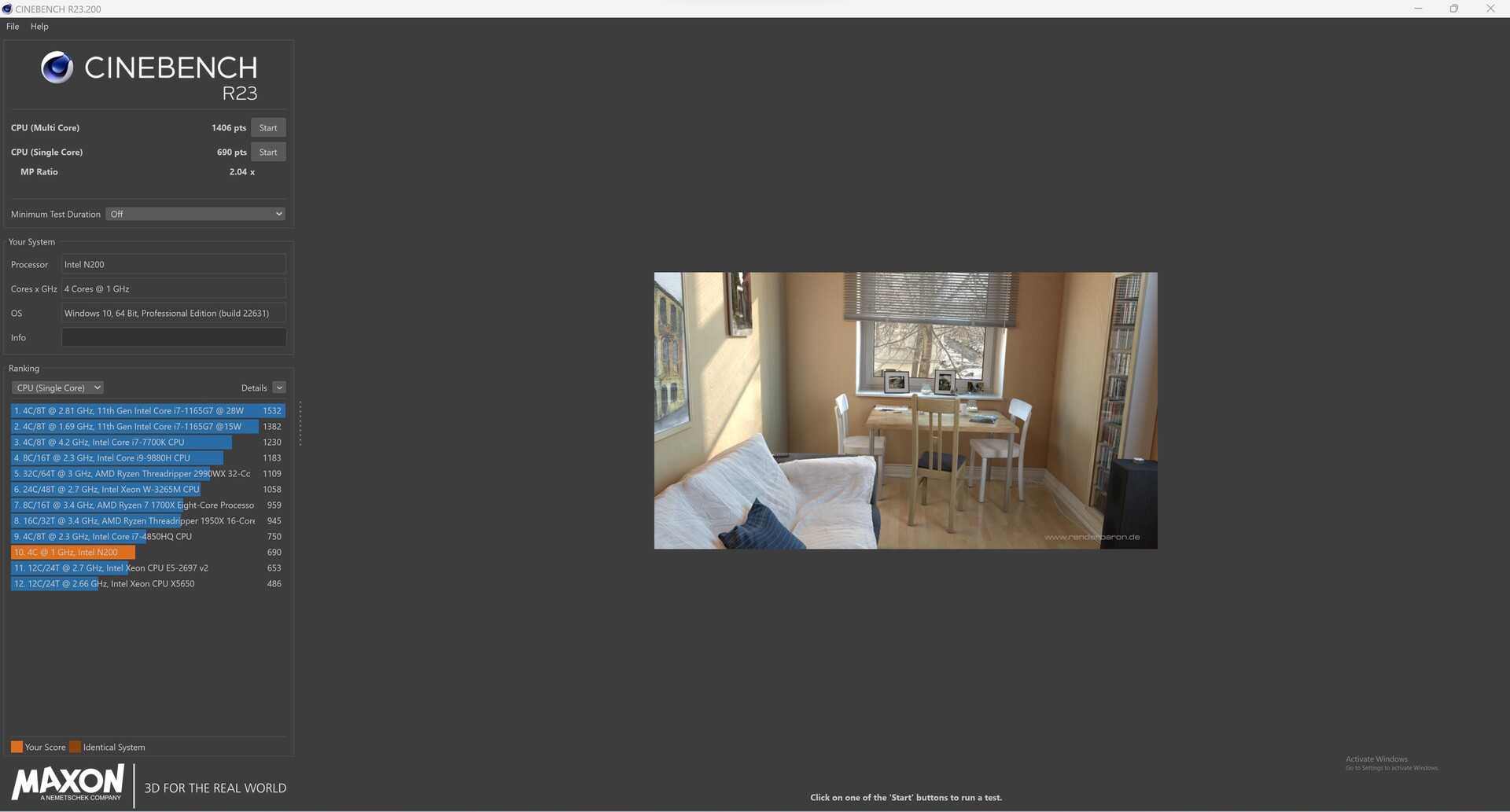

Cinebench R23
Single Core
Trigkey G4 Intel Processor N100, 1000 MHz	942 Points +37%
BOSGAME N95 Intel Processor N95, MHz	935 Points +36%
Acemagic S1 Intel Processor N95, MHz	933 Points +35%
Blackview MP80 Intel Processor N95, MHz	914 Points +32%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	700 Points +1%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 1000 MHz	690 Points
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	607 Points -12%
Multi Core
Trigkey G4 Intel Processor N100, 1000 MHz	2983 Points +112%
BOSGAME N95 Intel Processor N95, MHz	2785 Points +98%
Acemagic S1 Intel Processor N95, MHz	2769 Points +97%
Blackview MP80 Intel Processor N95, MHz	2686 Points +91%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	2528 Points +80%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2150 Points +53%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 1000 MHz	1406 Points

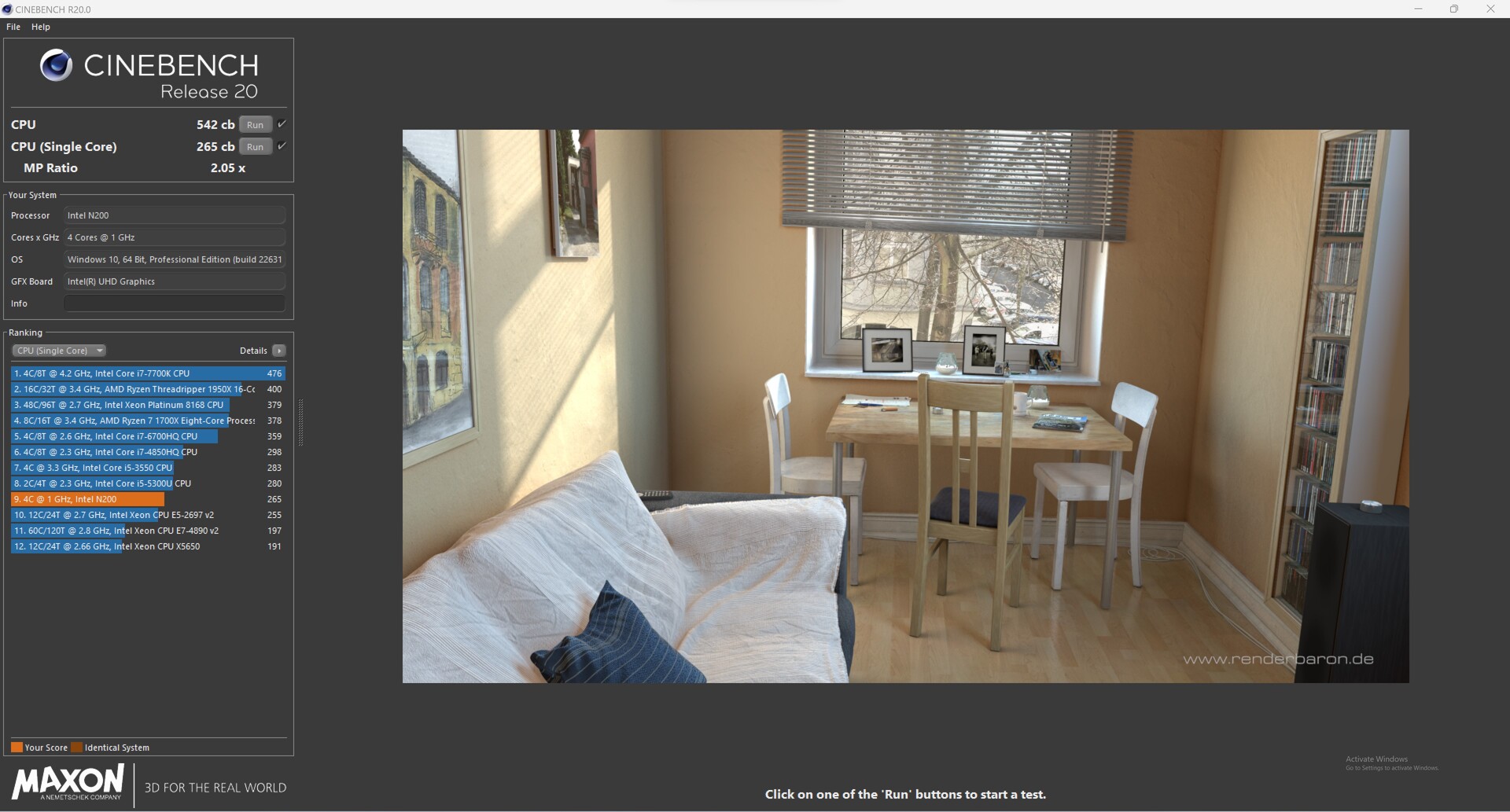

Cinebench R20
CPU (Single Core)
Trigkey G4 Intel Processor N100, 1000 MHz	358 Points +35%
BOSGAME N95 Intel Processor N95, MHz	357 Points +35%
Acemagic S1 Intel Processor N95, MHz	357 Points +35%
Blackview MP80 Intel Processor N95, MHz	350 Points +32%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 1000 MHz	265 Points
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	241 Points -9%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	233 Points -12%
CPU (Multi Core)
Trigkey G4 Intel Processor N100, 1000 MHz	1138 Points +110%
BOSGAME N95 Intel Processor N95, MHz	1067 Points +97%
Acemagic S1 Intel Processor N95, MHz	1050 Points +94%
Blackview MP80 Intel Processor N95, MHz	1029 Points +90%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	976 Points +80%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	822 Points +52%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 1000 MHz	542 Points

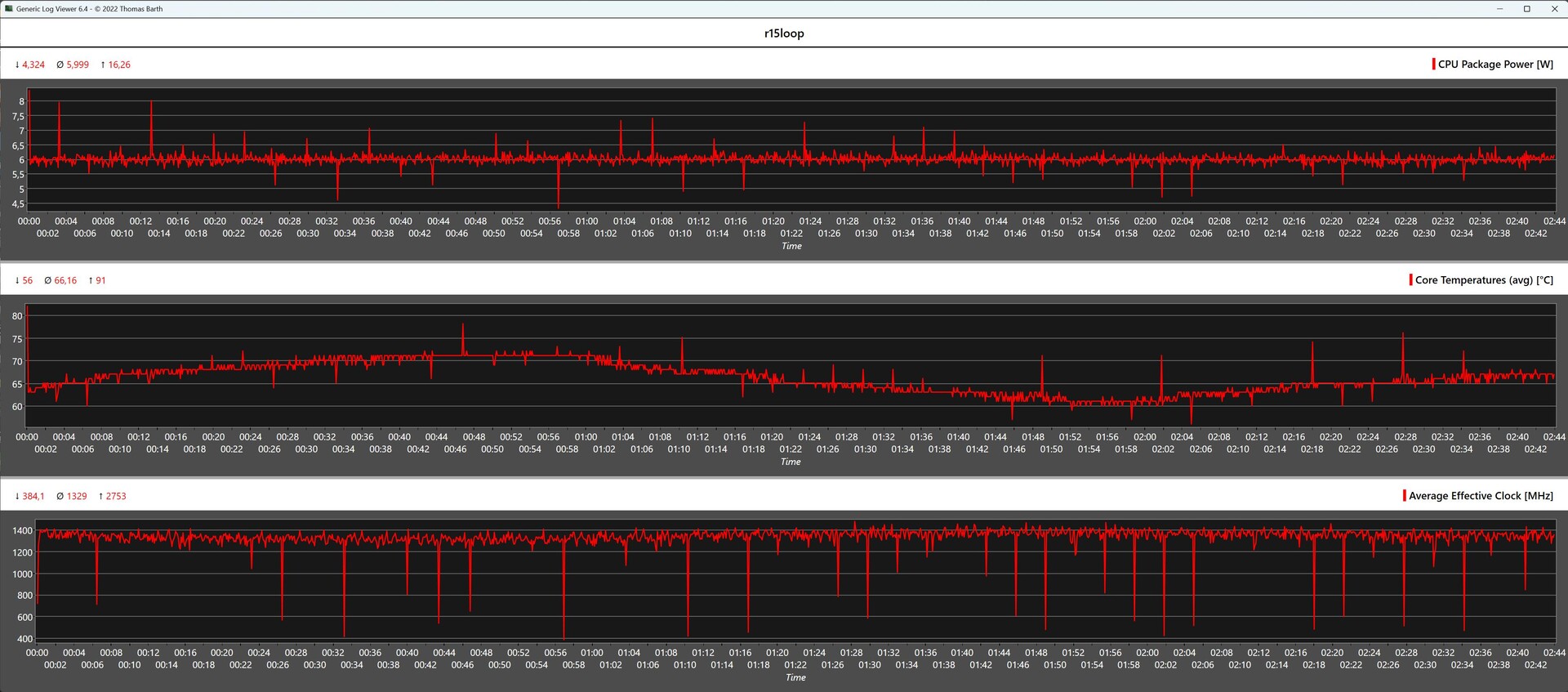

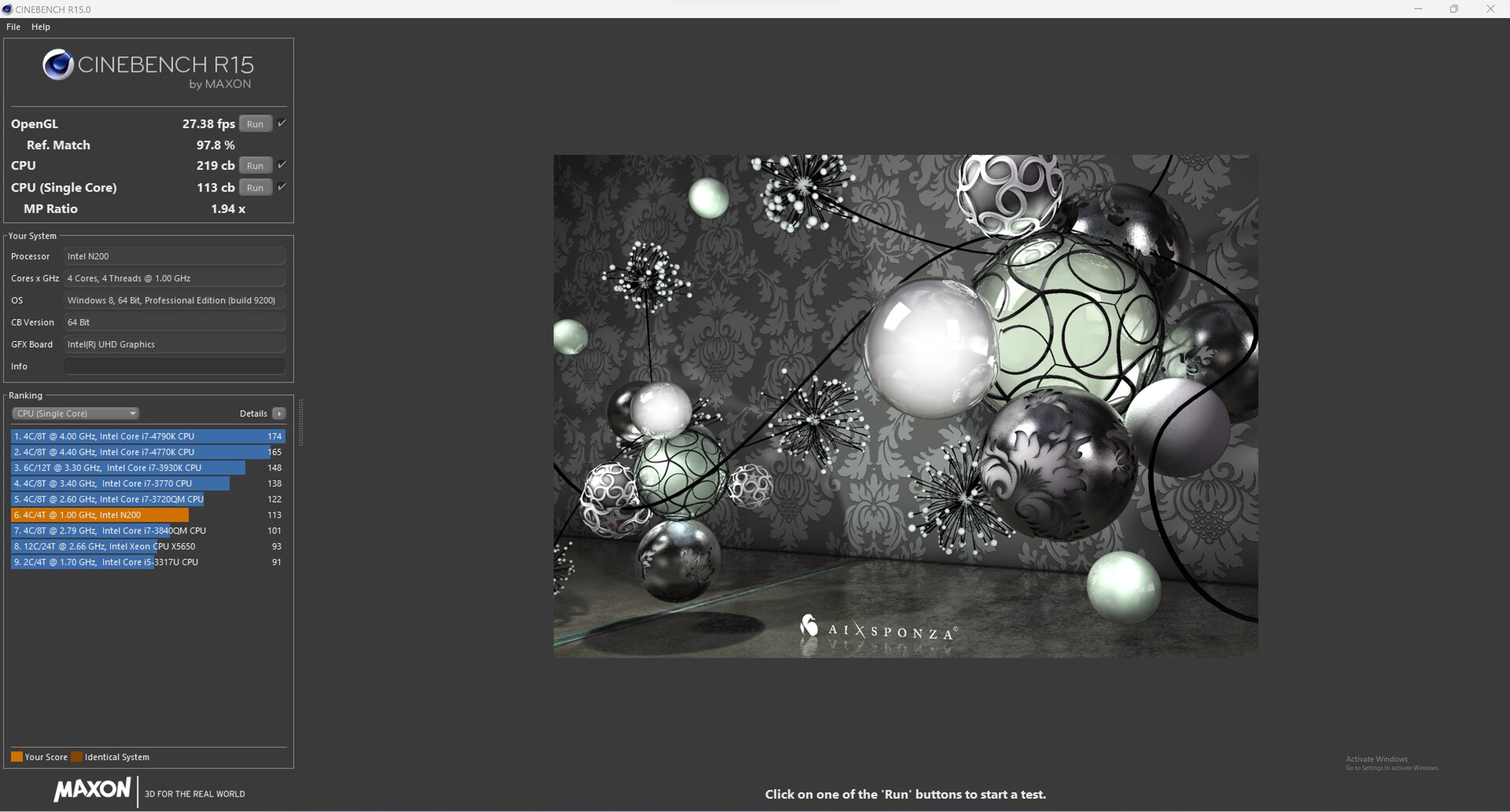

Cinebench R15
CPU Single 64Bit
BOSGAME N95 Intel Processor N95, MHz	155 Points +37%
Trigkey G4 Intel Processor N100, 1000 MHz	155 Points +37%
Acemagic S1 Intel Processor N95, MHz	154 Points +36%
Blackview MP80 Intel Processor N95, MHz	151 Points +34%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	123 Points +9%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 1000 MHz	113 Points
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	102 Points -10%
CPU Multi 64Bit
Trigkey G4 Intel Processor N100, 1000 MHz	477 Points +118%
BOSGAME N95 Intel Processor N95, MHz	452 Points +106%
Acemagic S1 Intel Processor N95, MHz	446 Points +104%
Blackview MP80 Intel Processor N95, MHz	434 Points +98%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	408 Points +86%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	359 Points +64%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 1000 MHz	219 Points

Cinebench R11.5
CPU Single 64Bit
Trigkey G4 Intel Processor N100, 1000 MHz	1.87 Points +38%
BOSGAME N95 Intel Processor N95, MHz	1.86 Points +37%
Acemagic S1 Intel Processor N95, MHz	1.85 Points +36%
Blackview MP80 Intel Processor N95, MHz	1.83 Points +35%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	1.49 Points +10%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 1000 MHz	1.36 Points
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	1.25 Points -8%
CPU Multi 64Bit
Trigkey G4 Intel Processor N100, 1000 MHz	5.99 Points +119%
BOSGAME N95 Intel Processor N95, MHz	5.62 Points +106%
Acemagic S1 Intel Processor N95, MHz	5.55 Points +103%
Blackview MP80 Intel Processor N95, MHz	5.41 Points +98%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	5.18 Points +90%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	4.65 Points +70%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 1000 MHz	2.73 Points

Cinebench R10
Rendering Single CPUs 64Bit
Trigkey G4 Intel Processor N100, 1000 MHz	8227 Points +38%
Acemagic S1 Intel Processor N95, MHz	8177 Points +37%
Blackview MP80 Intel Processor N95, MHz	8080 Points +35%
BOSGAME N95 Intel Processor N95, MHz	7574 Points +27%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	6562 Points +10%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 1000 MHz	5971 Points
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	5224 Points -13%
Rendering Multiple CPUs 64Bit
Trigkey G4 Intel Processor N100, 1000 MHz	24225 Points +120%
BOSGAME N95 Intel Processor N95, MHz	22275 Points +102%
Acemagic S1 Intel Processor N95, MHz	22261 Points +102%
Blackview MP80 Intel Processor N95, MHz	20565 Points +86%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	20429 Points +85%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	17278 Points +57%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 1000 MHz	11030 Points

Blender - v2.79 BMW27 CPU
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 1000 MHz	2150 Seconds *
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	1547 Seconds * +28%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	1152 Seconds * +46%
Blackview MP80 Intel Processor N95, MHz	1124 Seconds * +48%
Acemagic S1 Intel Processor N95, MHz	1113 Seconds * +48%
BOSGAME N95 Intel Processor N95, MHz	1103 Seconds * +49%
Trigkey G4 Intel Processor N100, 1000 MHz	1017 Seconds * +53%

wPrime 2.10
32m
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 1000 MHz	25.99 s *
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	19.202 s * +26%
BOSGAME N95 Intel Processor N95, MHz	18.213 s * +30%
Blackview MP80 Intel Processor N95, MHz	17.521 s * +33%
Acemagic S1 Intel Processor N95, MHz	16.565 s * +36%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	16.449 s * +37%
Trigkey G4 Intel Processor N100, 1000 MHz	15.795 s * +39%
1024m
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 1000 MHz	874.559 s *
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	605.375 s * +31%
BOSGAME N95 Intel Processor N95, MHz	568.939 s * +35%
Blackview MP80 Intel Processor N95, MHz	538.757 s * +38%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	535.88 s * +39%
Acemagic S1 Intel Processor N95, MHz	519.662 s * +41%
Trigkey G4 Intel Processor N100, 1000 MHz	481.652 s * +45%

X264 HD Benchmark 4.0
Pass 1
Trigkey G4 Intel Processor N100, 1000 MHz	172.55 (171.6^min - 175.2^max) fps +116%
Blackview MP80 Intel Processor N95, MHz	163.3 (162.1^min - 163.7^max) fps +104%
BOSGAME N95 Intel Processor N95, MHz	162.4 (161.9^min - 162.4^max) fps +103%
Acemagic S1 Intel Processor N95, MHz	161.9 (158.9^min - 162.5^max) fps +103%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	145.25 (144.9^min - 145.6^max) fps +82%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	112.75 (112^min - 114.5^max) fps +41%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 1000 MHz	79.95 (79^min - 109.2^max) fps
Pass 2
Trigkey G4 Intel Processor N100, 1000 MHz	33.85 (33.7^min - 35^max) fps +108%
BOSGAME N95 Intel Processor N95, MHz	32.45 (32.4^min - 32.5^max) fps +99%
Blackview MP80 Intel Processor N95, MHz	32.4 (32.4^min - 32.4^max) fps +99%
Acemagic S1 Intel Processor N95, MHz	32.4 (32.4^min - 32.5^max) fps +99%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	29.65 (29.5^min - 29.7^max) fps +82%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	24.75 (24.5^min - 25^max) fps +52%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 1000 MHz	16.3 (16.2^min - 16.4^max) fps

WinRAR - Result
Trigkey G4 Intel Processor N100, 1000 MHz	2431 KB/s +15%
Acemagic S1 Intel Processor N95, MHz	2391 KB/s +13%
BOSGAME N95 Intel Processor N95, MHz	2362 KB/s +12%
Blackview MP80 Intel Processor N95, MHz	2277 KB/s +8%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	2181 KB/s +3%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 1000 MHz	2115 KB/s
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	1630 KB/s -23%

TrueCrypt
AES Mean 100MB
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 1000 MHz	3.2 GB/s
Trigkey G4 Intel Processor N100, 1000 MHz	2.9 GB/s -9%
Blackview MP80 Intel Processor N95, MHz	2.8 GB/s -12%
BOSGAME N95 Intel Processor N95, MHz	2.7 GB/s -16%
Acemagic S1 Intel Processor N95, MHz	2.7 GB/s -16%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2.5 GB/s -22%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	2.4 GB/s -25%
Twofish Mean 100MB
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 1000 MHz	0.583 GB/s
Trigkey G4 Intel Processor N100, 1000 MHz	0.538 GB/s -8%
Blackview MP80 Intel Processor N95, MHz	0.501 GB/s -14%
Acemagic S1 Intel Processor N95, MHz	0.498 GB/s -15%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	0.497 GB/s -15%
BOSGAME N95 Intel Processor N95, MHz	0.492 GB/s -16%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	0.37 GB/s -37%
Serpent Mean 100MB
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 1000 MHz	0.287 GB/s
Trigkey G4 Intel Processor N100, 1000 MHz	0.262 GB/s -9%
Blackview MP80 Intel Processor N95, MHz	0.244 GB/s -15%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	0.243 GB/s -15%
BOSGAME N95 Intel Processor N95, MHz	0.239 GB/s -17%
Acemagic S1 Intel Processor N95, MHz	0.236 GB/s -18%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	0.198 GB/s -31%

Geekbench 5.5
Multi-Core
Trigkey G4 Intel Processor N100, 1000 MHz	2796 Points +82%
Blackview MP80 Intel Processor N95, MHz	2793 Points +81%
BOSGAME N95 Intel Processor N95, MHz	2616 Points +70%
Acemagic S1 Intel Processor N95, MHz	2566 Points +67%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	2391 Points +55%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2052 Points +33%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 1000 MHz	1540 Points
Single-Core
Trigkey G4 Intel Processor N100, 1000 MHz	1014 Points +9%
Blackview MP80 Intel Processor N95, MHz	1013 Points +9%
BOSGAME N95 Intel Processor N95, MHz	1007 Points +9%
Acemagic S1 Intel Processor N95, MHz	999 Points +8%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 1000 MHz	928 Points
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	804 Points -13%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	637 Points -31%

Geekbench 5.0
5.0 Multi-Core
Trigkey G4 Intel Processor N100, 1000 MHz	2753 Points +81%
Blackview MP80 Intel Processor N95, MHz	2737 Points +80%
BOSGAME N95 Intel Processor N95, MHz	2585 Points +70%
Acemagic S1 Intel Processor N95, MHz	2531 Points +67%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	2382 Points +57%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2041 Points +34%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 1000 MHz	1518 Points
5.0 Single-Core
Trigkey G4 Intel Processor N100, 1000 MHz	1008 Points +13%
Blackview MP80 Intel Processor N95, MHz	1005 Points +13%
BOSGAME N95 Intel Processor N95, MHz	1000 Points +12%
Acemagic S1 Intel Processor N95, MHz	993 Points +11%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 1000 MHz	891 Points
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	804 Points -10%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	638 Points -28%

Geekbench 4.4
64 Bit Single-Core Score
Blackview MP80 Intel Processor N95, MHz	4553 Points 0%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 1000 MHz	4552 Points
Trigkey G4 Intel Processor N100, 1000 MHz	4518 Points -1%
BOSGAME N95 Intel Processor N95, MHz	4495 Points -1%
Acemagic S1 Intel Processor N95, MHz	4450 Points -2%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	3591 Points -21%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2858 Points -37%
64 Bit Multi-Core Score
Trigkey G4 Intel Processor N100, 1000 MHz	10938 Points +10%
Blackview MP80 Intel Processor N95, MHz	10798 Points +8%
BOSGAME N95 Intel Processor N95, MHz	10299 Points +3%
Acemagic S1 Intel Processor N95, MHz	10228 Points +2%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 1000 MHz	9989 Points
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	9662 Points -3%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	7968 Points -20%

3DMark 11 - 1280x720 Performance Physics
Trigkey G4 Intel Processor N100, 1000 MHz	6129 Points +122%
Blackview MP80 Intel Processor N95, MHz	5806 Points +110%
BOSGAME N95 Intel Processor N95, MHz	5767 Points +109%
Acemagic S1 Intel Processor N95, MHz	5661 Points +105%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	5084 Points +84%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	4287 Points +55%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 1000 MHz	2765 Points

7-Zip 18.03
7z b 4
Trigkey G4 Intel Processor N100, 1000 MHz	13255 MIPS +85%
BOSGAME N95 Intel Processor N95, MHz	12224 MIPS +71%
Acemagic S1 Intel Processor N95, MHz	12190 MIPS +71%
Blackview MP80 Intel Processor N95, MHz	12177 MIPS +70%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	11654 MIPS +63%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	10924 MIPS +53%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 1000 MHz	7146 MIPS
7z b 4 -mmt1
Trigkey G4 Intel Processor N100, 1000 MHz	3908 MIPS +21%
Acemagic S1 Intel Processor N95, MHz	3866 MIPS +20%
Blackview MP80 Intel Processor N95, MHz	3843 MIPS +19%
BOSGAME N95 Intel Processor N95, MHz	3803 MIPS +18%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 1000 MHz	3230 MIPS
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	3121 MIPS -3%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2935 MIPS -9%

HWBOT x265 Benchmark v2.2 - 4k Preset
Trigkey G4 Intel Processor N100, 1000 MHz	3.49 fps +130%
Blackview MP80 Intel Processor N95, MHz	3.29 fps +116%
BOSGAME N95 Intel Processor N95, MHz	3.25 fps +114%
Acemagic S1 Intel Processor N95, MHz	3.17 fps +109%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	3.03 fps +99%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2.01 fps +32%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 1000 MHz	1.52 fps

R Benchmark 2.5 - Overall mean
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	1.2 sec * -4%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 1000 MHz	1.149 sec *
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	1.032 sec * +10%
Acemagic S1 Intel Processor N95, MHz	0.837 sec * +27%
BOSGAME N95 Intel Processor N95, MHz	0.834 sec * +27%
Blackview MP80 Intel Processor N95, MHz	0.83 sec * +28%
Trigkey G4 Intel Processor N100, 1000 MHz	0.824 sec * +28%

LibreOffice - 20 Documents To PDF
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 1000 MHz	120 s *
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	103.6 s * +14%
Acemagic S1 Intel Processor N95, MHz	89.3 s * +26%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	80.4 s * +33%
BOSGAME N95 Intel Processor N95, MHz	74.6 s * +38%
Blackview MP80 Intel Processor N95, MHz	68.3 s * +43%
Trigkey G4 Intel Processor N100, 1000 MHz	67 s * +44%

WebXPRT 3 - Overall
Trigkey G4 Intel Processor N100, 1000 MHz	187.4 Points +9%
Blackview MP80 Intel Processor N95, MHz	183.4 Points +7%
BOSGAME N95 Intel Processor N95, MHz	179.4 Points +5%
Acemagic S1 Intel Processor N95, MHz	178.3 Points +4%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 1000 MHz	171.3 Points
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	155.3 Points -9%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	127.2 Points -26%

Mozilla Kraken 1.1 - Total
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	1619 ms * -11%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 1000 MHz	1460 ms *
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	1238 ms * +15%
BOSGAME N95 Intel Processor N95, MHz	1056 ms * +28%
Acemagic S1 Intel Processor N95, MHz	1033 ms * +29%
Blackview MP80 Intel Processor N95, MHz	1026 ms * +30%
Trigkey G4 Intel Processor N100, 1000 MHz	1004 ms * +31%

3DMark - 1920x1080 Fire Strike Physics
Trigkey G4 Intel Processor N100, 1000 MHz	6522 Points +58%
Blackview MP80 Intel Processor N95, MHz	6062 Points +47%
BOSGAME N95 Intel Processor N95, MHz	5952 Points +44%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	5903 Points +43%
Acemagic S1 Intel Processor N95, MHz	5701 Points +38%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	5535 Points +34%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 1000 MHz	4135 Points

* ... smaller is better

Performance Rating
Average of class Mini PC	100 pt
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	18.9 pt
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, UHD Graphics Xe 750 32EUs	16.7 pt
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	9.6 pt
Trigkey G4 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	9.6 pt
Acemagic S1 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	9.2 pt
BOSGAME N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	9.1 pt
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	8.6 pt

AIDA64 / FP32 Ray-Trace
Average of class Mini PC (561 - 51004, n=118, last 2 years)	12276 KRay/s +787%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, UHD Graphics Xe 750 32EUs	1384 KRay/s
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	1242 KRay/s -10%
Trigkey G4 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	837 KRay/s -40%
Acemagic S1 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	770 KRay/s -44%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	769 KRay/s -44%
BOSGAME N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	764 KRay/s -45%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	744 KRay/s -46%

AIDA64 / FPU Julia
Average of class Mini PC (3604 - 214250, n=118, last 2 years)	62123 Points +752%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	7457 Points +2%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, UHD Graphics Xe 750 32EUs	7292 Points
Trigkey G4 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	4397 Points -40%
BOSGAME N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	4144 Points -43%
Acemagic S1 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	4141 Points -43%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	4140 Points -43%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	3970 Points -46%

AIDA64 / CPU SHA3
Average of class Mini PC (225 - 9399, n=118, last 2 years)	2738 MB/s +488%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	514 MB/s +10%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, UHD Graphics Xe 750 32EUs	466 MB/s
Trigkey G4 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	308 MB/s -34%
BOSGAME N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	290 MB/s -38%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	290 MB/s -38%
Acemagic S1 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	290 MB/s -38%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	270 MB/s -42%

AIDA64 / CPU Queen
Average of class Mini PC (8172 - 184747, n=118, last 2 years)	77819 Points +233%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, UHD Graphics Xe 750 32EUs	23345 Points
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	22326 Points -4%
Trigkey G4 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	8663 Points -63%
Acemagic S1 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	8208 Points -65%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	8186 Points -65%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	8178 Points -65%
BOSGAME N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	8172 Points -65%

AIDA64 / FPU SinJulia
Average of class Mini PC (408 - 29064, n=118, last 2 years)	8454 Points +758%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	1002 Points +2%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, UHD Graphics Xe 750 32EUs	985 Points
Trigkey G4 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	432 Points -56%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	408 Points -59%
BOSGAME N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	408 Points -59%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	408 Points -59%
Acemagic S1 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	408 Points -59%

AIDA64 / FPU Mandel
Average of class Mini PC (1958 - 113499, n=118, last 2 years)	32406 Points +788%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	3961 Points +9%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, UHD Graphics Xe 750 32EUs	3648 Points
Trigkey G4 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	2220 Points -39%
BOSGAME N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	2092 Points -43%
Acemagic S1 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	2089 Points -43%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	2088 Points -43%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	1987 Points -46%

AIDA64 / CPU AES
Average of class Mini PC (3691 - 325960, n=118, last 2 years)	85412 MB/s +876%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	19350 MB/s +121%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, UHD Graphics Xe 750 32EUs	8752 MB/s
Trigkey G4 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	8421 MB/s -4%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	7961 MB/s -9%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	7954 MB/s -9%
BOSGAME N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	7951 MB/s -9%
Acemagic S1 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	7948 MB/s -9%

AIDA64 / CPU ZLib
Average of class Mini PC (74.8 - 2039, n=118, last 2 years)	709 MB/s +431%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	188.1 MB/s +41%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, UHD Graphics Xe 750 32EUs	133.4 MB/s
Trigkey G4 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	81.9 MB/s -39%
Acemagic S1 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	77.7 MB/s -42%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	77.4 MB/s -42%
BOSGAME N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	76.7 MB/s -43%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	74.9 MB/s -44%

AIDA64 / FP64 Ray-Trace
Average of class Mini PC (308 - 26952, n=118, last 2 years)	6564 KRay/s +831%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, UHD Graphics Xe 750 32EUs	705 KRay/s
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	676 KRay/s -4%
Trigkey G4 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	465 KRay/s -34%
BOSGAME N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	433 KRay/s -39%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	432 KRay/s -39%
Acemagic S1 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	432 KRay/s -39%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	412 KRay/s -42%

AIDA64 / CPU PhotoWorxx
Average of class Mini PC (4408 - 50500, n=118, last 2 years)	27624 MPixel/s +192%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	9899 MPixel/s +5%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, UHD Graphics Xe 750 32EUs	9467 MPixel/s
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	6599 MPixel/s -30%
Trigkey G4 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	5384 MPixel/s -43%
Acemagic S1 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	5333 MPixel/s -44%
BOSGAME N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	5296 MPixel/s -44%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	4408 MPixel/s -53%

华硕 ExpertCenter PN42 与 Cinebench R15 多循环对比

通过 Cinebench R15 连续循环测试，我们首次了解了所安装的散热装置在长期负载下的性能表现。正如其规格中所述，SoC 的运行功率最高可达 25 瓦。从遥测数据来看，英特尔 N200 SoC 的功率极限在测试开始时仅为 16 瓦。与此同时，它的温度急剧上升，使其无法继续使用更高的功率极限。在平均 6 瓦的情况下，SoC 艰难地完成了 50 个 Cinebench R15 循环。

Asus ExpertCenter PN42-BBN200MV Intel Processor N200, Intel Processor N200: Ø210 (198.23-215.98)

Acemagic S1 Intel Processor N95, Intel Processor N95: Ø440 (431.21-442.98)

Blackview MP80 Intel Processor N95, Intel Processor N95: Ø425 (410.8-428.48)

BOSGAME N95 Intel Processor N95, Intel Processor N95: Ø421 (417.99-423.28)

Trigkey G4 Intel Processor N100, Intel Processor N100: Ø465 (453-467.97)

Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, Intel Processor N95: Ø404 (398.46-406.91)

Minipc Union Ace Magician T8Pro Intel Celeron N5095, Intel Celeron N5095: Ø362 (359.44-363.62)

系统性能

该设备有限的 CPU 性能反映在 Crossmark 的系统性能结果上。与此同时，华硕 ExpertCenter PN42 在 AIDA64 测试中的内存性能表现也相当不错。

CrossMark: Overall | Responsiveness | Creativity | Productivity

CrossMark / Overall
Acemagic S1, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), BiWin CE480Y2D100-1TB	820 Points +34%
BOSGAME N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kingston OM8SEP4256Q-A0	773 Points +26%
Blackview MP80, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Netac NS512GSSD330	764 Points +24%
Trigkey G4, Intel Processor N100 Intel UHD Graphics 24EUs (Alder Lake-N),	735 Points +20%
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB	666 Points +8%
Asus ExpertCenter PN42-BBN200MV, Intel Processor N200 Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Kingston KC3000 2048G SKC3000D2048G	614 Points
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	495 Points -19%

CrossMark / Responsiveness
Acemagic S1, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), BiWin CE480Y2D100-1TB	895 Points +55%
BOSGAME N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kingston OM8SEP4256Q-A0	755 Points +31%
Trigkey G4, Intel Processor N100 Intel UHD Graphics 24EUs (Alder Lake-N),	710 Points +23%
Blackview MP80, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Netac NS512GSSD330	709 Points +23%
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB	661 Points +15%
Asus ExpertCenter PN42-BBN200MV, Intel Processor N200 Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Kingston KC3000 2048G SKC3000D2048G	577 Points
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	497 Points -14%

CrossMark / Creativity
Blackview MP80, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Netac NS512GSSD330	739 Points +32%
Acemagic S1, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), BiWin CE480Y2D100-1TB	721 Points +29%
BOSGAME N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kingston OM8SEP4256Q-A0	714 Points +28%
Trigkey G4, Intel Processor N100 Intel UHD Graphics 24EUs (Alder Lake-N),	676 Points +21%
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB	616 Points +10%
Asus ExpertCenter PN42-BBN200MV, Intel Processor N200 Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Kingston KC3000 2048G SKC3000D2048G	560 Points
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	438 Points -22%

CrossMark / Productivity
Acemagic S1, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), BiWin CE480Y2D100-1TB	907 Points +32%
BOSGAME N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kingston OM8SEP4256Q-A0	843 Points +23%
Blackview MP80, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Netac NS512GSSD330	810 Points +18%
Trigkey G4, Intel Processor N100 Intel UHD Graphics 24EUs (Alder Lake-N),	808 Points +17%
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB	721 Points +5%
Asus ExpertCenter PN42-BBN200MV, Intel Processor N200 Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Kingston KC3000 2048G SKC3000D2048G	688 Points
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	558 Points -19%

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Average of class Mini PC (6481 - 89287, n=118, last 2 years)	47240 MB/s +149%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	22138 MB/s +17%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, UHD Graphics Xe 750 32EUs	18937 MB/s
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	12715 MB/s -33%
Acemagic S1 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	8472 MB/s -55%
BOSGAME N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	8458 MB/s -55%
Trigkey G4 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	8377 MB/s -56%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	6481 MB/s -66%

AIDA64 / Memory Read
Average of class Mini PC (6914 - 98398, n=118, last 2 years)	47897 MB/s +160%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, UHD Graphics Xe 750 32EUs	18451 MB/s
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	15464 MB/s -16%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	11247 MB/s -39%
Acemagic S1 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	9130 MB/s -51%
BOSGAME N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	9027 MB/s -51%
Trigkey G4 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	8974 MB/s -51%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	6914 MB/s -63%

AIDA64 / Memory Write
Average of class Mini PC (6862 - 98583, n=118, last 2 years)	51663 MB/s +139%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	30843 MB/s +43%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, UHD Graphics Xe 750 32EUs	21626 MB/s
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	14266 MB/s -34%
Acemagic S1 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	9047 MB/s -58%
BOSGAME N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	8959 MB/s -59%
Trigkey G4 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	8762 MB/s -59%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	6862 MB/s -68%

AIDA64 / Memory Latency
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	146 ns * -176%
Acemagic S1 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	125.8 ns * -138%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	124.9 ns * -136%
Trigkey G4 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	120.6 ns * -128%
BOSGAME N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	119.8 ns * -126%
Average of class Mini PC (44.9 - 184.8, n=118, last 2 years)	91.8 ns * -74%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	74.1 ns * -40%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, UHD Graphics Xe 750 32EUs	52.9 ns *

* ... smaller is better

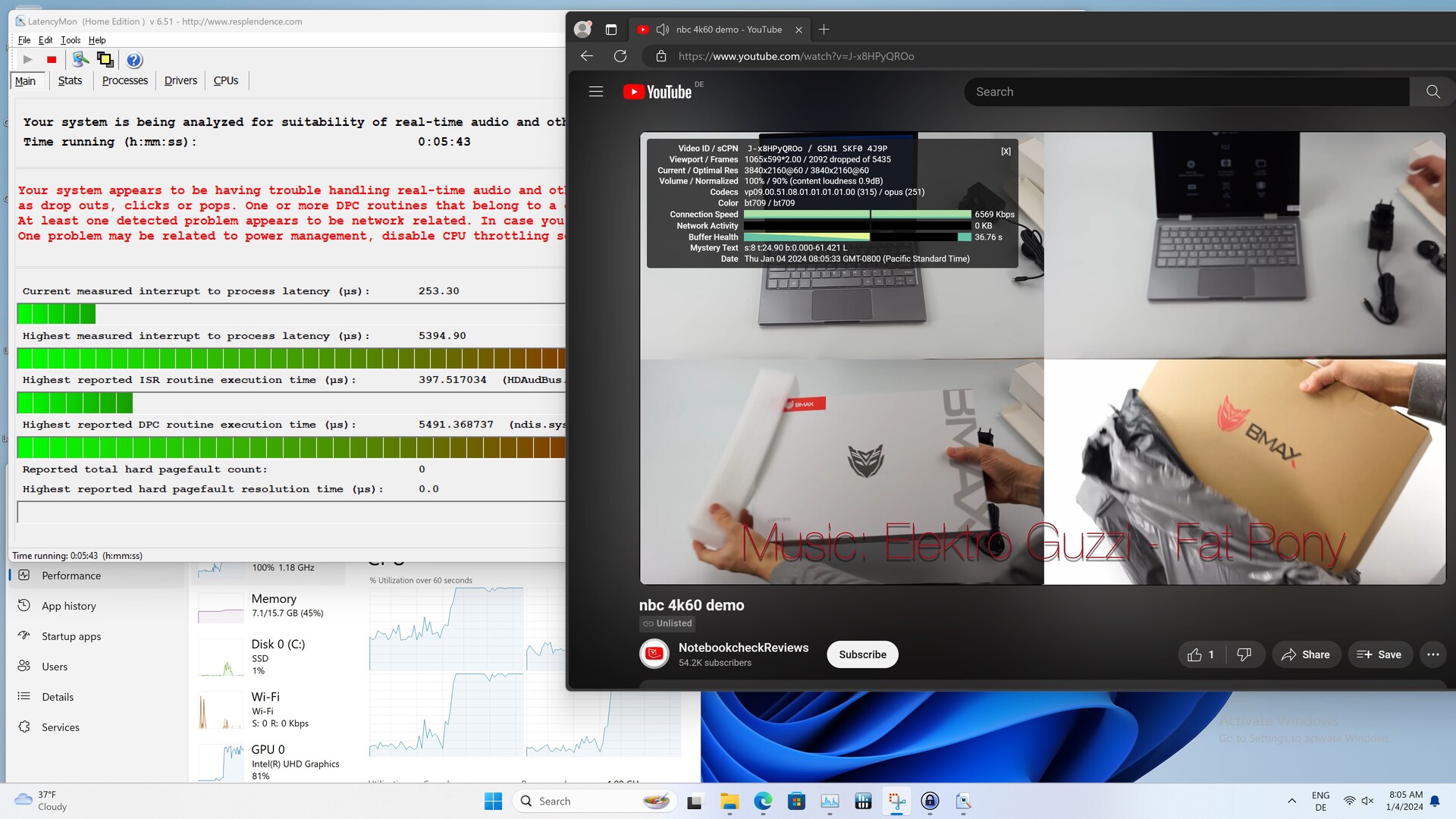

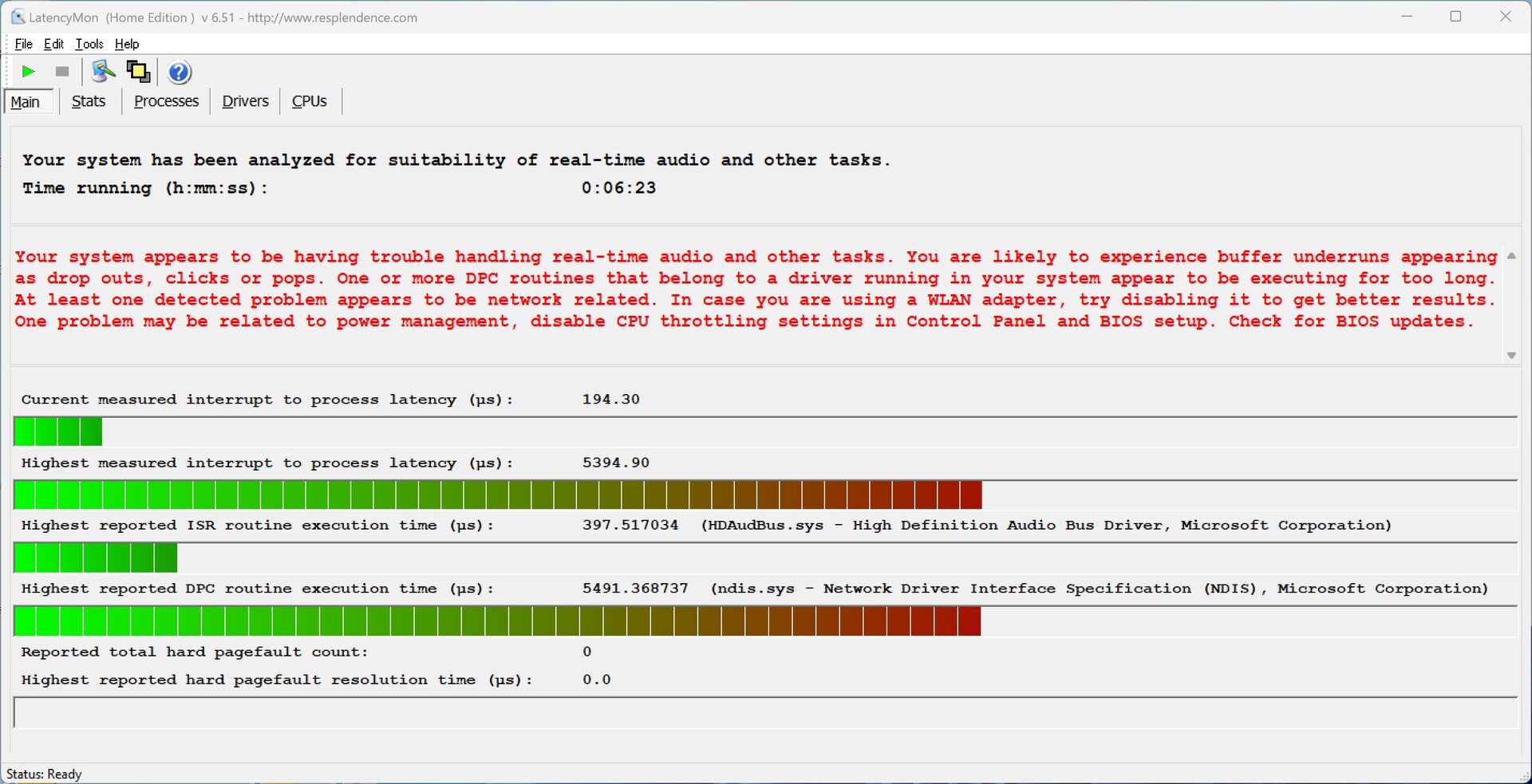

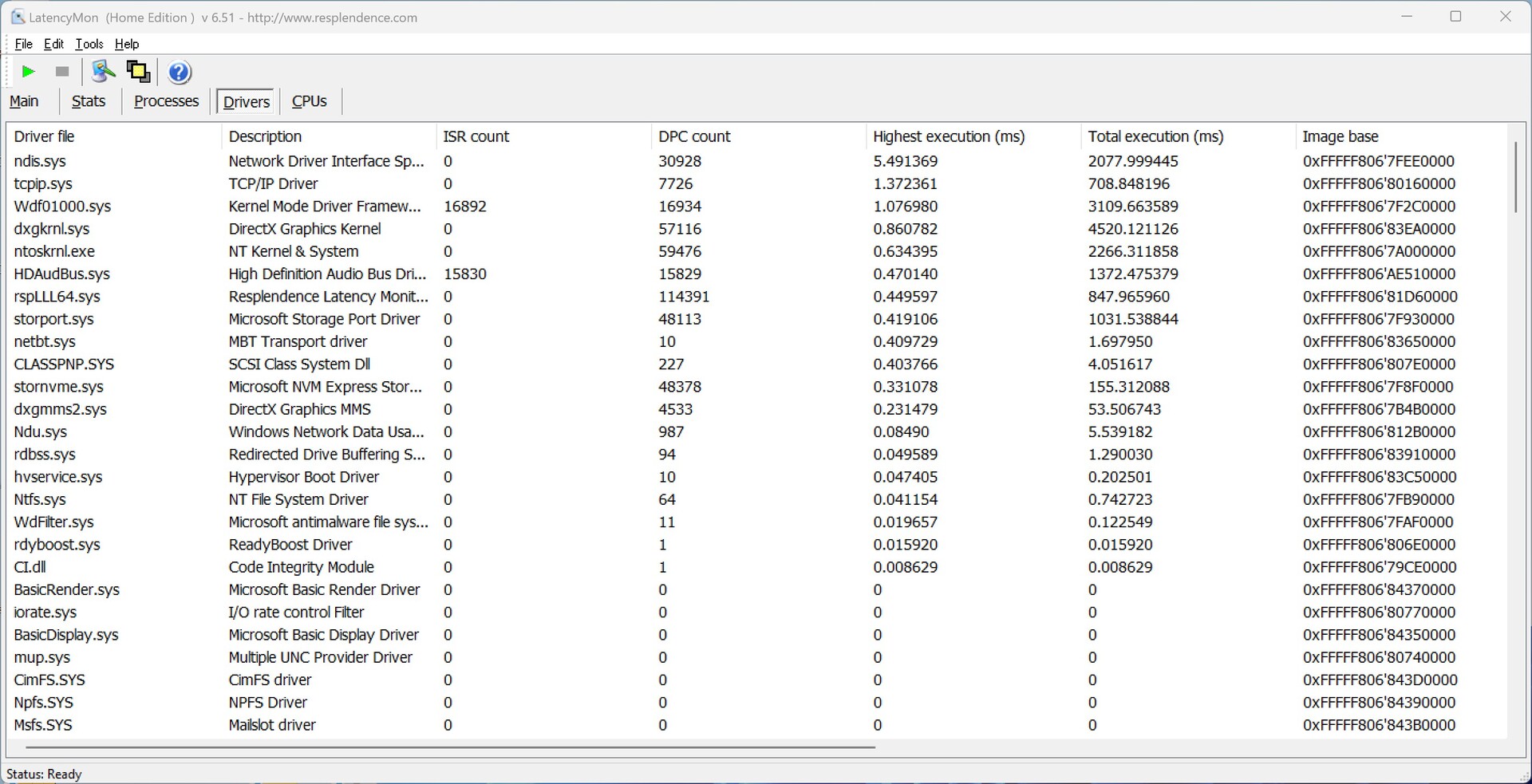

DPC 延迟

在延迟方面，华硕 ExpertCenter PN42 存在一些明显的问题。在 Edge 中打开多个标签页对这款迷你电脑来说仍然没有问题。但是，在播放 4K 测试视频时，其延迟迅速上升。英特尔 N200 似乎成了瓶颈，无法流畅地播放视频。

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Asus ExpertCenter PN42-BBN200MV, Intel Processor N200 Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Kingston KC3000 2048G SKC3000D2048G	5491 μs *
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	4075 μs * +26%
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB	3463 μs * +37%
BOSGAME N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kingston OM8SEP4256Q-A0	1165.5 μs * +79%
Blackview MP80, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Netac NS512GSSD330	817.1 μs * +85%
Trigkey G4, Intel Processor N100 Intel UHD Graphics 24EUs (Alder Lake-N),	561.2 μs * +90%
Acemagic S1, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), BiWin CE480Y2D100-1TB	367.2 μs * +93%

* ... smaller is better

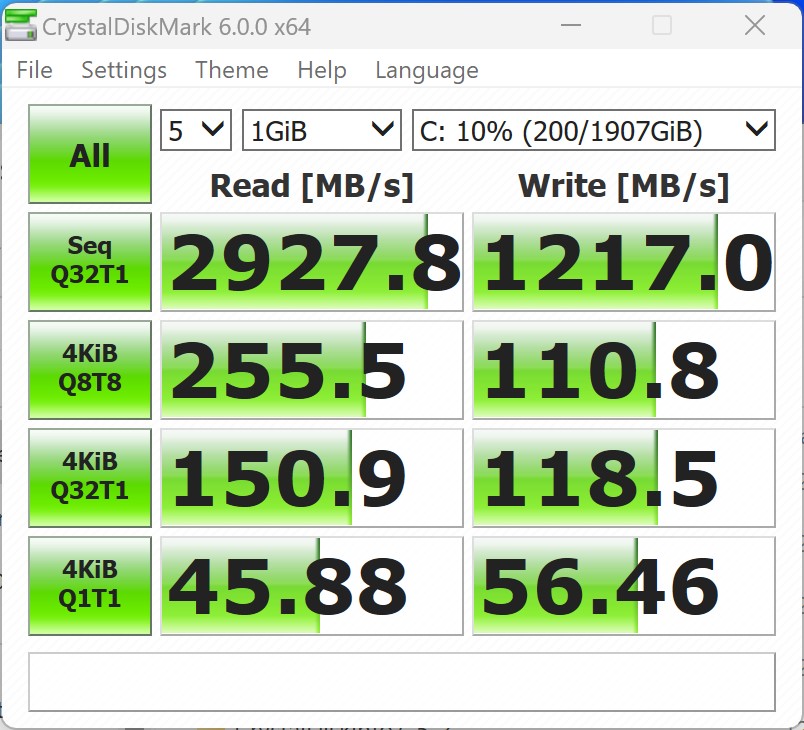

存储设备

由于我们只拿到了华硕ExpertCenter PN42的裸机版本，因此必须使用我们库存中的固态硬盘。我们决定使用 2 TB 的金士顿 SKC3000 固态硬盘。遗憾的是，PCIe-4.0.由于华硕ExpertCenter PN42仅支持PCIe-3.0固态硬盘，因此无法充分发挥固态硬盘的潜力。我们记录的传输速率远远低于固态硬盘应有的性能。另一方面，在日常使用中你应该不会注意到这一点，因为固态硬盘在一天结束时仍能提供不错的价值。华硕 ExpertCenter PN42 只能配备一块 NVMe 固态硬盘。

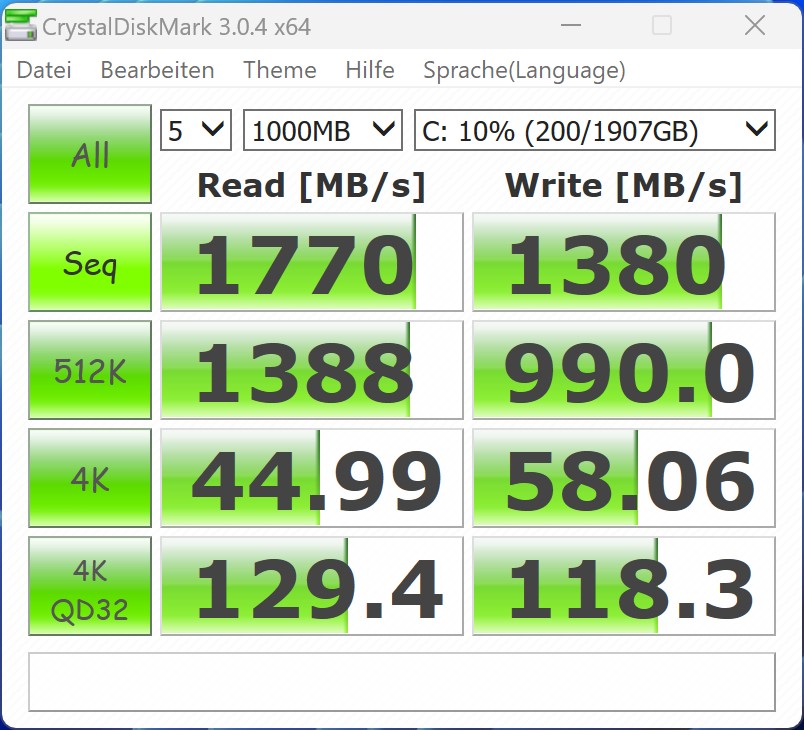

CrystalDiskMark 3.0

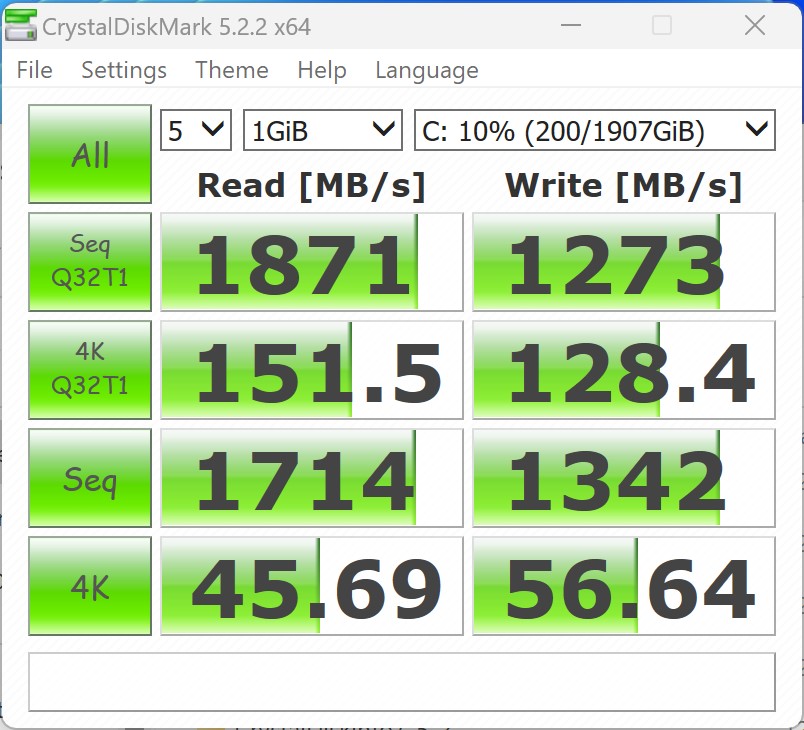

CrystalDiskMark 5.2 / 6

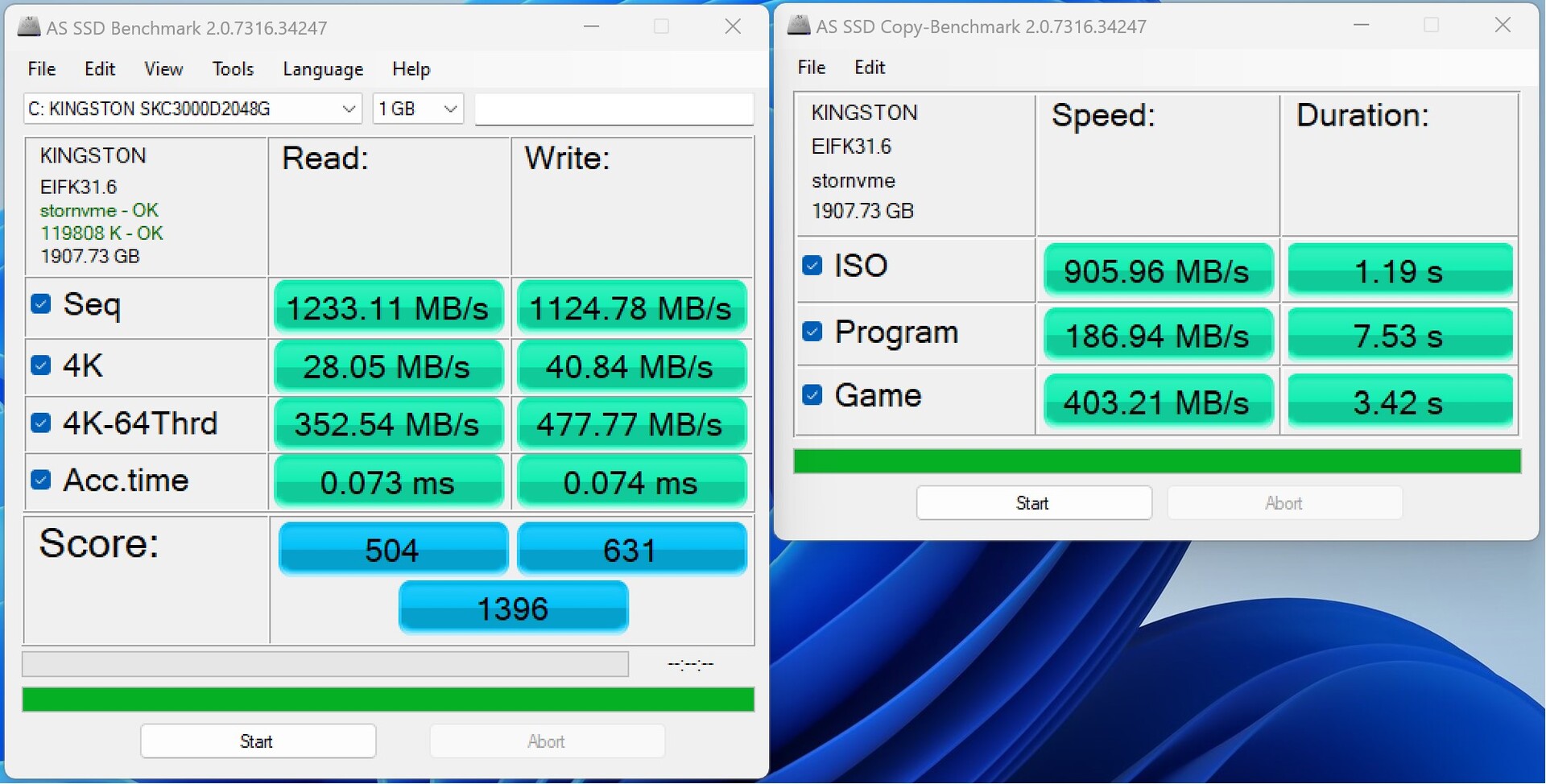

AS SSD

DiskSpd

Kingston KC3000 2048G SKC3000D2048G

Sequential Read: 1770 MB/s

Sequential Write: 1380 MB/s

512K Read: 1388 MB/s

512K Write: 990 MB/s

4K Read: 44.99 MB/s

4K Write: 58.06 MB/s

4K QD32 Read: 129.4 MB/s

4K QD32 Write: 118.3 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Average of class Mini PC	91.7 pt
Acemagic S1 BiWin CE480Y2D100-1TB	62.2 pt
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	45.5 pt
Trigkey G4	38.2 pt
BOSGAME N95 Kingston OM8SEP4256Q-A0	36.5 pt
Blackview MP80 Netac NS512GSSD330	25.6 pt
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	25.1 pt
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	21.4 pt

DiskSpd
seq read
Average of class Mini PC (233 - 4357, n=118, last 2 years)	2284 MB/s +17%
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	1948 (1560.49^min - 1947.92^max) MB/s
Acemagic S1 BiWin CE480Y2D100-1TB	1354 (1350.96^min - 1354.32^max) MB/s -30%
BOSGAME N95 Kingston OM8SEP4256Q-A0	762 (757.28^min - 762.31^max) MB/s -61%
Trigkey G4	729 (705.12^min - 729.18^max) MB/s -63%
Blackview MP80 Netac NS512GSSD330	542 (541.31^min - 542.36^max) MB/s -72%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	472 (470.6^min - 472.28^max) MB/s -76%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	459 (458.57^min - 459.41^max) MB/s -76%
seq write
Average of class Mini PC (222 - 5595, n=118, last 2 years)	2438 MB/s +59%
Acemagic S1 BiWin CE480Y2D100-1TB	1553 (1542.6^min - 1552.69^max) MB/s +1%
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	1535 (1194.25^min - 1534.56^max) MB/s
BOSGAME N95 Kingston OM8SEP4256Q-A0	649 (644.49^min - 649.49^max) MB/s -58%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	494 (488.92^min - 494.36^max) MB/s -68%
Blackview MP80 Netac NS512GSSD330	476 (138.2^min - 475.75^max) MB/s -69%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	463 (451.31^min - 462.72^max) MB/s -70%
Trigkey G4	339 (329.88^min - 338.64^max) MB/s -78%
seq q8 t1 read
Average of class Mini PC (236 - 8430, n=118, last 2 years)	3694 MB/s +79%
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	2058 (1971.74^min - 2057.94^max) MB/s
Acemagic S1 BiWin CE480Y2D100-1TB	1776 (1520.44^min - 1776.28^max) MB/s -14%
Trigkey G4	864 (619.52^min - 864.45^max) MB/s -58%
BOSGAME N95 Kingston OM8SEP4256Q-A0	820 (687.12^min - 820.02^max) MB/s -60%
Blackview MP80 Netac NS512GSSD330	556 (424.25^min - 556.44^max) MB/s -73%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	550 (465.68^min - 549.87^max) MB/s -73%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	504 (458.23^min - 504.4^max) MB/s -76%
seq q8 t1 write
Average of class Mini PC (228 - 6669, n=118, last 2 years)	2736 MB/s +31%
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	2086 (1404.04^min - 2086.06^max) MB/s
Acemagic S1 BiWin CE480Y2D100-1TB	1658 (1643.05^min - 1658.18^max) MB/s -21%
BOSGAME N95 Kingston OM8SEP4256Q-A0	684 (677.48^min - 683.67^max) MB/s -67%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	519 (472.8^min - 519.47^max) MB/s -75%
Blackview MP80 Netac NS512GSSD330	489 (220.62^min - 488.78^max) MB/s -77%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	466 (442.13^min - 465.87^max) MB/s -78%
Trigkey G4	346 (322.53^min - 346.45^max) MB/s -83%
4k q1 t1 read
Acemagic S1 BiWin CE480Y2D100-1TB	59.4 (58.56^min - 59.37^max) MB/s +12%
Average of class Mini PC (5.67 - 86.6, n=118, last 2 years)	55.1 MB/s +4%
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	52.9 (39.99^min - 52.89^max) MB/s
BOSGAME N95 Kingston OM8SEP4256Q-A0	45.9 (45.49^min - 45.92^max) MB/s -13%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	33.9 (33.27^min - 33.91^max) MB/s -36%
Blackview MP80 Netac NS512GSSD330	32.5 (32.38^min - 32.5^max) MB/s -39%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	25.9 (25.82^min - 25.85^max) MB/s -51%
Trigkey G4	8.85 (2.72^min - 8.85^max) MB/s -83%
4k q1 t1 write
Average of class Mini PC (30.4 - 435, n=118, last 2 years)	195.6 MB/s +164%
Trigkey G4	128.4 (124.08^min - 128.36^max) MB/s +74%
Acemagic S1 BiWin CE480Y2D100-1TB	128.1 (126.86^min - 128.09^max) MB/s +73%
BOSGAME N95 Kingston OM8SEP4256Q-A0	96.7 (95.09^min - 96.72^max) MB/s +31%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	96 (93.72^min - 96.04^max) MB/s +30%
Blackview MP80 Netac NS512GSSD330	88.1 (66.88^min - 88.14^max) MB/s +19%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	74.1 (72.55^min - 74.09^max) MB/s 0%
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	74 (57.85^min - 73.96^max) MB/s
4k q32 t16 read
Average of class Mini PC (26.1 - 4158, n=118, last 2 years)	1349 MB/s +316%
Acemagic S1 BiWin CE480Y2D100-1TB	1175 (1165.24^min - 1174.82^max) MB/s +263%
Trigkey G4	581 (553.76^min - 581.49^max) MB/s +79%
BOSGAME N95 Kingston OM8SEP4256Q-A0	440 (438.98^min - 440.28^max) MB/s +36%
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	324 (210.77^min - 323.72^max) MB/s
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	266 (264.89^min - 265.82^max) MB/s -18%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	260 (259.46^min - 259.7^max) MB/s -20%
Blackview MP80 Netac NS512GSSD330	179.4 (173.35^min - 179.35^max) MB/s -45%
4k q32 t16 write
Average of class Mini PC (30.2 - 4288, n=118, last 2 years)	1282 MB/s +802%
Acemagic S1 BiWin CE480Y2D100-1TB	762 (759.1^min - 762.44^max) MB/s +436%
BOSGAME N95 Kingston OM8SEP4256Q-A0	411 (406.46^min - 410.69^max) MB/s +189%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	319 (315.72^min - 318.72^max) MB/s +124%
Blackview MP80 Netac NS512GSSD330	276 (99.25^min - 275.55^max) MB/s +94%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	259 (224.2^min - 258.97^max) MB/s +82%
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	142.2 (93.56^min - 142.15^max) MB/s
Trigkey G4	70.3 (60.61^min - 70.32^max) MB/s -51%

AS SSD
Score Total
Average of class Mini PC (181.5 - 10021, n=116, last 2 years)	4101 Points +194%
Acemagic S1 BiWin CE480Y2D100-1TB	2427 Points +74%
Trigkey G4	1857 Points +33%
BOSGAME N95 Kingston OM8SEP4256Q-A0	1423 Points +2%
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	1396 Points
Blackview MP80 Netac NS512GSSD330	796 Points -43%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	736 Points -47%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	698 Points -50%
Score Read
Average of class Mini PC (61 - 3741, n=116, last 2 years)	1527 Points +203%
Acemagic S1 BiWin CE480Y2D100-1TB	1000 Points +98%
Trigkey G4	934 Points +85%
BOSGAME N95 Kingston OM8SEP4256Q-A0	522 Points +4%
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	504 Points
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	320 Points -37%
Blackview MP80 Netac NS512GSSD330	265 Points -47%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	232 Points -54%
Score Write
Average of class Mini PC (88 - 4371, n=116, last 2 years)	1841 Points +192%
Acemagic S1 BiWin CE480Y2D100-1TB	903 Points +43%
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	631 Points
BOSGAME N95 Kingston OM8SEP4256Q-A0	626 Points -1%
Trigkey G4	458 Points -27%
Blackview MP80 Netac NS512GSSD330	387 Points -39%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	373 Points -41%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	208 Points -67%
Seq Read
Average of class Mini PC (291 - 6620, n=116, last 2 years)	3157 MB/s +156%
Acemagic S1 BiWin CE480Y2D100-1TB	1582 MB/s +28%
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	1233 MB/s
Trigkey G4	794 MB/s -36%
BOSGAME N95 Kingston OM8SEP4256Q-A0	700 MB/s -43%
Blackview MP80 Netac NS512GSSD330	526 MB/s -57%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	489 MB/s -60%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	470 MB/s -62%
Seq Write
Average of class Mini PC (240 - 5783, n=116, last 2 years)	2202 MB/s +96%
Acemagic S1 BiWin CE480Y2D100-1TB	1526 MB/s +36%
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	1125 MB/s
BOSGAME N95 Kingston OM8SEP4256Q-A0	595 MB/s -47%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	484 MB/s -57%
Blackview MP80 Netac NS512GSSD330	466 MB/s -59%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	344 MB/s -69%
Trigkey G4	326 MB/s -71%
4K Read
Average of class Mini PC (6.08 - 104.3, n=116, last 2 years)	58.8 MB/s +109%
Acemagic S1 BiWin CE480Y2D100-1TB	54.7 MB/s +95%
Trigkey G4	44.4 MB/s +58%
BOSGAME N95 Kingston OM8SEP4256Q-A0	38.7 MB/s +38%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	35.45 MB/s +26%
Blackview MP80 Netac NS512GSSD330	30.2 MB/s +7%
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	28.1 MB/s
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	27.5 MB/s -2%
4K Write
Average of class Mini PC (30.9 - 366, n=116, last 2 years)	175.9 MB/s +331%
Trigkey G4	113.5 MB/s +178%
Acemagic S1 BiWin CE480Y2D100-1TB	108.9 MB/s +167%
BOSGAME N95 Kingston OM8SEP4256Q-A0	100.9 MB/s +147%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	85.6 MB/s +110%
Blackview MP80 Netac NS512GSSD330	84.3 MB/s +107%
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	40.8 MB/s
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	38 MB/s -7%
4K-64 Read
Average of class Mini PC (23.4 - 3220, n=116, last 2 years)	1153 MB/s +227%
Trigkey G4	810 MB/s +129%
Acemagic S1 BiWin CE480Y2D100-1TB	787 MB/s +123%
BOSGAME N95 Kingston OM8SEP4256Q-A0	413 MB/s +17%
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	353 MB/s
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	235.66 MB/s -33%
Blackview MP80 Netac NS512GSSD330	181.8 MB/s -48%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	157.7 MB/s -55%
4K-64 Write
Average of class Mini PC (32.8 - 3731, n=116, last 2 years)	1444 MB/s +202%
Acemagic S1 BiWin CE480Y2D100-1TB	641 MB/s +34%
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	478 MB/s
BOSGAME N95 Kingston OM8SEP4256Q-A0	466 MB/s -3%
Trigkey G4	312 MB/s -35%
Blackview MP80 Netac NS512GSSD330	256 MB/s -46%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	239 MB/s -50%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	135.39 MB/s -72%
Access Time Read
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	0.148 ms * -103%
BOSGAME N95 Kingston OM8SEP4256Q-A0	0.101 ms * -38%
Average of class Mini PC (0.022 - 0.489, n=116, last 2 years)	0.09752 ms * -34%
Blackview MP80 Netac NS512GSSD330	0.077 ms * -5%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	0.076 ms * -4%
Acemagic S1 BiWin CE480Y2D100-1TB	0.076 ms * -4%
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	0.073 ms *
Trigkey G4	0.064 ms * +12%
Access Time Write
Blackview MP80 Netac NS512GSSD330	0.136 ms * -84%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	0.132 ms * -78%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	0.127 ms * -72%
Average of class Mini PC (0.014 - 0.765, n=116, last 2 years)	0.116 ms * -57%
BOSGAME N95 Kingston OM8SEP4256Q-A0	0.109 ms * -47%
Acemagic S1 BiWin CE480Y2D100-1TB	0.098 ms * -32%
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	0.074 ms *
Trigkey G4	0.061 ms * +18%

* ... smaller is better

Reading continuous performance: DiskSpd Read Loop, Queue Depth 8

Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G; diskspd 2.0.17 f: Ø1990 (1877.37-2058.56)

Acemagic S1 BiWin CE480Y2D100-1TB: Ø1772 (1604.38-1776.91)

Blackview MP80 Netac NS512GSSD330: Ø551 (425.51-553.5)

BOSGAME N95 Kingston OM8SEP4256Q-A0: Ø817 (676.33-820.44)

Trigkey G4 : Ø839 (658.14-865.55)

Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB: Ø498 (453.55-500.22)

Minipc Union Ace Magician T8Pro FPT310M4SSD256G: Ø553 (484.52-559.31)

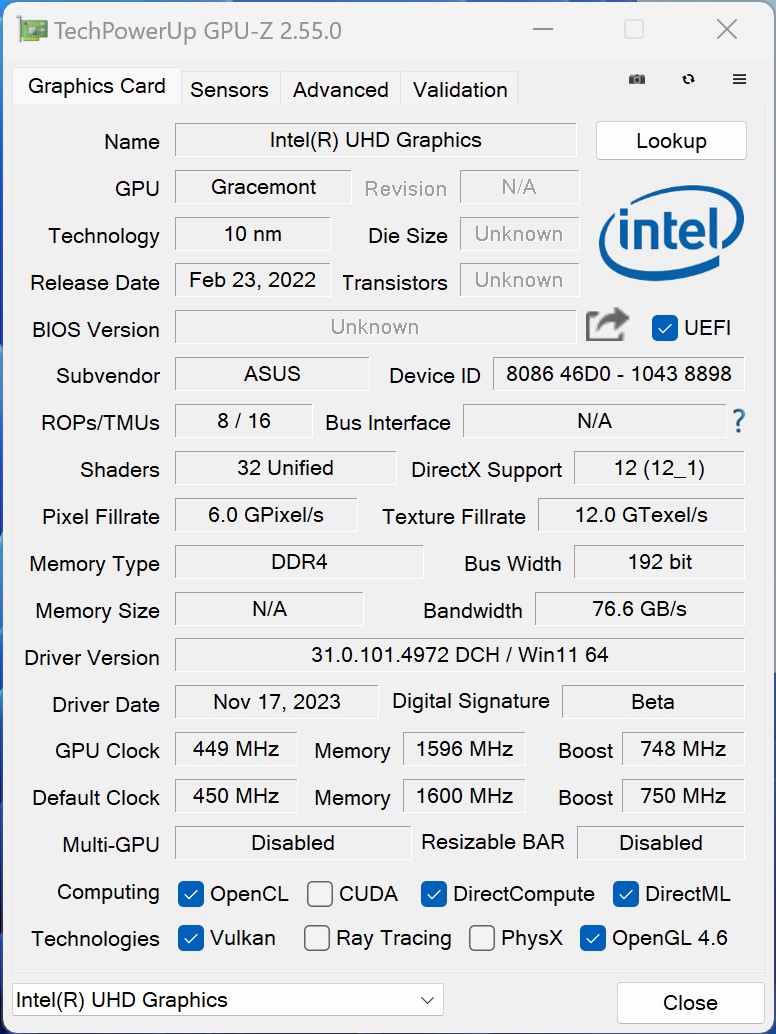

图形卡

英特尔英特尔 N200 处理器's 英特尔UHD Graphics是一个拥有 32 个 EU 的简单 iGPU。与竞争对手直接比较，华硕 ExpertCenter PN42 在这方面的表现要好得多。如果使用 DDR5，华硕肯定能从 iGPU 中榨取更多性能。不过，在实际使用中，你可能不会注意到任何额外的优势。

更多英特尔UHD Graphics 基准测试，请访问。

3DMark Performance Rating | 3DMark 11 | 3DMark | ComputeMark v2.1 | 3DMark 06

3DMark Performance Rating - Percent
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	93.6 pt
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	89.2 pt
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	89.2 pt
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	88.4 pt
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	86.7 pt
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	86 pt
Minipc Union Ace Magician T8Pro Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	66.5 pt

3DMark 11 - 1280x720 Performance GPU
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	1494 Points +11%
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	1492 Points +11%
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	1490 Points +10%
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	1485 Points +10%
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	1467 Points +9%
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	1349 Points
Minipc Union Ace Magician T8Pro Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	859 Points -36%

3DMark
1280x720 Cloud Gate Standard Graphics
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	8548 Points +12%
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	8304 Points +9%
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	8233 Points +8%
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	8035 Points +6%
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	7604 Points
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	7218 Points -5%
Minipc Union Ace Magician T8Pro Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	5217 Points -31%
1920x1080 Fire Strike Graphics
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	1184 Points +3%
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	1172 Points +2%
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	1144 Points
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	1124 Points -2%
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	1106 Points -3%
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	1080 Points -6%
Minipc Union Ace Magician T8Pro Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	662 Points -42%

ComputeMark v2.1
1024x600 Normal, Score
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	700 Points
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	670 Points -4%
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	650 Points -7%
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	638 Points -9%
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	638 Points -9%
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	628 Points -10%
Minipc Union Ace Magician T8Pro Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	555 Points -21%
1024x600 Normal, Fluid 3DTex
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	133 Points +53%
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	122 Points +40%
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	116 Points +33%
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	116 Points +33%
Minipc Union Ace Magician T8Pro Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	109 Points +25%
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	103 Points +18%
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	87 Points
1024x600 Normal, Fluid 2DTexArr
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	109 Points +31%
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	106 Points +28%
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	97 Points +17%
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	95 Points +14%
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	90 Points +8%
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	83 Points
Minipc Union Ace Magician T8Pro Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	71 Points -14%
1024x600 Normal, Mandel Vector
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	143 Points
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	126 Points -12%
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	126 Points -12%
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	125 Points -13%
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	122 Points -15%
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	120 Points -16%
Minipc Union Ace Magician T8Pro Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	105 Points -27%
1024x600 Normal, Mandel Scalar
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	144 Points
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	112 Points -22%
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	110 Points -24%
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	110 Points -24%
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	109 Points -24%
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	101 Points -30%
Minipc Union Ace Magician T8Pro Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	86 Points -40%
1024x600 Normal, QJuliaRayTrace
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	243 Points
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	203 Points -16%
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	197 Points -19%
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	196 Points -19%
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	194 Points -20%
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	186 Points -23%
Minipc Union Ace Magician T8Pro Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	185 Points -24%

3DMark 06 - 1280x1024 Standard Score AA:0x AF:0x
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	12203 Points +51%
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	10165 Points +26%
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	10088 Points +25%
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	10026 Points +24%
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	9774 Points +21%
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	8090 Points
Minipc Union Ace Magician T8Pro Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	6704 Points -17%

3DMark Performance Rating | Unigine Valley 1.0 | Unigine Heaven 4.0 | Unigine Superposition

3DMark Performance Rating - Percent
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	100 pt
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	91.1 pt
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	88.2 pt
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	87.7 pt
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	82.3 pt
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	72 pt
Minipc Union Ace Magician T8Pro Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	57.9 pt

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	5.3 fps +51%
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	4.6 fps +31%
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	4.6 fps +31%
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	4.6 fps +31%
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	4.1 fps +17%
Minipc Union Ace Magician T8Pro Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	3.5 fps 0%
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	3.5 fps
1920x1080 Extreme HD Preset OpenGL AA:x8
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	6 fps +71%
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	5.4 fps +54%
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	5.3 fps +51%
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	5.1 fps +46%
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	4.8 fps +37%
Minipc Union Ace Magician T8Pro Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	3.5 fps 0%
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	3.5 fps

Unigine Heaven 4.0
Extreme Preset DX11
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	7.5 fps +29%
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	7.2 fps +24%
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	6.8 fps +17%
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	6.7 fps +16%
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	6.4 fps +10%
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	5.8 fps
Minipc Union Ace Magician T8Pro Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	4.3 fps -26%
Extreme Preset OpenGL
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	7.2 fps +33%
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	6.9 fps +28%
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	6.7 fps +24%
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	6.7 fps +24%
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	6.3 fps +17%
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	5.4 fps
Minipc Union Ace Magician T8Pro Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	4 fps -26%

Unigine Superposition
1280x720 720p Low
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	2505 Points +56%
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	2141 Points +33%
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	1937 Points +21%
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	1924 Points +20%
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	1871 Points +16%
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	1607 Points
Minipc Union Ace Magician T8Pro Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	1358 Points -15%
1920x1080 1080p High
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	512 Points +10%
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	500 Points +7%
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	469 Points +1%
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	468 Points 0%
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	466 Points
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	454 Points -3%
Minipc Union Ace Magician T8Pro Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	287 Points -38%

3DMark 05 Standard		8935 points
3DMark 06 Standard Score		8090 points
3DMark Vantage P Result		5134 points
3DMark 11 Performance		1407 points
3DMark Ice Storm Standard Score		37388 points
3DMark Cloud Gate Standard Score		5545 points
3DMark Fire Strike Score		1024 points
3DMark Fire Strike Extreme Score		518 points
3DMark Time Spy Score		383 points
Help

... in comparison

游戏性能

英特尔英特尔UHD Graphics的低 3D 性能不足以运行 3D 游戏。我们只有在使用最低分辨率运行旧版游戏时才能达到可玩的帧率。华硕 ExpertCenter PN42 只适合休闲游戏或玩浏览器游戏。如果您需要更高的 3D 性能，那么您可能需要考虑一下 Minisforum EliteMini UM780 XTX.

	low	med.	high	ultra
GTA V (2015)	36.8	34.1
Dota 2 Reborn (2015)	35.1	20.6	10.9	9.9
Final Fantasy XV Benchmark (2018)	5.91	3.48	2.5
X-Plane 11.11 (2018)	11.3	8.45	7.62
Strange Brigade (2018)	25.2	10.1	9.2

排放--安静、节俭

噪音排放

由于采用了被动散热装置，华硕 ExpertCenter PN42 始终保持静音运行。我们没有注意到测试设备发出任何额外的电子噪音（线圈啸叫）。

	Asus ExpertCenter PN42-BBN200MV N200, UHD Graphics Xe 750 32EUs	Acemagic S1 N95, UHD Graphics 24EUs (Alder Lake-N)	Blackview MP80 N95, UHD Graphics 24EUs (Alder Lake-N)	BOSGAME N95 N95, UHD Graphics 24EUs (Alder Lake-N)	Trigkey G4 N100, UHD Graphics 24EUs (Alder Lake-N)	Minipc Union NiPoGi GK3PLUS - N95 N95, UHD Graphics 24EUs (Alder Lake-N)	Minipc Union Ace Magician T8Pro Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
Noise		-19%	-14%	-22%	-27%	-33%	-22%
off / environment *	25	25 -0%	25.2 -1%	29.7 -19%	24.8 1%	30.4 -22%	30.2 -21%
Idle Minimum *	25	25.5 -2%	25.4 -2%	30.2 -21%	30.6 -22%	31 -24%	30.2 -21%
Idle Average *	25	26.9 -8%	25.5 -2%	30.2 -21%	31.3 -25%	31.1 -24%	30.2 -21%
Idle Maximum *	25	27 -8%	25.5 -2%	30.2 -21%	32.1 -28%	31.8 -27%	30.2 -21%
Load Average *	25	34.3 -37%	32.3 -29%	30.4 -22%	34.8 -39%	33.3 -33%	30.5 -22%
Load Maximum *	25	40.3 -61%	36.4 -46%	31.4 -26%	37.1 -48%	42.5 -70%	30.9 -24%

* ... smaller is better

温度

由于采用了被动散热，华硕 ExpertCenter PN42 的机箱比其他采用主动散热装置的微型 PC 更热。在我们的压力测试中，英特尔 N200 处理器的温度很快就达到了 99 °C，导致性能下降。在短暂达到 14 瓦的峰值后，处理器的功耗降至 6 瓦，符合 PL 1（功率限制）标准。温度也随之下降，稳定在 71 °C。

Max. Load

Idle


33 °C	40.4 °C	38.7 °C
36.8 °C	43.5 °C	39.9 °C
37.1 °C	43.7 °C	41.5 °C

Maximum: 43.7 °C
Average: 39.4 °C


47.2 °C	46.2 °C	46 °C
44.7 °C	43.1 °C	42.5 °C
43 °C	43.9 °C	44.4 °C

Maximum: 47.2 °C
Average: 44.6 °C

Power Supply (max.) 29.6 °C | Room Temperature 29.9 °C | Fluke t3000FC (calibrated)

(-) The average temperature for the upper side under maximal load is 39.4 °C / 103 F, compared to the average of 32.2 °C / 90 F for the devices in the class Mini PC.
(±) The maximum temperature on the upper side is 43.7 °C / 111 F, compared to the average of 35.7 °C / 96 F, ranging from 24 to 69.5 °C for the class Mini PC.
(-) The bottom heats up to a maximum of 47.2 °C / 117 F, compared to the average of 36.2 °C / 97 F
(±) In idle usage, the average temperature for the upper side is 34.3 °C / 94 F, compared to the device average of 32.2 °C / 90 F.

耗电量

华硕 ExpertCenter PN42 非常节俭，这得益于 SoC 的低功耗。在空闲模式下，这款微型电脑的耗电量不超过 10 瓦。这与许多其他设备类似，但 Acemagic S1 除外。我们注意到其峰值功率略高于 30 瓦。不过，其最大使用功率仅在很短的时间内达到。在永久负载的情况下，电源只需提供 14.6 瓦的功率。这台电脑的电源功率为 65 瓦，足够使用。值得注意的是，华硕并没有使用专有电源。

Power Consumption

Off / Standby	0.9 / 1.5 Watt
Idle	4.4 / 6 / 9.7 Watt
Load	14.6 / 30.2 Watt


Key: min: , med: , max: Metrahit Energy

	Asus ExpertCenter PN42-BBN200MV N200, UHD Graphics Xe 750 32EUs	Acemagic S1 N95, UHD Graphics 24EUs (Alder Lake-N)	Blackview MP80 N95, UHD Graphics 24EUs (Alder Lake-N)	BOSGAME N95 N95, UHD Graphics 24EUs (Alder Lake-N)	Trigkey G4 N100, UHD Graphics 24EUs (Alder Lake-N)	Minipc Union NiPoGi GK3PLUS - N95 N95, UHD Graphics 24EUs (Alder Lake-N)	Minipc Union Ace Magician T8Pro Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	Average Intel UHD Graphics Xe 750 32EUs (Rocket Lake)	Average of class Mini PC
Power Consumption		-56%	-6%	15%	-36%	-11%	-29%	0%	-155%
Idle Minimum *	4.4	7.1 -61%	4.9 -11%	3.5 20%	8.2 -86%	6.1 -39%	8.4 -91%	4.4 ?() -0%	9.48 ?(1.9 - 45.7, n=119, last 2 years) -115%
Idle Average *	6	12.1 -102%	7.1 -18%	3.6 40%	8.6 -43%	6.9 -15%	8.4 -40%	6 ?() -0%	11.5 ?(1.9 - 47.5, n=117, last 2 years) -92%
Idle Maximum *	9.7	13.9 -43%	7.3 25%	6.2 36%	10.4 -7%	8.9 8%	11.1 -14%	9.7 ?() -0%	14.9 ?(2.6 - 57.1, n=119, last 2 years) -54%
Load Average *	14.6	23.8 -63%	20.6 -41%	20.4 -40%	19.4 -33%	20 -37%	16.5 -13%	14.6 ?() -0%	57.4 ?(11.3 - 170.6, n=119, last 2 years) -293%
Load Maximum *	30.2	33 -9%	26.2 13%	25 17%	33.1 -10%	21.1 30%	26.3 13%	30.2 ?() -0%	97.5 ?(18.1 - 423, n=119, last 2 years) -223%

* ... smaller is better

Power consumption with external monitor

Asus ExpertCenter PN42-BBN200MV; Prime95 V2810 Stress (external Monitor): Ø14.1 (12.1-30.2)

Asus ExpertCenter PN42-BBN200MV; Cinebench R15 Multi (external Monitor): Ø13.6 (11.7-28.8)

Asus ExpertCenter PN42-BBN200MV; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø14.2 (12.3-24.7)

Asus ExpertCenter PN42-BBN200MV; Idle 1min (external Monitor): Ø6.07 (5.03-9.79)

Asus ExpertCenter PN42-BBN200MV; 3DMark06 Return To Proxycon: Ø14.7 (12.8-22.4)

Asus ExpertCenter PN42-BBN200MV; Cinebench R23 Single (external Monitor): Ø12.6 (10.9-28.5)

Asus ExpertCenter PN42-BBN200MV; Cinebench R23 Multi (external Monitor): Ø12.9 (11.7-29.3)

Pros

+ 光滑、稳定的外壳

+ 易于打开

+ 现代 SoC

+ 低能耗

+ 出色的无线局域网性能

+ 静音使用

+ 大量 USB 端口

+ 红外线传感器

Cons

- 图形性能低

- 高 DPC 延迟

- SoC 的低涡轮使用率

结论 - 出色的 SoC，但散热能力较弱

如果单纯考虑规格，华硕的 ExpertCenter PN42 是一款不错的微型电脑。一般来说，我们欢迎使用英特尔 N200作为基础，并搭配 DDR4 内存。不过，我们的测试表明，由于采用被动冷却方式，该系统芯片只能发挥有限的性能。原则上，英特尔 N200 可以达到 PL1 规定的性能。与此同时，本次评测中的大多数对比设备都能通过使用英特尔 N100或英特尔 N95因为它们能实现永久性的更高涡轮增压。

对于测试设备的构造，我们没有任何负面意见。尽管采用的是塑料材质，但该设备给人的感觉还是相当优质的。华硕 ExpertCenter PN42 提供了大量的连接选项。此外，您还可以选择使用模拟显示屏。这使得这款迷你电脑成为一个有趣的选择，并因此从众多产品中脱颖而出。其良好的无线局域网性能值得称赞--在本次评测中，它的表现优于所有竞争对手。

华硕 ExpertCenter PN42 配备了英特尔 N200 处理器，是一款现代化的 SoC，但由于安装了散热装置，其性能仍然大大落后于我们的预期。

总而言之，华硕 ExpertCenter PN42 只能在一些单项测试中体现出自己的优势。被动散热无疑是一个良好的开端。同时，这也是其 CPU 基准测试成绩相对较差的原因。在这种情况下，为了更好地发挥处理器的性能，主动散热装置可能是更好的选择。

价格和供应情况

华硕 ExpertCenter PN42 可在亚马逊以 220 美元的价格购买裸机。

Asus ExpertCenter PN42-BBN200MV - 01/05/2024 v7 ^(old)
Sebastian Bade

Chassis

75 / 98 → 76%

Connectivity

58 / 81 → 71%

Weight

78%

Games Performance

42%

Application Performance

78%

Temperature

84%

Noise

100%

Average

74%

73%

Mini PC - Weighted Average

Transparency

The selection of devices to be reviewed is made by our editorial team. The test sample was provided to the author as a loan by the manufacturer or retailer for the purpose of this review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.

This is how Notebookcheck is testing

Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.

Editor of the original article: Daisy Dickson - Translator - 337 articles published on Notebookcheck since 2023

Translator: Ninh Ngoc Duy - Editorial Assistant - 458020 articles published on Notebookcheck since 2008

contact me via: Facebook

Please share our article, every link counts!

> Notebookcheck中文版（NBC中国） > 评测 > 评测华硕 ExpertCenter PN42 裸机配备了节俭的英特尔 N200 和 DDR4 内存

Sebastian Bade, 2024-01- 9 (Update: 2024-01- 9)
