Nofflink M500迷你电脑的回顾。高能效的办公电脑和流媒体客户端,配备英特尔SoC和32GB内存

紧凑型办公电脑。

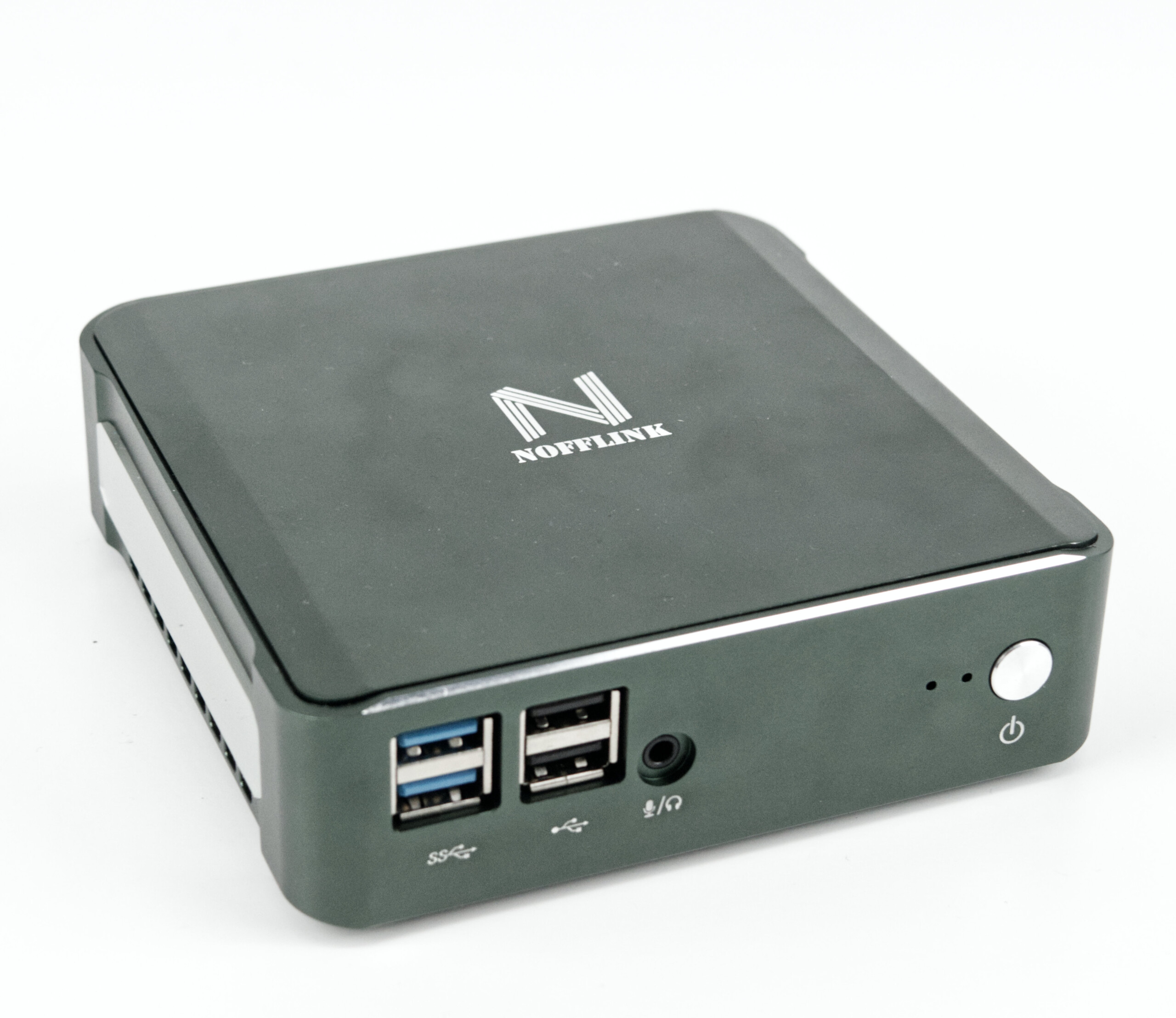

Nofflink M500是一款用于日常办公的迷你电脑。在这篇评论中,我们将仔细看看采用英特尔奔腾金5405U的基本型号。
Desktop Intel Mini PC

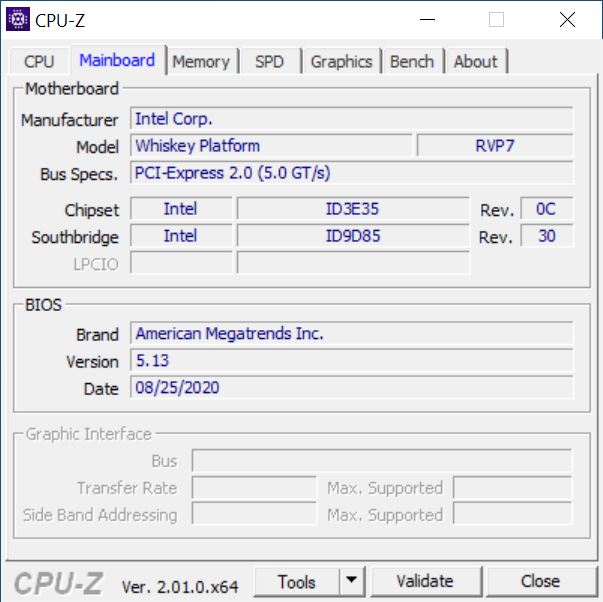

CPU-Z
CPU-Z

与Morefine或MinisForum一样,Nofflink是一家中国的系统制造商,专门生产紧凑型迷你PC。Nofflink的M500系列是针对办公室用户的。然而,M500也适用于作为流媒体客户端使用。机箱内有成熟的组件,在这种情况下意味着英特尔Whiskey Lake和英特尔Comet Lake SoC。对于日常办公使用来说,这些有点过时的处理器仍然可以提供不错的性能。

我们的测试配置是Nofflink的基本型号,配有 英特尔奔腾金5405U.结合32GB的内存和512GB的固态硬盘,该设备当然有能力。诚然,32GB可能稍显过量,因此16GB版本应该没有什么缺点。奇怪的是,Nofflink甚至没有在自己的网店上列出32GB的型号。盯上我们的配置的潜在客户可以预期支付400美元左右。同时,顶级型号是基于一个 英特尔酷睿i7 10510U和1TB的固态硬盘,价格约为600美元。对于一台快速、紧凑的迷你电脑来说,这是一个公平和令人信服的价格。

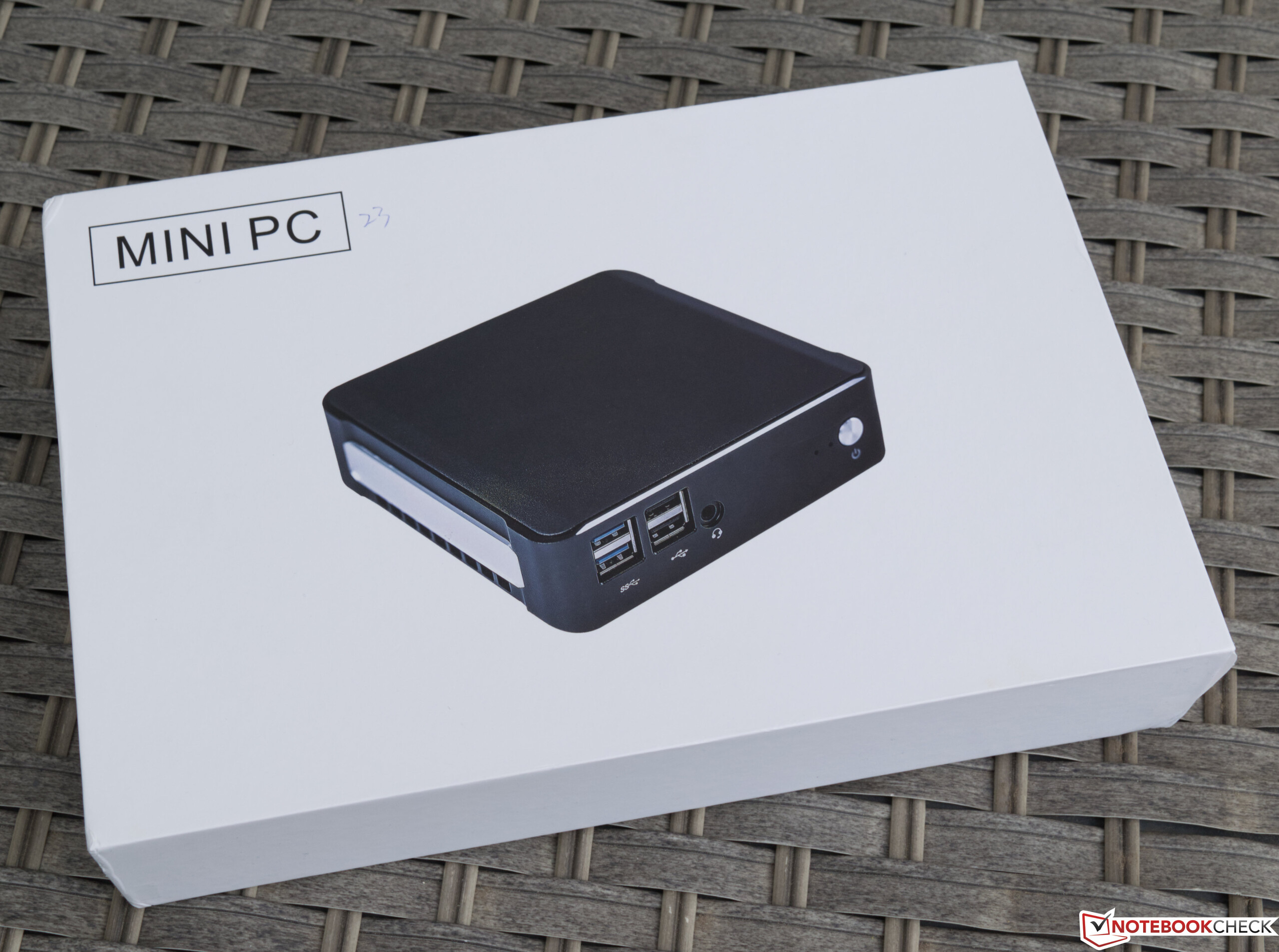

Nofflink M500采用小包装,配有所有必要的配件。

Nofflink M500
Processor
Intel Pentium Gold 5405U 2 x 2.3 GHz, 18 W PL2 / Short Burst, 10 W PL1 / Sustained, Whiskey Lake-U
Graphics adapter
Intel UHD Graphics 610
Memory
32 GB
, DDR4-2666, 2 of 2 occupied
Mainboard
Intel Cannon Lake-U PCH-LP Mainstream/Base
Storage
Qunion P20A NGFF 512GB, 512 GB
Soundcard
Intel Cannon Lake-LP - cAVS
Networking
Realtek PCIe GBE Family Controller (10/100/1000MBit/s), MediaTek RZ608 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/ Wi-Fi 6E 6 GHz)
Size
height x width x depth (in mm): 39 x 127 x 127
Operating System
Microsoft Windows 10 Pro 64 Bit
Weight
657 g, Power Supply: 301 g
Price
400 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



案例与特点

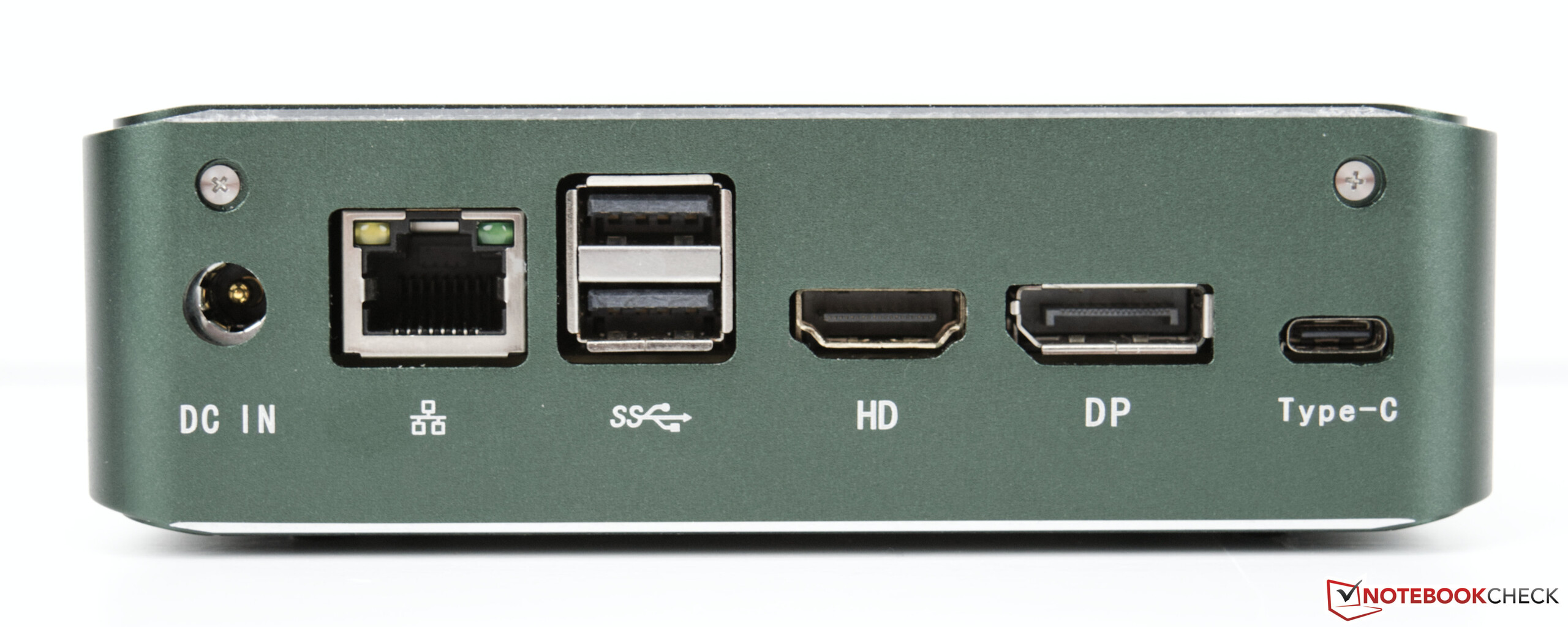

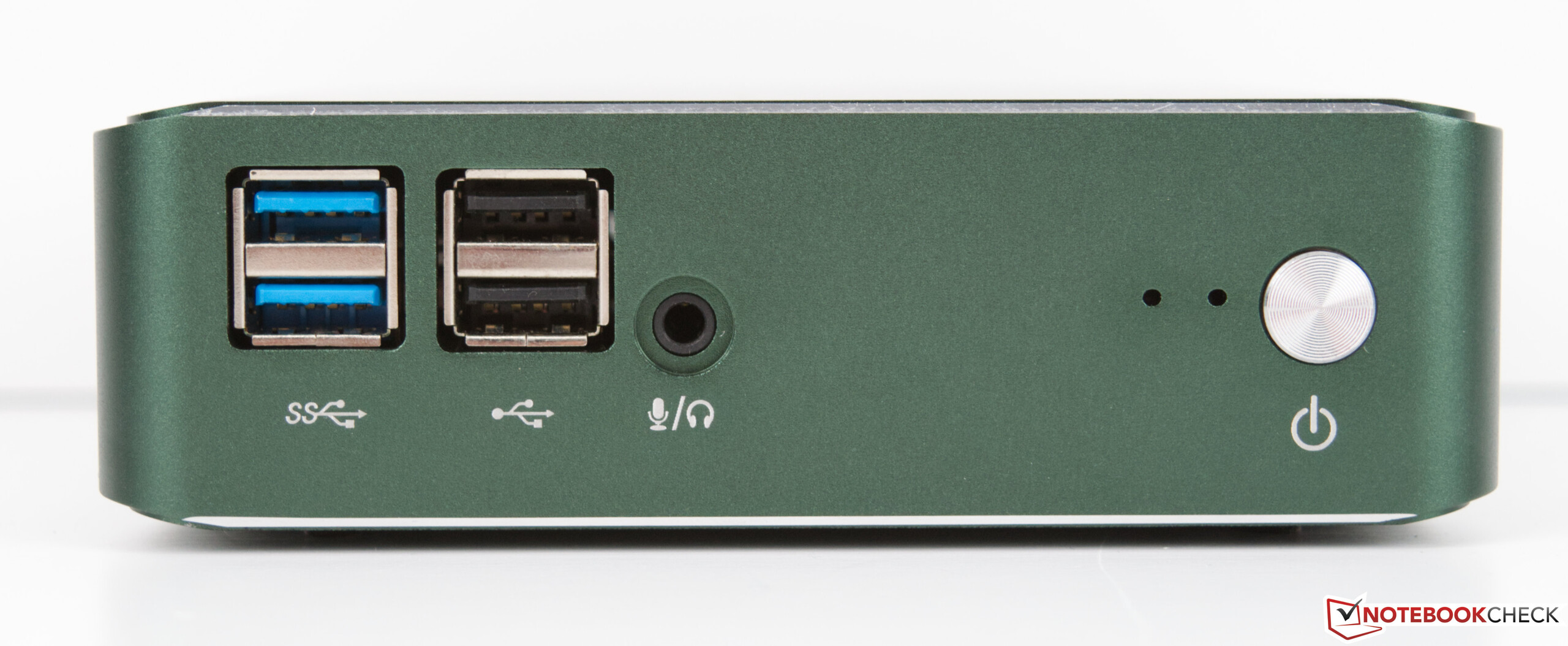

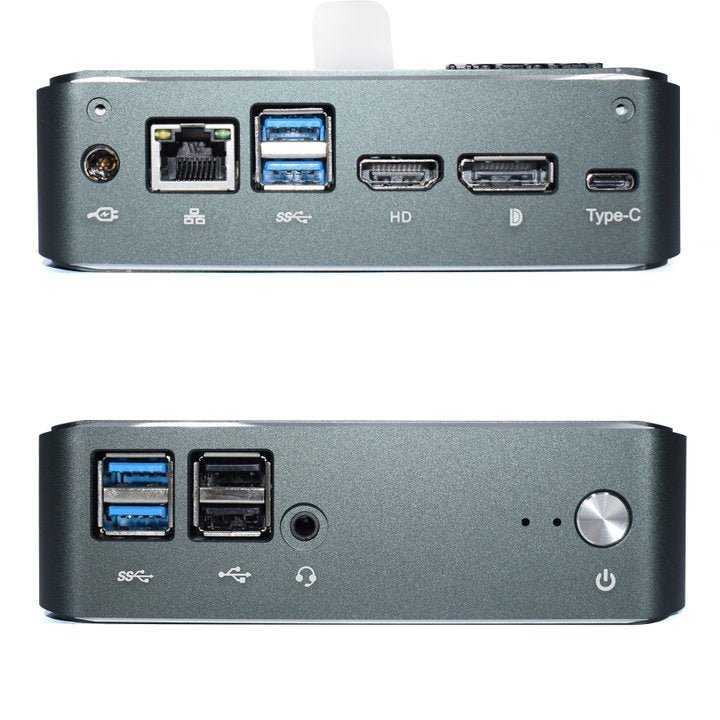

外部接口(来源:Nofflink)。
外部接口(来源:Nofflink)。

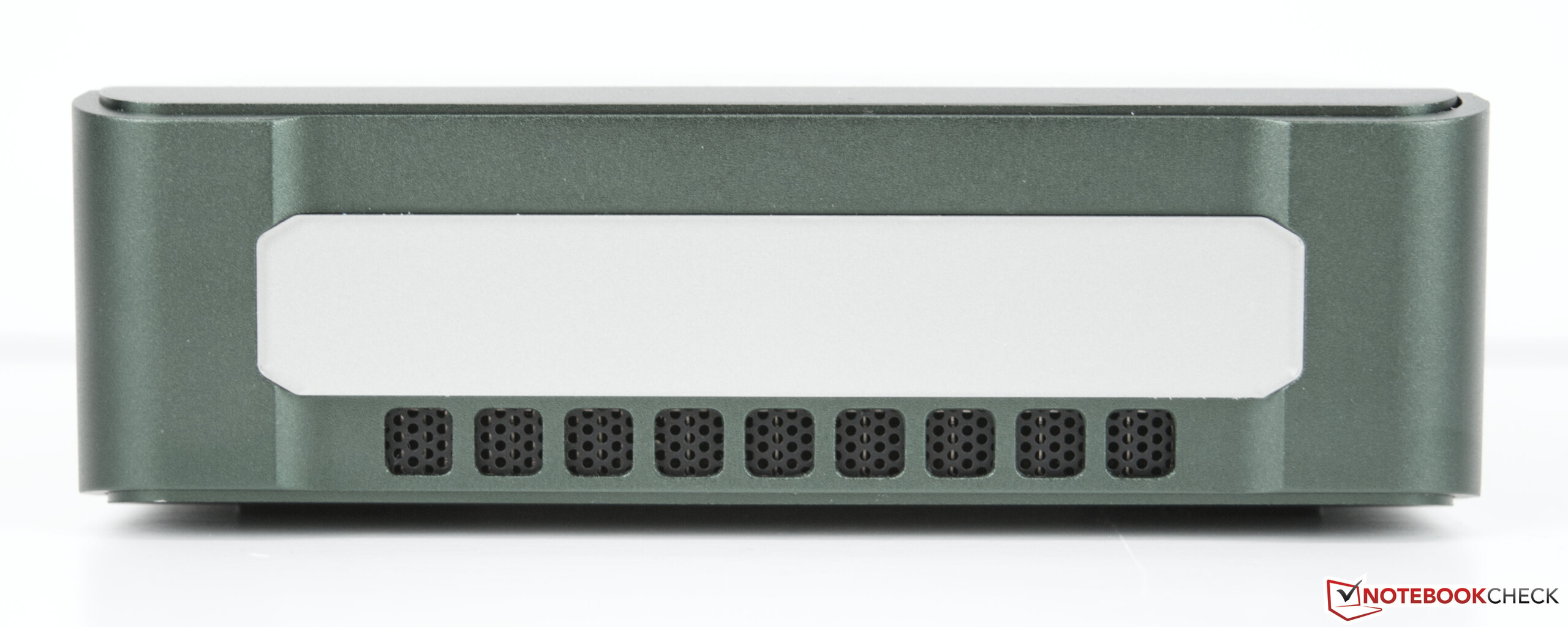

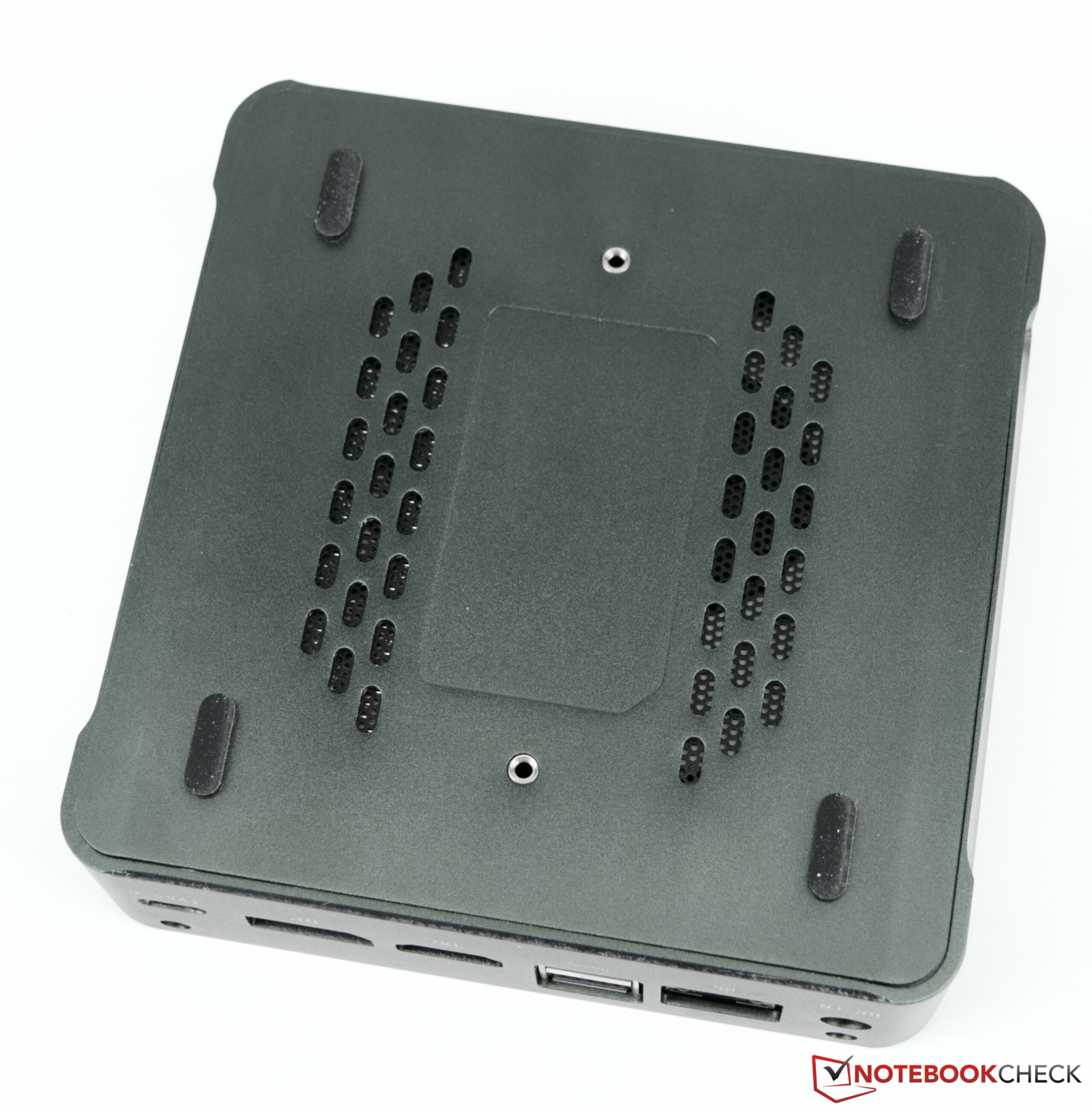

Nofflink M500主要由铝组成,这使得该设备非常坚硬。虽然该设备在制造商的网店上看起来大部分是灰色的,但仔细观察可以发现有明显的绿色色调。就整体外观而言,这并不是一个缺点。没有尖锐的边缘,设备感觉很好。如果有必要,该设备的盖子可以被快速拆下。

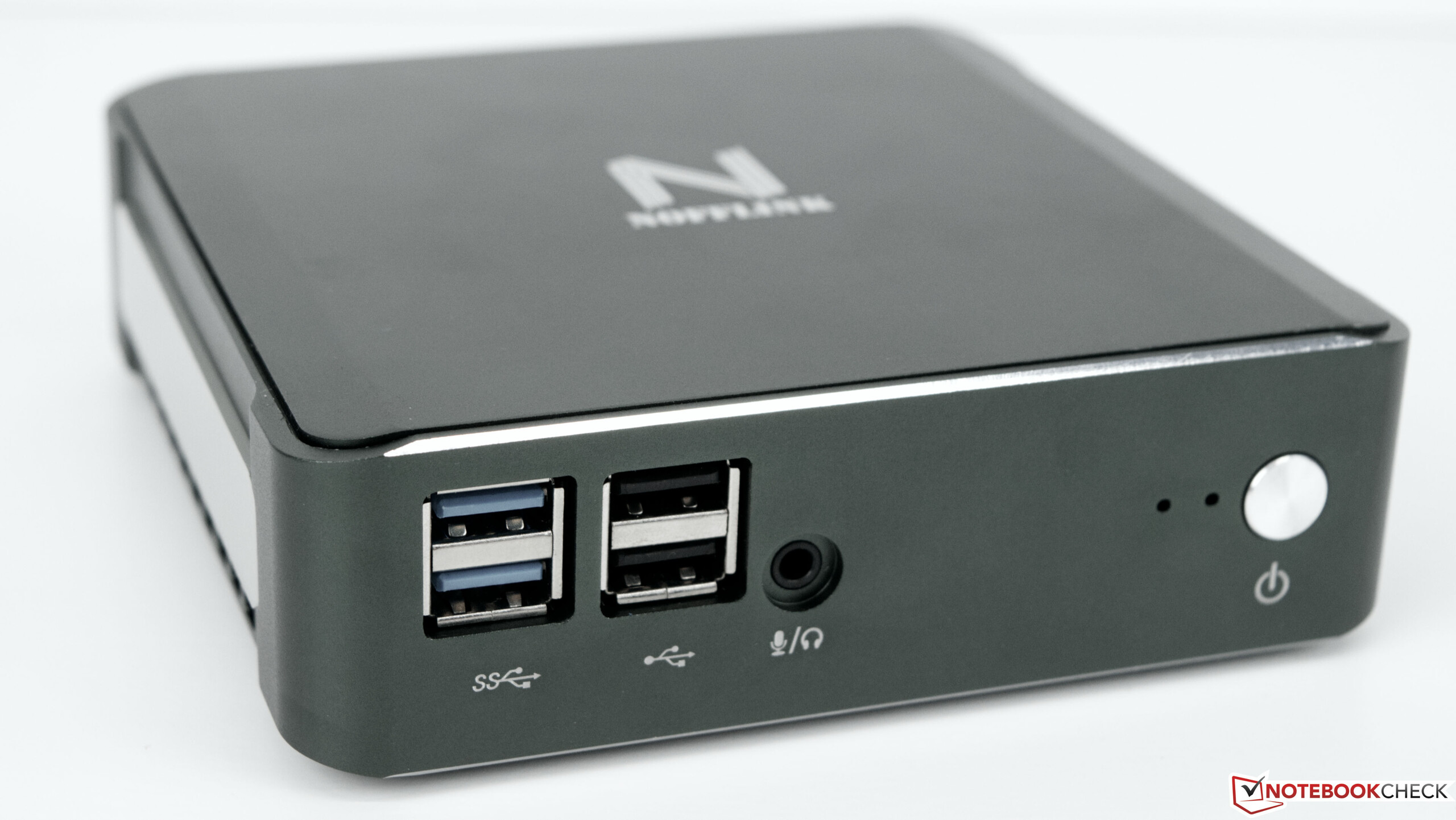

说到外部接口,Nofflink M500为外部外围设备提供了许多选择。总共有六个A型USB接口和一个C型USB接口。因此,M500提供的端口与Morefine S500+完全一样多。然而,其中两个端口被限制为USB 2.0。用户可以选择HDMI、DisplayPort或USB type-C进行视频输出。这允许同时连接多达三个显示器。没有SD卡读卡器。

Nofflink依靠英特尔AX201 Wi-Fi模块进行无线通信。它支持2.4-GHz和5-GHz频段的Wi-Fi 6。在我们的性能基准测试中,Nofflink M500取得了良好的成绩,尽管它们与台式电脑类的平均水平相差甚远。另外,这款迷你PC提供了一个传统的以太网端口,支持2.5Gb/s。

Networking
iperf3 receive AXE11000 6GHz
Average of class Desktop
  (1751 - 1751, n=2, last 2 years)
1751 MBit/s
Zotac ZBOX Magnus EN173070C
Killer Wi-Fi 6 AX1650x Wireless Network Adapter (200NGW)
1480 (1212min - 1519max) MBit/s
Average MediaTek RZ608
  (430 - 961, n=16)
826 MBit/s
Minisforum EliteMini TH50
MediaTek MT7921
776 (482min - 881max) MBit/s
Minisforum EliteMini B550
MediaTek RZ608
430 (379min - 451max) MBit/s
iperf3 transmit AXE11000 6GHz
Zotac ZBOX Magnus EN173070C
Killer Wi-Fi 6 AX1650x Wireless Network Adapter (200NGW)
1669 (1609min - 1719max) MBit/s
Average of class Desktop
  (1513 - 1734, n=3, last 2 years)
1616 MBit/s
Minisforum EliteMini TH50
MediaTek MT7921
866 (502min - 950max) MBit/s
Average MediaTek RZ608
  (572 - 980, n=16)
825 MBit/s
Minisforum EliteMini B550
MediaTek RZ608
572 (532min - 680max) MBit/s
050100150200250300350400450500550600650700750800850900950Tooltip
Nofflink M500-5405U; iperf3 receive AXE11000; iperf 3.1.3: Ø976 (958-997)
Nofflink M500-5405U; iperf3 transmit AXE11000; iperf 3.1.3: Ø831 (730-860)
Nofflink M500-5405U
Nofflink M500-5405U
Nofflink M500-5405U
Nofflink M500-5405U
Nofflink M500-5405U
Nofflink M500-5405U
Nofflink M500-5405U
Nofflink M500-5405U

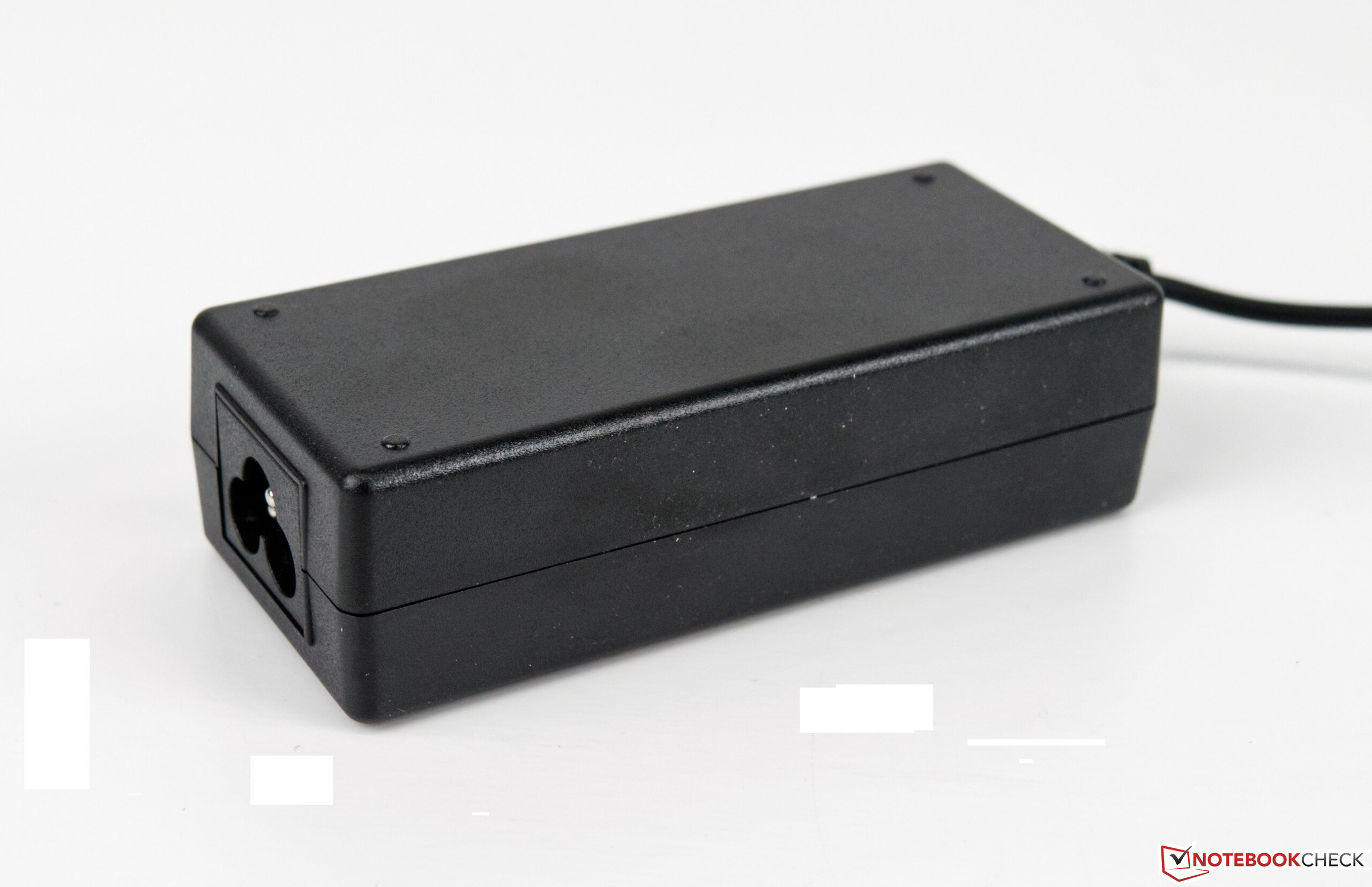

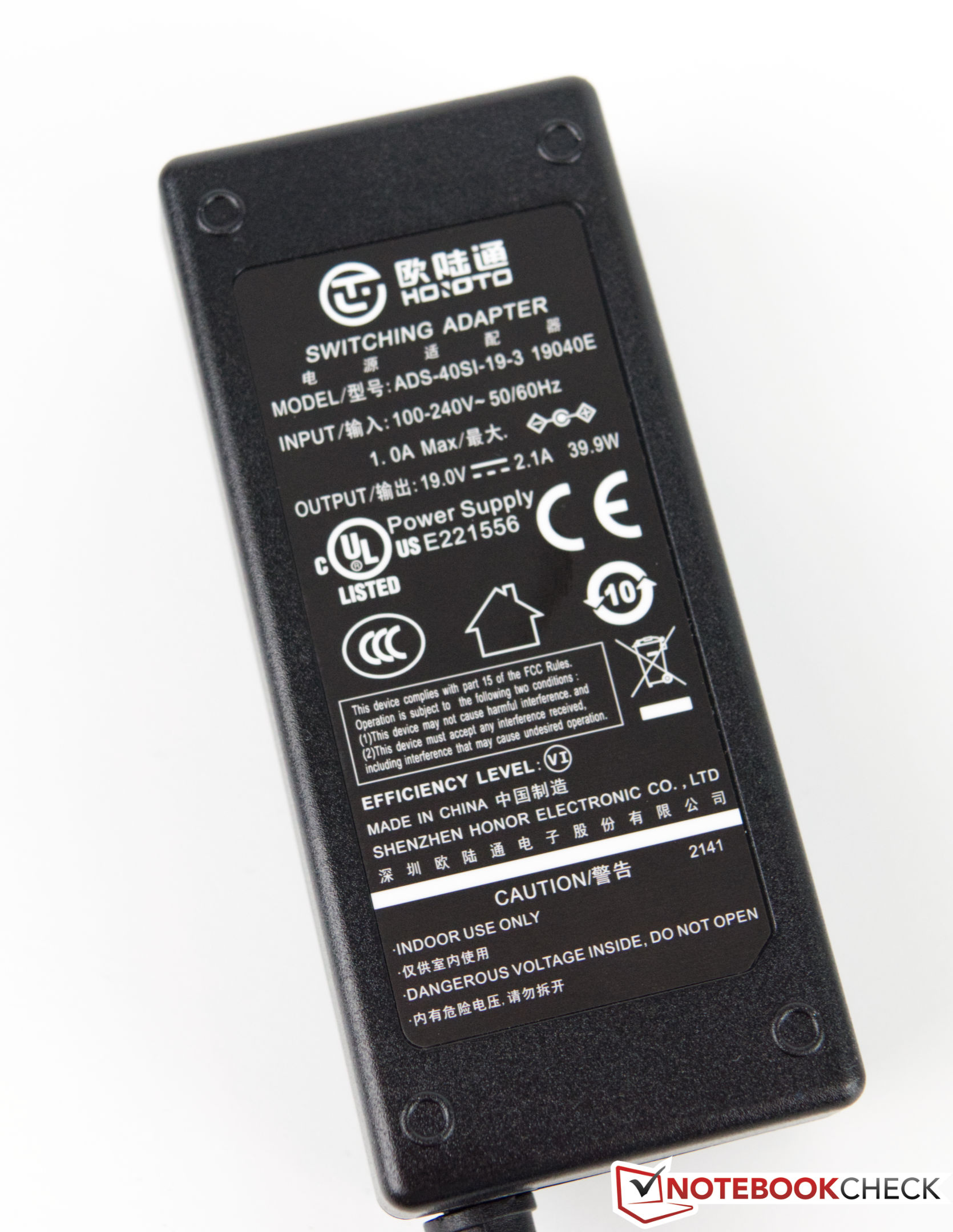

Nofflink M500-5405U - PSU
Nofflink M500-5405U - PSU

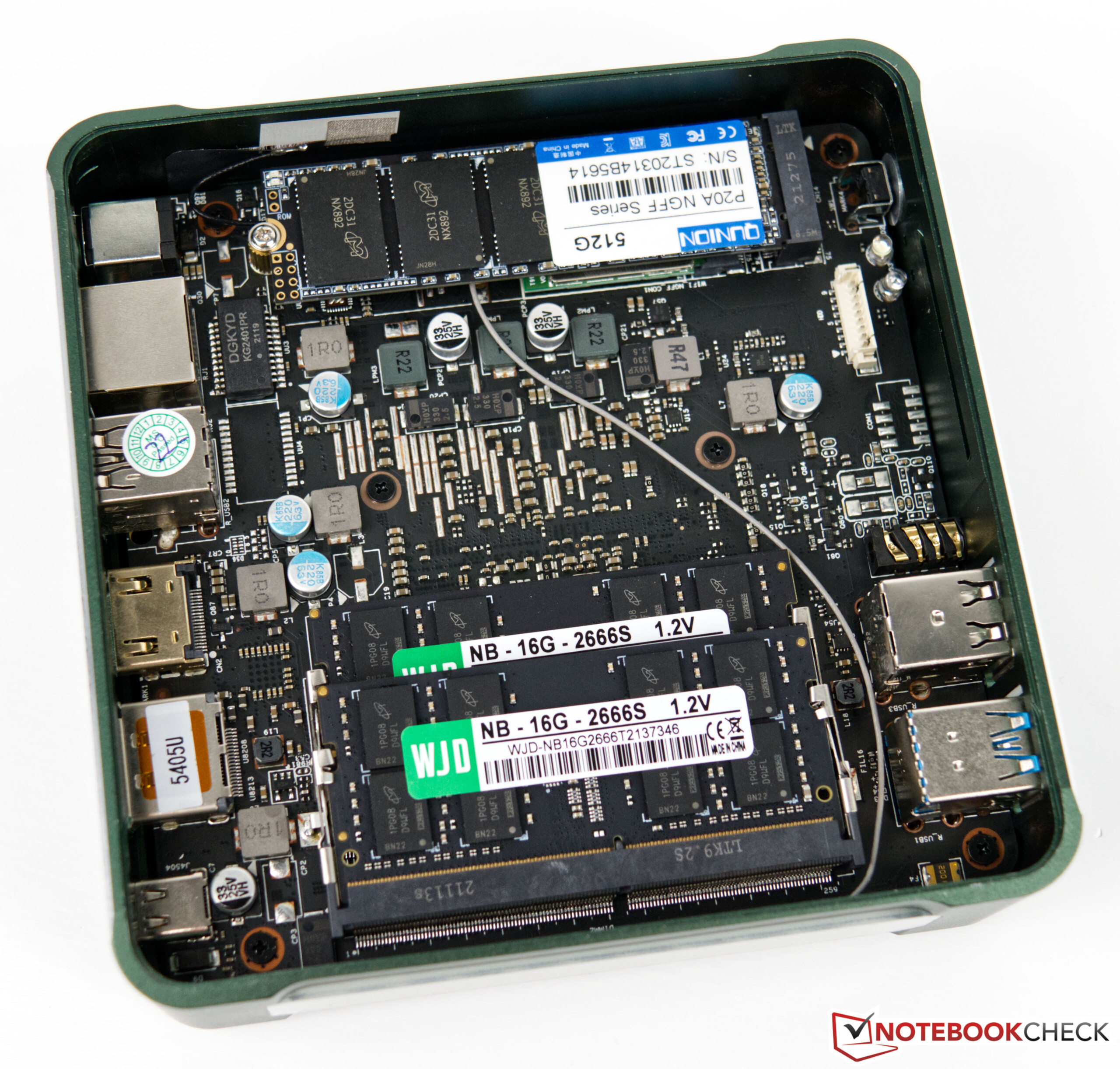

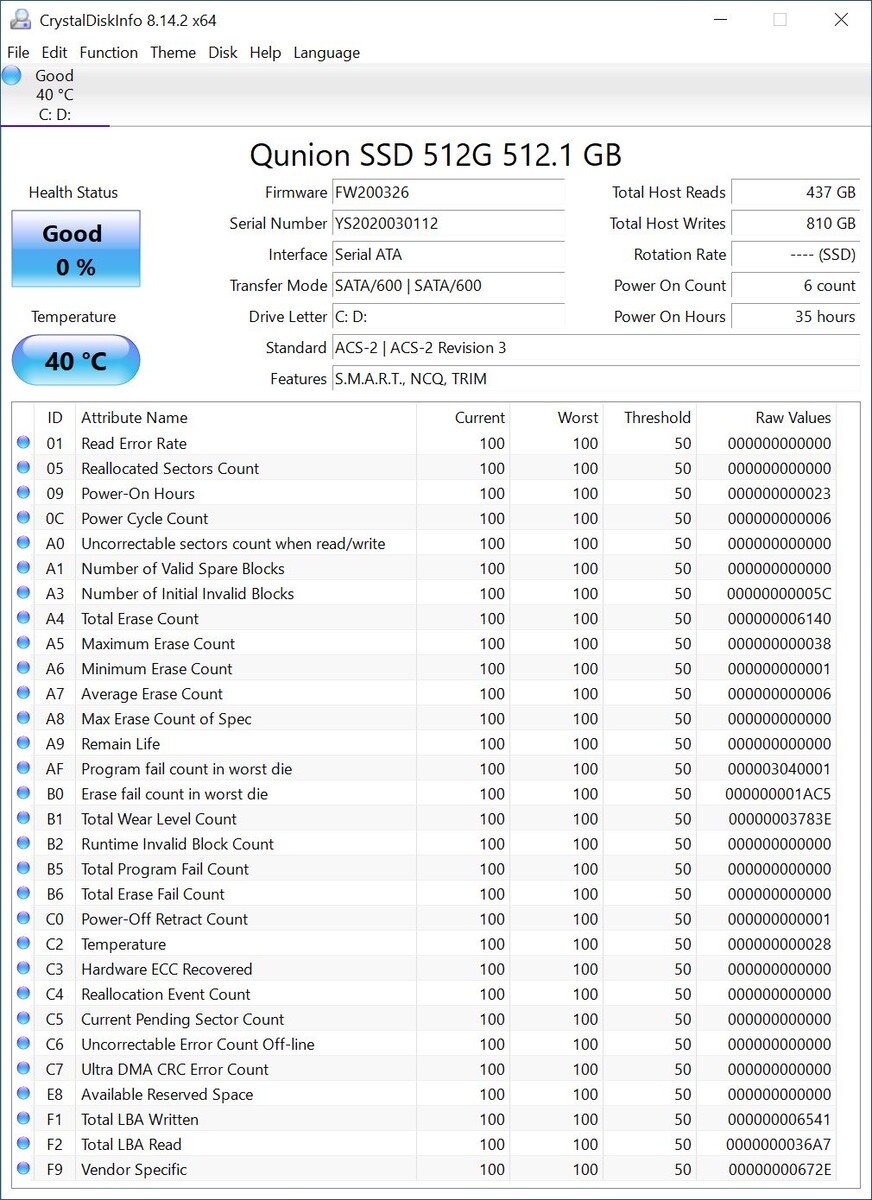

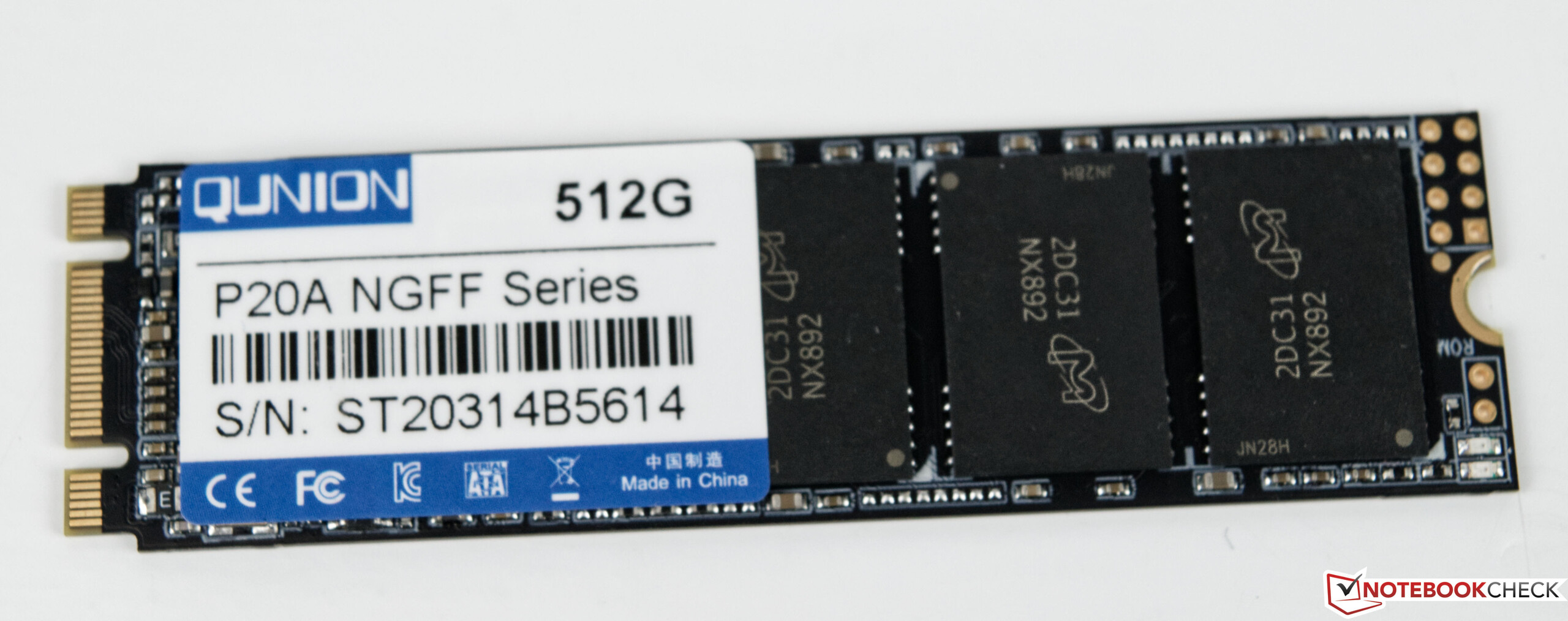

Nofflink M500-5405U - SSD

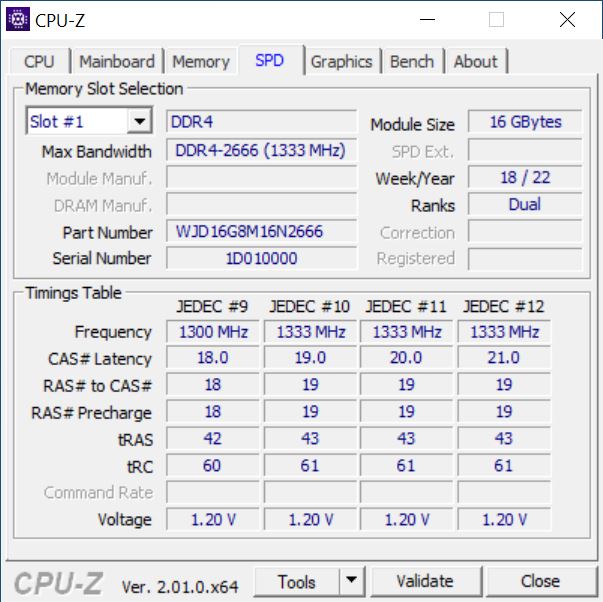

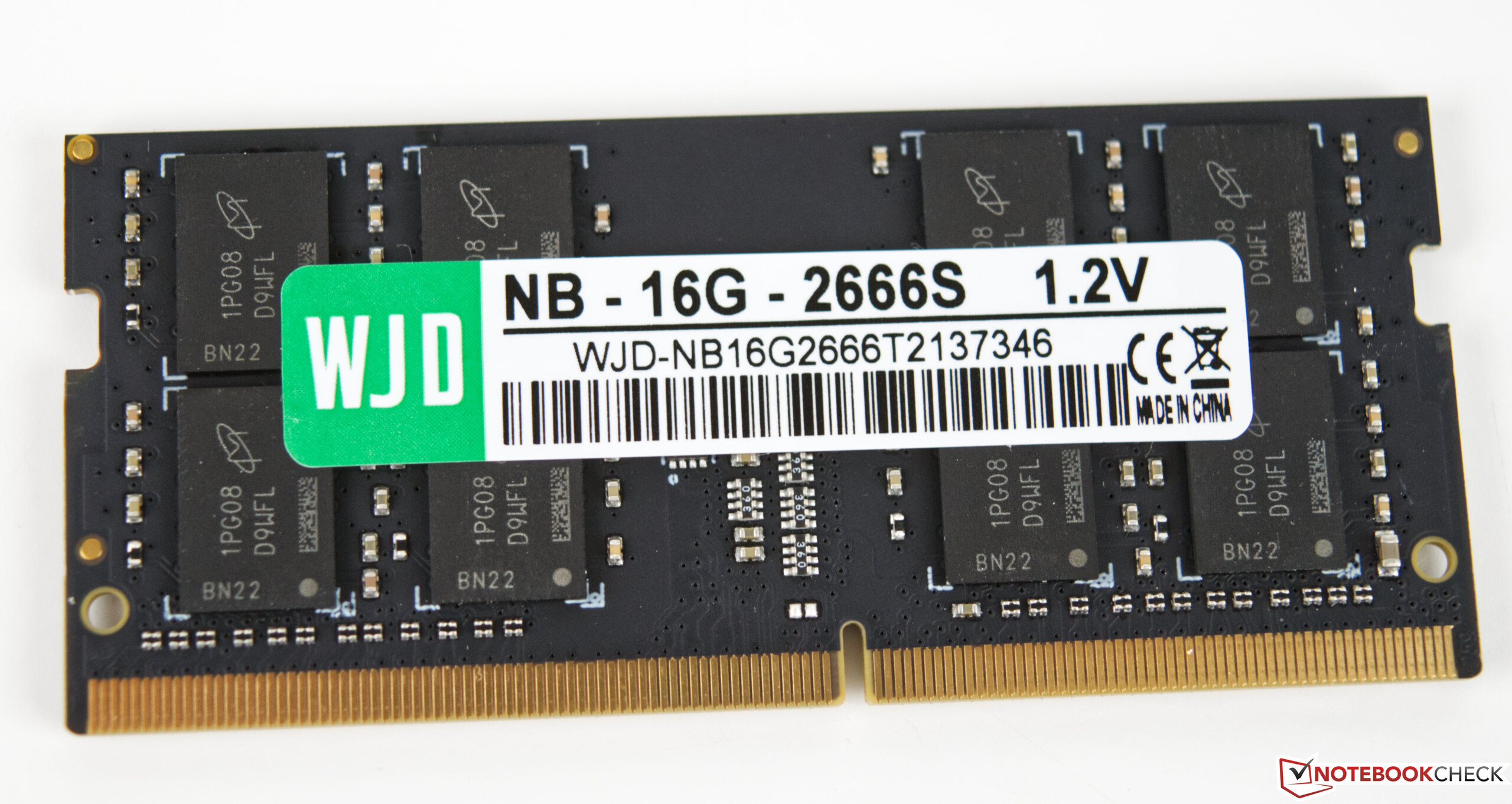

Nofflink M500-5405U - 内存

业绩

处理器

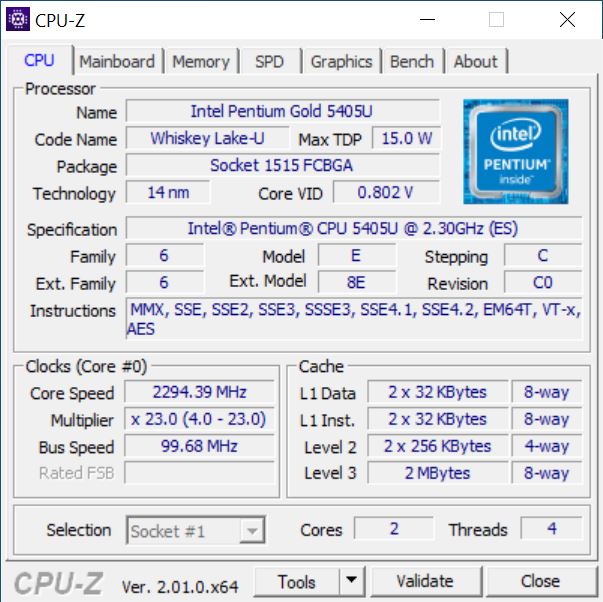

顾名思义,Nofflink M500-5405U使用了一个 英特尔Pentium Gold 5405U.这款15瓦的SoC是Whiskey Lake-U系列的一部分,提供两个物理核心,可同时处理多达四个线程,频率高达2.3GHz。

在直接比较中,原生双核SoC的缺点变得很明显。该 Newsmay AC6在我们的多线程基准测试中表现稍好,尽管我们的Nofflink M500的单核性能略胜一筹。然而,AMD的快速八核CPU将我们的英特尔奔腾金5405U甩在了后面。这符合我们的预期,因此并不令人惊讶。为便于比较,我们还将 英特尔酷睿i7-10510U在我们的图表中。这显示了用户可以从这个SoC中期待的大致性能,Nofflink M500也有这个SoC。

更多的比较和基准测试可以在我们的 CPU比较表.

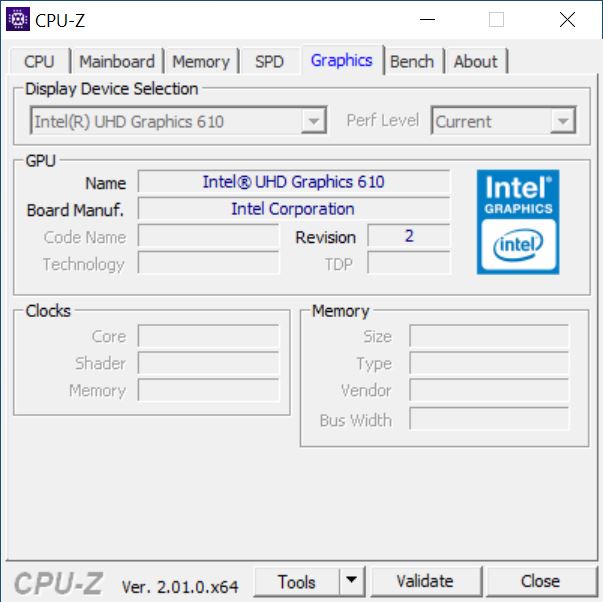

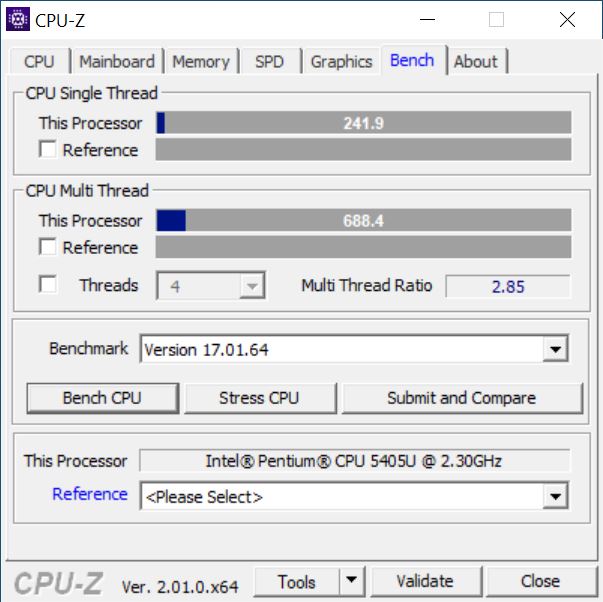

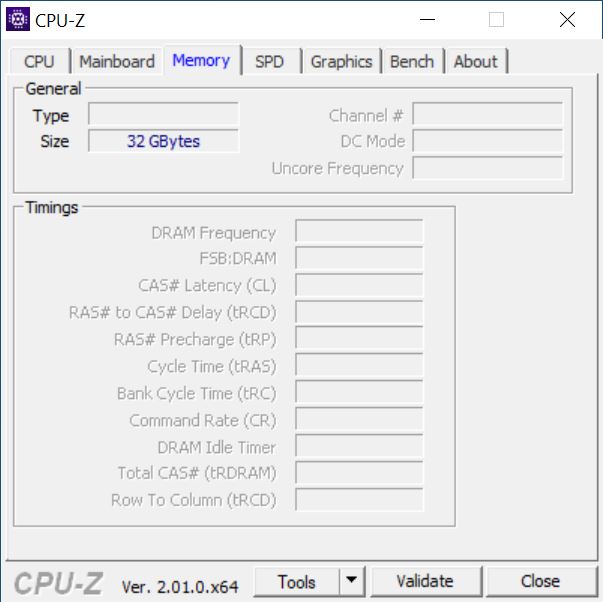

CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z

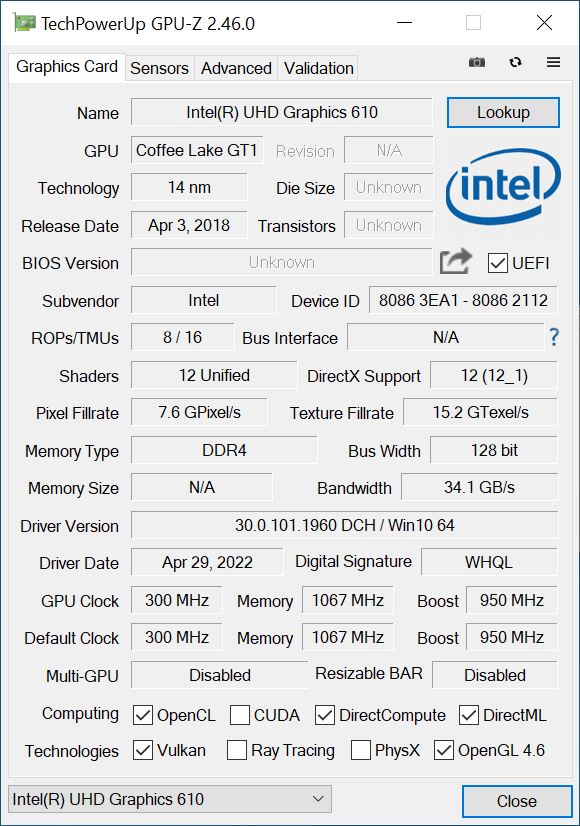

GPU-Z

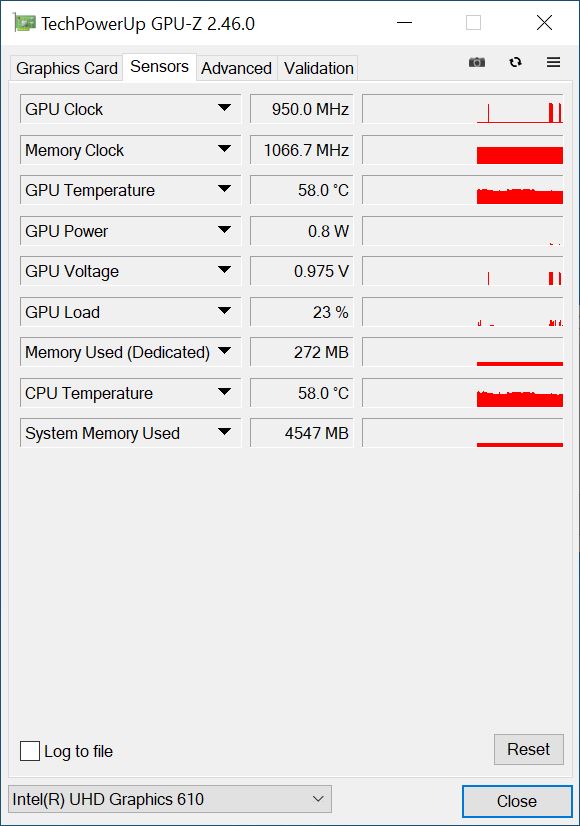

GPU-Z

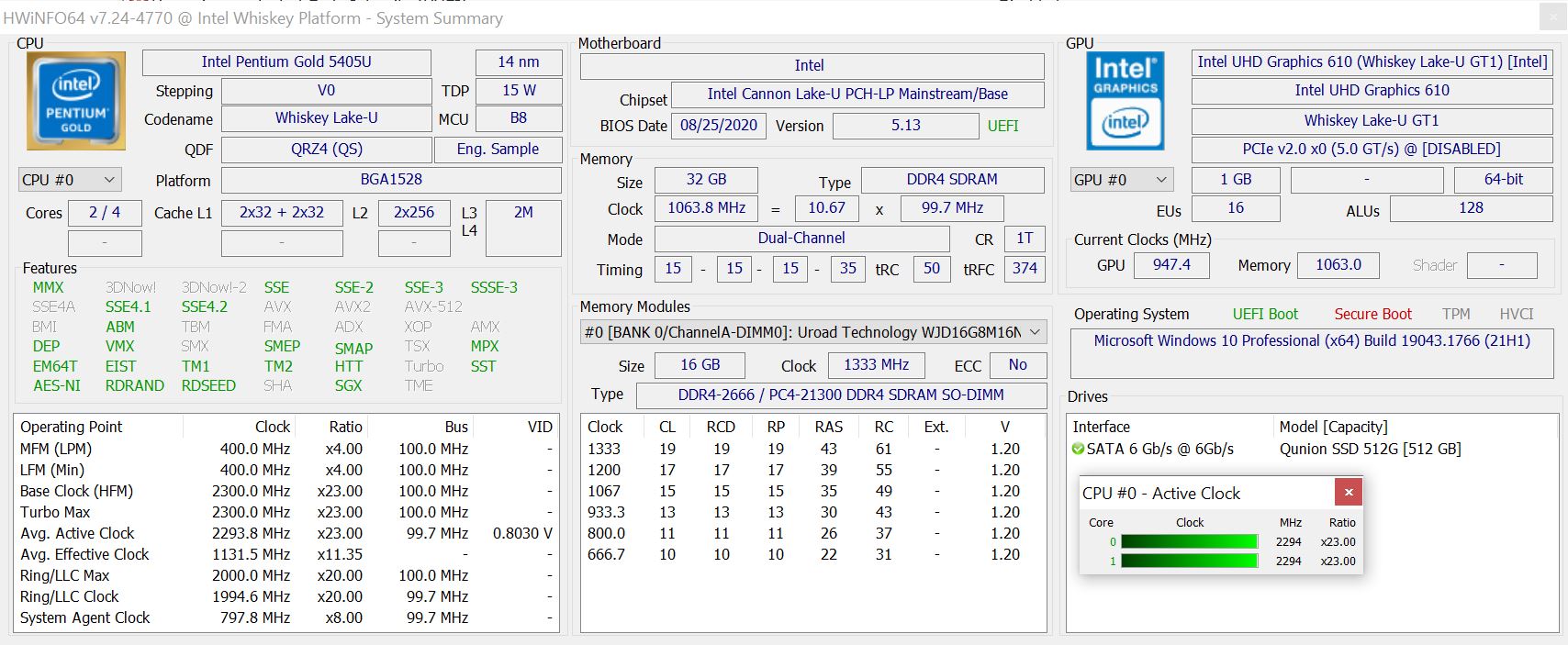

HWiNFO
Cinebench R23
Single Core
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1499 Points +178%
Minisforum EliteMini B550, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1495 Points +177%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1479 Points +174%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
1456 Points +170%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1298 Points +141%
Average Intel Core i7-10510U
  (1066 - 1207, n=3)
1142 Points +112%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
1031 Points +91%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
696 Points +29%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
660 Points +22%
Nofflink M500-5405U, Intel Pentium Gold 5405U
2300 MHz, Intel UHD Graphics 610
539 Points
Beelink GK Mini, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
446 Points -17%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
411 Points -24%
Multi Core
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
13430 Points +866%
Minisforum EliteMini B550, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
11873 Points +754%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
11792 Points +748%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
11440 Points +723%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
5980 Points +330%
Average Intel Core i7-10510U
  (3626 - 4239, n=3)
3866 Points +178%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
1910 Points +37%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
1833 Points +32%
Beelink GK Mini, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
1563 (1557.19min - 1562.55max) Points +12%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
1529 (1521.41min - 1529.3max) Points +10%
Nofflink M500-5405U, Intel Pentium Gold 5405U
2300 MHz, Intel UHD Graphics 610
1390 Points
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
834 (768.67min - 833.537max) Points -40%
Cinebench R20
CPU (Single Core)
Minisforum EliteMini B550, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
585 Points +181%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
582 Points +180%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
567 Points +173%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
560 Points +169%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
505 Points +143%
Average Intel Core i7-10510U
  (362 - 497, n=37)
437 Points +110%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
428 Points +106%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
401 Points +93%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
266 Points +28%
Nofflink M500-5405U, Intel Pentium Gold 5405U
2300 MHz, Intel UHD Graphics 610
208 Points
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
200 Points -4%
Beelink GK Mini, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
174 Points -16%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
171 Points -18%
GMK NucBox K1, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
161 Points -23%
CPU (Multi Core)
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
5185 Points +869%
Minisforum EliteMini B550, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
4660 Points +771%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
4585 Points +757%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
4495 Points +740%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
2319 Points +333%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
1820 Points +240%
Average Intel Core i7-10510U
  (1015 - 1897, n=38)
1412 Points +164%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
743 Points +39%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
720 Points +35%
Beelink GK Mini, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
610 Points +14%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
556 Points +4%
Nofflink M500-5405U, Intel Pentium Gold 5405U
2300 MHz, Intel UHD Graphics 610
535 Points
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
491 Points -8%
GMK NucBox K1, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
304 Points -43%
Cinebench R15
CPU Single 64Bit
Minisforum EliteMini B550, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
243 Points +159%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
242 Points +157%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
240 Points +155%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
212 Points +126%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
194 Points +106%
Average Intel Core i7-10510U
  (113 - 202, n=42)
178.4 Points +90%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
168 Points +79%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
162 Points +72%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
123 Points +31%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
117 Points +24%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
108 Points +15%
Nofflink M500-5405U, Intel Pentium Gold 5405U
2300 MHz, Intel UHD Graphics 610
94 Points
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
84 Points -11%
Beelink GK Mini, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
79.1 Points -16%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
77 Points -18%
GMK NucBox K1, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
75.3 Points -20%
CPU Multi 64Bit
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
2224 Points +831%
Minisforum EliteMini B550, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1980 Points +728%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1967 Points +723%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1919 (1862.02min - 1893.4max) Points +703%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
950 Points +297%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
790 Points +231%
Average Intel Core i7-10510U
  (482 - 856, n=45)
666 Points +179%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
319 Points +33%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
316 Points +32%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
298 Points +25%
Beelink GK Mini, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
271 (263.32min - 271.42max) Points +13%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
261 Points +9%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
248 Points +4%
GMK NucBox K1, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
243 (199.13min - 242.53max) Points +2%
Nofflink M500-5405U, Intel Pentium Gold 5405U
2300 MHz, Intel UHD Graphics 610
239 Points
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
220 Points -8%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
211 (209.9min - 211.39max) Points -12%
Blender - v2.79 BMW27 CPU
GMK NucBox K1, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
2391 Seconds * -10%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
2379 Seconds * -10%
Beelink GK Mini, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
2198 Seconds * -1%
Nofflink M500-5405U, Intel Pentium Gold 5405U
2300 MHz, Intel UHD Graphics 610
2168 Seconds *
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
1805 Seconds * +17%
Average Intel Core i7-10510U
  (628 - 1051, n=31)
796 Seconds * +63%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
585 Seconds * +73%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
516 Seconds * +76%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
265 Seconds * +88%
Minisforum EliteMini B550, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
252.1 Seconds * +88%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
247.3 Seconds * +89%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
229.3 Seconds * +89%
wPrime 2.10
1024m
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
732 s * -3%
Nofflink M500-5405U, Intel Pentium Gold 5405U
2300 MHz, Intel UHD Graphics 610
714.014 s *
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
620 s * +13%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
615 s * +14%
GMK NucBox K1, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
603 s * +16%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
566 s * +21%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
558 s * +22%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
543 s * +24%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
217.8 s * +69%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
191.4 s * +73%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
106.7 s * +85%
Minisforum EliteMini B550, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
98.635 s * +86%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
91.6 s * +87%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
82.9 s * +88%
32m
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
23.1 s * -1%
Nofflink M500-5405U, Intel Pentium Gold 5405U
2300 MHz, Intel UHD Graphics 610
22.797 s *
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
19.5 s * +14%
GMK NucBox K1, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
19.42 s * +15%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
18 s * +21%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
17.62 s * +23%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
17.37 s * +24%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
17.09 s * +25%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
6.78 s * +70%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
5.895 s * +74%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
4.4 s * +81%
Minisforum EliteMini B550, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
3.595 s * +84%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
3.308 s * +85%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
3.194 s * +86%
X264 HD Benchmark 4.0
Pass 2
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
128 (122min - 128max) fps +715%
Minisforum EliteMini B550, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
116.8 (116.8min - 117.3max) fps +644%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
112 (112min - 112max) fps +613%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
111 (111min - 112max) fps +607%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
49.35 (49.1min - 51.6max) fps +214%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
21.6 (21.5min - 22.1max) fps +38%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
20.55 (20.4min - 20.7max) fps +31%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
19.3 fps +23%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
16.75 (16.7min - 16.9max) fps +7%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
16.46 fps +5%
Nofflink M500-5405U, Intel Pentium Gold 5405U
2300 MHz, Intel UHD Graphics 610
15.7 (15.6min - 15.9max) fps
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
13.75 fps -12%
GMK NucBox K1, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
11.31 fps -28%
Pass 1
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
276.5 (274min - 278max) fps +232%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
271.5 (259min - 276max) fps +226%
Minisforum EliteMini B550, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
263.5 (262min - 266max) fps +216%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
215 (213min - 217max) fps +158%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
184.5 (184min - 186max) fps +121%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
106.5 (106min - 109max) fps +28%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
105 fps +26%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
102 (100min - 118max) fps +22%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
88.5 fps +6%
Nofflink M500-5405U, Intel Pentium Gold 5405U
2300 MHz, Intel UHD Graphics 610
83.4 (83.2min - 85.2max) fps
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
78.9 (77.1min - 81.7max) fps -5%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
74 fps -11%
GMK NucBox K1, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
52.6 fps -37%
TrueCrypt
AES Mean 100MB
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
10.8 GB/s +671%
Minisforum EliteMini B550, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
7.6 GB/s +443%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
7.4 GB/s +429%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
7.4 GB/s +429%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
6.1 GB/s +336%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
4.7 GB/s +236%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
2.6 GB/s +86%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
1.9 GB/s +36%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
1.9 GB/s +36%
GMK NucBox K1, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
1.8 GB/s +29%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
1.7 GB/s +21%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
1.5 GB/s +7%
Nofflink M500-5405U, Intel Pentium Gold 5405U
2300 MHz, Intel UHD Graphics 610
1.4 GB/s
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
1.3 GB/s -7%
Serpent Mean 100MB
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1.2 GB/s +728%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1.2 GB/s +728%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1.1 GB/s +659%
Minisforum EliteMini B550, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1.1 GB/s +659%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
0.525 GB/s +262%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
0.48 GB/s +231%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
0.23 GB/s +59%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
0.21 GB/s +45%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
0.182 GB/s +26%
GMK NucBox K1, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
0.178 GB/s +23%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
0.166 GB/s +14%
Nofflink M500-5405U, Intel Pentium Gold 5405U
2300 MHz, Intel UHD Graphics 610
0.145 GB/s
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
0.142 GB/s -2%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
0.133 GB/s -8%
Twofish Mean 100MB
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
2 GB/s +713%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
2 GB/s +713%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1.6 GB/s +550%
Minisforum EliteMini B550, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1.5 GB/s +510%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
0.919 GB/s +274%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
0.79 GB/s +221%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
0.403 GB/s +64%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
0.346 GB/s +41%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
0.283 GB/s +15%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
0.266 GB/s +8%
GMK NucBox K1, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
0.262 GB/s +7%
Nofflink M500-5405U, Intel Pentium Gold 5405U
2300 MHz, Intel UHD Graphics 610
0.246 GB/s
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
0.245 GB/s 0%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
0.199 GB/s -19%
HWBOT x265 Benchmark v2.2 - 4k Preset
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
15.9 fps +1182%
Minisforum EliteMini B550, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
14.8 fps +1094%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
14.5 fps +1069%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
12.9 fps +940%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
7.86 fps +534%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
6.28 fps +406%
Average Intel Core i7-10510U
  (3.41 - 6.04, n=31)
4.65 fps +275%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
1.65 fps +33%
Beelink GK Mini, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
1.61 fps +30%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
1.48 fps +19%
GMK NucBox K1, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
1.46 fps +18%
Nofflink M500-5405U, Intel Pentium Gold 5405U
2300 MHz, Intel UHD Graphics 610
1.24 fps
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
0 fps -100%

* ... smaller is better

Performance Rating
Average of class Desktop

100 pt
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
53.9 pt
Minisforum HM90
AMD Ryzen 9 4900H, Vega 8
48.4 pt
Morefine S500+
AMD Ryzen 9 5900HX, Vega 8
48.4 pt
Minisforum EliteMini B550
AMD Ryzen 7 5700G, Vega 8
48.2 pt
Minisforum EliteMini TH50
Intel Core i5-11320H, Iris Xe G7 96EUs
30.1 pt
Intel NUC5i3RYK -1!
Intel Core i3-5010U, HD Graphics 5500
6.9 pt
Nofflink M500-5405U
Intel Pentium Gold 5405U, UHD Graphics 610
6.8 pt
Beelink GK Mini
Intel Celeron J4125, UHD Graphics 600
6.8 pt
AC6-M Mini-PC
Intel Celeron J4125, UHD Graphics 600
6.6 pt
Average Intel Pentium Gold 5405U

6.3 pt
Newsmay AC8 N6005
Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)
2.7 pt
AIDA64 / FP32 Ray-Trace
Average of class Desktop
  (6011 - 83214, n=15, last 2 years)
40286 KRay/s +4391%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
15755 KRay/s +1656%
Minisforum HM90
AMD Ryzen 9 4900H, Vega 8
15061 KRay/s +1579%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, Vega 8
13631 KRay/s +1420%
Morefine S500+
AMD Ryzen 9 5900HX, Vega 8
13460 KRay/s +1401%
Minisforum EliteMini TH50
Intel Core i5-11320H, Iris Xe G7 96EUs
7489 KRay/s +735%
Intel NUC5i3RYK
Intel Core i3-5010U, HD Graphics 5500
1473 KRay/s +64%
Beelink GK Mini
Intel Celeron J4125, UHD Graphics 600
1040 KRay/s +16%
AC6-M Mini-PC
Intel Celeron J4125, UHD Graphics 600
999 KRay/s +11%
Nofflink M500-5405U
Intel Pentium Gold 5405U, UHD Graphics 610
897 KRay/s
Average Intel Pentium Gold 5405U
  (895 - 897, n=2)
896 KRay/s 0%
Newsmay AC8 N6005
Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)
416 KRay/s -54%
AIDA64 / FPU Julia
Average of class Desktop
  (27835 - 264044, n=15, last 2 years)
161013 Points +3896%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
100504 Points +2395%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, Vega 8
86825 Points +2055%
Morefine S500+
AMD Ryzen 9 5900HX, Vega 8
85294 Points +2017%
Minisforum HM90
AMD Ryzen 9 4900H, Vega 8
80302 Points +1893%
Minisforum EliteMini TH50
Intel Core i5-11320H, Iris Xe G7 96EUs
31637 Points +685%
Intel NUC5i3RYK
Intel Core i3-5010U, HD Graphics 5500
7200 Points +79%
Beelink GK Mini
Intel Celeron J4125, UHD Graphics 600
6611 Points +64%
AC6-M Mini-PC
Intel Celeron J4125, UHD Graphics 600
6217 Points +54%
Nofflink M500-5405U
Intel Pentium Gold 5405U, UHD Graphics 610
4029 Points
Average Intel Pentium Gold 5405U
  (4011 - 4029, n=2)
4020 Points 0%
Newsmay AC8 N6005
Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)
2401 Points -40%
AIDA64 / CPU SHA3
Average of class Desktop
  (2019 - 10804, n=15, last 2 years)
7090 MB/s +2432%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
3444 MB/s +1130%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, Vega 8
2953 MB/s +955%
Morefine S500+
AMD Ryzen 9 5900HX, Vega 8
2924 MB/s +944%
Minisforum HM90
AMD Ryzen 9 4900H, Vega 8
2631 MB/s +840%
Minisforum EliteMini TH50
Intel Core i5-11320H, Iris Xe G7 96EUs
2099 MB/s +650%
Beelink GK Mini
Intel Celeron J4125, UHD Graphics 600
417 MB/s +49%
AC6-M Mini-PC
Intel Celeron J4125, UHD Graphics 600
396 MB/s +41%
Nofflink M500-5405U
Intel Pentium Gold 5405U, UHD Graphics 610
280 MB/s
Average Intel Pentium Gold 5405U
  (279 - 280, n=2)
280 MB/s 0%
Newsmay AC8 N6005
Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)
167 MB/s -40%
AIDA64 / CPU Queen
Average of class Desktop
  (75592 - 205588, n=15, last 2 years)
146317 Points +833%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
105123 Points +570%
Minisforum HM90
AMD Ryzen 9 4900H, Vega 8
101697 Points +548%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, Vega 8
97720 Points +523%
Morefine S500+
AMD Ryzen 9 5900HX, Vega 8
94655 Points +503%
Minisforum EliteMini TH50
Intel Core i5-11320H, Iris Xe G7 96EUs
52477 Points +235%
Beelink GK Mini
Intel Celeron J4125, UHD Graphics 600
20042 Points +28%
AC6-M Mini-PC
Intel Celeron J4125, UHD Graphics 600
20014 Points +28%
Nofflink M500-5405U
Intel Pentium Gold 5405U, UHD Graphics 610
15686 Points
Average Intel Pentium Gold 5405U
  (15437 - 15686, n=2)
15562 Points -1%
Intel NUC5i3RYK
Intel Core i3-5010U, HD Graphics 5500
14767 Points -6%
Newsmay AC8 N6005
Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)
7876 Points -50%
AIDA64 / FPU SinJulia
Average of class Desktop
  (6540 - 35251, n=15, last 2 years)
20183 Points +1360%
Minisforum HM90
AMD Ryzen 9 4900H, Vega 8
14477 Points +948%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
12792 Points +826%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, Vega 8
12202 Points +783%
Morefine S500+
AMD Ryzen 9 5900HX, Vega 8
11929 Points +763%
Minisforum EliteMini TH50
Intel Core i5-11320H, Iris Xe G7 96EUs
5011 Points +263%
Nofflink M500-5405U
Intel Pentium Gold 5405U, UHD Graphics 610
1382 Points
Average Intel Pentium Gold 5405U
  (1378 - 1382, n=2)
1380 Points 0%
Intel NUC5i3RYK
Intel Core i3-5010U, HD Graphics 5500
1342 Points -3%
Beelink GK Mini
Intel Celeron J4125, UHD Graphics 600
1263 Points -9%
AC6-M Mini-PC
Intel Celeron J4125, UHD Graphics 600
1204 Points -13%
Newsmay AC8 N6005
Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)
397 Points -71%
AIDA64 / FPU Mandel
Average of class Desktop
  (16325 - 138291, n=15, last 2 years)
83865 Points +3985%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
55452 Points +2601%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, Vega 8
47597 Points +2218%
Morefine S500+
AMD Ryzen 9 5900HX, Vega 8
47010 Points +2190%
Minisforum HM90
AMD Ryzen 9 4900H, Vega 8
42220 Points +1957%
Minisforum EliteMini TH50
Intel Core i5-11320H, Iris Xe G7 96EUs
18770 Points +814%
Intel NUC5i3RYK
Intel Core i3-5010U, HD Graphics 5500
3821 Points +86%
Beelink GK Mini
Intel Celeron J4125, UHD Graphics 600
3614 Points +76%
AC6-M Mini-PC
Intel Celeron J4125, UHD Graphics 600
3375 Points +64%
Nofflink M500-5405U
Intel Pentium Gold 5405U, UHD Graphics 610
2053 Points
Average Intel Pentium Gold 5405U
  (2050 - 2053, n=2)
2052 Points 0%
Newsmay AC8 N6005
Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)
1264 Points -38%
AIDA64 / CPU AES
Average of class Desktop
  (67922 - 513073, n=15, last 2 years)
212768 MB/s +3969%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
135212 MB/s +2486%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, Vega 8
119844 MB/s +2192%
Morefine S500+
AMD Ryzen 9 5900HX, Vega 8
115382 MB/s +2107%
Minisforum EliteMini TH50
Intel Core i5-11320H, Iris Xe G7 96EUs
76500 MB/s +1363%
Minisforum HM90
AMD Ryzen 9 4900H, Vega 8
75234 MB/s +1339%
Beelink GK Mini
Intel Celeron J4125, UHD Graphics 600
10604 MB/s +103%
AC6-M Mini-PC
Intel Celeron J4125, UHD Graphics 600
10084 MB/s +93%
Newsmay AC8 N6005
Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)
6370 MB/s +22%
Nofflink M500-5405U
Intel Pentium Gold 5405U, UHD Graphics 610
5229 MB/s
Average Intel Pentium Gold 5405U
  (5222 - 5229, n=2)
5226 MB/s 0%
Intel NUC5i3RYK
Intel Core i3-5010U, HD Graphics 5500
4759 MB/s -9%
AIDA64 / CPU ZLib
Average of class Desktop
  (812 - 2632, n=15, last 2 years)
1757 MB/s +1604%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
871 MB/s +745%
Minisforum HM90
AMD Ryzen 9 4900H, Vega 8
851 MB/s +725%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, Vega 8
774 MB/s +651%
Morefine S500+
AMD Ryzen 9 5900HX, Vega 8
747 MB/s +625%
Minisforum EliteMini TH50
Intel Core i5-11320H, Iris Xe G7 96EUs
410 MB/s +298%
Beelink GK Mini
Intel Celeron J4125, UHD Graphics 600
137 MB/s +33%
AC6-M Mini-PC
Intel Celeron J4125, UHD Graphics 600
131 MB/s +27%
Nofflink M500-5405U
Intel Pentium Gold 5405U, UHD Graphics 610
103.1 MB/s
Average Intel Pentium Gold 5405U
  (100 - 103.1, n=2)
101.6 MB/s -1%
Intel NUC5i3RYK
Intel Core i3-5010U, HD Graphics 5500
95 MB/s -8%
Newsmay AC8 N6005
Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)
60.6 MB/s -41%
AIDA64 / FP64 Ray-Trace
Average of class Desktop
  (3442 - 44013, n=15, last 2 years)
21693 KRay/s +4196%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
8425 KRay/s +1568%
Minisforum HM90
AMD Ryzen 9 4900H, Vega 8
8242 KRay/s +1532%
Morefine S500+
AMD Ryzen 9 5900HX, Vega 8
7193 KRay/s +1324%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, Vega 8
7184 KRay/s +1323%
Minisforum EliteMini TH50
Intel Core i5-11320H, Iris Xe G7 96EUs
4021 KRay/s +696%
Intel NUC5i3RYK
Intel Core i3-5010U, HD Graphics 5500
814 KRay/s +61%
Beelink GK Mini
Intel Celeron J4125, UHD Graphics 600
578 KRay/s +14%
AC6-M Mini-PC
Intel Celeron J4125, UHD Graphics 600
553 KRay/s +10%
Nofflink M500-5405U
Intel Pentium Gold 5405U, UHD Graphics 610
505 KRay/s
Average Intel Pentium Gold 5405U
  (503 - 505, n=2)
504 KRay/s 0%
Newsmay AC8 N6005
Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)
213 KRay/s -58%
AIDA64 / CPU PhotoWorxx
Average of class Desktop
  (27809 - 54680, n=15, last 2 years)
42318 MPixel/s +249%
Minisforum EliteMini TH50
Intel Core i5-11320H, Iris Xe G7 96EUs
30647 MPixel/s +152%
Morefine S500+
AMD Ryzen 9 5900HX, Vega 8
19885 MPixel/s +64%
Minisforum HM90
AMD Ryzen 9 4900H, Vega 8
19718 MPixel/s +62%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
14978 MPixel/s +23%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, Vega 8
14810 MPixel/s +22%
Nofflink M500-5405U
Intel Pentium Gold 5405U, UHD Graphics 610
12141 MPixel/s
Average Intel Pentium Gold 5405U
  (7835 - 12141, n=2)
9988 MPixel/s -18%
Intel NUC5i3RYK
Intel Core i3-5010U, HD Graphics 5500
9034 MPixel/s -26%
AC6-M Mini-PC
Intel Celeron J4125, UHD Graphics 600
6778 MPixel/s -44%
Beelink GK Mini
Intel Celeron J4125, UHD Graphics 600
6756 MPixel/s -44%
Newsmay AC8 N6005
Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)
2501 MPixel/s -79%

Nofflink M500-5405U在Cinebench R15多循环中的表现

在我们的负载测试中,通过循环运行Cinebench R15 Multi来模拟,Nofflink的冷却解决方案显示其有能力处理以下的热量发展 Intel Pentium Gold 5405U.我们测得50次运行后的平均分数为238分。

050100150200250300350400450500550600650700750800850900950Tooltip
Nofflink M500-5405U Intel Pentium Gold 5405U, Intel Pentium Gold 5405U: Ø238 (236.3-238.86)
Beelink GK Mini Intel Celeron J4125, Intel Celeron J4125: Ø268 (263.32-271.42)
AC6-M Mini-PC Intel Celeron J4125, Intel Celeron J4125: Ø247 (245.01-250.05)
Newsmay AC8 N6005 Intel Pentium Silver N6005, Intel Pentium Silver N6005: Ø273 (225.33-307.03)
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Core i5-11320H: Ø896 (837.78-960.71)
MSI Cubi 5 10M Intel Core i3-10110U, Intel Core i3-10110U: Ø315 (308.88-317.27)

系统性能和存储解决方案

在我们的合成PCMark 10基准测试中,尽管Nofflink M500的SoC很弱,但它达到了相当好的分数。然而,在我们的比较中,它属于最低的三分之一的设备。4K测试视频的回放仍然运行良好。丢帧只发生在视频的开始部分,在视频的其余部分没有停顿,实现了流畅的4K播放。同时,iGPU的负载在20%和50%之间波动。

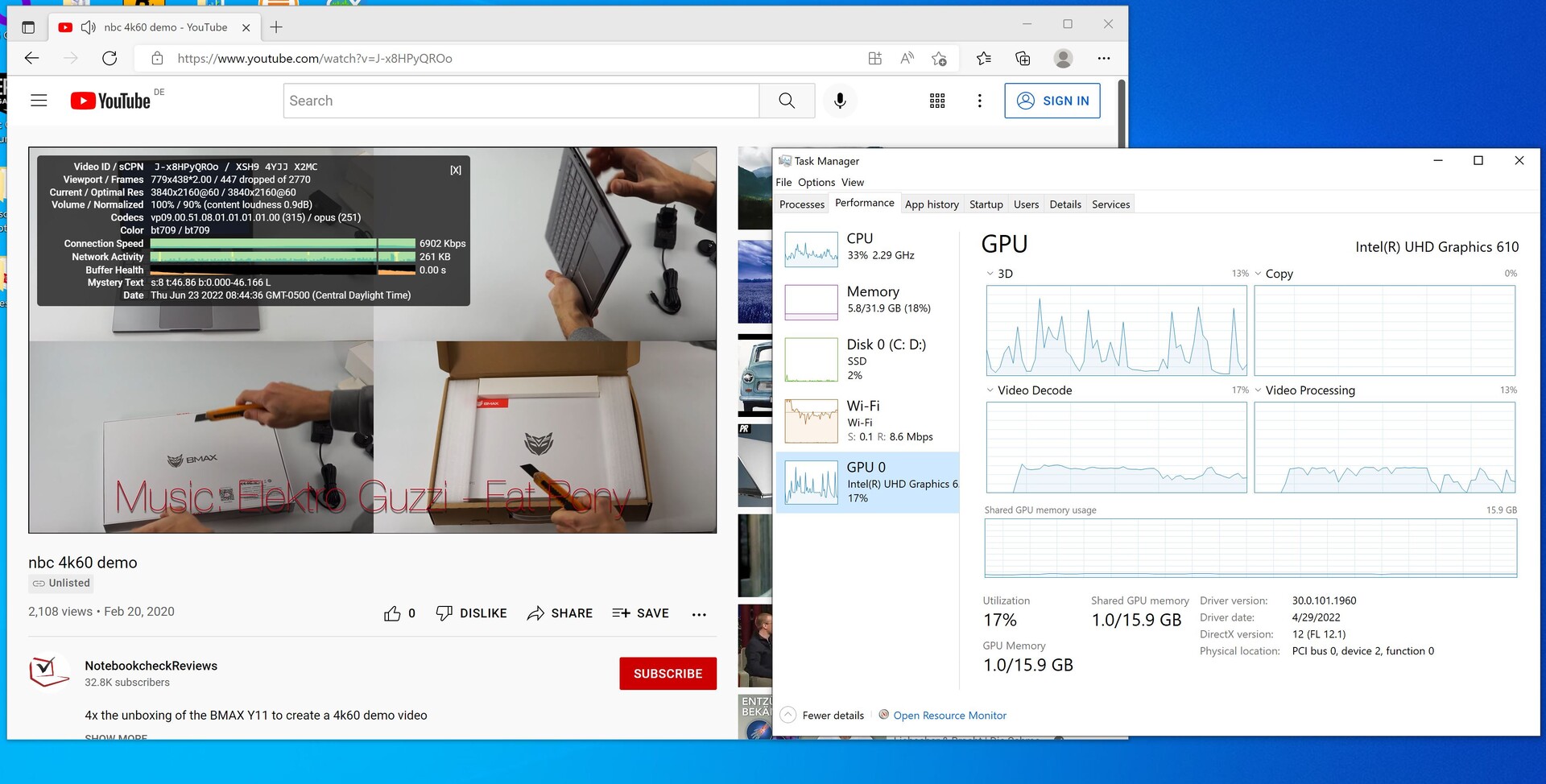

打开多个浏览器标签和4K视频播放时的最大延迟
打开多个浏览器标签和4K视频播放时的最大延迟

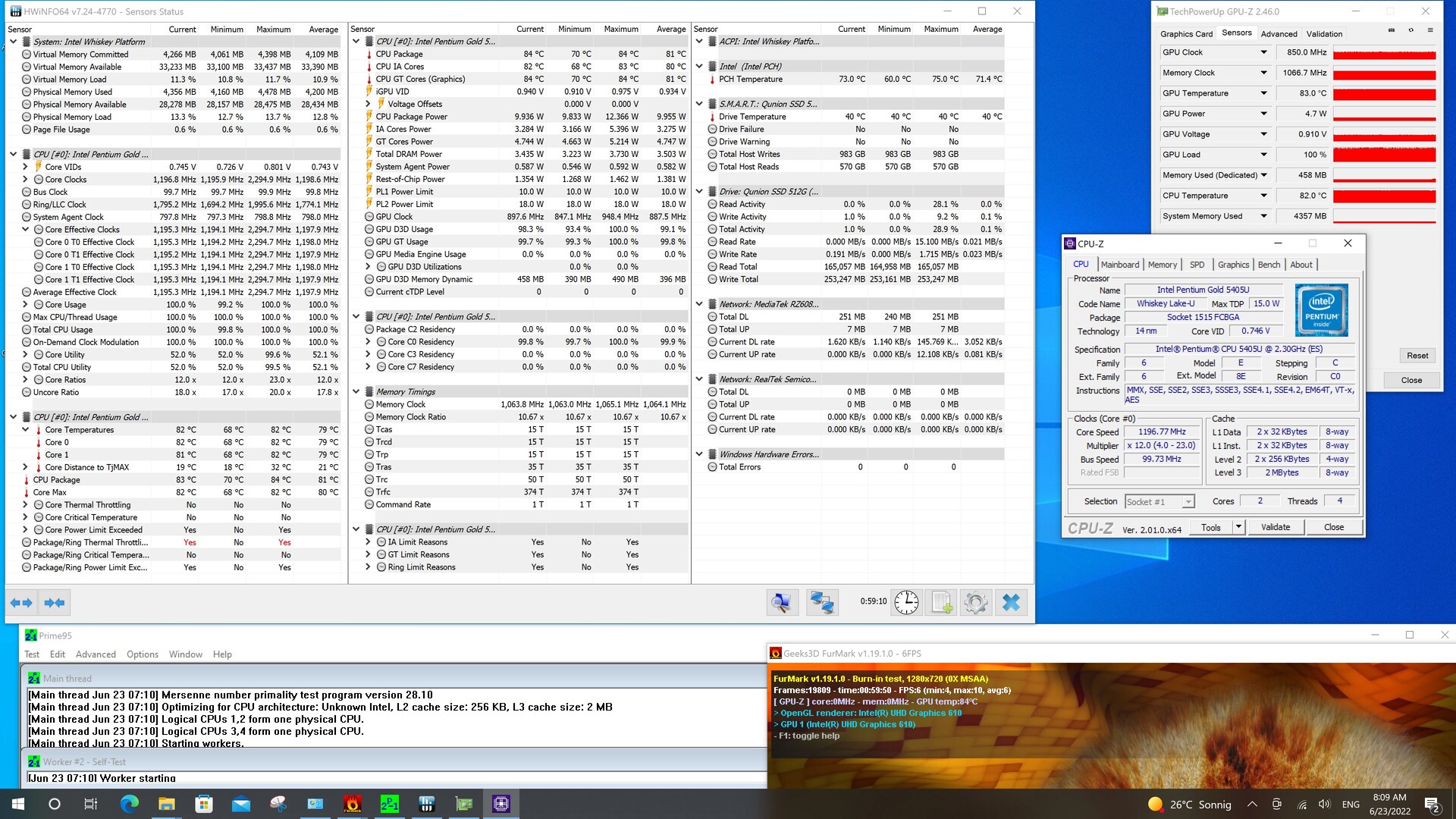

运行Prime95 10秒后的最大延迟
运行Prime95 10秒后的最大延迟

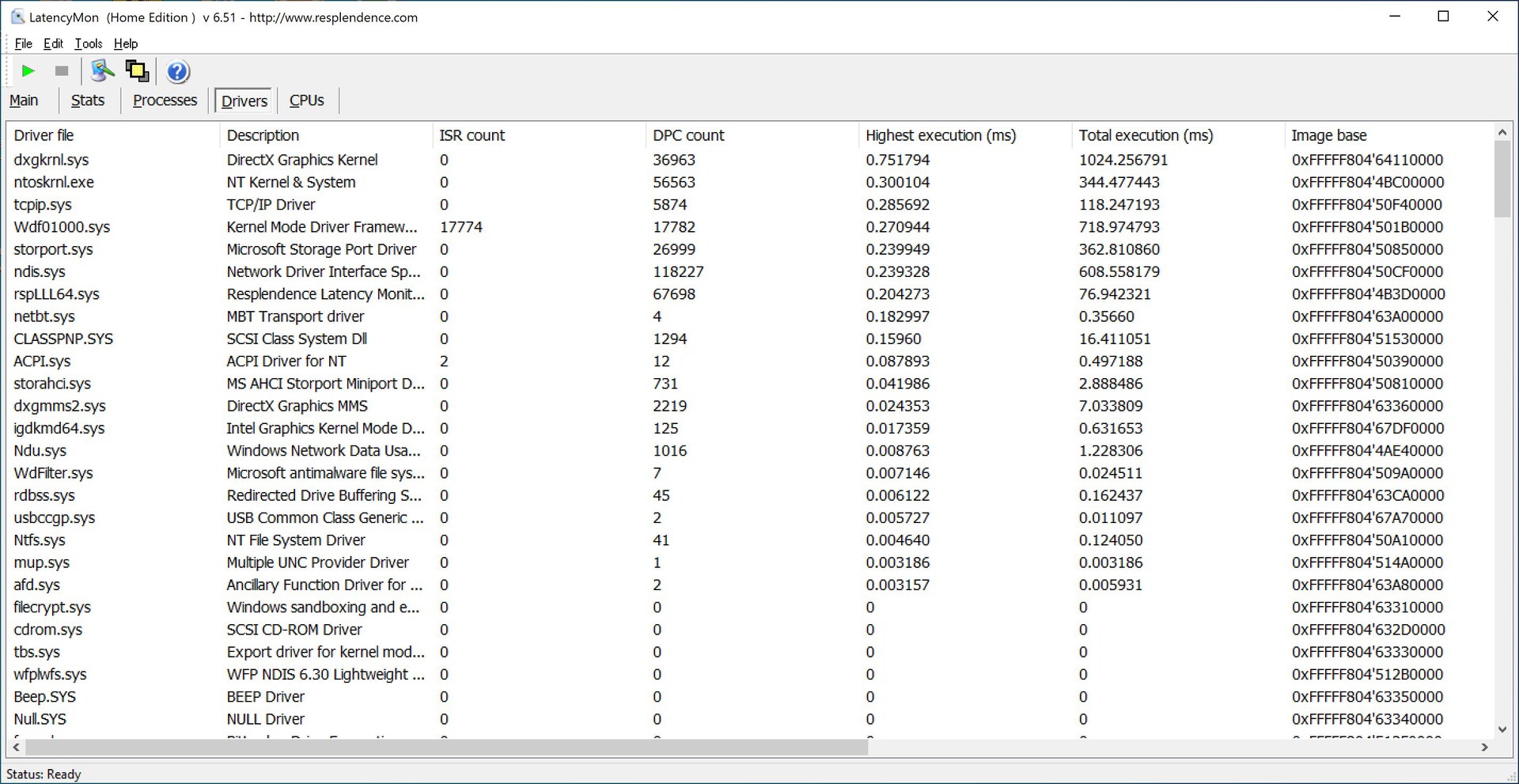

按最高执行率计算的驱动力
按最高执行率计算的驱动力
PCMark 10
Score
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
6507 Points +175%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
6290 Points +166%
Minisforum EliteMini B550, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
6214 Points +163%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
5565 Points +135%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
5130 Points +117%
Average Intel Core i7-10510U
  (3783 - 5409, n=39)
4312 Points +82%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
4019 Points +70%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
2958 Points +25%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
2548 Points +8%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
2391 Points +1%
Nofflink M500-5405U, Intel Pentium Gold 5405U
2300 MHz, Intel UHD Graphics 610
2365 Points
Beelink GK Mini, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
1898 Points -20%
GMK NucBox K1, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
1831 Points -23%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
1806 Points -24%
Productivity
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
10196 Points +151%
Minisforum EliteMini B550, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
9941 Points +145%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
9856 Points +143%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
8277 Points +104%
Average Intel Core i7-10510U
  (5883 - 8567, n=39)
7255 Points +79%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
6832 Points +68%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
6494 Points +60%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
5397 Points +33%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
4084 Points +1%
Nofflink M500-5405U, Intel Pentium Gold 5405U
2300 MHz, Intel UHD Graphics 610
4056 Points
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
3854 Points -5%
Beelink GK Mini, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
3050 Points -25%
GMK NucBox K1, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
2948 Points -27%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
2928 Points -28%

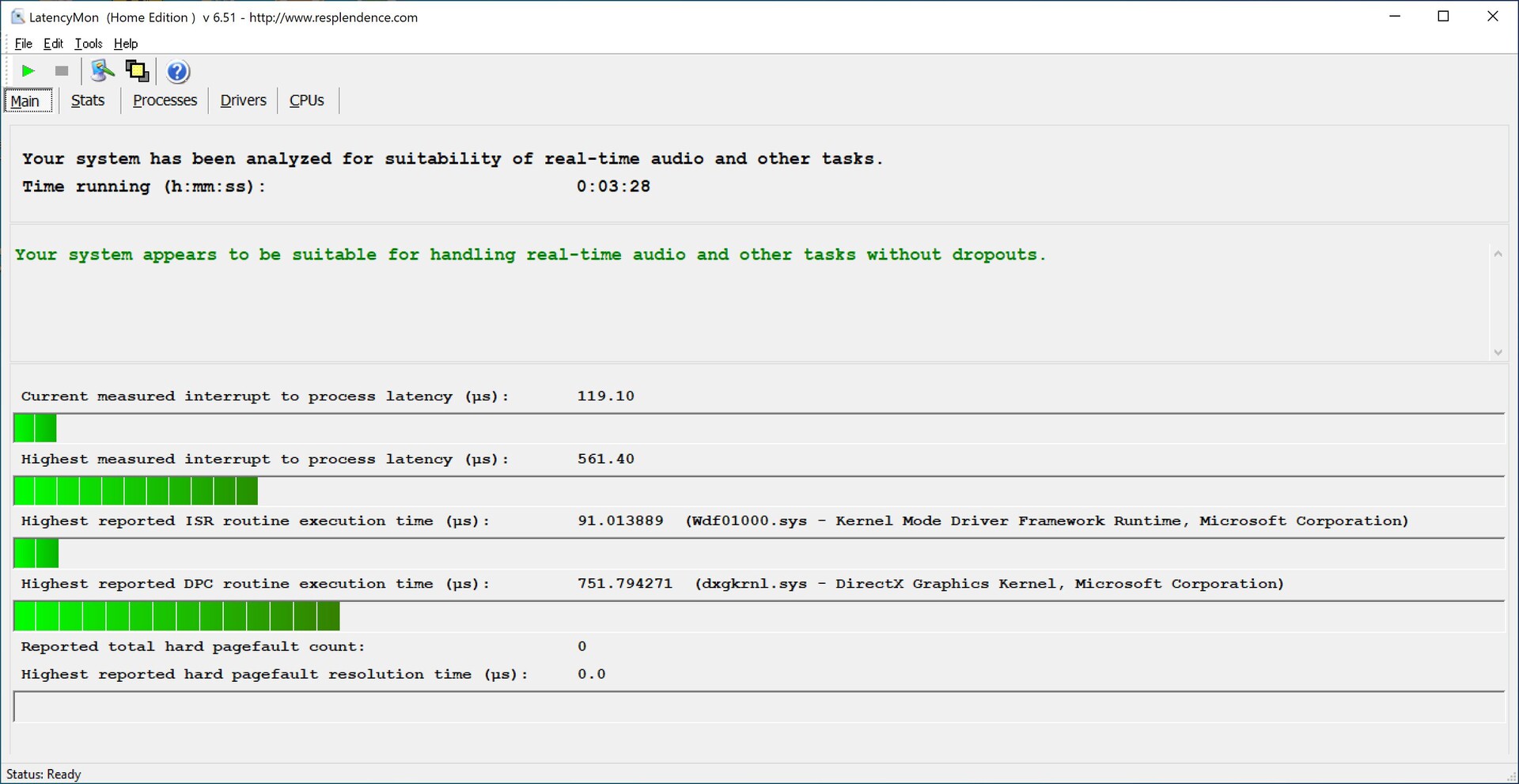

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
3767 μs * -401%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
2635 μs * -251%
Average Intel Core i7-10510U
  (395 - 5640, n=26)
2114 μs * -181%
Minisforum EliteMini B550, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1867 μs * -148%
GMK NucBox K1, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
1717 μs * -128%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1625 μs * -116%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
1581 μs * -110%
Beelink GK Mini, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
1318 μs * -75%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1106 μs * -47%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1106 μs * -47%
Nofflink M500-5405U, Intel Pentium Gold 5405U
2300 MHz, Intel UHD Graphics 610
751.7 μs *
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
349.5 μs * +54%

* ... smaller is better

存储解决方案

我们配置的Nofflink M500配备了一块512GB的M.2 2280固态硬盘。大多数用户可能会对其制造商Qunion感到陌生。该型号使用SATA接口,在我们的测试中取得了坚实的成果。在机箱内还有一个用于辅助的、2.5英寸存储驱动器的插槽。所有安装所需的电缆和螺丝都包括在内。

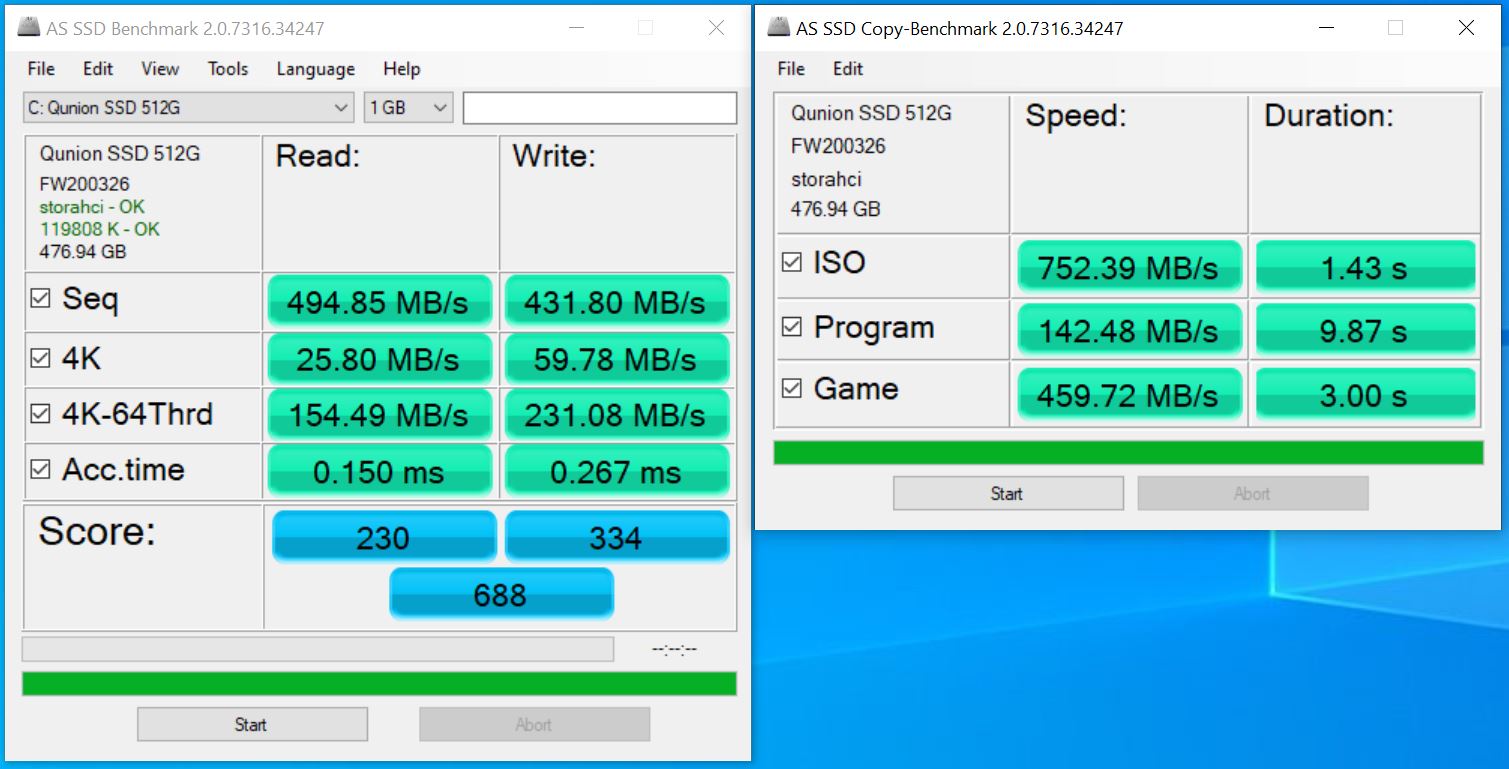

AS SSD
AS SSD

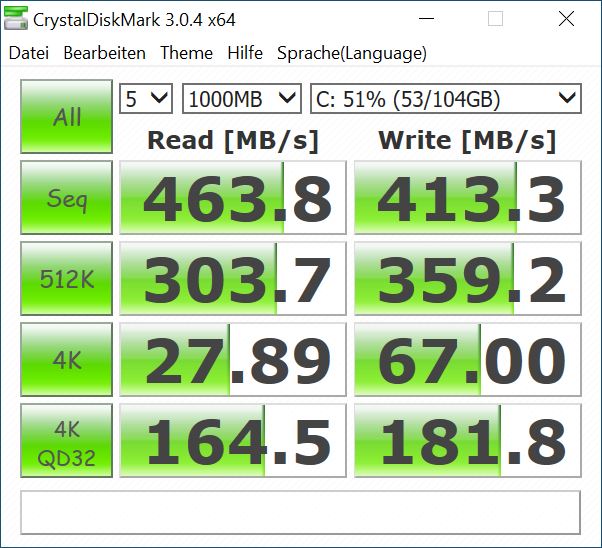

CDM 3
CDM 3

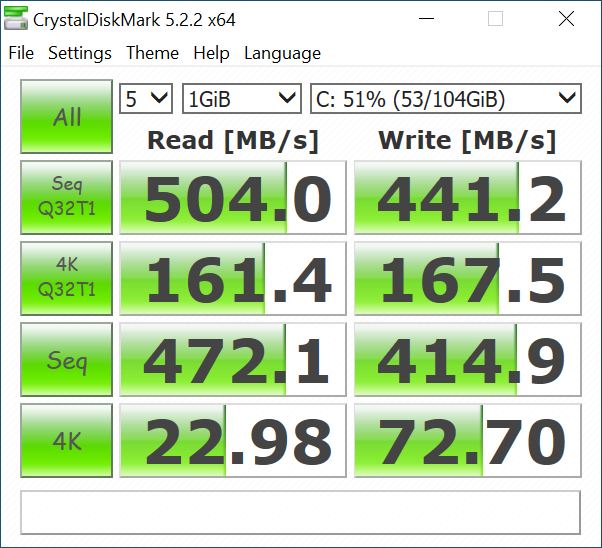

CDM 5
CDM 5

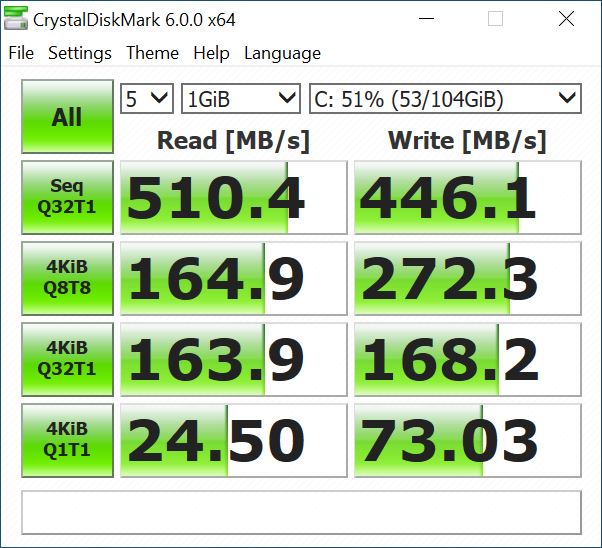

CDM 6
CDM 6
CDI
CDI

GPU性能

著名的 英特尔UHD Graphics 610作为Nofflink M500的图形单元。它有12个EU,时钟速度高达950MHz,只适合简单的2D应用。即使是基本的3D应用也会给 英特尔UHD Graphics 610到它的膝盖。因此,用户应避免将英特尔图形610用于除纯粹的办公应用之外的其他用途。

3DMark 11 - 1280x720 Performance GPU
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
7122 Points +666%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
6518 Points +601%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
6306 Points +578%
Minisforum EliteMini B550, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
5777 Points +521%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
5567 Points +499%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
2322 Points +150%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
1853 Points +99%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
1589 Points +71%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
1458 Points +57%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
1316 Points +42%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
1175 Points +26%
Nofflink M500-5405U, Intel Pentium Gold 5405U
2300 MHz, Intel UHD Graphics 610
930 Points
Average Intel HD Graphics 610
  (804 - 949, n=5)
868 Points -7%
Beelink GK Mini, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
613 Points -34%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
602 Points -35%
GMK NucBox K1, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
589 Points -37%
3DMark
1280x720 Ice Storm Standard Graphics
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
171104 Points +416%
Minisforum EliteMini B550, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
141325 Points +326%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
130976 Points +295%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
100414 Points +203%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
61979 Points +87%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
60011 Points +81%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
58199 Points +76%
Average Intel HD Graphics 610
  (38522 - 60904, n=4)
47069 Points +42%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
41037 Points +24%
Nofflink M500-5405U, Intel Pentium Gold 5405U
2300 MHz, Intel UHD Graphics 610
33154 Points
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
25631 Points -23%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
21465 Points -35%
1920x1080 Ice Storm Extreme Graphics
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
121736 Points +495%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
102227 Points +400%
Minisforum EliteMini B550, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
96874 Points +374%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
84227 Points +312%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
50500 Points +147%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
40670 Points +99%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
40532 Points +98%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
26409 Points +29%
Average Intel HD Graphics 610
  (21082 - 26975, n=4)
23697 Points +16%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
20602 Points +1%
Nofflink M500-5405U, Intel Pentium Gold 5405U
2300 MHz, Intel UHD Graphics 610
20443 Points
GMK NucBox K1, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
14600 Points -29%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
14360 Points -30%
1920x1080 Fire Strike Graphics
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
4730 Points +583%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
4369 Points +530%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
3775 Points +445%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
3414 Points +393%
Minisforum EliteMini B550, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
3379 Points +388%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
1479 Points +113%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
1202 Points +73%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
1033 Points +49%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
881 Points +27%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
772 Points +11%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
770 Points +11%
Nofflink M500-5405U, Intel Pentium Gold 5405U
2300 MHz, Intel UHD Graphics 610
693 Points
Average Intel HD Graphics 610
  (556 - 657, n=4)
607 Points -12%
Beelink GK Mini, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
455 Points -34%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
446 Points -36%
GMK NucBox K1, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
433 Points -38%
3DMark 05 Standard
12054 points
3DMark 06 Standard Score
7778 points
3DMark Vantage P Result
3996 points
3DMark 11 Performance
1065 points
3DMark Ice Storm Standard Score
32825 points
3DMark Cloud Gate Standard Score
4423 points
3DMark Fire Strike Score
635 points
Help
lowmed.highultra
GTA V (2015) 28.5 25.4 5.97
The Witcher 3 (2015) 11.3 7.68 4.18
Dota 2 Reborn (2015) 63.1 31.7 12.8 11.6
Final Fantasy XV Benchmark (2018) 7.73 3.53 3.53
X-Plane 11.11 (2018) 10.9 10.5 7.28
Far Cry 5 (2018) 8 4 3
Strange Brigade (2018) 18.3 7.7 10 13.6
Far Cry New Dawn (2019) 8 4 4
F1 2020 (2020) 17.6 7.54 5.5
F1 2021 (2021) 19.7 7.88 6.26

排放

系统噪音

当涉及到噪音水平时,我们期望能够测出更好的结果。在空转时,系统通常是完全无声的,尽管风扇偶尔也会明显地暂时活跃起来。在负载情况下,风扇产生的噪音水平稳定在39.1 dB(A)左右。在我们的压力测试中,我们测得的数值甚至高达 45.5 dB(A)。这让人联想到具有更高的性能水平的游戏笔记本电脑。同时,在同样的情况下,我们测量到Morefine S500+的最高值为41.6 dB(A)。

Noise Level

Idle
30.2 / 30.2 / 30.2 dB(A)
Load
39.1 / 45.5 dB(A)
  red to green bar


30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light   Earthworks M23R, Arta (15 cm distance)   environment noise: 29.8 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs203435.234.133.532.732.734.32533.938.53534.733.533.536.93132.641.931.632.333.733.732.14030.829.331.537.329.729.728.75031.632.932.932.833.433.4326331.132.631.831.131.331.330.88026.927.827.528.527.327.331.61003028.628.528.527.827.830.21252625.825.424.824.624.626.316024.724.523.523.723.823.825.320024.72324.223.923.223.225.625035.421.921.822.821.121.126.531524.721212120.820.836.840023.120.220.820.2202025.350025.719.719.819.319.219.225.363023.318.818.718.618.718.733.480025.718.718.518.718.118.12810002518.518.520.1181829.2125029.41817.918.517.617.633.2160031.917.517.817.516.816.836.4200029.617.818.817171736250027.417.217.816.716.816.83731502717.517.316.716.516.534.6400026.917.717.417.216.316.335.5500021.217.116.916.916.516.529.8630019.417.116.916.916.716.727.4800017.91717.117.216.816.823.71000017.517.317.417.317.217.219.91250017.617.517.61817.417.418.51600018.218.118.118.3181818.3SPL39.230.230.330.229.729.745.5N3.11.41.41.41.31.34.9median 25median 18.1median 18.5median 18.5median 18median 18median 28Delta3.81.71.722.22.25.2hearing rangehide median Fan NoiseNofflink M500-5405U

温度

压力测试。FurMark+Prime95
压力测试。FurMark+Prime95

我们最初的负载测试结果是对该SoC的冷却有良好的印象。也就是说,在我们的极端负载情况下,英特尔奔腾金5405U的冷却解决方案已经达到极限。HWiNFO报告了热节流,表明Nofflink将SoC的最高温度定义在80℃(176°F)左右。如果没有制造商设置的限制,英特尔奔腾金5405U允许高达100℃(212°F)。平均而言,当CPU和iGPU都受到压力时,CPU时钟下降到只有1.2 GHz。这是由于CPU和iGPU必须分享的10瓦的有限功率预算的结果。

由于机箱在负载下会明显发热,因此应将其放置在通风良好的地方,使热量得以散发。

热发展压力测试
热发展压力测试
热发展压力测试
热发展压力测试
热发展压力测试
热发展压力测试

能源消耗

40瓦的AC适配器
40瓦的AC适配器

耗电量是Nofflink M500的优势之一。在远低于20瓦的情况下,该系统在空闲时是非常节能的。在平均负荷下,我们只测量到32瓦。在最坏的情况下,相当大的40瓦的交流适配器要对付高达38.5瓦的功率。应该有足够的储备用于辅助驱动器,这也会耗费电力。

Power Consumption
Idledarkmidlight 8.1 / 8.6 / 16.2 Watt
Load midlight 32.1 / 38.5 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy

Consumption external Monitor

0510152025Tooltip
Nofflink M500-5405U; Prime95 V2810 Stress (external Monitor): Ø23.6 (22.7-24.2)
Nofflink M500-5405U; Cinebench R15 Multi (external Monitor): Ø21 (18.9-21.5)
Nofflink M500-5405U; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø28.2 (27.9-30)
Nofflink M500-5405U; Idle 1min (external Monitor): Ø8.68 (8.13-16.3)

Pros

+ 结构紧凑
+ 吸引人的设计
+ 良好的端口选择
+ 负担得起
+ 能源效率高
+ 两个存储驱动器插槽
+ 稳定的Wi-Fi性能

Cons

- 负载下的冷却解决方案接近其极限
- 没有SD卡读卡器

结论 - 紧凑的办公电脑,缺点不大

诺夫林M500-5405U,由诺夫林提供
诺夫林M500-5405U,由诺夫林提供

Nofflink M500-5405U是一款非常紧凑的迷你电脑。这款小尺寸的PC基于 Intel Pentium Gold 5405U并不适合要求过高的负载。不幸的是,制造商没有选择市场上最新的SoC之一,这一点很明显。在我们的测试中,原生双核CPU的表现仍然令人钦佩。也就是说,Nofflink M500的这一配置不适合用于纯粹的办公任务、网络浏览或视频流以外的事情。在这方面, 英特尔酷睿i7-10510U型号有更大的潜力。

虽然32GB的内存很好,但也不过如此,因为大多数用户不太可能利用这种配置中的高内存容量。因此,拥有16GB内存的配置可能会是一个更好的选择,即使是8GB,它也符合大多数紧凑型办公设备的系统内存标准量。

Nofflink M500是一款拥有大量外部端口的紧凑型办公电脑。不幸的是,由于没有使用更现代的SoC,很多性能潜力被留在了桌子上。

M500提供了良好的连接选项,所有主要的外部接口都已存在。由于有足够多的可用端口,缺少读卡器的问题可以借助USB适配器来弥补。

我们体验到的Nofflink M500的最大缺点是冷却解决方案,它在负载下很快达到极限。这也导致在高要求的情况下出现明显的噪音水平。在这里, 新闻美AC8迷你电脑可能是一个不错的选择,因为它是被动冷却的。同样,微星Cubi M5可能值得仔细看看。各种型号都可以在亚马逊起价为440美元。Nofflink M500-5405U目前价格约为400美元。此外,它只能通过制造商的在线商店购买。.

Please share our article, every link counts!
Mail Logo
> Notebookcheck中文版(NBC中国) > 评测 > Nofflink M500迷你电脑的回顾。高能效的办公电脑和流媒体客户端,配备英特尔SoC和32GB内存
Sebastian Bade, 2022-06-29 (Update: 2022-06-30)
