KFA2 GeForce RTX 5070 Ti 1-Click OC

目前 Nvidia RTX 5000 系列中最实用的显卡:NvidiaGeForce RTX 5070 Ti 评测

大量照明和 SFF 就绪。

作为顶级 Nvidia Blackwell 显卡的强大替代品,NvidiaGeForce RTX 5070 Ti 的性能令人惊喜。使用 KFA2GeForce RTX 5070 Ti 1-Click OC,我们分析了它与 NvidiaGeForce RTX 5080 和新款 AMD Radeon RX 9070 XT 的性能对比。在这篇评测中,我们将阐明其略高于 1000 美元的价格是否物有所值。
Sebastian Bade, 👁 Sebastian Bade (translated by DeepL / Ninh Duy) Published 🇺🇸 🇩🇪 ...
GPU Desktop Nvidia Blackwell RTX 5000 Gaming Business AI

结论:KFA2GeForce RTX 5070 Ti 1-Click OC 性能不错,但相比之下还是太贵了

KFA2GeForce RTX 5070 Ti 1-Click OC 具有持续强劲的性能、高效的散热和美观的外观。得益于全新的 Nvidia 架构,它在当前游戏中实现了较高的帧数,并取得了良好的能效。GeForce RTX 5070 Ti 尤其能在 1440p 下发挥其优势,不过在 2160p 下应使用 DLSS 和多帧生成技术,以保持足够高的帧率。
它的冷却系统工作效率很高,散热没有问题。显卡在负载情况下声音稍大,但并不恼人。通过 "Xtreme Tuner "工具,可以对时钟频率、电源目标和 RGB 灯光进行简单调整,甚至可以通过智能手机进行调整。

该显卡的 TGP 为 300 瓦,比高端型号节俭得多,但仍需要适当强大的电源。将 5070 Ti 与 RTX 5080 直接比较,可以看出 5070 Ti 对游戏玩家来说是一个极具吸引力的选择。其显存为 16 GB,与 RTX 5080 的显存一样大,这对 NvidiaGeForce RTX 5070 Ti 更有意义,即使其 VRAM 限制相同。NvidiaGeForce RTX 5070 Ti 并不是一款纯粹的 4K 游戏显卡,这也是其 VRAM 目前在 1,080p 或 1,440p 中大小合适的原因。

KFA2 为GeForce RTX 5070 Ti 1-Click OC 报出的 MRSP 约为 1000 美元,这意味着它并不是该系列中最便宜的型号之一。采用相同显卡芯片的竞争对手型号的售价略低于 1000 美元。

Pros

+ 超薄设计
+ 风扇停止模式

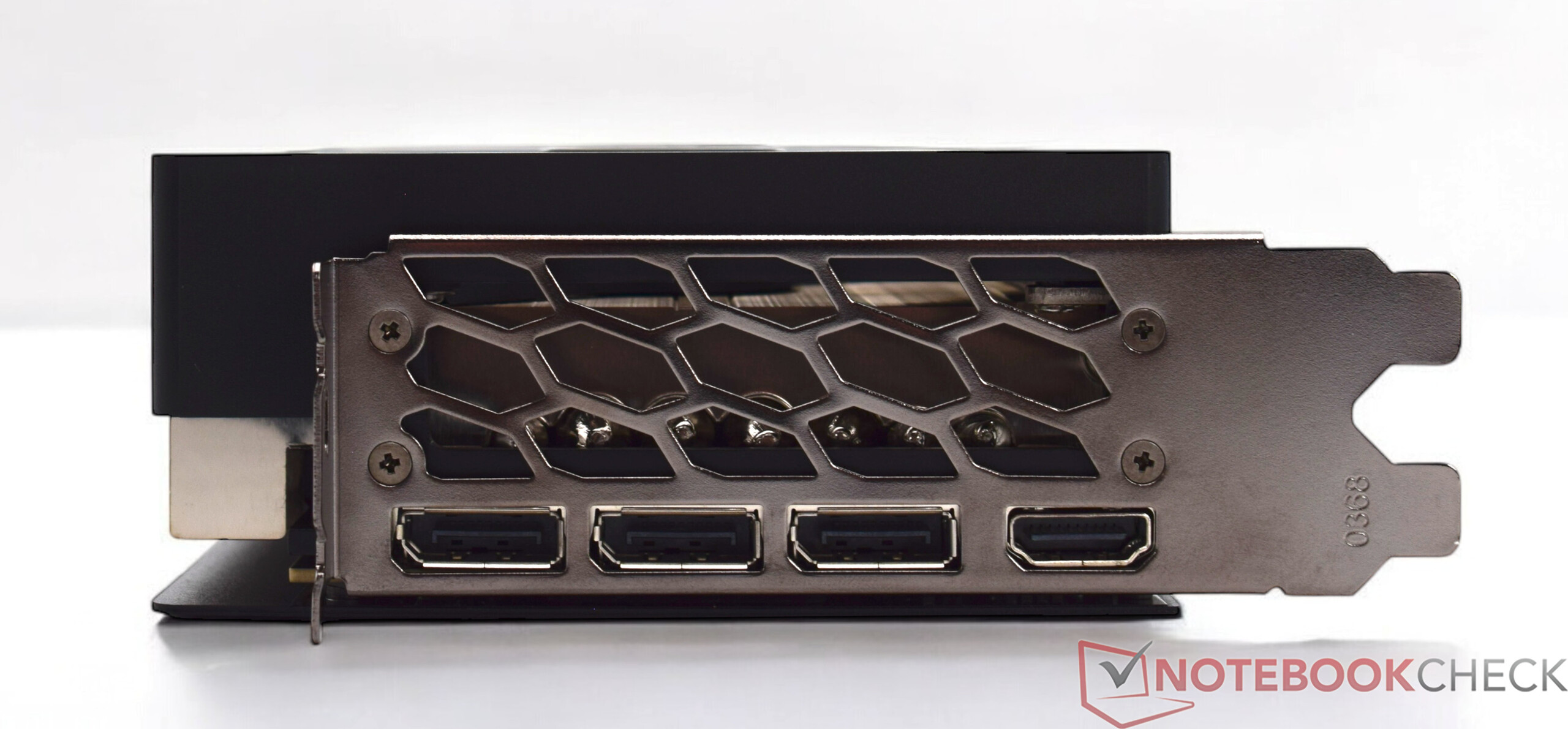

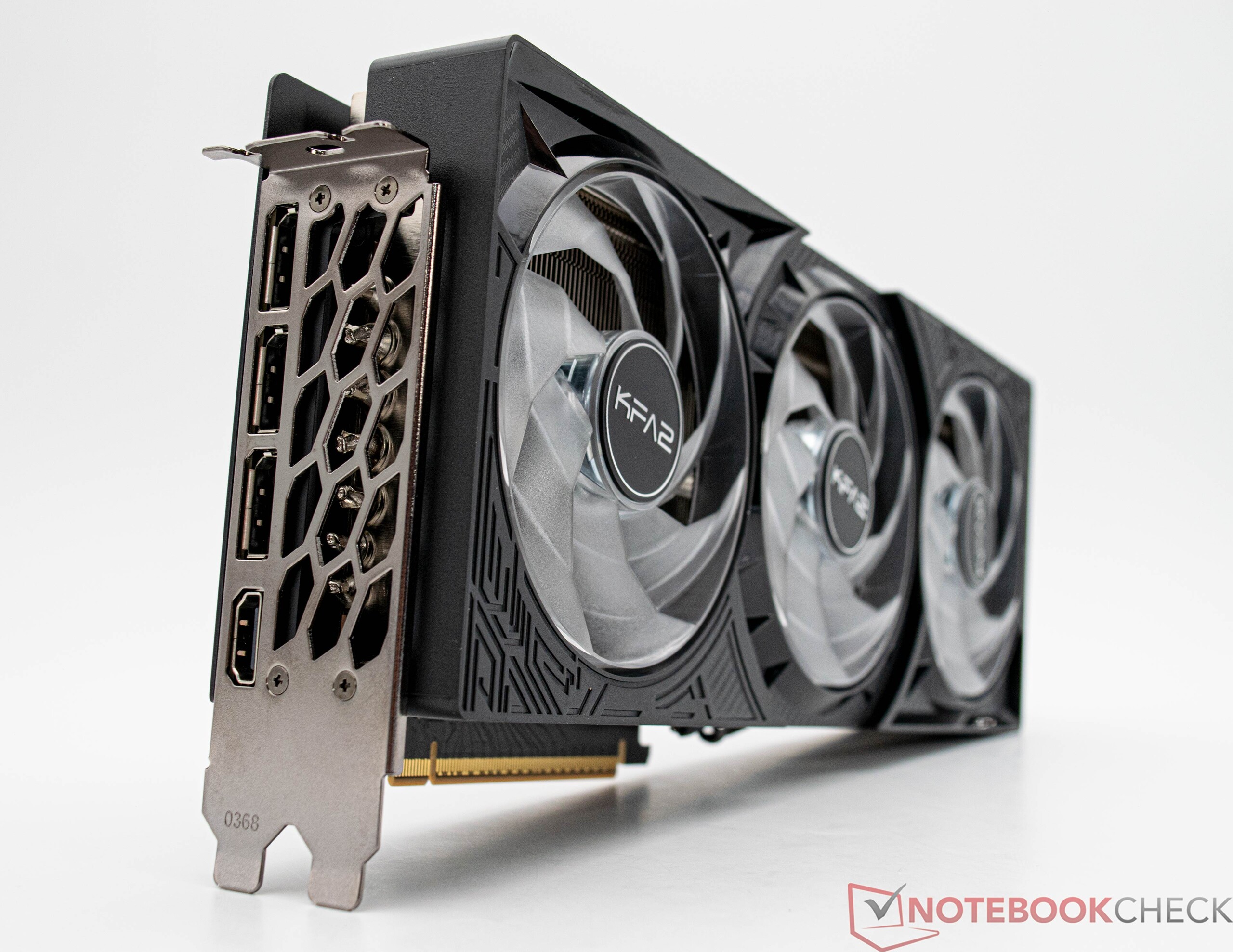

+ 3x DispalyPort 2.1b、1x HDMI 2.1b
+ 时尚的 RGB 灯光
+ 强劲散热
+ 16 GB VRAM
+ 多帧生成
+ 附带支架
+ 通过智能手机进行控制和监控

Cons

- 可听到线圈呜呜声
- 电源连接位置
- 电源适配器上的短电缆(3x 8 针 PCIe 至 12V-2x6)

价格和供应情况

KFA2GeForce RTX 5070 Ti 1-Click OC 的预计 MRSP 约为 1,000 美元。

与 RTX 5080 一样,KFA2GeForce RTX 5070 Ti 1-Click OC 也基于 GB203 芯片,是 Blackwell 系列中性能第三强大的消费级 GPU。从技术上讲,它提供了许多与较大型号相同的功能,但性能有所降低。差异主要体现在着色器单元、内存时钟和带宽上,但对于游戏玩家和创意专业人士来说,它仍然是一个强大的选择。它的 16 GB VRAM 尤其是一个加分项,因为它与 GeForce RTX 5080.

得益于其 Blackwell 架构,各种游戏都能从 DLSS 和全新的多帧生成(MFG)功能中受益。根据 Nvidia 的说法,即使游戏原生不支持该功能,也可以通过 Nvidia 应用程序激活该功能,而不会损失任何性能。

规格

KFA2 GeForce RTX 5070 Ti 1-Click OC
Processor
AMD Ryzen 7 9800X3D 8 x 4.7 - 5.2 GHz, 162 W PL2 / Short Burst, 120 W PL1 / Sustained, Granite Ridge (Zen5)
Graphics adapter
NVIDIA GeForce RTX 5070 Ti - 16 GB VRAM, Core: 2467 MHz, RAM: 1750 MHz, 300 W TDP, GDDR7, Nvidia 572.70
Memory
32 GB
, DDR5-6000 CL28
Mainboard
AMD X870E
Storage
Kingston KC3000 2048G SKC3000D2048G, 2048 GB
Size
height x width x depth (in mm): 140.5 x 315 x 50.7
Operating System
Microsoft Windows 11 Pro
Weight
1.305 kg
Price
1059 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



KFA2GeForce RTX 5070 Ti 1-Click OC
KFA2GeForce RTX 5070 Ti 1-Click OC
KFA2GeForce RTX 5070 Ti 1-Click OC
KFA2GeForce RTX 5070 Ti 1-Click OC
KFA2GeForce RTX 5070 Ti 1-Click OC
KFA2GeForce RTX 5070 Ti 1-Click OC
KFA2GeForce RTX 5070 Ti 1-Click OC
KFA2GeForce RTX 5070 Ti 1-Click OC
KFA2GeForce RTX 5070 Ti 1-Click OC
KFA2GeForce RTX 5070 Ti 1-Click OC
KFA2GeForce RTX 5070 Ti 1-Click OC
KFA2GeForce RTX 5070 Ti 1-Click OC
KFA2GeForce RTX 5070 Ti 1-Click OC(来源:KFA2)

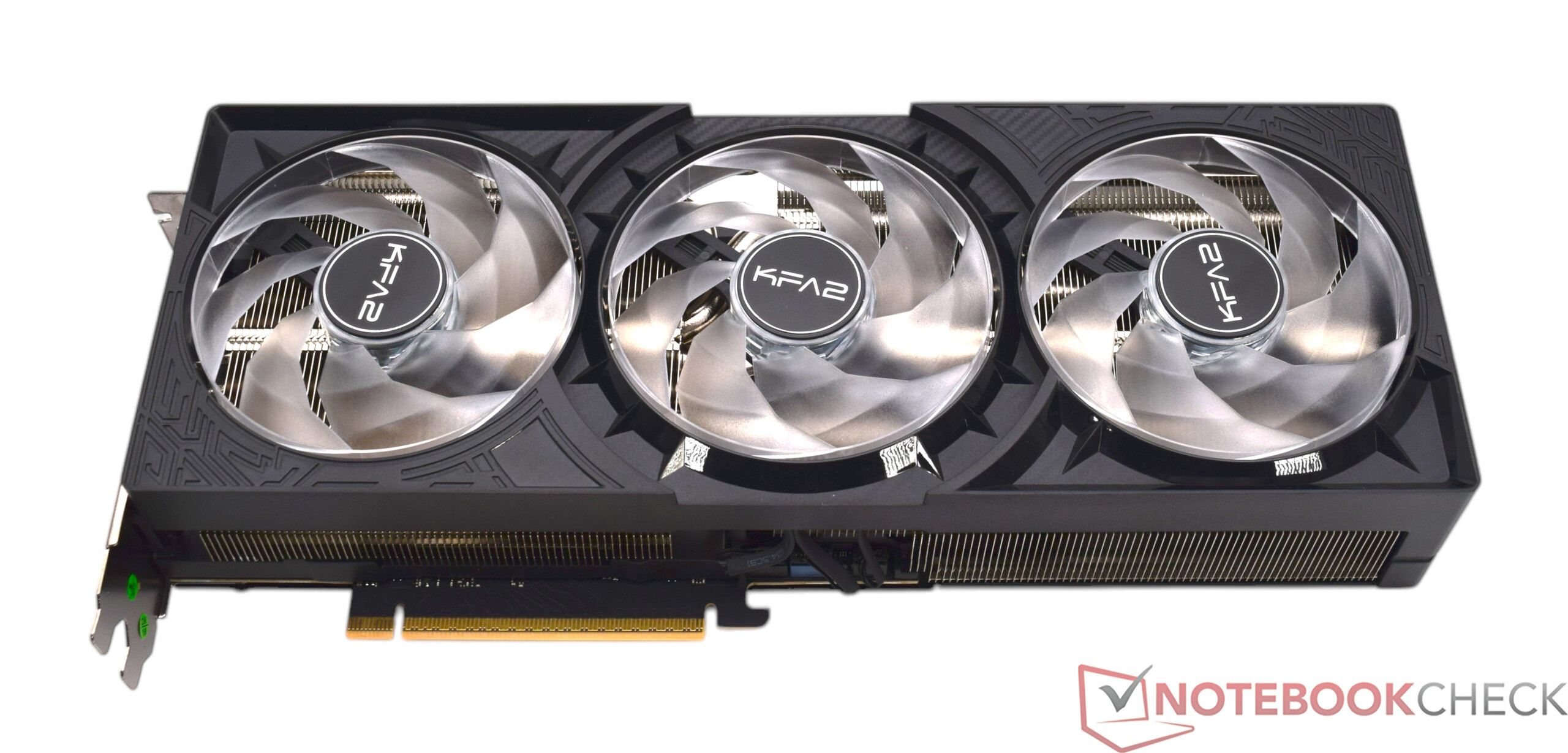

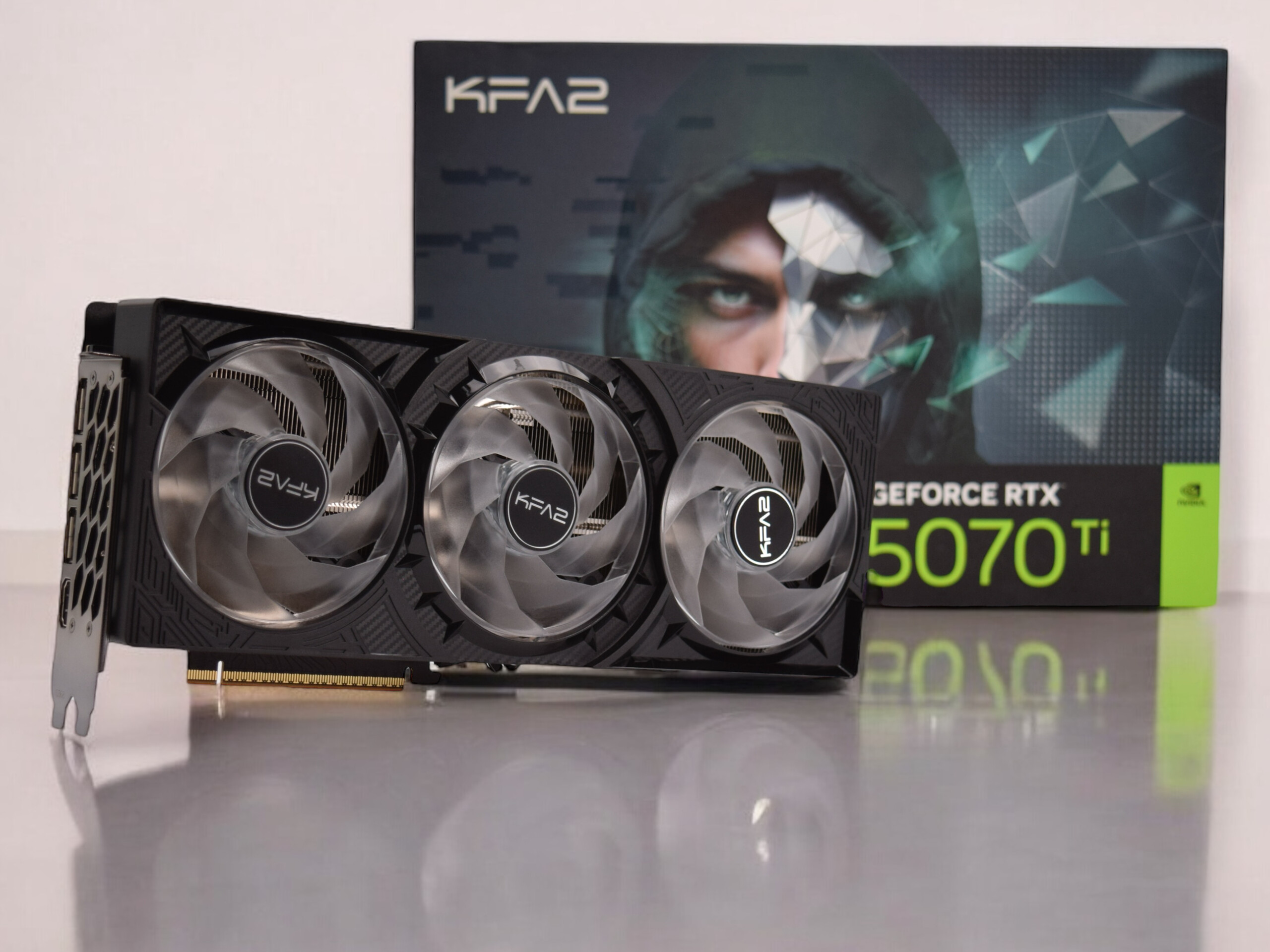

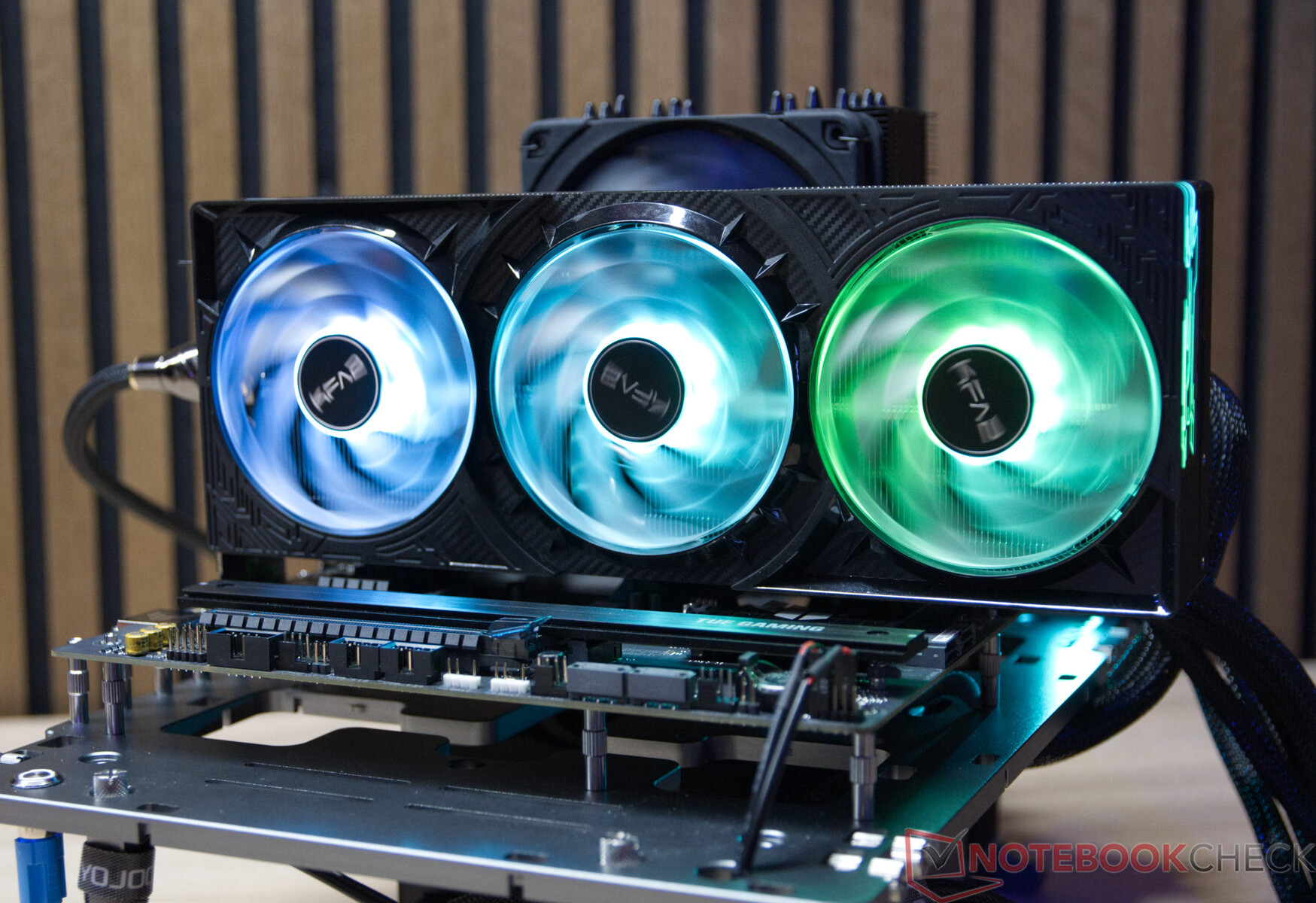

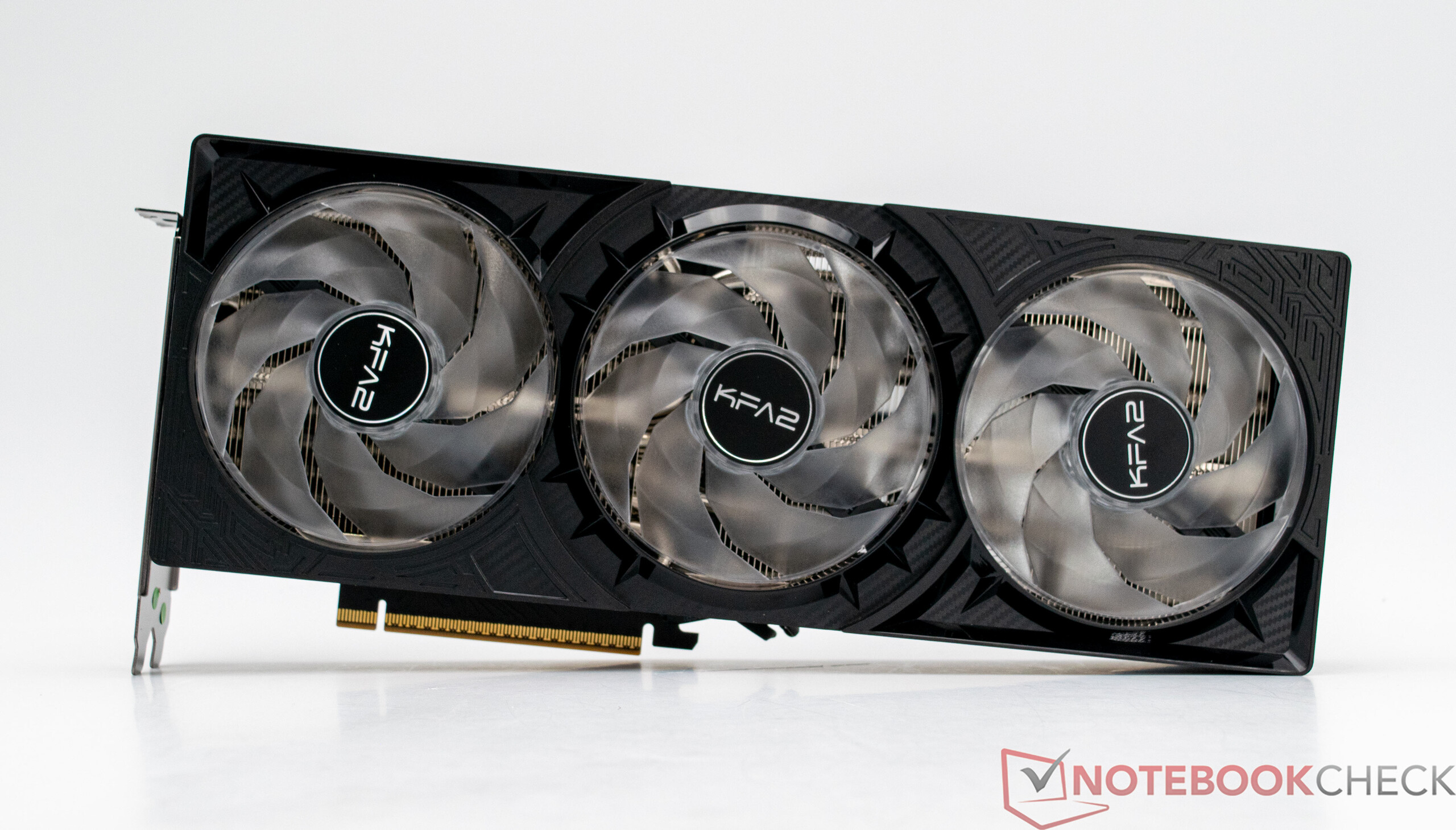

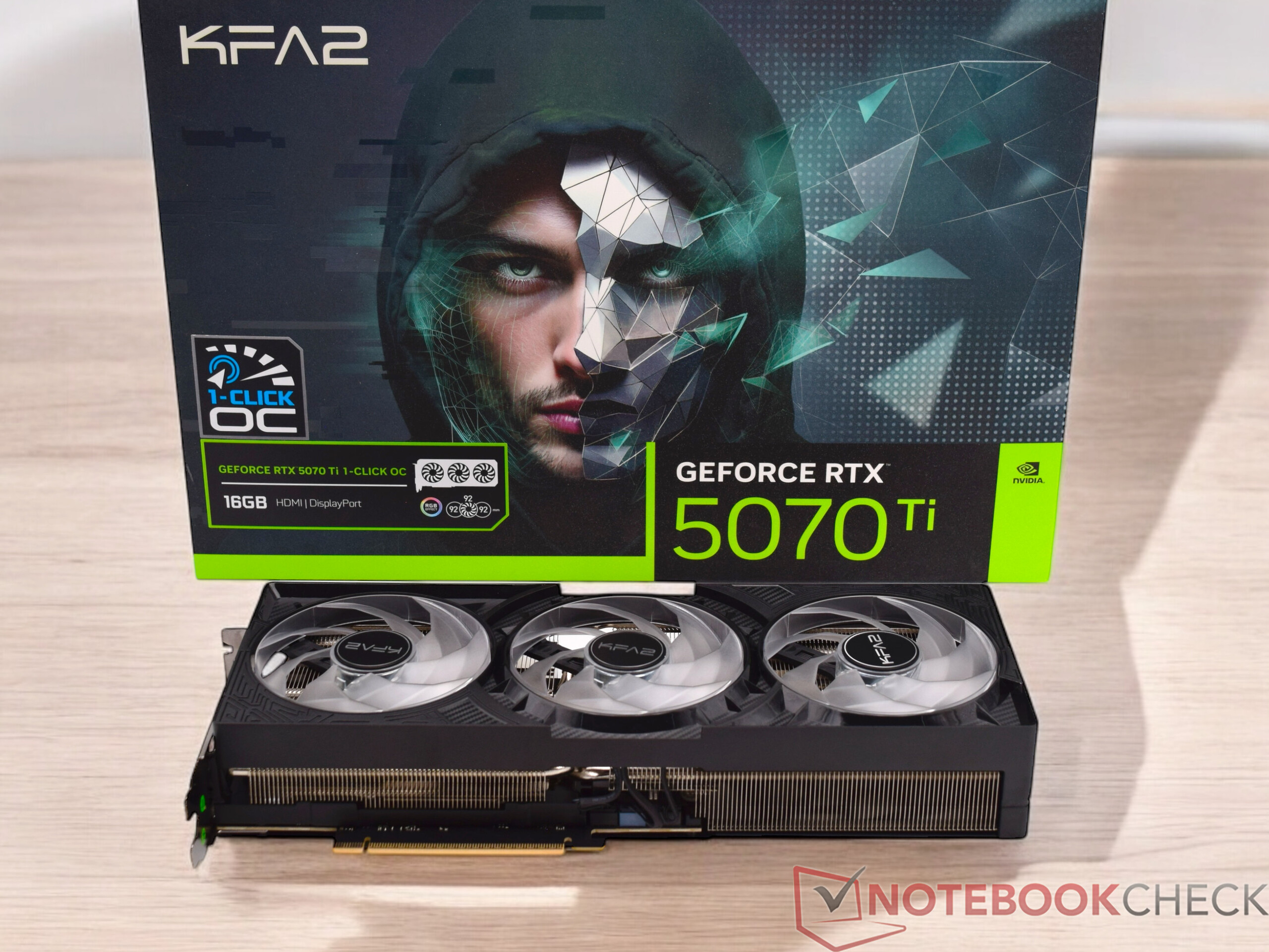

第一印象和构造 - 金属、塑料和大量 RGB

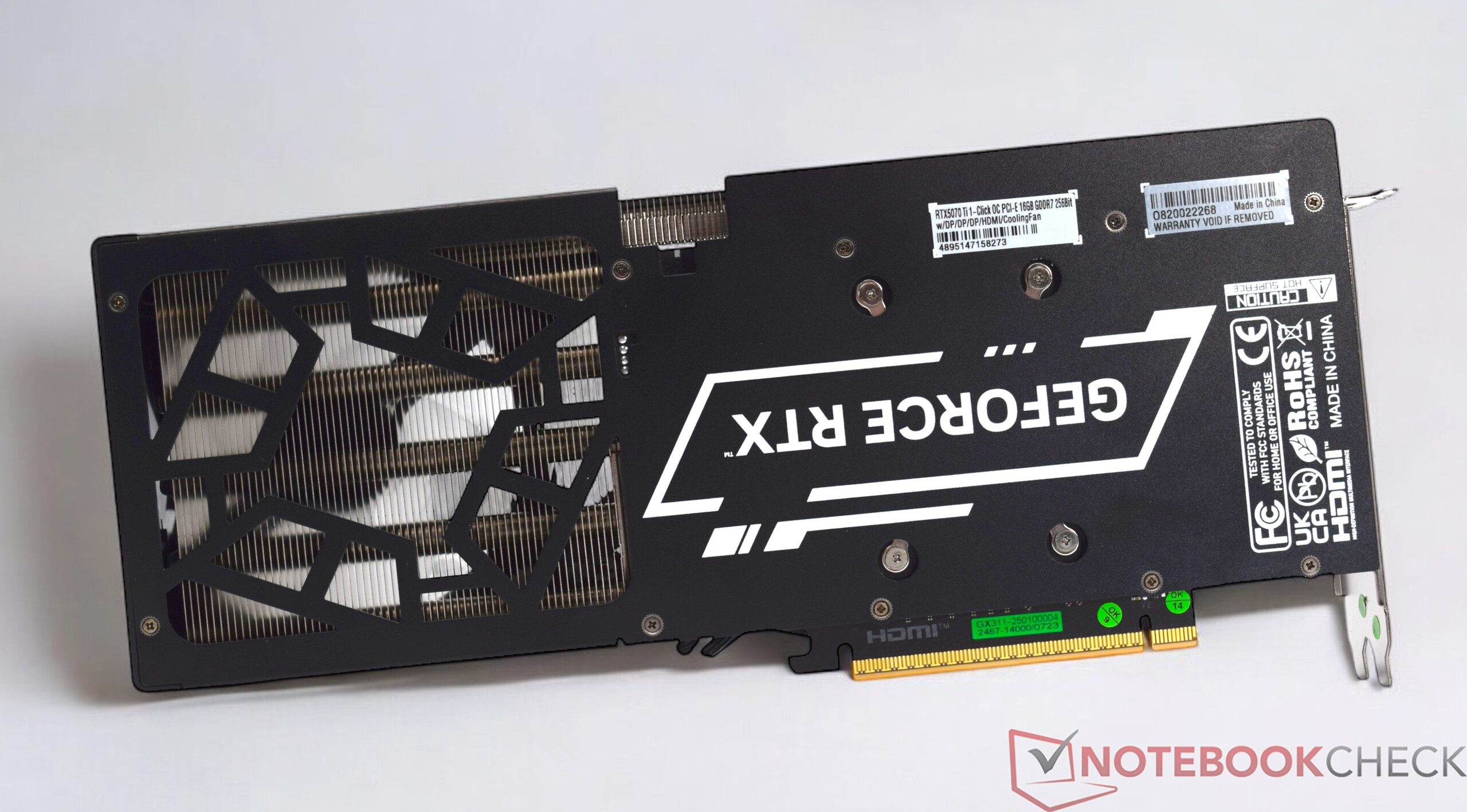

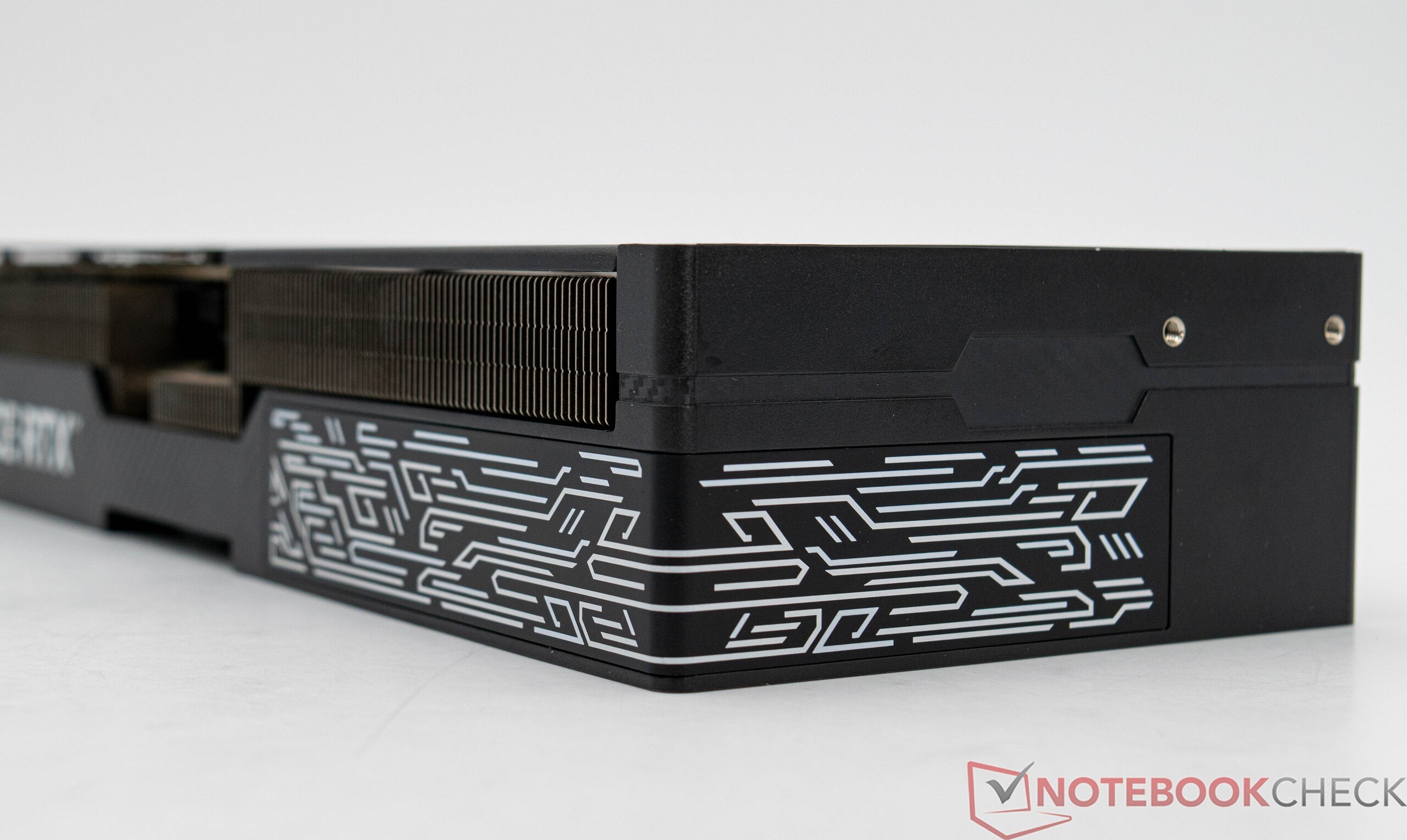

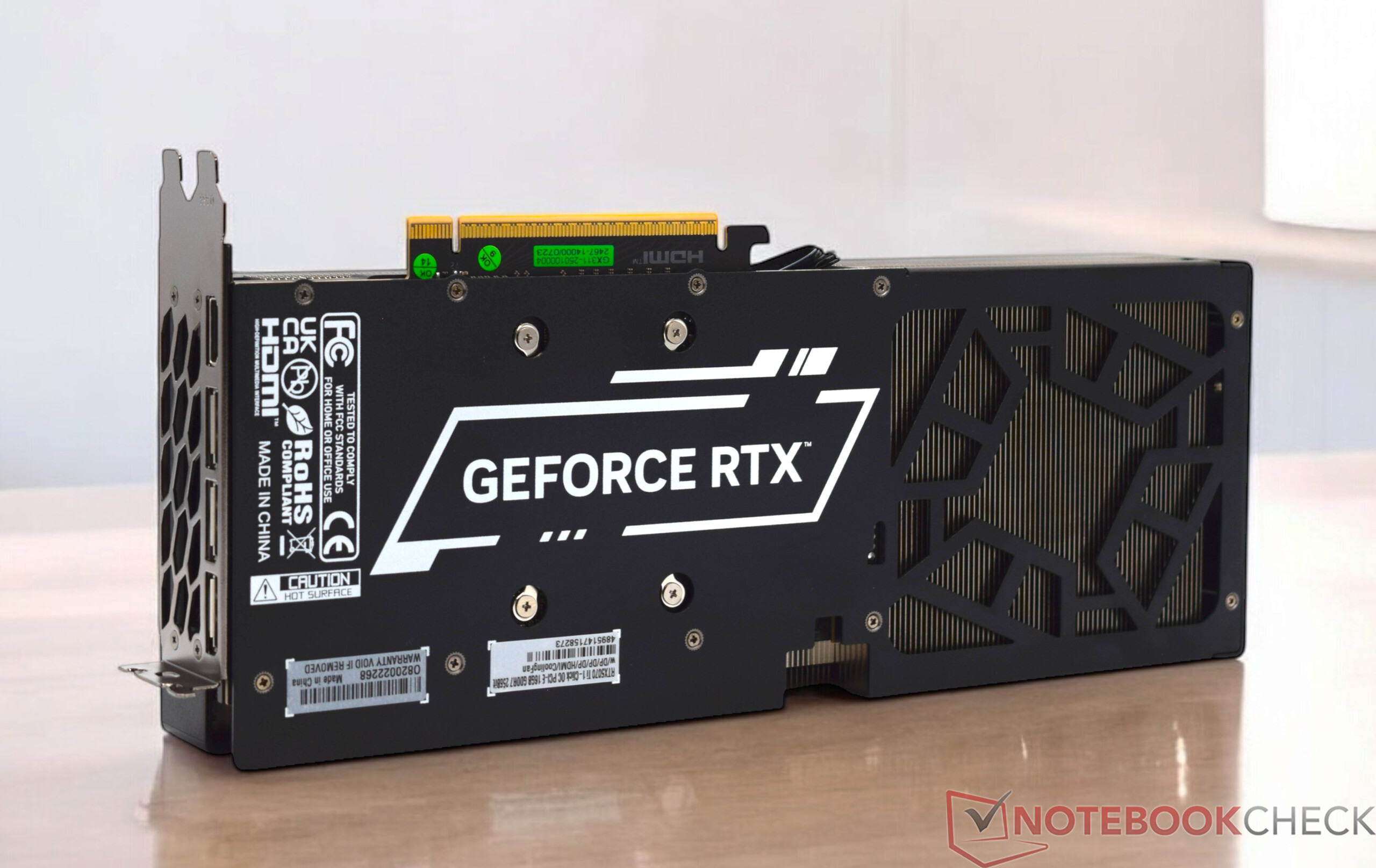

KFA2GeForce RTX 5070 Ti 1-Click OC 采用现代设计,结构坚固。其金属塑料上盖和强化铝背板可确保良好的稳定性和散热性。在外观上,KFA2 采用了醒目的 RGB 灯光设计。三个大型轴流风扇可确保即使在高负载情况下也能高效散热。

RTX 5070 Ti 1-Click OC 的长度接近 32 厘米,是同类产品中较大的型号之一。其 2.5 插槽设计在某些情况下可能会限制相邻的 PCIe 插槽,但应可轻松装入大多数游戏和工作站机箱。总体而言,它的构造和设计给人留下了高品质和深思熟虑的印象,应该会吸引游戏玩家和要求苛刻的内容创作者。

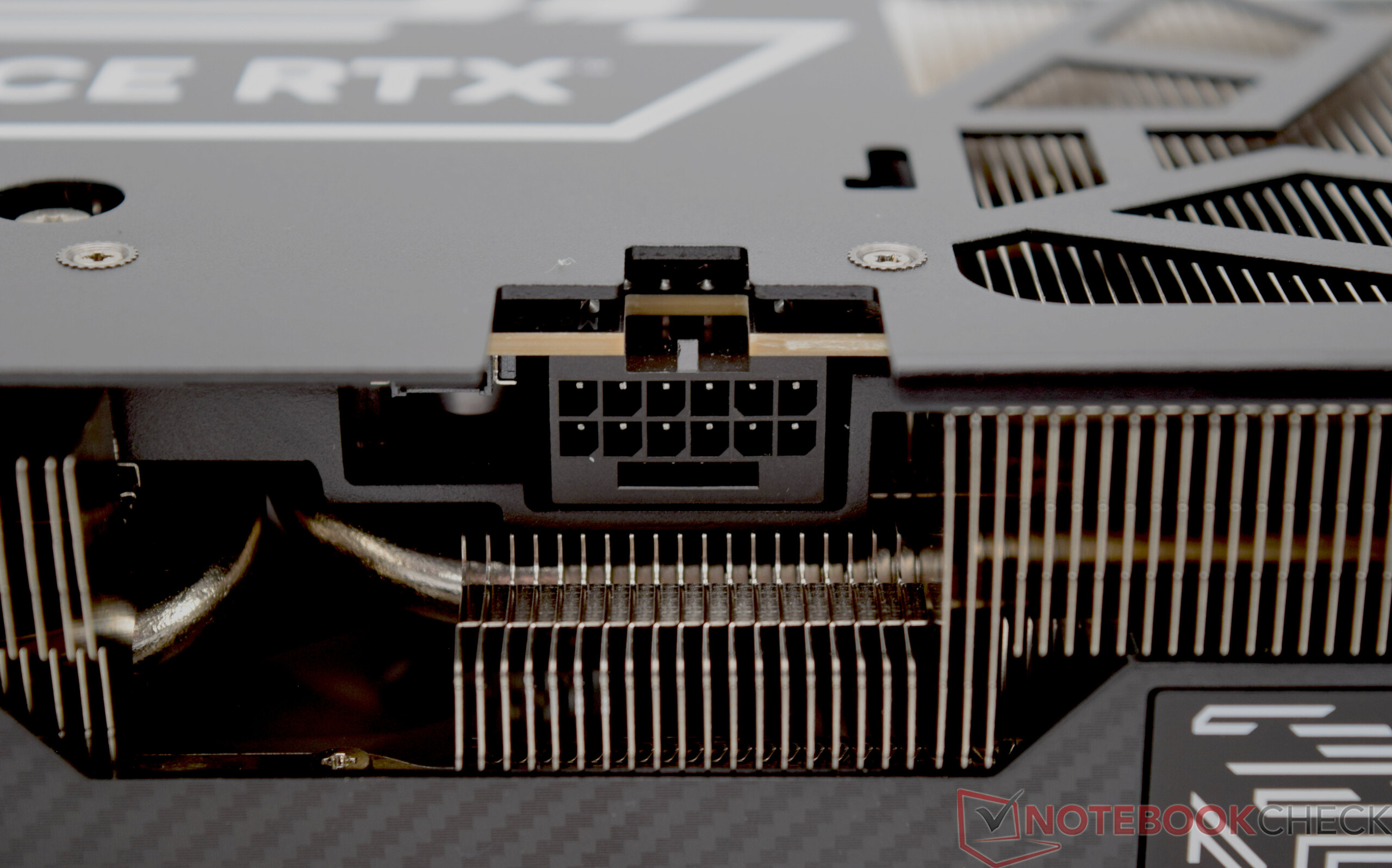

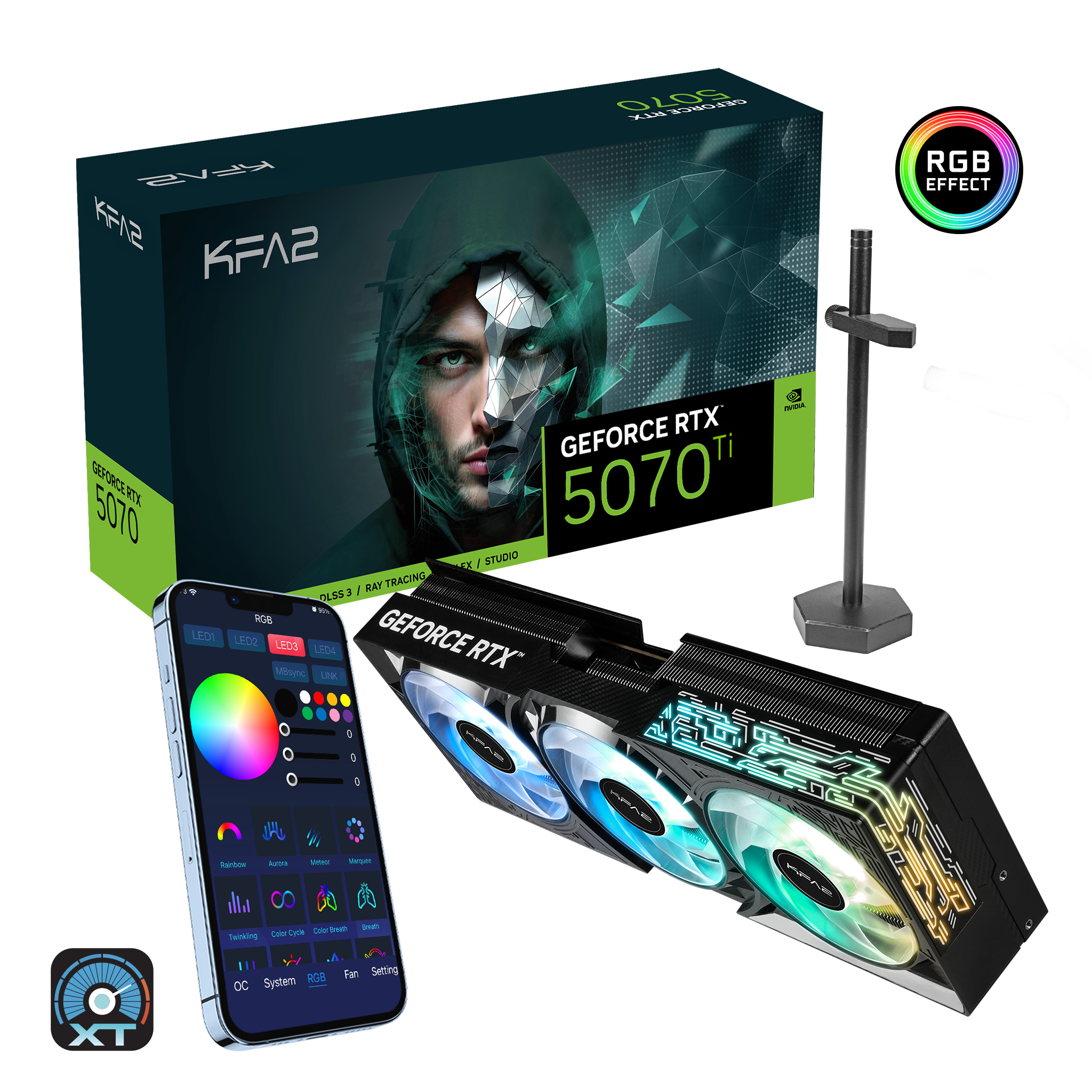

显卡本身配有一个金属支架,用于在机箱中稳定显卡。此外还有一个电源适配器(3x 8 针 PCIe 转 12 V 2x6)和一条 RGB 连接线,用于通过主板控制灯光效果。

技术数据比较

功能 RTX 5090 (FE) RTX 5080 (FE) RTX 5070 Ti RTX 4090 (FE) RTX 4080 (FE) RTX 3090 Ti RTX 3090 (FE)
芯片 GB202 GB203 GB203 AD102 AD103 GA102 GA102
FinFET 工艺 4 纳米 4纳米 4 纳米 4 纳米 4 纳米 8 纳米 8 纳米
CUDA 内核 21,760 10,752 8,960 16,384 9,728 10,752 10,496
纹理单元 680 336 280 512 304 336 328
张量核 680 第五代 336 第五代 280 第五代 512 第四代 30 第四代 336 第三代 328 第三代
RT 内核 170 84 70 128 76 84 82
GPU 基本时钟 2,010 MHz 2,295 MHz 2,295 2,235 MHz 2,205 MHz 1,560 MHz 1,395 MHz
GPU 提升时钟 2,407 MHz 2,617 MHz 2,452 2,520 MHz 2,505 MHz 1,860 MHz 1,695 MHz
内存总线 512 位 256 位 256 384 位 256 位 384 位 384 位
内存带宽 1,792 GB/s 960 GB/s 896 GB/s 1,008 GB/s 716.8 GB/s 1,008 GB/s 936 GB/s
显存 32 GB GDDR7 16 GB GDDR7 16GB GDDR7 24 GB GDDR6X 16 GB GDDR6X 24 GB GDDR6X 24 GB GDDR6X
TGP(图形总功率) 575 瓦 360 瓦 300 450 瓦 320 瓦 450 瓦 350 瓦

性能 - PCIe 5.0 和 16GB VRAM

与高端黑科技一代机型一样,KFA2GeForce RTX 5070 Ti 1-Click OC 也拥有众多技术创新:它拥有 8960 个 CUDA 内核、16 GB GDDR7 内存和 896 GB/s 的带宽。尤其值得一提的是,它支持 DLSS 4 和多帧生成 (MFG),利用人工智能确保更逼真的显示效果和更流畅的帧速率,而不会对硬件造成不必要的压力。由于采用了 PCIe 5.0,该显卡不仅面向未来,而且还兼容老式主板,从而实现了系统设计的高度灵活性。

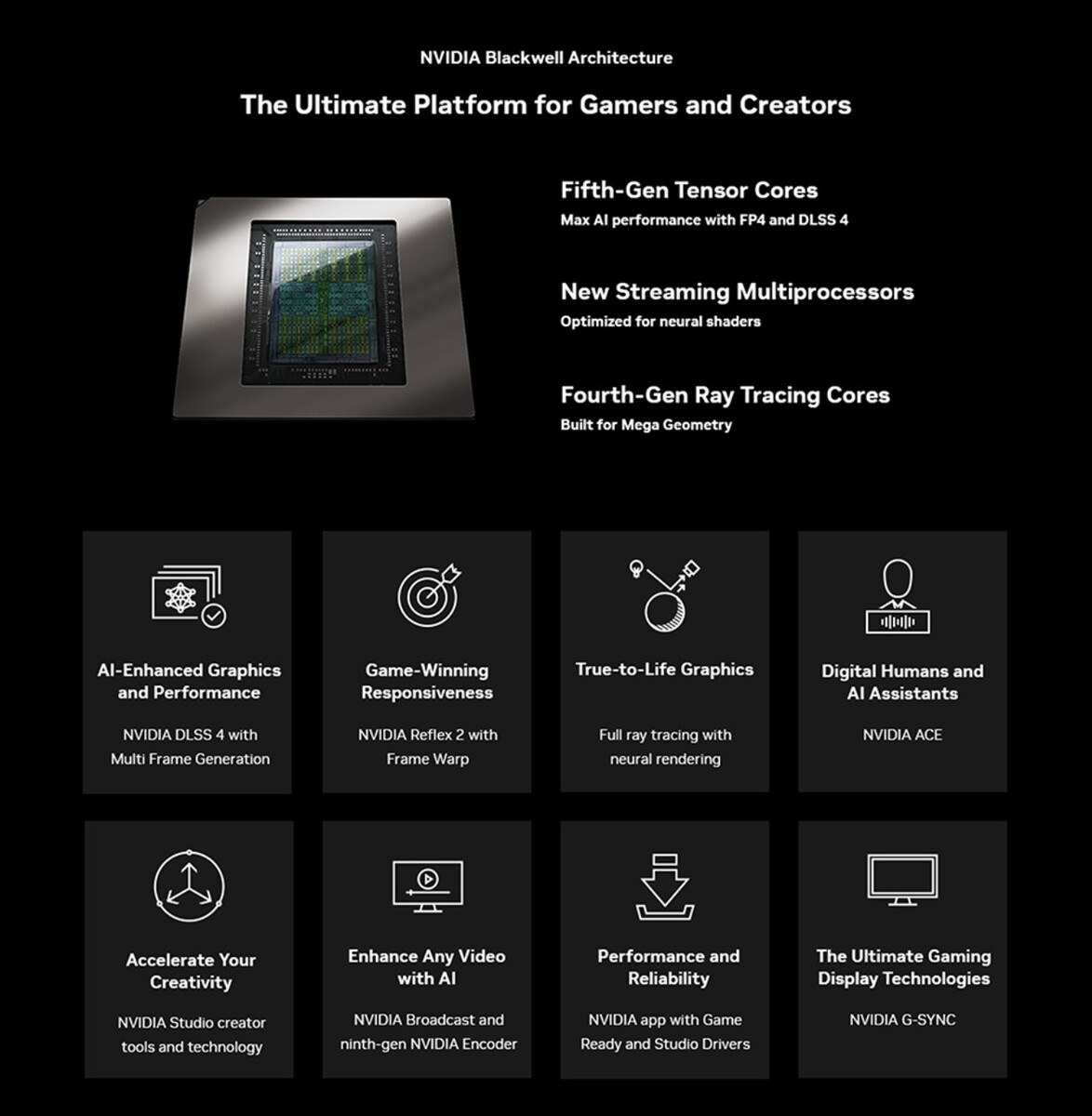

Nvidia Blackwell 架构(来源:KFA2)
Nvidia Blackwell 架构(来源:KFA2)

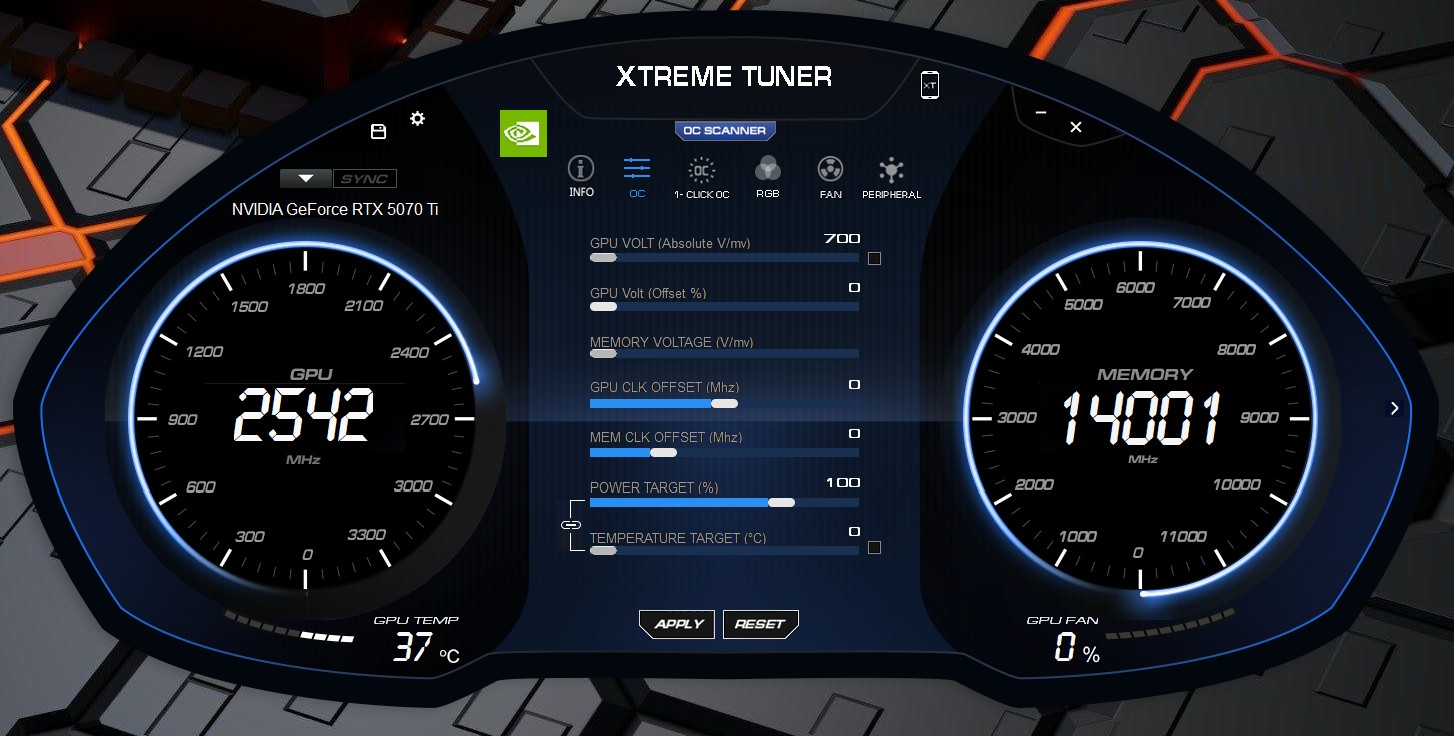

Xtreme Tuner Plus - KFA2 调谐实用程序和移动应用程序

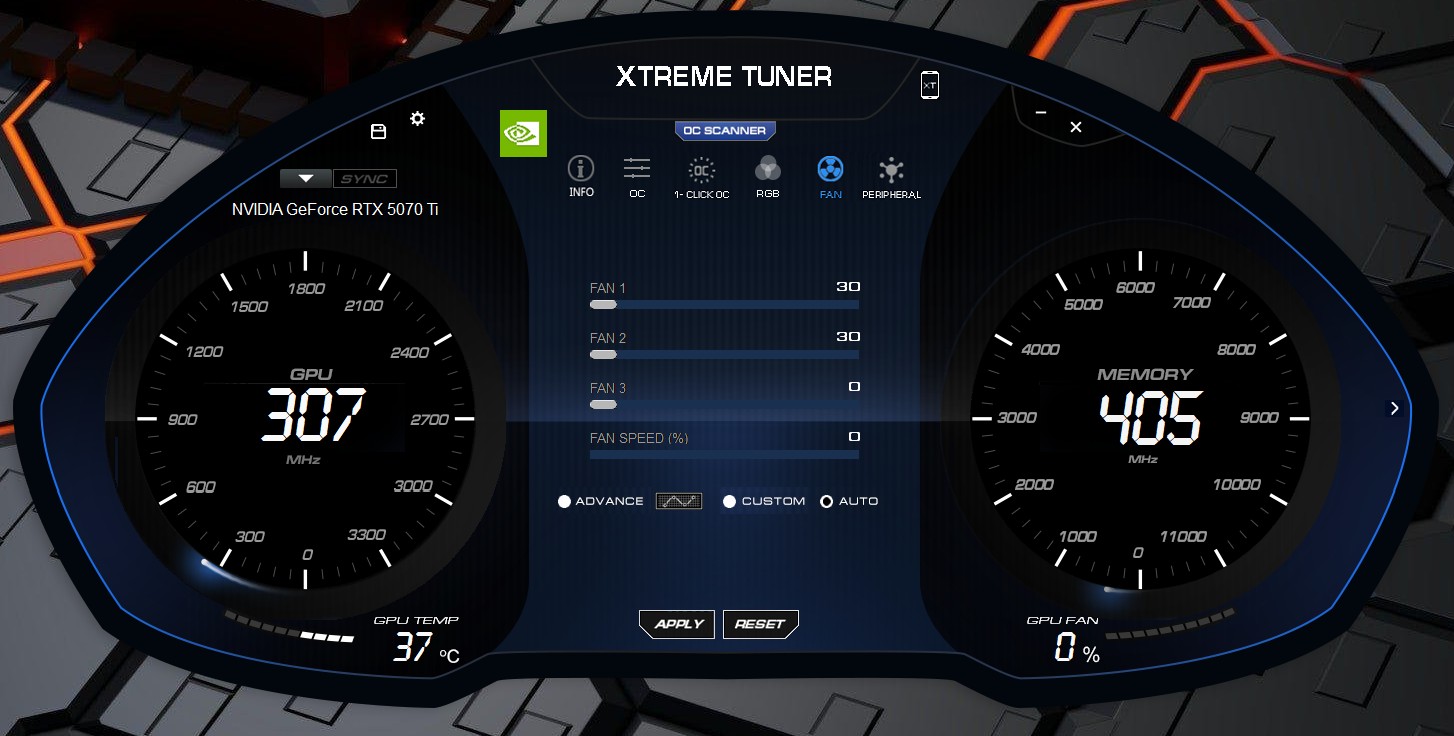

KFA2 "Xtreme Tuner "工具可用于调整时钟频率、将功率目标提高到 320 瓦以及控制灯光效果--所有这些都可以通过智能手机实现。使用二维码进行设置非常简单,但要求电脑和手机处于同一网络。

Xtreme Tuner Plus
Xtreme Tuner Plus
Xtreme Tuner Plus
Xtreme Tuner Plus
Xtreme Tuner Plus
Xtreme Tuner Plus
Xtreme Tuner Plus
Xtreme Tuner Plus

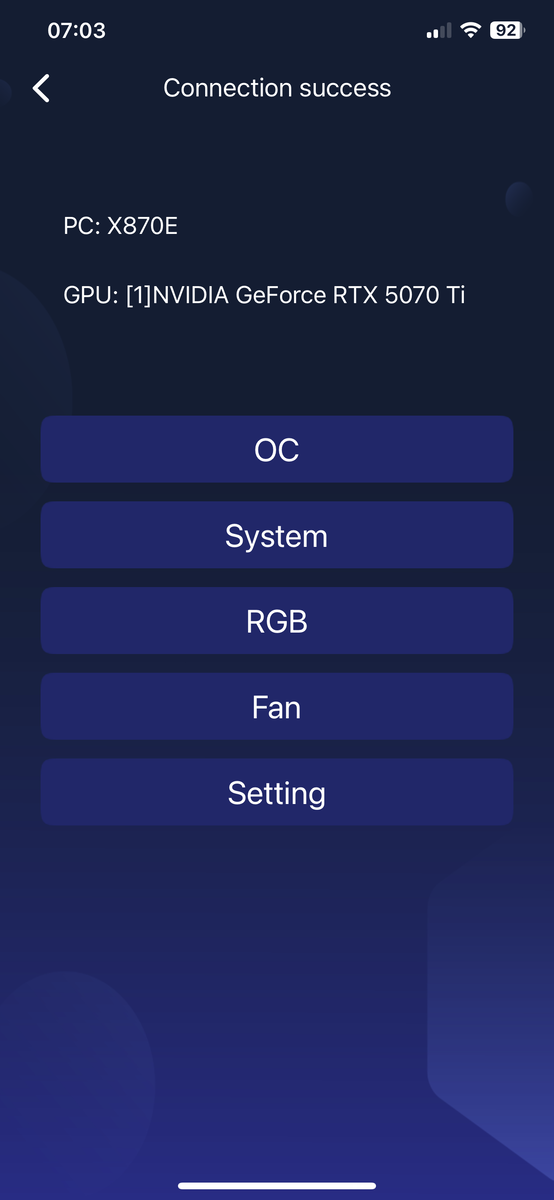

启动屏幕
启动屏幕

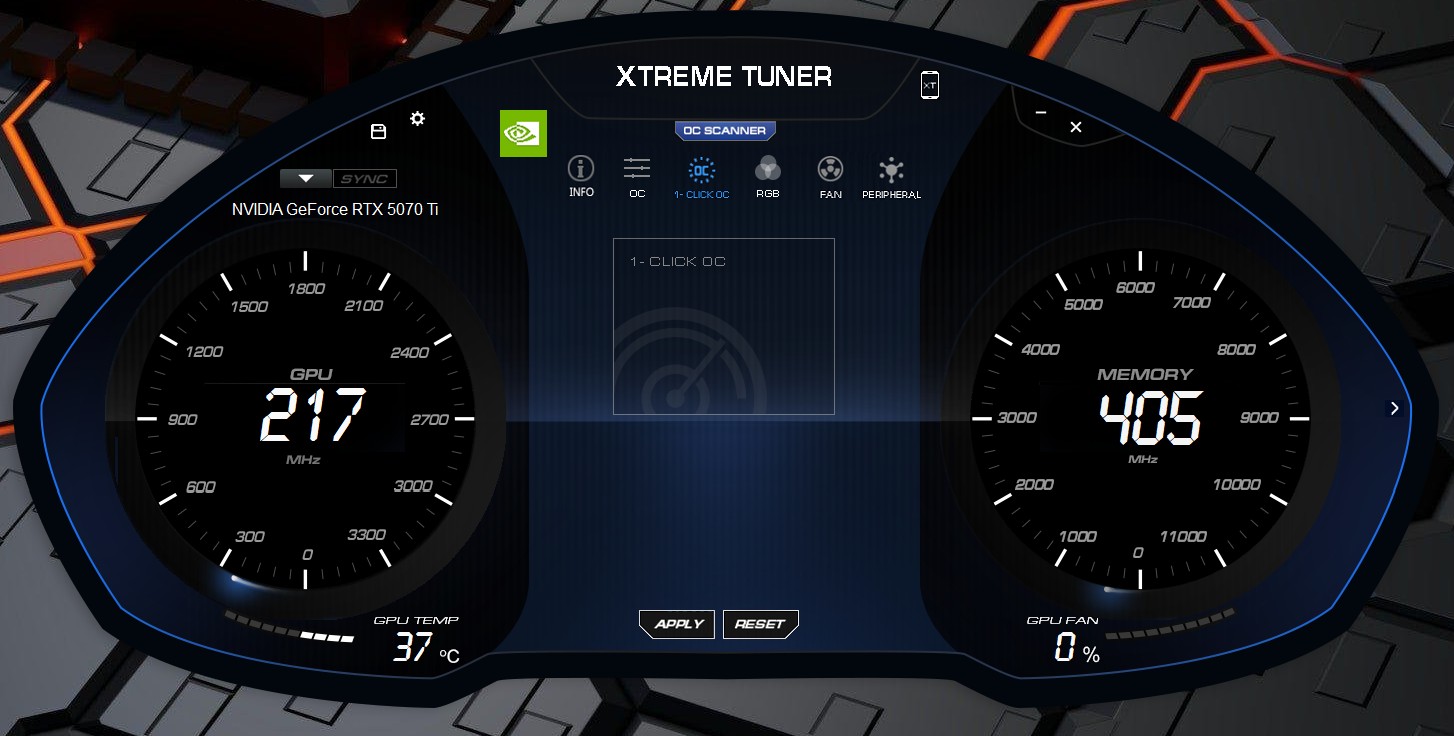

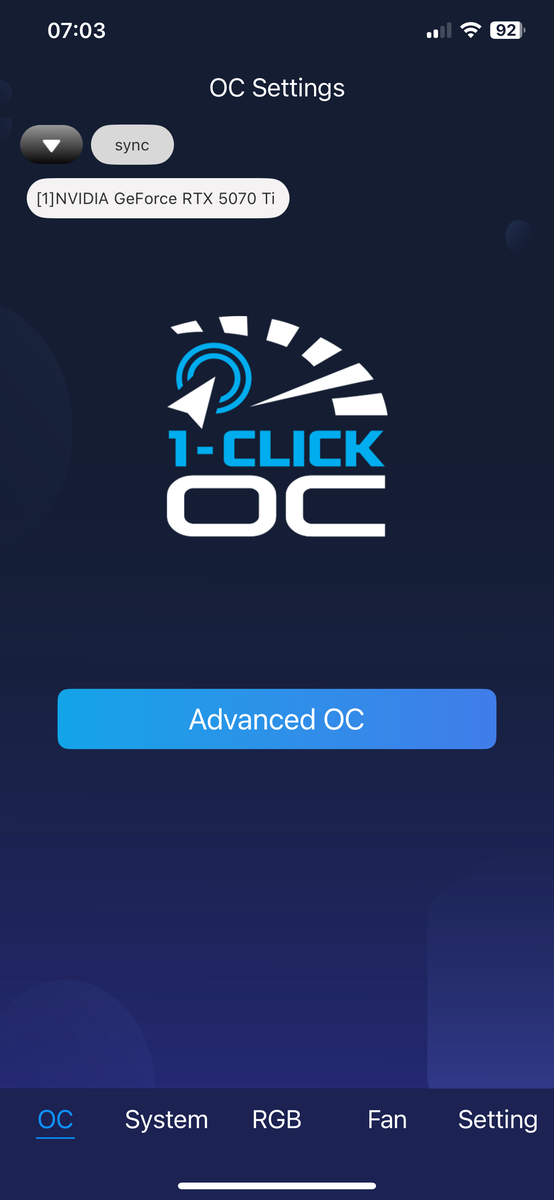

1-Click-OC
1-Click-OC
OC 菜单
OC 菜单

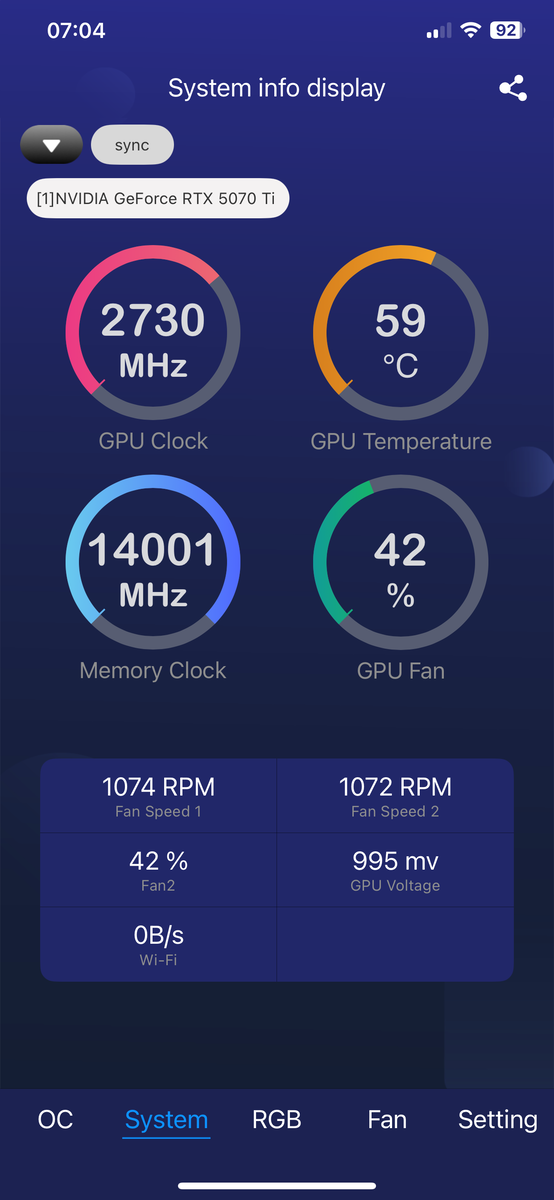

图形处理器性能数据
图形处理器性能数据

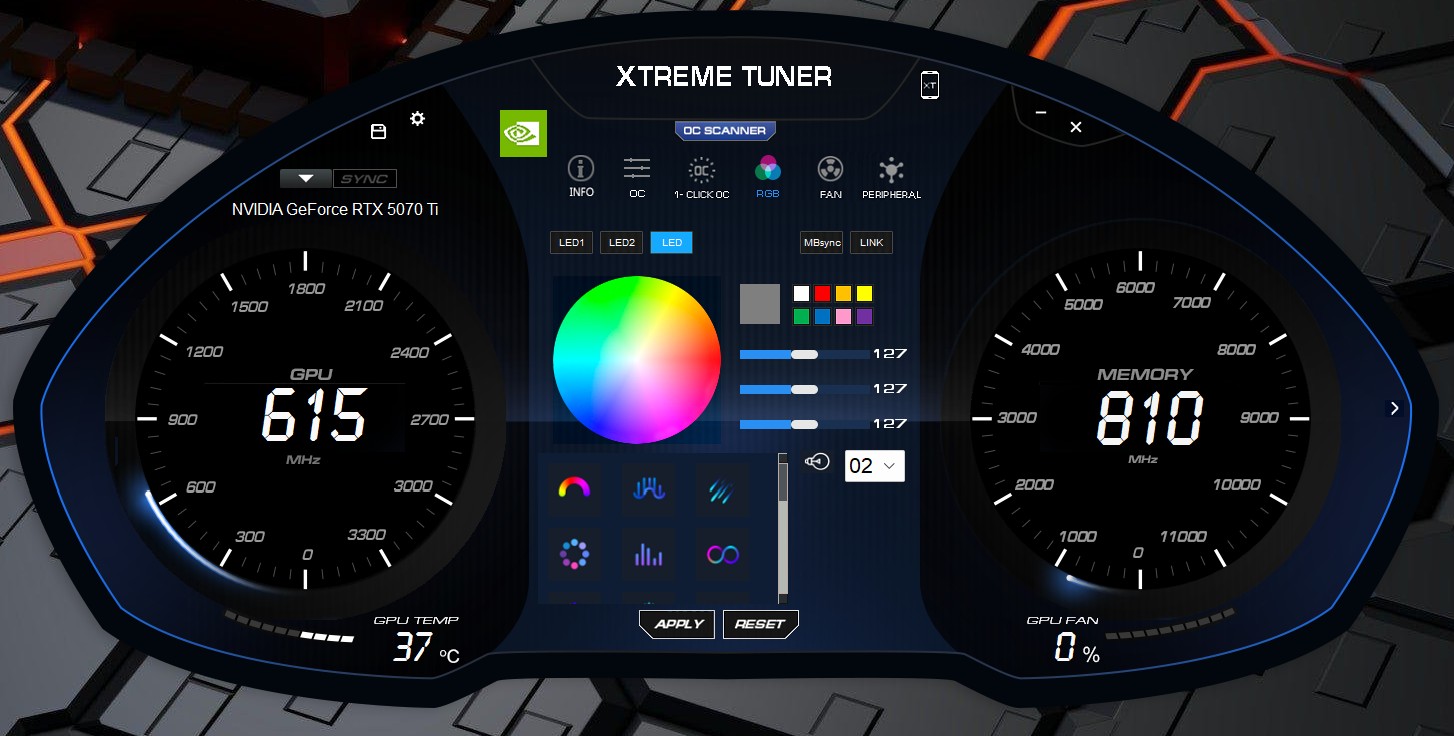

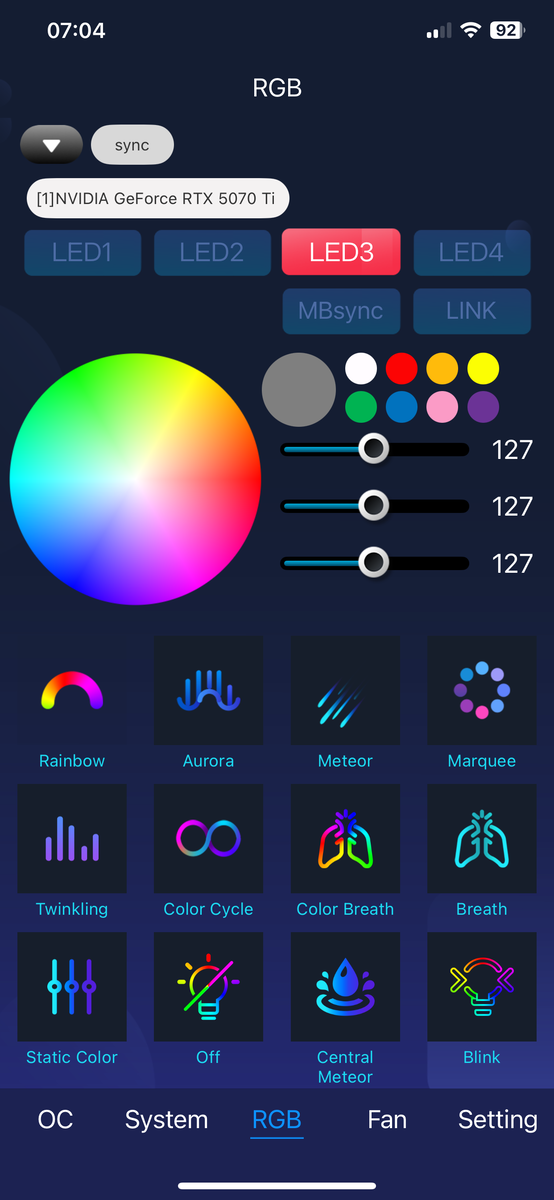

RGB 设置
RGB 设置

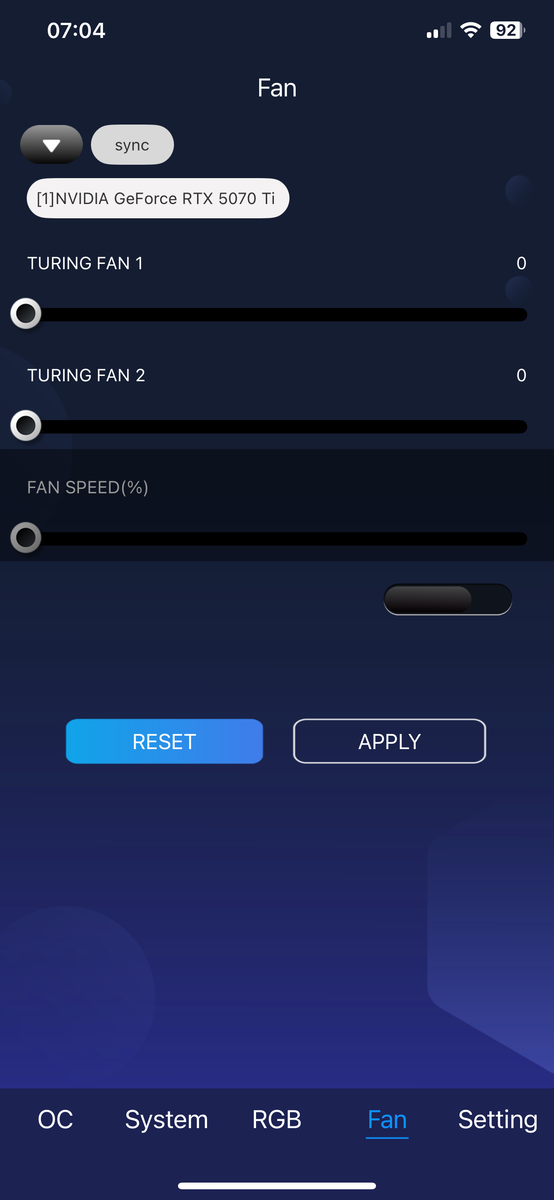

风扇控制
风扇控制

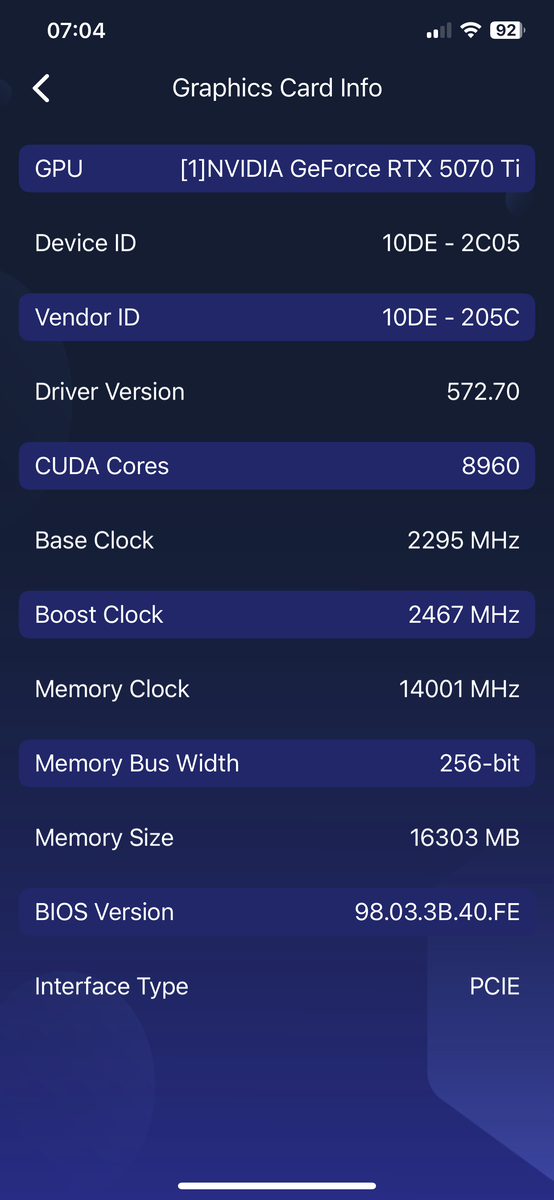

GPU 信息
GPU 信息

测试条件

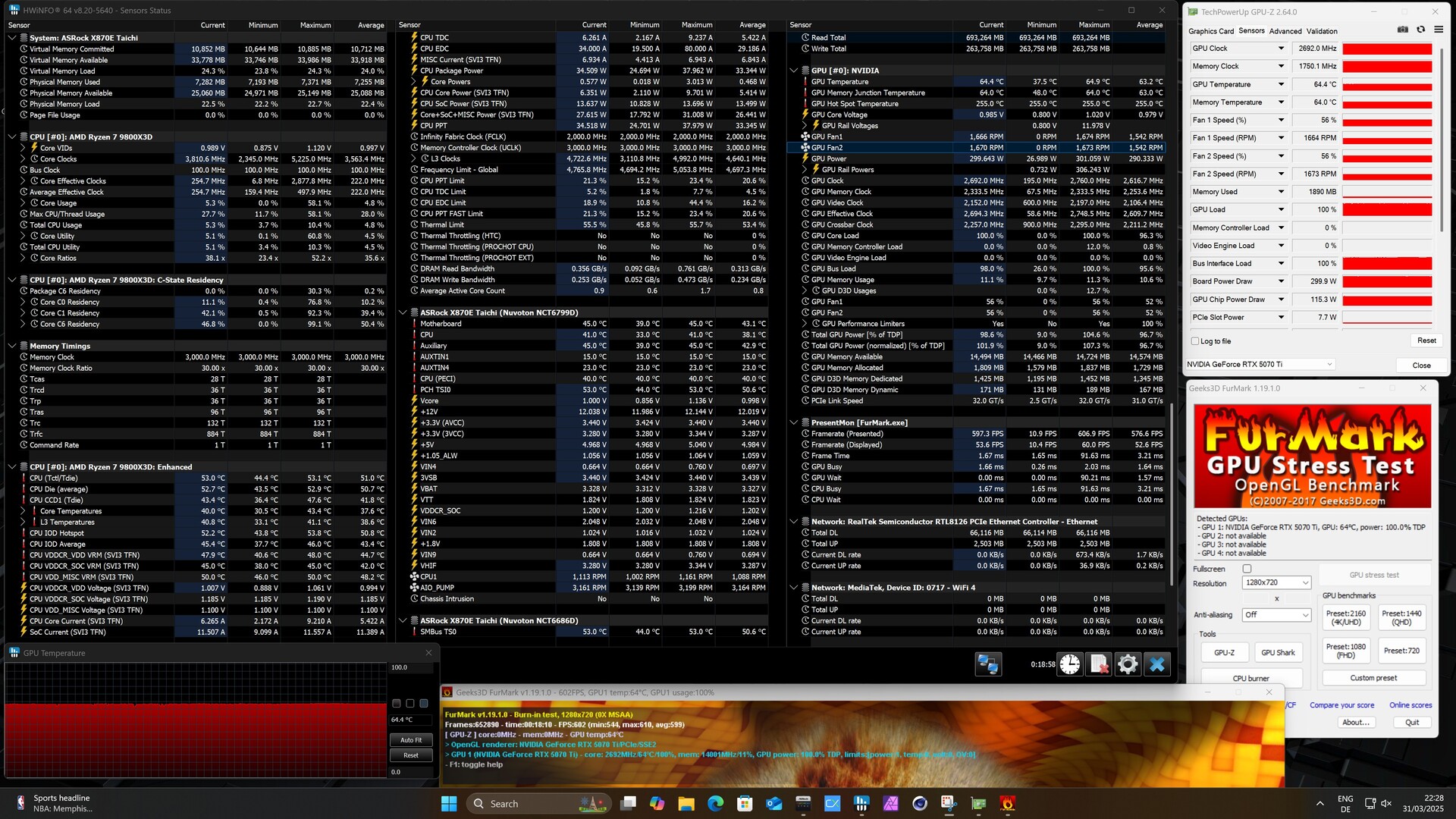

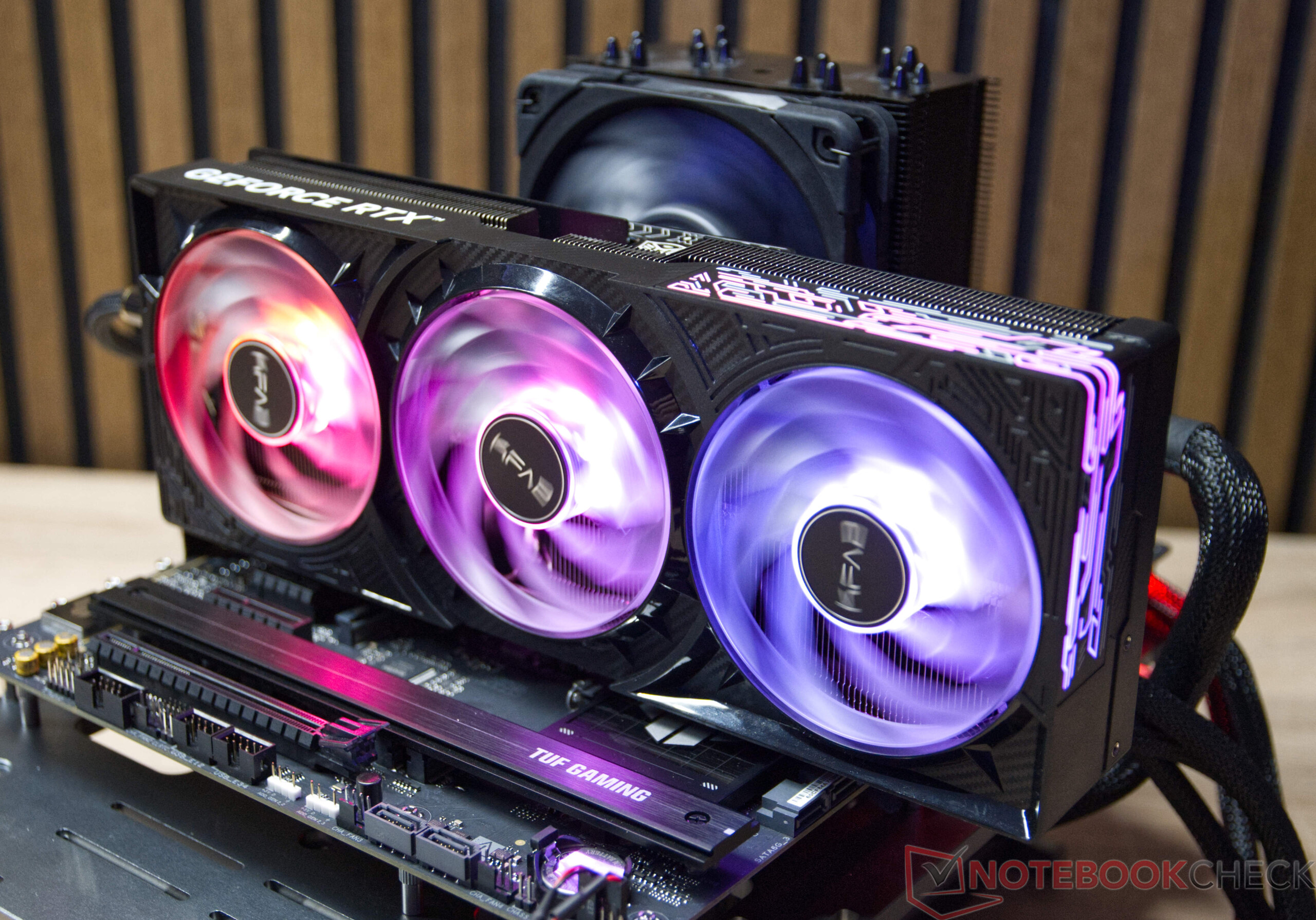

我们使用了 AMD Ryzen 7 9800X3DAsrock X870E Taichi 主板作为测试系统。显卡的最大功耗和 KFA2GeForce RTX 5070 Ti 1-Click OC 的时钟频率均未作任何更改。

合成基准测试 -GeForce RTX 5080 的影子

KFA2GeForce RTX 5070 Ti 1-Click OC 的合成基准测试结果显示其性能良好,与当前的 AMD Radeon RX 9000 型号相比脱颖而出。与华硕 TUF GamingGeForce RTX 5080 OC 相比,我们的测试样本损失了约 18 个百分点,这是可以接受的性能劣势。

不过,需要注意的是,合成基准并不总能反映游戏或生产应用中的实际性能。根据优化的驱动程序支持和个别游戏设置,真实性能可能会偏离这些测试结果。

Performance Rating - Percent
Nvidia GeForce RTX 5090 Founders Edition
89.6 pt
Palit GeForce RTX 4090 GameRock OC
69.9 pt
Asus TUF Gaming GeForce RTX 5080 OC
63.4 pt
XFX Speedster MERC 310 Radeon RX 7900 XTX
55.5 pt
KFA2 GeForce RTX 5070 Ti 1-Click OC
53.8 pt
AMD Radeon RX 9070 XT
46.2 pt
AMD Radeon RX 9070
42.5 pt
Nvidia GeForce RTX 3090 FE
41.1 pt
3DMark
2560x1440 Time Spy Graphics
Nvidia GeForce RTX 5090 Founders Edition
48663 Points
Palit GeForce RTX 4090 GameRock OC
37216 Points
Asus TUF Gaming GeForce RTX 5080 OC
33081 Points
XFX Speedster MERC 310 Radeon RX 7900 XTX
32717 Points
AMD Radeon RX 9070 XT
30530 Points
KFA2 GeForce RTX 5070 Ti 1-Click OC
27445 Points
AMD Radeon RX 9070
26774 Points
Nvidia GeForce RTX 3090 FE
19265 Points
Fire Strike Extreme Graphics
Nvidia GeForce RTX 5090 Founders Edition
61842 Points
Palit GeForce RTX 4090 GameRock OC
47529 Points
Asus TUF Gaming GeForce RTX 5080 OC
42451 Points
XFX Speedster MERC 310 Radeon RX 7900 XTX
40729 Points
KFA2 GeForce RTX 5070 Ti 1-Click OC
35880 Points
AMD Radeon RX 9070 XT
33890 Points
AMD Radeon RX 9070
30271 Points
Nvidia GeForce RTX 3090 FE
23768 Points
Steel Nomad Score
Nvidia GeForce RTX 5090 Founders Edition (Vulkan)
14376 Points
Nvidia GeForce RTX 5090 Founders Edition (DX12)
14142 Points
Palit GeForce RTX 4090 GameRock OC (Vulkan)
10252 Points
Palit GeForce RTX 4090 GameRock OC (DX12)
9171 Points
Asus TUF Gaming GeForce RTX 5080 OC (Vulkan)
8713 Points
Asus TUF Gaming GeForce RTX 5080 OC (DX12)
8209 Points
AMD Radeon RX 9070 XT (Vulkan)
7383 Points
AMD Radeon RX 9070 XT (DX12)
7223 Points
XFX Speedster MERC 310 Radeon RX 7900 XTX (Vulkan)
7309 Points
XFX Speedster MERC 310 Radeon RX 7900 XTX (DX12)
6891 Points
KFA2 GeForce RTX 5070 Ti 1-Click OC (Vulkan)
7176 Points
KFA2 GeForce RTX 5070 Ti 1-Click OC (DX12)
6478 Points
AMD Radeon RX 9070 (Vulkan)
6258 Points
AMD Radeon RX 9070 (DX12)
6071 Points
Nvidia GeForce RTX 3090 FE (Vulkan)
5209 Points
Nvidia GeForce RTX 3090 FE (DX12)
4941 Points
2560x1440 Port Royal Graphics
Nvidia GeForce RTX 5090 Founders Edition
37335 Points
Palit GeForce RTX 4090 GameRock OC
26363 Points
Asus TUF Gaming GeForce RTX 5080 OC
22598 Points
KFA2 GeForce RTX 5070 Ti 1-Click OC
19067 Points
AMD Radeon RX 9070 XT
18753 Points
XFX Speedster MERC 310 Radeon RX 7900 XTX
17183 Points
AMD Radeon RX 9070
16017 Points
Nvidia GeForce RTX 3090 FE
12947 Points
2560x1440 Speed Way Score
Nvidia GeForce RTX 5090 Founders Edition
14516 Points
Palit GeForce RTX 4090 GameRock OC
10302 Points
Asus TUF Gaming GeForce RTX 5080 OC
9140 Points
KFA2 GeForce RTX 5070 Ti 1-Click OC
7647 Points
XFX Speedster MERC 310 Radeon RX 7900 XTX
6554 Points
AMD Radeon RX 9070 XT
6382 Points
AMD Radeon RX 9070
5820 Points
Nvidia GeForce RTX 3090 FE
5299 Points
Unigine Superposition
7680x4320 8k Optimized
Nvidia GeForce RTX 5090 Founders Edition
18686 Points
Palit GeForce RTX 4090 GameRock OC
12757 Points
Asus TUF Gaming GeForce RTX 5080 OC
10913 Points
KFA2 GeForce RTX 5070 Ti 1-Click OC
9064 Points
XFX Speedster MERC 310 Radeon RX 7900 XTX
8937 Points
AMD Radeon RX 9070 XT
7566 Points
Nvidia GeForce RTX 3090 FE
6961 Points
AMD Radeon RX 9070
6920 Points
3840x2160 4k Optimized
Nvidia GeForce RTX 5090 Founders Edition
44524 Points
Palit GeForce RTX 4090 GameRock OC
33382 Points
Asus TUF Gaming GeForce RTX 5080 OC
27670 Points
XFX Speedster MERC 310 Radeon RX 7900 XTX
23961 Points
KFA2 GeForce RTX 5070 Ti 1-Click OC
22811 Points
AMD Radeon RX 9070 XT
19692 Points
AMD Radeon RX 9070
17355 Points
Nvidia GeForce RTX 3090 FE
16027 Points
1920x1080 1080p Extreme
Nvidia GeForce RTX 5090 Founders Edition
28585 Points
Palit GeForce RTX 4090 GameRock OC
21737 Points
Asus TUF Gaming GeForce RTX 5080 OC
19914 Points
XFX Speedster MERC 310 Radeon RX 7900 XTX
18045 Points
KFA2 GeForce RTX 5070 Ti 1-Click OC
15181 Points
AMD Radeon RX 9070 XT
14447 Points
AMD Radeon RX 9070
12632 Points
Nvidia GeForce RTX 3090 FE
11964 Points
Unigine Heaven 4.0
Extreme Preset DX11
Nvidia GeForce RTX 5090 Founders Edition
544.9 fps
Palit GeForce RTX 4090 GameRock OC
467.5 fps
Asus TUF Gaming GeForce RTX 5080 OC
454.1 fps
XFX Speedster MERC 310 Radeon RX 7900 XTX
384.1 fps
KFA2 GeForce RTX 5070 Ti 1-Click OC
383.1 fps
Nvidia GeForce RTX 3090 FE
309.1 fps
AMD Radeon RX 9070 XT
293.3 fps
AMD Radeon RX 9070
280.1 fps
Extreme Preset OpenGL
Nvidia GeForce RTX 5090 Founders Edition
550.7 fps
Palit GeForce RTX 4090 GameRock OC
470.8 fps
Asus TUF Gaming GeForce RTX 5080 OC
431.3 fps
XFX Speedster MERC 310 Radeon RX 7900 XTX
420.3 fps
KFA2 GeForce RTX 5070 Ti 1-Click OC
355.9 fps
AMD Radeon RX 9070 XT
312.3 fps
AMD Radeon RX 9070
298.4 fps
Nvidia GeForce RTX 3090 FE
281.9 fps
Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Palit GeForce RTX 4090 GameRock OC
302.7 fps
Nvidia GeForce RTX 5090 Founders Edition
295.3 fps
Asus TUF Gaming GeForce RTX 5080 OC
291 fps
XFX Speedster MERC 310 Radeon RX 7900 XTX
281.4 fps
KFA2 GeForce RTX 5070 Ti 1-Click OC
276.1 fps
Nvidia GeForce RTX 3090 FE
241.3 fps
AMD Radeon RX 9070 XT
214.8 fps
AMD Radeon RX 9070
205.8 fps
1920x1080 Extreme HD Preset OpenGL AA:x8
Nvidia GeForce RTX 5090 Founders Edition
308.6 fps
Palit GeForce RTX 4090 GameRock OC
307.5 fps
XFX Speedster MERC 310 Radeon RX 7900 XTX
298.7 fps
Asus TUF Gaming GeForce RTX 5080 OC
296.9 fps
KFA2 GeForce RTX 5070 Ti 1-Click OC
266 fps
Nvidia GeForce RTX 3090 FE
221.3 fps
AMD Radeon RX 9070 XT
215.4 fps
AMD Radeon RX 9070
206.3 fps
Affinity Photo 2 - Combined (Single / Multi GPU)
XFX Speedster MERC 310 Radeon RX 7900 XTX
11701 Points
AMD Radeon RX 9070
11481 Points
AMD Radeon RX 9070 XT
11452 Points
Palit GeForce RTX 4090 GameRock OC
11344 Points
Asus TUF Gaming GeForce RTX 5080 OC
10254 Points
Nvidia GeForce RTX 5090 Founders Edition
10031 Points
KFA2 GeForce RTX 5070 Ti 1-Click OC
9537 Points
Nvidia GeForce RTX 3090 FE
9343 Points
ComputeMark v2.1
1024x600 Normal, Score
Nvidia GeForce RTX 5090 Founders Edition
120417 Points
Palit GeForce RTX 4090 GameRock OC
91917 Points
Asus TUF Gaming GeForce RTX 5080 OC
76938 Points
XFX Speedster MERC 310 Radeon RX 7900 XTX
64580 Points
KFA2 GeForce RTX 5070 Ti 1-Click OC
64079 Points
AMD Radeon RX 9070 XT
52425 Points
Nvidia GeForce RTX 3090 FE
47608 Points
AMD Radeon RX 9070
47260 Points
1024x600 Normal, Fluid 3DTex
Nvidia GeForce RTX 5090 Founders Edition
18605 Points
Asus TUF Gaming GeForce RTX 5080 OC
10845 Points
Palit GeForce RTX 4090 GameRock OC
10545 Points
XFX Speedster MERC 310 Radeon RX 7900 XTX
8966 Points
KFA2 GeForce RTX 5070 Ti 1-Click OC
7676 Points
AMD Radeon RX 9070 XT
5915 Points
AMD Radeon RX 9070
5912 Points
Nvidia GeForce RTX 3090 FE
5460 Points
1024x600 Normal, Fluid 2DTexArr
Nvidia GeForce RTX 5090 Founders Edition
8647 Points
XFX Speedster MERC 310 Radeon RX 7900 XTX
7970 Points
Asus TUF Gaming GeForce RTX 5080 OC
6781 Points
KFA2 GeForce RTX 5070 Ti 1-Click OC
6236 Points
AMD Radeon RX 9070 XT
5881 Points
AMD Radeon RX 9070
5758 Points
Palit GeForce RTX 4090 GameRock OC
4917 Points
Nvidia GeForce RTX 3090 FE
4435 Points
1024x600 Normal, Mandel Vector
Nvidia GeForce RTX 5090 Founders Edition
24689 Points
Palit GeForce RTX 4090 GameRock OC
17268 Points
Asus TUF Gaming GeForce RTX 5080 OC
15070 Points
XFX Speedster MERC 310 Radeon RX 7900 XTX
12783 Points
KFA2 GeForce RTX 5070 Ti 1-Click OC
12126 Points
AMD Radeon RX 9070 XT
11469 Points
AMD Radeon RX 9070
10303 Points
Nvidia GeForce RTX 3090 FE
9578 Points
1024x600 Normal, Mandel Scalar
Nvidia GeForce RTX 5090 Founders Edition
28468 Points
Palit GeForce RTX 4090 GameRock OC
23007 Points
Asus TUF Gaming GeForce RTX 5080 OC
16810 Points
XFX Speedster MERC 310 Radeon RX 7900 XTX
15533 Points
KFA2 GeForce RTX 5070 Ti 1-Click OC
14037 Points
AMD Radeon RX 9070 XT
13465 Points
AMD Radeon RX 9070
11442 Points
Nvidia GeForce RTX 3090 FE
10899 Points
1024x600 Normal, QJuliaRayTrace
Nvidia GeForce RTX 5090 Founders Edition
40008 Points
Palit GeForce RTX 4090 GameRock OC
34180 Points
Asus TUF Gaming GeForce RTX 5080 OC
27433 Points
KFA2 GeForce RTX 5070 Ti 1-Click OC
24005 Points
XFX Speedster MERC 310 Radeon RX 7900 XTX
19328 Points
Nvidia GeForce RTX 3090 FE
17235 Points
AMD Radeon RX 9070 XT
15696 Points
AMD Radeon RX 9070
13845 Points
V-Ray Benchmark Next 4.10 - GPU
Nvidia GeForce RTX 5090 Founders Edition (v4.10.07 )
2392 mpaths
Palit GeForce RTX 4090 GameRock OC (v4.10.07 )
1869 mpaths
Asus TUF Gaming GeForce RTX 5080 OC (v4.10.07 )
1527 mpaths
KFA2 GeForce RTX 5070 Ti 1-Click OC (v4.10.07 )
1321 mpaths
Nvidia GeForce RTX 3090 FE (v4.10.07 )
883 mpaths
XFX Speedster MERC 310 Radeon RX 7900 XTX (v4.10.07 )
135 mpaths
AMD Radeon RX 9070 (v4.10.07 )
134 mpaths
AMD Radeon RX 9070 XT (v4.10.07 )
133 mpaths
Blender
v3.3 Classroom CUDA
Nvidia GeForce RTX 3090 FE
21 Seconds *
KFA2 GeForce RTX 5070 Ti 1-Click OC
17 Seconds *
Asus TUF Gaming GeForce RTX 5080 OC
14 Seconds *
Palit GeForce RTX 4090 GameRock OC
10 Seconds *
Nvidia GeForce RTX 5090 Founders Edition
8 Seconds *
v3.3 Classroom OPTIX/RTX
Nvidia GeForce RTX 3090 FE
14 Seconds *
KFA2 GeForce RTX 5070 Ti 1-Click OC
11 Seconds *
Asus TUF Gaming GeForce RTX 5080 OC
9 Seconds *
Palit GeForce RTX 4090 GameRock OC
7 Seconds *
Nvidia GeForce RTX 5090 Founders Edition
5 Seconds *
v4.3 Barbershop OPTIX
KFA2 GeForce RTX 5070 Ti 1-Click OC
49 Seconds *
MLPerf Client 0.5 - overall generation rate
Nvidia GeForce RTX 5090 Founders Edition
243 tokens/s
Palit GeForce RTX 4090 GameRock OC
175.4 tokens/s
Asus TUF Gaming GeForce RTX 5080 OC
160.5 tokens/s
KFA2 GeForce RTX 5070 Ti 1-Click OC
143.9 tokens/s
XFX Speedster MERC 310 Radeon RX 7900 XTX
133.3 tokens/s
Nvidia GeForce RTX 3090 FE
119 tokens/s
AMD Radeon RX 9070 XT
114.7 tokens/s
AMD Radeon RX 9070
111.7 tokens/s
Geekbench AI
Single Precision ONNX DirectML GPU 1.2
Nvidia GeForce RTX 5090 Founders Edition
46511 Points
Palit GeForce RTX 4090 GameRock OC
39485 Points
Asus TUF Gaming GeForce RTX 5080 OC
37399 Points
XFX Speedster MERC 310 Radeon RX 7900 XTX
36253 Points
AMD Radeon RX 9070 XT
35925 Points
KFA2 GeForce RTX 5070 Ti 1-Click OC
33141 Points
AMD Radeon RX 9070
31636 Points
Nvidia GeForce RTX 3090 FE
26056 Points
Half Precision ONNX DirectML GPU 1.2
Nvidia GeForce RTX 5090 Founders Edition
69041 Points
Asus TUF Gaming GeForce RTX 5080 OC
62651 Points
KFA2 GeForce RTX 5070 Ti 1-Click OC
56986 Points
Palit GeForce RTX 4090 GameRock OC
54352 Points
AMD Radeon RX 9070 XT
48830 Points
AMD Radeon RX 9070
44048 Points
XFX Speedster MERC 310 Radeon RX 7900 XTX
40801 Points
Nvidia GeForce RTX 3090 FE
39291 Points
Quantized ONNX DirectML GPU 1.2
Nvidia GeForce RTX 5090 Founders Edition
34479 Points
AMD Radeon RX 9070 XT
30860 Points
Palit GeForce RTX 4090 GameRock OC
29909 Points
XFX Speedster MERC 310 Radeon RX 7900 XTX
28691 Points
Asus TUF Gaming GeForce RTX 5080 OC
28445 Points
AMD Radeon RX 9070
27180 Points
KFA2 GeForce RTX 5070 Ti 1-Click OC
25304 Points
Nvidia GeForce RTX 3090 FE
15464 Points

* ... smaller is better

专业应用

KFA2GeForce RTX 5070 Ti 1-Click OC 明显落后于 RTX 5090RTX 5080在我们的测试中明显落后于 RTX 5090 和 RTX 5080。对于半专业应用来说,它仍然是一个可靠的选择,在 SPECviewperf 2020 测试中也取得了不错的成绩。在 SPECworkstation 4.0 测试中,所有结果都比较接近,而 AMD GPU 在支持的工作负载中表现良好。

KFA2 GeForce RTX 5070 Ti 1-Click OC
R7 9800X3D
Asus TUF Gaming GeForce RTX 5080 OC
R7 9800X3D
Nvidia GeForce RTX 5090 Founders Edition
R7 9800X3D
Palit GeForce RTX 4090 GameRock OC
R7 9800X3D
Nvidia GeForce RTX 3090 FE
R7 9800X3D
AMD Radeon RX 9070
R7 9800X3D
AMD Radeon RX 9070 XT
R7 9800X3D
XFX Speedster MERC 310 Radeon RX 7900 XTX
R7 9800X3D
SPECviewperf 2020
27%
77%
43%
-19%
84%
109%
113%
3840x2160 Medical (medical-03)
29.7
34.8
17%
51.2
72%
43.4
46%
21.1
-29%
131
341%
156
425%
107
260%
3840x2160 Maya (maya-06)
479
565
18%
697
46%
610
27%
363
-24%
377
-21%
405
-15%
565
18%
3840x2160 Energy (energy-03)
61.9
115
86%
196
217%
138
123%
56.4
-9%
109
76%
136
120%
194
213%
3840x2160 Creo (creo-03)
124
130
5%
136
10%
133
7%
114
-8%
195
57%
205
65%
223
80%
3840x2160 CATIA (catia-06)
72.2
82.5
14%
109
51%
89.9
25%
59.3
-18%
129
79%
133
84%
149
106%
3840x2160 3ds Max (3dsmax-07)
182
217
19%
297
63%
235
29%
139
-24%
128
-30%
134
-26%
187
3%
SPECworkstation 4.0
4%
16%
8%
-14%
17%
24%
30%
Graphics Score
8.03
9.16
14%
11.2
39%
9.9
23%
6.19
-23%
11.8
47%
12.8
59%
14.1
76%
AI & Machine Learning Score
1.22
1.21
-1%
1.18
-3%
1.2
-2%
1.2
-2%
1.16
-5%
1.19
-2%
1.22
0%
Viewport Graphics
8.03
9.16
14%
11.2
39%
9.9
23%
6.19
-23%
11.8
47%
12.8
59%
14.1
76%
HandBrake
1.8
1.84
2%
1.85
3%
1.82
1%
1.72
-4%
2.05
14%
2.06
14%
1.92
7%
ONNX Inference
4.55
4.13
-9%
4.65
2%
4.23
-7%
3.69
-19%
3.74
-18%
4.2
-8%
4.21
-7%
Total Average (Program / Settings)
16% / 16%
47% / 49%
26% / 27%
-17% / -17%
51% / 53%
67% / 70%
72% / 76%
Performance Rating
XFX Speedster MERC 310 Radeon RX 7900 XTX
90.4 pt
AMD Radeon RX 9070 XT
89.3 pt
NVIDIA Zotac GeForce RTX 5090 Solid
88.1 pt
AMD Radeon RX 9070
83.6 pt
Palit GeForce RTX 4090 GameRock OC
79.3 pt
NVIDIA Asus TUF Gaming GeForce RTX 5080 OC
76.8 pt
MSI Radeon RX 6950 XT Gaming X Trio
74.8 pt
NVIDIA KFA2 GeForce RTX 5070 Ti 1-Click OC
73.9 pt
Nvidia GeForce RTX 3090 FE
61.4 pt
MSI GeForce RTX 3070 Ti Suprim X
54.1 pt
ASUS Dual GeForce RTX 4060 EVO OC
49.4 pt
SPECworkstation 4.0 / Graphics Score
XFX Speedster MERC 310 Radeon RX 7900 XTX
14.1 Points
AMD Radeon RX 9070 XT
12.8 Points
AMD Radeon RX 9070
11.8 Points
NVIDIA Zotac GeForce RTX 5090 Solid
11.2 Points
MSI Radeon RX 6950 XT Gaming X Trio
10.3 Points
Palit GeForce RTX 4090 GameRock OC
9.9 Points
NVIDIA Asus TUF Gaming GeForce RTX 5080 OC
9.16 Points
NVIDIA KFA2 GeForce RTX 5070 Ti 1-Click OC
8.03 Points
Nvidia GeForce RTX 3090 FE
6.19 Points
MSI GeForce RTX 3070 Ti Suprim X
4.8 Points
ASUS Dual GeForce RTX 4060 EVO OC
3.93 Points
SPECworkstation 4.0 / Accelerator Score
NVIDIA Zotac GeForce RTX 5090 Solid
7.92 Points
Palit GeForce RTX 4090 GameRock OC
6.68 Points
NVIDIA Asus TUF Gaming GeForce RTX 5080 OC
6.59 Points
AMD Radeon RX 9070 XT
6.56 Points
AMD Radeon RX 9070
6.23 Points
NVIDIA KFA2 GeForce RTX 5070 Ti 1-Click OC
6.14 Points
XFX Speedster MERC 310 Radeon RX 7900 XTX
5.99 Points
Nvidia GeForce RTX 3090 FE
4.98 Points
MSI Radeon RX 6950 XT Gaming X Trio
4.85 Points
MSI GeForce RTX 3070 Ti Suprim X
4.28 Points
ASUS Dual GeForce RTX 4060 EVO OC
3.8 Points
SPECworkstation 4.0 / Viewport Graphics
XFX Speedster MERC 310 Radeon RX 7900 XTX
14.1 Points
AMD Radeon RX 9070 XT
12.8 Points
AMD Radeon RX 9070
11.8 Points
NVIDIA Zotac GeForce RTX 5090 Solid
11.2 Points
MSI Radeon RX 6950 XT Gaming X Trio
10.3 Points
Palit GeForce RTX 4090 GameRock OC
9.9 Points
NVIDIA Asus TUF Gaming GeForce RTX 5080 OC
9.16 Points
NVIDIA KFA2 GeForce RTX 5070 Ti 1-Click OC
8.03 Points
Nvidia GeForce RTX 3090 FE
6.19 Points
MSI GeForce RTX 3070 Ti Suprim X
4.8 Points
ASUS Dual GeForce RTX 4060 EVO OC
3.93 Points
SPECworkstation 4.0 / HandBrake
AMD Radeon RX 9070 XT
2.06 Points
AMD Radeon RX 9070
2.05 Points
XFX Speedster MERC 310 Radeon RX 7900 XTX
1.92 Points
NVIDIA Asus TUF Gaming GeForce RTX 5080 OC
1.84 Points
NVIDIA Zotac GeForce RTX 5090 Solid
1.84 Points
Palit GeForce RTX 4090 GameRock OC
1.82 Points
MSI Radeon RX 6950 XT Gaming X Trio
1.82 Points
ASUS Dual GeForce RTX 4060 EVO OC
1.81 Points
NVIDIA KFA2 GeForce RTX 5070 Ti 1-Click OC
1.8 Points
Nvidia GeForce RTX 3090 FE
1.72 Points
MSI GeForce RTX 3070 Ti Suprim X
1.71 Points
SPECworkstation 4.0 / ONNX Inference
NVIDIA Zotac GeForce RTX 5090 Solid
4.66 Points
NVIDIA KFA2 GeForce RTX 5070 Ti 1-Click OC
4.55 Points
Palit GeForce RTX 4090 GameRock OC
4.23 Points
XFX Speedster MERC 310 Radeon RX 7900 XTX
4.21 Points
AMD Radeon RX 9070 XT
4.2 Points
NVIDIA Asus TUF Gaming GeForce RTX 5080 OC
4.13 Points
MSI Radeon RX 6950 XT Gaming X Trio
3.97 Points
AMD Radeon RX 9070
3.74 Points
Nvidia GeForce RTX 3090 FE
3.69 Points
MSI GeForce RTX 3070 Ti Suprim X
3.34 Points
ASUS Dual GeForce RTX 4060 EVO OC
2.88 Points

游戏性能 - 与 AMD Radeon RX 9070 XT 不相上下

KFA2GeForce RTX 5070 Ti 1-Click OC 的性能足以流畅运行当前的游戏。即便如此,您也必须接受分辨率或细节级别方面的一些限制。对于选择 KFA2 RTX 5070 Ti 1-Click OC 的玩家来说,显示器的选择也至关重要:该显卡特别适合 FHD 和 QHD 游戏,这意味着其 16 GB 的 VRAM 足够大。不过,在 4K 游戏中,该显卡可能难以长期保持高帧率,尤其是在纯粹依赖传统光栅化技术而不使用 DLSS 4 或帧生成等技术的情况下。

Performance Rating - Percent
Nvidia GeForce RTX 5090 Founders Edition
100 pt
Palit GeForce RTX 4090 GameRock OC
79.2 pt
Asus TUF Gaming GeForce RTX 5080 OC
66 pt
XFX Speedster MERC 310 Radeon RX 7900 XTX
61.1 pt
AMD Radeon RX 9070 XT
57.4 pt
KFA2 GeForce RTX 5070 Ti 1-Click OC
56.7 pt
AMD Radeon RX 9070
50.2 pt
Nvidia GeForce RTX 3090 FE
45.9 pt
The Witcher 3 - 3840x2160 Ultra Graphics & Postprocessing (HBAO+)
Nvidia GeForce RTX 5090 Founders Edition
235 (74.7min, 174.5P0.1, 205P1) fps +87%
Palit GeForce RTX 4090 GameRock OC
176 (37.5min, 153.2P0.1, 157P1) fps +40%
Asus TUF Gaming GeForce RTX 5080 OC
158 (137.1min, 139.5P0.1, 141.7P1) fps +26%
XFX Speedster MERC 310 Radeon RX 7900 XTX
140.7 (41.4min, 120.3P0.1, 130.4P1) fps +12%
KFA2 GeForce RTX 5070 Ti 1-Click OC
125.8 (102.8min, 106.9P0.1, 110.1P1) fps
AMD Radeon RX 9070 XT
117.5 (35.9min, 99.4P0.1, 107.5P1) fps -7%
AMD Radeon RX 9070
105 (36.6min, 89.1P0.1, 94.9P1) fps -17%
Nvidia GeForce RTX 3090 FE
97.8 (36.5min, 87.2P0.1, 90.2P1) fps -22%
Hogwarts Legacy - 3840x2160 Ultra Preset AA:High T
Nvidia GeForce RTX 5090 Founders Edition
100.6 (19.4min, 33.6P0.1, 65.7P1) fps +61%
Palit GeForce RTX 4090 GameRock OC
92 (41.6min, 49.8P0.1, 70.6P1) fps +47%
Asus TUF Gaming GeForce RTX 5080 OC
75.8 (30.6min, 31.9P0.1, 59.8P1) fps +21%
AMD Radeon RX 9070 XT
67.9 (49.6min, 58.2P0.1, 59.7P1) fps +8%
XFX Speedster MERC 310 Radeon RX 7900 XTX
67.2 (25min, 56.1P0.1, 61.2P1) fps +7%
KFA2 GeForce RTX 5070 Ti 1-Click OC
62.6 (31.3min, 38.4P0.1, 50.7P1) fps
AMD Radeon RX 9070
60.8 (48.9min, 51.7P0.1, 53.3P1) fps -3%
Nvidia GeForce RTX 3090 FE
50.8 (26min, 29.7P0.1, 37.8P1) fps -19%
Baldur's Gate 3 - 3840x2160 Ultra Preset
Nvidia GeForce RTX 5090 Founders Edition
172 (96.1min, 153.6P0.1, 157.7P1) fps +79%
Palit GeForce RTX 4090 GameRock OC
138.3 (123.8min, 125.1P0.1, 126.5P1) fps +44%
Asus TUF Gaming GeForce RTX 5080 OC
115 (100.9min, 102P0.1, 103.6P1) fps +20%
XFX Speedster MERC 310 Radeon RX 7900 XTX
102.6 (91.3min, 91.7P0.1, 92.3P1) fps +7%
KFA2 GeForce RTX 5070 Ti 1-Click OC
96.2 (84.7min, 85.5P0.1, 87.5P1) fps
AMD Radeon RX 9070 XT
93.1 (81.7min, 82.1P0.1, 82.7P1) fps -3%
AMD Radeon RX 9070
79.4 (69.3min, 69.6P0.1, 70.2P1) fps -17%
Nvidia GeForce RTX 3090 FE
70.4 (60.7min, 61.7P0.1, 62.5P1) fps -27%
Cyberpunk 2077 2.2 Phantom Liberty - 3840x2160 Ultra Preset (FSR off)
Nvidia GeForce RTX 5090 Founders Edition
108.6 (85.8min) fps +90%
Palit GeForce RTX 4090 GameRock OC
76.9 (61.3min) fps +34%
Asus TUF Gaming GeForce RTX 5080 OC
71.5 (57.5min) fps +25%
XFX Speedster MERC 310 Radeon RX 7900 XTX
68.2 (57.5min) fps +19%
AMD Radeon RX 9070 XT
63.6 (52.7min) fps +11%
KFA2 GeForce RTX 5070 Ti 1-Click OC
57.3 (46.2min) fps
AMD Radeon RX 9070
55.7 (46.6min) fps -3%
Nvidia GeForce RTX 3090 FE
43.7 (36.7min) fps -24%
Alan Wake 2 - 3840x2160 High Preset
Nvidia GeForce RTX 5090 Founders Edition
92 (32.8min, 43.8P0.1, 58.4P1) fps +71%
Palit GeForce RTX 4090 GameRock OC
75.3 (53min, 57.3P0.1, 61.4P1) fps +40%
XFX Speedster MERC 310 Radeon RX 7900 XTX
66.6 (39min, 40.8P0.1, 58.2P1) fps +24%
Asus TUF Gaming GeForce RTX 5080 OC
62.4 (21.2min, 33P0.1, 45.8P1) fps +16%
AMD Radeon RX 9070 XT
59.4 (43.8min, 45.7P0.1, 53.6P1) fps +11%
KFA2 GeForce RTX 5070 Ti 1-Click OC
53.7 (39.9min, 42.1P0.1, 46.4P1) fps
AMD Radeon RX 9070
52.6 (27min, 30.1P0.1, 43.8P1) fps -2%
Nvidia GeForce RTX 3090 FE
40.9 (31min, 32P0.1, 34.7P1) fps -24%
F1 24 - 3840x2160 Ultra High Preset AA:T AF:16x
Nvidia GeForce RTX 5090 Founders Edition
123.2 (96min, 88P1) fps +100%
Palit GeForce RTX 4090 GameRock OC
93 (75min, 75P1) fps +51%
Asus TUF Gaming GeForce RTX 5080 OC
73.5 (59min, 60P1) fps +19%
KFA2 GeForce RTX 5070 Ti 1-Click OC
61.7 (51min, 51P1) fps
AMD Radeon RX 9070 XT
60.9 (48min, 49P1) fps -1%
XFX Speedster MERC 310 Radeon RX 7900 XTX
51.9 (40min, 40P1) fps -16%
AMD Radeon RX 9070
50.8 (40min, 40P1) fps -18%
Nvidia GeForce RTX 3090 FE
44.4 (38min, 35P1) fps -28%
Black Myth: Wukong - 3840x2160 cinematic TSR 100
Nvidia GeForce RTX 5090 Founders Edition
57 (46min) fps +78%
Palit GeForce RTX 4090 GameRock OC
45 (37min) fps +41%
Nvidia GeForce RTX 3090 FE
40 (32min) fps +25%
Asus TUF Gaming GeForce RTX 5080 OC
39 (34min) fps +22%
XFX Speedster MERC 310 Radeon RX 7900 XTX
32 (26min) fps 0%
KFA2 GeForce RTX 5070 Ti 1-Click OC
32 (25min) fps
AMD Radeon RX 9070 XT
31 (25min) fps -3%
AMD Radeon RX 9070
27 (22min) fps -16%
Star Wars Outlaws - 3840x2160 cinem. ultra
Nvidia GeForce RTX 5090 Founders Edition
78.4 fps +85%
Palit GeForce RTX 4090 GameRock OC
68.6 (55.3min, 56.1P0.1, 58.4P1) fps +62%
Asus TUF Gaming GeForce RTX 5080 OC
50.9 (33.5min, 42.6P0.1, 44.3P1) fps +20%
AMD Radeon RX 9070 XT
43.6 (36.9min, 37.5P0.1, 38.4P1) fps +3%
KFA2 GeForce RTX 5070 Ti 1-Click OC
42.4 (29.4min, 35.8P0.1, 37.1P1) fps
XFX Speedster MERC 310 Radeon RX 7900 XTX
42 (35.5min, 36P0.1, 37.3P1) fps -1%
AMD Radeon RX 9070
36.9 (30.4min, 30.8P0.1, 32.1P1) fps -13%
Nvidia GeForce RTX 3090 FE
34.9 (23.6min, 28.4P0.1, 29.5P1) fps -18%
Call of Duty Black Ops 6 - 3840x2160 Extreme Preset
Nvidia GeForce RTX 5090 Founders Edition
145 fps +71%
XFX Speedster MERC 310 Radeon RX 7900 XTX
113 fps +33%
AMD Radeon RX 9070 XT
102 fps +20%
Palit GeForce RTX 4090 GameRock OC
90 fps +6%
AMD Radeon RX 9070
89 fps +5%
KFA2 GeForce RTX 5070 Ti 1-Click OC
85 fps
Asus TUF Gaming GeForce RTX 5080 OC
68 fps -20%
Nvidia GeForce RTX 3090 FE
63 fps -26%
Stalker 2 - 3840x2160 Epic Preset
Nvidia GeForce RTX 5090 Founders Edition
79.5 (37.2min, 49.9P0.1, 56.9P1) fps +71%
Palit GeForce RTX 4090 GameRock OC
65.9 (28.1min, 38.8P0.1, 53.8P1) fps +41%
Asus TUF Gaming GeForce RTX 5080 OC
55.5 (31.1min, 32P0.1, 41.5P1) fps +19%
XFX Speedster MERC 310 Radeon RX 7900 XTX
48.5 (39.3min, 42.2P0.1, 43.2P1) fps +4%
KFA2 GeForce RTX 5070 Ti 1-Click OC
46.6 (38.5min, 38.9P0.1, 41P1) fps
AMD Radeon RX 9070 XT
44.3 (34.1min, 39P0.1, 39.9P1) fps -5%
AMD Radeon RX 9070
39.5 (34min, 34.7P0.1, 35.6P1) fps -15%
Nvidia GeForce RTX 3090 FE
36.6 (19min, 21.7P0.1, 30.5P1) fps -21%
Indiana Jones and the Great Circle - 3840x2160 Very Ultra Preset
Nvidia GeForce RTX 5090 Founders Edition
128 (108.8min, 112.4P0.1, 116.9P1) fps +58%
Palit GeForce RTX 4090 GameRock OC
108 (88.6min, 96.1P0.1, 98.2P1) fps +33%
Asus TUF Gaming GeForce RTX 5080 OC
93.9 (70.7min, 76.2P0.1, 81.6P1) fps +16%
KFA2 GeForce RTX 5070 Ti 1-Click OC
81.2 (62.9min, 66.7P0.1, 70.9P1) fps
XFX Speedster MERC 310 Radeon RX 7900 XTX
76.8 (68.2min, 70.2P0.1, 71.3P1) fps -5%
AMD Radeon RX 9070 XT
66.1 (49.7min, 55.6P0.1, 58.3P1) fps -19%
Nvidia GeForce RTX 3090 FE
60.7 (55.1min, 56P0.1, 56.5P1) fps -25%
AMD Radeon RX 9070
59 (45.2min, 48.4P0.1, 52.3P1) fps -27%

DLSS 4 和多帧生成 (MFG)

就纯光栅性能而言,Blackwell 几乎无法与 Ada Lovelace 相提并论,但 DLSS 4 和多帧生成(MFG)明显提高了帧数。KFA2GeForce RTX 5070 Ti 1-Click OC 显示,即使要求苛刻的 4K 游戏也能流畅运行。与 华硕 TUF GamingGeForce RTX 5080 OC相比,它在我们的测试中落后了约 20%。

Cyberpunk 2077 2.2 Phantom Liberty
3840x2160 Ray Tracing Overdrive Preset + DLSS 4 Transformer Quality (no FG)
Nvidia GeForce RTX 5090 Founders Edition
62.6 (56.2min) fps +89%
Palit GeForce RTX 4090 GameRock OC
48.8 (43.8min) fps +47%
Asus TUF Gaming GeForce RTX 5080 OC
38.9 (33.8min) fps +18%
KFA2 GeForce RTX 5070 Ti 1-Click OC
33.1 (27.6min) fps
Nvidia GeForce RTX 3090 FE
19.5 (17.9min) fps -41%
3840x2160 Ray Tracing Overdrive Preset + DLSS 4 Transformer Quality + Frame Generation (M)FG 2x
Nvidia GeForce RTX 5090 Founders Edition
114.4 (104.7min) fps +93%
Palit GeForce RTX 4090 GameRock OC
90.2 (82.5min) fps +52%
Asus TUF Gaming GeForce RTX 5080 OC
72.1 (64.7min) fps +22%
KFA2 GeForce RTX 5070 Ti 1-Click OC
59.2 (50.8min) fps
3840x2160 Ray Tracing Overdrive Preset + DLSS 4 Transformer Quality + Frame Generation MFG 4x
Nvidia GeForce RTX 5090 Founders Edition
209 (192.8min) fps +91%
Asus TUF Gaming GeForce RTX 5080 OC
132.9 (120.4min) fps +21%
KFA2 GeForce RTX 5070 Ti 1-Click OC
109.6 (93.9min) fps
Alan Wake 2
3840x2160 High Preset + Ultra Ray Tracing + Quality DLSS
Nvidia GeForce RTX 5090 Founders Edition
75.2 (37.2min, 41.7P0.1, 50.7P1) fps +83%
Palit GeForce RTX 4090 GameRock OC
61.3 (38.2min, 40.2P0.1, 42.8P1) fps +49%
Asus TUF Gaming GeForce RTX 5080 OC
49.9 (25.7min, 26.8P0.1, 36.2P1) fps +21%
KFA2 GeForce RTX 5070 Ti 1-Click OC
41.2 (27min, 27.2P0.1, 29.3P1) fps
Nvidia GeForce RTX 3090 FE
25.4 (18.7min, 19.6P0.1, 20.9P1) fps -38%
3840x2160 High Preset + Ultra Ray Tracing + Quality DLSS + FG 2x
Nvidia GeForce RTX 5090 Founders Edition
132.3 (29.3min, 48.2P0.1, 82.4P1) fps +72%
Palit GeForce RTX 4090 GameRock OC
106.6 (59.5min, 62.2P0.1, 71.7P1) fps +39%
Asus TUF Gaming GeForce RTX 5080 OC
88.7 (29.5min, 39.7P0.1, 58P1) fps +16%
KFA2 GeForce RTX 5070 Ti 1-Click OC
76.7 (44.5min, 45.7P0.1, 53.1P1) fps
3840x2160 High Preset + Ultra Ray Tracing + Quality DLSS + FG 4x
Nvidia GeForce RTX 5090 Founders Edition
244 (49.5min, 86.2P0.1, 142.4P1) fps +78%
Asus TUF Gaming GeForce RTX 5080 OC
158.1 (39.5min, 46.8P0.1, 94.5P1) fps +15%
KFA2 GeForce RTX 5070 Ti 1-Click OC
137 (47.8min, 72.3P0.1, 93.7P1) fps
Star Wars Outlaws
3840x2160 cinem. ultra, RT ultra, DLSS, FG RR
Nvidia GeForce RTX 5090 Founders Edition
107.9 fps +74%
Palit GeForce RTX 4090 GameRock OC
90.5 (56min, 67.3P0.1, 76.1P1) fps +46%
Asus TUF Gaming GeForce RTX 5080 OC
75.4 (53.2min, 58.4P0.1, 63.4P1) fps +21%
KFA2 GeForce RTX 5070 Ti 1-Click OC
62.1 (49.1min, 50.4P0.1, 53.4P1) fps
3840x2160 cinem. ultra, RT ultra, DLSS, FG 4x, RR
Nvidia GeForce RTX 5090 Founders Edition
202 fps +78%
Asus TUF Gaming GeForce RTX 5080 OC
139.6 (60.4min, 97.8P0.1, 114.6P1) fps +23%
KFA2 GeForce RTX 5070 Ti 1-Click OC
113.5 (69.3min, 84P0.1, 93.1P1) fps
Hogwarts Legacy
3840x2160 Ultra Preset + Full Ray Tracing + DLSS4 Quality + FG 2x AA:High T
Nvidia GeForce RTX 5090 Founders Edition
138.9 (25.1min, 30.8P0.1, 53P1) fps +76%
Palit GeForce RTX 4090 GameRock OC
101.9 (26.5min, 33.1P0.1, 59.7P1) fps +29%
Asus TUF Gaming GeForce RTX 5080 OC
91.5 (31.3min, 38.2P0.1, 56.8P1) fps +16%
KFA2 GeForce RTX 5070 Ti 1-Click OC
78.8 (36.9min, 37.6P0.1, 54.5P1) fps
3840x2160 Ultra Preset + Full Ray Tracing + DLSS4 Quality + FG 4x AA:High T
Nvidia GeForce RTX 5090 Founders Edition
269 (20.8min, 37.2P0.1, 58.4P1) fps +93%
Asus TUF Gaming GeForce RTX 5080 OC
165.3 (28.5min, 54.1P0.1, 92.7P1) fps +18%
KFA2 GeForce RTX 5070 Ti 1-Click OC
139.5 (52.8min, 59.2P0.1, 85.5P1) fps

Overview of tested games with the Asus TUF Gaming GeForce RTX 5080 OC

all | 2015 | 2018 | 2019 | 2021 | 2023 | 2024 | 2025
lowmed.highultraQHD DLSSQHD4K DLSS4K
Kingdom Come Deliverance 2 (2025) 335 257 213 143.2 128.6 107.4 81.6 62.4
Monster Hunter Wilds (2025) 139.5 122.2 100.5 96.6 80.6 69.5 51.7
Civilization 7 (2025) 547 403 356 227 107
Assassin's Creed Shadows (2025) 125 110 96 73 73 64 59 43
show all (30 hidden)

排放 - 300 瓦的功率得到可靠冷却

噪音排放

KFA2 为其GeForce RTX 5070 Ti 1-Click OC 配备了强大的散热系统。三个风扇确保高效散热,但在 2D 模式下仍处于停用状态。在低负载情况下,它们以低速安静运行,这意味着我们在开放设置中仅测得 30.2 dB(A)。在满载情况下,噪音水平上升到 40 dB(A),但仍在可接受的范围内。不过,我们偶尔会听到一些线圈呜呜声。

KFA2GeForce RTX 5070 Ti 1-Click OC 在开放设置噪音发射测试中的表现
KFA2GeForce RTX 5070 Ti 1-Click OC 在开放设置噪音发射测试中的表现

Noise Level

Idle
26.8 / 26.8 / 26.8 dB(A)
Load
30.2 / 40 dB(A)
  red to green bar


30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light   Earthworks M23R (15 cm distance)   environment noise: 23.7 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2034.435.438.534.133.734.634.42537.633.934.644.742.632.937.63133.632.432.239.438.432.933.64028.727.729.92927.43328.75032.631.33739.33725.432.6633024.727.22925.120.5308031.428.427.231.929.416.931.4100343030.731.933.318.83412532.723.924.224.325.211.632.716033.621.419.919.519.811.533.620036.222.120.119.92014.536.225034.42520.721.421.211.634.431534.520.418.318.318.7934.540033.119.818.518.418.18.933.150031.519.518.217.917.68.831.563030.319.71918.719.18.630.380027.316.214.81515.48.727.3100031.420.712.412.112.49.631.412503020.412.612.612.410.630160030.916.211.711.811.810.330.9200029.918.413.11312.910.829.9250022.715.113.913.613.711.522.7315019.415.612.812.612.612.119.4400015.915.31312.9131315.9500014.116.613.112.912.912.814.1630014.516.713.713.313.312.914.5800014.618.513.513.213.21314.61000014.818.113.513.413.413.414.81250014.817.213.613.513.61314.81600017.818.817.617.717.712.917.8SPL4030.226.826.826.923.740N3.21.40.90.90.90.53.2median 30median 18.8median 13.9median 13.6median 13.7median 11.6median 30Delta82.433.13.11.48hearing rangehide median Fan NoiseNVIDIA KFA2 GeForce RTX 5070 Ti 1-Click OC

温度

KFA2GeForce RTX 5070 Ti 1-Click OC 的散热理念非常强大,足以在满载情况下耗散 300 瓦的功率。KFA2 采用大型散热器,配备三个 92 毫米风扇,通过散热鳍片输送新鲜空气。经过优化的风扇设计被称为 Wings 3.0,据说能产生多达 15% 的风压,技术上噪音水平也会降低一些。

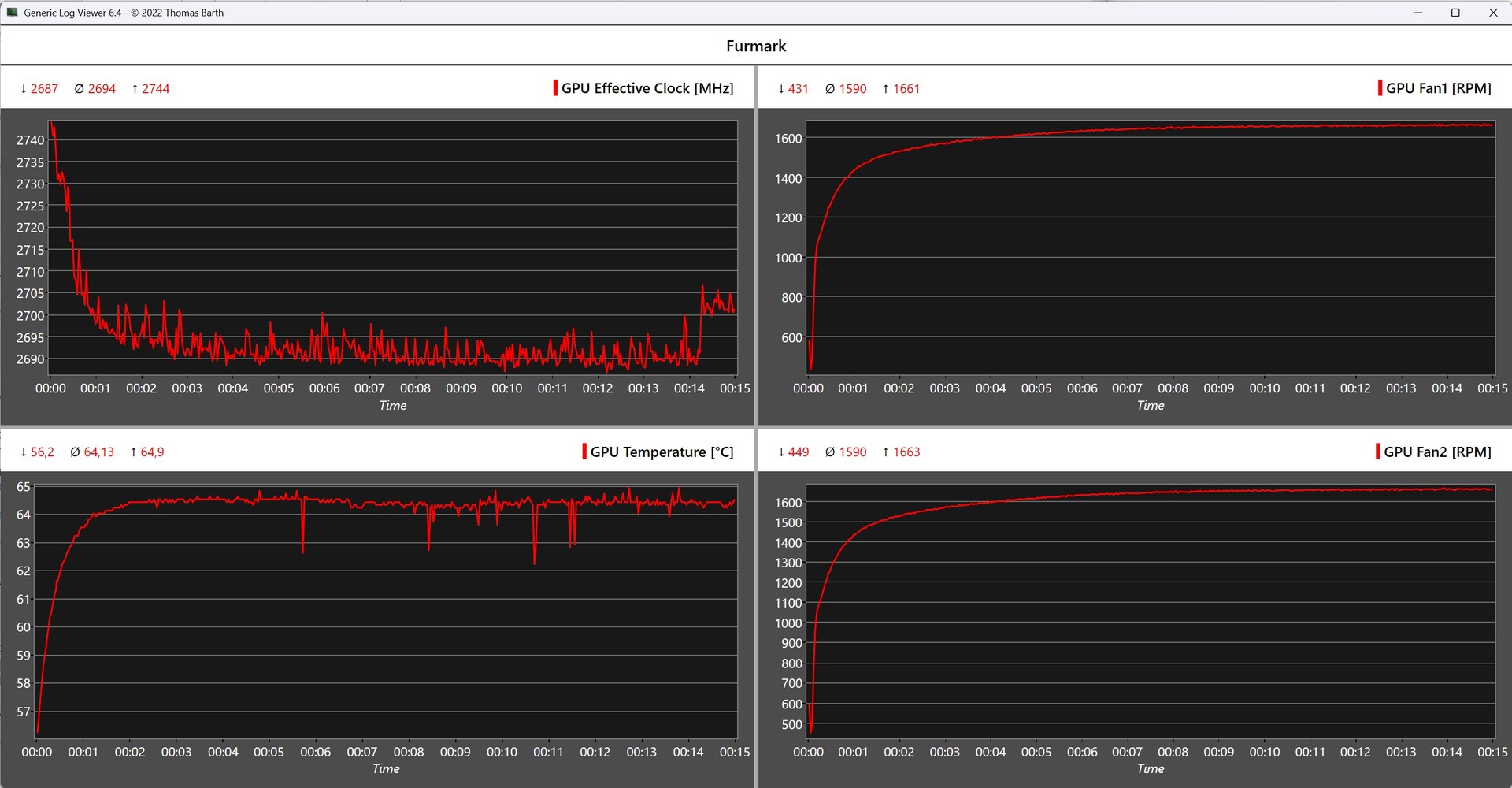

在我们的实际测试中,散热器对 GPU 废热的管理没有出现任何问题。在压力测试中,我们测得的最高芯片温度为 64.9 °C,而 VRAM 的温度则稳定在 64 °C。NvidiaGeForce RTX 5070 Ti 没有 GPU 热点数据。

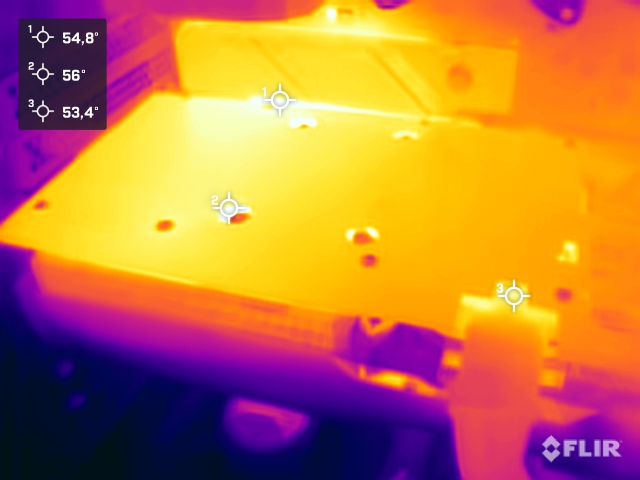

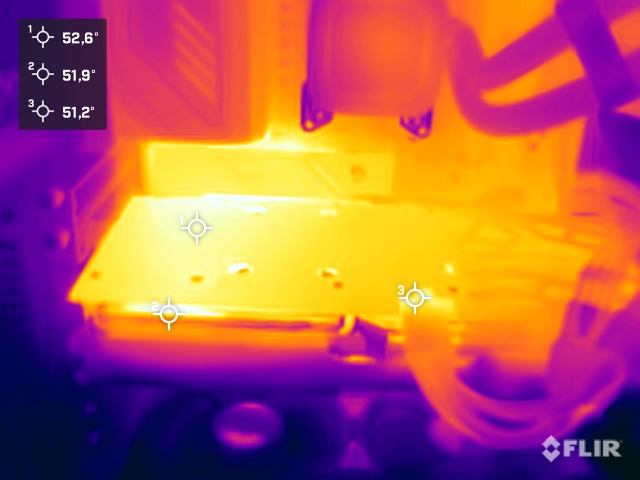

压力测试中的 KFA2GeForce RTX 5070 Ti 1-Click OC
压力测试中的 KFA2GeForce RTX 5070 Ti 1-Click OC
使用 KFA2GeForce RTX 5070 Ti 1-Click OC 进行压力测试时的 Furmark 日志
使用 KFA2GeForce RTX 5070 Ti 1-Click OC 进行压力测试时的 Furmark 日志
KFA2GeForce RTX 5070 Ti 1-Click OC
KFA2GeForce RTX 5070 Ti 1-Click OC
KFA2GeForce RTX 5070 Ti 1-Click OC
KFA2GeForce RTX 5070 Ti 1-Click OC

FPS diagram - 30 minutes of Cyberpunk 2077 1920 x 1080 Ultra preset (FSR off)

0102030405060708090100110120130140150160170180Tooltip
NVIDIA KFA2 GeForce RTX 5070 Ti 1-Click OC R7 9800X3D, GeForce RTX 5070 Ti: Ø182.9 (173.7-184.8)

能源管理 - 与 Ada Lovelace 和 Ampere 相比,效率明显提高

在我们的测试中,KFA2GeForce RTX 5070 Ti 1-Click OC 的功耗仅略微上升至 300 瓦,但在游戏测试中很少达到这一数值,通常在 250 至 280 瓦之间保持平衡。它比 RTX 5080 和 5090 更节俭,与 AMD Radeon 9000 相当。为了顺利运行,KFA2 建议使用至少 750 瓦的电源,原生 12 V 2x6 连接可提供 450 瓦的功率。或者,也可以使用附带的适配器(3x8 针 PCIe 至 12 V 2x6)。

Power Consumption / FurMark 1.19 GPU Stress Test (external Monitor)
Nvidia GeForce RTX 5090 Founders Edition, AMD Ryzen 7 9800X3D
725 (721min, 721P1 - 758max) Watt * -72%
Palit GeForce RTX 4090 GameRock OC, AMD Ryzen 7 9800X3D
581 (571min, 574P1 - 623max) Watt * -38%
XFX Speedster MERC 310 Radeon RX 7900 XTX, AMD Ryzen 7 9800X3D
546 (533min, 542P1 - 557max) Watt * -30%
Asus TUF Gaming GeForce RTX 5080 OC, AMD Ryzen 7 9800X3D
487 (483min, 484P1 - 494max) Watt * -16%
AMD Radeon RX 9070 XT, AMD Ryzen 7 9800X3D
486 (483min, 483P1 - 495max) Watt * -15%
Nvidia GeForce RTX 3090 FE, AMD Ryzen 7 9800X3D
478 (475min, 476P1 - 488max) Watt * -14%
KFA2 GeForce RTX 5070 Ti 1-Click OC, AMD Ryzen 7 9800X3D
421 (418min, 418P1 - 431max) Watt *
AMD Radeon RX 9070, AMD Ryzen 7 9800X3D
369 (364min, 365P1 - 378max) Watt * +12%
Power Consumption / The Witcher 3 ultra (external Monitor)
Nvidia GeForce RTX 5090 Founders Edition, AMD Ryzen 7 9800X3D
631 (586min, 590P1 - 669max) Watt * -60%
XFX Speedster MERC 310 Radeon RX 7900 XTX, AMD Ryzen 7 9800X3D
558 (551min, 553P1 - 572max) Watt * -42%
Palit GeForce RTX 4090 GameRock OC, AMD Ryzen 7 9800X3D
536 (528min, 530P1 - 552max) Watt * -36%
AMD Radeon RX 9070 XT, AMD Ryzen 7 9800X3D
503 (500min, 500P1 - 511max) Watt * -28%
Nvidia GeForce RTX 3090 FE, AMD Ryzen 7 9800X3D
489 (481min, 482P1 - 505max) Watt * -24%
Asus TUF Gaming GeForce RTX 5080 OC, AMD Ryzen 7 9800X3D
451 (445min, 445P1 - 476max) Watt * -14%
KFA2 GeForce RTX 5070 Ti 1-Click OC, AMD Ryzen 7 9800X3D
394 (387min, 387P1 - 416max) Watt *
AMD Radeon RX 9070, AMD Ryzen 7 9800X3D
385 (383min, 383P1 - 391max) Watt * +2%
Power Consumption / Cyberpunk 2077 FHD ultra no FSR (external Monitor)
Nvidia GeForce RTX 5090 Founders Edition, AMD Ryzen 7 9800X3D
636 (616min, 619P1 - 647max) Watt * -57%
Palit GeForce RTX 4090 GameRock OC, AMD Ryzen 7 9800X3D
594 (583min, 585P1 - 601max) Watt * -46%
XFX Speedster MERC 310 Radeon RX 7900 XTX, AMD Ryzen 7 9800X3D
593 (588min, 588P1 - 601max) Watt * -46%
AMD Radeon RX 9070 XT, AMD Ryzen 7 9800X3D
526 (515min, 517P1 - 536max) Watt * -30%
Nvidia GeForce RTX 3090 FE, AMD Ryzen 7 9800X3D
514 (508min, 510P1 - 523max) Watt * -27%
Asus TUF Gaming GeForce RTX 5080 OC, AMD Ryzen 7 9800X3D
471 (466min, 467P1 - 479max) Watt * -16%
AMD Radeon RX 9070, AMD Ryzen 7 9800X3D
420 (416min, 417P1 - 428max) Watt * -3%
KFA2 GeForce RTX 5070 Ti 1-Click OC, AMD Ryzen 7 9800X3D
406 (403min, 403P1 - 416max) Watt *
Power Consumption / Witcher 3 ultra Efficiency (external Monitor)
AMD Radeon RX 9070, AMD Ryzen 7 9800X3D
0.649 fps per Watt +2%
Asus TUF Gaming GeForce RTX 5080 OC, AMD Ryzen 7 9800X3D
0.647 fps per Watt +2%
KFA2 GeForce RTX 5070 Ti 1-Click OC, AMD Ryzen 7 9800X3D
0.637 fps per Watt
Palit GeForce RTX 4090 GameRock OC, AMD Ryzen 7 9800X3D
0.576 fps per Watt -10%
Nvidia GeForce RTX 5090 Founders Edition, AMD Ryzen 7 9800X3D
0.567 fps per Watt -11%
XFX Speedster MERC 310 Radeon RX 7900 XTX, AMD Ryzen 7 9800X3D
0.552 fps per Watt -13%
AMD Radeon RX 9070 XT, AMD Ryzen 7 9800X3D
0.549 fps per Watt -14%
Nvidia GeForce RTX 3090 FE, AMD Ryzen 7 9800X3D
0.3904 fps per Watt -39%

* ... smaller is better

Power consumption with external monitor

04080120160200240280320360400440480520560600640680720Tooltip
NVIDIA GeForce RTX 5070 Ti, R7 9800X3D GeForce RTX 5070 Ti, R7 9800X3D, Kingston KC3000 2048G SKC3000D2048G; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø421 (418-431)
NVIDIA GeForce RTX 5090, R7 9800X3D GeForce RTX 5090, R7 9800X3D, Kingston KC3000 2048G SKC3000D2048G; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø725 (721-758)
NVIDIA GeForce RTX 5080, R7 9800X3D GeForce RTX 5080, R7 9800X3D, Kingston KC3000 2048G SKC3000D2048G; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø475 (472-479)
NVIDIA GeForce RTX 4090, R7 9800X3D NVIDIA GeForce RTX 4090, R7 9800X3D, Kingston KC3000 2048G SKC3000D2048G; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø581 (571-623)
AMD Radeon RX 9070, R7 9800X3D Radeon RX 9070, R7 9800X3D, Kingston KC3000 2048G SKC3000D2048G; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø369 (364-378)
AMD Radeon RX 9070 XT, R7 9800X3D Radeon RX 9070 XT, R7 9800X3D, Kingston KC3000 2048G SKC3000D2048G; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø486 (483-495)
NVIDIA GeForce RTX 5070 Ti, R7 9800X3D GeForce RTX 5070 Ti, R7 9800X3D, Kingston KC3000 2048G SKC3000D2048G; 1920x1080 The Witcher 3 ultra (external Monitor): Ø394 (387-416)
NVIDIA GeForce RTX 5090, R7 9800X3D GeForce RTX 5090, R7 9800X3D, Kingston KC3000 2048G SKC3000D2048G; 1920x1080 The Witcher 3 ultra (external Monitor): Ø631 (586-669)
NVIDIA GeForce RTX 5080, R7 9800X3D GeForce RTX 5080, R7 9800X3D, Kingston KC3000 2048G SKC3000D2048G; 1920x1080 The Witcher 3 ultra (external Monitor): Ø436 (428-442)
NVIDIA GeForce RTX 4090, R7 9800X3D NVIDIA GeForce RTX 4090, R7 9800X3D, Kingston KC3000 2048G SKC3000D2048G; 1920x1080 The Witcher 3 ultra (external Monitor): Ø536 (528-552)
AMD Radeon RX 9070, R7 9800X3D Radeon RX 9070, R7 9800X3D, Kingston KC3000 2048G SKC3000D2048G; 1920x1080 The Witcher 3 ultra (external Monitor): Ø385 (383-391)
AMD Radeon RX 9070 XT, R7 9800X3D Radeon RX 9070 XT, R7 9800X3D, Kingston KC3000 2048G SKC3000D2048G; 1920x1080 The Witcher 3 ultra (external Monitor): Ø503 (500-511)
NVIDIA GeForce RTX 5070 Ti, R7 9800X3D GeForce RTX 5070 Ti, R7 9800X3D, Kingston KC3000 2048G SKC3000D2048G; Idle 1min (external Monitor): Ø117.7 (116.5-121.6)
NVIDIA GeForce RTX 5090, R7 9800X3D GeForce RTX 5090, R7 9800X3D, Kingston KC3000 2048G SKC3000D2048G; Idle 1min (external Monitor): Ø118 (114.2-127.8)
NVIDIA GeForce RTX 5080, R7 9800X3D GeForce RTX 5080, R7 9800X3D, Kingston KC3000 2048G SKC3000D2048G; Idle 1min (external Monitor): Ø106.9 (105.3-110.8)
NVIDIA GeForce RTX 4090, R7 9800X3D NVIDIA GeForce RTX 4090, R7 9800X3D, Kingston KC3000 2048G SKC3000D2048G; Idle 1min (external Monitor): Ø124.2 (121.5-131.3)
AMD Radeon RX 9070, R7 9800X3D Radeon RX 9070, R7 9800X3D, Kingston KC3000 2048G SKC3000D2048G; Idle 1min (external Monitor): Ø89.5 (85.9-108.8)
AMD Radeon RX 9070 XT, R7 9800X3D Radeon RX 9070 XT, R7 9800X3D, Kingston KC3000 2048G SKC3000D2048G; Idle 1min (external Monitor): Ø87.4 (85.3-92.2)

Notebookcheck 总评分

KFA2GeForce RTX 5070 Ti 1-Click OC 是一款功能强大的显卡,采用 Nvidia 新架构,在使用最新功能的情况下可明显提升帧数。从外观上看,KFA2 采用了醒目的设计,与该系列完美契合。

Transparency

The selection of devices to be reviewed is made by our editorial team. The test sample was given to the author by the manufacturer free of charge for the purposes of review. There was no third-party influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.

This is how Notebookcheck is testing

Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.

Please share our article, every link counts!
Mail Logo
> Notebookcheck中文版(NBC中国) > 评测 > 目前 Nvidia RTX 5000 系列中最实用的显卡:NvidiaGeForce RTX 5070 Ti 评测
Sebastian Bade, 2025-04- 4 (Update: 2025-04- 4)
