华硕ROG手机5s和5s Pro评测--小幅提升的顶级游戏智能手机
Likely Competitors
Bewertung | Datum | Modell | Gewicht | Laufwerk | Groesse | Aufloesung | Preis ab |
|---|---|---|---|---|---|---|---|
| 88.7 % v7 (old) | 12 / 2021 | Asus ROG Phone 5s SD 888+ 5G, Adreno 660 | 238 g | 512 GB UFS 3.1 Flash | 6.78" | 2448x1080 | |
| 87.7 % v7 (old) | 04 / 2021 | Lenovo Legion Phone Duel 2 SD 888 5G, Adreno 660 | 259 g | 512 GB UFS 3.1 Flash | 6.92" | 2460x1080 | |
| 83.6 % v7 (old) | 10 / 2021 | Nubia RedMagic 6S Pro SD 888+ 5G, Adreno 660 | 220 g | 128 GB UFS 3.1 Flash | 6.80" | 2400x1080 | |
| 88 % v7 (old) | 03 / 2021 | Asus ROG Phone 5 SD 888 5G, Adreno 660 | 239 g | 256 GB UFS 3.1 Flash | 6.78" | 2448x1080 |
外壳、连接和处理

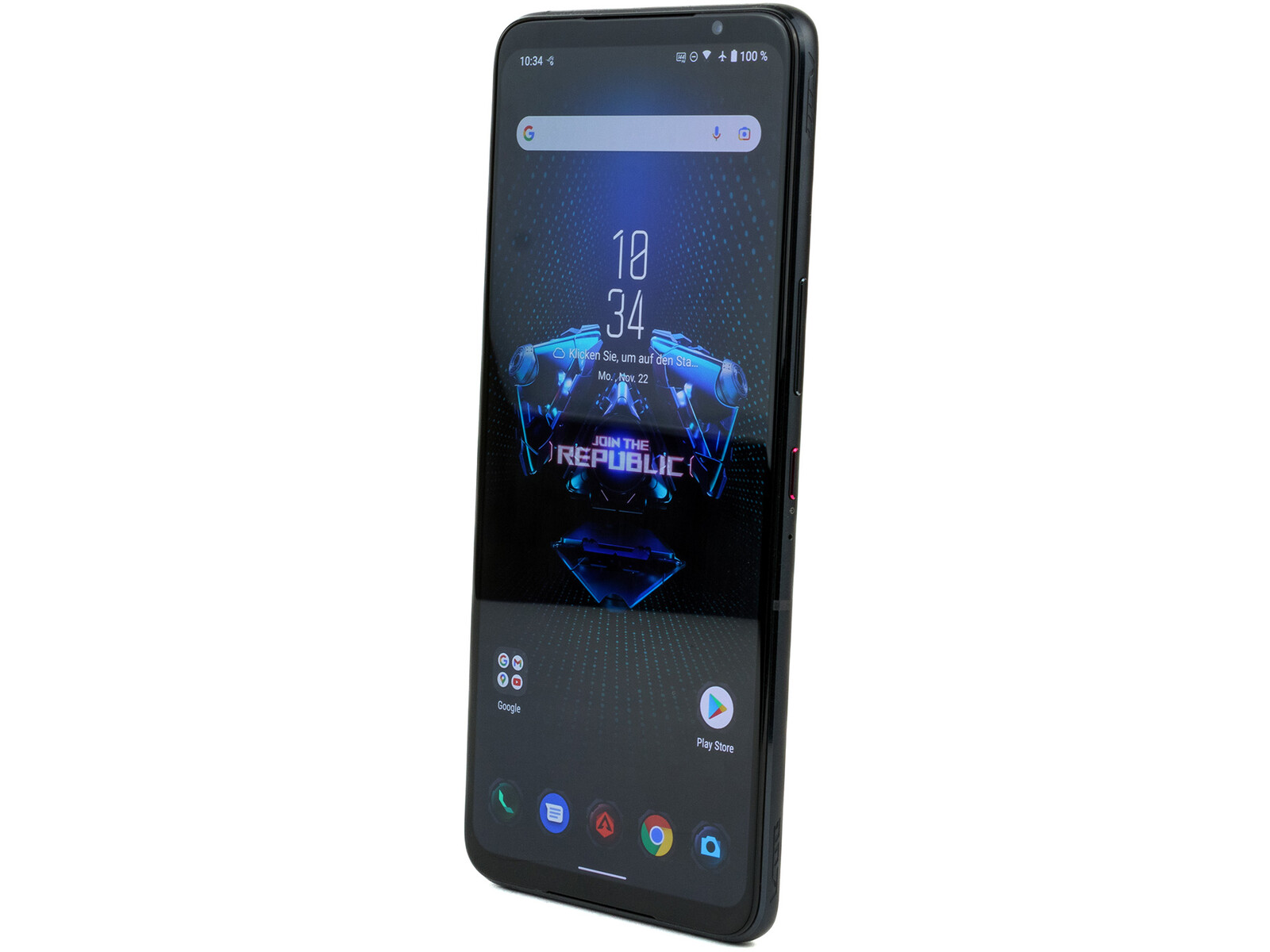

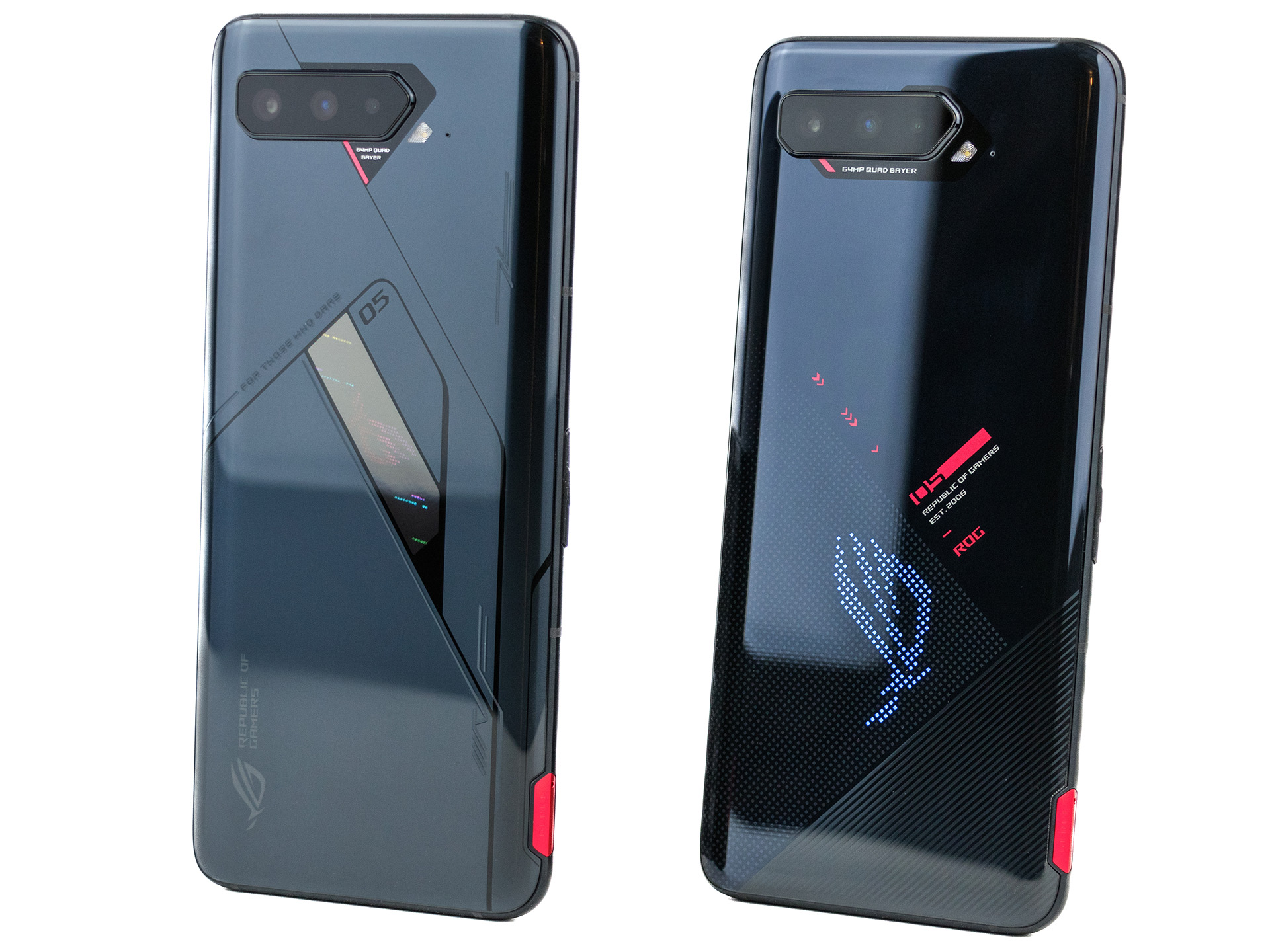

从视觉上看，华硕ROG手机5s与它的前辈相同。虽然标准型号的背面再次有一个点状RGB显示屏，但专业变体再次使用PMOLED面板。这两款智能手机的结构仍然非常好，而且很重。

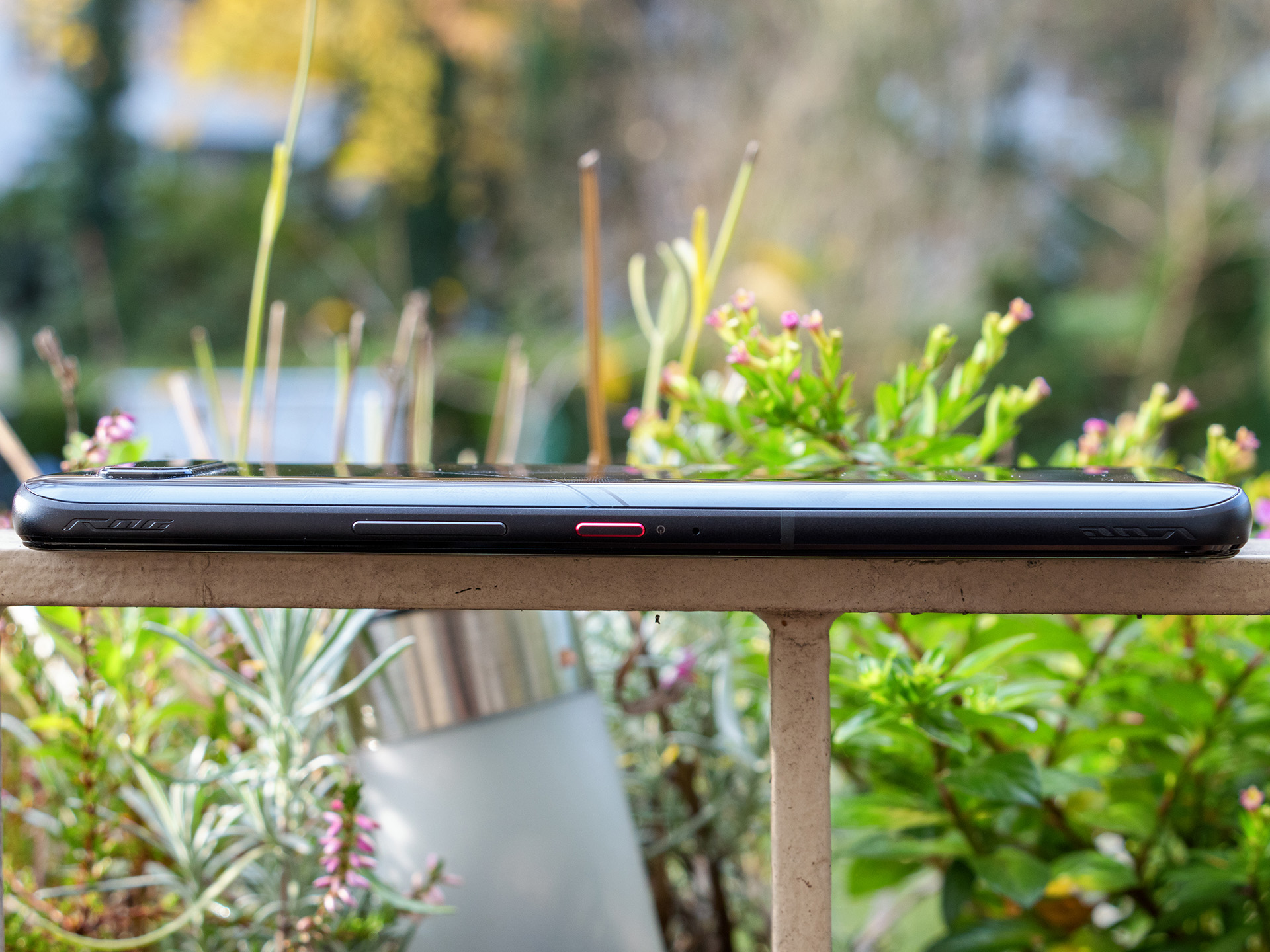

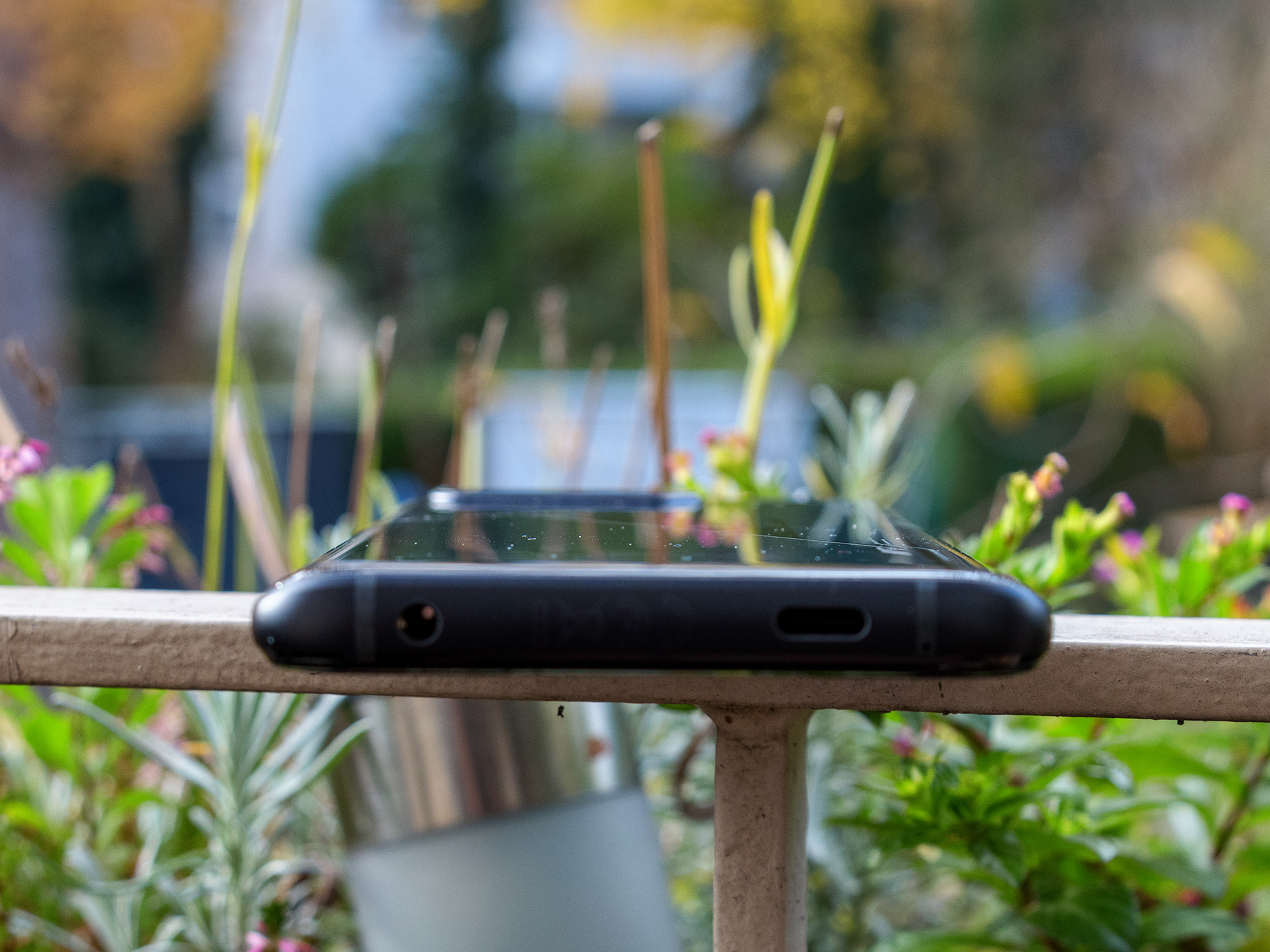

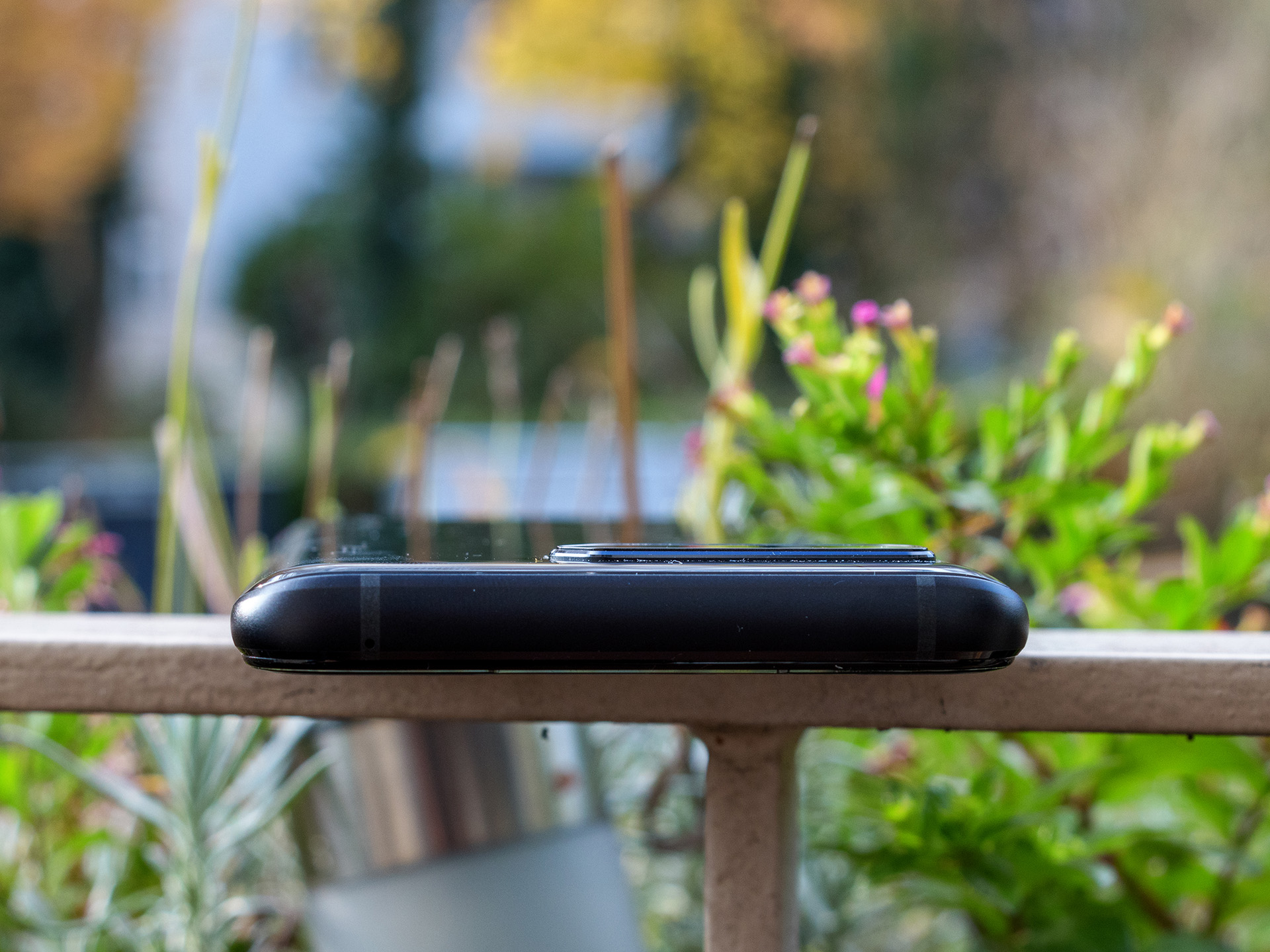

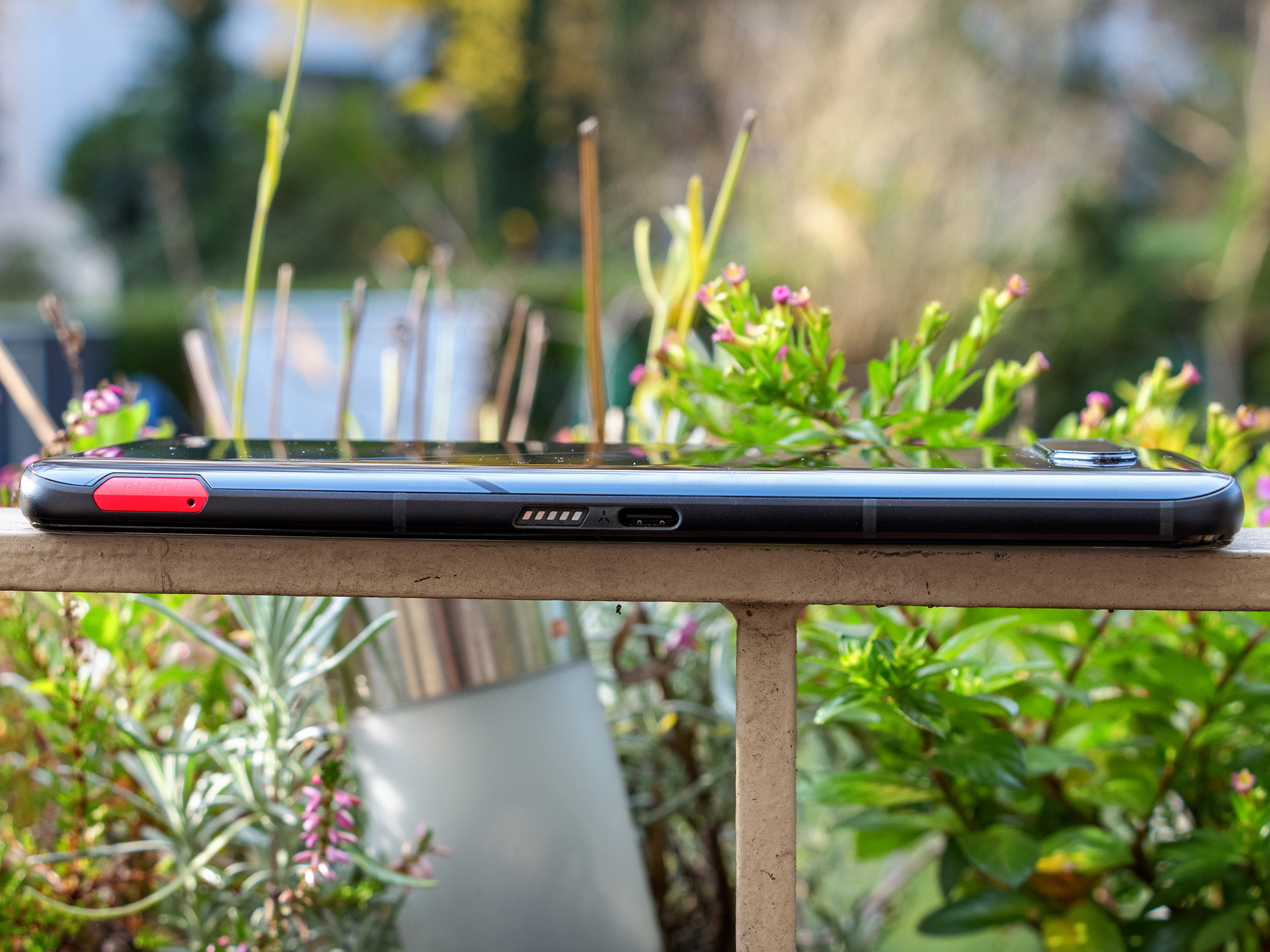

在功能方面没有任何变化。ROG Phone 5s有两个USB接口。侧面的USB 3.2（第2代）端口提供高数据传输速度，并能将显示内容投射到外部显示器。底部的端口（USB 2.0）速度较慢，在连接方面的功能也不多。两个端口都支持快速充电以及PowerDelivery 3.0。然而，只有侧面的端口支持QC 5.0。这两款设备仍然配备了AirTrigger5感应键和强大的Quad DAC。
华硕的智能手机运行Android 11，其专有皮肤被称为ROG UI。用户如果觉得它过于华丽，可以切换到一个不那么炫耀的主题。安全补丁最后一次更新是在2021年11月5日。在我们审查的时候，它们是最新的。Android 12的更新应该在2022年第一季度发布。
ROG Phone 5s提供较慢的Wi-Fi速度。结合我们的参考路由器，Netgear Nighthawk AX12，数据传输率比前代产品低31%。华硕为其游戏智能手机增加了LTE频段的数量。
四个集成麦克风确保了良好的语音质量。当智能手机靠近耳朵时，华硕的ROG Phone 5s的用户可以很好地理解。小的背景噪音被可靠地过滤掉了。另一方面，嘈杂的环境噪音会导致扭曲的语音再现，但不会对可懂度产生太大影响。华硕智能手机可以使用两张nano-SIM卡。支持VoLTE，但不支持Wi-Fi呼叫。然而，SIP账户可以直接在通话应用程序中配置和管理。还再次包含了通话录音功能。
在输入方面，与ROG Phone 5相比，没有任何变化。 ROG Phone 5.该设备可以识别轻拍、挤压和刷卡。集成在显示屏上的光学指纹传感器提供了良好的识别率和一个体面的解锁速度。
| Networking | |
| iperf3 transmit AX12 | |
| Asus ROG Phone 5 | |
| Nubia RedMagic 6S Pro | |
| Asus ROG Phone 5s | |
| Lenovo Legion Phone Duel 2 | |
| iperf3 receive AX12 | |
| Nubia RedMagic 6S Pro | |
| Asus ROG Phone 5s | |
| Lenovo Legion Phone Duel 2 | |
| Asus ROG Phone 5 | |
照相机--ROG手机5s没有什么新意
ROG Phone 5s的摄像头设置基本上与 ROG Phone 3.华硕仍然依靠64MP的索尼IMX686作为主要图像传感器。它在日光下拍摄的照片很有吸引力，但有时会有轻微的偏红。特别是在低光下，与同价位的非游戏类竞争产品的差异变得相当明显，快门延迟也明显提升了。超广角镜头的镜头校正是一个很好的功能。然而，图像在边缘有轻微的色差，而且不是特别细致。
前置摄像头可以拍出漂亮的自拍，色彩相当自然。用这个镜头可以录制全高清（60FPS）的视频，甚至用主摄像头可以录制8K的视频（30FPS）。
Image Comparison
Choose a scene and navigate within the first image. One click changes the position on touchscreens. One click on the zoomed-in image opens the original in a new window. The first image shows the scaled photograph of the test device.
HauptkameraHauptkameraUltraweitwinkel5-facher ZoomLow-Light

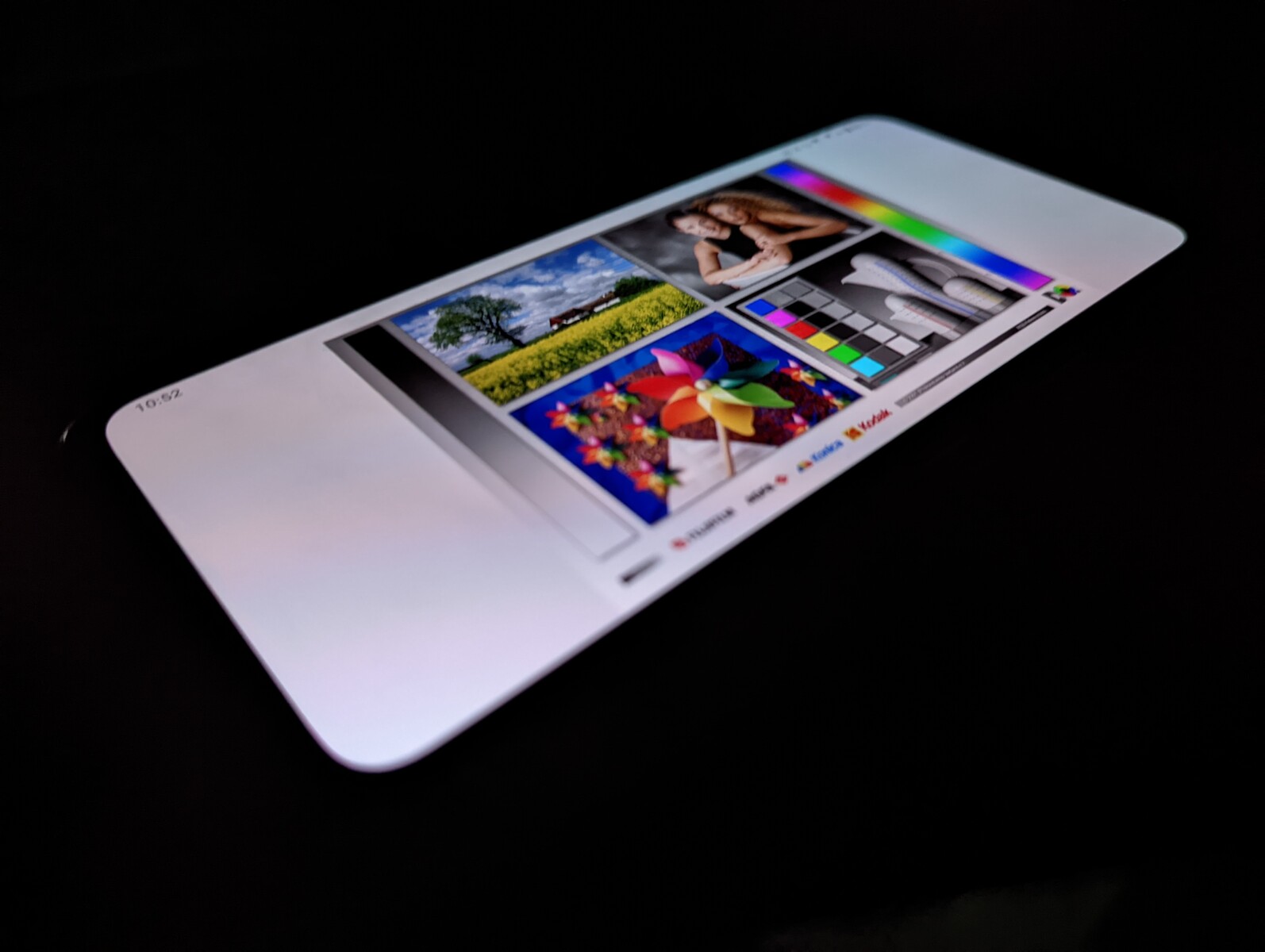

显示屏 - 144赫兹的AMOLED，提供完整的游戏体验

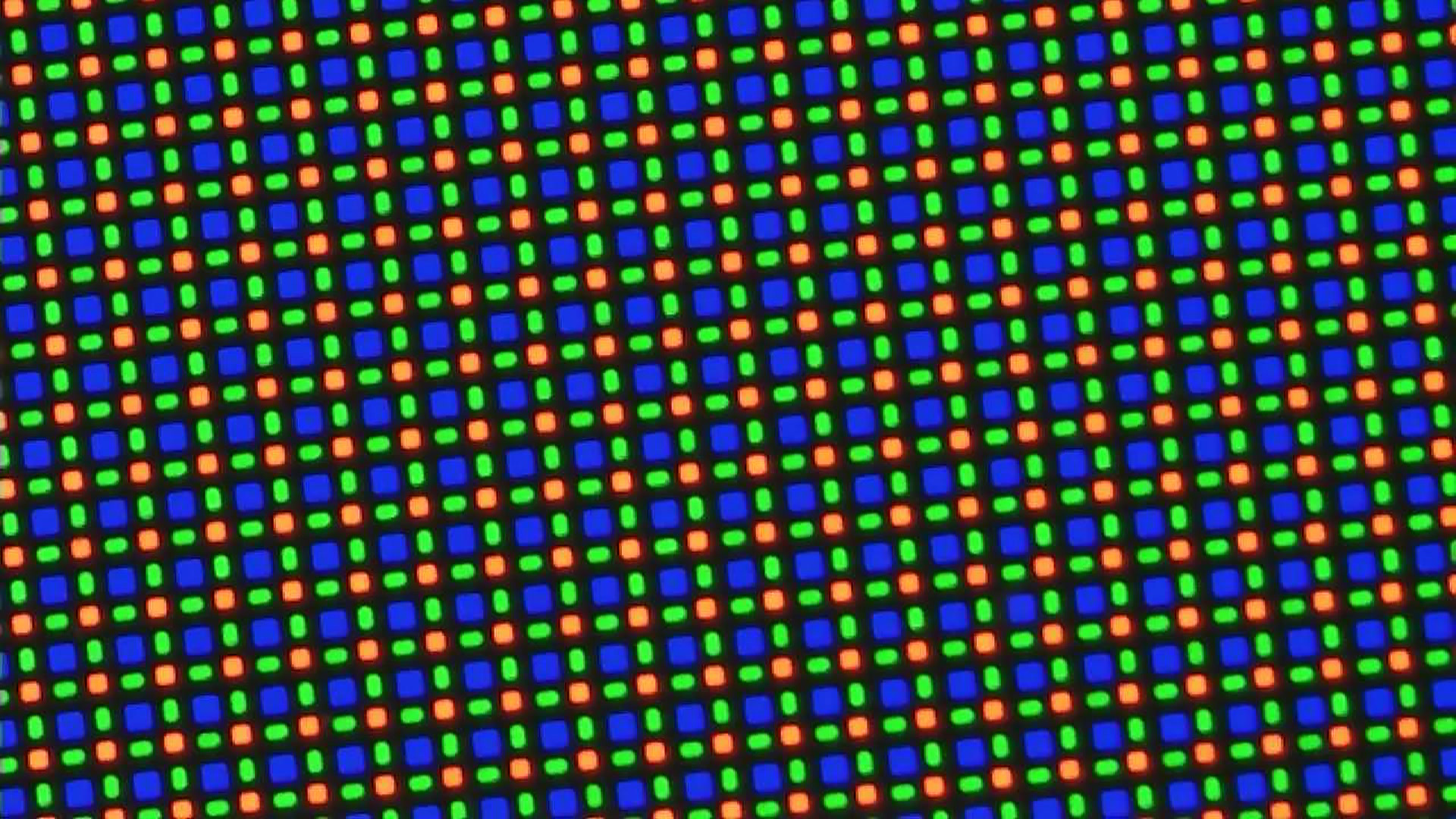

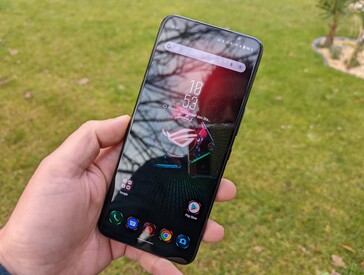

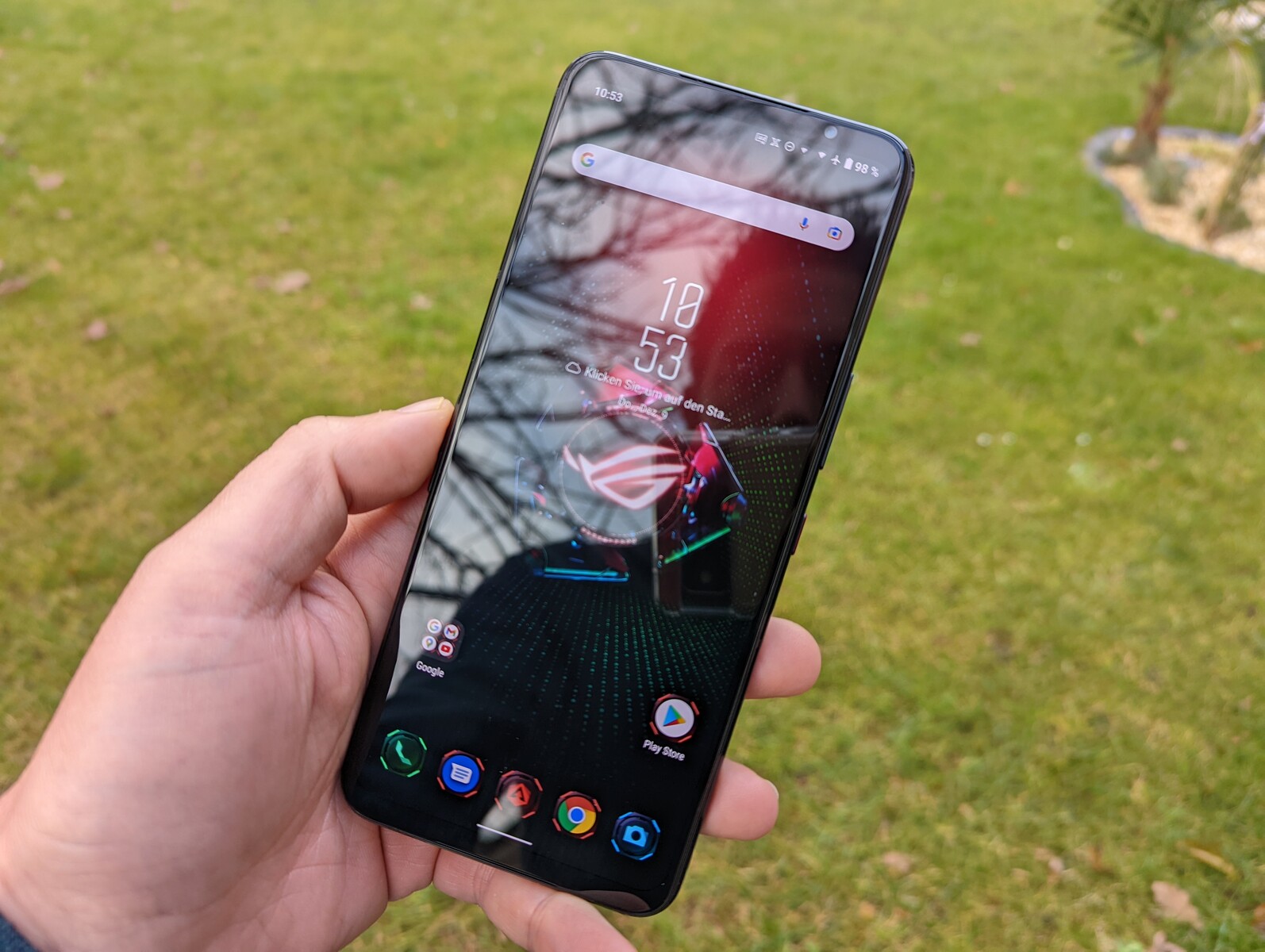

与前代产品相比，华硕ROG手机5s的显示屏完全没有变化。面板的亮度略低，可能是由于制造上的变化。AMOLED面板最高可以达到1013cd/m²。由于亮度的均匀分布和较高的峰值亮度，HDR内容应该看起来很棒。我们只希望最低亮度能低一点。

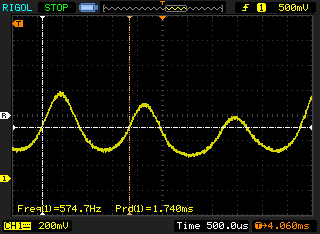

ROG Phone 5s也未能幸免于典型的OLED闪烁。它在低亮度范围内有一个非常大的振幅，波动在193.8和574.7赫兹之间。当亮度滑块设置为73%时，屏幕闪烁的频率恒定为144Hz。对于敏感的人来说，直流调光模式是一个不错的选择，但它将刷新率限制在60赫兹。
| |||||||||||||||||||||||||
Brightness Distribution: 97 %
Center on Battery: 749 cd/m²
Contrast: ∞:1 (Black: 0 cd/m²)

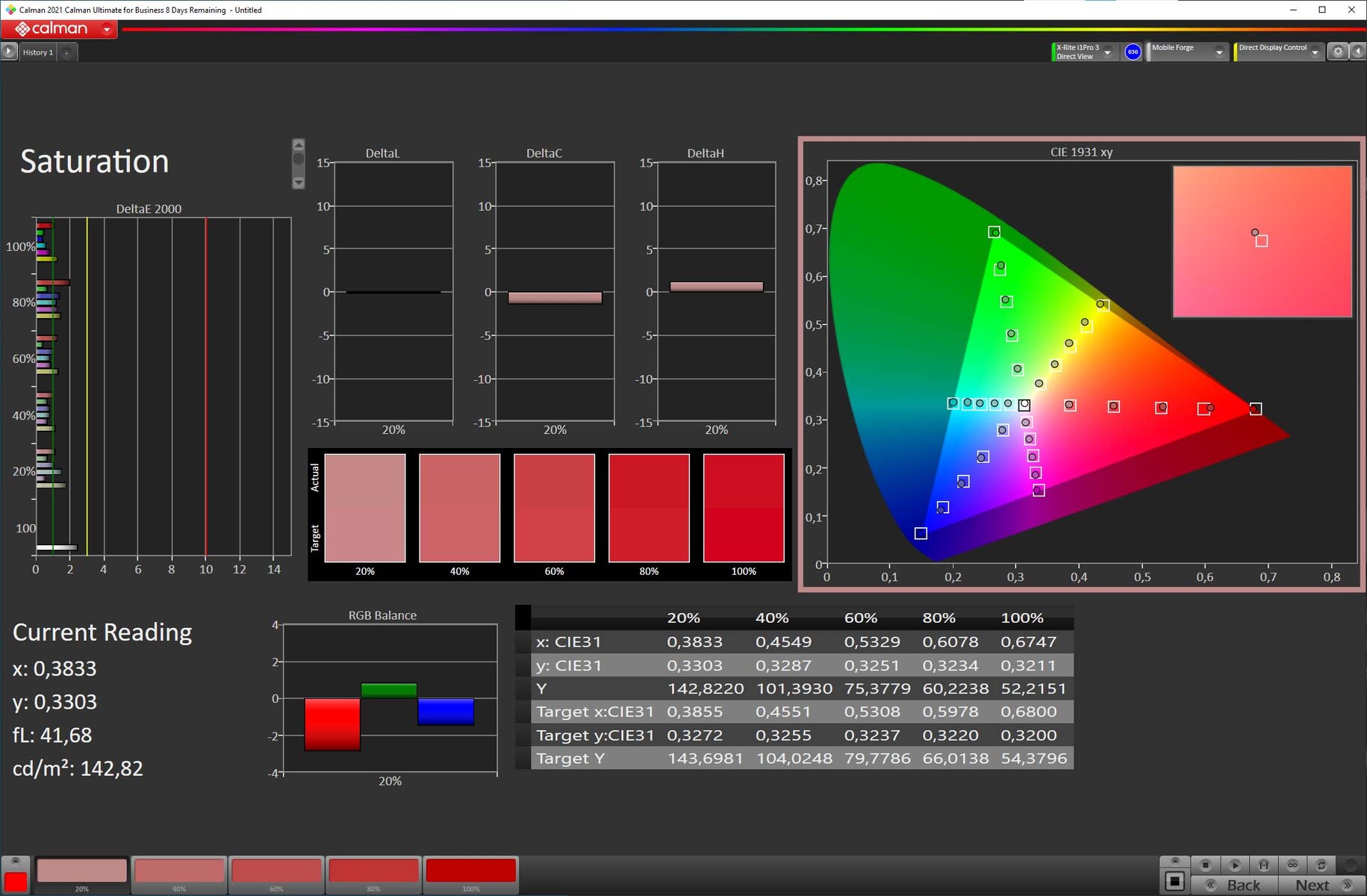

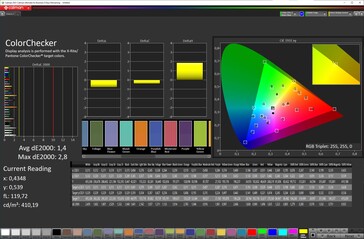

ΔE Color 1.4 | 0.5-29.43 Ø4.91

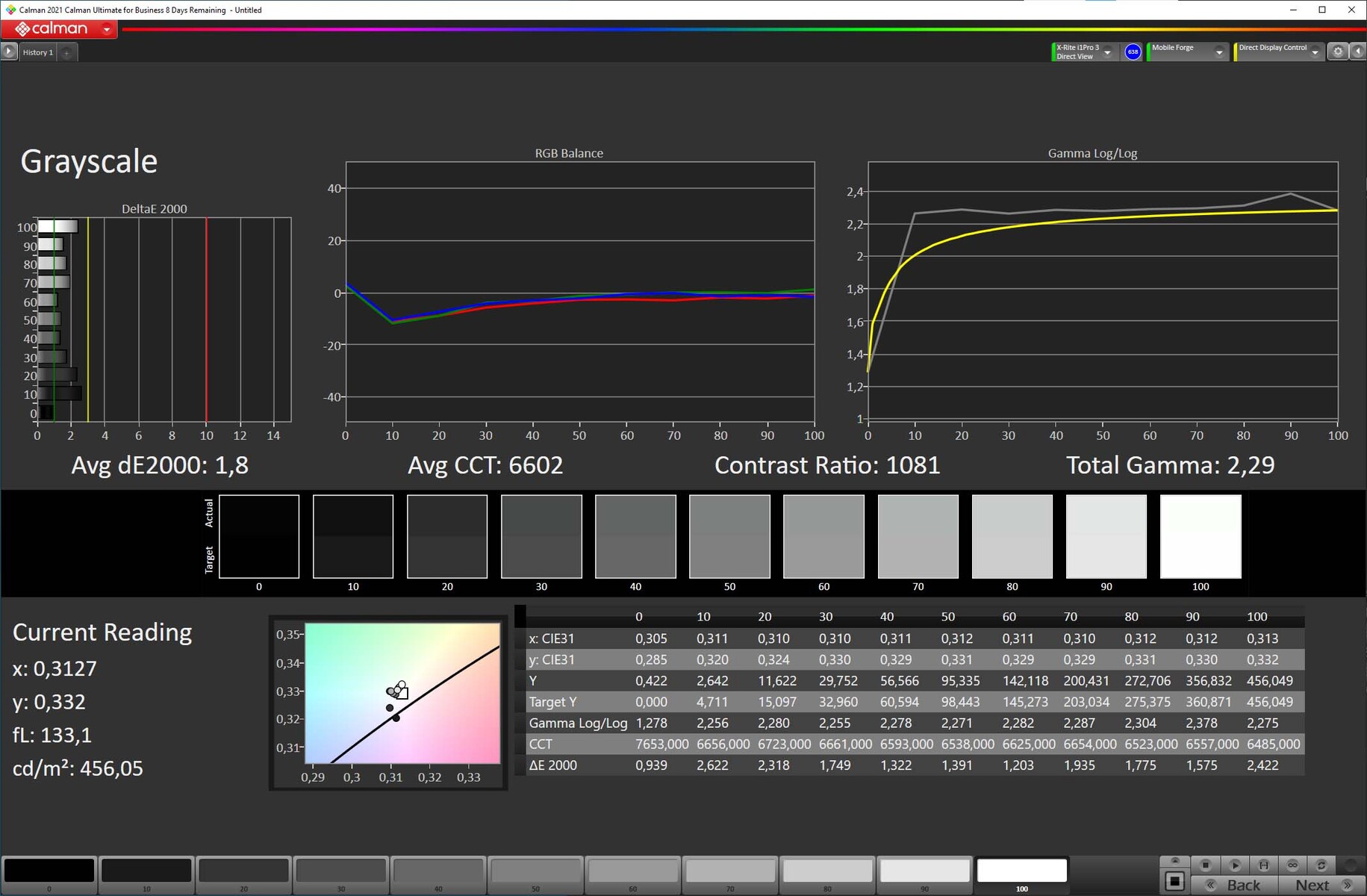

ΔE Greyscale 1.8 | 0.5-98 Ø5.2

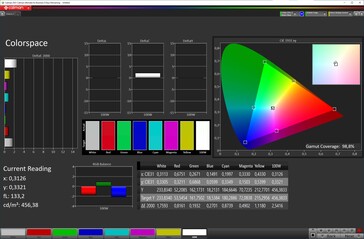

98.8% sRGB (Calman 2D)
Gamma: 2.29
| Asus ROG Phone 5s AMOLED, 2448x1080, 6.8" | Asus ROG Phone 5 AMOLED, 2448x1080, 6.8" | Lenovo Legion Phone Duel 2 AMOLED, 2460x1080, 6.9" | Nubia RedMagic 6S Pro AMOLED, 2400x1080, 6.8" | |
|---|---|---|---|---|
| Response Times | -0% | -128% | -28% | |
| Response Time Grey 50% / Grey 80% * | 2.4 ? | 2.4 ? -0% | 8 ? -233% | 2.4 ? -0% |
| Response Time Black / White * | 2.4 ? | 2.4 ? -0% | 6 ? -150% | 2.4 ? -0% |
| PWM Frequency | 575 ? | 568 ? -1% | 568 -1% | 90.6 ? -84% |
| Screen | 2% | -76% | -137% | |
| Brightness middle | 749 | 789 5% | 463 -38% | 714 -5% |
| Brightness | 750 | 795 6% | 466 -38% | 705 -6% |
| Brightness Distribution | 97 | 98 1% | 98 1% | 96 -1% |
| Black Level * | ||||
| Colorchecker dE 2000 * | 1.4 | 1.4 -0% | 3.24 -131% | 5.9 -321% |
| Colorchecker dE 2000 max. * | 2.8 | 3 -7% | 5.75 -105% | 8.7 -211% |
| Greyscale dE 2000 * | 1.8 | 1.7 6% | 4.4 -144% | 6.8 -278% |
| Gamma | 2.29 96% | 2.27 97% | 2.201 100% | 2.25 98% |
| CCT | 6602 98% | 6596 99% | 7273 89% | 7774 84% |
| Total Average (Program / Settings) | 1% /
1% | -102% /
-93% | -83% /
-101% |
* ... smaller is better
Display Response Times

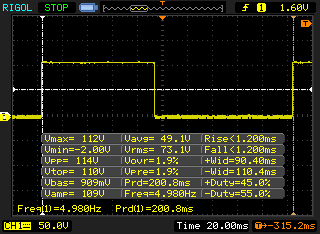

| ↔ Response Time Black to White | ||
|---|---|---|
| 2.4 ms ... rise ↗ and fall ↘ combined | ↗ 1.2 ms rise |  |
| ↘ 1.2 ms fall | ||
| The screen shows very fast response rates in our tests and should be very well suited for fast-paced gaming. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 9 % of all devices are better. This means that the measured response time is better than the average of all tested devices (20.9 ms). | ||

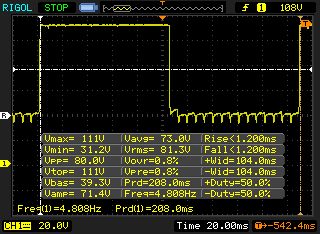

| ↔ Response Time 50% Grey to 80% Grey | ||
| 2.4 ms ... rise ↗ and fall ↘ combined | ↗ 1.2 ms rise |  |
| ↘ 1.2 ms fall | ||
| The screen shows very fast response rates in our tests and should be very well suited for fast-paced gaming. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 8 % of all devices are better. This means that the measured response time is better than the average of all tested devices (32.8 ms). | ||

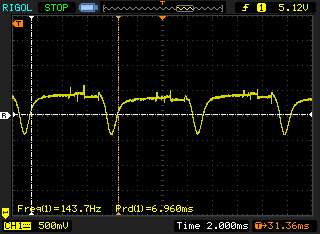

Screen Flickering / PWM (Pulse-Width Modulation)
| Screen flickering / PWM detected | 575 Hz | ≤ 73 % brightness setting |   |
The display backlight flickers at 575 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 73 % and below. There should be no flickering or PWM above this brightness setting. The frequency of 575 Hz is quite high, so most users sensitive to PWM should not notice any flickering. In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8710 (minimum: 5 - maximum: 343500) Hz was measured. | |||
性能、排放和电池寿命
华硕ROG手机5s Pro和5s都搭载了 骁龙888+.虽然普通的5s已经拥有令人印象深刻的16GB内存，但Pro更进一步，提供18GB的内存。然而，额外的2GB内存在日常使用和基准测试中都不明显。与ROG手机5相比，高通SoC的稍高频率的Prime Core没有提供任何优势(骁龙888)相比，也没有任何优势。
华硕智能手机在负载下变得相当热，但它从未变得太热。此外，即使没有专业机型配备的可安装的风扇，长期性能也不会下降太多。
双扬声器位于显示屏两侧，通过GameFX & Dirac HD音效提供良好的音质，这在日常使用中也给人留下了深刻的印象，并为智能手机提供了很多深度和相当均衡的声音。音频插孔提供了一个非常好的信噪比（SNR：93.47 dBFS）。
良好的电池运行时间与前代产品持平，但由于6000毫安时的大电池，可以再长一点。
| Asus ROG Phone 5s | Lenovo Legion Phone Duel 2 | Nubia RedMagic 6S Pro | Asus ROG Phone 5 | Asus ROG Phone 5s Pro | Average 512 GB UFS 3.1 Flash | Average of class Smartphone | |
|---|---|---|---|---|---|---|---|
| AndroBench 3-5 | -6% | -9% | -3% | 0% | 16% | 23% | |
| Sequential Read 256KB | 1972 | 1999 1% | 1607 -19% | 1779 -10% | 1930 -2% | 1846 ? -6% | 1894 ? -4% |
| Sequential Write 256KB | 770 | 754 -2% | 765 -1% | 795 3% | 793 3% | 1199 ? 56% | 1476 ? 92% |
| Random Read 4KB | 297.8 | 262.6 -12% | 285.8 -4% | 291.4 -2% | 298.8 0% | 282 ? -5% | 278 ? -7% |
| Random Write 4KB | 287.2 | 261.5 -9% | 254.9 -11% | 278 -3% | 287.4 0% | 338 ? 18% | 312 ? 9% |

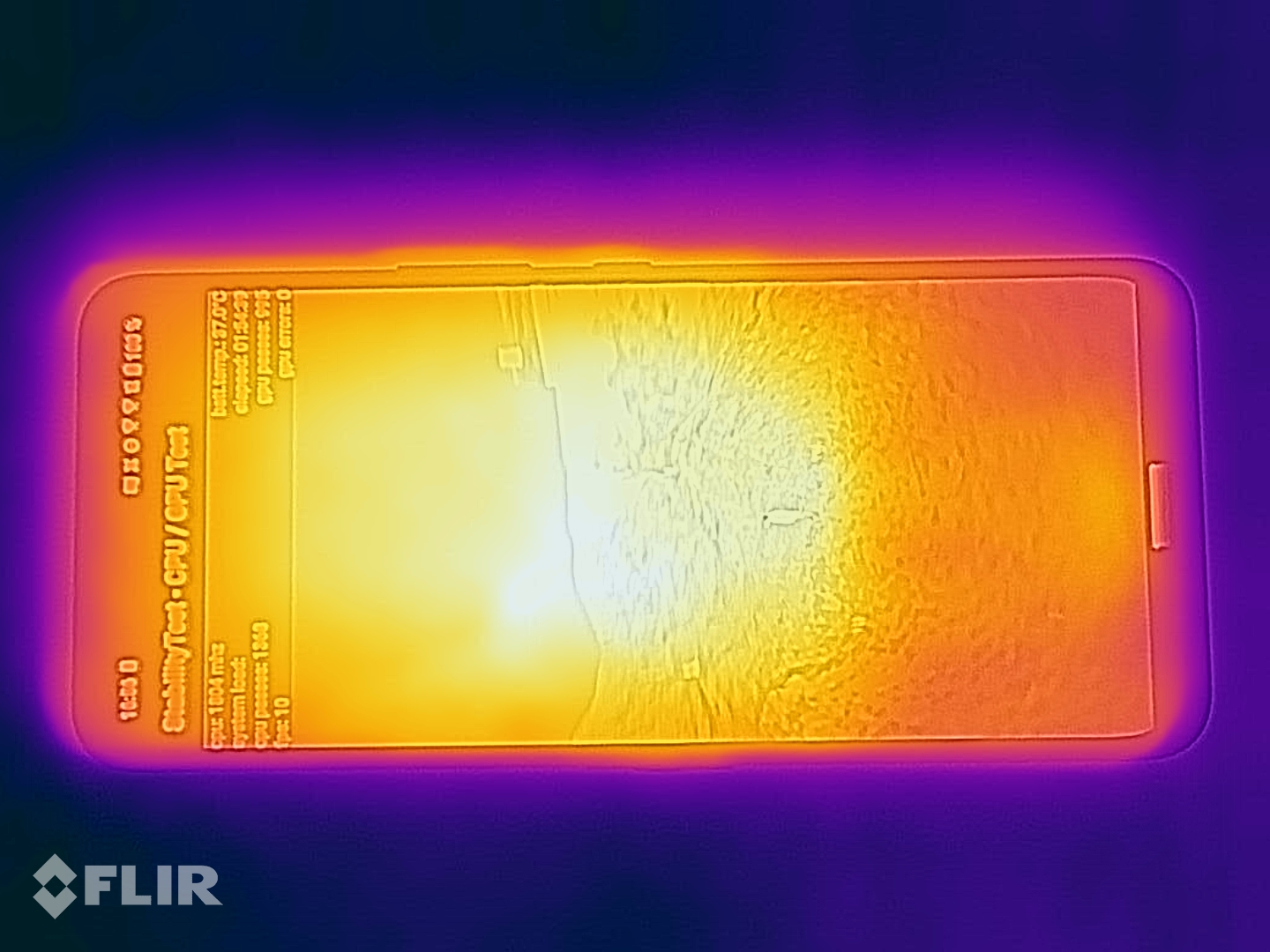

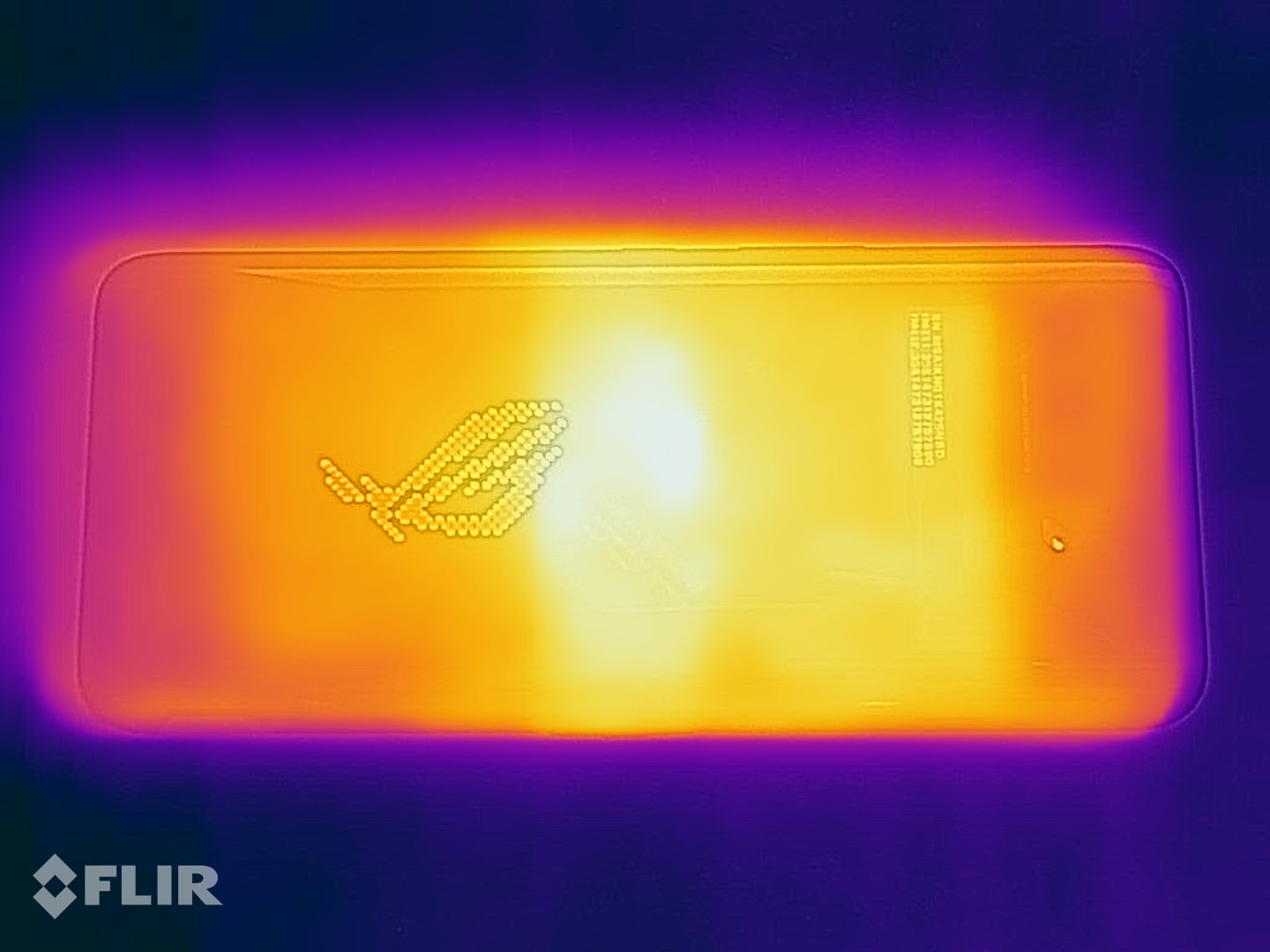

温度
(±) The maximum temperature on the upper side is 41.5 °C / 107 F, compared to the average of 35.1 °C / 95 F, ranging from 21.9 to 63.7 °C for the class Smartphone.
(+) The bottom heats up to a maximum of 37.8 °C / 100 F, compared to the average of 33.9 °C / 93 F
(+) In idle usage, the average temperature for the upper side is 25.8 °C / 78 F, compared to the device average of 32.8 °C / 91 F.
3DMark Wild Life Stress Tests
发言人
Asus ROG Phone 5s audio analysis
(+) | speakers can play relatively loud (90.5 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 20.9% lower than median
(+) | bass is linear (6.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.3% away from median
(+) | mids are linear (4.8% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4.9% away from median
(+) | highs are linear (3.9% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (14.9% difference to median)
Compared to same class
» 1% of all tested devices in this class were better, 2% similar, 97% worse
» The best had a delta of 12%, average was 37%, worst was 134%
Compared to all devices tested
» 17% of all tested devices were better, 4% similar, 79% worse
» The best had a delta of 4%, average was 25%, worst was 134%
Lenovo Legion Phone Duel 2 audio analysis
(+) | speakers can play relatively loud (84.9 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 17.7% lower than median
(±) | linearity of bass is average (7.4% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 4.1% away from median
(+) | mids are linear (4.7% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 0.9% away from median
(+) | highs are linear (2% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (12.9% difference to median)
Compared to same class
» 0% of all tested devices in this class were better, 0% similar, 99% worse
» The best had a delta of 12%, average was 37%, worst was 134%
Compared to all devices tested
» 10% of all tested devices were better, 3% similar, 87% worse
» The best had a delta of 4%, average was 25%, worst was 134%
电池寿命
| Asus ROG Phone 5s 6000 mAh | Lenovo Legion Phone Duel 2 5500 mAh | Nubia RedMagic 6S Pro 5050 mAh | Asus ROG Phone 5 6000 mAh | Average of class Smartphone | |
|---|---|---|---|---|---|
| Battery Runtime | |||||
| WiFi Websurfing | 734 | 907 24% | 829 13% | 754 3% | 990 ? 35% |
Pros
Cons
结论 - 瘦身升级
华硕ROG手机5s和5s Pro是非常好的智能手机。然而，与前代产品相比，改进只是很小的，因此出现了升级是否有必要的问题。规格表上有最新的芯片当然很好，但最小的升级并没有真正的优势。ROG手机5s和5s Pro之间也没有大的区别，最明显的是背面的不同显示屏和Pro型号所配备的AeroCooler 5风扇。额外的几个手机频段对极少数用户来说会很重要。
华硕ROG手机5s（Pro）仍然是最好的游戏智能手机，但与前代产品相比，s型号没有任何真正的进步
快速的144赫兹显示屏、出色的扬声器、良好的触觉反馈、反应灵敏的肩部按钮和稳定的性能使ROG Phone 5s系列成为游戏玩家的首选。然而，专业机型是针对发烧友的。它被定位为升级版的ROG Phone 5用户。ROG手机的良好替代品是 Legion Phone Duel 2和更便宜的 RedMagic 6S Pro.
价格和可用性
你可以通过华硕商店购买各种型号的ROG手机5s.这些智能手机目前在Amazon上没有库存。.
