TeamGroup MP44 2 TB SSD 评测：与三星 980 Pro 不相上下的内部 PCIe 4.0 固态硬盘

石墨烯冷却垫

TeamGroup 承诺其内部 PCIe 4.0 x 4 SSD MP44 的连续传输速率约为 7,000 MB/s，与三星 980 Pro 相似。该制造商还对其超薄石墨烯散热垫引以为豪。我们对这两款产品进行了测试，并通过各种基准测试检验了这些承诺的真实性。

Christian Hintze, 👁 Enrico Frahn (translated by DeepL / Ninh Duy), Published 06/24/2024 🇺🇸 🇩🇪 ...

Accessory Storage

我们已经测试过内部中端固态硬盘 T-Create Classic PCIe 4.0制造商TeamGroup的内部中端固态硬盘T-Create Classic PCIe 4.0，而现在的MP44是一款速度更快的型号，理论传输速率约为7000 MB/s。该制造商还引以为豪的是其获得专利的石墨烯散热垫，它只有 1 毫米薄，以胶粘贴的形式贴在内存模块上。我们在耐用性测试中测量了这种冷却材料是否也能确保可靠的高传输速率。我们的 2 TB 机型售价约 140 美元。竞争对手三星 980 Pro 的价格至少为 170 美元。

技术数据写入速度可能比 980 Pro 更快

MP44 有多种容量可供选择，从 512 GB 到 8 TB 不等。PCIe 4.0 x4 硬盘的顺序读取速率最高可达 7,400 MB/s。制造商在 5 月底发布公告，向下修正了顺序写入速率：虽然包装上仍标明最大速度为 7,000 MB/s，但新的官方数值现在是 6,400 MB/s。

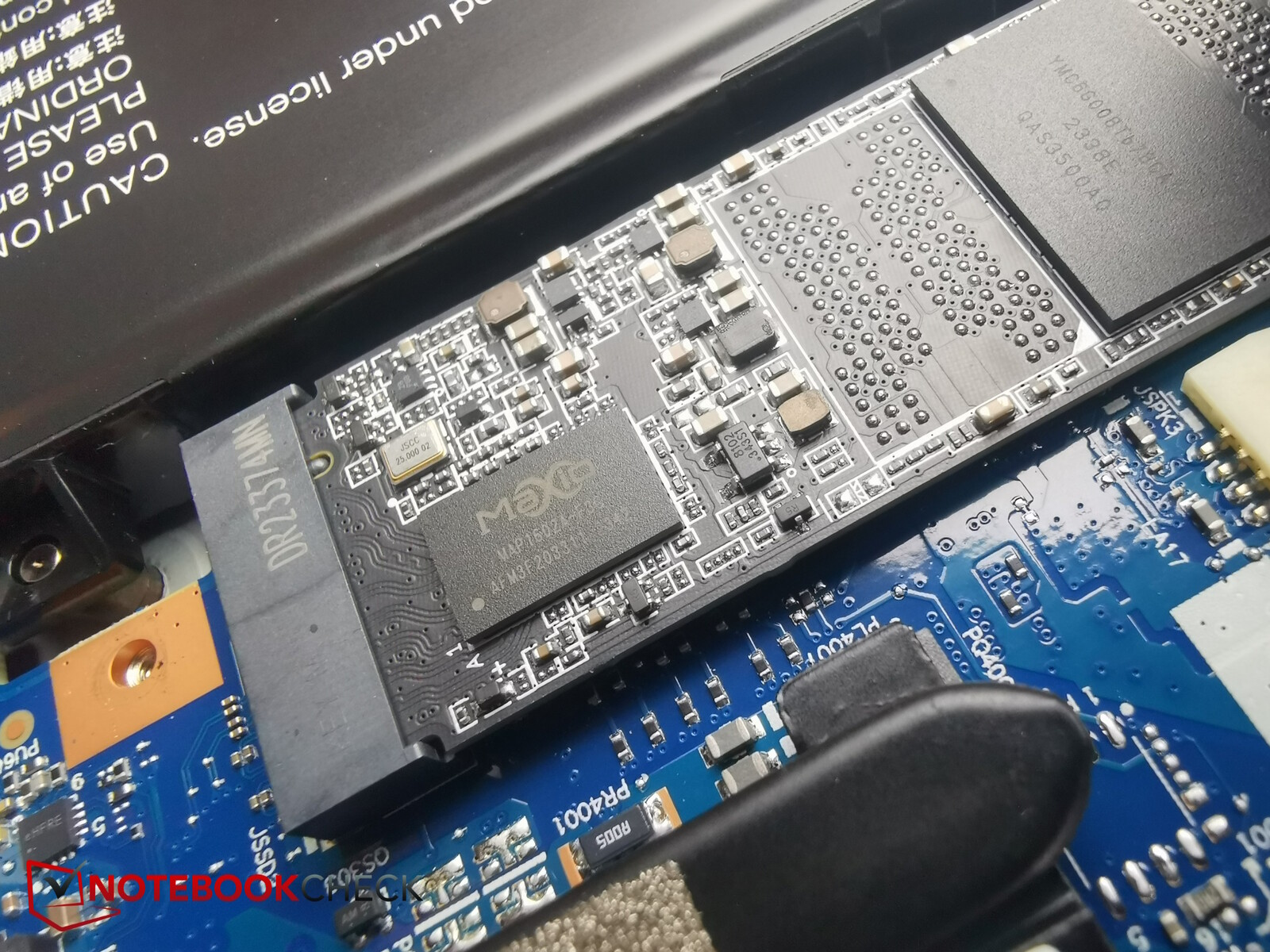

我们的测试机型配备了 Maxio 控制器，但 TeamGroup 表示，配备 Phison 控制器的机型也在市场上流通。

	TeamGroup MP44 M.2 PCIe 4.0 固态硬盘
外形尺寸	M.2 (2280)
接口	PCIe 4.0 x4
存储器	3D TLC NAND，SLC 高速缓存
重量	7 克
可用容量	512 GB、1 TB、2 TB、4 TB、8 TB
数据传输速率（根据制造商的顺序）	读取速度最高可达 7,400 MB/s 写入速度最高可达 6,400 MB/s
负载能力	1,450 TBW
IOPS	650K 读取，660K 写入
平均运行时间	1,600,000 h
固件	SN11296
保修	5 年
部件号	TM8FPW002T0C101

包装和交货范围：纸板和塑料

TeamGroup 称该产品采用 "可回收包装"，并获得了各种环保标签，包括 RoHS、REACH 和 ESG。遗憾的是，可回收包装并不意味着包装本身是由可回收材料制成的。

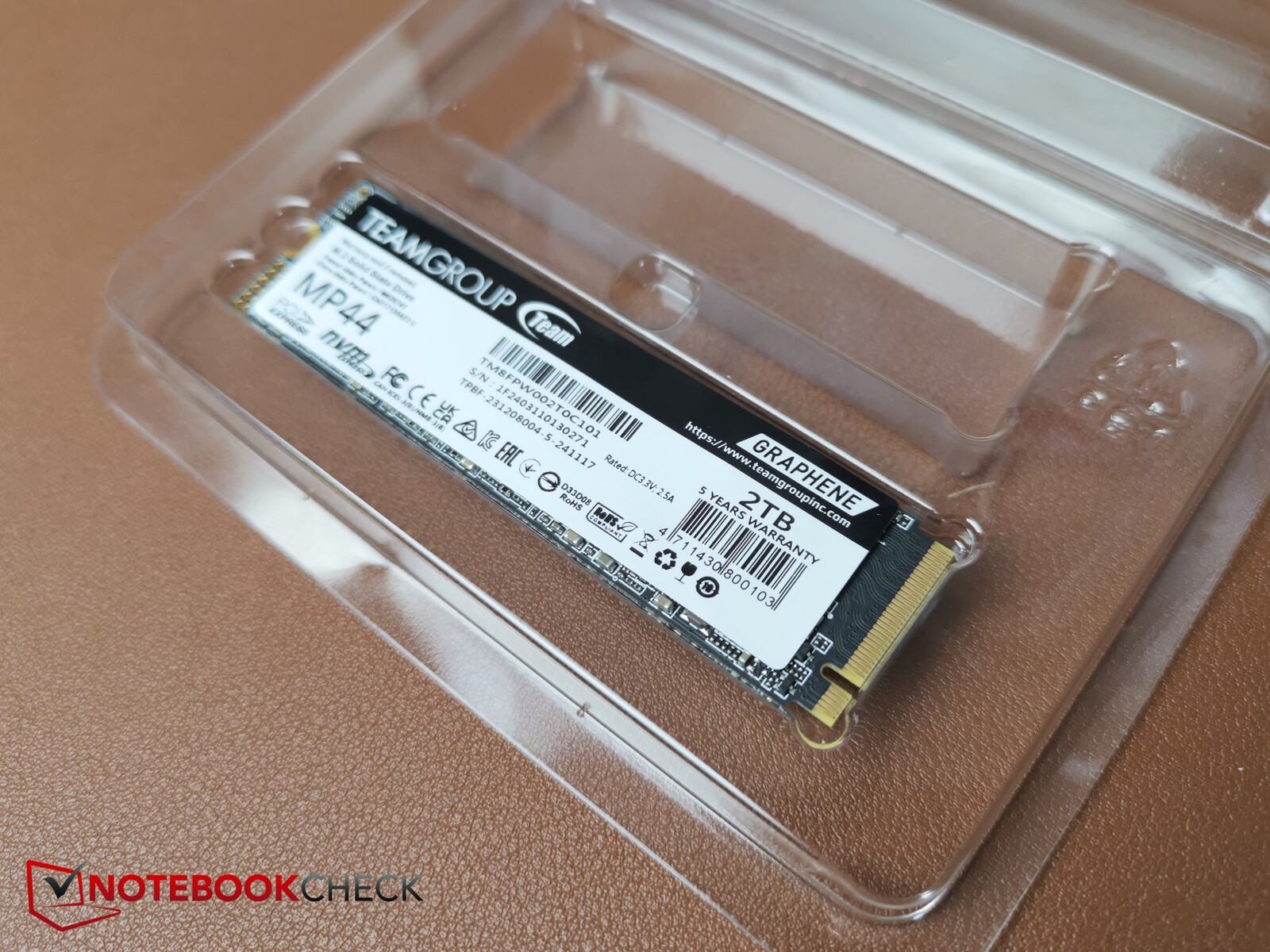

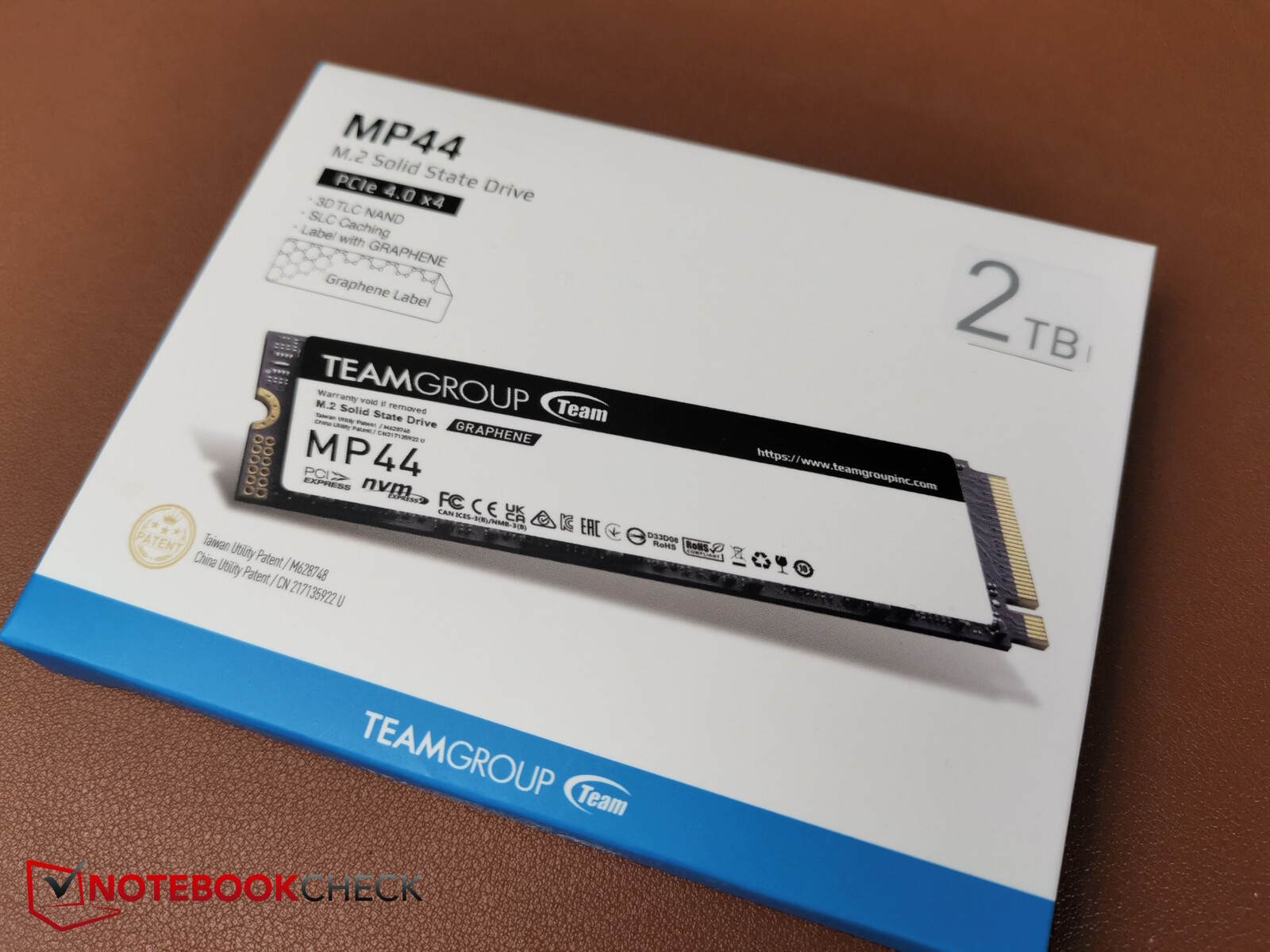

固态硬盘的外包装盒是用纸板制成的，而内部则是较大的塑料包装。

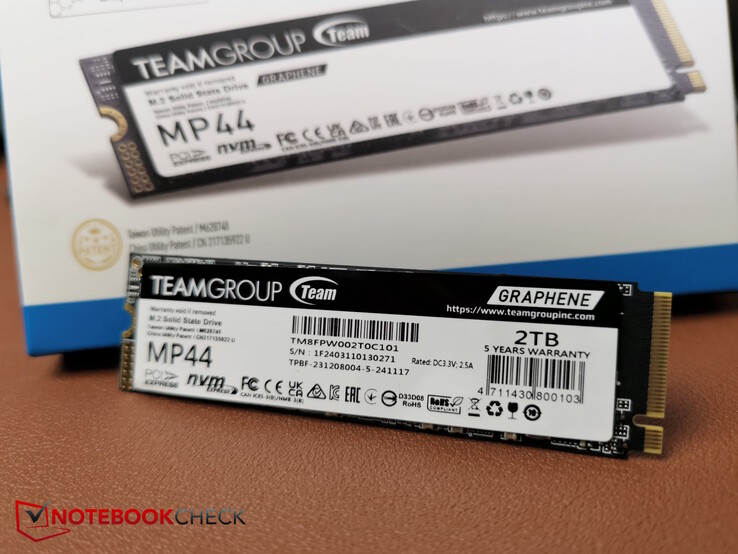

与 T-Create SSD 不同的是，石墨烯散热垫已经安装在我们的 MP44 上，因此包装盒中没有其他配件。

性能：言出必行

测试系统

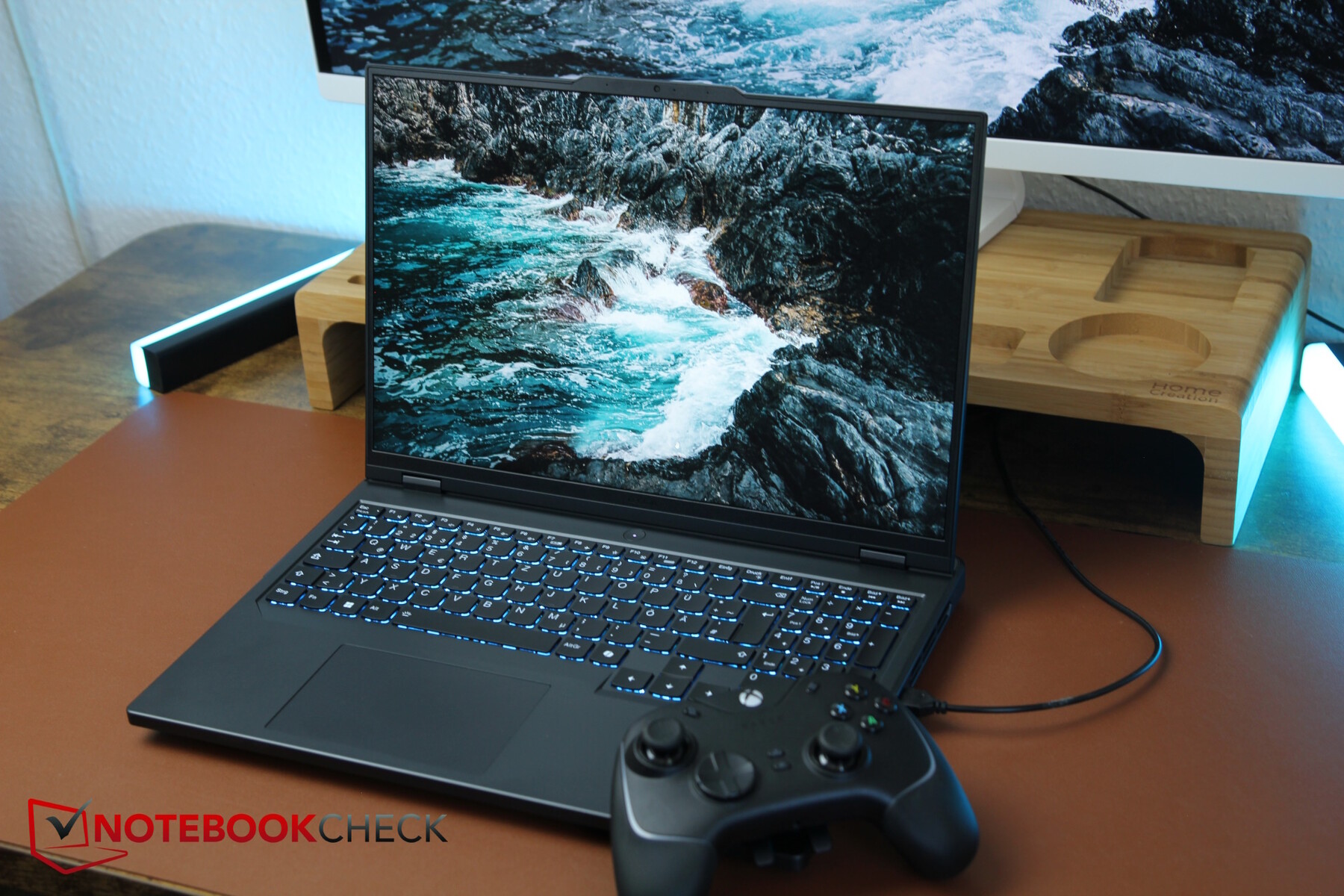

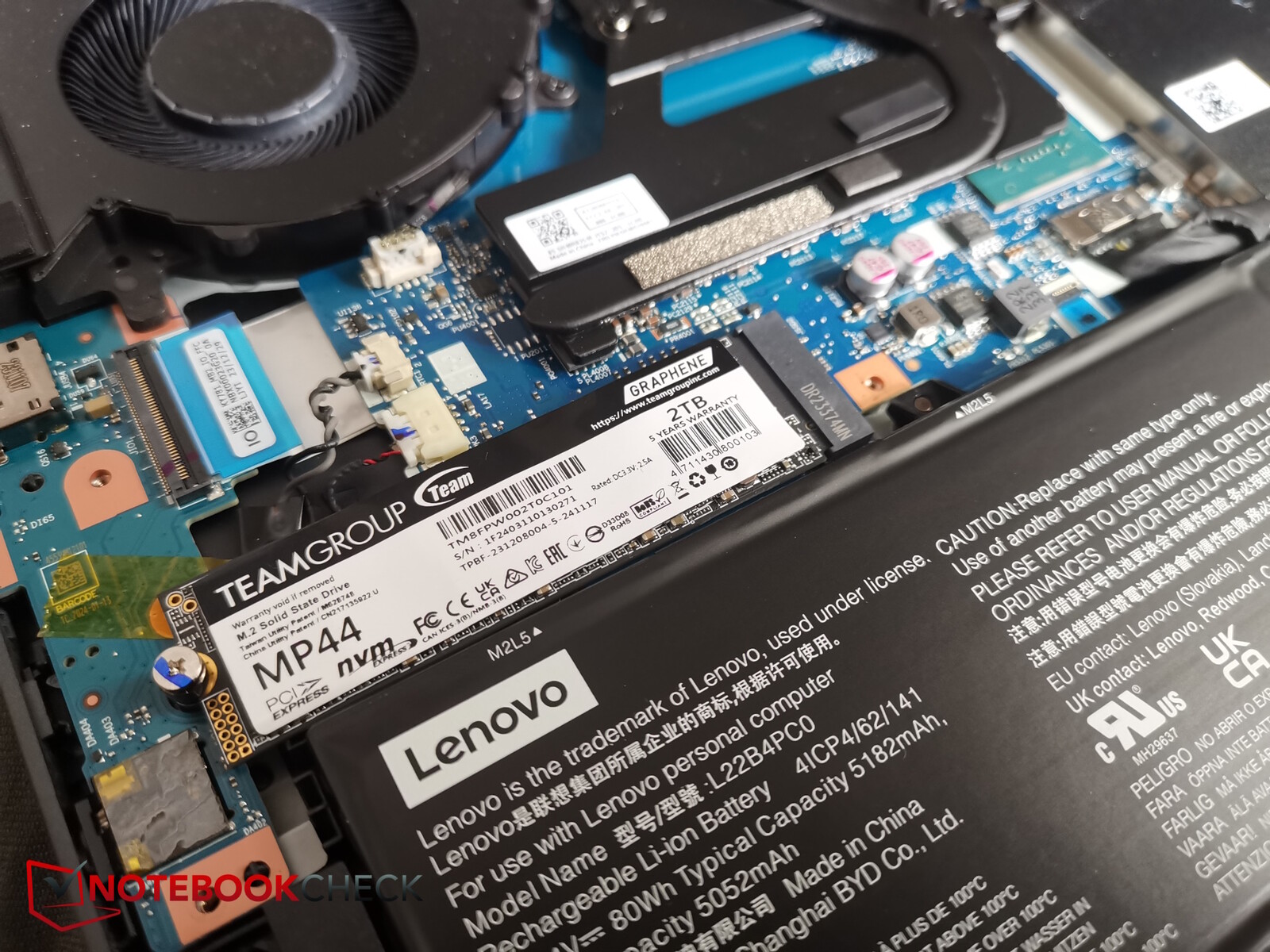

我们主要测试了新联想Legion Pro 5 内部的固态硬盘。它有第二个空闲的固态硬盘插槽，可使用 PCIe 4.0 x 4。

在另外两个配件测试中，我们将 MP44 插入了外置 USB 4 固态硬盘盒中 Zike ZikeDrive Z666直接连接到笔记本电脑或通过 Baseus Spacemate 系列 11 合 1扩展坞进行测试。结果可在链接的测试中找到。

我们使用了多款笔记本电脑进行比较--首先是 LG Gram 与三星 980 Pro，还有最近测试过的 XMG Core 15 M24与三星 990 Pro。

转账费率

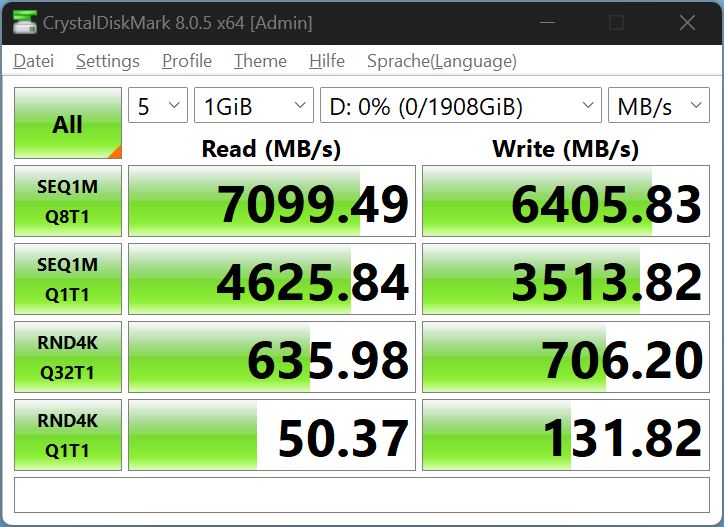

在Legion Pro 5 中，PCIe 4 SSD 的潜力得到了充分发挥，尤其是在 Crystaldiskmark 8 测试中，我们测得的连续写入速度达到了每秒 6,400 MB，连续读取速度超过了每秒 7,000 MB。在 AS SSD 中，其传输速率通常要低一些。

与其他内部固态硬盘相比，TeamGroup MP44 的表现非常出色，甚至可以与三星 PM9A1（三星 980 Pro 的 OEM 版）相媲美。XMG Core 15 M24 中的 990 Pro XMG Core 15 M24 中的 990 Pro(尽管容量只有 1 TB）甚至还略逊一筹。MP44 的唯一弱点是其 4K 读取率。

在我们的 Diskspd 循环中，它也表现出了长期稳定的高性能，没有出现节流现象；石墨烯散热垫似乎控制住了一切。

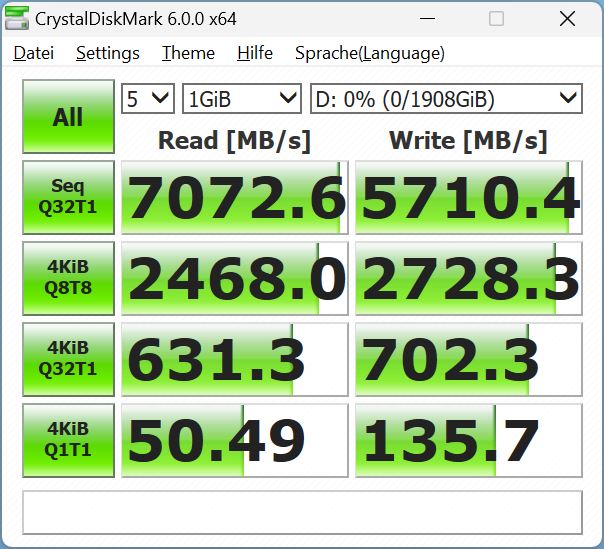

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

CDM 5/6 Read Seq Q32T1: 7073 MB/s

CDM 5/6 Write Seq Q32T1: 5710 MB/s

CDM 5/6 Read 4K Q32T1: 631 MB/s

CDM 5/6 Write 4K Q32T1: 702 MB/s

CDM 5/6 Read 4K: 50.5 MB/s

CDM 5/6 Write 4K: 135.7 MB/s

CDM 6 Write 4K Q8T8: 2728 MB/s

CDM 6 Read 4K Q8T8: 2468 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
TeamGroup MP44 2 TB	86.2 pt
LG Gram 2in1 16 16T90R - G.AA78G Samsung PM9A1 MZVL21T0HCLR	85.5 pt
SCHENKER XMG Core 15 (M24) Samsung 990 Pro 1 TB	81 pt
HP EliteBook 865 G10 SK hynix PC801 HFS001TEJ9X101N	70.4 pt
HP Spectre x360 2-in-1 16-f1075ng SK Hynix PC711 1TB HFS001TDE9X073N	65.1 pt
Global Average -3	40.6 pt
Average of class	40.6 pt

DiskSpd
seq read
TeamGroup MP44 2 TB	4652 (4592.09^min - 4651.69^max) MB/s
HP EliteBook 865 G10 SK hynix PC801 HFS001TEJ9X101N	3823 (3779.48^min - 3823.32^max) MB/s -18%
SCHENKER XMG Core 15 (M24) Samsung 990 Pro 1 TB	3390 (3342.47^min - 3389.7^max) MB/s -27%
LG Gram 2in1 16 16T90R - G.AA78G Samsung PM9A1 MZVL21T0HCLR	2882 (2725.88^min - 2882.22^max) MB/s -38%
Global Average -3 (113.3 - 7045, n=1823)	2371 MB/s -49%
Average of class (113.3 - 7045, n=1823)	2371 MB/s -49%
HP Spectre x360 2-in-1 16-f1075ng SK Hynix PC711 1TB HFS001TDE9X073N	2024 (1944.48^min - 2024.11^max) MB/s -56%
seq write
SCHENKER XMG Core 15 (M24) Samsung 990 Pro 1 TB	4209 (4104.55^min - 4209.16^max) MB/s +18%
TeamGroup MP44 2 TB	3573 (3499.44^min - 3572.69^max) MB/s
HP EliteBook 865 G10 SK hynix PC801 HFS001TEJ9X101N	3554 (3431.84^min - 3553.62^max) MB/s -1%
LG Gram 2in1 16 16T90R - G.AA78G Samsung PM9A1 MZVL21T0HCLR	3431 (3289.51^min - 3431.36^max) MB/s -4%
Global Average -3 (43 - 9459, n=1823)	2429 MB/s -32%
Average of class (43 - 9459, n=1823)	2429 MB/s -32%
HP Spectre x360 2-in-1 16-f1075ng SK Hynix PC711 1TB HFS001TDE9X073N	1548 (1453.93^min - 1548.49^max) MB/s -57%
seq q8 t1 read
TeamGroup MP44 2 TB	7076 (6536.68^min - 7075.58^max) MB/s
SCHENKER XMG Core 15 (M24) Samsung 990 Pro 1 TB	7058 (5789.19^min - 7057.97^max) MB/s 0%
HP EliteBook 865 G10 SK hynix PC801 HFS001TEJ9X101N	6912 (6199.99^min - 6911.79^max) MB/s -2%
LG Gram 2in1 16 16T90R - G.AA78G Samsung PM9A1 MZVL21T0HCLR	6562 (5825.59^min - 6561.57^max) MB/s -7%
Global Average -3 (114.5 - 16089, n=1823)	4050 MB/s -43%
Average of class (114.5 - 16089, n=1823)	4050 MB/s -43%
HP Spectre x360 2-in-1 16-f1075ng SK Hynix PC711 1TB HFS001TDE9X073N	3544 (2906.02^min - 3543.98^max) MB/s -50%
seq q8 t1 write
SCHENKER XMG Core 15 (M24) Samsung 990 Pro 1 TB	6898 (6891.45^min - 6898.33^max) MB/s +8%
TeamGroup MP44 2 TB	6388 (6352.48^min - 6388.12^max) MB/s
HP EliteBook 865 G10 SK hynix PC801 HFS001TEJ9X101N	6109 MB/s -4%
LG Gram 2in1 16 16T90R - G.AA78G Samsung PM9A1 MZVL21T0HCLR	4947 (4921.79^min - 4946.59^max) MB/s -23%
HP Spectre x360 2-in-1 16-f1075ng SK Hynix PC711 1TB HFS001TDE9X073N	3250 (3167.12^min - 3250.17^max) MB/s -49%
Global Average -3 (46.7 - 14571, n=1823)	3060 MB/s -52%
Average of class (46.7 - 14571, n=1823)	3060 MB/s -52%
4k q1 t1 read
LG Gram 2in1 16 16T90R - G.AA78G Samsung PM9A1 MZVL21T0HCLR	81.6 (74.82^min - 81.55^max) MB/s +67%
SCHENKER XMG Core 15 (M24) Samsung 990 Pro 1 TB	78.5 (76.33^min - 78.49^max) MB/s +60%
HP Spectre x360 2-in-1 16-f1075ng SK Hynix PC711 1TB HFS001TDE9X073N	60.8 (53.24^min - 60.81^max) MB/s +24%
HP EliteBook 865 G10 SK hynix PC801 HFS001TEJ9X101N	60.5 MB/s +23%
Global Average -3 (0.67 - 361, n=1823)	58.4 MB/s +19%
Average of class (0.67 - 361, n=1823)	58.4 MB/s +19%
TeamGroup MP44 2 TB	49 (46.92^min - 49.02^max) MB/s
4k q1 t1 write
LG Gram 2in1 16 16T90R - G.AA78G Samsung PM9A1 MZVL21T0HCLR	226 (219.95^min - 225.84^max) MB/s +66%
Global Average -3 (1.23 - 435, n=1822)	166.3 MB/s +22%
Average of class (1.23 - 435, n=1822)	166.3 MB/s +22%
SCHENKER XMG Core 15 (M24) Samsung 990 Pro 1 TB	159.2 (158.4^min - 159.24^max) MB/s +17%
HP EliteBook 865 G10 SK hynix PC801 HFS001TEJ9X101N	137.4 (136.17^min - 137.39^max) MB/s +1%
TeamGroup MP44 2 TB	135.8 (123.56^min - 135.78^max) MB/s
HP Spectre x360 2-in-1 16-f1075ng SK Hynix PC711 1TB HFS001TDE9X073N	133.3 (120.98^min - 133.34^max) MB/s -2%
4k q32 t16 read
TeamGroup MP44 2 TB	4139 (3182.59^min - 4139.23^max) MB/s
LG Gram 2in1 16 16T90R - G.AA78G Samsung PM9A1 MZVL21T0HCLR	3881 (3853^min - 3881.23^max) MB/s -6%
Global Average -3 (1.03 - 6172, n=1822)	1419 MB/s -66%
Average of class (1.03 - 6172, n=1822)	1419 MB/s -66%
SCHENKER XMG Core 15 (M24) Samsung 990 Pro 1 TB	1192 (1160.39^min - 1192.45^max) MB/s -71%
HP EliteBook 865 G10 SK hynix PC801 HFS001TEJ9X101N	1005 MB/s -76%
HP Spectre x360 2-in-1 16-f1075ng SK Hynix PC711 1TB HFS001TDE9X073N	715 (657.06^min - 714.84^max) MB/s -83%
4k q32 t16 write
TeamGroup MP44 2 TB	3691 (2707.13^min - 3690.58^max) MB/s
LG Gram 2in1 16 16T90R - G.AA78G Samsung PM9A1 MZVL21T0HCLR	3537 (3009.8^min - 3536.52^max) MB/s -4%
Global Average -3 (1.5 - 5588, n=1822)	1215 MB/s -67%
Average of class (1.5 - 5588, n=1822)	1215 MB/s -67%
SCHENKER XMG Core 15 (M24) Samsung 990 Pro 1 TB	489 (473.86^min - 489.4^max) MB/s -87%
HP EliteBook 865 G10 SK hynix PC801 HFS001TEJ9X101N	459 (404.81^min - 458.8^max) MB/s -88%
HP Spectre x360 2-in-1 16-f1075ng SK Hynix PC711 1TB HFS001TDE9X073N	389 (250.92^min - 389.12^max) MB/s -89%

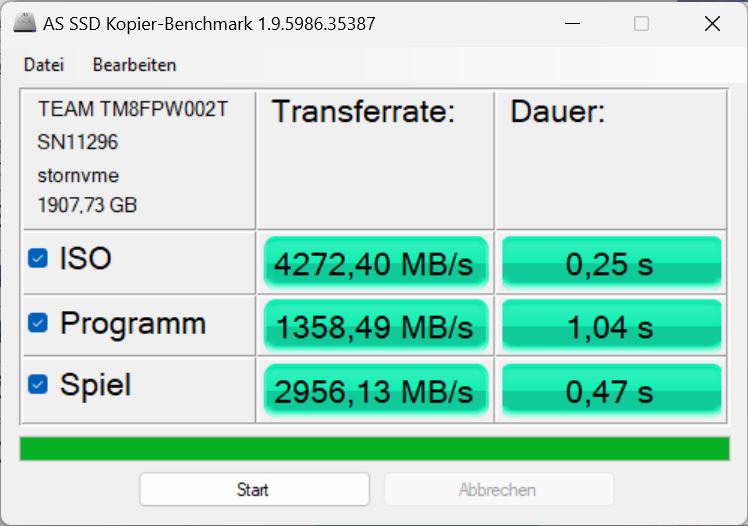

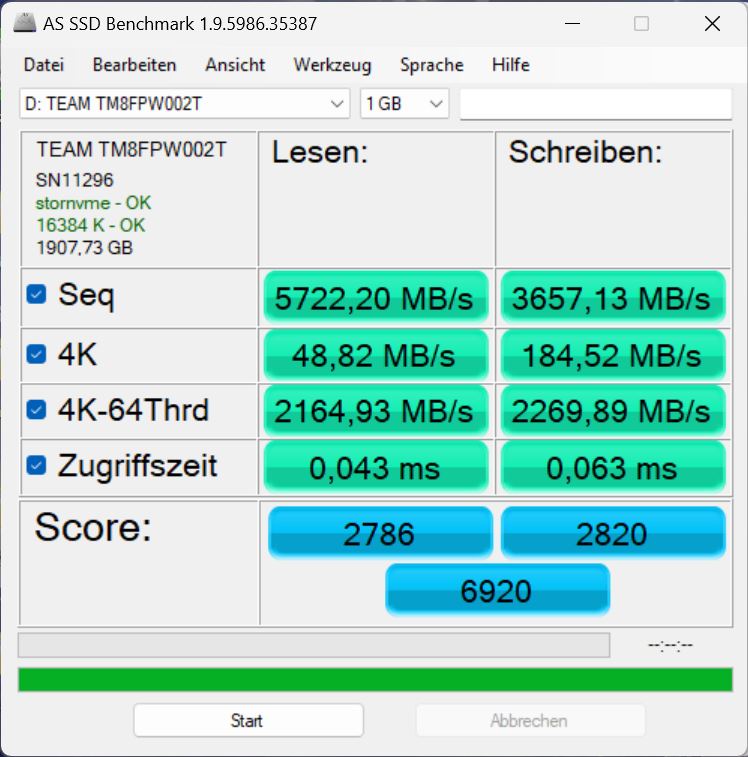

AS SSD
Score Total
TeamGroup MP44 2 TB	6920 Points
SCHENKER XMG Core 15 (M24) Samsung 990 Pro 1 TB	6614 Points -4%
HP Spectre x360 2-in-1 16-f1075ng SK Hynix PC711 1TB HFS001TDE9X073N	6585 Points -5%
LG Gram 2in1 16 16T90R - G.AA78G Samsung PM9A1 MZVL21T0HCLR	6136 Points -11%
HP EliteBook 865 G10 SK hynix PC801 HFS001TEJ9X101N	5674 Points -18%
Global Average -3 (19 - 13854, n=3484)	2929 Points -58%
Average of class (19 - 13854, n=3484)	2929 Points -58%
Score Read
LG Gram 2in1 16 16T90R - G.AA78G Samsung PM9A1 MZVL21T0HCLR	2943 Points +6%
TeamGroup MP44 2 TB	2786 Points
HP Spectre x360 2-in-1 16-f1075ng SK Hynix PC711 1TB HFS001TDE9X073N	2260 Points -19%
SCHENKER XMG Core 15 (M24) Samsung 990 Pro 1 TB	1873 Points -33%
HP EliteBook 865 G10 SK hynix PC801 HFS001TEJ9X101N	1470 Points -47%
Global Average -3 (6 - 4721, n=3485)	1120 Points -60%
Average of class (6 - 4721, n=3485)	1120 Points -60%
Score Write
SCHENKER XMG Core 15 (M24) Samsung 990 Pro 1 TB	3848 Points +36%
HP EliteBook 865 G10 SK hynix PC801 HFS001TEJ9X101N	3478 Points +23%
HP Spectre x360 2-in-1 16-f1075ng SK Hynix PC711 1TB HFS001TDE9X073N	3170 Points +12%
TeamGroup MP44 2 TB	2820 Points
LG Gram 2in1 16 16T90R - G.AA78G Samsung PM9A1 MZVL21T0HCLR	1731 Points -39%
Global Average -3 (4 - 7208, n=3485)	1265 Points -55%
Average of class (4 - 7208, n=3485)	1265 Points -55%
Seq Read
TeamGroup MP44 2 TB	5722 MB/s
SCHENKER XMG Core 15 (M24) Samsung 990 Pro 1 TB	5283 MB/s -8%
LG Gram 2in1 16 16T90R - G.AA78G Samsung PM9A1 MZVL21T0HCLR	4943.25 MB/s -14%
HP EliteBook 865 G10 SK hynix PC801 HFS001TEJ9X101N	3522 MB/s -38%
HP Spectre x360 2-in-1 16-f1075ng SK Hynix PC711 1TB HFS001TDE9X073N	2728.52 MB/s -52%
Global Average -3 (193.2 - 12763, n=3702)	2010 MB/s -65%
Average of class (193.2 - 12763, n=3702)	2010 MB/s -65%
Seq Write
LG Gram 2in1 16 16T90R - G.AA78G Samsung PM9A1 MZVL21T0HCLR	3967.06 MB/s +8%
TeamGroup MP44 2 TB	3657 MB/s
SCHENKER XMG Core 15 (M24) Samsung 990 Pro 1 TB	3646 MB/s 0%
HP EliteBook 865 G10 SK hynix PC801 HFS001TEJ9X101N	2772 MB/s -24%
HP Spectre x360 2-in-1 16-f1075ng SK Hynix PC711 1TB HFS001TDE9X073N	2630.48 MB/s -28%
Global Average -3 (52.2 - 11316, n=3705)	1358 MB/s -63%
Average of class (52.2 - 11316, n=3705)	1358 MB/s -63%
4K Read
LG Gram 2in1 16 16T90R - G.AA78G Samsung PM9A1 MZVL21T0HCLR	78.02 MB/s +60%
SCHENKER XMG Core 15 (M24) Samsung 990 Pro 1 TB	76.7 MB/s +57%
HP Spectre x360 2-in-1 16-f1075ng SK Hynix PC711 1TB HFS001TDE9X073N	61.52 MB/s +26%
HP EliteBook 865 G10 SK hynix PC801 HFS001TEJ9X101N	57.5 MB/s +18%
TeamGroup MP44 2 TB	48.8 MB/s
Global Average -3 (6.08 - 314, n=3694)	42.5 MB/s -13%
Average of class (6.08 - 314, n=3694)	42.5 MB/s -13%
4K Write
HP Spectre x360 2-in-1 16-f1075ng SK Hynix PC711 1TB HFS001TDE9X073N	239.47 MB/s +30%
LG Gram 2in1 16 16T90R - G.AA78G Samsung PM9A1 MZVL21T0HCLR	196.81 MB/s +7%
TeamGroup MP44 2 TB	184.5 MB/s
SCHENKER XMG Core 15 (M24) Samsung 990 Pro 1 TB	172.3 MB/s -7%
HP EliteBook 865 G10 SK hynix PC801 HFS001TEJ9X101N	144.4 MB/s -22%
Global Average -3 (13.3 - 512, n=3694)	113.8 MB/s -38%
Average of class (13.3 - 512, n=3694)	113.8 MB/s -38%
4K-64 Read
LG Gram 2in1 16 16T90R - G.AA78G Samsung PM9A1 MZVL21T0HCLR	2370.92 MB/s +10%
TeamGroup MP44 2 TB	2165 MB/s
HP Spectre x360 2-in-1 16-f1075ng SK Hynix PC711 1TB HFS001TDE9X073N	1925.49 MB/s -11%
SCHENKER XMG Core 15 (M24) Samsung 990 Pro 1 TB	1268 MB/s -41%
HP EliteBook 865 G10 SK hynix PC801 HFS001TEJ9X101N	1060 MB/s -51%
Global Average -3 (13.1 - 3600, n=3693)	824 MB/s -62%
Average of class (13.1 - 3600, n=3693)	824 MB/s -62%
4K-64 Write
SCHENKER XMG Core 15 (M24) Samsung 990 Pro 1 TB	3311 MB/s +46%
HP EliteBook 865 G10 SK hynix PC801 HFS001TEJ9X101N	3056 MB/s +35%
HP Spectre x360 2-in-1 16-f1075ng SK Hynix PC711 1TB HFS001TDE9X073N	2667.24 MB/s +17%
TeamGroup MP44 2 TB	2270 MB/s
LG Gram 2in1 16 16T90R - G.AA78G Samsung PM9A1 MZVL21T0HCLR	1137.26 MB/s -50%
Global Average -3 (13.7 - 5909, n=3691)	954 MB/s -58%
Average of class (13.7 - 5909, n=3691)	954 MB/s -58%
Access Time Read
Global Average -3 (0.012 - 33, n=3625)	0.613 ms * -1326%
Average of class (0.012 - 33, n=3625)	0.613 ms * -1326%
HP EliteBook 865 G10 SK hynix PC801 HFS001TEJ9X101N	0.043 ms * -0%
TeamGroup MP44 2 TB	0.043 ms *
HP Spectre x360 2-in-1 16-f1075ng SK Hynix PC711 1TB HFS001TDE9X073N	0.041 ms * +5%
SCHENKER XMG Core 15 (M24) Samsung 990 Pro 1 TB	0.033 ms * +23%
LG Gram 2in1 16 16T90R - G.AA78G Samsung PM9A1 MZVL21T0HCLR	0.028 ms * +35%
Access Time Write
Global Average -3 (0.011 - 60.7, n=3667)	0.524 ms * -732%
Average of class (0.011 - 60.7, n=3667)	0.524 ms * -732%
TeamGroup MP44 2 TB	0.063 ms *
HP EliteBook 865 G10 SK hynix PC801 HFS001TEJ9X101N	0.026 ms * +59%
LG Gram 2in1 16 16T90R - G.AA78G Samsung PM9A1 MZVL21T0HCLR	0.023 ms * +63%
SCHENKER XMG Core 15 (M24) Samsung 990 Pro 1 TB	0.023 ms * +63%
HP Spectre x360 2-in-1 16-f1075ng SK Hynix PC711 1TB HFS001TDE9X073N	0.018 ms * +71%

* ... smaller is better

Reading continuous performance: DiskSpd Read Loop, Queue Depth 8

TeamGroup MP44 2 TB ; diskspd 2.0.17 f: Ø7062 (6475.64-7083.88)

HP EliteBook 865 G10 SK hynix PC801 HFS001TEJ9X101N; diskspd 2.0.17 f: Ø6918 (6258.74-6957.44)

HP Spectre x360 2-in-1 16-f1075ng SK Hynix PC711 1TB HFS001TDE9X073N: Ø3537 (3123.29-3556.33)

LG Gram 2in1 16 16T90R - G.AA78G Samsung PM9A1 MZVL21T0HCLR: Ø6206 (5714.21-6585.65)

SCHENKER XMG Core 15 (M24) Samsung 990 Pro 1 TB; diskspd 2.0.17 f: Ø7120 (6339.48-7142.87)

Pros

+ 比 980 Pro 更快

+ 薄型石墨烯散热垫

+ 相当便宜

Cons

结论 - 快速内置 PCIe 4 固态硬盘，配备石墨烯散热垫

TeamGroup MP44是一款速度极快的内部PCIe 4固态硬盘，在性能方面，尤其是写入速度方面，可以媲美甚至超越著名的三星980 Pro。此外，我们测试的 2 TB 版 MP44 比其老牌竞争对手至少便宜 30 美元。超薄石墨烯散热垫似乎很好地完成了任务，因为在我们的测试中没有出现热节流现象。

我们没有批评意见，而且在这次测试中也无法评估其使用寿命和可靠性。不过，其性能数据无可挑剔。

PCIe 4 固态硬盘 TeamGroup MP44 是一款与三星 980 Pro 不相上下的快速内部固态硬盘，具有可靠的石墨烯散热垫，连续数据传输率约为 7000 MB/s。

价格和供应情况

目前，亚马逊上有一款 4 GB 存储容量的固态硬盘，售价233.99 美元。

Transparency

The selection of devices to be reviewed is made by our editorial team. The test sample was given to the author by the manufacturer free of charge for the purposes of review. There was no third-party influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.

This is how Notebookcheck is testing

Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.

Editor of the original article: Daisy Dickson - Translator - 422 articles published on Notebookcheck since 2023

Translator: Ninh Ngoc Duy - Editorial Assistant - 525467 articles published on Notebookcheck since 2008

contact me via: Facebook

Please share our article, every link counts!

> Notebookcheck中文版（NBC中国） > 评测 > TeamGroup MP44 2 TB SSD 评测：与三星 980 Pro 不相上下的内部 PCIe 4.0 固态硬盘

Christian Hintze, 2024-06-24 (Update: 2024-06-24)
