联想ThinkBook 14 G4笔记本电脑评测。坚实的笔记本电脑，大量的轻质金属
联想自2019年以来一直在制造ThinkBooks。这些笔记本电脑与联想的IdeaPad和ThinkPad品牌之间共享的许多功能相一致。与ThinkPads一样，它们在端口方面优于IdeaPads，但与面向终端客户的机型相比，其显示屏更差。就质量而言，ThinkBooks与E系列的入门级ThinkPads类似。这意味着联想ThinkBook 14 G4也可能最终出现在各个办公室。新的AMD Ryzen 5 5625U确保了系统的高响应性。
我们将联想ThinkBook 14 G4与其他用于办公室的14和15英寸笔记本电脑进行了比较。联想ThinkBook 15 G4也在比较设备之列。这款稍大的笔记本电脑与14英寸版本几乎相同。其他供办公室使用的设备包括戴尔 Inspiron 14，以及Dynabook Tecra A40-J-12-E和Schenker Work 15.
Lenovo ThinkBook 14 G4 21DK0004GE (ThinkBook 14 G4 Series)
Processor
AMD Ryzen 5 5625U 6 x 2.3 - 4.3 GHz, 50 W PL2 / Short Burst, 15 W PL1 / Sustained, Barcelo-U (Zen 3)
Graphics adapter
AMD Radeon RX Vega 7
Memory
16 GB
, DDR4-3200, 1x SO-DIMM, 8 GB on-board, Dual Channel
Display
14.00 inch 16:9, 1920 x 1080 pixel, LENOVO LEN140FHD, IPS, glossy: no, 60 Hz
Mainboard
AMD Promontory/Bixby FCH

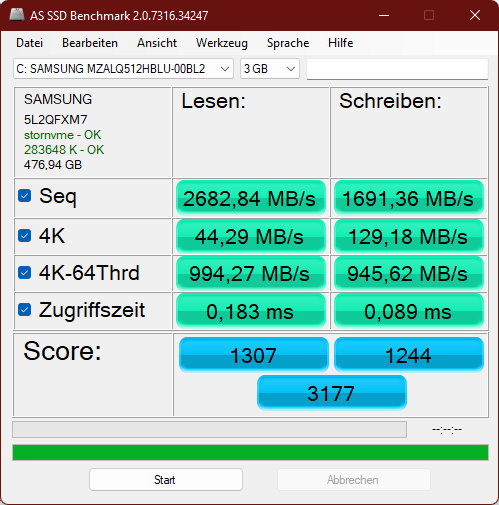

Storage
Samsung PM991a MZALQ512HBLU, 512 GB
, 428 GB free
Weight
1.454 kg, Power Supply: 186 g
Links
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.
潜在的竞争对手比较
Rating | Date | Model | Weight | Height | Size | Resolution | Price |
|---|---|---|---|---|---|---|---|
| 84.6 % v7 (old) | 09 / 2022 | Lenovo ThinkBook 14 G4 21DK0004GE R5 5625U, Vega 7 | 1.5 kg | 22 mm | 14.00" | 1920x1080 | |
| 84.6 % v7 (old) | 08 / 2022 | Dell Inspiron 14 5425 6VPKR R5 5625U, Vega 7 | 1.6 kg | 18.37 mm | 14.00" | 1920x1200 | |
| 85.3 % v7 (old) | 01 / 2022 | Acer TravelMate P4 TMP414-51-59MR i5-1135G7, Iris Xe G7 80EUs | 1.4 kg | 17.9 mm | 14.00" | 1920x1080 | |
| 84.8 % v7 (old) | 01 / 2022 | HP Pavilion 14-dv0357ng i5-1135G7, Iris Xe G7 80EUs | 1.4 kg | 19 mm | 14.00" | 1920x1080 | |
| 84.4 % v7 (old) | 10 / 2021 | Dynabook Tecra A40-J-12E i5-1135G7, Iris Xe G7 80EUs | 1.4 kg | 18.9 mm | 14.00" | 1920x1080 | |
| 84.9 % v7 (old) | 09 / 2022 | Lenovo ThinkBook 15 G4 21DL0009GE R5 5625U, Vega 7 | 1.8 kg | 23 mm | 15.60" | 1920x1080 | |
| 84.3 % v7 (old) | 02 / 2022 | SCHENKER Work 15 Tiger Lake-H i7-11370H, Iris Xe G7 96EUs | 1.7 kg | 19.9 mm | 15.60" | 1920x1080 | |
| 85 % v7 (old) | 08 / 2022 | HP ProBook 450 G9 6A180EA i7-1255U, Iris Xe G7 96EUs | 1.7 kg | 19.9 mm | 15.60" | 1920x1080 |

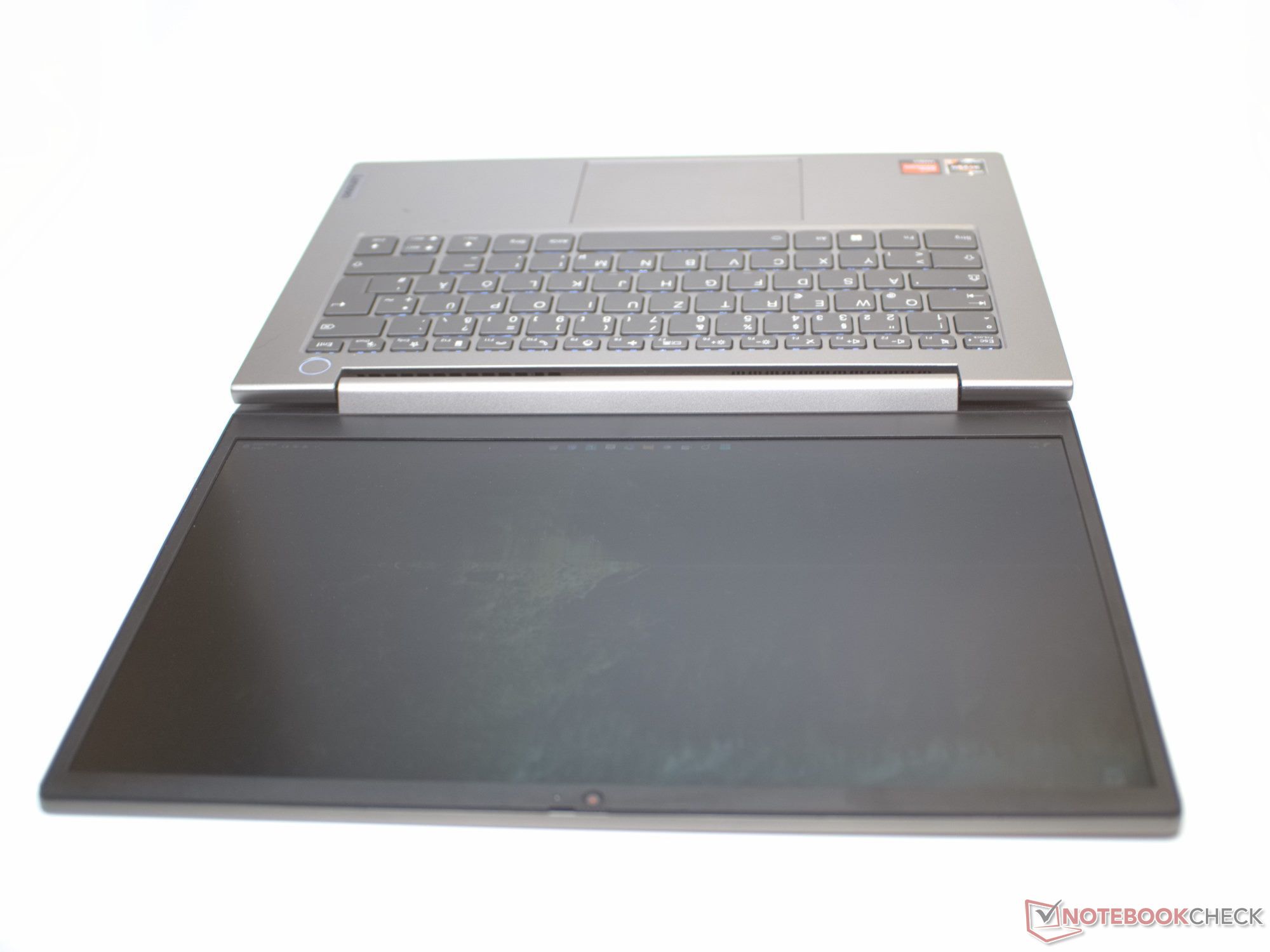

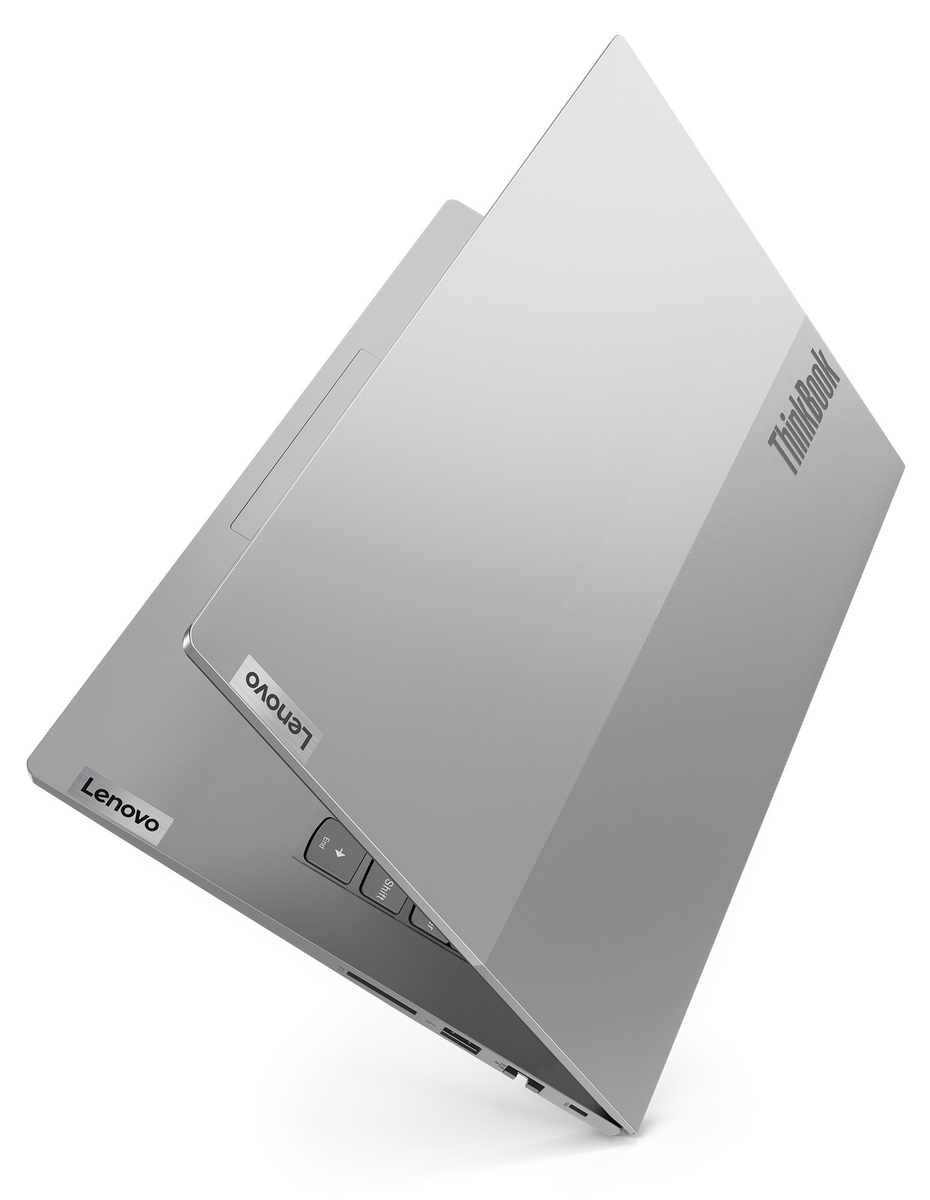

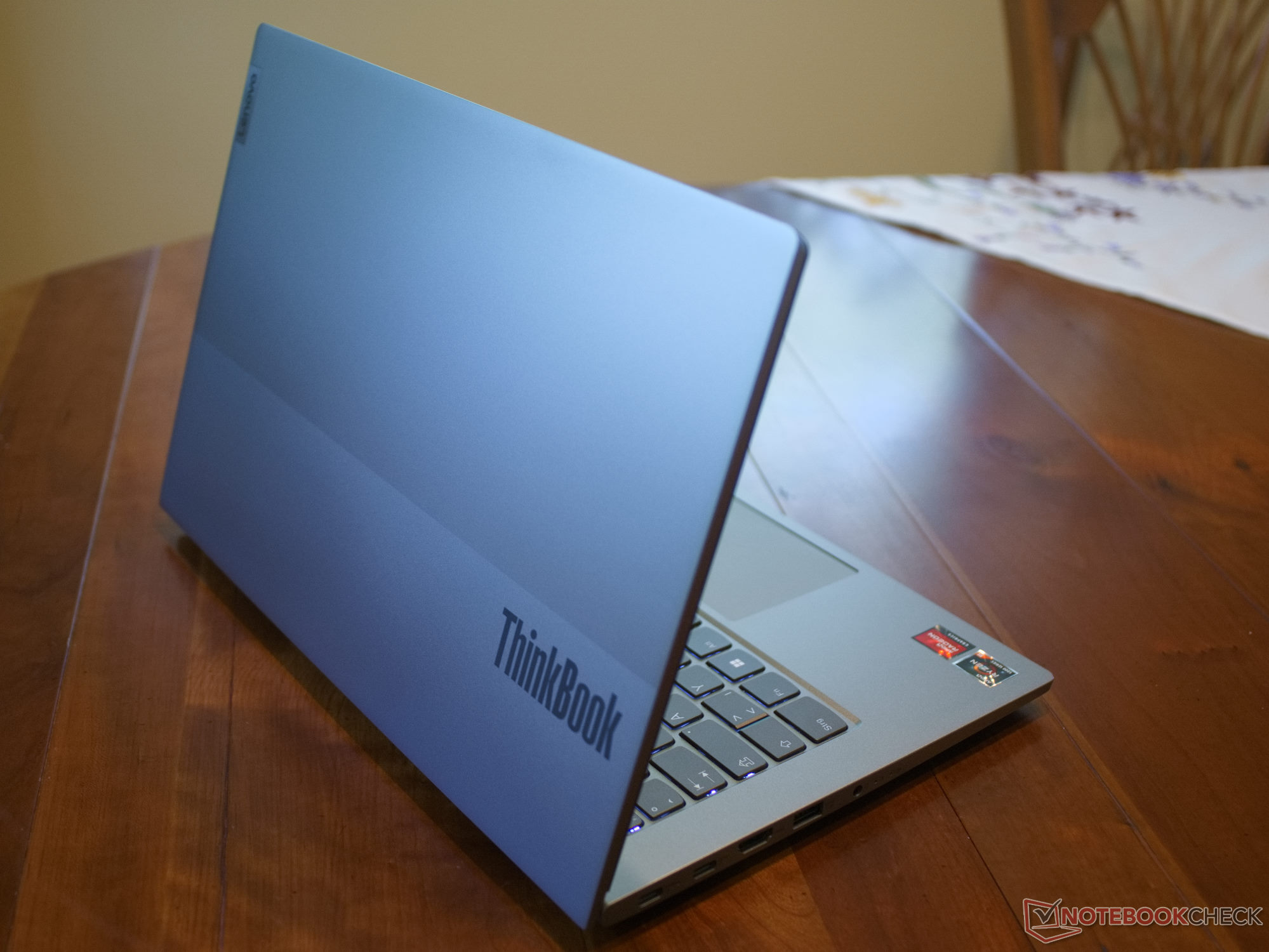

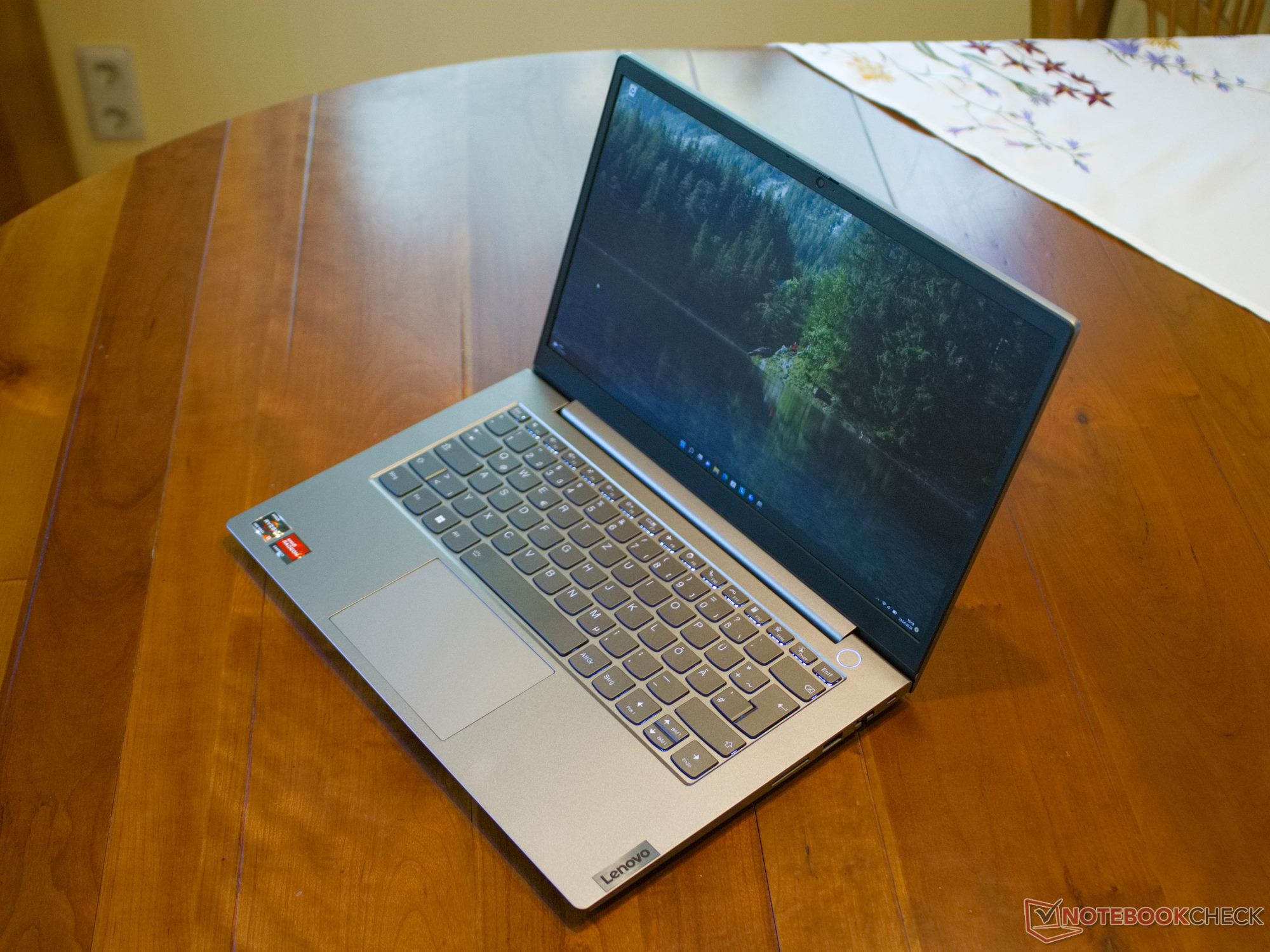

外壳 - 盖子和底座为铝制

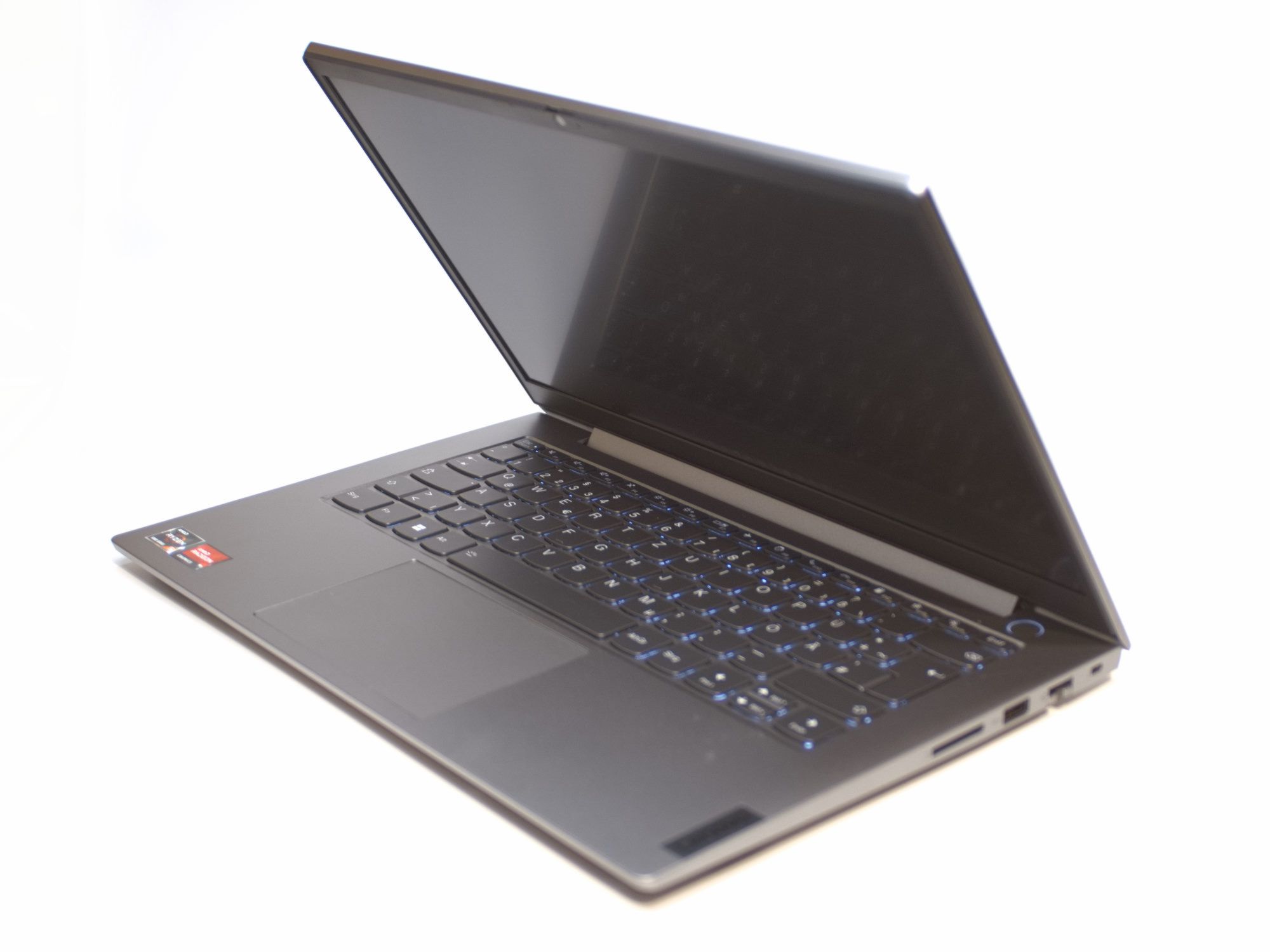

银色和灰色是ThinkBook外观使用的颜色。联想保持了设计的吸引力，并在一定程度上玩弄了表面和盖子的结构。这产生了一种双色的效果，尽管这是单色阳极氧化铝。底座的顶部由一个匹配的漆面塑料组成。铝合金再次被用于底座的底部。ThinkBook回到了它的起源，其设计是典型的联想。
特点--巴塞洛Ryzen中仍然没有USB 4

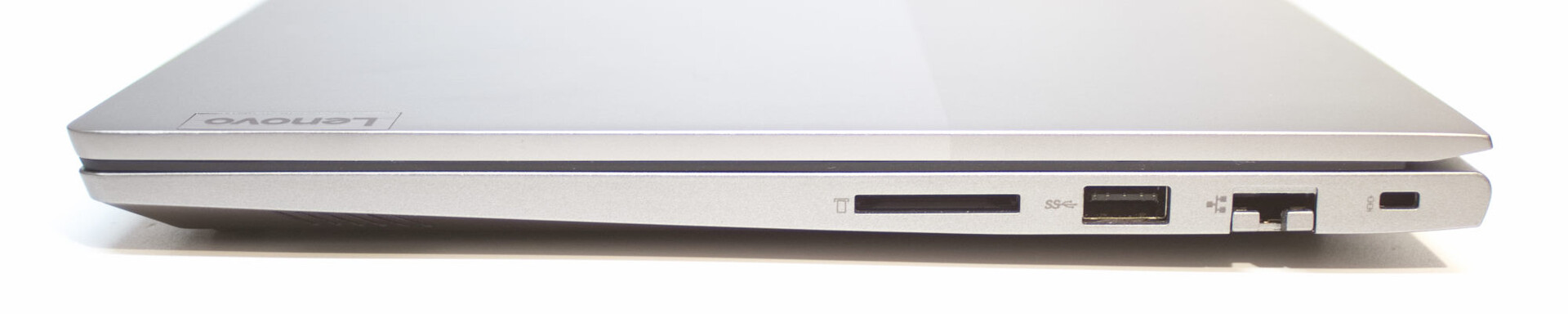

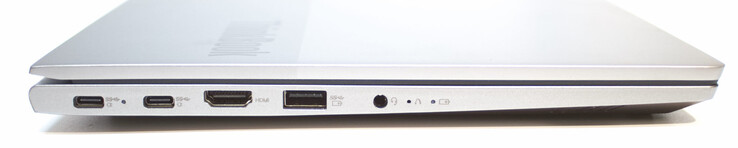

尽管ThinkBook 14 G4在查看其端口时缺少一些功能，但你仍然可以利用其四个USB插口、HDMI和SD读卡器工作。然而，你将不得不放弃Thunderbolt或USB 4。USB 4只有在新的6000系列AMD CPU上才能实现。
SD卡阅读器
这台ThinkBook上的SD读卡器能够用我们的参考卡达到良好的速度。然而，AV PRO microSD 128 GB V60也能够达到更快的传输速度。
| SD Card Reader | |
| average JPG Copy Test (av. of 3 runs) | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
| Lenovo ThinkBook 14 G4 21DK0004GE | |
| HP Pavilion 14-dv0357ng | |
| Dynabook Tecra A40-J-12E (AV Pro v60) | |
| SCHENKER Work 15 Tiger Lake-H (Angelbird AV Pro V60) | |
| Average of class Office (22.7 - 198.5, n=33, last 2 years) | |
| Dell Inspiron 14 5425 6VPKR (AV Pro SD microSD 128 GB V60) | |
| Acer TravelMate P4 TMP414-51-59MR (AV Pro SD microSD 128 GB V60) | |
| maximum AS SSD Seq Read Test (1GB) | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
| Lenovo ThinkBook 14 G4 21DK0004GE | |
| HP Pavilion 14-dv0357ng | |
| Dynabook Tecra A40-J-12E (AV Pro v60) | |
| Average of class Office (25 - 249, n=30, last 2 years) | |
| SCHENKER Work 15 Tiger Lake-H (Angelbird AV Pro V60) | |
| Dell Inspiron 14 5425 6VPKR (AV Pro SD microSD 128 GB V60) | |
| Acer TravelMate P4 TMP414-51-59MR (AV Pro SD microSD 128 GB V60) | |
沟通
自以前的化身以来，Realtek还开发了一个带有Wi-Fi 6的Wi-Fi模块。在测试中，Realtek RTL8852AE提供了良好的传输速度，但还不能完全跟上装有英特尔AX201芯片的笔记本电脑产生的数值。
Lenovo ThinkBook 14 G4 21DK0004GE RealTek Semiconductor RTL8852AE; iperf3 receive AXE11000; iperf 3.1.3: Ø967 (490-996)
Dell Inspiron 14 5425 6VPKR MediaTek MT7921; iperf3 receive AX12; iperf 3.1.3: Ø972 (948-981)
HP Pavilion 14-dv0357ng Realtek 8822CE Wireless LAN 802.11ac PCI-E NIC; iperf3 receive AX12; iperf 3.1.3: Ø504 (473-527)
Lenovo ThinkBook 14 G4 21DK0004GE RealTek Semiconductor RTL8852AE; iperf3 transmit AXE11000; iperf 3.1.3: Ø906 (465-957)
Dell Inspiron 14 5425 6VPKR MediaTek MT7921; iperf3 transmit AX12; iperf 3.1.3: Ø827 (461-903)
HP Pavilion 14-dv0357ng Realtek 8822CE Wireless LAN 802.11ac PCI-E NIC; iperf3 transmit AX12; iperf 3.1.3: Ø87 (80-95)
网络摄像头
凭借其清晰的对比度以及在有利的照明条件下的坚实表现，这款办公笔记本的全高清网络摄像头在测试中给我们留下了深刻印象。少量的环境光导致了非常嘈杂的图像。一个机械盖也能确保隐私。广角镜头的鱼眼效果很醒目。该摄像头不支持Windows Hello面部认证。
18.7 ∆E
22 ∆E
23.3 ∆E
22.8 ∆E
20.5 ∆E
17.3 ∆E
13.8 ∆E
21.5 ∆E
16.5 ∆E
10.2 ∆E
16.2 ∆E
14 ∆E
5.6 ∆E
17.2 ∆E
10.9 ∆E
13.8 ∆E
9.9 ∆E
15.2 ∆E
2.1 ∆E
11.6 ∆E
12.3 ∆E
11.1 ∆E
3.5 ∆E
8.1 ∆E
安全问题

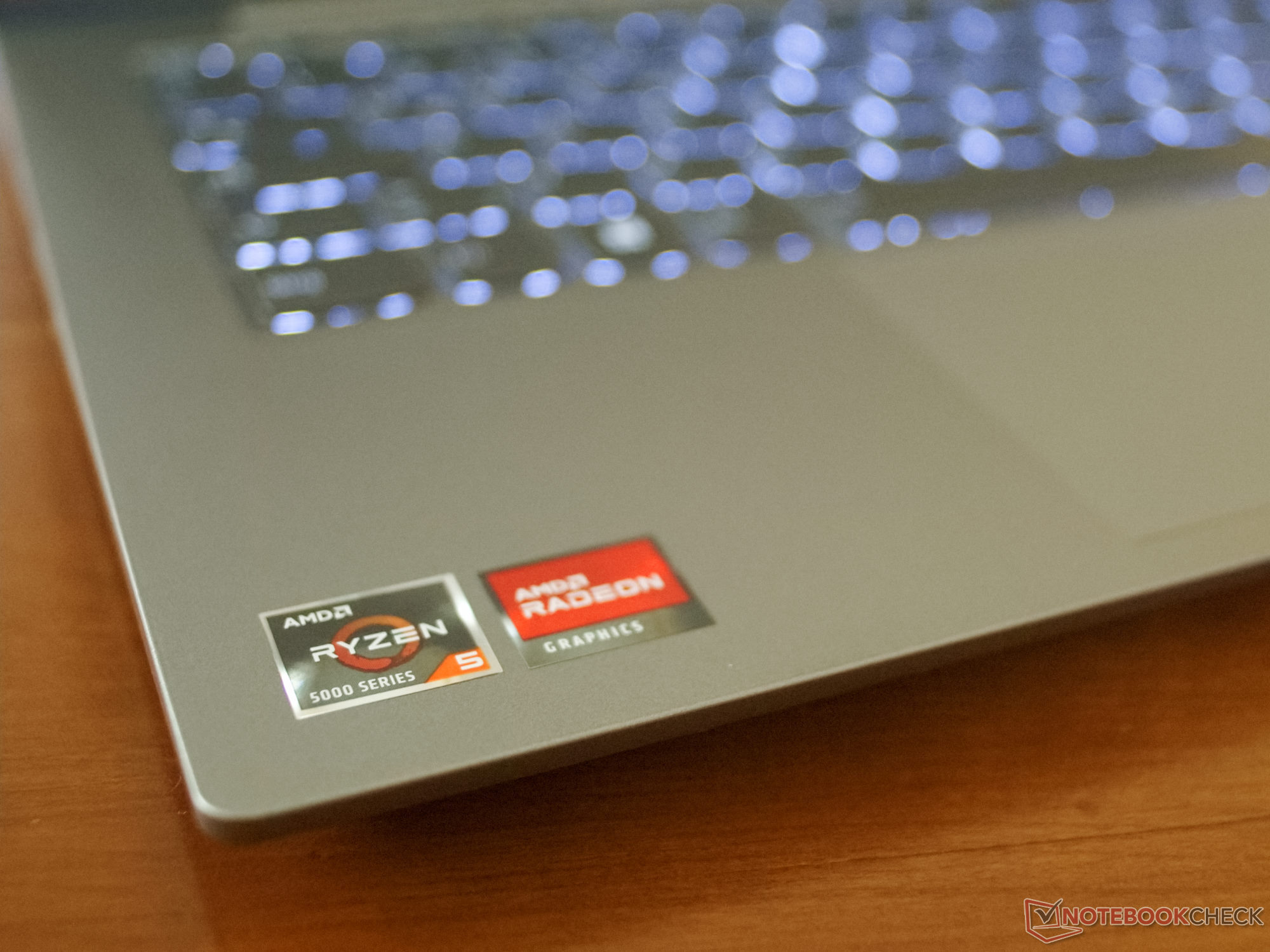

除了AMD Ryzen 5之外，指纹传感器以及Kensington锁槽也确保了安全。AMD处理器支持TPM 2.0和SecureBoot等安全功能。
维护

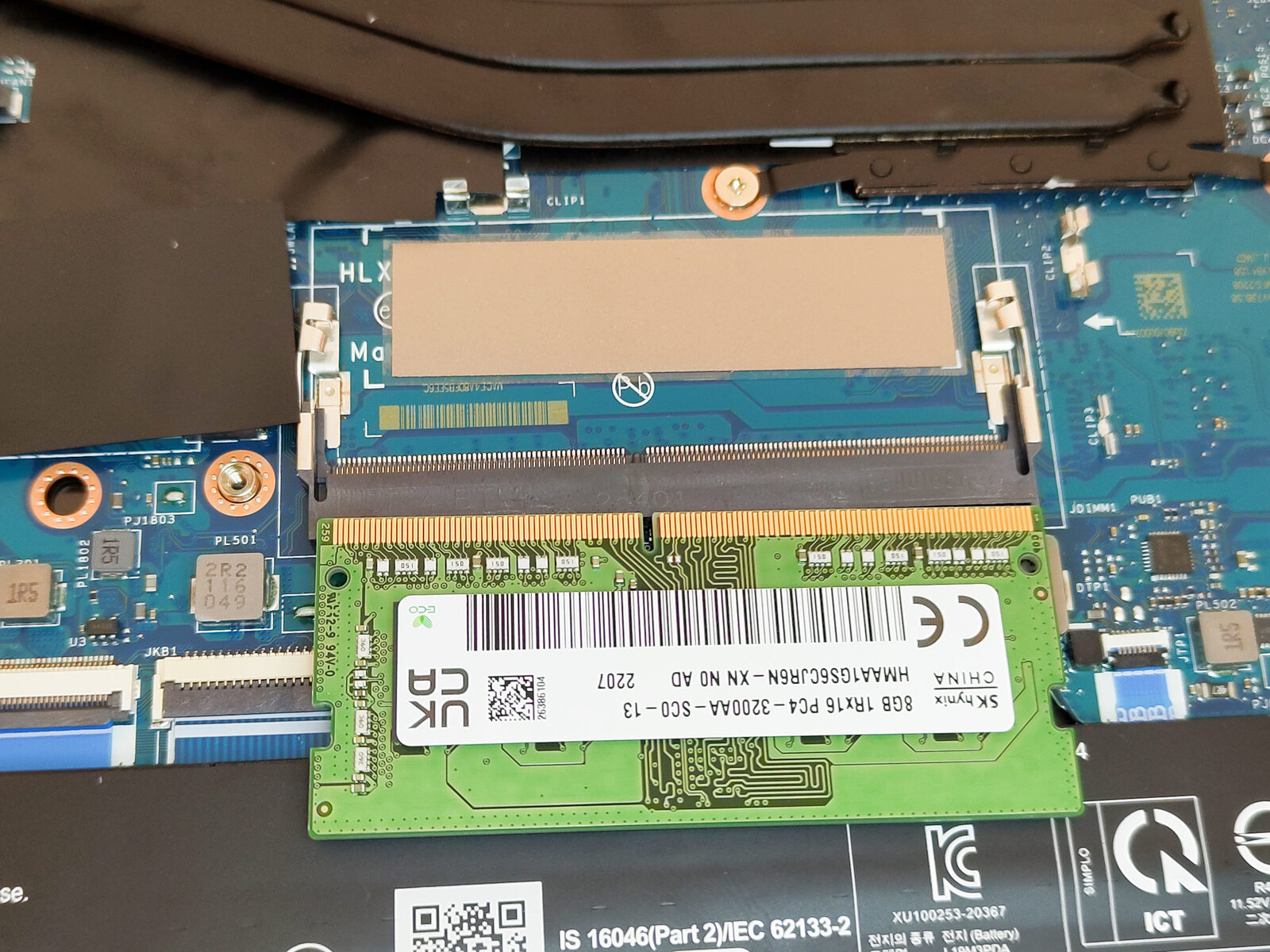

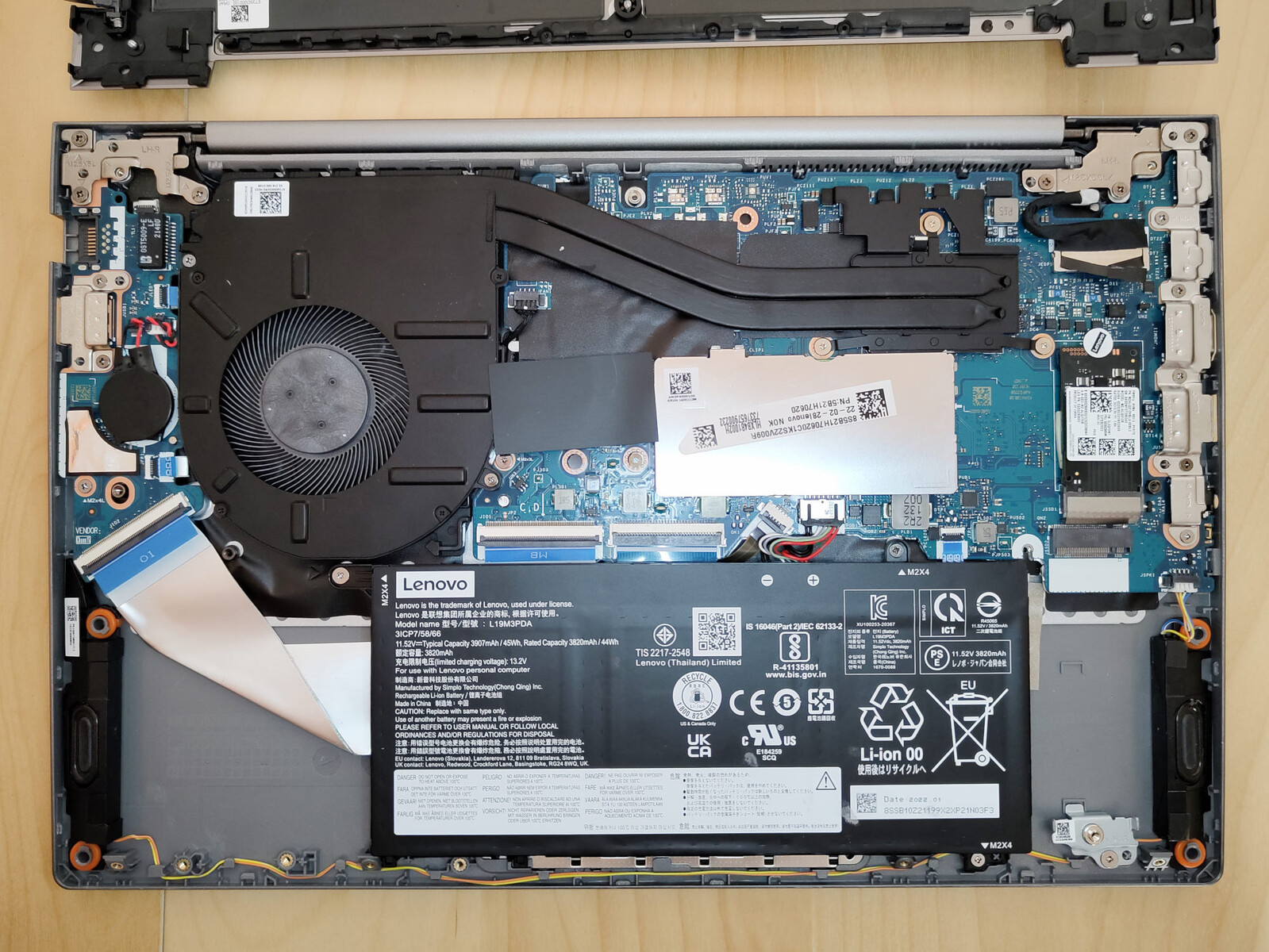

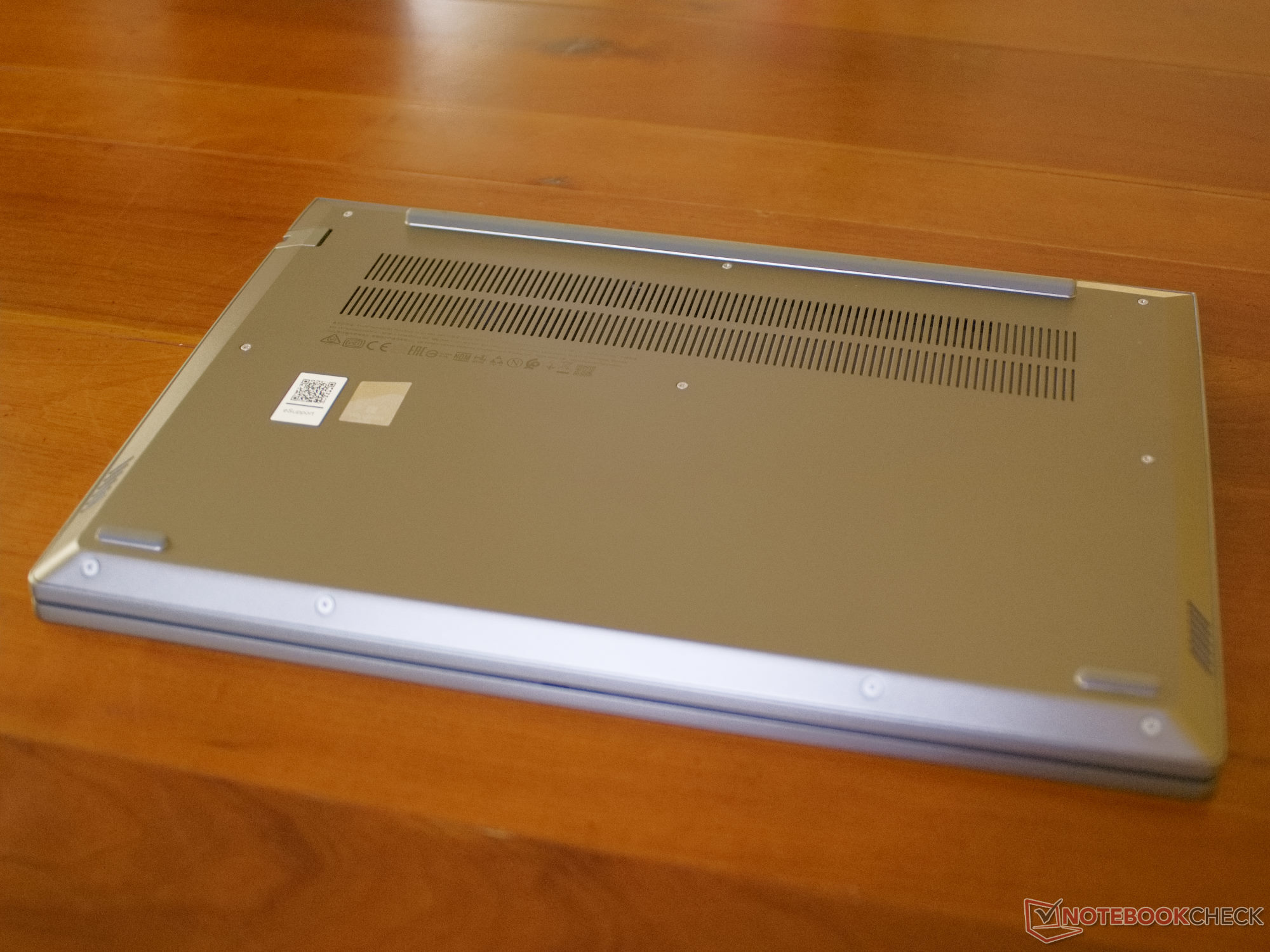

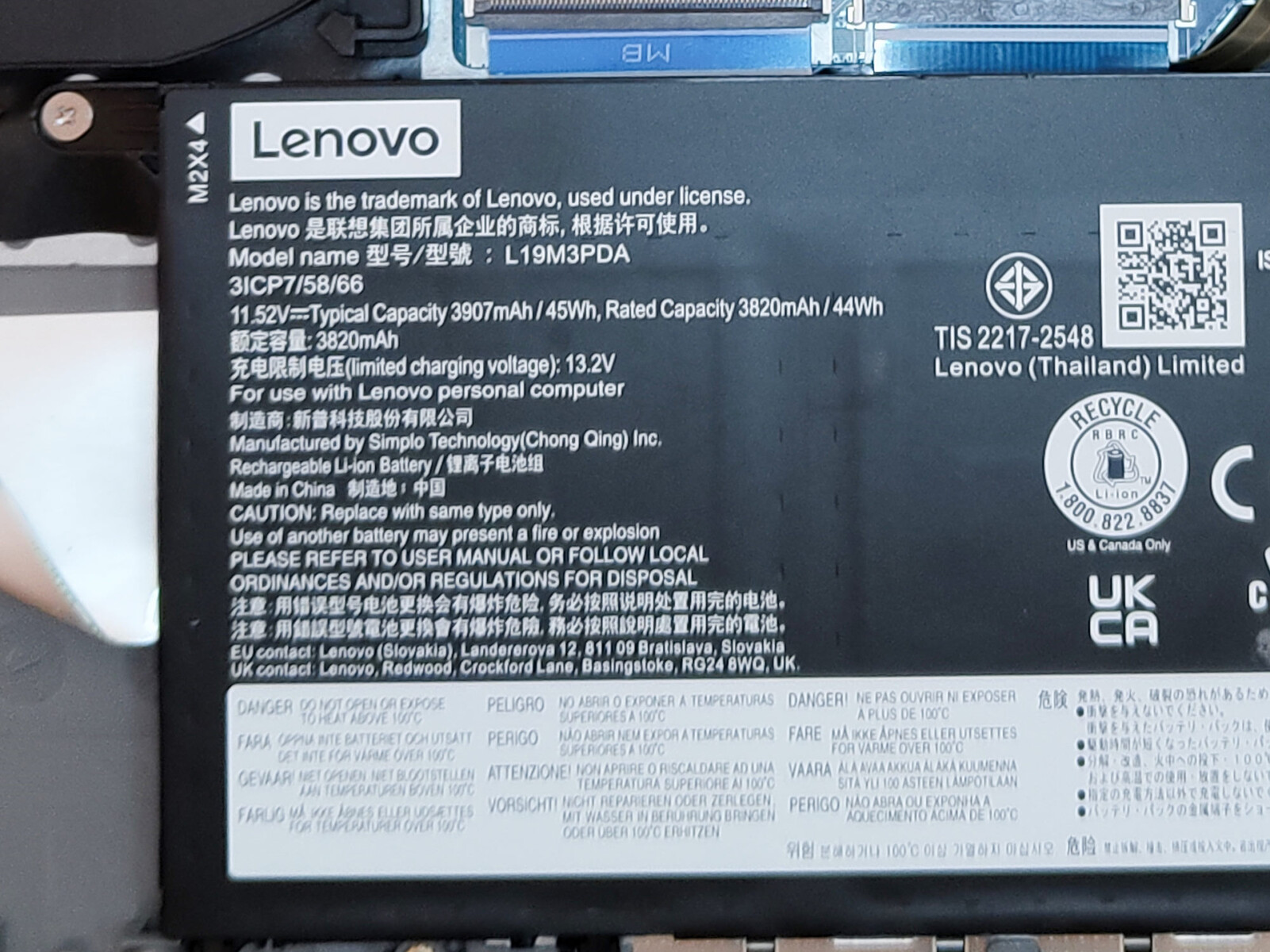

笔记本的底座可以快速拆卸。在下面可以找到一些升级的机会。这里有一个免费的M.2插槽。除此以外，现有的NVMe SSD的RAM模块也可以被替换。几乎所有的组件也都被安装到ThinkBook 15 G4以这种方式安装。
担保
我们测试中使用的配置只在德国提供12个月的保修。不过，在联想Vantage计划中，全球范围内都有各种保修选项。

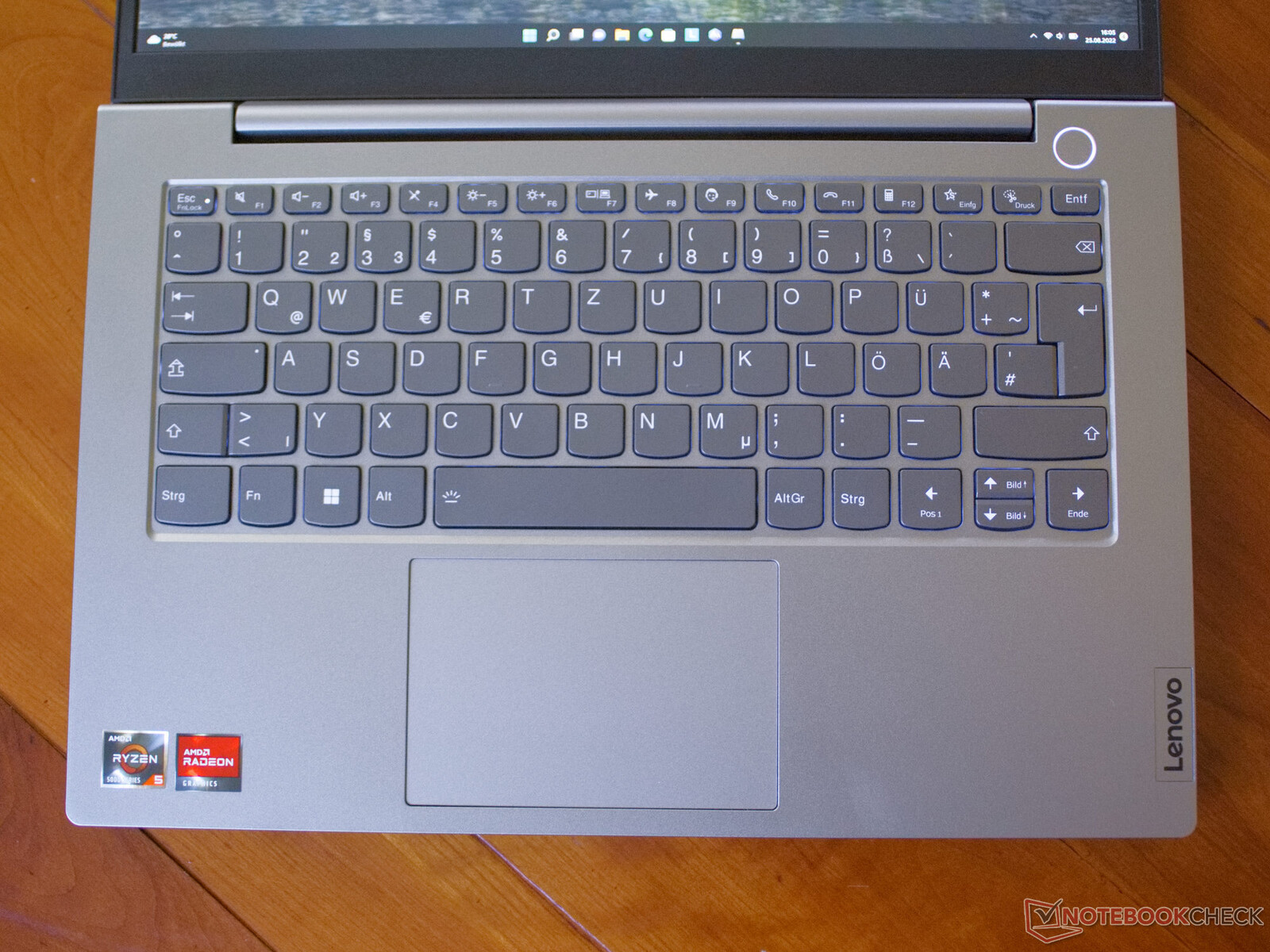

输入设备 - 平面键盘
触摸板和笔记本的背光键盘能可靠地工作。这里的键盘布局与ISO标准一致。按钮的间距和大小都很合理。在这里打字的感觉与IdeaPad键盘非常相似。低键程和小的触觉反馈意味着键盘可能需要一点时间来适应。然而，一旦你习惯了，键盘就很好。
触摸板也更接近于IdeaPad的水平。你不会在ThinkBook 14上找到像你可能从ThinkPad上了解的TrackPoint。
显示 - 色彩空间覆盖率低
联想ThinkBook 14 G4的全高清显示屏(1920 × 1080像素)没有任何特殊的功能或优点。16:9的格式，60赫兹和一个非常漂亮的远距离显示器是为一个Büro-Laptop提供的，但也是很好的。
笔记本的显示效果不是很好，而且对比度也比较低。在这里，我们看到的是对电脑的要求。
| |||||||||||||||||||||||||
LENOVO LEN140FHD tested with X-Rite i1Pro 2
Maximum: 306 cd/m² (Nits) Average: 283.4 cd/m² Minimum: 3.36 cd/m²Brightness Distribution: 85 %
Center on Battery: 306 cd/m²
Contrast: 805:1 (Black: 0.38 cd/m²)
ΔE Color 6 | 0.5-29.43 Ø4.92, calibrated: 4.5

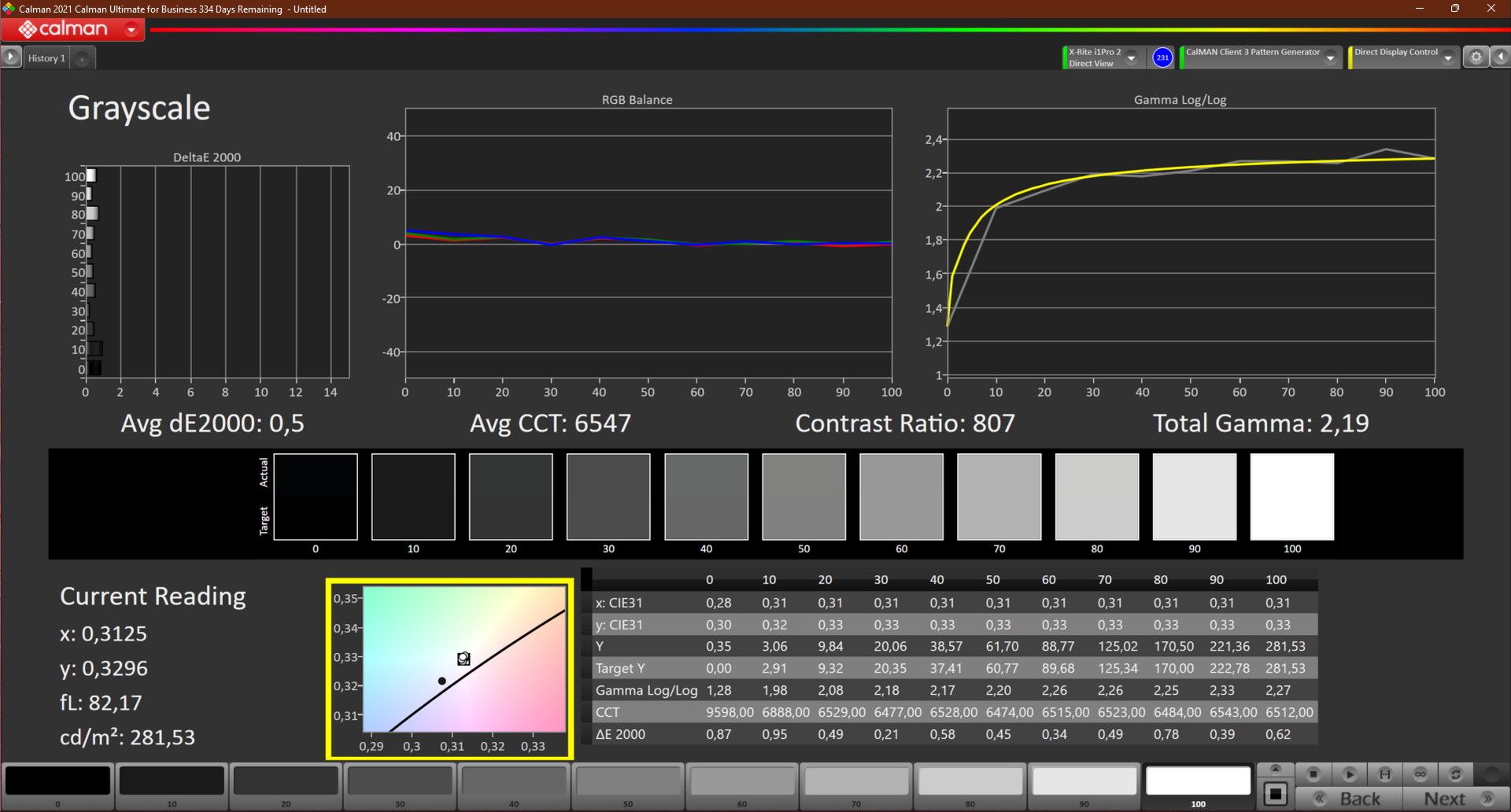

ΔE Greyscale 5.1 | 0.5-98 Ø5.2
43.6% AdobeRGB 1998 (Argyll 2.2.0 3D)
62.9% sRGB (Argyll 2.2.0 3D)
42.2% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.13
| Lenovo ThinkBook 14 G4 21DK0004GE LENOVO LEN140FHD, IPS, 1920x1080, 14" | Dell Inspiron 14 5425 6VPKR BOE NV14N42, IPS, 1920x1200, 14" | Acer TravelMate P4 TMP414-51-59MR AU Optronics B140HAN04.0, IPS, 1920x1080, 14" | HP Pavilion 14-dv0357ng LGD0619, IPS, 1920x1080, 14" | Dynabook Tecra A40-J-12E N140HCA-EAC, , 1920x1080, 14" | Lenovo ThinkBook 15 G4 21DL0009GE LENOVO LEN156FHD , IPS, 1920x1080, 15.6" | SCHENKER Work 15 Tiger Lake-H BOE07D8, IPS, 1920x1080, 15.6" | |
|---|---|---|---|---|---|---|---|
| Display | -8% | -6% | 46% | 0% | 6% | 45% | |
| Display P3 Coverage | 42.2 | 39.2 -7% | 39.6 -6% | 62 47% | 42.3 0% | 44.8 6% | 64.5 53% |
| sRGB Coverage | 62.9 | 57.4 -9% | 59.4 -6% | 92 46% | 63 0% | 66.8 6% | 86.2 37% |
| AdobeRGB 1998 Coverage | 43.6 | 40.5 -7% | 40.9 -6% | 63 44% | 43.8 0% | 46.3 6% | 62.9 44% |
| Response Times | 23% | -42% | -7% | -49% | 4% | -89% | |
| Response Time Grey 50% / Grey 80% * | 29 ? | 23 ? 21% | 40 ? -38% | 37 ? -28% | 41.2 ? -42% | 29 ? -0% | 58.4 ? -101% |
| Response Time Black / White * | 20 ? | 15 ? 25% | 29 ? -45% | 17 ? 15% | 31.2 ? -56% | 18.5 ? 7% | 35.2 ? -76% |
| PWM Frequency | 37037 ? | ||||||
| Screen | 5% | 28% | 19% | 4% | 21% | 21% | |
| Brightness middle | 306 | 292 -5% | 273 -11% | 387 26% | 234 -24% | 313 2% | 329 8% |
| Brightness | 283 | 279 -1% | 264 -7% | 359 27% | 216 -24% | 301 6% | 316 12% |
| Brightness Distribution | 85 | 90 6% | 88 4% | 84 -1% | 84 -1% | 90 6% | 92 8% |
| Black Level * | 0.38 | 0.34 11% | 0.22 42% | 0.55 -45% | 0.21 45% | 0.21 45% | 0.3 21% |
| Contrast | 805 | 859 7% | 1241 54% | 704 -13% | 1114 38% | 1490 85% | 1097 36% |
| Colorchecker dE 2000 * | 6 | 6.26 -4% | 4.27 29% | 4.04 33% | 5.6 7% | 5.3 12% | 5.4 10% |
| Colorchecker dE 2000 max. * | 20.5 | 19.14 7% | 7.76 62% | 8.28 60% | 20.3 1% | 18.7 9% | 10.1 51% |
| Colorchecker dE 2000 calibrated * | 4.5 | 1 78% | 4.6 -2% | 4 11% | 2.5 44% | ||
| Greyscale dE 2000 * | 5.1 | 4.31 15% | 2.5 51% | 5 2% | 5.1 -0% | 4.4 14% | 5.1 -0% |
| Gamma | 2.13 103% | 2.27 97% | 2.43 91% | 2.62 84% | 2.24 98% | 2.08 106% | 2.1 105% |
| CCT | 6264 104% | 6102 107% | 6463 101% | 7123 91% | 6542 99% | 6479 100% | 7609 85% |
| Total Average (Program / Settings) | 7% /
5% | -7% /
9% | 19% /
21% | -15% /
-4% | 10% /
15% | -8% /
11% |
* ... smaller is better

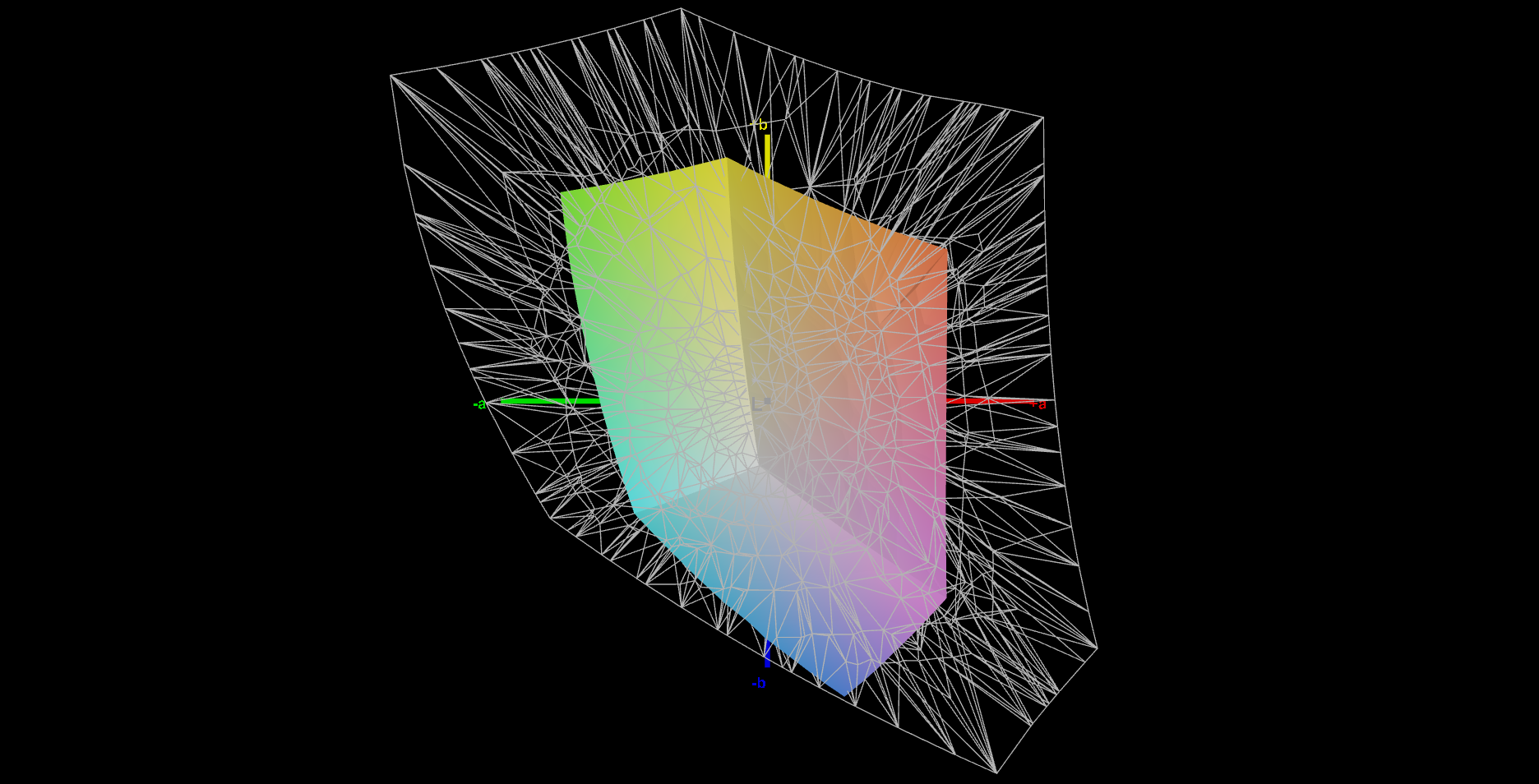

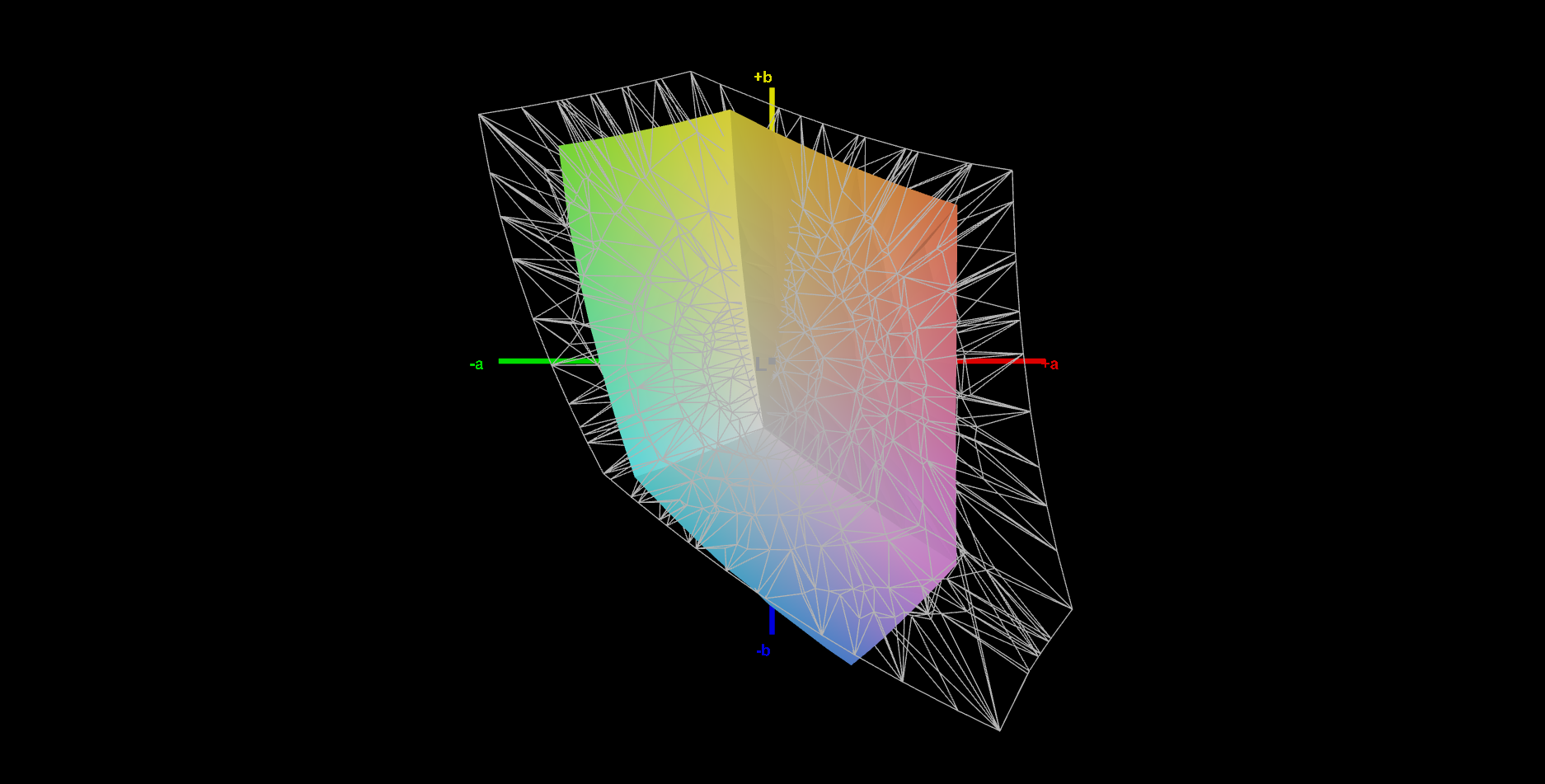

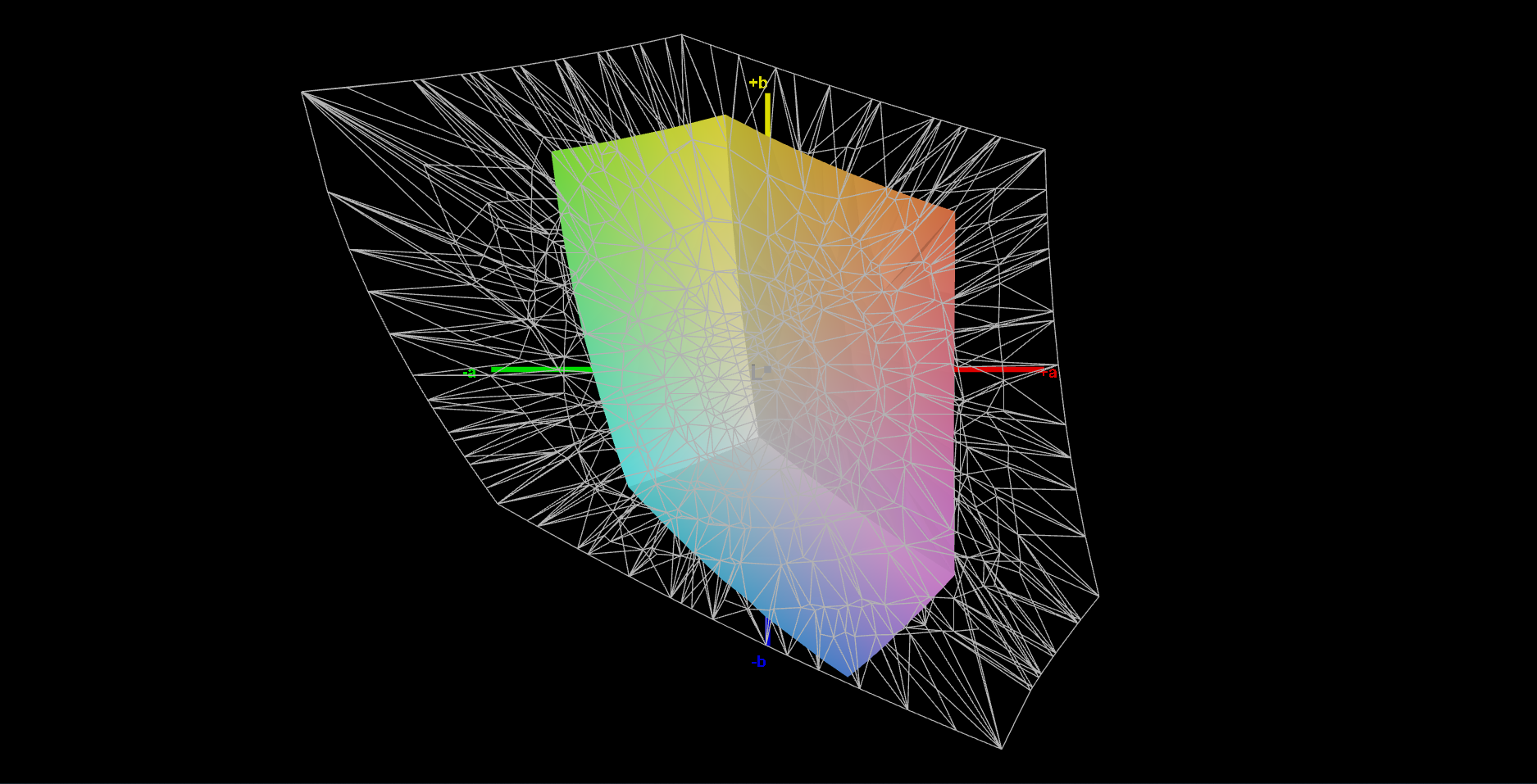

关于色彩空间覆盖率，这台办公笔记本电脑的屏幕表现出典型的数值。 62.9%的sRGB覆盖率以及42.2%和43.6%的Display P3和AdobeRGB色彩空间覆盖率都适合这台笔记本电脑的使用情况。

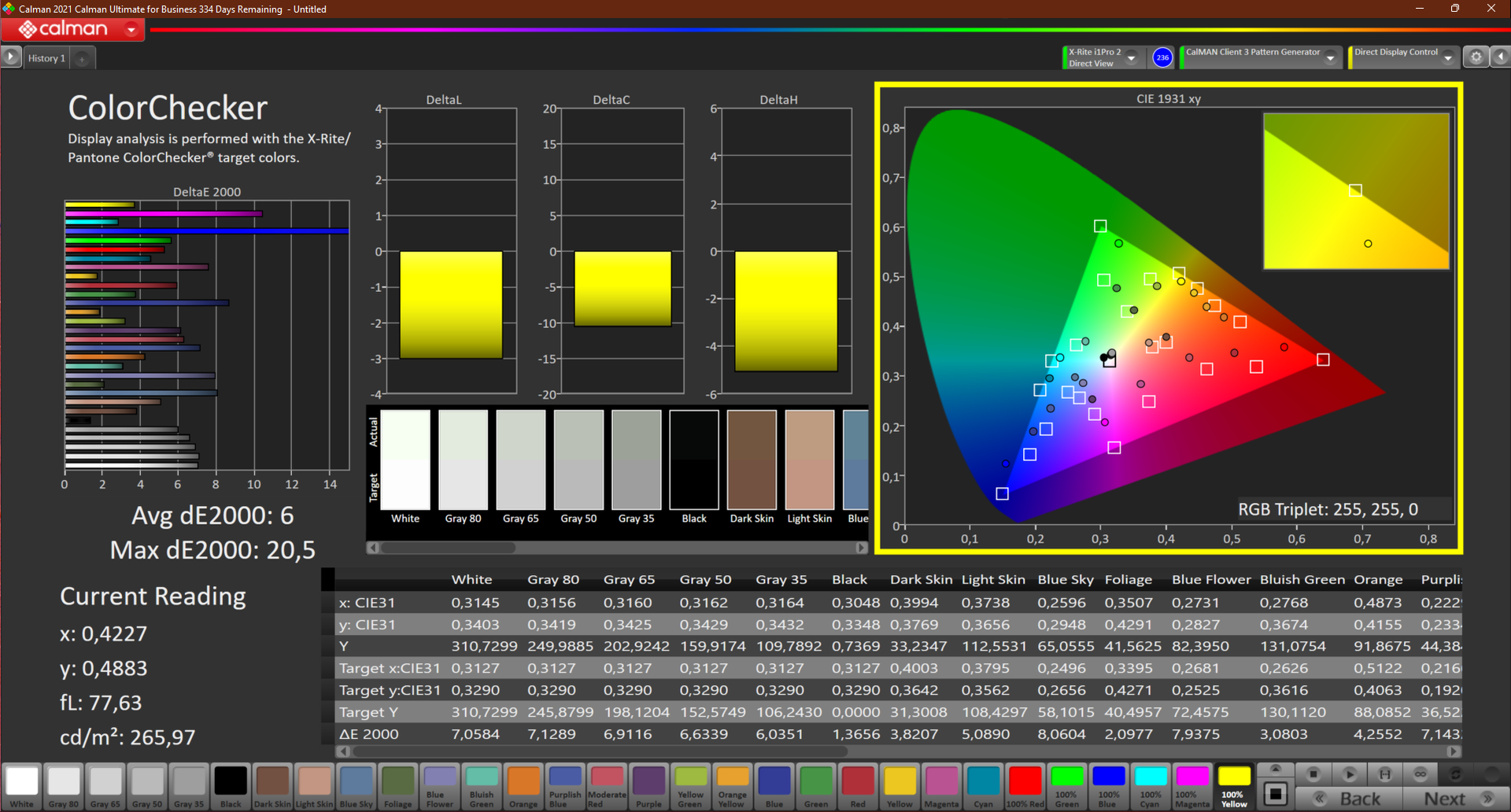

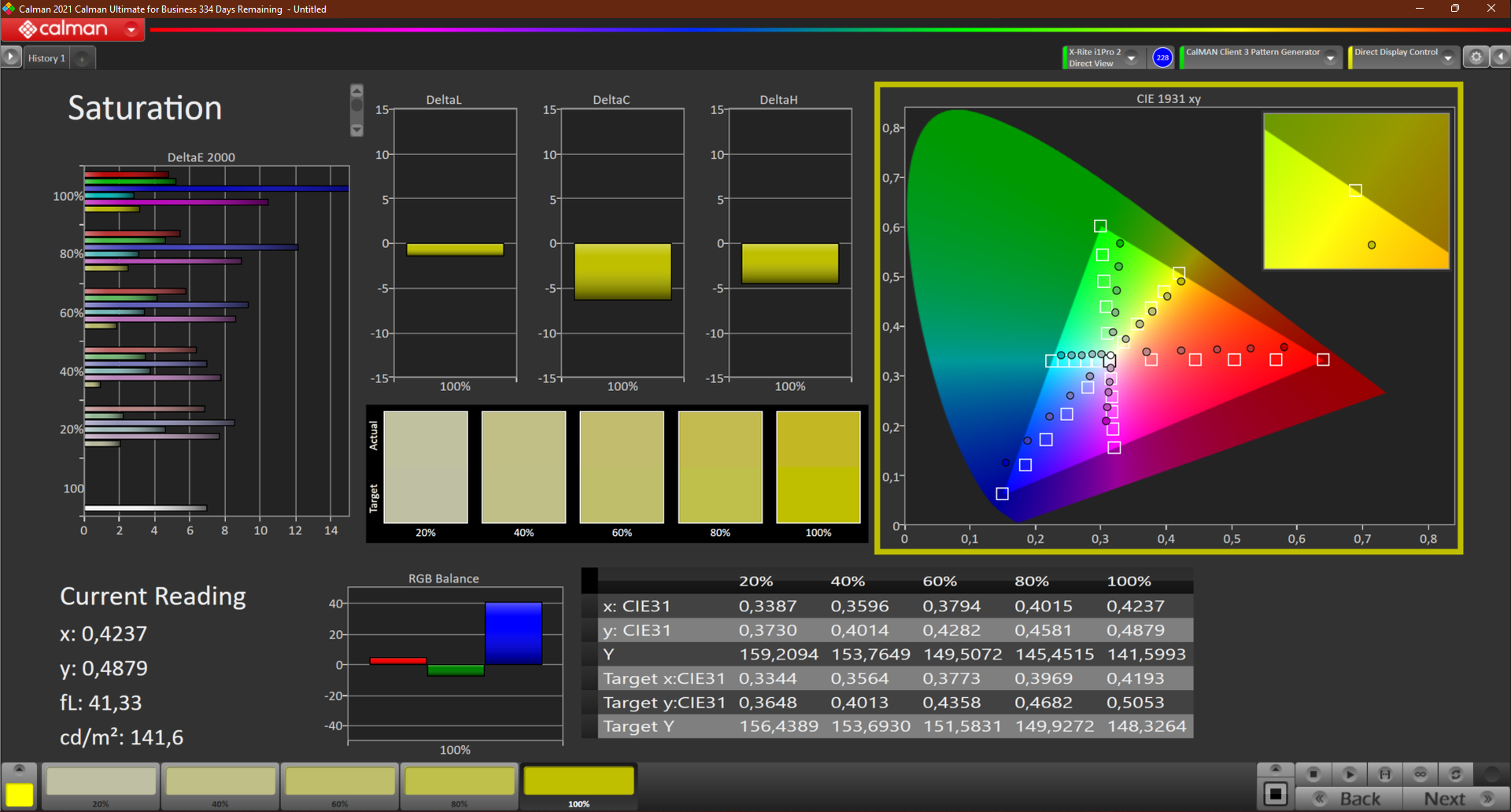

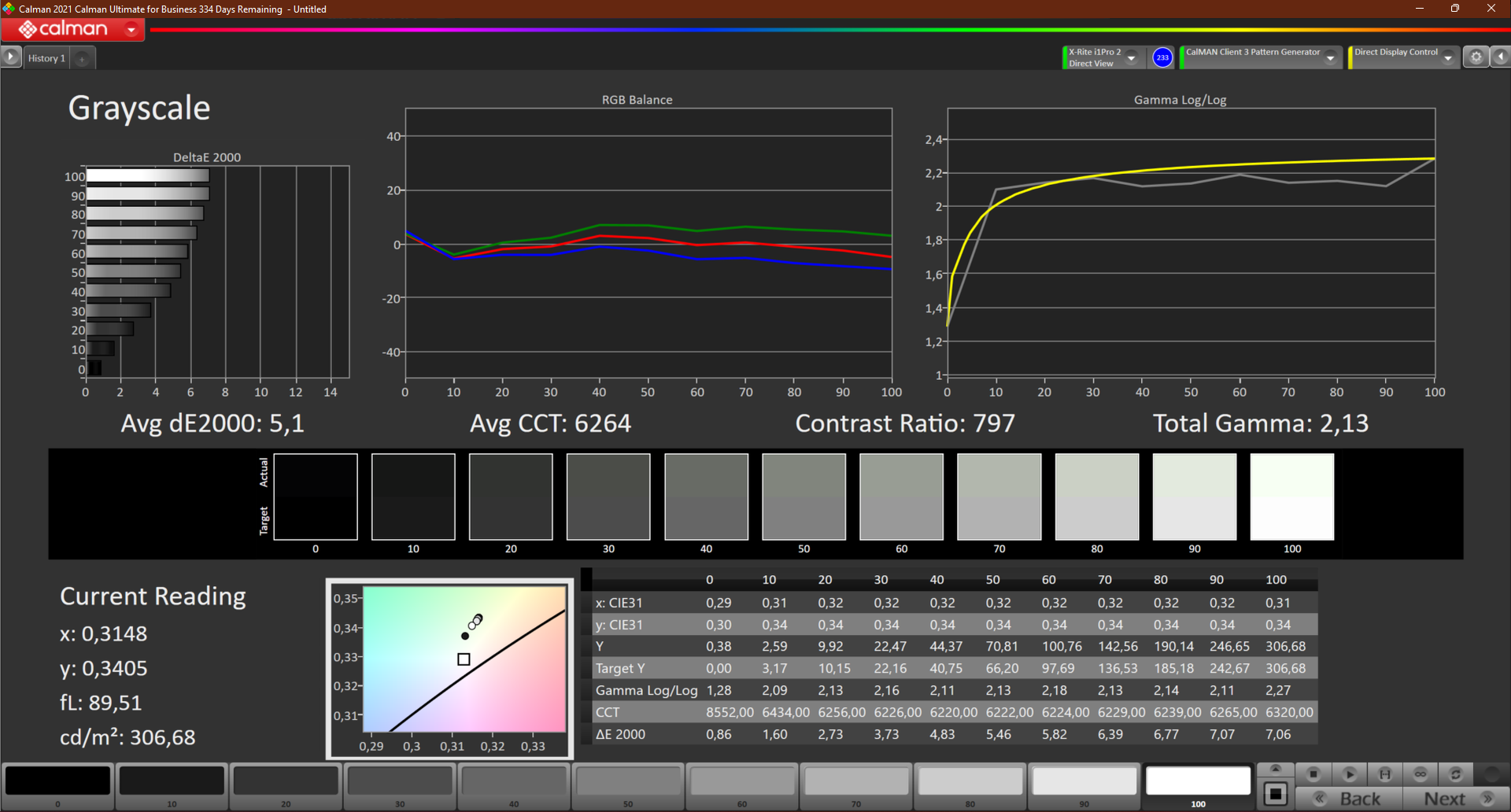

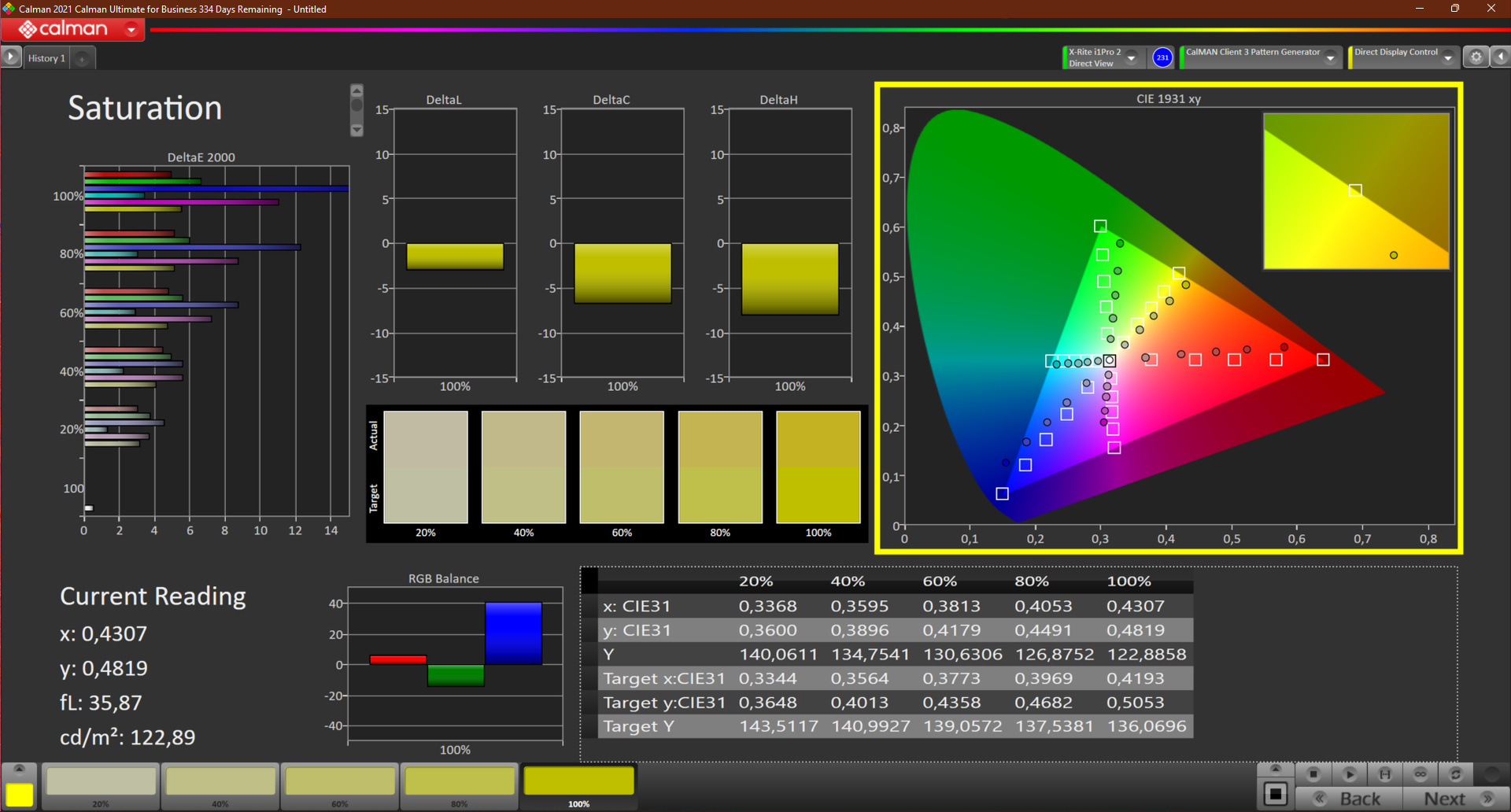

Calman ColorChecker在颜色偏差方面检测到相当高的数值。低色彩空间覆盖率主要反映在测量的最大值上。这意味着红、蓝、绿全色不符合规范。信息框中的校准文件仅在平均色彩偏差方面提供了微小的改进，达到了4.5的Delta E。

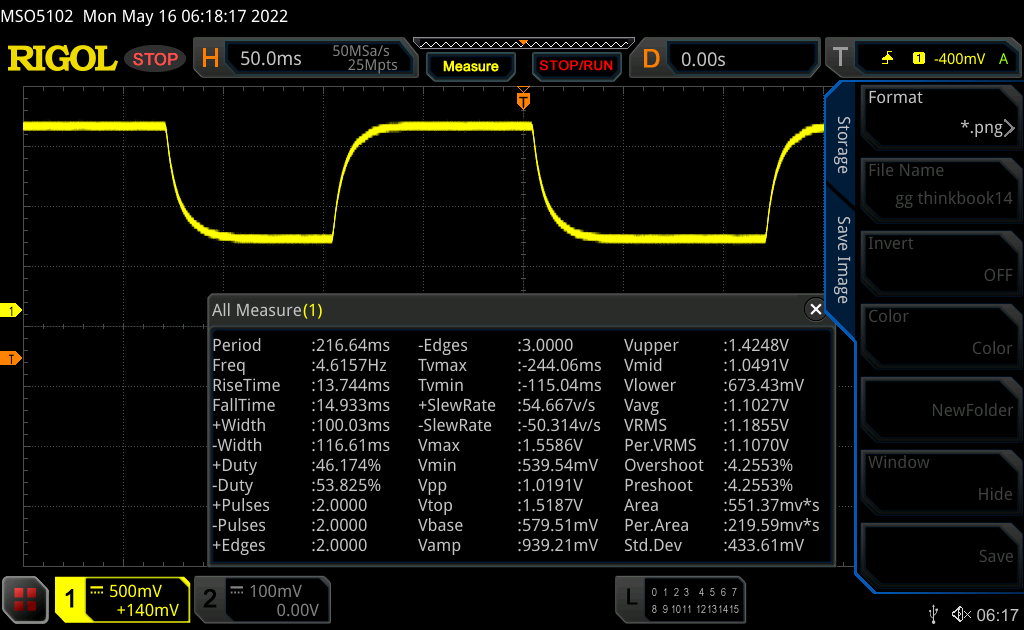

Display Response Times
ℹ

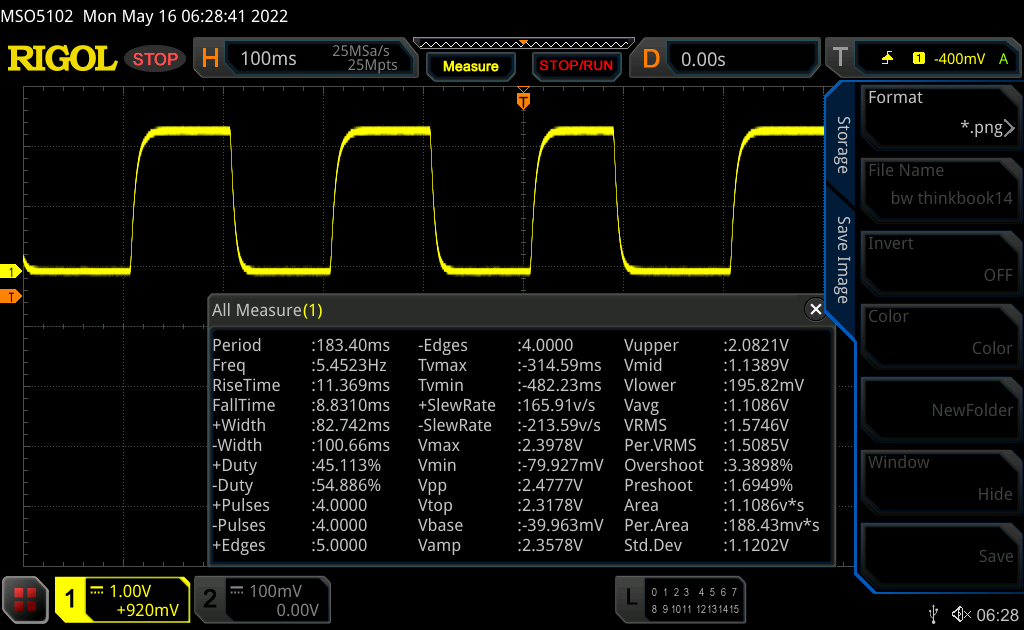

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.| ↔ Response Time Black to White | ||
|---|---|---|
| 20 ms ... rise ↗ and fall ↘ combined | ↗ 11 ms rise |  |
| ↘ 9 ms fall | ||
| The screen shows good response rates in our tests, but may be too slow for competitive gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 39 % of all devices are better. This means that the measured response time is similar to the average of all tested devices (21 ms). | ||
| ↔ Response Time 50% Grey to 80% Grey | ||
| 29 ms ... rise ↗ and fall ↘ combined | ↗ 14 ms rise |  |
| ↘ 15 ms fall | ||
| The screen shows relatively slow response rates in our tests and may be too slow for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 35 % of all devices are better. This means that the measured response time is better than the average of all tested devices (32.9 ms). | ||

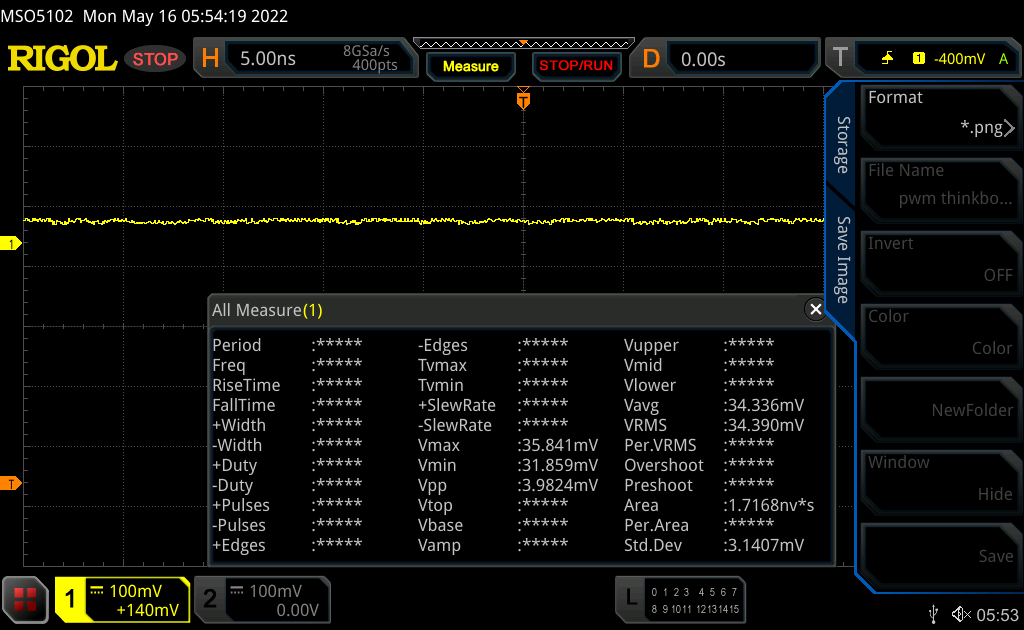

Screen Flickering / PWM (Pulse-Width Modulation)
ℹ
To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.| Screen flickering / PWM not detected |  | ||
In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8738 (minimum: 5 - maximum: 343500) Hz was measured. | |||

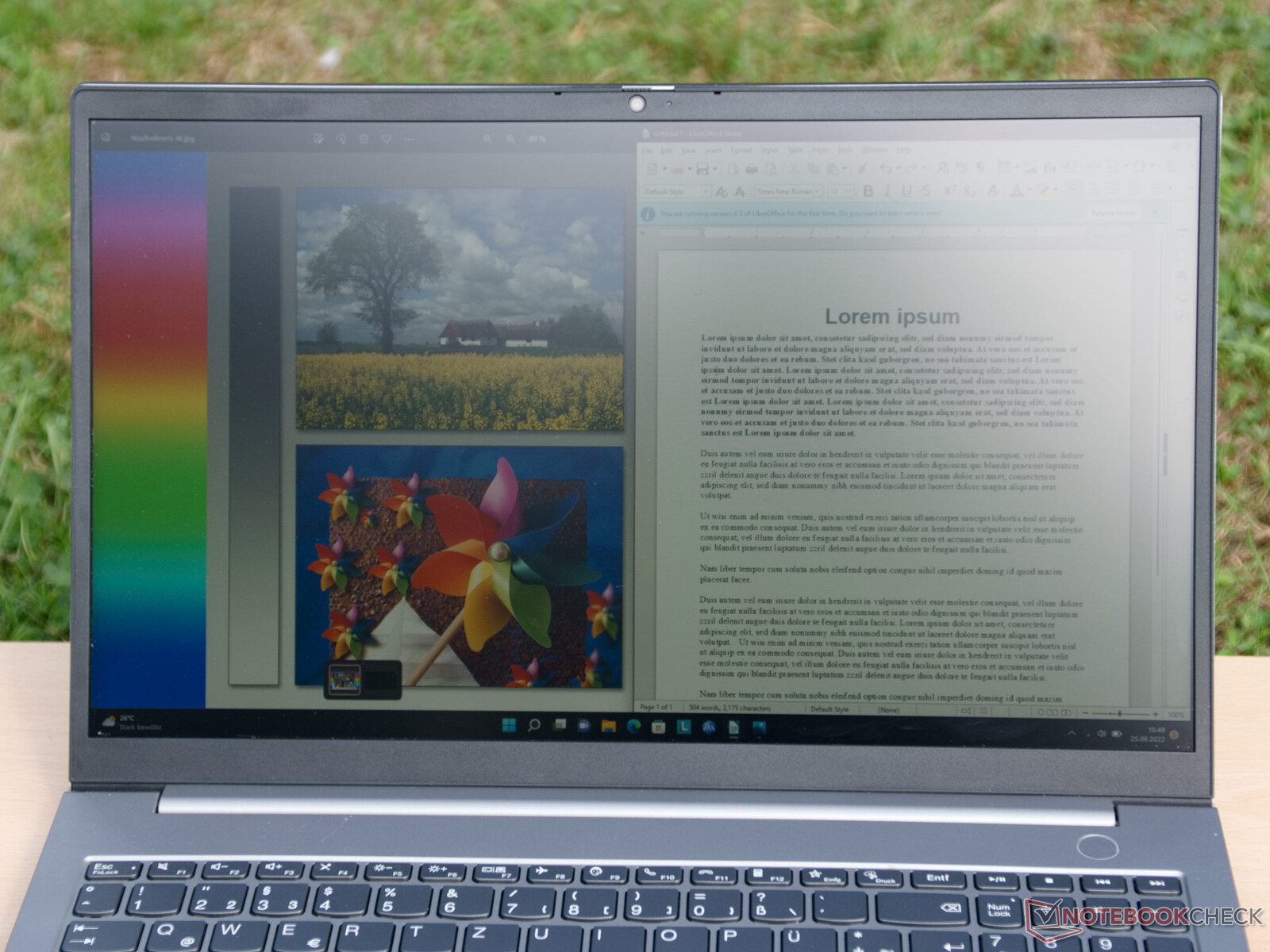

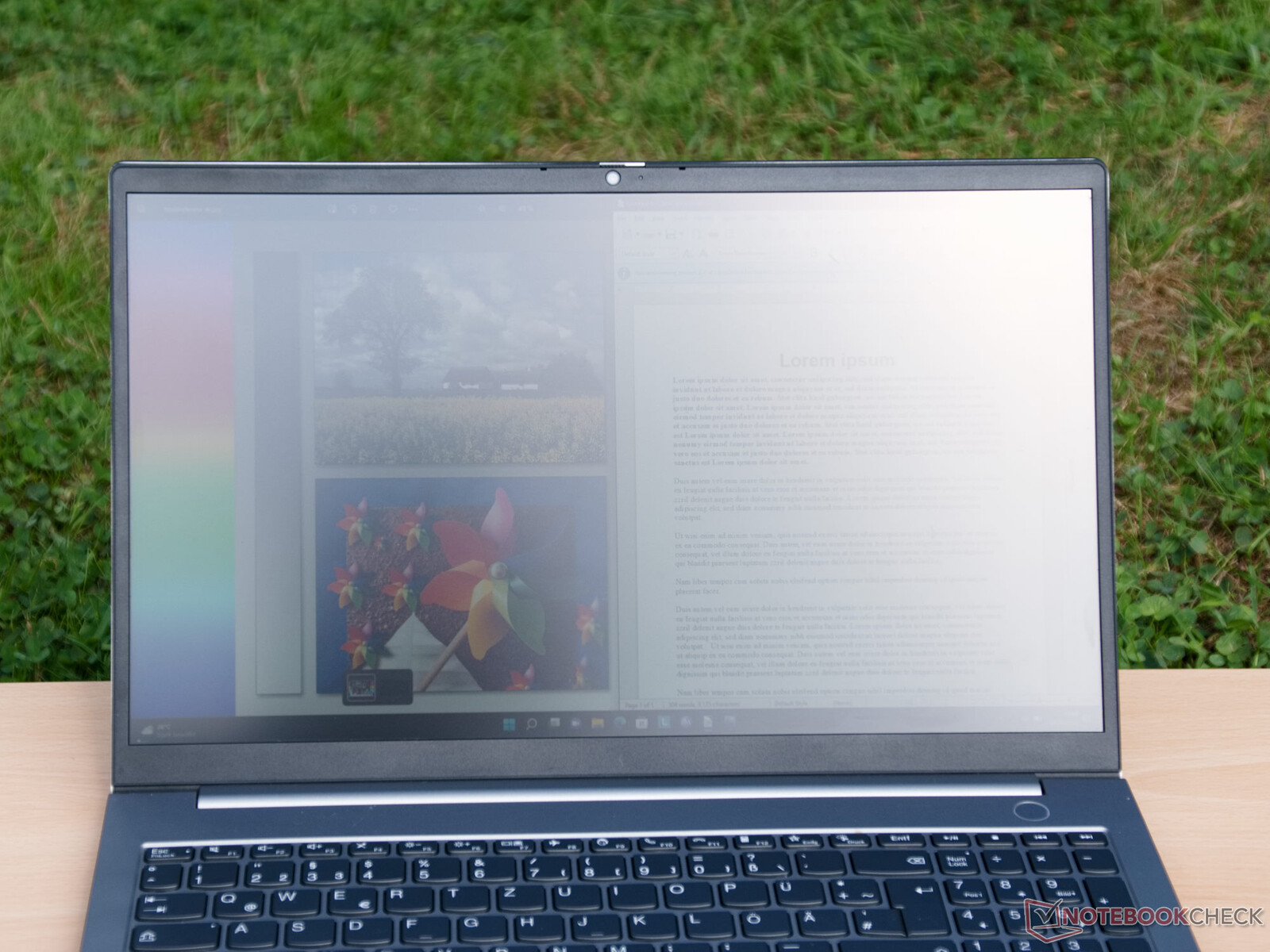

由于联想ThinkBook 14 G4的屏幕是哑光的，其283.4cd/m²的亮度通常足以在户外使用。然而，在这里，你应该期望根据你的位置而受到限制。

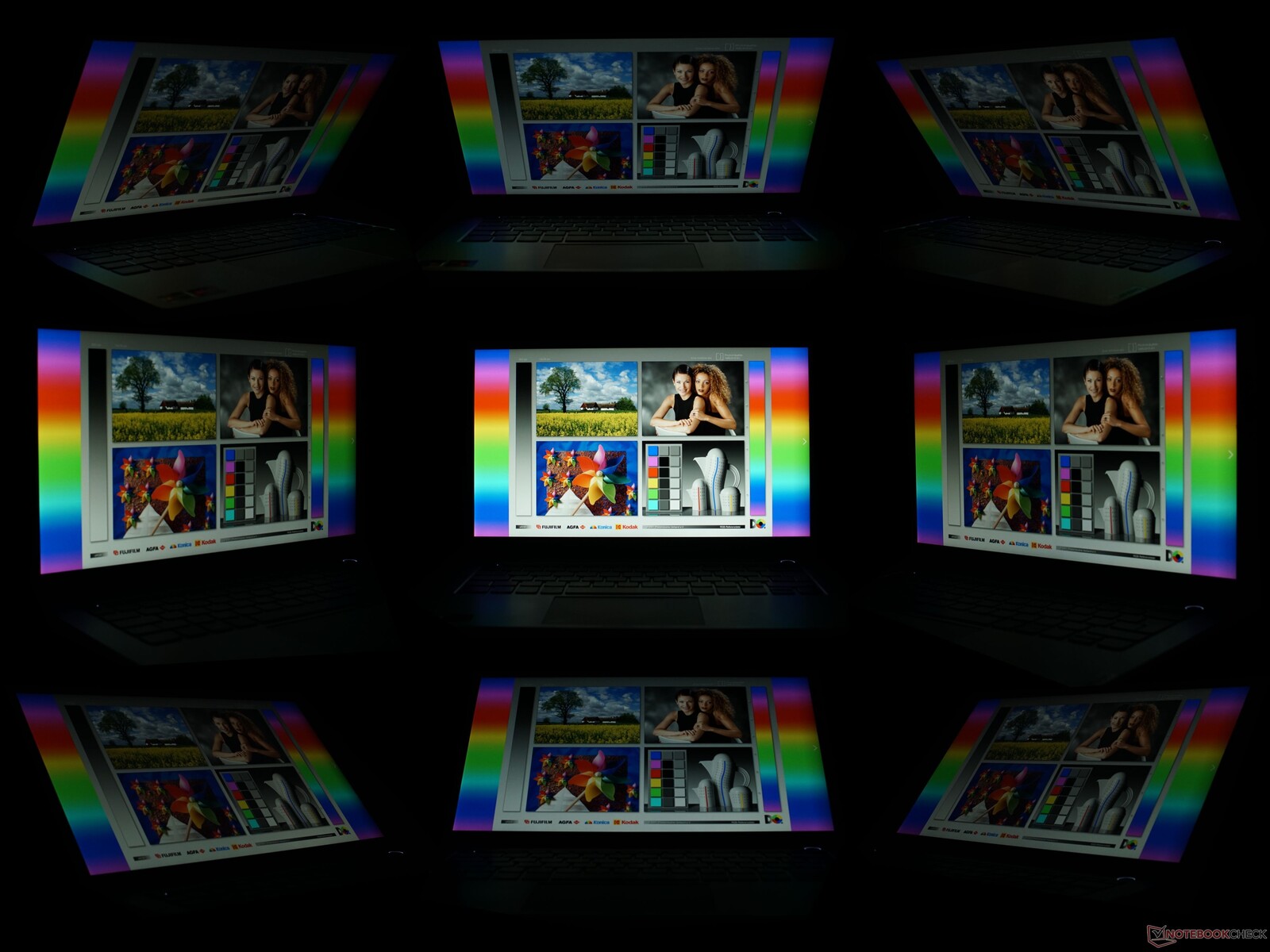

无论从哪个角度看，屏幕都能保持其颜色。当增加观看角度时，笔记本电脑的感知亮度只有轻微下降。
性能 - 由于Barcelo的存在，性能略有提高

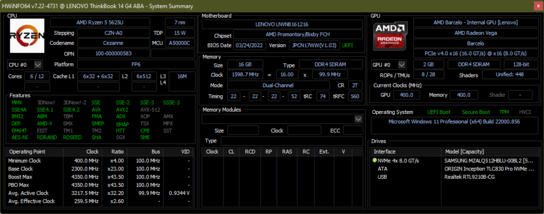

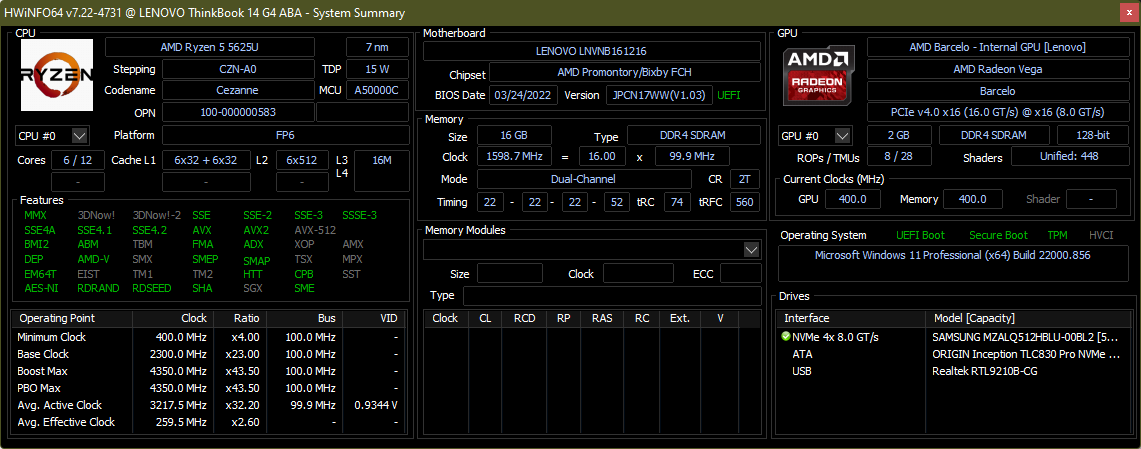

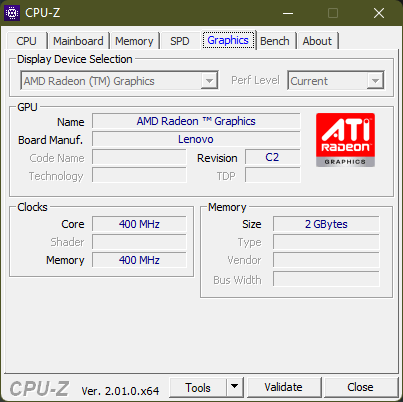

联想ThinkBook 14 G4有英特尔或AMD处理器，有多种内存版本可供选择。我们的测试笔记本电脑配备了AMD Ryzen 5 5625U和16GB的内存。其中，8GB的内存包含在SO-DIMM内存中。因此，该笔记本的内存可以扩展。
这些配置显然是为了适应办公笔记本电脑的要求。然而，虽然ThinkBook在办公和浏览器应用方面令人印象深刻，但在游戏和3D应用方面却不能完全跟上其他笔记本电脑。
测试条件
ThinkBook 14 G4的大多数基准测试都是在 "智能冷却 "性能模式激活时进行的。这种平衡的性能模式可以通过联想Vantage计划获得。最大性能模式也被激活，以确定最大耗电量和风扇噪音。
处理器

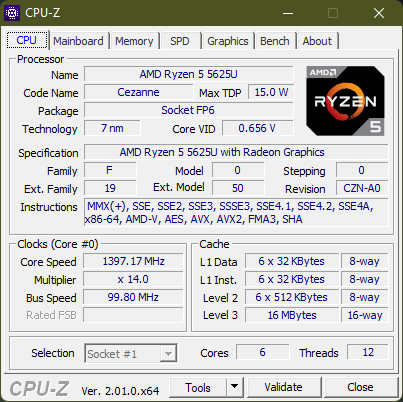

作为一款适用于小型和轻型笔记本的移动处理器，AMD Ryzen 5625UAMD Ryzen 5625U在ThinkBook 14 G4中可以充分利用其性能潜力。凭借Zen 3架构，这款来自2022年开始的Barcelo刷新的处理器在这里很强大。这并不令人惊讶，因为这款联想笔记本电脑中的处理器能够在其最大可配置的TDP为25瓦时持续工作。在最大性能模式下，该笔记本电脑将保持这一性能。激活 "智能冷却 "后，处理器将获得15瓦的能量。

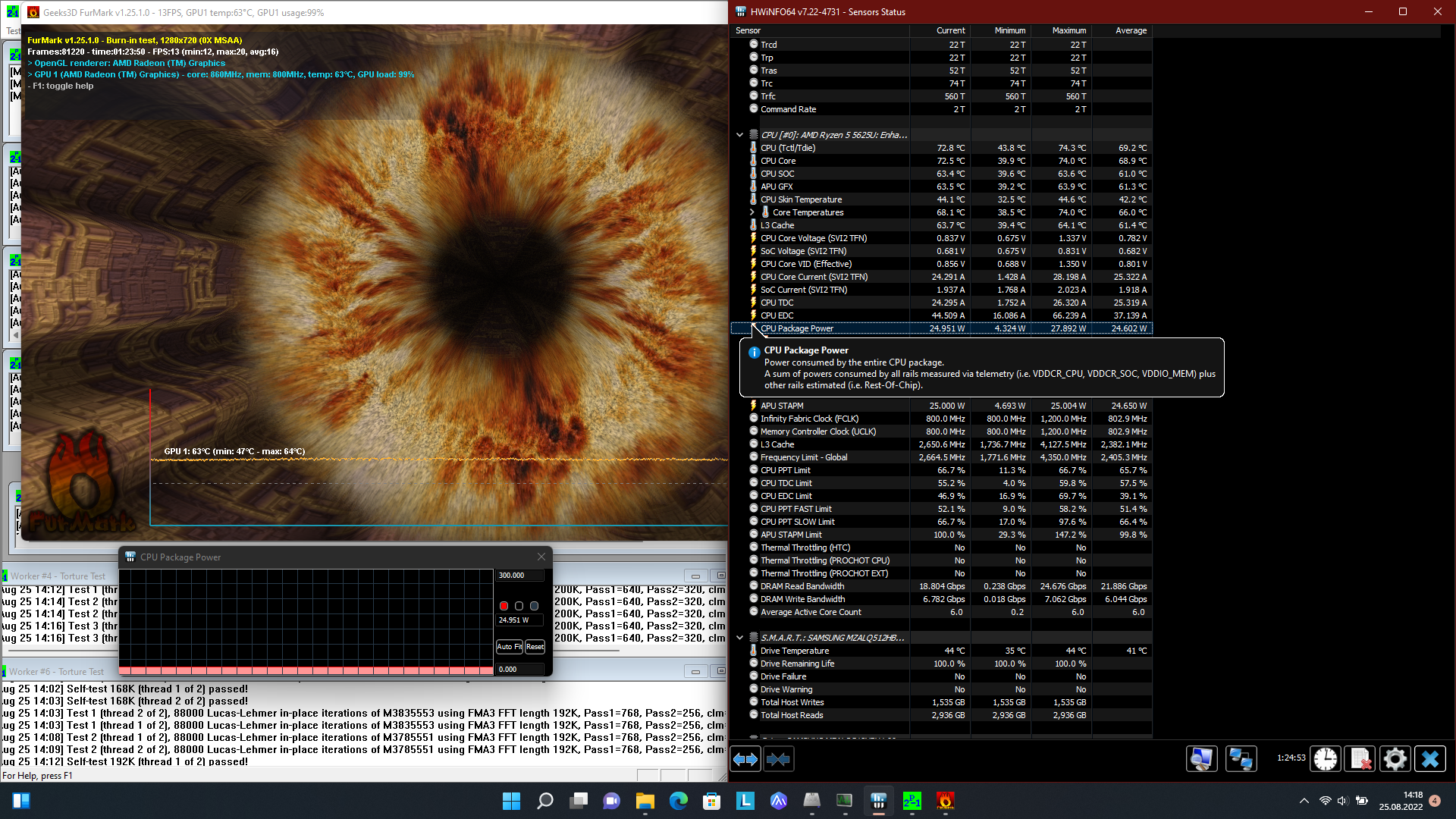

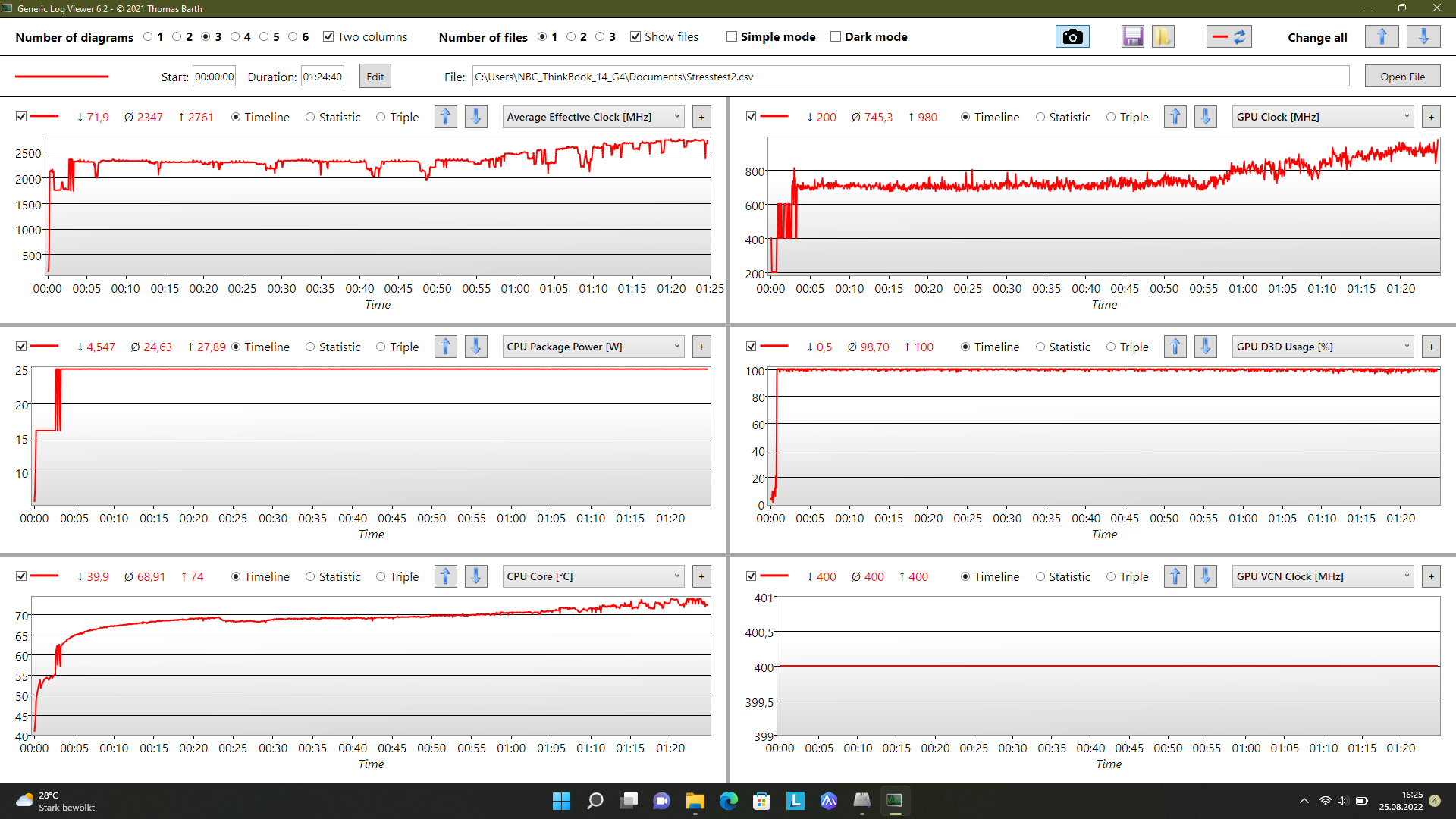

在涡轮增压功率下，我们在这里测得约50瓦。这使处理器时钟即使长时间保持在2.3GHz以上，并在短暂的时间内达到4.3GHz。
总的来说，Ryzen 5在通用基准测试中表现出强劲的性能。在几乎相同的ThinkBook 15 G4中，处理器的基准测试是在最高性能模式下进行的。
Cinebench R15 Multi Dauertest
Lenovo ThinkBook 14 G4 21DK0004GE AMD Ryzen 5 5625U: Ø1317 (1220.85-1478.8)
Dell Inspiron 14 5425 6VPKR AMD Ryzen 5 5625U: Ø1366 (1354.14-1378.36)
Acer TravelMate P4 TMP414-51-59MR Intel Core i5-1135G7: Ø680 (614.84-797.19)
HP Pavilion 14-dv0357ng Intel Core i5-1135G7: Ø674 (639.66-774.95)
Dynabook Tecra A40-J-12E Intel Core i5-1135G7: Ø847 (840.09-894.41)
Lenovo ThinkBook 15 G4 21DL0009GE AMD Ryzen 5 5625U: Ø1366 (1305.18-1529.23)
SCHENKER Work 15 Tiger Lake-H Intel Core i7-11370H; Performance Mode: Ø861 (841.54-932.92)
SCHENKER Work 15 Tiger Lake-H Intel Core i7-11370H: Ø664 (645.73-816.34)
SCHENKER Work 15 Tiger Lake-H Intel Core i7-11370H; On Battery: Ø487 (449.1-777.88)
HP ProBook 450 G9 6A180EA Intel Core i7-1255U; @Default (15W PL1): Ø811 (792.19-919)
CPU Performance Rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
| CPU Performance Rating | |
| Average of class Office | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
| Dell Inspiron 14 5425 6VPKR | |
| Average AMD Ryzen 5 5625U | |
| Lenovo ThinkBook 14 G4 21DK0004GE | |
| SCHENKER Work 15 Tiger Lake-H | |
| Dynabook Tecra A40-J-12E | |
| Acer TravelMate P4 TMP414-51-59MR | |
| HP Pavilion 14-dv0357ng -6! | |
| Cinebench R23 / Multi Core | |
| Average of class Office (1577 - 15743, n=94, last 2 years) | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
| Dell Inspiron 14 5425 6VPKR | |
| Average AMD Ryzen 5 5625U (7213 - 9100, n=7) | |
| Lenovo ThinkBook 14 G4 21DK0004GE | |
| Dynabook Tecra A40-J-12E | |
| Acer TravelMate P4 TMP414-51-59MR | |
| SCHENKER Work 15 Tiger Lake-H | |
| HP Pavilion 14-dv0357ng | |
| Cinebench R23 / Single Core | |
| Average of class Office (618 - 1995, n=94, last 2 years) | |
| SCHENKER Work 15 Tiger Lake-H | |
| Dell Inspiron 14 5425 6VPKR | |
| Average AMD Ryzen 5 5625U (1345 - 1400, n=7) | |
| Acer TravelMate P4 TMP414-51-59MR | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
| Lenovo ThinkBook 14 G4 21DK0004GE | |
| Dynabook Tecra A40-J-12E | |
| HP Pavilion 14-dv0357ng | |
| Cinebench R20 / CPU (Multi Core) | |
| Average of class Office (590 - 5980, n=94, last 2 years) | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
| Dell Inspiron 14 5425 6VPKR | |
| Average AMD Ryzen 5 5625U (2820 - 3549, n=7) | |
| Lenovo ThinkBook 14 G4 21DK0004GE | |
| Dynabook Tecra A40-J-12E | |
| Acer TravelMate P4 TMP414-51-59MR | |
| SCHENKER Work 15 Tiger Lake-H | |
| HP Pavilion 14-dv0357ng | |
| Cinebench R20 / CPU (Single Core) | |
| Average of class Office (229 - 766, n=94, last 2 years) | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
| Lenovo ThinkBook 14 G4 21DK0004GE | |
| Average AMD Ryzen 5 5625U (533 - 546, n=7) | |
| Dell Inspiron 14 5425 6VPKR | |
| SCHENKER Work 15 Tiger Lake-H | |
| Acer TravelMate P4 TMP414-51-59MR | |
| Dynabook Tecra A40-J-12E | |
| HP Pavilion 14-dv0357ng | |
| Cinebench R15 / CPU Multi 64Bit | |
| Average of class Office (246 - 2642, n=95, last 2 years) | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
| Lenovo ThinkBook 14 G4 21DK0004GE | |
| Average AMD Ryzen 5 5625U (1219 - 1529, n=7) | |
| Dell Inspiron 14 5425 6VPKR | |
| SCHENKER Work 15 Tiger Lake-H | |
| SCHENKER Work 15 Tiger Lake-H | |
| SCHENKER Work 15 Tiger Lake-H | |
| Dynabook Tecra A40-J-12E | |
| Acer TravelMate P4 TMP414-51-59MR | |
| HP Pavilion 14-dv0357ng | |
| Cinebench R15 / CPU Single 64Bit | |
| Average of class Office (98 - 284, n=94, last 2 years) | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
| Lenovo ThinkBook 14 G4 21DK0004GE | |
| Dell Inspiron 14 5425 6VPKR | |
| Average AMD Ryzen 5 5625U (219 - 226, n=7) | |
| SCHENKER Work 15 Tiger Lake-H | |
| SCHENKER Work 15 Tiger Lake-H | |
| Dynabook Tecra A40-J-12E | |
| Acer TravelMate P4 TMP414-51-59MR | |
| Blender / v2.79 BMW27 CPU | |
| HP Pavilion 14-dv0357ng | |
| SCHENKER Work 15 Tiger Lake-H | |
| Acer TravelMate P4 TMP414-51-59MR | |
| Dynabook Tecra A40-J-12E | |
| Average of class Office (208 - 1956, n=95, last 2 years) | |
| Lenovo ThinkBook 14 G4 21DK0004GE | |
| Average AMD Ryzen 5 5625U (347 - 415, n=7) | |
| Dell Inspiron 14 5425 6VPKR | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
| 7-Zip 18.03 / 7z b 4 | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
| Dell Inspiron 14 5425 6VPKR | |
| Average of class Office (7532 - 65460, n=95, last 2 years) | |
| Average AMD Ryzen 5 5625U (35573 - 40034, n=7) | |
| Lenovo ThinkBook 14 G4 21DK0004GE | |
| Dynabook Tecra A40-J-12E | |
| Acer TravelMate P4 TMP414-51-59MR | |
| SCHENKER Work 15 Tiger Lake-H | |
| HP Pavilion 14-dv0357ng | |
| 7-Zip 18.03 / 7z b 4 -mmt1 | |
| Average of class Office (2972 - 6687, n=95, last 2 years) | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
| Lenovo ThinkBook 14 G4 21DK0004GE | |
| SCHENKER Work 15 Tiger Lake-H | |
| Average AMD Ryzen 5 5625U (5070 - 5260, n=7) | |
| Dell Inspiron 14 5425 6VPKR | |
| HP Pavilion 14-dv0357ng | |
| Acer TravelMate P4 TMP414-51-59MR | |
| Dynabook Tecra A40-J-12E | |
| Geekbench 5.5 / Multi-Core | |
| Average of class Office (1018 - 11980, n=94, last 2 years) | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
| Dell Inspiron 14 5425 6VPKR | |
| Lenovo ThinkBook 14 G4 21DK0004GE | |
| Average AMD Ryzen 5 5625U (4813 - 6472, n=7) | |
| SCHENKER Work 15 Tiger Lake-H | |
| Dynabook Tecra A40-J-12E | |
| Acer TravelMate P4 TMP414-51-59MR | |
| Geekbench 5.5 / Single-Core | |
| Average of class Office (510 - 1995, n=95, last 2 years) | |
| SCHENKER Work 15 Tiger Lake-H | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
| Dell Inspiron 14 5425 6VPKR | |
| Average AMD Ryzen 5 5625U (1361 - 1450, n=7) | |
| Lenovo ThinkBook 14 G4 21DK0004GE | |
| Acer TravelMate P4 TMP414-51-59MR | |
| Dynabook Tecra A40-J-12E | |
| HWBOT x265 Benchmark v2.2 / 4k Preset | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
| Dell Inspiron 14 5425 6VPKR | |
| Average of class Office (1.72 - 18.7, n=93, last 2 years) | |
| Average AMD Ryzen 5 5625U (9.28 - 11.7, n=7) | |
| Lenovo ThinkBook 14 G4 21DK0004GE | |
| Dynabook Tecra A40-J-12E | |
| Acer TravelMate P4 TMP414-51-59MR | |
| SCHENKER Work 15 Tiger Lake-H | |
| LibreOffice / 20 Documents To PDF | |
| Dynabook Tecra A40-J-12E | |
| Average of class Office (31.3 - 129.6, n=93, last 2 years) | |
| Acer TravelMate P4 TMP414-51-59MR | |
| Dell Inspiron 14 5425 6VPKR | |
| Lenovo ThinkBook 14 G4 21DK0004GE | |
| Average AMD Ryzen 5 5625U (46.9 - 52, n=7) | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
| SCHENKER Work 15 Tiger Lake-H | |
| R Benchmark 2.5 / Overall mean | |
| Dynabook Tecra A40-J-12E | |
| Acer TravelMate P4 TMP414-51-59MR | |
| SCHENKER Work 15 Tiger Lake-H | |
| Dell Inspiron 14 5425 6VPKR | |
| Lenovo ThinkBook 14 G4 21DK0004GE | |
| Average AMD Ryzen 5 5625U (0.534 - 0.572, n=7) | |
| Average of class Office (0.4244 - 1.135, n=92, last 2 years) | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
* ... smaller is better
Performance Rating: Percent
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
| Performance Rating | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
| Average AMD Ryzen 5 5625U | |
| Average of class Office | |
| Dell Inspiron 14 5425 6VPKR | |
| Lenovo ThinkBook 14 G4 21DK0004GE | |
| SCHENKER Work 15 Tiger Lake-H | |
| Dynabook Tecra A40-J-12E | |
| Acer TravelMate P4 TMP414-51-59MR | |
| AIDA64 / FP32 Ray-Trace | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
| Dell Inspiron 14 5425 6VPKR | |
| Average AMD Ryzen 5 5625U (8446 - 10645, n=7) | |
| Average of class Office (763 - 24250, n=94, last 2 years) | |
| Lenovo ThinkBook 14 G4 21DK0004GE | |
| Dynabook Tecra A40-J-12E | |
| SCHENKER Work 15 Tiger Lake-H | |
| Acer TravelMate P4 TMP414-51-59MR | |
| AIDA64 / FPU Julia | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
| Dell Inspiron 14 5425 6VPKR | |
| Average AMD Ryzen 5 5625U (54270 - 67729, n=7) | |
| Lenovo ThinkBook 14 G4 21DK0004GE | |
| Average of class Office (4113 - 102228, n=94, last 2 years) | |
| SCHENKER Work 15 Tiger Lake-H | |
| Dynabook Tecra A40-J-12E | |
| Acer TravelMate P4 TMP414-51-59MR | |
| AIDA64 / CPU SHA3 | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
| Average of class Office (287 - 4551, n=94, last 2 years) | |
| Average AMD Ryzen 5 5625U (1807 - 2314, n=7) | |
| SCHENKER Work 15 Tiger Lake-H | |
| Dell Inspiron 14 5425 6VPKR | |
| Dynabook Tecra A40-J-12E | |
| Lenovo ThinkBook 14 G4 21DK0004GE | |
| Acer TravelMate P4 TMP414-51-59MR | |
| AIDA64 / CPU Queen | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
| Lenovo ThinkBook 14 G4 21DK0004GE | |
| Average AMD Ryzen 5 5625U (67115 - 77047, n=7) | |
| Dell Inspiron 14 5425 6VPKR | |
| Average of class Office (8185 - 115197, n=94, last 2 years) | |
| SCHENKER Work 15 Tiger Lake-H | |
| Acer TravelMate P4 TMP414-51-59MR | |
| Dynabook Tecra A40-J-12E | |
| AIDA64 / FPU SinJulia | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
| Dell Inspiron 14 5425 6VPKR | |
| Average AMD Ryzen 5 5625U (8128 - 9146, n=7) | |
| Lenovo ThinkBook 14 G4 21DK0004GE | |
| Average of class Office (404 - 14288, n=94, last 2 years) | |
| SCHENKER Work 15 Tiger Lake-H | |
| Acer TravelMate P4 TMP414-51-59MR | |
| Dynabook Tecra A40-J-12E | |
| AIDA64 / FPU Mandel | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
| Dell Inspiron 14 5425 6VPKR | |
| Average AMD Ryzen 5 5625U (29835 - 37072, n=7) | |
| Lenovo ThinkBook 14 G4 21DK0004GE | |
| Average of class Office (2075 - 54365, n=94, last 2 years) | |
| SCHENKER Work 15 Tiger Lake-H | |
| Dynabook Tecra A40-J-12E | |
| Acer TravelMate P4 TMP414-51-59MR | |
| AIDA64 / CPU AES | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
| SCHENKER Work 15 Tiger Lake-H | |
| Acer TravelMate P4 TMP414-51-59MR | |
| Average AMD Ryzen 5 5625U (31782 - 91153, n=7) | |
| Average of class Office (7860 - 155900, n=94, last 2 years) | |
| Dynabook Tecra A40-J-12E | |
| Dell Inspiron 14 5425 6VPKR | |
| Lenovo ThinkBook 14 G4 21DK0004GE | |
| AIDA64 / CPU ZLib | |
| Average of class Office (78 - 1018, n=94, last 2 years) | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
| Dell Inspiron 14 5425 6VPKR | |
| Average AMD Ryzen 5 5625U (481 - 592, n=7) | |
| Lenovo ThinkBook 14 G4 21DK0004GE | |
| SCHENKER Work 15 Tiger Lake-H | |
| Acer TravelMate P4 TMP414-51-59MR | |
| Dynabook Tecra A40-J-12E | |
| AIDA64 / FP64 Ray-Trace | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
| Dell Inspiron 14 5425 6VPKR | |
| Average AMD Ryzen 5 5625U (4472 - 5653, n=7) | |
| Average of class Office (432 - 12755, n=94, last 2 years) | |
| Lenovo ThinkBook 14 G4 21DK0004GE | |
| SCHENKER Work 15 Tiger Lake-H | |
| Dynabook Tecra A40-J-12E | |
| Acer TravelMate P4 TMP414-51-59MR | |
| AIDA64 / CPU PhotoWorxx | |
| Average of class Office (4814 - 54971, n=94, last 2 years) | |
| SCHENKER Work 15 Tiger Lake-H | |
| Lenovo ThinkBook 14 G4 21DK0004GE | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
| Dell Inspiron 14 5425 6VPKR | |
| Average AMD Ryzen 5 5625U (7138 - 14839, n=7) | |
| Dynabook Tecra A40-J-12E | |
| Acer TravelMate P4 TMP414-51-59MR | |
系统性能
在系统基准测试中，这台笔记本电脑表现出了采用AMD处理器的优秀笔记本电脑的预期结果。例如，PCMark 10和CrossMark的分数在多核负载下的子领域都很出色，而英特尔处理器在特别是单核负载下则显示出其优势。
因此，我们对该笔记本电脑的系统性能没有任何抱怨。
PCMark 10: Score | Essentials | Productivity | Digital Content Creation
CrossMark: Overall | Productivity | Creativity | Responsiveness
CrossMark: Overall | Productivity | Creativity | Responsiveness
| PCMark 10 / Score | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
| Average AMD Ryzen 5 5625U, AMD Radeon RX Vega 7 (5573 - 6025, n=5) | |
| Lenovo ThinkBook 14 G4 21DK0004GE | |
| Dell Inspiron 14 5425 6VPKR | |
| Average of class Office (2463 - 7344, n=86, last 2 years) | |
| SCHENKER Work 15 Tiger Lake-H | |
| HP Pavilion 14-dv0357ng | |
| Acer TravelMate P4 TMP414-51-59MR | |
| Dynabook Tecra A40-J-12E | |
| PCMark 10 / Essentials | |
| SCHENKER Work 15 Tiger Lake-H | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
| Average AMD Ryzen 5 5625U, AMD Radeon RX Vega 7 (10033 - 10555, n=5) | |
| Average of class Office (5575 - 20841, n=86, last 2 years) | |
| Dell Inspiron 14 5425 6VPKR | |
| Lenovo ThinkBook 14 G4 21DK0004GE | |
| HP Pavilion 14-dv0357ng | |
| Dynabook Tecra A40-J-12E | |
| Acer TravelMate P4 TMP414-51-59MR | |
| PCMark 10 / Productivity | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
| Average AMD Ryzen 5 5625U, AMD Radeon RX Vega 7 (8931 - 9462, n=5) | |
| Lenovo ThinkBook 14 G4 21DK0004GE | |
| Dell Inspiron 14 5425 6VPKR | |
| Average of class Office (3041 - 10415, n=86, last 2 years) | |
| SCHENKER Work 15 Tiger Lake-H | |
| HP Pavilion 14-dv0357ng | |
| Acer TravelMate P4 TMP414-51-59MR | |
| Dynabook Tecra A40-J-12E | |
| PCMark 10 / Digital Content Creation | |
| Average of class Office (2126 - 9773, n=86, last 2 years) | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
| SCHENKER Work 15 Tiger Lake-H | |
| Dell Inspiron 14 5425 6VPKR | |
| Average AMD Ryzen 5 5625U, AMD Radeon RX Vega 7 (4920 - 5944, n=5) | |
| Lenovo ThinkBook 14 G4 21DK0004GE | |
| Dynabook Tecra A40-J-12E | |
| Acer TravelMate P4 TMP414-51-59MR | |
| HP Pavilion 14-dv0357ng | |
| CrossMark / Overall | |
| Average of class Office (348 - 1891, n=88, last 2 years) | |
| Dell Inspiron 14 5425 6VPKR | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
| Lenovo ThinkBook 14 G4 21DK0004GE | |
| Average AMD Ryzen 5 5625U, AMD Radeon RX Vega 7 (1220 - 1330, n=5) | |
| Acer TravelMate P4 TMP414-51-59MR | |
| CrossMark / Productivity | |
| Average of class Office (393 - 1870, n=88, last 2 years) | |
| Dell Inspiron 14 5425 6VPKR | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
| Average AMD Ryzen 5 5625U, AMD Radeon RX Vega 7 (1305 - 1375, n=5) | |
| Lenovo ThinkBook 14 G4 21DK0004GE | |
| Acer TravelMate P4 TMP414-51-59MR | |
| CrossMark / Creativity | |
| Average of class Office (340 - 1982, n=88, last 2 years) | |
| Lenovo ThinkBook 14 G4 21DK0004GE | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
| Dell Inspiron 14 5425 6VPKR | |
| Average AMD Ryzen 5 5625U, AMD Radeon RX Vega 7 (1171 - 1358, n=5) | |
| Acer TravelMate P4 TMP414-51-59MR | |
| CrossMark / Responsiveness | |
| Average of class Office (258 - 2017, n=88, last 2 years) | |
| Dell Inspiron 14 5425 6VPKR | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
| Average AMD Ryzen 5 5625U, AMD Radeon RX Vega 7 (1103 - 1170, n=5) | |
| Lenovo ThinkBook 14 G4 21DK0004GE | |
| Acer TravelMate P4 TMP414-51-59MR | |

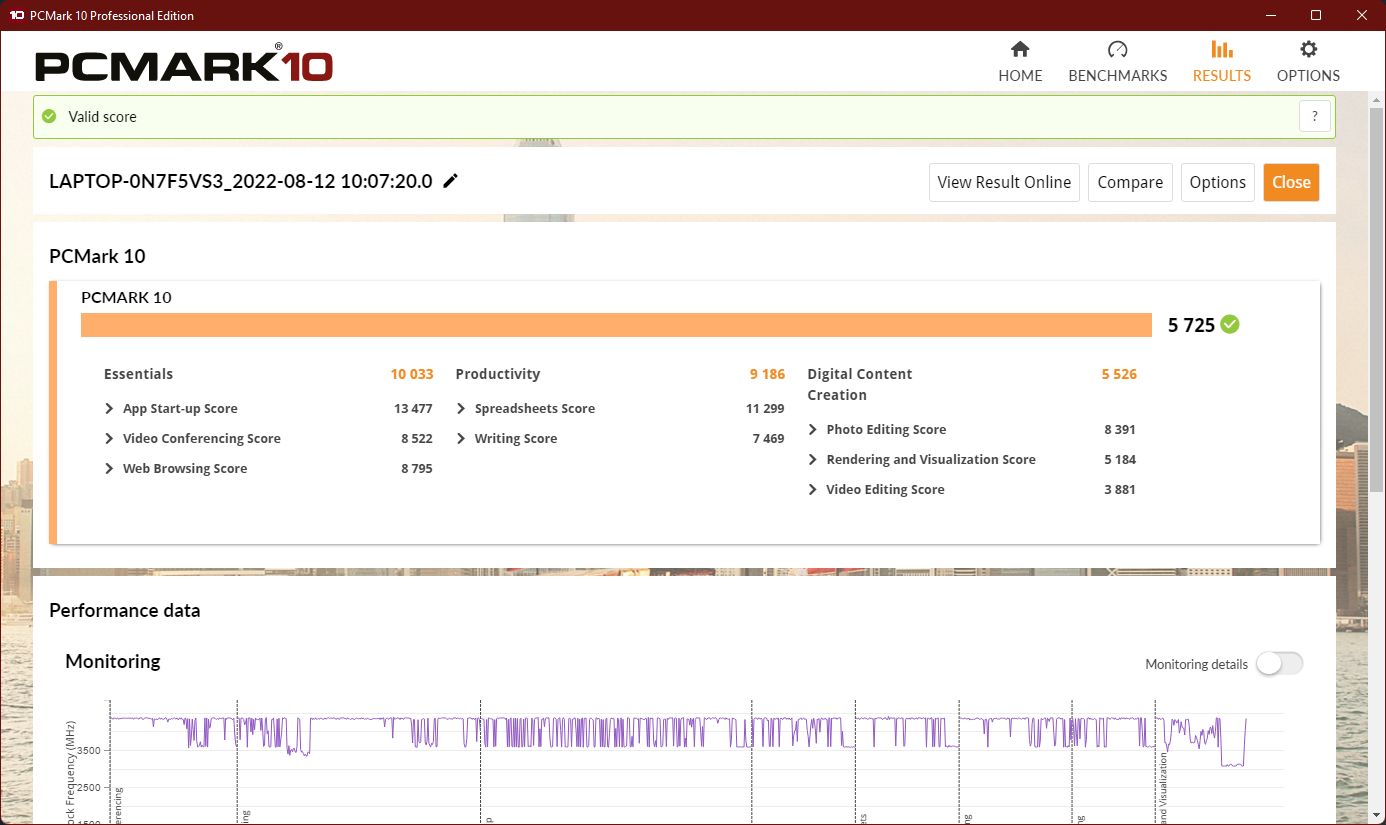

| PCMark 10 Score | 5725 points | |
Help | ||
| AIDA64 / Memory Copy | |
| Average of class Office (7158 - 108783, n=95, last 2 years) | |
| SCHENKER Work 15 Tiger Lake-H | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
| Lenovo ThinkBook 14 G4 21DK0004GE | |
| Dell Inspiron 14 5425 6VPKR | |
| Average AMD Ryzen 5 5625U (19943 - 34187, n=7) | |
| Dynabook Tecra A40-J-12E | |
| Acer TravelMate P4 TMP414-51-59MR | |
| AIDA64 / Memory Read | |
| Average of class Office (7325 - 123557, n=95, last 2 years) | |
| SCHENKER Work 15 Tiger Lake-H | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
| Lenovo ThinkBook 14 G4 21DK0004GE | |
| Dell Inspiron 14 5425 6VPKR | |
| Average AMD Ryzen 5 5625U (22532 - 39612, n=7) | |
| Acer TravelMate P4 TMP414-51-59MR | |
| Dynabook Tecra A40-J-12E | |
| AIDA64 / Memory Write | |
| Average of class Office (7579 - 117935, n=95, last 2 years) | |
| SCHENKER Work 15 Tiger Lake-H | |
| Dell Inspiron 14 5425 6VPKR | |
| Lenovo ThinkBook 14 G4 21DK0004GE | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
| Average AMD Ryzen 5 5625U (21512 - 33048, n=7) | |
| Acer TravelMate P4 TMP414-51-59MR | |
| Dynabook Tecra A40-J-12E | |
| AIDA64 / Memory Latency | |
| Dell Inspiron 14 5425 6VPKR | |
| Lenovo ThinkBook 14 G4 21DK0004GE | |
| Average AMD Ryzen 5 5625U (91.7 - 103, n=7) | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
| Average of class Office (6.9 - 185.2, n=95, last 2 years) | |
| Acer TravelMate P4 TMP414-51-59MR | |
| SCHENKER Work 15 Tiger Lake-H | |
| Dynabook Tecra A40-J-12E | |
* ... smaller is better

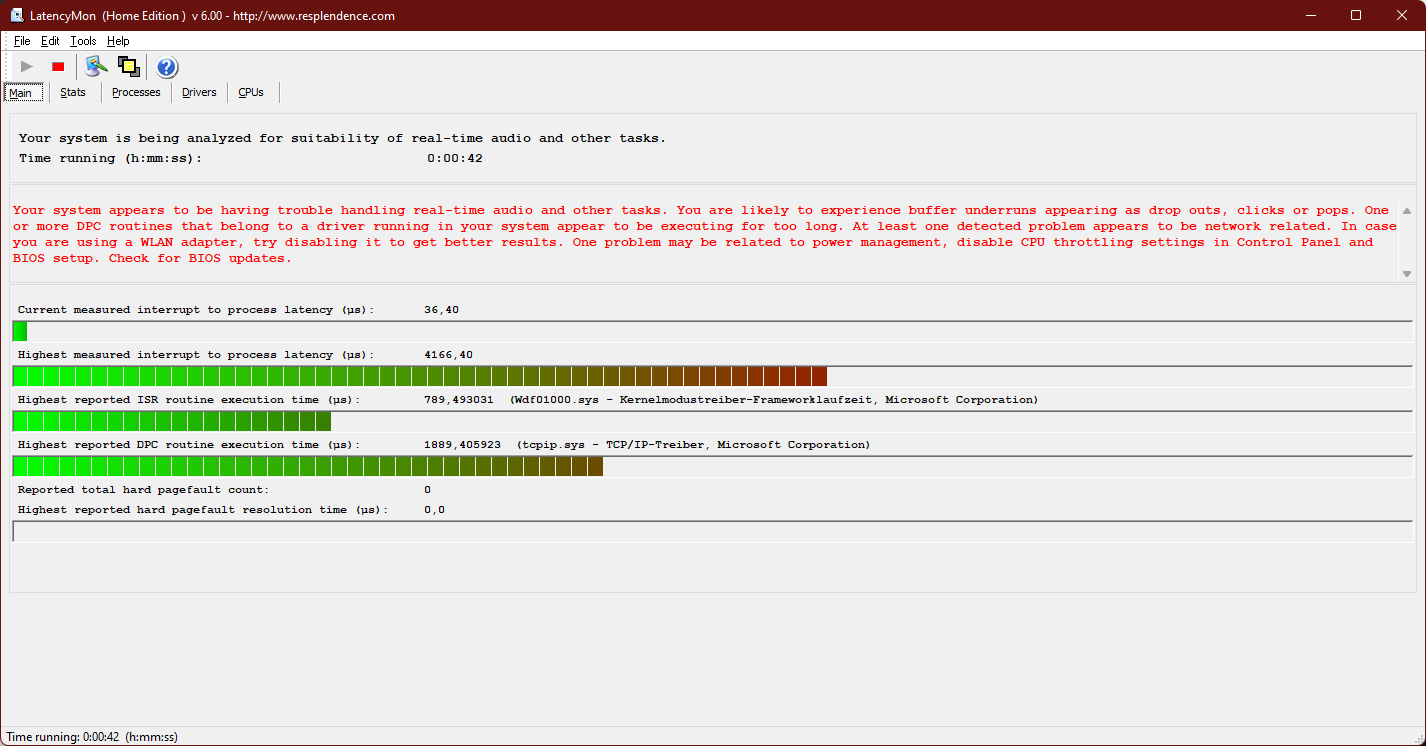

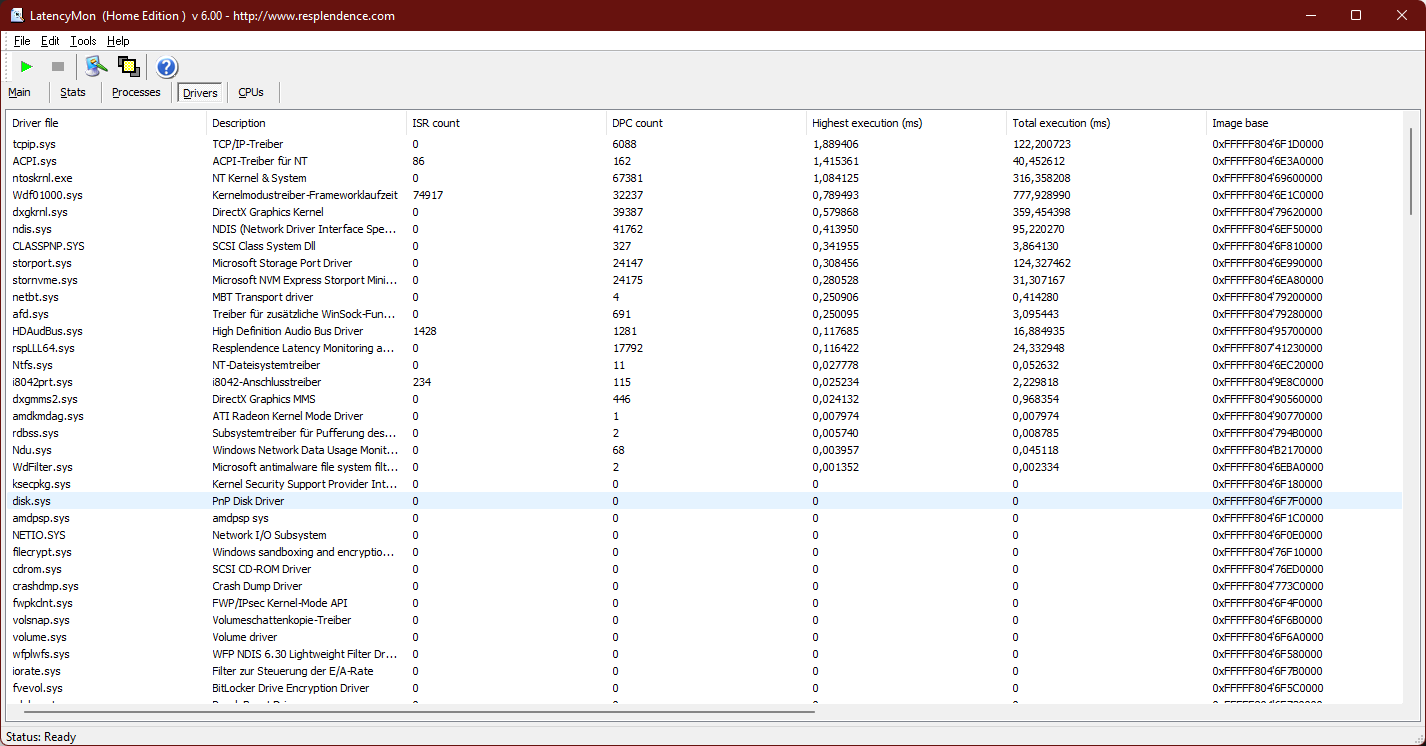

DPC延迟
所测得的高延迟非常依赖于软件配置，可以通过驱动更新迅速改善。
| DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95 | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
| Lenovo ThinkBook 14 G4 21DK0004GE | |
| SCHENKER Work 15 Tiger Lake-H | |
* ... smaller is better
存储设备
由于内置了三星NVMe固态硬盘，该笔记本的读写速度很好。对于办公笔记本来说，512GB的内存应该是足够的。如果有必要，内存可以扩展。
Samsung PM991a MZALQ512HBLU
Sequential Read:
2682.84MB/s
Sequential Write:
1691.36MB/s
4K Read:
44.29MB/s
4K Write:
129.18MB/s
4K-64 Read:
994.27MB/s
4K-64 Write:
945.62MB/s
Access Time Read:
0.183ms
Access Time Write:
0.089ms

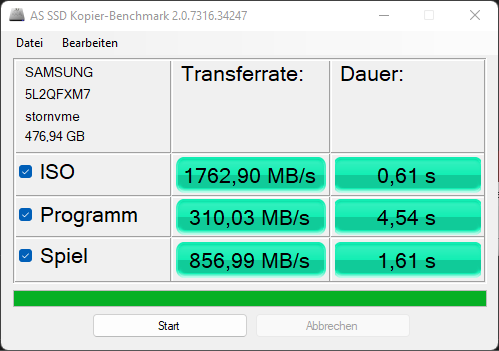

Copy ISO:
1762.9MB/s
Copy Program:
310.03MB/s
Copy Game:
856.99MB/s
Score Read:
1307Points
Score Write:
1244Points
Score Total:
3177Points
| Drive Performance Rating - Percent | |
| Average of class Office | |
| Average Samsung PM991a MZALQ512HBLU | |
| Lenovo ThinkBook 14 G4 21DK0004GE | |
* ... smaller is better
Continuous load read: DiskSpd Read Loop, Queue Depth 8
Lenovo ThinkBook 14 G4 21DK0004GE: Ø2558 (2467.41-2577.4)

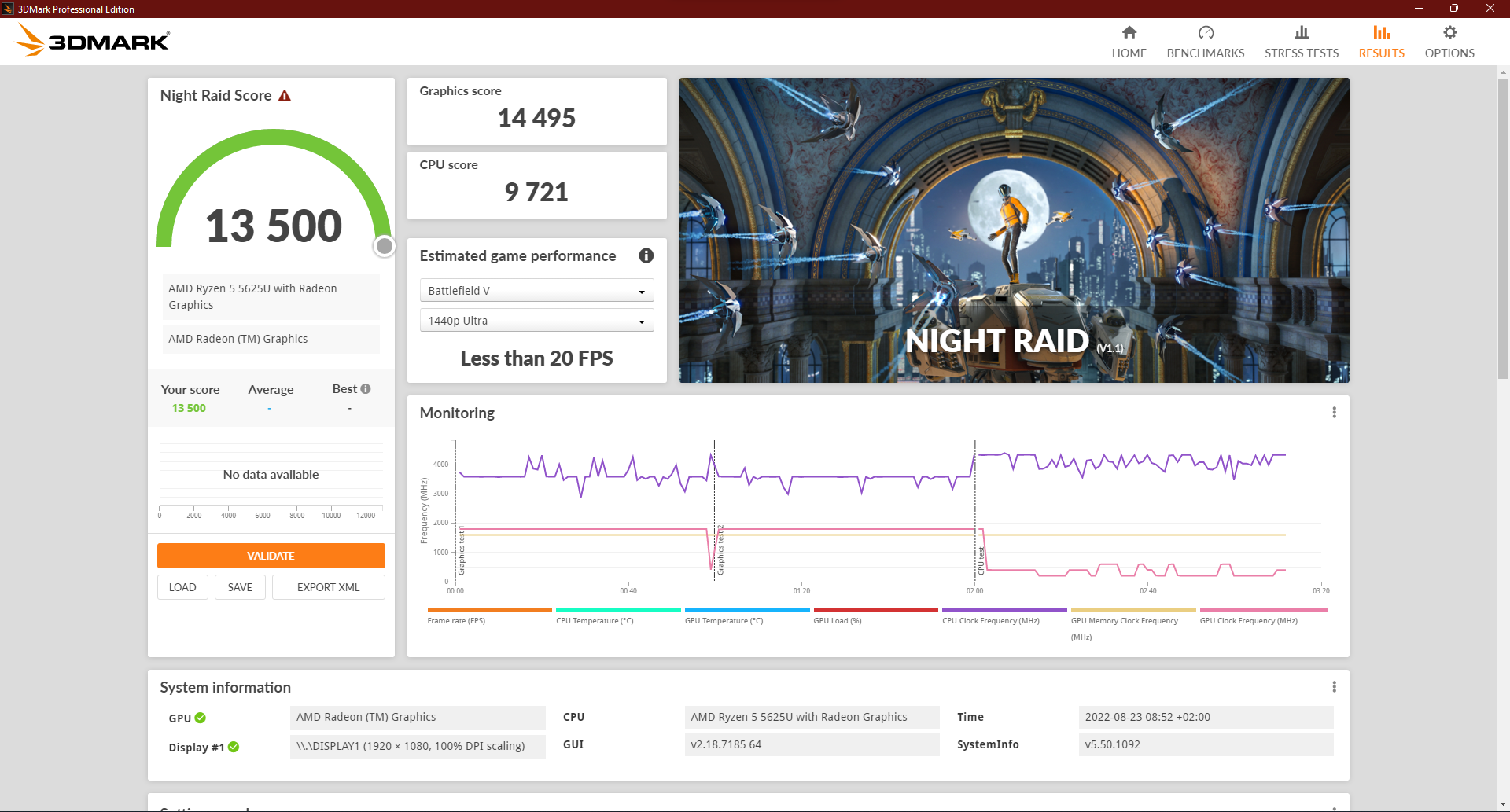

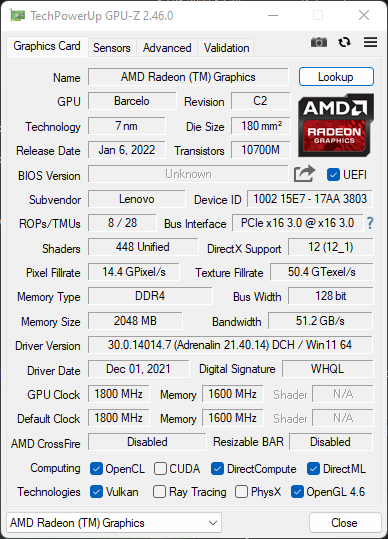

图形卡
AMD没有更新Ryzen 5显卡。因此，著名的AMD Radeon RX Vega 7iGPU在这里工作。该图形芯片可以执行基本任务，并在一定程度上应对3D应用。在测试的游戏中，该显卡能够在中等质量设置和分辨率下产生可玩的帧率。
| 3DMark 06 Standard Score | 22930 points | |

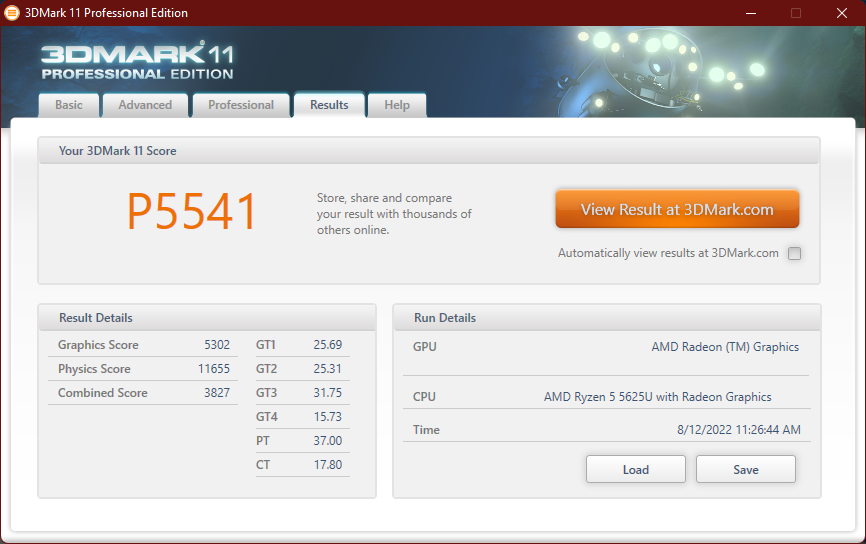

| 3DMark 11 Performance | 5541 points | |

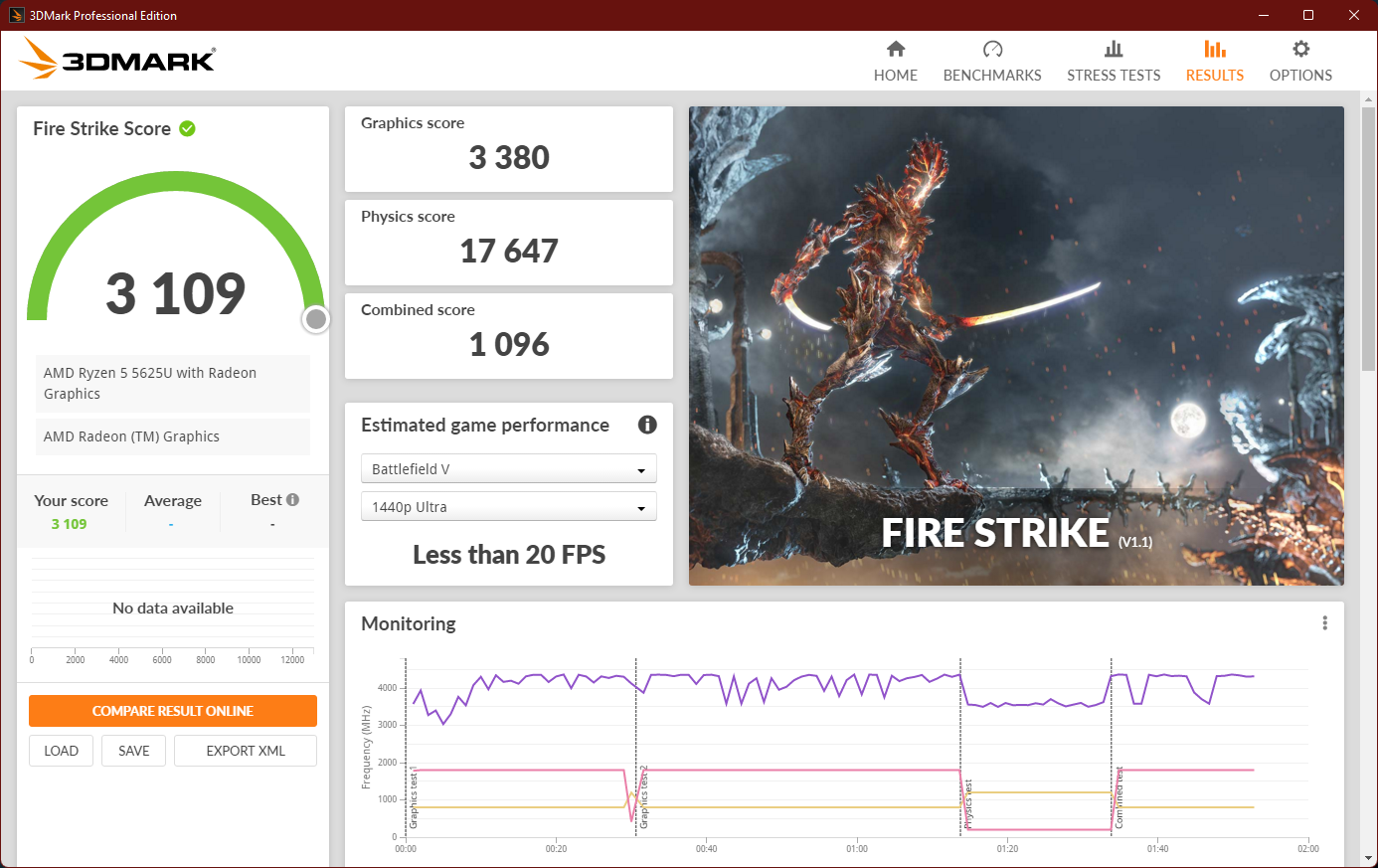

| 3DMark Fire Strike Score | 3109 points | |
| 3DMark Time Spy Score | 1234 points | |
Help | ||
游戏性能
ThinkBook 14 G4可以流畅地运行一些游戏。然而，iGPU并不是为游戏而设计的，所以需要在质量设置上做出妥协，可能还有分辨率。
The Witcher 3 | GTA V | Final Fantasy XV Benchmark | Dota 2 Reborn | X-Plane 11.11 | Strange Brigade
在TheWitcher 3 的长时间测试中，笔记本电脑能够保持其性能。在这里不应期待高帧率，因为测试是在最高图形设置下进行的。
Witcher 3 FPS-Diagramm
Lenovo ThinkBook 14 G4 21DK0004GE R5 5625U, Vega 7: Ø12.6 (11-15)
| low | med. | high | ultra | |
|---|---|---|---|---|
| GTA V (2015) | 104.3 | 90.4 | 25.4 | 11.7 |
| The Witcher 3 (2015) | 63.4 | 39.9 | 25.3 | 12.5 |
| Dota 2 Reborn (2015) | 107.5 | 82.5 | 49.2 | 45.9 |
| X-Plane 11.11 (2018) | 43.8 | 33.9 | 30.1 | |
| Strange Brigade (2018) | 80.4 | 30.1 | 25.1 | 21.4 |
排放 - 非常安静或无声
噪声排放
虽然ThinkBook在办公室里并不安静，但它的运行足够安静，从而避免造成任何破坏性的噪音。我们在明显安静的高频下测得最大38.62 dB(A)。这意味着，即使在负载情况下，笔记本也不会发出超过耳语的声音。
Noise Level
| Idle |
| 24.41 / 24.41 / 24.41 dB(A) |
| Load |
| 36.36 / 38.62 dB(A) |
 | ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min:  , med:  , max:  Earthworks M23R, Arta (15 cm distance) environment noise: 24.41 dB(A) | ||
| Lenovo ThinkBook 14 G4 21DK0004GE Vega 7, R5 5625U, Samsung PM991a MZALQ512HBLU | Dell Inspiron 14 5425 6VPKR Vega 7, R5 5625U, SK Hynix BC711 512GB HFM512GD3GX013N | Acer TravelMate P4 TMP414-51-59MR Iris Xe G7 80EUs, i5-1135G7, SK hynix BC511 HFM256GDJTNI-82A0 | HP Pavilion 14-dv0357ng Iris Xe G7 80EUs, i5-1135G7, Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H) | Dynabook Tecra A40-J-12E Iris Xe G7 80EUs, i5-1135G7, Phison C-E80T512G4-P3D3B3E13 | Lenovo ThinkBook 15 G4 21DL0009GE Vega 7, R5 5625U, Samsung PM991a MZALQ512HBLU | SCHENKER Work 15 Tiger Lake-H Iris Xe G7 96EUs, i7-11370H, Samsung SSD 980 Pro 1TB MZ-V8P1T0BW | |
|---|---|---|---|---|---|---|---|
| Noise | -5% | -1% | -1% | 5% | 3% | -8% | |
| off / environment * | 24.41 | 25.5 -4% | 25.4 -4% | 25.4 -4% | 25 -2% | 23.21 5% | 24.4 -0% |
| Idle Minimum * | 24.41 | 25.5 -4% | 25.4 -4% | 25.4 -4% | 25 -2% | 23.21 5% | 24.4 -0% |
| Idle Average * | 24.41 | 25.5 -4% | 25.4 -4% | 25.4 -4% | 25 -2% | 23.21 5% | 24.4 -0% |
| Idle Maximum * | 24.41 | 25.5 -4% | 25.4 -4% | 25.4 -4% | 25 -2% | 23.21 5% | 26.7 -9% |
| Load Average * | 36.36 | 37.7 -4% | 34.6 5% | 35.4 3% | 30 17% | 33 9% | 43.8 -20% |
| Load Maximum * | 38.62 | 43.3 -12% | 37.4 3% | 35.5 8% | 30 22% | 43.34 -12% | 44.8 -16% |
| Witcher 3 ultra * | 30 | 43.8 |
* ... smaller is better
温度

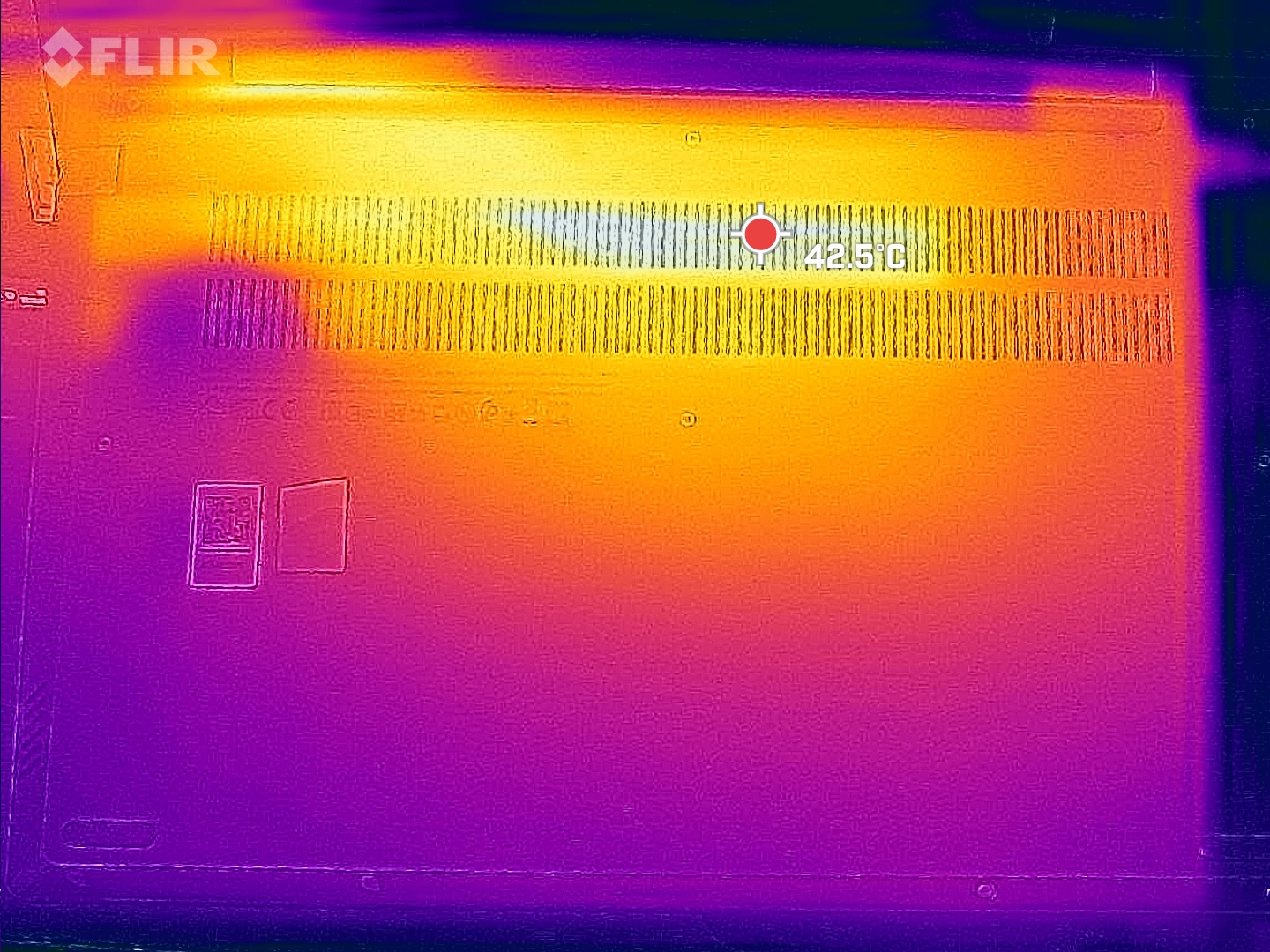

偶尔，这台笔记本电脑表面的温度会明显上升。因此，在热图像上可以清楚地看到热管的位置。在正常使用时，笔记本的整个表面保持凉爽。
(±) The average temperature for the upper side under maximal load is 33.2 °C / 92 F, compared to the average of 29.5 °C / 85 F for the devices in the class Office.
(+) The maximum temperature on the upper side is 38.9 °C / 102 F, compared to the average of 34.3 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(±) The bottom heats up to a maximum of 42.8 °C / 109 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 29 °C / 84 F, compared to the device average of 29.5 °C / 85 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 30.1 °C / 86.2 F and are therefore cool to the touch.
(-) The average temperature of the palmrest area of similar devices was 27.7 °C / 81.9 F (-2.4 °C / -4.3 F).
(+) The maximum temperature on the upper side is 38.9 °C / 102 F, compared to the average of 34.3 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(±) The bottom heats up to a maximum of 42.8 °C / 109 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 29 °C / 84 F, compared to the device average of 29.5 °C / 85 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 30.1 °C / 86.2 F and are therefore cool to the touch.
(-) The average temperature of the palmrest area of similar devices was 27.7 °C / 81.9 F (-2.4 °C / -4.3 F).
| Lenovo ThinkBook 14 G4 21DK0004GE AMD Ryzen 5 5625U, AMD Radeon RX Vega 7 | Dell Inspiron 14 5425 6VPKR AMD Ryzen 5 5625U, AMD Radeon RX Vega 7 | Acer TravelMate P4 TMP414-51-59MR Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs | HP Pavilion 14-dv0357ng Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs | Dynabook Tecra A40-J-12E Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs | Lenovo ThinkBook 15 G4 21DL0009GE AMD Ryzen 5 5625U, AMD Radeon RX Vega 7 | SCHENKER Work 15 Tiger Lake-H Intel Core i7-11370H, Intel Iris Xe Graphics G7 96EUs | |
|---|---|---|---|---|---|---|---|
| Heat | 2% | 10% | 2% | 5% | -7% | 11% | |
| Maximum Upper Side * | 38.9 | 39.1 -1% | 38.7 1% | 40.5 -4% | 41.1 -6% | 41.1 -6% | 39.1 -1% |
| Maximum Bottom * | 42.8 | 41.9 2% | 38.7 10% | 39.9 7% | 45.3 -6% | 45.6 -7% | 43.4 -1% |
| Idle Upper Side * | 33.2 | 31.2 6% | 26.9 19% | 31.3 6% | 26 22% | 31.6 5% | 24.3 27% |
| Idle Bottom * | 30.8 | 30.9 -0% | 27.8 10% | 31.1 -1% | 27.7 10% | 36.5 -19% | 25.1 19% |
* ... smaller is better
压力测试
在压力测试中，ThinkBook 14 G4能够其保持性能稳定。Prime95和Furmark没有能够使笔记本电脑过热。的AMD Ryzen 5 5625U没有发热超过80℃。这款办公笔记本电脑能够顺利散热。
发言人
根据设定的音量，这台笔记本电脑能够提供相当好的音质。
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
Lenovo ThinkBook 14 G4 21DK0004GE audio analysis
(-) | not very loud speakers (67.72 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 17% lower than median
(-) | bass is not linear (15% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.6% away from median
(±) | linearity of mids is average (7.6% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 5.2% higher than median
(+) | highs are linear (5.1% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (21.7% difference to median)
Compared to same class
» 50% of all tested devices in this class were better, 10% similar, 40% worse
» The best had a delta of 7%, average was 22%, worst was 53%
Compared to all devices tested
» 58% of all tested devices were better, 7% similar, 35% worse
» The best had a delta of 4%, average was 25%, worst was 134%
SCHENKER Work 15 Tiger Lake-H audio analysis
(+) | speakers can play relatively loud (82.3 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 27.2% lower than median
(+) | bass is linear (6.5% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 10.1% higher than median
(-) | mids are not linear (15.1% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4.1% away from median
(+) | highs are linear (6.9% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (28.8% difference to median)
Compared to same class
» 89% of all tested devices in this class were better, 2% similar, 9% worse
» The best had a delta of 7%, average was 22%, worst was 53%
Compared to all devices tested
» 85% of all tested devices were better, 3% similar, 13% worse
» The best had a delta of 4%, average was 25%, worst was 134%
电源管理--电池寿命长，只有45Wh
消耗功率
笔记本电脑的耗电量没有什么值得注意的地方。这些数值与安装的硬件相对应。我们确定短期内的最大耗电量为45瓦。因此，附带的65瓦的电源仍然有充足的储备。
Power Consumption
| Off / Standby | 0.29 / 0.66 Watt |
| Idle | 4.1 / 8 / 8.9 Watt |
| Load |
39.3 / 45.7 Watt |

| |
Key:
min: ,
med: ,
max: Metrahit Energy | |
| Lenovo ThinkBook 14 G4 21DK0004GE R5 5625U, Vega 7, Samsung PM991a MZALQ512HBLU, IPS, 1920x1080, 14" | Dell Inspiron 14 5425 6VPKR R5 5625U, Vega 7, SK Hynix BC711 512GB HFM512GD3GX013N, IPS, 1920x1200, 14" | Acer TravelMate P4 TMP414-51-59MR i5-1135G7, Iris Xe G7 80EUs, SK hynix BC511 HFM256GDJTNI-82A0, IPS, 1920x1080, 14" | HP Pavilion 14-dv0357ng i5-1135G7, Iris Xe G7 80EUs, Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H), IPS, 1920x1080, 14" | Dynabook Tecra A40-J-12E i5-1135G7, Iris Xe G7 80EUs, Phison C-E80T512G4-P3D3B3E13, , 1920x1080, 14" | Lenovo ThinkBook 15 G4 21DL0009GE R5 5625U, Vega 7, Samsung PM991a MZALQ512HBLU, IPS, 1920x1080, 15.6" | SCHENKER Work 15 Tiger Lake-H i7-11370H, Iris Xe G7 96EUs, Samsung SSD 980 Pro 1TB MZ-V8P1T0BW, IPS, 1920x1080, 15.6" | Average AMD Radeon RX Vega 7 | Average of class Office | |
|---|---|---|---|---|---|---|---|---|---|
| Power Consumption | 1% | 12% | -8% | 18% | -11% | -13% | -4% | -10% | |
| Idle Minimum * | 4.1 | 4 2% | 3.6 12% | 4.8 -17% | 3.3 20% | 4.6 -12% | 4.5 -10% | 4.66 ? -14% | 4.54 ? -11% |
| Idle Average * | 8 | 6.6 17% | 5.6 30% | 8.5 -6% | 5.1 36% | 8.6 -8% | 8.5 -6% | 7.56 ? 5% | 7.49 ? 6% |
| Idle Maximum * | 8.9 | 9.4 -6% | 7.2 19% | 12.4 -39% | 6 33% | 9.6 -8% | 9.1 -2% | 8.95 ? -1% | 9.14 ? -3% |
| Load Average * | 39.3 | 37 6% | 29.6 25% | 37.7 4% | 26.4 33% | 40.2 -2% | 43.5 -11% | 38.7 ? 2% | 42.8 ? -9% |
| Witcher 3 ultra * | 38.1 | 37.1 3% | 29.3 23% | 35.4 7% | 28 27% | 35.7 6% | 37.5 2% | ||
| Load Maximum * | 45.7 | 53.7 -18% | 62 -36% | 45.3 1% | 65.3 -43% | 65.8 -44% | 69.4 -52% | 51.9 ? -14% | 61.3 ? -34% |
* ... smaller is better
Power consumption in The-Witcher-3 Witcher 3 / Stress test
Lenovo ThinkBook 14 G4 21DK0004GE R5 5625U, Vega 7; Witcher 3 ultra: Ø38.1 (37.3-48.7)
Dell Inspiron 14 5425 6VPKR R5 5625U, Vega 7; Witcher 3 ultra: Ø37.1 (32.9-45.1)
Lenovo ThinkBook 14 G4 21DK0004GE R5 5625U, Vega 7; 1280x720 Prime95 28.10 and Furmark 1.25: Ø42.1 (41-45.7)
Dell Inspiron 14 5425 6VPKR R5 5625U, Vega 7; 1280x720 Prime95 28.10 and Furmark 1.25: Ø43.7 (36.7-54.8)
Power consumption with external monitor
Lenovo ThinkBook 14 G4 21DK0004GE R5 5625U, Vega 7; Prime95 V2810 Stress (external Monitor): Ø38.6 (37.8-39.8)
Dell Inspiron 14 5425 6VPKR R5 5625U, Vega 7; Prime95 V2810 Stress (external Monitor): Ø29.8 (28.5-31.3)
Lenovo ThinkBook 14 G4 21DK0004GE R5 5625U, Vega 7; Cinebench R15 Multi (external Monitor): Ø36.2 (34.8-48)
Dell Inspiron 14 5425 6VPKR R5 5625U, Vega 7; Cinebench R15 Multi (external Monitor): Ø34 (20.8-41.8)
Lenovo ThinkBook 14 G4 21DK0004GE R5 5625U, Vega 7; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø39.1 (33.8-48.6)
Dell Inspiron 14 5425 6VPKR R5 5625U, Vega 7; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø34.1 (32.4-48.8)
Lenovo ThinkBook 14 G4 21DK0004GE R5 5625U, Vega 7; 1920x1080 The Witcher 3 ultra (external Monitor): Ø40.1 (35.1-61.9)
Dell Inspiron 14 5425 6VPKR R5 5625U, Vega 7; 1920x1080 The Witcher 3 ultra (external Monitor): Ø28.6 (25.6-32.7)
电池寿命
联想ThinkBook 14 G4的电池可以持续45瓦时。这使笔记本电脑可以保持近18个小时的空闲状态。我们在实际的Wi-Fi网络浏览测试中能够达到8小时。因此，该笔记本可以舒适地持续整个工作日。
| Lenovo ThinkBook 14 G4 21DK0004GE R5 5625U, Vega 7, 43.01 Wh | Dell Inspiron 14 5425 6VPKR R5 5625U, Vega 7, 54 Wh | Acer TravelMate P4 TMP414-51-59MR i5-1135G7, Iris Xe G7 80EUs, 55.9 Wh | HP Pavilion 14-dv0357ng i5-1135G7, Iris Xe G7 80EUs, 43 Wh | Dynabook Tecra A40-J-12E i5-1135G7, Iris Xe G7 80EUs, 53 Wh | Lenovo ThinkBook 15 G4 21DL0009GE R5 5625U, Vega 7, 44.52 Wh | SCHENKER Work 15 Tiger Lake-H i7-11370H, Iris Xe G7 96EUs, 73 Wh | Average of class Office | |
|---|---|---|---|---|---|---|---|---|
| Battery Runtime | 51% | 16% | -30% | 23% | 3% | 62% | 50% | |
| WiFi v1.3 | 511 | 770 51% | 593 16% | 360 -30% | 631 23% | 492 -4% | 614 20% | 602 ? 18% |
| Load | 65 | 71 9% | 132.7 104% | 118.1 ? 82% | ||||
| H.264 | 356 | 576 | 704 ? | |||||
| Witcher 3 ultra | 121 | 142 ? | ||||||
| Reader / Idle | 1218 | 1472 | 1300 ? |
Pros
+ 高质量的外壳，大量的金属
+ 可扩展的硬件
+ 良好的网络摄像头
+ 适当的性能
+ 快速的固态硬盘
+ SD卡读卡器
Cons
- 制造商的保修期只有12个月
- 屏幕较弱（色彩空间覆盖率低，在户外使用时有反光现象）
- 键盘的键程较低
结论--ThinkBook 14 G4与其他办公笔记本电脑相比，没有更多的优势。
凭借其16GB的内存和AMD Ryzen 5 5625U，这款办公笔记本电脑能够应对日常使用。事实证明，几乎没有任何程序对这款纤薄的笔记本电脑要求很高。这里有一个很大的好处是。即使在负载情况下，这台笔记本电脑仍然保持安静。
这款联想笔记本电脑的核心竞争力是其较长的电池寿命，在负载时的弹性和缺乏噪音。
ThinkBook 14 G4的屏幕在许多方面都有些弱。色彩空间覆盖率、色彩偏差、对比度值和显示亮度都可以做得更好。但这些数值符合办公用笔记本电脑的要求。因此，哑光屏幕达到了它的目的。
然而，竞争对手的设备和他们的 联想ThinkBook 15 G4都在同一水平上。因此，很难在个别办公笔记本电脑之间做出决定。诸如以下设备 惠普Pavilion 14和 申克工作15提供了几乎相同的性能范围。
价格和可用性
联想ThinkBook 14 G4在CampusPoint有售。在测试的时候，价格约为800欧元。
Lenovo ThinkBook 14 G4 21DK0004GE
- 08/31/2022 v7 (old)
Translated
Office - Weighted Average
Price comparison
