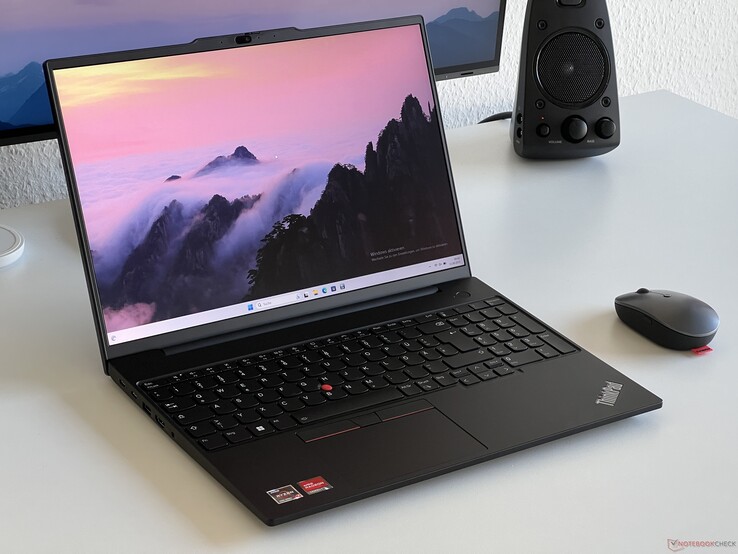

联想 ThinkPad E16 G1 AMD 评测--配备 AMD 处理器和 WQHD 显示屏的大型办公笔记本电脑

经济实惠的大屏幕商务笔记本电脑。

联想推出了一款 16 英寸版本的 ThinkPad E 系列产品。新款 ThinkPad E16 G1 采用了我们熟悉的 AMD Ryzen 处理器和明亮的 WQHD 面板。
AMD Business Laptop / Notebook Radeon ThinkPad Windows

大尺寸笔记本电脑越来越受欢迎,联想推出了一款适合家庭办公的 16 英寸机型,扩展了其经济实惠的 ThinkPad E 系列。新款 ThinkPad E16 G1 有英特尔和 AMD 两种处理器可供选择。硬件选项与较小的ThinkPad E14 G5相同,联想还使用了一些相同的组件,例如主板。

我们的评测机型是校园机型,配备了AMD Ryzen 7 7730U24 GB 内存、1 TB 固态硬盘以及 400 nit WQHD-IPS 屏幕,售价 938 欧元(不含操作系统)。WQHD 面板尚未在所有地区上市,但可在联想自己的网上商店选择升级,价格约为 100 欧元。

Lenovo ThinkPad E16 G1-21JUS08X00 (ThinkPad E16 Series)
Processor
AMD Ryzen 7 7730U 8 x 2 - 4.5 GHz, 25 W PL2 / Short Burst, 30 W PL1 / Sustained, Barcelo-U Refresh
Memory
24 GB
, DDR4-3200, 8 GB onboard, 16 GB SO-DIMM, 1 Slot, max. 40 GB
Display
16.00 inch 16:10, 2560 x 1600 pixel 189 PPI, MNG007DA1-C, IPS, glossy: no, 60 Hz
Mainboard
AMD Promontory/Bixby FCH
Storage
WD PC SN740 SDDPNQD-1T00, 1024 GB
, 914 GB free
Soundcard
AMD Zen - Audio Processor - HD Audio Controller
Connections
2 USB 3.0 / 3.1 Gen1, 2 USB 3.1 Gen2, USB-C Power Delivery (PD), 1 HDMI, 2 DisplayPort, 1 Kensington Lock, Audio Connections: 3.5 mm Stereo, 1 Fingerprint Reader
Networking
Realtek Semiconductor RTL8168/8111 PCI-E Gigabit Ethernet NIC (10/100/1000MBit/s), MediaTek RZ616 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/ Wi-Fi 6E 6 GHz), Bluetooth 5.2
Size
height x width x depth (in mm): 19.85 x 356.1 x 247.7
Battery
57 Wh Lithium-Polymer, 3-cell
Camera
Webcam: 1080p + IR
Primary Camera: 2 MPix
Additional features
Speakers: Stereo (2x 2W), Keyboard: Chiclet, Keyboard Light: yes, 65W PSU USB-C, 24 Months Warranty
Weight
1.814 kg, Power Supply: 300 g
Price
938 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



潜在的竞争对手比较

Rating
Date
Model
Weight
Height
Size
Resolution
Price
88.1 %
v7 (old)
09 / 2023
Lenovo ThinkPad E16 G1-21JUS08X00
R7 7730U, Vega 8
1.8 kg19.85 mm16.00"2560x1600
86 %
v7 (old)
04 / 2023
Acer TravelMate P4 TMP416-51-55KN
i5-1240P, Iris Xe G7 80EUs
1.6 kg18.5 mm16.00"1920x1200
80.7 %
v7 (old)
06 / 2023
Samsung Galaxy Book3 15, Core i5-1335U
i5-1335U, Iris Xe G7 80EUs
1.5 kg15.4 mm15.60"1920x1080
85.1 %
v7 (old)
12 / 2022
Lenovo ThinkBook 15 G3 ACL 21A400B2GE
R5 5500U, Vega 7
1.7 kg18.9 mm15.60"1920x1080
85 %
v7 (old)
08 / 2022
HP ProBook 450 G9 6A180EA
i7-1255U, Iris Xe G7 96EUs
1.7 kg19.9 mm15.60"1920x1080

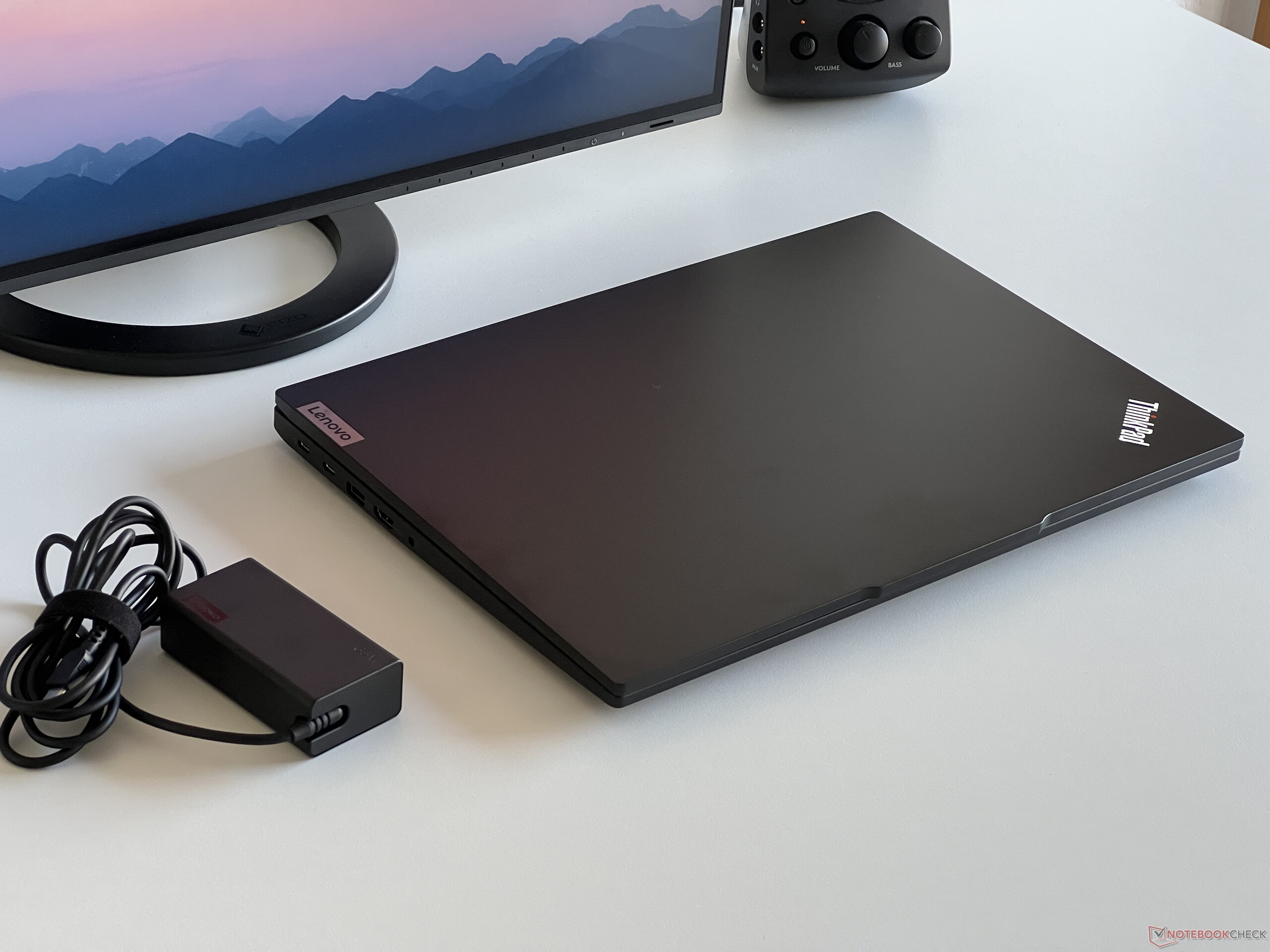

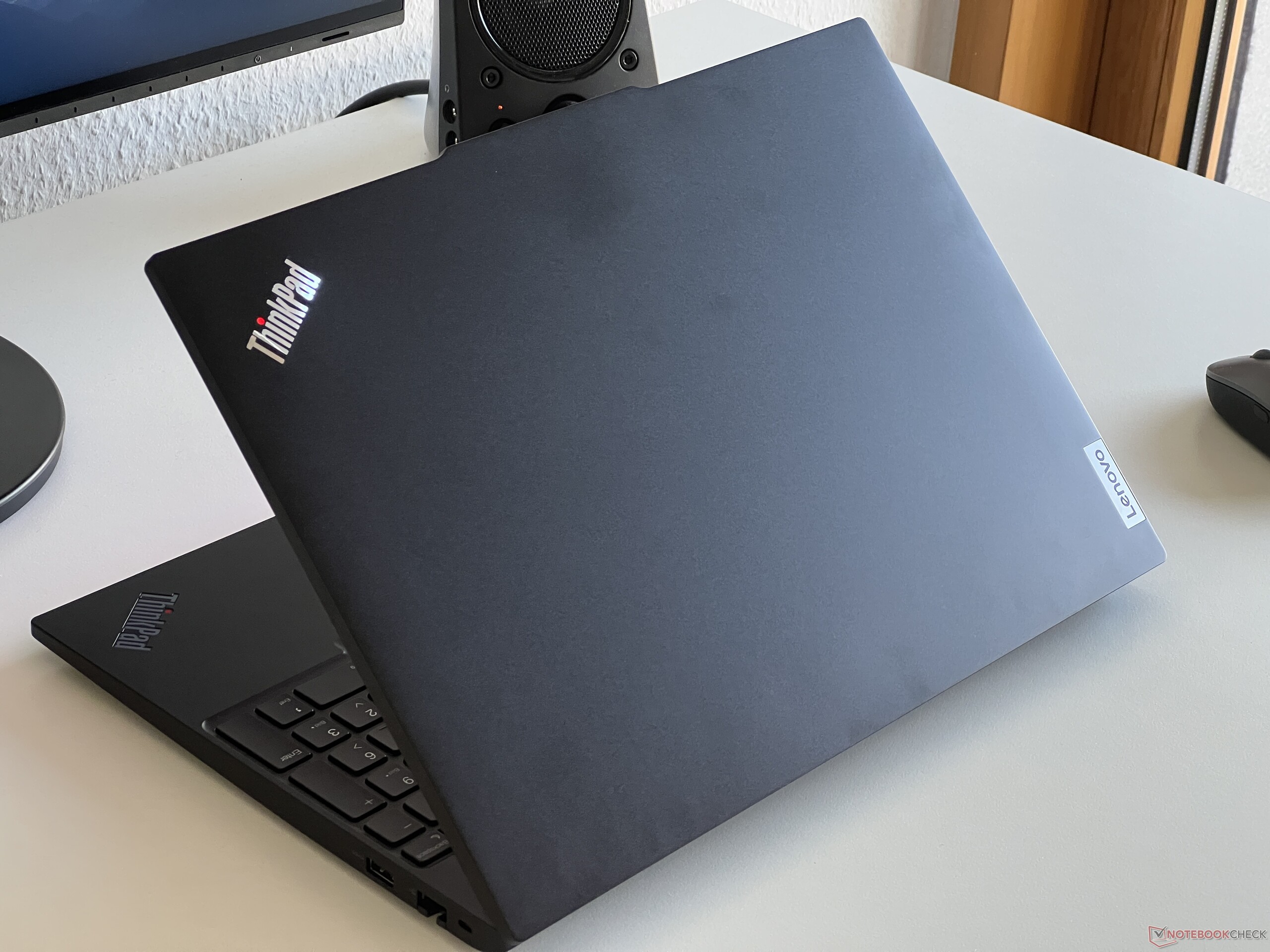

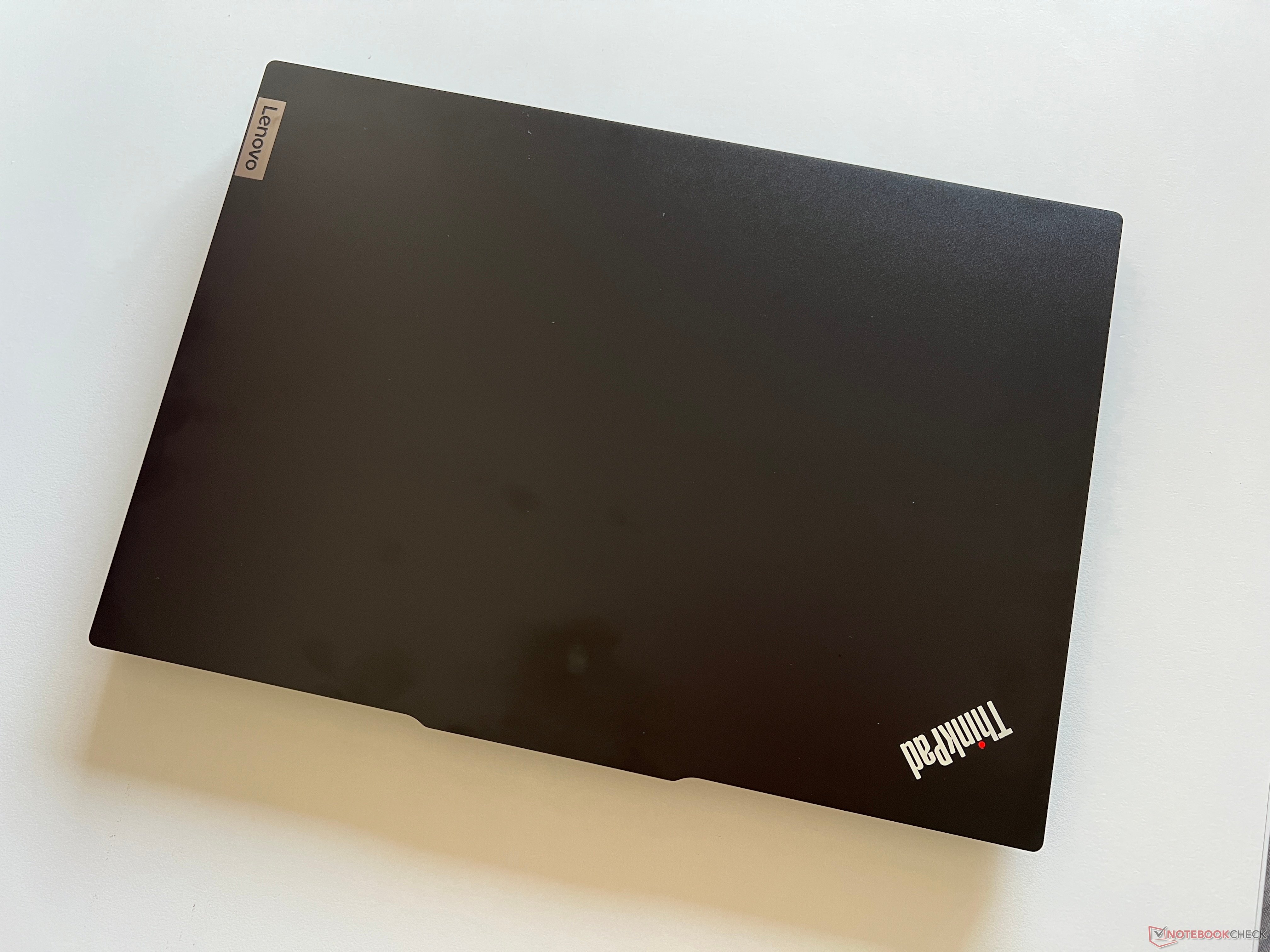

机箱 - 带铝质机箱的 ThinkPad E16 G1

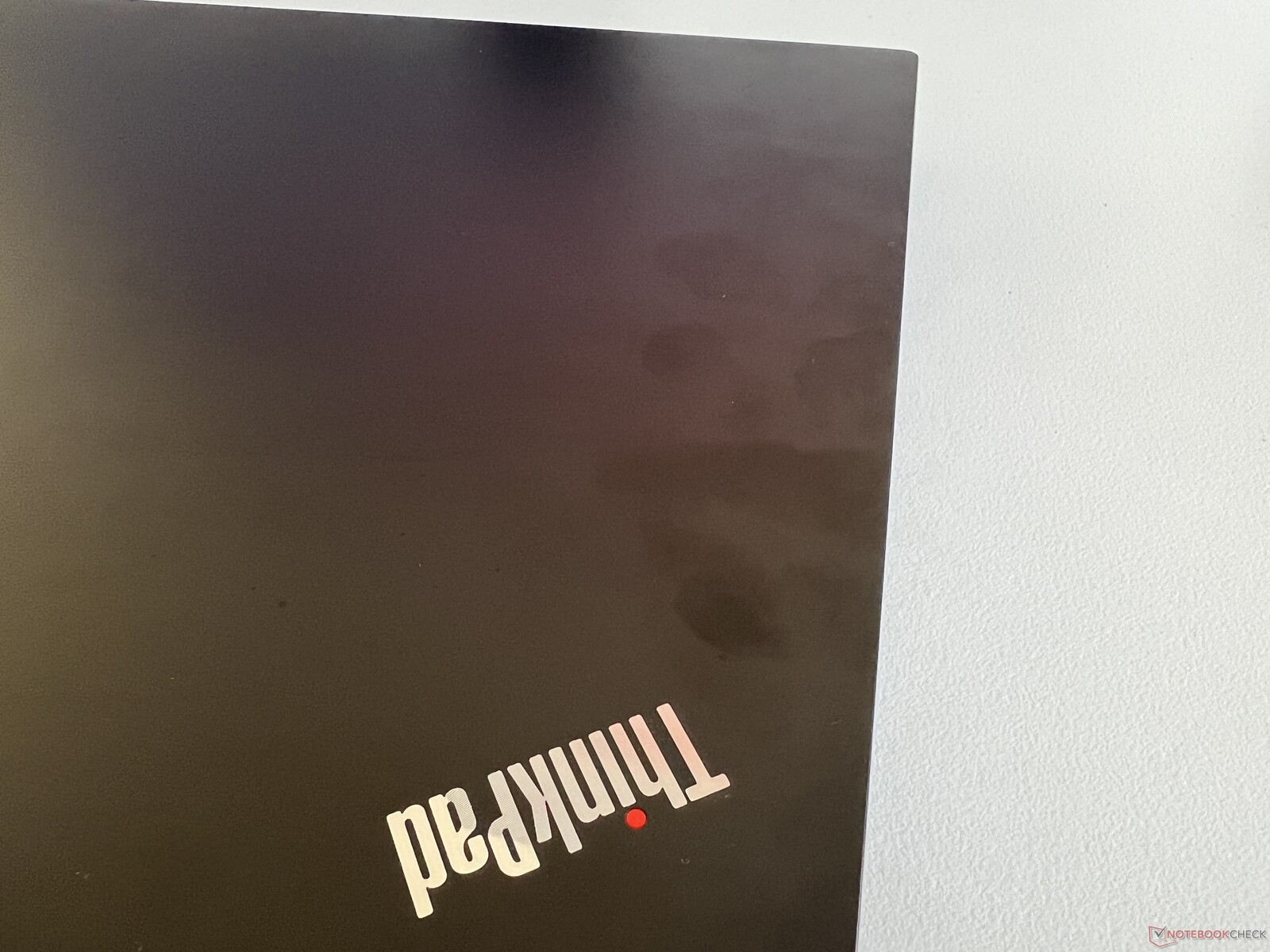

机箱容易留下指纹。
机箱容易留下指纹。

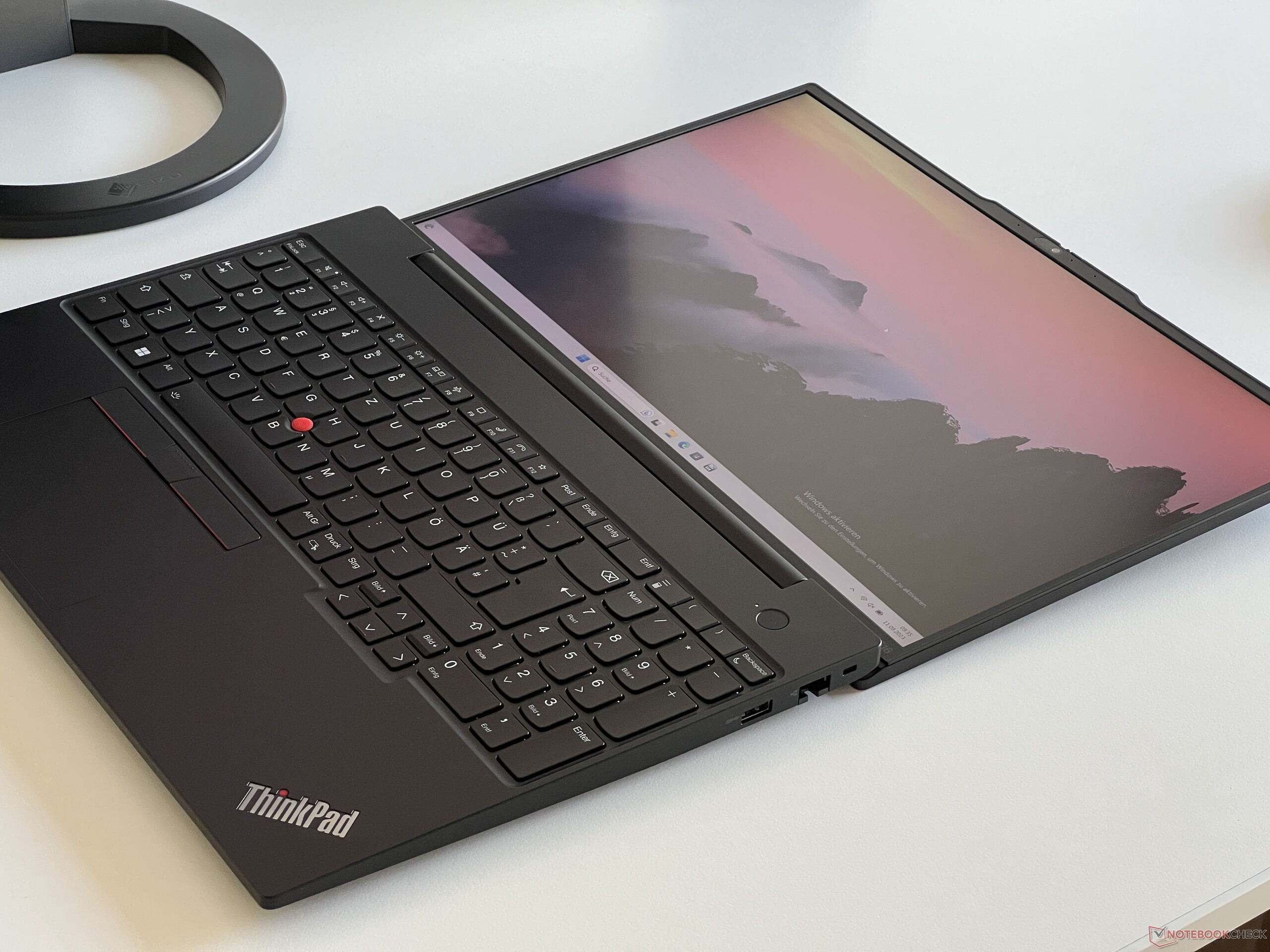

不出所料,新款 ThinkPad E16 G1 是我们熟悉的 ThinkPad E14 G5 的放大版。这款黑色的办公笔记本电脑让人一眼就能认出是 ThinkPad,而且 E16 在专业环境中也很舒适。至于这种设计是永恒还是乏味,显然取决于你自己。表面(盖子、底座和底盖)非常容易沾染指纹,因此必须定期清洁。与目前的其他 ThinkPad 机型类似,E16 G1 也有一个摄像头凸起,虽然看起来不太好看,但它能让你更轻松地打开盖子。

E16 G1 的质量给人留下了不错的印象,联想在盖子和底座上都使用了铝材。而底盖则采用了廉价而粗糙的塑料,指纹更加明显。我们并不完全相信底座的稳定性,因为我们可以轻易地将中间凹陷进去,也可以轻微地扭动它,但不会发出嘎吱嘎吱的声音。盖子也可以轻微扭动,但整体感觉较好,不会造成图像失真。中央铰链能很好地保持盖子的位置,只有轻微的弹跳,但单手打开盖子比较麻烦。最大开启角度为 180 度。

E16 G1 是由 15.6 英寸和 16 英寸笔记本电脑组成的对比组中最大的机型之一,但差异并不大。它也是最重的机型,重量略高于 1.8 千克;小巧的 65 瓦电源适配器仅重 300 克。

尺寸比较

359.4 mm 233.9 mm 19.9 mm 1.7 kg357.9 mm 251.9 mm 18.5 mm 1.6 kg356.1 mm 247.7 mm 19.85 mm 1.8 kg357 mm 235 mm 18.9 mm 1.7 kg356.6 mm 229.1 mm 15.4 mm 1.5 kg297 mm 210 mm 1 mm 5.7 g

连接性 - Wi-Fi 6E,但没有 USB 4.0

联想提供了 HDMI、USB-C 和 USB-A 接口,您不需要任何适配器,但这些标准只是最低标准。两个 USB-C 端口中只有一个支持 3.2 Gen.2 标准,而且没有 USB 4.0 的迹象。HDMI 输出也仅限于旧的 1.4b 标准,因此如果可能的话,您应该通过 USB-C 连接外部高分辨率屏幕。尽管机身较大,但没有读卡器。

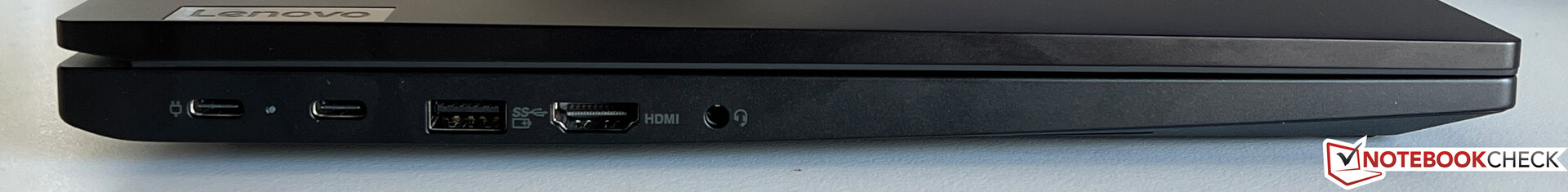

左侧USB-C 3.2 Gen.1(5 Gbps、DisplayPort 1.4、Power Delivery 3.0)、USB-C 3.2 Gen.2(10 Gbps、DisplayPort 1.4、Power Delivery 3.0)、USB-A 3.2 Gen.1(5 Gbps、供电)、HDMI 1.4b、3.5 毫米立体声
左侧USB-C 3.2 Gen.1(5 Gbps、DisplayPort 1.4、Power Delivery 3.0)、USB-C 3.2 Gen.2(10 Gbps、DisplayPort 1.4、Power Delivery 3.0)、USB-A 3.2 Gen.1(5 Gbps、供电)、HDMI 1.4b、3.5 毫米立体声
右侧USB-A 3.2 Gen.1(5 Gbps)、千兆以太网、Kensington Nano 安全插槽
右侧USB-A 3.2 Gen.1(5 Gbps)、千兆以太网、Kensington Nano 安全插槽

交流

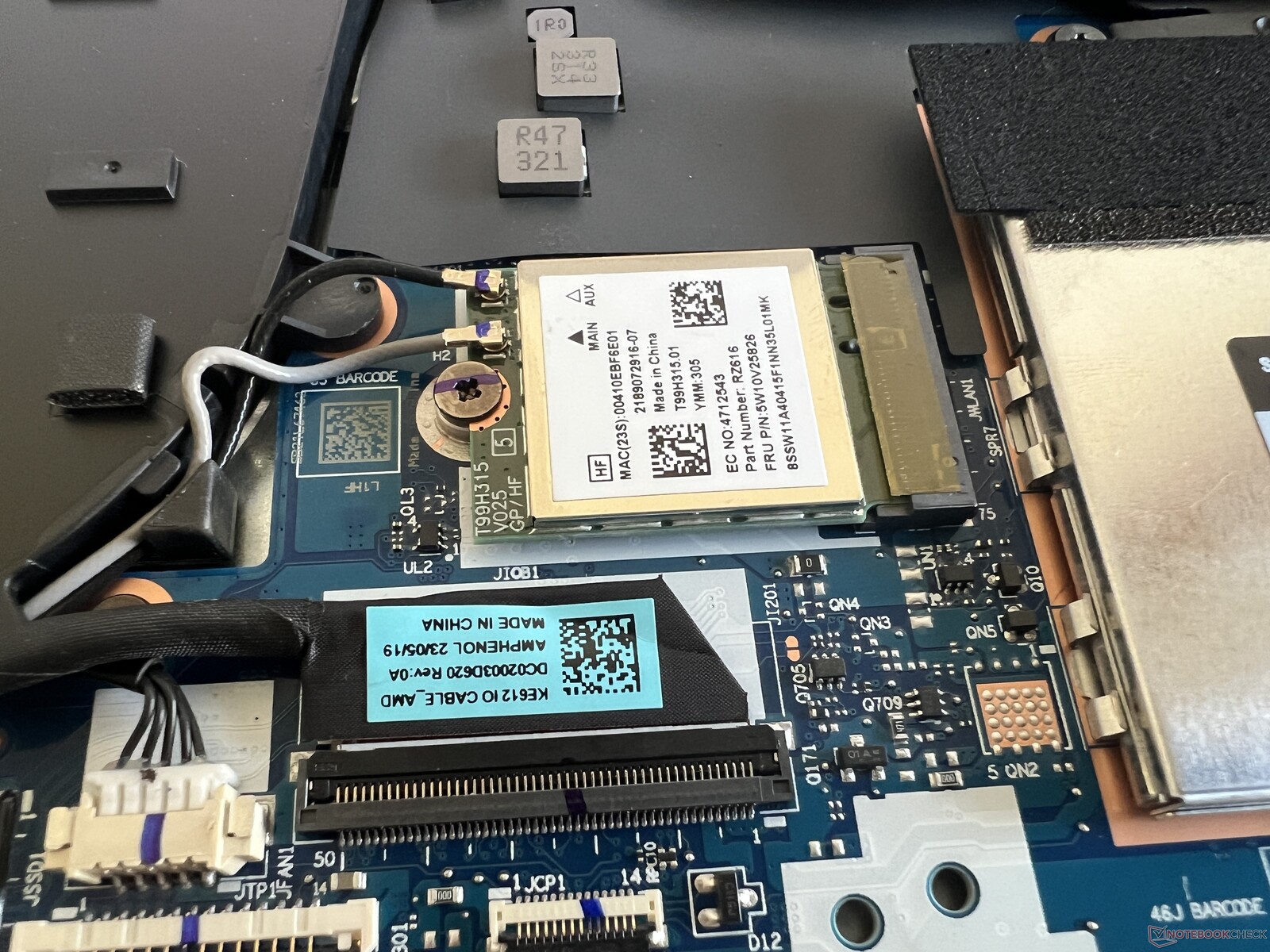

可更换的 Wi-Fi 模块
可更换的 Wi-Fi 模块

除了千兆以太网端口外,还配备了现代 Wi-Fi 模块(联发科 RZ616)。它支持用于 6 GHz 网络的最新 Wi-Fi 6E 标准以及蓝牙 5.2。我们无法使用华硕参考路由器的相应 6 GHz 网络,只能使用 5 GHz 网络。传输速率非常高且稳定,只有接收文件时的传输速率可能会更高一些。不过,在实际使用中没有任何限制。

Networking
Lenovo ThinkPad E16 G1-21JUS08X00
MediaTek RZ616
iperf3 transmit AXE11000
1769 (min: 1610) MBit/s ∼100%
iperf3 receive AXE11000
1484 (min: 1458) MBit/s ∼86%
Acer TravelMate P4 TMP416-51-55KN
Intel Wi-Fi 6E AX211
iperf3 transmit AXE11000
1618 (min: 1590) MBit/s ∼91%
iperf3 receive AXE11000
1672 (min: 764) MBit/s ∼97%
iperf3 transmit AXE11000 6GHz
1625 (min: 834) MBit/s ∼100%
iperf3 receive AXE11000 6GHz
1638 (min: 1572) MBit/s ∼100%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Wi-Fi 6 AX201
iperf3 transmit AXE11000
1649 (min: 1353) MBit/s ∼93%
iperf3 receive AXE11000
1720 (min: 1676) MBit/s ∼100%
Lenovo ThinkBook 15 G3 ACL 21A400B2GE
MediaTek MT7921
iperf3 transmit AXE11000
976 (min: 917) MBit/s ∼55%
iperf3 receive AXE11000
940 (min: 928) MBit/s ∼55%
HP ProBook 450 G9 6A180EA
Intel Wi-Fi 6E AX211
iperf3 transmit AXE11000 6GHz
1031 (min: 575) MBit/s ∼63%
iperf3 receive AXE11000 6GHz
1509 (min: 1482) MBit/s ∼92%
05010015020025030035040045050055060065070075080085090095010001050110011501200125013001350140014501500155016001650170017501800185019001950Tooltip
Lenovo ThinkPad E16 G1-21JUS08X00; iperf3 transmit AXE11000; iperf 3.1.3: Ø1769 (1610-1956)
Lenovo ThinkPad E16 G1-21JUS08X00; iperf3 receive AXE11000; iperf 3.1.3: Ø1483 (1458-1499)

网络摄像头

与以前的 720p 模块相比,1080p 网络摄像头的拍照效果更好,在光线条件良好的情况下也能拍出不错的照片。除了机械快门外,联想还加入了一个红外模块,用于通过 Windows Hello 进行面部识别。

ColorChecker
6.3 ∆E
9.1 ∆E
10.2 ∆E
13.9 ∆E
7.7 ∆E
11.8 ∆E
9.6 ∆E
11.7 ∆E
11.9 ∆E
11.8 ∆E
11 ∆E
9.5 ∆E
6.8 ∆E
11.7 ∆E
13.5 ∆E
11.7 ∆E
7.9 ∆E
11.4 ∆E
10.5 ∆E
8.2 ∆E
9.2 ∆E
12.4 ∆E
10.9 ∆E
5.6 ∆E
ColorChecker Lenovo ThinkPad E16 G1-21JUS08X00: 10.18 ∆E min: 5.56 - max: 13.89 ∆E

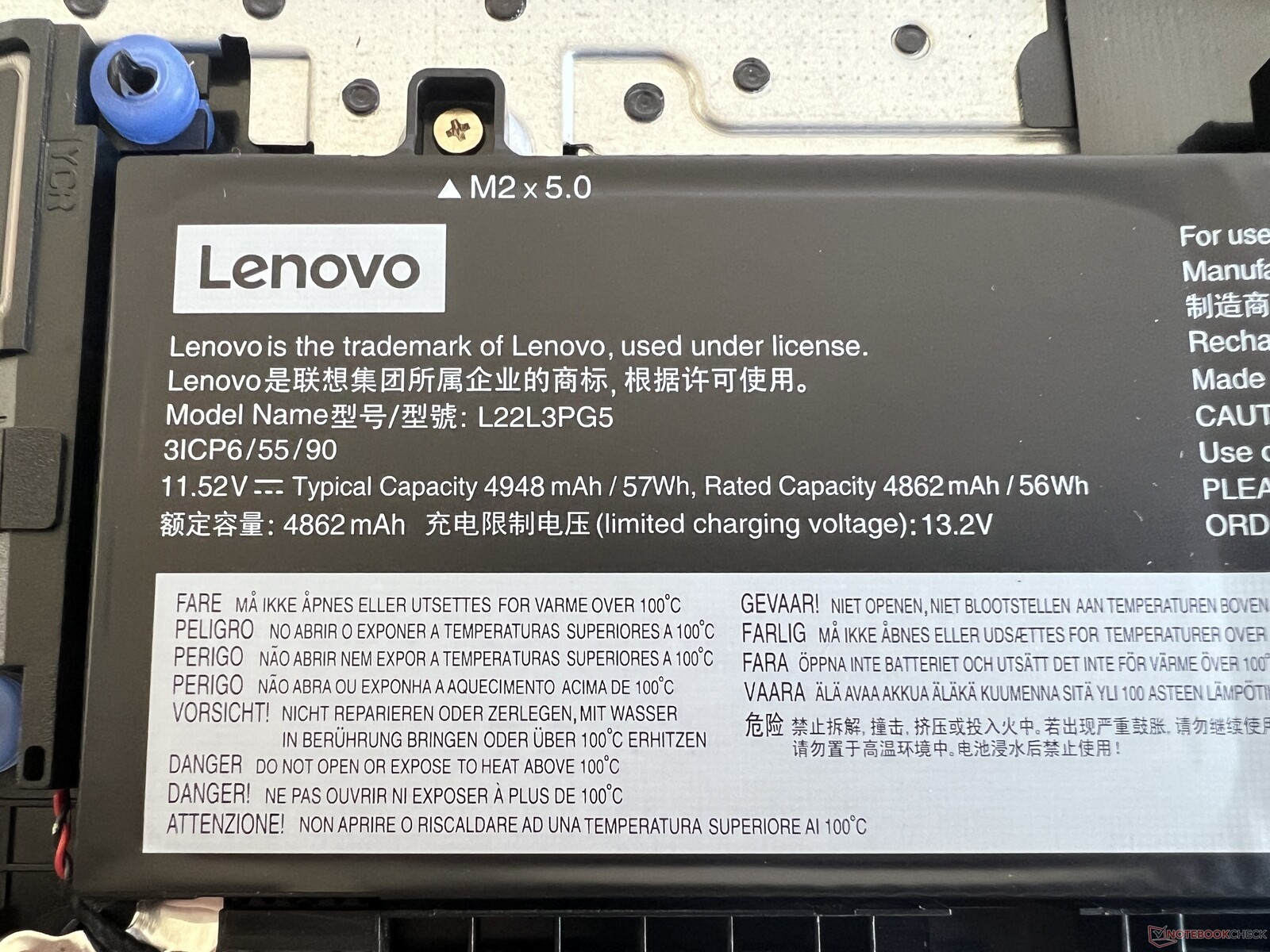

维护

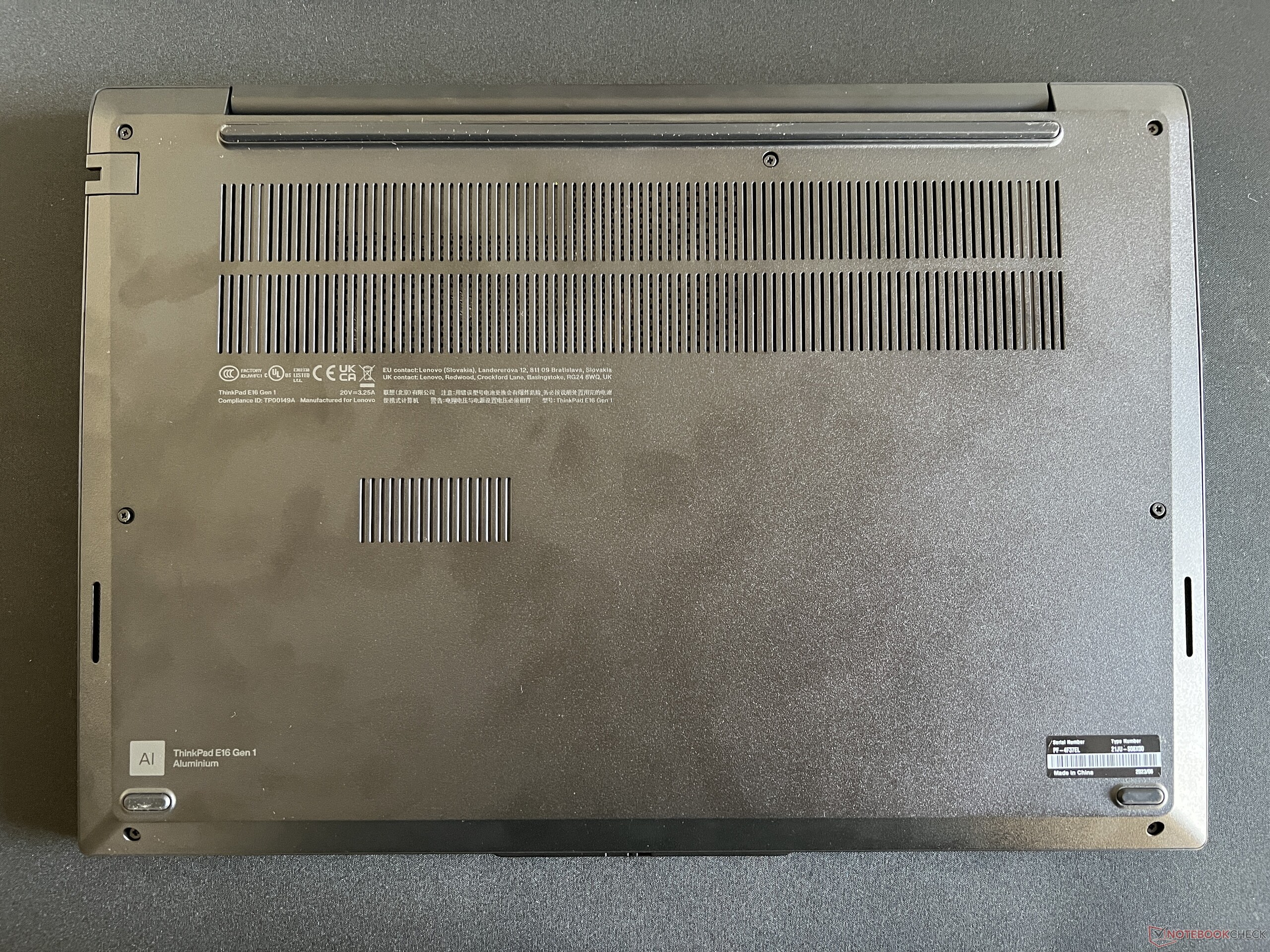

底盖由多个飞利浦螺钉和几个塑料夹固定。拧松螺丝后,底盖仍然牢牢地固定在一起(不要完全拧下),这时应使用合适的工具从后部开始小心地尝试拧松夹子。进入机箱后,你会发现 ThinkPad E14 G5 的主板,这意味着由于机箱较大,有很大一块区域没有组件。维护选项总体上不错:可以更换 Wi-Fi 模块,有一个内存插槽,可以安装 M.2-SSD (1 个 M.2-2280 和 1 个 M.2.2242)。

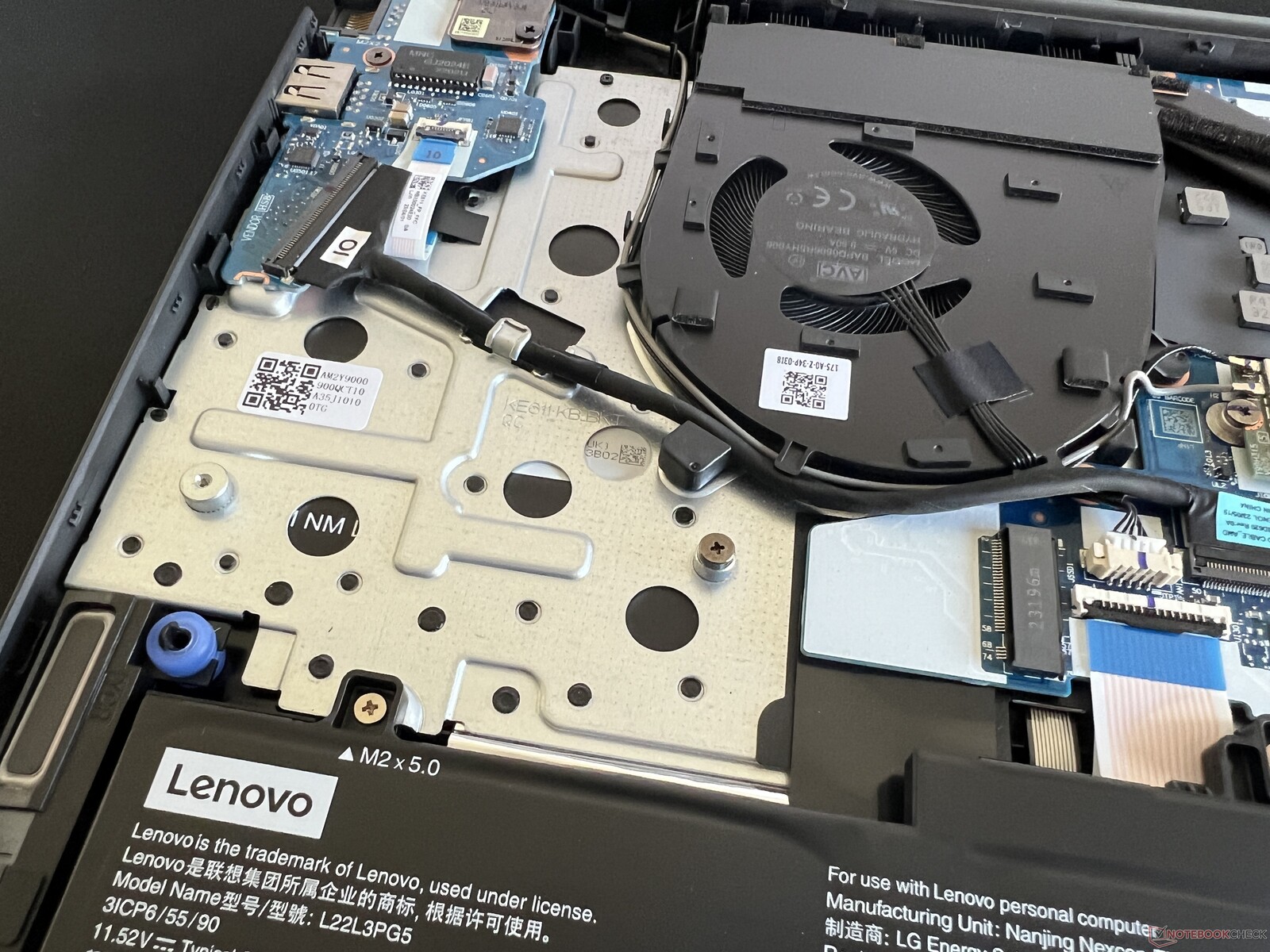

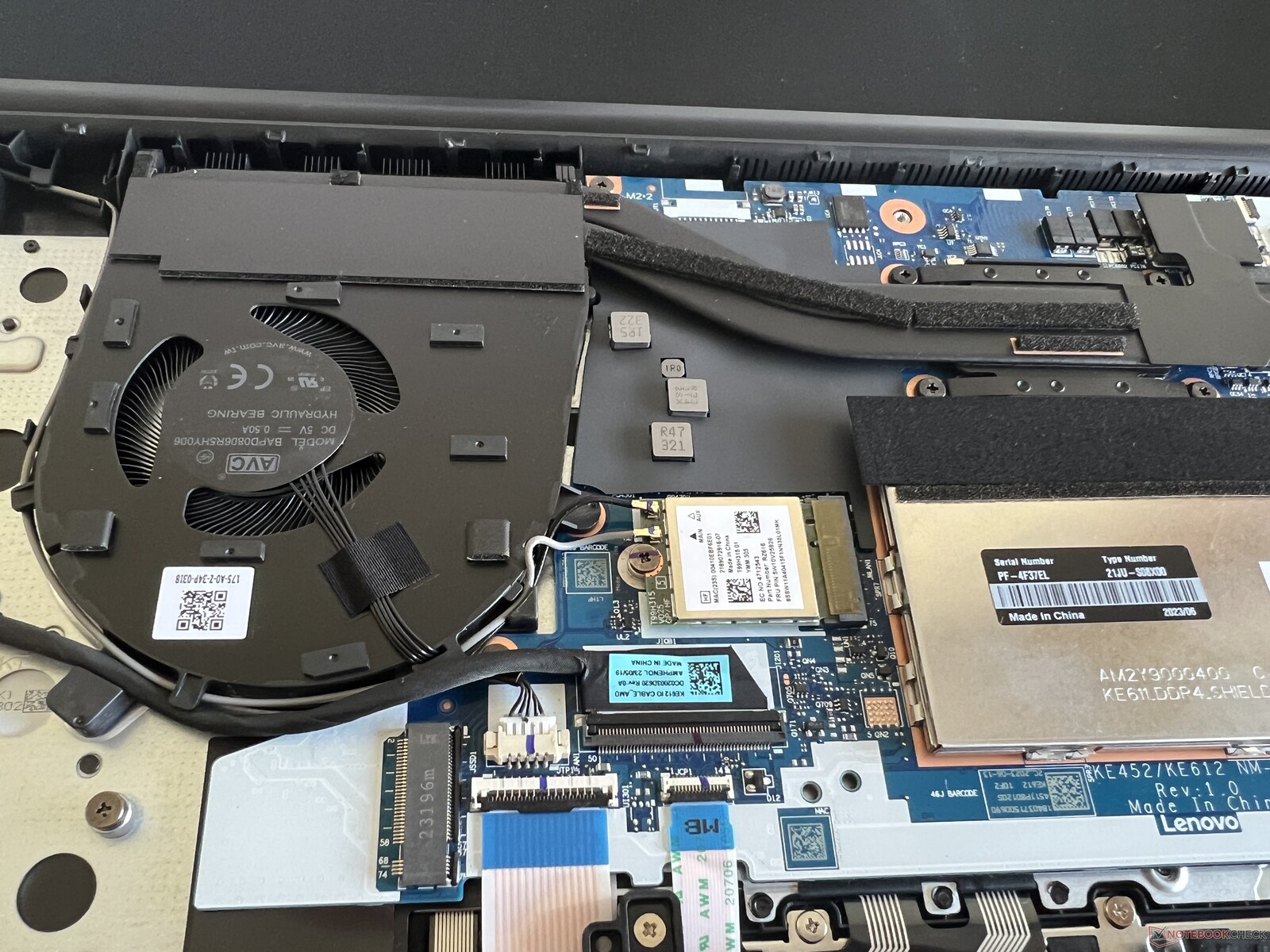

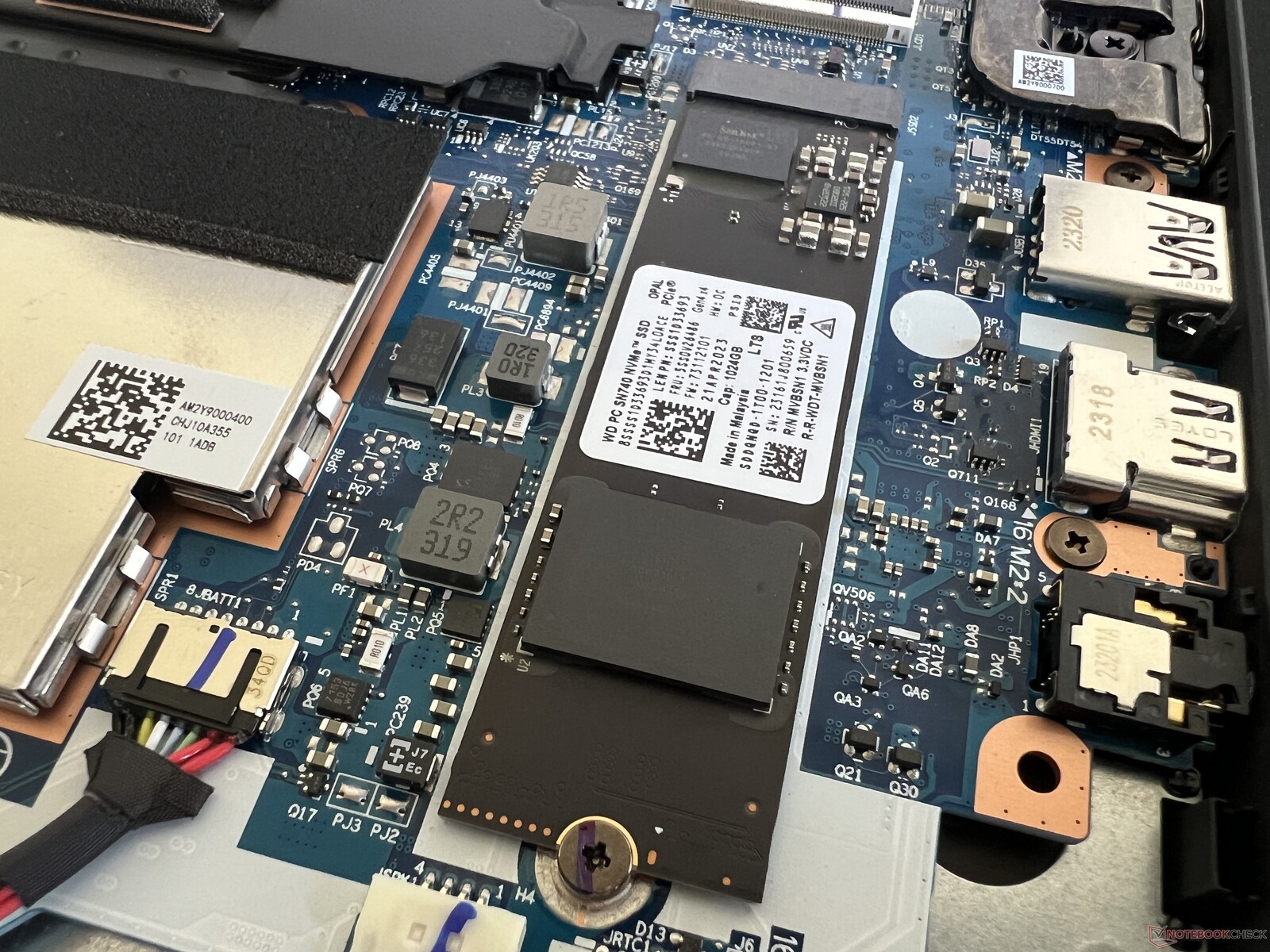

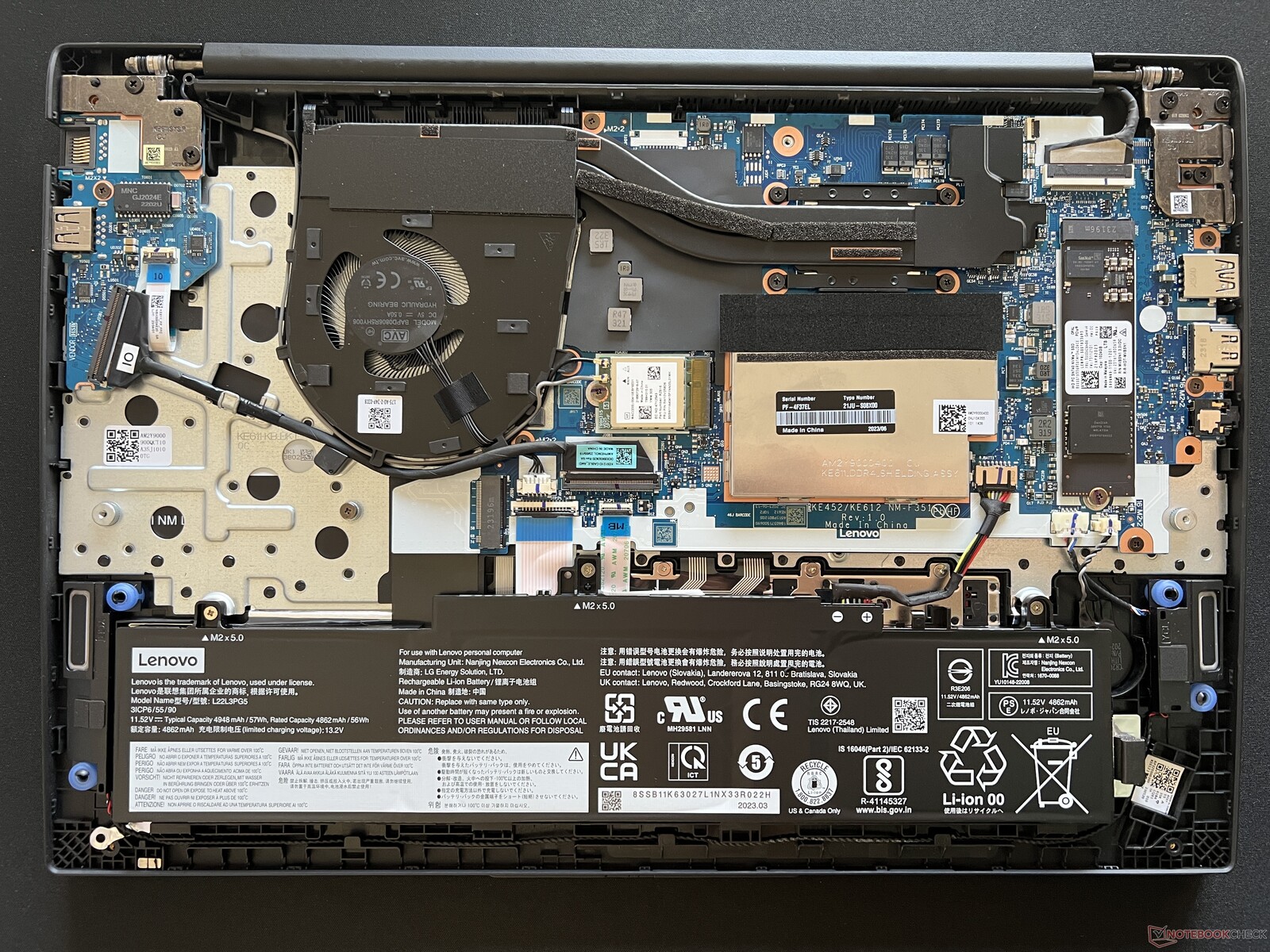

内部布局
内部布局
16 英寸机型有大量闲置空间
16 英寸机型有大量闲置空间

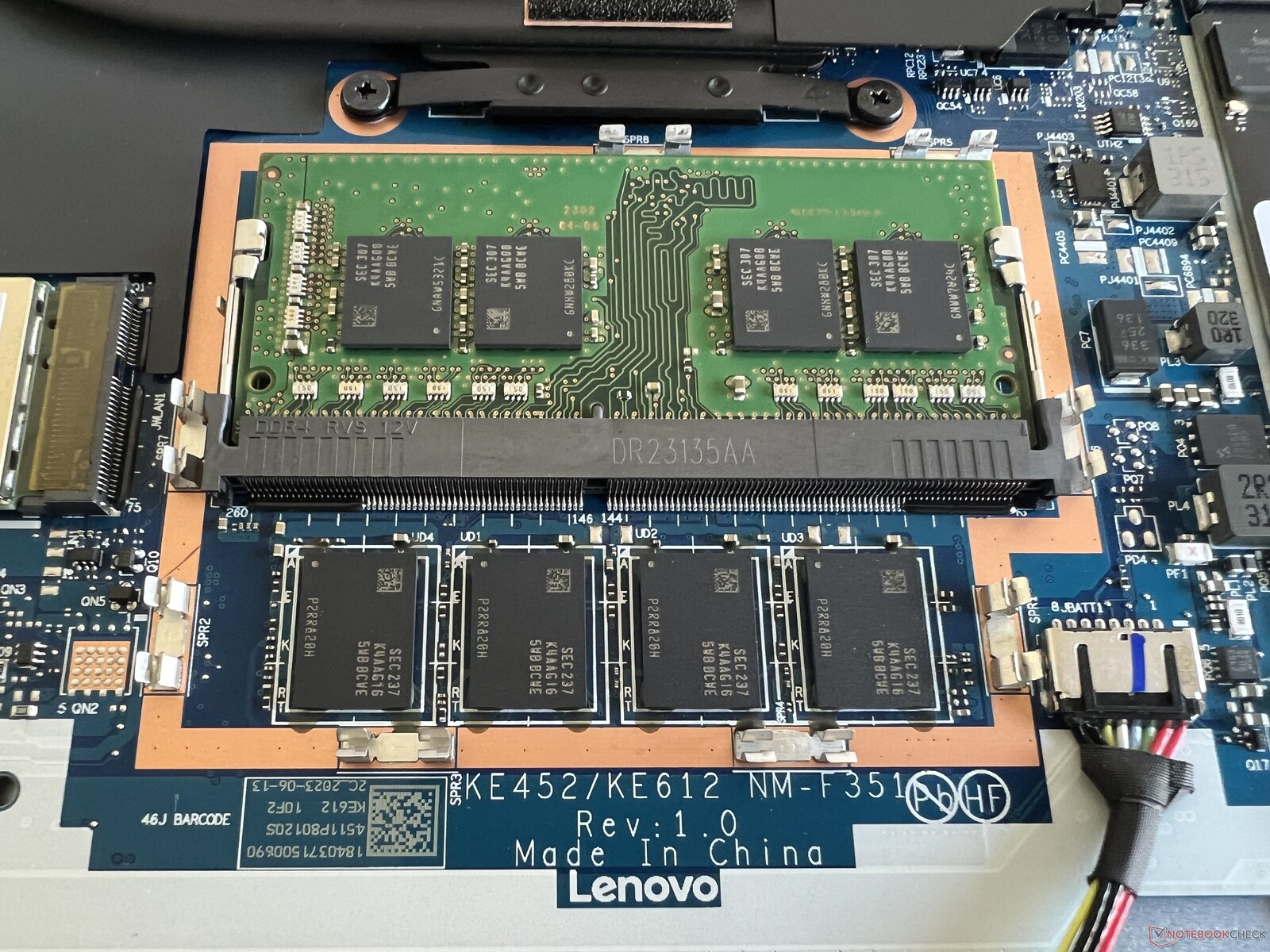

焊接内存可通过一个内存模块进行扩展。
焊接内存可通过一个内存模块进行扩展。

输入设备 - 1.5 毫米行程和数字键盘

联想利用机身的额外宽度集成了专用数字键盘。按键比大多数按键要窄一些,但这并不限制其可用性。键入体验本身与较小的 ThinkPad E14 G5 相似,键程同样为 1.5 毫米。打字舒适而精确,但并不像以前的 ThinkPad 机型那样让人眼前一亮。两段式白色照明有助于在较暗的环境中使用。电源按钮位于键盘上方的右侧,同时也是指纹扫描仪。

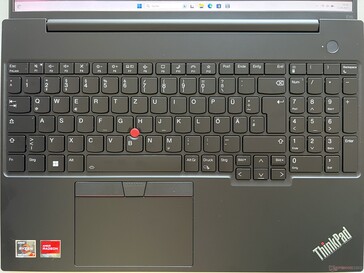

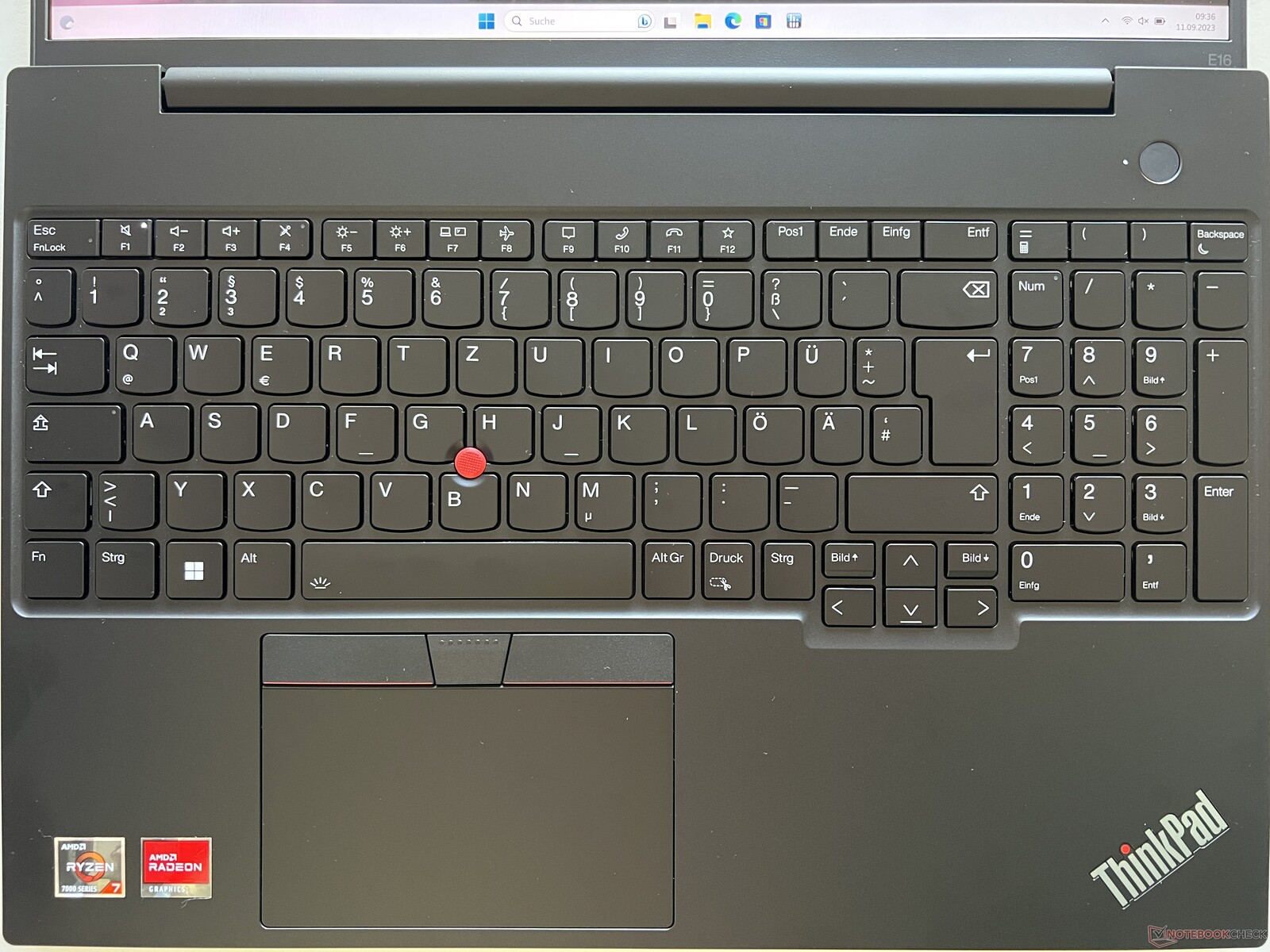

输入设备
输入设备

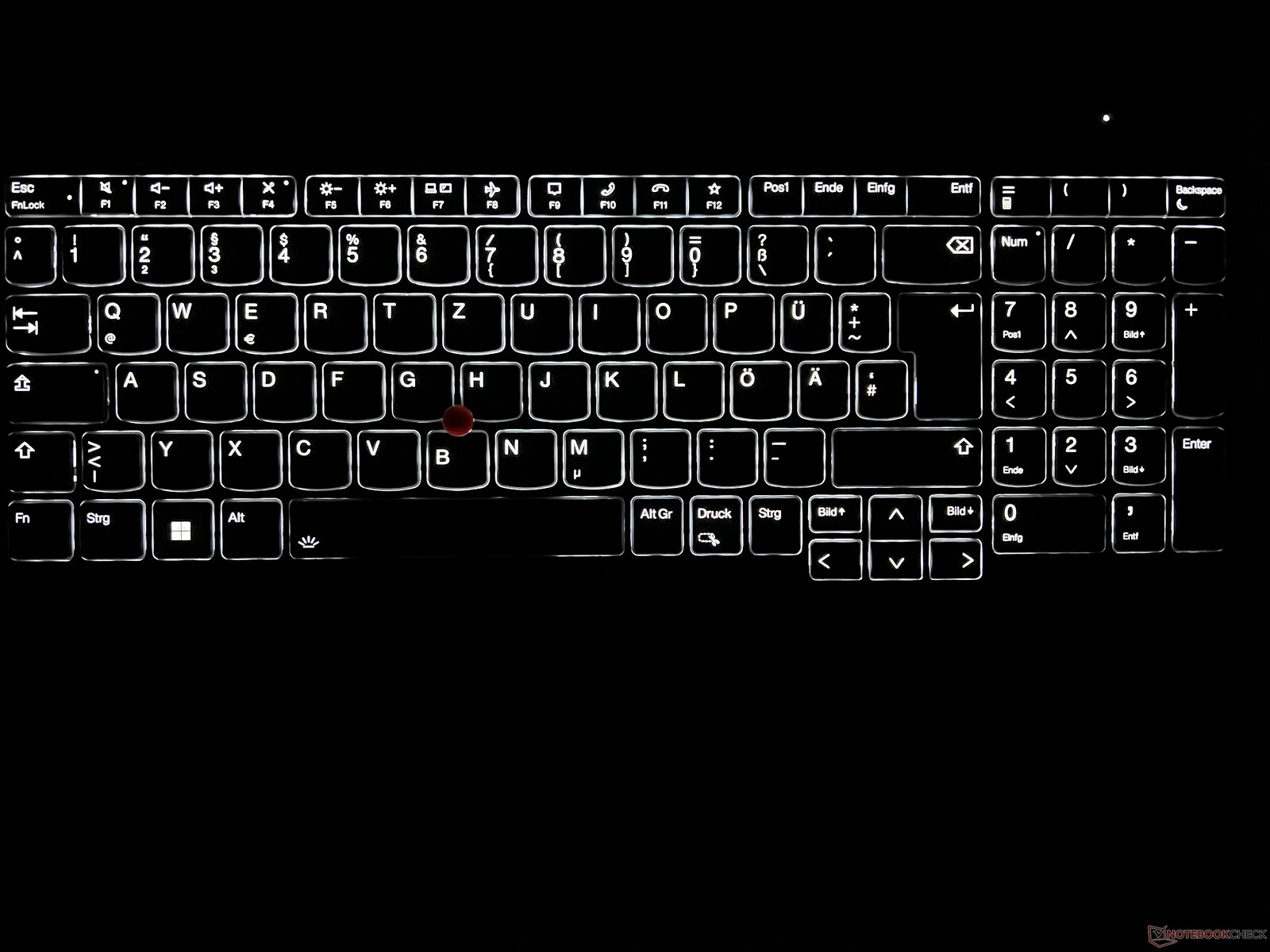

键盘照明
键盘照明

你可以使用点击板或 TrackPoint 进行光标移动。一旦你习惯了后者,使用起来就会很舒适,三个相应的鼠标按钮也能很好地工作,但点击声音不均匀,有点太大。点击板的滑动能力可以更好一些,我们的手指时不时会被卡住。机械点击也不完美,因为在我们的评测机上,左侧的点击机构非常重。

显示屏 - 配备明亮 WQHD 面板的 ThinkPad

子像素阵列
子像素阵列

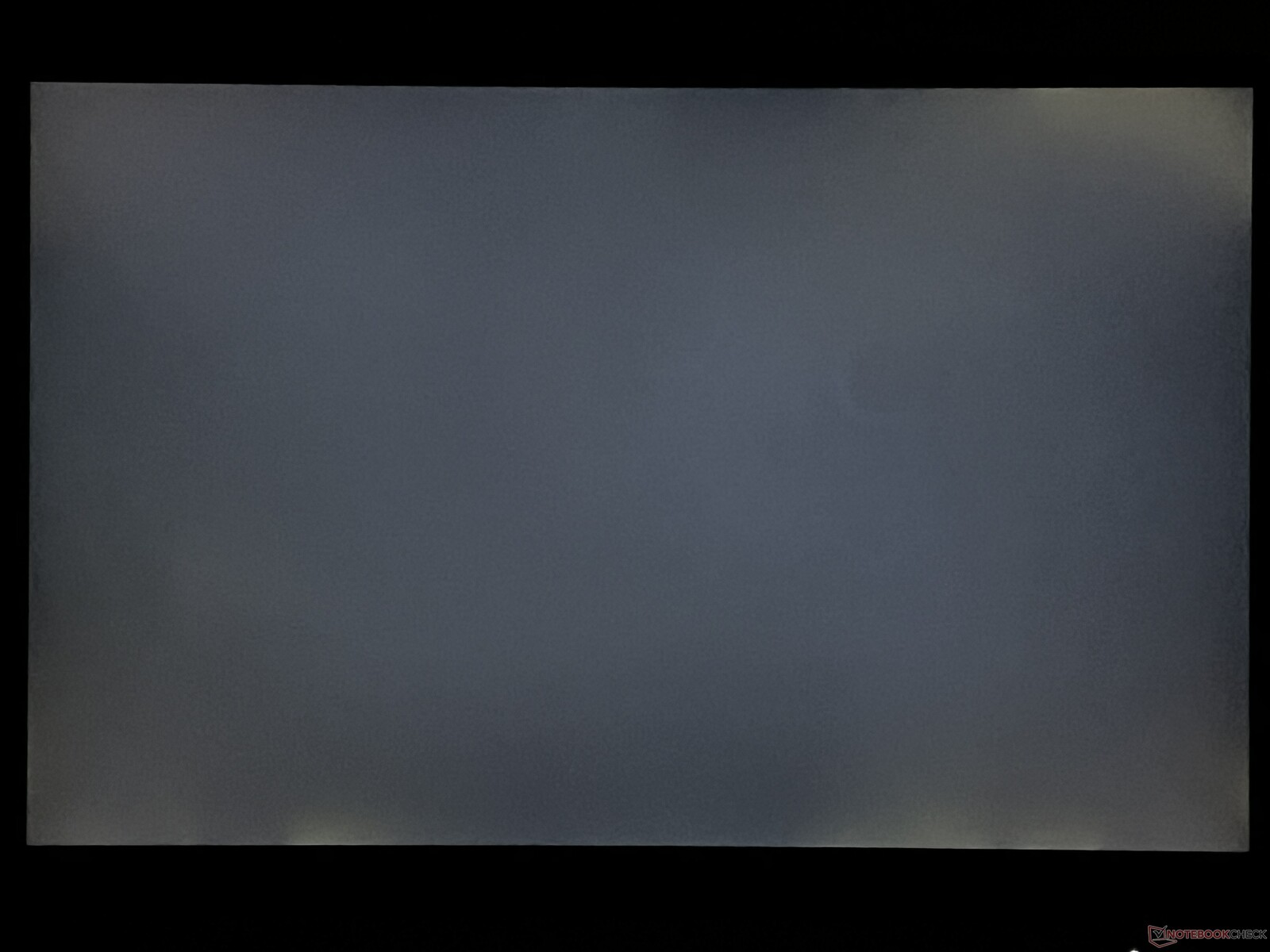

轻微背光出血
轻微背光出血

联想为 ThinkPad E16 G1 提供了不同的显示屏,它们都基于 IPS 技术。默认屏幕(16:10)的分辨率为 1920 x 1200 像素,亮度为 300 尼特(45% NTSC,带或不带触摸,100% sRGB 可选)。我们的评测机配备的是 2560 x 1600 像素的高分辨率 WQHD 面板,亮度更高达 400 nits。画面给人的主观印象非常好,尽管表面是哑光的,但明亮的表面看起来没有颗粒感。我们没有发现 PWM 闪烁,背光出血也不是大问题。

我们可以确认宣传的亮度,最大值为 410 尼特(平均为 389 尼特)。黑色值较低,为 0.24 cd/m²,这使得最大对比度接近 1700:1,表现非常出色。响应时间不明显,也没有重影现象。

410
cd/m²
372
cd/m²
398
cd/m²
396
cd/m²
404
cd/m²
394
cd/m²
377
cd/m²
374
cd/m²
379
cd/m²
Distribution of brightness
MNG007DA1-C tested with X-Rite i1Pro 2
Maximum: 410 cd/m² (Nits) Average: 389.3 cd/m² Minimum: 5 cd/m²
Brightness Distribution: 91 %
Center on Battery: 405 cd/m²
Contrast: 1683:1 (Black: 0.24 cd/m²)
ΔE Color 2.1 | 0.5-29.43 Ø4.92, calibrated: 1.4
ΔE Greyscale 3.3 | 0.5-98 Ø5.2
70% AdobeRGB 1998 (Argyll 2.2.0 3D)
95.3% sRGB (Argyll 2.2.0 3D)
67.6% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.24
Lenovo ThinkPad E16 G1-21JUS08X00
MNG007DA1-C, IPS, 2560x1600, 16"
Acer TravelMate P4 TMP416-51-55KN
BOE BOE0A32, IPS, 1920x1200, 16"
Samsung Galaxy Book3 15, Core i5-1335U
BOE 18 NE156FHM-NS0, IPS, 1920x1080, 15.6"
Lenovo ThinkBook 15 G3 ACL 21A400B2GE
Chi Mei N156HCA-EAC, IPS, 1920x1080, 15.6"
HP ProBook 450 G9 6A180EA
Chi Mei CMN1512, , 1920x1080, 15.6"
Display
-41%
-35%
-34%
-36%
Display P3 Coverage
67.6
38.9
-42%
43.17
-36%
43.8
-35%
42.76
-37%
sRGB Coverage
95.3
58.1
-39%
65.03
-32%
65.5
-31%
63.9
-33%
AdobeRGB 1998 Coverage
70
40.2
-43%
44.6
-36%
45.4
-35%
44.2
-37%
Response Times
46%
41%
0%
6%
Response Time Grey 50% / Grey 80% *
32.4 ?(15.4, 17)
20 ?(4, 16)
38%
20 ?(3, 17)
38%
30 ?(14, 16)
7%
28 ?(13, 15)
14%
Response Time Black / White *
19.6 ?(9.2, 10.4)
9 ?(2, 7)
54%
11 ?(2, 9)
44%
21 ?(12, 9)
-7%
20 ?(12, 8)
-2%
PWM Frequency
Screen
-70%
-90%
-43%
-87%
Brightness middle
404
269
-33%
308
-24%
291
-28%
234
-42%
Brightness
389
265
-32%
290
-25%
271
-30%
218
-44%
Brightness Distribution
91
94
3%
83
-9%
86
-5%
85
-7%
Black Level *
0.24
0.305
-27%
0.425
-77%
0.375
-56%
0.17
29%
Contrast
1683
882
-48%
725
-57%
776
-54%
1376
-18%
Colorchecker dE 2000 *
2.1
4.89
-133%
5.27
-151%
4.17
-99%
5.04
-140%
Colorchecker dE 2000 max. *
4.2
8.81
-110%
16.43
-291%
7.18
-71%
18.04
-330%
Colorchecker dE 2000 calibrated *
1.4
5.12
-266%
2.58
-84%
4.13
-195%
Greyscale dE 2000 *
3.3
2.91
12%
6.38
-93%
3.31
-0%
4.43
-34%
Gamma
2.24 98%
2.28 96%
2.4 92%
2.23 99%
2.41 91%
CCT
7038 92%
6920 94%
7784 84%
6457 101%
6350 102%
Total Average (Program / Settings)
-22% / -48%
-28% / -60%
-26% / -34%
-39% / -63%

* ... smaller is better

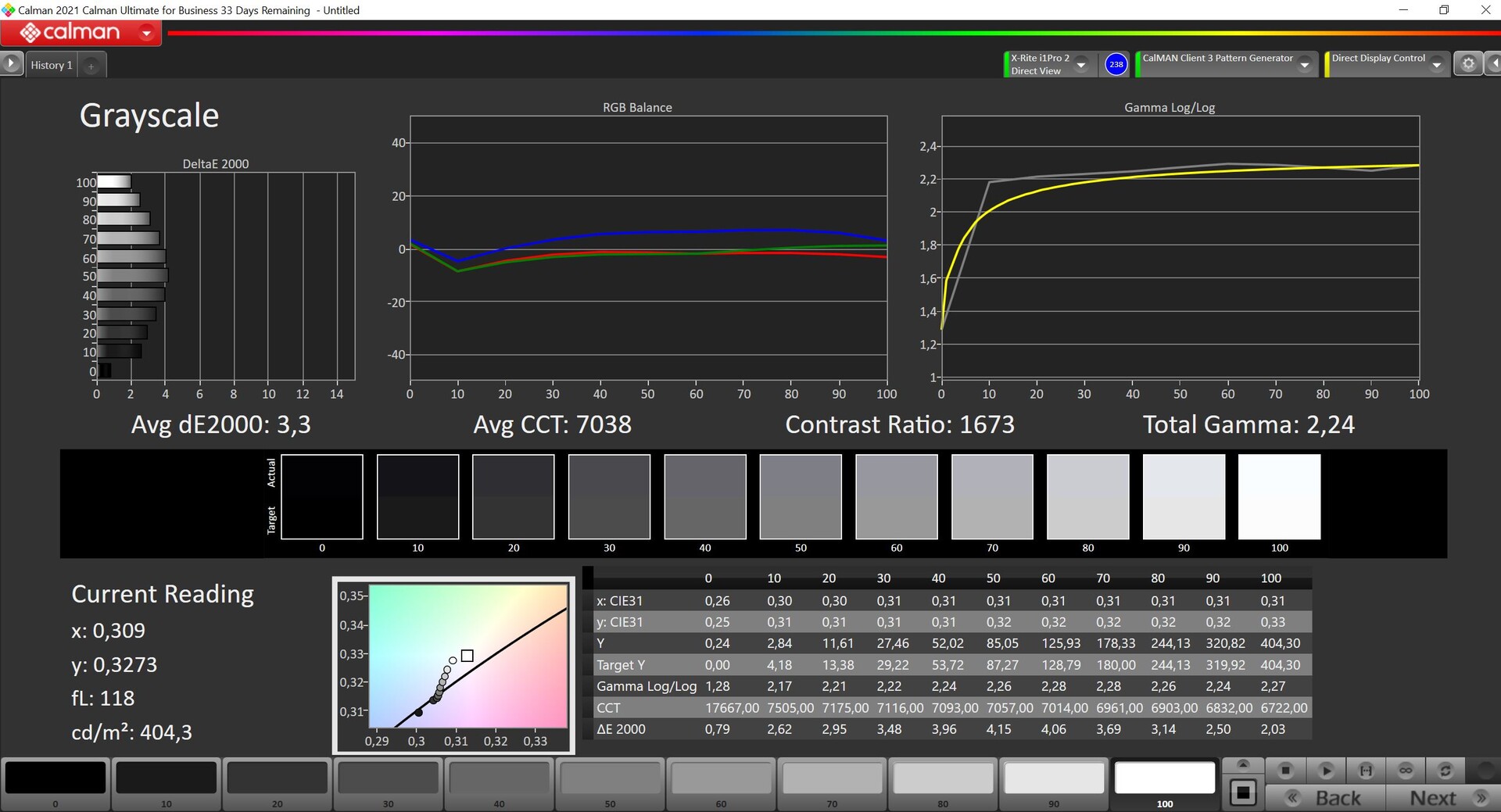

卡尔曼灰度
卡尔曼灰度

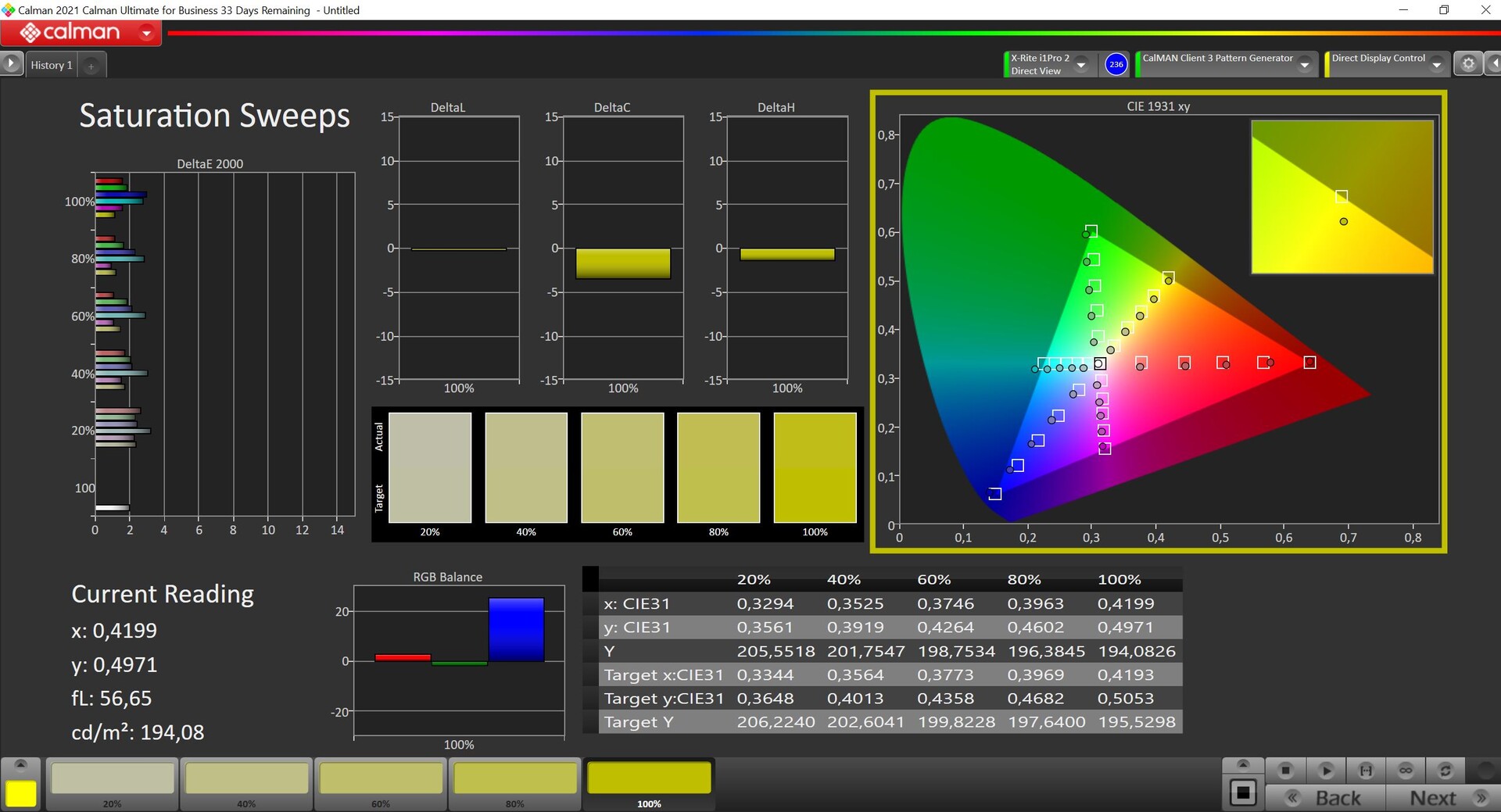

CalMAN 饱和度扫描
CalMAN 饱和度扫描

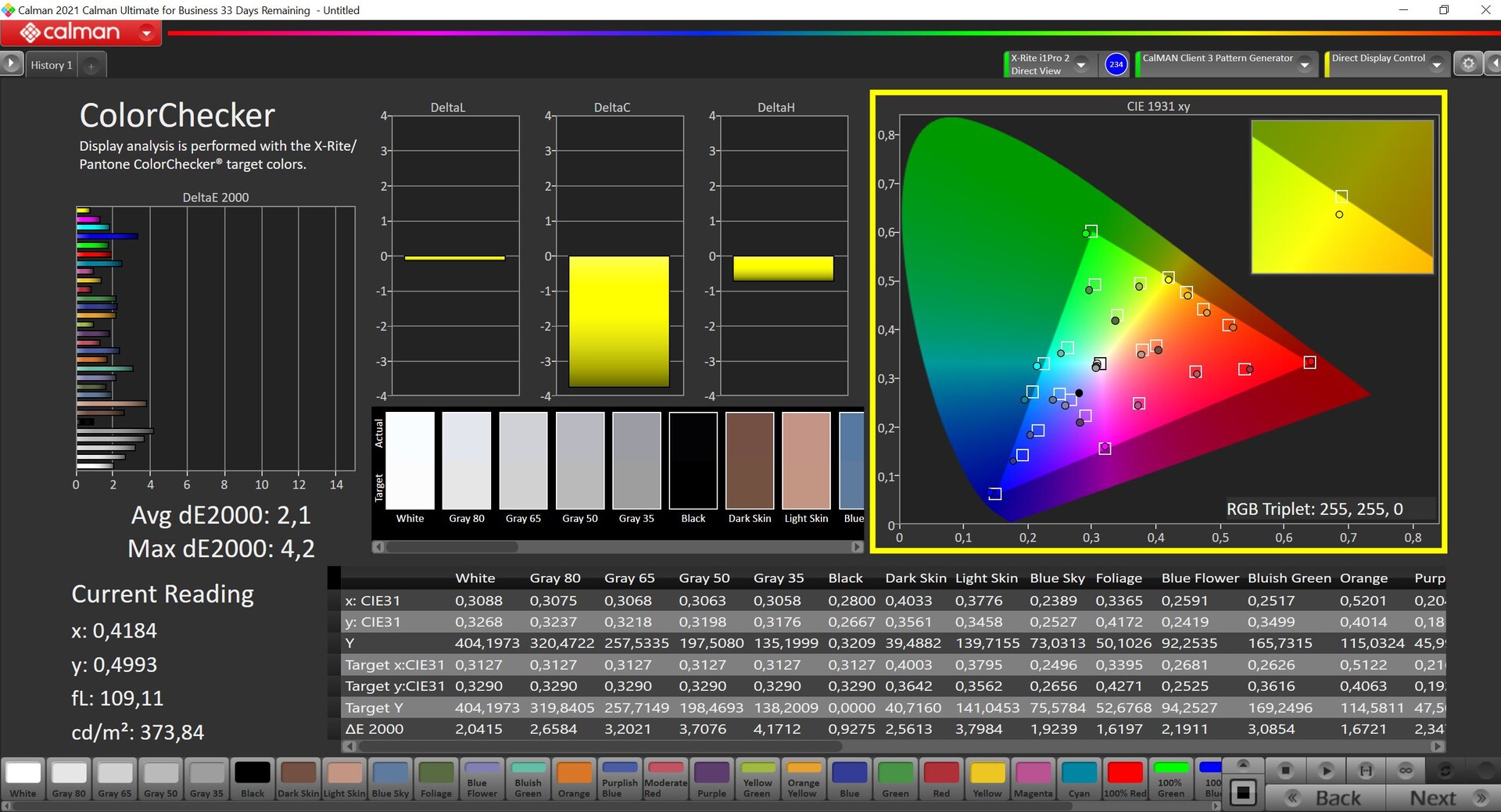

CalMAN 色彩检查器
CalMAN 色彩检查器
CalMAN 灰度校准
CalMAN 灰度校准

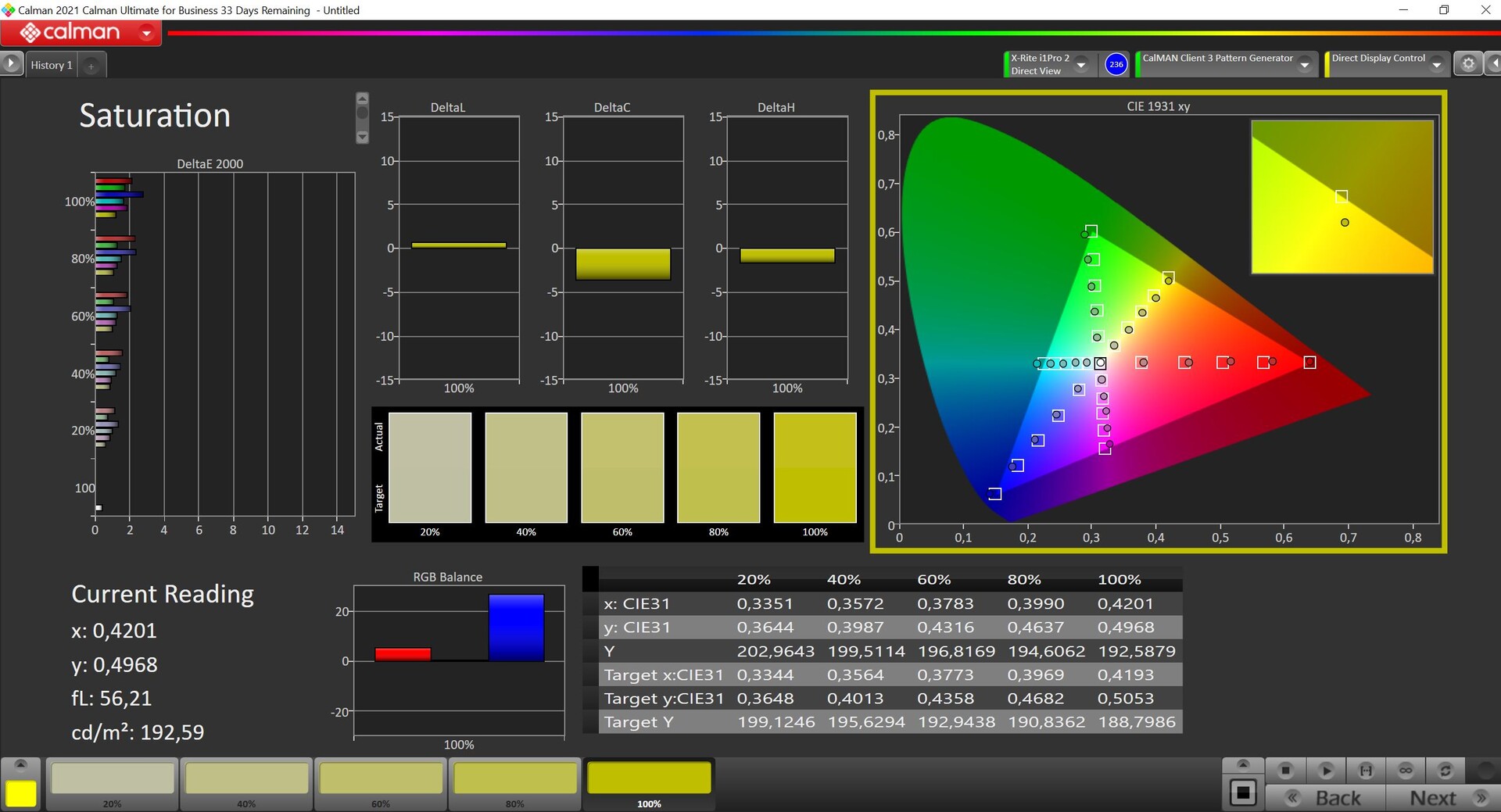

CalMAN 饱和度扫描已校准
CalMAN 饱和度扫描已校准
CalMAN ColorChecker 已校准
CalMAN ColorChecker 已校准

我们使用专业的 CalMAN 软件(X-Rite i1 Pro 2)进行了分析,发现开箱后有轻微偏蓝现象,但色彩偏差已经很小。我们通过自己的校准(可在上面的方框中免费下载配置文件)进一步改善了画质,但考虑到这是一款办公笔记本电脑,这其实并无必要。小范围的 sRGB 色域几乎完全覆盖。

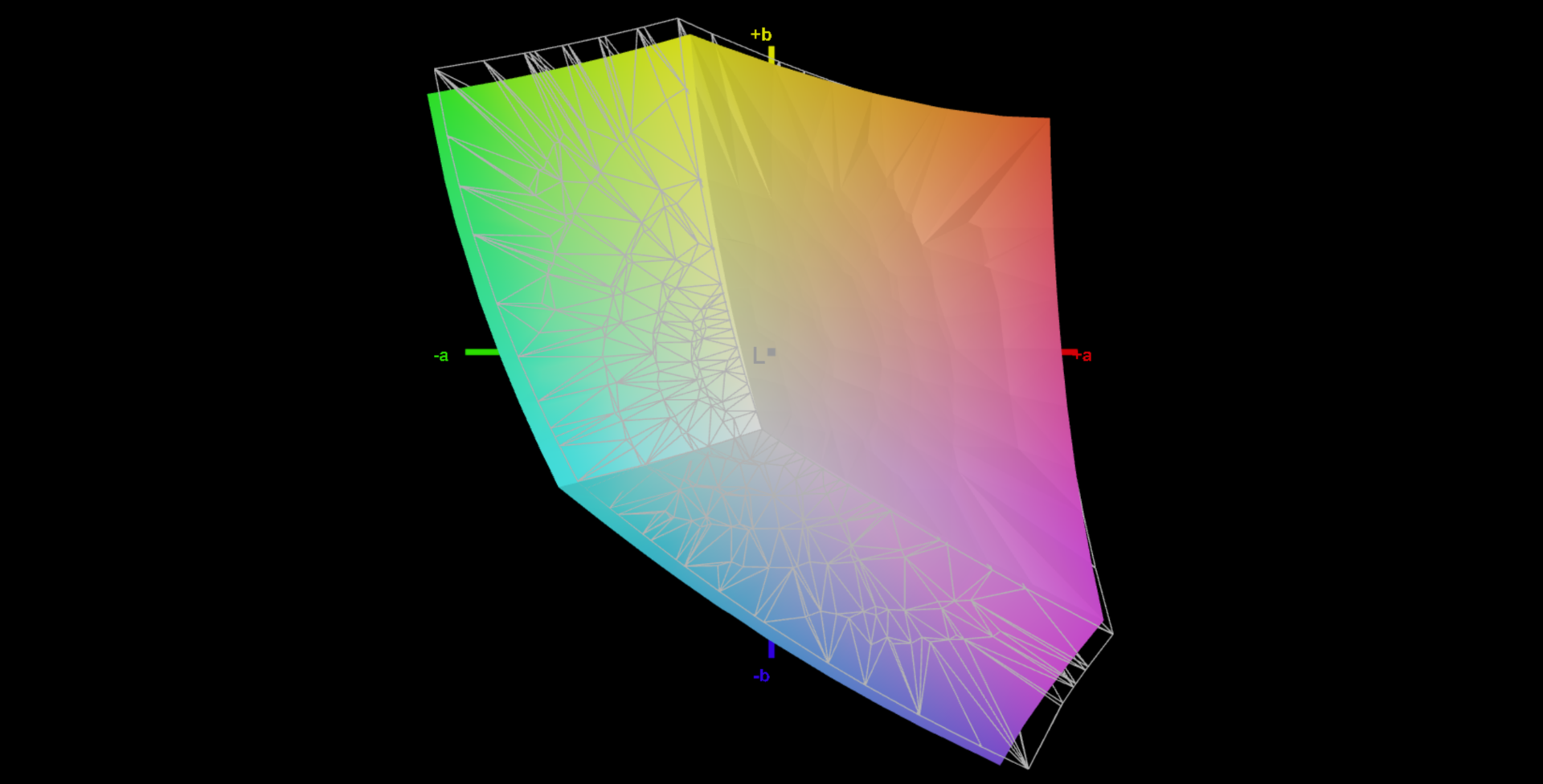

对比 sRGB
对比 sRGB

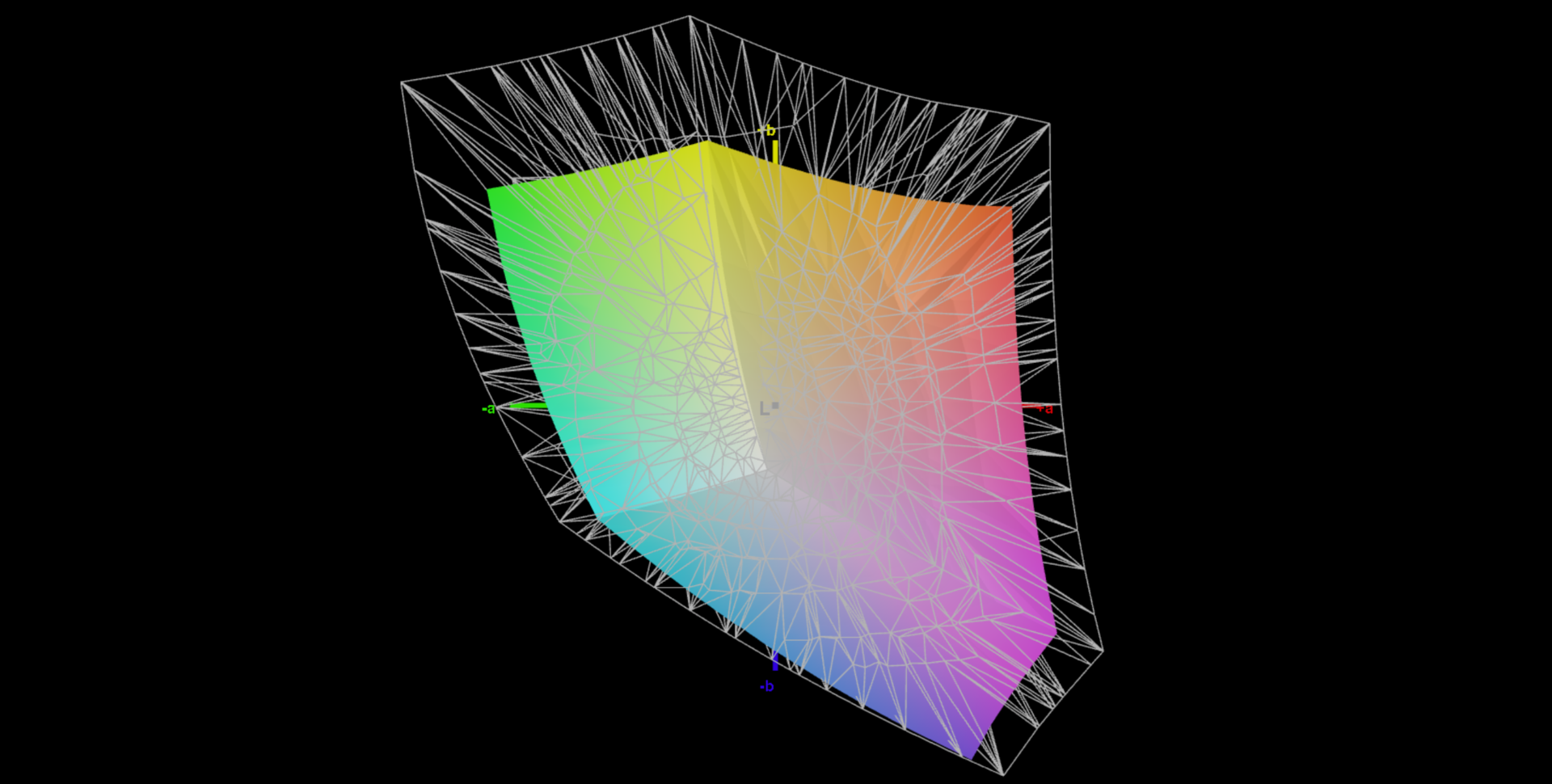

对 P3
对 P3

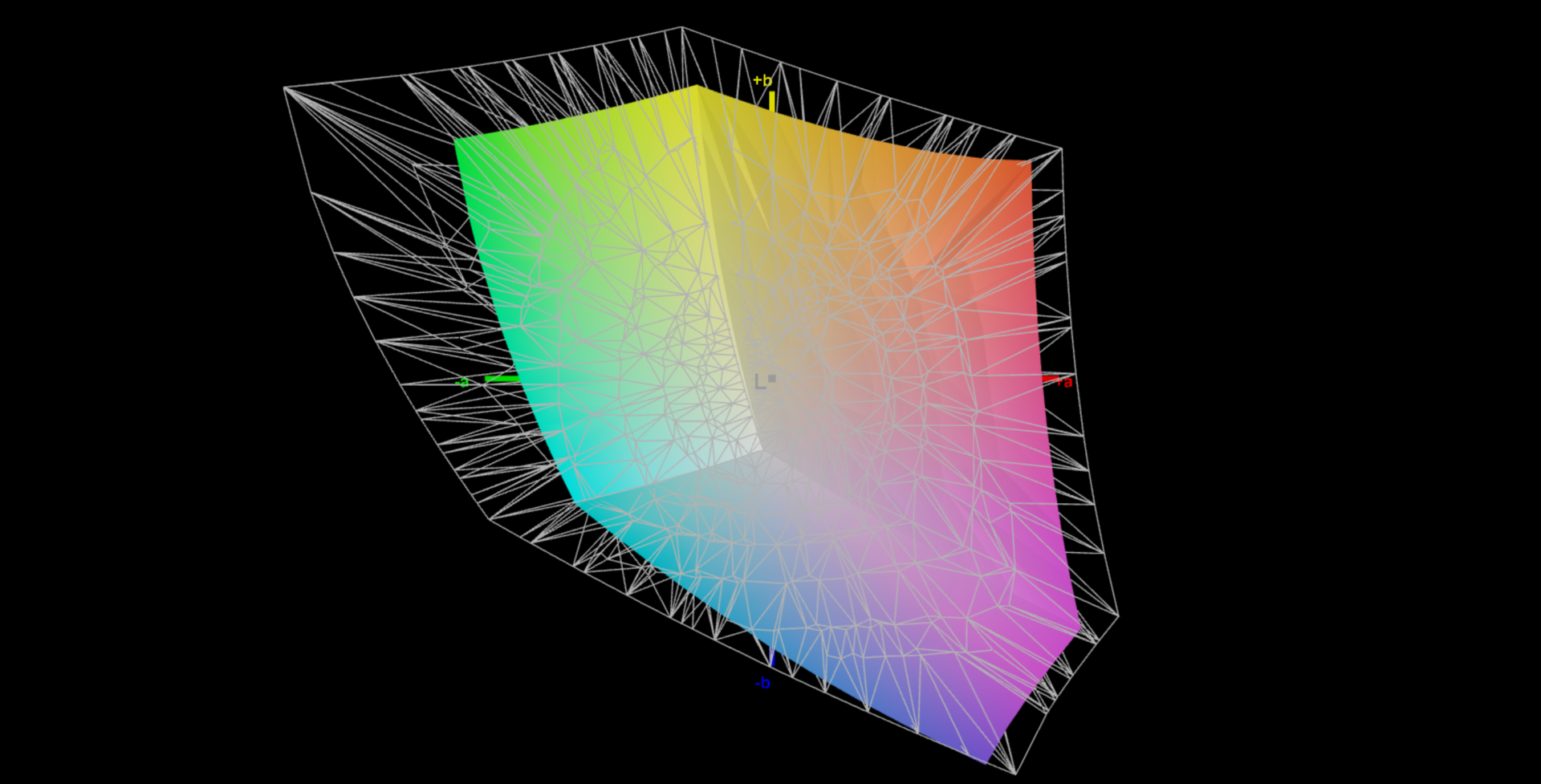

对比 AdobeRGB
对比 AdobeRGB

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

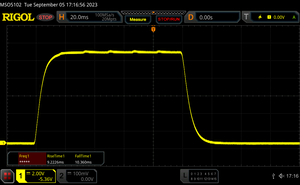

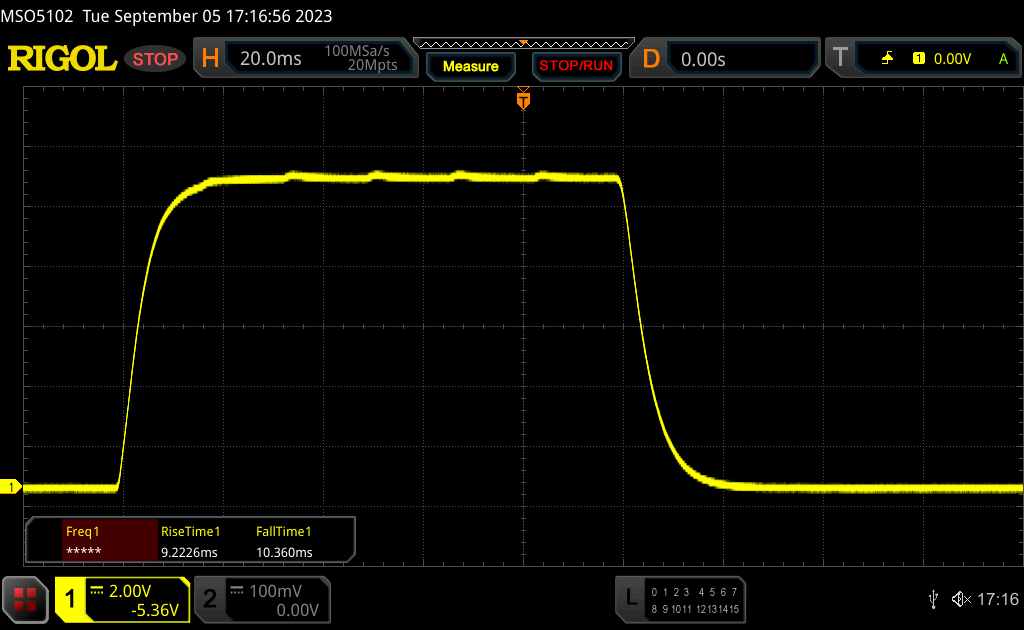

       Response Time Black to White
19.6 ms ... rise ↗ and fall ↘ combined↗ 9.2 ms rise
↘ 10.4 ms fall
The screen shows good response rates in our tests, but may be too slow for competitive gamers.
In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 39 % of all devices are better.
This means that the measured response time is similar to the average of all tested devices (21 ms).

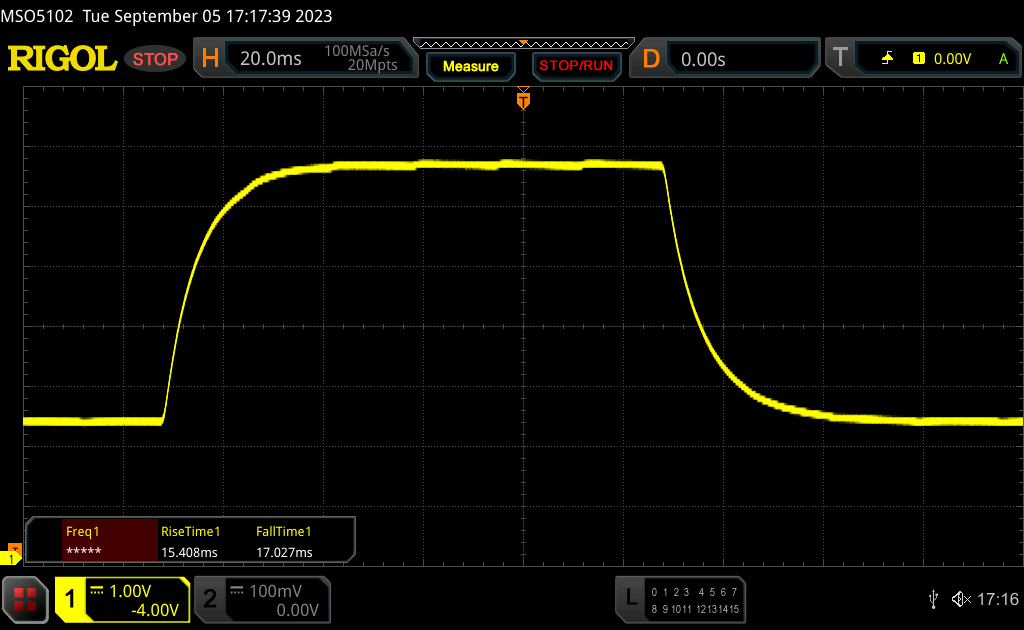

       Response Time 50% Grey to 80% Grey
32.4 ms ... rise ↗ and fall ↘ combined↗ 15.4 ms rise
↘ 17 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 40 % of all devices are better.
This means that the measured response time is similar to the average of all tested devices (32.9 ms).

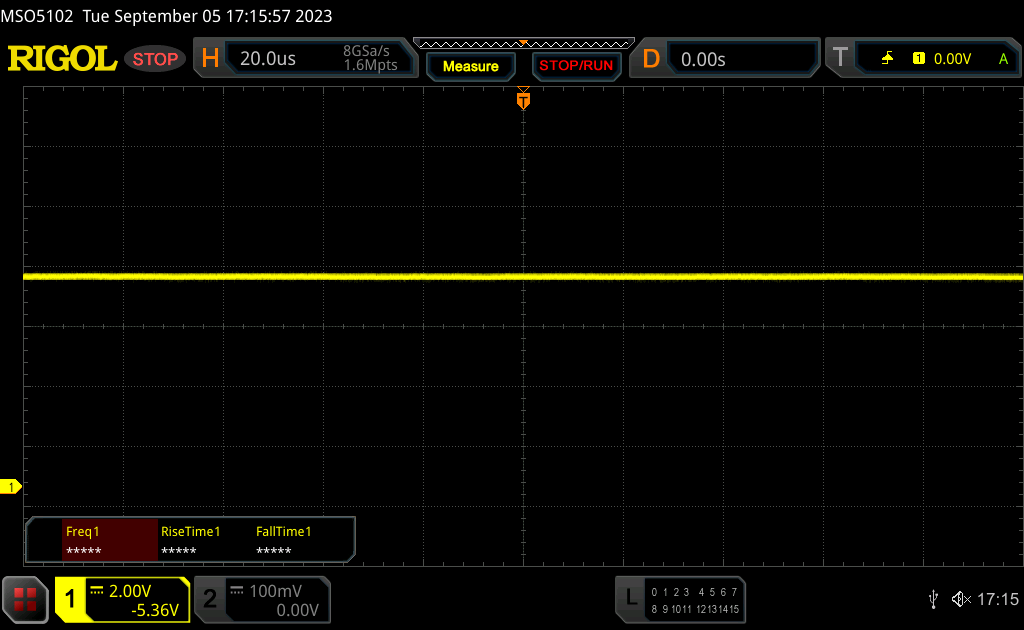

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM not detected

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8743 (minimum: 5 - maximum: 343500) Hz was measured.

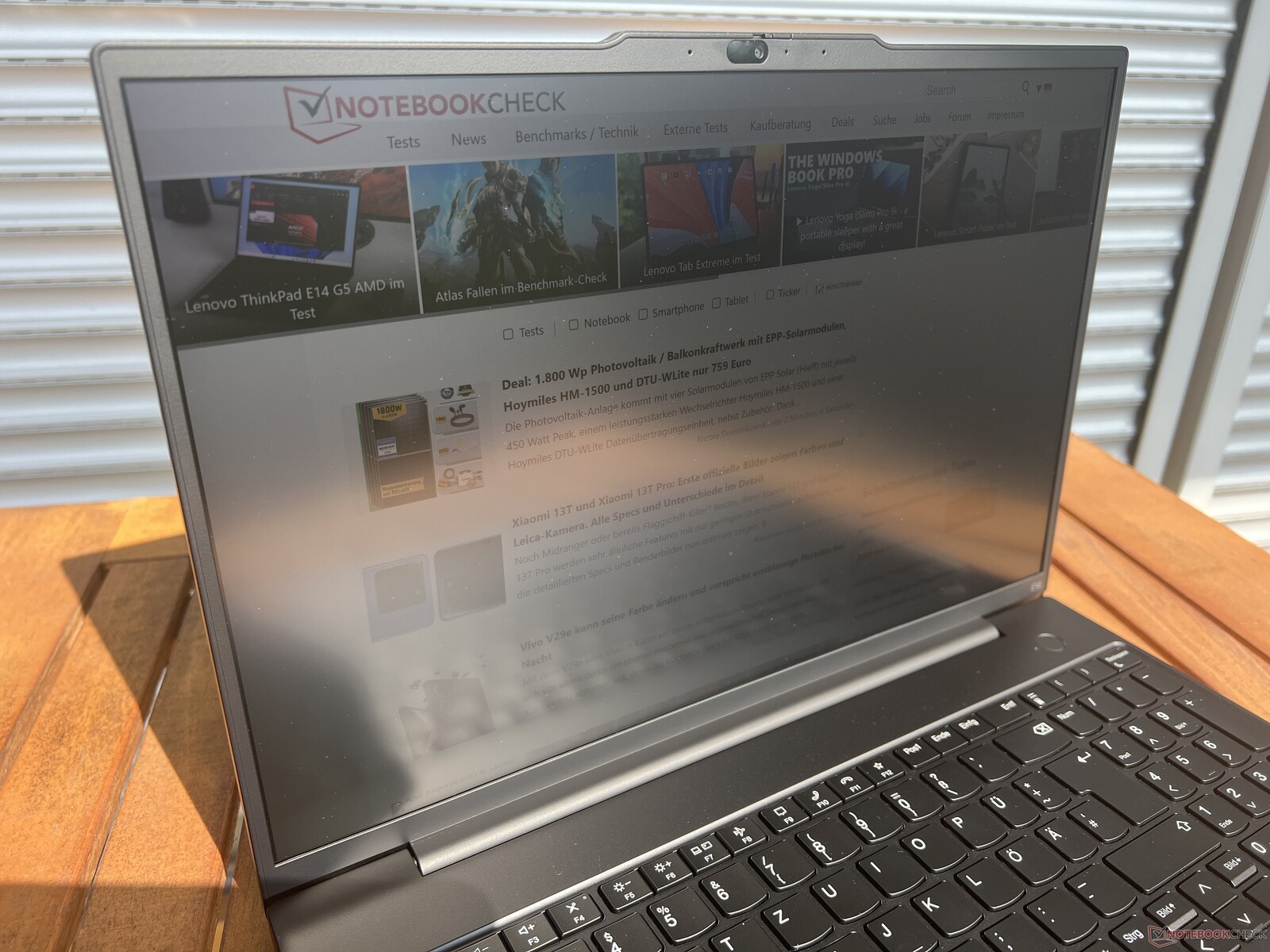

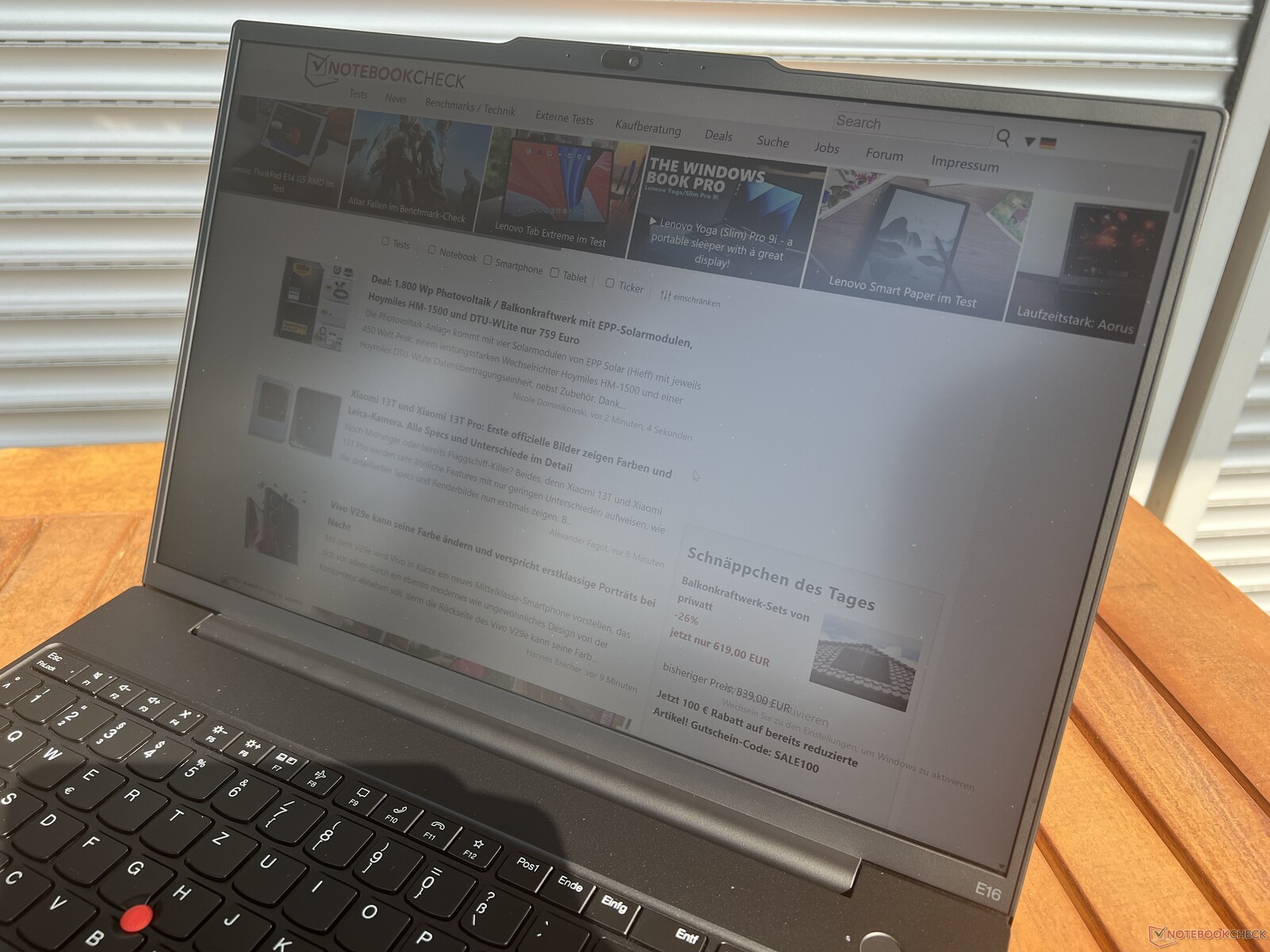

在阳光下
在阳光下

磨砂面板在户外使用时很有优势,电池电量充足时亮度也不会降低。非常明亮的环境(例如在阳光直射下)太具挑战性,你无法再舒适地看到显示内容,但除此之外,没有其他问题。IPS 屏幕的视角稳定性非常好。

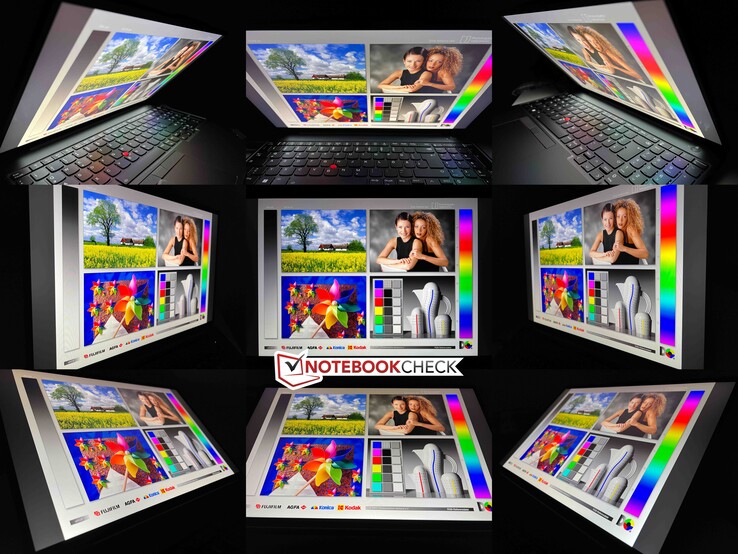

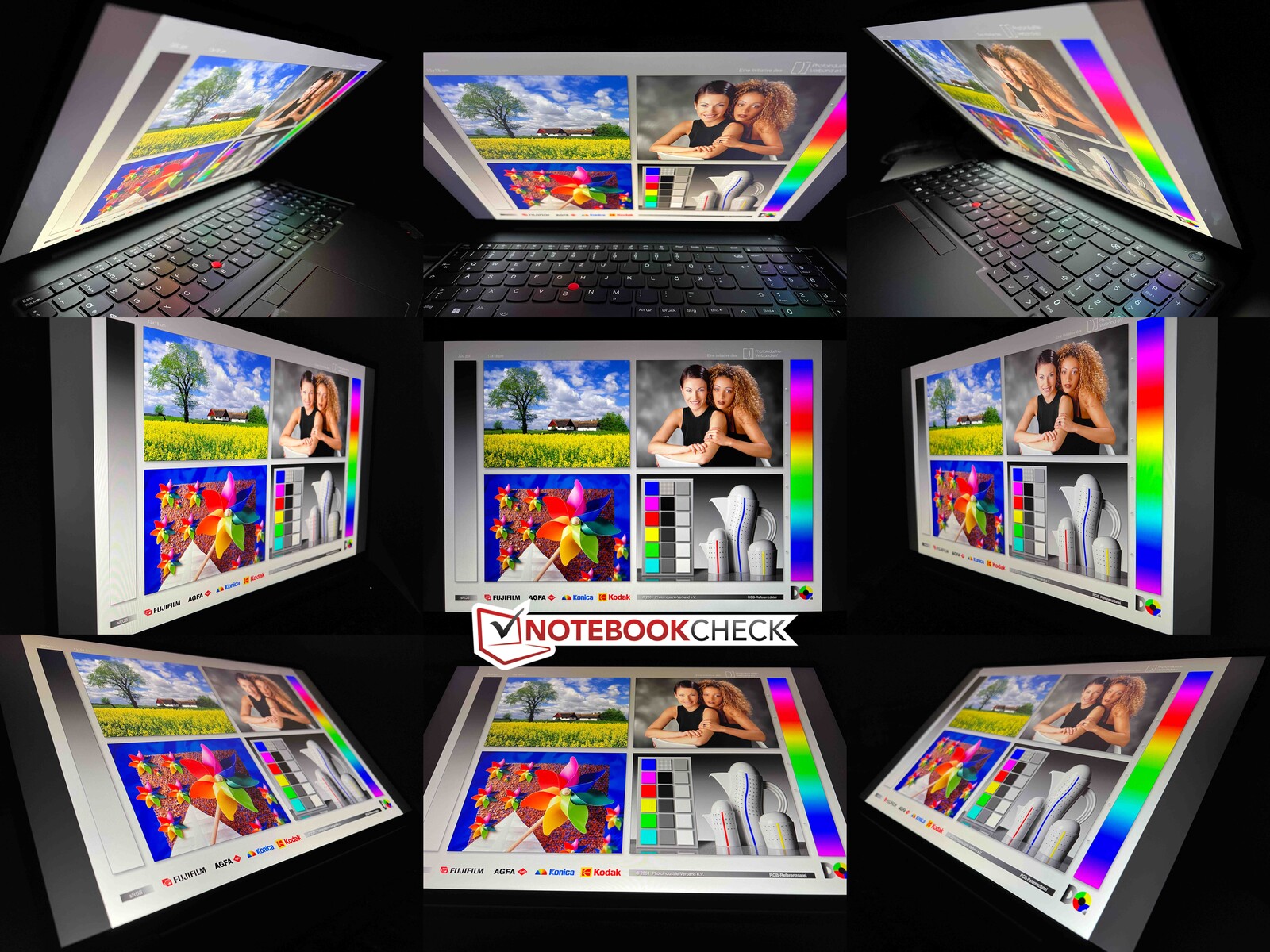

视角稳定性
视角稳定性

性能 - Ryzen 7000 与 Zen 3





审查设置

不久前,联想在 Windows 默认设置中加入了自己的电源配置文件。我们在下面的基准测试和测量中使用了 "最佳性能"设置,CPU 的功耗为 30 瓦。其他配置文件的能效更高,分别为 20 瓦(平衡)和 10 瓦(最佳能效)。

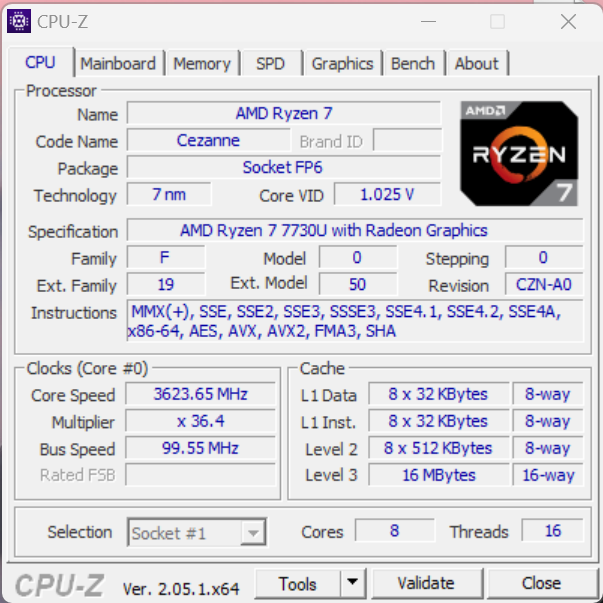

处理器 - Ryzen 7 7730U

AMD 的Ryzen 7 7730U目前,许多经济型笔记本电脑都采用了这款处理器,我们也已对其进行过多次评测。尽管从型号上看,它是一款现代的 AMD 处理器,但它其实是旧版的Ryzen 7 5825U.它仍然使用老式的 Zen 3 内核,最高主频为 4.5 GHz。

在我们的 Cinebench R15 Multi 循环测试中,CPU 性能几乎完全稳定,尽管使用了老式的 Zen 3 内核,但多核性能仍然很有竞争力。英特尔的现代 CPU 仅在单核测试中凭借性能核心占据优势,但功耗也更高。总而言之,Ryzen 7 7730U 的性能足以胜任所有常见的办公任务。

在电池供电的情况下,CPU 性能完全稳定。更多 CPU 基准测试请参见 我们的技术部分.

Cinebench R15 Multi loop

01002003004005006007008009001000110012001300140015001600170018001900Tooltip
Lenovo ThinkPad E16 G1-21JUS08X00 AMD Ryzen 7 7730U: Ø1703 (1668.54-1718.58)
Acer TravelMate P4 TMP416-51-55KN Intel Core i5-1240P: Ø1550 (1516.88-1938.17)
Samsung Galaxy Book3 15, Core i5-1335U Intel Core i5-1335U: Ø1259 (1080.88-1547.27)
Lenovo ThinkBook 15 G3 ACL 21A400B2GE AMD Ryzen 5 5500U: Ø1196 (1177.3-1249.15)
HP ProBook 450 G9 6A180EA Intel Core i7-1255U; @Default (15W PL1): Ø811 (792.19-919)
CPU Performance Rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
CPU Performance Rating
Acer TravelMate P4 TMP416-51-55KN
Intel Core i5-1240P
83.5 pt
Average AMD Ryzen 7 7730U

79.8 pt
Lenovo ThinkPad E16 G1-21JUS08X00
AMD Ryzen 7 7730U
79.6 pt
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U
77.7 pt
Average of class Office

74.8 pt
HP ProBook 450 G9 6A180EA
Intel Core i7-1255U
57.4 pt
Lenovo ThinkBook 15 G3 ACL 21A400B2GE
AMD Ryzen 5 5500U
54.6 pt
Cinebench R23 / Multi Core
Acer TravelMate P4 TMP416-51-55KN
Intel Core i5-1240P
10615 Points +3%
Lenovo ThinkPad E16 G1-21JUS08X00
AMD Ryzen 7 7730U
10325 Points
Average AMD Ryzen 7 7730U
  (7286 - 11490, n=6)
10291 Points 0%
Average of class Office
  (1577 - 15743, n=92, last 2 years)
9250 Points -10%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U
8915 Points -14%
Lenovo ThinkBook 15 G3 ACL 21A400B2GE
AMD Ryzen 5 5500U
7548 Points -27%
HP ProBook 450 G9 6A180EA
Intel Core i7-1255U
5269 Points -49%
Cinebench R23 / Single Core
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U
1685 Points +15%
Acer TravelMate P4 TMP416-51-55KN
Intel Core i5-1240P
1656 Points +13%
Average of class Office
  (618 - 1995, n=92, last 2 years)
1563 Points +7%
Lenovo ThinkPad E16 G1-21JUS08X00
AMD Ryzen 7 7730U
1466 Points
Average AMD Ryzen 7 7730U
  (1335 - 1466, n=6)
1435 Points -2%
HP ProBook 450 G9 6A180EA
Intel Core i7-1255U
1425 Points -3%
Lenovo ThinkBook 15 G3 ACL 21A400B2GE
AMD Ryzen 5 5500U
1179 Points -20%
Cinebench R20 / CPU (Multi Core)
Acer TravelMate P4 TMP416-51-55KN
Intel Core i5-1240P
4054 Points +2%
Lenovo ThinkPad E16 G1-21JUS08X00
AMD Ryzen 7 7730U
3985 Points
Average AMD Ryzen 7 7730U
  (2849 - 4267, n=6)
3885 Points -3%
Average of class Office
  (590 - 5980, n=92, last 2 years)
3556 Points -11%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U
3415 Points -14%
Lenovo ThinkBook 15 G3 ACL 21A400B2GE
AMD Ryzen 5 5500U
2920 Points -27%
HP ProBook 450 G9 6A180EA
Intel Core i7-1255U
2095 Points -47%
Cinebench R20 / CPU (Single Core)
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U
643 Points +12%
Acer TravelMate P4 TMP416-51-55KN
Intel Core i5-1240P
636 Points +11%
Average of class Office
  (229 - 764, n=92, last 2 years)
602 Points +5%
Lenovo ThinkPad E16 G1-21JUS08X00
AMD Ryzen 7 7730U
573 Points
Average AMD Ryzen 7 7730U
  (533 - 573, n=6)
560 Points -2%
HP ProBook 450 G9 6A180EA
Intel Core i7-1255U
550 Points -4%
Lenovo ThinkBook 15 G3 ACL 21A400B2GE
AMD Ryzen 5 5500U
461 Points -20%
Cinebench R15 / CPU Multi 64Bit
Acer TravelMate P4 TMP416-51-55KN
Intel Core i5-1240P
1938 Points +13%
Average AMD Ryzen 7 7730U
  (1588 - 1942, n=6)
1800 Points +5%
Lenovo ThinkPad E16 G1-21JUS08X00
AMD Ryzen 7 7730U
1718.58 (1668.54min - 1718.58max) Points
Average of class Office
  (246 - 2642, n=93, last 2 years)
1561 Points -9%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U
1547 (1080.88min - 1547.27max) Points -10%
Lenovo ThinkBook 15 G3 ACL 21A400B2GE
AMD Ryzen 5 5500U
1249 Points -27%
HP ProBook 450 G9 6A180EA
Intel Core i7-1255U
919 (792.19min - 909max) Points -47%
Cinebench R15 / CPU Single 64Bit
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U
240 Points +3%
Acer TravelMate P4 TMP416-51-55KN
Intel Core i5-1240P
236 Points +1%
Lenovo ThinkPad E16 G1-21JUS08X00
AMD Ryzen 7 7730U
233 Points
Average of class Office
  (98 - 284, n=92, last 2 years)
230 Points -1%
Average AMD Ryzen 7 7730U
  (221 - 233, n=6)
229 Points -2%
HP ProBook 450 G9 6A180EA
Intel Core i7-1255U
213 Points -9%
Lenovo ThinkBook 15 G3 ACL 21A400B2GE
AMD Ryzen 5 5500U
177.3 Points -24%
Blender / v2.79 BMW27 CPU
HP ProBook 450 G9 6A180EA
Intel Core i7-1255U
601 Seconds * -103%
Lenovo ThinkBook 15 G3 ACL 21A400B2GE
AMD Ryzen 5 5500U
419 Seconds * -42%
Average of class Office
  (208 - 1956, n=93, last 2 years)
419 Seconds * -42%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U
362 Seconds * -22%
Acer TravelMate P4 TMP416-51-55KN
Intel Core i5-1240P
309 Seconds * -4%
Average AMD Ryzen 7 7730U
  (277 - 374, n=5)
307 Seconds * -4%
Lenovo ThinkPad E16 G1-21JUS08X00
AMD Ryzen 7 7730U
296 Seconds *
7-Zip 18.03 / 7z b 4
Average AMD Ryzen 7 7730U
  (40263 - 51898, n=6)
48295 MIPS +1%
Lenovo ThinkPad E16 G1-21JUS08X00
AMD Ryzen 7 7730U
47733 MIPS
Acer TravelMate P4 TMP416-51-55KN
Intel Core i5-1240P
42160 MIPS -12%
Average of class Office
  (7532 - 65460, n=93, last 2 years)
38934 MIPS -18%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U
38513 MIPS -19%
Lenovo ThinkBook 15 G3 ACL 21A400B2GE
AMD Ryzen 5 5500U
30129 MIPS -37%
HP ProBook 450 G9 6A180EA
Intel Core i7-1255U
24126 MIPS -49%
7-Zip 18.03 / 7z b 4 -mmt1
Lenovo ThinkPad E16 G1-21JUS08X00
AMD Ryzen 7 7730U
5426 MIPS
Average AMD Ryzen 7 7730U
  (5222 - 5426, n=6)
5348 MIPS -1%
Acer TravelMate P4 TMP416-51-55KN
Intel Core i5-1240P
5320 MIPS -2%
Average of class Office
  (2972 - 6687, n=93, last 2 years)
5276 MIPS -3%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U
5215 MIPS -4%
HP ProBook 450 G9 6A180EA
Intel Core i7-1255U
5168 MIPS -5%
Lenovo ThinkBook 15 G3 ACL 21A400B2GE
AMD Ryzen 5 5500U
4325 MIPS -20%
Geekbench 5.5 / Multi-Core
Acer TravelMate P4 TMP416-51-55KN
Intel Core i5-1240P
9284 Points +38%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U
8044 Points +19%
Average of class Office
  (1018 - 11980, n=92, last 2 years)
7612 Points +13%
Average AMD Ryzen 7 7730U
  (6747 - 8257, n=6)
7546 Points +12%
Lenovo ThinkPad E16 G1-21JUS08X00
AMD Ryzen 7 7730U
6747 Points
HP ProBook 450 G9 6A180EA
Intel Core i7-1255U
5419 Points -20%
Lenovo ThinkBook 15 G3 ACL 21A400B2GE
AMD Ryzen 5 5500U
4142 Points -39%
Geekbench 5.5 / Single-Core
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U
1672 Points +12%
HP ProBook 450 G9 6A180EA
Intel Core i7-1255U
1661 Points +11%
Acer TravelMate P4 TMP416-51-55KN
Intel Core i5-1240P
1624 Points +9%
Average of class Office
  (510 - 1989, n=93, last 2 years)
1585 Points +6%
Lenovo ThinkPad E16 G1-21JUS08X00
AMD Ryzen 7 7730U
1490 Points
Average AMD Ryzen 7 7730U
  (1464 - 1500, n=6)
1480 Points -1%
Lenovo ThinkBook 15 G3 ACL 21A400B2GE
AMD Ryzen 5 5500U
1076 Points -28%
HWBOT x265 Benchmark v2.2 / 4k Preset
Average AMD Ryzen 7 7730U
  (9.91 - 13.7, n=6)
12.4 fps +5%
Acer TravelMate P4 TMP416-51-55KN
Intel Core i5-1240P
12 fps +2%
Lenovo ThinkPad E16 G1-21JUS08X00
AMD Ryzen 7 7730U
11.8 fps
Average of class Office
  (1.72 - 18.7, n=91, last 2 years)
10.4 fps -12%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U
10 fps -15%
Lenovo ThinkBook 15 G3 ACL 21A400B2GE
AMD Ryzen 5 5500U
7.41 fps -37%
HP ProBook 450 G9 6A180EA
Intel Core i7-1255U
6.31 fps -47%
LibreOffice / 20 Documents To PDF
Lenovo ThinkBook 15 G3 ACL 21A400B2GE
AMD Ryzen 5 5500U
69.3 s * -40%
Average of class Office
  (31.3 - 129.6, n=91, last 2 years)
53.2 s * -7%
Acer TravelMate P4 TMP416-51-55KN
Intel Core i5-1240P
52.6 s * -6%
Average AMD Ryzen 7 7730U
  (48.4 - 53.6, n=6)
51 s * -3%
HP ProBook 450 G9 6A180EA
Intel Core i7-1255U
50.4 s * -2%
Lenovo ThinkPad E16 G1-21JUS08X00
AMD Ryzen 7 7730U
49.6 s *
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U
46.6 s * +6%
R Benchmark 2.5 / Overall mean
Lenovo ThinkBook 15 G3 ACL 21A400B2GE
AMD Ryzen 5 5500U
0.66 sec * -28%
HP ProBook 450 G9 6A180EA
Intel Core i7-1255U
0.558 sec * -8%
Average of class Office
  (0.4244 - 1.135, n=90, last 2 years)
0.543 sec * -5%
Average AMD Ryzen 7 7730U
  (0.515 - 0.543, n=6)
0.529 sec * -3%
Acer TravelMate P4 TMP416-51-55KN
Intel Core i5-1240P
0.52 sec * -1%
Lenovo ThinkPad E16 G1-21JUS08X00
AMD Ryzen 7 7730U
0.515 sec *
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U
0.503 sec * +2%

* ... smaller is better

Cinebench R15 OpenGL 64Bit
113.1 fps
Cinebench R15 Ref. Match 64Bit
97.9 %
Cinebench R15 CPU Single 64Bit
233 Points
Cinebench R15 CPU Multi 64Bit
1718.58 Points
Cinebench R20 CPU (Multi Core)
3985 Points
Cinebench R20 CPU (Single Core)
573 Points
Cinebench R23 Single Core
1466 Points
Cinebench R23 Multi Core
10325 Points
Help
Performance Rating
Average AMD Ryzen 7 7730U

93.1 pt
Lenovo ThinkPad E16 G1-21JUS08X00
AMD Ryzen 7 7730U, Vega 8
88.9 pt
Average of class Office

75.5 pt
Acer TravelMate P4 TMP416-51-55KN
Intel Core i5-1240P, Iris Xe G7 80EUs
75.3 pt
Lenovo ThinkBook 15 G3 ACL 21A400B2GE
AMD Ryzen 5 5500U, Vega 7
71.9 pt
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U, Iris Xe G7 80EUs
67.8 pt
HP ProBook 450 G9 6A180EA
Intel Core i7-1255U, Iris Xe G7 96EUs
44.3 pt
AIDA64 / FP32 Ray-Trace
Average AMD Ryzen 7 7730U
  (11322 - 13069, n=6)
12118 KRay/s +3%
Lenovo ThinkPad E16 G1-21JUS08X00
AMD Ryzen 7 7730U, Vega 8
11747 KRay/s
Average of class Office
  (763 - 24250, n=92, last 2 years)
9320 KRay/s -21%
Lenovo ThinkBook 15 G3 ACL 21A400B2GE
AMD Ryzen 5 5500U, Vega 7
9175 KRay/s -22%
Acer TravelMate P4 TMP416-51-55KN
Intel Core i5-1240P, Iris Xe G7 80EUs
8656 KRay/s -26%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U, Iris Xe G7 80EUs
7525 KRay/s -36%
HP ProBook 450 G9 6A180EA
Intel Core i7-1255U, Iris Xe G7 96EUs
4965 KRay/s -58%
AIDA64 / FPU Julia
Average AMD Ryzen 7 7730U
  (72772 - 83307, n=6)
77576 Points +4%
Lenovo ThinkPad E16 G1-21JUS08X00
AMD Ryzen 7 7730U, Vega 8
74875 Points
Lenovo ThinkBook 15 G3 ACL 21A400B2GE
AMD Ryzen 5 5500U, Vega 7
51801 Points -31%
Acer TravelMate P4 TMP416-51-55KN
Intel Core i5-1240P, Iris Xe G7 80EUs
48063 Points -36%
Average of class Office
  (4113 - 102228, n=92, last 2 years)
47898 Points -36%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U, Iris Xe G7 80EUs
38538 Points -49%
HP ProBook 450 G9 6A180EA
Intel Core i7-1255U, Iris Xe G7 96EUs
25532 Points -66%
AIDA64 / CPU SHA3
Average AMD Ryzen 7 7730U
  (2424 - 2782, n=6)
2576 MB/s +4%
Lenovo ThinkPad E16 G1-21JUS08X00
AMD Ryzen 7 7730U, Vega 8
2479 MB/s
Acer TravelMate P4 TMP416-51-55KN
Intel Core i5-1240P, Iris Xe G7 80EUs
2330 MB/s -6%
Average of class Office
  (287 - 4551, n=92, last 2 years)
2212 MB/s -11%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U, Iris Xe G7 80EUs
2018 MB/s -19%
Lenovo ThinkBook 15 G3 ACL 21A400B2GE
AMD Ryzen 5 5500U, Vega 7
1685 MB/s -32%
HP ProBook 450 G9 6A180EA
Intel Core i7-1255U, Iris Xe G7 96EUs
1325 MB/s -47%
AIDA64 / CPU Queen
Average AMD Ryzen 7 7730U
  (86118 - 95529, n=6)
90813 Points +5%
Lenovo ThinkPad E16 G1-21JUS08X00
AMD Ryzen 7 7730U, Vega 8
86118 Points
Acer TravelMate P4 TMP416-51-55KN
Intel Core i5-1240P, Iris Xe G7 80EUs
75916 Points -12%
Lenovo ThinkBook 15 G3 ACL 21A400B2GE
AMD Ryzen 5 5500U, Vega 7
73428 Points -15%
Average of class Office
  (8185 - 115197, n=92, last 2 years)
70379 Points -18%
HP ProBook 450 G9 6A180EA
Intel Core i7-1255U, Iris Xe G7 96EUs
63374 Points -26%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U, Iris Xe G7 80EUs
60626 Points -30%
AIDA64 / FPU SinJulia
Average AMD Ryzen 7 7730U
  (10753 - 11716, n=6)
11215 Points +2%
Lenovo ThinkPad E16 G1-21JUS08X00
AMD Ryzen 7 7730U, Vega 8
11040 Points
Lenovo ThinkBook 15 G3 ACL 21A400B2GE
AMD Ryzen 5 5500U, Vega 7
10443 Points -5%
Average of class Office
  (404 - 14288, n=92, last 2 years)
6714 Points -39%
Acer TravelMate P4 TMP416-51-55KN
Intel Core i5-1240P, Iris Xe G7 80EUs
6021 Points -45%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U, Iris Xe G7 80EUs
4950 Points -55%
HP ProBook 450 G9 6A180EA
Intel Core i7-1255U, Iris Xe G7 96EUs
3577 Points -68%
AIDA64 / FPU Mandel
Average AMD Ryzen 7 7730U
  (40080 - 45955, n=6)
42662 Points +4%
Lenovo ThinkPad E16 G1-21JUS08X00
AMD Ryzen 7 7730U, Vega 8
41149 Points
Lenovo ThinkBook 15 G3 ACL 21A400B2GE
AMD Ryzen 5 5500U, Vega 7
27285 Points -34%
Average of class Office
  (2075 - 54365, n=92, last 2 years)
24965 Points -39%
Acer TravelMate P4 TMP416-51-55KN
Intel Core i5-1240P, Iris Xe G7 80EUs
23979 Points -42%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U, Iris Xe G7 80EUs
19131 Points -54%
HP ProBook 450 G9 6A180EA
Intel Core i7-1255U, Iris Xe G7 96EUs
12203 Points -70%
AIDA64 / CPU AES
Average of class Office
  (7860 - 155900, n=92, last 2 years)
51340 MB/s +20%
Lenovo ThinkBook 15 G3 ACL 21A400B2GE
AMD Ryzen 5 5500U, Vega 7
50577 MB/s +18%
Acer TravelMate P4 TMP416-51-55KN
Intel Core i5-1240P, Iris Xe G7 80EUs
46854 MB/s +9%
Average AMD Ryzen 7 7730U
  (42560 - 56403, n=6)
45985 MB/s +7%
Lenovo ThinkPad E16 G1-21JUS08X00
AMD Ryzen 7 7730U, Vega 8
42867 MB/s
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U, Iris Xe G7 80EUs
39602 MB/s -8%
HP ProBook 450 G9 6A180EA
Intel Core i7-1255U, Iris Xe G7 96EUs
27900 MB/s -35%
AIDA64 / CPU ZLib
Acer TravelMate P4 TMP416-51-55KN
Intel Core i5-1240P, Iris Xe G7 80EUs
694 MB/s +4%
Average AMD Ryzen 7 7730U
  (646 - 733, n=6)
686 MB/s +3%
Lenovo ThinkPad E16 G1-21JUS08X00
AMD Ryzen 7 7730U, Vega 8
666 MB/s
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U, Iris Xe G7 80EUs
637 MB/s -4%
Average of class Office
  (78 - 1018, n=92, last 2 years)
600 MB/s -10%
Lenovo ThinkBook 15 G3 ACL 21A400B2GE
AMD Ryzen 5 5500U, Vega 7
573 MB/s -14%
HP ProBook 450 G9 6A180EA
Intel Core i7-1255U, Iris Xe G7 96EUs
393 MB/s -41%
AIDA64 / FP64 Ray-Trace
Average AMD Ryzen 7 7730U
  (5986 - 6886, n=6)
6396 KRay/s +4%
Lenovo ThinkPad E16 G1-21JUS08X00
AMD Ryzen 7 7730U, Vega 8
6164 KRay/s
Average of class Office
  (432 - 12755, n=92, last 2 years)
4939 KRay/s -20%
Acer TravelMate P4 TMP416-51-55KN
Intel Core i5-1240P, Iris Xe G7 80EUs
4827 KRay/s -22%
Lenovo ThinkBook 15 G3 ACL 21A400B2GE
AMD Ryzen 5 5500U, Vega 7
4679 KRay/s -24%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U, Iris Xe G7 80EUs
4031 KRay/s -35%
HP ProBook 450 G9 6A180EA
Intel Core i7-1255U, Iris Xe G7 96EUs
2634 KRay/s -57%
AIDA64 / CPU PhotoWorxx
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U, Iris Xe G7 80EUs
41123 MPixel/s +199%
Average of class Office
  (4814 - 54971, n=92, last 2 years)
29077 MPixel/s +112%
Acer TravelMate P4 TMP416-51-55KN
Intel Core i5-1240P, Iris Xe G7 80EUs
28192 MPixel/s +105%
Average AMD Ryzen 7 7730U
  (13747 - 19447, n=6)
17492 MPixel/s +27%
HP ProBook 450 G9 6A180EA
Intel Core i7-1255U, Iris Xe G7 96EUs
14411 MPixel/s +5%
Lenovo ThinkPad E16 G1-21JUS08X00
AMD Ryzen 7 7730U, Vega 8
13747 MPixel/s
Lenovo ThinkBook 15 G3 ACL 21A400B2GE
AMD Ryzen 5 5500U, Vega 7
7982 MPixel/s -42%

系统性能

主观的性能印象非常好,所有输入都能顺利执行,没有明显的延迟。它在合成基准测试中也表现出色,我们在评测期间没有遇到任何问题。

PCMark 10 / Score
Lenovo ThinkPad E16 G1-21JUS08X00
Vega 8, R7 7730U, WD PC SN740 SDDPNQD-1T00
6049 Points
Average AMD Ryzen 7 7730U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
  (5285 - 6403, n=6)
6017 Points -1%
Average of class Office
  (2463 - 7344, n=86, last 2 years)
5618 Points -7%
Samsung Galaxy Book3 15, Core i5-1335U
Iris Xe G7 80EUs, i5-1335U, Samsung PM991a MZ9LQ512HBLU-00BD1
5314 Points -12%
Acer TravelMate P4 TMP416-51-55KN
Iris Xe G7 80EUs, i5-1240P, Micron 2450 512GB MTFDKBA512TFK
5307 Points -12%
HP ProBook 450 G9 6A180EA
Iris Xe G7 96EUs, i7-1255U, SK Hynix HFM512GD3JX013N
4676 Points -23%
Lenovo ThinkBook 15 G3 ACL 21A400B2GE
Vega 7, R5 5500U, Samsung PM991A MZALQ256HBJD
4626 Points -24%
PCMark 10 / Essentials
Average AMD Ryzen 7 7730U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
  (10084 - 11458, n=6)
10577 Points +1%
Lenovo ThinkPad E16 G1-21JUS08X00
Vega 8, R7 7730U, WD PC SN740 SDDPNQD-1T00
10478 Points
Average of class Office
  (5575 - 20841, n=86, last 2 years)
10136 Points -3%
Samsung Galaxy Book3 15, Core i5-1335U
Iris Xe G7 80EUs, i5-1335U, Samsung PM991a MZ9LQ512HBLU-00BD1
9828 Points -6%
Acer TravelMate P4 TMP416-51-55KN
Iris Xe G7 80EUs, i5-1240P, Micron 2450 512GB MTFDKBA512TFK
9713 Points -7%
HP ProBook 450 G9 6A180EA
Iris Xe G7 96EUs, i7-1255U, SK Hynix HFM512GD3JX013N
9381 Points -10%
Lenovo ThinkBook 15 G3 ACL 21A400B2GE
Vega 7, R5 5500U, Samsung PM991A MZALQ256HBJD
8390 Points -20%
PCMark 10 / Productivity
Lenovo ThinkPad E16 G1-21JUS08X00
Vega 8, R7 7730U, WD PC SN740 SDDPNQD-1T00
9381 Points
Average AMD Ryzen 7 7730U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
  (8443 - 9761, n=6)
9294 Points -1%
Average of class Office
  (3041 - 10415, n=86, last 2 years)
7689 Points -18%
Lenovo ThinkBook 15 G3 ACL 21A400B2GE
Vega 7, R5 5500U, Samsung PM991A MZALQ256HBJD
7095 Points -24%
Samsung Galaxy Book3 15, Core i5-1335U
Iris Xe G7 80EUs, i5-1335U, Samsung PM991a MZ9LQ512HBLU-00BD1
6874 Points -27%
Acer TravelMate P4 TMP416-51-55KN
Iris Xe G7 80EUs, i5-1240P, Micron 2450 512GB MTFDKBA512TFK
6726 Points -28%
HP ProBook 450 G9 6A180EA
Iris Xe G7 96EUs, i7-1255U, SK Hynix HFM512GD3JX013N
6579 Points -30%
PCMark 10 / Digital Content Creation
Average of class Office
  (2126 - 9773, n=86, last 2 years)
6335 Points +4%
Acer TravelMate P4 TMP416-51-55KN
Iris Xe G7 80EUs, i5-1240P, Micron 2450 512GB MTFDKBA512TFK
6209 Points +2%
Lenovo ThinkPad E16 G1-21JUS08X00
Vega 8, R7 7730U, WD PC SN740 SDDPNQD-1T00
6111 Points
Samsung Galaxy Book3 15, Core i5-1335U
Iris Xe G7 80EUs, i5-1335U, Samsung PM991a MZ9LQ512HBLU-00BD1
6029 Points -1%
Average AMD Ryzen 7 7730U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
  (4705 - 6561, n=6)
6029 Points -1%
Lenovo ThinkBook 15 G3 ACL 21A400B2GE
Vega 7, R5 5500U, Samsung PM991A MZALQ256HBJD
4513 Points -26%
HP ProBook 450 G9 6A180EA
Iris Xe G7 96EUs, i7-1255U, SK Hynix HFM512GD3JX013N
4498 Points -26%
CrossMark / Overall
Acer TravelMate P4 TMP416-51-55KN
Iris Xe G7 80EUs, i5-1240P, Micron 2450 512GB MTFDKBA512TFK
1531 Points +15%
Samsung Galaxy Book3 15, Core i5-1335U
Iris Xe G7 80EUs, i5-1335U, Samsung PM991a MZ9LQ512HBLU-00BD1
1450 Points +9%
Average of class Office
  (348 - 1891, n=86, last 2 years)
1410 Points +6%
HP ProBook 450 G9 6A180EA
Iris Xe G7 96EUs, i7-1255U, SK Hynix HFM512GD3JX013N
1329 Points 0%
Lenovo ThinkPad E16 G1-21JUS08X00
Vega 8, R7 7730U, WD PC SN740 SDDPNQD-1T00
1328 Points
Average AMD Ryzen 7 7730U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
  (1296 - 1350, n=6)
1319 Points -1%
Lenovo ThinkBook 15 G3 ACL 21A400B2GE
Vega 7, R5 5500U, Samsung PM991A MZALQ256HBJD
958 Points -28%
CrossMark / Productivity
Acer TravelMate P4 TMP416-51-55KN
Iris Xe G7 80EUs, i5-1240P, Micron 2450 512GB MTFDKBA512TFK
1524 Points +13%
Samsung Galaxy Book3 15, Core i5-1335U
Iris Xe G7 80EUs, i5-1335U, Samsung PM991a MZ9LQ512HBLU-00BD1
1428 (1479min - 1268max) Points +5%
Average of class Office
  (393 - 1870, n=86, last 2 years)
1409 Points +4%
HP ProBook 450 G9 6A180EA
Iris Xe G7 96EUs, i7-1255U, SK Hynix HFM512GD3JX013N
1364 Points +1%
Lenovo ThinkPad E16 G1-21JUS08X00
Vega 8, R7 7730U, WD PC SN740 SDDPNQD-1T00
1354 Points
Average AMD Ryzen 7 7730U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
  (1301 - 1354, n=6)
1330 Points -2%
Lenovo ThinkBook 15 G3 ACL 21A400B2GE
Vega 7, R5 5500U, Samsung PM991A MZALQ256HBJD
1039 Points -23%
CrossMark / Creativity
Acer TravelMate P4 TMP416-51-55KN
Iris Xe G7 80EUs, i5-1240P, Micron 2450 512GB MTFDKBA512TFK
1535 Points +10%
Samsung Galaxy Book3 15, Core i5-1335U
Iris Xe G7 80EUs, i5-1335U, Samsung PM991a MZ9LQ512HBLU-00BD1
1528 Points +9%
Average of class Office
  (340 - 1982, n=86, last 2 years)
1466 Points +5%
Average AMD Ryzen 7 7730U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
  (1372 - 1461, n=6)
1413 Points +1%
Lenovo ThinkPad E16 G1-21JUS08X00
Vega 8, R7 7730U, WD PC SN740 SDDPNQD-1T00
1401 Points
HP ProBook 450 G9 6A180EA
Iris Xe G7 96EUs, i7-1255U, SK Hynix HFM512GD3JX013N
1372 Points -2%
Lenovo ThinkBook 15 G3 ACL 21A400B2GE
Vega 7, R5 5500U, Samsung PM991A MZALQ256HBJD
895 Points -36%
CrossMark / Responsiveness
Acer TravelMate P4 TMP416-51-55KN
Iris Xe G7 80EUs, i5-1240P, Micron 2450 512GB MTFDKBA512TFK
1545 Points +45%
Samsung Galaxy Book3 15, Core i5-1335U
Iris Xe G7 80EUs, i5-1335U, Samsung PM991a MZ9LQ512HBLU-00BD1
1299 Points +22%
Average of class Office
  (258 - 2017, n=86, last 2 years)
1269 Points +19%
HP ProBook 450 G9 6A180EA
Iris Xe G7 96EUs, i7-1255U, SK Hynix HFM512GD3JX013N
1117 Points +5%
Lenovo ThinkPad E16 G1-21JUS08X00
Vega 8, R7 7730U, WD PC SN740 SDDPNQD-1T00
1067 Points
Average AMD Ryzen 7 7730U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
  (955 - 1086, n=6)
1048 Points -2%
Lenovo ThinkBook 15 G3 ACL 21A400B2GE
Vega 7, R5 5500U, Samsung PM991A MZALQ256HBJD
918 Points -14%
PCMark 10 Score
6049 points
Help
AIDA64 / Memory Copy
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U, Iris Xe G7 80EUs
60884 MB/s +76%
Average of class Office
  (7158 - 108783, n=93, last 2 years)
49017 MB/s +42%
Acer TravelMate P4 TMP416-51-55KN
Intel Core i5-1240P, Iris Xe G7 80EUs
43495 MB/s +26%
Average AMD Ryzen 7 7730U
  (34315 - 42873, n=6)
40021 MB/s +16%
Lenovo ThinkPad E16 G1-21JUS08X00
AMD Ryzen 7 7730U, Vega 8
34551 MB/s
HP ProBook 450 G9 6A180EA
Intel Core i7-1255U, Iris Xe G7 96EUs
23171 MB/s -33%
Lenovo ThinkBook 15 G3 ACL 21A400B2GE
AMD Ryzen 5 5500U, Vega 7
19426 MB/s -44%
AIDA64 / Memory Read
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U, Iris Xe G7 80EUs
53476 MB/s +39%
Average of class Office
  (7325 - 112436, n=93, last 2 years)
48863 MB/s +27%
Acer TravelMate P4 TMP416-51-55KN
Intel Core i5-1240P, Iris Xe G7 80EUs
46887 MB/s +22%
Average AMD Ryzen 7 7730U
  (38520 - 39632, n=6)
39144 MB/s +2%
Lenovo ThinkPad E16 G1-21JUS08X00
AMD Ryzen 7 7730U, Vega 8
38520 MB/s
HP ProBook 450 G9 6A180EA
Intel Core i7-1255U, Iris Xe G7 96EUs
23462 MB/s -39%
Lenovo ThinkBook 15 G3 ACL 21A400B2GE
AMD Ryzen 5 5500U, Vega 7
23183 MB/s -40%
AIDA64 / Memory Write
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U, Iris Xe G7 80EUs
65947 MB/s +104%
Average of class Office
  (7579 - 117935, n=93, last 2 years)
53233 MB/s +65%
Acer TravelMate P4 TMP416-51-55KN
Intel Core i5-1240P, Iris Xe G7 80EUs
46729 MB/s +45%
Average AMD Ryzen 7 7730U
  (29984 - 41796, n=6)
37934 MB/s +18%
Lenovo ThinkPad E16 G1-21JUS08X00
AMD Ryzen 7 7730U, Vega 8
32255 MB/s
HP ProBook 450 G9 6A180EA
Intel Core i7-1255U, Iris Xe G7 96EUs
23375 MB/s -28%
Lenovo ThinkBook 15 G3 ACL 21A400B2GE
AMD Ryzen 5 5500U, Vega 7
21205 MB/s -34%
AIDA64 / Memory Latency
Average AMD Ryzen 7 7730U
  (94.4 - 110.6, n=6)
103.7 ns * -10%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U, Iris Xe G7 80EUs
102.6 ns * -9%
Average of class Office
  (8.3 - 185.2, n=93, last 2 years)
97.1 ns * -3%
Lenovo ThinkPad E16 G1-21JUS08X00
AMD Ryzen 7 7730U, Vega 8
94.4 ns *
Lenovo ThinkBook 15 G3 ACL 21A400B2GE
AMD Ryzen 5 5500U, Vega 7
88.5 ns * +6%
Acer TravelMate P4 TMP416-51-55KN
Intel Core i5-1240P, Iris Xe G7 80EUs
85.1 ns * +10%
HP ProBook 450 G9 6A180EA
Intel Core i7-1255U, Iris Xe G7 96EUs
79.2 ns * +16%

* ... smaller is better

DPC 延迟

我们的标准化延迟测试(网页浏览、4K YouTube 播放、CPU 负载)显示,当您想使用实时音频应用程序时,当前 BIOS 版本的评测机存在一些限制。

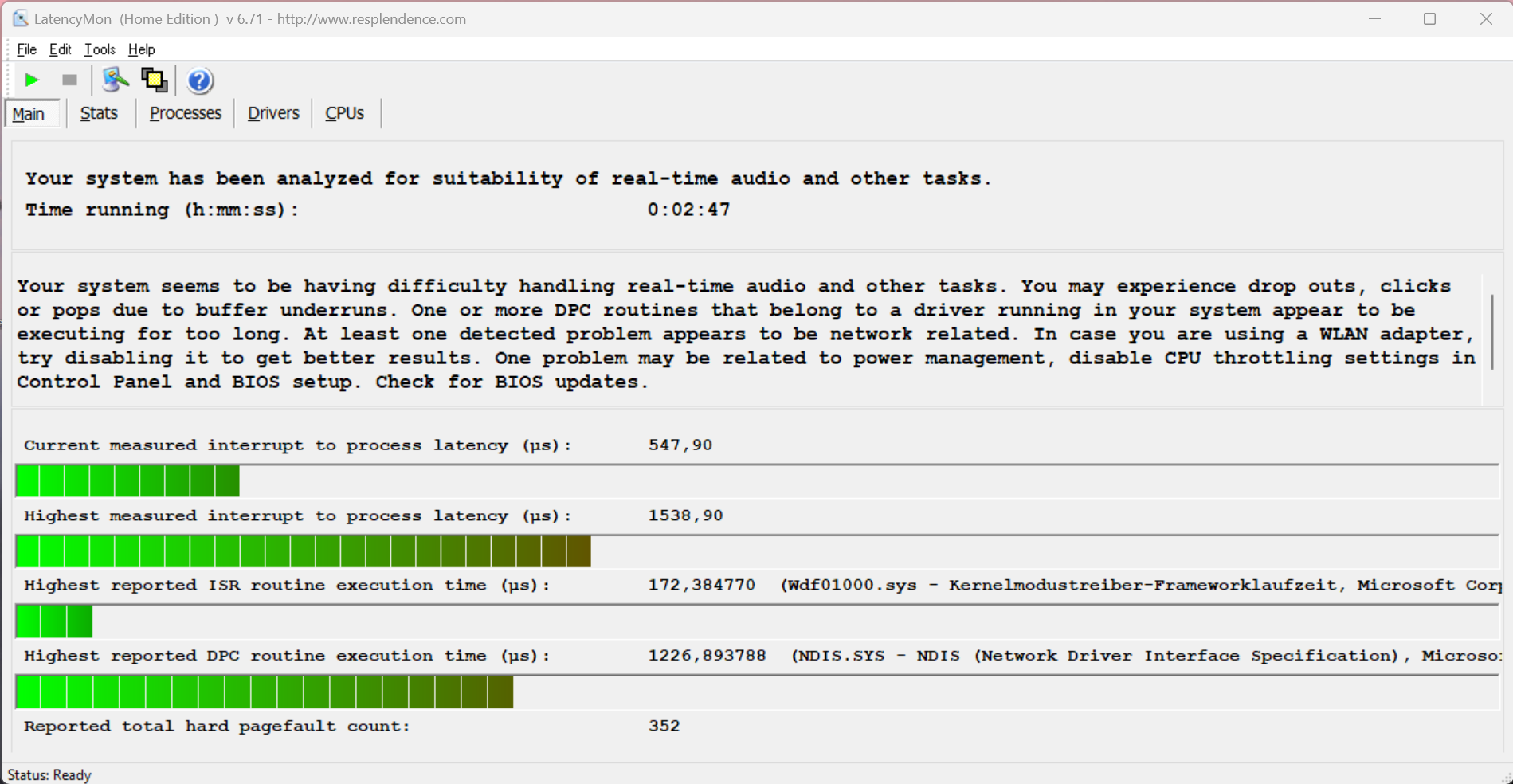

LatencyMon - 概述
LatencyMon - 概述

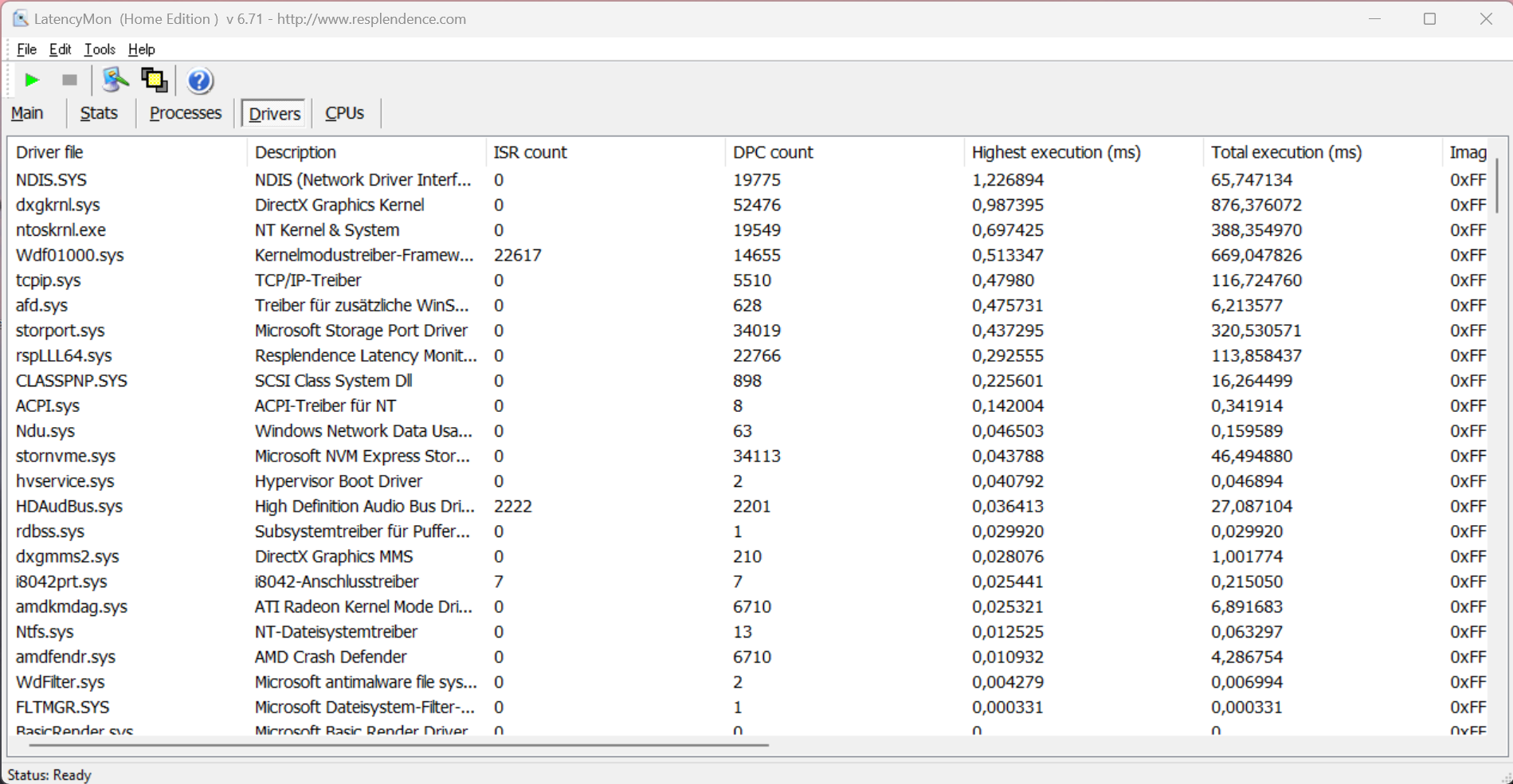

LatencyMon - 驱动程序
LatencyMon - 驱动程序
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
HP ProBook 450 G9 6A180EA
Iris Xe G7 96EUs, i7-1255U, SK Hynix HFM512GD3JX013N
8179 μs * -431%
Acer TravelMate P4 TMP416-51-55KN
Iris Xe G7 80EUs, i5-1240P, Micron 2450 512GB MTFDKBA512TFK
2553.9 μs * -66%
Lenovo ThinkPad E16 G1-21JUS08X00
Vega 8, R7 7730U, WD PC SN740 SDDPNQD-1T00
1538.9 μs *
Lenovo ThinkBook 15 G3 ACL 21A400B2GE
Vega 7, R5 5500U, Samsung PM991A MZALQ256HBJD
984.8 μs * +36%
Samsung Galaxy Book3 15, Core i5-1335U
Iris Xe G7 80EUs, i5-1335U, Samsung PM991a MZ9LQ512HBLU-00BD1
947 μs * +38%

* ... smaller is better

存储设备

可以更换 M.2-2280 SSD。
可以更换 M.2-2280 SSD。

ThinkPad E16 G1 为固态硬盘提供了两个 PCIe-3.0-x4 插槽,常规的 M.2-2280 插槽默认已被占用,但你可以通过额外的 M.2-2242 硬盘轻松扩展存储容量。我们的评测机配备的是 1 TB 版本的 WD SN740,传输速率不错。不过,在持续工作负荷下,性能开始出现波动,但这不会影响日常办公负荷。在完成初始设置后,您可以将大约 914 GB 用于保存自己的文件。更多固态硬盘基准测试 这里.

WD PC SN740 SDDPNQD-1T00
CDM 5/6 Read Seq Q32T1: 3721 MB/s
CDM 5/6 Write Seq Q32T1: 3194 MB/s
CDM 5/6 Read 4K Q32T1: 530 MB/s
CDM 5/6 Write 4K Q32T1: 420 MB/s
CDM 5/6 Read 4K: 53.3 MB/s
CDM 5/6 Write 4K: 110.4 MB/s
CDM 6 Write 4K Q8T8: 397 MB/s
CDM 6 Read 4K Q8T8: 940 MB/s
Drive Performance Rating - Percent
Average WD PC SN740 SDDPNQD-1T00

89.5 pt
Average of class Office

78.9 pt
Acer TravelMate P4 TMP416-51-55KN
Micron 2450 512GB MTFDKBA512TFK
75.4 pt
HP ProBook 450 G9 6A180EA
SK Hynix HFM512GD3JX013N
64.3 pt
Lenovo ThinkPad E16 G1-21JUS08X00
WD PC SN740 SDDPNQD-1T00
59.3 pt
Samsung Galaxy Book3 15, Core i5-1335U
Samsung PM991a MZ9LQ512HBLU-00BD1
55.9 pt
Lenovo ThinkBook 15 G3 ACL 21A400B2GE
Samsung PM991A MZALQ256HBJD
51.2 pt
DiskSpd
seq read
Average WD PC SN740 SDDPNQD-1T00
  (2314 - 4269, n=7)
3297 MB/s +42%
Average of class Office
  (121 - 4554, n=89, last 2 years)
2657 MB/s +15%
Lenovo ThinkPad E16 G1-21JUS08X00
WD PC SN740 SDDPNQD-1T00
2314 (2290.3min - 2313.77max) MB/s
Acer TravelMate P4 TMP416-51-55KN
Micron 2450 512GB MTFDKBA512TFK
2083 (2025.85min - 2083.31max) MB/s -10%
HP ProBook 450 G9 6A180EA
SK Hynix HFM512GD3JX013N
1914 (1900.86min - 1914.49max) MB/s -17%
Lenovo ThinkBook 15 G3 ACL 21A400B2GE
Samsung PM991A MZALQ256HBJD
1816 (1777.35min - 1816.13max) MB/s -22%
Samsung Galaxy Book3 15, Core i5-1335U
Samsung PM991a MZ9LQ512HBLU-00BD1
1476 (1435.36min - 1475.98max) MB/s -36%
seq write
Average WD PC SN740 SDDPNQD-1T00
  (2168 - 4695, n=7)
3392 MB/s +49%
Acer TravelMate P4 TMP416-51-55KN
Micron 2450 512GB MTFDKBA512TFK
3154 (1827.16min - 3154.31max) MB/s +38%
Average of class Office
  (43 - 5842, n=89, last 2 years)
2567 MB/s +13%
Lenovo ThinkPad E16 G1-21JUS08X00
WD PC SN740 SDDPNQD-1T00
2281 (2244.79min - 2280.65max) MB/s
HP ProBook 450 G9 6A180EA
SK Hynix HFM512GD3JX013N
1762 (1719.25min - 1761.82max) MB/s -23%
Samsung Galaxy Book3 15, Core i5-1335U
Samsung PM991a MZ9LQ512HBLU-00BD1
1706 (1502.19min - 1706.45max) MB/s -25%
Lenovo ThinkBook 15 G3 ACL 21A400B2GE
Samsung PM991A MZALQ256HBJD
1123 (1079.34min - 1123.09max) MB/s -51%
seq q8 t1 read
Average WD PC SN740 SDDPNQD-1T00
  (3686 - 5251, n=7)
4756 MB/s +29%
Average of class Office
  (124.2 - 7120, n=89, last 2 years)
4362 MB/s +18%
Lenovo ThinkPad E16 G1-21JUS08X00
WD PC SN740 SDDPNQD-1T00
3686 (3401.25min - 3685.71max) MB/s
HP ProBook 450 G9 6A180EA
SK Hynix HFM512GD3JX013N
3463 (3094.03min - 3462.81max) MB/s -6%
Acer TravelMate P4 TMP416-51-55KN
Micron 2450 512GB MTFDKBA512TFK
3457 (3108.26min - 3456.53max) MB/s -6%
Lenovo ThinkBook 15 G3 ACL 21A400B2GE
Samsung PM991A MZALQ256HBJD
2187 (1960.9min - 2187.15max) MB/s -41%
Samsung Galaxy Book3 15, Core i5-1335U
Samsung PM991a MZ9LQ512HBLU-00BD1
2133 (1921.83min - 2132.73max) MB/s -42%
seq q8 t1 write
Average WD PC SN740 SDDPNQD-1T00
  (1250 - 4676, n=7)
3554 MB/s +18%
Average of class Office
  (46.7 - 6791, n=89, last 2 years)
3371 MB/s +12%
Acer TravelMate P4 TMP416-51-55KN
Micron 2450 512GB MTFDKBA512TFK
3233 (3010.25min - 3233.21max) MB/s +7%
Lenovo ThinkPad E16 G1-21JUS08X00
WD PC SN740 SDDPNQD-1T00
3018 (3008.85min - 3018.43max) MB/s
HP ProBook 450 G9 6A180EA
SK Hynix HFM512GD3JX013N
2600 (2474.1min - 2599.63max) MB/s -14%
Samsung Galaxy Book3 15, Core i5-1335U
Samsung PM991a MZ9LQ512HBLU-00BD1
1188 (1164.94min - 1187.76max) MB/s -61%
Lenovo ThinkBook 15 G3 ACL 21A400B2GE
Samsung PM991A MZALQ256HBJD
1137 (1052.97min - 1136.87max) MB/s -62%
4k q1 t1 read
Average WD PC SN740 SDDPNQD-1T00
  (46.5 - 78.6, n=7)
63.6 MB/s +37%
Average of class Office
  (5.55 - 89.9, n=89, last 2 years)
58.3 MB/s +25%
HP ProBook 450 G9 6A180EA
SK Hynix HFM512GD3JX013N
52.7 (52.1min - 52.69max) MB/s +13%
Samsung Galaxy Book3 15, Core i5-1335U
Samsung PM991a MZ9LQ512HBLU-00BD1
49.3 (47.4min - 49.31max) MB/s +6%
Lenovo ThinkBook 15 G3 ACL 21A400B2GE
Samsung PM991A MZALQ256HBJD
48.2 (45.48min - 48.2max) MB/s +4%
Lenovo ThinkPad E16 G1-21JUS08X00
WD PC SN740 SDDPNQD-1T00
46.5 (44.92min - 46.5max) MB/s
Acer TravelMate P4 TMP416-51-55KN
Micron 2450 512GB MTFDKBA512TFK
37.4 (31.08min - 37.44max) MB/s -20%
4k q1 t1 write
Acer TravelMate P4 TMP416-51-55KN
Micron 2450 512GB MTFDKBA512TFK
228 (218.45min - 228.18max) MB/s +107%
Samsung Galaxy Book3 15, Core i5-1335U
Samsung PM991a MZ9LQ512HBLU-00BD1
185.5 (181.45min - 185.46max) MB/s +68%
Average WD PC SN740 SDDPNQD-1T00
  (104.6 - 254, n=7)
183.6 MB/s +66%
Average of class Office
  (1.23 - 429, n=89, last 2 years)
165.2 MB/s +50%
Lenovo ThinkBook 15 G3 ACL 21A400B2GE
Samsung PM991A MZALQ256HBJD
140.8 (139.59min - 140.83max) MB/s +28%
HP ProBook 450 G9 6A180EA
SK Hynix HFM512GD3JX013N
112.4 (110.93min - 112.39max) MB/s +2%
Lenovo ThinkPad E16 G1-21JUS08X00
WD PC SN740 SDDPNQD-1T00
110.4 (107.59min - 110.44max) MB/s
4k q32 t16 read
Average WD PC SN740 SDDPNQD-1T00
  (876 - 3048, n=7)
1768 MB/s +102%
Acer TravelMate P4 TMP416-51-55KN
Micron 2450 512GB MTFDKBA512TFK
1449 (1379.84min - 1449.09max) MB/s +65%
Average of class Office
  (7.49 - 4425, n=89, last 2 years)
1254 MB/s +43%
Lenovo ThinkBook 15 G3 ACL 21A400B2GE
Samsung PM991A MZALQ256HBJD
882 (875.14min - 881.89max) MB/s +1%
Lenovo ThinkPad E16 G1-21JUS08X00
WD PC SN740 SDDPNQD-1T00
876 (850.6min - 876.16max) MB/s
Samsung Galaxy Book3 15, Core i5-1335U
Samsung PM991a MZ9LQ512HBLU-00BD1
871 (866.74min - 870.51max) MB/s -1%
HP ProBook 450 G9 6A180EA
SK Hynix HFM512GD3JX013N
328 (323.08min - 327.89max) MB/s -63%
4k q32 t16 write
Acer TravelMate P4 TMP416-51-55KN
Micron 2450 512GB MTFDKBA512TFK
2086 (1179.13min - 2086.08max) MB/s +452%
Average WD PC SN740 SDDPNQD-1T00
  (378 - 2980, n=7)
1479 MB/s +291%
Average of class Office
  (1.5 - 3254, n=89, last 2 years)
943 MB/s +149%
Lenovo ThinkBook 15 G3 ACL 21A400B2GE
Samsung PM991A MZALQ256HBJD
916 (858.49min - 916.21max) MB/s +142%
Samsung Galaxy Book3 15, Core i5-1335U
Samsung PM991a MZ9LQ512HBLU-00BD1
858 (854.84min - 857.91max) MB/s +127%
Lenovo ThinkPad E16 G1-21JUS08X00
WD PC SN740 SDDPNQD-1T00
378 (358.85min - 377.62max) MB/s
HP ProBook 450 G9 6A180EA
SK Hynix HFM512GD3JX013N
192.2 (188.62min - 192.2max) MB/s -49%
AS SSD
Score Total
Average of class Office
  (704 - 9204, n=87, last 2 years)
4202 Points +82%
Average WD PC SN740 SDDPNQD-1T00
  (2304 - 5273, n=7)
4184 Points +82%
Acer TravelMate P4 TMP416-51-55KN
Micron 2450 512GB MTFDKBA512TFK
3587 Points +56%
HP ProBook 450 G9 6A180EA
SK Hynix HFM512GD3JX013N
3457 Points +50%
Samsung Galaxy Book3 15, Core i5-1335U
Samsung PM991a MZ9LQ512HBLU-00BD1
2774 Points +20%
Lenovo ThinkBook 15 G3 ACL 21A400B2GE
Samsung PM991A MZALQ256HBJD
2750 Points +19%
Lenovo ThinkPad E16 G1-21JUS08X00
WD PC SN740 SDDPNQD-1T00
2304 Points
Score Read
Acer TravelMate P4 TMP416-51-55KN
Micron 2450 512GB MTFDKBA512TFK
1725 Points +71%
Average of class Office
  (252 - 3364, n=87, last 2 years)
1476 Points +46%
Average WD PC SN740 SDDPNQD-1T00
  (985 - 1784, n=7)
1398 Points +38%
Samsung Galaxy Book3 15, Core i5-1335U
Samsung PM991a MZ9LQ512HBLU-00BD1
1137 Points +13%
Lenovo ThinkBook 15 G3 ACL 21A400B2GE
Samsung PM991A MZALQ256HBJD
1093 Points +8%
HP ProBook 450 G9 6A180EA
SK Hynix HFM512GD3JX013N
1025 Points +1%
Lenovo ThinkPad E16 G1-21JUS08X00
WD PC SN740 SDDPNQD-1T00
1010 Points
Score Write
Average WD PC SN740 SDDPNQD-1T00
  (780 - 3001, n=7)
2095 Points +169%
Average of class Office
  (247 - 4111, n=87, last 2 years)
2014 Points +158%
HP ProBook 450 G9 6A180EA
SK Hynix HFM512GD3JX013N
1949 Points +150%
Lenovo ThinkBook 15 G3 ACL 21A400B2GE
Samsung PM991A MZALQ256HBJD
1150 Points +47%
Samsung Galaxy Book3 15, Core i5-1335U
Samsung PM991a MZ9LQ512HBLU-00BD1
1091 Points +40%
Acer TravelMate P4 TMP416-51-55KN
Micron 2450 512GB MTFDKBA512TFK
966 Points +24%
Lenovo ThinkPad E16 G1-21JUS08X00
WD PC SN740 SDDPNQD-1T00
780 Points
Seq Read
Average WD PC SN740 SDDPNQD-1T00
  (3072 - 4491, n=7)
3878 MB/s +26%
Average of class Office
  (508 - 5796, n=87, last 2 years)
3452 MB/s +12%
Lenovo ThinkPad E16 G1-21JUS08X00
WD PC SN740 SDDPNQD-1T00
3072 MB/s
Acer TravelMate P4 TMP416-51-55KN
Micron 2450 512GB MTFDKBA512TFK
3001.03 MB/s -2%
HP ProBook 450 G9 6A180EA
SK Hynix HFM512GD3JX013N
2687 MB/s -13%
Samsung Galaxy Book3 15, Core i5-1335U
Samsung PM991a MZ9LQ512HBLU-00BD1
2629.16 MB/s -14%
Lenovo ThinkBook 15 G3 ACL 21A400B2GE
Samsung PM991A MZALQ256HBJD
2294.23 MB/s -25%
Seq Write
Average WD PC SN740 SDDPNQD-1T00
  (1747 - 4365, n=7)
3181 MB/s +13%
Acer TravelMate P4 TMP416-51-55KN
Micron 2450 512GB MTFDKBA512TFK
2849.46 MB/s +1%
Lenovo ThinkPad E16 G1-21JUS08X00
WD PC SN740 SDDPNQD-1T00
2820 MB/s
Average of class Office
  (294 - 5880, n=87, last 2 years)
2350 MB/s -17%
Samsung Galaxy Book3 15, Core i5-1335U
Samsung PM991a MZ9LQ512HBLU-00BD1
1708.34 MB/s -39%
HP ProBook 450 G9 6A180EA
SK Hynix HFM512GD3JX013N
1476.14 MB/s -48%
Lenovo ThinkBook 15 G3 ACL 21A400B2GE
Samsung PM991A MZALQ256HBJD
1089.74 MB/s -61%
4K Read
Acer TravelMate P4 TMP416-51-55KN
Micron 2450 512GB MTFDKBA512TFK
83.63 MB/s +81%
HP ProBook 450 G9 6A180EA
SK Hynix HFM512GD3JX013N
60 MB/s +30%
Average of class Office
  (18 - 91.1, n=87, last 2 years)
58.3 MB/s +26%
Average WD PC SN740 SDDPNQD-1T00
  (44.3 - 69.3, n=7)
55.9 MB/s +21%
Samsung Galaxy Book3 15, Core i5-1335U
Samsung PM991a MZ9LQ512HBLU-00BD1
46.78 MB/s +1%
Lenovo ThinkPad E16 G1-21JUS08X00
WD PC SN740 SDDPNQD-1T00
46.1 MB/s
Lenovo ThinkBook 15 G3 ACL 21A400B2GE
Samsung PM991A MZALQ256HBJD
43.13 MB/s -6%
4K Write
Acer TravelMate P4 TMP416-51-55KN
Micron 2450 512GB MTFDKBA512TFK
247.37 MB/s +185%
Average WD PC SN740 SDDPNQD-1T00
  (86.7 - 253, n=7)
178.8 MB/s +106%
HP ProBook 450 G9 6A180EA
SK Hynix HFM512GD3JX013N
176.81 MB/s +104%
Average of class Office
  (28.2 - 350, n=87, last 2 years)
167.1 MB/s +93%
Samsung Galaxy Book3 15, Core i5-1335U
Samsung PM991a MZ9LQ512HBLU-00BD1
160.19 MB/s +85%
Lenovo ThinkBook 15 G3 ACL 21A400B2GE
Samsung PM991A MZALQ256HBJD
121.86 MB/s +41%
Lenovo ThinkPad E16 G1-21JUS08X00
WD PC SN740 SDDPNQD-1T00
86.7 MB/s
4K-64 Read
Acer TravelMate P4 TMP416-51-55KN
Micron 2450 512GB MTFDKBA512TFK
1340.82 MB/s +104%
Average of class Office
  (182.3 - 2713, n=87, last 2 years)
1073 MB/s +64%
Average WD PC SN740 SDDPNQD-1T00
  (557 - 1315, n=7)
954 MB/s +45%
Samsung Galaxy Book3 15, Core i5-1335U
Samsung PM991a MZ9LQ512HBLU-00BD1
823.86 MB/s +26%
Lenovo ThinkBook 15 G3 ACL 21A400B2GE
Samsung PM991A MZALQ256HBJD
820.25 MB/s +25%
HP ProBook 450 G9 6A180EA
SK Hynix HFM512GD3JX013N
696.46 MB/s +6%
Lenovo ThinkPad E16 G1-21JUS08X00
WD PC SN740 SDDPNQD-1T00
656 MB/s
4K-64 Write
HP ProBook 450 G9 6A180EA
SK Hynix HFM512GD3JX013N
1624.91 MB/s +295%
Average of class Office
  (183.4 - 3394, n=87, last 2 years)
1612 MB/s +292%
Average WD PC SN740 SDDPNQD-1T00
  (411 - 2332, n=7)
1598 MB/s +289%
Lenovo ThinkBook 15 G3 ACL 21A400B2GE
Samsung PM991A MZALQ256HBJD
918.85 MB/s +124%
Samsung Galaxy Book3 15, Core i5-1335U
Samsung PM991a MZ9LQ512HBLU-00BD1
759.51 MB/s +85%
Acer TravelMate P4 TMP416-51-55KN
Micron 2450 512GB MTFDKBA512TFK
433.42 MB/s +5%
Lenovo ThinkPad E16 G1-21JUS08X00
WD PC SN740 SDDPNQD-1T00
411 MB/s
Access Time Read
Lenovo ThinkBook 15 G3 ACL 21A400B2GE
Samsung PM991A MZALQ256HBJD
0.179 ms * -442%
Samsung Galaxy Book3 15, Core i5-1335U
Samsung PM991a MZ9LQ512HBLU-00BD1
0.143 ms * -333%
Acer TravelMate P4 TMP416-51-55KN
Micron 2450 512GB MTFDKBA512TFK
0.095 ms * -188%
Average of class Office
  (0.022 - 0.302, n=87, last 2 years)
0.07797 ms * -136%
HP ProBook 450 G9 6A180EA
SK Hynix HFM512GD3JX013N
0.04 ms * -21%
Average WD PC SN740 SDDPNQD-1T00
  (0.026 - 0.058, n=7)
0.03829 ms * -16%
Lenovo ThinkPad E16 G1-21JUS08X00
WD PC SN740 SDDPNQD-1T00
0.033 ms *
Access Time Write
Acer TravelMate P4 TMP416-51-55KN
Micron 2450 512GB MTFDKBA512TFK
0.165 ms * -284%
Average of class Office
  (0.017 - 0.625, n=87, last 2 years)
0.06914 ms * -61%
Lenovo ThinkPad E16 G1-21JUS08X00
WD PC SN740 SDDPNQD-1T00
0.043 ms *
Lenovo ThinkBook 15 G3 ACL 21A400B2GE
Samsung PM991A MZALQ256HBJD
0.033 ms * +23%
Average WD PC SN740 SDDPNQD-1T00
  (0.017 - 0.065, n=7)
0.03186 ms * +26%
HP ProBook 450 G9 6A180EA
SK Hynix HFM512GD3JX013N
0.028 ms * +35%
Samsung Galaxy Book3 15, Core i5-1335U
Samsung PM991a MZ9LQ512HBLU-00BD1
0.024 ms * +44%

* ... smaller is better

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

018537055574092511101295148016651850203522202405259027752960314533303515Tooltip
Lenovo ThinkPad E16 G1-21JUS08X00: Ø3342 (1966.76-3685.12)

图形处理器性能 - RX Vega 8

GPU-Z Radeon RX Vega 8
GPU-Z Radeon RX Vega 8

......(英文Ryzen 7 7730U配备了老式的Radeon RX Vega 8iGPU,也用于较小的ThinkPad E14 G5.不出所料,GPU 基准测试的结果完全相同,性能完全满足标准办公任务的要求。Vega 8 还能赶上Iris Xe Graphics G7,它仍然用于英特尔最新的 Raptor Lake 芯片。

整体游戏性能非常低,当你想以 1080p 的分辨率玩游戏时,往往会被限制在低/中细节,即使是老游戏也是如此。在较长时间的游戏过程中,以及在电池供电的情况下,图形性能都比较稳定。更多 GPU 基准测试 这里.

3DMark Performance Rating - Percent
Average of class Office

100 pt
Samsung Galaxy Book3 15, Core i5-1335U
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1335U
87 pt
Acer TravelMate P4 TMP416-51-55KN
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1240P
84 pt
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000)

78.9 pt
Lenovo ThinkPad E16 G1-21JUS08X00
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 7730U
77.7 pt
HP ProBook 450 G9 6A180EA
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1255U
68.8 pt
Lenovo ThinkBook 15 G3 ACL 21A400B2GE
AMD Radeon RX Vega 7, AMD Ryzen 5 5500U
43.2 pt
3DMark 11 - 1280x720 Performance GPU
Average of class Office
  (1468 - 13132, n=88, last 2 years)
6704 Points +15%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000)
  (3459 - 7591, n=54)
5910 Points +1%
Lenovo ThinkPad E16 G1-21JUS08X00
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 7730U
5847 Points
Acer TravelMate P4 TMP416-51-55KN
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1240P
5610 Points -4%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1335U
5554 Points -5%
HP ProBook 450 G9 6A180EA
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1255U
4851 Points -17%
Lenovo ThinkBook 15 G3 ACL 21A400B2GE
AMD Radeon RX Vega 7, AMD Ryzen 5 5500U
3353 Points -43%
3DMark
1920x1080 Fire Strike Graphics
Average of class Office
  (1089 - 9375, n=89, last 2 years)
4861 Points +38%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1335U
4523 Points +29%
Acer TravelMate P4 TMP416-51-55KN
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1240P
4189 Points +19%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000)
  (1694 - 5041, n=54)
3676 Points +5%
Lenovo ThinkPad E16 G1-21JUS08X00
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 7730U
3516 Points
HP ProBook 450 G9 6A180EA
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1255U
3167 Points -10%
Lenovo ThinkBook 15 G3 ACL 21A400B2GE
AMD Radeon RX Vega 7, AMD Ryzen 5 5500U
1889 Points -46%
2560x1440 Time Spy Graphics
Average of class Office
  (313 - 4109, n=89, last 2 years)
1585 Points +36%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1335U
1348 Points +16%
Acer TravelMate P4 TMP416-51-55KN
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1240P
1303 Points +12%
Lenovo ThinkPad E16 G1-21JUS08X00
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 7730U
1164 Points
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000)
  (540 - 1557, n=54)
1156 Points -1%
HP ProBook 450 G9 6A180EA
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1255U
1090 Points -6%
Lenovo ThinkBook 15 G3 ACL 21A400B2GE
AMD Radeon RX Vega 7, AMD Ryzen 5 5500U
644 Points -45%
3DMark 11 Performance
5976 points
3DMark Fire Strike Score
3223 points
3DMark Time Spy Score
1328 points
Help
Blender / v3.3 Classroom HIP/AMD
Average of class Office
  (298 - 1215, n=15, last 2 years)
727 Seconds * -4%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000)
  (477 - 1133, n=12)
702 Seconds * -1%
Lenovo ThinkPad E16 G1-21JUS08X00
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 7730U
697 Seconds *
Blender / v3.3 Classroom CPU
HP ProBook 450 G9 6A180EA
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1255U
1156 Seconds * -121%
Average of class Office
  (343 - 3964, n=89, last 2 years)
773 Seconds * -48%
Lenovo ThinkBook 15 G3 ACL 21A400B2GE
AMD Radeon RX Vega 7, AMD Ryzen 5 5500U
750 Seconds * -43%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1335U
676 Seconds * -29%
Acer TravelMate P4 TMP416-51-55KN
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1240P
560 Seconds * -7%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000)
  (463 - 758, n=18)
542 Seconds * -3%
Lenovo ThinkPad E16 G1-21JUS08X00
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 7730U
524 Seconds *

* ... smaller is better

Performance Rating
Average of class Office

98.6 pt
Samsung Galaxy Book3 15, Core i5-1335U -1!
Intel Core i5-1335U, Intel Iris Xe Graphics G7 80EUs
91.7 pt
Lenovo ThinkPad E16 G1-21JUS08X00
AMD Ryzen 7 7730U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
81.5 pt
Acer TravelMate P4 TMP416-51-55KN
Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs
78.7 pt
HP ProBook 450 G9 6A180EA -1!
Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs
58 pt
Lenovo ThinkBook 15 G3 ACL 21A400B2GE
AMD Ryzen 5 5500U, AMD Radeon RX Vega 7
45.6 pt
The Witcher 3 / Ultra Graphics & Postprocessing (HBAO+)
Average of class Office
  (3.8 - 34, n=79, last 2 years)
14.8 fps +15%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U, Intel Iris Xe Graphics G7 80EUs
13.6 (12min, 13P1) fps +5%
Lenovo ThinkPad E16 G1-21JUS08X00
AMD Ryzen 7 7730U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
12.9 (12min, 12P1) fps
Acer TravelMate P4 TMP416-51-55KN
Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs
12.2 (10min) fps -5%
HP ProBook 450 G9 6A180EA
Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs
8.79 (8min, 9P1) fps -32%
Lenovo ThinkBook 15 G3 ACL 21A400B2GE
AMD Ryzen 5 5500U, AMD Radeon RX Vega 7
6.5 (4.96min, 5.14P0.1, 5.71P1) fps -50%
GTA V / Highest Settings possible
Average of class Office
  (3.35 - 47.8, n=78, last 2 years)
12.7 fps +42%
Lenovo ThinkPad E16 G1-21JUS08X00
AMD Ryzen 7 7730U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
8.92 (1.351min, 5.95P1) fps
Acer TravelMate P4 TMP416-51-55KN
Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs
7.36 (2.93min, 4.15P1) fps -17%
Lenovo ThinkBook 15 G3 ACL 21A400B2GE
AMD Ryzen 5 5500U, AMD Radeon RX Vega 7
5.53 (1.857min, 3.21P1) fps -38%
Final Fantasy XV Benchmark / High Quality
Average of class Office
  (3.86 - 35.7, n=87, last 2 years)
15.9 fps +28%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U, Intel Iris Xe Graphics G7 80EUs
15.4 fps +24%
Acer TravelMate P4 TMP416-51-55KN
Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs
14 fps +13%
Lenovo ThinkPad E16 G1-21JUS08X00
AMD Ryzen 7 7730U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
12.4 fps
HP ProBook 450 G9 6A180EA
Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs
11.2 fps -10%
Lenovo ThinkBook 15 G3 ACL 21A400B2GE
AMD Ryzen 5 5500U, AMD Radeon RX Vega 7
5.85 fps -53%
Strange Brigade / ultra
Average of class Office
  (9.6 - 56.5, n=73, last 2 years)
27.1 fps +30%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U, Intel Iris Xe Graphics G7 80EUs
21.9 (5min, 6.51P1) fps +5%
Lenovo ThinkPad E16 G1-21JUS08X00
AMD Ryzen 7 7730U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
20.9 (5.1min, 6.57P1) fps
Acer TravelMate P4 TMP416-51-55KN
Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs
20.5 (5min, 5.03P1) fps -2%
HP ProBook 450 G9 6A180EA
Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs
12.4 (5min, 5P1) fps -41%
Lenovo ThinkBook 15 G3 ACL 21A400B2GE
AMD Ryzen 5 5500U, AMD Radeon RX Vega 7
9.9 (5min, 5.71P1) fps -53%
Dota 2 Reborn / ultra (3/3) best looking
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U, Intel Iris Xe Graphics G7 80EUs
56.5 (49min) fps +18%
Acer TravelMate P4 TMP416-51-55KN
Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs
52.6 (47.7min) fps +10%
Average of class Office
  (13.4 - 121.2, n=94, last 2 years)
51.6 fps +8%
Lenovo ThinkPad E16 G1-21JUS08X00
AMD Ryzen 7 7730U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
47.7 (43.2min) fps
HP ProBook 450 G9 6A180EA
Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs
27.9 (24.8min) fps -42%
Lenovo ThinkBook 15 G3 ACL 21A400B2GE
AMD Ryzen 5 5500U, AMD Radeon RX Vega 7
24 (22.6min) fps -50%
X-Plane 11.11 / high (fps_test=3)
Average of class Office
  (8.88 - 92.6, n=92, last 2 years)
30.1 fps +8%
Lenovo ThinkPad E16 G1-21JUS08X00
AMD Ryzen 7 7730U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
27.8 fps
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U, Intel Iris Xe Graphics G7 80EUs
26.8 fps -4%
Acer TravelMate P4 TMP416-51-55KN
Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs
22.5 fps -19%
Lenovo ThinkBook 15 G3 ACL 21A400B2GE
AMD Ryzen 5 5500U, AMD Radeon RX Vega 7
21.1 fps -24%
HP ProBook 450 G9 6A180EA
Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs
19.6 fps -29%

Witcher 3 FPS chart

01234567891011121314Tooltip
Lenovo ThinkPad E16 G1-21JUS08X00 R7 7730U, Vega 8: Ø12.9 (12-14)
lowmed.highultra
GTA V (2015) 92 79 22.1 8.92
The Witcher 3 (2015) 63 20 12.9
Dota 2 Reborn (2015) 107.8 85.5 50.7 47.7
Final Fantasy XV Benchmark (2018) 33.7 17.1 12.4
X-Plane 11.11 (2018) 40.9 31.4 27.8
Far Cry 5 (2018) 44 21 18 17
Strange Brigade (2018) 75.5 29.3 24.5 20.9
F1 2021 (2021) 83.1 37.7 28.4 19.9
F1 22 (2022) 33.7 30.1 22.5
F1 23 (2023) 31.2 27.4 20.9

排放 - 安静的办公笔记本电脑

系统噪音

单风扇双热管
单风扇双热管

散热解决方案与较小的 ThinkPad E14 G5 完全相同,但较大的 ThinkPad E16 G1 却明显更安静。即使使用最佳性能电源配置文件,风扇在正常使用时也很少转动,即使运转,也只能听到非常安静的杂音。这款大型办公笔记本电脑在负载情况下也更安静,噪音最高可达 36 dB(A)。如果你想要一台更安静的笔记本电脑,你应该选择 "最佳电源效率 "配置文件,它在压力测试中的噪音为 27 dB(A),几乎听不到任何声音。我们的评测机没有产生任何其他电子噪音,如线圈啸叫。

Noise Level

Idle
22.4 / 22.4 / 23.7 dB(A)
Load
24.8 / 36.1 dB(A)
  red to green bar


30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light   Earthworks M23R, Arta (15 cm distance)   environment noise: 22.4 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2041.441.939.842.94138.339.44540.62532.836.133.234.234.734.834.437.131.93130.929.328.327.230.727.226.527.828.44028.227.127.227.426.825.425.927.628.95025.921.322.62321.322.921.823.622.46324.122.425.223.723.421.221.721.128.38021.320.72218.919.118.819.119.321.210022.319.720.618.71818.817.216.118.512520.619.418.717.114.915.813.714.217.616019.518.618.615.814.314.213.313.116.920023.323.222.820.619.418.717.318.624.425026.925.325.12219.118.517.318.12131524.823.120.818.21514.412.212.116.540024.422.321.718.61416.713.510.115.450024.323.220.717.615.614.212.29.71663024.823.322.319.914.912.211.49.115.480024.92421.618.615.112.512.58.815.9100024.823.621.719.714.211.811.38.615.1125025.52422.620.41412.311.88.915160026.124.621.618.814.211.2129.115.9200026.224.722.719.413.511.811.39.415.2250024.923.421.218.213.211.3119.914.1315023.922.119.416.312.711.71110.213.1400020.819.417.314.813.211.810.810.412.6500022.721.419.416.312.511.510.810.512.2630024.121.316.912.912.8121110.911.4800016.514.712.911.813.713.310.91111.11000013.712.811.812.615.114.311.21111.31250011.511.31112.915.814.911.110.811.11600010.210.410.613.71817.210.610.210.3SPL36.234.732.529.826.124.823.722.426.6N2.52.11.71.20.80.60.50.40.8median 24.1median 22.3median 20.7median 18.2median 14.3median 13.3median 11.4median 10.4median 15.2Delta2.82.42.72.41.32.211.62.4hearing rangehide median Fan NoiseLenovo ThinkPad E16 G1-21JUS08X00
Lenovo ThinkPad E16 G1-21JUS08X00
Vega 8, R7 7730U, WD PC SN740 SDDPNQD-1T00
Acer TravelMate P4 TMP416-51-55KN
Iris Xe G7 80EUs, i5-1240P, Micron 2450 512GB MTFDKBA512TFK
Samsung Galaxy Book3 15, Core i5-1335U
Iris Xe G7 80EUs, i5-1335U, Samsung PM991a MZ9LQ512HBLU-00BD1
Lenovo ThinkBook 15 G3 ACL 21A400B2GE
Vega 7, R5 5500U, Samsung PM991A MZALQ256HBJD
HP ProBook 450 G9 6A180EA
Iris Xe G7 96EUs, i7-1255U, SK Hynix HFM512GD3JX013N
Noise
-24%
-30%
-15%
-7%
off / environment *
22.4
25.4
-13%
25.2
-13%
25.5
-14%
25.5
-14%
Idle Minimum *
22.4
25.4
-13%
25.2
-13%
25.5
-14%
25.5
-14%
Idle Average *
22.4
25.4
-13%
25.2
-13%
25.5
-14%
25.5
-14%
Idle Maximum *
23.7
25.4
-7%
31.6
-33%
25.5
-8%
25.5
-8%
Load Average *
24.8
43.9
-77%
45.4
-83%
28.5
-15%
28
-13%
Witcher 3 ultra *
29.8
Load Maximum *
36.1
43.7
-21%
45.4
-26%
45.6
-26%
27.7
23%

* ... smaller is better

温度

在轻负载情况下,机箱表面温度没有任何问题,几乎不会升温。不过,在负载情况下,风扇的噪音会明显增大,表面温度也会比ThinkPad E14 G5尽管机箱更大。我们在底部中央测得的温度超过 50 °C,因此在这种情况下不要把 E16 放在膝盖上。由于机箱右侧没有任何组件,因此总体上保持了较低的温度。

在 CPU/iGPU 综合负载的压力测试中,CPU 功耗很快就降到了 25 瓦。

CPU/iGPU 数据压力测试
CPU/iGPU 数据压力测试
Max. Load
 46.1 °C45.2 °C42.7 °C
 43.1 °C41.7 °C31.2 °C
 28.2 °C26.3 °C25.5 °C
Maximum: 46.1 °C
Average: 36.7 °C
48.8 °C50.3 °C51.3 °C
27.4 °C52.2 °C51.3 °C
25.9 °C28.3 °C28.8 °C
Maximum: 52.2 °C
Average: 40.5 °C
Power Supply (max.)  41.4 °C | Room Temperature 21.2 °C | Fluke t3000FC (calibrated), Voltcraft IR-900
(±) The average temperature for the upper side under maximal load is 36.7 °C / 98 F, compared to the average of 29.5 °C / 85 F for the devices in the class Office.
(-) The maximum temperature on the upper side is 46.1 °C / 115 F, compared to the average of 34.3 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(-) The bottom heats up to a maximum of 52.2 °C / 126 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 24.8 °C / 77 F, compared to the device average of 29.5 °C / 85 F.
(±) Playing The Witcher 3, the average temperature for the upper side is 35.3 °C / 96 F, compared to the device average of 29.5 °C / 85 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 28.2 °C / 82.8 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 27.7 °C / 81.9 F (-0.5 °C / -0.9 F).
表面温度应力测试(顶部)
表面温度应力测试(顶部)
表面温度应力测试(底部)
表面温度应力测试(底部)
Lenovo ThinkPad E16 G1-21JUS08X00
AMD Ryzen 7 7730U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
Acer TravelMate P4 TMP416-51-55KN
Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U, Intel Iris Xe Graphics G7 80EUs
Lenovo ThinkBook 15 G3 ACL 21A400B2GE
AMD Ryzen 5 5500U, AMD Radeon RX Vega 7
HP ProBook 450 G9 6A180EA
Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs
Heat
-2%
-6%
-4%
-9%
Maximum Upper Side *
46.1
38.6
16%
45.9
-0%
42.2
8%
40.5
12%
Maximum Bottom *
52.2
44.4
15%
43.5
17%
48.8
7%
47.6
9%
Idle Upper Side *
25.7
28.9
-12%
31.1
-21%
27.8
-8%
32.6
-27%
Idle Bottom *
26.7
34
-27%
31.6
-18%
32.3
-21%
34.2
-28%

* ... smaller is better

发言人

两个立体声扬声器提供了不错的音质,尤其是对于经济型办公笔记本电脑而言。与竞争对手相比,ThinkPad 还有一个明显的优势,如惠普 ProBook 450 G9等竞争对手相比,ThinkPad 在这方面具有明显的优势。

dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs204539.62537.136.83127.828.74027.626.15023.622.56321.1248019.323.810016.126.312514.231.416013.134.820018.645.225018.150.631512.155.140010.1595009.761.96309.163.58008.867.110008.665.312508.967.216009.169.220009.466.325009.965.4315010.265.5400010.463.3500010.563.7630010.964.280001165.8100001165.71250010.863.71600010.254.2SPL22.477.6N0.441.5median 10.4median 63.7Delta1.67.526.723.526.729.928.929.929.630.429.623.423.323.432.431.932.42322.42316.31616.316.814.916.819.615.319.628.415.428.43114.43126.713.726.73914.73955.516.155.559.316.559.365.21265.266.311.366.368.911.568.973.711.773.770.412.270.471.712.371.769.912.769.968.513.468.568.313.868.37113.57173.514.273.577.51577.578.615.878.672.813.672.862.113.262.18425.58455.70.755.7median 68.3median 13.7median 68.312.71.312.7hearing rangehide median Pink NoiseLenovo ThinkPad E16 G1-21JUS08X00HP ProBook 450 G9 6A180EA
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
Lenovo ThinkPad E16 G1-21JUS08X00 audio analysis

(±) | speaker loudness is average but good (77.6 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 23.1% lower than median
(±) | linearity of bass is average (9.8% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.9% away from median
(+) | mids are linear (4.8% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 1.3% away from median
(+) | highs are linear (1.6% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (16.2% difference to median)
Compared to same class
» 15% of all tested devices in this class were better, 5% similar, 79% worse
» The best had a delta of 7%, average was 22%, worst was 53%
Compared to all devices tested
» 23% of all tested devices were better, 5% similar, 72% worse
» The best had a delta of 4%, average was 25%, worst was 134%

HP ProBook 450 G9 6A180EA audio analysis

(+) | speakers can play relatively loud (84 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 41.4% lower than median
(±) | linearity of bass is average (9.5% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 4.8% away from median
(±) | linearity of mids is average (9% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4.2% away from median
(+) | highs are linear (3.6% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (26% difference to median)
Compared to same class
» 77% of all tested devices in this class were better, 8% similar, 15% worse
» The best had a delta of 7%, average was 22%, worst was 53%
Compared to all devices tested
» 77% of all tested devices were better, 5% similar, 18% worse
» The best had a delta of 4%, average was 25%, worst was 134%

能源管理 - AMD 笔记本电脑,动力强劲

耗电量

我们的功耗测量结果没有发现任何意外,但由于屏幕亮度较高,最大空闲功耗比一些竞争对手要高一些。在负载情况下,我们测得的最大功耗为 56 瓦,几分钟后降到 48 瓦左右。因此,65 瓦的电源适配器完全够用。

Power Consumption
Off / Standbydarklight 0.52 / 0.88 Watt
Idledarkmidlight 4.1 / 9.6 / 10.2 Watt
Load midlight 47.3 / 55.7 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Lenovo ThinkPad E16 G1-21JUS08X00
R7 7730U, Vega 8, WD PC SN740 SDDPNQD-1T00, IPS, 2560x1600, 16"
Acer TravelMate P4 TMP416-51-55KN
i5-1240P, Iris Xe G7 80EUs, Micron 2450 512GB MTFDKBA512TFK, IPS, 1920x1200, 16"
Samsung Galaxy Book3 15, Core i5-1335U
i5-1335U, Iris Xe G7 80EUs, Samsung PM991a MZ9LQ512HBLU-00BD1, IPS, 1920x1080, 15.6"
Lenovo ThinkBook 15 G3 ACL 21A400B2GE
R5 5500U, Vega 7, Samsung PM991A MZALQ256HBJD, IPS, 1920x1080, 15.6"
HP ProBook 450 G9 6A180EA
i7-1255U, Iris Xe G7 96EUs, SK Hynix HFM512GD3JX013N, , 1920x1080, 15.6"
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000)

Average of class Office

Power Consumption
2%
25%
5%
19%
-0%
4%
Idle Minimum *
4.1
5.2
-27%
3.5
15%
4.2
-2%
4.5
-10%
5.26 ?(3 - 12.5, n=46)
-28%
Idle Average *
9.6
7.1
26%
7
27%
8.3
14%
7.3
24%
Idle Maximum *
10.2
9.6
6%
7.6
25%
10.4
-2%
8.1
21%
Load Average *
47.3
47
1%
33
30%
49
-4%
32.8
31%
Witcher 3 ultra *
46.7
43.3
7%
32.7
30%
39.7
15%
32
31%
Load Maximum *
55.7
56
-1%
44
21%
49.3
11%
47
16%

* ... smaller is better

Power consumption Witcher 3 / Stress test

0510152025303540455055Tooltip
Lenovo ThinkPad E16 G1-21JUS08X00; Witcher 3 ultra: Ø46.7 (45.1-47.6)
Lenovo ThinkPad E16 G1-21JUS08X00; 1280x720 Prime95 28.10 and Furmark 1.25: Ø53 (48.2-55.7)
Lenovo ThinkPad E16 G1-21JUS08X00; Idle 150cd/m2: Ø6.74 (6.22-7.8)

Power consumption with external screen

051015202530354045Tooltip
Lenovo ThinkPad E16 G1-21JUS08X00; Prime95 V2810 Stress (external Monitor): Ø44.6 (43.4-45.6)
Lenovo ThinkPad E16 G1-21JUS08X00; Cinebench R15 Multi (external Monitor): Ø44.5 (43.9-45)
Lenovo ThinkPad E16 G1-21JUS08X00; Cinebench R23 Single (external Monitor): Ø26.6 (25-35.7)
Lenovo ThinkPad E16 G1-21JUS08X00; Cinebench R23 Multi (external Monitor): Ø44.1 (43.2-45)
Lenovo ThinkPad E16 G1-21JUS08X00; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø37.8 (36.2-39.7)
Lenovo ThinkPad E16 G1-21JUS08X00; 1920x1080 The Witcher 3 ultra (external Monitor): Ø40.6 (39.1-44.8)
Lenovo ThinkPad E16 G1-21JUS08X00; Idle 1min (external Monitor): Ø3.83 (2.94-5.63)

电池运行时间

57 瓦时电池
57 瓦时电池

与尺寸较小的 ThinkPad E14 G5 的 2.2K 显示屏相比,16 英寸面板的 150 尼特显示效率似乎更高,因为尽管电池容量为 57 Wh,但结果却更好。我们的视频测试耗时 11:44h,Wi-Fi 测试耗时 11:17h,这都是非常好的结果。只有全亮度下的 Wi-Fi 运行时间稍差,略低于 7 小时。与竞争对手相比,这些结果都要好一些。在负载情况下,电池可在 80 分钟左右耗尽,因为 CPU 性能不会因电池电量而降低。

Battery Runtime
WiFi Websurfing (Edge 115)
11h 17min
WiFi Websurfing max. Brightness (Edge 115)
6h 43min
Big Buck Bunny H.264 1080p
11h 44min
Load (maximum brightness)
1h 17min
Lenovo ThinkPad E16 G1-21JUS08X00
R7 7730U, Vega 8, 57 Wh
Acer TravelMate P4 TMP416-51-55KN
i5-1240P, Iris Xe G7 80EUs, 56 Wh
Samsung Galaxy Book3 15, Core i5-1335U
i5-1335U, Iris Xe G7 80EUs, 54 Wh
Lenovo ThinkBook 15 G3 ACL 21A400B2GE
R5 5500U, Vega 7, 45 Wh
HP ProBook 450 G9 6A180EA
i7-1255U, Iris Xe G7 96EUs, 51 Wh
Average of class Office

Battery Runtime
-17%
-8%
-28%
72%
14%
H.264
704
426
-39%
WiFi v1.3
677
562
-17%
397
-41%
486
-28%
604
-11%
Load
77
121
57%
196
155%
Witcher 3 ultra
162

Pros

+ 良好的(可选)WQHD 面板
+ 良好的系统性能
+ 可扩展内存和 2 个固态硬盘插槽
+ 快速 Wi-Fi
+ 电池续航时间长
+ 安静运行

Cons

- 极易受指纹影响
- 没有 WWAN 选项
- 负载时表面温度高

结论:ThinkPad E 的大屏幕同样令人信服

回顾:联想 ThinkPad E16 G1 AMD。测试机型由以下公司提供
回顾:联想 ThinkPad E16 G1 AMD。测试机型由以下公司提供

新款 ThinkPad E16 G1 与你所期待的更大尺寸的ThinkPad E14:它拥有更大的显示屏和带专用数字键盘的键盘。除此之外,两者之间的差别微乎其微,联想还使用了较小机型的一些部件,如主板和电池,这为制造商节省了一些成本。考虑到这是一款入门级商务笔记本电脑,我们可以理解这种做法。

与较小的 14 英寸机型可选的 2.2K 屏幕一样,我们对办公笔记本可选的 WQHD 屏幕也非常满意。雾面 IPS 屏幕的画质非常好,没有 PWM 闪烁,响应时间也不明显。该面板在较低亮度下也非常高效,因此电池运行时间很长。

性能AMD Ryzen 7 7730U的性能与较小的型号相同,尽管它不是最新的处理器,但多核性能仍然完全具有竞争力。与大多数英特尔笔记本电脑相反,其性能也非常稳定,Vega 8 的 GPU 性能也可与当前的英特尔 CPU 相媲美。

ThinkPad E16 G1 AMD 具有良好的系统性能、较长的电池续航时间、大尺寸 WQHD 面板以及较高的性价比。

但它也有明显的缺点,如端口标准过时或缺少读卡器。此外,我们还不得不再次对联想键盘的发展提出批评。ThinkPad E16 G1 还使用了键程为 1.5 毫米的键盘,这与键程为 1.8 毫米的旧版本相比实在是差强人意。考虑到 ThinkPad E16 G1 的尺寸,我们认为键盘再厚 0.3 毫米也不会有什么影响。

宏碁宏碁 TravelMate P4提供了类似的性能数据,但提供了更先进的端口和读卡器。惠普的ProBook 450 G9则仍然使用较小和较暗的 15.6 英寸面板,性能也较低。另一方面,银色机身不易沾染指纹。

Download your licensed rating image as SVG / PNG

价格和供应情况

新款 ThinkPad E16 G1 目前可在联想在线商店进行配置,起价为 473 美元。我们的评测机配备 Windows 11 Home 操作系统,售价约为 960 美元。

Lenovo ThinkPad E16 G1-21JUS08X00 - 09/14/2023 v7 (old)
Andreas Osthoff

Chassis
86 / 98 → 87%
Keyboard
89%
Pointing Device
83%
Connectivity
64 / 80 → 81%
Weight
65 / 20-75 → 82%
Battery
89%
Display
91%
Games Performance
63 / 78 → 80%
Application Performance
94 / 95 → 98%
Temperature
87%
Noise
98%
Audio
75%
Camera
38 / 85 → 44%
Average
79%
88%
Office - Weighted Average

Transparency

The selection of devices to be reviewed is made by our editorial team. The test sample was provided to the author as a loan by the manufacturer or retailer for the purpose of this review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.

This is how Notebookcheck is testing

Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.

Price comparison

Please share our article, every link counts!
Mail Logo
> Notebookcheck中文版(NBC中国) > 评测 > 联想 ThinkPad E16 G1 AMD 评测--配备 AMD 处理器和 WQHD 显示屏的大型办公笔记本电脑
Andreas Osthoff, 2023-09-14 (Update: 2023-09-14)
