联想ThinkPad L13 Yoga G2 AMD笔记本电脑回顾。锐志Pro在ThinkPad敞篷车内的释放
由于分别采用了英特尔Tiger Lake 和AMD Ryzen Pro 5000 CPU，第二代ThinkPad Yoga L13与前代产品相比，性能明显提高，同时保持了其熟悉的外观。拉丝铝盖给人以坚实的印象，具有舒适行程的传统ThinkPad键盘和带有三个专用按钮的TrackPoint很好地补充了这一点。然而，联想还没有切换到16:10或3:2的面板，工作空间分布更好。
一般来说，L系列，特别是AMD CPU的变体以相对较低的价格在商务类中脱颖而出。我们的配置，配备了R5 5650U Pro、13.3英寸触摸屏、ThinkPad Pen Pro和无操作系统，价格为900欧元（约994美元）。由于机箱、扬声器和输入设备保持不变，我们的深入审查的意见仍然适用。
我们也已经评测了第二代机型的英特尔酷睿i5-1135G7。
ThinkPad L13 Yoga G2 AMD
Processor
AMD Ryzen 5 PRO 5650U 6 x 2.3 - 4.2 GHz, 30 W PL2 / Short Burst, 25 W PL1 / Sustained, Cezanne-U PRO (Zen 3)
Graphics adapter
AMD Radeon RX Vega 7
Memory
16 GB
, DDR4-3200, onboard, dual-channel
Display
13.30 inch 16:9, 1920 x 1080 pixel 166 PPI, N133HCE-EP2, IPS LED, glossy: yes, 60 Hz
Mainboard
AMD Promontory/Bixby FCH
Storage
SK Hynix HFS512 GDE9X081N, 512 GB
Weight
1.432 kg, Power Supply: 365 g
Price
900 Euro
Links
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.
潜在的竞争对手比较
Rating | Date | Model | Weight | Height | Size | Resolution | Price |
|---|---|---|---|---|---|---|---|
| 88.3 % v7 (old) | 03 / 2022 | Lenovo ThinkPad L13 Yoga G2 21AES01A00 R5 PRO 5650U, Vega 7 | 1.4 kg | 18 mm | 13.30" | 1920x1080 | |
| 88.3 % v7 (old) | 09 / 2021 | Lenovo ThinkPad L13 Yoga Gen2-20VK000VGE i5-1135G7, Iris Xe G7 80EUs | 1.5 kg | 17.6 mm | 13.30" | 1920x1080 | |
| 86.6 % v7 (old) | 03 / 2022 | Samsung Galaxy Book Pro 360 15 NP950QDB-KC3DE i5-1135G7, Iris Xe G7 80EUs | 1.4 kg | 11 mm | 15.60" | 1920x1080 | |
| 88.2 % v7 (old) | 02 / 2022 | Acer Swift 3 SF314-511-54ZK i5-1135G7, Iris Xe G7 80EUs | 1.2 kg | 16.55 mm | 14.00" | 1920x1080 | |
| 88.3 % v7 (old) | 11 / 2021 | Asus ExpertBook B5 Flip B5302FEA i5-1135G7, Iris Xe G7 80EUs | 1.3 kg | 16.9 mm | 13.30" | 1920x1080 | |
| 91.1 % v7 (old) | Lenovo ThinkPad X13 Yoga G2 i7-1165G7, Iris Xe G7 96EUs | 1.2 kg | 15.39 mm | 13.30" | 2560x1600 |
外壳 - 熟悉的ThinkPad外观

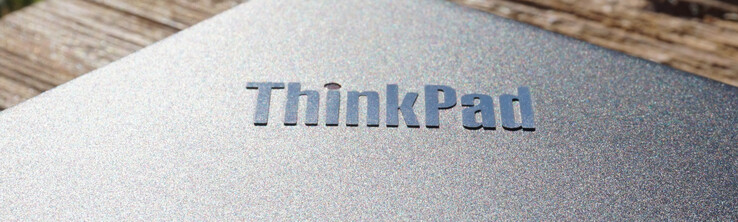

与前代产品一样，盖子由拉丝铝组成，给人以坚实的印象，尽管它是一个指纹磁铁。它对扭曲的抵抗力很强。铰链通常是敞篷车的弱点，每个铰链用四个螺丝固定。用一只手打开设备是不可能的，这进一步证明了铰链的牢固性。
连接性 - 联想商务笔记本种类繁多，但没有智能读卡器
端口的数量和选择都很好。通过兼容的底座，用户可以获得更多的连接。另外，集成的USB-C端口可以达到10Gbps的速度，并支持DisplayPort，可以这样使用。同时，入门级商务机型上省略了一个智能卡读卡器。
SD卡阅读器
| SD Card Reader | |
| average JPG Copy Test (av. of 3 runs) | |
| Lenovo ThinkPad L13 Yoga Gen2-20VK000VGE (AV PRO V60) | |
| Average of class Convertible (17.7 - 209, n=29, last 2 years) | |
| Lenovo ThinkPad L13 Yoga G2 21AES01A00 (AV Pro V60) | |
| Samsung Galaxy Book Pro 360 15 NP950QDB-KC3DE (AV Pro SD microSD 128 GB V60) | |
| maximum AS SSD Seq Read Test (1GB) | |
| Average of class Convertible (22.6 - 263, n=28, last 2 years) | |
| Lenovo ThinkPad L13 Yoga Gen2-20VK000VGE (AV PRO V60) | |
| Lenovo ThinkPad L13 Yoga G2 21AES01A00 (AV Pro V60) | |
| Samsung Galaxy Book Pro 360 15 NP950QDB-KC3DE (AV Pro SD microSD 128 GB V60) | |
沟通
与英特尔版本相比，较弱的Wi-Fi模块是一个重要的缺点。相对于其他具有相同模块的设备，我们的测试设备的Wi-Fi性能是不合格的。即使不是这样，联想ThinkPad Yoga L13Tiger Lake 的速度仍将几乎是其两倍。
也就是说，近600Mbps的速度应该足以满足所有的应用，直至大型文件传输。不管怎么说，Yoga L13 AMD在商务类别中落后于其直接竞争对手。
| Networking | |
| iperf3 transmit AX12 | |
| Lenovo ThinkPad X13 Yoga G2 | |
| Lenovo ThinkPad L13 Yoga Gen2-20VK000VGE | |
| Acer Swift 3 SF314-511-54ZK | |
| Asus ExpertBook B5 Flip B5302FEA | |
| Samsung Galaxy Book Pro 360 15 NP950QDB-KC3DE | |
| Average MediaTek MT7921 (548 - 985, n=16) | |
| Lenovo ThinkPad L13 Yoga G2 21AES01A00 | |
| iperf3 receive AX12 | |
| Asus ExpertBook B5 Flip B5302FEA | |
| Lenovo ThinkPad L13 Yoga Gen2-20VK000VGE | |
| Samsung Galaxy Book Pro 360 15 NP950QDB-KC3DE | |
| Lenovo ThinkPad X13 Yoga G2 | |
| Acer Swift 3 SF314-511-54ZK | |
| Lenovo ThinkPad L13 Yoga G2 21AES01A00 | |
| Average MediaTek MT7921 (90 - 972, n=16) | |
Lenovo ThinkPad L13 Yoga G2 21AES01A00 MediaTek MT7921; iperf3 receive AX12; iperf 3.1.3: Ø787 (669-854)
Lenovo ThinkPad L13 Yoga Gen2-20VK000VGE Intel Wi-Fi 6 AX201; iperf3 receive AX12; iperf 3.1.3: Ø1410 (1142-1535)
Lenovo ThinkPad L13 Yoga G2 21AES01A00 MediaTek MT7921; iperf3 transmit AX12; iperf 3.1.3: Ø674 (631-762)
Lenovo ThinkPad L13 Yoga Gen2-20VK000VGE Intel Wi-Fi 6 AX201; iperf3 transmit AX12; iperf 3.1.3: Ø1389 (1277-1466)

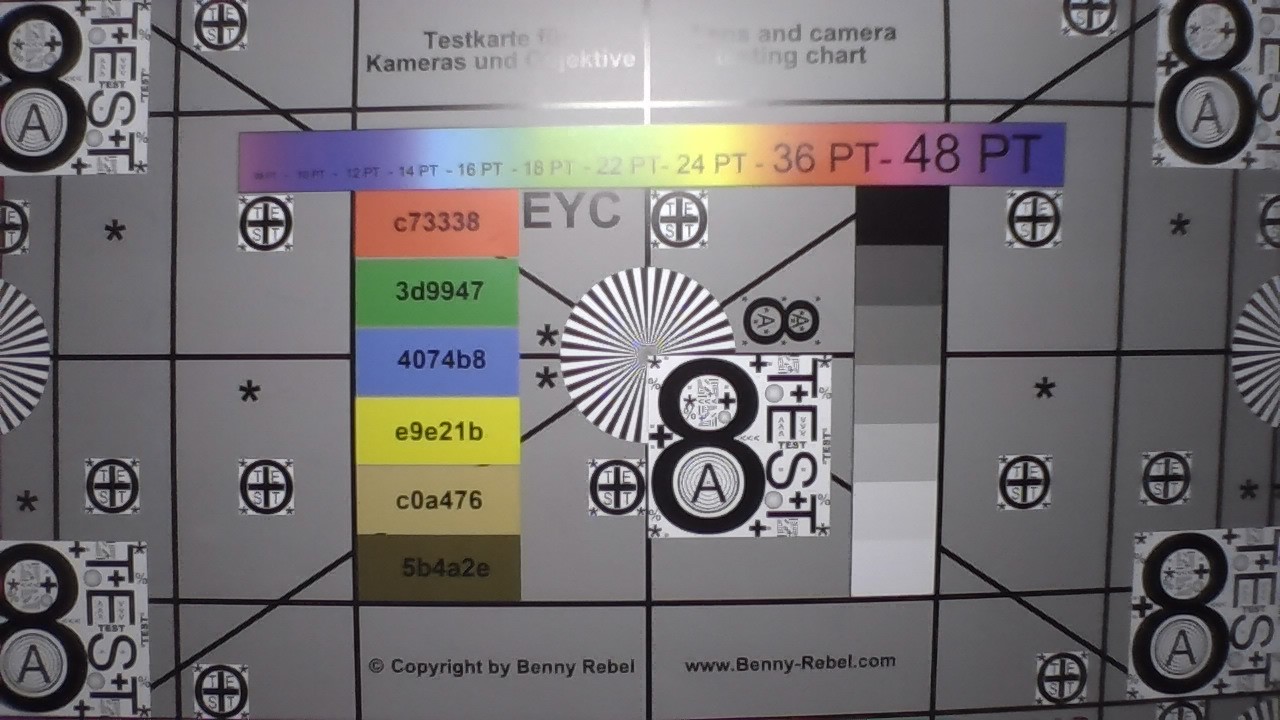

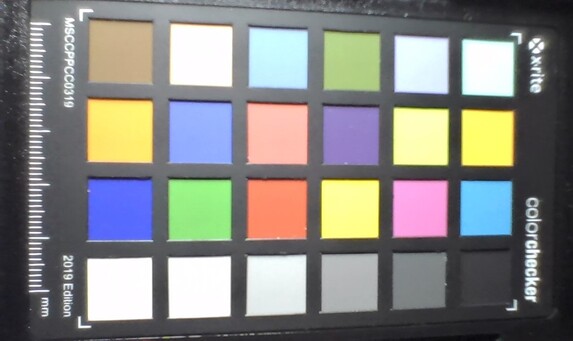

网络摄像头
34.6 ∆E
28.3 ∆E
36.3 ∆E
33.1 ∆E
36.2 ∆E
29.2 ∆E
33.3 ∆E
29.7 ∆E
28 ∆E
27.4 ∆E
19.5 ∆E
25.9 ∆E
20.9 ∆E
24.8 ∆E
29.5 ∆E
15.7 ∆E
23.3 ∆E
23.2 ∆E
2.9 ∆E
11.8 ∆E
21 ∆E
19.6 ∆E
19.4 ∆E
4.8 ∆E
显示屏 - 瑜伽L13触屏，效果稳固
尽管面板类型与前代产品相同，但除了sRGB色彩空间覆盖率外，最近的型号在各方面的表现都更差。平均亮度和对比度--由于糟糕的黑值--超出了预期的系列生产差异。
尽管有些特性受到了明显超过10％的打击，但该显示器可以说是完全平均的。最大亮度即使在偶尔的户外使用也是足够的。只要没有专业标准需要遵守，其色彩准确性适合于照片编辑。

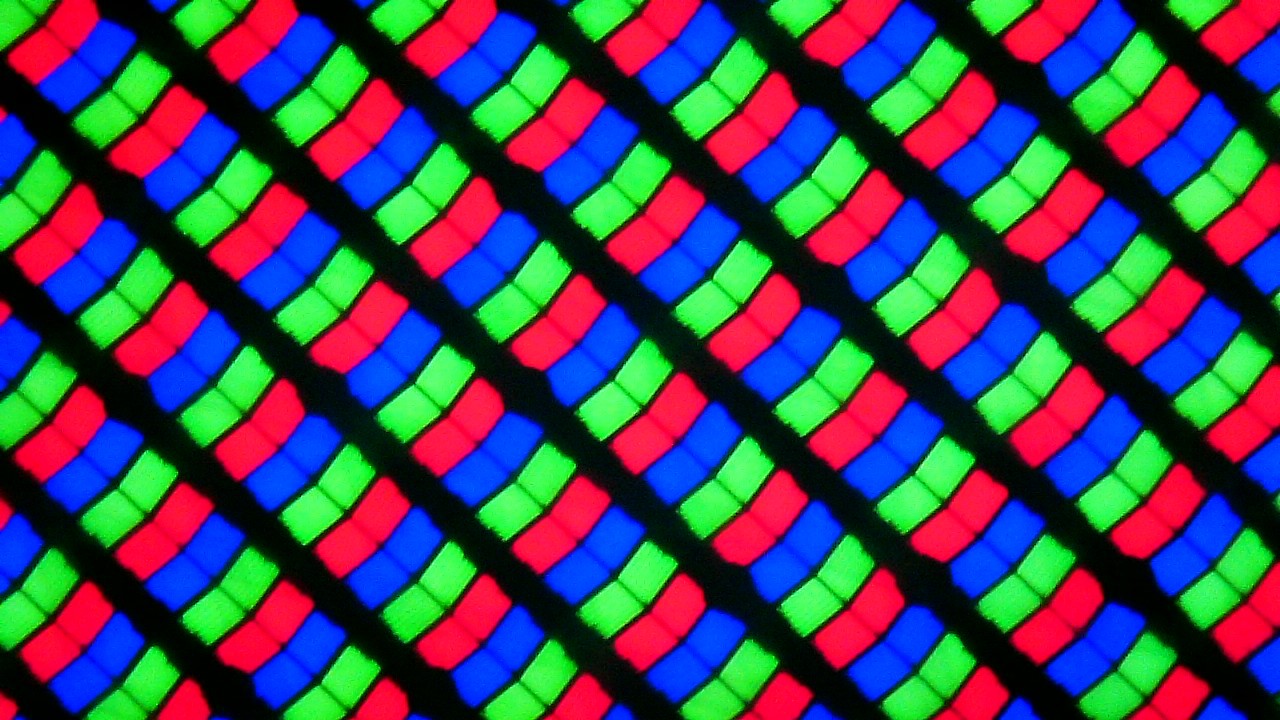

全高清分辨率使13.3英寸显示屏上的图像更加细腻。290尼特，测得的平均亮度仅略低于制造商规定的300尼特，而且肉眼看不出偏差。对比度还不错。与我们之前测试的面板类似，我们检测到PWM闪烁的存在。在亮度低于50%的情况下，我们测得的频率为25 kHz，这不应该导致任何问题。值得注意的是，几乎没有任何背光渗漏。虽然这种效果因单位而异，但我们测试的所有三款面板都显示出类似的良好效果。
| |||||||||||||||||||||||||
N133HCE-EP2 tested with X-Rite i1Pro 2
Maximum: 310 cd/m² (Nits) Average: 290.8 cd/m² Minimum: 9.25 cd/m²Brightness Distribution: 89 %
Center on Battery: 310 cd/m²
Contrast: 816:1 (Black: 0.38 cd/m²)
ΔE Color 2 | 0.5-29.43 Ø4.91, calibrated: 1
ΔE Greyscale 3.3 | 0.5-98 Ø5.2

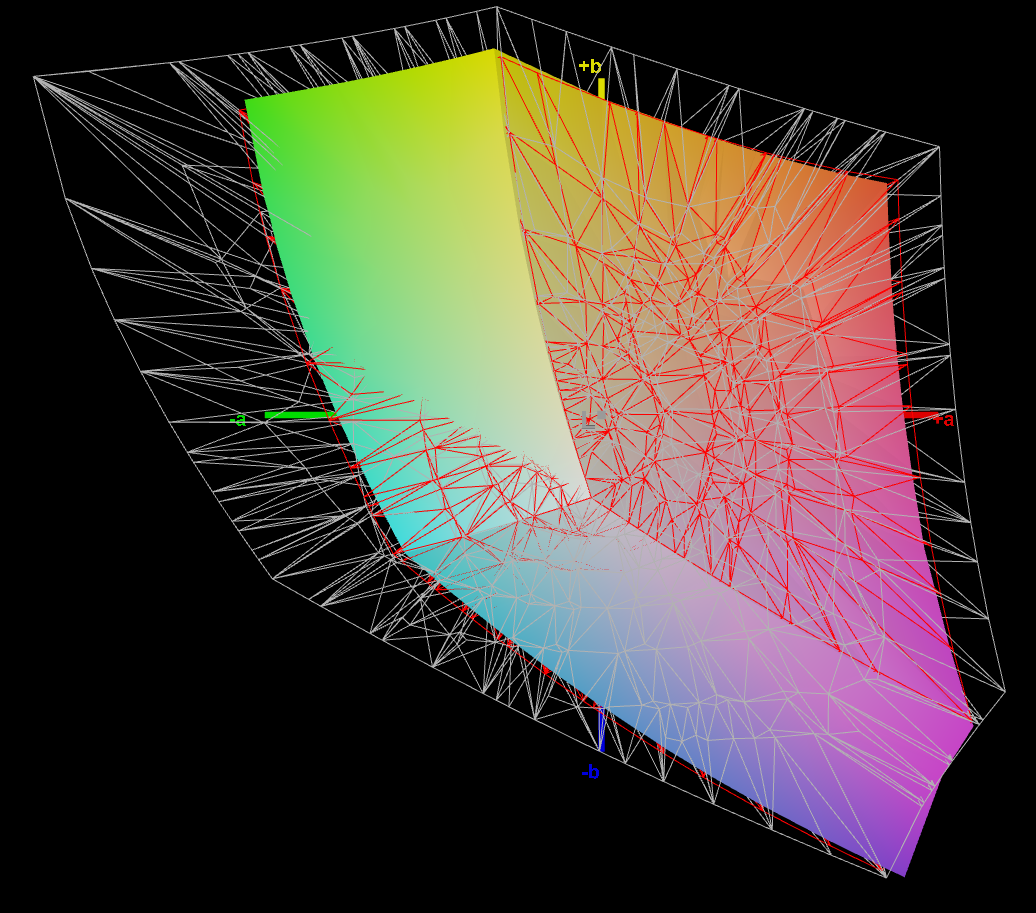

66.5% AdobeRGB 1998 (Argyll 2.2.0 3D)
96% sRGB (Argyll 2.2.0 3D)
64.7% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.21
| Lenovo ThinkPad L13 Yoga G2 21AES01A00 N133HCE-EP2, IPS LED, 1920x1080, 13.3" | Lenovo ThinkPad L13 Yoga Gen2-20VK000VGE N133HCE-EP2, IPS, 1920x1080, 13.3" | Samsung Galaxy Book Pro 360 15 NP950QDB-KC3DE SDC4159, OLED, 1920x1080, 15.6" | Acer Swift 3 SF314-511-54ZK AUO B140HAN06, IPS, 1920x1080, 14" | Asus ExpertBook B5 Flip B5302FEA N133HCE-EN2, IPS, 1920x1080, 13.3" | Lenovo ThinkPad X13 Yoga G2 LP133WQ1-SPF2, IPS LED, 2560x1600, 13.3" | |
|---|---|---|---|---|---|---|
| Display | 5% | 35% | 3% | 3% | 5% | |
| Display P3 Coverage | 64.7 | 68.5 6% | 99.9 54% | 67 4% | 66.3 2% | 68.3 6% |
| sRGB Coverage | 96 | 99.4 4% | 100 4% | 98 2% | 98.9 3% | 99.1 3% |
| AdobeRGB 1998 Coverage | 66.5 | 70.7 6% | 97.6 47% | 69 4% | 68.5 3% | 70.3 6% |
| Response Times | 5% | 30% | 4% | 21% | -1% | |
| Response Time Grey 50% / Grey 80% * | 48 ? | 44.4 ? 7% | 2 ? 96% | 52 ? -8% | 36 ? 25% | 52 ? -8% |
| Response Time Black / White * | 34 ? | 31.2 ? 8% | 2 ? 94% | 29 ? 15% | 23.6 ? 31% | 32 ? 6% |
| PWM Frequency | 25000 ? | 25000 ? 0% | 60 -100% | 26600 ? 6% | ||
| Screen | 21% | 71% | 17% | 26% | 42% | |
| Brightness middle | 310 | 316 2% | 290 -6% | 320 3% | 299 -4% | 460 48% |
| Brightness | 291 | 299 3% | 290 0% | 309 6% | 286 -2% | 423 45% |
| Brightness Distribution | 89 | 92 3% | 99 11% | 84 -6% | 92 3% | 85 -4% |
| Black Level * | 0.38 | 0.25 34% | 0.05 87% | 0.25 34% | 0.18 53% | 0.33 13% |
| Contrast | 816 | 1264 55% | 5800 611% | 1280 57% | 1661 104% | 1394 71% |
| Colorchecker dE 2000 * | 2 | 1.7 15% | 1.84 8% | 2.57 -29% | 1.9 5% | 1 50% |
| Colorchecker dE 2000 max. * | 5.9 | 3.8 36% | 3.83 35% | 3.5 41% | 4.5 24% | 1.5 75% |
| Colorchecker dE 2000 calibrated * | 1 | 0.7 30% | 2.69 -169% | 0.76 24% | 0.6 40% | 0.8 20% |
| Greyscale dE 2000 * | 3.3 | 2.8 15% | 1.24 62% | 2.46 25% | 3 9% | 1.2 64% |
| Gamma | 2.21 100% | 2.25 98% | 2.2 100% | 2.23 99% | 2.16 102% | 2.26 97% |
| CCT | 6838 95% | 6654 98% | 6686 97% | 6311 103% | 6944 94% | 6652 98% |
| Color Space (Percent of AdobeRGB 1998) | 64.5 | 64.4 | ||||
| Color Space (Percent of sRGB) | 99.4 | 99.12 | ||||
| Total Average (Program / Settings) | 10% /
15% | 45% /
56% | 8% /
12% | 17% /
20% | 15% /
28% |
* ... smaller is better

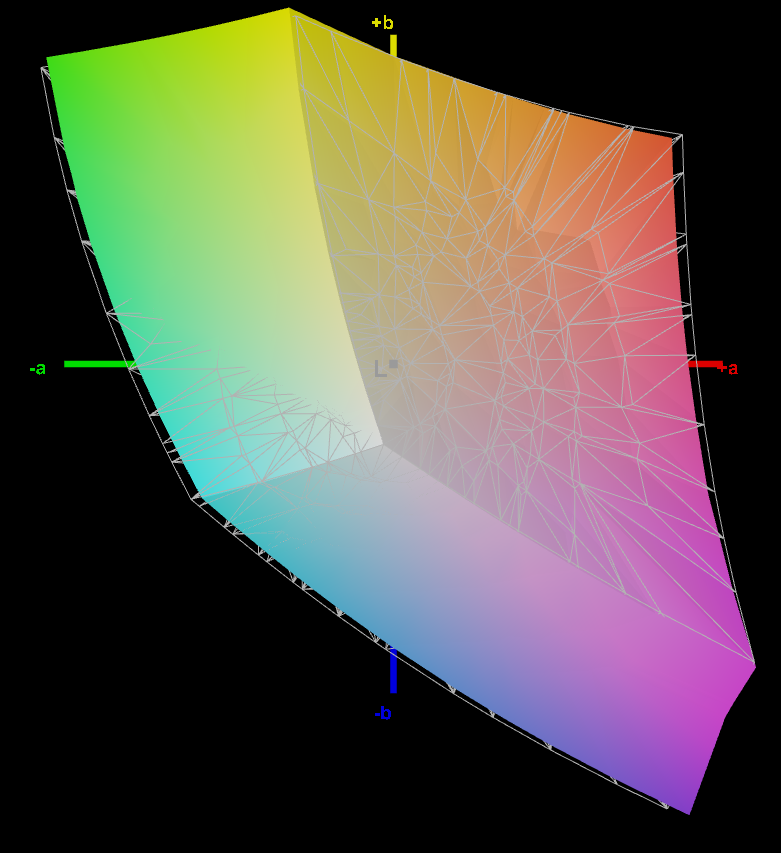

我们使用X-Rite i1Pro分光光度计进行了测试，其色彩准确性与前代产品大致相同。瑜伽L13 G2几乎覆盖了整个sRGB色彩空间。虽然第一代面板实际上能够完全覆盖sRGB色彩空间，然而，我们的测试模型不能完全达到100％。由于这款显示器很可能不会被用于专业的照片编辑或设计师软件，所以这个小缺陷和67%的AdobeRGB色彩空间覆盖率都不是一个大问题。尽管落后于其竞争对手，但多媒体任务对我们的测试设备来说并不是挑战。

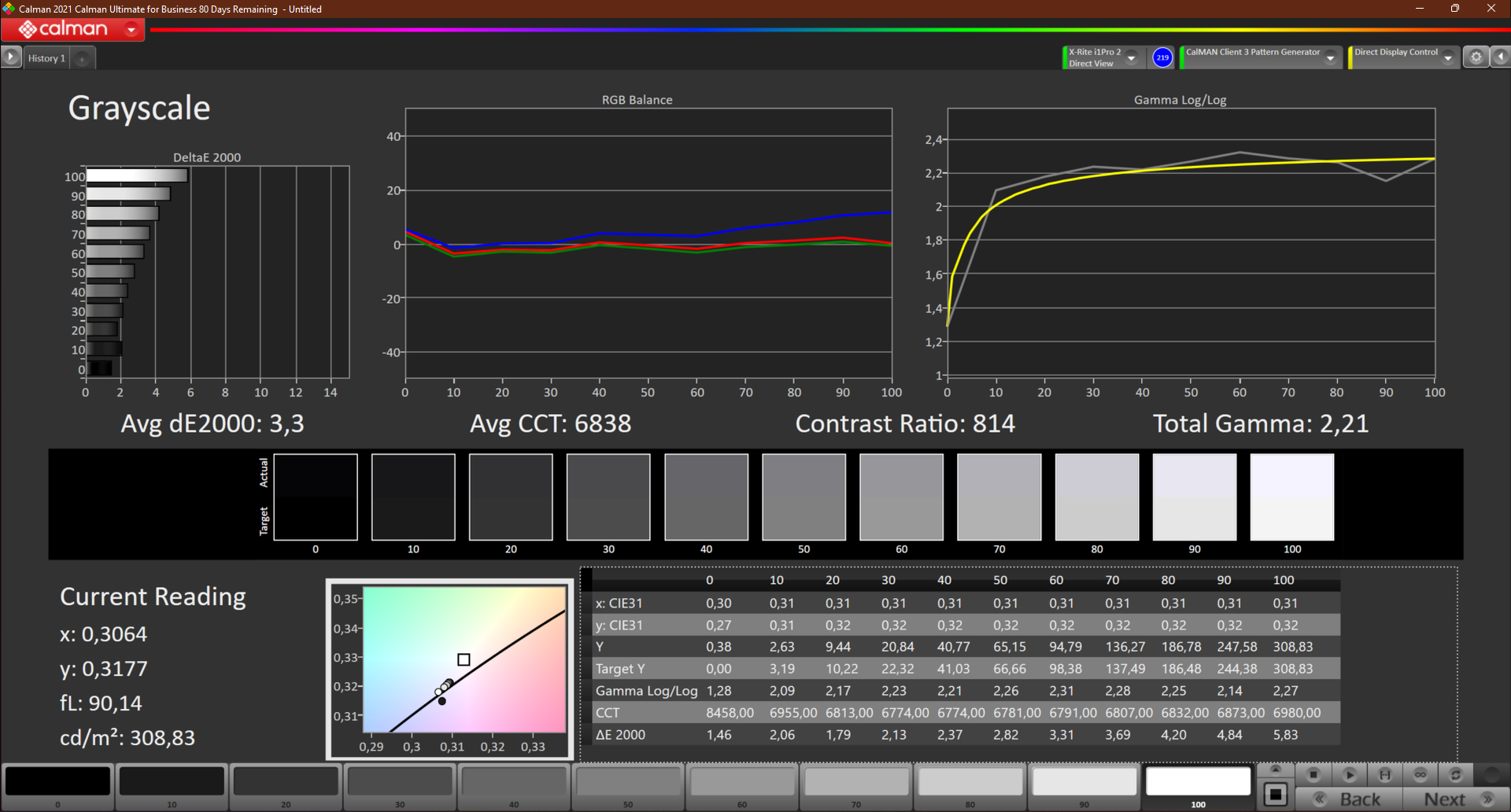

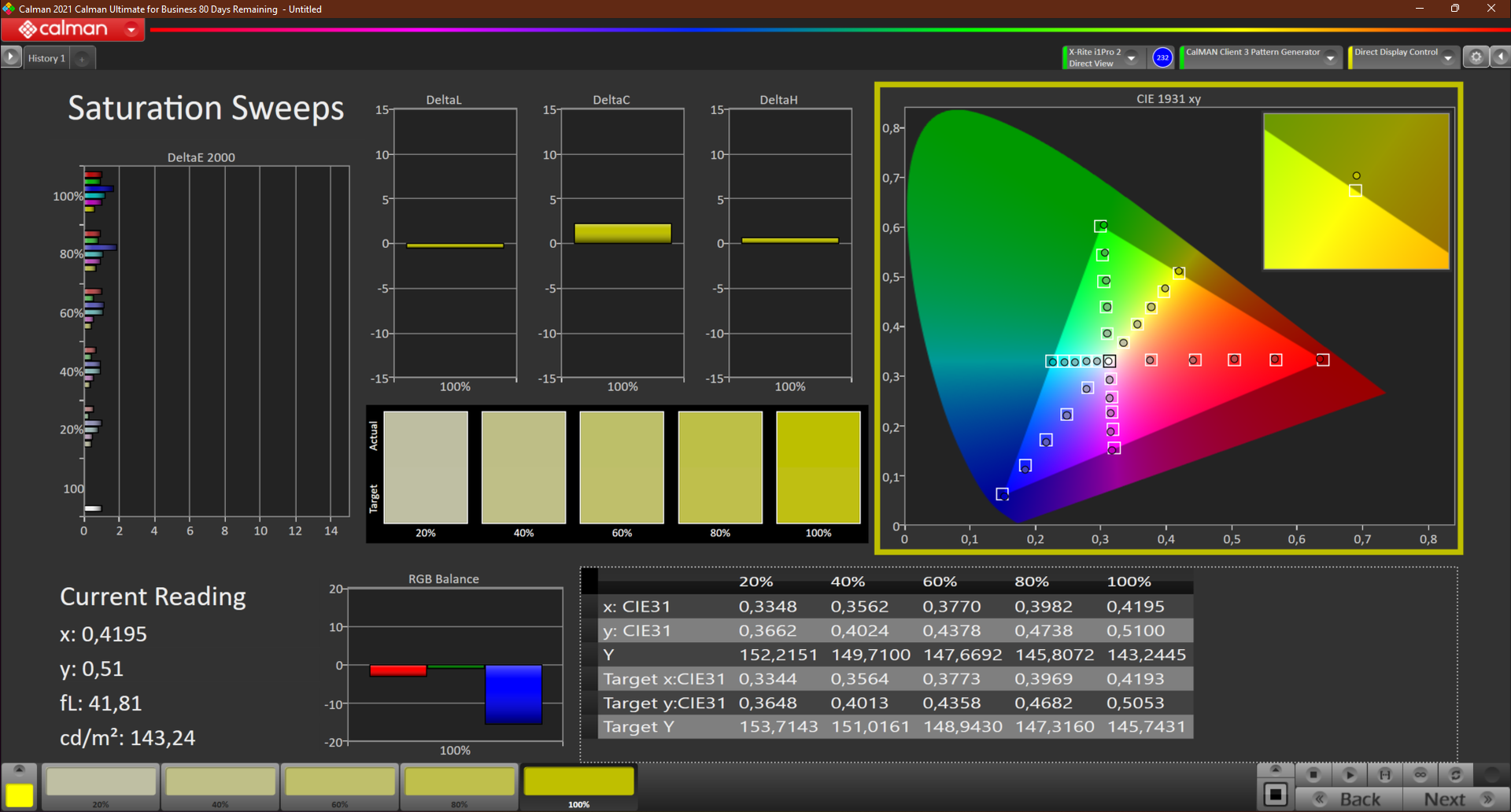

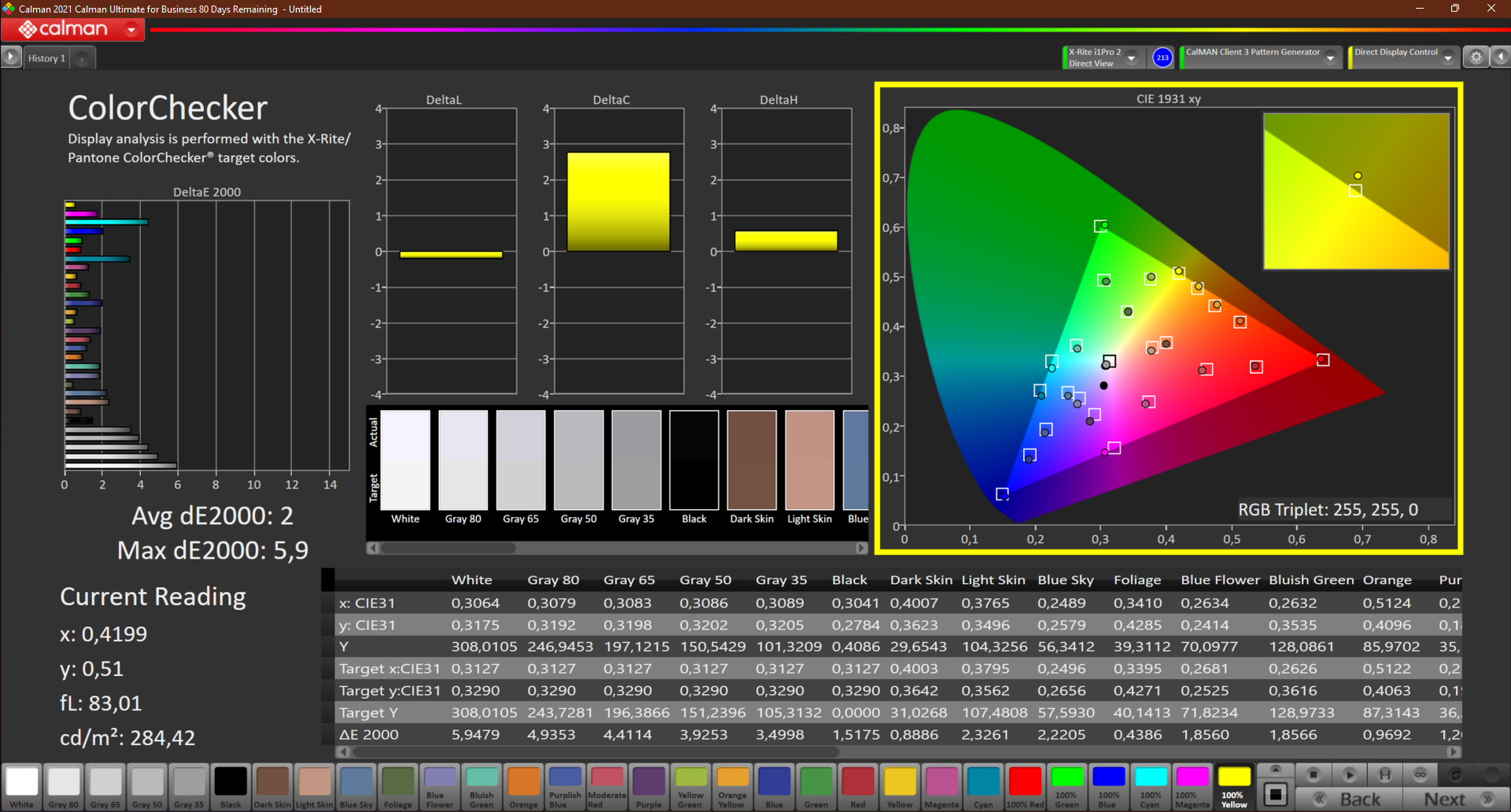

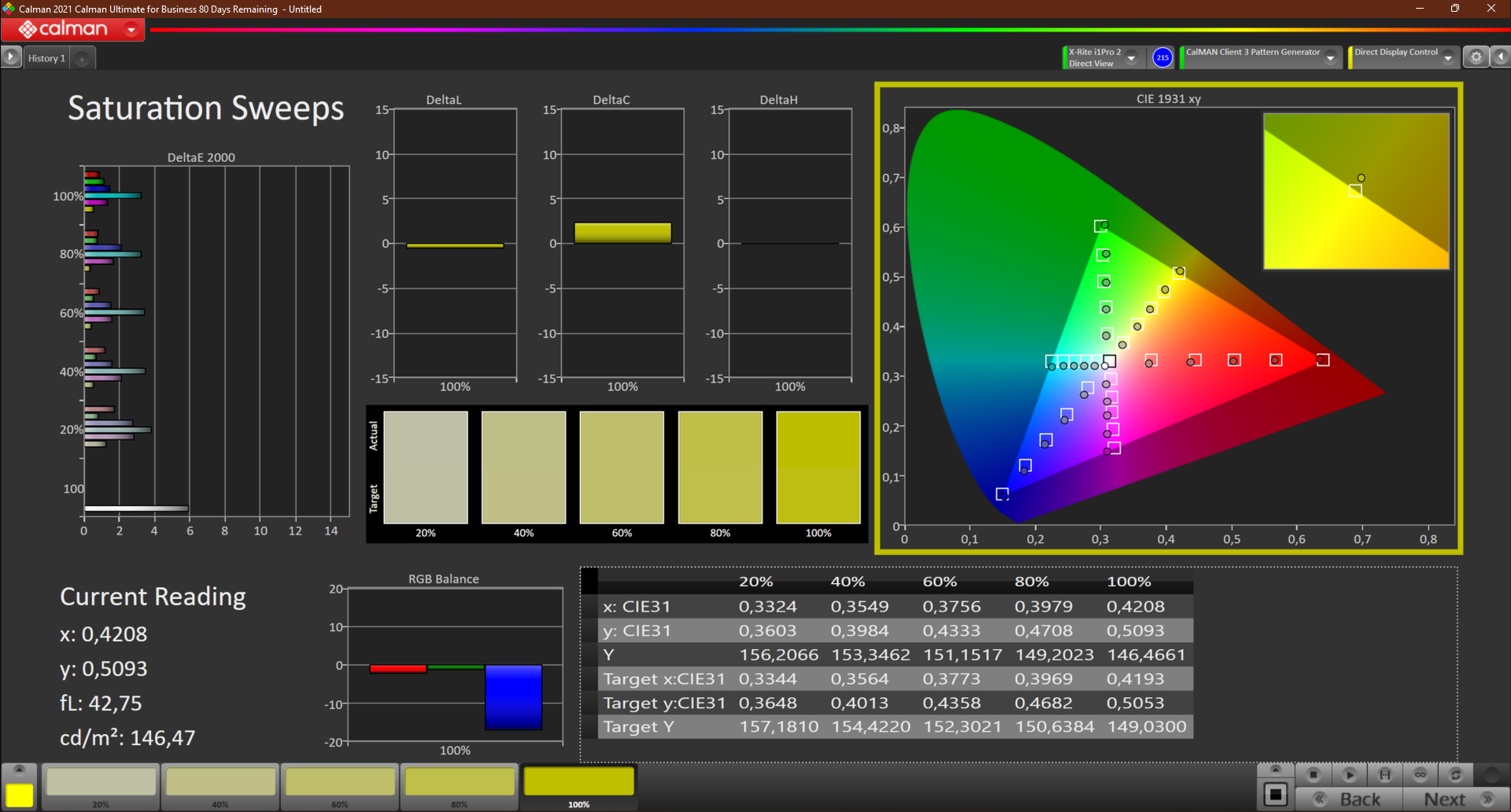

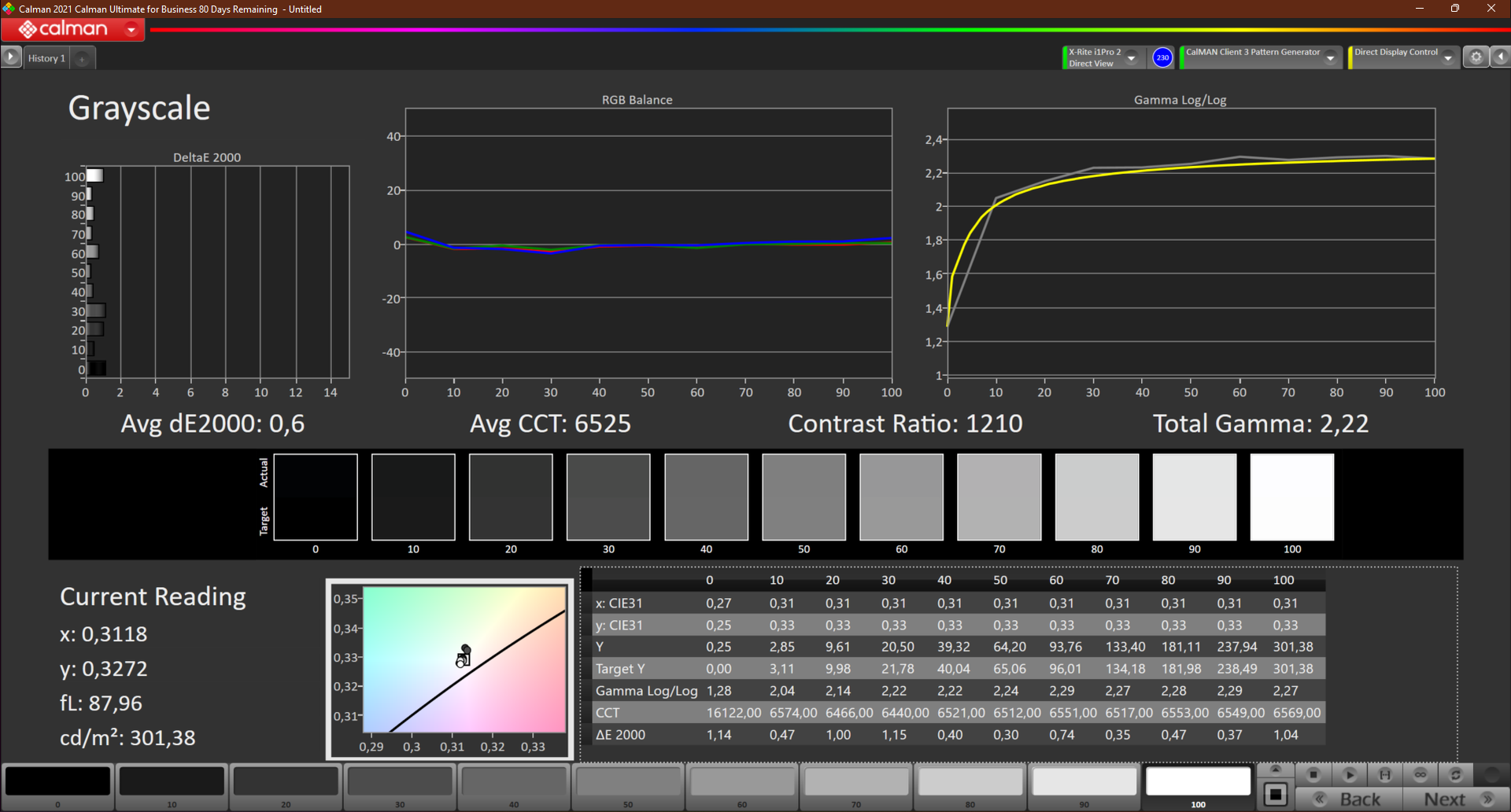

我们的CalMAN分析显示，出厂时的颜色精度非常好。deltaE的偏差明显低于3。低于这个阈值的偏差不再是肉眼可见的。在校准显示器后，我们能够进一步将deltaE偏差从2降至1。我们的配置文件可在包含屏幕测量值的方框附近下载。适当的色彩空间覆盖率和巨大的色彩准确性为视频和照片编辑打下了坚实的基础。

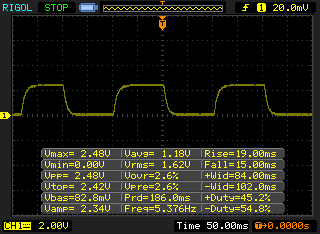

Display Response Times
ℹ
Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.| ↔ Response Time Black to White | ||
|---|---|---|
| 34 ms ... rise ↗ and fall ↘ combined | ↗ 19 ms rise |  |
| ↘ 15 ms fall | ||
| The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 90 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (20.9 ms). | ||

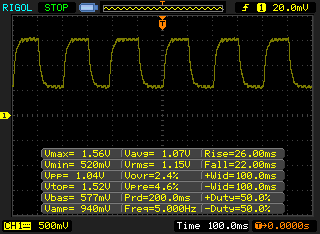

| ↔ Response Time 50% Grey to 80% Grey | ||
| 48 ms ... rise ↗ and fall ↘ combined | ↗ 26 ms rise |  |
| ↘ 22 ms fall | ||
| The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 81 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (32.8 ms). | ||

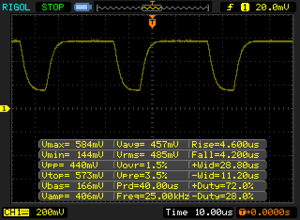

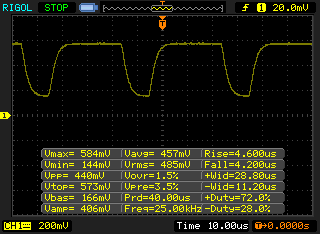

Screen Flickering / PWM (Pulse-Width Modulation)
ℹ
To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.| Screen flickering / PWM detected | 25000 Hz | ≤ 50 % brightness setting |  |
The display backlight flickers at 25000 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 50 % and below. There should be no flickering or PWM above this brightness setting. The frequency of 25000 Hz is quite high, so most users sensitive to PWM should not notice any flickering. In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8710 (minimum: 5 - maximum: 343500) Hz was measured. | |||

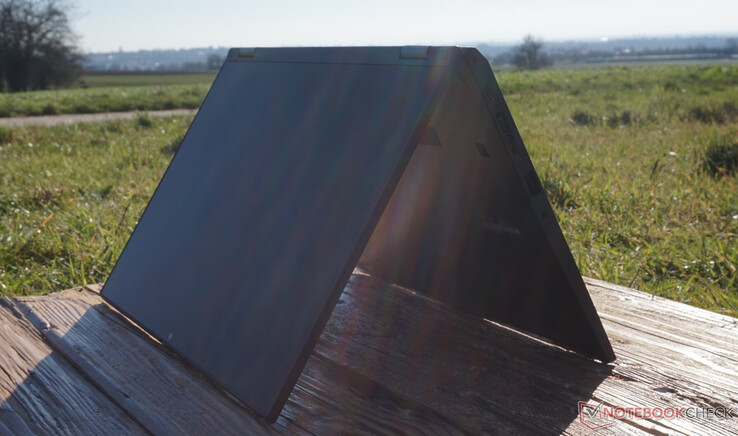

在户外使用方面有一些缺点。由于触摸屏传统上有一个光亮的表面，在明亮的环境中，色彩表现力会受到影响。如图所示，即使在阳光直射下，文字仍然清晰可辨。在晴朗的日子里认真地在户外使用是不可能的，或者至少是对眼睛造成很大的压力。正如预期的那样，从侧面看时，IPS面板的颜色和对比度并没有恶化。
性能--敞篷车的AMD Ryzen专业版击中油门
除了英特尔Tiger Lake 处理器的变体外，这款商务敞篷车还配备了第五代AMD Ryzen Pro的配置，我们的测试设备就是这种情况。后者可以管理更复杂的工作负载和苛刻的计算。办公任务也不是真正的挑战。有了16GB的内存，这台敞篷车为长期使用做好了准备。由于内存是焊接的，不能扩展，我们不推荐8GB的型号。

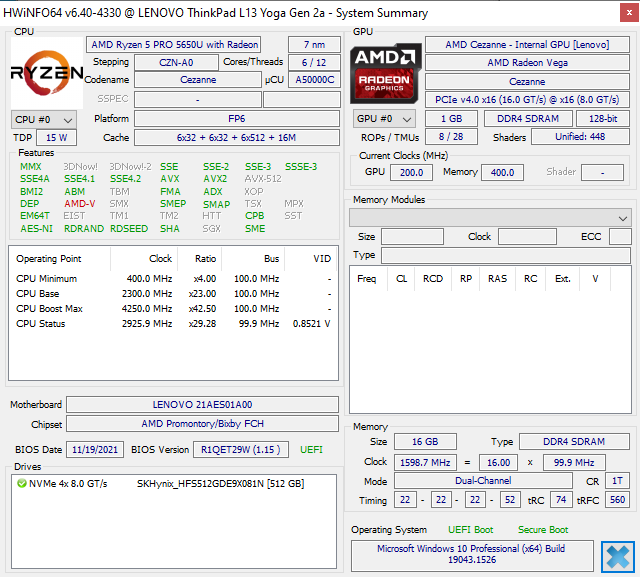

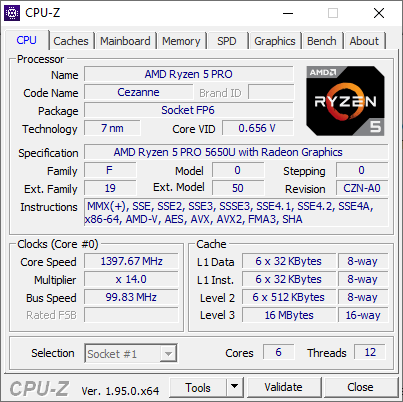

处理器 - AMD Ryzen 5 Pro 5650U
淘宝网 AMD的Ryzen 5 Pro 5650U提供六个核心和十二个线程。联想允许CPU的短时提升消耗高达30W。随后，CPU能够在几乎整整一分钟内保持25W的消耗。该处理器的设计只为了处理大约15W TDP的热能。这个数值与我们压力测试中的长期功耗相匹配。为了保持这一水平，单个风扇必须努力工作以散热--在 "排放 "段落中会有更多关于这一点。
我们的Cinebench R15循环测试显示了CPU的临时性能潜力。在第一个循环中（第二个循环稍差），结果明显好于类似的 联想ThinkPad L13相比，结果明显好于采用相同处理器的联想ThinkPad L13。随后，它们趋于一致。同时，与i5-1135G7相比，其领先优势相当大。虽然AMD解决方案只是在单线程基准中表现略好，但全核Cinebench结果比现有的英特尔CPU（包括i5和i7）快20％至50％之间。这使AMD Ryzen 5 Pro至少比其竞争对手高出一个级别。
Cinebench R15 Multi Loop
Lenovo ThinkPad L13 Yoga G2 21AES01A00 AMD Ryzen 5 PRO 5650U: Ø1082 (1062.19-1332.8)
Samsung Galaxy Book Pro 360 15 NP950QDB-KC3DE Intel Core i5-1135G7: Ø709 (680.94-828.5)
Asus ExpertBook B5 Flip B5302FEA Intel Core i5-1135G7: Ø750 (702.58-902.47)
Lenovo ThinkPad X13 Yoga G2 Intel Core i7-1165G7: Ø654 (610.84-834.6)
Lenovo ThinkPad L13 Gen2-21AB000PGE AMD Ryzen 5 PRO 5650U: Ø1041 (1035.33-1047.61)
Lenovo ThinkPad L14-20U50003GE AMD Ryzen 5 4500U: Ø865 (852.57-888.2)
CPU Performance Rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
| CPU Performance Rating | |
| Average of class Convertible | |
| Lenovo ThinkPad L13 Yoga G2 21AES01A00 | |
| Average AMD Ryzen 5 PRO 5650U | |
| Lenovo ThinkPad L13 Gen2-21AB000PGE | |
| Asus ExpertBook B5 Flip B5302FEA | |
| Samsung Galaxy Book Pro 360 15 NP950QDB-KC3DE | |
| Lenovo ThinkPad X13 Yoga G2 | |
| Lenovo ThinkPad L14-20U50003GE -2! | |
| Cinebench R23 / Multi Core | |
| Average of class Convertible (616 - 18698, n=63, last 2 years) | |
| Average AMD Ryzen 5 PRO 5650U (6210 - 7140, n=3) | |
| Lenovo ThinkPad L13 Yoga G2 21AES01A00 | |
| Lenovo ThinkPad L13 Gen2-21AB000PGE | |
| Asus ExpertBook B5 Flip B5302FEA | |
| Samsung Galaxy Book Pro 360 15 NP950QDB-KC3DE | |
| Lenovo ThinkPad X13 Yoga G2 | |
| Cinebench R23 / Single Core | |
| Average of class Convertible (308 - 1980, n=63, last 2 years) | |
| Lenovo ThinkPad L13 Yoga G2 21AES01A00 | |
| Average AMD Ryzen 5 PRO 5650U (1356 - 1367, n=3) | |
| Lenovo ThinkPad L13 Gen2-21AB000PGE | |
| Asus ExpertBook B5 Flip B5302FEA | |
| Samsung Galaxy Book Pro 360 15 NP950QDB-KC3DE | |
| Lenovo ThinkPad X13 Yoga G2 | |
| Cinebench R20 / CPU (Multi Core) | |
| Average of class Convertible (242 - 7303, n=63, last 2 years) | |
| Average AMD Ryzen 5 PRO 5650U (2415 - 2771, n=3) | |
| Lenovo ThinkPad L13 Yoga G2 21AES01A00 | |
| Lenovo ThinkPad L13 Gen2-21AB000PGE | |
| Lenovo ThinkPad L14-20U50003GE | |
| Asus ExpertBook B5 Flip B5302FEA | |
| Samsung Galaxy Book Pro 360 15 NP950QDB-KC3DE | |
| Lenovo ThinkPad X13 Yoga G2 | |
| Cinebench R20 / CPU (Single Core) | |
| Average of class Convertible (149.8 - 781, n=62, last 2 years) | |
| Lenovo ThinkPad X13 Yoga G2 | |
| Lenovo ThinkPad L13 Yoga G2 21AES01A00 | |
| Average AMD Ryzen 5 PRO 5650U (524 - 533, n=3) | |
| Lenovo ThinkPad L13 Gen2-21AB000PGE | |
| Asus ExpertBook B5 Flip B5302FEA | |
| Samsung Galaxy Book Pro 360 15 NP950QDB-KC3DE | |
| Lenovo ThinkPad L14-20U50003GE | |
| Cinebench R15 / CPU Multi 64Bit | |
| Average of class Convertible (110.1 - 2889, n=65, last 2 years) | |
| Lenovo ThinkPad L13 Yoga G2 21AES01A00 | |
| Average AMD Ryzen 5 PRO 5650U (1048 - 1333, n=3) | |
| Lenovo ThinkPad L13 Gen2-21AB000PGE | |
| Asus ExpertBook B5 Flip B5302FEA | |
| Lenovo ThinkPad L14-20U50003GE | |
| Lenovo ThinkPad X13 Yoga G2 | |
| Samsung Galaxy Book Pro 360 15 NP950QDB-KC3DE | |
| Cinebench R15 / CPU Single 64Bit | |
| Average of class Convertible (68.6 - 302, n=62, last 2 years) | |
| Lenovo ThinkPad L13 Yoga G2 21AES01A00 | |
| Average AMD Ryzen 5 PRO 5650U (217 - 221, n=3) | |
| Lenovo ThinkPad L13 Gen2-21AB000PGE | |
| Lenovo ThinkPad X13 Yoga G2 | |
| Asus ExpertBook B5 Flip B5302FEA | |
| Samsung Galaxy Book Pro 360 15 NP950QDB-KC3DE | |
| Lenovo ThinkPad L14-20U50003GE | |
| Blender / v2.79 BMW27 CPU | |
| Lenovo ThinkPad X13 Yoga G2 | |
| Samsung Galaxy Book Pro 360 15 NP950QDB-KC3DE | |
| Asus ExpertBook B5 Flip B5302FEA | |
| Lenovo ThinkPad L14-20U50003GE | |
| Lenovo ThinkPad L13 Gen2-21AB000PGE | |
| Lenovo ThinkPad L13 Yoga G2 21AES01A00 | |
| Average AMD Ryzen 5 PRO 5650U (422 - 455, n=3) | |
| Average of class Convertible (175 - 1059, n=59, last 2 years) | |
| 7-Zip 18.03 / 7z b 4 | |
| Average of class Convertible (12977 - 72400, n=60, last 2 years) | |
| Lenovo ThinkPad L13 Yoga G2 21AES01A00 | |
| Average AMD Ryzen 5 PRO 5650U (32687 - 35665, n=3) | |
| Lenovo ThinkPad L13 Gen2-21AB000PGE | |
| Lenovo ThinkPad L14-20U50003GE | |
| Asus ExpertBook B5 Flip B5302FEA | |
| Samsung Galaxy Book Pro 360 15 NP950QDB-KC3DE | |
| Lenovo ThinkPad X13 Yoga G2 | |
| 7-Zip 18.03 / 7z b 4 -mmt1 | |
| Average of class Convertible (3672 - 6493, n=60, last 2 years) | |
| Average AMD Ryzen 5 PRO 5650U (5021 - 5081, n=3) | |
| Lenovo ThinkPad L13 Yoga G2 21AES01A00 | |
| Lenovo ThinkPad L13 Gen2-21AB000PGE | |
| Lenovo ThinkPad X13 Yoga G2 | |
| Asus ExpertBook B5 Flip B5302FEA | |
| Samsung Galaxy Book Pro 360 15 NP950QDB-KC3DE | |
| Lenovo ThinkPad L14-20U50003GE | |
| Geekbench 5.5 / Multi-Core | |
| Average of class Convertible (663 - 14016, n=63, last 2 years) | |
| Lenovo ThinkPad L13 Yoga G2 21AES01A00 | |
| Average AMD Ryzen 5 PRO 5650U (5634 - 5788, n=3) | |
| Lenovo ThinkPad L13 Gen2-21AB000PGE | |
| Samsung Galaxy Book Pro 360 15 NP950QDB-KC3DE | |
| Asus ExpertBook B5 Flip B5302FEA | |
| Lenovo ThinkPad L14-20U50003GE | |
| Lenovo ThinkPad X13 Yoga G2 | |
| Geekbench 5.5 / Single-Core | |
| Average of class Convertible (319 - 2062, n=63, last 2 years) | |
| Lenovo ThinkPad X13 Yoga G2 | |
| Lenovo ThinkPad L13 Yoga G2 21AES01A00 | |
| Asus ExpertBook B5 Flip B5302FEA | |
| Average AMD Ryzen 5 PRO 5650U (1352 - 1384, n=3) | |
| Lenovo ThinkPad L13 Gen2-21AB000PGE | |
| Samsung Galaxy Book Pro 360 15 NP950QDB-KC3DE | |
| Lenovo ThinkPad L14-20U50003GE | |
| HWBOT x265 Benchmark v2.2 / 4k Preset | |
| Average of class Convertible (0.73 - 22.4, n=62, last 2 years) | |
| Average AMD Ryzen 5 PRO 5650U (8.36 - 9.27, n=3) | |
| Lenovo ThinkPad L13 Yoga G2 21AES01A00 | |
| Lenovo ThinkPad L13 Gen2-21AB000PGE | |
| Lenovo ThinkPad L14-20U50003GE | |
| Asus ExpertBook B5 Flip B5302FEA | |
| Samsung Galaxy Book Pro 360 15 NP950QDB-KC3DE | |
| Lenovo ThinkPad X13 Yoga G2 | |
| LibreOffice / 20 Documents To PDF | |
| Lenovo ThinkPad L14-20U50003GE | |
| Lenovo ThinkPad L13 Gen2-21AB000PGE | |
| Asus ExpertBook B5 Flip B5302FEA | |
| Samsung Galaxy Book Pro 360 15 NP950QDB-KC3DE | |
| Average of class Convertible (42 - 121.5, n=59, last 2 years) | |
| Lenovo ThinkPad L13 Yoga G2 21AES01A00 | |
| Lenovo ThinkPad L13 Yoga G2 21AES01A00 | |
| Average AMD Ryzen 5 PRO 5650U (35.3 - 57.6, n=4) | |
| Lenovo ThinkPad X13 Yoga G2 | |
| R Benchmark 2.5 / Overall mean | |
| Samsung Galaxy Book Pro 360 15 NP950QDB-KC3DE | |
| Lenovo ThinkPad L14-20U50003GE | |
| Asus ExpertBook B5 Flip B5302FEA | |
| Lenovo ThinkPad X13 Yoga G2 | |
| Lenovo ThinkPad L13 Gen2-21AB000PGE | |
| Lenovo ThinkPad L13 Yoga G2 21AES01A00 | |
| Average AMD Ryzen 5 PRO 5650U (0.555 - 0.569, n=3) | |
| Average of class Convertible (0.4102 - 1.013, n=59, last 2 years) | |
* ... smaller is better
Performance Rating: Percent
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
| Performance Rating | |
| Average of class Convertible | |
| Average AMD Ryzen 5 PRO 5650U | |
| Lenovo ThinkPad L13 Yoga G2 21AES01A00 | |
| Samsung Galaxy Book Pro 360 15 NP950QDB-KC3DE | |
| Asus ExpertBook B5 Flip B5302FEA | |
| Acer Swift 3 SF314-511-54ZK | |
| Lenovo ThinkPad L13 Yoga Gen2-20VK000VGE | |
| Lenovo ThinkPad X13 Yoga G2 | |
| AIDA64 / FP32 Ray-Trace | |
| Average of class Convertible (468 - 29594, n=63, last 2 years) | |
| Average AMD Ryzen 5 PRO 5650U (7205 - 8274, n=3) | |
| Lenovo ThinkPad L13 Yoga G2 21AES01A00 | |
| Asus ExpertBook B5 Flip B5302FEA | |
| Samsung Galaxy Book Pro 360 15 NP950QDB-KC3DE | |
| Acer Swift 3 SF314-511-54ZK | |
| Lenovo ThinkPad L13 Yoga Gen2-20VK000VGE | |
| Lenovo ThinkPad X13 Yoga G2 | |
| AIDA64 / FPU Julia | |
| Average of class Convertible (2644 - 114033, n=62, last 2 years) | |
| Average AMD Ryzen 5 PRO 5650U (46649 - 53123, n=3) | |
| Lenovo ThinkPad L13 Yoga G2 21AES01A00 | |
| Asus ExpertBook B5 Flip B5302FEA | |
| Samsung Galaxy Book Pro 360 15 NP950QDB-KC3DE | |
| Acer Swift 3 SF314-511-54ZK | |
| Lenovo ThinkPad L13 Yoga Gen2-20VK000VGE | |
| Lenovo ThinkPad X13 Yoga G2 | |
| AIDA64 / CPU SHA3 | |
| Average of class Convertible (182 - 4841, n=62, last 2 years) | |
| Asus ExpertBook B5 Flip B5302FEA | |
| Samsung Galaxy Book Pro 360 15 NP950QDB-KC3DE | |
| Acer Swift 3 SF314-511-54ZK | |
| Average AMD Ryzen 5 PRO 5650U (1553 - 1829, n=3) | |
| Lenovo ThinkPad L13 Yoga Gen2-20VK000VGE | |
| Lenovo ThinkPad L13 Yoga G2 21AES01A00 | |
| Lenovo ThinkPad X13 Yoga G2 | |
| AIDA64 / CPU Queen | |
| Lenovo ThinkPad L13 Yoga G2 21AES01A00 | |
| Average of class Convertible (10502 - 120368, n=62, last 2 years) | |
| Average AMD Ryzen 5 PRO 5650U (67818 - 70596, n=3) | |
| Lenovo ThinkPad X13 Yoga G2 | |
| Asus ExpertBook B5 Flip B5302FEA | |
| Lenovo ThinkPad L13 Yoga Gen2-20VK000VGE | |
| Samsung Galaxy Book Pro 360 15 NP950QDB-KC3DE | |
| Acer Swift 3 SF314-511-54ZK | |
| AIDA64 / FPU SinJulia | |
| Average AMD Ryzen 5 PRO 5650U (7289 - 7931, n=3) | |
| Lenovo ThinkPad L13 Yoga G2 21AES01A00 | |
| Average of class Convertible (659 - 16315, n=62, last 2 years) | |
| Asus ExpertBook B5 Flip B5302FEA | |
| Samsung Galaxy Book Pro 360 15 NP950QDB-KC3DE | |
| Lenovo ThinkPad L13 Yoga Gen2-20VK000VGE | |
| Acer Swift 3 SF314-511-54ZK | |
| Lenovo ThinkPad X13 Yoga G2 | |
| AIDA64 / FPU Mandel | |
| Average AMD Ryzen 5 PRO 5650U (25763 - 29311, n=3) | |
| Average of class Convertible (1420 - 61249, n=62, last 2 years) | |
| Lenovo ThinkPad L13 Yoga G2 21AES01A00 | |
| Asus ExpertBook B5 Flip B5302FEA | |
| Samsung Galaxy Book Pro 360 15 NP950QDB-KC3DE | |
| Acer Swift 3 SF314-511-54ZK | |
| Lenovo ThinkPad L13 Yoga Gen2-20VK000VGE | |
| Lenovo ThinkPad X13 Yoga G2 | |
| AIDA64 / CPU AES | |
| Samsung Galaxy Book Pro 360 15 NP950QDB-KC3DE | |
| Lenovo ThinkPad L13 Yoga G2 21AES01A00 | |
| Asus ExpertBook B5 Flip B5302FEA | |
| Lenovo ThinkPad L13 Yoga Gen2-20VK000VGE | |
| Average AMD Ryzen 5 PRO 5650U (27927 - 73719, n=3) | |
| Lenovo ThinkPad X13 Yoga G2 | |
| Average of class Convertible (1279 - 169089, n=62, last 2 years) | |
| Acer Swift 3 SF314-511-54ZK | |
| AIDA64 / CPU ZLib | |
| Average of class Convertible (61.4 - 1243, n=62, last 2 years) | |
| Average AMD Ryzen 5 PRO 5650U (414 - 473, n=3) | |
| Lenovo ThinkPad L13 Yoga G2 21AES01A00 | |
| Asus ExpertBook B5 Flip B5302FEA | |
| Samsung Galaxy Book Pro 360 15 NP950QDB-KC3DE | |
| Acer Swift 3 SF314-511-54ZK | |
| Lenovo ThinkPad L13 Yoga Gen2-20VK000VGE | |
| Lenovo ThinkPad X13 Yoga G2 | |
| AIDA64 / FP64 Ray-Trace | |
| Average of class Convertible (254 - 16065, n=62, last 2 years) | |
| Average AMD Ryzen 5 PRO 5650U (3893 - 4383, n=3) | |
| Lenovo ThinkPad L13 Yoga G2 21AES01A00 | |
| Samsung Galaxy Book Pro 360 15 NP950QDB-KC3DE | |
| Asus ExpertBook B5 Flip B5302FEA | |
| Acer Swift 3 SF314-511-54ZK | |
| Lenovo ThinkPad L13 Yoga Gen2-20VK000VGE | |
| Lenovo ThinkPad X13 Yoga G2 | |
| AIDA64 / CPU PhotoWorxx | |
| Samsung Galaxy Book Pro 360 15 NP950QDB-KC3DE | |
| Average of class Convertible (5136 - 53406, n=62, last 2 years) | |
| Acer Swift 3 SF314-511-54ZK | |
| Lenovo ThinkPad X13 Yoga G2 | |
| Lenovo ThinkPad L13 Yoga Gen2-20VK000VGE | |
| Average AMD Ryzen 5 PRO 5650U (14215 - 17421, n=3) | |
| Lenovo ThinkPad L13 Yoga G2 21AES01A00 | |
| Asus ExpertBook B5 Flip B5302FEA | |
系统性能
该系统对日常工作和包括专业软件在内的工作负荷的适用性无可指责。良好的PCMark结果反映了该处理器良好的性能特点。在这里，联想ThinkPad L13 Yoga G2 AMD再次将基于英特尔的同类产品甩在后面。媒体处理是唯一一个情况比较平均的类别。快速的工作流程、快速的应用程序启动时间和多任务处理都是可能的，没有任何障碍。
| PCMark 10 / Score | |
| Average of class Convertible (1486 - 7963, n=59, last 2 years) | |
| Lenovo ThinkPad L13 Yoga G2 21AES01A00 | |
| Average AMD Ryzen 5 PRO 5650U, AMD Radeon RX Vega 7 (5320 - 5720, n=3) | |
| Lenovo ThinkPad L13 Gen2-21AB000PGE | |
| Lenovo ThinkPad X13 Yoga G2 | |
| Samsung Galaxy Book Pro 360 15 NP950QDB-KC3DE | |
| Asus ExpertBook B5 Flip B5302FEA | |
| Lenovo ThinkPad L14-20U50003GE | |
| PCMark 10 / Essentials | |
| Lenovo ThinkPad L13 Yoga G2 21AES01A00 | |
| Lenovo ThinkPad X13 Yoga G2 | |
| Average of class Convertible (3975 - 12059, n=59, last 2 years) | |
| Average AMD Ryzen 5 PRO 5650U, AMD Radeon RX Vega 7 (9576 - 10750, n=3) | |
| Samsung Galaxy Book Pro 360 15 NP950QDB-KC3DE | |
| Lenovo ThinkPad L13 Gen2-21AB000PGE | |
| Asus ExpertBook B5 Flip B5302FEA | |
| Lenovo ThinkPad L14-20U50003GE | |
| PCMark 10 / Productivity | |
| Average AMD Ryzen 5 PRO 5650U, AMD Radeon RX Vega 7 (8729 - 9087, n=3) | |
| Lenovo ThinkPad L13 Yoga G2 21AES01A00 | |
| Lenovo ThinkPad L13 Gen2-21AB000PGE | |
| Average of class Convertible (2764 - 10800, n=59, last 2 years) | |
| Lenovo ThinkPad X13 Yoga G2 | |
| Lenovo ThinkPad L14-20U50003GE | |
| Asus ExpertBook B5 Flip B5302FEA | |
| Samsung Galaxy Book Pro 360 15 NP950QDB-KC3DE | |
| PCMark 10 / Digital Content Creation | |
| Average of class Convertible (811 - 12360, n=59, last 2 years) | |
| Average AMD Ryzen 5 PRO 5650U, AMD Radeon RX Vega 7 (4891 - 5495, n=3) | |
| Lenovo ThinkPad X13 Yoga G2 | |
| Samsung Galaxy Book Pro 360 15 NP950QDB-KC3DE | |
| Lenovo ThinkPad L13 Yoga G2 21AES01A00 | |
| Lenovo ThinkPad L13 Gen2-21AB000PGE | |
| Asus ExpertBook B5 Flip B5302FEA | |
| Lenovo ThinkPad L14-20U50003GE | |
| PCMark 10 Score | 5621 points | |
Help | ||
| AIDA64 / Memory Copy | |
| Average of class Convertible (16353 - 108544, n=62, last 2 years) | |
| Lenovo ThinkPad X13 Yoga G2 | |
| Samsung Galaxy Book Pro 360 15 NP950QDB-KC3DE | |
| Acer Swift 3 SF314-511-54ZK | |
| Lenovo ThinkPad L13 Yoga G2 21AES01A00 | |
| Average AMD Ryzen 5 PRO 5650U (31262 - 33245, n=3) | |
| Lenovo ThinkPad L13 Yoga Gen2-20VK000VGE | |
| Asus ExpertBook B5 Flip B5302FEA | |
| AIDA64 / Memory Read | |
| Samsung Galaxy Book Pro 360 15 NP950QDB-KC3DE | |
| Average of class Convertible (12706 - 125359, n=62, last 2 years) | |
| Lenovo ThinkPad X13 Yoga G2 | |
| Acer Swift 3 SF314-511-54ZK | |
| Lenovo ThinkPad L13 Yoga Gen2-20VK000VGE | |
| Lenovo ThinkPad L13 Yoga G2 21AES01A00 | |
| Average AMD Ryzen 5 PRO 5650U (36338 - 37610, n=3) | |
| Asus ExpertBook B5 Flip B5302FEA | |
| AIDA64 / Memory Write | |
| Average of class Convertible (10177 - 117920, n=62, last 2 years) | |
| Samsung Galaxy Book Pro 360 15 NP950QDB-KC3DE | |
| Lenovo ThinkPad X13 Yoga G2 | |
| Acer Swift 3 SF314-511-54ZK | |
| Lenovo ThinkPad L13 Yoga Gen2-20VK000VGE | |
| Average AMD Ryzen 5 PRO 5650U (25594 - 32670, n=3) | |
| Lenovo ThinkPad L13 Yoga G2 21AES01A00 | |
| Asus ExpertBook B5 Flip B5302FEA | |
| AIDA64 / Memory Latency | |
| Average of class Convertible (7.4 - 173, n=62, last 2 years) | |
| Average AMD Ryzen 5 PRO 5650U (100 - 120, n=3) | |
| Acer Swift 3 SF314-511-54ZK | |
| Lenovo ThinkPad L13 Yoga G2 21AES01A00 | |
| Samsung Galaxy Book Pro 360 15 NP950QDB-KC3DE | |
| Lenovo ThinkPad X13 Yoga G2 | |
| Asus ExpertBook B5 Flip B5302FEA | |
| Lenovo ThinkPad L13 Yoga Gen2-20VK000VGE | |
* ... smaller is better

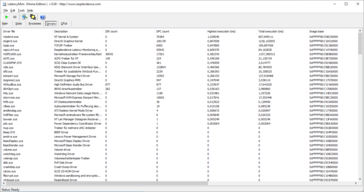

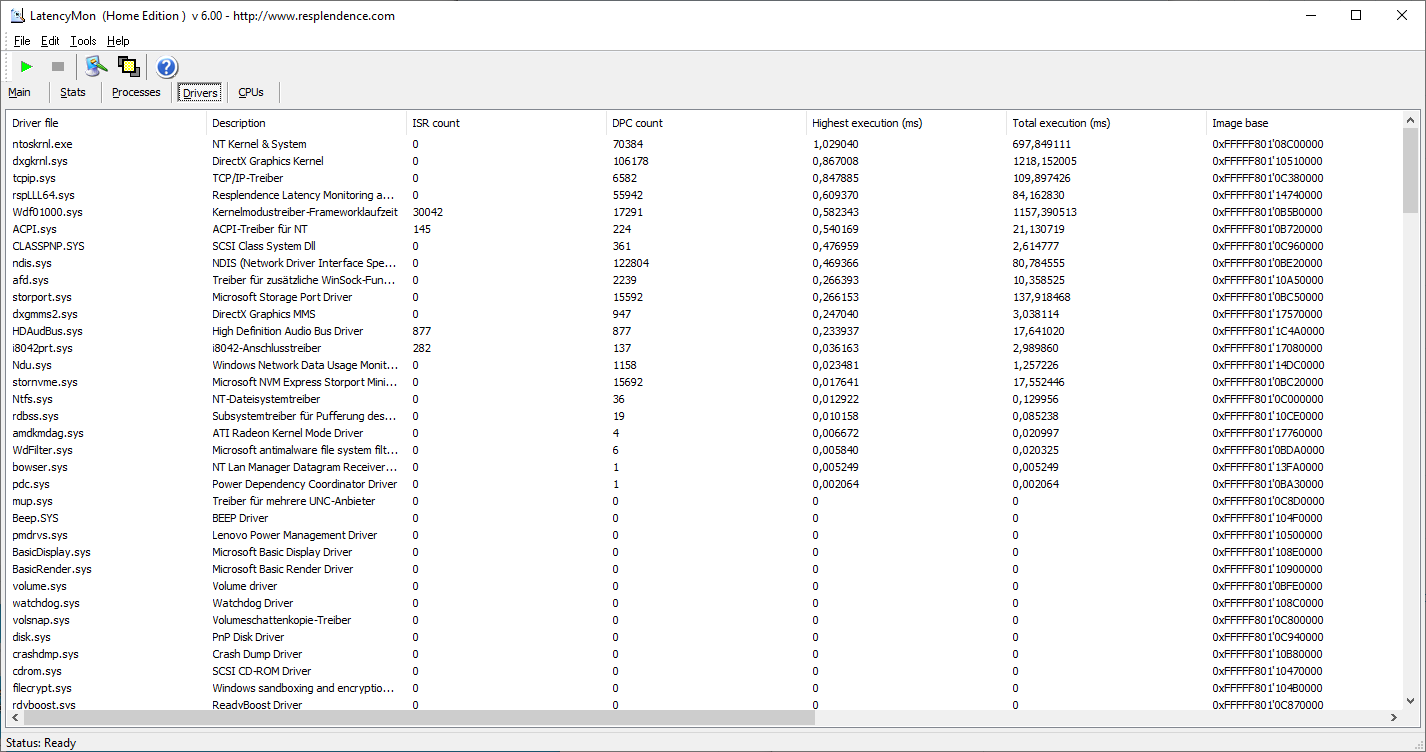

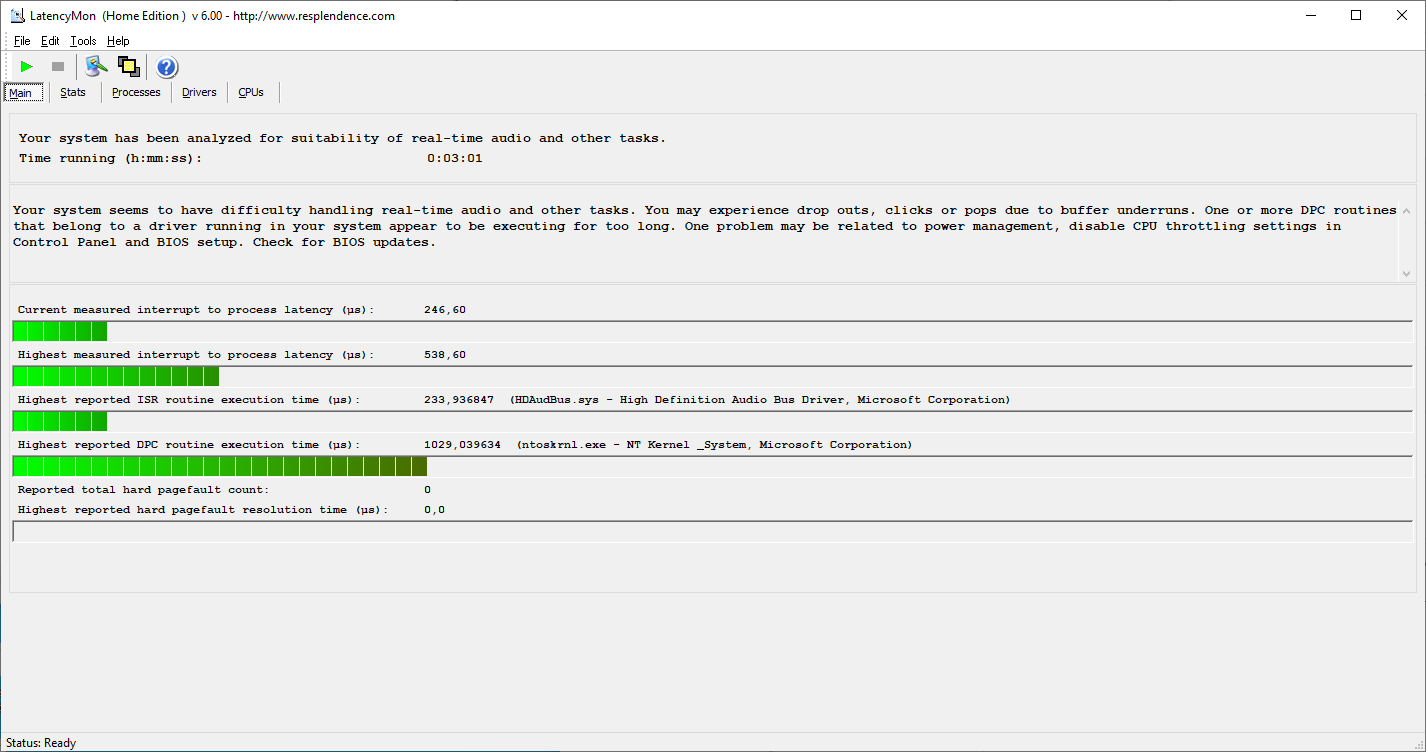

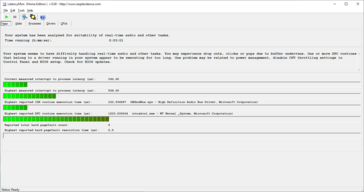

DPC延迟
低延迟允许使用实时应用程序。在播放4K视频时，我们没有遇到任何丢帧的情况。
| DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95 | |
| Samsung Galaxy Book Pro 360 15 NP950QDB-KC3DE | |
| Acer Swift 3 SF314-511-54ZK | |
| Asus ExpertBook B5 Flip B5302FEA | |
| Lenovo ThinkPad X13 Yoga G2 | |
| Lenovo ThinkPad L13 Yoga G2 21AES01A00 | |
| Lenovo ThinkPad L13 Yoga Gen2-20VK000VGE | |
* ... smaller is better
存储解决方案
安装的固态硬盘提供了坚实的性能。与可转换级别的平均水平相比，它在几乎所有的子类别中都略胜一筹。尽管512GB在大多数情况下应该是足够的，但80毫米的标准长度和M.2接口允许简单而廉价的更换。在安装了操作系统和一些必要的程序后，用户可以获得大约450GB的空间。
更多信息和基准可以在我们的 比较表.

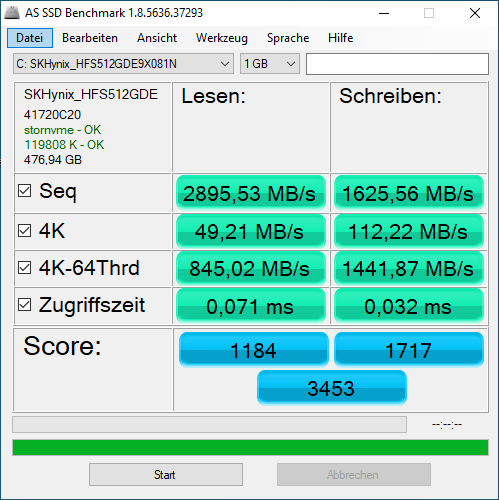

SK Hynix HFS512 GDE9X081N
Sequential Read:
2896MB/s
Sequential Write:
1626MB/s
4K Read:
49.21MB/s
4K Write:
112.2MB/s
4K-64 Read:
845MB/s
4K-64 Write:
1442MB/s
Access Time Read:
0.071ms
Access Time Write:
0.032ms
Score Read:
1184Points
Score Write:
1717Points
Score Total:
3453Points
| Lenovo ThinkPad L13 Yoga G2 21AES01A00 SK Hynix HFS512 GDE9X081N | Lenovo ThinkPad L13 Yoga Gen2-20VK000VGE WDC PC SN730 SDBPNTY-256G | Samsung Galaxy Book Pro 360 15 NP950QDB-KC3DE Samsung PM991 MZVLQ256HAJD | Acer Swift 3 SF314-511-54ZK Samsung PM9A1 MZVL2512HCJQ | Asus ExpertBook B5 Flip B5302FEA Samsung PM991 MZVLQ512HALU | Lenovo ThinkPad X13 Yoga G2 WDC PC SN730 SDBQNTY-1T00 | Average SK Hynix HFS512 GDE9X081N | Average of class Convertible | |
|---|---|---|---|---|---|---|---|---|
| Drive Performance Rating | ||||||||
| Percent | 58.4 | 51 -13% | 40.5 -31% | 92.8 59% | 50.7 -13% | 65.3 12% | 66.8 14% | 59.1 1% |
| AS SSD | -8% | -34% | 78% | -9% | 16% | 16% | -7% | |
| Score Total | 3453 | 2384 -31% | 2465 -29% | 6799 97% | 2693 -22% | 3824 11% | 4051 ? 17% | 3771 ? 9% |
| Score Read | 1184 | 961 -19% | 1031 -13% | 3224 172% | 1097 -7% | 1372 16% | 1351 ? 14% | 1263 ? 7% |
| Score Write | 1717 | 941 -45% | 952 -45% | 1926 12% | 1076 -37% | 1809 5% | 2051 ? 19% | 1916 ? 12% |
| Seq Read | 2896 | 2387 -18% | 2278 -21% | 3626 25% | 1928 -33% | 2631 -9% | 2727 ? -6% | 3539 ? 22% |
| Seq Write | 1626 | 2000 23% | 1069 -34% | 3577 120% | 807 -50% | 1280 -21% | 1664 ? 2% | 2222 ? 37% |
| 4K Read | 49.21 | 41.18 -16% | 54.6 11% | 78.2 59% | 54.2 10% | 50.4 2% | 53.6 ? 9% | 53.7 ? 9% |
| 4K Write | 112.2 | 169.6 51% | 160.7 43% | 164.7 47% | 182.7 63% | 208 85% | 152.5 ? 36% | 160.8 ? 43% |
| 4K-64 Read | 845 | 681 -19% | 748 -11% | 2783 229% | 850 1% | 1058 25% | 1025 ? 21% | 857 ? 1% |
| 4K-64 Write | 1442 | 571 -60% | 685 -52% | 1403 -3% | 812 -44% | 1473 2% | 1731 ? 20% | 1533 ? 6% |
| Access Time Read * | 0.071 | 0.051 28% | 0.138 -94% | 0.08 -13% | 0.064 10% | 0.05417 ? 24% | 0.08748 ? -23% | |
| Access Time Write * | 0.032 | 0.025 22% | 0.072 -125% | 0.025 22% | 0.02 37% | 0.017 47% | 0.026 ? 19% | 0.09485 ? -196% |
| Total Average (Program / Settings) | -11% /
-8% | -33% /
-33% | 69% /
76% | -11% /
-9% | 14% /
15% | 15% /
16% | -3% /
-6% |
* ... smaller is better
Disk Throttling: DiskSpd Read Loop, Queue Depth 8
Lenovo ThinkPad L13 Yoga G2 21AES01A00 SK Hynix HFS512 GDE9X081N: Ø3595 (2695.47-3612.34)
Samsung Galaxy Book Pro 360 15 NP950QDB-KC3DE Samsung PM991 MZVLQ256HAJD: Ø1921 (1807.9-1947.83)
GPU性能

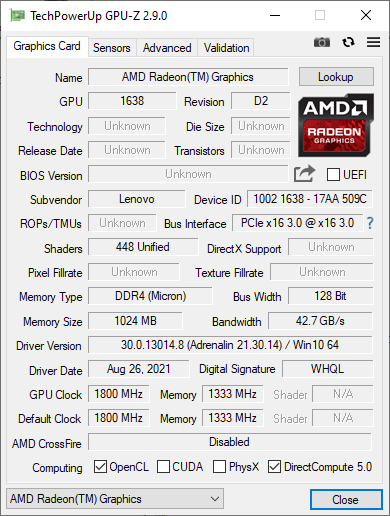

集成的 AMD Radeon RX Vega 7负责所有图形要求的任务。按照惯例，它与CPU分享其功率预算和热限制。由于这个原因，我们的期望值很低。结果使ThinkPad Yoga L13 AMD与配备英特尔i5-1135G7的L13和其 Iris Xe图形。
与第一代Yoga L13相比，有一个明显的改进。相对而言，一些3DMark基准得分增加了一倍多。
| 3DMark 11 Performance | 5020 points | |
| 3DMark Fire Strike Score | 2897 points | |
| 3DMark Time Spy Score | 1084 points | |
Help | ||
游戏性能
由于敞篷车内的空间有限，加上13.3英寸的外形尺寸，图形性能充其量只能接受。在低设置下，即使是奇怪的高要求游戏也可以玩。
图形性能在很短的时间内就稳定在一个较低的水平。当功耗由于热限制而被限制后--最多一分钟，性能下降接近20%，正如我们的Witcher 3 FPS图表所示。也就是说，之后的性能仍然稳定，尽管是在高风扇速度下。
Witcher 3 FPS Chart
Lenovo ThinkPad L13 Yoga G2 21AES01A00 R5 PRO 5650U, Vega 7: Ø12 (11-15)
| low | med. | high | ultra | |
|---|---|---|---|---|
| GTA V (2015) | 84.1 | 73.3 | 22.2 | 9.37 |
| The Witcher 3 (2015) | 48 | 35 | 18 | 12 |
| Dota 2 Reborn (2015) | 104 | 77.9 | 44.6 | 41.9 |
| Final Fantasy XV Benchmark (2018) | 30.3 | 15.6 | 11.8 | |
| X-Plane 11.11 (2018) | 41.7 | 30.6 | 27.2 | |
| Far Cry 5 (2018) | 39 | 19 | 17 | 16 |
| Strange Brigade (2018) | 70.8 | 27.8 | 23.6 | 20.5 |
| Back 4 Blood (2021) | 58 | 35 | 27 | 24 |
排放 - 正常使用时无声
系统噪音
在大多数情况下，ThinkPad可以做到完全无声。节能模式在这方面尤其有益。当主动冷却解决方案启动时，它产生的噪音有点让人联想到小猫的抱怨。随后，一个强大的吹气声进入画面。它保持恒定和低调。我们没有观察到风扇的脉动或其他令人不安的噪音。
Noise Level
| Idle |
| 25.44 / 25.44 / 25.44 dB(A) |
| Load |
| 27.04 / 30.63 dB(A) |
 | ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min:  , med:  , max:  Earthworks M23R, Arta (15 cm distance) environment noise: 25.44 dB(A) | ||
| Lenovo ThinkPad L13 Yoga G2 21AES01A00 Vega 7, R5 PRO 5650U, SK Hynix HFS512 GDE9X081N | Lenovo ThinkPad L13 Yoga Gen2-20VK000VGE Iris Xe G7 80EUs, i5-1135G7, WDC PC SN730 SDBPNTY-256G | Samsung Galaxy Book Pro 360 15 NP950QDB-KC3DE Iris Xe G7 80EUs, i5-1135G7, Samsung PM991 MZVLQ256HAJD | Acer Swift 3 SF314-511-54ZK Iris Xe G7 80EUs, i5-1135G7, Samsung PM9A1 MZVL2512HCJQ | Asus ExpertBook B5 Flip B5302FEA Iris Xe G7 80EUs, i5-1135G7, Samsung PM991 MZVLQ512HALU | Lenovo ThinkPad X13 Yoga G2 Iris Xe G7 96EUs, i7-1165G7, WDC PC SN730 SDBQNTY-1T00 | |
|---|---|---|---|---|---|---|
| Noise | -7% | -8% | -10% | -12% | -1% | |
| off / environment * | 25.44 | 24.1 5% | 25 2% | 25 2% | 23.8 6% | 24 6% |
| Idle Minimum * | 25.44 | 24.1 5% | 25 2% | 25 2% | 23.8 6% | 24 6% |
| Idle Average * | 25.44 | 24.1 5% | 25 2% | 25 2% | 23.8 6% | 24 6% |
| Idle Maximum * | 25.44 | 28.5 -12% | 25 2% | 27.5 -8% | 26 -2% | 24 6% |
| Load Average * | 27.04 | 33.9 -25% | 32.7 -21% | 32.9 -22% | 37.6 -39% | 32.72 -21% |
| Load Maximum * | 30.63 | 36.9 -20% | 42 -37% | 42 -37% | 44.9 -47% | 33.88 -11% |
| Witcher 3 ultra * | 36.9 | 39.8 |
* ... smaller is better
温度
与系统噪音类似，日常使用过程中的热量发展仍然是温和的。即使在负载下，我们测得的热点温度峰值也只有40℃。这部分是由于SoC的原因，它从未超过80℃。单个传感器的读数只是零星地达到更高的数值。因此，即使系统处于长时间的压力之下，ThinkPad的外壳仍然保持低温。在 "S "和 "W "键附近有一个明显的wam点。
总体而言，该系统似乎适合在腿上使用，特别是在平板电脑模式下。
(+) The average temperature for the upper side under maximal load is 27.5 °C / 82 F, compared to the average of 30.3 °C / 87 F for the devices in the class Convertible.
(+) The maximum temperature on the upper side is 34.7 °C / 94 F, compared to the average of 35.4 °C / 96 F, ranging from 19.6 to 60 °C for the class Convertible.
(+) The bottom heats up to a maximum of 39.1 °C / 102 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 23.7 °C / 75 F, compared to the device average of 30.3 °C / 87 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 24.3 °C / 75.7 F and are therefore cool to the touch.
(+) The average temperature of the palmrest area of similar devices was 28 °C / 82.4 F (+3.7 °C / 6.7 F).
(+) The maximum temperature on the upper side is 34.7 °C / 94 F, compared to the average of 35.4 °C / 96 F, ranging from 19.6 to 60 °C for the class Convertible.
(+) The bottom heats up to a maximum of 39.1 °C / 102 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 23.7 °C / 75 F, compared to the device average of 30.3 °C / 87 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 24.3 °C / 75.7 F and are therefore cool to the touch.
(+) The average temperature of the palmrest area of similar devices was 28 °C / 82.4 F (+3.7 °C / 6.7 F).
| Lenovo ThinkPad L13 Yoga G2 21AES01A00 AMD Ryzen 5 PRO 5650U, AMD Radeon RX Vega 7 | Lenovo ThinkPad L13 Yoga Gen2-20VK000VGE Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs | Samsung Galaxy Book Pro 360 15 NP950QDB-KC3DE Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs | Acer Swift 3 SF314-511-54ZK Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs | Asus ExpertBook B5 Flip B5302FEA Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs | Lenovo ThinkPad X13 Yoga G2 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs | |
|---|---|---|---|---|---|---|
| Heat | -14% | -1% | 1% | -2% | -18% | |
| Maximum Upper Side * | 34.7 | 43.3 -25% | 42.6 -23% | 39.6 -14% | 42.6 -23% | 47.2 -36% |
| Maximum Bottom * | 39.1 | 54.5 -39% | 40.8 -4% | 43.2 -10% | 45.1 -15% | 51.5 -32% |
| Idle Upper Side * | 26.3 | 26.6 -1% | 25.9 2% | 25 5% | 24.6 6% | 30 -14% |
| Idle Bottom * | 33.5 | 30.7 8% | 26.1 22% | 26.2 22% | 24.8 26% | 30.5 9% |
* ... smaller is better
发言人
当作为笔记本电脑使用时，两个小扬声器指向底部。当放在桌子上时，声音不值得批评。自然，没有任何低音，但声音、中音和高音都能清晰再现。在将Yoga L13转变为平板电脑模式后，一个明显的区别变得很明显。扬声器被直接指向用户。这导致了明显更好的声音体验。因此，建议使用Yoga L13的平板电脑模式进行媒体消费。
另外，可以主要通过左侧的耳机插孔或蓝牙连接外部扬声器或耳机。不幸的是，没有物理音量按钮。当键盘及其功能键难以触及时，如在平板电脑模式下，试图控制系统的音量水平会变得很乏味。
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
Lenovo ThinkPad L13 Yoga G2 21AES01A00 audio analysis
(-) | not very loud speakers (69.7 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 21% lower than median
(±) | linearity of bass is average (14.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.4% away from median
(+) | mids are linear (6.7% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.1% away from median
(+) | highs are linear (6.1% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (18.7% difference to median)
Compared to same class
» 39% of all tested devices in this class were better, 7% similar, 53% worse
» The best had a delta of 6%, average was 21%, worst was 57%
Compared to all devices tested
» 39% of all tested devices were better, 8% similar, 53% worse
» The best had a delta of 4%, average was 25%, worst was 134%
Lenovo ThinkPad L13 Yoga 20R6S00800 audio analysis
(±) | speaker loudness is average but good (75.8 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 21.2% lower than median
(±) | linearity of bass is average (14.7% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 5.1% higher than median
(+) | mids are linear (5.7% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | reduced highs - on average 8.1% lower than median
(±) | linearity of highs is average (8.6% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (29.1% difference to median)
Compared to same class
» 86% of all tested devices in this class were better, 3% similar, 11% worse
» The best had a delta of 6%, average was 21%, worst was 57%
Compared to all devices tested
» 85% of all tested devices were better, 3% similar, 12% worse
» The best had a delta of 4%, average was 25%, worst was 134%
能源管理--联想ThinkPad Yoga是经济型的
能源消耗
令人惊讶的是，负载下的能量消耗很低。由于AMD Ryzen 5 Pro即使在最大压力下也只消耗30W，系统的总功耗只是略高。因此，随附的65瓦电源几乎显得过度。尽管如此，它仍然是联想ThinkPad Yoga L13的标准配置。
相比之下，闲置时的耗电量显得有些高。在这里，在没有任何任务的情况下，这台敞篷车需要将近5W的电量。
Power Consumption
| Off / Standby | 0.42 / 0.69 Watt |
| Idle | 4.56 / 7.15 / 7.33 Watt |
| Load |
31.93 / 34.65 Watt |

| |
Key:
min: ,
med: ,
max: Metrahit Energy | |
| Lenovo ThinkPad L13 Yoga G2 21AES01A00 R5 PRO 5650U, Vega 7, SK Hynix HFS512 GDE9X081N, IPS LED, 1920x1080, 13.3" | Lenovo ThinkPad L13 Yoga Gen2-20VK000VGE i5-1135G7, Iris Xe G7 80EUs, WDC PC SN730 SDBPNTY-256G, IPS, 1920x1080, 13.3" | Samsung Galaxy Book Pro 360 15 NP950QDB-KC3DE i5-1135G7, Iris Xe G7 80EUs, Samsung PM991 MZVLQ256HAJD, OLED, 1920x1080, 15.6" | Acer Swift 3 SF314-511-54ZK i5-1135G7, Iris Xe G7 80EUs, Samsung PM9A1 MZVL2512HCJQ, IPS, 1920x1080, 14" | Asus ExpertBook B5 Flip B5302FEA i5-1135G7, Iris Xe G7 80EUs, Samsung PM991 MZVLQ512HALU, IPS, 1920x1080, 13.3" | Lenovo ThinkPad X13 Yoga G2 i7-1165G7, Iris Xe G7 96EUs, WDC PC SN730 SDBQNTY-1T00, IPS LED, 2560x1600, 13.3" | Average AMD Radeon RX Vega 7 | Average of class Convertible | |
|---|---|---|---|---|---|---|---|---|
| Power Consumption | -23% | -17% | -18% | -1% | -18% | -20% | -44% | |
| Idle Minimum * | 4.56 | 4.6 -1% | 4 12% | 4.3 6% | 3.5 23% | 3.61 21% | 4.66 ? -2% | 5.18 ? -14% |
| Idle Average * | 7.15 | 7.3 -2% | 5.6 22% | 6.8 5% | 6 16% | 6.78 5% | 7.56 ? -6% | 8.18 ? -14% |
| Idle Maximum * | 7.33 | 10.2 -39% | 10.1 -38% | 9 -23% | 6.6 10% | 7.45 -2% | 8.95 ? -22% | 11.1 ? -51% |
| Load Average * | 31.93 | 32.3 -1% | 34.7 -9% | 33.3 -4% | 25.7 20% | 48.85 -53% | 38.7 ? -21% | 46.8 ? -47% |
| Witcher 3 ultra * | 32.2 | 35 -9% | 34.7 -8% | 33.3 -3% | 29.3 9% | 28.7 11% | ||
| Load Maximum * | 34.65 | 65.3 -88% | 63 -82% | 65 -88% | 64.2 -85% | 66.51 -92% | 51.9 ? -50% | 67.2 ? -94% |
* ... smaller is better
Energy Consumption Witcher 3 / Stress Test
Lenovo ThinkPad L13 Yoga G2 21AES01A00; Witcher 3 ultra: Ø32.2 (31.2-33.2)
Lenovo ThinkPad L13 Yoga G2 21AES01A00; 1280x720 Prime95 28.10 and Furmark 1.25: Ø33.5 (32.2-34.7)
Energy Consumption External Monitor
Lenovo ThinkPad L13 Yoga G2 21AES01A00; Prime95 V2810 Stress (external Monitor): Ø29.6 (28.8-30.5)
Lenovo ThinkPad L13 Yoga G2 21AES01A00; Cinebench R15 Multi (external Monitor): Ø25 (24.6-25.6)
Lenovo ThinkPad L13 Yoga G2 21AES01A00; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø29.7 (28.6-34.1)
Lenovo ThinkPad L13 Yoga G2 21AES01A00; 1920x1080 The Witcher 3 ultra (external Monitor): Ø29.3 (28.4-30.5)
电池寿命
在我们的实际Wi-Fi测试中，我们的测试设备的46瓦时电池在接近75%的显示亮度下可以持续近8小时。在飞行模式的视频播放过程中，电池持续时间长达一个小时。考虑到电池容量充其量是平均水平，这代表了一个好结果。该系统运行效率高，这一点从视频测试中特别明显，与配备i5-10210U和相同电池容量的前代ThinkPad Yoga L13相比，视频测试多运行了140分钟。
| Lenovo ThinkPad L13 Yoga G2 21AES01A00 R5 PRO 5650U, Vega 7, 46 Wh | Lenovo ThinkPad L13 Yoga Gen2-20VK000VGE i5-1135G7, Iris Xe G7 80EUs, 46 Wh | Samsung Galaxy Book Pro 360 15 NP950QDB-KC3DE i5-1135G7, Iris Xe G7 80EUs, 67 Wh | Asus ExpertBook B5 Flip B5302FEA i5-1135G7, Iris Xe G7 80EUs, 66 Wh | Lenovo ThinkPad X13 Yoga G2 i7-1165G7, Iris Xe G7 96EUs, 52.8 Wh | Lenovo ThinkPad L13 Yoga 20R6S00800 i5-10210U, UHD Graphics 620, 46 Wh | Average of class Convertible | |
|---|---|---|---|---|---|---|---|
| Battery Runtime | -10% | 39% | 46% | 24% | 0% | 30% | |
| H.264 | 533 | 528 -1% | 669 26% | 686 29% | 394 -26% | 765 ? 44% | |
| WiFi v1.3 | 470 | 401 -15% | 679 44% | 707 50% | 555 18% | 459 -2% | 599 ? 27% |
| Load | 95 | 82 -14% | 127 34% | 153 61% | 118 24% | 123 29% | 113.1 ? 19% |
Pros
+ 令人印象深刻的处理器
+ 集成的ThinkPad Pen Pro
+ 坚固的结构
+ 舒适的键盘
+ 优秀的色彩准确性
+ 精心设计的平板电脑模式
+ 价格相对较低
Cons
- 焊接的RAM
- 弱的Wi-Fi模块
- 由于TDP有限，GPU性能有限
- 最大亮度可以更高
- 没有Thunderbolt
结论 - 瑜伽L13 AMD具有令人印象深刻的性能和广泛的功能
与第一代产品相比，联想ThinkPad Yoga L13 AMD G2凭借其强大的处理器，在系统性能方面具有明显优势。同时，电池寿命也得到了改善--特别是在视频播放期间。我们也没有观察到类似于前代产品的过高的表面温度。当涉及到多线程计算时，英特尔Tiger Lake 与AMD Ryzen 5 Pro相比没有机会，尽管它在其他方面具有竞争力。
除了显示屏的最大亮度可以稍微高一点之外，明显没有任何真正的弱点。L13 Yoga的底盘给人以坚固的印象，输入设备提供舒适的触觉。此外，联想还包括一个合理的端口选择，可以通过对接连接器轻松扩展。校园机型缺少智能卡读卡器，这对大多数用户来说应该不是问题。虽然这款敞篷车在任何方面都不是特别突出，但考虑到价格，这也是可以接受的。
笔记本电脑和平板电脑模式的灵活性似乎设计得很好。这两种情况下的用户体验都很好。当作为工作母机使用时，L13 Yoga以出色的性能以及出色的键盘和点击板而大放异彩。转变为平板电脑模式后，扬声器的声音更好听，有一个能拍出漂亮照片的摄像头，而ThinkPad Pen Pro可以进行精确输入。在平板电脑模式下，唯一令人烦恼的是缺乏音量按钮。
ThinkPad Yoga L13 Gen2内部的AMD处理器在日常使用中表现非常好。除此之外，所有的输入设备都能提供良好的用户体验。这款商务敞篷车毫不费力地满足了我们的期望，并配备了所有最重要的功能。
与它的直接竞争者如敞篷车相比 联想ThinkPad Yoga L13英特尔Tiger Lake 或 三星Galaxy Book 360 15i5-1135G7，AMD Ryzen Pro的性能明显更快。这导致了出色的PCMark10得分，表明了伟大的实际性能。相比之下，集成显卡单元并不那么快，尽管这对大多数用户来说不太重要。缓慢的Wi-Fi模块和缺乏Thunderbolt 4端口是更明显的缺点。此外，Galaxy Book有一个好得多的显示屏。
价格和可用性
虽然AMD机型尚未广泛发售，但我们预计它将在未来几周内在联想的网上商店出售和几个主要的零售商处购买，起价略低于1000美元。另外，英特尔版本的各种配置（带有Thunderbolt 4）可以从联想的在线商店购买。,Amazon.com或百思买.
Lenovo ThinkPad L13 Yoga G2 21AES01A00
- 03/06/2022 v7 (old)
Mario Petzold
Convertible - Weighted Average
Price comparison
