Magyar联想ThinkPad L14 G3 AMD笔记本电脑评测。长电池寿命加上AMD动力

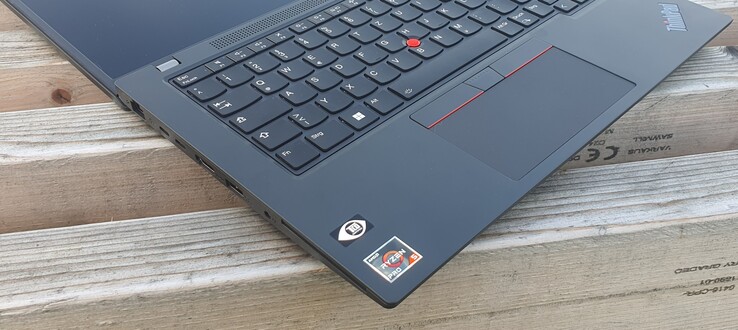

除了几个令人兴奋的改进，联想ThinkPad L14 G3 AMD也比ThinkPad T14 G3 有一些优势。在本评论中，我们将讨论它们是否足以使L14成为更好的选择。L14 G3有两个内存插槽--这是T系列的一个进步，T系列的AMD机型甚至只配有焊接的内存。
L14同样比T14的英特尔变体有一个至关重要的优势：25瓦的更高功率限制和更好的冷却解决方案。因此，主要针对商业用户和公司的L系列，现在也有可能对消费者产生吸引力。

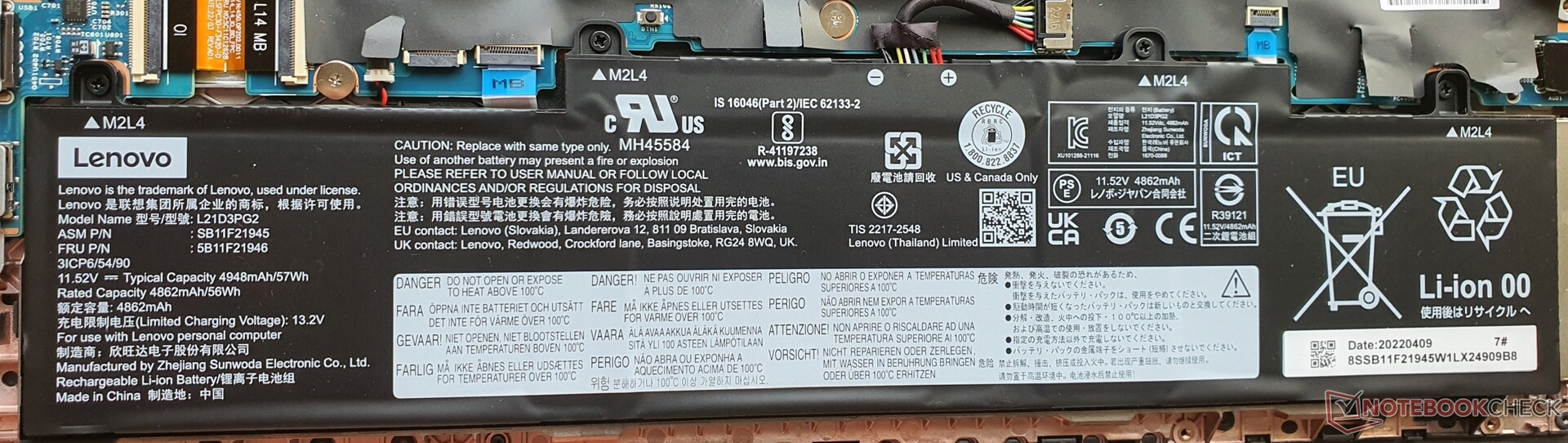

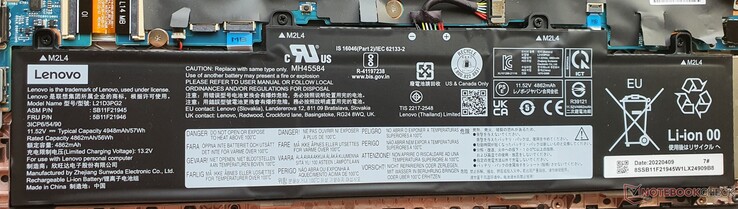

与上一代L14相比，新设备的底盘明显更薄，看起来更像 ThinkPad E14.此外，一些型号的电池容量已经增加到63Wh（以前是45Wh）。也就是说，在材料的选择上也有变化，不一定是最佳的。我们将在后面的评论中更多地讨论这个问题和其他变化。ThinkPad L14 G3直接与笔记本电脑竞争，如 惠普ProBook 445 G8以及 戴尔Latitude 14 5420和 Inspiron 14 5425.
潜在的竞争对手比较
Rating | Date | Model | Weight | Height | Size | Resolution | Price |
|---|---|---|---|---|---|---|---|
| 86.5 % v7 (old) | 10 / 2022 | Lenovo ThinkPad L14 G3 21C50030GE R5 PRO 5675U, Vega 7 | 1.6 kg | 19.83 mm | 14.00" | 1920x1080 | |
| 86.1 % v7 (old) | 08 / 2021 | Lenovo ThinkPad L14 G2 AMD R7 PRO 5850U, Vega 8 | 1.7 kg | 20.4 mm | 14.00" | 1920x1080 | |
| 88.8 % v7 (old) | 09 / 2022 | Lenovo ThinkPad T14 G3-21CF004NGE R7 PRO 6850U, Radeon 680M | 1.4 kg | 17.9 mm | 14.00" | 1920x1200 | |
| 86.7 % v7 (old) | 08 / 2021 | Lenovo ThinkPad E14 G3-20Y7003SGE R5 5500U, Vega 7 | 1.6 kg | 17.9 mm | 14.00" | 1920x1080 | |
| 84.6 % v7 (old) | 09 / 2022 | Lenovo ThinkBook 14 G4 21DK0004GE R5 5625U, Vega 7 | 1.5 kg | 22 mm | 14.00" | 1920x1080 | |
| 85.5 % v7 (old) | 11 / 2021 | Lenovo IdeaPad 5 Pro 14ACN6 R5 5600U, Vega 7 | 1.5 kg | 17.9 mm | 14.00" | 2240x1400 | |
| 85.3 % v7 (old) | 07 / 2022 | HP ProBook 445 G8-3Z6Q8ES R5 5600U, Vega 7 | 1.4 kg | 19.8 mm | 14.00" | 1920x1080 | |
| 84.8 % v7 (old) | 01 / 2022 | Dell Latitude 14 5420-D2G5W i5-1135G7, Iris Xe G7 80EUs | 1.5 kg | 20.9 mm | 14.00" | 1920x1080 | |
| 84.6 % v7 (old) | 08 / 2022 | Dell Inspiron 14 5425 6VPKR R5 5625U, Vega 7 | 1.6 kg | 18.37 mm | 14.00" | 1920x1200 |

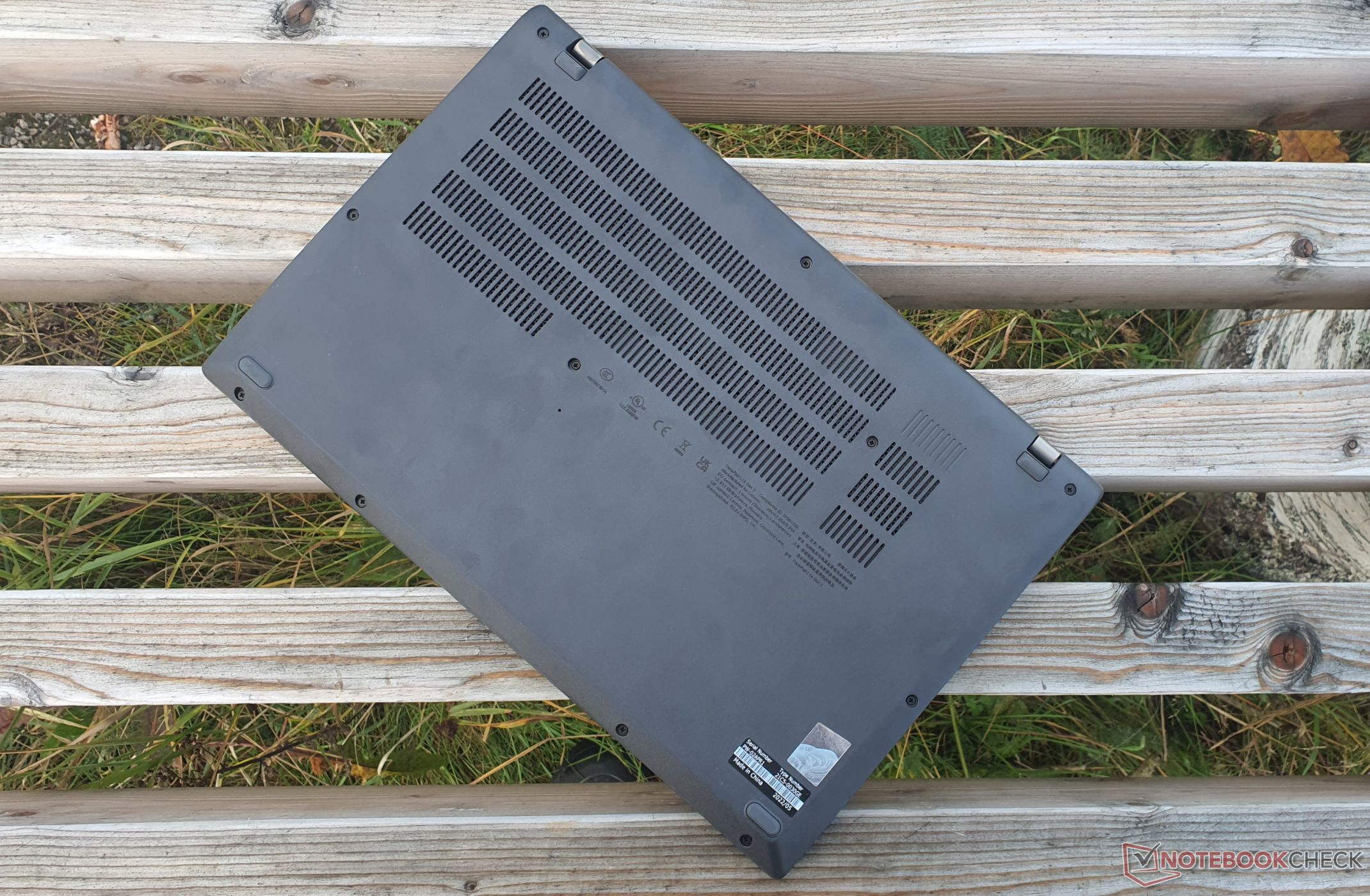

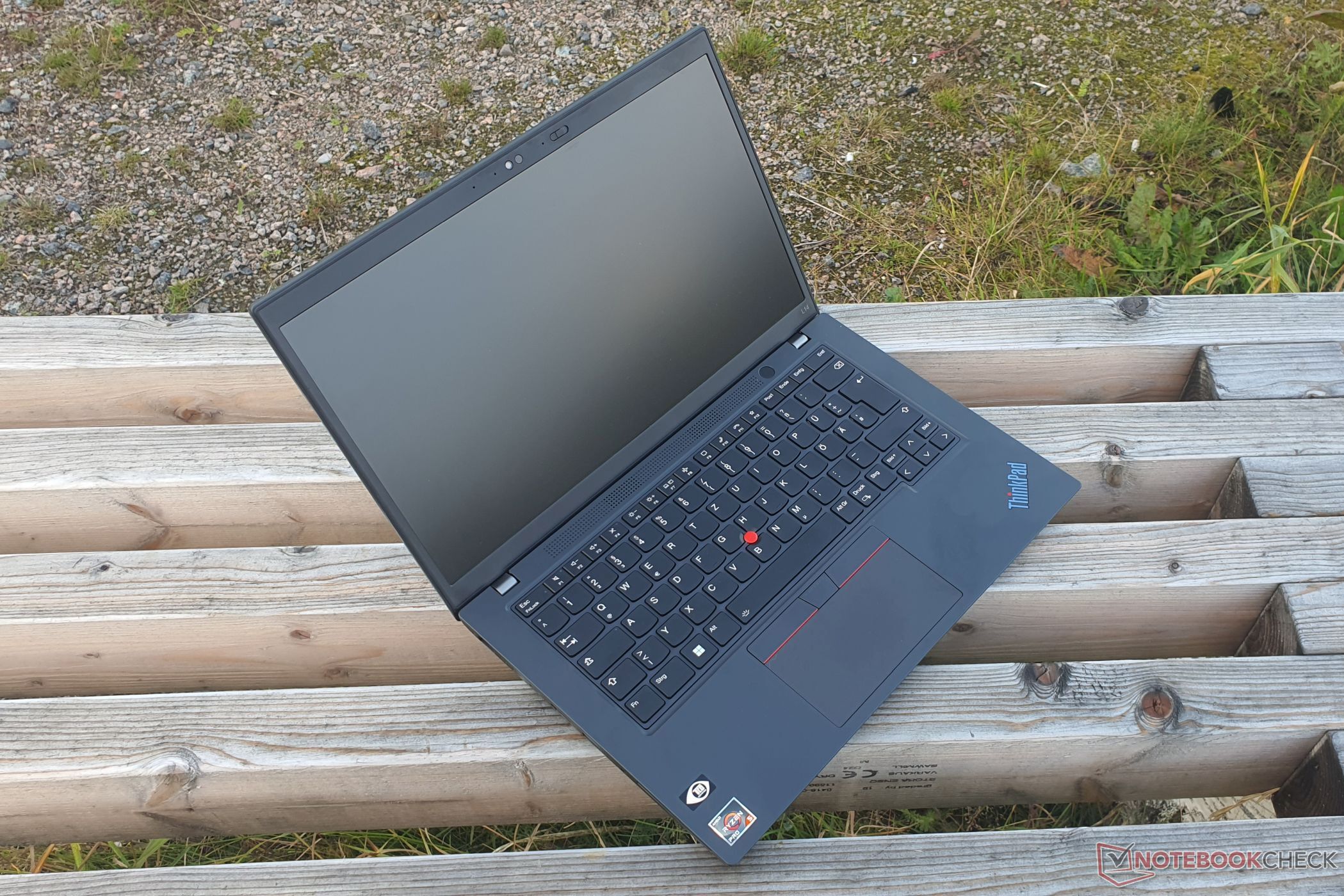

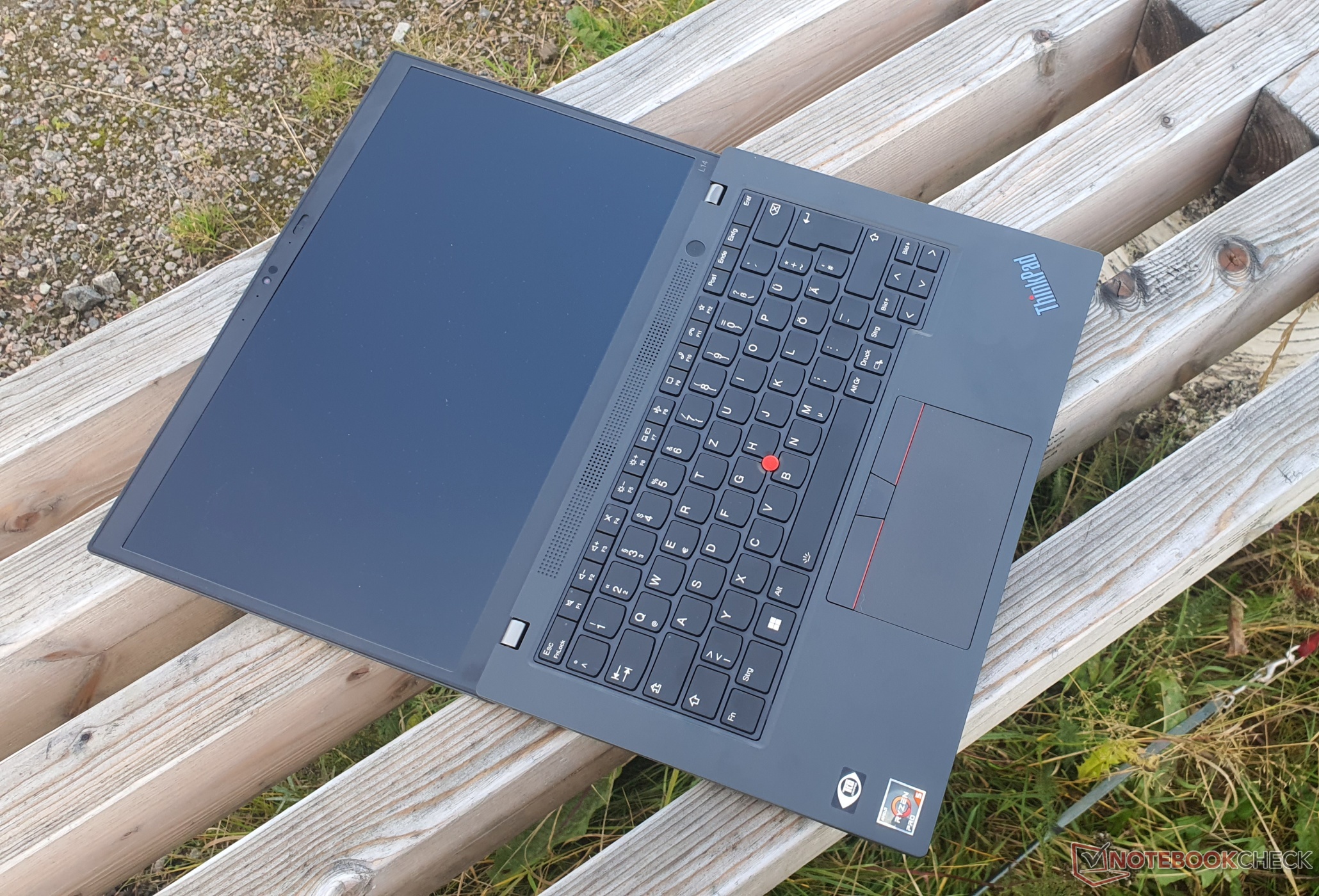

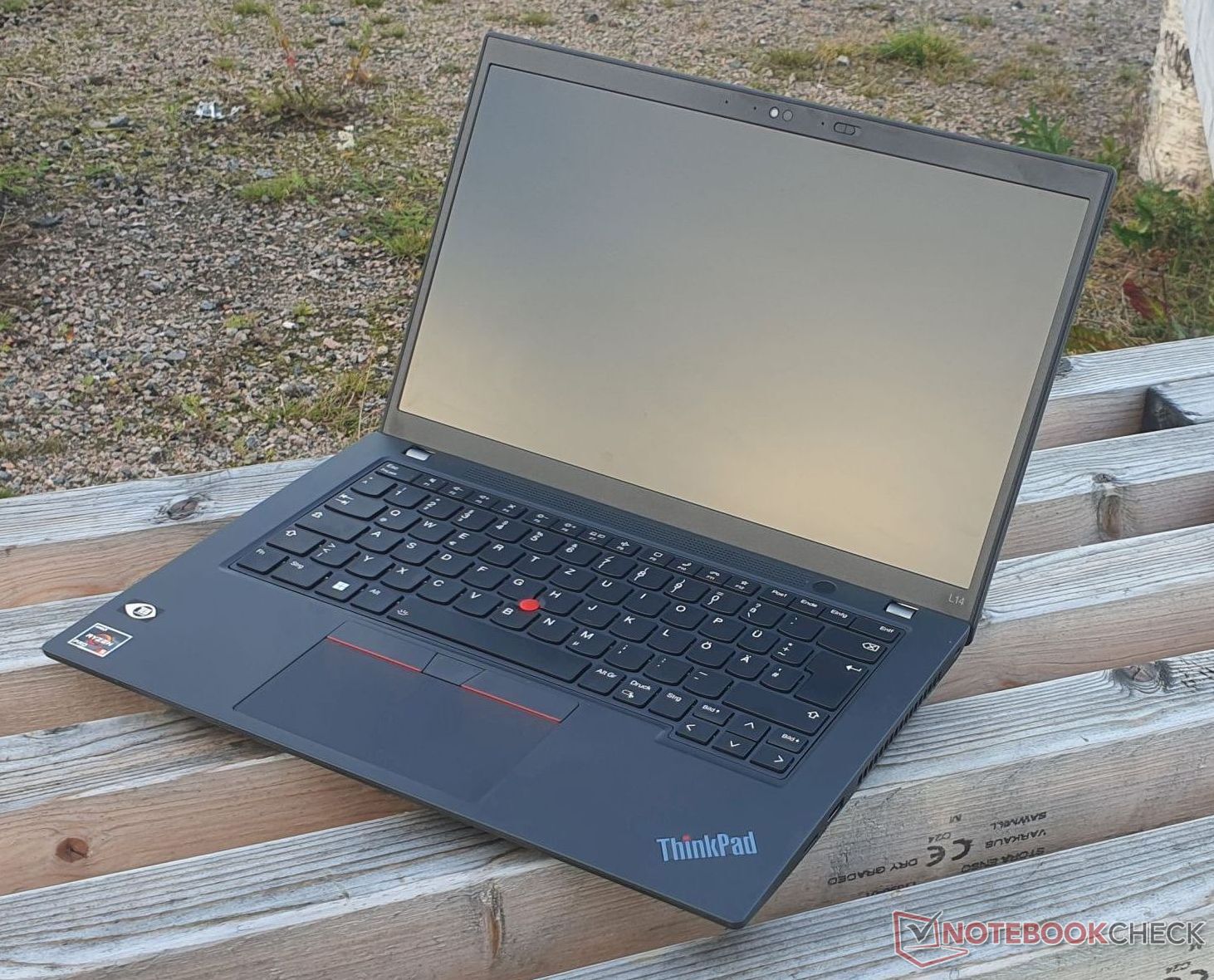

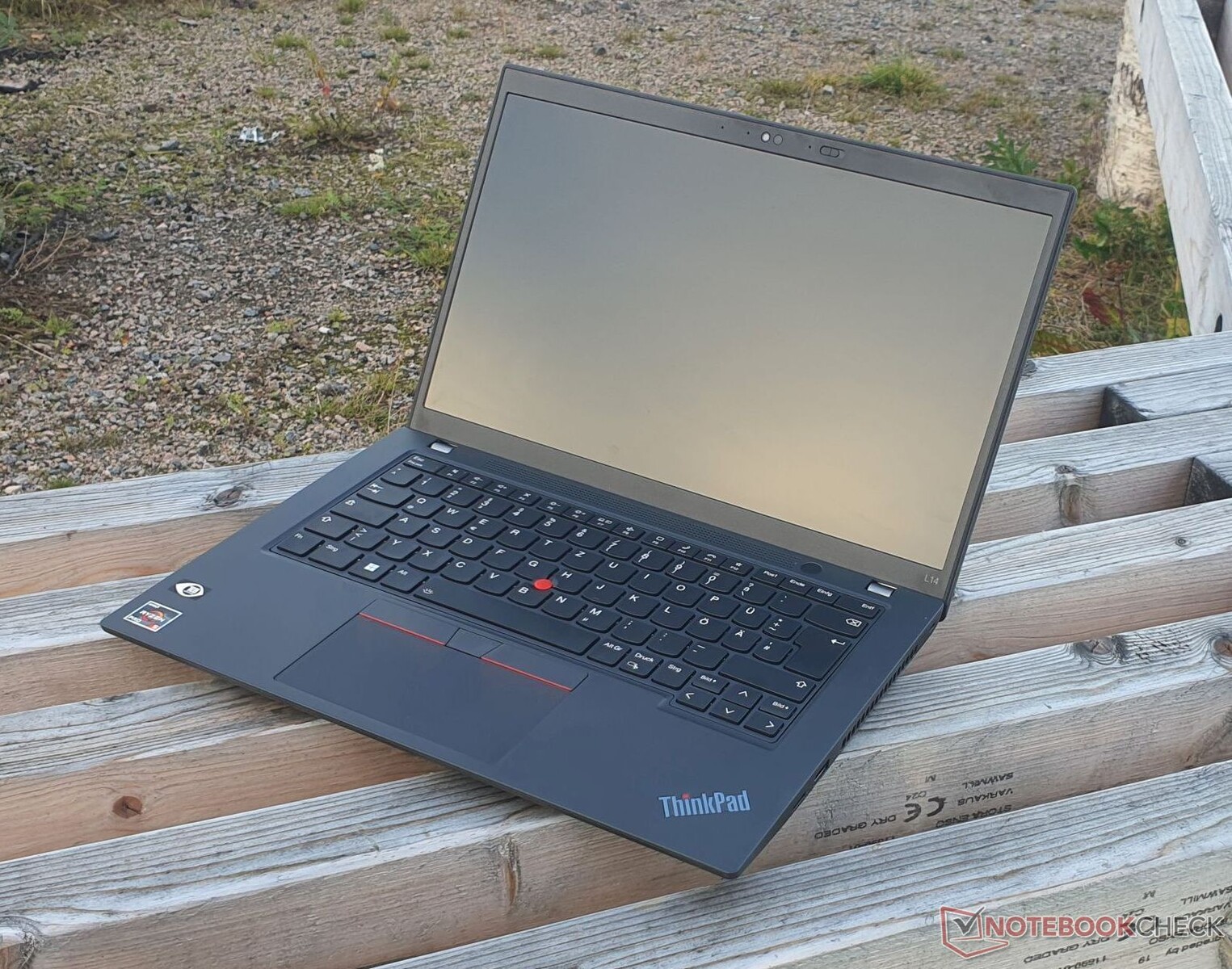

外壳：ThinkPad L14拥有一个紧凑的尺寸

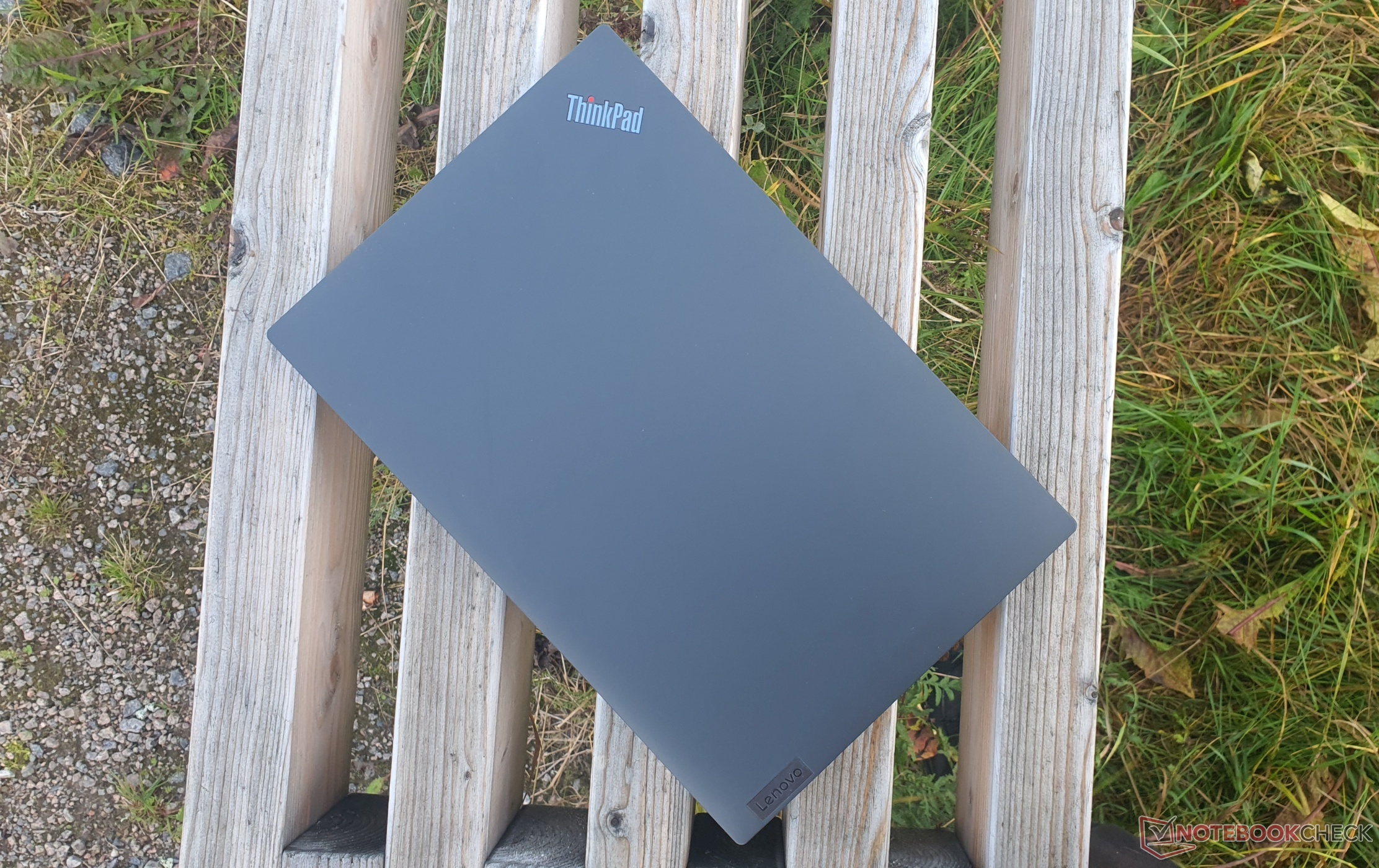

ThinkPads通常是黑色的。上一代机型就是这种情况。相比之下，新L14的颜色绝对可以说是灰色。
通常情况下，L系列在其结构中使用了大量的塑料。联想再次没有包括一个镁质框架来加固笔记本电脑，与前辈L14 G2不同。.一些联想的机型配备了部分由碳制成的底座，以及可选的铝制盖子。我们的评测单元没有这些功能。
不幸的是，机箱在掌托周围的区域会出现弯曲，尽管这在日常使用中不是一个问题。同样，我们希望机盖能更硬一点。铰链非常结实，可以防止你用一只手打开笔记本电脑，但显示屏可以向后折叠180°。设备的表面在大多数情况下是光滑的，盖子的质地略显粗糙。在装配和完成方面，我们没有注意到笔记本电脑机身的任何缝隙或缺陷。

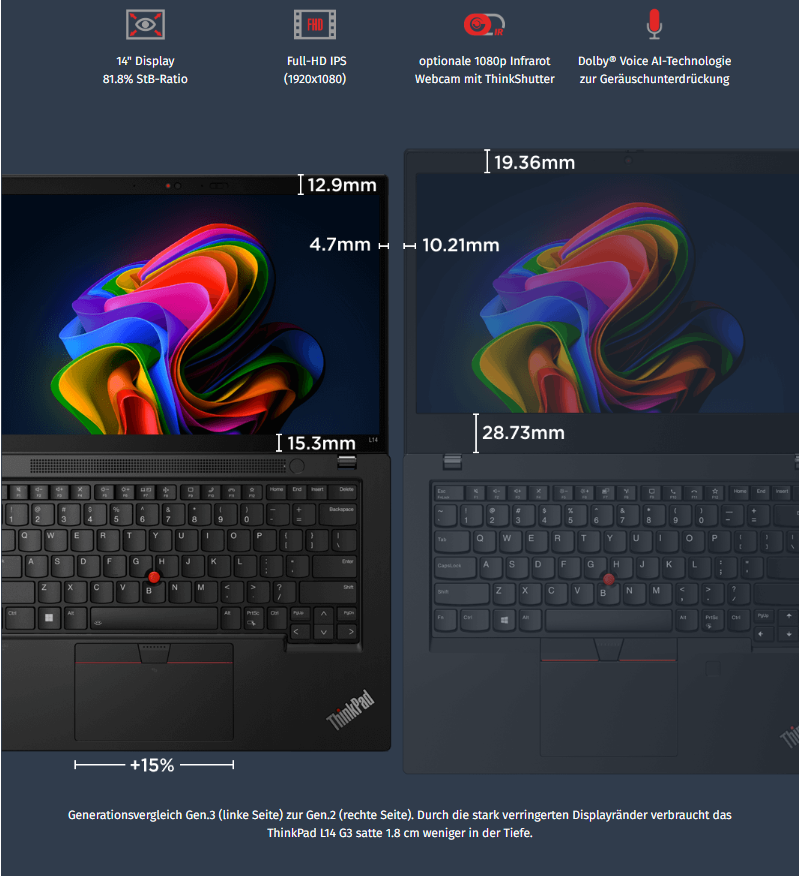

显示器周围的边框变得相当薄，导致屏幕与机身的比例达到81.8%。因此，ThinkPad L14 G3比E14 G3更加紧凑。 ThinkPad E14 G3.它的侧面也比E14 G3短1厘米（0.4英寸）。 侧面比ThinkPad T14另一方面，由于采用了16:10的显示屏，它更窄。
此外，新的L14比其前身轻约200克（0.44磅），在审查配置中重1.566公斤（3.45磅），使其与竞争对手处于同一水平。最轻的L14型号为1.39公斤（3.06英寸），电池选项占了重量差异的一部分。
联想ThinkPad L14 G3具有广泛的功能

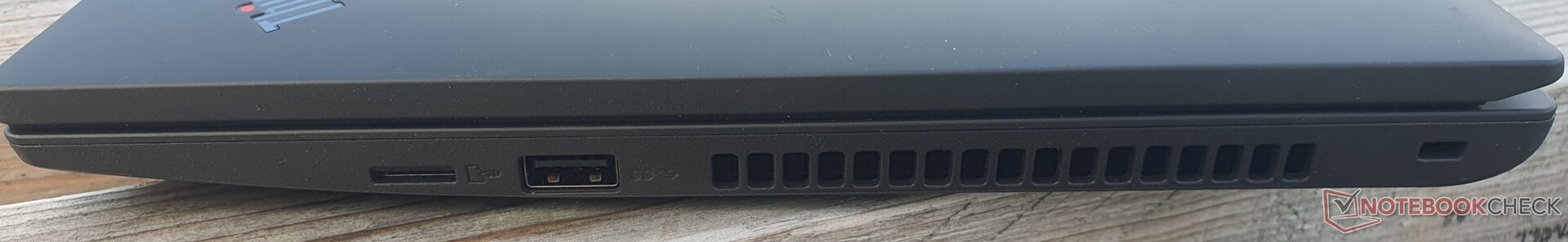

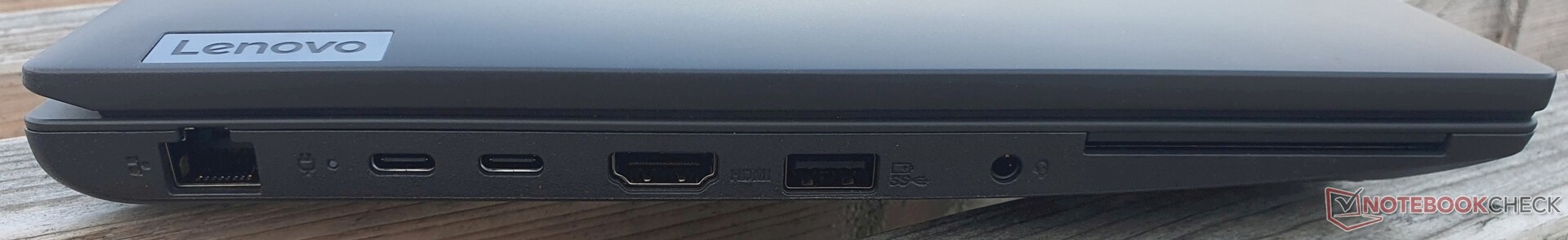

在端口选择方面没有什么变化--这是件好事。除了一个HDMI 2.0输出，一个microSD读卡器和一个千兆以太网端口（幸好已经移到了后面），该设备上有四个USB端口：2个USB-C（最大10 GBit/s），都支持PD 3.0和DisplayPort 1.4，以及2个USB-A 3.2 Gen 1.然而，你不会得到任何雷电或USB 4支持。
SD卡阅读器
我们用我们的参考卡AV PRO micro SD 128 GB V60测试了ThinkPad L14上的SD读卡器，发现它的读写速度相当一般。相比之下，ThinkPad L14上的读卡器戴尔Latitude 14 5420的读卡器表现要好得多，提供的传输速度要高两到三倍。
| SD Card Reader | |
| average JPG Copy Test (av. of 3 runs) | |
| Dell Latitude 14 5420-D2G5W (AV Pro SD microSD 128 GB V60) | |
| HP ProBook 445 G8-3Z6Q8ES (AV Pro SD microSD 128 GB V60) | |
| Lenovo ThinkPad L14 G2 AMD (AV Pro V60) | |
| Lenovo IdeaPad 5 Pro 14ACN6 (AV PRO V60) | |
| Lenovo ThinkBook 14 G4 21DK0004GE | |
| Lenovo ThinkPad L14 G3 21C50030GE | |
| Average of class Office (22.7 - 198.5, n=33, last 2 years) | |
| Dell Inspiron 14 5425 6VPKR (AV Pro SD microSD 128 GB V60) | |
| maximum AS SSD Seq Read Test (1GB) | |
| Dell Latitude 14 5420-D2G5W (AV Pro SD microSD 128 GB V60) | |
| Lenovo ThinkBook 14 G4 21DK0004GE | |
| Lenovo ThinkPad L14 G3 21C50030GE | |
| Lenovo ThinkPad L14 G2 AMD (AV Pro V60) | |
| HP ProBook 445 G8-3Z6Q8ES (AV Pro SD microSD 128 GB V60) | |
| Lenovo IdeaPad 5 Pro 14ACN6 (AV PRO V60) | |
| Average of class Office (25 - 249, n=30, last 2 years) | |
| Dell Inspiron 14 5425 6VPKR (AV Pro SD microSD 128 GB V60) | |
连接性

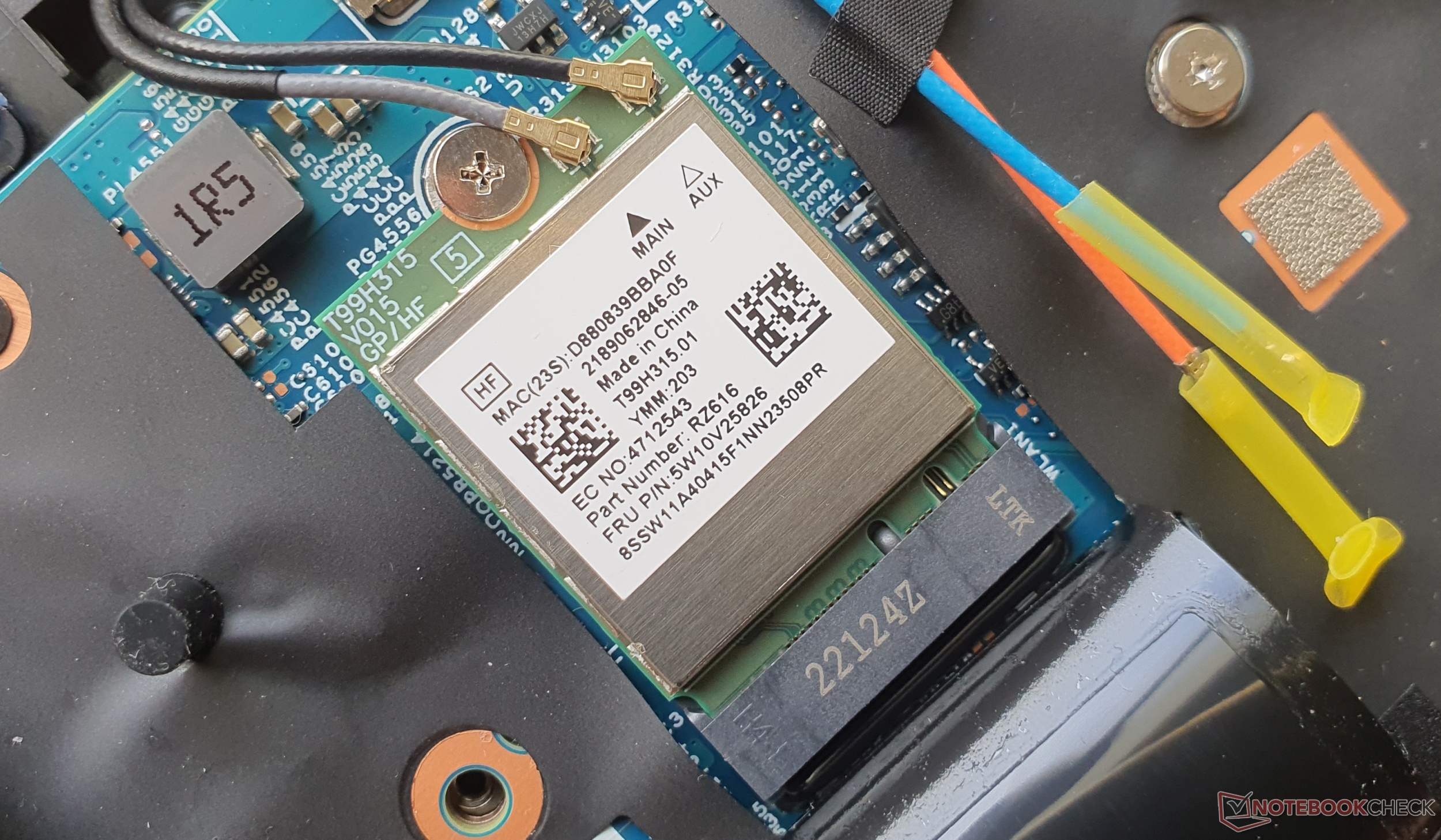

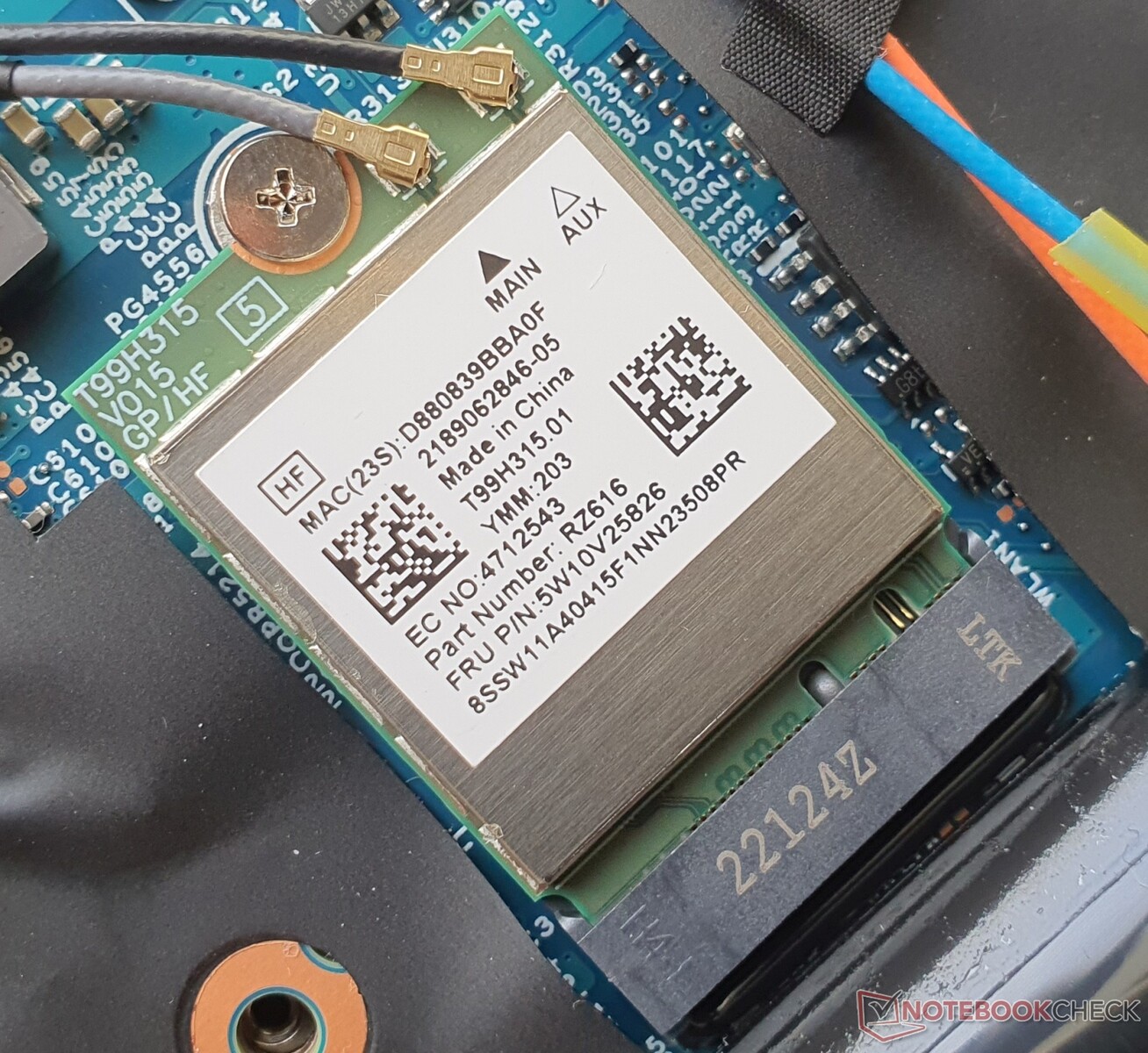

来自AMD/Mediatek的可替换Wi-Fi 6模块在我们的比较中几乎完全领先。根据我们的测量，与上一代ThinkPad L14相比，其发射和接收速率几乎翻了一番。此外，新的L14型号都没有配备缓慢的Realtek芯片。

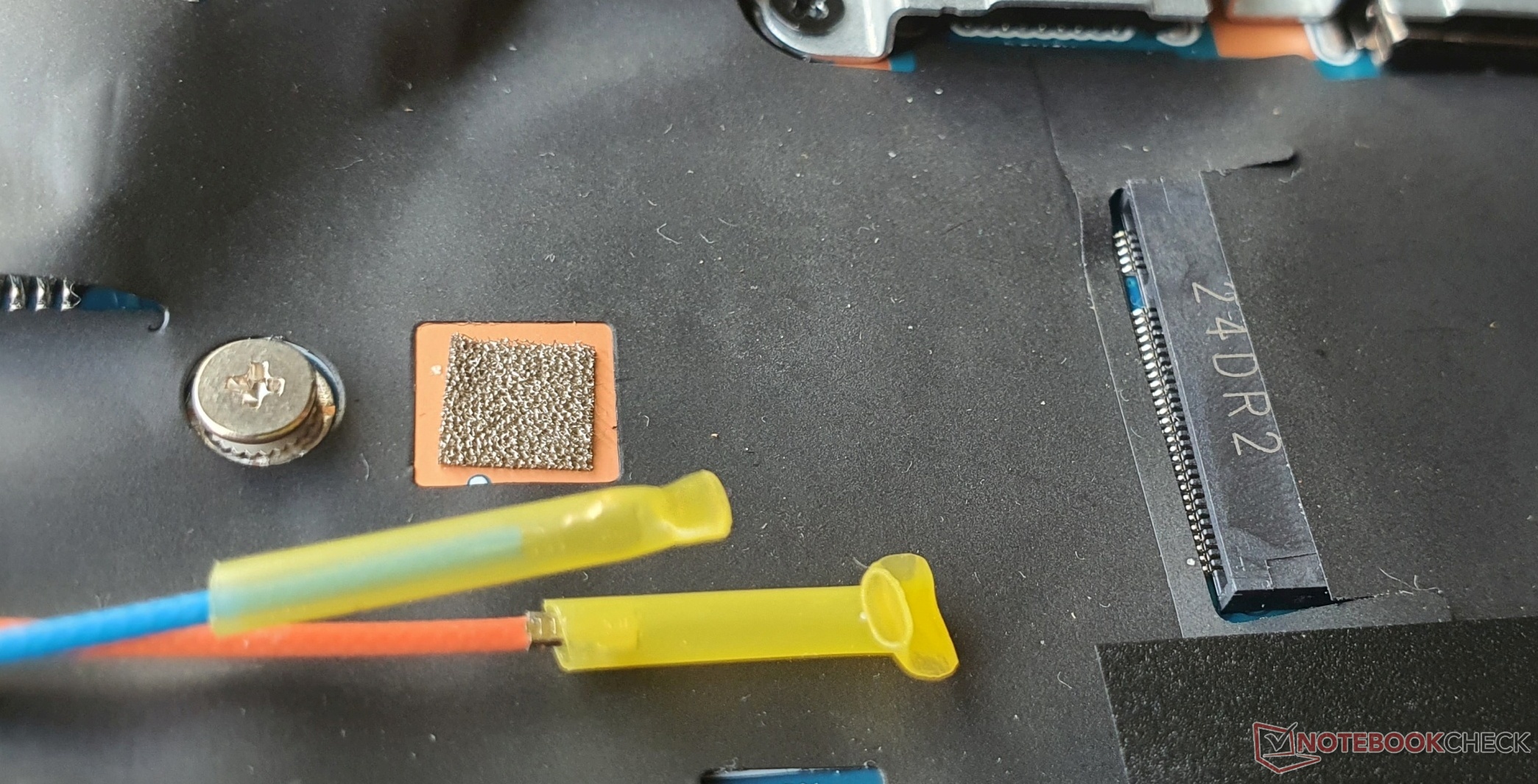

我们的评测机型是可以使用WWAN的（即它有一个免费的M.2插槽和一根天线线）。蓝牙5.1没有给我们带来任何问题，这与越来越多的关于配备最新AMD处理器的ThinkPads的报告相反。NFC可作为一个选项。
| Networking | |
| Lenovo ThinkPad L14 G3 21C50030GE | |
| iperf3 receive AXE11000 | |
| iperf3 transmit AXE11000 | |
| Lenovo ThinkPad T14 G3-21CF004NGE | |
| iperf3 receive AXE11000 6GHz | |
| iperf3 transmit AXE11000 6GHz | |
| Dell Latitude 14 5420-D2G5W | |
| iperf3 receive AX12 | |
| iperf3 transmit AX12 | |
| Lenovo ThinkBook 14 G4 21DK0004GE | |
| iperf3 receive AXE11000 | |
| iperf3 transmit AXE11000 | |
| Dell Inspiron 14 5425 6VPKR | |
| iperf3 receive AX12 | |
| iperf3 transmit AX12 | |
| Lenovo ThinkPad E14 G3-20Y7003SGE | |
| iperf3 receive AX12 | |
| iperf3 transmit AX12 | |
| Lenovo ThinkPad L14 G2 AMD | |
| iperf3 receive AX12 | |
| iperf3 transmit AX12 | |
| Lenovo IdeaPad 5 Pro 14ACN6 | |
| iperf3 receive AX12 | |
| iperf3 transmit AX12 | |
| HP ProBook 445 G8-3Z6Q8ES | |
| iperf3 receive AXE11000 | |
| iperf3 transmit AXE11000 | |

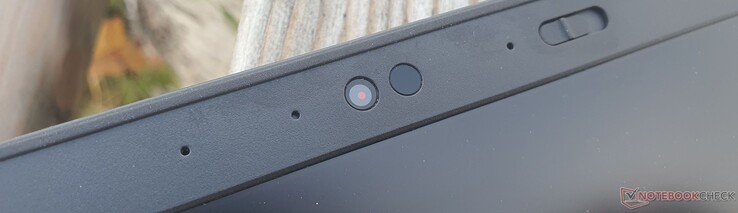

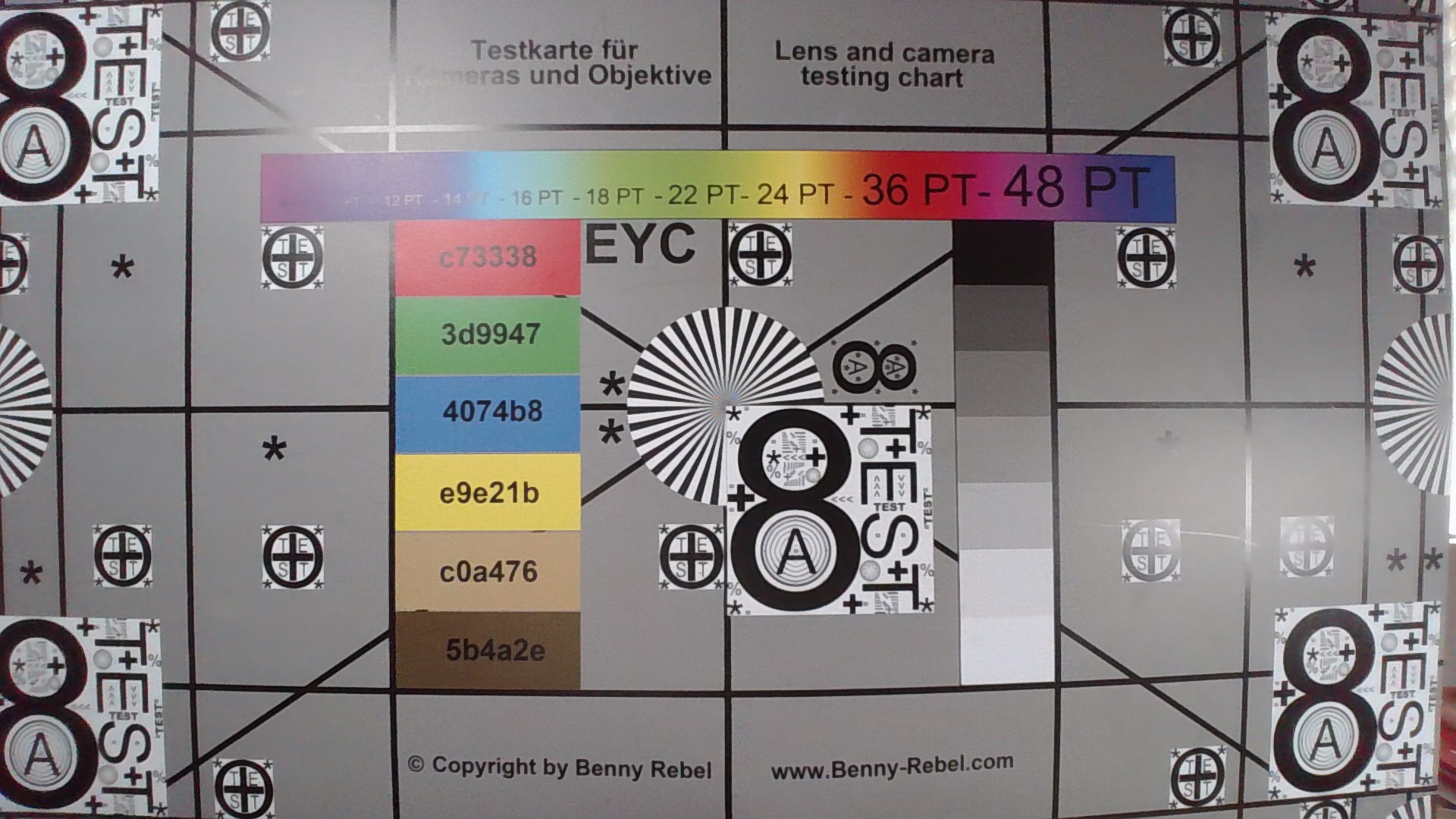

网络摄像头
安全问题
在ThinkPad L14 G3上，联想将可选的指纹识别器集成到了电源按钮上。这款笔记本电脑还为企业用户配备了一整套安全功能，包括TPM 2.0、智能卡读卡器、肯辛顿插槽、带物理快门的红外摄像头和Mirametrix Glance.
辅料

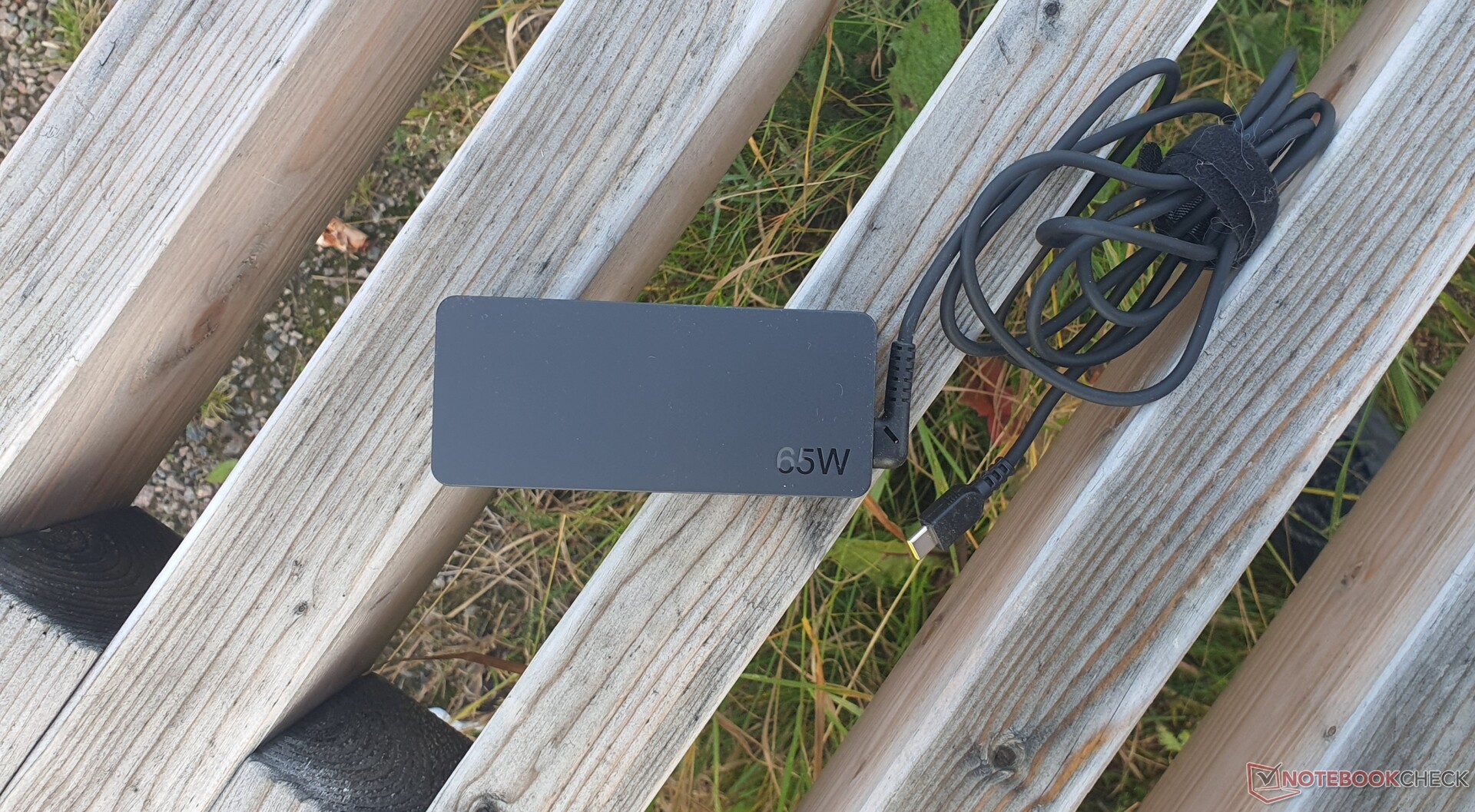

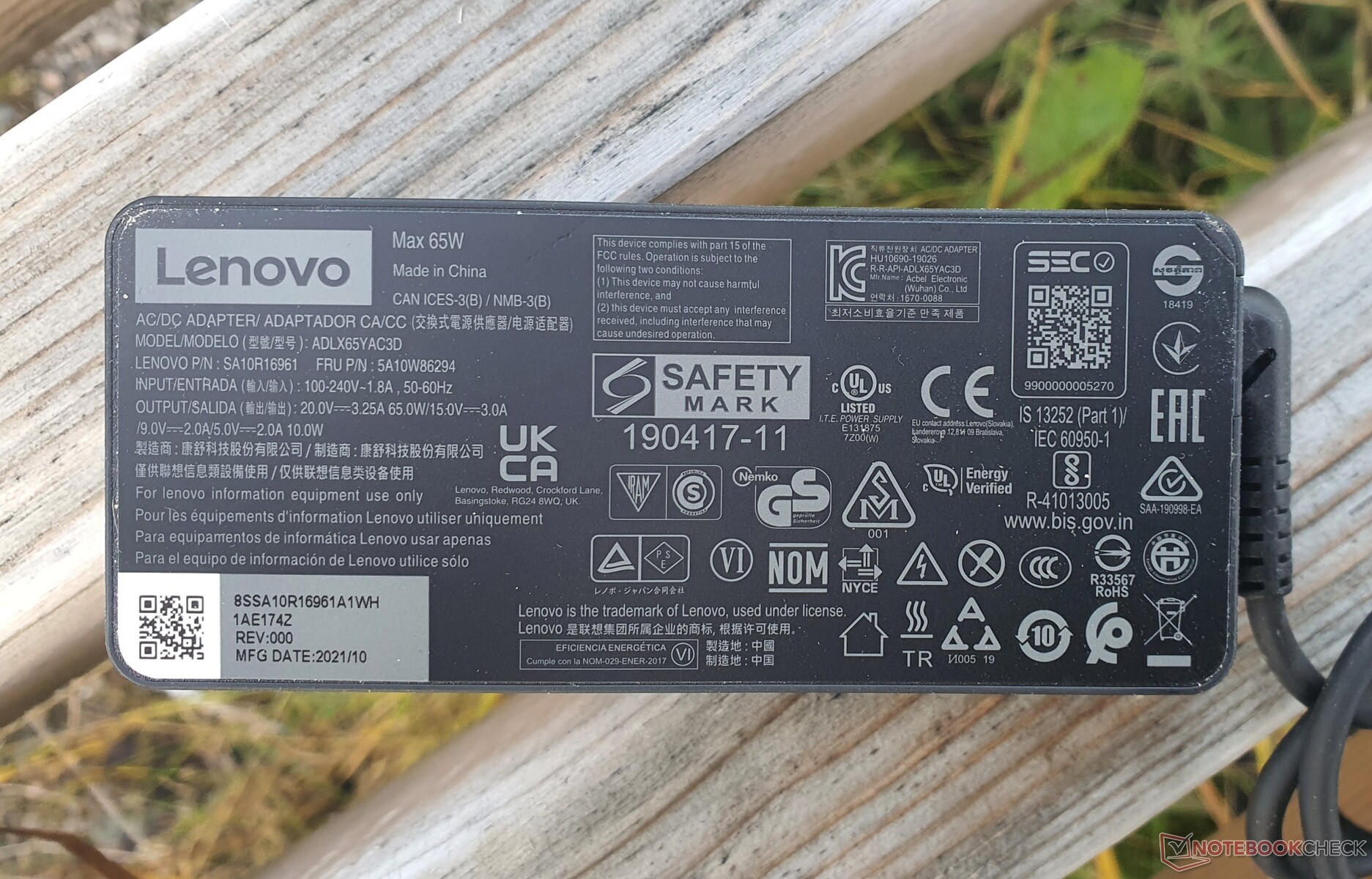

虽然L系列缺乏一个对接端口，但它仍然可以连接到USB-C底座上。在包装盒中，你只会发现笔记本电脑附带的65瓦USB-C电源适配器。而90%的包装都是由可回收或来自可持续林业的材料制成。
维护
卸下11颗十字头螺钉后，你可以用飞刀卸下底盖。但要小心：塑料夹子很容易断裂。

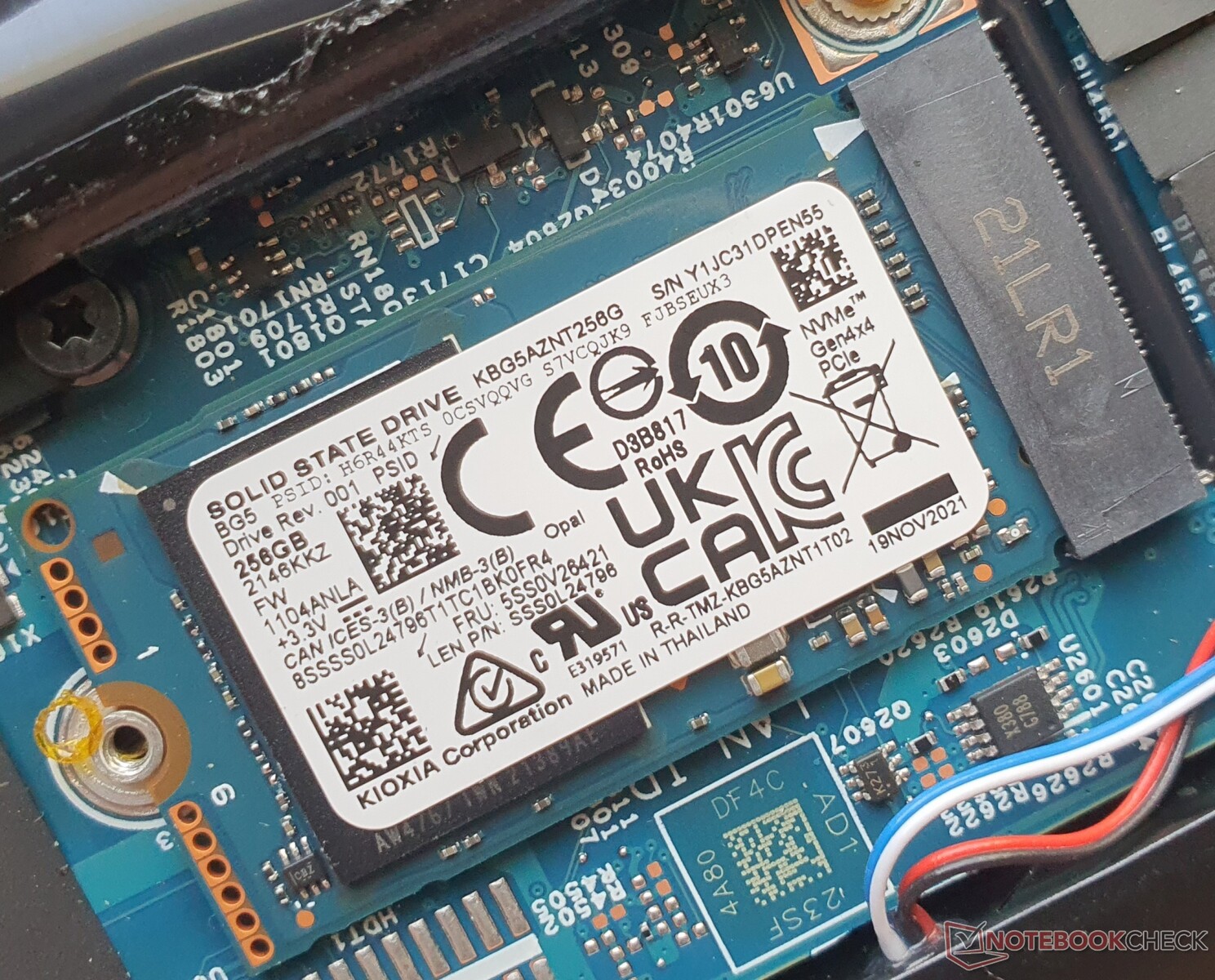

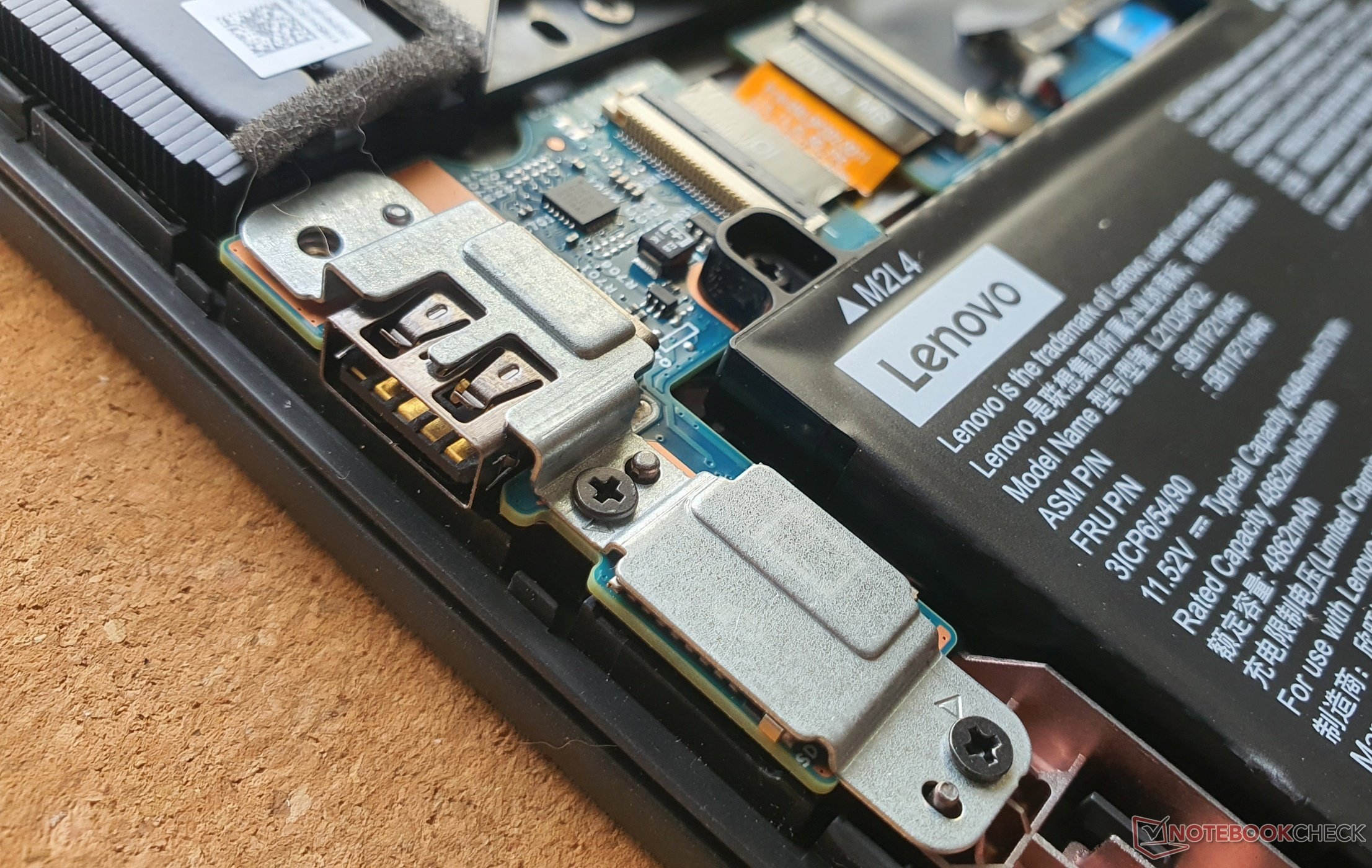

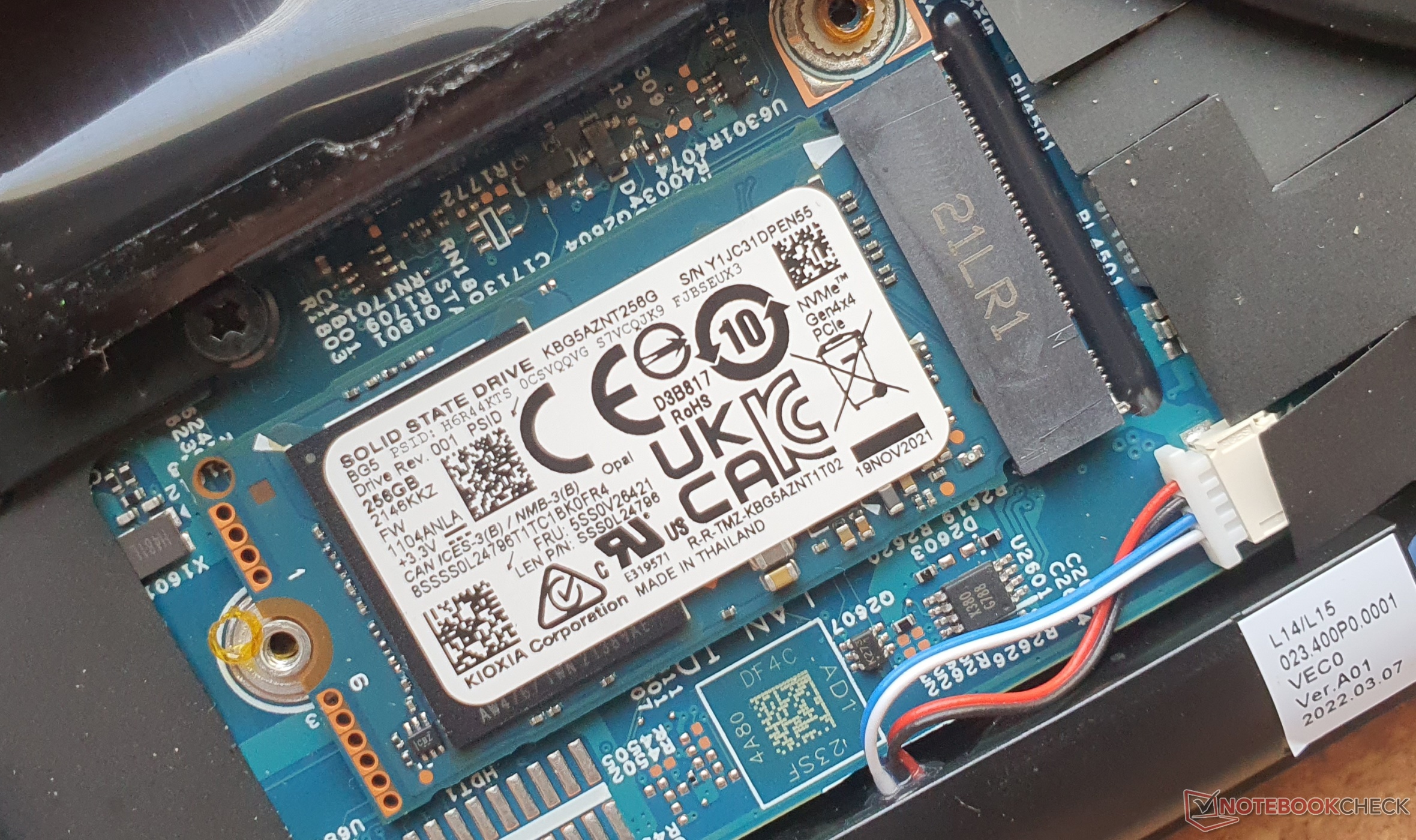

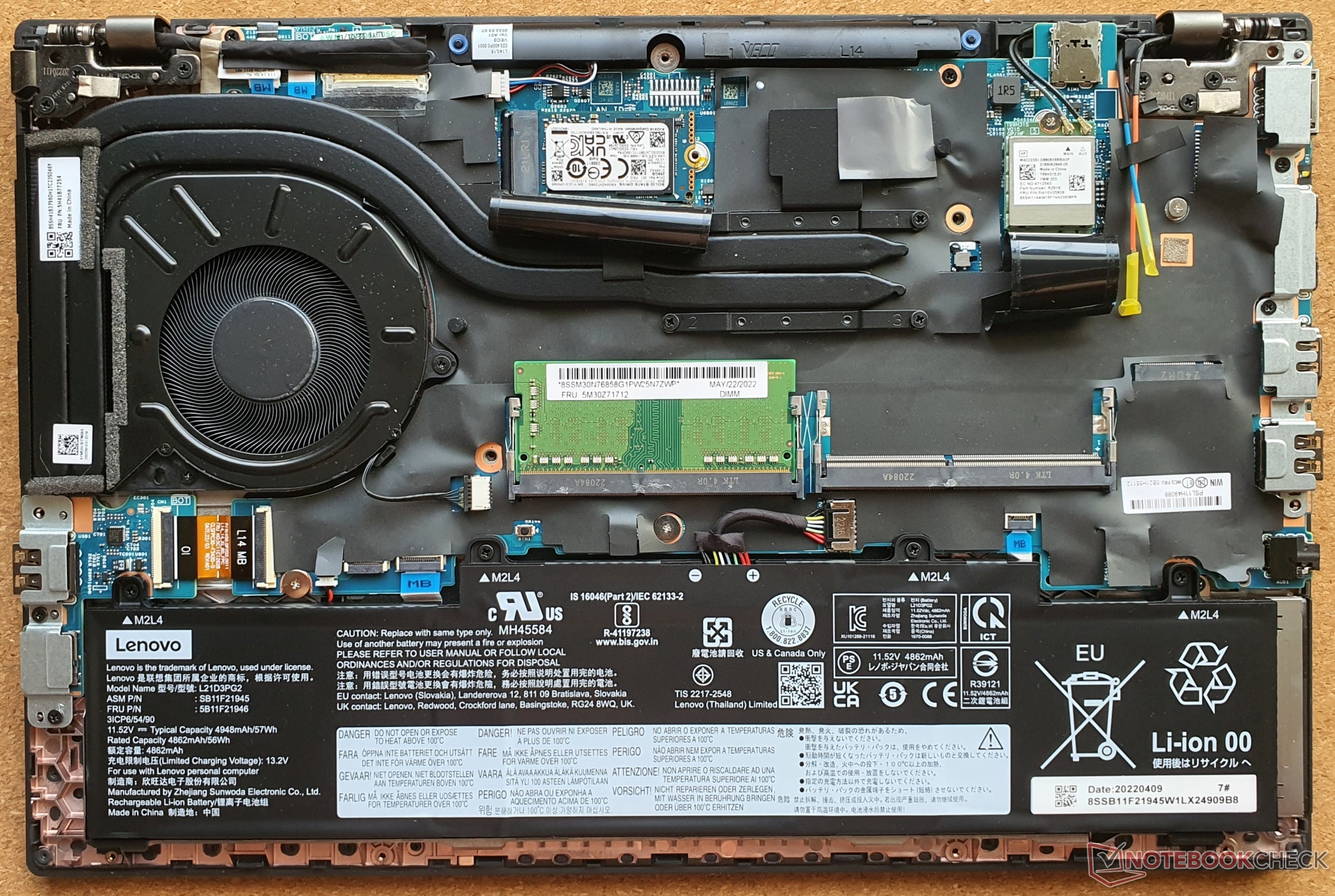

在我们看来，内部结构有很多优点：两个内存插槽，一个可拆卸的Wi-Fi模块，一个用于WWAN的免费M.2插槽，一个容易维护的冷却系统，以及一个可更换的SSD。与前代产品不同的是，L14 G3使用的固态硬盘具有更短的M.2 2242外形尺寸，以适应更大的电池（也可更换）。其中一个USB-A端口在一个子板上，因此如果它坏了也可以更换。
担保
联想在德国和美国都为L14 G3提供了12个月的保修。虽然我们的校园机型配有高级现场支持，但默认的保修只提供快递或携带服务。但是，你可以升级和延长保修期，大约95欧元（99美元），三年，大约210欧元（189美元）。

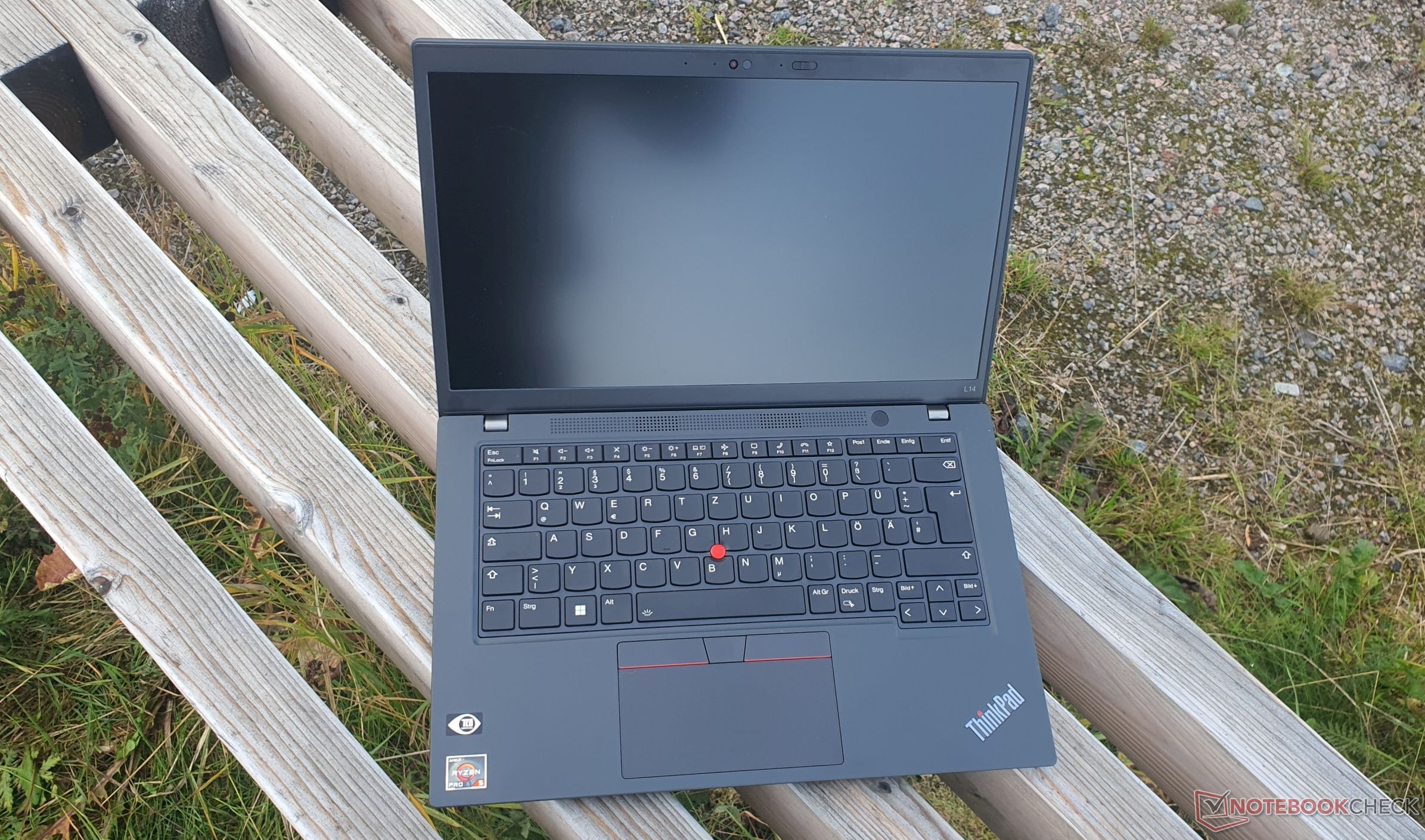

伟大的输入设备有一些怪癖

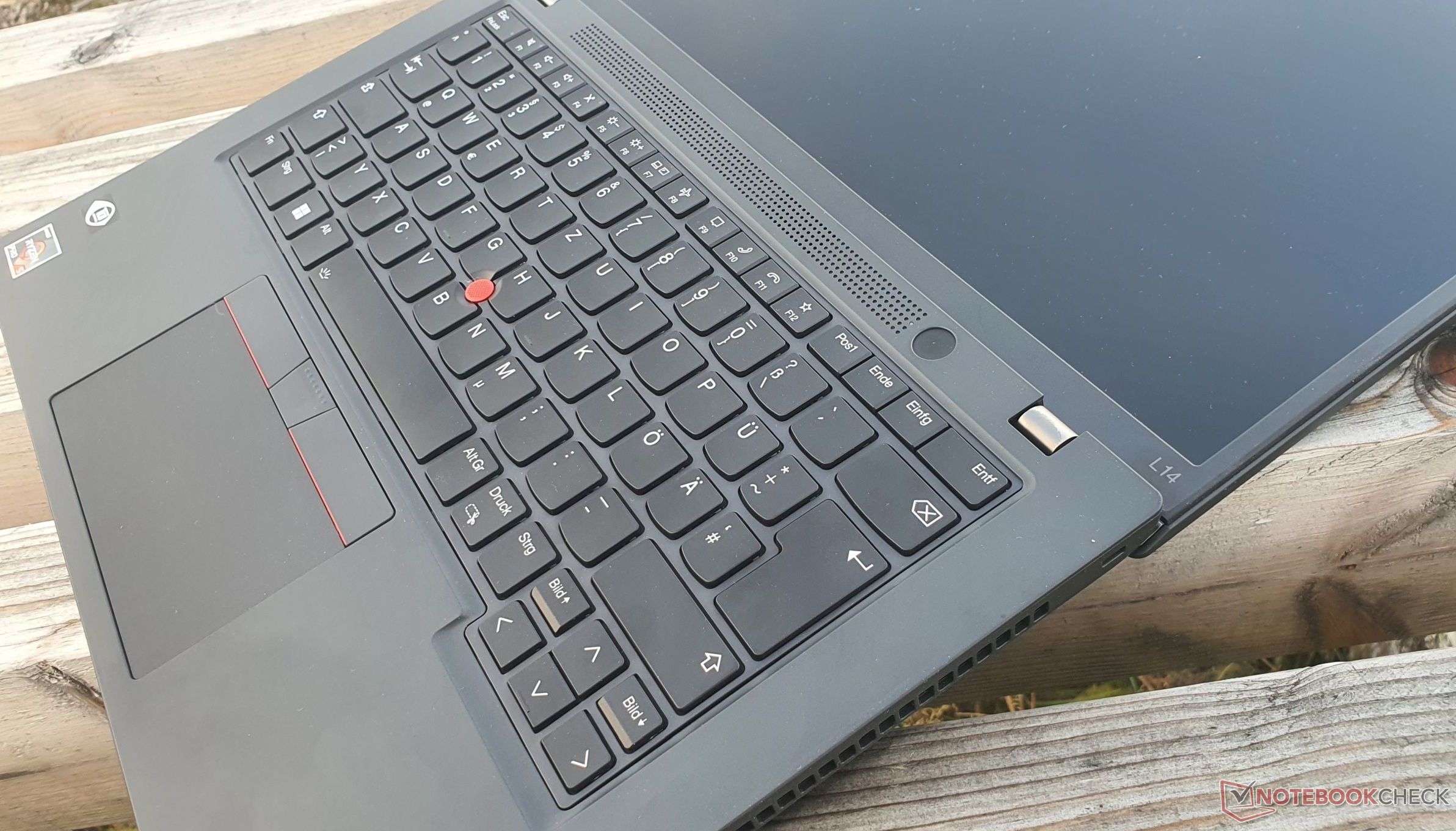

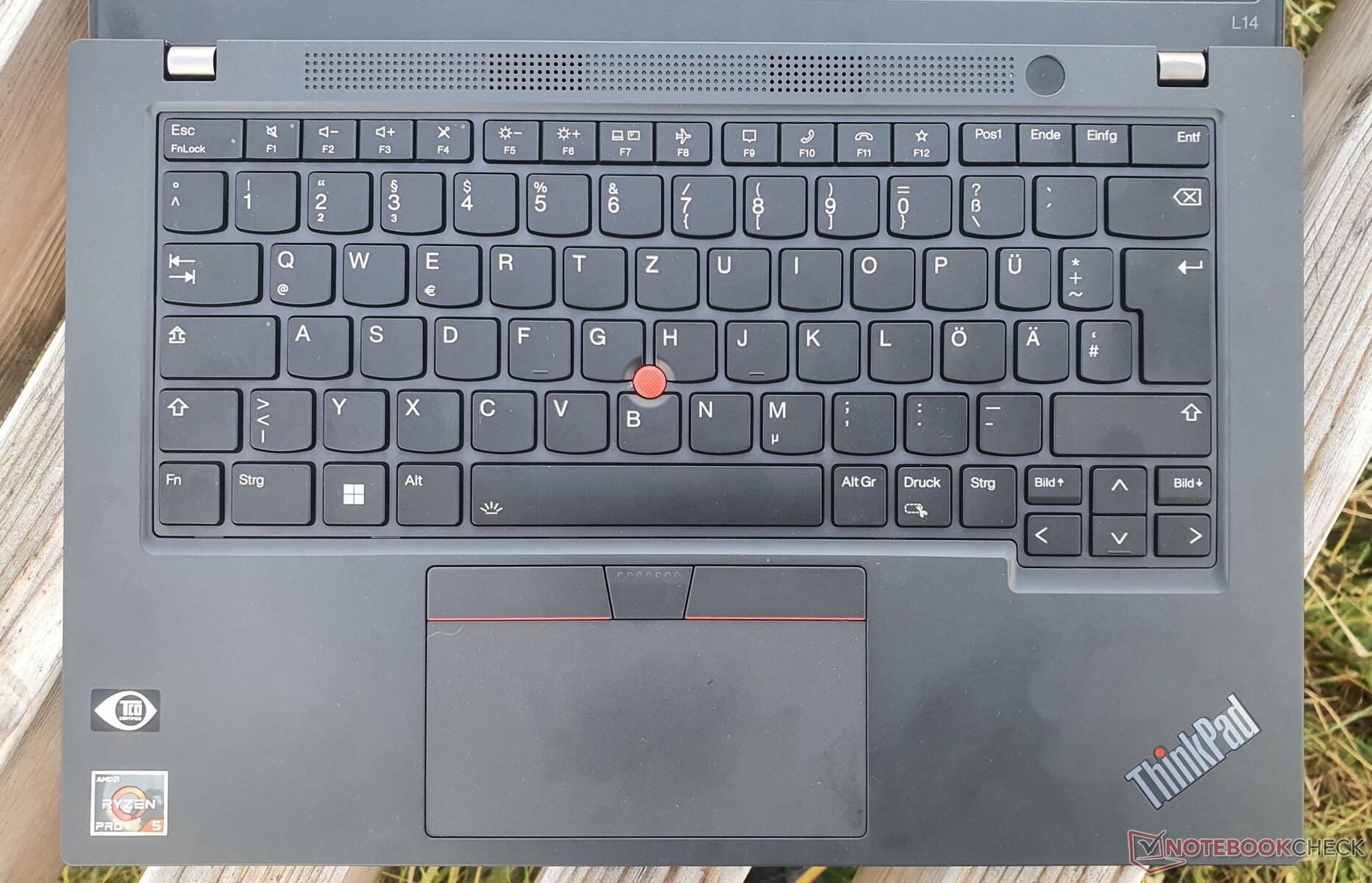

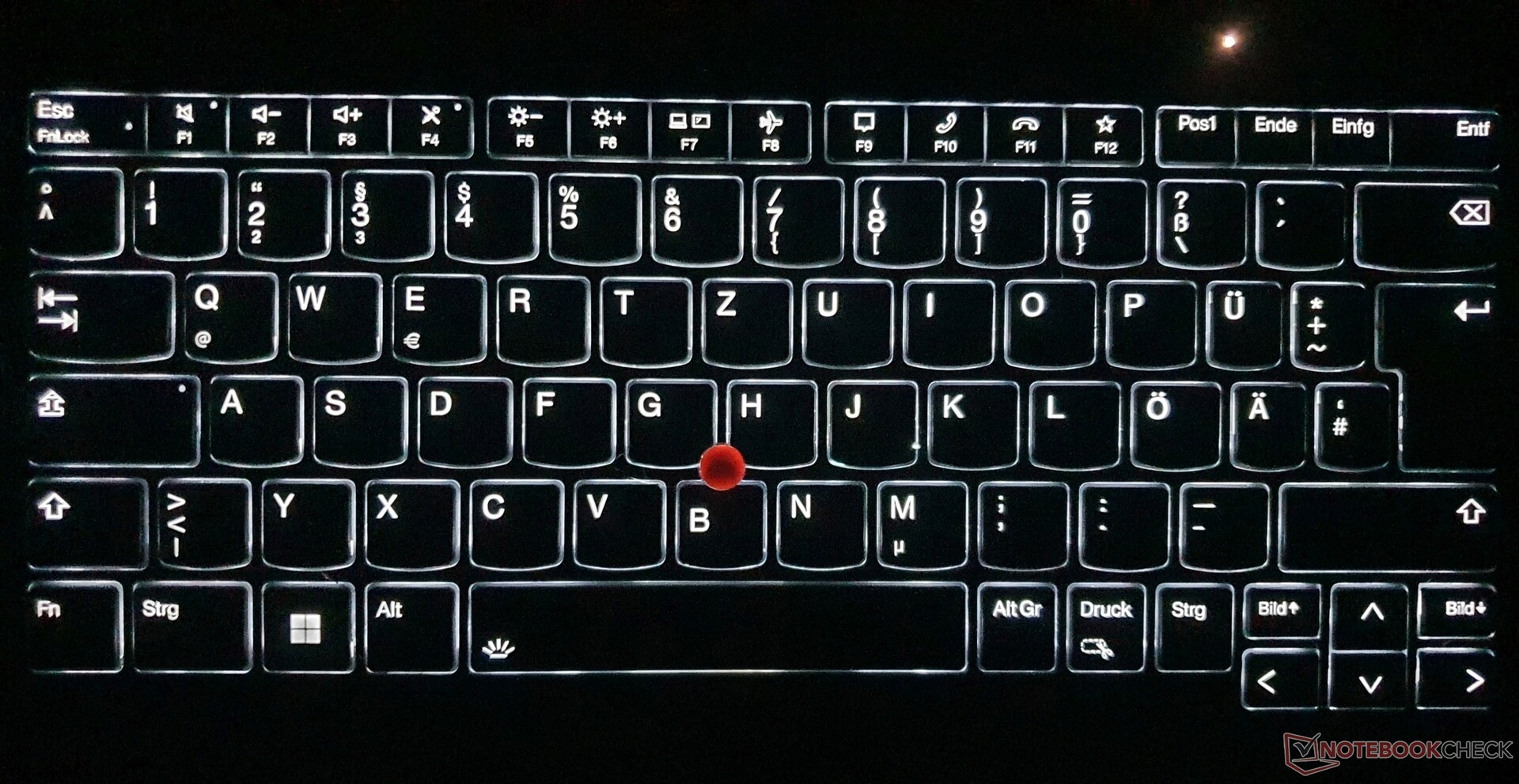

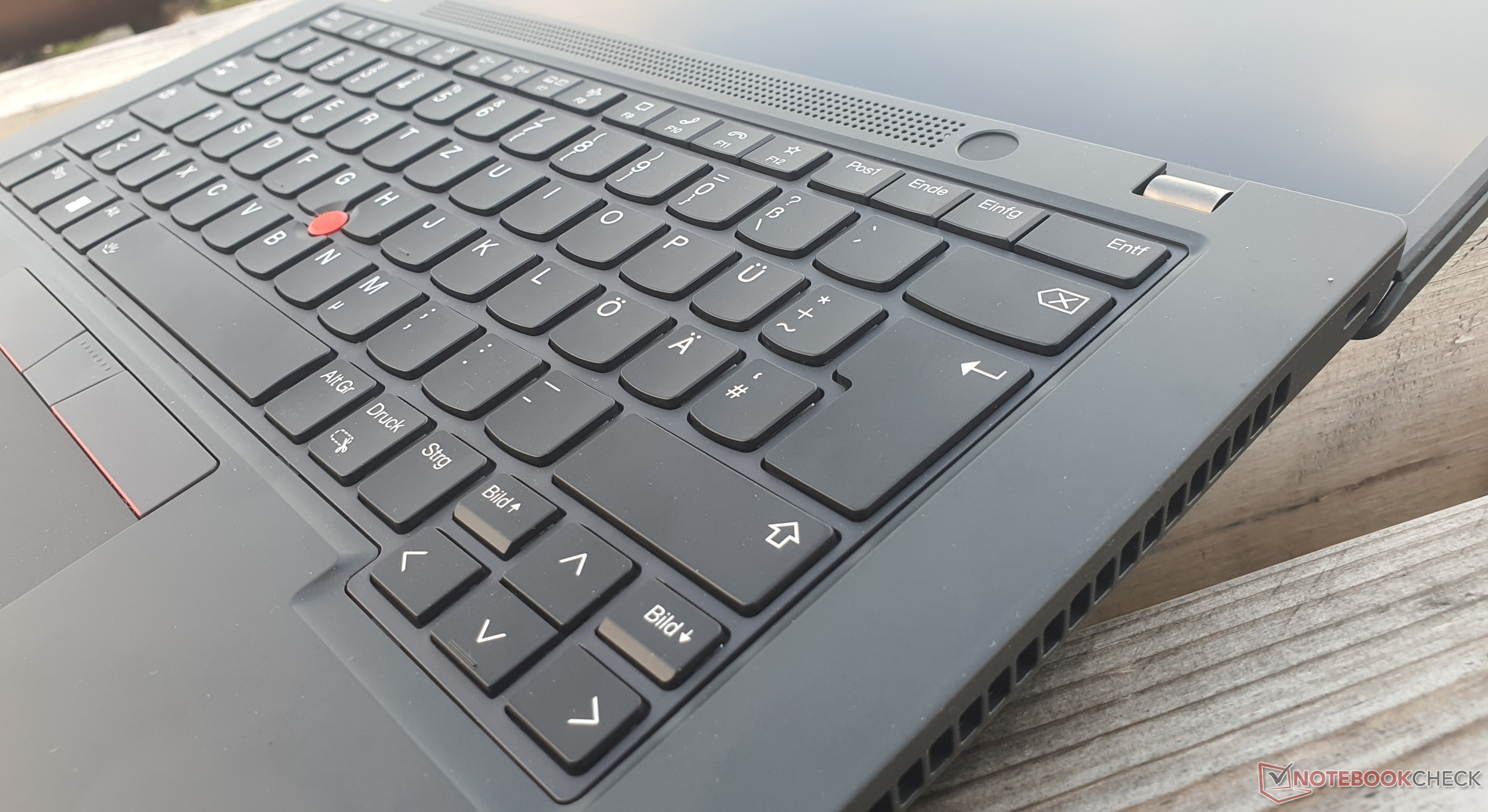

键盘
从第一代开始，ThinkPad L14的键程就比较短，为1.5毫米（0.06英寸）。这意味着如果你喜欢1.8毫米（0.07英寸）的键程，E系列仍然是唯一的选择。六排全宽键盘打字非常舒适、快速和安静。
联想在其ThinkPad上使用了来自不同供应商的键盘；我们评测单元上的键盘是由Sunrex制造的，感觉没有我们的ThinkPad T16上的键盘那么清晰。 键盘，感觉不如我们的ThinkPad T16评测样本上的键盘感觉更清晰。由于缺乏镁质框架，键盘在被刻意压下时表现出明显的弯曲。在打字时，你只会注意到数字键6至9和向下箭头键有一些弯曲。所有重要的特殊功能键都是专用的。

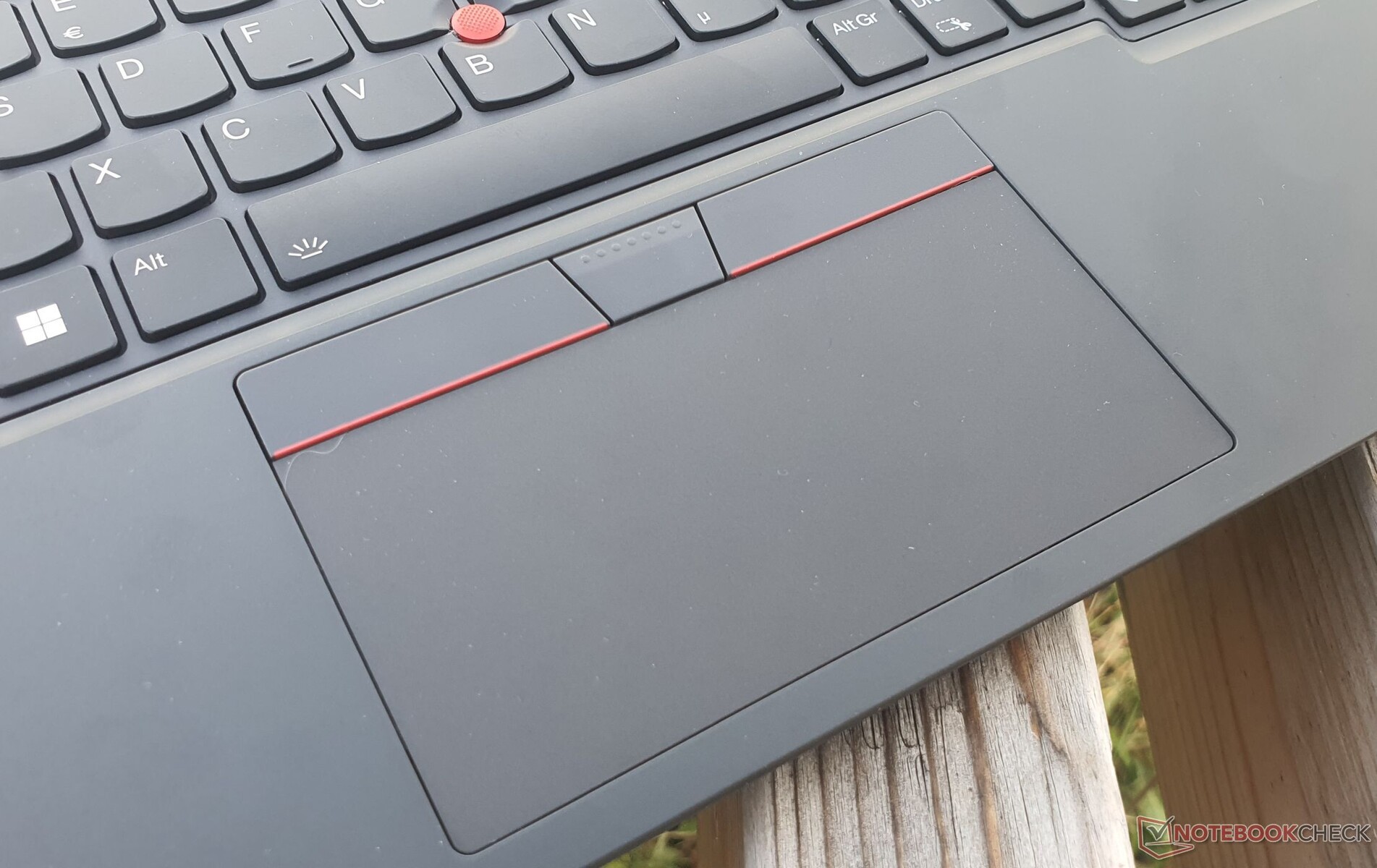

触摸板和跟踪点
触摸板现在宽了15%，但短了同样的百分比，尺寸为11.5×5.5厘米（4.53×2.17英寸）。略显粗糙的Mylar表面并不像目前T系列机型那样光滑。但它的使用感觉仍然很好。触摸板反应灵敏、精确，能够毫无延迟地识别普通手势。集成按钮的点击深度很低，但按起来感觉很沉闷。
键盘中间的红色TrackPoint像预期的那样工作，让你在屏幕上快速而精确地移动鼠标光标。下面的三个TrackPoint按钮现在是完全平的。尽管如此，它们仍然提供了一个明显而准确的点击。
可选的低功耗显示器能够达到400尼特

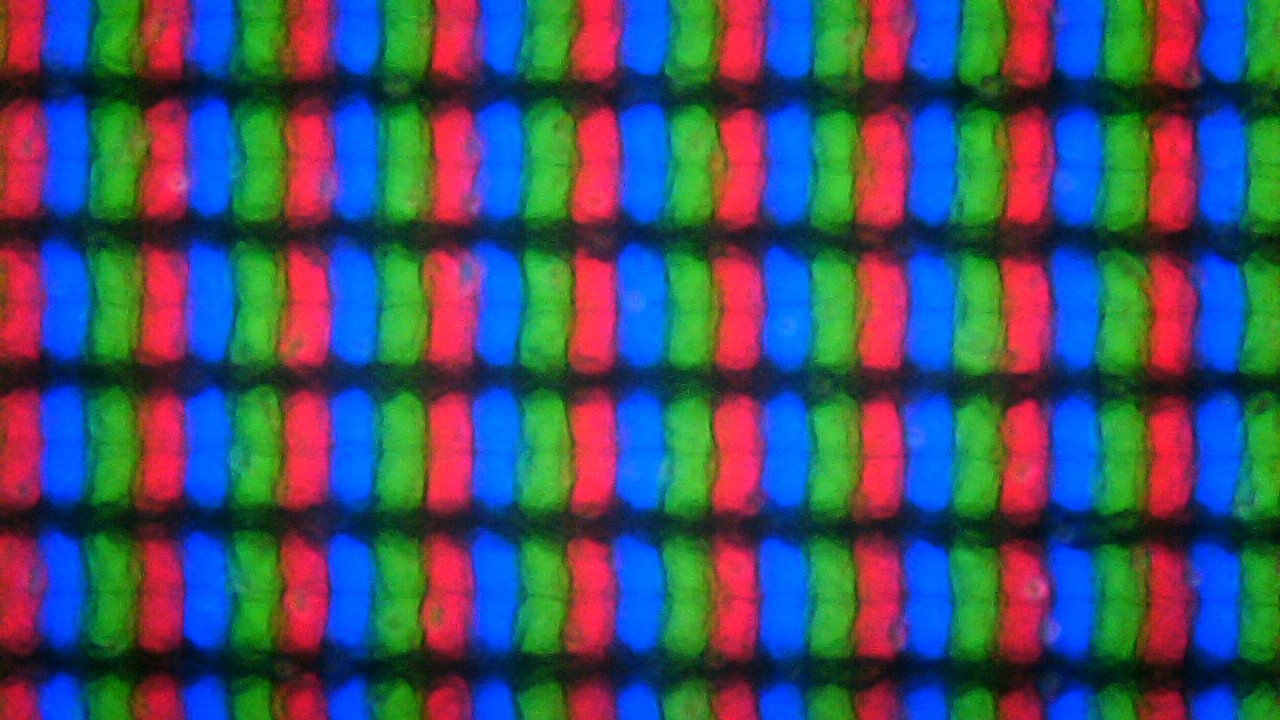

我们的评测单元配备了一个哑光的全高清IPS显示屏（1,920 × 1,080），长宽比为16:9，尽管ThinkPad L13已经跳到了16:10的显示屏。在这个分辨率下，屏幕看起来足够锐利，并且由于其1219:1的巨大对比度和0.24尼特的低黑度，能够产生相对饱和的黑色。在7,071K时，白点并没有完全达到6500K的最佳值。

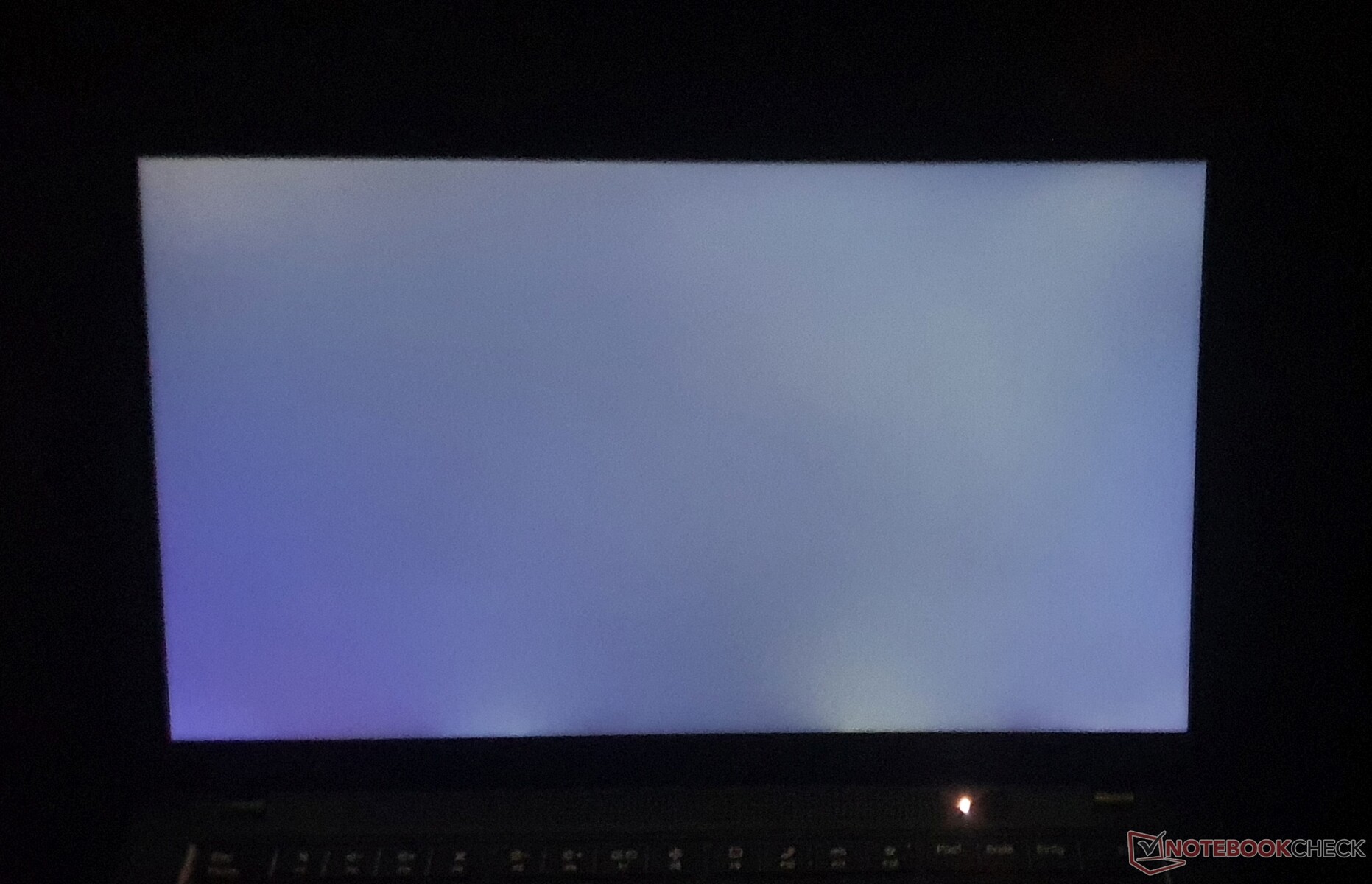

该屏幕的峰值亮度较低，为282尼特。如果可能的话，你应该选择低功耗显示选项，因为400尼特的亮度更高，因此对户外使用更实用。我们没有检测到任何PWM闪烁的情况。除了 IdeaPad 5 Pro 14和 ThinkPad T14 G3之外，比较中的所有其他设备都有类似的性能水平。
有以下显示选项（均为哑光）。
1,366x768（高清），220尼特，45%NTSC，TN1
,920×1,080（全高清），250尼特，45%NTSC，IPS
1,920×1,080（全高清），300尼特，45%NTSC，IPS，触摸支持1
,920×1,080（全高清），400尼特，100%sRGB，IPS，低功率
| |||||||||||||||||||||||||
Brightness Distribution: 91 %
Center on Battery: 292 cd/m²
Contrast: 1217:1 (Black: 0.24 cd/m²)
ΔE Color 5.8 | 0.5-29.43 Ø4.92, calibrated: 4.5
ΔE Greyscale 3.7 | 0.5-98 Ø5.2

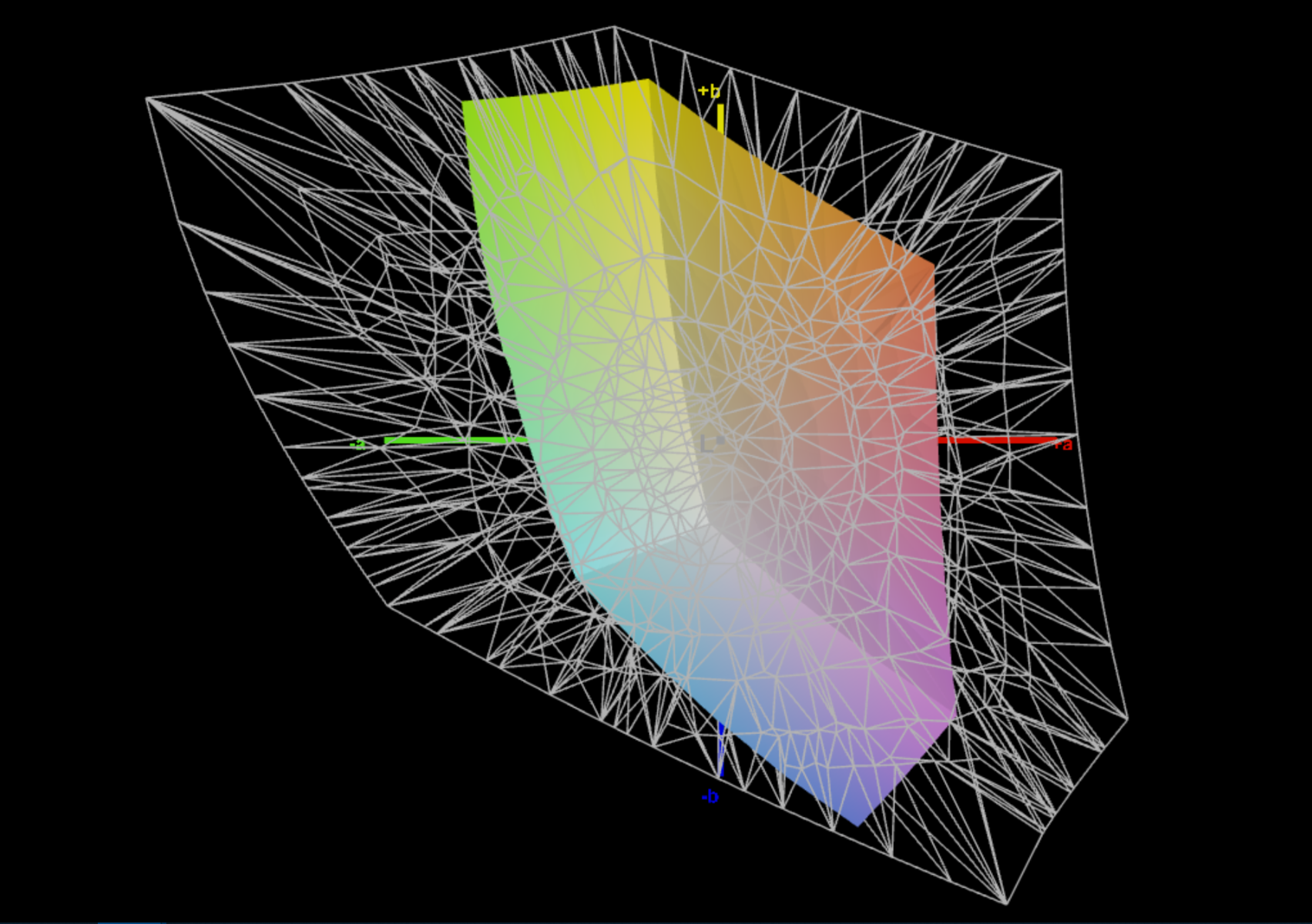

42.7% AdobeRGB 1998 (Argyll 2.2.0 3D)
60.8% sRGB (Argyll 2.2.0 3D)
41.4% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.07
| Lenovo ThinkPad L14 G3 21C50030GE BOE NV140FHM-N4U, IPS, 1920x1080, 14" | Lenovo ThinkPad L14 G2 AMD B140HAN04.0, IPS LED, 1920x1080, 14" | Lenovo ThinkPad T14 G3-21CF004NGE LP140WU1-SPB2, IPS, 1920x1200, 14" | Lenovo ThinkPad E14 G3-20Y7003SGE NVM140FHM-N4V, IPS, 1920x1080, 14" | Lenovo ThinkBook 14 G4 21DK0004GE LENOVO LEN140FHD, IPS, 1920x1080, 14" | Lenovo IdeaPad 5 Pro 14ACN6 LEN140WUXGA+, IPS, 2240x1400, 14" | HP ProBook 445 G8-3Z6Q8ES AUO559C, IPS LED, 1920x1080, 14" | Dell Latitude 14 5420-D2G5W AUO5491 / B140HAN, IPS, 1920x1080, 14" | |
|---|---|---|---|---|---|---|---|---|
| Display | -8% | 65% | -2% | 2% | 71% | -10% | -12% | |
| Display P3 Coverage | 41.4 | 37.5 -9% | 69.2 67% | 40.3 -3% | 42.2 2% | 72.2 74% | 36.9 -11% | 36 -13% |
| sRGB Coverage | 60.8 | 56.3 -7% | 97.4 60% | 59.5 -2% | 62.9 3% | 99.5 64% | 55.5 -9% | 54 -11% |
| AdobeRGB 1998 Coverage | 42.7 | 38.7 -9% | 71.5 67% | 41.7 -2% | 43.6 2% | 74.3 74% | 38.2 -11% | 37 -13% |
| Response Times | -135% | -103% | -106% | -83% | -211% | -153% | -145% | |
| Response Time Grey 50% / Grey 80% * | 25 ? | 36 ? -44% | 41.4 ? -66% | 35.2 ? -41% | 29 ? -16% | 45.2 ? -81% | 39 ? -56% | 41 ? -64% |
| Response Time Black / White * | 8 ? | 26 ? -225% | 19.2 ? -140% | 21.6 ? -170% | 20 ? -150% | 35.2 ? -340% | 28 ? -250% | 26 ? -225% |
| PWM Frequency | ||||||||
| Screen | -13% | 46% | 10% | -16% | 24% | 0% | 8% | |
| Brightness middle | 292 | 278 -5% | 451 54% | 341 17% | 306 5% | 310.6 6% | 304 4% | 290 -1% |
| Brightness | 282 | 255 -10% | 435 54% | 327 16% | 283 0% | 302 7% | 270 -4% | 282 0% |
| Brightness Distribution | 91 | 86 -5% | 94 3% | 90 -1% | 85 -7% | 92 1% | 83 -9% | 81 -11% |
| Black Level * | 0.24 | 0.33 -38% | 0.21 12% | 0.26 -8% | 0.38 -58% | 0.22 8% | 0.25 -4% | 0.26 -8% |
| Contrast | 1217 | 842 -31% | 2148 76% | 1312 8% | 805 -34% | 1412 16% | 1216 0% | 1115 -8% |
| Colorchecker dE 2000 * | 5.8 | 5.9 -2% | 2.4 59% | 5.1 12% | 6 -3% | 2.67 54% | 6.78 -17% | 4.65 20% |
| Colorchecker dE 2000 max. * | 18.1 | 20.2 -12% | 4.1 77% | 17.6 3% | 20.5 -13% | 4.54 75% | 17.59 3% | 7.5 59% |
| Colorchecker dE 2000 calibrated * | 4.5 | 4.5 -0% | 1.3 71% | 4.4 2% | 4.5 -0% | 2.33 48% | 4.69 -4% | 3.98 12% |
| Greyscale dE 2000 * | 3.7 | 4.1 -11% | 3.3 11% | 2.1 43% | 5.1 -38% | 3.7 -0% | 2.43 34% | 3.22 13% |
| Gamma | 2.07 106% | 2.15 102% | 2.13 103% | 2.11 104% | 2.13 103% | 2.12 104% | 2.43 91% | 2.54 87% |
| CCT | 7071 92% | 7224 90% | 6848 95% | 6755 96% | 6264 104% | 6398 102% | 6759 96% | 6169 105% |
| Total Average (Program / Settings) | -52% /
-29% | 3% /
29% | -33% /
-9% | -32% /
-22% | -39% /
0% | -54% /
-24% | -50% /
-18% |
* ... smaller is better

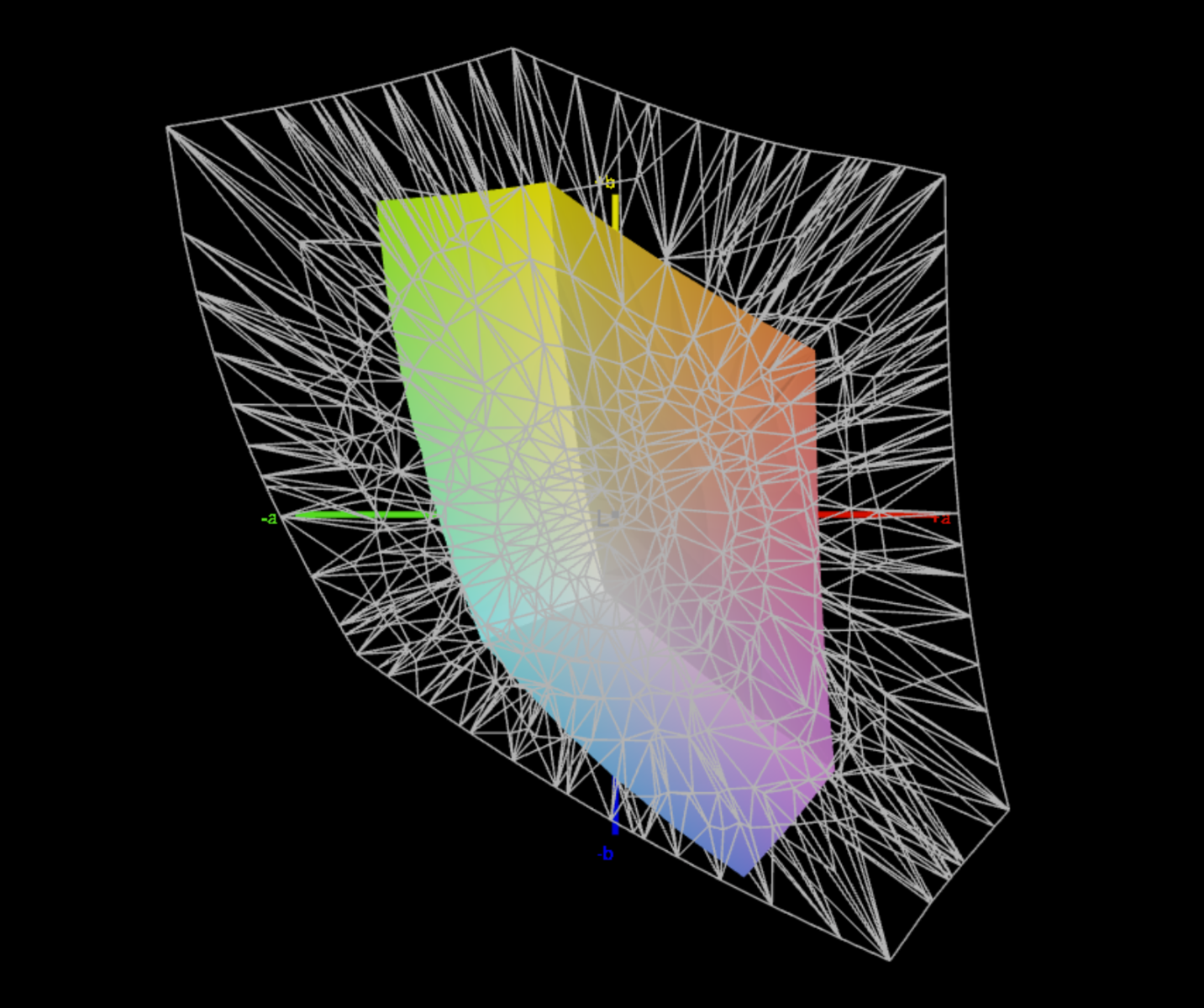

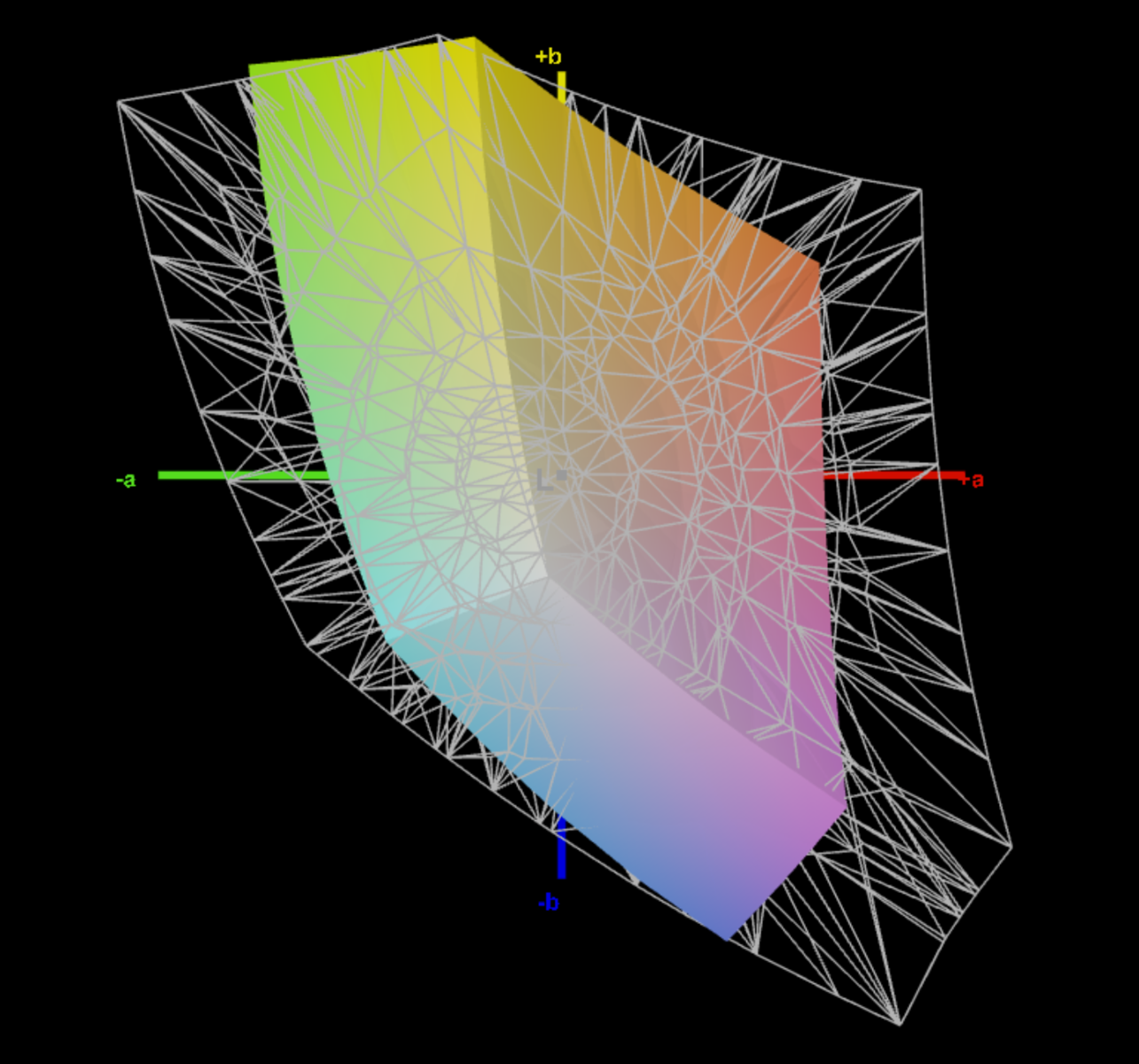

该显示器只覆盖了约61%的sRGB色彩空间，即使对于更随意的照片编辑也是不够的。

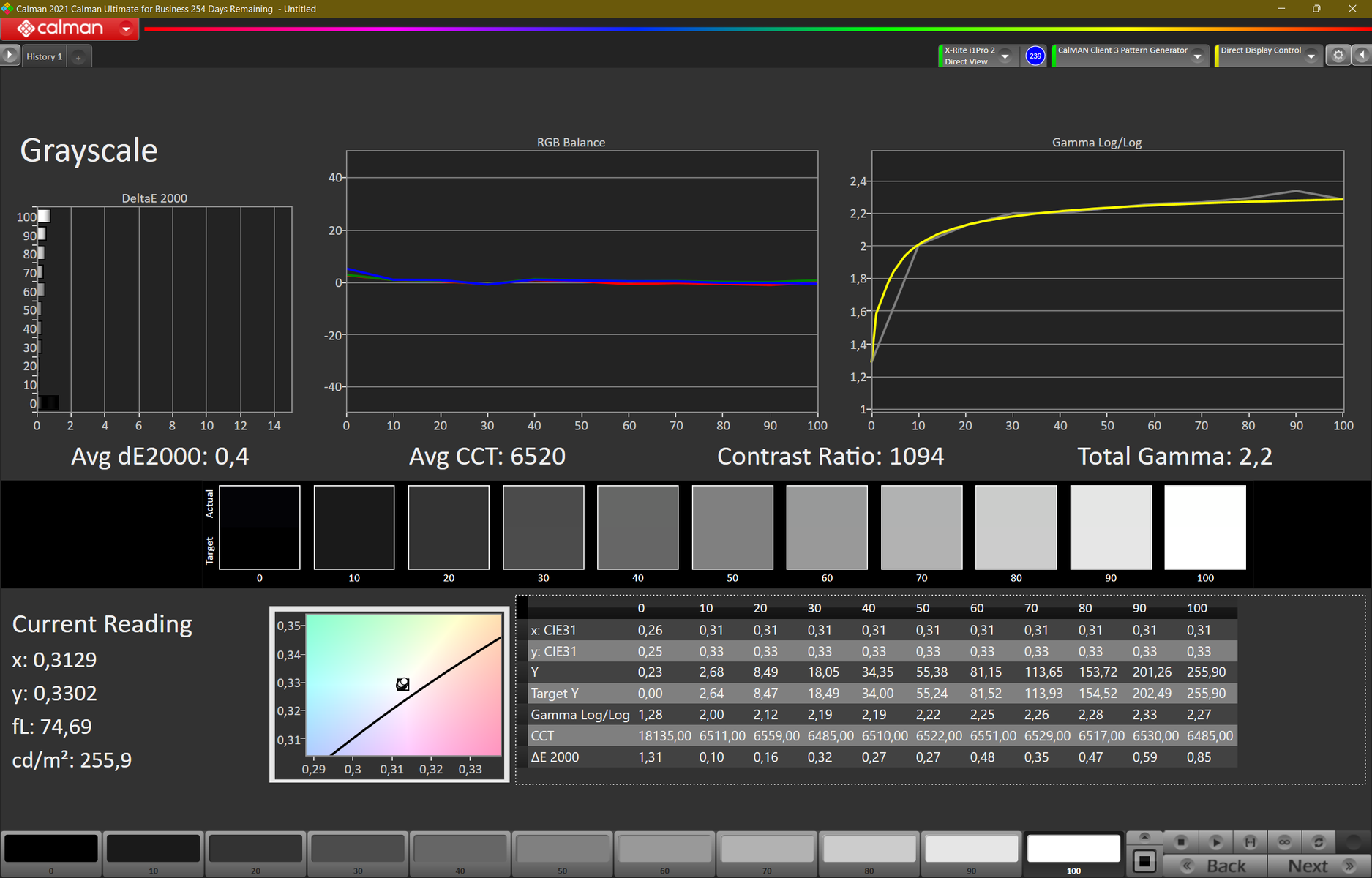

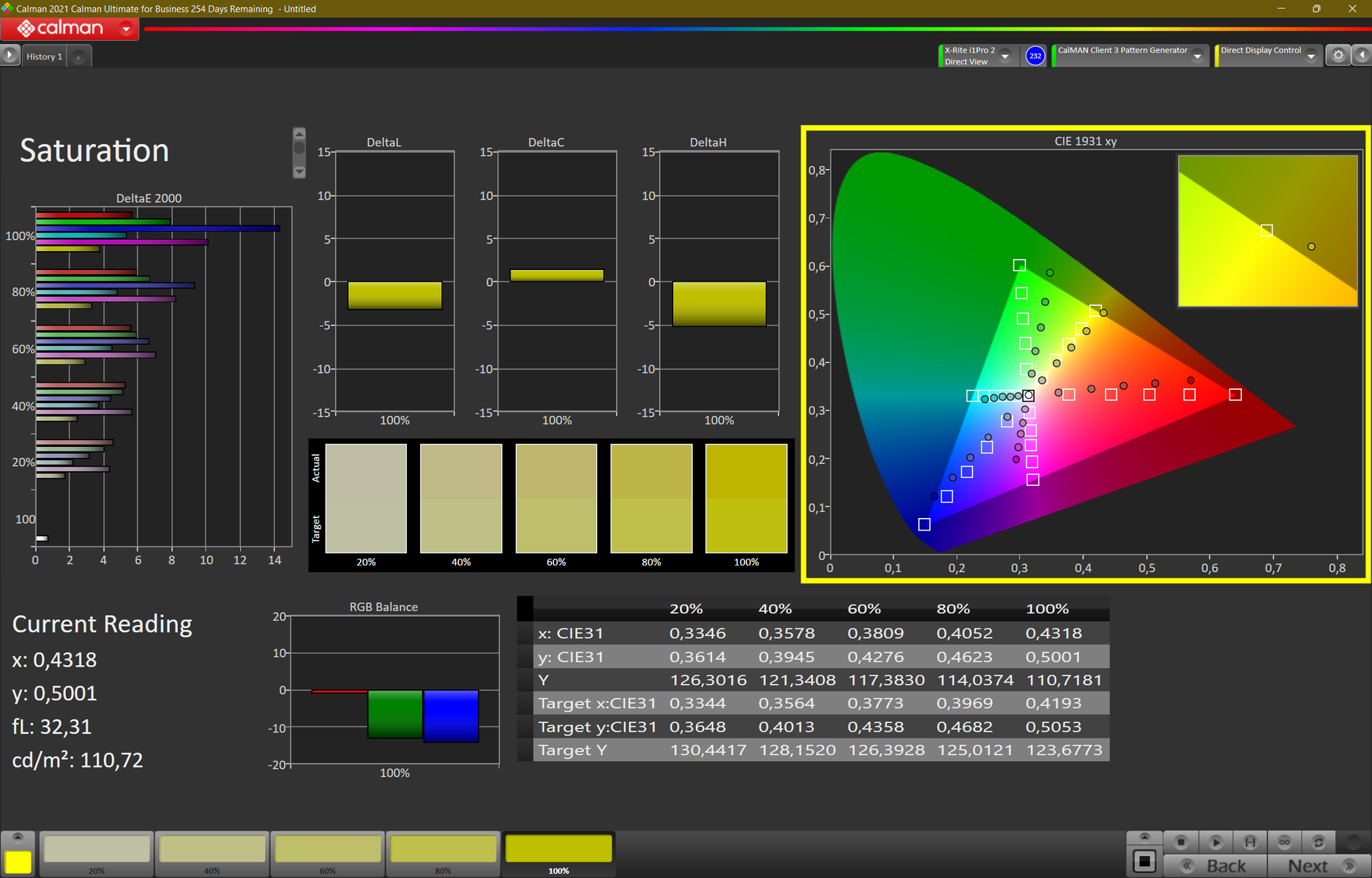

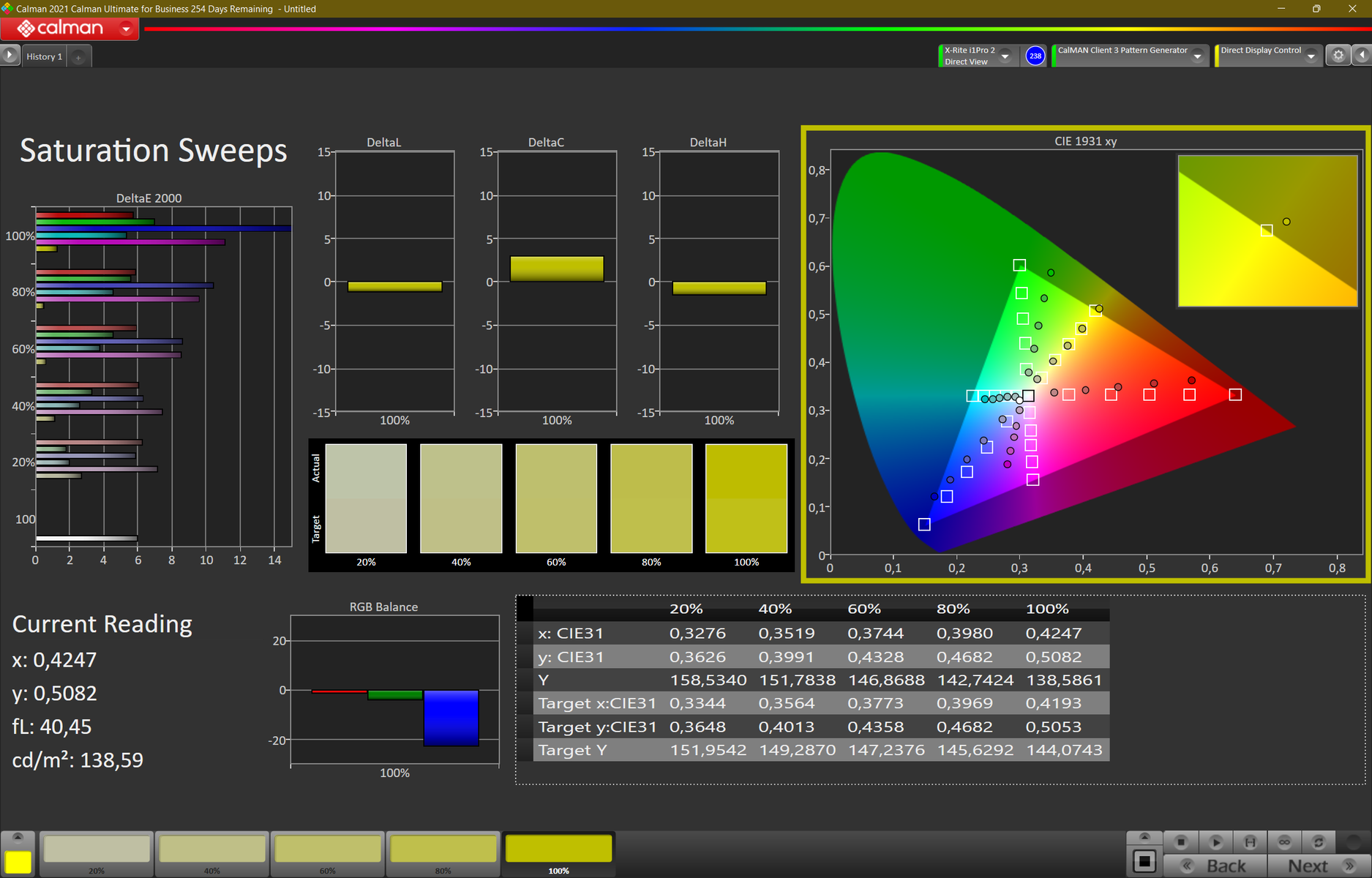

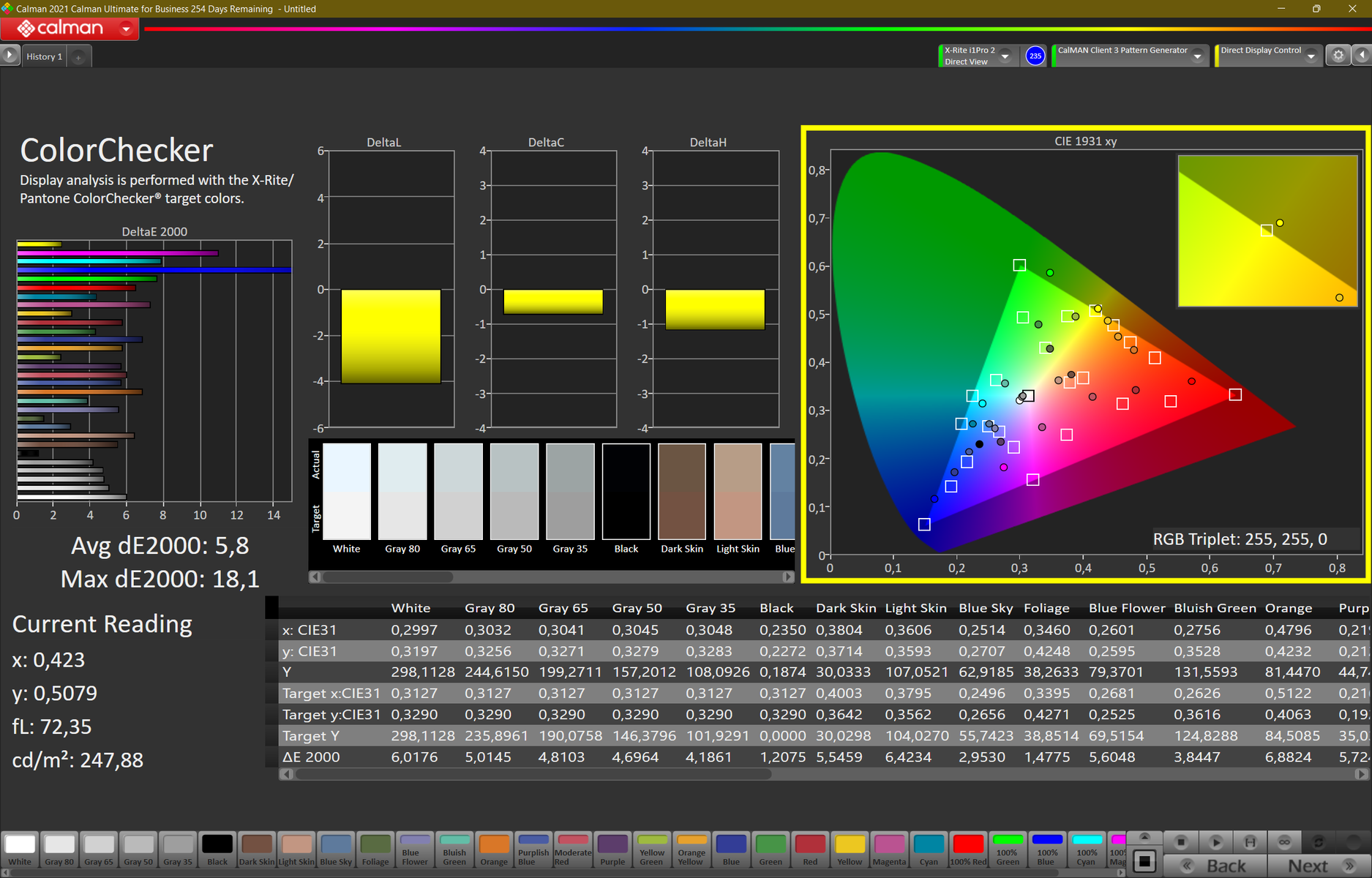

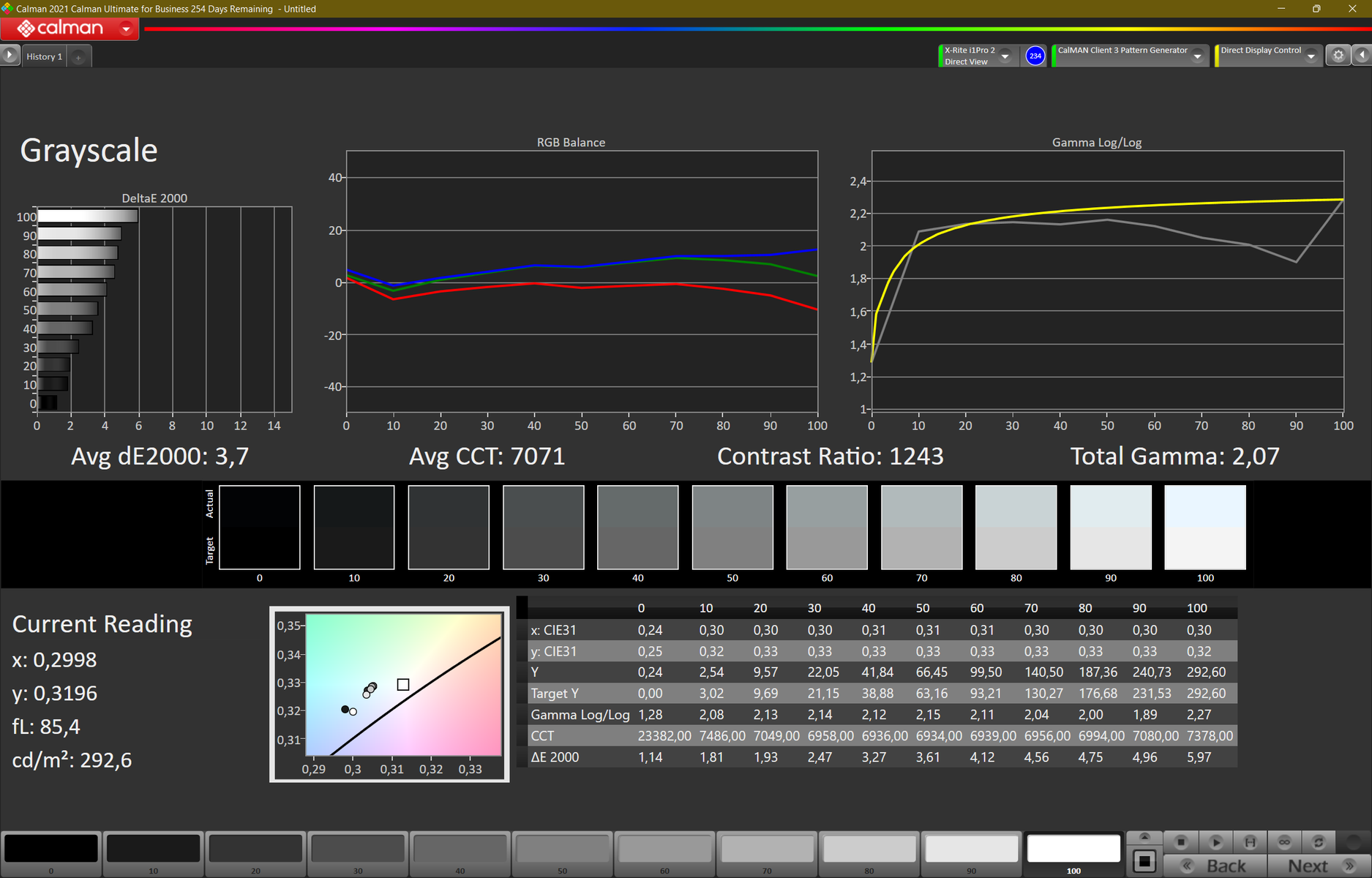

屏幕上的颜色明显偏离目标值。校准显示器并没有真正改善这种情况，但它至少消除了轻微的青色色调。像往常一样，你会发现在亮度分布图的右边有一个链接可以下载我们创建的颜色配置文件。

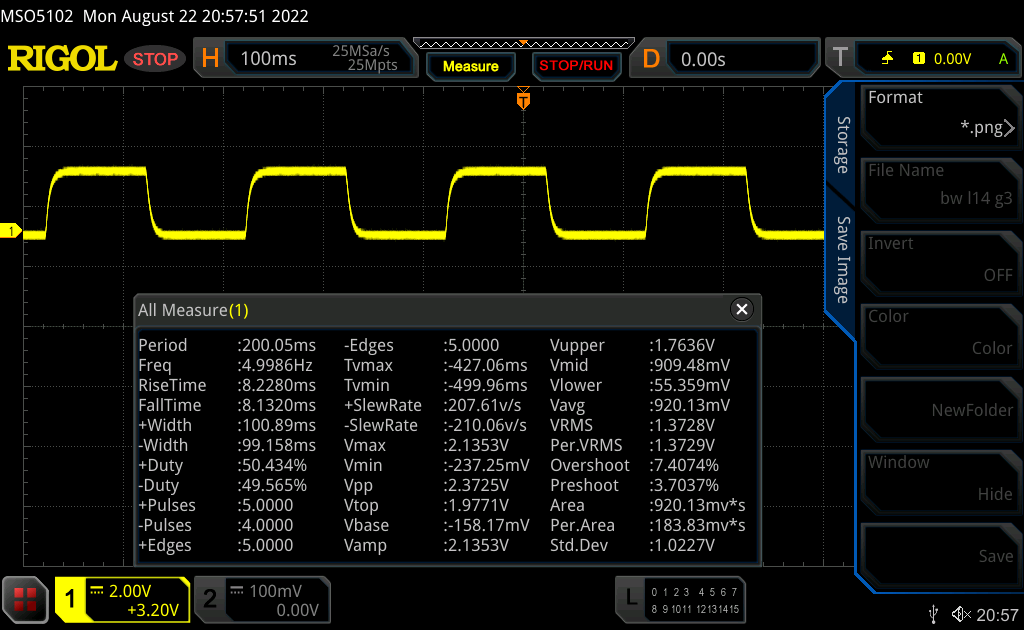

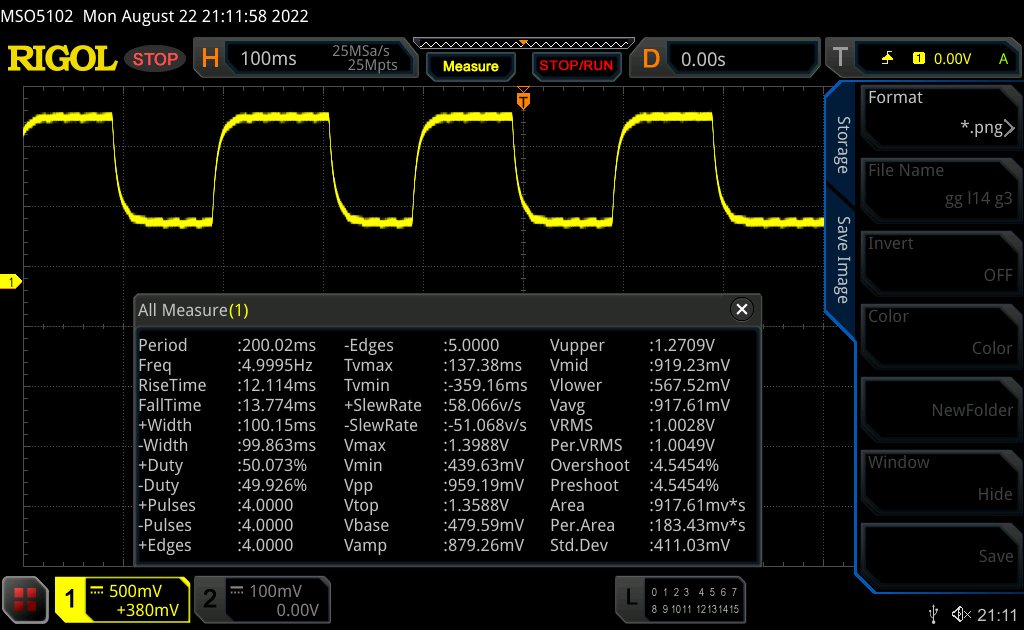

Display Response Times
| ↔ Response Time Black to White | ||
|---|---|---|
| 8 ms ... rise ↗ and fall ↘ combined | ↗ 8 ms rise |  |
| ↘ 8 ms fall | ||
| The screen shows fast response rates in our tests and should be suited for gaming. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 18 % of all devices are better. This means that the measured response time is better than the average of all tested devices (21 ms). | ||
| ↔ Response Time 50% Grey to 80% Grey | ||
| 25 ms ... rise ↗ and fall ↘ combined | ↗ 12 ms rise |  |
| ↘ 13 ms fall | ||
| The screen shows relatively slow response rates in our tests and may be too slow for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 31 % of all devices are better. This means that the measured response time is better than the average of all tested devices (32.9 ms). | ||

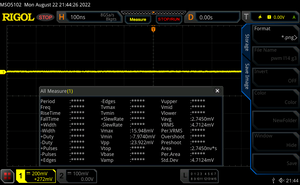

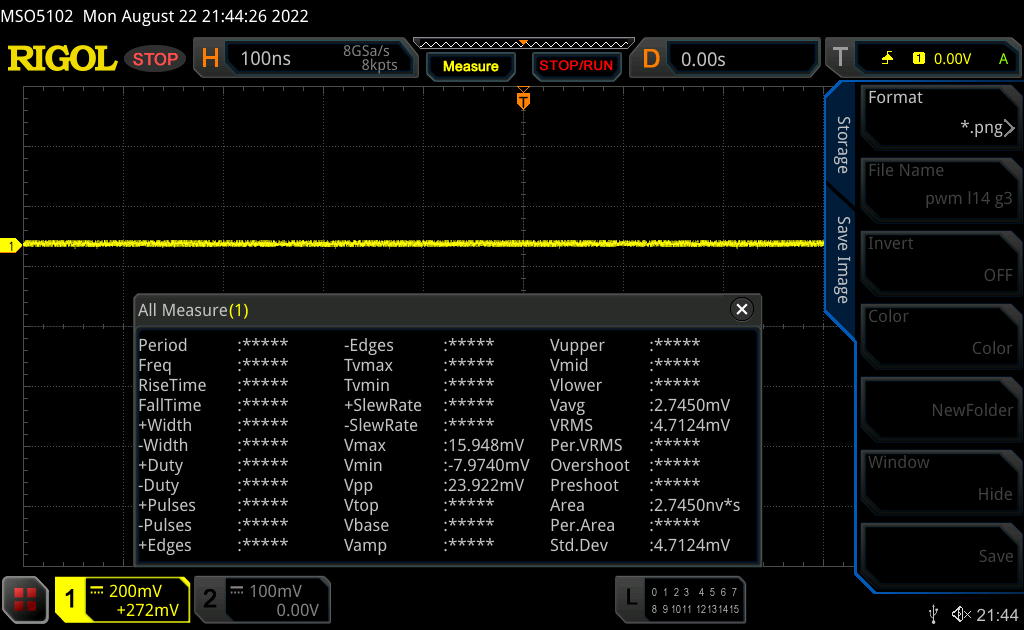

Screen Flickering / PWM (Pulse-Width Modulation)
| Screen flickering / PWM not detected |  | ||
In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8746 (minimum: 5 - maximum: 343500) Hz was measured. | |||

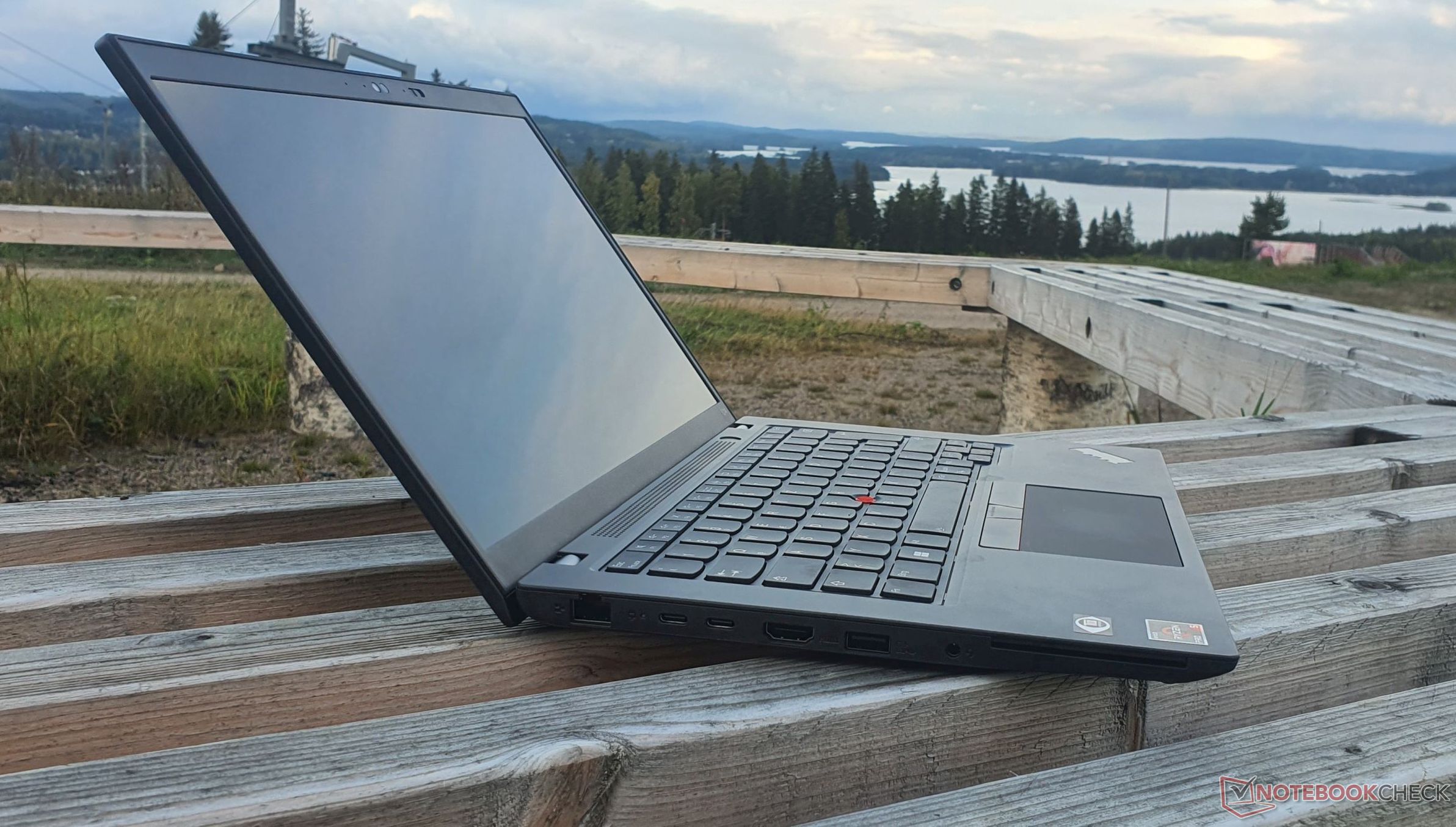

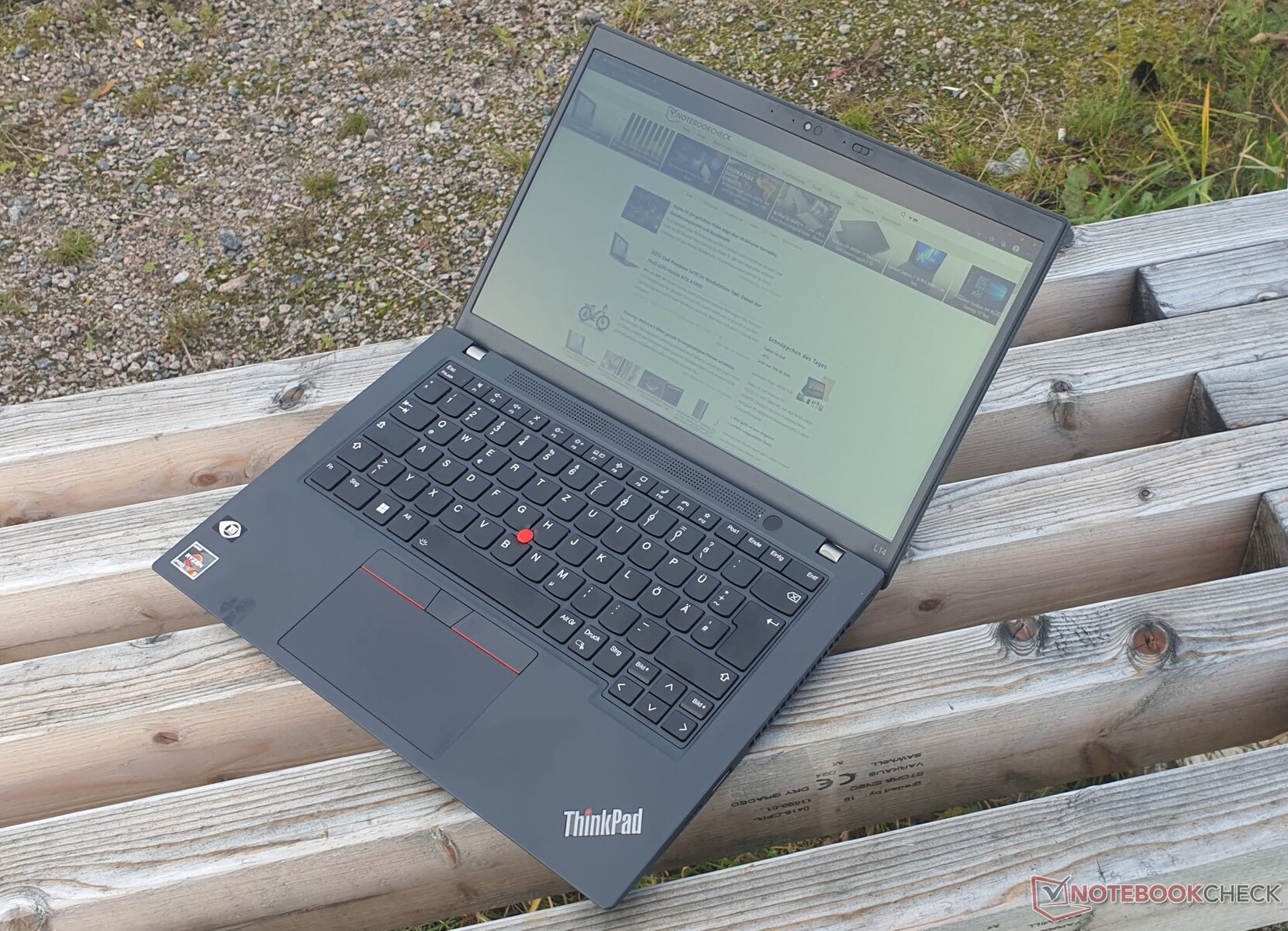

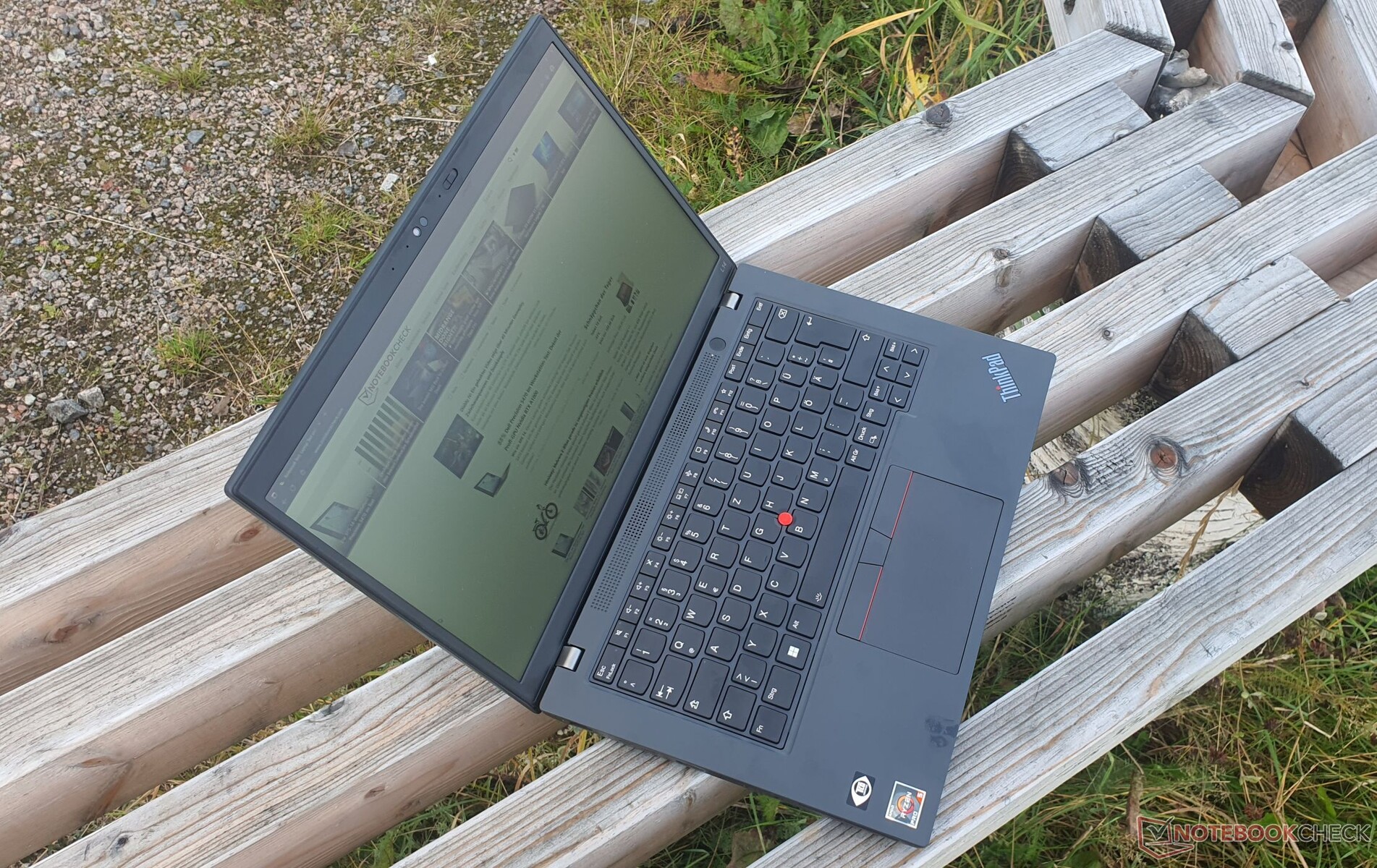

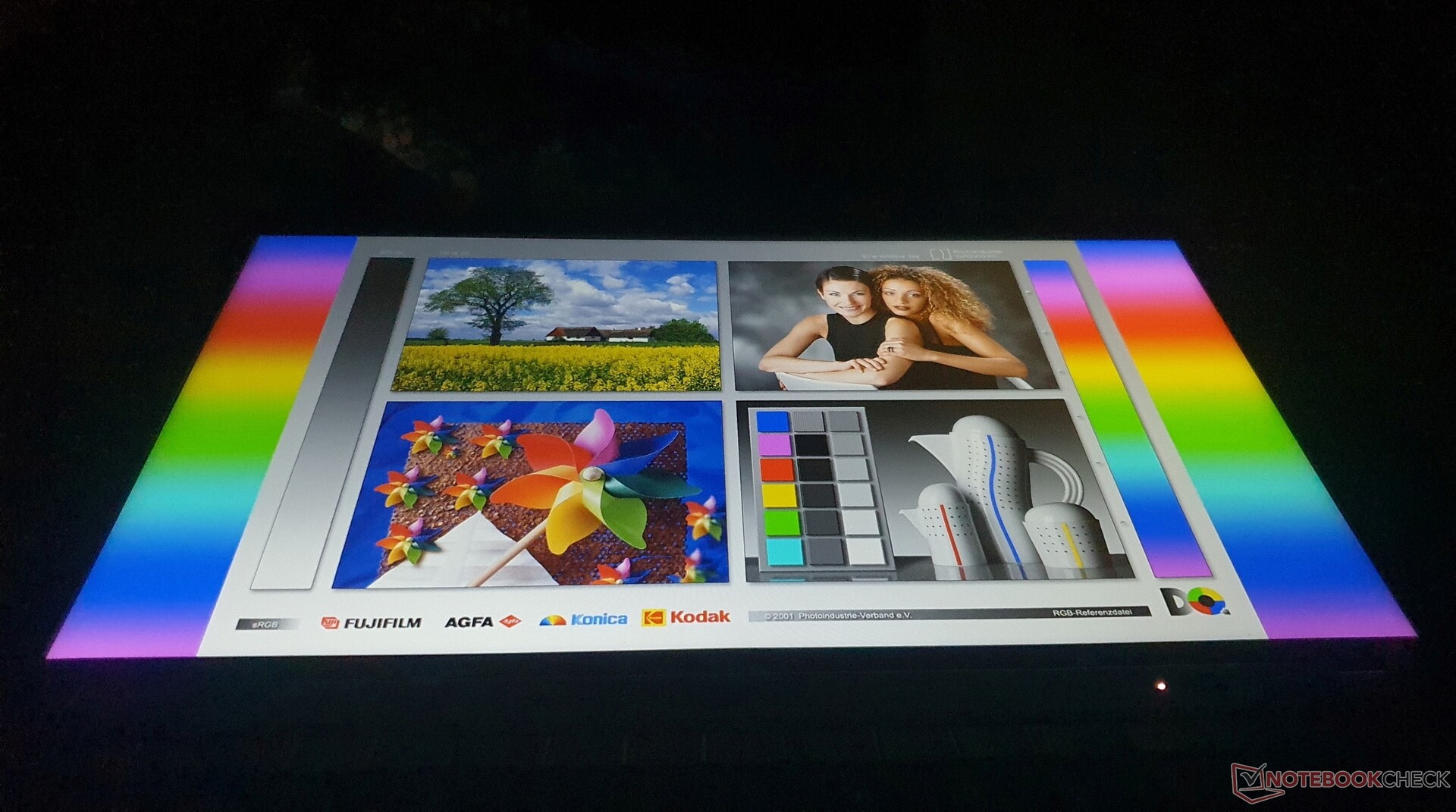

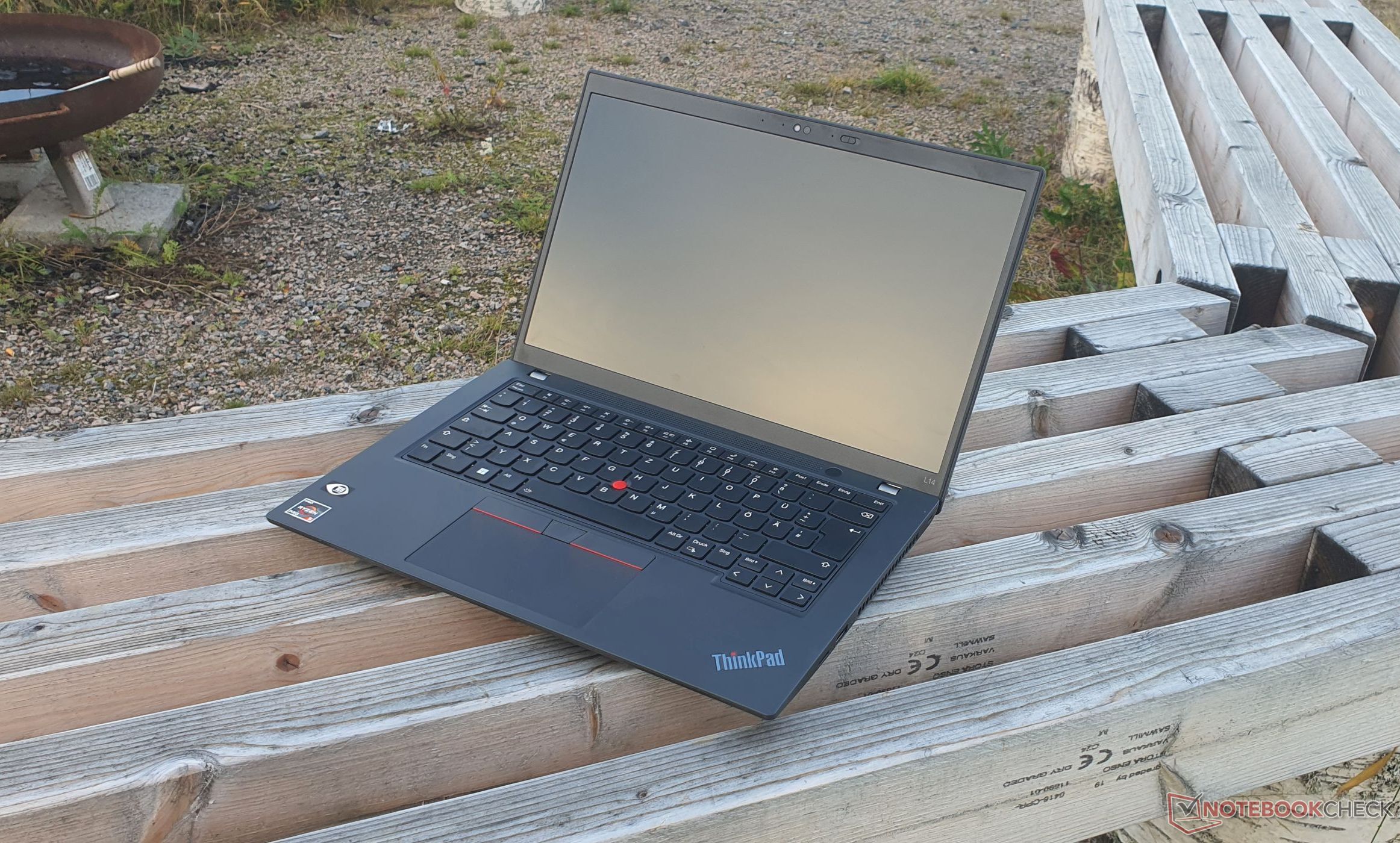

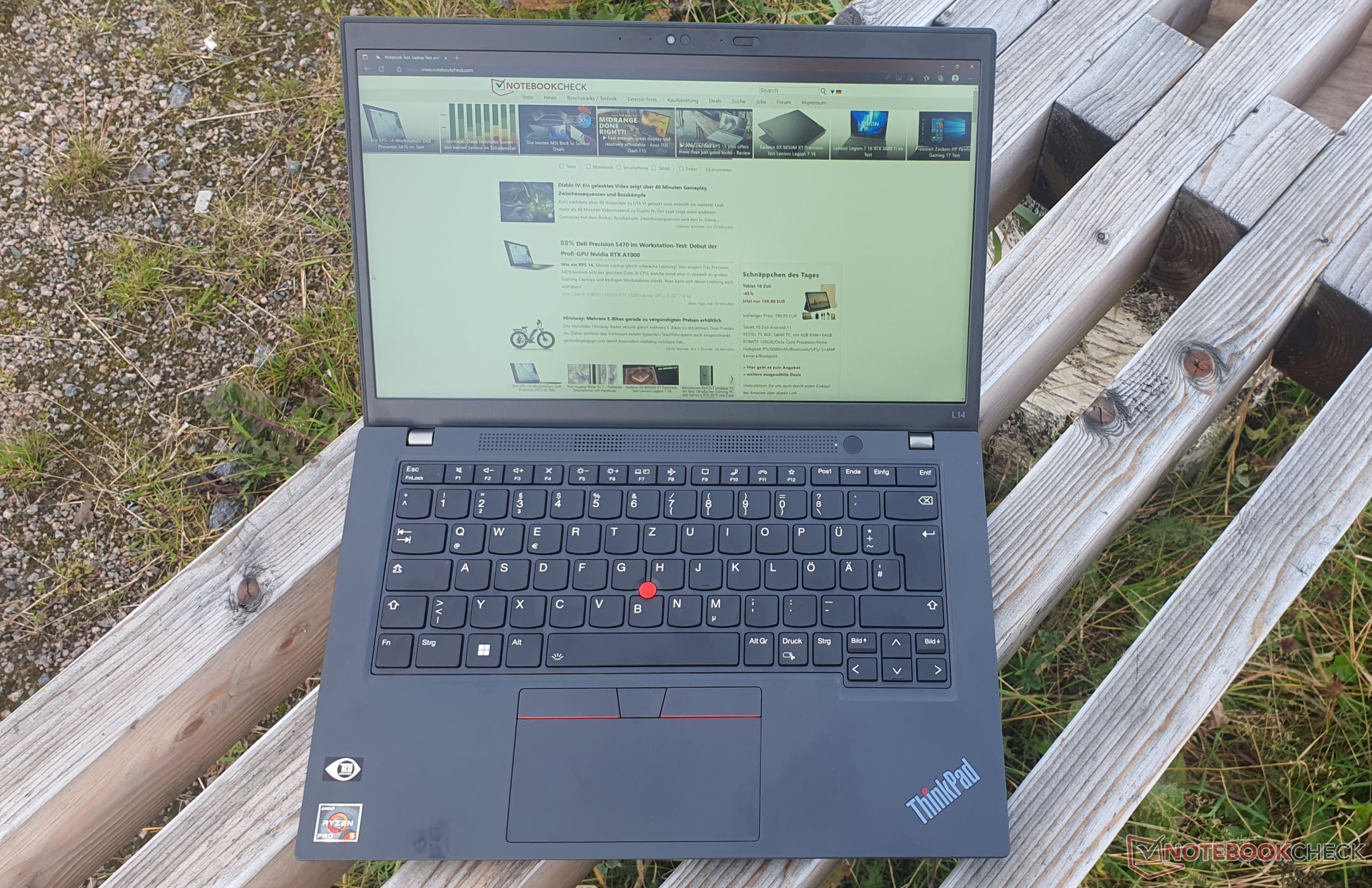

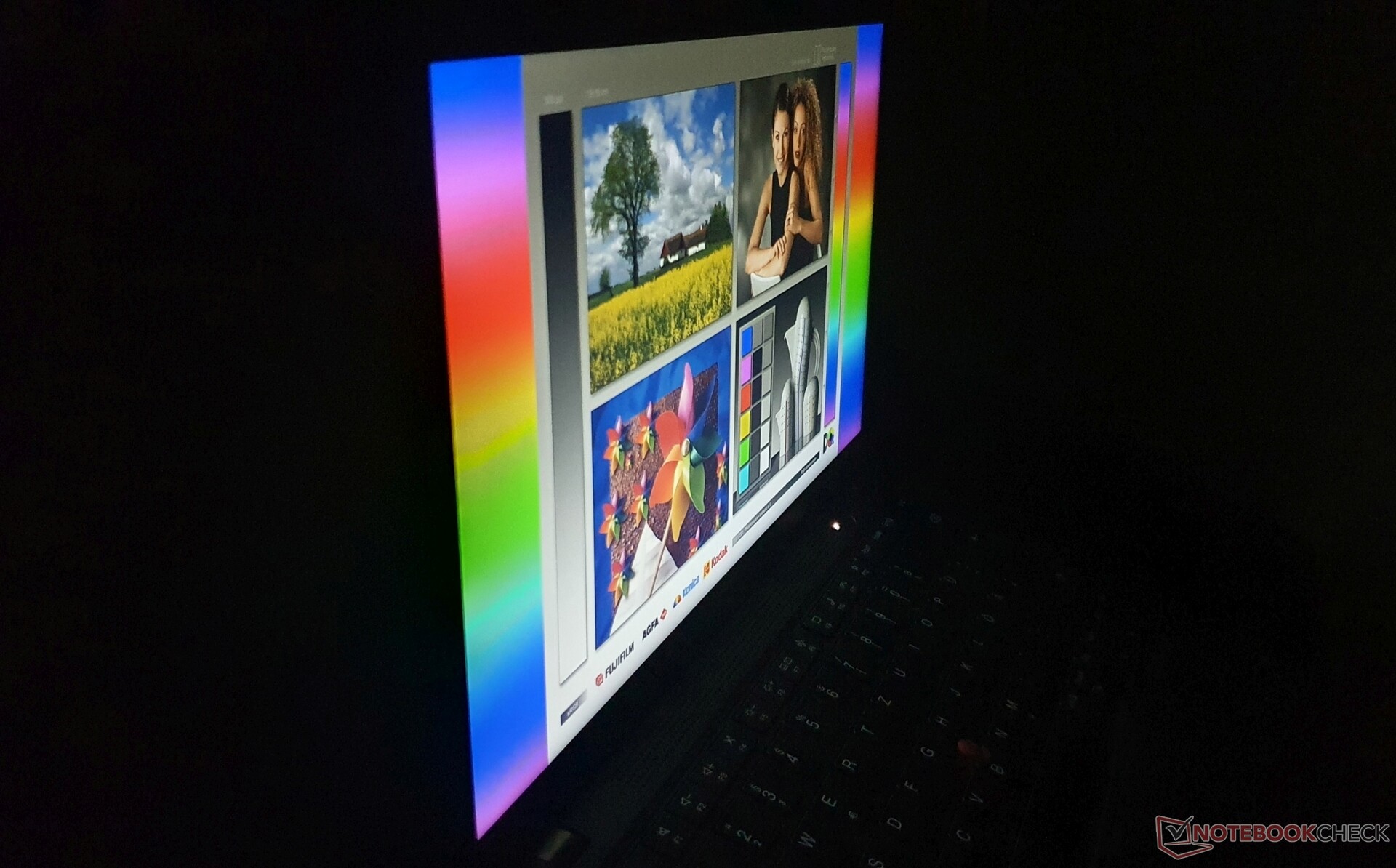

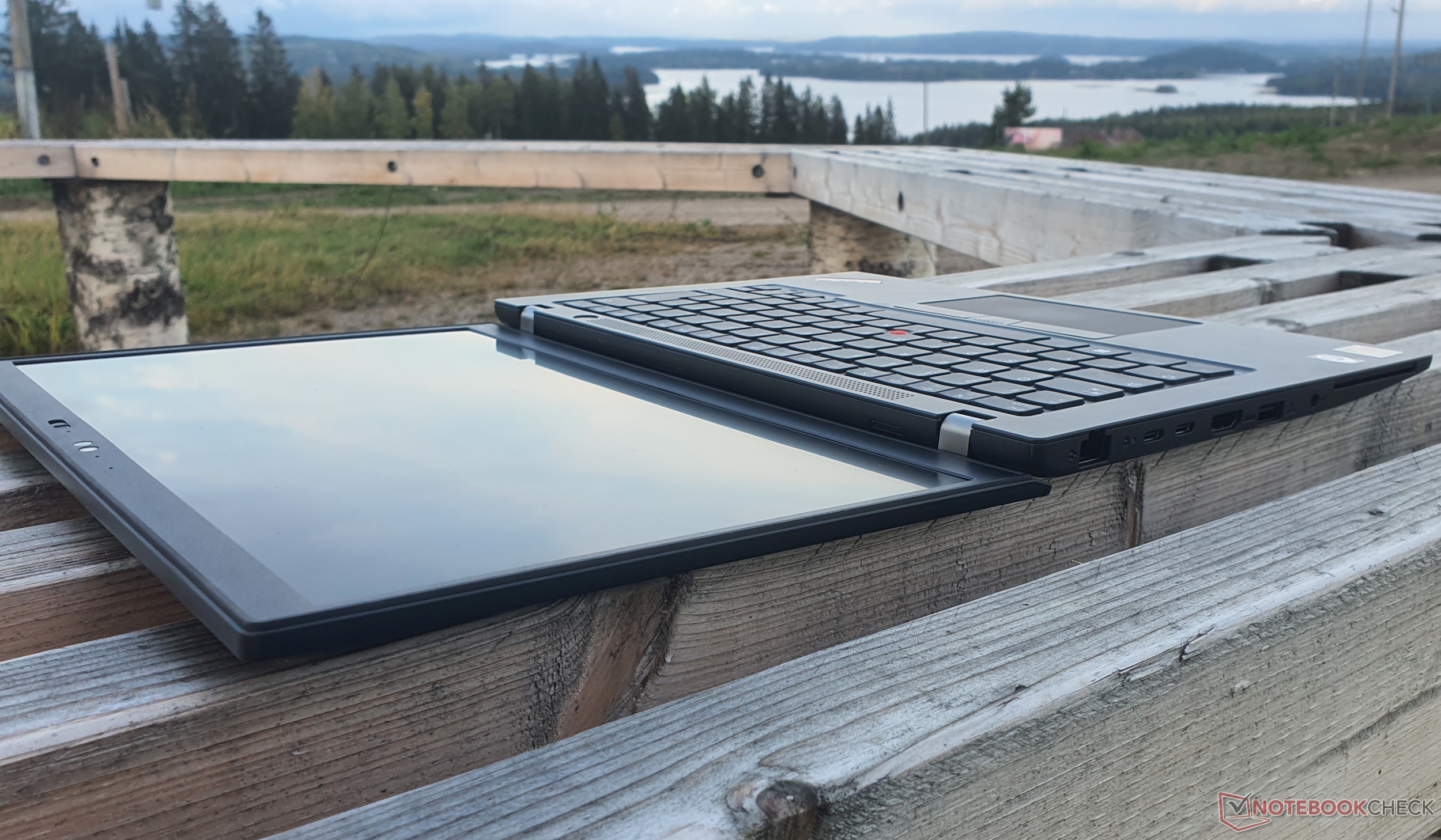

哑光的表面处理使显示屏在户外相当可读。然而，用户必须避免阳光直射，因为屏幕的峰值亮度只有280尼特左右。
ThinkPad L14的性能很好，但有稳定性问题

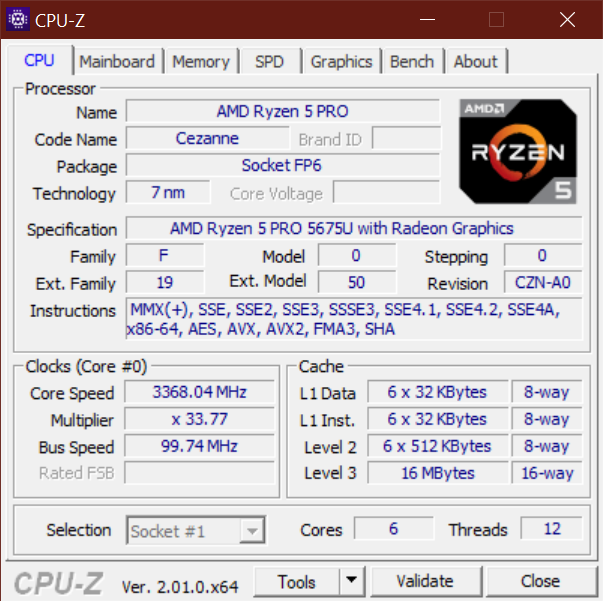

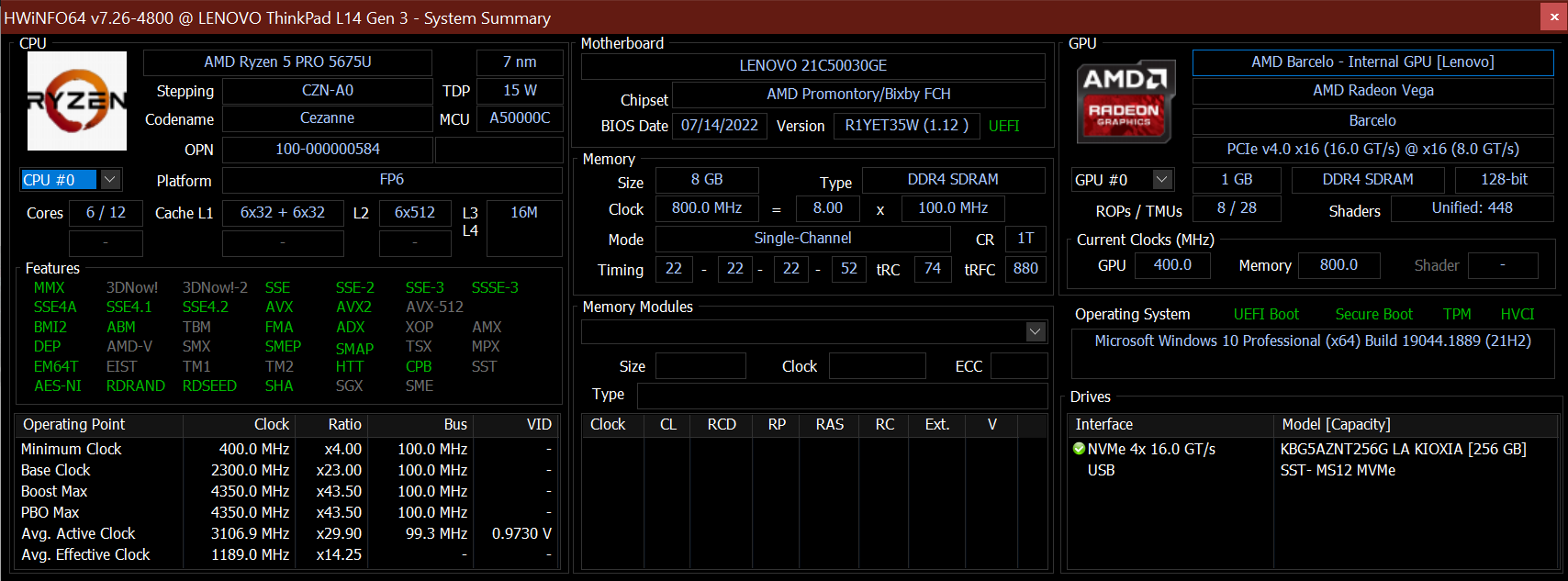

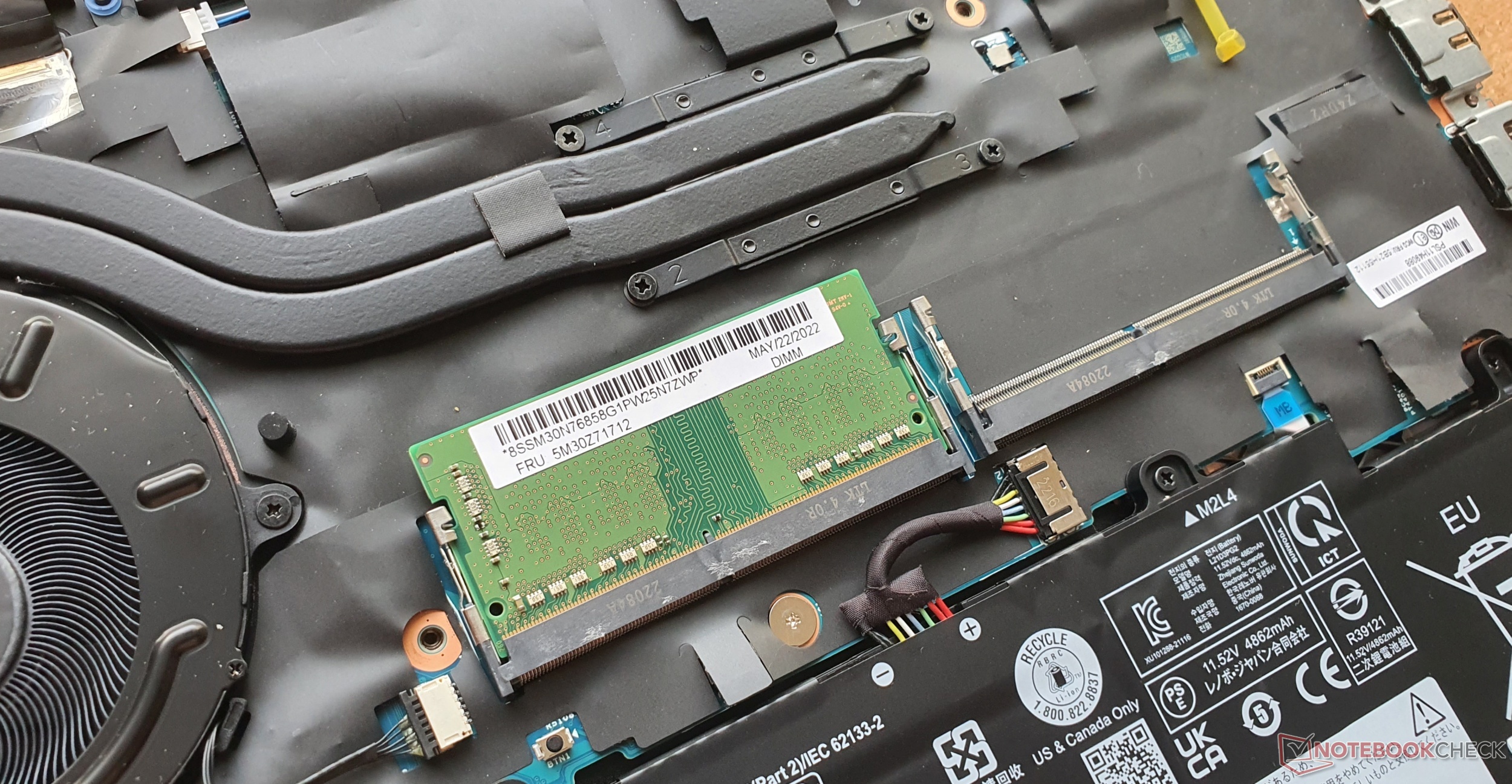

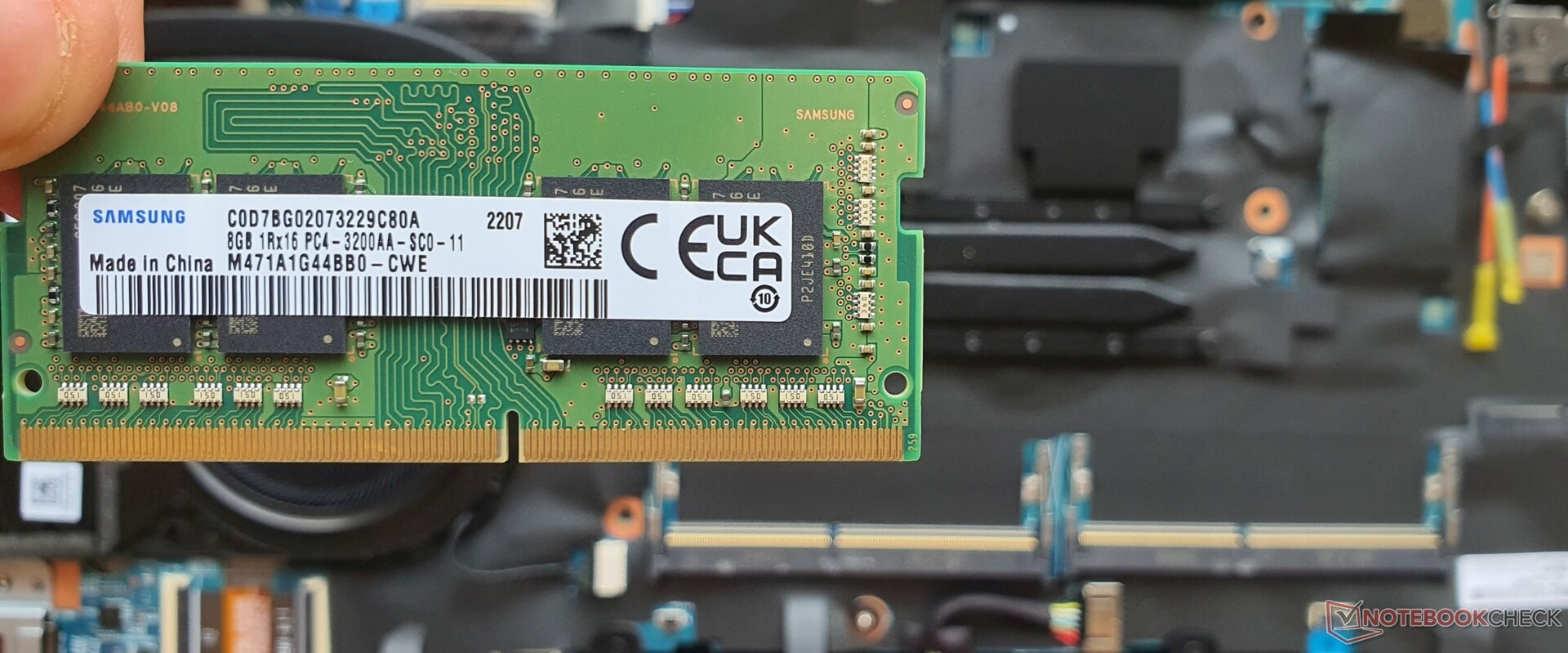

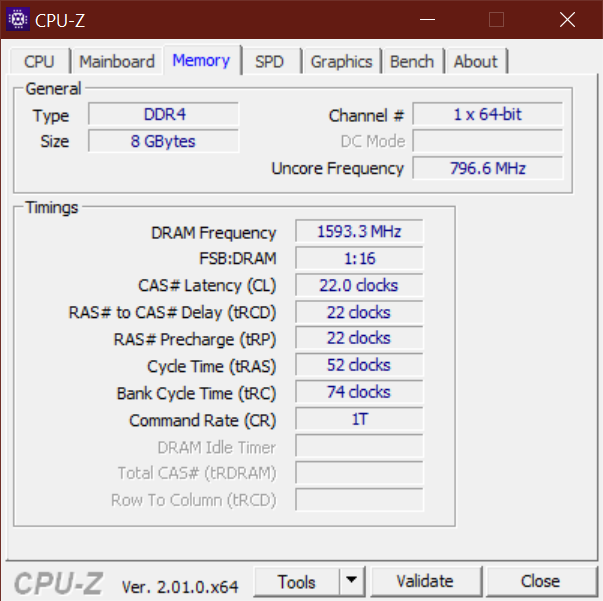

我们的评测单元配备了一个8GB的内存模块，可以支持高达64GB的DDR4-3200内存，分为两个SODIMM模块。它还具有一个六核的AMD Ryzen 5 PRO 5675UBarcelo CPU，集成 Vega 7图形和一个PCIe 4.0 SSD的256GB存储。
这些硬件对于办公和商业用途来说已经足够了，但我们建议升级到至少16GB的内存，以满足更苛刻的任务。L14 G3的其他AMD型号有四到八个核心的CPU，而英特尔的变种则有从 酷睿i3-1215U到 酷睿i7-1260P.
测试条件
在ThinkPads上，联想已经将性能模式整合到Windows电源选项中。在进行所有与性能有关的基准测试时，我们使用了高性能配置文件并禁用了自动模式。

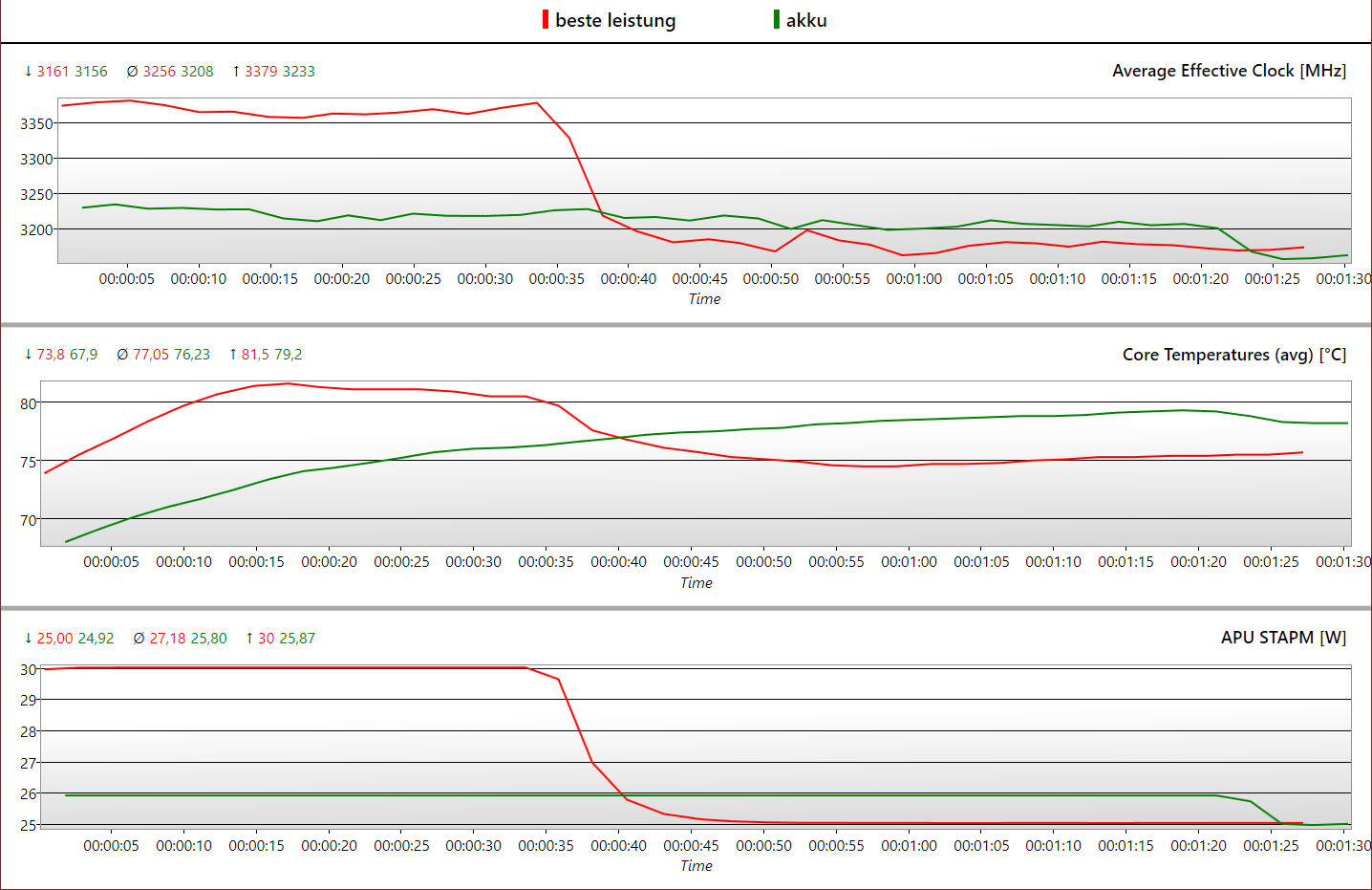

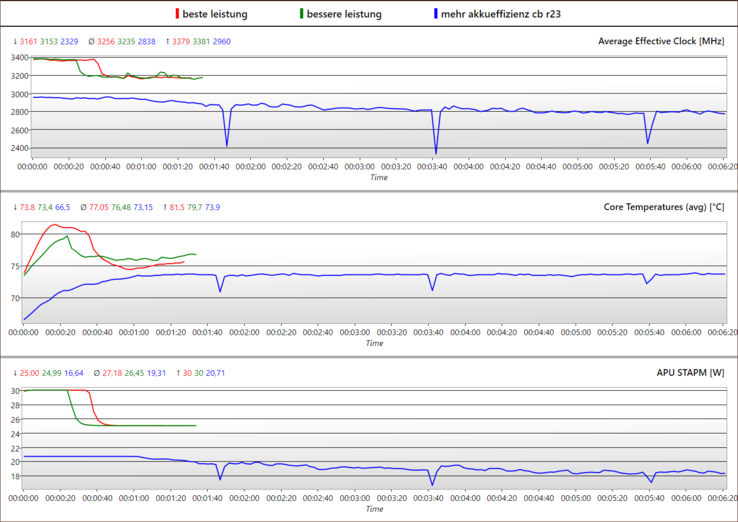

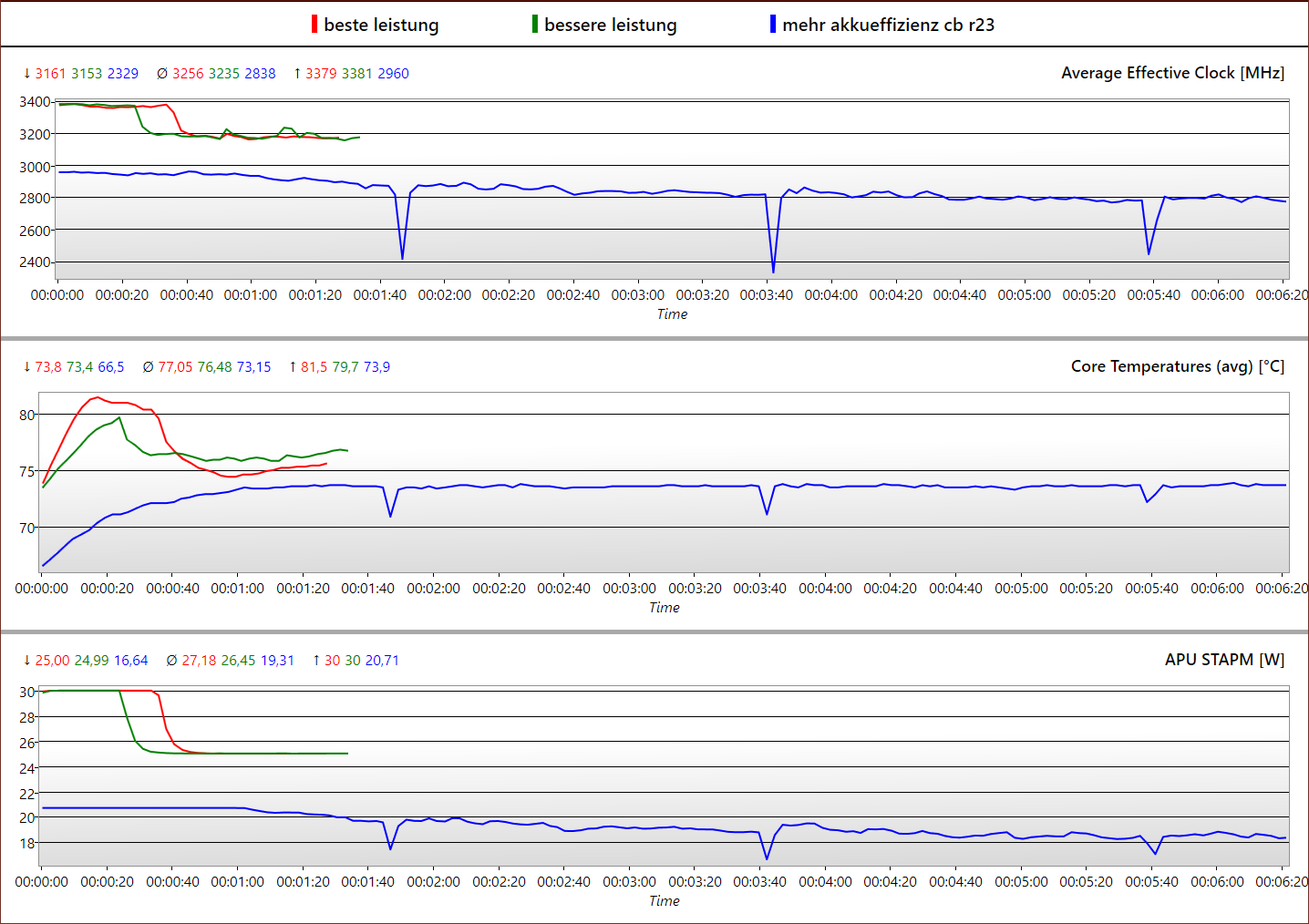

在 "最佳性能 "和 "更好的性能 "模式下，AMD处理器最初消耗了30瓦的电力，然后分别在40秒和25秒后将其电力使用减少到25瓦。在 "更高的电池效率 "模式下，功耗在几分钟内从21瓦特逐渐下降到18瓦特。
处理器
对于AMD Ryzen 5 PRO 5675U ，25瓦的功率限制是合理的。该处理器能够比ThinkPad T16 （限制在20瓦）中的英特尔Alder Lake CPU的持续性能高出30%。
有趣的是，新的L14的CPU性能与它的上一代的八核Ryzen CPU 。但是，我们的数据库 ，表明在相同的功率限制下，使用八个塞尚/巴塞洛U核心，你将获得大约25%的性能提升。

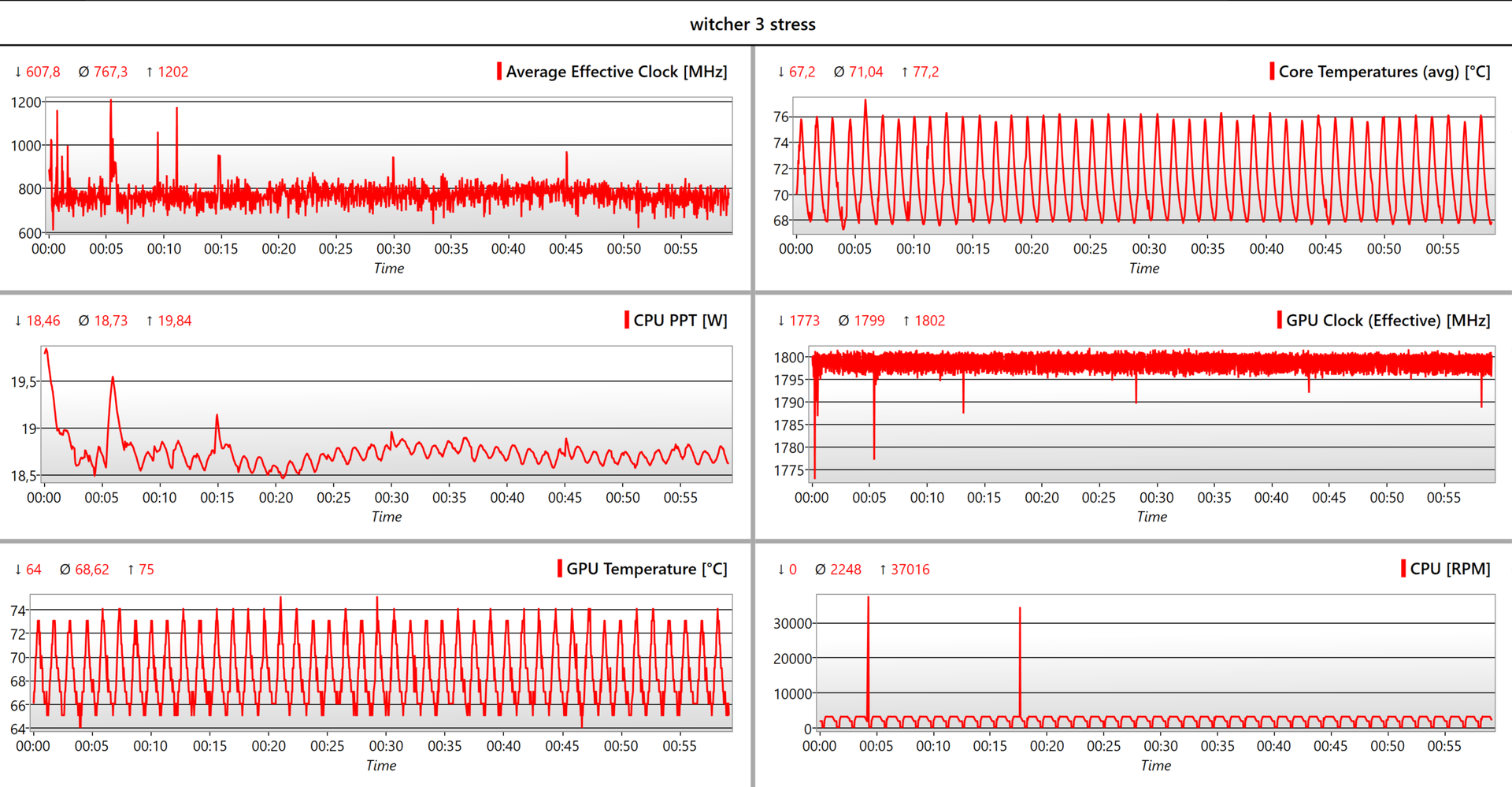

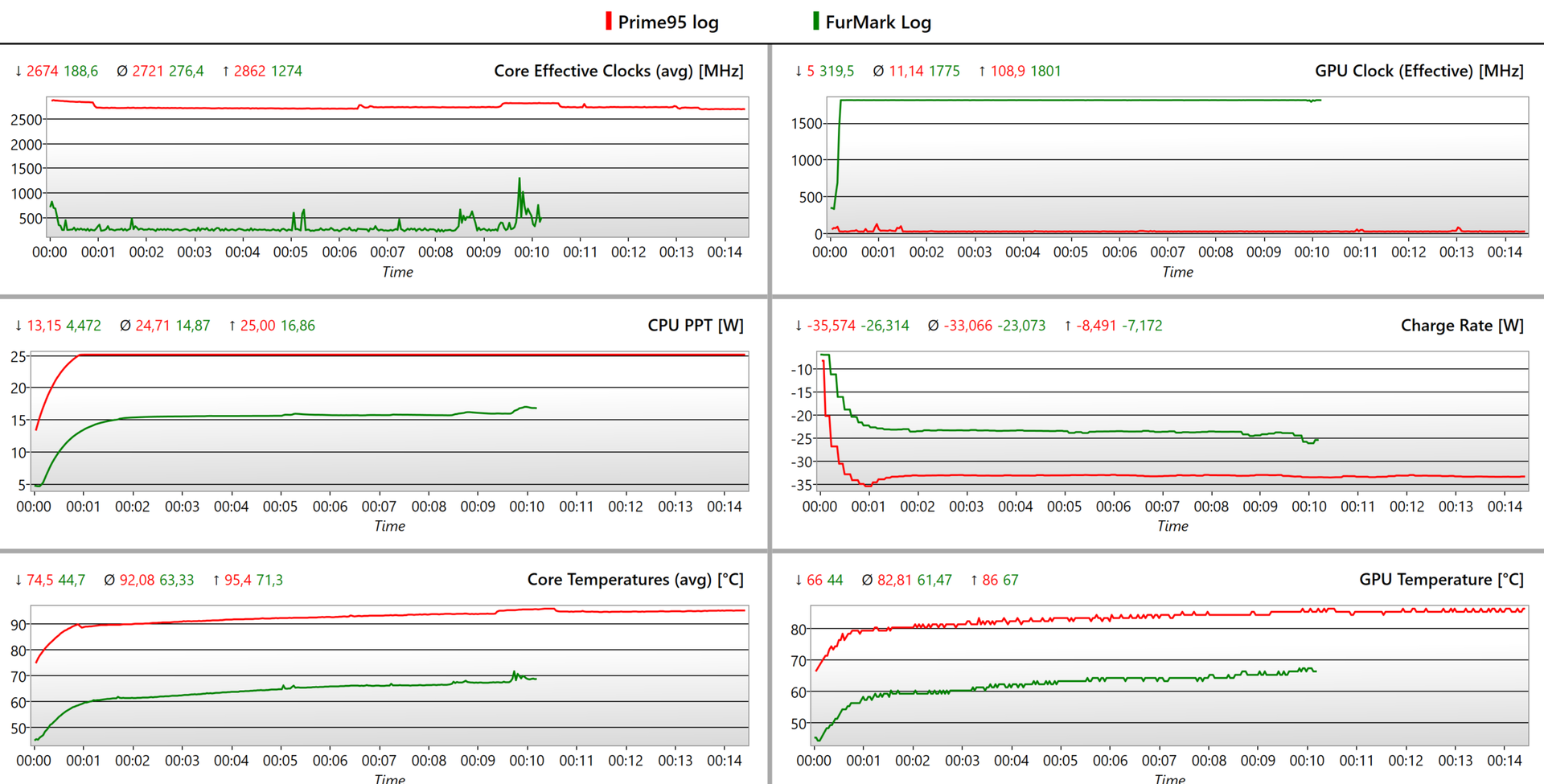

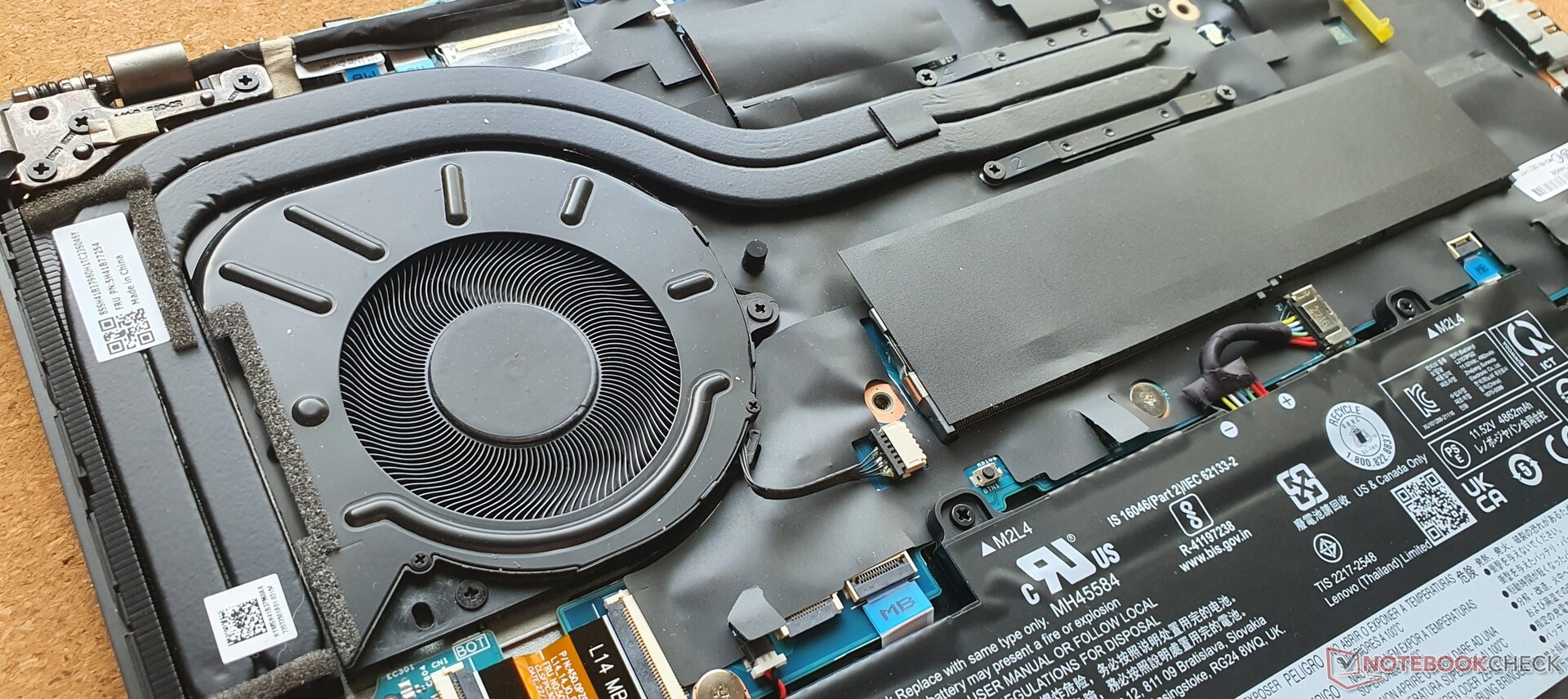

由于有两根铜质热管，温度在很长一段时间内只达到75℃（167℉）。相比之下，L14 G3的英特尔变体只配备了一根热管，与ThinkPad T系列类似。在我们的比较中，所有其他设备由于采用了六核AMD CPU，大多提供了类似的性能。
在电池上，持续性能没有下降。32秒的初始提升至30瓦的功能被简单地禁用（见电源使用记录和截图）。
也就是说，我们遇到了一个非常恼人的错误：每次从睡眠模式唤醒后，CPU会在500到800MHz左右徘徊。这个问题只能通过重启笔记本来解决，然后导致功率限制停留在20瓦。我们并不真正理解什么时候以及为什么我们能重新获得25瓦的完整功率限制。

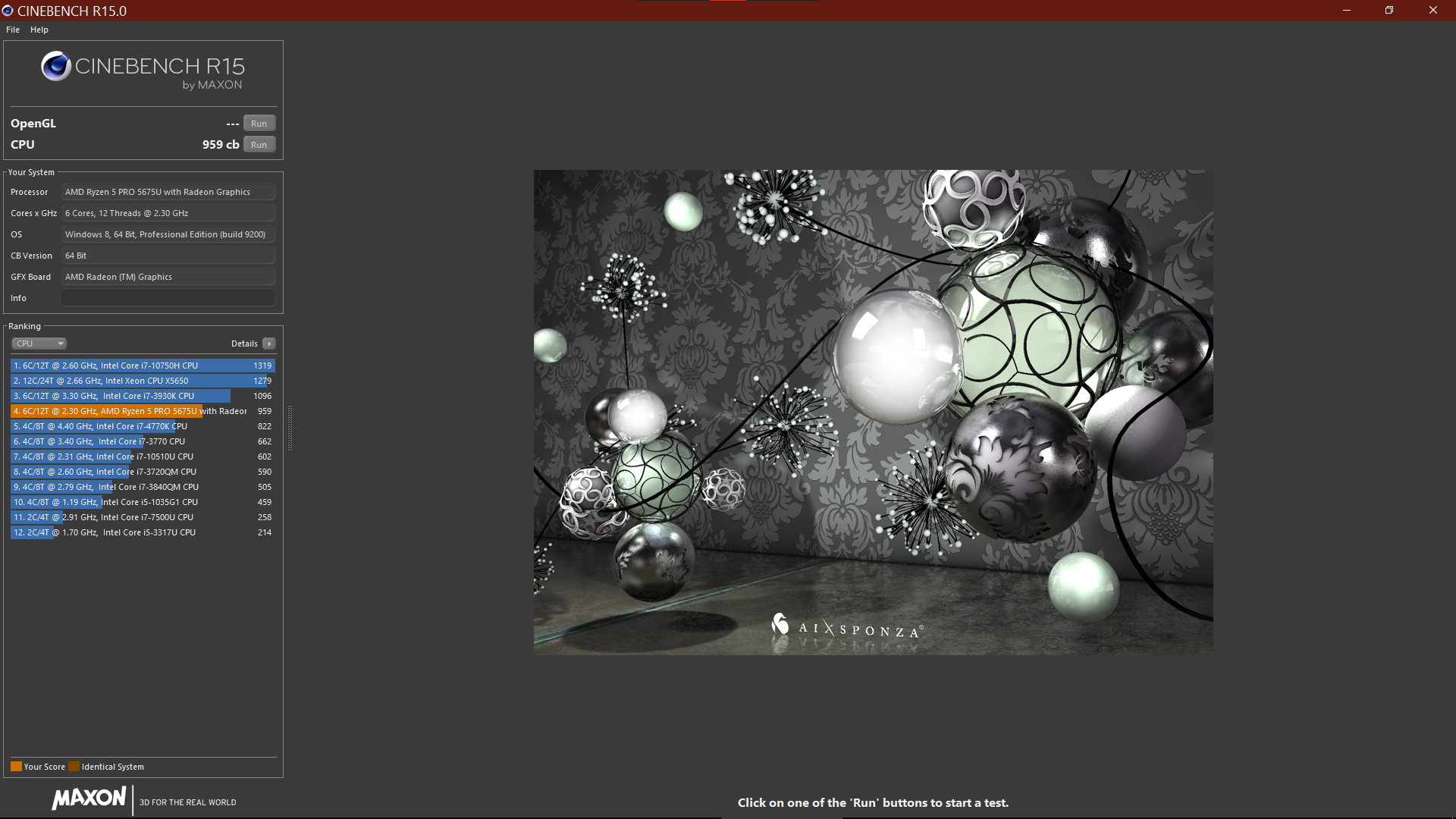

Cinebench R15 Multi Sustained Load
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)

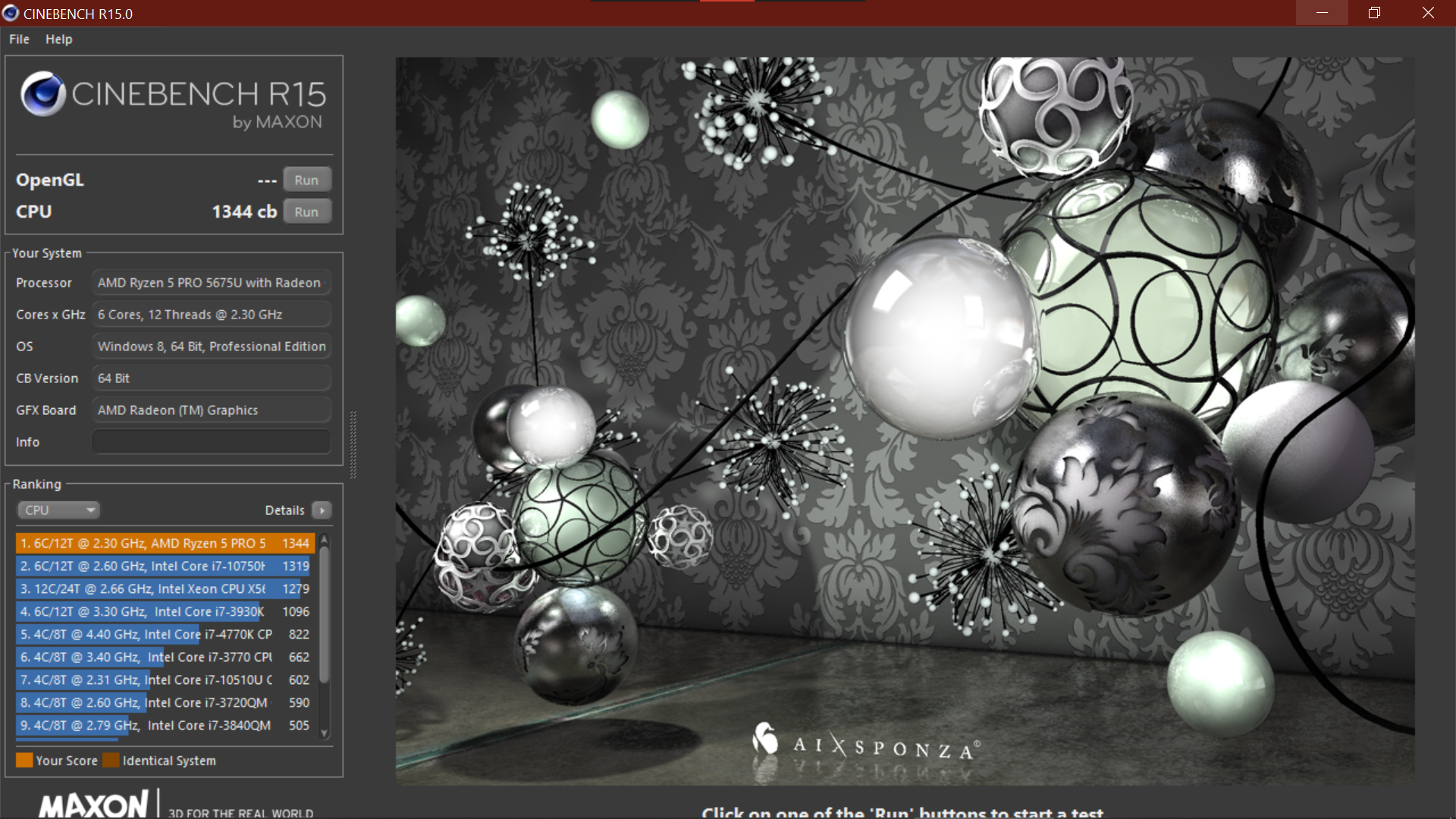

Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU | v3.3 Classroom CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
V-Ray 5 Benchmark: CPU
V-Ray Benchmark Next 4.10: CPU
| Performance Rating | |
| Lenovo ThinkPad T14 G3-21CF004NGE -1! | |
| Average of class Office | |
| Lenovo IdeaPad 5 Pro 14ACN6 -5! | |
| Lenovo ThinkPad L14 G2 AMD -2! | |
| Dell Inspiron 14 5425 6VPKR | |
| Lenovo ThinkPad T16 G1 21BWS00200 | |
| Lenovo ThinkBook 14 G4 21DK0004GE -1! | |
| Average AMD Ryzen 5 PRO 5675U | |
| Lenovo ThinkPad L14 G3 21C50030GE | |
| HP ProBook 445 G8-3Z6Q8ES -1! | |
| Lenovo ThinkPad E14 G3-20Y7003SGE -2! | |
| Dell Latitude 14 5420-D2G5W -1! | |
| Cinebench R23 / Single Core | |
| Lenovo ThinkPad T16 G1 21BWS00200 | |
| Average of class Office (618 - 1995, n=92, last 2 years) | |
| Lenovo ThinkPad T14 G3-21CF004NGE | |
| Lenovo ThinkPad L14 G2 AMD | |
| Lenovo ThinkPad L14 G3 21C50030GE | |
| Dell Inspiron 14 5425 6VPKR | |
| Average AMD Ryzen 5 PRO 5675U (1382 - 1393, n=2) | |
| Dell Latitude 14 5420-D2G5W | |
| Lenovo IdeaPad 5 Pro 14ACN6 | |
| Lenovo ThinkBook 14 G4 21DK0004GE | |
| Lenovo ThinkPad E14 G3-20Y7003SGE | |
| Cinebench R20 / CPU (Multi Core) | |
| Lenovo ThinkPad T14 G3-21CF004NGE | |
| Lenovo IdeaPad 5 Pro 14ACN6 | |
| Average of class Office (590 - 5980, n=92, last 2 years) | |
| Dell Inspiron 14 5425 6VPKR | |
| Lenovo ThinkPad L14 G2 AMD | |
| HP ProBook 445 G8-3Z6Q8ES | |
| Lenovo ThinkPad L14 G3 21C50030GE | |
| Average AMD Ryzen 5 PRO 5675U (2901 - 3082, n=2) | |
| Lenovo ThinkBook 14 G4 21DK0004GE | |
| Lenovo ThinkPad T16 G1 21BWS00200 | |
| Lenovo ThinkPad E14 G3-20Y7003SGE | |
| Dell Latitude 14 5420-D2G5W | |
| Cinebench R20 / CPU (Single Core) | |
| Average of class Office (229 - 764, n=92, last 2 years) | |
| Lenovo ThinkPad T14 G3-21CF004NGE | |
| Lenovo ThinkPad T16 G1 21BWS00200 | |
| Lenovo ThinkPad L14 G2 AMD | |
| Lenovo ThinkBook 14 G4 21DK0004GE | |
| Lenovo ThinkPad L14 G3 21C50030GE | |
| Dell Inspiron 14 5425 6VPKR | |
| Average AMD Ryzen 5 PRO 5675U (534 - 540, n=2) | |
| HP ProBook 445 G8-3Z6Q8ES | |
| Lenovo IdeaPad 5 Pro 14ACN6 | |
| Dell Latitude 14 5420-D2G5W | |
| Lenovo ThinkPad E14 G3-20Y7003SGE | |
| Cinebench R15 / CPU Single 64Bit | |
| Lenovo ThinkPad T14 G3-21CF004NGE | |
| Average of class Office (98 - 284, n=92, last 2 years) | |
| Lenovo ThinkPad L14 G2 AMD | |
| Lenovo ThinkPad T16 G1 21BWS00200 | |
| HP ProBook 445 G8-3Z6Q8ES | |
| Lenovo ThinkBook 14 G4 21DK0004GE | |
| Dell Inspiron 14 5425 6VPKR | |
| Lenovo ThinkPad L14 G3 21C50030GE | |
| Lenovo IdeaPad 5 Pro 14ACN6 | |
| Average AMD Ryzen 5 PRO 5675U (209 - 222, n=2) | |
| Dell Latitude 14 5420-D2G5W | |
| Lenovo ThinkPad E14 G3-20Y7003SGE | |
| Blender / v3.3 Classroom CPU | |
| Lenovo ThinkPad T16 G1 21BWS00200 | |
| HP ProBook 445 G8-3Z6Q8ES | |
| Average of class Office (343 - 3964, n=89, last 2 years) | |
| Average AMD Ryzen 5 PRO 5675U (702 - 730, n=2) | |
| Lenovo ThinkPad L14 G3 21C50030GE | |
| Lenovo ThinkBook 14 G4 21DK0004GE | |
| Dell Inspiron 14 5425 6VPKR | |
| Lenovo ThinkPad T14 G3-21CF004NGE | |
| Geekbench 5.5 / Multi-Core | |
| Lenovo ThinkPad T14 G3-21CF004NGE | |
| Average of class Office (1018 - 11980, n=92, last 2 years) | |
| Lenovo ThinkPad T16 G1 21BWS00200 | |
| Dell Inspiron 14 5425 6VPKR | |
| Lenovo ThinkBook 14 G4 21DK0004GE | |
| HP ProBook 445 G8-3Z6Q8ES | |
| Lenovo ThinkPad E14 G3-20Y7003SGE | |
| Average AMD Ryzen 5 PRO 5675U (4513 - 5941, n=2) | |
| Lenovo ThinkPad L14 G2 AMD | |
| Lenovo ThinkPad L14 G3 21C50030GE | |
| Dell Latitude 14 5420-D2G5W | |
| Geekbench 5.5 / Single-Core | |
| Average of class Office (510 - 1989, n=93, last 2 years) | |
| Lenovo ThinkPad T16 G1 21BWS00200 | |
| Lenovo ThinkPad T14 G3-21CF004NGE | |
| Dell Inspiron 14 5425 6VPKR | |
| HP ProBook 445 G8-3Z6Q8ES | |
| Lenovo ThinkBook 14 G4 21DK0004GE | |
| Average AMD Ryzen 5 PRO 5675U (1300 - 1427, n=2) | |
| Lenovo ThinkPad L14 G2 AMD | |
| Lenovo ThinkPad L14 G3 21C50030GE | |
| Dell Latitude 14 5420-D2G5W | |
| Lenovo ThinkPad E14 G3-20Y7003SGE | |
| HWBOT x265 Benchmark v2.2 / 4k Preset | |
| Lenovo ThinkPad T14 G3-21CF004NGE | |
| Lenovo IdeaPad 5 Pro 14ACN6 | |
| Dell Inspiron 14 5425 6VPKR | |
| Average of class Office (1.72 - 18.7, n=91, last 2 years) | |
| Lenovo ThinkBook 14 G4 21DK0004GE | |
| Lenovo ThinkPad L14 G2 AMD | |
| Average AMD Ryzen 5 PRO 5675U (8.8 - 10.1, n=2) | |
| HP ProBook 445 G8-3Z6Q8ES | |
| Lenovo ThinkPad T16 G1 21BWS00200 | |
| Lenovo ThinkPad L14 G3 21C50030GE | |
| Lenovo ThinkPad E14 G3-20Y7003SGE | |
| Dell Latitude 14 5420-D2G5W | |
| LibreOffice / 20 Documents To PDF | |
| Lenovo ThinkPad E14 G3-20Y7003SGE | |
| HP ProBook 445 G8-3Z6Q8ES | |
| Dell Latitude 14 5420-D2G5W | |
| Average AMD Ryzen 5 PRO 5675U (53.4 - 56.7, n=2) | |
| Lenovo IdeaPad 5 Pro 14ACN6 | |
| Lenovo ThinkPad L14 G3 21C50030GE | |
| Average of class Office (31.3 - 129.6, n=91, last 2 years) | |
| Lenovo ThinkPad L14 G2 AMD | |
| Dell Inspiron 14 5425 6VPKR | |
| Lenovo ThinkBook 14 G4 21DK0004GE | |
| Lenovo ThinkPad T14 G3-21CF004NGE | |
| Lenovo ThinkPad T16 G1 21BWS00200 | |
| R Benchmark 2.5 / Overall mean | |
| Dell Latitude 14 5420-D2G5W | |
| Lenovo ThinkPad E14 G3-20Y7003SGE | |
| Lenovo ThinkPad L14 G3 21C50030GE | |
| Average AMD Ryzen 5 PRO 5675U (0.553 - 0.591, n=2) | |
| Dell Inspiron 14 5425 6VPKR | |
| Lenovo ThinkBook 14 G4 21DK0004GE | |
| Lenovo ThinkPad L14 G2 AMD | |
| HP ProBook 445 G8-3Z6Q8ES | |
| Lenovo IdeaPad 5 Pro 14ACN6 | |
| Average of class Office (0.4244 - 1.135, n=90, last 2 years) | |
| Lenovo ThinkPad T14 G3-21CF004NGE | |
| Lenovo ThinkPad T16 G1 21BWS00200 | |
| V-Ray 5 Benchmark / CPU | |
| Average of class Office (1456 - 10457, n=45, last 2 years) | |
| Dell Inspiron 14 5425 6VPKR | |
| HP ProBook 445 G8-3Z6Q8ES | |
| Lenovo ThinkPad L14 G3 21C50030GE | |
| Average AMD Ryzen 5 PRO 5675U (5346 - 5467, n=2) | |
| Lenovo ThinkPad T16 G1 21BWS00200 | |
| Dell Latitude 14 5420-D2G5W | |
| V-Ray Benchmark Next 4.10 / CPU | |
| Lenovo ThinkPad T14 G3-21CF004NGE | |
| Average of class Office (1329 - 15618, n=74, last 2 years) | |
| Lenovo ThinkPad L14 G2 AMD | |
| Dell Inspiron 14 5425 6VPKR | |
| HP ProBook 445 G8-3Z6Q8ES | |
| Lenovo ThinkBook 14 G4 21DK0004GE | |
| Lenovo ThinkPad L14 G3 21C50030GE | |
| Average AMD Ryzen 5 PRO 5675U (8218 - 8293, n=2) | |
| Lenovo ThinkPad T16 G1 21BWS00200 | |
| Lenovo ThinkPad E14 G3-20Y7003SGE | |
| Dell Latitude 14 5420-D2G5W | |
* ... smaller is better
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
| Performance Rating | |
| Lenovo ThinkPad T14 G3-21CF004NGE | |
| Lenovo IdeaPad 5 Pro 14ACN6 | |
| Lenovo ThinkPad L14 G2 AMD | |
| Average of class Office | |
| Dell Inspiron 14 5425 6VPKR | |
| Lenovo ThinkPad E14 G3-20Y7003SGE | |
| Lenovo ThinkBook 14 G4 21DK0004GE | |
| Lenovo ThinkPad L14 G3 21C50030GE | |
| Average AMD Ryzen 5 PRO 5675U | |
| HP ProBook 445 G8-3Z6Q8ES | |
| Dell Latitude 14 5420-D2G5W | |
| AIDA64 / FP32 Ray-Trace | |
| Lenovo ThinkPad T14 G3-21CF004NGE | |
| Lenovo IdeaPad 5 Pro 14ACN6 | |
| Dell Inspiron 14 5425 6VPKR | |
| Lenovo ThinkPad L14 G2 AMD | |
| Average of class Office (763 - 24250, n=92, last 2 years) | |
| Lenovo ThinkPad L14 G3 21C50030GE | |
| Average AMD Ryzen 5 PRO 5675U (9144 - 9192, n=2) | |
| Lenovo ThinkBook 14 G4 21DK0004GE | |
| Lenovo ThinkPad E14 G3-20Y7003SGE | |
| HP ProBook 445 G8-3Z6Q8ES | |
| Dell Latitude 14 5420-D2G5W | |
| AIDA64 / FPU SinJulia | |
| Lenovo ThinkPad T14 G3-21CF004NGE | |
| Lenovo ThinkPad E14 G3-20Y7003SGE | |
| Lenovo ThinkPad L14 G2 AMD | |
| Lenovo IdeaPad 5 Pro 14ACN6 | |
| Dell Inspiron 14 5425 6VPKR | |
| Lenovo ThinkPad L14 G3 21C50030GE | |
| Lenovo ThinkBook 14 G4 21DK0004GE | |
| Average AMD Ryzen 5 PRO 5675U (8259 - 8482, n=2) | |
| HP ProBook 445 G8-3Z6Q8ES | |
| Average of class Office (404 - 14288, n=92, last 2 years) | |
| Dell Latitude 14 5420-D2G5W | |
| AIDA64 / FP64 Ray-Trace | |
| Lenovo ThinkPad T14 G3-21CF004NGE | |
| Lenovo IdeaPad 5 Pro 14ACN6 | |
| Dell Inspiron 14 5425 6VPKR | |
| Lenovo ThinkPad L14 G2 AMD | |
| Average of class Office (432 - 12755, n=92, last 2 years) | |
| Lenovo ThinkPad E14 G3-20Y7003SGE | |
| Lenovo ThinkPad L14 G3 21C50030GE | |
| Average AMD Ryzen 5 PRO 5675U (4768 - 4797, n=2) | |
| Lenovo ThinkBook 14 G4 21DK0004GE | |
| HP ProBook 445 G8-3Z6Q8ES | |
| Dell Latitude 14 5420-D2G5W | |
| AIDA64 / CPU PhotoWorxx | |
| Average of class Office (4814 - 54971, n=92, last 2 years) | |
| Lenovo ThinkPad T14 G3-21CF004NGE | |
| Lenovo ThinkPad E14 G3-20Y7003SGE | |
| Lenovo ThinkBook 14 G4 21DK0004GE | |
| Lenovo IdeaPad 5 Pro 14ACN6 | |
| Dell Inspiron 14 5425 6VPKR | |
| HP ProBook 445 G8-3Z6Q8ES | |
| Average AMD Ryzen 5 PRO 5675U (7035 - 14092, n=2) | |
| Dell Latitude 14 5420-D2G5W | |
| Lenovo ThinkPad L14 G2 AMD | |
| Lenovo ThinkPad L14 G3 21C50030GE | |
系统性能

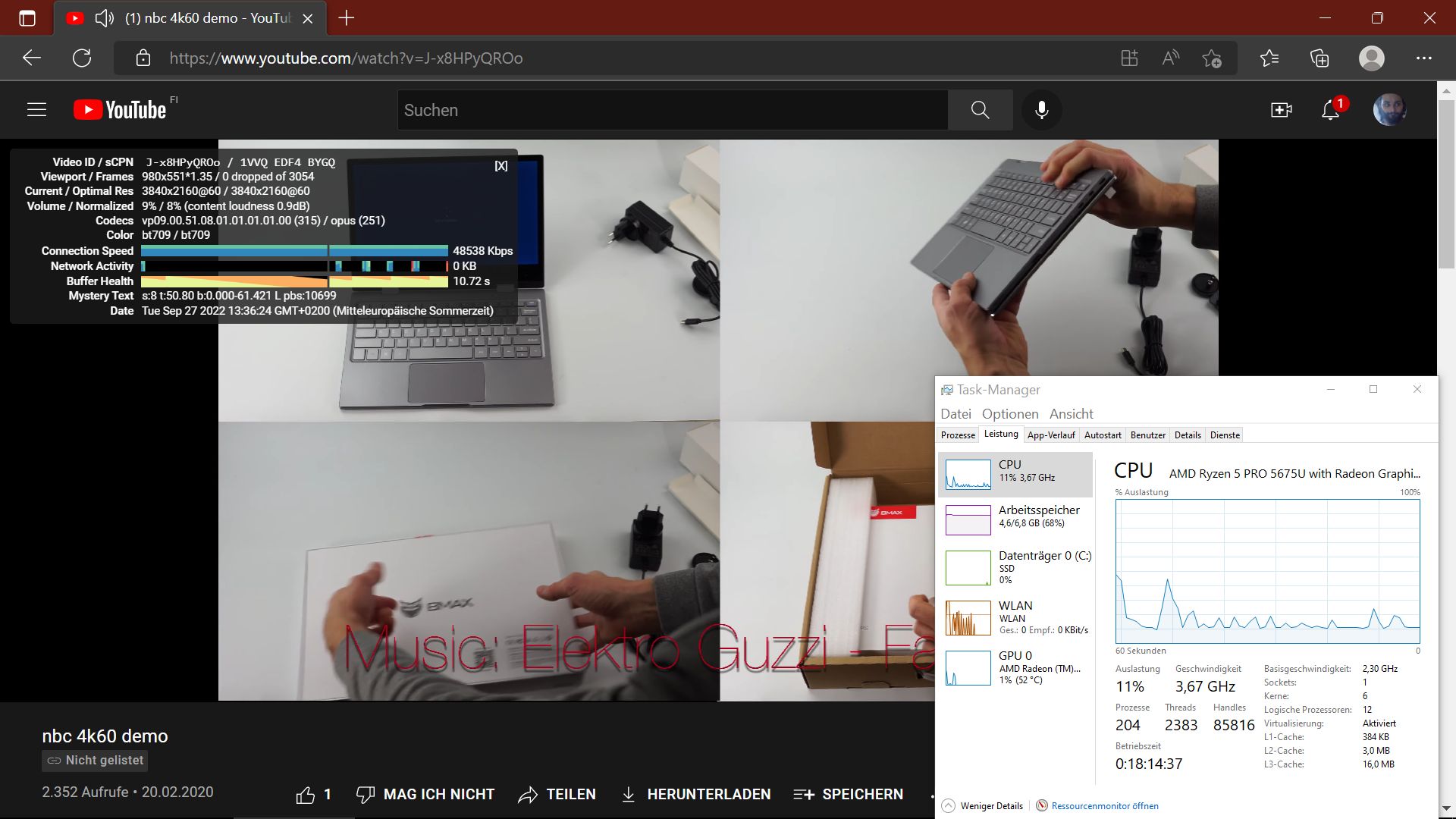

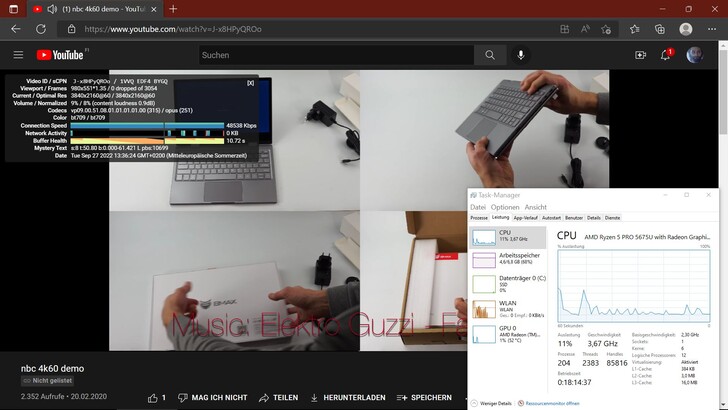

根据我们的经验，系统性能非常快。应用程序和网站的加载没有任何延迟，即使在后台播放4K视频时也是如此。尽管采用了单通道内存，但合成基准测试结果与竞争对手的水平大致相同，比采用英特尔Alder Lake处理器的ThinkPad T16略好。然而，Alder Lake处理器在网络浏览基准测试中具有相当大的领先优势，这是因为它具有更高的射程涡轮增压。
CrossMark: Overall | Productivity | Creativity | Responsiveness
Sunspider: 1.0 Total Score
Mozilla Kraken 1.1: Total
Speedometer 2.0: Result
Octane V2: Total Score
Jetstream 2: Total Score
WebXPRT 3: Overall
WebXPRT 4: Overall
| Sunspider / 1.0 Total Score | |
| Average of class Office (64.5 - 197.1, n=4, last 2 years) | |
| Lenovo ThinkPad L14 G3 21C50030GE | |
| Dell Inspiron 14 5425 6VPKR | |
| Lenovo ThinkPad T16 G1 21BWS00200 | |
| Speedometer 2.0 / Result | |
| Average of class Office (26.1 - 408, n=38, last 2 years) | |
| Lenovo ThinkPad T16 G1 21BWS00200 | |
| Lenovo ThinkPad T14 G3-21CF004NGE | |
| Lenovo ThinkPad L14 G3 21C50030GE | |
| Dell Inspiron 14 5425 6VPKR | |
| Lenovo ThinkPad E14 G3-20Y7003SGE | |
* ... smaller is better

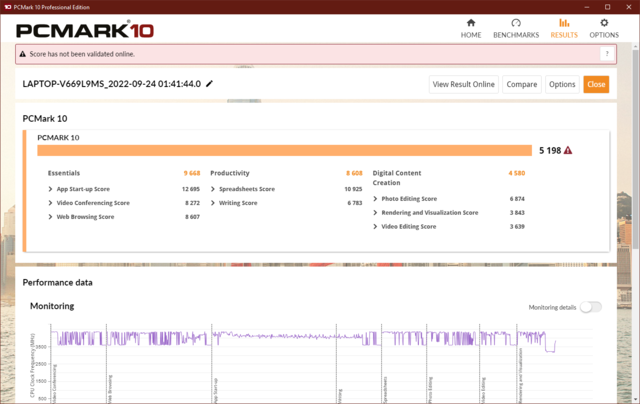

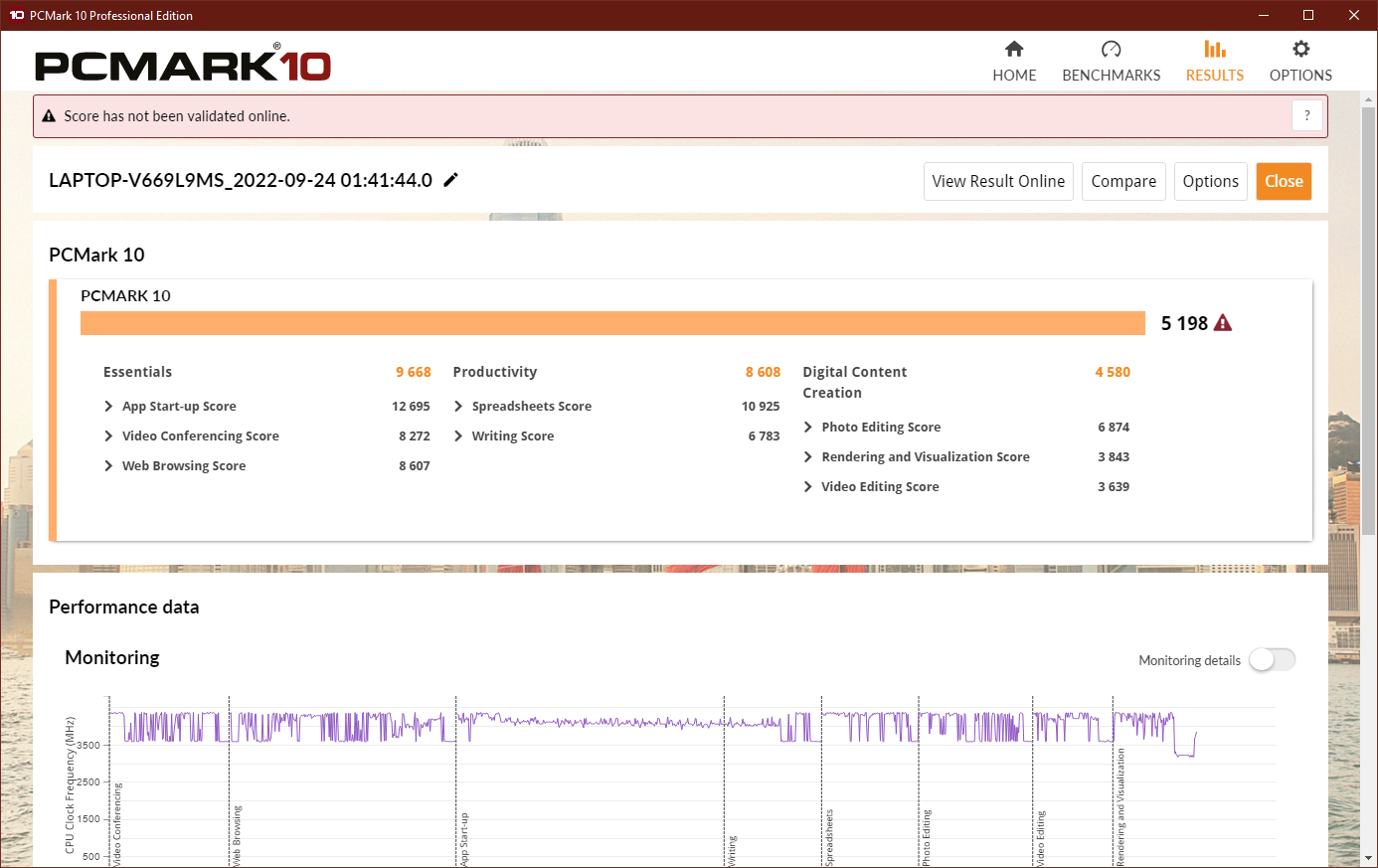

| PCMark 10 Score | 5198 points | |
Help | ||
* ... smaller is better

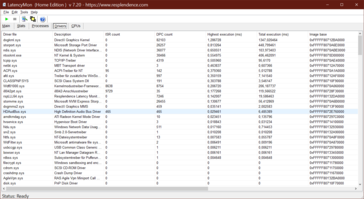

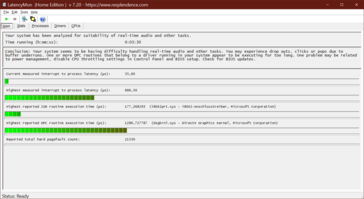

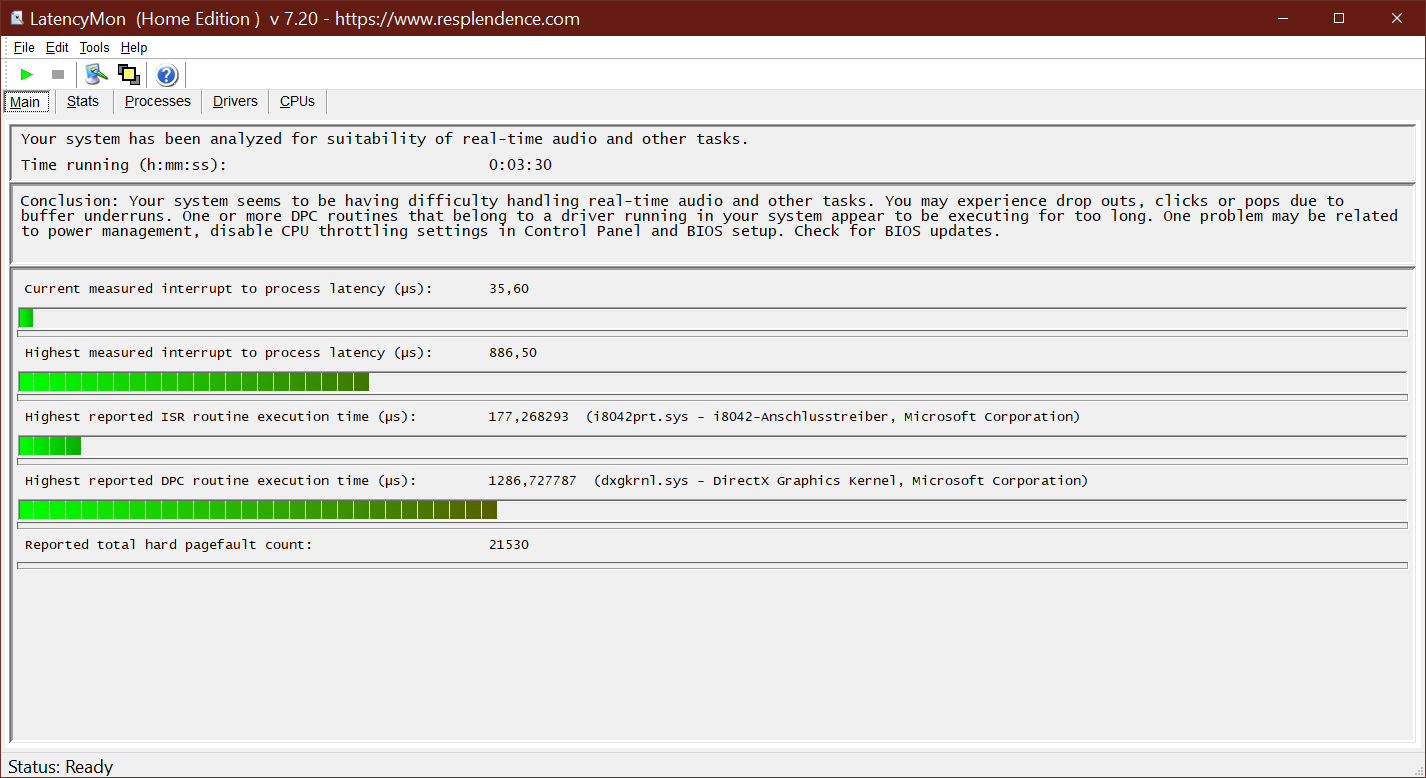

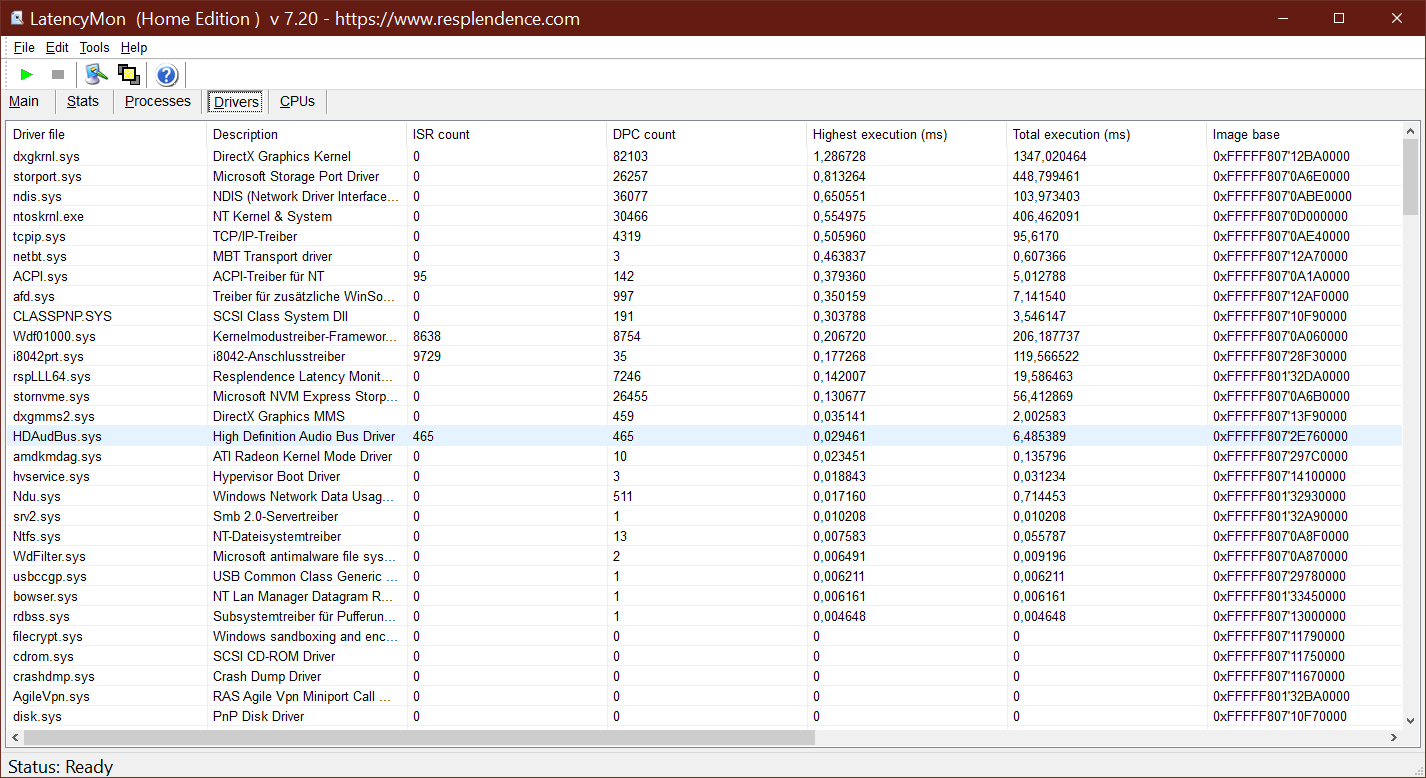

DPC延时
| DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95 | |
| Dell Latitude 14 5420-D2G5W | |
| Lenovo ThinkBook 14 G4 21DK0004GE | |
| Lenovo ThinkPad L14 G3 21C50030GE | |
| Lenovo ThinkPad E14 G3-20Y7003SGE | |
| Lenovo IdeaPad 5 Pro 14ACN6 | |
| Lenovo ThinkPad L14 G2 AMD | |
| Dell Inspiron 14 5425 6VPKR | |
| Lenovo ThinkPad T14 G3-21CF004NGE | |
| HP ProBook 445 G8-3Z6Q8ES | |
* ... smaller is better
大容量存储

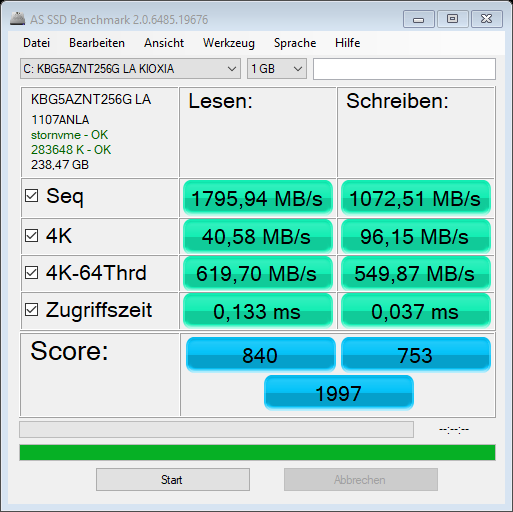

我们的评测单元安装了一个Kioxia/东芝BG5 PCIe 4.0 SSD。由于空间限制，不得不使用外形尺寸较短的M.2 2242的驱动器。因此，ThinkPad L14 G3的存储速度比上一代产品的PCIe 3.0固态硬盘还要慢。尽管如此，你只有在日常使用中复制大量数据时才会注意到这一点。
| Lenovo ThinkPad L14 G3 21C50030GE Vega 7, R5 PRO 5675U, Kioxia BG5 KBG5AZNT256G | Lenovo ThinkPad L14 G2 AMD Vega 8, R7 PRO 5850U, WDC PC SN730 SDBQNTY-512GB | Lenovo ThinkPad T14 G3-21CF004NGE Radeon 680M, R7 PRO 6850U, Kioxia BG5 KBG5AZNV512G | Lenovo ThinkPad E14 G3-20Y7003SGE Vega 7, R5 5500U, SK Hynix BC711 HFM512GD3HX015N | Lenovo ThinkBook 14 G4 21DK0004GE Vega 7, R5 5625U, Samsung PM991a MZALQ512HBLU | Lenovo IdeaPad 5 Pro 14ACN6 Vega 7, R5 5600U, WDC PC SN730 SDBPNTY-512G | HP ProBook 445 G8-3Z6Q8ES Vega 7, R5 5600U, SSSTC CL1-8D512-HP | Dell Latitude 14 5420-D2G5W Iris Xe G7 80EUs, i5-1135G7, WDC PC SN530 SDBPTPZ-256G | |
|---|---|---|---|---|---|---|---|---|
| DiskSpd | 35% | 31% | 91% | 53% | 45% | -4% | -1% | |
| seq read | 1820 | 2185 20% | 2449 35% | 1687 -7% | 1989 9% | 2330 28% | 1868 3% | 1646 -10% |
| seq write | 1541 | 2080 35% | 2052 33% | 2188 42% | 1597 4% | 2438 58% | 1124 -27% | 968 -37% |
| seq q8 t1 read | 2237 | 3437 54% | 2836 27% | 3346 50% | 2618 17% | 3437 54% | 2035 -9% | 2479 11% |
| seq q8 t1 write | 1855 | 2715 46% | 2752 48% | 2387 29% | 1591 -14% | 2711 46% | 1131 -39% | 970 -48% |
| 4k q32 t16 read | 699 | 1024 46% | 839 20% | 1733 148% | 1056 51% | 1197 71% | 368 -47% | 674 -4% |
| 4k q32 t16 write | 275 | 488 77% | 377 37% | 1471 435% | 1168 325% | 503 83% | 839 205% | 425 55% |
| 4k q1 t1 read | 44.8 | 41.9 -6% | 54.1 21% | 53.2 19% | 47.3 6% | 45.2 1% | 17.7 -60% | 38.7 -14% |
| 4k q1 t1 write | 109.4 | 117 7% | 134.4 23% | 126 15% | 135.2 24% | 127 16% | 49.8 -54% | 151 38% |
| AS SSD | 75% | 9% | 78% | 22% | 25% | -31% | -18% | |
| Seq Read | 1796 | 2693 50% | 2117 18% | 2596 45% | 2682.84 49% | 2874 60% | 1511.18 -16% | 1934 8% |
| Seq Write | 1073 | 1456 36% | 1059 -1% | 1460 36% | 1691.36 58% | 1491 39% | 1037.75 -3% | 646 -40% |
| 4K Read | 41 | 41.67 2% | 51.29 25% | 48.62 19% | 44.29 8% | 39.28 -4% | 19.05 -54% | 44.07 7% |
| 4K Write | 96 | 138.4 44% | 110.24 15% | 113.4 18% | 129.18 35% | 122.2 27% | 53.34 -44% | 138.9 45% |
| 4K-64 Read | 620 | 940 52% | 668.7 8% | 1419 129% | 994.27 60% | 1022 65% | 657.15 6% | 447 -28% |
| 4K-64 Write | 550 | 1933 251% | 332.54 -40% | 1840 235% | 945.62 72% | 677 23% | 467.25 -15% | 216 -61% |
| Access Time Read * | 0.133 | 0.114 14% | 0.067 50% | 0.049 63% | 0.183 -38% | 0.079 41% | 0.101 24% | 0.138 -4% |
| Access Time Write * | 0.037 | 0.027 27% | 0.035 5% | 0.032 14% | 0.089 -141% | 0.091 -146% | 0.128 -246% | 0.049 -32% |
| Score Read | 840 | 1251 49% | 932 11% | 1727 106% | 1307 56% | 1349 61% | 827 -2% | 685 -18% |
| Score Write | 753 | 2217 194% | 549 -27% | 2099 179% | 1244 65% | 948 26% | 624 -17% | 420 -44% |
| Score Total | 1997 | 4052 103% | 1919 -4% | 4658 133% | 3177 59% | 2922 46% | 1851 -7% | 1406 -30% |

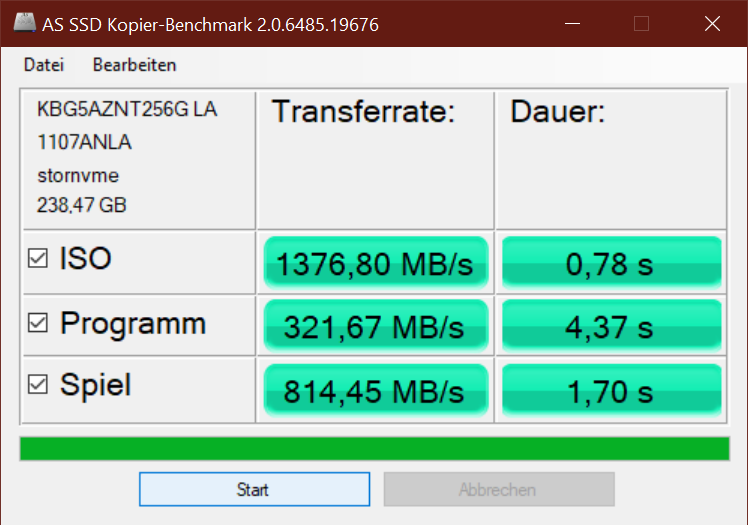

| Copy ISO MB/s | 1377 | 1682.54 22% | 1168 -15% | 1762.9 28% | 1325 -4% | 1100.51 -20% | ||
| Copy Program MB/s | 321.7 | 402.12 25% | 590 83% | 310.03 -4% | 579 80% | 365.45 14% | ||
| Copy Game MB/s | 814.5 | 967.5 19% | 1148 41% | 856.99 5% | 1158 42% | 330.02 -59% | ||
| Total Average (Program / Settings) | 55% /
58% | 20% /
17% | 85% /
83% | 38% /
33% | 35% /
32% | -18% /
-21% | -10% /
-11% |
* ... smaller is better
* ... smaller is better
Sustained Load Read: DiskSpd Read Loop, Queue Depth 8
图形卡

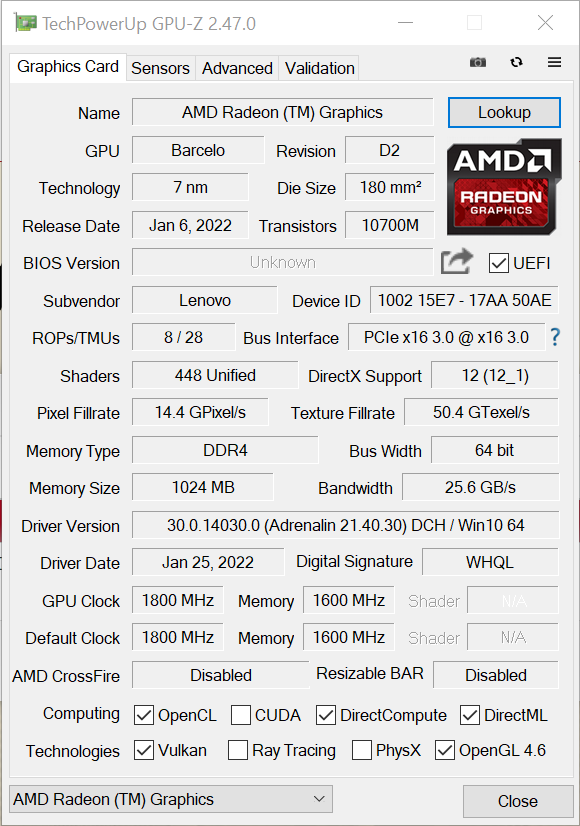

图形处理是由Radeon RX Vega 7.图形性能不是很好，因为GPU受到单通道内存的约束。
即使是老游戏也必须在低设置下进行。但是考虑到该设备不是为游戏而设计的，而且你可以通过添加第二个内存模块来提高性能，这对ThinkPad L14来说是没有问题的。
也就是说，如果不是因为以下问题的话。Far Cry 5在多次尝试和重启后仍拒绝启动，而且每次我们试图运行GRID Legends时，L14都会重新启动。关于这一点，请看 "压力测试 "部分。
用电池运行笔记本并不影响图形性能。
| 3DMark Performance Rating - Percent | |
| Lenovo ThinkPad T14 G3-21CF004NGE | |
| Average of class Office | |
| Lenovo ThinkPad T14 Gen2-20W1S00000 -1! | |
| Dell Inspiron 14 5425 6VPKR | |
| Lenovo ThinkBook 14 G4 21DK0004GE -1! | |
| Lenovo ThinkPad E14 G3-20Y7003SGE | |
| Average AMD Radeon RX Vega 7 | |
| Lenovo ThinkPad L14 G2 AMD -1! | |
| HP ProBook 445 G8-3Z6Q8ES | |
| Dell Latitude 14 5420-D2G5W -1! | |
| Lenovo ThinkPad L14 G3 21C50030GE | |

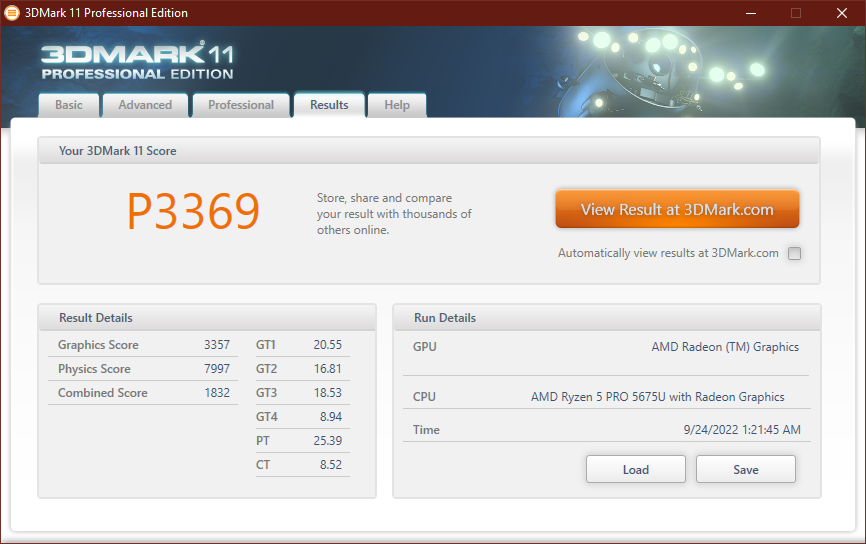

| 3DMark 11 Performance | 3369 points | |

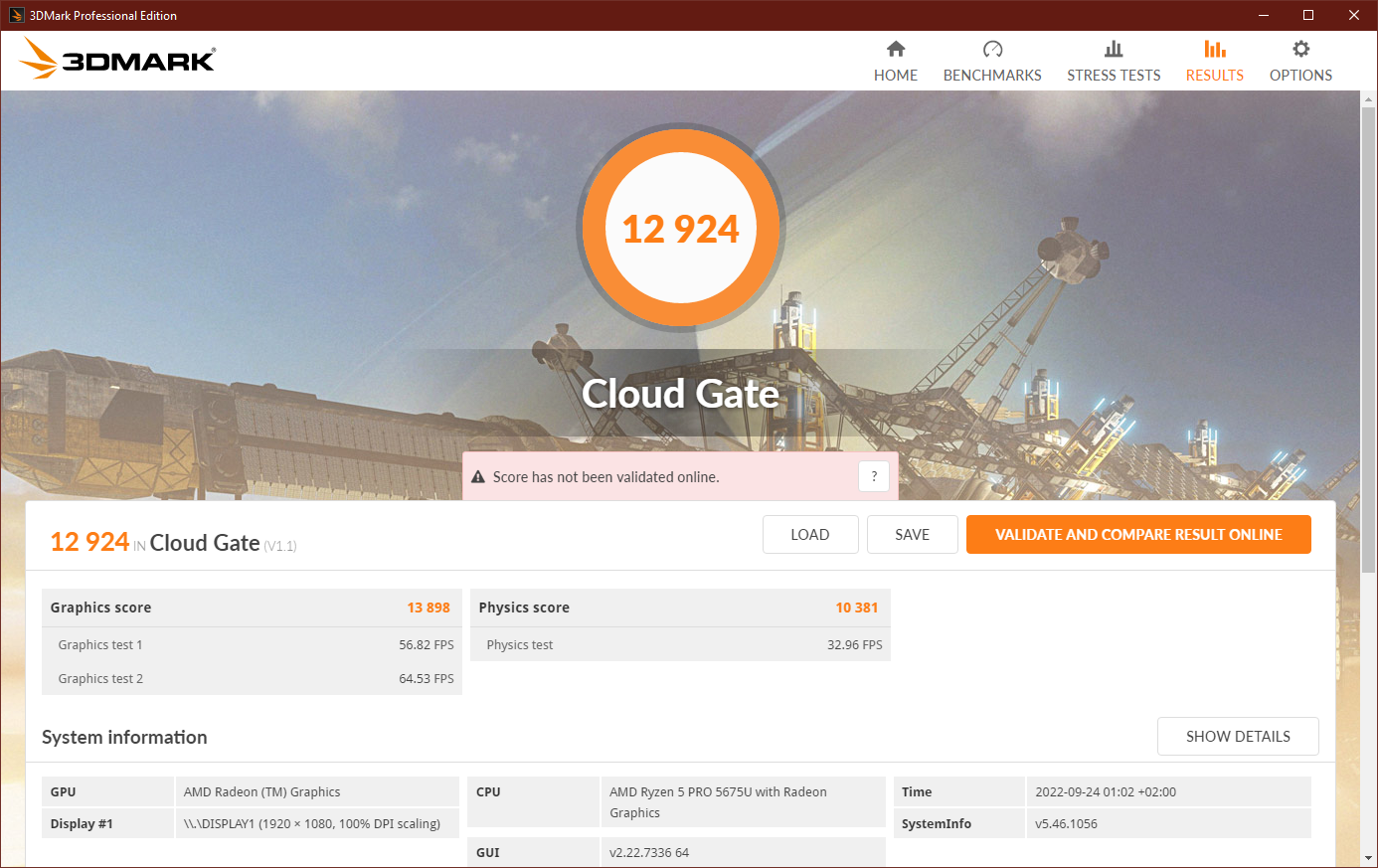

| 3DMark Cloud Gate Standard Score | 12924 points | |

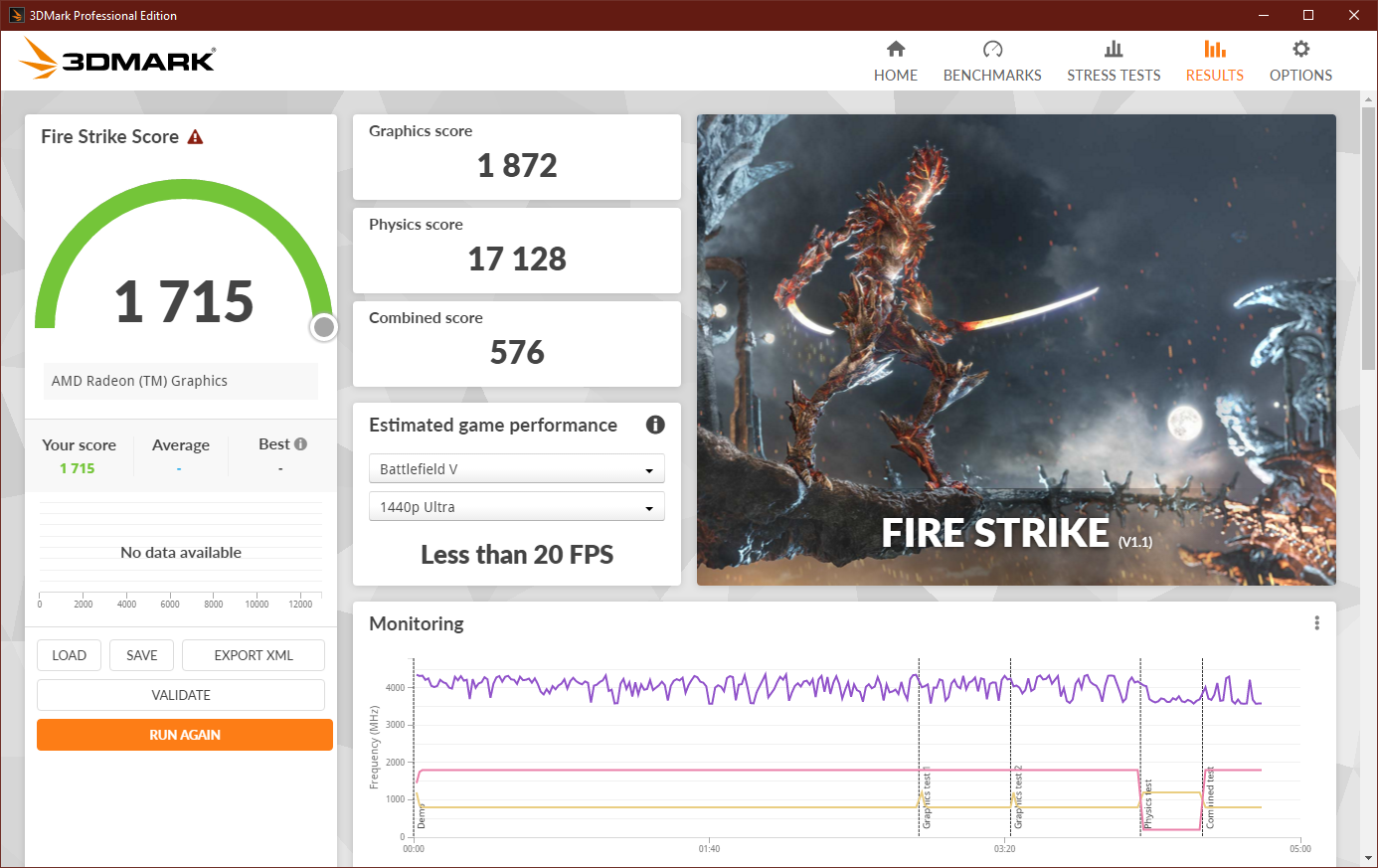

| 3DMark Fire Strike Score | 1715 points | |

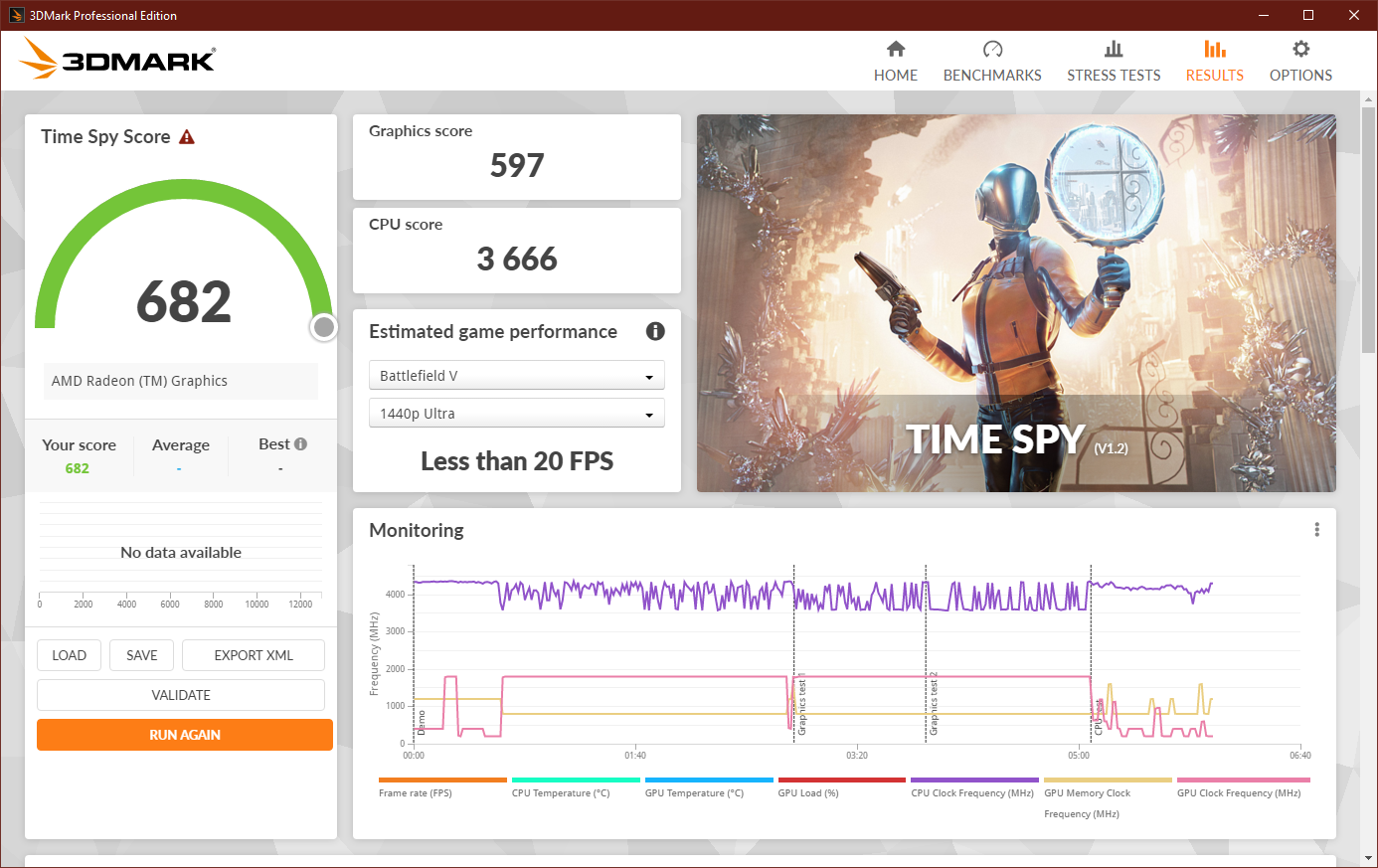

| 3DMark Time Spy Score | 682 points | |
Help | ||
| The Witcher 3 - 1024x768 Low Graphics & Postprocessing | |
| Lenovo ThinkPad T14 G3-21CF004NGE | |
| Lenovo ThinkPad T14 Gen2-20W1S00000 | |
| Average of class Office (16 - 177, n=75, last 2 years) | |
| Lenovo ThinkPad E14 G3-20Y7003SGE | |
| Average AMD Radeon RX Vega 7 (25.5 - 105.8, n=50) | |
| Dell Inspiron 14 5425 6VPKR | |
| Lenovo ThinkPad L14 G2 AMD | |
| Dell Latitude 14 5420-D2G5W | |
| HP ProBook 445 G8-3Z6Q8ES | |
| Lenovo ThinkPad L14 G3 21C50030GE | |
| Shadow of the Tomb Raider - 1280x720 Lowest Preset | |
| Lenovo ThinkPad T14 Gen2-20W1S00000 | |
| Average of class Office (27 - 70.6, n=2, last 2 years) | |
| Average AMD Radeon RX Vega 7 (20 - 55, n=9) | |
| Lenovo ThinkPad L14 G3 21C50030GE | |

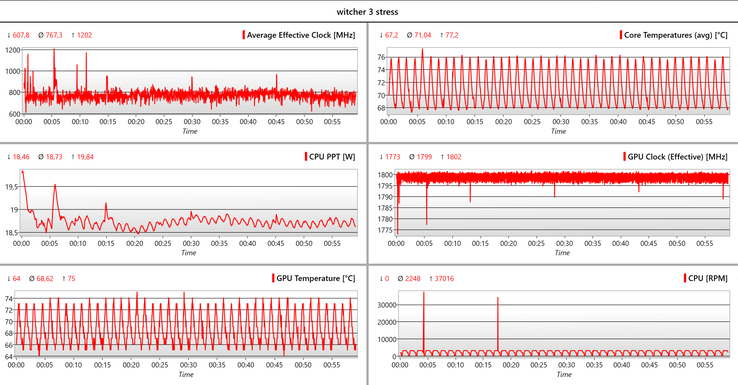

Witcher 3 FPS graph
| low | med. | high | ultra | |
|---|---|---|---|---|
| GTA V (2015) | 43.1 | 38.2 | 11.3 | |
| The Witcher 3 (2015) | 29.2 | 19.1 | 9.63 | 6.6 |
| Dota 2 Reborn (2015) | 80.5 | 52.2 | 25.9 | 24.2 |
| Final Fantasy XV Benchmark (2018) | 17.6 | 8.9 | 6 | |
| X-Plane 11.11 (2018) | 31.2 | 24.1 | 21.7 | |
| Strange Brigade (2018) | 35.3 | 13.5 | 11.7 | 10.3 |
| Shadow of the Tomb Raider (2018) | 20 | 9 |
排放。联想办公笔记本运行安静且相当凉爽
噪声排放
你很少会听到来自L14的任何风扇噪音。笔记本电脑必须要运行高要求的软件，你才能注意到风扇的声音。在浏览互联网时，你可以同时打开尽可能多的标签，但很少会听到来自风扇的任何声音。即使在最大负荷下，风扇的噪音也从未超过31.7分贝（A）。对比组中的大多数设备都运行得更响，特别是在最大负荷下。
然而，当笔记本电脑处于持续负载或运行游戏时，风扇频繁地旋转起来，每次都会产生一个响亮的、略微恼人的高音调噪音。在我们的评测单元上，我们没有检测到任何线圈的啸叫。
Noise Level
| Idle |
| 24.2 / 24.2 / 28.6 dB(A) |
| Load |
| 28.6 / 31.75 dB(A) |
 | ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min:  , med:  , max:  Earthworks M23R, Arta (15 cm distance) environment noise: 24.2 dB(A) | ||
| Lenovo ThinkPad L14 G3 21C50030GE Vega 7, R5 PRO 5675U, Kioxia BG5 KBG5AZNT256G | Lenovo ThinkPad L14 G2 AMD Vega 8, R7 PRO 5850U, WDC PC SN730 SDBQNTY-512GB | Lenovo ThinkPad T14 G3-21CF004NGE Radeon 680M, R7 PRO 6850U, Kioxia BG5 KBG5AZNV512G | Lenovo ThinkPad E14 G3-20Y7003SGE Vega 7, R5 5500U, SK Hynix BC711 HFM512GD3HX015N | Lenovo ThinkBook 14 G4 21DK0004GE Vega 7, R5 5625U, Samsung PM991a MZALQ512HBLU | Lenovo IdeaPad 5 Pro 14ACN6 Vega 7, R5 5600U, WDC PC SN730 SDBPNTY-512G | HP ProBook 445 G8-3Z6Q8ES Vega 7, R5 5600U, SSSTC CL1-8D512-HP | Dell Latitude 14 5420-D2G5W Iris Xe G7 80EUs, i5-1135G7, WDC PC SN530 SDBPTPZ-256G | |
|---|---|---|---|---|---|---|---|---|
| Noise | -2% | -5% | -0% | -6% | -6% | 0% | -15% | |
| off / environment * | 24.2 | 25.08 -4% | 24.2 -0% | 23.8 2% | 24.41 -1% | 24.6 -2% | 25 -3% | 25 -3% |
| Idle Minimum * | 24.2 | 25.08 -4% | 24.2 -0% | 23.8 2% | 24.41 -1% | 24.6 -2% | 25 -3% | 25 -3% |
| Idle Average * | 24.2 | 25.08 -4% | 24.2 -0% | 23.8 2% | 24.41 -1% | 24.6 -2% | 25 -3% | 25 -3% |
| Idle Maximum * | 28.6 | 25.08 12% | 25.8 10% | 25 13% | 24.41 15% | 25.1 12% | 25 13% | 25 13% |
| Load Average * | 28.6 | 26.81 6% | 32.2 -13% | 32 -12% | 36.36 -27% | 29.6 -3% | 30.7 -7% | 36.5 -28% |
| Witcher 3 ultra * | 31.7 | 34.1 -8% | 32 -1% | 31.9 -1% | ||||
| Load Maximum * | 31.75 | 37.99 -20% | 38.8 -22% | 34.5 -9% | 38.62 -22% | 45.5 -43% | 30.7 3% | 52.4 -65% |
* ... smaller is better
温度
在最大负荷下，在底板右侧朝后的位置有一个热点，温度达到45.8℃（114.4℉）。不过在日常负载情况下，ThinkPad L14 G3并没有变得那么热，即使是在机箱的那个特定区域，也可以在膝上使用而没有问题。
笔记本电脑上的所有其他区域触感都相当凉爽。相比之下， ThinkPad T14 G3 AMD和 ThinkPad E14 G3 AMD的运行温度都很高。
(±) The maximum temperature on the upper side is 40.4 °C / 105 F, compared to the average of 34.3 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(-) The bottom heats up to a maximum of 45.8 °C / 114 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 27.4 °C / 81 F, compared to the device average of 29.5 °C / 85 F.
(±) Playing The Witcher 3, the average temperature for the upper side is 34.3 °C / 94 F, compared to the device average of 29.5 °C / 85 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 31.9 °C / 89.4 F and are therefore cool to the touch.
(-) The average temperature of the palmrest area of similar devices was 27.7 °C / 81.9 F (-4.2 °C / -7.5 F).
| Lenovo ThinkPad L14 G3 21C50030GE AMD Ryzen 5 PRO 5675U, AMD Radeon RX Vega 7 | Lenovo ThinkPad L14 G2 AMD AMD Ryzen 7 PRO 5850U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) | Lenovo ThinkPad T14 G3-21CF004NGE AMD Ryzen 7 PRO 6850U, AMD Radeon 680M | Lenovo ThinkPad E14 G3-20Y7003SGE AMD Ryzen 5 5500U, AMD Radeon RX Vega 7 | Lenovo ThinkBook 14 G4 21DK0004GE AMD Ryzen 5 5625U, AMD Radeon RX Vega 7 | Lenovo IdeaPad 5 Pro 14ACN6 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7 | HP ProBook 445 G8-3Z6Q8ES AMD Ryzen 5 5600U, AMD Radeon RX Vega 7 | Dell Latitude 14 5420-D2G5W Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs | |
|---|---|---|---|---|---|---|---|---|
| Heat | -3% | -2% | 1% | -4% | 10% | 2% | 3% | |
| Maximum Upper Side * | 40.4 | 42.1 -4% | 48.2 -19% | 45.1 -12% | 38.9 4% | 35.8 11% | 37.9 6% | 41.7 -3% |
| Maximum Bottom * | 45.8 | 45.2 1% | 52.8 -15% | 49.3 -8% | 42.8 7% | 42.8 7% | 44.1 4% | 35.6 22% |
| Idle Upper Side * | 28.2 | 28.6 -1% | 24.4 13% | 24.7 12% | 33.2 -18% | 25 11% | 27.8 1% | 29.9 -6% |
| Idle Bottom * | 28.9 | 31.5 -9% | 24.5 15% | 25.6 11% | 30.8 -7% | 26.2 9% | 29.8 -3% | 29.7 -3% |
* ... smaller is better
压力测试
我们无法为我们的综合压力测试（同时运行Prime95和FurMark）获得任何数据，因为每次我们试图这样做时，系统就会崩溃。这本身就是一个结果，表明系统有稳定性问题--这是我们以前在尝试启动一些游戏时遇到的问题。至少在系统进行纯粹的CPU压力测试时，CPU没有节流，运行在2.72GHz，这仍然高于其基本时钟。
一个缺点是，核心温度确实达到了95°C（203°F）的关键水平。作为比较， L14 G2没有超过65°C（149°F）。当系统仅在图形负载下，GPU温度达到86°C（187°F），这是不寻常的高。假设一下，这可能是联想的员工对散热膏使用得太重了。
| CPU时钟（GHz） | GPU时钟（MHz） | CPU平均温度（°C） | GPU平均温度（°C） | |
| 系统空闲 | - | - | 36 | 35 |
| Prime95压力 | 2.72 | - | 95 | 67 |
| FurMark 压力 | 0.28 | 1,800 | 71 | 86 |
| Witcher 3 应力 | 0.77 | 1,800 | 71 | 69 |
发言人

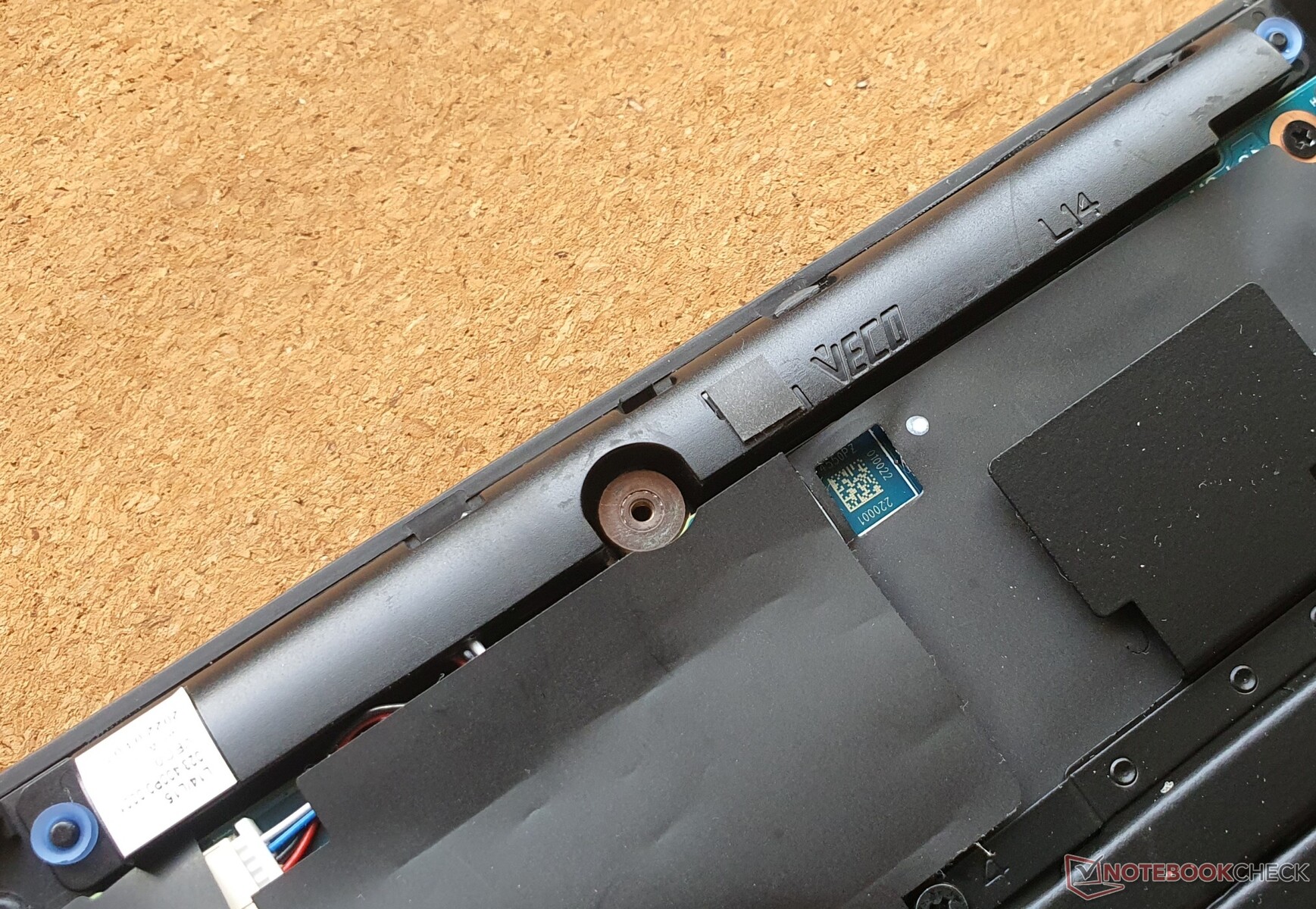

向上发射的扬声器声音不大，最大音量只有68分贝（A）。但至少有一丝低音，而且高音和中音听起来平衡而平缓。尽管如此，如果你真的想享受音乐，我们建议通过音频插孔或蓝牙将笔记本电脑连接到外部音频设备。
Lenovo ThinkPad L14 G3 21C50030GE audio analysis
(-) | not very loud speakers (68.33 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 14% lower than median
(±) | linearity of bass is average (14.8% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.4% away from median
(+) | mids are linear (5.9% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.1% away from median
(+) | highs are linear (6.1% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (17.5% difference to median)
Compared to same class
» 23% of all tested devices in this class were better, 6% similar, 70% worse
» The best had a delta of 7%, average was 22%, worst was 53%
Compared to all devices tested
» 30% of all tested devices were better, 8% similar, 62% worse
» The best had a delta of 4%, average was 25%, worst was 134%
Lenovo IdeaPad 5 Pro 14ACN6 audio analysis
(±) | speaker loudness is average but good (76.7 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 17% lower than median
(±) | linearity of bass is average (9% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 4.5% away from median
(+) | mids are linear (4.9% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 1.6% away from median
(+) | highs are linear (4.3% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (16% difference to median)
Compared to same class
» 35% of all tested devices in this class were better, 5% similar, 60% worse
» The best had a delta of 5%, average was 19%, worst was 53%
Compared to all devices tested
» 22% of all tested devices were better, 5% similar, 73% worse
» The best had a delta of 4%, average was 25%, worst was 134%
电源管理。ThinkPad L系列终于获得了良好的电池寿命
消耗功率
尽管L14 G3的空闲功耗不算太差，但 ThinkPad T14 G3 AMD相比之下，ThinkPad T14 G3在闲置时需要的电量要少得多。
在负载情况下，该设备消耗约30瓦的电力，鉴于指定的功率限制，这符合我们的预期。即使是一个45瓦的电源适配器也不会有任何区别。
| Off / Standby | 0.6 / 0.8 Watt |
| Idle | 4.8 / 7.7 / 8.5 Watt |
| Load |
27.4 / 36.5 Watt |

| |
Key:
min: ,
med: ,
max: Metrahit Energy | |
| Lenovo ThinkPad L14 G3 21C50030GE R5 PRO 5675U, Vega 7, Kioxia BG5 KBG5AZNT256G, IPS, 1920x1080, 14" | Lenovo ThinkPad L14 G2 AMD R7 PRO 5850U, Vega 8, WDC PC SN730 SDBQNTY-512GB, IPS LED, 1920x1080, 14" | Lenovo ThinkPad T14 G3-21CF004NGE R7 PRO 6850U, Radeon 680M, Kioxia BG5 KBG5AZNV512G, IPS, 1920x1200, 14" | Lenovo ThinkPad E14 G3-20Y7003SGE R5 5500U, Vega 7, SK Hynix BC711 HFM512GD3HX015N, IPS, 1920x1080, 14" | Lenovo ThinkBook 14 G4 21DK0004GE R5 5625U, Vega 7, Samsung PM991a MZALQ512HBLU, IPS, 1920x1080, 14" | Lenovo IdeaPad 5 Pro 14ACN6 R5 5600U, Vega 7, WDC PC SN730 SDBPNTY-512G, IPS, 2240x1400, 14" | HP ProBook 445 G8-3Z6Q8ES R5 5600U, Vega 7, SSSTC CL1-8D512-HP, IPS LED, 1920x1080, 14" | Dell Inspiron 14 5425 6VPKR R5 5625U, Vega 7, SK Hynix BC711 512GB HFM512GD3GX013N, IPS, 1920x1200, 14" | Average of class Office | |
|---|---|---|---|---|---|---|---|---|---|
| Power Consumption | -10% | -1% | -19% | -14% | -22% | 2% | -13% | -25% | |
| Idle Minimum * | 4.8 | 5.44 -13% | 2.4 50% | 3.5 27% | 4.1 15% | 3.8 21% | 3.6 25% | 4 17% | 4.54 ? 5% |
| Idle Average * | 7.7 | 8.06 -5% | 5.3 31% | 7.5 3% | 8 -4% | 6.9 10% | 7.5 3% | 6.6 14% | 7.49 ? 3% |
| Idle Maximum * | 8.5 | 9.4 -11% | 5.6 34% | 8.7 -2% | 8.9 -5% | 8.8 -4% | 9 -6% | 9.4 -11% | 9.14 ? -8% |
| Load Average * | 27.4 | 36.06 -32% | 39.7 -45% | 43.6 -59% | 39.3 -43% | 42.2 -54% | 27 1% | 37 -35% | 42.8 ? -56% |
| Witcher 3 ultra * | 32 | 26.1 18% | 42.8 -34% | 42.2 -32% | 38.1 -19% | 37.7 -18% | 26.9 16% | 37.1 -16% | |
| Load Maximum * | 36.5 | 42.26 -16% | 50.6 -39% | 55 -51% | 45.7 -25% | 68.4 -87% | 46 -26% | 53.7 -47% | 61.3 ? -68% |
* ... smaller is better
Power consumption Witcher 3 / stress test
Power consumption with external monitor
电池寿命
由于电池容量增加了23%，ThinkPad L系列的一个主要缺陷终于得到了解决。我们的评测单元配备了57Wh的电池。在屏幕亮度为150尼特的情况下，L14 G3在我们的Wi-Fi测试中成功地持续了13小时以上。这是一个很好的结果，使该笔记本在比较中领先于所有其他设备。即使使用45Wh的电池选项，你仍然可以期待该设备的电池寿命超过10小时。对于那些想要更大电池的人，还有一个63Wh的选项。
| Lenovo ThinkPad L14 G3 21C50030GE R5 PRO 5675U, Vega 7, 57 Wh | Lenovo ThinkPad L14 G2 AMD R7 PRO 5850U, Vega 8, 45 Wh | Lenovo ThinkPad T14 G3-21CF004NGE R7 PRO 6850U, Radeon 680M, 52.5 Wh | Lenovo ThinkPad E14 G3-20Y7003SGE R5 5500U, Vega 7, 57 Wh | Lenovo ThinkBook 14 G4 21DK0004GE R5 5625U, Vega 7, 43.01 Wh | Lenovo IdeaPad 5 Pro 14ACN6 R5 5600U, Vega 7, 57 Wh | HP ProBook 445 G8-3Z6Q8ES R5 5600U, Vega 7, 45 Wh | Dell Latitude 14 5420-D2G5W i5-1135G7, Iris Xe G7 80EUs, 63 Wh | Average of class Office | |
|---|---|---|---|---|---|---|---|---|---|
| Battery Runtime | -30% | 1% | -12% | -36% | -36% | -4% | 21% | -5% | |
| H.264 | 759 | 574 -24% | 984 30% | 827 9% | 704 ? -7% | ||||
| WiFi v1.3 | 795 | 469 -41% | 772 -3% | 680 -14% | 511 -36% | 550 -31% | 605 -24% | 769 -3% | 600 ? -25% |
| Load | 101 | 77 -24% | 76 -25% | 71 -30% | 65 -36% | 60 -41% | 117 16% | 146 45% | 118.1 ? 17% |
Pros
Cons
评语。是ThinkPad T14的最佳替代品
联想ThinkPad L14 G3是一款不错的办公笔记本电脑，与前代产品相比，它拥有更大的电池和更薄的机箱。再加上它有两个内存插槽，出色的CPU性能、安静的运行和低功耗的显示选项使L14成为流行的ThinkPad T14的一个有吸引力的替代品。，后者运行温度较高，并有一个焊接的Wi-Fi模块。T14的AMD变体甚至有完全焊接的内存。
有一点是肯定的：L14在输入设备和外壳坚固性方面没有接近ThinkPad T14，尽管键盘和触控板对于这个价格来说是很好的。如果你不介意有些更基本的机箱，你可以用1,019欧元（1,104美元）购买L14，而不是T系列笔记本电脑，这样可以节省很多钱。
L14 G3可能是受欢迎的ThinkPad T480当之无愧的继任者。它提供两个内存插槽，电池寿命长，性能好，排放低。还有一个很好的显示屏选择。
然而，我们的评测单位配备的显示屏亮度不足（282尼特），仅覆盖61%的sRGB色域。因此，如果有这个选项，你应该选择更明亮的低功耗显示屏。同样令人遗憾的是，联想保留了16:9的长宽比，故意将该产品与ThinkPad T14区分开来。
那些绝对想要更长键程的人应该看看ThinkPad E14 。它在大多数方面的性能与L14惊人地相似，只是在端口选择和与商业有关的安全功能方面落后。但E14至少有一个内存插槽。如果你想以较低的价格获得16:10的显示屏，你可以考虑购买IdeaPad 5 Pro 14 或Dell Inspiron 14 。后者也有两个内存插槽，但其键盘没有那么好。
价格和可用性
我们的评测单位是，是为学生和教育工作者准备的特殊型号(仅在德国销售），价格为939欧元（915美元）。一台，存储量为512的AMD型号的AMD机型，价格约为1,699美元。
ThinkPad L14 G3的英特尔型号起价为1399美元，可直接从Lenovo US购买。.
Lenovo ThinkPad L14 G3 21C50030GE
- 10/18/2022 v7 (old)
Marvin Gollor
Price comparison
