联想ThinkPad P16笔记本电脑回顾：RTX A2000现在有了充分的动力
今年早些时候，我们审查了配备RTX A2000的联想ThinkPad P16。当时，图形性能变成了令人失望的低水平，这导致我们建议不要使用这种特定配置。我们对联想工作站的第二次测试表明，联想ThinkPad P16基本上可以成为一台非常强大的笔记本电脑，因为配备RTX A5500的联想ThinkPad P16显示出非常强大的GPU性能。
联想向我们保证，P16在配备RTX A2000的情况下，应该还会显示出更好的GPU性能。怀疑的是： 我们的第一个测试设备出了问题。联想无法复制相应的基准测试结果，所以我们又看了看带RTX A2000的ThinkPad P16。我们重点关注GPU性能，所有其他信息都可以在我们对该配置的第一次详细审查中找到。
潜在的竞争对手比较
Rating | Date | Model | Weight | Height | Size | Resolution | Price |
|---|---|---|---|---|---|---|---|
| 89.3 % v7 (old) | 06 / 2023 | Lenovo ThinkPad P16 21D6001DMB A2000 Retest i7-12850HX, RTX A2000 Laptop GPU | 3 kg | 30.23 mm | 16.00" | 2560x1600 | |
| 91 % v7 (old) | 02 / 2023 | Lenovo ThinkPad P16 G1 RTX A5500 i9-12950HX, RTX A5500 Laptop GPU | 3 kg | 30.23 mm | 16.00" | 3840x2400 | |
| 88.2 % v7 (old) | 02 / 2023 | Lenovo ThinkPad P16 G1 21D6001DMB i7-12850HX, RTX A2000 Laptop GPU | 3 kg | 30.23 mm | 16.00" | 2560x1600 | |
| 88.4 % v7 (old) | 10 / 2022 | Dell Precision 7670 i7-12850HX, RTX A2000 Laptop GPU | 2.7 kg | 24.7 mm | 16.00" | 3840x2400 | |
| 89.6 % v7 (old) | 01 / 2023 | Asus ExpertBook B6 Flip B6602FC2 i9-12950HX, RTX A2000 Laptop GPU | 2.8 kg | 27.2 mm | 16.00" | 2560x1600 | |
| 87.8 % v7 (old) | 04 / 2023 | Lenovo ThinkPad P15v G3 21EM001AGE R7 PRO 6850H, RTX A2000 Laptop GPU | 2.2 kg | 22.7 mm | 15.60" | 3840x2160 |
性能：Nvidia RTX A2000现在运行速度明显加快
这里测试的配置与第一个测试设备相同： 英特尔酷睿i7-12850HX, Nvidia RTX A2000，16GB内存，和1TB SSD。关于联想ThinkPad P16的其他可用型号的信息可以在 我们的第一篇评论.
测试条件
在CPU性能方面没有任何变化，所以我们不会进一步讨论处理器性能。GPU的情况则不同，联想澄清了这一情况：图形芯片的功率不限于60瓦，但最多可以消耗80瓦。60瓦的数值只适用于CPU和GPU同时负载的情况。

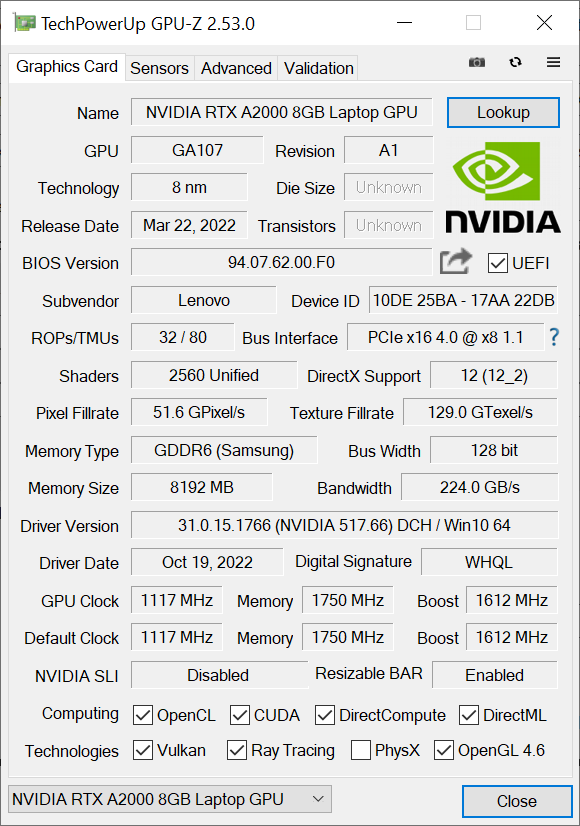

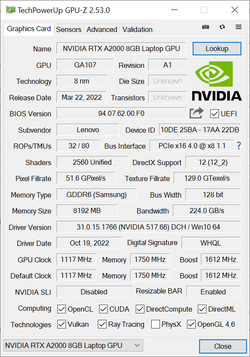

图形卡
有许多不同版本的 Nvidia RTX A2000.较旧的版本只有4GB的内存，例如，我们最近看到一个在 ThinkPad P15v G3.这种GPU的较新型号，比如这里的P16，总是配备8GB。然而，即使是这些较新的GPU，GPU的最大消耗量也会有很大不同：在35至95瓦的范围内，任何事情都有可能。
在ThinkPad P16中，一切都表明图形芯片最多可消耗60瓦，在综合负载下甚至更少。然而，我们今天的测试设备运行的是一个较新的驱动版本，这里的情况看起来有所不同：我们测得在纯粹的GPU负载下，最大功率为80瓦。联想的规格表提到了60瓦，但联想在被问及时确认了80瓦，我们在另一个样本中也确认了同样的数值。
与第一次测试结果的差异很明显：这里测试的ThinkPad P16在3DMark测试中比第一次测试快了约37%，在SPECviewperf中甚至快了47%。与配备RTX A5500的版本相比，仍有明显差距。 版本仍有明显差距。，但差异明显较小。现在P16的RTX A2000变体在游戏测试中的得分也高得多。
| 3DMark 11 Performance | 19498 points | |
| 3DMark Cloud Gate Standard Score | 49001 points | |
| 3DMark Fire Strike Score | 13587 points | |
| 3DMark Time Spy Score | 6113 points | |
Help | ||
* ... smaller is better
| The Witcher 3 - 1920x1080 Ultra Graphics & Postprocessing (HBAO+) | |
| Lenovo ThinkPad P16 G1 RTX A5500 | |
| Average of class Workstation (23.3 - 156.5, n=23, last 2 years) | |
| Asus ExpertBook B6 Flip B6602FC2 | |
| Lenovo ThinkPad P16 21D6001DMB A2000 Retest | |
| Dell Precision 7670 | |
| Lenovo ThinkPad P15v G3 21EM001AGE | |
| Lenovo ThinkPad P16 G1 21D6001DMB | |
| GTA V - 1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x | |
| Lenovo ThinkPad P16 G1 RTX A5500 | |
| Asus ExpertBook B6 Flip B6602FC2 | |
| Lenovo ThinkPad P16 21D6001DMB A2000 Retest | |
| Average of class Workstation (18.3 - 126.7, n=26, last 2 years) | |
| Dell Precision 7670 | |
| Lenovo ThinkPad P15v G3 21EM001AGE | |
Witcher 3 FPS Chart
| low | med. | high | ultra | QHD | |
|---|---|---|---|---|---|
| GTA V (2015) | 186.8 | 185.3 | 164.5 | 81.2 | 58.4 |
| The Witcher 3 (2015) | 320 | 204 | 108.6 | 59 | |
| Dota 2 Reborn (2015) | 192.4 | 174.7 | 168.4 | 158 | |
| Final Fantasy XV Benchmark (2018) | 158.2 | 84.7 | 60.3 | 44.2 | |
| X-Plane 11.11 (2018) | 163.3 | 142.3 | 112.5 | ||
| Strange Brigade (2018) | 353 | 154.3 | 120.4 | 103.9 | 75.9 |
| F1 22 (2022) | 195 | 178.2 | 125.4 | 36.2 | 22.6 |
排放与能源：联想ThinkPad P16的风扇现在更活跃了
噪声排放
在我们对配备RTX A2000的ThinkPad P16进行第一次审查时，可以注意到，在Witcher 3 测试期间，风扇几乎不运行。这一点现在明显不同。现在主动冷却系统在Witcher 3 测试和压力测试中运行的声音一样大。同样值得注意的是：在这个设备上，风扇在空闲模式下运行的频率也高得多。
Noise Level
| Idle |
| 24.7 / 26.2 / 31.2 dB(A) |
| Load |
| 48.3 / 52.7 dB(A) |
 | ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min:  , med:  , max:  Earthworks M23R, Arta (15 cm distance) environment noise: 24.7 dB(A) | ||
| Lenovo ThinkPad P16 21D6001DMB A2000 Retest RTX A2000 Laptop GPU, i7-12850HX, Micron 3400 1TB MTFDKBA1T0TFH | Lenovo ThinkPad P16 G1 21D6001DMB RTX A2000 Laptop GPU, i7-12850HX, Micron 3400 1TB MTFDKBA1T0TFH | Lenovo ThinkPad P16 G1 RTX A5500 RTX A5500 Laptop GPU, i9-12950HX, WDC PC SN810 2TB | Dell Precision 7670 RTX A2000 Laptop GPU, i7-12850HX, SK Hynix HFS001TEJ9X115N | Asus ExpertBook B6 Flip B6602FC2 RTX A2000 Laptop GPU, i9-12950HX, Samsung PM9A1 MZVL21T0HCLR | Lenovo ThinkPad P15v G3 21EM001AGE RTX A2000 Laptop GPU, R7 PRO 6850H, SK Hynix PC711 1TB HFS001TDE9X081N | |
|---|---|---|---|---|---|---|
| Noise | 11% | 13% | 9% | -12% | 19% | |
| off / environment * | 24.7 | 23.2 6% | 23.1 6% | 22.7 8% | 26 -5% | 23.2 6% |
| Idle Minimum * | 24.7 | 23.2 6% | 23.1 6% | 22.9 7% | 32.4 -31% | 23.2 6% |
| Idle Average * | 26.2 | 23.2 11% | 23.1 12% | 22.9 13% | 32.4 -24% | 23.2 11% |
| Idle Maximum * | 31.2 | 23.2 26% | 23.1 26% | 24.5 21% | 32.4 -4% | 23.2 26% |
| Load Average * | 48.3 | 47.8 1% | 28.9 40% | 48.7 -1% | 51.9 -7% | 35 28% |
| Witcher 3 ultra * | 52.7 | 34.1 35% | 51.6 2% | 45.2 14% | 37.9 28% | |
| Load Maximum * | 52.7 | 56.3 -7% | 51.4 2% | 52.1 1% | 52.1 1% | 37.5 29% |
* ... smaller is better
温度
ThinkPad P16的新测试装置在负载和怠速状态下的运行温度都比第一款机型略高。特别是负载下的较高温度并不令人惊讶。毕竟，GPU的性能变高了。

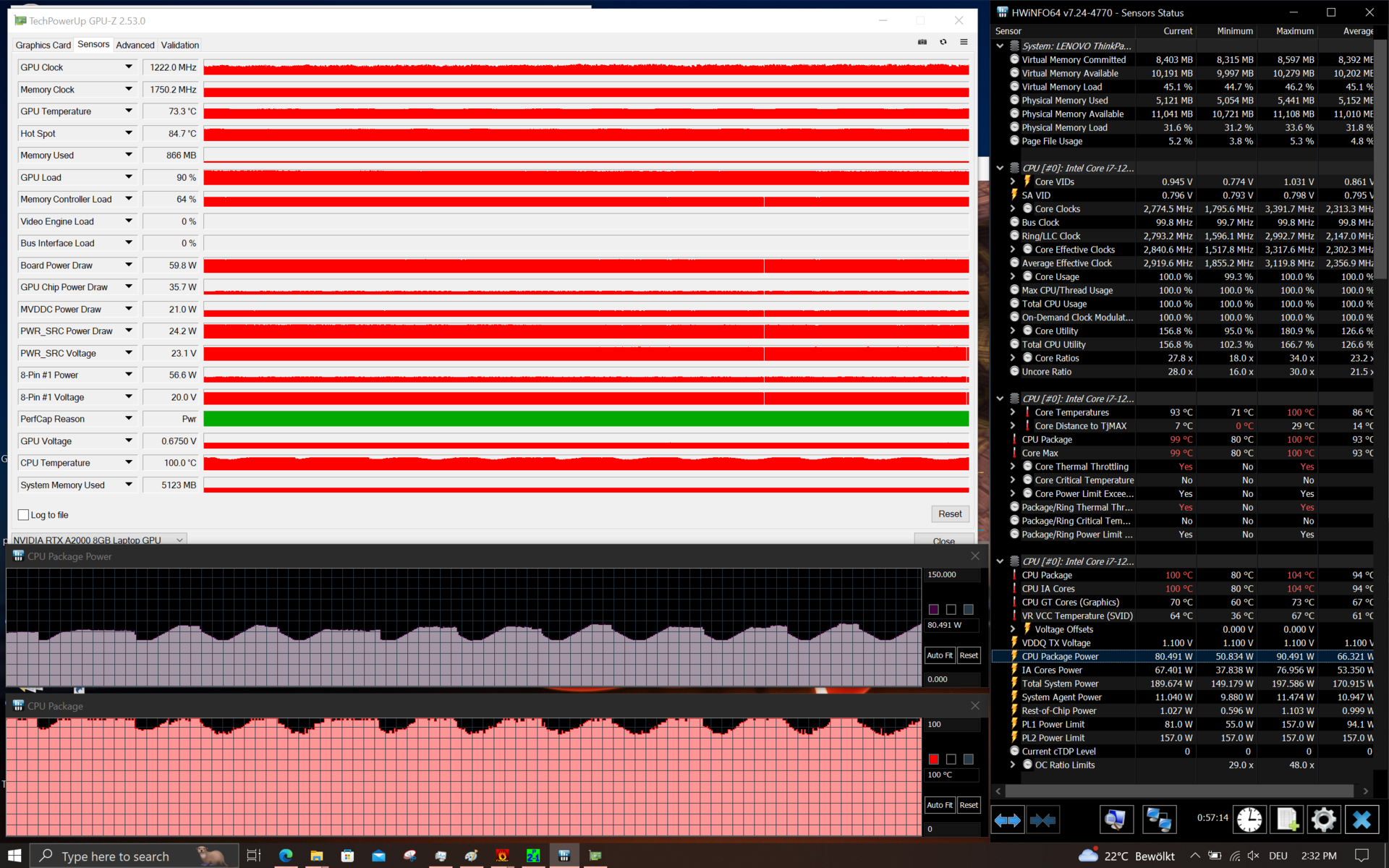

在压力测试中，我们无法确定任何节流情况。
(±) The maximum temperature on the upper side is 44 °C / 111 F, compared to the average of 38.2 °C / 101 F, ranging from 22.2 to 69.8 °C for the class Workstation.
(-) The bottom heats up to a maximum of 46.8 °C / 116 F, compared to the average of 41.3 °C / 106 F
(+) In idle usage, the average temperature for the upper side is 29 °C / 84 F, compared to the device average of 32 °C / 90 F.
(±) Playing The Witcher 3, the average temperature for the upper side is 33.7 °C / 93 F, compared to the device average of 32 °C / 90 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 31.2 °C / 88.2 F and are therefore cool to the touch.
(-) The average temperature of the palmrest area of similar devices was 27.8 °C / 82 F (-3.4 °C / -6.2 F).
| Lenovo ThinkPad P16 21D6001DMB A2000 Retest Intel Core i7-12850HX, NVIDIA RTX A2000 Laptop GPU | Lenovo ThinkPad P16 G1 21D6001DMB Intel Core i7-12850HX, NVIDIA RTX A2000 Laptop GPU | Lenovo ThinkPad P16 G1 RTX A5500 Intel Core i9-12950HX, NVIDIA RTX A5500 Laptop GPU | Dell Precision 7670 Intel Core i7-12850HX, NVIDIA RTX A2000 Laptop GPU | Asus ExpertBook B6 Flip B6602FC2 Intel Core i9-12950HX, NVIDIA RTX A2000 Laptop GPU | Lenovo ThinkPad P15v G3 21EM001AGE AMD Ryzen 7 PRO 6850H, NVIDIA RTX A2000 Laptop GPU | |
|---|---|---|---|---|---|---|
| Heat | 13% | -5% | -3% | 0% | 7% | |
| Maximum Upper Side * | 44 | 43.1 2% | 44.8 -2% | 51 -16% | 48.4 -10% | 48.7 -11% |
| Maximum Bottom * | 46.8 | 39.9 15% | 49.8 -6% | 45.8 2% | 52.3 -12% | 50.5 -8% |
| Idle Upper Side * | 31.8 | 26 18% | 30.6 4% | 31.8 -0% | 27.8 13% | 25 21% |
| Idle Bottom * | 33.5 | 27.6 18% | 38.6 -15% | 32.6 3% | 30.3 10% | 25.4 24% |
* ... smaller is better
消耗功率
为了证实我们的基准结果，我们再次进行了一些能量测量。这些结果与基准测试结果所显示的完全一致：配备RTX A2000和较新驱动版本的ThinkPad P16在负载下显示出更高的能耗，因为GPU被允许消耗更多。特别是在Witcher 3 测试中可以看到这种差异。
Power consumption Witcher 3 / Stress test
Power consumption external monitor
Pros
Cons
结论：联想ThinkPad P16现在用RTX A2000运行得更快了
联想ThinkPad P16是一款非常好的移动工作站--这是我们对配备Nvidia RTX A2000的版本进行首次评测时的结论。我们对配备Nvidia RTX A2000的版本进行的第一次审查的结论尽管我们不得不承认，GPU的性能太低。有了较新的驱动版本和新安装的操作系统，我们可以说GPU手刹的问题已经解决了。尽管Nvidia RTX A2000仍然明显慢于RTX A5500，我们也在ThinkPad P16中进行了测试--现在达到了预期的效果。
现在GPU性能达到了全速：配备RTX A2000的ThinkPad P16毕竟值得推荐。
我们已经测试过的ThinkPad P16的最强对手是 戴尔Precision 7670和 华硕ExpertBook B6.关于联想ThinkPad P16的另外两篇评论，对硬件进行了更详细的介绍，可以在以下链接中找到：
价格和可用性
ThinkPad P16在联想的官方网上商店有售，价格从1639美元起。 否则，用户可以通过其他经销商如美国亚马逊订购该移动工作站的一些变种。
