Magyar联想 ThinkPad P40 Yoga 工作站简短评测
Lenovo ThinkPad P40 Yoga 20GQ-0004GE (ThinkPad P1 Series)
Processor
Intel Core i7-6500U 2 x 2.5 - 3.1 GHz, Skylake
Graphics adapter

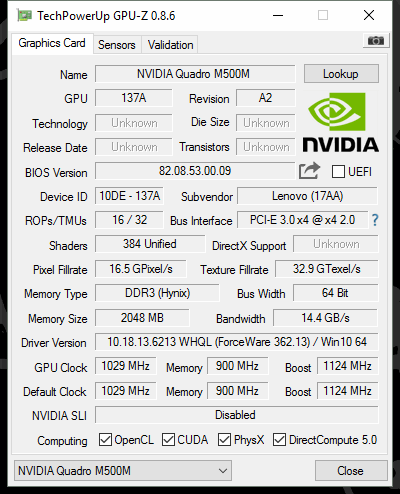

NVIDIA Quadro M500M - 2048 MB VRAM, Core: 1124 MHz, RAM: 900 MHz, DDR3, 362.13, Optimus

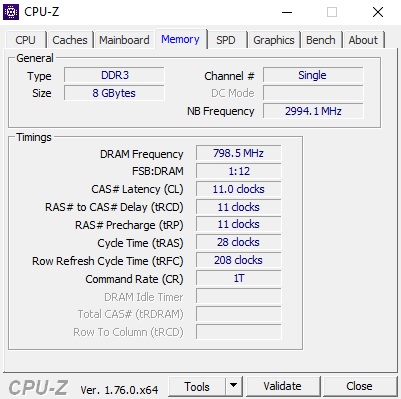

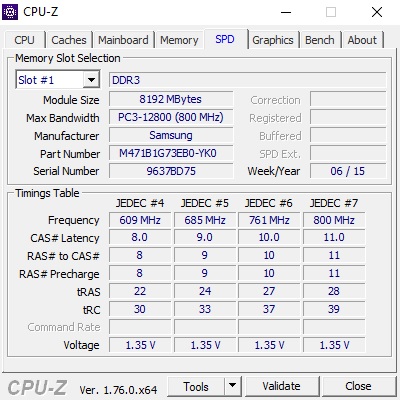

Memory
8 GB
, DDR3L-1600, 一个内存槽（已占用）, 最大支持16 GB
Display
14.00 inch 16:9, 1920 x 1080 pixel 157 PPI, 10点触控, native pen support, NV140FHM-N41, IPS, glossy: yes

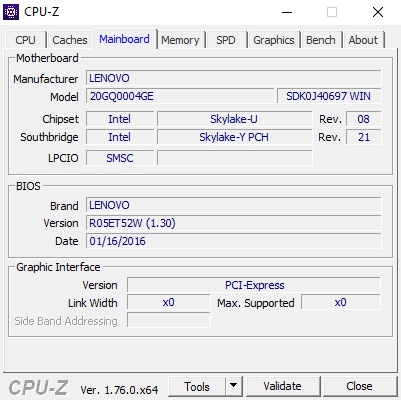

Mainboard
Intel Skylake-U Premium PCH
Storage
Liteonit LCH-256V2S, 256 GB
Weight
1.834 kg, Power Supply: 353 g
Price
1900 Euro
Links
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.
| |||||||||||||||||||||||||
NV140FHM-N41 tested with X-Rite i1Pro 2
Maximum: 256 cd/m² (Nits) Average: 240.6 cd/m² Minimum: 2.5 cd/m²Brightness Distribution: 89 %
Center on Battery: 227 cd/m²
Contrast: 954:1 (Black: 0.24 cd/m²)
ΔE Color 6.3 | 0.5-29.43 Ø4.93
ΔE Greyscale 5.4 | 0.5-98 Ø5.2
65.5% sRGB (Calman 2D)
62% sRGB (Argyll 1.6.3 3D)
39.4% AdobeRGB 1998 (Argyll 1.6.3 3D)
43.2% AdobeRGB 1998 (Argyll 2.2.0 3D)
62.7% sRGB (Argyll 2.2.0 3D)
41.82% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.22
| Lenovo ThinkPad P40 Yoga 20GQ-0004GE Quadro M500M, 6500U, Liteonit LCH-256V2S | Lenovo Thinkpad X1 Yoga 20FQ-000QUS HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN512HCJH | Lenovo ThinkPad Yoga 14 GeForce 840M, 5500U, Samsung SSD PM851 512 GB MZ7TE512HMHP | Microsoft Surface Book Core i7 Maxwell GPU (940M, GDDR5), 6600U, Samsung MZFLV512 NVMe | Lenovo ThinkPad P50s-20FKS00400 Quadro M500M, 6500U, Samsung PM871 MZYLN256HCHP | |
|---|---|---|---|---|---|
| Display | 60% | 56% | 47% | ||
| Display P3 Coverage | 41.82 | 68.1 63% | 66.3 59% | 63.7 52% | |
| sRGB Coverage | 62.7 | 97.2 55% | 96 53% | 87.6 40% | |
| AdobeRGB 1998 Coverage | 43.2 | 70.2 63% | 68 57% | 63.8 48% | |
| Response Times | 9% | 6% | 11% | ||
| Response Time Grey 50% / Grey 80% * | 55 ? | 38 ? 31% | 39 ? 29% | 38 ? 31% | |
| Response Time Black / White * | 28.8 ? | 30.4 ? -6% | 34 ? -18% | 28.8 ? -0% | |
| PWM Frequency | 217 ? | 219 ? 1% | 219 ? 1% | ||
| Screen | 8% | 2% | 53% | 17% | |
| Brightness middle | 229 | 284.7 24% | 286 25% | 438 91% | 319 39% |
| Brightness | 241 | 272 13% | 274 14% | 414 72% | 290 20% |
| Brightness Distribution | 89 | 89 0% | 90 1% | 88 -1% | 82 -8% |
| Black Level * | 0.24 | 0.383 -60% | 0.3 -25% | 0.25 -4% | 0.31 -29% |
| Contrast | 954 | 743 -22% | 953 0% | 1752 84% | 1029 8% |
| Colorchecker dE 2000 * | 6.3 | 5.24 17% | 5.62 11% | 2.06 67% | 4.8 24% |
| Colorchecker dE 2000 max. * | 12.6 | 11.22 11% | 7.8 38% | ||
| Greyscale dE 2000 * | 5.4 | 7.32 -36% | 6.19 -15% | 2.87 47% | 5.7 -6% |
| Gamma | 2.22 99% | 2.22 99% | 2.35 94% | 2.44 90% | 2.07 106% |
| CCT | 6592 99% | 6277 104% | 5606 116% | 6820 95% | 6260 104% |
| Color Space (Percent of AdobeRGB 1998) | 39.4 | 70.17 78% | 64 62% | 56.9 44% | |
| Color Space (Percent of sRGB) | 62 | 94.68 53% | 96 55% | 87.4 41% | |
| Total Average (Program / Settings) | 26% /
18% | 2% /
2% | 38% /
47% | 25% /
21% |
* ... smaller is better

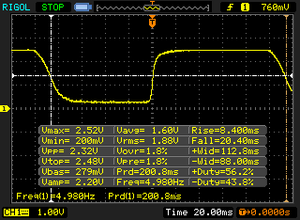

Display Response Times
ℹ
Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.| ↔ Response Time Black to White | ||
|---|---|---|

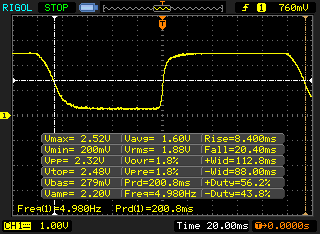

| 28.8 ms ... rise ↗ and fall ↘ combined | ↗ 8.4 ms rise |  |
| ↘ 20.4 ms fall | ||
| The screen shows relatively slow response rates in our tests and may be too slow for gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 73 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (21 ms). | ||

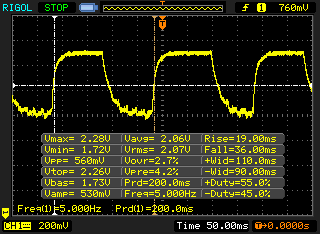

| ↔ Response Time 50% Grey to 80% Grey | ||
| 55 ms ... rise ↗ and fall ↘ combined | ↗ 19 ms rise |  |
| ↘ 36 ms fall | ||
| The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 91 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (32.9 ms). | ||

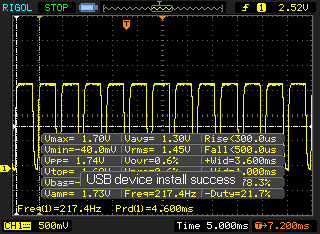

Screen Flickering / PWM (Pulse-Width Modulation)
ℹ
To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.| Screen flickering / PWM detected | 217 Hz | ≤ 40 % brightness setting |  |
The display backlight flickers at 217 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 40 % and below. There should be no flickering or PWM above this brightness setting. The frequency of 217 Hz is relatively low, so sensitive users will likely notice flickering and experience eyestrain at the stated brightness setting and below. In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8774 (minimum: 5 - maximum: 343500) Hz was measured. | |||
| PCMark 8 | |
| Home Score Accelerated v2 | |
| Lenovo Thinkpad X1 Yoga 20FQ-000QUS | |
| Microsoft Surface Book Core i7 | |
| Lenovo ThinkPad P40 Yoga 20GQ-0004GE | |
| Lenovo ThinkPad P50s-20FKS00400 | |
| Creative Score Accelerated v2 | |
| Microsoft Surface Book Core i7 | |
| Lenovo ThinkPad P40 Yoga 20GQ-0004GE | |
| Work Score Accelerated v2 | |
| Lenovo ThinkPad P40 Yoga 20GQ-0004GE | |
| Lenovo Thinkpad X1 Yoga 20FQ-000QUS | |
| Microsoft Surface Book Core i7 | |
| Lenovo ThinkPad P50s-20FKS00400 | |
| PCMark 7 Score | 4095 points | |
| PCMark 8 Home Score Accelerated v2 | 2875 points | |
| PCMark 8 Creative Score Accelerated v2 | 3744 points | |
| PCMark 8 Work Score Accelerated v2 | 4377 points | |
Help | ||
Liteonit LCH-256V2S
Sequential Read:
505 MB/s
Sequential Write:
287.6 MB/s
512K Read:
281.2 MB/s
512K Write:
289.2 MB/s
4K Read:
26.56 MB/s
4K Write:
79.8 MB/s
4K QD32 Read:
264.3 MB/s
4K QD32 Write:
227.4 MB/s
| SiSoft Sandra 2016 | |
| Image Processing | |
| Dell Precision 5510 | |
| Lenovo ThinkPad P50s-20FKS00400 | |
| Lenovo ThinkPad P40 Yoga 20GQ-0004GE | |
| GP Cryptography (Higher Security AES256+SHA2-512) | |
| Dell Precision 5510 | |
| Lenovo ThinkPad P50s-20FKS00400 | |
| Lenovo ThinkPad P40 Yoga 20GQ-0004GE | |
| GP Financial Analysis (FP High/Double Precision) | |
| Dell Precision 5510 | |
| Lenovo ThinkPad P50s-20FKS00400 | |
| Lenovo ThinkPad P40 Yoga 20GQ-0004GE | |
| Unigine Heaven 3.0 | |
| 1920x1080 DX 11, Normal Tessellation, High Shaders AA:Off AF:Off | |
| Dell Precision 5510 | |
| Lenovo ThinkPad W550s 20E2-000PGE | |
| Lenovo ThinkPad P40 Yoga 20GQ-0004GE | |
| Lenovo ThinkPad P50s-20FKS00400 | |
| 1920x1080 OpenGL, Normal Tessellation, High Shaders AA:Off AF:Off | |
| Dell Precision 5510 | |
| Lenovo ThinkPad P50s-20FKS00400 | |
| Lenovo ThinkPad P40 Yoga 20GQ-0004GE | |
| Lenovo ThinkPad W550s 20E2-000PGE | |
| Unigine Valley 1.0 | |
| 1920x1080 Extreme HD DirectX AA:x8 | |
| Dell Precision 5510 | |
| Lenovo ThinkPad P50s-20FKS00400 | |
| Lenovo ThinkPad P40 Yoga 20GQ-0004GE | |
| 1920x1080 Extreme HD Preset OpenGL AA:x8 | |
| Dell Precision 5510 | |
| Lenovo ThinkPad P50s-20FKS00400 | |
| Lenovo ThinkPad P40 Yoga 20GQ-0004GE | |
| 3DMark 06 Standard Score | 11913 points | |
| 3DMark 11 Performance | 2462 points | |
| 3DMark Ice Storm Standard Score | 41915 points | |
| 3DMark Cloud Gate Standard Score | 6491 points | |
| 3DMark Fire Strike Score | 1388 points | |
Help | ||
| low | med. | high | ultra | |
|---|---|---|---|---|
| BioShock Infinite (2013) | 89.1 | 50.1 | 40.3 | 13.8 |
| The Witcher 3 (2015) | 29 | 17.9 | 9.9 | |
| Rainbow Six Siege (2015) | 65.4 | 38.2 | 20.2 | 11.9 |
Noise Level
| Idle |
| 30 / 30 / 30 dB(A) |
| Load |
| 37.3 / 39.8 dB(A) |
 | ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min:  , med:  , max:  Audix TM1 Arta (15 cm distance) environment noise: 30 dB(A) | ||
| Lenovo ThinkPad P40 Yoga 20GQ-0004GE Quadro M500M, 6500U, Liteonit LCH-256V2S | Lenovo Thinkpad X1 Yoga 20FQ-000QUS HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN512HCJH | Lenovo ThinkPad Yoga 14 GeForce 840M, 5500U, Samsung SSD PM851 512 GB MZ7TE512HMHP | Microsoft Surface Book Core i7 Maxwell GPU (940M, GDDR5), 6600U, Samsung MZFLV512 NVMe | Lenovo ThinkPad P50s-20FKS00400 Quadro M500M, 6500U, Samsung PM871 MZYLN256HCHP | |
|---|---|---|---|---|---|
| Noise | 6% | 5% | -3% | 1% | |
| off / environment * | 30 | 28.8 4% | 31.3 -4% | ||
| Idle Minimum * | 30 | 28.8 4% | 29.6 1% | 31.3 -4% | 30 -0% |
| Idle Average * | 30 | 28.8 4% | 29.6 1% | 31.3 -4% | 30 -0% |
| Idle Maximum * | 30 | 28.8 4% | 29.6 1% | 31.3 -4% | 30 -0% |
| Load Average * | 37.3 | 35.2 6% | 34.2 8% | 38 -2% | 33.5 10% |
| Load Maximum * | 39.8 | 35.2 12% | 34.5 13% | 40.5 -2% | 41.9 -5% |
* ... smaller is better
(±) The average temperature for the upper side under maximal load is 36.4 °C / 98 F, compared to the average of 32 °C / 90 F for the devices in the class Workstation.
(-) The maximum temperature on the upper side is 54.8 °C / 131 F, compared to the average of 38.2 °C / 101 F, ranging from 22.2 to 69.8 °C for the class Workstation.
(-) The bottom heats up to a maximum of 55.2 °C / 131 F, compared to the average of 41.2 °C / 106 F
(+) In idle usage, the average temperature for the upper side is 26 °C / 79 F, compared to the device average of 32 °C / 90 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 31.5 °C / 88.7 F and are therefore cool to the touch.
(-) The average temperature of the palmrest area of similar devices was 27.8 °C / 82 F (-3.7 °C / -6.7 F).
(-) The maximum temperature on the upper side is 54.8 °C / 131 F, compared to the average of 38.2 °C / 101 F, ranging from 22.2 to 69.8 °C for the class Workstation.
(-) The bottom heats up to a maximum of 55.2 °C / 131 F, compared to the average of 41.2 °C / 106 F
(+) In idle usage, the average temperature for the upper side is 26 °C / 79 F, compared to the device average of 32 °C / 90 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 31.5 °C / 88.7 F and are therefore cool to the touch.
(-) The average temperature of the palmrest area of similar devices was 27.8 °C / 82 F (-3.7 °C / -6.7 F).
| Lenovo ThinkPad P40 Yoga 20GQ-0004GE Quadro M500M, 6500U, Liteonit LCH-256V2S | Lenovo Thinkpad X1 Yoga 20FQ-000QUS HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN512HCJH | Lenovo ThinkPad Yoga 14 GeForce 840M, 5500U, Samsung SSD PM851 512 GB MZ7TE512HMHP | Microsoft Surface Book Core i7 Maxwell GPU (940M, GDDR5), 6600U, Samsung MZFLV512 NVMe | Lenovo ThinkPad P50s-20FKS00400 Quadro M500M, 6500U, Samsung PM871 MZYLN256HCHP | |
|---|---|---|---|---|---|
| Heat | 0% | 10% | 5% | 6% | |
| Maximum Upper Side * | 54.8 | 42.8 22% | 43.5 21% | 47.4 14% | 44.2 19% |
| Maximum Bottom * | 55.2 | 49.4 11% | 47 15% | 50.2 9% | 57.8 -5% |
| Idle Upper Side * | 28.1 | 32.4 -15% | 26.7 5% | 30.4 -8% | 26.4 6% |
| Idle Bottom * | 28.6 | 33.4 -17% | 28.8 -1% | 27.4 4% | 28.1 2% |
* ... smaller is better
Power Consumption
| Off / Standby | 0.4 / 0.6 Watt |
| Idle | 3.7 / 6.8 / 7.2 Watt |
| Load |
41.5 / 50.5 Watt |

| |
Key:
min: ,
med: ,
max: Metrahit Energy | |
| Lenovo ThinkPad P40 Yoga 20GQ-0004GE 53 Wh | Lenovo Thinkpad X1 Yoga 20FQ-000QUS 52 Wh | Lenovo ThinkPad Yoga 14 56 Wh | Microsoft Surface Book Core i7 78 Wh | Lenovo ThinkPad P50s-20FKS00400 67 Wh | |
|---|---|---|---|---|---|
| Power Consumption | -37% | 8% | -31% | -24% | |
| Idle Minimum * | 3.7 | 6.82 -84% | 3.1 16% | 4.5 -22% | 4.3 -16% |
| Idle Average * | 6.8 | 8.21 -21% | 7.2 -6% | 9.8 -44% | 9.7 -43% |
| Idle Maximum * | 7.2 | 17.55 -144% | 7.7 -7% | 12.2 -69% | 10.2 -42% |
| Load Average * | 41.5 | 28.81 31% | 36.2 13% | 46 -11% | 45.7 -10% |
| Load Maximum * | 50.5 | 34.07 33% | 38.5 24% | 56 -11% | 55.8 -10% |
* ... smaller is better
| Lenovo ThinkPad P40 Yoga 20GQ-0004GE 53 Wh | Lenovo Thinkpad X1 Yoga 20FQ-000QUS 52 Wh | Lenovo ThinkPad Yoga 14 56 Wh | Microsoft Surface Book Core i7 78 Wh | Lenovo ThinkPad P50s-20FKS00400 67 Wh | |
|---|---|---|---|---|---|
| Battery Runtime | 13% | 3% | 104% | 22% | |
| Reader / Idle | 724 | 922 27% | 747 3% | 1107 53% | |
| H.264 | 537 | 537 0% | |||
| WiFi v1.3 | 318 | 356 12% | 648 104% | 408 28% | |
| Load | 120 | 120 0% | 129 8% | ||
| WiFi | 352 |
Pros
+ 安静
+ 灵活
+ 附带主动式手写笔
+ 优秀的系统性能
+ 优秀的触控屏幕
+ 非常快速的无线网络
+ 优秀的键盘，但是打字声有些响
Cons
- 屏幕上盖稳定性
- 高发热量，负载下降频
- 仅一年质保
- 色域覆盖范围小
- 屏幕镜面，亮度略显不足
- 一般的无线上网续航时间
- 扬声器较差
- 屏幕转轴不够稳定
- 不支持最新接口
- 测试机型不支持移动网络
- 闪烁亮度控制
- 昂贵
ThinkPad P40 Yoga并没有完全说服我们。和尺寸稍大的工作站机型ThinkPad P50s相似，由于机身结构的设计，联想省去了许多最新技术（USB-C，USB 3.1，Thunderbolt，NVMe固态硬盘，M.2-2280）。而后者也用于售价更低的ThinkPad Yoga 460，它基于较老的ThinkPad Yoga 14。它的机身紧凑，因此2.5寸硬盘槽会浪费太大空间。
我们的测试机型有一些我们预想之外的缺点。它的坚固度有待提高，只需轻轻扳动屏幕就会出现水波纹。它的屏幕转轴也略显脆弱，在使用触控屏幕或稍微移动机身时它都会明显晃动。我们的测试机型——尽管有空余的M.2硬盘槽——并不支持手机移动网络，而质保也只有一年。它的镜面屏幕的亮度对于户外使用来说也有些暗，屏幕的其他数据也很难让人满意。这台设备非常安静，不过它的温度也因此较高，这将会在负载下限制它的性能。
当然P40 Yoga有潜在消费者，不过如果不需要一块专业显卡的话还有更好的选择。生产商也浪费了它的很多潜能，因为它缺少很多最新的接口，同时还有一些不必要的限制如高价位。
P40 Yoga的优势明显是不同的使用模式，不过它也有由重量和转轴设计带来的问题。甚至一向是ThinkPad优势的键盘，也有稳定性的问题。它依然有非常优秀的输入设备，但相比最新ThinkPad机型略逊一筹。
ThinkPad P40 Yoga面向一个特别的用户群体。如果你同时需要专业显卡和变形本设计，那么除了P40 Yoga没有任何其他的选择。不过，如果你不需要Quadro显卡的话，则可以考虑更轻盈的ThinkPad X1 Yoga或着更实惠的ThinkPad Yoga 460。
如果作为变形本评分的话它的分数是81%
注：本文是基于完整评测的缩减版本，阅读完整的英文评测，请点击这里。
Lenovo ThinkPad P40 Yoga 20GQ-0004GE
-
04/25/2016 v5.1 (old)
Andreas Osthoff
