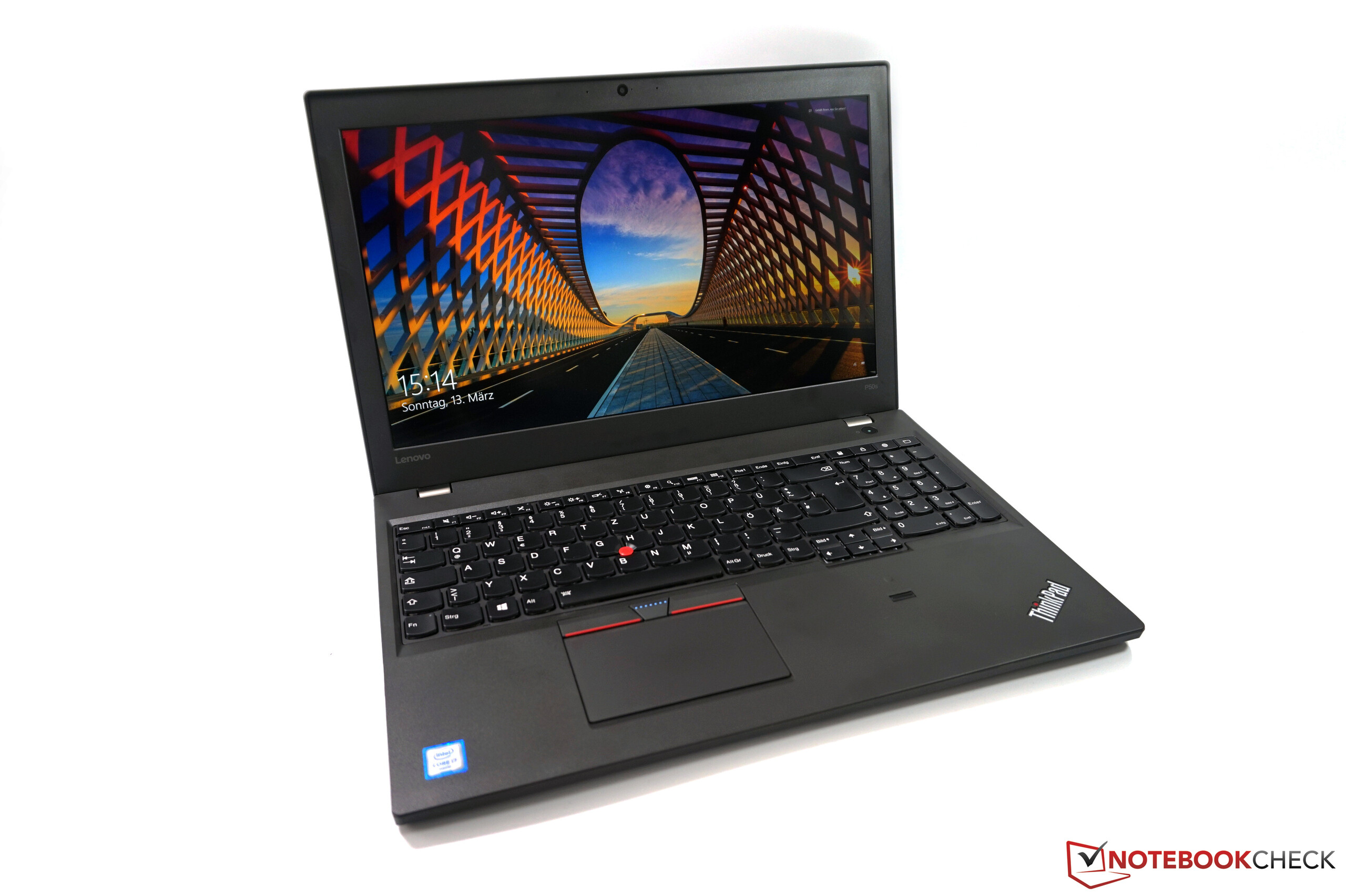

联想 ThinkPad P50s-20FKS00400 笔记本电脑简短评测

Name: Lenovo ThinkPad P50s-20FKS00400
Brand: Lenovo

过时？ 联想的最新ThinkPad P50s是ThinkPad W550s的后续产品。尽管尺寸紧凑，这台移动工作站的用户仍然可以得到足够的性能。不过相比前代产品由于处理器性能有所下降，它有一个同样来自联想的强力竞争对手。

Andreas Osthoff, ✓ Stefanie Voigt (translated by Yuchen Wang), Published 03/28/2016 🇺🇸 🇩🇪 ...

Business Laptop / Notebook Skylake Windows Workstation

Test device courtesy of notebooksandmore.de

Download your licensed rating image as PNG / SVG

Lenovo ThinkPad P50s-20FKS00400 (ThinkPad P1 Series)

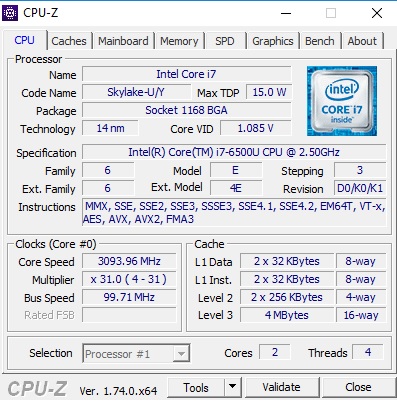

Processor

Intel Core i7-6500U 2 x 2.5 - 3.1 GHz, Skylake

Graphics adapter

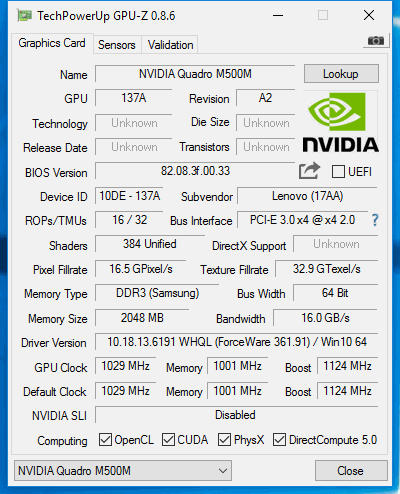

NVIDIA Quadro M500M - 2048 MB VRAM, Core: 1124 MHz, RAM: 1001 MHz, DDR3, 361.91, Optimus

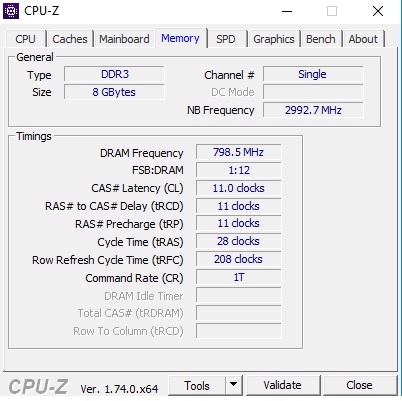

Memory

8 GB

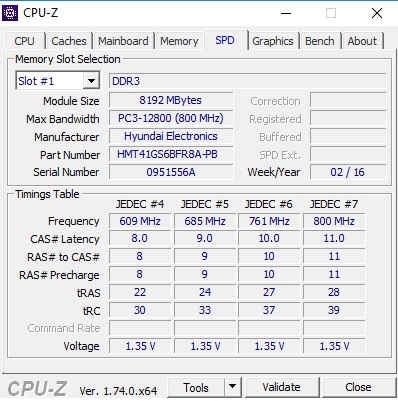

, DDR3L-1600, 单通道，两个内存槽，一个已占用，最大支持32GB

Display

15.50 inch 16:9, 2880 x 1620 pixel 213 PPI, WX16T028J00, LEN40B5, IPS, glossy: no

Mainboard

Intel Skylake-U Premium PCH

Storage

Samsung PM871 MZYLN256HCHP, 256 GB

, 215 GB free

Soundcard

Intel Skylake-U/Y PCH - High Definition Audio

Connections

3 USB 3.0 / 3.1 Gen1, 1 HDMI, 1 DisplayPort, 1 Kensington Lock, 1 Docking Station Port, Audio Connections: 3.5毫米耳机插口, Card Reader: 四合一 (MMC, SD, SDHC, SDXC), 1 SmartCard, 1 Fingerprint Reader

Networking

Intel Ethernet Connection I219-V (10/100/1000MBit/s), Intel Dual Band Wireless-AC 8260 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.2

Size

height x width x depth (in mm): 22.45 x 380.6 x 258.2

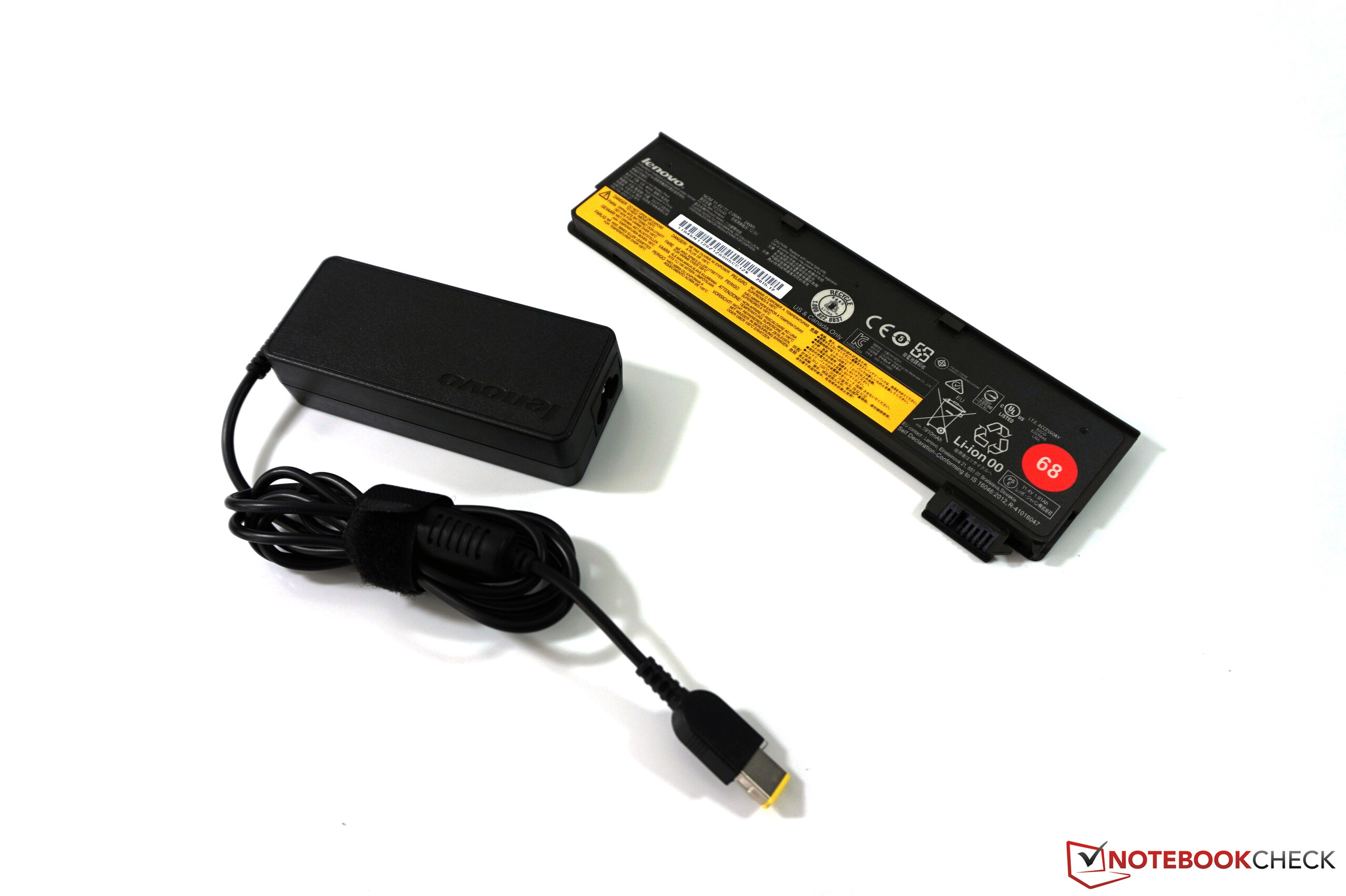

Battery

67 Wh Lithium-Ion, removeable, Battery runtime (according to manufacturer): 12 h

Camera

Webcam: 高清摄像头 (720p)

Additional features

Speakers: 立体声, 2x 1瓦, Dolby Audio系统, Keyboard: 孤岛式, Keyboard Light: yes, 电源适配器，快速开始说明，质保信息, 36 Months Warranty

Weight

2.219 kg, Power Supply: 323 g

Price

1400 Euro

Links

Lenovo homepage

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

MSI WS60-6QJE316H11 Lenovo ThinkPad P50 Lenovo ThinkPad P50s-20FKS00400 HP ZBook 15u G3 Dell Precision 5510 DIN A4 ❌

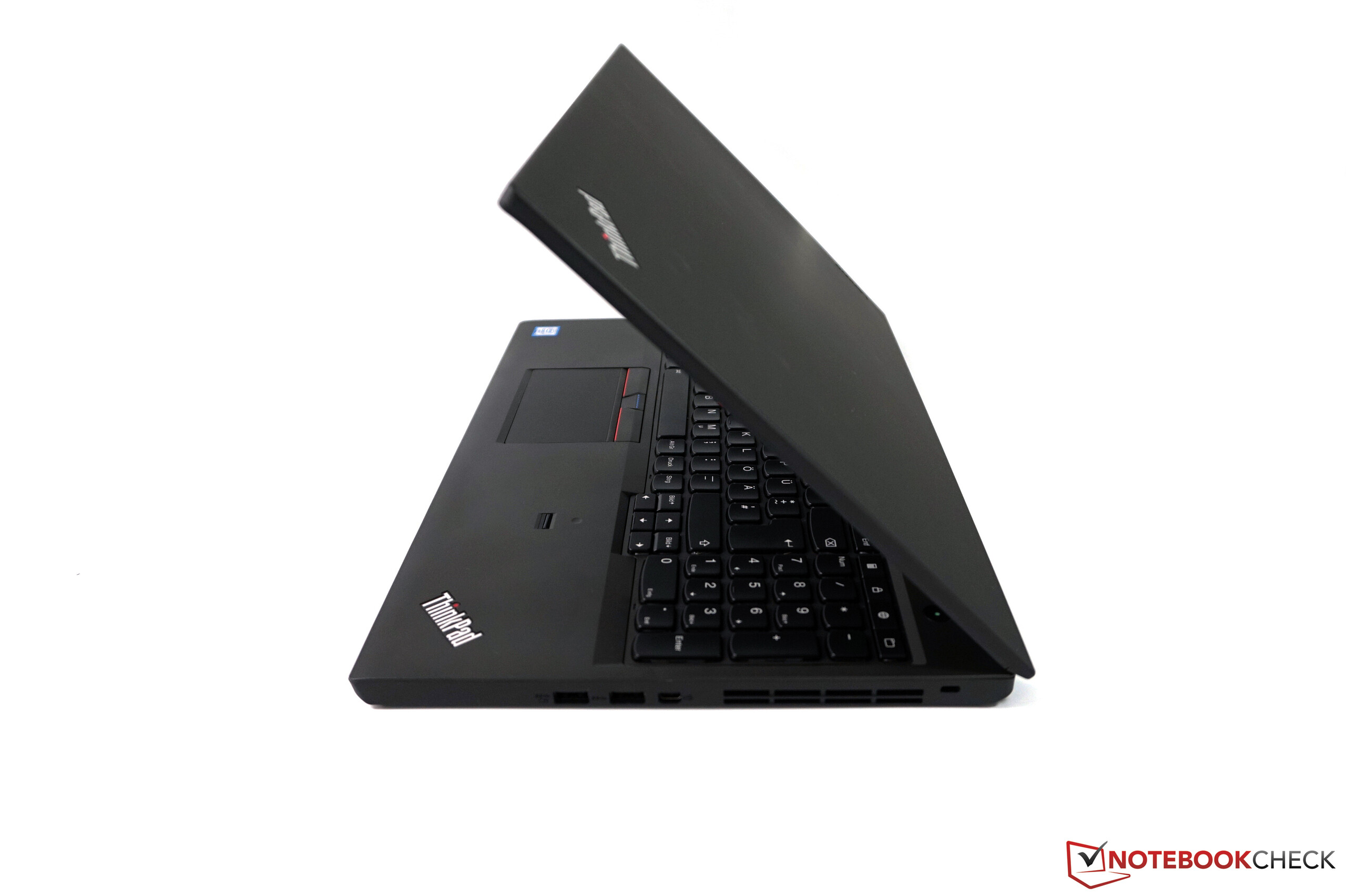

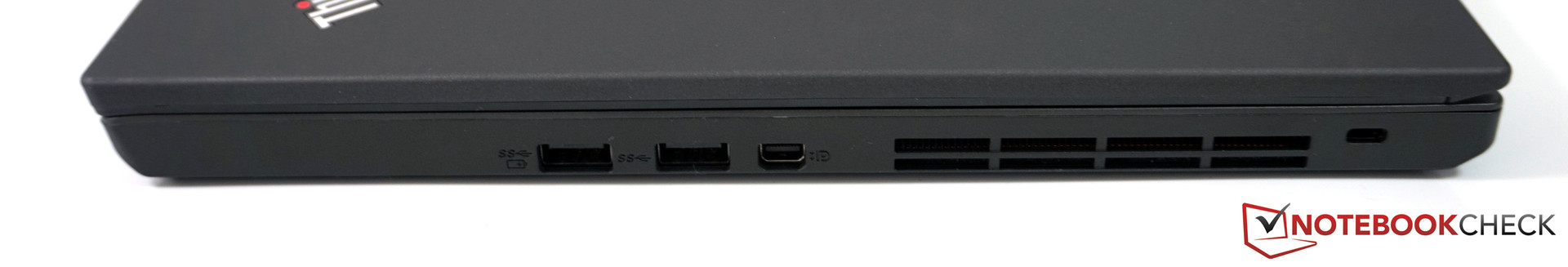

Right: 2x USB 3.0, Mini-DisplayPort, fan exhaust, slot for a Kensington lock

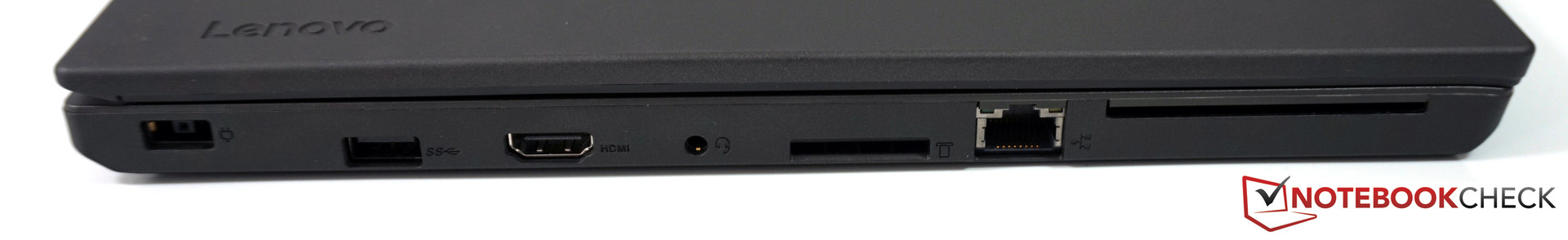

Left: power, USB 3.0, HDMI, 3.5 mm audio, SD-card reader, Gigabit Ethernet, SmartCard reader


298 cd/m²	296 cd/m²	310 cd/m²
277 cd/m²	319 cd/m²	278 cd/m²
263 cd/m²	290 cd/m²	276 cd/m²

Distribution of brightness

WX16T028J00, LEN40B5 tested with X-Rite i1Pro 2

Maximum: 319 cd/m² (Nits) Average: 289.7 cd/m²
Brightness Distribution: 82 %
Center on Battery: 320 cd/m²
Contrast: 1029:1 (Black: 0.31 cd/m²)
ΔE Color 4.8 | 0.5-29.43 Ø4.91
ΔE Greyscale 5.7 | 0.5-98 Ø5.2
87.4% sRGB (Argyll 1.6.3 3D)
56.9% AdobeRGB 1998 (Argyll 1.6.3 3D)
63.8% AdobeRGB 1998 (Argyll 2.2.0 3D)
87.6% sRGB (Argyll 2.2.0 3D)
63.7% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.07

Download ICC File (X-Rite i1Pro 2)

	Lenovo ThinkPad P50s-20FKS00400 WX16T028J00, LEN40B5, IPS	Dell Precision 5510 SHP143E, 7PHPT_LQ156D1, IGZO LED	HP ZBook 15u G3 CMN15C3, TN LED	MSI WS60-6QJE316H11 SDC424B, IPS	Lenovo ThinkPad P50 LP156WF6-SPK1, IPS	Lenovo ThinkPad W550s 20E2-000PGE VVX16T028J00, IPS LED
Display		36%	-13%	-10%	-36%	-2%
Display P3 Coverage	63.7	88.4 39%	53.2 -16%	55.1 -14%	39.13 -39%	62.3 -2%
sRGB Coverage	87.6	100 14%	80.1 -9%	83 -5%	58.5 -33%	86.5 -1%
AdobeRGB 1998 Coverage	63.8	99.5 56%	54.9 -14%	56.9 -11%	40.45 -37%	62.6 -2%
Response Times		-33%	-16%	176%	-6%
Response Time Grey 50% / Grey 80% *	38 ?(15.2, 22.8)	56.4 ?(23.2, 33.2) -48%	45.6 ?(25.6, 20) -20%	34 ?(13, 21) 11%	46 ?(17, 29) -21%
Response Time Black / White *	28.8 ?(8.4, 20.4)	34 ?(11, 23) -18%	34.4 ?(16.4, 18) -19%	24 ?(9, 15) 17%	26 ?(9, 17) 10%
PWM Frequency	219 ?(90)		198.4 ?(90) -9%	1316 ?(40) 501%
Screen		15%	-49%	-5%	-6%	-1%
Brightness middle	319	391 23%	297.8 -7%	237 -26%	263 -18%	360 13%
Brightness	290	361 24%	284 -2%	208 -28%	236 -19%	323 11%
Brightness Distribution	82	87 6%	89 9%	77 -6%	78 -5%	81 -1%
Black Level *	0.31	0.4 -29%	0.849 -174%	0.26 16%	0.34 -10%	0.54 -74%
Contrast	1029	978 -5%	351 -66%	912 -11%	774 -25%	667 -35%
Colorchecker dE 2000 *	4.8	4.85 -1%	8.68 -81%	4.42 8%	2.35 51%	3.45 28%
Colorchecker dE 2000 max. *	7.8		14.98 -92%	8.54 -9%
Greyscale dE 2000 *	5.7	4.01 30%	9.3 -63%	4.43 22%	3.33 42%	2.98 48%
Gamma	2.07 ^106%	2.18 ^101%	2.27 ^97%	2.23 ^99%	2.38 ^92%	2.06 ^107%
CCT	6260 ^104%	7340 ^89%	10585 ^61%	6133 ^106%	6917 ^94%	6338 ^103%
Color Space (Percent of AdobeRGB 1998)	56.9	96 69%	50.99 -10%	52.5 -8%	37 -35%	56 -2%
Color Space (Percent of sRGB)	87.4	100 14%	80.42 -8%	82.9 -5%	58 -34%	86.3 -1%
Total Average (Program / Settings)		6% / 12%	-26% / -36%	54% / 28%	-16% / -12%	-2% / -2%

* ... smaller is better

Display Response Times

ℹ

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

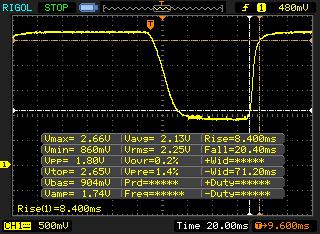

↔ Response Time Black to White
28.8 ms ... rise ↗ and fall ↘ combined	↗ 8.4 ms rise
28.8 ms ... rise ↗ and fall ↘ combined	↘ 20.4 ms fall
The screen shows relatively slow response rates in our tests and may be too slow for gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 74 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (20.9 ms).

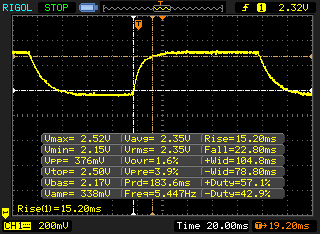

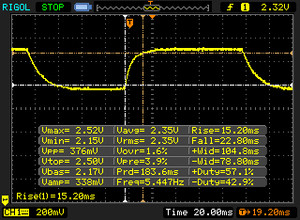

↔ Response Time 50% Grey to 80% Grey
38 ms ... rise ↗ and fall ↘ combined	↗ 15.2 ms rise
38 ms ... rise ↗ and fall ↘ combined	↘ 22.8 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 51 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (32.8 ms).

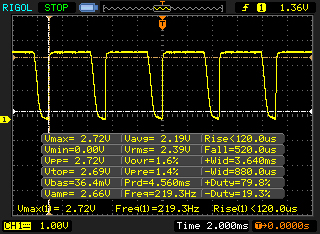

Screen Flickering / PWM (Pulse-Width Modulation)

ℹ

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.

Screen flickering / PWM detected

219 Hz

≤ 90 % brightness setting

The display backlight flickers at 219 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 90 % and below. There should be no flickering or PWM above this brightness setting.

The frequency of 219 Hz is relatively low, so sensitive users will likely notice flickering and experience eyestrain at the stated brightness setting and below.

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8715 (minimum: 5 - maximum: 343500) Hz was measured.

Cinebench R15 | Cinebench R11.5

Cinebench R15
CPU Multi 64Bit
Dell Precision 5510 Intel Xeon E3-1505M v5	732 Points +138%
MSI WS60-6QJE316H11 Intel Xeon E3-1505M v5	674 Points +120%
Lenovo ThinkPad P50 Intel Core i7-6820HQ	592 Points +93%
Lenovo ThinkPad T460s-20FA003GGE Intel Core i7-6600U	347 Points +13%
HP ZBook 15u G3 Intel Core i7-6600U	330 Points +7%
Lenovo ThinkPad P50s-20FKS00400 Intel Core i7-6500U	307 Points
Lenovo ThinkPad W550s 20E2-000PGE Intel Core i7-5500U	260 Points -15%
CPU Single 64Bit
MSI WS60-6QJE316H11 Intel Xeon E3-1505M v5	158 Points +22%
HP ZBook 15u G3 Intel Core i7-6600U	143 Points +11%
Dell Precision 5510 Intel Xeon E3-1505M v5	142 Points +10%
Lenovo ThinkPad T460s-20FA003GGE Intel Core i7-6600U	141 Points +9%
Lenovo ThinkPad P50s-20FKS00400 Intel Core i7-6500U	129 Points
Lenovo ThinkPad W550s 20E2-000PGE Intel Core i7-5500U	124 Points -4%
Lenovo ThinkPad P50 Intel Core i7-6820HQ	117 Points -9%

Cinebench R11.5
CPU Multi 64Bit
Dell Precision 5510 Intel Xeon E3-1505M v5	7.93 Points +130%
MSI WS60-6QJE316H11 Intel Xeon E3-1505M v5	7.42 Points +115%
Lenovo ThinkPad P50 Intel Core i7-6820HQ	6.48 Points +88%
Lenovo ThinkPad T460s-20FA003GGE Intel Core i7-6600U	3.83 Points +11%
HP ZBook 15u G3 Intel Core i7-6600U	3.67 Points +6%
Lenovo ThinkPad P50s-20FKS00400 Intel Core i7-6500U	3.45 Points
Lenovo ThinkPad W550s 20E2-000PGE Intel Core i7-5500U	2.85 Points -17%
CPU Single 64Bit
MSI WS60-6QJE316H11 Intel Xeon E3-1505M v5	1.78 Points +19%
HP ZBook 15u G3 Intel Core i7-6600U	1.63 Points +9%
Dell Precision 5510 Intel Xeon E3-1505M v5	1.6 Points +7%
Lenovo ThinkPad T460s-20FA003GGE Intel Core i7-6600U	1.57 Points +5%
Lenovo ThinkPad P50s-20FKS00400 Intel Core i7-6500U	1.49 Points
Lenovo ThinkPad W550s 20E2-000PGE Intel Core i7-5500U	1.42 Points -5%
Lenovo ThinkPad P50 Intel Core i7-6820HQ	1.32 Points -11%

Cinebench R10 Rendering Single CPUs 64Bit

6241 Points

Cinebench R10 Rendering Multiple CPUs 64Bit

14039 Points

Cinebench R10 Shading 64Bit

5472 Points

Cinebench R10 Shading 32Bit

5476

Cinebench R10 Rendering Multiple CPUs 32Bit

10447

Cinebench R10 Rendering Single 32Bit

4886

Cinebench R11.5 OpenGL 64Bit

39.77 fps

Cinebench R11.5 CPU Multi 64Bit

3.45 Points

Cinebench R11.5 CPU Single 64Bit

1.49 Points

Cinebench R15 Ref. Match 64Bit

99.6 %

Cinebench R15 OpenGL 64Bit

48.45 fps

Cinebench R15 CPU Multi 64Bit

307 Points

Cinebench R15 CPU Single 64Bit

129 Points

Help

... in comparison

PCMark Vantage Result		15876 points
PCMark 7 Score		4992 points
PCMark 8 Home Score Accelerated v2		2790 points
PCMark 8 Work Score Accelerated v2		3744 points
Help

... in comparison

PCMark 8 | PCMark 7

PCMark 8
Home Score Accelerated v2
Lenovo ThinkPad P50	4213 Points +51%
HP ZBook 15u G3	3974 Points +42%
Dell Precision 5510	3941 Points +41%
Lenovo ThinkPad T460s-20FA003GGE	3542 Points +27%
MSI WS60-6QJE316H11	3134 Points +12%
Lenovo ThinkPad W550s 20E2-000PGE	3061 Points +10%
Lenovo ThinkPad P50s-20FKS00400	2790 Points
Work Score Accelerated v2
Dell Precision 5510	5100 Points +36%
HP ZBook 15u G3	4900 Points +31%
Lenovo ThinkPad P50	4677 Points +25%
Lenovo ThinkPad T460s-20FA003GGE	4442 Points +19%
Lenovo ThinkPad W550s 20E2-000PGE	4323 Points +15%
MSI WS60-6QJE316H11	4045 Points +8%
Lenovo ThinkPad P50s-20FKS00400	3744 Points

PCMark 7 - Score
HP ZBook 15u G3	5493 Points +10%
MSI WS60-6QJE316H11	5340 Points +7%
Dell Precision 5510	5317 Points +7%
Lenovo ThinkPad T460s-20FA003GGE	5190 Points +4%
Lenovo ThinkPad P50s-20FKS00400	4992 Points
Lenovo ThinkPad P50	4892 Points -2%
Lenovo ThinkPad W550s 20E2-000PGE	4474 Points -10%

Legend

Lenovo ThinkPad P50s-20FKS00400 Intel Core i7-6500U, NVIDIA Quadro M500M, Samsung PM871 MZYLN256HCHP

Dell Precision 5510 Intel Xeon E3-1505M v5, NVIDIA Quadro M1000M, SK hynix SC920 512 GB

HP ZBook 15u G3 Intel Core i7-6600U, AMD FirePro W4190M, Samsung SM951 MZVPV256HDGL m.2 PCI-e

MSI WS60-6QJE316H11 Intel Xeon E3-1505M v5, NVIDIA Quadro M2000M, Toshiba NVMe THNSN5128GP

Lenovo ThinkPad P50 Intel Core i7-6820HQ, NVIDIA Quadro M2000M, Samsung SSD PM871 MZNLN256HCHP

Lenovo ThinkPad W550s 20E2-000PGE Intel Core i7-5500U, NVIDIA Quadro K620M, Samsung SSD PM851 512 GB MZ7TE512HMHP

Lenovo ThinkPad T460s-20FA003GGE Intel Core i7-6600U, Intel HD Graphics 520, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)

CrystalDiskMark 3.0

AS SSD

Samsung PM871 MZYLN256HCHP

Sequential Read: 475.5 MB/s

Sequential Write: 304.7 MB/s

512K Read: 379.3 MB/s

512K Write: 303.4 MB/s

4K Read: 34.31 MB/s

4K Write: 89.4 MB/s

4K QD32 Read: 319.9 MB/s

4K QD32 Write: 279.4 MB/s

SPECviewperf 12 | SPECviewperf 11

SPECviewperf 12
1900x1060 Solidworks (sw-03)
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	71.7 fps +93%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	63 fps +69%
Dell Precision 5510 NVIDIA Quadro M1000M	62 fps +67%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	37.22 fps
Lenovo ThinkPad W550s 20E2-000PGE NVIDIA Quadro K620M	33.02 fps -11%
HP ZBook 15u G3 AMD FirePro W4190M	31.41 fps -16%
Lenovo ThinkPad T460s-20FA003GGE Intel HD Graphics 520	22.64 fps -39%
1900x1060 Siemens NX (snx-02)
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	33.95 fps +77%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	32.52 fps +70%
Dell Precision 5510 NVIDIA Quadro M1000M	31 fps +62%
HP ZBook 15u G3 AMD FirePro W4190M	19.89 fps +4%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	19.13 fps
Lenovo ThinkPad W550s 20E2-000PGE NVIDIA Quadro K620M	17.1 fps -11%
Lenovo ThinkPad T460s-20FA003GGE Intel HD Graphics 520	2.95 fps -85%
1900x1060 Showcase (showcase-01)
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	24.25 fps +299%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	21.35 fps +251%
Dell Precision 5510 NVIDIA Quadro M1000M	20 fps +229%
Lenovo ThinkPad W550s 20E2-000PGE NVIDIA Quadro K620M	6.32 fps +4%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	6.08 fps
Lenovo ThinkPad T460s-20FA003GGE Intel HD Graphics 520	6.05 fps 0%
HP ZBook 15u G3 AMD FirePro W4190M	4.98 fps -18%
1900x1060 Medical (medical-01)
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	14.68 fps +54%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	14.4 fps +51%
Dell Precision 5510 NVIDIA Quadro M1000M	12 fps +26%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	9.51 fps
Lenovo ThinkPad W550s 20E2-000PGE NVIDIA Quadro K620M	7.05 fps -26%
HP ZBook 15u G3 AMD FirePro W4190M	6.09 fps -36%
Lenovo ThinkPad T460s-20FA003GGE Intel HD Graphics 520	1.7 fps -82%
1900x1060 Maya (maya-04)
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	38.46 fps +245%
Dell Precision 5510 NVIDIA Quadro M1000M	30 fps +169%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	29.89 fps +168%
HP ZBook 15u G3 AMD FirePro W4190M	16.38 fps +47%
Lenovo ThinkPad W550s 20E2-000PGE NVIDIA Quadro K620M	12.03 fps +8%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	11.14 fps
Lenovo ThinkPad T460s-20FA003GGE Intel HD Graphics 520	10.89 fps -2%
1900x1060 Energy (energy-01)
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	3.2 fps +504%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	3.16 fps +496%
Dell Precision 5510 NVIDIA Quadro M1000M	0.69 fps +30%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	0.53 fps
HP ZBook 15u G3 AMD FirePro W4190M	0.41 fps -23%
Lenovo ThinkPad W550s 20E2-000PGE NVIDIA Quadro K620M	0.38 fps -28%
Lenovo ThinkPad T460s-20FA003GGE Intel HD Graphics 520	0.06 fps -89%
1900x1060 Creo (creo-01)
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	38.95 fps +89%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	37.48 fps +82%
Dell Precision 5510 NVIDIA Quadro M1000M	34 fps +65%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	20.62 fps
HP ZBook 15u G3 AMD FirePro W4190M	16.87 fps -18%
Lenovo ThinkPad W550s 20E2-000PGE NVIDIA Quadro K620M	16.28 fps -21%
Lenovo ThinkPad T460s-20FA003GGE Intel HD Graphics 520	10.15 fps -51%
1900x1060 Catia (catia-04)
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	46.26 fps +116%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	44.29 fps +107%
Dell Precision 5510 NVIDIA Quadro M1000M	37 fps +73%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	21.42 fps
Lenovo ThinkPad W550s 20E2-000PGE NVIDIA Quadro K620M	18.72 fps -13%
HP ZBook 15u G3 AMD FirePro W4190M	18.62 fps -13%
Lenovo ThinkPad T460s-20FA003GGE Intel HD Graphics 520	11.62 fps -46%

SPECviewperf 11
1920x1080 Siemens NX
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	43.31 fps +47%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	42.14 fps +43%
Dell Precision 5510 NVIDIA Quadro M1000M	41 fps +39%
Lenovo ThinkPad W550s 20E2-000PGE NVIDIA Quadro K620M	30.91 fps +5%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	29.41 fps
1920x1080 Tcvis
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	43.93 fps +23%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	42.91 fps +20%
Dell Precision 5510 NVIDIA Quadro M1000M	40 fps +12%
Lenovo ThinkPad W550s 20E2-000PGE NVIDIA Quadro K620M	39.52 fps +11%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	35.63 fps
1920x1080 SolidWorks
Dell Precision 5510 NVIDIA Quadro M1000M	51 fps +29%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	47.71 fps +20%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	46.69 fps +18%
Lenovo ThinkPad W550s 20E2-000PGE NVIDIA Quadro K620M	41.78 fps +5%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	39.63 fps
1920x1080 Pro/ENGINEER
Dell Precision 5510 NVIDIA Quadro M1000M	21 fps +41%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	17.54 fps +18%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	17.4 fps +17%
Lenovo ThinkPad W550s 20E2-000PGE NVIDIA Quadro K620M	15.68 fps +5%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	14.87 fps
1920x1080 Maya
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	58.3 fps +24%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	56.9 fps +21%
Dell Precision 5510 NVIDIA Quadro M1000M	56 fps +19%
Lenovo ThinkPad W550s 20E2-000PGE NVIDIA Quadro K620M	49.5 fps +6%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	46.88 fps
1920x1080 Lightwave
Dell Precision 5510 NVIDIA Quadro M1000M	54 fps +15%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	52.5 fps +12%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	48.27 fps +3%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	46.9 fps
Lenovo ThinkPad W550s 20E2-000PGE NVIDIA Quadro K620M	46.82 fps 0%
1920x1080 Ensight
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	46.43 fps +127%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	43.49 fps +113%
Dell Precision 5510 NVIDIA Quadro M1000M	39 fps +91%
Lenovo ThinkPad W550s 20E2-000PGE NVIDIA Quadro K620M	20.68 fps +1%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	20.44 fps
1920x1080 Catia
Dell Precision 5510 NVIDIA Quadro M1000M	54 fps +42%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	53.5 fps +40%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	48.98 fps +29%
Lenovo ThinkPad W550s 20E2-000PGE NVIDIA Quadro K620M	46.7 fps +23%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	38.08 fps

LuxMark v2.0 64Bit | SiSoft Sandra 2016

LuxMark v2.0 64Bit
Room GPUs-only
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	903 Samples/s +139%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	791 Samples/s +109%
Dell Precision 5510 NVIDIA Quadro M1000M	534 Samples/s +41%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	378 Samples/s
Lenovo ThinkPad W550s 20E2-000PGE NVIDIA Quadro K620M	253 Samples/s -33%
Lenovo ThinkPad T460s-20FA003GGE Intel HD Graphics 520	224 Samples/s -41%
Sala GPUs-only
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	1434 Samples/s +52%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	1426 Samples/s +51%
HP ZBook 15u G3 AMD FirePro W4190M	1034 Samples/s +9%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	945 Samples/s
Dell Precision 5510 NVIDIA Quadro M1000M	889 Samples/s -6%
Lenovo ThinkPad T460s-20FA003GGE Intel HD Graphics 520	529 Samples/s -44%
Lenovo ThinkPad W550s 20E2-000PGE NVIDIA Quadro K620M	508 Samples/s -46%

SiSoft Sandra 2016
Image Processing
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	155.8 MPix/s +57%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	155.7 MPix/s +56%
Dell Precision 5510 NVIDIA Quadro M1000M	127.5 MPix/s +28%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	99.5 MPix/s
GP Cryptography (Higher Security AES256+SHA2-512)
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	12.28 GB/s +129%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	9.28 GB/s +73%
Dell Precision 5510 NVIDIA Quadro M1000M	7.38 GB/s +37%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	5.37 GB/s
GP Financial Analysis (FP High/Double Precision)
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	21.75 KOPT/s +70%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	21.63 KOPT/s +69%
Dell Precision 5510 NVIDIA Quadro M1000M	17 KOPT/s +33%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	12.82 KOPT/s

Unigine Heaven 3.0 | Unigine Valley 1.0 | 3DMark

Unigine Heaven 3.0
1920x1080 OpenGL, Normal Tessellation, High Shaders AA:Off AF:Off
Dell Precision 5510 NVIDIA Quadro M1000M	43.4 fps +117%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	33.9 fps +70%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	32.4 fps +62%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	20 fps
Lenovo ThinkPad W550s 20E2-000PGE NVIDIA Quadro K620M	18.6 fps -7%
1920x1080 DX 11, Normal Tessellation, High Shaders AA:Off AF:Off
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	53.4 fps +154%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	52.5 fps +150%
Dell Precision 5510 NVIDIA Quadro M1000M	44.9 fps +114%
Lenovo ThinkPad W550s 20E2-000PGE NVIDIA Quadro K620M	21.9 fps +4%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	21 fps

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	20.4 fps +214%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	20.3 fps +212%
Dell Precision 5510 NVIDIA Quadro M1000M	18.7 fps +188%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	6.5 fps
1920x1080 Extreme HD Preset OpenGL AA:x8
Dell Precision 5510 NVIDIA Quadro M1000M	16.2 fps +138%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	13.8 fps +103%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	13.2 fps +94%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	6.8 fps

3DMark
1920x1080 Fire Strike Combined
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	1628 Points +228%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	1590 Points +221%
Dell Precision 5510 NVIDIA Quadro M1000M	1401 Points +182%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	496 Points
Lenovo ThinkPad W550s 20E2-000PGE NVIDIA Quadro K620M	483 Points -3%
Lenovo ThinkPad T460s-20FA003GGE Intel HD Graphics 520	305 Points -39%
1920x1080 Fire Strike Physics
Dell Precision 5510 NVIDIA Quadro M1000M	10414 Points +113%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	10118 Points +107%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	8526 Points +74%
HP ZBook 15u G3 AMD FirePro W4190M	5401 Points +10%
Lenovo ThinkPad T460s-20FA003GGE Intel HD Graphics 520	5291 Points +8%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	4893 Points
Lenovo ThinkPad W550s 20E2-000PGE NVIDIA Quadro K620M	4665 Points -5%
1920x1080 Fire Strike Graphics
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	4243 Points +164%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	4126 Points +156%
Dell Precision 5510 NVIDIA Quadro M1000M	3517 Points +118%
Lenovo ThinkPad W550s 20E2-000PGE NVIDIA Quadro K620M	1621 Points +1%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	1610 Points
HP ZBook 15u G3 AMD FirePro W4190M	1588 Points -1%
Lenovo ThinkPad T460s-20FA003GGE Intel HD Graphics 520	935 Points -42%
1920x1080 Fire Strike Score
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	3952 Points +176%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	3813 Points +166%
Dell Precision 5510 NVIDIA Quadro M1000M	3344 Points +134%
HP ZBook 15u G3 AMD FirePro W4190M	1517 Points +6%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	1432 Points
Lenovo ThinkPad W550s 20E2-000PGE NVIDIA Quadro K620M	1424 Points -1%
Lenovo ThinkPad T460s-20FA003GGE Intel HD Graphics 520	863 Points -40%
1280x720 Sky Diver Graphics
Dell Precision 5510 NVIDIA Quadro M1000M	11179 Points
1280x720 Sky Diver Score
Dell Precision 5510 NVIDIA Quadro M1000M	10951 Points
1280x720 Cloud Gate Standard Physics
Dell Precision 5510 NVIDIA Quadro M1000M	7641 Points +124%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	7312 Points +114%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	6224 Points +82%
Lenovo ThinkPad T460s-20FA003GGE Intel HD Graphics 520	3681 Points +8%
HP ZBook 15u G3 AMD FirePro W4190M	3649 Points +7%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	3413 Points
Lenovo ThinkPad W550s 20E2-000PGE NVIDIA Quadro K620M	3359 Points -2%
1280x720 Cloud Gate Standard Graphics
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	30495 Points +268%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	27157 Points +228%
Dell Precision 5510 NVIDIA Quadro M1000M	23777 Points +187%
Lenovo ThinkPad W550s 20E2-000PGE NVIDIA Quadro K620M	9092 Points +10%
HP ZBook 15u G3 AMD FirePro W4190M	8513 Points +3%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	8281 Points
Lenovo ThinkPad T460s-20FA003GGE Intel HD Graphics 520	7505 Points -9%
1280x720 Cloud Gate Standard Score
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	16940 Points +169%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	16337 Points +160%
Dell Precision 5510 NVIDIA Quadro M1000M	16180 Points +157%
Lenovo ThinkPad W550s 20E2-000PGE NVIDIA Quadro K620M	6591 Points +5%
HP ZBook 15u G3 AMD FirePro W4190M	6567 Points +4%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	6287 Points
Lenovo ThinkPad T460s-20FA003GGE Intel HD Graphics 520	6097 Points -3%
1920x1080 Ice Storm Extreme Physics
Lenovo ThinkPad T460s-20FA003GGE Intel HD Graphics 520	38530 Points
1920x1080 Ice Storm Extreme Graphics
Lenovo ThinkPad T460s-20FA003GGE Intel HD Graphics 520	40401 Points
1920x1080 Ice Storm Extreme Score
Lenovo ThinkPad T460s-20FA003GGE Intel HD Graphics 520	39969 Points
1280x720 Ice Storm Standard Physics
HP ZBook 15u G3 AMD FirePro W4190M	44477 Points +65%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	43922 Points +63%
Dell Precision 5510 NVIDIA Quadro M1000M	41557 Points +54%
Lenovo ThinkPad T460s-20FA003GGE Intel HD Graphics 520	40867 Points +51%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	39650 Points +47%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	26992 Points
Lenovo ThinkPad W550s 20E2-000PGE NVIDIA Quadro K620M	14821 Points -45%
1280x720 Ice Storm Standard Graphics
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	76826 Points +191%
Lenovo ThinkPad T460s-20FA003GGE Intel HD Graphics 520	66190 Points +151%
Dell Precision 5510 NVIDIA Quadro M1000M	41161 Points +56%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	39220 Points +49%
Lenovo ThinkPad W550s 20E2-000PGE NVIDIA Quadro K620M	38601 Points +46%
HP ZBook 15u G3 AMD FirePro W4190M	35930 Points +36%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	26395 Points
1280x720 Ice Storm Standard Score
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	63578 Points +140%
Lenovo ThinkPad T460s-20FA003GGE Intel HD Graphics 520	58178 Points +119%
Dell Precision 5510 NVIDIA Quadro M1000M	41248 Points +56%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	40175 Points +51%
HP ZBook 15u G3 AMD FirePro W4190M	37532 Points +41%
Lenovo ThinkPad W550s 20E2-000PGE NVIDIA Quadro K620M	28455 Points +7%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	26525 Points

3DMark 06 Standard Score		12842 points
3DMark Vantage P Result		7959 points
3DMark 11 Performance		2350 points
3DMark Ice Storm Standard Score		26525 points
3DMark Cloud Gate Standard Score		6287 points
3DMark Fire Strike Score		1432 points
Help

... in comparison

Tomb Raider | Rise of the Tomb Raider | BioShock Infinite

Tomb Raider
1920x1080 Ultra Preset AA:FX AF:16x (sort by value)
Lenovo ThinkPad P50s-20FKS00400 Intel Core i7-6500U, NVIDIA Quadro M500M	17.3 fps
Dell Precision 5510 Intel Xeon E3-1505M v5, NVIDIA Quadro M1000M	43 fps +149%
Lenovo ThinkPad P50 Intel Core i7-6820HQ, NVIDIA Quadro M2000M	51.5 fps +198%
Acer Aspire V3-575G-5093 Intel Core i5-6200U, NVIDIA GeForce 940M	16.8 fps -3%
1366x768 High Preset AA:FX AF:8x (sort by value)
Lenovo ThinkPad P50s-20FKS00400 Intel Core i7-6500U, NVIDIA Quadro M500M	34.4 fps
Dell Precision 5510 Intel Xeon E3-1505M v5, NVIDIA Quadro M1000M	98 fps +185%
Lenovo ThinkPad P50 Intel Core i7-6820HQ, NVIDIA Quadro M2000M	107.3 fps +212%
Lenovo ThinkPad W550s 20E2-000PGE Intel Core i7-5500U, NVIDIA Quadro K620M	36 fps +5%
Acer Aspire V3-575G-5093 Intel Core i5-6200U, NVIDIA GeForce 940M	35.4 fps +3%
1366x768 Normal Preset AA:FX AF:4x (sort by value)
Lenovo ThinkPad P50s-20FKS00400 Intel Core i7-6500U, NVIDIA Quadro M500M	62.7 fps
Dell Precision 5510 Intel Xeon E3-1505M v5, NVIDIA Quadro M1000M	144 fps +130%
Lenovo ThinkPad P50 Intel Core i7-6820HQ, NVIDIA Quadro M2000M	162.8 fps +160%
Lenovo ThinkPad W550s 20E2-000PGE Intel Core i7-5500U, NVIDIA Quadro K620M	66 fps +5%
Acer Aspire V3-575G-5093 Intel Core i5-6200U, NVIDIA GeForce 940M	52.1 fps -17%
1024x768 Low Preset (sort by value)
Lenovo ThinkPad P50s-20FKS00400 Intel Core i7-6500U, NVIDIA Quadro M500M	137.8 fps
Dell Precision 5510 Intel Xeon E3-1505M v5, NVIDIA Quadro M1000M	279 fps +102%
Lenovo ThinkPad P50 Intel Core i7-6820HQ, NVIDIA Quadro M2000M	348.7 fps +153%
Lenovo ThinkPad W550s 20E2-000PGE Intel Core i7-5500U, NVIDIA Quadro K620M	134 fps -3%
Acer Aspire V3-575G-5093 Intel Core i5-6200U, NVIDIA GeForce 940M	82.5 fps -40%

Rise of the Tomb Raider
3840x2160 High Preset AA:FX AF:4x (sort by value)
MSI WS60-6QJE316H11 Intel Xeon E3-1505M v5, NVIDIA Quadro M2000M	9.1 fps
1920x1080 Very High Preset AA:FX AF:16x (sort by value)
MSI WS60-6QJE316H11 Intel Xeon E3-1505M v5, NVIDIA Quadro M2000M	21.6 fps
1920x1080 High Preset AA:FX AF:4x (sort by value)
Lenovo ThinkPad P50s-20FKS00400 Intel Core i7-6500U, NVIDIA Quadro M500M	10.4 fps
HP ZBook 15u G3 Intel Core i7-6600U, AMD FirePro W4190M	8 fps -23%
MSI WS60-6QJE316H11 Intel Xeon E3-1505M v5, NVIDIA Quadro M2000M	25.7 fps +147%
Acer Aspire V3-575G-5093 Intel Core i5-6200U, NVIDIA GeForce 940M	10.84 fps +4%
1366x768 Medium Preset AF:2x (sort by value)
Lenovo ThinkPad P50s-20FKS00400 Intel Core i7-6500U, NVIDIA Quadro M500M	18.6 fps
HP ZBook 15u G3 Intel Core i7-6600U, AMD FirePro W4190M	14 fps -25%
MSI WS60-6QJE316H11 Intel Xeon E3-1505M v5, NVIDIA Quadro M2000M	45.3 fps +144%
Acer Aspire V3-575G-5093 Intel Core i5-6200U, NVIDIA GeForce 940M	18.28 fps -2%
1024x768 Lowest Preset (sort by value)
Lenovo ThinkPad P50s-20FKS00400 Intel Core i7-6500U, NVIDIA Quadro M500M	30.3 fps
Acer Aspire V3-575G-5093 Intel Core i5-6200U, NVIDIA GeForce 940M	22.74 fps -25%

BioShock Infinite
1920x1080 Ultra Preset, DX11 (DDOF) (sort by value)
Lenovo ThinkPad P50s-20FKS00400 Intel Core i7-6500U, NVIDIA Quadro M500M	14.7 fps
Dell Precision 5510 Intel Xeon E3-1505M v5, NVIDIA Quadro M1000M	38 fps +159%
HP ZBook 15u G3 Intel Core i7-6600U, AMD FirePro W4190M	13.64 fps -7%
Lenovo ThinkPad P50 Intel Core i7-6820HQ, NVIDIA Quadro M2000M	39.5 fps +169%
Lenovo ThinkPad W550s 20E2-000PGE Intel Core i7-5500U, NVIDIA Quadro K620M	15 fps +2%
Acer Aspire V3-575G-5093 Intel Core i5-6200U, NVIDIA GeForce 940M	20.86 fps +42%
1366x768 High Preset (sort by value)
Lenovo ThinkPad P50s-20FKS00400 Intel Core i7-6500U, NVIDIA Quadro M500M	43.8 fps
Dell Precision 5510 Intel Xeon E3-1505M v5, NVIDIA Quadro M1000M	100 fps +128%
HP ZBook 15u G3 Intel Core i7-6600U, AMD FirePro W4190M	34.08 fps -22%
Lenovo ThinkPad P50 Intel Core i7-6820HQ, NVIDIA Quadro M2000M	112.9 fps +158%
Lenovo ThinkPad W550s 20E2-000PGE Intel Core i7-5500U, NVIDIA Quadro K620M	42 fps -4%
Acer Aspire V3-575G-5093 Intel Core i5-6200U, NVIDIA GeForce 940M	42.27 fps -3%
1366x768 Medium Preset (sort by value)
Lenovo ThinkPad P50s-20FKS00400 Intel Core i7-6500U, NVIDIA Quadro M500M	54 fps
Dell Precision 5510 Intel Xeon E3-1505M v5, NVIDIA Quadro M1000M	111 fps +106%
HP ZBook 15u G3 Intel Core i7-6600U, AMD FirePro W4190M	38.42 fps -29%
Lenovo ThinkPad P50 Intel Core i7-6820HQ, NVIDIA Quadro M2000M	128 fps +137%
Lenovo ThinkPad W550s 20E2-000PGE Intel Core i7-5500U, NVIDIA Quadro K620M	52 fps -4%
Acer Aspire V3-575G-5093 Intel Core i5-6200U, NVIDIA GeForce 940M	51.4 fps -5%
1280x720 Very Low Preset (sort by value)
Lenovo ThinkPad P50s-20FKS00400 Intel Core i7-6500U, NVIDIA Quadro M500M	94.9 fps
Dell Precision 5510 Intel Xeon E3-1505M v5, NVIDIA Quadro M1000M	195 fps +105%
HP ZBook 15u G3 Intel Core i7-6600U, AMD FirePro W4190M	85.2 fps -10%
Lenovo ThinkPad P50 Intel Core i7-6820HQ, NVIDIA Quadro M2000M	187.9 fps +98%
Lenovo ThinkPad W550s 20E2-000PGE Intel Core i7-5500U, NVIDIA Quadro K620M	73 fps -23%
Acer Aspire V3-575G-5093 Intel Core i5-6200U, NVIDIA GeForce 940M	73.5 fps -23%

	low	med.	high	ultra
Tomb Raider (2013)	137.8	62.7	34.4	17.3
BioShock Infinite (2013)	94.9	54	43.8	14.7
Metro: Last Light (2013)	48.9	38.3	22.9	11.6
Thief (2014)	33.7	23.4	19.1	9.6
Dirt Rally (2015)	82.6	32.8	19.5	12.7
The Witcher 3 (2015)	30.5	18.9	10.2
Star Wars Battlefront (2015)	56.5	33.3	15.2	13
Rainbow Six Siege (2015)	46.9	32.4	19.2	13.1
Just Cause 3 (2015)	35.6	29.6	16.2	14.5
Rise of the Tomb Raider (2016)	30.3	18.6	10.4

Noise Level

Idle		30 / 30 / 30 dB(A)
Load		33.5 / 41.9 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Audix TM1, Arta (15 cm distance)

	Lenovo ThinkPad P50s-20FKS00400 Intel Core i7-6500U, NVIDIA Quadro M500M	Dell Precision 5510 Intel Xeon E3-1505M v5, NVIDIA Quadro M1000M	HP ZBook 15u G3 Intel Core i7-6600U, AMD FirePro W4190M	MSI WS60-6QJE316H11 Intel Xeon E3-1505M v5, NVIDIA Quadro M2000M	Lenovo ThinkPad P50 Intel Core i7-6820HQ, NVIDIA Quadro M2000M	Lenovo ThinkPad W550s 20E2-000PGE Intel Core i7-5500U, NVIDIA Quadro K620M
Noise		-8%	-4%	-24%	-1%	10%
Idle Minimum *	30	30 -0%	29.8 1%	37.2 -24%	30 -0%	26.9 10%
Idle Average *	30	30 -0%	29.8 1%	37.2 -24%	30 -0%	26.9 10%
Idle Maximum *	30	30 -0%	29.8 1%	37.2 -24%	30 -0%	26.9 10%
Load Average *	33.5	42.08 -26%	39.5 -18%	42.1 -26%	34.5 -3%	30.4 9%
Load Maximum *	41.9	46.78 -12%	43.2 -3%	50.7 -21%	42.1 -0%	38.1 9%

* ... smaller is better

Max. Load

Idle


27.4 °C	30.7 °C	37.5 °C
27.3 °C	34.4 °C	44.2 °C
26.5 °C	32.3 °C	34.4 °C

Maximum: 44.2 °C
Average: 32.7 °C


41.1 °C	33.8 °C	27.3 °C
57.8 °C	55.9 °C	28.9 °C
32.3 °C	30.2 °C	25.7 °C

Maximum: 57.8 °C
Average: 37 °C

Power Supply (max.) 46.3 °C | Room Temperature 20 °C | Fennel FIRT 550

(±) The average temperature for the upper side under maximal load is 32.7 °C / 91 F, compared to the average of 32 °C / 90 F for the devices in the class Workstation.
(±) The maximum temperature on the upper side is 44.2 °C / 112 F, compared to the average of 38.2 °C / 101 F, ranging from 22.2 to 69.8 °C for the class Workstation.
(-) The bottom heats up to a maximum of 57.8 °C / 136 F, compared to the average of 41.3 °C / 106 F
(+) In idle usage, the average temperature for the upper side is 24.8 °C / 77 F, compared to the device average of 32 °C / 90 F.
(+) The palmrests and touchpad are reaching skin temperature as a maximum (34.4 °C / 93.9 F) and are therefore not hot.
(-) The average temperature of the palmrest area of similar devices was 27.8 °C / 82 F (-6.6 °C / -11.9 F).

	Lenovo ThinkPad P50s-20FKS00400 Intel Core i7-6500U, NVIDIA Quadro M500M	Dell Precision 5510 Intel Xeon E3-1505M v5, NVIDIA Quadro M1000M	HP ZBook 15u G3 Intel Core i7-6600U, AMD FirePro W4190M	MSI WS60-6QJE316H11 Intel Xeon E3-1505M v5, NVIDIA Quadro M2000M	Lenovo ThinkPad P50 Intel Core i7-6820HQ, NVIDIA Quadro M2000M	Lenovo ThinkPad W550s 20E2-000PGE Intel Core i7-5500U, NVIDIA Quadro K620M
Heat		-4%	6%	-11%	-0%	12%
Maximum Upper Side *	44.2	45.8 -4%	44.6 -1%	42.3 4%	36.7 17%	36.5 17%
Maximum Bottom *	57.8	46.7 19%	46 20%	60.1 -4%	41.3 29%	51.2 11%
Idle Upper Side *	26.4	31.2 -18%	25.8 2%	32.7 -24%	31.1 -18%	23.9 9%
Idle Bottom *	28.1	31.9 -14%	27.4 2%	33.1 -18%	36.2 -29%	25.7 9%

* ... smaller is better

Power Consumption

Off / Standby	0.18 / 0.37 Watt
Idle	4.3 / 9.7 / 10.2 Watt
Load	45.7 / 55.8 Watt


Key: min: , med: , max: Gossen Metrahit Energy

	Lenovo ThinkPad P50s-20FKS00400 Intel Core i7-6500U, NVIDIA Quadro M500M	Dell Precision 5510 Intel Xeon E3-1505M v5, NVIDIA Quadro M1000M	HP ZBook 15u G3 Intel Core i7-6600U, AMD FirePro W4190M	MSI WS60-6QJE316H11 Intel Xeon E3-1505M v5, NVIDIA Quadro M2000M	Lenovo ThinkPad P50 Intel Core i7-6820HQ, NVIDIA Quadro M2000M	Lenovo ThinkPad W550s 20E2-000PGE Intel Core i7-5500U, NVIDIA Quadro K620M
Power Consumption		-90%	-4%	-201%	-39%	5%
Idle Minimum *	4.3	8.6 -100%	4.3 -0%	18.8 -337%	5.6 -30%	4 7%
Idle Average *	9.7	16.2 -67%	7.9 19%	29.6 -205%	8.6 11%	9.6 1%
Idle Maximum *	10.2	16.7 -64%	11.5 -13%	30.3 -197%	9.3 9%	10.8 -6%
Load Average *	45.7	82.6 -81%	43.3 5%	90.4 -98%	89.5 -96%	36.9 19%
Load Maximum *	55.8	131.8 -136%	72.3 -30%	150.2 -169%	105 -88%	54.5 2%

* ... smaller is better

Battery Runtime

Idle (without WLAN, min brightness)		18h 27min
WiFi Websurfing		6h 48min
Big Buck Bunny H.264 1080p		8h 57min
Load (maximum brightness)		2h 9min

	Lenovo ThinkPad P50s-20FKS00400 67 Wh, 6500U, Quadro M500M	Dell Precision 5510 56 Wh, E3-1505M v5, Quadro M1000M	HP ZBook 15u G3 90 Wh, 6600U, FirePro W4190M	MSI WS60-6QJE316H11 47 Wh, E3-1505M v5, Quadro M2000M	Lenovo ThinkPad P50 90 Wh, 6820HQ, Quadro M2000M	Lenovo ThinkPad W550s 20E2-000PGE 116 Wh, 5500U, Quadro K620M
Battery Runtime		-43%	-16%	-74%	-3%	62%
Reader / Idle	1107	428 -61%	756 -32%	160 -86%	860 -22%	1728 56%
H.264	537	197 -63%		141 -74%	533 -1%	667 24%
WiFi v1.3	408	286 -30%	312 -24%	106 -74%	498 22%	715 75%
Load	129	109 -16%	141 9%	51 -60%	113 -12%	247 91%
WiFi		298

Pros

+ 坚固的机身

+ 优秀的屏幕

+ 出色的键盘

+ 优秀的电池续航

+ 接口速度快

+ 出色的无线网络速度

+ 三年质保

Cons

- 借口布局

- 处理器性能作为工作站来说较弱

- 处理器无法完全发挥加速性能

- 不便于维护升级

- 无最新接口（USB 3.1，USB－C，Thunderbolt，M.2-2280）

- 屏幕闪烁亮度控制

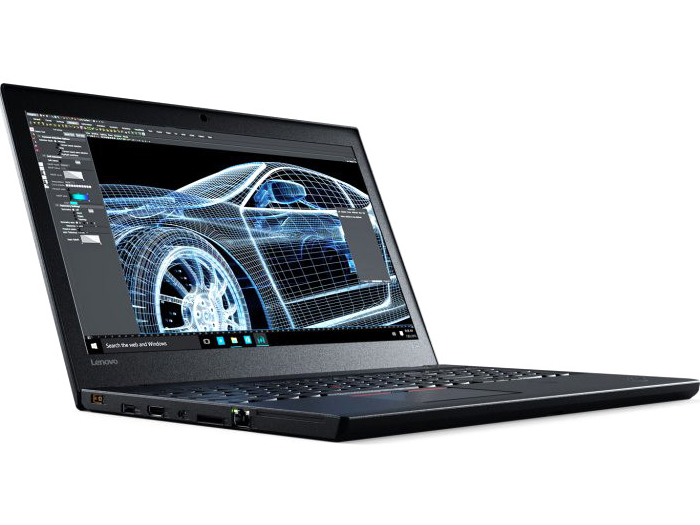

In review: Lenovo ThinkPad P50s. Test model courtesy of Notebooksandmore.

ThinkPad P50s是上一代的ThinkPad W550s的Skylake更新，这也成为了这台移动工作站最大的问题。除了处理器，它并没有什么实质性的改变，你依然无法用到最新的接口（USB-C, Thunderbolt, M.2固态硬盘, M.2-2280）。我们甚至可以直接复制W550的评测总结，因为你会拿到手上的依然是一台缺少处理性能的轻薄工作站。当然这取决于你的需要，当然移动超低电压处理器也不算孱弱，不过我们的测试机甚至无法发挥应有的全部潜能。为什么超极本如ThinkPad T460s可以提高热设计功率限制，而工作站不能呢？联想的不同产品团队显然需要增强交流。

这也把我们带到了ThinkPad P50s的另一个问题前面：ThinkPad P50。由于机身得到重新设计，它提供了所有的最新接口，更强的性能，而噪音散热却有了改善。P50s的优势在于更薄的机身和较轻的重量（包括电源适配器）。不过如果你真的关注便携性的话，戴尔 Precision 5510的地位几乎无可撼动。
