测试Trigkey 迷你电脑，配备英特尔 N100、16 GB 内存和 500 GB 固态硬盘，售价不到 200 美元

Name: Trigkey G4
Brand: Trigkey

高效的流媒体客户端

为了满足这些要求，流媒体客户端或小型办公设备并不需要很强的功耗。Trigkey 是一款相对现代的迷你 PC，配备英特尔 N100 CPU，售价不到 200 美元。不过，重要的是要记住它配备了 DDR4 内存。在这次评测中，我们将 Trigkey G4 的性能与同类设备进行了比较。

Sebastian Bade (translated by DeepL / Ninh Duy), Published 11/17/2023 🇺🇸 🇩🇪 ...

Mini PC Desktop Intel Alder Lake

迷你 PC 市场竞争激烈，越来越多的公司推出了自己的设备。Trigkey 推出了专为简单应用而设计的 G4 迷你 PC，进入了这一领域。该产品采用英特尔 N100 ，这是一款今年早些时候推出的基于 Alder Lake 的 SoC，原生四核处理器可提供可靠的日常性能。尽管没有使用 DDR5，Trigkey G4 还是配备了 16 GB DDR4 模块和 512 GB SSD。值得注意的是，购买时还赠送了一份专业版的 Windows 11 操作系统，这使它以不到 200 美元的价格成为一款引人注目的产品。

本次评测的目的是将 Trigkey G4 与功能类似、价格实惠的竞争对手进行对比评估，我们已经对这些竞争对手进行了详细的研究。以下概述列出了对比设备：

Test device courtesy of Trigkey

Download your licensed rating image as PNG / SVG

Trigkey G4

Processor

Intel Processor N100 4 x 1 - 3.4 GHz, 23 W PL2 / Short Burst, 20 W PL1 / Sustained, Alder Lake-N

Graphics adapter

Intel UHD Graphics 24EUs (Alder Lake-N), Core: 750 MHz, RAM: 1600 MHz, 31.0.101.4575

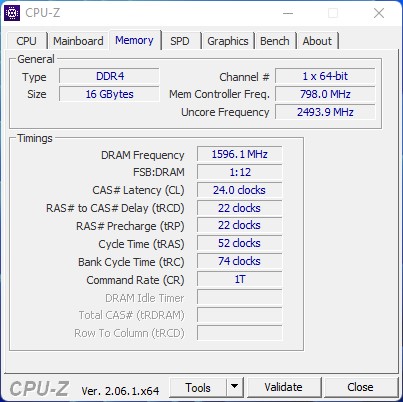

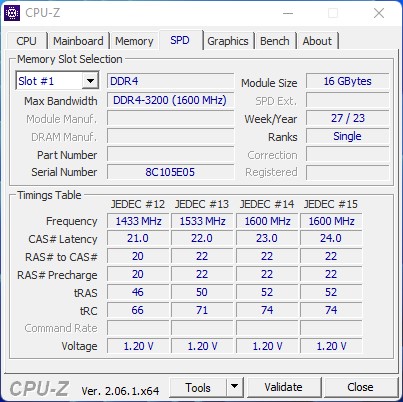

Memory

16 GB

, DDR4-3200, Single Channel

Mainboard

Intel Alder Lake-N PCH

Storage

512-GB-NVMe, 450 GB free

Soundcard

Intel Alder Lake-N PCH - cAVS

Connections

4 USB 3.1 Gen2, 2 HDMI, Audio Connections: 3,5mm Klinke

Networking

Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit/s), Intel Wi-Fi 6 AX101 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/), Bluetooth 5.2

Operating System

Microsoft Windows 11 Pro

Additional features

36-Watt-Netzteil, 24 Months Warranty

Weight

272 g, Power Supply: 164 g

Price

189 EUR

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

潜在的竞争对手比较

Rating	Date	Model	Weight	Price
70.1 % v7 ^(old)	11 / 2023	Trigkey G4 N100, UHD Graphics 24EUs (Alder Lake-N)	272 g	189 EUR
74.1 % v7 ^(old)	11 / 2023	Acemagic S1 N95, UHD Graphics 24EUs (Alder Lake-N)	440 g	239 EUR
73.1 % v7 ^(old)	10 / 2023	Beelink Mini S12 Pro N100, UHD Graphics 24EUs (Alder Lake-N)	335 g	200 USD
73.5 % v7 ^(old)	09 / 2023	Blackview MP80 N95, UHD Graphics 24EUs (Alder Lake-N)	214 g	250 EUR
71.1 % v7 ^(old)	08 / 2023	BOSGAME N95 N95, UHD Graphics 24EUs (Alder Lake-N)	392 g	179 EUR
68.2 % v7 ^(old)	03 / 2023	Minipc Union NiPoGi GK3PLUS - N95 N95, UHD Graphics 24EUs (Alder Lake-N)	381 g	399 EUR
65.9 % v7 ^(old)	01 / 2023	Minipc Union Ace Magician T8Pro Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	209 g	280 EUR

特里基格林 G4 详情

外壳和连接

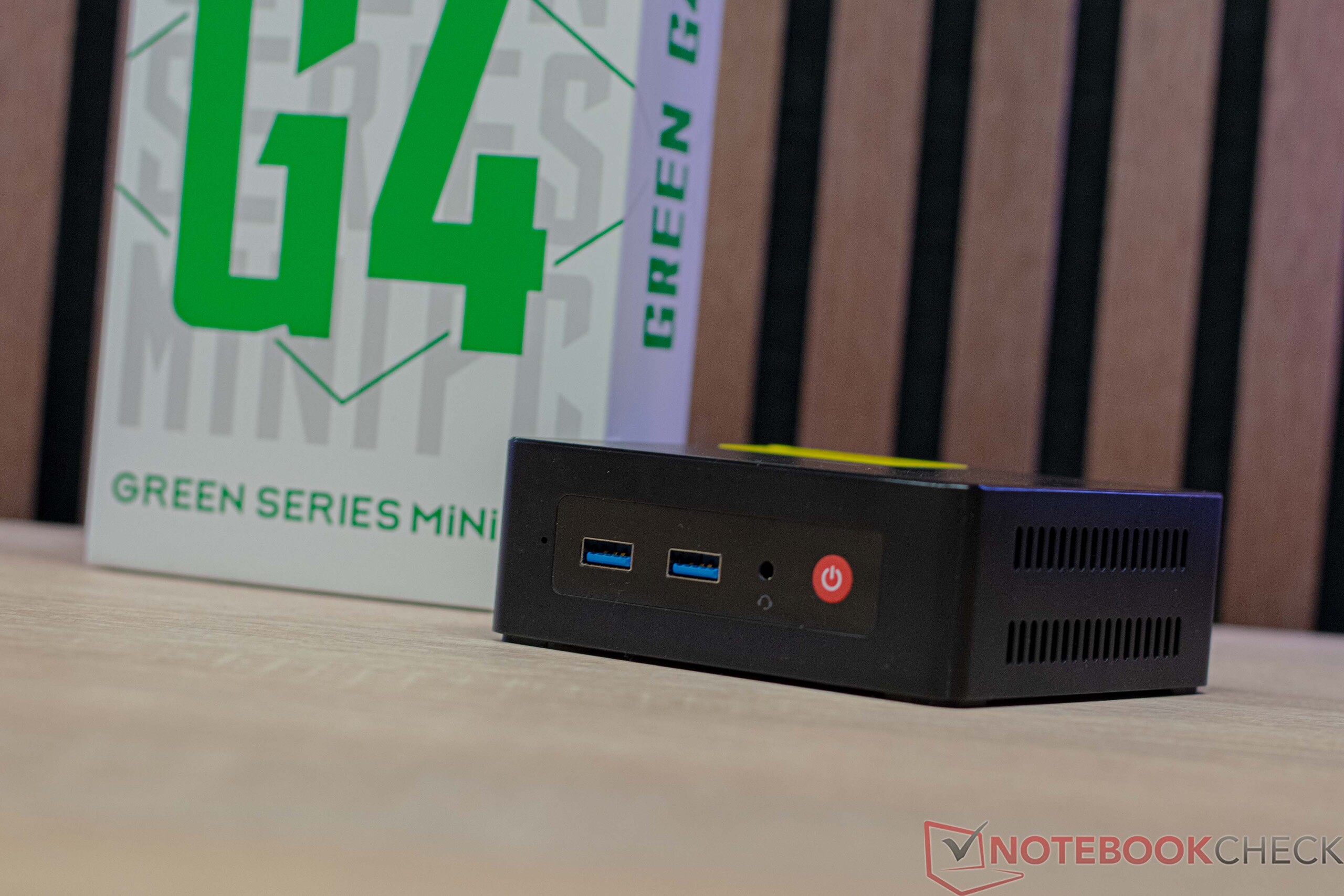

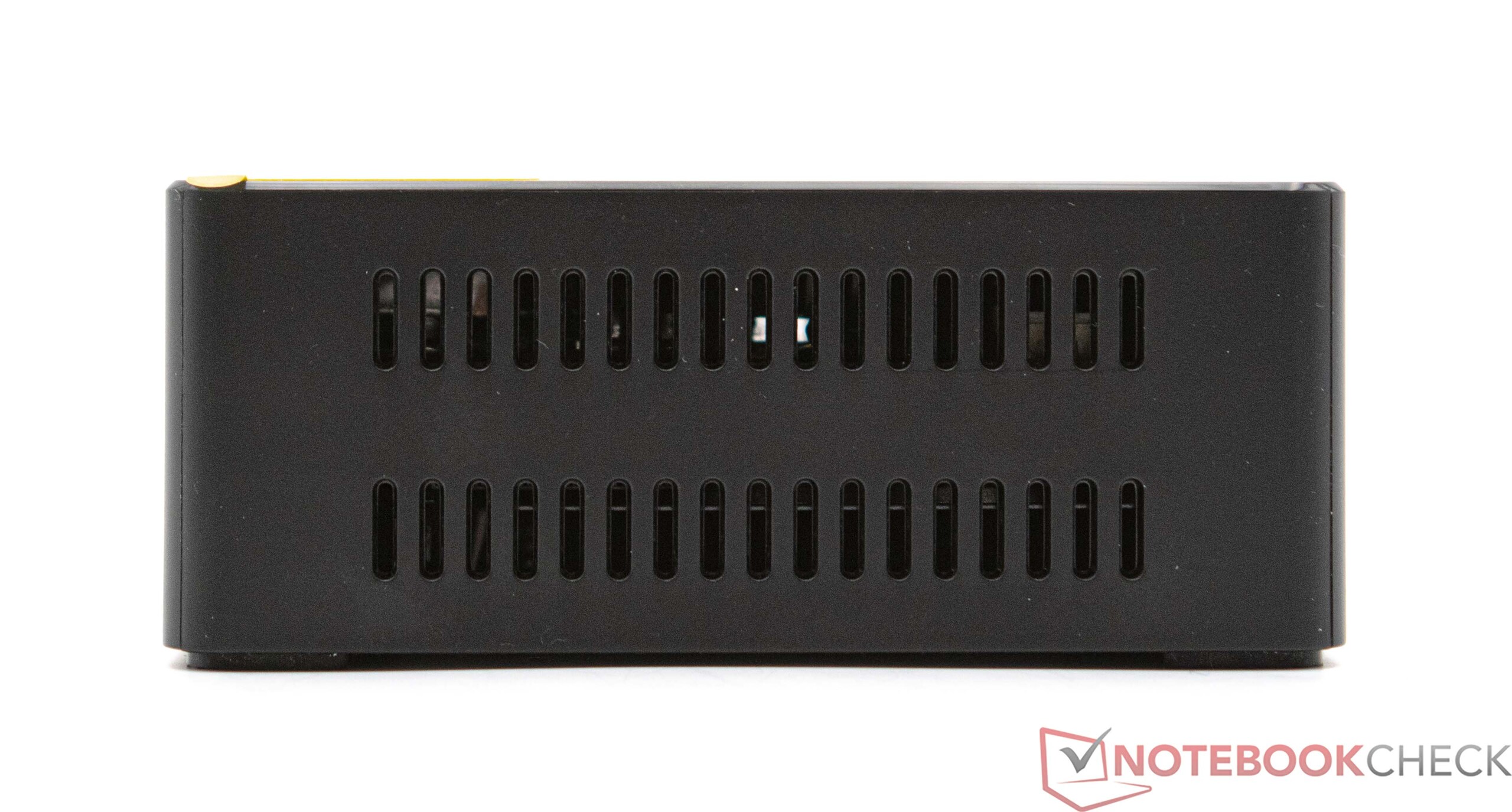

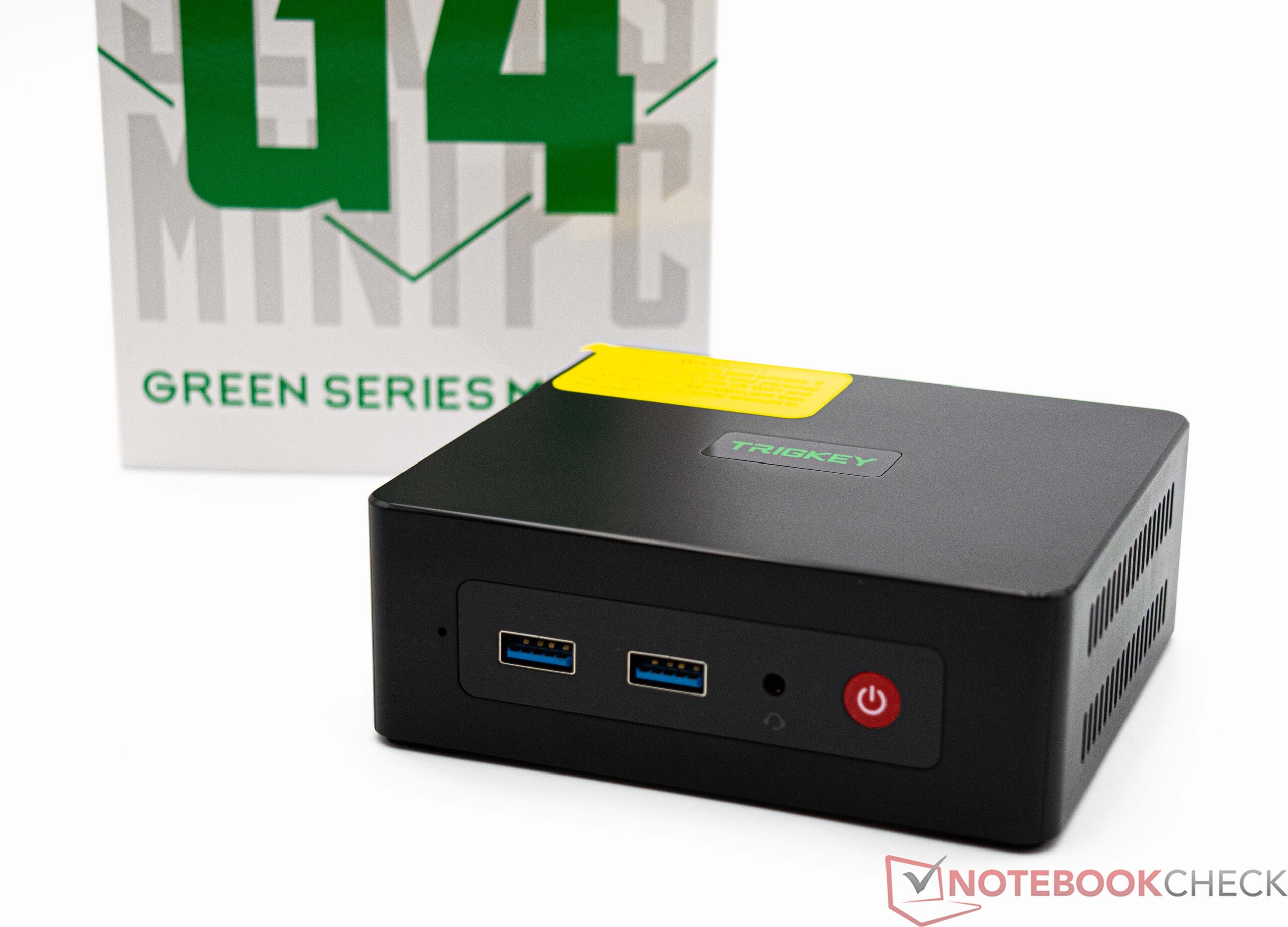

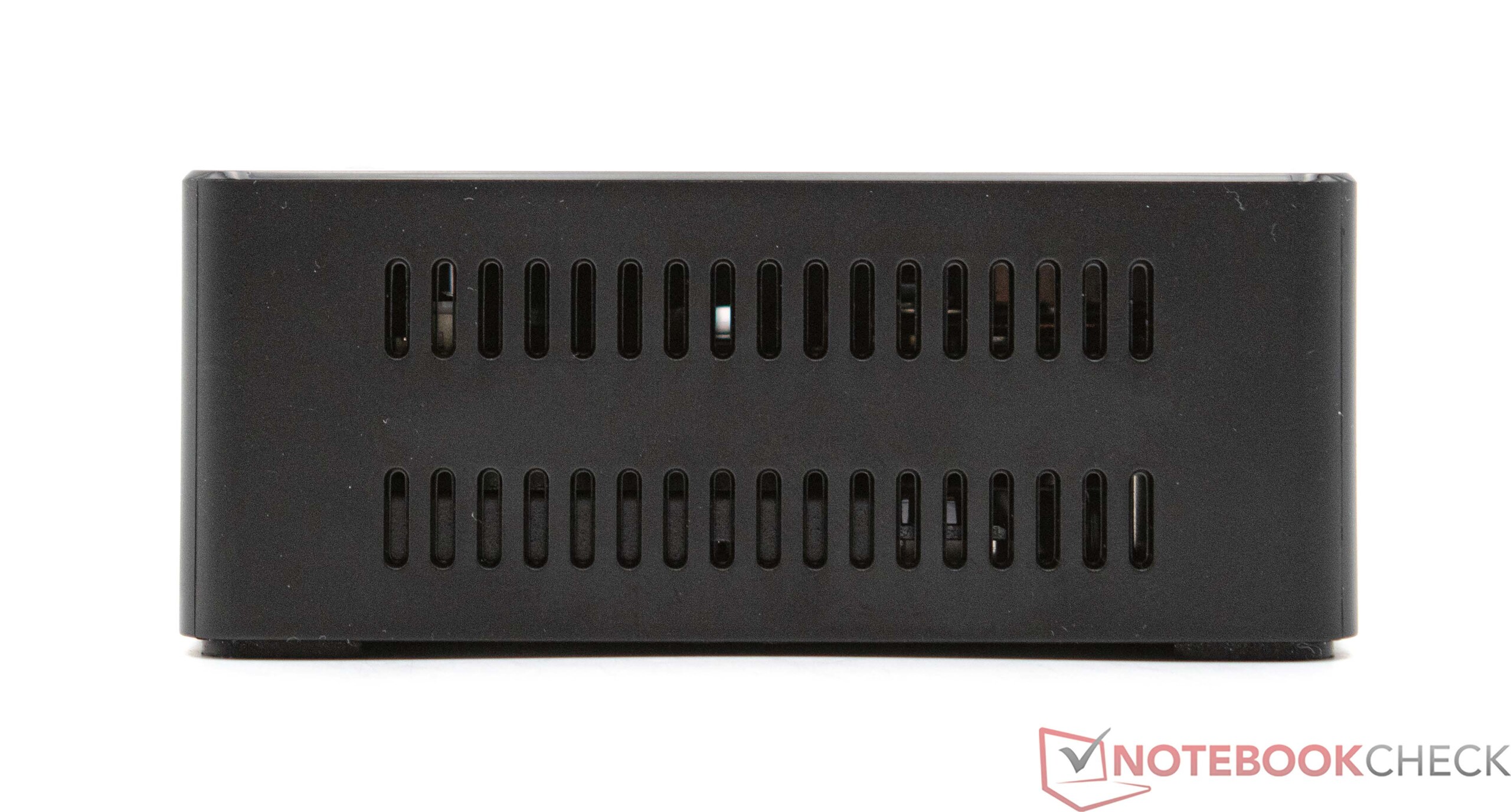

Trigkey G4 采用简单的塑料外壳，既坚固又做工精良。黑色的表面处理增加了它的视觉吸引力，正面和背面都有所有必要的接口。四个 USB 端口足以满足日常使用。此外，通过 HDMI 连接两个屏幕的功能确保了 Trigkey 的竞争力。测试样品相对较轻，重量略低于 300 克，不过，在一些比较中，我们看到了更轻的设备。

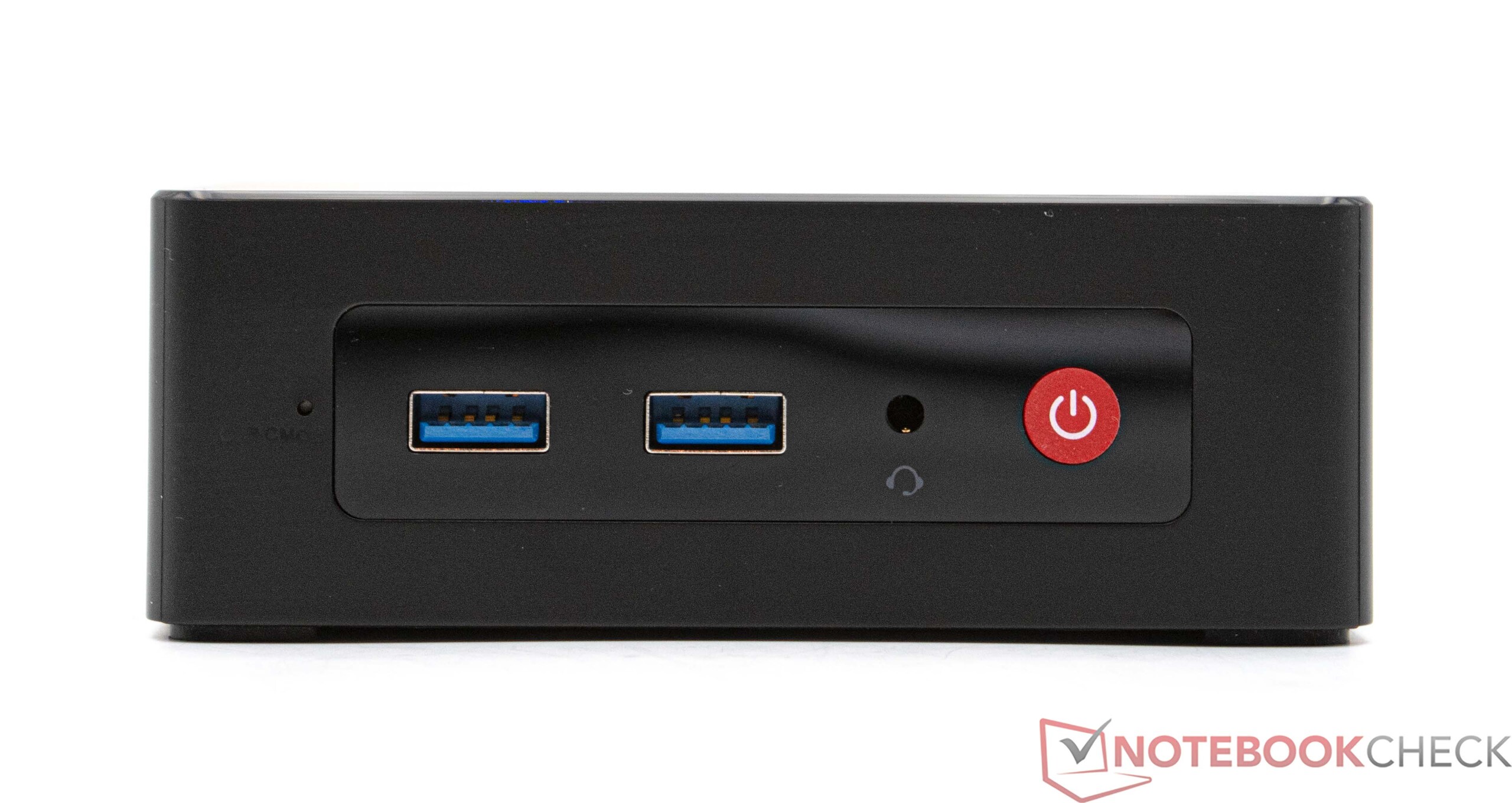

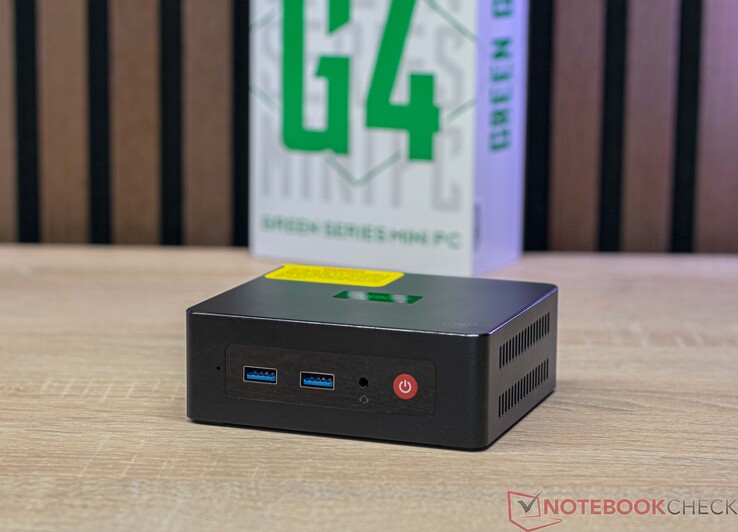

前置：2 个 USB 3.2 Gen2（10 Gbps）、3.5 毫米音频/麦克风（组合）

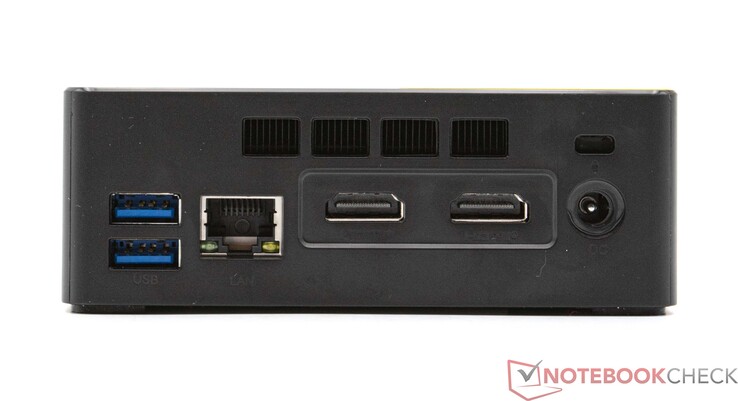

后部：2 个 USB 3.2 Gen2（10 Gbps）、GBit-LAN、2 个 HDMI（最大 4K@60Hz）、主电源连接（12V 3.0A）。

尺寸比较

Minipc Union NiPoGi GK3PLUS - N95 Acemagic S1 BOSGAME N95 Beelink Mini S12 Pro Minipc Union Ace Magician T8Pro Blackview MP80 Trigkey G4 DIN A5 ❌

Networking
iperf3 receive AXE11000
Average of class Mini PC (192.9 - 1796, n=112, last 2 years)	933 MBit/s +90%
BOSGAME N95 Intel Dual Band Wireless-AC 8265	719 (702^min - 729^max) MBit/s +46%
Acemagic S1 Realtek RTL8852BE	503 (357^min - 676^max) MBit/s +2%
Average Intel Wi-Fi 6 AX101 (491 - 501, n=4)	495 MBit/s +1%
Trigkey G4 Intel Wi-Fi 6 AX101	491 (483^min - 495^max) MBit/s
Beelink Mini S12 Pro Intel Wi-Fi 6 AX201	470 (445^min - 491^max) MBit/s -4%
Minipc Union Ace Magician T8Pro Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC	363 (359^min - 365^max) MBit/s -26%
Blackview MP80 Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC	361 (326^min - 365^max) MBit/s -26%
Minipc Union NiPoGi GK3PLUS - N95 Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC	358 (180^min - 362^max) MBit/s -27%
iperf3 transmit AXE11000
Average of class Mini PC (184.1 - 1776, n=112, last 2 years)	866 MBit/s +78%
Acemagic S1 Realtek RTL8852BE	536 (515^min - 553^max) MBit/s +10%
BOSGAME N95 Intel Dual Band Wireless-AC 8265	519 (510^min - 547^max) MBit/s +7%
Average Intel Wi-Fi 6 AX101 (481 - 505, n=4)	494 MBit/s +1%
Trigkey G4 Intel Wi-Fi 6 AX101	487 (459^min - 504^max) MBit/s
Beelink Mini S12 Pro Intel Wi-Fi 6 AX201	438 (376^min - 489^max) MBit/s -10%
Blackview MP80 Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC	274 (266^min - 281^max) MBit/s -44%
Minipc Union NiPoGi GK3PLUS - N95 Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC	269 (136^min - 276^max) MBit/s -45%
Minipc Union Ace Magician T8Pro Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC	184.1 (94^min - 191^max) MBit/s -62%

Trigkey G4 Intel Wi-Fi 6 AX101; iperf3 receive AXE11000; iperf 3.1.3: Ø490 (483-495)

Acemagic S1 Realtek RTL8852BE; iperf3 receive AXE11000; iperf 3.1.3: Ø503 (357-676)

Trigkey G4 Intel Wi-Fi 6 AX101; iperf3 transmit AXE11000; iperf 3.1.3: Ø487 (459-504)

Acemagic S1 Realtek RTL8852BE; iperf3 transmit AXE11000; iperf 3.1.3: Ø536 (515-553)

维护

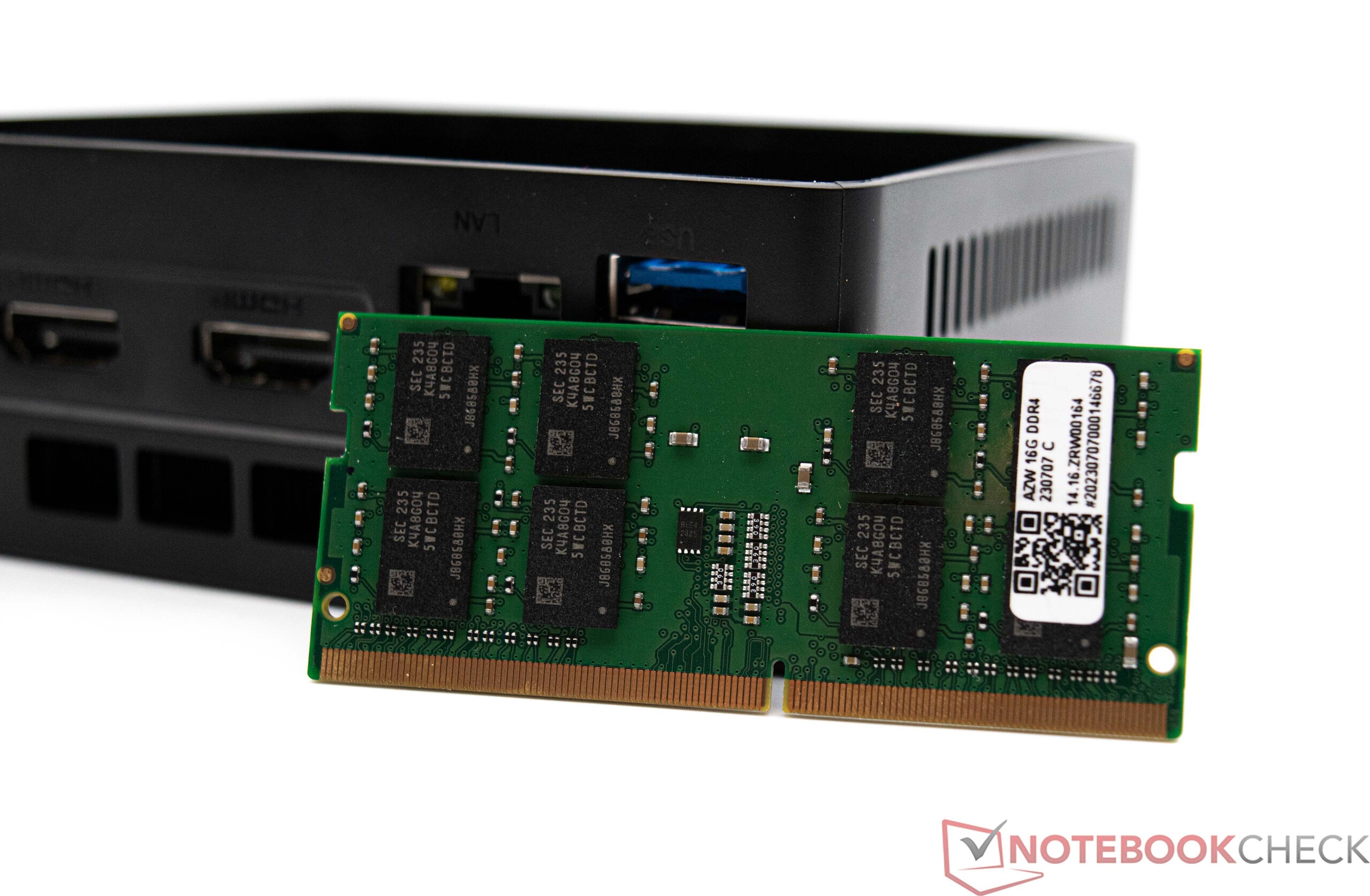

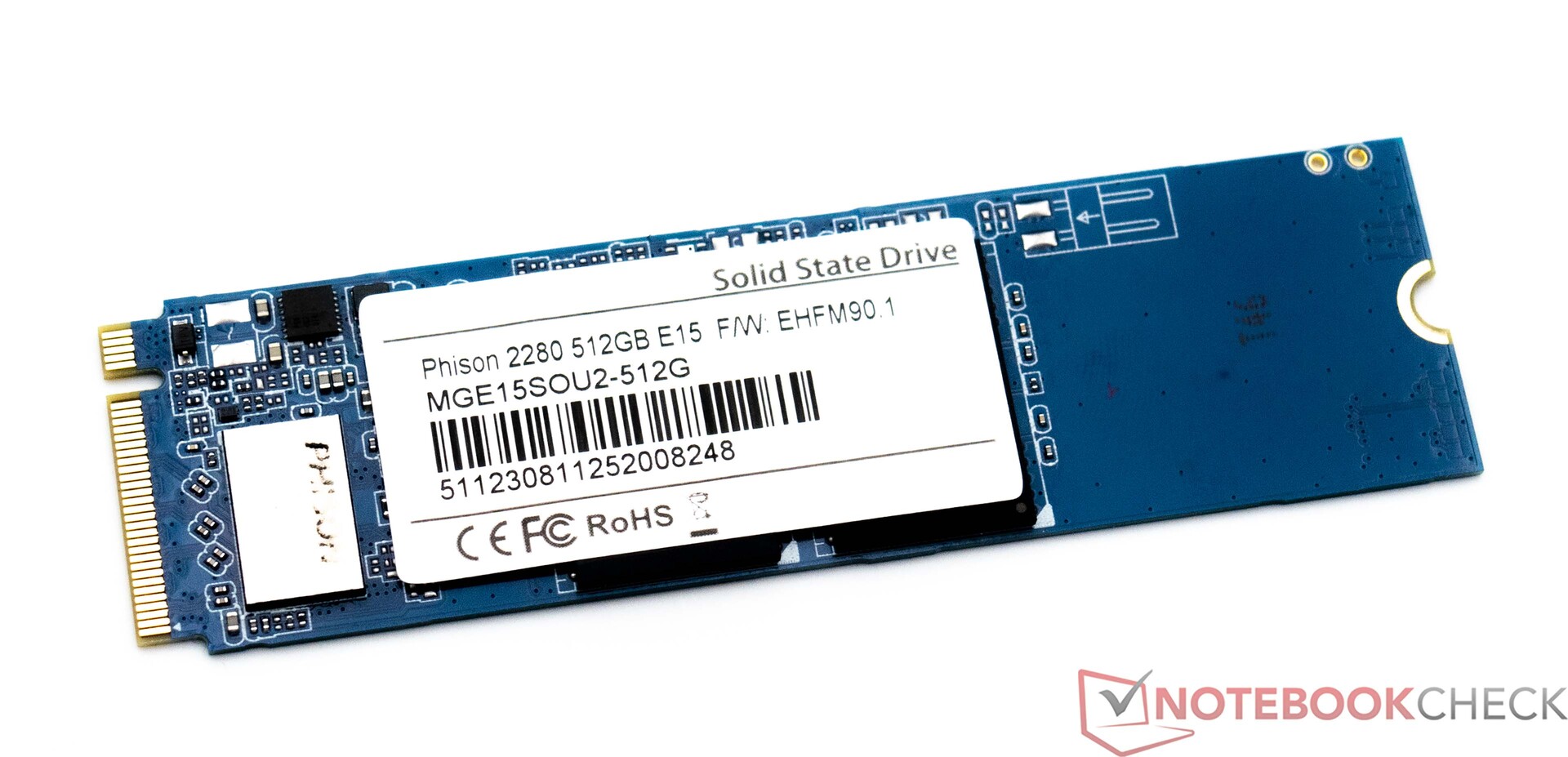

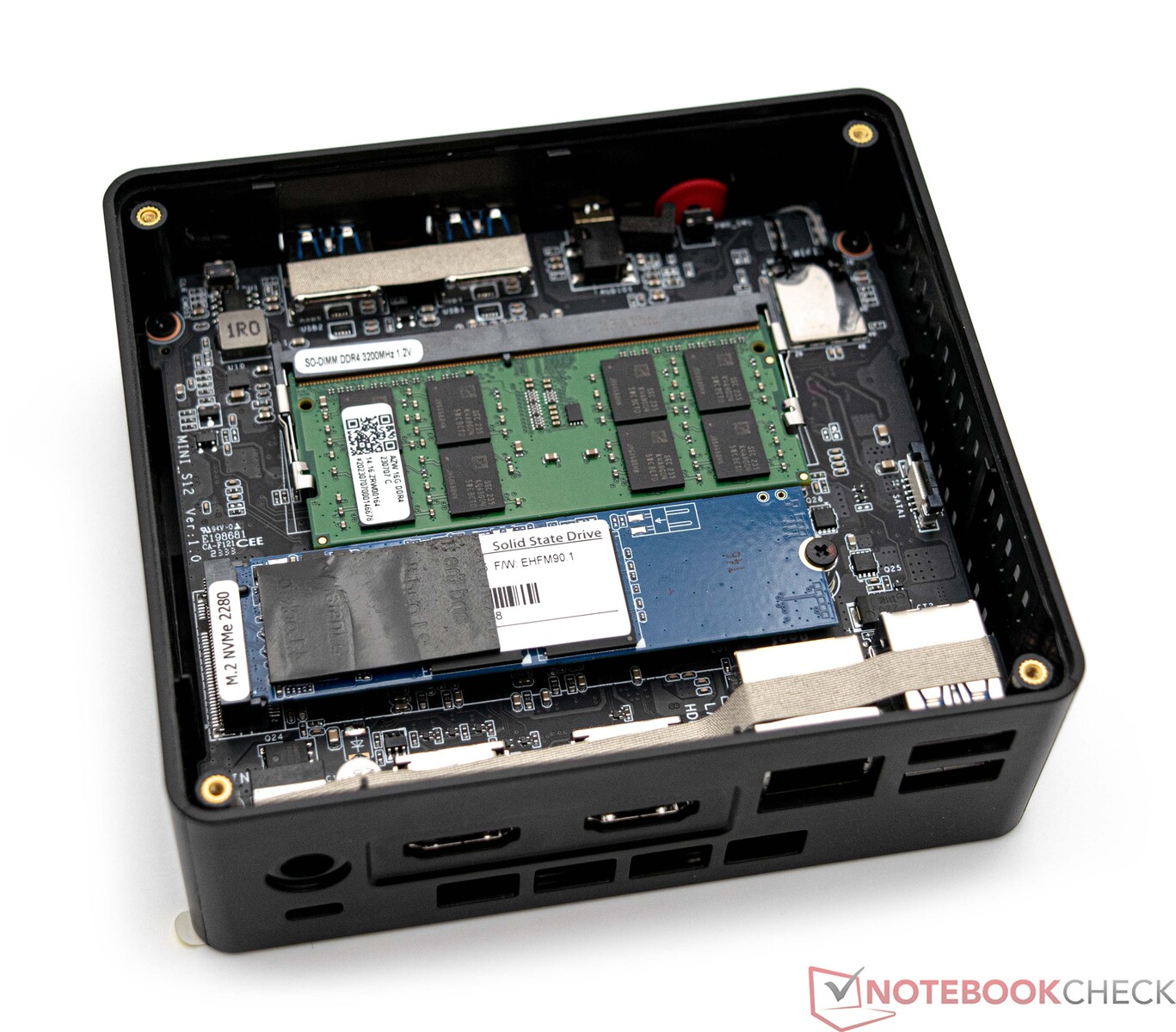

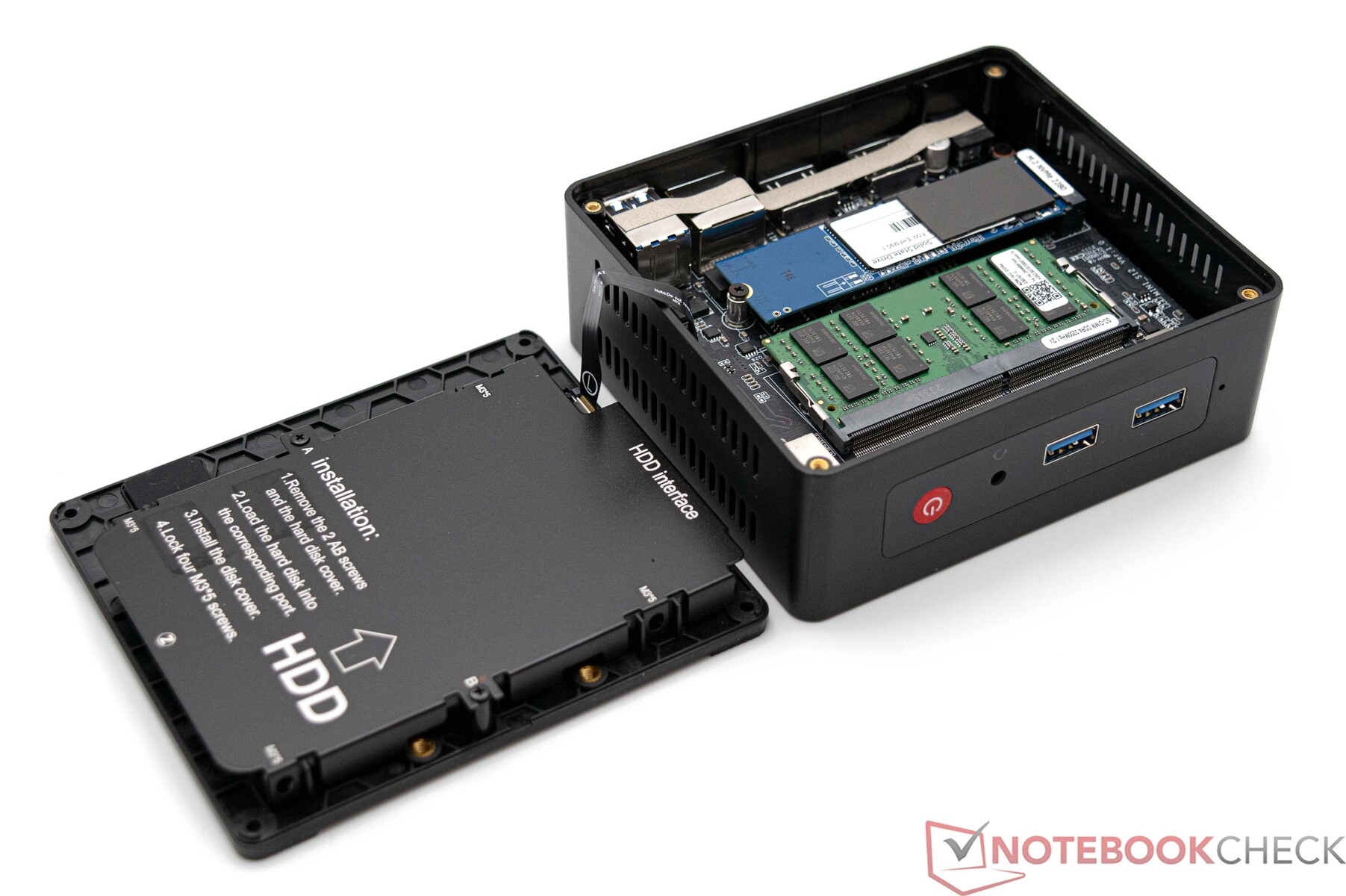

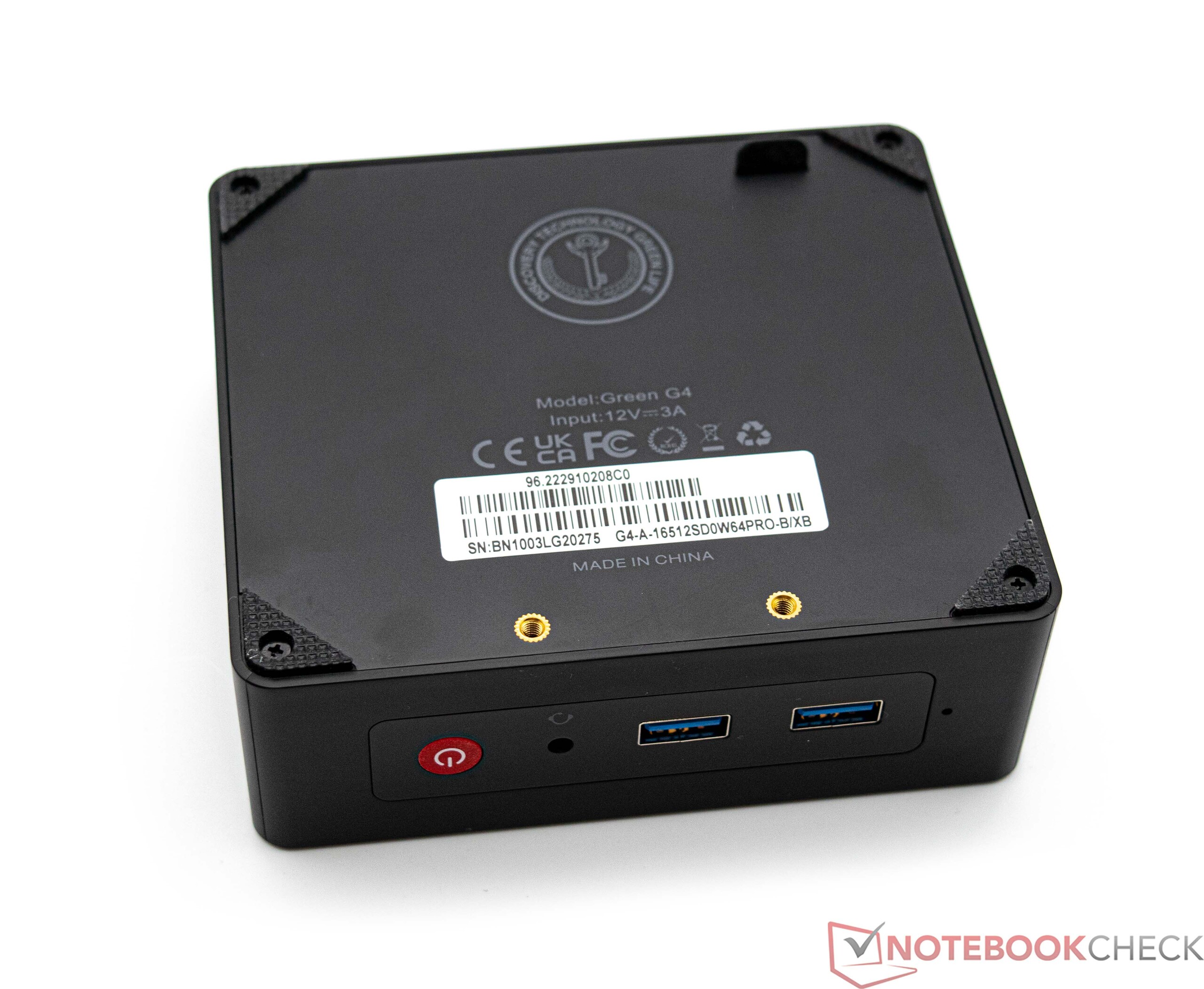

Trigkey G4 可以比较容易地从底部打开，只需拧下四颗螺丝即可取下底板。它通过一根带状电缆与电路板相连，另外一个 2.5 英寸数据载体的连接也已就位。2.5 英寸硬盘的支撑架还能为安装的 M.2 固态硬盘散热。值得注意的是，只能插入一个内存模块。由于主板上没有永久连接的内存，内存只能以单通道模式运行。这种设置会降低数据吞吐量，并可能影响 SoC 和 GPU 性能。

性能 - 基于英特尔 Alder Lake 处理器的英特尔 N100

与英特尔 N95 相比，英特尔 N100 具有四个本地计算内核，时钟频率略高，这表明用户可以期待性能略有提高。这颗 SoC 可胜任简单的办公任务。Trigkey G4 配备了 16 GB 内存和 512 GB 固态硬盘，性能稳定，是满足各种计算需求的可靠设备。

测试条件

我们使用最高性能的能源配置文件进行了所有性能测试。只有在测量能耗和体积时才使用了偏离的节能程序。有关测试标准的更多信息，请点击此处。

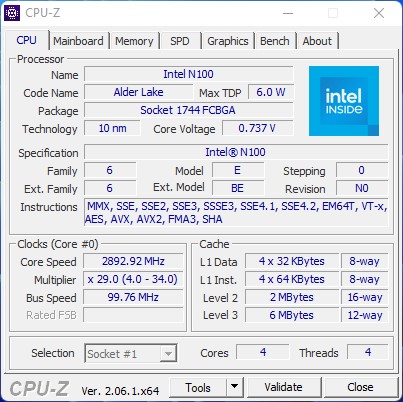

处理器

英特尔英特尔 N100 拥有四个计算内核，属于 Alder Lake 系列，与之前经过广泛测试的英特尔 N95 相同的架构。从本质上讲，它是相同的 SoC，但时钟频率略高，因此性能提升不大。这种性能差异在基准测试中显而易见，Trigkey G4 经常稳居榜首。遗憾的是，Trigkey 选择了 16GB DDR4 内存模块，限制了 SoC 发挥全部性能潜力。如果使用更快的内存，Trigkey G4 可能会在测试中表现出更好的性能。

有关处理器的其他基准测试，请参阅参考:

Performance Rating - Percent
Trigkey G4 Intel Processor N100, 1000 MHz	38.2 pt
Beelink Mini S12 Pro Intel Processor N100, 1000 MHz	38.1 pt
Blackview MP80 Intel Processor N95, MHz	37.7 pt
BOSGAME N95 Intel Processor N95, MHz	37.6 pt
Acemagic S1 Intel Processor N95, MHz	37.3 pt
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	34.4 pt
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	31.9 pt

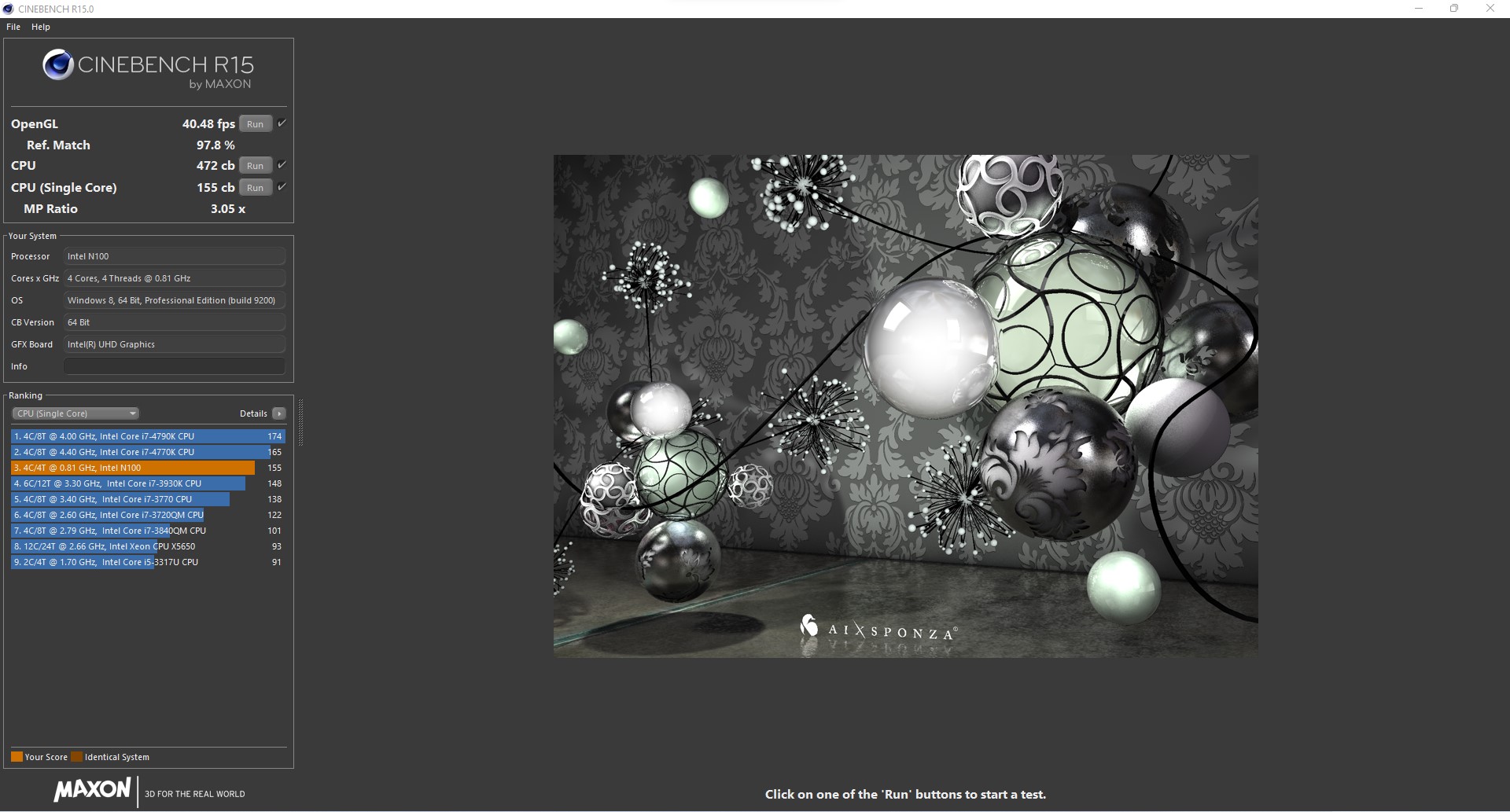

Cinebench R15
CPU Single 64Bit
BOSGAME N95 Intel Processor N95, MHz	155 Points 0%
Trigkey G4 Intel Processor N100, 1000 MHz	155 Points
Acemagic S1 Intel Processor N95, MHz	154 Points -1%
Beelink Mini S12 Pro Intel Processor N100, 1000 MHz	153.9 Points -1%
Blackview MP80 Intel Processor N95, MHz	151 Points -3%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	123 Points -21%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	102 Points -34%
CPU Multi 64Bit
Trigkey G4 Intel Processor N100, 1000 MHz	477 Points
Beelink Mini S12 Pro Intel Processor N100, 1000 MHz	467 (458.73^min - 467.21^max) Points -2%
BOSGAME N95 Intel Processor N95, MHz	452 Points -5%
Acemagic S1 Intel Processor N95, MHz	446 Points -6%
Blackview MP80 Intel Processor N95, MHz	434 Points -9%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	408 Points -14%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	359 Points -25%

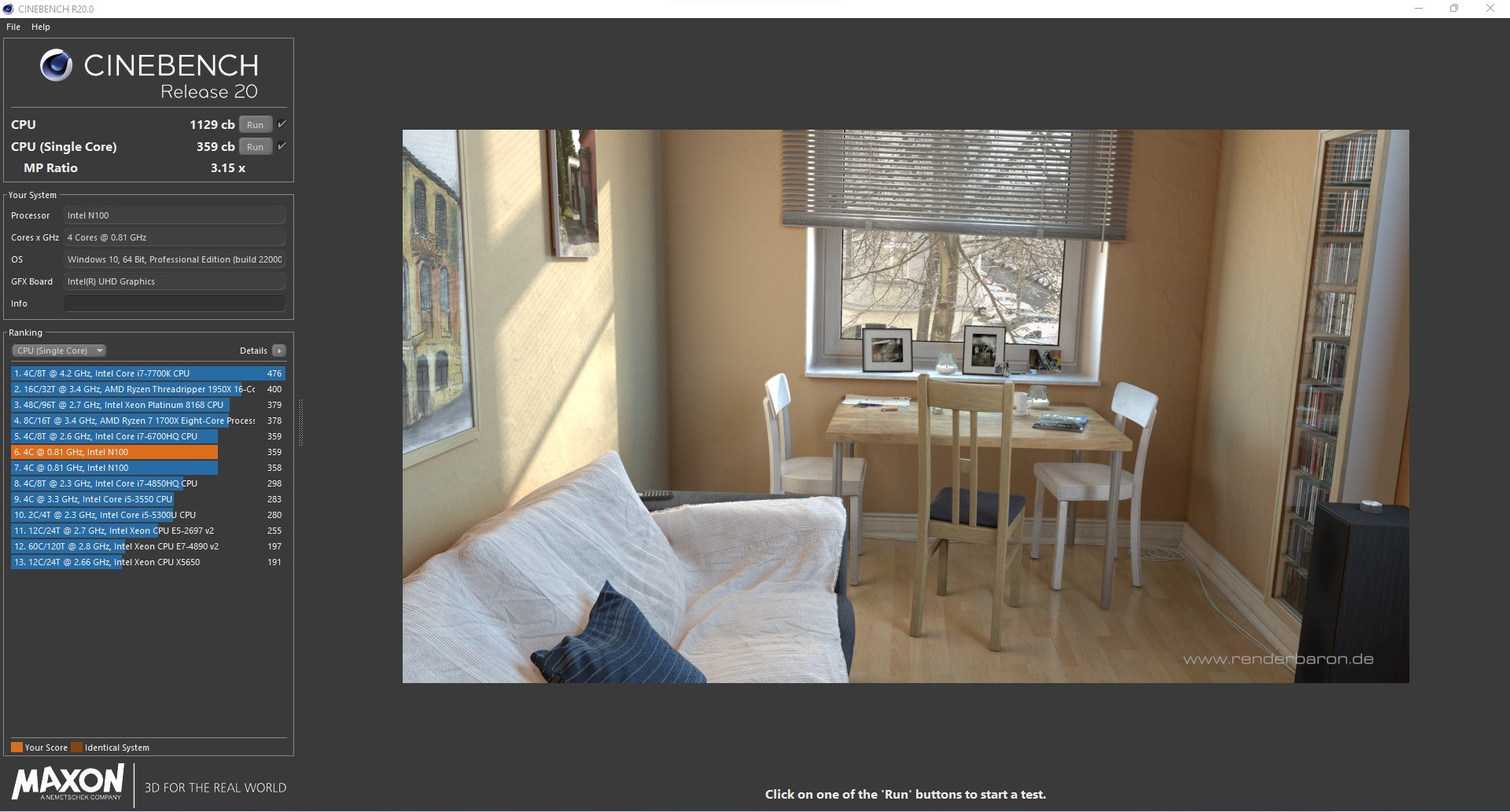

Cinebench R20
CPU (Single Core)
Trigkey G4 Intel Processor N100, 1000 MHz	358 Points
BOSGAME N95 Intel Processor N95, MHz	357 Points 0%
Beelink Mini S12 Pro Intel Processor N100, 1000 MHz	357 Points 0%
Acemagic S1 Intel Processor N95, MHz	357 Points 0%
Blackview MP80 Intel Processor N95, MHz	350 Points -2%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	241 Points -33%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	233 Points -35%
CPU (Multi Core)
Trigkey G4 Intel Processor N100, 1000 MHz	1138 Points
Beelink Mini S12 Pro Intel Processor N100, 1000 MHz	1115 Points -2%
BOSGAME N95 Intel Processor N95, MHz	1067 Points -6%
Acemagic S1 Intel Processor N95, MHz	1050 Points -8%
Blackview MP80 Intel Processor N95, MHz	1029 Points -10%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	976 Points -14%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	822 Points -28%

Blender - v2.79 BMW27 CPU
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	1547 Seconds * -52%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	1152 Seconds * -13%
Blackview MP80 Intel Processor N95, MHz	1124 Seconds * -11%
Acemagic S1 Intel Processor N95, MHz	1113 Seconds * -9%
BOSGAME N95 Intel Processor N95, MHz	1103 Seconds * -8%
Beelink Mini S12 Pro Intel Processor N100, 1000 MHz	1048 Seconds * -3%
Trigkey G4 Intel Processor N100, 1000 MHz	1017 Seconds *

Geekbench 5.5
Multi-Core
Beelink Mini S12 Pro Intel Processor N100, 1000 MHz	2867 Points +3%
Trigkey G4 Intel Processor N100, 1000 MHz	2796 Points
Blackview MP80 Intel Processor N95, MHz	2793 Points 0%
BOSGAME N95 Intel Processor N95, MHz	2616 Points -6%
Acemagic S1 Intel Processor N95, MHz	2566 Points -8%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	2391 Points -14%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2052 Points -27%
Single-Core
Beelink Mini S12 Pro Intel Processor N100, 1000 MHz	1018 Points 0%
Trigkey G4 Intel Processor N100, 1000 MHz	1014 Points
Blackview MP80 Intel Processor N95, MHz	1013 Points 0%
BOSGAME N95 Intel Processor N95, MHz	1007 Points -1%
Acemagic S1 Intel Processor N95, MHz	999 Points -1%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	804 Points -21%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	637 Points -37%

3DMark 11 - 1280x720 Performance Physics
Beelink Mini S12 Pro Intel Processor N100, 1000 MHz	6486 Points +6%
Trigkey G4 Intel Processor N100, 1000 MHz	6129 Points
Blackview MP80 Intel Processor N95, MHz	5806 Points -5%
BOSGAME N95 Intel Processor N95, MHz	5767 Points -6%
Acemagic S1 Intel Processor N95, MHz	5661 Points -8%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	5084 Points -17%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	4287 Points -30%

7-Zip 18.03
7z b 4
Beelink Mini S12 Pro Intel Processor N100, 1000 MHz	13291 MIPS 0%
Trigkey G4 Intel Processor N100, 1000 MHz	13255 MIPS
BOSGAME N95 Intel Processor N95, MHz	12224 MIPS -8%
Acemagic S1 Intel Processor N95, MHz	12190 MIPS -8%
Blackview MP80 Intel Processor N95, MHz	12177 MIPS -8%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	11654 MIPS -12%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	10924 MIPS -18%
7z b 4 -mmt1
Beelink Mini S12 Pro Intel Processor N100, 1000 MHz	3958 MIPS +1%
Trigkey G4 Intel Processor N100, 1000 MHz	3908 MIPS
Acemagic S1 Intel Processor N95, MHz	3866 MIPS -1%
Blackview MP80 Intel Processor N95, MHz	3843 MIPS -2%
BOSGAME N95 Intel Processor N95, MHz	3803 MIPS -3%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	3121 MIPS -20%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2935 MIPS -25%

HWBOT x265 Benchmark v2.2 - 4k Preset
Trigkey G4 Intel Processor N100, 1000 MHz	3.49 fps
Beelink Mini S12 Pro Intel Processor N100, 1000 MHz	3.41 fps -2%
Blackview MP80 Intel Processor N95, MHz	3.29 fps -6%
BOSGAME N95 Intel Processor N95, MHz	3.25 fps -7%
Acemagic S1 Intel Processor N95, MHz	3.17 fps -9%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	3.03 fps -13%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2.01 fps -42%

R Benchmark 2.5 - Overall mean
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	1.2 sec * -46%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	1.032 sec * -25%
Acemagic S1 Intel Processor N95, MHz	0.837 sec * -2%
BOSGAME N95 Intel Processor N95, MHz	0.834 sec * -1%
Blackview MP80 Intel Processor N95, MHz	0.83 sec * -1%
Trigkey G4 Intel Processor N100, 1000 MHz	0.824 sec *
Beelink Mini S12 Pro Intel Processor N100, 1000 MHz	0.822 sec * -0%

LibreOffice - 20 Documents To PDF
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	103.6 s * -55%
Acemagic S1 Intel Processor N95, MHz	89.3 s * -33%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	80.4 s * -20%
BOSGAME N95 Intel Processor N95, MHz	74.6 s * -11%
Beelink Mini S12 Pro Intel Processor N100, 1000 MHz	69.6 s * -4%
Blackview MP80 Intel Processor N95, MHz	68.3 s * -2%
Trigkey G4 Intel Processor N100, 1000 MHz	67 s *

WebXPRT 3 - Overall
Trigkey G4 Intel Processor N100, 1000 MHz	187.4 Points
Blackview MP80 Intel Processor N95, MHz	183.4 Points -2%
BOSGAME N95 Intel Processor N95, MHz	179.4 Points -4%
Acemagic S1 Intel Processor N95, MHz	178.3 Points -5%
Beelink Mini S12 Pro Intel Processor N100, 1000 MHz	176.3 Points -6%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	155.3 Points -17%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	127.2 Points -32%

Mozilla Kraken 1.1 - Total
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	1619 ms * -61%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	1238 ms * -23%
BOSGAME N95 Intel Processor N95, MHz	1056 ms * -5%
Acemagic S1 Intel Processor N95, MHz	1033 ms * -3%
Blackview MP80 Intel Processor N95, MHz	1026 ms * -2%
Beelink Mini S12 Pro Intel Processor N100, 1000 MHz	1023 ms * -2%
Trigkey G4 Intel Processor N100, 1000 MHz	1004 ms *

3DMark - 1920x1080 Fire Strike Physics
Beelink Mini S12 Pro Intel Processor N100, 1000 MHz	6602 Points +1%
Trigkey G4 Intel Processor N100, 1000 MHz	6522 Points
Blackview MP80 Intel Processor N95, MHz	6062 Points -7%
BOSGAME N95 Intel Processor N95, MHz	5952 Points -9%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	5903 Points -9%
Acemagic S1 Intel Processor N95, MHz	5701 Points -13%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	5535 Points -15%

* ... smaller is better

Performance Rating - Percent
Trigkey G4 Intel Processor N100, 1000 MHz	26.1 pt
Acemagic S1 Intel Processor N95, MHz	25.5 pt
Blackview MP80 Intel Processor N95, MHz	25.5 pt
BOSGAME N95 Intel Processor N95, MHz	25.4 pt
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	23.7 pt
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	21.5 pt

Cinebench R11.5
CPU Single 64Bit
Trigkey G4 Intel Processor N100, 1000 MHz	1.87 Points
BOSGAME N95 Intel Processor N95, MHz	1.86 Points -1%
Acemagic S1 Intel Processor N95, MHz	1.85 Points -1%
Blackview MP80 Intel Processor N95, MHz	1.83 Points -2%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	1.49 Points -20%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	1.25 Points -33%
CPU Multi 64Bit
Trigkey G4 Intel Processor N100, 1000 MHz	5.99 Points
BOSGAME N95 Intel Processor N95, MHz	5.62 Points -6%
Acemagic S1 Intel Processor N95, MHz	5.55 Points -7%
Blackview MP80 Intel Processor N95, MHz	5.41 Points -10%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	5.18 Points -14%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	4.65 Points -22%

Cinebench R10
Rendering Single CPUs 64Bit
Trigkey G4 Intel Processor N100, 1000 MHz	8227 Points
Acemagic S1 Intel Processor N95, MHz	8177 Points -1%
Blackview MP80 Intel Processor N95, MHz	8080 Points -2%
BOSGAME N95 Intel Processor N95, MHz	7574 Points -8%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	6562 Points -20%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	5224 Points -37%
Rendering Multiple CPUs 64Bit
Trigkey G4 Intel Processor N100, 1000 MHz	24225 Points
BOSGAME N95 Intel Processor N95, MHz	22275 Points -8%
Acemagic S1 Intel Processor N95, MHz	22261 Points -8%
Blackview MP80 Intel Processor N95, MHz	20565 Points -15%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	20429 Points -16%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	17278 Points -29%

wPrime 2.10
32m
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	19.202 s * -22%
BOSGAME N95 Intel Processor N95, MHz	18.213 s * -15%
Blackview MP80 Intel Processor N95, MHz	17.521 s * -11%
Acemagic S1 Intel Processor N95, MHz	16.565 s * -5%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	16.449 s * -4%
Trigkey G4 Intel Processor N100, 1000 MHz	15.795 s *
1024m
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	605.375 s * -26%
BOSGAME N95 Intel Processor N95, MHz	568.939 s * -18%
Blackview MP80 Intel Processor N95, MHz	538.757 s * -12%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	535.88 s * -11%
Acemagic S1 Intel Processor N95, MHz	519.662 s * -8%
Trigkey G4 Intel Processor N100, 1000 MHz	481.652 s *

X264 HD Benchmark 4.0
Pass 1
Trigkey G4 Intel Processor N100, 1000 MHz	172.55 (171.6^min - 175.2^max) fps
Blackview MP80 Intel Processor N95, MHz	163.3 (162.1^min - 163.7^max) fps -5%
BOSGAME N95 Intel Processor N95, MHz	162.4 (161.9^min - 162.4^max) fps -6%
Acemagic S1 Intel Processor N95, MHz	161.9 (158.9^min - 162.5^max) fps -6%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	145.25 (144.9^min - 145.6^max) fps -16%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	112.75 (112^min - 114.5^max) fps -35%
Pass 2
Trigkey G4 Intel Processor N100, 1000 MHz	33.85 (33.7^min - 35^max) fps
BOSGAME N95 Intel Processor N95, MHz	32.45 (32.4^min - 32.5^max) fps -4%
Blackview MP80 Intel Processor N95, MHz	32.4 (32.4^min - 32.4^max) fps -4%
Acemagic S1 Intel Processor N95, MHz	32.4 (32.4^min - 32.5^max) fps -4%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	29.65 (29.5^min - 29.7^max) fps -12%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	24.75 (24.5^min - 25^max) fps -27%

WinRAR - Result
Trigkey G4 Intel Processor N100, 1000 MHz	2431 KB/s
Acemagic S1 Intel Processor N95, MHz	2391 KB/s -2%
BOSGAME N95 Intel Processor N95, MHz	2362 KB/s -3%
Blackview MP80 Intel Processor N95, MHz	2277 KB/s -6%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	2181 KB/s -10%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	1630 KB/s -33%

TrueCrypt
AES Mean 100MB
Trigkey G4 Intel Processor N100, 1000 MHz	2.9 GB/s
Blackview MP80 Intel Processor N95, MHz	2.8 GB/s -3%
BOSGAME N95 Intel Processor N95, MHz	2.7 GB/s -7%
Acemagic S1 Intel Processor N95, MHz	2.7 GB/s -7%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2.5 GB/s -14%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	2.4 GB/s -17%
Twofish Mean 100MB
Trigkey G4 Intel Processor N100, 1000 MHz	0.538 GB/s
Blackview MP80 Intel Processor N95, MHz	0.501 GB/s -7%
Acemagic S1 Intel Processor N95, MHz	0.498 GB/s -7%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	0.497 GB/s -8%
BOSGAME N95 Intel Processor N95, MHz	0.492 GB/s -9%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	0.37 GB/s -31%
Serpent Mean 100MB
Trigkey G4 Intel Processor N100, 1000 MHz	0.262 GB/s
Blackview MP80 Intel Processor N95, MHz	0.244 GB/s -7%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	0.243 GB/s -7%
BOSGAME N95 Intel Processor N95, MHz	0.239 GB/s -9%
Acemagic S1 Intel Processor N95, MHz	0.236 GB/s -10%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	0.198 GB/s -24%

Geekbench 5.0
5.0 Multi-Core
Trigkey G4 Intel Processor N100, 1000 MHz	2753 Points
Blackview MP80 Intel Processor N95, MHz	2737 Points -1%
BOSGAME N95 Intel Processor N95, MHz	2585 Points -6%
Acemagic S1 Intel Processor N95, MHz	2531 Points -8%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	2382 Points -13%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2041 Points -26%
5.0 Single-Core
Trigkey G4 Intel Processor N100, 1000 MHz	1008 Points
Blackview MP80 Intel Processor N95, MHz	1005 Points 0%
BOSGAME N95 Intel Processor N95, MHz	1000 Points -1%
Acemagic S1 Intel Processor N95, MHz	993 Points -1%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	804 Points -20%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	638 Points -37%

Geekbench 4.4
64 Bit Single-Core Score
Blackview MP80 Intel Processor N95, MHz	4553 Points +1%
Trigkey G4 Intel Processor N100, 1000 MHz	4518 Points
BOSGAME N95 Intel Processor N95, MHz	4495 Points -1%
Acemagic S1 Intel Processor N95, MHz	4450 Points -2%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	3591 Points -21%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2858 Points -37%
64 Bit Multi-Core Score
Trigkey G4 Intel Processor N100, 1000 MHz	10938 Points
Blackview MP80 Intel Processor N95, MHz	10798 Points -1%
BOSGAME N95 Intel Processor N95, MHz	10299 Points -6%
Acemagic S1 Intel Processor N95, MHz	10228 Points -6%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	9662 Points -12%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	7968 Points -27%

* ... smaller is better

Performance Rating
Average of class Mini PC	100 pt
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	18.9 pt
Beelink Mini S12 Pro Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	10 pt
Trigkey G4 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	9.6 pt
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	9.6 pt
Acemagic S1 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	9.2 pt
BOSGAME N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	9.1 pt
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	8.6 pt

AIDA64 / FP32 Ray-Trace
Average of class Mini PC (561 - 51004, n=118, last 2 years)	12276 KRay/s +1367%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	1242 KRay/s +48%
Beelink Mini S12 Pro Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	837 KRay/s 0%
Trigkey G4 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	837 KRay/s
Acemagic S1 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	770 KRay/s -8%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	769 KRay/s -8%
BOSGAME N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	764 KRay/s -9%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	744 KRay/s -11%

AIDA64 / FPU Julia
Average of class Mini PC (3604 - 214250, n=118, last 2 years)	62123 Points +1313%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	7457 Points +70%
Trigkey G4 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	4397 Points
Beelink Mini S12 Pro Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	4395 Points 0%
BOSGAME N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	4144 Points -6%
Acemagic S1 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	4141 Points -6%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	4140 Points -6%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	3970 Points -10%

AIDA64 / CPU SHA3
Average of class Mini PC (225 - 9399, n=118, last 2 years)	2738 MB/s +789%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	514 MB/s +67%
Trigkey G4 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	308 MB/s
Beelink Mini S12 Pro Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	307 MB/s 0%
BOSGAME N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	290 MB/s -6%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	290 MB/s -6%
Acemagic S1 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	290 MB/s -6%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	270 MB/s -12%

AIDA64 / CPU Queen
Average of class Mini PC (8172 - 184747, n=118, last 2 years)	77819 Points +798%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	22326 Points +158%
Beelink Mini S12 Pro Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	8691 Points 0%
Trigkey G4 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	8663 Points
Acemagic S1 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	8208 Points -5%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	8186 Points -6%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	8178 Points -6%
BOSGAME N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	8172 Points -6%

AIDA64 / FPU SinJulia
Average of class Mini PC (408 - 29064, n=118, last 2 years)	8454 Points +1857%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	1002 Points +132%
Trigkey G4 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	432 Points
Beelink Mini S12 Pro Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	430 Points 0%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	408 Points -6%
BOSGAME N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	408 Points -6%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	408 Points -6%
Acemagic S1 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	408 Points -6%

AIDA64 / FPU Mandel
Average of class Mini PC (1958 - 113499, n=118, last 2 years)	32406 Points +1360%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	3961 Points +78%
Trigkey G4 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	2220 Points
Beelink Mini S12 Pro Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	2217 Points 0%
BOSGAME N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	2092 Points -6%
Acemagic S1 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	2089 Points -6%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	2088 Points -6%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	1987 Points -10%

AIDA64 / CPU AES
Average of class Mini PC (3691 - 325960, n=118, last 2 years)	85412 MB/s +914%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	19350 MB/s +130%
Beelink Mini S12 Pro Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	8426 MB/s 0%
Trigkey G4 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	8421 MB/s
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	7961 MB/s -5%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	7954 MB/s -6%
BOSGAME N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	7951 MB/s -6%
Acemagic S1 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	7948 MB/s -6%

AIDA64 / CPU ZLib
Average of class Mini PC (74.8 - 2039, n=118, last 2 years)	709 MB/s +766%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	188.1 MB/s +130%
Trigkey G4 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	81.9 MB/s
Beelink Mini S12 Pro Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	81.7 MB/s 0%
Acemagic S1 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	77.7 MB/s -5%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	77.4 MB/s -5%
BOSGAME N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	76.7 MB/s -6%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	74.9 MB/s -9%

AIDA64 / FP64 Ray-Trace
Average of class Mini PC (308 - 26952, n=118, last 2 years)	6564 KRay/s +1312%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	676 KRay/s +45%
Beelink Mini S12 Pro Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	465 KRay/s 0%
Trigkey G4 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	465 KRay/s
BOSGAME N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	433 KRay/s -7%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	432 KRay/s -7%
Acemagic S1 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	432 KRay/s -7%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	412 KRay/s -11%

AIDA64 / CPU PhotoWorxx
Average of class Mini PC (4408 - 50500, n=118, last 2 years)	27624 MPixel/s +413%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	9899 MPixel/s +84%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	6599 MPixel/s +23%
Beelink Mini S12 Pro Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	6535 MPixel/s +21%
Trigkey G4 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	5384 MPixel/s
Acemagic S1 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	5333 MPixel/s -1%
BOSGAME N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	5296 MPixel/s -2%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	4408 MPixel/s -18%

Trigkey Green G4 与 Cinebench R15 多循环对比

通过 Cinebench R15 耐用性循环测试，Trigkey G4 在初始耐用性测试中表现出色。令人惊讶的是，测试结果表明，在持续使用的情况下，性能并没有明显下降。相比之下，我们的测试样本以微弱优势领先。

Trigkey G4 Intel Processor N100, Intel Processor N100: Ø465 (453-467.97)

Acemagic S1 Intel Processor N95, Intel Processor N95: Ø440 (431.21-442.98)

Beelink Mini S12 Pro Intel Processor N100, Intel Processor N100: Ø461 (458.73-467.21)

Blackview MP80 Intel Processor N95, Intel Processor N95: Ø425 (410.8-428.48)

BOSGAME N95 Intel Processor N95, Intel Processor N95: Ø421 (417.99-423.28)

Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, Intel Processor N95: Ø404 (398.46-406.91)

Minipc Union Ace Magician T8Pro Intel Celeron N5095, Intel Celeron N5095: Ø362 (359.44-363.62)

系统性能

Trigkey G4 在 CPU 测试中表现出色，在 PCMark 10 中也是如此。不过，在 Crossmark 测试中，我们的测试样本回落到了中等水平，Trigkey G4 在内存测试中也并不突出。后者是因为单通道运行导致内存性能下降。

PCMark 10: Score | Essentials | Productivity

PCMark 10 / Score
Blackview MP80, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Netac NS512GSSD330	3220 Points 0%
Trigkey G4, Intel Processor N100 Intel UHD Graphics 24EUs (Alder Lake-N),	3207 Points
BOSGAME N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kingston OM8SEP4256Q-A0	3192 Points 0%
Beelink Mini S12 Pro, Intel Processor N100 Intel UHD Graphics 24EUs (Alder Lake-N),	3164 Points -1%
Acemagic S1, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), BiWin CE480Y2D100-1TB	3153 Points -2%
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB	2983 Points -7%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	2417 Points -25%

PCMark 10 / Essentials
Beelink Mini S12 Pro, Intel Processor N100 Intel UHD Graphics 24EUs (Alder Lake-N),	7295 Points +2%
Trigkey G4, Intel Processor N100 Intel UHD Graphics 24EUs (Alder Lake-N),	7123 Points
Blackview MP80, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Netac NS512GSSD330	7079 Points -1%
BOSGAME N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kingston OM8SEP4256Q-A0	7021 Points -1%
Acemagic S1, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), BiWin CE480Y2D100-1TB	6731 Points -6%
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB	6650 Points -7%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	5866 Points -18%

PCMark 10 / Productivity
Trigkey G4, Intel Processor N100 Intel UHD Graphics 24EUs (Alder Lake-N),	5033 Points
Blackview MP80, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Netac NS512GSSD330	4993 Points -1%
Acemagic S1, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), BiWin CE480Y2D100-1TB	4950 Points -2%
BOSGAME N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kingston OM8SEP4256Q-A0	4923 Points -2%
Beelink Mini S12 Pro, Intel Processor N100 Intel UHD Graphics 24EUs (Alder Lake-N),	4764 Points -5%
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB	4524 Points -10%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	3666 Points -27%

CrossMark: Overall | Responsiveness | Creativity | Productivity

CrossMark / Overall
Beelink Mini S12 Pro, Intel Processor N100 Intel UHD Graphics 24EUs (Alder Lake-N),	839 Points +14%
Acemagic S1, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), BiWin CE480Y2D100-1TB	820 Points +12%
BOSGAME N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kingston OM8SEP4256Q-A0	773 Points +5%
Blackview MP80, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Netac NS512GSSD330	764 Points +4%
Trigkey G4, Intel Processor N100 Intel UHD Graphics 24EUs (Alder Lake-N),	735 Points
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB	666 Points -9%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	495 Points -33%

CrossMark / Responsiveness
Acemagic S1, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), BiWin CE480Y2D100-1TB	895 Points +26%
Beelink Mini S12 Pro, Intel Processor N100 Intel UHD Graphics 24EUs (Alder Lake-N),	856 Points +21%
BOSGAME N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kingston OM8SEP4256Q-A0	755 Points +6%
Trigkey G4, Intel Processor N100 Intel UHD Graphics 24EUs (Alder Lake-N),	710 Points
Blackview MP80, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Netac NS512GSSD330	709 Points 0%
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB	661 Points -7%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	497 Points -30%

CrossMark / Creativity
Beelink Mini S12 Pro, Intel Processor N100 Intel UHD Graphics 24EUs (Alder Lake-N),	773 Points +14%
Blackview MP80, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Netac NS512GSSD330	739 Points +9%
Acemagic S1, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), BiWin CE480Y2D100-1TB	721 Points +7%
BOSGAME N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kingston OM8SEP4256Q-A0	714 Points +6%
Trigkey G4, Intel Processor N100 Intel UHD Graphics 24EUs (Alder Lake-N),	676 Points
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB	616 Points -9%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	438 Points -35%

CrossMark / Productivity
Acemagic S1, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), BiWin CE480Y2D100-1TB	907 Points +12%
Beelink Mini S12 Pro, Intel Processor N100 Intel UHD Graphics 24EUs (Alder Lake-N),	905 Points +12%
BOSGAME N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kingston OM8SEP4256Q-A0	843 Points +4%
Blackview MP80, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Netac NS512GSSD330	810 Points 0%
Trigkey G4, Intel Processor N100 Intel UHD Graphics 24EUs (Alder Lake-N),	808 Points
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB	721 Points -11%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	558 Points -31%

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Average of class Mini PC (6481 - 89287, n=118, last 2 years)	47240 MB/s +464%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	22138 MB/s +164%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	12715 MB/s +52%
Beelink Mini S12 Pro Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	11580 MB/s +38%
Acemagic S1 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	8472 MB/s +1%
BOSGAME N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	8458 MB/s +1%
Trigkey G4 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	8377 MB/s
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	6481 MB/s -23%

AIDA64 / Memory Read
Average of class Mini PC (6914 - 98398, n=118, last 2 years)	47897 MB/s +434%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	15464 MB/s +72%
Beelink Mini S12 Pro Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	12488 MB/s +39%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	11247 MB/s +25%
Acemagic S1 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	9130 MB/s +2%
BOSGAME N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	9027 MB/s +1%
Trigkey G4 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	8974 MB/s
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	6914 MB/s -23%

AIDA64 / Memory Write
Average of class Mini PC (6862 - 98583, n=118, last 2 years)	51663 MB/s +490%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	30843 MB/s +252%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	14266 MB/s +63%
Beelink Mini S12 Pro Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	12305 MB/s +40%
Acemagic S1 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	9047 MB/s +3%
BOSGAME N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	8959 MB/s +2%
Trigkey G4 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	8762 MB/s
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	6862 MB/s -22%

AIDA64 / Memory Latency
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	146 ns * -21%
Acemagic S1 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	125.8 ns * -4%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	124.9 ns * -4%
Trigkey G4 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	120.6 ns *
BOSGAME N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	119.8 ns * +1%
Beelink Mini S12 Pro Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	114.8 ns * +5%
Average of class Mini PC (44.9 - 184.8, n=118, last 2 years)	91.8 ns * +24%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	74.1 ns * +39%

* ... smaller is better

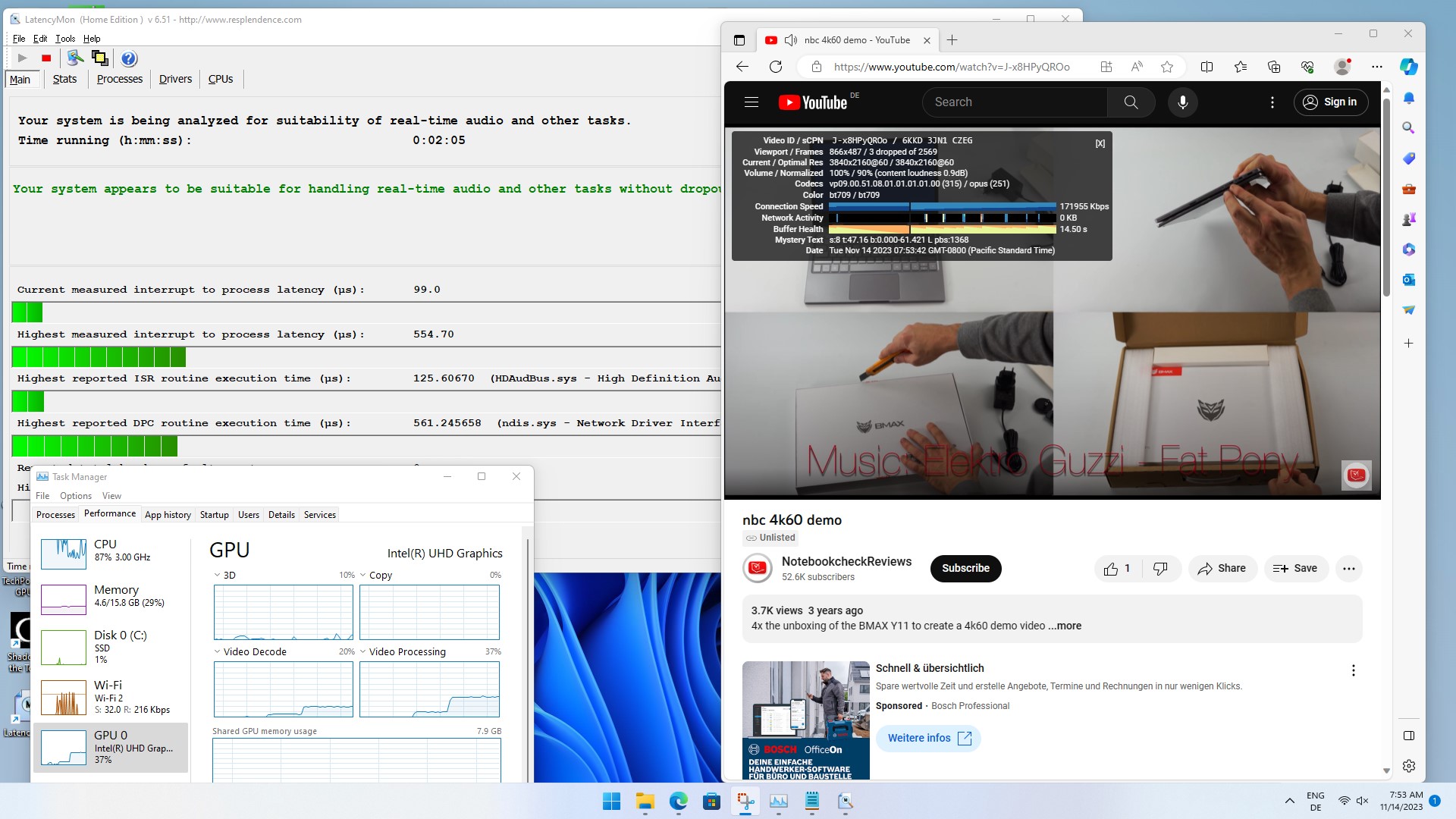

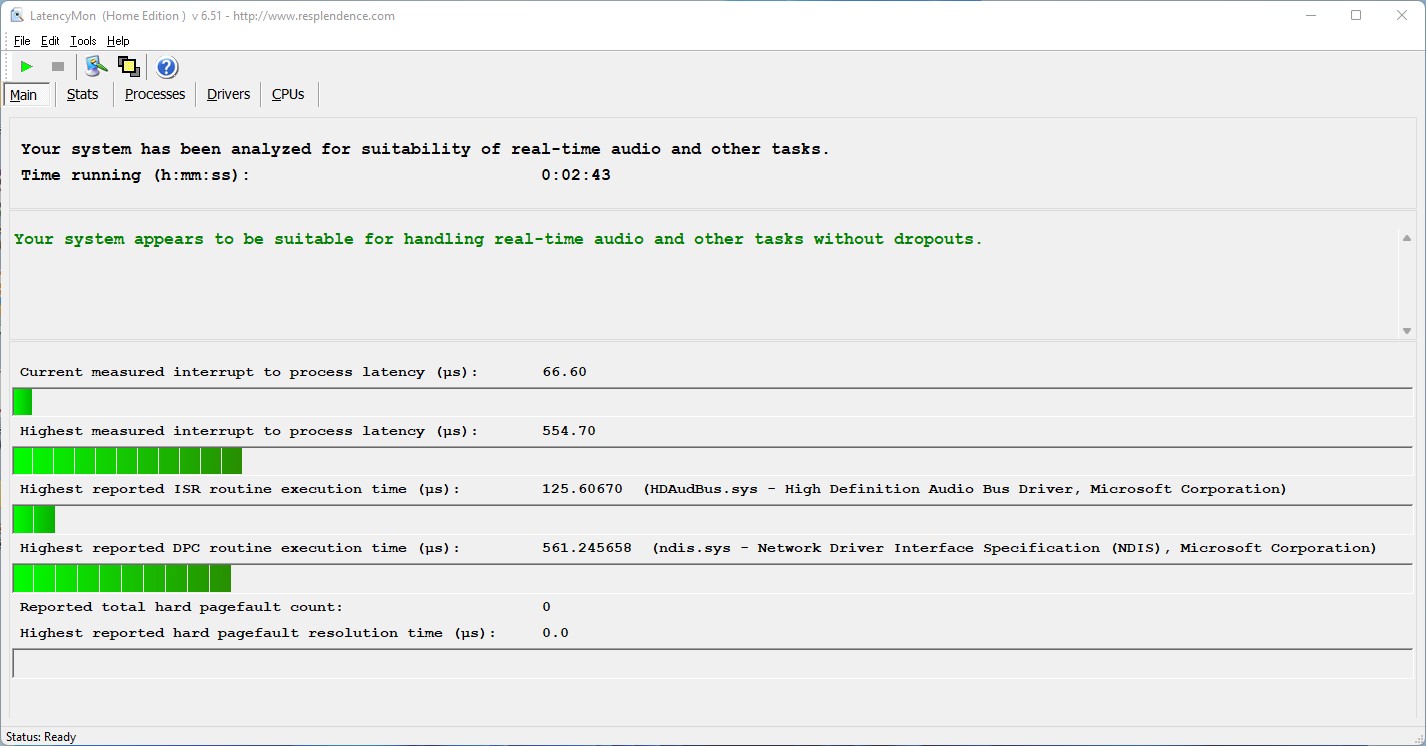

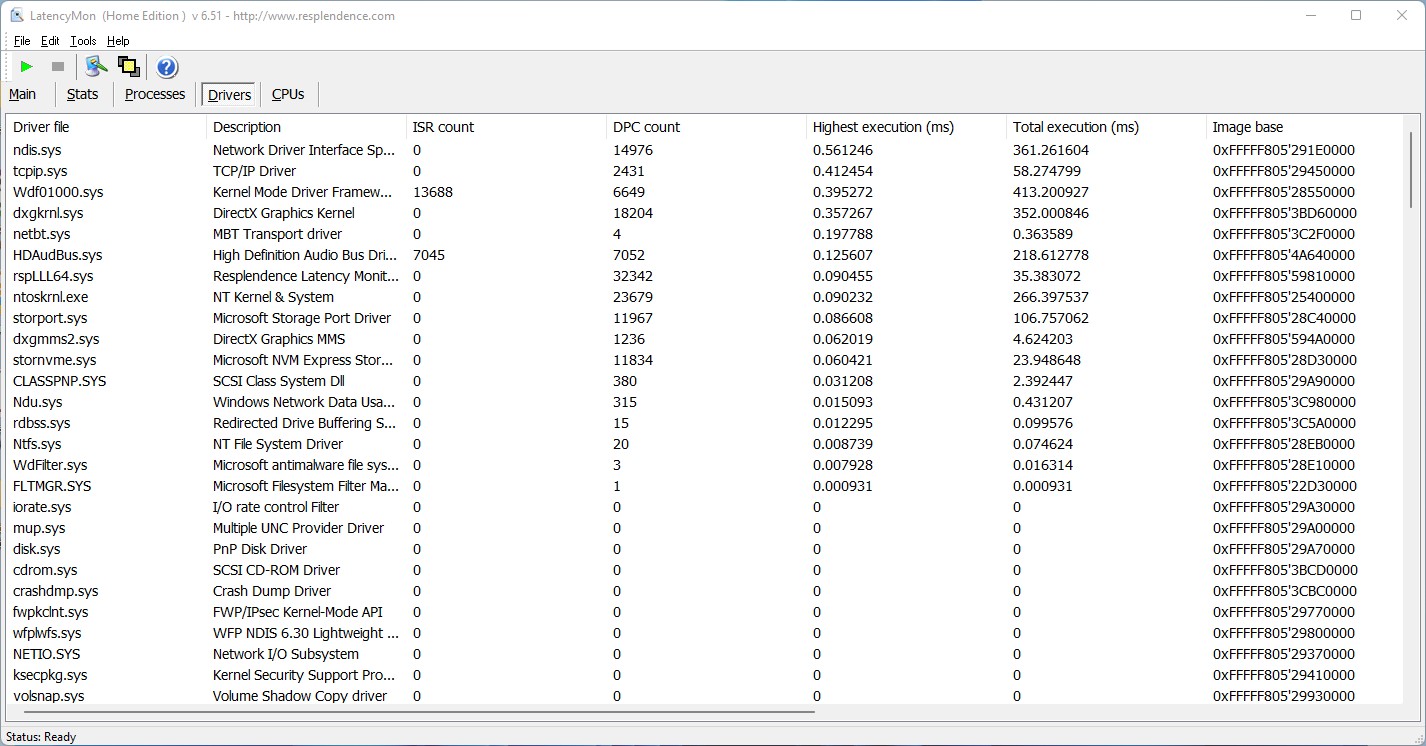

DPC 延迟

Trigkey G4 因其低延迟而备受赞誉，在 Edge 浏览器中打开大量标签页和观看高分辨率电影时都能高效运行。因此，这款小型 PC 非常适合用作客厅的流媒体客户端，在这些活动中提供流畅的体验。

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Beelink Mini S12 Pro, Intel Processor N100 Intel UHD Graphics 24EUs (Alder Lake-N),	7391.7 μs * -1217%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	4075 μs * -626%
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB	3463 μs * -517%
BOSGAME N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kingston OM8SEP4256Q-A0	1165.5 μs * -108%
Blackview MP80, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Netac NS512GSSD330	817.1 μs * -46%
Trigkey G4, Intel Processor N100 Intel UHD Graphics 24EUs (Alder Lake-N),	561.2 μs *
Acemagic S1, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), BiWin CE480Y2D100-1TB	367.2 μs * +35%

* ... smaller is better

存储设备

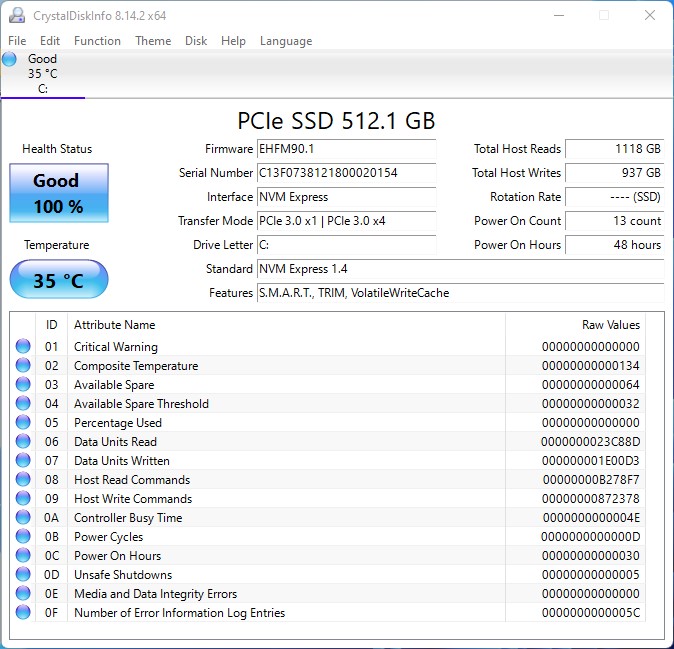

Trigkey 在我们的测试样本中安装了 512 GB SSD 作为大容量存储，使用快速 NVMe 接口。不过，值得注意的是，固态硬盘仅通过 PCIe 3.0 x1 连接，尽管安装的型号支持 PCIe 3.0 x4。这意味着会损失一些性能，但仍在可控范围内。与竞争对手相比，Trigkey G4 的性能属于中等偏上水平。我们的测试样本总共可容纳两个大容量存储设备，还有一个空闲的 2.5 英寸插槽。必须考虑到 7 毫米的高度。

有关其他比较和基准，请参阅我们的比较表。

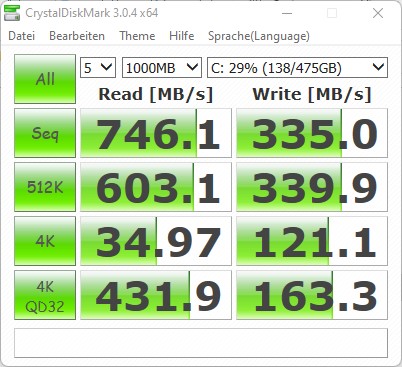

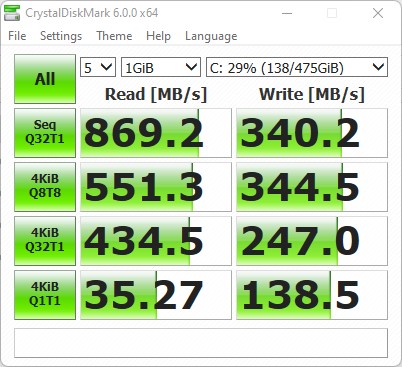

CrystalDiskMark 3.0

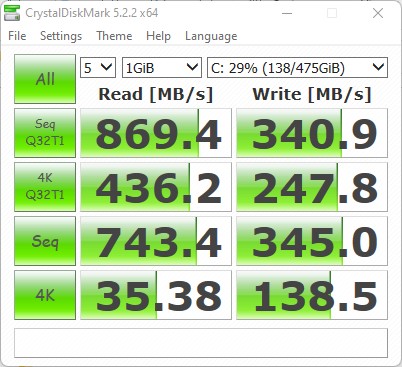

CrystalDiskMark 5.2 / 6

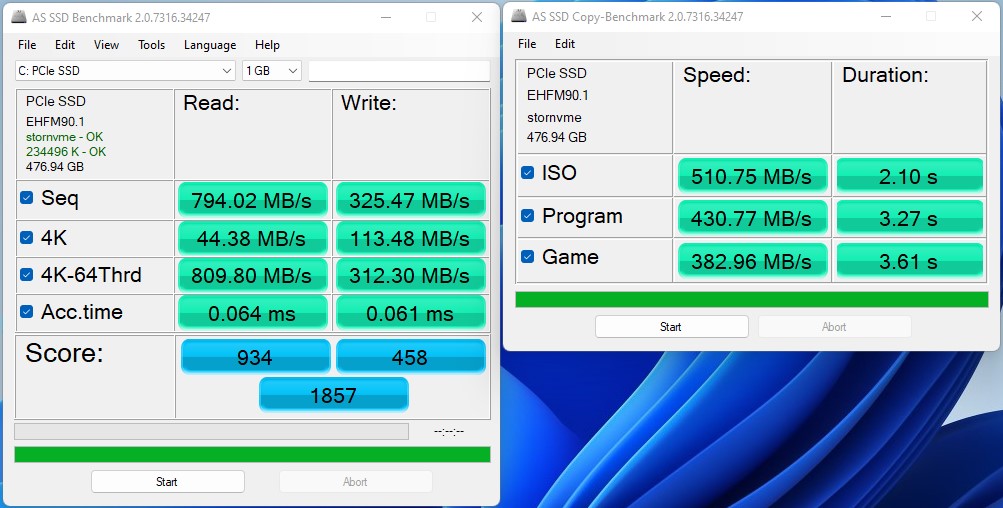

AS SSD

DiskSpd

Sequential Read: 746.1 MB/s

Sequential Write: 335 MB/s

512K Read: 603.1 MB/s

512K Write: 339.9 MB/s

4K Read: 34.97 MB/s

4K Write: 121.1 MB/s

4K QD32 Read: 431.9 MB/s

4K QD32 Write: 163.3 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Average of class Mini PC	91.7 pt
Acemagic S1 BiWin CE480Y2D100-1TB	62.2 pt
Beelink Mini S12 Pro	49 pt
Trigkey G4	38.2 pt
BOSGAME N95 Kingston OM8SEP4256Q-A0	36.5 pt
Blackview MP80 Netac NS512GSSD330	25.6 pt
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	25.1 pt
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	21.4 pt

DiskSpd
seq read
Average of class Mini PC (233 - 4357, n=118, last 2 years)	2284 MB/s +213%
Acemagic S1 BiWin CE480Y2D100-1TB	1354 (1350.96^min - 1354.32^max) MB/s +86%
BOSGAME N95 Kingston OM8SEP4256Q-A0	762 (757.28^min - 762.31^max) MB/s +5%
Trigkey G4	729 (705.12^min - 729.18^max) MB/s
Beelink Mini S12 Pro	724 (713.03^min - 723.5^max) MB/s -1%
Blackview MP80 Netac NS512GSSD330	542 (541.31^min - 542.36^max) MB/s -26%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	472 (470.6^min - 472.28^max) MB/s -35%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	459 (458.57^min - 459.41^max) MB/s -37%
seq write
Average of class Mini PC (222 - 5595, n=118, last 2 years)	2438 MB/s +619%
Acemagic S1 BiWin CE480Y2D100-1TB	1553 (1542.6^min - 1552.69^max) MB/s +358%
Beelink Mini S12 Pro	715 (699.61^min - 714.88^max) MB/s +111%
BOSGAME N95 Kingston OM8SEP4256Q-A0	649 (644.49^min - 649.49^max) MB/s +91%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	494 (488.92^min - 494.36^max) MB/s +46%
Blackview MP80 Netac NS512GSSD330	476 (138.2^min - 475.75^max) MB/s +40%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	463 (451.31^min - 462.72^max) MB/s +37%
Trigkey G4	339 (329.88^min - 338.64^max) MB/s
seq q8 t1 read
Average of class Mini PC (236 - 8430, n=118, last 2 years)	3694 MB/s +328%
Acemagic S1 BiWin CE480Y2D100-1TB	1776 (1520.44^min - 1776.28^max) MB/s +106%
Beelink Mini S12 Pro	874 (761^min - 873.67^max) MB/s +1%
Trigkey G4	864 (619.52^min - 864.45^max) MB/s
BOSGAME N95 Kingston OM8SEP4256Q-A0	820 (687.12^min - 820.02^max) MB/s -5%
Blackview MP80 Netac NS512GSSD330	556 (424.25^min - 556.44^max) MB/s -36%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	550 (465.68^min - 549.87^max) MB/s -36%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	504 (458.23^min - 504.4^max) MB/s -42%
seq q8 t1 write
Average of class Mini PC (228 - 6669, n=118, last 2 years)	2736 MB/s +691%
Acemagic S1 BiWin CE480Y2D100-1TB	1658 (1643.05^min - 1658.18^max) MB/s +379%
Beelink Mini S12 Pro	867 (858.82^min - 866.96^max) MB/s +151%
BOSGAME N95 Kingston OM8SEP4256Q-A0	684 (677.48^min - 683.67^max) MB/s +98%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	519 (472.8^min - 519.47^max) MB/s +50%
Blackview MP80 Netac NS512GSSD330	489 (220.62^min - 488.78^max) MB/s +41%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	466 (442.13^min - 465.87^max) MB/s +35%
Trigkey G4	346 (322.53^min - 346.45^max) MB/s
4k q1 t1 read
Acemagic S1 BiWin CE480Y2D100-1TB	59.4 (58.56^min - 59.37^max) MB/s +571%
Average of class Mini PC (5.67 - 86.6, n=118, last 2 years)	55.1 MB/s +523%
Beelink Mini S12 Pro	50.2 (48.32^min - 50.22^max) MB/s +467%
BOSGAME N95 Kingston OM8SEP4256Q-A0	45.9 (45.49^min - 45.92^max) MB/s +419%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	33.9 (33.27^min - 33.91^max) MB/s +283%
Blackview MP80 Netac NS512GSSD330	32.5 (32.38^min - 32.5^max) MB/s +267%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	25.9 (25.82^min - 25.85^max) MB/s +193%
Trigkey G4	8.85 (2.72^min - 8.85^max) MB/s
4k q1 t1 write
Average of class Mini PC (30.4 - 435, n=118, last 2 years)	195.6 MB/s +52%
Beelink Mini S12 Pro	131.7 (124.21^min - 131.65^max) MB/s +3%
Trigkey G4	128.4 (124.08^min - 128.36^max) MB/s
Acemagic S1 BiWin CE480Y2D100-1TB	128.1 (126.86^min - 128.09^max) MB/s 0%
BOSGAME N95 Kingston OM8SEP4256Q-A0	96.7 (95.09^min - 96.72^max) MB/s -25%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	96 (93.72^min - 96.04^max) MB/s -25%
Blackview MP80 Netac NS512GSSD330	88.1 (66.88^min - 88.14^max) MB/s -31%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	74.1 (72.55^min - 74.09^max) MB/s -42%
4k q32 t16 read
Average of class Mini PC (26.1 - 4158, n=118, last 2 years)	1349 MB/s +132%
Acemagic S1 BiWin CE480Y2D100-1TB	1175 (1165.24^min - 1174.82^max) MB/s +102%
Beelink Mini S12 Pro	861 (842.97^min - 860.59^max) MB/s +48%
Trigkey G4	581 (553.76^min - 581.49^max) MB/s
BOSGAME N95 Kingston OM8SEP4256Q-A0	440 (438.98^min - 440.28^max) MB/s -24%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	266 (264.89^min - 265.82^max) MB/s -54%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	260 (259.46^min - 259.7^max) MB/s -55%
Blackview MP80 Netac NS512GSSD330	179.4 (173.35^min - 179.35^max) MB/s -69%
4k q32 t16 write
Average of class Mini PC (30.2 - 4288, n=118, last 2 years)	1282 MB/s +1724%
Acemagic S1 BiWin CE480Y2D100-1TB	762 (759.1^min - 762.44^max) MB/s +984%
Beelink Mini S12 Pro	721 (676.73^min - 721.31^max) MB/s +926%
BOSGAME N95 Kingston OM8SEP4256Q-A0	411 (406.46^min - 410.69^max) MB/s +485%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	319 (315.72^min - 318.72^max) MB/s +354%
Blackview MP80 Netac NS512GSSD330	276 (99.25^min - 275.55^max) MB/s +293%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	259 (224.2^min - 258.97^max) MB/s +268%
Trigkey G4	70.3 (60.61^min - 70.32^max) MB/s

AS SSD
Score Total
Average of class Mini PC (181.5 - 10021, n=116, last 2 years)	4101 Points +121%
Acemagic S1 BiWin CE480Y2D100-1TB	2427 Points +31%
Beelink Mini S12 Pro	2210 Points +19%
Trigkey G4	1857 Points
BOSGAME N95 Kingston OM8SEP4256Q-A0	1423 Points -23%
Blackview MP80 Netac NS512GSSD330	796 Points -57%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	736 Points -60%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	698 Points -62%
Score Read
Average of class Mini PC (61 - 3741, n=116, last 2 years)	1527 Points +63%
Acemagic S1 BiWin CE480Y2D100-1TB	1000 Points +7%
Trigkey G4	934 Points
Beelink Mini S12 Pro	920 Points -1%
BOSGAME N95 Kingston OM8SEP4256Q-A0	522 Points -44%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	320 Points -66%
Blackview MP80 Netac NS512GSSD330	265 Points -72%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	232 Points -75%
Score Write
Average of class Mini PC (88 - 4371, n=116, last 2 years)	1841 Points +302%
Acemagic S1 BiWin CE480Y2D100-1TB	903 Points +97%
Beelink Mini S12 Pro	801 Points +75%
BOSGAME N95 Kingston OM8SEP4256Q-A0	626 Points +37%
Trigkey G4	458 Points
Blackview MP80 Netac NS512GSSD330	387 Points -16%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	373 Points -19%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	208 Points -55%
Seq Read
Average of class Mini PC (291 - 6620, n=116, last 2 years)	3157 MB/s +298%
Acemagic S1 BiWin CE480Y2D100-1TB	1582 MB/s +99%
Trigkey G4	794 MB/s
Beelink Mini S12 Pro	704.36 MB/s -11%
BOSGAME N95 Kingston OM8SEP4256Q-A0	700 MB/s -12%
Blackview MP80 Netac NS512GSSD330	526 MB/s -34%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	489 MB/s -38%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	470 MB/s -41%
Seq Write
Average of class Mini PC (240 - 5783, n=116, last 2 years)	2202 MB/s +575%
Acemagic S1 BiWin CE480Y2D100-1TB	1526 MB/s +368%
Beelink Mini S12 Pro	736.89 MB/s +126%
BOSGAME N95 Kingston OM8SEP4256Q-A0	595 MB/s +83%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	484 MB/s +48%
Blackview MP80 Netac NS512GSSD330	466 MB/s +43%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	344 MB/s +6%
Trigkey G4	326 MB/s
4K Read
Average of class Mini PC (6.08 - 104.3, n=116, last 2 years)	58.8 MB/s +32%
Beelink Mini S12 Pro	55.88 MB/s +26%
Acemagic S1 BiWin CE480Y2D100-1TB	54.7 MB/s +23%
Trigkey G4	44.4 MB/s
BOSGAME N95 Kingston OM8SEP4256Q-A0	38.7 MB/s -13%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	35.45 MB/s -20%
Blackview MP80 Netac NS512GSSD330	30.2 MB/s -32%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	27.5 MB/s -38%
4K Write
Average of class Mini PC (30.9 - 366, n=116, last 2 years)	175.9 MB/s +55%
Beelink Mini S12 Pro	113.72 MB/s 0%
Trigkey G4	113.5 MB/s
Acemagic S1 BiWin CE480Y2D100-1TB	108.9 MB/s -4%
BOSGAME N95 Kingston OM8SEP4256Q-A0	100.9 MB/s -11%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	85.6 MB/s -25%
Blackview MP80 Netac NS512GSSD330	84.3 MB/s -26%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	38 MB/s -67%
4K-64 Read
Average of class Mini PC (23.4 - 3220, n=116, last 2 years)	1153 MB/s +42%
Trigkey G4	810 MB/s
Beelink Mini S12 Pro	793.52 MB/s -2%
Acemagic S1 BiWin CE480Y2D100-1TB	787 MB/s -3%
BOSGAME N95 Kingston OM8SEP4256Q-A0	413 MB/s -49%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	235.66 MB/s -71%
Blackview MP80 Netac NS512GSSD330	181.8 MB/s -78%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	157.7 MB/s -81%
4K-64 Write
Average of class Mini PC (32.8 - 3731, n=116, last 2 years)	1444 MB/s +363%
Acemagic S1 BiWin CE480Y2D100-1TB	641 MB/s +105%
Beelink Mini S12 Pro	613.44 MB/s +97%
BOSGAME N95 Kingston OM8SEP4256Q-A0	466 MB/s +49%
Trigkey G4	312 MB/s
Blackview MP80 Netac NS512GSSD330	256 MB/s -18%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	239 MB/s -23%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	135.39 MB/s -57%
Access Time Read
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	0.148 ms * -131%
BOSGAME N95 Kingston OM8SEP4256Q-A0	0.101 ms * -58%
Average of class Mini PC (0.022 - 0.489, n=116, last 2 years)	0.09752 ms * -52%
Beelink Mini S12 Pro	0.086 ms * -34%
Blackview MP80 Netac NS512GSSD330	0.077 ms * -20%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	0.076 ms * -19%
Acemagic S1 BiWin CE480Y2D100-1TB	0.076 ms * -19%
Trigkey G4	0.064 ms *
Access Time Write
Blackview MP80 Netac NS512GSSD330	0.136 ms * -123%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	0.132 ms * -116%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	0.127 ms * -108%
Average of class Mini PC (0.014 - 0.765, n=116, last 2 years)	0.116 ms * -90%
Beelink Mini S12 Pro	0.114 ms * -87%
BOSGAME N95 Kingston OM8SEP4256Q-A0	0.109 ms * -79%
Acemagic S1 BiWin CE480Y2D100-1TB	0.098 ms * -61%
Trigkey G4	0.061 ms *

* ... smaller is better

Dauerleistung Lesen: DiskSpd Read Loop, Queue Depth 8

Trigkey G4 : Ø839 (658.14-865.55)

Acemagic S1 BiWin CE480Y2D100-1TB: Ø1772 (1604.38-1776.91)

Beelink Mini S12 Pro : Ø853 (744.93-890.66)

Blackview MP80 Netac NS512GSSD330: Ø551 (425.51-553.5)

BOSGAME N95 Kingston OM8SEP4256Q-A0: Ø817 (676.33-820.44)

Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB: Ø498 (453.55-500.22)

Minipc Union Ace Magician T8Pro FPT310M4SSD256G: Ø553 (484.52-559.31)

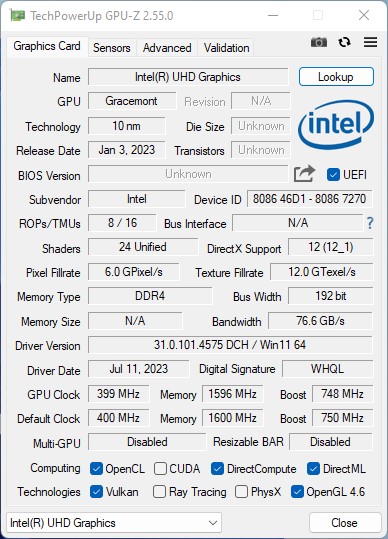

图形卡

图像由英特尔UHD Graphics 24 EU 生成。英特尔 N100 采用与英特尔 N95 相同的 GPU 作为 CPU 的一部分。因此，我们可以看到性能相当，但也受到内存速度的影响。由于 Trigkey G4 只能容纳一个内存模块，生产商在这一点上牺牲了一些性能。黑屏 Blackview MP80采用了速度更快的 DDR5 内存，这意味着性能可能会更高一些。

你可以在这里找到英特尔UHD Graphics 的更多基准测试。

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Beelink Mini S12 Pro Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	100 pt
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	95.7 pt
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	94.9 pt
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	93.6 pt
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	90.9 pt
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	88.9 pt
Minipc Union Ace Magician T8Pro Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	55.9 pt

3DMark 11 - 1280x720 Performance GPU
Beelink Mini S12 Pro Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	1510 Points +1%
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	1494 Points 0%
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	1492 Points
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	1490 Points 0%
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	1485 Points 0%
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	1467 Points -2%
Minipc Union Ace Magician T8Pro Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	859 Points -42%

3DMark
1280x720 Cloud Gate Standard Graphics
Beelink Mini S12 Pro Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	8965 Points +9%
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	8548 Points +4%
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	8304 Points +1%
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	8233 Points
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	8035 Points -2%
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	7218 Points -12%
Minipc Union Ace Magician T8Pro Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	5217 Points -37%
1920x1080 Fire Strike Graphics
Beelink Mini S12 Pro Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	1258 Points +6%
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	1184 Points
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	1172 Points -1%
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	1124 Points -5%
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	1106 Points -7%
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	1080 Points -9%
Minipc Union Ace Magician T8Pro Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	662 Points -44%

3DMark Performance Rating - Percent
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	99.3 pt
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	91.8 pt
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	91 pt
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	89.9 pt
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	86.5 pt
Minipc Union Ace Magician T8Pro Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	68 pt

ComputeMark v2.1
1024x600 Normal, Score
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	670 Points +5%
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	650 Points +2%
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	638 Points
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	638 Points 0%
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	628 Points -2%
Minipc Union Ace Magician T8Pro Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	555 Points -13%
1024x600 Normal, Fluid 3DTex
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	133 Points +9%
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	122 Points
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	116 Points -5%
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	116 Points -5%
Minipc Union Ace Magician T8Pro Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	109 Points -11%
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	103 Points -16%
1024x600 Normal, Fluid 2DTexArr
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	109 Points
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	106 Points -3%
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	97 Points -11%
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	95 Points -13%
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	90 Points -17%
Minipc Union Ace Magician T8Pro Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	71 Points -35%
1024x600 Normal, Mandel Vector
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	126 Points +5%
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	126 Points +5%
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	125 Points +4%
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	122 Points +2%
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	120 Points
Minipc Union Ace Magician T8Pro Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	105 Points -12%
1024x600 Normal, Mandel Scalar
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	112 Points +11%
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	110 Points +9%
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	110 Points +9%
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	109 Points +8%
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	101 Points
Minipc Union Ace Magician T8Pro Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	86 Points -15%
1024x600 Normal, QJuliaRayTrace
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	203 Points +9%
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	197 Points +6%
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	196 Points +5%
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	194 Points +4%
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	186 Points
Minipc Union Ace Magician T8Pro Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	185 Points -1%

3DMark 06 - 1280x1024 Standard Score AA:0x AF:0x
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	12203 Points +22%
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	10165 Points +1%
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	10088 Points +1%
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	10026 Points
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	9774 Points -3%
Minipc Union Ace Magician T8Pro Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	6704 Points -33%

Unigine Heaven 4.0
Extreme Preset OpenGL
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	7.2 fps +4%
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	6.9 fps
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	6.7 fps -3%
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	6.7 fps -3%
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	6.3 fps -9%
Minipc Union Ace Magician T8Pro Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	4 fps -42%
Extreme Preset DX11
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	7.5 fps +4%
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	7.2 fps
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	6.8 fps -6%
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	6.7 fps -7%
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	6.4 fps -11%
Minipc Union Ace Magician T8Pro Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	4.3 fps -40%

Unigine Valley 1.0
1920x1080 Extreme HD Preset OpenGL AA:x8
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	6 fps +18%
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	5.4 fps +6%
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	5.3 fps +4%
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	5.1 fps
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	4.8 fps -6%
Minipc Union Ace Magician T8Pro Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	3.5 fps -31%
1920x1080 Extreme HD DirectX AA:x8
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	5.3 fps +15%
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	4.6 fps 0%
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	4.6 fps
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	4.6 fps 0%
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	4.1 fps -11%
Minipc Union Ace Magician T8Pro Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	3.5 fps -24%

Unigine Superposition
1280x720 720p Low
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	2505 Points +17%
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	2141 Points
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	1937 Points -10%
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	1924 Points -10%
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	1871 Points -13%
Minipc Union Ace Magician T8Pro Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	1358 Points -37%
1920x1080 1080p High
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	512 Points +2%
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	500 Points
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	469 Points -6%
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	468 Points -6%
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	454 Points -9%
Minipc Union Ace Magician T8Pro Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	287 Points -43%

3DMark 05 Standard		17649 points
3DMark 06 Standard Score		10026 points
3DMark Vantage P Result		6127 points
3DMark 11 Performance		1723 points
3DMark Ice Storm Standard Score		48849 points
3DMark Cloud Gate Standard Score		7040 points
3DMark Fire Strike Score		1132 points
3DMark Fire Strike Extreme Score		538 points
3DMark Time Spy Score		363 points
Help

... in comparison

游戏性能

Trigkey G4 不建议用于要求苛刻的游戏，因为它的集成图形处理器（iGPU）性能只能满足简单的休闲游戏或浏览器游戏。相比之下，采用 AMD 的 Ryzen 9 6900HX的设备，如 Geekom AS 6, Morefine M600或王牌魔术师 AM08 Pro它们的游戏性能明显更好。

	low	med.	high	ultra
GTA V (2015)	51	42.1	6.4	2.73
The Witcher 3 (2015)	22.3	14.6	7.83
Dota 2 Reborn (2015)	76.6	47.9	19.8	18.4
Final Fantasy XV Benchmark (2018)	12.9	6.33	4.44
X-Plane 11.11 (2018)	20.6	13.2	11.8
Far Cry 5 (2018)	15	7	6	6
Strange Brigade (2018)	27	10.2	9.4	14.2
Shadow of the Tomb Raider (2018)	16.7	6.5	6
Far Cry New Dawn (2019)	14	7	6	6
Metro Exodus (2019)	12.4	5.61	4.27	3.59
Borderlands 3 (2019)	13.6	5.77	3.35	2.37
Tiny Tina's Wonderlands (2022)	5.24	3.92	3.29	1.77

排放 - 冷却装置需要改进

系统噪音

内置的散热系统有一根细小的热管和一个风扇，能有效散发 CPU 的热量。在噪音方面，我们认为仍有发展潜力。当发动机空转时，我们测得的声压级为 30 至 32 dB(A)。这比大多数同类产品的噪音要大得多。在负载情况下，我们测得的噪音值为 37 dB(A)，与同类产品相比同样较大。我们的王牌魔力 S1和 NiPoGi GK3Plus则在负载情况下噪音更大。

Noise Level

Idle		30.6 / 31.3 / 32.1 dB(A)
Load		34.8 / 37.1 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Earthworks M23R (15 cm distance) environment noise: 24.8 dB(A)

	Trigkey G4 N100, UHD Graphics 24EUs (Alder Lake-N)	Acemagic S1 N95, UHD Graphics 24EUs (Alder Lake-N)	Beelink Mini S12 Pro N100, UHD Graphics 24EUs (Alder Lake-N)	Blackview MP80 N95, UHD Graphics 24EUs (Alder Lake-N)	BOSGAME N95 N95, UHD Graphics 24EUs (Alder Lake-N)	Minipc Union NiPoGi GK3PLUS - N95 N95, UHD Graphics 24EUs (Alder Lake-N)	Minipc Union Ace Magician T8Pro Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
Noise		6%	11%	11%	3%	-6%	3%
off / environment *	24.8	25 -1%	23.3 6%	25.2 -2%	29.7 -20%	30.4 -23%	30.2 -22%
Idle Minimum *	30.6	25.5 17%	26.3 14%	25.4 17%	30.2 1%	31 -1%	30.2 1%
Idle Average *	31.3	26.9 14%	26.3 16%	25.5 19%	30.2 4%	31.1 1%	30.2 4%
Idle Maximum *	32.1	27 16%	26.3 18%	25.5 21%	30.2 6%	31.8 1%	30.2 6%
Load Average *	34.8	34.3 1%	31.9 8%	32.3 7%	30.4 13%	33.3 4%	30.5 12%
Load Maximum *	37.1	40.3 -9%	36.7 1%	36.4 2%	31.4 15%	42.5 -15%	30.9 17%
Witcher 3 ultra *			33

* ... smaller is better

温度

Trigkey G4 的温度控制始终如一，没有出现任何问题。在负载情况下，外壳会出现明显的发热现象，尤其是顶部，最高温度达到 44.9 °C，这被认为是无害的。在使用 Prime95 进行的压力测试中，处理器记录的最高温度为 75 °C。

Max. Load

Idle


38 °C	44.9 °C	40.4 °C
35.4 °C	34.9 °C	33 °C
32.2 °C	33.7 °C	35.8 °C

Maximum: 44.9 °C
Average: 36.5 °C


30.2 °C	37.3 °C	35.4 °C
30.5 °C	31.1 °C	29.6 °C
31.6 °C	32 °C	30.8 °C

Maximum: 37.3 °C
Average: 32.1 °C

Power Supply (max.) 46.2 °C | Room Temperature 22.3 °C | Fluke t3000FC (calibrated)

(±) The average temperature for the upper side under maximal load is 36.5 °C / 98 F, compared to the average of 32.2 °C / 90 F for the devices in the class Mini PC.
(±) The maximum temperature on the upper side is 44.9 °C / 113 F, compared to the average of 35.7 °C / 96 F, ranging from 24 to 69.5 °C for the class Mini PC.
(+) The bottom heats up to a maximum of 37.3 °C / 99 F, compared to the average of 36.2 °C / 97 F
(+) In idle usage, the average temperature for the upper side is 29.9 °C / 86 F, compared to the device average of 32.2 °C / 90 F.

耗电量

Trigkey G4 的功耗在典型范围内。在闲置期间，36 瓦的电源（12V 3.0A）只需提供 8.2 至 10.4 瓦的功率。即使在使用率最高的情况下，设备记录的功率也只有 33.1 瓦，这表明电源并未处于过载状态。Trigkey G4 的平均耗电量约为 19 瓦，与 Beelink Mini S12 Pro 的耗电量相当。 Beelink 迷你 S12 Pro.这表明 Trigkey G4 的电源效率与同类设备相当。

Power Consumption

Off / Standby	0.3 / 0.9 Watt
Idle	8.2 / 8.6 / 10.4 Watt
Load	19.4 / 33.1 Watt


Key: min: , med: , max: Metrahit Energy

	Trigkey G4 N100, UHD Graphics 24EUs (Alder Lake-N)	Acemagic S1 N95, UHD Graphics 24EUs (Alder Lake-N)	Beelink Mini S12 Pro N100, UHD Graphics 24EUs (Alder Lake-N)	Blackview MP80 N95, UHD Graphics 24EUs (Alder Lake-N)	BOSGAME N95 N95, UHD Graphics 24EUs (Alder Lake-N)	Minipc Union NiPoGi GK3PLUS - N95 N95, UHD Graphics 24EUs (Alder Lake-N)	Minipc Union Ace Magician T8Pro Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	Average Intel UHD Graphics 24EUs (Alder Lake-N)	Average of class Mini PC
Power Consumption		-17%	2%	20%	35%	19%	6%	10%	-97%
Idle Minimum *	8.2	7.1 13%	8.3 -1%	4.9 40%	3.5 57%	6.1 26%	8.4 -2%	6.09 ?(2.48 - 9.8, n=13) 26%	9.48 ?(1.9 - 45.7, n=119, last 2 years) -16%
Idle Average *	8.6	12.1 -41%	8.8 -2%	7.1 17%	3.6 58%	6.9 20%	8.4 2%	7.73 ?(3.6 - 12.1, n=13) 10%	11.5 ?(1.9 - 47.5, n=117, last 2 years) -34%
Idle Maximum *	10.4	13.9 -34%	8.9 14%	7.3 30%	6.2 40%	8.9 14%	11.1 -7%	9.44 ?(4.89 - 13.9, n=13) 9%	14.9 ?(2.6 - 57.1, n=119, last 2 years) -43%
Load Average *	19.4	23.8 -23%	20.1 -4%	20.6 -6%	20.4 -5%	20 -3%	16.5 15%	19.3 ?(12.9 - 27.6, n=13) 1%	57.4 ?(11.3 - 170.6, n=119, last 2 years) -196%
Load Maximum *	33.1	33 -0%	32.2 3%	26.2 21%	25 24%	21.1 36%	26.3 21%	31.1 ?(21.1 - 46.2, n=13) 6%	97.5 ?(18.1 - 423, n=119, last 2 years) -195%
Witcher 3 ultra *			21.5

* ... smaller is better

Power consumption with external monitor

Trigkey G4 UHD Graphics 24EUs (Alder Lake-N), N100; Prime95 V2810 Stress (external Monitor): Ø27.7 (24-33.1)

Acemagic S1 UHD Graphics 24EUs (Alder Lake-N), N95, BiWin CE480Y2D100-1TB; Prime95 V2810 Stress (external Monitor): Ø31.5 (26.6-33)

Trigkey G4 UHD Graphics 24EUs (Alder Lake-N), N100; Cinebench R15 Multi (external Monitor): Ø26.1 (24.8-27.1)

Acemagic S1 UHD Graphics 24EUs (Alder Lake-N), N95, BiWin CE480Y2D100-1TB; Cinebench R15 Multi (external Monitor): Ø25.5 (24.5-26.2)

Trigkey G4 UHD Graphics 24EUs (Alder Lake-N), N100; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø17.4 (16-28.8)

Acemagic S1 UHD Graphics 24EUs (Alder Lake-N), N95, BiWin CE480Y2D100-1TB; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø27.5 (25.5-30.3)

Acemagic S1 UHD Graphics 24EUs (Alder Lake-N), N95, BiWin CE480Y2D100-1TB; 1920x1080 The Witcher 3 ultra (external Monitor): Ø26.5 (22.5-28.1)

Trigkey G4 UHD Graphics 24EUs (Alder Lake-N), N100; Idle 1min (external Monitor): Ø9.98 (9.59-10.4)

Acemagic S1 UHD Graphics 24EUs (Alder Lake-N), N95, BiWin CE480Y2D100-1TB; Idle 1min (external Monitor): Ø12.6 (12.2-14)

Pros

+ 外壳简单

+ 重量轻

+ 现代 SoC

+ 日常使用性能良好

+ 稳定的 CPU 性能

+ 低 DPC 延迟

+ 低功耗

Cons

- 单通道内存

- 图形性能低

- 即使在空闲时也能听到风扇声

结论：适合执行简单日常任务的迷你电脑

如果你正在寻找一款价格合理的家用小型 PC，Trigkey G4 绝对是一个不错的选择。当然，你必须接受一些限制。英特尔 N100 的性能相对较好，尽管不是最佳，因为不幸的是只安装了 DDR4 内存。作为回报，你将得到一个坚实的基本配置，16 GB 内存和 512 GB 固态硬盘，其中还包括操作系统。如果不过度使用四核 SoC，日常任务也能很好地完成。

Trigkey G4 是一款不错的日常小工具，还可以顺利播放高分辨率视频，这意味着该设备还可以用作流媒体客户端。

该机的外观质量很高，符合定价预期。虽然没有 Type-C 端口，但功能连接已经足够。不过，四个 USB 3.2 端口的加入使其有别于一些竞争对手。如果你想要一台功能较少的基本微型电脑，Trigkey G4 是一个不错的选择。值得一提的是，散热装置的噪音水平值得批评。在空闲模式下采用被动散热应该是可行的，而且可能会改善用户体验。与竞争对手相比，该产品在这方面还有改进的余地。

价格和供应情况

Trigkey G4 配备英特尔 N100、16 GB DDR4 和 500 GB 固态硬盘，目前在亚马逊上的售价为 179 美元。

Trigkey G4 - 11/15/2023 v7 ^(old)
Sebastian Bade

Chassis

63 / 98 → 64%

Connectivity

50 / 81 → 62%

Weight

87%

Games Performance

50%

Application Performance

79%

Workstation

45%

Temperature

90%

Noise

85%

Average

69%

70%

Mini PC - Weighted Average

Transparency

The selection of devices to be reviewed is made by our editorial team. The test sample was freely purchased by the author at his/her own expense. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.

This is how Notebookcheck is testing

Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.

Editor of the original article: Carmen Pol - Translator - 320 articles published on Notebookcheck since 2023

Translator: Ninh Ngoc Duy - Editorial Assistant - 458020 articles published on Notebookcheck since 2008

contact me via: Facebook

Please share our article, every link counts!

> Notebookcheck中文版（NBC中国） > 评测 > 测试Trigkey 迷你电脑，配备英特尔 N100、16 GB 内存和 500 GB 固态硬盘，售价不到 200 美元

Sebastian Bade, 2023-11-17 (Update: 2023-11-17)
