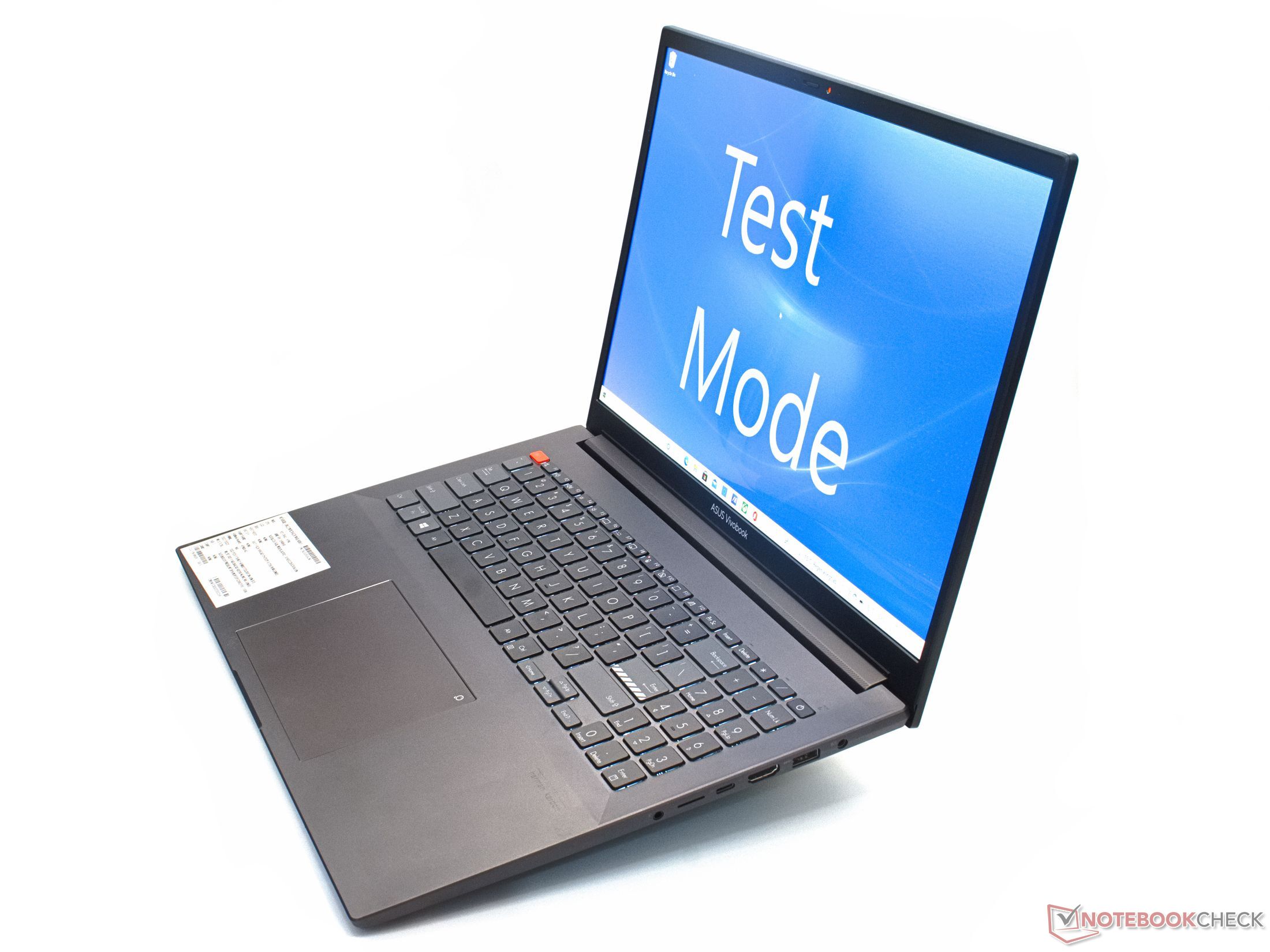

华硕Vivobook Pro 16X的预生产单位审查。性能、耐力和强大的OLED显示屏

大型笔记本电脑,有花纹细节

400 cd/m²的明亮OLED显示屏以及来自Nvidia和AMD的强大硬件使16英寸的Vivobook与宝贵的铝制外壳一起成为一台有吸引力的笔记本电脑。然而,测试的预生产设备只能在测试中几乎显示出可生产的性能。
AMD Geforce Gaming Laptop / Notebook Workstation Zen Zen 3 (Vermeer)

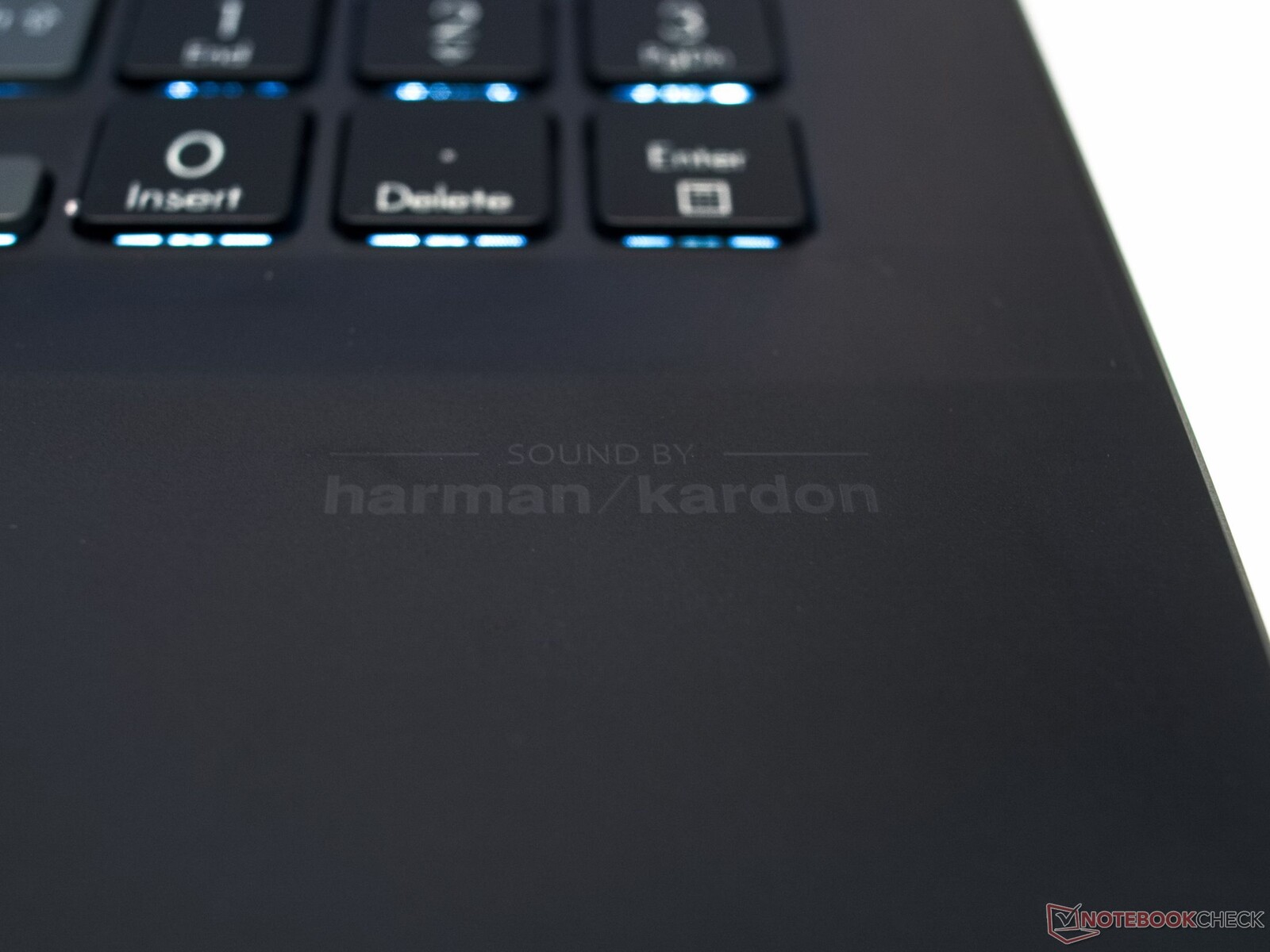

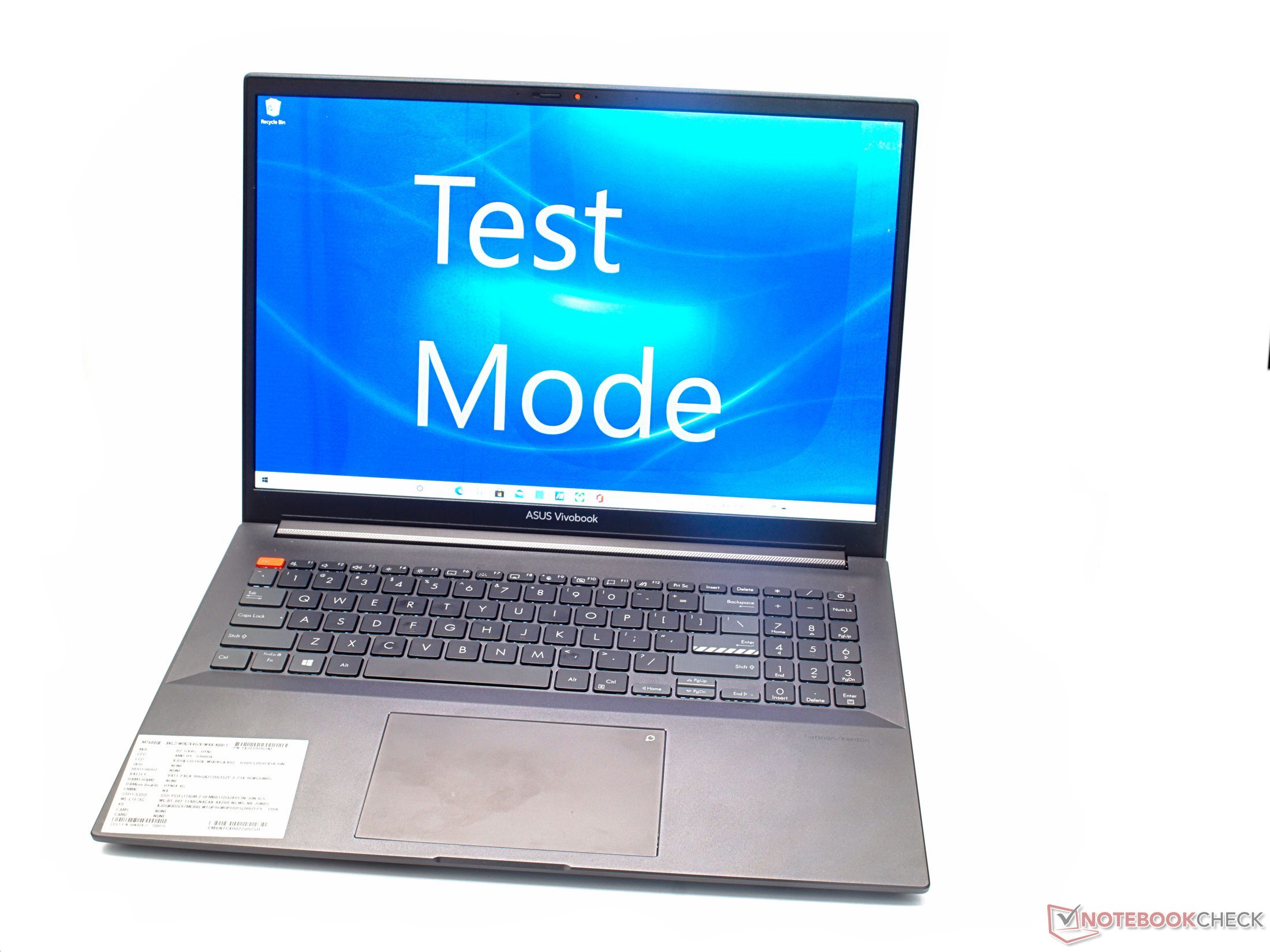

华硕Vivobook Pro 16x拥有非常好的OLED显示屏、哈曼卡顿音响和强大的计算能力,应该主要吸引媒体设计师和内容创作者。集成在触摸板上的微软Surface Dial强调了这一方面。这款笔记本电脑,我们被允许作为预生产设备进行测试,显示出精心的设计和高性能的准备工作。深色的铝制外壳看起来既稳定又优雅。

这款多媒体笔记本电脑的核心是快速的AMD Ryzen R9-5900HX和NvidiaGeForce RTX 3050 Ti。因此,这款笔记本电脑有足够的图形性能,适合许多游戏和视频编辑程序。

华硕Vivobook Pro的竞争来自我们数据库中的所有领域,因为这款笔记本对于多媒体笔记本来说非常强大。因此,Vivobook Pro也可以跟上当前游戏笔记本和一些工作站的入门级。

作为对华硕最新设备的进一步预演 华硕Zenbook 14X的评论可供查阅。

Asus Vivobook Pro 16X-M7600QE
Processor
AMD Ryzen 9 5900HX 8 x 3.3 - 4.6 GHz, 64 W PL2 / Short Burst, 54 W PL1 / Sustained, Cezanne-H (Zen 3)
Graphics adapter
NVIDIA GeForce RTX 3050 Ti Laptop GPU - 4 GB VRAM, RAM: 5500 MHz, 50 W TDP, yes
Memory
32 GB
, soldered
Display
16.10 inch 16:10, 3840 x 2400 pixel 281 PPI, Samsung ATNA60YV02-0, OLED, glossy: yes, 60 Hz
Mainboard
AMD Promontory/Bixby FCH
Storage
SK Hynix HFM001TD3JX013N, 1024 GB
Soundcard
AMD Raven/Renoir/VanGogh/Cezanne - Audio Processor - HD Audio Controller
Connections
4 USB 3.1 Gen2, 1 HDMI, Audio Connections: 3.5 mm Multi Headset, 1 Fingerprint Reader
Networking
Intel Wi-Fi 6 AX200 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/), Bluetooth 5.1
Size
height x width x depth (in mm): 19 x 358 x 258
Battery
96 Wh Lithium-Ion
Operating System
Microsoft Windows 10 Pro 64 Bit
Camera
Webcam: 0.9 MP
Additional features
Keyboard: Inseltastatur, Keyboard Light: yes
Weight
1.911 kg, Power Supply: 460 g
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Possible competitors in comparison

Rating
Date
Model
Weight
Height
Size
Resolution
Price

v (old)
12 / 2021
Asus Vivobook Pro 16X-M7600QE
R9 5900HX, GeForce RTX 3050 Ti Laptop GPU
1.9 kg19 mm16.10"3840x2400
87.8 %
v7 (old)
08 / 2021
HP ZBook Studio 15 G8
i9-11950H, GeForce RTX 3070 Laptop GPU
1.9 kg18 mm15.60"3840x2160
86.5 %
v7 (old)
10 / 2021
Huawei MateBook 16 R7 5800H
R7 5800H, Vega 8
2 kg17.8 mm16.00"2520x1680
85.6 %
v7 (old)
02 / 2021
Gigabyte Aero 15 OLED XC
i7-10870H, GeForce RTX 3070 Laptop GPU
2.2 kg20 mm15.60"3840x2160
86 %
v7 (old)
08 / 2021
Lenovo IdeaPad 5 Pro 16IHU6
i5-11300H, GeForce MX450
1.9 kg18.4 mm16.00"2560x1600
88.4 %
v7 (old)
09 / 2021
Dell XPS 15 9510 11800H RTX 3050 Ti OLED
i7-11800H, GeForce RTX 3050 Ti Laptop GPU
1.9 kg18 mm15.60"3456x2160

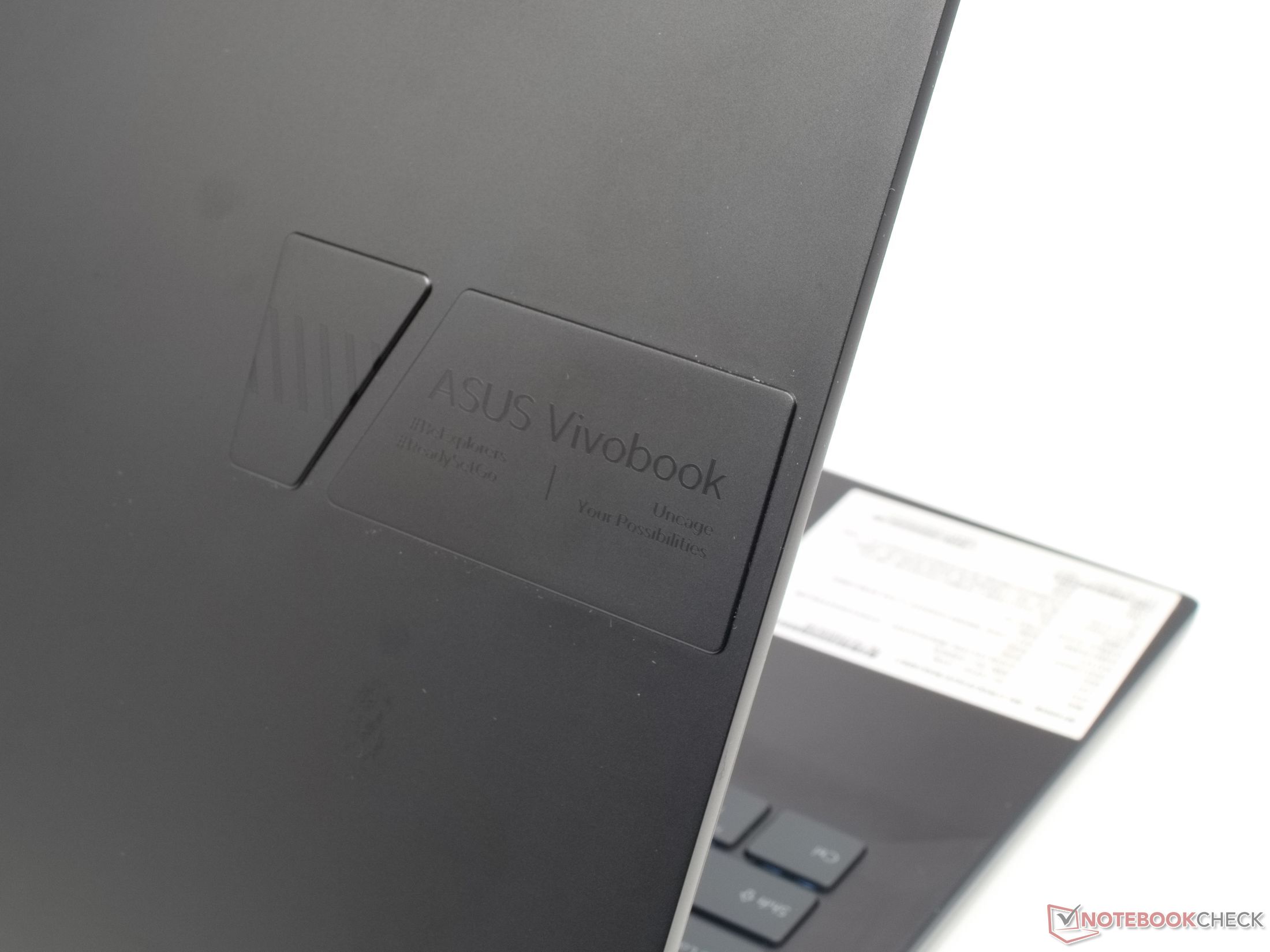

外壳 - 阳极氧化铝和少量塑料

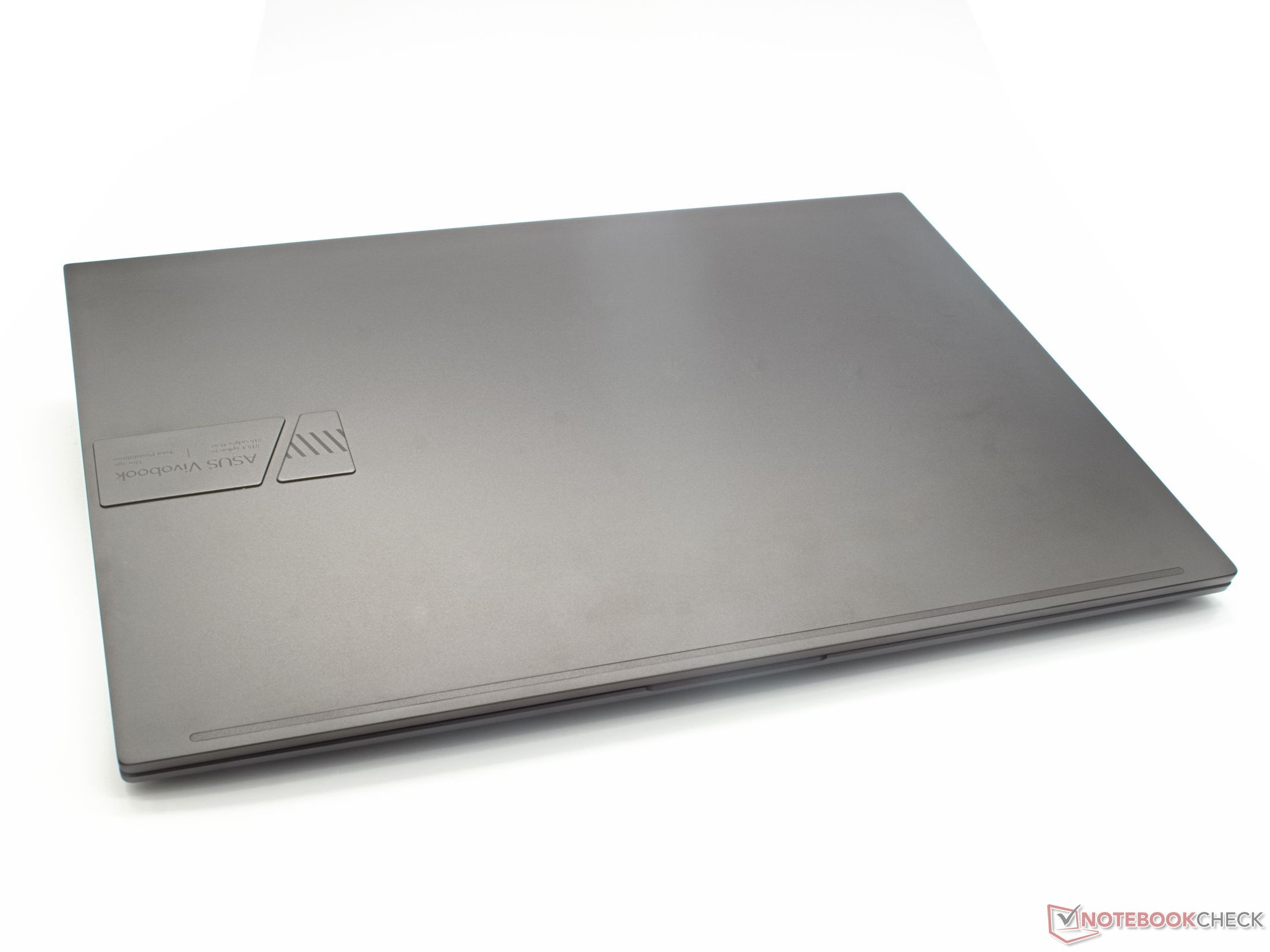

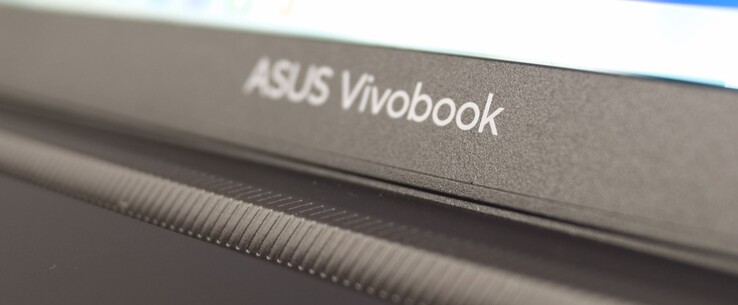

很多深灰色到黑色的阳极氧化铝与一些黑色塑料的点缀决定了华硕Vivobook的外观。虽然这款笔记本电脑并不真正薄,但由于采用了瑞士边缘,设备看起来不那么笨重。小的设计元素,如显示屏铰链上的浮雕,也使事情变得生动起来。

哑光铝的光滑表面总是让人感觉到凉爽。除了有点灵活的显示屏,这台笔记本电脑看起来非常稳定,几乎没有显示任何制造问题。底部有些不均匀的缝隙对于一个预生产的设备来说并不是不典型的。

显示器可以用一只手打开到160°的角度。可以看到下面有一个灰色和红色的键盘以及大的触摸板。

华硕Vivobook对于给定性能级别的16英寸笔记本电脑来说是比较纤薄的。重量和厚度与竞争对手处于同一范围。

Size comparison

358 mm 258 mm 19 mm 1.9 kg356 mm 250 mm 20 mm 2.2 kg356 mm 251 mm 18.4 mm 1.9 kg354 mm 235 mm 18 mm 1.9 kg351 mm 254.9 mm 17.8 mm 2 kg345 mm 230 mm 18 mm 1.9 kg297 mm 210 mm 1 mm 5.7 g

设备--没有Thunderbolt,Vivobook提供的连接性很小

这款笔记本的四个USB端口(其中一个是USB Type-C)并没有提供很多连接选项。PowerDelivery和Thunderbolt 4在这里是不存在的。HDMI端口是通过电缆连接外部显示器的唯一选择。

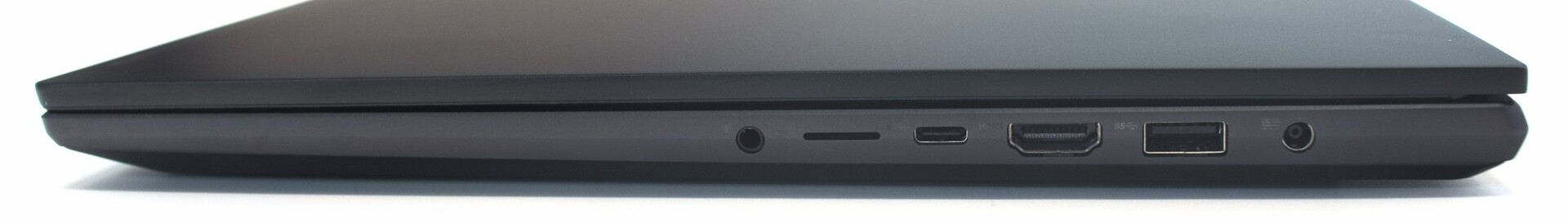

3.5毫米耳机,microSD,USB Type C 3.2 Gen 2,HDMI,USB Type A 3.2 Gen 2,电源
3.5毫米耳机,microSD,USB Type C 3.2 Gen 2,HDMI,USB Type A 3.2 Gen 2,电源

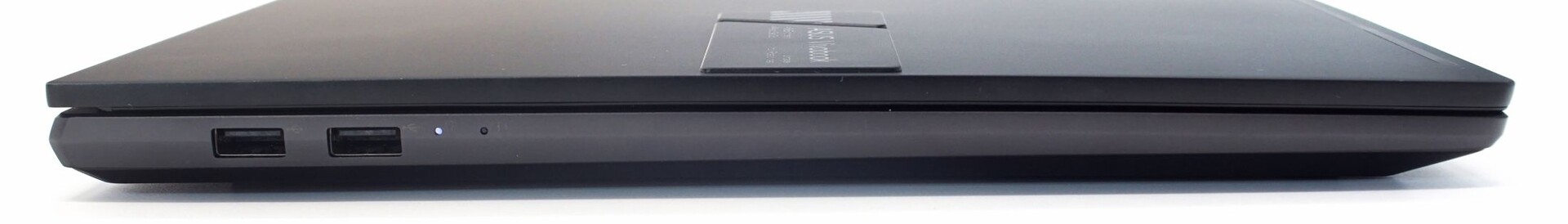

2 x USB Type A 3.2 Gen 2
2 x USB Type A 3.2 Gen 2

淘宝网

microSD读卡器的速度相当慢,传输速率为38MB/s。测试中使用的128GB的AV PRO microSD通常提供更快的数据传输率。

SD Card Reader
average JPG Copy Test (av. of 3 runs)
Dell XPS 15 9510 11800H RTX 3050 Ti OLED
  (AV Pro V60)
224 MB/s +502%
Gigabyte Aero 15 OLED XC
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
194 MB/s +422%
Average of class Multimedia
  (18.4 - 201, n=59, last 2 years)
103.3 MB/s +178%
HP ZBook Studio 15 G8
  (AV Pro V60)
73.8 MB/s +98%
Asus Vivobook Pro 16X-M7600QE
  (AV Pro SD microSD 128 GB V60)
37.2 MB/s
maximum AS SSD Seq Read Test (1GB)
Gigabyte Aero 15 OLED XC
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
213 MB/s +461%
Dell XPS 15 9510 11800H RTX 3050 Ti OLED
  (AV Pro V60)
202.8 MB/s +434%
Average of class Multimedia
  (25.8 - 266, n=59, last 2 years)
142.9 MB/s +276%
Lenovo IdeaPad 5 Pro 16IHU6
  (AV PRO microSD 128 GB V60)
90.6 MB/s +138%
HP ZBook Studio 15 G8
  (AV Pro V60)
88.6 MB/s +133%
Asus Vivobook Pro 16X-M7600QE
  (AV Pro SD microSD 128 GB V60)
38 MB/s

沟通

一个英特尔AX200模块负责华硕Vivobook的Wi-Fi 6和蓝牙5.1。然而,本来非常快的WLAN模块在测试设备的传输速度上却低于其潜力。在具有金属外壳的笔记本电脑中,天线的定位往往特别困难。

Networking
iperf3 transmit AX12
HP ZBook Studio 15 G8
Intel Wi-Fi 6 AX201
1419 (1169min - 1609max) MBit/s +55%
Lenovo IdeaPad 5 Pro 16IHU6
Intel Wi-Fi 6 AX201
1367 (960min - 1479max) MBit/s +49%
Average Intel Wi-Fi 6 AX200
  (447 - 1645, n=127)
1104 MBit/s +21%
Gigabyte Aero 15 OLED XC
Intel Wi-Fi 6 AX200
1090 MBit/s +19%
Asus Vivobook Pro 16X-M7600QE
Intel Wi-Fi 6 AX200
915 (458min - 960max) MBit/s
iperf3 receive AX12
HP ZBook Studio 15 G8
Intel Wi-Fi 6 AX201
1363 (1311min - 1453max) MBit/s +110%
Lenovo IdeaPad 5 Pro 16IHU6
Intel Wi-Fi 6 AX201
1339 (1289min - 1364max) MBit/s +106%
Average Intel Wi-Fi 6 AX200
  (523 - 1684, n=128)
1191 MBit/s +84%
Gigabyte Aero 15 OLED XC
Intel Wi-Fi 6 AX200
1080 MBit/s +66%
Asus Vivobook Pro 16X-M7600QE
Intel Wi-Fi 6 AX200
649 (613min - 666max) MBit/s
050100150200250300350400450500550600650700750800850900950Tooltip
Asus Vivobook Pro 16X-M7600QE; iperf3 receive AX12; iperf 3.1.3: Ø649 (613-666)
Asus Vivobook Pro 16X-M7600QE; iperf3 transmit AX12; iperf 3.1.3: Ø899 (458-960)

网络摄像头

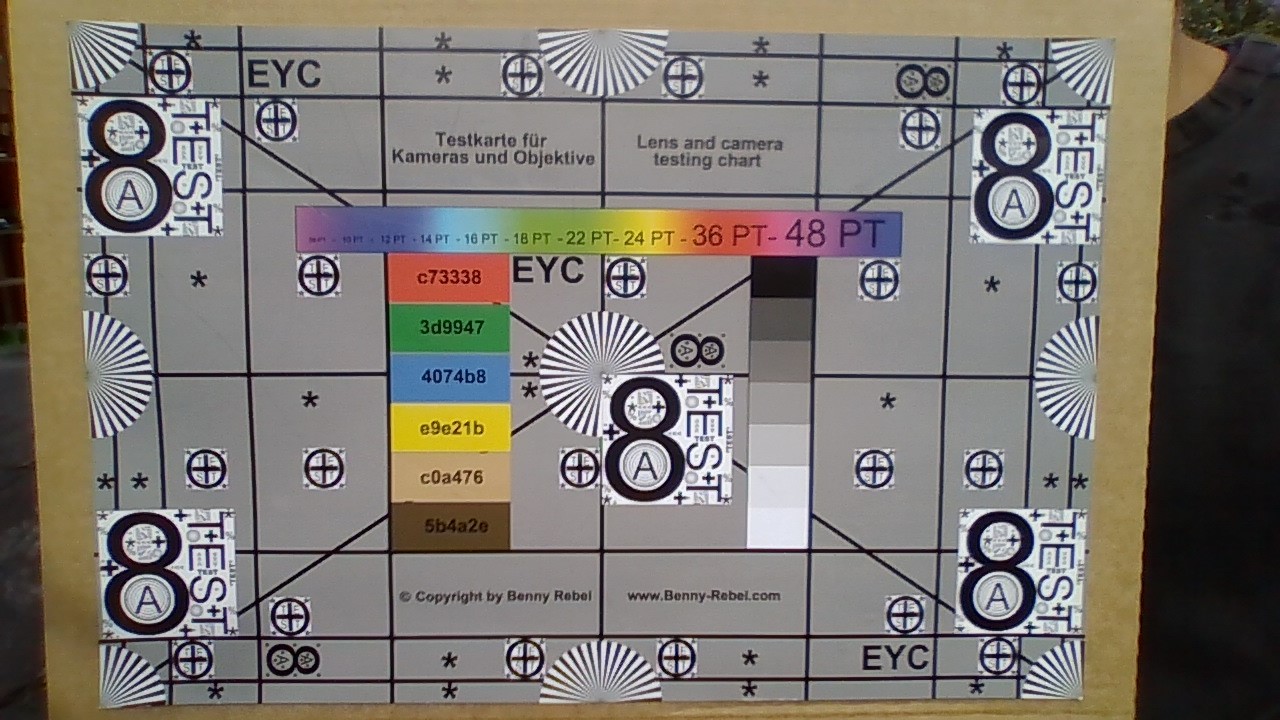

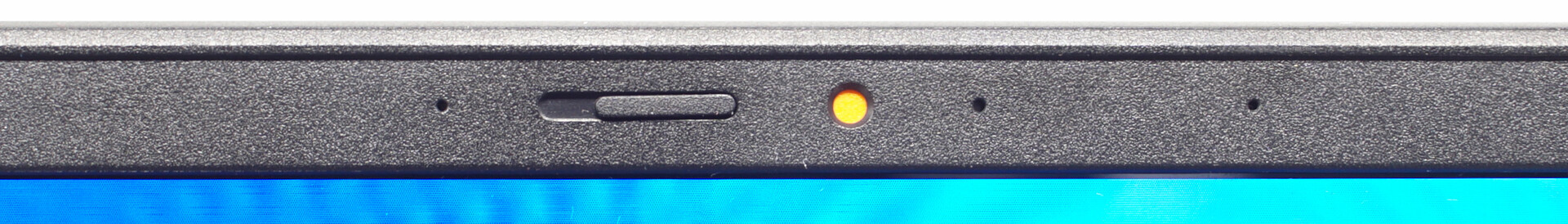

这款全能型笔记本电脑的90万像素网络摄像头显示了笔记本电脑的典型图像质量。一个机械快门可以防止通过这里的摄像头进行不必要的瞥视。麦克风和网络摄像头也可以通过键盘上的一个功能键禁用。小小的橙色LED灯显示了这两者的状态。

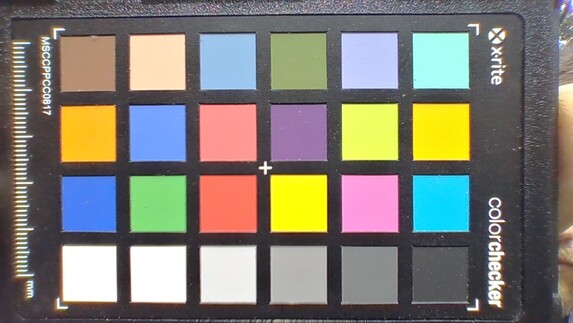

ColorChecker
25.5 ∆E
20.2 ∆E
22.7 ∆E
24.5 ∆E
21.7 ∆E
16.7 ∆E
22.4 ∆E
26.4 ∆E
19.2 ∆E
23.1 ∆E
16.7 ∆E
22.4 ∆E
25.8 ∆E
20.8 ∆E
25 ∆E
13.5 ∆E
21 ∆E
24.3 ∆E
2.3 ∆E
11.8 ∆E
20.1 ∆E
19.6 ∆E
22.6 ∆E
11.7 ∆E
ColorChecker Asus Vivobook Pro 16X-M7600QE: 20.01 ∆E min: 2.33 - max: 26.41 ∆E

安全问题

由于采用了AMD Ryzen R9,华硕Vivobook具有最新的安全功能,如SecureBoot和TPM 2.0。Windows Update报告说与Windows 11完全兼容。

集成在电源按钮上的指纹传感器可以作为登录的认证方法。

辅料

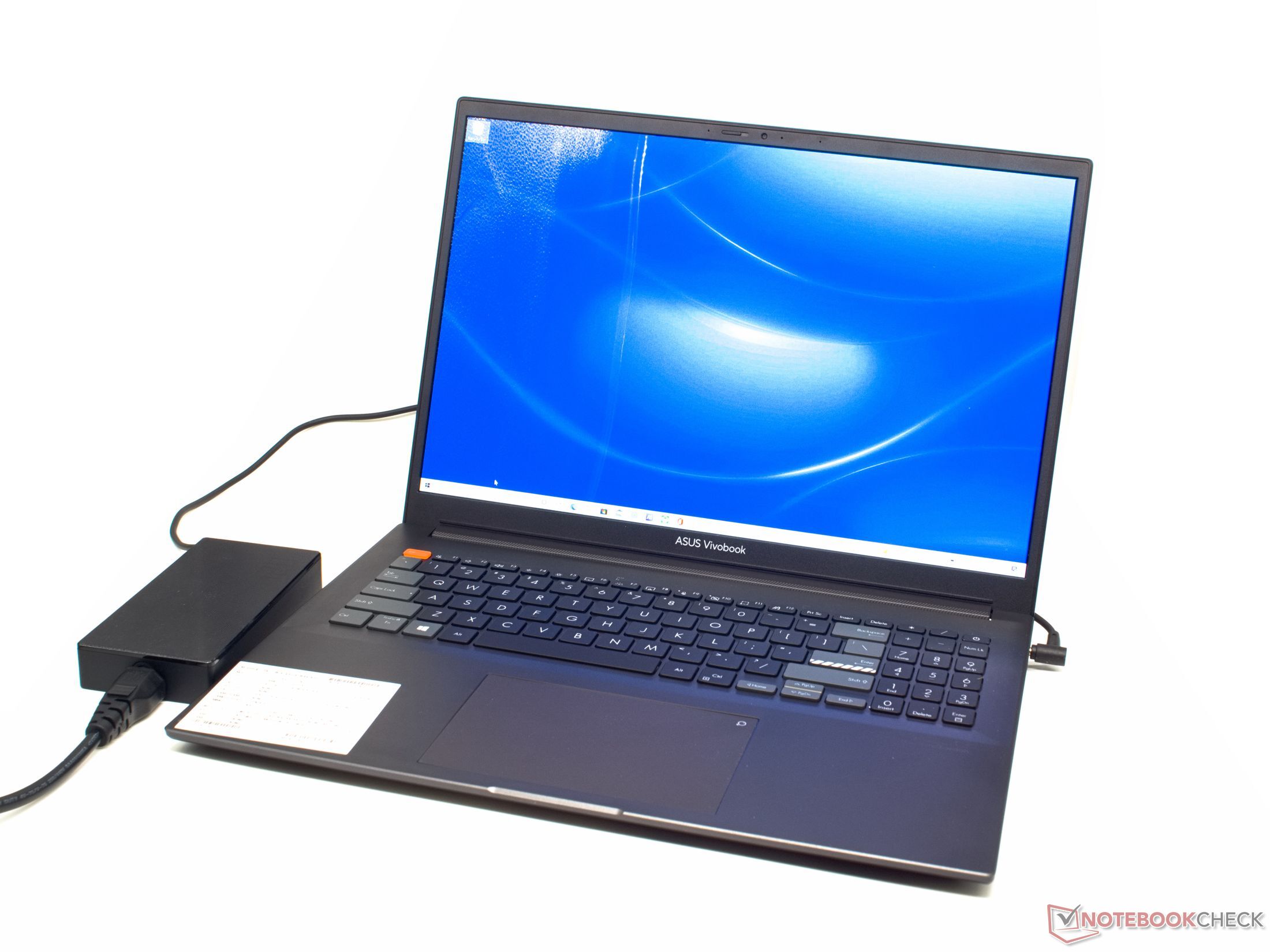

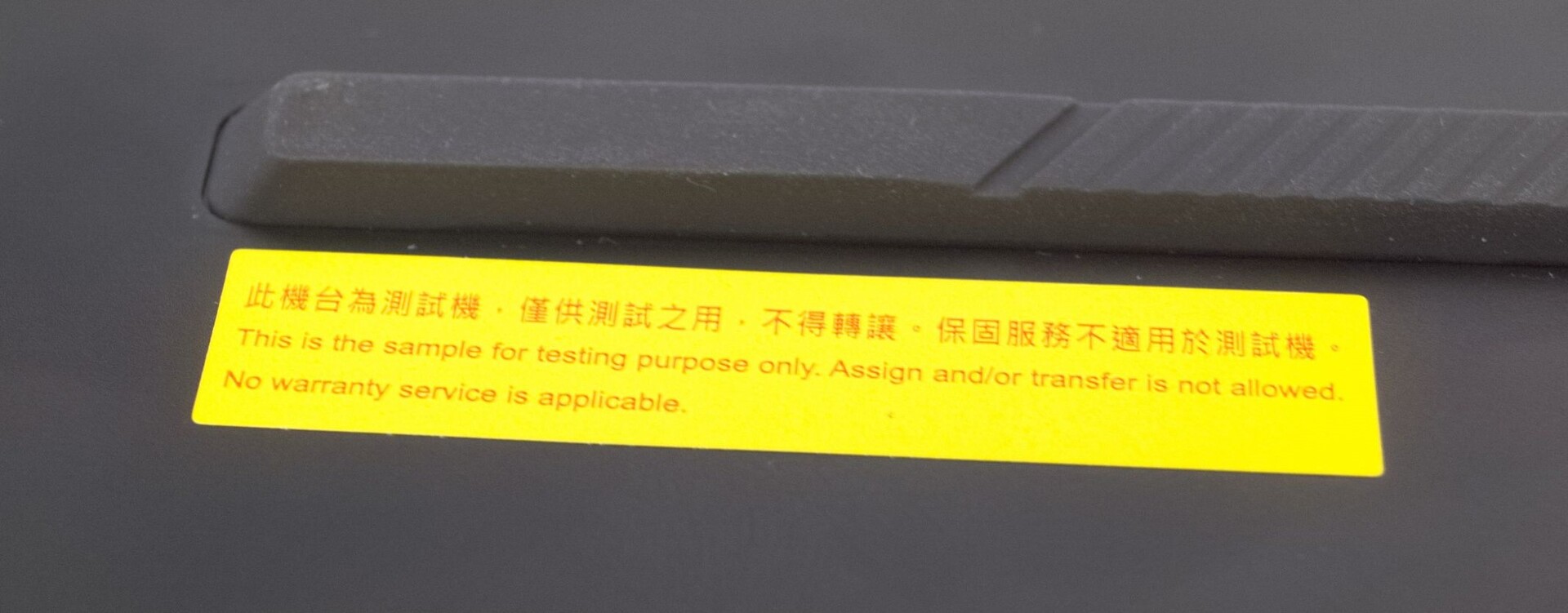

除了适当的电源装置外,我们的预生产设备没有配备任何其他附件。

维护

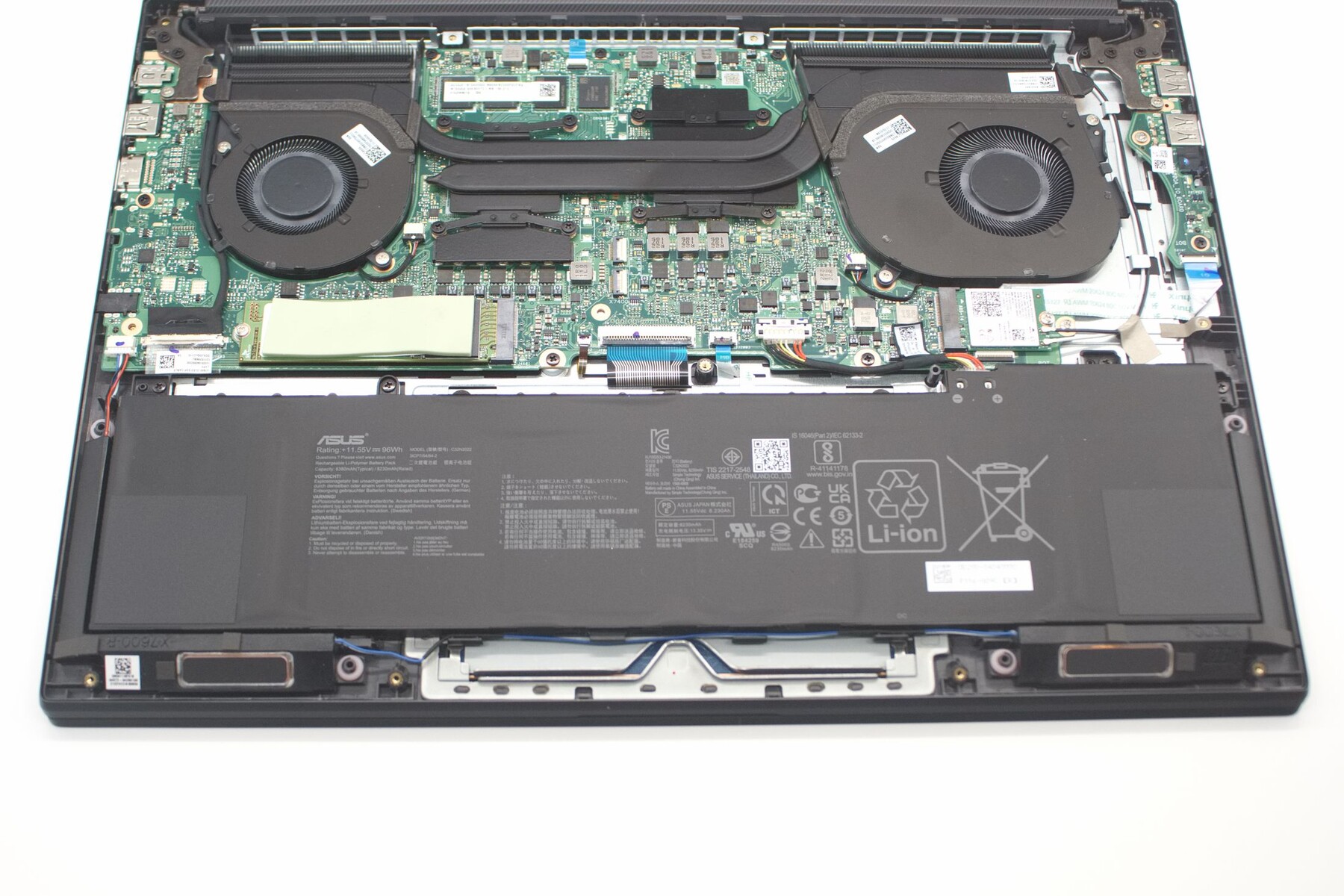

卸下11颗TX5螺丝后,可以用吸盘将下层机壳盖拆下。WLAN模块和M.2-2280 SSD可以被替换。在这个过程中,两个风扇也可以很容易地被清洁。另一方面,工作存储器是焊接的。

担保

我们的预生产设备不在任何保修范围内。通常情况下,华硕提供的设备有24个月的保修期。

输入设备--华硕Dial为创意者提供的功能

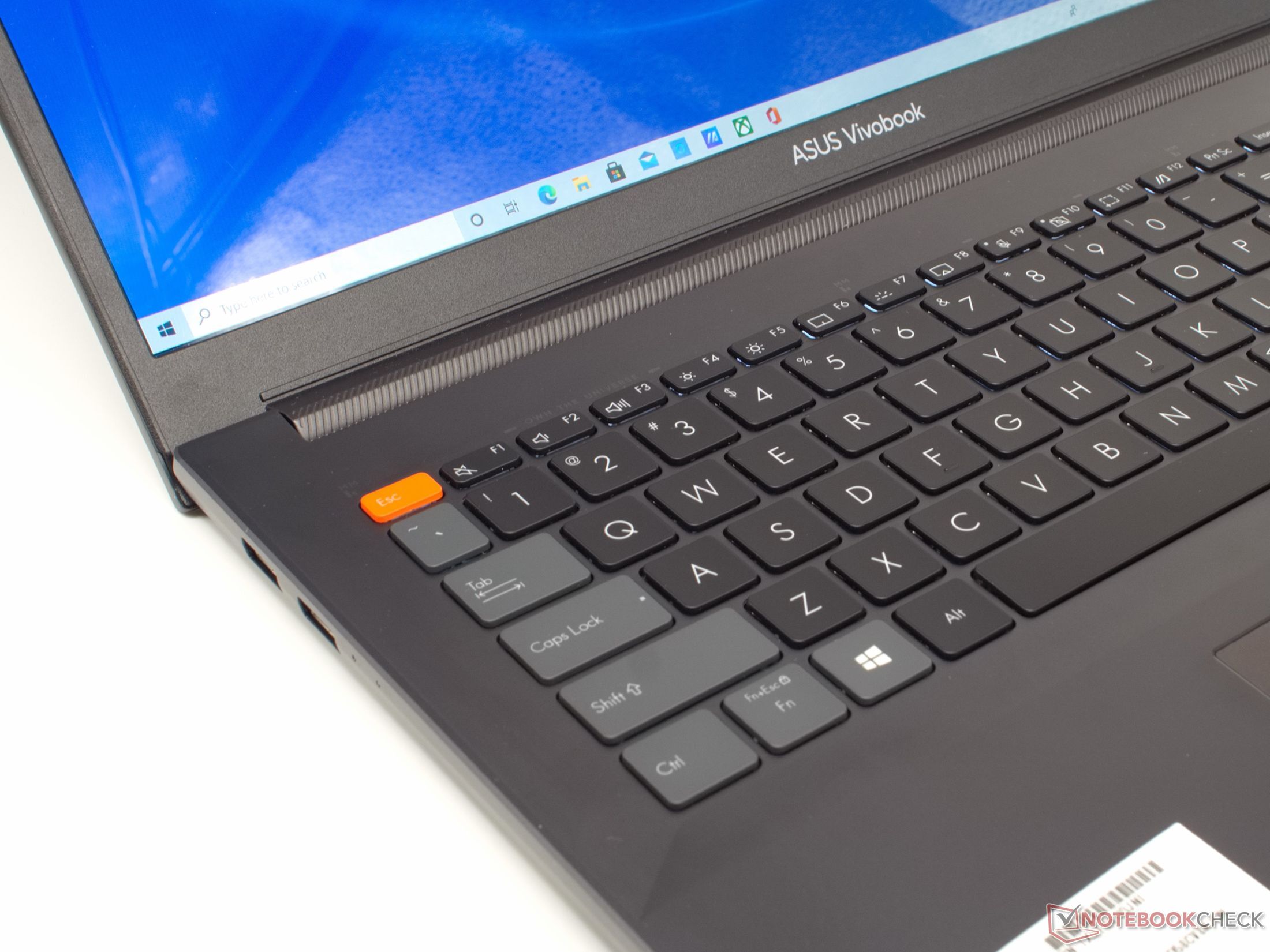

键盘

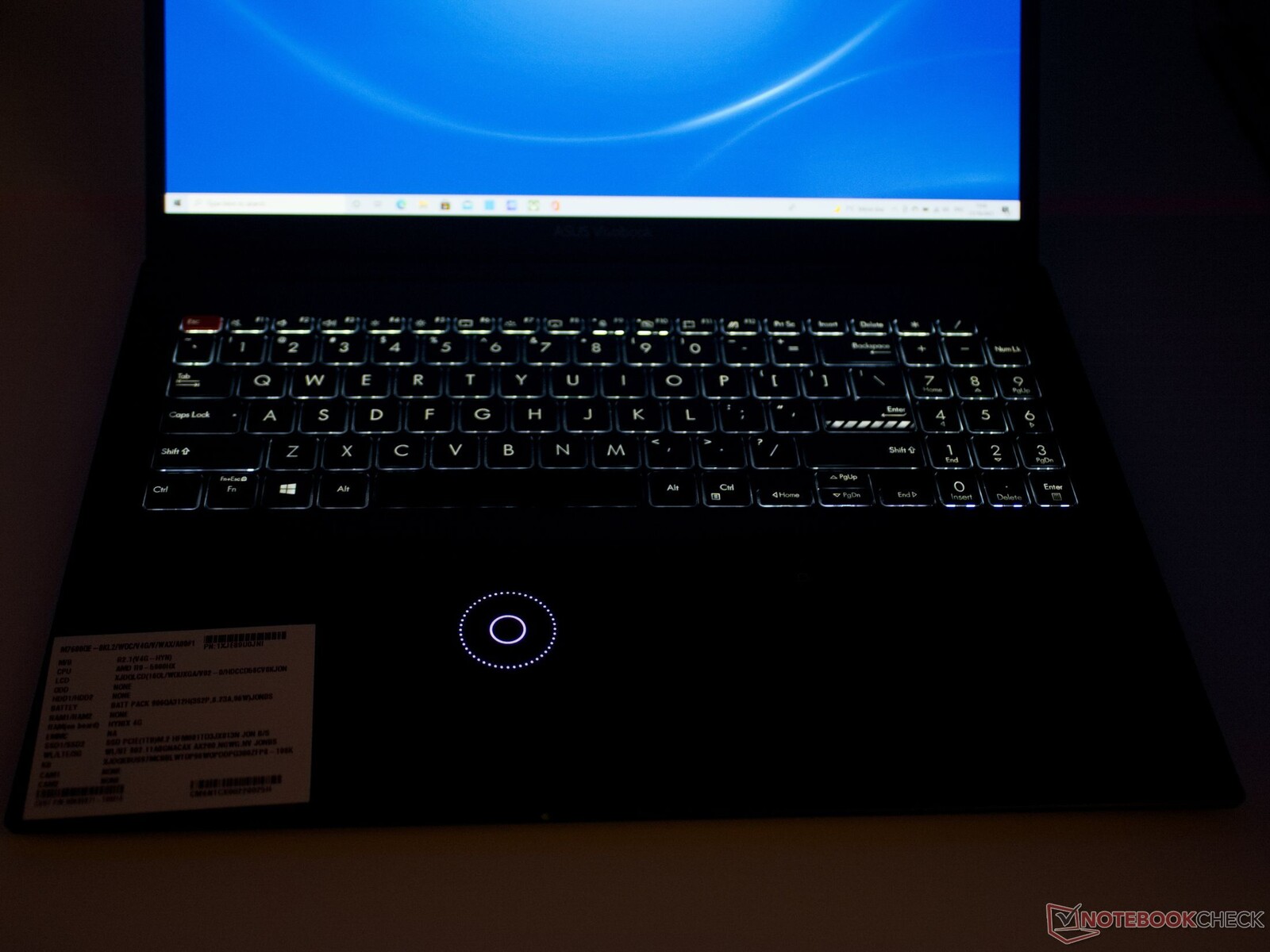

华硕Vivobook的全键盘有一个正常的尺寸,它有16毫米的按键。它很容易工作,具有令人愉快的高输入阻力和明显的触觉反馈。由于有背光灯,键盘很安静,即使在黑暗中也很容易使用。用于打开和关闭麦克风和摄像头的功能键,以及用于屏幕截图菜单和MyAsus应用程序的功能键使键盘的功能更加完善。

触摸板

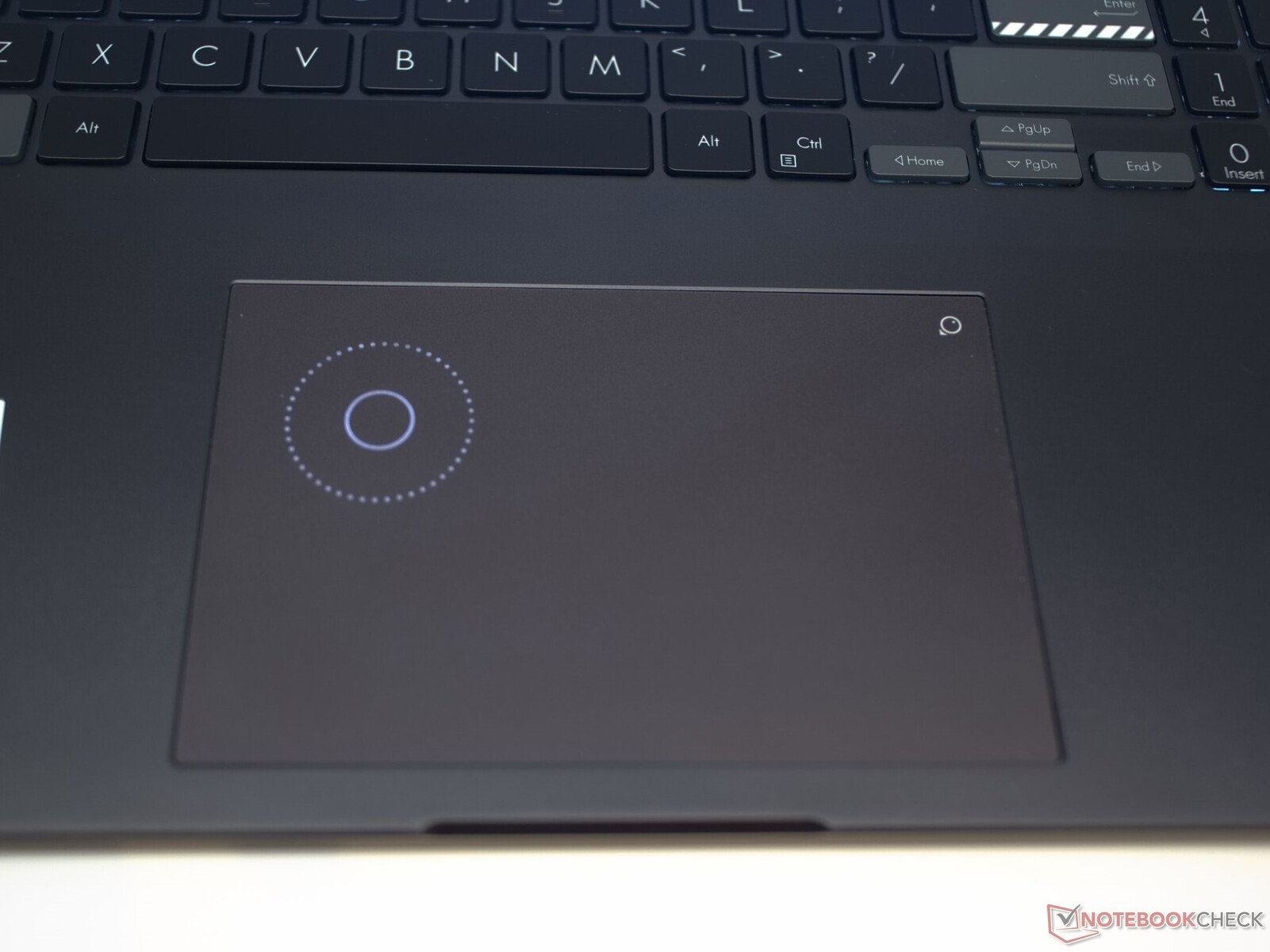

13×8.5厘米(5.1×3.4英寸)的ClickPad以其反应速度和光滑的表面令人信服。从右上角轻扫就可以进入一个额外的控制元素。华硕拨号盘可以控制屏幕亮度、音量和其他设置,以及启动应用程序。华硕拨号盘也可以在一些Adobe程序中使用。另外,华硕拨号也可以像微软Surface拨号那样进行配置。

显示屏--WQUXGA和OLED在60赫兹下产生了非常好的画面

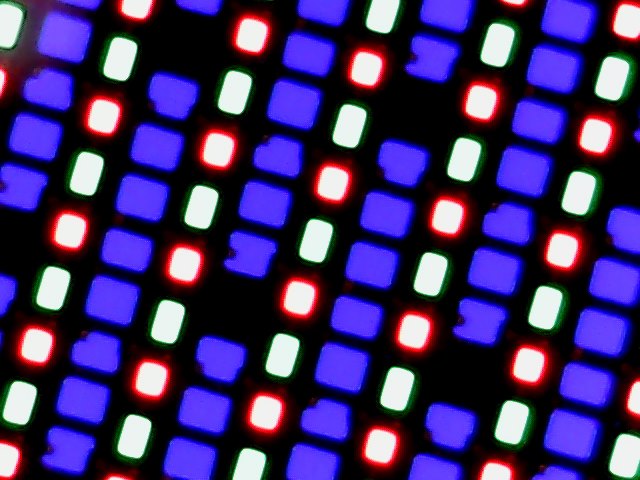

OLED面板的像素网格
OLED面板的像素网格

华硕Vivobook的OLED显示屏具有400cd/m²的亮度,以16:10的格式提供了3840×2400像素的非常明亮和多彩的画面。按照16.1英寸的尺寸计算,这导致像素密度为281 ppi。因此,单个像素难以识别。60 FPS的最大帧率对于作为媒体设计师的笔记本电脑的预期用途来说可能太低。在OLED屏幕上没有光晕或照明不足的区域。测量结果还显示出非常好的照明效果。

396
cd/m²
392
cd/m²
392
cd/m²
397
cd/m²
392
cd/m²
398
cd/m²
398
cd/m²
397
cd/m²
402
cd/m²
Distribution of brightness
Samsung ATNA60YV02-0 tested with X-Rite i1Pro 2
Maximum: 402 cd/m² (Nits) Average: 396 cd/m² Minimum: 5.1 cd/m²
Brightness Distribution: 98 %
Center on Battery: 392 cd/m²
Contrast: ∞:1 (Black: 0 cd/m²)
ΔE Color 1.74 | 0.5-29.43 Ø4.91, calibrated: 1.85
ΔE Greyscale 1.77 | 0.5-98 Ø5.2
96.9% AdobeRGB 1998 (Argyll 2.2.0 3D)
100% sRGB (Argyll 2.2.0 3D)
99.8% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.22
Asus Vivobook Pro 16X-M7600QE
Samsung ATNA60YV02-0, OLED, 3840x2400, 16.1"
HP ZBook Studio 15 G8
SDC4145, OLED, 3840x2160, 15.6"
Huawei MateBook 16 R7 5800H
BOE TV160DKT-NH0, , 2520x1680, 16"
Gigabyte Aero 15 OLED XC
SDCA029, OLED, 3840x2160, 15.6"
Lenovo IdeaPad 5 Pro 16IHU6
Lenovo LEN160WQXGA, IPS, 2560x1600, 16"
Dell XPS 15 9510 11800H RTX 3050 Ti OLED
SDC414D, OLED, 3456x2160, 15.6"
Display
-1%
-25%
1%
-17%
0%
Display P3 Coverage
99.8
99.9
0%
63.1
-37%
99.9
0%
74
-26%
99.9
0%
sRGB Coverage
100
100
0%
94.9
-5%
100
0%
98.7
-1%
100
0%
AdobeRGB 1998 Coverage
96.9
95.3
-2%
65.1
-33%
98.5
2%
74.5
-23%
98.1
1%
Response Times
87%
-1590%
97%
-425%
-40%
Response Time Grey 50% / Grey 80% *
2 ?(1, 1)
2.4 ?(1, 1.4)
-20%
41.2 ?(19.2, 22)
-1960%
2.4 ?(1.2, 1.2)
-20%
13 ?(6, 7)
-550%
3.6 ?(2, 1.6)
-80%
Response Time Black / White *
2 ?(1, 1)
2.4 ?(1.1, 1.3)
-20%
26.4 ?(14, 12.4)
-1220%
1.8 ?(1, 0.8)
10%
8 ?(4, 4)
-300%
2.8 ?(1.2, 1.6)
-40%
PWM Frequency
60 ?(80)
240.4 ?(52)
301%
240 ?(79)
300%
59.5 ?(99)
-1%
Screen
-67%
-1%
-26%
-30%
-11%
Brightness middle
392
379.6
-3%
357
-9%
442
13%
356
-9%
362
-8%
Brightness
396
380
-4%
349
-12%
452
14%
322
-19%
367
-7%
Brightness Distribution
98
95
-3%
93
-5%
95
-3%
80
-18%
97
-1%
Black Level *
0.21
0.05
0.27
0.06
Colorchecker dE 2000 *
1.74
5.15
-196%
1.6
8%
2.69
-55%
2.4
-38%
2.1
-21%
Colorchecker dE 2000 max. *
3.18
7.79
-145%
3.9
-23%
8.27
-160%
4.42
-39%
4.1
-29%
Colorchecker dE 2000 calibrated *
1.85
3.1
-68%
0.6
68%
2.59
-40%
2.5
-35%
Greyscale dE 2000 *
1.77
2.6
-47%
2.4
-36%
0.9
49%
2.81
-59%
1.4
21%
Gamma
2.22 99%
1.99 111%
2.14 103%
2.172 101%
2.4 92%
2.18 101%
CCT
6483 100%
6166 105%
6728 97%
6434 101%
6294 103%
6608 98%
Contrast
1700
8840
1319
6033
Color Space (Percent of AdobeRGB 1998)
99
Color Space (Percent of sRGB)
100
Total Average (Program / Settings)
6% / -16%
-539% / -272%
24% / 8%
-157% / -98%
-17% / -15%

* ... smaller is better

OLED显示器的无限对比度从来没有让人失望过。同时,Adobe、P3和sRGB色彩空间几乎100%覆盖。出厂时的平均色彩偏差只有ΔΕ1.74,显示器的校准效果非常好。我们创建的色彩配置文件只能改善灰度的表现,但在这个过程中,色彩的再现会略有恶化。

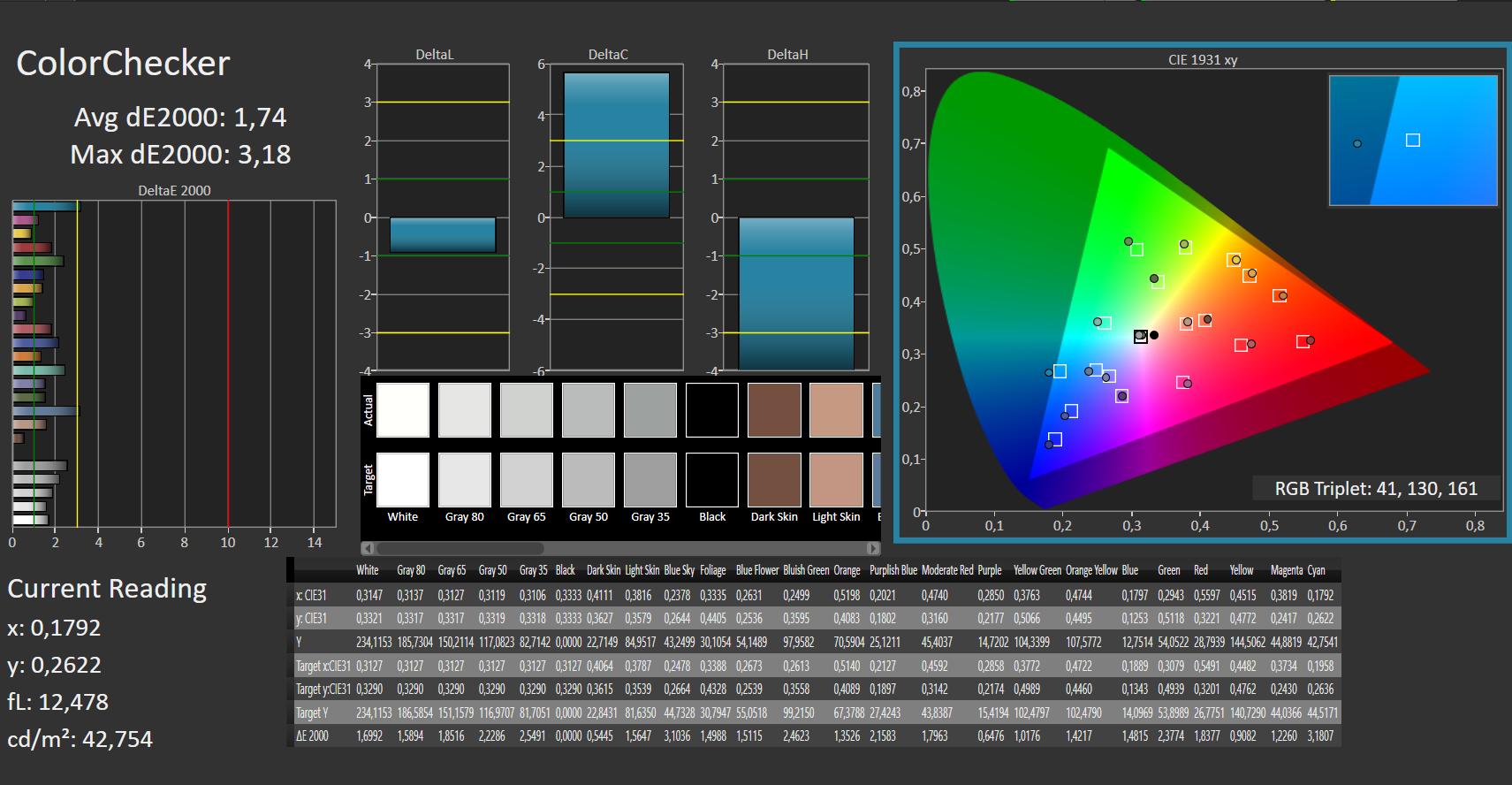

卡尔曼色
卡尔曼色
卡尔曼色彩校准
卡尔曼色彩校准

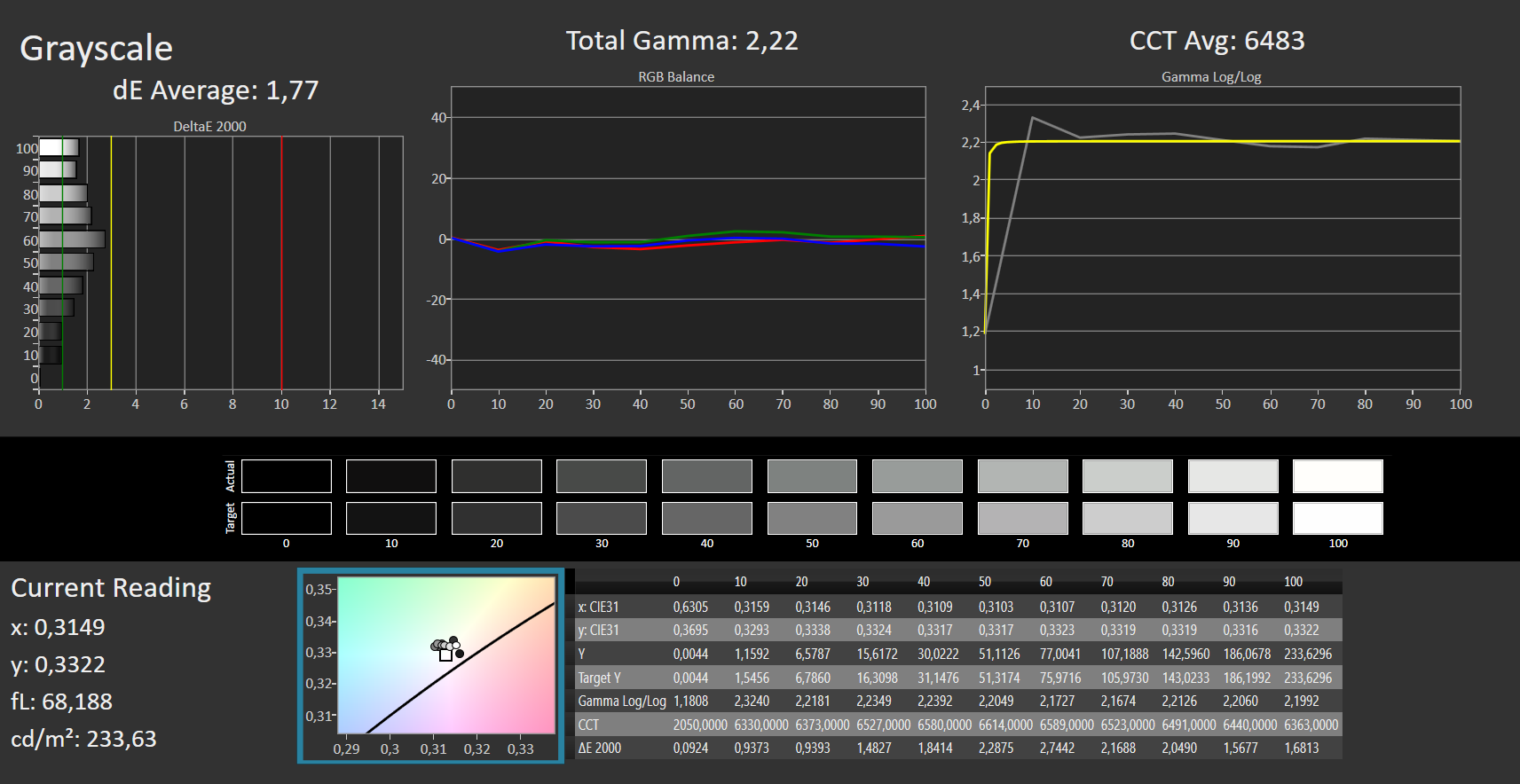

卡尔曼灰度
卡尔曼灰度

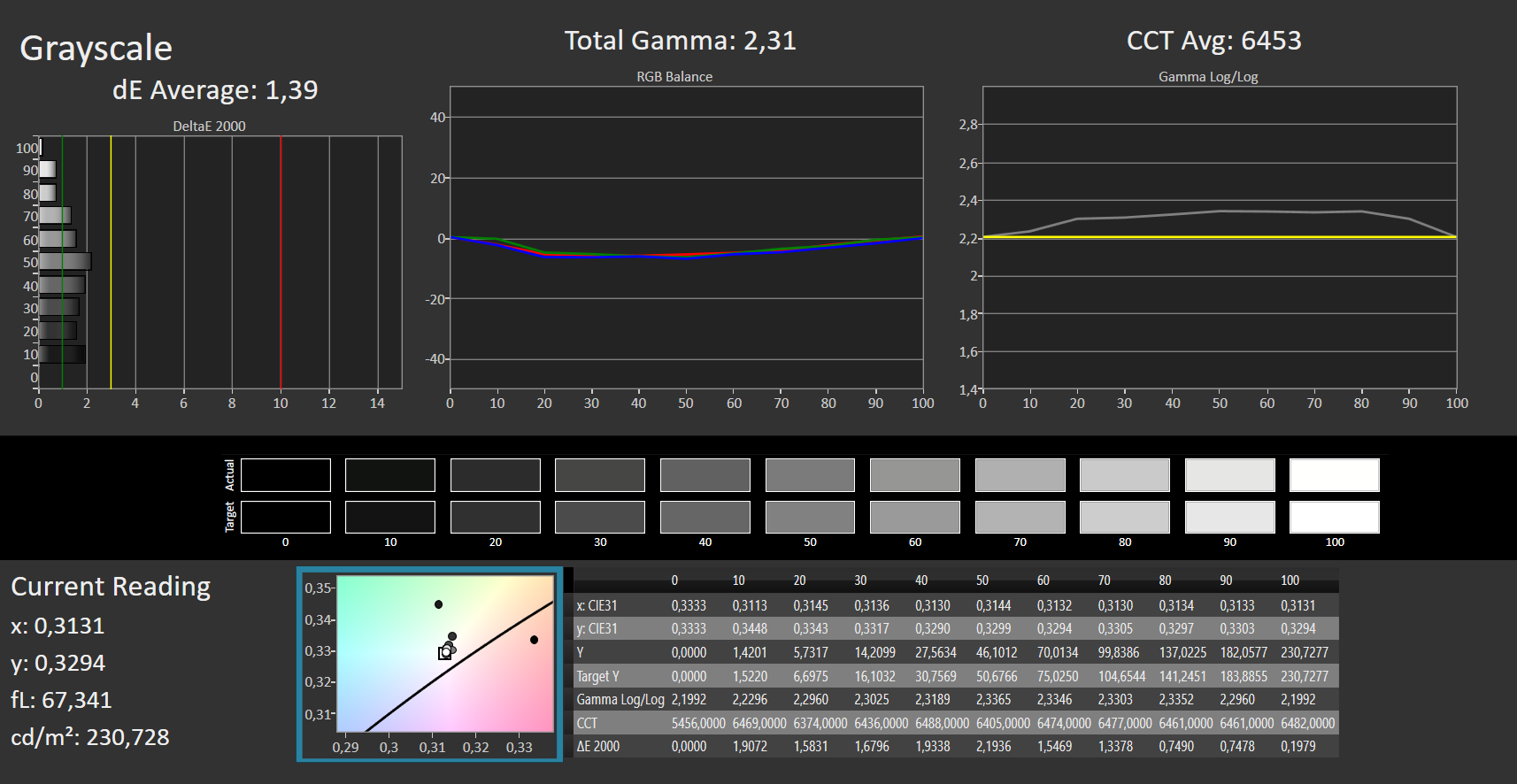

卡尔曼灰度标定
卡尔曼灰度标定

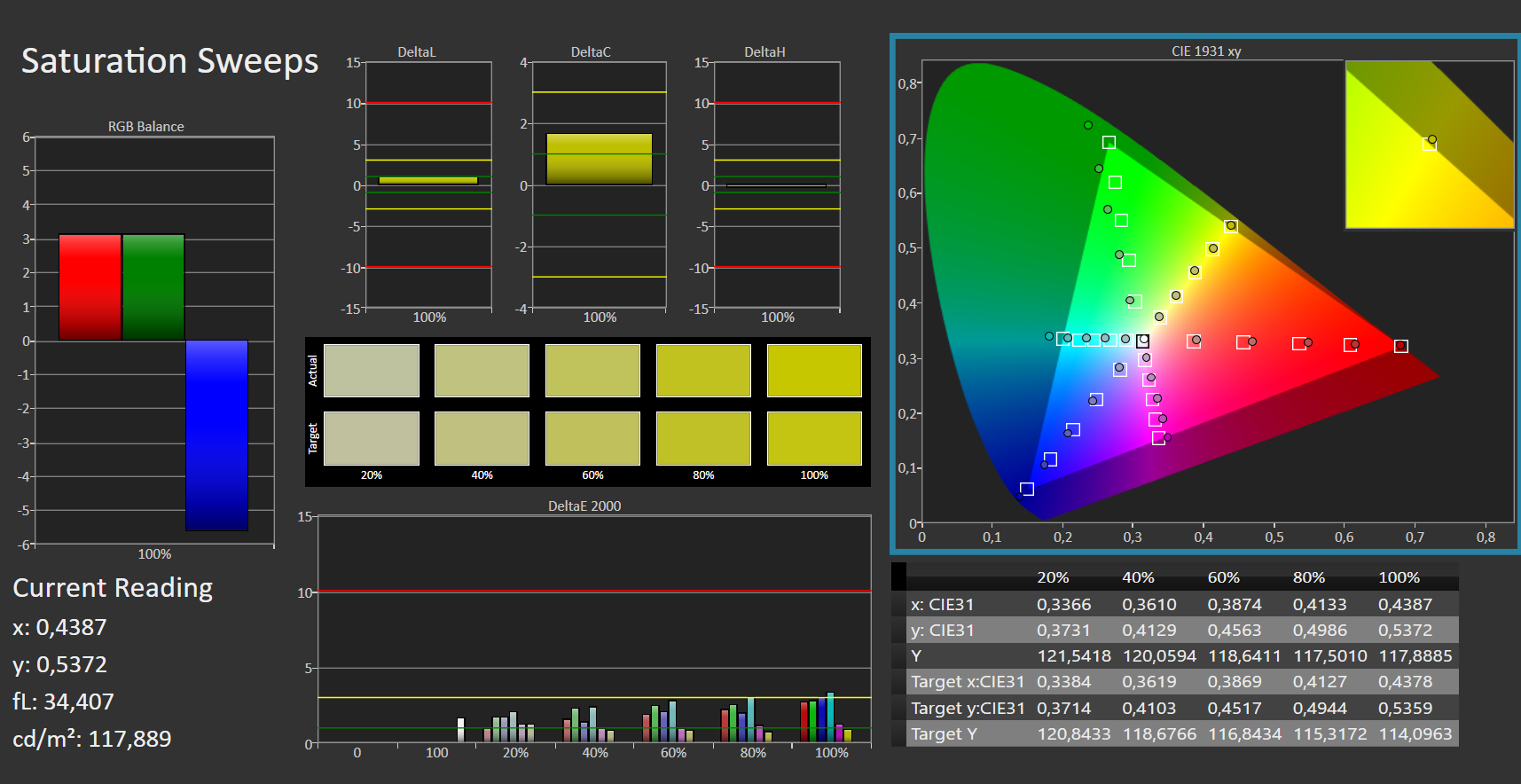

卡尔曼饱和度
卡尔曼饱和度

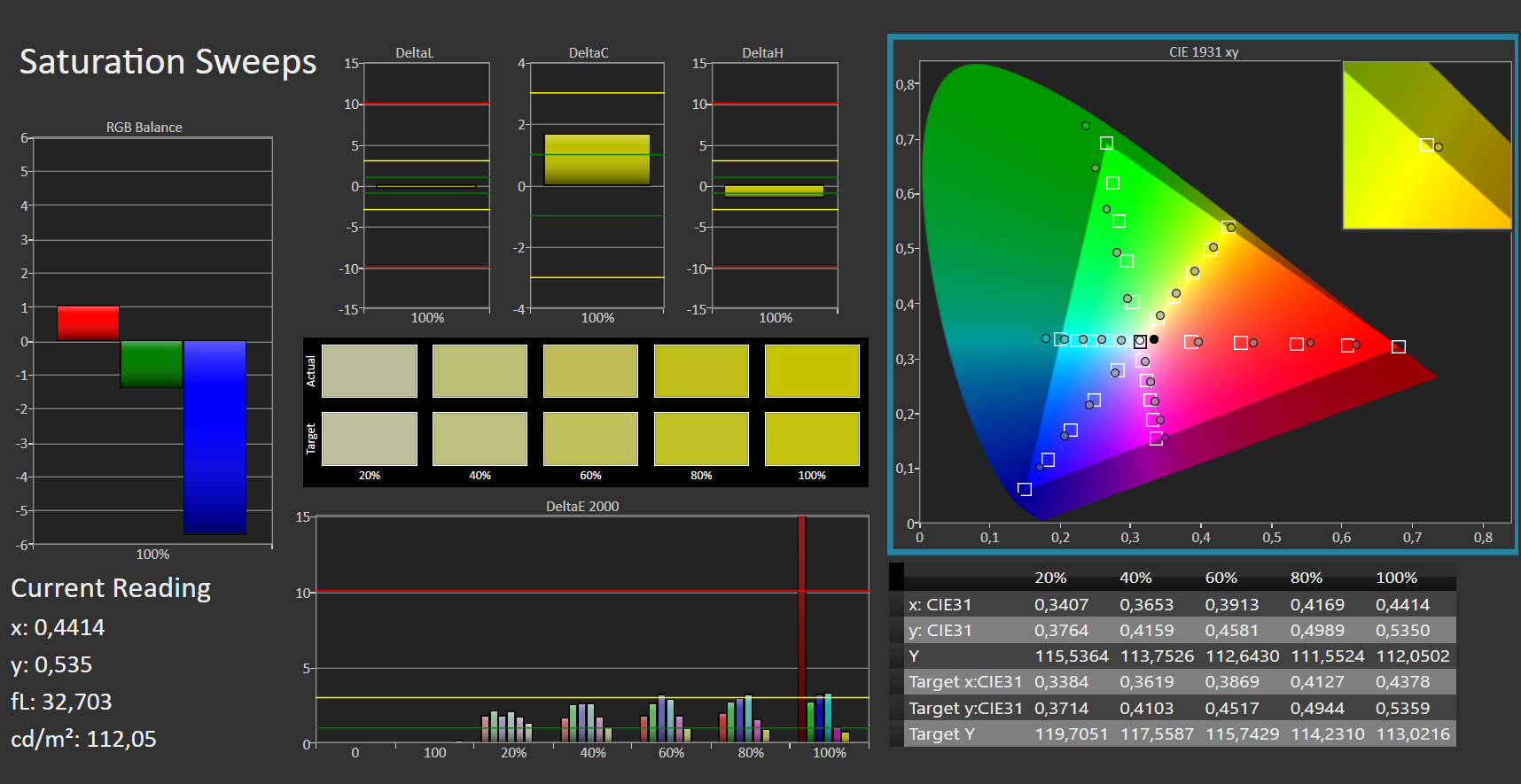

卡尔曼饱和度校准
卡尔曼饱和度校准
华硕Vivobook与sRGB色彩空间的对比
华硕Vivobook与sRGB色彩空间的对比
华硕Vivobook与Adobe色彩空间的对比
华硕Vivobook与Adobe色彩空间的对比
华硕Vivobook vs. DisplayP3
华硕Vivobook vs. DisplayP3

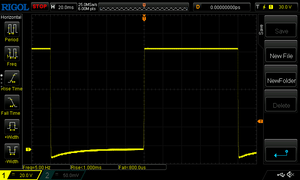

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.
       Response Time Black to White
2 ms ... rise ↗ and fall ↘ combined↗ 1 ms rise
↘ 1 ms fall
The screen shows very fast response rates in our tests and should be very well suited for fast-paced gaming.
In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 7 % of all devices are better.
This means that the measured response time is better than the average of all tested devices (20.9 ms).
       Response Time 50% Grey to 80% Grey
2 ms ... rise ↗ and fall ↘ combined↗ 1 ms rise
↘ 1 ms fall
The screen shows very fast response rates in our tests and should be very well suited for fast-paced gaming.
In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 6 % of all devices are better.
This means that the measured response time is better than the average of all tested devices (32.8 ms).

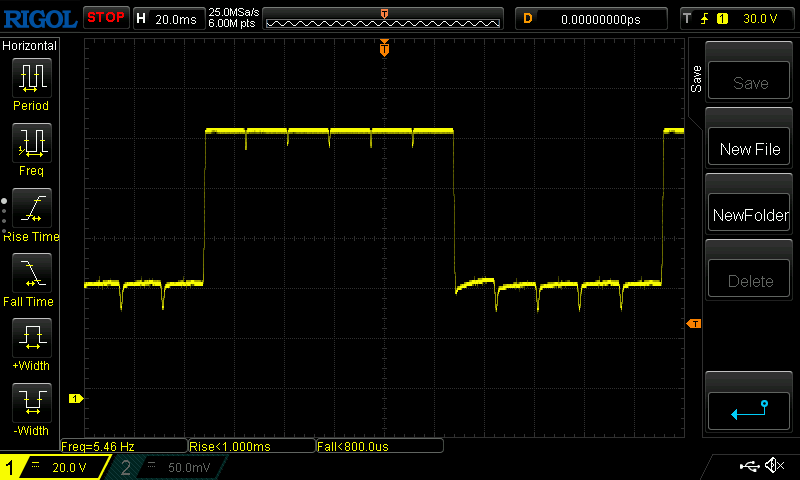

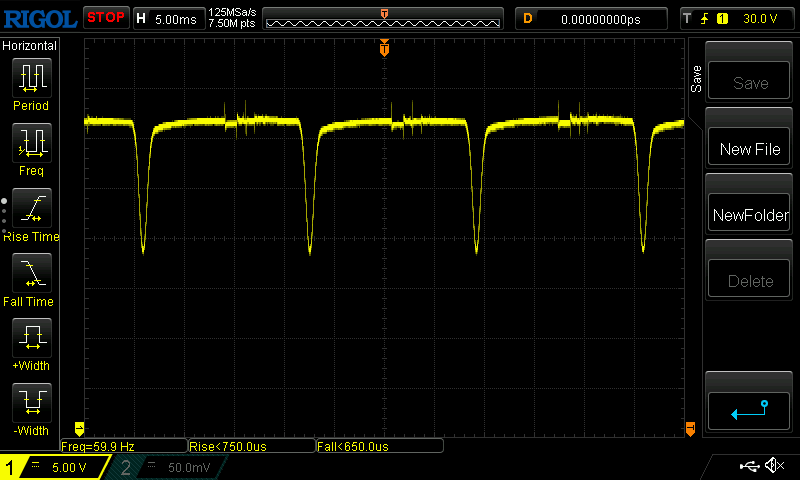

测试中发现的闪烁是由于所使用的显示技术造成的。在OLED显示器中,图像通常逐行更新。在这个过程中,图像的一个狭窄区域被短暂关闭。根据亮度设置,更多或更宽的条纹也会变暗。然而,与PWM控制的背光相比,闪烁在某种程度上对眼睛更容易,因为在这个过程中,整个显示屏不会变暗。

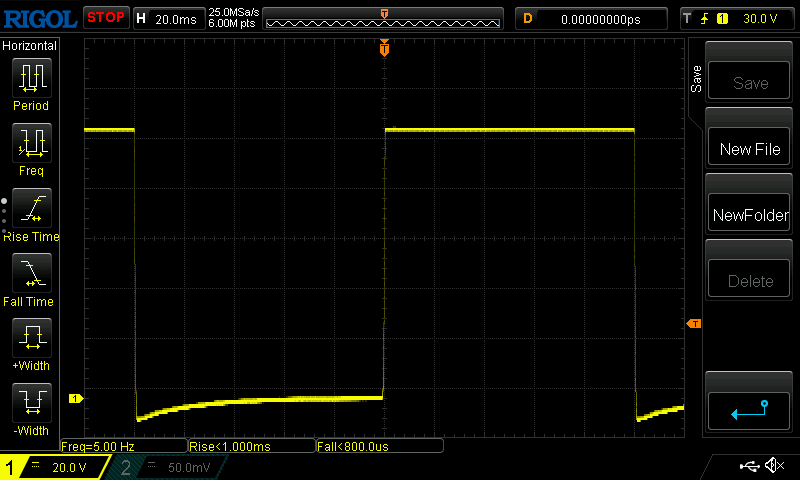

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM detected 60 Hz ≤ 80 % brightness setting

The display backlight flickers at 60 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 80 % and below. There should be no flickering or PWM above this brightness setting.

The frequency of 60 Hz is very low, so the flickering may cause eyestrain and headaches after extended use.

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8706 (minimum: 5 - maximum: 343500) Hz was measured.

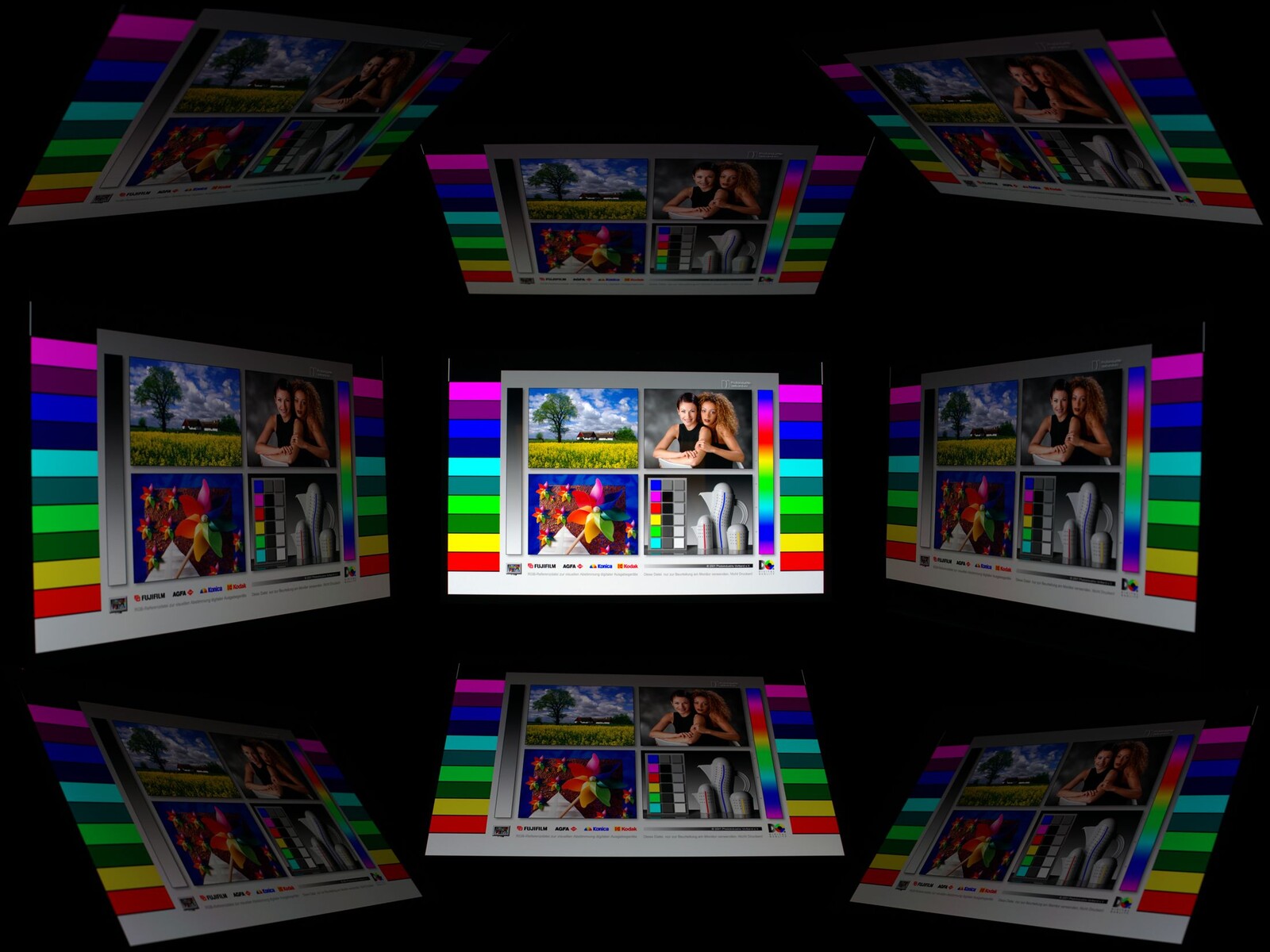

作为OLED显示屏的典型代表,华硕Vivobook的屏幕从各个方向都很容易阅读。然而,在尖锐的视角下会出现轻微的彩虹效应。尽管显示屏亮度很高,但光亮的显示屏表面使得在户外使用该笔记本很困难。反射和折射使得在错误的观察角度下无法阅读显示屏。

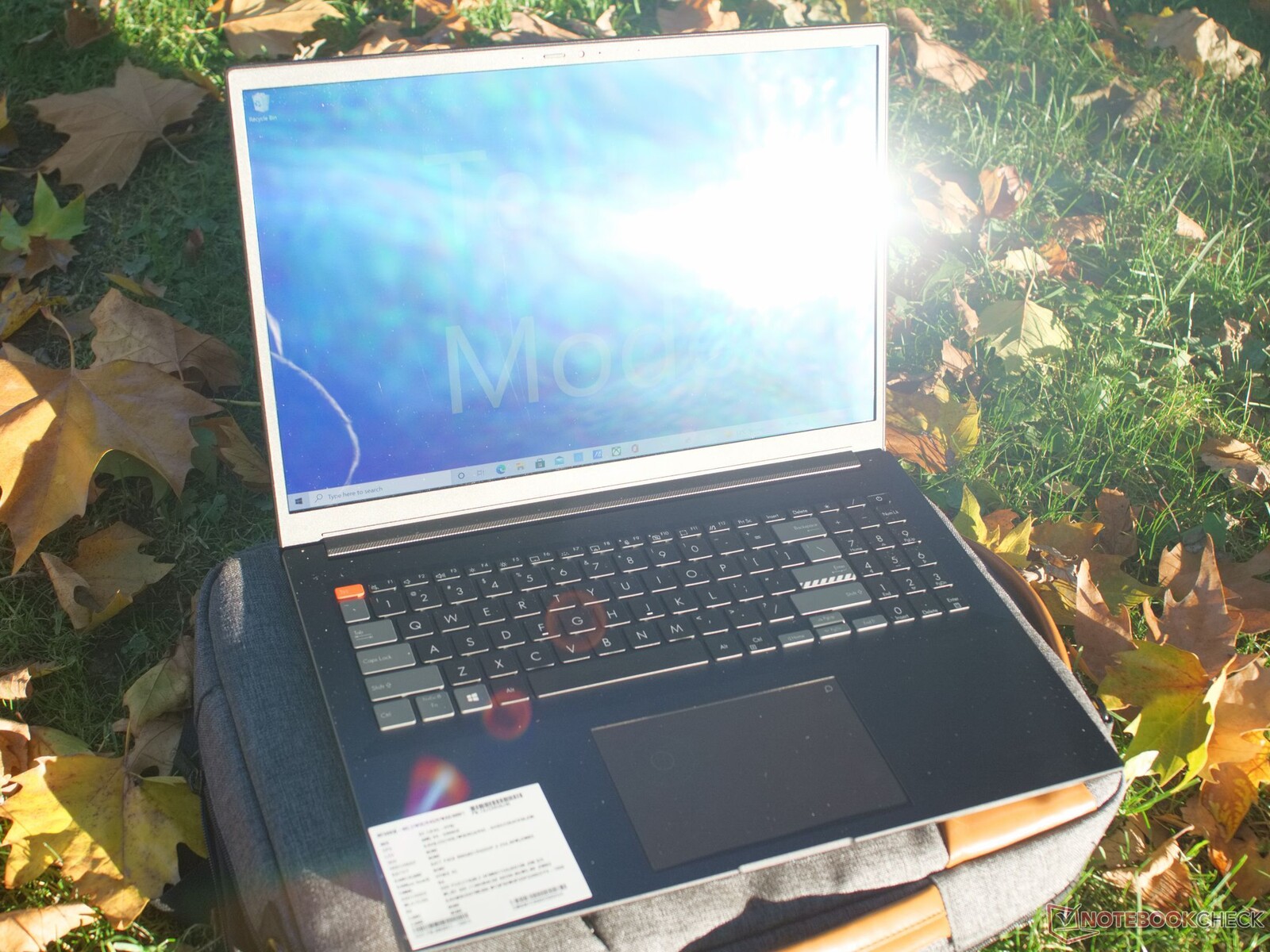

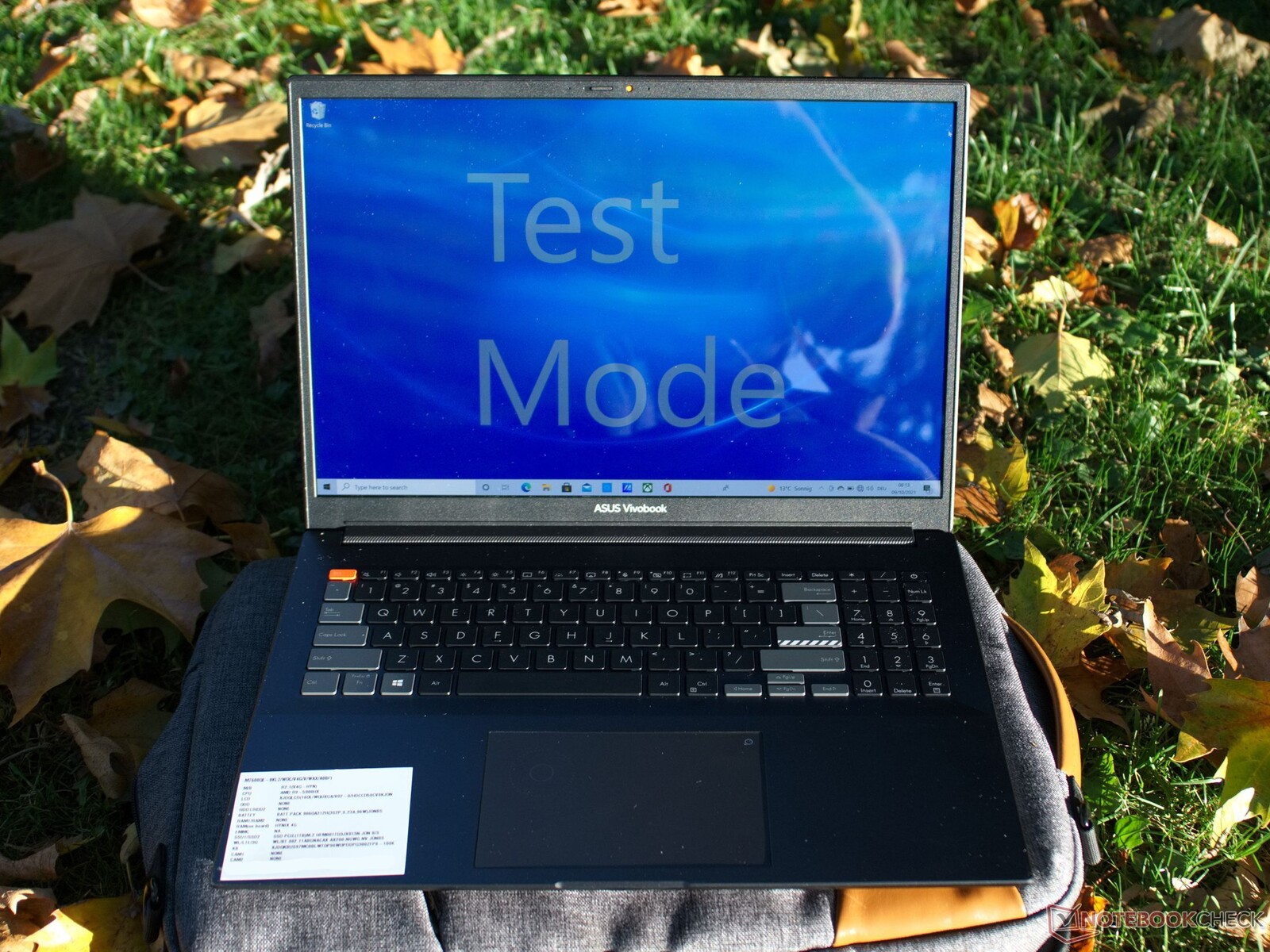

户外使用华硕Vivobook Pro
户外使用华硕Vivobook Pro
户外使用华硕Vivobook Pro
户外使用华硕Vivobook Pro
华硕Vivobook Pro的可视角度组件
华硕Vivobook Pro的可视角度组件


软件 - MyAsus一直要求注册

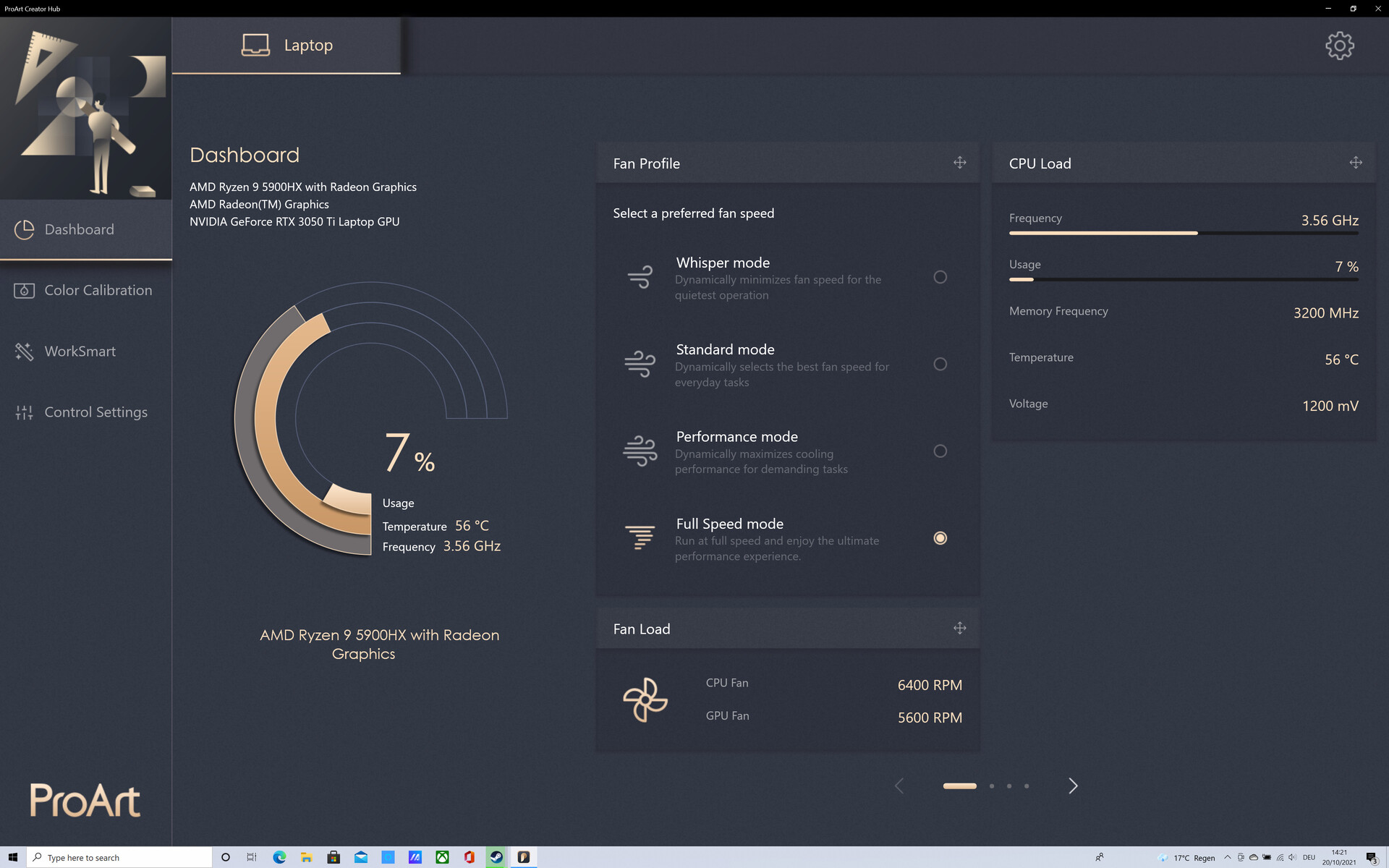

华硕Vivobook上预装了两个程序,可以用来设置各种硬件组件的设置。在ProArt Creator Hub中,你主要可以调整色彩还原、华硕表盘的功能和性能控制。

MyAsus应用程序,也可以通过其中一个功能键进入,提供很多设置。在那里,可以对屏幕、扬声器、电池、电源控制等进行设置。然而,该应用程序总是要求用华硕账户登录或通过Facebook或Google链接。因此,我们在其余测试中没有使用MyAsus应用程序。

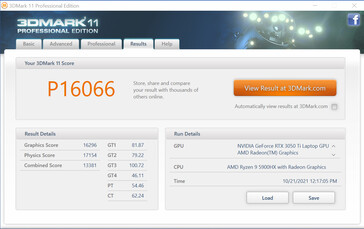

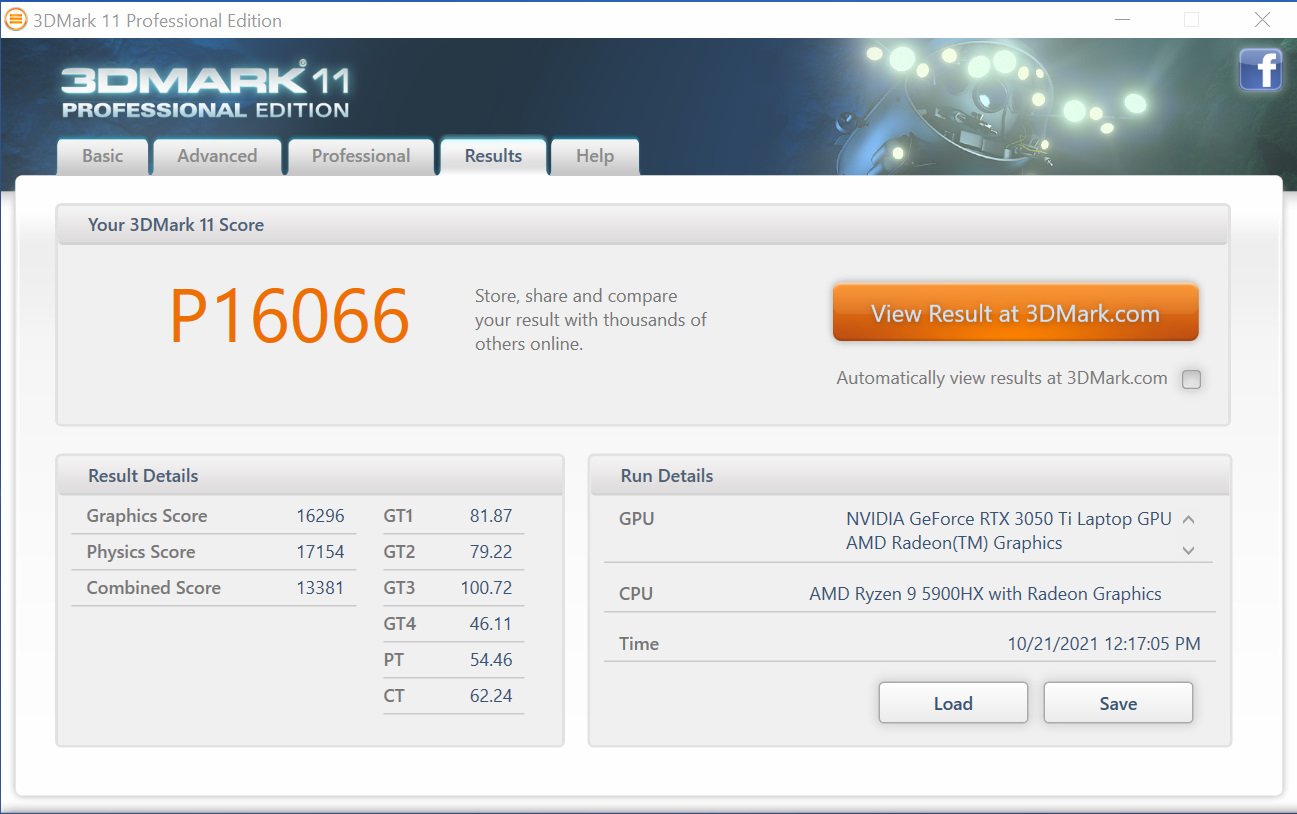

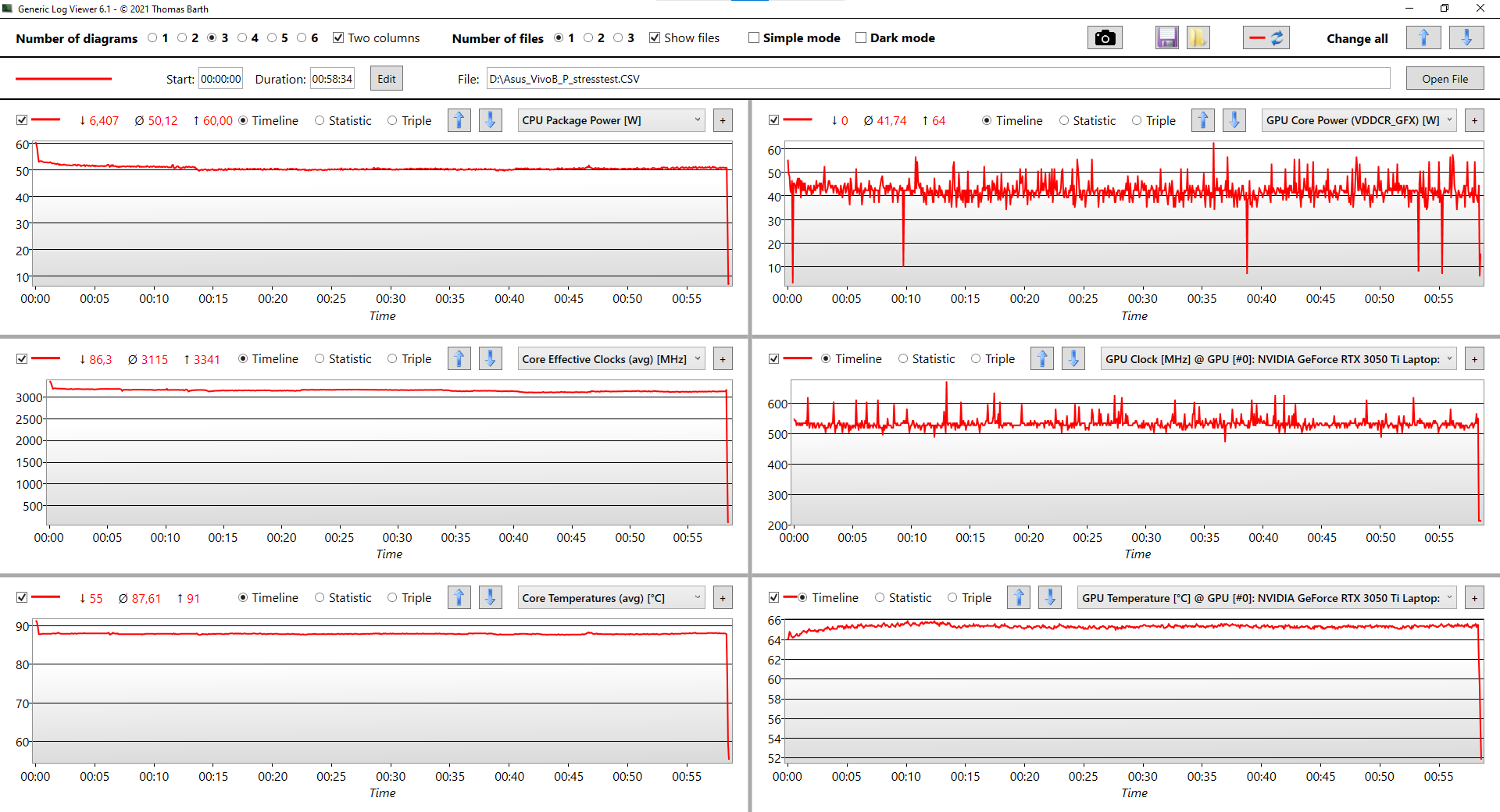

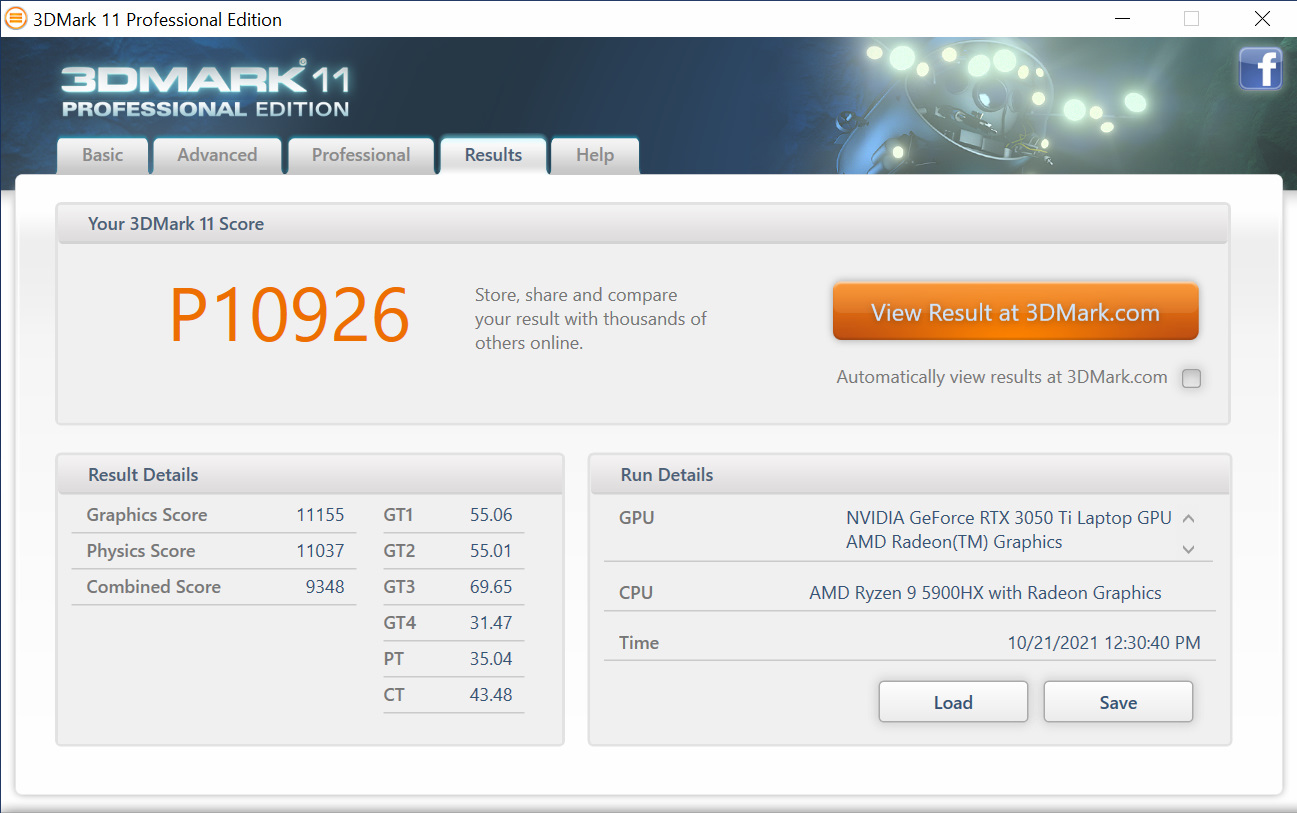

性能 - 54瓦的Ryzen R9让人信服

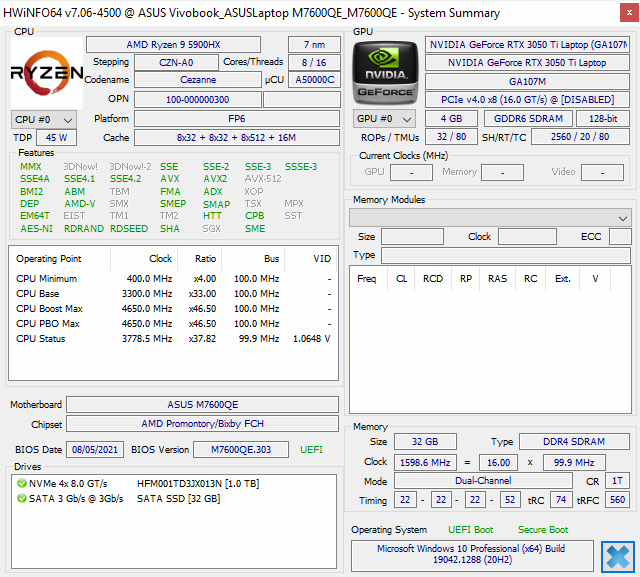

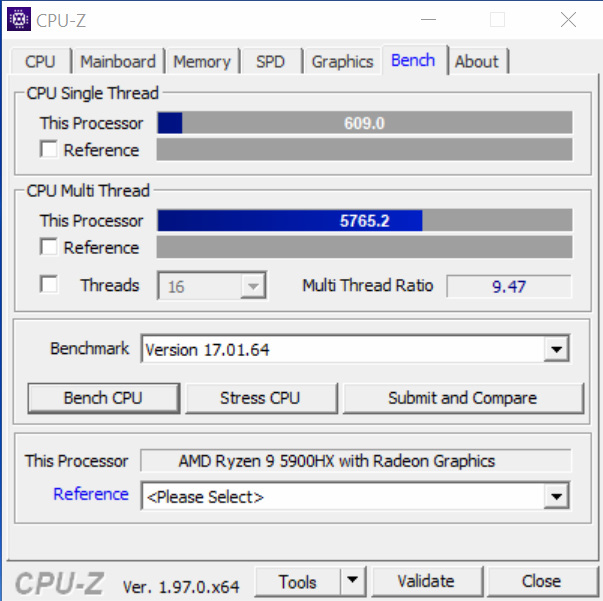

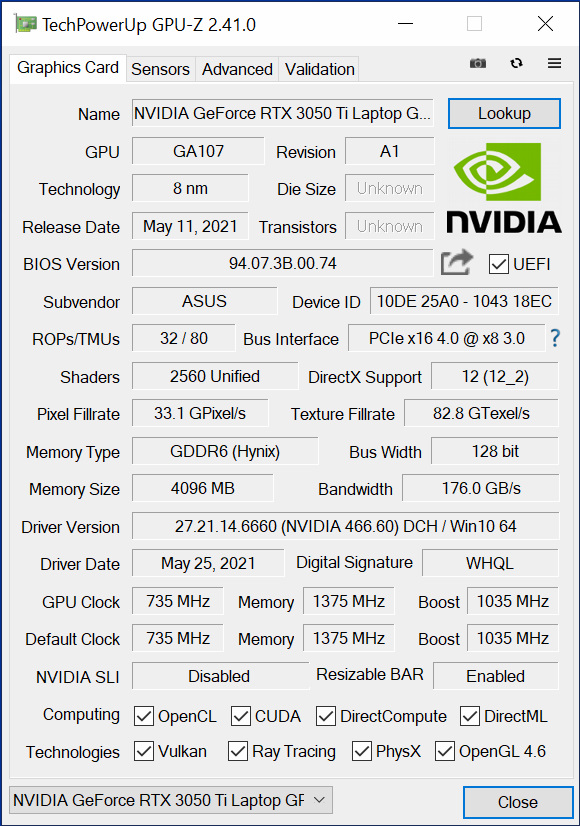

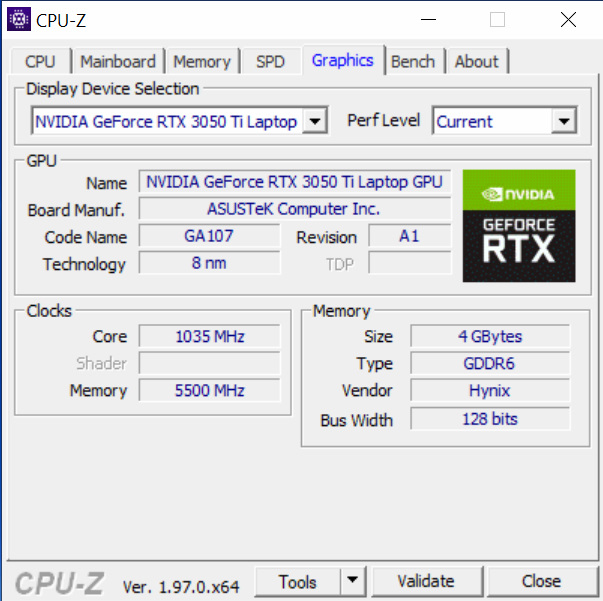

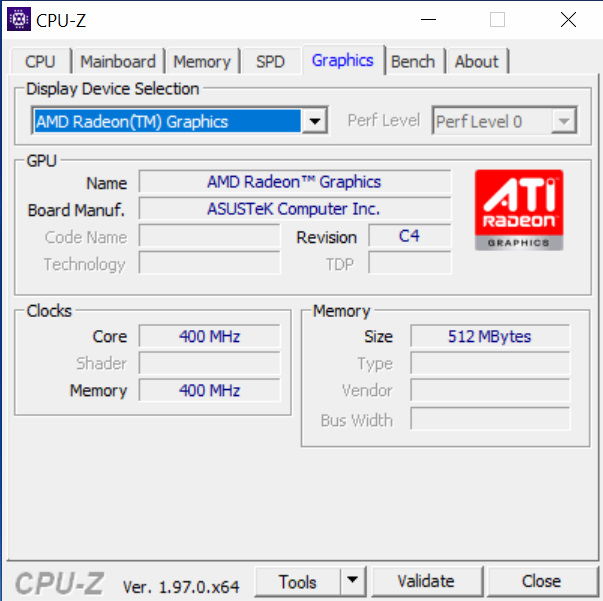

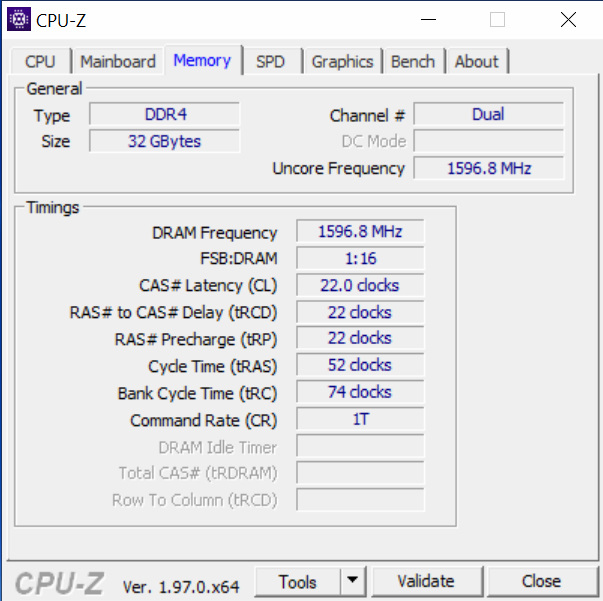

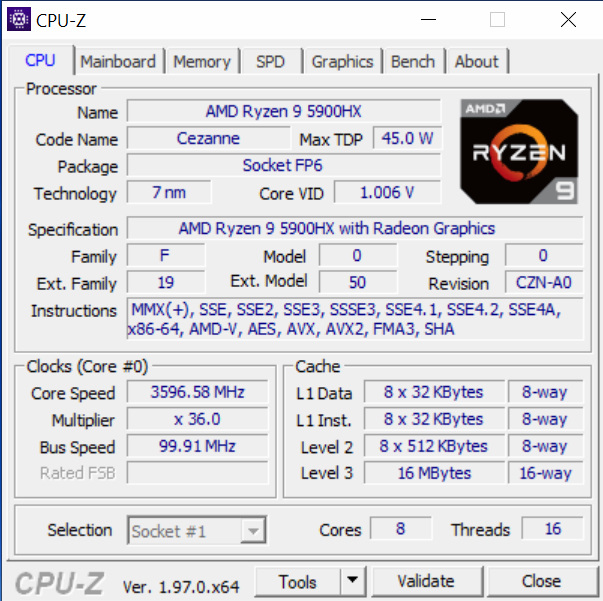

有了AMD Ryzen R9-5900HX,32GB DDR5内存和NvidiaGeForce RTX 3050 Ti,我们测试设备的主板装备精良。一个1TB的NVMe SSD可作为主存储。其他配置有Ryzen R5和R7以及8GB和16GB工作内存的配置也是已知的,但尚未确认。

测试条件

测试的华硕Vivobook Pro是一个预生产的模型。并非所有的驱动程序都已完全开发。在测试期间,个别驱动程序被反复更新。华硕只在测试期结束前不久,通过ProArt Creator Hub的更新,为我们的测试设备提供了一个有效的性能控制。因此,所有的基准测试都是在全速模式设置下重复进行的。

因此,性能控制有4种不同的选择。在选定的模式下,风扇永久地以全速旋转。这种设置特别适合于在较长的负载阶段获得稳定的性能。

HWinfo
HWinfo

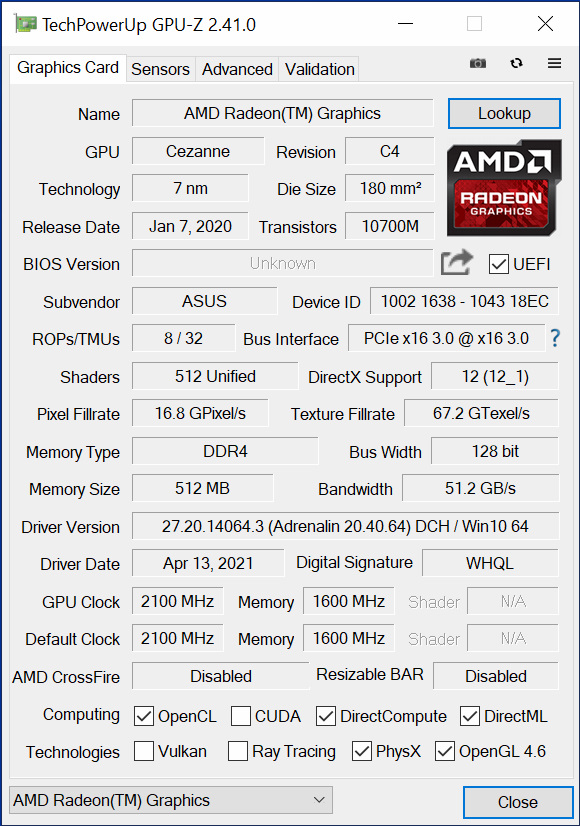

GPU-Z AMD iGPU
GPU-Z AMD iGPU
GPU-Z NVidia dGPU
GPU-Z NVidia dGPU
CPU-Z CPU
CPU-Z CPU

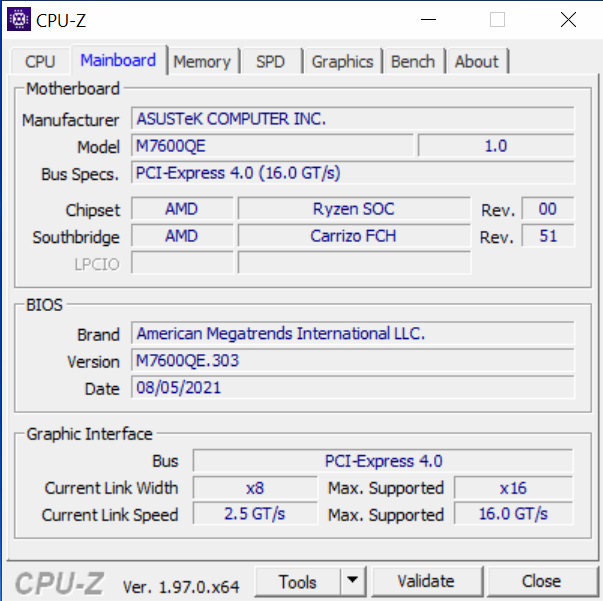

CPU-Z 主板
CPU-Z 主板
CPU-Z工作存储器
CPU-Z工作存储器

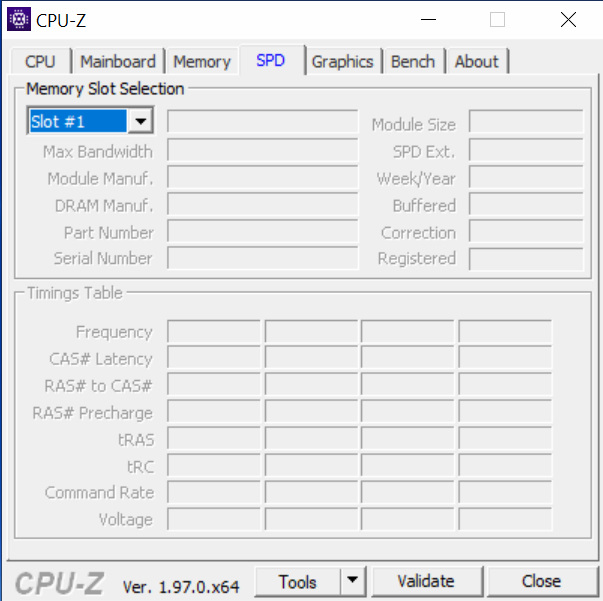

CPU-Z内存插槽
CPU-Z内存插槽
CPU-Z Nvidia dGPU
CPU-Z Nvidia dGPU
CPU-Z AMD iGPU
CPU-Z AMD iGPU
CPU-Z基准测试
CPU-Z基准测试

处理器

作为目前最强大的移动处理器之一,... AMD Ryzen R9-5900HX特别是在大型笔记本电脑中使用。该SoC还配备了AMD Radeon板载图形芯片。由于有足够的冷却尺寸,这款八核处理器可以长期以略高于54瓦的功率(PL1)运行。因此,CineBench循环显示出非常稳定的高性能。在短期负载期间,处理器时钟在65瓦的情况下增加到4.3GHz。在大多数多核处理器基准测试中,强大的R9明显超过了对手。只有 华为MateBook 16 AMD能很好地跟上,尽管AMD Ryzen R7的性能较弱。

然而,在单核基准测试中,英特尔的酷睿处理器仍然明显领先于AMD的顶级核心。

Cinebench R15 Multi Endurance test

01052103154205256307358409451050115512601365147015751680178518901995Tooltip
Asus Vivobook Pro 16X-M7600QE AMD Ryzen 9 5900HX; Settings: Full Speed Mode: Ø2037 (2029.74-2050.23)
Asus Vivobook Pro 16X-M7600QE AMD Ryzen 9 5900HX; Settings Performance Mode: Ø1945 (1916.35-2019.28)
HP ZBook Studio 15 G8 Intel Core i9-11950H: Ø1806 (1765.46-1841.11)
Huawei MateBook 16 R7 5800H AMD Ryzen 7 5800H: Ø1995 (1980.49-2009.14)
Gigabyte Aero 15 OLED XC Intel Core i7-10870H: Ø1490 (1455.29-1701.11)
Lenovo IdeaPad 5 Pro 16IHU6 Intel Core i5-11300H: Ø954 (921.15-990.11)
Dell XPS 15 9510 11800H RTX 3050 Ti OLED Intel Core i7-11800H; Ultra Performance: Ø1663 (1589.38-2024.19)
Dell XPS 15 9510 11800H RTX 3050 Ti OLED Intel Core i7-11800H: Ø1625 (1566.05-2009.95)
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
Cinebench R23 / Multi Core
Average of class Multimedia
  (6936 - 30789, n=104, last 2 years)
15647 Points +27%
Average AMD Ryzen 9 5900HX
  (6622 - 14363, n=30)
12529 Points +2%
Asus Vivobook Pro 16X-M7600QE
AMD Ryzen 9 5900HX
12309 Points
Asus Vivobook Pro 16X-M7600QE
AMD Ryzen 9 5900HX
12031 Points -2%
HP ZBook Studio 15 G8
Intel Core i9-11950H
12166 (11410min - 12166.4max) Points -1%
Dell XPS 15 9510 11800H RTX 3050 Ti OLED
Intel Core i7-11800H
10531 Points -14%
Huawei MateBook 16 R7 5800H
AMD Ryzen 7 5800H
10336 Points -16%
Gigabyte Aero 15 OLED XC
Intel Core i7-10870H
9633 Points -22%
Lenovo IdeaPad 5 Pro 16IHU6
Intel Core i5-11300H
6465 Points -47%
Cinebench R23 / Single Core
Average of class Multimedia
  (878 - 2290, n=95, last 2 years)
1770 Points +18%
HP ZBook Studio 15 G8
Intel Core i9-11950H
1569 Points +5%
Dell XPS 15 9510 11800H RTX 3050 Ti OLED
Intel Core i7-11800H
1498 Points 0%
Asus Vivobook Pro 16X-M7600QE
AMD Ryzen 9 5900HX
1495 Points
Asus Vivobook Pro 16X-M7600QE
AMD Ryzen 9 5900HX
1451 Points -3%
Average AMD Ryzen 9 5900HX
  (1218 - 1499, n=29)
1471 Points -2%
Lenovo IdeaPad 5 Pro 16IHU6
Intel Core i5-11300H
1431 Points -4%
Huawei MateBook 16 R7 5800H
AMD Ryzen 7 5800H
1338 Points -11%
Gigabyte Aero 15 OLED XC
Intel Core i7-10870H
1234 Points -17%
Cinebench R20 / CPU (Multi Core)
Average of class Multimedia
  (2681 - 11924, n=88, last 2 years)
5758 Points +20%
Average AMD Ryzen 9 5900HX
  (2242 - 5476, n=30)
4847 Points +1%
Asus Vivobook Pro 16X-M7600QE
AMD Ryzen 9 5900HX
4792 Points
Asus Vivobook Pro 16X-M7600QE
AMD Ryzen 9 5900HX
4662 Points -3%
HP ZBook Studio 15 G8
Intel Core i9-11950H
4660 Points -3%
Huawei MateBook 16 R7 5800H
AMD Ryzen 7 5800H
3993 Points -17%
Dell XPS 15 9510 11800H RTX 3050 Ti OLED
Intel Core i7-11800H
3848 Points -20%
Gigabyte Aero 15 OLED XC
Intel Core i7-10870H
3543 Points -26%
Lenovo IdeaPad 5 Pro 16IHU6
Intel Core i5-11300H
2382 Points -50%
Cinebench R20 / CPU (Single Core)
Average of class Multimedia
  (341 - 853, n=88, last 2 years)
652 Points +13%
HP ZBook Studio 15 G8
Intel Core i9-11950H
610 Points +6%
Dell XPS 15 9510 11800H RTX 3050 Ti OLED
Intel Core i7-11800H
581 Points +1%
Asus Vivobook Pro 16X-M7600QE
AMD Ryzen 9 5900HX
576 Points
Asus Vivobook Pro 16X-M7600QE
AMD Ryzen 9 5900HX
573 Points -1%
Average AMD Ryzen 9 5900HX
  (471 - 584, n=29)
573 Points -1%
Lenovo IdeaPad 5 Pro 16IHU6
Intel Core i5-11300H
548 Points -5%
Huawei MateBook 16 R7 5800H
AMD Ryzen 7 5800H
518 Points -10%
Gigabyte Aero 15 OLED XC
Intel Core i7-10870H
482 Points -16%
Cinebench R15 / CPU Multi 64Bit
Average of class Multimedia
  (1252 - 5224, n=95, last 2 years)
2474 Points +21%
Asus Vivobook Pro 16X-M7600QE
AMD Ryzen 9 5900HX
2050 (2029.74min - 2050.23max) Points
Asus Vivobook Pro 16X-M7600QE
AMD Ryzen 9 5900HX
2019 (1916.35min - 2019.28max) Points -2%
Average AMD Ryzen 9 5900HX
  (1076 - 2267, n=29)
2050 Points 0%
Dell XPS 15 9510 11800H RTX 3050 Ti OLED
Intel Core i7-11800H
2024 Points -1%
Dell XPS 15 9510 11800H RTX 3050 Ti OLED
Intel Core i7-11800H
2010 Points -2%
Huawei MateBook 16 R7 5800H
AMD Ryzen 7 5800H
2009 (1980.49min - 2009.14max) Points -2%
HP ZBook Studio 15 G8
Intel Core i9-11950H
1841 (1765.46min - 1841.11max) Points -10%
Gigabyte Aero 15 OLED XC
Intel Core i7-10870H
1701 (1455.29min - 1701.11max) Points -17%
Lenovo IdeaPad 5 Pro 16IHU6
Intel Core i5-11300H
990 Points -52%
Cinebench R15 / CPU Single 64Bit
Average of class Multimedia
  (99.6 - 323, n=90, last 2 years)
259 Points +7%
Asus Vivobook Pro 16X-M7600QE
AMD Ryzen 9 5900HX
242 Points
Asus Vivobook Pro 16X-M7600QE
AMD Ryzen 9 5900HX
240 Points -1%
Average AMD Ryzen 9 5900HX
  (197 - 243, n=25)
238 Points -2%
HP ZBook Studio 15 G8
Intel Core i9-11950H
236 Points -2%
Huawei MateBook 16 R7 5800H
AMD Ryzen 7 5800H
232 Points -4%
Dell XPS 15 9510 11800H RTX 3050 Ti OLED
Intel Core i7-11800H
228 Points -6%
Gigabyte Aero 15 OLED XC
Intel Core i7-10870H
200 Points -17%
Lenovo IdeaPad 5 Pro 16IHU6
Intel Core i5-11300H
176 Points -27%
Blender / v2.79 BMW27 CPU
Lenovo IdeaPad 5 Pro 16IHU6
Intel Core i5-11300H
542 Seconds * -112%
Gigabyte Aero 15 OLED XC
Intel Core i7-10870H
308 Seconds * -20%
Dell XPS 15 9510 11800H RTX 3050 Ti OLED
Intel Core i7-11800H
298 Seconds * -16%
Asus Vivobook Pro 16X-M7600QE
AMD Ryzen 9 5900HX
256 Seconds *
Asus Vivobook Pro 16X-M7600QE
AMD Ryzen 9 5900HX
249 Seconds * +3%
HP ZBook Studio 15 G8
Intel Core i9-11950H
254 Seconds * +1%
Huawei MateBook 16 R7 5800H
AMD Ryzen 7 5800H
254 Seconds * +1%
Average of class Multimedia
  (100 - 502, n=86, last 2 years)
251 Seconds * +2%
Average AMD Ryzen 9 5900HX
  (219 - 442, n=29)
250 Seconds * +2%
7-Zip 18.03 / 7z b 4
Average of class Multimedia
  (30592 - 130368, n=80, last 2 years)
61096 MIPS +4%
Asus Vivobook Pro 16X-M7600QE
AMD Ryzen 9 5900HX
58576 MIPS
Asus Vivobook Pro 16X-M7600QE
AMD Ryzen 9 5900HX
56729 MIPS -3%
Average AMD Ryzen 9 5900HX
  (36011 - 62503, n=29)
57266 MIPS -2%
Huawei MateBook 16 R7 5800H
AMD Ryzen 7 5800H
53767 MIPS -8%
HP ZBook Studio 15 G8
Intel Core i9-11950H
50050 MIPS -15%
Gigabyte Aero 15 OLED XC
Intel Core i7-10870H
43601 MIPS -26%
Dell XPS 15 9510 11800H RTX 3050 Ti OLED
Intel Core i7-11800H
42570 MIPS -27%
Lenovo IdeaPad 5 Pro 16IHU6
Intel Core i5-11300H
25353 MIPS -57%
7-Zip 18.03 / 7z b 4 -mmt1
Asus Vivobook Pro 16X-M7600QE
AMD Ryzen 9 5900HX
5865 MIPS
Asus Vivobook Pro 16X-M7600QE
AMD Ryzen 9 5900HX
5826 MIPS -1%
HP ZBook Studio 15 G8
Intel Core i9-11950H
5773 MIPS -2%
Average of class Multimedia
  (3398 - 7545, n=80, last 2 years)
5736 MIPS -2%
Average AMD Ryzen 9 5900HX
  (4791 - 5905, n=29)
5701 MIPS -3%
Huawei MateBook 16 R7 5800H
AMD Ryzen 7 5800H
5593 MIPS -5%
Dell XPS 15 9510 11800H RTX 3050 Ti OLED
Intel Core i7-11800H
5427 MIPS -7%
Gigabyte Aero 15 OLED XC
Intel Core i7-10870H
5294 MIPS -10%
Lenovo IdeaPad 5 Pro 16IHU6
Intel Core i5-11300H
4947 MIPS -16%
Geekbench 5.5 / Multi-Core
Average of class Multimedia
  (4990 - 23059, n=87, last 2 years)
12221 Points +44%
Asus Vivobook Pro 16X-M7600QE
AMD Ryzen 9 5900HX
8479 Points
Asus Vivobook Pro 16X-M7600QE
AMD Ryzen 9 5900HX
8355 Points -1%
Average AMD Ryzen 9 5900HX
  (5057 - 9294, n=27)
8188 Points -3%
Dell XPS 15 9510 11800H RTX 3050 Ti OLED
Intel Core i7-11800H
8164 Points -4%
Gigabyte Aero 15 OLED XC
Intel Core i7-10870H
7716 Points -9%
Huawei MateBook 16 R7 5800H
AMD Ryzen 7 5800H
7641 Points -10%
HP ZBook Studio 15 G8
Intel Core i9-11950H
7286 Points -14%
Lenovo IdeaPad 5 Pro 16IHU6
Intel Core i5-11300H
4905 Points -42%
Geekbench 5.5 / Single-Core
Average of class Multimedia
  (891 - 2555, n=87, last 2 years)
1833 Points +18%
HP ZBook Studio 15 G8
Intel Core i9-11950H
1702 Points +10%
Asus Vivobook Pro 16X-M7600QE
AMD Ryzen 9 5900HX
1553 Points
Asus Vivobook Pro 16X-M7600QE
AMD Ryzen 9 5900HX
1542 Points -1%
Dell XPS 15 9510 11800H RTX 3050 Ti OLED
Intel Core i7-11800H
1540 Points -1%
Average AMD Ryzen 9 5900HX
  (1271 - 1574, n=27)
1517 Points -2%
Huawei MateBook 16 R7 5800H
AMD Ryzen 7 5800H
1480 Points -5%
Lenovo IdeaPad 5 Pro 16IHU6
Intel Core i5-11300H
1447 Points -7%
Gigabyte Aero 15 OLED XC
Intel Core i7-10870H
1295 Points -17%
HWBOT x265 Benchmark v2.2 / 4k Preset
Average of class Multimedia
  (5.26 - 34.3, n=79, last 2 years)
16.6 fps +7%
Asus Vivobook Pro 16X-M7600QE
AMD Ryzen 9 5900HX
15.5 fps
Asus Vivobook Pro 16X-M7600QE
AMD Ryzen 9 5900HX
14.9 fps -4%
Average AMD Ryzen 9 5900HX
  (8.26 - 17.1, n=29)
15.2 fps -2%
HP ZBook Studio 15 G8
Intel Core i9-11950H
14.5 fps -6%
Huawei MateBook 16 R7 5800H
AMD Ryzen 7 5800H
14.4 fps -7%
Dell XPS 15 9510 11800H RTX 3050 Ti OLED
Intel Core i7-11800H
12.4 fps -20%
Gigabyte Aero 15 OLED XC
Intel Core i7-10870H
11.7 fps -25%
Lenovo IdeaPad 5 Pro 16IHU6
Intel Core i5-11300H
7.08 fps -54%
LibreOffice / 20 Documents To PDF
Gigabyte Aero 15 OLED XC
Intel Core i7-10870H
64.4 s * -21%
Average AMD Ryzen 9 5900HX
  (44.1 - 87.4, n=29)
53.3 s * -0%
Asus Vivobook Pro 16X-M7600QE
AMD Ryzen 9 5900HX
53.2 s *
Asus Vivobook Pro 16X-M7600QE
AMD Ryzen 9 5900HX
50.4 s * +5%
Lenovo IdeaPad 5 Pro 16IHU6
Intel Core i5-11300H
52.4 s * +2%
Huawei MateBook 16 R7 5800H
AMD Ryzen 7 5800H
49.6 s * +7%
Average of class Multimedia
  (6.7 - 146.7, n=82, last 2 years)
49.1 s * +8%
HP ZBook Studio 15 G8
Intel Core i9-11950H
48.6 s * +9%
Dell XPS 15 9510 11800H RTX 3050 Ti OLED
Intel Core i7-11800H
47.5 s * +11%
R Benchmark 2.5 / Overall mean
Lenovo IdeaPad 5 Pro 16IHU6
Intel Core i5-11300H
0.604 sec * -22%
Gigabyte Aero 15 OLED XC
Intel Core i7-10870H
0.573 sec * -15%
Dell XPS 15 9510 11800H RTX 3050 Ti OLED
Intel Core i7-11800H
0.567 sec * -14%
HP ZBook Studio 15 G8
Intel Core i9-11950H
0.551 sec * -11%
Huawei MateBook 16 R7 5800H
AMD Ryzen 7 5800H
0.517 sec * -4%
Average AMD Ryzen 9 5900HX
  (0.48 - 0.599, n=29)
0.507 sec * -2%
Asus Vivobook Pro 16X-M7600QE
AMD Ryzen 9 5900HX
0.4965 sec *
Asus Vivobook Pro 16X-M7600QE
AMD Ryzen 9 5900HX
0.4851 sec * +2%
Average of class Multimedia
  (0.3604 - 0.947, n=80, last 2 years)
0.4836 sec * +3%

* ... smaller is better

Cinebench R15 CPU Multi 64Bit
2019 Points
Cinebench R15 CPU Single 64Bit
240 Points
Cinebench R15 Ref. Match 64Bit
99.6 %
Cinebench R15 OpenGL 64Bit
166 fps
Cinebench R20 CPU (Multi Core)
4662 Points
Cinebench R20 CPU (Single Core)
576 Points
Cinebench R23 Single Core
1451 Points
Cinebench R23 Multi Core
12031 Points
Help
日志分析 Cinebench循环:拔掉电源线后性能下降
日志分析 Cinebench循环:拔掉电源线后性能下降

当笔记本电脑由电池供电时,仍然允许处理器以大约45瓦的功率工作。因此,在10分钟的Cinebench R23循环中,处理器时钟从大约3.6GHz降至3.4GHz。

系统性能

Vivobook Pro是一台非常快的笔记本电脑。在PCMark 10基准测试中,该计算机提供了非常高的分数。作为对比领域中的第二名,在整体非常强大的竞争者中,华硕的笔记本电脑可以提供更令人满意的结果。我们的预生产单位最初在性能管理和一些驱动程序方面存在问题,这使得系统看起来很迟钝,但华硕同时也通过一些更新做出了相当大的改进。笔记本电脑在最新版本上运行平稳,基本没有掉线。

PCMark 10 / Score
Average of class Multimedia
  (4542 - 8670, n=73, last 2 years)
6810 Points +3%
HP ZBook Studio 15 G8
GeForce RTX 3070 Laptop GPU, i9-11950H, Samsung PM981a MZVLB2T0HALB
6751 Points +2%
Average AMD Ryzen 9 5900HX, NVIDIA GeForce RTX 3050 Ti Laptop GPU
  (6592 - 6687, n=2)
6640 Points +1%
Asus Vivobook Pro 16X-M7600QE
GeForce RTX 3050 Ti Laptop GPU, R9 5900HX, SK Hynix HFM001TD3JX013N
6592 Points
Gigabyte Aero 15 OLED XC
GeForce RTX 3070 Laptop GPU, i7-10870H, WDC PC SN730 SDBPNTY-1T00
6442 Points -2%
Huawei MateBook 16 R7 5800H
Vega 8, R7 5800H, Lite-On CA5-8D512
6365 Points -3%
Dell XPS 15 9510 11800H RTX 3050 Ti OLED
GeForce RTX 3050 Ti Laptop GPU, i7-11800H, Micron 2300 512GB MTFDHBA512TDV
6019 Points -9%
Lenovo IdeaPad 5 Pro 16IHU6
GeForce MX450, i5-11300H, Samsung SSD PM981a MZVLB512HBJQ
5333 Points -19%
PCMark 10 / Essentials
Huawei MateBook 16 R7 5800H
Vega 8, R7 5800H, Lite-On CA5-8D512
10690 Points +2%
Average of class Multimedia
  (8480 - 12420, n=73, last 2 years)
10526 Points 0%
Asus Vivobook Pro 16X-M7600QE
GeForce RTX 3050 Ti Laptop GPU, R9 5900HX, SK Hynix HFM001TD3JX013N
10491 Points
Average AMD Ryzen 9 5900HX, NVIDIA GeForce RTX 3050 Ti Laptop GPU
  (10348 - 10491, n=2)
10420 Points -1%
HP ZBook Studio 15 G8
GeForce RTX 3070 Laptop GPU, i9-11950H, Samsung PM981a MZVLB2T0HALB
9915 Points -5%
Dell XPS 15 9510 11800H RTX 3050 Ti OLED
GeForce RTX 3050 Ti Laptop GPU, i7-11800H, Micron 2300 512GB MTFDHBA512TDV
9490 Points -10%
Gigabyte Aero 15 OLED XC
GeForce RTX 3070 Laptop GPU, i7-10870H, WDC PC SN730 SDBPNTY-1T00
9185 Points -12%
Lenovo IdeaPad 5 Pro 16IHU6
GeForce MX450, i5-11300H, Samsung SSD PM981a MZVLB512HBJQ
8931 Points -15%
PCMark 10 / Productivity
Huawei MateBook 16 R7 5800H
Vega 8, R7 5800H, Lite-On CA5-8D512
9729 Points +1%
Asus Vivobook Pro 16X-M7600QE
GeForce RTX 3050 Ti Laptop GPU, R9 5900HX, SK Hynix HFM001TD3JX013N
9665 Points
Average AMD Ryzen 9 5900HX, NVIDIA GeForce RTX 3050 Ti Laptop GPU
  (9614 - 9665, n=2)
9640 Points 0%
Average of class Multimedia
  (6089 - 10742, n=73, last 2 years)
8939 Points -8%
Lenovo IdeaPad 5 Pro 16IHU6
GeForce MX450, i5-11300H, Samsung SSD PM981a MZVLB512HBJQ
8554 Points -11%
HP ZBook Studio 15 G8
GeForce RTX 3070 Laptop GPU, i9-11950H, Samsung PM981a MZVLB2T0HALB
8461 Points -12%
Dell XPS 15 9510 11800H RTX 3050 Ti OLED
GeForce RTX 3050 Ti Laptop GPU, i7-11800H, Micron 2300 512GB MTFDHBA512TDV
8344 Points -14%
Gigabyte Aero 15 OLED XC
GeForce RTX 3070 Laptop GPU, i7-10870H, WDC PC SN730 SDBPNTY-1T00
7916 Points -18%
PCMark 10 / Digital Content Creation
HP ZBook Studio 15 G8
GeForce RTX 3070 Laptop GPU, i9-11950H, Samsung PM981a MZVLB2T0HALB
9952 Points +30%
Average of class Multimedia
  (3651 - 13548, n=73, last 2 years)
9249 Points +21%
Gigabyte Aero 15 OLED XC
GeForce RTX 3070 Laptop GPU, i7-10870H, WDC PC SN730 SDBPNTY-1T00
8663 Points +13%
Average AMD Ryzen 9 5900HX, NVIDIA GeForce RTX 3050 Ti Laptop GPU
  (7667 - 8158, n=2)
7913 Points +3%
Asus Vivobook Pro 16X-M7600QE
GeForce RTX 3050 Ti Laptop GPU, R9 5900HX, SK Hynix HFM001TD3JX013N
7667 Points
Dell XPS 15 9510 11800H RTX 3050 Ti OLED
GeForce RTX 3050 Ti Laptop GPU, i7-11800H, Micron 2300 512GB MTFDHBA512TDV
7475 Points -3%
Huawei MateBook 16 R7 5800H
Vega 8, R7 5800H, Lite-On CA5-8D512
6730 Points -12%
Lenovo IdeaPad 5 Pro 16IHU6
GeForce MX450, i5-11300H, Samsung SSD PM981a MZVLB512HBJQ
5388 Points -30%
PCMark 10 Score
6592 points
Help

DPC延迟

在用LatencyMon进行的测试中,不同驱动程序的互动出现了短暂的问题。即使有华硕的最新更新,也不是所有的问题都已经解决了。观察到的延迟的短期波动非常大,这就是结果。

在播放4k60的YouTube测试视频时发生了这样的抽搐。其结果是35个跳帧在一块。一张静止了半秒多一点的图片是明显可以看到的。

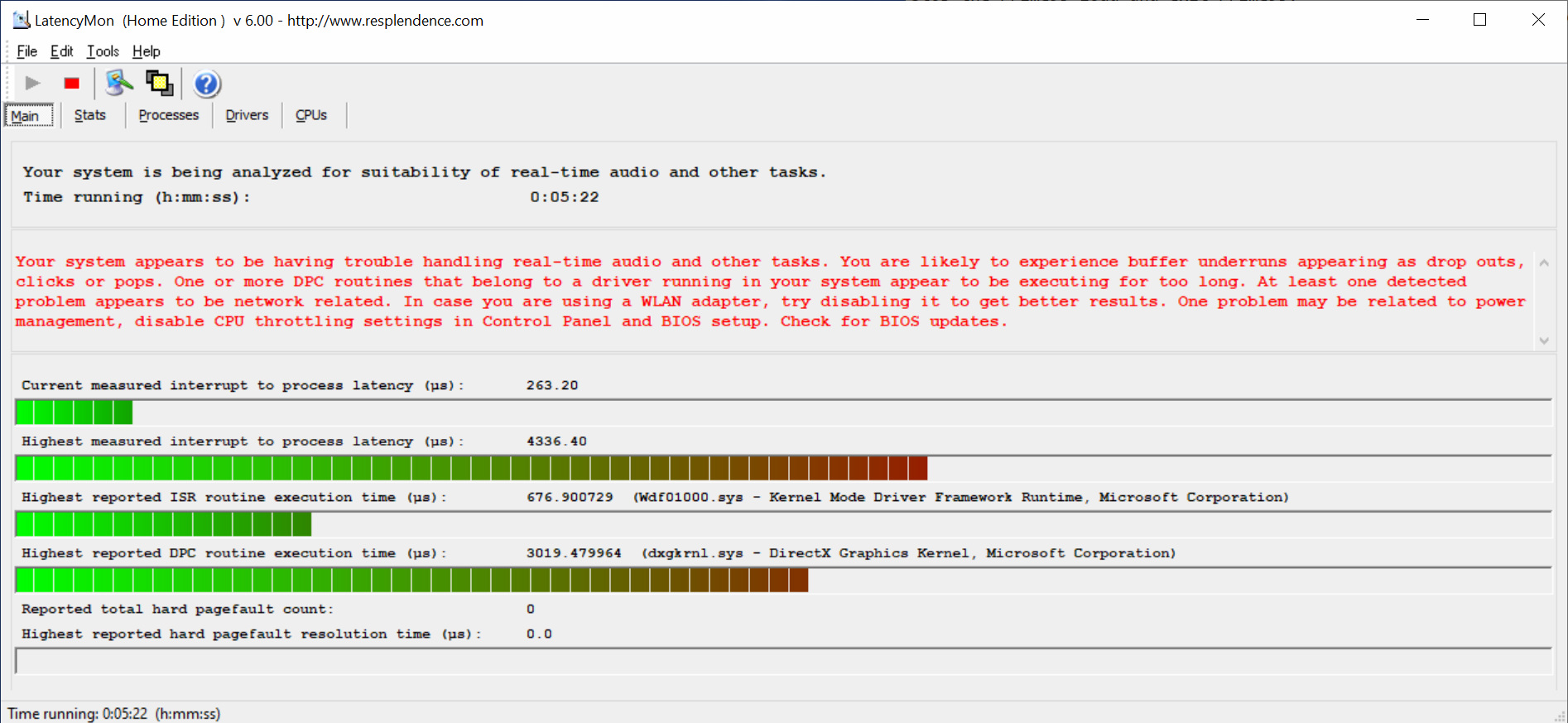

LatencyMon主标签
LatencyMon主标签

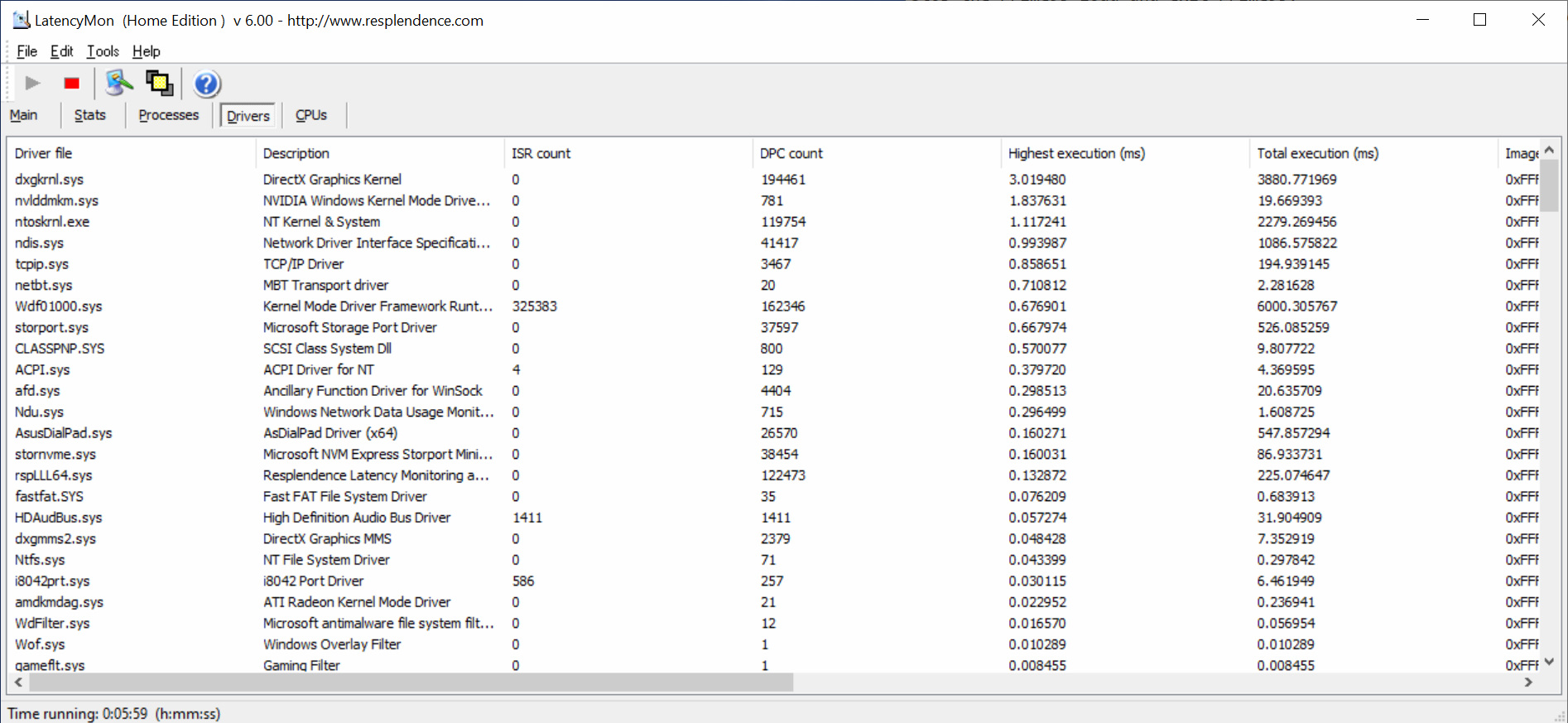

LatencyMon 驱动程序
LatencyMon 驱动程序

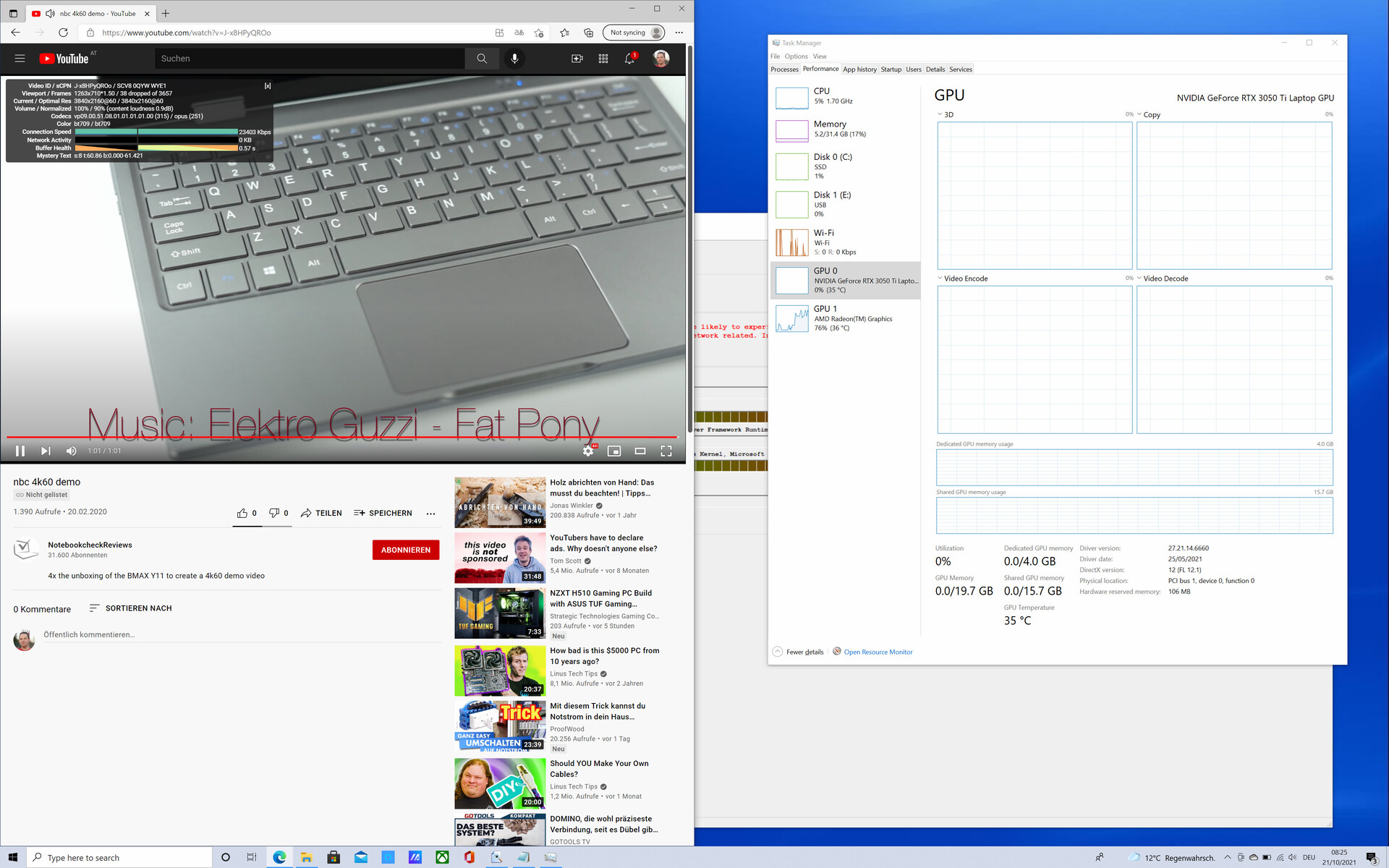

Youtube播放
Youtube播放
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Asus Vivobook Pro 16X-M7600QE
GeForce RTX 3050 Ti Laptop GPU, R9 5900HX, SK Hynix HFM001TD3JX013N
4336 μs *
Gigabyte Aero 15 OLED XC
GeForce RTX 3070 Laptop GPU, i7-10870H, WDC PC SN730 SDBPNTY-1T00
2029 μs * +53%
Dell XPS 15 9510 11800H RTX 3050 Ti OLED
GeForce RTX 3050 Ti Laptop GPU, i7-11800H, Micron 2300 512GB MTFDHBA512TDV
1914 μs * +56%
HP ZBook Studio 15 G8
GeForce RTX 3070 Laptop GPU, i9-11950H, Samsung PM981a MZVLB2T0HALB
1508 μs * +65%
Lenovo IdeaPad 5 Pro 16IHU6
GeForce MX450, i5-11300H, Samsung SSD PM981a MZVLB512HBJQ
629 μs * +85%
Huawei MateBook 16 R7 5800H
Vega 8, R7 5800H, Lite-On CA5-8D512
454.3 μs * +90%

* ... smaller is better

大容量存储

即使AS SSD和CrystalDiskMark 6.0的测量结果有些差距,但SK Hynix的M.2 NVMe SSD在传输较大文件时速度非常快。其余的访问时间和传输较小文件的得分在比较中的笔记本电脑中处于中等水平。有一TB的存储空间,有足够的空间用于小型视频项目。

Asus Vivobook Pro 16X-M7600QE
SK Hynix HFM001TD3JX013N
HP ZBook Studio 15 G8
Samsung PM981a MZVLB2T0HALB
Huawei MateBook 16 R7 5800H
Lite-On CA5-8D512
Gigabyte Aero 15 OLED XC
WDC PC SN730 SDBPNTY-1T00
Lenovo IdeaPad 5 Pro 16IHU6
Samsung SSD PM981a MZVLB512HBJQ
Dell XPS 15 9510 11800H RTX 3050 Ti OLED
Micron 2300 512GB MTFDHBA512TDV
Average SK Hynix HFM001TD3JX013N

CrystalDiskMark 5.2 / 6
-3%
15%
1%
26%
-2%
9%
Write 4K
129.9
110.5
-15%
129.3
0%
126
-3%
203
56%
109.3
-16%
155.8 ?(115.9 - 218, n=13)
20%
Read 4K
47.02
51.8
10%
54.3
15%
44.94
-4%
52.3
11%
53.9
15%
Write Seq
2071
2763
2138
1991
Read Seq
2505
1671
1974
1759
Write 4K Q32T1
510
429.8
-16%
446.6
-12%
451.6
-11%
640
25%
499.8
-2%
452 ?(382 - 525, n=13)
-11%
Read 4K Q32T1
442
418.3
-5%
564
28%
552
25%
707
60%
438.8
-1%
Write Seq Q32T1
2784
3060
10%
2210
-21%
3060
10%
2973
7%
2835
2%
Read Seq Q32T1
3601
3539
-2%
3418
-5%
3192
-11%
3559
-1%
3235
-10%
Write 4K Q8T8
527
1254
138%
Read 4K Q8T8
1776
1388
-22%
AS SSD
13%
-2%
7%
17%
-21%
9%
Seq Read
2913
2953
1%
2955
1%
2331
-20%
2541
-13%
1362
-53%
Seq Write
1806
1691
-6%
2080
15%
2312
28%
2555
41%
1440
-20%
4K Read
47.67
43.98
-8%
51.1
7%
39.13
-18%
56
17%
38.43
-19%
4K Write
101.5
105.4
4%
127.5
26%
98.1
-3%
129.6
28%
121.4
20%
127.3 ?(59 - 184.8, n=15)
25%
4K-64 Read
1382
1065
-23%
1321
-4%
1663
20%
1633
18%
370.5
-73%
4K-64 Write
2164
1957
-10%
1103
-49%
2138
-1%
1863
-14%
1054
-51%
1939 ?(1342 - 2216, n=15)
-10%
Access Time Read *
0.044
0.04
9%
0.034
23%
0.099
-125%
0.077
-75%
0.042
5%
Access Time Write *
0.109
0.105
4%
0.031
72%
0.038
65%
0.029
73%
0.135
-24%
Score Read
1720
1404
-18%
1668
-3%
1935
13%
1944
13%
545
-68%
Score Write
2446
2232
-9%
1439
-41%
2468
1%
2248
-8%
1319
-46%
Score Total
4995
4297
-14%
3922
-21%
5388
8%
5192
4%
2160
-57%
Copy ISO MB/s
2649
2474
-7%
1480
-44%
2903
10%
2246
-15%
1406
-47%
1908 ?(1277 - 2649, n=10)
-28%
Copy Program MB/s
372.8
1074
188%
377.6
1%
686
84%
861
131%
844
126%
Copy Game MB/s
1126
1929
71%
1045
-7%
1594
42%
1552
38%
1353
20%
Total Average (Program / Settings)
5% / 8%
7% / 4%
4% / 6%
22% / 20%
-12% / -15%
9% / 9%

* ... smaller is better

SK Hynix HFM001TD3JX013N
CDM 5/6 Read Seq Q32T1: 3601 MB/s
CDM 5/6 Write Seq Q32T1: 2784 MB/s
CDM 5/6 Read 4K Q32T1: 442 MB/s
CDM 5/6 Write 4K Q32T1: 510 MB/s
CDM 5/6 Read 4K: 47.02 MB/s
CDM 5/6 Write 4K: 129.9 MB/s
CDM 6 Write 4K Q8T8: 527 MB/s
CDM 6 Read 4K Q8T8: 1776 MB/s

Continuous load read: DiskSpd Read Loop, Queue Depth 8

No graph data

图形卡

华硕Vivobook Pro配备了一个 NvidiaGeForce RTX 3050 Ti作为dGPU。3050 Ti足够强大,可以在全高清分辨率下以高细节水平玩目前的游戏。然而,来自Nvidia RTX 3000系列的第二小的显卡在更高的分辨率下达到了它的极限。Nvidia允许将3050 Ti的最大功耗配置在35至80瓦之间。在华硕Vivobook Pro中,该显卡的最大功率为50瓦。

为了提高能源效率,在R9 APU上支持一个较小的AMD Radeon图形。它能可靠地处理较小的任务。只有在游戏或应用中对图形提出更高的要求时,Nvidia图形芯片才会无缝切换。

3DMark和3DMark11的基准测试结果显示,华硕选择的最大性能非常好。华硕电脑中的显卡运行速度比戴尔XPS 15中的3050 Ti略快。 戴尔XPS 15但在我们的基准测试表中低于3050的平均水平。 基准测试表.

3DMark 11 - 1280x720 Performance GPU
Gigabyte Aero 15 OLED XC
NVIDIA GeForce RTX 3070 Laptop GPU, Intel Core i7-10870H
31866 Points +96%
HP ZBook Studio 15 G8
NVIDIA GeForce RTX 3070 Laptop GPU, Intel Core i9-11950H
28908 Points +77%
Average of class Multimedia
  (3505 - 60250, n=79, last 2 years)
20784 Points +28%
Average NVIDIA GeForce RTX 3050 Ti Laptop GPU
  (7952 - 20905, n=27)
17562 Points +8%
Asus Vivobook Pro 16X-M7600QE
NVIDIA GeForce RTX 3050 Ti Laptop GPU, AMD Ryzen 9 5900HX
16296 Points
Dell XPS 15 9510 11800H RTX 3050 Ti OLED
NVIDIA GeForce RTX 3050 Ti Laptop GPU, Intel Core i7-11800H
15387 Points -6%
Lenovo IdeaPad 5 Pro 16IHU6
NVIDIA GeForce MX450, Intel Core i5-11300H
9580 Points -41%
Huawei MateBook 16 R7 5800H
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H
6117 Points -62%
3DMark
1280x720 Cloud Gate Standard Graphics
Average NVIDIA GeForce RTX 3050 Ti Laptop GPU
  (30158 - 102432, n=23)
67913 Points +70%
Gigabyte Aero 15 OLED XC
NVIDIA GeForce RTX 3070 Laptop GPU, Intel Core i7-10870H
63674 Points +60%
Average of class Multimedia
  (14679 - 130614, n=38, last 2 years)
56887 Points +43%
Dell XPS 15 9510 11800H RTX 3050 Ti OLED
NVIDIA GeForce RTX 3050 Ti Laptop GPU, Intel Core i7-11800H
48479 Points +22%
HP ZBook Studio 15 G8
NVIDIA GeForce RTX 3070 Laptop GPU, Intel Core i9-11950H
45531 Points +14%
Asus Vivobook Pro 16X-M7600QE
NVIDIA GeForce RTX 3050 Ti Laptop GPU, AMD Ryzen 9 5900HX
39886 Points
Lenovo IdeaPad 5 Pro 16IHU6
NVIDIA GeForce MX450, Intel Core i5-11300H
33806 Points -15%
Huawei MateBook 16 R7 5800H
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H
29795 Points -25%
1920x1080 Fire Strike Graphics
Gigabyte Aero 15 OLED XC
NVIDIA GeForce RTX 3070 Laptop GPU, Intel Core i7-10870H
23674 Points +130%
HP ZBook Studio 15 G8
NVIDIA GeForce RTX 3070 Laptop GPU, Intel Core i9-11950H
21399 Points +108%
Average of class Multimedia
  (1835 - 46022, n=82, last 2 years)
14939 Points +45%
Average NVIDIA GeForce RTX 3050 Ti Laptop GPU
  (7917 - 15611, n=26)
13090 Points +27%
Dell XPS 15 9510 11800H RTX 3050 Ti OLED
NVIDIA GeForce RTX 3050 Ti Laptop GPU, Intel Core i7-11800H
12119 Points +18%
Asus Vivobook Pro 16X-M7600QE
NVIDIA GeForce RTX 3050 Ti Laptop GPU, AMD Ryzen 9 5900HX
10288 Points
Lenovo IdeaPad 5 Pro 16IHU6
NVIDIA GeForce MX450, Intel Core i5-11300H
5573 Points -46%
Huawei MateBook 16 R7 5800H
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H
3734 Points -64%
2560x1440 Time Spy Graphics
Gigabyte Aero 15 OLED XC
NVIDIA GeForce RTX 3070 Laptop GPU, Intel Core i7-10870H
9323 Points +96%
HP ZBook Studio 15 G8
NVIDIA GeForce RTX 3070 Laptop GPU, Intel Core i9-11950H
7909 Points +67%
Average of class Multimedia
  (622 - 17620, n=83, last 2 years)
5648 Points +19%
Average NVIDIA GeForce RTX 3050 Ti Laptop GPU
  (3744 - 6122, n=27)
5177 Points +9%
Asus Vivobook Pro 16X-M7600QE
NVIDIA GeForce RTX 3050 Ti Laptop GPU, AMD Ryzen 9 5900HX
4747 Points
Dell XPS 15 9510 11800H RTX 3050 Ti OLED
NVIDIA GeForce RTX 3050 Ti Laptop GPU, Intel Core i7-11800H
4591 Points -3%
Lenovo IdeaPad 5 Pro 16IHU6
NVIDIA GeForce MX450, Intel Core i5-11300H
2300 Points -52%
Huawei MateBook 16 R7 5800H
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H
1186 Points -75%
3DMark 11 Performance
16066 points
3DMark Ice Storm Standard Score
41830 points
3DMark Cloud Gate Standard Score
30802 points
3DMark Fire Strike Score
9720 points
3DMark Fire Strike Extreme Score
5016 points
3DMark Time Spy Score
5126 points
Help

图形性能在电池供电时也会下降,但不像其他一些笔记本电脑那样明显。在3DMark 11中获得了将近一万一千分的成绩,在使用外部电源的情况下,该笔记本保留了60%以上的性能。

3DMark 11电池
3DMark 11电池
3DMark 11网络
3DMark 11网络

游戏性能

华硕Vivobook Pro在游戏基准测试中显示了入门级游戏笔记本电脑的性能准备。全高清的游戏对该笔记本来说没有任何障碍,即使是目前的标题和高细节水平。然而,只要你想使用OLED面板的全分辨率,这款多媒体笔记本就会在目前的游戏中达到极限。

The Witcher 3
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Gigabyte Aero 15 OLED XC
Intel Core i7-10870H, NVIDIA GeForce RTX 3070 Laptop GPU
168 (129min - 191max) fps +140%
HP ZBook Studio 15 G8
Intel Core i9-11950H, NVIDIA GeForce RTX 3070 Laptop GPU
154.2 (135min - 171max) fps +120%
Average of class Multimedia
  (11.2 - 290, n=73, last 2 years)
101.2 fps +45%
Dell XPS 15 9510 11800H RTX 3050 Ti OLED
Intel Core i7-11800H, NVIDIA GeForce RTX 3050 Ti Laptop GPU
91 fps +30%
Average NVIDIA GeForce RTX 3050 Ti Laptop GPU
  (30 - 110, n=26)
88.8 fps +27%
Asus Vivobook Pro 16X-M7600QE
AMD Ryzen 9 5900HX, NVIDIA GeForce RTX 3050 Ti Laptop GPU
70 fps
Lenovo IdeaPad 5 Pro 16IHU6
Intel Core i5-11300H, NVIDIA GeForce MX450
42.8 (12.2min, 16.6P0.1, 29.7P1 - 169max) fps -39%
Huawei MateBook 16 R7 5800H
AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
22 fps -69%
1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Gigabyte Aero 15 OLED XC
Intel Core i7-10870H, NVIDIA GeForce RTX 3070 Laptop GPU
92.1 (67min) fps +92%
HP ZBook Studio 15 G8
Intel Core i9-11950H, NVIDIA GeForce RTX 3070 Laptop GPU
81.5 (72min - 87max) fps +70%
Average of class Multimedia
  (8 - 143.2, n=80, last 2 years)
54.6 fps +14%
Asus Vivobook Pro 16X-M7600QE
AMD Ryzen 9 5900HX, NVIDIA GeForce RTX 3050 Ti Laptop GPU
48 fps
Average NVIDIA GeForce RTX 3050 Ti Laptop GPU
  (19 - 58.5, n=29)
47.5 fps -1%
Dell XPS 15 9510 11800H RTX 3050 Ti OLED
Intel Core i7-11800H, NVIDIA GeForce RTX 3050 Ti Laptop GPU
43.7 (32min, 34P1 - 48max) fps -9%
Dell XPS 15 9510 11800H RTX 3050 Ti OLED
Intel Core i7-11800H, NVIDIA GeForce RTX 3050 Ti Laptop GPU
37.1 (33min, 35P1 - 46max) fps -23%
Dell XPS 15 9510 11800H RTX 3050 Ti OLED
Intel Core i7-11800H, NVIDIA GeForce RTX 3050 Ti Laptop GPU
36.2 (31min, 32P1 - 46max) fps -25%
Dell XPS 15 9510 11800H RTX 3050 Ti OLED
Intel Core i7-11800H, NVIDIA GeForce RTX 3050 Ti Laptop GPU
34.3 (30min, 31P1 - 42max) fps -29%
Lenovo IdeaPad 5 Pro 16IHU6
Intel Core i5-11300H, NVIDIA GeForce MX450
24.3 (12.1min, 14.5P0.1, 19.1P1 - 111max) fps -49%
Huawei MateBook 16 R7 5800H
AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
14.6 (13min, 14P1 - 16max) fps -70%
F1 2021
1920x1080 Medium Preset AA:T AF:16x
Average of class Multimedia
  (59.1 - 336, n=14, last 2 years)
187.2 fps +43%
Asus Vivobook Pro 16X-M7600QE
AMD Ryzen 9 5900HX, NVIDIA GeForce RTX 3050 Ti Laptop GPU
131 (106min, 97P1 - 146max) fps
Average NVIDIA GeForce RTX 3050 Ti Laptop GPU
  (72 - 150, n=11)
126.5 fps -3%
Dell XPS 15 9510 11800H RTX 3050 Ti OLED
Intel Core i7-11800H, NVIDIA GeForce RTX 3050 Ti Laptop GPU
123 (104min, 86P1 - 136max) fps -6%
Lenovo IdeaPad 5 Pro 16IHU6
Intel Core i5-11300H, NVIDIA GeForce MX450
57.7 (41min, 40P1 - 67max) fps -56%
Huawei MateBook 16 R7 5800H
AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
40.3 (32min, 32P1 - 46max) fps -69%
1920x1080 High Preset AA:T AF:16x
Average of class Multimedia
  (46 - 264, n=15, last 2 years)
155.3 fps +48%
Dell XPS 15 9510 11800H RTX 3050 Ti OLED
Intel Core i7-11800H, NVIDIA GeForce RTX 3050 Ti Laptop GPU
105 (85min, 61P1 - 120max) fps 0%
Asus Vivobook Pro 16X-M7600QE
AMD Ryzen 9 5900HX, NVIDIA GeForce RTX 3050 Ti Laptop GPU
105 (93min, 79P1 - 118max) fps
Average NVIDIA GeForce RTX 3050 Ti Laptop GPU
  (68 - 131, n=11)
104.8 fps 0%
Lenovo IdeaPad 5 Pro 16IHU6
Intel Core i5-11300H, NVIDIA GeForce MX450
46.9 (37min, 34P1 - 54max) fps -55%
Huawei MateBook 16 R7 5800H
AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
30.9 (26min, 25P1 - 33max) fps -71%
1920x1080 Ultra High Preset + Raytracing AA:T AF:16x
Average of class Multimedia
  (31.5 - 149.8, n=14, last 2 years)
91.1 fps +74%
Average NVIDIA GeForce RTX 3050 Ti Laptop GPU
  (44.4 - 69, n=11)
54 fps +3%
Dell XPS 15 9510 11800H RTX 3050 Ti OLED
Intel Core i7-11800H, NVIDIA GeForce RTX 3050 Ti Laptop GPU
52.8 (45min, 44P1 - 59max) fps +1%
Asus Vivobook Pro 16X-M7600QE
AMD Ryzen 9 5900HX, NVIDIA GeForce RTX 3050 Ti Laptop GPU
52.3 fps
Huawei MateBook 16 R7 5800H
AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
21.4 (16min, 16P1 - 24max) fps -59%
2560x1440 Ultra High Preset + Raytracing AA:T AF:16x
Average of class Multimedia
  (27 - 110.9, n=11, last 2 years)
74.5 fps +101%
Average NVIDIA GeForce RTX 3050 Ti Laptop GPU
  (30.9 - 43.1, n=5)
37.9 fps +2%
Dell XPS 15 9510 11800H RTX 3050 Ti OLED
Intel Core i7-11800H, NVIDIA GeForce RTX 3050 Ti Laptop GPU
37.4 (32min, 31P1 - 42max) fps +1%
Asus Vivobook Pro 16X-M7600QE
AMD Ryzen 9 5900HX, NVIDIA GeForce RTX 3050 Ti Laptop GPU
37 (30min, 30P1 - 42max) fps
GTA V
1366x768 Normal/Off AF:4x
Gigabyte Aero 15 OLED XC
Intel Core i7-10870H, NVIDIA GeForce RTX 3070 Laptop GPU
172 (6.33min, 125P1 - 314max) fps
Dell XPS 15 9510 11800H RTX 3050 Ti OLED
Intel Core i7-11800H, NVIDIA GeForce RTX 3050 Ti Laptop GPU
166 (5min, 100P1 - 392max) fps
Average NVIDIA GeForce RTX 3050 Ti Laptop GPU
  (88.4 - 181.3, n=23)
161.9 fps
Lenovo IdeaPad 5 Pro 16IHU6
Intel Core i5-11300H, NVIDIA GeForce MX450
154 (5.16min, 90.9P1 - 291max) fps
Average of class Multimedia
  (45.6 - 186.4, n=68, last 2 years)
140.8 fps
Huawei MateBook 16 R7 5800H
AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
103 (18.8min, 66.7P1 - 174max) fps
1920x1080 Normal/Off AF:4x
Gigabyte Aero 15 OLED XC
Intel Core i7-10870H, NVIDIA GeForce RTX 3070 Laptop GPU
171 (4.86min, 125P1 - 334max) fps +1%
Asus Vivobook Pro 16X-M7600QE
AMD Ryzen 9 5900HX, NVIDIA GeForce RTX 3050 Ti Laptop GPU
169 (5.09min, 111P1 - 283max) fps
Average NVIDIA GeForce RTX 3050 Ti Laptop GPU
  (108.2 - 180.2, n=19)
163.4 fps -3%
Lenovo IdeaPad 5 Pro 16IHU6
Intel Core i5-11300H, NVIDIA GeForce MX450
135 (5.64min, 76.9P1 - 280max) fps -20%
Average of class Multimedia
  (30.6 - 186.9, n=36, last 2 years)
131 fps -22%
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Gigabyte Aero 15 OLED XC
Intel Core i7-10870H, NVIDIA GeForce RTX 3070 Laptop GPU
153 (3.86min, 83.3P1 - 295max) fps
Average NVIDIA GeForce RTX 3050 Ti Laptop GPU
  (53.8 - 149, n=25)
117.4 fps
Dell XPS 15 9510 11800H RTX 3050 Ti OLED
Intel Core i7-11800H, NVIDIA GeForce RTX 3050 Ti Laptop GPU
110 (13.5min, 50P1 - 231max) fps
Average of class Multimedia
  (11.9 - 186.1, n=83, last 2 years)
98.1 fps
Lenovo IdeaPad 5 Pro 16IHU6
Intel Core i5-11300H, NVIDIA GeForce MX450
68.3 (24.7min, 45.5P1 - 145max) fps
Huawei MateBook 16 R7 5800H
AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
26.3 (6.93min, 18.9P1 - 126max) fps
Dota 2 Reborn
1920x1080 high (2/3)
HP ZBook Studio 15 G8
Intel Core i9-11950H, NVIDIA GeForce RTX 3070 Laptop GPU
135.8 (95.1min) fps +4%
Asus Vivobook Pro 16X-M7600QE
AMD Ryzen 9 5900HX, NVIDIA GeForce RTX 3050 Ti Laptop GPU
131 (115.3min) fps
Asus Vivobook Pro 16X-M7600QE
AMD Ryzen 9 5900HX, NVIDIA GeForce RTX 3050 Ti Laptop GPU
125 (109.8min) fps -5%
Gigabyte Aero 15 OLED XC
Intel Core i7-10870H, NVIDIA GeForce RTX 3070 Laptop GPU
124 (107.1min) fps -5%
Dell XPS 15 9510 11800H RTX 3050 Ti OLED
Intel Core i7-11800H, NVIDIA GeForce RTX 3050 Ti Laptop GPU
121 (100.3min) fps -8%
Average NVIDIA GeForce RTX 3050 Ti Laptop GPU
  (74.8 - 154, n=27)
119.9 fps -8%
Average of class Multimedia
  (28 - 196.9, n=84, last 2 years)
105 fps -20%
Lenovo IdeaPad 5 Pro 16IHU6
Intel Core i5-11300H, NVIDIA GeForce MX450
104 (91.9min) fps -21%
Huawei MateBook 16 R7 5800H
AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
53.7 (49min) fps -59%
1920x1080 ultra (3/3) best looking
Asus Vivobook Pro 16X-M7600QE
AMD Ryzen 9 5900HX, NVIDIA GeForce RTX 3050 Ti Laptop GPU
126 (111.1min) fps
Asus Vivobook Pro 16X-M7600QE
AMD Ryzen 9 5900HX, NVIDIA GeForce RTX 3050 Ti Laptop GPU
119 (103.2min) fps -6%
Gigabyte Aero 15 OLED XC
Intel Core i7-10870H, NVIDIA GeForce RTX 3070 Laptop GPU
117 (100.7min) fps -7%
HP ZBook Studio 15 G8
Intel Core i9-11950H, NVIDIA GeForce RTX 3070 Laptop GPU
116.3 (90.8min) fps -8%
Average NVIDIA GeForce RTX 3050 Ti Laptop GPU
  (67.3 - 145, n=27)
113 fps -10%
Dell XPS 15 9510 11800H RTX 3050 Ti OLED
Intel Core i7-11800H, NVIDIA GeForce RTX 3050 Ti Laptop GPU
109 (92.1min) fps -13%
Average of class Multimedia
  (26.3 - 179.9, n=84, last 2 years)
97.3 fps -23%
Lenovo IdeaPad 5 Pro 16IHU6
Intel Core i5-11300H, NVIDIA GeForce MX450
95.5 (80.2min) fps -24%
Huawei MateBook 16 R7 5800H
AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
50.8 (47.1min) fps -60%
3840x2160 ultra (3/3) best looking
Gigabyte Aero 15 OLED XC
Intel Core i7-10870H, NVIDIA GeForce RTX 3070 Laptop GPU
98.8 (86min) fps +82%
HP ZBook Studio 15 G8
Intel Core i9-11950H, NVIDIA GeForce RTX 3070 Laptop GPU
93.1 (67.6min) fps +71%
Average of class Multimedia
  (30 - 139.3, n=15, last 2 years)
85.5 fps +57%
Average NVIDIA GeForce RTX 3050 Ti Laptop GPU
  (31.9 - 76.6, n=6)
55.9 fps +3%
Asus Vivobook Pro 16X-M7600QE
AMD Ryzen 9 5900HX, NVIDIA GeForce RTX 3050 Ti Laptop GPU
54.4 (50.8min) fps
Asus Vivobook Pro 16X-M7600QE
AMD Ryzen 9 5900HX, NVIDIA GeForce RTX 3050 Ti Laptop GPU
53.7 (50.1min) fps -1%
Final Fantasy XV Benchmark
1920x1080 Standard Quality
Gigabyte Aero 15 OLED XC
Intel Core i7-10870H, NVIDIA GeForce RTX 3070 Laptop GPU
112 fps +90%
HP ZBook Studio 15 G8
Intel Core i9-11950H, NVIDIA GeForce RTX 3070 Laptop GPU
104 fps +77%
Average NVIDIA GeForce RTX 3050 Ti Laptop GPU
  (33.4 - 106, n=24)
70 fps +19%
Average of class Multimedia
  (9.75 - 170.8, n=80, last 2 years)
69.3 fps +18%
Asus Vivobook Pro 16X-M7600QE
AMD Ryzen 9 5900HX, NVIDIA GeForce RTX 3050 Ti Laptop GPU
58.8 fps
Dell XPS 15 9510 11800H RTX 3050 Ti OLED
Intel Core i7-11800H, NVIDIA GeForce RTX 3050 Ti Laptop GPU
51.6 fps -12%
Lenovo IdeaPad 5 Pro 16IHU6
Intel Core i5-11300H, NVIDIA GeForce MX450
33 fps -44%
Huawei MateBook 16 R7 5800H
AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
18.1 fps -69%
1920x1080 High Quality
Gigabyte Aero 15 OLED XC
Intel Core i7-10870H, NVIDIA GeForce RTX 3070 Laptop GPU
87.6 fps +104%
HP ZBook Studio 15 G8
Intel Core i9-11950H, NVIDIA GeForce RTX 3070 Laptop GPU
78.5 fps +83%
Average of class Multimedia
  (6.53 - 141.8, n=83, last 2 years)
52.8 fps +23%
Average NVIDIA GeForce RTX 3050 Ti Laptop GPU
  (23.5 - 106, n=24)
51.2 fps +19%
Asus Vivobook Pro 16X-M7600QE
AMD Ryzen 9 5900HX, NVIDIA GeForce RTX 3050 Ti Laptop GPU
43 fps
Dell XPS 15 9510 11800H RTX 3050 Ti OLED
Intel Core i7-11800H, NVIDIA GeForce RTX 3050 Ti Laptop GPU
37.4 fps -13%
Lenovo IdeaPad 5 Pro 16IHU6
Intel Core i5-11300H, NVIDIA GeForce MX450
21.2 fps -51%
Huawei MateBook 16 R7 5800H
AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
12.1 fps -72%
2560x1440 High Quality
Gigabyte Aero 15 OLED XC
Intel Core i7-10870H, NVIDIA GeForce RTX 3070 Laptop GPU
65.7 fps +113%
HP ZBook Studio 15 G8
Intel Core i9-11950H, NVIDIA GeForce RTX 3070 Laptop GPU
61.3 fps +98%
Average of class Multimedia
  (9.85 - 132.7, n=48, last 2 years)
52.4 fps +70%
Average NVIDIA GeForce RTX 3050 Ti Laptop GPU
  (18.4 - 53.1, n=11)
33.9 fps +10%
Asus Vivobook Pro 16X-M7600QE
AMD Ryzen 9 5900HX, NVIDIA GeForce RTX 3050 Ti Laptop GPU
30.9 fps
Dell XPS 15 9510 11800H RTX 3050 Ti OLED
Intel Core i7-11800H, NVIDIA GeForce RTX 3050 Ti Laptop GPU
26.8 fps -13%
Lenovo IdeaPad 5 Pro 16IHU6
Intel Core i5-11300H, NVIDIA GeForce MX450
13.5 fps -56%
3840x2160 High Quality
Gigabyte Aero 15 OLED XC
Intel Core i7-10870H, NVIDIA GeForce RTX 3070 Laptop GPU
40.9 fps +146%
HP ZBook Studio 15 G8
Intel Core i9-11950H, NVIDIA GeForce RTX 3070 Laptop GPU
36.2 fps +118%
Average of class Multimedia
  (8.98 - 81.9, n=12, last 2 years)
33.8 fps +104%
Average NVIDIA GeForce RTX 3050 Ti Laptop GPU
  (12.8 - 21.4, n=3)
16.9 fps +2%
Asus Vivobook Pro 16X-M7600QE
AMD Ryzen 9 5900HX, NVIDIA GeForce RTX 3050 Ti Laptop GPU
16.6 fps
Dirt 5
1920x1080 Medium Preset
Average NVIDIA GeForce RTX 3050 Ti Laptop GPU
  (58.9 - 84.3, n=5)
73.3 fps +17%
Asus Vivobook Pro 16X-M7600QE
AMD Ryzen 9 5900HX, NVIDIA GeForce RTX 3050 Ti Laptop GPU
62.6 (29.9min, 41.4P0.1, 51.7P1 - 107.9max) fps
Lenovo IdeaPad 5 Pro 16IHU6
Intel Core i5-11300H, NVIDIA GeForce MX450
25.8 (14.9min, 16.3P0.1, 21P1 - 34.2max) fps -59%
Average of class Multimedia
  (last 2 years)
22.5 fps -64%
1920x1080 High Preset
Average NVIDIA GeForce RTX 3050 Ti Laptop GPU
  (51.2 - 69.1, n=5)
61.5 fps +20%
Asus Vivobook Pro 16X-M7600QE
AMD Ryzen 9 5900HX, NVIDIA GeForce RTX 3050 Ti Laptop GPU
51.2 (29.3min, 37P0.1, 40.6P1 - 70.4max) fps
Average of class Multimedia
  (last 2 years)
18 fps -65%
Lenovo IdeaPad 5 Pro 16IHU6
Intel Core i5-11300H, NVIDIA GeForce MX450
16.3 (9.6min, 12.3P0.1, 12.8P1 - 22.1max) fps -68%
1920x1080 Ultra High Preset
Average NVIDIA GeForce RTX 3050 Ti Laptop GPU
  (40.5 - 54.3, n=5)
49.3 fps +22%
Asus Vivobook Pro 16X-M7600QE
AMD Ryzen 9 5900HX, NVIDIA GeForce RTX 3050 Ti Laptop GPU
40.5 (28.9min, 32.3P0.1, 33.8P1 - 51.6max) fps
Average of class Multimedia
  (last 2 years)
14 fps -65%
Lenovo IdeaPad 5 Pro 16IHU6
Intel Core i5-11300H, NVIDIA GeForce MX450
11.4 (8.8min, 9.1P0.1, 9.5P1 - 15.1max) fps -72%
Strange Brigade
1920x1080 medium AA:medium AF:4
Gigabyte Aero 15 OLED XC
Intel Core i7-10870H, NVIDIA GeForce RTX 3070 Laptop GPU
224 (73.7min, 176P1 - 365max) fps +90%
Average NVIDIA GeForce RTX 3050 Ti Laptop GPU
  (53 - 145.5, n=25)
123.8 fps +5%
Average of class Multimedia
  (15.2 - 305, n=76, last 2 years)
123.2 fps +4%
Asus Vivobook Pro 16X-M7600QE
AMD Ryzen 9 5900HX, NVIDIA GeForce RTX 3050 Ti Laptop GPU
118 (86.8min, 98.7P1 - 182max) fps
Dell XPS 15 9510 11800H RTX 3050 Ti OLED
Intel Core i7-11800H, NVIDIA GeForce RTX 3050 Ti Laptop GPU
117 fps -1%
Lenovo IdeaPad 5 Pro 16IHU6
Intel Core i5-11300H, NVIDIA GeForce MX450
53.2 (44.2min, 46.6P1 - 68.5max) fps -55%
Huawei MateBook 16 R7 5800H
AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
33 fps -72%
1920x1080 high AA:high AF:8
Gigabyte Aero 15 OLED XC
Intel Core i7-10870H, NVIDIA GeForce RTX 3070 Laptop GPU
183 (77.1min, 132P1 - 322max) fps +92%
Average of class Multimedia
  (12.8 - 244, n=80, last 2 years)
105.3 fps +11%
Average NVIDIA GeForce RTX 3050 Ti Laptop GPU
  (79.2 - 117.3, n=23)
103.3 fps +9%
Asus Vivobook Pro 16X-M7600QE
AMD Ryzen 9 5900HX, NVIDIA GeForce RTX 3050 Ti Laptop GPU
95.2 (64.7min, 71.6P1 - 151max) fps
Dell XPS 15 9510 11800H RTX 3050 Ti OLED
Intel Core i7-11800H, NVIDIA GeForce RTX 3050 Ti Laptop GPU
94 fps -1%
Lenovo IdeaPad 5 Pro 16IHU6
Intel Core i5-11300H, NVIDIA GeForce MX450
46.7 (38.7min, 39.3P1 - 62.7max) fps -51%
Huawei MateBook 16 R7 5800H
AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
29 fps -70%
1920x1080 ultra AA:ultra AF:16
Gigabyte Aero 15 OLED XC
Intel Core i7-10870H, NVIDIA GeForce RTX 3070 Laptop GPU
161 (75.5min, 117P1 - 283max) fps +97%
Average of class Multimedia
  (11 - 233, n=82, last 2 years)
91.4 fps +12%
Average NVIDIA GeForce RTX 3050 Ti Laptop GPU
  (34.8 - 101.3, n=25)
87.5 fps +7%
Dell XPS 15 9510 11800H RTX 3050 Ti OLED
Intel Core i7-11800H, NVIDIA GeForce RTX 3050 Ti Laptop GPU
84 fps +3%
Asus Vivobook Pro 16X-M7600QE
AMD Ryzen 9 5900HX, NVIDIA GeForce RTX 3050 Ti Laptop GPU
81.9 (59.4min, 63.5P1 - 123max) fps
Lenovo IdeaPad 5 Pro 16IHU6
Intel Core i5-11300H, NVIDIA GeForce MX450
32.2 (15.7min, 25.4P1 - 113max) fps -61%
Huawei MateBook 16 R7 5800H
AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
25 fps -69%
Far Cry 5
1920x1080 Medium Preset AA:T
HP ZBook Studio 15 G8
Intel Core i9-11950H, NVIDIA GeForce RTX 3070 Laptop GPU
100 (68min - 135max) fps +41%
Average of class Multimedia
  (20 - 162, n=55, last 2 years)
79.6 fps +12%
Average NVIDIA GeForce RTX 3050 Ti Laptop GPU
  (44 - 101, n=14)
79.4 fps +12%
Dell XPS 15 9510 11800H RTX 3050 Ti OLED
Intel Core i7-11800H, NVIDIA GeForce RTX 3050 Ti Laptop GPU
76 fps +7%
Asus Vivobook Pro 16X-M7600QE
AMD Ryzen 9 5900HX, NVIDIA GeForce RTX 3050 Ti Laptop GPU
71 (54min - 86max) fps
Lenovo IdeaPad 5 Pro 16IHU6
Intel Core i5-11300H, NVIDIA GeForce MX450
41 (35min - 56max) fps -42%
Huawei MateBook 16 R7 5800H
AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
21 fps -70%
1920x1080 High Preset AA:T
HP ZBook Studio 15 G8
Intel Core i9-11950H, NVIDIA GeForce RTX 3070 Laptop GPU
93 (66min - 118max) fps +43%
Average of class Multimedia
  (18 - 154, n=59, last 2 years)
74.2 fps +14%
Average NVIDIA GeForce RTX 3050 Ti Laptop GPU
  (36 - 94, n=14)
73.6 fps +13%
Dell XPS 15 9510 11800H RTX 3050 Ti OLED
Intel Core i7-11800H, NVIDIA GeForce RTX 3050 Ti Laptop GPU
73 fps +12%
Asus Vivobook Pro 16X-M7600QE
AMD Ryzen 9 5900HX, NVIDIA GeForce RTX 3050 Ti Laptop GPU
65 (49min - 81max) fps
Lenovo IdeaPad 5 Pro 16IHU6
Intel Core i5-11300H, NVIDIA GeForce MX450
35 (26min - 51max) fps -46%
Huawei MateBook 16 R7 5800H
AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
20 fps -69%
1920x1080 Ultra Preset AA:T
HP ZBook Studio 15 G8
Intel Core i9-11950H, NVIDIA GeForce RTX 3070 Laptop GPU
89 (48min - 121max) fps +44%
Average of class Multimedia
  (17 - 145, n=59, last 2 years)
69.5 fps +12%
Average NVIDIA GeForce RTX 3050 Ti Laptop GPU
  (30 - 89, n=14)
68.4 fps +10%
Dell XPS 15 9510 11800H RTX 3050 Ti OLED
Intel Core i7-11800H, NVIDIA GeForce RTX 3050 Ti Laptop GPU
65 fps +5%
Asus Vivobook Pro 16X-M7600QE
AMD Ryzen 9 5900HX, NVIDIA GeForce RTX 3050 Ti Laptop GPU
62 (50min - 73max) fps
Lenovo IdeaPad 5 Pro 16IHU6
Intel Core i5-11300H, NVIDIA GeForce MX450
33 (25min - 47max) fps -47%
X-Plane 11.11
1920x1080 med (fps_test=2)
HP ZBook Studio 15 G8
Intel Core i9-11950H, NVIDIA GeForce RTX 3070 Laptop GPU
104 fps +14%
Gigabyte Aero 15 OLED XC
Intel Core i7-10870H, NVIDIA GeForce RTX 3070 Laptop GPU
96.3 fps +5%
Average NVIDIA GeForce RTX 3050 Ti Laptop GPU
  (54.6 - 117, n=27)
93.7 fps +2%
Asus Vivobook Pro 16X-M7600QE
AMD Ryzen 9 5900HX, NVIDIA GeForce RTX 3050 Ti Laptop GPU
91.5 fps
Asus Vivobook Pro 16X-M7600QE
AMD Ryzen 9 5900HX, NVIDIA GeForce RTX 3050 Ti Laptop GPU
89.4 fps -2%
Dell XPS 15 9510 11800H RTX 3050 Ti OLED
Intel Core i7-11800H, NVIDIA GeForce RTX 3050 Ti Laptop GPU
88.8 fps -3%
Average of class Multimedia
  (25.6 - 177.4, n=82, last 2 years)
82.5 fps -10%
Lenovo IdeaPad 5 Pro 16IHU6
Intel Core i5-11300H, NVIDIA GeForce MX450
73.4 fps -20%
Huawei MateBook 16 R7 5800H
AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
41.7 fps -54%
1920x1080 high (fps_test=3)
HP ZBook Studio 15 G8
Intel Core i9-11950H, NVIDIA GeForce RTX 3070 Laptop GPU
83.5 fps +11%
Gigabyte Aero 15 OLED XC
Intel Core i7-10870H, NVIDIA GeForce RTX 3070 Laptop GPU
80.7 fps +7%
Average NVIDIA GeForce RTX 3050 Ti Laptop GPU
  (48.8 - 100.6, n=27)
77.4 fps +3%
Asus Vivobook Pro 16X-M7600QE
AMD Ryzen 9 5900HX, NVIDIA GeForce RTX 3050 Ti Laptop GPU
75.5 fps
Asus Vivobook Pro 16X-M7600QE
AMD Ryzen 9 5900HX, NVIDIA GeForce RTX 3050 Ti Laptop GPU
72.7 fps -4%
Dell XPS 15 9510 11800H RTX 3050 Ti OLED
Intel Core i7-11800H, NVIDIA GeForce RTX 3050 Ti Laptop GPU
74.2 fps -2%
Average of class Multimedia
  (23 - 141.1, n=84, last 2 years)
67.4 fps -11%
Lenovo IdeaPad 5 Pro 16IHU6
Intel Core i5-11300H, NVIDIA GeForce MX450
62.6 fps -17%
Huawei MateBook 16 R7 5800H
AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
36.8 fps -51%
3840x2160 high (fps_test=3)
Average of class Multimedia
  (19.3 - 114.7, n=15, last 2 years)
67.4 fps +26%
Gigabyte Aero 15 OLED XC
Intel Core i7-10870H, NVIDIA GeForce RTX 3070 Laptop GPU
60.4 fps +13%
HP ZBook Studio 15 G8
Intel Core i9-11950H, NVIDIA GeForce RTX 3070 Laptop GPU
54.4 fps +1%
Asus Vivobook Pro 16X-M7600QE
AMD Ryzen 9 5900HX, NVIDIA GeForce RTX 3050 Ti Laptop GPU
53.6 fps
Asus Vivobook Pro 16X-M7600QE
AMD Ryzen 9 5900HX, NVIDIA GeForce RTX 3050 Ti Laptop GPU
51.8 fps -3%
Average NVIDIA GeForce RTX 3050 Ti Laptop GPU
  (32.8 - 73.7, n=6)
53.4 fps 0%
lowmed.highultraQHD4K
GTA V (2015) 179 63.9
The Witcher 3 (2015) 191 151 70 48
Dota 2 Reborn (2015) 158 146 131 126 54.4
Final Fantasy XV Benchmark (2018) 106 58.8 43 30.9 16.6
X-Plane 11.11 (2018) 107 91.5 75.5 53.6
Far Cry 5 (2018) 105 71 65 62 50 21
Strange Brigade (2018) 213 118 95.2 81.9 57.7 33.5
Dirt 5 (2020) 121 62.6 51.2 40.5 33.8
F1 2021 (2021) 225 131 105 52.3 37 14.4

排放--不幸的智能风扇

噪声排放

虽然风扇的声音不是特别大,最大为45 dB(A),但由于其频率分布,它们是令人讨厌的。6.3kHz以上的高音调在笔记本电脑中异常响亮。从长远来看,当需要大量的性能时,华硕Vivobook Pro可以被认为是令人不快的声音。令人不安的是,几乎在每一个风扇水平上,中高音构成了大部分的可听噪音。
然而,风扇可以通过ProArt Creator Hub有效控制。笔记本电脑在Whisper模式下更安静。然而,系统性能受到了很大的限制。

Noise Level

Idle
27 / 27 / 27.5 dB(A)
Load
41.7 / 45.3 dB(A)
  red to green bar


30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light   Earthworks M23R, Arta (15 cm distance)   environment noise: 26 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs203430.427.228.5342535.937.83332.735.93140.738.942.136.940.74032.331.43235.232.35035.331.631.73335.36329.630.326.62729.68018.72021.821.618.710018.119.320.218.718.1125182221.519.11816017.322.323.116.317.320017.823.42515.717.825016.422.624.813.916.431516.324.728.514.416.340014.525.228.111.814.550013.824.326.811.313.863012.822.926.211.212.880014.126.629.310.914.110001428.331.911.514125014.228.231.512.114.2160015.330.133.111.915.3200016.931.834.81316.9250017.331.934.413.517.3315016.630.233.213.616.6400014.72932.913.314.7500013.632.133.813.313.6630013.930.836.913.613.9800016.428.434.713.716.41000015.927.432.61415.91250016.227.332.813.616.21600013.717.920.812.313.7SPL27.541.745.325.127.5N0.93.750.60.9median 15.9median 27.3median 31.5median 13.5median 15.9Delta1.43.44.21.81.431.529.731.838.331.324.32225.627.423.928.429.930.633.130.328.534.332.332.529.425.223.424.72624.720.918.622.920.722.225.117.420.119.422.224.424.523.323.724.321.817.82018.520.82217.920.616.721.825.919.722.117.523.826.619.322.917.223.6251720.813.123.825.71619.711.624.825.115.619.710.724.325.214.117.411.123.125.313.518.911.523.229.413.418.910.82629.314.419.410.727.528.114.518.710.726.127.313.818.51124.828.513.9191126.226.112.716.511.423.124.512.214.811.822.123.112.112.71221.51712.312.512.215.113.512.412.512.413.112.712.412.612.314.312.412.212.412.315.411.511.611.611.51238.225.829.623.8362.70.71.20.52.2median 25.1median 13.9median 18.9median 11.8median 23.23.62.63.622.8hearing rangehide median Fan NoiseAsus Vivobook Pro 16X-M7600QEDell XPS 15 9510 11800H RTX 3050 Ti OLED

温度

日志分析压力测试
日志分析压力测试

华硕Vivobook Pro的表面温度通常保持令人愉快的凉爽到可以忍受的温暖。尤其是掌托,总是保持在一个舒适的温度范围内。在用FurMark和Prime95进行的压力测试中,这台多媒体笔记本电脑始终提供了很高的性能。R9处理器的平均温度为87°C(约189°F),离热节流的危险仍有一段距离。

Max. Load
 29 °C37.8 °C33.3 °C
 29.5 °C39.4 °C35.1 °C
 27.1 °C26.8 °C27.7 °C
Maximum: 39.4 °C
Average: 31.7 °C
38.3 °C43.6 °C30 °C
33.4 °C31.4 °C28.9 °C
29.9 °C28.7 °C29.1 °C
Maximum: 43.6 °C
Average: 32.6 °C
Power Supply (max.)  42.1 °C | Room Temperature 22 °C | FIRT 550-Pocket
(+) The average temperature for the upper side under maximal load is 31.7 °C / 89 F, compared to the average of 31.3 °C / 88 F for the devices in the class Multimedia.
(+) The maximum temperature on the upper side is 39.4 °C / 103 F, compared to the average of 36.9 °C / 98 F, ranging from 21.1 to 71 °C for the class Multimedia.
(±) The bottom heats up to a maximum of 43.6 °C / 110 F, compared to the average of 39.2 °C / 103 F
(+) In idle usage, the average temperature for the upper side is 25.6 °C / 78 F, compared to the device average of 31.3 °C / 88 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 27.7 °C / 81.9 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 28.8 °C / 83.8 F (+1.1 °C / 1.9 F).

演讲者

哈曼卡顿的声音
哈曼卡顿的声音

哈曼卡顿的声音 "很好。华硕笔记本电脑的扬声器不是特别大,大约为80 dB(A),但它们的声音质量很高。除了在低音方面有一点弱点外,Vivobook提供了一个良好和平衡的声音。这台笔记本电脑的两个扬声器位于底部,但它们是朝向用户的。

然而,外部扬声器和耳机也可以通过蓝牙5.1和3.5毫米的耳机接口连接。

dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2030.728.530.7253732.7373139.336.939.34034.235.234.25032.23332.26329.22729.2802921.62910038.618.738.612542.519.142.516043.816.343.820044.615.744.62505413.95431560.814.460.840064.911.864.950064.411.364.463065.511.265.580064.210.964.2100059.111.559.1125063.212.163.216006611.966200064.31364.3250064.213.564.2315065.813.665.8400064.613.364.650006713.367630071.613.671.6800073.713.773.7100007914791250080.813.680.81600076.312.376.3SPL82.425.182.4N48.60.648.6median 64.4median 13.5median 64.4Delta41.8435.335.132.931.831.83236.535.132.428.93328.936.328.848.32761.52752.924.860.92462.822.763.32269.521.267.82174.82075.919.472.718.97117.770.117.86917.671.817.668.117.671.417.673.717.670.417.571.617.671.617.669.617.459.717.583.630.662.51.5median 69.6median 17.84.72.4hearing rangehide median Pink NoiseAsus Vivobook Pro 16X-M7600QEApple MacBook 12 (Early 2016) 1.1 GHz
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
Asus Vivobook Pro 16X-M7600QE audio analysis

(±) | speaker loudness is average but good (80.8 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 17% lower than median
(±) | linearity of bass is average (10.4% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 1.2% away from median
(+) | mids are linear (5.1% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 5.1% higher than median
(+) | highs are linear (4.9% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (16.5% difference to median)
Compared to same class
» 39% of all tested devices in this class were better, 7% similar, 54% worse
» The best had a delta of 5%, average was 18%, worst was 45%
Compared to all devices tested
» 25% of all tested devices were better, 5% similar, 70% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Apple MacBook 12 (Early 2016) 1.1 GHz audio analysis

(+) | speakers can play relatively loud (83.6 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 11.3% lower than median
(±) | linearity of bass is average (14.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.4% away from median
(+) | mids are linear (5.5% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2% away from median
(+) | highs are linear (4.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (10.2% difference to median)
Compared to same class
» 6% of all tested devices in this class were better, 2% similar, 92% worse
» The best had a delta of 5%, average was 19%, worst was 53%
Compared to all devices tested
» 4% of all tested devices were better, 1% similar, 95% worse
» The best had a delta of 4%, average was 25%, worst was 134%

电源管理--96瓦特的电池已经达到了合法的极限

能源消耗

对能源消耗的测量证明了笔记本电脑在闲置时的良好能源效率,尽管没有OLED显示屏的对比设备的消耗甚至更少。在能耗测量中,OLED显示屏的能耗往往高于液晶屏。在负载下的测量中,高能耗显示了强大的硬件。

在压力测试中,附带的120瓦电源在50°C(122°F)时变得相对温暖,并开始轻微的嗡嗡声。这表明适配器是在其性能极限下运行的。附带的电源是否也会包括在生产模型中,目前还没有定论。

Power Consumption
Off / Standbydarklight 0.4 / 0.4 Watt
Idledarkmidlight 8.2 / 16.2 / 19.7 Watt
Load midlight 65.8 / 104 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Asus Vivobook Pro 16X-M7600QE
R9 5900HX, GeForce RTX 3050 Ti Laptop GPU, SK Hynix HFM001TD3JX013N, OLED, 3840x2400, 16.1"
HP ZBook Studio 15 G8
i9-11950H, GeForce RTX 3070 Laptop GPU, Samsung PM981a MZVLB2T0HALB, OLED, 3840x2160, 15.6"
Huawei MateBook 16 R7 5800H
R7 5800H, Vega 8, Lite-On CA5-8D512, , 2520x1680, 16"
Gigabyte Aero 15 OLED XC
i7-10870H, GeForce RTX 3070 Laptop GPU, WDC PC SN730 SDBPNTY-1T00, OLED, 3840x2160, 15.6"
Lenovo IdeaPad 5 Pro 16IHU6
i5-11300H, GeForce MX450, Samsung SSD PM981a MZVLB512HBJQ, IPS, 2560x1600, 16"
Dell XPS 15 9510 11800H RTX 3050 Ti OLED
i7-11800H, GeForce RTX 3050 Ti Laptop GPU, Micron 2300 512GB MTFDHBA512TDV, OLED, 3456x2160, 15.6"
Average NVIDIA GeForce RTX 3050 Ti Laptop GPU

Average of class Multimedia

Power Consumption
-60%
25%
-63%
20%
4%
-8%
10%
Idle Minimum *
8.2
11
-34%
4.6
44%
11
-34%
5
39%
7.6
7%
8.2 ?(2.6 - 23, n=25)
-0%
Idle Average *
16.2
18.8
-16%
10.5
35%
14
14%
9
44%
9.9
39%
12.6 ?(6.5 - 25, n=25)
22%
Idle Maximum *
19.7
31.7
-61%
11.2
43%
34
-73%
9.4
52%
10.8
45%
17.2 ?(7.9 - 30, n=25)
13%
Load Average *
65.8
105.2
-60%
59.1
10%
95
-44%
71
-8%
81
-23%
Witcher 3 ultra *
65.6
148
-126%
58.6
11%
152
-132%
72.4
-10%
76.2
-16%
Load Maximum *
104
171.8
-65%
98.3
5%
216
-108%
99
5%
131
-26%
139.1 ?(63 - 195, n=25)
-34%

* ... smaller is better

Energy consumption Witcher 3 / Stress test

0102030405060708090100110120130Tooltip
Asus Vivobook Pro 16X-M7600QE R9 5900HX, GeForce RTX 3050 Ti Laptop GPU; Witcher 3 ultra: Ø65.6 (63.4-68.7)
Dell XPS 15 9510 11800H RTX 3050 Ti OLED i7-11800H, GeForce RTX 3050 Ti Laptop GPU; Witcher 3 ultra: Ø76.2 (68.3-82.9)
Asus Vivobook Pro 16X-M7600QE R9 5900HX, GeForce RTX 3050 Ti Laptop GPU; 1280x720 Prime95 28.10 and Furmark 1.25: Ø98.8 (87.4-117)
Asus Vivobook Pro 16X-M7600QE R9 5900HX, GeForce RTX 3050 Ti Laptop GPU; 1280x720 Prime95 28.10 and Furmark 1.25: Ø66.4 (31.3-85)
Dell XPS 15 9510 11800H RTX 3050 Ti OLED i7-11800H, GeForce RTX 3050 Ti Laptop GPU; 1280x720 Prime95 28.10 and Furmark 1.25: Ø83.5 (68.3-132)

电池寿命

笔记本电脑或类似移动设备中的固定电池最大允许有100Wh。Vivobook Pro配备了96Wh的电池,这为这款多媒体笔记本电脑提供了较长的电池寿命。然而,Vivobook Pro的电池寿命不仅受到所需计算能力的限制,而且还受到屏幕的限制。当需要显示许多明亮区域时,OLED显示屏会相应地消耗更多的电力。而另一方面,黑暗区域需要的能量较少。因此,作为第一个节能措施,值得选择尽可能深的屏幕背景,并尽可能使用黑暗模式。

因此,WiFi网上冲浪测试(许多网站以白色背景访问)和闲置电池测试之间有12小时的间隔,这并不奇怪。在闲置电池测试中,屏幕亮度被设置为最低水平,而且还选择了深色屏幕背景。

在测试期间,使用所述的节约措施,笔记本电脑多次显示,在日常使用中,只需一次电池充电就能轻松度过一天。在一天结束时,仍有超过30%的电池可用。

然而,如果你要求笔记本在电池模式下具有高亮度和大量的性能,运行时间就会缩减到刚刚超过一个小时。

Battery Runtime
Idle (without WLAN, min brightness)
20h 18min
WiFi Websurfing
11h 15min
WiFi Websurfing max. Brightness
7h 56.8min
Load (maximum brightness)
1h 06min
Asus Vivobook Pro 16X-M7600QE
R9 5900HX, GeForce RTX 3050 Ti Laptop GPU, 96 Wh
HP ZBook Studio 15 G8
i9-11950H, GeForce RTX 3070 Laptop GPU, 83 Wh
Huawei MateBook 16 R7 5800H
R7 5800H, Vega 8, 84 Wh
Gigabyte Aero 15 OLED XC
i7-10870H, GeForce RTX 3070 Laptop GPU, 99 Wh
Lenovo IdeaPad 5 Pro 16IHU6
i5-11300H, GeForce MX450, 75 Wh
Dell XPS 15 9510 11800H RTX 3050 Ti OLED
i7-11800H, GeForce RTX 3050 Ti Laptop GPU, 86 Wh
Average of class Multimedia

Battery Runtime
-7%
22%
83%
1%
12%
13%
Reader / Idle
1218
774
-36%
1163
-5%
WiFi v1.3
675
369
-45%
770
14%
399
-41%
543
-20%
420
-38%
Load
66
106
61%
86
30%
202
206%
84
27%
106
61%
H.264
654
427
625
624

Pros

+ OLED显示屏的色彩还原度非常好
+ 具有高硬度的铝制外壳
+ 凉爽的掌托
+ 哈曼卡顿音效
+ 高性能
+ 持久的电池

Cons

- MyAsus登录
- 很少有连接(只有一个显示输出)。
- 内存被焊接
- 电源变得非常热

判决书

华硕Vivobook Pro 16x由德国华硕提供
华硕Vivobook Pro 16x由德国华硕提供

作为一个预生产设备,华硕Vivobook Pro 16X必须经历与其他笔记本电脑一样的测试。除了一些小的问题领域,Vivobook非常积极地展示了自己。然而,在最后的开发步骤中,与最终产品可能存在相当大的差异。因此,我们在文章末尾不包括通常的评级表。

视觉上吸引人的华硕Vivobook Pro在测试中表现出很高的意愿。这款笔记本电脑还可以凭借明亮、多彩和高分辨率的OLED显示屏得分。尽管有AMD Ryzen R9和NvidiaGeForce RTX 3050 Ti的强大组合,但如果你相应地限制显示器的亮度,长的电池运行时间是可能的。除了风扇的噪音特性和MyAsus应用程序之外,很难找到公开的批评点。预览设备证明是一台经过深思熟虑的笔记本电脑。

对于游戏玩家来说,NvidiaGeForce RTX 3050 Ti可能不是很有前途,但除了最高设置下的最新游戏外,显卡的性能非常好,远远超过了多媒体笔记本电脑的水平。华硕Vivobook Pro也可以被归类为工作站,尽管它缺乏专业程序的认证驱动。特别好的屏幕和在触摸板上调用华硕表盘的选项至少强调了对媒体设计师的关注。

华硕Vivobook Pro结合了良好的设计和高的系统性能。

在测试阶段开始时,华硕的笔记本电脑的软件问题仍然比结束时多得多。很难估计最终的生产型号会有多少性能。然而,华硕笔记本电脑可以通过持续的驱动和软件更新来修复最初的弱点。连接选项的数量少是一个品味问题,但可能对工作流程产生重大负面影响。

价格和可用性

华硕Vivobook 16X的官方价格还没有公布。该预生产设备尚未在欧洲上市。然而,竞争设备对可能的价格范围给出了一个很好的概述。价格低廉的华为Matebook 16 AMD目前约有1,600欧元(约合1,831美元),但它的显示屏分辨率较低,工作内存较少,但显卡略好。

这款 惠普ZBook Studio的16:9格式有类似的高配置,有更好的显卡,价格约为2800欧元(约合人民币3204元)。

华硕笔记本电脑也将在这个范围内,尽管华硕目前正以高端设备的低价吸引人们的注意。

Price comparison

Please share our article, every link counts!
Mail Logo
> Notebookcheck中文版(NBC中国) > 评测 > 华硕Vivobook Pro 16X的预生产单位审查。性能、耐力和强大的OLED显示屏
Marc Herter, 2021-12-16 (Update: 2021-12-16)
