联想 Yoga 3 14 变形本简短评测

1, 2, Yoga 3。 联想将一块14寸屏幕放进了与去年的Yoga 2 13相近大小的机身中,同时也更新了它的硬件配置。新的Yoga 3 14继承了前代产品的主要特性,同时在一些方面有了改进,但在另外一些方面也有所退步。
Windows Ultrabook Touchscreen Convertible / 2-in-1 Broadwell
219.8
cd/m²
231.6
cd/m²
244.3
cd/m²
202.3
cd/m²
234.6
cd/m²
233.9
cd/m²
199.5
cd/m²
224.5
cd/m²
232.8
cd/m²
Distribution of brightness
LG Philips LGD047A (LP140WF3-SPL2) tested with X-Rite i1Display 2
Maximum: 244.3 cd/m² (Nits) Average: 224.8 cd/m²
Brightness Distribution: 82 %
Center on Battery: 234.6 cd/m²
Contrast: 595:1 (Black: 0.394 cd/m²)
ΔE Color 5.22 | 0.5-29.43 Ø4.92
ΔE Greyscale 3.35 | 0.5-98 Ø5.2
36.92% AdobeRGB 1998 (Argyll 1.6.3 3D)
Gamma: 2.27
Lenovo Yoga 3 14
HD Graphics 5500, 5200U, Samsung SSD PM851 256 GB MZYTE256HMHP
Lenovo Flex 2 14
GeForce 840M, 4010U, Samsung SSD PM851 128 GB MZ7TE128HMGR
Asus Transformer Book Flip TP300LD-C4031H
GeForce 820M, 4510U, SanDisk SD6SB1M128G1002
Lenovo Yoga 2 13
HD Graphics 4400, 4010U, WD Blue UltraSlim WD5000MPCK-22AWHT0
Lenovo Yoga 2 Pro
HD Graphics 4400, 4200U, Samsung SSD PM841 MZMTD128HAFV mSATA
Display
Display P3 Coverage
38.81
74.4
65.5
42.03
sRGB Coverage
58.2
98.9
96.2
63.3
AdobeRGB 1998 Coverage
40.12
72.6
67.7
43.42
Screen
15%
18%
16%
15%
Brightness middle
234.6
216
-8%
345
47%
269
15%
371.5
58%
Brightness
225
215
-4%
331
47%
249
11%
340
51%
Brightness Distribution
82
88
7%
93
13%
86
5%
87
6%
Black Level *
0.394
0.21
47%
0.47
-19%
0.4
-2%
0.749
-90%
Contrast
595
1029
73%
734
23%
673
13%
496
-17%
Colorchecker dE 2000 *
5.22
4.56
13%
4.82
8%
2.95
43%
3.14
40%
Greyscale dE 2000 *
3.35
3.51
-5%
4.97
-48%
4.19
-25%
1.24
63%
Gamma
2.27 97%
2.53 87%
2.35 94%
2.5 88%
2.44 90%
CCT
6184 105%
6401 102%
6435 101%
6771 96%
6461 101%
Color Space (Percent of AdobeRGB 1998)
36.92
37
0%
64
73%
62.1
68%
40.49
10%
Total Average (Program / Settings)
15% / 15%
18% / 18%
16% / 16%
15% / 15%

* ... smaller is better

Cinebench R10 Shading 64Bit
2896 Points
Cinebench R10 Rendering Multiple CPUs 64Bit
10899 Points
Cinebench R10 Rendering Single CPUs 64Bit
5492 Points
Cinebench R11.5 OpenGL 64Bit
17.56 fps
Cinebench R11.5 CPU Multi 64Bit
2.83 Points
Cinebench R11.5 CPU Single 64Bit
1.27 Points
Cinebench R15 Ref. Match 64Bit
98 %
Cinebench R15 OpenGL 64Bit
24.12 fps
Cinebench R15 CPU Multi 64Bit
260 Points
Cinebench R15 CPU Single 64Bit
109 Points
Help
PCMark 7 Score
4659 points
PCMark 8 Home Score Accelerated v2
2795 points
PCMark 8 Creative Score Accelerated v2
3756 points
PCMark 8 Work Score Accelerated v2
3315 points
Help
PCMark 7 - Score (sort by value)
Lenovo Yoga 3 14
4659 Points
Lenovo Flex 2 14
3816 Points -18%
Asus Transformer Book Flip TP300LD-C4031H
4976 Points +7%
Lenovo Yoga 2 13
2180 Points -53%
Lenovo Yoga 2 Pro
4670 Points 0%

Legend


Lenovo Yoga 3 14 Intel Core i5-5200U, Intel HD Graphics 5500, Samsung SSD PM851 256 GB MZYTE256HMHP

Lenovo Flex 2 14 Intel Core i3-4010U, NVIDIA GeForce 840M, Samsung SSD PM851 128 GB MZ7TE128HMGR

Asus Transformer Book Flip TP300LD-C4031H Intel Core i7-4510U, NVIDIA GeForce 820M, SanDisk SD6SB1M128G1002

Lenovo Yoga 2 13 Intel Core i3-4010U, Intel HD Graphics 4400, WD Blue UltraSlim WD5000MPCK-22AWHT0

Lenovo Yoga 2 Pro Intel Core i5-4200U, Intel HD Graphics 4400, Samsung SSD PM841 MZMTD128HAFV mSATA
AS SSD
Seq Read (sort by value)
Lenovo Yoga 3 14
509 MB/s
Lenovo Flex 2 14
485.3 MB/s -5%
Asus Transformer Book Flip TP300LD-C4031H
467.3 MB/s -8%
Lenovo Yoga 2 13
100.7 MB/s -80%
Lenovo Yoga 2 Pro
501 MB/s -2%
Seq Write (sort by value)
Lenovo Yoga 3 14
260 MB/s
Lenovo Flex 2 14
126.4 MB/s -51%
Asus Transformer Book Flip TP300LD-C4031H
244.8 MB/s -6%
Lenovo Yoga 2 13
95.8 MB/s -63%
Lenovo Yoga 2 Pro
129.7 MB/s -50%
4K Read (sort by value)
Lenovo Yoga 3 14
31.14 MB/s
Lenovo Flex 2 14
30.7 MB/s -1%
Asus Transformer Book Flip TP300LD-C4031H
29.52 MB/s -5%
Lenovo Yoga 2 13
0.46 MB/s -99%
Lenovo Yoga 2 Pro
25.47 MB/s -18%
4K Write (sort by value)
Lenovo Yoga 3 14
82.3 MB/s
Lenovo Flex 2 14
72.2 MB/s -12%
Asus Transformer Book Flip TP300LD-C4031H
86.5 MB/s +5%
Lenovo Yoga 2 13
1.14 MB/s -99%
Lenovo Yoga 2 Pro
58.7 MB/s -29%
4K-64 Read (sort by value)
Lenovo Yoga 3 14
417.3 MB/s
Lenovo Flex 2 14
338.8 MB/s -19%
Asus Transformer Book Flip TP300LD-C4031H
312.1 MB/s -25%
Lenovo Yoga 2 13
1.09 MB/s -100%
Lenovo Yoga 2 Pro
295.5 MB/s -29%
4K-64 Write (sort by value)
Lenovo Yoga 3 14
191.3 MB/s
Lenovo Flex 2 14
90 MB/s -53%
Asus Transformer Book Flip TP300LD-C4031H
140.2 MB/s -27%
Lenovo Yoga 2 13
1.06 MB/s -99%
Lenovo Yoga 2 Pro
109.3 MB/s -43%
Access Time Read (sort by value)
Lenovo Yoga 3 14
0.08 ms *
Lenovo Flex 2 14
0.18 ms * -125%
Asus Transformer Book Flip TP300LD-C4031H
0.153 ms * -91%
Lenovo Yoga 2 13
19 ms * -23650%
Lenovo Yoga 2 Pro
0.101 ms * -26%
Access Time Write (sort by value)
Lenovo Yoga 3 14
0.041 ms *
Lenovo Flex 2 14
0.06 ms * -46%
Asus Transformer Book Flip TP300LD-C4031H
0.048 ms * -17%
Lenovo Yoga 2 13
15 ms * -36485%
Lenovo Yoga 2 Pro
0.058 ms * -41%
CrystalDiskMark 3.0
Read Seq (sort by value)
Lenovo Yoga 3 14
525 MB/s
Asus Transformer Book Flip TP300LD-C4031H
475 MB/s -10%
Lenovo Yoga 2 Pro
520 MB/s -1%
Write Seq (sort by value)
Lenovo Yoga 3 14
446.6 MB/s
Asus Transformer Book Flip TP300LD-C4031H
295 MB/s -34%
Lenovo Yoga 2 Pro
133.8 MB/s -70%
Read 512 (sort by value)
Lenovo Yoga 3 14
442.9 MB/s
Asus Transformer Book Flip TP300LD-C4031H
278 MB/s -37%
Lenovo Yoga 2 Pro
433.1 MB/s -2%
Write 512 (sort by value)
Lenovo Yoga 3 14
126.6 MB/s
Asus Transformer Book Flip TP300LD-C4031H
285 MB/s +125%
Lenovo Yoga 2 Pro
133 MB/s +5%
Read 4k (sort by value)
Lenovo Yoga 3 14
34.89 MB/s
Asus Transformer Book Flip TP300LD-C4031H
25 MB/s -28%
Lenovo Yoga 2 Pro
28.38 MB/s -19%
Write 4k (sort by value)
Lenovo Yoga 3 14
18.34 MB/s
Asus Transformer Book Flip TP300LD-C4031H
94 MB/s +413%
Lenovo Yoga 2 Pro
74.4 MB/s +306%
Read 4k QD32 (sort by value)
Lenovo Yoga 3 14
354.1 MB/s
Asus Transformer Book Flip TP300LD-C4031H
335 MB/s -5%
Lenovo Yoga 2 Pro
274.1 MB/s -23%
Write 4k QD32 (sort by value)
Lenovo Yoga 3 14
267.2 MB/s
Asus Transformer Book Flip TP300LD-C4031H
203 MB/s -24%
Lenovo Yoga 2 Pro
133.6 MB/s -50%

Legend


Lenovo Yoga 3 14 Intel Core i5-5200U, Intel HD Graphics 5500, Samsung SSD PM851 256 GB MZYTE256HMHP

Lenovo Flex 2 14 Intel Core i3-4010U, NVIDIA GeForce 840M, Samsung SSD PM851 128 GB MZ7TE128HMGR

Asus Transformer Book Flip TP300LD-C4031H Intel Core i7-4510U, NVIDIA GeForce 820M, SanDisk SD6SB1M128G1002

Lenovo Yoga 2 13 Intel Core i3-4010U, Intel HD Graphics 4400, WD Blue UltraSlim WD5000MPCK-22AWHT0

Lenovo Yoga 2 Pro Intel Core i5-4200U, Intel HD Graphics 4400, Samsung SSD PM841 MZMTD128HAFV mSATA

* ... smaller is better

lowmed.highultra
Anno 2070 (2011) 53.2 26.6 15.9 7.9
Company of Heroes 2 (2013) 16.5 12.8 7.8 2.8
Fifa 14 (2013) 97.5 67 48.3 40.3
Thief (2014) 13 9 7 3.2
GRID: Autosport (2014) 29.2 22.5 13.6 12.5
3DMark 06 Standard Score
6041 points
3DMark Vantage P Result
4030 points

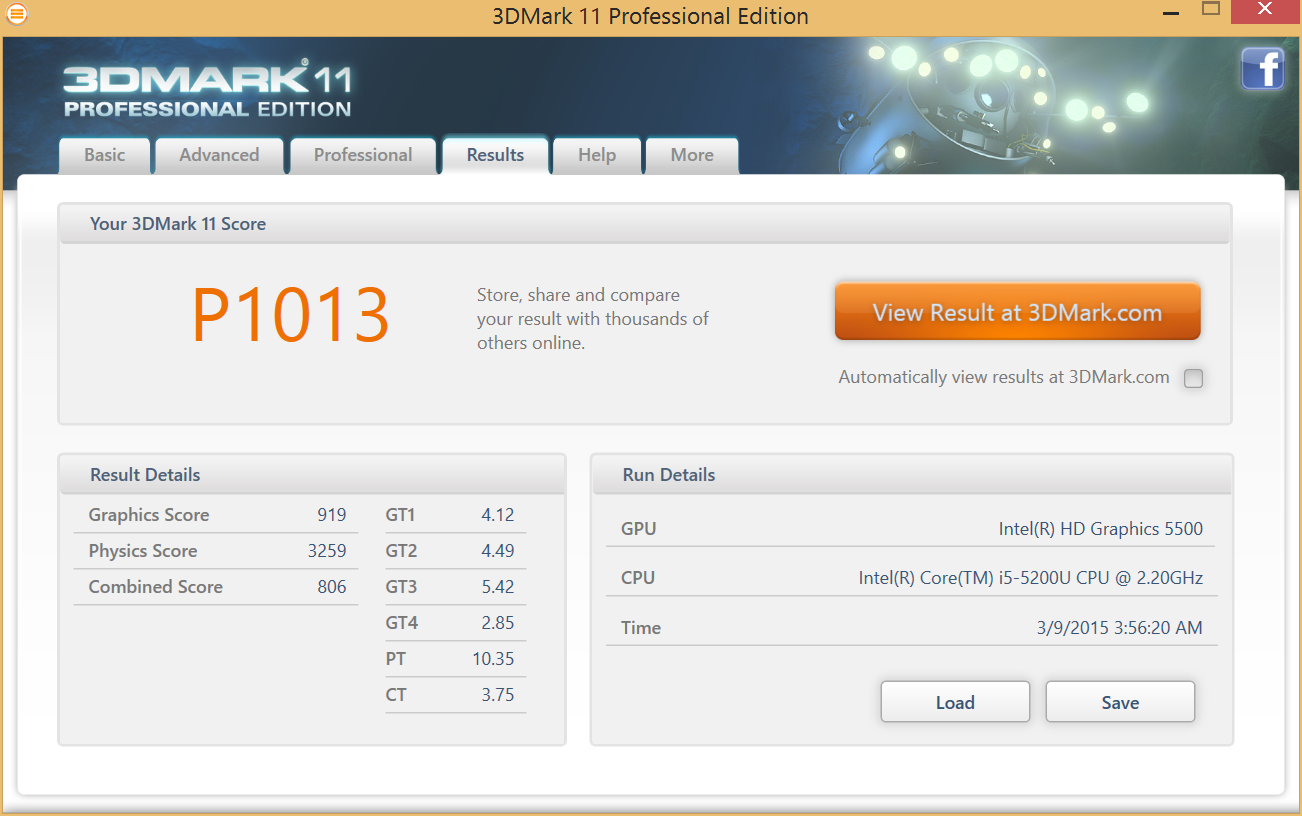

3DMark 11 Performance
1013 points

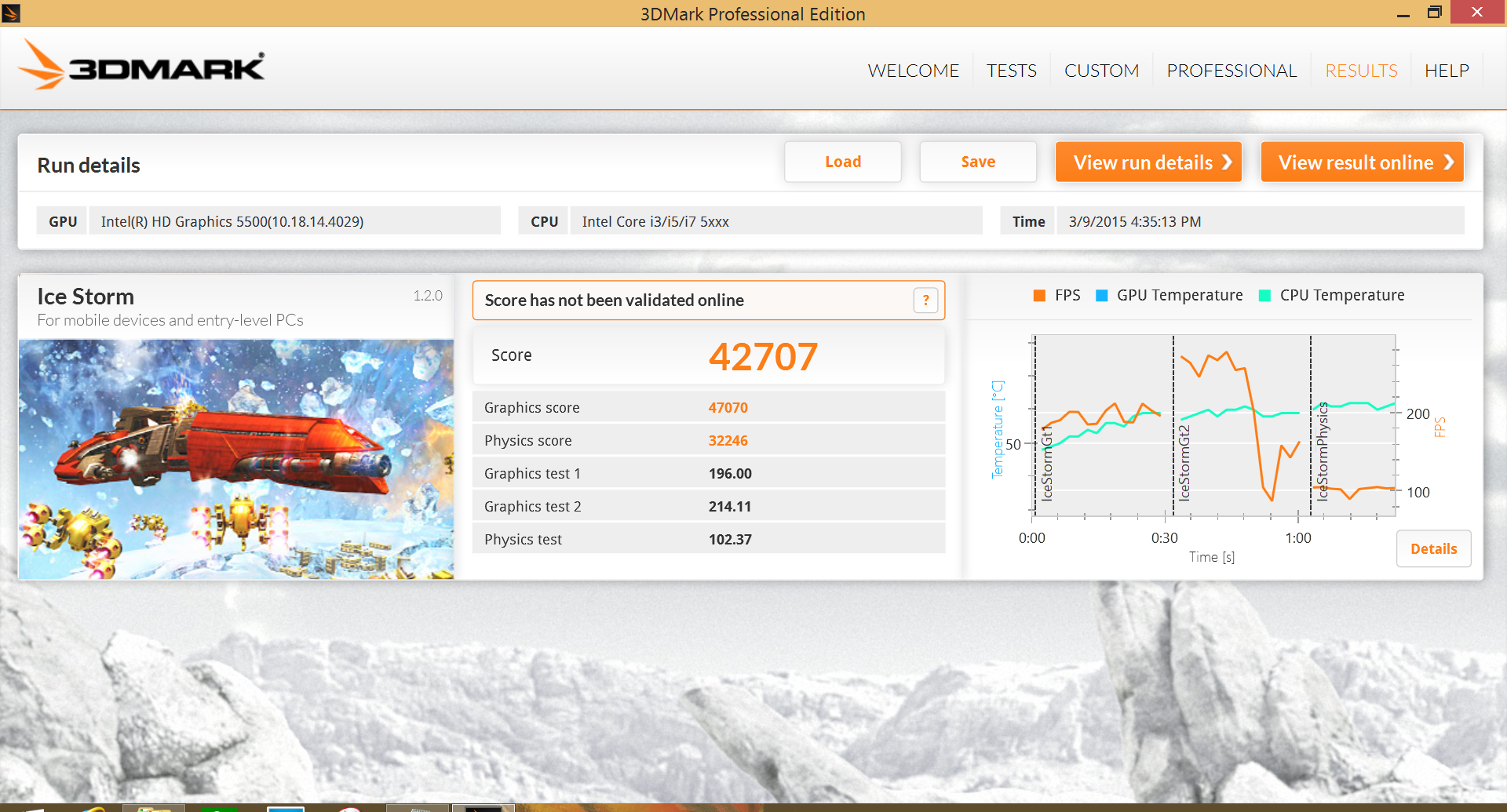

3DMark Ice Storm Standard Score
42707 points

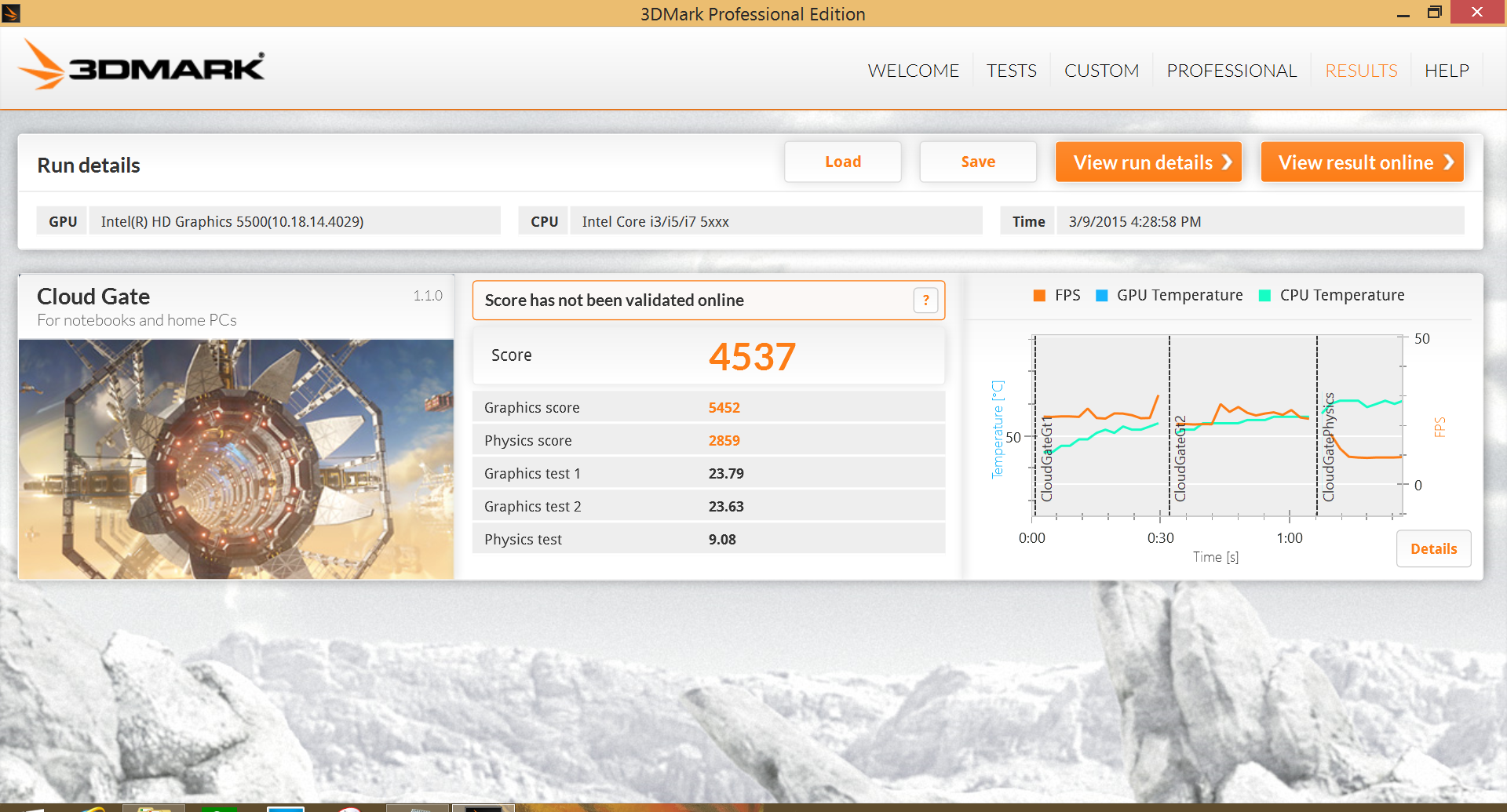

3DMark Cloud Gate Standard Score
4537 points

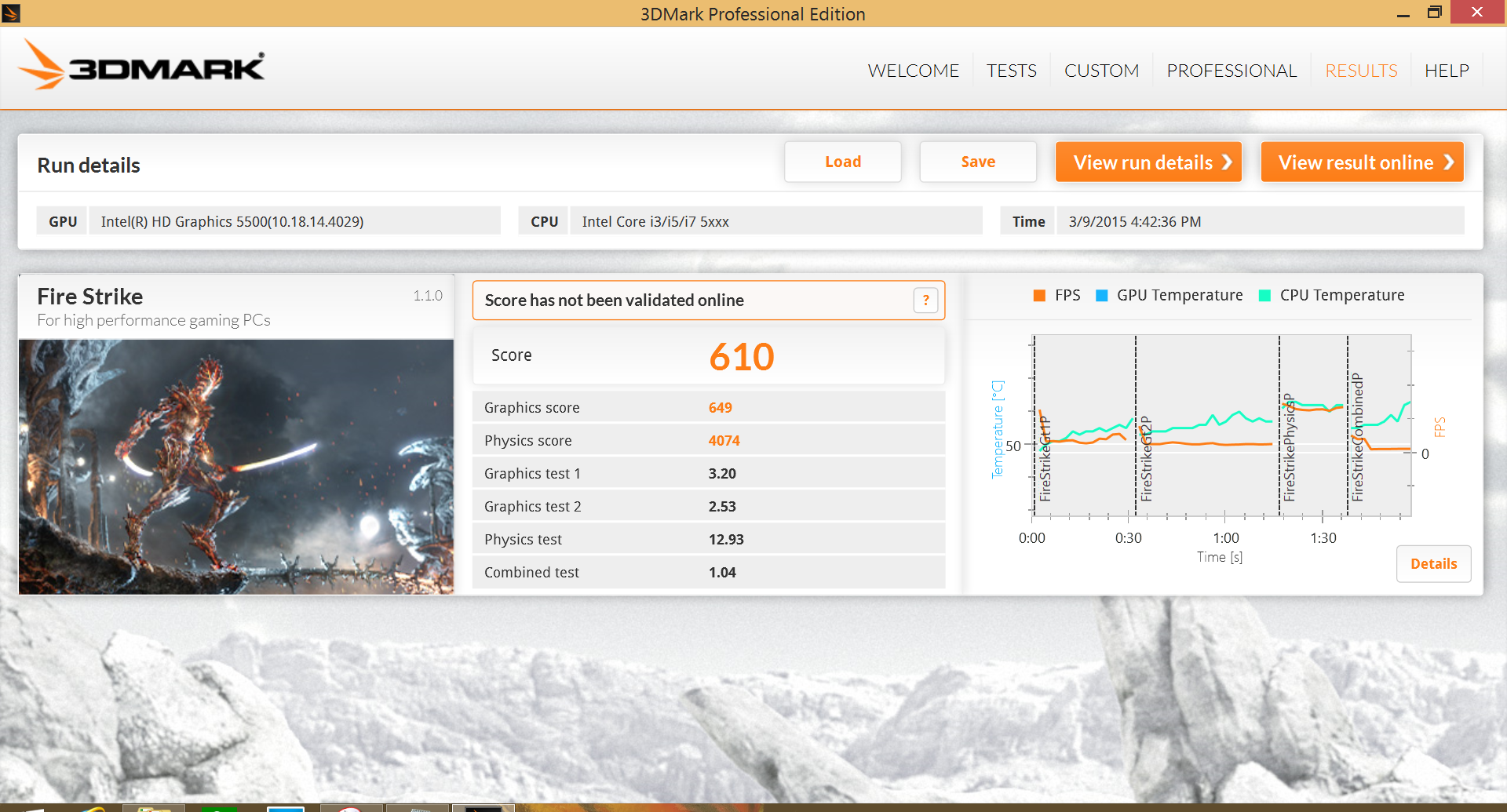

3DMark Fire Strike Score
610 points
Help

Noise Level

Idle
32.2 / 32.5 / 32.6 dB(A)
Load
33.6 / 37.2 dB(A)
  red to green bar


30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light   Voltcraft sl-300 (15 cm distance)
Max. Load
 27 °C34.6 °C30.4 °C
 24.6 °C32.6 °C28 °C
 23.2 °C22.4 °C23.8 °C
Maximum: 34.6 °C
Average: 27.4 °C
27.2 °C38 °C26.8 °C
27.2 °C44.4 °C25.8 °C
25.2 °C23.2 °C22.6 °C
Maximum: 44.4 °C
Average: 28.9 °C
Power Supply (max.)  44.6 °C | Room Temperature 19 °C | Raytek Raynger ST
(+) The average temperature for the upper side under maximal load is 27.4 °C / 81 F, compared to the average of 30.2 °C / 86 F for the devices in the class Convertible.
(+) The maximum temperature on the upper side is 34.6 °C / 94 F, compared to the average of 35.3 °C / 96 F, ranging from 19.6 to 55.7 °C for the class Convertible.
(±) The bottom heats up to a maximum of 44.4 °C / 112 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 22.7 °C / 73 F, compared to the device average of 30.2 °C / 86 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 23.8 °C / 74.8 F and are therefore cool to the touch.
(+) The average temperature of the palmrest area of similar devices was 28.1 °C / 82.6 F (+4.3 °C / 7.8 F).
Battery Runtime
Idle (without WLAN, min brightness)
19h 43min
WiFi Surfing
7h 47min
Load (maximum brightness)
2h 15min

更新的硬件,更大的屏幕,更长电池续航——它有什么不值得喜欢的吗?Yoga 3 14相比前代产品Yoga 2 13在不少方面有了改进。尽管它的屏幕尺寸增大到了14寸,而使用了更小的电池,但新机型仍然提供了更好的性能与明显更长的电池续航时间。256GB的三星固态硬盘在开机、关机和启动程序时都速度极快。这款变形本在日常使用中也相当安静,而在高负载下也不会特别吵人。作为消费级产品它的输入设备十分实用,且键盘提供了背光,这是个非常方便的功能。它的各种使用模式都十分实用,尽管我们建议避免站立模式,因为它的键盘没有保护,会与桌面相接触。

遗憾的是新的屏幕并不如前作产品明亮,因此它就更加暗淡了,且只覆盖了sRGB色域一半的色彩。在明亮的户外使用性十分有限,因此喜欢在户外使用电脑的用户可能需要考虑其他产品。一个可能的选择是联想的老款Yoga 2 Pro,它提供了非常明亮的QHD+屏幕(340尼特,3200x1800像素)。在截稿时,它配备i5-4200U,8GB内存,256GB硬盘的机型售价约850美元。华硕Transformer Book Flip也有更加明亮的屏幕,并配备了入门级的独立显卡,因此它的游戏性能略高。Aspire R13 R7也是一个不错但稍逊一筹的选择,生产商官网出售的Haswell架构机型目前起售价900美元。注重性价比的用户可以考虑联想Flex 2 14,尽管仅支持两种使用模式,尽管售价仅530美元,但仍然配备了IPS屏幕。



注:本文是基于完整评测的缩减版本,阅读完整的英文评测,请点击这里

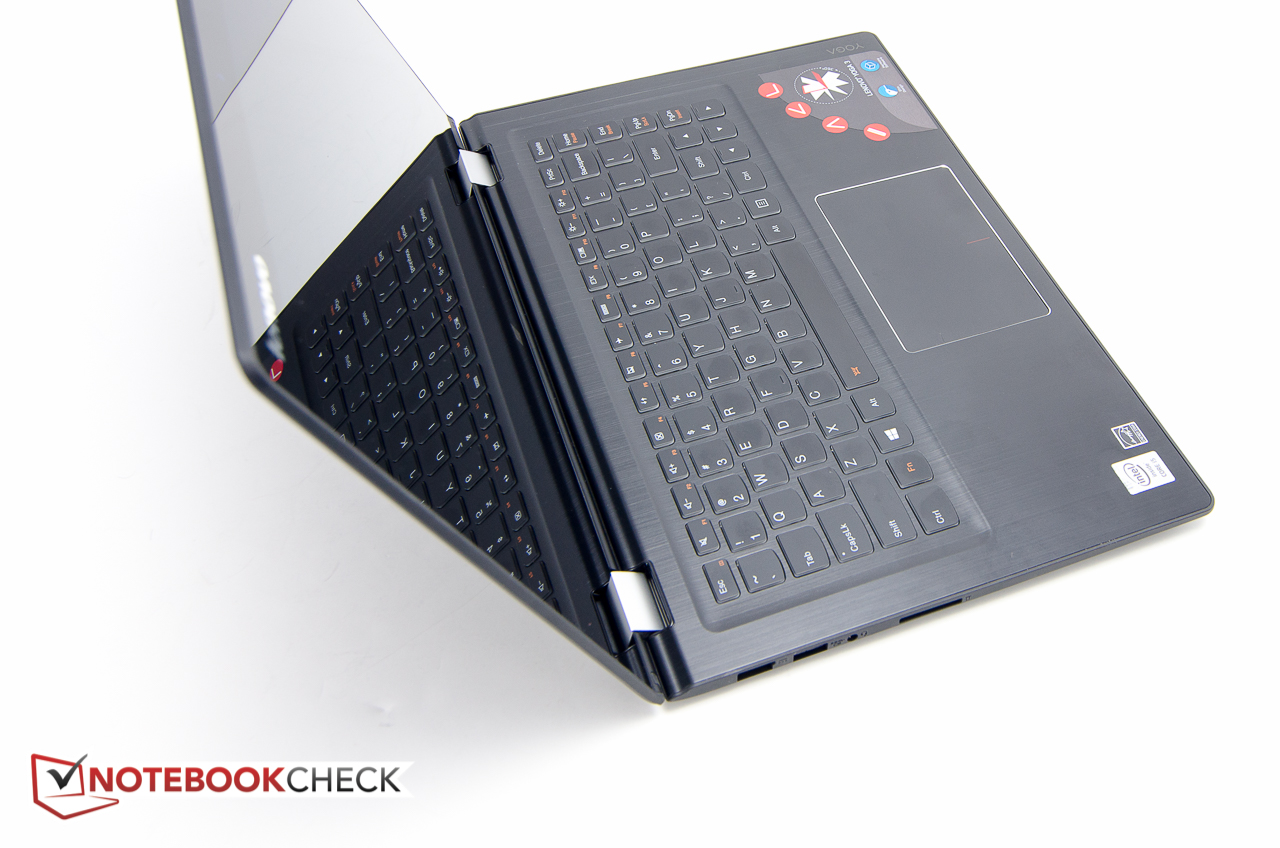

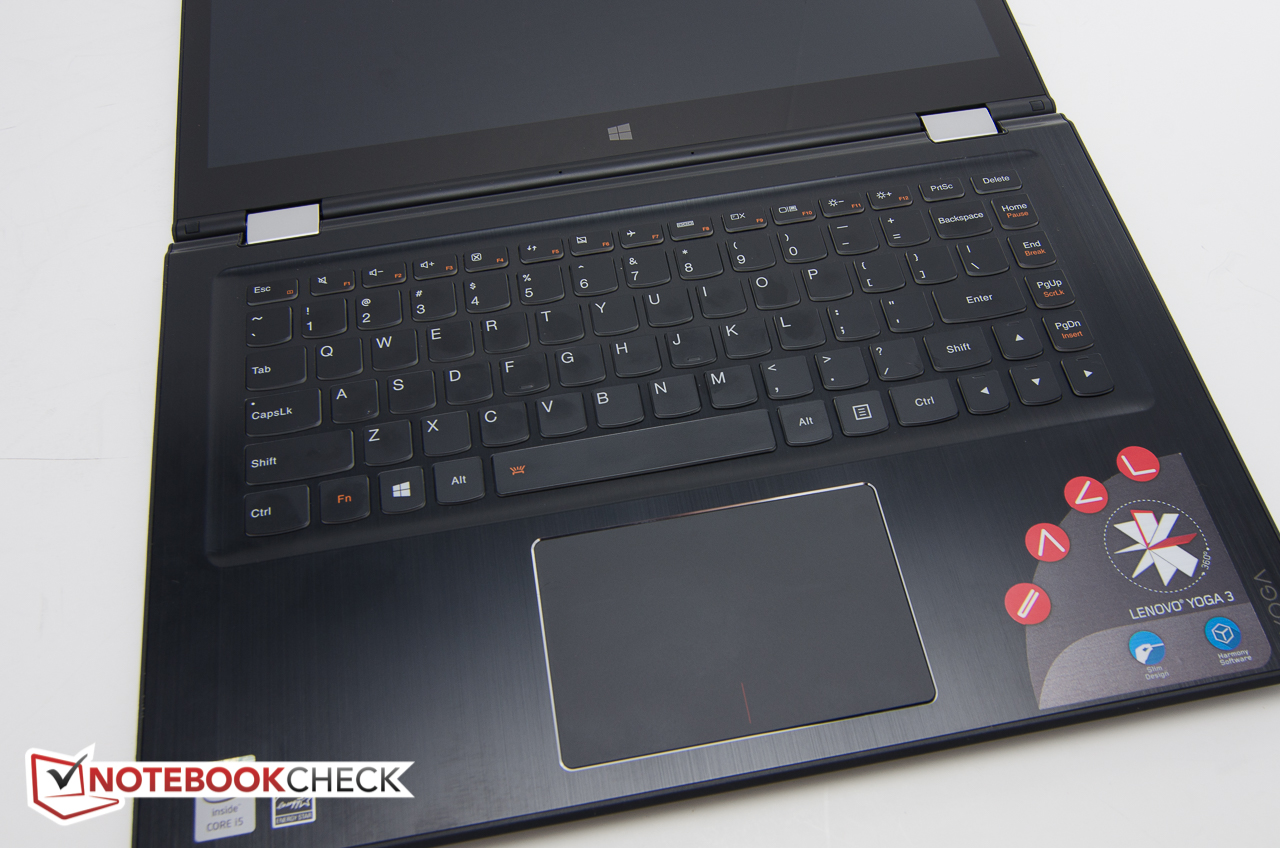

联想Yoga 3 14看起来很像一个普通的笔记本电脑...
联想Yoga 3 14看起来很像一个普通的笔记本电脑...

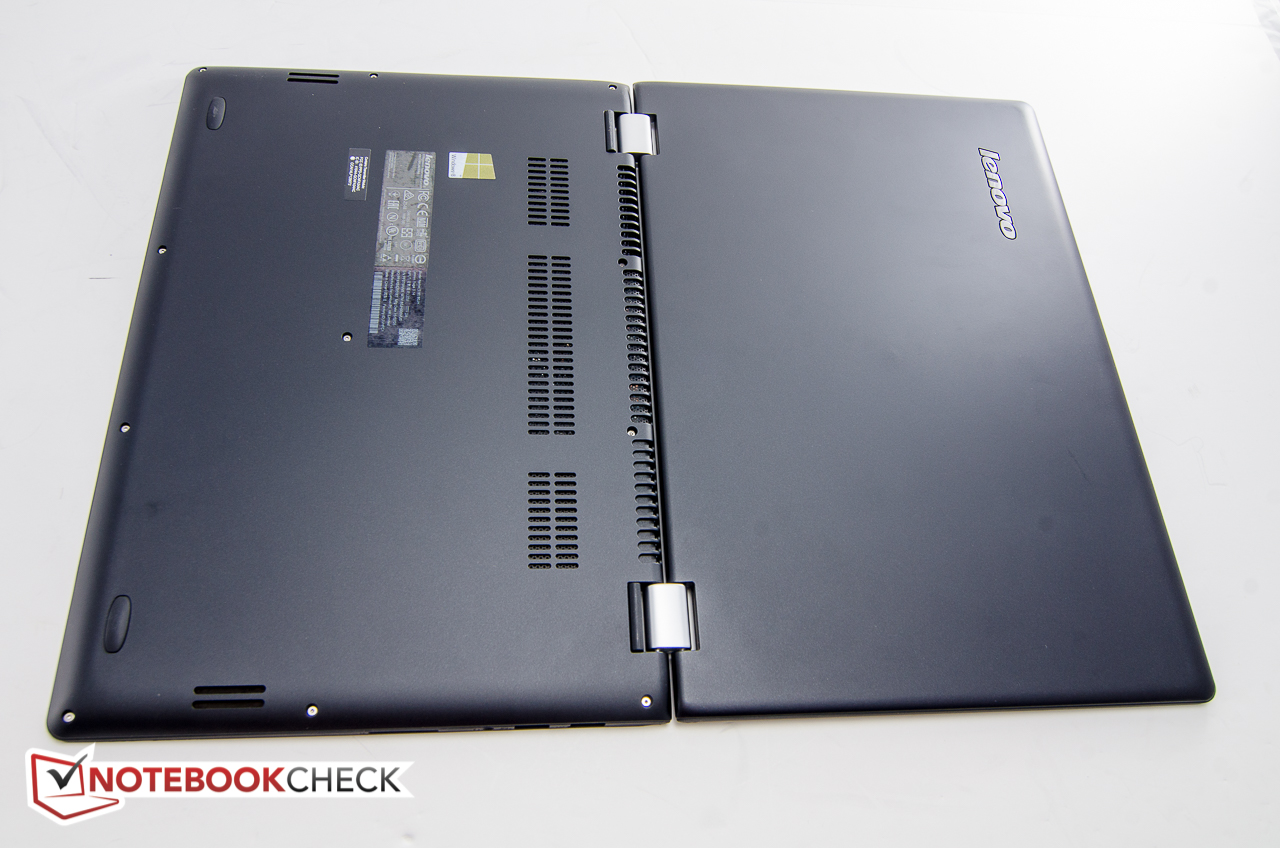

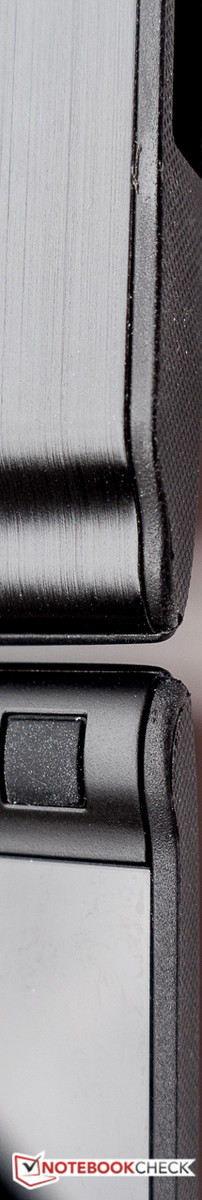

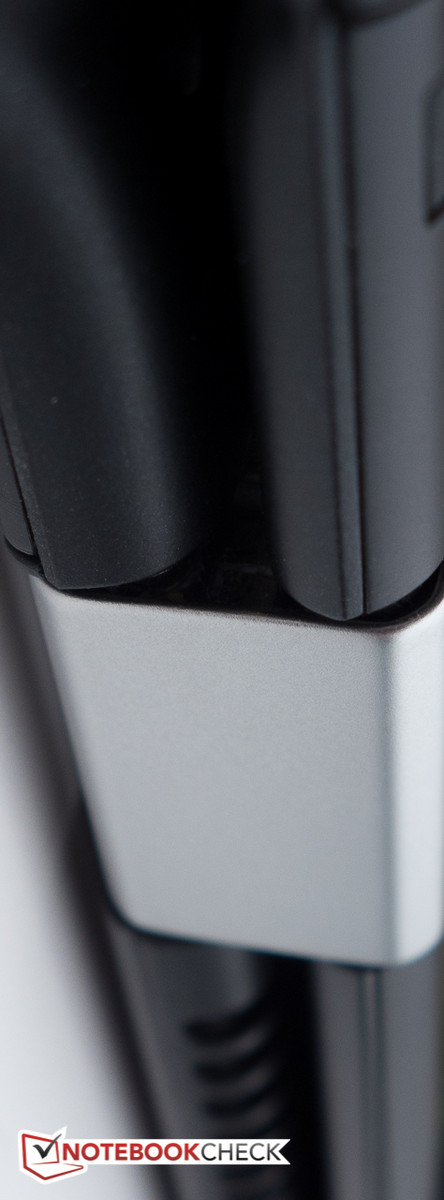

...不过它有特别的转轴设计...
...不过它有特别的转轴设计...

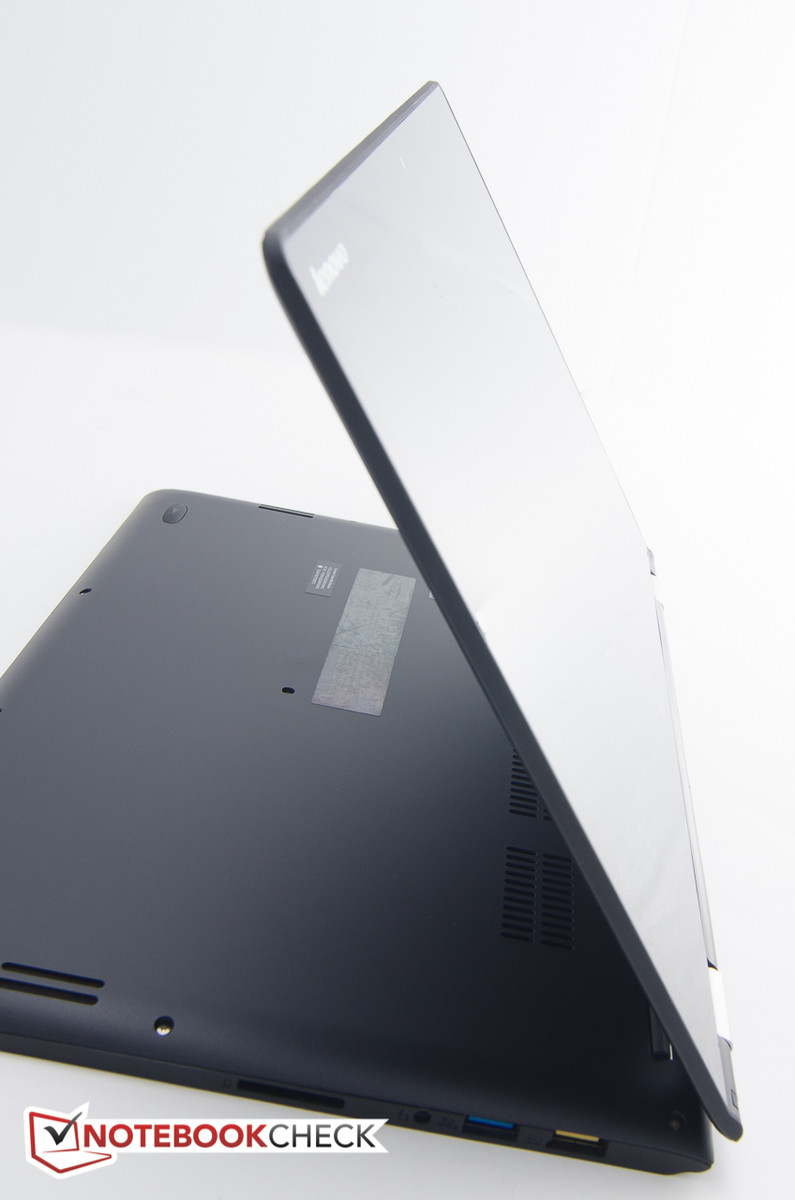

...让它可以成为多模式变形本。
...让它可以成为多模式变形本。

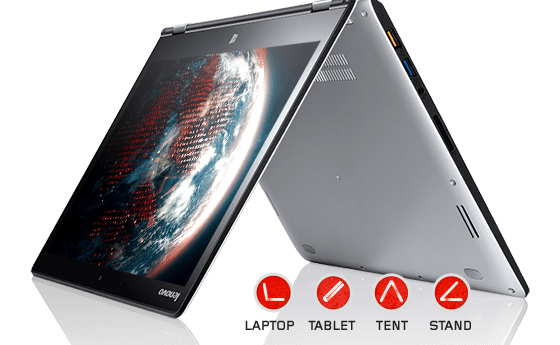

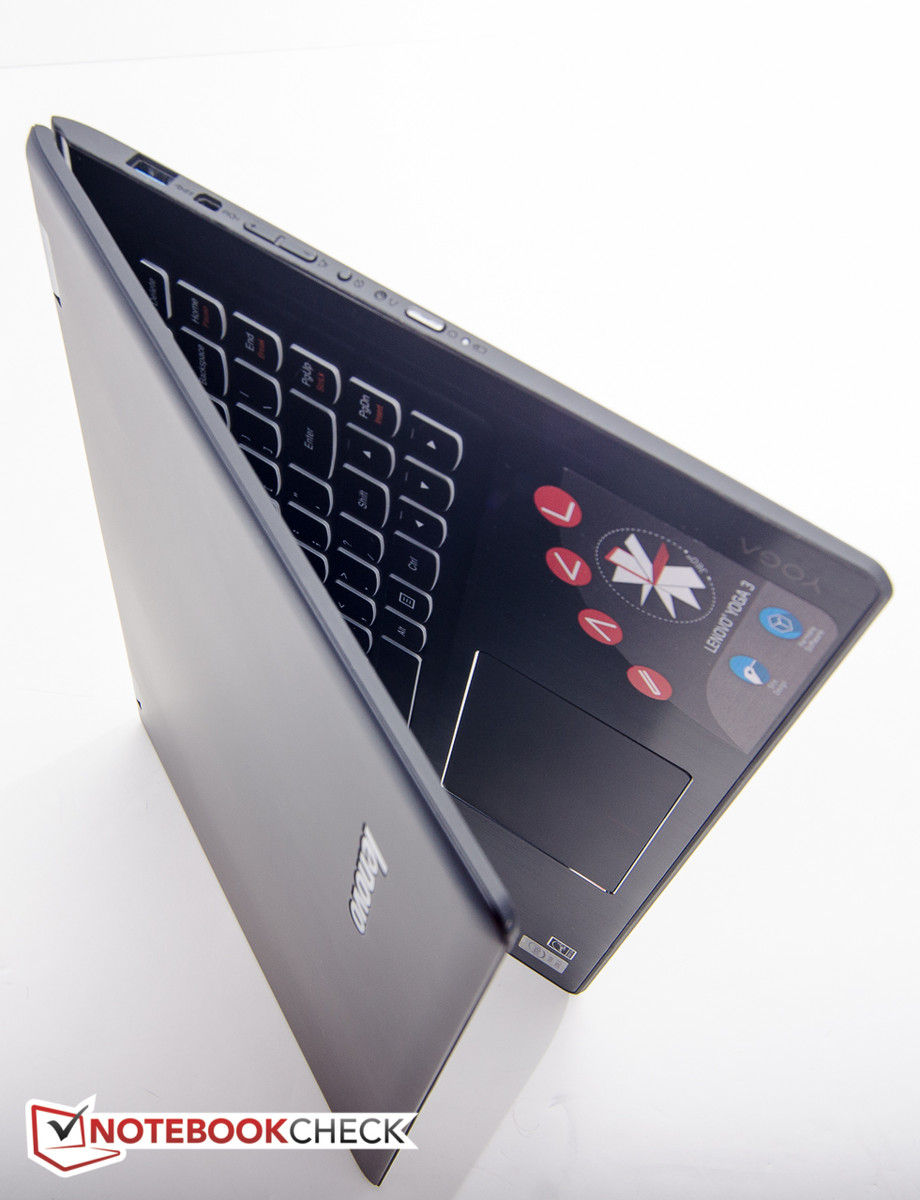

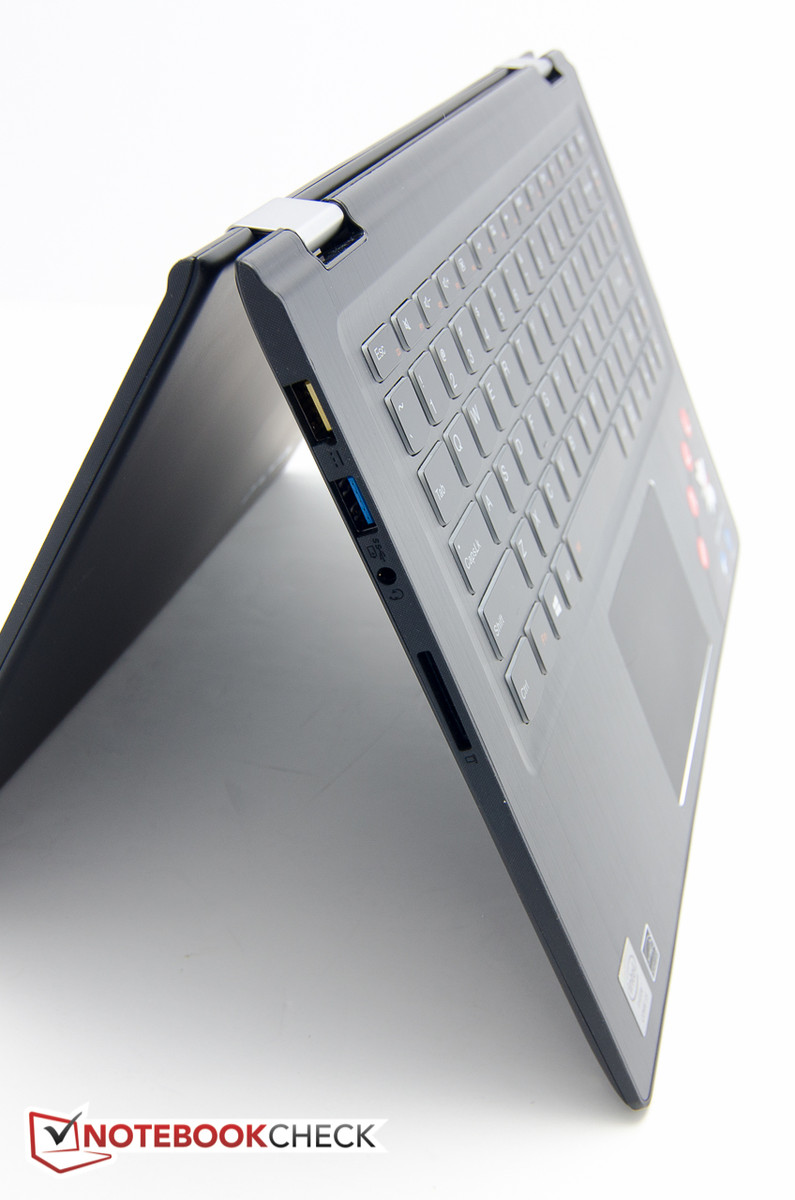

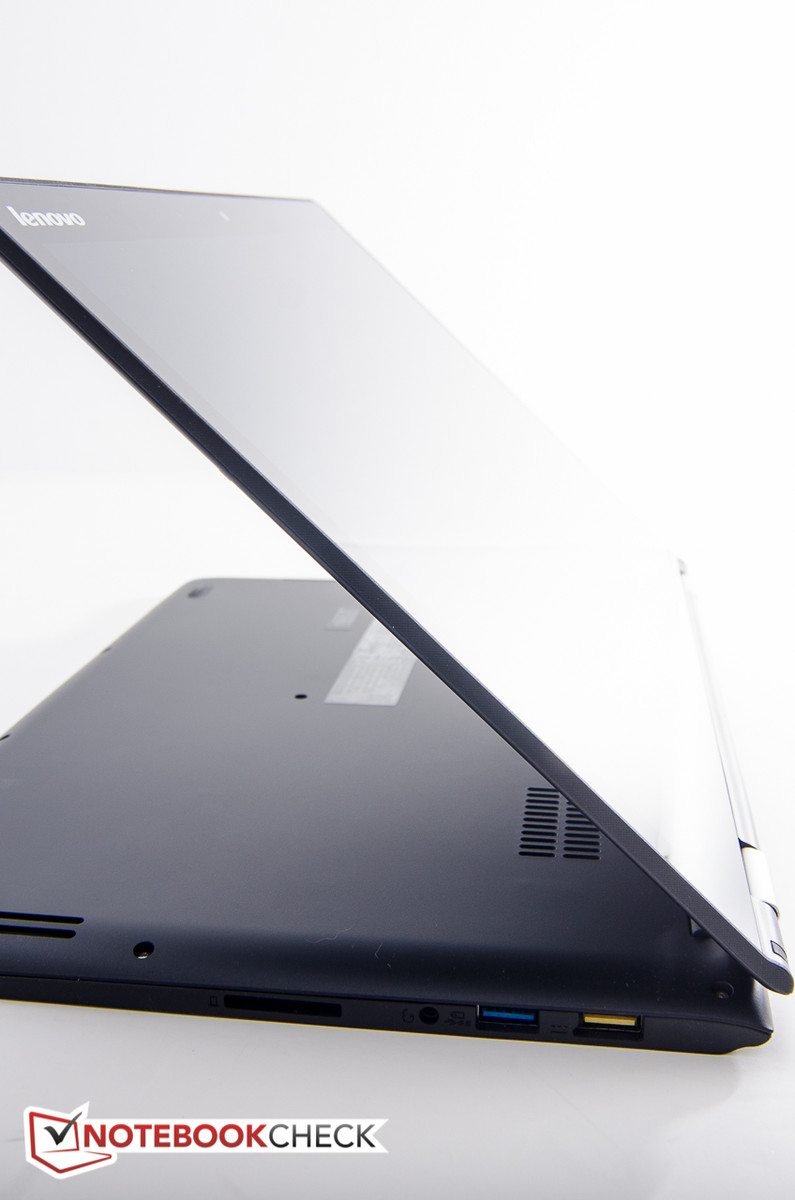

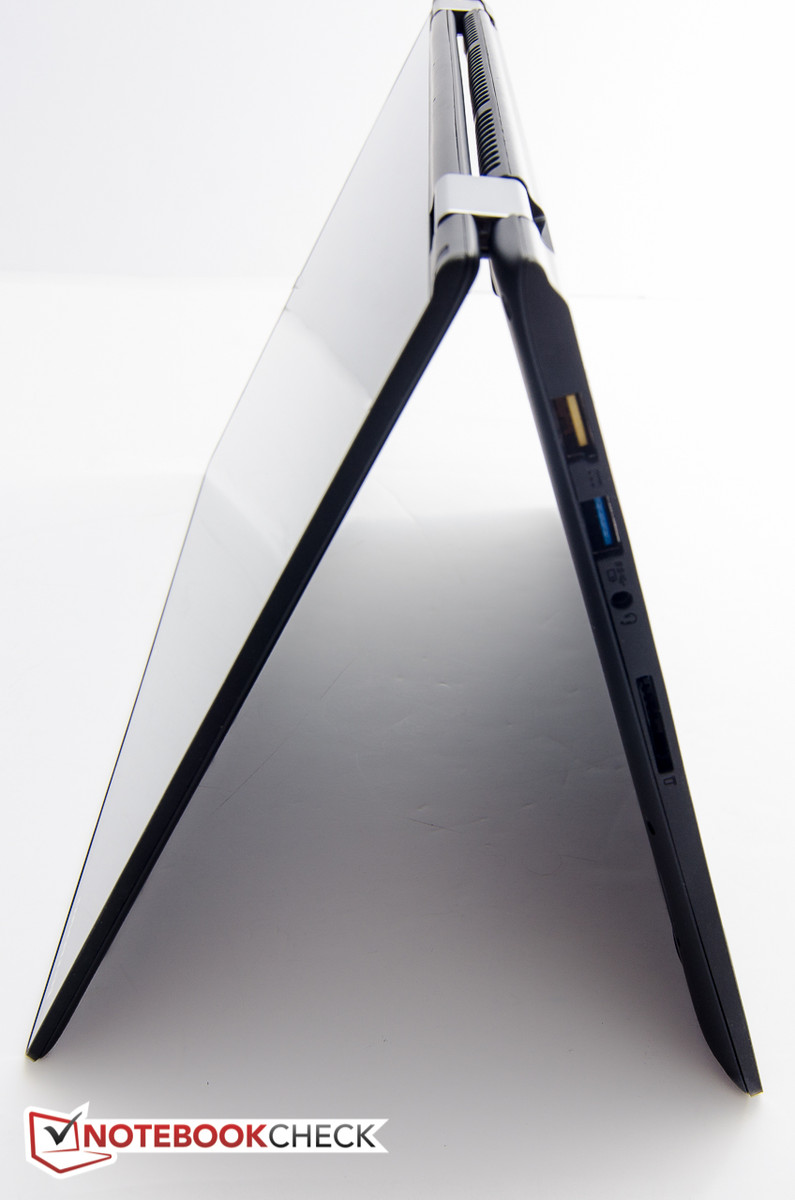

它在帐篷模式下非常适合观看电影或者使用触控操作。
它在帐篷模式下非常适合观看电影或者使用触控操作。

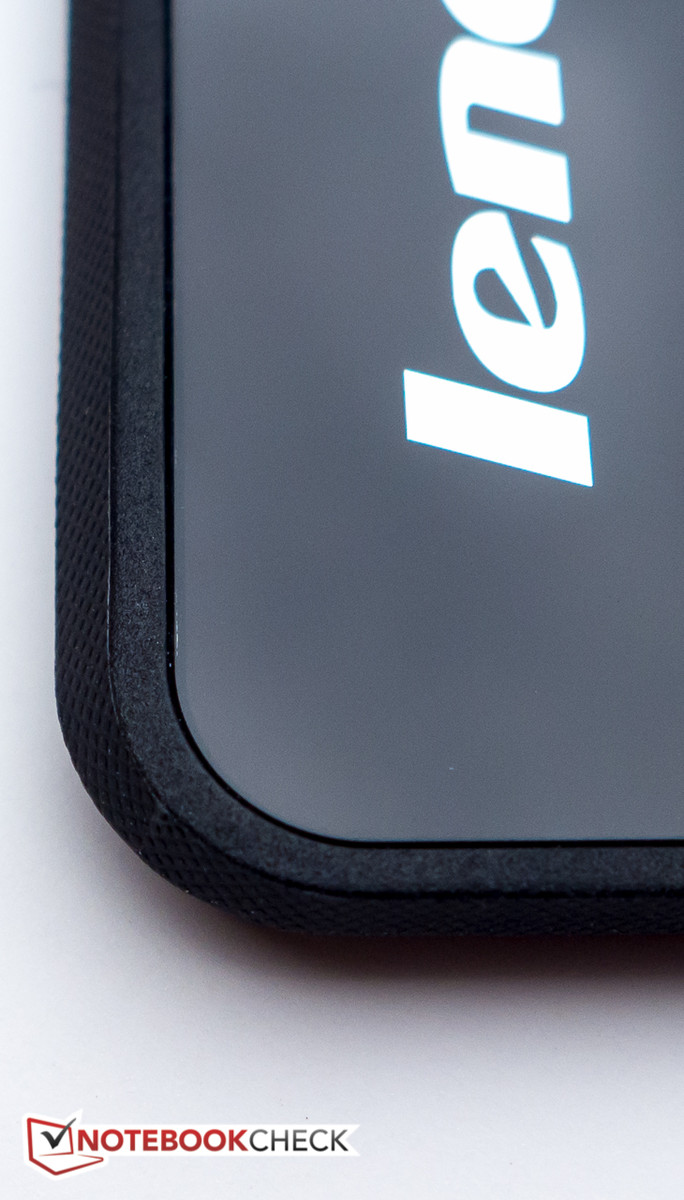

屏幕边缘有一圈橡胶保护...
屏幕边缘有一圈橡胶保护...
...以避免划伤或碰撞。
...以避免划伤或碰撞。

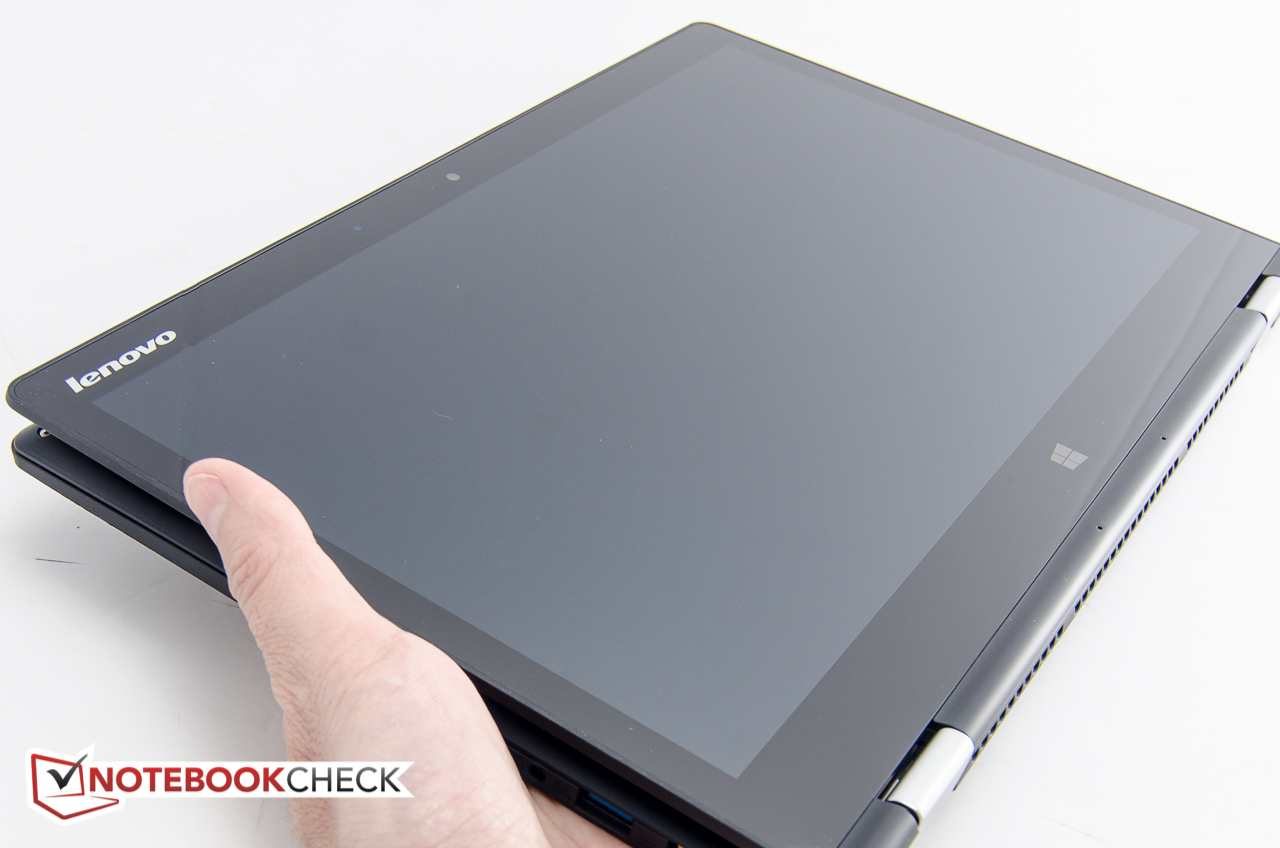

旋转它的屏幕可以将Yoga变成一个平板电脑。
旋转它的屏幕可以将Yoga变成一个平板电脑。
它的外表面采用了柔软材质。
它的外表面采用了柔软材质。

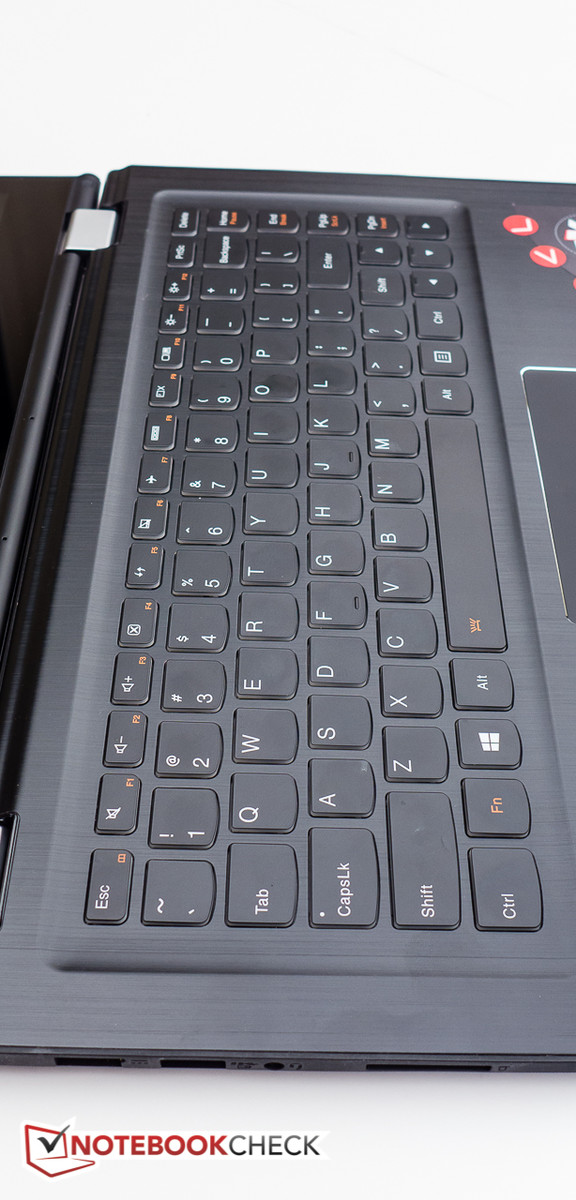

键盘在中央部分不够稳固。
键盘在中央部分不够稳固。

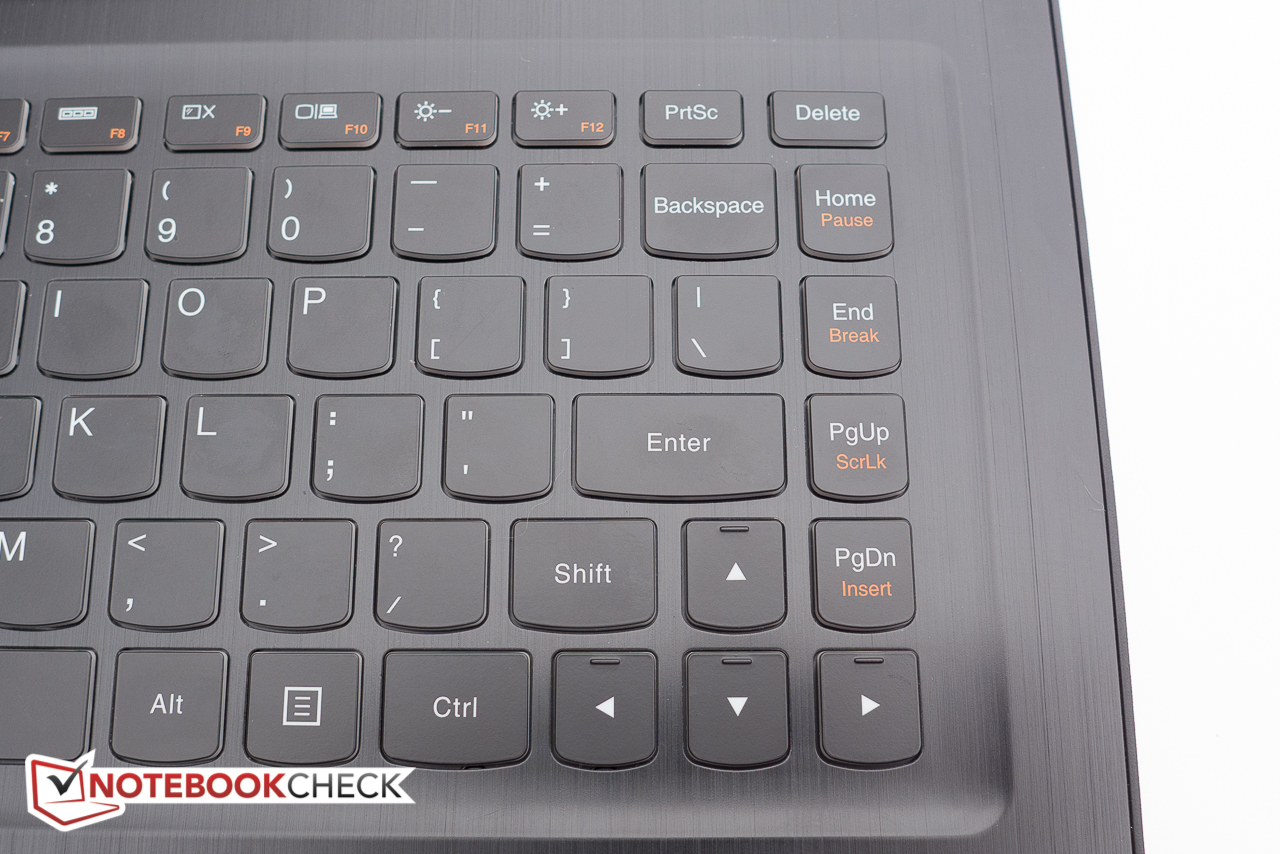

...一些按键也不是全尺寸的——例如退格键。
...一些按键也不是全尺寸的——例如退格键。

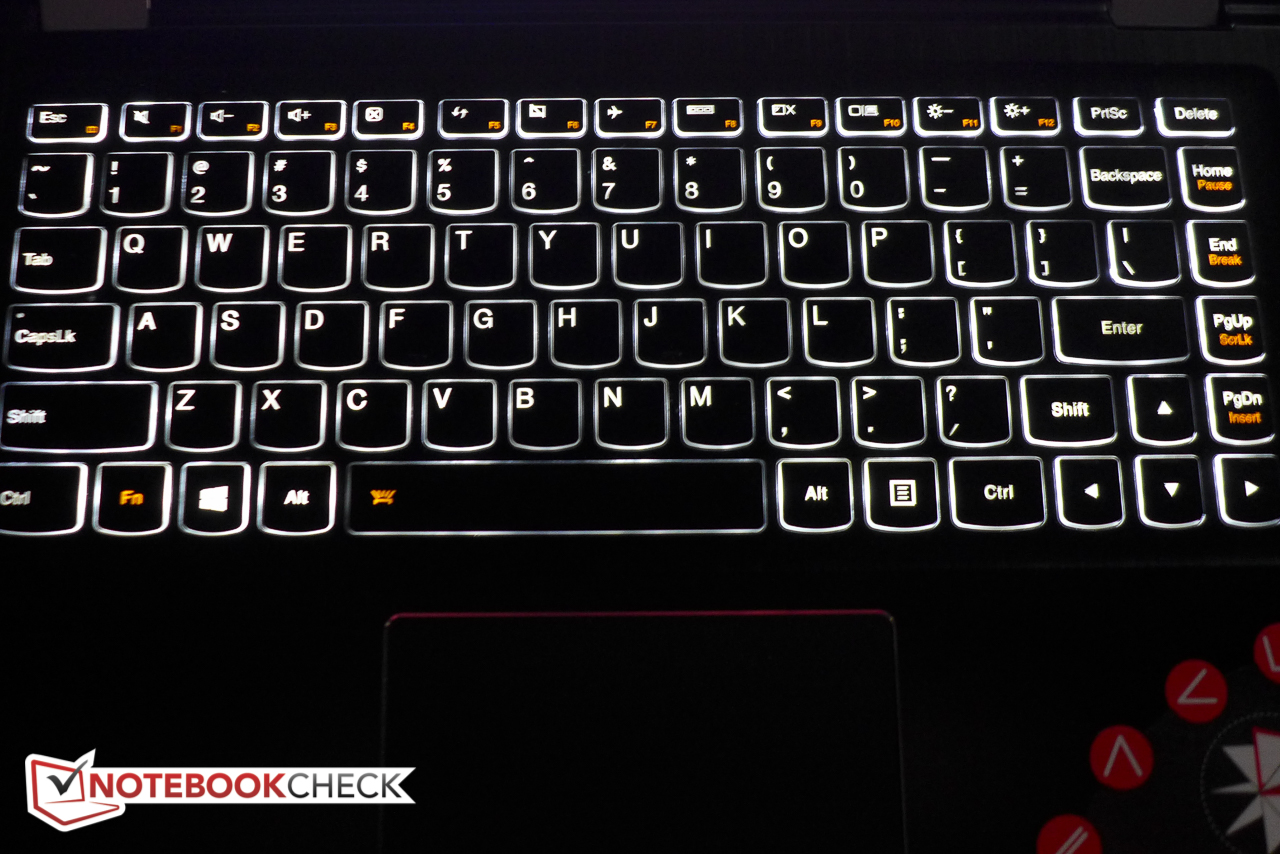

实用设计:键盘背光。
实用设计:键盘背光。

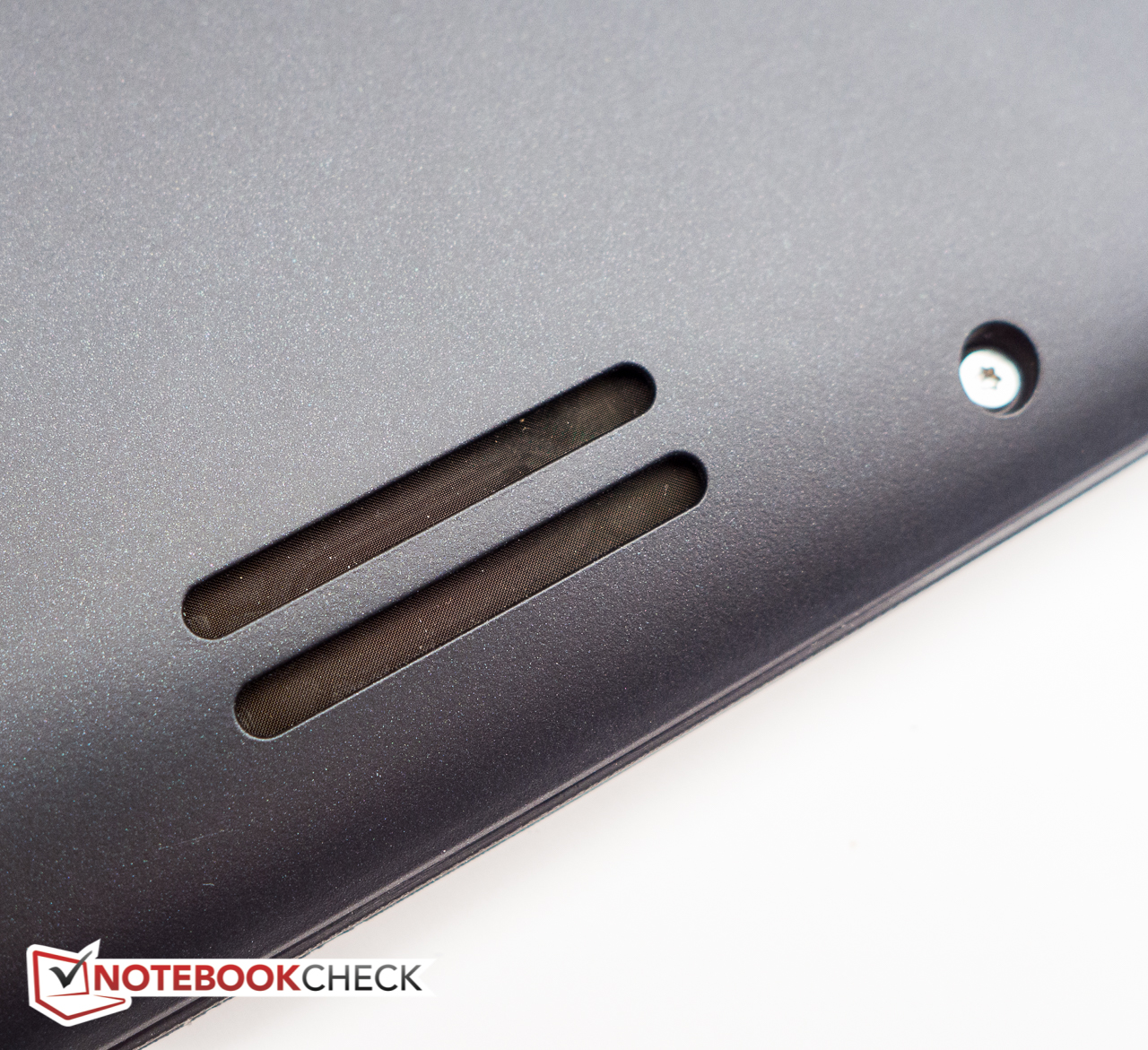

它的扬声器音量适中,无失真。
它的扬声器音量适中,无失真。

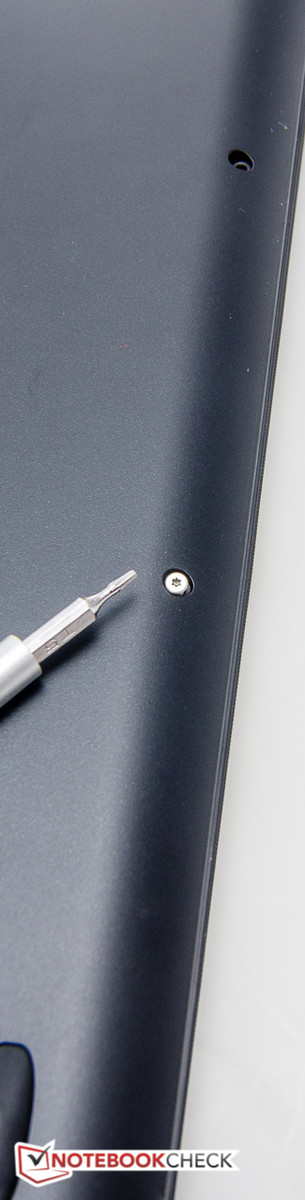

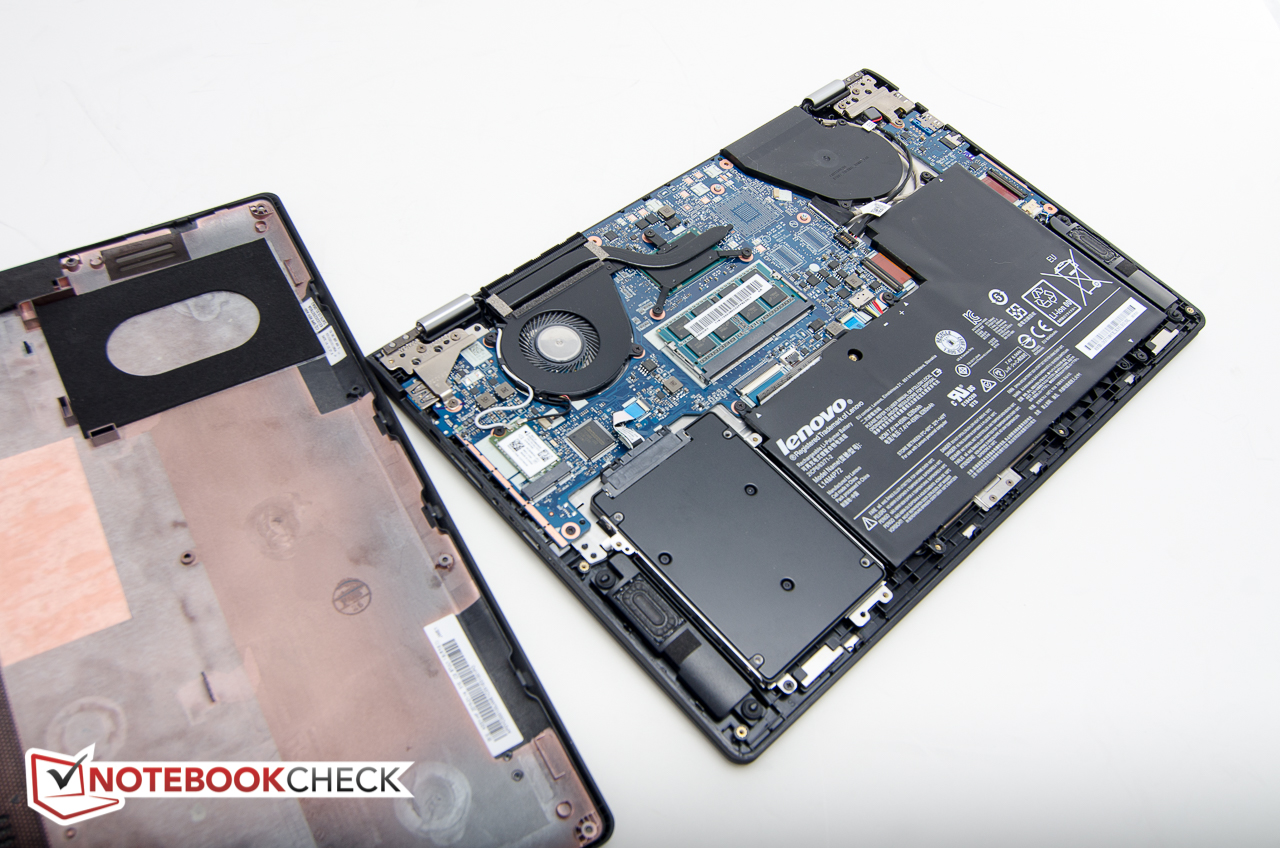

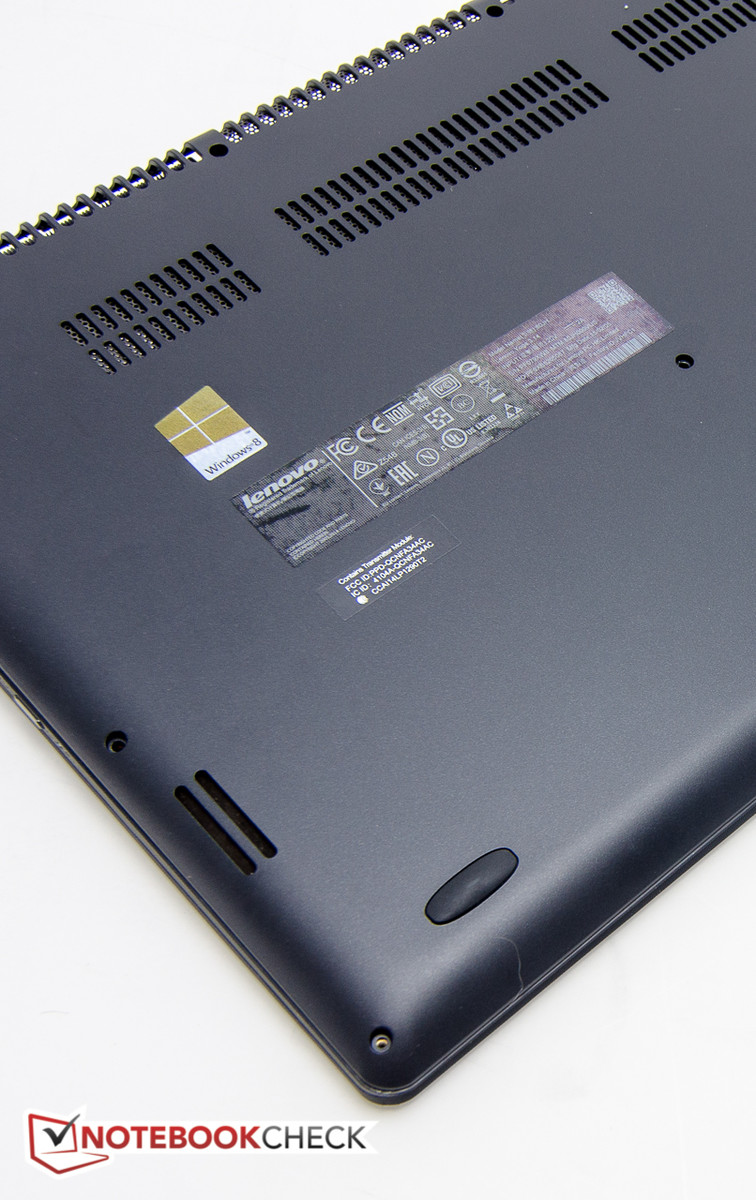

...之后就可以取下底盖。
...之后就可以取下底盖。

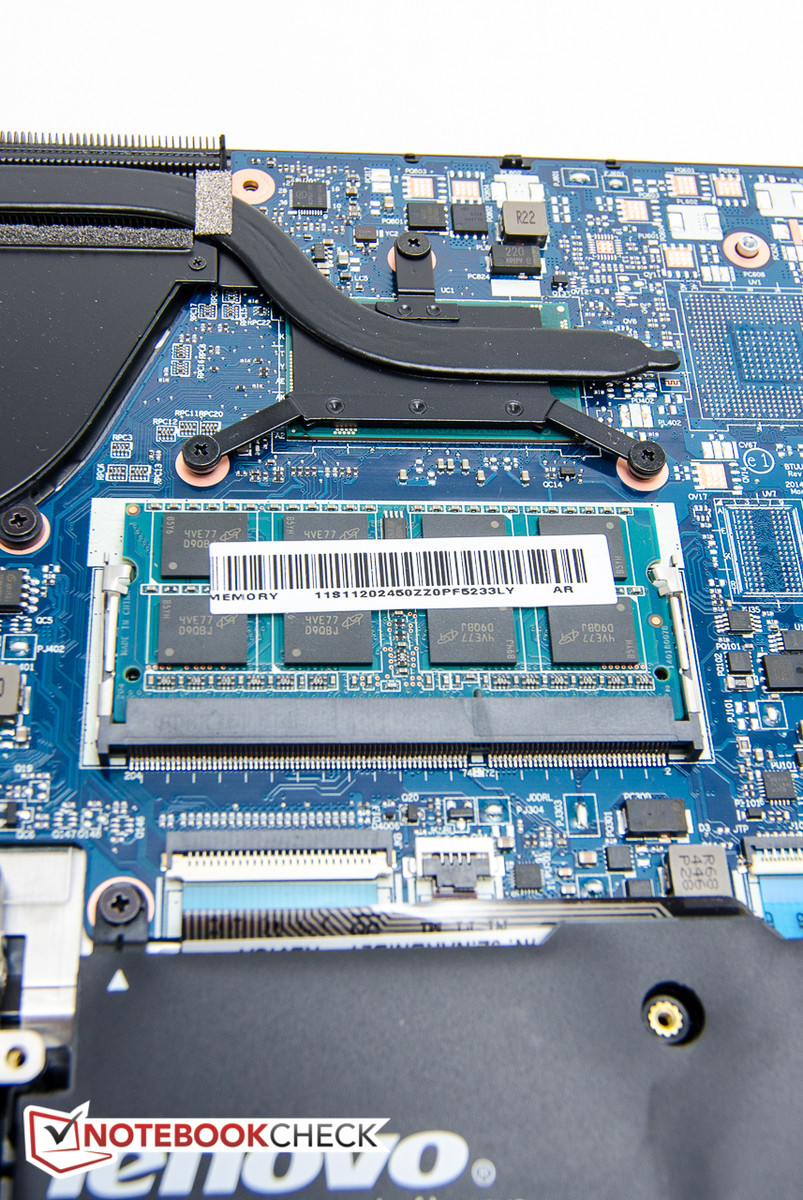

单内存条(我们测试机为8GB)。
单内存条(我们测试机为8GB)。

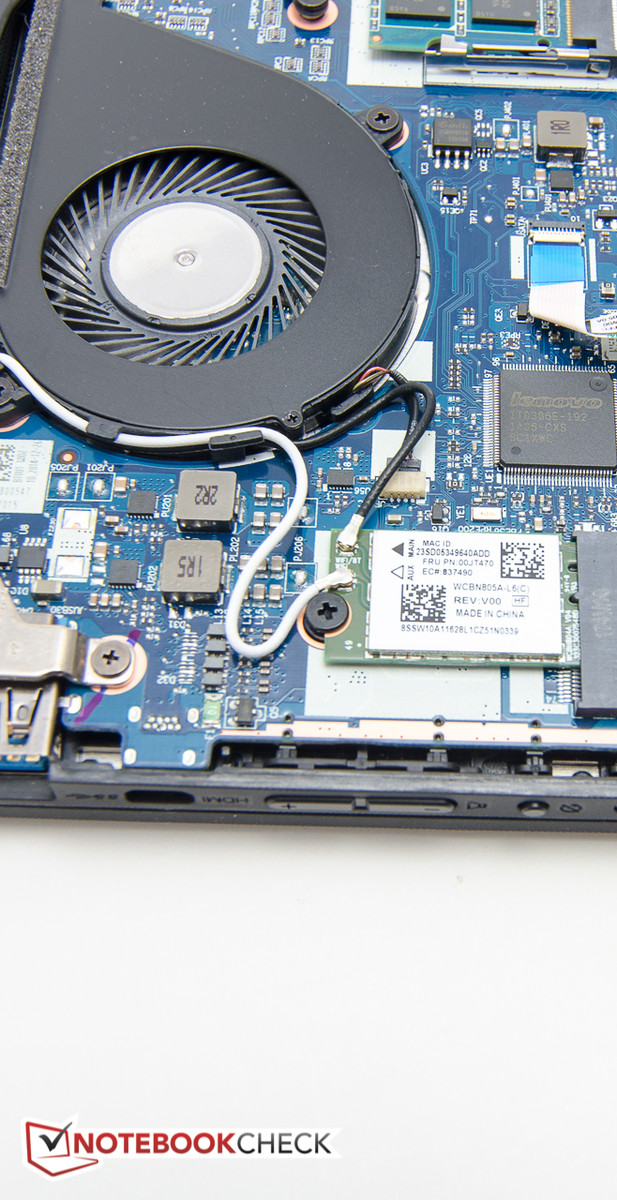

它的无线模组支持所有现行标准。
它的无线模组支持所有现行标准。

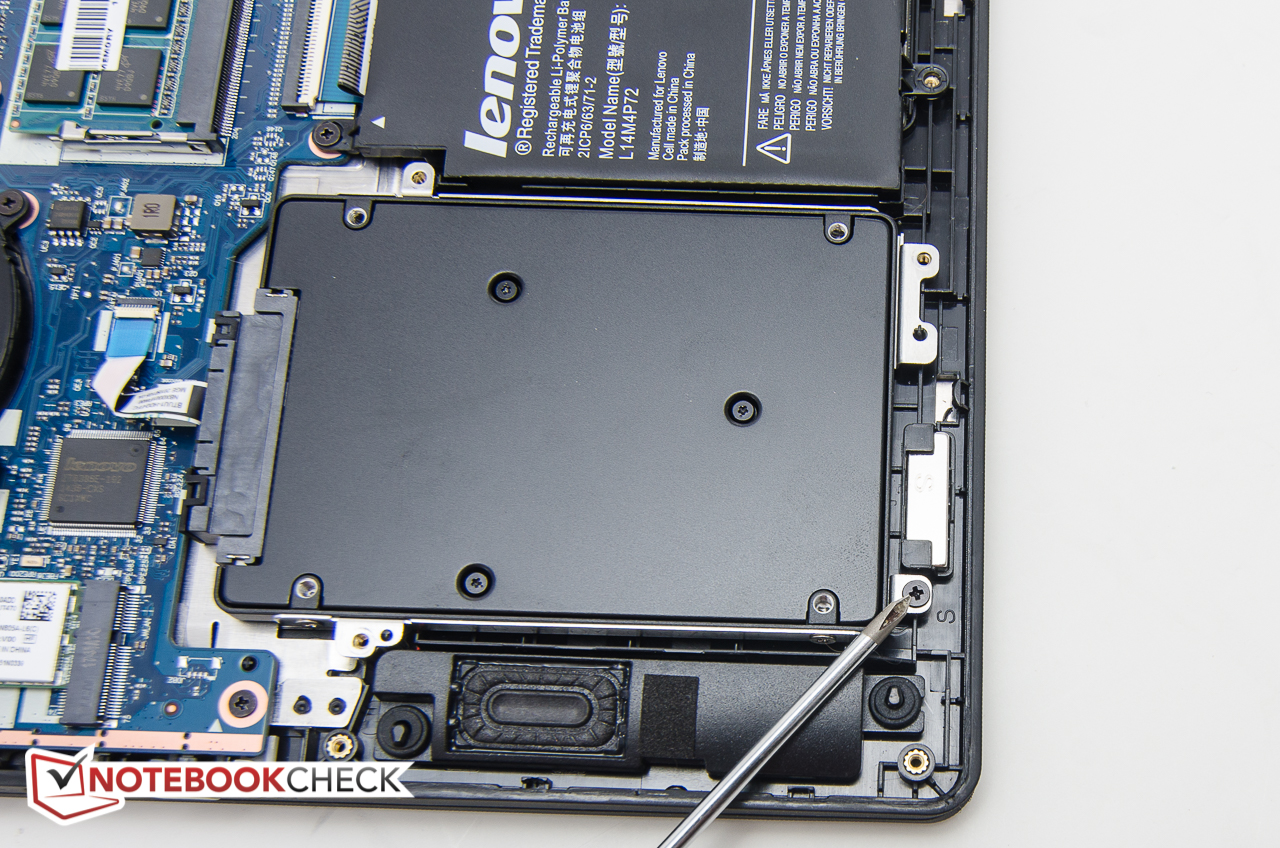

固态硬盘由四个十字螺丝固定。
固态硬盘由四个十字螺丝固定。

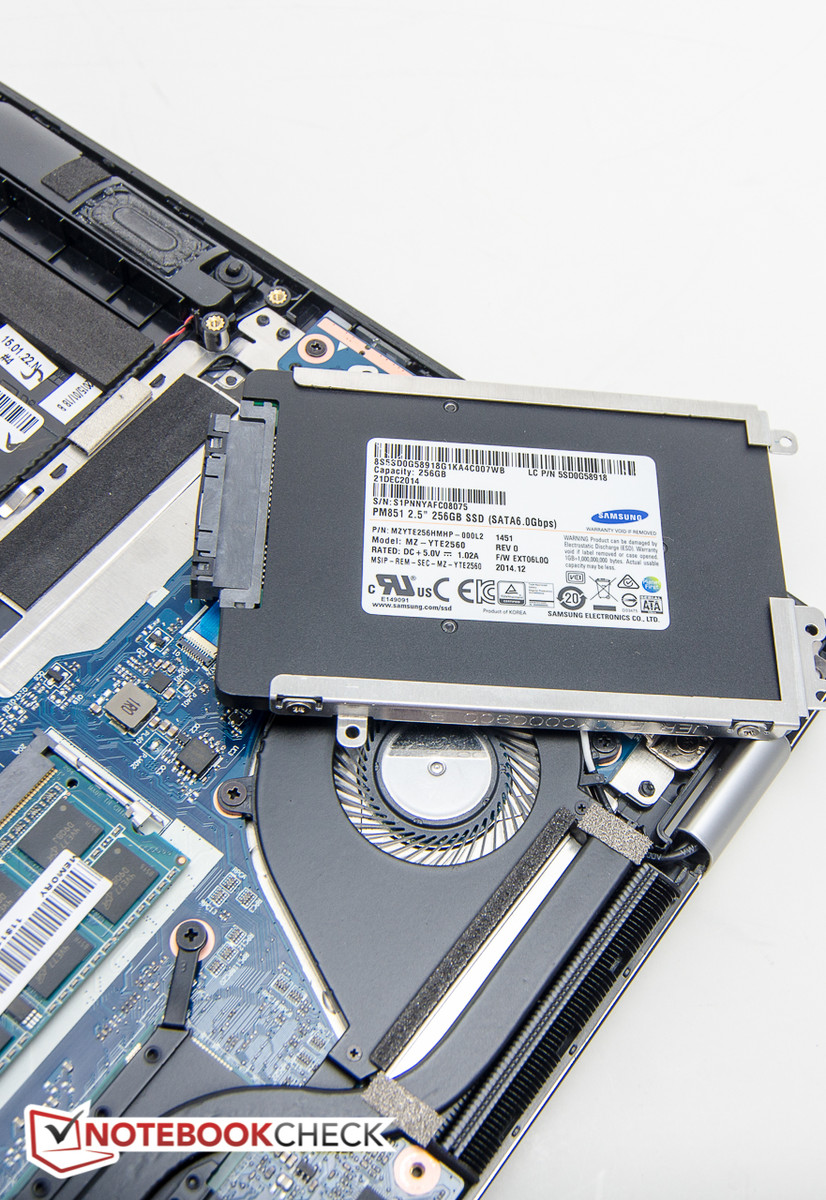

三星PM851厚5毫米,速度极快...
三星PM851厚5毫米,速度极快...

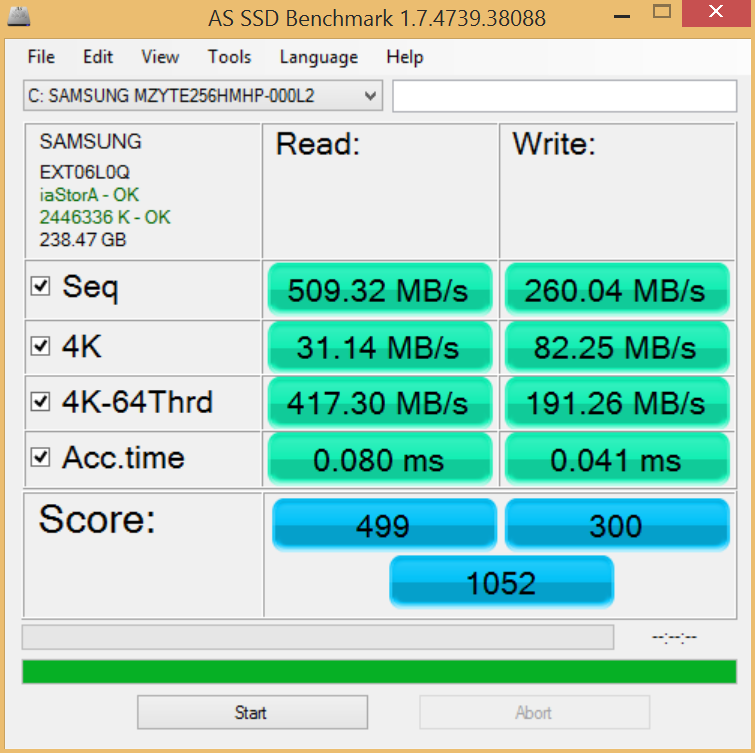

从AS SSD的测试结果中这显而易见。
从AS SSD的测试结果中这显而易见。
它的整体系统性能也非常优秀。
它的整体系统性能也非常优秀。

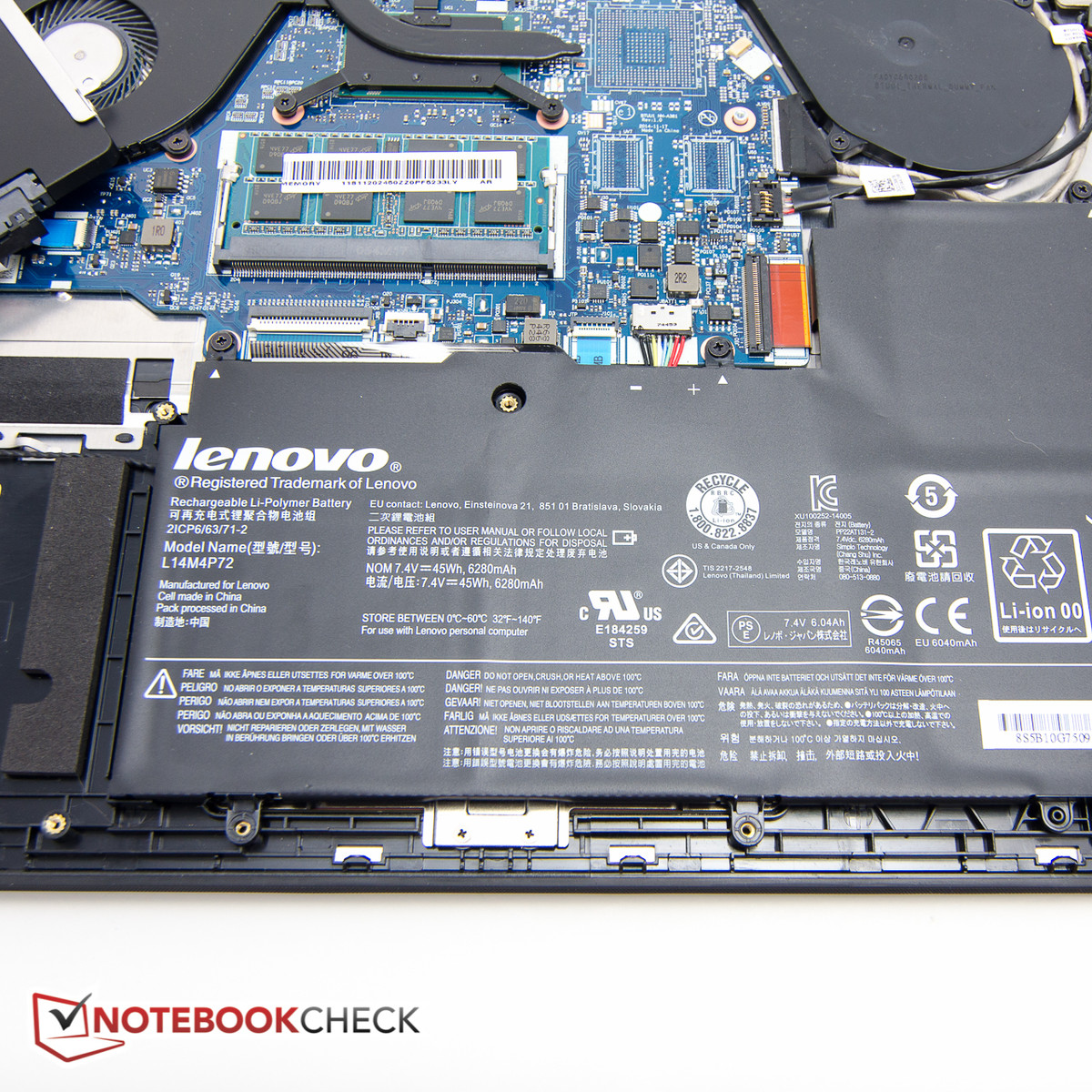

它的电池固定在了机身内,容量为45Wh。
它的电池固定在了机身内,容量为45Wh。

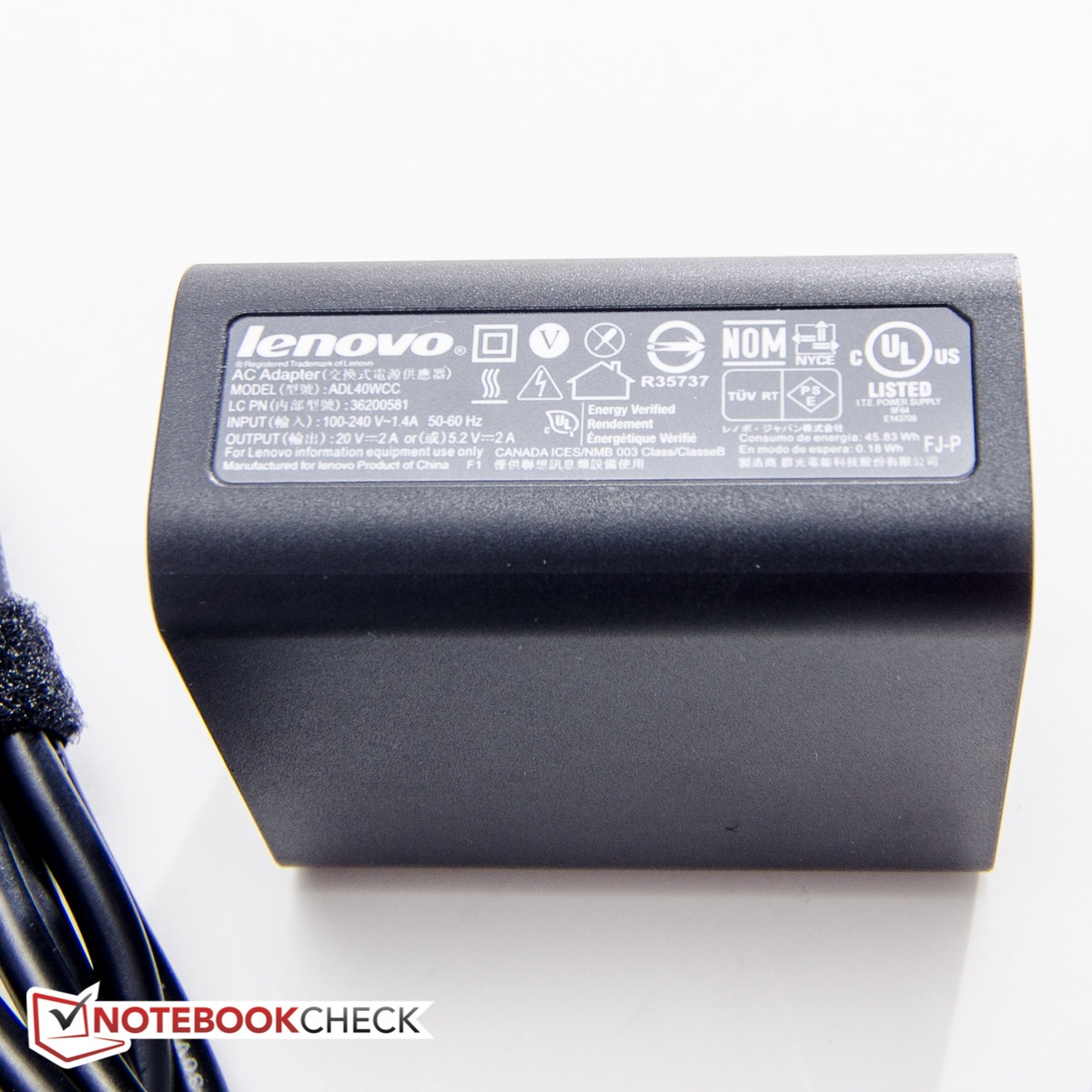

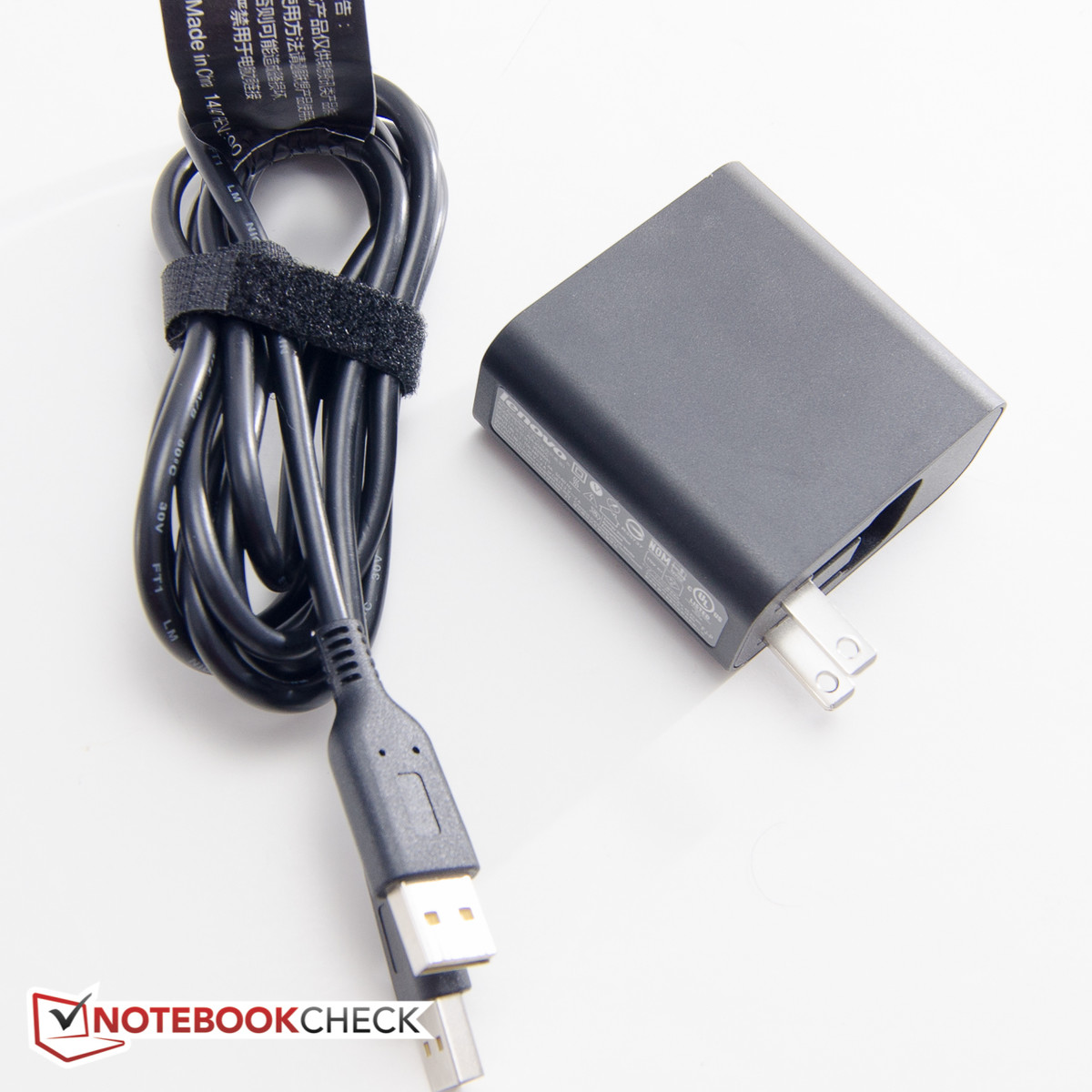

电源适配器十分小巧轻盈...
电源适配器十分小巧轻盈...
...不过无法快速为笔记本充电。
...不过无法快速为笔记本充电。

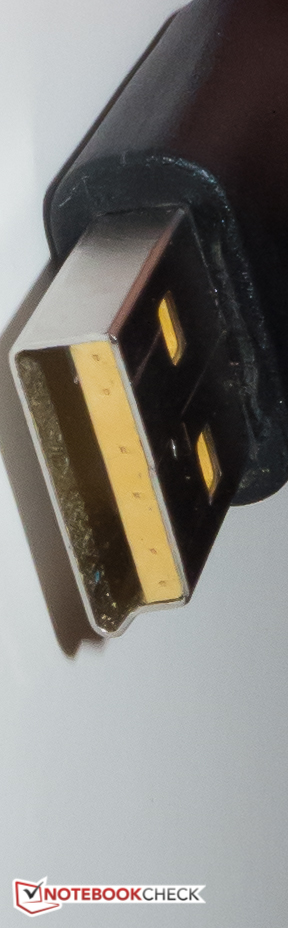

连接电脑的接头有些像是USB接口。
连接电脑的接头有些像是USB接口。

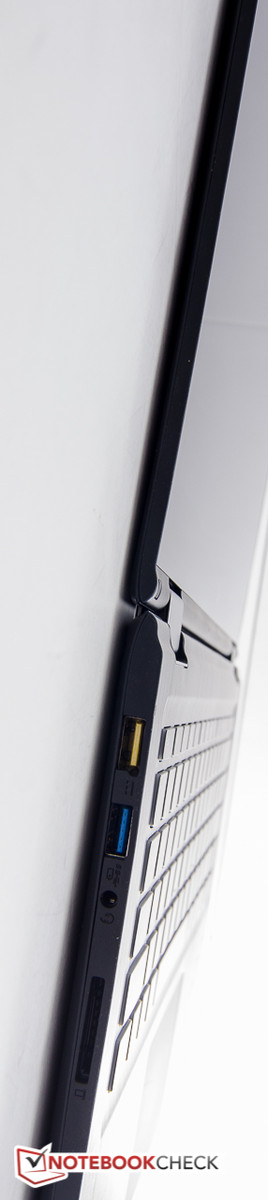

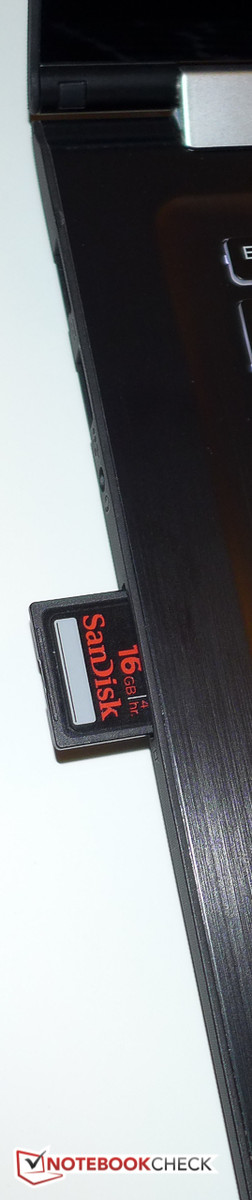

使用读卡器需要小心,它会留在外面很长一截。
使用读卡器需要小心,它会留在外面很长一截。
机身中未提供microHDMI转接器...
机身中未提供microHDMI转接器...

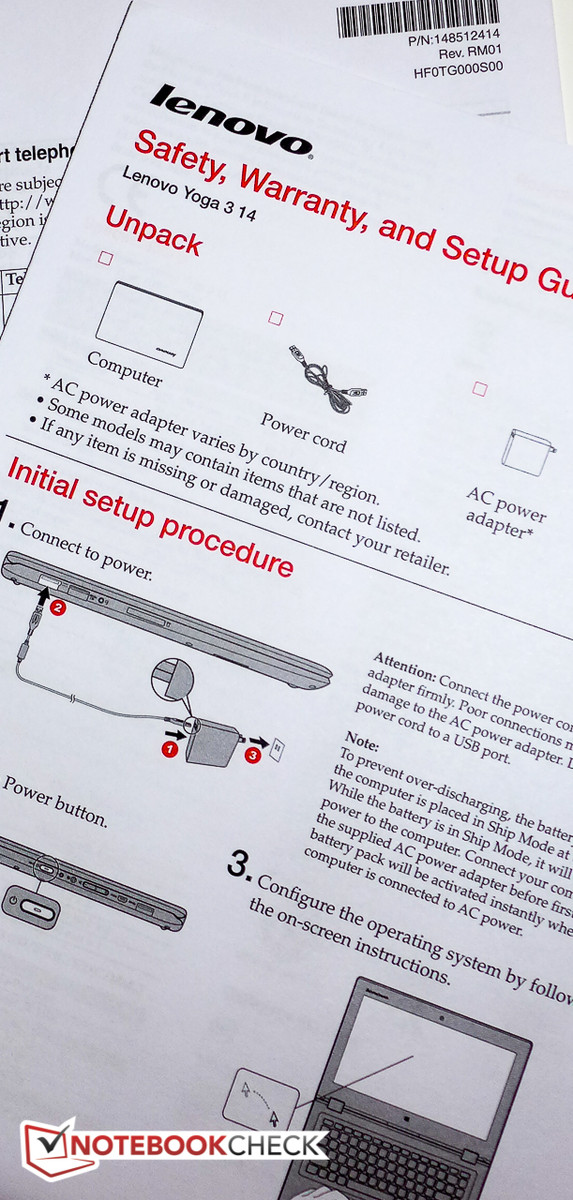

...说明书也没有提供。
...说明书也没有提供。

Please share our article, every link counts!

Specifications

Lenovo Yoga 3 14 (Yoga Series)
Processor
Intel Core i5-5200U 2 x 2.2 - 2.7 GHz, Broadwell
Graphics adapter
Intel HD Graphics 5500, Core: 900 MHz, 10.18.14.4029
Memory
7.9 GB
, DDR3L 1600MHz
Display
14.00 inch 16:9, 1920 x 1080 pixel, 10点触控, LG Philips LGD047A (LP140WF3-SPL2), IPS, glossy: yes
Storage
Samsung SSD PM851 256 GB MZYTE256HMHP, 256 GB
Soundcard
Intel Broadwell PCH-LP - High Definition Audio Controller
Connections
1 USB 2.0, 2 USB 3.0 / 3.1 Gen1, 1 HDMI, Audio Connections: 1, Card Reader: 四合一读卡器(SD, MMC, SDXC, SDHC), Sensors: 陀螺仪
Networking
Qualcomm Atheros QCA61x4 (a/g/n = Wi-Fi 4/ac = Wi-Fi 5/)
Size
height x width x depth (in mm): 18.3 x 334.8 x 229.4
Battery
45 Wh Lithium-Ion, 4-芯
Operating System
Microsoft Windows 8.1 64 Bit
Camera
Webcam: 720p
Additional features
Speakers: JBL扬声器,Waves Audio认证, Keyboard: AccuType, McAfee® Internet Security (30天试用), VeriFace® Pro, OneKey® Optimizer, Zinio® Online Newsstand, Lenovo® Photo Master, Evernote®, Lenovo® SHAREit, Lenovo® Harmony, 12 Months Warranty
Weight
1.688 kg, Power Supply: 194 g



Devices with the same GPU

戴尔 Inspiron 15 7558 变形本简短评测
HD Graphics 5500, Core i5 5200U, 15.60", 2.104 kg
东芝 Satellite Radius 15 P50W-C 笔记本电脑简短评测
HD Graphics 5500, Core i5 5200U, 15.60", 2.159 kg
惠普 Spectre 13 x360 变形本简短评测
HD Graphics 5500, Core i7 5500U, 13.30", 1.51 kg

Devices with Same Screen Size and/or Weight

联想 Yoga 7 二合一 14IML9 可折叠机评测:低于 700 美元的经典之作
Graphics 4-Core, Meteor Lake-U Ultra 5 125U, 14.00", 1.626 kg
联想 ThinkBook 14 二合一 G4 IML 评测:流星湖-U带来全新时尚外观
Graphics 4-Core, Meteor Lake-U Ultra 5 125U, 14.00", 1.639 kg
Core Ultra 5 125U 性能首次亮相:联想 Yoga 7 二合一 16IML9 可折叠机评测
Graphics 4-Core, Meteor Lake-U Ultra 5 125U, 16.00", 2.052 kg

Pros

+ 14寸屏幕结合13寸机身
+ 非常不错的性能
+ 高速固态硬盘
+ 长电池续航
+ 多模式试用

Cons

- 屏幕不是非常明亮
- 户外实用性不够出色
- 在高负载下有降频问题
- 不支持全尺寸HDMI接口
- 抗扭折坚固度较差
- 屏幕受压时有水波纹出现

Lenovo Yoga 3 14 - 03/16/2015 v4 (old)
Bernie Pechlaner

Chassis
71 / 98 → 72%
Keyboard
77%
Pointing Device
89%
Connectivity
51 / 80 → 64%
Weight
68 / 35-78 → 77%
Battery
90%
Display
78%
Games Performance
63 / 68 → 93%
Application Performance
82 / 87 → 94%
Temperature
93%
Noise
89%
Audio
56 / 91 → 62%
Camera
68 / 85 → 80%
Average
75%
81%
Convertible - Weighted Average
> Notebookcheck中文版(NBC中国) > 评测 > 联想 Yoga 3 14 变形本简短评测
Bernie Pechlaner, 2015-03-23 (Update: 2024-11- 4)
