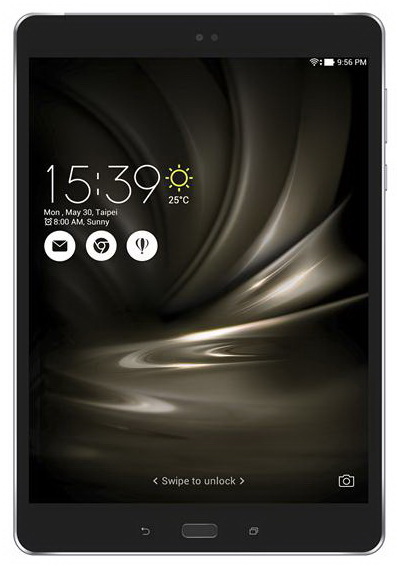

华硕 ZenPad 3S 10 LTE (Z500KL) 平板电脑简短评测

适合出行。 支持4G的ZenPad 3S 10 LTE也进入到了我们的测试中。在接下来的详尽评测中,你将会了解到这台LTE设备是否值得它450欧元(约504美元)的价码。
Android Tablet Touchscreen

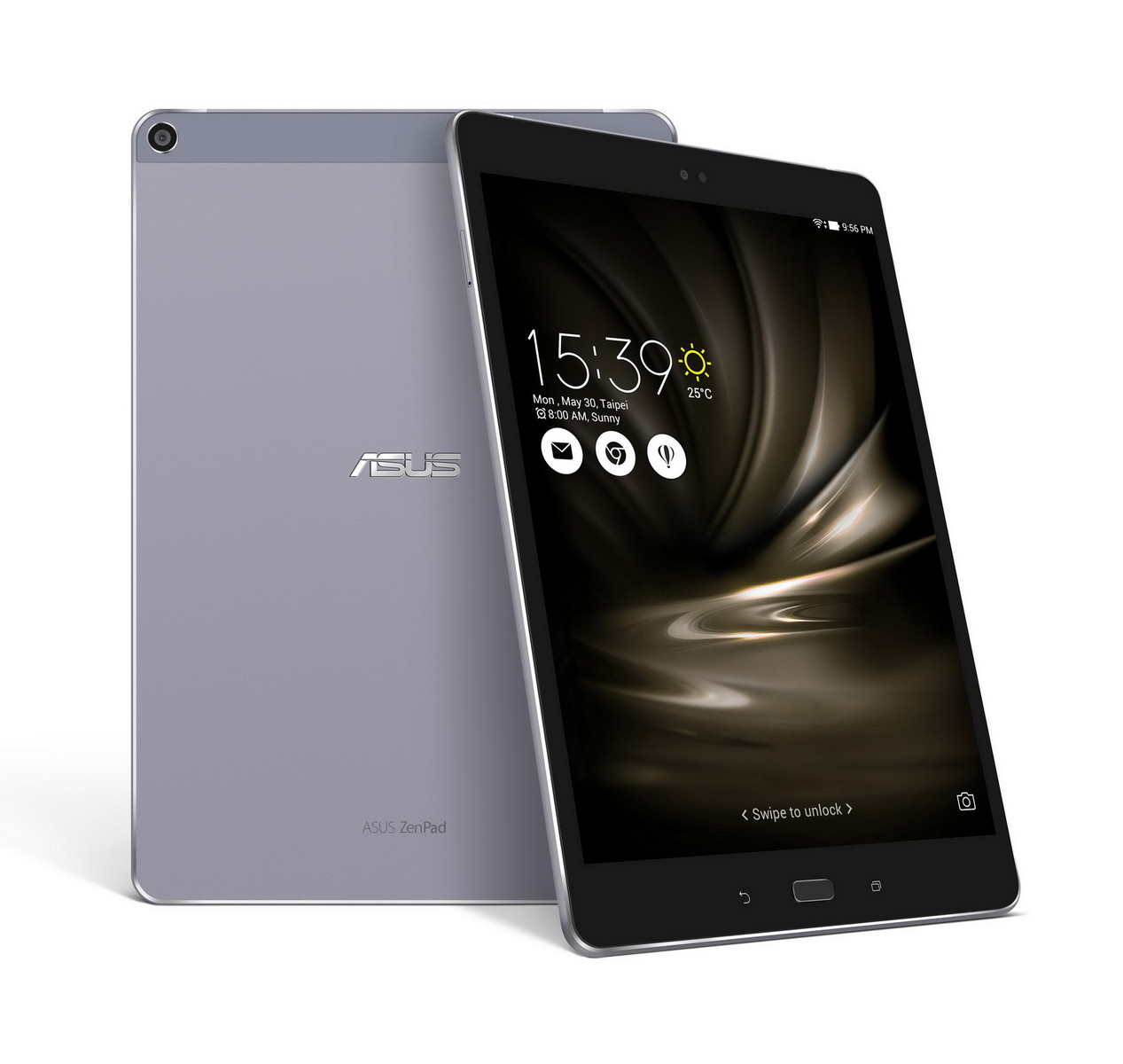

Asus ZenPad 3S 10 Z500KL (ZenPad Series)
Processor
Qualcomm Snapdragon 650 MSM8956 6 x 1.8 GHz, Cortex-A72/-A53
Graphics adapter
Memory
4 GB
Display
9.70 inch 16:9, 2048 x 1536 pixel 264 PPI, 电容式,10点触控, native pen support, LCD, IPS, glossy: yes
Storage
32 GB eMMC Flash, 32 GB
, 24.2 GB free
Connections
1 USB 2.0, Audio Connections: 3.5毫米耳机接口, Card Reader: microSD, 最大支持128 GB, Brightness Sensor, Sensors: 运动感应器,位置感应器,指南针,霍尔感应器, USB-OTG, Miracast
Networking
802.11 a/b/g/n/ac (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.1, 4G: LTE 频段: 1, 3, 5, 7, 8, 9, 18, 19, 20, 26, 28, 38, 41), 3G/UMTS: 850 MHz, 850 MHz, 900 MHz, 2100 MHz , LTE, GPS
Size
height x width x depth (in mm): 7 x 242 x 164
Battery
30 Wh, 7800 mAh Lithium-Polymer, Battery runtime (according to manufacturer): 15 h
Operating System
Android 6.0 Marshmallow
Camera
Primary Camera: 8 MPix 自动对焦
Secondary Camera: 5 MPix
Additional features
Speakers: 2 x 支持DTS HD音效的高品质扬声器, DTS耳机:X, Sonic Master技术, 支持aptX®, Keyboard: 触控, Keyboard Light: yes, 电源适配器,USB数据线, ZenUI, 12 Months Warranty, fanless
Weight
490 g, Power Supply: 55 g
Price
449 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

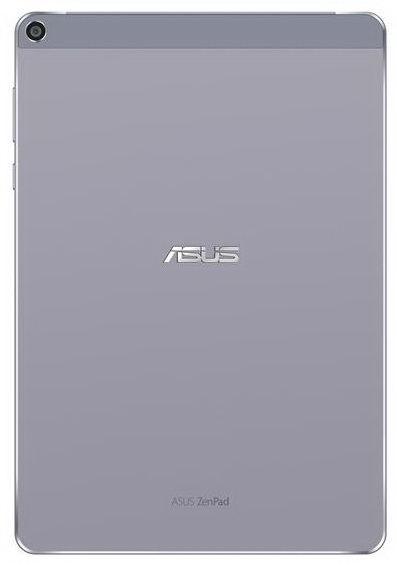

Asus ZenPad 3S 10 LTE (Z500KL)
Asus ZenPad 3S 10 LTE (Z500KL)
Asus ZenPad 3S 10 LTE (Z500KL)
Asus ZenPad 3S 10 LTE (Z500KL)
Asus ZenPad 3S 10 LTE (Z500KL)

Size Comparison

242 mm 164 mm 7 mm 490 g242 mm 179 mm 7 mm 517 g240 mm 169.5 mm 7.5 mm 478 g241 mm 164 mm 5.8 mm 430 g237.3 mm 169 mm 6 mm 434 g237.3 mm 169 mm 5.6 mm 387 g215.5 mm 124.2 mm 7.3 mm 310 g210 mm 148 mm 1 mm 2.9 g
Networking
iperf3 transmit AX12
Samsung Galaxy Tab S3 SM-T825
Adreno 530, 820 MSM8996, 32 GB eMMC Flash
569 MBit/s +1413%
Apple iPad (2017)
A9 / PowerVR GT7600, A9, 128 GB NVMe
389 MBit/s +935%
Asus ZenPad 3s 10 Z500M
PowerVR GX6250, MT8176, 64 GB eMMC Flash
246 MBit/s +554%
Huawei MediaPad M3 8.4 inch
Mali-T880 MP4, Kirin 950, 32 GB eMMC Flash
209 MBit/s +456%
Asus ZenPad 3S 10 Z500KL
Adreno 510, 650 MSM8956, 32 GB eMMC Flash
37.6 MBit/s
iperf3 receive AX12
Samsung Galaxy Tab S3 SM-T825
Adreno 530, 820 MSM8996, 32 GB eMMC Flash
615 MBit/s +1741%
Apple iPad (2017)
A9 / PowerVR GT7600, A9, 128 GB NVMe
465 MBit/s +1292%
Asus ZenPad 3s 10 Z500M
PowerVR GX6250, MT8176, 64 GB eMMC Flash
254 MBit/s +660%
Huawei MediaPad M3 8.4 inch
Mali-T880 MP4, Kirin 950, 32 GB eMMC Flash
209 MBit/s +526%
Asus ZenPad 3S 10 Z500KL
Adreno 510, 650 MSM8956, 32 GB eMMC Flash
33.4 MBit/s

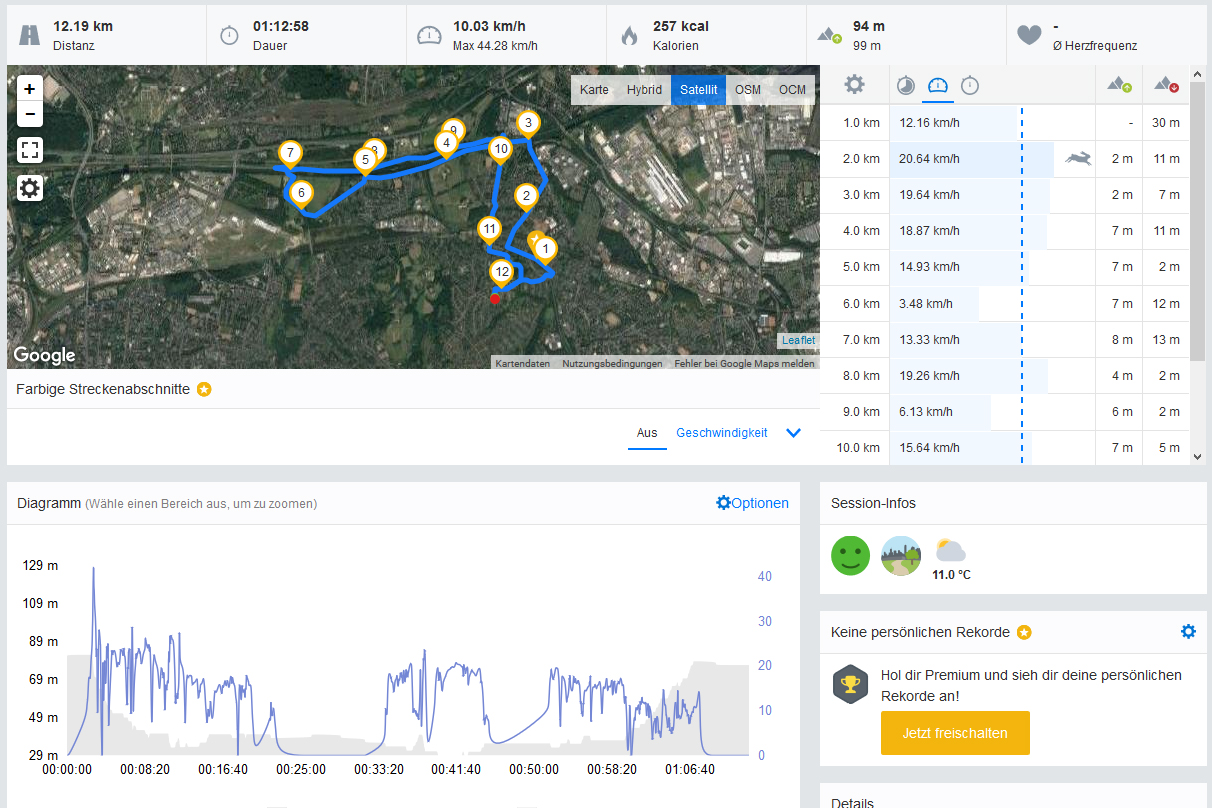

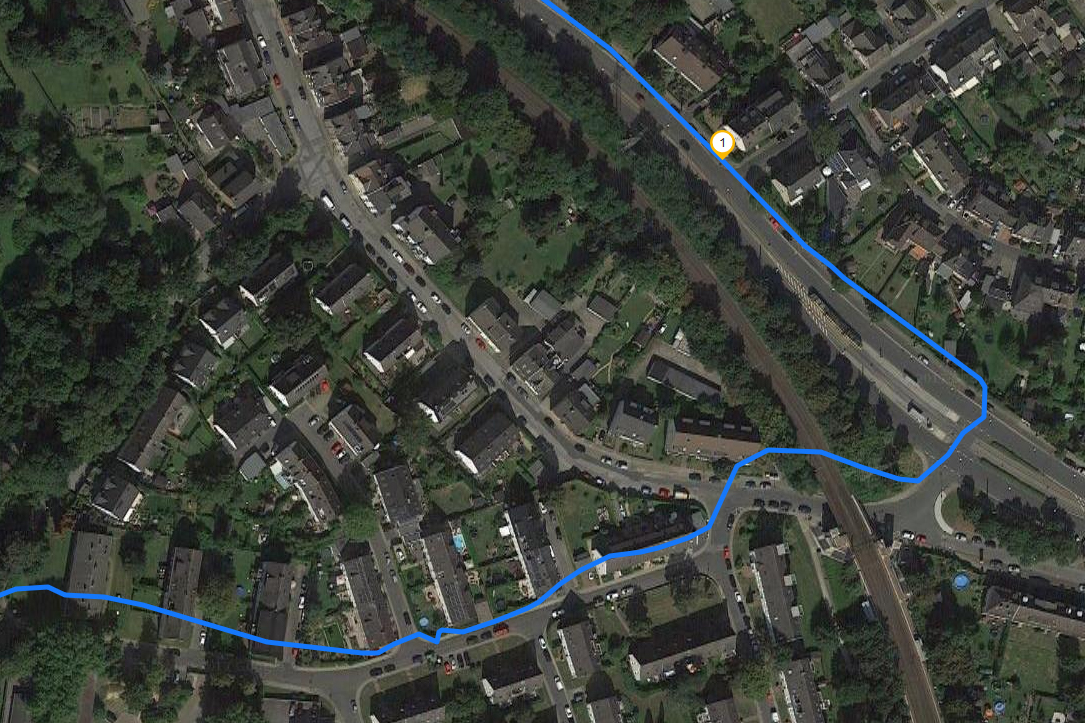

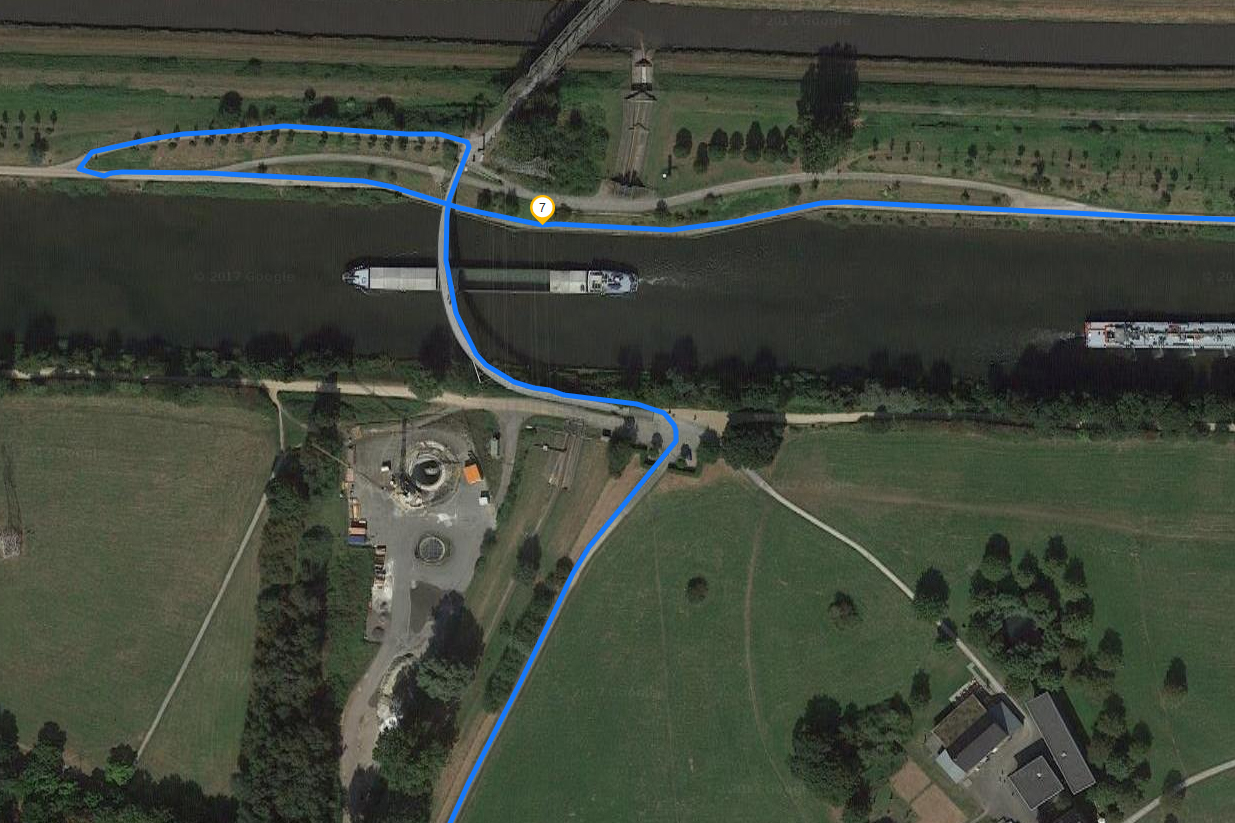

Garmin Edge 500
Garmin Edge 500
Garmin Edge 500
Garmin Edge 500
Garmin Edge 500
Garmin Edge 500

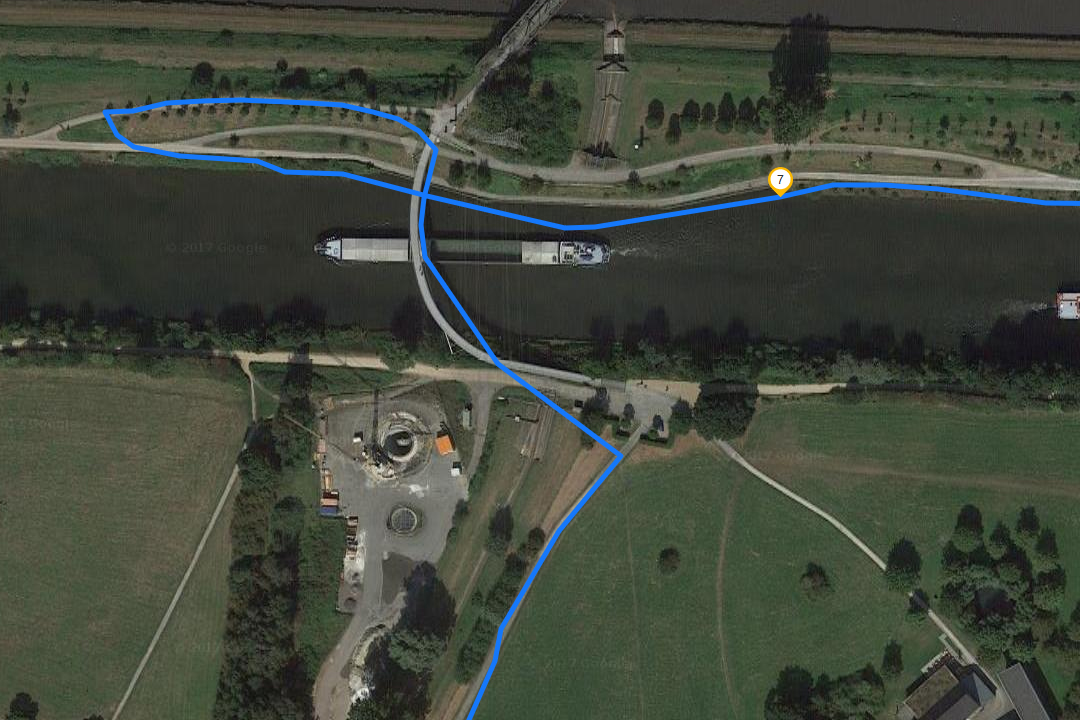

Asus ZenPad 3S 10 LTE
Asus ZenPad 3S 10 LTE
Asus ZenPad 3S 10 LTE
Asus ZenPad 3S 10 LTE
Asus ZenPad 3S 10 LTE
Asus ZenPad 3S 10 LTE

Image Comparison

Choose a scene and navigate within the first image. One click changes the position on touchscreens. One click on the zoomed-in image opens the original in a new window. The first image shows the scaled photograph of the test device.

Scene 1Scene 2Scene 3
orginal image
click to load images
441
cd/m²
479
cd/m²
430
cd/m²
452
cd/m²
486
cd/m²
449
cd/m²
451
cd/m²
484
cd/m²
444
cd/m²
Distribution of brightness
LCD tested with X-Rite i1Pro 2
Maximum: 486 cd/m² (Nits) Average: 457.3 cd/m² Minimum: 6.66 cd/m²
Brightness Distribution: 88 %
Center on Battery: 486 cd/m²
Contrast: 1944:1 (Black: 0.25 cd/m²)
ΔE Color 5.2 | 0.5-29.43 Ø4.86
ΔE Greyscale 4.1 | 0.09-98 Ø5.1
Gamma: 2.73
Asus ZenPad 3S 10 Z500KL
IPS, 2048x1536, 9.7"
Asus ZenPad 3s 10 Z500M
IPS, 2048x1536, 9.7"
Google Pixel C
LTPS, 2560x1800, 10.2"
Samsung Galaxy Tab S2 9.7 LTE
Super AMOLED, 2048x1536, 9.7"
Samsung Galaxy Tab S3 SM-T825
Super AMOLED, 2048x1526, 9.7"
Huawei MediaPad M3 8.4 inch
IPS, 2560x1600, 8.4"
Apple iPad (2017)
IPS, 2048x1536, 9.7"
Screen
-27%
-25%
16%
30%
-29%
9%
Brightness middle
486
489
1%
487
0%
358
-26%
452
-7%
460
-5%
514
6%
Brightness
457
443
-3%
510
12%
357
-22%
468
2%
445
-3%
485
6%
Brightness Distribution
88
86
-2%
91
3%
86
-2%
82
-7%
90
2%
88
0%
Black Level *
0.25
0.43
-72%
0.39
-56%
0.45
-80%
0.46
-84%
Contrast
1944
1137
-42%
1249
-36%
1022
-47%
1117
-43%
Colorchecker dE 2000 *
5.2
5.5
-6%
5.24
-1%
1.78
66%
1.8
65%
6.2
-19%
1.4
73%
Colorchecker dE 2000 max. *
9
11.6
-29%
4
56%
10.5
-17%
2.9
68%
Greyscale dE 2000 *
4.1
6.7
-63%
7.95
-94%
1.38
66%
1.2
71%
6.5
-59%
2.1
49%
Gamma
2.73 81%
2.06 107%
2.16 102%
2.24 98%
2.11 104%
2.33 94%
2.22 99%
CCT
6579 99%
7457 87%
6565 99%
6366 102%
6500 100%
8056 81%
6647 98%
Color Space (Percent of AdobeRGB 1998)
82.32
Color Space (Percent of sRGB)
99.06

* ... smaller is better

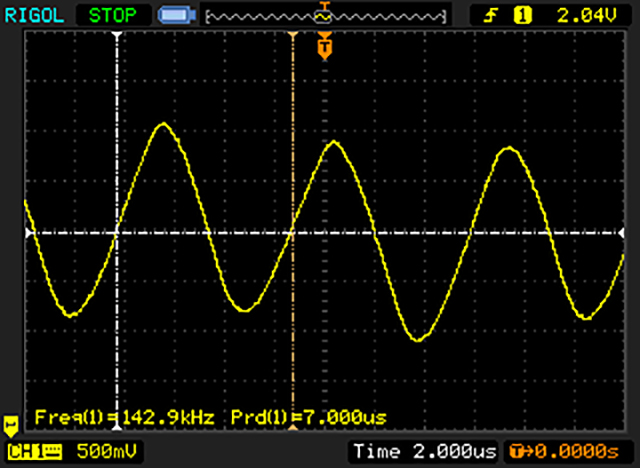

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM detected 142900 Hz ≤ 10 % brightness setting

The display backlight flickers at 142900 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 10 % and below. There should be no flickering or PWM above this brightness setting.

The frequency of 142900 Hz is quite high, so most users sensitive to PWM should not notice any flickering.

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8439 (minimum: 5 - maximum: 343500) Hz was measured.

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

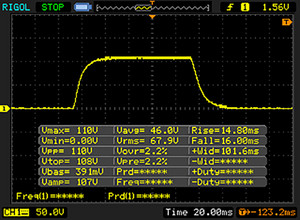

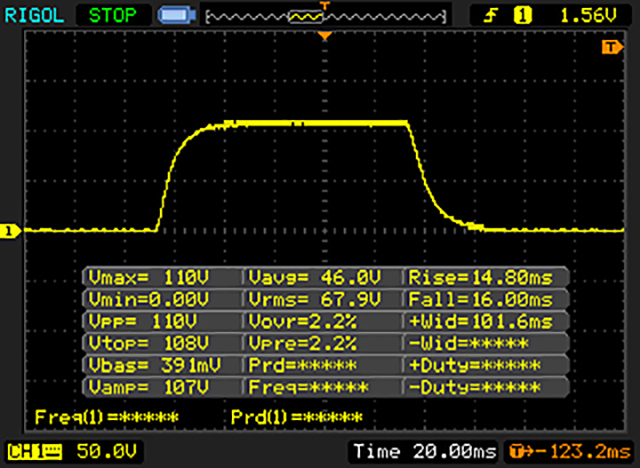

       Response Time Black to White
30.8 ms ... rise ↗ and fall ↘ combined↗ 14.8 ms rise
↘ 16 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 82 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (20.7 ms).

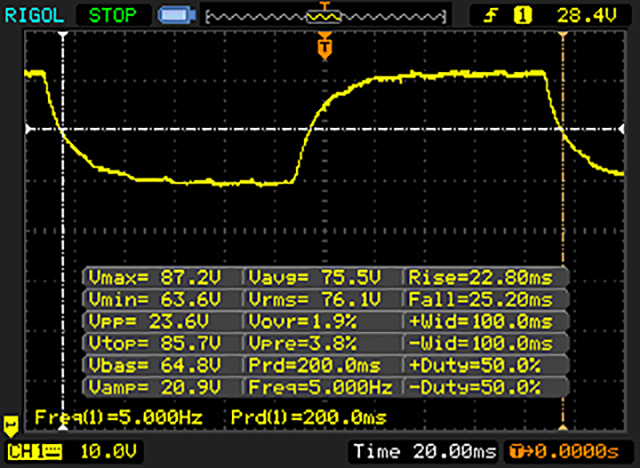

       Response Time 50% Grey to 80% Grey
49 ms ... rise ↗ and fall ↘ combined↗ 22.8 ms rise
↘ 25.2 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 84 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (32.4 ms).
AndroBench 3-5
Sequential Write 256KB SDCard
Samsung Galaxy Tab S3 SM-T825
Adreno 530, 820 MSM8996, 32 GB eMMC Flash
58.6 MB/s +144%
Asus ZenPad 3s 10 Z500M
PowerVR GX6250, MT8176, 64 GB eMMC Flash
26.9 MB/s +12%
Asus ZenPad 3S 10 Z500KL
Adreno 510, 650 MSM8956, 32 GB eMMC Flash
23.97 MB/s
Huawei MediaPad M3 8.4 inch
Mali-T880 MP4, Kirin 950, 32 GB eMMC Flash
23.52 MB/s -2%
Sequential Read 256KB SDCard
Samsung Galaxy Tab S3 SM-T825
Adreno 530, 820 MSM8996, 32 GB eMMC Flash
76.4 MB/s +122%
Huawei MediaPad M3 8.4 inch
Mali-T880 MP4, Kirin 950, 32 GB eMMC Flash
61.7 MB/s +79%
Asus ZenPad 3s 10 Z500M
PowerVR GX6250, MT8176, 64 GB eMMC Flash
45.15 MB/s +31%
Asus ZenPad 3S 10 Z500KL
Adreno 510, 650 MSM8956, 32 GB eMMC Flash
34.42 MB/s
Random Write 4KB
Huawei MediaPad M3 8.4 inch
Mali-T880 MP4, Kirin 950, 32 GB eMMC Flash
31.35 MB/s +391%
Samsung Galaxy Tab S3 SM-T825
Adreno 530, 820 MSM8996, 32 GB eMMC Flash
13.13 MB/s +106%
Google Pixel C
Tegra X1 Maxwell GPU, X1, 64 GB eMMC Flash
10.08 MB/s +58%
Samsung Galaxy Tab S2 9.7 LTE
Mali-T760 MP6, Exynos 5433, 32 GB eMMC Flash
9.82 MB/s +54%
Asus ZenPad 3s 10 Z500M
PowerVR GX6250, MT8176, 64 GB eMMC Flash
6.8 MB/s +7%
Asus ZenPad 3S 10 Z500KL
Adreno 510, 650 MSM8956, 32 GB eMMC Flash
6.38 MB/s
Random Read 4KB
Samsung Galaxy Tab S3 SM-T825
Adreno 530, 820 MSM8996, 32 GB eMMC Flash
45.82 MB/s +46%
Huawei MediaPad M3 8.4 inch
Mali-T880 MP4, Kirin 950, 32 GB eMMC Flash
32.04 MB/s +2%
Asus ZenPad 3S 10 Z500KL
Adreno 510, 650 MSM8956, 32 GB eMMC Flash
31.34 MB/s
Samsung Galaxy Tab S2 9.7 LTE
Mali-T760 MP6, Exynos 5433, 32 GB eMMC Flash
25.56 MB/s -18%
Asus ZenPad 3s 10 Z500M
PowerVR GX6250, MT8176, 64 GB eMMC Flash
24.85 MB/s -21%
Google Pixel C
Tegra X1 Maxwell GPU, X1, 64 GB eMMC Flash
19.96 MB/s -36%
Sequential Write 256KB
Asus ZenPad 3s 10 Z500M
PowerVR GX6250, MT8176, 64 GB eMMC Flash
136.5 MB/s +117%
Huawei MediaPad M3 8.4 inch
Mali-T880 MP4, Kirin 950, 32 GB eMMC Flash
117.2 MB/s +86%
Google Pixel C
Tegra X1 Maxwell GPU, X1, 64 GB eMMC Flash
109.4 MB/s +74%
Samsung Galaxy Tab S3 SM-T825
Adreno 530, 820 MSM8996, 32 GB eMMC Flash
87.6 MB/s +39%
Asus ZenPad 3S 10 Z500KL
Adreno 510, 650 MSM8956, 32 GB eMMC Flash
63 MB/s
Samsung Galaxy Tab S2 9.7 LTE
Mali-T760 MP6, Exynos 5433, 32 GB eMMC Flash
49.37 MB/s -22%
Sequential Read 256KB
Samsung Galaxy Tab S3 SM-T825
Adreno 530, 820 MSM8996, 32 GB eMMC Flash
288.6 MB/s +16%
Huawei MediaPad M3 8.4 inch
Mali-T880 MP4, Kirin 950, 32 GB eMMC Flash
249.7 MB/s 0%
Asus ZenPad 3S 10 Z500KL
Adreno 510, 650 MSM8956, 32 GB eMMC Flash
249.6 MB/s
Samsung Galaxy Tab S2 9.7 LTE
Mali-T760 MP6, Exynos 5433, 32 GB eMMC Flash
248.2 MB/s -1%
Asus ZenPad 3s 10 Z500M
PowerVR GX6250, MT8176, 64 GB eMMC Flash
209.3 MB/s -16%
Google Pixel C
Tegra X1 Maxwell GPU, X1, 64 GB eMMC Flash
154.3 MB/s -38%

* ... smaller is better

Max. Load
 35.6 °C33.7 °C33.8 °C
 36 °C32.9 °C32.6 °C
 31.5 °C30.9 °C32.1 °C
Maximum: 36 °C
Average: 33.2 °C
29.1 °C31.6 °C34.5 °C
28.7 °C31 °C35.5 °C
38.7 °C30.8 °C32 °C
Maximum: 38.7 °C
Average: 32.4 °C
Power Supply (max.)  36.1 °C | Room Temperature 21.3 °C | Voltcraft IR-260
(±) The average temperature for the upper side under maximal load is 33.2 °C / 92 F, compared to the average of 30 °C / 86 F for the devices in the class Tablet.
(+) The maximum temperature on the upper side is 36 °C / 97 F, compared to the average of 33.7 °C / 93 F, ranging from 20.7 to 53.2 °C for the class Tablet.
(+) The bottom heats up to a maximum of 38.7 °C / 102 F, compared to the average of 33.2 °C / 92 F
(+) In idle usage, the average temperature for the upper side is 28.5 °C / 83 F, compared to the device average of 30 °C / 86 F.
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2031.637.52525.435.83125.330.84032.927.85033.632.56331.630.48028.429.51002726.212520.833.31602243.520021.352.925020.856.531521.263.940019.468.150019.570.363017.772.880017.976.5100017.876.9125017.374.8160017.473.9200016.772.4250017.272.6315018.275.5400017.977500017.675.4630017.768.7800017.863.91000017.960.51250018.158.41600018.257.1SPL3085.9N1.365.9median 17.9median 68.7Delta1.48.53730.934.43725.629.328.925.628.931.523.728.929.331.830.929.33935.937.23933.535.130.533.52730.928.52722.432.722.322.423.534.522.923.530.438.92030.434.443.420.434.440.649.719.840.644.255.620.344.247.158.619.247.152.265.917.952.257.172.616.357.15770.417.65758.472.41858.46176.917.66163.779.21763.760.376.717.260.359.275.717.759.256.977.717.356.963.181.917.463.166.688.517.766.664.584.81864.553.975.617.753.947.569.518.247.542.164.217.942.133.357.317.833.373.392.829.873.329.588.31.329.5median 53.9median 72.4median 17.9median 53.910.310.70.710.331.639.825.430.725.330.632.933.533.632.231.630.328.425.92726.620.826.82236.221.346.320.861.321.27219.475.319.573.817.780.817.980.517.879.217.373.417.474.116.77217.268.518.267.717.970.717.672.817.76917.873.517.970.318.167.718.264.43086.51.371median 17.9median 711.47.3hearing rangehide median Pink NoiseAsus ZenPad 3S 10 Z500KLGoogle Pixel CSamsung Galaxy Tab S3 SM-T825
Asus ZenPad 3S 10 Z500KL audio analysis

(+) | speakers can play relatively loud (85.9 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 22.6% lower than median
(±) | linearity of bass is average (13.5% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 4.7% away from median
(+) | mids are linear (4.3% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 5.5% higher than median
(+) | highs are linear (5.9% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (20% difference to median)
Compared to same class
» 53% of all tested devices in this class were better, 8% similar, 40% worse
» The best had a delta of 7%, average was 21%, worst was 129%
Compared to all devices tested
» 49% of all tested devices were better, 8% similar, 43% worse
» The best had a delta of 4%, average was 24%, worst was 134%

Google Pixel C audio analysis

(+) | speakers can play relatively loud (92.8 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 29.9% lower than median
(±) | linearity of bass is average (7.5% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 4.8% away from median
(±) | linearity of mids is average (7% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 7.5% higher than median
(±) | linearity of highs is average (8.6% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (24.2% difference to median)
Compared to same class
» 73% of all tested devices in this class were better, 7% similar, 21% worse
» The best had a delta of 7%, average was 21%, worst was 129%
Compared to all devices tested
» 71% of all tested devices were better, 6% similar, 23% worse
» The best had a delta of 4%, average was 24%, worst was 134%

Samsung Galaxy Tab S3 SM-T825 audio analysis

(+) | speakers can play relatively loud (86.5 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 26.5% lower than median
(±) | linearity of bass is average (14.5% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 5.1% higher than median
(+) | mids are linear (5.2% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 1.9% away from median
(+) | highs are linear (5.6% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (17.9% difference to median)
Compared to same class
» 41% of all tested devices in this class were better, 6% similar, 53% worse
» The best had a delta of 7%, average was 21%, worst was 129%
Compared to all devices tested
» 34% of all tested devices were better, 8% similar, 58% worse
» The best had a delta of 4%, average was 24%, worst was 134%

Power Consumption
Off / Standbydarklight 0.03 / 0.16 Watt
Idledarkmidlight 1.57 / 4 / 4.09 Watt
Load midlight 7.99 / 9.71 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Asus ZenPad 3S 10 Z500KL
7800 mAh
Asus ZenPad 3s 10 Z500M
5900 mAh
Google Pixel C
 mAh
Samsung Galaxy Tab S2 9.7 LTE
5870 mAh
Samsung Galaxy Tab S3 SM-T825
6000 mAh
Huawei MediaPad M3 8.4 inch
5100 mAh
Apple iPad (2017)
8.827 mAh
Power Consumption
-13%
-19%
-21%
6%
8%
-49%
Idle Minimum *
1.57
1.59
-1%
1.82
-16%
2.3
-46%
2.08
-32%
1.51
4%
2.06
-31%
Idle Average *
4
4.14
-4%
4.26
-7%
4.5
-13%
3.5
12%
3.64
9%
7.42
-86%
Idle Maximum *
4.09
4.23
-3%
4.33
-6%
5
-22%
3.58
12%
3.68
10%
7.47
-83%
Load Average *
7.99
10.89
-36%
9.82
-23%
9.4
-18%
6.97
13%
6.95
13%
9.45
-18%
Load Maximum *
9.71
11.58
-19%
13.99
-44%
10.4
-7%
7.4
24%
9.11
6%
12.31
-27%

* ... smaller is better

Battery Runtime
WiFi Websurfing
9h 39min
Asus ZenPad 3S 10 Z500KL
7800 mAh
Asus ZenPad 3s 10 Z500M
5900 mAh
Google Pixel C
 mAh
Samsung Galaxy Tab S2 9.7 LTE
5870 mAh
Samsung Galaxy Tab S3 SM-T825
6000 mAh
Huawei MediaPad M3 8.4 inch
5100 mAh
Apple iPad (2017)
8.827 mAh
Battery Runtime
WiFi v1.3
579
518
-11%
638
10%
393
-32%
760
31%
546
-6%
764
32%

Pros

+ 低发热量
+ 非常优秀的IPS面板
+ 优秀的扬声器音效
+ 美观的金属机身
+ LTE(Cat.6)
+ USB-C

Cons

- 低品质相机
- 无线网络速度
- 测试机的工艺品质
- 触控屏幕有延迟
- 无背光按键
- 无指纹感应器
- 仅USB 2.0
- 32GB eMMC闪存
- 仅安卓6.0
In the test: Asus ZenPad 3S 10 LTE (Z500KL). Test unit provided by Asus Germany.
In the test: Asus ZenPad 3S 10 LTE (Z500KL). Test unit provided by Asus Germany.

尽管ZenPad 3S 10 LTE的缺点多于优点,但这台来自华硕的高端平板电脑仍然是一台不错的设备。它的机身外观和材质都非常优秀。遗憾的是,我们测试机的工艺品质却不尽人意。它的IPS屏幕十分锐利,亮度和对比度也较高,可以适合日常使用的需要。它在电池续航和系统性能方面也都十分让人满意。

我们对ZenPad 3S 10 LTE不够满意的方面包括:尽管它的售价达到了450欧元(约504美元),但硬件配置并不出色。这台华硕平板电脑没有提供指纹感应器,仅搭配32GB的eMMC闪存,无NFC芯片,控制键无背光,且处理器的性能相比同价位设备也相对较低。它的无线模组速度和后置相机品质也有待改进。在安卓O(Beta测试)已经发布的现在,一台高端设备只搭载过时的安卓6.0让人无法接受。

由于ZenPad 3S 10 LTE的问题较多,我们只能在有限的程度上推荐用户考虑这台设备,尽管它的整体得分十分不错,但目前的售价并不算便宜。

注:本文是基于完整评测的缩减版本,阅读完整的英文评测,请点击这里。

Asus ZenPad 3S 10 Z500KL - 05/22/2017 v6 (old)
Marcus Herbrich

Chassis
86%
Keyboard
70 / 80 → 88%
Pointing Device
88%
Connectivity
42 / 65 → 65%
Weight
83 / 40-88 → 90%
Battery
92%
Display
85%
Games Performance
42 / 68 → 61%
Application Performance
55 / 76 → 72%
Temperature
92%
Noise
100%
Audio
70 / 91 → 77%
Camera
44 / 85 → 52%
Average
73%
85%
Tablet - Weighted Average

Price comparison

Please share our article, every link counts!
Mail Logo
> Notebookcheck中文版(NBC中国) > 评测 > 华硕 ZenPad 3S 10 LTE (Z500KL) 平板电脑简短评测
Marcus Herbrich, 2017-06- 2 (Update: 2017-06- 2)
