AMD Radeon RX 7700 XT 台式机显卡评测,配备 12GB VRAM,售价不到 500 欧元
目前,AMD 已经完成了基于 RDNA 3 架构的显卡产品线,我们现在来仔细看看 AMD Radeon RX 7700 XT。由于 AMD 没有推出自己的 Radeon RX 7700 XT 显卡,因此我们在这次评测中测试的是蓝宝石的型号。Sapphire Pulse AMD Radeon RX 7700 XT 代表了 RX 7700 XT 的所有型号,它们在性能方面只有细微差别。作为 AMD Radeon RX 6700 XT 和后来的 AMD Radeon RX 6750 XT 的继任者,AMD Radeon RX 7700 XT 也是一款专为 1440p 游戏开发的显卡。AMD Radeon RX 7700 XT 配备了 12GB 的 VRAM,忠实于这一产品线,因为前代产品也配备了 12GB 的 VRAM。由于价格原因,蓝宝石 Pulse AMD Radeon RX 7700 XT 的竞争对手是 Nvidia 的GeForce RTX 4060 Ti蓝宝石脉动 AMD Radeon RX 7700 XT 16 GB VRAM我们最近几周也在测试台上使用了这些型号。
作为图形芯片,Navi 32 配备了 3456 个着色器单元。AMD 的 VRAM 为 12 GB,在 8 GB 和 16 GB 之间找到了一个很好的折中,尽管 16 GB 在 1440p 下会更令人放心。这里还采用了新的芯片组设计,除了 200 平方毫米的 GCD 外,还有三个 MCD,每个面积为 36.6 平方毫米。VRAM 通过 MCD 连接,从而实现了 192 位的存储连接。在供电方面,蓝宝石采用了传统的供电方式,为我们的测试设备配备了两个 6+2 针 PCIe 电源连接。

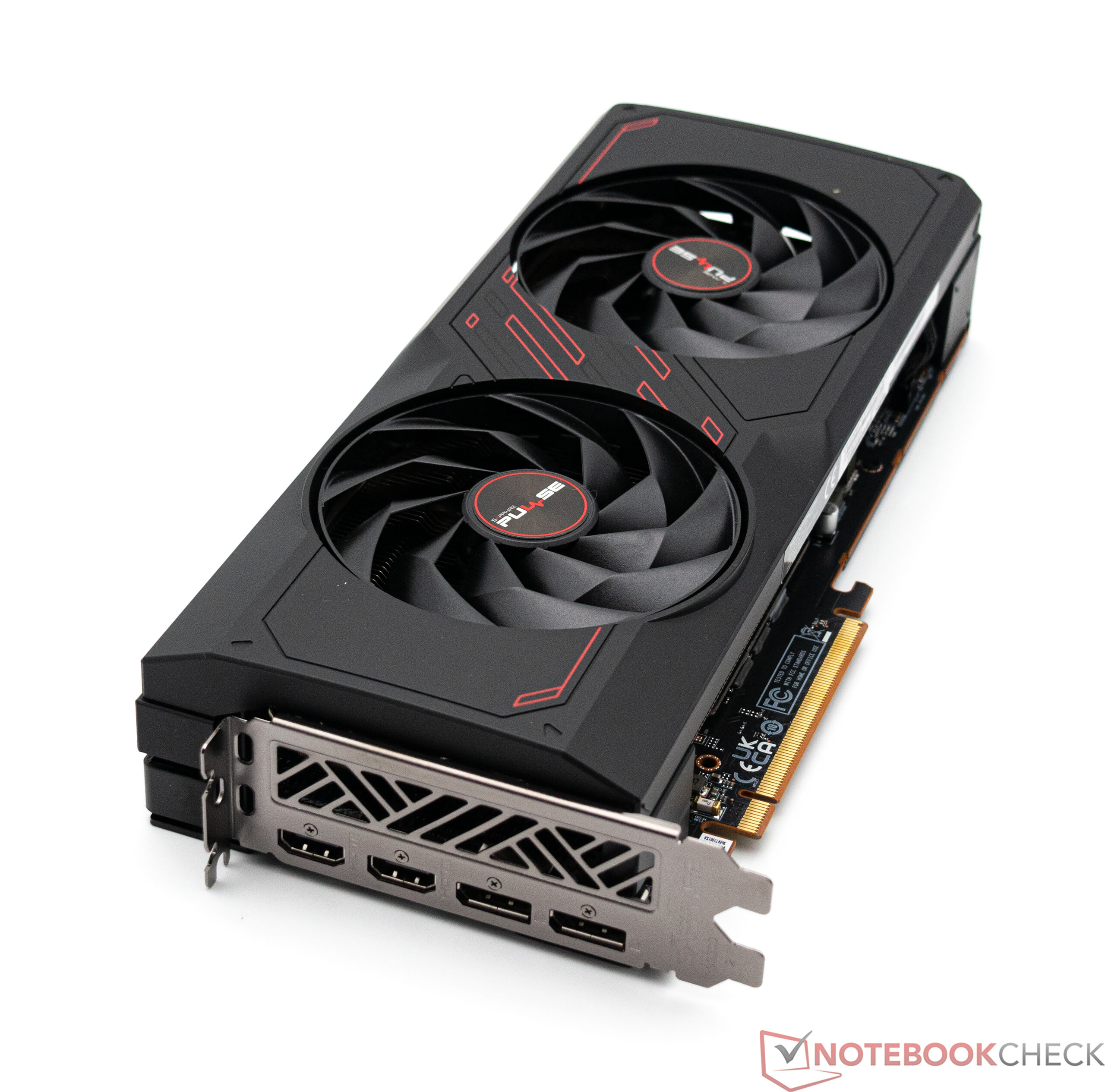

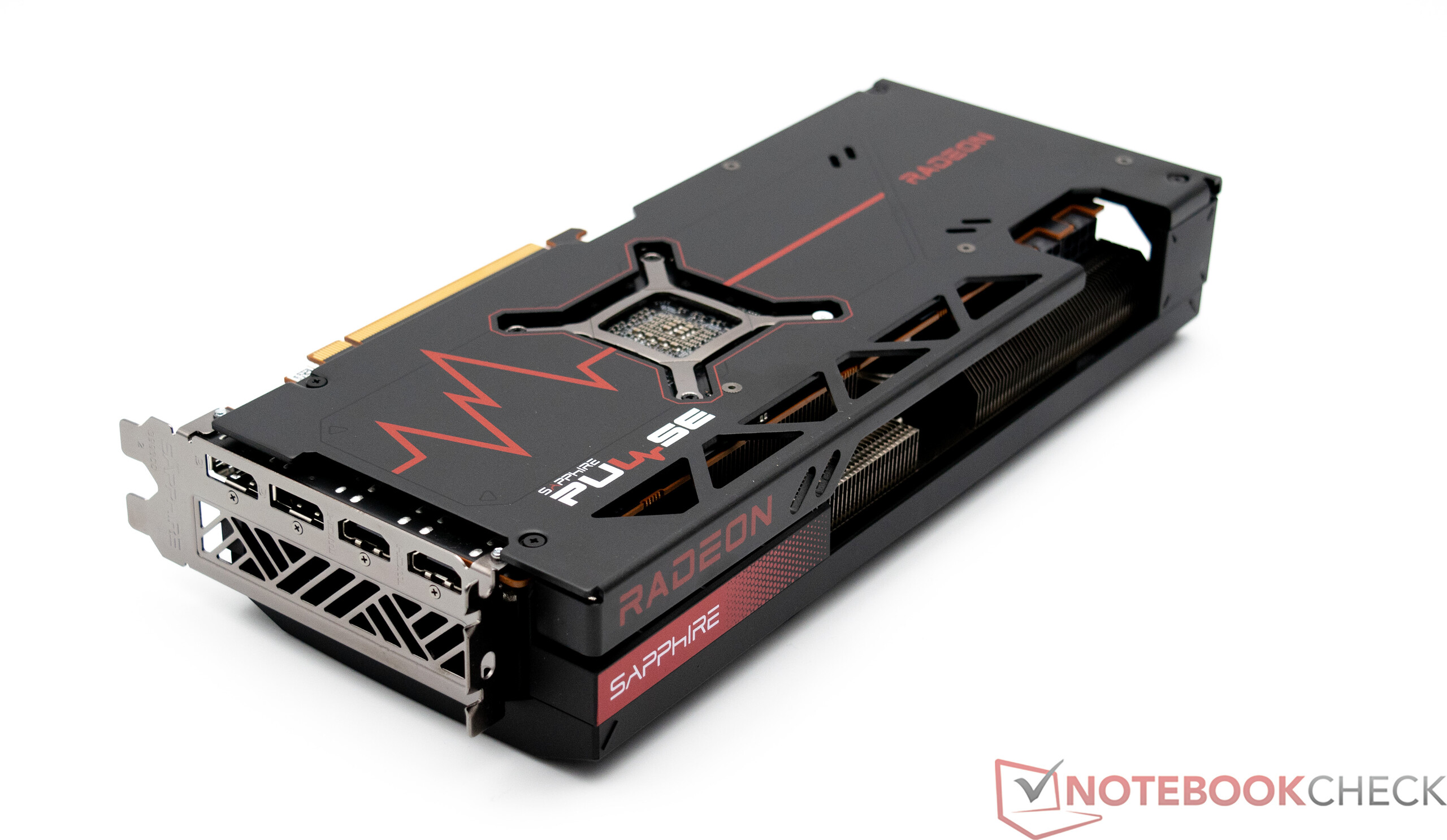

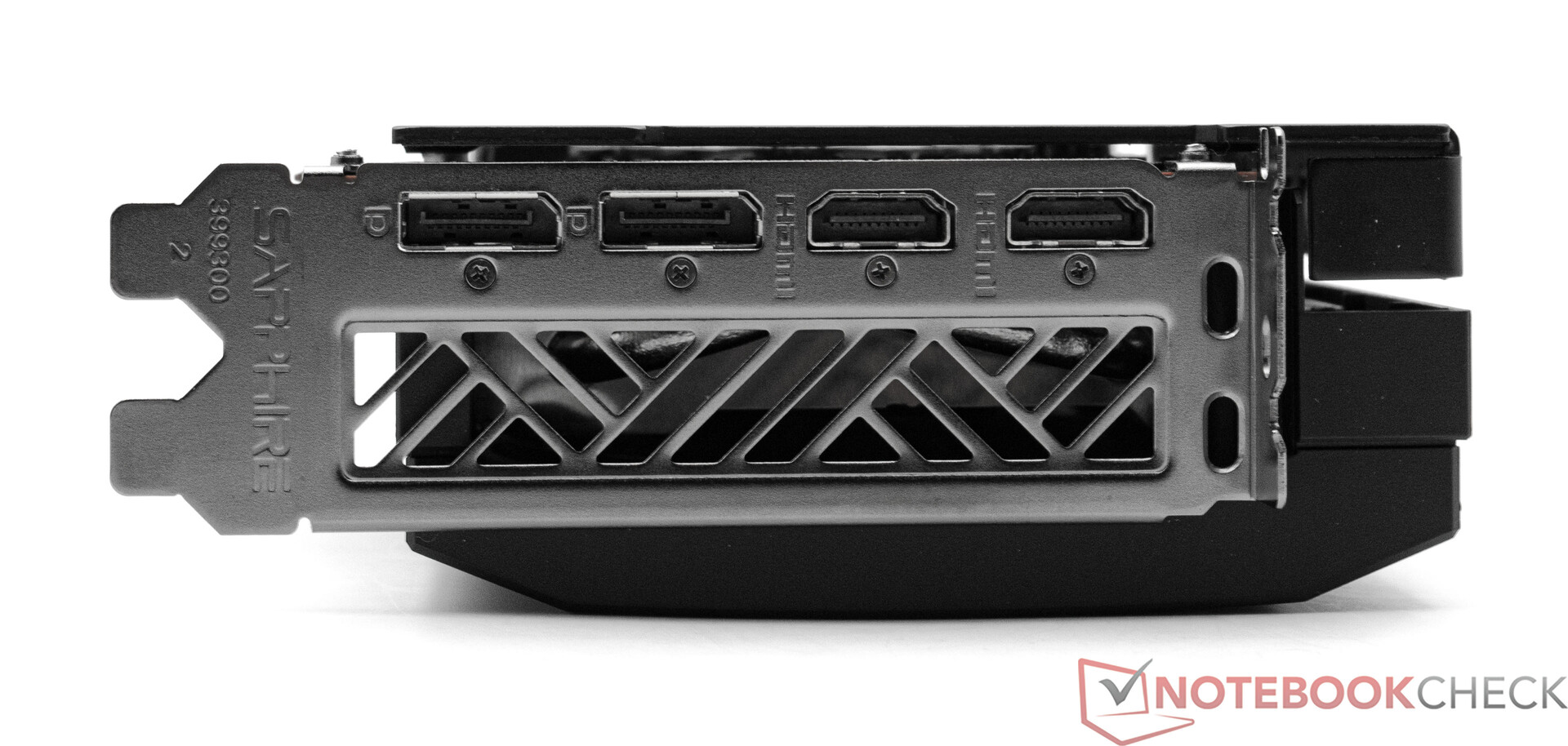

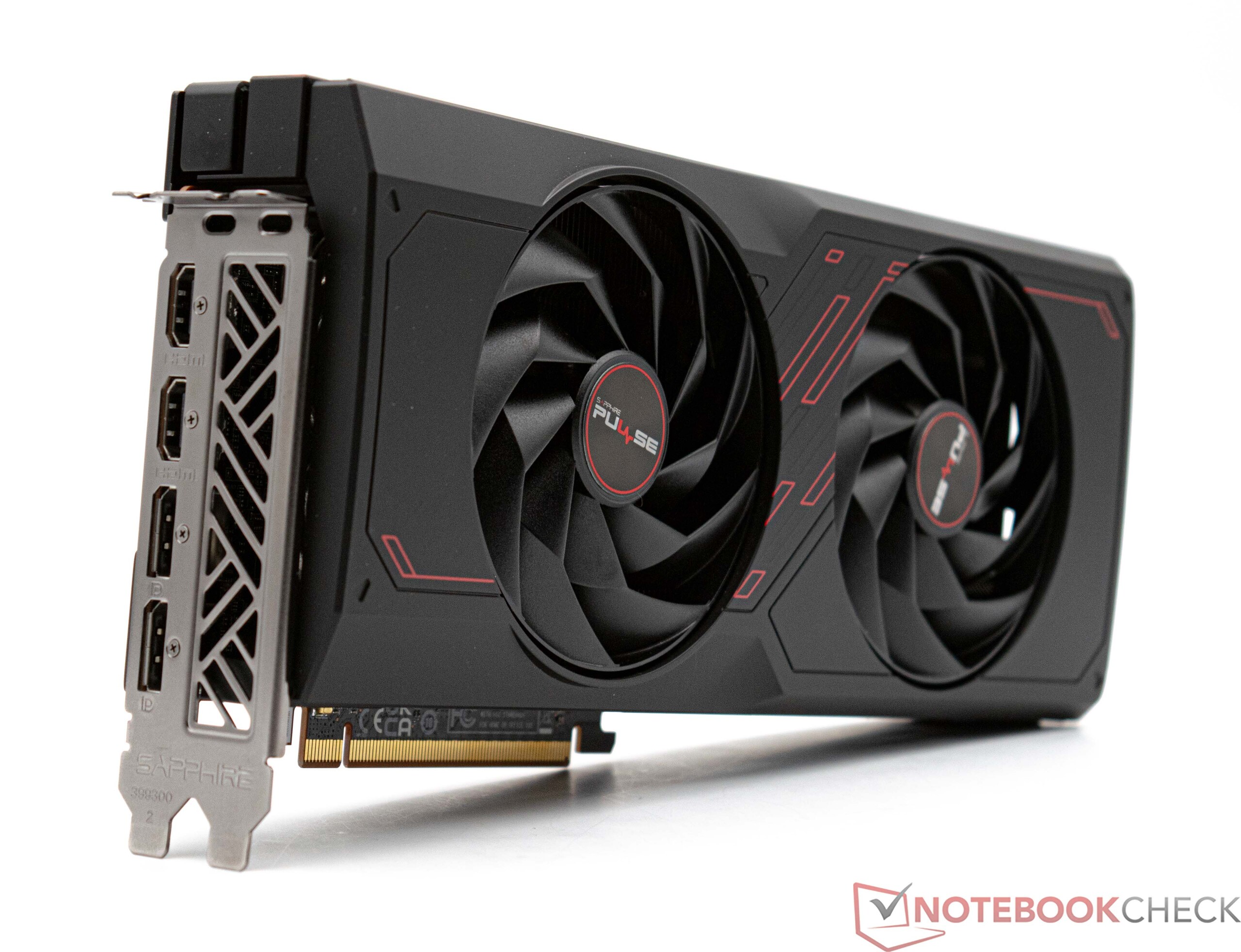

在外部连接方面,蓝宝石 Pulse AMD Radeon RX 7700 XT 采用了非常现代化的设备。您最多可以同时运行四台显示器,这四台显示器可以通过 HDMI(2.1a)或 DisplayPort(2.1)连接,每种连接都有两个。AMD 在这方面树立了榜样,其所有 RX 7000 显卡都提供 DisplayPort 2.1 连接。相比之下,Nvidia 显卡仅支持 DisplayPort 1.4。
» Notebookcheck多媒体笔记本电脑Top 10排名
» Notebookcheck游戏笔记本电脑Top 10排名
» Notebookcheck低价办公/商务笔记本电脑Top 10排名
» Notebookcheck高端办公/商务笔记本电脑Top 10排名
» Notebookcheck工作站笔记本电脑Top 10排名
» Notebookcheck亚笔记本电脑Top 10排名
» Notebookcheck超级本产品Top 10排名
» Notebookcheck变形本产品Top 10排名
» Notebookcheck平板电脑Top 10排名
» Notebookcheck智能手机Top 10排名
» Notebookcheck评测过最出色的笔记本电脑屏幕
» Notebookcheck售价500欧元以下笔记本电脑Top 10排名
» Notebookcheck售价300欧元以下笔记本电脑Top 10排名

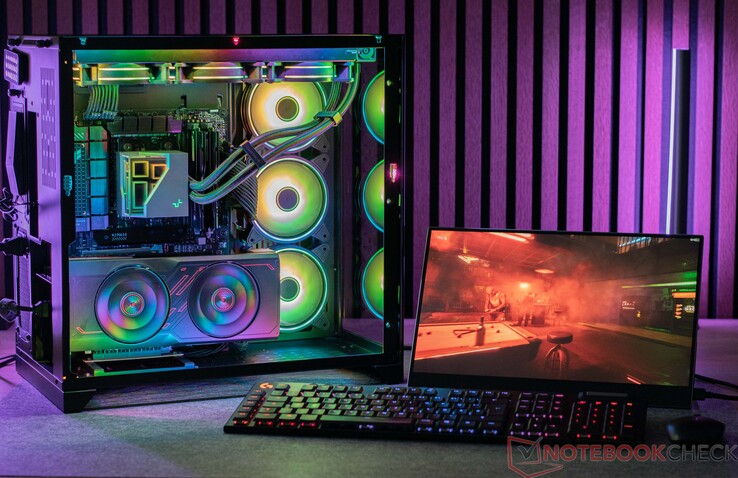

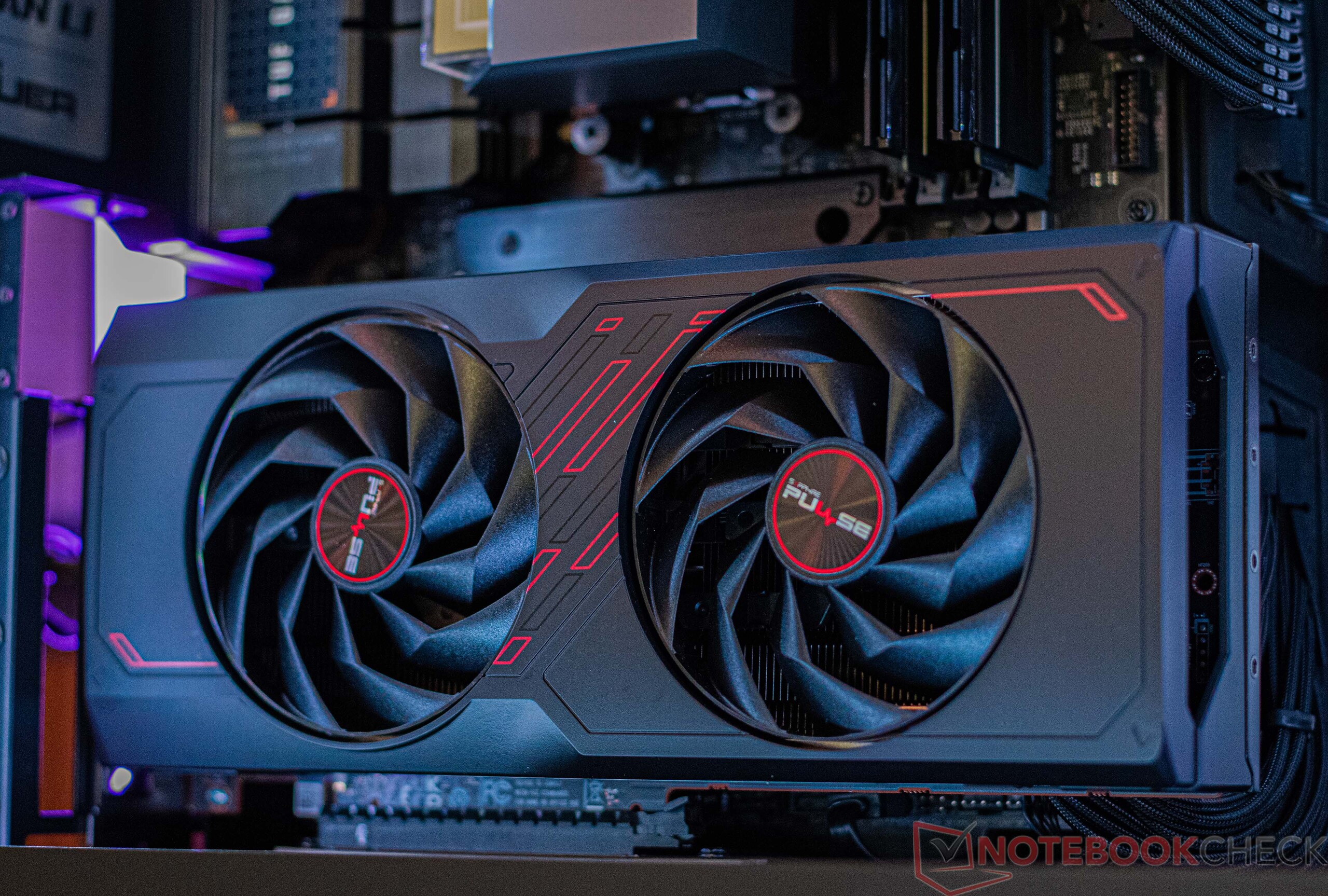

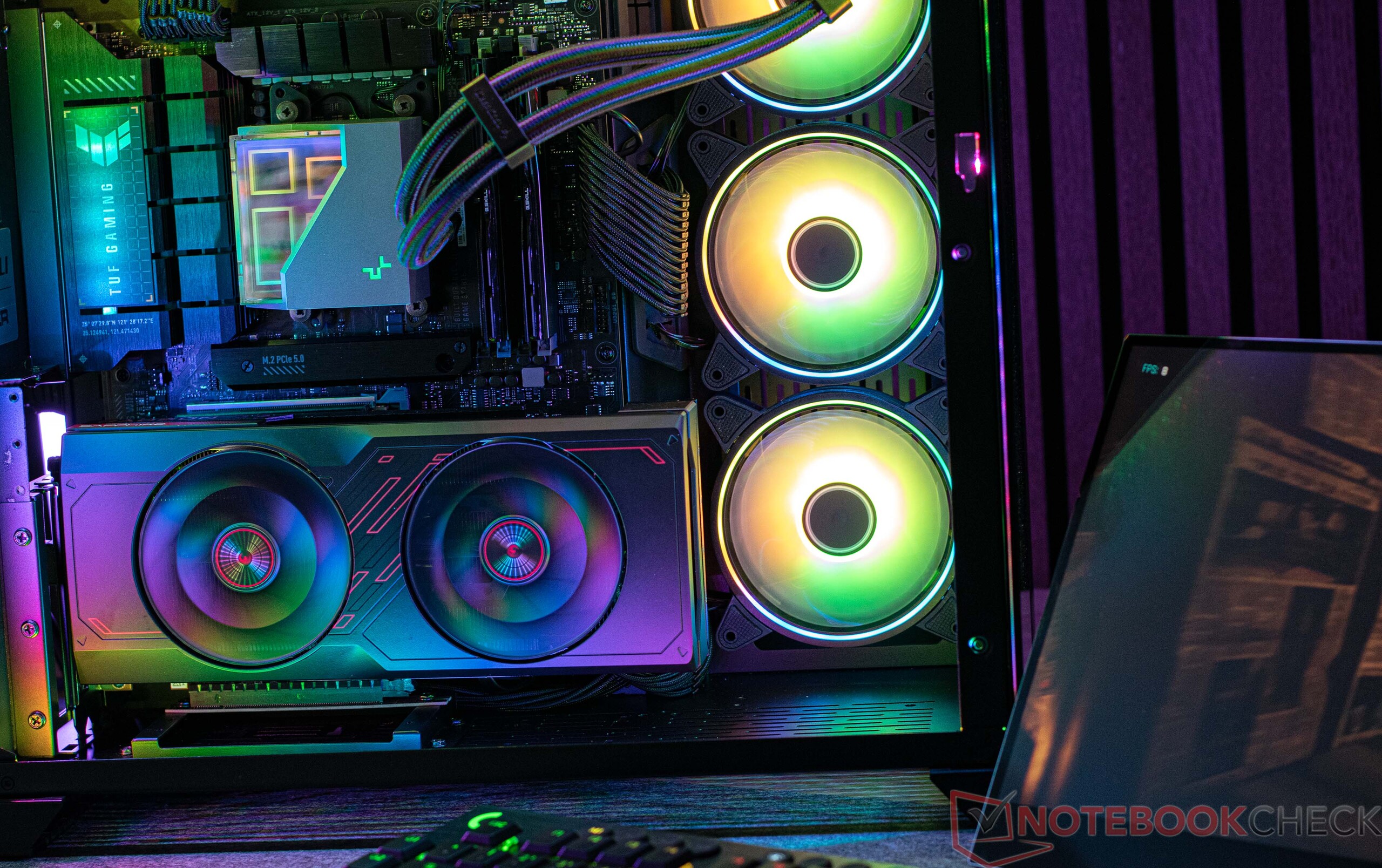

测试系统信息

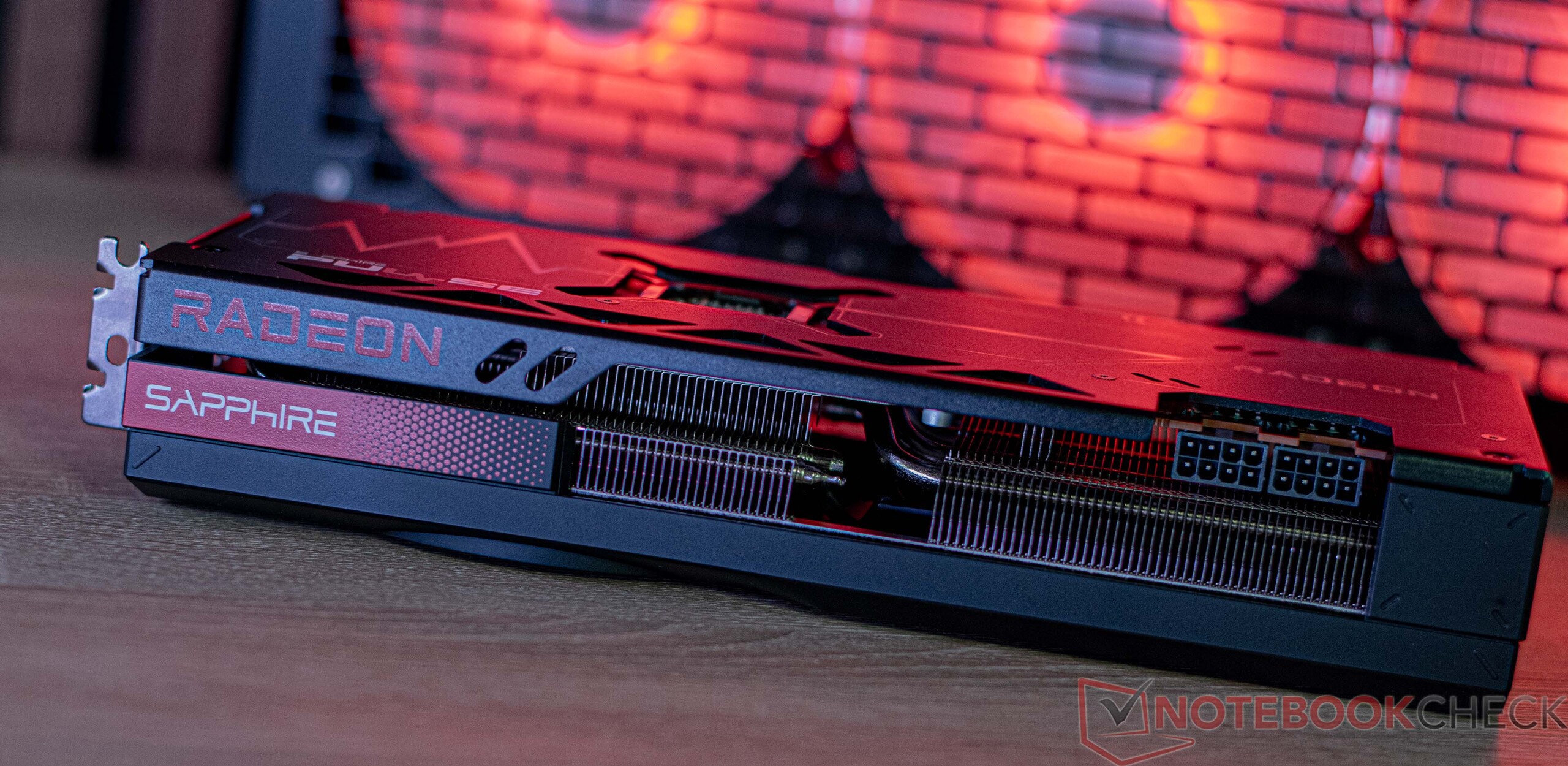

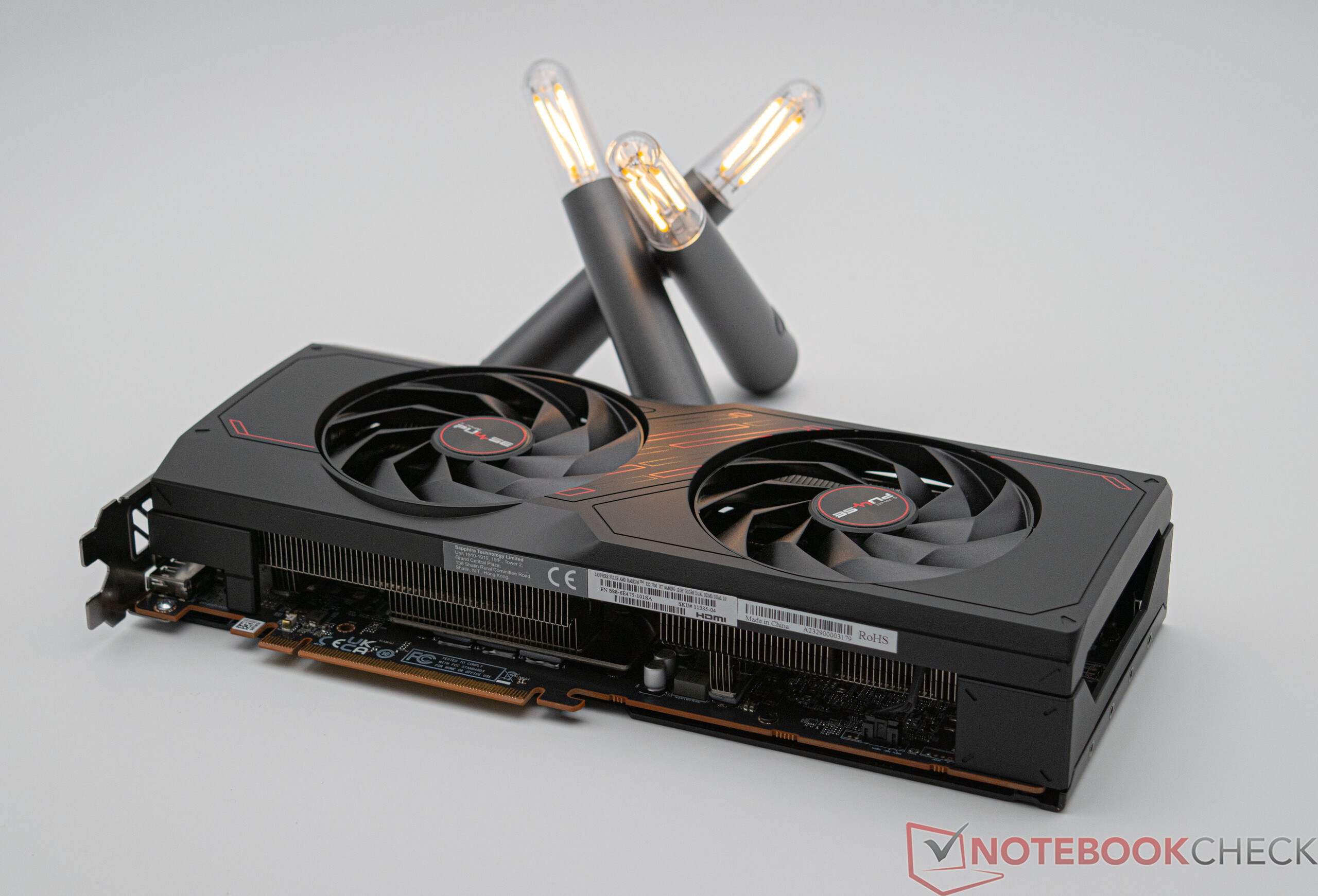

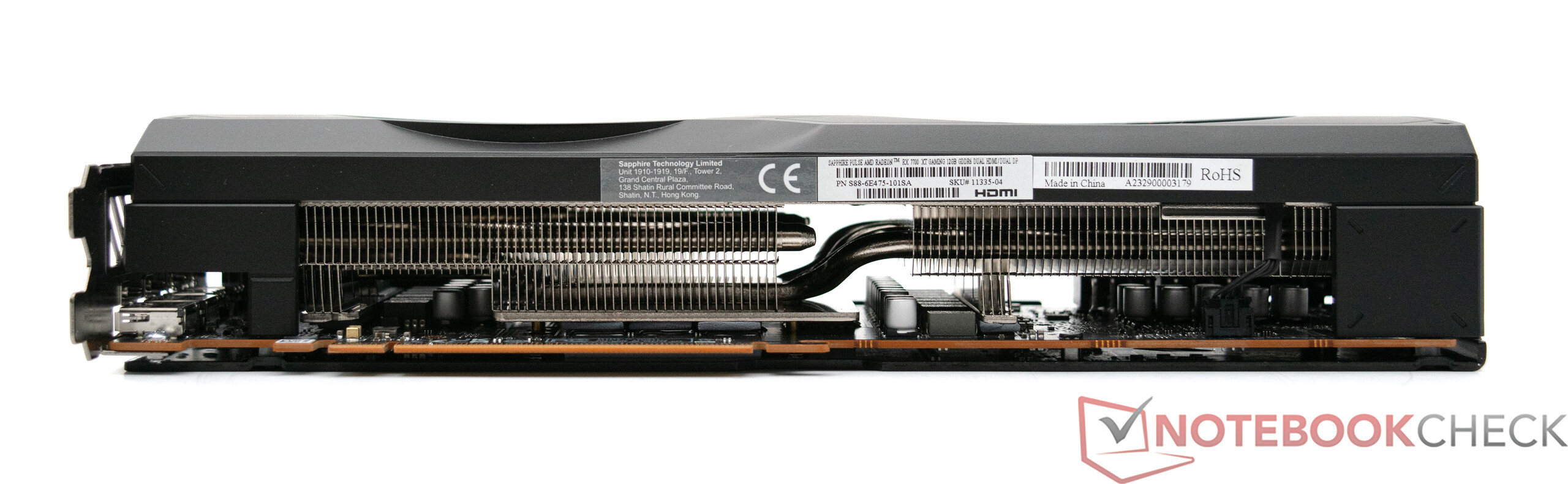

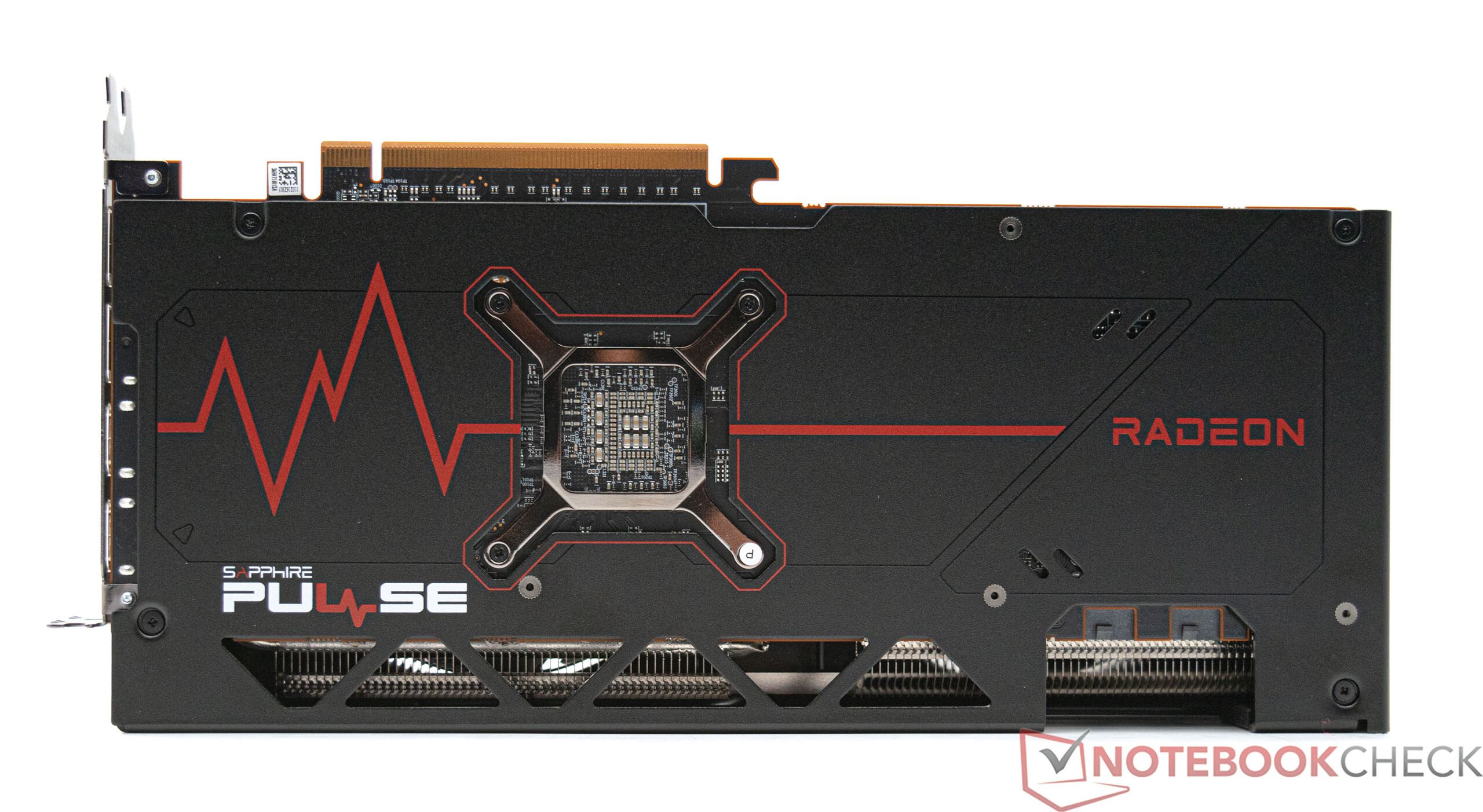

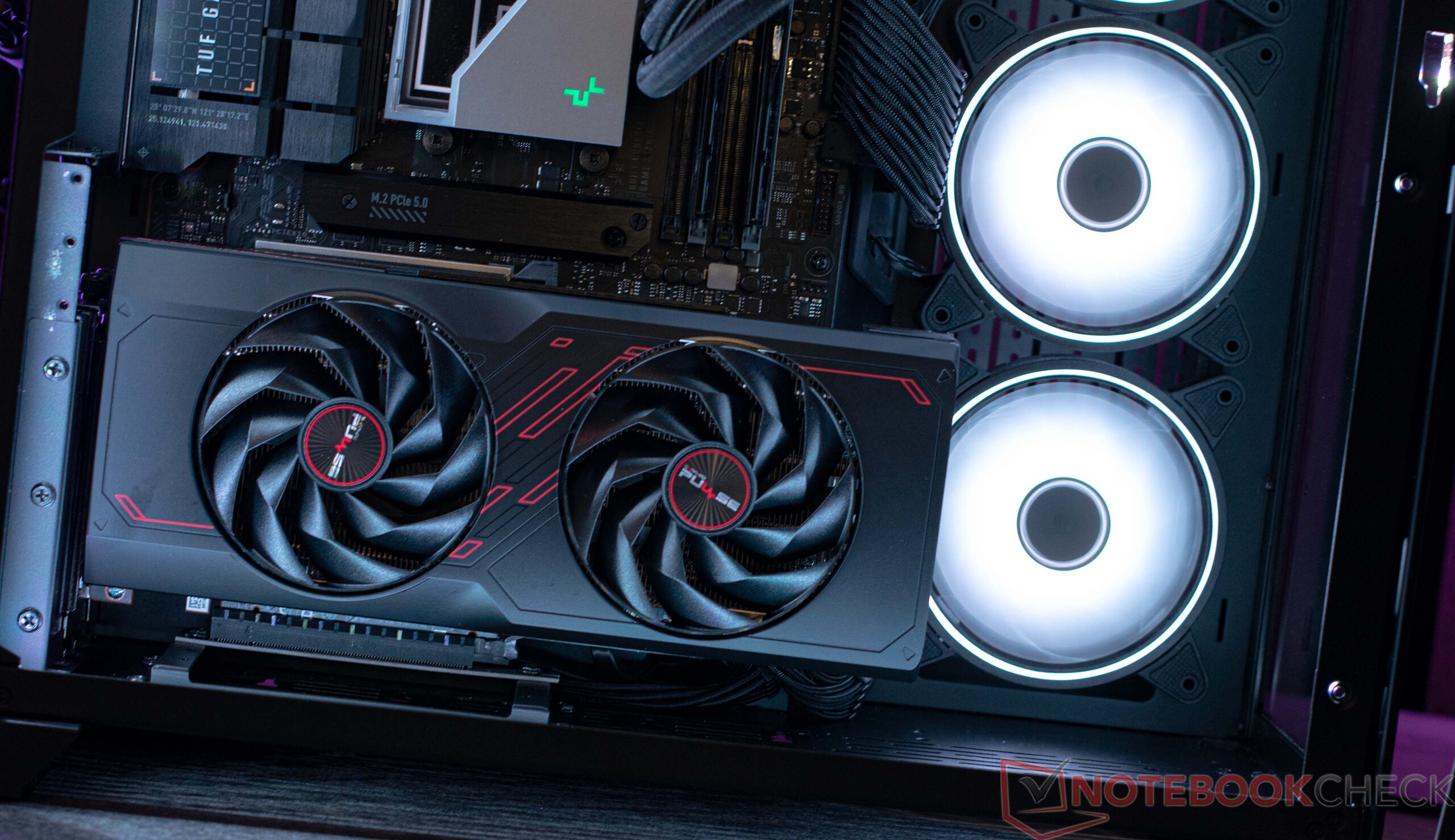

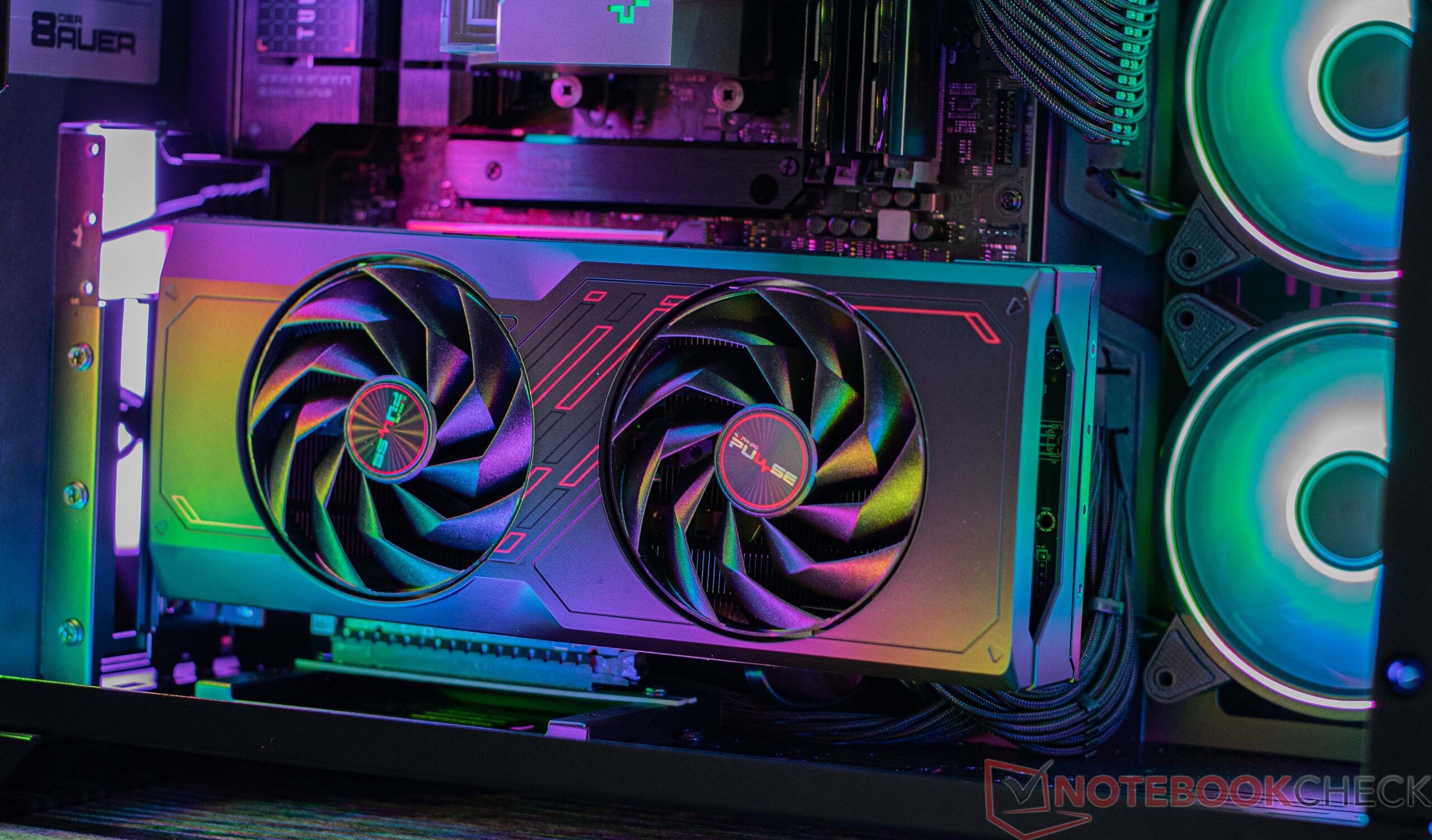

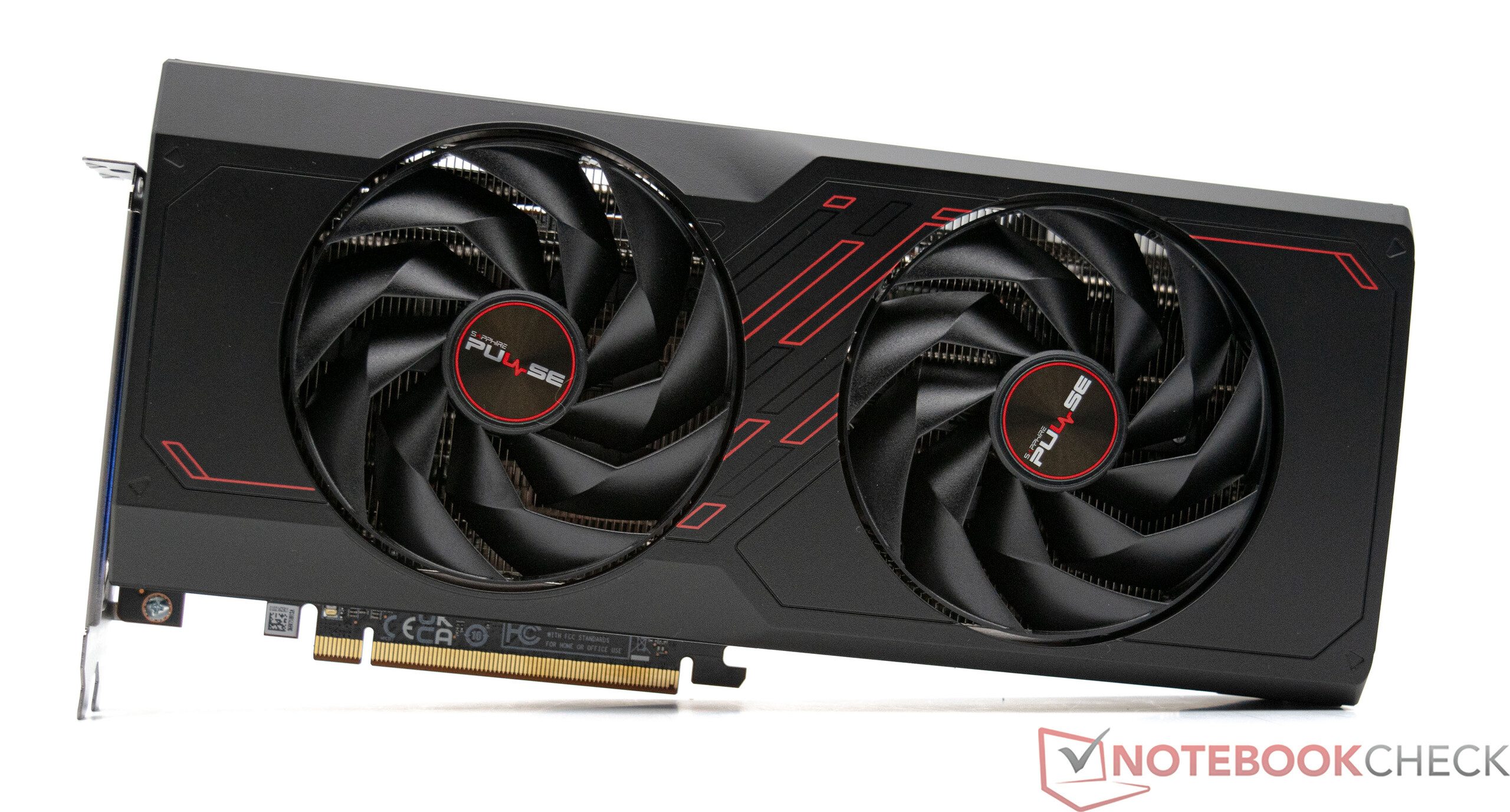

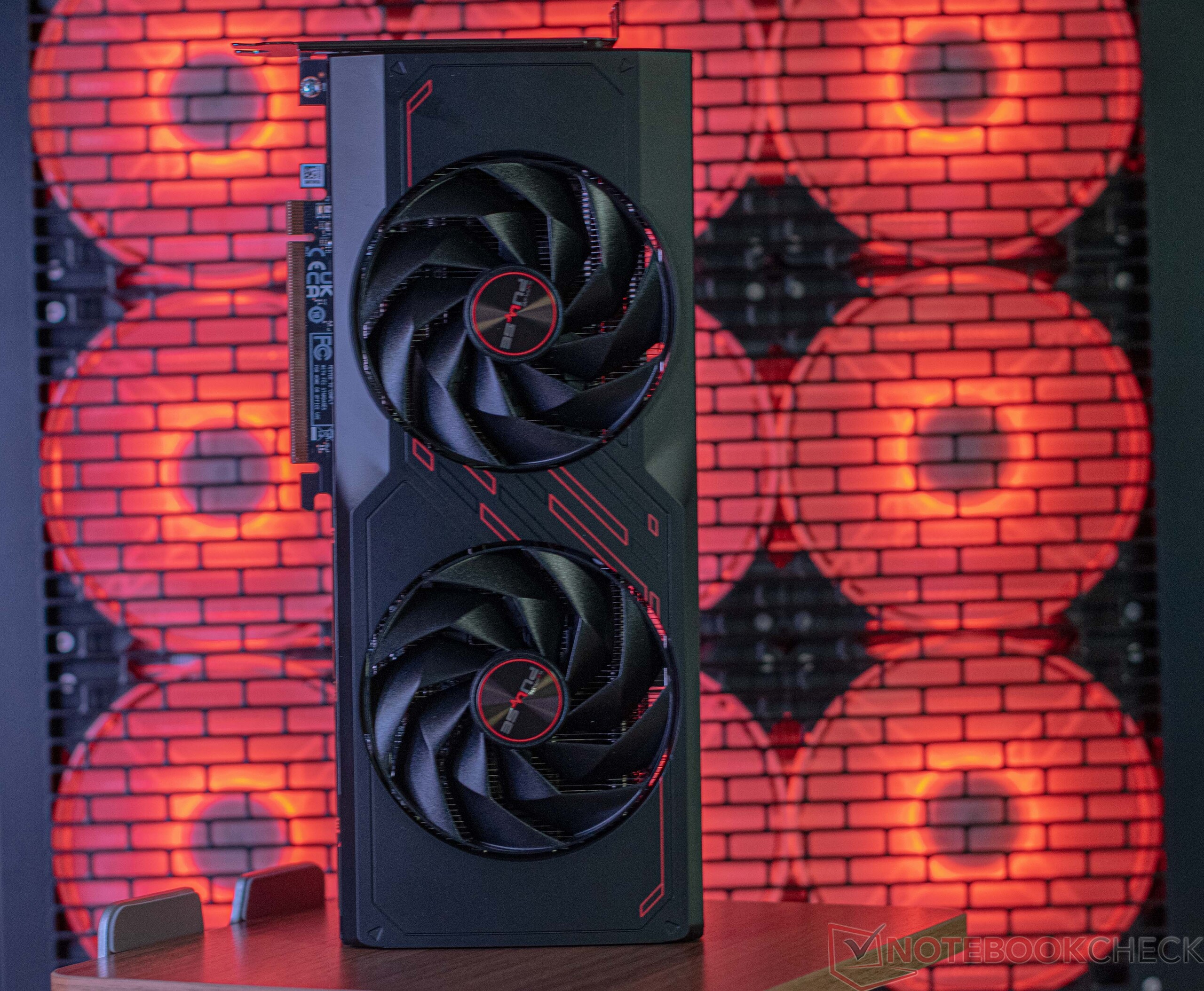

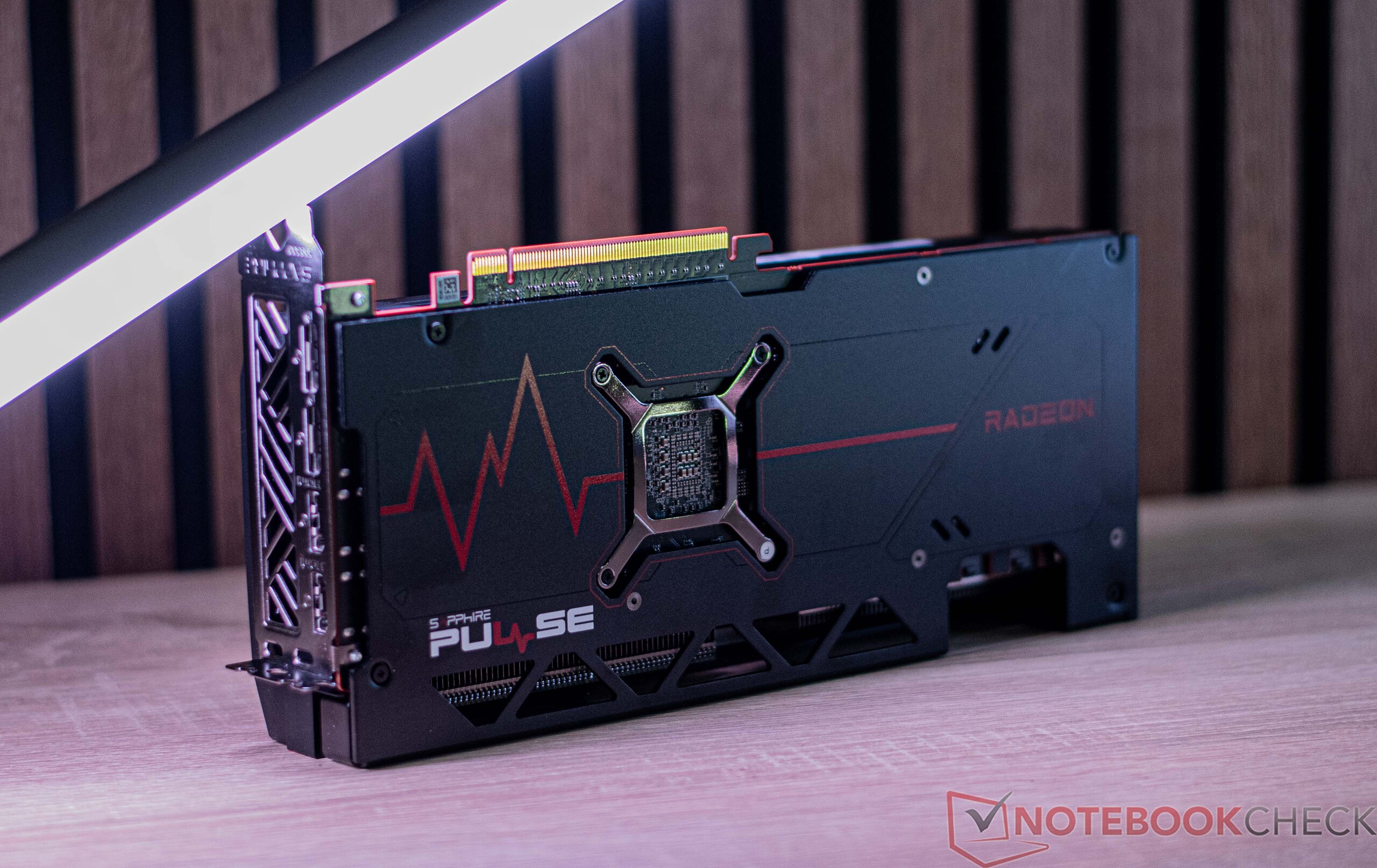

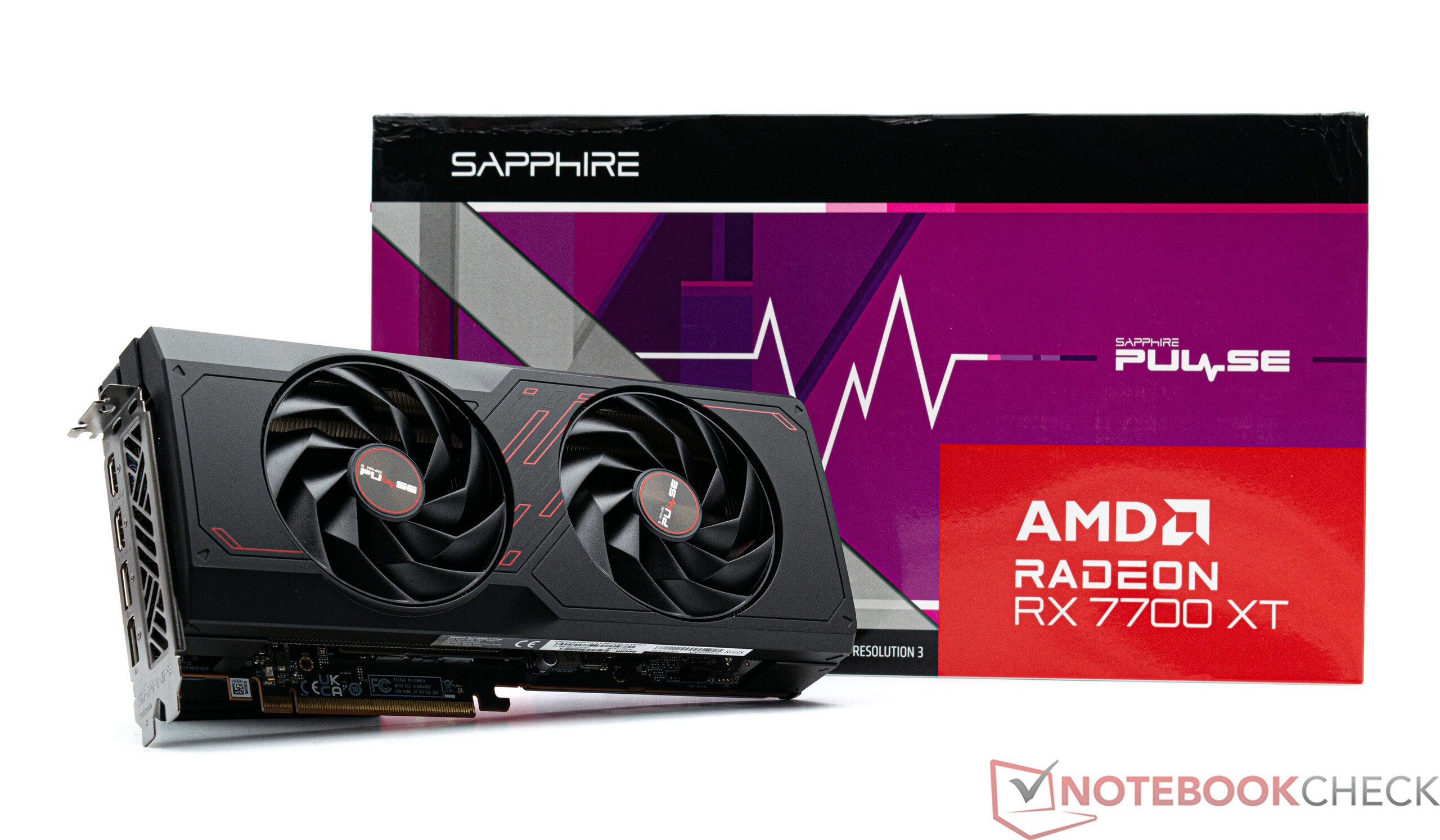

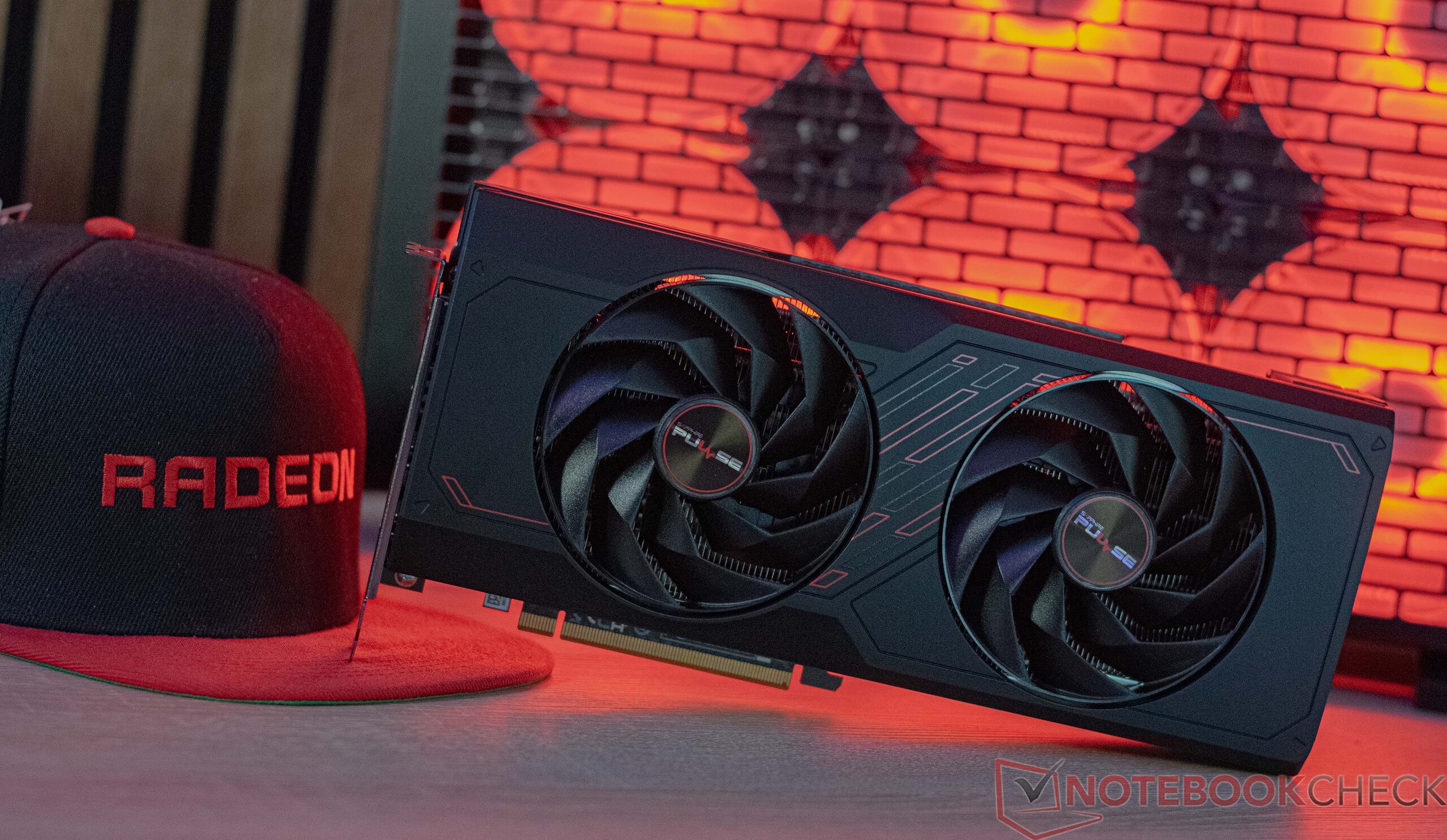

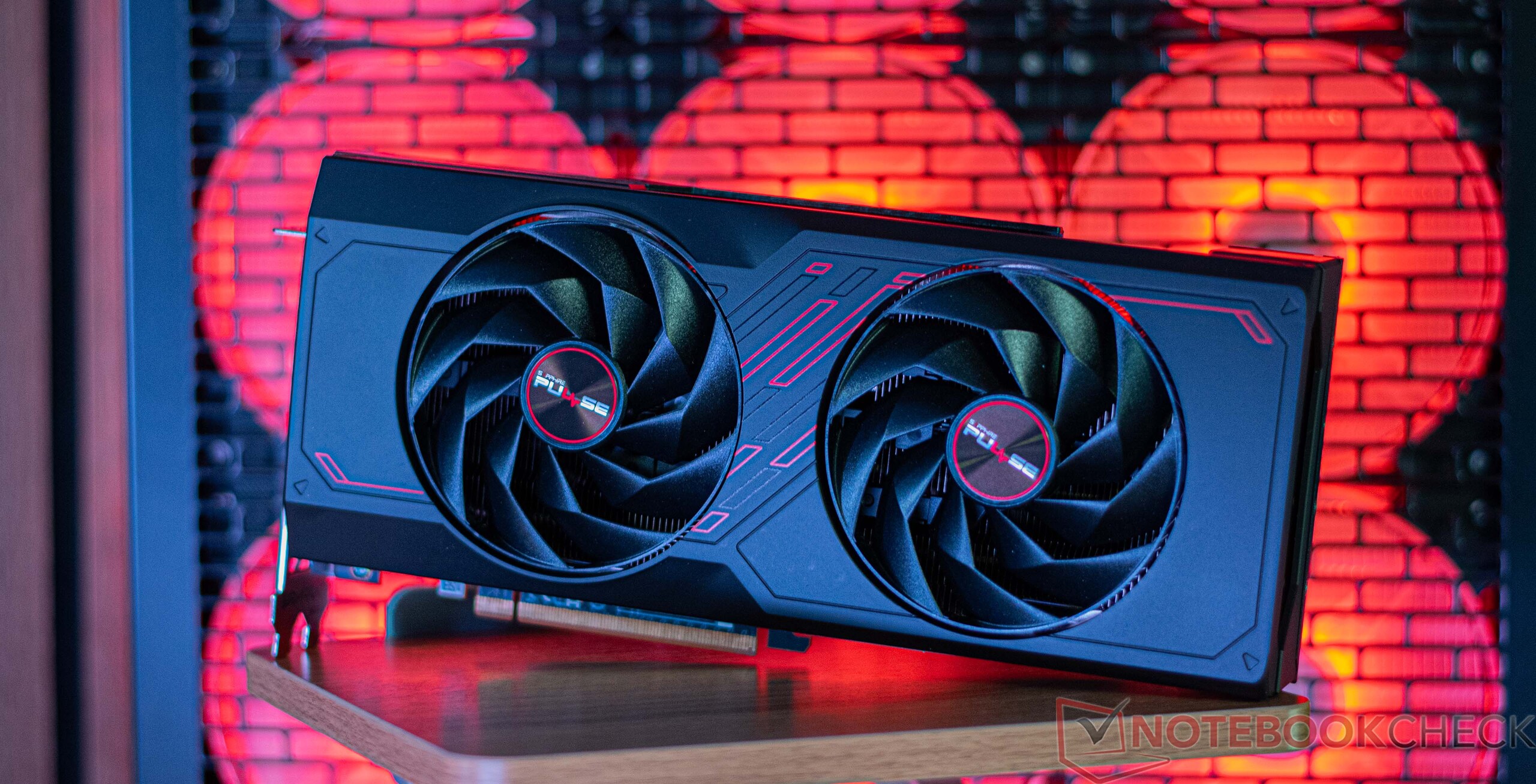

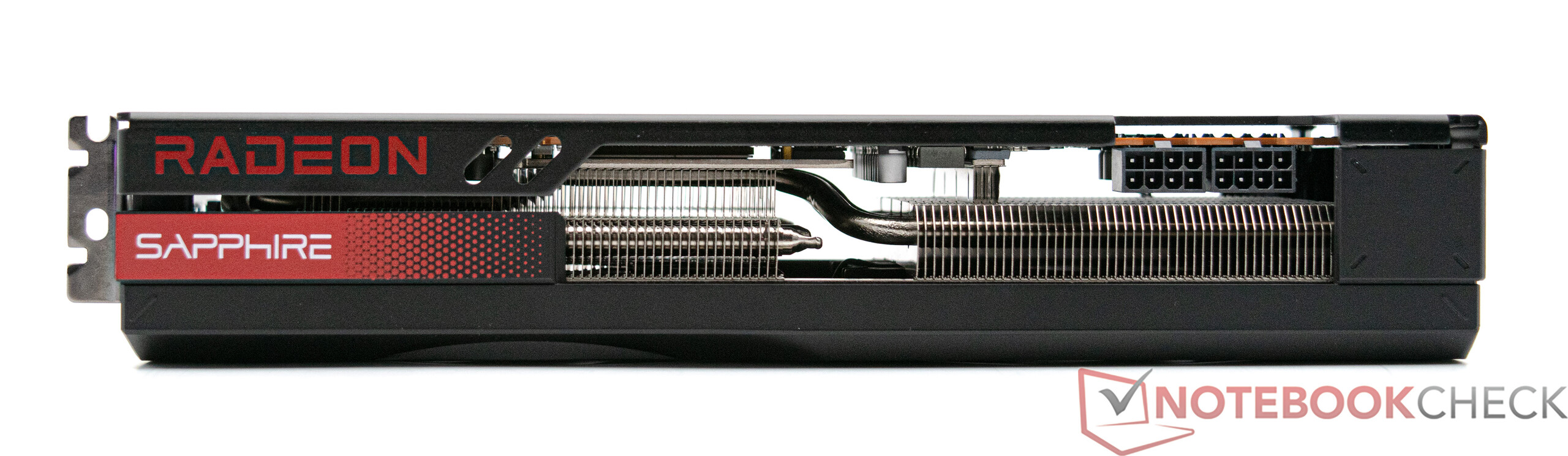

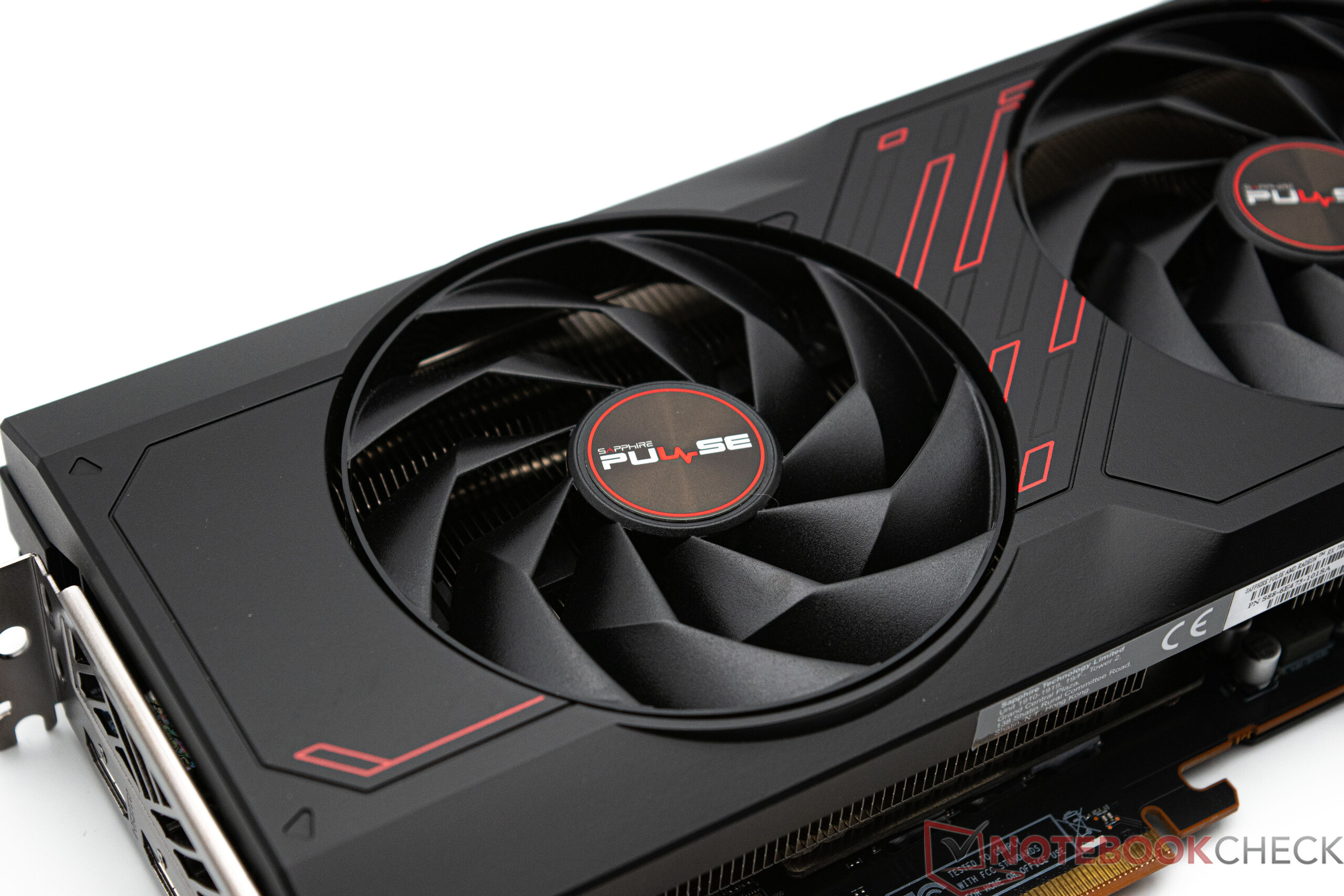

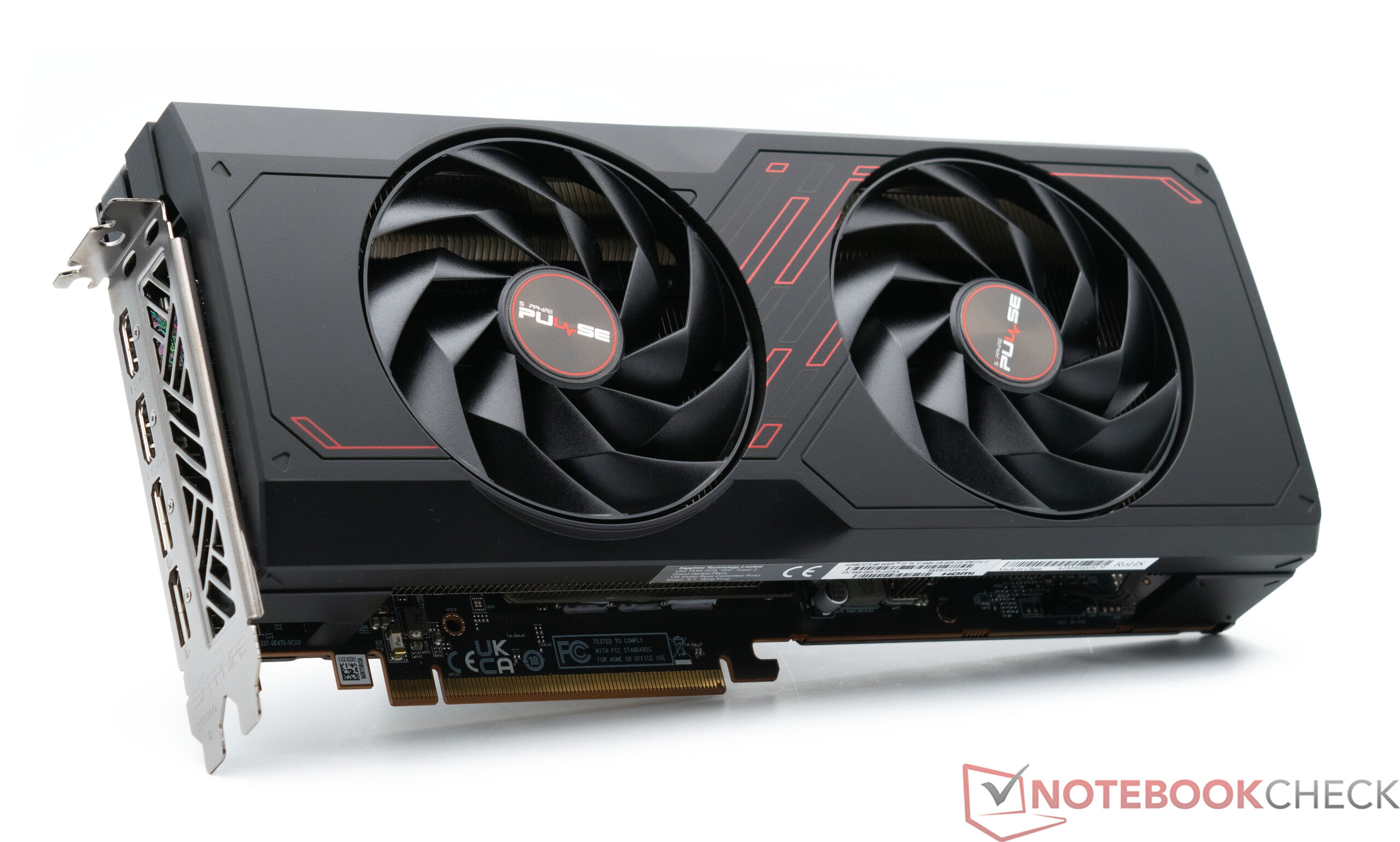

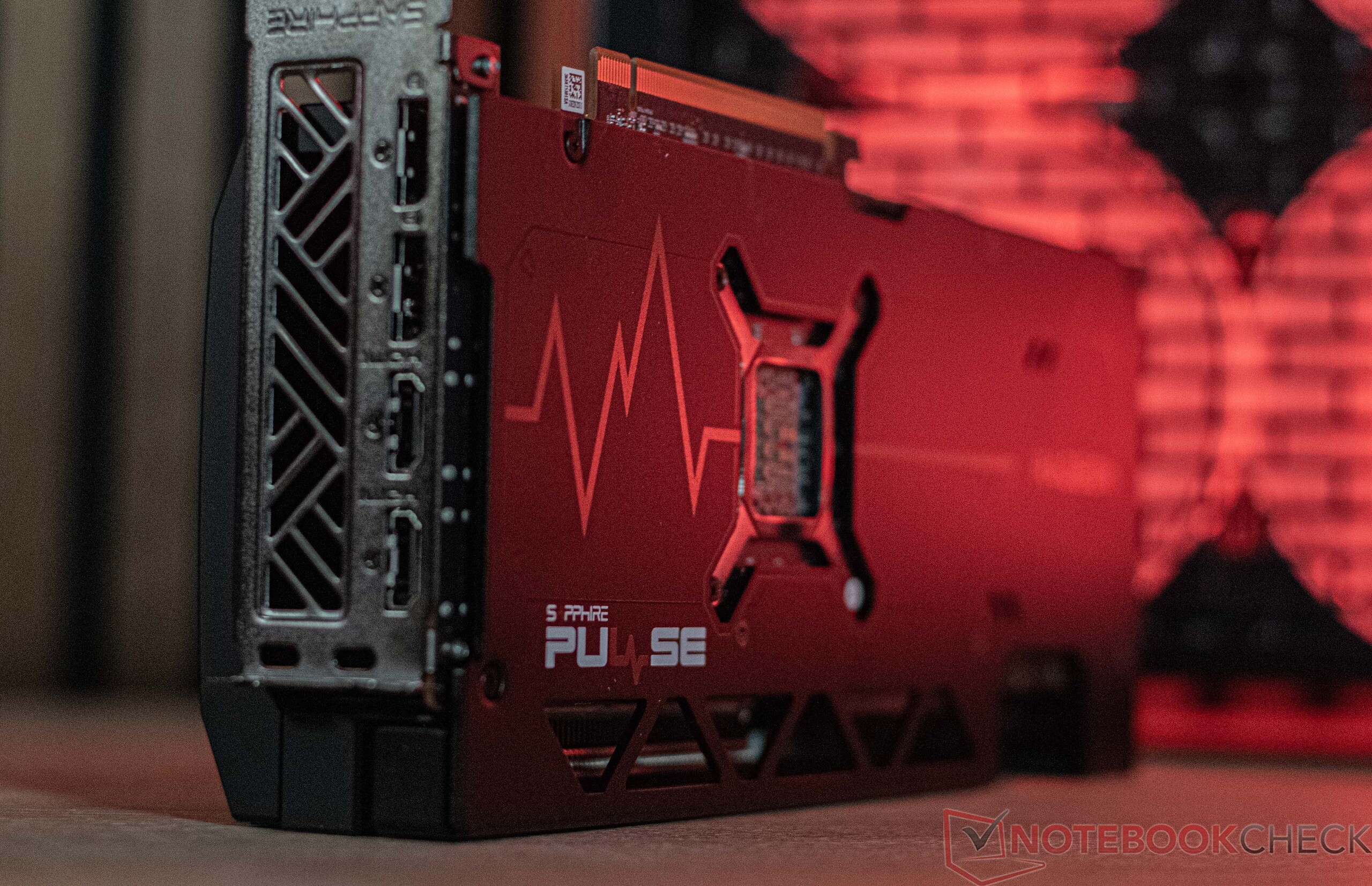

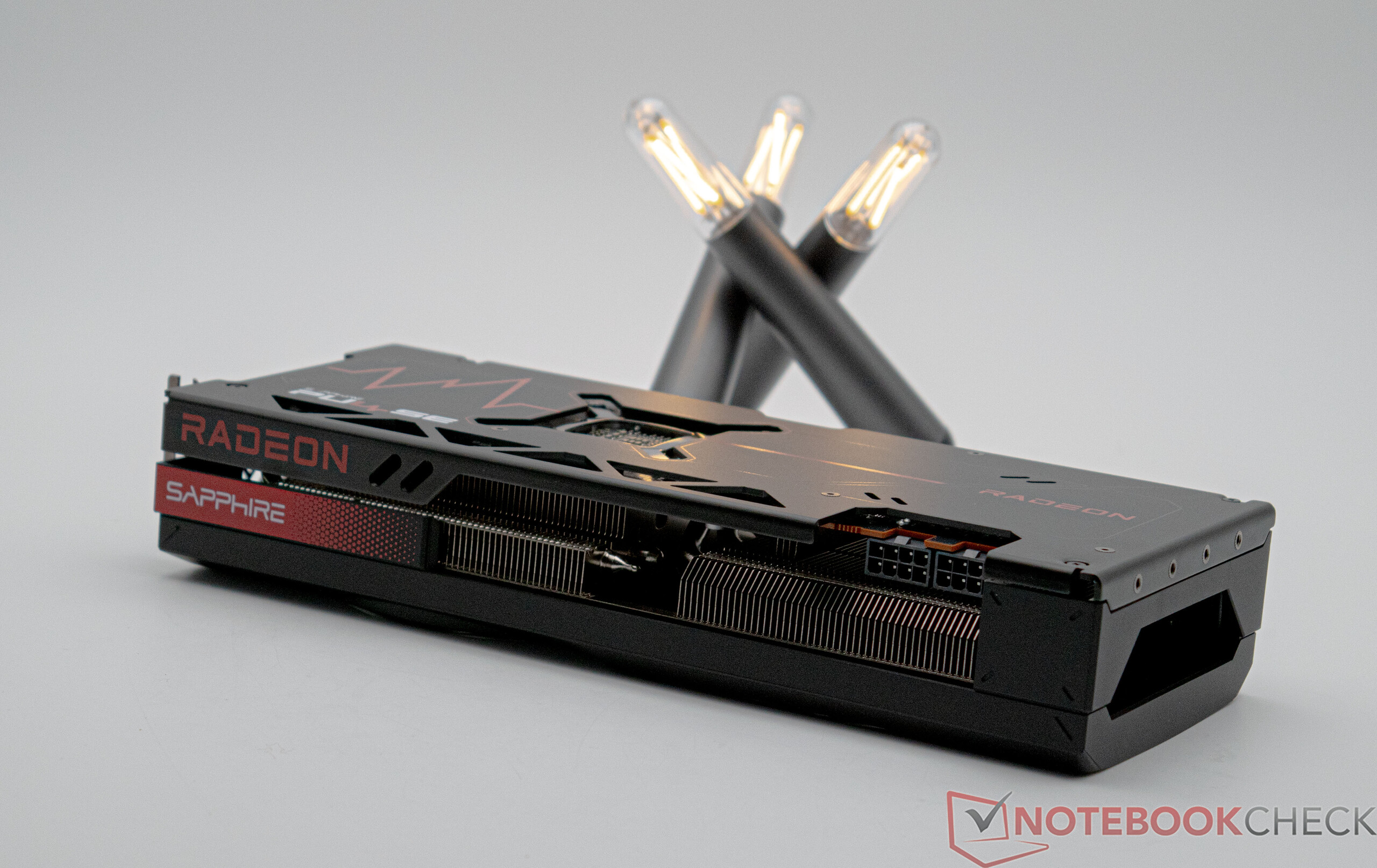

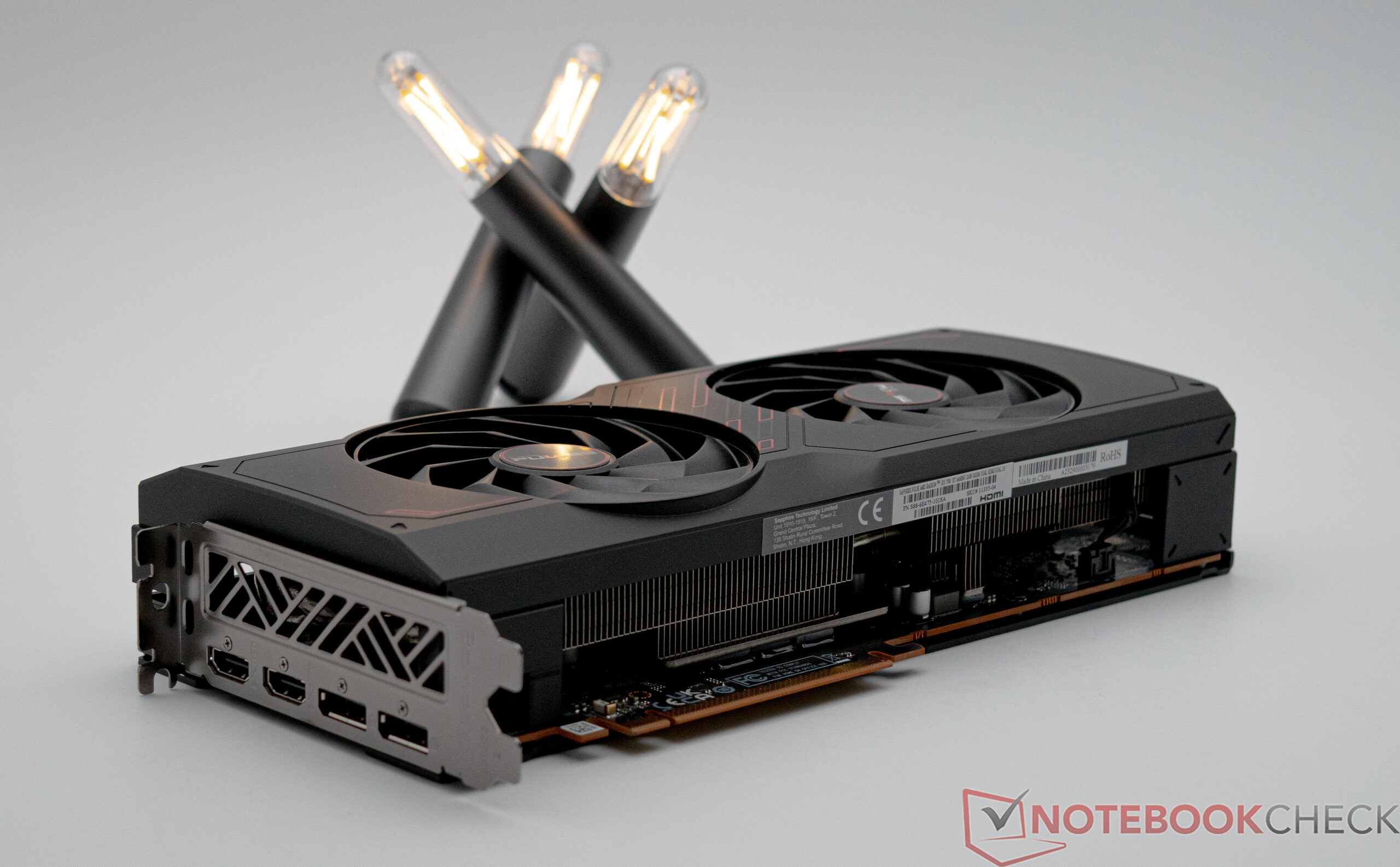

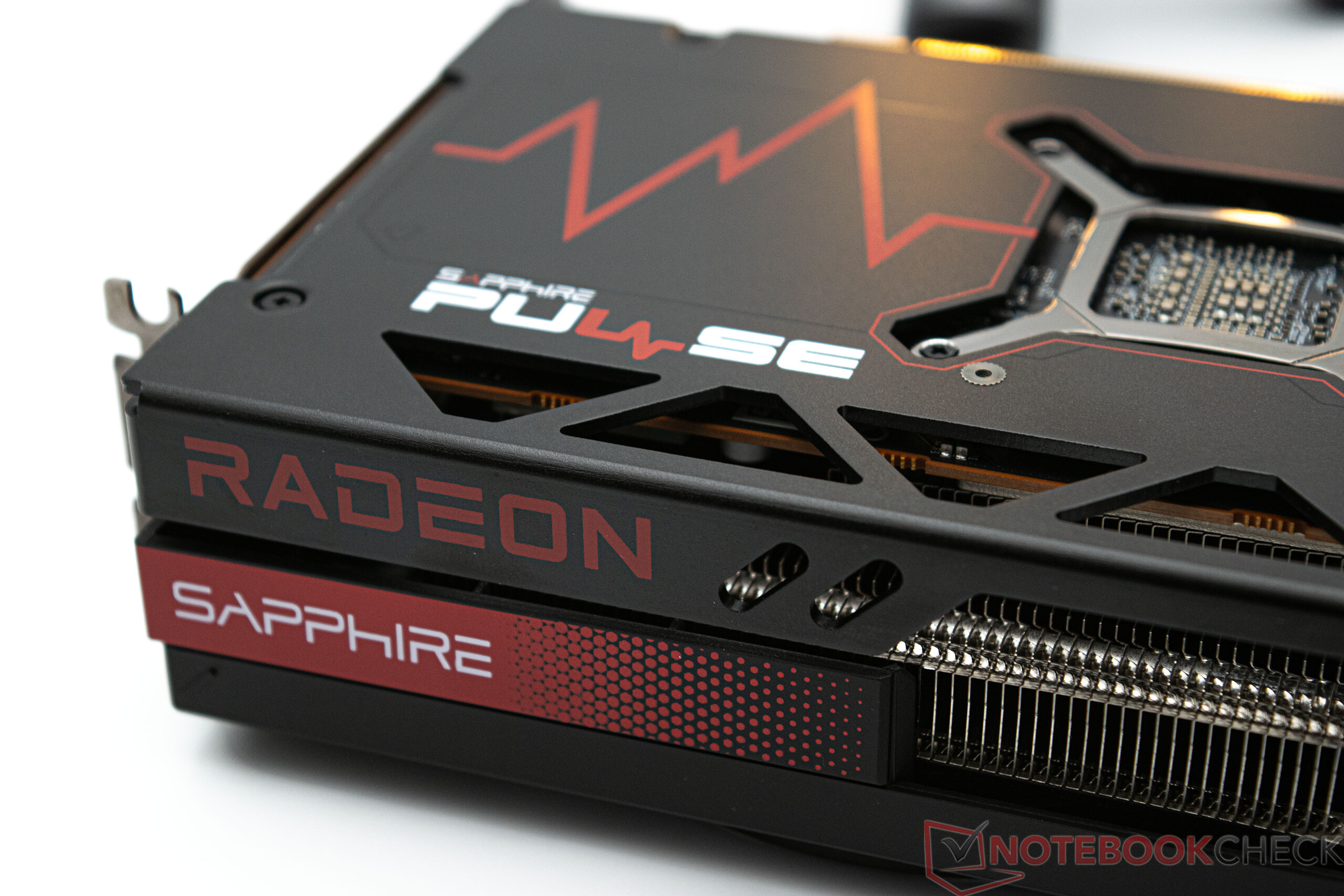

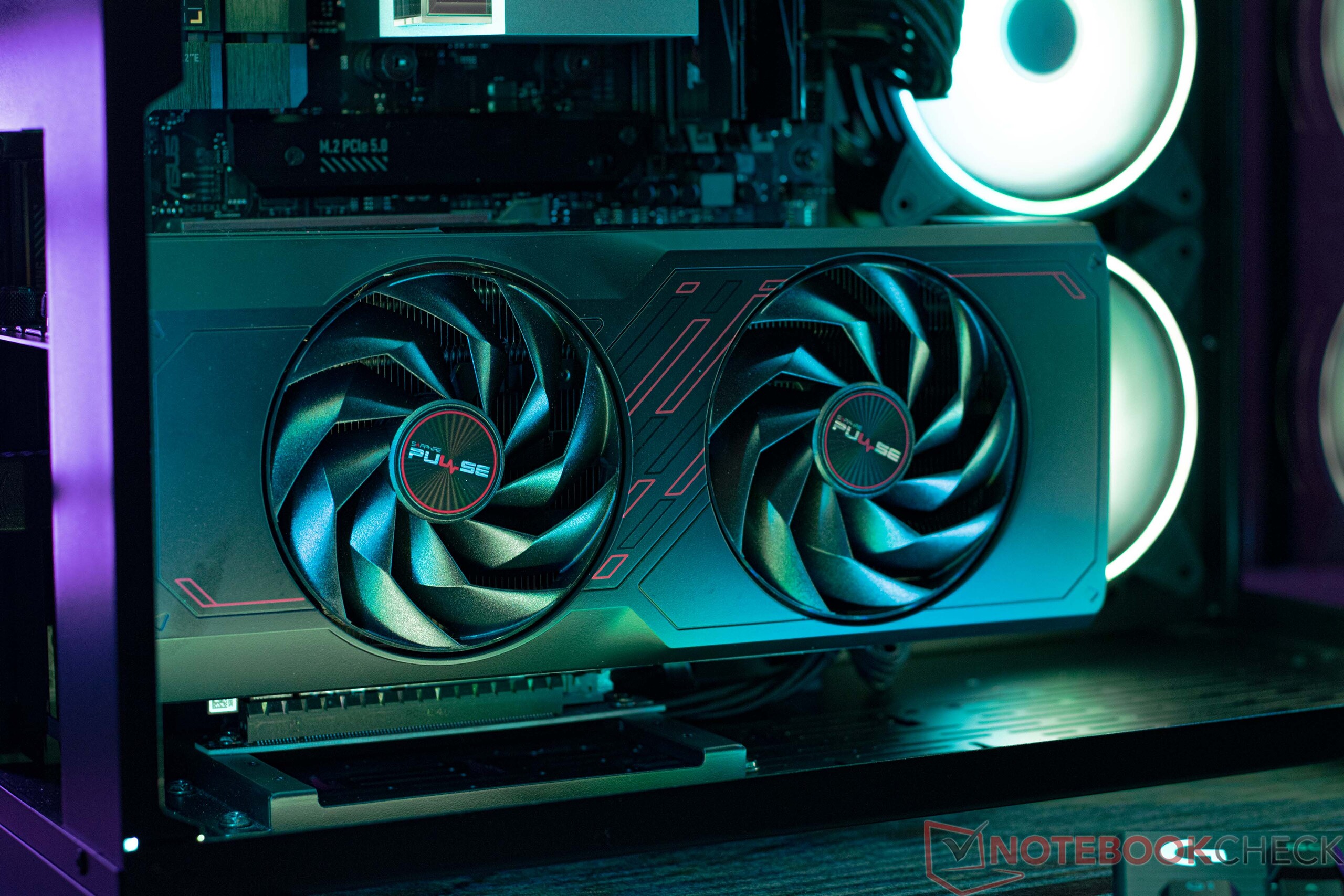

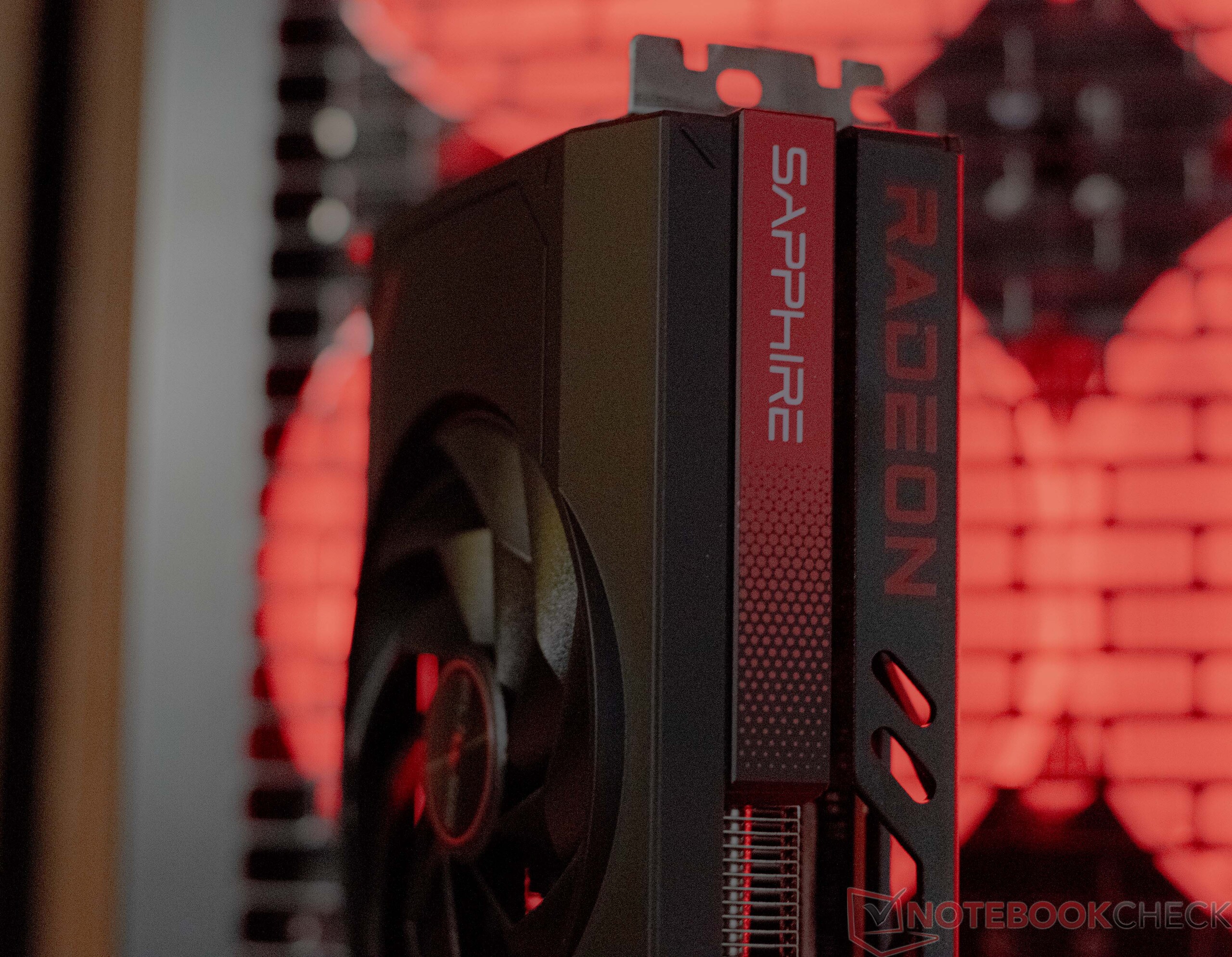

蓝宝石脉动 AMD Radeon RX 7700 XT 详细介绍
Radeon AMD GPU 的比较
规格 | Radeon RX 7900 XTX | Radeon RX 7900 XT | Radeon RX 7900 GRE | Radeon RX 7800 XT | Radeon RX 7700XT | Radeon RX 7600 | Radeon RX 6800 XT | Radeon RX 6800 |
GPU | Navi 31 XTX | Navi 31 XT | Navi 31 XT | Navi 32 XT | Navi 32 XL | Navi 33 XL | Navi 21 XL | Navi 21 XL |
制造工艺 | 5/6 nm | 5/6 nm | 5/6 nm | 5/6 nm | 5/6 nm | 6 nm | 7 nm | 7 nm |
计算单位 | 96 | 84 | 80 | >60 | 54 | 32 | 72 | 60 |
着色单元 | 6,144 | 5,376 | 5,120 | 3,840 | 3,456 | 2,048 | 4,608 | 3,840 |
纹理映射单元 | 384 | 336 | 320 | 240 | 216 | 128 | 288 | 240 |
光线加速器 | 96 | 84 | 80 | 60 | 54 | 32 | 72 | 60 |
基本时钟 | 2,270 MHz | 2,000 MHz | 1,880 MHz | 1,295 MHz | 1,700MHz | 1,720 MHz | 1,825 MHz | 1,700 MHz |
游戏时钟 | 2,300 MHz | 2,000 MHz | 1,880 MHz | 2,124 MHz | 2,171MHz | 2,250 MHz | 2,015 MHz | 1,815 MHz |
提升时钟 | 2,500 MHz | 2,400 MHz | 2,245 MHz | 2,430 MHz | 2,544MHz | 2,655 MHz | 2,250 MHz | 2,105 MHz |
无限缓存 | 96 MB | 80 MB | 64 MB | 64 MB | 48MB | 32 MB | 128 MB | 128 MB |
内存总线宽度 | 384 位 | 320 位 | 256 位 | 256 位 | 256 位 | 128 位 | 256 位 | 256 位 |
内存带宽 | 960 GB/s | 800 GB/s | 576 GB/s | 620.8 GB/s | 432 GB/s | 288 GB/s | 512 GB/s | 512 GB/s |
内存大小 | 24 GB GDDR6 | 20 GB GDDR6 | 16 GB GDDR6 | 16 GB GDDR6 | 12GB | 8 GB GDDR6 | 16 GB GDDR6 | 16 GB GDDR6 |
TBP | 355 W | 315 W | 260 W | 263 W | 245W | 165 W | 300 W | 250 W |

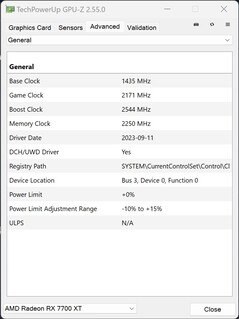

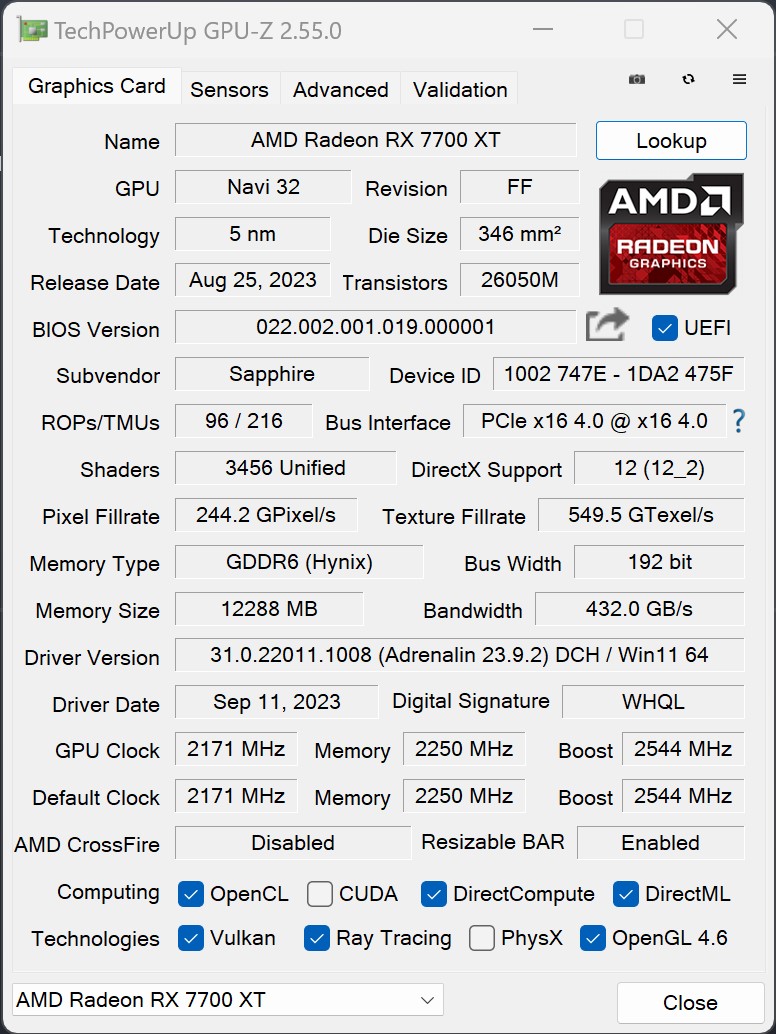

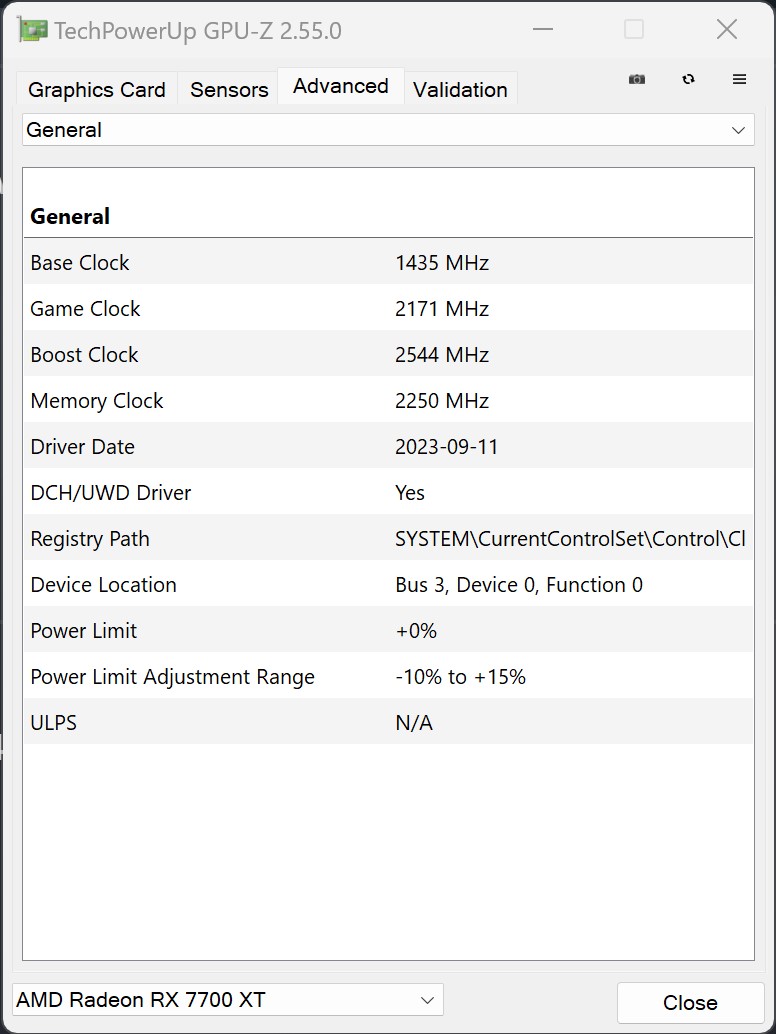

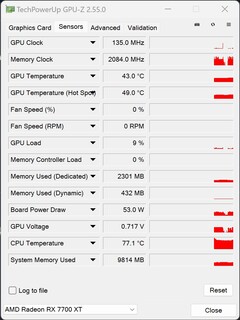

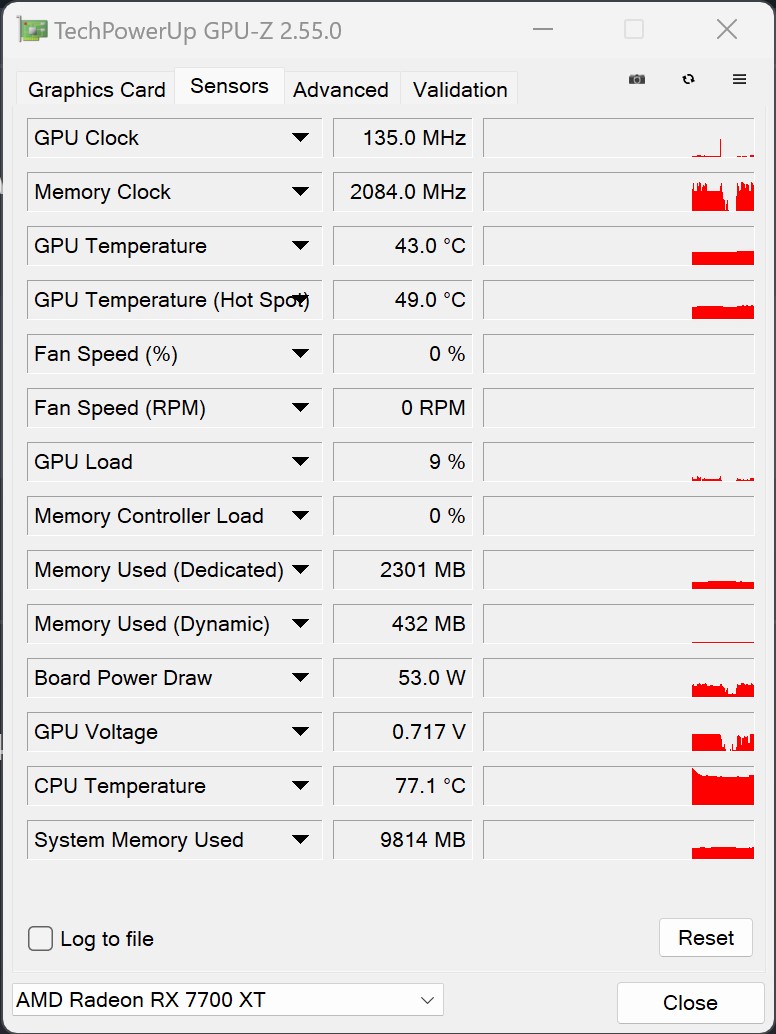

AMD Radeon RX 7700 XT 的时钟速度
由于 AMD 没有为 Radeon RX 7700 XT 提供 MBA 型号(由 AMD 制造),因此所有 AMD Radeon RX 7700 XT 显卡都由已知的显卡制造商提供。与此同时,AMD 仍规定了面向制造商的参考时钟速度,这些也是 GPU 的基本时钟速度。从数字上看,这意味着图形芯片的基本时钟频率为 2,171 MHz,在提升模式下最高可达 2,544 MHz。显存频率为 2250 MHz,加上存储接口(192 位),存储带宽为 432 GB/s。由此可见,蓝宝石 Pulse AMD Radeon RX 7700 XT 直接遵循了 AMD 的规格。此外,通过 Nitro+ Radeon RX 7700 XT,蓝宝石还在其产品组合中提供了一款经过制造商超频的型号。
合成基准
像往常一样,我们首先来看一下合成基准测试结果。蓝宝石 Pulse AMD Radeon RX 7700 XT 比 AMD Radeon RX 6700 XT 高出 14%。另一方面,我们还可以看到 AMD Radeon RX 6800能够带来更高的性能。与NvidiaGeForce RTX 4060 Ti蓝宝石 Pulse AMD Radeon RX 7700 XT 能够轻松胜出,我们的测试设备能够将 RTX 4060 Ti 的性能超出 18 个百分点。然而,我们的蓝宝石测试装置却无法跟上英伟达GeForce RTX 4070 Ti.
Performance Rating - Percent | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
AMD Radeon RX 7900 GRE | |
AMD Radeon RX 7800 XT | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 6800 | |
Sapphire Pulse Radeon RX 7700 XT | |
AMD Radeon RX 6700 XT | |
ASUS Dual GeForce RTX 4060 Ti OC | |
Nvidia GeForce RTX 3060 Ti FE | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
Sapphire Nitro+ Radeon RX 6650 XT | |
Nvidia GeForce RTX 2070 Super | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
Nvidia GeForce RTX 2060 Super | |
Sapphire Pulse Radeon RX 6600 |
Unigine Heaven 4.0 | |
Extreme Preset DX11 | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
AMD Radeon RX 7900 GRE | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 7800 XT | |
AMD Radeon RX 6800 | |
Sapphire Pulse Radeon RX 7700 XT | |
Nvidia GeForce RTX 3060 Ti FE | |
AMD Radeon RX 6700 XT | |
ASUS Dual GeForce RTX 4060 Ti OC | |
Nvidia GeForce RTX 2070 Super | |
Sapphire Nitro+ Radeon RX 6650 XT | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
Nvidia GeForce RTX 2060 Super | |
Sapphire Pulse Radeon RX 6600 | |
Extreme Preset OpenGL | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
AMD Radeon RX 7900 GRE | |
AMD Radeon RX 7800 XT | |
AMD Radeon RX 6800 | |
KFA2 GeForce RTX 4070 EX Gamer | |
Sapphire Pulse Radeon RX 7700 XT | |
AMD Radeon RX 6700 XT | |
Nvidia GeForce RTX 3060 Ti FE | |
ASUS Dual GeForce RTX 4060 Ti OC | |
Sapphire Nitro+ Radeon RX 6650 XT | |
Nvidia GeForce RTX 2070 Super | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
Sapphire Pulse Radeon RX 6600 | |
Nvidia GeForce RTX 2060 Super |
Unigine Valley 1.0 | |
1920x1080 Extreme HD DirectX AA:x8 | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
AMD Radeon RX 7900 GRE | |
AMD Radeon RX 6800 | |
AMD Radeon RX 7800 XT | |
KFA2 GeForce RTX 4070 EX Gamer | |
Sapphire Pulse Radeon RX 7700 XT | |
Nvidia GeForce RTX 3060 Ti FE | |
AMD Radeon RX 6700 XT | |
ASUS Dual GeForce RTX 4060 Ti OC | |
Nvidia GeForce RTX 2070 Super | |
Sapphire Nitro+ Radeon RX 6650 XT | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
Nvidia GeForce RTX 2060 Super | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
Sapphire Pulse Radeon RX 6600 | |
1920x1080 Extreme HD Preset OpenGL AA:x8 | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
AMD Radeon RX 6800 | |
AMD Radeon RX 7900 GRE | |
AMD Radeon RX 7800 XT | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 6700 XT | |
Sapphire Pulse Radeon RX 7700 XT | |
Nvidia GeForce RTX 3060 Ti FE | |
ASUS Dual GeForce RTX 4060 Ti OC | |
Sapphire Nitro+ Radeon RX 6650 XT | |
Nvidia GeForce RTX 2070 Super | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
Nvidia GeForce RTX 2060 Super | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
Sapphire Pulse Radeon RX 6600 |
3DMark 11 | |
1280x720 Performance GPU | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
AMD Radeon RX 7900 GRE | |
AMD Radeon RX 7800 XT | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 6800 | |
Sapphire Pulse Radeon RX 7700 XT | |
ASUS Dual GeForce RTX 4060 Ti OC | |
AMD Radeon RX 6700 XT | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
Sapphire Nitro+ Radeon RX 6650 XT | |
Nvidia GeForce RTX 3060 Ti FE | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
Nvidia GeForce RTX 2070 Super | |
Sapphire Pulse Radeon RX 6600 | |
Nvidia GeForce RTX 2060 Super | |
1280x720 Performance | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
AMD Radeon RX 7900 GRE | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 7800 XT | |
AMD Radeon RX 6800 | |
Sapphire Pulse Radeon RX 7700 XT | |
ASUS Dual GeForce RTX 4060 Ti OC | |
AMD Radeon RX 6700 XT | |
Nvidia GeForce RTX 3060 Ti FE | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
Sapphire Nitro+ Radeon RX 6650 XT | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
Nvidia GeForce RTX 2070 Super | |
Nvidia GeForce RTX 2060 Super | |
Sapphire Pulse Radeon RX 6600 |
LuxMark v2.0 64Bit | |
Room GPUs-only | |
NVIDIA GeForce RTX 4070 Ti | |
NVIDIA GeForce RTX 4070 | |
NVIDIA GeForce RTX 4060 | |
AMD Radeon RX 7900 GRE | |
AMD Radeon RX 7800 XT | |
AMD Radeon RX 7700 XT | |
AMD Radeon RX 6700 XT | |
AMD Radeon RX 6750 XT | |
AMD Radeon RX 7600 | |
AMD Radeon RX 6650 XT | |
AMD Radeon RX 6600 | |
Sala GPUs-only | |
NVIDIA GeForce RTX 4070 Ti | |
NVIDIA GeForce RTX 4070 | |
AMD Radeon RX 7900 GRE | |
AMD Radeon RX 7800 XT | |
NVIDIA GeForce RTX 4060 | |
AMD Radeon RX 7700 XT | |
AMD Radeon RX 6700 XT | |
AMD Radeon RX 6750 XT | |
AMD Radeon RX 7600 | |
AMD Radeon RX 6650 XT | |
AMD Radeon RX 6600 |
Photoshop PugetBench | |
GPU Score | |
AMD Radeon RX 6750 XT | |
AMD Radeon RX 6700 XT | |
AMD Radeon RX 7900 GRE | |
AMD Radeon RX 7700 XT | |
AMD Radeon RX 7800 XT | |
AMD Radeon RX 6650 XT | |
AMD Radeon RX 7600 | |
NVIDIA GeForce RTX 2060 Super (Desktop) | |
NVIDIA GeForce RTX 3060 Ti | |
NVIDIA GeForce RTX 2070 Super (Desktop) | |
AMD Radeon RX 6600 | |
NVIDIA GeForce RTX 4070 | |
NVIDIA GeForce RTX 4060 | |
NVIDIA GeForce RTX 4070 Ti | |
Overall Score | |
AMD Radeon RX 6750 XT | |
AMD Radeon RX 7900 GRE | |
AMD Radeon RX 7600 | |
AMD Radeon RX 6700 XT | |
AMD Radeon RX 7800 XT | |
NVIDIA GeForce RTX 2060 Super (Desktop) | |
AMD Radeon RX 7700 XT | |
AMD Radeon RX 6650 XT | |
NVIDIA GeForce RTX 2070 Super (Desktop) | |
NVIDIA GeForce RTX 4060 | |
NVIDIA GeForce RTX 3060 Ti | |
NVIDIA GeForce RTX 4070 | |
AMD Radeon RX 6600 | |
NVIDIA GeForce RTX 4070 Ti |
Premiere Pro PugetBench | |
GPU 0.9 | |
NVIDIA GeForce RTX 4070 Ti | |
NVIDIA GeForce RTX 4070 | |
AMD Radeon RX 7900 GRE | |
AMD Radeon RX 7800 XT | |
NVIDIA GeForce RTX 2070 Super (Desktop) | |
AMD Radeon RX 7700 XT | |
NVIDIA GeForce RTX 3060 Ti | |
NVIDIA GeForce RTX 2060 Super (Desktop) | |
AMD Radeon RX 6750 XT | |
AMD Radeon RX 6700 XT | |
NVIDIA GeForce RTX 4060 | |
AMD Radeon RX 7600 | |
AMD Radeon RX 6650 XT | |
AMD Radeon RX 6600 | |
Overall Score 0.9 | |
NVIDIA GeForce RTX 4070 | |
NVIDIA GeForce RTX 4070 Ti | |
AMD Radeon RX 7900 GRE | |
NVIDIA GeForce RTX 2060 Super (Desktop) | |
NVIDIA GeForce RTX 4060 | |
NVIDIA GeForce RTX 3060 Ti | |
NVIDIA GeForce RTX 2070 Super (Desktop) | |
AMD Radeon RX 7800 XT | |
AMD Radeon RX 7700 XT | |
AMD Radeon RX 6750 XT | |
AMD Radeon RX 7600 | |
AMD Radeon RX 6650 XT | |
AMD Radeon RX 6700 XT | |
AMD Radeon RX 6600 |
Affinity Photo 2 - Combined (Single / Multi GPU) | |
NVIDIA GeForce RTX 4070 | |
NVIDIA GeForce RTX 4070 Ti | |
AMD Radeon RX 7800 XT | |
NVIDIA GeForce RTX 2070 Super (Desktop) | |
AMD Radeon RX 7900 GRE | |
NVIDIA GeForce RTX 2060 Super (Desktop) | |
AMD Radeon RX 7700 XT | |
AMD Radeon RX 6750 XT | |
NVIDIA GeForce RTX 3060 Ti | |
NVIDIA GeForce RTX 4060 | |
AMD Radeon RX 7600 | |
AMD Radeon RX 6650 XT | |
AMD Radeon RX 6700 XT | |
AMD Radeon RX 6600 |
3DMark 06 Standard Score | 65983 points | |
3DMark Vantage P Result | 126733 points | |
3DMark 11 Performance | 45241 points | |
3DMark Ice Storm Standard Score | 269333 points | |
3DMark Cloud Gate Standard Score | 80883 points | |
3DMark Fire Strike Score | 38758 points | |
3DMark Fire Strike Extreme Score | 20340 points | |
3DMark Time Spy Score | 16454 points | |
Help |
专业应用
专业应用程序是经过专门调整的程序,与优化的驱动程序结合使用,能够最大限度地发挥图形加速器的性能。AMD 和 Nvidia 在其产品组合中有专门的工作站图形卡。虽然工作站图形处理器的支持能力要强得多,但消费级显卡在这方面也能提供经济实惠的选择。在渲染测试中,AMD 显卡的表现相当出色,而 Nvidia 显卡在这方面就没有什么可比性了。在直接比较中,蓝宝石 Pulse AMD Radeon RX 7700 XT 稍微落后于 AMD Radeon RX 7800 XT.
AMD Radeon RX 7700 XT R9 7950X | AMD Radeon RX 7600 R9 7950X | AMD Radeon RX 7800 XT R9 7950X | AMD Radeon RX 7900 GRE R9 7950X | AMD Radeon RX 7900 XT R9 7950X | AMD Radeon RX 7900 XTX R9 7950X | AMD Radeon RX 6800 R9 7950X | AMD Radeon RX 6950 XT R9 7950X | NVIDIA GeForce RTX 4060 R9 7950X | NVIDIA GeForce RTX 4060 Ti 8G R9 7950X | NVIDIA GeForce RTX 4070 R9 7950X | NVIDIA GeForce RTX 4070 Ti R9 7950X | NVIDIA GeForce RTX 4080 R9 7950X | NVIDIA GeForce RTX 4090 R9 7950X | Average of class | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SPECviewperf 12 | -22% | 14% | 22% | 48% | 65% | 18% | -9% | -53% | -45% | -29% | -14% | 0% | 8% | -61% | |
1900x1060 3ds Max (3dsmax-05) | 373 | 279 -25% | 427 14% | 444 19% | 502 35% | 553 48% | 424 14% | 418 12% | 251 -33% | 286 -23% | 382 2% | 436 17% | 502 35% | 571 53% | 192.3 ? -48% |
1900x1060 Catia (catia-04) | 351 | 273 -22% | 386 10% | 448 28% | 481 37% | 536 53% | 396 13% | 368 5% | 113 -68% | 128 -64% | 161 -54% | 192 -45% | 221 -37% | 257 -27% | 105.6 ? -70% |
1900x1060 Creo (creo-01) | 123 | 115 -7% | 148 20% | 155 26% | 176 43% | 187 52% | 160 30% | 163 33% | 60.6 -51% | 74.3 -40% | 89.1 -28% | 99.4 -19% | 110 -11% | 115 -7% | 64.5 ? -48% |
1900x1060 Energy (energy-01) | 33.4 | 25.5 -24% | 38.4 15% | 40.3 21% | 72.4 117% | 85.2 155% | 48.4 45% | 34.3 3% | 15.9 -52% | 22.8 -32% | 31.7 -5% | 48 44% | 58.8 76% | 54.7 64% | 15.2 ? -54% |
1900x1060 Maya (maya-04) | 283 | 236 -17% | 304 7% | 323 14% | 347 23% | 367 30% | 304 7% | 195 -31% | 233 -18% | 252 -11% | 284 0% | 287 1% | 309 9% | 317 12% | 109.5 ? -61% |
1900x1060 Medical (medical-01) | 177 | 128 -28% | 200 13% | 226 28% | 288 63% | 347 96% | 188 6% | 95.2 -46% | 82.4 -53% | 107 -40% | 132 -25% | 157 -11% | 171 -3% | 119 -33% | 53.2 ? -70% |
1900x1060 Showcase (showcase-01) | 179 | 127 -29% | 235 31% | 222 24% | 278 55% | 322 80% | 229 28% | 264 47% | 109 -39% | 122 -32% | 190 6% | 244 36% | 333 86% | 457 155% | 95.8 ? -46% |
1900x1060 Siemens NX (snx-02) | 268 | 210 -22% | 280 4% | 341 27% | 373 39% | 400 49% | 296 10% | 56.4 -79% | 14.2 -95% | 14.5 -95% | 16.4 -94% | 19 -93% | 21.6 -92% | 27.1 -90% | 58.6 ? -78% |
1900x1060 Solidworks (sw-03) | 288 | 221 -23% | 322 12% | 319 11% | 342 19% | 360 25% | 315 9% | 218 -24% | 91.2 -68% | 94.8 -67% | 109 -62% | 118 -59% | 113 -61% | 126 -56% | 86.2 ? -70% |
SPECviewperf 13 | -26% | 15% | 22% | 31% | 47% | 5% | -9% | -56% | -48% | -33% | -20% | -4% | 14% | -57% | |
3ds Max (3dsmax-06) | 371 | 280 -25% | 434 17% | 439 18% | 506 36% | 564 52% | 424 14% | 416 12% | 252 -32% | 286 -23% | 381 3% | 433 17% | 497 34% | 563 52% | 184.7 ? -50% |
Catia (catia-05) | 529 | 410 -22% | 588 11% | 661 25% | 728 38% | 825 56% | 616 16% | 588 11% | 163 -69% | 187 -65% | 241 -54% | 290 -45% | 340 -36% | 402 -24% | 198.2 ? -63% |
Creo (creo-02) | 387 | 294 -24% | 442 14% | 470 21% | 567 47% | 613 58% | 431 11% | 374 -3% | 230 -41% | 298 -23% | 375 -3% | 455 18% | 529 37% | 552 43% | 203 ? -48% |
Energy (energy-02) | 115 | 82.9 -28% | 139 21% | 150 30% | 147 28% | 187 63% | 93.6 -19% | 60.8 -47% | 34.6 -70% | 45.3 -61% | 54.2 -53% | 72.8 -37% | 92.6 -19% | 126 10% | 35.7 ? -69% |
Maya (maya-05) | 487 | 333 -32% | 548 13% | 580 19% | 670 38% | 735 51% | 544 12% | 460 -6% | 343 -30% | 395 -19% | 510 5% | 591 21% | 678 39% | 715 47% | 263 ? -46% |
Medical (medical-02) | 300 | 226 -25% | 332 11% | 372 24% | 237 -21% | 263 -12% | 166 -45% | 76.5 -74% | 92 -69% | 112 -63% | 132 -56% | 150 -50% | 186 -38% | 77.3 ? -74% | |
Showcase (showcase-02) | 179 | 127 -29% | 234 31% | 221 23% | 279 56% | 323 80% | 230 28% | 264 47% | 108 -40% | 121 -32% | 191 7% | 244 36% | 334 87% | 455 154% | 117.9 ? -34% |
Siemens NX (snx-03) | 486 | 379 -22% | 506 4% | 617 27% | 675 39% | 725 49% | 537 10% | 101 -79% | 25.6 -95% | 26.3 -95% | 29.5 -94% | 34.1 -93% | 39 -92% | 49.1 -90% | 128.9 ? -73% |
Solidworks (sw-04) | 265 | 195 -26% | 294 11% | 287 8% | 307 16% | 323 22% | 304 15% | 254 -4% | 127 -52% | 135 -49% | 157 -41% | 168 -37% | 179 -32% | 186 -30% | 120.6 ? -54% |
SPECviewperf 2020 | -27% | 14% | 29% | 29% | 49% | 3% | -20% | -56% | -49% | -31% | -17% | -2% | 23% | -47% | |
3840x2160 Siemens NX (snx-04) | 312 | 240 -23% | 333 7% | 402 29% | 476 53% | 514 65% | 330 6% | 98.4 -68% | 19.5 -94% | 20.1 -94% | 23.9 -92% | 27.5 -91% | 31.9 -90% | 41.3 -87% | 87.1 ? -72% |
3840x2160 Medical (medical-03) | 56.2 | 36.1 -36% | 63.7 13% | 76.1 35% | 53.9 -4% | 62.3 11% | 36.4 -35% | 35 -38% | 13.7 -76% | 17.5 -69% | 22.2 -60% | 26.9 -52% | 32.2 -43% | 45.9 -18% | 19.9 ? -65% |
3840x2160 Maya (maya-06) | 261 | 178 -32% | 346 33% | 401 54% | 481 84% | 331 27% | 315 21% | 196 -25% | 226 -13% | 305 17% | 372 43% | 447 71% | 498 91% | 202 ? -23% | |
3840x2160 Energy (energy-03) | 95 | 67 -29% | 111 17% | 133 40% | 99.6 5% | 129 36% | 113 19% | 69.3 -27% | 33.2 -65% | 44.8 -53% | 57.6 -39% | 75.7 -20% | 90.4 -5% | 141 48% | 48.6 ? -49% |
3840x2160 Creo (creo-03) | 130 | 106 -18% | 151 16% | 159 22% | 173 33% | 187 44% | 136 5% | 92.4 -29% | 85.9 -34% | 95.8 -26% | 112 -14% | 121 -7% | 128 -2% | 133 2% | 75.2 ? -42% |
3840x2160 CATIA (catia-06) | 88.8 | 68 -23% | 101 14% | 107 20% | 113 27% | 127 43% | 92.2 4% | 59.7 -33% | 34 -62% | 39.1 -56% | 51.6 -42% | 61.2 -31% | 75.5 -15% | 95.3 7% | 45.7 ? -49% |
3840x2160 3ds Max (3dsmax-07) | 106 | 72.9 -31% | 125 18% | 134 26% | 143 35% | 167 58% | 102 -4% | 140 32% | 67.4 -36% | 74.5 -30% | 122 15% | 147 39% | 179 69% | 228 115% | 77.8 ? -27% |
Total Average (Program / Settings) | -25% /
-25% | 14% /
14% | 24% /
24% | 36% /
36% | 54% /
54% | 9% /
9% | -13% /
-12% | -55% /
-55% | -47% /
-47% | -31% /
-31% | -17% /
-17% | -2% /
-2% | 15% /
14% | -55% /
-55% |
游戏性能
在合成测试中,蓝宝石 Pulse AMD Radeon RX 7700 XT 很难赶上 AMD Radeon RX 6800.不过,在我们测试的游戏中,我们也看到差距明显缩小,蓝宝石脉动 AMD Radeon RX 7700 XT 往往是速度明显更快的机型。我们的测试设备对 16-GB 型号的 NvidiaGeForce RTX 4060 Ti超过 20%,Radeon RX 7700 XT 的性能优势非常明显。另一方面,蓝宝石脉动 AMD Radeon RX 7700 XT 无法达到 NvidiaGeForce RTX 4070 的性能。
AMD 自己认为 Radeon RX 7700 XT 是一款适用于 1440p 游戏的显卡。虽然从所有测试游戏的表格中可以看出这是有可能实现的,但你必须满足于在最大细节设置下低于 60 fps 的平均帧率。有这方面问题的用户必须减少细节或选择速度更快的 AMD Radeon RX 7800 XT。我们的测试机配备了 12 GB 的 VRAM,性能相当不错。不过,我们在对NvidiaGeForce RTX 4060 Ti 的测试中也看到,使用 8 GB 时,在 1080p 下已经会出现问题。现在,16GB 机型的 P1 值明显提高,可以带来更流畅的游戏体验。在 P1 值方面,我们没有看到蓝宝石 Pulse AMD Radeon RX 7700 XT 有任何明显的表现。
F1 2021 | |
2560x1440 Ultra High Preset + Raytracing AA:T AF:16x | |
Palit GeForce RTX 4090 GameRock OC (874931) | |
KFA2 GeForce RTX 4080 SG (874931) | |
AMD Radeon RX 7900 XTX (874931) | |
KFA2 GeForce RTX 4070 Ti EX Gamer (874931) | |
AMD Radeon RX 7900 XT (874931) | |
MSI Radeon RX 6950 XT Gaming X Trio (874931) | |
NVIDIA GeForce RTX 3090 Founders Edition (874931) | |
KFA2 GeForce RTX 4070 EX Gamer (874931) | |
AMD Radeon RX 7900 GRE (874931) | |
AMD Radeon RX 7800 XT (874931) | |
KFA2 GeForce RTX 3070 Ti SG (874931) | |
AMD Radeon RX 5700 XT (874931) | |
AMD Radeon RX 6800 (874931) | |
Sapphire Pulse Radeon RX 7700 XT (874931) | |
Nvidia Titan RTX (874931) | |
ASUS Dual GeForce RTX 4060 Ti OC (874931) | |
KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 (874931) | |
AMD Radeon RX 5700 (874931) | |
Sapphire Pulse Radeon RX 6750 XT (874931) | |
Nvidia GeForce RTX 3060 Ti FE (874931) | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition (874931) | |
Nvidia GeForce RTX 2070 Super (874931) | |
KFA2 GeForce GTX 1660 Super (874931) | |
Sapphire Nitro+ Radeon RX 6650 XT (874931) | |
PNY GeForce GTX 1660 (874931) | |
Nvidia GeForce RTX 2060 Super (874931) | |
Sapphire Pulse Radeon RX 6600 (874931) | |
1920x1080 Ultra High Preset + Raytracing AA:T AF:16x | |
Palit GeForce RTX 4090 GameRock OC (874931) | |
AMD Radeon RX 7900 XTX (874931) | |
KFA2 GeForce RTX 4080 SG (874931) | |
KFA2 GeForce RTX 4070 Ti EX Gamer (874931) | |
AMD Radeon RX 7900 XT (874931) | |
MSI Radeon RX 6950 XT Gaming X Trio (874931) | |
NVIDIA GeForce RTX 3090 Founders Edition (874931) | |
KFA2 GeForce RTX 4070 EX Gamer (874931) | |
AMD Radeon RX 7900 GRE (874931) | |
AMD Radeon RX 7800 XT (874931) | |
KFA2 GeForce RTX 3070 Ti SG (874931) | |
AMD Radeon RX 5700 XT (874931) | |
KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 (874931) | |
ASUS Dual GeForce RTX 4060 Ti OC (874931) | |
AMD Radeon RX 6800 (874931) | |
Sapphire Pulse Radeon RX 7700 XT (874931) | |
Nvidia Titan RTX (874931) | |
AMD Radeon RX 5700 (874931) | |
Sapphire Pulse Radeon RX 6750 XT (874931) | |
Nvidia GeForce RTX 3060 Ti FE (874931) | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition (874931) | |
Nvidia GeForce RTX 2070 Super (874931) | |
Sapphire Nitro+ Radeon RX 6650 XT (874931) | |
KFA2 GeForce GTX 1660 Super (874931) | |
Nvidia GeForce RTX 2060 Super (874931) | |
PNY GeForce GTX 1660 (874931) | |
Sapphire Pulse Radeon RX 6600 (874931) |
F1 22 | |
2560x1440 Ultra High Preset AA:T AF:16x | |
Palit GeForce RTX 4090 GameRock OC (923662) | |
KFA2 GeForce RTX 4080 SG (939134) | |
AMD Radeon RX 7900 XTX (939134) | |
KFA2 GeForce RTX 4070 Ti EX Gamer (959964) | |
AMD Radeon RX 5700 XT (959964) | |
AMD Radeon RX 7900 XT (939134) | |
NVIDIA GeForce RTX 3090 Founders Edition (923650) | |
AMD Radeon RX 5700 (959964) | |
AMD Radeon RX 7900 GRE (959964) | |
MSI Radeon RX 6950 XT Gaming X Trio (939134) | |
KFA2 GeForce RTX 4070 EX Gamer (959964) | |
KFA2 GeForce GTX 1660 Super (928484) | |
AMD Radeon RX 7800 XT (959964) | |
PNY GeForce GTX 1660 (928484) | |
KFA2 GeForce RTX 3070 Ti SG (939134) | |
Sapphire Pulse Radeon RX 7700 XT (959964) | |
Nvidia Titan RTX (923650) | |
KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 (959964) | |
ASUS Dual GeForce RTX 4060 Ti OC (959964) | |
AMD Radeon RX 6800 (928484) | |
Nvidia GeForce RTX 3060 Ti FE (923650) | |
Sapphire Pulse Radeon RX 6750 XT (959964) | |
KFA2 GeForce RTX 4060 1-Click-OC 2X (959964) | |
Nvidia GeForce RTX 2070 Super (923662) | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition (959964) | |
Nvidia GeForce RTX 2060 Super (923662) | |
Sapphire Nitro+ Radeon RX 6650 XT (946728) | |
Sapphire Pulse Radeon RX 6600 (946728) | |
1920x1080 Ultra High Preset AA:T AF:16x | |
Palit GeForce RTX 4090 GameRock OC | |
KFA2 GeForce RTX 4080 SG (939134) | |
AMD Radeon RX 7900 XTX (939134) | |
KFA2 GeForce RTX 4070 Ti EX Gamer (959964) | |
NVIDIA GeForce RTX 3090 Founders Edition (923650) | |
AMD Radeon RX 7900 XT (939134) | |
AMD Radeon RX 5700 XT (959964) | |
MSI Radeon RX 6950 XT Gaming X Trio (939134) | |
KFA2 GeForce RTX 4070 EX Gamer (959964) | |
AMD Radeon RX 7900 GRE (959964) | |
AMD Radeon RX 7800 XT (959964) | |
AMD Radeon RX 5700 (959964) | |
KFA2 GeForce GTX 1660 Super (928484) | |
KFA2 GeForce RTX 3070 Ti SG (939134) | |
Sapphire Pulse Radeon RX 7700 XT (959964) | |
PNY GeForce GTX 1660 (928484) | |
Nvidia Titan RTX (923650) | |
KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 (959964) | |
ASUS Dual GeForce RTX 4060 Ti OC (959964) | |
Nvidia GeForce RTX 3060 Ti FE (923650) | |
AMD Radeon RX 6800 | |
Sapphire Pulse Radeon RX 6750 XT (959964) | |
KFA2 GeForce RTX 4060 1-Click-OC 2X (959964) | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition (959964) | |
Nvidia GeForce RTX 2070 Super (923662) | |
Nvidia GeForce RTX 2060 Super (923662) | |
Sapphire Nitro+ Radeon RX 6650 XT (946728) | |
Sapphire Pulse Radeon RX 6600 (946728) |
GRID Legends | |
2560x1440 Ultra Preset | |
AMD Radeon RX 7900 XTX (643827) | |
Palit GeForce RTX 4090 GameRock OC (591708) | |
AMD Radeon RX 7900 XT (643827) | |
MSI Radeon RX 6950 XT Gaming X Trio (643827) | |
KFA2 GeForce RTX 4080 SG (643827) | |
KFA2 GeForce RTX 4070 Ti EX Gamer (712825) | |
NVIDIA GeForce RTX 3090 Founders Edition (591708) | |
AMD Radeon RX 7900 GRE (800660) | |
AMD Radeon RX 6800 (643827) | |
KFA2 GeForce RTX 3070 Ti SG (643827) | |
AMD Radeon RX 7800 XT (800660) | |
KFA2 GeForce RTX 4070 EX Gamer (712825) | |
Sapphire Pulse Radeon RX 6750 XT (712825) | |
Sapphire Pulse Radeon RX 7700 XT (800660) | |
Nvidia Titan RTX (591708) | |
ASUS Dual GeForce RTX 4060 Ti OC (800660) | |
KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 (800660) | |
Nvidia GeForce RTX 3060 Ti FE (591708) | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition (800660) | |
Sapphire Nitro+ Radeon RX 6650 XT (643827) | |
KFA2 GeForce RTX 4060 1-Click-OC 2X (800660) | |
Nvidia GeForce RTX 2070 Super (591708) | |
AMD Radeon RX 5700 XT (712825) | |
Nvidia GeForce RTX 2060 Super (623651) | |
Sapphire Pulse Radeon RX 6600 (683088) | |
AMD Radeon RX 5700 (712825) | |
KFA2 GeForce GTX 1660 Super (623651) | |
PNY GeForce GTX 1660 (623651) | |
1920x1080 Ultra Preset | |
AMD Radeon RX 7900 XTX (643827) | |
MSI Radeon RX 6950 XT Gaming X Trio (643827) | |
AMD Radeon RX 7900 XT (643827) | |
Palit GeForce RTX 4090 GameRock OC (591708) | |
KFA2 GeForce RTX 4080 SG (643827) | |
AMD Radeon RX 6800 (643827) | |
KFA2 GeForce RTX 4070 Ti EX Gamer (712825) | |
NVIDIA GeForce RTX 3090 Founders Edition (591708) | |
KFA2 GeForce RTX 4070 EX Gamer (712825) | |
AMD Radeon RX 7900 GRE (800660) | |
Sapphire Pulse Radeon RX 6750 XT (712825) | |
AMD Radeon RX 7800 XT (800660) | |
KFA2 GeForce RTX 3070 Ti SG (643827) | |
Nvidia Titan RTX (591708) | |
Sapphire Pulse Radeon RX 7700 XT (800660) | |
Nvidia GeForce RTX 3060 Ti FE (591708) | |
Sapphire Nitro+ Radeon RX 6650 XT (643827) | |
ASUS Dual GeForce RTX 4060 Ti OC (800660) | |
KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 (800660) | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition (800660) | |
KFA2 GeForce RTX 4060 1-Click-OC 2X (800660) | |
Nvidia GeForce RTX 2070 Super (591708) | |
Sapphire Pulse Radeon RX 6600 (683088) | |
AMD Radeon RX 5700 XT (712825) | |
Nvidia GeForce RTX 2060 Super (623651) | |
AMD Radeon RX 5700 (712825) | |
KFA2 GeForce GTX 1660 Super (623651) | |
PNY GeForce GTX 1660 (623651) |
Final Fantasy XV Benchmark | |
1920x1080 High Quality | |
Palit GeForce RTX 4090 GameRock OC (1.3) | |
KFA2 GeForce RTX 4080 SG (1.3) | |
AMD Radeon RX 7900 XTX (1.3) | |
KFA2 GeForce RTX 4070 Ti EX Gamer (1.3) | |
AMD Radeon RX 7900 XT (1.3) | |
MSI Radeon RX 6950 XT Gaming X Trio (1.3) | |
NVIDIA GeForce RTX 3090 Founders Edition (1.3) | |
KFA2 GeForce RTX 4070 EX Gamer (1.3) | |
AMD Radeon RX 7900 GRE (1.3) | |
AMD Radeon RX 7800 XT (1.3) | |
AMD Radeon RX 6800 (1.3) | |
Nvidia Titan RTX (1.3) | |
KFA2 GeForce RTX 3070 Ti SG (1.3) | |
Sapphire Pulse Radeon RX 7700 XT (1.3) | |
ASUS Dual GeForce RTX 4060 Ti OC (1.3) | |
Sapphire Pulse Radeon RX 6750 XT (1.3) | |
Nvidia GeForce RTX 3060 Ti FE (1.3) | |
KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 (1.3) | |
KFA2 GeForce RTX 4060 1-Click-OC 2X (1.3) | |
Nvidia GeForce RTX 2070 Super (1.3) | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition (1.3) | |
Sapphire Nitro+ Radeon RX 6650 XT (1.3) | |
Nvidia GeForce RTX 2060 Super (1.3) | |
AMD Radeon RX 5700 XT (1.3) | |
Sapphire Pulse Radeon RX 6600 (1.3) | |
AMD Radeon RX 5700 (1.3) | |
KFA2 GeForce GTX 1660 Super (1.3) | |
PNY GeForce GTX 1660 (1.3) | |
2560x1440 High Quality | |
Palit GeForce RTX 4090 GameRock OC (1.3) | |
KFA2 GeForce RTX 4080 SG (1.3) | |
AMD Radeon RX 7900 XTX (1.3) | |
KFA2 GeForce RTX 4070 Ti EX Gamer (1.3) | |
MSI Radeon RX 6950 XT Gaming X Trio (1.3) | |
AMD Radeon RX 7900 XT (1.3) | |
NVIDIA GeForce RTX 3090 Founders Edition (1.3) | |
KFA2 GeForce RTX 4070 EX Gamer (1.3) | |
AMD Radeon RX 7900 GRE (1.3) | |
AMD Radeon RX 7800 XT (1.3) | |
AMD Radeon RX 6800 (1.3) | |
KFA2 GeForce RTX 3070 Ti SG (1.3) | |
Nvidia Titan RTX (1.3) | |
Sapphire Pulse Radeon RX 7700 XT (1.3) | |
ASUS Dual GeForce RTX 4060 Ti OC (1.3) | |
Sapphire Pulse Radeon RX 6750 XT (1.3) | |
Nvidia GeForce RTX 3060 Ti FE (1.3) | |
KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 (1.3) | |
KFA2 GeForce RTX 4060 1-Click-OC 2X (1.3) | |
Nvidia GeForce RTX 2070 Super (1.3) | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition (1.3) | |
Sapphire Nitro+ Radeon RX 6650 XT (1.3) | |
Nvidia GeForce RTX 2060 Super (1.3) | |
AMD Radeon RX 5700 XT (1.3) | |
AMD Radeon RX 5700 (1.3) | |
Sapphire Pulse Radeon RX 6600 (1.3) | |
KFA2 GeForce GTX 1660 Super (1.3) | |
PNY GeForce GTX 1660 (1.3) |
F1 23 | |
1920x1080 Ultra High Preset AA:T AF:16x | |
Palit GeForce RTX 4090 GameRock OC (1022189) | |
AMD Radeon RX 5700 XT (1022189) | |
AMD Radeon RX 5700 (1022189) | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 7900 GRE (1016022) | |
MSI Radeon RX 6950 XT Gaming X Trio (1016022) | |
AMD Radeon RX 7800 XT (1022189) | |
KFA2 GeForce GTX 1660 Super (1016022) | |
ASUS Dual GeForce RTX 4060 Ti OC (1012607) | |
KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 (1022189) | |
Nvidia Titan RTX (1021115) | |
PNY GeForce GTX 1660 (1016022) | |
Sapphire Pulse Radeon RX 7700 XT (1026791) | |
Nvidia GeForce RTX 3060 Ti FE (1021115) | |
AMD Radeon RX 6800 (1016022) | |
KFA2 GeForce RTX 4060 1-Click-OC 2X (1008687) | |
Sapphire Pulse Radeon RX 6750 XT (1016022) | |
Nvidia GeForce RTX 2070 Super (1021115) | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition (1016022) | |
Nvidia GeForce RTX 2060 Super (1021115) | |
Sapphire Nitro+ Radeon RX 6650 XT (1016022) | |
Sapphire Pulse Radeon RX 6600 (1016022) | |
2560x1440 Ultra High Preset AA:T AF:16x | |
Palit GeForce RTX 4090 GameRock OC (1022189) | |
AMD Radeon RX 5700 XT (1022189) | |
AMD Radeon RX 5700 (1022189) | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 7900 GRE (1016022) | |
MSI Radeon RX 6950 XT Gaming X Trio (1016022) | |
KFA2 GeForce GTX 1660 Super (1016022) | |
PNY GeForce GTX 1660 (1016022) | |
AMD Radeon RX 7800 XT (1022189) | |
Nvidia Titan RTX (1021115) | |
ASUS Dual GeForce RTX 4060 Ti OC (1012607) | |
KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 (1022189) | |
Sapphire Pulse Radeon RX 7700 XT (1026791) | |
Nvidia GeForce RTX 3060 Ti FE (1021115) | |
AMD Radeon RX 6800 (1016022) | |
KFA2 GeForce RTX 4060 1-Click-OC 2X (1008687) | |
Sapphire Pulse Radeon RX 6750 XT (1016022) | |
Nvidia GeForce RTX 2070 Super (1021115) | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition (1016022) | |
Nvidia GeForce RTX 2060 Super (1021115) | |
Sapphire Nitro+ Radeon RX 6650 XT (1016022) | |
Sapphire Pulse Radeon RX 6600 (1016022) |
P1 Values of the KFA2 GeForce RTX 4060 Ti EX - 8 GB vs. 16 GB
Performance Rating - Percent | |
Sapphire Pulse Radeon RX 7700 XT | |
KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 | |
KFA2 GeForce RTX 4060 Ti EX |
Sons of the Forest | |
1920x1080 Ultra Preset AA:T P1 | |
Sapphire Pulse Radeon RX 7700 XT | |
KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 | |
KFA2 GeForce RTX 4060 Ti EX | |
2560x1440 Ultra Preset AA:T P1 | |
Sapphire Pulse Radeon RX 7700 XT | |
KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 | |
KFA2 GeForce RTX 4060 Ti EX | |
3840x2160 Ultra Preset AA:T P1 | |
Sapphire Pulse Radeon RX 7700 XT | |
KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 | |
KFA2 GeForce RTX 4060 Ti EX |
Diablo 4 | |
1920x1080 Ultra Preset P1 | |
Sapphire Pulse Radeon RX 7700 XT | |
KFA2 GeForce RTX 4060 Ti EX | |
KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 | |
2560x1440 Ultra Preset P1 | |
Sapphire Pulse Radeon RX 7700 XT | |
KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 | |
KFA2 GeForce RTX 4060 Ti EX | |
3840x2160 Ultra Preset P1 | |
Sapphire Pulse Radeon RX 7700 XT | |
KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 | |
KFA2 GeForce RTX 4060 Ti EX |
The Last of Us | |
1920x1080 Ultra Preset P1 | |
Sapphire Pulse Radeon RX 7700 XT | |
KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 | |
KFA2 GeForce RTX 4060 Ti EX | |
2560x1440 Ultra Preset P1 | |
Sapphire Pulse Radeon RX 7700 XT | |
KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 | |
KFA2 GeForce RTX 4060 Ti EX | |
3840x2160 Ultra Preset P1 | |
Sapphire Pulse Radeon RX 7700 XT | |
KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 | |
KFA2 GeForce RTX 4060 Ti EX |
Star Wars Jedi Survivor | |
1920x1080 Epic Preset P1 | |
Sapphire Pulse Radeon RX 7700 XT | |
KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 | |
KFA2 GeForce RTX 4060 Ti EX | |
2560x1440 Epic Preset P1 | |
Sapphire Pulse Radeon RX 7700 XT | |
KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 | |
KFA2 GeForce RTX 4060 Ti EX | |
3840x2160 Epic Preset P1 | |
Sapphire Pulse Radeon RX 7700 XT | |
KFA2 GeForce RTX 4060 Ti EX | |
KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 |
Resident Evil 4 Remake | |
1920x1080 Max Preset P1 | |
Sapphire Pulse Radeon RX 7700 XT | |
KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 | |
KFA2 GeForce RTX 4060 Ti EX | |
2560x1440 Max Preset P1 | |
Sapphire Pulse Radeon RX 7700 XT | |
KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 | |
KFA2 GeForce RTX 4060 Ti EX | |
3840x2160 Max Preset P1 | |
Sapphire Pulse Radeon RX 7700 XT | |
KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 | |
KFA2 GeForce RTX 4060 Ti EX |
The Quarry | |
1920x1080 Ultra Preset P1 | |
Sapphire Pulse Radeon RX 7700 XT | |
KFA2 GeForce RTX 4060 Ti EX | |
KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 | |
2560x1440 Ultra Preset P1 | |
Sapphire Pulse Radeon RX 7700 XT | |
KFA2 GeForce RTX 4060 Ti EX | |
KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 | |
3840x2160 Ultra Preset P1 | |
Sapphire Pulse Radeon RX 7700 XT | |
KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 | |
KFA2 GeForce RTX 4060 Ti EX |
Spider-Man Miles Morales | |
1920x1080 Very High Preset AA:T P1 | |
KFA2 GeForce RTX 4060 Ti EX | |
KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 | |
Sapphire Pulse Radeon RX 7700 XT | |
2560x1440 Very High Preset AA:T P1 | |
Sapphire Pulse Radeon RX 7700 XT | |
KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 | |
KFA2 GeForce RTX 4060 Ti EX | |
3840x2160 Very High Preset AA:T P1 | |
Sapphire Pulse Radeon RX 7700 XT | |
KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 | |
KFA2 GeForce RTX 4060 Ti EX |
Uncharted Legacy of Thieves Collection | |
1920x1080 Ultra Preset P1 | |
KFA2 GeForce RTX 4060 Ti EX | |
KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 | |
Sapphire Pulse Radeon RX 7700 XT | |
2560x1440 Ultra Preset P1 | |
KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 | |
KFA2 GeForce RTX 4060 Ti EX | |
Sapphire Pulse Radeon RX 7700 XT | |
3840x2160 Ultra Preset P1 | |
Sapphire Pulse Radeon RX 7700 XT | |
KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 | |
KFA2 GeForce RTX 4060 Ti EX |
Atomic Heart | |
1920x1080 Atomic Preset P1 | |
Sapphire Pulse Radeon RX 7700 XT | |
KFA2 GeForce RTX 4060 Ti EX | |
KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 | |
2560x1440 Atomic Preset P1 | |
Sapphire Pulse Radeon RX 7700 XT | |
KFA2 GeForce RTX 4060 Ti EX | |
KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 | |
3840x2160 Atomic Preset P1 | |
Sapphire Pulse Radeon RX 7700 XT | |
KFA2 GeForce RTX 4060 Ti EX | |
KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 |
Control | |
1920x1080 High Quality Preset (DX11) P1 | |
Sapphire Pulse Radeon RX 7700 XT | |
KFA2 GeForce RTX 4060 Ti EX | |
KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 | |
2560x1440 High Quality Preset (DX11) P1 | |
Sapphire Pulse Radeon RX 7700 XT | |
KFA2 GeForce RTX 4060 Ti EX | |
KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 | |
3840x2160 High Quality Preset (DX11) P1 | |
Sapphire Pulse Radeon RX 7700 XT | |
KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 | |
KFA2 GeForce RTX 4060 Ti EX |
Dead Island 2 | |
1920x1080 Ultra Preset AA:High T P1 | |
KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 | |
Sapphire Pulse Radeon RX 7700 XT | |
KFA2 GeForce RTX 4060 Ti EX | |
2560x1440 Ultra Preset AA:High T P1 | |
Sapphire Pulse Radeon RX 7700 XT | |
KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 | |
KFA2 GeForce RTX 4060 Ti EX | |
3840x2160 Ultra Preset AA:High T P1 | |
Sapphire Pulse Radeon RX 7700 XT | |
KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 | |
KFA2 GeForce RTX 4060 Ti EX |
Dead Space Remake | |
1920x1080 Ultra Preset AA:T P1 | |
Sapphire Pulse Radeon RX 7700 XT | |
KFA2 GeForce RTX 4060 Ti EX | |
KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 | |
2560x1440 Ultra Preset AA:T P1 | |
Sapphire Pulse Radeon RX 7700 XT | |
KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 | |
KFA2 GeForce RTX 4060 Ti EX | |
3840x2160 Ultra Preset AA:T P1 | |
Sapphire Pulse Radeon RX 7700 XT | |
KFA2 GeForce RTX 4060 Ti EX | |
KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 |
光线追踪性能
在光线追踪方面,AMD 仍被 Nvidia 超过,尽管我们在测试的游戏中看到了足够的性能。不过,激活光线追踪还需要降低分辨率,以获得良好的帧率。与 AMD Radeon RX 6750 XT 相比,激活光线追踪后的性能明显提高,我们看到帧率有时可提高 30%。与 Nvidia 相比,我们的测试设备实际上可以与 GeForce RTX 4060 Ti在这里。我们的NvidiaGeForce RTX 4070的性能要高出约 30%,可以与 AMD Radeon RX 7900 GRE.
Spider-Man Miles Morales - 1920x0180 Very High Preset + Ray-Tracing AA:T | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 7800 XT | |
MSI Radeon RX 6950 XT Gaming X Trio | |
KFA2 GeForce RTX 3070 Ti SG | |
AMD Radeon RX 7900 GRE | |
ASUS Dual GeForce RTX 4060 Ti OC | |
Sapphire Pulse Radeon RX 7700 XT | |
AMD Radeon RX 6800 | |
Nvidia GeForce RTX 3060 Ti FE | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
Sapphire Pulse Radeon RX 6750 XT | |
Nvidia GeForce RTX 2070 Super | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
Nvidia GeForce RTX 2060 Super | |
Sapphire Nitro+ Radeon RX 6650 XT | |
Sapphire Pulse Radeon RX 6600 |
Metro Exodus - 1920x1080 Ultra Quality DXR AF:16x | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
MSI Radeon RX 6950 XT Gaming X Trio | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 7900 GRE | |
AMD Radeon RX 7800 XT | |
KFA2 GeForce RTX 3070 Ti SG | |
Sapphire Pulse Radeon RX 7700 XT | |
ASUS Dual GeForce RTX 4060 Ti OC | |
Nvidia GeForce RTX 3060 Ti FE | |
Sapphire Pulse Radeon RX 6750 XT | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
Nvidia GeForce RTX 2070 Super | |
Nvidia GeForce RTX 2060 Super | |
Sapphire Pulse Radeon RX 6600 |
Far Cry 6 - 1920x1080 Ultra Graphics Quality + HD Textures + DXR AA:T | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
AMD Radeon RX 7900 GRE | |
MSI Radeon RX 6950 XT Gaming X Trio | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 7800 XT | |
AMD Radeon RX 6800 | |
Sapphire Pulse Radeon RX 7700 XT | |
Sapphire Pulse Radeon RX 6750 XT | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
KFA2 GeForce RTX 3070 Ti SG | |
Nvidia GeForce RTX 2070 Super | |
Nvidia GeForce RTX 2060 Super | |
KFA2 GeForce RTX 4060 1-Click-OC 2X |
Cyberpunk 2077 1.6 - 1920x1080 Ray Tracing Ultra Preset (DLSS off) | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 7900 GRE (1.6) | |
ASUS Dual GeForce RTX 4060 Ti OC (1.6) | |
MSI Radeon RX 6950 XT Gaming X Trio (1.61) | |
KFA2 GeForce RTX 3070 Ti SG (1.61) | |
AMD Radeon RX 7800 XT (1.6) | |
Nvidia GeForce RTX 3060 Ti FE (1.5) | |
Sapphire Pulse Radeon RX 7700 XT (1.6) | |
Sapphire Pulse Radeon RX 7700 XT (1.6) | |
Sapphire Pulse Radeon RX 7700 XT (1.6) | |
KFA2 GeForce RTX 4060 1-Click-OC 2X (1.6) | |
AMD Radeon RX 6800 (1.61) | |
Nvidia GeForce RTX 2070 Super (1.6) | |
Sapphire Pulse Radeon RX 6750 XT | |
Nvidia GeForce RTX 2060 Super (1.6) | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition (1.6) | |
Sapphire Nitro+ Radeon RX 6650 XT (1.5) |
The Callisto Protocol - 1920x1080 Ultra Preset (without FSR Upscaling) + Full Ray-Tracing | |
AMD Radeon RX 7800 XT | |
AMD Radeon RX 7900 GRE | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
Sapphire Pulse Radeon RX 7700 XT | |
ASUS Dual GeForce RTX 4060 Ti OC | |
MSI Radeon RX 6950 XT Gaming X Trio | |
Nvidia GeForce RTX 3060 Ti FE | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 6800 | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
KFA2 GeForce RTX 3070 Ti SG | |
Sapphire Nitro+ Radeon RX 6650 XT | |
Nvidia GeForce RTX 2070 Super | |
Sapphire Pulse Radeon RX 6600 | |
Nvidia GeForce RTX 2060 Super | |
Sapphire Pulse Radeon RX 6750 XT | |
PNY GeForce GTX 1660 | |
KFA2 GeForce GTX 1660 Super |
Guardians of the Galaxy - 1920x1080 Ultra Preset + Ultra Ray-Tracing | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 7900 GRE | |
MSI Radeon RX 6950 XT Gaming X Trio | |
ASUS Dual GeForce RTX 4060 Ti OC | |
AMD Radeon RX 7800 XT | |
Nvidia GeForce RTX 3060 Ti FE | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
Sapphire Pulse Radeon RX 7700 XT | |
Nvidia GeForce RTX 2070 Super | |
Sapphire Pulse Radeon RX 6750 XT | |
Nvidia GeForce RTX 2060 Super | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
Sapphire Nitro+ Radeon RX 6650 XT |
Control - 1920x1080 High Quality Preset & High Ray Tracing Preset (DX12) | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
MSI Radeon RX 6950 XT Gaming X Trio | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 7900 GRE | |
AMD Radeon RX 7800 XT | |
Sapphire Pulse Radeon RX 7700 XT | |
ASUS Dual GeForce RTX 4060 Ti OC | |
Nvidia GeForce RTX 3060 Ti FE | |
Sapphire Pulse Radeon RX 6750 XT | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
Nvidia GeForce RTX 2070 Super | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
Nvidia GeForce RTX 2060 Super | |
Sapphire Nitro+ Radeon RX 6650 XT | |
Sapphire Pulse Radeon RX 6600 |
Returnal - 1920x1080 Epic Preset + Epic Ray-Tracing | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 7900 GRE | |
AMD Radeon RX 7800 XT | |
ASUS Dual GeForce RTX 4060 Ti OC | |
Sapphire Pulse Radeon RX 7700 XT | |
Nvidia GeForce RTX 3060 Ti FE | |
AMD Radeon RX 6800 | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
Nvidia GeForce RTX 2070 Super | |
Sapphire Pulse Radeon RX 6750 XT | |
Nvidia GeForce RTX 2060 Super | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
Sapphire Nitro+ Radeon RX 6650 XT |
F1 23 - 1920x1080 Ultra High Preset AA:T AF:16x | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 7900 GRE (1016022) | |
MSI Radeon RX 6950 XT Gaming X Trio (1016022) | |
AMD Radeon RX 7800 XT (1022189) | |
KFA2 GeForce GTX 1660 Super (1016022) | |
ASUS Dual GeForce RTX 4060 Ti OC (1012607) | |
PNY GeForce GTX 1660 (1016022) | |
Sapphire Pulse Radeon RX 7700 XT (1026791) | |
Nvidia GeForce RTX 3060 Ti FE (1021115) | |
AMD Radeon RX 6800 (1016022) | |
KFA2 GeForce RTX 4060 1-Click-OC 2X (1008687) | |
Sapphire Pulse Radeon RX 6750 XT (1016022) | |
Nvidia GeForce RTX 2070 Super (1021115) | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition (1016022) | |
Nvidia GeForce RTX 2060 Super (1021115) | |
Sapphire Nitro+ Radeon RX 6650 XT (1016022) | |
Sapphire Pulse Radeon RX 6600 (1016022) |
low | med. | high | ultra | QHD | 4K | |
---|---|---|---|---|---|---|
GTA V (2015) | 188 | 187.4 | 186.5 | 146 | 105.4 | 112.4 |
The Witcher 3 (2015) | 732 | 516 | 295 | 168.3 | 119.6 | 88.7 |
Dota 2 Reborn (2015) | 278.7 | 206.3 | 186.3 | 169.3 | 123.5 | |
Rise of the Tomb Raider (2016) | 347 | 253 | 170.4 | 148.6 | 75.5 | |
The Division (2016) | 213 | 216 | 195 | 162 | 81 | |
Assassin´s Creed Origins (2017) | 182 | 144 | 134 | 114 | 90 | 58 |
Final Fantasy XV Benchmark (2018) | 235 | 203 | 139.5 | 103.1 | 57.4 | |
X-Plane 11.11 (2018) | 162.8 | 129.7 | 100.2 | 69.3 | ||
Far Cry 5 (2018) | 212 | 188 | 181 | 167 | 157 | 82 |
Strange Brigade (2018) | 730 | 398 | 334 | 287 | 193 | 97.4 |
Shadow of the Tomb Raider (2018) | 355 | 242 | 223 | 194.1 | 131.9 | 65.5 |
Forza Horizon 4 (2018) | 334 | 278 | 272 | 231 | 197 | 134 |
Assassin´s Creed Odyssey (2018) | 181 | 165 | 148 | 121 | 98 | 58 |
Far Cry New Dawn (2019) | 176 | 157 | 151 | 136 | 134 | 89 |
Metro Exodus (2019) | 289 | 194 | 148.4 | 113.9 | 89.6 | 57 |
Anno 1800 (2019) | 201 | 197.1 | 143.5 | 68.5 | 58.1 | 33.7 |
Control (2019) | 240 | 214 | 156.1 | 96.1 | 46.4 | |
Borderlands 3 (2019) | 244 | 210 | 158.2 | 126.4 | 89.4 | 48 |
F1 2020 (2020) | 575 | 391 | 322 | 216 | 170.6 | 102.5 |
Death Stranding (2020) | 238 | 217 | 198.9 | 191.9 | 145.6 | 81.6 |
Dirt 5 (2020) | 167.9 | 125.7 | 98.6 | 85.9 | 83.2 | 81.6 |
Assassin´s Creed Valhalla (2020) | 250 | 180 | 149 | 132 | 101 | 59 |
F1 2021 (2021) | 645 | 537 | 397 | 172.6 | 129.5 | 72.6 |
Far Cry 6 (2021) | 227 | 196.9 | 178.5 | 161.8 | 121.9 | 63.1 |
Guardians of the Galaxy (2021) | 180 | 177 | 175 | 164 | 125 | 72 |
God of War (2022) | 191.9 | 188.1 | 148.7 | 102 | 85.3 | 54.2 |
GRID Legends (2022) | 263 | 226 | 194.9 | 173.1 | 153.8 | 104.2 |
Cyberpunk 2077 1.6 (2022) | 193 | 158.2 | 132 | 122.1 | 80.2 | 36 |
Ghostwire Tokyo (2022) | 244 | 235 | 233 | 225 | 139.9 | 65.7 |
Tiny Tina's Wonderlands (2022) | 366 | 281 | 170.6 | 133.2 | 89.2 | 46 |
F1 22 (2022) | 426 | 400 | 315 | 92.3 | 59.9 | 29.8 |
The Quarry (2022) | 234 | 172.9 | 136.9 | 106.3 | 73.6 | 37.8 |
A Plague Tale Requiem (2022) | 160.3 | 121.9 | 92.8 | 70.1 | 52.6 | 30.3 |
Uncharted Legacy of Thieves Collection (2022) | 102.2 | 98.8 | 92.6 | 87 | 70.1 | 42.1 |
Spider-Man Miles Morales (2022) | 154.5 | 144.8 | 130.2 | 121.1 | 100.6 | 58.1 |
The Callisto Protocol (2022) | 239.8 | 194.1 | 177.1 | 115.3 | 90.1 | 57.8 |
Need for Speed Unbound (2022) | 205 | 183.3 | 144.3 | 144.1 | 111.7 | 64.2 |
High On Life (2023) | 350 | 263 | 194.1 | 150.3 | 89.6 | 38 |
The Witcher 3 v4.00 (2023) | 307 | 264 | 233 | 198 | 122.6 | 59.3 |
Dead Space Remake (2023) | 133.4 | 129.4 | 110.9 | 111.8 | 75 | 36.2 |
Hogwarts Legacy (2023) | 195.6 | 161.1 | 119.3 | 91.4 | 66.9 | 35.5 |
Returnal (2023) | 163 | 153 | 137 | 115 | 87 | 50 |
Atomic Heart (2023) | 265 | 199.4 | 118.8 | 93.6 | 73.9 | 43.8 |
Company of Heroes 3 (2023) | 300.6 | 254 | 195.7 | 194.3 | 143.4 | 81.3 |
Sons of the Forest (2023) | 118.7 | 115.6 | 112.4 | 112.2 | 99.1 | 59 |
Resident Evil 4 Remake (2023) | 229 | 180.4 | 156.1 | 107.1 | 84.2 | 49.2 |
The Last of Us (2023) | 154.6 | 132.5 | 122 | 105 | 68 | 29.6 |
Dead Island 2 (2023) | 353 | 318 | 238 | 166.2 | 119.9 | 62.7 |
Star Wars Jedi Survivor (2023) | 129.9 | 115.6 | 107.5 | 101 | 62.3 | 30.3 |
Diablo 4 (2023) | 363 | 316 | 286 | 243 | 158 | 71 |
F1 23 (2023) | 464 | 418 | 310 | 76.5 | 48.7 | 23.5 |
Ratchet & Clank Rift Apart (2023) | 151.3 | 121.9 | 102.1 | 90 | 72 | 42.5 |
Atlas Fallen (2023) | 191.6 | 186.6 | 179 | 165.6 | 117.6 | 63.3 |
Immortals of Aveum (2023) | 120.2 | 102.6 | 82.2 | 56.1 | 29.9 | |
Armored Core 6 (2023) | 119.5 | 118.9 | 116.8 | 106.4 | 84.3 | 51.5 |
Starfield (2023) | 100.5 | 90.4 | 73.6 | 68 | 55.1 | 36 |
Lies of P (2023) | 268 | 232 | 196.8 | 173.6 | 122.7 | 63.9 |
Baldur's Gate 3 (2023) | 203 | 166.3 | 136.2 | 133 | 95.7 | 50.2 |
Cyberpunk 2077 2.1 Phantom Liberty (2023) | 175.9 | 145.1 | 120.8 | 110.2 | 73.1 | 31.6 |
Counter-Strike 2 (2023) | 351 | 344 | 283 | 202 | 127.2 | 62 |
EA Sports FC 24 (2023) | 395 | 345 | 274 | 246 | 199.1 | 127.2 |
Assassin's Creed Mirage (2023) | 186 | 168 | 154 | 120 | 91 | 54 |
Total War Pharaoh (2023) | 519.1 | 333.2 | 209.7 | 169.6 | 122.8 | 60.5 |
Lords of the Fallen (2023) | 135 | 113.8 | 79.4 | 56 | 37.1 | 19.2 |
Alan Wake 2 (2023) | 119.7 | 108 | 93.2 | 62.7 | 30.8 | |
EA Sports WRC (2023) | 240 | 155.8 | 140.4 | 125.5 | 92.8 | 51.8 |
Call of Duty Modern Warfare 3 2023 (2023) | 234 | 212 | 171 | 158 | 109 | 64 |
Avatar Frontiers of Pandora (2023) | 114 | 103 | 87 | 68 | 46 | 23 |
The Finals (2023) | 347 | 286 | 253 | 189.3 | 118.9 | 54.7 |
Ready or Not (2023) | 281 | 277 | 269 | 183.6 | 109.9 | 48.4 |
排放 - 高效且声音不大
噪音水平
蓝宝石为 Pulse Radeon RX 7700 XT 配备了两个轴流风扇。在这一点上,蓝宝石继续沿用我们在 RX 6000 型号上看到的角速度风扇叶片设计。我们采用开放式设置进行噪音水平测量,同时确保在测量过程中关闭任何其他风扇(电源和 CPU 风扇)。蓝宝石测试装置提供风扇停止模式,使显卡在 2D 运行时保持完全静音。在低负载情况下,我们最初只看到噪音水平略有上升。在压力测试中,情况恰恰相反,蓝宝石 Pulse AMD Radeon RX 7700 XT 的噪音值为 37.6 dB(A),明显低于我们的对比型号。在实际游戏测试中,我们测得的最大噪音水平为 42.1 dB(A)。然而,由于一些线圈啸叫,我们的测量设备在游戏场景(Witcher 3 - 1,080p Ultra 预设值)中记录的测量值明显更高。但直接比较显示,蓝宝石 Pulse AMD Radeon RX 7700 XT 并不是噪音最大的型号。
Noise Level
Idle |
| 27.4 / 27.5 / 28 dB(A) |
Load |
| 32.6 / 37.6 dB(A) |
| ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min: , med: , max: Earthworks M23R (15 cm distance) environment noise: 25 dB(A) |
Sapphire Pulse Radeon RX 7700 XT | AMD Radeon RX 7800 XT | KFA2 GeForce RTX 4070 Ti EX Gamer | KFA2 GeForce RTX 4070 EX Gamer | KFA2 GeForce RTX 4060 1-Click-OC 2X | ASUS Dual GeForce RTX 4060 Ti OC | XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
---|---|---|---|---|---|---|---|
Noise | -0% | -8% | -9% | -0% | -1% | 3% | |
off / environment * | 25 | 24.7 1% | 30 -20% | 30 -20% | 25.8 -3% | 25.4 -2% | 25.4 -2% |
Idle Minimum * | 27.4 | 26.8 2% | 30.1 -10% | 30.2 -10% | 25.9 5% | 26.7 3% | 26.3 4% |
Idle Average * | 27.5 | 27.2 1% | 30.1 -9% | 30.2 -10% | 25.9 6% | 26.7 3% | 26.3 4% |
Idle Maximum * | 28 | 27.3 2% | 30.1 -8% | 30.2 -8% | 25.9 7% | 26.7 5% | 26.3 6% |
Load Average * | 32.6 | 30.7 6% | 30.2 7% | 31.8 2% | 30.3 7% | 29.3 10% | 29.6 9% |
Witcher 3 ultra * | 42.1 | 42.6 -1% | 40.2 5% | 45.2 -7% | 42.5 -1% | 39.6 6% | |
Load Maximum * | 37.6 | 43 -14% | 44.7 -19% | 41.1 -9% | 43.5 -16% | 46 -22% | 39.4 -5% |
* ... smaller is better

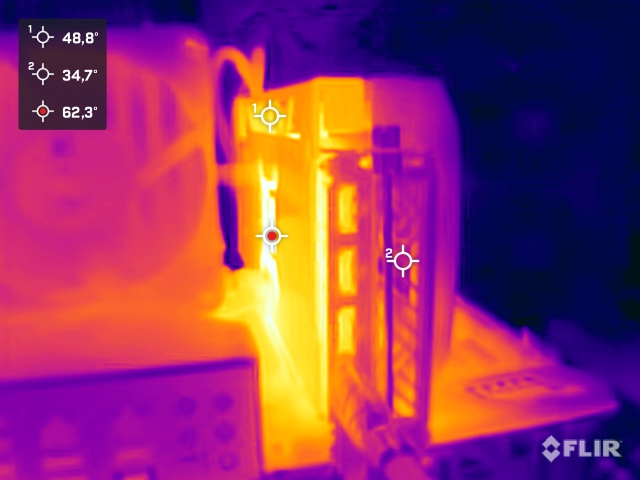

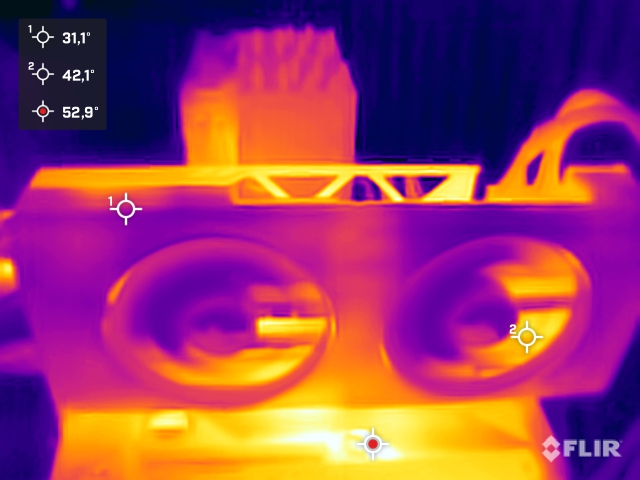

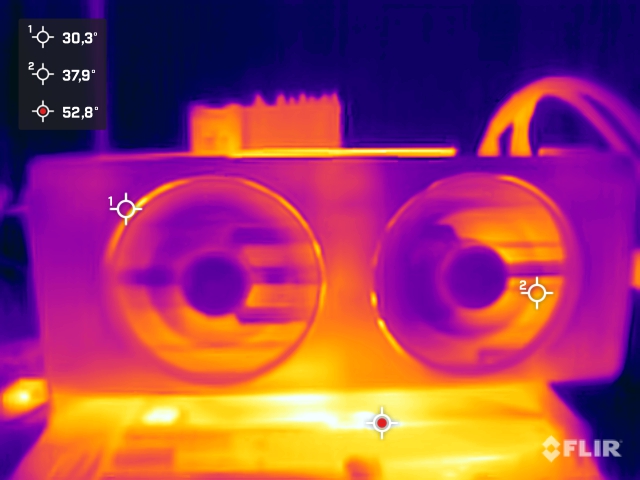

温度和功耗

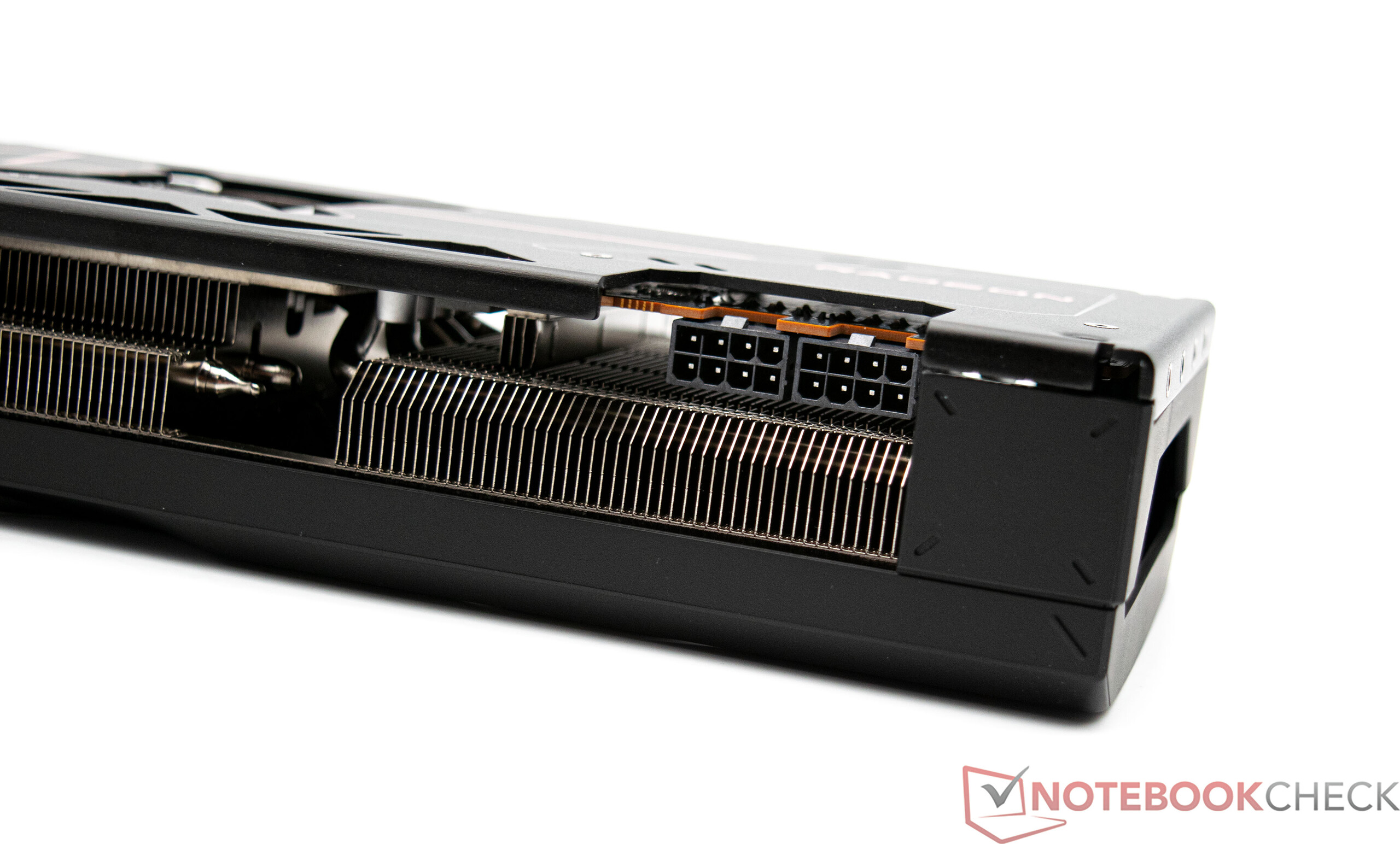

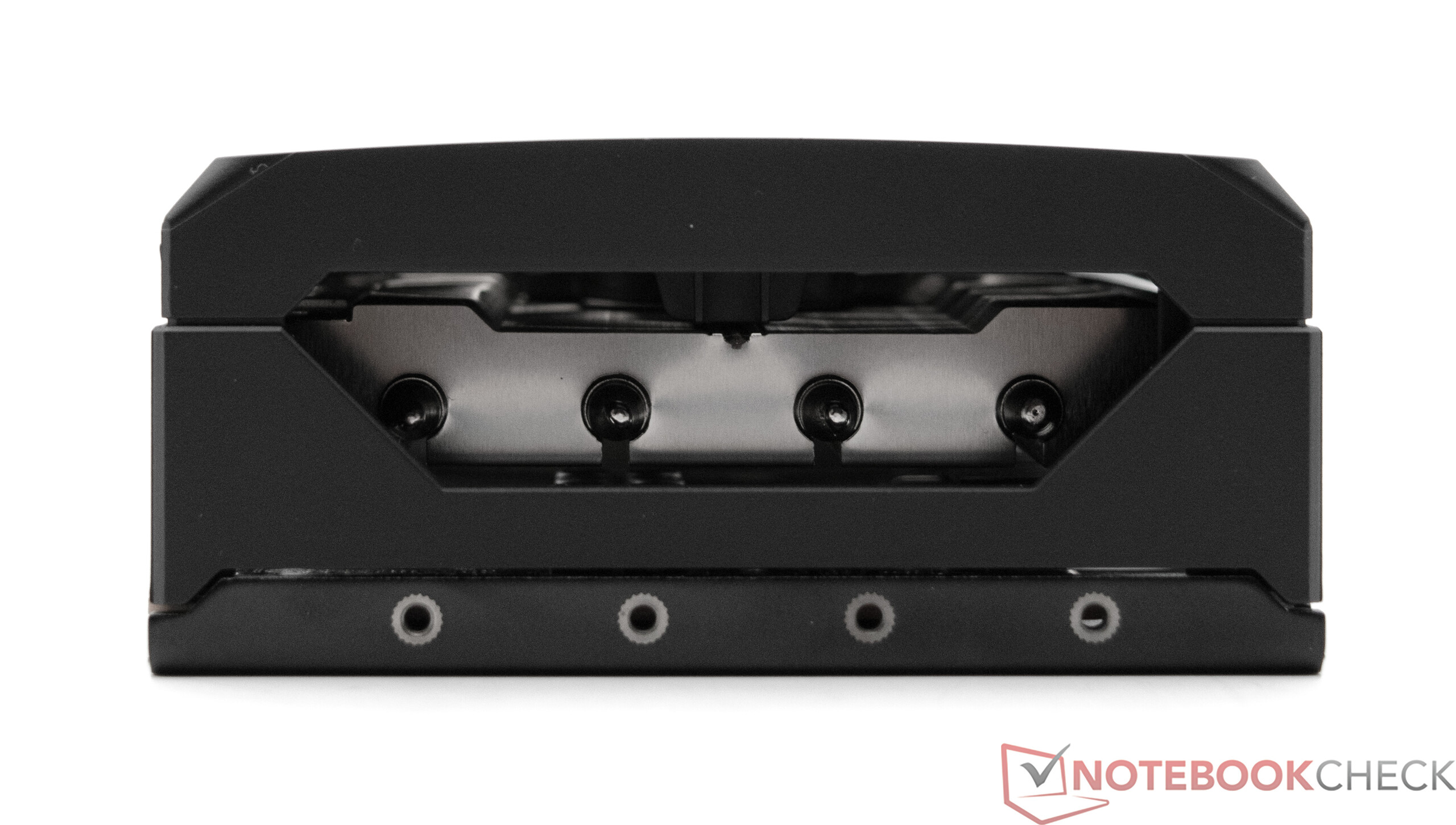

蓝宝石为 Pulse Radeon RX 7700 XT 配备了大型冷却装置。热量通过四根热管从芯片中传出,然后由两个轴流风扇吹过无数散热片进行冷却。这在实践中非常奏效,可随时防止温度达到临界值。
在功耗方面,我们看到蓝宝石并没有根据 AMD 的参考规格(245 瓦)为测试的显卡提供允许的最大功耗。具体来说,蓝宝石 Pulse AMD Radeon RX 7700 XT 的最大功耗为 230 瓦。与 Nvidia 相比,AMD 的效率仍然较低,不过与 RDNA2 相比,我们看到了明显的改进。在与 AMD Radeon RX 6750 XT 的直接对比中,效率提高了约 20%。现在,我们在测试系统的功耗测量中已经看不到 400 瓦的功耗了。在游戏过程中,我们测得的最高值为 384 瓦,而在压力测试中,我们的测量设备只显示了 365 瓦。
制造商仍然建议蓝宝石 Pulse Radeon AMD RX 7700 XT 使用至少 700 瓦的电源。

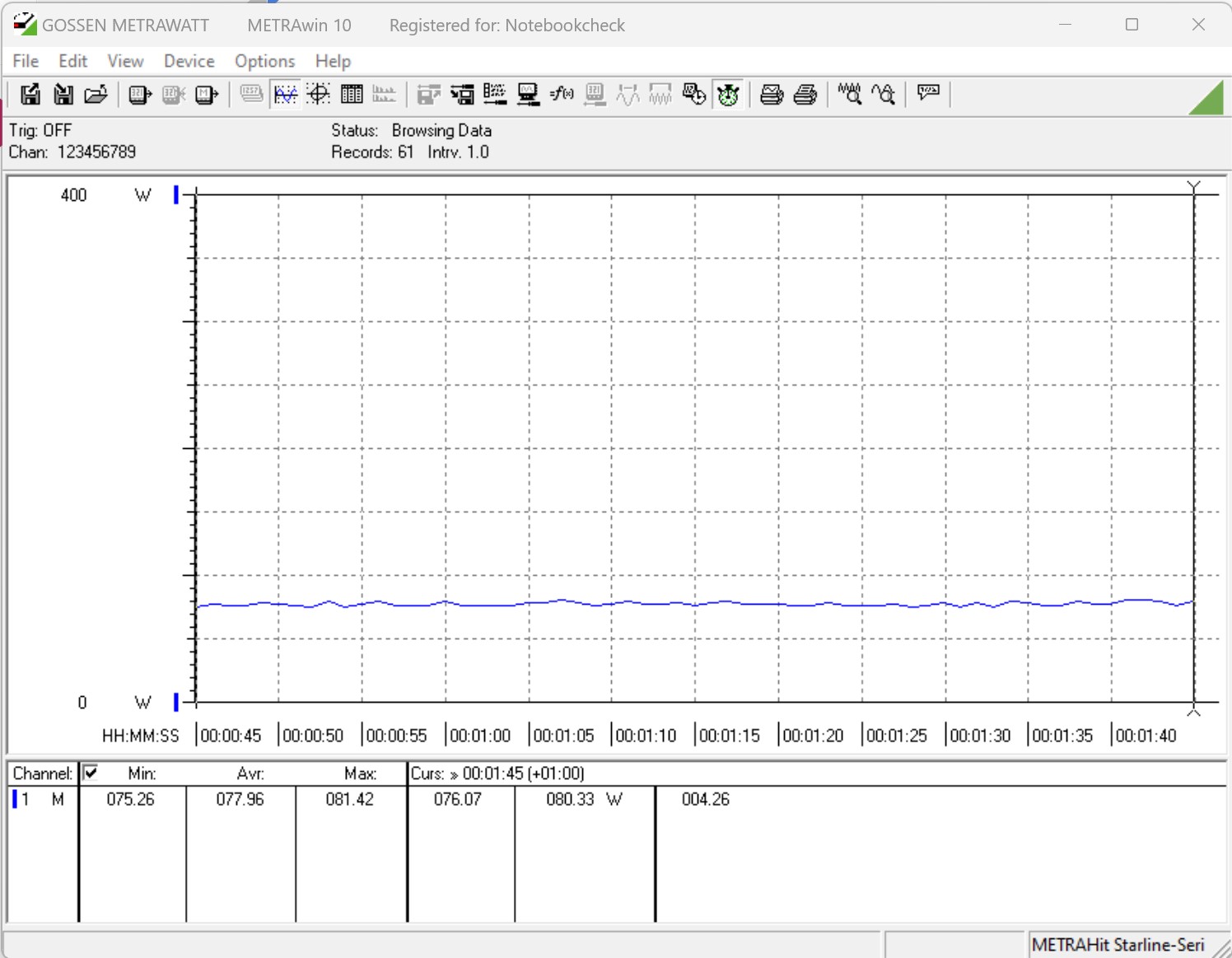

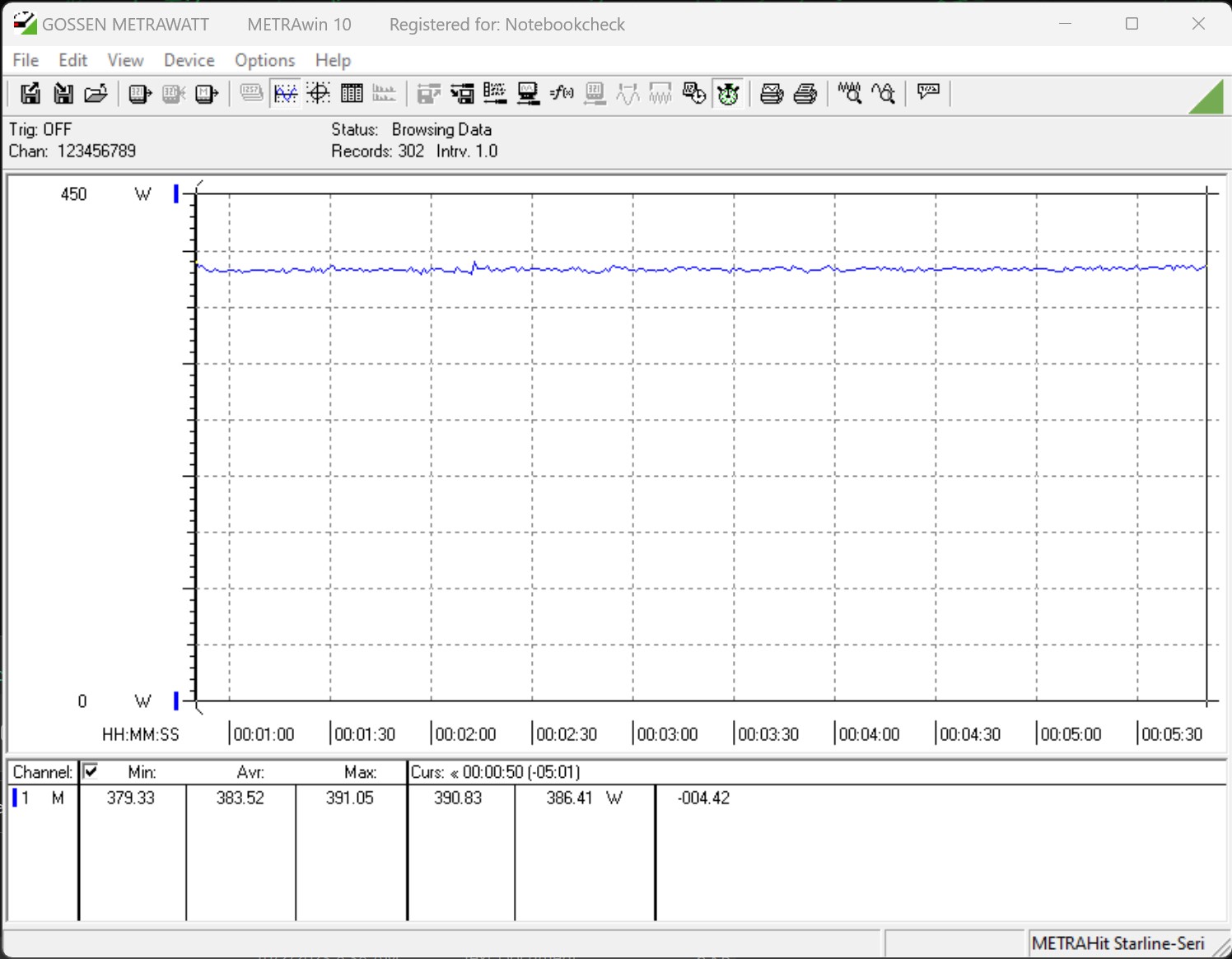

Power Consumption / The Witcher 3 ultra (external Monitor) | |
AMD Radeon RX 7900 XTX (Idle: 86.5 W) | |
NVIDIA GeForce RTX 3090 Founders Edition | |
Palit GeForce RTX 4090 GameRock OC | |
KFA2 GeForce RTX 3080 SG | |
KFA2 GeForce RTX 4080 SG (Idle: 86.4 W) | |
AMD Radeon RX 7900 XT (Idle: 84.6 W) | |
KFA2 GeForce RTX 3070 Ti SG (Idle: 88.9 W) | |
AMD Radeon RX 7900 GRE | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
AMD Radeon RX 7800 XT | |
Sapphire Pulse Radeon RX 6750 XT | |
Sapphire Pulse Radeon RX 7700 XT | |
NVIDIA GeForce RTX 3060 Ti Founders Edition (Idle: 111.39 W) | |
KFA2 GeForce RTX 4070 EX Gamer | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
Sapphire Nitro+ Radeon RX 6650 XT | |
KFA2 GeForce RTX 4060 Ti EX | |
KFA2 GeForce RTX 4060 1-Click-OC 2X |

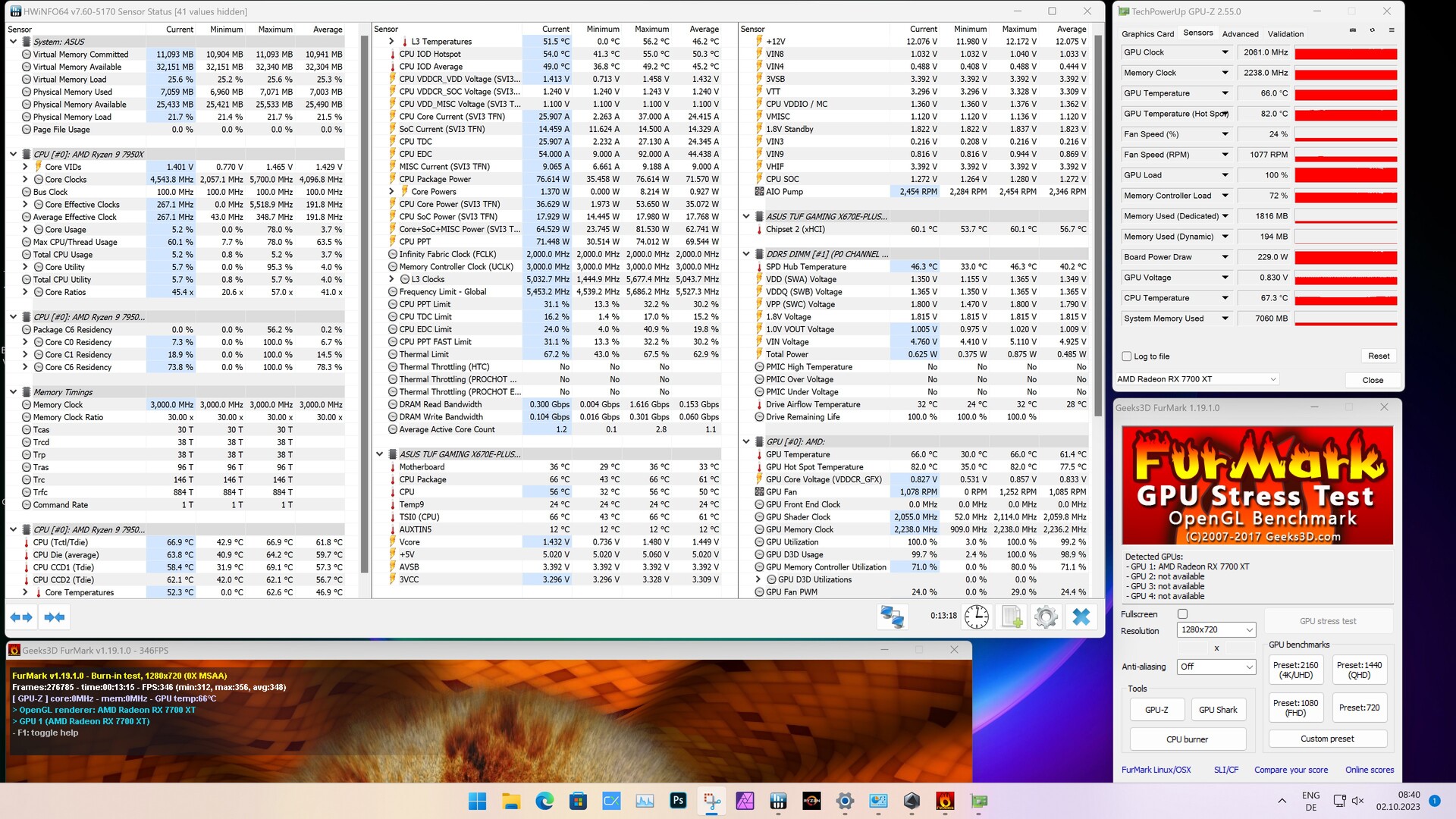

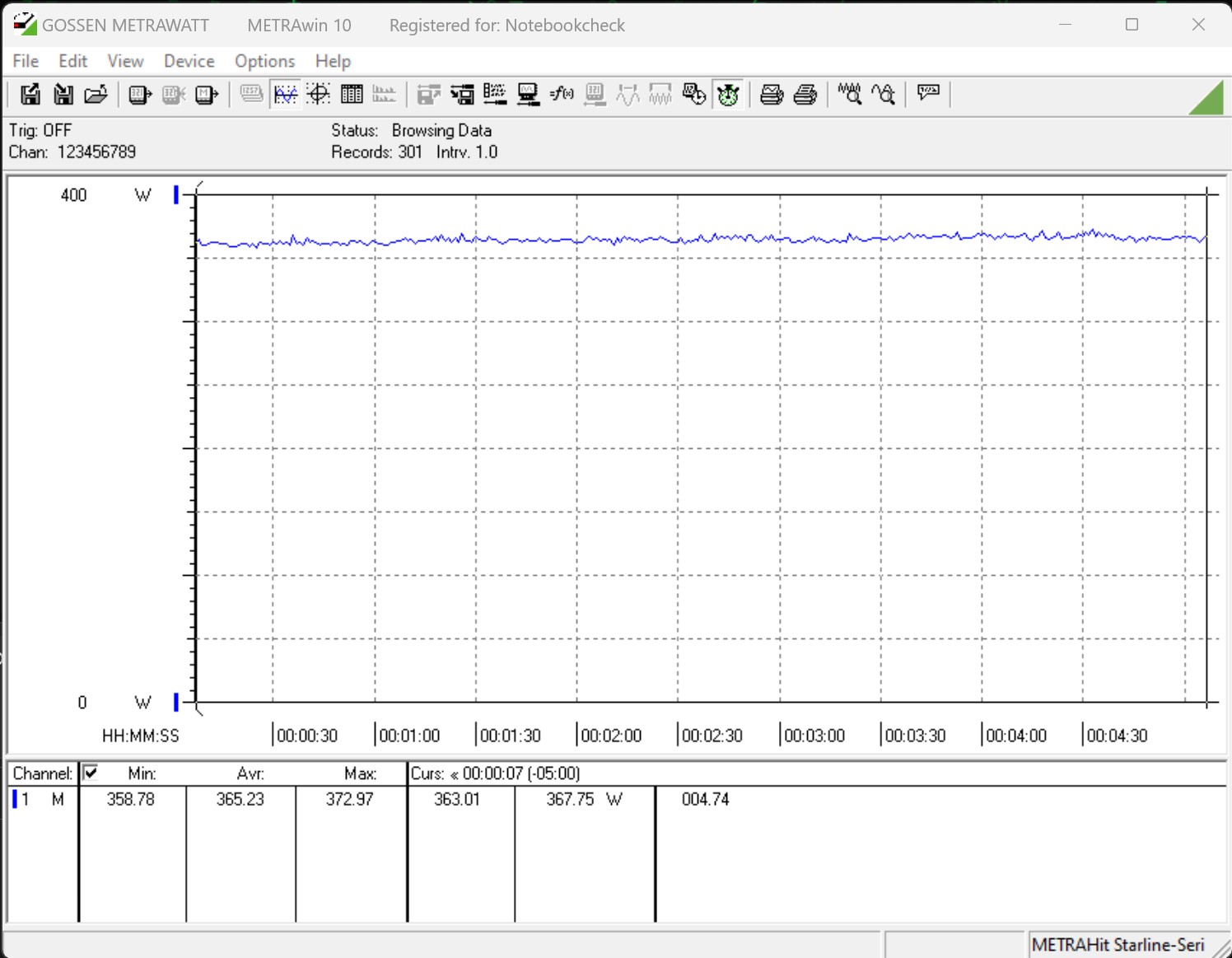

Power Consumption / FurMark 1.19 GPU Stress Test (external Monitor) | |
Palit GeForce RTX 4090 GameRock OC | |
AMD Radeon RX 7900 XTX (Idle: 86.5 W) | |
NVIDIA GeForce RTX 3090 Founders Edition | |
AMD Radeon RX 7900 XT (Idle: 84.6 W) | |
KFA2 GeForce RTX 3080 SG | |
KFA2 GeForce RTX 3070 Ti SG (Idle: 88.9 W) | |
KFA2 GeForce RTX 4080 SG (Idle: 86.4 W) | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
AMD Radeon RX 7900 GRE | |
Sapphire Pulse Radeon RX 6750 XT | |
AMD Radeon RX 7800 XT | |
Sapphire Pulse Radeon RX 7700 XT | |
NVIDIA GeForce RTX 3060 Ti Founders Edition (Idle: 111.39 W) | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
Sapphire Nitro+ Radeon RX 6650 XT | |
KFA2 GeForce RTX 4070 EX Gamer | |
KFA2 GeForce RTX 4060 Ti EX | |
KFA2 GeForce RTX 4060 1-Click-OC 2X |
Power Consumption / Witcher 3 ultra Efficiency (external Monitor) | |
Palit GeForce RTX 4090 GameRock OC | |
KFA2 GeForce RTX 4080 SG | |
AMD Radeon RX 7900 XT | |
AMD Radeon RX 7900 XTX | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
AMD Radeon RX 7900 GRE | |
KFA2 GeForce RTX 4070 EX Gamer | |
KFA2 GeForce RTX 4060 Ti EX | |
AMD Radeon RX 7800 XT | |
Sapphire Pulse Radeon RX 7700 XT | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
Sapphire Pulse Radeon RX 6750 XT | |
NVIDIA GeForce RTX 3090 Founders Edition | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
KFA2 GeForce RTX 3070 Ti SG | |
KFA2 GeForce RTX 3080 SG | |
Sapphire Nitro+ Radeon RX 6650 XT | |
NVIDIA GeForce RTX 3060 Ti Founders Edition |
* ... smaller is better
Power Consumption With External Monitor
Pros
Cons
结论 - 出色的显卡,但在效率方面并非奇迹
AMD Radeon RX 7700 XT 与 AMD Radeon RX 7900 GRE和 AMD Radeon RX 7800 XT目前,AMD 在其产品组合中提供了三款可用于 1440p 游戏的显卡。不过,我们的性能测试也显示,蓝宝石 Pulse AMD Radeon RX 7700 XT 并不总是能达到理想的平均 60 fps。在越来越多地使用光线追踪功能的新游戏中,情况变得更加困难,用户不得不将分辨率降低一个档次。我们看到蓝宝石脉动 AMD Radeon RX 7700 XT 更多地是在 1080p 区域,显卡处理得游刃有余,大部分时间帧率都能达到三位数。
虽然蓝宝石 Pulse AMD Radeon RX 7700 XT 可以让你在 1440p 下玩所有游戏,但从长远来看,你会更喜欢全高清区域的显卡。
如果我们只看目前的市场价格,蓝宝石脉动 AMD Radeon RX 7700 XT 与 NvidiaGeForce RTX 4060 Ti 16 GB 显卡的价格相差无几。在直接比较中,AMD 显卡击败了绿色角落的 16 GB 型号,尽管 "绿色 "团队的效率明显更具吸引力。AMD Radeon RX 7700 XT 拥有 12 GB 的 VRAM,为购买它提供了一个很好的理由,因为对于 Nvidia 显卡来说,如果你想要超过 8 GB 的 VRAM,你就必须支付更多的费用,而最终却无法获得更高的性能。 只有当你添加了光线追踪功能时,Nvidia 才能够通过GeForce RTX 4060 Ti 获得分数,击败蓝宝石脉动 AMD Radeon RX 7700 XT。
那些目前仍在使用 AMD Radeon RX 6700 或 RX 6750 XT 的用户可能仍想等待下一代产品,或改用 AMD 显卡的两个高端型号之一。不过,我们还应该提到,DisplayPort 2.1 的现代连接是一个真正的附加值。不过,目前只有少数显示器提供对该功能的原生支持。
价格和供应情况
Sapphire Pulse AMD Radeon RX 7700 XT 目前在亚马逊有售,售价 450 美元,或在NewEgg 有售,售价相同。有售,价格相同。
Transparency
The selection of devices to be reviewed is made by our editorial team. The test sample was provided to the author as a loan by the manufacturer or retailer for the purpose of this review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.
This is how Notebookcheck is testing
Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.
