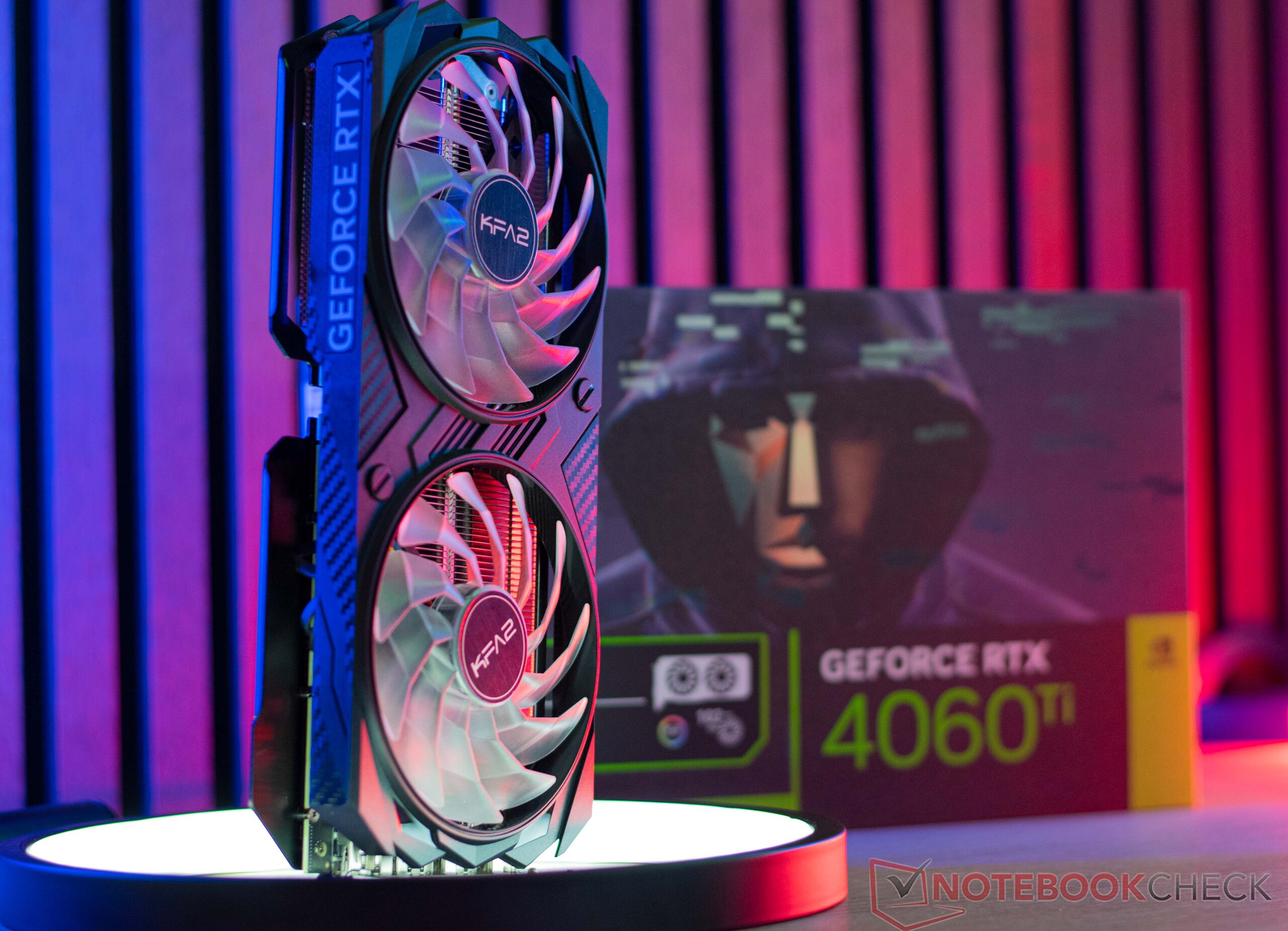

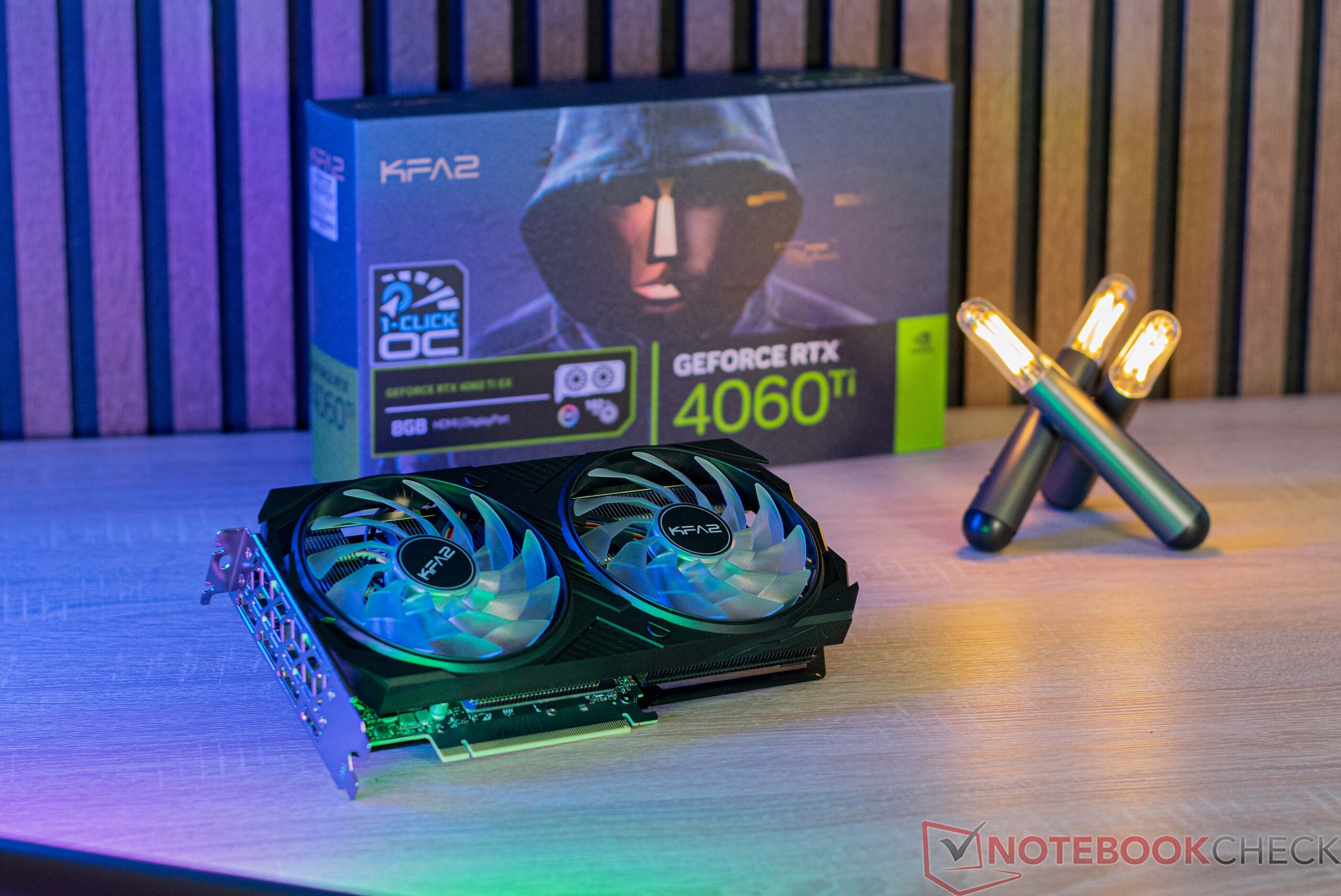

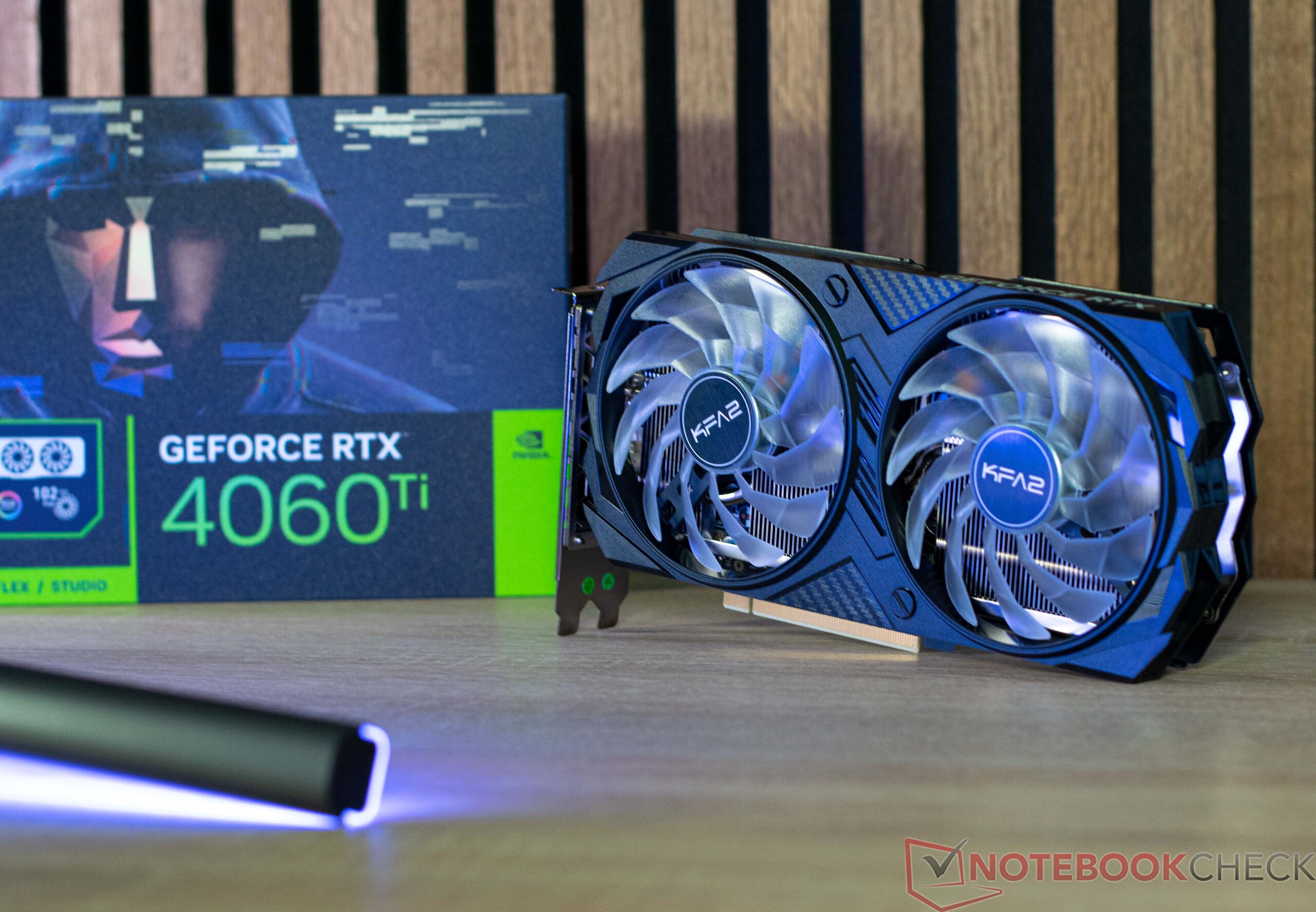

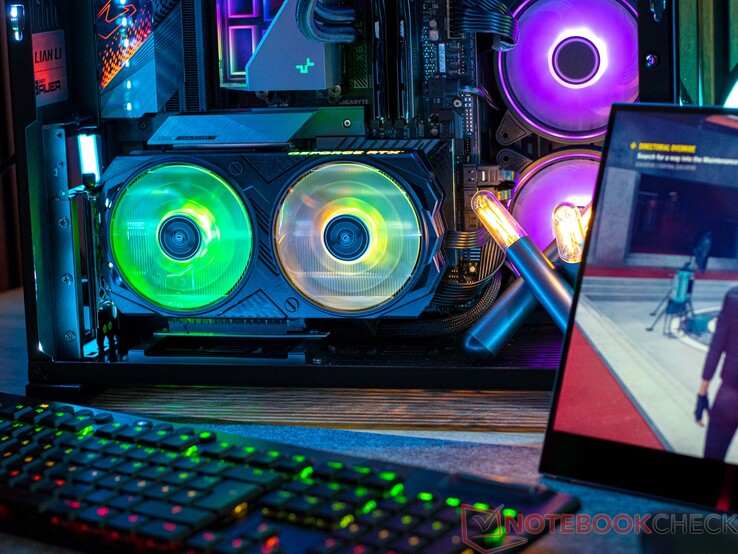

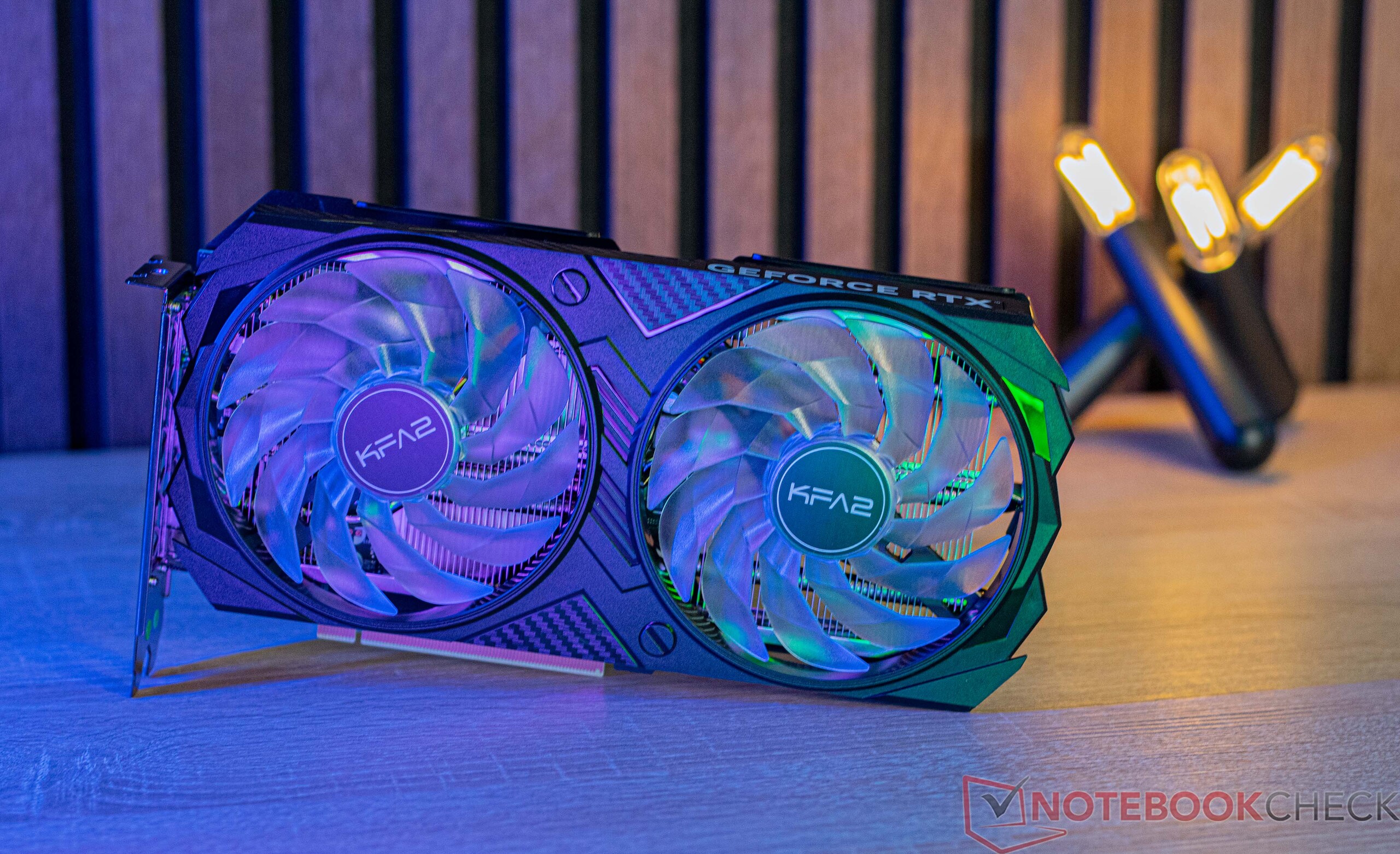

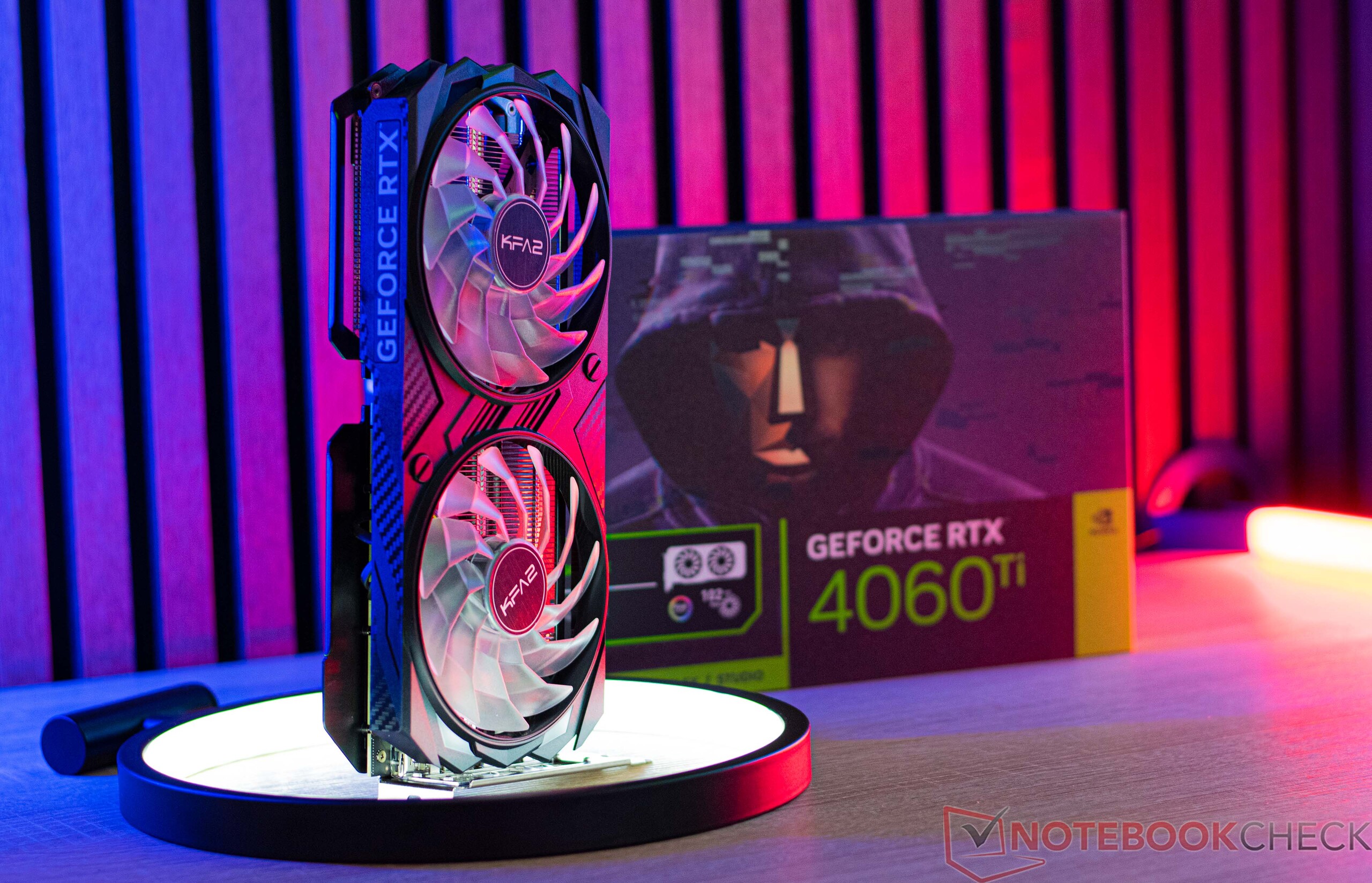

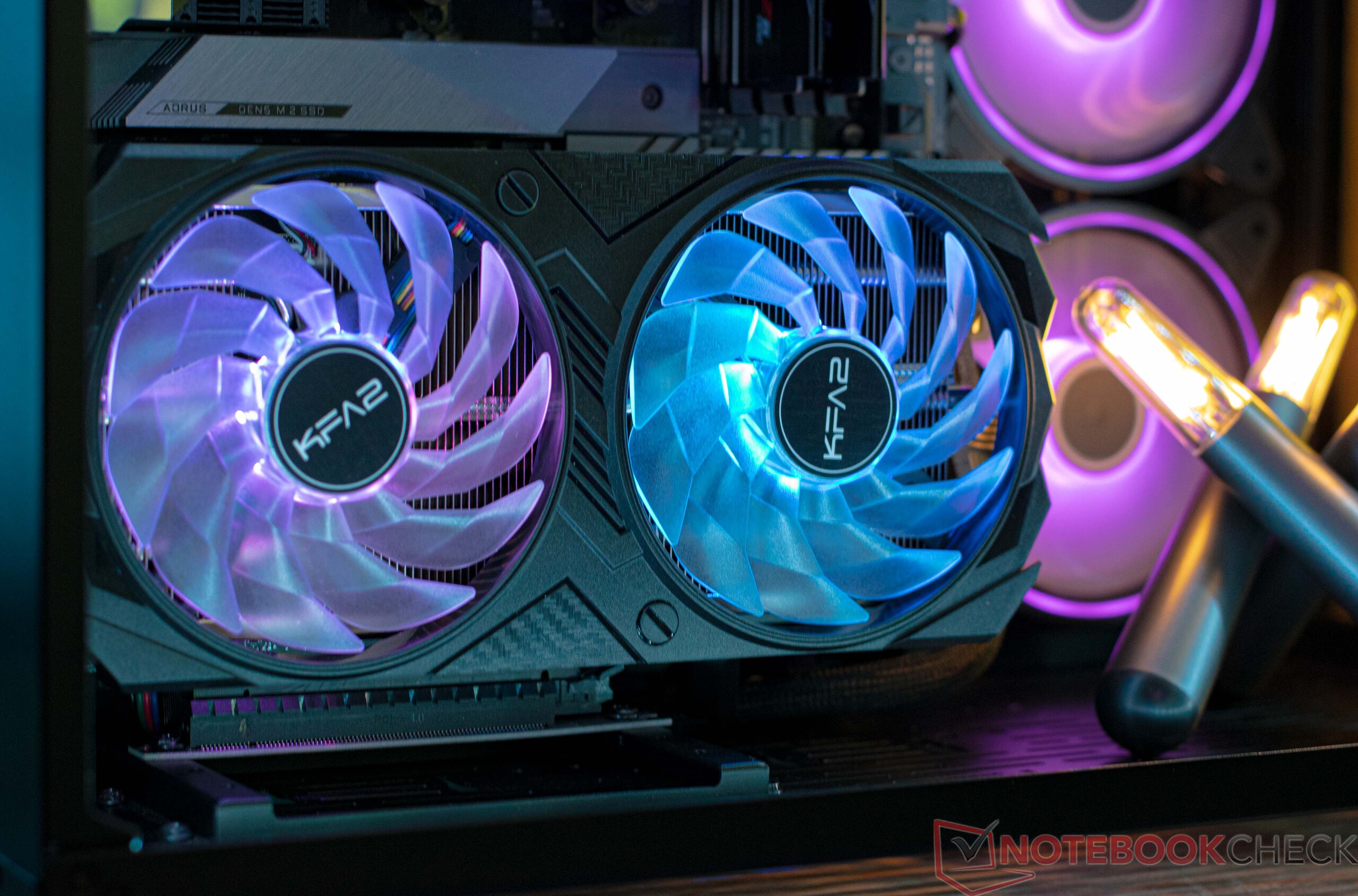

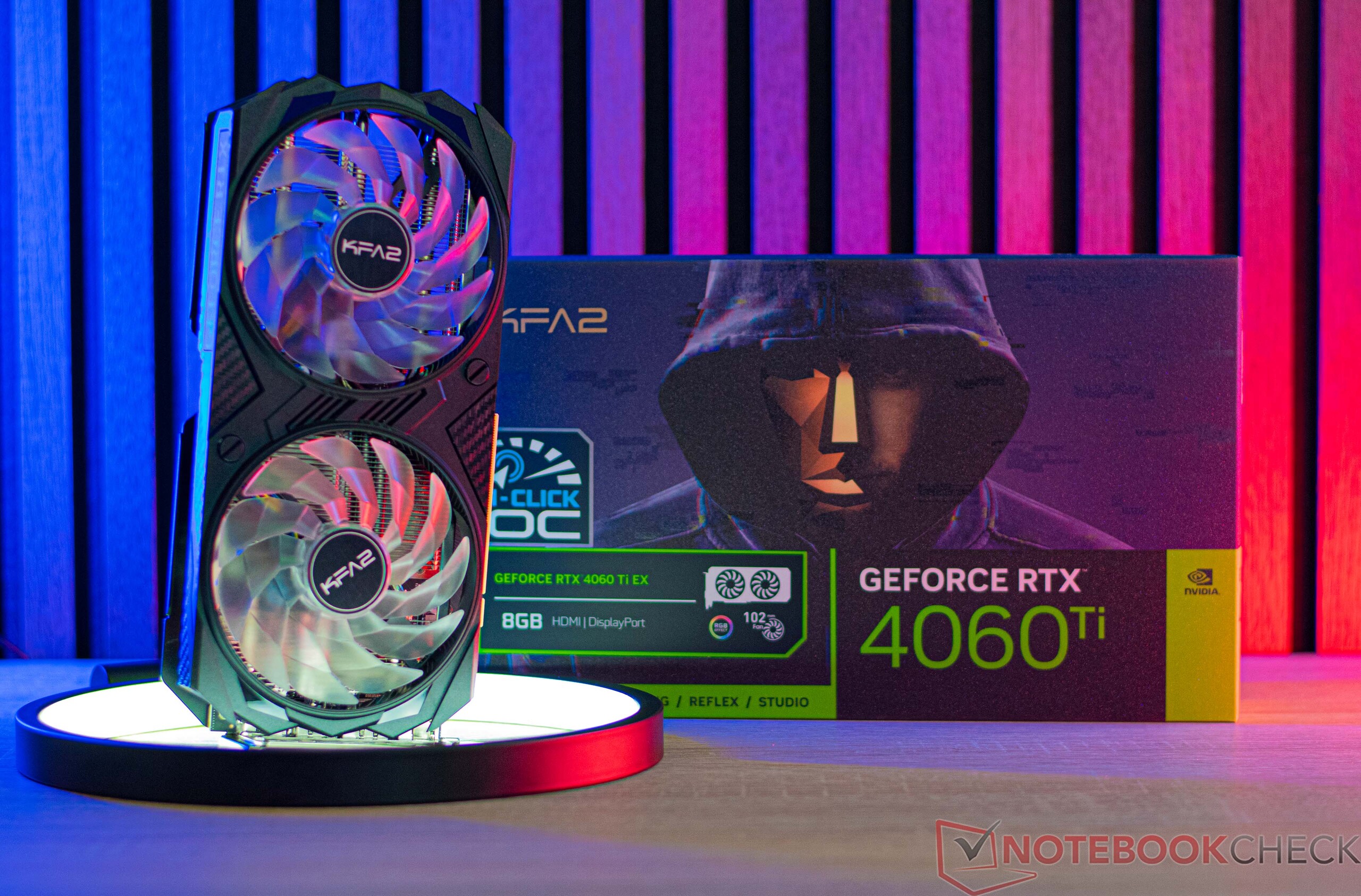

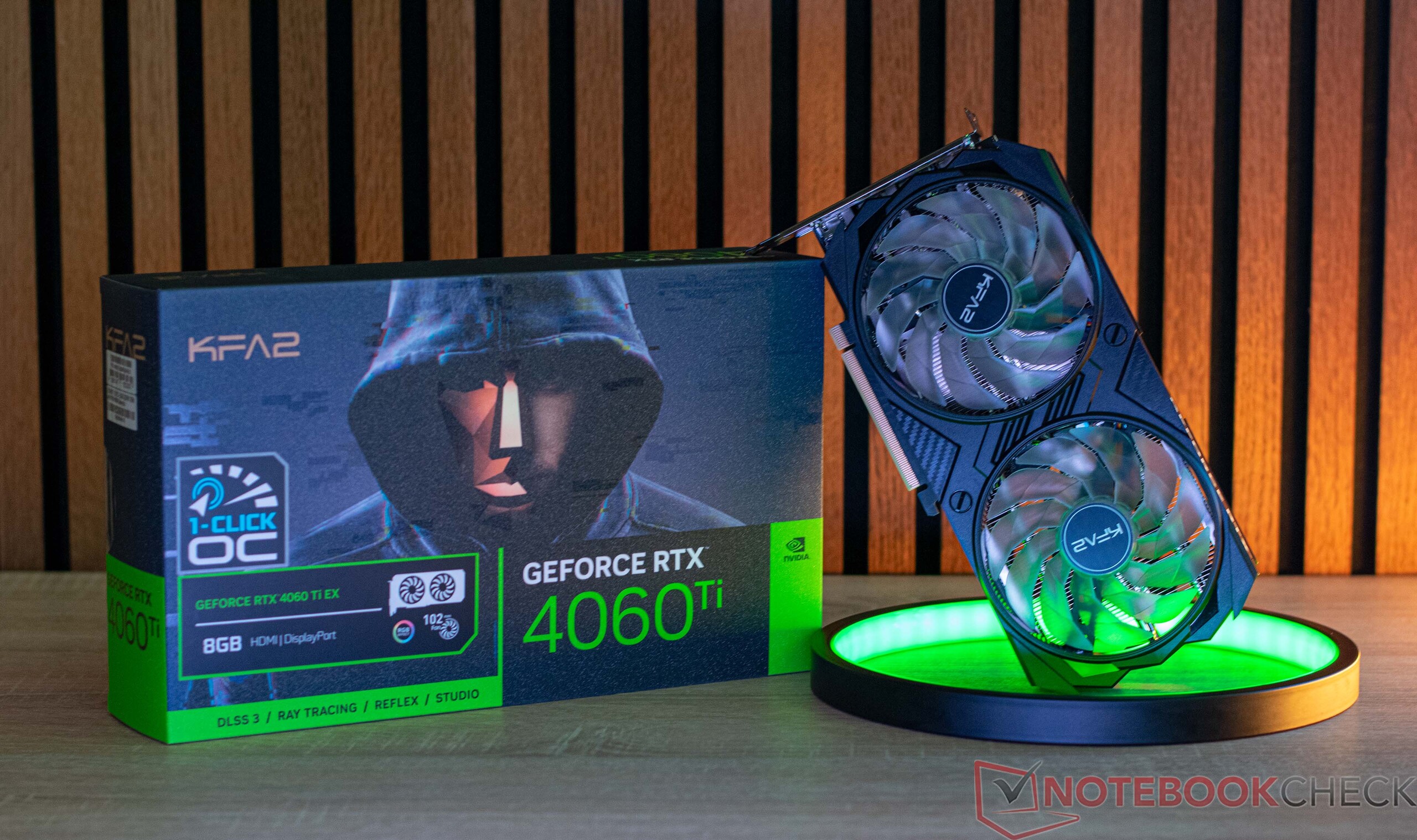

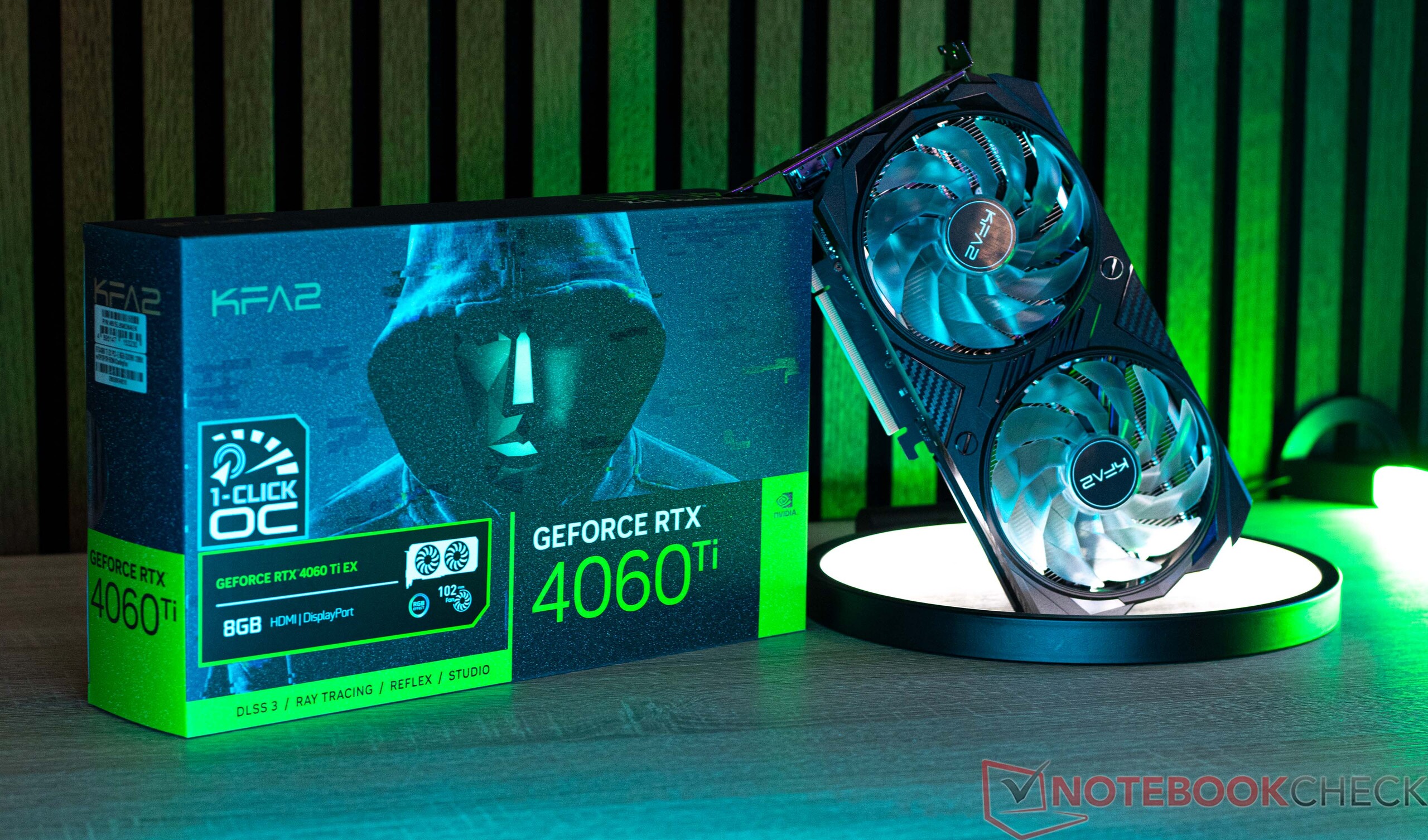

KFA2GeForce RTX 4060 Ti EX显卡评论：一个紧凑的中端GPU，具有强大的功能和时尚的灯光
我们最近测试了NvidiaGeForce RTX 4060 Ti的性能，其形状为微星GeForce RTX 4060 Ti Gaming X Trio 8G.当时，已经很清楚，拥有8GB的VRAM，目前只是部分地足以可靠、流畅地玩现代游戏，并具有最大细节设置。GeForce RTX 4060 Ti EX，我们将在这次审查中进行测试，很可能屈服于同样的弱点，因为这个模型也 "只 "有8GB的VRAM。基于AD106芯片和更多VRAM的显卡已经公布，但到目前为止，这些显卡还没有正式发售。

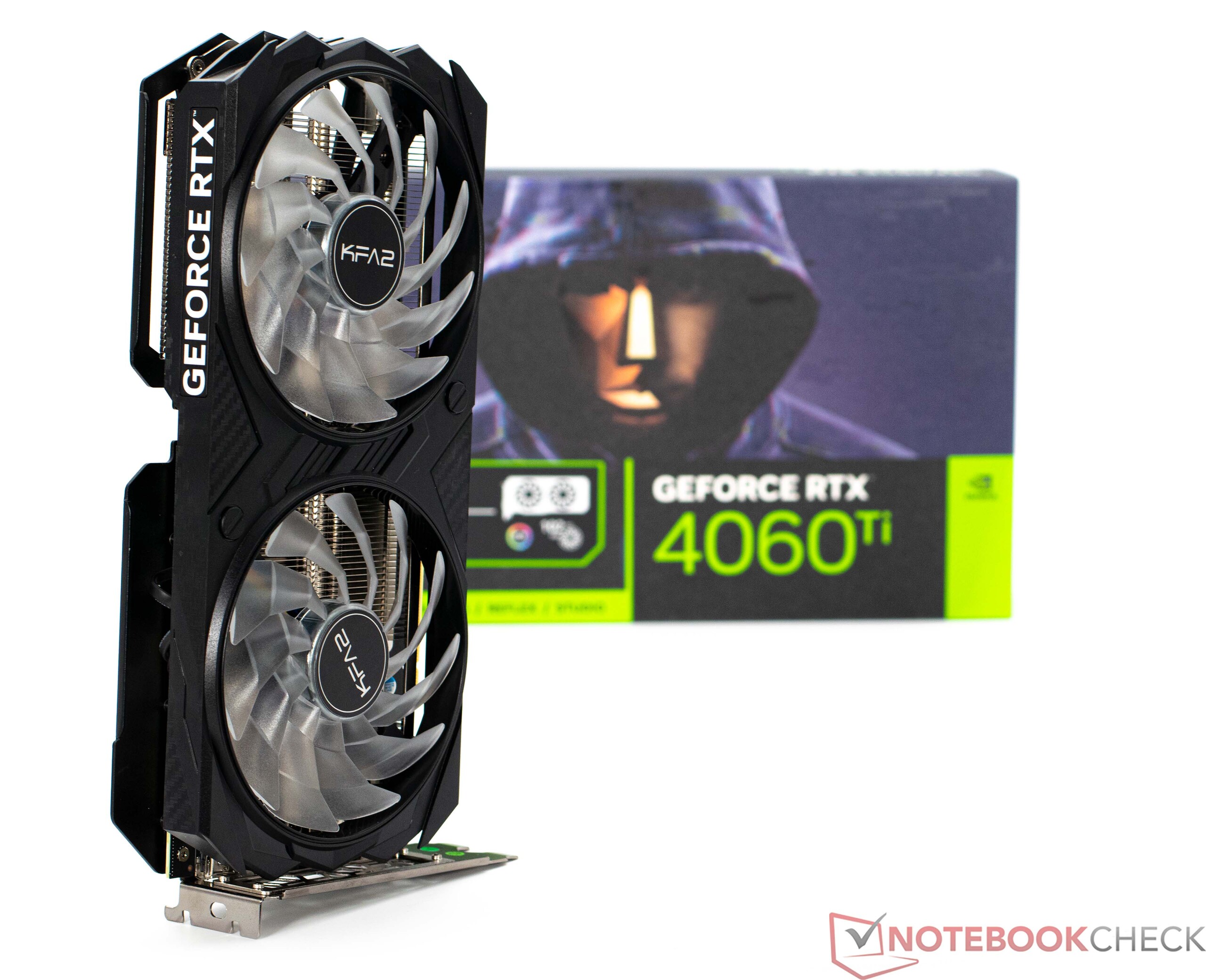

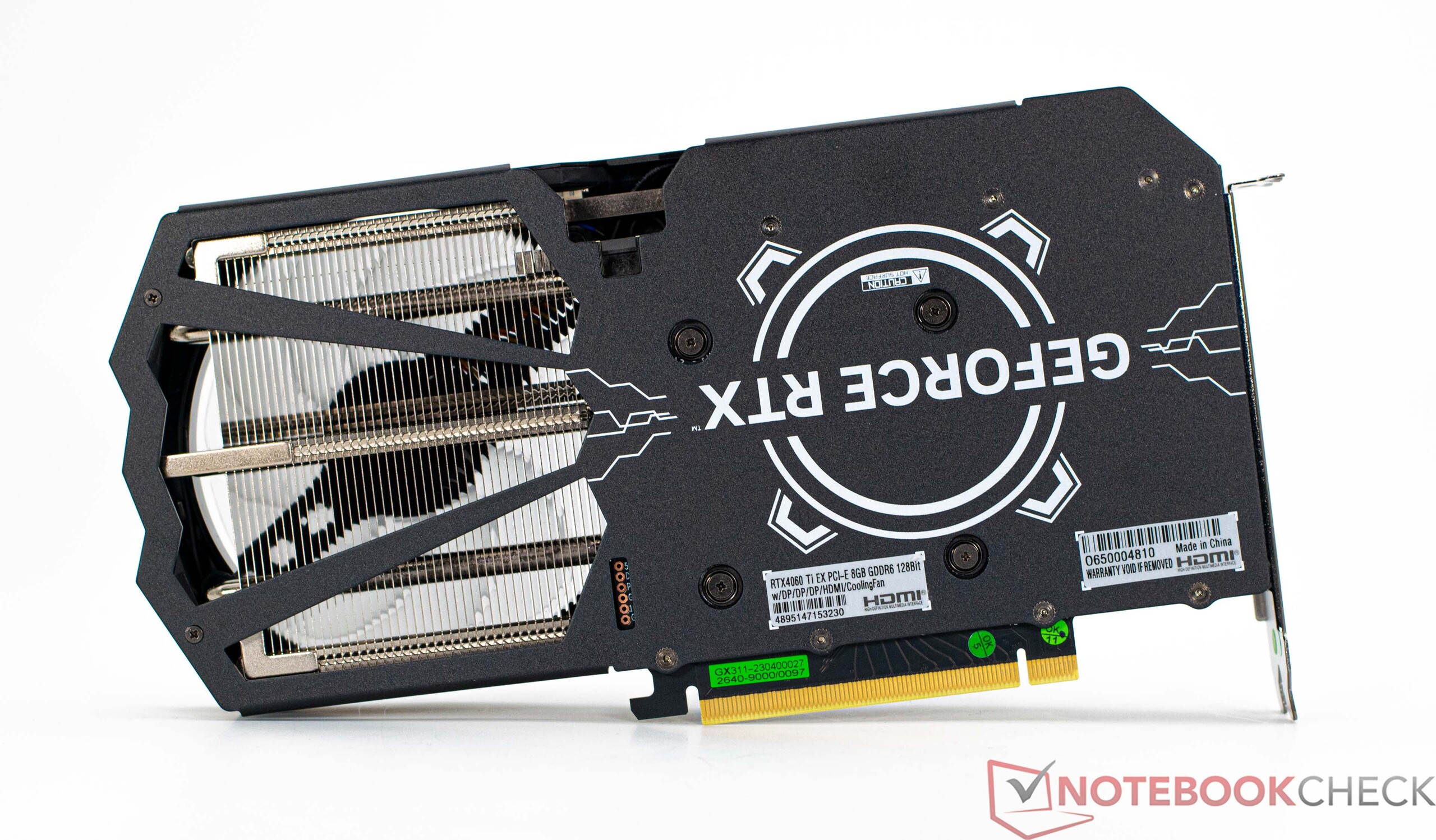

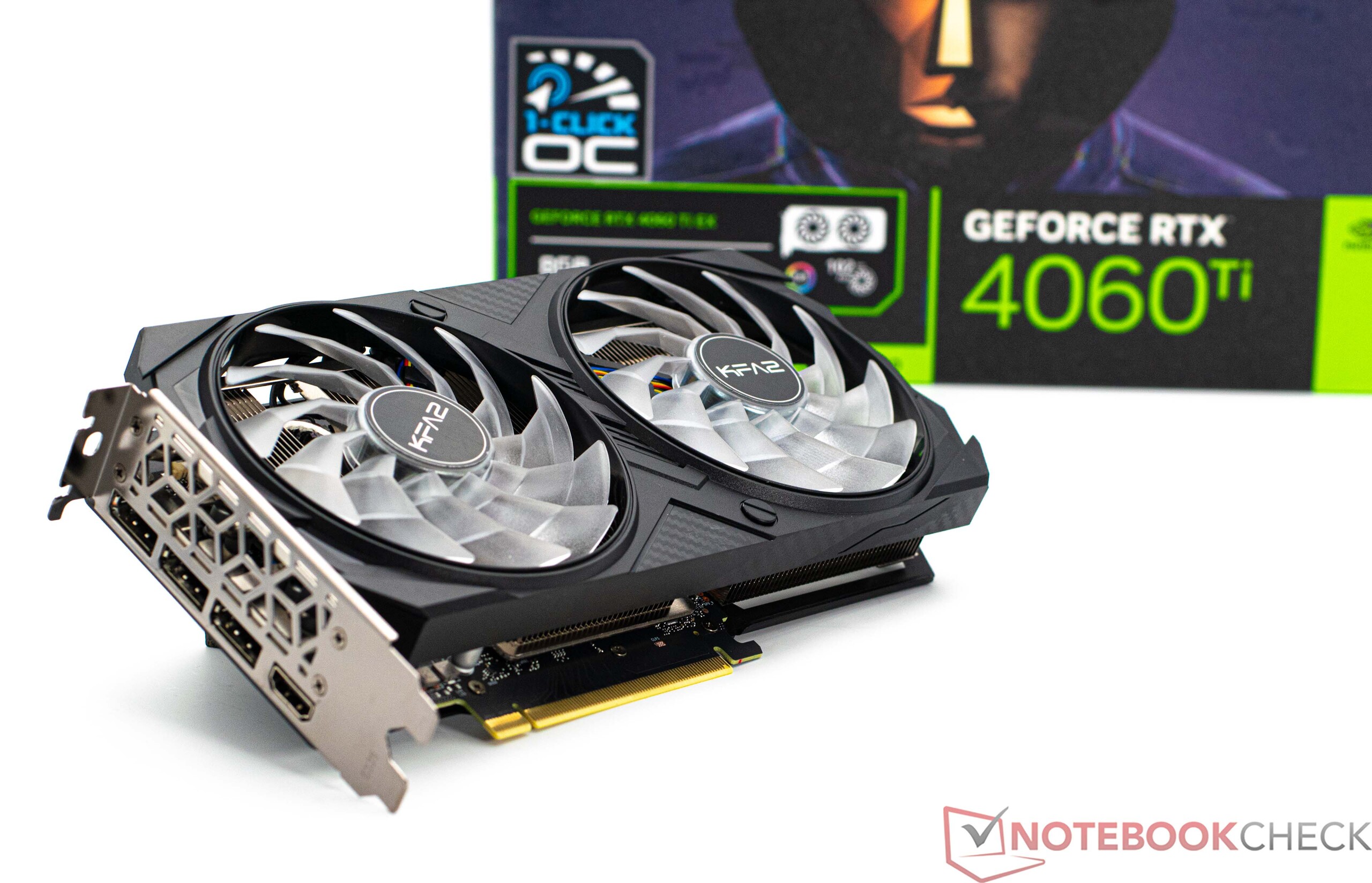

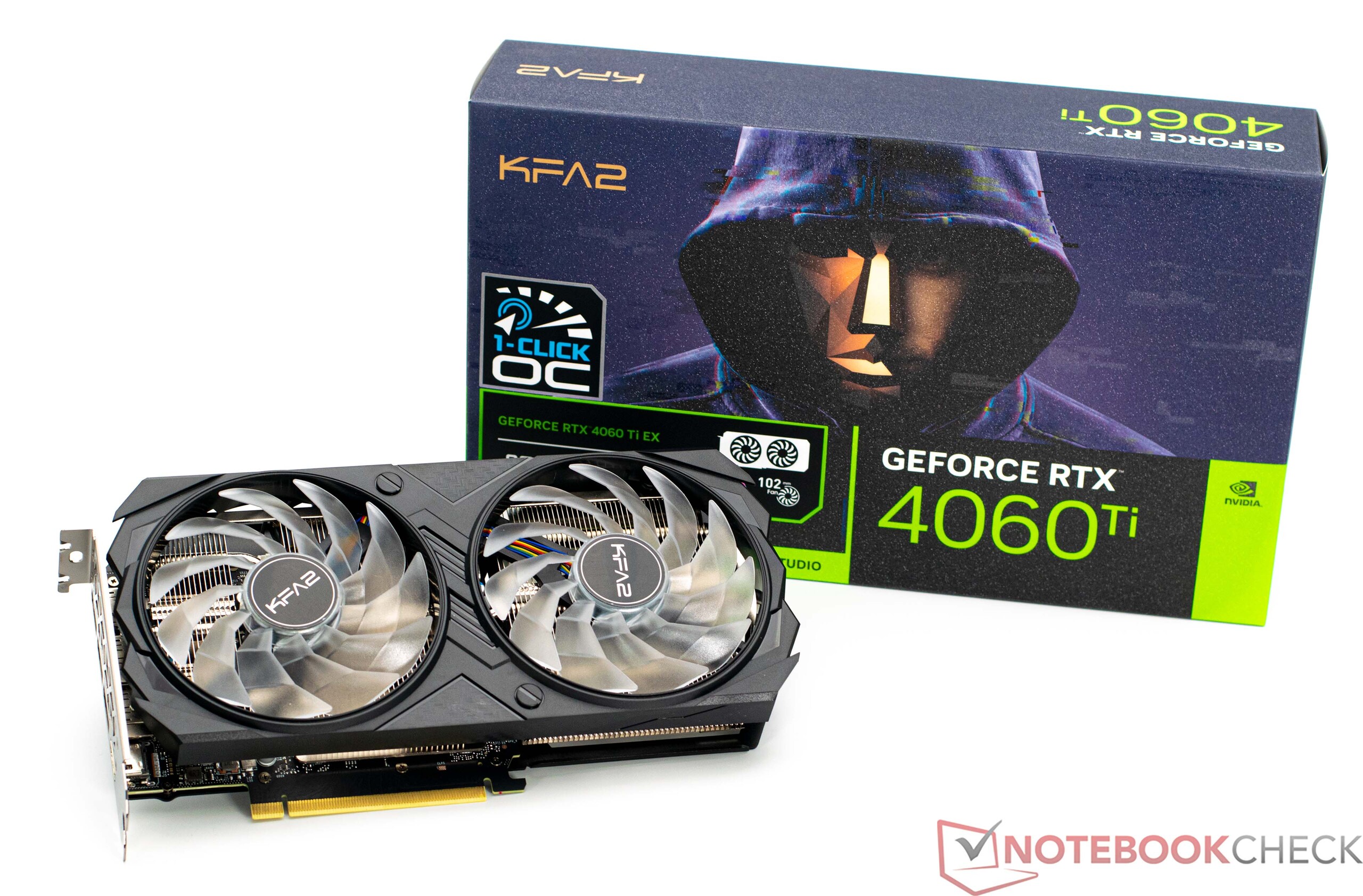

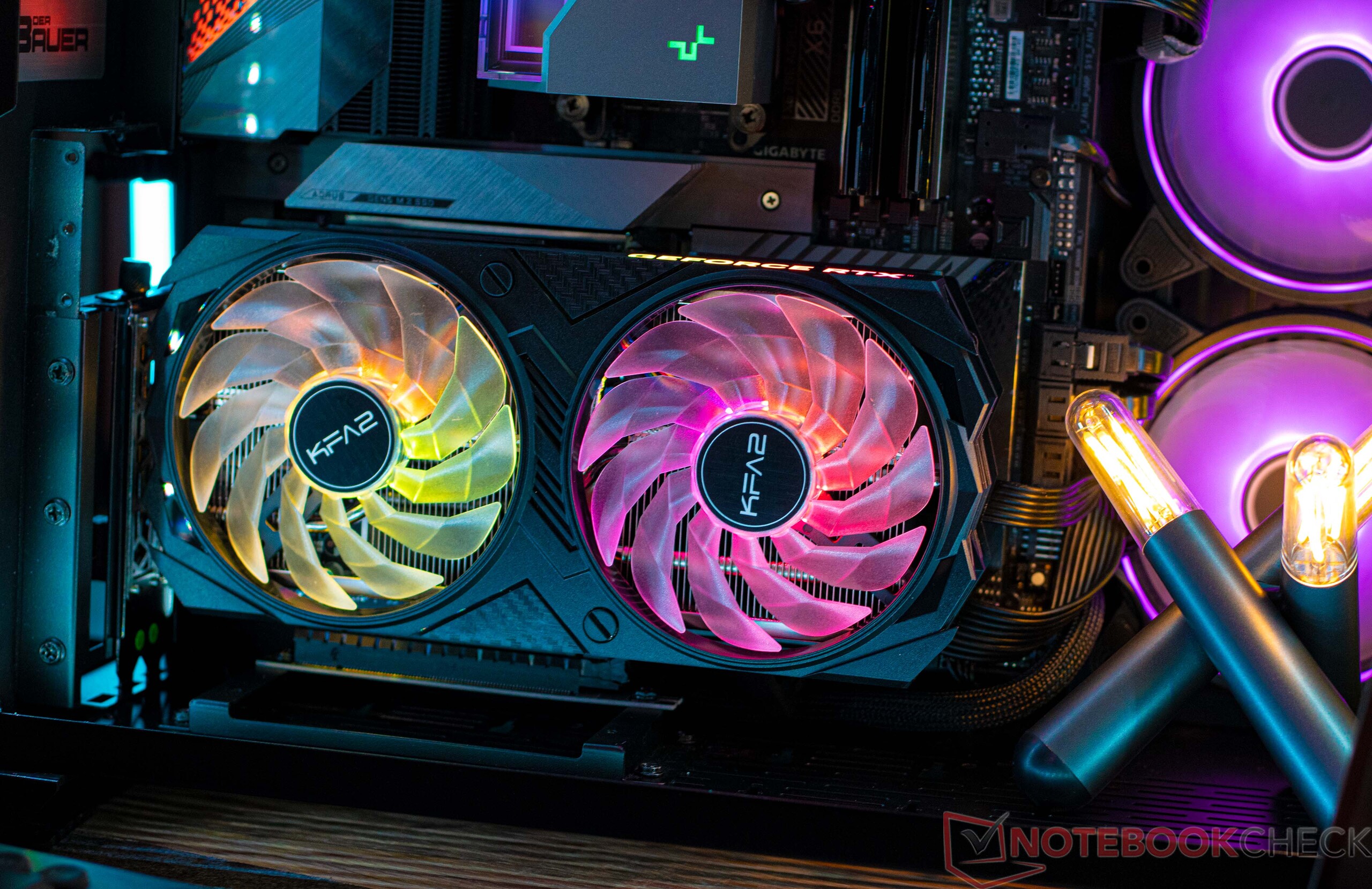

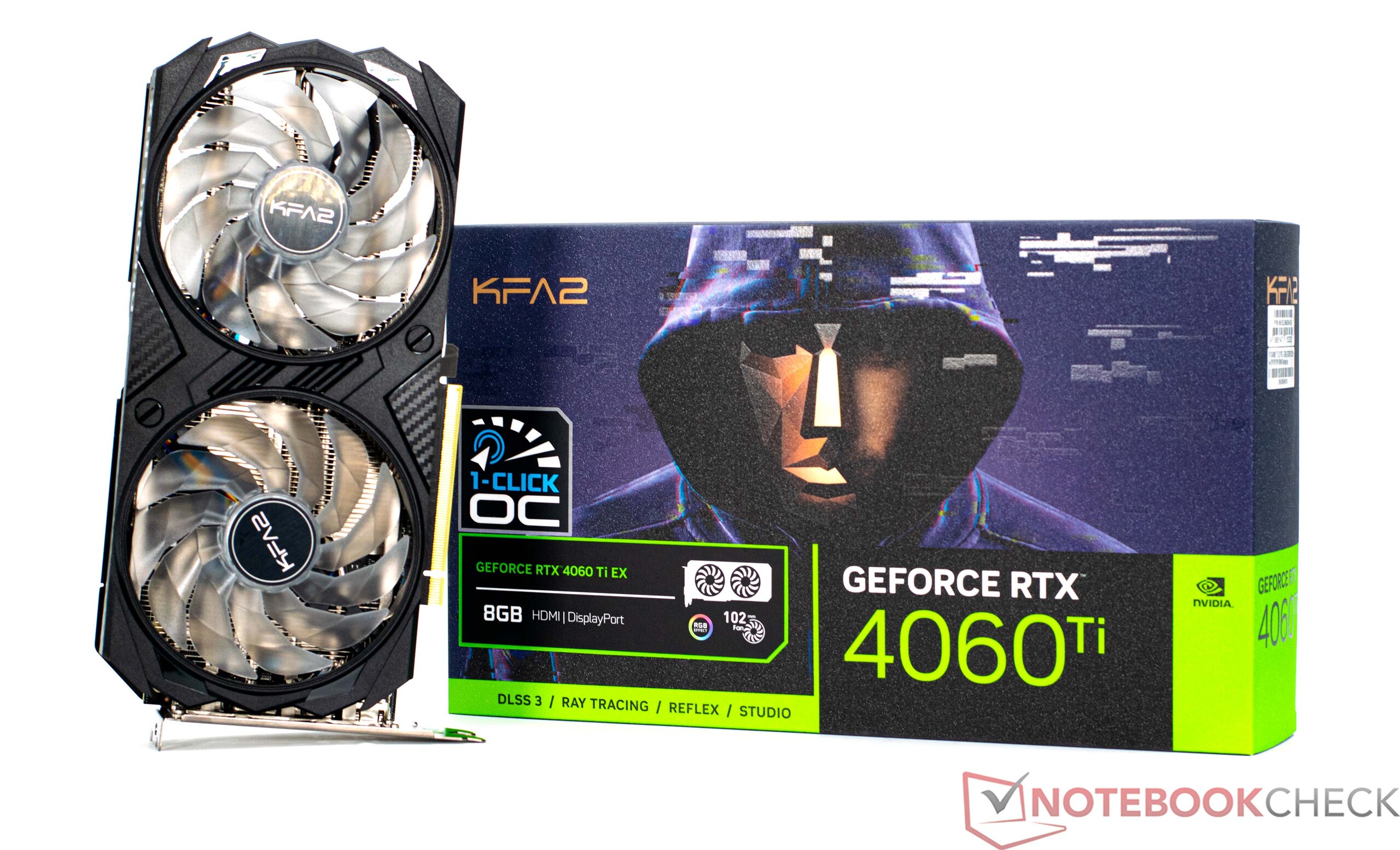

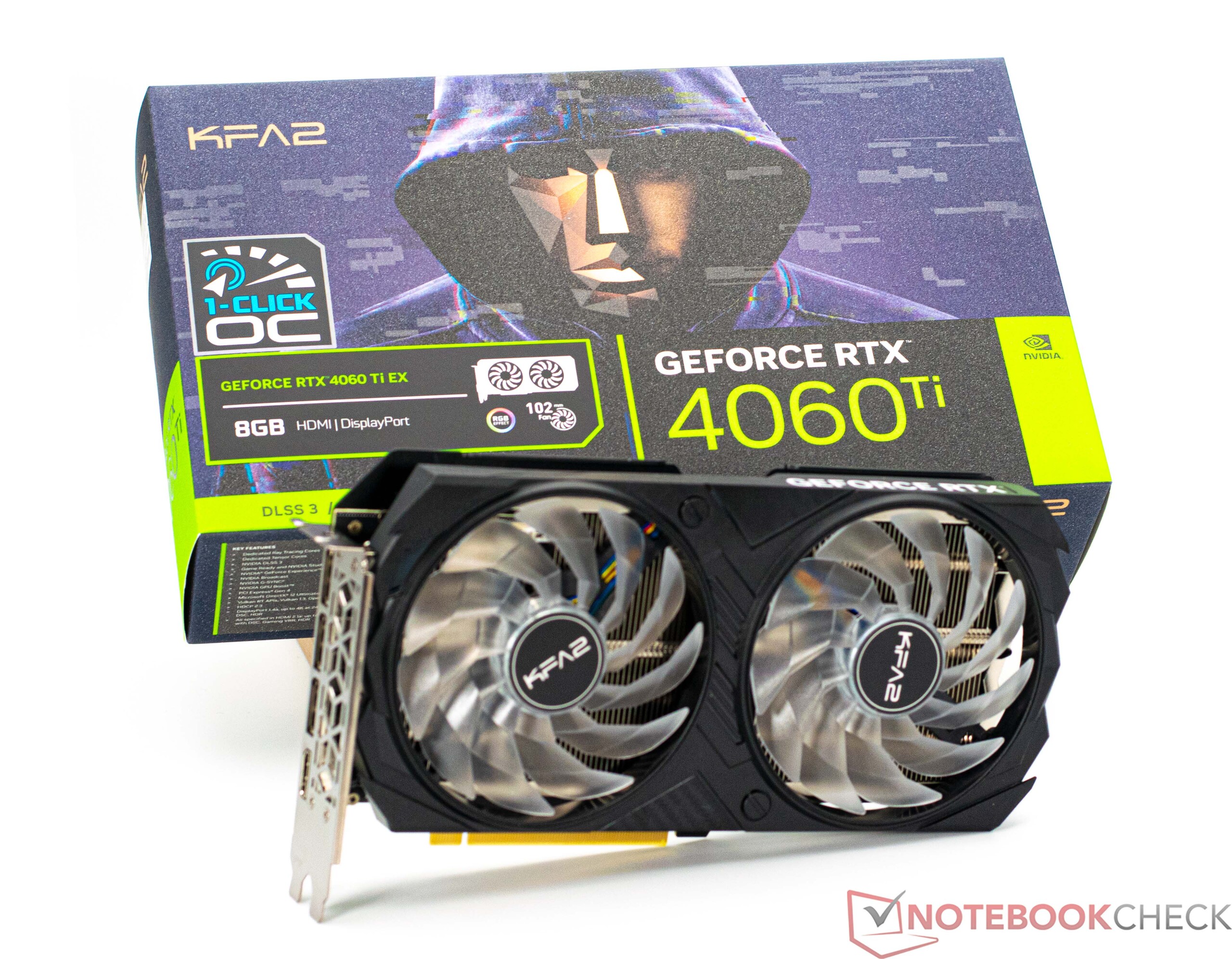

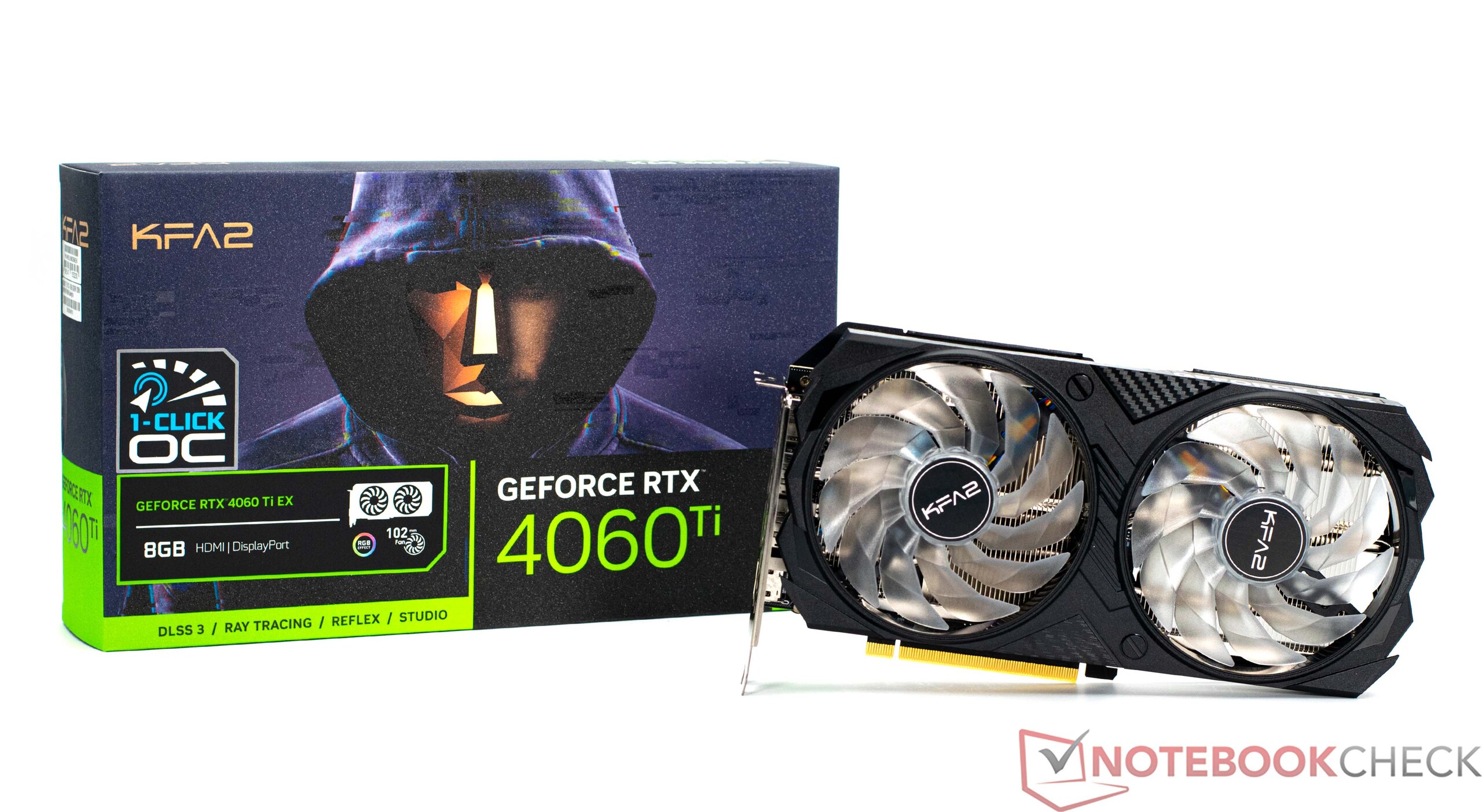

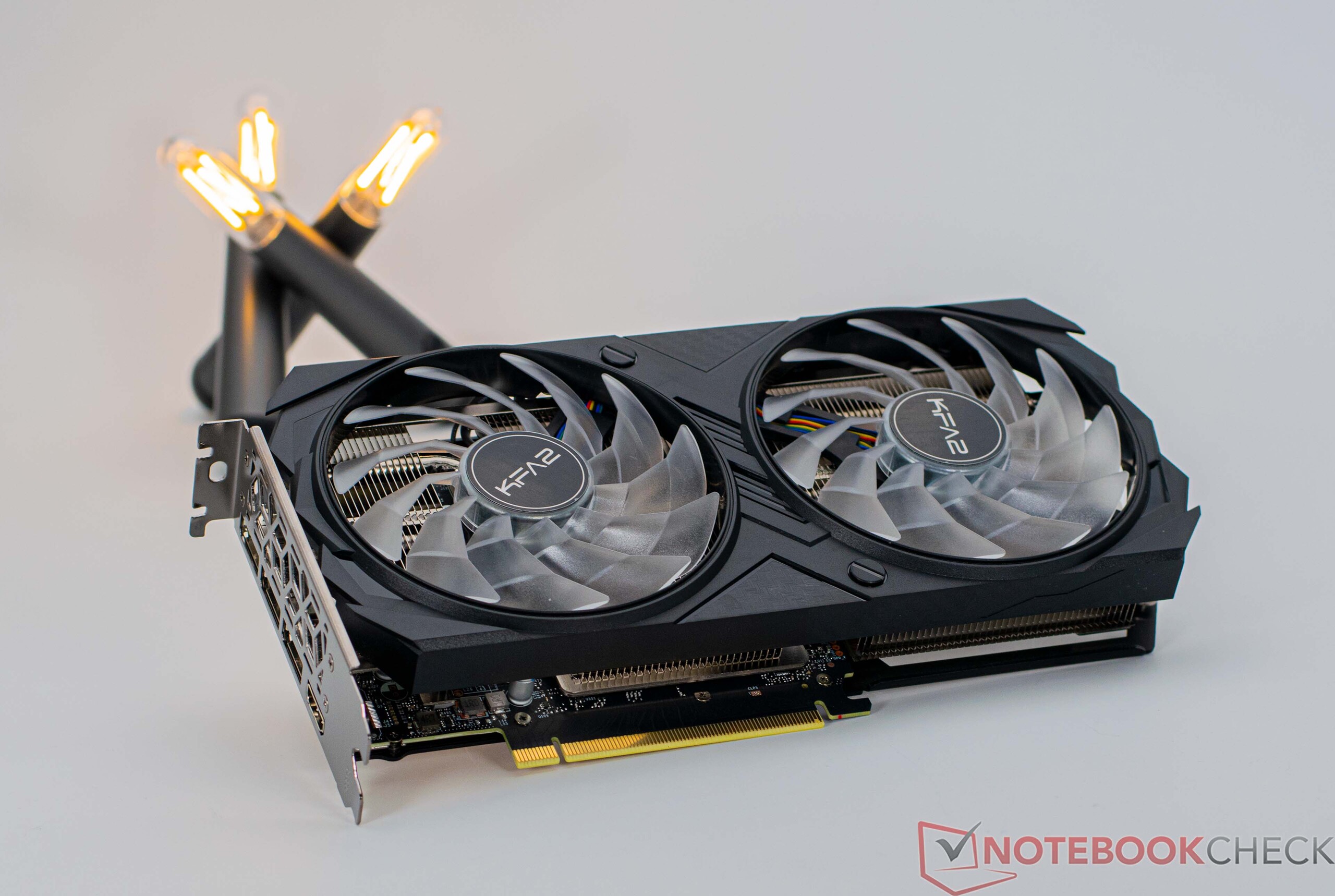

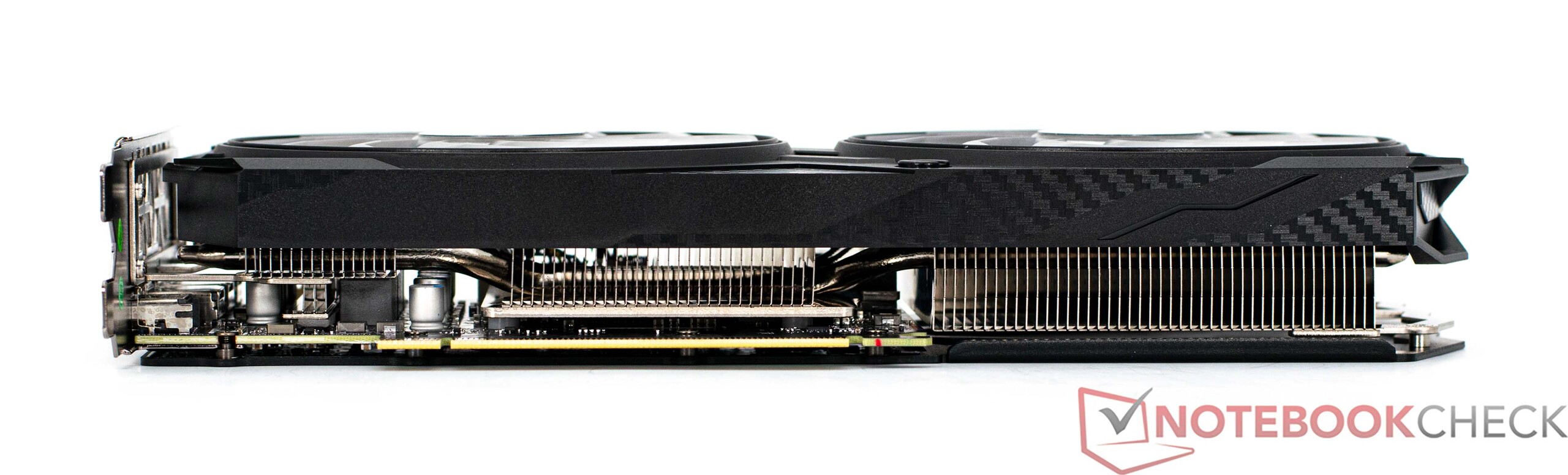

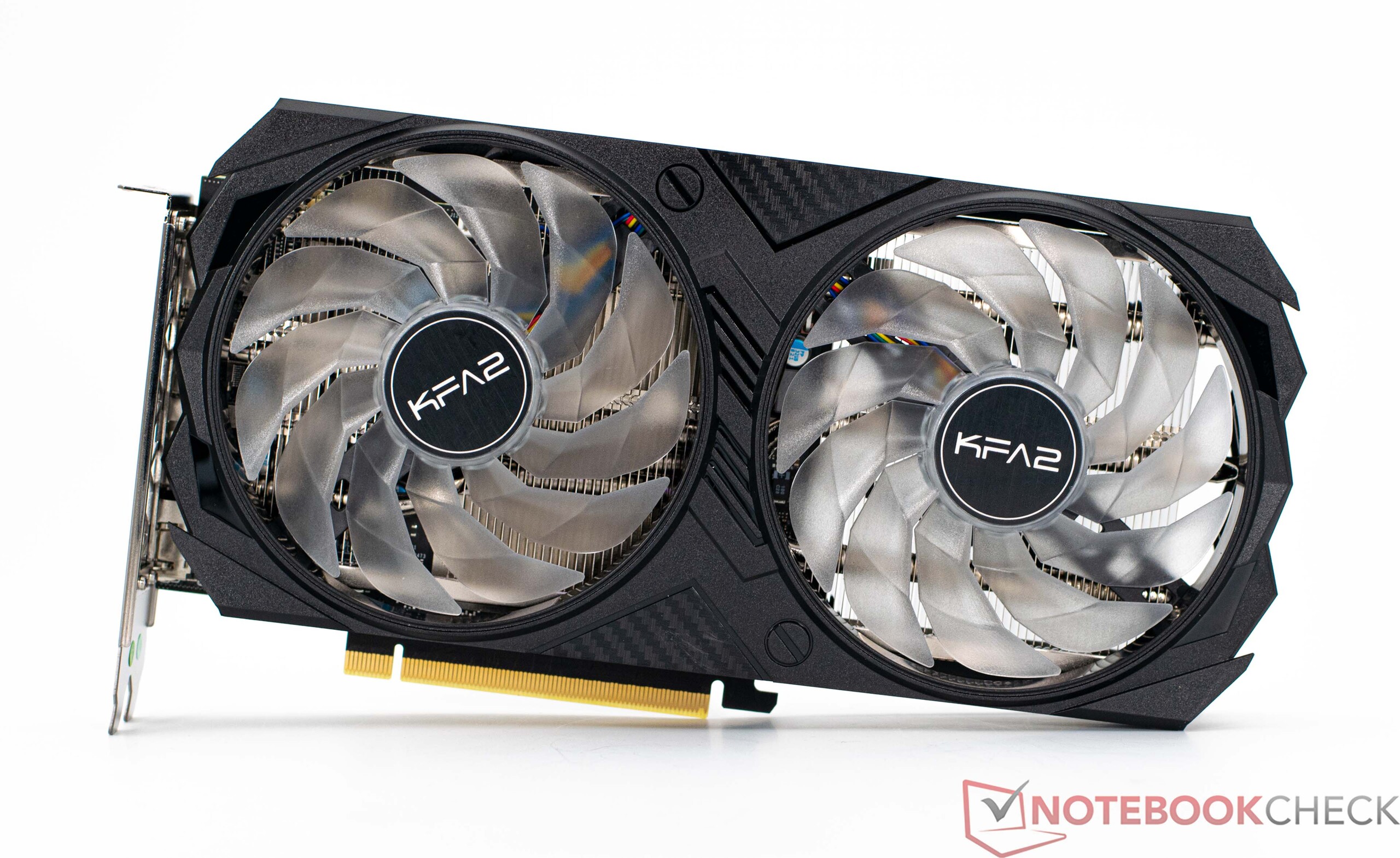

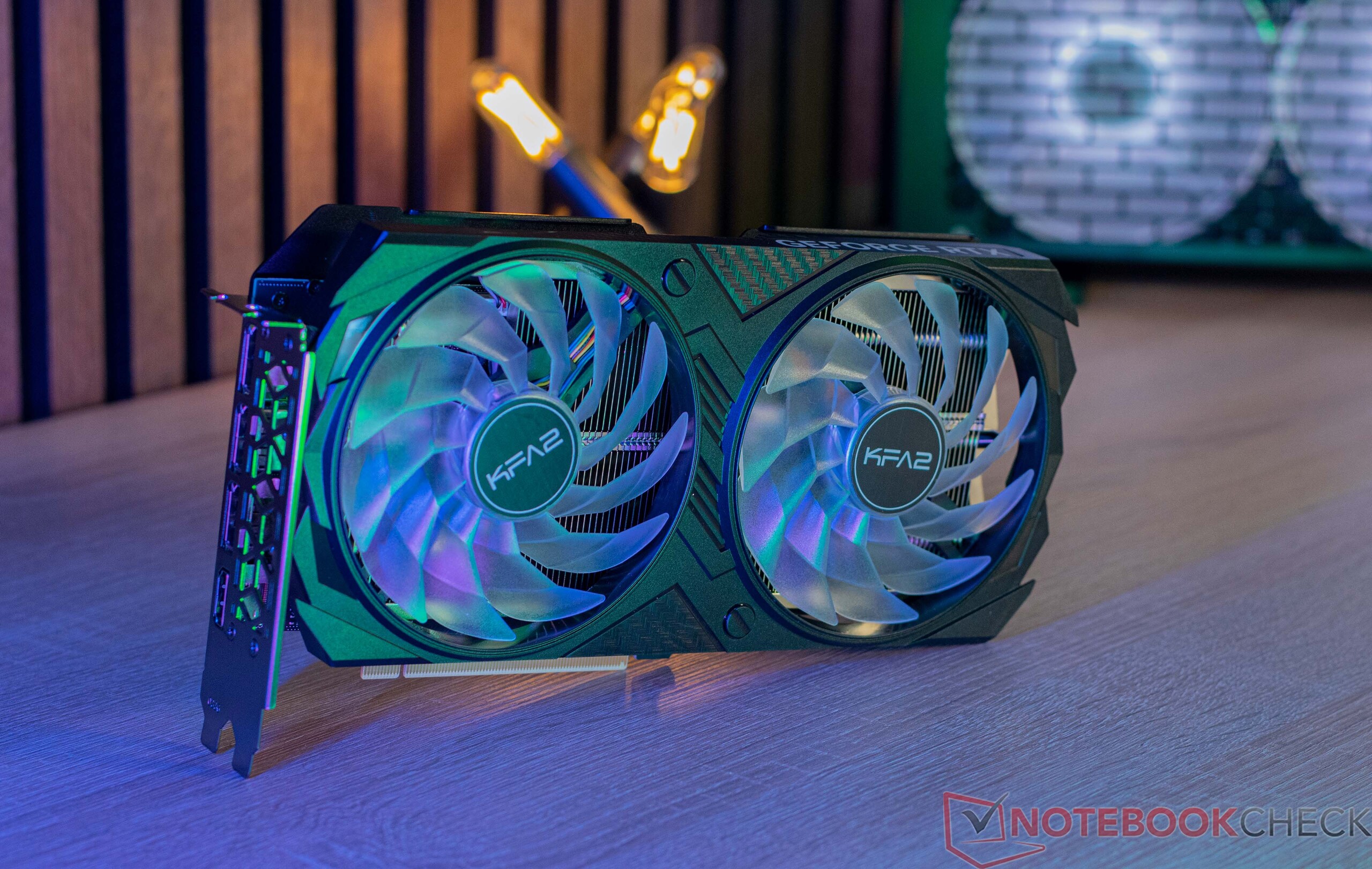

我们由KFA2制作的测试样品比微星GeForce RTX 4060 Ti Gaming X Trio 8G要小得多，因此，在挤进较小的机箱时，它面临的问题要少得多。此外，这个25厘米长的显卡只有一个2插槽的冷却器。这意味着相邻的PCIe插槽仍然可以使用，不会被大型冷却装置阻挡。我们在功耗方面没有看到任何偏差，这意味着KFA2的模型也要用160瓦来做。由于其低功耗，该电源并没有面临任何困难的挑战。与GeForce RTX 4060 Ti的创始版不同，KFA2GeForce RTX 4060 Ti EX采用了著名的、常用的6+2针PCIe电源适配器。Nvidia的参考模型配备了一个12VHPWR连接。

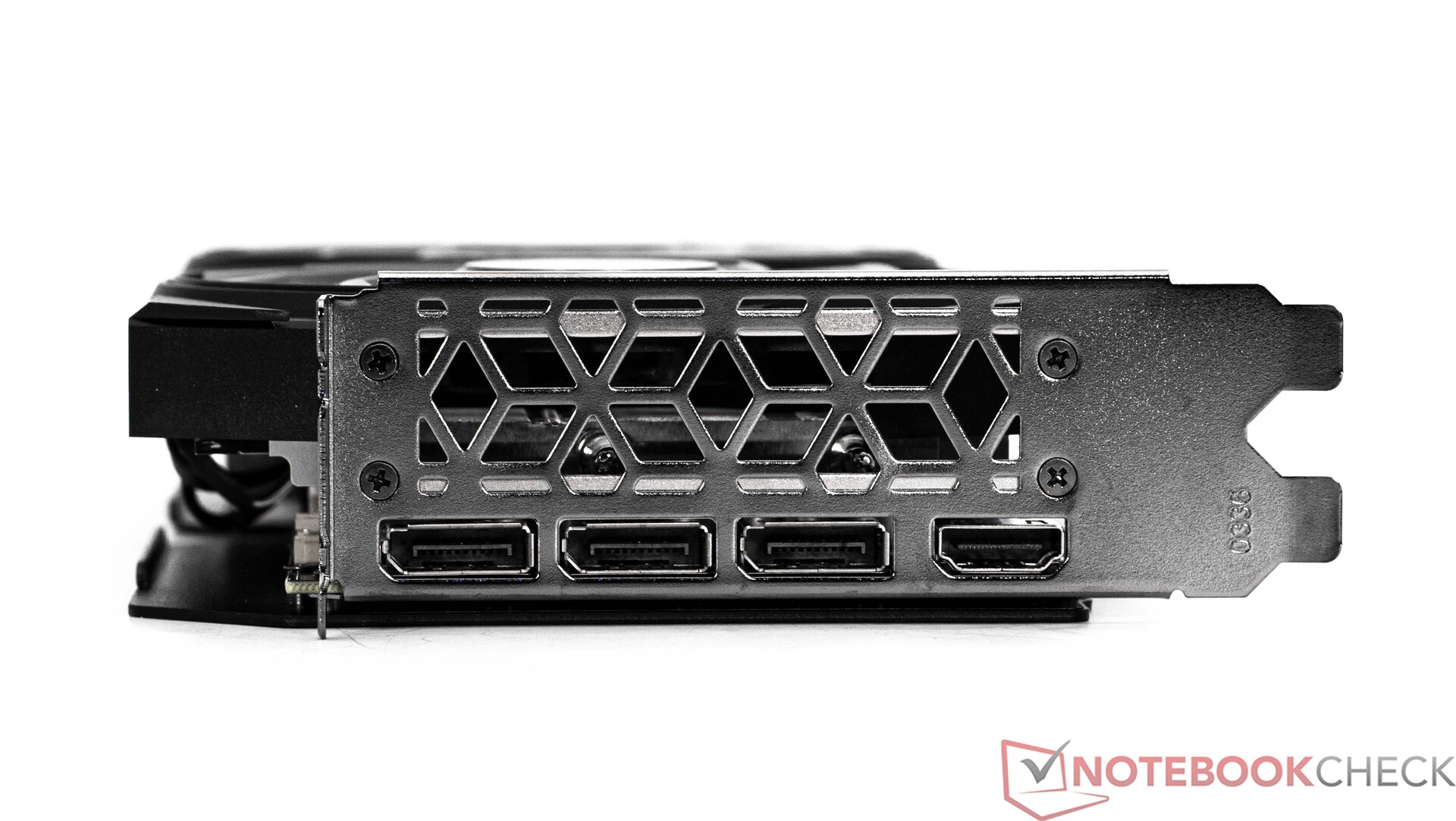

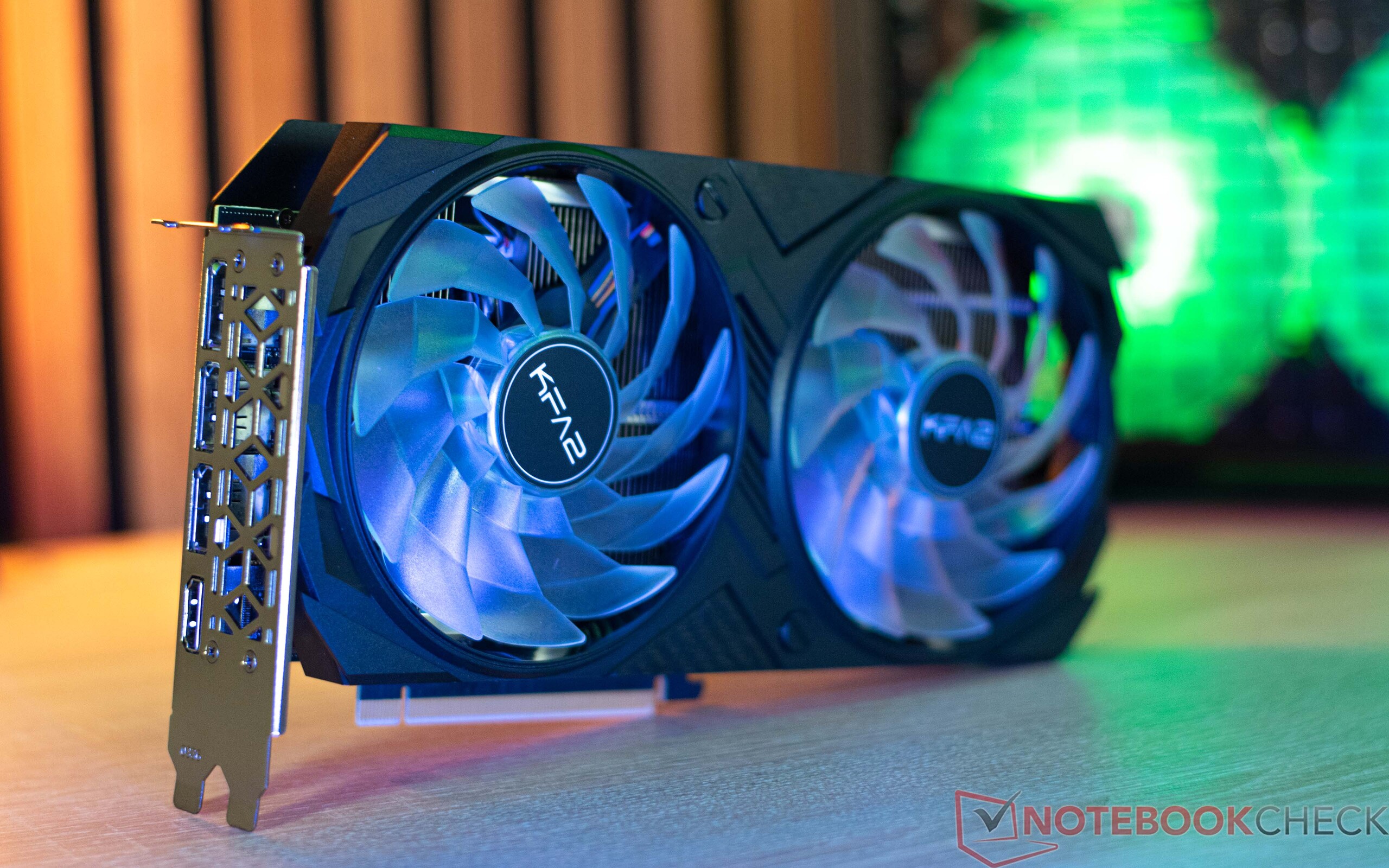

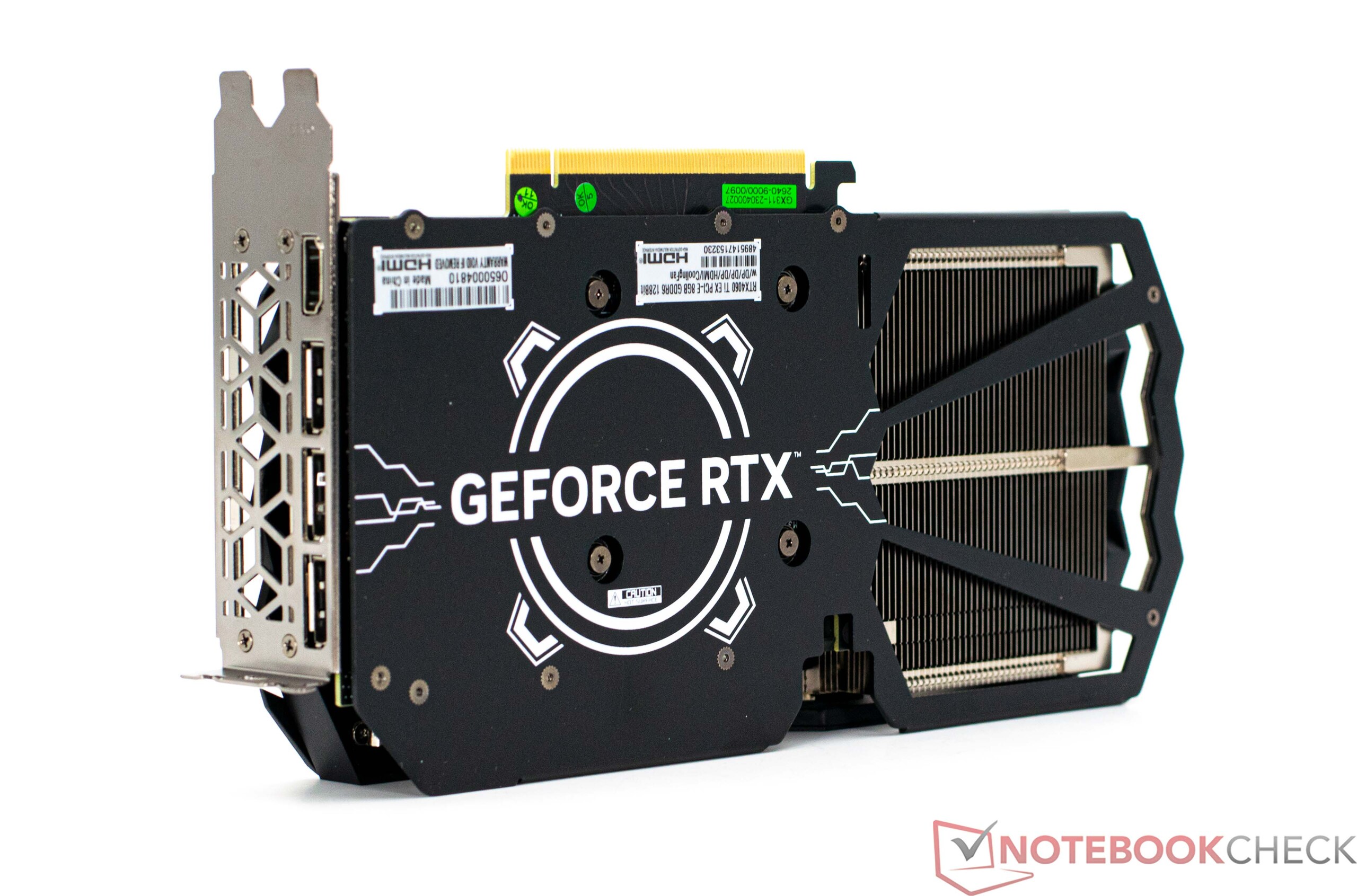

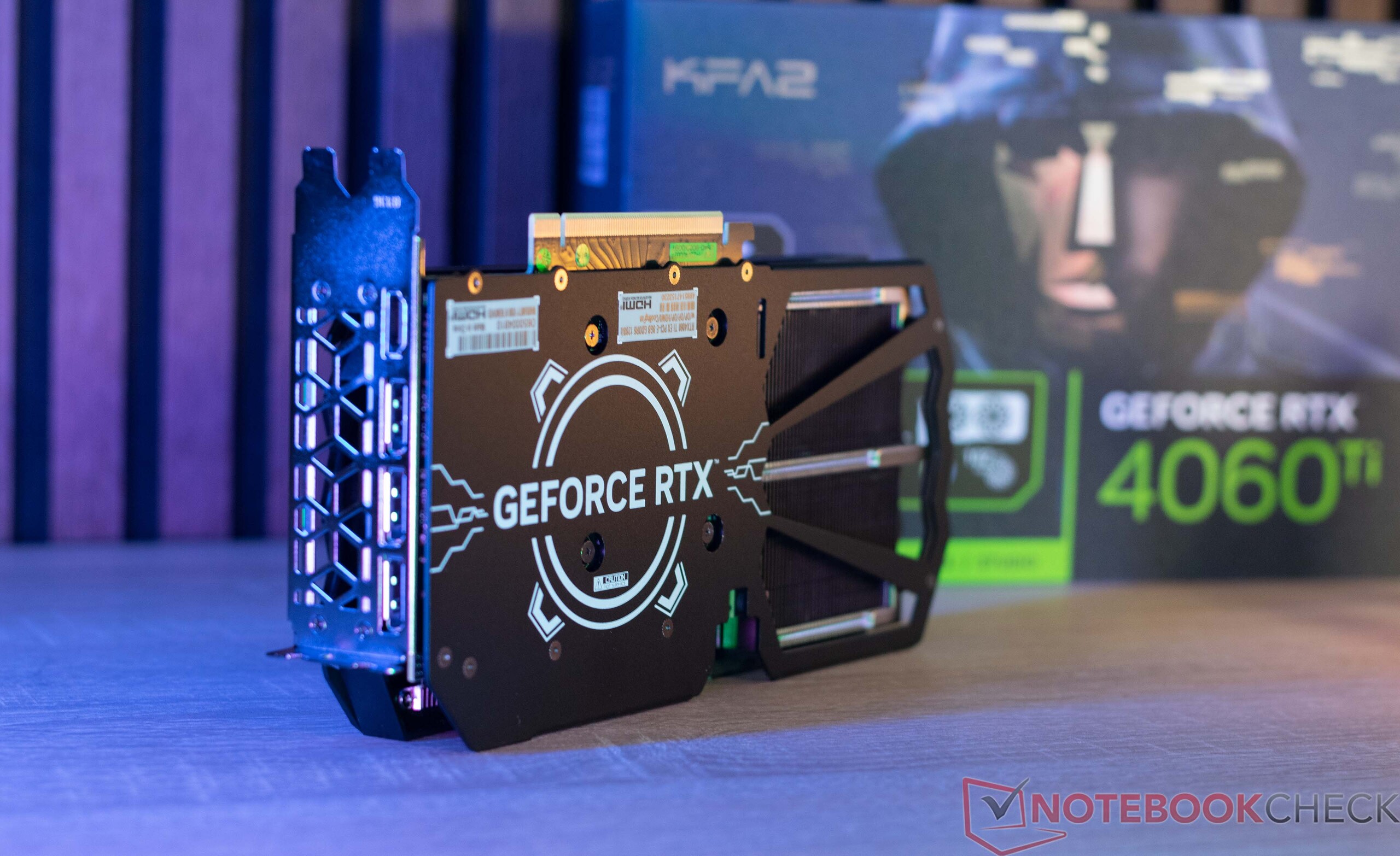

该显卡具有所有常见的外部连接选项。然而，它仍然没有DisplayPort 2.1。因此，屏幕可以通过HDMI 2.1a（1x）和/或DisplayPort 1.4a（3x）连接。

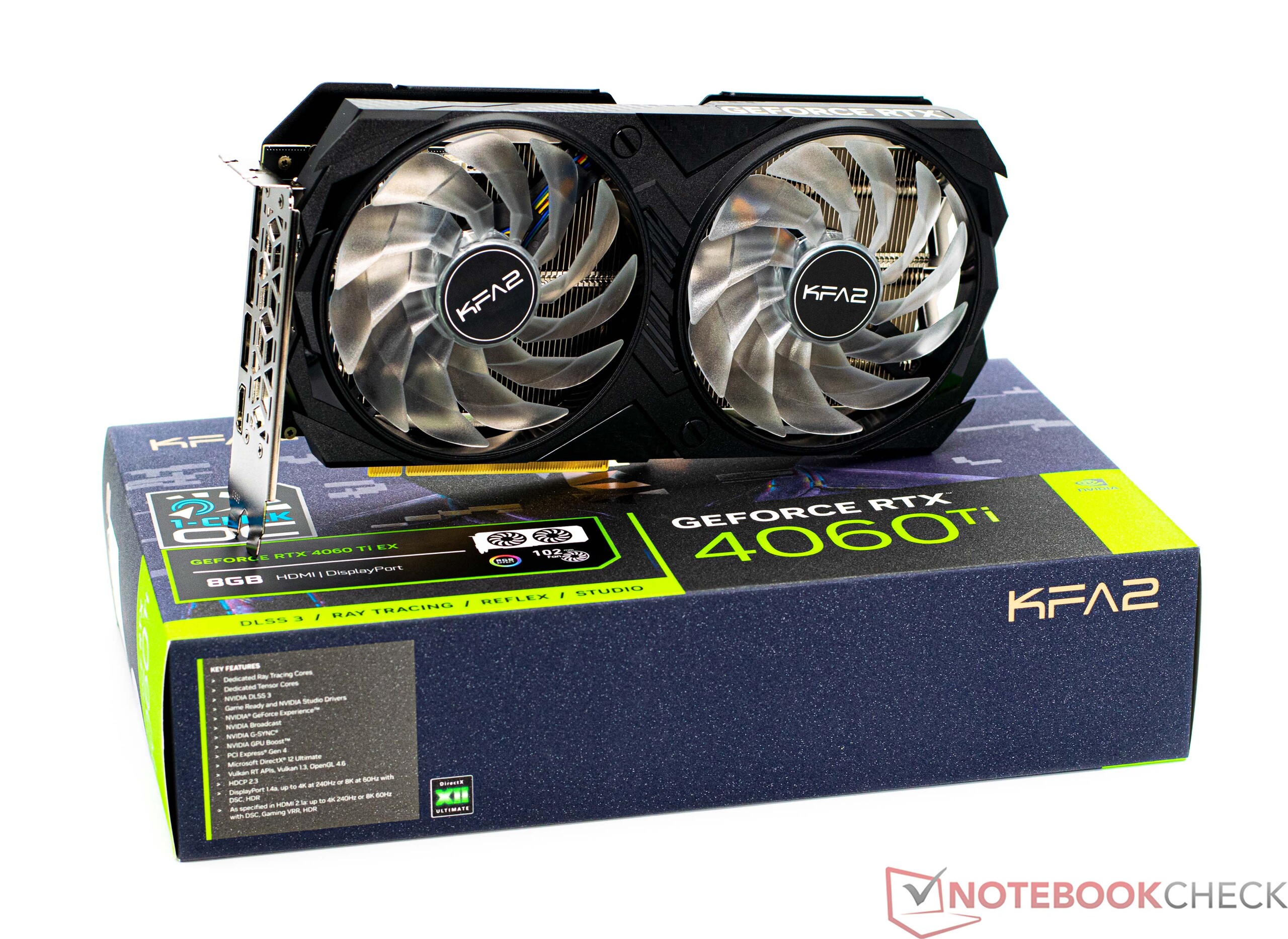

KFA2GeForce RTX 4060 Ti EX的详细信息
GeForce 显卡规格比较
| 功能 | RTX 4090 | RTX 4080 | RTX 4070 Ti | RTX 4070 | RTX 4060 Ti | RTX 3070 | RTX 3060 Ti |
| 芯片 | AD102 | AD103 | AD104 | AD104 | AD106 | GA104 | GA104 |
| FinFET工艺 | 台积电4N | 台积电4N | 台积电4N | 台积电4N | 台积电4N | 8nm | 8nm |
| CUDA核心 | 16,384 | 9,728 | 7,680 | 5,888 | 4,352 | 5,888 | 4,864 |
| 纹理单元 | 512 | 304 | 240 | 184 | 136 | 184 | 152 |
| 张量核心 | 512 第四代 | 304 第四代 | 240 第四代 | 184 第四代 | 136 第四代 | 184 第三代 | 152 第三代 |
| RT核心 | 128 | 76 | 60 | 46 | 34 | 46 | 38 |
| GPU基本时钟 | 2,235 MHz | 2,205 MHz | 2,310 MHz | 1,920 MHz | 2,310 MHz | 1,500 MHz | 1,410 MHz |
| GPU提升时钟 | 2,520 MHz | 2,505 MHz | 2,610 MHz | 2,475 MHz | 2,535 MHz | 1,725 MHz | 1,665 MHz |
| 内存总线 | 384位 | 256位 | 192位 | 192位 | 128位 | 256位 | 256位 |
| 内存带宽 | 1,008 GB/s | 716.8 GB/s | 504.2 GB/s | 504.2 GB/s | 288 GB/s | 448 GB/s | 448 GB/s |
| 显存 | 24 GB GDDR6X | 16 GB GDDR6X | 12 GB GDDR6 | 12 GB GDDR6X | 8GB GDDR6 | 8 GB GDDR6 | 8 GB GDDR6 |
| 消耗功率 | 450 W | 320 W | 285 W | 215 W | 160 W | 220 W | 200 W |
Infos about our test system
KFA2 GeForce RTX 4060 Ti EX
Processor
AMD Ryzen 9 7950X 16 x 4.5 - 5.7 GHz, 230 W PL2 / Short Burst, 170 W PL1 / Sustained, Raphael (Zen 4)
Graphics adapter
NVIDIA GeForce RTX 4060 Ti 8G - 8 GB VRAM ( including 160 W Dynamic Boost), GDDR6, Nvidia
Memory
32 GB
, DDR5-6000 (EXPO)
Display
32.00 inch 16:9, 3840 x 2160 pixel 138 PPI, Innolux (M315DCA-K7B), 144 Hz
Storage
Corsair MP600, 2048 GB
Weight
675 g, Power Supply: 0 g
Price
399 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

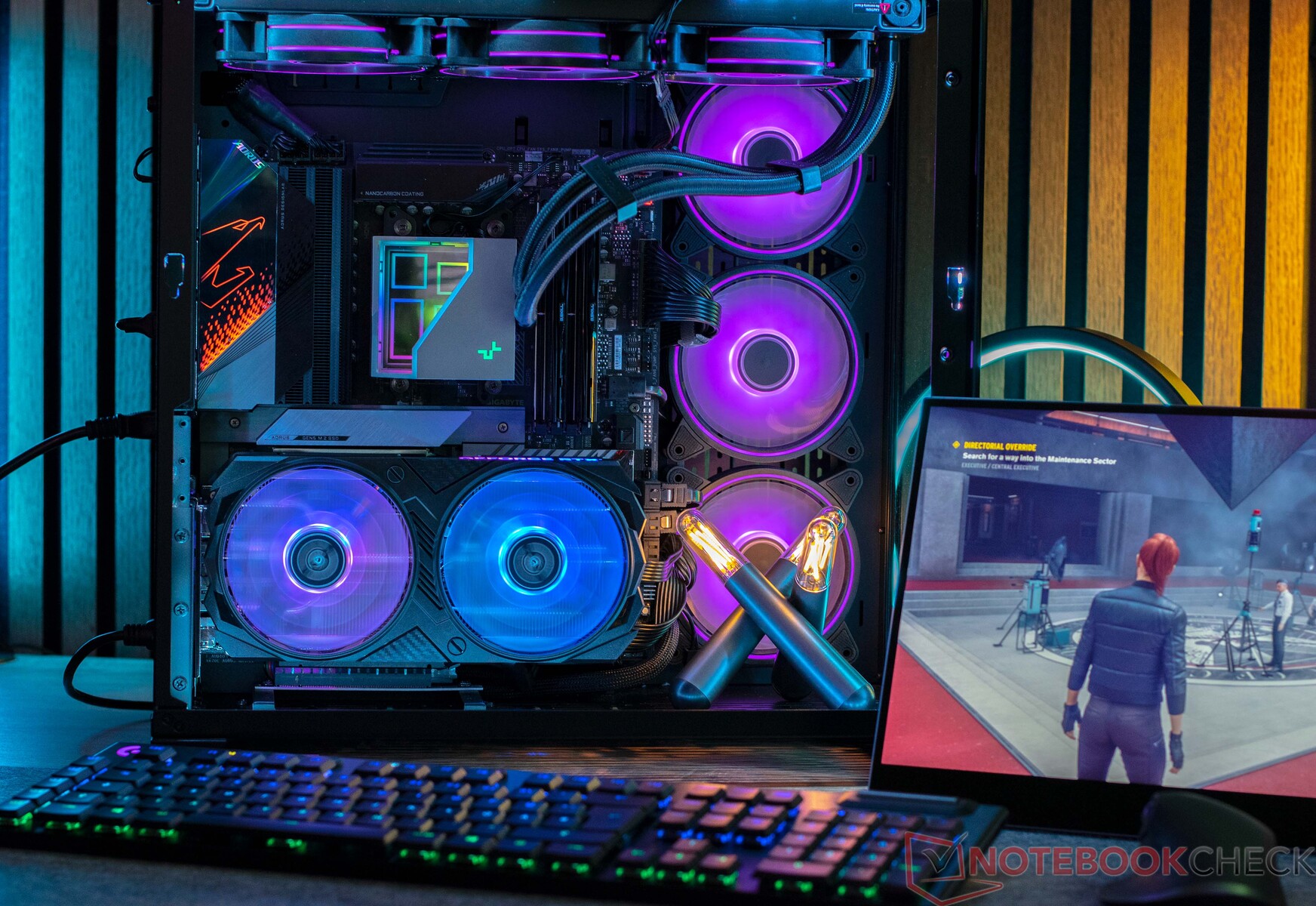

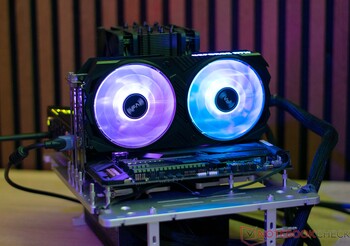

我们的测试系统的细节
我们用这个系统进行了以下基准测试和试验：
- Lian-Li O11动态
- AMD Ryzen 9 7950X
- Gigabyte X670E Aorus Master, BIOS：F11
- Deepcool LT720
- 海瑟尔HX1200i电源
- G.Skill Trident Z5 Neo DDR5-6000 2x 16 GB, EXPO (DDR5-6000 CL30-38-38-96)
- 海瑟尔MP600，2TB
- Crucial MX500, 2 TB
- 微软Windows 11专业版64位（版本22H2）
关于KFA2GeForce RTX 4060 Ti EX的详细信息

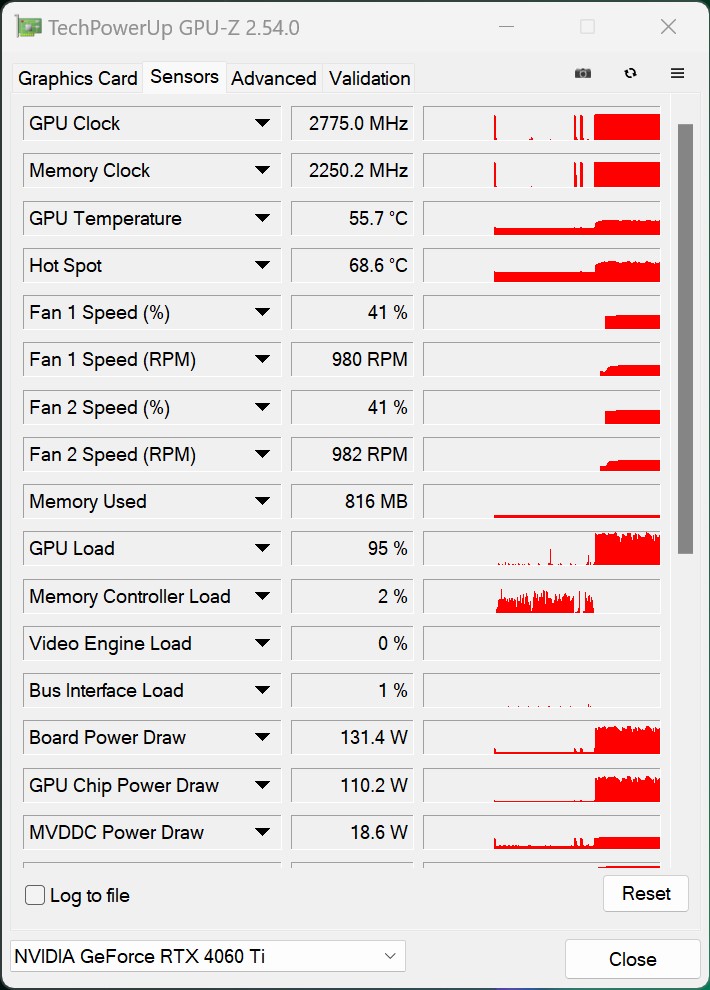

与Nvidia的创始人版相比，KFA2给他们的GeForce RTX 4060 Ti E的提升时钟提供了更多的回旋空间。毕竟，我们的测试样本是GeForce RTX 4060 Ti的OC模型。在标准配置文件中，其速率为2,640兆赫 - 105兆赫的改进。使用调谐工具 "Xtreme Tuner Plus"，你也可以激活OC配置文件，这给显卡提供了额外的15兆赫工作（2,655兆赫提升时钟）。然而，我们使用标准配置文件进行了所有测试。我们并不指望通过激活OC模式获得任何性能提升，因为在我们的基准测试中，显卡的提升时钟速率已经远远高于预期。在我们的游戏测试中，GPU的时钟速率在2700至2775兆赫之间保持平衡。KFA2GeForce RTX 4060 Ti EX的内存数量与它的前辈相同，即NvidiaGeForce RTX 3060 Ti.虽然，在128位，其内存连接已经大大缩水，导致内存带宽大大降低（288GB/s）。

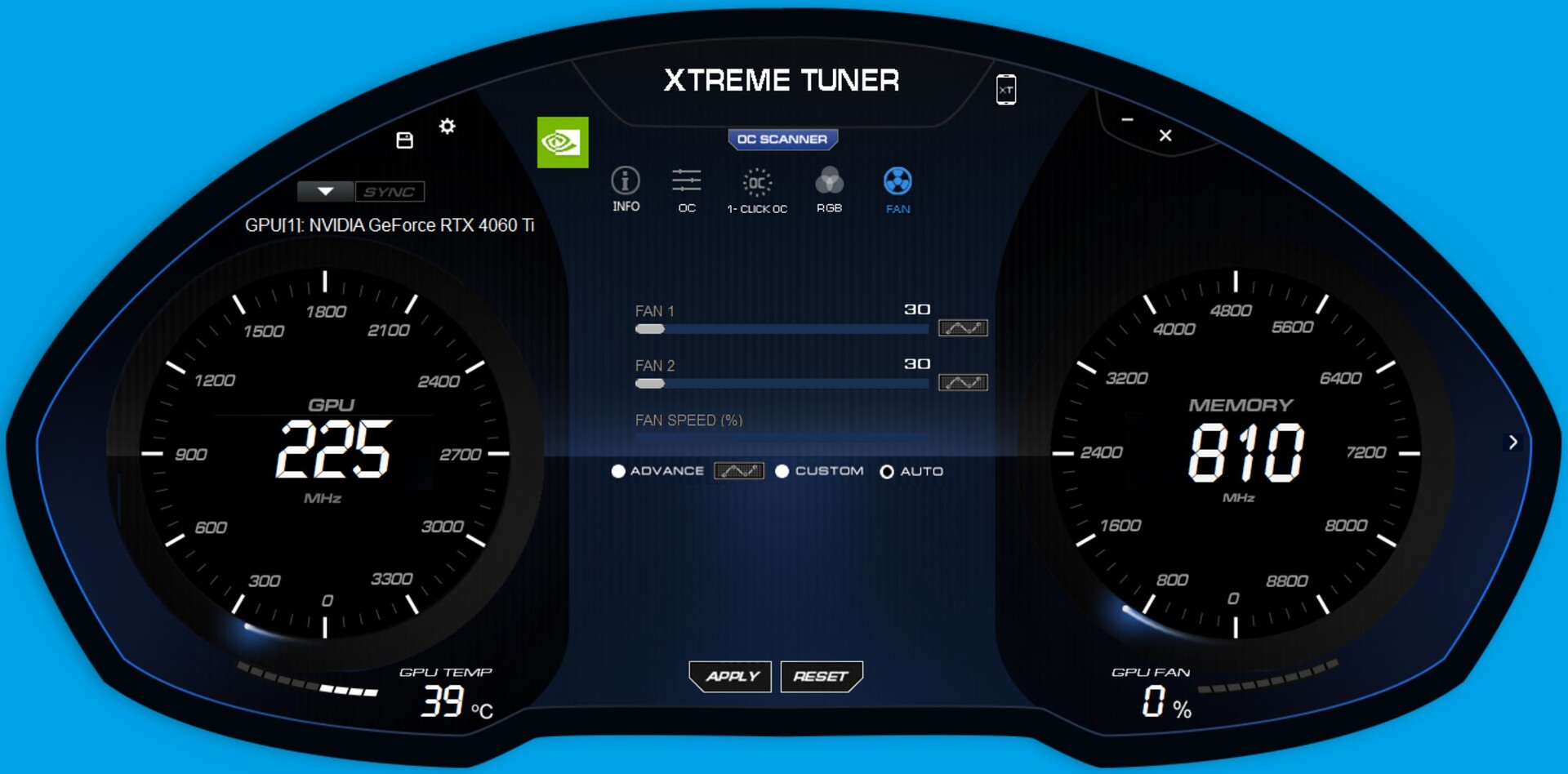

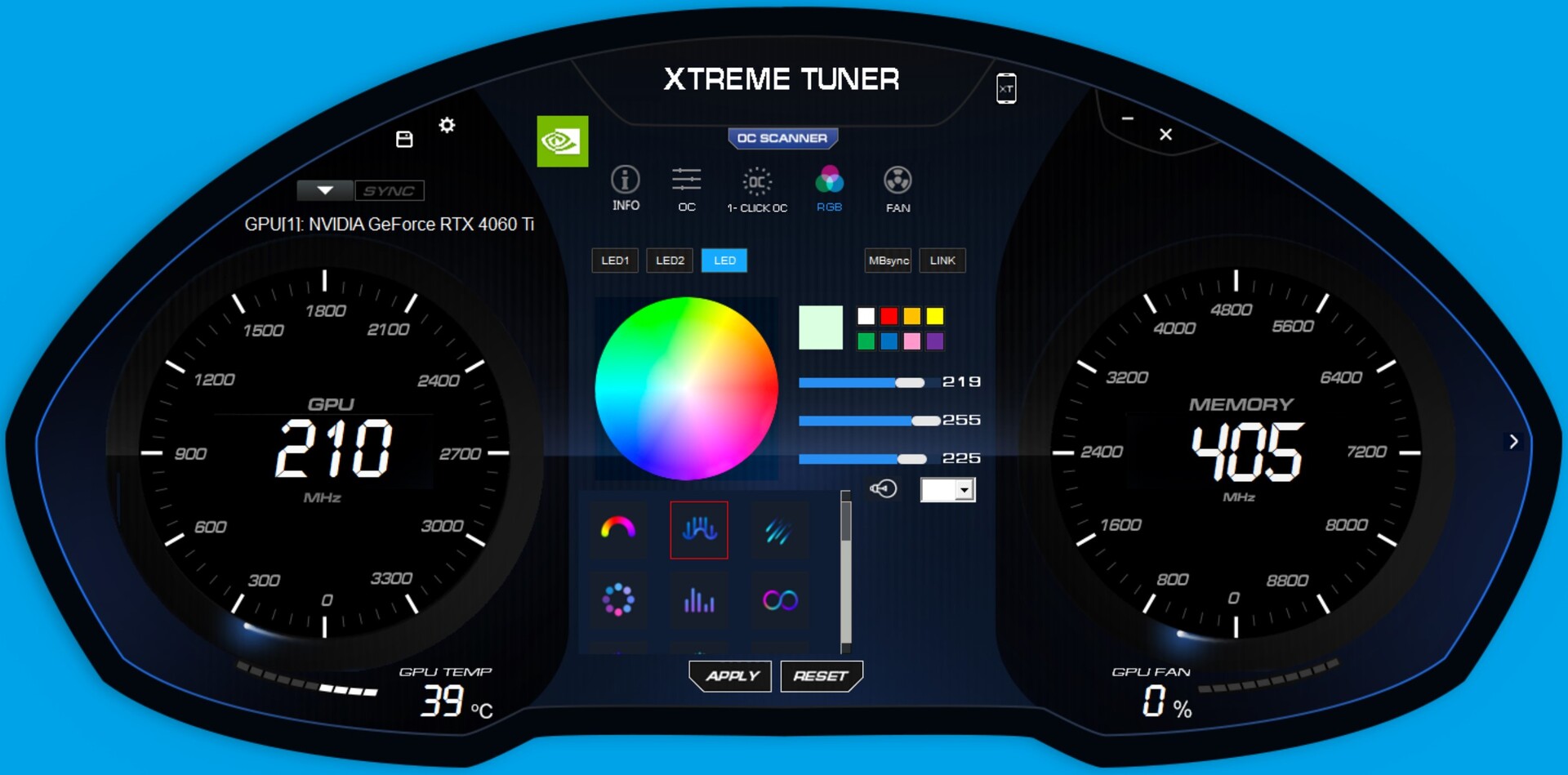

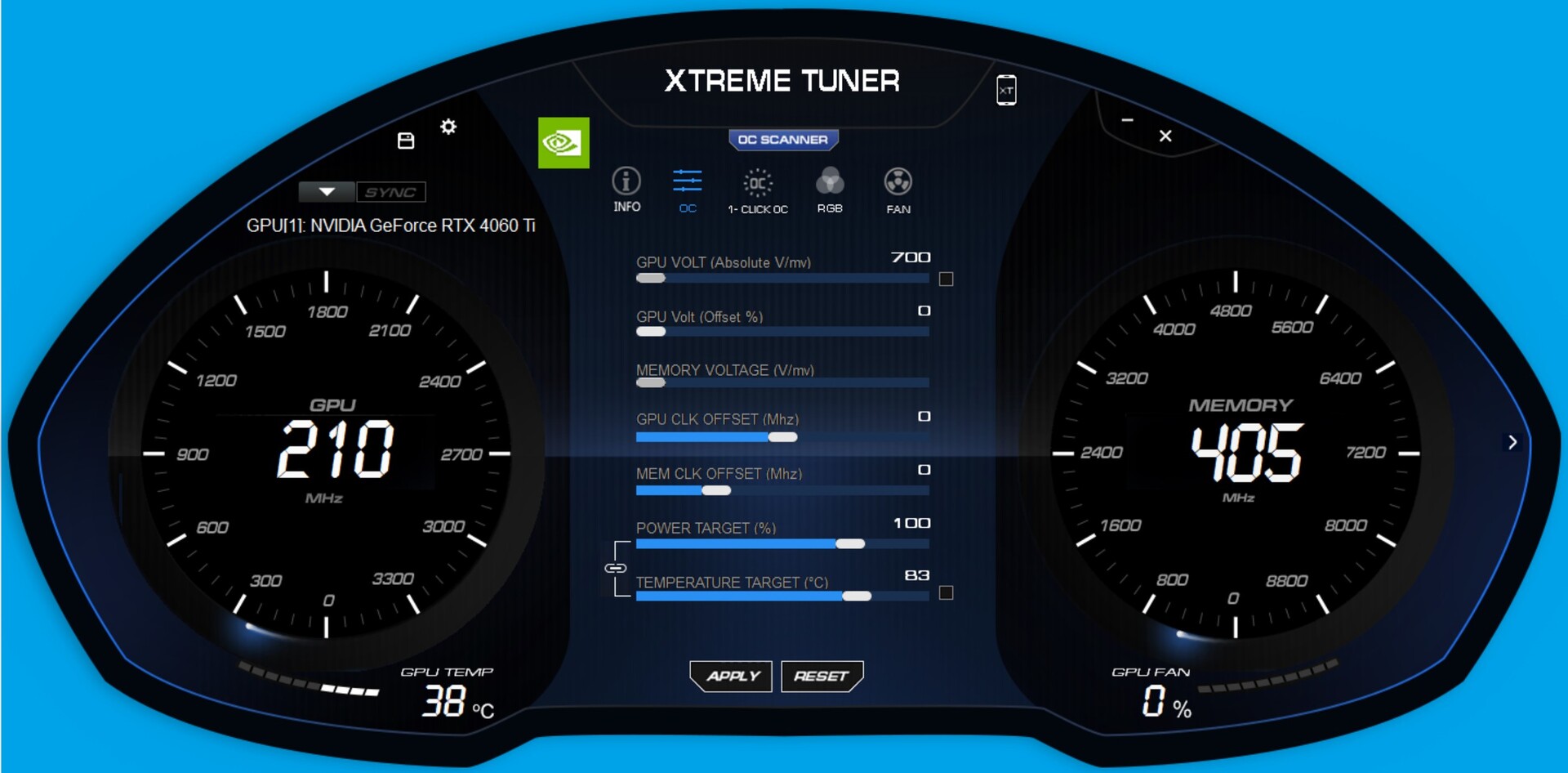

Xtreme Tuner Plus - 不仅仅是一个OC工具

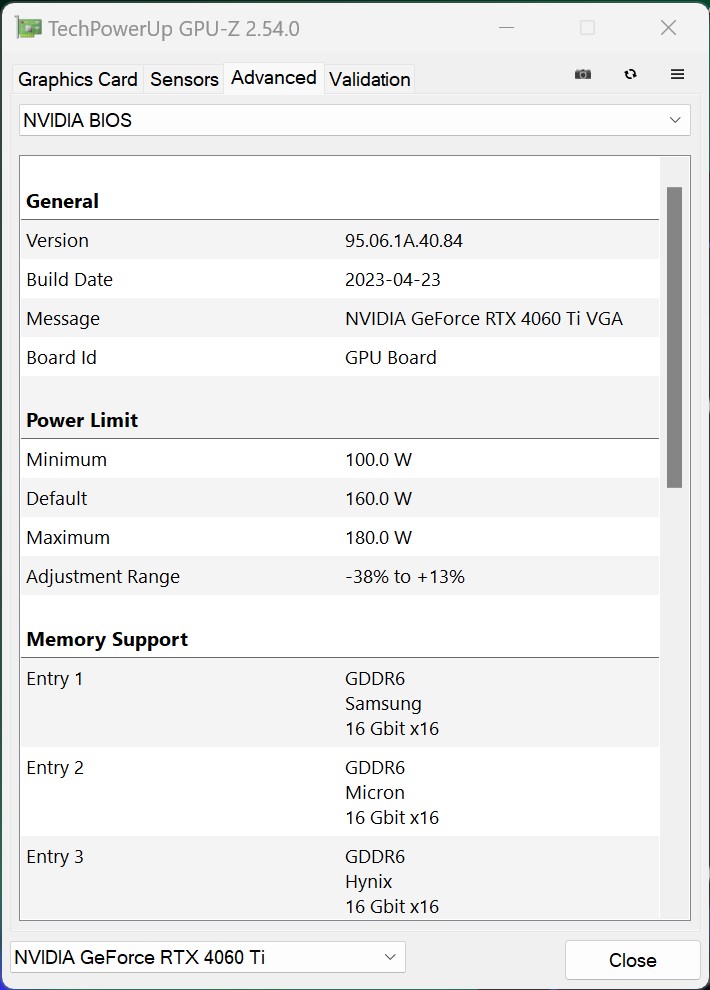

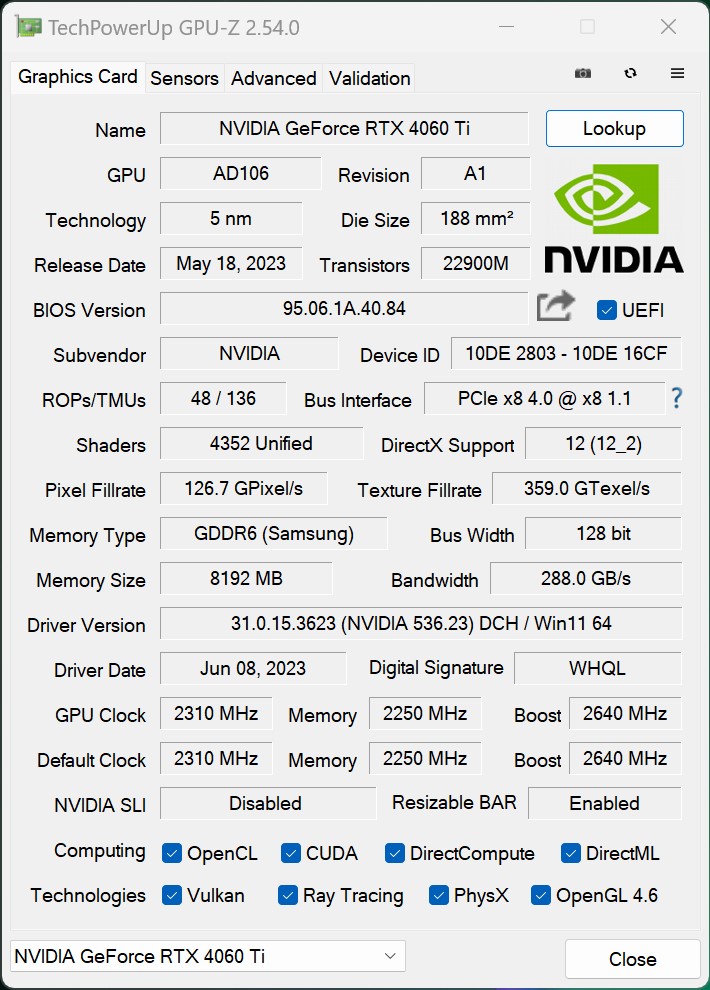

使用KFA2的内部工具 "Xtreme Tuner Plus"，可以读出许多GeForce RTX 4060 Ti EX的数据。该工具也可用于KFA2或Galaxy 的其他显卡。因此，你可以改变其GPU和VRAM时钟速率。你还可以对其功耗进行改变，从68%到112%。此外，你可以在各种设置效果的帮助下改变GPU的照明，你还可以决定风扇的速度。

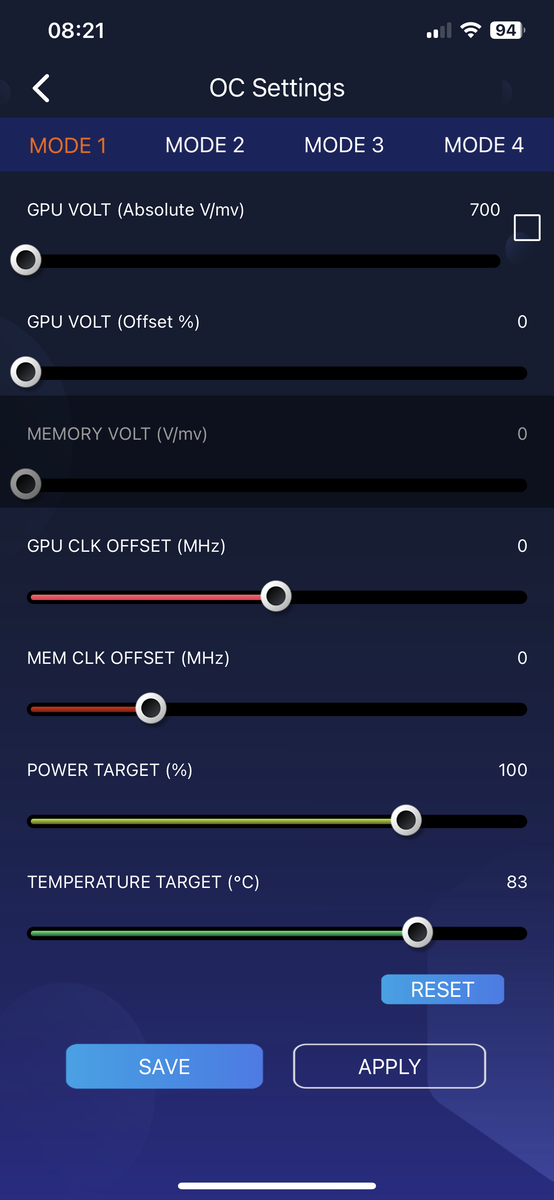

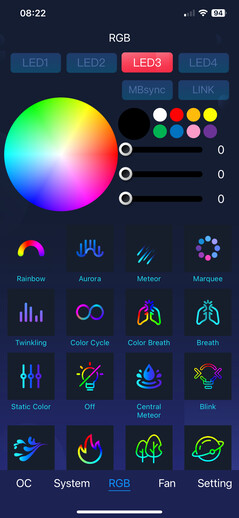

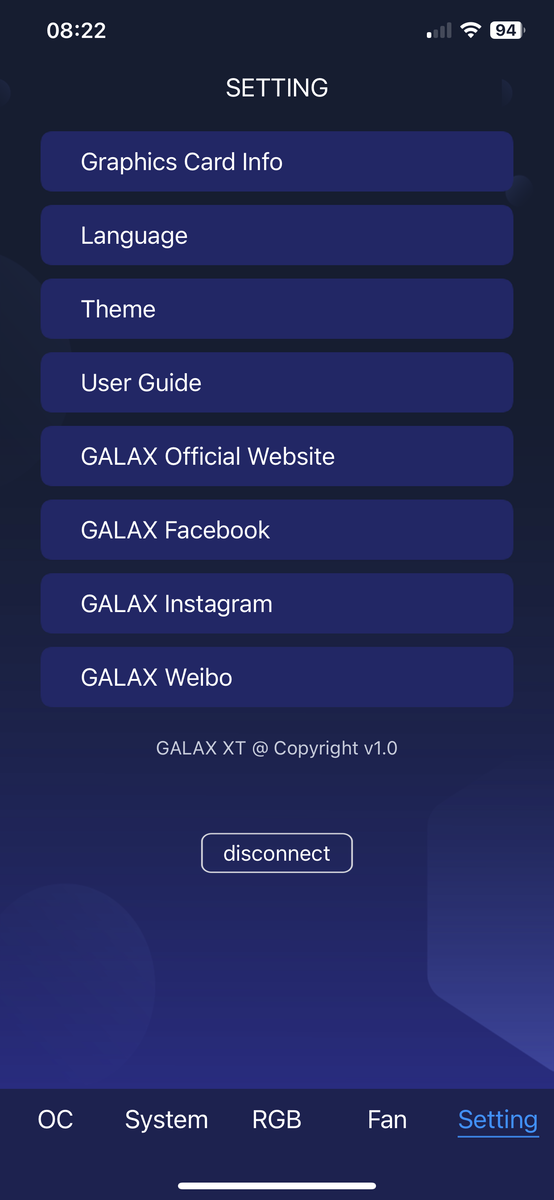

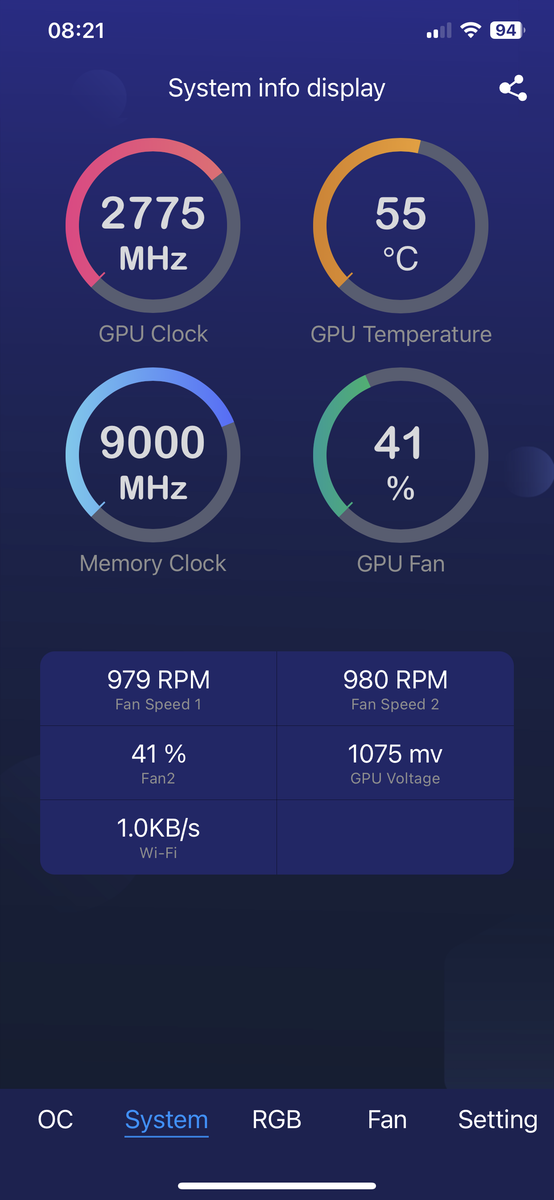

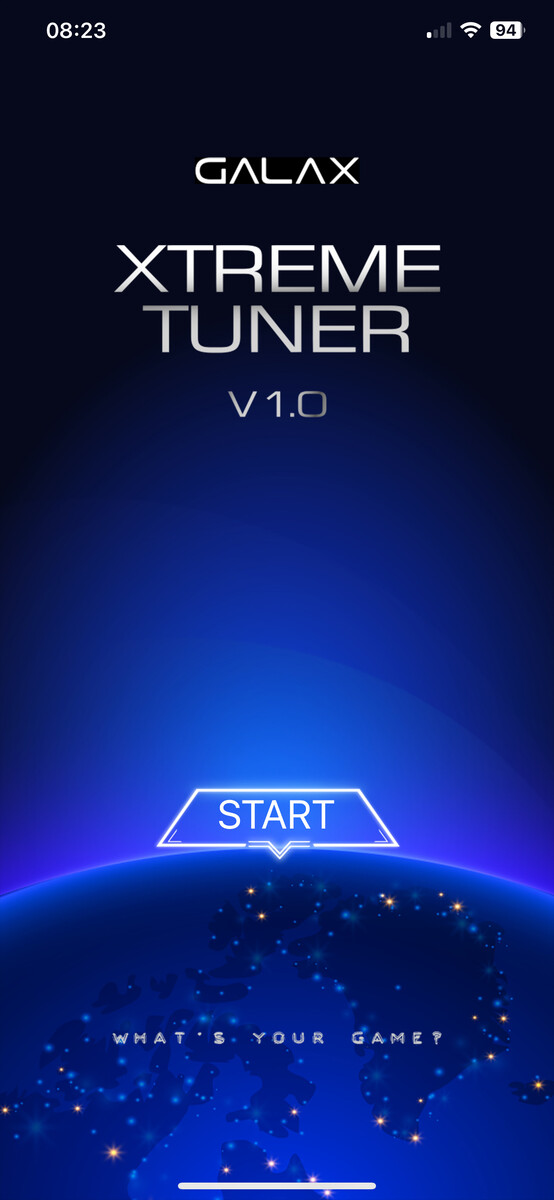

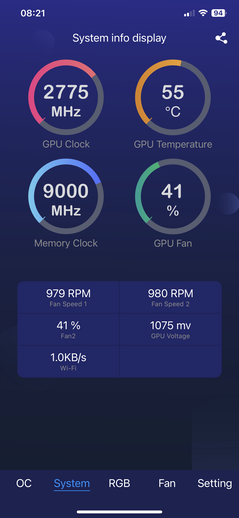

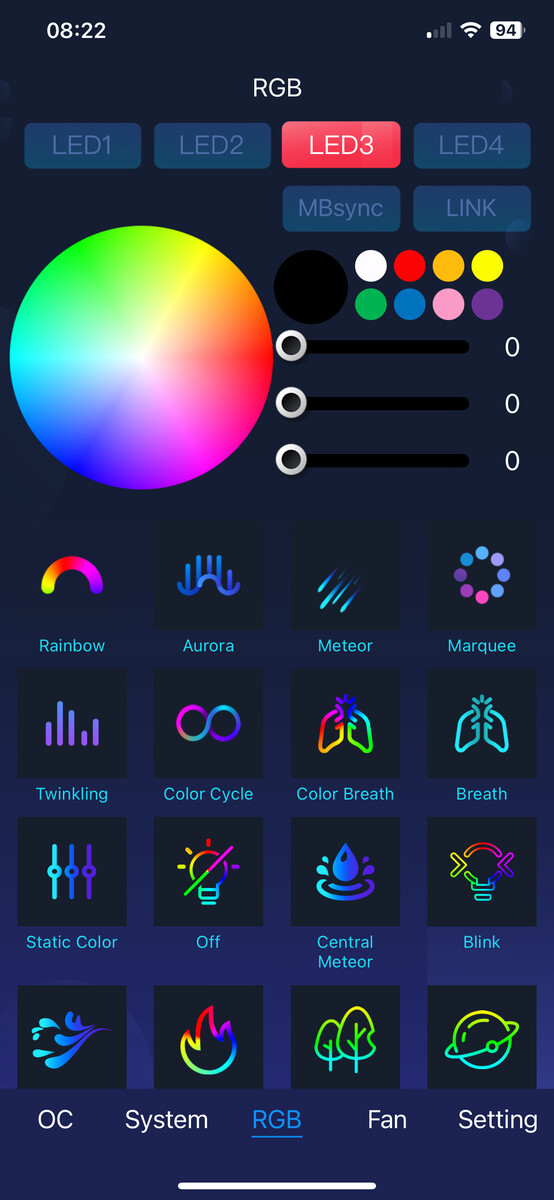

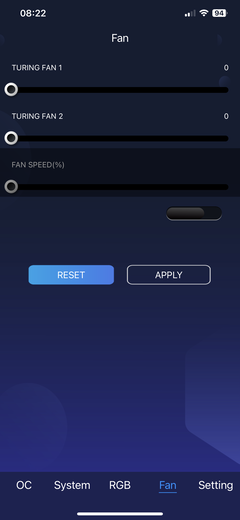

该制造商还提供了一个移动应用程序（iOS和Android ）作为额外的功能。通过这种方式，你可以从你的手机中进行所有这些改变。为了能够访问硬件，你必须确保两个设备（电脑和手机）都连接到同一个网络。
合成基准
在合成基准测试中，我们的KFA2GeForce RTX 4060 Ti EX仅次于MSIGeForce RTX 4060 Ti Gaming X Trio 8G.这意味着，相当小的KFA2GeForce RTX 4060 Ti EX能够很好地跟上微星制造的极大型显卡。它领先于NvidiaGeForce RTX 3060 Ti.因此，我们没有注意到与上一代相比有明显的纯性能提高。这是一个耻辱，因为NvidiaGeForce RTX 4090的性能要比NvidiaGeForce RTX 3090.在相同的百分比区域内的性能增加将意味着，NvidiaGeForce RTX 4060 Ti应该达到与NvidiaGeForce RTX 3090相同的性能水平。作为一个中端型号，这是不现实的--然而，类似于Nvidia RTX 3090的20%的改进。NvidiaGeForce RTX 3060 Ti就已经很不错了。Nvidia只是做了太多的削减。与它的前辈相比，它的局限性很大，由于它的着色器单元数量较少，内存连接较小，它只实现了一个数字的性能提升。

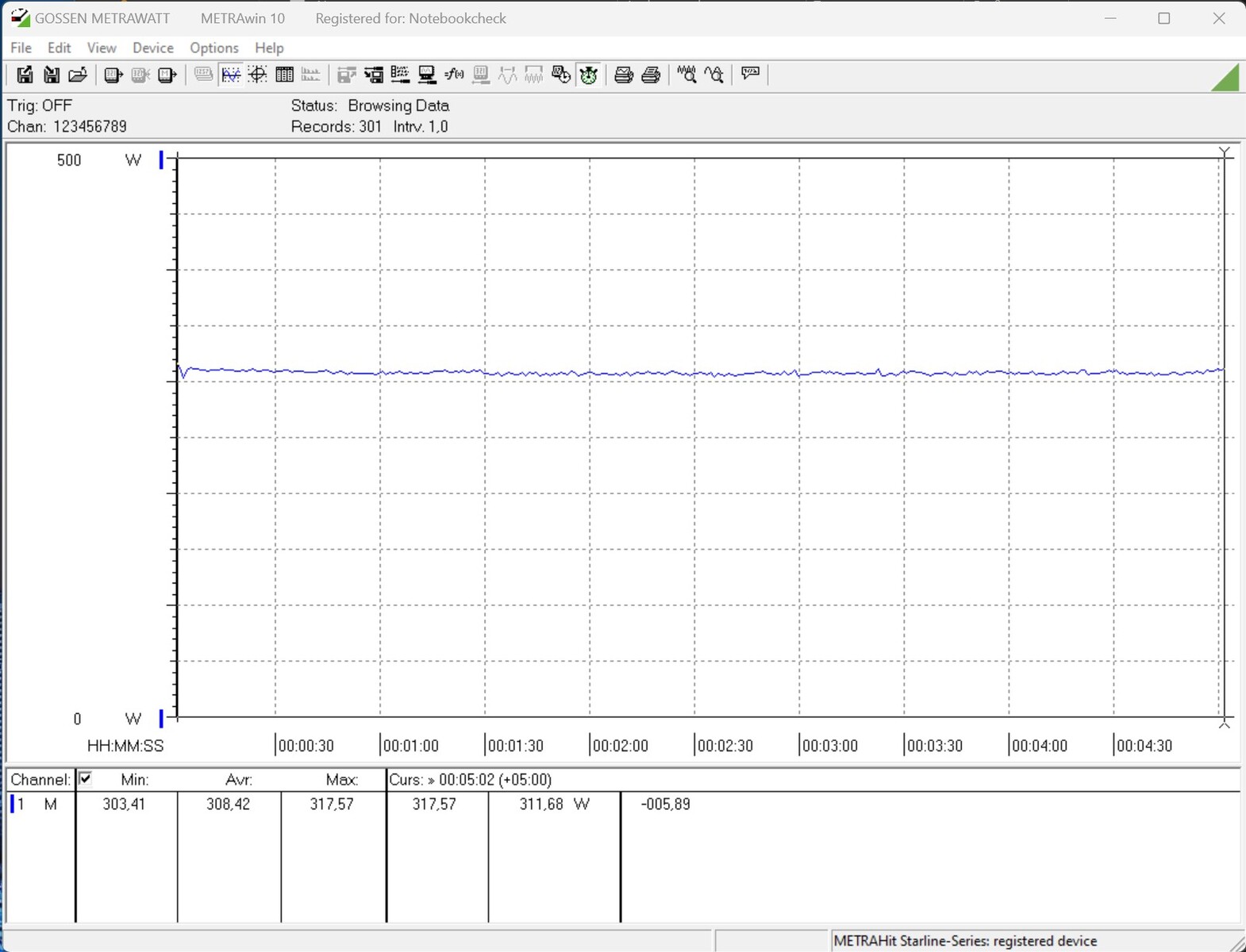

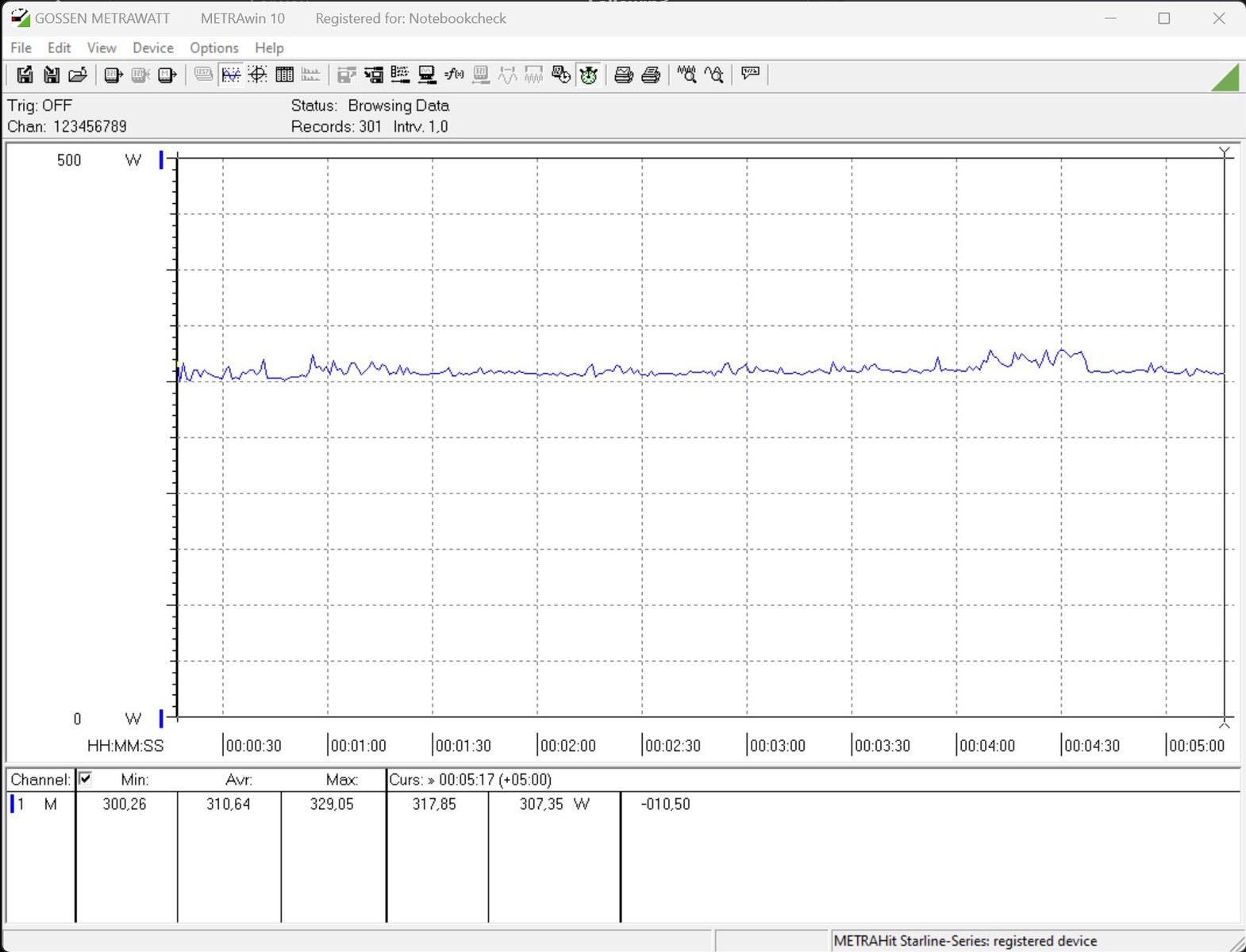

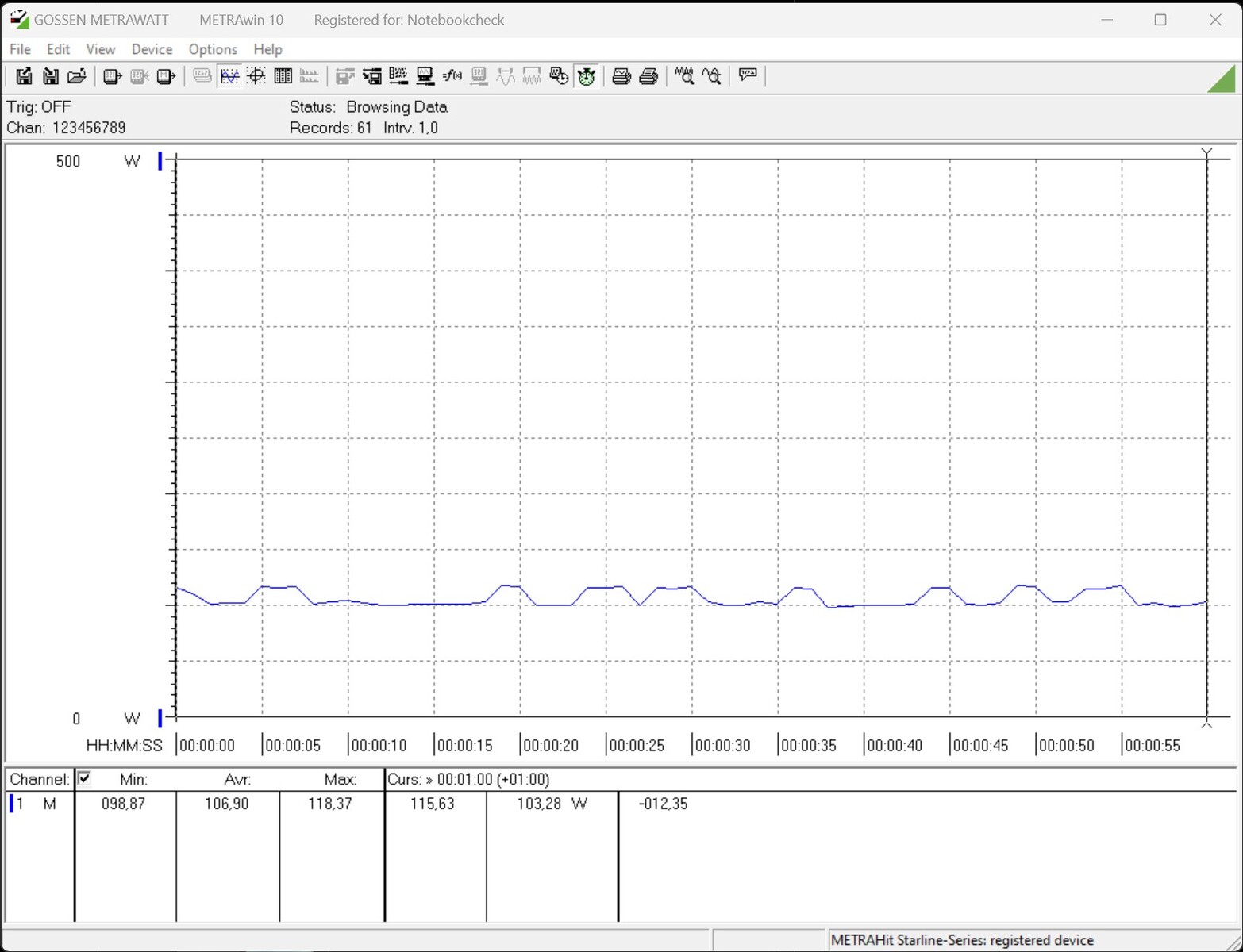

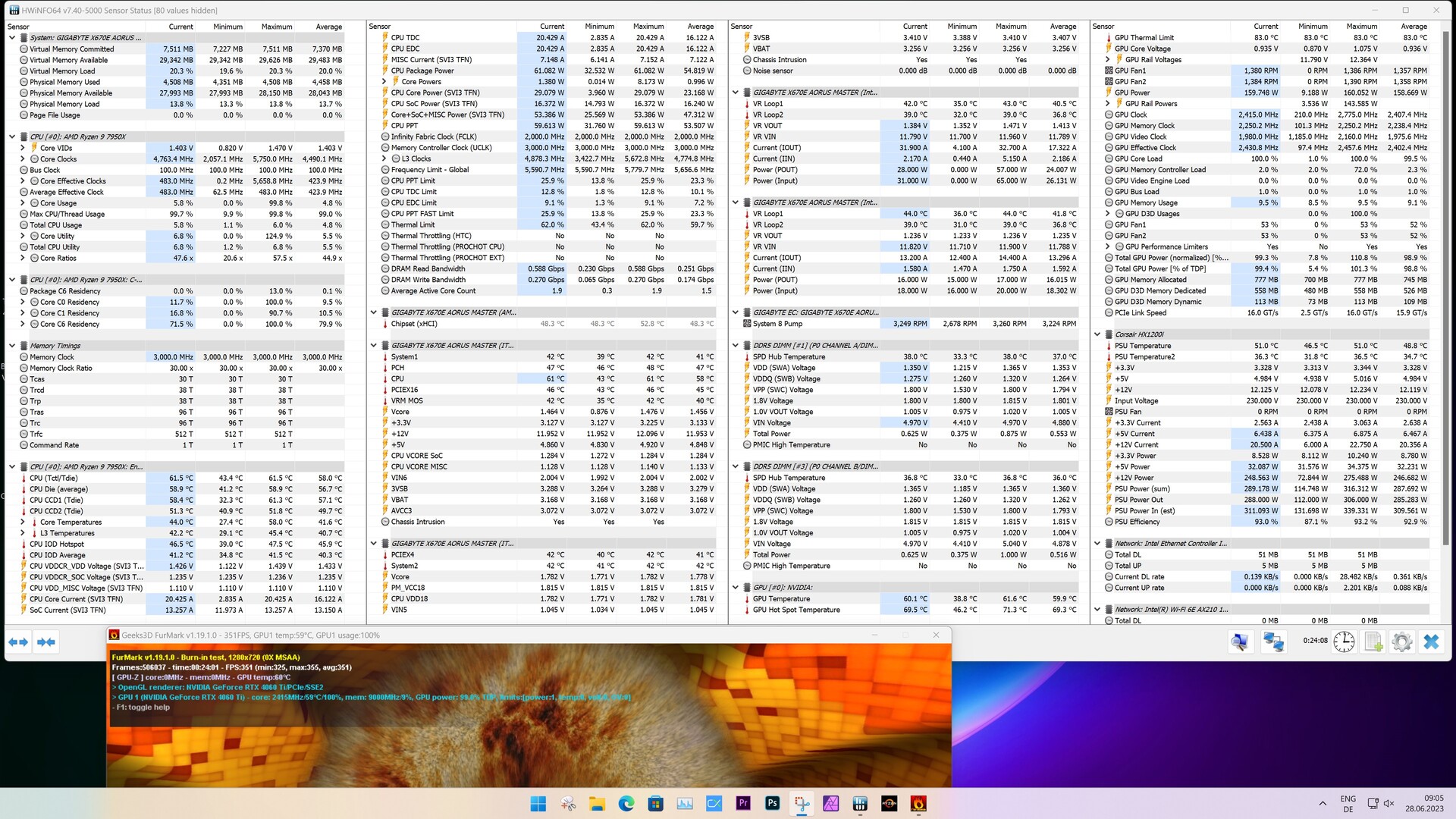

在一个小的积极方面，我们想提及的是，其性能的小幅提高并没有导致更高的功耗。恰恰相反：它的良好性能也可以通过大大降低功耗来实现。在本评论的进一步过程中，我们将更详细地强调这一点。
KFA2GeForce RTX 4060 Ti EX的AMD竞争者是AMD Radeon RX 6700 XT.这款显卡具有更大的显存（12GB），然而，它在合成测试中只比我们的测试样本领先4个百分点。
Performance Rating | 3DMark | Unigine Superposition | Unigine Heaven 4.0 | Unigine Valley 1.0 | 3DMark 11
| Performance Rating - Percent | |
| Palit GeForce RTX 4090 GameRock OC | |
| AMD Radeon RX 7900 XTX | |
| KFA2 GeForce RTX 4080 SG | |
| AMD Radeon RX 7900 XT | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| NVIDIA GeForce RTX 3090 Founders Edition | |
| KFA2 GeForce RTX 3080 SG | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Nvidia Titan RTX | |
| KFA2 GeForce RTX 3070 Ti SG | |
| Sapphire Pulse Radeon RX 6750 XT | |
| AMD Radeon RX 6700 XT | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
| KFA2 GeForce RTX 4060 Ti EX | |
| NVIDIA GeForce RTX 3060 Ti FE | |
| Nvidia GeForce RTX 2070 Super | |
| Sapphire Nitro+ Radeon RX 6650 XT | |
| Nvidia GeForce RTX 2060 Super | |
| KFA2 GeForce GTX 1660 Super | |
| PNY GeForce GTX 1660 | |
| ASUS ROG Strix GeForce GTX 1060 | |
| Unigine Valley 1.0 | |
| 1920x1080 Extreme HD DirectX AA:x8 | |
| Palit GeForce RTX 4090 GameRock OC | |
| AMD Radeon RX 7900 XTX | |
| KFA2 GeForce RTX 4080 SG | |
| AMD Radeon RX 7900 XT | |
| NVIDIA GeForce RTX 3090 Founders Edition | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| KFA2 GeForce RTX 3080 SG | |
| KFA2 GeForce RTX 3070 Ti SG | |
| Nvidia Titan RTX | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Sapphire Pulse Radeon RX 6750 XT | |
| AMD Radeon RX 6700 XT | |
| NVIDIA GeForce RTX 3060 Ti FE | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
| KFA2 GeForce RTX 4060 Ti EX | |
| Nvidia GeForce RTX 2070 Super | |
| Sapphire Nitro+ Radeon RX 6650 XT | |
| Nvidia GeForce RTX 2060 Super | |
| KFA2 GeForce GTX 1660 Super | |
| ASUS ROG Strix GeForce GTX 1060 | |
| PNY GeForce GTX 1660 | |
| 1920x1080 Extreme HD Preset OpenGL AA:x8 | |
| Palit GeForce RTX 4090 GameRock OC | |
| AMD Radeon RX 7900 XTX | |
| KFA2 GeForce RTX 4080 SG | |
| AMD Radeon RX 7900 XT | |
| NVIDIA GeForce RTX 3090 Founders Edition | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| KFA2 GeForce RTX 3080 SG | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Sapphire Pulse Radeon RX 6750 XT | |
| KFA2 GeForce RTX 3070 Ti SG | |
| Nvidia Titan RTX | |
| AMD Radeon RX 6700 XT | |
| NVIDIA GeForce RTX 3060 Ti FE | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
| KFA2 GeForce RTX 4060 Ti EX | |
| Sapphire Nitro+ Radeon RX 6650 XT | |
| Nvidia GeForce RTX 2070 Super | |
| Nvidia GeForce RTX 2060 Super | |
| KFA2 GeForce GTX 1660 Super | |
| PNY GeForce GTX 1660 | |
| ASUS ROG Strix GeForce GTX 1060 | |
LuxMark v2.0 64Bit | ComputeMark v2.1 | Photoshop PugetBench | Premiere Pro PugetBench | Affinity Photo 2 | Geekbench 5.0 | Geekbench 6.0 | V-Ray 5 Benchmark
| Affinity Photo 2 - Combined (Single / Multi GPU) | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| Palit GeForce RTX 4090 GameRock OC | |
| KFA2 GeForce RTX 4080 SG | |
| Nvidia GeForce RTX 2070 Super | |
| KFA2 GeForce RTX 3070 Ti SG | |
| Nvidia GeForce RTX 2060 Super | |
| Sapphire Pulse Radeon RX 6750 XT | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
| Nvidia Titan RTX | |
| KFA2 GeForce RTX 4060 Ti EX | |
| PNY GeForce GTX 1660 | |
| KFA2 GeForce GTX 1660 Super | |
| AMD Radeon RX 7900 XTX | |
| AMD Radeon RX 7900 XT | |
| Geekbench 5.0 - OpenCL Score 5.0 | |
| Palit GeForce RTX 4090 GameRock OC | |
| NVIDIA GeForce RTX 3090 Founders Edition | |
| KFA2 GeForce RTX 3080 SG | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Sapphire Pulse Radeon RX 6750 XT | |
| Sapphire AMD Radeon RX 6950 XT Nitro+ Pure | |
| Nvidia Titan RTX | |
| KFA2 GeForce RTX 4060 Ti EX | |
| Nvidia GeForce RTX 2070 Super | |
| Sapphire Nitro+ Radeon RX 6650 XT | |
| Nvidia GeForce RTX 2060 Super | |
| Geekbench 6.0 | |
| GPU Vulkan 6.0 | |
| Nvidia Titan RTX | |
| Nvidia GeForce RTX 2070 Super | |
| Nvidia GeForce RTX 2060 Super | |
| Palit GeForce RTX 4090 GameRock OC | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Sapphire Pulse Radeon RX 6750 XT | |
| KFA2 GeForce RTX 4060 Ti EX | |
| GPU OpenCL 6.0 | |
| Nvidia Titan RTX | |
| Nvidia GeForce RTX 2070 Super | |
| Nvidia GeForce RTX 2060 Super | |
| Palit GeForce RTX 4090 GameRock OC | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Sapphire Pulse Radeon RX 6750 XT | |
| KFA2 GeForce RTX 4060 Ti EX | |
| V-Ray 5 Benchmark - GPU RTX | |
| Palit GeForce RTX 4090 GameRock OC | |
| KFA2 GeForce RTX 4080 SG | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| NVIDIA GeForce RTX 3090 Founders Edition | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Sapphire Pulse Radeon RX 6750 XT | |
| KFA2 GeForce RTX 3070 Ti SG | |
| KFA2 GeForce RTX 4060 Ti EX | |
专业用途
如果你希望将显卡用于生产任务，那么你应该考虑购买专门用于专业用途的显卡。为了表示这一点，我们已经将Nvidia RTX A6000和Nvidia Titan RTX在我们的比较表中。在这里，当硬件由于优化驱动而能够更好地使用时，它的潜力就变得绝对清晰。在性能上的差异Nvidia Titan RTX和KFA2GeForce RTX 4060 Ti EX之间的性能差异尤其值得关注。在合成测试中，两者之间只有20个百分点，尽管Nvidia Titan RTX在使用SPECviewperf进行的渲染测试中表现得更好--领先多达200个百分点。
我们不完全建议反对使用KFA2GeForce RTX 4060 Ti EX进行GPU渲染。然而，对于任何超过业余用途的东西，你可能想看看其他地方。
| NVIDIA GeForce RTX 4060 Ti 8G R9 7950X | NVIDIA GeForce RTX 4060 Ti 8G R9 7950X | NVIDIA GeForce RTX 3060 Ti R9 5950X | NVIDIA GeForce RTX 3070 Ti R9 7950X | NVIDIA GeForce RTX 4070 R9 7950X | NVIDIA GeForce RTX 4070 Ti R9 7950X | NVIDIA GeForce RTX 4080 R9 7950X | NVIDIA GeForce RTX 4090 R9 7950X | AMD Radeon RX 7900 XT R9 7950X | AMD Radeon RX 7900 XTX R9 7950X | NVIDIA GeForce RTX 3080 12 GB R9 5900X | NVIDIA GeForce GTX 1660 (Desktop) R9 7950X | NVIDIA GeForce GTX 1660 Super (Desktop) R9 7950X | NVIDIA GeForce RTX 2060 Super (Desktop) R9 7950X | NVIDIA GeForce RTX 2070 Super (Desktop) R9 7950X | NVIDIA Titan RTX R9 7950X | NVIDIA RTX A6000 TR Pro 3975WX | Average of class | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SPECviewperf 12 | -0% | -21% | 7% | 25% | 49% | 73% | 88% | 417% | 465% | -14% | -48% | -44% | -29% | -16% | 264% | 312% | 7% | |
| 1900x1060 3ds Max (3dsmax-05) | 289 | 287 -1% | 252 -13% | 330 14% | 382 32% | 436 51% | 502 74% | 571 98% | 502 74% | 553 91% | 334 16% | 153 -47% | 167 -42% | 220 -24% | 247 -15% | 315 9% | 336 16% | 192.3 ? -33% |
| 1900x1060 Catia (catia-04) | 127 | 128 1% | 109 -14% | 136 7% | 161 27% | 192 51% | 221 74% | 257 102% | 481 279% | 536 322% | 79.1 -38% | 65.1 -49% | 68 -46% | 84.5 -33% | 114 -10% | 332 161% | 229 80% | 105.6 ? -17% |
| 1900x1060 Creo (creo-01) | 74 | 75.4 2% | 57.8 -22% | 72.6 -2% | 89.1 20% | 99.4 34% | 110 49% | 115 55% | 176 138% | 187 153% | 74.4 1% | 46.1 -38% | 45.5 -39% | 58.8 -21% | 65.7 -11% | 197 166% | 136 84% | 64.5 ? -13% |
| 1900x1060 Energy (energy-01) | 22.9 | 23 0% | 13.9 -39% | 18 -21% | 31.7 38% | 48 110% | 58.8 157% | 54.7 139% | 72.4 216% | 85.2 272% | 17.2 -25% | 6.31 -72% | 8.38 -63% | 11.6 -49% | 12.4 -46% | 28.8 26% | 39.8 74% | 15.2 ? -34% |
| 1900x1060 Maya (maya-04) | 256 | 254 -1% | 197 -23% | 279 9% | 284 11% | 287 12% | 309 21% | 317 24% | 347 36% | 367 43% | 139 -46% | 131 -49% | 149 -42% | 200 -22% | 225 -12% | 260 2% | 144 -44% | 109.5 ? -57% |
| 1900x1060 Medical (medical-01) | 108 | 110 2% | 59.4 -45% | 106 -2% | 132 22% | 157 45% | 171 58% | 119 10% | 288 167% | 347 221% | 40.3 -63% | 36 -67% | 38.2 -65% | 49.5 -54% | 55.9 -48% | 101 -6% | 159 47% | 53.2 ? -51% |
| 1900x1060 Showcase (showcase-01) | 132 | 120 -9% | 144 9% | 199 51% | 190 44% | 244 85% | 333 152% | 457 246% | 278 111% | 322 144% | 226 71% | 65 -51% | 85.2 -35% | 121 -8% | 135 2% | 197 49% | 255 93% | 95.8 ? -27% |
| 1900x1060 Siemens NX (snx-02) | 14.5 | 14.7 1% | 12.3 -15% | 14.7 1% | 16.4 13% | 19 31% | 21.6 49% | 27.1 87% | 373 2472% | 400 2659% | 12 -17% | 9.41 -35% | 9.38 -35% | 10.1 -30% | 13.9 -4% | 283 1852% | 351 2321% | 58.6 ? 304% |
| 1900x1060 Solidworks (sw-03) | 95.1 | 95.7 1% | 71.1 -25% | 101 6% | 109 15% | 118 24% | 113 19% | 126 32% | 342 260% | 360 279% | 73.8 -22% | 69.3 -27% | 70.7 -26% | 79.7 -16% | 95.1 0% | 207 118% | 225 137% | 86.2 ? -9% |
| SPECviewperf 13 | -0% | -18% | 5% | 26% | 50% | 78% | 114% | 402% | 453% | 11% | -50% | -46% | -29% | -16% | 248% | 322% | 27% | |
| 3ds Max (3dsmax-06) | 290 | 289 0% | 252 -13% | 330 14% | 381 31% | 433 49% | 497 71% | 563 94% | 506 74% | 564 94% | 334 15% | 153 -47% | 166 -43% | 218 -25% | 247 -15% | 321 11% | 338 17% | 184.7 ? -36% |
| Catia (catia-05) | 185 | 188 2% | 161 -13% | 201 9% | 241 30% | 290 57% | 340 84% | 402 117% | 728 294% | 825 346% | 206 11% | 90.3 -51% | 94.9 -49% | 119 -36% | 163 -12% | 534 189% | 371 101% | 198.2 ? 7% |
| Creo (creo-02) | 295 | 299 1% | 225 -24% | 286 -3% | 375 27% | 455 54% | 529 79% | 552 87% | 567 92% | 613 108% | 324 10% | 138 -53% | 141 -52% | 203 -31% | 240 -19% | 386 31% | 366 24% | 203 ? -31% |
| Energy (energy-02) | 44.7 | 45.7 2% | 25.6 -43% | 30 -33% | 54.2 21% | 72.8 63% | 92.6 107% | 126 182% | 147 229% | 187 318% | 37.6 -16% | 9.93 -78% | 11.3 -75% | 21.9 -51% | 23.8 -47% | 51.8 16% | 132 195% | 35.7 ? -20% |
| Maya (maya-05) | 398 | 396 -1% | 344 -14% | 437 10% | 510 28% | 591 48% | 678 70% | 715 80% | 670 68% | 735 85% | 460 16% | 194 -51% | 214 -46% | 291 -27% | 344 -14% | 499 25% | 415 4% | 263 ? -34% |
| Medical (medical-02) | 91.2 | 92.9 2% | 72.2 -21% | 83.6 -8% | 112 23% | 132 45% | 150 64% | 186 104% | 237 160% | 263 188% | 102 12% | 40.5 -56% | 40.7 -55% | 54.2 -41% | 63.7 -30% | 92 1% | 184 102% | 77.3 ? -15% |
| Showcase (showcase-02) | 133 | 120 -10% | 145 9% | 198 49% | 191 44% | 244 83% | 334 151% | 455 242% | 279 110% | 323 143% | 228 71% | 64.9 -51% | 85.3 -36% | 122 -8% | 135 2% | 198 49% | 255 92% | 117.9 ? -11% |
| Siemens NX (snx-03) | 26.3 | 26.4 0% | 22.3 -15% | 26.4 0% | 29.5 12% | 34.1 30% | 39 48% | 49.1 87% | 675 2467% | 725 2657% | 26.3 0% | 16.9 -36% | 16.9 -36% | 18.2 -31% | 25 -5% | 512 1847% | 638 2326% | 128.9 ? 390% |
| Solidworks (sw-04) | 136 | 137 1% | 99.6 -27% | 146 7% | 157 15% | 168 24% | 179 32% | 186 37% | 307 126% | 323 138% | 108 -21% | 102 -25% | 104 -24% | 119 -12% | 136 0% | 218 60% | 192 41% | 120.6 ? -11% |
| SPECviewperf 2020 | 0% | -19% | 11% | 32% | 57% | 87% | 142% | 436% | 496% | 20% | -50% | -48% | -29% | -20% | 304% | 388% | 50% | |
| 3840x2160 Siemens NX (snx-04) | 20 | 20.3 2% | 18.2 -9% | 22.2 11% | 23.9 20% | 27.5 38% | 31.9 60% | 41.3 107% | 476 2280% | 514 2470% | 21.8 9% | 12.7 -36% | 12.7 -36% | 14 -30% | 19.8 -1% | 375 1775% | 481 2305% | 87.8 ? 339% |
| 3840x2160 Medical (medical-03) | 17.3 | 17.7 2% | 11.4 -34% | 16.3 -6% | 22.2 28% | 26.9 55% | 32.2 86% | 45.9 165% | 53.9 212% | 62.3 260% | 18.8 9% | 7.48 -57% | 7.41 -57% | 10.3 -40% | 12 -31% | 16.5 -5% | 37.9 119% | 20 ? 16% |
| 3840x2160 Maya (maya-06) | 236 | 226 -4% | 215 -9% | 290 23% | 305 29% | 372 58% | 447 89% | 498 111% | 401 70% | 481 104% | 314 33% | 106 -55% | 118 -50% | 162 -31% | 185 -22% | 274 16% | 329 39% | 202 ? -14% |
| 3840x2160 Energy (energy-03) | 44.2 | 44.9 2% | 14.5 -67% | 39.1 -12% | 57.6 30% | 75.7 71% | 90.4 105% | 141 219% | 99.6 125% | 129 192% | 37.2 -16% | 12.5 -72% | 13.7 -69% | 22.9 -48% | 17.8 -60% | 93.9 112% | 63 43% | 48.7 ? 10% |
| 3840x2160 Creo (creo-03) | 95.8 | 96.1 0% | 76.6 -20% | 99.3 4% | 112 17% | 121 26% | 128 34% | 133 39% | 173 81% | 187 95% | 90 -6% | 55.2 -42% | 57.7 -40% | 77.2 -19% | 85.8 -10% | 135 41% | 111 16% | 75.3 ? -21% |
| 3840x2160 CATIA (catia-06) | 38.9 | 39.2 1% | 37.9 -3% | 48 23% | 51.6 33% | 61.2 57% | 75.5 94% | 95.3 145% | 113 190% | 127 226% | 53.7 38% | 19.2 -51% | 21 -46% | 30.5 -22% | 36.7 -6% | 90.9 134% | 82.4 112% | 45.8 ? 18% |
| 3840x2160 3ds Max (3dsmax-07) | 74.6 | 74.5 0% | 80.1 7% | 99 33% | 122 64% | 147 97% | 179 140% | 228 206% | 143 92% | 167 124% | 128 72% | 45.5 -39% | 48.3 -35% | 63.1 -15% | 69.7 -7% | 118 58% | 137 84% | 77.6 ? 4% |
| Total Average (Program / Settings) | 0% /
-0% | -19% /
-19% | 8% /
7% | 28% /
27% | 52% /
52% | 79% /
79% | 115% /
113% | 418% /
417% | 471% /
469% | 6% /
5% | -49% /
-49% | -46% /
-46% | -29% /
-29% | -17% /
-17% | 272% /
269% | 341% /
337% | 28% /
26% |
游戏基准
关于我们对KFA2GeForce RTX 4060 Ti EX的性能预期，你必须首先注意到，Nvidia对这款GPU的目标市场是那些主要在1920 x1080的情况下玩游戏，并且使用高到最大细节设置的玩家。总的来说，我们会说该显卡已经实现了这些目标，因为快速浏览一下我们测试的游戏列表，当涉及到全高清游戏时，只显示绿框。只有增加的分辨率才会给KFA2GeForce RTX 4060 Ti EX带来一些明显的问题，因为它努力将帧率保持在可玩的水平。在一天结束的时候，这是可以预期的，Nvidia为这项工作提供了完美的产品 - 即GeForce RTX 4070(1,440p)，直到GeForce RTX 4090(2,160p)，它们都能满足更高的分辨率。
总的来说，你目前仍然装备有3000代的中端型号，在1080p时仍能实现良好的帧率。随后，我们会注意到KFA2GeForce RTX 4060 Ti EX是相当老的GTX时代的升级选择。它的性能增长是巨大的，如果你也非常重视最新的技术：它还支持DLSS 3等功能。这是RTX 4000型号独有的，你可以说这使它值得购买。你也不应该忘记它的低耗电量。在这里，新的Ada Lovelace架构真正显示出它比Ampere（RTX 3000系列）的优势。
另一方面，我们不想让KFA2对其VRAM的吝啬处理不被注意到。我们已经在我们的微星GeForce RTX 4060 Ti Gaming X Trio 8G 审查中谈到了这一点。我们注意到KFA2GeForce RTX 4060 Ti EX的类似结果，由于其糟糕的FPS低值，对GPU的一般可用帧率投下了可怜的光芒。
与其竞争对手相比，KFA2GeForce RTX 4060 Ti EX仍然表现良好，在所有领域，它与微星GeForce RTX 4060 Ti Gaming X Trio 8G处于同一水平。与AMD相比，KFA2GeForce RTX 4060 Ti EX经常发现自己与蓝宝石脉冲Radeon RX 6750 XT 。即使在更高的分辨率下，我们的测试样本也能与AMD卡竞争，尽管Radeon RX 6750 XT由于其更大的VRAM而应该提供更多的纹理空间。GeForce RTX 4060 Ti的16-GB型号是否会产生关键的差异--只有时间能证明。
The Witcher 3 | Metro Exodus | Far Cry 5 | Far Cry 6 | F1 2021 | F1 22 | Cyberpunk 2077 1.6 | A Plague Tale Requiem | Spider-Man Miles Morales | Borderlands 3 | God of War | GTA V | The Quarry | Tiny Tina's Wonderlands | GRID Legends | Final Fantasy XV Benchmark | X-Plane 11.11
| F1 2021 | |
| 2560x1440 Ultra High Preset + Raytracing AA:T AF:16x | |
| Palit GeForce RTX 4090 GameRock OC (874931) | |
| KFA2 GeForce RTX 4080 SG (874931) | |
| AMD Radeon RX 7900 XTX (874931) | |
| KFA2 GeForce RTX 4070 Ti EX Gamer (874931) | |
| AMD Radeon RX 7900 XT (874931) | |
| NVIDIA GeForce RTX 3090 Founders Edition (874931) | |
| KFA2 GeForce RTX 4070 EX Gamer (874931) | |
| KFA2 GeForce RTX 3080 SG (874931) | |
| KFA2 GeForce RTX 3070 Ti SG (874931) | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G (874931) | |
| Nvidia Titan RTX (874931) | |
| KFA2 GeForce RTX 4060 Ti EX (874931) | |
| Sapphire Pulse Radeon RX 6750 XT (874931) | |
| Nvidia GeForce RTX 2070 Super (874931) | |
| KFA2 GeForce GTX 1660 Super (874931) | |
| Sapphire Nitro+ Radeon RX 6650 XT (874931) | |
| PNY GeForce GTX 1660 (874931) | |
| Nvidia GeForce RTX 2060 Super (874931) | |
| 1920x1080 Ultra High Preset + Raytracing AA:T AF:16x | |
| Palit GeForce RTX 4090 GameRock OC (874931) | |
| AMD Radeon RX 7900 XTX (874931) | |
| KFA2 GeForce RTX 4080 SG (874931) | |
| KFA2 GeForce RTX 4070 Ti EX Gamer (874931) | |
| AMD Radeon RX 7900 XT (874931) | |
| NVIDIA GeForce RTX 3090 Founders Edition (874931) | |
| KFA2 GeForce RTX 4070 EX Gamer (874931) | |
| KFA2 GeForce RTX 3080 SG (874931) | |
| KFA2 GeForce RTX 3070 Ti SG (874931) | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G (874931) | |
| KFA2 GeForce RTX 4060 Ti EX (874931) | |
| Nvidia Titan RTX (874931) | |
| Sapphire Pulse Radeon RX 6750 XT (874931) | |
| Nvidia GeForce RTX 2070 Super (874931) | |
| Sapphire Nitro+ Radeon RX 6650 XT (874931) | |
| KFA2 GeForce GTX 1660 Super (874931) | |
| Nvidia GeForce RTX 2060 Super (874931) | |
| PNY GeForce GTX 1660 (874931) | |
| F1 22 | |
| 2560x1440 Ultra High Preset AA:T AF:16x | |
| Palit GeForce RTX 4090 GameRock OC (923662) | |
| KFA2 GeForce RTX 4080 SG (939134) | |
| AMD Radeon RX 7900 XTX (939134) | |
| KFA2 GeForce RTX 4070 Ti EX Gamer (959964) | |
| AMD Radeon RX 7900 XT (939134) | |
| NVIDIA GeForce RTX 3090 Founders Edition (923650) | |
| KFA2 GeForce RTX 4070 EX Gamer (959964) | |
| KFA2 GeForce GTX 1660 Super (928484) | |
| PNY GeForce GTX 1660 (928484) | |
| KFA2 GeForce RTX 3070 Ti SG (939134) | |
| Nvidia Titan RTX (923650) | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G (959964) | |
| KFA2 GeForce RTX 4060 Ti EX (959964) | |
| Sapphire Pulse Radeon RX 6750 XT (959964) | |
| Nvidia GeForce RTX 2070 Super (923662) | |
| Nvidia GeForce RTX 2060 Super (923662) | |
| Sapphire Nitro+ Radeon RX 6650 XT | |
| 1920x1080 Ultra High Preset AA:T AF:16x | |
| Palit GeForce RTX 4090 GameRock OC | |
| KFA2 GeForce RTX 4080 SG (939134) | |
| AMD Radeon RX 7900 XTX (939134) | |
| KFA2 GeForce RTX 4070 Ti EX Gamer (959964) | |
| NVIDIA GeForce RTX 3090 Founders Edition (923650) | |
| AMD Radeon RX 7900 XT (939134) | |
| KFA2 GeForce RTX 4070 EX Gamer (959964) | |
| KFA2 GeForce GTX 1660 Super (928484) | |
| KFA2 GeForce RTX 3070 Ti SG (939134) | |
| PNY GeForce GTX 1660 (928484) | |
| Nvidia Titan RTX (923650) | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G (959964) | |
| KFA2 GeForce RTX 4060 Ti EX (959964) | |
| Sapphire Pulse Radeon RX 6750 XT (959964) | |
| Nvidia GeForce RTX 2070 Super (923662) | |
| Nvidia GeForce RTX 2060 Super (923662) | |
| Sapphire Nitro+ Radeon RX 6650 XT | |
| A Plague Tale Requiem | |
| 2560x1440 Ultra Preset | |
| Palit GeForce RTX 4090 GameRock OC | |
| AMD Radeon RX 7900 XTX | |
| KFA2 GeForce RTX 4080 SG | |
| AMD Radeon RX 7900 XT | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| KFA2 GeForce RTX 3070 Ti SG | |
| Nvidia Titan RTX | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
| KFA2 GeForce RTX 4060 Ti EX | |
| Sapphire Pulse Radeon RX 6750 XT | |
| Nvidia GeForce RTX 2070 Super | |
| Nvidia GeForce RTX 2060 Super | |
| KFA2 GeForce GTX 1660 Super | |
| PNY GeForce GTX 1660 | |
| 1920x1080 Ultra Preset | |
| Palit GeForce RTX 4090 GameRock OC | |
| KFA2 GeForce RTX 4080 SG | |
| AMD Radeon RX 7900 XTX | |
| AMD Radeon RX 7900 XT | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| KFA2 GeForce RTX 3070 Ti SG | |
| Nvidia Titan RTX | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
| KFA2 GeForce RTX 4060 Ti EX | |
| Sapphire Pulse Radeon RX 6750 XT | |
| Nvidia GeForce RTX 2070 Super | |
| Nvidia GeForce RTX 2060 Super | |
| KFA2 GeForce GTX 1660 Super | |
| PNY GeForce GTX 1660 | |
| Spider-Man Miles Morales | |
| 2560x1440 Very High Preset AA:T | |
| KFA2 GeForce RTX 4080 SG | |
| Palit GeForce RTX 4090 GameRock OC | |
| AMD Radeon RX 7900 XTX | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| AMD Radeon RX 7900 XT | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| KFA2 GeForce RTX 3070 Ti SG | |
| Nvidia Titan RTX | |
| KFA2 GeForce RTX 4060 Ti EX | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
| Sapphire Pulse Radeon RX 6750 XT | |
| Nvidia GeForce RTX 2070 Super | |
| Nvidia GeForce RTX 2060 Super | |
| PNY GeForce GTX 1660 | |
| KFA2 GeForce GTX 1660 Super | |
| 1920x1080 Very High Preset AA:T | |
| Palit GeForce RTX 4090 GameRock OC | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| AMD Radeon RX 7900 XTX | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| KFA2 GeForce RTX 4080 SG | |
| AMD Radeon RX 7900 XT | |
| KFA2 GeForce RTX 3070 Ti SG | |
| Nvidia Titan RTX | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
| KFA2 GeForce RTX 4060 Ti EX | |
| Sapphire Pulse Radeon RX 6750 XT | |
| Nvidia GeForce RTX 2070 Super | |
| Nvidia GeForce RTX 2060 Super | |
| KFA2 GeForce GTX 1660 Super | |
| PNY GeForce GTX 1660 | |
| GRID Legends | |
| 2560x1440 Ultra Preset | |
| AMD Radeon RX 7900 XTX (643827) | |
| Palit GeForce RTX 4090 GameRock OC (591708) | |
| AMD Radeon RX 7900 XT (643827) | |
| KFA2 GeForce RTX 4080 SG (643827) | |
| KFA2 GeForce RTX 4070 Ti EX Gamer (712825) | |
| NVIDIA GeForce RTX 3090 Founders Edition (591708) | |
| KFA2 GeForce RTX 3070 Ti SG (643827) | |
| KFA2 GeForce RTX 4070 EX Gamer (712825) | |
| Sapphire Pulse Radeon RX 6750 XT (712825) | |
| Nvidia Titan RTX (591708) | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G (800660) | |
| KFA2 GeForce RTX 4060 Ti EX (800660) | |
| Sapphire Nitro+ Radeon RX 6650 XT | |
| Nvidia GeForce RTX 2070 Super (591708) | |
| Nvidia GeForce RTX 2060 Super (623651) | |
| KFA2 GeForce GTX 1660 Super (623651) | |
| PNY GeForce GTX 1660 (623651) | |
| 1920x1080 Ultra Preset | |
| AMD Radeon RX 7900 XTX (643827) | |
| AMD Radeon RX 7900 XT (643827) | |
| Palit GeForce RTX 4090 GameRock OC (591708) | |
| KFA2 GeForce RTX 4080 SG (643827) | |
| KFA2 GeForce RTX 4070 Ti EX Gamer (712825) | |
| NVIDIA GeForce RTX 3090 Founders Edition (591708) | |
| KFA2 GeForce RTX 4070 EX Gamer (712825) | |
| Sapphire Pulse Radeon RX 6750 XT (712825) | |
| KFA2 GeForce RTX 3070 Ti SG (643827) | |
| Nvidia Titan RTX (591708) | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G (800660) | |
| KFA2 GeForce RTX 4060 Ti EX (800660) | |
| Sapphire Nitro+ Radeon RX 6650 XT | |
| Nvidia GeForce RTX 2070 Super (591708) | |
| Nvidia GeForce RTX 2060 Super (623651) | |
| KFA2 GeForce GTX 1660 Super (623651) | |
| PNY GeForce GTX 1660 (623651) | |
| Final Fantasy XV Benchmark | |
| 1920x1080 High Quality | |
| Palit GeForce RTX 4090 GameRock OC (1.3) | |
| KFA2 GeForce RTX 4080 SG (1.3) | |
| AMD Radeon RX 7900 XTX (1.3) | |
| KFA2 GeForce RTX 4070 Ti EX Gamer (1.3) | |
| AMD Radeon RX 7900 XT (1.3) | |
| NVIDIA GeForce RTX 3090 Founders Edition (1.3) | |
| KFA2 GeForce RTX 4070 EX Gamer (1.3) | |
| KFA2 GeForce RTX 3080 SG (1.3) | |
| Nvidia Titan RTX (1.3) | |
| KFA2 GeForce RTX 3070 Ti SG (1.3) | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G (1.3) | |
| KFA2 GeForce RTX 4060 Ti EX (1.3) | |
| Sapphire Pulse Radeon RX 6750 XT (1.3) | |
| Nvidia GeForce RTX 2070 Super (1.3) | |
| Sapphire Nitro+ Radeon RX 6650 XT (1.3) | |
| Nvidia GeForce RTX 2060 Super (1.3) | |
| KFA2 GeForce GTX 1660 Super (1.3) | |
| PNY GeForce GTX 1660 (1.3) | |
| 2560x1440 High Quality | |
| Palit GeForce RTX 4090 GameRock OC (1.3) | |
| KFA2 GeForce RTX 4080 SG (1.3) | |
| AMD Radeon RX 7900 XTX (1.3) | |
| KFA2 GeForce RTX 4070 Ti EX Gamer (1.3) | |
| AMD Radeon RX 7900 XT (1.3) | |
| NVIDIA GeForce RTX 3090 Founders Edition (1.3) | |
| KFA2 GeForce RTX 4070 EX Gamer (1.3) | |
| KFA2 GeForce RTX 3080 SG (1.3) | |
| KFA2 GeForce RTX 3070 Ti SG (1.3) | |
| Nvidia Titan RTX (1.3) | |
| KFA2 GeForce RTX 4060 Ti EX (1.3) | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G (1.3) | |
| Sapphire Pulse Radeon RX 6750 XT (1.3) | |
| Nvidia GeForce RTX 2070 Super (1.3) | |
| Sapphire Nitro+ Radeon RX 6650 XT (1.3) | |
| Nvidia GeForce RTX 2060 Super (1.3) | |
| KFA2 GeForce GTX 1660 Super (1.3) | |
| PNY GeForce GTX 1660 (1.3) | |
光线追踪、DLSS和FG（帧生成）。
在Nvidia的Ada Lovelace和RTX 4000显卡上可以看到的新功能仍然保留在Ampere显卡上。GeForce RTX 4000家族得到了包括帧生成在内的DLSS 3的独家好处，这是一个伟大的功能--只要游戏开发者真正实现了这项技术。与光线追踪一起，KFA2GeForce RTX 4060 Ti EX在适当的情况下仍然能够实现足够好的帧率，以使游戏体验更加流畅。在没有光线追踪的情况下，许多游戏甚至可以在1,440p或2,160p下流畅地进行。
激活光线追踪后，GeForce RTX 4060 Ti与NvidiaGeForce RTX 2080 Ti ，大约处于同一水平。激活该功能后，平均帧率大幅下降--这一点应该明确。我们总是建议将光线追踪与DLSS结合使用，只要你玩的游戏支持这一点。与AMD相比，这简直是小儿科。它的竞争对手，AMD Radeon RX 6750 XT ，显然占据了激活光线追踪的最后位置之一。
你可以在这里找到目前所有支持DLSS 3的游戏列表https://www.nvidia.com/en-us/geforce/news/dlss3-supports-over-35-games-apps/ 。
Spider-Man Miles Morales | Metro Exodus | Far Cry 6 | Cyberpunk 2077 1.6 | The Callisto Protocol | Guardians of the Galaxy | A Plague Tale Requiem | Control | The Last of Us | Returnal | Hogwarts Legacy | Diablo 4
| Spider-Man Miles Morales - 1920x0180 Very High Preset + Ray-Tracing AA:T | |
| Palit GeForce RTX 4090 GameRock OC | |
| KFA2 GeForce RTX 4080 SG | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| AMD Radeon RX 7900 XTX | |
| AMD Radeon RX 7900 XT | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| KFA2 GeForce RTX 3070 Ti SG | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
| KFA2 GeForce RTX 4060 Ti EX | |
| Nvidia Titan RTX | |
| Sapphire Pulse Radeon RX 6750 XT | |
| Nvidia GeForce RTX 2070 Super | |
| Nvidia GeForce RTX 2060 Super | |
| Metro Exodus - 1920x1080 Ultra Quality DXR AF:16x | |
| Palit GeForce RTX 4090 GameRock OC | |
| KFA2 GeForce RTX 4080 SG | |
| AMD Radeon RX 7900 XTX | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| AMD Radeon RX 7900 XT | |
| NVIDIA GeForce RTX 3090 Founders Edition | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| KFA2 GeForce RTX 3080 SG | |
| KFA2 GeForce RTX 3070 Ti SG | |
| Nvidia Titan RTX | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
| KFA2 GeForce RTX 4060 Ti EX | |
| NVIDIA GeForce RTX 3060 Ti FE | |
| Sapphire Pulse Radeon RX 6750 XT | |
| Nvidia GeForce RTX 2070 Super | |
| Nvidia GeForce RTX 2060 Super | |
| Far Cry 6 - 1920x1080 Ultra Graphics Quality + HD Textures + DXR AA:T | |
| AMD Radeon RX 7900 XTX | |
| AMD Radeon RX 7900 XT | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| Palit GeForce RTX 4090 GameRock OC | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| NVIDIA GeForce RTX 3090 Founders Edition | |
| KFA2 GeForce RTX 4080 SG | |
| Nvidia Titan RTX | |
| Sapphire Pulse Radeon RX 6750 XT | |
| KFA2 GeForce RTX 4060 Ti EX | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
| KFA2 GeForce RTX 3070 Ti SG | |
| Nvidia GeForce RTX 2070 Super | |
| Nvidia GeForce RTX 2060 Super | |
| Cyberpunk 2077 1.6 | |
| 3840x2160 Ray Tracing Ultra Preset (DLSS off) | |
| Palit GeForce RTX 4090 GameRock OC (1.6) | |
| KFA2 GeForce RTX 4080 SG (1.61) | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| AMD Radeon RX 7900 XTX (1.61) | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| AMD Radeon RX 7900 XT (1.61) | |
| Sapphire Pulse Radeon RX 6750 XT | |
| KFA2 GeForce RTX 4060 Ti EX | |
| KFA2 GeForce RTX 3070 Ti SG (1.61) | |
| Nvidia GeForce RTX 2070 Super (1.6) | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
| 1920x1080 Ray Tracing Ultra Preset (DLSS off) | |
| Palit GeForce RTX 4090 GameRock OC (1.6) | |
| KFA2 GeForce RTX 4080 SG (1.61) | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| AMD Radeon RX 7900 XTX (1.61) | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| AMD Radeon RX 7900 XT (1.61) | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
| KFA2 GeForce RTX 4060 Ti EX | |
| KFA2 GeForce RTX 3070 Ti SG (1.61) | |
| Nvidia GeForce RTX 2070 Super (1.6) | |
| Sapphire Pulse Radeon RX 6750 XT | |
| Nvidia GeForce RTX 2060 Super (1.6) | |
| The Callisto Protocol - 1920x1080 Ultra Preset (without FSR Upscaling) + Full Ray-Tracing | |
| AMD Radeon RX 7900 XTX | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| Palit GeForce RTX 4090 GameRock OC | |
| AMD Radeon RX 7900 XT | |
| KFA2 GeForce RTX 4080 SG | |
| KFA2 GeForce RTX 4060 Ti EX | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
| KFA2 GeForce RTX 3070 Ti SG | |
| Nvidia Titan RTX | |
| Nvidia GeForce RTX 2070 Super | |
| Nvidia GeForce RTX 2060 Super | |
| Sapphire Pulse Radeon RX 6750 XT | |
| PNY GeForce GTX 1660 | |
| KFA2 GeForce GTX 1660 Super | |
| Guardians of the Galaxy - 1920x1080 Ultra Preset + Ultra Ray-Tracing | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| AMD Radeon RX 7900 XTX | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| AMD Radeon RX 7900 XT | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
| KFA2 GeForce RTX 4060 Ti EX | |
| Nvidia Titan RTX | |
| Nvidia GeForce RTX 2070 Super | |
| Sapphire Pulse Radeon RX 6750 XT | |
| Nvidia GeForce RTX 2060 Super | |
| A Plague Tale Requiem | |
| 3840x2160 Ultra DLSS Quality + Frame Generation | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
| KFA2 GeForce RTX 4060 Ti EX | |
| 3840x2160 Ultra DLSS Quality | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
| KFA2 GeForce RTX 4060 Ti EX | |
| Control | |
| 1920x1080 High Quality Preset & High Ray Tracing Preset (DX12) | |
| Palit GeForce RTX 4090 GameRock OC | |
| KFA2 GeForce RTX 4080 SG | |
| AMD Radeon RX 7900 XTX | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| AMD Radeon RX 7900 XT | |
| KFA2 GeForce RTX 3080 SG | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Nvidia Titan RTX | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
| KFA2 GeForce RTX 4060 Ti EX | |
| NVIDIA GeForce RTX 3060 Ti FE | |
| Sapphire Pulse Radeon RX 6750 XT | |
| Nvidia GeForce RTX 2070 Super | |
| Nvidia GeForce RTX 2060 Super | |
| Sapphire Nitro+ Radeon RX 6650 XT | |
| 3840x2160 High Quality Preset & High Ray Tracing Preset (DX12) | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
| Sapphire Pulse Radeon RX 6750 XT | |
| KFA2 GeForce RTX 4060 Ti EX | |
| 3840x2160 High Quality, High Ray Tracing, DLSS | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
| KFA2 GeForce RTX 4060 Ti EX | |
| The Last of Us - 3840x2160 Ultra Preset + Quality DLSS | |
| Palit GeForce RTX 4090 GameRock OC | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Nvidia Titan RTX | |
| KFA2 GeForce RTX 4060 Ti EX | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
| Nvidia GeForce RTX 2070 Super | |
| Returnal | |
| 1920x1080 Epic Preset + Epic Ray-Tracing | |
| Palit GeForce RTX 4090 GameRock OC | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Nvidia Titan RTX | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
| KFA2 GeForce RTX 4060 Ti EX | |
| Nvidia GeForce RTX 2070 Super | |
| Sapphire Pulse Radeon RX 6750 XT | |
| Nvidia GeForce RTX 2060 Super | |
| 3840x2160 Epic Preset + Epic Ray-Tracing | |
| Palit GeForce RTX 4090 GameRock OC | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Nvidia Titan RTX | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
| KFA2 GeForce RTX 4060 Ti EX | |
| Nvidia GeForce RTX 2070 Super | |
| Sapphire Pulse Radeon RX 6750 XT | |
| Nvidia GeForce RTX 2060 Super | |
| Hogwarts Legacy | |
| 1920x1080 Ultra Preset + Full Ray Tracing AA:High T | |
| Palit GeForce RTX 4090 GameRock OC | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| Nvidia Titan RTX | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
| KFA2 GeForce RTX 4060 Ti EX | |
| Nvidia GeForce RTX 2070 Super | |
| Sapphire Pulse Radeon RX 6750 XT | |
| Nvidia GeForce RTX 2060 Super | |
| 3840x2160 Ultra Preset + Full Ray Tracing AA:High T | |
| Palit GeForce RTX 4090 GameRock OC | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Nvidia Titan RTX | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
| KFA2 GeForce RTX 4060 Ti EX | |
| Nvidia GeForce RTX 2070 Super | |
| Sapphire Pulse Radeon RX 6750 XT | |
| Nvidia GeForce RTX 2060 Super | |
| Diablo 4 - 3840x2160 Ultra Preset + DLSS Quality + FG | |
| Palit GeForce RTX 4090 GameRock OC | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
| KFA2 GeForce RTX 4060 Ti EX | |
| low | med. | high | ultra | QHD | 4K DLSS | 4K | |
|---|---|---|---|---|---|---|---|
| GTA V (2015) | 188 | 187.8 | 187.5 | 141.8 | 102.4 | 102.3 | |
| The Witcher 3 (2015) | 706.5 | 470.7 | 277.6 | 140.6 | 79.1 | ||
| Dota 2 Reborn (2015) | 304 | 266 | 254 | 235 | 165.5 | ||
| Final Fantasy XV Benchmark (2018) | 235 | 190.3 | 130.6 | 95.9 | 51.5 | ||
| X-Plane 11.11 (2018) | 222 | 197.6 | 149.7 | 127.4 | |||
| Far Cry 5 (2018) | 246 | 205 | 195 | 183 | 134 | 67 | |
| Strange Brigade (2018) | 639 | 346 | 271 | 236 | 152.7 | 79.9 | |
| Shadow of the Tomb Raider (2018) | 342 | 221 | 202 | 181.6 | 119.3 | 58.1 | |
| Far Cry New Dawn (2019) | 198 | 173 | 166 | 146 | 127 | 69 | |
| Metro Exodus (2019) | 305 | 171.3 | 129 | 100.6 | 78.9 | 48.4 | |
| Control (2019) | 234 | 159.8 | 115.7 | 75.3 | 42.8 | 35.6 | |
| Borderlands 3 (2019) | 240 | 209 | 156 | 121.5 | 83.9 | 43.1 | |
| F1 2020 (2020) | 505 | 399 | 334 | 229 | 173.8 | 95.4 | |
| F1 2021 (2021) | 595 | 460 | 348 | 177.5 | 126.2 | 68.1 | |
| Far Cry 6 (2021) | 238 | 189 | 163 | 144.3 | 101.5 | 20.9 | |
| Guardians of the Galaxy (2021) | 201 | 194 | 194 | 186 | 127 | 66 | |
| God of War (2022) | 174.5 | 143.7 | 114.3 | 85.1 | 70.1 | 46.1 | |
| GRID Legends (2022) | 246 | 217 | 195.4 | 162.8 | 134.8 | 83.6 | |
| Cyberpunk 2077 1.6 (2022) | 175 | 137 | 112.8 | 100.3 | 59.7 | 24.8 | |
| Ghostwire Tokyo (2022) | 233 | 219 | 217 | 213 | 119.9 | 57.6 | |
| Tiny Tina's Wonderlands (2022) | 297 | 233 | 153 | 117.6 | 80.4 | 36.7 | |
| F1 22 (2022) | 344 | 340 | 258 | 89.2 | 56.1 | 27.3 | |
| The Quarry (2022) | 225 | 164.5 | 135.2 | 106 | 70.8 | 22.4 | |
| A Plague Tale Requiem (2022) | 151.4 | 117.4 | 87.6 | 65 | 46.9 | 50.5 | 24.8 |
| Uncharted Legacy of Thieves Collection (2022) | 112.2 | 109 | 101.6 | 97.9 | 70.6 | 29.4 | |
| Spider-Man Miles Morales (2022) | 158.3 | 150.3 | 144.9 | 129.8 | 97.9 | 54.1 | |
| The Callisto Protocol (2022) | 230.2 | 175.2 | 165.5 | 101.8 | 78 | 47.7 | |
| High On Life (2023) | 338 | 220 | 164.3 | 165.4 | 77.1 | 32.1 | |
| The Witcher 3 v4.00 (2023) | 276 | 231 | 192.3 | 157.2 | 102 | 53.4 | |
| Dead Space Remake (2023) | 126.6 | 123.5 | 105.9 | 105.4 | 64.8 | 32.2 | |
| Hogwarts Legacy (2023) | 162.8 | 133.9 | 104.7 | 82.8 | 56.9 | 30.2 | |
| Returnal (2023) | 135 | 128 | 115 | 100 | 73 | 40 | |
| Atomic Heart (2023) | 259 | 200 | 117.3 | 92.4 | 68 | 38.4 | |
| Company of Heroes 3 (2023) | 288 | 242.1 | 178 | 177 | 129.3 | 72.7 | |
| Sons of the Forest (2023) | 120.4 | 107 | 103 | 102.3 | 79 | 48.8 | |
| Resident Evil 4 Remake (2023) | 204 | 146.3 | 132.8 | 96.4 | 69.1 | 36.4 | |
| The Last of Us (2023) | 143.8 | 116.1 | 101.4 | 76.6 | 49.5 | 39.1 | 21.1 |
| Dead Island 2 (2023) | 321 | 314 | 228 | 160.2 | 110.7 | 55.2 | |
| Star Wars Jedi Survivor (2023) | 109.6 | 95.8 | 89 | 83.4 | 52.6 | 25.3 | |
| Diablo 4 (2023) | 342 | 287 | 255 | 212 | 129.6 | 91.9 | 67.4 |
| F1 23 (2023) | 379 | 337 | 243 | 81 | 51 | 24 |
KFA2GeForce RTX 4060 Ti EX的排放量
噪声排放
我们在KFA2GeForce RTX 4060 Ti EX打开的情况下进行噪音排放测量。在本次测试期间，其CPU和电源冷却器被暂时停用，以便准确确定GPU的噪音排放。
在测试期间，KFA2GeForce RTX 4060 Ti EX表现得相对不明显。在空闲模式下，由于其零风扇模式，显卡完全安静地运行。即使在低负载下，我们也只注意到30.3分贝（A）。只有在连续负载的情况下，我们用FurMark进行模拟，两个风扇才开始工作。我们的测量设备显示最大为40 dB(A)，这意味着KFA2GeForce RTX 4060 Ti EX肯定能被听到。在玩游戏时，KFA2GeForce RTX 4060 Ti EX表现得稍微安静一些，为35.8 dB(A)。
Noise Level
| Idle |
| 30.1 / 30.1 / 30.1 dB(A) |
| Load |
| 30.3 / 40 dB(A) |
 | ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min:  , med:  , max:  Earthworks M23R, Arta (15 cm distance) environment noise: 29.7 dB(A) | ||

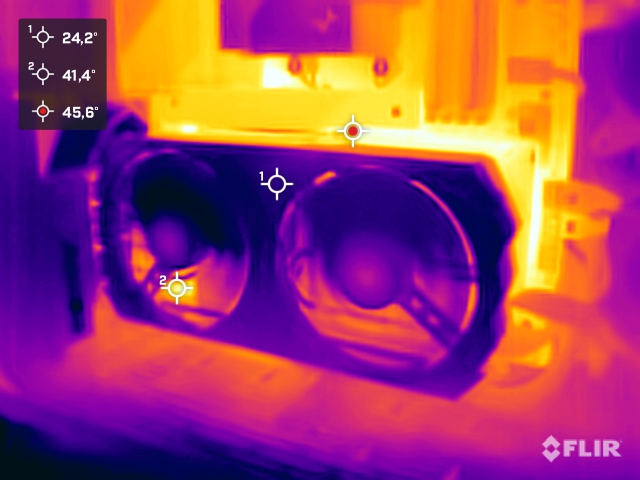

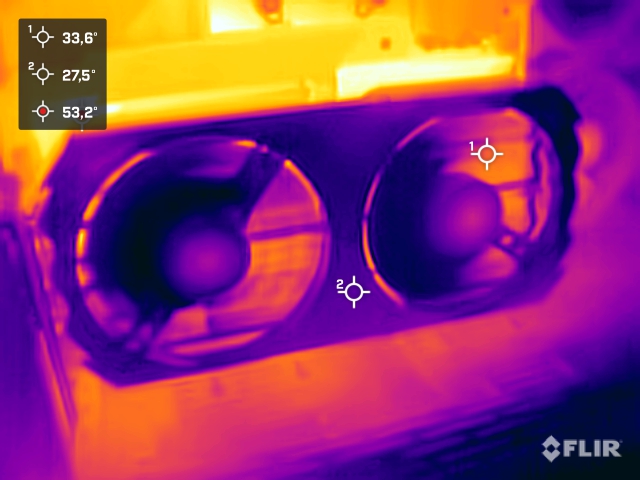

温度和功率消耗

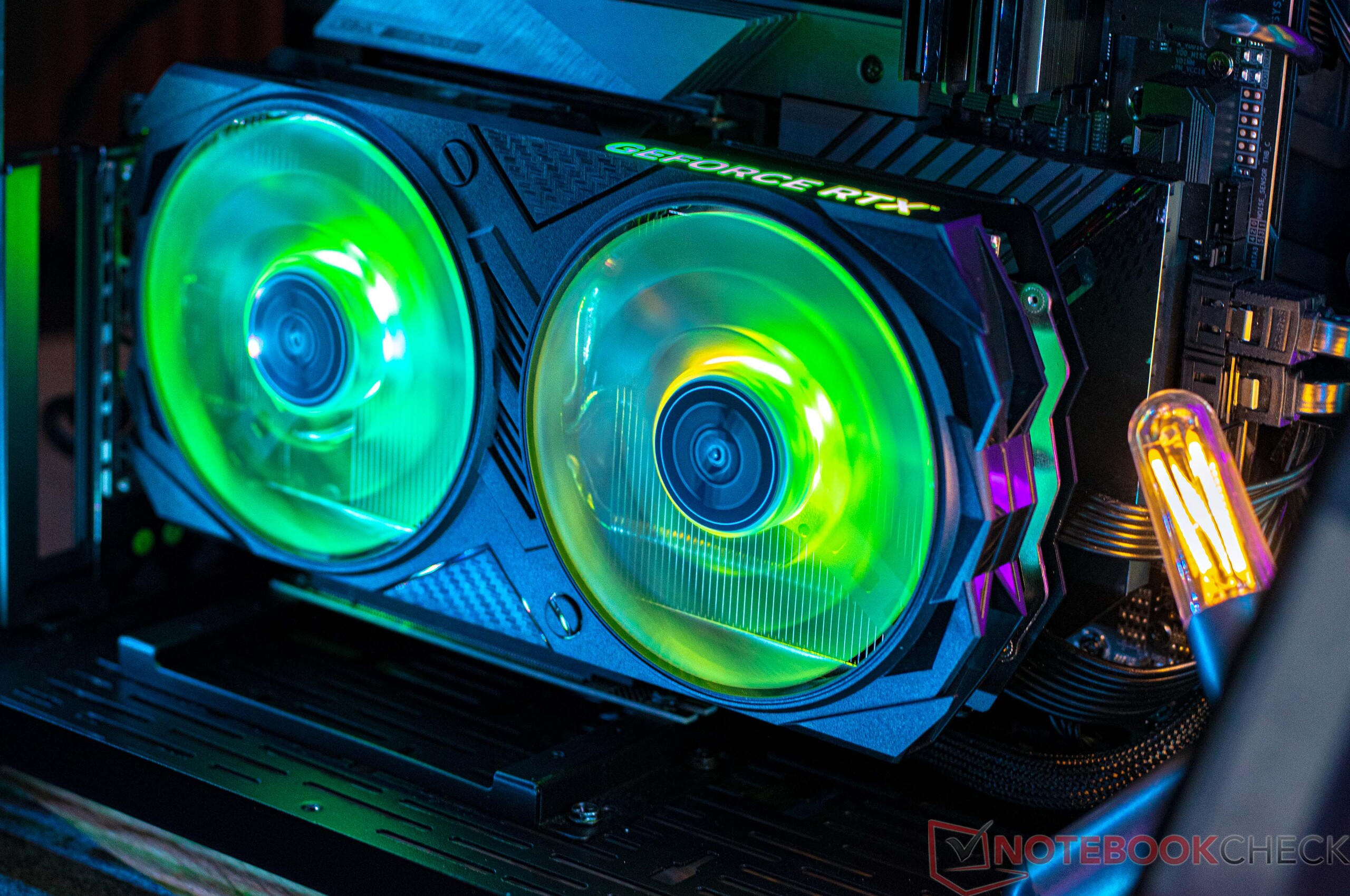

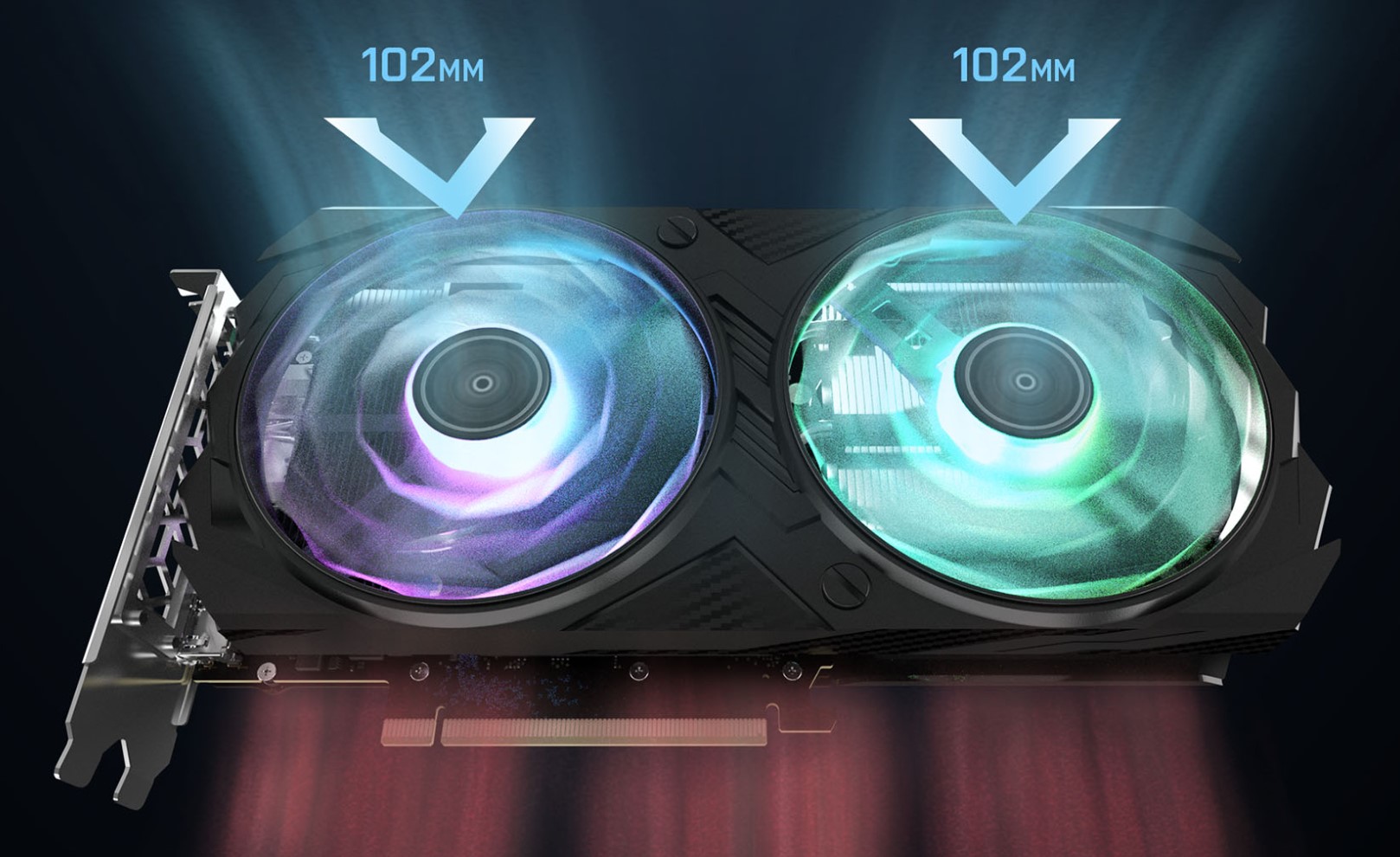

KFA2为GeForce RTX 4060 Ti EX配备了两个102毫米的轴流风扇，具有光滑的RGB照明。KFA2继续坚持他们的设计，因为在RTX 4000系列的高端型号上可以看到类似的风扇设计。
如前所述，KFA2GeForce RTX 4060 Ti EX具有风扇停止模式，这意味着风扇只在负载下旋转。如果需要冷却器，那么它们会提供可靠的工作，这意味着即使在最大负荷下，CPU也能得到充分的冷却。在我们的压力测试中，热点温度只测量到71℃，虽然，平均温度低于60℃。关于其在压力测试中的噪音排放，我们会发现有一点改进的余地。至少可以使用各种工具手动调整风扇曲线。

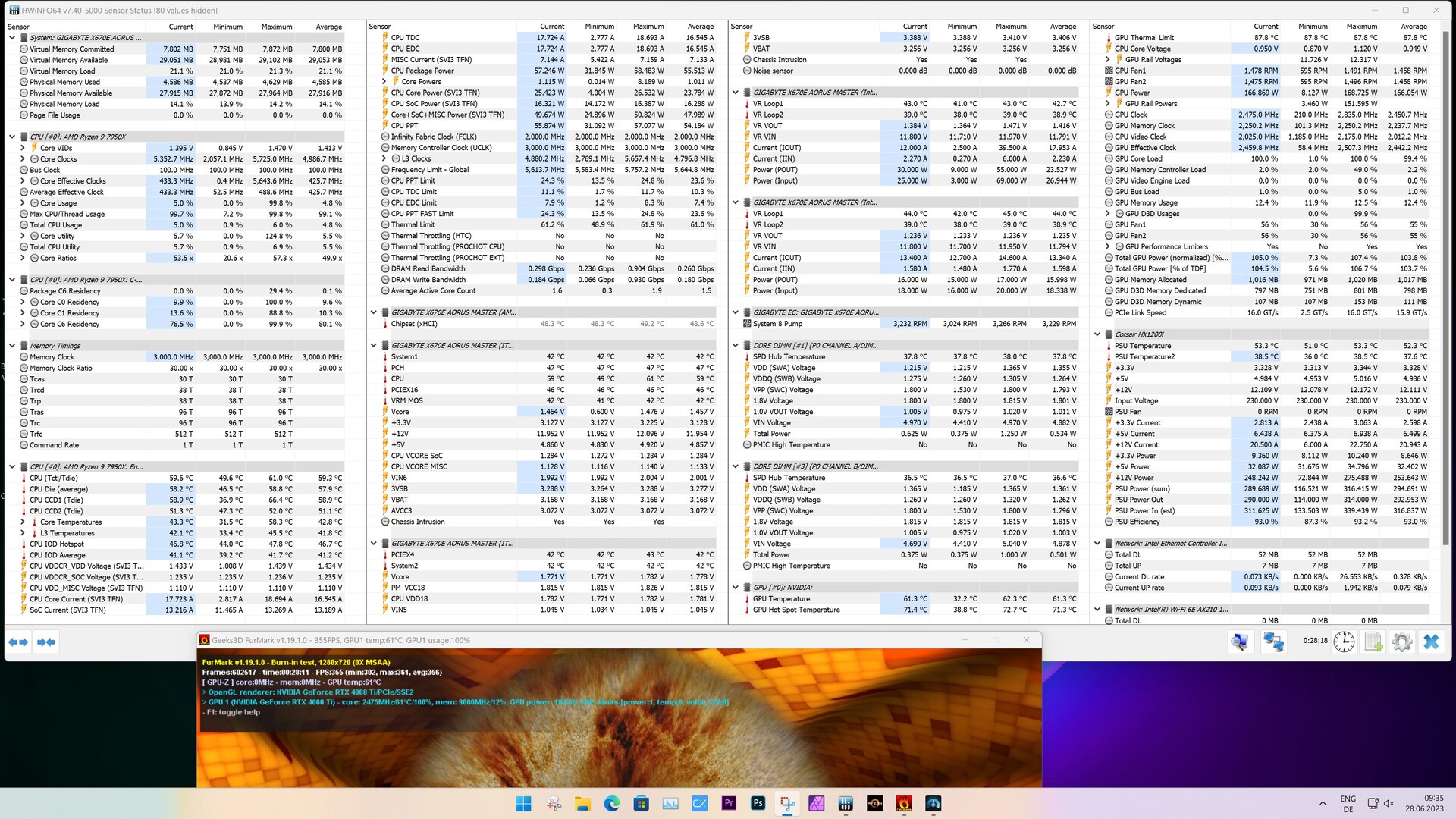

HWiNFO指出该显卡的功耗为160瓦。这意味着KFA2GeForce RTX 4060 Ti EX的确定的功率限制得到了充分的利用。在我们连接到主电源的测试中，我们注意到在玩游戏和压力测试期间的功耗约为310瓦。然而，我们检查了整个测试系统的功耗，没有连接显示器。我们的测试系统另外还配备了六个120毫米的风扇。我们还停用了PC的额外RGB照明。我们没有对显卡的RGB照明做任何改变。我们的测试结果显示，与微星GeForce RTX 4060 Ti Gaming X Trio 8G 的值相同。这两种型号都使用少量的能源，但仍然提供了很好的性能水平。AMD Radeon RX 6750 XT 型号在游戏时多利用了约27%的能量。在压力测试中，我们甚至注意到与我们的KFA2测试样本相比，有34%的差异。制造商指出，推荐的电源为550瓦。
Power Consumption: 1920x1080 The Witcher 3 ultra (external Monitor) | 1280x720 FurMark 1.19 GPU Stress Test (external Monitor) | Witcher 3 ultra Efficiency (external Monitor)
| Power Consumption / The Witcher 3 ultra (external Monitor) | |
| AMD Radeon RX 7900 XTX (Idle: 86.5 W) | |
| NVIDIA GeForce RTX 3090 Founders Edition | |
| Palit GeForce RTX 4090 GameRock OC | |
| KFA2 GeForce RTX 3080 SG | |
| KFA2 GeForce RTX 4080 SG (Idle: 86.4 W) | |
| AMD Radeon RX 7900 XT (Idle: 84.6 W) | |
| KFA2 GeForce RTX 3070 Ti SG (Idle: 88.9 W) | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| Sapphire Pulse Radeon RX 6750 XT | |
| NVIDIA GeForce RTX 3060 Ti Founders Edition (Idle: 111.39 W) | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Sapphire Nitro+ Radeon RX 6650 XT | |
| KFA2 GeForce RTX 4060 Ti EX | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
| Power Consumption / FurMark 1.19 GPU Stress Test (external Monitor) | |
| Palit GeForce RTX 4090 GameRock OC | |
| AMD Radeon RX 7900 XTX (Idle: 86.5 W) | |
| NVIDIA GeForce RTX 3090 Founders Edition | |
| AMD Radeon RX 7900 XT (Idle: 84.6 W) | |
| KFA2 GeForce RTX 3080 SG | |
| KFA2 GeForce RTX 3070 Ti SG (Idle: 88.9 W) | |
| KFA2 GeForce RTX 4080 SG (Idle: 86.4 W) | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| Sapphire Pulse Radeon RX 6750 XT | |
| NVIDIA GeForce RTX 3060 Ti Founders Edition (Idle: 111.39 W) | |
| Sapphire Nitro+ Radeon RX 6650 XT | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
| KFA2 GeForce RTX 4060 Ti EX | |
| Power Consumption / Witcher 3 ultra Efficiency (external Monitor) | |
| Palit GeForce RTX 4090 GameRock OC | |
| KFA2 GeForce RTX 4080 SG | |
| AMD Radeon RX 7900 XT | |
| AMD Radeon RX 7900 XTX | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
| KFA2 GeForce RTX 4060 Ti EX | |
| Sapphire Pulse Radeon RX 6750 XT | |
| NVIDIA GeForce RTX 3090 Founders Edition | |
| KFA2 GeForce RTX 3070 Ti SG | |
| KFA2 GeForce RTX 3080 SG | |
| Sapphire Nitro+ Radeon RX 6650 XT | |
| NVIDIA GeForce RTX 3060 Ti Founders Edition | |
Power Consumption: 1920x1080 The Witcher 3 ultra (external Monitor) | 1280x720 FurMark 1.19 GPU Stress Test (external Monitor) | Witcher 3 ultra Efficiency (external Monitor)
* ... smaller is better
Power consumption with external monitor
KFA2 GeForce RTX 4060 Ti EX; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø308 (303-318)
KFA2 GeForce RTX 4060 Ti EX; 1920x1080 The Witcher 3 ultra (external Monitor): Ø311 (300-329)
KFA2 GeForce RTX 4060 Ti EX; Idle 1min (external Monitor): Ø106.9 (98.9-118.4)
Pros
+ 节俭且非常高效
+ DLSS 3包括帧生成
+ 风扇停止模式

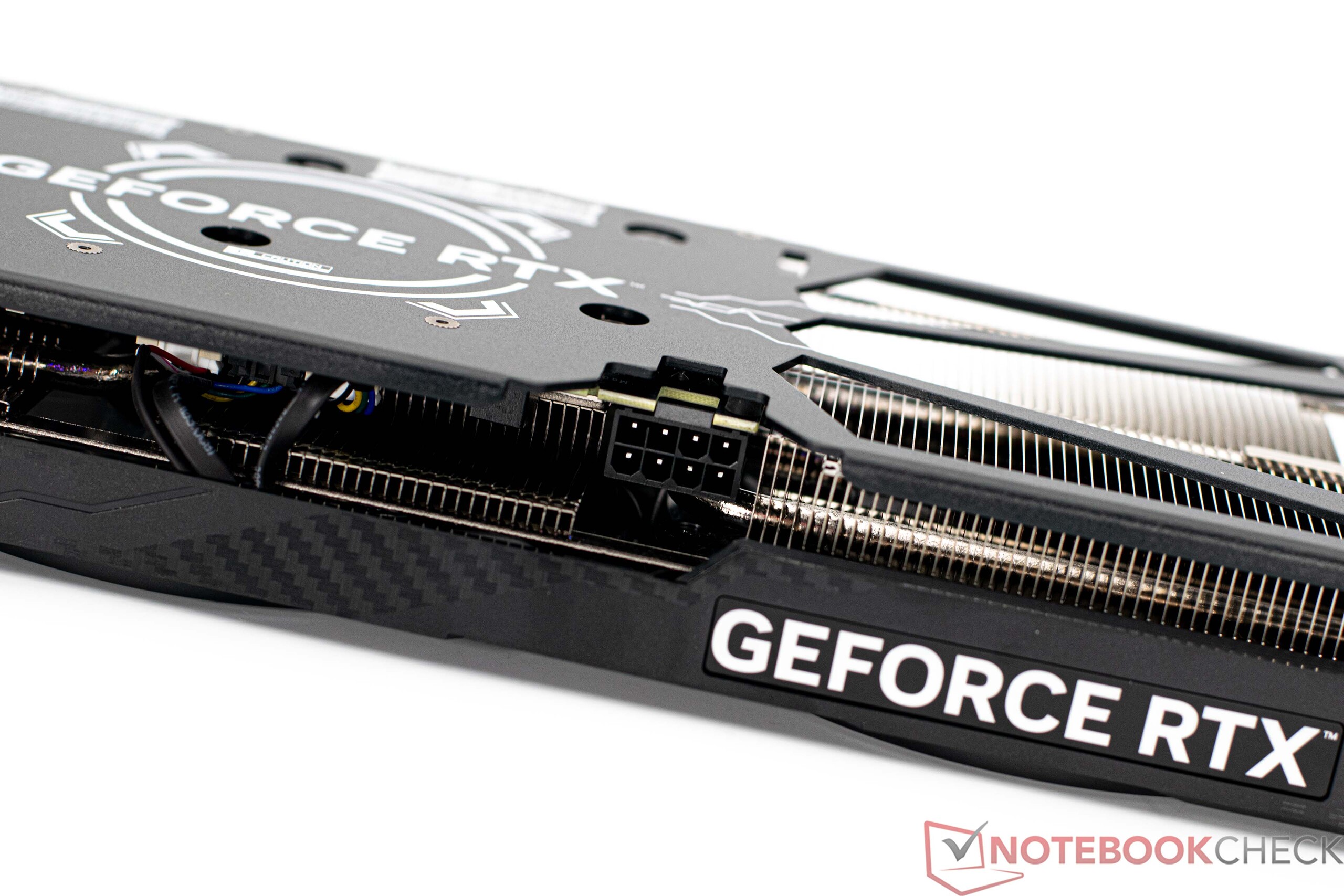

+ 著名的6+2针电源连接
+ 现代5纳米架构
+ 紧凑型设计
Cons
- 与前代产品相比，性能提高很少
- 没有DisplayPort 2.1
- 负载下的声音相当大
结论 - 小巧而节俭的GeForce RTX 4060 Ti
KFA2GeForce RTX 4060 Ti EX是Nvidia的第二个中端显卡型号，证实了MSI在之前测试中的表现。在性能方面，这两个型号几乎没有差别，这意味着它们必须在其他方面争夺买家的注意力。KFA2GeForce RTX 4060 Ti EX的尺寸绝对可以说是对它有利的，因为相比于微星GeForce RTX 4060 Ti Gaming X Trio 8G，我们目前的测试样本要小得多。然而，最大的区别在于价格。KFA2模型是这方面的明显赢家，没有给其微星竞争对手留下任何机会。即便如此，它仍然会让你至少花费435美元。这使得KFA2GeForce RTX 4060 Ti EX的价格类似于AMD Radeon RX 6750 XT具有相似的性能水平。
说到性能：他们向大众提供1080p显卡的目标总的来说是成功的，尽管它是否面向未来是一个不同的问题。在撰写本文时，大多数游戏可以在FHD和最大细节水平下顺利运行。VRAM耗费者将需要稍微降低细节设置，但这仍然是可以的。随着宣布的16-GB型号的发布，是否会有任何改善--时间会告诉我们。
KFA2GeForce RTX 4060 Ti EX目前是一个坚实而非常节俭的1080p游戏显卡。
光线追踪和DLSS等功能很好，在实践中也运作良好。虽然，目前支持DLSS 3的游戏数量仍然有限。因此，KFA2GeForce RTX 4060 Ti EX的未来在于游戏开发者的手中，因为有了DLSS 3和Frame Generation，你应该仍然能够在这个中档显卡上很好地运行新版本。如果这些关于潜在未来的谈话对你来说都太模糊了，那么你可能应该直接寻找一个更快的模型。你在KFA2GeForce RTX 4070 EX Gamer上获得了良好的性能水平，但目前它的价格也高出200美元（635美元）左右。
价格和可用性
KFA2GeForce RTX 4060 Ti EX目前在亚马逊上找不到，然而，你可以在KFA2的网站上阅读更多关于该显卡的信息.该显卡的售价约为435美元。
Transparency
The selection of devices to be reviewed is made by our editorial team. The test sample was provided to the author as a loan by the manufacturer or retailer for the purpose of this review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.
This is how Notebookcheck is testing
Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.
