Acemagic M2A Starship 评测：采用英特尔酷睿 i9-12900H 处理器和 NvidiaGeForce RTX 3080 笔记本电脑 GPU 的未来派飞船外观游戏 PC

Name: Acemagic M2A
Brand: Acemagic

熟悉的硬件重新包装！

Acemagic 推出的 M2A Starship 游戏电脑非常引人注目。这款迷你 PC 不同寻常的飞船式设计吸引了众人的目光，不过，Acemagic Tank03 已经使用了我们熟悉的硬件。在这次评测中，我们分析了英特尔酷睿 i9-12900H 和 NvidiaGeForce-RTX-3080 笔记本 GPU 在独特外壳中的实际性能。

Sebastian Bade, 👁 Sebastian Bade (translated by DeepL / Ninh Duy), Published 06/10/2024 🇺🇸 🇩🇪 ...

Mini PC Desktop Gaming Intel Nvidia Geforce Alder Lake Thunderbolt

已与 Tank03的时候，这家来自远东的系统制造商就已经推出了一款功能强大的游戏电脑，并因其外观和小巧而备受赞誉。在 Acemagic M2A Starship 上，该制造商也采用了类似的方法，只是设备稍大一些。作为回报，Acemagic M2A 的设计也极不寻常。不过，内部硬件采用的是 Acemagic Tank03 中使用的熟悉组件。

在顶级配置中，制造商搭配了英特尔酷睿 i9-12900H与英伟达GeForce RTX 3080 笔记本电脑配备 16GB VRAM。此外，还有 32 GB DDR5 内存和 1 TB 存储空间的固态硬盘。在此配置下，该设备的零售价为 1599 欧元。更便宜的配置基于英特尔酷睿 i7-12700H和英伟达GeForce RTX 3070 笔记本电脑或英伟达GeForce RTX 3060 笔记本电脑已在商店中列出。但目前无法保证供货。制造商偶尔会在自己的商店中提供丰厚的折扣。因此，不妨到制造商的在线商店看看。

在这次评测中，Acemagic M2A Starship 必须在与自己公司以及 Minisforum、英特尔和 Zotac 的竞争中证明自己。我们在下表中汇总了对比设备的概况。

Test device courtesy of Acemagic

Download your licensed rating image as PNG / SVG

Acemagic M2A

Processor

Intel Core i9-12900H 14 x 1.8 - 5 GHz, 65 W PL2 / Short Burst, 45 W PL1 / Sustained, Alder Lake-H

Graphics adapter

NVIDIA GeForce RTX 3080 Laptop GPU - 16 GB VRAM, 115 W TDP, Nvidia 551.76

Memory

32 GB

, DDR5-4800

Mainboard

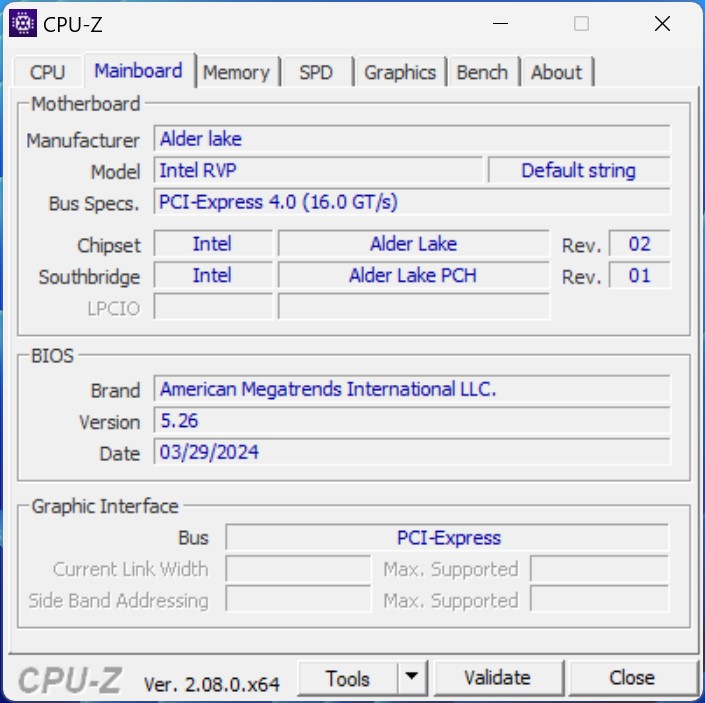

Intel Alder Lake-P PCH

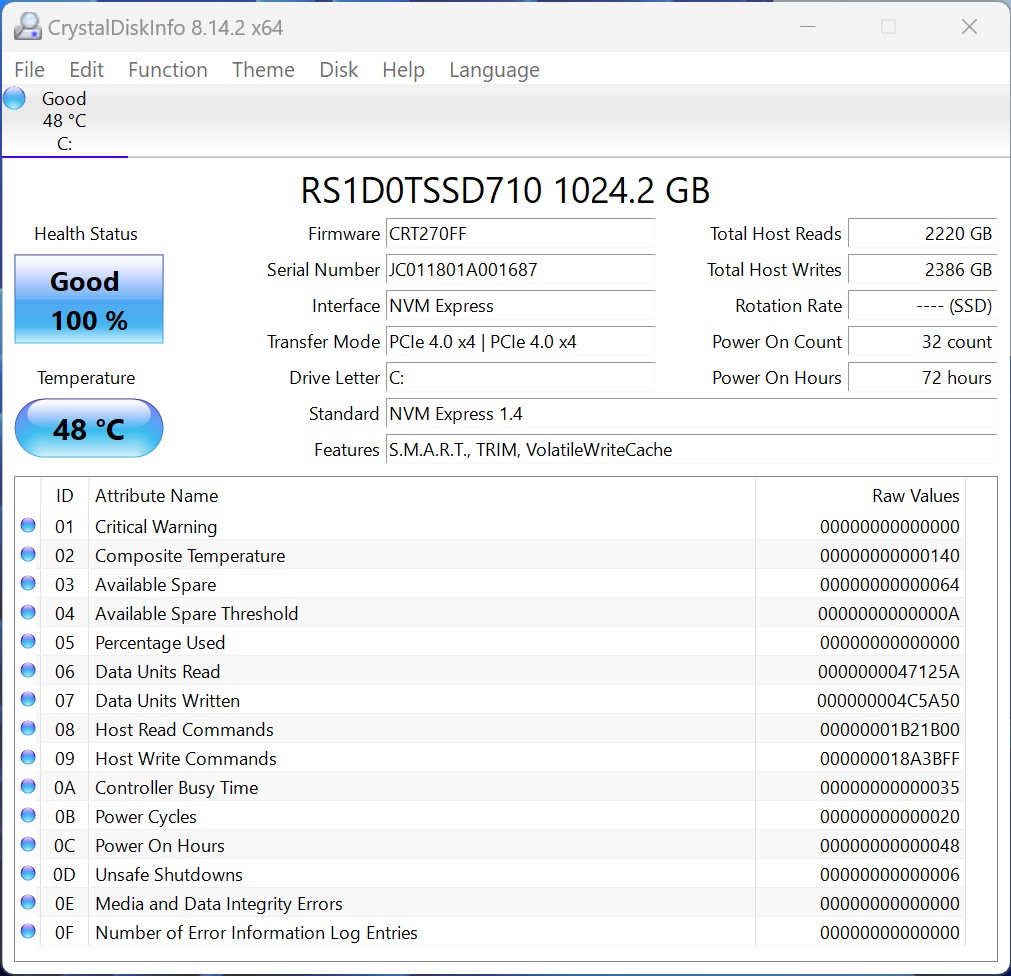

Storage

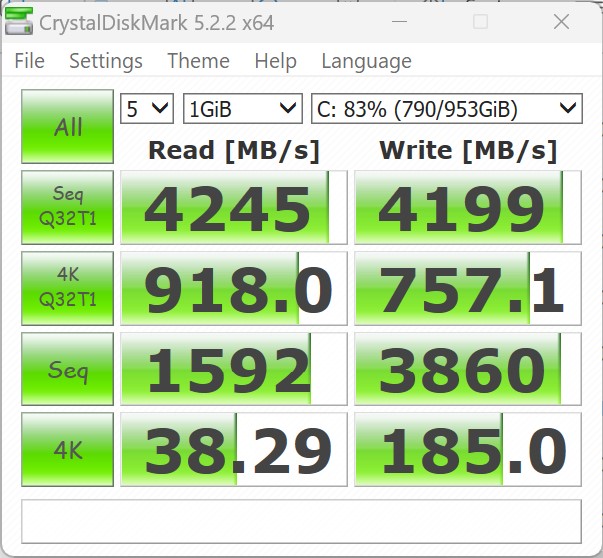

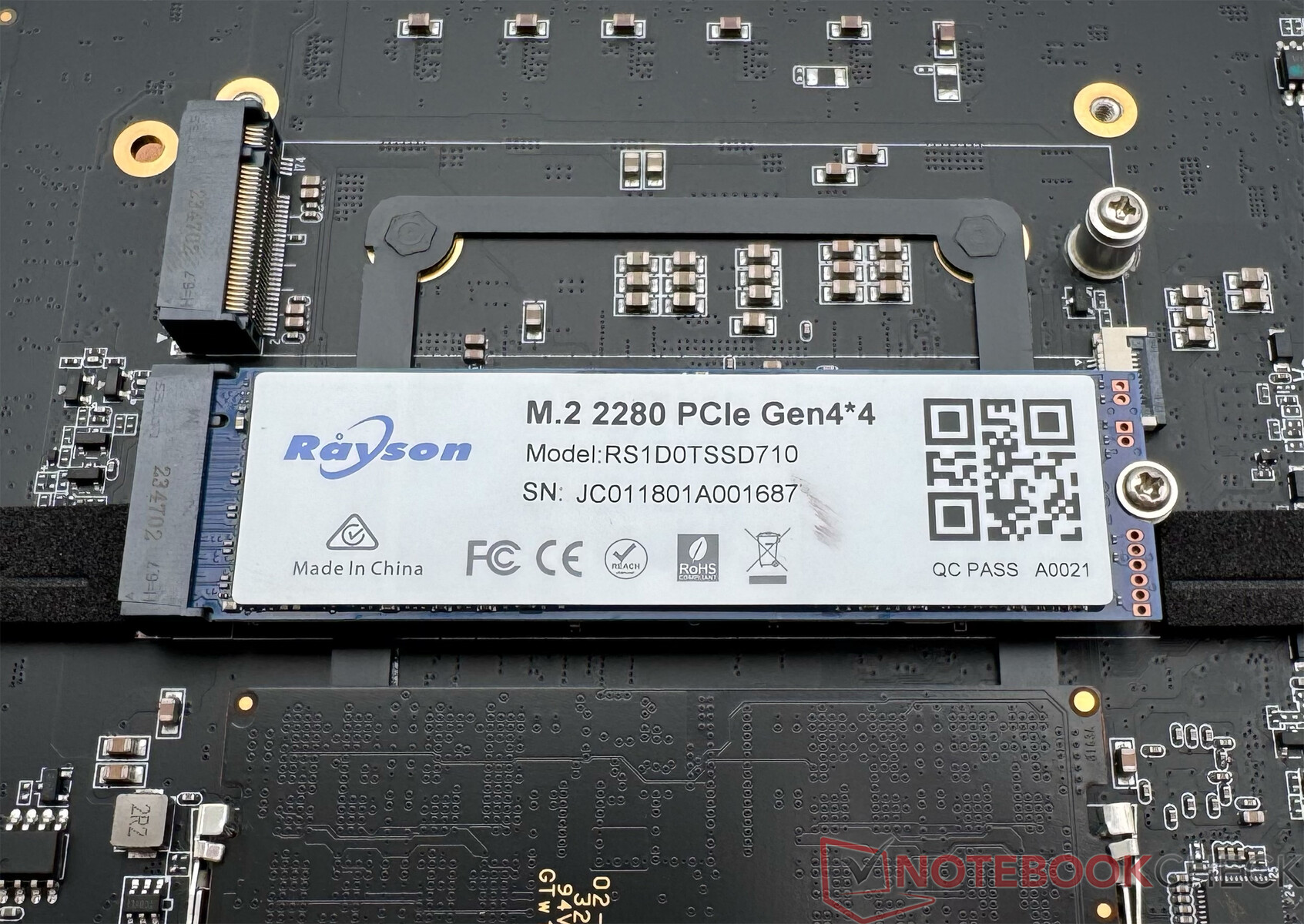

Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe, 1024 GB

, M.2-2280, NVMe, 950 GB free

Soundcard

Intel Alder Lake-P PCH - cAVS (Audio, Voice, Speech)

Connections

3 USB 3.0 / 3.1 Gen1, 3 USB 3.1 Gen2, 1 USB 4.0 40 Gbps, 1 Thunderbolt, 2 HDMI, 2 DisplayPort, 2 Kensington Lock, Audio Connections: 3.5mm Klinke, 2.5G RJ45

Networking

Realtek RTL8125 2.5GBe Family Ethernet Controller (10/100/1000/2500MBit/s), Realtek RTL8852BE (b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/), Bluetooth 5.2

Size

height x width x depth (in mm): 200 x 331 x 185

Operating System

Microsoft Windows 11 Pro

Weight

2.145 kg, Power Supply: 1.106 kg

Price

1.599 EUR

Amazon

$1,099.00

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

潜在的竞争对手比较

Rating	Date	Model	Memory	Weight	Height
80.7 %	06 / 2024	Acemagic M2A i9-12900H, GeForce RTX 3080 Laptop GPU	32768 MB	2.1 kg	200 mm
90.6 % v7 ^(old)	11 / 2023	Minisforum Neptune Series HX77G R7 7735HS, Radeon RX 6600M	32768 MB	1.6 kg	69.3 mm
88.4 % v7 ^(old)	03 / 2023	Intel NUC 12, NUC12SNKi72_Serpent Canyon i7-12700H, A770M	32768 MB	2 kg	60 mm
87.7 % v7 ^(old)	12 / 2023	Acemagic Tank03 i9-12900H, GeForce RTX 3080 Laptop GPU	32768 MB	2.2 kg	159 mm
v7 ^(old)	09 / 2022	Minisforum NUCX i7 i7-11800H, GeForce RTX 3070 Laptop GPU	16384 MB	2.4 kg	393 mm
v ^(old)	05 / 2022	Zotac ZBOX Magnus EN173070C i7-11800H, GeForce RTX 3070 Laptop GPU	32 MB	1.8 kg	62.2 mm

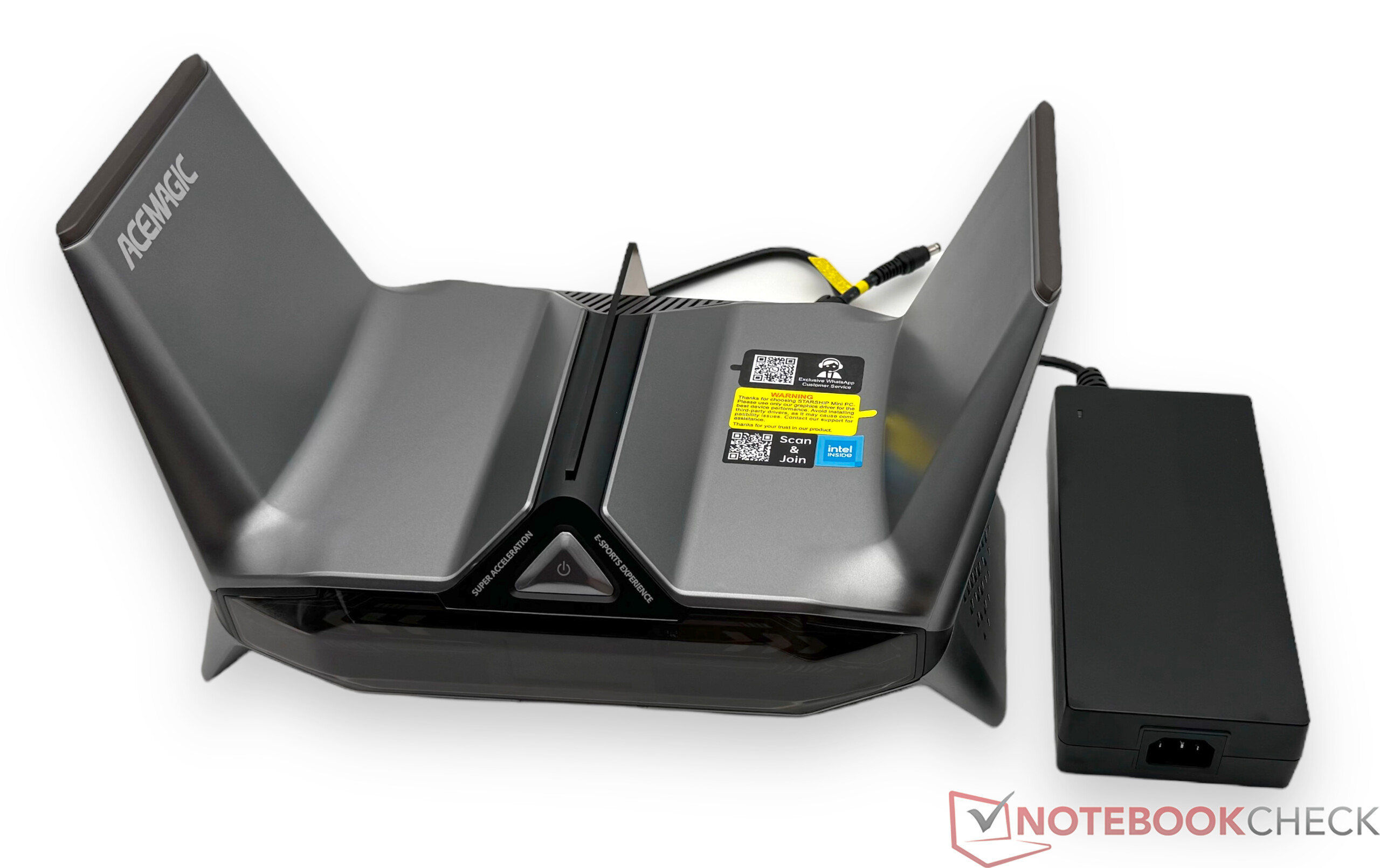

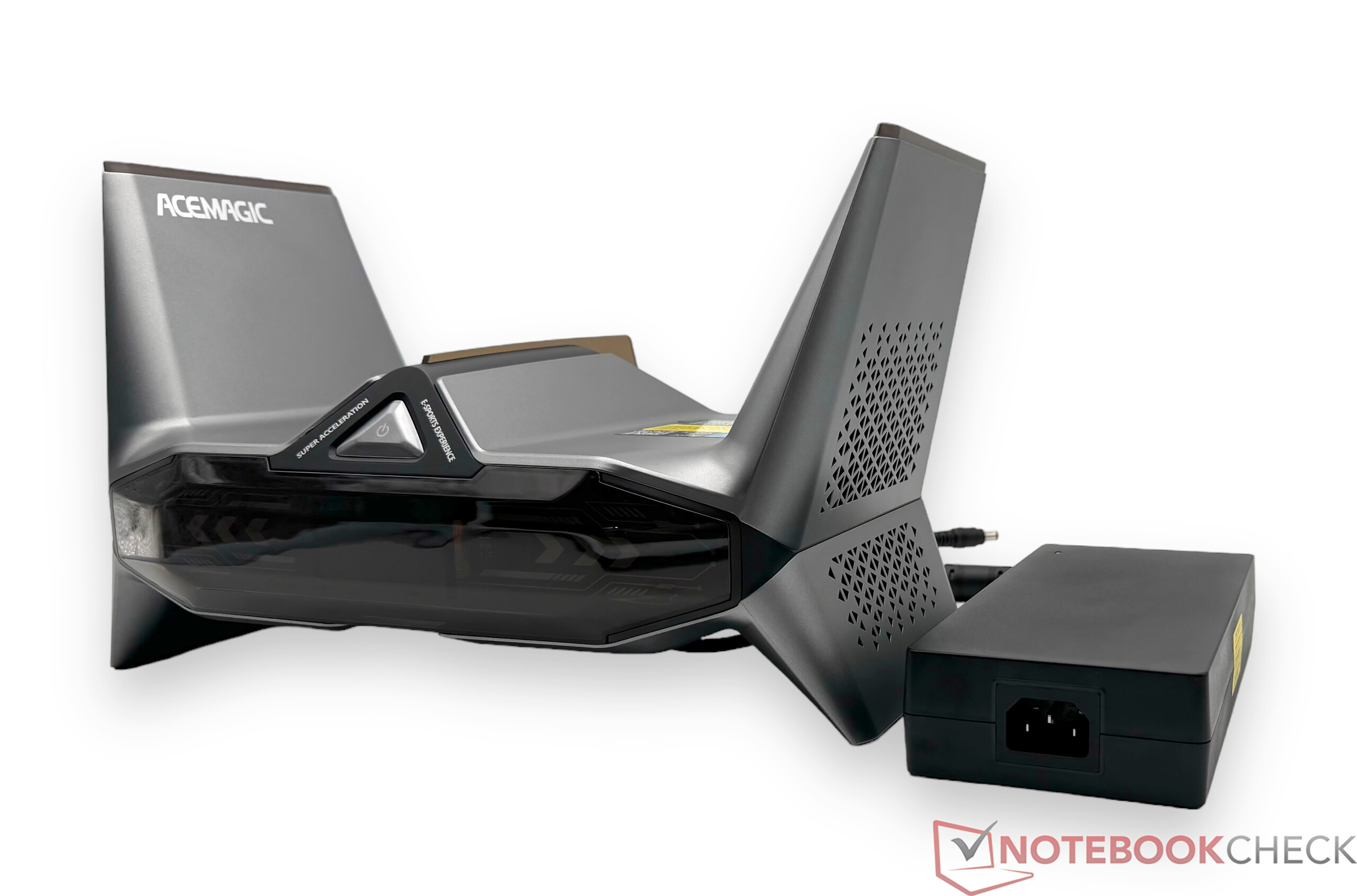

Acemagic M2A 星际飞船，带 300 瓦电源装置（19 伏；15.79 安）

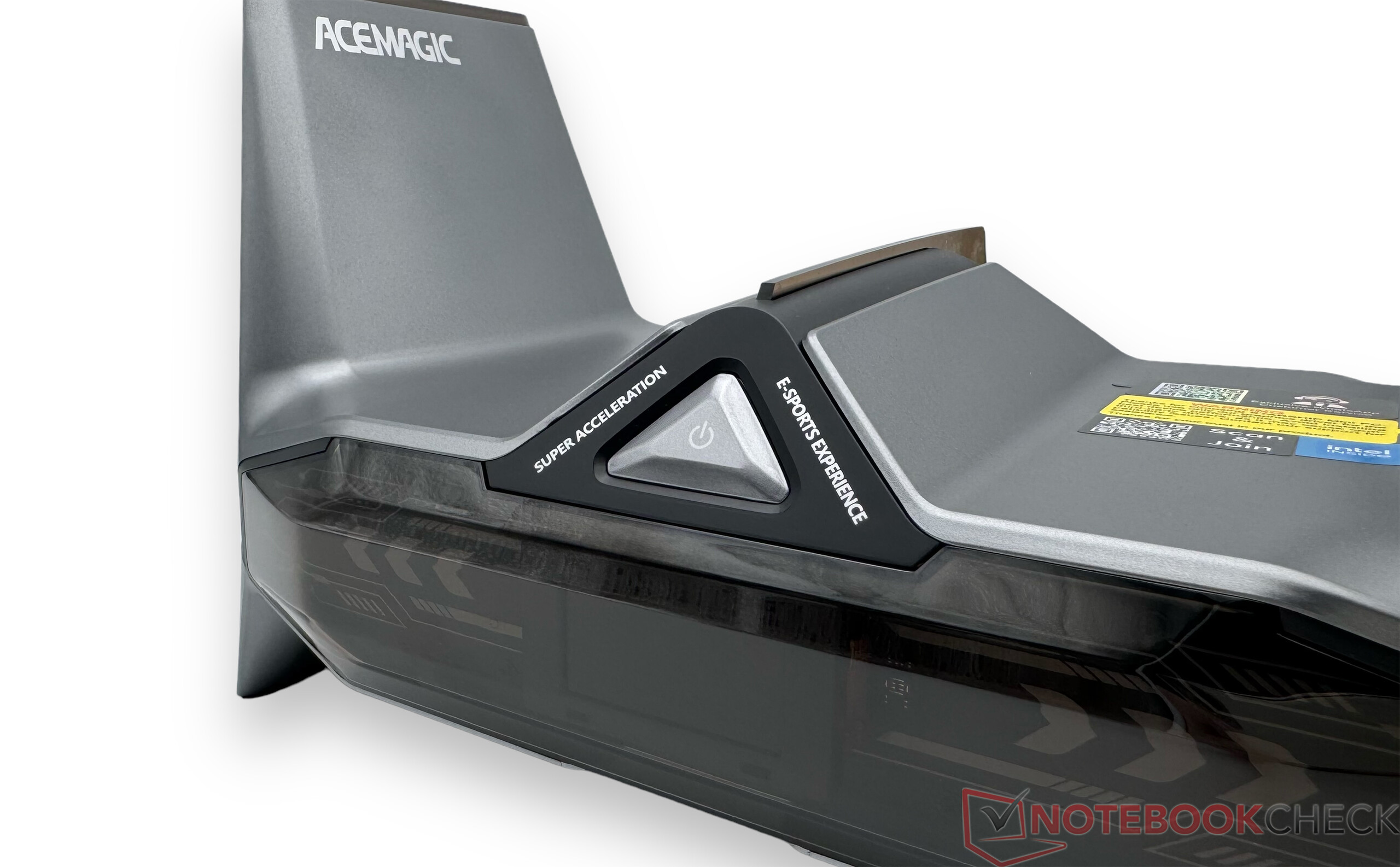

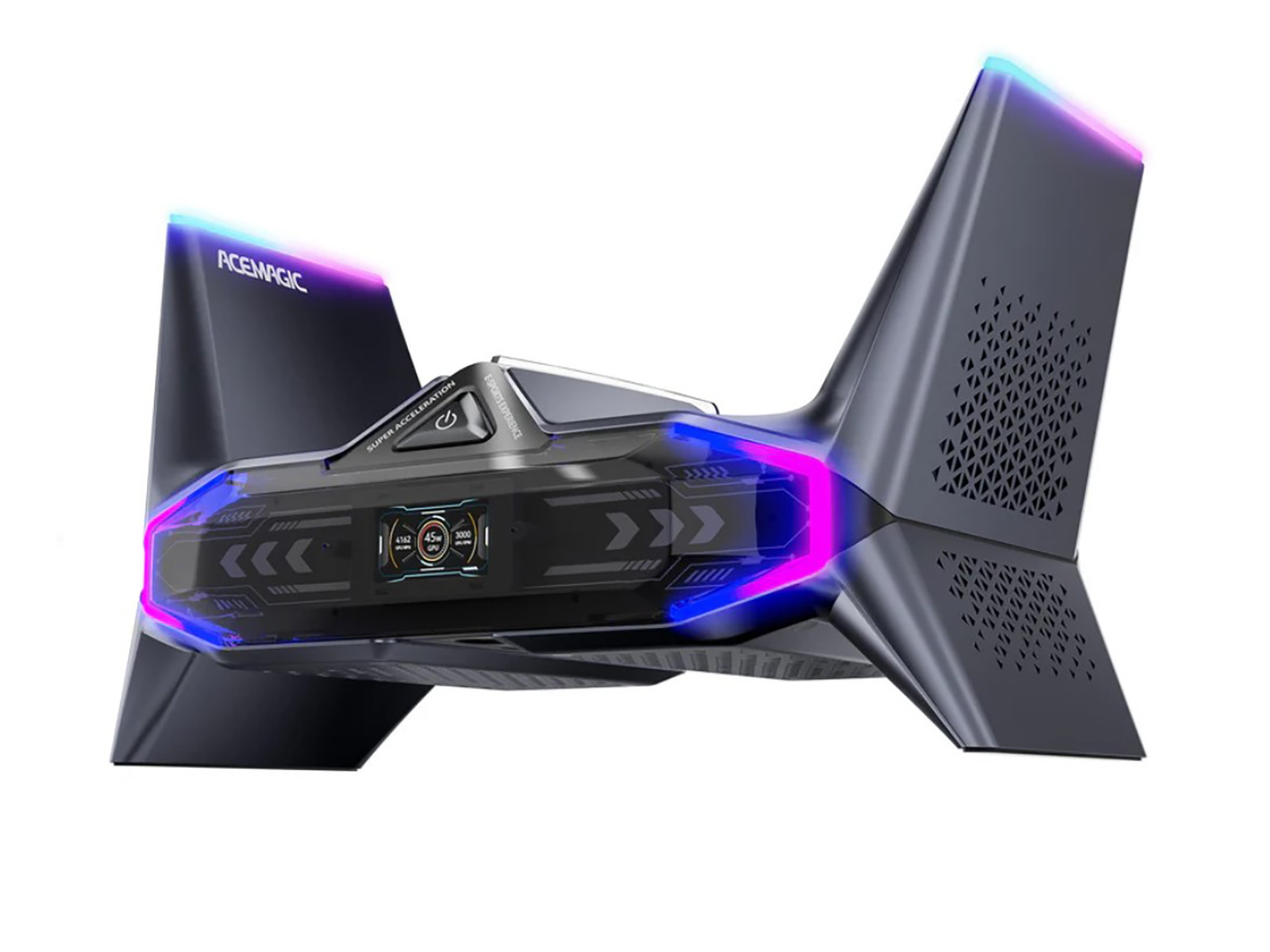

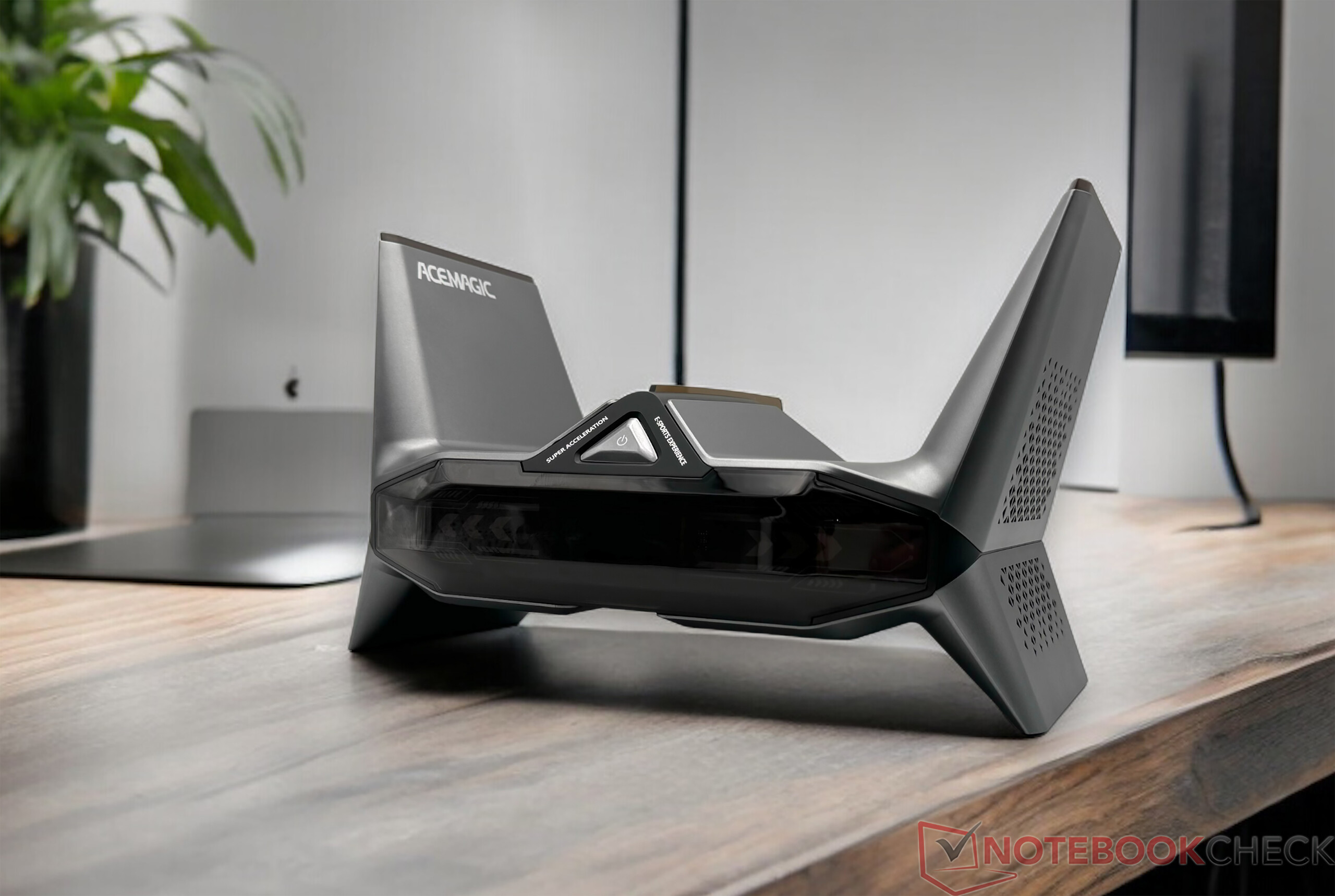

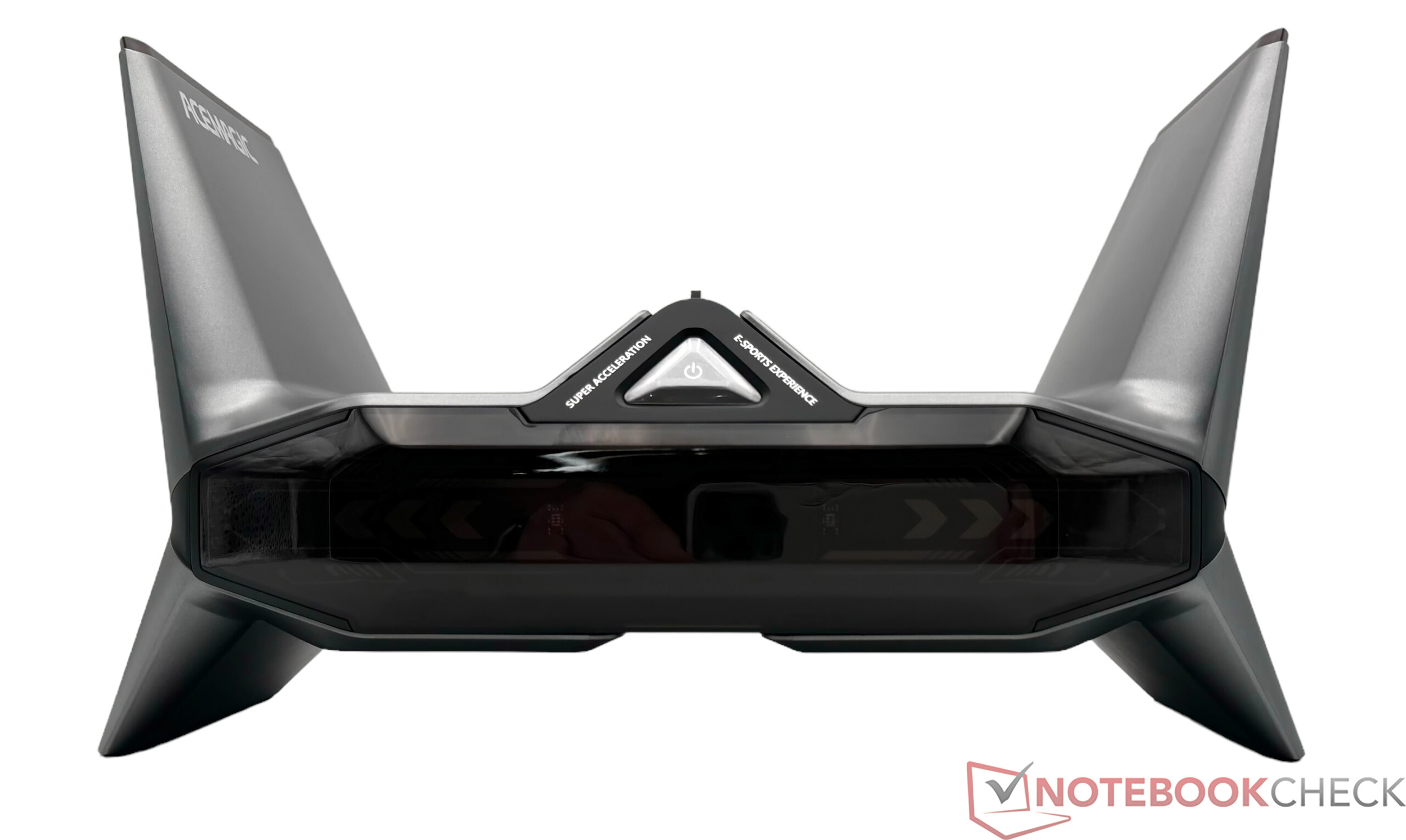

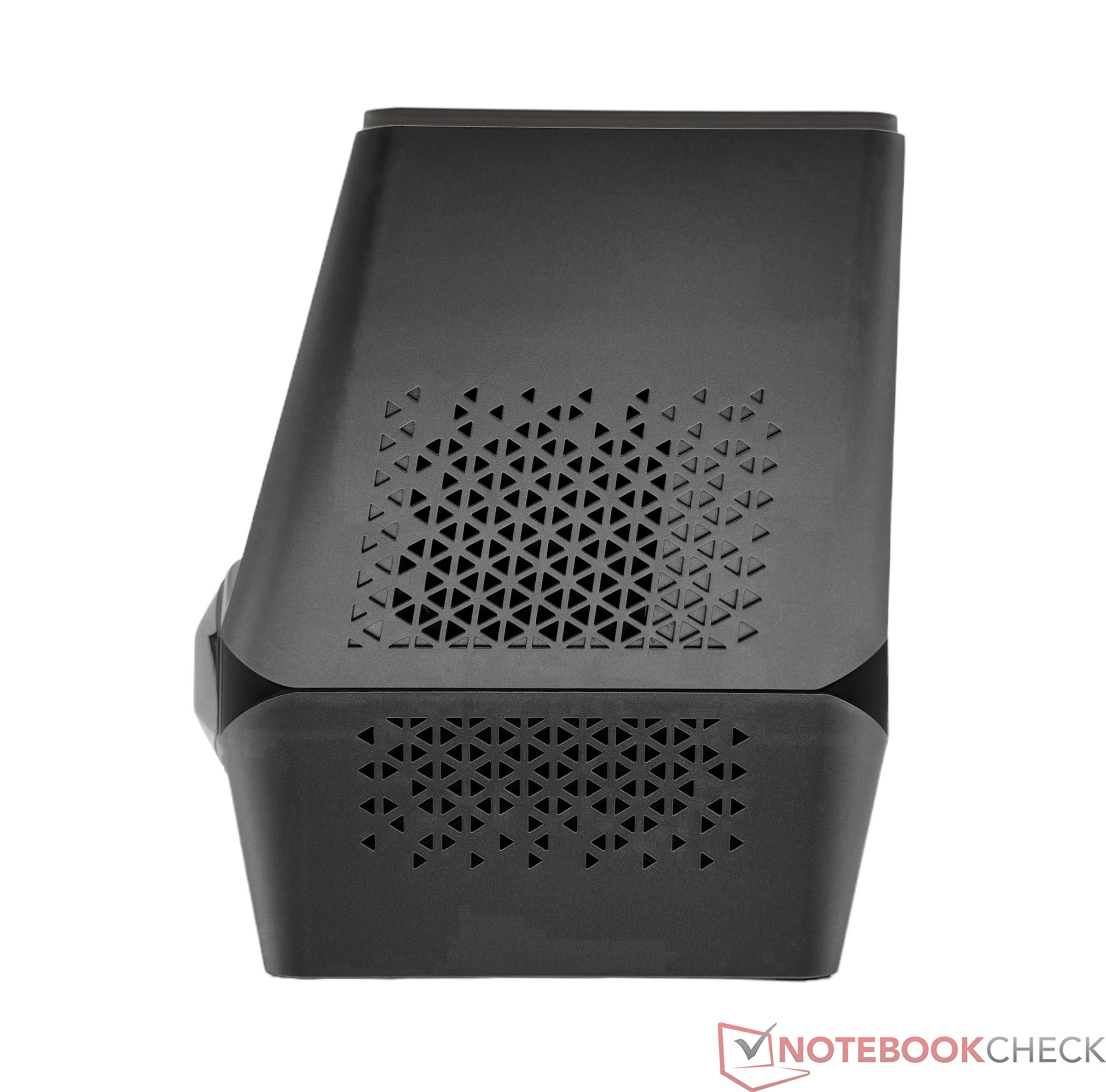

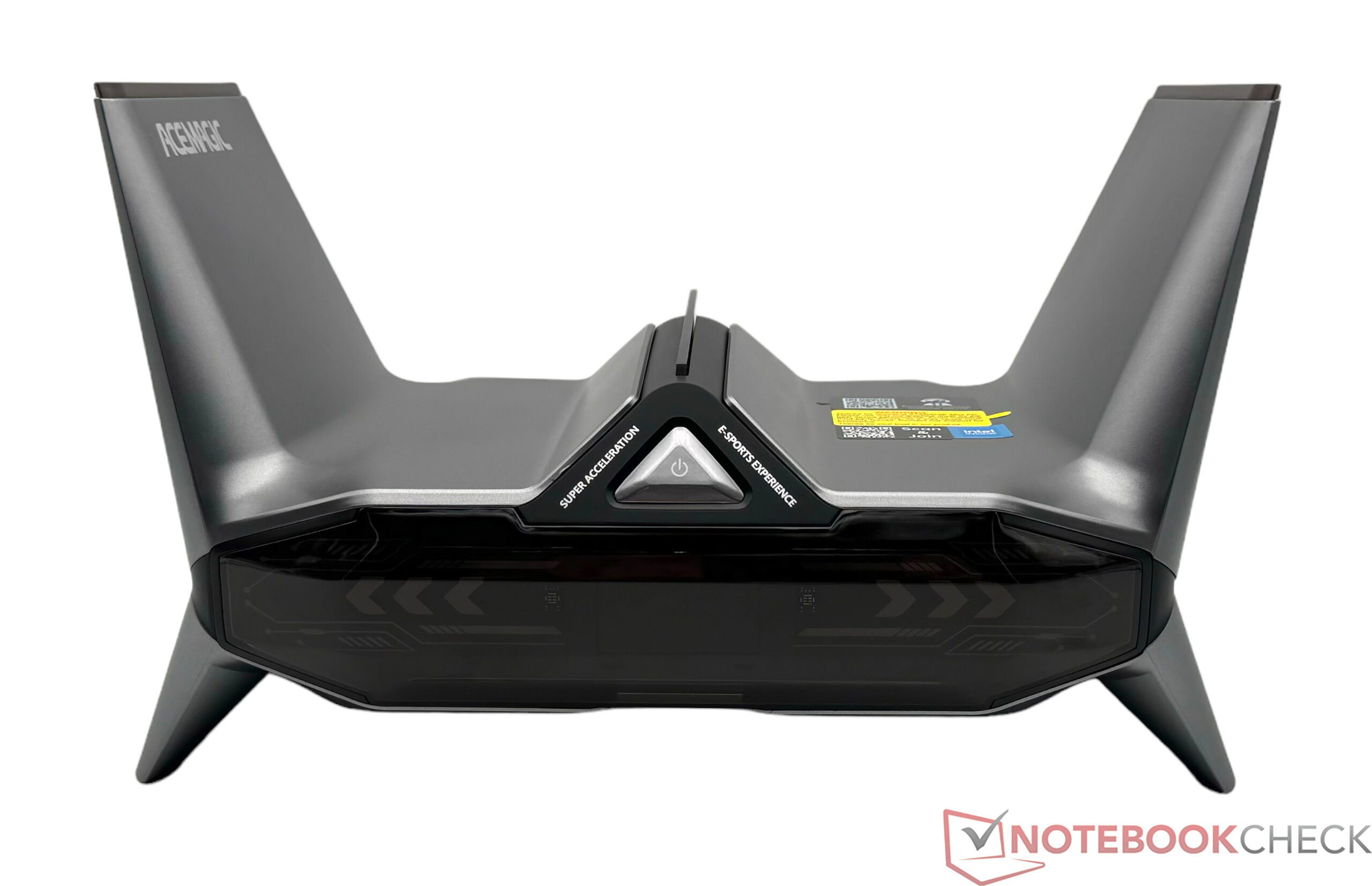

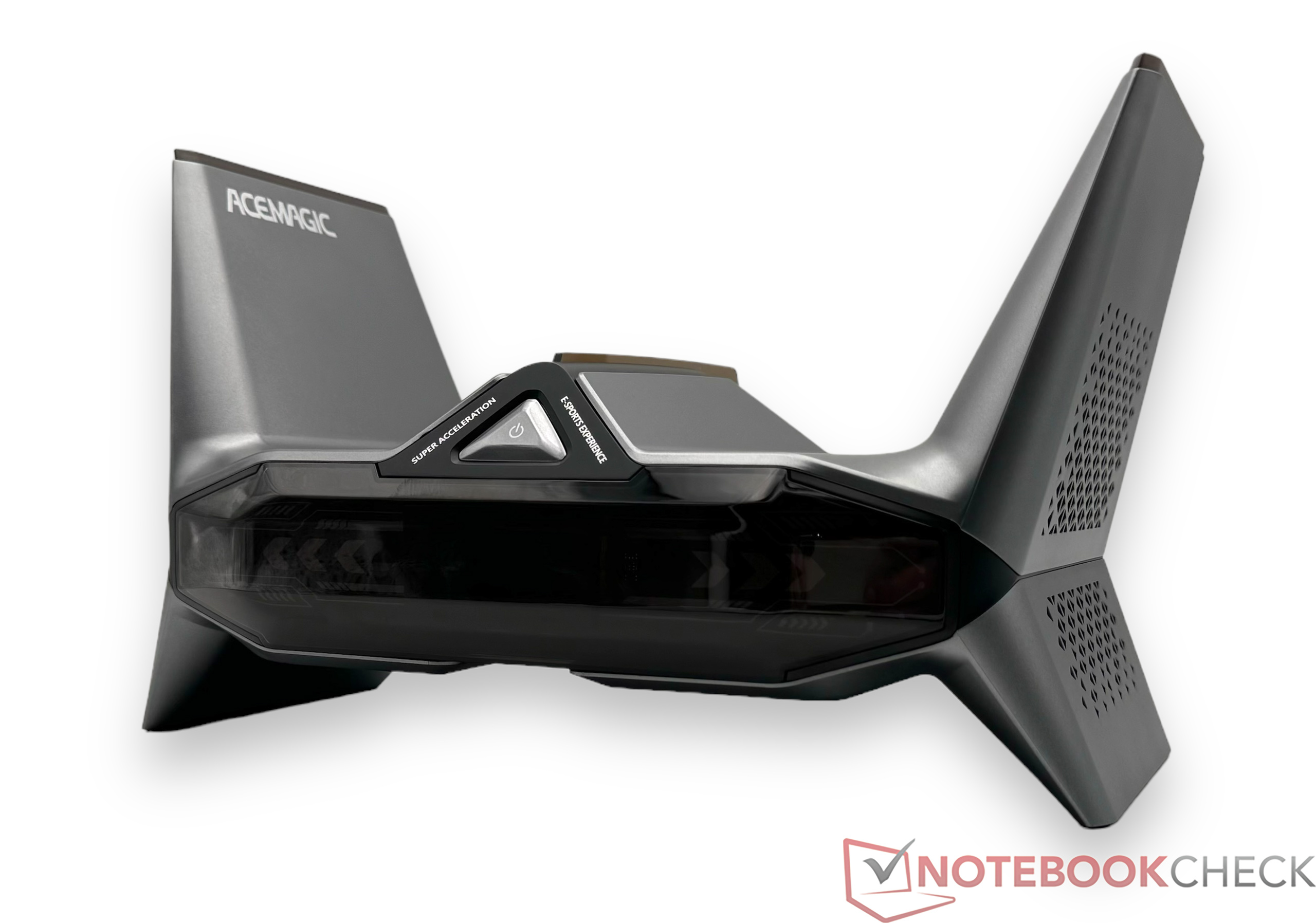

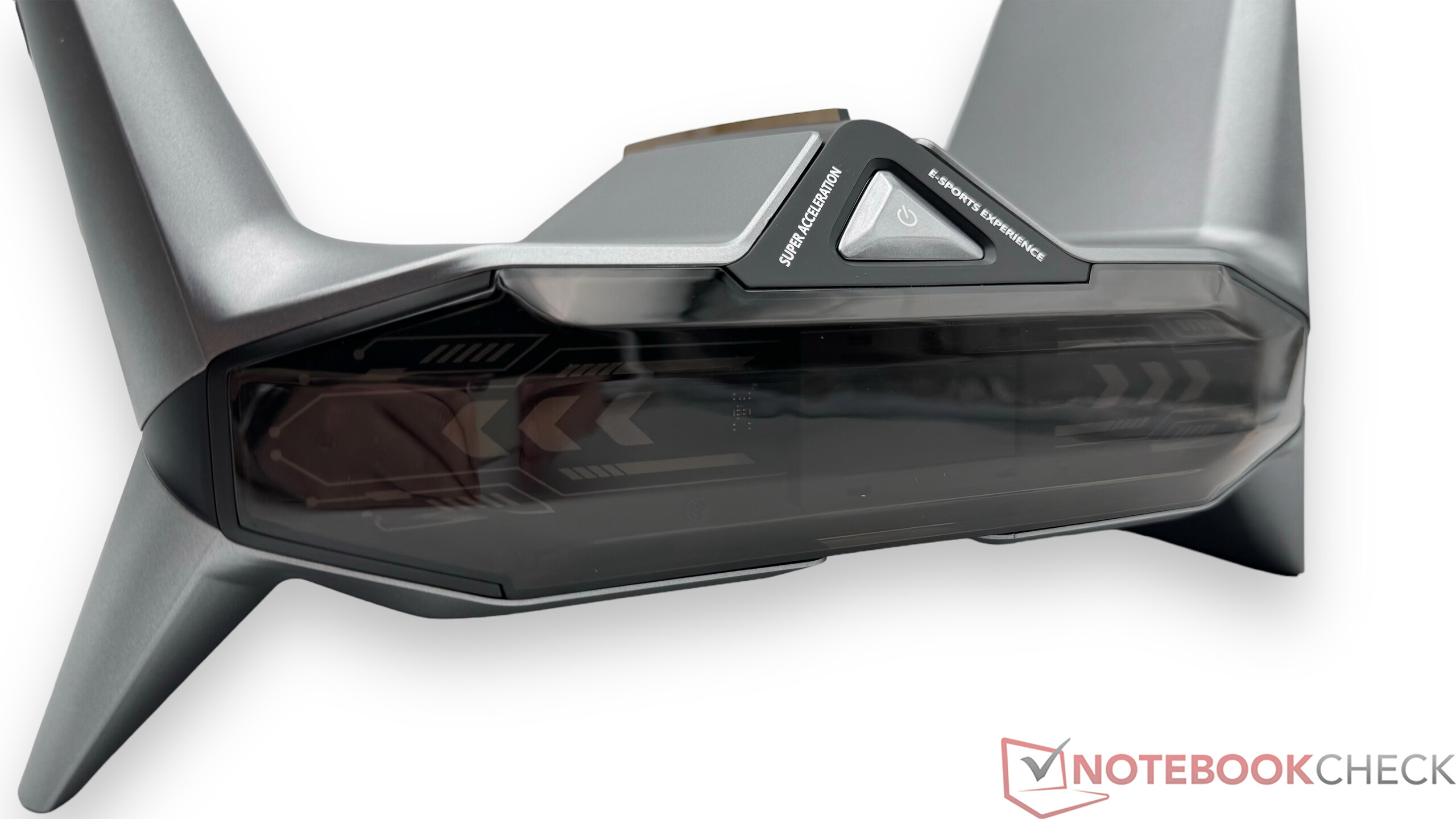

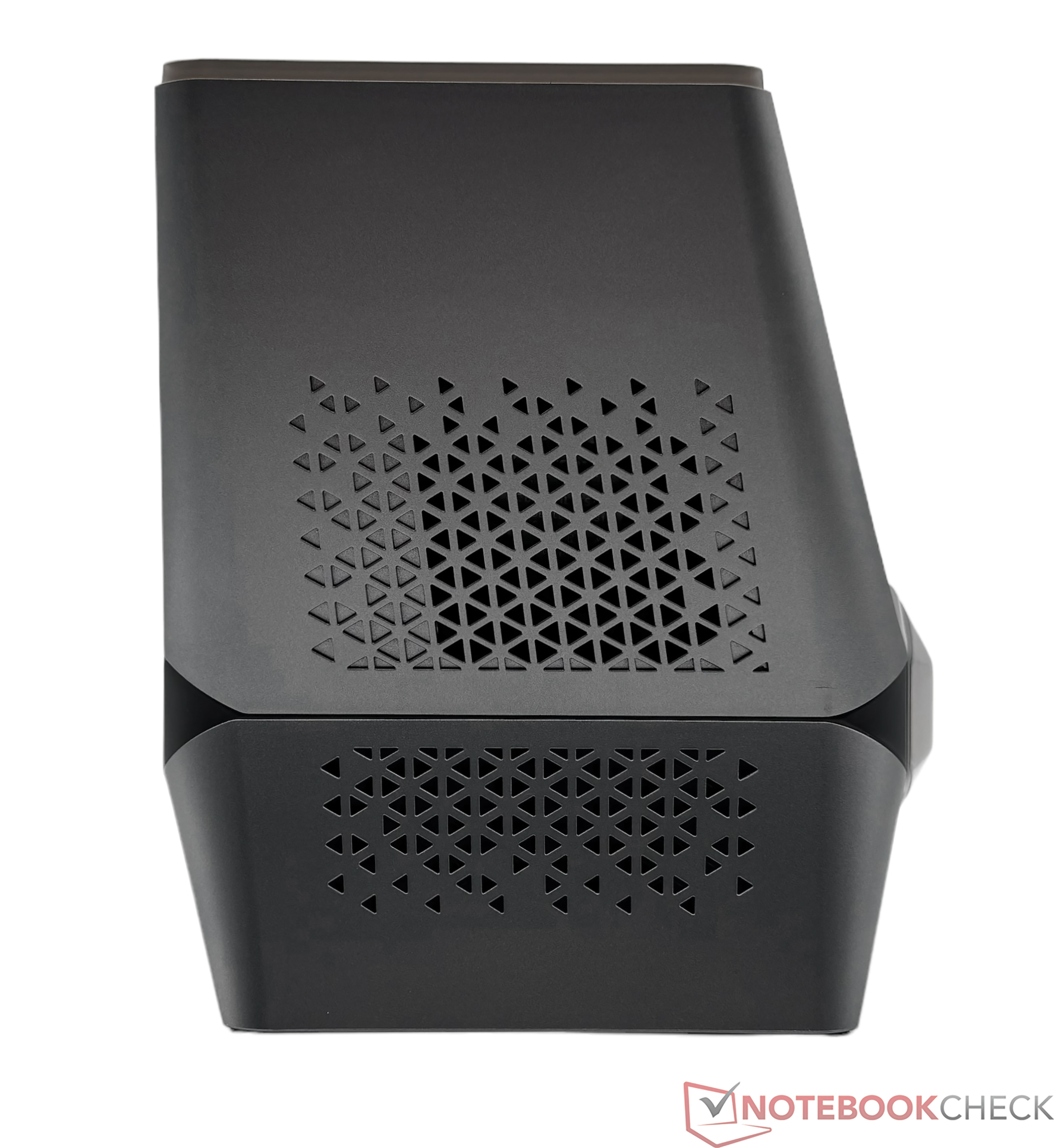

外壳 - 带有 RGB 元素和显示屏的飞船外观

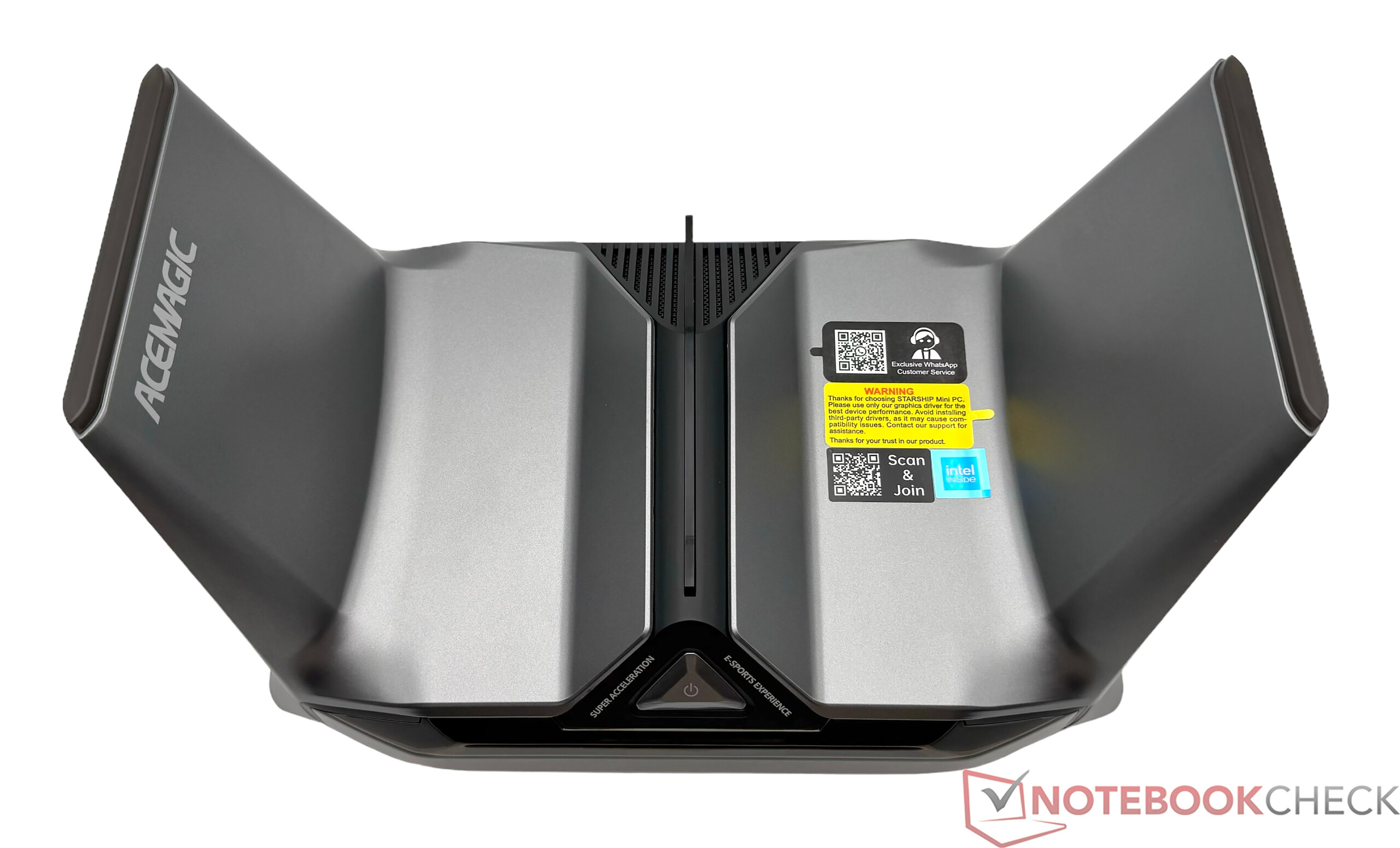

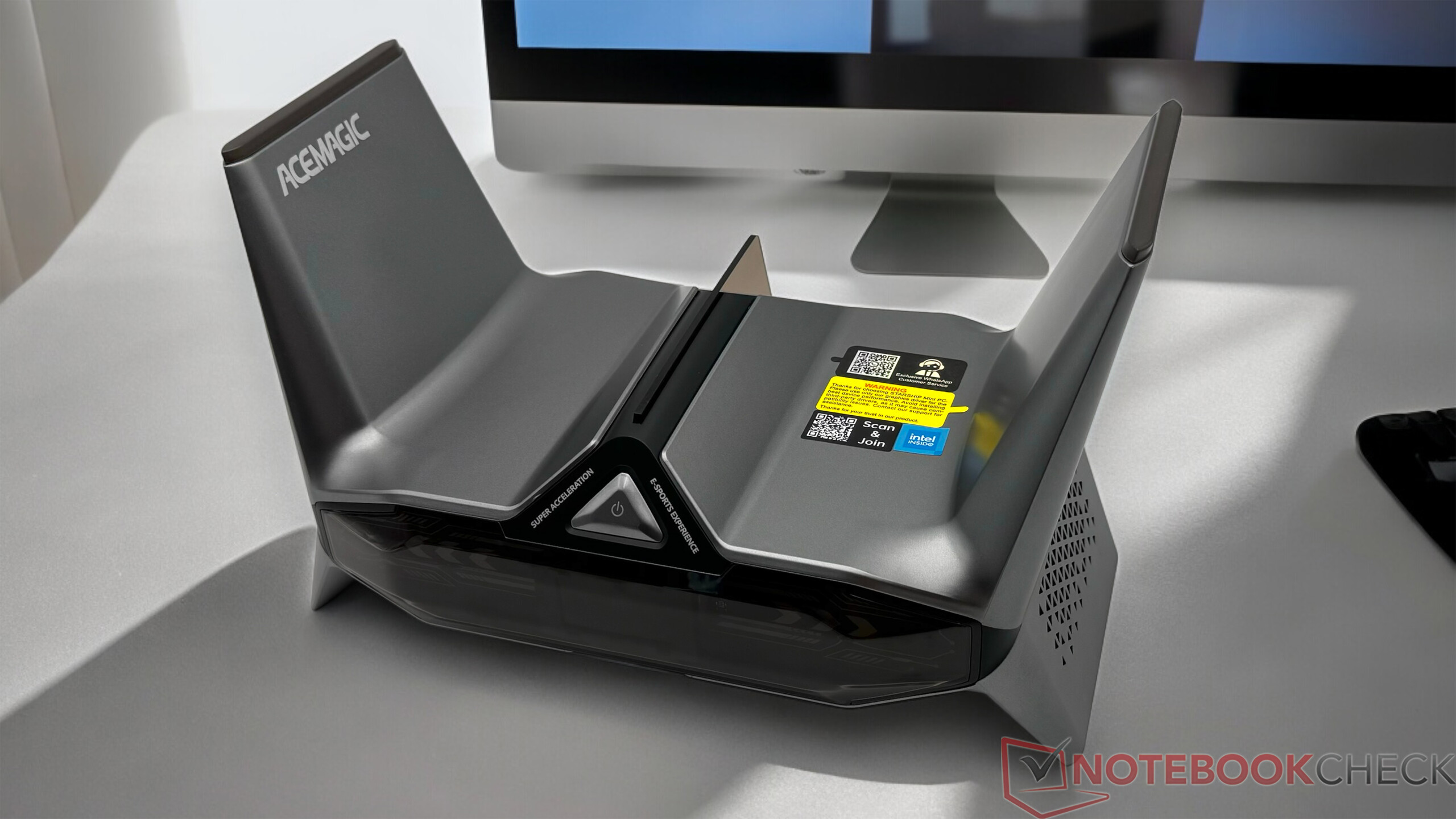

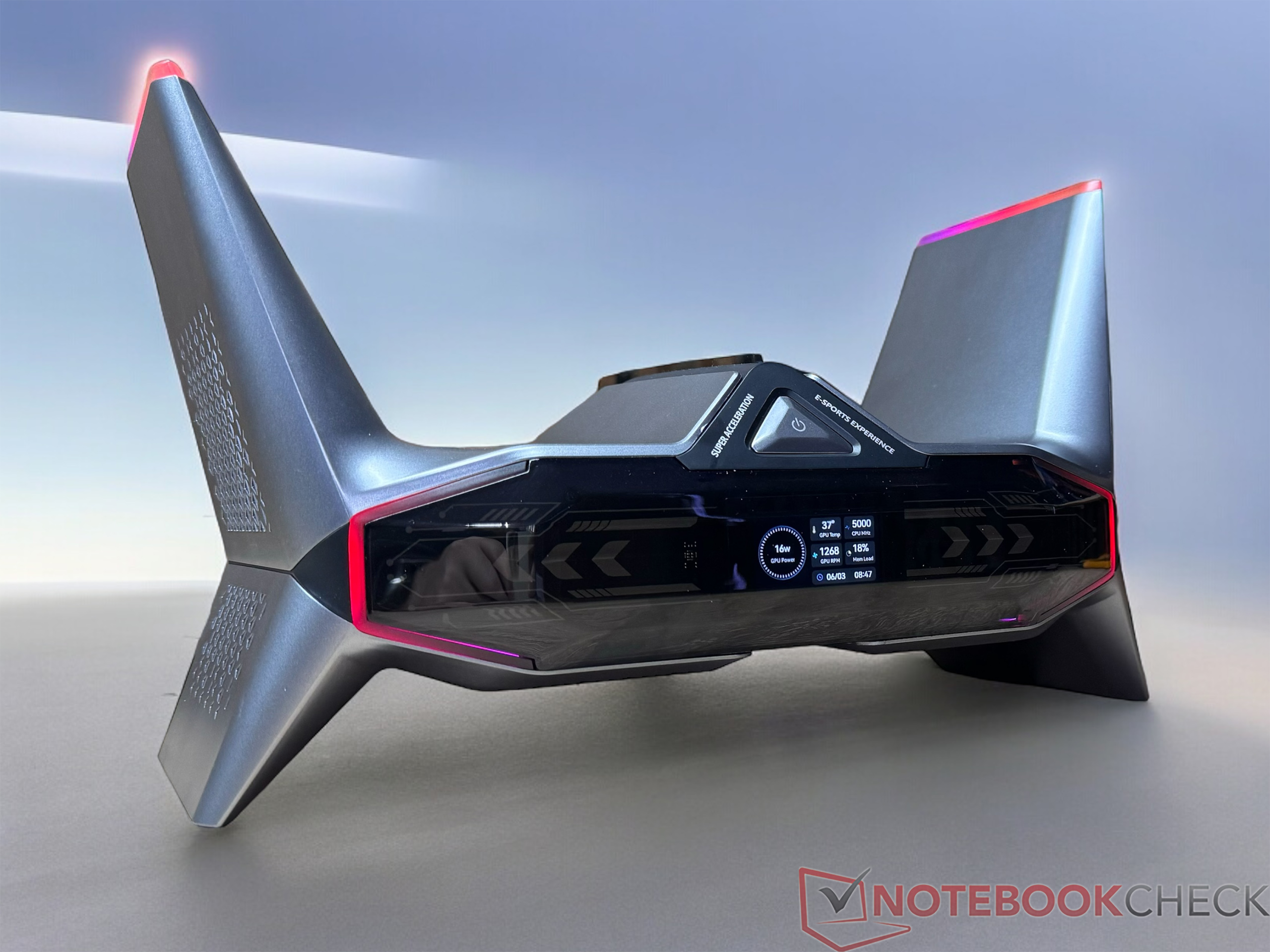

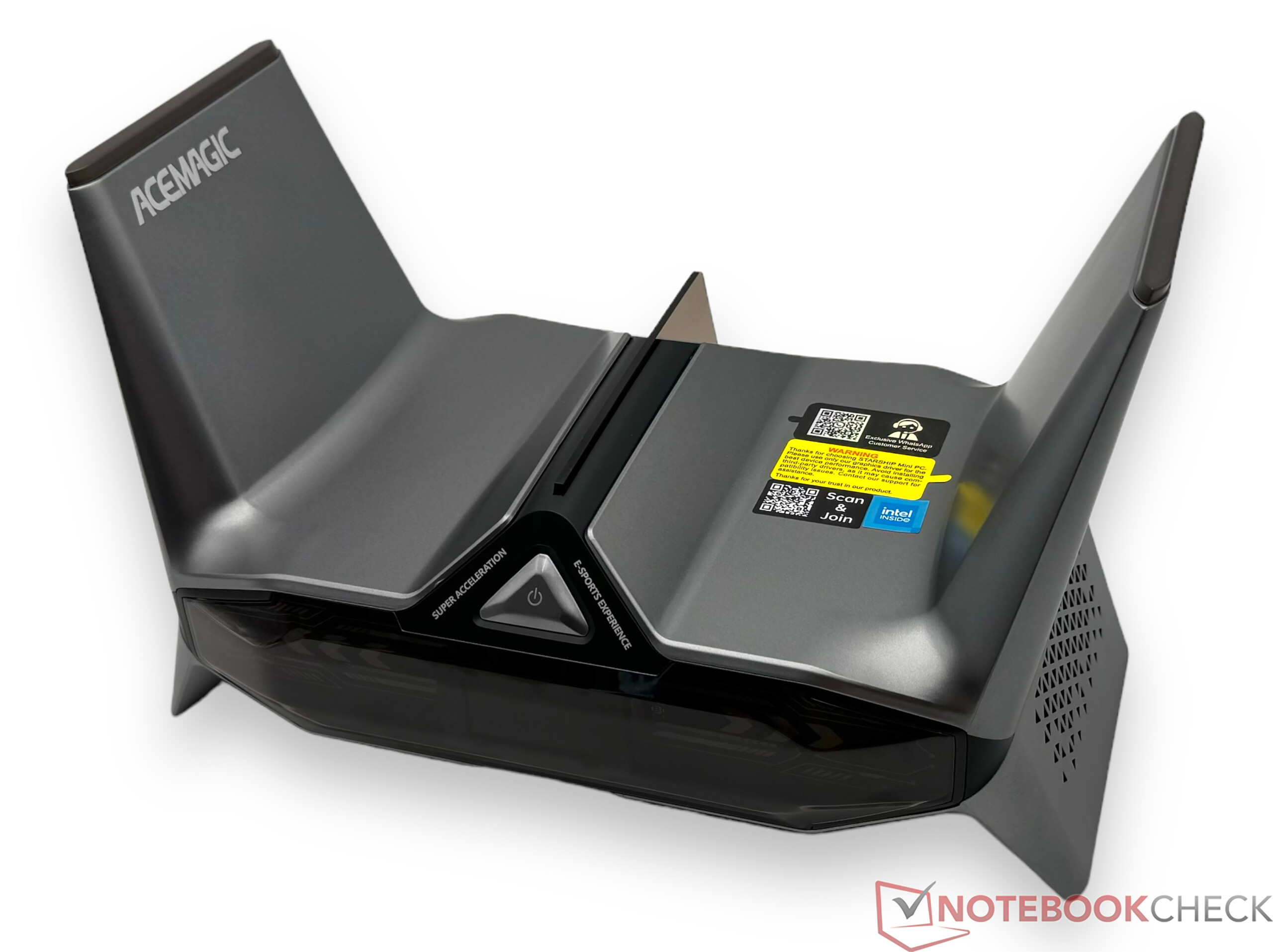

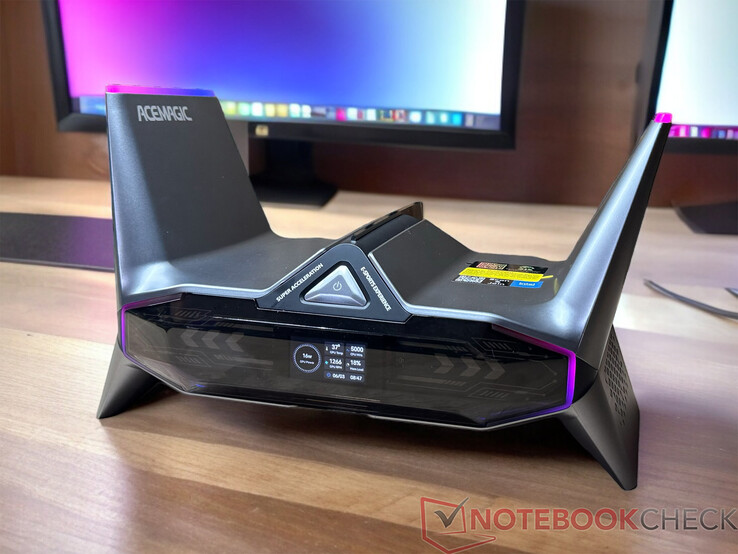

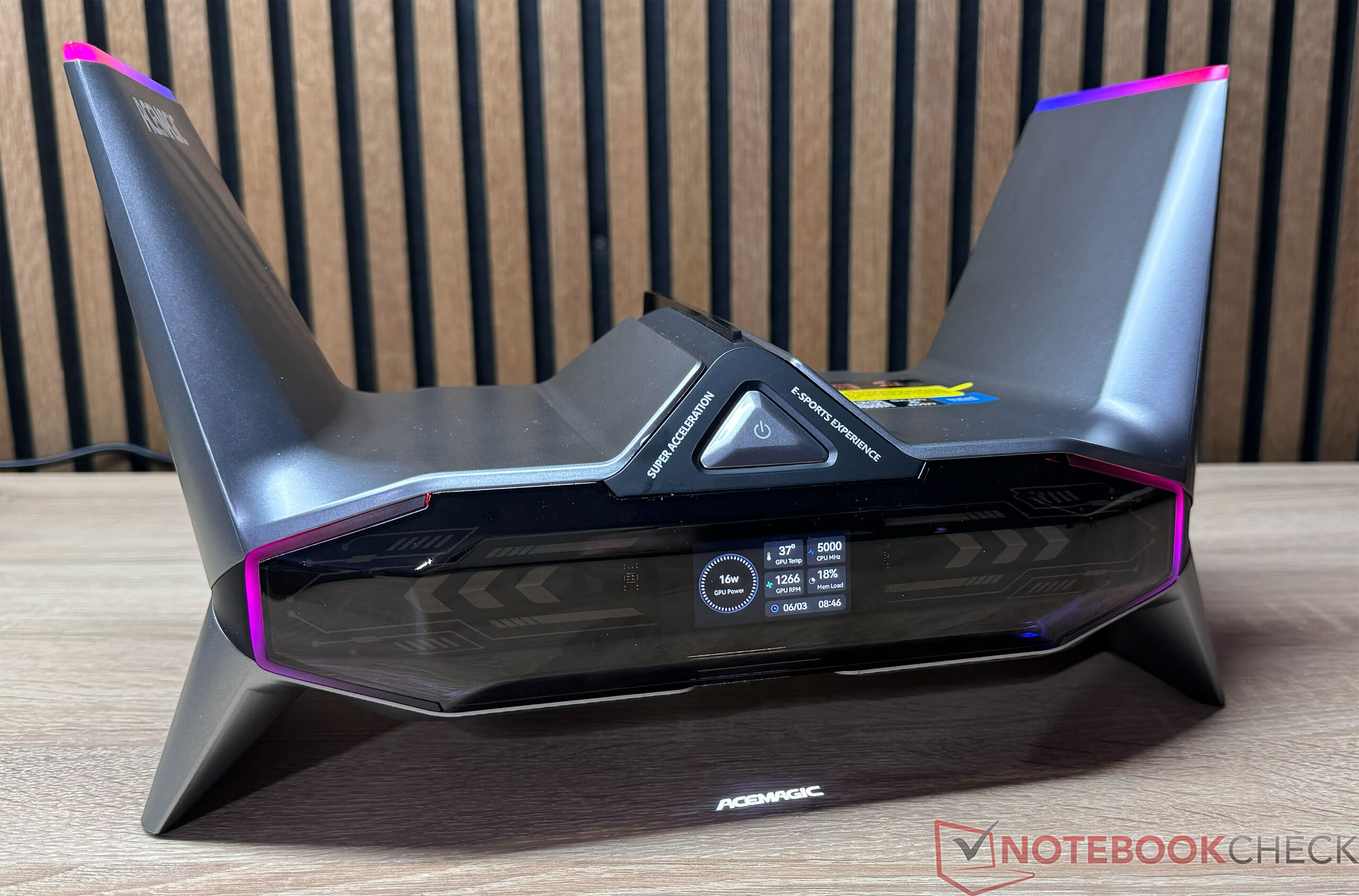

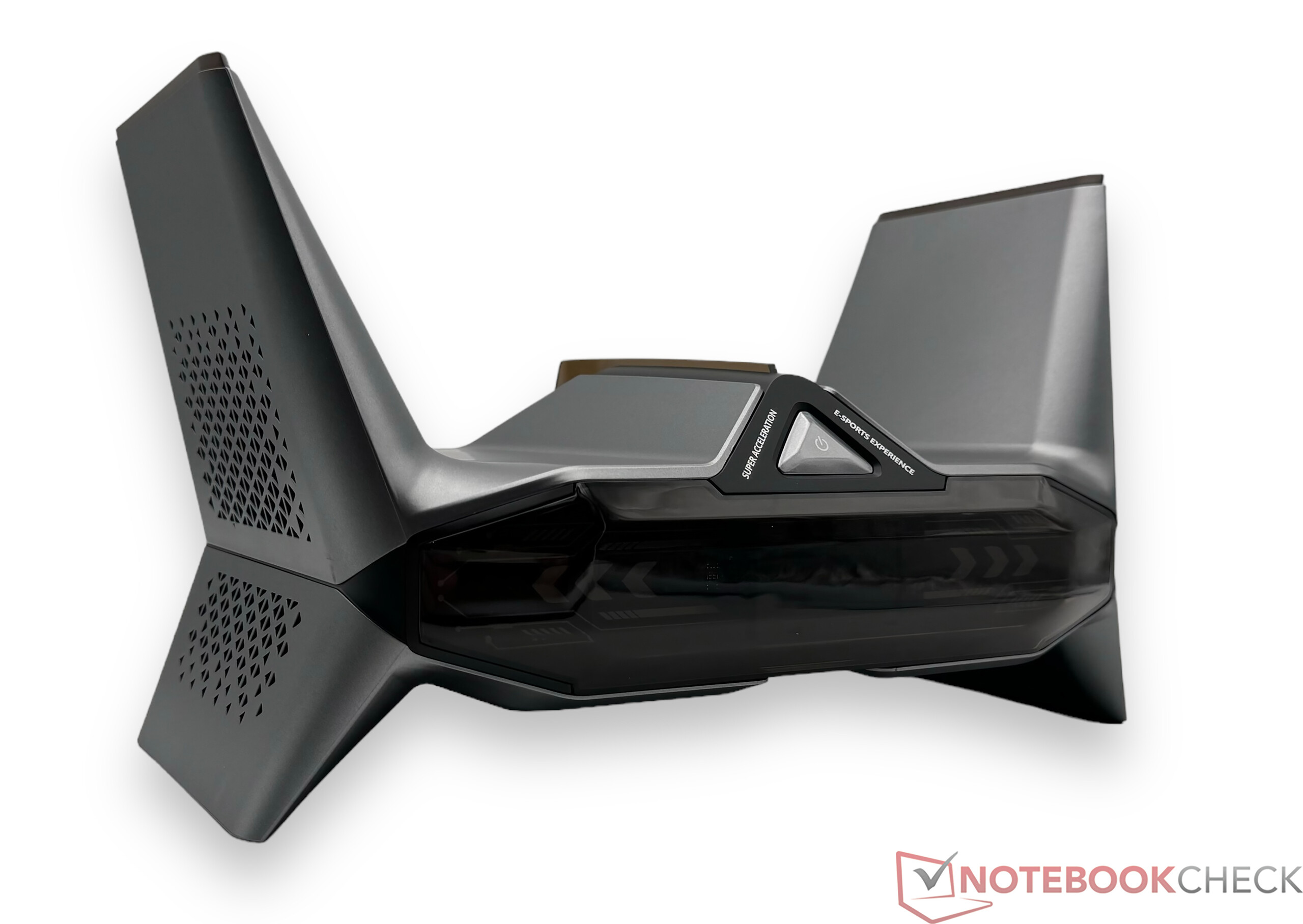

Acemagic M2A Starship 因其外观而具有极高的辨识度。制造商将硬件装在一个奢华的外壳中，看起来就像一艘宇宙飞船。如果您正在寻找一款外观与众不同的电脑，那么 Acemagic M2A 一定会让您爱不释手。在材料的选择上，Acemagic M2A 主要使用塑料。这并不是一个悲剧，因为银色元素与黑色塑料机箱搭配得天衣无缝。这款引人注目的微型电脑的占地面积略大于其他竞争对手。不过，Acemagic M2A Starship 并没有完全夸张。测试样品的重量略高于 2.1 千克，而巨大的 300 瓦电源则重达 1.1 千克。该设备结构坚固，具有很高的刚性。不过，如果设备温度较低，在负载情况下外壳可能会破裂，而在游戏过程中，在负载情况下外壳可能会发热。

作为视觉亮点，制造商安装了一些发光元件，可使用小工具进行控制。正面还有一个小显示屏，可显示一些系统信息。这也可以通过一个应用程序进行自定义。但这还不是全部，在显示屏下方的中间位置还有一个小灯，可以将 Acemagic 的标志投射到桌面上。

尺寸比较

Acemagic M2A Minisforum NUCX i7 Acemagic Tank03 Intel NUC 12, NUC12SNKi72_Serpent Canyon Minisforum Neptune Series HX77G Zotac ZBOX Magnus EN173070C DIN A4 ❌

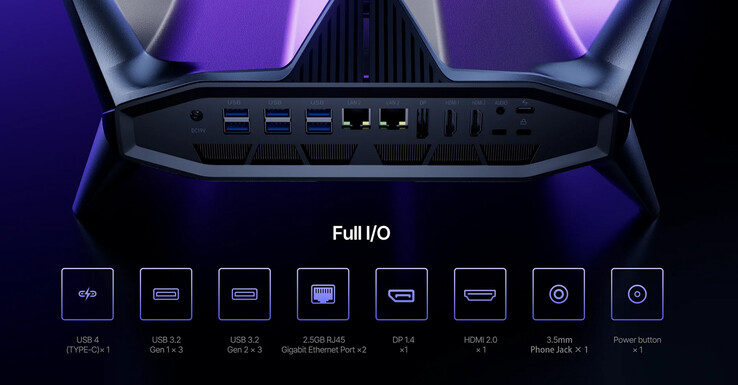

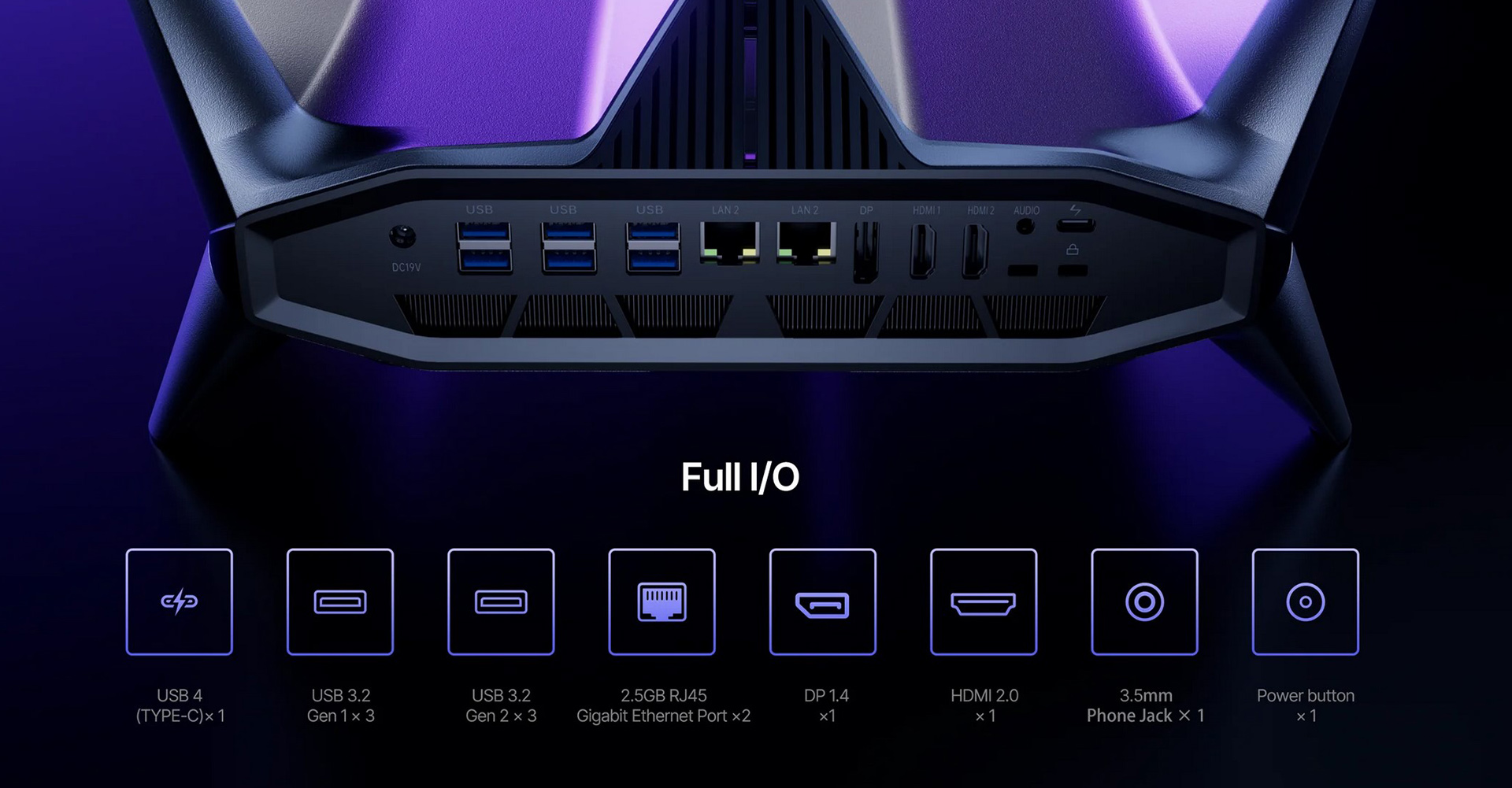

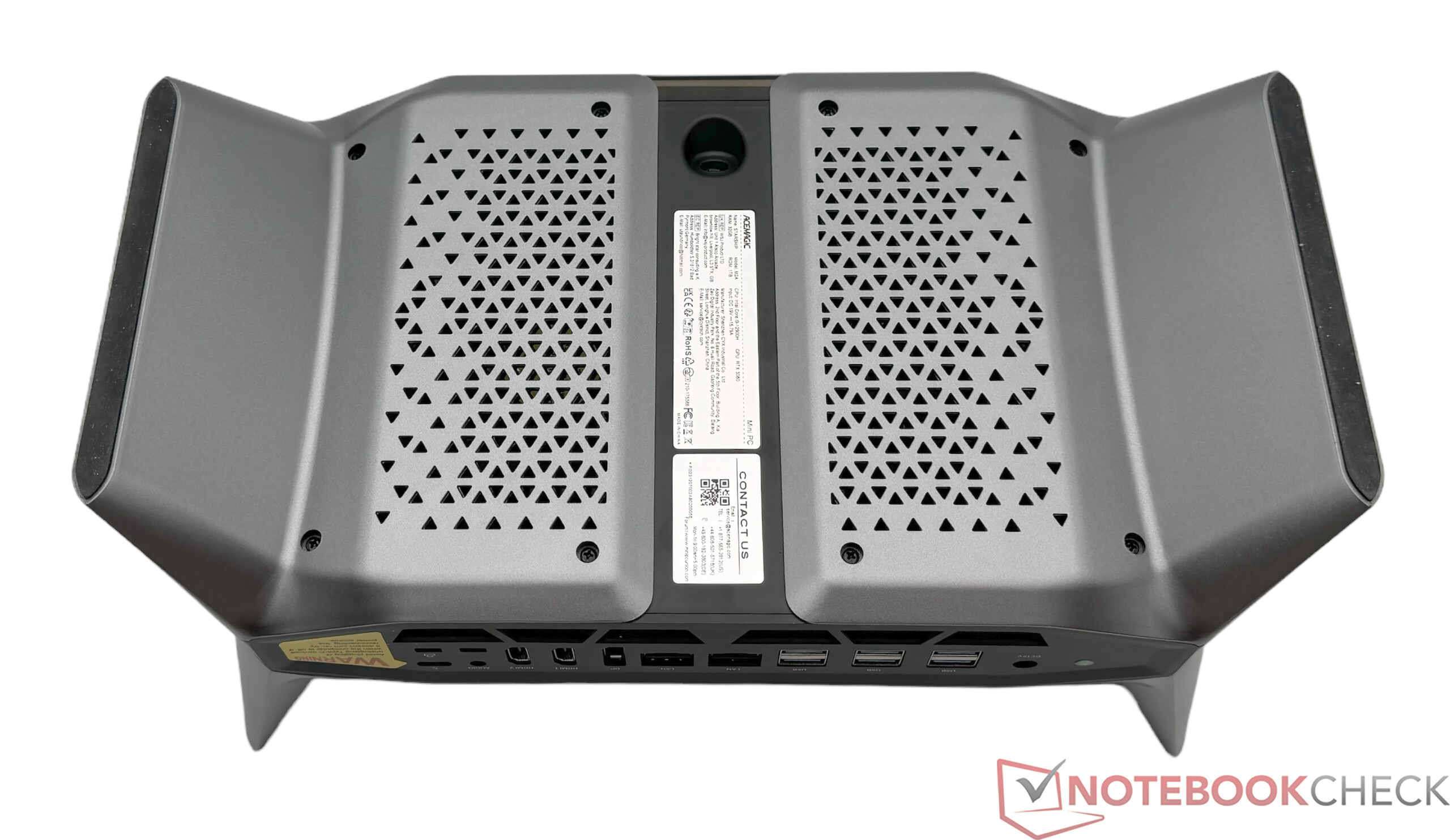

功能 - 多个端口，可连接 USB4

Acemagic M2A Starship 提供足够数量的外部接口。总共有六个 USB-A 接口和一个额外的 USB4 接口，可通过扩展坞等提供更多接口。有两个 HDMI 输出和一个 DisplayPort 用于图像输出。另外，USB4 端口也可用于视频输出。值得注意的是，所有外部接口都位于机身后部。就设计而言，这一决定当然是可以理解的。

交流

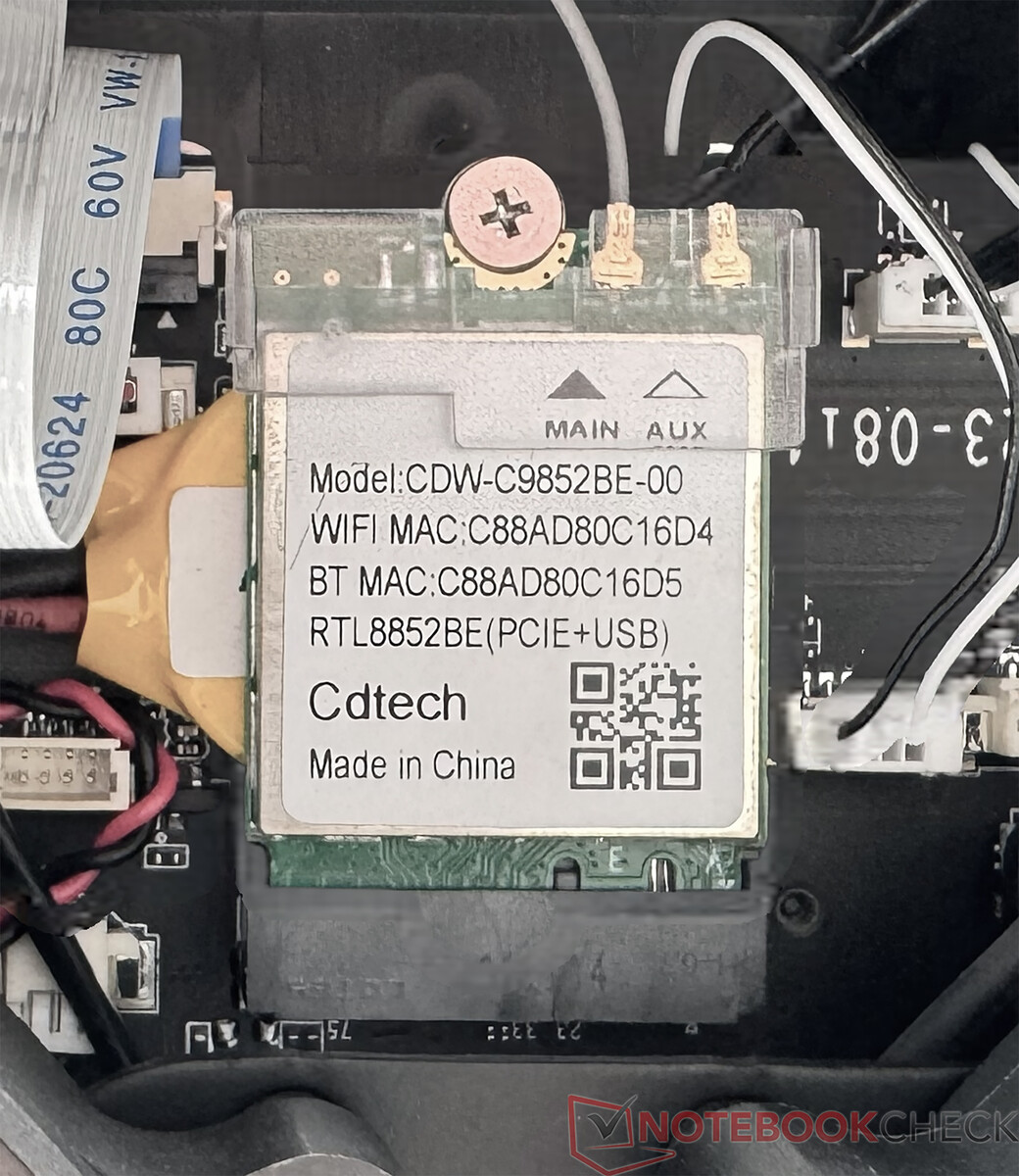

Acemagic M2A Starship 配备了 Realtek 的无线局域网模块。相同型号已用于 Acemagic Tank03.该无线模块在测试中取得了良好的结果。不过，它没有使用最新的 Wi-Fi 标准。这意味着你最多只能使用 5 GHz 频段。所有 Wi-Fi 测试均使用华硕 ROG Rapture GT-AXE11000 测试路由器进行。在有线网络连接方面，Acemagic M2A Starship 提供两个 RJ45 接口，每个接口的速度最高可达 2.5 Gbit/s。

Networking
iperf3 receive AXE11000
Intel NUC 12, NUC12SNKi72_Serpent Canyon Killer Wi-Fi 6E AX1690i 160MHz	1605 (791^min - 1659^max) MBit/s +71%
Acemagic Tank03 Realtek RTL8852BE	952 (927^min - 969^max) MBit/s +1%
Minisforum Neptune Series HX77G MediaTek RZ608	941 (892^min - 955^max) MBit/s 0%
Acemagic M2A Realtek RTL8852BE	940 (798^min - 977^max) MBit/s
Average of class Mini PC (192.9 - 1796, n=113, last 2 years)	932 MBit/s -1%
Average Realtek RTL8852BE (455 - 984, n=43)	847 MBit/s -10%
iperf3 transmit AXE11000
Intel NUC 12, NUC12SNKi72_Serpent Canyon Killer Wi-Fi 6E AX1690i 160MHz	1369 (1102^min - 1441^max) MBit/s +59%
Average of class Mini PC (184.1 - 1776, n=113, last 2 years)	864 MBit/s +1%
Acemagic M2A Realtek RTL8852BE	859 (333^min - 917^max) MBit/s
Acemagic Tank03 Realtek RTL8852BE	811 (425^min - 877^max) MBit/s -6%
Average Realtek RTL8852BE (536 - 925, n=42)	792 MBit/s -8%
Minisforum Neptune Series HX77G MediaTek RZ608	694 (338^min - 721^max) MBit/s -19%

Minisforum Neptune Series HX77G MediaTek RZ608; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø839 (433-909)

Minisforum Neptune Series HX77G MediaTek RZ608; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø796 (768-836)

Acemagic M2A Realtek RTL8852BE; iperf3 receive AXE11000; iperf 3.1.3: Ø940 (798-977)

Minisforum Neptune Series HX77G MediaTek RZ608; iperf3 receive AXE11000; iperf 3.1.3: Ø940 (892-955)

Acemagic Tank03 Realtek RTL8852BE; iperf3 receive AXE11000; iperf 3.1.3: Ø951 (927-969)

Acemagic M2A Realtek RTL8852BE; iperf3 transmit AXE11000; iperf 3.1.3: Ø844 (333-917)

Minisforum Neptune Series HX77G MediaTek RZ608; iperf3 transmit AXE11000; iperf 3.1.3: Ø682 (338-721)

Acemagic Tank03 Realtek RTL8852BE; iperf3 transmit AXE11000; iperf 3.1.3: Ø796 (425-877)

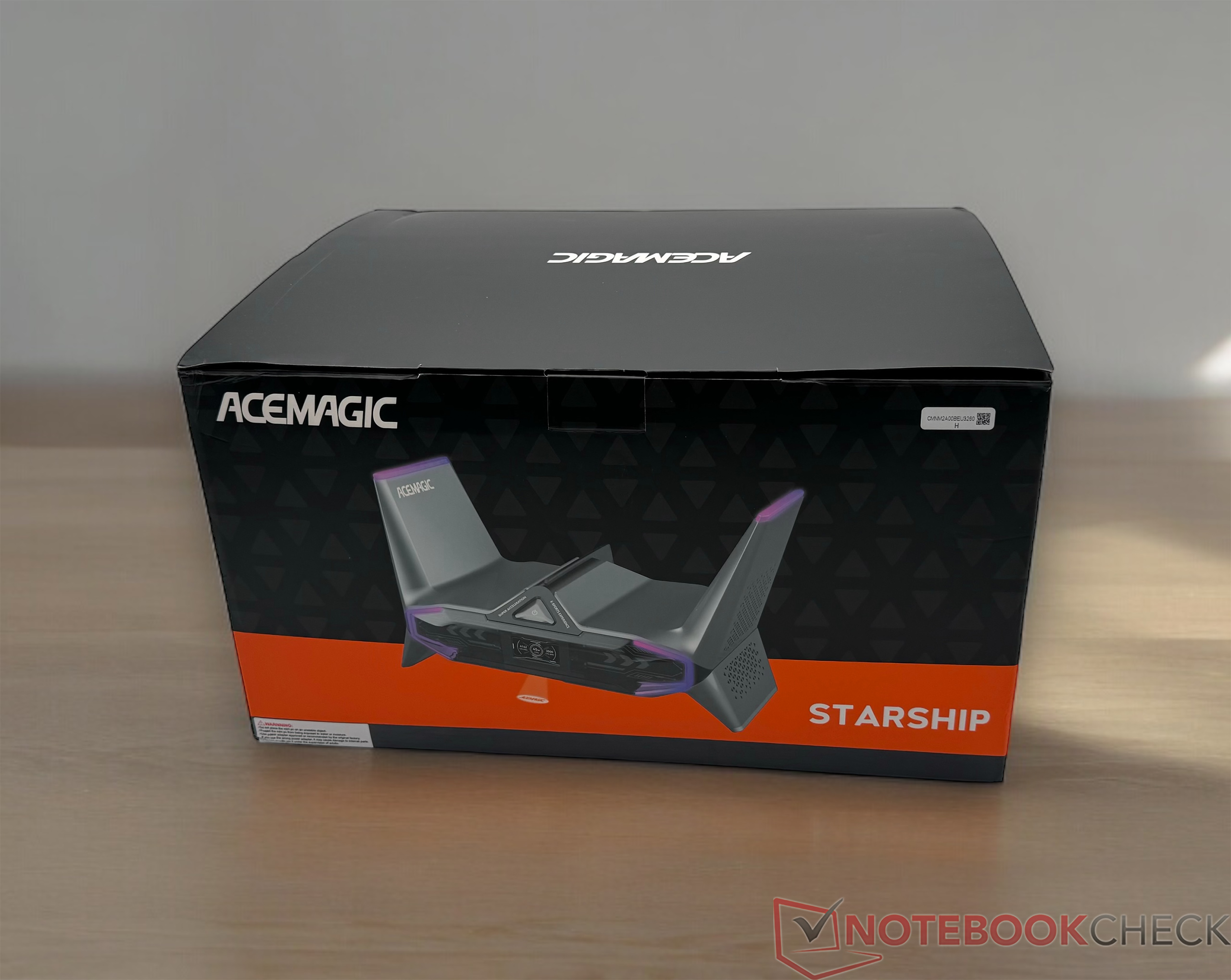

配件

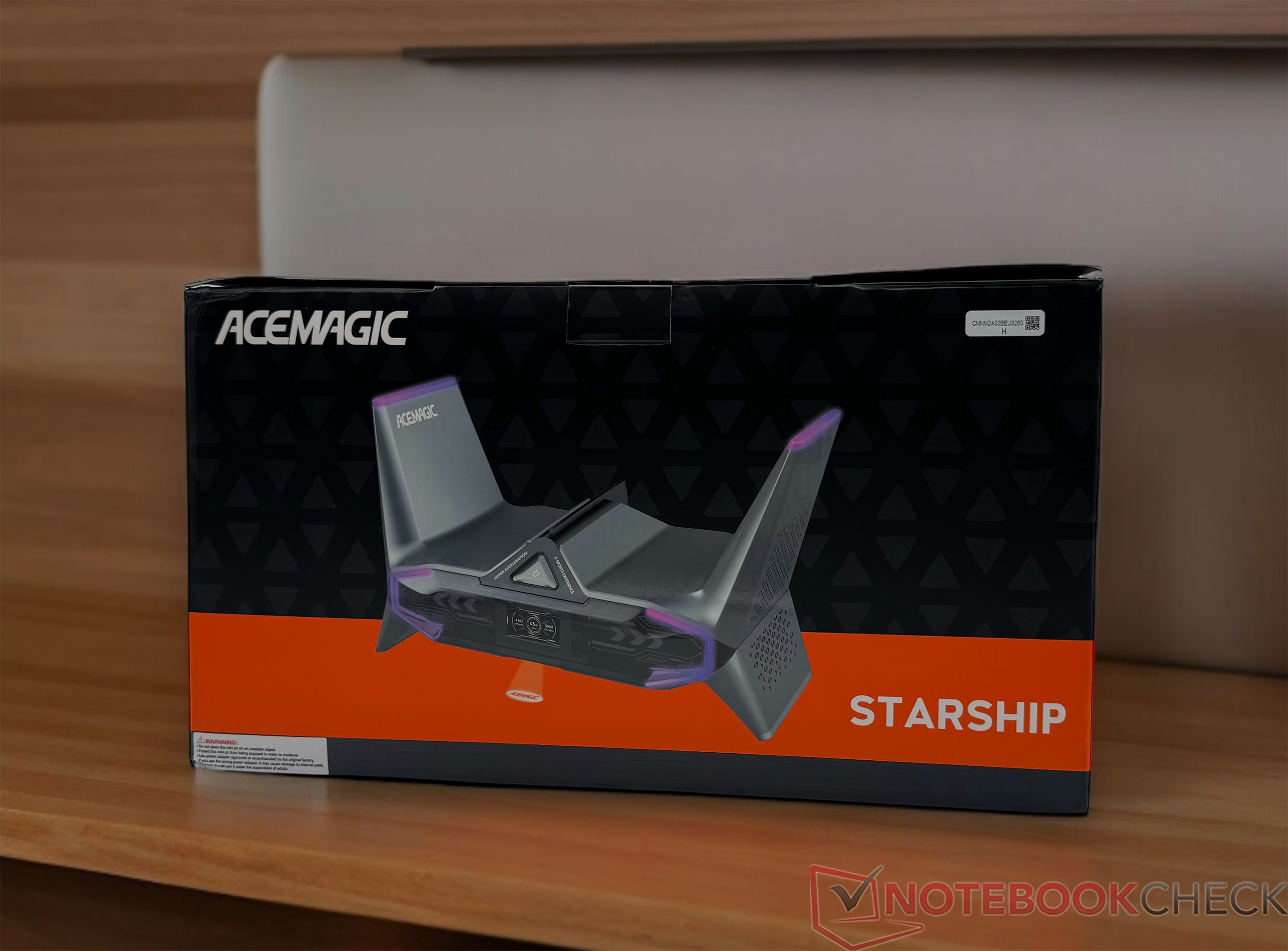

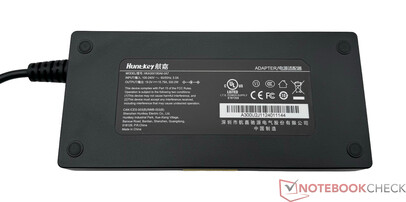

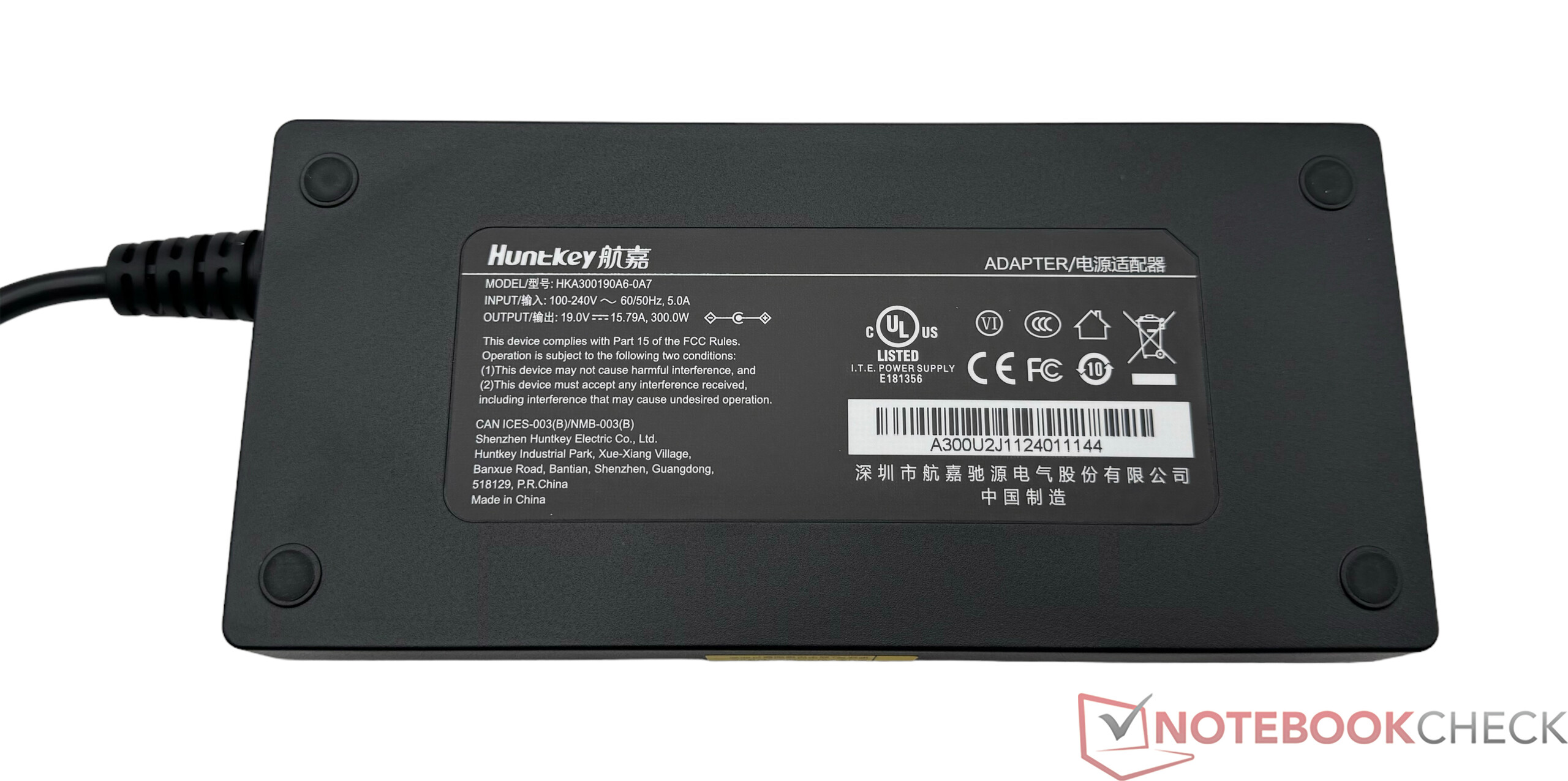

Acemagic 并没有为 M2A Starship 提供太多的额外配件。除了设备本身，相对较大的包装盒内还包括一个 300 瓦的大型电源装置、一根高质量 HDMI 电缆和一本用户手册。

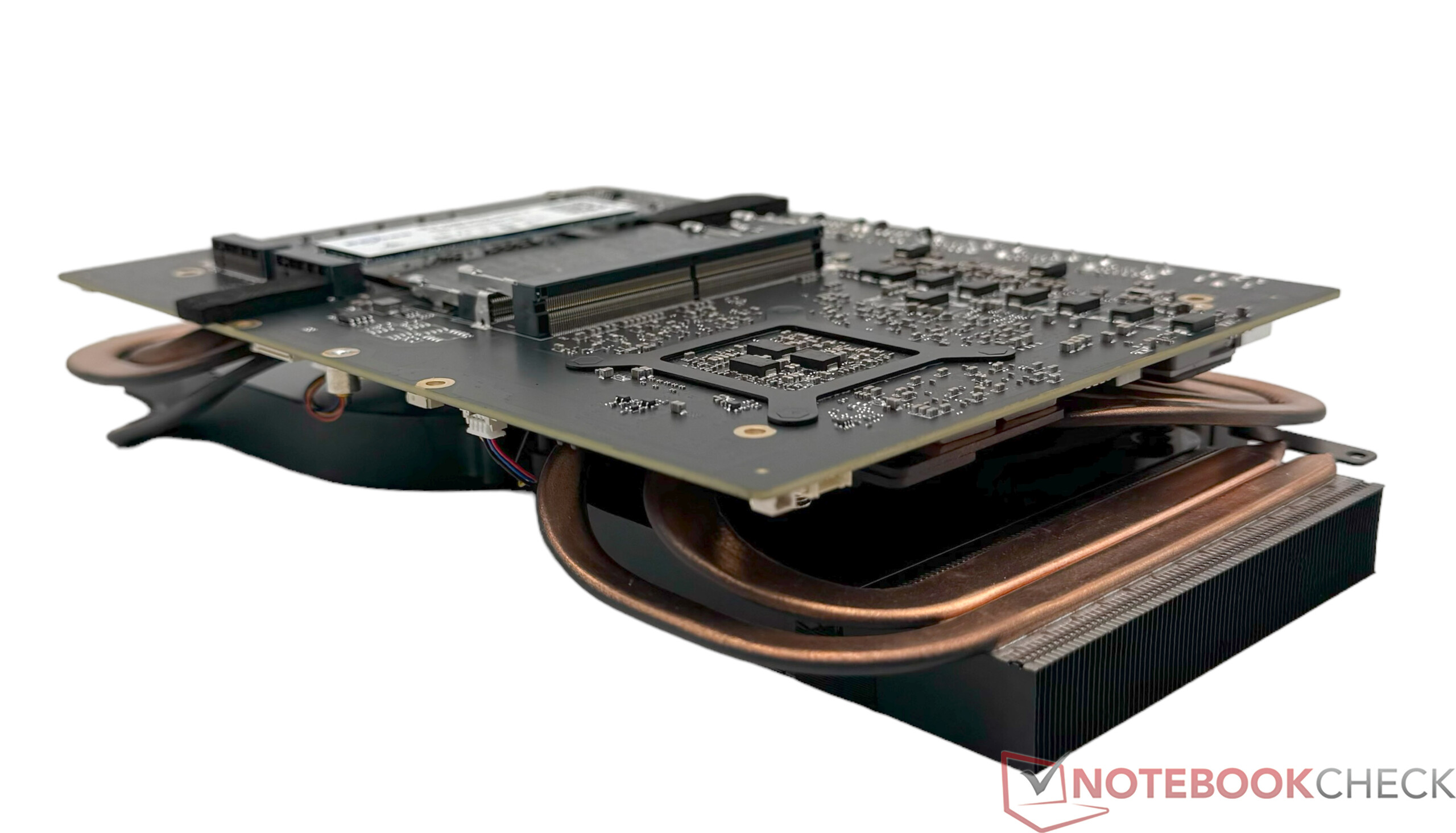

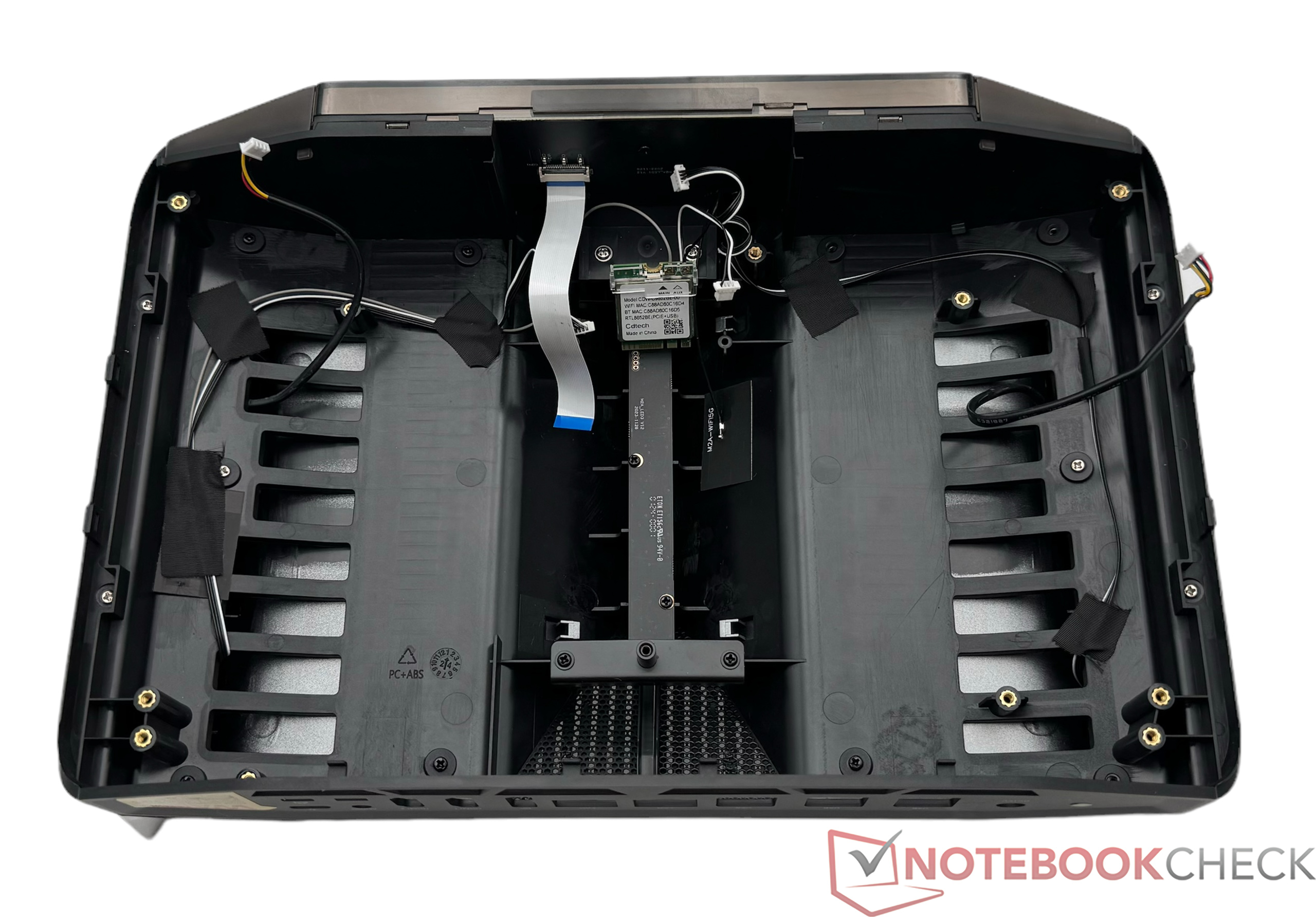

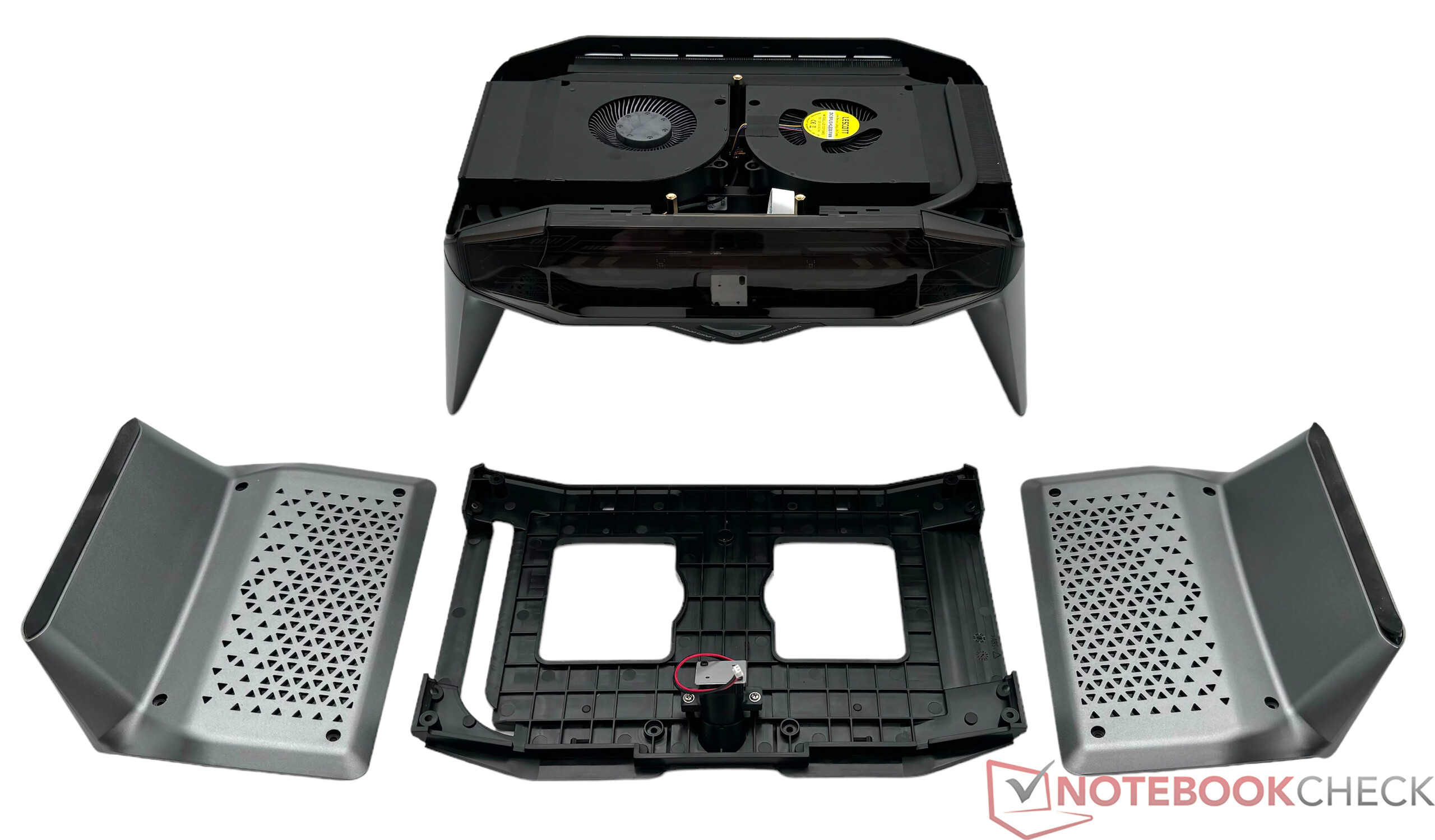

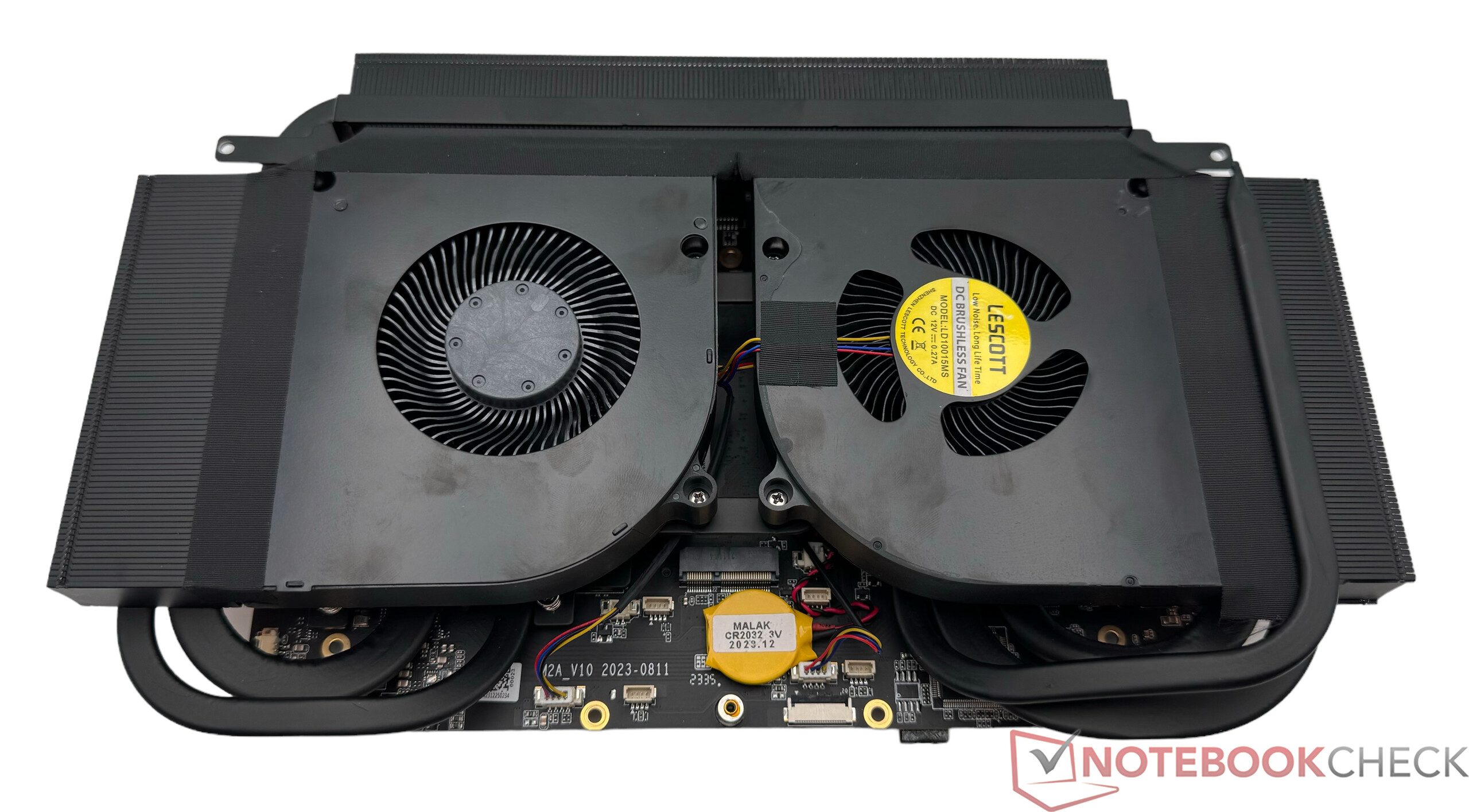

维护

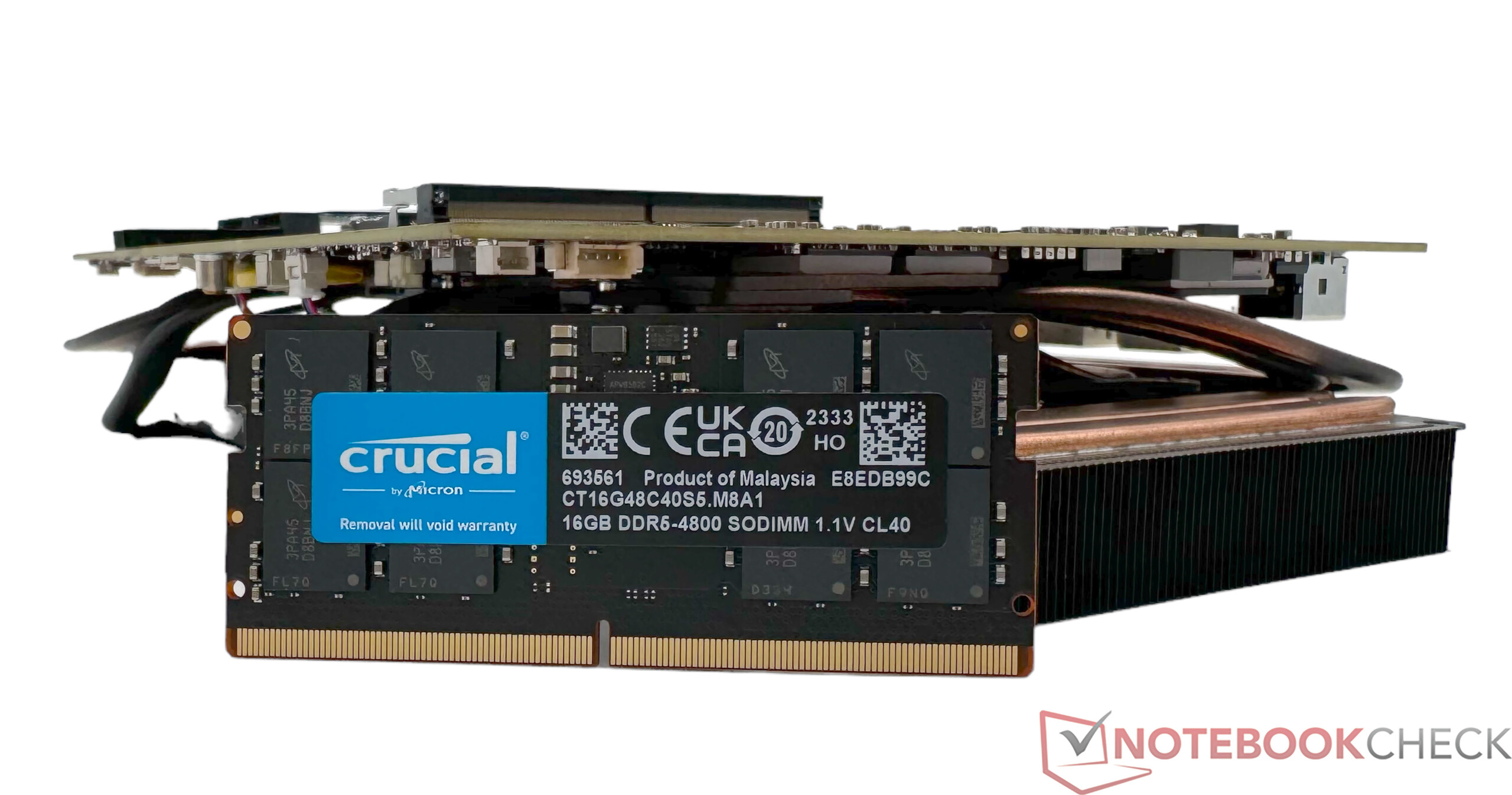

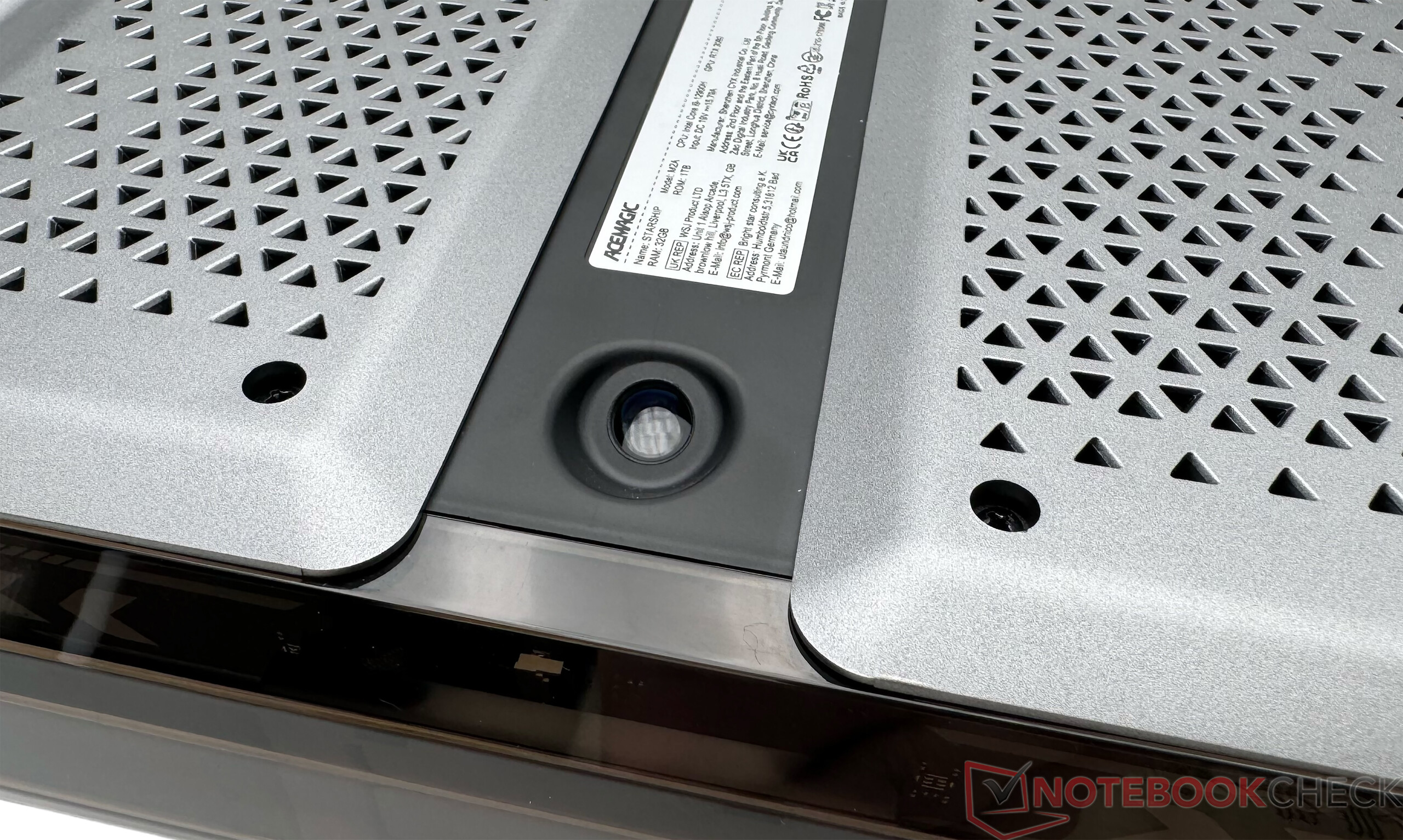

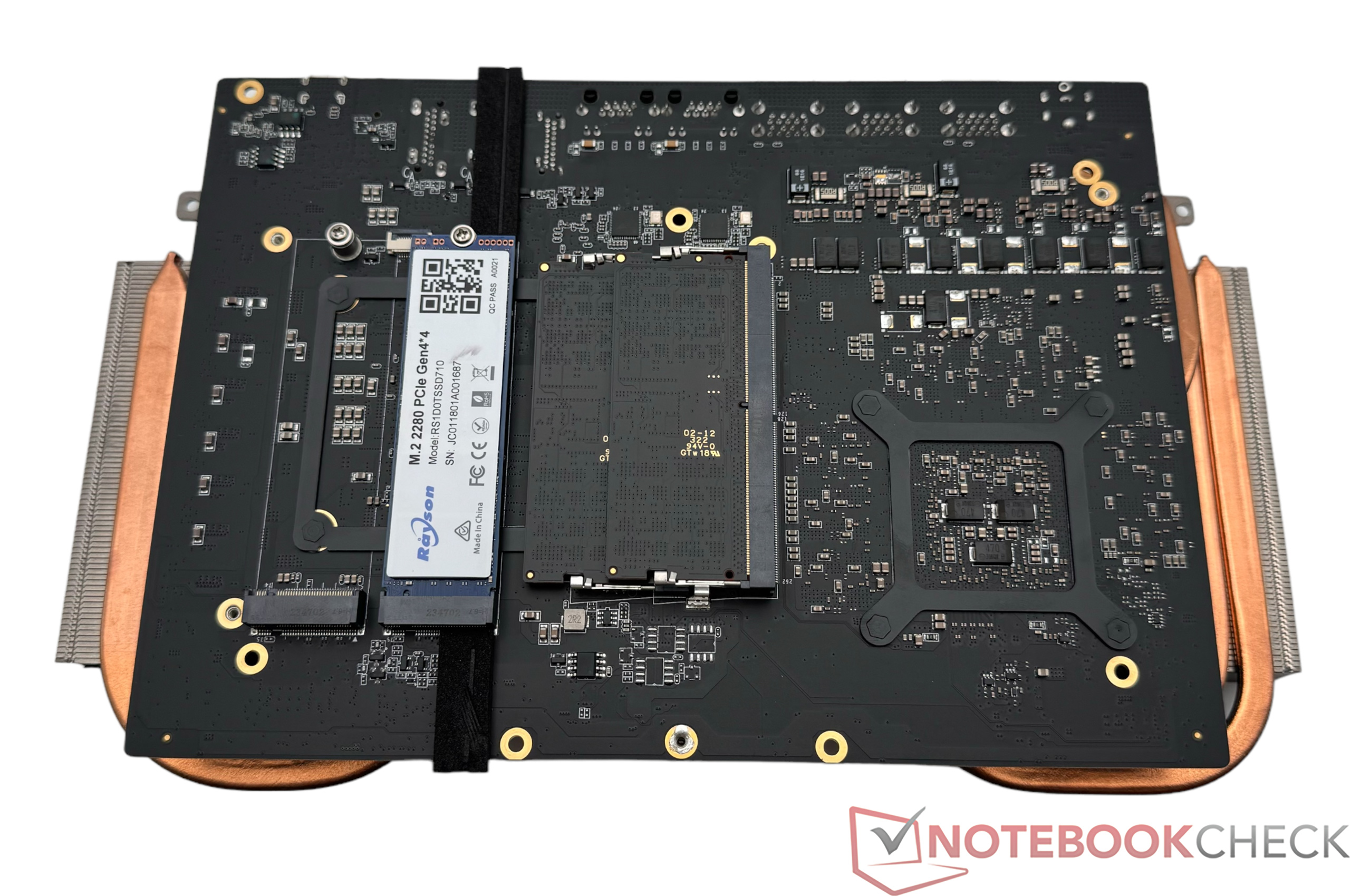

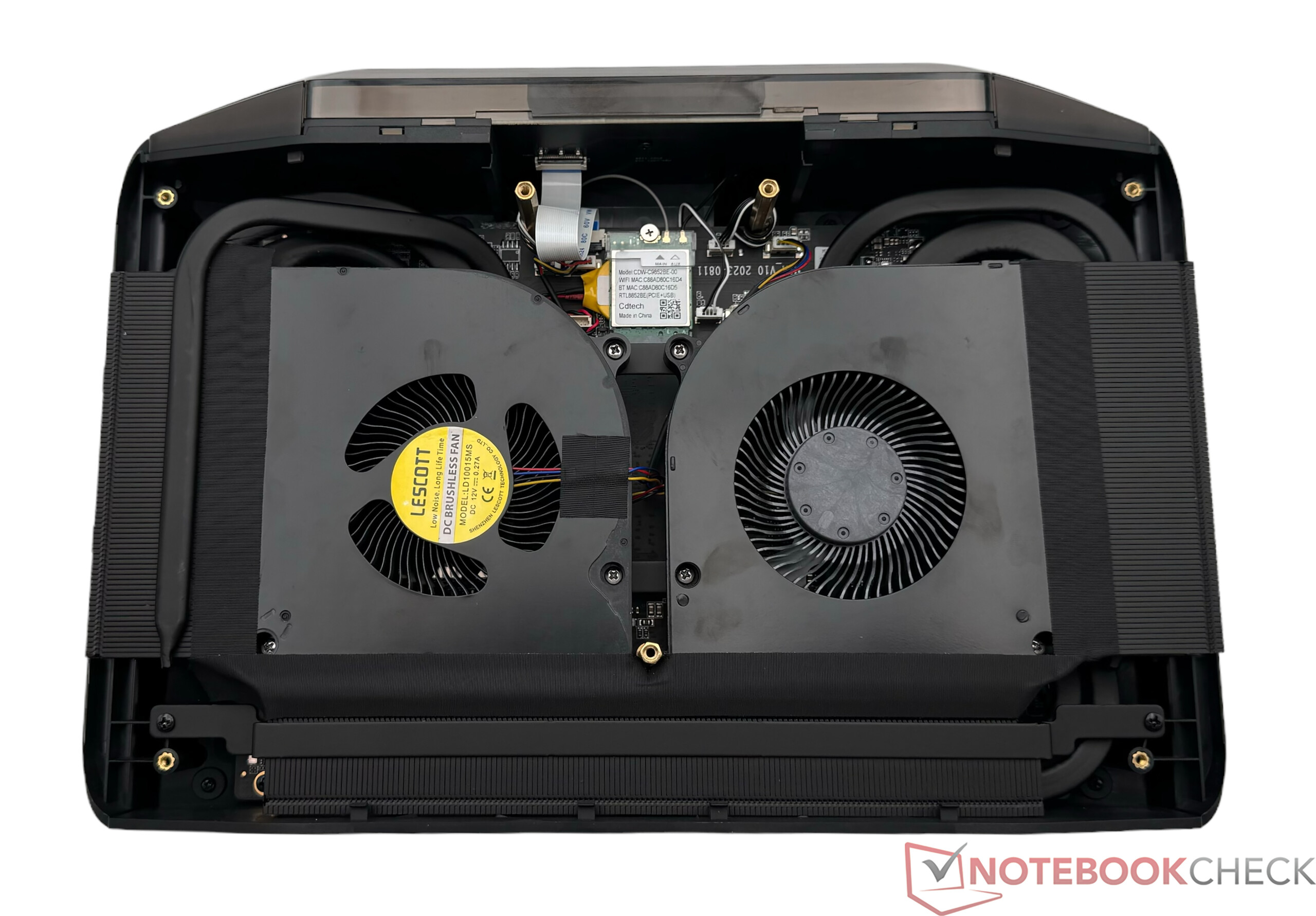

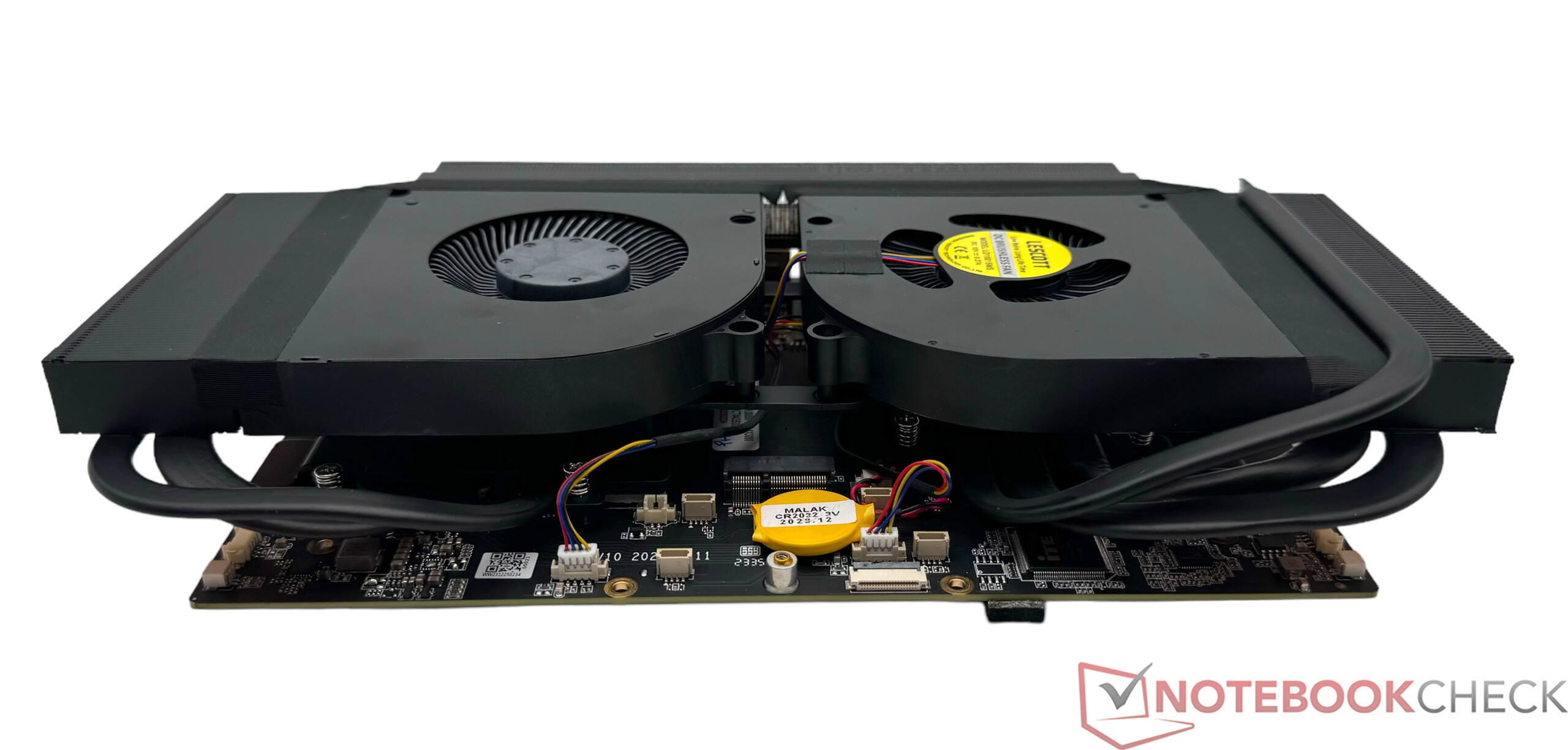

Acemagic M2A Starship 没有提供快速简便的内存或固态硬盘更换方法。这是一个遗憾，因为 M2A 星舰上有两个维护挡板。王牌魔力 Tank03.不过，只要你稍微聪明一点，Starship 迷你电脑还是可以拆卸的。要进入内部，必须先卸下许多螺丝。在胶粘的橡胶脚下还隐藏着四颗螺丝。卸下脚垫和下面单独拧上的塑料盖后，就只能更换 WLAN 模块了。内存和固态硬盘位于主板的另一侧。基本上，包括散热装置在内的整个主板都必须拆卸下来。我们开始工作，并将设备拆卸到这种程度。遗憾的是，我们无法快速更换内存或扩展大容量存储空间。其他设备在这方面提供了更简单的解决方案。最后，Acemagic M2A Starship 可以配备两个 NVMe SSD。该设备正好为内存提供了两个 SO-DIMM 插槽，其中配备了两个 16 GB 模块。

软件

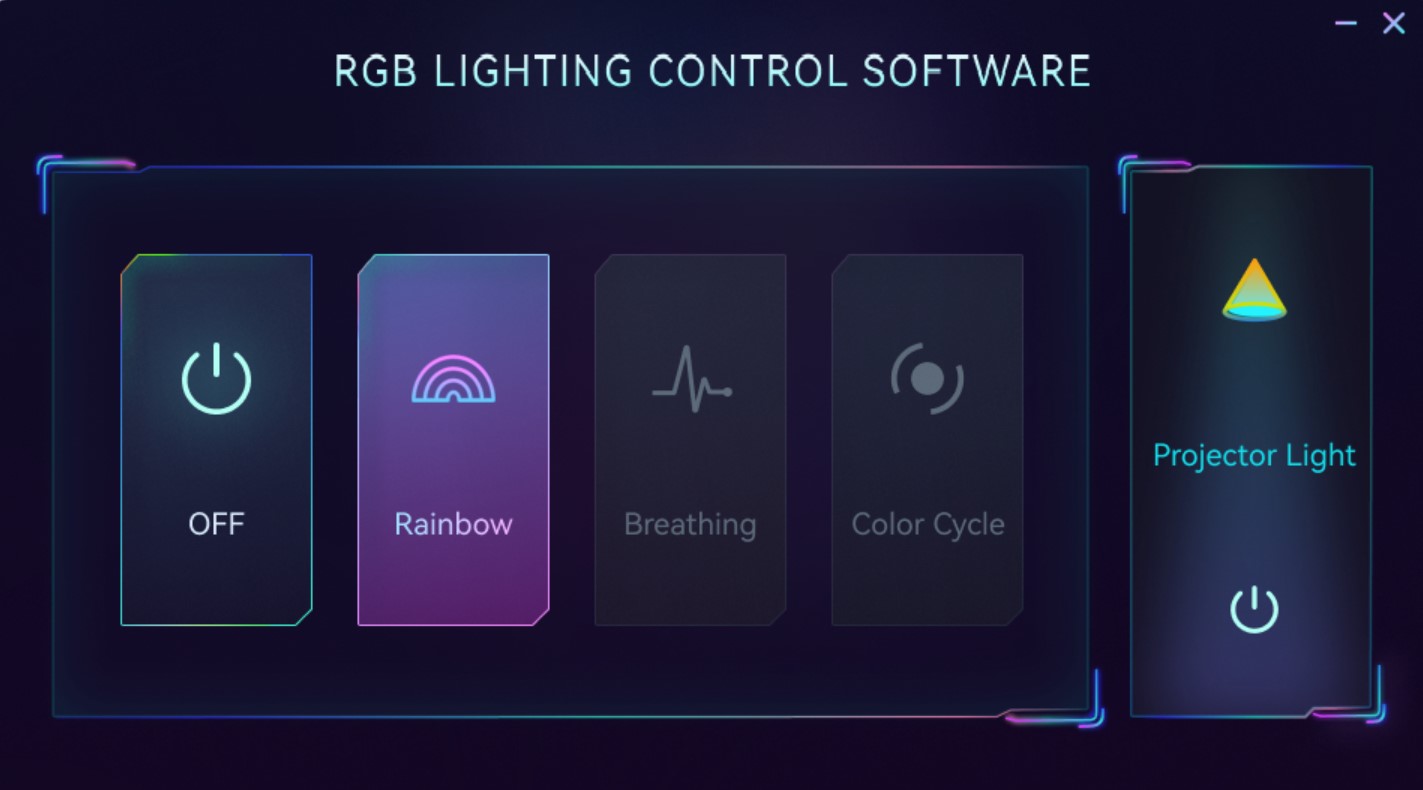

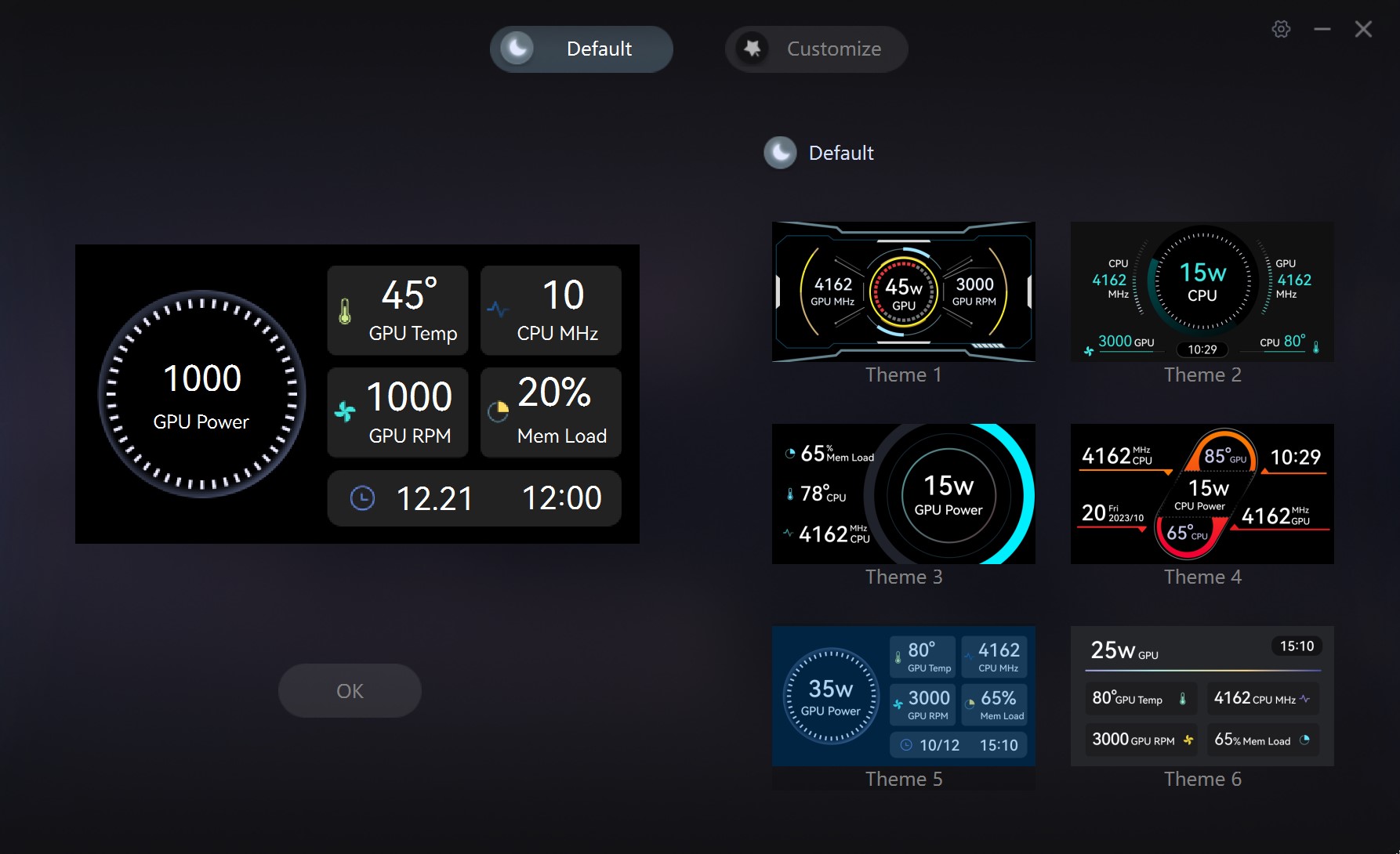

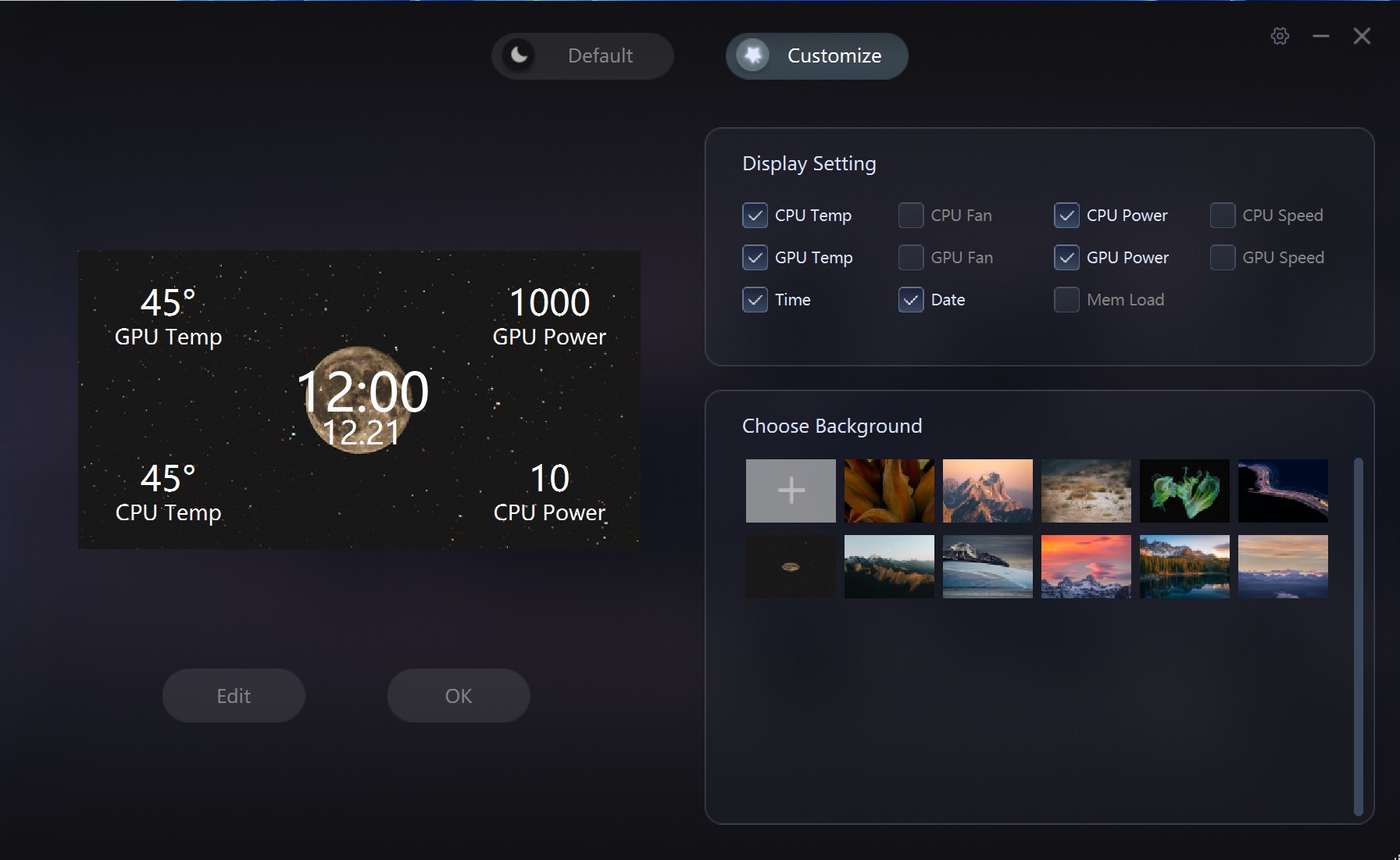

Acemagic M2A Starship 预装了 Windows 11 Home 操作系统。设备上还预装了两个小应用程序，用于控制灯光和调节集成显示屏。RGB 控制非常简单，不提供太多自定义选项。该程序还可用于开关底部的小型投影灯。正面的显示屏用于显示一些系统信息，可进行有限的定制。不过，Acemagic 可以更有效地利用正面的空间。内置显示屏相对较小，而且由于塑料盖呈弧形，无法始终完美读取。

关于 Acemagic，病毒和木马的话题仍然令人余味无穷。不过，我们无法在测试设备上检测到任何异常情况。为了安全起见，你应该自己完全重新安装预装的操作系统。这个过程与制造商无关，应始终执行！

性能 - 英特尔酷睿 i9-12900H 或英特尔酷睿 i7-12700H

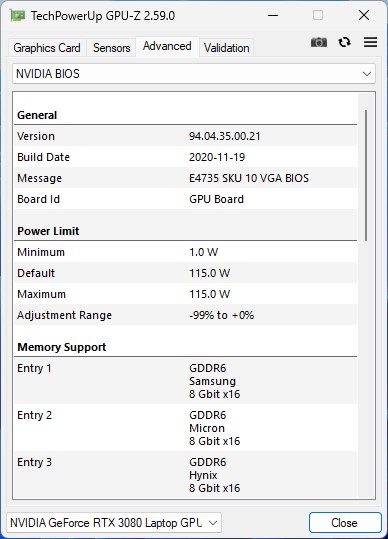

使用英特尔酷睿 i9-12900Hacemagic 在顶级配置中安装了快速而强大的 SoC，与英伟达GeForce RTX 3080 笔记本电脑可提供出色的游戏性能。另外，Acemagic M2A Starship 配备了英特尔酷睿 i7-12700H.3D 加速器仍包括一个英伟达GeForce RTX 3070 笔记本电脑或英伟达GeForce RTX 3060 笔记本电脑可供选择。

测试条件

所有性能测试均在 "平衡 "能量模式下进行。Acemagic M2A 星舰保持交付状态。安装了测试前可用的所有 Windows 更新。

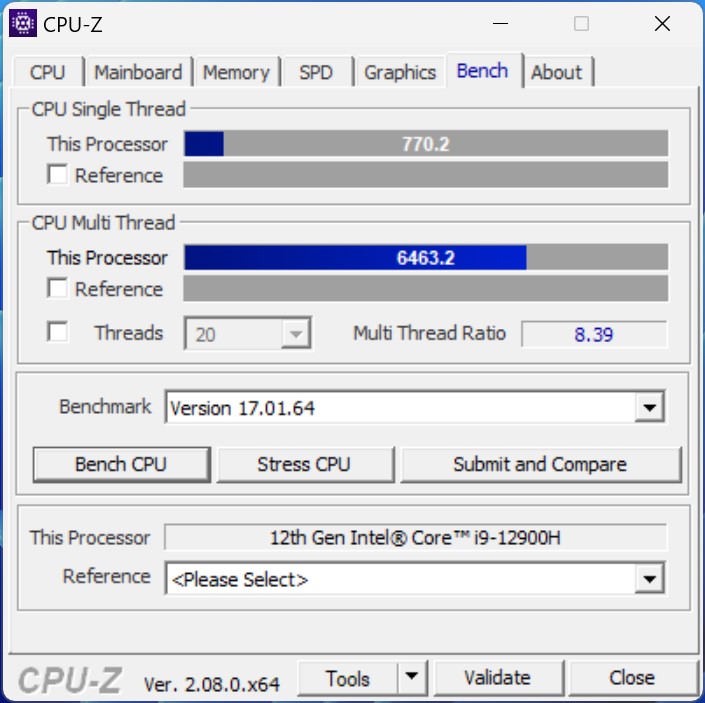

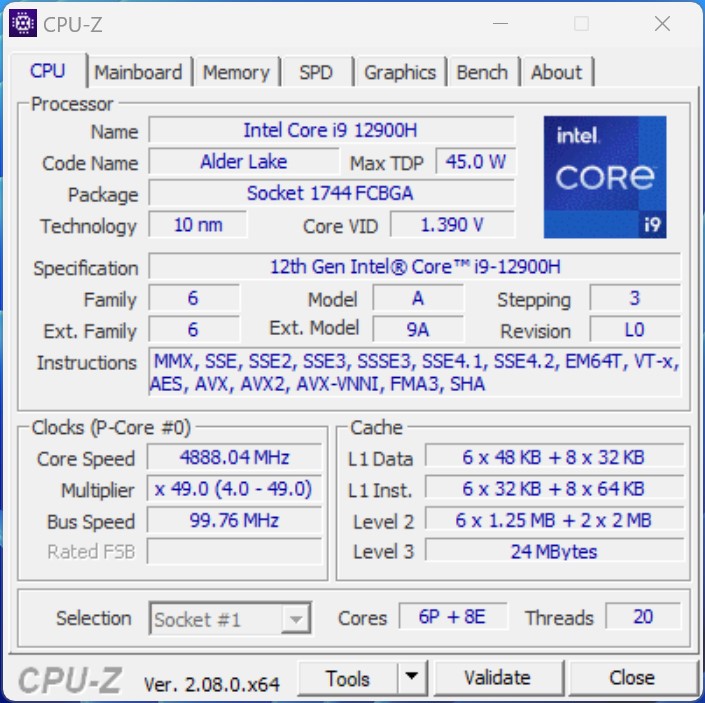

处理器

英特尔英特尔酷睿 i9-12900H是一款基于英特尔 Alder Lake 架构的高端处理器。该 SoC 拥有 14 个内核和 20 个线程，可轻松驾驭强大的应用程序。竞争对手也表现出了同样出色的性能，这让 Acemagic M2A Starship 有了不错的表现。不过，在直接的性能比较中，它只能屈居第二。英特尔酷睿 i7-12700H 处理器的出色性能英特尔酷睿 i7-12700H的出色性能英特尔 NUC 12 Serpent Canyon的出色性能是我们的测试样品无法比拟的。与 Acemagic Tank03不同，处理器的性能无法进一步降低甚至提高。英特尔酷睿 i9-12900H 的性能极限为峰值 65 瓦，但长期可用功率为 45 瓦。

您可以在这里找到更多有关该处理器的基准测试结果这里.

Performance Rating - Percent
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel NUC 12 Kit - Serpent Canyon, Intel Core i7-12700H	57.2 pt
Acemagic M2A Intel Core i9-12900H	56.2 pt
Acemagic Tank03 Acemagic Tank03 (Performance), Intel Core i9-12900H	54.6 pt
Minisforum Neptune Series HX77G Neptune Series HX77G, AMD Ryzen 7 7735HS	54.5 pt
Minisforum NUCX i7 Minisforum NUCXi7, Intel Core i7-11800H	51.5 pt
Zotac ZBOX Magnus EN173070C ZBOX Magnus EN173070C, Intel Core i7-11800H	49.9 pt

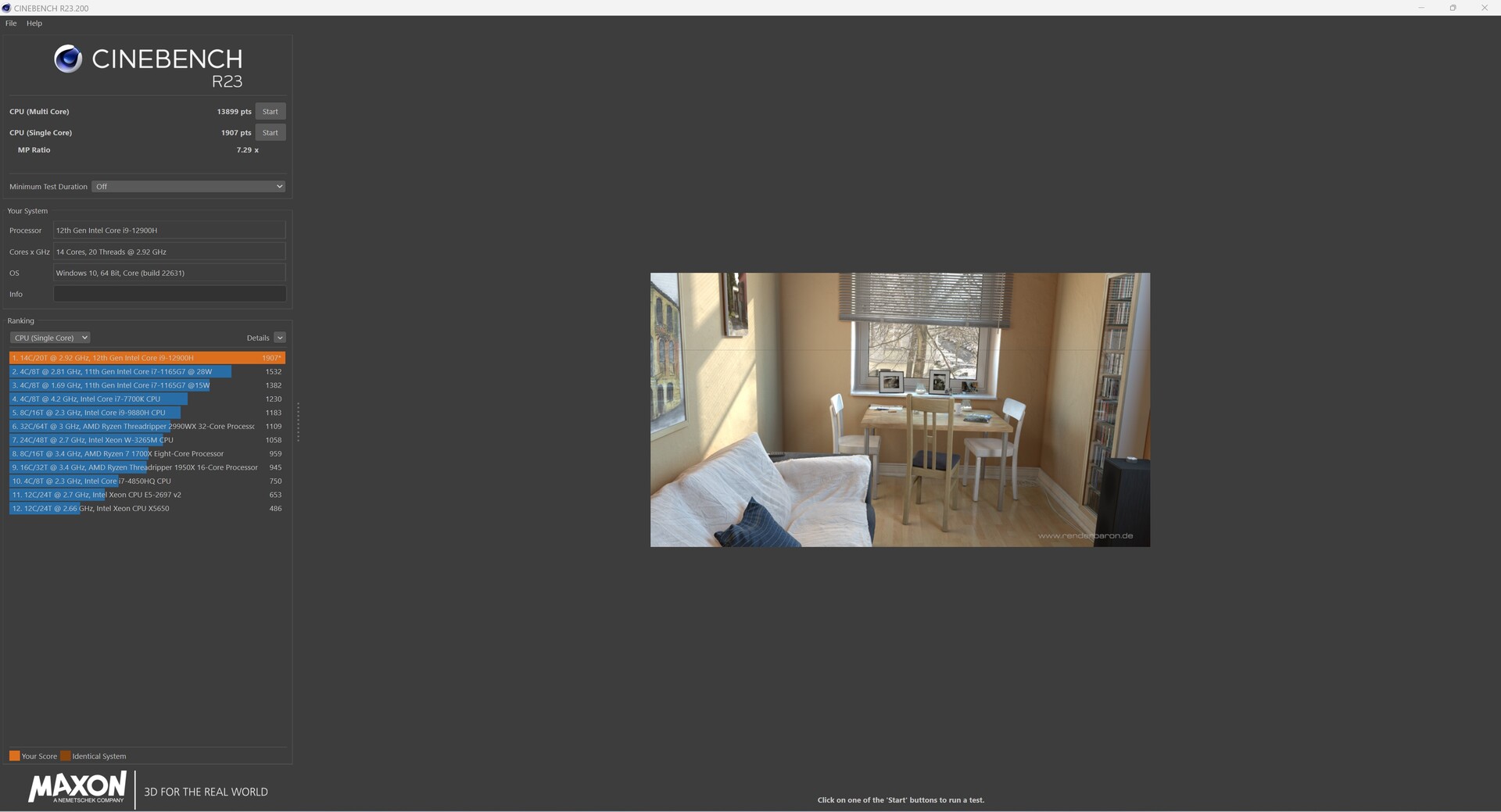

Cinebench R23
Multi Core
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel NUC 12 Kit - Serpent Canyon, Intel Core i7-12700H	16674 Points +20%
Minisforum Neptune Series HX77G Neptune Series HX77G, AMD Ryzen 7 7735HS	14023 Points +1%
Acemagic M2A Intel Core i9-12900H	13899 Points
Acemagic Tank03 Acemagic Tank03 (Performance), Intel Core i9-12900H	13561 Points -2%
Minisforum NUCX i7 Minisforum NUCXi7, Intel Core i7-11800H	12265 Points -12%
Zotac ZBOX Magnus EN173070C ZBOX Magnus EN173070C, Intel Core i7-11800H	10243 Points -26%
Single Core
Acemagic M2A Intel Core i9-12900H	1907 Points
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel NUC 12 Kit - Serpent Canyon, Intel Core i7-12700H	1801 Points -6%
Acemagic Tank03 Acemagic Tank03 (Performance), Intel Core i9-12900H	1781 Points -7%
Minisforum Neptune Series HX77G Neptune Series HX77G, AMD Ryzen 7 7735HS	1570 Points -18%
Minisforum NUCX i7 Minisforum NUCXi7, Intel Core i7-11800H	1508 Points -21%
Zotac ZBOX Magnus EN173070C ZBOX Magnus EN173070C, Intel Core i7-11800H	1478 Points -22%

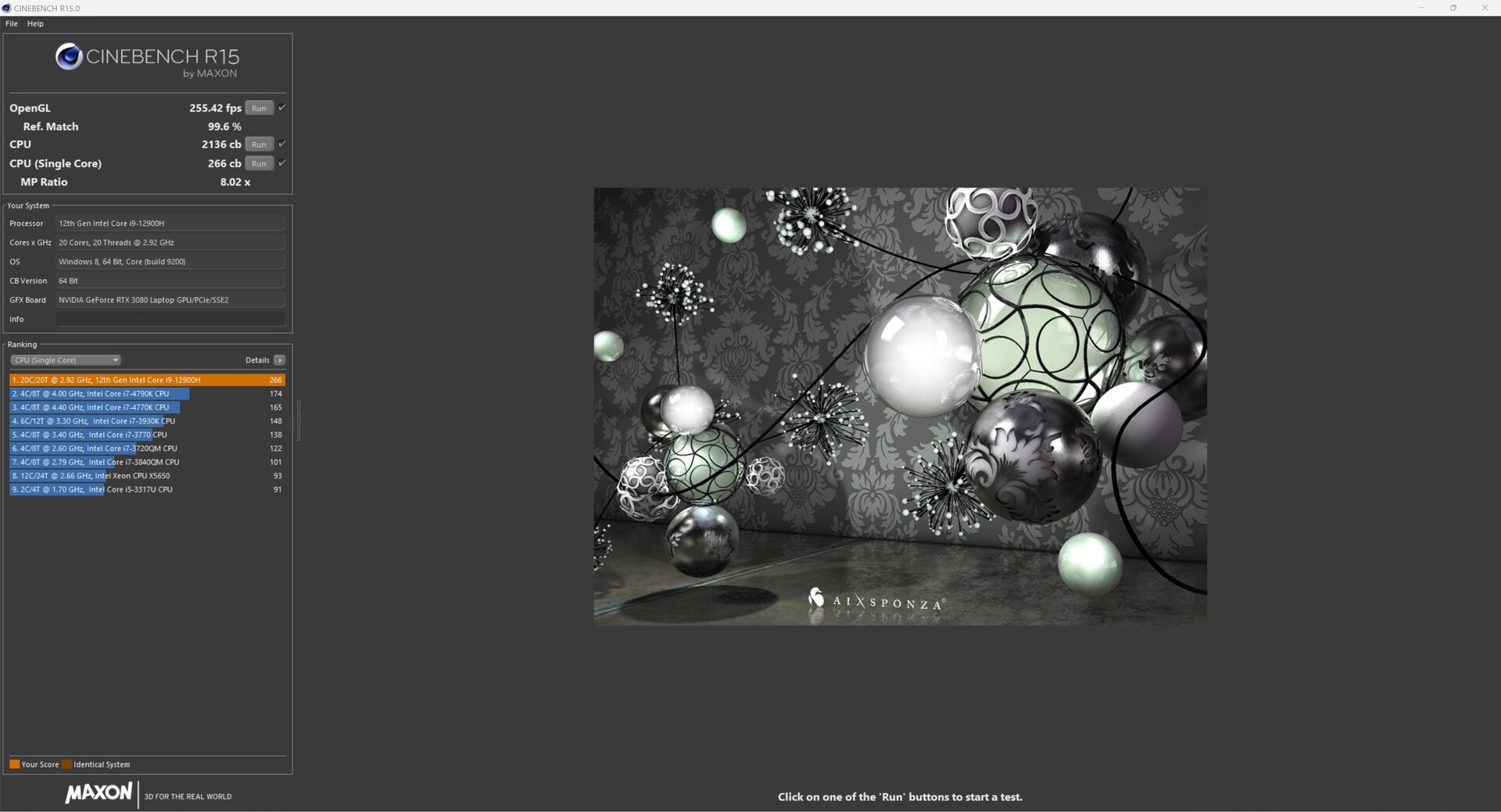

Cinebench R15
CPU Single 64Bit
Acemagic M2A Intel Core i9-12900H	266 Points
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel NUC 12 Kit - Serpent Canyon, Intel Core i7-12700H	259 Points -3%
Minisforum Neptune Series HX77G Neptune Series HX77G, AMD Ryzen 7 7735HS	255 Points -4%
Acemagic Tank03 Acemagic Tank03 (Performance), Intel Core i9-12900H	251 Points -6%
Minisforum NUCX i7 Minisforum NUCXi7, Intel Core i7-11800H	227 Points -15%
Zotac ZBOX Magnus EN173070C ZBOX Magnus EN173070C, Intel Core i7-11800H	224 Points -16%
CPU Multi 64Bit
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel NUC 12 Kit - Serpent Canyon, Intel Core i7-12700H	2632 Points +23%
Minisforum Neptune Series HX77G Neptune Series HX77G, AMD Ryzen 7 7735HS	2343 Points +10%
Acemagic Tank03 Acemagic Tank03 (Performance), Intel Core i9-12900H	2154 Points +1%
Acemagic M2A Intel Core i9-12900H	2136 Points
Minisforum NUCX i7 Minisforum NUCXi7, Intel Core i7-11800H	2045 Points -4%
Zotac ZBOX Magnus EN173070C ZBOX Magnus EN173070C, Intel Core i7-11800H	1666 Points -22%

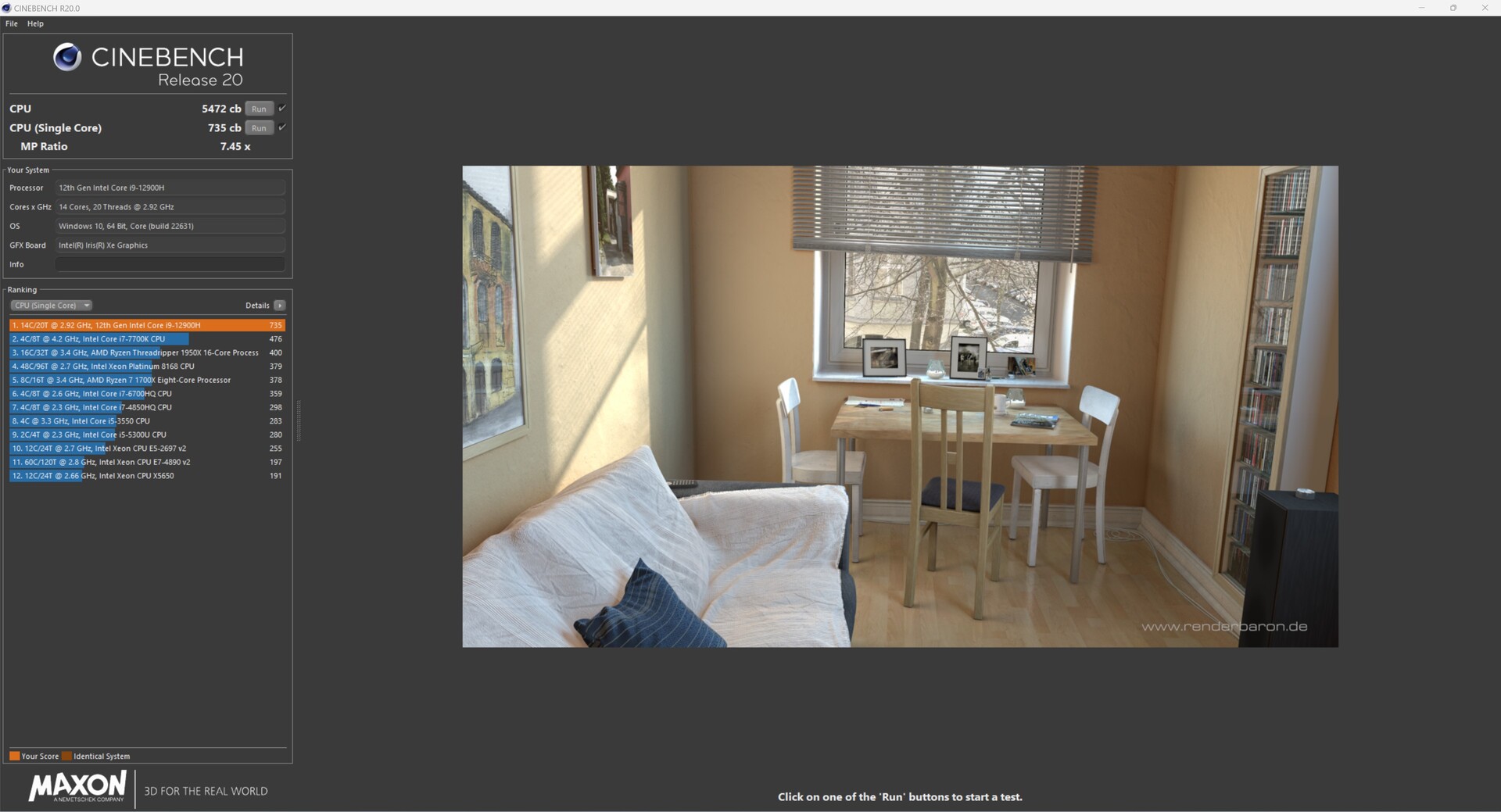

Cinebench R20
CPU (Single Core)
Acemagic M2A Intel Core i9-12900H	735 Points
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel NUC 12 Kit - Serpent Canyon, Intel Core i7-12700H	692 Points -6%
Acemagic Tank03 Acemagic Tank03 (Performance), Intel Core i9-12900H	686 Points -7%
Minisforum Neptune Series HX77G Neptune Series HX77G, AMD Ryzen 7 7735HS	613 Points -17%
Minisforum NUCX i7 Minisforum NUCXi7, Intel Core i7-11800H	579 Points -21%
Zotac ZBOX Magnus EN173070C ZBOX Magnus EN173070C, Intel Core i7-11800H	564 Points -23%
CPU (Multi Core)
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel NUC 12 Kit - Serpent Canyon, Intel Core i7-12700H	6459 Points +18%
Acemagic M2A Intel Core i9-12900H	5472 Points
Minisforum Neptune Series HX77G Neptune Series HX77G, AMD Ryzen 7 7735HS	5341 Points -2%
Acemagic Tank03 Acemagic Tank03 (Performance), Intel Core i9-12900H	5154 Points -6%
Minisforum NUCX i7 Minisforum NUCXi7, Intel Core i7-11800H	4760 Points -13%
Zotac ZBOX Magnus EN173070C ZBOX Magnus EN173070C, Intel Core i7-11800H	3954 Points -28%

Cinebench R11.5
CPU Single 64Bit
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel NUC 12 Kit - Serpent Canyon, Intel Core i7-12700H	3.13 Points +1%
Acemagic M2A Intel Core i9-12900H	3.09 Points
Acemagic Tank03 Acemagic Tank03 (Performance), Intel Core i9-12900H	3 Points -3%
Minisforum Neptune Series HX77G Neptune Series HX77G, AMD Ryzen 7 7735HS	2.98 Points -4%
Minisforum NUCX i7 Minisforum NUCXi7, Intel Core i7-11800H	2.61 Points -16%
Zotac ZBOX Magnus EN173070C ZBOX Magnus EN173070C, Intel Core i7-11800H	2.59 Points -16%
CPU Multi 64Bit
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel NUC 12 Kit - Serpent Canyon, Intel Core i7-12700H	31.46 Points +24%
Minisforum Neptune Series HX77G Neptune Series HX77G, AMD Ryzen 7 7735HS	26.63 Points +5%
Acemagic Tank03 Acemagic Tank03 (Performance), Intel Core i9-12900H	26.03 Points +3%
Acemagic M2A Intel Core i9-12900H	25.34 Points
Minisforum NUCX i7 Minisforum NUCXi7, Intel Core i7-11800H	21.87 Points -14%
Zotac ZBOX Magnus EN173070C ZBOX Magnus EN173070C, Intel Core i7-11800H	19.18 Points -24%

Cinebench R10
Rendering Single CPUs 64Bit
Acemagic M2A Intel Core i9-12900H	14567 Points
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel NUC 12 Kit - Serpent Canyon, Intel Core i7-12700H	14478 Points -1%
Acemagic Tank03 Acemagic Tank03 (Performance), Intel Core i9-12900H	13256 Points -9%
Minisforum Neptune Series HX77G Neptune Series HX77G, AMD Ryzen 7 7735HS	12642 Points -13%
Minisforum NUCX i7 Minisforum NUCXi7, Intel Core i7-11800H	11957 Points -18%
Zotac ZBOX Magnus EN173070C ZBOX Magnus EN173070C, Intel Core i7-11800H	11608 Points -20%
Rendering Multiple CPUs 64Bit
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel NUC 12 Kit - Serpent Canyon, Intel Core i7-12700H	91600 Points +27%
Minisforum Neptune Series HX77G Neptune Series HX77G, AMD Ryzen 7 7735HS	75830 Points +5%
Acemagic Tank03 Acemagic Tank03 (Performance), Intel Core i9-12900H	72730 Points +1%
Acemagic M2A Intel Core i9-12900H	72332 Points
Minisforum NUCX i7 Minisforum NUCXi7, Intel Core i7-11800H	67486 Points -7%
Zotac ZBOX Magnus EN173070C ZBOX Magnus EN173070C, Intel Core i7-11800H	58426 Points -19%

Blender - v2.79 BMW27 CPU
Zotac ZBOX Magnus EN173070C ZBOX Magnus EN173070C, Intel Core i7-11800H	286.1 Seconds * -13%
Minisforum NUCX i7 Minisforum NUCXi7, Intel Core i7-11800H	261 Seconds * -3%
Acemagic M2A Intel Core i9-12900H	254 Seconds *
Acemagic Tank03 Acemagic Tank03 (Performance), Intel Core i9-12900H	253 Seconds * -0%
Minisforum Neptune Series HX77G Neptune Series HX77G, AMD Ryzen 7 7735HS	229 Seconds * +10%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel NUC 12 Kit - Serpent Canyon, Intel Core i7-12700H	198 Seconds * +22%

wPrime 2.10
32m
Zotac ZBOX Magnus EN173070C ZBOX Magnus EN173070C, Intel Core i7-11800H	4.186 s * -13%
Acemagic Tank03 Acemagic Tank03 (Performance), Intel Core i9-12900H	3.939 s * -6%
Acemagic M2A Intel Core i9-12900H	3.703 s *
Minisforum Neptune Series HX77G Neptune Series HX77G, AMD Ryzen 7 7735HS	3.429 s * +7%
Minisforum NUCX i7 Minisforum NUCXi7, Intel Core i7-11800H	3.405 s * +8%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel NUC 12 Kit - Serpent Canyon, Intel Core i7-12700H	3.296 s * +11%
1024m
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel NUC 12 Kit - Serpent Canyon, Intel Core i7-12700H	236.133 s * -22%
Acemagic M2A Intel Core i9-12900H	192.845 s *
Acemagic Tank03 Acemagic Tank03 (Performance), Intel Core i9-12900H	187.176 s * +3%
Zotac ZBOX Magnus EN173070C ZBOX Magnus EN173070C, Intel Core i7-11800H	120.839 s * +37%
Minisforum NUCX i7 Minisforum NUCXi7, Intel Core i7-11800H	98.307 s * +49%
Minisforum Neptune Series HX77G Neptune Series HX77G, AMD Ryzen 7 7735HS	92.763 s * +52%

X264 HD Benchmark 4.0
Pass 1
Acemagic M2A Intel Core i9-12900H	317 (315^min - 319^max) fps
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel NUC 12 Kit - Serpent Canyon, Intel Core i7-12700H	297.5 (291^min - 306^max) fps -6%
Acemagic Tank03 Acemagic Tank03 (Performance), Intel Core i9-12900H	286 (278^min - 296^max) fps -10%
Minisforum Neptune Series HX77G Neptune Series HX77G, AMD Ryzen 7 7735HS	274 (271^min - 278^max) fps -14%
Minisforum NUCX i7 Minisforum NUCXi7, Intel Core i7-11800H	258 (256^min - 259^max) fps -19%
Zotac ZBOX Magnus EN173070C ZBOX Magnus EN173070C, Intel Core i7-11800H	247.5 (245^min - 250^max) fps -22%
Pass 2
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel NUC 12 Kit - Serpent Canyon, Intel Core i7-12700H	145.75 (142.2^min - 147.8^max) fps +15%
Minisforum Neptune Series HX77G Neptune Series HX77G, AMD Ryzen 7 7735HS	133.25 (133.1^min - 135.2^max) fps +5%
Acemagic M2A Intel Core i9-12900H	126.7 (111.2^min - 127.2^max) fps
Acemagic Tank03 Acemagic Tank03 (Performance), Intel Core i9-12900H	125.45 (124.7^min - 126.8^max) fps -1%
Minisforum NUCX i7 Minisforum NUCXi7, Intel Core i7-11800H	109.3 (108.1^min - 111.7^max) fps -14%
Zotac ZBOX Magnus EN173070C ZBOX Magnus EN173070C, Intel Core i7-11800H	93.75 (91.3^min - 98.8^max) fps -26%

WinRAR - Result
Acemagic M2A Intel Core i9-12900H	8869 KB/s
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel NUC 12 Kit - Serpent Canyon, Intel Core i7-12700H	8231 KB/s -7%
Minisforum NUCX i7 Minisforum NUCXi7, Intel Core i7-11800H	7944 KB/s -10%
Zotac ZBOX Magnus EN173070C ZBOX Magnus EN173070C, Intel Core i7-11800H	7925 KB/s -11%
Acemagic Tank03 Acemagic Tank03 (Performance), Intel Core i9-12900H	7897 KB/s -11%
Minisforum Neptune Series HX77G Neptune Series HX77G, AMD Ryzen 7 7735HS	7174 KB/s -19%

TrueCrypt
AES Mean 100MB
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel NUC 12 Kit - Serpent Canyon, Intel Core i7-12700H	14.8 GB/s +22%
Minisforum Neptune Series HX77G Neptune Series HX77G, AMD Ryzen 7 7735HS	13.2 GB/s +9%
Acemagic Tank03 Acemagic Tank03 (Performance), Intel Core i9-12900H	12.8 GB/s +6%
Acemagic M2A Intel Core i9-12900H	12.1 GB/s
Minisforum NUCX i7 Minisforum NUCXi7, Intel Core i7-11800H	11.6 GB/s -4%
Zotac ZBOX Magnus EN173070C ZBOX Magnus EN173070C, Intel Core i7-11800H	9.9 GB/s -18%
Twofish Mean 100MB
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel NUC 12 Kit - Serpent Canyon, Intel Core i7-12700H	2.5 GB/s +19%
Acemagic M2A Intel Core i9-12900H	2.1 GB/s
Acemagic Tank03 Acemagic Tank03 (Performance), Intel Core i9-12900H	2 GB/s -5%
Minisforum Neptune Series HX77G Neptune Series HX77G, AMD Ryzen 7 7735HS	1.9 GB/s -10%
Minisforum NUCX i7 Minisforum NUCXi7, Intel Core i7-11800H	1.7 GB/s -19%
Zotac ZBOX Magnus EN173070C ZBOX Magnus EN173070C, Intel Core i7-11800H	1.5 GB/s -29%
Serpent Mean 100MB
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel NUC 12 Kit - Serpent Canyon, Intel Core i7-12700H	1.4 GB/s +17%
Minisforum Neptune Series HX77G Neptune Series HX77G, AMD Ryzen 7 7735HS	1.2 GB/s 0%
Acemagic M2A Intel Core i9-12900H	1.2 GB/s
Minisforum NUCX i7 Minisforum NUCXi7, Intel Core i7-11800H	1.1 GB/s -8%
Acemagic Tank03 Acemagic Tank03 (Performance), Intel Core i9-12900H	1 GB/s -17%
Zotac ZBOX Magnus EN173070C ZBOX Magnus EN173070C, Intel Core i7-11800H	0.9 GB/s -25%

Geekbench 5.5
Multi-Core
Acemagic M2A Intel Core i9-12900H	11406 Points
Acemagic Tank03 Acemagic Tank03 (Performance), Intel Core i9-12900H	11155 Points -2%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel NUC 12 Kit - Serpent Canyon, Intel Core i7-12700H	10126 Points -11%
Minisforum Neptune Series HX77G Neptune Series HX77G, AMD Ryzen 7 7735HS	10126 Points -11%
Minisforum NUCX i7 Minisforum NUCXi7, Intel Core i7-11800H	9186 Points -19%
Zotac ZBOX Magnus EN173070C ZBOX Magnus EN173070C, Intel Core i7-11800H	8207 Points -28%
Single-Core
Acemagic M2A Intel Core i9-12900H	1842 Points
Acemagic Tank03 Acemagic Tank03 (Performance), Intel Core i9-12900H	1692 Points -8%
Minisforum Neptune Series HX77G Neptune Series HX77G, AMD Ryzen 7 7735HS	1615 Points -12%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel NUC 12 Kit - Serpent Canyon, Intel Core i7-12700H	1590 Points -14%
Zotac ZBOX Magnus EN173070C ZBOX Magnus EN173070C, Intel Core i7-11800H	1579 Points -14%
Minisforum NUCX i7 Minisforum NUCXi7, Intel Core i7-11800H	1570 Points -15%

Geekbench 5.0
5.0 Multi-Core
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel NUC 12 Kit - Serpent Canyon, Intel Core i7-12700H	11805 Points +4%
Acemagic M2A Intel Core i9-12900H	11337 Points
Acemagic Tank03 Acemagic Tank03 (Performance), Intel Core i9-12900H	10985 Points -3%
Minisforum Neptune Series HX77G Neptune Series HX77G, AMD Ryzen 7 7735HS	10300 Points -9%
Minisforum NUCX i7 Minisforum NUCXi7, Intel Core i7-11800H	9074 Points -20%
Zotac ZBOX Magnus EN173070C ZBOX Magnus EN173070C, Intel Core i7-11800H	8109 Points -28%
5.0 Single-Core
Acemagic M2A Intel Core i9-12900H	1751 Points
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel NUC 12 Kit - Serpent Canyon, Intel Core i7-12700H	1723 Points -2%
Zotac ZBOX Magnus EN173070C ZBOX Magnus EN173070C, Intel Core i7-11800H	1571 Points -10%
Acemagic Tank03 Acemagic Tank03 (Performance), Intel Core i9-12900H	1564 Points -11%
Minisforum NUCX i7 Minisforum NUCXi7, Intel Core i7-11800H	1563 Points -11%
Minisforum Neptune Series HX77G Neptune Series HX77G, AMD Ryzen 7 7735HS	1563 Points -11%

Geekbench 4.4
64 Bit Single-Core Score
Acemagic M2A Intel Core i9-12900H	7671 Points
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel NUC 12 Kit - Serpent Canyon, Intel Core i7-12700H	7608 Points -1%
Acemagic Tank03 Acemagic Tank03 (Performance), Intel Core i9-12900H	7198 Points -6%
Minisforum Neptune Series HX77G Neptune Series HX77G, AMD Ryzen 7 7735HS	6720 Points -12%
Zotac ZBOX Magnus EN173070C ZBOX Magnus EN173070C, Intel Core i7-11800H	6698 Points -13%
Minisforum NUCX i7 Minisforum NUCXi7, Intel Core i7-11800H	6693 Points -13%
64 Bit Multi-Core Score
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel NUC 12 Kit - Serpent Canyon, Intel Core i7-12700H	44386 Points +8%
Acemagic M2A Intel Core i9-12900H	41134 Points
Minisforum Neptune Series HX77G Neptune Series HX77G, AMD Ryzen 7 7735HS	40164 Points -2%
Acemagic Tank03 Acemagic Tank03 (Performance), Intel Core i9-12900H	39648 Points -4%
Minisforum NUCX i7 Minisforum NUCXi7, Intel Core i7-11800H	36347 Points -12%
Zotac ZBOX Magnus EN173070C ZBOX Magnus EN173070C, Intel Core i7-11800H	33034 Points -20%

3DMark 11 - 1280x720 Performance Physics
Acemagic M2A Intel Core i9-12900H	21433 Points
Acemagic Tank03 Acemagic Tank03 (Performance), Intel Core i9-12900H	21217 Points -1%
Minisforum Neptune Series HX77G Neptune Series HX77G, AMD Ryzen 7 7735HS	20709 Points -3%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel NUC 12 Kit - Serpent Canyon, Intel Core i7-12700H	19339 Points -10%
Minisforum NUCX i7 Minisforum NUCXi7, Intel Core i7-11800H	16736 Points -22%
Zotac ZBOX Magnus EN173070C ZBOX Magnus EN173070C, Intel Core i7-11800H	15739 Points -27%

7-Zip 18.03
7z b 4
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel NUC 12 Kit - Serpent Canyon, Intel Core i7-12700H	64403 MIPS +22%
Minisforum Neptune Series HX77G Neptune Series HX77G, AMD Ryzen 7 7735HS	63214 MIPS +20%
Acemagic Tank03 Acemagic Tank03 (Performance), Intel Core i9-12900H	55613 MIPS +6%
Acemagic M2A Intel Core i9-12900H	52663 MIPS
Minisforum NUCX i7 Minisforum NUCXi7, Intel Core i7-11800H	51773 MIPS -2%
Zotac ZBOX Magnus EN173070C ZBOX Magnus EN173070C, Intel Core i7-11800H	45999 MIPS -13%
7z b 4 -mmt1
Acemagic M2A Intel Core i9-12900H	6076 MIPS
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel NUC 12 Kit - Serpent Canyon, Intel Core i7-12700H	5972 MIPS -2%
Minisforum Neptune Series HX77G Neptune Series HX77G, AMD Ryzen 7 7735HS	5807 MIPS -4%
Zotac ZBOX Magnus EN173070C ZBOX Magnus EN173070C, Intel Core i7-11800H	5619 MIPS -8%
Acemagic Tank03 Acemagic Tank03 (Performance), Intel Core i9-12900H	5582 MIPS -8%
Minisforum NUCX i7 Minisforum NUCXi7, Intel Core i7-11800H	5446 MIPS -10%

HWBOT x265 Benchmark v2.2 - 4k Preset
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel NUC 12 Kit - Serpent Canyon, Intel Core i7-12700H	18.7 fps +25%
Minisforum Neptune Series HX77G Neptune Series HX77G, AMD Ryzen 7 7735HS	17.7 fps +18%
Acemagic M2A Intel Core i9-12900H	15 fps
Minisforum NUCX i7 Minisforum NUCXi7, Intel Core i7-11800H	14.8 fps -1%
Acemagic Tank03 Acemagic Tank03 (Performance), Intel Core i9-12900H	14.8 fps -1%
Zotac ZBOX Magnus EN173070C ZBOX Magnus EN173070C, Intel Core i7-11800H	13.2 fps -12%

R Benchmark 2.5 - Overall mean
Minisforum NUCX i7 Minisforum NUCXi7, Intel Core i7-11800H	0.562 sec * -29%
Zotac ZBOX Magnus EN173070C ZBOX Magnus EN173070C, Intel Core i7-11800H	0.56 sec * -29%
Acemagic Tank03 Acemagic Tank03 (Performance), Intel Core i9-12900H	0.506 sec * -16%
Minisforum Neptune Series HX77G Neptune Series HX77G, AMD Ryzen 7 7735HS	0.4822 sec * -11%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel NUC 12 Kit - Serpent Canyon, Intel Core i7-12700H	0.4643 sec * -7%
Acemagic M2A Intel Core i9-12900H	0.4347 sec *

LibreOffice - 20 Documents To PDF
Minisforum NUCX i7 Minisforum NUCXi7, Intel Core i7-11800H	50.1 s * -25%
Minisforum Neptune Series HX77G Neptune Series HX77G, AMD Ryzen 7 7735HS	49.6 s * -24%
Zotac ZBOX Magnus EN173070C ZBOX Magnus EN173070C, Intel Core i7-11800H	48 s * -20%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel NUC 12 Kit - Serpent Canyon, Intel Core i7-12700H	44.9 s * -12%
Acemagic M2A Intel Core i9-12900H	40 s *
Acemagic Tank03 Acemagic Tank03 (Performance), Intel Core i9-12900H	36.8 s * +8%

WebXPRT 3 - Overall
Minisforum Neptune Series HX77G Neptune Series HX77G, AMD Ryzen 7 7735HS	297 Points +1%
Acemagic M2A Intel Core i9-12900H	293 Points
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel NUC 12 Kit - Serpent Canyon, Intel Core i7-12700H	287 Points -2%
Acemagic Tank03 Acemagic Tank03 (Performance), Intel Core i9-12900H	283 Points -3%
Zotac ZBOX Magnus EN173070C ZBOX Magnus EN173070C, Intel Core i7-11800H	267 Points -9%
Minisforum NUCX i7 Minisforum NUCXi7, Intel Core i7-11800H	262 Points -11%

Mozilla Kraken 1.1 - Total
Zotac ZBOX Magnus EN173070C ZBOX Magnus EN173070C, Intel Core i7-11800H	641 ms * -29%
Minisforum NUCX i7 Minisforum NUCXi7, Intel Core i7-11800H	640 ms * -29%
Acemagic Tank03 Acemagic Tank03 (Performance), Intel Core i9-12900H	608 ms * -23%
Minisforum Neptune Series HX77G Neptune Series HX77G, AMD Ryzen 7 7735HS	576 ms * -16%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel NUC 12 Kit - Serpent Canyon, Intel Core i7-12700H	520 ms * -5%
Acemagic M2A Intel Core i9-12900H	496 ms *

3DMark
1920x1080 Fire Strike Physics
Minisforum Neptune Series HX77G Neptune Series HX77G, AMD Ryzen 7 7735HS	27690 Points +7%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel NUC 12 Kit - Serpent Canyon, Intel Core i7-12700H	27265 Points +5%
Acemagic M2A Intel Core i9-12900H	25951 Points
Acemagic Tank03 Acemagic Tank03 (Performance), Intel Core i9-12900H	25492 Points -2%
Minisforum NUCX i7 Minisforum NUCXi7, Intel Core i7-11800H	24508 Points -6%
Zotac ZBOX Magnus EN173070C ZBOX Magnus EN173070C, Intel Core i7-11800H	23641 Points -9%
2560x1440 Time Spy CPU
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel NUC 12 Kit - Serpent Canyon, Intel Core i7-12700H	12397 Points +7%
Acemagic M2A Intel Core i9-12900H	11607 Points
Minisforum Neptune Series HX77G Neptune Series HX77G, AMD Ryzen 7 7735HS	11073 Points -5%
Acemagic Tank03 Acemagic Tank03 (Performance), Intel Core i9-12900H	10965 Points -6%
Minisforum NUCX i7 Minisforum NUCXi7, Intel Core i7-11800H	10169 Points -12%
Zotac ZBOX Magnus EN173070C ZBOX Magnus EN173070C, Intel Core i7-11800H	9282 Points -20%

Super Pi mod 1.5 XS 1M - 1M
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel NUC 12 Kit - Serpent Canyon, Intel Core i7-12700H	7.915 s * -6%
Acemagic Tank03 Acemagic Tank03 (Performance), Intel Core i9-12900H	7.782 s * -4%
Minisforum Neptune Series HX77G Neptune Series HX77G, AMD Ryzen 7 7735HS	7.776 s * -4%
Acemagic M2A Intel Core i9-12900H	7.469 s *
Zotac ZBOX Magnus EN173070C ZBOX Magnus EN173070C, Intel Core i7-11800H	7.312 s * +2%
Minisforum NUCX i7 Minisforum NUCXi7, Intel Core i7-11800H	7.267 s * +3%

Super Pi mod 1.5 XS 2M - 2M
Minisforum Neptune Series HX77G Neptune Series HX77G, AMD Ryzen 7 7735HS	18.935 s * -14%
Acemagic Tank03 Acemagic Tank03 (Performance), Intel Core i9-12900H	17.768 s * -7%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel NUC 12 Kit - Serpent Canyon, Intel Core i7-12700H	17.72 s * -7%
Acemagic M2A Intel Core i9-12900H	16.629 s *
Zotac ZBOX Magnus EN173070C ZBOX Magnus EN173070C, Intel Core i7-11800H	15.844 s * +5%
Minisforum NUCX i7 Minisforum NUCXi7, Intel Core i7-11800H	15.779 s * +5%

Super Pi Mod 1.5 XS 32M - 32M
Minisforum Neptune Series HX77G Neptune Series HX77G, AMD Ryzen 7 7735HS	657.983 s * -65%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel NUC 12 Kit - Serpent Canyon, Intel Core i7-12700H	428.646 s * -8%
Acemagic Tank03 Acemagic Tank03 (Performance), Intel Core i9-12900H	409.191 s * -3%
Acemagic M2A Intel Core i9-12900H	398.643 s *
Minisforum NUCX i7 Minisforum NUCXi7, Intel Core i7-11800H	372.381 s * +7%
Zotac ZBOX Magnus EN173070C ZBOX Magnus EN173070C, Intel Core i7-11800H	369.784 s * +7%

* ... smaller is better

Cinebench R10 Rendering Single 32Bit

9148

Cinebench R10 Shading 64Bit

6849 Points

Cinebench R10 Rendering Multiple CPUs 64Bit

72332 Points

Cinebench R10 Rendering Single CPUs 64Bit

14567 Points

Cinebench R10 Shading 32Bit

6845

Cinebench R10 Rendering Multiple CPUs 32Bit

47767

Cinebench R11.5 CPU Single 32Bit

2.72 Points

Cinebench R11.5 CPU Multi 32Bit

23.03 Points

Cinebench R11.5 OpenGL 32Bit

174.69 fps

Cinebench R11.5 CPU Single 64Bit

3.09 Points

Cinebench R11.5 CPU Multi 64Bit

25.34 Points

Cinebench R11.5 OpenGL 64Bit

185.34 fps

Cinebench R15 CPU Single 64Bit

266 Points

Cinebench R15 CPU Multi 64Bit

2136 Points

Cinebench R15 Ref. Match 64Bit

99.6 %

Cinebench R15 OpenGL 64Bit

255.42 fps

Cinebench R20 CPU (Single Core)

735 Points

Cinebench R20 CPU (Multi Core)

5472 Points

Cinebench R23 Multi Core

13899 Points

Cinebench R23 Single Core

1907 Points

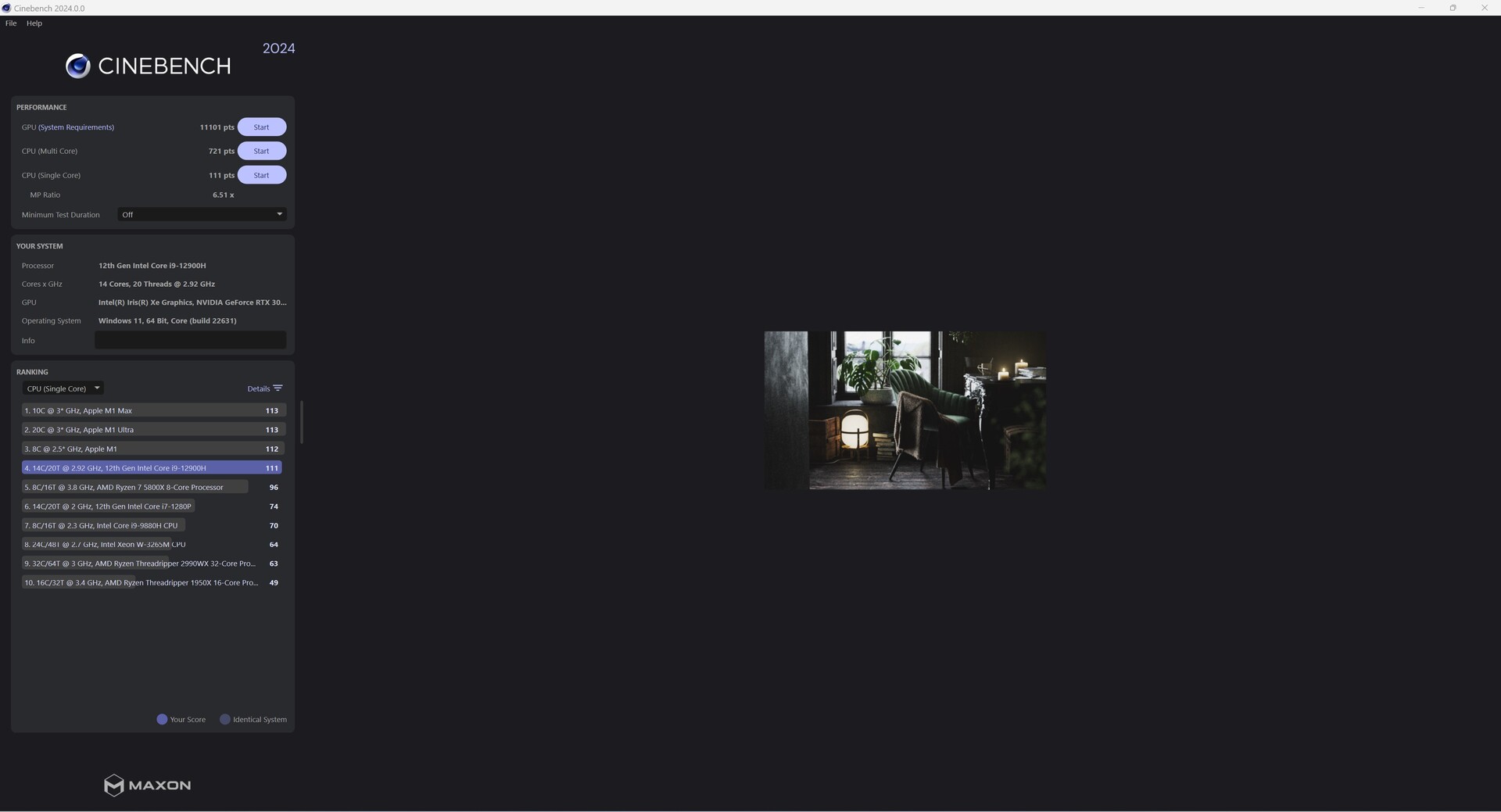

Cinebench 2024 CPU Single Core

111 Points

Cinebench 2024 CPU Multi Core

721 Points

Help

... in comparison

Performance Rating
Minisforum Neptune Series HX77G AMD Ryzen 7 7735HS, Radeon RX 6600M	95.4 pt
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H, A770M	84 pt
Zotac ZBOX Magnus EN173070C Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU	75.8 pt
Minisforum NUCX i7 Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU	75.6 pt
Acemagic M2A Intel Core i9-12900H, GeForce RTX 3080 Laptop GPU	73.1 pt
Acemagic Tank03 Intel Core i9-12900H, GeForce RTX 3080 Laptop GPU	71.9 pt
Average of class Mini PC	68.8 pt

AIDA64 / FP32 Ray-Trace
Minisforum Neptune Series HX77G AMD Ryzen 7 7735HS, Radeon RX 6600M	16144 KRay/s +40%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H, A770M	14547 KRay/s +26%
Zotac ZBOX Magnus EN173070C Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU	13002 KRay/s +13%
Minisforum NUCX i7 Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU	12788 KRay/s +11%
Average of class Mini PC (561 - 51004, n=119, last 2 years)	12449 KRay/s +8%
Acemagic Tank03 Intel Core i9-12900H, GeForce RTX 3080 Laptop GPU	12341 KRay/s +7%
Acemagic M2A Intel Core i9-12900H, GeForce RTX 3080 Laptop GPU	11543 KRay/s

AIDA64 / FPU Julia
Minisforum Neptune Series HX77G AMD Ryzen 7 7735HS, Radeon RX 6600M	101374 Points +73%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H, A770M	73386 Points +25%
Average of class Mini PC (3604 - 214250, n=119, last 2 years)	62645 Points +7%
Acemagic Tank03 Intel Core i9-12900H, GeForce RTX 3080 Laptop GPU	61545 Points +5%
Acemagic M2A Intel Core i9-12900H, GeForce RTX 3080 Laptop GPU	58537 Points
Zotac ZBOX Magnus EN173070C Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU	56368 Points -4%
Minisforum NUCX i7 Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU	54342 Points -7%

AIDA64 / CPU SHA3
Zotac ZBOX Magnus EN173070C Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU	3829 MB/s +39%
Minisforum NUCX i7 Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU	3655 MB/s +33%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H, A770M	3570 MB/s +30%
Minisforum Neptune Series HX77G AMD Ryzen 7 7735HS, Radeon RX 6600M	3482 MB/s +27%
Acemagic Tank03 Intel Core i9-12900H, GeForce RTX 3080 Laptop GPU	2795 MB/s +2%
Average of class Mini PC (225 - 9399, n=119, last 2 years)	2760 MB/s 0%
Acemagic M2A Intel Core i9-12900H, GeForce RTX 3080 Laptop GPU	2752 MB/s

AIDA64 / CPU Queen
Minisforum Neptune Series HX77G AMD Ryzen 7 7735HS, Radeon RX 6600M	106827 Points +14%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H, A770M	102818 Points +10%
Acemagic Tank03 Intel Core i9-12900H, GeForce RTX 3080 Laptop GPU	93332 Points 0%
Acemagic M2A Intel Core i9-12900H, GeForce RTX 3080 Laptop GPU	93326 Points
Minisforum NUCX i7 Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU	89290 Points -4%
Zotac ZBOX Magnus EN173070C Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU	88481 Points -5%
Average of class Mini PC (8172 - 184747, n=119, last 2 years)	77998 Points -16%

AIDA64 / FPU SinJulia
Minisforum Neptune Series HX77G AMD Ryzen 7 7735HS, Radeon RX 6600M	12926 Points +63%
Minisforum NUCX i7 Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU	9734 Points +23%
Zotac ZBOX Magnus EN173070C Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU	9457 Points +20%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H, A770M	9351 Points +18%
Average of class Mini PC (408 - 29064, n=119, last 2 years)	8538 Points +8%
Acemagic Tank03 Intel Core i9-12900H, GeForce RTX 3080 Laptop GPU	8142 Points +3%
Acemagic M2A Intel Core i9-12900H, GeForce RTX 3080 Laptop GPU	7910 Points

AIDA64 / FPU Mandel
Minisforum Neptune Series HX77G AMD Ryzen 7 7735HS, Radeon RX 6600M	55864 Points +96%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H, A770M	33971 Points +19%
Zotac ZBOX Magnus EN173070C Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU	33223 Points +17%
Average of class Mini PC (1958 - 113499, n=119, last 2 years)	32689 Points +15%
Minisforum NUCX i7 Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU	32372 Points +14%
Acemagic Tank03 Intel Core i9-12900H, GeForce RTX 3080 Laptop GPU	30203 Points +6%
Acemagic M2A Intel Core i9-12900H, GeForce RTX 3080 Laptop GPU	28502 Points

AIDA64 / CPU AES
Minisforum Neptune Series HX77G AMD Ryzen 7 7735HS, Radeon RX 6600M	137629 MB/s +32%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H, A770M	129719 MB/s +24%
Minisforum NUCX i7 Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU	128262 MB/s +23%
Zotac ZBOX Magnus EN173070C Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU	124539 MB/s +19%
Acemagic M2A Intel Core i9-12900H, GeForce RTX 3080 Laptop GPU	104529 MB/s
Average of class Mini PC (3691 - 325960, n=119, last 2 years)	85358 MB/s -18%
Acemagic Tank03 Intel Core i9-12900H, GeForce RTX 3080 Laptop GPU	57725 MB/s -45%

AIDA64 / CPU ZLib
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H, A770M	982 MB/s +23%
Minisforum Neptune Series HX77G AMD Ryzen 7 7735HS, Radeon RX 6600M	872 MB/s +9%
Acemagic Tank03 Intel Core i9-12900H, GeForce RTX 3080 Laptop GPU	842 MB/s +5%
Acemagic M2A Intel Core i9-12900H, GeForce RTX 3080 Laptop GPU	800 MB/s
Minisforum NUCX i7 Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU	756 MB/s -5%
Zotac ZBOX Magnus EN173070C Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU	735 MB/s -8%
Average of class Mini PC (74.8 - 2039, n=119, last 2 years)	714 MB/s -11%

AIDA64 / FP64 Ray-Trace
Minisforum Neptune Series HX77G AMD Ryzen 7 7735HS, Radeon RX 6600M	8626 KRay/s +38%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H, A770M	7775 KRay/s +24%
Zotac ZBOX Magnus EN173070C Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU	7119 KRay/s +14%
Minisforum NUCX i7 Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU	7109 KRay/s +14%
Average of class Mini PC (308 - 26952, n=119, last 2 years)	6658 KRay/s +7%
Acemagic Tank03 Intel Core i9-12900H, GeForce RTX 3080 Laptop GPU	6643 KRay/s +6%
Acemagic M2A Intel Core i9-12900H, GeForce RTX 3080 Laptop GPU	6248 KRay/s

AIDA64 / CPU PhotoWorxx
Acemagic M2A Intel Core i9-12900H, GeForce RTX 3080 Laptop GPU	40911 MPixel/s
Acemagic Tank03 Intel Core i9-12900H, GeForce RTX 3080 Laptop GPU	40833 MPixel/s 0%
Minisforum Neptune Series HX77G AMD Ryzen 7 7735HS, Radeon RX 6600M	30205 MPixel/s -26%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H, A770M	29030 MPixel/s -29%
Average of class Mini PC (4408 - 50500, n=119, last 2 years)	27805 MPixel/s -32%
Zotac ZBOX Magnus EN173070C Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU	23774 MPixel/s -42%
Minisforum NUCX i7 Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU	23758 MPixel/s -42%

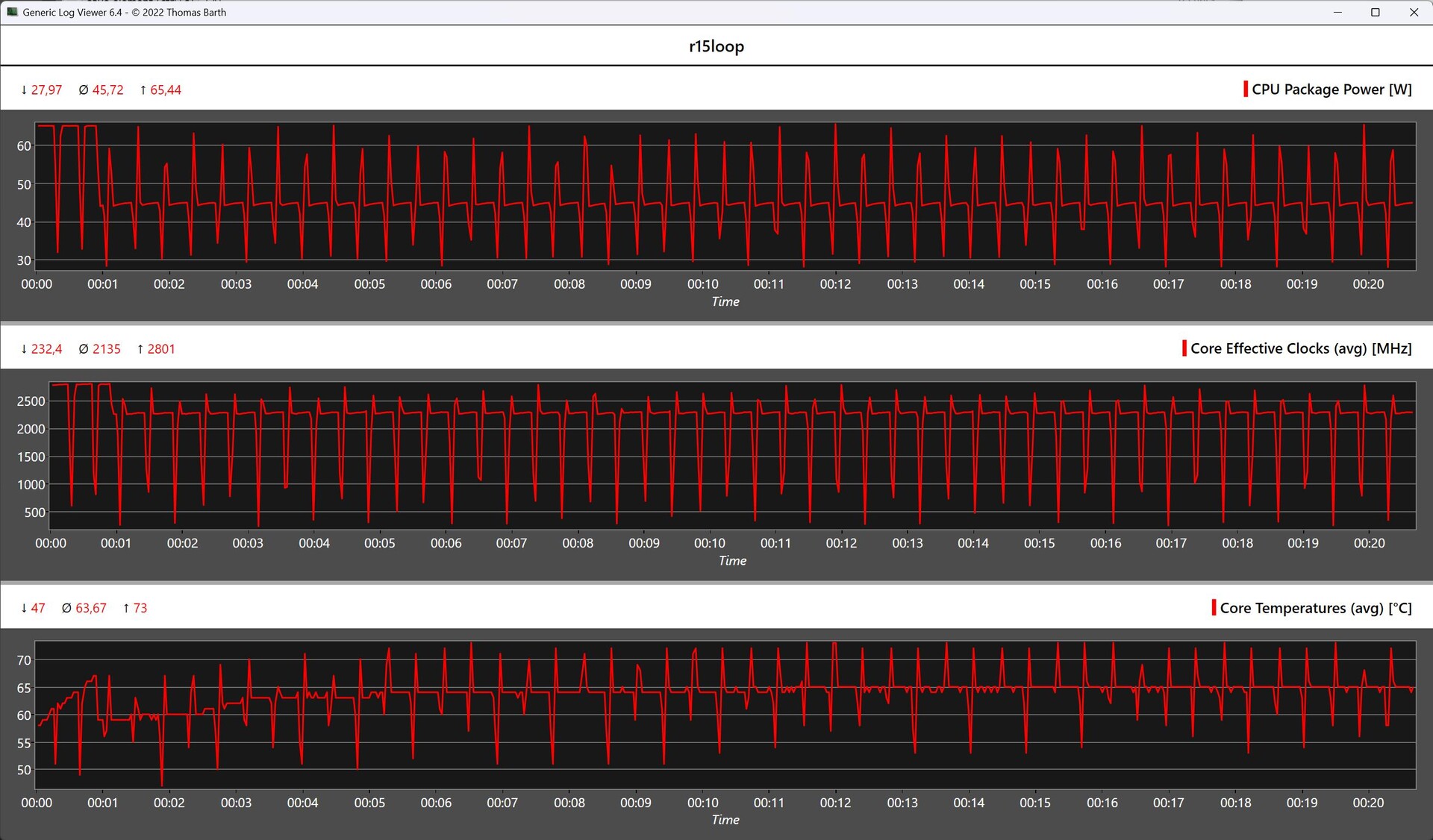

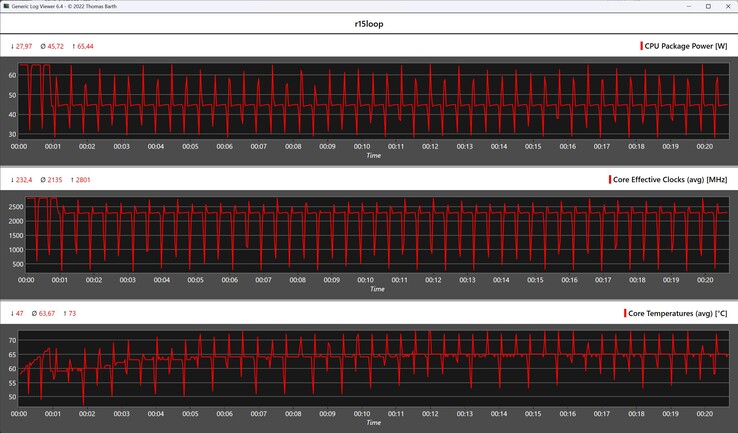

Cinebench R15 多循环

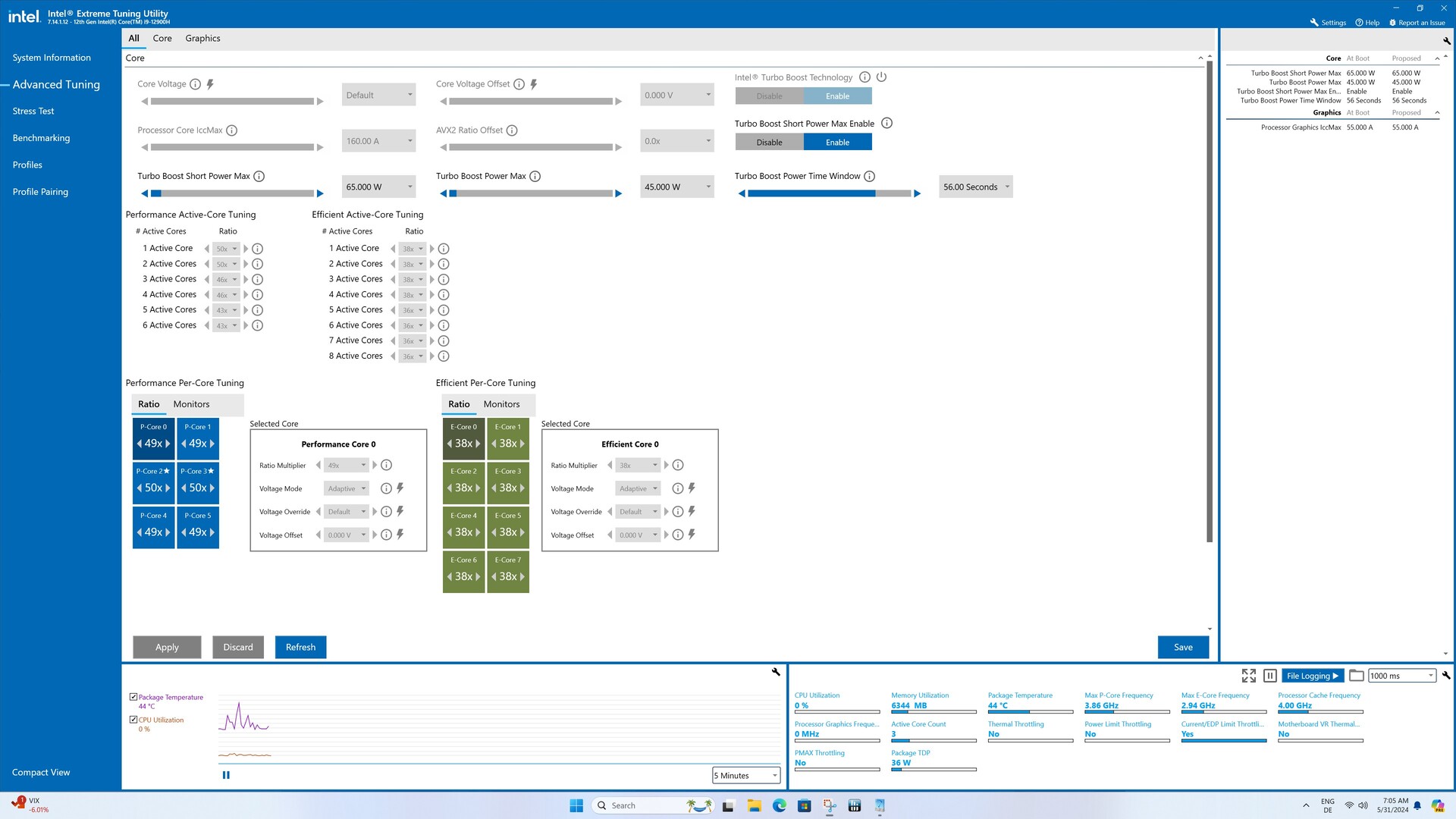

通过 Cinebench R15 连续循环测试，我们对内置冷却系统的性能有了初步印象。英特尔酷睿 i7-12900H 的最大可用功率为 65 瓦。56 秒后，功率永久降至 45 瓦，这在结果中得到了很好的体现。因此，在长时间负载的情况下，性能会明显下降。

Acemagic M2A Intel Core i9-12900H, Intel Core i9-12900H: Ø1833 (1798.4-2157.61)

Minisforum Neptune Series HX77G AMD Ryzen 7 7735HS, AMD Ryzen 7 7735HS: Ø2215 (2150.88-2285.58)

Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H, Intel Core i7-12700H: Ø2410 (2386.63-2623.64)

Acemagic Tank03 Intel Core i9-12900H, Intel Core i9-12900H: Ø1779 (1736.94-2045.09)

Minisforum NUCX i7 Intel Core i7-11800H, Intel Core i7-11800H: Ø1825 (1783.96-2050.55)

Zotac ZBOX Magnus EN173070C Intel Core i7-11800H, Intel Core i7-11800H: Ø1562 (1536.63-1683.86)

系统性能

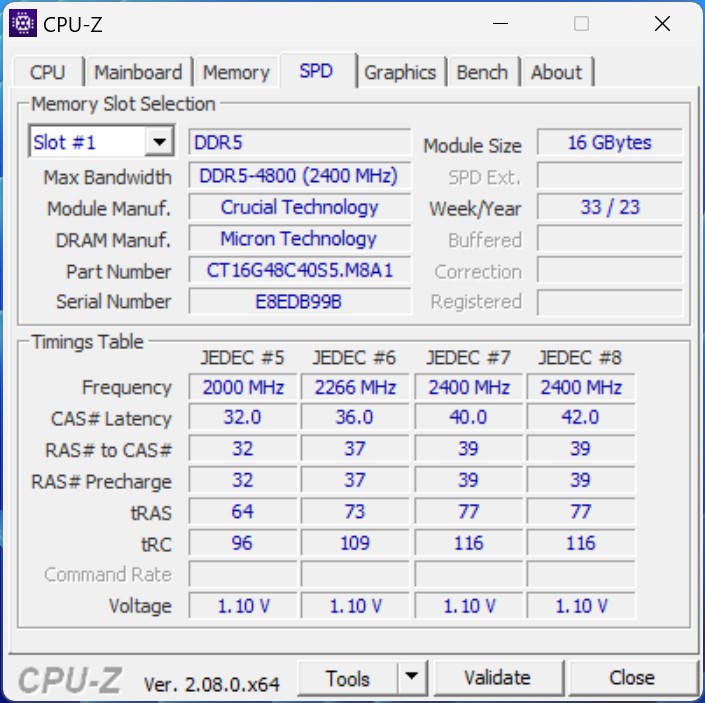

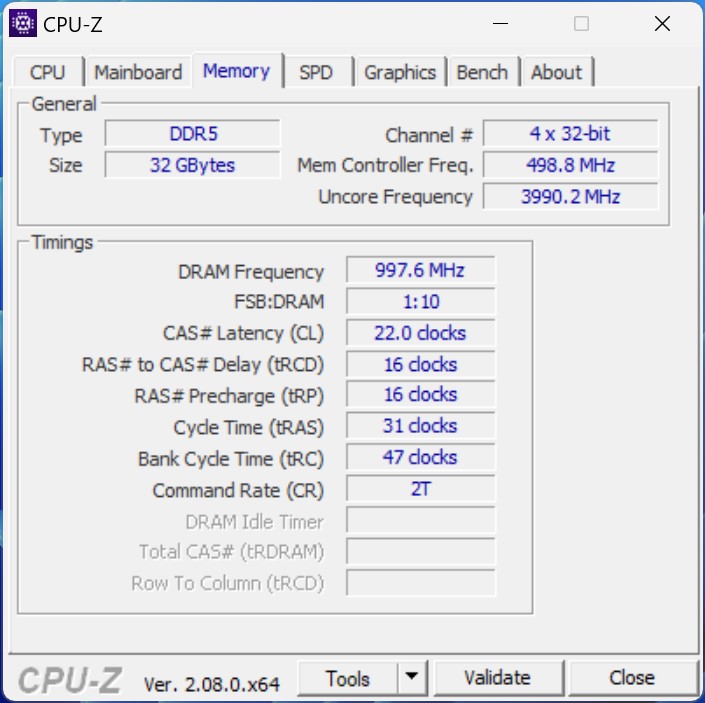

Acemagic M2A Starship 的系统性能丝毫不逊色于其他竞争对手。这款游戏电脑运行流畅，能毫不费力地完成多线程任务。DDR5 内存的使用值得肯定，结合我们的测试样本，它取得了最佳成绩，紧随其后的是 Acemagic Tank03.

PCMark 10: Score | Essentials | Productivity

PCMark 10 / Score
Minisforum Neptune Series HX77G, AMD Ryzen 7 7735HS AMD Radeon RX 6600M, Kingston OM8PGP4512Q-A0	7916 Points +2%
Acemagic M2A, Intel Core i9-12900H NVIDIA GeForce RTX 3080 Laptop GPU, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	7730 Points
Acemagic Tank03, Intel Core i9-12900H NVIDIA GeForce RTX 3080 Laptop GPU, BiWin CE480V6D10H-1TB	7326 Points -5%
Intel NUC 12, NUC12SNKi72_Serpent Canyon, Intel Core i7-12700H Intel Arc A770M, Kingston Fury Renegade SFYRS500G	7208 Points -7%
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H NVIDIA GeForce RTX 3070 Laptop GPU, Transcend M.2 SSD 2200S TS512GMTE220S	6952 Points -10%
Minisforum NUCX i7, Intel Core i7-11800H NVIDIA GeForce RTX 3070 Laptop GPU,	6863 Points -11%

PCMark 10 / Essentials
Minisforum Neptune Series HX77G, AMD Ryzen 7 7735HS AMD Radeon RX 6600M, Kingston OM8PGP4512Q-A0	10921 Points +6%
Intel NUC 12, NUC12SNKi72_Serpent Canyon, Intel Core i7-12700H Intel Arc A770M, Kingston Fury Renegade SFYRS500G	10689 Points +3%
Acemagic M2A, Intel Core i9-12900H NVIDIA GeForce RTX 3080 Laptop GPU, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	10344 Points
Acemagic Tank03, Intel Core i9-12900H NVIDIA GeForce RTX 3080 Laptop GPU, BiWin CE480V6D10H-1TB	10130 Points -2%
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H NVIDIA GeForce RTX 3070 Laptop GPU, Transcend M.2 SSD 2200S TS512GMTE220S	10014 Points -3%
Minisforum NUCX i7, Intel Core i7-11800H NVIDIA GeForce RTX 3070 Laptop GPU,	9865 Points -5%

PCMark 10 / Productivity
Acemagic M2A, Intel Core i9-12900H NVIDIA GeForce RTX 3080 Laptop GPU, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	11014 Points
Acemagic Tank03, Intel Core i9-12900H NVIDIA GeForce RTX 3080 Laptop GPU, BiWin CE480V6D10H-1TB	10430 Points -5%
Minisforum Neptune Series HX77G, AMD Ryzen 7 7735HS AMD Radeon RX 6600M, Kingston OM8PGP4512Q-A0	9705 Points -12%
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H NVIDIA GeForce RTX 3070 Laptop GPU, Transcend M.2 SSD 2200S TS512GMTE220S	8985 Points -18%
Minisforum NUCX i7, Intel Core i7-11800H NVIDIA GeForce RTX 3070 Laptop GPU,	8579 Points -22%
Intel NUC 12, NUC12SNKi72_Serpent Canyon, Intel Core i7-12700H Intel Arc A770M, Kingston Fury Renegade SFYRS500G	7096 Points -36%

CrossMark: Overall | Responsiveness | Creativity | Productivity

CrossMark / Overall
Intel NUC 12, NUC12SNKi72_Serpent Canyon, Intel Core i7-12700H Intel Arc A770M, Kingston Fury Renegade SFYRS500G	1965 Points +10%
Acemagic M2A, Intel Core i9-12900H NVIDIA GeForce RTX 3080 Laptop GPU, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	1785 Points
Minisforum Neptune Series HX77G, AMD Ryzen 7 7735HS AMD Radeon RX 6600M, Kingston OM8PGP4512Q-A0	1731 Points -3%
Minisforum NUCX i7, Intel Core i7-11800H NVIDIA GeForce RTX 3070 Laptop GPU,	1600 Points -10%
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H NVIDIA GeForce RTX 3070 Laptop GPU, Transcend M.2 SSD 2200S TS512GMTE220S	1569 Points -12%
Acemagic Tank03, Intel Core i9-12900H NVIDIA GeForce RTX 3080 Laptop GPU, BiWin CE480V6D10H-1TB	1567 Points -12%

CrossMark / Responsiveness
Intel NUC 12, NUC12SNKi72_Serpent Canyon, Intel Core i7-12700H Intel Arc A770M, Kingston Fury Renegade SFYRS500G	2039 Points +31%
Minisforum Neptune Series HX77G, AMD Ryzen 7 7735HS AMD Radeon RX 6600M, Kingston OM8PGP4512Q-A0	1704 Points +10%
Acemagic M2A, Intel Core i9-12900H NVIDIA GeForce RTX 3080 Laptop GPU, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	1556 Points
Minisforum NUCX i7, Intel Core i7-11800H NVIDIA GeForce RTX 3070 Laptop GPU,	1496 Points -4%
Acemagic Tank03, Intel Core i9-12900H NVIDIA GeForce RTX 3080 Laptop GPU, BiWin CE480V6D10H-1TB	1469 Points -6%
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H NVIDIA GeForce RTX 3070 Laptop GPU, Transcend M.2 SSD 2200S TS512GMTE220S	1435 Points -8%

CrossMark / Creativity
Intel NUC 12, NUC12SNKi72_Serpent Canyon, Intel Core i7-12700H Intel Arc A770M, Kingston Fury Renegade SFYRS500G	1985 Points +3%
Acemagic M2A, Intel Core i9-12900H NVIDIA GeForce RTX 3080 Laptop GPU, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	1931 Points
Minisforum Neptune Series HX77G, AMD Ryzen 7 7735HS AMD Radeon RX 6600M, Kingston OM8PGP4512Q-A0	1740 Points -10%
Acemagic Tank03, Intel Core i9-12900H NVIDIA GeForce RTX 3080 Laptop GPU, BiWin CE480V6D10H-1TB	1692 Points -12%
Minisforum NUCX i7, Intel Core i7-11800H NVIDIA GeForce RTX 3070 Laptop GPU,	1644 Points -15%
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H NVIDIA GeForce RTX 3070 Laptop GPU, Transcend M.2 SSD 2200S TS512GMTE220S	1613 Points -16%

CrossMark / Productivity
Intel NUC 12, NUC12SNKi72_Serpent Canyon, Intel Core i7-12700H Intel Arc A770M, Kingston Fury Renegade SFYRS500G	1922 Points +11%
Minisforum Neptune Series HX77G, AMD Ryzen 7 7735HS AMD Radeon RX 6600M, Kingston OM8PGP4512Q-A0	1730 Points 0%
Acemagic M2A, Intel Core i9-12900H NVIDIA GeForce RTX 3080 Laptop GPU, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	1728 Points
Minisforum NUCX i7, Intel Core i7-11800H NVIDIA GeForce RTX 3070 Laptop GPU,	1592 Points -8%
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H NVIDIA GeForce RTX 3070 Laptop GPU, Transcend M.2 SSD 2200S TS512GMTE220S	1573 Points -9%
Acemagic Tank03, Intel Core i9-12900H NVIDIA GeForce RTX 3080 Laptop GPU, BiWin CE480V6D10H-1TB	1483 Points -14%

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Acemagic M2A Intel Core i9-12900H, GeForce RTX 3080 Laptop GPU	63046 MB/s
Acemagic Tank03 Intel Core i9-12900H, GeForce RTX 3080 Laptop GPU	62486 MB/s -1%
Minisforum Neptune Series HX77G AMD Ryzen 7 7735HS, Radeon RX 6600M	51130 MB/s -19%
Average of class Mini PC (6481 - 89287, n=119, last 2 years)	47585 MB/s -25%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H, A770M	47450 MB/s -25%
Minisforum NUCX i7 Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU	44370 MB/s -30%
Zotac ZBOX Magnus EN173070C Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU	44240 MB/s -30%

AIDA64 / Memory Read
Acemagic M2A Intel Core i9-12900H, GeForce RTX 3080 Laptop GPU	66442 MB/s
Acemagic Tank03 Intel Core i9-12900H, GeForce RTX 3080 Laptop GPU	65637 MB/s -1%
Minisforum Neptune Series HX77G AMD Ryzen 7 7735HS, Radeon RX 6600M	51730 MB/s -22%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H, A770M	50511 MB/s -24%
Zotac ZBOX Magnus EN173070C Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU	50365 MB/s -24%
Minisforum NUCX i7 Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU	49326 MB/s -26%
Average of class Mini PC (6914 - 99171, n=119, last 2 years)	48328 MB/s -27%

AIDA64 / Memory Write
Acemagic Tank03 Intel Core i9-12900H, GeForce RTX 3080 Laptop GPU	66516 MB/s +2%
Acemagic M2A Intel Core i9-12900H, GeForce RTX 3080 Laptop GPU	65234 MB/s
Minisforum Neptune Series HX77G AMD Ryzen 7 7735HS, Radeon RX 6600M	55224 MB/s -15%
Average of class Mini PC (6862 - 98583, n=119, last 2 years)	52056 MB/s -20%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H, A770M	47546 MB/s -27%
Zotac ZBOX Magnus EN173070C Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU	46213 MB/s -29%
Minisforum NUCX i7 Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU	46018 MB/s -29%

AIDA64 / Memory Latency
Minisforum NUCX i7 Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU	97.7 ns * -7%
Average of class Mini PC (44.9 - 184.8, n=119, last 2 years)	91.9 ns * -1%
Acemagic M2A Intel Core i9-12900H, GeForce RTX 3080 Laptop GPU	91 ns *
Acemagic Tank03 Intel Core i9-12900H, GeForce RTX 3080 Laptop GPU	90.9 ns * -0%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H, A770M	88.2 ns * +3%
Minisforum Neptune Series HX77G AMD Ryzen 7 7735HS, Radeon RX 6600M	86.1 ns * +5%
Zotac ZBOX Magnus EN173070C Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU	77.3 ns * +15%

* ... smaller is better

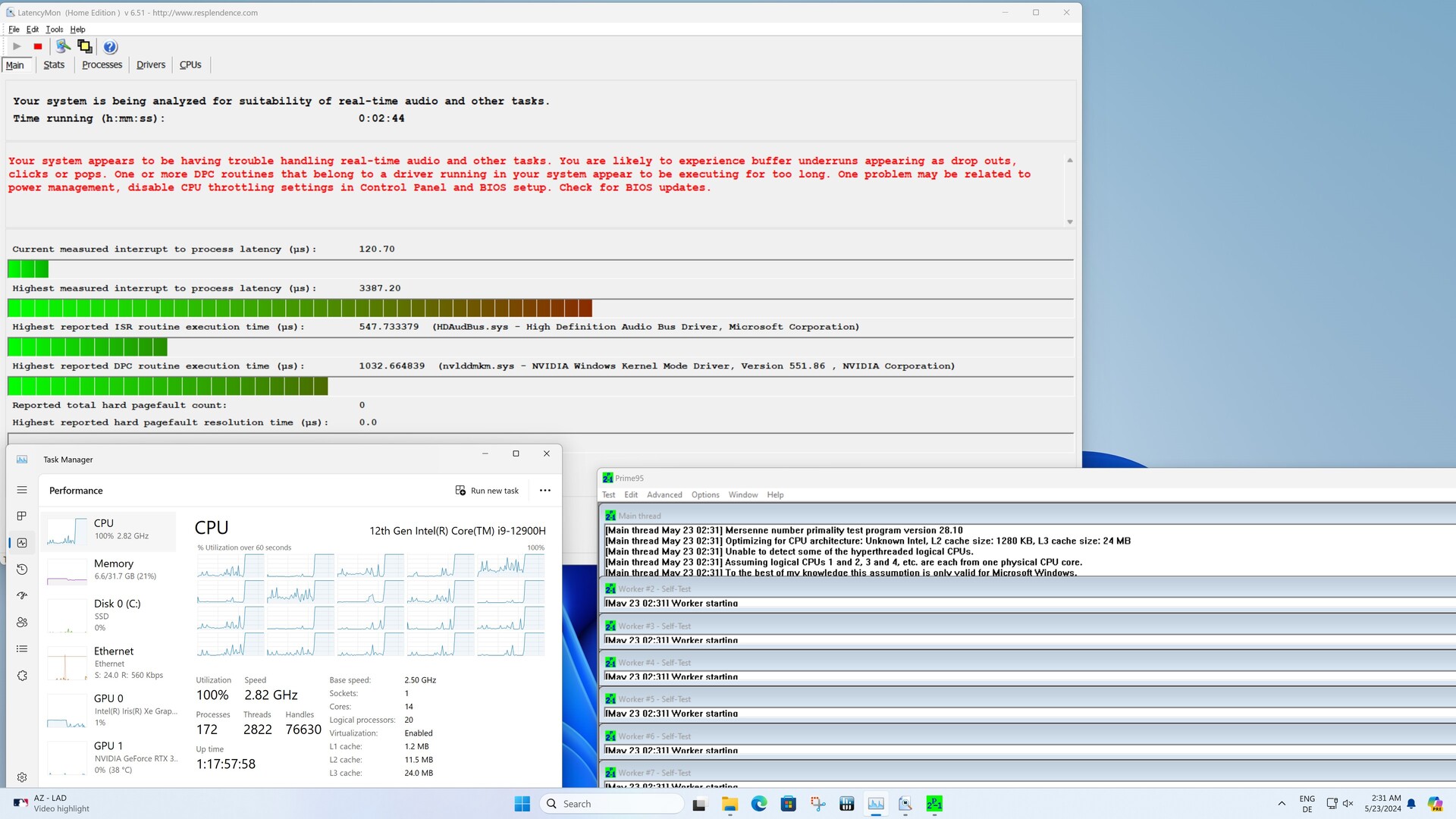

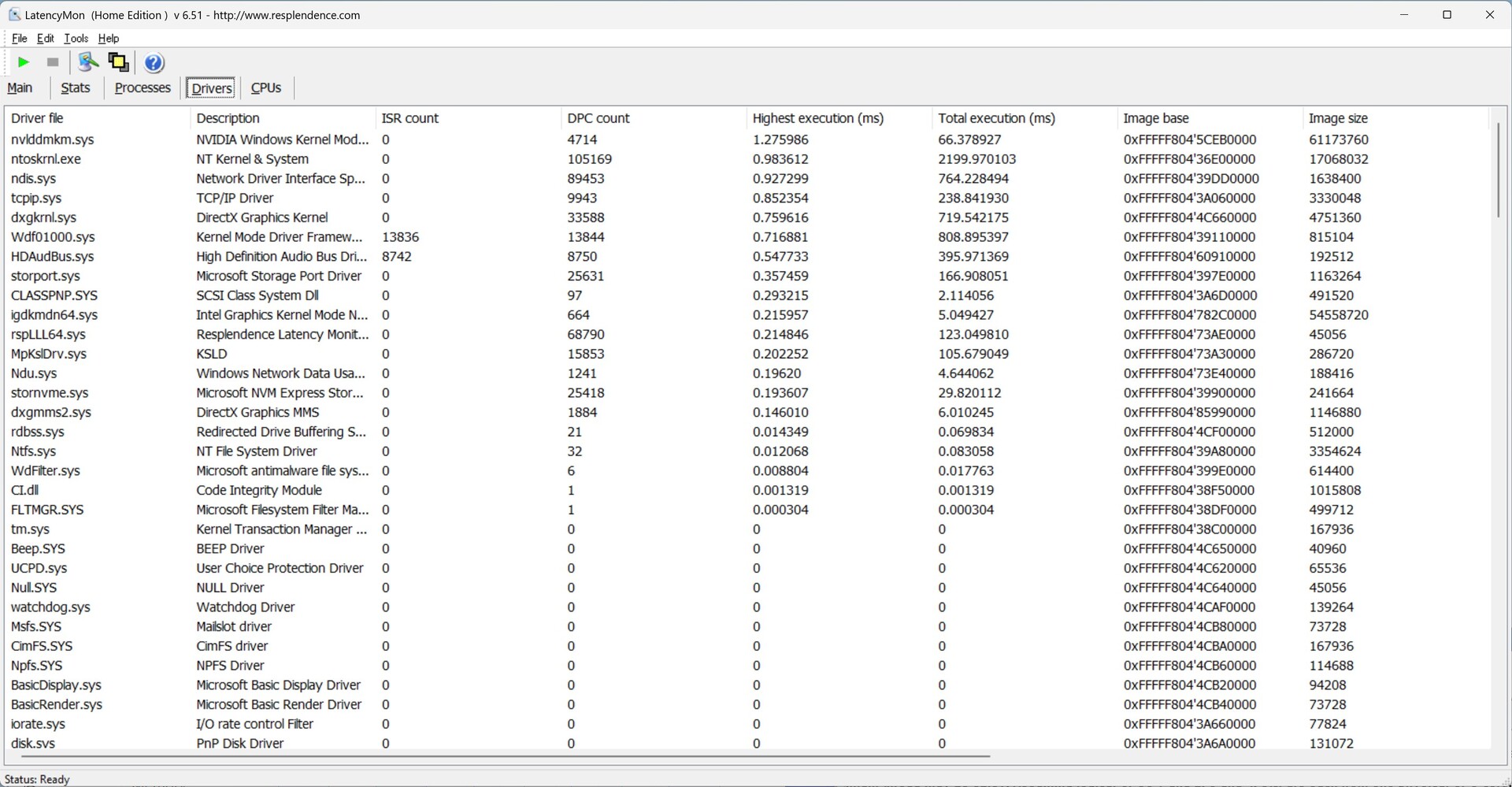

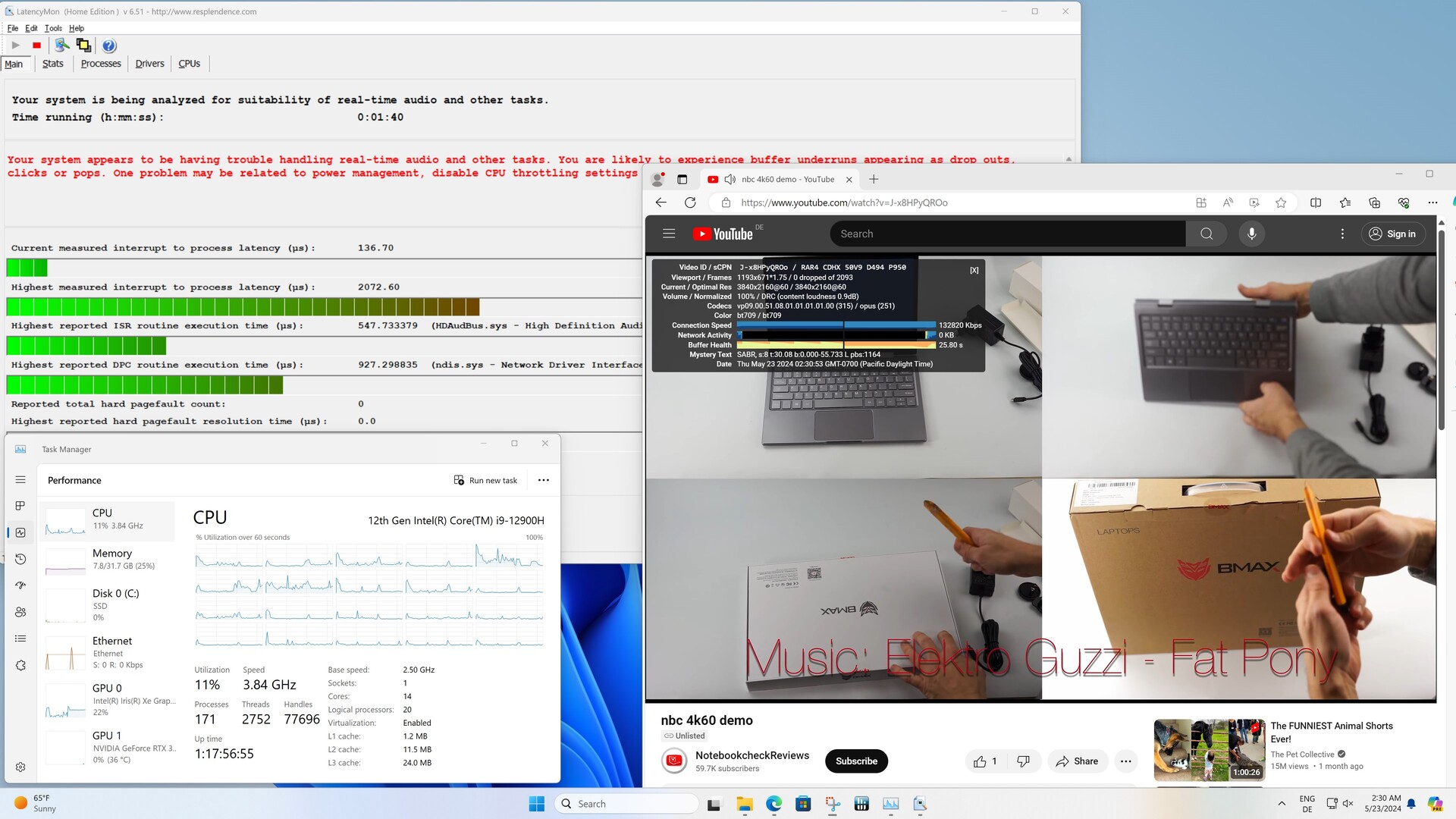

DPC 延迟

在 Edge 浏览器中打开多个浏览器标签页时，我们检测到 DPC 延迟增加。在播放 4K YouTube 视频时，延迟值起初并没有增加。此外，这里还使用了 iGPU，其负载约为 22%。使用 Prime95 进行压力测试后，数值再次略有上升。与其他微型电脑相比，Acemagic M2A Starship 仍然取得了第三名的好成绩。

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Intel NUC 12, NUC12SNKi72_Serpent Canyon A770M, i7-12700H, Kingston Fury Renegade SFYRS500G	13890 μs * -989%
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	2373 μs * -86%
Acemagic Tank03 GeForce RTX 3080 Laptop GPU, i9-12900H, BiWin CE480V6D10H-1TB	1295.7 μs * -2%
Acemagic M2A GeForce RTX 3080 Laptop GPU, i9-12900H, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	1275 μs *
Zotac ZBOX Magnus EN173070C GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S	1214.8 μs * +5%
Minisforum Neptune Series HX77G Radeon RX 6600M, R7 7735HS, Kingston OM8PGP4512Q-A0	1074.4 μs * +16%

* ... smaller is better

大容量存储器

Acemagic M2A Starship 配备了来自 Rayson 的 1 TB SSD。所使用的型号采用了 PCIe 4.0 x4 速度的 M.2 接口。在测试中，该大容量存储设备取得了合理的性能，在比较中名列第三。从连续性能可以看出，温度会导致性能下降。

在维护部分已经提到，Acemagic M2A 可以安装两个大容量存储设备。不过，安装第二块固态硬盘并非易事。考虑到迷你 PC 的目标群体，直接安装一个 2 TB 存储空间的固态硬盘更为合理。

有关进一步的基准测试，请参阅我们的比较表.

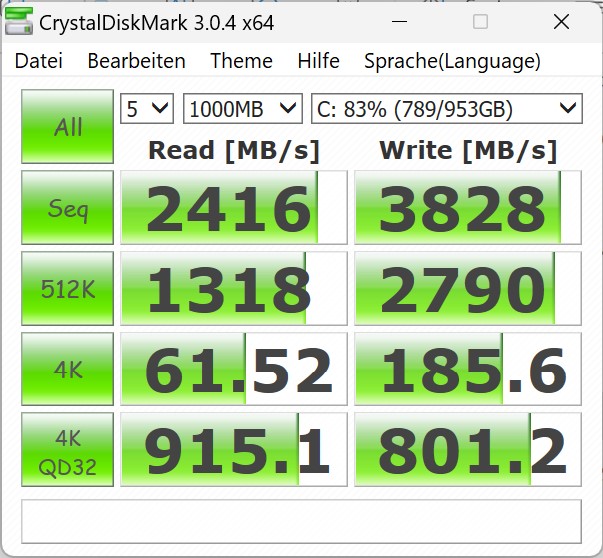

CrystalDiskMark 3.0

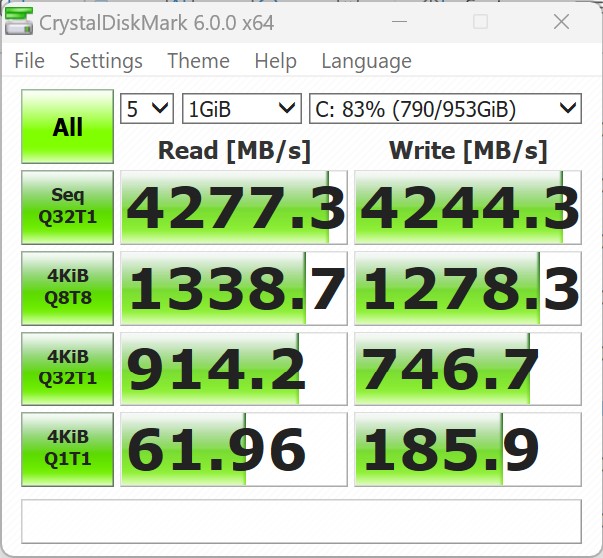

CrystalDiskMark 5.2 / 6

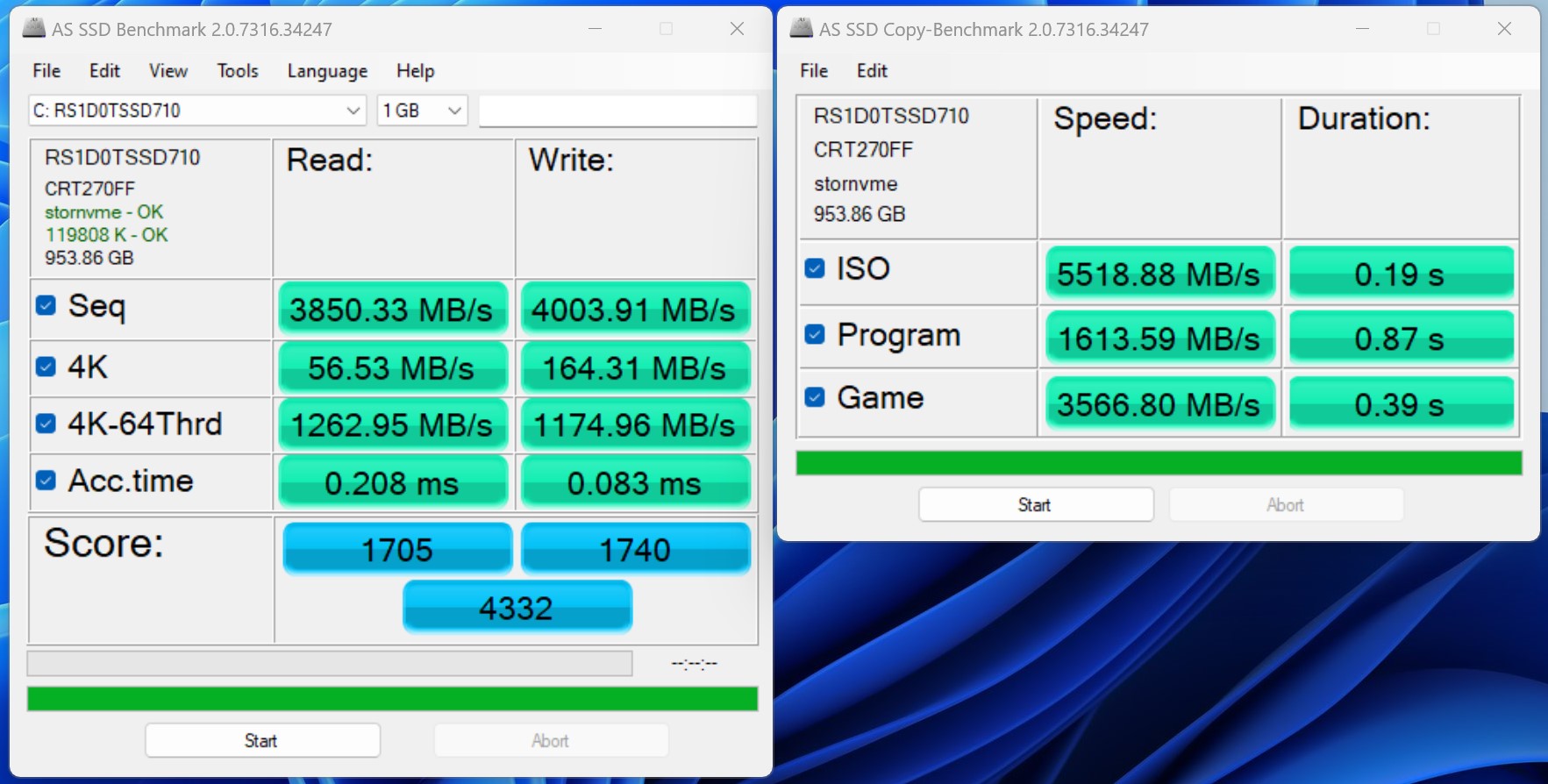

AS SSD

DiskSpd

Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe

Sequential Read: 2416 MB/s

Sequential Write: 3828 MB/s

512K Read: 1318 MB/s

512K Write: 2790 MB/s

4K Read: 61.52 MB/s

4K Write: 185.6 MB/s

4K QD32 Read: 915.1 MB/s

4K QD32 Write: 801.2 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Intel NUC 12, NUC12SNKi72_Serpent Canyon Kingston Fury Renegade SFYRS500G	96.3 pt
Minisforum Neptune Series HX77G Kingston OM8PGP4512Q-A0	83.5 pt
Acemagic M2A Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	59.1 pt
Average of class Mini PC	55.4 pt
Zotac ZBOX Magnus EN173070C Transcend M.2 SSD 2200S TS512GMTE220S	46.6 pt
Acemagic Tank03 BiWin CE480V6D10H-1TB	43 pt
Minisforum NUCX i7	40.7 pt

DiskSpd
seq read
Intel NUC 12, NUC12SNKi72_Serpent Canyon Kingston Fury Renegade SFYRS500G	3630 (3394.03^min - 3630.17^max) MB/s +64%
Minisforum Neptune Series HX77G Kingston OM8PGP4512Q-A0	2572 (2568.7^min - 2572.05^max) MB/s +16%
Average of class Mini PC (233 - 4357, n=119, last 2 years)	2288 MB/s +3%
Acemagic Tank03 BiWin CE480V6D10H-1TB	2241 (2104.91^min - 2241.3^max) MB/s +1%
Acemagic M2A Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	2216 (2183.59^min - 2216.06^max) MB/s
Zotac ZBOX Magnus EN173070C Transcend M.2 SSD 2200S TS512GMTE220S	2008 (1998.8^min - 2008.02^max) MB/s -9%
Minisforum NUCX i7	1620 (1579.16^min - 1620.17^max) MB/s -27%
seq write
Intel NUC 12, NUC12SNKi72_Serpent Canyon Kingston Fury Renegade SFYRS500G	3870 (3859.6^min - 3870.08^max) MB/s +20%
Minisforum Neptune Series HX77G Kingston OM8PGP4512Q-A0	3553 (3511.26^min - 3553.2^max) MB/s +10%
Acemagic M2A Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	3237 (1845.07^min - 3236.56^max) MB/s
Acemagic Tank03 BiWin CE480V6D10H-1TB	2770 (324.43^min - 2769.71^max) MB/s -14%
Average of class Mini PC (222 - 5595, n=119, last 2 years)	2448 MB/s -24%
Minisforum NUCX i7	1707 (1684.21^min - 1706.66^max) MB/s -47%
Zotac ZBOX Magnus EN173070C Transcend M.2 SSD 2200S TS512GMTE220S	1701 (653.68^min - 1701.42^max) MB/s -47%
seq q8 t1 read
Intel NUC 12, NUC12SNKi72_Serpent Canyon Kingston Fury Renegade SFYRS500G	7038 (6284.12^min - 7037.83^max) MB/s +89%
Minisforum Neptune Series HX77G Kingston OM8PGP4512Q-A0	4822 (4434.43^min - 4822.19^max) MB/s +29%
Acemagic M2A Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	3725 (3100.73^min - 3725.48^max) MB/s
Average of class Mini PC (236 - 8430, n=119, last 2 years)	3706 MB/s -1%
Acemagic Tank03 BiWin CE480V6D10H-1TB	3393 (3063.99^min - 3392.85^max) MB/s -9%
Zotac ZBOX Magnus EN173070C Transcend M.2 SSD 2200S TS512GMTE220S	2599 (2228.8^min - 2599.21^max) MB/s -30%
Minisforum NUCX i7	2308 (2036.12^min - 2307.5^max) MB/s -38%
seq q8 t1 write
Acemagic M2A Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	4100 (1961.68^min - 4099.51^max) MB/s
Intel NUC 12, NUC12SNKi72_Serpent Canyon Kingston Fury Renegade SFYRS500G	3876 (3863.2^min - 3876.38^max) MB/s -5%
Minisforum Neptune Series HX77G Kingston OM8PGP4512Q-A0	3545 (3515.76^min - 3544.86^max) MB/s -14%
Acemagic Tank03 BiWin CE480V6D10H-1TB	2851 (1687.58^min - 2851.29^max) MB/s -30%
Average of class Mini PC (228 - 6669, n=119, last 2 years)	2743 MB/s -33%
Zotac ZBOX Magnus EN173070C Transcend M.2 SSD 2200S TS512GMTE220S	1988 (530.16^min - 1987.88^max) MB/s -52%
Minisforum NUCX i7	1843 (1731.1^min - 1843.4^max) MB/s -55%
4k q1 t1 read
Intel NUC 12, NUC12SNKi72_Serpent Canyon Kingston Fury Renegade SFYRS500G	86.6 (86.16^min - 86.63^max) MB/s +36%
Minisforum Neptune Series HX77G Kingston OM8PGP4512Q-A0	70.2 (69.81^min - 70.2^max) MB/s +11%
Zotac ZBOX Magnus EN173070C Transcend M.2 SSD 2200S TS512GMTE220S	68.2 (66.68^min - 68.15^max) MB/s +7%
Acemagic M2A Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	63.5 (61.01^min - 63.48^max) MB/s
Average of class Mini PC (5.67 - 86.6, n=119, last 2 years)	54.7 MB/s -14%
Acemagic Tank03 BiWin CE480V6D10H-1TB	50.6 (34.5^min - 50.64^max) MB/s -20%
Minisforum NUCX i7	38.9 (38.65^min - 38.87^max) MB/s -39%
4k q1 t1 write
Intel NUC 12, NUC12SNKi72_Serpent Canyon Kingston Fury Renegade SFYRS500G	347 (344.28^min - 346.78^max) MB/s +83%
Minisforum Neptune Series HX77G Kingston OM8PGP4512Q-A0	277 (276.33^min - 277.08^max) MB/s +46%
Zotac ZBOX Magnus EN173070C Transcend M.2 SSD 2200S TS512GMTE220S	251 (152.06^min - 251.09^max) MB/s +32%
Acemagic Tank03 BiWin CE480V6D10H-1TB	232 (226.09^min - 231.51^max) MB/s +22%
Average of class Mini PC (30.4 - 435, n=119, last 2 years)	194.7 MB/s +2%
Acemagic M2A Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	190.1 (177.52^min - 190.08^max) MB/s
Minisforum NUCX i7	187.4 (170.03^min - 187.4^max) MB/s -1%
4k q32 t16 read
Intel NUC 12, NUC12SNKi72_Serpent Canyon Kingston Fury Renegade SFYRS500G	1948 (1941.48^min - 1947.79^max) MB/s +55%
Minisforum Neptune Series HX77G Kingston OM8PGP4512Q-A0	1944 (1938.6^min - 1943.6^max) MB/s +55%
Average of class Mini PC (26.1 - 4158, n=119, last 2 years)	1360 MB/s +8%
Acemagic M2A Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	1256 (1240.98^min - 1256.41^max) MB/s
Minisforum NUCX i7	786 (734.36^min - 786.34^max) MB/s -37%
Zotac ZBOX Magnus EN173070C Transcend M.2 SSD 2200S TS512GMTE220S	656 (654.58^min - 656.18^max) MB/s -48%
Acemagic Tank03 BiWin CE480V6D10H-1TB	655 (257.56^min - 654.6^max) MB/s -48%
4k q32 t16 write
Intel NUC 12, NUC12SNKi72_Serpent Canyon Kingston Fury Renegade SFYRS500G	3830 (3566.25^min - 3830.22^max) MB/s +214%
Minisforum Neptune Series HX77G Kingston OM8PGP4512Q-A0	3402 (3397.45^min - 3402.1^max) MB/s +179%
Average of class Mini PC (30.2 - 4288, n=119, last 2 years)	1287 MB/s +6%
Acemagic M2A Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	1219 (1079.72^min - 1218.56^max) MB/s
Minisforum NUCX i7	1032 (266.97^min - 1032.05^max) MB/s -15%
Zotac ZBOX Magnus EN173070C Transcend M.2 SSD 2200S TS512GMTE220S	933 (584.14^min - 933.42^max) MB/s -23%
Acemagic Tank03 BiWin CE480V6D10H-1TB	411 (140.26^min - 411.01^max) MB/s -66%

AS SSD
Score Total
Intel NUC 12, NUC12SNKi72_Serpent Canyon Kingston Fury Renegade SFYRS500G	8314 Points +92%
Minisforum Neptune Series HX77G Kingston OM8PGP4512Q-A0	6881 Points +59%
Acemagic M2A Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	4332 Points
Average of class Mini PC (181.5 - 10021, n=117, last 2 years)	4121 Points -5%
Acemagic Tank03 BiWin CE480V6D10H-1TB	2266 Points -48%
Zotac ZBOX Magnus EN173070C Transcend M.2 SSD 2200S TS512GMTE220S	2237 Points -48%
Minisforum NUCX i7	1054.23 Points -76%
Score Read
Intel NUC 12, NUC12SNKi72_Serpent Canyon Kingston Fury Renegade SFYRS500G	2781 Points +63%
Minisforum Neptune Series HX77G Kingston OM8PGP4512Q-A0	2371 Points +39%
Acemagic M2A Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	1705 Points
Average of class Mini PC (61 - 3741, n=117, last 2 years)	1534 Points -10%
Acemagic Tank03 BiWin CE480V6D10H-1TB	974 Points -43%
Minisforum NUCX i7	895 Points -48%
Zotac ZBOX Magnus EN173070C Transcend M.2 SSD 2200S TS512GMTE220S	824 Points -52%
Score Write
Intel NUC 12, NUC12SNKi72_Serpent Canyon Kingston Fury Renegade SFYRS500G	4185 Points +141%
Minisforum Neptune Series HX77G Kingston OM8PGP4512Q-A0	3324 Points +91%
Average of class Mini PC (88 - 4371, n=117, last 2 years)	1851 Points +6%
Acemagic M2A Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	1740 Points
Minisforum NUCX i7	1556 Points -11%
Zotac ZBOX Magnus EN173070C Transcend M.2 SSD 2200S TS512GMTE220S	1022 Points -41%
Acemagic Tank03 BiWin CE480V6D10H-1TB	805 Points -54%
Seq Read
Intel NUC 12, NUC12SNKi72_Serpent Canyon Kingston Fury Renegade SFYRS500G	5339 MB/s +39%
Minisforum Neptune Series HX77G Kingston OM8PGP4512Q-A0	4152 MB/s +8%
Acemagic M2A Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	3850 MB/s
Average of class Mini PC (291 - 6620, n=117, last 2 years)	3161 MB/s -18%
Acemagic Tank03 BiWin CE480V6D10H-1TB	2888 MB/s -25%
Zotac ZBOX Magnus EN173070C Transcend M.2 SSD 2200S TS512GMTE220S	2822 MB/s -27%
Minisforum NUCX i7	1613 MB/s -58%
Seq Write
Acemagic M2A Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	4004 MB/s
Intel NUC 12, NUC12SNKi72_Serpent Canyon Kingston Fury Renegade SFYRS500G	3480 MB/s -13%
Minisforum Neptune Series HX77G Kingston OM8PGP4512Q-A0	3272 MB/s -18%
Acemagic Tank03 BiWin CE480V6D10H-1TB	2368 MB/s -41%
Average of class Mini PC (240 - 5783, n=117, last 2 years)	2212 MB/s -45%
Zotac ZBOX Magnus EN173070C Transcend M.2 SSD 2200S TS512GMTE220S	2044 MB/s -49%
Minisforum NUCX i7	1468 MB/s -63%
4K Read
Intel NUC 12, NUC12SNKi72_Serpent Canyon Kingston Fury Renegade SFYRS500G	99.7 MB/s +76%
Minisforum Neptune Series HX77G Kingston OM8PGP4512Q-A0	87 MB/s +54%
Average of class Mini PC (6.08 - 104.3, n=117, last 2 years)	58.9 MB/s +4%
Acemagic M2A Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	56.5 MB/s
Minisforum NUCX i7	54.25 MB/s -4%
Acemagic Tank03 BiWin CE480V6D10H-1TB	52.4 MB/s -7%
Zotac ZBOX Magnus EN173070C Transcend M.2 SSD 2200S TS512GMTE220S	37.9 MB/s -33%
4K Write
Minisforum Neptune Series HX77G Kingston OM8PGP4512Q-A0	246 MB/s +50%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Kingston Fury Renegade SFYRS500G	239 MB/s +45%
Acemagic Tank03 BiWin CE480V6D10H-1TB	193.9 MB/s +18%
Average of class Mini PC (30.9 - 366, n=117, last 2 years)	175.1 MB/s +7%
Zotac ZBOX Magnus EN173070C Transcend M.2 SSD 2200S TS512GMTE220S	173.69 MB/s +6%
Acemagic M2A Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	164.3 MB/s
Minisforum NUCX i7	129.81 MB/s -21%
4K-64 Read
Intel NUC 12, NUC12SNKi72_Serpent Canyon Kingston Fury Renegade SFYRS500G	2148 MB/s +70%
Minisforum Neptune Series HX77G Kingston OM8PGP4512Q-A0	1869 MB/s +48%
Acemagic M2A Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	1263 MB/s
Average of class Mini PC (23.4 - 3220, n=117, last 2 years)	1159 MB/s -8%
Minisforum NUCX i7	679.23 MB/s -46%
Acemagic Tank03 BiWin CE480V6D10H-1TB	633 MB/s -50%
Zotac ZBOX Magnus EN173070C Transcend M.2 SSD 2200S TS512GMTE220S	503.52 MB/s -60%
4K-64 Write
Intel NUC 12, NUC12SNKi72_Serpent Canyon Kingston Fury Renegade SFYRS500G	3598 MB/s +206%
Minisforum Neptune Series HX77G Kingston OM8PGP4512Q-A0	2750 MB/s +134%
Average of class Mini PC (32.8 - 3731, n=117, last 2 years)	1455 MB/s +24%
Minisforum NUCX i7	1279.71 MB/s +9%
Acemagic M2A Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	1175 MB/s
Zotac ZBOX Magnus EN173070C Transcend M.2 SSD 2200S TS512GMTE220S	643.35 MB/s -45%
Acemagic Tank03 BiWin CE480V6D10H-1TB	374 MB/s -68%
Access Time Read
Acemagic M2A Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	0.208 ms *
Acemagic Tank03 BiWin CE480V6D10H-1TB	0.143 ms * +31%
Average of class Mini PC (0.022 - 0.489, n=117, last 2 years)	0.09726 ms * +53%
Minisforum NUCX i7	0.092 ms * +56%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Kingston Fury Renegade SFYRS500G	0.085 ms * +59%
Zotac ZBOX Magnus EN173070C Transcend M.2 SSD 2200S TS512GMTE220S	0.063 ms * +70%
Minisforum Neptune Series HX77G Kingston OM8PGP4512Q-A0	0.049 ms * +76%
Access Time Write
Acemagic Tank03 BiWin CE480V6D10H-1TB	0.201 ms * -142%
Average of class Mini PC (0.014 - 0.765, n=117, last 2 years)	0.1153 ms * -39%
Acemagic M2A Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	0.083 ms *
Minisforum NUCX i7	0.079 ms * +5%
Minisforum Neptune Series HX77G Kingston OM8PGP4512Q-A0	0.031 ms * +63%
Zotac ZBOX Magnus EN173070C Transcend M.2 SSD 2200S TS512GMTE220S	0.027 ms * +67%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Kingston Fury Renegade SFYRS500G	0.017 ms * +80%

* ... smaller is better

Continuous read: DiskSpd Read Loop, Queue Depth 8

Acemagic M2A Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe; diskspd 2.0.17 f: Ø2368 (1892.46-3714.48)

Minisforum Neptune Series HX77G Kingston OM8PGP4512Q-A0: Ø3367 (1610.33-4824.5)

Intel NUC 12, NUC12SNKi72_Serpent Canyon Kingston Fury Renegade SFYRS500G: Ø7000 (6488.14-7039.72)

Acemagic Tank03 BiWin CE480V6D10H-1TB; diskspd 2.0.17 f: Ø2763 (386.86-3127.27)

Minisforum NUCX i7 : Ø2309 (2137.76-2318.4)

Zotac ZBOX Magnus EN173070C Transcend M.2 SSD 2200S TS512GMTE220S: Ø2440 (1786.98-2501.9)

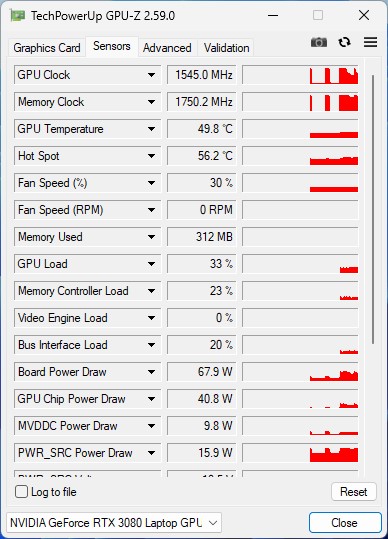

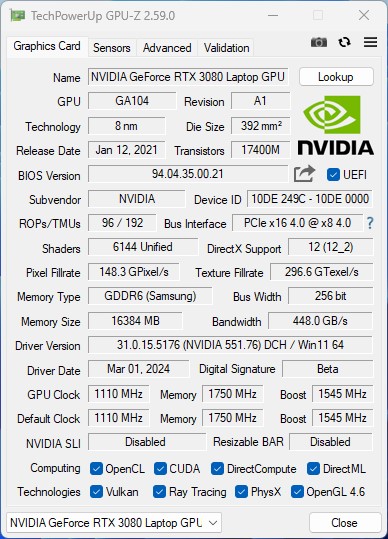

显卡 - NvidiaGeForce RTX 3080 笔记本电脑 GPU，16 GB

我们测试样本中的专用显卡是 NvidiaGeForce RTX 3080 笔记本电脑 GPU.移动显卡的性能限制从 80 瓦到 150 瓦不等。在 Acemagic M2A 中，3D 加速器的性能最高限制为 115 瓦，这意味着显卡的潜力无法得到充分发挥。从合成基准测试结果来看，我们的测试样品无法与两家竞争对手的 NvidiaGeForce RTX 3070 笔记本电脑 GPU.由于散热装置和迄今记录的温度较高，制造商本可以期望专用显卡的性能更高一些。Acemagic M2A 中的 NvidiaGeForce RTX 3080 笔记本电脑 GPU 的最大优势当然是充足的显存。这里使用的是 16 GB VRAM。在 Acemagic Tank03时，制造商就已经使用了这种组合。

关于所安装的显卡，一个重要的注意事项与驱动程序和制造商的支持有关。Nvidia 的官方驱动程序无法安装。为什么制造商要绕道而行，只允许安装特殊驱动程序，这对我们来说是个谜。由于 Acemagic 对其设备的驱动程序更新问题相当忽视，这导致了与较新游戏的兼容性问题。同样的问题也存在于 Acemagic Tank03 上，它最终也有类似的基础。可以通过 GitHub 在互联网上下载并安装专门适配的驱动程序。但需要注意的是，这不是官方来源，可能包含恶意软件。

您可以在GeForce RTX 3080 笔记本电脑 GPU 找到更多基准测试结果这里.

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Arc A770M, Intel Core i7-12700H	100 pt
Acemagic Tank03 NVIDIA GeForce RTX 3080 Laptop GPU, Intel Core i9-12900H	93.5 pt
Zotac ZBOX Magnus EN173070C NVIDIA GeForce RTX 3070 Laptop GPU, Intel Core i7-11800H	93 pt
Acemagic M2A NVIDIA GeForce RTX 3080 Laptop GPU, Intel Core i9-12900H	92.5 pt
Minisforum NUCX i7 NVIDIA GeForce RTX 3070 Laptop GPU, Intel Core i7-11800H	88.6 pt
Minisforum Neptune Series HX77G AMD Radeon RX 6600M, AMD Ryzen 7 7735HS	79.8 pt

3DMark 11 - 1280x720 Performance GPU
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Arc A770M, Intel Core i7-12700H	37375 Points +7%
Acemagic Tank03 NVIDIA GeForce RTX 3080 Laptop GPU, Intel Core i9-12900H	35614 Points +2%
Minisforum NUCX i7 NVIDIA GeForce RTX 3070 Laptop GPU, Intel Core i7-11800H	34986 Points 0%
Zotac ZBOX Magnus EN173070C NVIDIA GeForce RTX 3070 Laptop GPU, Intel Core i7-11800H	34957 Points 0%
Acemagic M2A NVIDIA GeForce RTX 3080 Laptop GPU, Intel Core i9-12900H	34924 Points
Minisforum Neptune Series HX77G AMD Radeon RX 6600M, AMD Ryzen 7 7735HS	32046 Points -8%

3DMark
2560x1440 Time Spy Graphics
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Arc A770M, Intel Core i7-12700H	10783 Points +7%
Acemagic Tank03 NVIDIA GeForce RTX 3080 Laptop GPU, Intel Core i9-12900H	10112 Points 0%
Acemagic M2A NVIDIA GeForce RTX 3080 Laptop GPU, Intel Core i9-12900H	10108 Points
Zotac ZBOX Magnus EN173070C NVIDIA GeForce RTX 3070 Laptop GPU, Intel Core i7-11800H	9929 Points -2%
Minisforum NUCX i7 NVIDIA GeForce RTX 3070 Laptop GPU, Intel Core i7-11800H	9205 Points -9%
Minisforum Neptune Series HX77G AMD Radeon RX 6600M, AMD Ryzen 7 7735HS	7813 Points -23%
1920x1080 Fire Strike Graphics
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Arc A770M, Intel Core i7-12700H	28126 Points +11%
Zotac ZBOX Magnus EN173070C NVIDIA GeForce RTX 3070 Laptop GPU, Intel Core i7-11800H	26284 Points +3%
Acemagic Tank03 NVIDIA GeForce RTX 3080 Laptop GPU, Intel Core i9-12900H	25733 Points +1%
Acemagic M2A NVIDIA GeForce RTX 3080 Laptop GPU, Intel Core i9-12900H	25433 Points
Minisforum NUCX i7 NVIDIA GeForce RTX 3070 Laptop GPU, Intel Core i7-11800H	24451 Points -4%
Minisforum Neptune Series HX77G AMD Radeon RX 6600M, AMD Ryzen 7 7735HS	22838 Points -10%

Unigine Heaven 4.0
Extreme Preset OpenGL
Zotac ZBOX Magnus EN173070C NVIDIA GeForce RTX 3070 Laptop GPU, Intel Core i7-11800H	152.9 fps 0%
Acemagic M2A NVIDIA GeForce RTX 3080 Laptop GPU, Intel Core i9-12900H	152.7 fps
Acemagic Tank03 NVIDIA GeForce RTX 3080 Laptop GPU, Intel Core i9-12900H	149.1 fps -2%
Minisforum Neptune Series HX77G AMD Radeon RX 6600M, AMD Ryzen 7 7735HS	140.4 fps -8%
Minisforum NUCX i7 NVIDIA GeForce RTX 3070 Laptop GPU, Intel Core i7-11800H	139.4 fps -9%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Arc A770M, Intel Core i7-12700H	123.7 fps -19%
Extreme Preset DX11
Zotac ZBOX Magnus EN173070C NVIDIA GeForce RTX 3070 Laptop GPU, Intel Core i7-11800H	165.1 fps +3%
Acemagic M2A NVIDIA GeForce RTX 3080 Laptop GPU, Intel Core i9-12900H	160.1 fps
Acemagic Tank03 NVIDIA GeForce RTX 3080 Laptop GPU, Intel Core i9-12900H	159.6 fps 0%
Minisforum NUCX i7 NVIDIA GeForce RTX 3070 Laptop GPU, Intel Core i7-11800H	152.9 fps -4%
Minisforum Neptune Series HX77G AMD Radeon RX 6600M, AMD Ryzen 7 7735HS	128.8 fps -20%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Arc A770M, Intel Core i7-12700H	126 fps -21%

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Zotac ZBOX Magnus EN173070C NVIDIA GeForce RTX 3070 Laptop GPU, Intel Core i7-11800H	131.6 fps +1%
Acemagic M2A NVIDIA GeForce RTX 3080 Laptop GPU, Intel Core i9-12900H	129.8 fps
Acemagic Tank03 NVIDIA GeForce RTX 3080 Laptop GPU, Intel Core i9-12900H	129.5 fps 0%
Minisforum NUCX i7 NVIDIA GeForce RTX 3070 Laptop GPU, Intel Core i7-11800H	120.9 fps -7%
Minisforum Neptune Series HX77G AMD Radeon RX 6600M, AMD Ryzen 7 7735HS	92.9 fps -28%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Arc A770M, Intel Core i7-12700H	75.2 fps -42%
1920x1080 Extreme HD Preset OpenGL AA:x8
Acemagic M2A NVIDIA GeForce RTX 3080 Laptop GPU, Intel Core i9-12900H	124.9 fps
Acemagic Tank03 NVIDIA GeForce RTX 3080 Laptop GPU, Intel Core i9-12900H	117.6 fps -6%
Zotac ZBOX Magnus EN173070C NVIDIA GeForce RTX 3070 Laptop GPU, Intel Core i7-11800H	115.3 fps -8%
Minisforum NUCX i7 NVIDIA GeForce RTX 3070 Laptop GPU, Intel Core i7-11800H	104.8 fps -16%
Minisforum Neptune Series HX77G AMD Radeon RX 6600M, AMD Ryzen 7 7735HS	93.8 fps -25%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Arc A770M, Intel Core i7-12700H	76.5 fps -39%

Unigine Superposition
1280x720 720p Low
Acemagic M2A NVIDIA GeForce RTX 3080 Laptop GPU, Intel Core i9-12900H	34368 Points
Minisforum NUCX i7 NVIDIA GeForce RTX 3070 Laptop GPU, Intel Core i7-11800H	34159 Points -1%
Acemagic Tank03 NVIDIA GeForce RTX 3080 Laptop GPU, Intel Core i9-12900H	32854 Points -4%
Zotac ZBOX Magnus EN173070C NVIDIA GeForce RTX 3070 Laptop GPU, Intel Core i7-11800H	30771 Points -10%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Arc A770M, Intel Core i7-12700H	29891 Points -13%
Minisforum Neptune Series HX77G AMD Radeon RX 6600M, AMD Ryzen 7 7735HS	29229 Points -15%
1920x1080 1080p High
Acemagic Tank03 NVIDIA GeForce RTX 3080 Laptop GPU, Intel Core i9-12900H	14195 Points 0%
Acemagic M2A NVIDIA GeForce RTX 3080 Laptop GPU, Intel Core i9-12900H	14175 Points
Zotac ZBOX Magnus EN173070C NVIDIA GeForce RTX 3070 Laptop GPU, Intel Core i7-11800H	13502 Points -5%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Arc A770M, Intel Core i7-12700H	13398 Points -5%
Minisforum NUCX i7 NVIDIA GeForce RTX 3070 Laptop GPU, Intel Core i7-11800H	12667 Points -11%
Minisforum Neptune Series HX77G AMD Radeon RX 6600M, AMD Ryzen 7 7735HS	10192 Points -28%
1920x1080 1080p Extreme
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Arc A770M, Intel Core i7-12700H	6755 Points +5%
Acemagic Tank03 NVIDIA GeForce RTX 3080 Laptop GPU, Intel Core i9-12900H	6523 Points +1%
Acemagic M2A NVIDIA GeForce RTX 3080 Laptop GPU, Intel Core i9-12900H	6448 Points
Zotac ZBOX Magnus EN173070C NVIDIA GeForce RTX 3070 Laptop GPU, Intel Core i7-11800H	6259 Points -3%
Minisforum NUCX i7 NVIDIA GeForce RTX 3070 Laptop GPU, Intel Core i7-11800H	5847 Points -9%
Minisforum Neptune Series HX77G AMD Radeon RX 6600M, AMD Ryzen 7 7735HS	4212 Points -35%

ComputeMark v2.1
1024x600 Normal, Score
Zotac ZBOX Magnus EN173070C NVIDIA GeForce RTX 3070 Laptop GPU, Intel Core i7-11800H	24877 Points +8%
Minisforum NUCX i7 NVIDIA GeForce RTX 3070 Laptop GPU, Intel Core i7-11800H	24877 Points +8%
Acemagic Tank03 NVIDIA GeForce RTX 3080 Laptop GPU, Intel Core i9-12900H	23267 Points +1%
Acemagic M2A NVIDIA GeForce RTX 3080 Laptop GPU, Intel Core i9-12900H	23121 Points
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Arc A770M, Intel Core i7-12700H	20027 Points -13%
Minisforum Neptune Series HX77G AMD Radeon RX 6600M, AMD Ryzen 7 7735HS	15716 Points -32%
1024x600 Normal, Fluid 3DTex
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Arc A770M, Intel Core i7-12700H	2693 Points +4%
Acemagic M2A NVIDIA GeForce RTX 3080 Laptop GPU, Intel Core i9-12900H	2588 Points
Acemagic Tank03 NVIDIA GeForce RTX 3080 Laptop GPU, Intel Core i9-12900H	2584 Points 0%
Zotac ZBOX Magnus EN173070C NVIDIA GeForce RTX 3070 Laptop GPU, Intel Core i7-11800H	2557 Points -1%
Minisforum NUCX i7 NVIDIA GeForce RTX 3070 Laptop GPU, Intel Core i7-11800H	2346 Points -9%
Minisforum Neptune Series HX77G AMD Radeon RX 6600M, AMD Ryzen 7 7735HS	1412 Points -45%
1024x600 Normal, Fluid 2DTexArr
Acemagic Tank03 NVIDIA GeForce RTX 3080 Laptop GPU, Intel Core i9-12900H	2487 Points +2%
Acemagic M2A NVIDIA GeForce RTX 3080 Laptop GPU, Intel Core i9-12900H	2429 Points
Zotac ZBOX Magnus EN173070C NVIDIA GeForce RTX 3070 Laptop GPU, Intel Core i7-11800H	2358 Points -3%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Arc A770M, Intel Core i7-12700H	2338 Points -4%
Minisforum NUCX i7 NVIDIA GeForce RTX 3070 Laptop GPU, Intel Core i7-11800H	2270 Points -7%
Minisforum Neptune Series HX77G AMD Radeon RX 6600M, AMD Ryzen 7 7735HS	1391 Points -43%
1024x600 Normal, Mandel Vector
Minisforum NUCX i7 NVIDIA GeForce RTX 3070 Laptop GPU, Intel Core i7-11800H	5027 Points +14%
Zotac ZBOX Magnus EN173070C NVIDIA GeForce RTX 3070 Laptop GPU, Intel Core i7-11800H	4963 Points +13%
Acemagic Tank03 NVIDIA GeForce RTX 3080 Laptop GPU, Intel Core i9-12900H	4484 Points +2%
Acemagic M2A NVIDIA GeForce RTX 3080 Laptop GPU, Intel Core i9-12900H	4391 Points
Minisforum Neptune Series HX77G AMD Radeon RX 6600M, AMD Ryzen 7 7735HS	3788 Points -14%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Arc A770M, Intel Core i7-12700H	3499 Points -20%
1024x600 Normal, Mandel Scalar
Minisforum NUCX i7 NVIDIA GeForce RTX 3070 Laptop GPU, Intel Core i7-11800H	5620 Points +12%
Zotac ZBOX Magnus EN173070C NVIDIA GeForce RTX 3070 Laptop GPU, Intel Core i7-11800H	5466 Points +9%
Acemagic Tank03 NVIDIA GeForce RTX 3080 Laptop GPU, Intel Core i9-12900H	5158 Points +3%
Acemagic M2A NVIDIA GeForce RTX 3080 Laptop GPU, Intel Core i9-12900H	5017 Points
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Arc A770M, Intel Core i7-12700H	4261 Points -15%
Minisforum Neptune Series HX77G AMD Radeon RX 6600M, AMD Ryzen 7 7735HS	4197 Points -16%
1024x600 Normal, QJuliaRayTrace
Minisforum NUCX i7 NVIDIA GeForce RTX 3070 Laptop GPU, Intel Core i7-11800H	9615 Points +7%
Zotac ZBOX Magnus EN173070C NVIDIA GeForce RTX 3070 Laptop GPU, Intel Core i7-11800H	9534 Points +6%
Acemagic M2A NVIDIA GeForce RTX 3080 Laptop GPU, Intel Core i9-12900H	8996 Points
Acemagic Tank03 NVIDIA GeForce RTX 3080 Laptop GPU, Intel Core i9-12900H	8553 Points -5%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Arc A770M, Intel Core i7-12700H	7237 Points -20%
Minisforum Neptune Series HX77G AMD Radeon RX 6600M, AMD Ryzen 7 7735HS	4929 Points -45%

LuxMark v2.0 64Bit
Room GPUs-only
Acemagic Tank03 NVIDIA GeForce RTX 3080 Laptop GPU, Intel Core i9-12900H	5062 Samples/s +2%
Acemagic M2A NVIDIA GeForce RTX 3080 Laptop GPU, Intel Core i9-12900H	4945 Samples/s
Zotac ZBOX Magnus EN173070C NVIDIA GeForce RTX 3070 Laptop GPU, Intel Core i7-11800H	4566 Samples/s -8%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Arc A770M, Intel Core i7-12700H	3678 Samples/s -26%
Minisforum NUCX i7 NVIDIA GeForce RTX 3070 Laptop GPU, Intel Core i7-11800H	2986 Samples/s -40%
Minisforum Neptune Series HX77G AMD Radeon RX 6600M, AMD Ryzen 7 7735HS	2294 Samples/s -54%
Sala GPUs-only
Acemagic Tank03 NVIDIA GeForce RTX 3080 Laptop GPU, Intel Core i9-12900H	11844 Samples/s +2%
Acemagic M2A NVIDIA GeForce RTX 3080 Laptop GPU, Intel Core i9-12900H	11608 Samples/s
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Arc A770M, Intel Core i7-12700H	10975 Samples/s -5%
Zotac ZBOX Magnus EN173070C NVIDIA GeForce RTX 3070 Laptop GPU, Intel Core i7-11800H	9606 Samples/s -17%
Minisforum NUCX i7 NVIDIA GeForce RTX 3070 Laptop GPU, Intel Core i7-11800H	7262 Samples/s -37%
Minisforum Neptune Series HX77G AMD Radeon RX 6600M, AMD Ryzen 7 7735HS	5564 Samples/s -52%

Affinity Photo 2 - Combined (Single / Multi GPU)
Acemagic M2A NVIDIA GeForce RTX 3080 Laptop GPU, Intel Core i9-12900H	6229 Points
Acemagic Tank03 NVIDIA GeForce RTX 3080 Laptop GPU, Intel Core i9-12900H	5403 Points -13%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Arc A770M, Intel Core i7-12700H	4537 Points -27%

	Acemagic M2A, NVIDIA GeForce RTX 3080 Laptop GPU i9-12900H	Minisforum Neptune Series HX77G, AMD Radeon RX 6600M R7 7735HS	Intel NUC 12, NUC12SNKi72_Serpent Canyon, Intel Arc A770M i7-12700H	Acemagic Tank03, NVIDIA GeForce RTX 3080 Laptop GPU i9-12900H	Minisforum NUCX i7, NVIDIA GeForce RTX 3070 Laptop GPU i7-11800H	Zotac ZBOX Magnus EN173070C, NVIDIA GeForce RTX 3070 Laptop GPU i7-11800H	Average of class Mini PC
SPECviewperf 12		70%	-31%	-3%	-5%	-1%	-44%
1900x1060 3ds Max (3dsmax-05)	216	246 14%	150 -31%	217 0%	230 6%	233 8%	75.4 ?(13.6 - 295, n=63, last 2 years) -65%
1900x1060 Catia (catia-04)	114	248 118%	144 26%	111 -3%	108 -5%	115 1%	64.2 ?(10.9 - 251, n=63, last 2 years) -44%
1900x1060 Creo (creo-01)	64.1	109 70%	37.7 -41%	62.5 -2%	55.4 -14%	59 -8%	37 ?(4.03 - 117, n=63, last 2 years) -42%
1900x1060 Energy (energy-01)	11.8	31.3 165%	2.13 -82%		12.1 3%	12.8 8%	13.3 ?(0.15 - 80.4, n=57, last 2 years) 13%
1900x1060 Maya (maya-04)	190	198 4%	136 -28%	183 -4%	199 5%	212 12%	64 ?(11.4 - 226, n=63, last 2 years) -66%
1900x1060 Medical (medical-01)	79.4	97.6 23%	40.4 -49%		55.7 -30%	57.2 -28%	28.5 ?(2.53 - 136, n=60, last 2 years) -64%
1900x1060 Showcase (showcase-01)	133	120 -10%	104 -22%	125 -6%	138 4%	136 2%	35.3 ?(5.71 - 133, n=63, last 2 years) -73%
1900x1060 Solidworks (sw-03)	78.4	214 173%	61.1 -22%	75.3 -4%	68.6 -12%	79.4 1%	72.4 ?(20.9 - 243, n=63, last 2 years) -8%
SPECviewperf 13		56%	-17%	-4%	2%	5%	-52%
3ds Max (3dsmax-06)	217	246 13%	149 -31%	215 -1%	233 7%	235 8%	74.8 ?(13.4 - 294, n=63, last 2 years) -66%
Catia (catia-05)	158	381 141%	211 34%	159 1%	155 -2%	163 3%	91.4 ?(15.6 - 381, n=62, last 2 years) -42%
Creo (creo-02)	218	273 25%	77.6 -64%	215 -1%	215 -1%	225 3%	73 ?(11.6 - 275, n=63, last 2 years) -67%
Energy (energy-02)	24.8	41.8 69%	19.2 -23%	24.6 -1%	24.5 -1%	25.5 3%	17.7 ?(0.92 - 310, n=60, last 2 years) -29%
Maya (maya-05)	308	340 10%	281 -9%	304 -1%	333 8%	337 9%	97.5 ?(15.9 - 340, n=63, last 2 years) -68%
Medical (medical-02)	59.2	130 120%	70.4 19%	58.9 -1%	67.2 14%	69.5 17%	37.6 ?(2.28 - 198, n=63, last 2 years) -36%
Showcase (showcase-02)	133	121 -9%	105 -21%	120 -10%	138 4%	135 2%	35 ?(5.69 - 133, n=63, last 2 years) -74%
Solidworks (sw-04)	115	201 75%	66.2 -42%	98.6 -14%	104 -10%	111 -3%	76.6 ?(27.4 - 223, n=63, last 2 years) -33%
SPECviewperf 2020		167%	-29%	1%	-7%	-4%	-34%
3840x2160 Medical (medical-03)	9.84	20.7 110%	15.6 59%	10.4 6%	10.8 10%	11 12%	7.74 ?(0.78 - 30.8, n=65, last 2 years) -21%
3840x2160 Energy (energy-03)	29.1	19.1 -34%	14.1 -52%	29.6 2%	20.1 -31%	19.7 -32%	10.8 ?(0.52 - 47.9, n=65, last 2 years) -63%
3840x2160 Creo (creo-03)	79.7	88.4 11%	45.5 -43%	76.8 -4%	75.5 -5%	78.3 -2%	29.7 ?(7.73 - 97.5, n=65, last 2 years) -63%
3840x2160 CATIA (catia-06)	37.6	55.1 47%	36 -4%	38 1%	36.4 -3%	37 -2%	18.3 ?(4.61 - 64.1, n=64, last 2 years) -51%
3840x2160 3ds Max (3dsmax-07)	84.5	42.5 -50%	40.1 -53%	86.8 3%	72.1 -15%	76.4 -10%	21.8 ?(5.53 - 87.5, n=65, last 2 years) -74%
3840x2160 Siemens NX (snx-04)	18.7	224 1098%	2.42 -87%	18.5 -1%	16.5 -12%	17.3 -7%	37.5 ?(2.25 - 224, n=63, last 2 years) 101%
3840x2160 Maya (maya-06)	190	162 -15%	149 -22%	186 -2%	206 8%	210 11%	56.4 ?(12.2 - 207, n=65, last 2 years) -70%
Total Average (Program / Settings)		98% / 94%	-26% / -26%	-2% / -2%	-3% / -3%	0% / 0%	-43% / -44%

3DMark 05 Standard		52380 points
3DMark 06 Standard Score		51819 points
3DMark Vantage P Result		82066 points
3DMark 11 Performance		29880 points
3DMark Ice Storm Standard Score		85003 points
3DMark Cloud Gate Standard Score		51583 points
3DMark Fire Strike Score		22912 points
3DMark Fire Strike Extreme Score		12338 points
3DMark Time Spy Score		10307 points
3DMark Steel Nomad Score		2337 points
3DMark Steel Nomad Light Score		10323 points
3DMark Steel Nomad Light Unlimited Score		10344 points
Help

... in comparison

游戏性能

基本上，Acemagic M2A Starship 配备了英伟达GeForce RTX 3080 笔记本电脑 GPU性能出众，可流畅运行几乎所有当前游戏。不过，在性能对比中，我们的测试样品无法明显区别于配备 Nvidia GPU 的竞争对手。不过，与英特尔 NUC12 Serpent Canyon 相比，我们发现 Acemagic 优势明显。英特尔英特尔 Arc A770M没有机会，尽管该机型也有 16GB 的 VRAM。Acemagic M2A Starship 适合全高清游戏。如果不一定总是玩最新的游戏，这款迷你电脑也能以 QHD 甚至 UHD 的帧率进行游戏。此外，还可以选择使用 DLSS 形式的升采样。

如需了解所有测试游戏与其他机型的性能比较，请参阅我们的 GPU 游戏列表.

God of War
1280x720 Low Preset
Acemagic Tank03 GeForce RTX 3080 Laptop GPU, i9-12900H, BiWin CE480V6D10H-1TB	143.4 (59.8^min, 71.1^P0.1, 89.5^P1) fps +2%
Acemagic M2A GeForce RTX 3080 Laptop GPU, i9-12900H, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	141.1 (68.2^min, 72.5^P0.1, 85.2^P1) fps
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	140.7 (52.2^min, 89.1^P0.1, 103.1^P1) fps 0%
Zotac ZBOX Magnus EN173070C GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S	122 (49.9^min, 70.4^P0.1, 80.9^P1) fps -14%
Minisforum Neptune Series HX77G Radeon RX 6600M, R7 7735HS, Kingston OM8PGP4512Q-A0	108.2 (66.7^min, 67.8^P0.1, 78.4^P1) fps -23%
Intel NUC 12, NUC12SNKi72_Serpent Canyon A770M, i7-12700H, Kingston Fury Renegade SFYRS500G	59.1 (8.94^min, 31^P0.1, 38.8^P1) fps -58%
1920x1080 High Preset
Acemagic M2A GeForce RTX 3080 Laptop GPU, i9-12900H, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	92 (69.4^min, 72.5^P0.1, 78.4^P1) fps
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	91.5 (23.1^min, 37.1^P0.1, 47.4^P1) fps -1%
Acemagic Tank03 GeForce RTX 3080 Laptop GPU, i9-12900H, BiWin CE480V6D10H-1TB	91 (59.8^min, 63.7^P0.1, 75.7^P1) fps -1%
Zotac ZBOX Magnus EN173070C GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S	88.1 (31.6^min, 41.6^P0.1, 67.6^P1) fps -4%
Minisforum Neptune Series HX77G Radeon RX 6600M, R7 7735HS, Kingston OM8PGP4512Q-A0	82.4 (68.7^min, 70^P0.1, 72.6^P1) fps -10%
Intel NUC 12, NUC12SNKi72_Serpent Canyon A770M, i7-12700H, Kingston Fury Renegade SFYRS500G	59.3 (43.8^min, 45.7^P0.1, 50.1^P1) fps -36%

The Witcher 3
1024x768 Low Graphics & Postprocessing
Zotac ZBOX Magnus EN173070C GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S	435 (17.2^min, 159.4^P0.1, 291^P1) fps +3%
Acemagic M2A GeForce RTX 3080 Laptop GPU, i9-12900H, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	423 (15.9^min, 119.9^P0.1, 291^P1) fps
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	417 (15.1^min, 91.3^P0.1, 269^P1) fps -1%
Acemagic Tank03 GeForce RTX 3080 Laptop GPU, i9-12900H, BiWin CE480V6D10H-1TB	400 (19.8^min, 125^P0.1, 282^P1) fps -5%
Minisforum Neptune Series HX77G Radeon RX 6600M, R7 7735HS, Kingston OM8PGP4512Q-A0	350 (6.55^min, 37.8^P0.1, 237^P1) fps -17%
Intel NUC 12, NUC12SNKi72_Serpent Canyon A770M, i7-12700H, Kingston Fury Renegade SFYRS500G	274.7 fps -35%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Acemagic M2A GeForce RTX 3080 Laptop GPU, i9-12900H, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	205 (13^min, 115.3^P0.1, 151.3^P1) fps
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	204 (41.8^min, 71.5^P0.1, 144.3^P1) fps 0%
Acemagic Tank03 GeForce RTX 3080 Laptop GPU, i9-12900H, BiWin CE480V6D10H-1TB	196.4 (15.6^min, 107.2^P0.1, 138.9^P1) fps -4%
Zotac ZBOX Magnus EN173070C GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S	190.1 (27.7^min, 84.1^P0.1, 144.8^P1) fps -7%
Intel NUC 12, NUC12SNKi72_Serpent Canyon A770M, i7-12700H, Kingston Fury Renegade SFYRS500G	172.7 fps -16%
Minisforum Neptune Series HX77G Radeon RX 6600M, R7 7735HS, Kingston OM8PGP4512Q-A0	143.6 (71.9^min, 105.8^P0.1, 124^P1) fps -30%

Borderlands 3
1280x720 Very Low Overall Quality (DX11)
Acemagic M2A GeForce RTX 3080 Laptop GPU, i9-12900H, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	170.4 fps
Acemagic Tank03 GeForce RTX 3080 Laptop GPU, i9-12900H, BiWin CE480V6D10H-1TB	158.7 fps -7%
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	141.9 fps -17%
Zotac ZBOX Magnus EN173070C GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S	135.5 fps -20%
Minisforum Neptune Series HX77G Radeon RX 6600M, R7 7735HS, Kingston OM8PGP4512Q-A0	128 fps -25%
Intel NUC 12, NUC12SNKi72_Serpent Canyon A770M, i7-12700H, Kingston Fury Renegade SFYRS500G	99.4 fps -42%
1920x1080 High Overall Quality (DX11)
Acemagic M2A GeForce RTX 3080 Laptop GPU, i9-12900H, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	112.9 fps
Acemagic Tank03 GeForce RTX 3080 Laptop GPU, i9-12900H, BiWin CE480V6D10H-1TB	109.2 fps -3%
Zotac ZBOX Magnus EN173070C GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S	101 fps -11%
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	101 fps -11%
Minisforum Neptune Series HX77G Radeon RX 6600M, R7 7735HS, Kingston OM8PGP4512Q-A0	86.2 fps -24%
Intel NUC 12, NUC12SNKi72_Serpent Canyon A770M, i7-12700H, Kingston Fury Renegade SFYRS500G	78.9 fps -30%

GTA V
1024x768 Lowest Settings possible
Acemagic M2A GeForce RTX 3080 Laptop GPU, i9-12900H, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	186.3 (1.707^min, 166.7^P1) fps
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	184.7 (2.24^min, 142.9^P1) fps -1%
Zotac ZBOX Magnus EN173070C GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S	182.7 (2.41^min, 142.9^P1) fps -2%
Acemagic Tank03 GeForce RTX 3080 Laptop GPU, i9-12900H, BiWin CE480V6D10H-1TB	181.7 (2.29^min, 125^P1) fps -2%
Minisforum Neptune Series HX77G Radeon RX 6600M, R7 7735HS, Kingston OM8PGP4512Q-A0	180.3 (9.65^min, 142.9^P1) fps -3%
Intel NUC 12, NUC12SNKi72_Serpent Canyon A770M, i7-12700H, Kingston Fury Renegade SFYRS500G	174.5 (4.62^min, 111.1^P1) fps -6%
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Acemagic M2A GeForce RTX 3080 Laptop GPU, i9-12900H, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	174.7 (3.63^min, 125^P1) fps
Acemagic Tank03 GeForce RTX 3080 Laptop GPU, i9-12900H, BiWin CE480V6D10H-1TB	172.2 (4.06^min, 111.1^P1) fps -1%
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	171.5 (2.79^min, 111.1^P1) fps -2%
Zotac ZBOX Magnus EN173070C GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S	167.5 (3.4^min, 100^P1) fps -4%
Minisforum Neptune Series HX77G Radeon RX 6600M, R7 7735HS, Kingston OM8PGP4512Q-A0	159.7 (6.21^min, 83.3^P1) fps -9%
Intel NUC 12, NUC12SNKi72_Serpent Canyon A770M, i7-12700H, Kingston Fury Renegade SFYRS500G	119.4 (4.53^min, 76.9^P1) fps -32%

Far Cry 5
1280x720 Low Preset AA:T
Acemagic M2A GeForce RTX 3080 Laptop GPU, i9-12900H, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	168 (87^min) fps
Acemagic Tank03 GeForce RTX 3080 Laptop GPU, i9-12900H, BiWin CE480V6D10H-1TB	166 (112^min) fps -1%
Zotac ZBOX Magnus EN173070C GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S	159 (115^min) fps -5%
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	157 (111^min) fps -7%
Minisforum Neptune Series HX77G Radeon RX 6600M, R7 7735HS, Kingston OM8PGP4512Q-A0	133 (107^min) fps -21%
Intel NUC 12, NUC12SNKi72_Serpent Canyon A770M, i7-12700H, Kingston Fury Renegade SFYRS500G	127 (102^min) fps -24%
1920x1080 High Preset AA:T
Acemagic M2A GeForce RTX 3080 Laptop GPU, i9-12900H, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	137 (111^min) fps
Acemagic Tank03 GeForce RTX 3080 Laptop GPU, i9-12900H, BiWin CE480V6D10H-1TB	135 (109^min) fps -1%
Zotac ZBOX Magnus EN173070C GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S	129 (98^min) fps -6%
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	127 (102^min) fps -7%
Minisforum Neptune Series HX77G Radeon RX 6600M, R7 7735HS, Kingston OM8PGP4512Q-A0	115 (93^min) fps -16%
Intel NUC 12, NUC12SNKi72_Serpent Canyon A770M, i7-12700H, Kingston Fury Renegade SFYRS500G	99 (76^min) fps -28%

Far Cry New Dawn
1280x720 Low Preset
Acemagic M2A GeForce RTX 3080 Laptop GPU, i9-12900H, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	143 (57^min) fps
Acemagic Tank03 GeForce RTX 3080 Laptop GPU, i9-12900H, BiWin CE480V6D10H-1TB	142 (72^min) fps -1%
Zotac ZBOX Magnus EN173070C GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S	134 (89^min) fps -6%
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	133 (98^min) fps -7%
Minisforum Neptune Series HX77G Radeon RX 6600M, R7 7735HS, Kingston OM8PGP4512Q-A0	117 (92^min) fps -18%
Intel NUC 12, NUC12SNKi72_Serpent Canyon A770M, i7-12700H, Kingston Fury Renegade SFYRS500G	115 (63^min) fps -20%
1920x1080 High Preset
Acemagic M2A GeForce RTX 3080 Laptop GPU, i9-12900H, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	120 (95^min) fps
Acemagic Tank03 GeForce RTX 3080 Laptop GPU, i9-12900H, BiWin CE480V6D10H-1TB	118 (94^min) fps -2%
Zotac ZBOX Magnus EN173070C GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S	112 (85^min) fps -7%
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	112 (85^min) fps -7%
Minisforum Neptune Series HX77G Radeon RX 6600M, R7 7735HS, Kingston OM8PGP4512Q-A0	101 (78^min) fps -16%
Intel NUC 12, NUC12SNKi72_Serpent Canyon A770M, i7-12700H, Kingston Fury Renegade SFYRS500G	95 (75^min) fps -21%

Dota 2 Reborn
1280x720 min (0/3) fastest
Acemagic M2A GeForce RTX 3080 Laptop GPU, i9-12900H, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	180.8 (158.2^min) fps
Acemagic Tank03 GeForce RTX 3080 Laptop GPU, i9-12900H, BiWin CE480V6D10H-1TB	171.4 (150.8^min) fps -5%
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	169.9 (146^min) fps -6%
Zotac ZBOX Magnus EN173070C GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S	164.4 (144.1^min) fps -9%
Minisforum Neptune Series HX77G Radeon RX 6600M, R7 7735HS, Kingston OM8PGP4512Q-A0	152.2 (131.7^min) fps -16%
Intel NUC 12, NUC12SNKi72_Serpent Canyon A770M, i7-12700H, Kingston Fury Renegade SFYRS500G	110.1 (56.4^min) fps -39%
1920x1080 high (2/3)
Acemagic M2A GeForce RTX 3080 Laptop GPU, i9-12900H, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	152.1 (133.1^min) fps
Acemagic Tank03 GeForce RTX 3080 Laptop GPU, i9-12900H, BiWin CE480V6D10H-1TB	147.4 (128.5^min) fps -3%
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	145.8 (125.9^min) fps -4%
Zotac ZBOX Magnus EN173070C GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S	142.9 (124.8^min) fps -6%
Minisforum Neptune Series HX77G Radeon RX 6600M, R7 7735HS, Kingston OM8PGP4512Q-A0	136.6 (110.1^min) fps -10%
Intel NUC 12, NUC12SNKi72_Serpent Canyon A770M, i7-12700H, Kingston Fury Renegade SFYRS500G	104 (59.6^min) fps -32%

F1 2020
1280x720 Ultra Low Preset
Minisforum Neptune Series HX77G Radeon RX 6600M, R7 7735HS, Kingston OM8PGP4512Q-A0	346 (282^min) fps +4%
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	333 (263^min) fps 0%
Acemagic M2A GeForce RTX 3080 Laptop GPU, i9-12900H, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	333 (271^min) fps
Zotac ZBOX Magnus EN173070C GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S	315 (253^min) fps -5%
Acemagic Tank03 GeForce RTX 3080 Laptop GPU, i9-12900H, BiWin CE480V6D10H-1TB	301 (270^min) fps -10%
Intel NUC 12, NUC12SNKi72_Serpent Canyon A770M, i7-12700H, Kingston Fury Renegade SFYRS500G	249 (198^min) fps -25%
1920x1080 High Preset AA:T AF:16x
Zotac ZBOX Magnus EN173070C GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S	238 (207^min) fps +5%
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	230 (202^min) fps +2%
Acemagic M2A GeForce RTX 3080 Laptop GPU, i9-12900H, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	226 (195^min) fps
Acemagic Tank03 GeForce RTX 3080 Laptop GPU, i9-12900H, BiWin CE480V6D10H-1TB	221 (195^min) fps -2%
Minisforum Neptune Series HX77G Radeon RX 6600M, R7 7735HS, Kingston OM8PGP4512Q-A0	201 (163^min) fps -11%
Intel NUC 12, NUC12SNKi72_Serpent Canyon A770M, i7-12700H, Kingston Fury Renegade SFYRS500G	149.9 (120^min) fps -34%

GRID Legends
1280x720 Low Preset
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	198 fps +19%
Minisforum Neptune Series HX77G Radeon RX 6600M, R7 7735HS, Kingston OM8PGP4512Q-A0	173.1 (43.5^min) fps +4%
Acemagic M2A GeForce RTX 3080 Laptop GPU, i9-12900H, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	166.2 (71.7^min) fps
Acemagic Tank03 GeForce RTX 3080 Laptop GPU, i9-12900H, BiWin CE480V6D10H-1TB	155.7 (65.9^min) fps -6%
Intel NUC 12, NUC12SNKi72_Serpent Canyon A770M, i7-12700H, Kingston Fury Renegade SFYRS500G	153.1 (35.4^min) fps -8%
1920x1080 High Preset
Zotac ZBOX Magnus EN173070C GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S	158 fps +17%
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	153 fps +14%
Acemagic M2A GeForce RTX 3080 Laptop GPU, i9-12900H, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	134.6 (56.1^min) fps
Minisforum Neptune Series HX77G Radeon RX 6600M, R7 7735HS, Kingston OM8PGP4512Q-A0	132.5 (46.1^min) fps -2%
Acemagic Tank03 GeForce RTX 3080 Laptop GPU, i9-12900H, BiWin CE480V6D10H-1TB	131 (62^min) fps -3%
Intel NUC 12, NUC12SNKi72_Serpent Canyon A770M, i7-12700H, Kingston Fury Renegade SFYRS500G	95.9 (47.6^min) fps -29%

Shadow of the Tomb Raider
1280x720 Lowest Preset
Minisforum Neptune Series HX77G Radeon RX 6600M, R7 7735HS, Kingston OM8PGP4512Q-A0	181.1 fps +2%
Acemagic M2A GeForce RTX 3080 Laptop GPU, i9-12900H, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	177.7 fps
Zotac ZBOX Magnus EN173070C GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S	169.6 fps -5%
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	167.7 fps -6%
Acemagic Tank03 GeForce RTX 3080 Laptop GPU, i9-12900H, BiWin CE480V6D10H-1TB	162.6 fps -8%
Intel NUC 12, NUC12SNKi72_Serpent Canyon A770M, i7-12700H, Kingston Fury Renegade SFYRS500G	100.9 fps -43%
1920x1080 High Preset AA:SM
Zotac ZBOX Magnus EN173070C GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S	142.5 fps 0%
Acemagic M2A GeForce RTX 3080 Laptop GPU, i9-12900H, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	141.8 fps
Acemagic Tank03 GeForce RTX 3080 Laptop GPU, i9-12900H, BiWin CE480V6D10H-1TB	136.7 fps -4%
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	134.3 fps -5%
Minisforum Neptune Series HX77G Radeon RX 6600M, R7 7735HS, Kingston OM8PGP4512Q-A0	126.2 fps -11%
Intel NUC 12, NUC12SNKi72_Serpent Canyon A770M, i7-12700H, Kingston Fury Renegade SFYRS500G	73 fps -49%

Far Cry 6
1280x720 Low Graphics Quality
Acemagic M2A GeForce RTX 3080 Laptop GPU, i9-12900H, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	160.1 (127^min) fps
Acemagic Tank03 GeForce RTX 3080 Laptop GPU, i9-12900H, BiWin CE480V6D10H-1TB	148.8 (132^min) fps -7%
Intel NUC 12, NUC12SNKi72_Serpent Canyon A770M, i7-12700H, Kingston Fury Renegade SFYRS500G	143.2 (111^min) fps -11%
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	139.1 (117^min) fps -13%
Minisforum Neptune Series HX77G Radeon RX 6600M, R7 7735HS, Kingston OM8PGP4512Q-A0	135.9 (89^min) fps -15%
Zotac ZBOX Magnus EN173070C GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S	127.5 (106^min) fps -20%
1920x1080 High Graphics Quality AA:T
Acemagic M2A GeForce RTX 3080 Laptop GPU, i9-12900H, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	115.4 (98^min) fps
Acemagic Tank03 GeForce RTX 3080 Laptop GPU, i9-12900H, BiWin CE480V6D10H-1TB	111.9 (93^min) fps -3%
Minisforum Neptune Series HX77G Radeon RX 6600M, R7 7735HS, Kingston OM8PGP4512Q-A0	108.9 (82^min) fps -6%
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	106.5 (86^min) fps -8%
Intel NUC 12, NUC12SNKi72_Serpent Canyon A770M, i7-12700H, Kingston Fury Renegade SFYRS500G	103.3 (92^min) fps -10%
Zotac ZBOX Magnus EN173070C GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S	99 (80^min) fps -14%

Metro Exodus
1280x720 Low Quality AF:4x
Acemagic M2A GeForce RTX 3080 Laptop GPU, i9-12900H, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	214 (113.99^min) fps
Minisforum Neptune Series HX77G Radeon RX 6600M, R7 7735HS, Kingston OM8PGP4512Q-A0	210 (111.1^min) fps -2%
Acemagic Tank03 GeForce RTX 3080 Laptop GPU, i9-12900H, BiWin CE480V6D10H-1TB	193 fps -10%
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	185 (101.32^min) fps -14%
Zotac ZBOX Magnus EN173070C GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S	177.1 (91.24^min) fps -17%
Intel NUC 12, NUC12SNKi72_Serpent Canyon A770M, i7-12700H, Kingston Fury Renegade SFYRS500G	155.1 (83.86^min) fps -28%
1920x1080 High Quality AF:16x
Acemagic Tank03 GeForce RTX 3080 Laptop GPU, i9-12900H, BiWin CE480V6D10H-1TB	96.1 (47.07^min) fps 0%
Acemagic M2A GeForce RTX 3080 Laptop GPU, i9-12900H, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	96.1 (47.51^min) fps
Zotac ZBOX Magnus EN173070C GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S	94 (43.57^min) fps -2%
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	93.1 (43.95^min) fps -3%
Intel NUC 12, NUC12SNKi72_Serpent Canyon A770M, i7-12700H, Kingston Fury Renegade SFYRS500G	85.1 (43.37^min) fps -11%
Minisforum Neptune Series HX77G Radeon RX 6600M, R7 7735HS, Kingston OM8PGP4512Q-A0	75.8 (40.32^min) fps -21%

Farming Simulator 22
1280x720 Low Preset
Acemagic M2A GeForce RTX 3080 Laptop GPU, i9-12900H, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	263 (10.6^min, 23.5^P0.1, 167.3^P1) fps
Zotac ZBOX Magnus EN173070C GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S	205 (15.3^min, 24^P0.1, 121.8^P1) fps -22%
1920x1080 High Preset
Acemagic M2A GeForce RTX 3080 Laptop GPU, i9-12900H, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	179.6 (9.43^min, 19.7^P0.1, 122.6^P1) fps
Zotac ZBOX Magnus EN173070C GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S	138.8 (10.6^min, 19^P0.1, 25.6^P1) fps -23%

Dead Space Remake
1280x720 Low Preset AA:T
Acemagic Tank03 GeForce RTX 3080 Laptop GPU, i9-12900H, BiWin CE480V6D10H-1TB	119.9 (41.2^min, 47.2^P0.1, 57.9^P1) fps +3%
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	119.6 (30.8^min, 36.2^P0.1, 43.9^P1) fps +2%
Acemagic M2A GeForce RTX 3080 Laptop GPU, i9-12900H, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	116.9 (20.5^min, 37.8^P0.1, 45.9^P1) fps
Minisforum Neptune Series HX77G Radeon RX 6600M, R7 7735HS, Kingston OM8PGP4512Q-A0	105.5 (20.8^min, 25.2^P0.1, 61.3^P1) fps -10%
Intel NUC 12, NUC12SNKi72_Serpent Canyon A770M, i7-12700H, Kingston Fury Renegade SFYRS500G	89.3 (18.5^min, 19.4^P0.1, 33.2^P1) fps -24%
1920x1080 High Preset AA:T
Acemagic Tank03 GeForce RTX 3080 Laptop GPU, i9-12900H, BiWin CE480V6D10H-1TB	74.7 (35.4^min, 38.1^P0.1, 43^P1) fps +2%
Acemagic M2A GeForce RTX 3080 Laptop GPU, i9-12900H, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	73.4 (25.3^min, 32.6^P0.1, 35.6^P1) fps
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	73.3 (16.7^min, 19.9^P0.1, 21.7^P1) fps 0%
Minisforum Neptune Series HX77G Radeon RX 6600M, R7 7735HS, Kingston OM8PGP4512Q-A0	53.1 (19.9^min, 31.2^P0.1, 37.5^P1) fps -28%
Intel NUC 12, NUC12SNKi72_Serpent Canyon A770M, i7-12700H, Kingston Fury Renegade SFYRS500G	46.2 (18.6^min, 19^P0.1, 20.6^P1) fps -37%

Hogwarts Legacy
1280x720 Low Preset AA:Low T
Acemagic M2A GeForce RTX 3080 Laptop GPU, i9-12900H, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	126.6 (57.7^min, 68.4^P0.1, 96.1^P1) fps
Acemagic Tank03 GeForce RTX 3080 Laptop GPU, i9-12900H, BiWin CE480V6D10H-1TB	112.2 (25.2^min, 58.3^P0.1, 88.6^P1) fps -11%
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	99.2 (48.5^min, 55.7^P0.1, 70.9^P1) fps -22%
Intel NUC 12, NUC12SNKi72_Serpent Canyon A770M, i7-12700H, Kingston Fury Renegade SFYRS500G	57 (20.2^min, 31^P0.1, 37.2^P1) fps -55%
1920x1080 High Preset AA:High T
Acemagic M2A GeForce RTX 3080 Laptop GPU, i9-12900H, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	80.2 (31.7^min, 40.2^P0.1, 55^P1) fps
Acemagic Tank03 GeForce RTX 3080 Laptop GPU, i9-12900H, BiWin CE480V6D10H-1TB	76.5 (8.73^min, 30.6^P0.1, 42.4^P1) fps -5%
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	72.4 (24.3^min, 27.9^P0.1, 47.7^P1) fps -10%
Intel NUC 12, NUC12SNKi72_Serpent Canyon A770M, i7-12700H, Kingston Fury Renegade SFYRS500G	55.1 (19.4^min, 28.2^P0.1, 36^P1) fps -31%

FPS-Diagramm - Cyberpunk 2077 2.1 Phantom Liberty, 1920x1080, Ultra, (FSR off)

Acemagic M2A i9-12900H, GeForce RTX 3080 Laptop GPU: Ø71.1 (67.3-72.9)

all | 2015 | 2017 | 2018 | 2019 | 2020 | 2021 | 2022 | 2023 | 2024

	low	med.	high	ultra	QHD DLSS	QHD	4K DLSS	4K FSR	4K
GTA V (2015)	186.3	180	174.7	114.6		98.2			98
The Witcher 3 (2015)	423	317	205	100.9		79.3			70.3
Dota 2 Reborn (2015)	180.8	159.8	152.1	141.2					120.4
Assassin´s Creed Origins (2017)	154	126	119	102		82			53
Final Fantasy XV Benchmark (2018)	195.1	142.3	106.6			79.2			45.2
X-Plane 11.11 (2018)	153	129.6	109.3						88.6
Far Cry 5 (2018)	168	144	137	129		104			55
Strange Brigade (2018)	450	262	212	184.6		137			80.5
Shadow of the Tomb Raider (2018)	177.7	148.7	141.8	129.2		89.5			48.7
Forza Horizon 4 (2018)	225	195	188	156		129			87
Assassin´s Creed Odyssey (2018)	135	121	107	71		65			43
Far Cry New Dawn (2019)	143	126	120	110		97			59
Metro Exodus (2019)	214	127.9	96.1	75.7		59.2			36.6
The Division 2 (2019)	147	135	119	95		67			36
Anno 1800 (2019)	134.9	121.9	105.1	58.9		57.9			50.8
Total War: Three Kingdoms (2019)	367.7	189.4	121.2	85.3		53.7			26
Control (2019)	239	124.4	90.6			58.8	34.8		29.1
Borderlands 3 (2019)	170.4	145.5	112.9	91.3		65.2			35.7
F1 2020 (2020)	333	258	226	160.4		120.7			68.8
Death Stranding (2020)	175.5	149.7	143.6	141.5		106.9			59.6
Horizon Zero Dawn (2020)	167	148	128	110		87	67		48
Watch Dogs Legion (2020)	115	115	101	75		56			33
Dirt 5 (2020)	103	81	62	52		51			49
Assassin´s Creed Valhalla (2020)	159	116	98	83		66			39
F1 2021 (2021)	364	285	235	123.4		90.3			50.9
Far Cry 6 (2021)	160.1	130.4	115.4	104.4		77.5			44.8
Guardians of the Galaxy (2021)	153	150	149	145		104			56
Forza Horizon 5 (2021)	224	151	136	83		70			50
Farming Simulator 22 (2021)	263	212	179.6	163.9		130			81.3
God of War (2022)	132.2	113.3	92	67.6		56			36.9
GRID Legends (2022)	162.5	146.7	134.6	116.7		99.6			65
Cyberpunk 2077 1.6 (2022)	120.8	95.3	83.5	75		48.1			22.4
Ghostwire Tokyo (2022)	155.4	149.3	148.9	147.5		95.5			46.4
Tiny Tina's Wonderlands (2022)	207	165.1	114	88.8		62.5			33.8
F1 22 (2022)	255	263	195.5	64.1		41.8			20
The Quarry (2022)	156.8	119.3	98.9	78.8		54.9			29.1
A Plague Tale Requiem (2022)	113	89.7	66.4	50.3		35.4			20.1
Uncharted Legacy of Thieves Collection (2022)	83.3	81.5	77.2	73		57.5			32.9
Spider-Man Miles Morales (2022)	134	122.6	114	105.8		77.3			43.4
The Callisto Protocol (2022)	161.5	129.1	121.7	82.1		62.4			38.7
Need for Speed Unbound (2022)	131.8	121.9	108.1	107.9		81.8			44.4
High On Life (2023)	243	192.7	136.1	111.5		67.9			29.9
The Witcher 3 v4.00 (2023)	168.1	147.3	131.7	118		84.1			49.4
Dead Space Remake (2023)	85.2	82.8	73.4	72.3		49.6			26.4
Hogwarts Legacy (2023)	124.7	106.5	80.2	65.7		48.9			26.6
Returnal (2023)	100	98	88	76		57			33
Atomic Heart (2023)	183.5	142	84.9	67		51.4			31.1
Company of Heroes 3 (2023)	181.1	161.1	123.6	122.5		90.8			53.3
Sons of the Forest (2023)	91	83.6	80.2	79.6		63.6			39
Resident Evil 4 Remake (2023)	140.2	99.6	92.8	69.4		52.3			30.1
The Last of Us (2023)	103	87.3	79.2	67.4		43.7	34.3		21.5
Dead Island 2 (2023)	208	204	163.1	127.8		87.5			44
Star Wars Jedi Survivor (2023)	82.8	73.2	69.1	65.1		41.3			20.6
Diablo 4 (2023)	245	214	180.6	151.7		98.8			50.1
F1 23 (2023)	267	254	185.2	59.3		38.3	33		18.6
Ratchet & Clank Rift Apart (2023)	122.1	99.9	81.5	75.2		70.2			61.9
Atlas Fallen (2023)	141.5	133.4	124.6	106.2		73.1			41.6
Immortals of Aveum (2023)	60.6		52.6	47.5		33.3			18.1
Armored Core 6 (2023)	105	101.6		95.6		74.5			43.7
Starfield (2023)	99.3	81.7	59	51.4		42.4			29.6
Lies of P (2023)	172	150.6	130.9	118.1		78.9	64.4		40.6
Baldur's Gate 3 (2023)	130.6	103.9	91.6	90.2		63	54.5		33.8
Cyberpunk 2077 2.1 Phantom Liberty (2023)	127.1	99.3	86	74.8		46.6			20.7
Counter-Strike 2 (2023)	199.5	196.3	168.7	141.4		96.8			61.3
Assassin's Creed Mirage (2023)	102	96	90	75		62	53		40
Total War Pharaoh (2023)	349.3	227.3	136.7	106.5		79.4			42.4
Lords of the Fallen (2023)	84.4	78.3	66.1	53.9		37.6	36.5		20.5
Alan Wake 2 (2023)	66.4	60.6	55.7			37.5		14.8	20.5
EA Sports WRC (2023)	132.1	98.5	90.8	84.3		62	51.2		35.3
Call of Duty Modern Warfare 3 2023 (2023)	139	121	97	90		67	46		44
Avatar Frontiers of Pandora (2023)	76	70	61	46		30	27		15
The Finals (2023)	169	159.1	151.7	131.5		81.9			39.3
Ready or Not (2023)	206	177.9	154.4	108.5		82.6	65		37.7
Prince of Persia The Lost Crown (2024)		338	316	308		260			177.7
Palworld (2024)	118.6	113.7	96.8	92.3		68.2	47		35.3
Enshrouded (2024)	76.2	66.5	57.4	49		38	34.4	28.8	23
Helldivers 2 (2024)	126.5	106.7	94.9	93.2		66.6			37.6
Skull & Bones (2024)	100	91	75	60		47	43	40	31
Last Epoch (2024)	192.2	183.7	175.6	128		83.8			40.7
Alone in the Dark (2024)	189.5	180.5	163.1	108.5		64.9	47.3	58.7	18.4
Horizon Forbidden West (2024)	100.3	89.5	63.4	62.4		47.7	41.5	39.5	29.8
Dragon's Dogma 2 (2024)	68.9		56.9			45.2	31.7	30.2	29.3
Ghost of Tsushima (2024)	93.6	79.1	70.9	58.6		46	42.7		28.7
Senua's Saga Hellblade 2 (2024)	57.6	48.2	35.6			25.9	23.7		14.5
F1 24 (2024)	252	230	175.6	58.8		38.3	33.2		18.7
The First Descendant (2024)	147.6	93.3	76.1	64.5		43.3	24.3		23.9
Once Human (2024)	188.2	134.3	114.2	104.1		69.4			36.2
Black Myth: Wukong (2024)	76	58	44	24	27	18	19		11

show all (73 hidden)

排放物 - 四个风扇的声音清晰可闻

噪音排放

Acemagic 在 M2A Starship 中安装了四个风扇，它们始终保持旋转。空转时，微型电脑仍然安静宜人，噪音约为 33 dB(A)。但是，在负载和游戏时，风扇的转速会大大提高。我们达到了 53.9 dB(A)的峰值，声音清晰可闻。游戏时音量略有下降，但 49.3 dB(A) 的音量也不算小。至少风扇不会产生令人不悦的高频率，这意味着主观噪音水平会稍低一些。

Noise Level

Idle		32.7 / 32.8 / 33.1 dB(A)
Load		40.7 / 53.9 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Earthworks M23R (15 cm distance) environment noise: 24.3 dB(A)

	Acemagic M2A i9-12900H, GeForce RTX 3080 Laptop GPU	Minisforum Neptune Series HX77G R7 7735HS, Radeon RX 6600M	Intel NUC 12, NUC12SNKi72_Serpent Canyon i7-12700H, A770M	Acemagic Tank03 i9-12900H, GeForce RTX 3080 Laptop GPU	Minisforum NUCX i7 i7-11800H, GeForce RTX 3070 Laptop GPU	Zotac ZBOX Magnus EN173070C i7-11800H, GeForce RTX 3070 Laptop GPU
Noise		14%	-1%	6%	9%	-2%
off / environment *	24.3	25 -3%	30.3 -25%	25 -3%	29.5 -21%	30.7 -26%
Idle Minimum *	32.7	27.5 16%	31.8 3%	26.6 19%	29.5 10%	32.7 -0%
Idle Average *	32.8	27.5 16%	31.9 3%	26.7 19%	29.5 10%	32.8 -0%
Idle Maximum *	33.1	27.5 17%	32 3%	26.7 19%	29.5 11%	32.8 1%
Load Average *	40.7	38.5 5%	44.4 -9%	47.3 -16%	32.8 19%	41.7 -2%
Witcher 3 ultra *	49.3	39.58 20%		47.3 4%
Cyberpunk 2077 ultra *	45.8
Load Maximum *	53.9	40.7 24%	44.5 17%	53.1 1%	40.8 24%	45.4 16%

* ... smaller is better

温度

Acemagic M2A Starship 的冷却系统由 7 根热管和 4 个风扇组成，可从侧面和底部吸入冷空气。然后，热空气从两侧和后部排出机箱。通风效果良好，任何时候都不会出现热量积聚导致机箱温度过高的情况。

我们看到处理器在负载情况下的最高温度为 97 °C，但这并不是永久性的。在 45 瓦的功耗下，英特尔酷睿 i9-12900H 处理器的温度为英特尔酷睿 i9-12900H温度稳定在 76 °C左右。处理器 NvidiaGeForce RTX 3080 笔记本电脑 GPU冷却效果也很好，在负载情况下温度不会达到 75 °C。115 瓦的最大功耗可以在较长时间内顺利耗尽。

Max. Load

Idle

Cyberpunk


34.3 °C	29.9 °C	28.7 °C
35.4 °C	31.6 °C	28.8 °C
32 °C	28.9 °C	28.3 °C

Maximum: 35.4 °C
Average: 30.9 °C


28.5 °C	33.4 °C	28.2 °C
26.1 °C	28.9 °C	25.6 °C
29.5 °C	30.7 °C	28.4 °C

Maximum: 33.4 °C
Average: 28.8 °C

Power Supply (max.) 37 °C | Room Temperature 21.9 °C | Fluke t3000FC (calibrated)

Max. Load

Idle

Cyberpunk


29.2 °C	27.6 °C	28.5 °C
29 °C	29.4 °C	27.6 °C
29.8 °C	28.2 °C	27.5 °C

Maximum: 29.8 °C
Average: 28.5 °C


25.2 °C	27.8 °C	24.5 °C
24.6 °C	26.1 °C	24.6 °C
26.8 °C	28.3 °C	26.8 °C

Maximum: 28.3 °C
Average: 26.1 °C

Power Supply (max.) 28.4 °C | Room Temperature 21.8 °C | Fluke t3000FC (calibrated)

Max. Load

Idle

Cyberpunk


34 °C	32.1 °C	28.8 °C
35.9 °C	32.2 °C	28.4 °C
32.2 °C	31.2 °C	28.8 °C

Maximum: 35.9 °C
Average: 31.5 °C


32 °C	37.1 °C	34.1 °C
31.3 °C	31 °C	27.7 °C
36.6 °C	32.4 °C	37.7 °C

Maximum: 37.7 °C
Average: 33.3 °C

Power Supply (max.) 37.2 °C | Room Temperature 21.9 °C | Fluke t3000FC (calibrated)

(+) The average temperature for the upper side under maximal load is 30.9 °C / 88 F, compared to the average of 32.2 °C / 90 F for the devices in the class Mini PC.
(+) The maximum temperature on the upper side is 35.4 °C / 96 F, compared to the average of 35.7 °C / 96 F, ranging from 24 to 69.5 °C for the class Mini PC.
(+) The bottom heats up to a maximum of 33.4 °C / 92 F, compared to the average of 36.2 °C / 97 F
(+) In idle usage, the average temperature for the upper side is 28.5 °C / 83 F, compared to the device average of 32.2 °C / 90 F.
(+) 3: The average temperature for the upper side is 31.5 °C / 89 F, compared to the average of 32.2 °C / 90 F for the class Mini PC.

能源管理

与其他微型电脑相比，Acemagic M2A Starship 并不十分经济。尽管如此，我们的测试样本也并非完全不符合要求，在空闲模式下仅需约 30 瓦。在平均负载情况下，我们记录的功率略高于 112 瓦，但峰值功率达到了 212 瓦。电源装置的额定功率为 300 瓦，尺寸也比较合适。

Power Consumption

Off / Standby	1.8 / 3.3 Watt
Idle	26.4 / 30.4 / 33.5 Watt
Load	112.6 / 215 Watt


Key: min: , med: , max: Metrahit Energy

	Acemagic M2A i9-12900H, GeForce RTX 3080 Laptop GPU	Minisforum Neptune Series HX77G R7 7735HS, Radeon RX 6600M	Intel NUC 12, NUC12SNKi72_Serpent Canyon i7-12700H, A770M	Acemagic Tank03 i9-12900H, GeForce RTX 3080 Laptop GPU	Minisforum NUCX i7 i7-11800H, GeForce RTX 3070 Laptop GPU	Zotac ZBOX Magnus EN173070C i7-11800H, GeForce RTX 3070 Laptop GPU	Average NVIDIA GeForce RTX 3080 Laptop GPU	Average of class Mini PC
Power Consumption		27%	-35%	-5%	4%	-31%	9%	57%
Idle Minimum *	26.4	16.5 37%	28.8 -9%	27.5 -4%	28.2 -7%	31.3 -19%	19.8 ?(8 - 62, n=35) 25%	9.48 ?(1.9 - 45.7, n=119, last 2 years) 64%
Idle Average *	30.4	21.5 29%	39.3 -29%	30.1 1%	29.9 2%	35.1 -15%	24.3 ?(11.7 - 64, n=35) 20%	11.5 ?(1.9 - 47.5, n=117, last 2 years) 62%
Idle Maximum *	33.5	24.4 27%	57.1 -70%	38.1 -14%	36.2 -8%	41.6 -24%	33.3 ?(12 - 69, n=35) 1%	14.9 ?(2.6 - 57.1, n=119, last 2 years) 56%
Load Average *	112.6	77.2 31%	158.7 -41%	101 10%	83.2 26%	214 -90%	108.1 ?(81.2 - 183, n=35) 4%	57.4 ?(11.3 - 170.6, n=119, last 2 years) 49%
Cyberpunk 2077 ultra external monitor *	194.7			206 -6%	177 9%
Load Maximum *	215	193.3 10%	270.9 -26%	252 -17%	215.7 -0%	231 -7%	230 ?(152.5 - 368, n=35) -7%	97.5 ?(18.1 - 423, n=119, last 2 years) 55%
Witcher 3 ultra *					167	193.5

* ... smaller is better

Power consumption with external monitor

Acemagic M2A; Prime95 V2810 Stress (external Monitor): Ø99.1 (91.3-133.3)

Acemagic M2A; Cinebench R15 Multi (external Monitor): Ø117.1 (113.6-119.5)

Acemagic M2A; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø161.8 (133-186.3)

Acemagic M2A; 1920x1080 The Witcher 3 ultra (external Monitor): Ø196.7 (191.7-215)

Acemagic M2A; Idle 1min (external Monitor): Ø31.7 (30.6-33.5)

Acemagic M2A; 3DMark06 Return To Proxycon: Ø112.5 (93.2-131.7)

Acemagic M2A; Cinebench R23 Single (external Monitor): Ø71.2 (63.6-115)

Acemagic M2A; Cinebench R23 Multi (external Monitor): Ø113.3 (88-123.4)

Acemagic M2A; Cyberpunk 2077 FHD ultra no FSR - external Monitor: Ø194.7 (187.5-207)

Pros

+ 引人注目的设计

+ 良好的 CPU 性能

+ 32GB DDR5 内存

+ GeForce 配备 16GB VRAM 的 RTX 3080 笔记本电脑 GPU

+ 合理的游戏性能

+ 多种外部连接，包括 USB4

+ 两次 2.5 GBit LAN

+ 机箱温度低

Cons

- 专用 GPU 只能使用 115 瓦 BIOS

- 只能使用专用 GPU 驱动程序

- 负载情况下声音清晰可闻

- 无维护舱门 - 难以访问内存和固态硬盘

- 高 DPC 延迟

评价：外观抢眼的优秀游戏 PC

Acemagic M2A Starship 是制造商推出的一款非常有趣的游戏电脑。不过，它并没有配备市场上最新的硬件，这有点遗憾。不过，英特尔酷睿 i9-12900H 的性能与英伟达GeForce RTX 3080 笔记本电脑 GPU可以实现良好的游戏性能。我们在测试中可以确定，几乎所有现代游戏都可以在 1080p 的屏幕上流畅显示。因此，Acemagic M2A Starship 符合游戏电脑的要求。显存的大小值得肯定，因为 16GB 的显存很少会出现瓶颈。许多游戏甚至在全高清模式下也能充分利用显存。在显卡功耗方面，Acemagic 采取了保守的做法：NvidiaGeForce RTX 3080 笔记本电脑 GPU 的功耗为 115 瓦，其性能受到一定限制，这就是为什么显卡的性能甚至落后于性能良好的 NvidiaGeForce RTX 3070 笔记本电脑 GPU在Minisforum NUCxi7.

Acemagic M2A Starship 是一款非常抢眼的小巧型游戏 PC，具有良好的游戏性能。

Acemagic M2A Starship 的设计当然值得商榷。不过，这款迷你 PC 绝对是一款抢眼的产品。在做工方面，没有什么可抱怨的。它使用了大量塑料，你不应该指望它能给你带来任何触觉上的享受。安装组件的安排不切实际。内存和固态硬盘可以交换，但对许多人来说，够不着它们是个大问题。在 Acemagic Tank03 上，这个问题得到了更好的解决。

值得强调的是，由于设计原因，所有连接都必须移到后部。不过，任何不想经常插拔外围设备的人都能应付自如。另外，还可以通过 USB4 连接扩展坞来避免这个问题。

遗憾的是，散热效果不佳。Acemagic M2A Starship 配备了四个风扇。这些风扇可确保 CPU 和 GPU 在负载情况下保持稳定的性能。不过，四个风扇会产生明显的背景噪音。

价格和供应情况

用户可以通过亚马逊订购 Acemagic M2A Starship。此外，用户还可直接从制造商处购买这款未来派外观的电脑。

Acemagic M2A - 06/21/2024 v8
Sebastian Bade

Chassis

82 / 98 → 83%

Connectivity

66 / 81 → 82%

Weight

62%

Games Performance

83 / 80 → 100%

Application Performance

84 / 92 → 91%

Workstation

59%

Temperature

93%

Noise

65%

Average

51%

81%

Mini PC - Weighted Average

CO2 Emissions
No Data

Materials
25%

Packaging
25%

Power Use
57.7%

Repairability
12.5%

Software Updates
22.3%

Total Sustainability Score: 23.8%

Transparency

The selection of devices to be reviewed is made by our editorial team. The test sample was given to the author by the manufacturer free of charge for the purposes of review. There was no third-party influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.

This is how Notebookcheck is testing

Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.

Editor of the original article: Ninh Ngoc Duy - Editorial Assistant - 459232 articles published on Notebookcheck since 2008

contact me via: Facebook

Please share our article, every link counts!

> Notebookcheck中文版（NBC中国） > 评测 > Acemagic M2A Starship 评测：采用英特尔酷睿 i9-12900H 处理器和 NvidiaGeForce RTX 3080 笔记本电脑 GPU 的未来派飞船外观游戏 PC

Sebastian Bade, 2024-06-10 (Update: 2024-06-10)

Cinebench 2024 CPU Multi Core in comparison
HP Spectre x360 16 RTX 4050 (min) Ultra 7 155H, NVIDIA GeForce RTX 4050 Laptop GPU	28.1
...
Apple MacBook Pro 14 2023 M3 M3, M3 10-Core GPU	712
Apple MacBook Pro 14 2023 M3 M3, M3 10-Core GPU	712
Aoostar GOD77 R7 7735HS, Radeon 680M	713
Acemagic M2A i9-12900H, GeForce RTX 3080 Laptop GPU	721
ACEMagician Ace Magician AM08 Pro R9 6900HX, Radeon 680M	724
Lenovo ThinkBook Plus Gen5 Hybrid Ultra 7 155H, Arc 8-Core	726
Acer Nitro 14 AN14-41-R3MX R5 8645HS, NVIDIA GeForce RTX 4060 Laptop GPU	727
...
(max) TR Pro 7995WX, RTX 6000 Ada Generation	5372

3DMark 11 in comparison
HP Stream 7 5700ng (min) Z3735G, HD Graphics (Bay Trail)	183
...
Asus ROG Flow X16 GV601RW-M5082W R9 6900HS, GeForce RTX 3070 Ti Laptop GPU	29638
Eurocom Nightsky ARX315 R9 5900X, GeForce RTX 3070 Laptop GPU	29688
Alienware Area-51m i9-9900K RTX 2080 i9-9900K, GeForce RTX 2080 Mobile	29759
Acemagic M2A i9-12900H, GeForce RTX 3080 Laptop GPU	29880
Dell Precision 7000 7670 Performance i9-12950HX, RTX A5500 Laptop GPU	29929
Corsair Voyager a1600 R9 6900HS, Radeon RX 6800M	30013
Acemagic Tank03 i9-12900H, GeForce RTX 3080 Laptop GPU	30079
...
(max) R7 9800X3D, NVIDIA GeForce RTX 4090	77609
