英特尔蛇谷NUC 12回顾。配备英特尔酷睿i7-12700H和英特尔A770M的快速迷你PC
英特尔NUC 12发烧友套件是一款紧凑而强大的台式电脑。CPU以及GPU都是由英特尔生产的。这一发展被证明对终端客户来说是非常令人兴奋的--毕竟竞争对商业来说是很好的。处理器是英特尔酷睿i7-12700H,是尖端的Alder Lake P型号。此外,该电脑还配备了16GB VRAM的专用显卡,32GB内存和500GB存储空间的固态硬盘。根据其规格表,英特尔NUC 16发烧友套件有裸机型号,也有16GB内存和1TB SSD。裸机版的价格约为1591.99美元,带内存、SSD和操作系统的版本价格略高,约为1647.64美元。

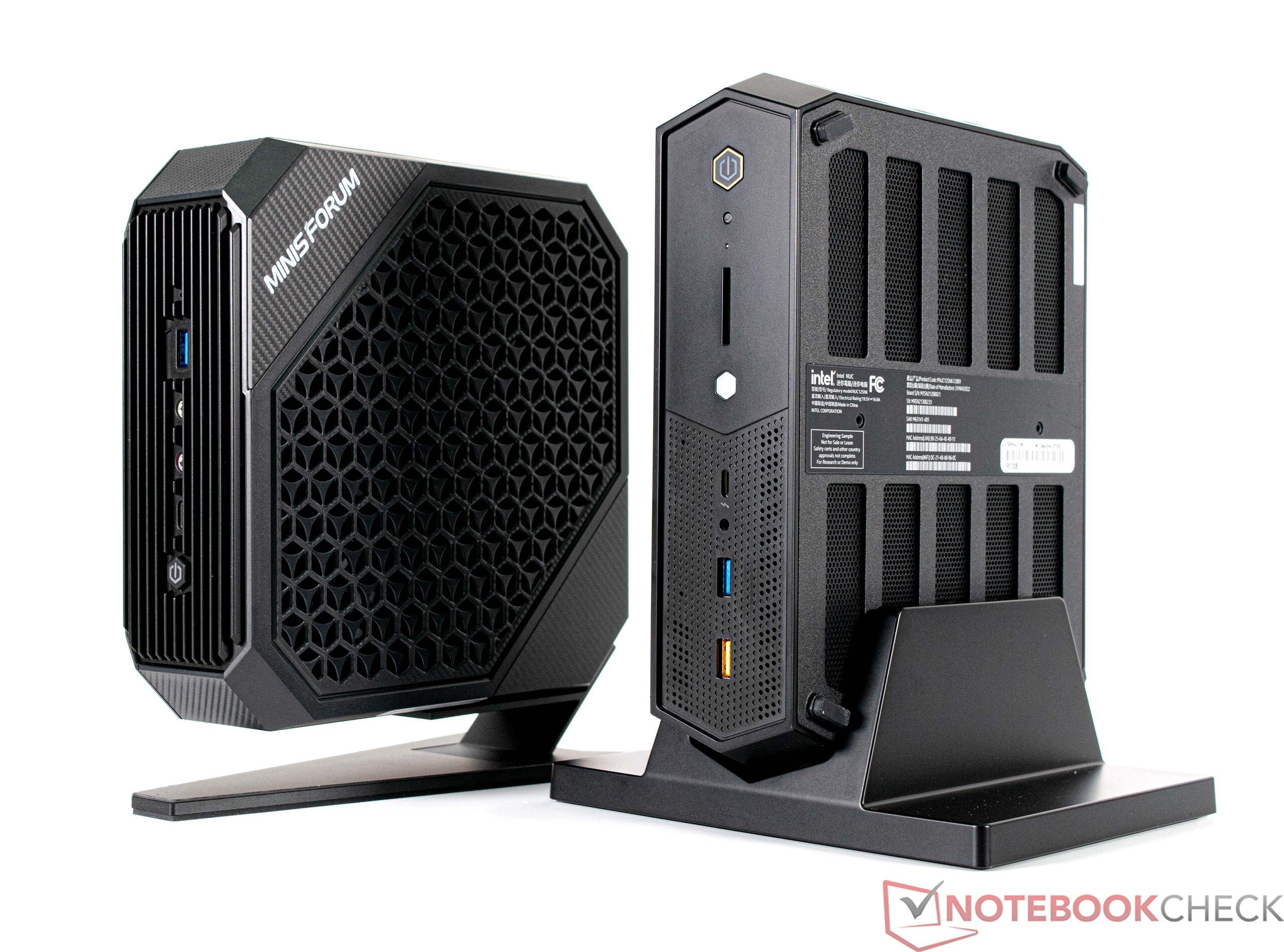

在这次审查中,我们使用了各种带有专用显卡的紧凑型台式电脑来进行比较。这款 Minisforum Neptune系列HX99G看起来是其最大的竞争对手。
» Notebookcheck多媒体笔记本电脑Top 10排名
» Notebookcheck游戏笔记本电脑Top 10排名
» Notebookcheck低价办公/商务笔记本电脑Top 10排名
» Notebookcheck高端办公/商务笔记本电脑Top 10排名
» Notebookcheck工作站笔记本电脑Top 10排名
» Notebookcheck亚笔记本电脑Top 10排名
» Notebookcheck超级本产品Top 10排名
» Notebookcheck变形本产品Top 10排名
» Notebookcheck平板电脑Top 10排名
» Notebookcheck智能手机Top 10排名
» Notebookcheck评测过最出色的笔记本电脑屏幕
» Notebookcheck售价500欧元以下笔记本电脑Top 10排名
» Notebookcheck售价300欧元以下笔记本电脑Top 10排名
潜在的竞争对手比较
Rating | Date | Model | Weight | Height | Price |
---|---|---|---|---|---|
88.4 % v7 (old) | 03 / 2023 | Intel NUC 12, NUC12SNKi72_Serpent Canyon i7-12700H, A770M | 2 kg | 60 mm | |
v (old) | 12 / 2021 | Intel Beast Canyon NUC i9-11900KB, NVIDIA GeForce RTX 3060 | 189 mm | ||
v (old) | Zotac Magnus One (ECM73070C) i7-10700, NVIDIA GeForce RTX 3070 | ||||
v (old) | 05 / 2022 | Zotac ZBOX Magnus EN173070C i7-11800H, GeForce RTX 3070 Laptop GPU | 1.8 kg | 62.2 mm | |
v (old) | 04 / 2022 | Intel Dragon Canyon NUC - RTX 3060 i9-12900, NVIDIA GeForce RTX 3060 | 189 mm | ||
82.6 % v7 (old) | 05 / 2022 | Lenovo Legion 5 15ACH6A-82NW0010GE R5 5600H, Radeon RX 6600M | 2.5 kg | 25.75 mm | |
v7 (old) | 09 / 2022 | Minisforum NUCX i7 i7-11800H, GeForce RTX 3070 Laptop GPU | 2.4 kg | 393 mm | |
89.9 % v7 (old) | 02 / 2023 | Minisforum Neptune Series HX99G R9 6900HX, Radeon RX 6600M | 1.6 kg | 69.3 mm |
英特尔NUC 12发烧友套件的详细介绍
案例

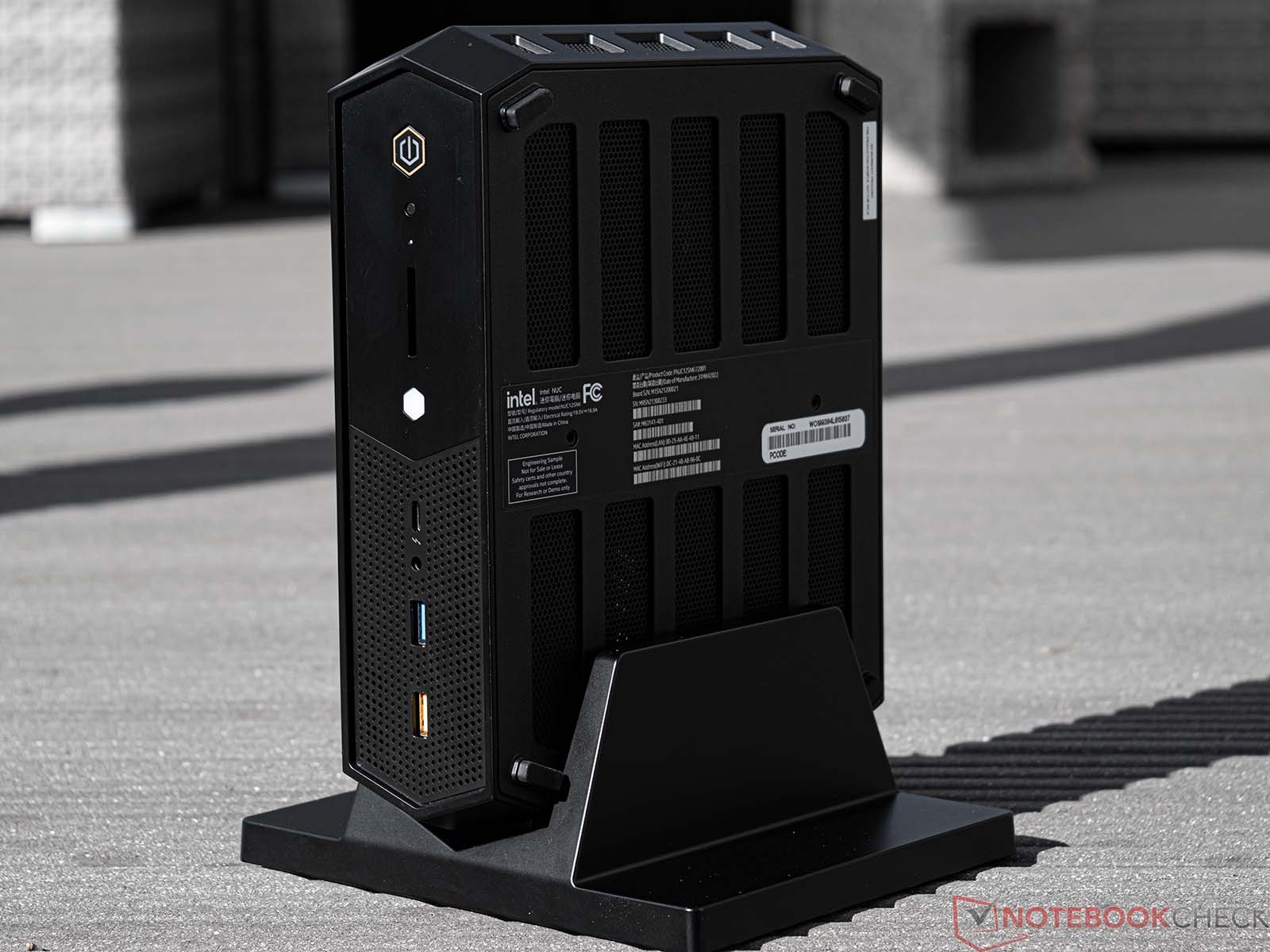

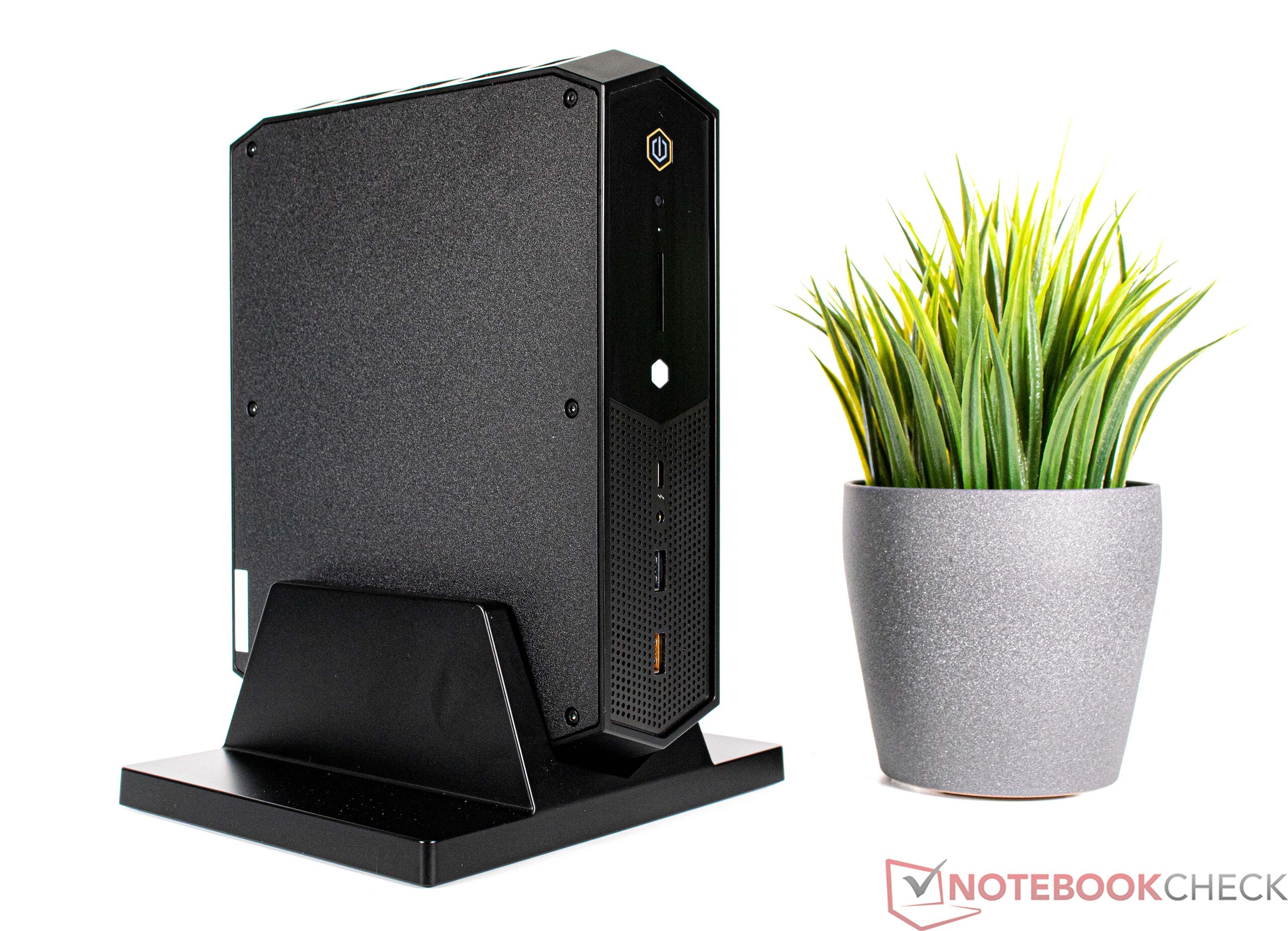

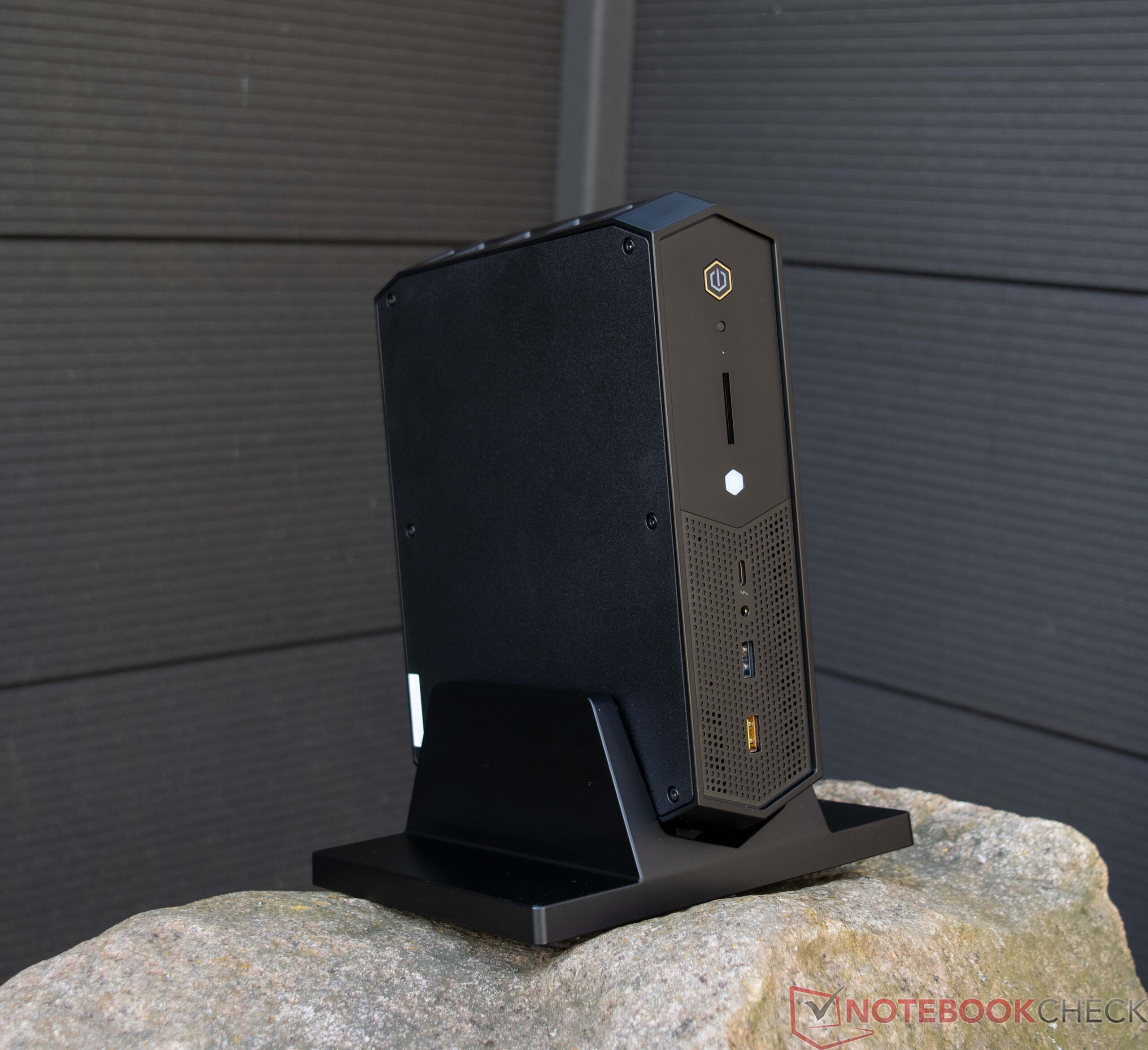

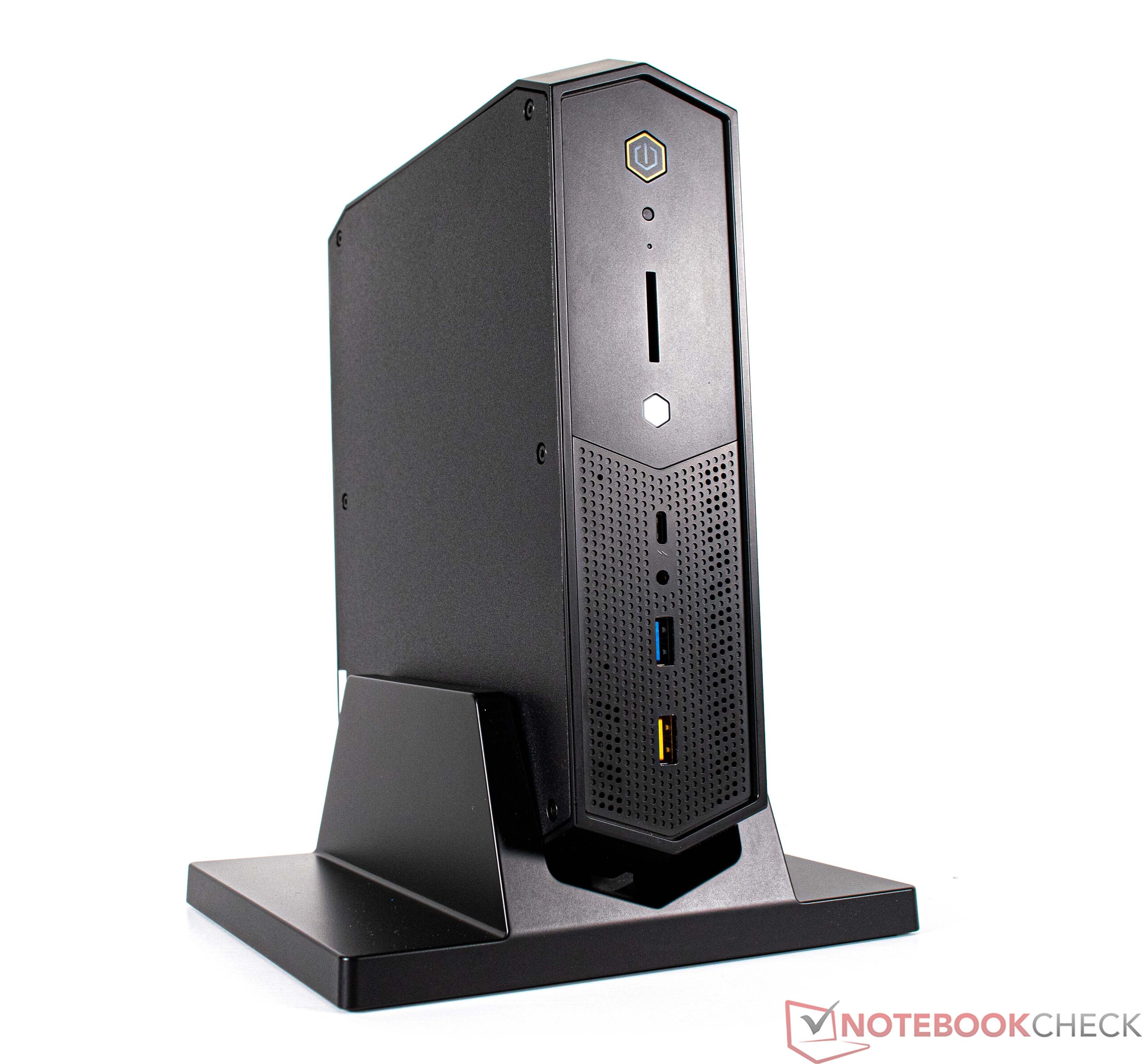

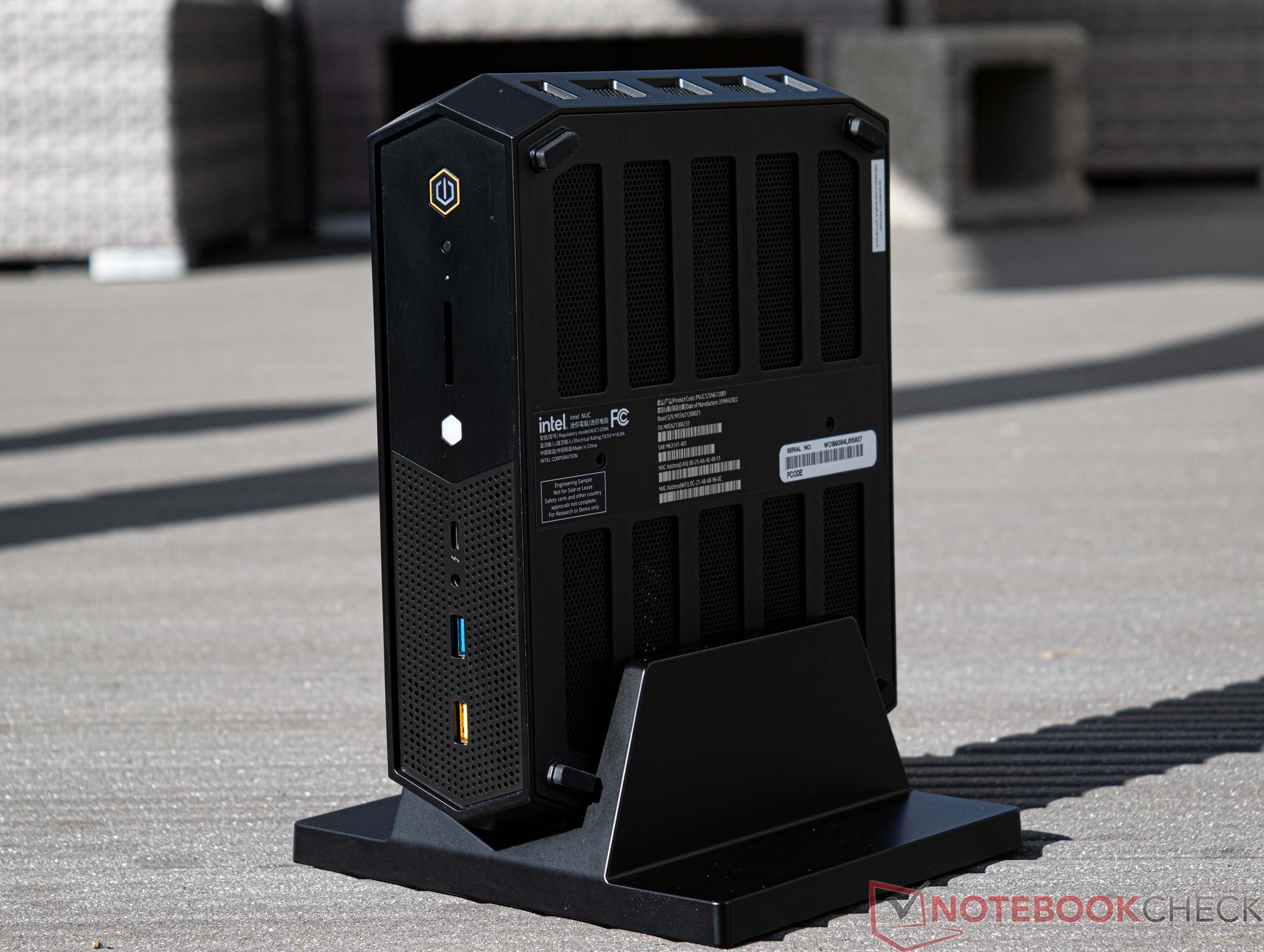

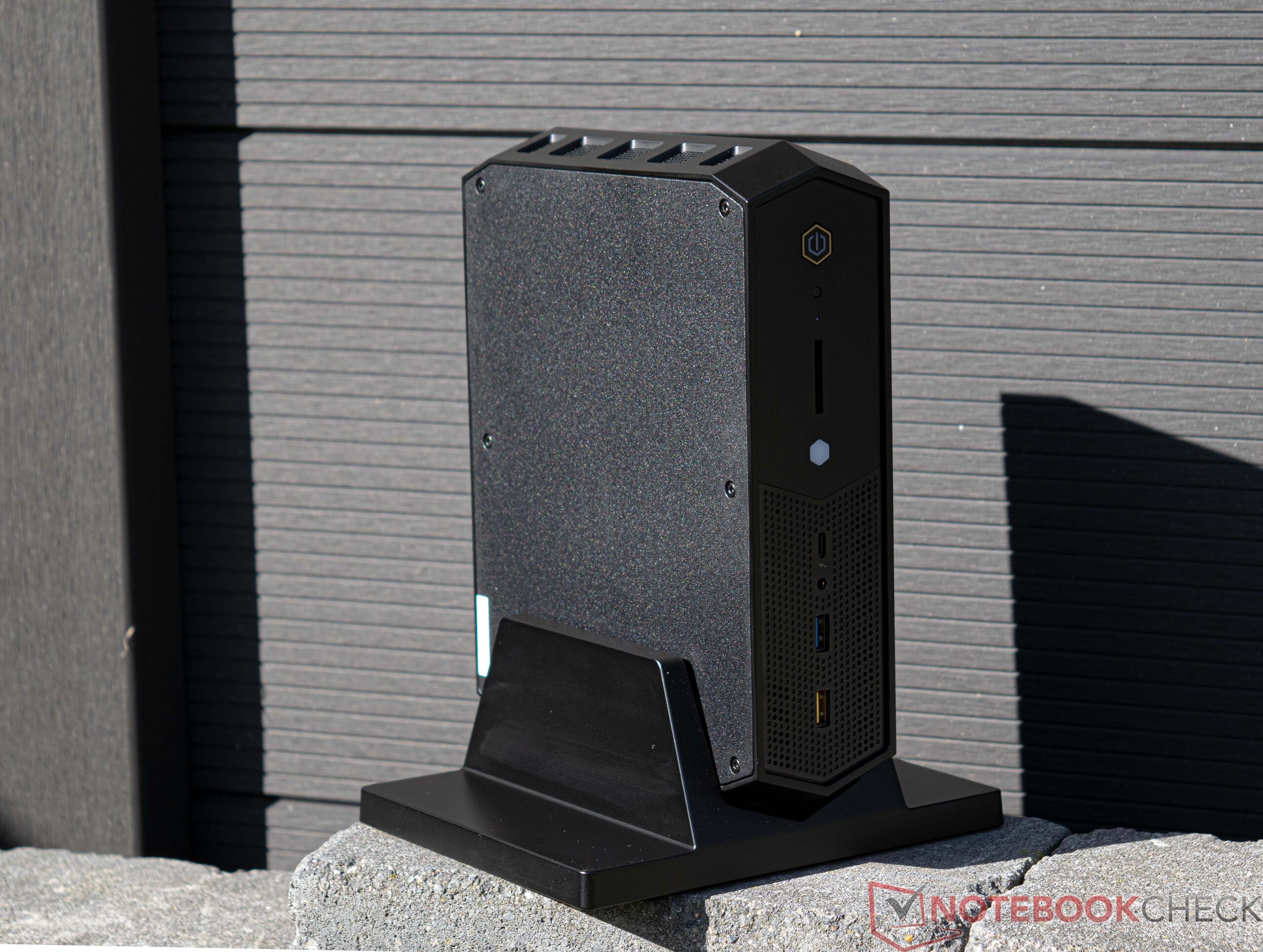

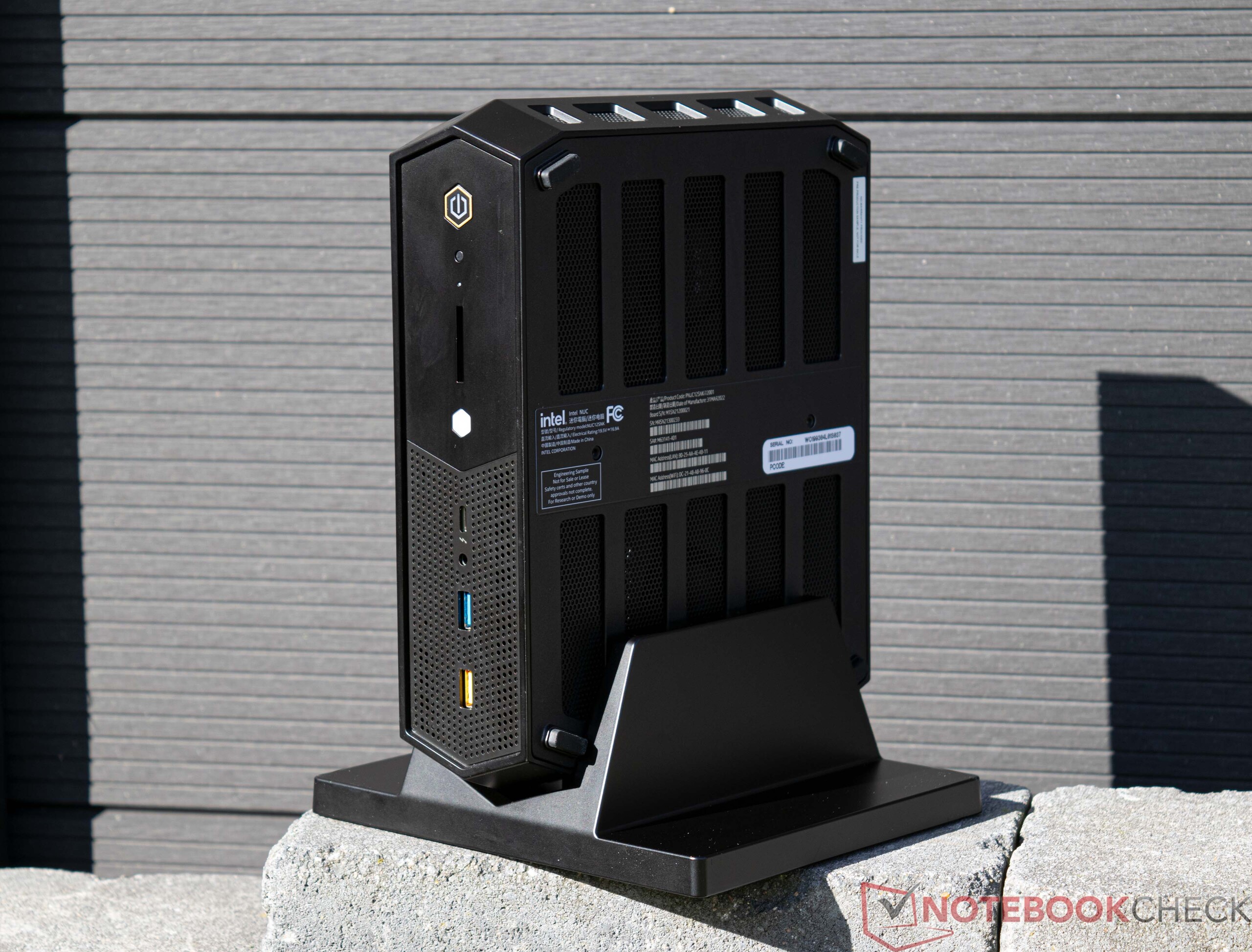

从外观上看,NUC 12发烧友套装看起来做得非常好,水平或直立放置时都很安全。这也要归功于PC的重量,为1.97公斤。可选的脚垫,在电脑直立时可以安装,又增加了443克的重量--而厚重的330瓦电源适配器又增加了1.3公斤。在实际使用中,我们更喜欢将NUC 12 Enthusiast Kit直立起来,这样就可以毫无障碍地吸入新鲜空气。从颜色上看,这台PC看起来很时尚--只有在使用时,你才能看到设备顶部有一个亮起的标志(在设备左侧的直立位置)。这台电脑还打上了一个骷髅头的烙印,这是NUC系列的一个运行风格特征。另外,这也可以换成蛇头或其他图像。
连接性

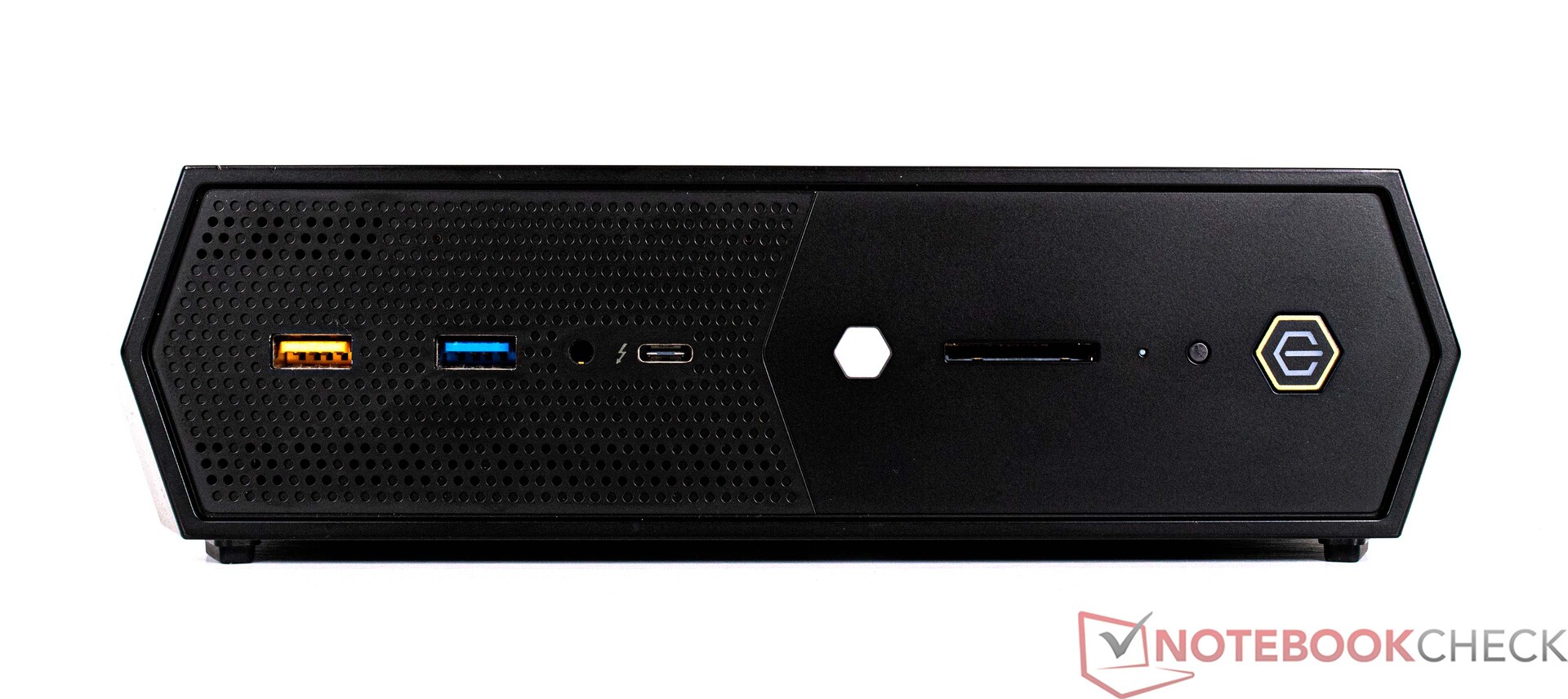

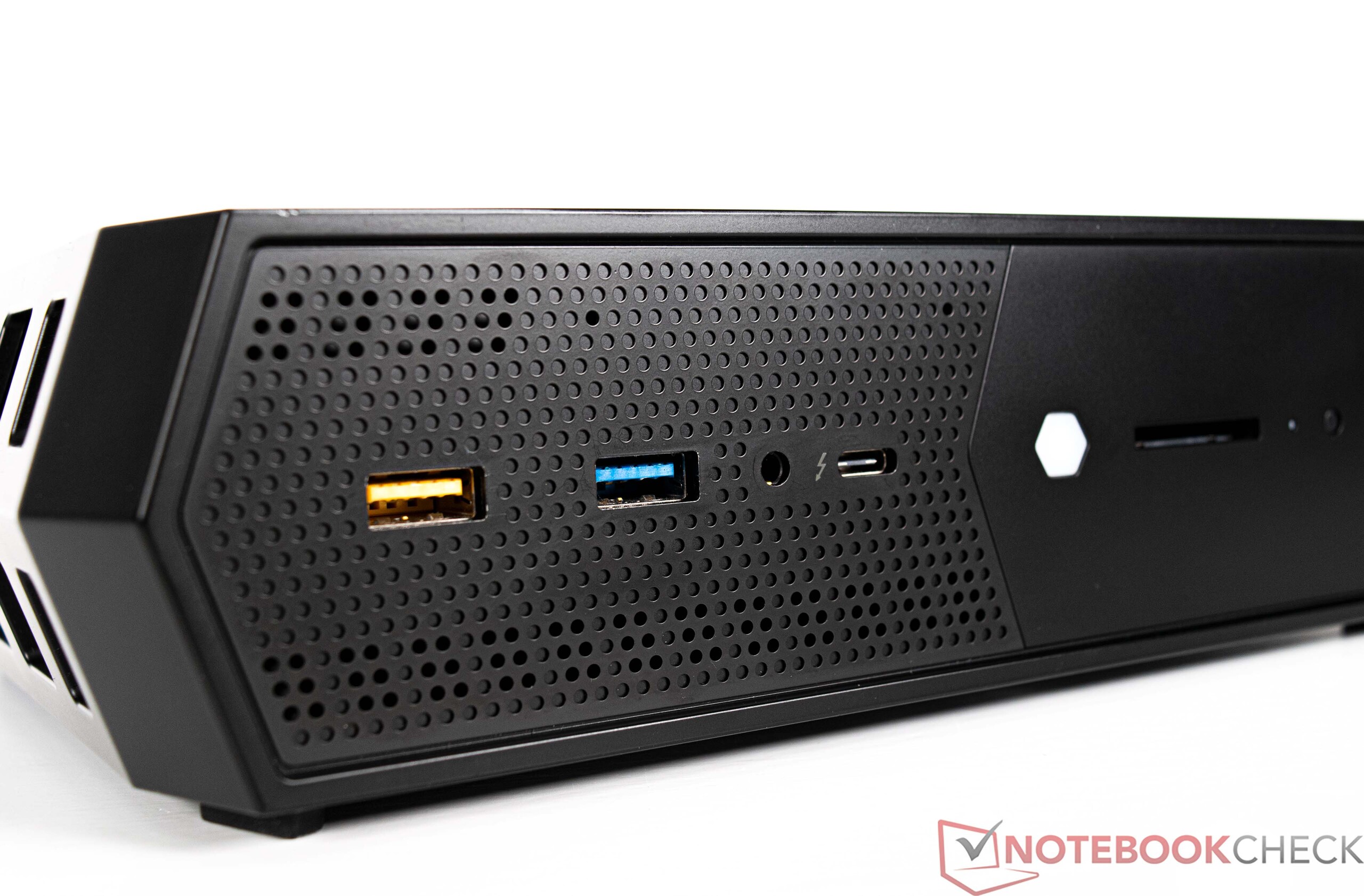

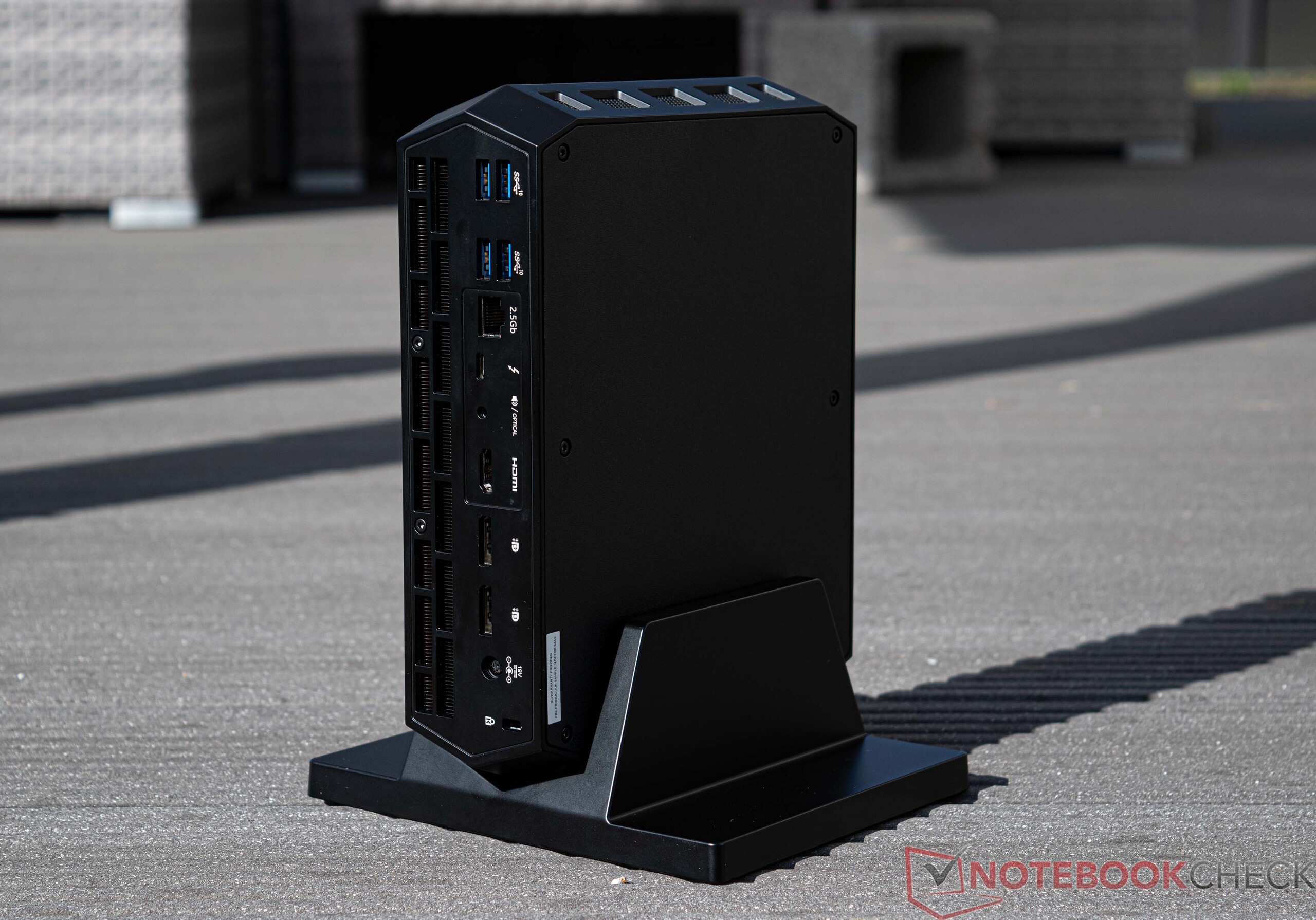

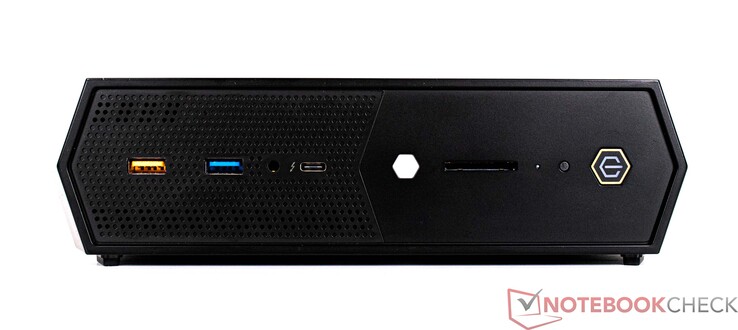

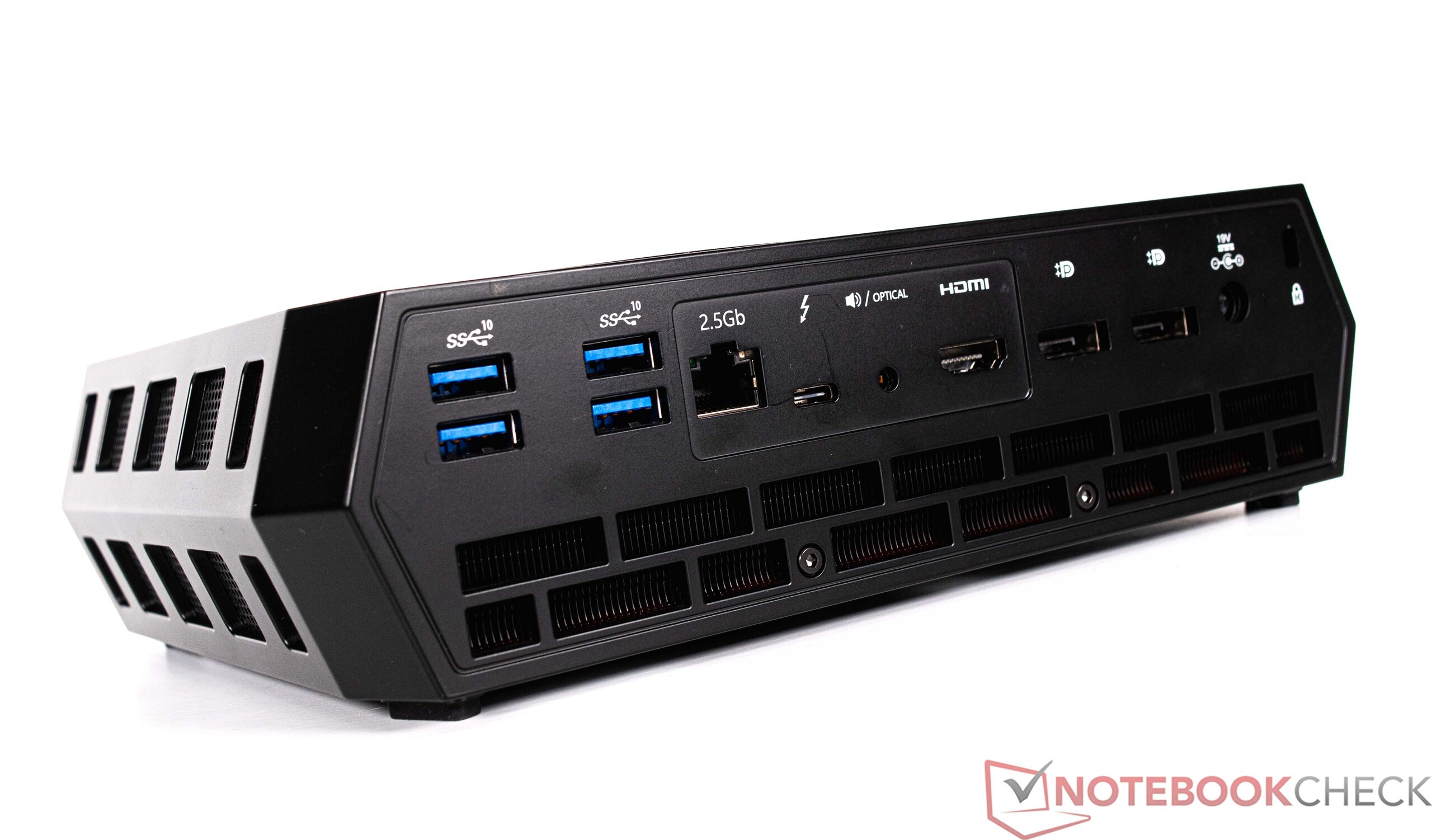

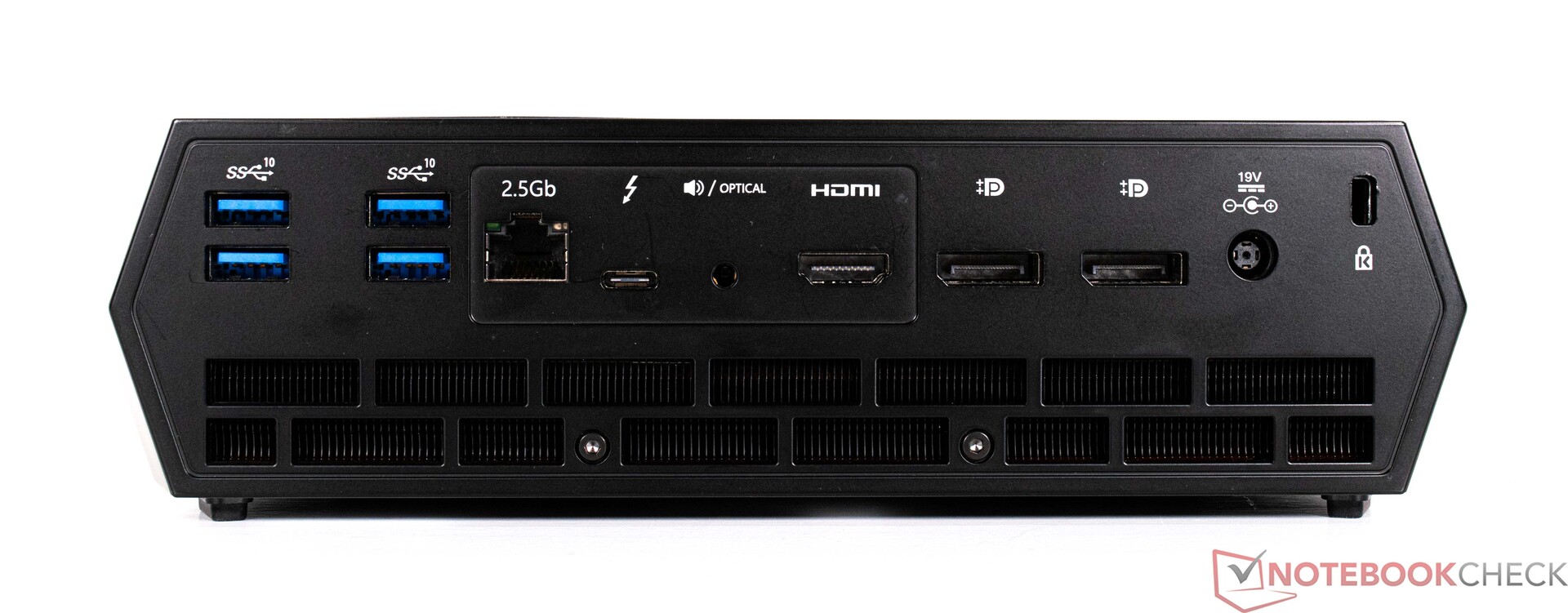

英特尔为NUC 12 Enthusiast Kit配备了大量的外部端口。甚至还包括Thunderbolt--两次,就这一点而言。此外,你可以找到六个USB Type-A端口,这很可能让大多数用户感到满意。前面有一个SD卡读卡器--这是其竞争对手经常忽略的一个功能。在我们看来,端口的分布是经过深思熟虑的--在水平和直立的使用中,你应该没有问题,可以将电缆路由。

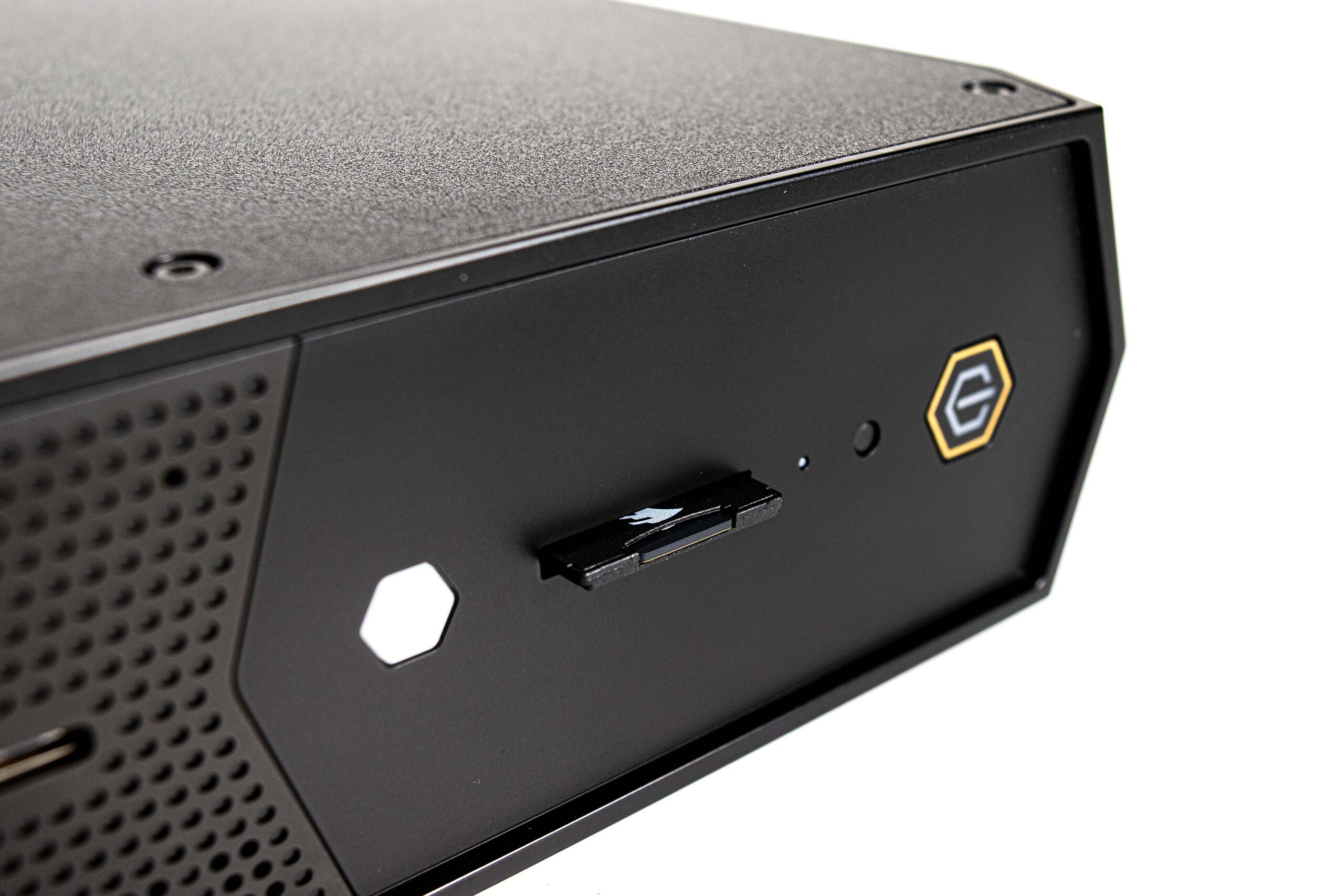

内置的SD读卡器提供USB-3速度,但无法利用我们的AV Pro SD microSD 128 GB V60测试卡。这两款 英特尔龙之谷NUC和英特尔野兽峡谷NUC都展示了支持UHS-II的可能性。
SD Card Reader | |
average JPG Copy Test (av. of 3 runs) | |
Intel Beast Canyon NUC (AV Pro SD microSD 128 GB V60) | |
Intel Dragon Canyon NUC | |
Average of class Mini PC (15.1 - 214, n=26, last 2 years) | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon (AV Pro SD microSD 128 GB V60) | |
Zotac ZBOX Magnus EN173070C (AV Pro SD microSD 128 GB V60) | |
maximum AS SSD Seq Read Test (1GB) | |
Intel Beast Canyon NUC (AV Pro SD microSD 128 GB V60) | |
Intel Dragon Canyon NUC | |
Average of class Mini PC (18.2 - 221, n=26, last 2 years) | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon (AV Pro SD microSD 128 GB V60) | |
Zotac ZBOX Magnus EN173070C (AV Pro SD microSD 128 GB V60) |
沟通

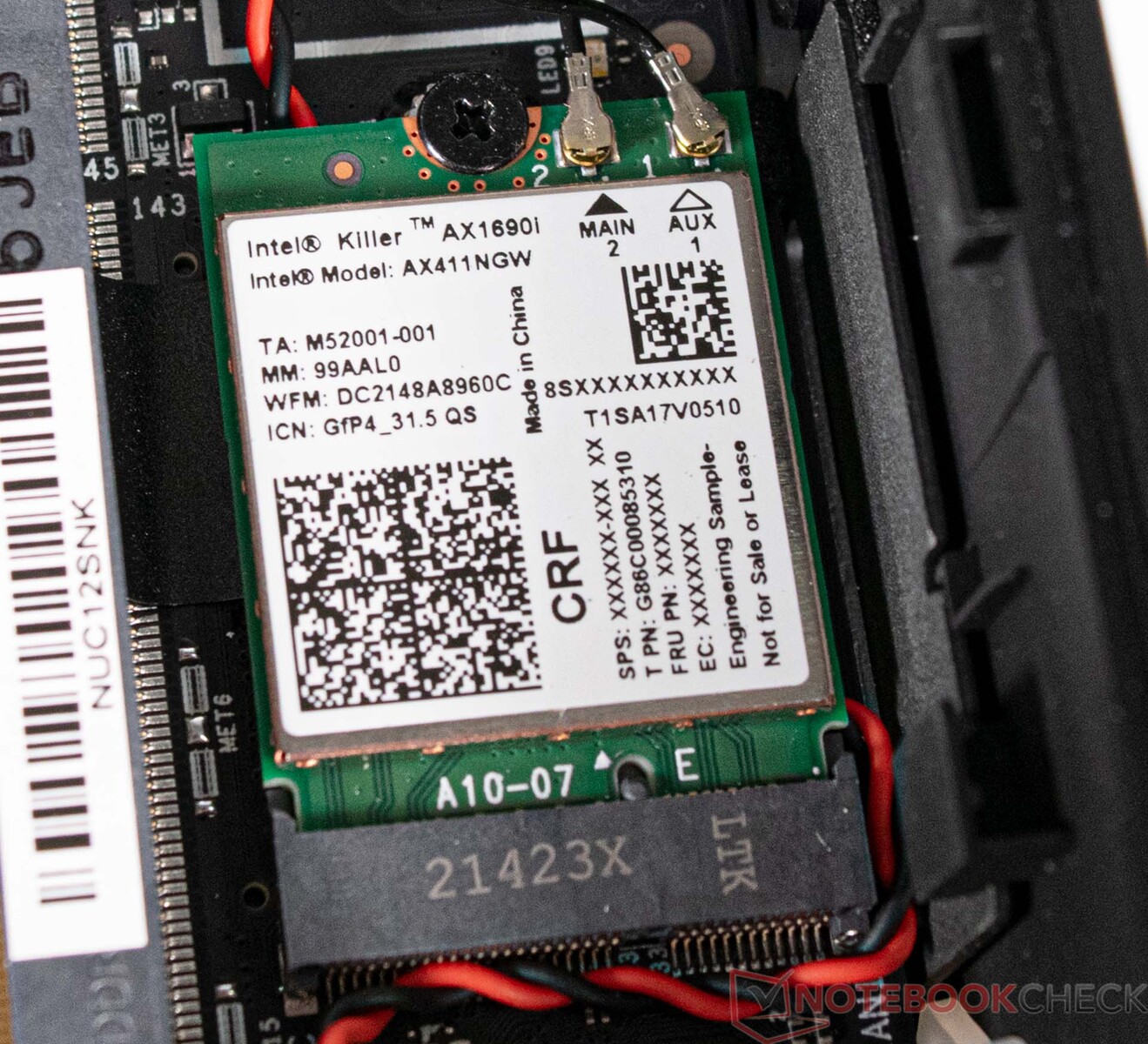

英特尔NUC 12发烧友套件采用了他们自己生产线上的杀手AX1690i Wi-Fi 6E模块。使用华硕ROG Rapture GT-AXE11000作为测试路由器,我们使用5GHz和6GHz连接测量了快速和稳定的传输速率。对于更快的数据传输,你也可以利用LAN插座,它支持高达2.5Gbit/s。
辅料

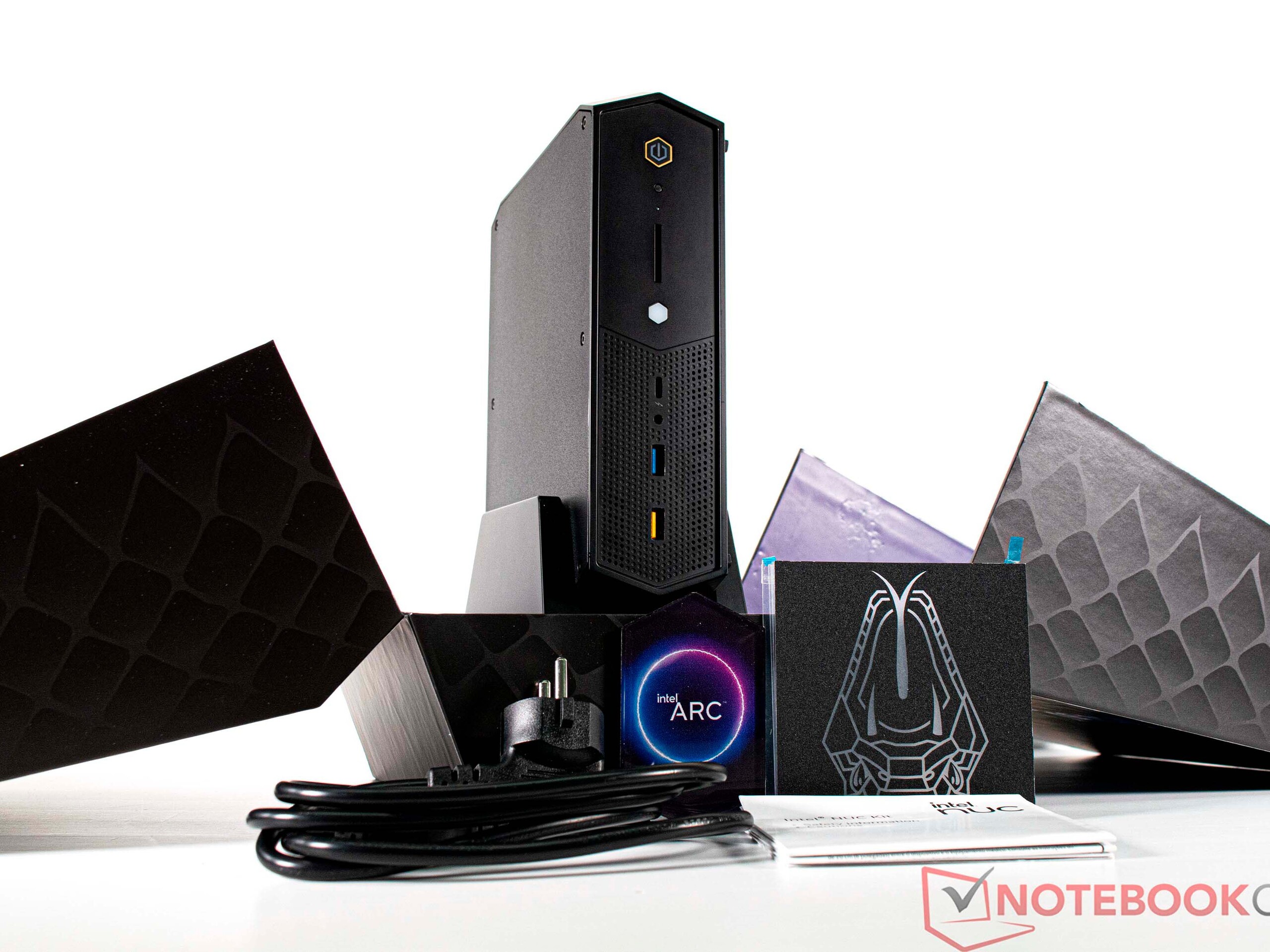

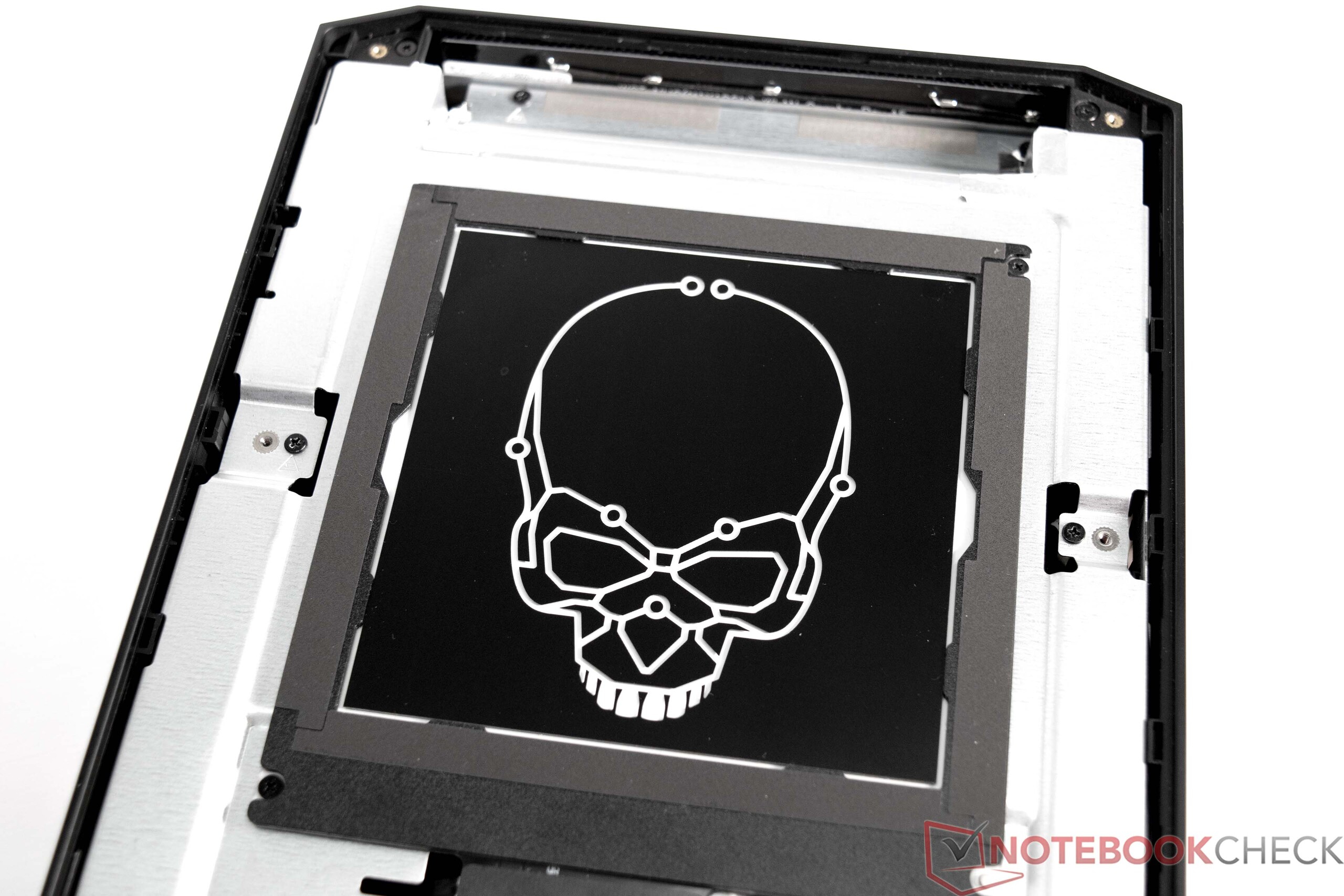

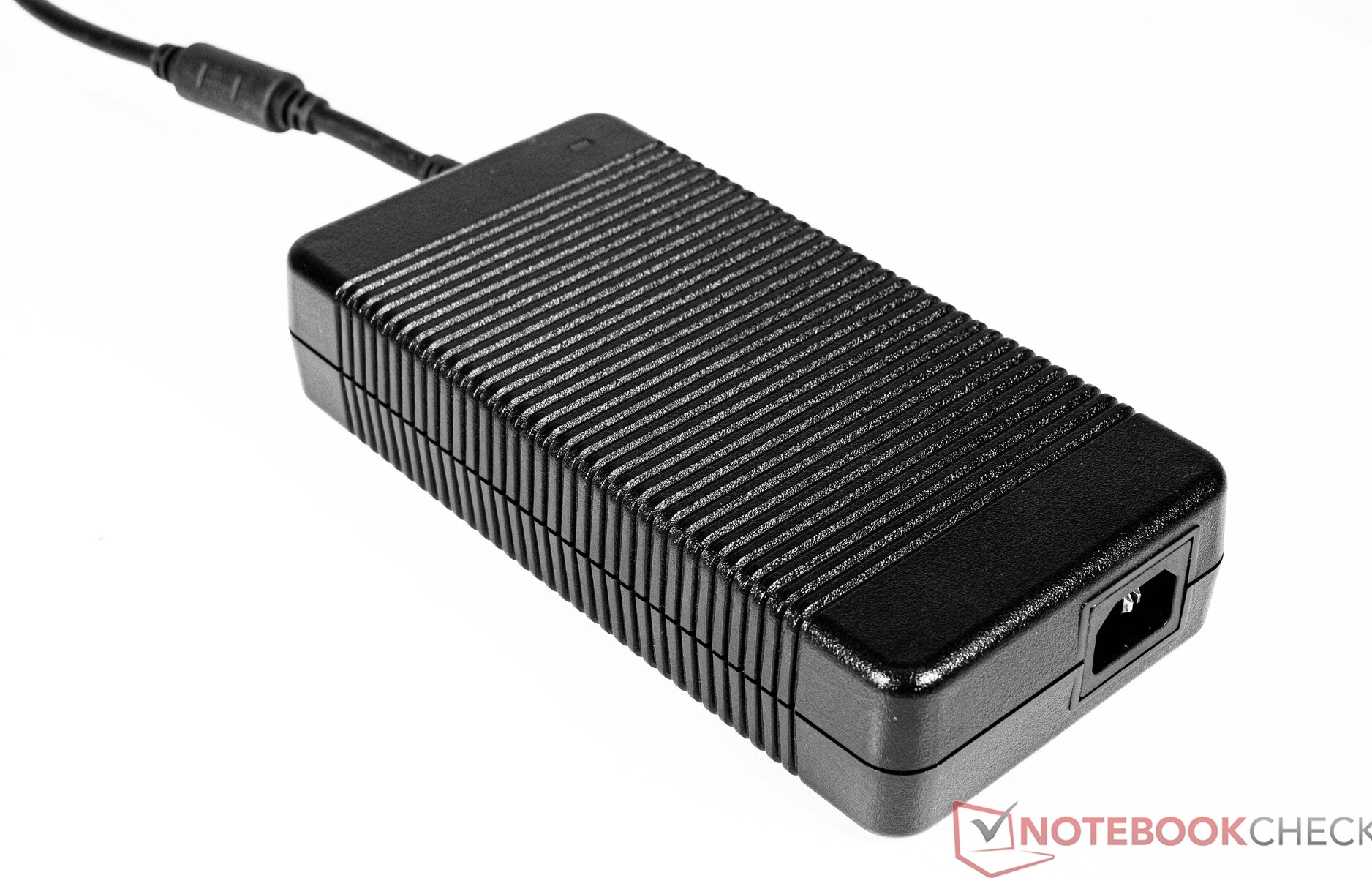

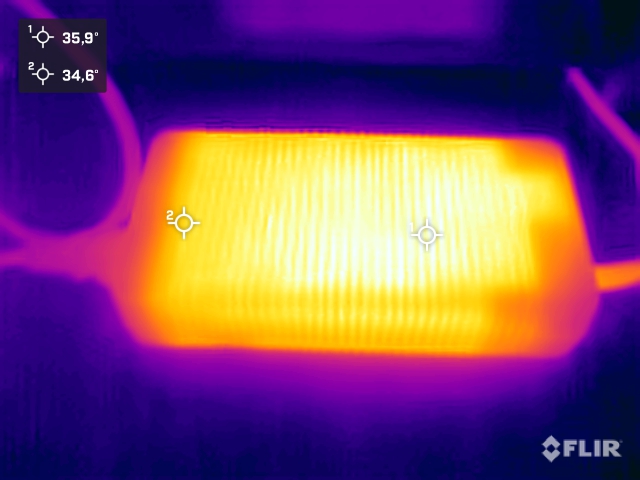

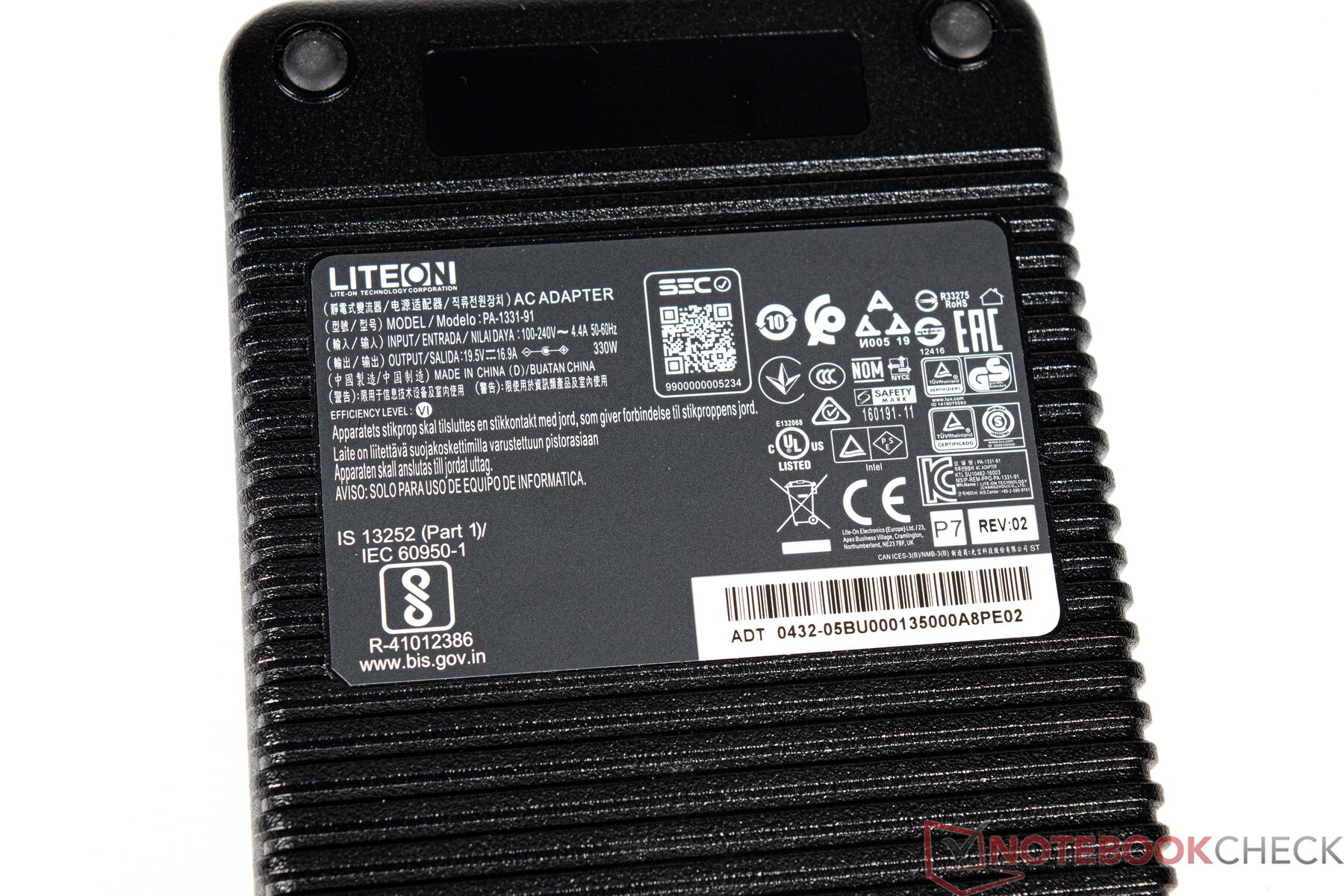

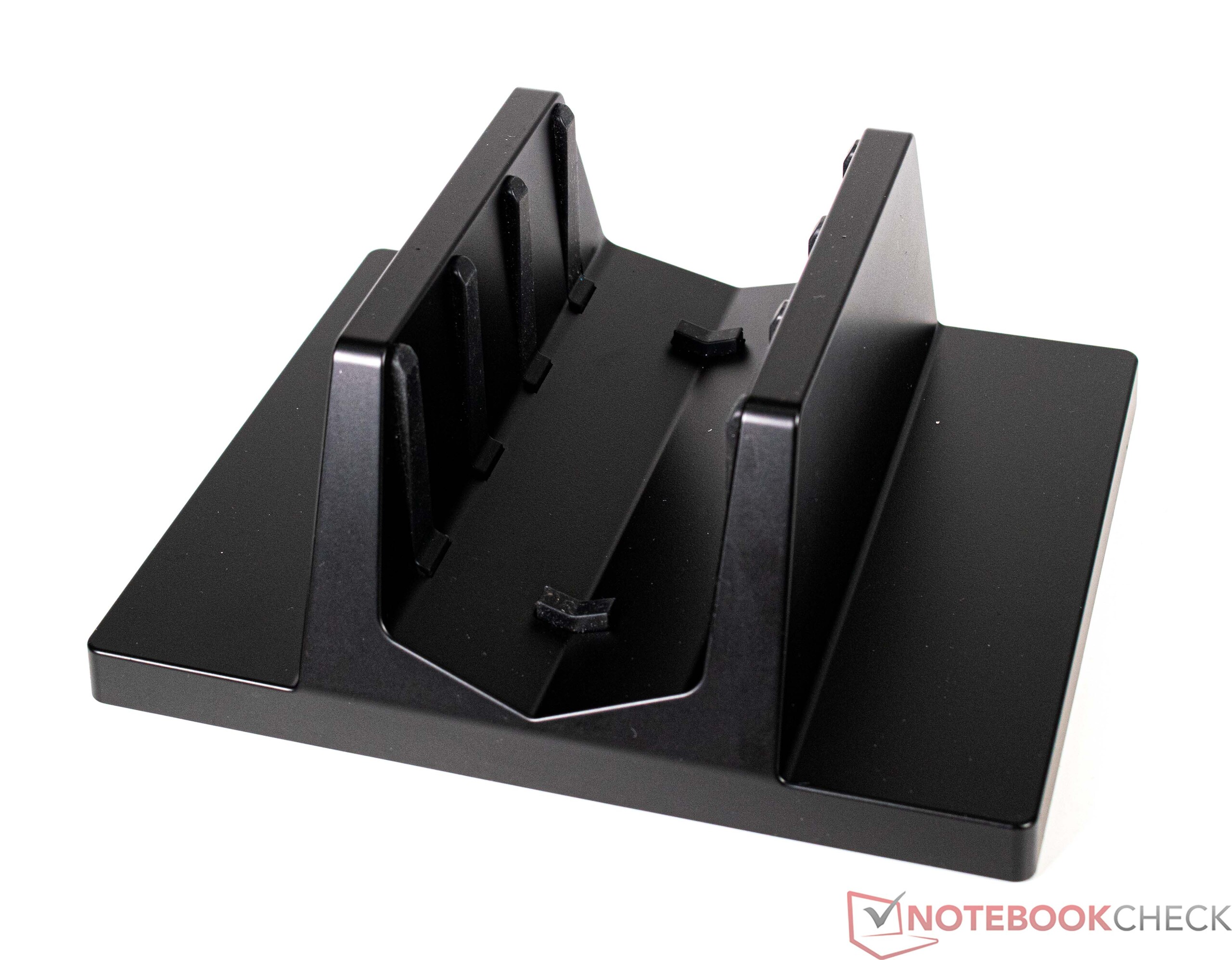

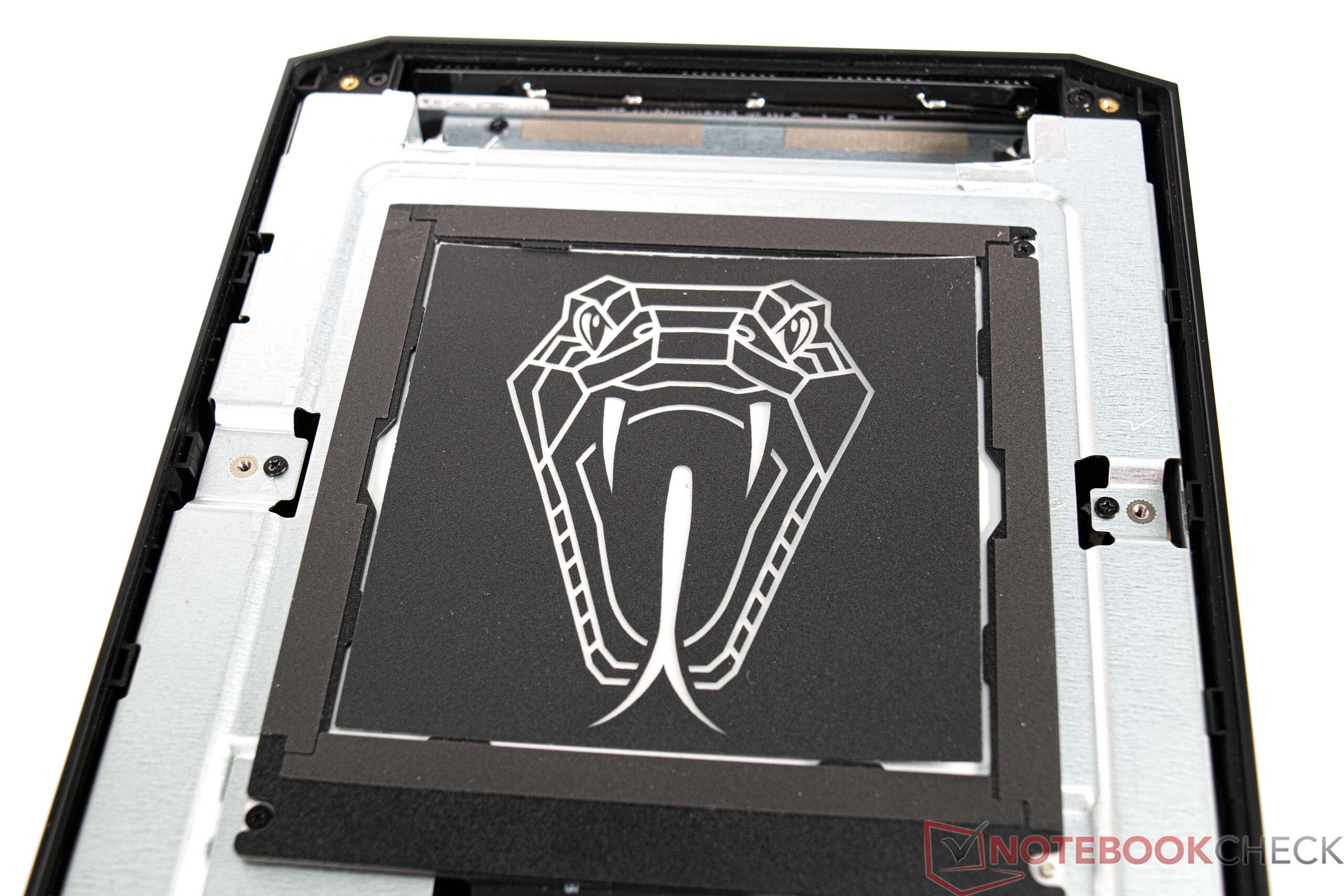

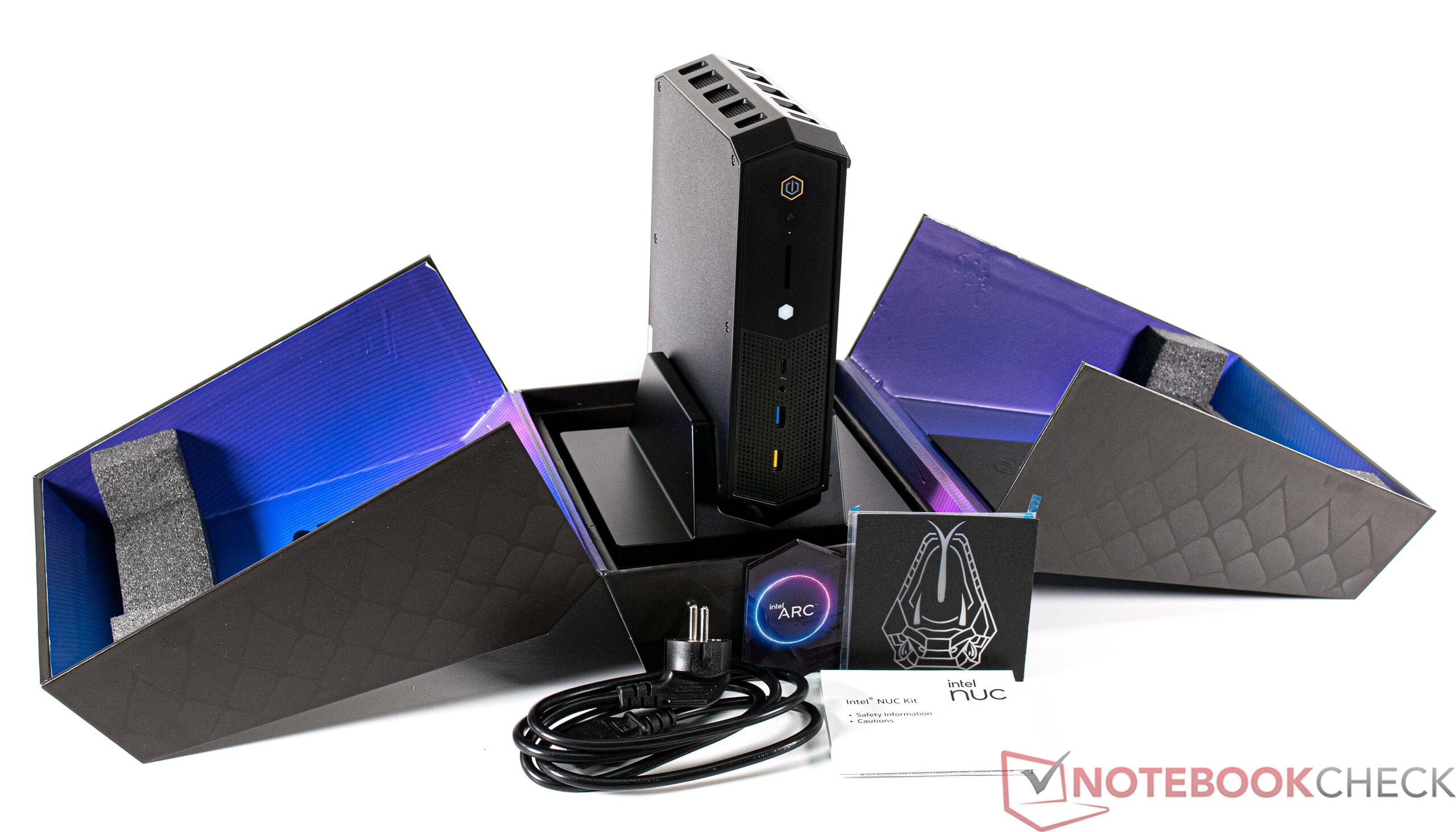

在迷你电脑本身旁边,英特尔还包括一个脚,当它直立时可以连接到电脑上。除此以外,还有一个330瓦的电源适配器和额外的模板,可以用来定制设备顶部的发光标志。
维护

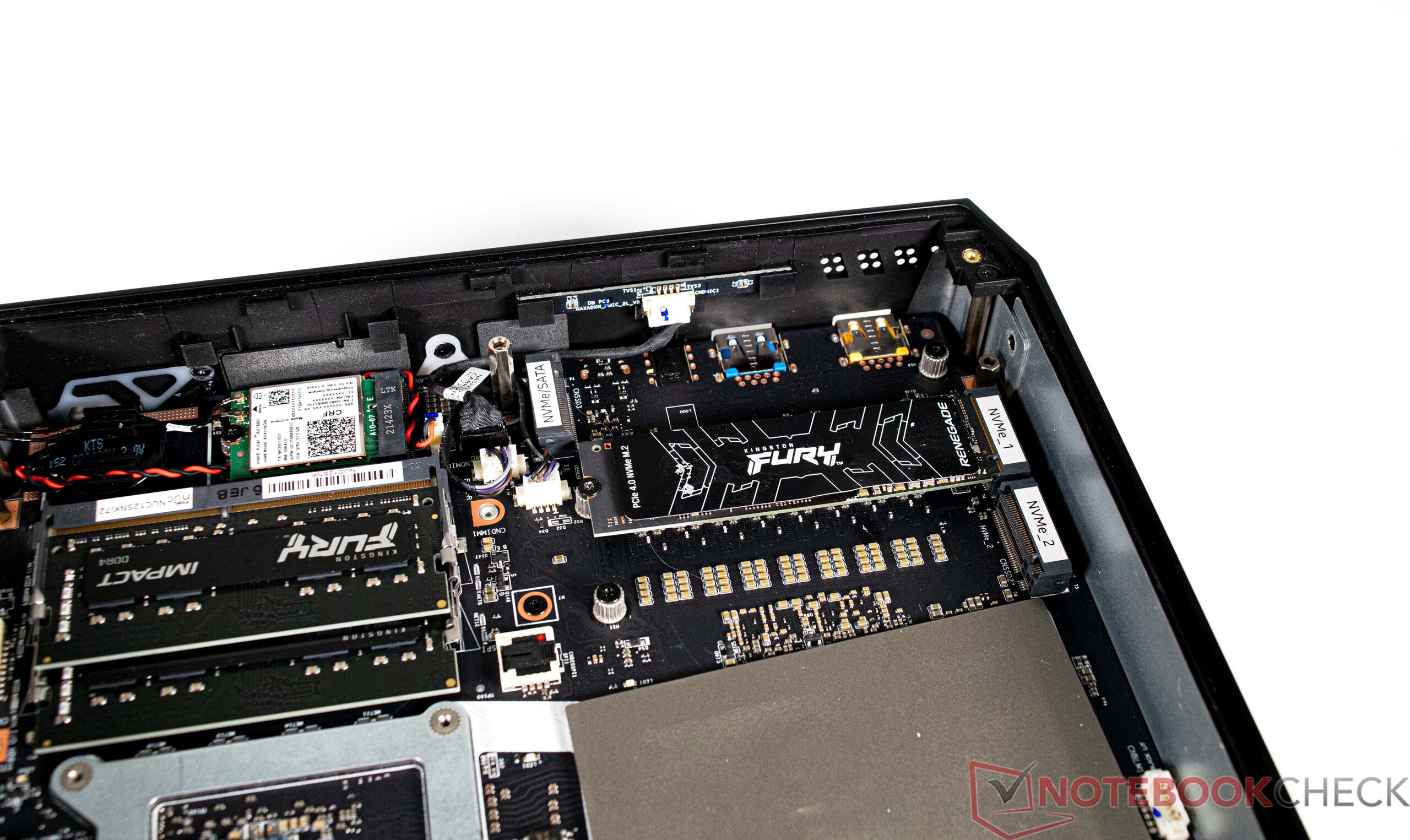

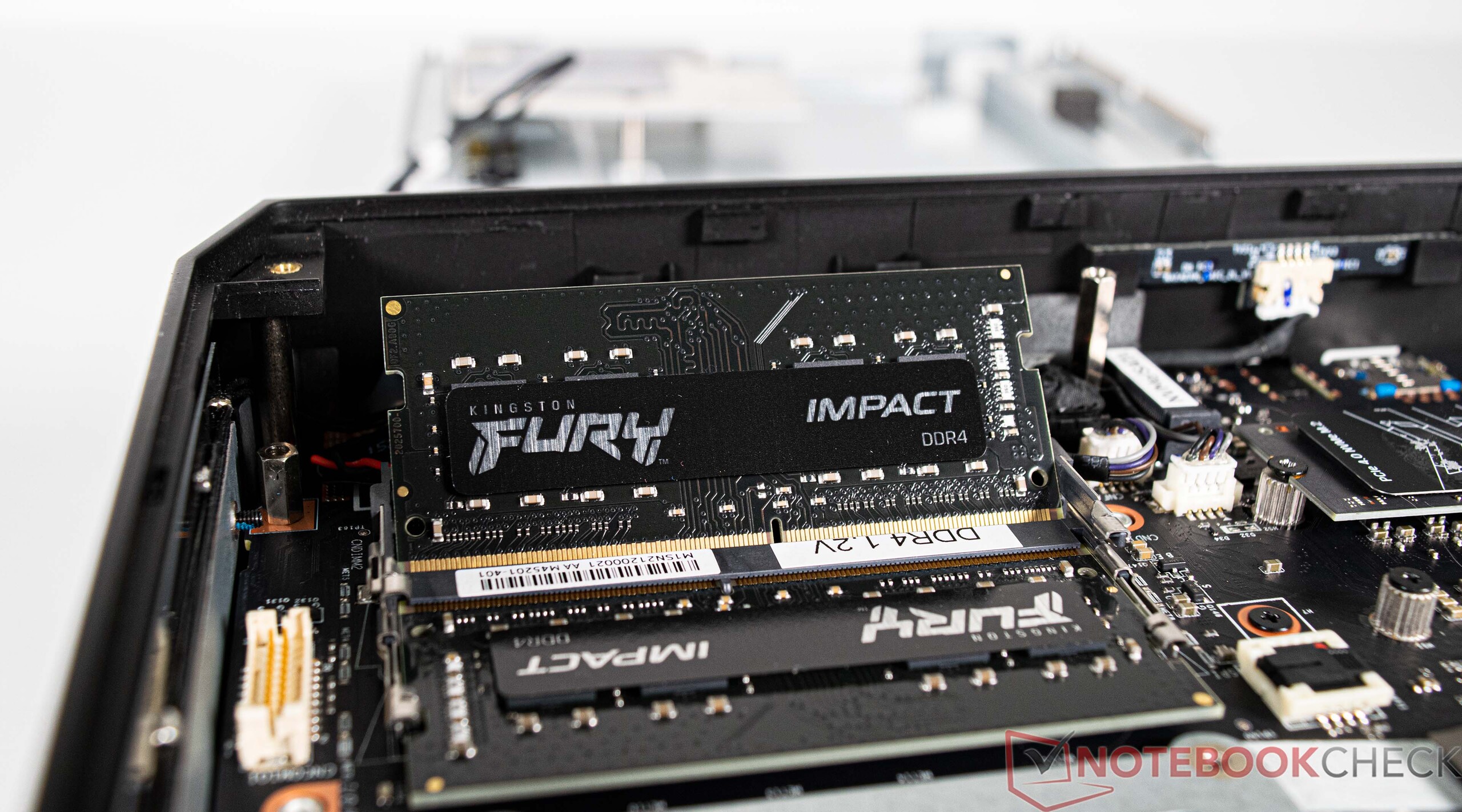

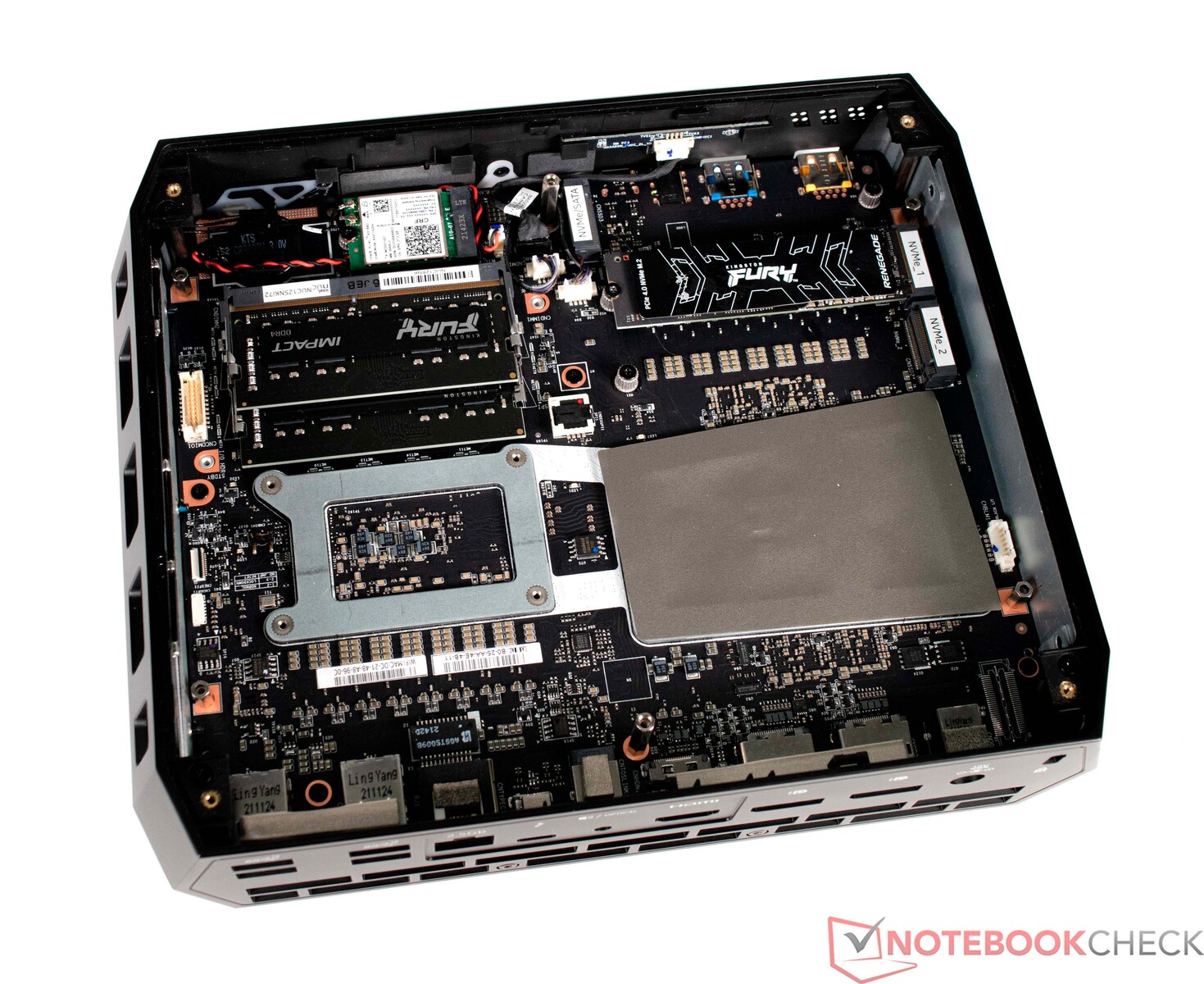

对英特尔NUC 12发烧友套件进行维护只有部分可能--至少在清洁风扇的时候是这样。顶部可以很容易地拆下来,还有用于内置固态硬盘散热的额外盖子也是如此。不幸的是,如果你想清洁风扇,就必须把设备进一步拆开。在我们的测试中,我们避免了这样做。内置的组件,如内存和固态硬盘可以很容易地被替换或升级。在我们的案例中,英特尔NUC 12 Enthusiast Kit有空间再安装两个外形尺寸为M.2-2280的SSD。
性能--英特尔SoC与专用英特尔GPU的结合

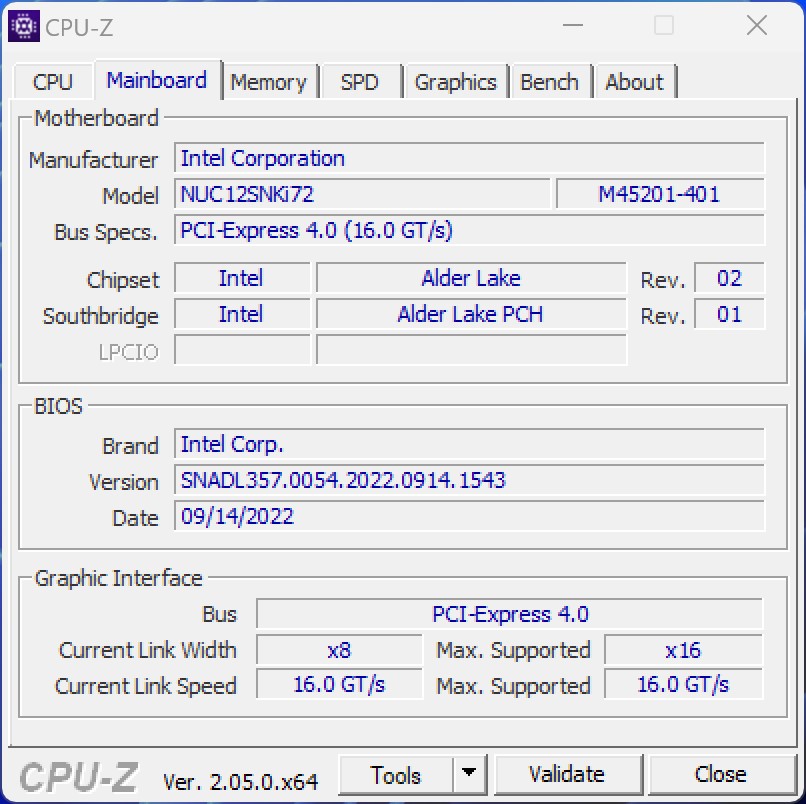

英特尔NUC 12爱好者套件配备了一个 英特尔酷睿i7-12700H和一个英特尔A770M- 一块专用显卡,也是由英特尔生产的。他们不提供其他配件,如其他SoC或GPU选项。
测试条件
我们使用能源配置文件 "平衡 "运行所有性能测试。我们没有改变CPU的性能--相反,我们让它按照BIOS设置处于自动模式。
处理器

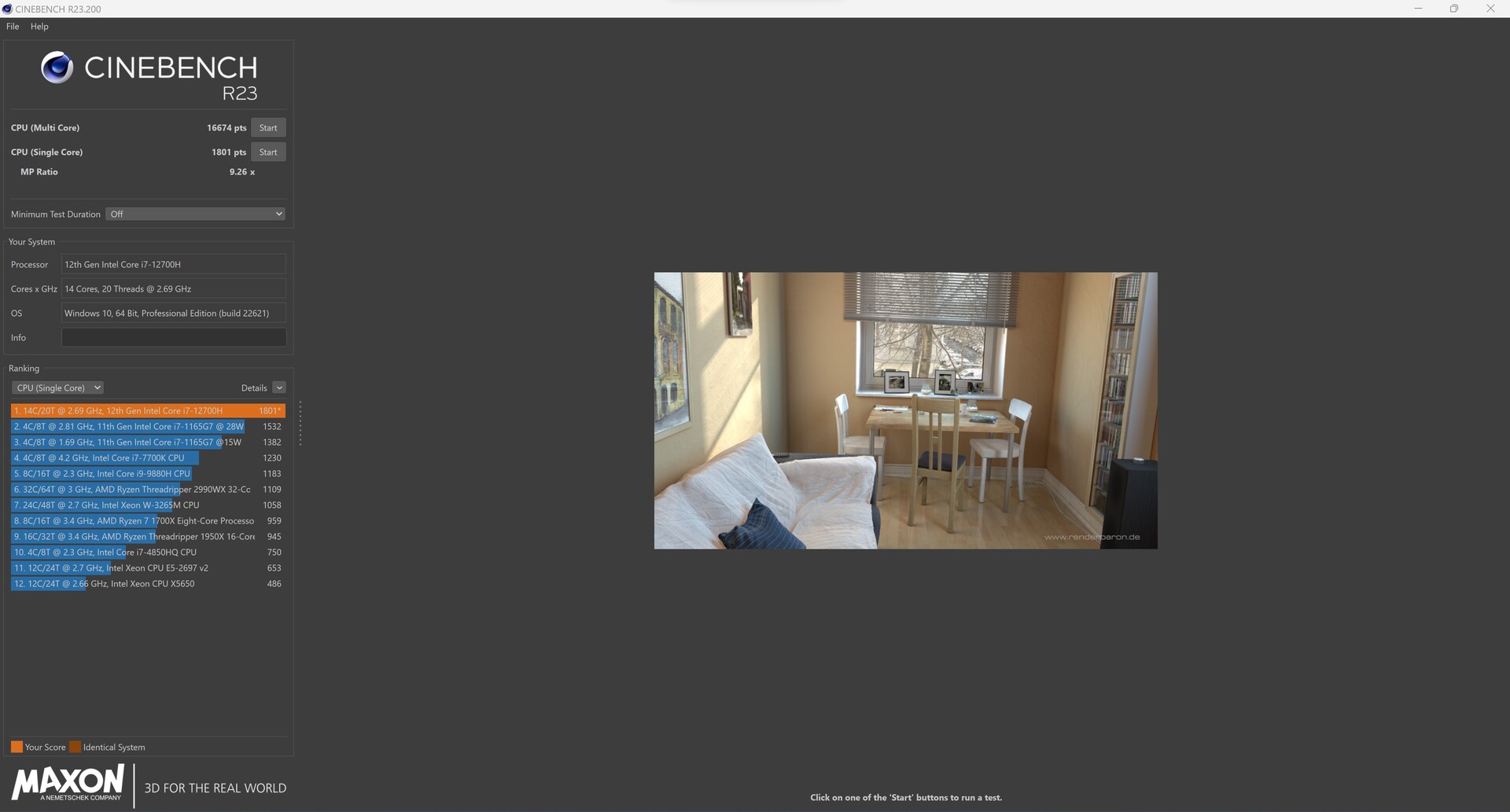

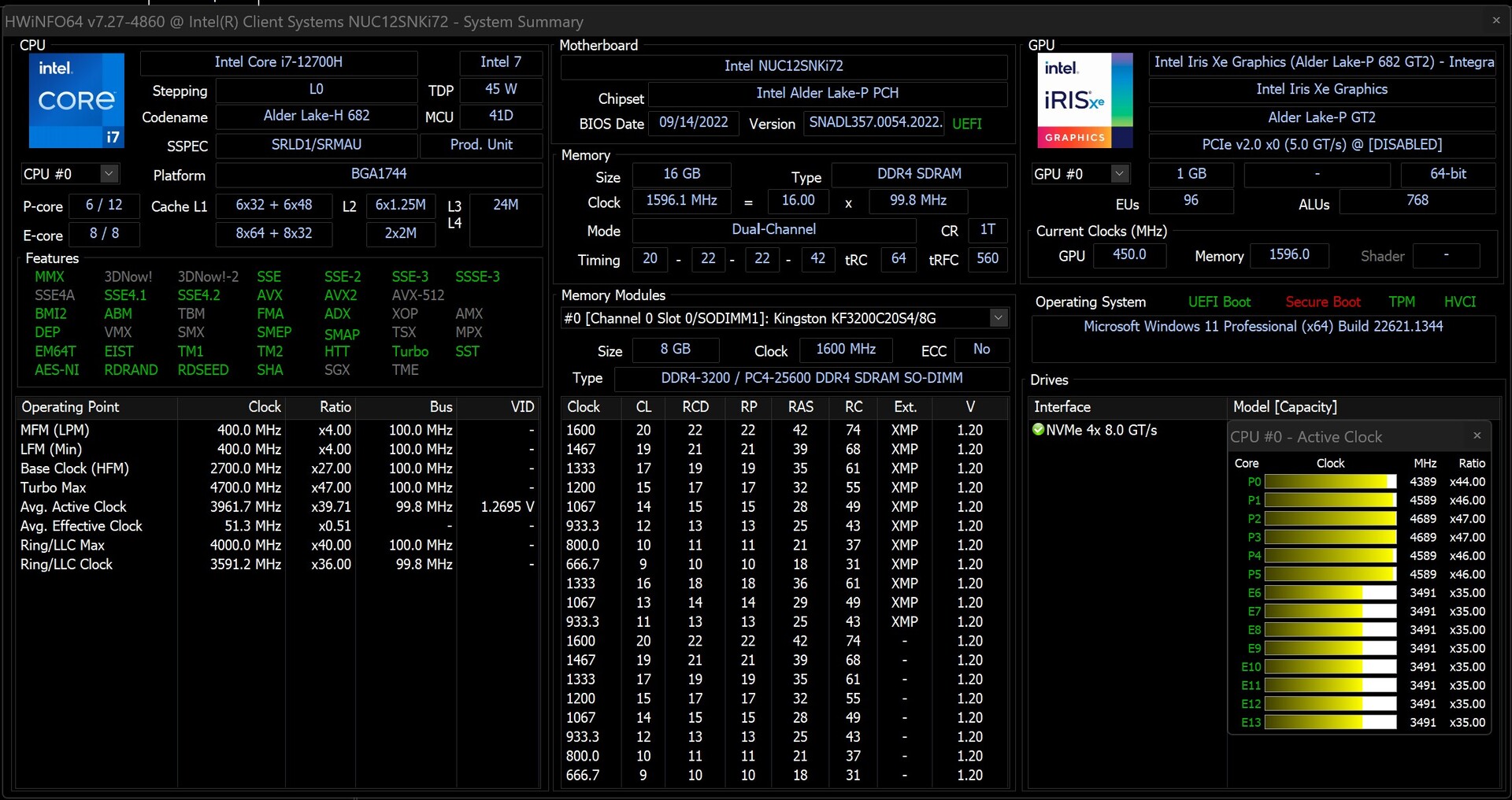

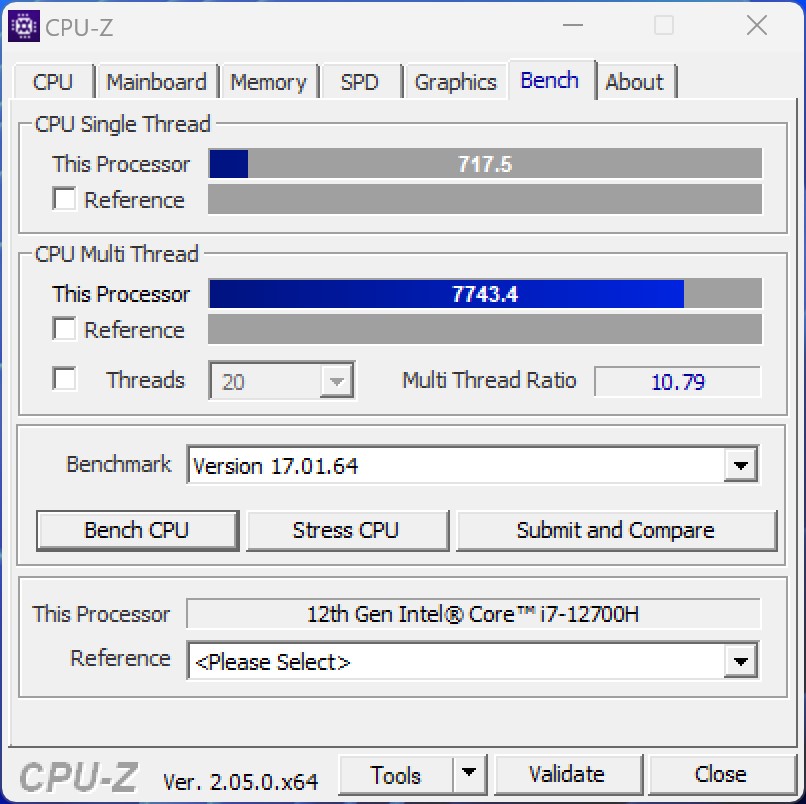

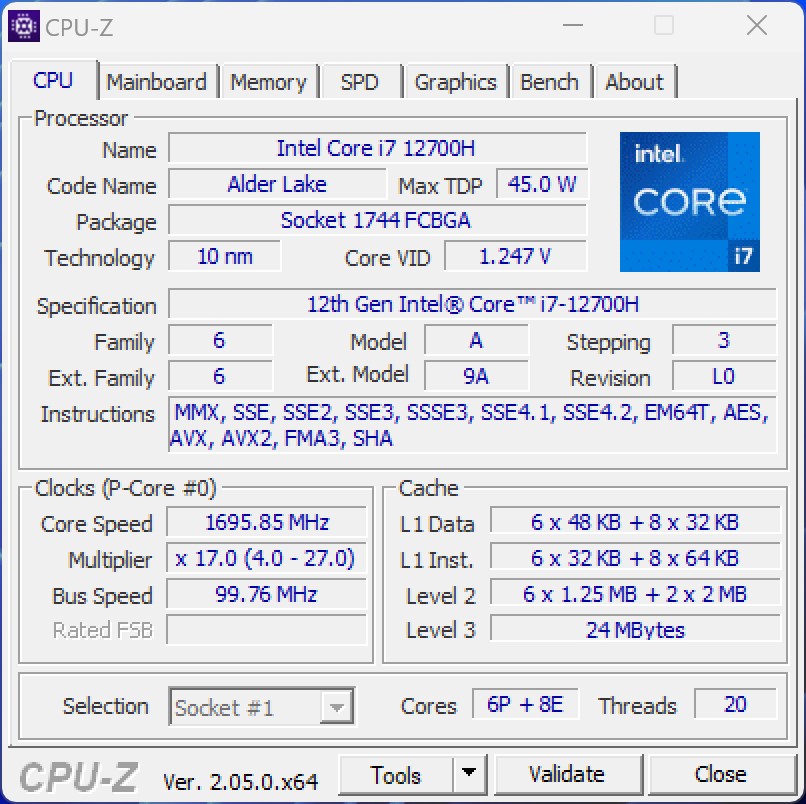

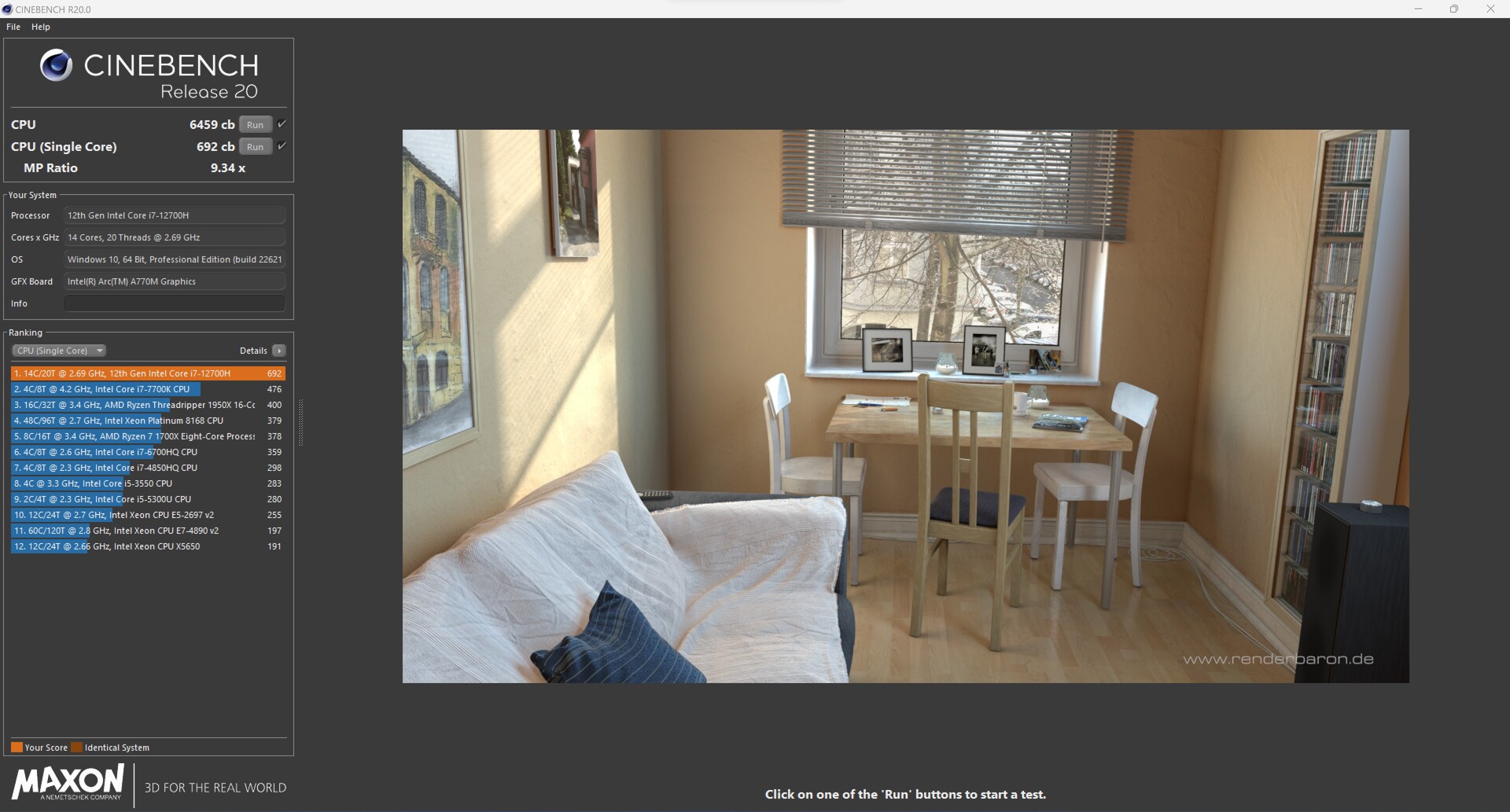

ǞǞǞ 英特尔酷睿i7-12700H是一款最新的处理器,有14个内核和20个线程。6个P-cores在负载下可以运行到4.7GHz。在最大性能下,其Alder Lake芯片的供应量高达100瓦--然而,由于温度高,这只能维持很短的时间。即便如此,CPU基准的性能评级得分略高于平均水平。英特尔NUC 12发烧友套件可以自己决定谁在与的战斗中获胜。Minisforum Neptune Series HX99G.由于其较高的核心数量, 英特尔酷睿i7-12700H提供更好的CPU性能,比 AMD Ryzen 9 6900HX.然而,性能上的差异几乎是不明显的。
你可以找到更多的处理器基准测试 这里.
Performance Rating - Percent | |
Intel Dragon Canyon NUC - RTX 3060 | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon | |
Average Intel Core i7-12700H | |
Minisforum Neptune Series HX99G | |
Intel Beast Canyon NUC | |
Minisforum NUCX i7 | |
Zotac ZBOX Magnus EN173070C | |
Lenovo Legion 5 15ACH6A-82NW0010GE -8! | |
Zotac Magnus One (ECM73070C) -2! |
Cinebench R10 | |
Rendering Single CPUs 64Bit | |
Intel Dragon Canyon NUC - RTX 3060 | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon | |
Average Intel Core i7-12700H (14342 - 14478, n=2) | |
Minisforum Neptune Series HX99G | |
Intel Beast Canyon NUC | |
Minisforum NUCX i7 | |
Zotac ZBOX Magnus EN173070C | |
Lenovo Legion 5 15ACH6A-82NW0010GE | |
Zotac Magnus One (ECM73070C) | |
Rendering Multiple CPUs 64Bit | |
Intel Dragon Canyon NUC - RTX 3060 | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon | |
Average Intel Core i7-12700H (75147 - 91600, n=2) | |
Minisforum Neptune Series HX99G | |
Minisforum NUCX i7 | |
Intel Beast Canyon NUC | |
Lenovo Legion 5 15ACH6A-82NW0010GE | |
Zotac ZBOX Magnus EN173070C | |
Zotac Magnus One (ECM73070C) |
TrueCrypt | |
AES Mean 100MB | |
Intel Dragon Canyon NUC - RTX 3060 | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon | |
Average Intel Core i7-12700H () | |
Minisforum Neptune Series HX99G | |
Intel Beast Canyon NUC | |
Minisforum NUCX i7 | |
Zotac Magnus One (ECM73070C) | |
Zotac ZBOX Magnus EN173070C | |
Twofish Mean 100MB | |
Intel Dragon Canyon NUC - RTX 3060 | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon | |
Average Intel Core i7-12700H () | |
Zotac Magnus One (ECM73070C) | |
Minisforum Neptune Series HX99G | |
Intel Beast Canyon NUC | |
Minisforum NUCX i7 | |
Zotac ZBOX Magnus EN173070C | |
Serpent Mean 100MB | |
Intel Dragon Canyon NUC - RTX 3060 | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon | |
Average Intel Core i7-12700H () | |
Minisforum Neptune Series HX99G | |
Zotac Magnus One (ECM73070C) | |
Intel Beast Canyon NUC | |
Minisforum NUCX i7 | |
Zotac ZBOX Magnus EN173070C |
3DMark 11 - 1280x720 Performance Physics | |
Intel Dragon Canyon NUC - RTX 3060 | |
Average Intel Core i7-12700H (6917 - 24999, n=62) | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon | |
Minisforum Neptune Series HX99G | |
Intel Beast Canyon NUC | |
Minisforum NUCX i7 | |
Zotac ZBOX Magnus EN173070C | |
Zotac Magnus One (ECM73070C) | |
Lenovo Legion 5 15ACH6A-82NW0010GE |
HWBOT x265 Benchmark v2.2 - 4k Preset | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon | |
Minisforum Neptune Series HX99G | |
Average Intel Core i7-12700H (4.67 - 21.8, n=63) | |
Minisforum NUCX i7 | |
Intel Beast Canyon NUC | |
Intel Dragon Canyon NUC - RTX 3060 | |
Zotac ZBOX Magnus EN173070C | |
Lenovo Legion 5 15ACH6A-82NW0010GE | |
Zotac Magnus One (ECM73070C) |
LibreOffice - 20 Documents To PDF | |
Zotac Magnus One (ECM73070C) | |
Lenovo Legion 5 15ACH6A-82NW0010GE | |
Minisforum Neptune Series HX99G | |
Minisforum NUCX i7 | |
Zotac ZBOX Magnus EN173070C | |
Average Intel Core i7-12700H (34.2 - 95.3, n=62) | |
Intel Beast Canyon NUC | |
Intel Dragon Canyon NUC - RTX 3060 | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon |
* ... smaller is better
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx

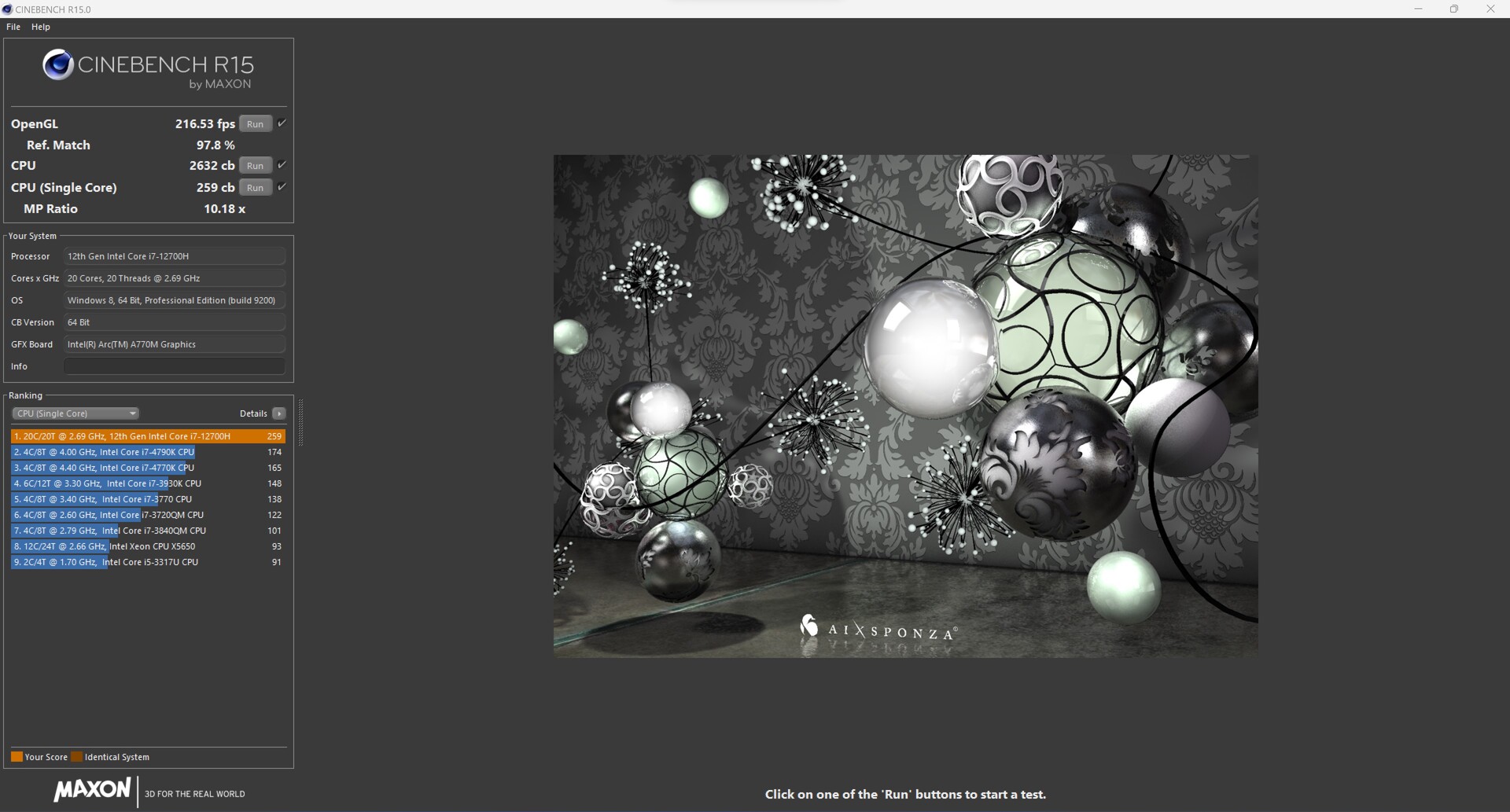

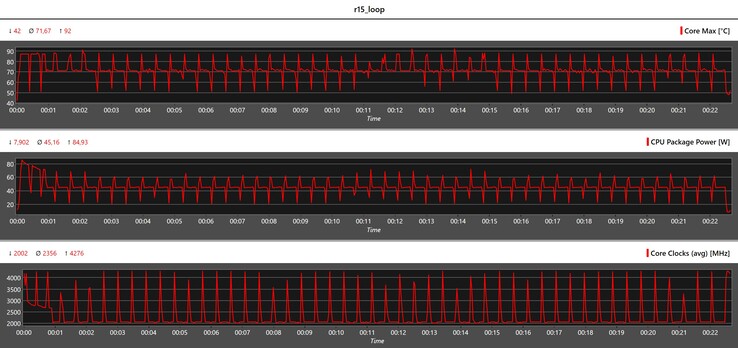

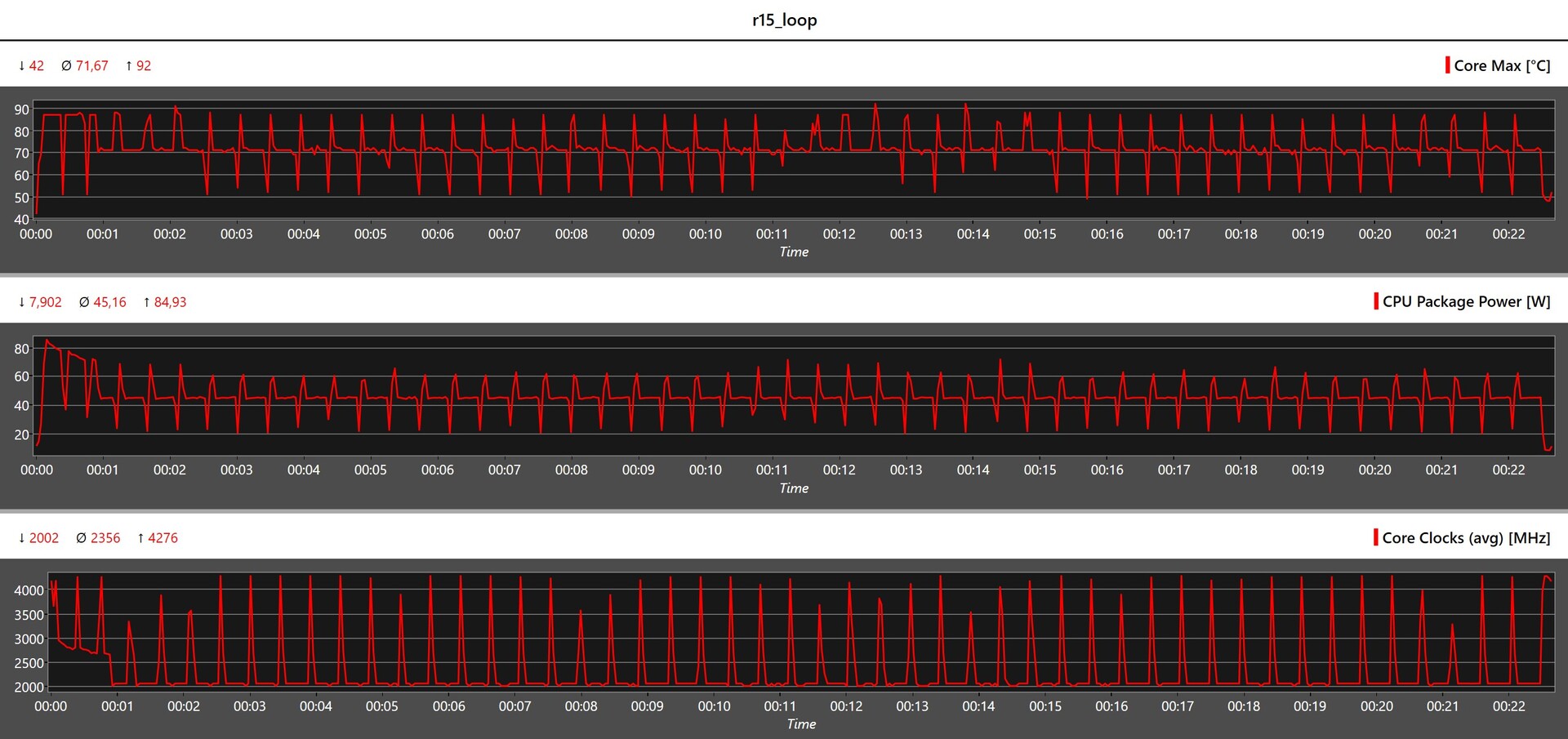

英特尔NUC 12爱好者套件在Cinebench R15多循环中的表现
在其第三次运行后, 英特尔酷睿i7-12700H在Cinebench R15的连续循环中提供了一个非常稳定的性能。与第一次运行相比,其性能只下降了200分,是相当低的。我们看到了一个更大的性能下降,在 英特尔龙之谷NUC.相比之下,英特尔NUC 12发烧友套件稳居第二位,取得了2.410分。
系统性能
在合成系统测试中,英特尔NUC 12 Enthusiast Kit稍稍减弱。它良好的CPU性能只是不足以在PCMark 10测试中取得好成绩。在Crossmark和RAM测试中,我们的测试样本又表现得更好。
* ... smaller is better

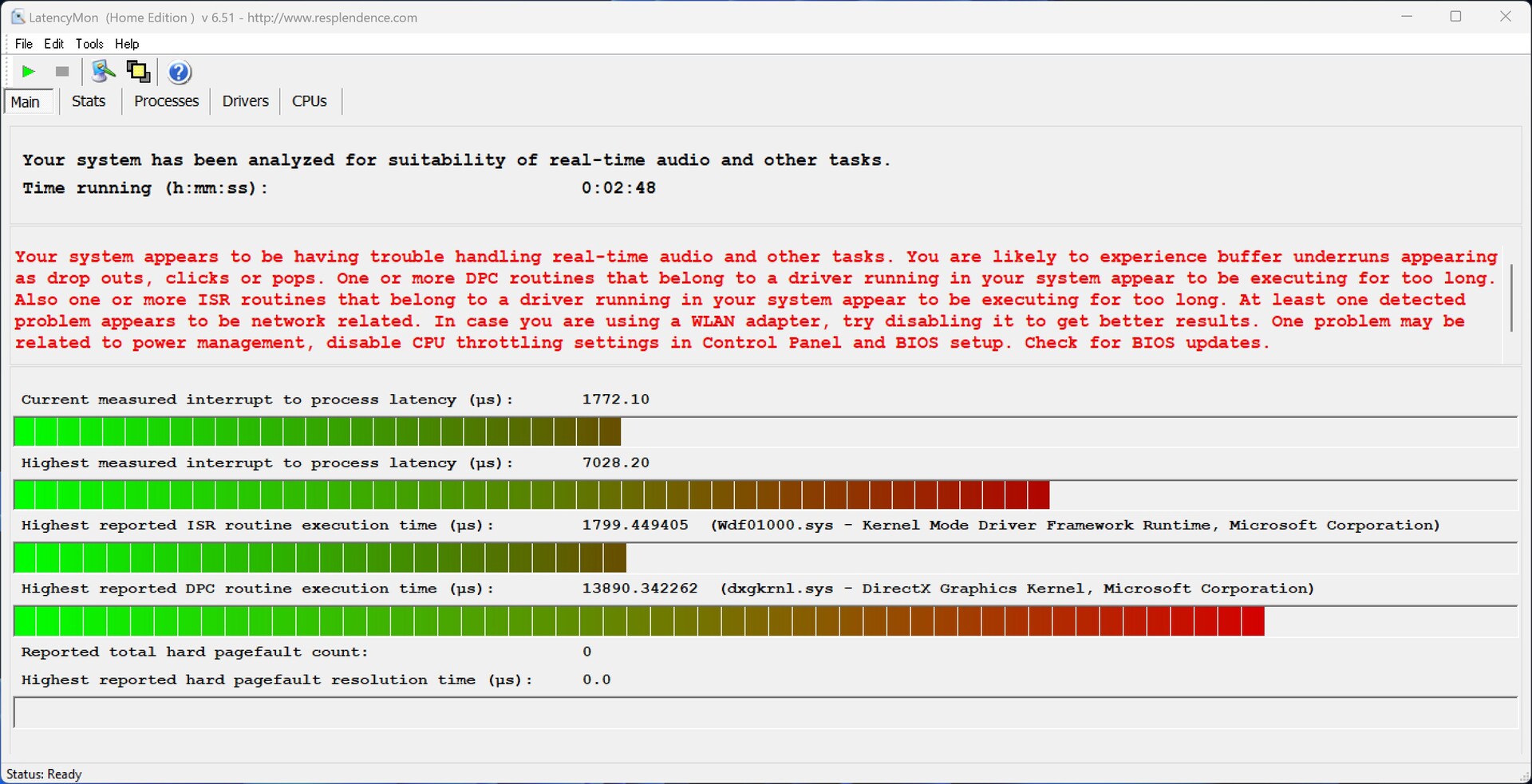

DPC延时

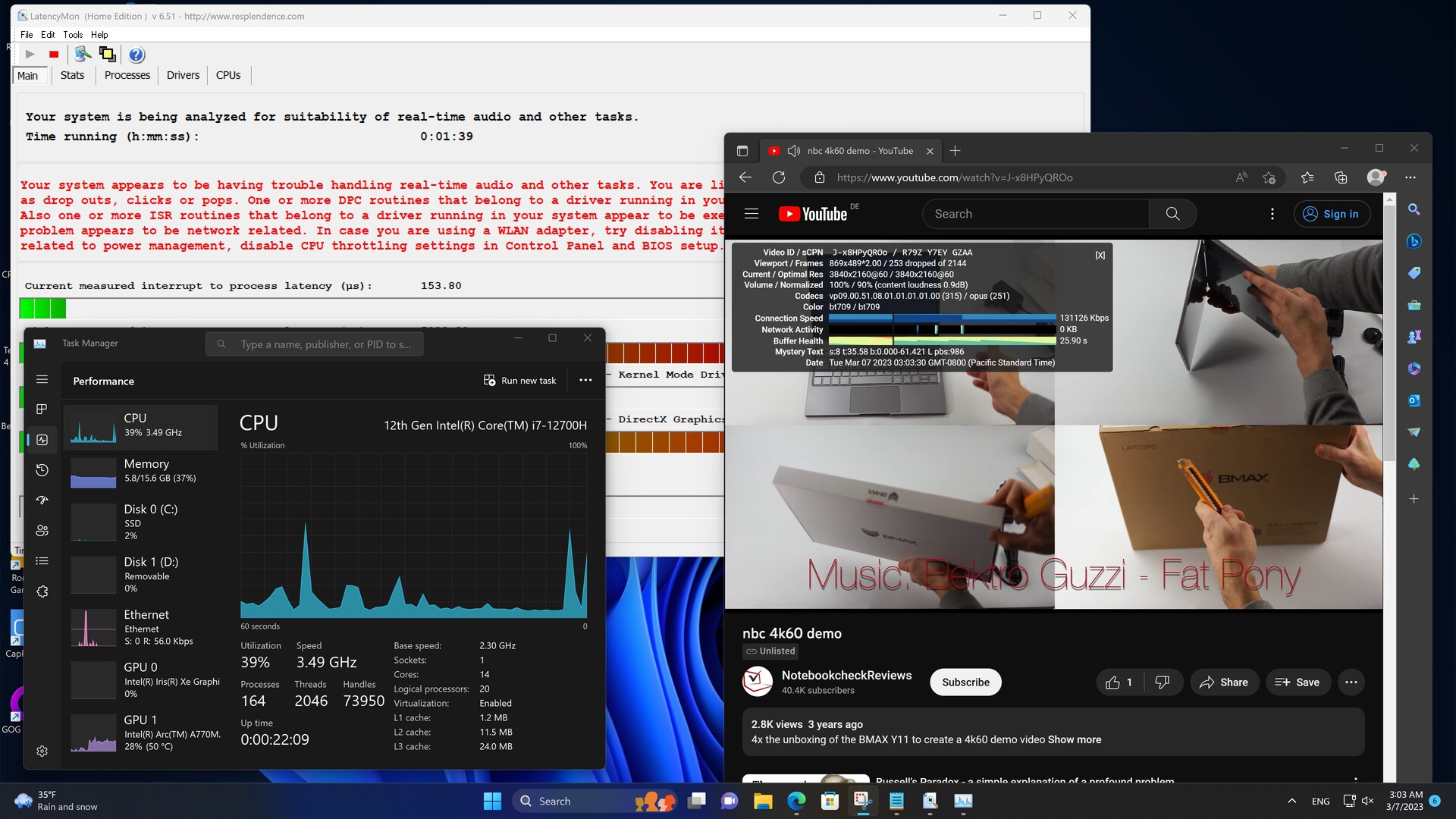

只要我们使用Edge打开多个浏览器标签,我们就能看到更高的延迟。在播放4K YouTube视频时, 英特尔A770M被用于大约30%的容量。
存储设备

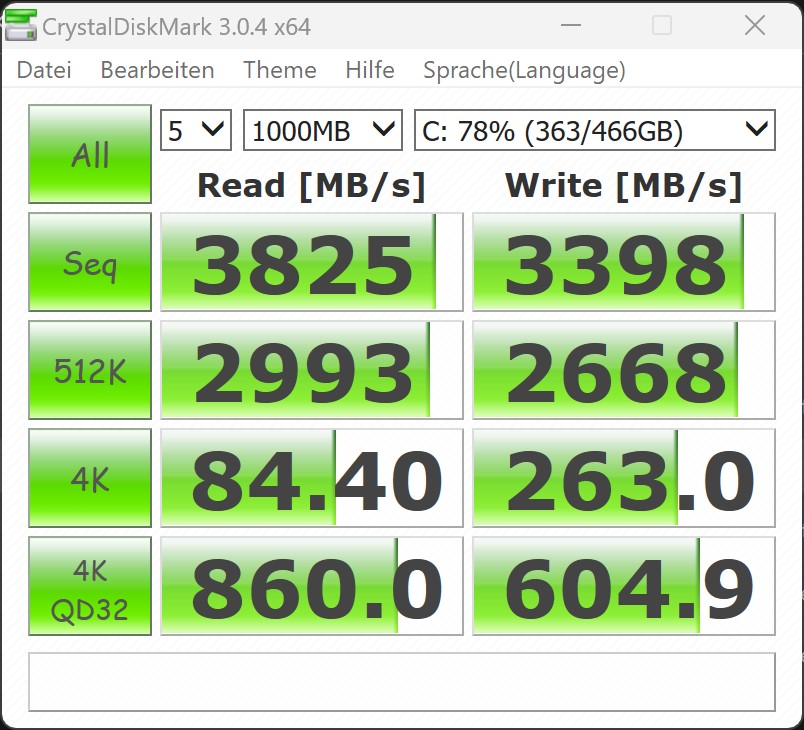

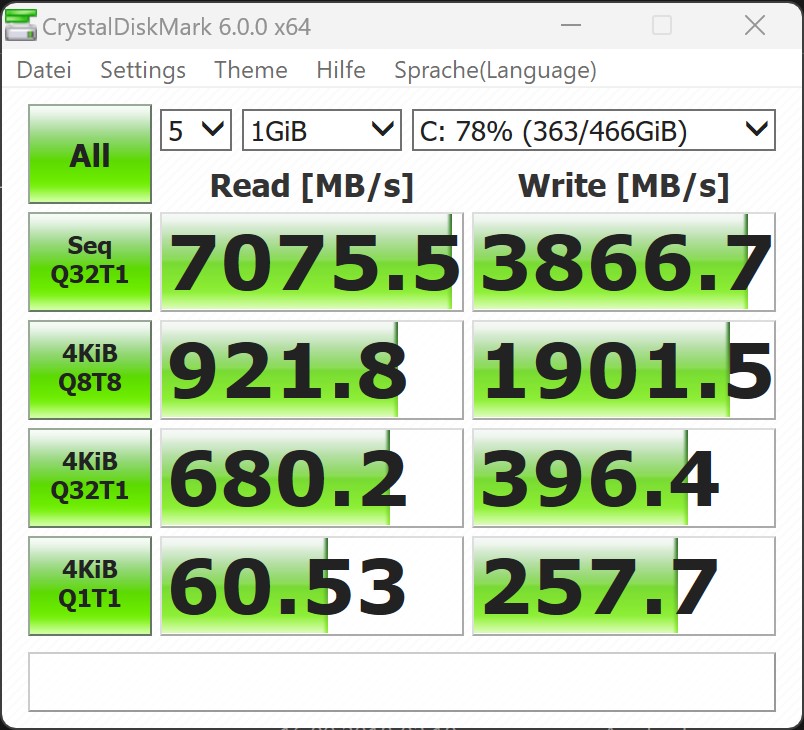

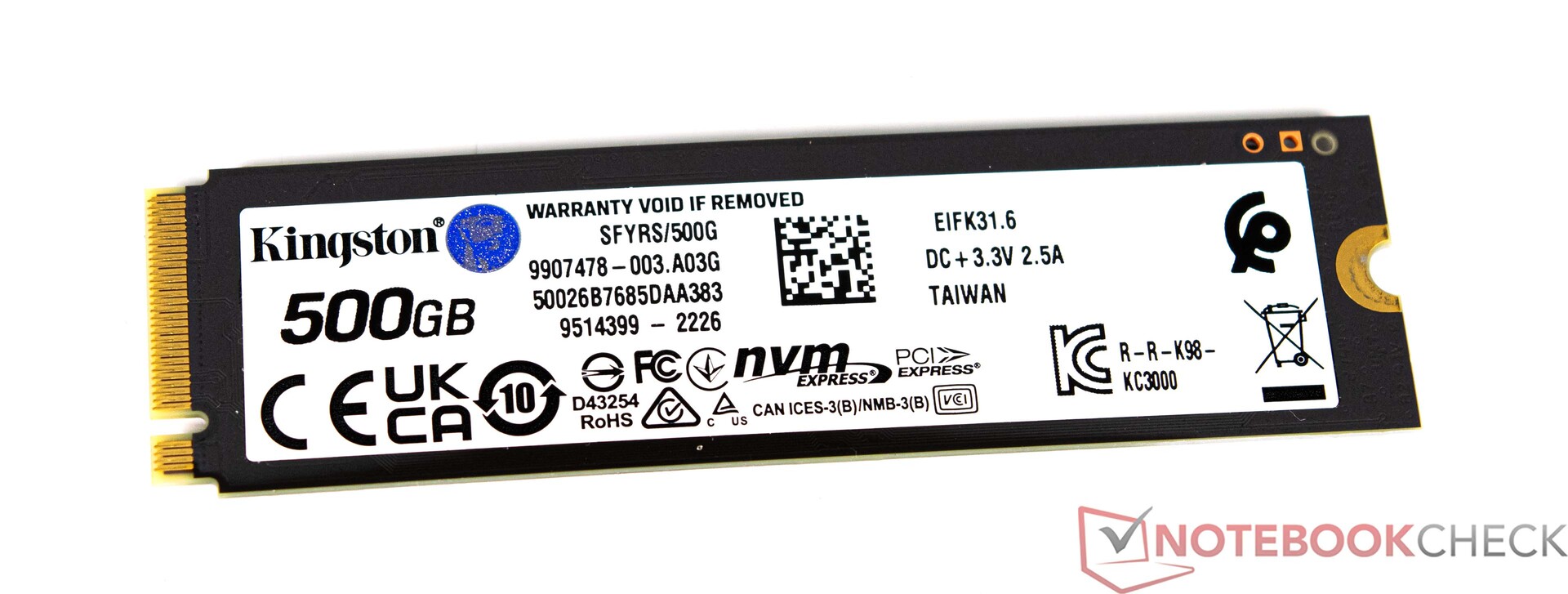

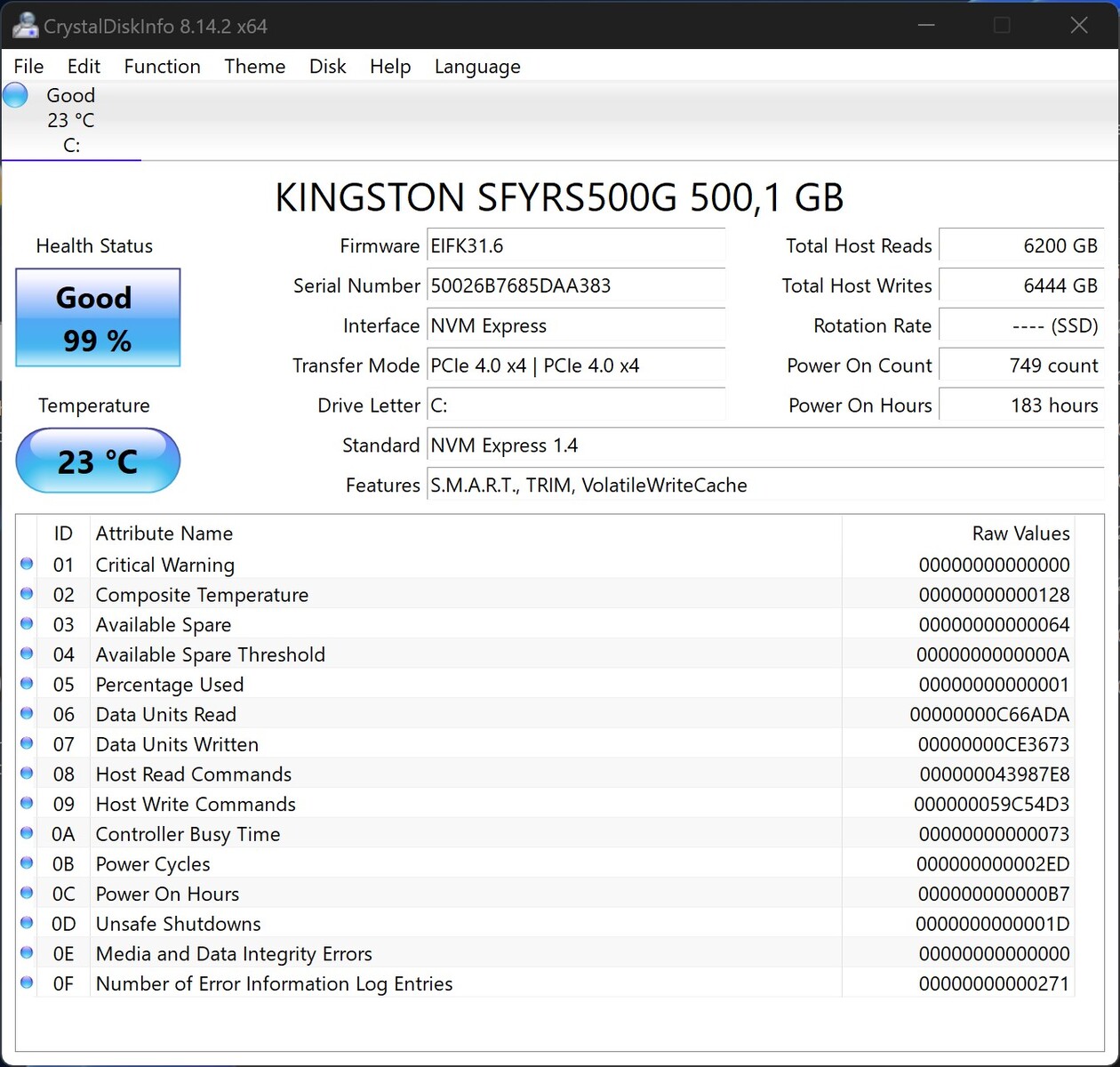

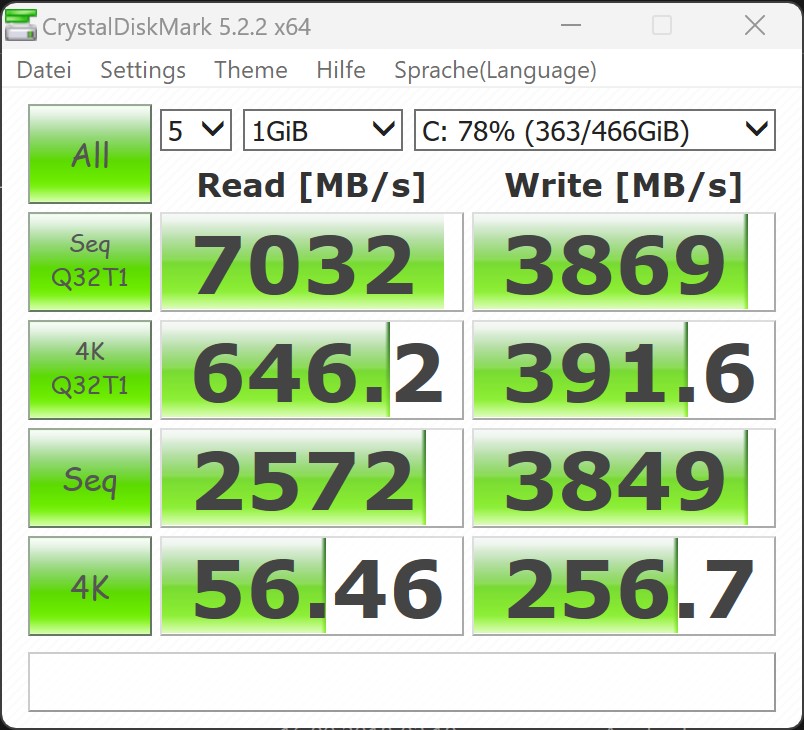

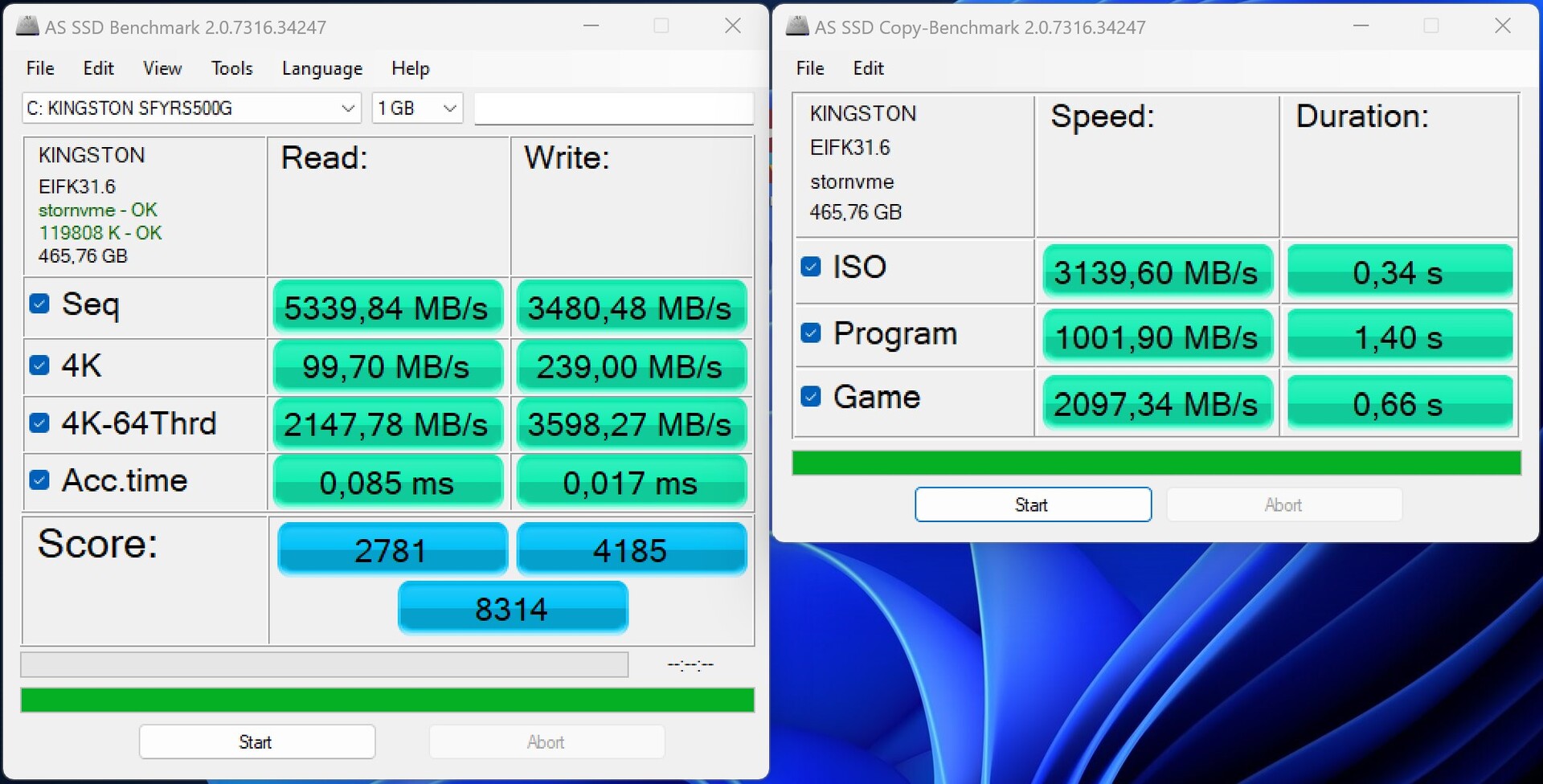

英特尔NUC 12爱好者套件安装了金士顿极快的NVMe固态硬盘。虽然,金士顿Fury Renegade只提供500GB的存储空间,如果安装了两三个较大的游戏,就会很快装满。但是,其性能绝对令人印象深刻。在这一点上,它的竞争对手没有一个能跟上的。在大约100MB/s的速度下,我们可以看到4K读取值的巨大成果,这对加载大量小文件有积极影响。除此之外,英特尔已经掌握了固态硬盘的冷却技术,这一点你可以从连续读取值中看出来。由于英特尔NUC 12发烧友套件可以安装多达三个M.2-2280格式的固态硬盘,所以关于存储的一些批评可以被原谅。
请看我们的 比较表来看更多的比较和基准。
Drive Performance Rating - Percent | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon | |
Minisforum Neptune Series HX99G | |
Intel Beast Canyon NUC | |
Intel Dragon Canyon NUC - RTX 3060 -11! | |
Average of class Mini PC | |
Zotac Magnus One (ECM73070C) | |
Zotac ZBOX Magnus EN173070C | |
Lenovo Legion 5 15ACH6A-82NW0010GE | |
Minisforum NUCX i7 |
* ... smaller is better
Reading continuous performance: DiskSpd Read Loop, Queue Depth 8
图形卡

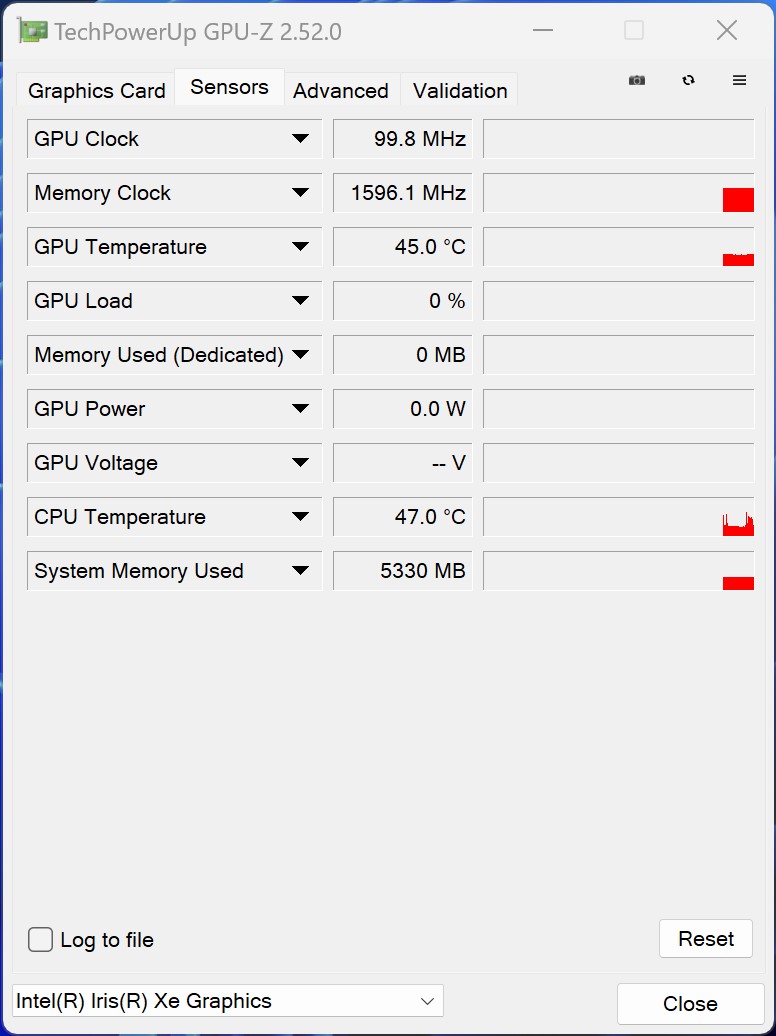

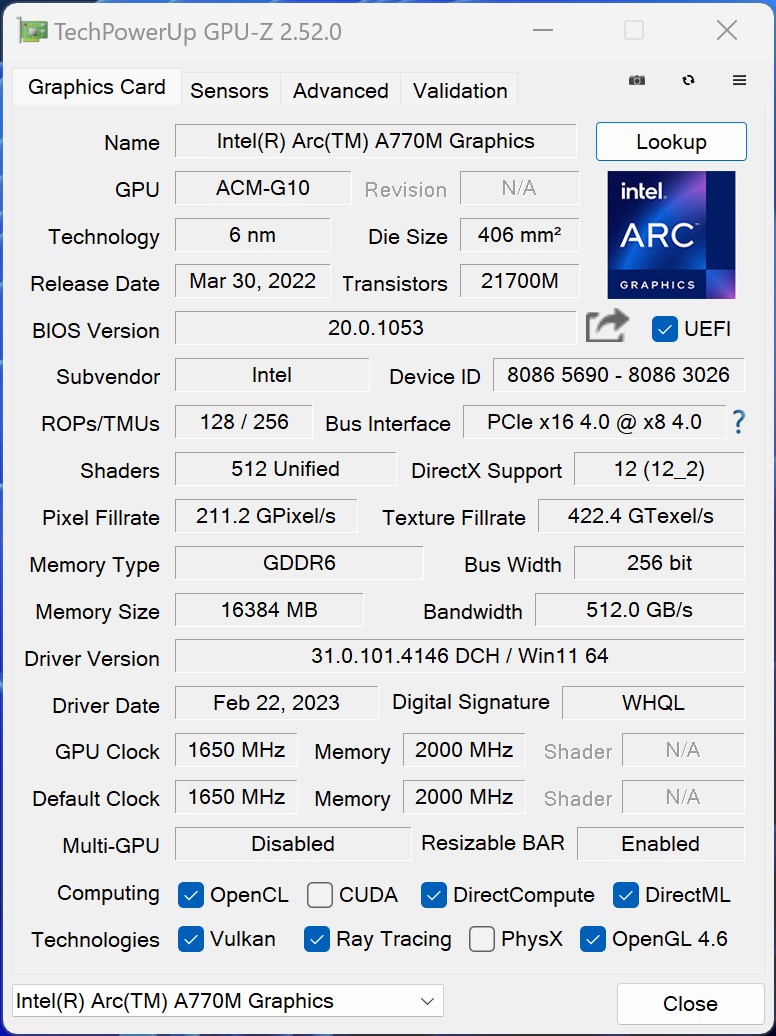

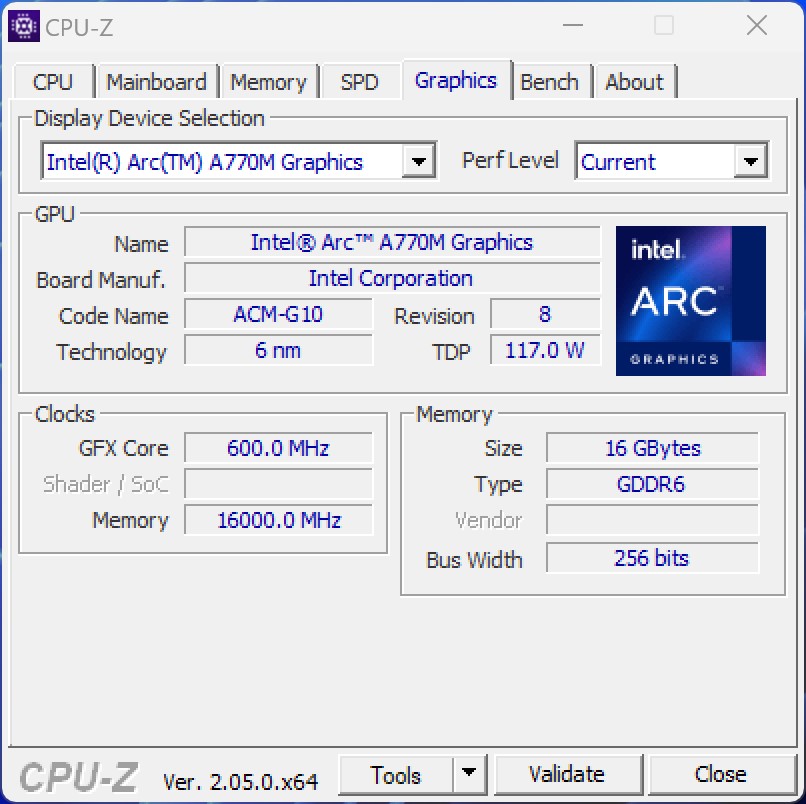

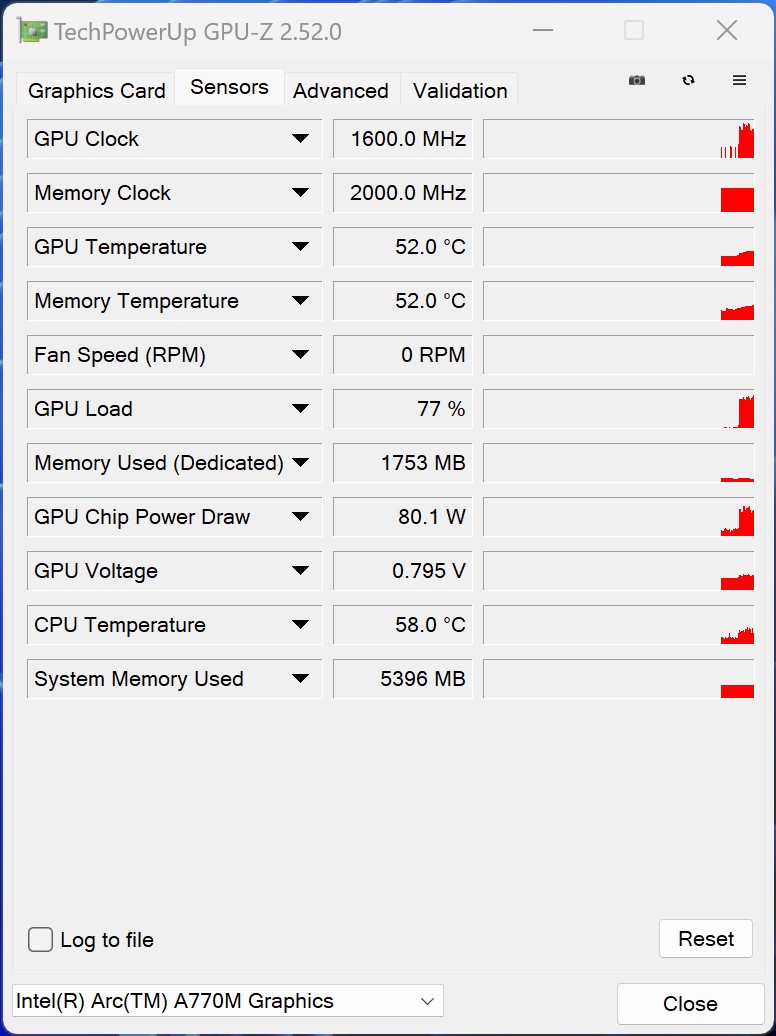

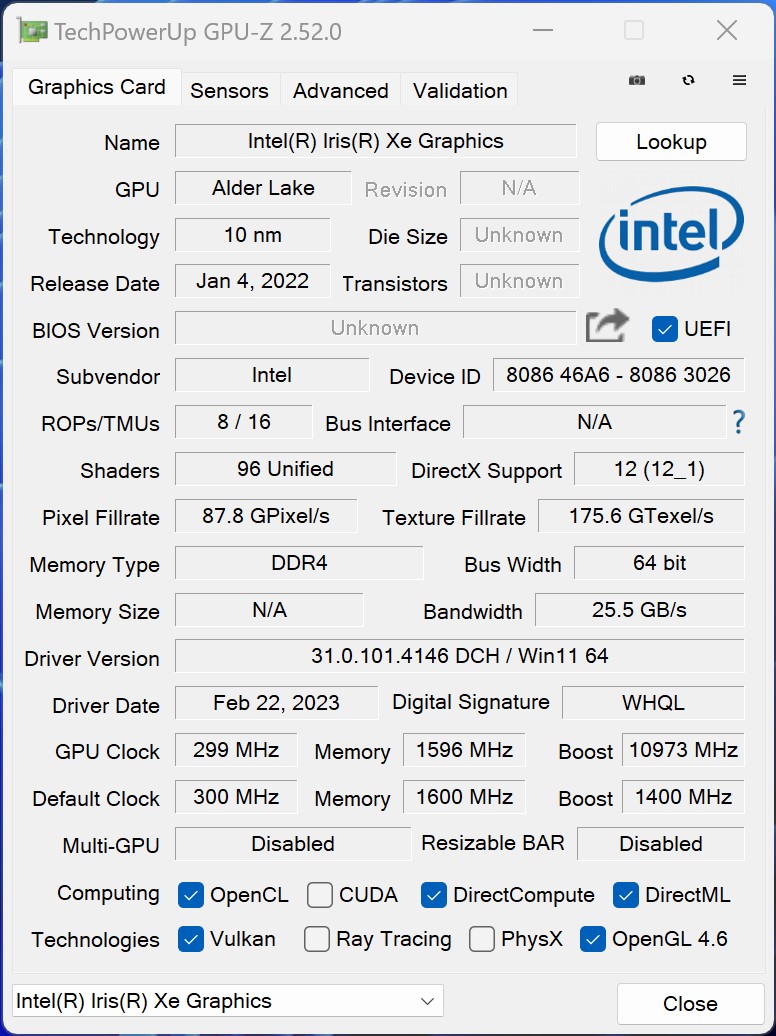

英特尔NUC 12爱好者套件的3D性能是由 英特尔 Arc A770M和iGPU Intel Iris Xe提供的,在2D运行时减轻了SoC的负担。专用的英特尔Arc A770M使得这是一个新的模型,我们以前在测试设施中并不经常看到。尽管英特尔几十年来一直提供良好的图形解决方案,但当涉及到专用图形卡时,情况就不同了。我们的测试样品在合成测试中表现良好,能够跟上其竞争对手的步伐--竞争对手有时甚至会输掉比赛。同时,在进行专业渲染测试时,英特尔NUC 12发烧友套装不得不承认失败。虽然,在3DMark测试中,它的表现超过了 NvidiaGeForce RTX 3070笔记本电脑.另外,英特尔A770M能够利用自己的VRAM,有16GB GDDR6--其竞争对手通常只有8GB。
英特尔NUC 12发烧友套件很容易做到超越其主要竞争对手--MINISFORUM海王星系列HX99G,它只有一个 AMD Radeon RX 6600M.根据不同的测试,英特尔NUC 12 Enthusiast Kit的性能提高了15-30%。
3DMark Performance Rating - Percent | |
Zotac Magnus One (ECM73070C) | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon | |
Zotac ZBOX Magnus EN173070C | |
Minisforum NUCX i7 | |
Lenovo Legion 5 15ACH6A-82NW0010GE | |
Minisforum Neptune Series HX99G | |
Intel Dragon Canyon NUC - RTX 3060 | |
Intel Beast Canyon NUC |
3DMark 11 - 1280x720 Performance GPU | |
Zotac Magnus One (ECM73070C) | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon | |
Minisforum NUCX i7 | |
Zotac ZBOX Magnus EN173070C | |
Minisforum Neptune Series HX99G | |
Lenovo Legion 5 15ACH6A-82NW0010GE | |
Intel Dragon Canyon NUC - RTX 3060 | |
Intel Beast Canyon NUC |
Performance Rating - Percent | |
Zotac Magnus One (ECM73070C) -5! | |
Zotac ZBOX Magnus EN173070C | |
Minisforum NUCX i7 | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon | |
Intel Dragon Canyon NUC - RTX 3060 | |
Intel Beast Canyon NUC | |
Minisforum Neptune Series HX99G | |
Lenovo Legion 5 15ACH6A-82NW0010GE -5! |
Unigine Heaven 4.0 | |
Extreme Preset OpenGL | |
Zotac Magnus One (ECM73070C) | |
Zotac ZBOX Magnus EN173070C | |
Minisforum NUCX i7 | |
Minisforum Neptune Series HX99G | |
Intel Dragon Canyon NUC - RTX 3060 | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon | |
Intel Beast Canyon NUC | |
Lenovo Legion 5 15ACH6A-82NW0010GE | |
Extreme Preset DX11 | |
Zotac Magnus One (ECM73070C) | |
Zotac ZBOX Magnus EN173070C | |
Minisforum NUCX i7 | |
Intel Dragon Canyon NUC - RTX 3060 | |
Intel Beast Canyon NUC | |
Minisforum Neptune Series HX99G | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon | |
Lenovo Legion 5 15ACH6A-82NW0010GE |
Unigine Valley 1.0 | |
1920x1080 Extreme HD DirectX AA:x8 | |
Zotac Magnus One (ECM73070C) | |
Zotac ZBOX Magnus EN173070C | |
Minisforum NUCX i7 | |
Intel Dragon Canyon NUC - RTX 3060 | |
Intel Beast Canyon NUC | |
Minisforum Neptune Series HX99G | |
Lenovo Legion 5 15ACH6A-82NW0010GE | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon | |
1920x1080 Extreme HD Preset OpenGL AA:x8 | |
Zotac Magnus One (ECM73070C) | |
Zotac ZBOX Magnus EN173070C | |
Minisforum NUCX i7 | |
Intel Dragon Canyon NUC - RTX 3060 | |
Intel Beast Canyon NUC | |
Minisforum Neptune Series HX99G | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon | |
Lenovo Legion 5 15ACH6A-82NW0010GE |
Unigine Superposition | |
1920x1080 1080p High | |
Zotac Magnus One (ECM73070C) | |
Zotac ZBOX Magnus EN173070C | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon | |
Minisforum NUCX i7 | |
Intel Beast Canyon NUC | |
Intel Dragon Canyon NUC - RTX 3060 | |
Minisforum Neptune Series HX99G | |
Lenovo Legion 5 15ACH6A-82NW0010GE | |
1920x1080 1080p Extreme | |
Zotac Magnus One (ECM73070C) | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon | |
Zotac ZBOX Magnus EN173070C | |
Minisforum NUCX i7 | |
Intel Dragon Canyon NUC - RTX 3060 | |
Intel Beast Canyon NUC | |
Lenovo Legion 5 15ACH6A-82NW0010GE | |
Minisforum Neptune Series HX99G |
Intel NUC 12, NUC12SNKi72_Serpent Canyon, Intel Core i7-12700H, Intel Arc A770M | Intel Beast Canyon NUC, Intel Core i9-11900KB, NVIDIA GeForce RTX 3060 | Zotac Magnus One (ECM73070C), Intel Core i7-10700, NVIDIA GeForce RTX 3070 | Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H, NVIDIA GeForce RTX 3070 Laptop GPU | Intel Dragon Canyon NUC - RTX 3060, Intel Core i9-12900, NVIDIA GeForce RTX 3060 | Lenovo Legion 5 15ACH6A-82NW0010GE, AMD Ryzen 5 5600H, AMD Radeon RX 6600M | Minisforum NUCX i7, Intel Core i7-11800H, NVIDIA GeForce RTX 3070 Laptop GPU | Minisforum Neptune Series HX99G, AMD Ryzen 9 6900HX, AMD Radeon RX 6600M | |
---|---|---|---|---|---|---|---|---|
SPECviewperf 12 | 112% | 174% | 170% | 132% | 312% | 156% | 1583% | |
1900x1060 Solidworks (sw-03) | 61.1 | 71.6 17% | 82.3 35% | 79.4 30% | 73.3 20% | 105 72% 105 72% | 68.6 12% | 180 195% |
1900x1060 Siemens NX (snx-02) | 1.33 | 8.75 558% | 12 802% | 11.7 780% | 9.83 639% | 36.2 2622% 36.2 2622% | 11.1 735% | 164 12231% |
1900x1060 Showcase (showcase-01) | 104 | 113 9% | 165 59% | 136 31% | 117 13% | 98.4 -5% 98.4 -5% | 138 33% | 129 24% |
1900x1060 Medical (medical-01) | 40.4 | 40.9 1% | 49 21% | 57.2 42% | 49.2 22% | 44.1 9% 44.1 9% | 55.7 38% | 96.1 138% |
1900x1060 Maya (maya-04) | 136 | 191 40% | 200 47% | 212 56% | 196 44% | 90.1 -34% 90.1 -34% | 199 46% | 159 17% |
1900x1060 Energy (energy-01) | 2.13 | 10 369% | 13.1 515% | 12.8 501% | 10.6 398% | 2.13 0% 2.13 0% | 12.1 468% | 31.4 1374% |
1900x1060 Creo (creo-01) | 37.7 | 49.4 31% | 61.5 63% | 59 56% | 56.9 51% | 86 128% 86 128% | 55.4 47% | 107 184% |
1900x1060 Catia (catia-04) | 144 | 77 -47% | 117 -19% | 115 -20% | 77.5 -46% | 141 -2% 141 -2% | 108 -25% | 207 44% |
1900x1060 3ds Max (3dsmax-05) | 150 | 201 34% | 213 42% | 233 55% | 214 43% | 172 15% 172 15% | 230 53% | 204 36% |
SPECviewperf 13 | 73% | 139% | 126% | 87% | 291% | 117% | 1416% | |
Solidworks (sw-04) | 66.2 | 104 57% | 114 72% | 111 68% | 107 62% | 127 92% | 104 57% | 169 155% |
Siemens NX (snx-03) | 2.44 | 15.8 548% | 21.9 798% | 20.9 757% | 17.7 625% | 64.2 2531% | 20 720% | 299 12154% |
Showcase (showcase-02) | 105 | 113 8% | 165 57% | 135 29% | 117 11% | 98.5 -6% | 138 31% | 129 23% |
Medical (medical-02) | 70.4 | 54.4 -23% | 78.3 11% | 69.5 -1% | 55.7 -21% | 63 -11% | 67.2 -5% | 80.3 14% |
Maya (maya-05) | 281 | 262 -7% | 367 31% | 337 20% | 281 0% | 187 -33% | 333 19% | 280 0% |
Energy (energy-02) | 19.2 | 13.7 -29% | 28.2 47% | 25.5 33% | 13.7 -29% | 2.05 -89% | 24.5 28% | 43.5 127% |
Creo (creo-02) | 77.6 | 172 122% | 241 211% | 225 190% | 191 146% | 166 114% | 215 177% | 221 185% |
Catia (catia-05) | 211 | 104 -51% | 171 -19% | 163 -23% | 107 -49% | 211 0% | 155 -27% | 314 49% |
3ds Max (3dsmax-06) | 149 | 202 36% | 213 43% | 235 58% | 207 39% | 174 17% | 233 56% | 202 36% |
Photoshop PugetBench | 149% | 163% | 122% | |||||
Filter Score | 116.2 | 89.4 -23% | 97.5 -16% | 97.6 -16% | ||||
General Score | 88.1 | 68.4 -22% | 73.7 -16% | 77 -13% | ||||
GPU Score | 10.8 | 82.3 662% | 86.4 700% | 68 530% | ||||
Overall Score | 1022 | 789 -23% | 856 -16% | 873 -15% | ||||
Premiere Pro PugetBench | -31% | 7% | -14% | |||||
GPU 0.9 | 47.2 | 30.2 -36% | 52.3 11% | 33.9 -28% | ||||
Live Playback 0.9 | 52.6 | 37 -30% | 59.2 13% | 43.6 -17% | ||||
Export 0.9 | 47.6 | 34.3 -28% | 46.8 -2% | 47.6 0% | ||||
Overall Score 0.9 | 501 | 357 -29% | 530 6% | 456 -9% | ||||
Total Average (Program / Settings) | 93% /
93% | 157% /
156% | 148% /
148% | 110% /
109% | 180% /
248% | 111% /
121% | 777% /
1055% |
3DMark 05 Standard | 55811 points | |
3DMark 06 Standard Score | 48471 points | |
3DMark Vantage P Result | 77403 points | |
3DMark 11 Performance | 29170 points | |
3DMark Ice Storm Standard Score | 236619 points | |
3DMark Cloud Gate Standard Score | 53345 points | |
3DMark Fire Strike Score | 23797 points | |
3DMark Fire Strike Extreme Score | 12430 points | |
3DMark Time Spy Score | 10997 points | |
Help |
游戏性能
其中一个问题是 弧度A770M在看它的游戏性能时就很清楚了。许多游戏都无法达到像这样的显卡所期望的性能水平。与合成测试结果相比,它的结果很差,它的GPU被证明比一个NvidiaGeForce RTX 3070笔记本电脑.我们怀疑主要问题不在于缺乏最佳的游戏支持。驱动程序也是这里的一个主要批评点,英特尔需要解决这个问题,以提高其显卡的性能。在去年推出台式机对应产品后,也有很多人感到失望--但是,英特尔一点一点地投入大量工作,使这些问题得到控制。我们希望未来的驱动优化能够为新游戏提供更好的效果。单个游戏之间的性能差异有时是相当大的。在《F1 2021》和《地铁出埃及记》中,我们看到了良好的帧率结果,而英特尔Arc A770M在《Witcher 3 》和《GTA V》中则很挣扎。
在1080p下,我们测试的大多数游戏都可以由英特尔Arc A770M流畅地播放。
Performance Rating - Percent | |
Minisforum NUCX i7 | |
Minisforum Neptune Series HX99G | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon |
GTA V - 1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x | |
Minisforum NUCX i7 | |
Minisforum Neptune Series HX99G | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon |
The Witcher 3 - 1920x1080 Ultra Graphics & Postprocessing (HBAO+) | |
Minisforum NUCX i7 | |
Minisforum Neptune Series HX99G | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon |
Far Cry 5 - 1920x1080 Ultra Preset AA:T | |
Minisforum NUCX i7 | |
Minisforum Neptune Series HX99G | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon |
Far Cry New Dawn - 1920x1080 Ultra Preset | |
Minisforum NUCX i7 | |
Minisforum Neptune Series HX99G | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon |
F1 2020 - 1920x1080 Ultra High Preset AA:T AF:16x | |
Minisforum NUCX i7 | |
Minisforum Neptune Series HX99G | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon |
Strange Brigade - 1920x1080 ultra AA:ultra AF:16 | |
Minisforum NUCX i7 | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon | |
Minisforum Neptune Series HX99G |
Borderlands 3 - 1920x1080 Badass Overall Quality (DX11) | |
Minisforum NUCX i7 | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon | |
Minisforum Neptune Series HX99G |
Metro Exodus - 1920x1080 Ultra Quality AF:16x | |
Minisforum NUCX i7 | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon | |
Minisforum Neptune Series HX99G |
F1 2021 - 1920x1080 Ultra High Preset + Raytracing AA:T AF:16x | |
Minisforum NUCX i7 | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon | |
Minisforum Neptune Series HX99G |
F1 22 - 1920x1080 Ultra High Preset AA:T AF:16x | |
Minisforum NUCX i7 | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon | |
Minisforum Neptune Series HX99G |
Tiny Tina's Wonderlands - 1920x1080 Badass Preset (DX12) | |
Minisforum NUCX i7 | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon | |
Minisforum Neptune Series HX99G |
God of War - 1920x1080 Ultra Preset | |
Minisforum NUCX i7 | |
Minisforum Neptune Series HX99G | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon |
Shadow of the Tomb Raider - 1920x1080 Highest Preset AA:T | |
Minisforum NUCX i7 | |
Minisforum Neptune Series HX99G | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon |
GTA V - 1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x | |
Minisforum NUCX i7 | |
Zotac ZBOX Magnus EN173070C | |
Intel Beast Canyon NUC | |
Intel Dragon Canyon NUC - RTX 3060 | |
Zotac Magnus One (ECM73070C) | |
Minisforum Neptune Series HX99G | |
Lenovo Legion 5 15ACH6A-82NW0010GE | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon |
The Witcher 3 - 1920x1080 Ultra Graphics & Postprocessing (HBAO+) | |
Zotac Magnus One (ECM73070C) | |
Zotac ZBOX Magnus EN173070C | |
Minisforum NUCX i7 | |
Intel Dragon Canyon NUC - RTX 3060 | |
Minisforum Neptune Series HX99G | |
Lenovo Legion 5 15ACH6A-82NW0010GE | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon |
Far Cry 5 - 1920x1080 Ultra Preset AA:T | |
Intel Dragon Canyon NUC - RTX 3060 | |
Intel Beast Canyon NUC | |
Zotac ZBOX Magnus EN173070C | |
Minisforum NUCX i7 | |
Zotac Magnus One (ECM73070C) | |
Minisforum Neptune Series HX99G | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon | |
Lenovo Legion 5 15ACH6A-82NW0010GE |
Far Cry New Dawn - 1920x1080 Ultra Preset | |
Intel Dragon Canyon NUC - RTX 3060 | |
Intel Beast Canyon NUC | |
Zotac ZBOX Magnus EN173070C | |
Minisforum NUCX i7 | |
Zotac Magnus One (ECM73070C) | |
Minisforum Neptune Series HX99G | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon | |
Lenovo Legion 5 15ACH6A-82NW0010GE |
Strange Brigade - 1920x1080 ultra AA:ultra AF:16 | |
Zotac Magnus One (ECM73070C) | |
Zotac ZBOX Magnus EN173070C | |
Minisforum NUCX i7 | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon | |
Minisforum Neptune Series HX99G | |
Intel Beast Canyon NUC | |
Intel Dragon Canyon NUC - RTX 3060 | |
Lenovo Legion 5 15ACH6A-82NW0010GE |
Borderlands 3 - 1920x1080 Badass Overall Quality (DX11) | |
Intel Beast Canyon NUC | |
Zotac Magnus One (ECM73070C) | |
Intel Dragon Canyon NUC - RTX 3060 | |
Minisforum NUCX i7 | |
Zotac ZBOX Magnus EN173070C | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon | |
Minisforum Neptune Series HX99G | |
Lenovo Legion 5 15ACH6A-82NW0010GE |
Metro Exodus - 1920x1080 Ultra Quality AF:16x | |
Zotac Magnus One (ECM73070C) | |
Zotac ZBOX Magnus EN173070C | |
Minisforum NUCX i7 | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon | |
Intel Dragon Canyon NUC - RTX 3060 | |
Lenovo Legion 5 15ACH6A-82NW0010GE | |
Intel Beast Canyon NUC | |
Minisforum Neptune Series HX99G |
F1 2021 - 1920x1080 Ultra High Preset + Raytracing AA:T AF:16x | |
Minisforum NUCX i7 | |
Zotac ZBOX Magnus EN173070C | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon | |
Intel Beast Canyon NUC | |
Intel Dragon Canyon NUC - RTX 3060 | |
Lenovo Legion 5 15ACH6A-82NW0010GE | |
Minisforum Neptune Series HX99G |
low | med. | high | ultra | QHD | 4K | |
---|---|---|---|---|---|---|
GTA V (2015) | 174.5 | 165.6 | 119.4 | 53.3 | 45.2 | |
The Witcher 3 (2015) | 274.7 | 172.7 | 50.7 | 61.5 | ||
Dota 2 Reborn (2015) | 110.1 | 96.3 | 104 | 101.7 | 85.9 | |
Final Fantasy XV Benchmark (2018) | 132.4 | 91.3 | 50.7 | 41.6 | 28.6 | |
X-Plane 11.11 (2018) | 67.5 | 59.4 | 55.5 | 38.5 | ||
Far Cry 5 (2018) | 127 | 106 | 99 | 95 | 81 | 45 |
Strange Brigade (2018) | 439 | 256 | 211 | 178.7 | 74.3 | |
Shadow of the Tomb Raider (2018) | 100.9 | 74.2 | 73 | 68.5 | 57.6 | 38.6 |
Far Cry New Dawn (2019) | 115 | 100 | 95 | 85 | 50 | |
Metro Exodus (2019) | 155.1 | 123.8 | 85.1 | 69.6 | 56.5 | 37 |
Borderlands 3 (2019) | 99.4 | 87 | 78.9 | 69.2 | 53.5 | 29.1 |
F1 2020 (2020) | 249 | 175.9 | 149.9 | 104.5 | 81.6 | 53.1 |
Death Stranding (2020) | 140.6 | 123.7 | 116.6 | 113.7 | 85.7 | 49.4 |
F1 2021 (2021) | 355 | 285 | 227 | 106.4 | 75.9 | 43.6 |
New World (2021) | 101.9 | 84.2 | 77.6 | 74.8 | 35.2 | |
Far Cry 6 (2021) | 143.2 | 119.9 | 103.3 | 88 | 67.7 | 40.2 |
Guardians of the Galaxy (2021) | 124 | 112 | 110 | 105 | 79 | 45 |
God of War (2022) | 62.1 | 62.3 | 59.3 | 47.3 | 26.8 | |
GRID Legends (2022) | 143.1 | 117.9 | 95.9 | 81.2 | 74.5 | 71.9 |
Elden Ring (2022) | 57.7 | 40.8 | ||||
Cyberpunk 2077 1.6 (2022) | 112.5 | 95.3 | 77 | 66.5 | 44 | 21.6 |
Tiny Tina's Wonderlands (2022) | 192.2 | 138.5 | 95.1 | 76.8 | 52.4 | 27.4 |
F1 22 (2022) | 181.5 | 166 | 131 | 42 | 27.8 | 14.6 |
The Quarry (2022) | 108 | 84.9 | 69.3 | 52.9 | 35.9 | 18.8 |
A Plague Tale Requiem (2022) | 79.3 | 71.5 | 55 | 42.1 | 31.9 | 18.6 |
Uncharted Legacy of Thieves Collection (2022) | 43.4 | 40.8 | 44.2 | 43.4 | 41.1 | |
Call of Duty Modern Warfare 2 2022 (2022) | 95 | 86 | 71 | 68 | 51 | 32 |
Spider-Man Miles Morales (2022) | 102.8 | 100 | 90 | 86.4 | 67.7 | 38.3 |
The Callisto Protocol (2022) | 122.5 | 90.6 | 64.1 | 64 | 47.5 | 28.1 |
High On Life (2023) | 178.5 | 126.5 | 99.7 | 80.9 | 52.9 | 24.9 |
The Witcher 3 v4.00 (2023) | 143.7 | 125.1 | 111.3 | 99.2 | 44.1 | |
Dead Space Remake (2023) | 42.2 | 49.2 | 46.2 | 54.1 | 24.4 | 15.8 |
Hogwarts Legacy (2023) | 51.9 | 52.5 | 55.1 | 51.9 | 39.1 | 22.2 |
Baldur's Gate 3 (2023) | 88.9 | 60.6 | 31.7 | |||
Cyberpunk 2077 2.1 Phantom Liberty (2023) | 97.1 | 78.8 | 65.6 | 43.1 | 20.7 | |
Counter-Strike 2 (2023) | 79.2 | |||||
EA Sports FC 24 (2023) | 116.9 | |||||
Total War Pharaoh (2023) | 67.3 | |||||
The Finals (2023) | 106 | 69.6 | ||||
Palworld (2024) | 61.7 | 46.6 | ||||
Helldivers 2 (2024) | 96.2 | 73.7 | 32.3 | |||
Senua's Saga Hellblade 2 (2024) | 34.2 | 27.3 | 19.9 | |||
F1 24 (2024) | 229 | 196.4 | 151.3 | 49.1 | ||
Black Myth: Wukong (2024) | 56 | 42 | 32 | 19 | 15 | |
Star Wars Outlaws (2024) | 42.8 | 40.9 | 35.1 | 29.5 |
排放--耗费能源,不容忽视
系统噪音
英特尔NUC 12发烧友套件通过热管和两个风扇的组合进行冷却,从而有效地将热量引出机箱。在实际使用中,它的效果相当好--尽管必须指出,其竞争对手的平均表现略好。在没有负载的情况下,该系统几乎总是安静地运行,几乎是无声的,只有32dB(A)。在我们的压力测试中,在负载下,其噪音排放上升到44.5 dB(A) - 这是一个更明显的音量。
Noise Level
Idle |
| 31.8 / 31.9 / 32 dB(A) |
Load |
| 44.4 / 44.5 dB(A) |
| ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min: , med: , max: Earthworks M23R, Arta (15 cm distance) environment noise: 30.3 dB(A) |
Intel NUC 12, NUC12SNKi72_Serpent Canyon i7-12700H, A770M | Minisforum Neptune Series HX99G R9 6900HX, Radeon RX 6600M | Minisforum NUCX i7 i7-11800H, GeForce RTX 3070 Laptop GPU | Zotac Magnus One (ECM73070C) i7-10700, NVIDIA GeForce RTX 3070 | Zotac ZBOX Magnus EN173070C i7-11800H, GeForce RTX 3070 Laptop GPU | Intel Dragon Canyon NUC - RTX 3060 i9-12900, NVIDIA GeForce RTX 3060 | Lenovo Legion 5 15ACH6A-82NW0010GE R5 5600H, Radeon RX 6600M | |
---|---|---|---|---|---|---|---|
Noise | 8% | 10% | -4% | -1% | 3% | 4% | |
off / environment * | 30.3 | 30.5 -1% | 29.5 3% | 30 1% | 30.7 -1% | 30.2 -0% | 25 17% |
Idle Minimum * | 31.8 | 31.7 -0% | 29.5 7% | 33.58 -6% | 32.7 -3% | 30.2 5% | 25 21% |
Idle Average * | 31.9 | 31.7 1% | 29.5 8% | 32.8 -3% | 30.4 5% | 25 22% | |
Idle Maximum * | 32 | 31.7 1% | 29.5 8% | 32.8 -3% | 30.8 4% | 34.5 -8% | |
Load Average * | 44.4 | 32 28% | 32.8 26% | 44.25 -0% | 41.7 6% | 51.1 -15% | |
Load Maximum * | 44.5 | 36.2 19% | 40.8 8% | 48.72 -9% | 45.4 -2% | 45.1 -1% | 51.3 -15% |
* ... smaller is better

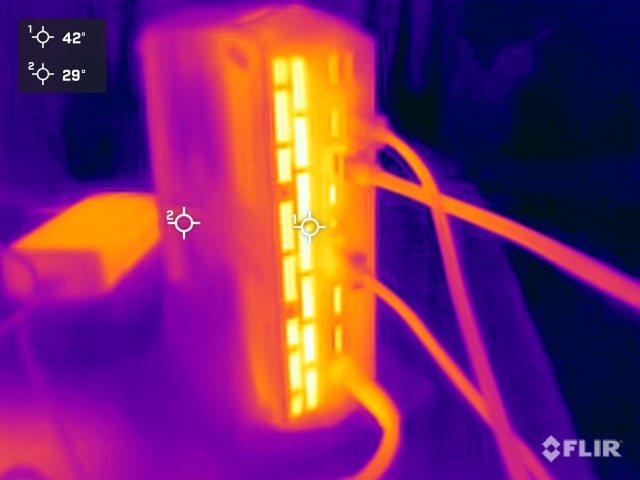

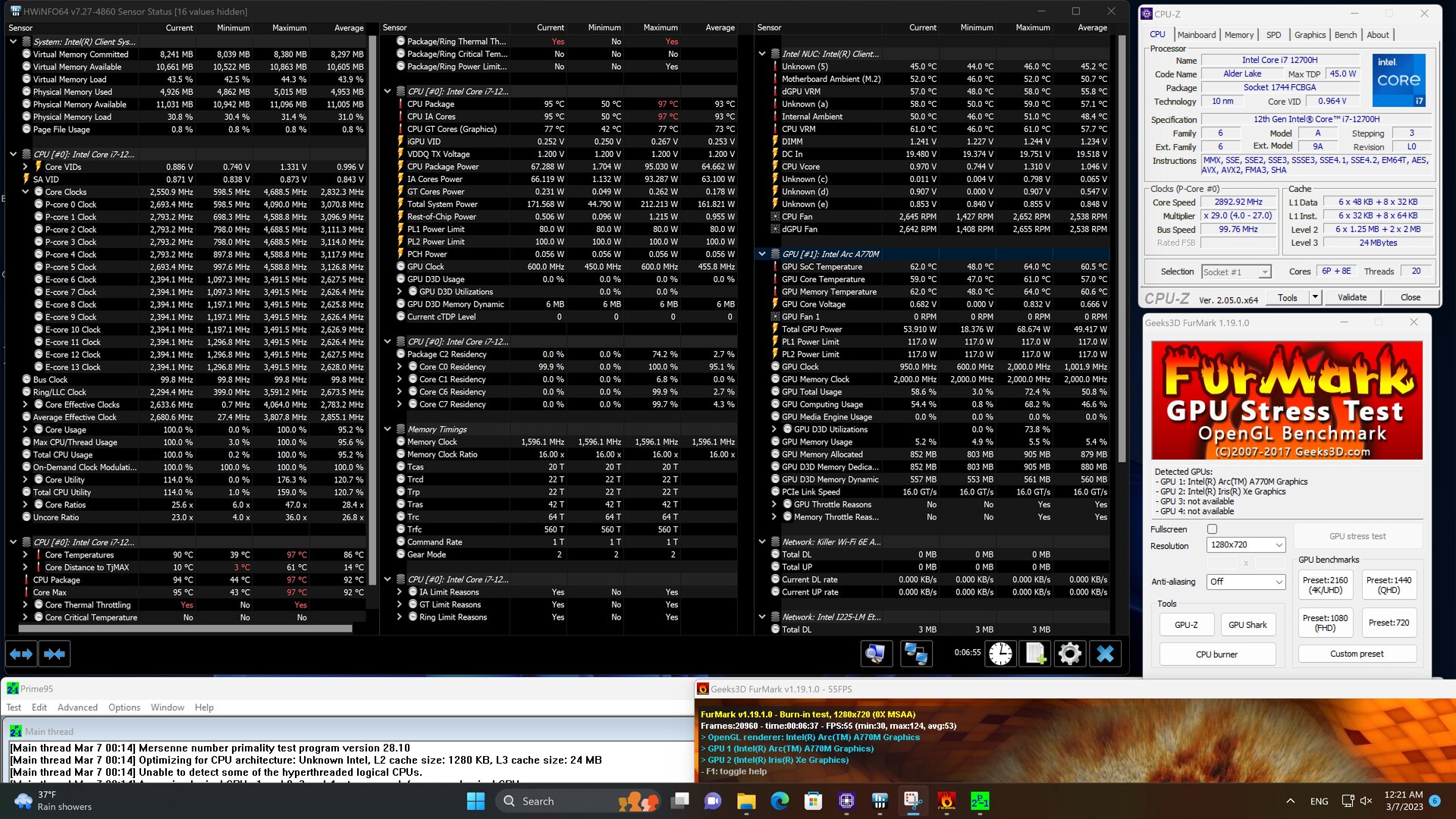

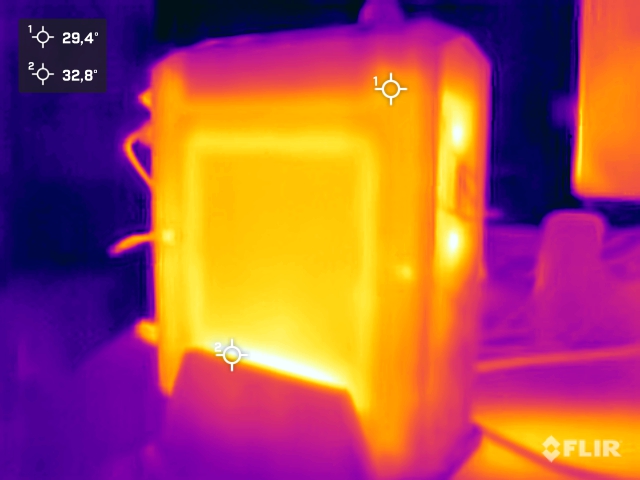

温度
英特尔NUC 12发烧友套装的机箱温度并不突出,这意味着热量被迅速有效地引出机箱,没有热量积聚。然而,在负载情况下,温度最高达到97℃。与之相比, 英特尔A770M的温度最高为76℃。GPU在整个过程中都能以全性能运行。
消耗功率
在所有的事情上,英特尔NUC 12发烧友套件根本无法跟上其竞争对手。特别是在空载时,我们看到了一个相当高的消耗。我们测得的峰值为271瓦,这是我们在其他任何一款迷你PC上都没有看到的。即便如此,330瓦的大型电源适配器始终为设备提供充足的电源。
Off / Standby | 0.3 / 0.8 Watt |
Idle | 28.8 / 39.3 / 57.1 Watt |
Load |
158.7 / 270.9 Watt |
Key:
min: ,
med: ,
max: Metrahit Energy |
Intel NUC 12, NUC12SNKi72_Serpent Canyon i7-12700H, A770M | Minisforum Neptune Series HX99G R9 6900HX, Radeon RX 6600M | Minisforum NUCX i7 i7-11800H, GeForce RTX 3070 Laptop GPU | Zotac ZBOX Magnus EN173070C i7-11800H, GeForce RTX 3070 Laptop GPU | Lenovo Legion 5 15ACH6A-82NW0010GE R5 5600H, Radeon RX 6600M | Average Intel Arc A770M | Average of class Mini PC | |
---|---|---|---|---|---|---|---|
Power Consumption | 43% | 26% | 2% | 45% | 0% | 67% | |
Idle Minimum * | 28.8 | 16.8 42% | 28.2 2% | 31.3 -9% | 10 65% | 28.8 ? -0% | 9.69 ? 66% |
Idle Average * | 39.3 | 19.4 51% | 29.9 24% | 35.1 11% | 13.2 66% | 39.3 ? -0% | 11.9 ? 70% |
Idle Maximum * | 57.1 | 23.1 60% | 36.2 37% | 41.6 27% | 15.6 73% | 57.1 ? -0% | 15.2 ? 73% |
Load Average * | 158.7 | 81.5 49% | 83.2 48% | 214 -35% | 178 -12% | 158.7 ? -0% | 59 ? 63% |
Load Maximum * | 270.9 | 237 13% | 215.7 20% | 231 15% | 180 34% | 271 ? -0% | 100.5 ? 63% |
Witcher 3 ultra * | 167 | 193.5 | 181 | ||||
Cyberpunk 2077 ultra external monitor * | 177 |
* ... smaller is better
Power consumption with external monitor
Pros
Cons
结论 - 快速的CPU,平均的GPU
英特尔NUC 12发烧友套件是一个有趣的设备,它有一个快速的 英特尔酷睿i7-12700H,在我们的测试中表现出很好的性能。说到它的英特尔A770M,我们仍然很纠结。乍一看,专用显卡的性能相当好,甚至可以与一个 NvidiaGeForce RTX 3070笔记本电脑- 但即便如此,在我们的游戏测试中,越来越多的问题变得清晰。过去,英特尔在开发他们的驱动程序方面投入了大量精力,并且肯定已经在正确的方向上迈出了一步。显卡的性能,与2023年2月28日的驱动程序一起,只是还没有完全达到。很多时候,它甚至落在相当远的地方。
英特尔NUC 12发烧友套件的外观是一个个人意见的问题--不是每个人都喜欢发光的头骨。不过,这一点可以通过你可以自己定制标识的事实来弥补。正如英特尔所期望的那样,该设备的整体建造质量很好。
英特尔NUC 12 Enthusiast Kit是一款时尚的迷你PC,配有快速的英特尔酷睿i7-12700H。英特尔A770M提供了一个坚实的基础性能和大量的VRAM。尽管如此,它并没有完全达到我们的期望。
我们对其内置的冷却系统有更高的期望,该系统有很大的潜力来冷却设备的组件。尽管如此,我们对它在高负荷下的噪音排放并不感到满意。在这里, Minisforum Neptune系列HX99G提供了一个更安静的体验。此外,英特尔需要在其驱动程序的GPU性能上下功夫。在这里,AMD和Nvidia仍然占据领先地位。
一个值得肯定的积极特征是16GB的VRAM,这在其竞争对手中并不常见。此外,英特尔NUC 12 Enthusiast Kit具有大量的外部端口,包括Thunderbolt。这使迷你电脑能够适应未来的发展,并提供大量的扩展机会。
价格和可用性
英特尔NUC 12 Enthusiast Kit的裸机版可以在亚马逊上以1591.99美元的价格购买。配备16GB DDR4内存和1TB固态硬盘的版本售价为1,647.64美元。
Transparency
The selection of devices to be reviewed is made by our editorial team. The test sample was provided to the author as a loan by the manufacturer or retailer for the purpose of this review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.
This is how Notebookcheck is testing
Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.
Intel NUC 12, NUC12SNKi72_Serpent Canyon
- 03/09/2023 v7 (old)
Sebastian Bade
