华硕ExpertBook B3 Flip在审查中。带有数字手写笔和LTE调制解调器的二合一笔记本电脑

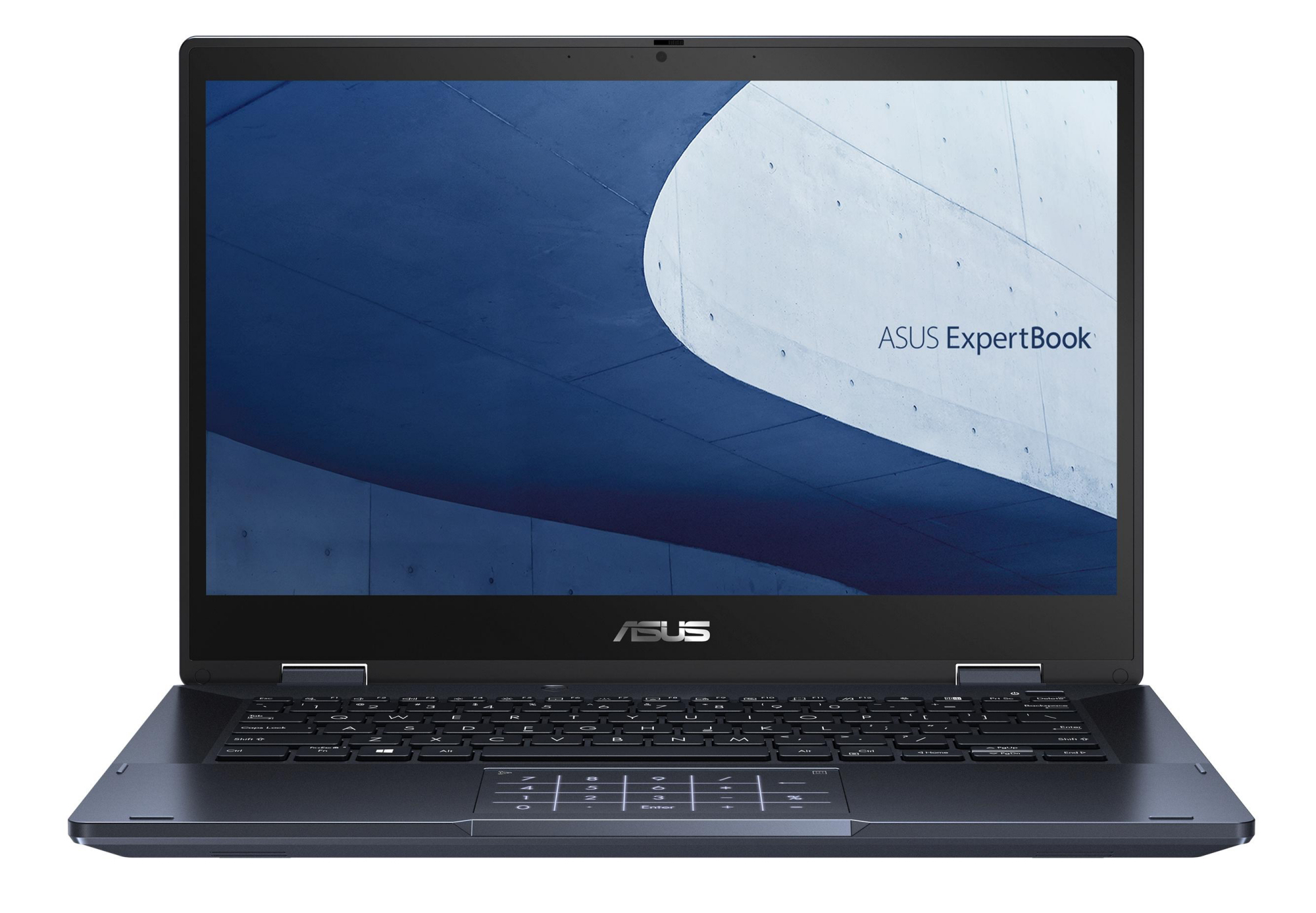

ExpertBook B3是一款商务系列的2合1笔记本电脑。这个模型代表了华硕产品组合的入门级。我们已经测试了中档和高档系列的代表产品，包括 ExpertBook B5 Flip和 ExpertBook B7 Flip.设备如 联想ThinkBook 14s Yoga ITL，以及 惠普ProBook x360 435 G8，或 戴尔 Inspiron 14 7415是其竞争对手的一些例子。
Asus ExpertBook B3 Flip B3402FEA (ExpertBook B3 Flip Series)
Processor
Intel Core i7-1165G7 4 x 2.8 - 4.7 GHz, 64 W PL2 / Short Burst, 32 W PL1 / Sustained, Tiger Lake-UP3
Graphics adapter

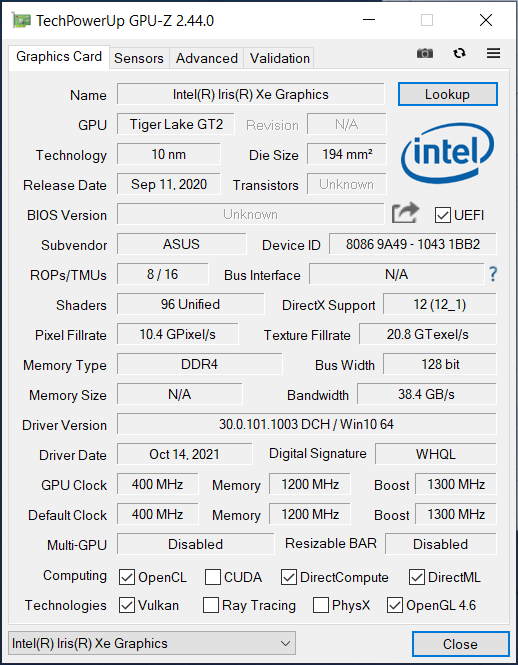

Intel Iris Xe Graphics G7 96EUs, Core: 1300 MHz, Single-Channel, 30.0.101.1003
Memory
16 GB

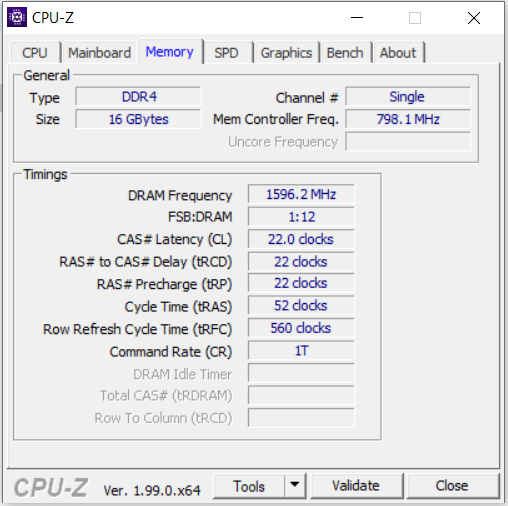

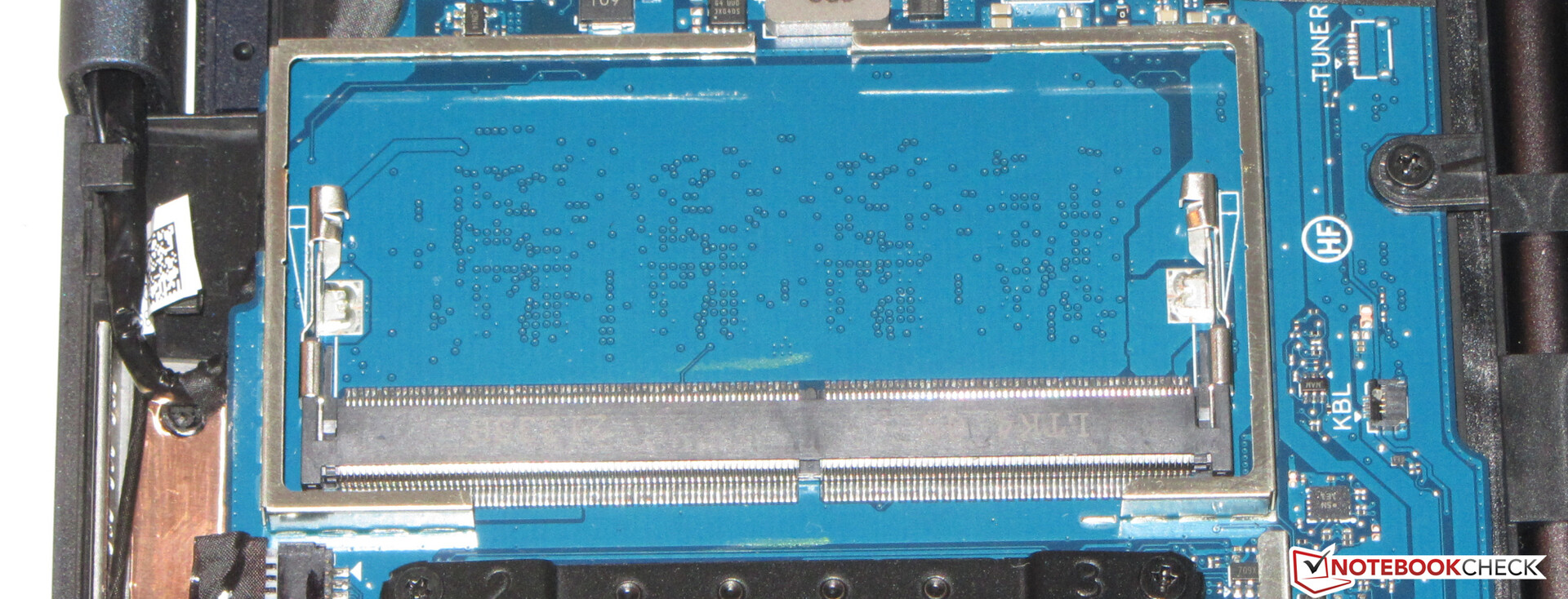

, DDR4-3200, Single-Channel-Mode, 16 GB onboard, one memory slot (empty)
Display
14.00 inch 16:9, 1920 x 1080 pixel 157 PPI, capacitive, 10 touchpoints, native pen support, AU Optronics B140HAN04.0, IPS, glossy: yes, 60 Hz
Mainboard
Intel Tiger Lake-UP3 PCH-LP
Storage

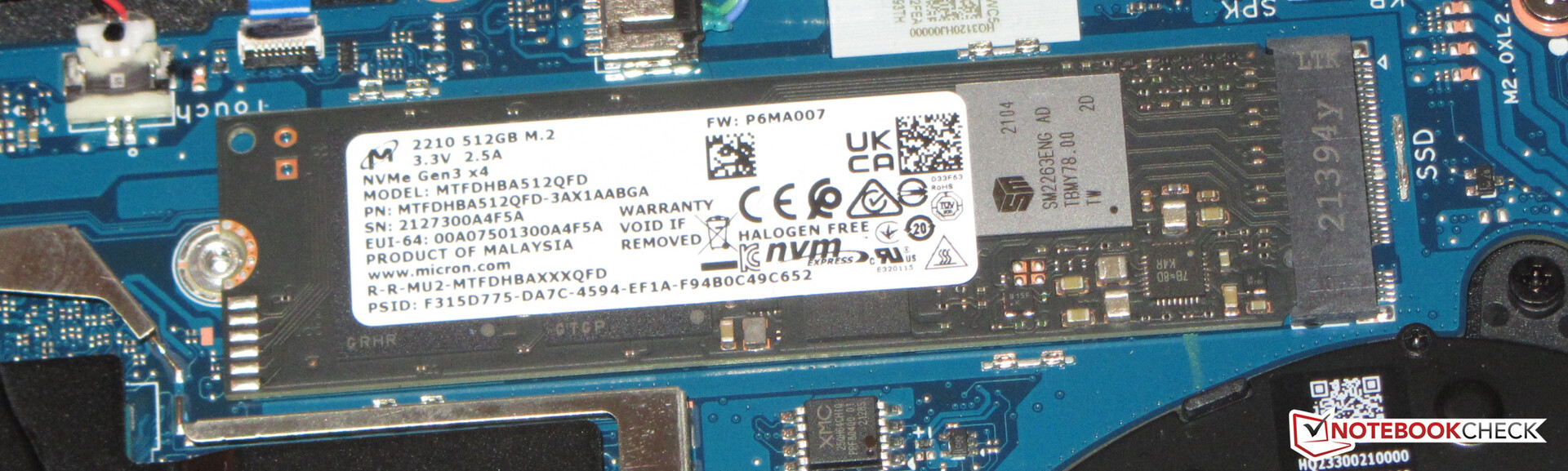

Micron 2210 MTFDHBA512QFD, 512 GB
, 429 GB free
Weight
1.61 kg, Power Supply: 350 g
Price
1499 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.
潜在的竞争对手比较
Rating | Date | Model | Weight | Height | Size | Resolution | Price |
|---|---|---|---|---|---|---|---|
| 85.2 % v7 (old) | 02 / 2022 | Asus ExpertBook B3 Flip B3402FEA i7-1165G7, Iris Xe G7 96EUs | 1.6 kg | 19.5 mm | 14.00" | 1920x1080 | |
| 88.1 % v7 (old) | 04 / 2021 | Lenovo ThinkBook 14s Yoga ITL 20WE0023GE i7-1165G7, Iris Xe G7 96EUs | 1.5 kg | 16.9 mm | 14.00" | 1920x1080 | |
| 82.9 % v7 (old) | 09 / 2021 | Dell Inspiron 14 7400 7415 2-in-1 R7 5700U, Vega 8 | 1.5 kg | 17.95 mm | 14.00" | 1920x1080 | |
| 85.7 % v7 (old) | 08 / 2021 | HP ProBook x360 435 G8 R7-5800U R7 5800U, Vega 8 | 1.5 kg | 18 mm | 13.30" | 1920x1080 |
机箱和连接性 - B3 Flip有两个以上的雷电4端口

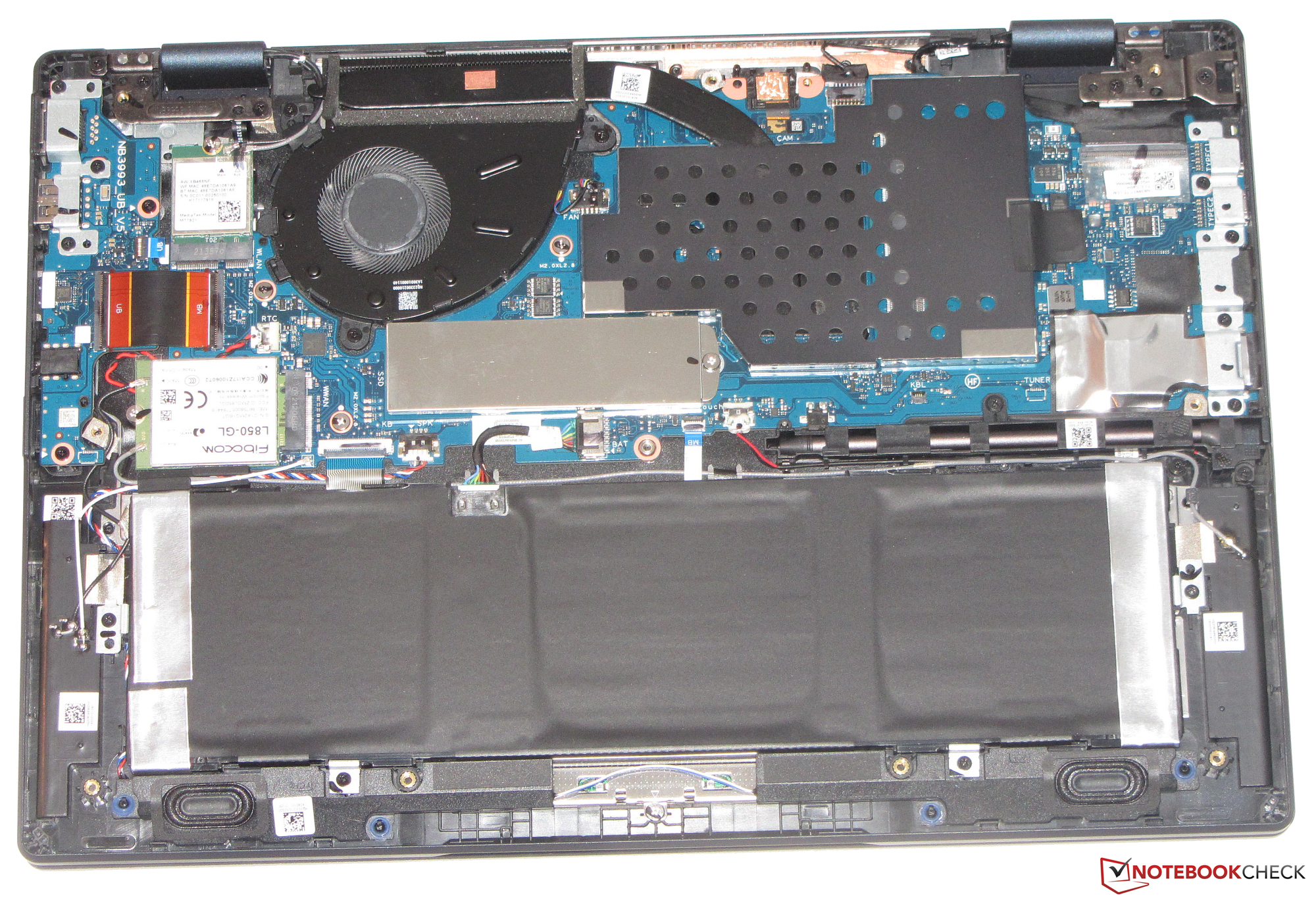

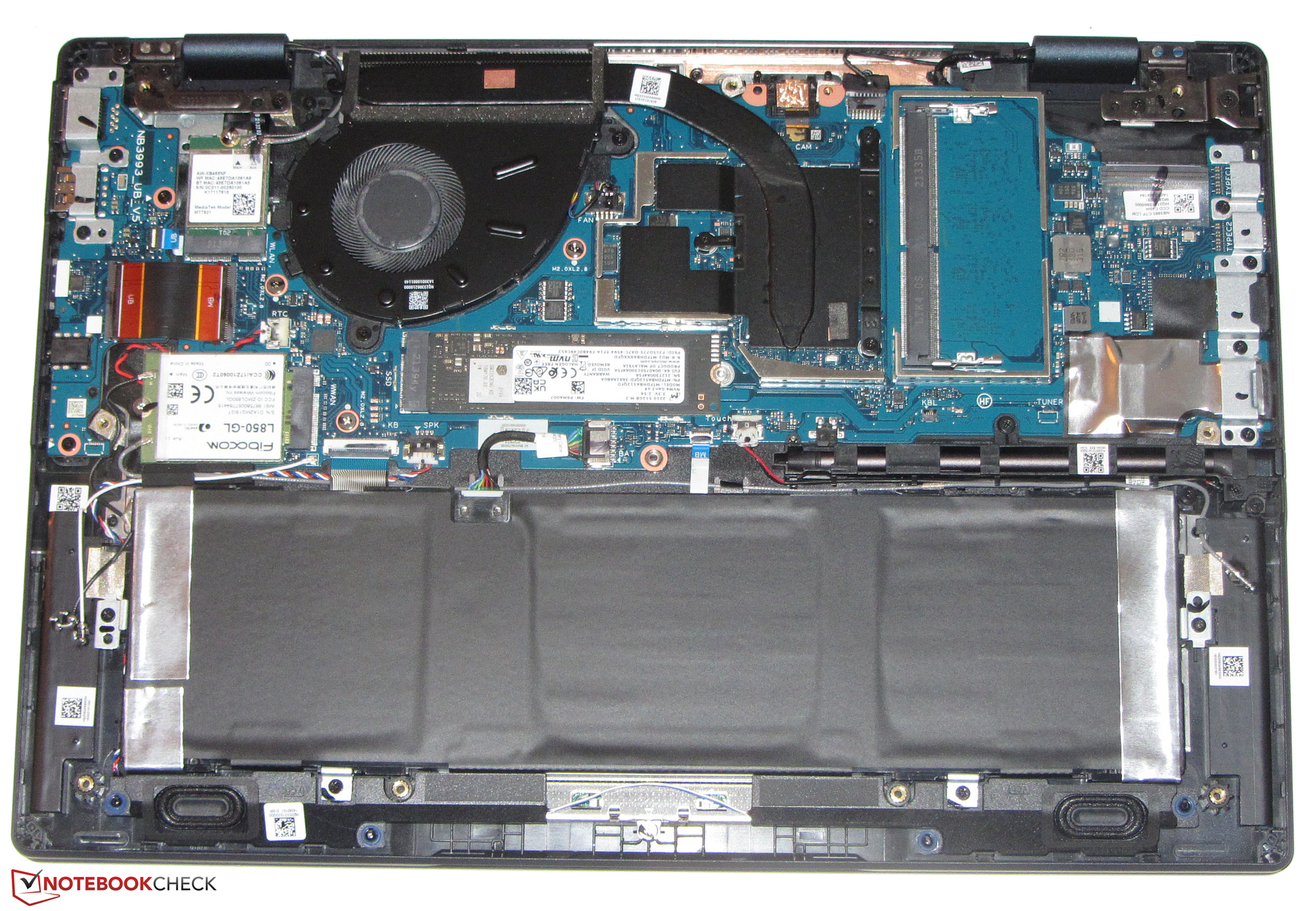

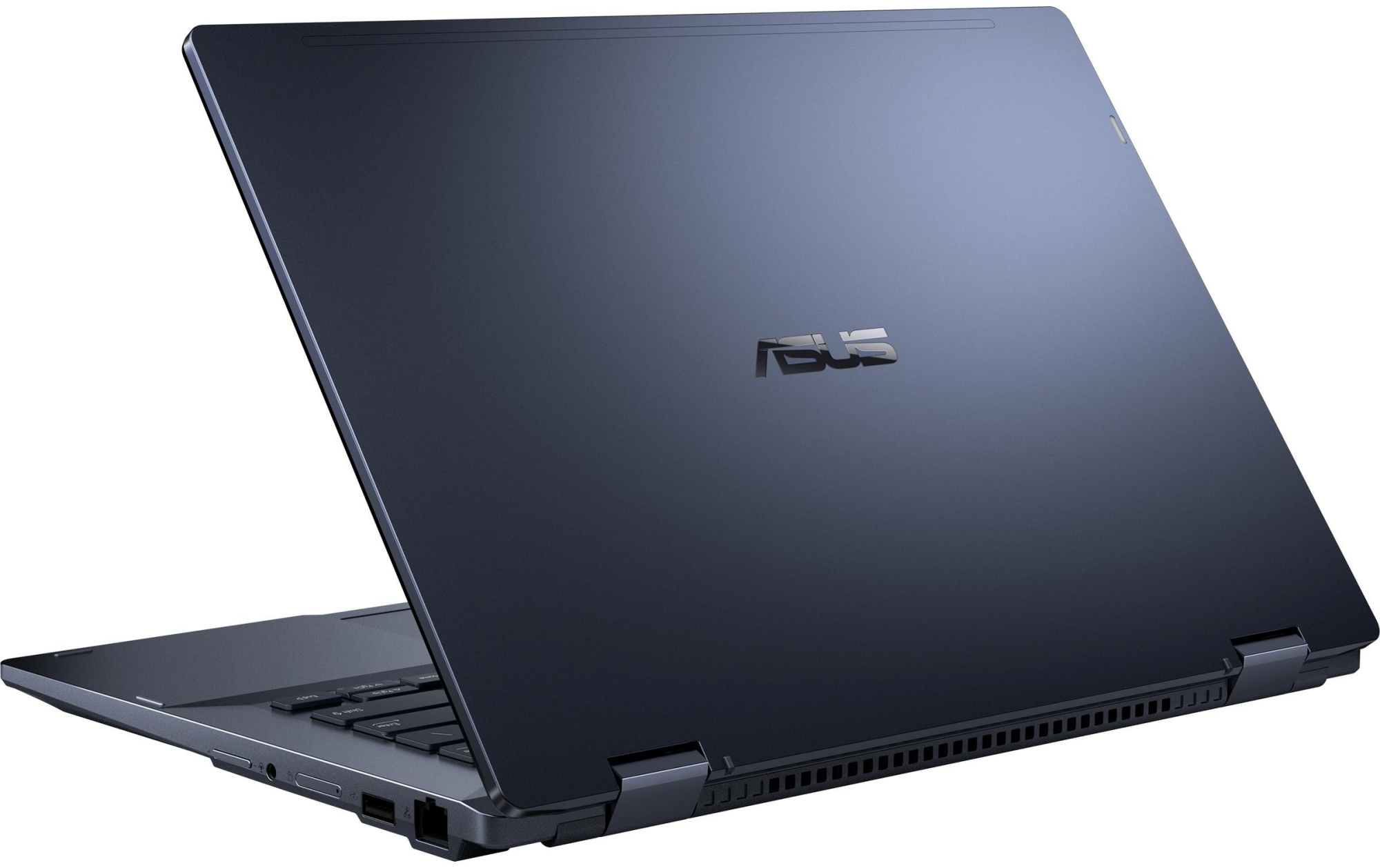

华硕选择了哑光的黑色外壳和混合材料，盖子的背面是金属，底座是塑料。间隙很均匀，没有尖锐的边缘。底座单元和盖子可以稍稍太容易地扭转。电池是固定的，没有所谓的维修挡板。

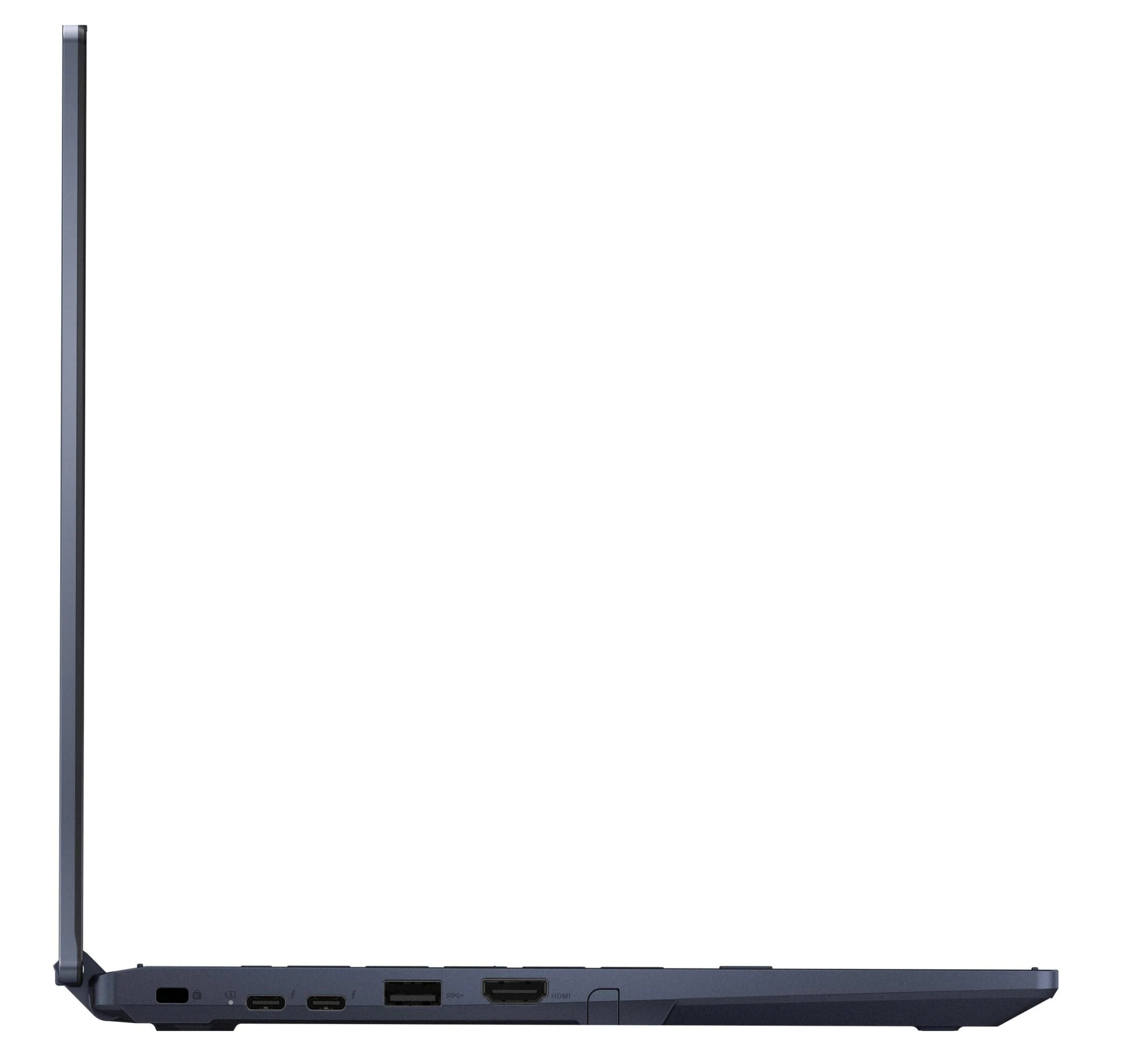

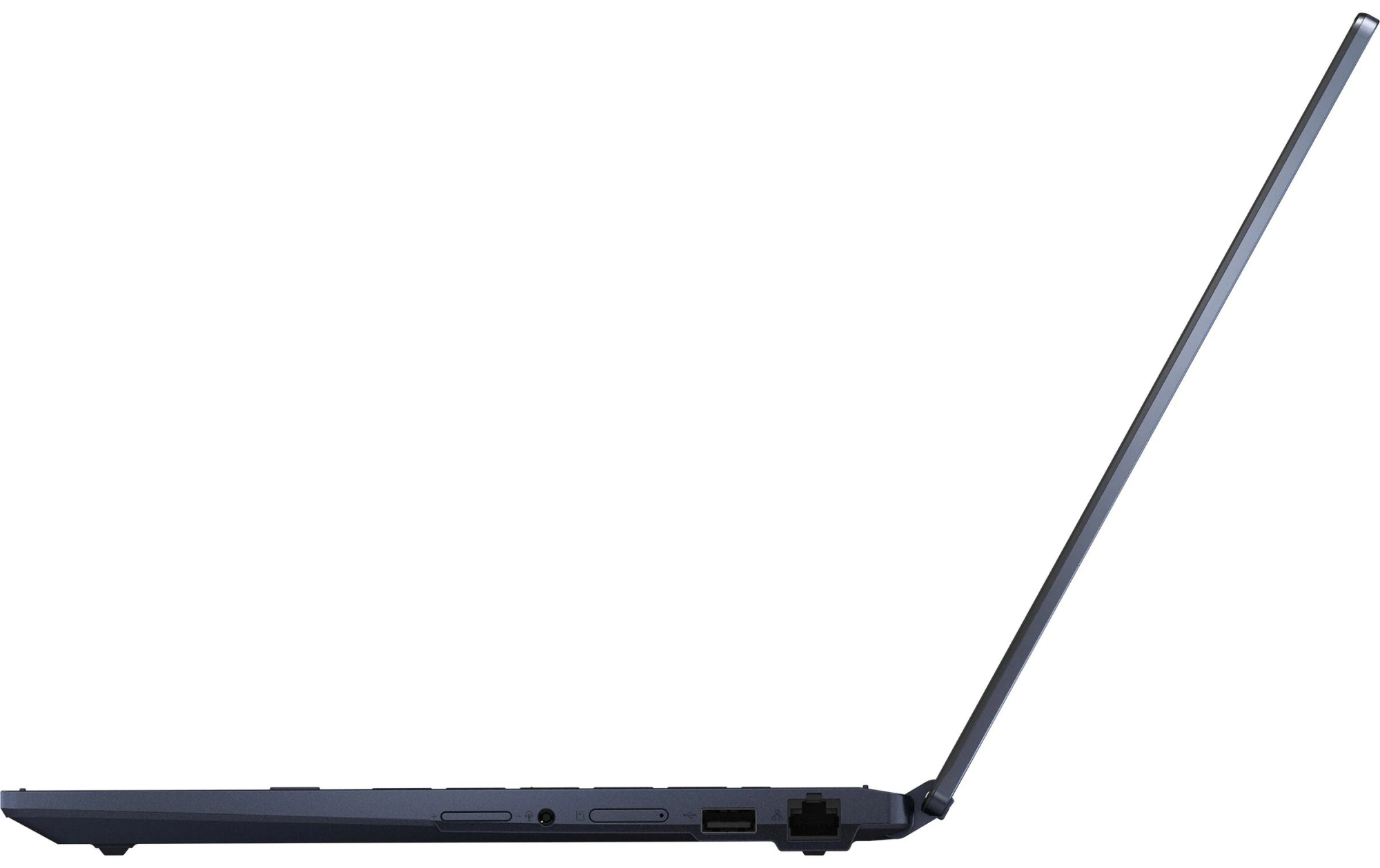

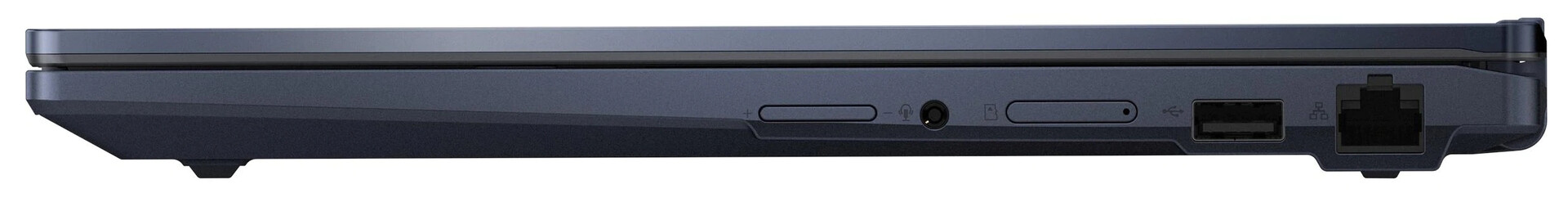

敞篷车有两个USB-C端口（1个USB 3.2 Gen 1，1个USB 2.0）。除此之外，它还有两个USB-C端口（Thunderbolt 4），支持PowerDelivery和每个USB-C的DisplayPort。因此，总的来说，B3有三个视频输出，包括专用的HDMI端口。microSD存储卡阅读器是较慢的型号之一（参考卡：AV PRO microSD 128 GB V60）。

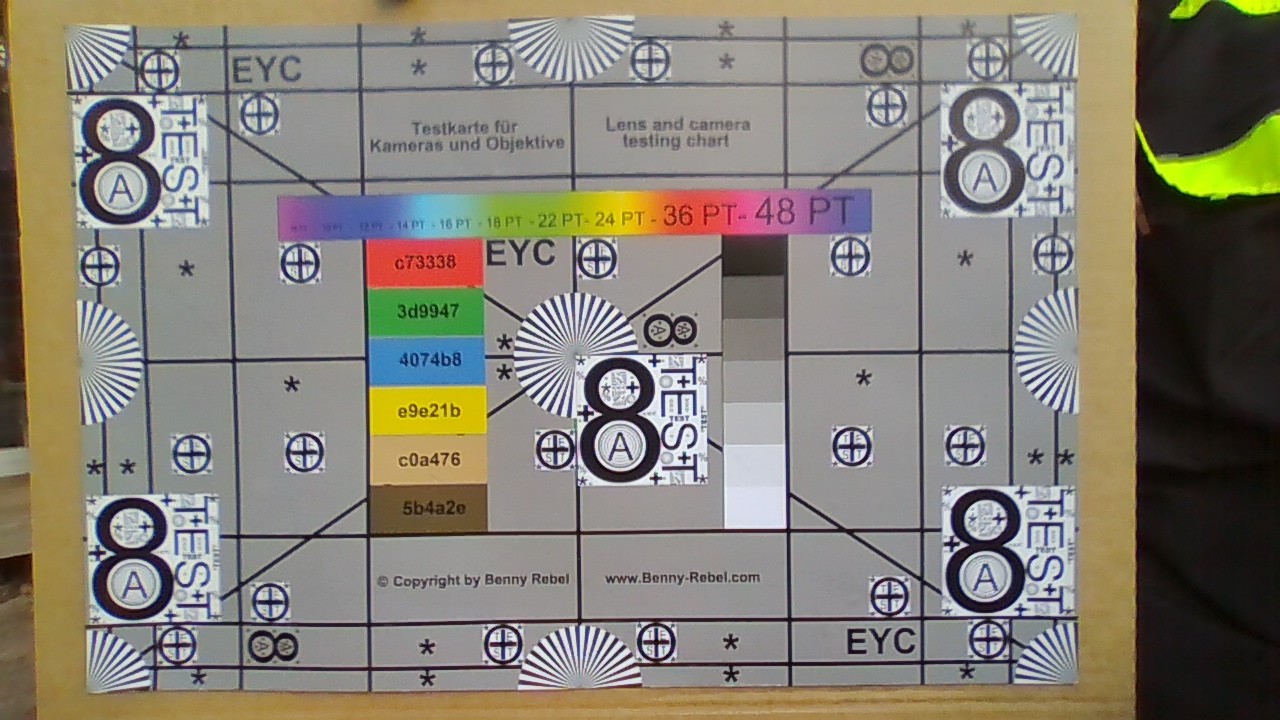

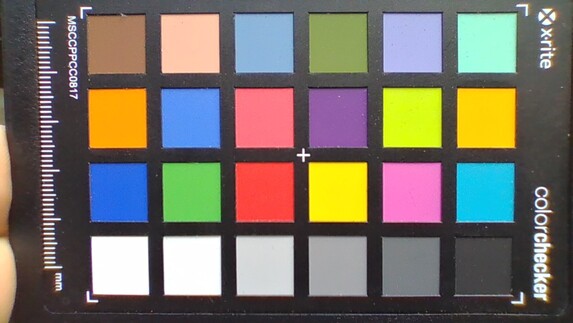

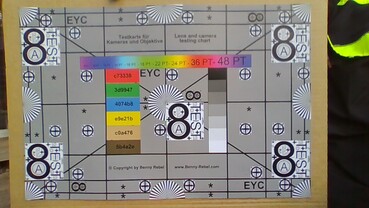

这款二合一设备上有两个摄像头：一个网络摄像头（0,9MP）用于视频会议，一个摄像头（13MP）用于拍摄照片。后者被放置在键盘上方，可以在平板电脑模式下使用。网络摄像头是一个标准质量的模型，但1300万像素的摄像头显示了坚实的成果。
Wi-Fi芯片（联发科MT7921）支持802.11a/b/g/n/ac/ax标准。在理想的情况下（附近没有其他Wi-Fi设备，笔记本电脑和服务器之间的距离较小），传输率还可以，但不能与今天的设备及其选项相提并论。

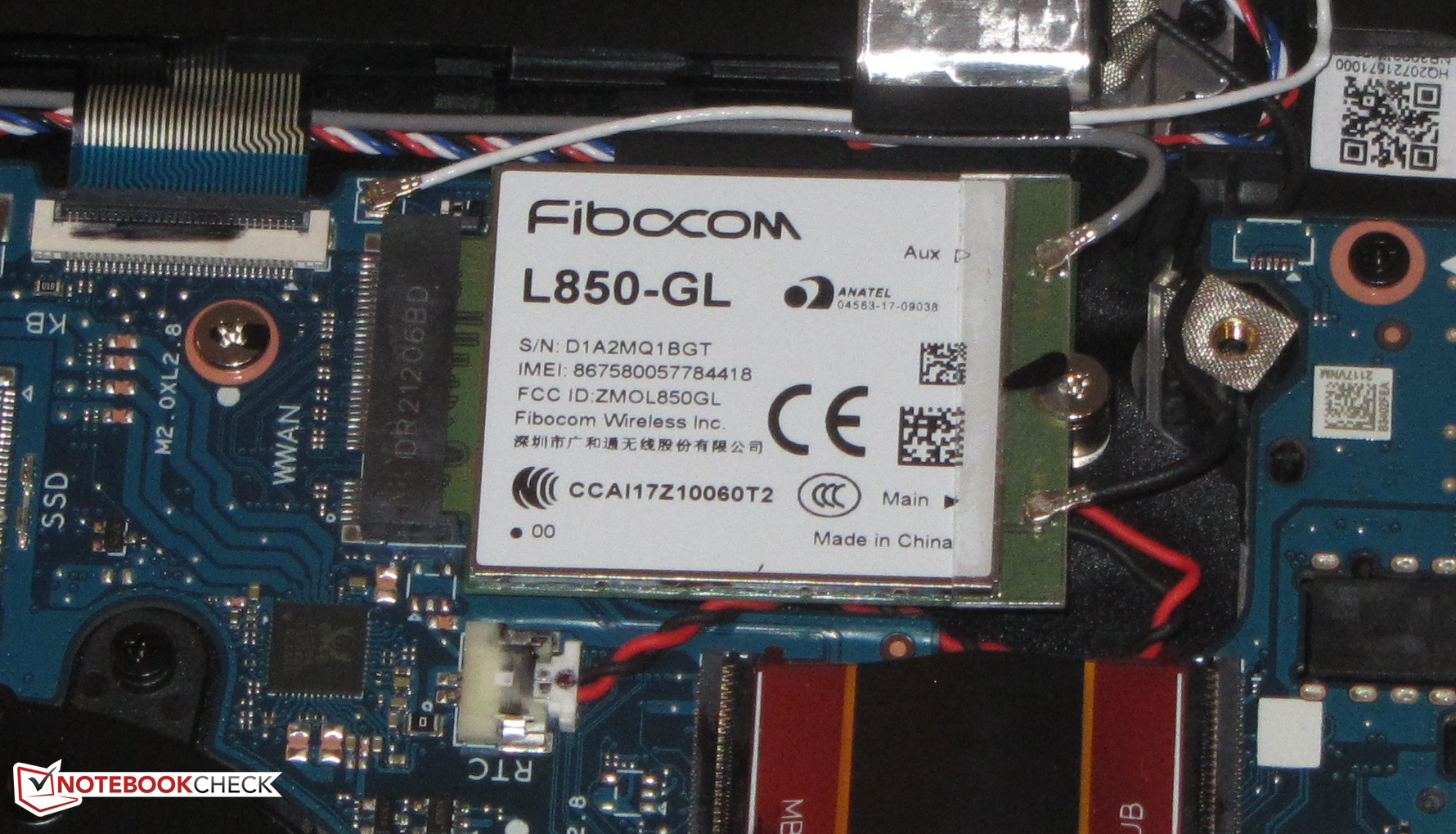

英特尔的AX芯片显示出明显更好的结果。由于有一个兼容的调制解调器（Fibocom L850-GL），还可以通过LTE网络建立无线连接。存储卡阅读器和SIM卡阅读器（nanoSIM）共用一个托盘。
| SD Card Reader | |
| average JPG Copy Test (av. of 3 runs) | |
| Lenovo ThinkBook 14s Yoga ITL 20WE0023GE (Toshiba Exceria Pro M501 microSDXC 64GB) | |
| Average of class Convertible (17.7 - 209, n=29, last 2 years) | |
| HP ProBook x360 435 G8 R7-5800U (AV Pro UHS-II V60) | |
| Dell Inspiron 14 7400 7415 2-in-1 (AV Pro V60) | |
| Asus ExpertBook B3 Flip B3402FEA (AV Pro SD microSD 128 GB V60) | |
| maximum AS SSD Seq Read Test (1GB) | |
| Average of class Convertible (22.6 - 263, n=28, last 2 years) | |
| Lenovo ThinkBook 14s Yoga ITL 20WE0023GE (Toshiba Exceria Pro M501 microSDXC 64GB) | |
| HP ProBook x360 435 G8 R7-5800U (AV Pro UHS-II V60) | |
| Dell Inspiron 14 7400 7415 2-in-1 (AV Pro V60) | |
| Asus ExpertBook B3 Flip B3402FEA (AV Pro SD microSD 128 GB V60) | |
Asus ExpertBook B3 Flip B3402FEA MediaTek MT7921; iperf3 receive AX12; iperf 3.1.3: Ø687 (642-726)
Lenovo ThinkBook 14s Yoga ITL 20WE0023GE Intel Wi-Fi 6 AX201; iperf3 receive AX12; iperf 3.1.3: Ø921 (856-949)
Dell Inspiron 14 7400 7415 2-in-1 Intel Wi-Fi 6 AX200; iperf3 receive AX12; iperf 3.1.3: Ø1228 (1187-1283)
HP ProBook x360 435 G8 R7-5800U Intel Wi-Fi 6 AX200; iperf3 receive AX12; iperf 3.1.3: Ø1235 (1079-1405)
Asus ExpertBook B3 Flip B3402FEA MediaTek MT7921; iperf3 transmit AX12; iperf 3.1.3: Ø879 (814-923)
Lenovo ThinkBook 14s Yoga ITL 20WE0023GE Intel Wi-Fi 6 AX201; iperf3 transmit AX12; iperf 3.1.3: Ø1406 (1323-1649)
Dell Inspiron 14 7400 7415 2-in-1 Intel Wi-Fi 6 AX200; iperf3 transmit AX12; iperf 3.1.3: Ø932 (766-1008)
HP ProBook x360 435 G8 R7-5800U Intel Wi-Fi 6 AX200; iperf3 transmit AX12; iperf 3.1.3: Ø1409 (1274-1474)
18.5 ∆E
14.1 ∆E
18.5 ∆E
21.5 ∆E
17.4 ∆E
15.9 ∆E
15.2 ∆E
23.2 ∆E
14.6 ∆E
15.7 ∆E
16.6 ∆E
14.8 ∆E
18.3 ∆E
18.2 ∆E
18.7 ∆E
10.2 ∆E
16.8 ∆E
19.9 ∆E
2.3 ∆E
11.8 ∆E
14.5 ∆E
16 ∆E
17.2 ∆E
6.1 ∆E

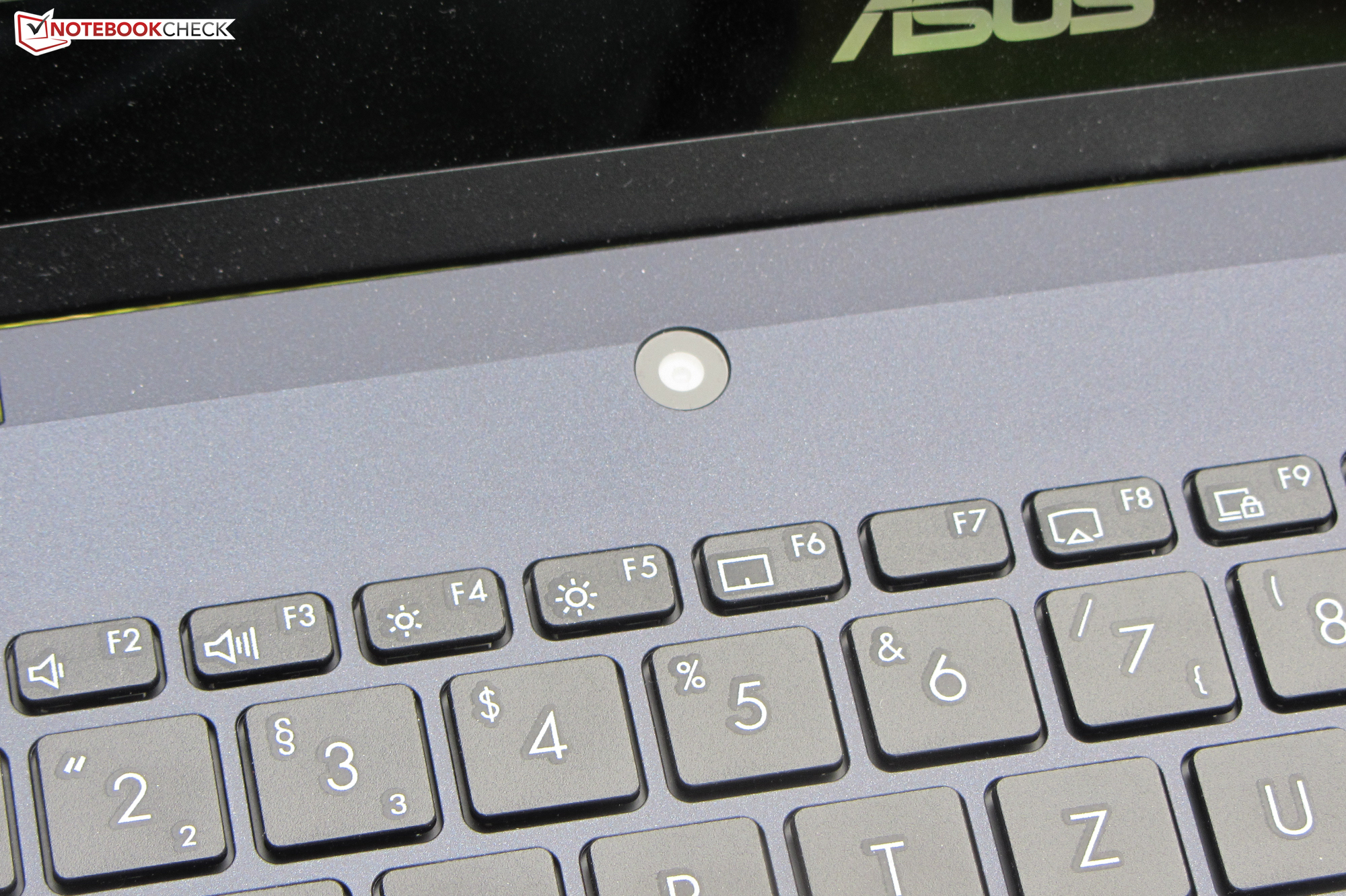

输入设备 - 华硕电脑没有背光键盘

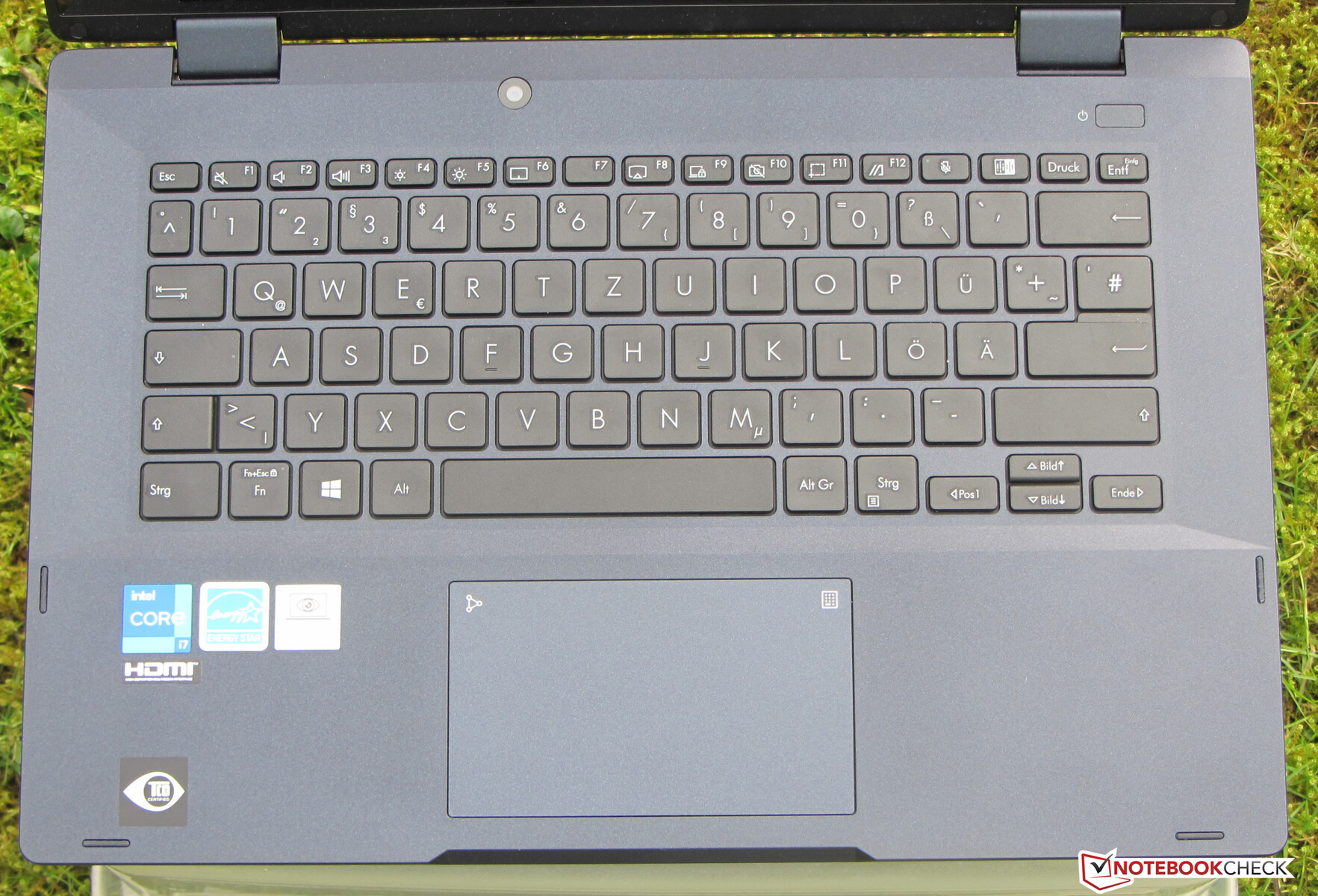

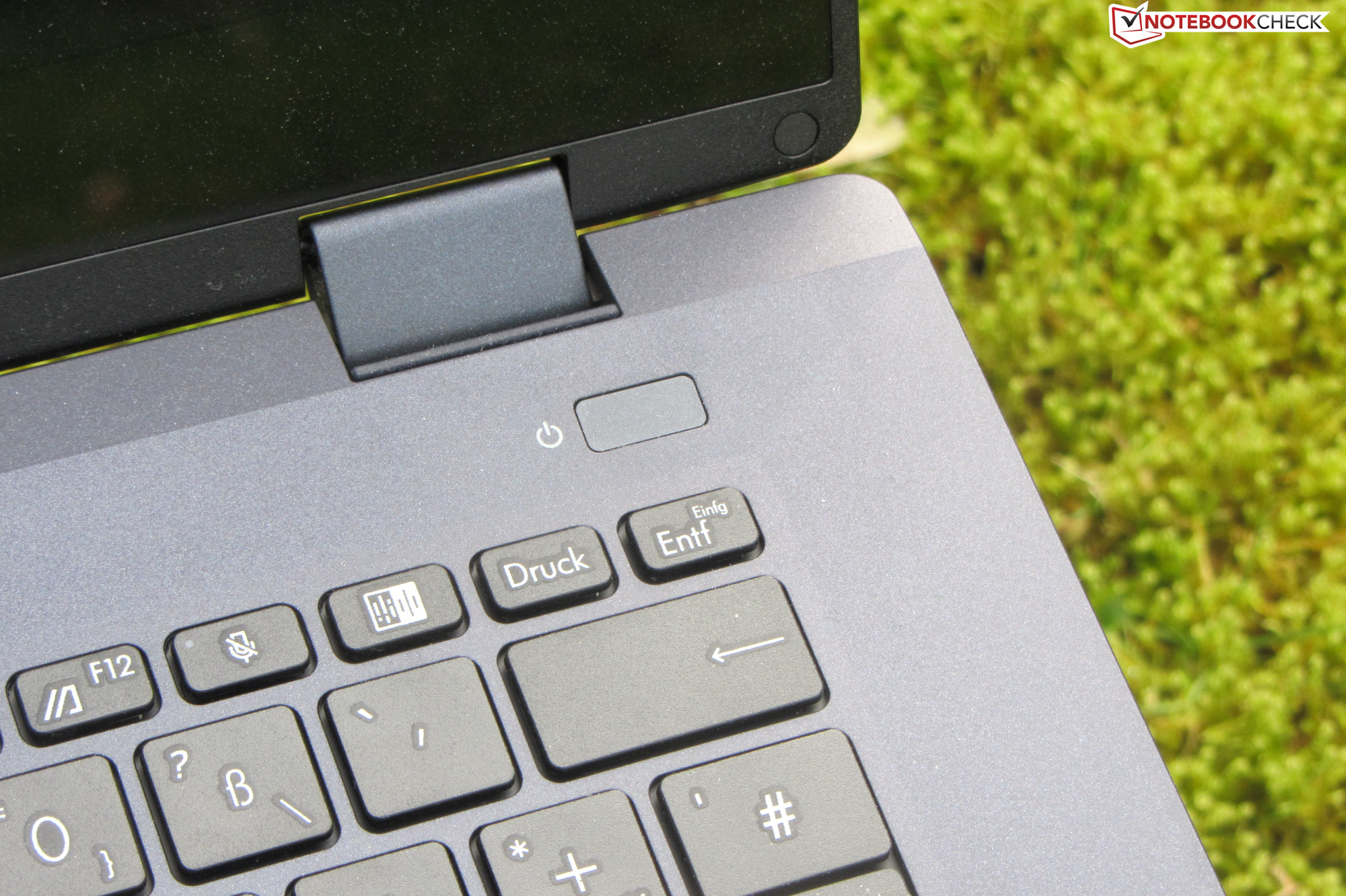

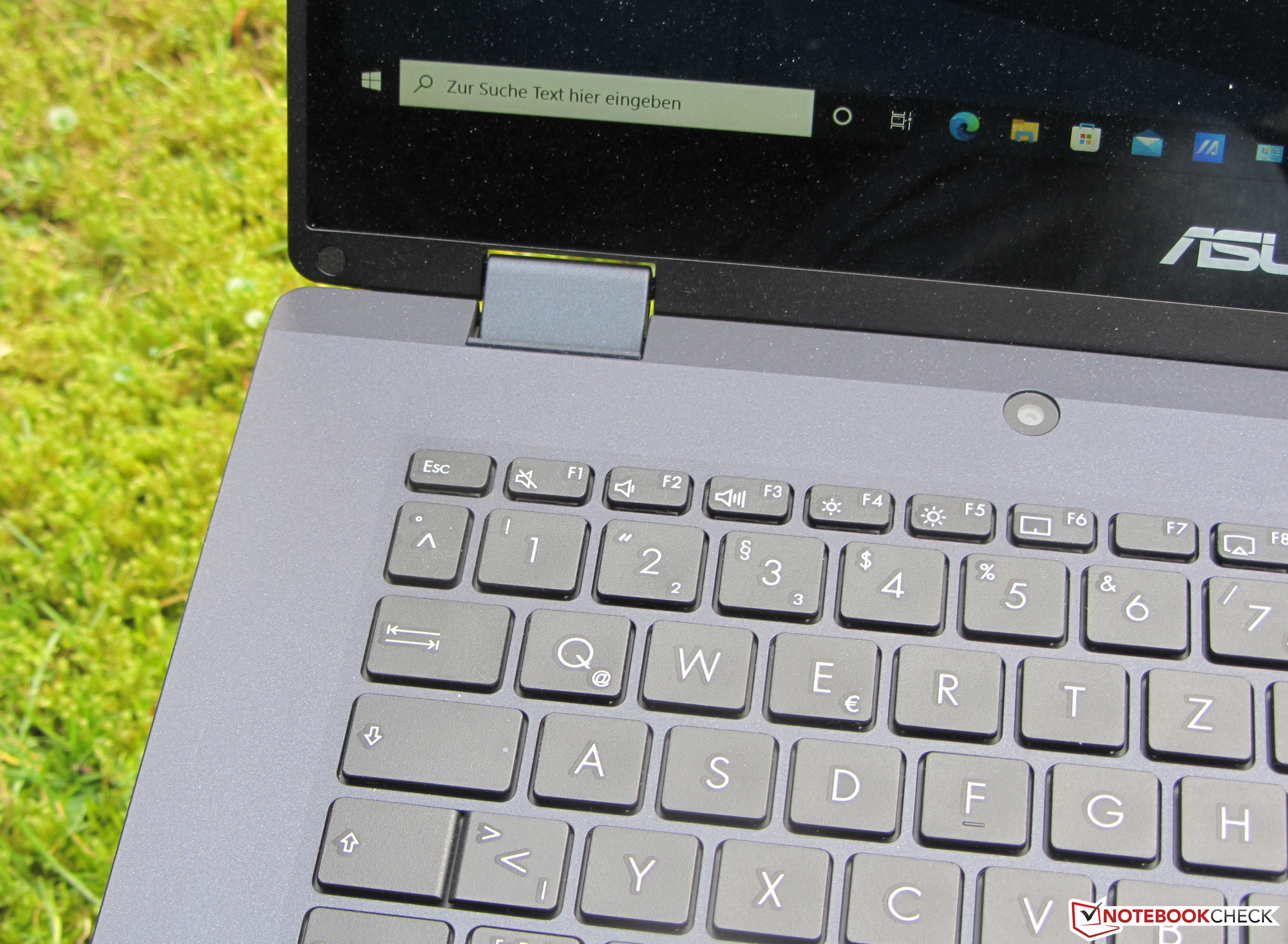

Chiclet键盘均匀、光滑的按键具有较浅的行程和明显的启动点。键盘在打字的时候会有轻微的晃动，但不会太明显。总而言之，华硕创造了一个适合日常使用的键盘。但是键盘没有背光，这是我们对一台1,400欧元（约1,586美元）的笔记本电脑的期望。
平滑的多点触控ClickPad的表面积约为10.5 x 6.2厘米（约4.1 x 2.4英寸），具有良好的滑行性能。触摸板甚至在其边缘都能精确地记录输入。点击板的行程很浅，有一个明显的启动点。点击右上角可以打开数字键盘。

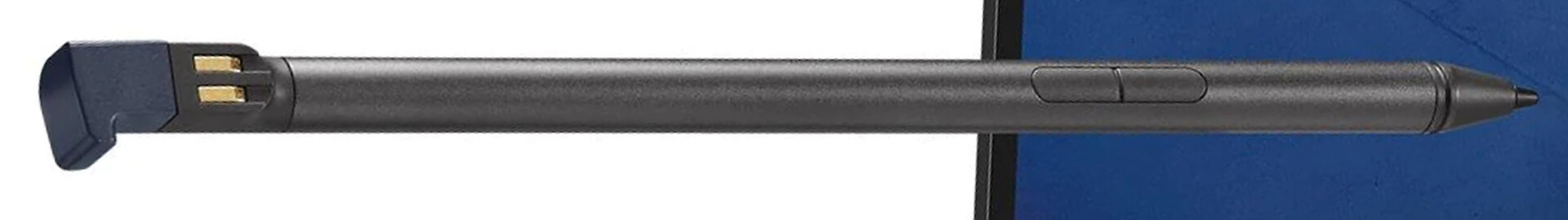

触摸屏支持10个触摸点，并能迅速登记输入。屏幕可以用手指或附带的华硕输入笔使用。底座上有一个专门的插槽，用于存放手写笔，在那里也可以充电。

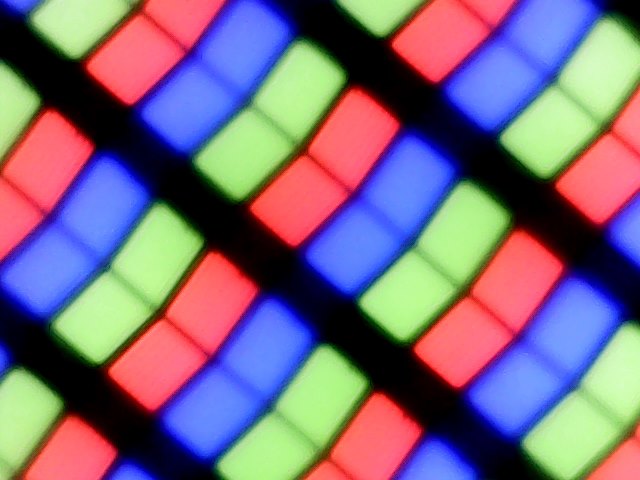

显示器 - 板载IPS
反射式14英寸触摸屏具有良好的对比度（1893：1），但亮度不是很高。测量值离好的水平（300 cd/m²）很远--247 cd/m²。没有PWM闪烁。
| |||||||||||||||||||||||||
AU Optronics B140HAN04.0 tested with X-Rite i1Pro 2
Maximum: 265 cd/m² (Nits) Average: 247 cd/m² Minimum: 14.6 cd/m²Brightness Distribution: 88 %
Center on Battery: 260 cd/m²
Contrast: 1893:1 (Black: 0.14 cd/m²)
ΔE Color 5.09 | 0.5-29.43 Ø4.91
ΔE Greyscale 2.33 | 0.5-98 Ø5.2
40.4% AdobeRGB 1998 (Argyll 2.2.0 3D)
58.6% sRGB (Argyll 2.2.0 3D)
39.1% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.42
| Asus ExpertBook B3 Flip B3402FEA AU Optronics B140HAN04.0, IPS, 1920x1080, 14" | Lenovo ThinkBook 14s Yoga ITL 20WE0023GE Innolux N140HCG-EQ1, IPS, 1920x1080, 14" | Dell Inspiron 14 7400 7415 2-in-1 Chi Mei 140HCA, IPS, 1920x1080, 14" | HP ProBook x360 435 G8 R7-5800U AUO4B2D, IPS, 1920x1080, 13.3" | |
|---|---|---|---|---|
| Display | 52% | 9% | 2% | |
| Display P3 Coverage | 39.1 | 59.4 52% | 42.5 9% | 40.1 3% |
| sRGB Coverage | 58.6 | 88.7 51% | 63.1 8% | 59.9 2% |
| AdobeRGB 1998 Coverage | 40.4 | 61.3 52% | 44 9% | 41.4 2% |
| Response Times | -26% | 14% | -12% | |
| Response Time Grey 50% / Grey 80% * | 41 ? | 50 ? -22% | 28.8 ? 30% | 42.8 ? -4% |
| Response Time Black / White * | 27 ? | 35 ? -30% | 27.6 ? -2% | 32 ? -19% |
| PWM Frequency | ||||
| Screen | 23% | -59% | -5% | |
| Brightness middle | 265 | 304 15% | 262.7 -1% | 304 15% |
| Brightness | 247 | 289 17% | 245 -1% | 292 18% |
| Brightness Distribution | 88 | 90 2% | 84 -5% | 89 1% |
| Black Level * | 0.14 | 0.1 29% | 0.37 -164% | 0.23 -64% |
| Contrast | 1893 | 3040 61% | 710 -62% | 1322 -30% |
| Colorchecker dE 2000 * | 5.09 | 2.97 42% | 6.23 -22% | 5 2% |
| Colorchecker dE 2000 max. * | 19.84 | 5.69 71% | 22.62 -14% | 17.7 11% |
| Greyscale dE 2000 * | 2.33 | 3.58 -54% | 7.1 -205% | 2.1 10% |
| Gamma | 2.42 91% | 2.17 101% | 2.22 99% | 2.03 108% |
| CCT | 6344 102% | 6346 102% | 6241 104% | 6443 101% |
| Colorchecker dE 2000 calibrated * | 0.59 | 1.8 | 4.2 | |
| Color Space (Percent of AdobeRGB 1998) | 56 | |||
| Color Space (Percent of sRGB) | 89 | |||
| Total Average (Program / Settings) | 16% /
22% | -12% /
-32% | -5% /
-4% |
* ... smaller is better

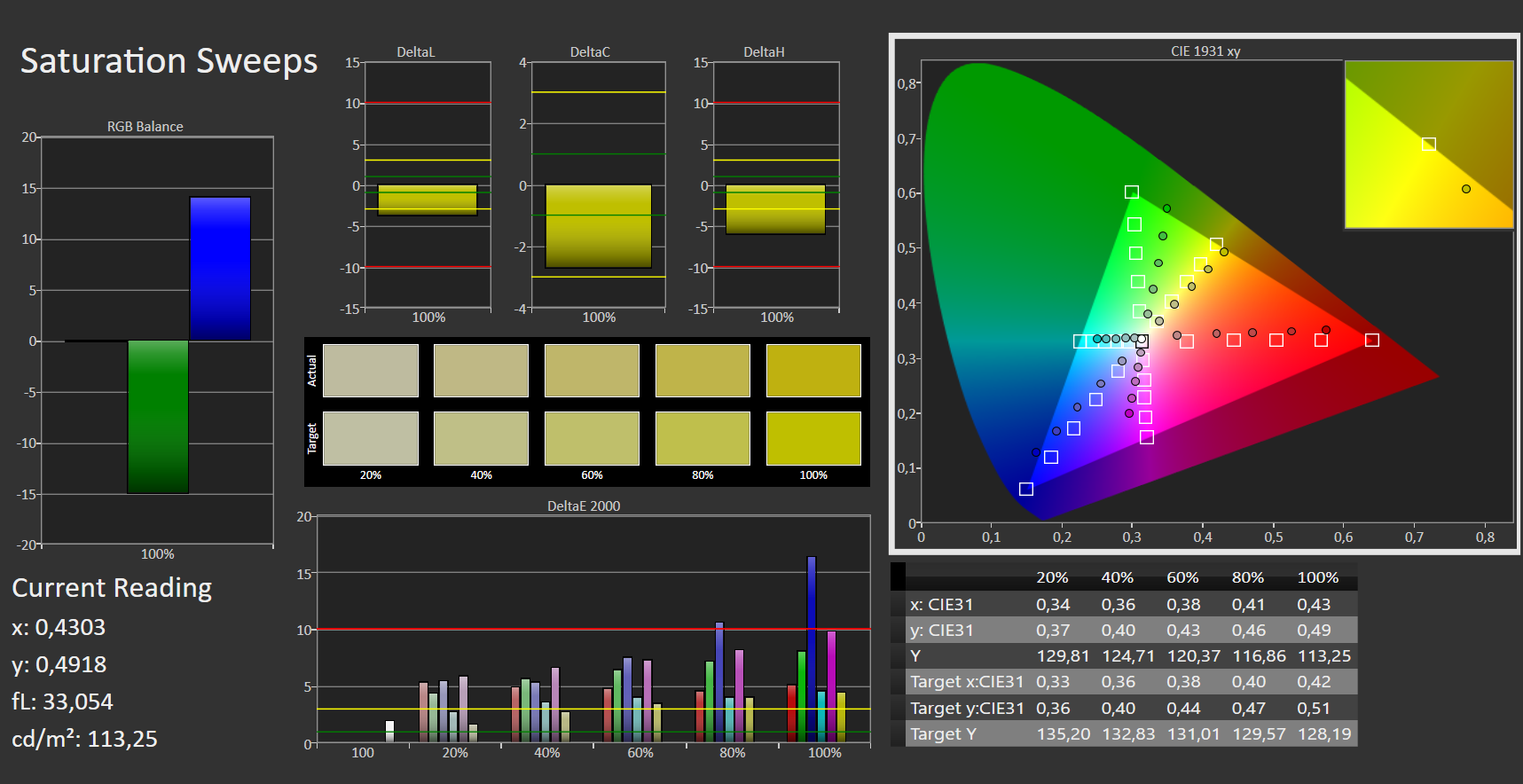

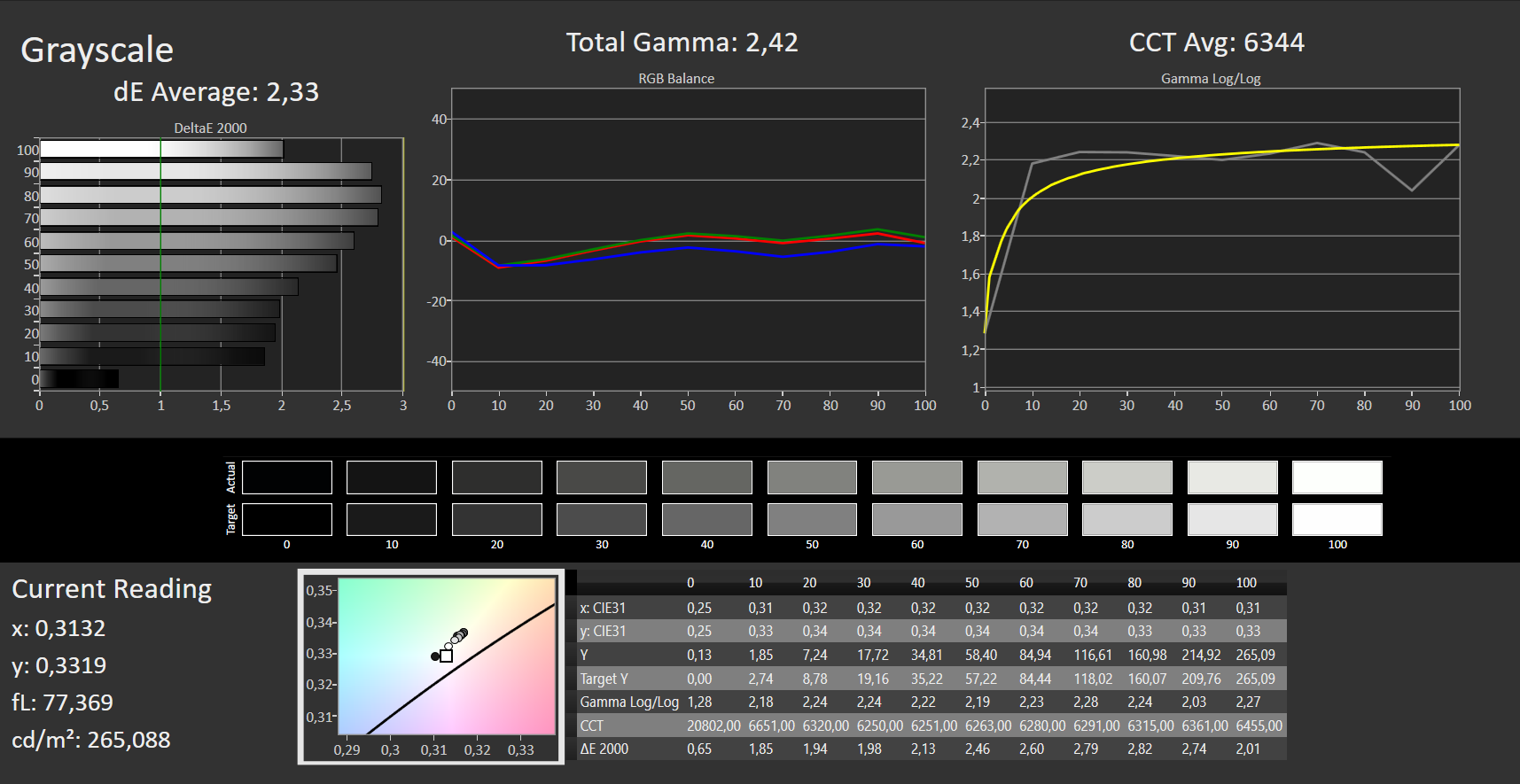

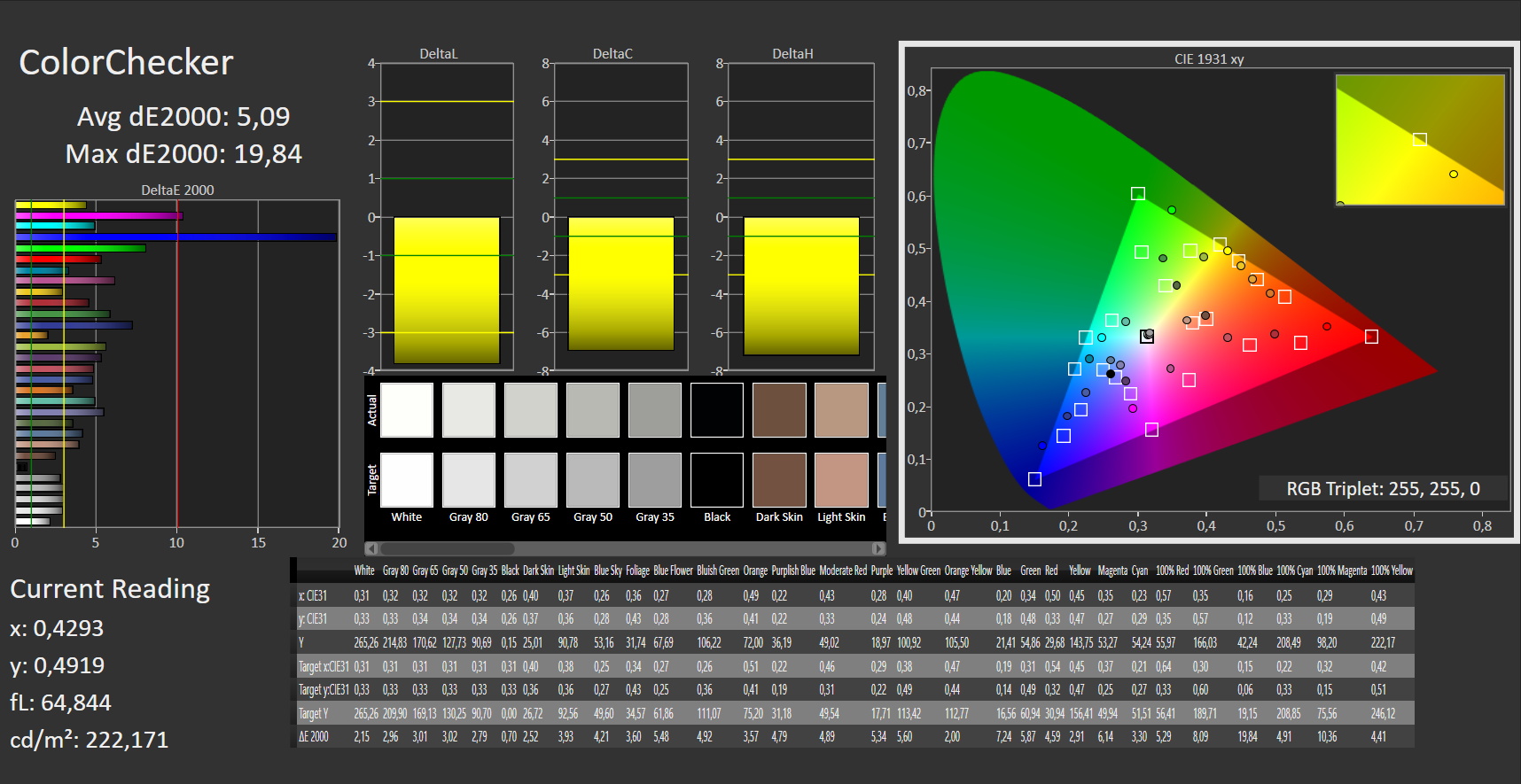

屏幕显示的是出厂时的纯色表现，尽管颜色与原始色调有轻微的、难以察觉的偏差。该显示器不能再现AdobeRGB（40%）、sRGB（59%）和DCI-P3（39%）色彩空间。

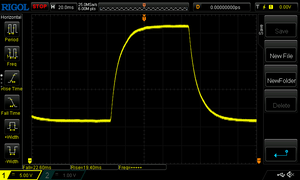

Display Response Times
ℹ

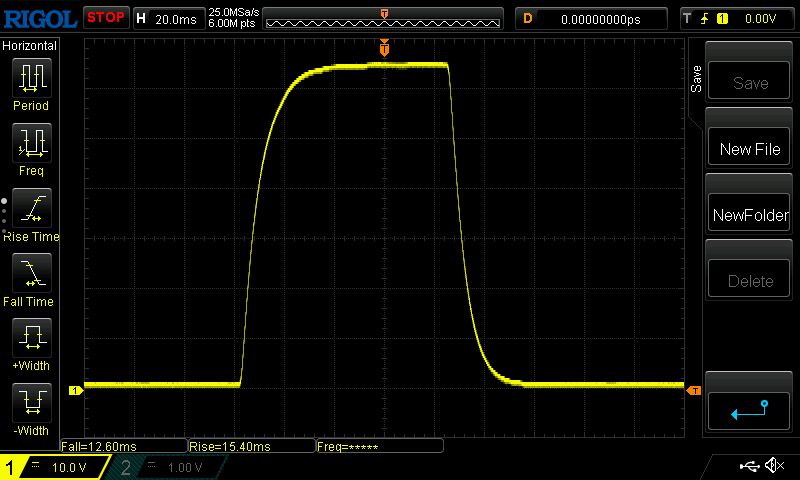

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.| ↔ Response Time Black to White | ||
|---|---|---|
| 27 ms ... rise ↗ and fall ↘ combined | ↗ 12 ms rise |  |
| ↘ 15 ms fall | ||
| The screen shows relatively slow response rates in our tests and may be too slow for gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 64 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (20.9 ms). | ||

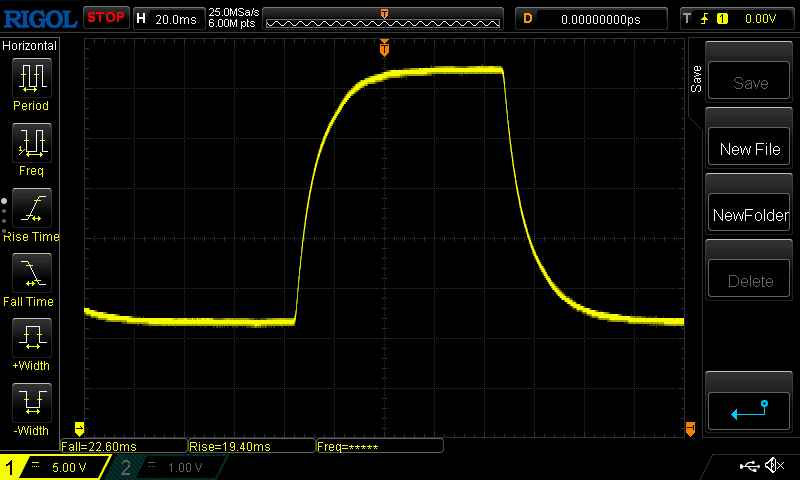

| ↔ Response Time 50% Grey to 80% Grey | ||
| 41 ms ... rise ↗ and fall ↘ combined | ↗ 22 ms rise |  |
| ↘ 19 ms fall | ||
| The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 61 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (32.8 ms). | ||

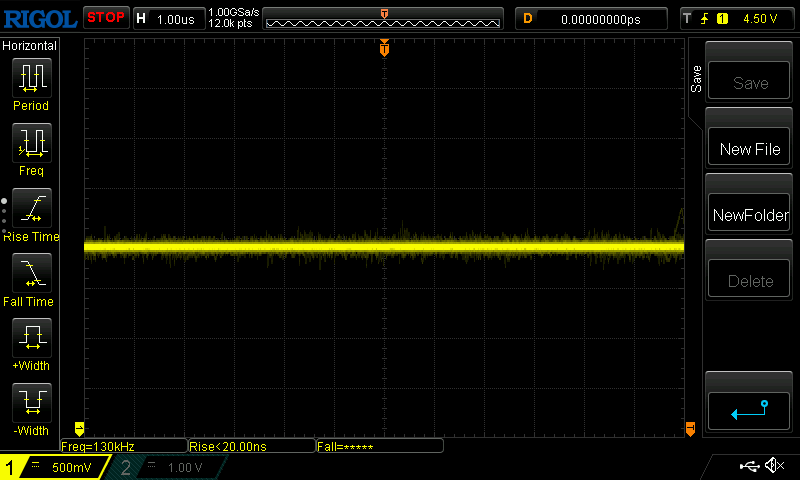

Screen Flickering / PWM (Pulse-Width Modulation)
ℹ
To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.| Screen flickering / PWM not detected |  | ||
In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8705 (minimum: 5 - maximum: 343500) Hz was measured. | |||

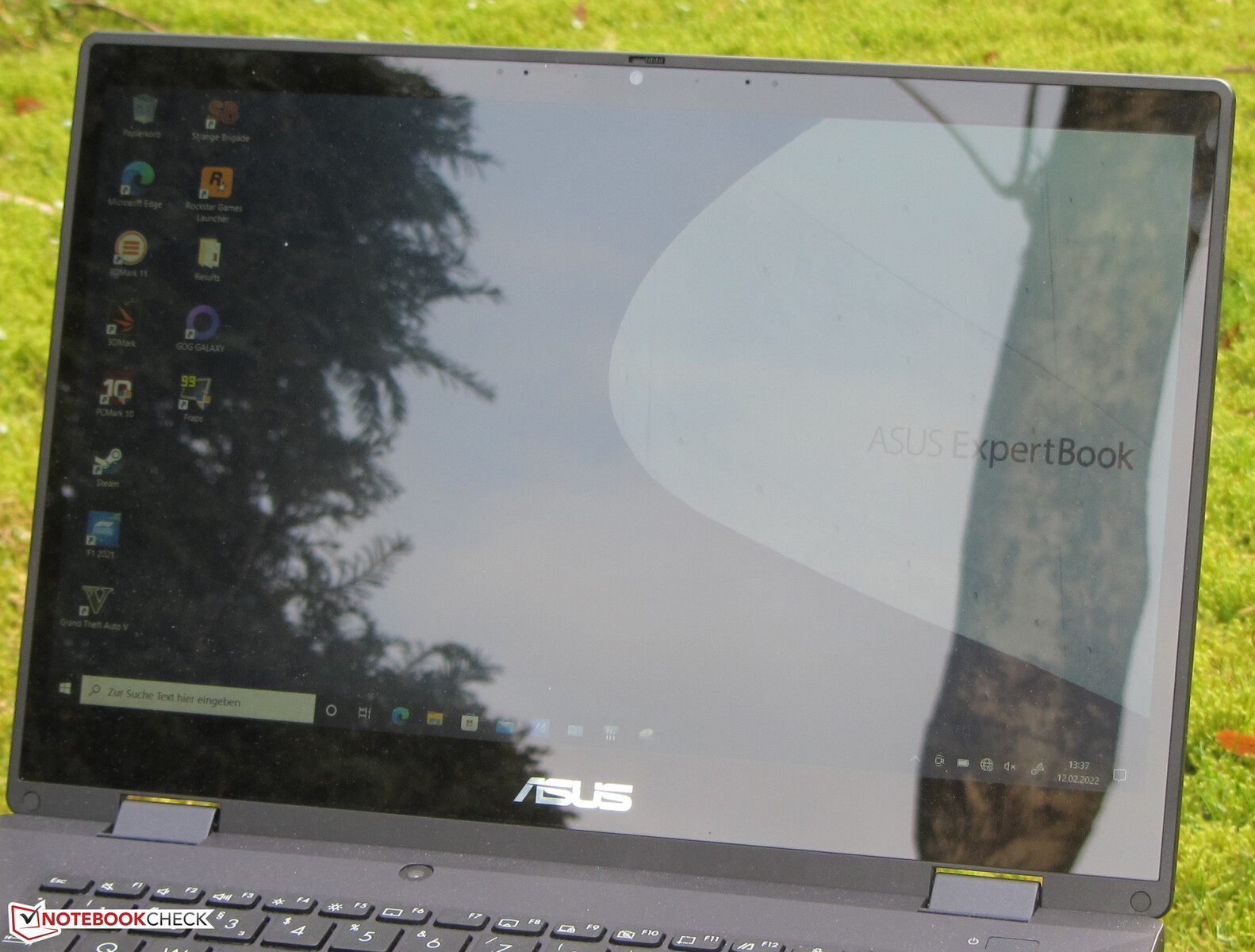

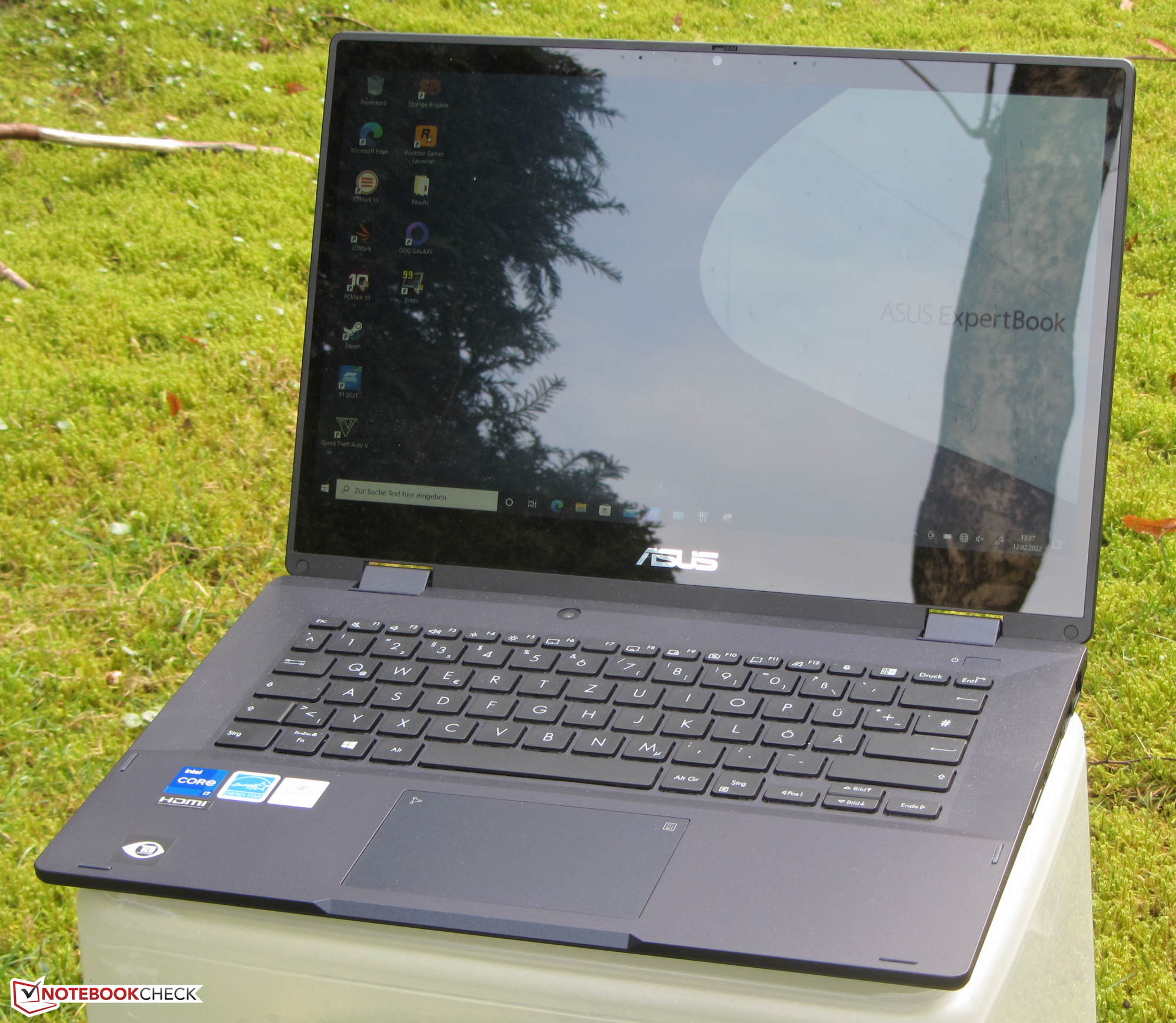

IPS面板具有良好的可视角度，可以从任何位置阅读。在室外，低的显示亮度和反射表面使阅读屏幕充其量是非常困难的。
性能 - 华硕B3与Tiger Lake CPU
华硕从商业系列中创造了一个二合一的笔记本电脑，其计算能力足以满足所有的办公和互联网用具。
测试条件
笔记本电脑支持三种性能模式（"高性能"，"平衡"，"低声模式"）。用户可以通过热键'Fn'+'F'在它们之间切换。我们在'平衡模式'下进行了测试，而其他许多基准测试也是用其他模式进行的。你可以在对比图中找到结果。
| 平衡模式 | 高性能模式 | 低音模式 | |
|---|---|---|---|
| 功率限制1 | 32瓦 | 32瓦 | 12瓦 |
| 功率限制2 | 64瓦 | 64瓦 | 64瓦 |

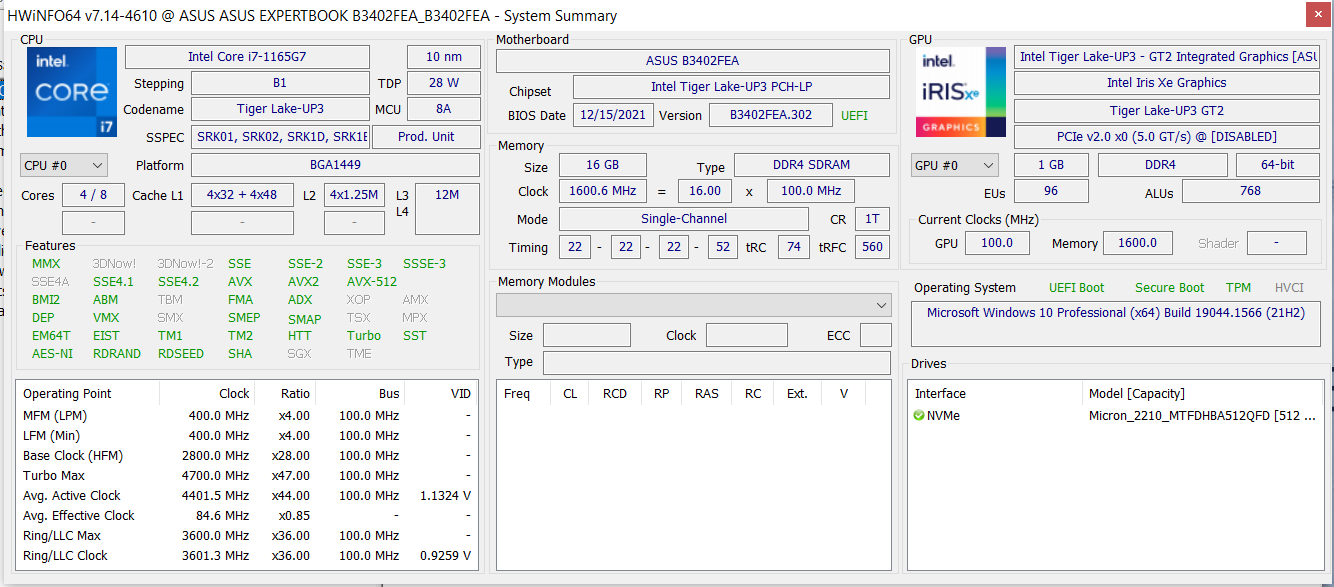

处理器

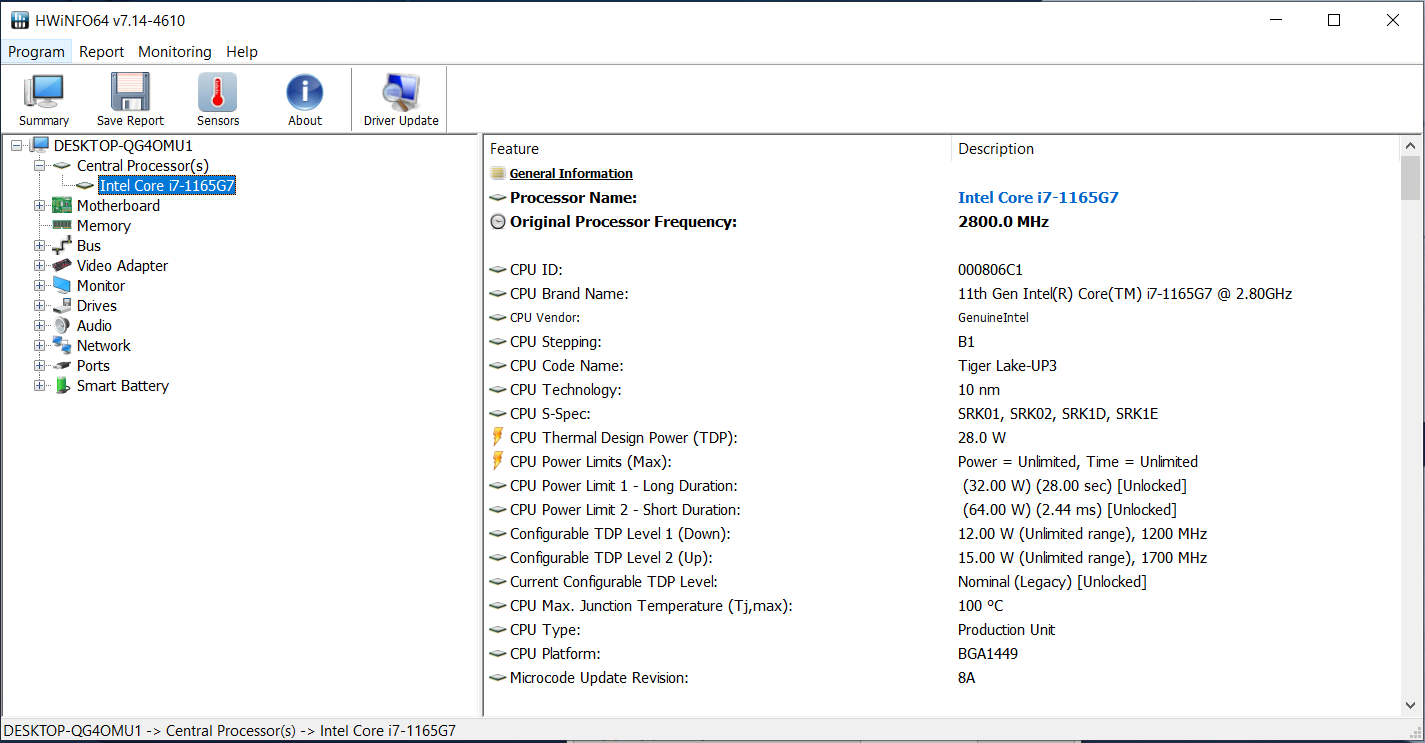

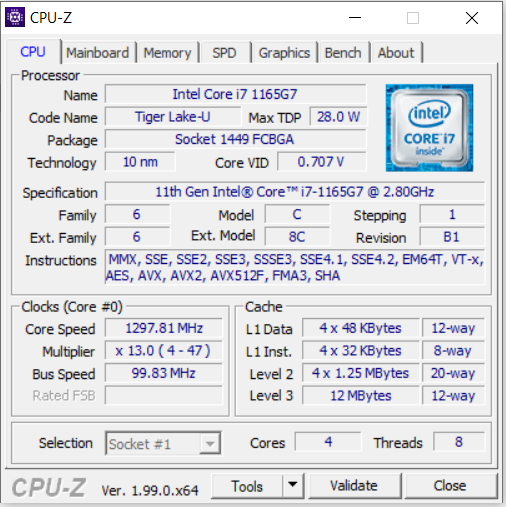

四核的 酷睿i7-1165G7(Tiger Lake)以2.8 GHz的基本时钟运行。通过涡轮增压，这可以增加到4.1 GHz（四个核心）或4.7 GHz（一个核心）。该处理器支持超线程，每个核心可以处理两个线程。在多线程Cinebench R15基准测试中，该处理器以3.4至4.1 GHz的速度运行，在单线程测试中，时钟速度在1.8至4.7 GHz之间。在电池模式下，时钟速率明显降低。

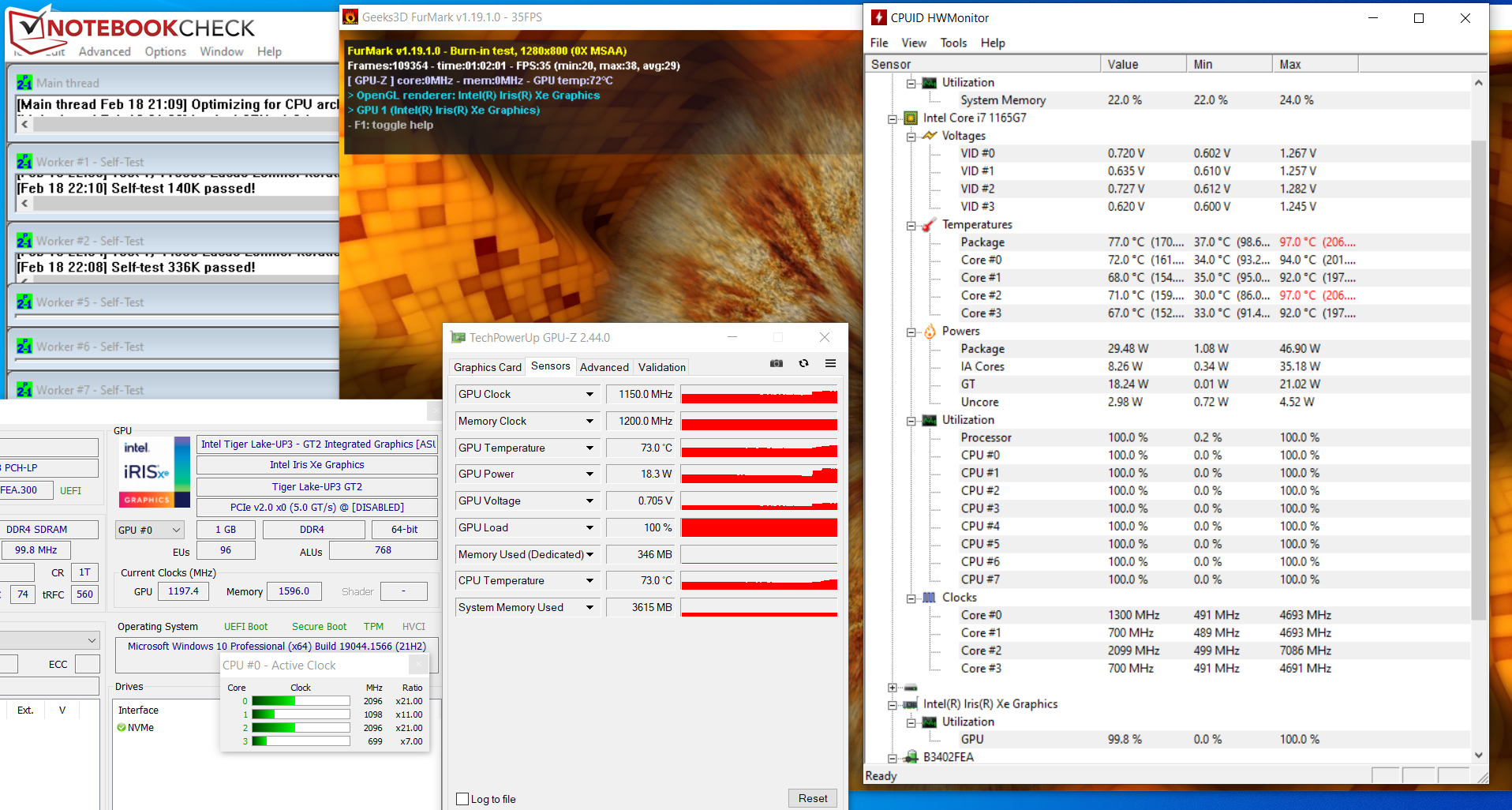

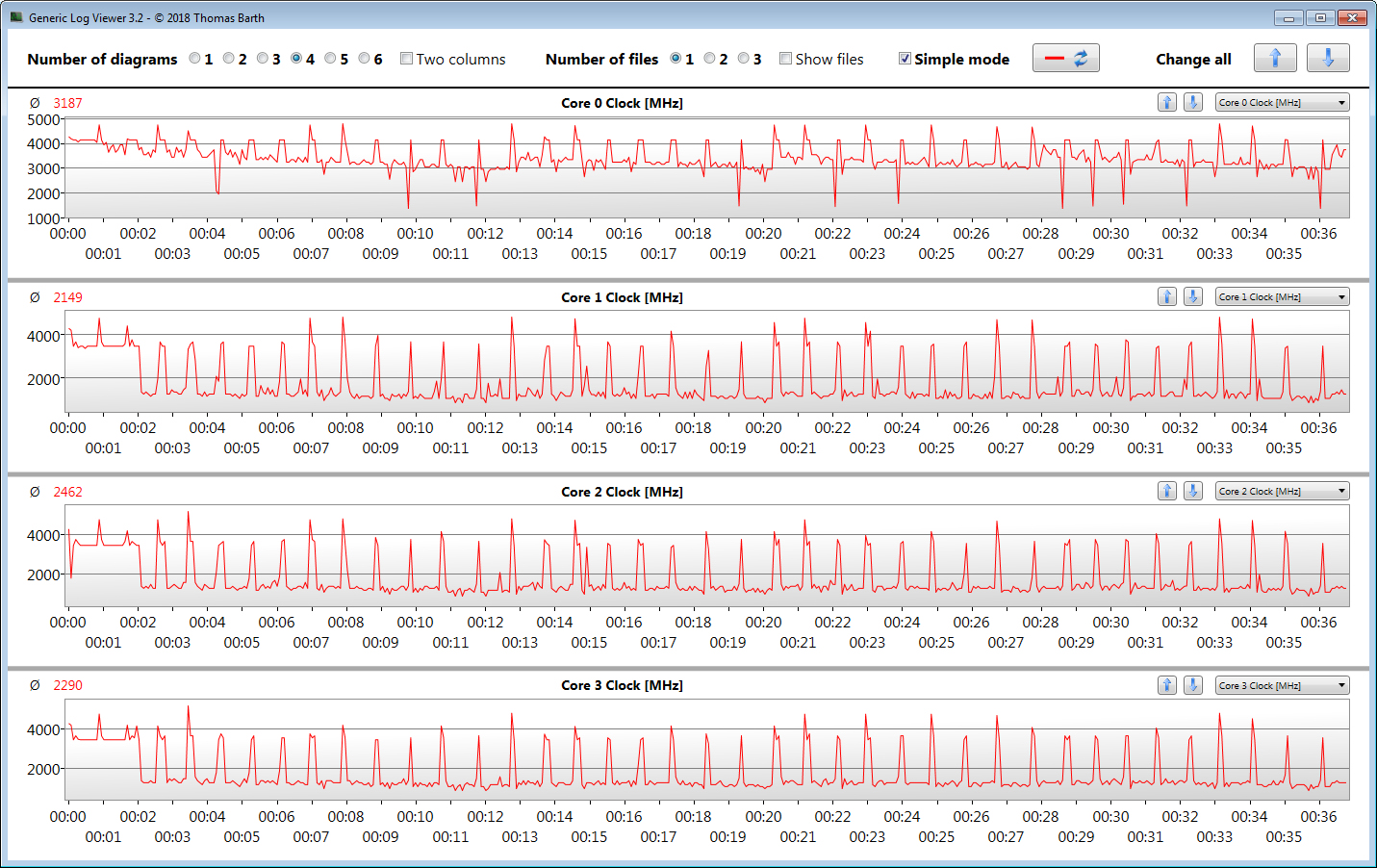

通过循环运行Cinebench R15基准的多线程测试至少30分钟，我们确定CPU Turbo是否永久处于激活状态。CPU Turbo持续了大约两分钟，使用了所有的核心。随后，四个核心中的三个以略低于基础时钟的速度运行。能源配置文件 "高性能 "导致了时钟速率的增加。
Cinebench R15 Multi Stress Test
Asus ExpertBook B3 Flip B3402FEA Intel Core i7-1165G7: Ø774 (689.3-874.78)
Asus ExpertBook B3 Flip B3402FEA Intel Core i7-1165G7; Fluestermodus: Ø400 (332.16-553.37)
Asus ExpertBook B3 Flip B3402FEA Intel Core i7-1165G7; Leistungsmodus: Ø824 (751.19-880.38)
Lenovo ThinkBook 14s Yoga ITL 20WE0023GE Intel Core i7-1165G7: Ø675 (658.2-790.7)
Dell Inspiron 14 7400 7415 2-in-1 AMD Ryzen 7 5700U: Ø1282 (1274.74-1288.99)
HP ProBook x360 435 G8 R7-5800U AMD Ryzen 7 5800U: Ø1520 (1461.4-1613.49)
CPU Performance Rating | Cinebench R23 | Cinebench R20 | Cinebench R15 | Blender | 7-Zip 18.03 | Geekbench 5.5 | HWBOT x265 Benchmark v2.2 | LibreOffice | R Benchmark 2.5
| CPU Performance Rating - Percent | |
| Average of class Convertible | |
| HP ProBook x360 435 G8 R7-5800U | |
| Dell Inspiron 14 7400 7415 2-in-1 -2! | |
| Asus ExpertBook B3 Flip B3402FEA | |
| Asus ExpertBook B3 Flip B3402FEA | |
| Asus ExpertBook B3 Flip B3402FEA | |
| Average Intel Core i7-1165G7 | |
| Lenovo ThinkBook 14s Yoga ITL 20WE0023GE | |
| Asus ExpertBook B3 Flip B3402FEA | |
| Cinebench R23 | |
| Multi Core | |
| Average of class Convertible (616 - 18070, n=63, last 2 years) | |
| HP ProBook x360 435 G8 R7-5800U | |
| Dell Inspiron 14 7400 7415 2-in-1 | |
| Asus ExpertBook B3 Flip B3402FEA (Leistungsmodus) | |
| Asus ExpertBook B3 Flip B3402FEA (Dual-Channel) | |
| Asus ExpertBook B3 Flip B3402FEA | |
| Average Intel Core i7-1165G7 (2525 - 6862, n=64) | |
| Lenovo ThinkBook 14s Yoga ITL 20WE0023GE | |
| Asus ExpertBook B3 Flip B3402FEA (Fluestermodus) | |
| Single Core | |
| Average of class Convertible (308 - 1970, n=63, last 2 years) | |
| Asus ExpertBook B3 Flip B3402FEA (Leistungsmodus) | |
| Lenovo ThinkBook 14s Yoga ITL 20WE0023GE | |
| Asus ExpertBook B3 Flip B3402FEA (Dual-Channel) | |
| Asus ExpertBook B3 Flip B3402FEA | |
| Average Intel Core i7-1165G7 (1110 - 1539, n=59) | |
| HP ProBook x360 435 G8 R7-5800U | |
| Dell Inspiron 14 7400 7415 2-in-1 | |
| Asus ExpertBook B3 Flip B3402FEA (Fluestermodus) | |
| Cinebench R20 | |
| CPU (Multi Core) | |
| Average of class Convertible (242 - 6954, n=63, last 2 years) | |
| HP ProBook x360 435 G8 R7-5800U | |
| Dell Inspiron 14 7400 7415 2-in-1 | |
| Asus ExpertBook B3 Flip B3402FEA (Leistungsmodus) | |
| Asus ExpertBook B3 Flip B3402FEA (Dual-Channel) | |
| Asus ExpertBook B3 Flip B3402FEA | |
| Average Intel Core i7-1165G7 (1060 - 2657, n=81) | |
| Lenovo ThinkBook 14s Yoga ITL 20WE0023GE | |
| Asus ExpertBook B3 Flip B3402FEA (Fluestermodus) | |
| CPU (Single Core) | |
| Average of class Convertible (149.8 - 755, n=62, last 2 years) | |
| Asus ExpertBook B3 Flip B3402FEA (Leistungsmodus) | |
| Lenovo ThinkBook 14s Yoga ITL 20WE0023GE | |
| Asus ExpertBook B3 Flip B3402FEA (Dual-Channel) | |
| Asus ExpertBook B3 Flip B3402FEA | |
| HP ProBook x360 435 G8 R7-5800U | |
| Average Intel Core i7-1165G7 (442 - 589, n=81) | |
| Dell Inspiron 14 7400 7415 2-in-1 | |
| Asus ExpertBook B3 Flip B3402FEA (Fluestermodus) | |
| Cinebench R15 | |
| CPU Multi 64Bit | |
| Average of class Convertible (110.1 - 2889, n=65, last 2 years) | |
| HP ProBook x360 435 G8 R7-5800U | |
| Dell Inspiron 14 7400 7415 2-in-1 | |
| Asus ExpertBook B3 Flip B3402FEA (Leistungsmodus) | |
| Asus ExpertBook B3 Flip B3402FEA | |
| Asus ExpertBook B3 Flip B3402FEA (Dual-Channel) | |
| Average Intel Core i7-1165G7 (553 - 1027, n=86) | |
| Lenovo ThinkBook 14s Yoga ITL 20WE0023GE | |
| Asus ExpertBook B3 Flip B3402FEA (Fluestermodus) | |
| CPU Single 64Bit | |
| Average of class Convertible (68.6 - 287, n=62, last 2 years) | |
| HP ProBook x360 435 G8 R7-5800U | |
| Average Intel Core i7-1165G7 (115 - 230, n=78) | |
| Asus ExpertBook B3 Flip B3402FEA (Leistungsmodus) | |
| Asus ExpertBook B3 Flip B3402FEA (Dual-Channel) | |
| Lenovo ThinkBook 14s Yoga ITL 20WE0023GE | |
| Asus ExpertBook B3 Flip B3402FEA | |
| Dell Inspiron 14 7400 7415 2-in-1 | |
| Asus ExpertBook B3 Flip B3402FEA (Fluestermodus) | |
| Blender - v2.79 BMW27 CPU | |
| Asus ExpertBook B3 Flip B3402FEA (Fluestermodus) | |
| Lenovo ThinkBook 14s Yoga ITL 20WE0023GE | |
| Average Intel Core i7-1165G7 (468 - 1138, n=80) | |
| Asus ExpertBook B3 Flip B3402FEA | |
| Asus ExpertBook B3 Flip B3402FEA (Leistungsmodus) | |
| Asus ExpertBook B3 Flip B3402FEA | |
| Average of class Convertible (193 - 1059, n=59, last 2 years) | |
| Dell Inspiron 14 7400 7415 2-in-1 | |
| HP ProBook x360 435 G8 R7-5800U | |
| 7-Zip 18.03 | |
| 7z b 4 | |
| HP ProBook x360 435 G8 R7-5800U | |
| Average of class Convertible (12977 - 72400, n=60, last 2 years) | |
| Dell Inspiron 14 7400 7415 2-in-1 | |
| Asus ExpertBook B3 Flip B3402FEA (Dual-Channel) | |
| Asus ExpertBook B3 Flip B3402FEA | |
| Asus ExpertBook B3 Flip B3402FEA (Leistungsmodus) | |
| Average Intel Core i7-1165G7 (15347 - 27405, n=80) | |
| Lenovo ThinkBook 14s Yoga ITL 20WE0023GE | |
| Asus ExpertBook B3 Flip B3402FEA (Fluestermodus) | |
| 7z b 4 -mmt1 | |
| HP ProBook x360 435 G8 R7-5800U | |
| Lenovo ThinkBook 14s Yoga ITL 20WE0023GE | |
| Asus ExpertBook B3 Flip B3402FEA (Dual-Channel) | |
| Average of class Convertible (3672 - 6493, n=60, last 2 years) | |
| Asus ExpertBook B3 Flip B3402FEA | |
| Average Intel Core i7-1165G7 (4478 - 5507, n=80) | |
| Asus ExpertBook B3 Flip B3402FEA (Leistungsmodus) | |
| Dell Inspiron 14 7400 7415 2-in-1 | |
| Asus ExpertBook B3 Flip B3402FEA (Fluestermodus) | |
| Geekbench 5.5 | |
| Multi-Core | |
| Average of class Convertible (663 - 14016, n=63, last 2 years) | |
| HP ProBook x360 435 G8 R7-5800U | |
| Average Intel Core i7-1165G7 (3078 - 5926, n=77) | |
| Lenovo ThinkBook 14s Yoga ITL 20WE0023GE | |
| Asus ExpertBook B3 Flip B3402FEA (Dual-Channel) | |
| Asus ExpertBook B3 Flip B3402FEA (Leistungsmodus) | |
| Asus ExpertBook B3 Flip B3402FEA | |
| Asus ExpertBook B3 Flip B3402FEA (Fluestermodus) | |
| Single-Core | |
| Average of class Convertible (319 - 2003, n=63, last 2 years) | |
| Lenovo ThinkBook 14s Yoga ITL 20WE0023GE | |
| Average Intel Core i7-1165G7 (1302 - 1595, n=77) | |
| Asus ExpertBook B3 Flip B3402FEA | |
| Asus ExpertBook B3 Flip B3402FEA (Fluestermodus) | |
| Asus ExpertBook B3 Flip B3402FEA (Dual-Channel) | |
| Asus ExpertBook B3 Flip B3402FEA (Leistungsmodus) | |
| HP ProBook x360 435 G8 R7-5800U | |
| HWBOT x265 Benchmark v2.2 - 4k Preset | |
| Average of class Convertible (0.73 - 20.1, n=62, last 2 years) | |
| HP ProBook x360 435 G8 R7-5800U | |
| Dell Inspiron 14 7400 7415 2-in-1 | |
| Asus ExpertBook B3 Flip B3402FEA (Dual-Channel) | |
| Asus ExpertBook B3 Flip B3402FEA (Leistungsmodus) | |
| Average Intel Core i7-1165G7 (1.39 - 8.47, n=80) | |
| Asus ExpertBook B3 Flip B3402FEA | |
| Lenovo ThinkBook 14s Yoga ITL 20WE0023GE | |
| Asus ExpertBook B3 Flip B3402FEA (Fluestermodus) | |
| LibreOffice - 20 Documents To PDF | |
| Dell Inspiron 14 7400 7415 2-in-1 | |
| HP ProBook x360 435 G8 R7-5800U | |
| Asus ExpertBook B3 Flip B3402FEA (Fluestermodus) | |
| Average of class Convertible (42 - 121.5, n=59, last 2 years) | |
| Average Intel Core i7-1165G7 (21.5 - 88.1, n=78) | |
| Lenovo ThinkBook 14s Yoga ITL 20WE0023GE | |
| Asus ExpertBook B3 Flip B3402FEA | |
| Asus ExpertBook B3 Flip B3402FEA (Leistungsmodus) | |
| Asus ExpertBook B3 Flip B3402FEA (Dual-Channel) | |
| R Benchmark 2.5 - Overall mean | |
| Asus ExpertBook B3 Flip B3402FEA (Fluestermodus) | |
| Dell Inspiron 14 7400 7415 2-in-1 | |
| Average Intel Core i7-1165G7 (0.552 - 1.002, n=80) | |
| Asus ExpertBook B3 Flip B3402FEA (Dual-Channel) | |
| Asus ExpertBook B3 Flip B3402FEA | |
| Asus ExpertBook B3 Flip B3402FEA (Leistungsmodus) | |
| Lenovo ThinkBook 14s Yoga ITL 20WE0023GE | |
| HP ProBook x360 435 G8 R7-5800U | |
| Average of class Convertible (0.4102 - 1.013, n=59, last 2 years) | |
* ... smaller is better
Performance Rating: Percent
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
| Performance Rating | |
| Dell Inspiron 14 7400 7415 2-in-1 | |
| Average of class Convertible | |
| HP ProBook x360 435 G8 R7-5800U | |
| Asus ExpertBook B3 Flip B3402FEA | |
| Asus ExpertBook B3 Flip B3402FEA | |
| Average Intel Core i7-1165G7 | |
| Asus ExpertBook B3 Flip B3402FEA | |
| Lenovo ThinkBook 14s Yoga ITL 20WE0023GE | |
| Asus ExpertBook B3 Flip B3402FEA | |
| AIDA64 / FP32 Ray-Trace | |
| Dell Inspiron 14 7400 7415 2-in-1 (v6.33.5700) | |
| HP ProBook x360 435 G8 R7-5800U (v6.33.5700) | |
| Average of class Convertible (468 - 25226, n=63, last 2 years) | |
| Asus ExpertBook B3 Flip B3402FEA (v6.50.5800) | |
| Asus ExpertBook B3 Flip B3402FEA (v6.50.5800, Dual-Channel) | |
| Asus ExpertBook B3 Flip B3402FEA (v6.50.5800, Leistungsmodus) | |
| Average Intel Core i7-1165G7 (3933 - 8184, n=58) | |
| Lenovo ThinkBook 14s Yoga ITL 20WE0023GE (v6.32.5600) | |
| Asus ExpertBook B3 Flip B3402FEA (v6.50.5800, Fluestermodus) | |
| AIDA64 / FPU Julia | |
| HP ProBook x360 435 G8 R7-5800U (v6.33.5700) | |
| Dell Inspiron 14 7400 7415 2-in-1 (v6.33.5700) | |
| Average of class Convertible (2644 - 106512, n=62, last 2 years) | |
| Asus ExpertBook B3 Flip B3402FEA (v6.50.5800) | |
| Asus ExpertBook B3 Flip B3402FEA (v6.50.5800, Leistungsmodus) | |
| Asus ExpertBook B3 Flip B3402FEA (v6.50.5800, Dual-Channel) | |
| Average Intel Core i7-1165G7 (17720 - 34369, n=58) | |
| Lenovo ThinkBook 14s Yoga ITL 20WE0023GE (v6.32.5600) | |
| Asus ExpertBook B3 Flip B3402FEA (v6.50.5800, Fluestermodus) | |
| AIDA64 / CPU SHA3 | |
| Average of class Convertible (182 - 4764, n=62, last 2 years) | |
| HP ProBook x360 435 G8 R7-5800U (v6.33.5700) | |
| Asus ExpertBook B3 Flip B3402FEA (v6.50.5800) | |
| Asus ExpertBook B3 Flip B3402FEA (v6.50.5800, Leistungsmodus) | |
| Dell Inspiron 14 7400 7415 2-in-1 (v6.33.5700) | |
| Asus ExpertBook B3 Flip B3402FEA (v6.50.5800, Dual-Channel) | |
| Average Intel Core i7-1165G7 (958 - 2338, n=58) | |
| Lenovo ThinkBook 14s Yoga ITL 20WE0023GE (v6.32.5600) | |
| Asus ExpertBook B3 Flip B3402FEA (v6.50.5800, Fluestermodus) | |
| AIDA64 / CPU Queen | |
| Dell Inspiron 14 7400 7415 2-in-1 (v6.33.5700) | |
| HP ProBook x360 435 G8 R7-5800U (v6.33.5700) | |
| Average of class Convertible (10502 - 120368, n=62, last 2 years) | |
| Asus ExpertBook B3 Flip B3402FEA (v6.50.5800) | |
| Asus ExpertBook B3 Flip B3402FEA (v6.50.5800, Leistungsmodus) | |
| Asus ExpertBook B3 Flip B3402FEA (v6.50.5800, Fluestermodus) | |
| Lenovo ThinkBook 14s Yoga ITL 20WE0023GE (v6.32.5600) | |
| Asus ExpertBook B3 Flip B3402FEA (v6.50.5800, Dual-Channel) | |
| Average Intel Core i7-1165G7 (44161 - 50624, n=58) | |
| AIDA64 / FPU SinJulia | |
| Dell Inspiron 14 7400 7415 2-in-1 (v6.33.5700) | |
| HP ProBook x360 435 G8 R7-5800U (v6.33.5700) | |
| Average of class Convertible (659 - 14835, n=62, last 2 years) | |
| Asus ExpertBook B3 Flip B3402FEA (v6.50.5800) | |
| Asus ExpertBook B3 Flip B3402FEA (v6.50.5800, Dual-Channel) | |
| Asus ExpertBook B3 Flip B3402FEA (v6.50.5800, Leistungsmodus) | |
| Average Intel Core i7-1165G7 (3183 - 4796, n=58) | |
| Lenovo ThinkBook 14s Yoga ITL 20WE0023GE (v6.32.5600) | |
| Asus ExpertBook B3 Flip B3402FEA (v6.50.5800, Fluestermodus) | |
| AIDA64 / FPU Mandel | |
| HP ProBook x360 435 G8 R7-5800U (v6.33.5700) | |
| Dell Inspiron 14 7400 7415 2-in-1 (v6.33.5700) | |
| Average of class Convertible (1420 - 56839, n=62, last 2 years) | |
| Asus ExpertBook B3 Flip B3402FEA (v6.50.5800) | |
| Asus ExpertBook B3 Flip B3402FEA (v6.50.5800, Leistungsmodus) | |
| Asus ExpertBook B3 Flip B3402FEA (v6.50.5800, Dual-Channel) | |
| Average Intel Core i7-1165G7 (11876 - 20468, n=58) | |
| Lenovo ThinkBook 14s Yoga ITL 20WE0023GE (v6.32.5600) | |
| Asus ExpertBook B3 Flip B3402FEA (v6.50.5800, Fluestermodus) | |
| AIDA64 / CPU AES | |
| Asus ExpertBook B3 Flip B3402FEA (v6.50.5800, Leistungsmodus) | |
| Asus ExpertBook B3 Flip B3402FEA (v6.50.5800) | |
| Asus ExpertBook B3 Flip B3402FEA (v6.50.5800, Dual-Channel) | |
| Average Intel Core i7-1165G7 (29506 - 73387, n=58) | |
| Dell Inspiron 14 7400 7415 2-in-1 (v6.33.5700) | |
| Lenovo ThinkBook 14s Yoga ITL 20WE0023GE (v6.32.5600) | |
| Average of class Convertible (1279 - 169089, n=62, last 2 years) | |
| HP ProBook x360 435 G8 R7-5800U (v6.33.5700) | |
| Asus ExpertBook B3 Flip B3402FEA (v6.50.5800, Fluestermodus) | |
| AIDA64 / CPU ZLib | |
| Dell Inspiron 14 7400 7415 2-in-1 (v6.33.5700) | |
| Average of class Convertible (61.4 - 1088, n=62, last 2 years) | |
| HP ProBook x360 435 G8 R7-5800U (v6.33.5700) | |
| Asus ExpertBook B3 Flip B3402FEA (v6.50.5800, Leistungsmodus) | |
| Asus ExpertBook B3 Flip B3402FEA | |
| Asus ExpertBook B3 Flip B3402FEA (v6.50.5800, Dual-Channel) | |
| Average Intel Core i7-1165G7 (169 - 402, n=65) | |
| Lenovo ThinkBook 14s Yoga ITL 20WE0023GE (v6.32.5600) | |
| Asus ExpertBook B3 Flip B3402FEA (v6.50.5800, Fluestermodus) | |
| AIDA64 / FP64 Ray-Trace | |
| Dell Inspiron 14 7400 7415 2-in-1 (v6.33.5700) | |
| HP ProBook x360 435 G8 R7-5800U (v6.33.5700) | |
| Average of class Convertible (254 - 13175, n=62, last 2 years) | |
| Asus ExpertBook B3 Flip B3402FEA (v6.50.5800) | |
| Asus ExpertBook B3 Flip B3402FEA (v6.50.5800, Dual-Channel) | |
| Asus ExpertBook B3 Flip B3402FEA (v6.50.5800, Leistungsmodus) | |
| Average Intel Core i7-1165G7 (2033 - 4461, n=58) | |
| Lenovo ThinkBook 14s Yoga ITL 20WE0023GE (v6.32.5600) | |
| Asus ExpertBook B3 Flip B3402FEA (v6.50.5800, Fluestermodus) | |
| AIDA64 / CPU PhotoWorxx | |
| Average of class Convertible (5136 - 53406, n=62, last 2 years) | |
| Average Intel Core i7-1165G7 (12392 - 45694, n=58) | |
| Asus ExpertBook B3 Flip B3402FEA (v6.50.5800, Dual-Channel) | |
| Lenovo ThinkBook 14s Yoga ITL 20WE0023GE (v6.32.5600) | |
| Dell Inspiron 14 7400 7415 2-in-1 (v6.33.5700) | |
| Asus ExpertBook B3 Flip B3402FEA (v6.50.5800) | |
| Asus ExpertBook B3 Flip B3402FEA (v6.50.5800, Leistungsmodus) | |
| Asus ExpertBook B3 Flip B3402FEA (v6.50.5800, Fluestermodus) | |
| HP ProBook x360 435 G8 R7-5800U (v6.33.5700) | |
系统性能
该系统反应灵敏，运行平稳。CPU为办公和互联网使用提供了足够的性能。不过，华硕并没有发挥其全部潜力，因为牢固焊接的内存（16GB）只能在单通道模式下运行。双通道模式可以通过安装另一个内存模块来激活。该笔记本有一个空闲的RAM插槽。
| PCMark 10 Score | 5082 points | |
Help | ||
PCMark 10: Score | Essentials | Productivity | Digital Content Creation
CrossMark: Overall | Productivity | Creativity | Responsiveness
CrossMark: Overall | Productivity | Creativity | Responsiveness
| PCMark 10 / Score | |
| Average of class Convertible (1486 - 7963, n=59, last 2 years) | |
| Dell Inspiron 14 7400 7415 2-in-1 | |
| HP ProBook x360 435 G8 R7-5800U | |
| Asus ExpertBook B3 Flip B3402FEA | |
| Lenovo ThinkBook 14s Yoga ITL 20WE0023GE | |
| Average Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs (4531 - 5454, n=50) | |
| PCMark 10 / Essentials | |
| Lenovo ThinkBook 14s Yoga ITL 20WE0023GE | |
| Average of class Convertible (3975 - 12059, n=59, last 2 years) | |
| Average Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs (8997 - 11505, n=50) | |
| Asus ExpertBook B3 Flip B3402FEA | |
| HP ProBook x360 435 G8 R7-5800U | |
| Dell Inspiron 14 7400 7415 2-in-1 | |
| PCMark 10 / Productivity | |
| HP ProBook x360 435 G8 R7-5800U | |
| Average of class Convertible (2764 - 10800, n=59, last 2 years) | |
| Dell Inspiron 14 7400 7415 2-in-1 | |
| Asus ExpertBook B3 Flip B3402FEA | |
| Average Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs (5570 - 7136, n=50) | |
| Lenovo ThinkBook 14s Yoga ITL 20WE0023GE | |
| PCMark 10 / Digital Content Creation | |
| Average of class Convertible (811 - 12360, n=59, last 2 years) | |
| Dell Inspiron 14 7400 7415 2-in-1 | |
| Asus ExpertBook B3 Flip B3402FEA | |
| HP ProBook x360 435 G8 R7-5800U | |
| Average Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs (4083 - 5550, n=50) | |
| Lenovo ThinkBook 14s Yoga ITL 20WE0023GE | |
| CrossMark / Overall | |
| Average of class Convertible (310 - 1912, n=59, last 2 years) | |
| Average Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs (1341 - 1477, n=4) | |
| Asus ExpertBook B3 Flip B3402FEA | |
| CrossMark / Productivity | |
| Asus ExpertBook B3 Flip B3402FEA | |
| Average Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs (1430 - 1492, n=4) | |
| Average of class Convertible (389 - 1790, n=59, last 2 years) | |
| CrossMark / Creativity | |
| Average of class Convertible (252 - 2183, n=59, last 2 years) | |
| Average Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs (1237 - 1483, n=4) | |
| Asus ExpertBook B3 Flip B3402FEA | |
| CrossMark / Responsiveness | |
| Asus ExpertBook B3 Flip B3402FEA | |
| Average Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs (1273 - 1414, n=4) | |
| Average of class Convertible (295 - 1868, n=59, last 2 years) | |
| AIDA64 / Memory Copy | |
| Average of class Convertible (16353 - 108544, n=62, last 2 years) | |
| Average Intel Core i7-1165G7 (20032 - 65446, n=58) | |
| Lenovo ThinkBook 14s Yoga ITL 20WE0023GE (v6.32.5600) | |
| Dell Inspiron 14 7400 7415 2-in-1 (v6.33.5700) | |
| Asus ExpertBook B3 Flip B3402FEA (v6.50.5800, Dual-Channel) | |
| HP ProBook x360 435 G8 R7-5800U (v6.33.5700) | |
| Asus ExpertBook B3 Flip B3402FEA (v6.50.5800) | |
| AIDA64 / Memory Read | |
| Average of class Convertible (12706 - 125359, n=62, last 2 years) | |
| Average Intel Core i7-1165G7 (23033 - 64524, n=58) | |
| Dell Inspiron 14 7400 7415 2-in-1 (v6.33.5700) | |
| Lenovo ThinkBook 14s Yoga ITL 20WE0023GE (v6.32.5600) | |
| Asus ExpertBook B3 Flip B3402FEA (v6.50.5800, Dual-Channel) | |
| HP ProBook x360 435 G8 R7-5800U (v6.33.5700) | |
| Asus ExpertBook B3 Flip B3402FEA (v6.50.5800) | |
| AIDA64 / Memory Write | |
| Average of class Convertible (10177 - 117920, n=62, last 2 years) | |
| Average Intel Core i7-1165G7 (21736 - 66791, n=58) | |
| Lenovo ThinkBook 14s Yoga ITL 20WE0023GE (v6.32.5600) | |
| Dell Inspiron 14 7400 7415 2-in-1 (v6.33.5700) | |
| Asus ExpertBook B3 Flip B3402FEA (v6.50.5800, Dual-Channel) | |
| HP ProBook x360 435 G8 R7-5800U (v6.33.5700) | |
| Asus ExpertBook B3 Flip B3402FEA | |
| AIDA64 / Memory Latency | |
| Average of class Convertible (7.4 - 173, n=62, last 2 years) | |
| Dell Inspiron 14 7400 7415 2-in-1 (v6.33.5700) | |
| Asus ExpertBook B3 Flip B3402FEA (v6.50.5800, Dual-Channel) | |
| Asus ExpertBook B3 Flip B3402FEA | |
| HP ProBook x360 435 G8 R7-5800U (v6.33.5700) | |
| Lenovo ThinkBook 14s Yoga ITL 20WE0023GE (v6.32.5600) | |
| Average Intel Core i7-1165G7 (69 - 110, n=65) | |
* ... smaller is better
DPC延迟
| DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95 | |
| Asus ExpertBook B3 Flip B3402FEA | |
| Dell Inspiron 14 7400 7415 2-in-1 | |
| Lenovo ThinkBook 14s Yoga ITL 20WE0023GE | |
| HP ProBook x360 435 G8 R7-5800U | |
* ... smaller is better
存储解决方案
美光公司的512GB NVMe固态硬盘（M.2-2280）作为系统驱动器，总体上提供了良好的传输速率，但它不是固态硬盘中的顶级型号之一。
Micron 2210 MTFDHBA512QFD
CDM 5/6 Read Seq Q32T1:
2218 MB/s
CDM 5/6 Write Seq Q32T1:
1127 MB/s
CDM 5/6 Read 4K Q32T1:
550 MB/s
CDM 5/6 Write 4K Q32T1:
64.7 MB/s
CDM 5 Read Seq:
1990 MB/s
CDM 5 Write Seq:
1143 MB/s
CDM 5/6 Read 4K:
79.2 MB/s
CDM 5/6 Write 4K:
259.3 MB/s
* ... smaller is better
Continuous Read Speed: DiskSpd Read Loop, Queue Depth 8
Asus ExpertBook B3 Flip B3402FEA Micron 2210 MTFDHBA512QFD: Ø1555 (1435.15-1559.89)
GPU性能
内置的英特尔Iris Xe Graphics G7（96EU）iGPU可以永久保持1300MHz的最大时钟速度--在TheWitcher 3测试中可以看到。B3不是一款用于游戏的笔记本，尽管内置硬件可以流畅地显示许多游戏--在低分辨率和低质量设置下。

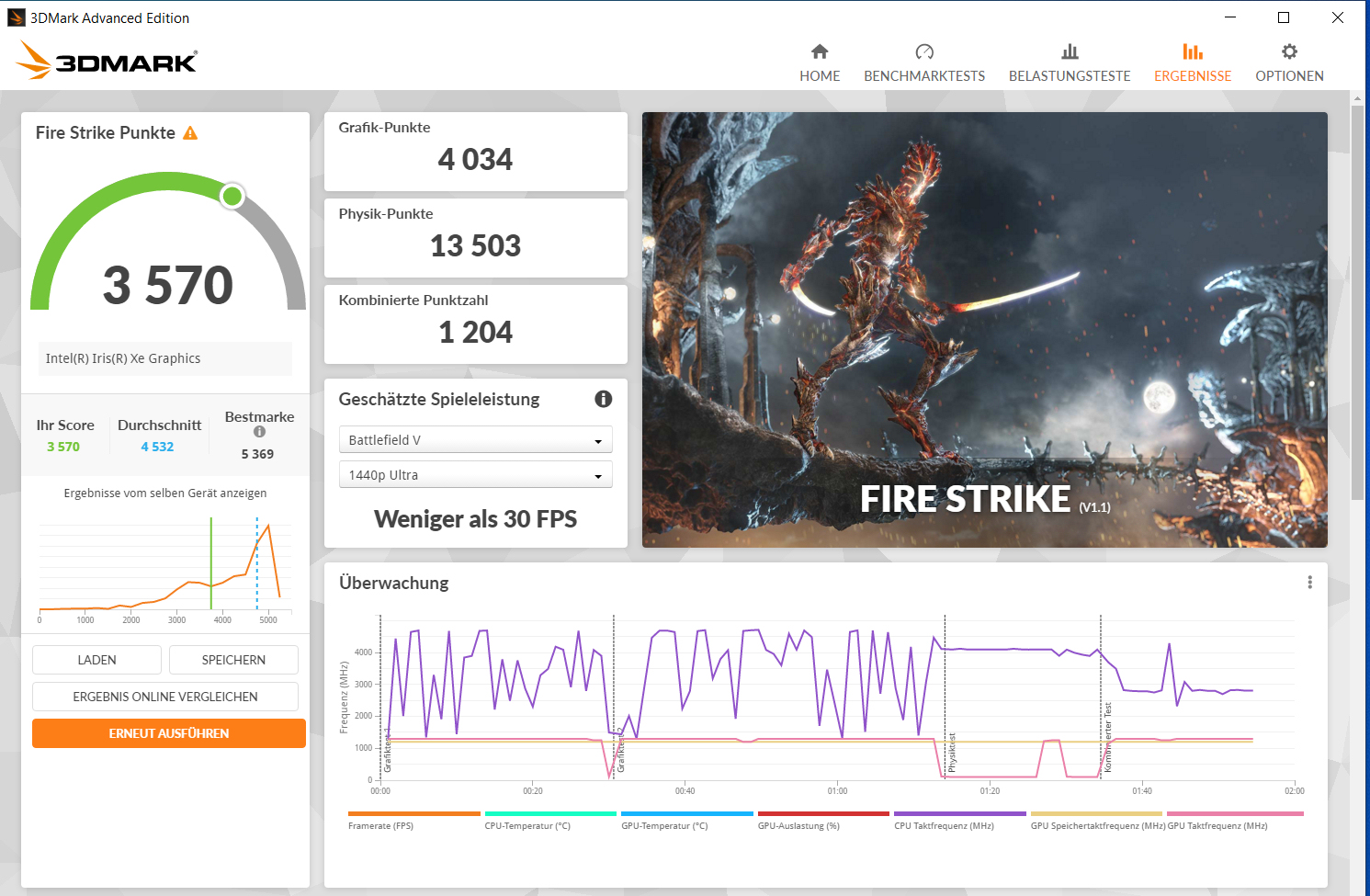

内存只在单通道模式下运行，不允许iGPU发挥其全部潜力。但也有选择：激活双通道模式（安装第二个内存模块）将提高基准测试结果以及游戏时的帧率（见对比图）。
| 3DMark 11 Performance | 5312 points | |
| 3DMark Ice Storm Standard Score | 64123 points | |
| 3DMark Cloud Gate Standard Score | 15817 points | |

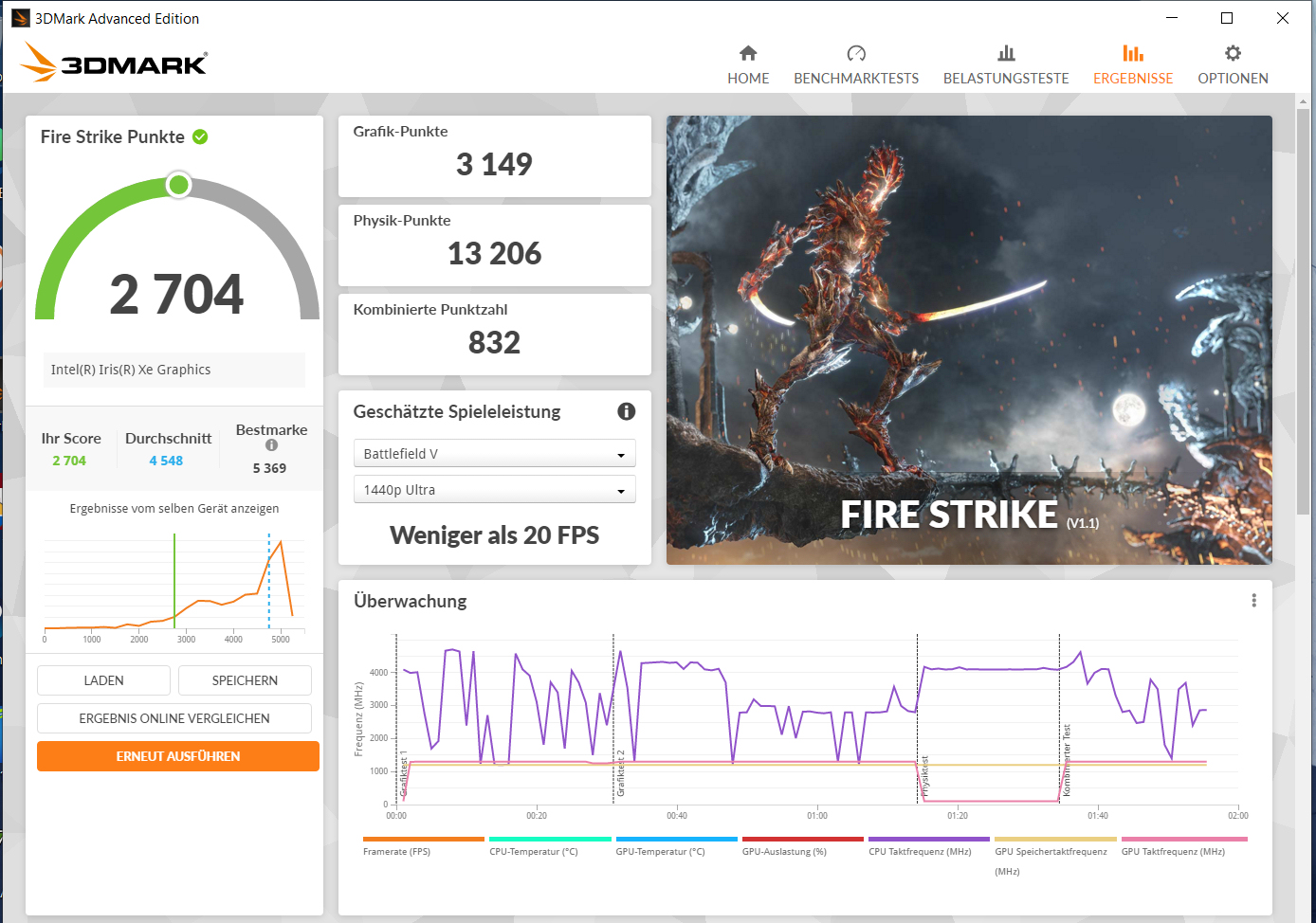

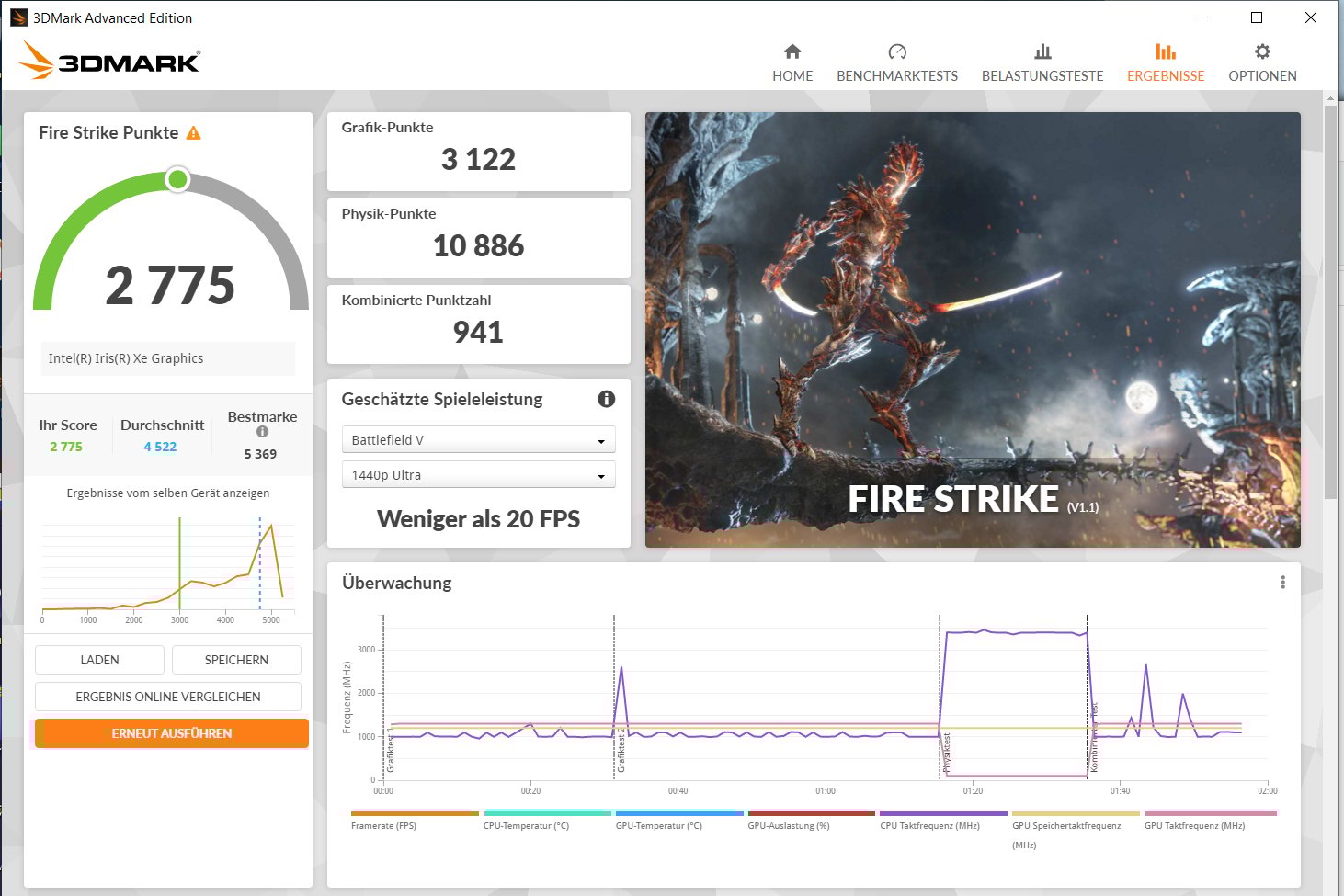

| 3DMark Fire Strike Score | 2704 points | |
| 3DMark Time Spy Score | 1213 points | |
Help | ||
| 3DMark Performance Rating - Percent | |
| Average of class Convertible | |
| Average Intel Iris Xe Graphics G7 96EUs | |
| Asus ExpertBook B3 Flip B3402FEA | |
| Lenovo ThinkBook 14s Yoga ITL 20WE0023GE | |
| Dell Inspiron 14 7400 7415 2-in-1 | |
| Asus ExpertBook B3 Flip B3402FEA | |
| Asus ExpertBook B3 Flip B3402FEA -1! | |
| HP ProBook x360 435 G8 R7-5800U | |
| Asus ExpertBook B3 Flip B3402FEA -1! | |
| 3DMark 11 - 1280x720 Performance GPU | |
| Average of class Convertible (471 - 40768, n=61, last 2 years) | |
| Average Intel Iris Xe Graphics G7 96EUs (2867 - 7676, n=202) | |
| Lenovo ThinkBook 14s Yoga ITL 20WE0023GE | |
| Asus ExpertBook B3 Flip B3402FEA (Dual-Channel) | |
| Dell Inspiron 14 7400 7415 2-in-1 | |
| Asus ExpertBook B3 Flip B3402FEA | |
| HP ProBook x360 435 G8 R7-5800U | |
The Witcher 3 | Dota 2 Reborn | Final Fantasy XV Benchmark | X-Plane 11.11 | GTA V | Strange Brigade | F1 2021
| The Witcher 3 - 1366x768 Medium Graphics & Postprocessing | |
| Average of class Convertible (28 - 257, n=42, last 2 years) | |
| Average Intel Iris Xe Graphics G7 96EUs (21.4 - 77.8, n=184) | |
| Lenovo ThinkBook 14s Yoga ITL 20WE0023GE | |
| Asus ExpertBook B3 Flip B3402FEA | |
| Asus ExpertBook B3 Flip B3402FEA | |
| Dota 2 Reborn - 1366x768 med (1/3) | |
| Average of class Convertible (6.9 - 174.3, n=62, last 2 years) | |
| Asus ExpertBook B3 Flip B3402FEA (Dual-Channel) | |
| HP ProBook x360 435 G8 R7-5800U | |
| Average Intel Iris Xe Graphics G7 96EUs (31.6 - 108.5, n=215) | |
| Dell Inspiron 14 7400 7415 2-in-1 | |
| Asus ExpertBook B3 Flip B3402FEA (Leistungsmodus) | |
| Asus ExpertBook B3 Flip B3402FEA | |
| Lenovo ThinkBook 14s Yoga ITL 20WE0023GE | |
| Asus ExpertBook B3 Flip B3402FEA (Fluestermodus) | |
| Final Fantasy XV Benchmark - 1280x720 Lite Quality | |
| Average of class Convertible (3.56 - 182.7, n=59, last 2 years) | |
| Average Intel Iris Xe Graphics G7 96EUs (14.9 - 56.5, n=183) | |
| Dell Inspiron 14 7400 7415 2-in-1 (1.3) | |
| Asus ExpertBook B3 Flip B3402FEA (1.3, Dual-Channel) | |
| Asus ExpertBook B3 Flip B3402FEA (1.3, Leistungsmodus) | |
| Asus ExpertBook B3 Flip B3402FEA (1.3) | |
| HP ProBook x360 435 G8 R7-5800U (1.3) | |
| Asus ExpertBook B3 Flip B3402FEA (1.3, Fluestermodus) | |
| X-Plane 11.11 - 1280x720 low (fps_test=1) | |
| Average of class Convertible (20.7 - 143.4, n=62, last 2 years) | |
| Asus ExpertBook B3 Flip B3402FEA (Dual-Channel) | |
| Average Intel Iris Xe Graphics G7 96EUs (13.4 - 88.4, n=212) | |
| Lenovo ThinkBook 14s Yoga ITL 20WE0023GE | |
| HP ProBook x360 435 G8 R7-5800U | |
| Dell Inspiron 14 7400 7415 2-in-1 | |
| Asus ExpertBook B3 Flip B3402FEA (Leistungsmodus) | |
| Asus ExpertBook B3 Flip B3402FEA | |
| Asus ExpertBook B3 Flip B3402FEA (Fluestermodus) | |
| GTA V - 1366x768 Normal/Off AF:4x | |
| Average of class Convertible (46.6 - 175.4, n=45, last 2 years) | |
| Average Intel Iris Xe Graphics G7 96EUs (24.1 - 149.3, n=165) | |
| Dell Inspiron 14 7400 7415 2-in-1 | |
| Asus ExpertBook B3 Flip B3402FEA (Dual-Channel) | |
| HP ProBook x360 435 G8 R7-5800U | |
| Asus ExpertBook B3 Flip B3402FEA | |
| Asus ExpertBook B3 Flip B3402FEA (Leistungsmodus) | |
| Strange Brigade - 1280x720 lowest AF:1 | |
| Average of class Convertible (27.6 - 407, n=57, last 2 years) | |
| Average Intel Iris Xe Graphics G7 96EUs (48.5 - 115.1, n=168) | |
| Dell Inspiron 14 7400 7415 2-in-1 (1.47.22.14 D3D12) | |
| Asus ExpertBook B3 Flip B3402FEA (1.47.22.14 D3D12, Dual-Channel) | |
| Asus ExpertBook B3 Flip B3402FEA (1.47.22.14 D3D12) | |
| Asus ExpertBook B3 Flip B3402FEA (1.47.22.14 D3D12, Leistungsmodus) | |
| HP ProBook x360 435 G8 R7-5800U (1.47.22.14 D3D12) | |
| F1 2021 - 1280x720 Ultra Low Preset | |
| Average of class Convertible (101.6 - 191.7, n=6, last 2 years) | |
| Average Intel Iris Xe Graphics G7 96EUs (59.4 - 129.9, n=46) | |
| Asus ExpertBook B3 Flip B3402FEA (843175, Dual-Channel) | |
| Asus ExpertBook B3 Flip B3402FEA (843175) | |
| Asus ExpertBook B3 Flip B3402FEA (843175, Leistungsmodus) | |
| low | med. | high | ultra | |
|---|---|---|---|---|
| GTA V (2015) | 65 | 51.5 | 13 | 5.15 |
| The Witcher 3 (2015) | 60.1 | 36.5 | 16.7 | 9.74 |
| Dota 2 Reborn (2015) | 99.1 | 59.5 | 34.6 | 32.8 |
| Final Fantasy XV Benchmark (2018) | 26.1 | 13.2 | 10.1 | |
| X-Plane 11.11 (2018) | 24.6 | 21.6 | 21 | |
| Strange Brigade (2018) | 57.1 | 20.7 | 17.7 | 14.7 |
| F1 2021 (2021) | 64.7 | 30.8 | 24.7 | 17.3 |
排放与能源 - 华硕敞篷车产生的噪音有点大
系统噪音
在日常使用中（办公室、互联网），风扇经常完全不转，完全无声运行。在负载情况下，噪音水平增加到44.1 dB(A)--对于一个简单的办公笔记本来说，噪音太大。在这方面，竞争对手有更多的优势。通过 "低声模式"，噪音水平降低--以牺牲计算能力为代价。
Noise Level
| Idle |
| 25 / 25 / 32.3 dB(A) |
| Load |
| 44.1 / 44.1 dB(A) |
 | ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min:  , med:  , max:  Earthworks M23R, Arta (15 cm distance) environment noise: 25 dB(A) | ||
| Asus ExpertBook B3 Flip B3402FEA Iris Xe G7 96EUs, i7-1165G7, Micron 2210 MTFDHBA512QFD | Lenovo ThinkBook 14s Yoga ITL 20WE0023GE Iris Xe G7 96EUs, i7-1165G7, SK Hynix BC711 HFM512GD3HX015N | Dell Inspiron 14 7400 7415 2-in-1 Vega 8, R7 5700U, WDC PC SN530 SDBPTPZ-512G | HP ProBook x360 435 G8 R7-5800U Vega 8, R7 5800U, Samsung PM991 MZVLQ512HALU | |
|---|---|---|---|---|
| Noise | 15% | 11% | 4% | |
| off / environment * | 25 | 24.9 -0% | 24.3 3% | 23.7 5% |
| Idle Minimum * | 25 | 24.9 -0% | 24.3 3% | 23.7 5% |
| Idle Average * | 25 | 24.9 -0% | 24.3 3% | 27.5 -10% |
| Idle Maximum * | 32.3 | 24.9 23% | 24.3 25% | 34.4 -7% |
| Load Average * | 44.1 | 29.1 34% | 35.7 19% | 36.2 18% |
| Load Maximum * | 44.1 | 29.8 32% | 37.3 15% | 38.7 12% |
| Witcher 3 ultra * | 37.5 |
* ... smaller is better
温度
在日常使用中（办公室、互联网），华硕Flip的表面温度保持合理。在负载（压力测试）下，温度在几个区域上升，但平均仍保持适度。
在压力测试的开始阶段（运行Prime95和Furmark至少一个小时），CPU运行在2.6到4GHz。在我们整个压力测试过程中，时钟速率下降到1.3至2.8GHz范围。图形芯片的时钟在1,000至1,200兆赫之间震荡。压力测试代表了一种极端情况。我们用这个测试来确定系统在最大负荷下是否稳定。

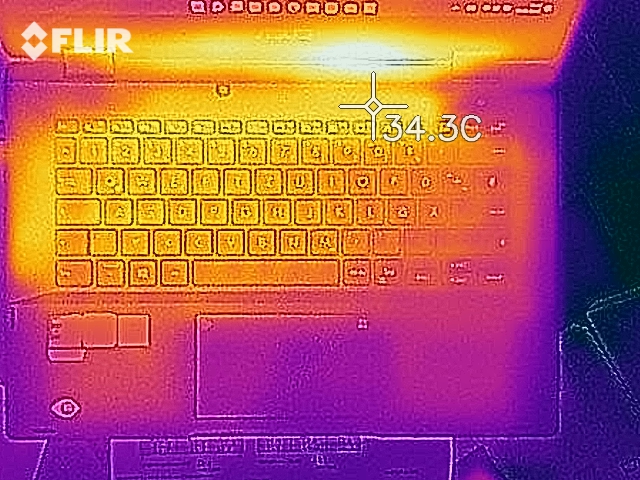

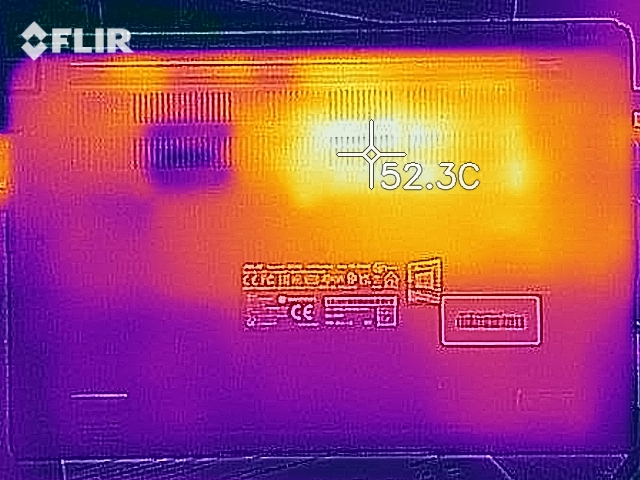

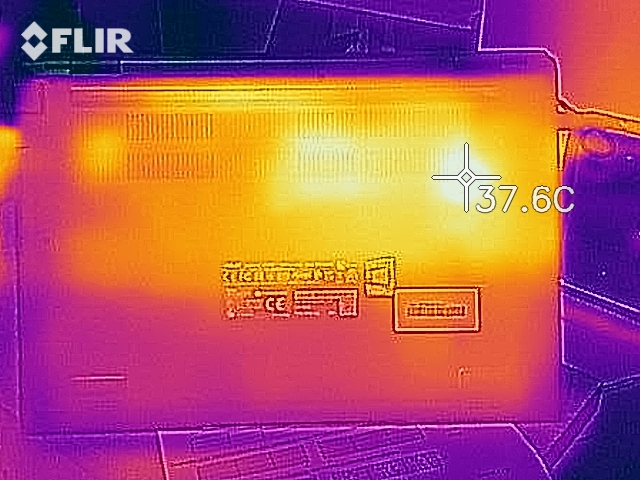

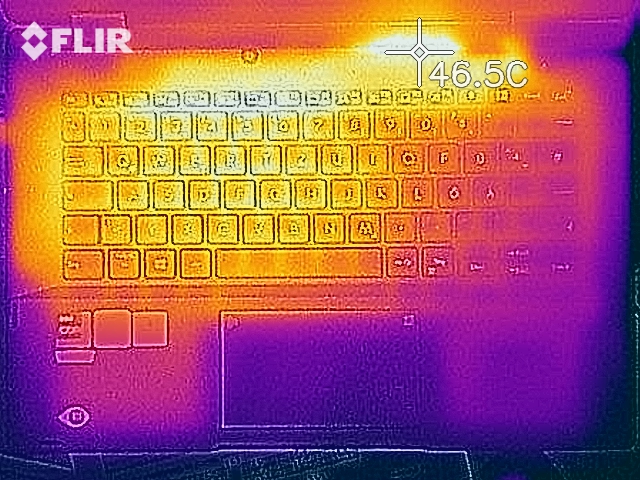

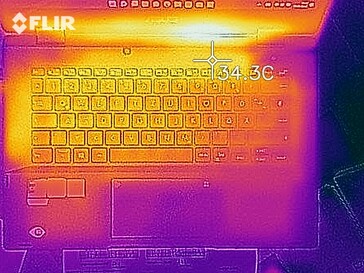

请注意：以下热图图片是用网络摄像头拍摄的。
(±) The average temperature for the upper side under maximal load is 34.3 °C / 94 F, compared to the average of 30.3 °C / 87 F for the devices in the class Convertible.
(±) The maximum temperature on the upper side is 43.6 °C / 110 F, compared to the average of 35.3 °C / 96 F, ranging from 19.6 to 60 °C for the class Convertible.
(-) The bottom heats up to a maximum of 55.4 °C / 132 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 26 °C / 79 F, compared to the device average of 30.3 °C / 87 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 30.2 °C / 86.4 F and are therefore cool to the touch.
(-) The average temperature of the palmrest area of similar devices was 28.1 °C / 82.6 F (-2.1 °C / -3.8 F).
(±) The maximum temperature on the upper side is 43.6 °C / 110 F, compared to the average of 35.3 °C / 96 F, ranging from 19.6 to 60 °C for the class Convertible.
(-) The bottom heats up to a maximum of 55.4 °C / 132 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 26 °C / 79 F, compared to the device average of 30.3 °C / 87 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 30.2 °C / 86.4 F and are therefore cool to the touch.
(-) The average temperature of the palmrest area of similar devices was 28.1 °C / 82.6 F (-2.1 °C / -3.8 F).
| Asus ExpertBook B3 Flip B3402FEA Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs | Lenovo ThinkBook 14s Yoga ITL 20WE0023GE Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs | Dell Inspiron 14 7400 7415 2-in-1 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) | HP ProBook x360 435 G8 R7-5800U AMD Ryzen 7 5800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) | |
|---|---|---|---|---|
| Heat | 16% | 3% | 9% | |
| Maximum Upper Side * | 43.6 | 36 17% | 39.4 10% | 43.8 -0% |
| Maximum Bottom * | 55.4 | 37.6 32% | 51 8% | 47.4 14% |
| Idle Upper Side * | 28.1 | 26.1 7% | 26.2 7% | 24.6 12% |
| Idle Bottom * | 28.4 | 25.8 9% | 32.4 -14% | 25.2 11% |
* ... smaller is better
发言人
虽然立体声扬声器能产生良好的声音，但它们可以从更明显的低音中受益。
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
Asus ExpertBook B3 Flip B3402FEA audio analysis
(±) | speaker loudness is average but good (81.7 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 14.2% lower than median
(±) | linearity of bass is average (9.4% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 1% away from median
(+) | mids are linear (3.7% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 14.4% higher than median
(±) | linearity of highs is average (8% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (21.3% difference to median)
Compared to same class
» 54% of all tested devices in this class were better, 12% similar, 34% worse
» The best had a delta of 6%, average was 21%, worst was 57%
Compared to all devices tested
» 56% of all tested devices were better, 7% similar, 37% worse
» The best had a delta of 4%, average was 25%, worst was 134%
Lenovo ThinkBook 14s Yoga ITL 20WE0023GE audio analysis
(±) | speaker loudness is average but good (73.2 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 26.1% lower than median
(±) | linearity of bass is average (12.1% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 5.3% higher than median
(+) | mids are linear (6.8% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.1% away from median
(±) | linearity of highs is average (8.2% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (21.3% difference to median)
Compared to same class
» 54% of all tested devices in this class were better, 12% similar, 34% worse
» The best had a delta of 6%, average was 21%, worst was 57%
Compared to all devices tested
» 56% of all tested devices were better, 7% similar, 37% worse
» The best had a delta of 4%, average was 25%, worst was 134%
能源消耗
我们记录了内置硬件的正常能源消耗值。在压力测试开始时，达到了约66瓦的峰值消耗。在我们整个压力测试过程中，这个数值不断下降，因为CPU的速度变慢。在《Witcher 3 》 测试中，该笔记本可以保持相当稳定的消耗水平。附带的USB-C电源的额定输出功率为65瓦，其尺寸足以满足笔记本的需求。
Power Consumption
| Off / Standby | 0.3 / 1 Watt |
| Idle | 4.1 / 6.9 / 7.4 Watt |
| Load |
39.8 / 66 Watt |

| |
Key:
min: ,
med: ,
max: Metrahit Energy | |
Power Consumption Witcher 3 / Stress Test
Asus ExpertBook B3 Flip B3402FEA; Witcher 3 ultra: Ø39.7 (35.5-60.8)
Asus ExpertBook B3 Flip B3402FEA; 1280x720 Prime95 28.10 and Furmark 1.25: Ø46 (41.6-66.2)
Power Consumption External Monitor
Asus ExpertBook B3 Flip B3402FEA; Prime95 V2810 Stress (external Monitor): Ø44.1 (41.6-64.9)
Asus ExpertBook B3 Flip B3402FEA; Cinebench R15 Multi (external Monitor): Ø48.7 (41.3-66)
Asus ExpertBook B3 Flip B3402FEA; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø42.4 (38.9-44.5)
Asus ExpertBook B3 Flip B3402FEA; 1920x1080 The Witcher 3 ultra (external Monitor): Ø37 (33.6-41)
电池寿命
在我们真实的Wi-Fi测试中，笔记本持续了7:40小时。在这里，我们借助一个脚本来模拟网络浏览的负载。
Pros
+ 具有良好对比度的触摸屏显示器
+ NVMe SSD
+ 良好的键盘
+ 内存可升级
+ 两个Thunderbolt 4端口
+ 三个SSD插槽
+ 副摄像头（1300万像素）
+ 电源交付
+ 手写笔输入
+ 盒子里的输入笔
+ LTE调制解调器
Cons
- 反射式显示器
- 显示屏亮度低
- 色彩精确度低
- 负载下有噪音
- RAM在单通道模式下运行
- 读卡器速度慢
- 没有背光键盘
结论 - 稳固，但有一些弱点
华硕ExpertBook B3 Flip是一款不起眼的二合一笔记本电脑，配备了所有使用情况。通过以太网、Wi-Fi和LTE可以实现网络访问。两个Thunderbolt 4端口（PowerDelivery、Displayport）为更多的升级选择留下了空间。
ExpertBook B3 Flip在它所做的事情上相当出色，但它在一些领域中挣扎，而这些领域是一个价格为1400欧元（约
1586美元）的设备所不应该的。
Core i7-1165G7具有良好的短期爆发性能，但在连续负载下会有所下降。由于它在负载下的声音比较大，可以在 "耳语模式 "下降低噪音水平--通过降低性能。实际的电池寿命总共为8小时，但B3的数值低于其竞争对手的数值。
触摸屏（FHD，IPS）提供了良好的对比度，良好的可视角度，以及坚实的色彩表现。不过，亮度和色彩准确性未能给人留下深刻印象。触摸屏显示器可以用手指或附带的华硕笔进行输入。后者被收在底座中，在那里也可以充电。
联想ThinkBook 14s Yoga ITL 可能是华硕可折叠机的替代产品。它有更好的显示屏，背光键盘，以及更长的电池寿命。它不提供LTE调制解调器--甚至不提供选项。
价格和可用性
类似版本的ExpertBook B3 Flip(配备酷睿i7-1135G7，16GB内存，256GB SSD，Windows 10 Pro）目前在沃尔玛有售。
Asus ExpertBook B3 Flip B3402FEA
- 02/23/2022 v7 (old)
Sascha Mölck
Convertible - Weighted Average
Price comparison
