华硕ExpertBook L1 L1401CDA在审查中。小型预算的安静办公笔记本

Name: Asus ExpertBook L1 L1401CDA-EK0457R
Brand: Asus

便宜还是不便宜？

ExpertBook板上有Ryzen 3 APU，通常运行安静，提供背光键盘，并有许多连接选项（包括VGA）。Windows 10 Pro作为操作系统（可以升级到Windows 11）。购买价格约为330欧元（约350美元）。

Sascha Mölck, 👁 Sebastian Jentsch (translated by DeepL / Ninh Duy), Published 12/20/2022 🇺🇸 🇩🇪 ...

AMD Business Laptop / Notebook Ryzen (Zen) Windows Zen

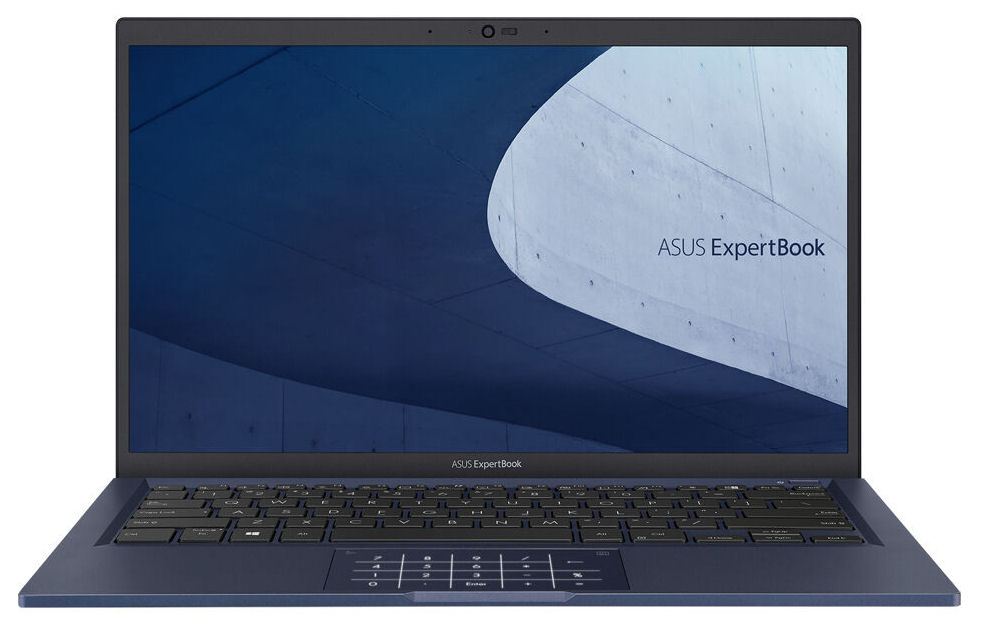

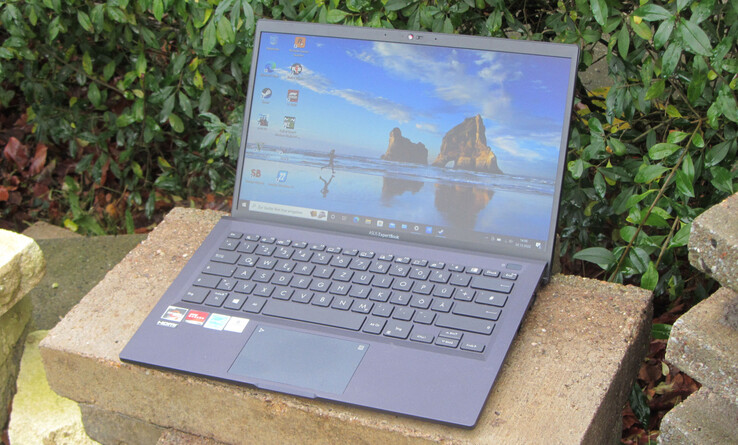

华硕的ExpertBook L1是一款14英寸的笔记本，主要针对商业客户和教育机构。然而，价格水平也使该设备对私人用户很有吸引力。大约330欧元（约350美元），你可以得到一个包括Ryzen 3-3250UAPU、8GB内存、256GB SSD和Windows 10 Pro（可以升级到Windows 11）。竞争者包括以下电脑联想IdeaPad 3 14ITL6，以及戴尔 Inspiron 15 3505和 Acer Extensa 15 EX215-54.

Test device courtesy of cyberport.de

Download your licensed rating image as PNG / SVG

Asus ExpertBook L1 L1401CDA-EK0457R

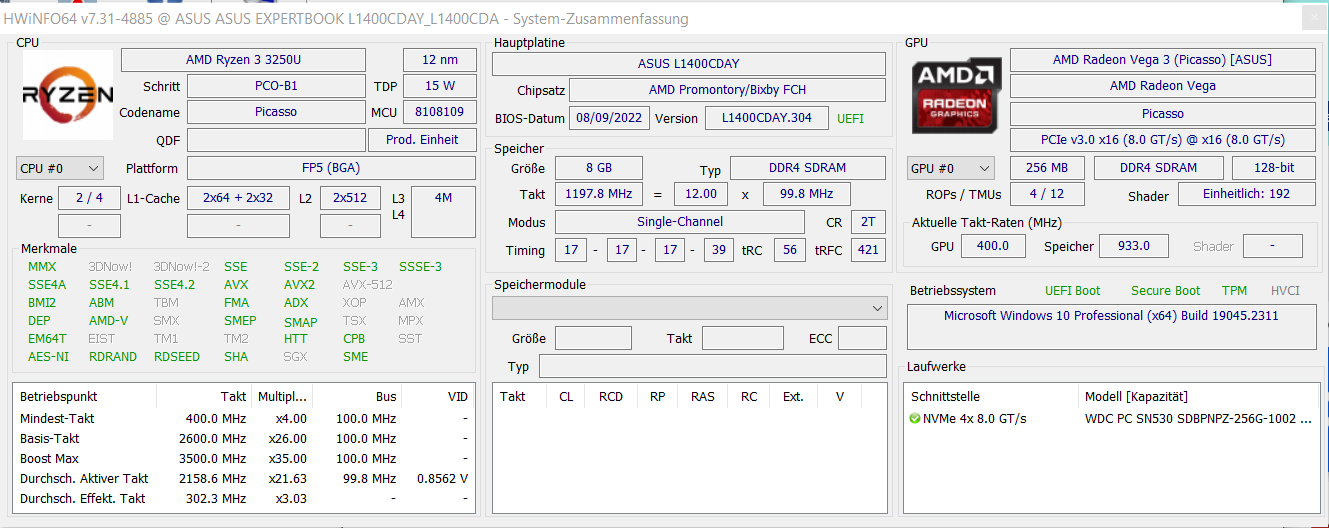

Processor

AMD Ryzen 3 3250U 2 x 2.6 - 3.5 GHz, 30 W PL2 / Short Burst, 26 W PL1 / Sustained, Zen

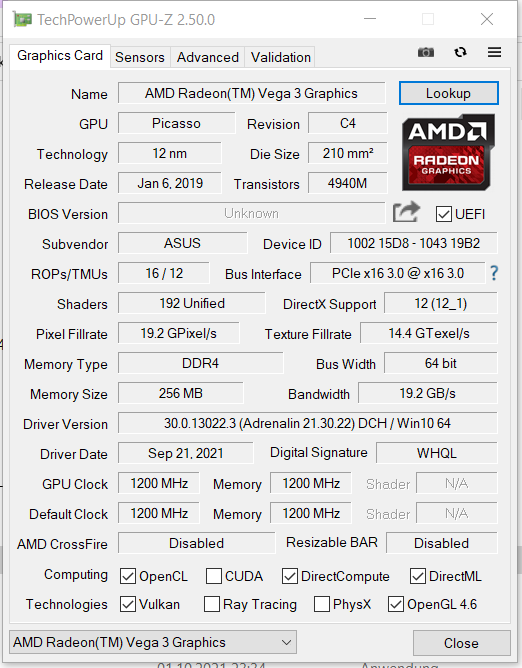

Graphics adapter

AMD Radeon RX Vega 3 - 256 MB VRAM, Core: 1200 MHz, Single-Channel, 30.0.13022.3

Memory

8 GB

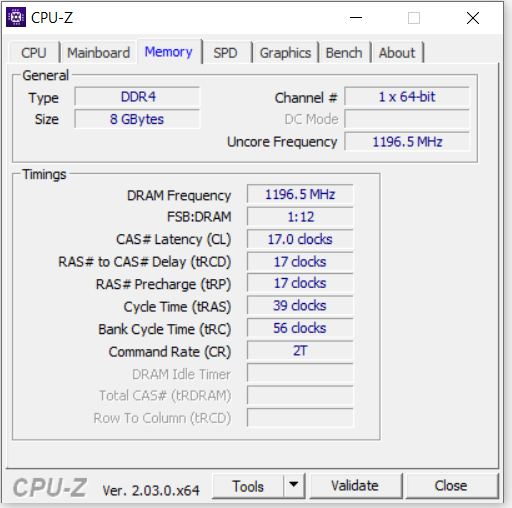

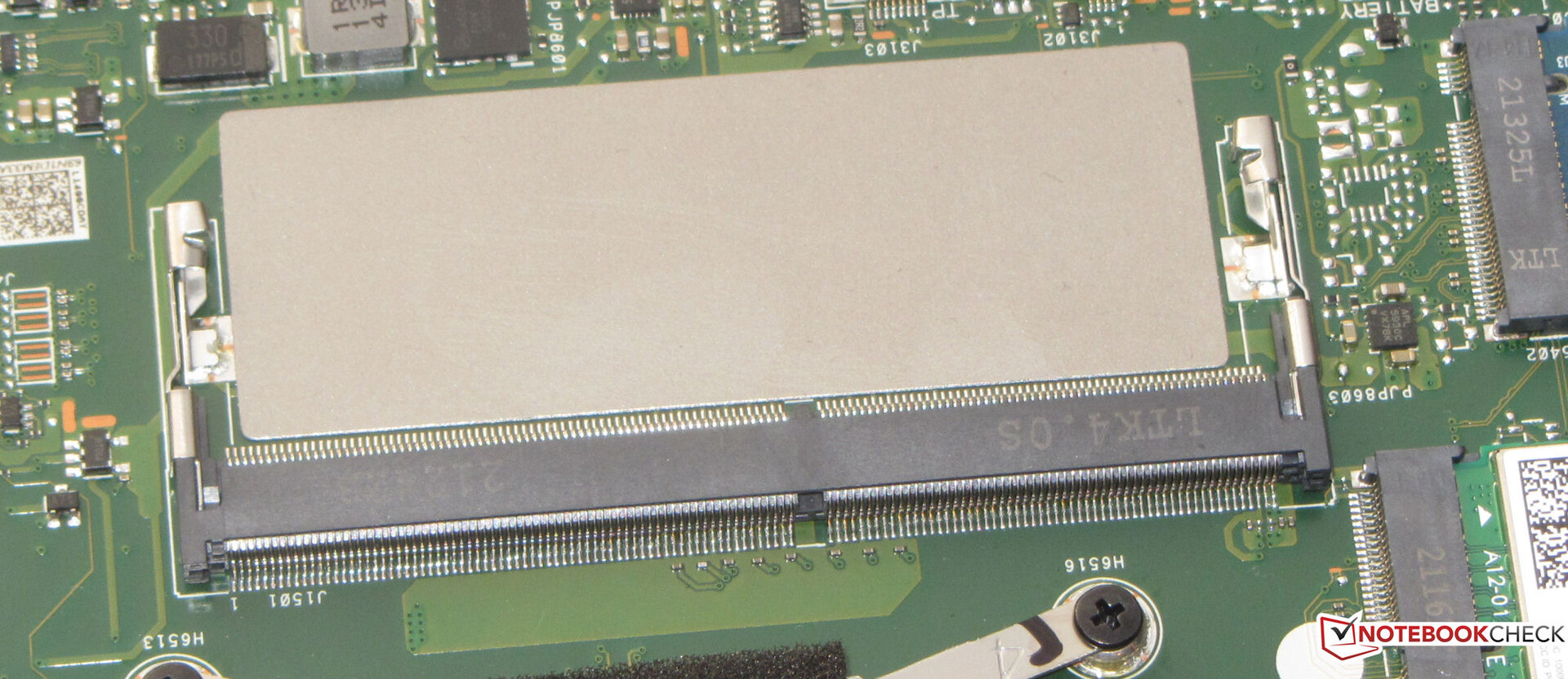

, DDR4-2400, Single-Channel-Mode, one memory bank (unoccupied), 8 GB onboard

Display

14.00 inch 16:9, 1920 x 1080 pixel 157 PPI, BOE CQ NT140FHM-N44, TN LED, glossy: no, 60 Hz

Mainboard

AMD Promontory/Bixby FCH

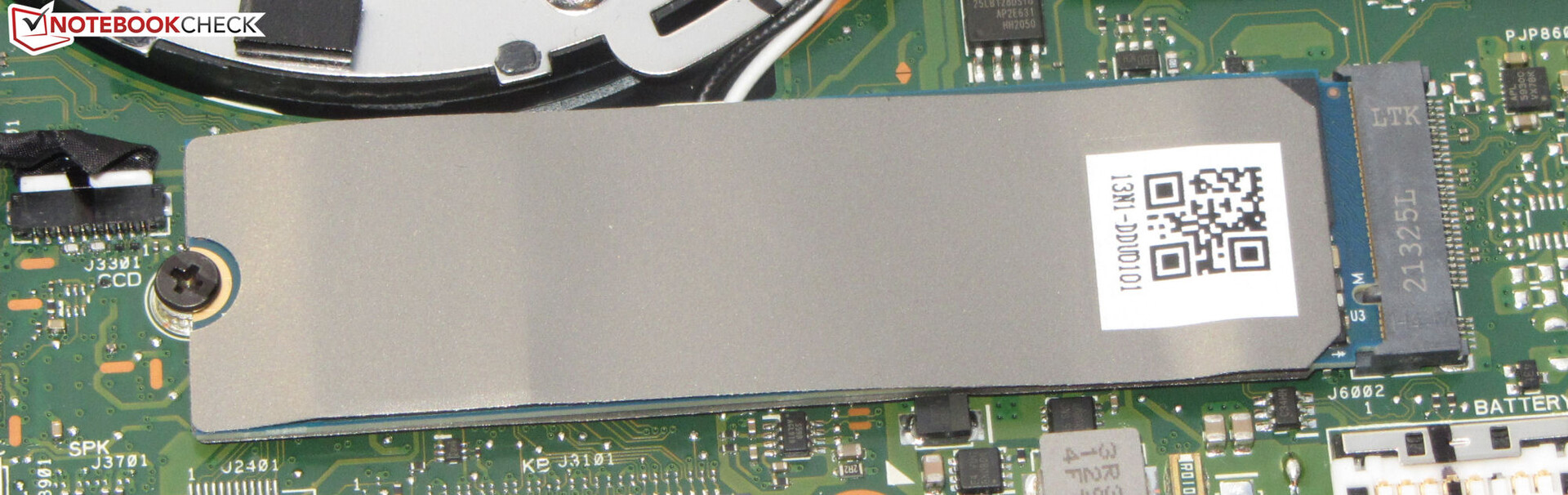

Storage

WDC PC SN530 SDBPNPZ-265G, 256 GB

, PCIe 3, M.2-2280, 197 GB free

Soundcard

Realtek ALC256 @ AMD K17.1 - Audio Processor - High Definition Audio Controller

Connections

1 USB 2.0, 3 USB 3.1 Gen2, 1 VGA, 1 HDMI, 1 Kensington Lock, Audio Connections: Headset combined port, 1 Fingerprint Reader, TPM 2.0

Networking

Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit/s), Intel Wi-Fi 6 AX200 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/), Bluetooth 5.2

Size

height x width x depth (in mm): 19.2 x 323.4 x 215.6

Battery

42 Wh, 3640 mAh Lithium-Ion, 3-cell

Operating System

Microsoft Windows 10 Pro 64 Bit

Camera

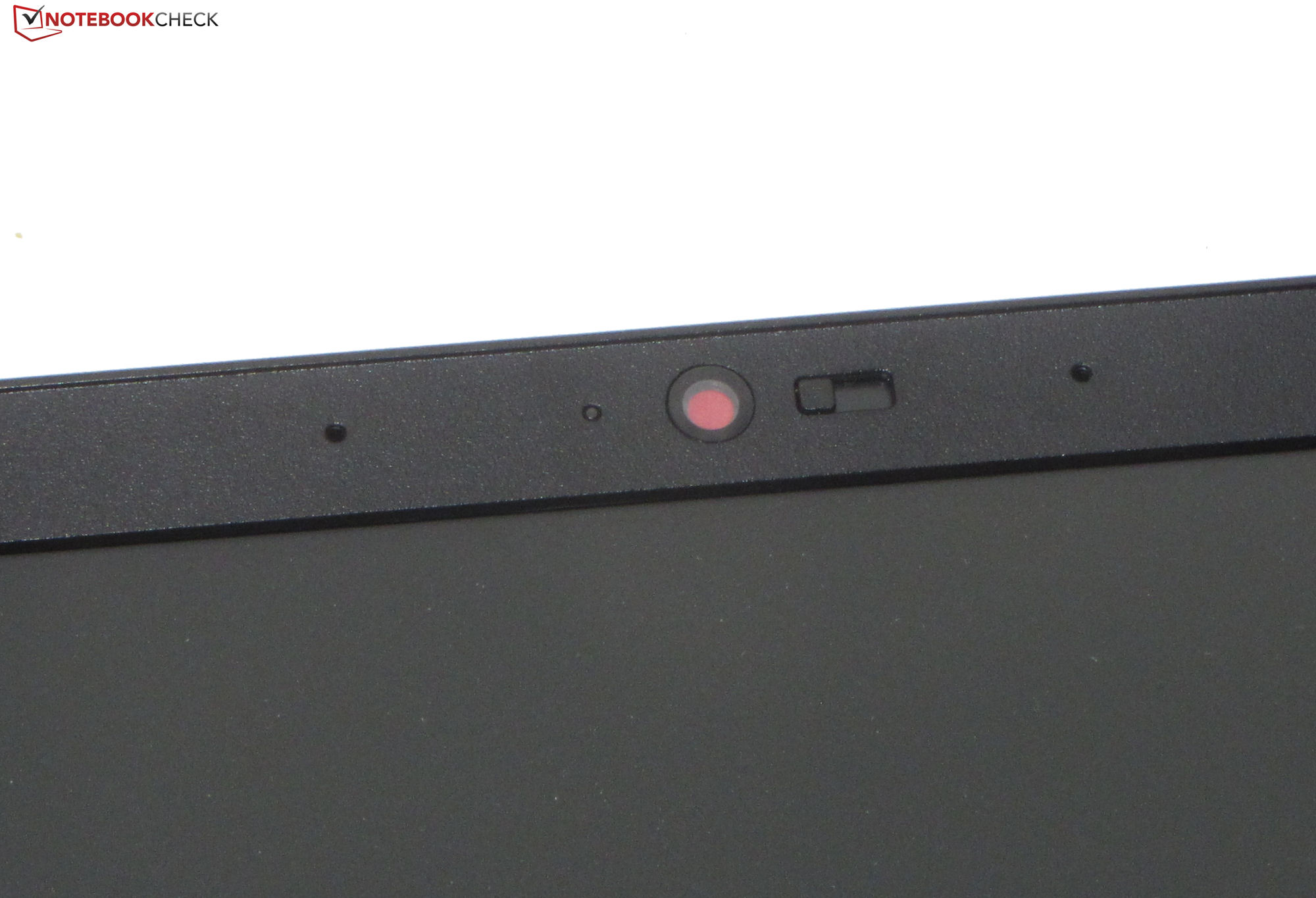

Webcam: HD
Primary Camera: 0.9 MPix

Additional features

Speakers: Stereo, Keyboard: Chiclet, Keyboard Light: yes, HDD-Tray, screws, SATA-Connector, Microsoft 365 (Trial), 24 Months Warranty

Weight

1.5 kg, Power Supply: 301 g

Price

319 Euro

Links

Asus homepage
Asus notebook section

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

潜在的竞争对手比较

Rating	Date	Model	Weight	Height	Size	Resolution
80.1 % v7 ^(old)	12 / 2022	Asus ExpertBook L1 L1401CDA-EK0457R R3 3250U, Vega 3	1.5 kg	19.2 mm	14.00"	1920x1080
79.2 % v7 ^(old)	06 / 2022	Lenovo IdeaPad 3 14ITL6 82H700CCGE Celeron 6305, UHD Graphics Xe G4 48EUs	1.4 kg	19.9 mm	14.00"	1920x1080
75.9 % v7 ^(old)	04 / 2022	Dell Inspiron 15 3505-PXHPW R5 3450U, Vega 8	2 kg	19.89 mm	15.60"	1920x1080
78 % v7 ^(old)	02 / 2022	Acer Extensa 15 EX215-54-5103 i5-1135G7, Iris Xe G7 80EUs	1.9 kg	19.9 mm	15.60"	1920x1080

机箱与设备 - 华硕电脑提供USB-C接口

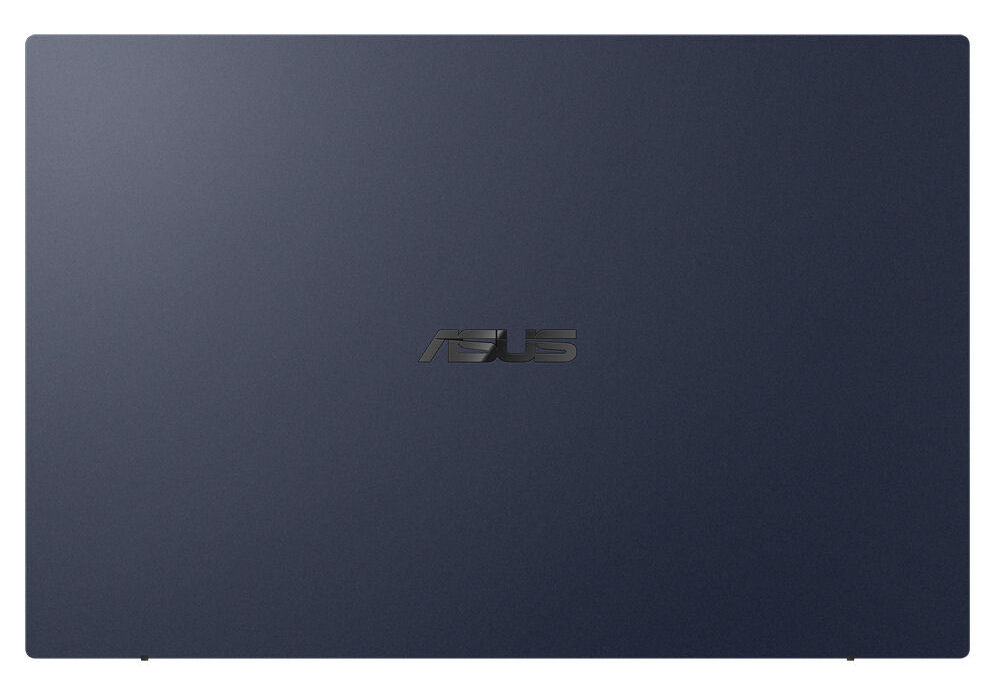

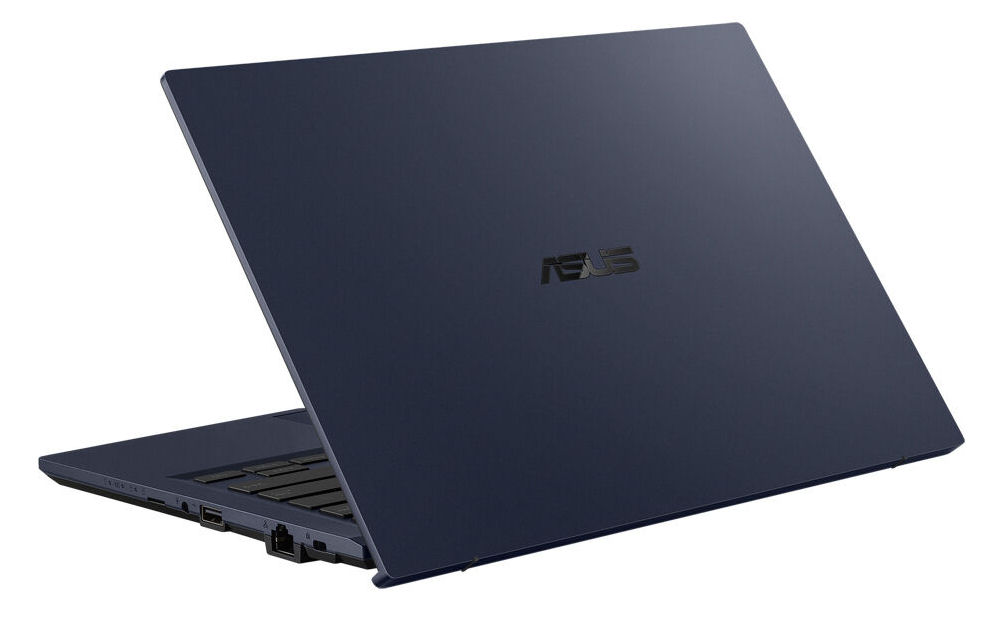

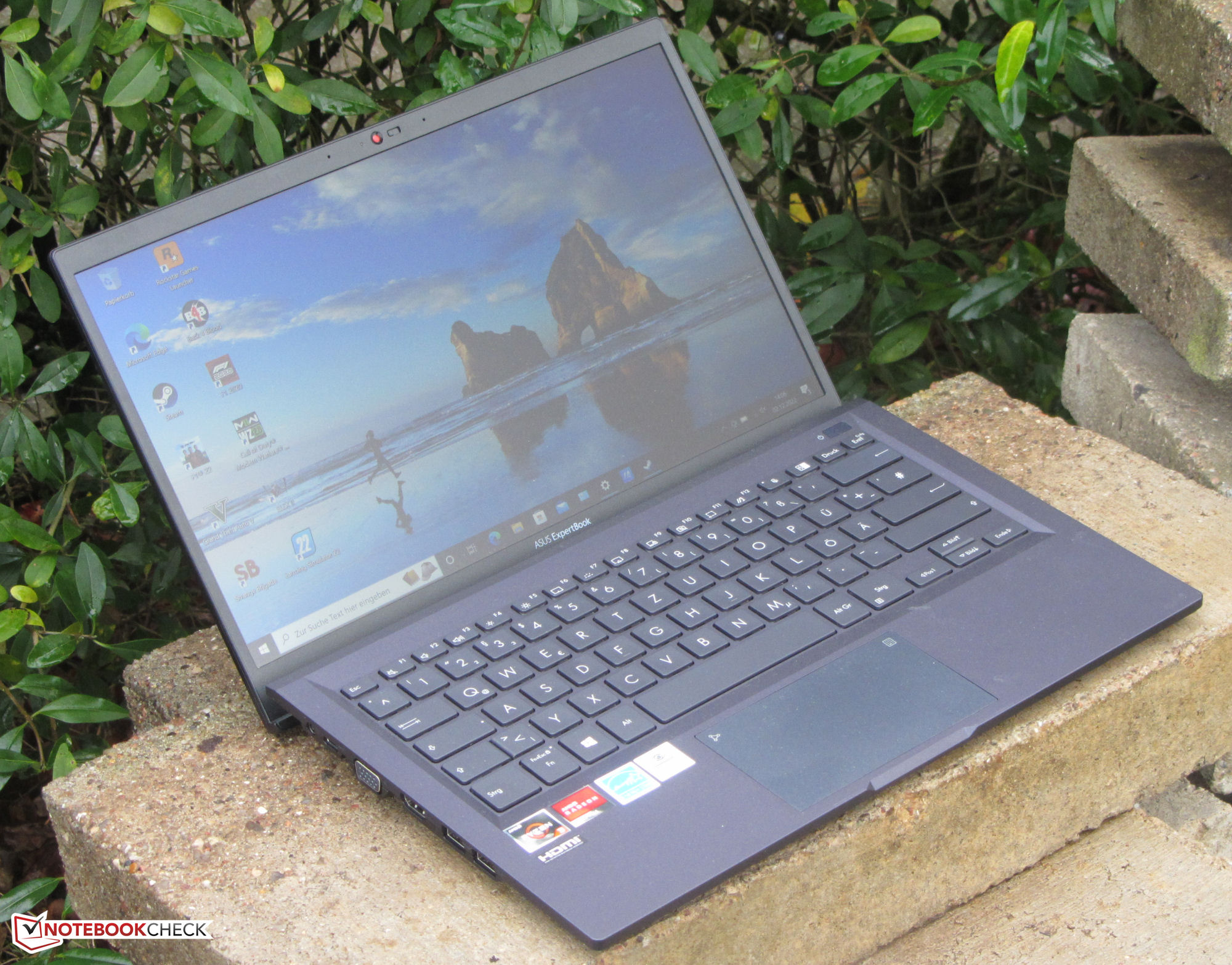

华硕依靠金属（盖子背面）和塑料（基本单元）的材料组合来制作L1的哑光黑色外壳。缝隙是正确的，尖锐的边缘是不明显的。底座和盖子可以扭曲，但整个东西仍在限制范围内。电池（用螺丝固定，不是用胶水）和其他内部零件在拆下底座后可以接触到。积极的一面。内置网络摄像头（0.9MP，最大1280 x 720像素）有一个机械盖。

笔记本电脑有三个USB-A端口（1x USB 2.0，2x USB 3.2 Gen 2）和一个USB-C插槽（USB 3.2 Gen 2）。太糟糕了：后者不支持Power Delivery或通过USB-C的Displayport。这款笔记本总共有两个视频输出（1个HDMI，1个VGA）。存储卡读卡器（MicroSD）是可选的；审查样本没有。

在最佳条件下（附近没有其他WLAN设备，笔记本和服务器PC之间的距离较短）确定的WLAN传输率是不错的。

尺寸比较

Dell Inspiron 15 3505-PXHPW Acer Extensa 15 EX215-54-5103 Lenovo IdeaPad 3 14ITL6 82H700CCGE Asus ExpertBook L1 L1401CDA-EK0457R DIN A4 ❌

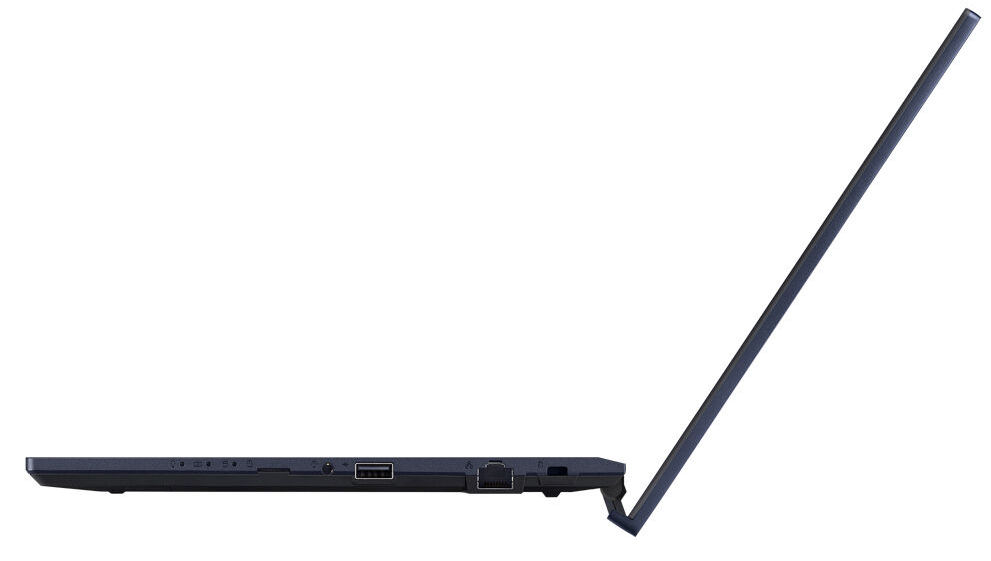

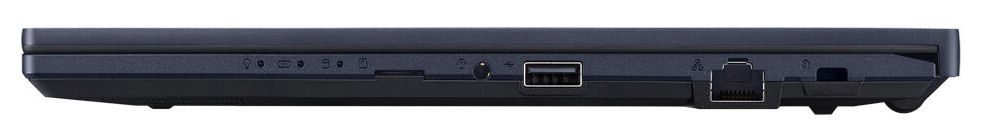

右侧：存储卡读卡器（MicroSD，可选），音频组合，USB 2.0（USB-A），千兆以太网，电缆锁的插槽

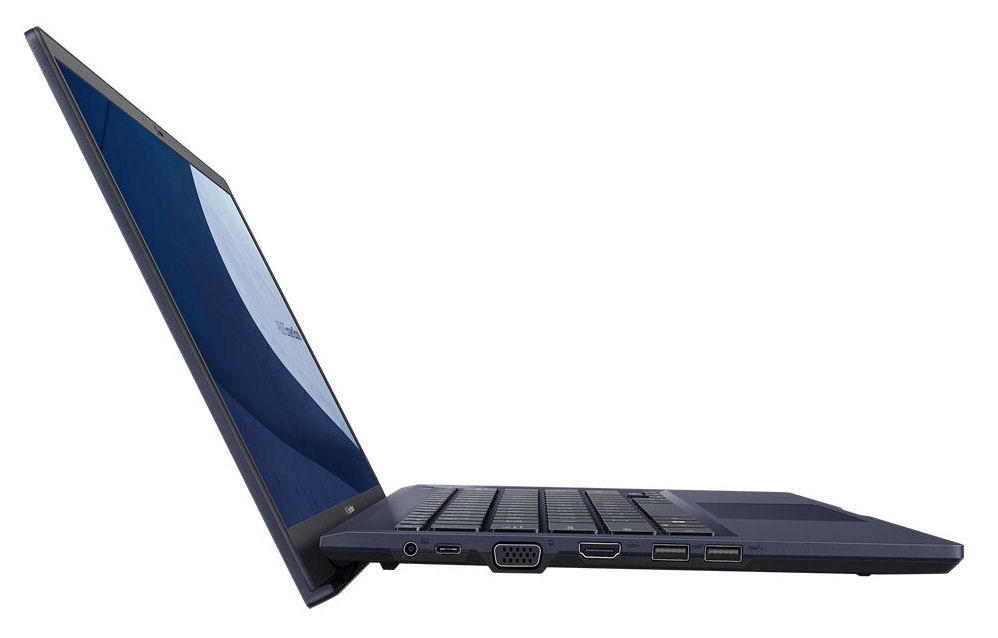

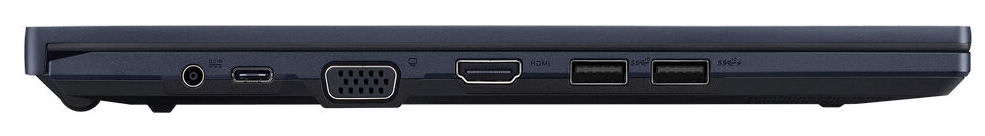

左侧。电源端口，USB 3.2 Gen 2 (USB-C)，VGA，HDMI，2个USB 3.2 Gen 2 (USB-A)

Networking
iperf3 transmit AX12
Average Intel Wi-Fi 6 AX200 (447 - 1645, n=127)	1104 MBit/s
Acer Extensa 15 EX215-54-5103 Intel Wireless AC 9462	345 (321^min - 353^max) MBit/s
Dell Inspiron 15 3505-PXHPW Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC	280 (268^min - 327^max) MBit/s
iperf3 receive AX12
Average Intel Wi-Fi 6 AX200 (523 - 1684, n=128)	1191 MBit/s
Acer Extensa 15 EX215-54-5103 Intel Wireless AC 9462	360 (345^min - 365^max) MBit/s
Dell Inspiron 15 3505-PXHPW Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC	348 (337^min - 354^max) MBit/s
iperf3 receive AXE11000
Average of class Office (104.2 - 1775, n=92, last 2 years)	1286 MBit/s +36%
Average Intel Wi-Fi 6 AX200 (451 - 1746, n=23)	1274 MBit/s +35%
Asus ExpertBook L1 L1401CDA-EK0457R Intel Wi-Fi 6 AX200	944 (847^min - 957^max) MBit/s
iperf3 transmit AXE11000
Average Intel Wi-Fi 6 AX200 (429 - 1748, n=23)	1164 MBit/s +24%
Average of class Office (47.8 - 1793, n=92, last 2 years)	1134 MBit/s +21%
Asus ExpertBook L1 L1401CDA-EK0457R Intel Wi-Fi 6 AX200	938 (731^min - 996^max) MBit/s

Asus ExpertBook L1 L1401CDA-EK0457R Intel Wi-Fi 6 AX200; iperf3 receive AXE11000; iperf 3.1.3: Ø943 (847-957)

Asus ExpertBook L1 L1401CDA-EK0457R Intel Wi-Fi 6 AX200; iperf3 transmit AXE11000; iperf 3.1.3: Ø938 (731-996)

Dell Inspiron 15 3505-PXHPW Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC; iperf3 receive AX12; iperf 3.1.3: Ø347 (337-354)

Acer Extensa 15 EX215-54-5103 Intel Wireless AC 9462; iperf3 receive AX12; iperf 3.1.3: Ø360 (345-365)

Dell Inspiron 15 3505-PXHPW Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC; iperf3 transmit AX12; iperf 3.1.3: Ø280 (268-327)

Acer Extensa 15 EX215-54-5103 Intel Wireless AC 9462; iperf3 transmit AX12; iperf 3.1.3: Ø345 (321-353)

ColorChecker Asus ExpertBook L1 L1401CDA-EK0457R: 34.62 ∆E min: 2.33 - max: 50.73 ∆E

输入设备--按键的照明应该更亮一些

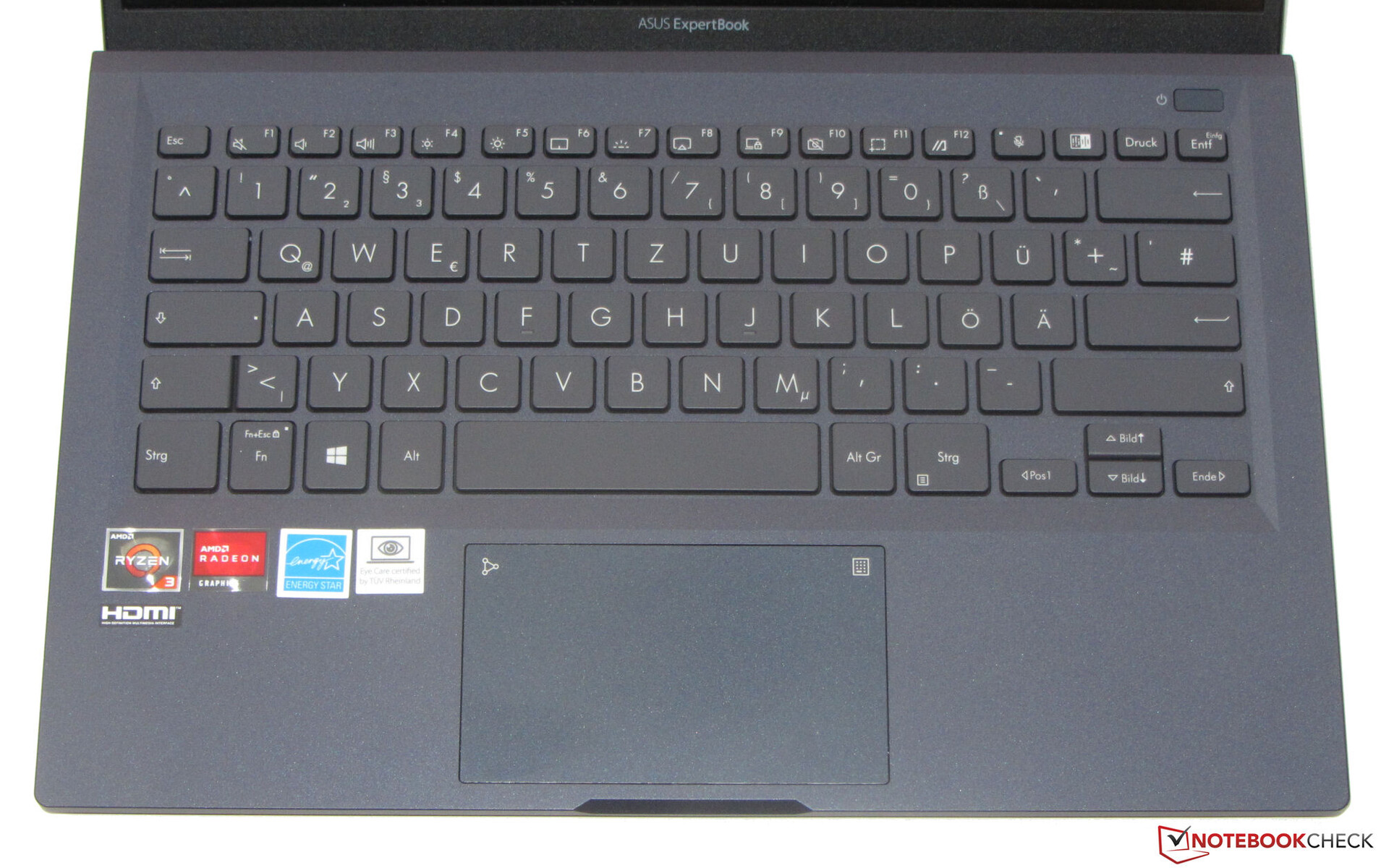

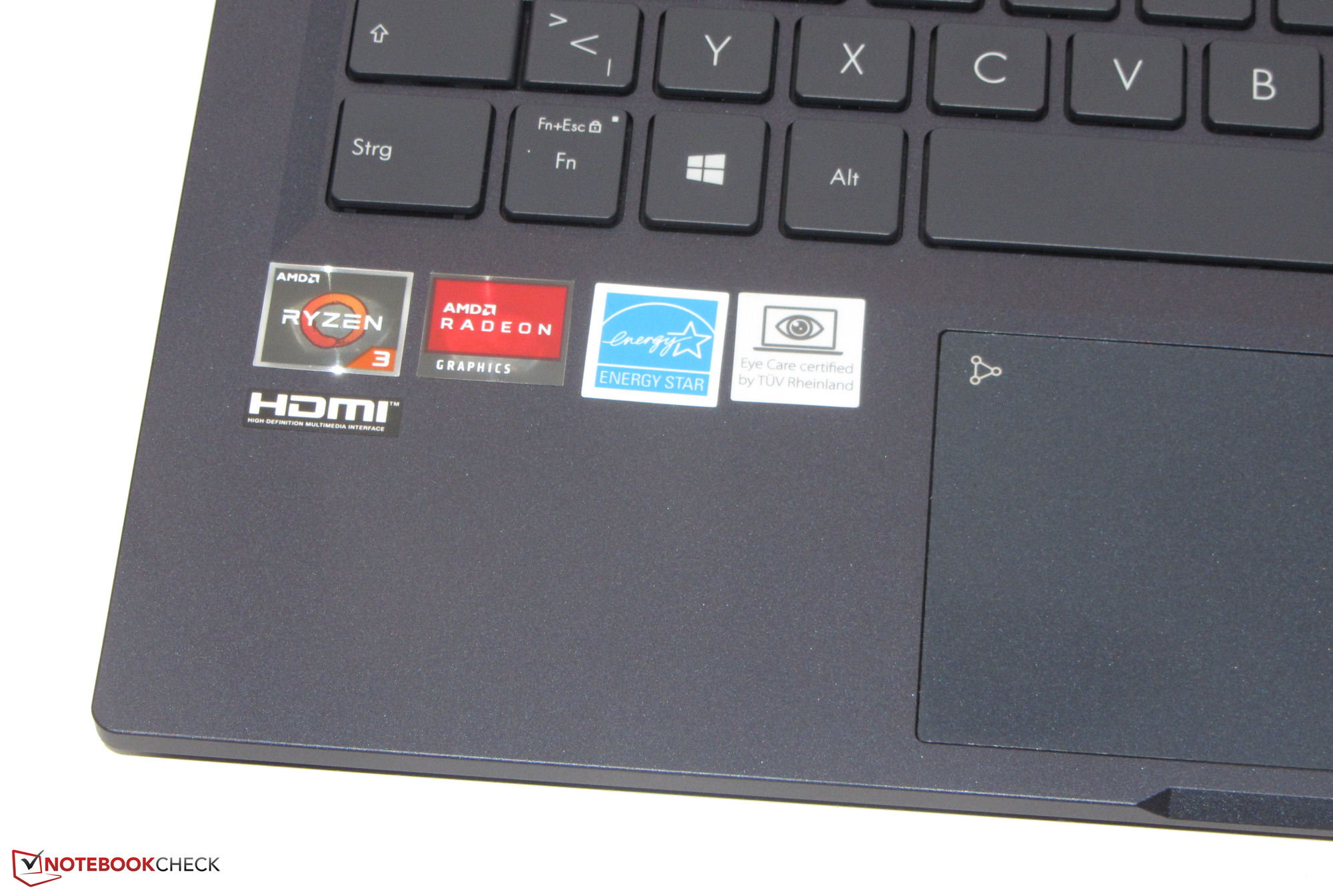

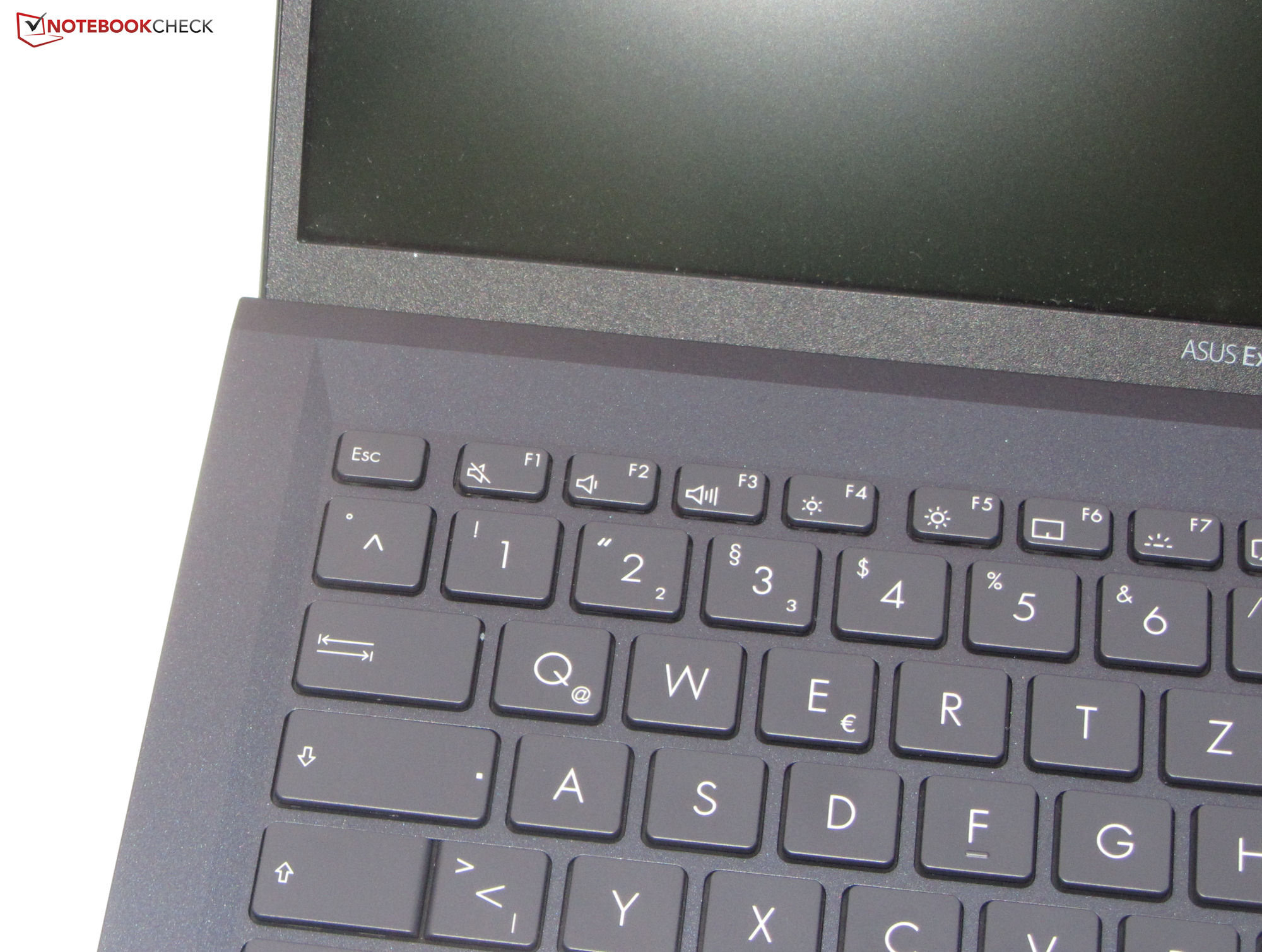

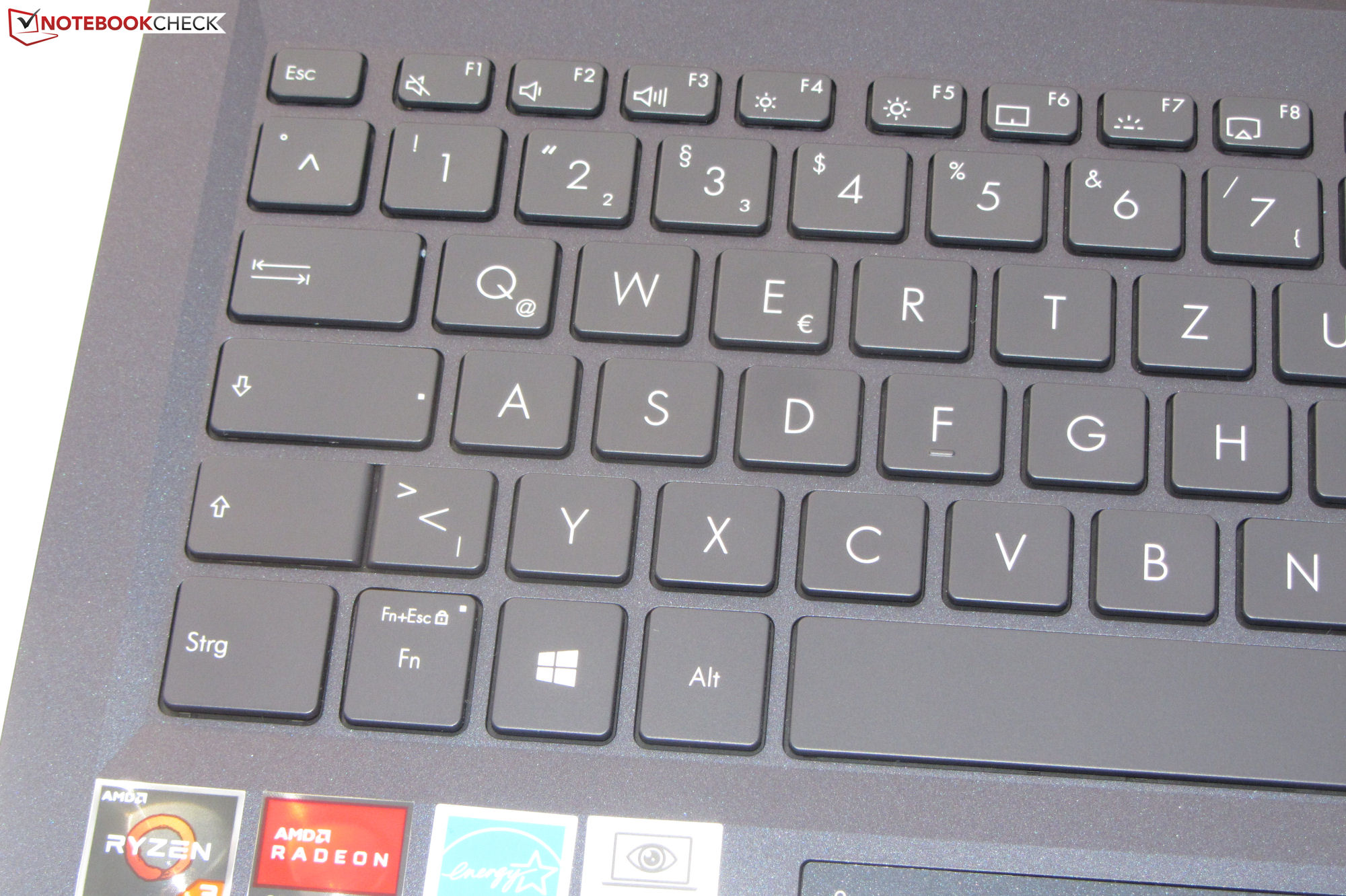

扁平、光滑的小键盘按键行程短，压力点明确。在打字过程中，键盘会有轻微的弯曲。事实证明，这并不令人讨厌。这台电脑有一个按键照明，它提供了一个相对较低的亮度。总而言之，华硕在这里提供了一个适合日常使用的键盘。

一个具有多点触控功能的ClickPad（约10.5 x 6.2厘米/~4.1 x 2.4英寸）可作为鼠标的替代品，其光滑的表面使手指易于滑动。这块垫子的行程很短，压力点也很清晰。用手指敲击垫子的右上角，会在垫子上出现一个数字板（NumPad）。

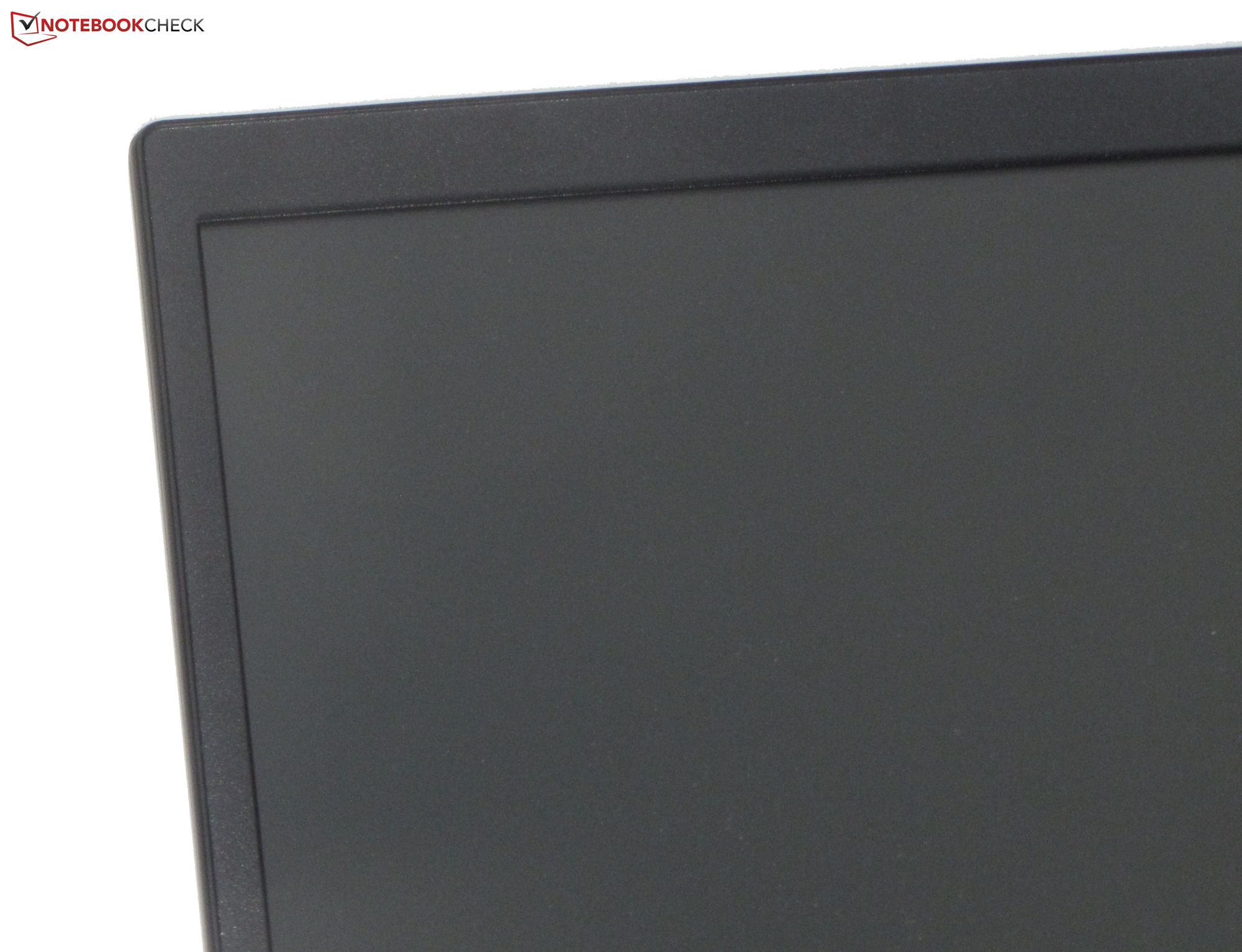

显示屏 - 华硕L1带来了一个足够的，而不是一个杰出的屏幕。

哑光14英寸屏幕（1,920 x 1,080像素）的亮度（244.4 cd/m²）和对比度（413:1）都太低了--考虑到该电脑的价格水平，这并不奇怪。我们认为超过1,000:1或300 cd/m²的数值是好的。一些竞争者的成绩更好。这台笔记本有一个相当明亮的显示屏。积极的一面。L1的面板在任何亮度设置下都不会出现PWM闪烁。


255 cd/m²	250 cd/m²	270 cd/m²
242 cd/m²	260 cd/m²	244 cd/m²
232 cd/m²	230 cd/m²	217 cd/m²

Distribution of brightness

BOE CQ NT140FHM-N44 tested with X-Rite i1Pro 2

Maximum: 270 cd/m² (Nits) Average: 244.4 cd/m² Minimum: 11.9 cd/m²
Brightness Distribution: 80 %
Center on Battery: 260 cd/m²
Contrast: 413:1 (Black: 0.63 cd/m²)
ΔE Color 2.28 | 0.5-29.43 Ø4.91, calibrated: 2.16
ΔE Greyscale 1.64 | 0.5-98 Ø5.2
35.9% AdobeRGB 1998 (Argyll 2.2.0 3D)
52.2% sRGB (Argyll 2.2.0 3D)
34.7% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.37

Download ICC File (X-Rite i1Pro 2)

	Asus ExpertBook L1 L1401CDA-EK0457R BOE CQ NT140FHM-N44, TN LED, 1920x1080, 14"	Lenovo IdeaPad 3 14ITL6 82H700CCGE AU Optronics B140HAN04.E, IPS, 1920x1080, 14"	Dell Inspiron 15 3505-PXHPW AU Optronics B156HAN, IPS, 1920x1080, 15.6"	Acer Extensa 15 EX215-54-5103 AU Optronics B156HTN06.1, TN LED, 1920x1080, 15.6"
Display		5%	16%	7%
Display P3 Coverage	34.7	36.6 5%	40.3 16%	37 7%
sRGB Coverage	52.2	54.7 5%	60.4 16%	55.7 7%
AdobeRGB 1998 Coverage	35.9	37.8 5%	41.7 16%	38.2 6%
Response Times		-57%	-46%	-24%
Response Time Grey 50% / Grey 80% *	39 ?(21, 18)	44 ?(20, 24) -13%	36 ?(16, 20) 8%	38 ?(18, 20) 3%
Response Time Black / White *	14 ?(10, 4)	28 ?(15, 13) -100%	28 ?(16, 12) -100%	21 ?(17, 4) -50%
PWM Frequency				52 ?(100)
Screen		-50%	-13%	-165%
Brightness middle	260	368 42%	235 -10%	220 -15%
Brightness	244	332 36%	231 -5%	203 -17%
Brightness Distribution	80	83 4%	84 5%	82 3%
Black Level *	0.63	0.47 25%	0.25 60%	0.43 32%
Contrast	413	783 90%	940 128%	512 24%
Colorchecker dE 2000 *	2.28	6.14 -169%	4.11 -80%	10.74 -371%
Colorchecker dE 2000 max. *	4.94	17.76 -260%	6.72 -36%	20.92 -323%
Colorchecker dE 2000 calibrated *	2.16		4.56 -111%	4.44 -106%
Greyscale dE 2000 *	1.64	4.44 -171%	2.79 -70%	13.29 -710%
Gamma	2.37 ^93%	2.73 ^81%	2.53 ^87%	2.63 ^84%
CCT	6384 ^102%	5979 ^109%	6666 ^98%	14880 ^44%
Total Average (Program / Settings)		-34% / -39%	-14% / -12%	-61% / -108%

* ... smaller is better

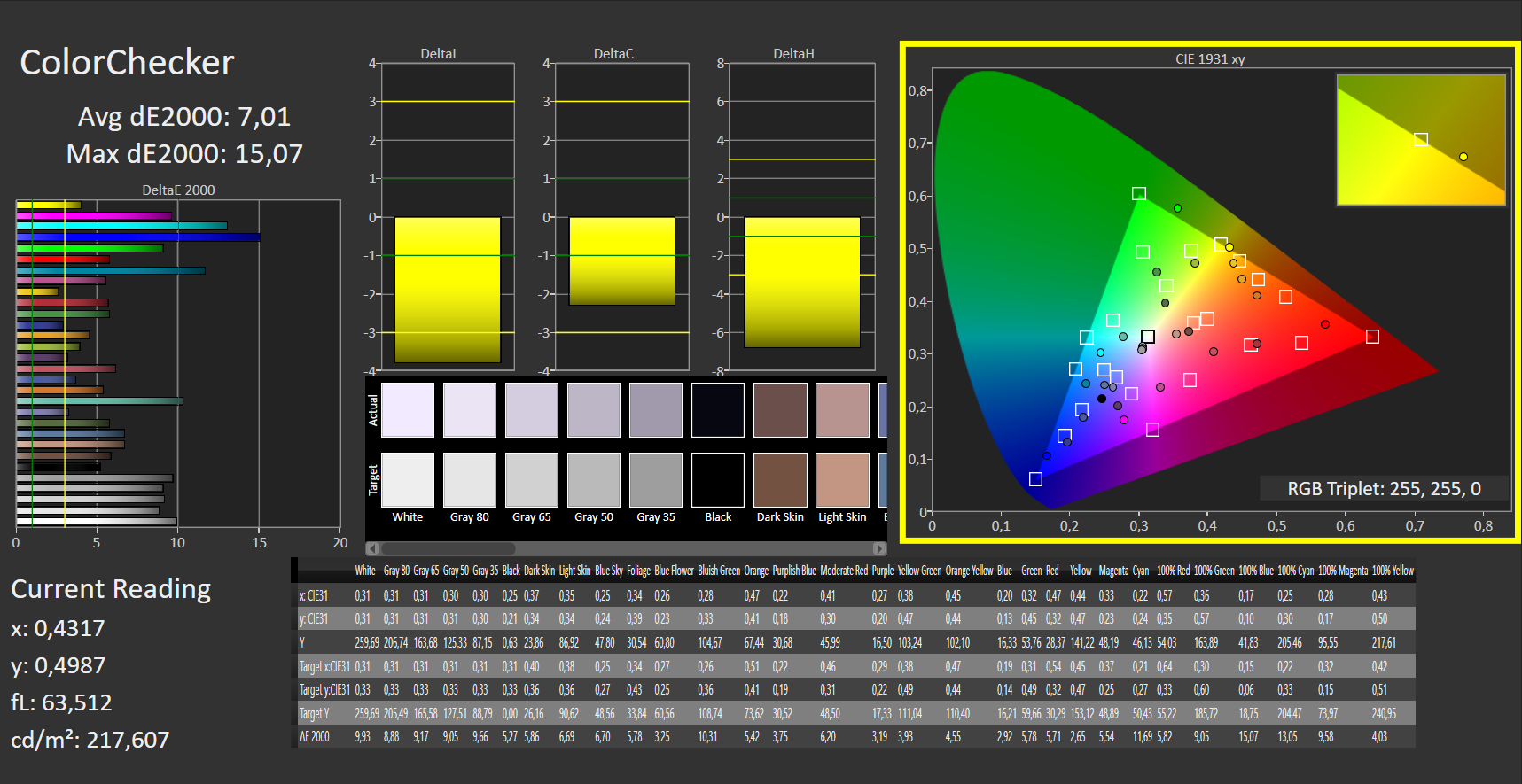

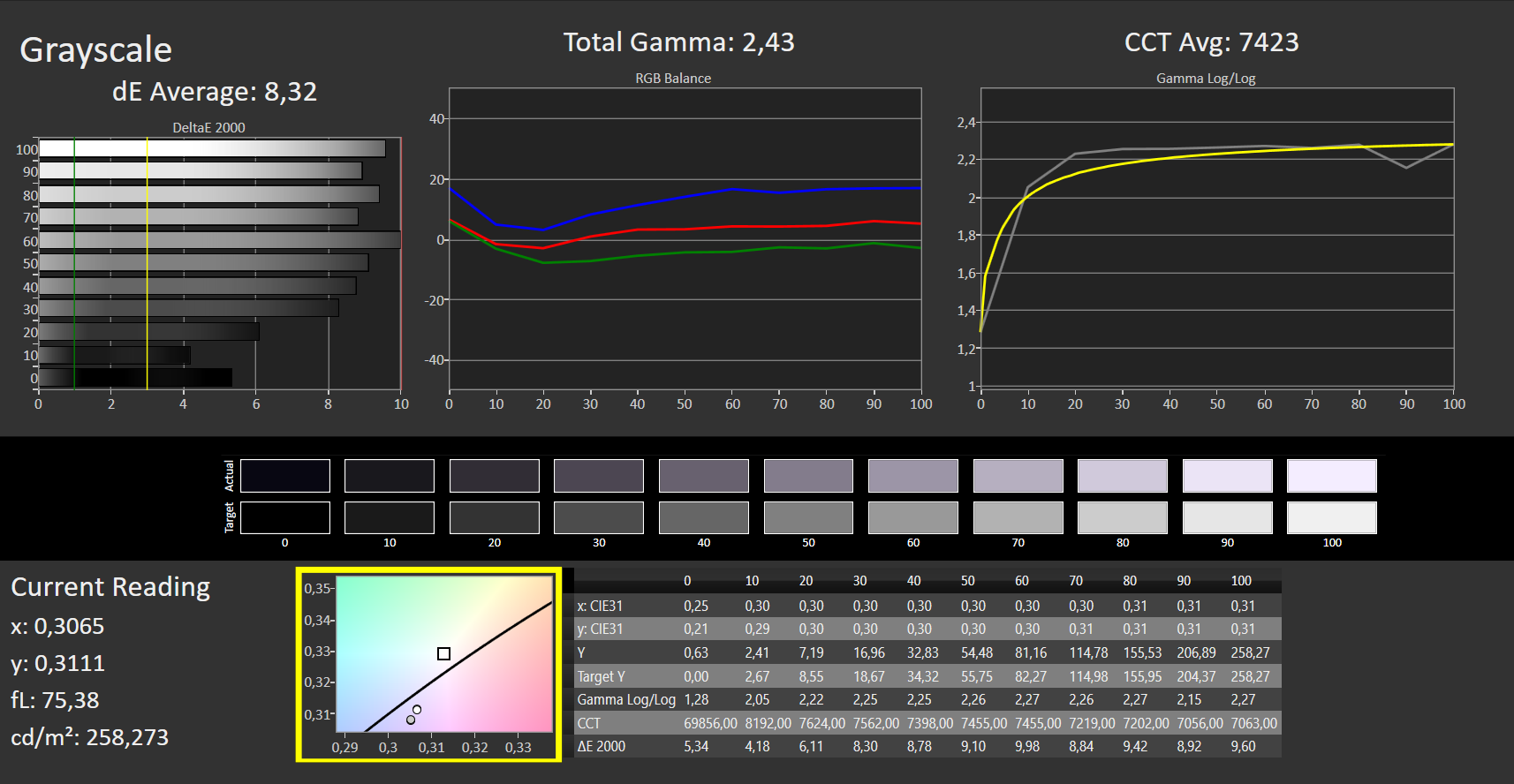

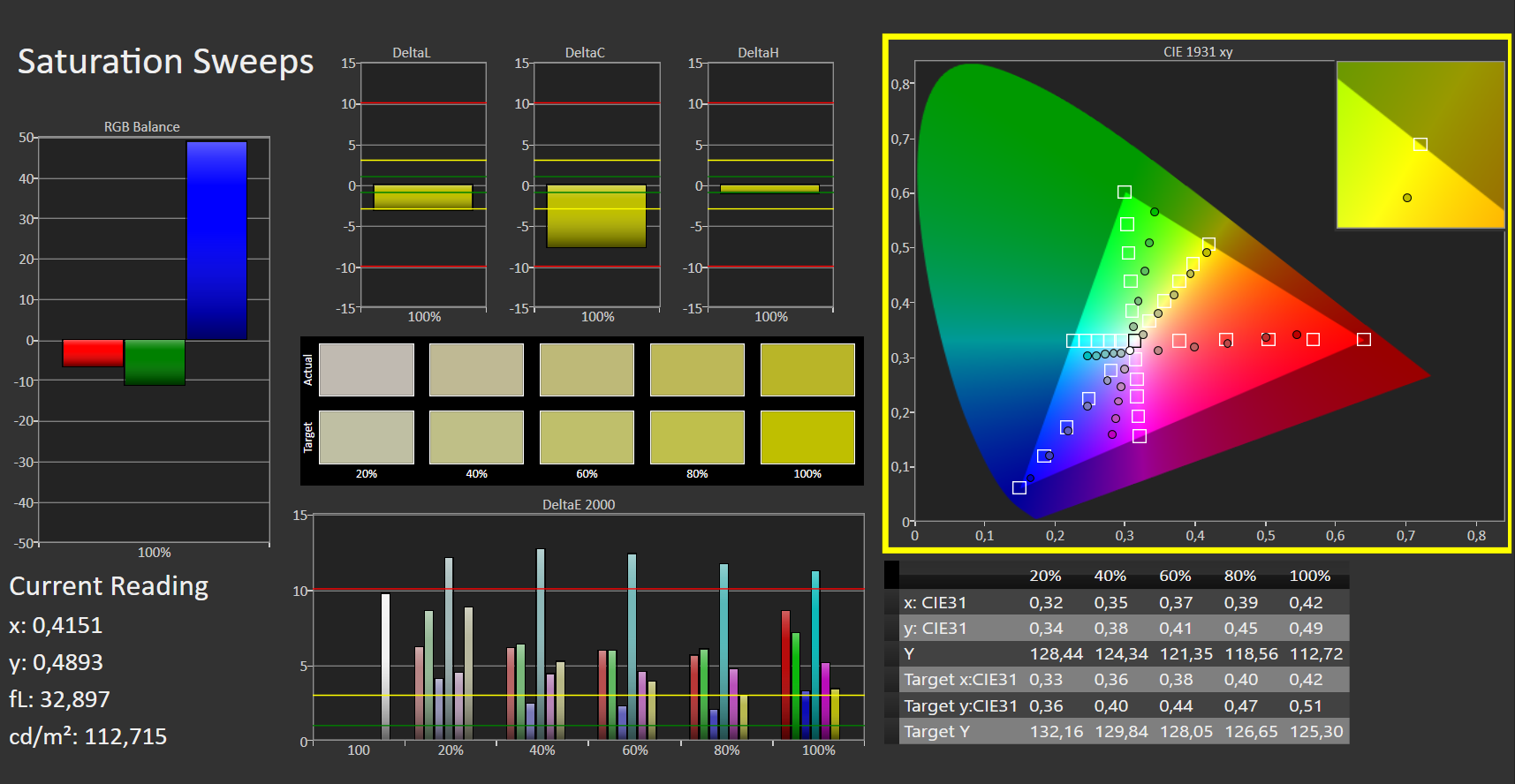

在交付状态下，屏幕显示的颜色相当差。偏差为7，显然没有达到目标（DeltaE<3）。该显示器不能再现AdobeRGB（36%）、sRGB（52%）和DCI-P3（35%）色彩空间。因此，该面板不适合依赖色彩保真度的应用场景。竞争对手在这方面并没有更好的表现。

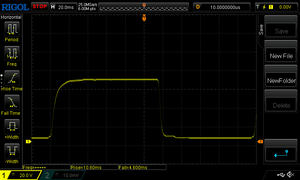

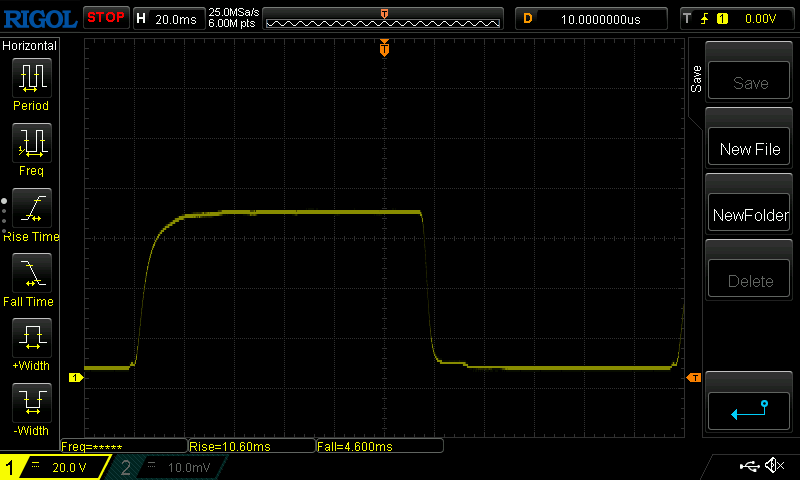

Display Response Times

ℹ

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

↔ Response Time Black to White
14 ms ... rise ↗ and fall ↘ combined	↗ 10 ms rise
14 ms ... rise ↗ and fall ↘ combined	↘ 4 ms fall
The screen shows good response rates in our tests, but may be too slow for competitive gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 31 % of all devices are better. This means that the measured response time is better than the average of all tested devices (20.9 ms).

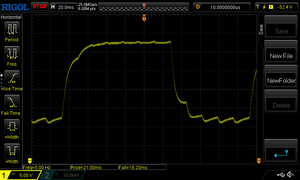

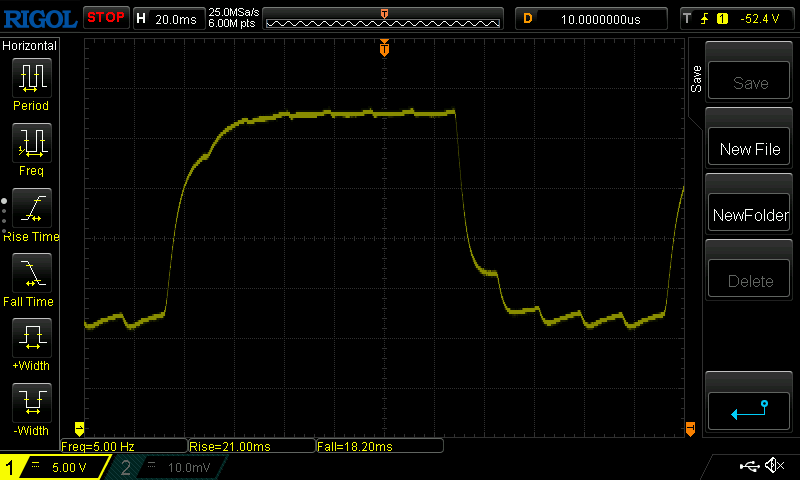

↔ Response Time 50% Grey to 80% Grey
39 ms ... rise ↗ and fall ↘ combined	↗ 21 ms rise
39 ms ... rise ↗ and fall ↘ combined	↘ 18 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 55 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (32.8 ms).

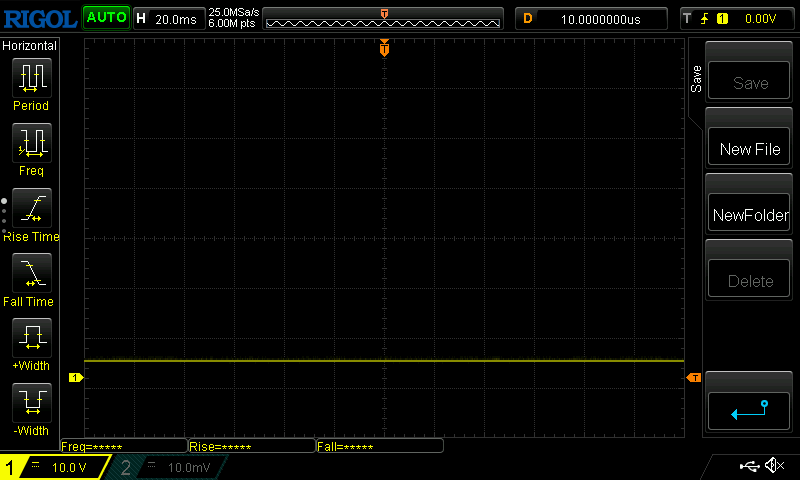

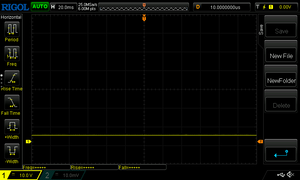

Screen Flickering / PWM (Pulse-Width Modulation)

ℹ

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.

Screen flickering / PWM not detected

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8705 (minimum: 5 - maximum: 343500) Hz was measured.

性能 - ExpertBook依赖Ryzen APU

华硕的办公笔记本针对私人和专业用户。华硕在该系列中依靠的是毕加索一代的AMD APU。根据华硕网站，除了配备Ryzen 5-3500U APU的机型外，在德国也有配备Ryzen 3-3250U APU的机型。价格在330至600欧元之间（约350美元和约530美元，取决于配置）。

测试条件

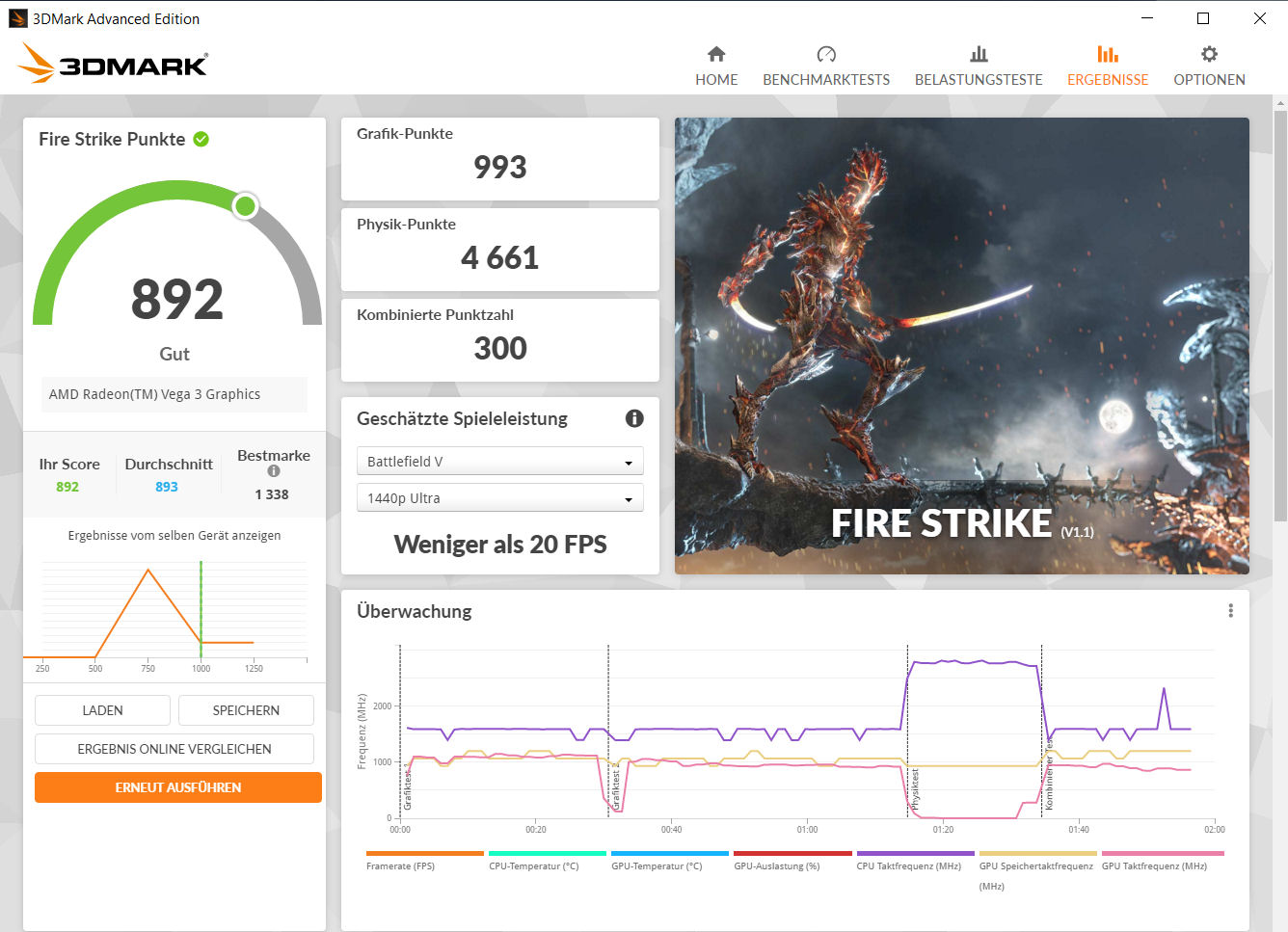

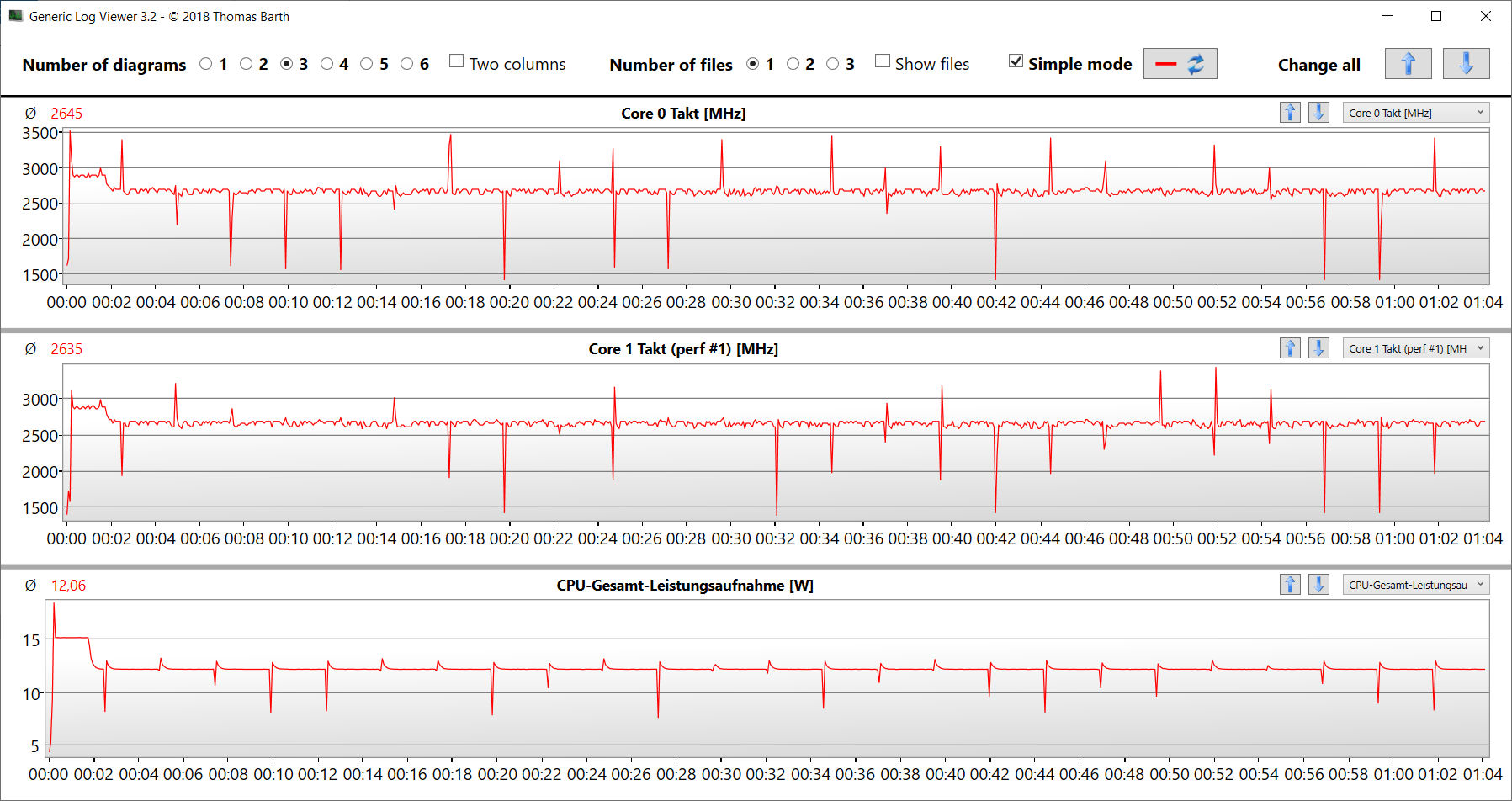

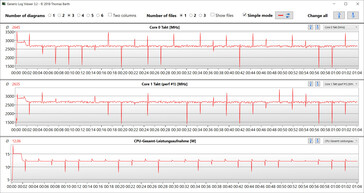

笔记本有两种制造商指定的风扇模式（"标准模式"、"低声模式"），可以通过组合键 "Fn "+"F "进行切换。测试是在 "标准模式 "激活时进行的。低声模式 "大大降低了负载下的运行噪音--以牺牲计算能力为代价，有利于更高的热量发展。

	标准模式	悄悄话模式
功率限制1	26瓦	15瓦
功率限制2	30瓦	30瓦

处理器

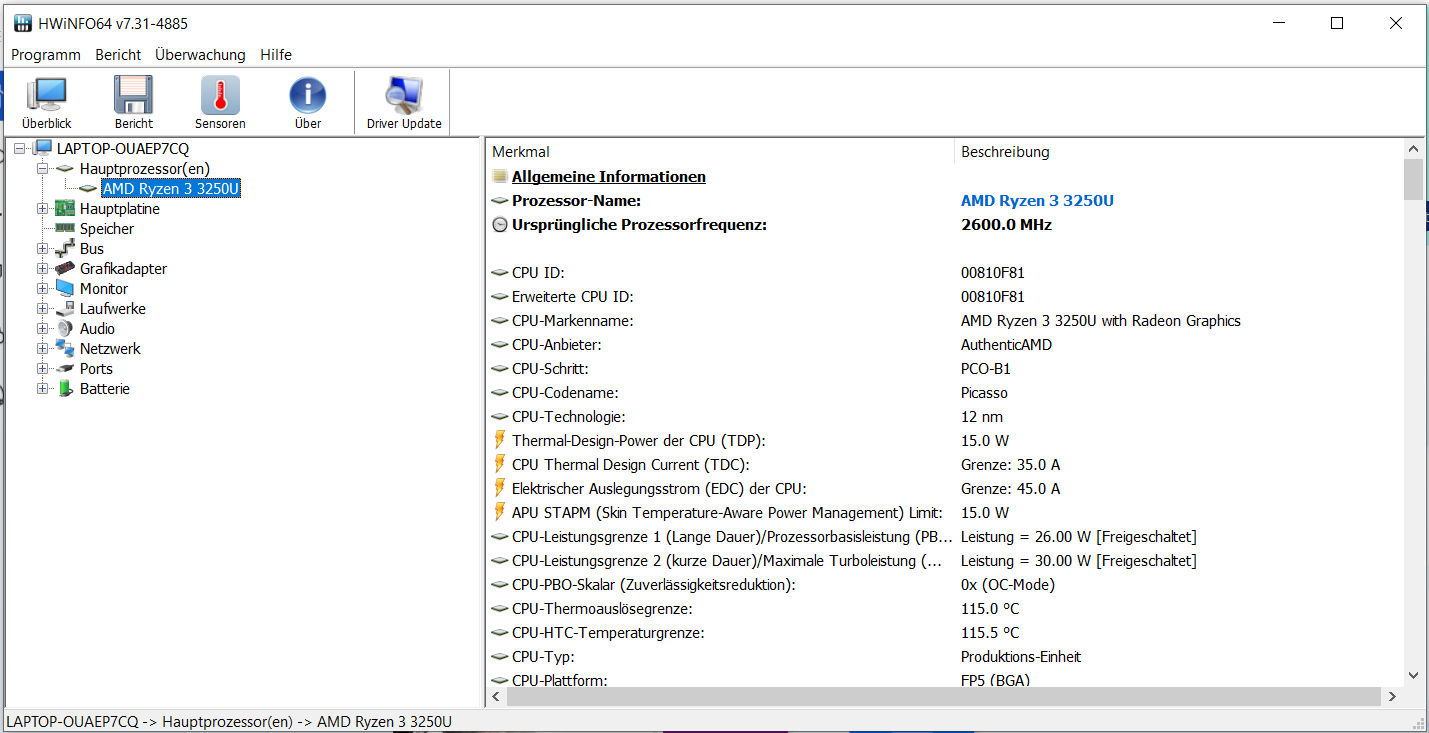

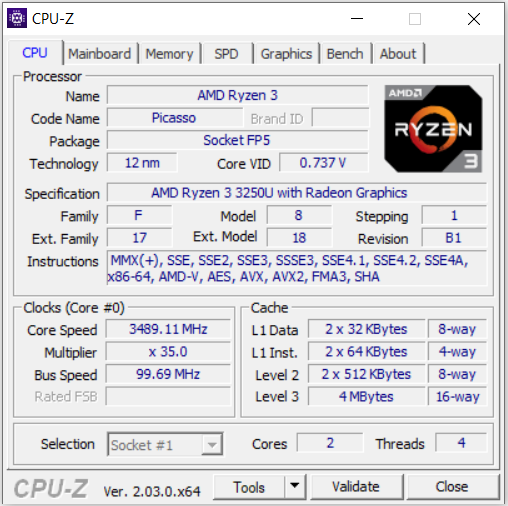

的CPU部分的CPU部分APU（Picasso）包括一个双核处理器，其基本时钟为2.6 GHz。通过Turbo可以提高到3.5GHz。支持同步多线程（每个核心两个线程）。

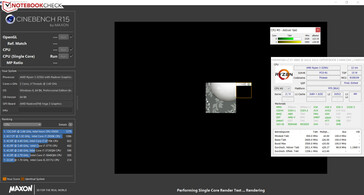

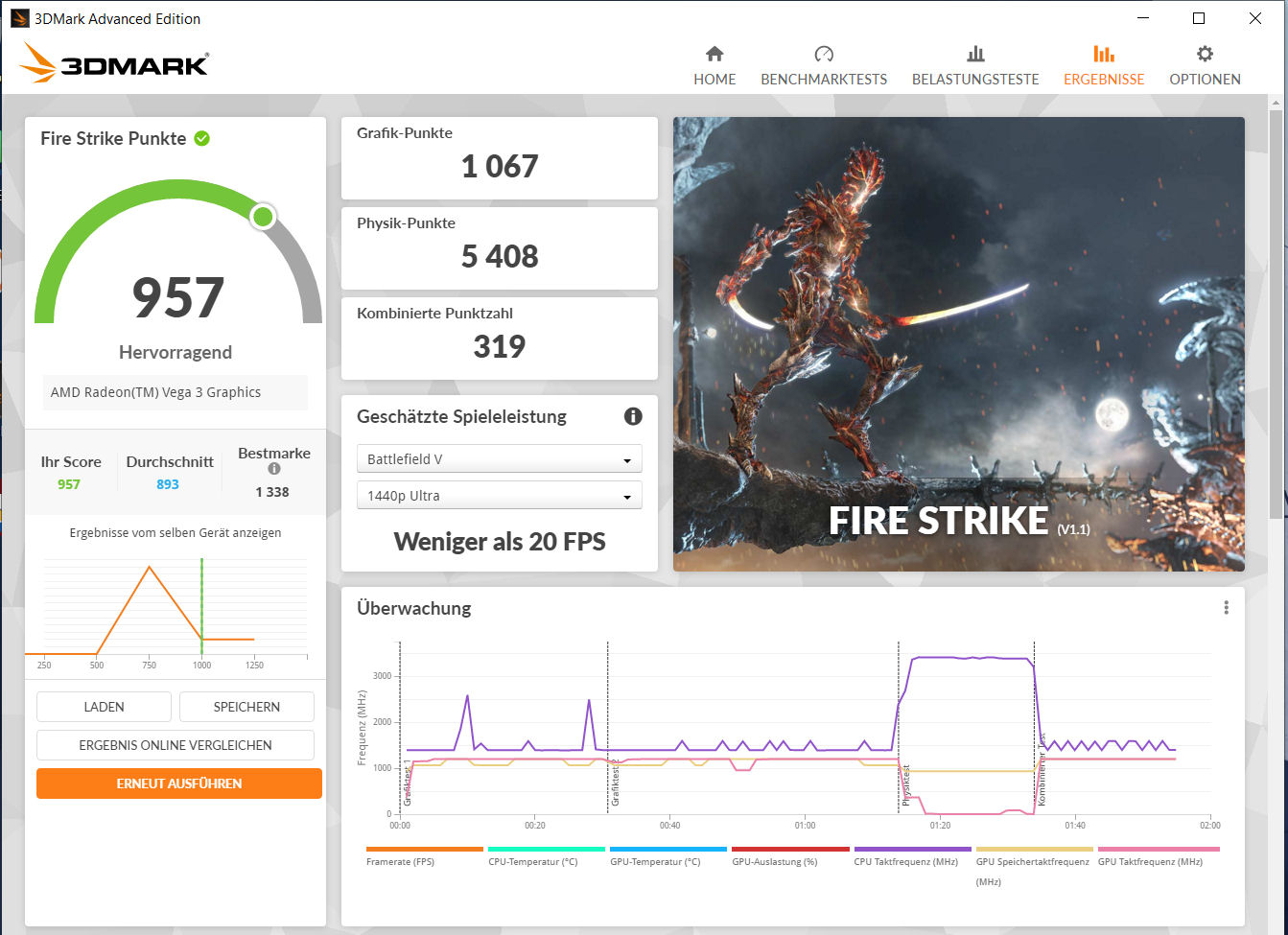

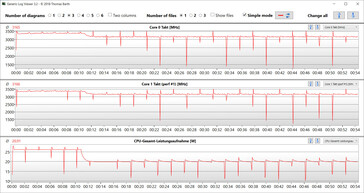

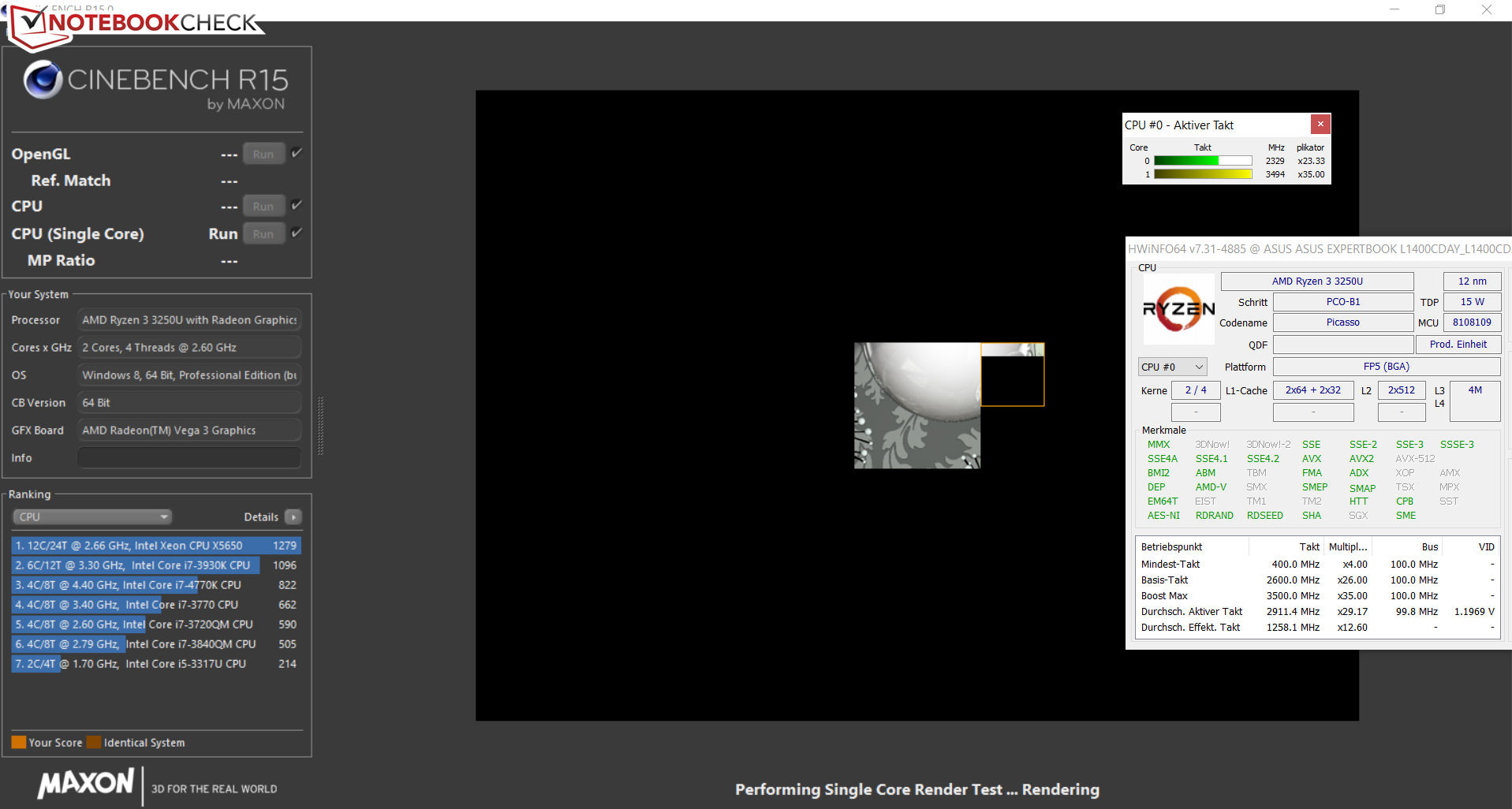

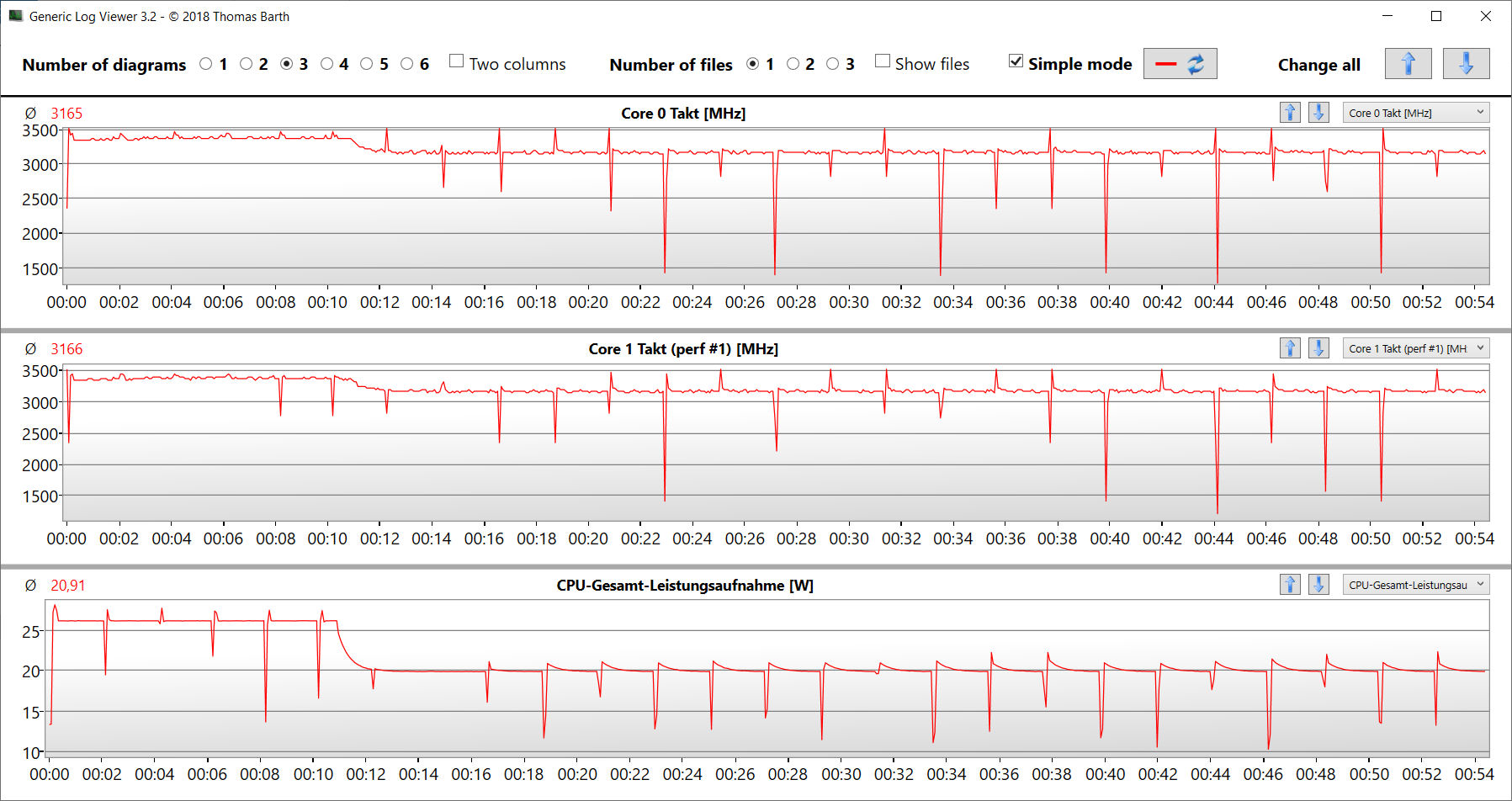

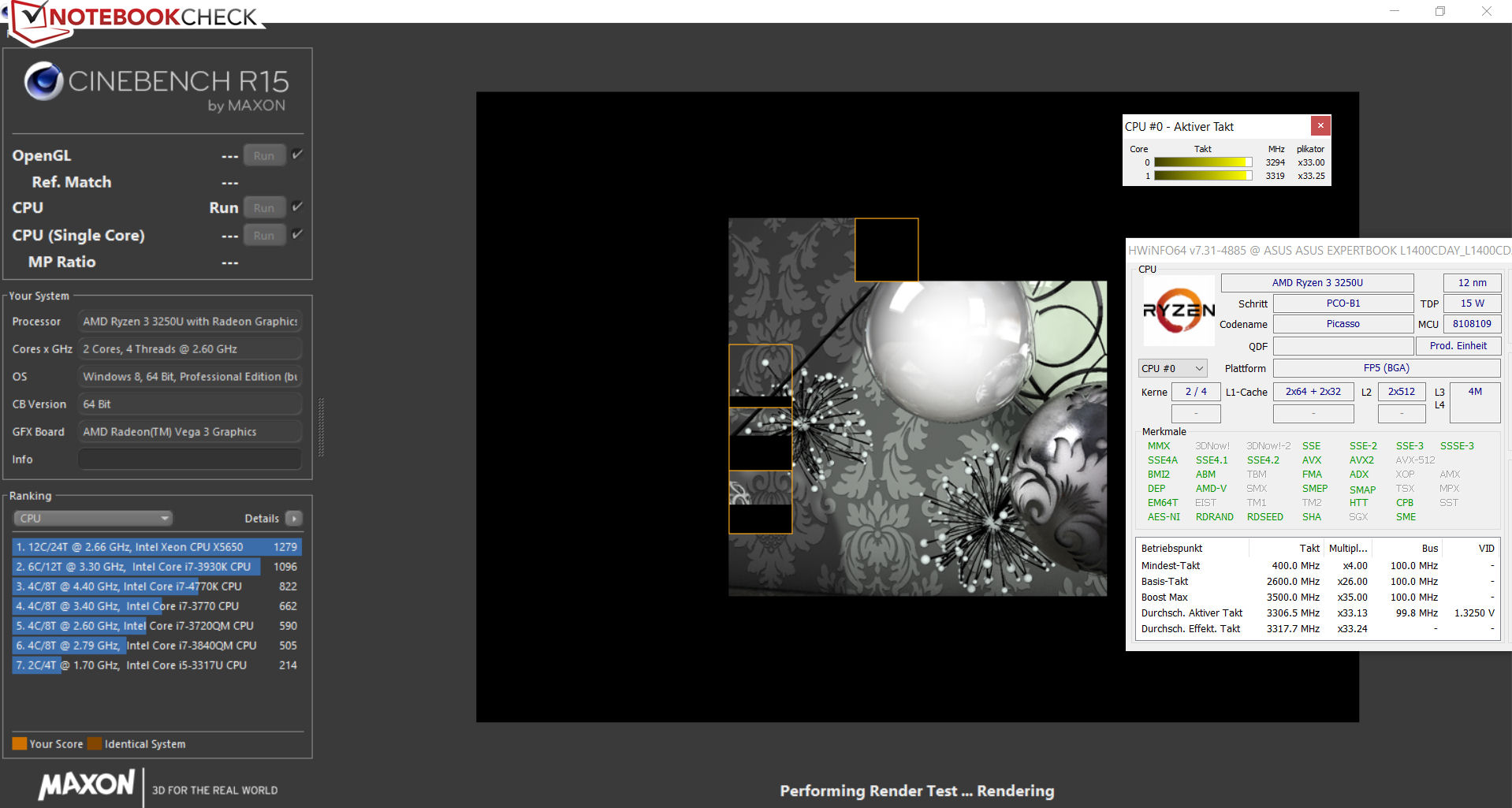

Cinebench R15基准的多线程测试以3.3至3.4 GHz的频率处理，单线程测试以1.6至3.5 GHz的频率处理。在电池模式下，CPU以2.4至3.4GHz（多线程）和1.6至2.4GHz（单线程）运行。CB15循环测试证实了对CPU Turbo的永久使用。

Cinebench R15 Multi Endurance test

Asus ExpertBook L1 L1401CDA-EK0457R AMD Ryzen 3 3250U: Ø332 (321.72-353.09)

Lenovo IdeaPad 3 14ITL6 82H700CCGE Intel Celeron 6305: Ø156.5 (153.1-161.3)

Dell Inspiron 15 3505-PXHPW AMD Ryzen 5 3450U: Ø469 (445.57-602.6)

Acer Extensa 15 EX215-54-5103 Intel Core i5-1135G7: Ø837 (828.74-856.81)

CPU Performance Rating - Percent
Average of class Office	92.7 pt
Acer Extensa 15 EX215-54-5103 Intel Core i5-1135G7	70 pt
Dell Inspiron 15 3505-PXHPW AMD Ryzen 5 3450U	43.2 pt
Asus ExpertBook L1 L1401CDA-EK0457R AMD Ryzen 3 3250U	36.4 pt
Average AMD Ryzen 3 3250U	36 pt
Lenovo IdeaPad 3 14ITL6 82H700CCGE Intel Celeron 6305	19 pt

Cinebench R23
Multi Core
Average of class Office (1577 - 15743, n=96, last 2 years)	9316 Points +348%
Acer Extensa 15 EX215-54-5103 Intel Core i5-1135G7	5638 Points +171%
Dell Inspiron 15 3505-PXHPW AMD Ryzen 5 3450U	2658 Points +28%
Asus ExpertBook L1 L1401CDA-EK0457R AMD Ryzen 3 3250U	2080 Points
Average AMD Ryzen 3 3250U (1876 - 2080, n=3)	1989 Points -4%
Lenovo IdeaPad 3 14ITL6 82H700CCGE Intel Celeron 6305	1056 Points -49%
Single Core
Average of class Office (618 - 1995, n=96, last 2 years)	1559 Points +103%
Acer Extensa 15 EX215-54-5103 Intel Core i5-1135G7	1369 Points +78%
Dell Inspiron 15 3505-PXHPW AMD Ryzen 5 3450U	858 Points +12%
Average AMD Ryzen 3 3250U (768 - 810, n=3)	785 Points +2%
Asus ExpertBook L1 L1401CDA-EK0457R AMD Ryzen 3 3250U	768 Points
Lenovo IdeaPad 3 14ITL6 82H700CCGE Intel Celeron 6305	566 Points -26%

Cinebench R20
CPU (Multi Core)
Average of class Office (590 - 5980, n=96, last 2 years)	3584 Points +345%
Acer Extensa 15 EX215-54-5103 Intel Core i5-1135G7	2142 Points +166%
Dell Inspiron 15 3505-PXHPW AMD Ryzen 5 3450U	1089 Points +35%
Asus ExpertBook L1 L1401CDA-EK0457R AMD Ryzen 3 3250U	805 Points
Average AMD Ryzen 3 3250U (415 - 805, n=3)	668 Points -17%
Lenovo IdeaPad 3 14ITL6 82H700CCGE Intel Celeron 6305	416 Points -48%
CPU (Single Core)
Average of class Office (229 - 766, n=96, last 2 years)	600 Points +100%
Acer Extensa 15 EX215-54-5103 Intel Core i5-1135G7	525 Points +75%
Asus ExpertBook L1 L1401CDA-EK0457R AMD Ryzen 3 3250U	300 Points
Dell Inspiron 15 3505-PXHPW AMD Ryzen 5 3450U	292 Points -3%
Average AMD Ryzen 3 3250U (234 - 303, n=3)	279 Points -7%
Lenovo IdeaPad 3 14ITL6 82H700CCGE Intel Celeron 6305	217 Points -28%

Cinebench R15
CPU Multi 64Bit
Average of class Office (246 - 2642, n=97, last 2 years)	1575 Points +346%
Acer Extensa 15 EX215-54-5103 Intel Core i5-1135G7	857 Points +143%
Dell Inspiron 15 3505-PXHPW AMD Ryzen 5 3450U	603 Points +71%
Asus ExpertBook L1 L1401CDA-EK0457R AMD Ryzen 3 3250U	353 Points
Average AMD Ryzen 3 3250U (351 - 354, n=3)	353 Points 0%
Lenovo IdeaPad 3 14ITL6 82H700CCGE Intel Celeron 6305	161.3 Points -54%
CPU Single 64Bit
Average of class Office (98 - 284, n=96, last 2 years)	231 Points +94%
Acer Extensa 15 EX215-54-5103 Intel Core i5-1135G7	199 Points +67%
Dell Inspiron 15 3505-PXHPW AMD Ryzen 5 3450U	138 Points +16%
Average AMD Ryzen 3 3250U (119 - 126, n=3)	122.2 Points +3%
Asus ExpertBook L1 L1401CDA-EK0457R AMD Ryzen 3 3250U	119 Points
Lenovo IdeaPad 3 14ITL6 82H700CCGE Intel Celeron 6305	85.3 Points -28%

Blender - v2.79 BMW27 CPU
Lenovo IdeaPad 3 14ITL6 82H700CCGE Intel Celeron 6305	2824 Seconds * -114%
Average AMD Ryzen 3 3250U (1319 - 1399, n=3)	1372 Seconds * -4%
Asus ExpertBook L1 L1401CDA-EK0457R AMD Ryzen 3 3250U	1319 Seconds *
Dell Inspiron 15 3505-PXHPW AMD Ryzen 5 3450U	946 Seconds * +28%
Acer Extensa 15 EX215-54-5103 Intel Core i5-1135G7	545 Seconds * +59%
Average of class Office (208 - 1956, n=97, last 2 years)	415 Seconds * +69%

7-Zip 18.03
7z b 4
Average of class Office (7532 - 65460, n=97, last 2 years)	39123 MIPS +340%
Acer Extensa 15 EX215-54-5103 Intel Core i5-1135G7	23314 MIPS +162%
Dell Inspiron 15 3505-PXHPW AMD Ryzen 5 3450U	15163 MIPS +70%
Average AMD Ryzen 3 3250U (8899 - 9496, n=3)	9153 MIPS +3%
Asus ExpertBook L1 L1401CDA-EK0457R AMD Ryzen 3 3250U	8899 MIPS
Lenovo IdeaPad 3 14ITL6 82H700CCGE Intel Celeron 6305	4226 MIPS -53%
7z b 4 -mmt1
Average of class Office (2972 - 6687, n=97, last 2 years)	5271 MIPS +60%
Acer Extensa 15 EX215-54-5103 Intel Core i5-1135G7	4921 MIPS +50%
Dell Inspiron 15 3505-PXHPW AMD Ryzen 5 3450U	3411 MIPS +4%
Asus ExpertBook L1 L1401CDA-EK0457R AMD Ryzen 3 3250U	3291 MIPS
Average AMD Ryzen 3 3250U (2931 - 3452, n=3)	3225 MIPS -2%
Lenovo IdeaPad 3 14ITL6 82H700CCGE Intel Celeron 6305	2233 MIPS -32%

Geekbench 5.5
Multi-Core
Average of class Office (1018 - 11980, n=96, last 2 years)	7635 Points +447%
Acer Extensa 15 EX215-54-5103 Intel Core i5-1135G7	4066 Points +191%
Dell Inspiron 15 3505-PXHPW AMD Ryzen 5 3450U	2565 Points +84%
Average AMD Ryzen 3 3250U (1397 - 1813, n=4)	1634 Points +17%
Asus ExpertBook L1 L1401CDA-EK0457R AMD Ryzen 3 3250U	1397 Points
Lenovo IdeaPad 3 14ITL6 82H700CCGE Intel Celeron 6305	1154 Points -17%
Single-Core
Average of class Office (510 - 1995, n=97, last 2 years)	1592 Points +98%
Acer Extensa 15 EX215-54-5103 Intel Core i5-1135G7	1349 Points +67%
Dell Inspiron 15 3505-PXHPW AMD Ryzen 5 3450U	836 Points +4%
Asus ExpertBook L1 L1401CDA-EK0457R AMD Ryzen 3 3250U	806 Points
Average AMD Ryzen 3 3250U (687 - 848, n=4)	796 Points -1%
Lenovo IdeaPad 3 14ITL6 82H700CCGE Intel Celeron 6305	632 Points -22%

HWBOT x265 Benchmark v2.2 - 4k Preset
Average of class Office (1.72 - 18.7, n=95, last 2 years)	10.5 fps +384%
Acer Extensa 15 EX215-54-5103 Intel Core i5-1135G7	6.56 fps +202%
Dell Inspiron 15 3505-PXHPW AMD Ryzen 5 3450U	2.77 fps +28%
Asus ExpertBook L1 L1401CDA-EK0457R AMD Ryzen 3 3250U	2.17 fps
Average AMD Ryzen 3 3250U (1.83 - 2.17, n=3)	2.05 fps -6%
Lenovo IdeaPad 3 14ITL6 82H700CCGE Intel Celeron 6305	1.69 fps -22%

LibreOffice - 20 Documents To PDF
Lenovo IdeaPad 3 14ITL6 82H700CCGE Intel Celeron 6305	111.6 s * -31%
Dell Inspiron 15 3505-PXHPW AMD Ryzen 5 3450U	90.6 s * -6%
Average AMD Ryzen 3 3250U (84.3 - 88.5, n=3)	86.1 s * -1%
Asus ExpertBook L1 L1401CDA-EK0457R AMD Ryzen 3 3250U	85.5 s *
Average of class Office (31.3 - 129.6, n=95, last 2 years)	53.3 s * +38%
Acer Extensa 15 EX215-54-5103 Intel Core i5-1135G7	51.2 s * +40%

R Benchmark 2.5 - Overall mean
Lenovo IdeaPad 3 14ITL6 82H700CCGE Intel Celeron 6305	1.397 sec * -66%
Asus ExpertBook L1 L1401CDA-EK0457R AMD Ryzen 3 3250U	0.843 sec *
Average AMD Ryzen 3 3250U (0.773 - 0.843, n=3)	0.807 sec * +4%
Dell Inspiron 15 3505-PXHPW AMD Ryzen 5 3450U	0.806 sec * +4%
Acer Extensa 15 EX215-54-5103 Intel Core i5-1135G7	0.627 sec * +26%
Average of class Office (0.4244 - 1.135, n=94, last 2 years)	0.546 sec * +35%

* ... smaller is better

Cinebench R15 CPU Multi 64Bit

353 Points

Cinebench R15 OpenGL 64Bit

26.1 fps

Cinebench R15 Ref. Match 64Bit

98 %

Cinebench R15 CPU Single 64Bit

119 Points

Cinebench R20 CPU (Multi Core)

805 Points

Cinebench R20 CPU (Single Core)

300 Points

Cinebench R23 Single Core

768 Points

Cinebench R23 Multi Core

2080 Points

Help

... in comparison

Performance Rating
Average of class Office	97.6 pt
Acer Extensa 15 EX215-54-5103 Intel Core i5-1135G7, Iris Xe G7 80EUs	71.8 pt
Dell Inspiron 15 3505-PXHPW AMD Ryzen 5 3450U, Vega 8	37.8 pt
Asus ExpertBook L1 L1401CDA-EK0457R AMD Ryzen 3 3250U, Vega 3	25.6 pt
Average AMD Ryzen 3 3250U	24.9 pt
Asus ExpertBook L1 L1401CDA-EK0457R AMD Ryzen 3 3250U, Vega 3	23.6 pt
Lenovo IdeaPad 3 14ITL6 82H700CCGE Intel Celeron 6305, UHD Graphics Xe G4 48EUs	17.2 pt

AIDA64 / FP32 Ray-Trace
Average of class Office (763 - 24250, n=96, last 2 years)	9496 KRay/s +491%
Acer Extensa 15 EX215-54-5103 Intel Core i5-1135G7, Iris Xe G7 80EUs (v6.50.5800)	7685 KRay/s +378%
Dell Inspiron 15 3505-PXHPW AMD Ryzen 5 3450U, Vega 8 (v6.50.5800)	2205 KRay/s +37%
Lenovo IdeaPad 3 14ITL6 82H700CCGE Intel Celeron 6305, UHD Graphics Xe G4 48EUs (v6.50.5800)	1701 KRay/s +6%
Asus ExpertBook L1 L1401CDA-EK0457R AMD Ryzen 3 3250U, Vega 3 (v6.75.6100, Dual-Channel)	1660 KRay/s +3%
Asus ExpertBook L1 L1401CDA-EK0457R AMD Ryzen 3 3250U, Vega 3 (v6.75.6100)	1607 KRay/s
Average AMD Ryzen 3 3250U (1507 - 1660, n=3)	1591 KRay/s -1%

AIDA64 / FPU Julia
Average of class Office (4113 - 102228, n=96, last 2 years)	47957 Points +474%
Acer Extensa 15 EX215-54-5103 Intel Core i5-1135G7, Iris Xe G7 80EUs (v6.50.5800)	31232 Points +274%
Dell Inspiron 15 3505-PXHPW AMD Ryzen 5 3450U, Vega 8 (v6.50.5800)	13159 Points +57%
Asus ExpertBook L1 L1401CDA-EK0457R AMD Ryzen 3 3250U, Vega 3 (v6.75.6100, Dual-Channel)	8639 Points +3%
Average AMD Ryzen 3 3250U (8357 - 8675, n=3)	8557 Points +2%
Asus ExpertBook L1 L1401CDA-EK0457R AMD Ryzen 3 3250U, Vega 3 (v6.75.6100)	8357 Points
Lenovo IdeaPad 3 14ITL6 82H700CCGE Intel Celeron 6305, UHD Graphics Xe G4 48EUs (v6.50.5800)	7051 Points -16%

AIDA64 / CPU SHA3
Average of class Office (287 - 4551, n=96, last 2 years)	2251 MB/s +425%
Acer Extensa 15 EX215-54-5103 Intel Core i5-1135G7, Iris Xe G7 80EUs (v6.50.5800)	2134 MB/s +397%
Dell Inspiron 15 3505-PXHPW AMD Ryzen 5 3450U, Vega 8 (v6.50.5800)	708 MB/s +65%
Average AMD Ryzen 3 3250U (427 - 456, n=3)	437 MB/s +2%
Asus ExpertBook L1 L1401CDA-EK0457R AMD Ryzen 3 3250U, Vega 3 (v6.75.6100)	429 MB/s
Asus ExpertBook L1 L1401CDA-EK0457R AMD Ryzen 3 3250U, Vega 3 (v6.75.6100, Dual-Channel)	427 MB/s 0%
Lenovo IdeaPad 3 14ITL6 82H700CCGE Intel Celeron 6305, UHD Graphics Xe G4 48EUs (v6.50.5800)	350 MB/s -18%

AIDA64 / CPU Queen
Average of class Office (8185 - 115197, n=96, last 2 years)	70416 Points +206%
Acer Extensa 15 EX215-54-5103 Intel Core i5-1135G7, Iris Xe G7 80EUs (v6.50.5800)	46748 Points +103%
Dell Inspiron 15 3505-PXHPW AMD Ryzen 5 3450U, Vega 8 (v6.50.5800)	43532 Points +89%
Asus ExpertBook L1 L1401CDA-EK0457R AMD Ryzen 3 3250U, Vega 3 (v6.75.6100, Dual-Channel)	25740 Points +12%
Average AMD Ryzen 3 3250U (22574 - 25740, n=3)	23780 Points +3%
Asus ExpertBook L1 L1401CDA-EK0457R AMD Ryzen 3 3250U, Vega 3 (v6.75.6100)	23027 Points
Lenovo IdeaPad 3 14ITL6 82H700CCGE Intel Celeron 6305, UHD Graphics Xe G4 48EUs (v6.50.5800)	8031 Points -65%

AIDA64 / FPU SinJulia
Average of class Office (404 - 14288, n=96, last 2 years)	6730 Points +140%
Dell Inspiron 15 3505-PXHPW AMD Ryzen 5 3450U, Vega 8 (v6.50.5800)	4796 Points +71%
Acer Extensa 15 EX215-54-5103 Intel Core i5-1135G7, Iris Xe G7 80EUs (v6.50.5800)	4443 Points +59%
Asus ExpertBook L1 L1401CDA-EK0457R AMD Ryzen 3 3250U, Vega 3 (v6.75.6100)	2801 Points
Average AMD Ryzen 3 3250U (2732 - 2814, n=3)	2782 Points -1%
Asus ExpertBook L1 L1401CDA-EK0457R AMD Ryzen 3 3250U, Vega 3 (v6.75.6100, Dual-Channel)	2732 Points -2%
Lenovo IdeaPad 3 14ITL6 82H700CCGE Intel Celeron 6305, UHD Graphics Xe G4 48EUs (v6.50.5800)	755 Points -73%

AIDA64 / FPU Mandel
Average of class Office (2075 - 54365, n=96, last 2 years)	25037 Points +465%
Acer Extensa 15 EX215-54-5103 Intel Core i5-1135G7, Iris Xe G7 80EUs (v6.50.5800)	18751 Points +323%
Dell Inspiron 15 3505-PXHPW AMD Ryzen 5 3450U, Vega 8 (v6.50.5800)	6711 Points +51%
Asus ExpertBook L1 L1401CDA-EK0457R AMD Ryzen 3 3250U, Vega 3 (v6.75.6100)	4432 Points
Average AMD Ryzen 3 3250U (4342 - 4505, n=3)	4426 Points 0%
Lenovo IdeaPad 3 14ITL6 82H700CCGE Intel Celeron 6305, UHD Graphics Xe G4 48EUs (v6.50.5800)	4362 Points -2%
Asus ExpertBook L1 L1401CDA-EK0457R AMD Ryzen 3 3250U, Vega 3 (v6v6.75.6100, Dual-Channel)	4342 Points -2%

AIDA64 / CPU AES
Acer Extensa 15 EX215-54-5103 Intel Core i5-1135G7, Iris Xe G7 80EUs (v6.50.5800)	67925 MB/s +372%
Average of class Office (7860 - 155900, n=96, last 2 years)	51431 MB/s +258%
Dell Inspiron 15 3505-PXHPW AMD Ryzen 5 3450U, Vega 8 (v6.50.5800)	25354 MB/s +76%
Average AMD Ryzen 3 3250U (14381 - 14905, n=3)	14586 MB/s +1%
Asus ExpertBook L1 L1401CDA-EK0457R AMD Ryzen 3 3250U, Vega 3 (v6.75.6100, Dual-Channel)	14471 MB/s +1%
Asus ExpertBook L1 L1401CDA-EK0457R AMD Ryzen 3 3250U, Vega 3 (v6.75.6100)	14381 MB/s
Lenovo IdeaPad 3 14ITL6 82H700CCGE Intel Celeron 6305, UHD Graphics Xe G4 48EUs (v6.50.5800)	13549 MB/s -6%

AIDA64 / CPU ZLib
Average of class Office (78 - 1018, n=96, last 2 years)	603 MB/s +292%
Acer Extensa 15 EX215-54-5103 Intel Core i5-1135G7, Iris Xe G7 80EUs (v6.50.5800)	366 MB/s +138%
Dell Inspiron 15 3505-PXHPW AMD Ryzen 5 3450U, Vega 8 (v6.50.5800)	295 MB/s +92%
Average AMD Ryzen 3 3250U (153.8 - 161, n=3)	156.9 MB/s +2%
Asus ExpertBook L1 L1401CDA-EK0457R AMD Ryzen 3 3250U, Vega 3 (v6.75.6100, Dual-Channel)	156 MB/s +1%
Asus ExpertBook L1 L1401CDA-EK0457R AMD Ryzen 3 3250U, Vega 3 (v6.75.6100)	153.8 MB/s
Lenovo IdeaPad 3 14ITL6 82H700CCGE Intel Celeron 6305, UHD Graphics Xe G4 48EUs (v6.50.5800)	67.8 MB/s -56%

AIDA64 / FP64 Ray-Trace
Average of class Office (432 - 12755, n=96, last 2 years)	5036 KRay/s +491%
Acer Extensa 15 EX215-54-5103 Intel Core i5-1135G7, Iris Xe G7 80EUs (v6.50.5800)	3918 KRay/s +360%
Dell Inspiron 15 3505-PXHPW AMD Ryzen 5 3450U, Vega 8 (v6.50.5800)	1184 KRay/s +39%
Lenovo IdeaPad 3 14ITL6 82H700CCGE Intel Celeron 6305, UHD Graphics Xe G4 48EUs (v6.50.5800)	941 KRay/s +10%
Average AMD Ryzen 3 3250U (844 - 864, n=3)	853 KRay/s 0%
Asus ExpertBook L1 L1401CDA-EK0457R AMD Ryzen 3 3250U, Vega 3 (v6.75.6100)	852 KRay/s
Asus ExpertBook L1 L1401CDA-EK0457R AMD Ryzen 3 3250U, Vega 3 (v6.75.6100, Dual-Channel)	844 KRay/s -1%

AIDA64 / CPU PhotoWorxx
Average of class Office (4814 - 54971, n=96, last 2 years)	29480 MPixel/s +269%
Asus ExpertBook L1 L1401CDA-EK0457R AMD Ryzen 3 3250U, Vega 3 (v6.75.6100, Dual-Channel)	12595 MPixel/s +58%
Average AMD Ryzen 3 3250U (7986 - 12595, n=3)	11043 MPixel/s +38%
Lenovo IdeaPad 3 14ITL6 82H700CCGE Intel Celeron 6305, UHD Graphics Xe G4 48EUs (v6.50.5800)	10018 MPixel/s +25%
Acer Extensa 15 EX215-54-5103 Intel Core i5-1135G7, Iris Xe G7 80EUs (v6.50.5800)	9264 MPixel/s +16%
Asus ExpertBook L1 L1401CDA-EK0457R AMD Ryzen 3 3250U, Vega 3 (v6.75.6100)	7986 MPixel/s
Dell Inspiron 15 3505-PXHPW AMD Ryzen 5 3450U, Vega 8 (v6.50.5800)	7659 MPixel/s -4%

系统性能

运行平稳的系统为办公和互联网应用提供了足够的计算能力。PCMark的结果很好。然而，由于工作内存（8GB，DDR4-2400，板载）只在单通道模式下运行，部分性能仍未使用。安装第二个内存模块会有积极的效果--特别是对图形性能。

可用内存的传输速率落后于基于英特尔的竞争对手的内存值。究其原因。Ryzen 3 APU最大支持DDR4-2400内存，而竞争对手的英特尔CPU则支持DDR4-3200内存。

PCMark 10 / Score
Average of class Office (2463 - 7344, n=88, last 2 years)	5649 Points +82%
Acer Extensa 15 EX215-54-5103 Iris Xe G7 80EUs, i5-1135G7, WDC PC SN530 SDBPNPZ-265G	4703 Points +51%
Dell Inspiron 15 3505-PXHPW Vega 8, R5 3450U, KDI OM3PDP3-AD NVMe KDI 256GB	3485 Points +12%
Average AMD Ryzen 3 3250U, AMD Radeon RX Vega 3 (3109 - 3344, n=2)	3227 Points +4%
Asus ExpertBook L1 L1401CDA-EK0457R Vega 3, R3 3250U, WDC PC SN530 SDBPNPZ-265G	3109 Points
Lenovo IdeaPad 3 14ITL6 82H700CCGE UHD Graphics Xe G4 48EUs, Celeron 6305, SK Hynix BC711 HFM128GD3HX015N	2325 Points -25%

PCMark 10 / Essentials
Average of class Office (5575 - 20841, n=88, last 2 years)	10146 Points +55%
Acer Extensa 15 EX215-54-5103 Iris Xe G7 80EUs, i5-1135G7, WDC PC SN530 SDBPNPZ-265G	9074 Points +39%
Dell Inspiron 15 3505-PXHPW Vega 8, R5 3450U, KDI OM3PDP3-AD NVMe KDI 256GB	7067 Points +8%
Average AMD Ryzen 3 3250U, AMD Radeon RX Vega 3 (6547 - 6987, n=2)	6767 Points +3%
Asus ExpertBook L1 L1401CDA-EK0457R Vega 3, R3 3250U, WDC PC SN530 SDBPNPZ-265G	6547 Points
Lenovo IdeaPad 3 14ITL6 82H700CCGE UHD Graphics Xe G4 48EUs, Celeron 6305, SK Hynix BC711 HFM128GD3HX015N	5095 Points -22%

PCMark 10 / Productivity
Average of class Office (3041 - 10415, n=88, last 2 years)	7735 Points +36%
Acer Extensa 15 EX215-54-5103 Iris Xe G7 80EUs, i5-1135G7, WDC PC SN530 SDBPNPZ-265G	6305 Points +11%
Dell Inspiron 15 3505-PXHPW Vega 8, R5 3450U, KDI OM3PDP3-AD NVMe KDI 256GB	5801 Points +2%
Average AMD Ryzen 3 3250U, AMD Radeon RX Vega 3 (5670 - 5886, n=2)	5778 Points +2%
Asus ExpertBook L1 L1401CDA-EK0457R Vega 3, R3 3250U, WDC PC SN530 SDBPNPZ-265G	5670 Points
Lenovo IdeaPad 3 14ITL6 82H700CCGE UHD Graphics Xe G4 48EUs, Celeron 6305, SK Hynix BC711 HFM128GD3HX015N	3053 Points -46%

PCMark 10 / Digital Content Creation
Average of class Office (2126 - 9773, n=88, last 2 years)	6396 Points +191%
Acer Extensa 15 EX215-54-5103 Iris Xe G7 80EUs, i5-1135G7, WDC PC SN530 SDBPNPZ-265G	4935 Points +125%
Dell Inspiron 15 3505-PXHPW Vega 8, R5 3450U, KDI OM3PDP3-AD NVMe KDI 256GB	2802 Points +27%
Average AMD Ryzen 3 3250U, AMD Radeon RX Vega 3 (2198 - 2467, n=2)	2333 Points +6%
Asus ExpertBook L1 L1401CDA-EK0457R Vega 3, R3 3250U, WDC PC SN530 SDBPNPZ-265G	2198 Points
Lenovo IdeaPad 3 14ITL6 82H700CCGE UHD Graphics Xe G4 48EUs, Celeron 6305, SK Hynix BC711 HFM128GD3HX015N	2194 Points 0%

CrossMark / Overall
Average of class Office (348 - 1891, n=90, last 2 years)	1414 Points +140%
Acer Extensa 15 EX215-54-5103 Iris Xe G7 80EUs, i5-1135G7, WDC PC SN530 SDBPNPZ-265G	1058 Points +80%
Dell Inspiron 15 3505-PXHPW Vega 8, R5 3450U, KDI OM3PDP3-AD NVMe KDI 256GB	707 Points +20%
Asus ExpertBook L1 L1401CDA-EK0457R Vega 3, R3 3250U (Dual-Channel)	659 Points +12%
Average AMD Ryzen 3 3250U, AMD Radeon RX Vega 3 (588 - 659, n=2)	624 Points +6%
Asus ExpertBook L1 L1401CDA-EK0457R Vega 3, R3 3250U, WDC PC SN530 SDBPNPZ-265G	588 Points
Lenovo IdeaPad 3 14ITL6 82H700CCGE UHD Graphics Xe G4 48EUs, Celeron 6305, SK Hynix BC711 HFM128GD3HX015N	501 Points -15%

CrossMark / Productivity
Average of class Office (393 - 1870, n=90, last 2 years)	1410 Points +99%
Acer Extensa 15 EX215-54-5103 Iris Xe G7 80EUs, i5-1135G7, WDC PC SN530 SDBPNPZ-265G	1197 Points +69%
Dell Inspiron 15 3505-PXHPW Vega 8, R5 3450U, KDI OM3PDP3-AD NVMe KDI 256GB	808 Points +14%
Asus ExpertBook L1 L1401CDA-EK0457R Vega 3, R3 3250U (Dual-Channel)	744 Points +5%
Average AMD Ryzen 3 3250U, AMD Radeon RX Vega 3 (708 - 744, n=2)	726 Points +3%
Asus ExpertBook L1 L1401CDA-EK0457R Vega 3, R3 3250U, WDC PC SN530 SDBPNPZ-265G	708 Points
Lenovo IdeaPad 3 14ITL6 82H700CCGE UHD Graphics Xe G4 48EUs, Celeron 6305, SK Hynix BC711 HFM128GD3HX015N	557 Points -21%

CrossMark / Creativity
Average of class Office (340 - 1982, n=90, last 2 years)	1474 Points +203%
Acer Extensa 15 EX215-54-5103 Iris Xe G7 80EUs, i5-1135G7, WDC PC SN530 SDBPNPZ-265G	895 Points +84%
Dell Inspiron 15 3505-PXHPW Vega 8, R5 3450U, KDI OM3PDP3-AD NVMe KDI 256GB	615 Points +27%
Asus ExpertBook L1 L1401CDA-EK0457R Vega 3, R3 3250U (Dual-Channel)	583 Points +20%
Average AMD Ryzen 3 3250U, AMD Radeon RX Vega 3 (486 - 583, n=2)	535 Points +10%
Asus ExpertBook L1 L1401CDA-EK0457R Vega 3, R3 3250U, WDC PC SN530 SDBPNPZ-265G	486 Points
Lenovo IdeaPad 3 14ITL6 82H700CCGE UHD Graphics Xe G4 48EUs, Celeron 6305, SK Hynix BC711 HFM128GD3HX015N	424 Points -13%

CrossMark / Responsiveness
Average of class Office (258 - 2017, n=90, last 2 years)	1276 Points +113%
Acer Extensa 15 EX215-54-5103 Iris Xe G7 80EUs, i5-1135G7, WDC PC SN530 SDBPNPZ-265G	1202 Points +101%
Dell Inspiron 15 3505-PXHPW Vega 8, R5 3450U, KDI OM3PDP3-AD NVMe KDI 256GB	719 Points +20%
Asus ExpertBook L1 L1401CDA-EK0457R Vega 3, R3 3250U (Dual-Channel)	660 Points +10%
Average AMD Ryzen 3 3250U, AMD Radeon RX Vega 3 (599 - 660, n=2)	630 Points +5%
Lenovo IdeaPad 3 14ITL6 82H700CCGE UHD Graphics Xe G4 48EUs, Celeron 6305, SK Hynix BC711 HFM128GD3HX015N	599 Points 0%
Asus ExpertBook L1 L1401CDA-EK0457R Vega 3, R3 3250U, WDC PC SN530 SDBPNPZ-265G	599 Points

PCMark 10 Score		3109 points
Help

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Average of class Office (7158 - 108783, n=97, last 2 years)	49873 MB/s +243%
Asus ExpertBook L1 L1401CDA-EK0457R AMD Ryzen 3 3250U, Vega 3 (v6.75.6100, Dual-Channel)	28036 MB/s +93%
Average AMD Ryzen 3 3250U (14545 - 28036, n=3)	23479 MB/s +61%
Acer Extensa 15 EX215-54-5103 Intel Core i5-1135G7, Iris Xe G7 80EUs (v6.50.5800)	17810 MB/s +22%
Lenovo IdeaPad 3 14ITL6 82H700CCGE Intel Celeron 6305, UHD Graphics Xe G4 48EUs (v6.50.5800)	17223 MB/s +18%
Dell Inspiron 15 3505-PXHPW AMD Ryzen 5 3450U, Vega 8 (v6.50.5800)	15343 MB/s +5%
Asus ExpertBook L1 L1401CDA-EK0457R AMD Ryzen 3 3250U, Vega 3 (v6.75.6100)	14545 MB/s

AIDA64 / Memory Read
Average of class Office (7325 - 127282, n=97, last 2 years)	51060 MB/s +187%
Asus ExpertBook L1 L1401CDA-EK0457R AMD Ryzen 3 3250U, Vega 3 (v6.75.6100, Dual-Channel)	32364 MB/s +82%
Average AMD Ryzen 3 3250U (17812 - 32364, n=3)	27448 MB/s +54%
Acer Extensa 15 EX215-54-5103 Intel Core i5-1135G7, Iris Xe G7 80EUs (v6.50.5800)	21134 MB/s +19%
Lenovo IdeaPad 3 14ITL6 82H700CCGE Intel Celeron 6305, UHD Graphics Xe G4 48EUs (v6.50.5800)	20971 MB/s +18%
Dell Inspiron 15 3505-PXHPW AMD Ryzen 5 3450U, Vega 8 (v6.50.5800)	17983 MB/s +1%
Asus ExpertBook L1 L1401CDA-EK0457R AMD Ryzen 3 3250U, Vega 3 (v6.75.6100)	17812 MB/s

AIDA64 / Memory Write
Average of class Office (7579 - 117935, n=97, last 2 years)	53904 MB/s +209%
Asus ExpertBook L1 L1401CDA-EK0457R AMD Ryzen 3 3250U, Vega 3 (v6.75.6100, Dual-Channel)	33662 MB/s +93%
Average AMD Ryzen 3 3250U (17439 - 33662, n=3)	28128 MB/s +61%
Lenovo IdeaPad 3 14ITL6 82H700CCGE Intel Celeron 6305, UHD Graphics Xe G4 48EUs (v6.50.5800)	20423 MB/s +17%
Acer Extensa 15 EX215-54-5103 Intel Core i5-1135G7, Iris Xe G7 80EUs (v6.50.5800)	18924 MB/s +9%
Dell Inspiron 15 3505-PXHPW AMD Ryzen 5 3450U, Vega 8 (v6.50.5800)	17811 MB/s +2%
Asus ExpertBook L1 L1401CDA-EK0457R AMD Ryzen 3 3250U, Vega 3 (v6.75.6100)	17439 MB/s

AIDA64 / Memory Latency
Asus ExpertBook L1 L1401CDA-EK0457R AMD Ryzen 3 3250U, Vega 3 (v6.75.6100, Dual-Channel)	116.6 ns * -7%
Lenovo IdeaPad 3 14ITL6 82H700CCGE Intel Celeron 6305, UHD Graphics Xe G4 48EUs (v6.50.5800)	113.9 ns * -5%
Average AMD Ryzen 3 3250U (108.8 - 116.6, n=3)	112.8 ns * -4%
Asus ExpertBook L1 L1401CDA-EK0457R AMD Ryzen 3 3250U, Vega 3 (v6.75.6100)	108.8 ns *
Dell Inspiron 15 3505-PXHPW AMD Ryzen 5 3450U, Vega 8 (v6.50.5800)	100 ns * +8%
Average of class Office (6.9 - 185.2, n=97, last 2 years)	95.6 ns * +12%
Acer Extensa 15 EX215-54-5103 Intel Core i5-1135G7, Iris Xe G7 80EUs (v6.50.5800)	68.8 ns * +37%

* ... smaller is better

DPC延迟

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Asus ExpertBook L1 L1401CDA-EK0457R Vega 3, R3 3250U, WDC PC SN530 SDBPNPZ-265G	4321.8 μs *
Dell Inspiron 15 3505-PXHPW Vega 8, R5 3450U, KDI OM3PDP3-AD NVMe KDI 256GB	2473 μs * +43%
Acer Extensa 15 EX215-54-5103 Iris Xe G7 80EUs, i5-1135G7, WDC PC SN530 SDBPNPZ-265G	1876 μs * +57%
Lenovo IdeaPad 3 14ITL6 82H700CCGE UHD Graphics Xe G4 48EUs, Celeron 6305, SK Hynix BC711 HFM128GD3HX015N	1703.4 μs * +61%

* ... smaller is better

大容量存储

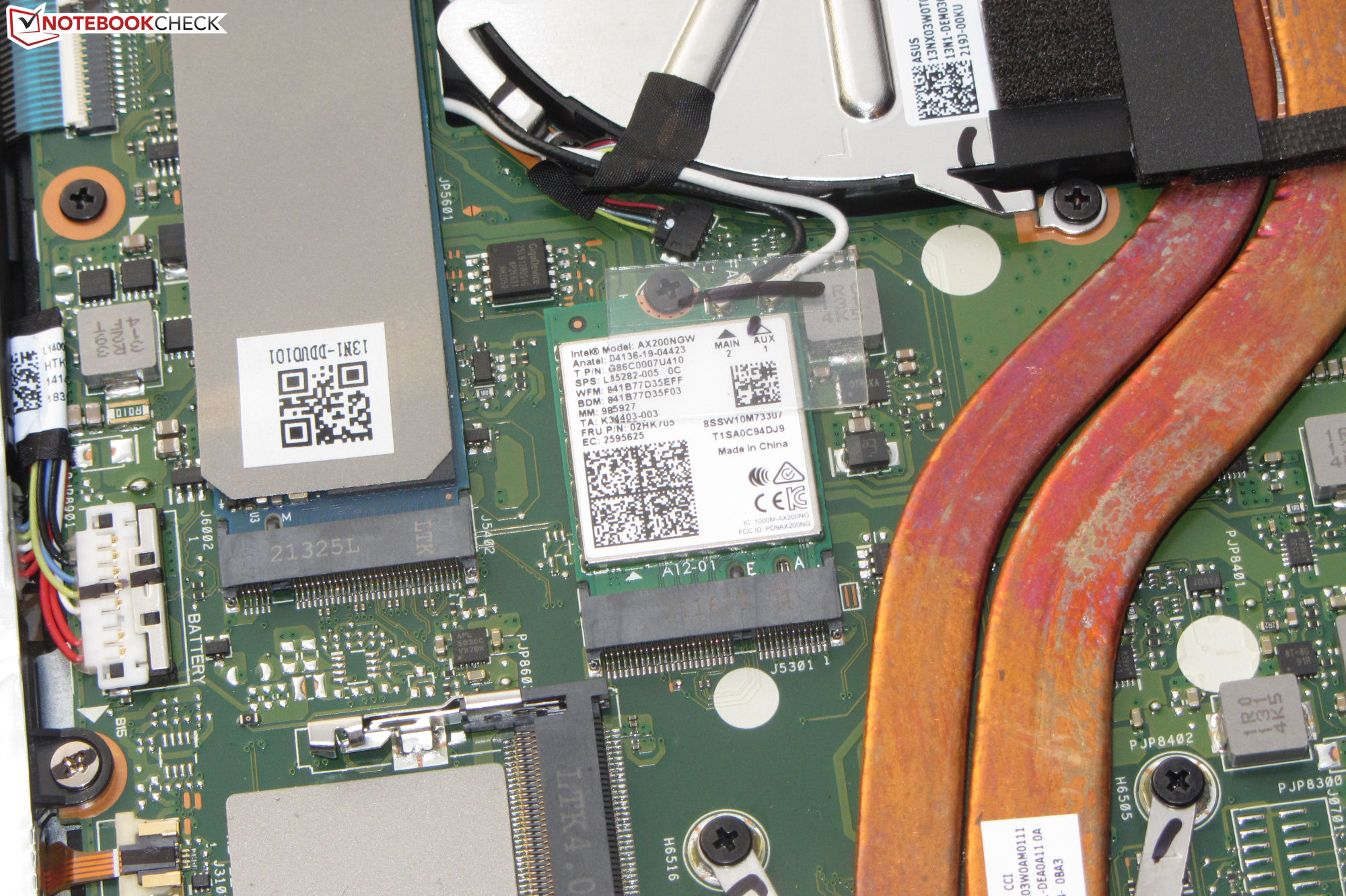

华硕为ExpertBook配备了西部数据的PCIe-3固态硬盘（M.2-2280），其存储容量为256GB。传输速率很好，但它不是顶级固态硬盘之一。笔记本提供了2.5英寸存储介质的空间。安装框架、螺丝和SATA插槽都包括在内。

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

WDC PC SN530 SDBPNPZ-265G

CDM 5/6 Read Seq Q32T1: 2322 MB/s

CDM 5/6 Write Seq Q32T1: 970 MB/s

CDM 5/6 Read 4K Q32T1: 318.7 MB/s

CDM 5/6 Write 4K Q32T1: 173.9 MB/s

CDM 5 Read Seq: 1659 MB/s

CDM 5 Write Seq: 972.9 MB/s

CDM 5/6 Read 4K: 42.72 MB/s

CDM 5/6 Write 4K: 119.6 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Average of class Office	89.1 pt
Acer Extensa 15 EX215-54-5103 WDC PC SN530 SDBPNPZ-265G	49 pt
Dell Inspiron 15 3505-PXHPW KDI OM3PDP3-AD NVMe KDI 256GB	46.3 pt
Average WDC PC SN530 SDBPNPZ-265G	46 pt
Asus ExpertBook L1 L1401CDA-EK0457R WDC PC SN530 SDBPNPZ-265G	43 pt
Lenovo IdeaPad 3 14ITL6 82H700CCGE SK Hynix BC711 HFM128GD3HX015N	39.5 pt

DiskSpd
seq read
Average of class Office (121 - 4554, n=93, last 2 years)	2680 MB/s +63%
Acer Extensa 15 EX215-54-5103 WDC PC SN530 SDBPNPZ-265G	1756 (1749.3^min - 1756.42^max) MB/s +6%
Average WDC PC SN530 SDBPNPZ-265G (1649 - 1756, n=2)	1703 MB/s +3%
Asus ExpertBook L1 L1401CDA-EK0457R WDC PC SN530 SDBPNPZ-265G	1649 (1632.93^min - 1649.05^max) MB/s
Dell Inspiron 15 3505-PXHPW KDI OM3PDP3-AD NVMe KDI 256GB	1604 (1543.23^min - 1603.96^max) MB/s -3%
Lenovo IdeaPad 3 14ITL6 82H700CCGE SK Hynix BC711 HFM128GD3HX015N	1321 (1315.85^min - 1321.42^max) MB/s -20%
seq write
Average of class Office (43 - 5842, n=93, last 2 years)	2624 MB/s +179%
Dell Inspiron 15 3505-PXHPW KDI OM3PDP3-AD NVMe KDI 256GB	1217 (1098.8^min - 1217.31^max) MB/s +29%
Acer Extensa 15 EX215-54-5103 WDC PC SN530 SDBPNPZ-265G	943 (937.83^min - 942.67^max) MB/s 0%
Average WDC PC SN530 SDBPNPZ-265G (942 - 943, n=2)	943 MB/s 0%
Asus ExpertBook L1 L1401CDA-EK0457R WDC PC SN530 SDBPNPZ-265G	942 (928.62^min - 942.25^max) MB/s
Lenovo IdeaPad 3 14ITL6 82H700CCGE SK Hynix BC711 HFM128GD3HX015N	333 (297.38^min - 333.45^max) MB/s -65%
seq q8 t1 read
Average of class Office (124.2 - 7120, n=93, last 2 years)	4428 MB/s +80%
Asus ExpertBook L1 L1401CDA-EK0457R WDC PC SN530 SDBPNPZ-265G	2462 (2143.62^min - 2461.85^max) MB/s
Average WDC PC SN530 SDBPNPZ-265G (2460 - 2462, n=2)	2461 MB/s 0%
Acer Extensa 15 EX215-54-5103 WDC PC SN530 SDBPNPZ-265G	2460 (2212.73^min - 2460.17^max) MB/s 0%
Dell Inspiron 15 3505-PXHPW KDI OM3PDP3-AD NVMe KDI 256GB	2340 (1570.97^min - 2340.07^max) MB/s -5%
Lenovo IdeaPad 3 14ITL6 82H700CCGE SK Hynix BC711 HFM128GD3HX015N	1679 (1573.91^min - 1678.98^max) MB/s -32%
seq q8 t1 write
Average of class Office (46.7 - 6791, n=93, last 2 years)	3432 MB/s +265%
Dell Inspiron 15 3505-PXHPW KDI OM3PDP3-AD NVMe KDI 256GB	1255 (1224.04^min - 1254.93^max) MB/s +34%
Acer Extensa 15 EX215-54-5103 WDC PC SN530 SDBPNPZ-265G	945 (939.94^min - 945.39^max) MB/s +1%
Average WDC PC SN530 SDBPNPZ-265G (940 - 945, n=2)	943 MB/s 0%
Asus ExpertBook L1 L1401CDA-EK0457R WDC PC SN530 SDBPNPZ-265G	940 (926.77^min - 939.95^max) MB/s
Lenovo IdeaPad 3 14ITL6 82H700CCGE SK Hynix BC711 HFM128GD3HX015N	276 (266.45^min - 275.85^max) MB/s -71%
4k q1 t1 read
Average of class Office (5.55 - 89.9, n=93, last 2 years)	58.6 MB/s +67%
Lenovo IdeaPad 3 14ITL6 82H700CCGE SK Hynix BC711 HFM128GD3HX015N	49.2 (49.02^min - 49.17^max) MB/s +40%
Dell Inspiron 15 3505-PXHPW KDI OM3PDP3-AD NVMe KDI 256GB	36.9 (36.83^min - 36.91^max) MB/s +5%
Asus ExpertBook L1 L1401CDA-EK0457R WDC PC SN530 SDBPNPZ-265G	35.1 (34.68^min - 35.09^max) MB/s
Average WDC PC SN530 SDBPNPZ-265G (33 - 35.1, n=2)	34.1 MB/s -3%
Acer Extensa 15 EX215-54-5103 WDC PC SN530 SDBPNPZ-265G	33 (31.97^min - 33.04^max) MB/s -6%
4k q1 t1 write
Acer Extensa 15 EX215-54-5103 WDC PC SN530 SDBPNPZ-265G	243 (240.56^min - 243.21^max) MB/s +123%
Average WDC PC SN530 SDBPNPZ-265G (109.1 - 243, n=2)	176.1 MB/s +61%
Average of class Office (1.23 - 429, n=93, last 2 years)	166.5 MB/s +53%
Lenovo IdeaPad 3 14ITL6 82H700CCGE SK Hynix BC711 HFM128GD3HX015N	135.8 (133.28^min - 135.82^max) MB/s +24%
Dell Inspiron 15 3505-PXHPW KDI OM3PDP3-AD NVMe KDI 256GB	122 (118^min - 121.61^max) MB/s +12%
Asus ExpertBook L1 L1401CDA-EK0457R WDC PC SN530 SDBPNPZ-265G	109.1 (102.98^min - 109.13^max) MB/s
4k q32 t16 read
Average of class Office (7.49 - 4425, n=93, last 2 years)	1293 MB/s +90%
Dell Inspiron 15 3505-PXHPW KDI OM3PDP3-AD NVMe KDI 256GB	947 (944.45^min - 946.62^max) MB/s +39%
Asus ExpertBook L1 L1401CDA-EK0457R WDC PC SN530 SDBPNPZ-265G	682 (655.96^min - 681.88^max) MB/s
Average WDC PC SN530 SDBPNPZ-265G (656 - 682, n=2)	669 MB/s -2%
Acer Extensa 15 EX215-54-5103 WDC PC SN530 SDBPNPZ-265G	656 (652.43^min - 655.55^max) MB/s -4%
Lenovo IdeaPad 3 14ITL6 82H700CCGE SK Hynix BC711 HFM128GD3HX015N	485 (476.28^min - 484.57^max) MB/s -29%
4k q32 t16 write
Average of class Office (1.5 - 3254, n=93, last 2 years)	950 MB/s +77%
Dell Inspiron 15 3505-PXHPW KDI OM3PDP3-AD NVMe KDI 256GB	925 (365.56^min - 925.09^max) MB/s +72%
Acer Extensa 15 EX215-54-5103 WDC PC SN530 SDBPNPZ-265G	614 (286.41^min - 614.04^max) MB/s +14%
Average WDC PC SN530 SDBPNPZ-265G (538 - 614, n=2)	576 MB/s +7%
Asus ExpertBook L1 L1401CDA-EK0457R WDC PC SN530 SDBPNPZ-265G	538 (206.36^min - 538.17^max) MB/s
Lenovo IdeaPad 3 14ITL6 82H700CCGE SK Hynix BC711 HFM128GD3HX015N	279 (258.09^min - 279.34^max) MB/s -48%

AS SSD
Score Total
Average of class Office (704 - 9204, n=90, last 2 years)	4271 Points +167%
Dell Inspiron 15 3505-PXHPW KDI OM3PDP3-AD NVMe KDI 256GB	1625 Points +1%
Asus ExpertBook L1 L1401CDA-EK0457R WDC PC SN530 SDBPNPZ-265G	1601 Points
Average WDC PC SN530 SDBPNPZ-265G (1449 - 1601, n=2)	1525 Points -5%
Acer Extensa 15 EX215-54-5103 WDC PC SN530 SDBPNPZ-265G	1449 Points -9%
Lenovo IdeaPad 3 14ITL6 82H700CCGE SK Hynix BC711 HFM128GD3HX015N	1363 Points -15%
Score Read
Average of class Office (252 - 3364, n=90, last 2 years)	1502 Points +93%
Dell Inspiron 15 3505-PXHPW KDI OM3PDP3-AD NVMe KDI 256GB	794 Points +2%
Asus ExpertBook L1 L1401CDA-EK0457R WDC PC SN530 SDBPNPZ-265G	780 Points
Average WDC PC SN530 SDBPNPZ-265G (621 - 780, n=2)	701 Points -10%
Lenovo IdeaPad 3 14ITL6 82H700CCGE SK Hynix BC711 HFM128GD3HX015N	674 Points -14%
Acer Extensa 15 EX215-54-5103 WDC PC SN530 SDBPNPZ-265G	621 Points -20%
Score Write
Average of class Office (247 - 4111, n=90, last 2 years)	2042 Points +331%
Acer Extensa 15 EX215-54-5103 WDC PC SN530 SDBPNPZ-265G	567 Points +20%
Average WDC PC SN530 SDBPNPZ-265G (474 - 567, n=2)	521 Points +10%
Dell Inspiron 15 3505-PXHPW KDI OM3PDP3-AD NVMe KDI 256GB	499 Points +5%
Asus ExpertBook L1 L1401CDA-EK0457R WDC PC SN530 SDBPNPZ-265G	474 Points
Lenovo IdeaPad 3 14ITL6 82H700CCGE SK Hynix BC711 HFM128GD3HX015N	387 Points -18%
Seq Read
Average of class Office (508 - 5796, n=90, last 2 years)	3491 MB/s +62%
Acer Extensa 15 EX215-54-5103 WDC PC SN530 SDBPNPZ-265G	2220 MB/s +3%
Dell Inspiron 15 3505-PXHPW KDI OM3PDP3-AD NVMe KDI 256GB	2190 MB/s +2%
Average WDC PC SN530 SDBPNPZ-265G (2150 - 2220, n=2)	2185 MB/s +2%
Asus ExpertBook L1 L1401CDA-EK0457R WDC PC SN530 SDBPNPZ-265G	2150.46 MB/s
Lenovo IdeaPad 3 14ITL6 82H700CCGE SK Hynix BC711 HFM128GD3HX015N	1448.03 MB/s -33%
Seq Write
Average of class Office (294 - 5880, n=90, last 2 years)	2402 MB/s +161%
Asus ExpertBook L1 L1401CDA-EK0457R WDC PC SN530 SDBPNPZ-265G	920.46 MB/s
Average WDC PC SN530 SDBPNPZ-265G (919 - 920, n=2)	920 MB/s 0%
Acer Extensa 15 EX215-54-5103 WDC PC SN530 SDBPNPZ-265G	919 MB/s 0%
Dell Inspiron 15 3505-PXHPW KDI OM3PDP3-AD NVMe KDI 256GB	422.1 MB/s -54%
Lenovo IdeaPad 3 14ITL6 82H700CCGE SK Hynix BC711 HFM128GD3HX015N	304.12 MB/s -67%
4K Read
Average of class Office (18 - 91.1, n=90, last 2 years)	58.5 MB/s +58%
Dell Inspiron 15 3505-PXHPW KDI OM3PDP3-AD NVMe KDI 256GB	48.31 MB/s +30%
Lenovo IdeaPad 3 14ITL6 82H700CCGE SK Hynix BC711 HFM128GD3HX015N	45.21 MB/s +22%
Asus ExpertBook L1 L1401CDA-EK0457R WDC PC SN530 SDBPNPZ-265G	37.07 MB/s
Average WDC PC SN530 SDBPNPZ-265G (31.5 - 37.1, n=2)	34.3 MB/s -7%
Acer Extensa 15 EX215-54-5103 WDC PC SN530 SDBPNPZ-265G	31.5 MB/s -15%
4K Write
Acer Extensa 15 EX215-54-5103 WDC PC SN530 SDBPNPZ-265G	208.9 MB/s +111%
Average of class Office (28.2 - 350, n=90, last 2 years)	168.3 MB/s +70%
Average WDC PC SN530 SDBPNPZ-265G (98.8 - 209, n=2)	153.9 MB/s +56%
Lenovo IdeaPad 3 14ITL6 82H700CCGE SK Hynix BC711 HFM128GD3HX015N	117.85 MB/s +19%
Asus ExpertBook L1 L1401CDA-EK0457R WDC PC SN530 SDBPNPZ-265G	98.83 MB/s
Dell Inspiron 15 3505-PXHPW KDI OM3PDP3-AD NVMe KDI 256GB	91.1 MB/s -8%
4K-64 Read
Average of class Office (182.3 - 2713, n=90, last 2 years)	1095 MB/s +108%
Asus ExpertBook L1 L1401CDA-EK0457R WDC PC SN530 SDBPNPZ-265G	527.38 MB/s
Dell Inspiron 15 3505-PXHPW KDI OM3PDP3-AD NVMe KDI 256GB	527 MB/s 0%
Lenovo IdeaPad 3 14ITL6 82H700CCGE SK Hynix BC711 HFM128GD3HX015N	484.3 MB/s -8%
Average WDC PC SN530 SDBPNPZ-265G (367 - 527, n=2)	447 MB/s -15%
Acer Extensa 15 EX215-54-5103 WDC PC SN530 SDBPNPZ-265G	367.2 MB/s -30%
4K-64 Write
Average of class Office (183.4 - 3394, n=90, last 2 years)	1634 MB/s +476%
Dell Inspiron 15 3505-PXHPW KDI OM3PDP3-AD NVMe KDI 256GB	365.4 MB/s +29%
Asus ExpertBook L1 L1401CDA-EK0457R WDC PC SN530 SDBPNPZ-265G	283.45 MB/s
Average WDC PC SN530 SDBPNPZ-265G (266 - 283, n=2)	275 MB/s -3%
Acer Extensa 15 EX215-54-5103 WDC PC SN530 SDBPNPZ-265G	266 MB/s -6%
Lenovo IdeaPad 3 14ITL6 82H700CCGE SK Hynix BC711 HFM128GD3HX015N	238.34 MB/s -16%
Access Time Read
Dell Inspiron 15 3505-PXHPW KDI OM3PDP3-AD NVMe KDI 256GB	0.138 ms * -28%
Asus ExpertBook L1 L1401CDA-EK0457R WDC PC SN530 SDBPNPZ-265G	0.108 ms *
Average WDC PC SN530 SDBPNPZ-265G (0.1 - 0.108, n=2)	0.104 ms * +4%
Acer Extensa 15 EX215-54-5103 WDC PC SN530 SDBPNPZ-265G	0.1 ms * +7%
Lenovo IdeaPad 3 14ITL6 82H700CCGE SK Hynix BC711 HFM128GD3HX015N	0.079 ms * +27%
Average of class Office (0.022 - 0.302, n=90, last 2 years)	0.07814 ms * +28%
Access Time Write
Average of class Office (0.016 - 0.625, n=90, last 2 years)	0.06748 ms * -14%
Dell Inspiron 15 3505-PXHPW KDI OM3PDP3-AD NVMe KDI 256GB	0.062 ms * -5%
Asus ExpertBook L1 L1401CDA-EK0457R WDC PC SN530 SDBPNPZ-265G	0.059 ms *
Average WDC PC SN530 SDBPNPZ-265G (0.041 - 0.059, n=2)	0.05 ms * +15%
Acer Extensa 15 EX215-54-5103 WDC PC SN530 SDBPNPZ-265G	0.041 ms * +31%
Lenovo IdeaPad 3 14ITL6 82H700CCGE SK Hynix BC711 HFM128GD3HX015N	0.033 ms * +44%

* ... smaller is better

Continuous Read: DiskSpd Read Loop, Queue Depth 8

Asus ExpertBook L1 L1401CDA-EK0457R WDC PC SN530 SDBPNPZ-265G: Ø2465 (1684.01-2479.96)

Lenovo IdeaPad 3 14ITL6 82H700CCGE SK Hynix BC711 HFM128GD3HX015N: Ø1636 (1473.88-1662.2)

Dell Inspiron 15 3505-PXHPW KDI OM3PDP3-AD NVMe KDI 256GB: Ø2158 (1671.84-2352.47)

Acer Extensa 15 EX215-54-5103 WDC PC SN530 SDBPNPZ-265G: Ø2467 (2193.62-2474.72)

图形卡

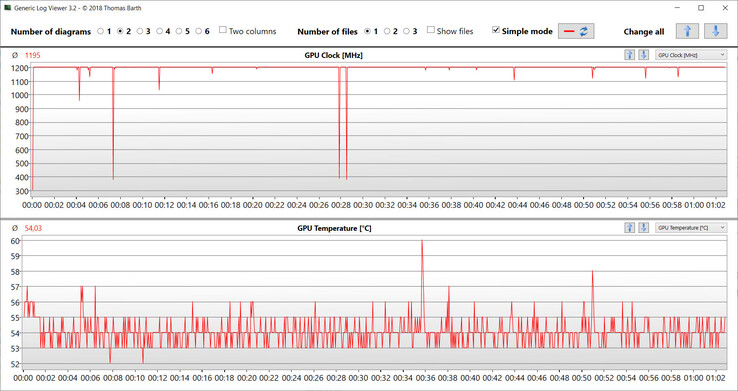

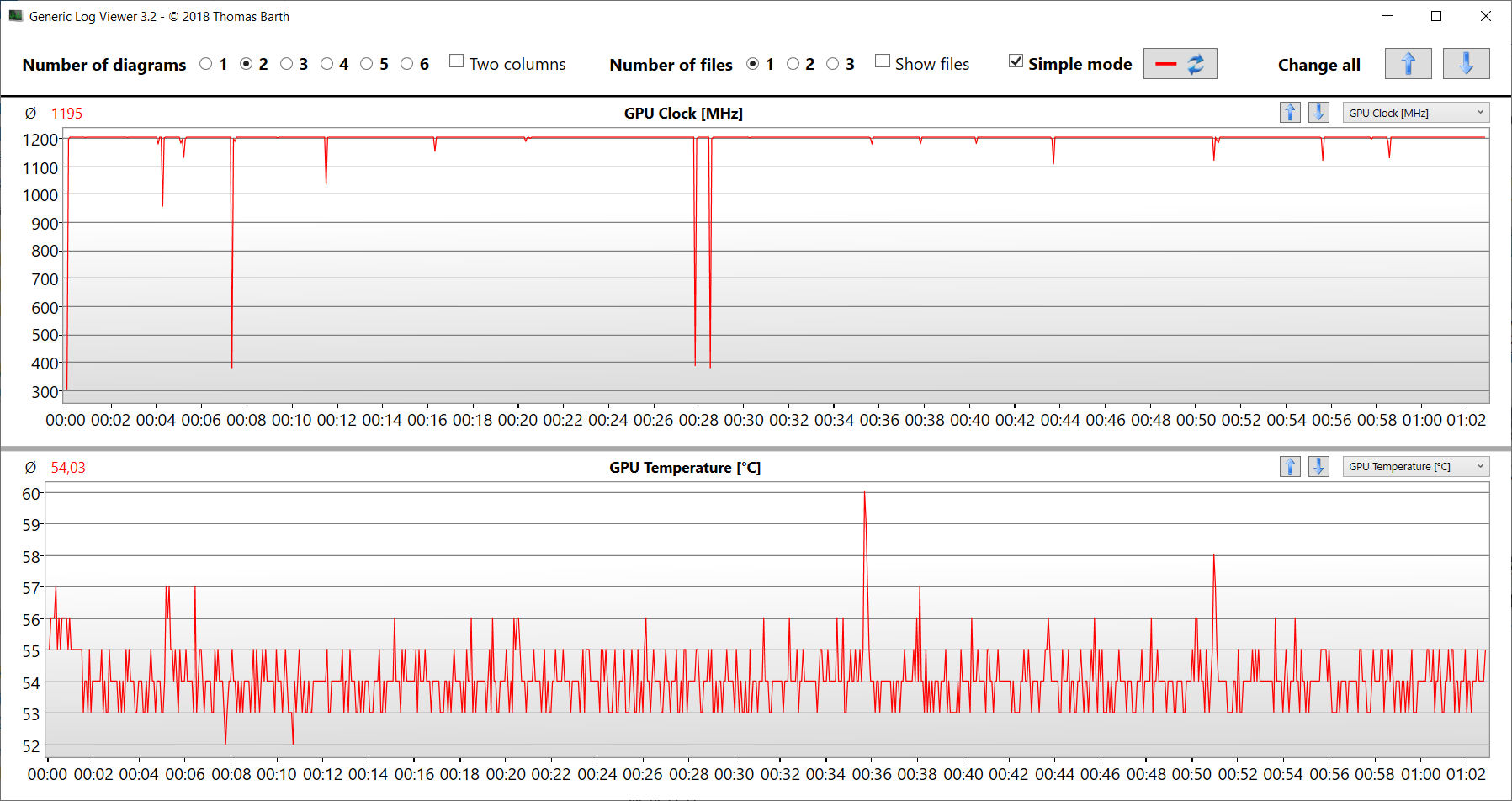

如果你不考虑短期的性能下降，那么锐龙RX Vega 3GPU可以永久地保持其最大时钟（1200 MHz）--测试结果显示。 Witcher 3测试显示了这一点。华硕L1不是一款游戏笔记本。然而，它可以处理节俭的游戏，如Dota 2 Reborn、Sims 4 或Diablo 3。在低分辨率和低质量设置下，可以实现流畅的帧率。当双通道模式被激活时，可以实现更多（=安装内存模块）（见对比表）。

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Average of class Office	100 pt
Acer Extensa 15 EX215-54-5103 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	50.2 pt
Dell Inspiron 15 3505-PXHPW AMD Radeon RX Vega 8 (Ryzen 2000/3000), AMD Ryzen 5 3450U	39.2 pt
Lenovo IdeaPad 3 14ITL6 82H700CCGE ^-1! Intel UHD Graphics Xe G4 48EUs, Intel Celeron 6305	35.4 pt
Asus ExpertBook L1 L1401CDA-EK0457R AMD Radeon RX Vega 3, AMD Ryzen 3 3250U	31.3 pt
Average AMD Radeon RX Vega 3	25.7 pt
Asus ExpertBook L1 L1401CDA-EK0457R AMD Radeon RX Vega 3, AMD Ryzen 3 3250U	24.7 pt

3DMark 11 - 1280x720 Performance GPU
Average of class Office (1468 - 13132, n=92, last 2 years)	6792 Points +314%
Acer Extensa 15 EX215-54-5103 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	3929 Points +140%
Dell Inspiron 15 3505-PXHPW AMD Radeon RX Vega 8 (Ryzen 2000/3000), AMD Ryzen 5 3450U	2856 Points +74%
Lenovo IdeaPad 3 14ITL6 82H700CCGE Intel UHD Graphics Xe G4 48EUs, Intel Celeron 6305	2156 Points +31%
Asus ExpertBook L1 L1401CDA-EK0457R AMD Radeon RX Vega 3, AMD Ryzen 3 3250U (Dual-Channel)	2048 Points +25%
Average AMD Radeon RX Vega 3 (1108 - 2048, n=14)	1674 Points +2%
Asus ExpertBook L1 L1401CDA-EK0457R AMD Radeon RX Vega 3, AMD Ryzen 3 3250U	1640 Points

3DMark
1280x720 Cloud Gate Standard Graphics
Average of class Office (7982 - 58068, n=66, last 2 years)	26751 Points +255%
Acer Extensa 15 EX215-54-5103 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	13628 Points +81%
Dell Inspiron 15 3505-PXHPW AMD Radeon RX Vega 8 (Ryzen 2000/3000), AMD Ryzen 5 3450U	12249 Points +63%
Lenovo IdeaPad 3 14ITL6 82H700CCGE Intel UHD Graphics Xe G4 48EUs, Intel Celeron 6305	11270 Points +50%
Asus ExpertBook L1 L1401CDA-EK0457R AMD Radeon RX Vega 3, AMD Ryzen 3 3250U (Dual-Channel)	10718 Points +42%
Average AMD Radeon RX Vega 3 (5005 - 12278, n=16)	8533 Points +13%
Asus ExpertBook L1 L1401CDA-EK0457R AMD Radeon RX Vega 3, AMD Ryzen 3 3250U	7526 Points

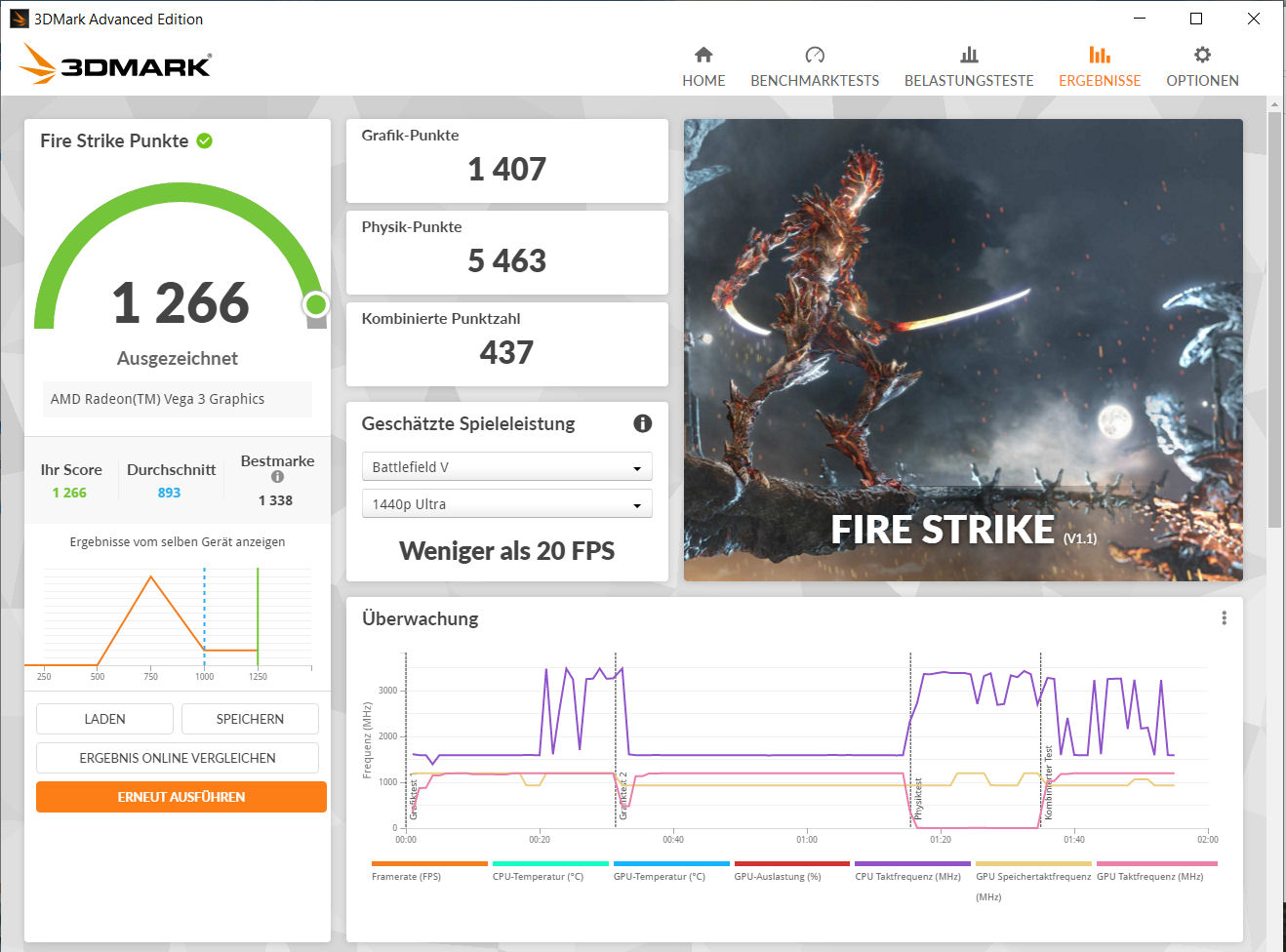

1920x1080 Fire Strike Graphics
Average of class Office (1089 - 21732, n=93, last 2 years)	5061 Points +367%
Acer Extensa 15 EX215-54-5103 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	2134 Points +97%
Dell Inspiron 15 3505-PXHPW AMD Radeon RX Vega 8 (Ryzen 2000/3000), AMD Ryzen 5 3450U	1713 Points +58%
Lenovo IdeaPad 3 14ITL6 82H700CCGE Intel UHD Graphics Xe G4 48EUs, Intel Celeron 6305	1643 Points +52%
Asus ExpertBook L1 L1401CDA-EK0457R AMD Radeon RX Vega 3, AMD Ryzen 3 3250U (Dual-Channel)	1407 Points +30%
Average AMD Radeon RX Vega 3 (726 - 1522, n=16)	1155 Points +7%
Asus ExpertBook L1 L1401CDA-EK0457R AMD Radeon RX Vega 3, AMD Ryzen 3 3250U	1084 Points
2560x1440 Time Spy Graphics
Average of class Office (313 - 4109, n=93, last 2 years)	1599 Points +300%
Acer Extensa 15 EX215-54-5103 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	796 Points +99%
Dell Inspiron 15 3505-PXHPW AMD Radeon RX Vega 8 (Ryzen 2000/3000), AMD Ryzen 5 3450U	563 Points +41%
Asus ExpertBook L1 L1401CDA-EK0457R AMD Radeon RX Vega 3, AMD Ryzen 3 3250U (Dual-Channel)	433 Points +8%
Asus ExpertBook L1 L1401CDA-EK0457R AMD Radeon RX Vega 3, AMD Ryzen 3 3250U	400 Points
Average AMD Radeon RX Vega 3 (196 - 450, n=11)	372 Points -7%

3DMark 11 Performance		1763 points
3DMark Cloud Gate Standard Score		6113 points

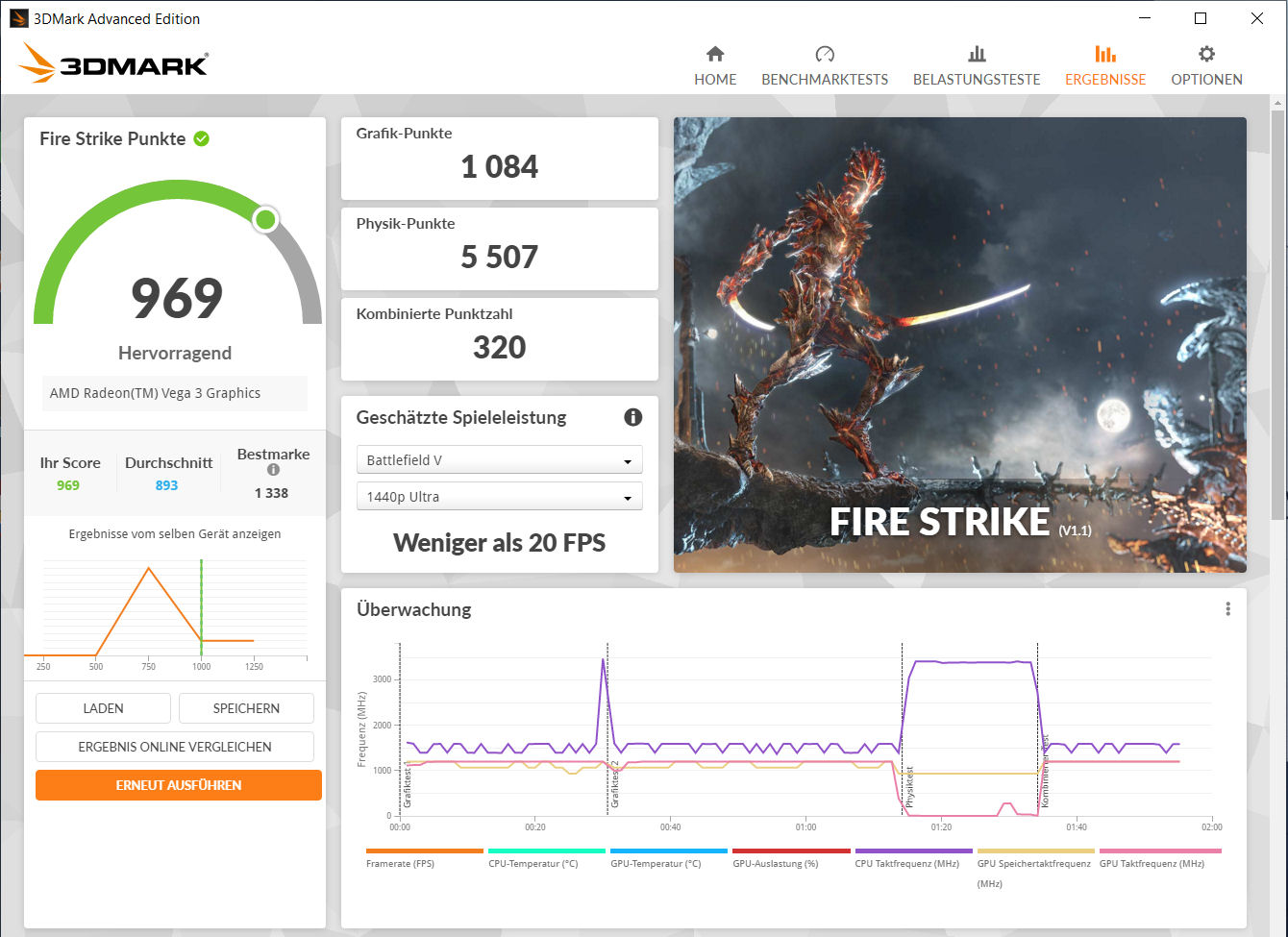

3DMark Fire Strike Score		969 points
Help

... in comparison

Performance Rating - Percent
Average of class Office	100 pt
Asus ExpertBook L1 L1401CDA-EK0457R AMD Ryzen 3 3250U, AMD Radeon RX Vega 3	50.4 pt
Acer Extensa 15 EX215-54-5103 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	47 pt
Lenovo IdeaPad 3 14ITL6 82H700CCGE ^-1! Intel Celeron 6305, Intel UHD Graphics Xe G4 48EUs	38.8 pt
Dell Inspiron 15 3505-PXHPW AMD Ryzen 5 3450U, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	36.6 pt
Asus ExpertBook L1 L1401CDA-EK0457R AMD Ryzen 3 3250U, AMD Radeon RX Vega 3	33.7 pt

The Witcher 3 - 1024x768 Low Graphics & Postprocessing
Average of class Office (16 - 177, n=75, last 2 years)	79.3 fps +384%
Acer Extensa 15 EX215-54-5103 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	33.6 (4.78^min, 5.88^P0.1, 19.1^P1) fps +105%
Asus ExpertBook L1 L1401CDA-EK0457R AMD Ryzen 3 3250U, AMD Radeon RX Vega 3 (Dual-Channel)	24.9 (3.39^min, 6.8^P0.1, 14.5^P1) fps +52%
Dell Inspiron 15 3505-PXHPW AMD Ryzen 5 3450U, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	24 (5.17^min, 6.17^P0.1, 12^P1) fps +46%
Lenovo IdeaPad 3 14ITL6 82H700CCGE Intel Celeron 6305, Intel UHD Graphics Xe G4 48EUs	20.6 (4.06^min, 4.35^P0.1, 7.43^P1) fps +26%
Asus ExpertBook L1 L1401CDA-EK0457R AMD Ryzen 3 3250U, AMD Radeon RX Vega 3	16.4 (4.93^min, 5.38^P0.1, 9.96^P1) fps

Dota 2 Reborn - 1366x768 med (1/3)
Average of class Office (27.6 - 146.2, n=98, last 2 years)	80 fps +88%
Asus ExpertBook L1 L1401CDA-EK0457R AMD Ryzen 3 3250U, AMD Radeon RX Vega 3 (Dual-Channel)	56.1 (50.8^min) fps +32%
Asus ExpertBook L1 L1401CDA-EK0457R AMD Ryzen 3 3250U, AMD Radeon RX Vega 3	42.5 (39.3^min) fps
Acer Extensa 15 EX215-54-5103 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	41.9 (34.3^min) fps -1%
Dell Inspiron 15 3505-PXHPW AMD Ryzen 5 3450U, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	39.9 (35.8^min) fps -6%
Lenovo IdeaPad 3 14ITL6 82H700CCGE Intel Celeron 6305, Intel UHD Graphics Xe G4 48EUs	35.7 (28.5^min) fps -16%

X-Plane 11.11 - 1280x720 low (fps_test=1)
Average of class Office (13.6 - 128.2, n=97, last 2 years)	43.8 fps +138%
Acer Extensa 15 EX215-54-5103 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	39 fps +112%
Asus ExpertBook L1 L1401CDA-EK0457R AMD Ryzen 3 3250U, AMD Radeon RX Vega 3 (Dual-Channel)	22.5 fps +22%
Lenovo IdeaPad 3 14ITL6 82H700CCGE Intel Celeron 6305, Intel UHD Graphics Xe G4 48EUs	21.8 fps +18%
Dell Inspiron 15 3505-PXHPW AMD Ryzen 5 3450U, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	19.6 fps +7%
Asus ExpertBook L1 L1401CDA-EK0457R AMD Ryzen 3 3250U, AMD Radeon RX Vega 3	18.4 fps

Final Fantasy XV Benchmark - 1280x720 Lite Quality
Average of class Office (12.1 - 103.1, n=93, last 2 years)	42.4 fps +253%
Asus ExpertBook L1 L1401CDA-EK0457R AMD Ryzen 3 3250U, AMD Radeon RX Vega 3 (1.3, Dual-Channel)	20.5 fps +71%
Acer Extensa 15 EX215-54-5103 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs (1.3)	18.4 fps +53%
Lenovo IdeaPad 3 14ITL6 82H700CCGE Intel Celeron 6305, Intel UHD Graphics Xe G4 48EUs (1.3)	14.6 fps +22%
Dell Inspiron 15 3505-PXHPW AMD Ryzen 5 3450U, AMD Radeon RX Vega 8 (Ryzen 2000/3000) (1.3)	13.4 fps +12%
Asus ExpertBook L1 L1401CDA-EK0457R AMD Ryzen 3 3250U, AMD Radeon RX Vega 3 (1.3)	12 fps

GTA V
1366x768 Normal/Off AF:4x
Average of class Office (32.1 - 171.4, n=84, last 2 years)	92.5 fps +185%
Asus ExpertBook L1 L1401CDA-EK0457R AMD Ryzen 3 3250U, AMD Radeon RX Vega 3 (Dual-Channel)	52.2 (11.8^min, 25.6^P1) fps +61%
Lenovo IdeaPad 3 14ITL6 82H700CCGE Intel Celeron 6305, Intel UHD Graphics Xe G4 48EUs	37.3 (0.923^min, 3.4^P1) fps +15%
Asus ExpertBook L1 L1401CDA-EK0457R AMD Ryzen 3 3250U, AMD Radeon RX Vega 3	32.4 (4.32^min, 16.7^P1) fps
Acer Extensa 15 EX215-54-5103 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	31.9 (13.7^min, 19.2^P1) fps -2%
Dell Inspiron 15 3505-PXHPW AMD Ryzen 5 3450U, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	29.9 (15.2^min, 20^P1) fps -8%
1920x1080 Normal/Off AF:4x
Average of class Office (21.3 - 168.4, n=65, last 2 years)	72.6 fps +236%
Asus ExpertBook L1 L1401CDA-EK0457R AMD Ryzen 3 3250U, AMD Radeon RX Vega 3 (Dual-Channel)	33.7 (8.5^min, 20.8^P1) fps +56%
Lenovo IdeaPad 3 14ITL6 82H700CCGE Intel Celeron 6305, Intel UHD Graphics Xe G4 48EUs	27.4 (0.465^min, 2.67^P1) fps +27%
Dell Inspiron 15 3505-PXHPW AMD Ryzen 5 3450U, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	21.6 (11.1^min, 14.3^P1) fps 0%
Asus ExpertBook L1 L1401CDA-EK0457R AMD Ryzen 3 3250U, AMD Radeon RX Vega 3	21.6 (1.747^min, 12.5^P1) fps
Acer Extensa 15 EX215-54-5103 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	20.5 (9.62^min, 13^P1) fps -5%

Strange Brigade - 1280x720 lowest AF:1
Average of class Office (37.7 - 175.7, n=82, last 2 years)	91.6 fps +268%
Asus ExpertBook L1 L1401CDA-EK0457R AMD Ryzen 3 3250U, AMD Radeon RX Vega 3 (1.47.22.14 D3D12, Dual-Channel)	44.7 (35^min, 38.5^P1) fps +80%
Acer Extensa 15 EX215-54-5103 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs (1.47.22.14 D3D12)	35.5 (8.5^min, 10.4^P1) fps +43%
Dell Inspiron 15 3505-PXHPW AMD Ryzen 5 3450U, AMD Radeon RX Vega 8 (Ryzen 2000/3000) (1.47.22.14 D3D12)	34.2 (25.6^min, 29^P1) fps +37%
Asus ExpertBook L1 L1401CDA-EK0457R AMD Ryzen 3 3250U, AMD Radeon RX Vega 3 (1.47.22.14 D3D12)	24.9 (18.6^min, 21.4^P1) fps

	low	med.	high	ultra
GTA V (2015)	37.3	32.4	8.21	3.81
The Witcher 3 (2015)	16.4	11.1	5.88	3.79
Dota 2 Reborn (2015)	63.3	42.5	18.4	17.4
Final Fantasy XV Benchmark (2018)	12	5.6	3.83
X-Plane 11.11 (2018)	18.4	11.9	10.9
Strange Brigade (2018)	24.9	8.6	7.1	6.6

排放与能源 - Windows笔记本产生的噪音很小

噪声排放

在日常使用中（办公室、互联网），华硕笔记本电脑的风扇经常静止不动，保持沉默。在负载情况下，它的转速会上升。声压级可能达到近42 dB(A)。通过使用 "耳语模式 "配置文件可以减少噪音，但要牺牲计算性能。

Noise Level

Idle		26 / 26.9 / 27.4 dB(A)
Load		41.8 / 41.7 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Earthworks M23R, Arta (15 cm distance) environment noise: 26 dB(A)

	Asus ExpertBook L1 L1401CDA-EK0457R Vega 3, R3 3250U, WDC PC SN530 SDBPNPZ-265G	Lenovo IdeaPad 3 14ITL6 82H700CCGE UHD Graphics Xe G4 48EUs, Celeron 6305, SK Hynix BC711 HFM128GD3HX015N	Dell Inspiron 15 3505-PXHPW Vega 8, R5 3450U, KDI OM3PDP3-AD NVMe KDI 256GB	Acer Extensa 15 EX215-54-5103 Iris Xe G7 80EUs, i5-1135G7, WDC PC SN530 SDBPNPZ-265G
Noise		8%	10%	3%
off / environment *	26	25.4 2%	25 4%	25 4%
Idle Minimum *	26	25.4 2%	25 4%	25 4%
Idle Average *	26.9	25.4 6%	25 7%	25 7%
Idle Maximum *	27.4	25.4 7%	25 9%	27 1%
Load Average *	41.8	27.2 35%	33.6 20%	32.3 23%
Load Maximum *	41.7	44.8 -7%	34.5 17%	50 -20%

* ... smaller is better

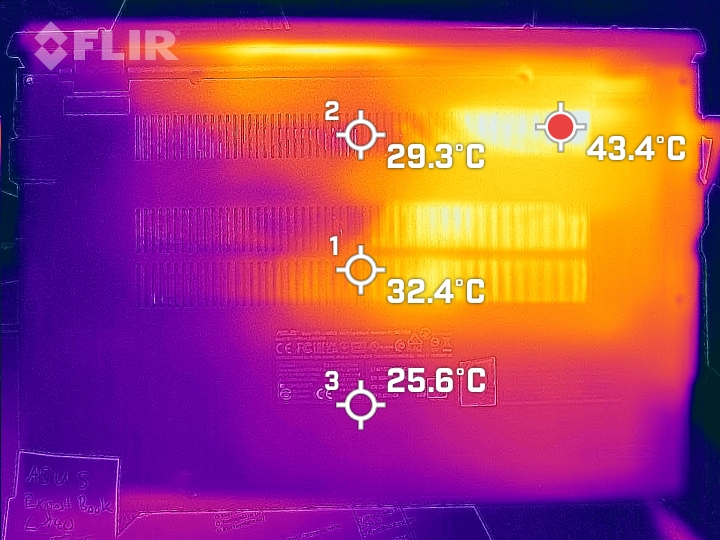

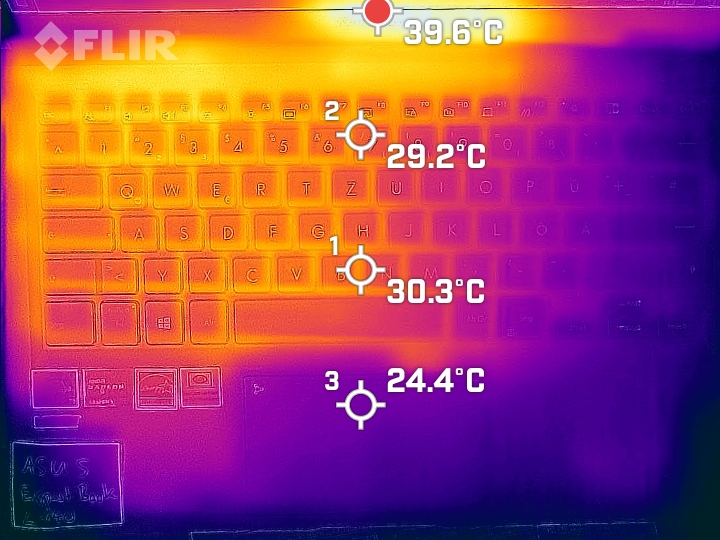

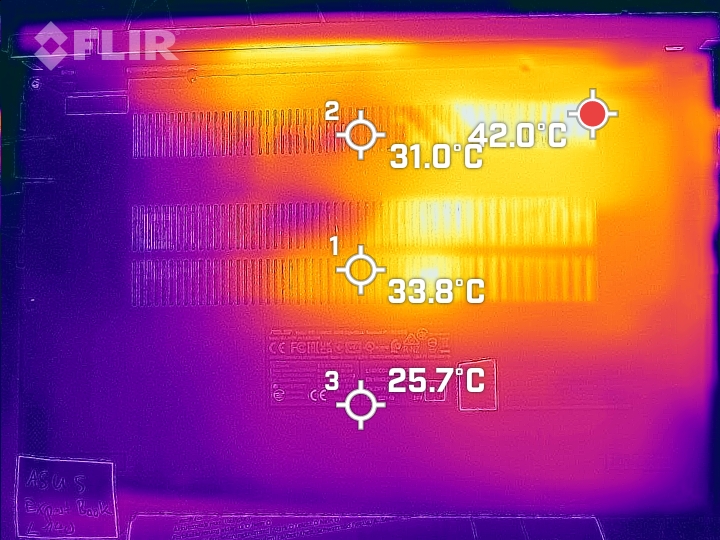

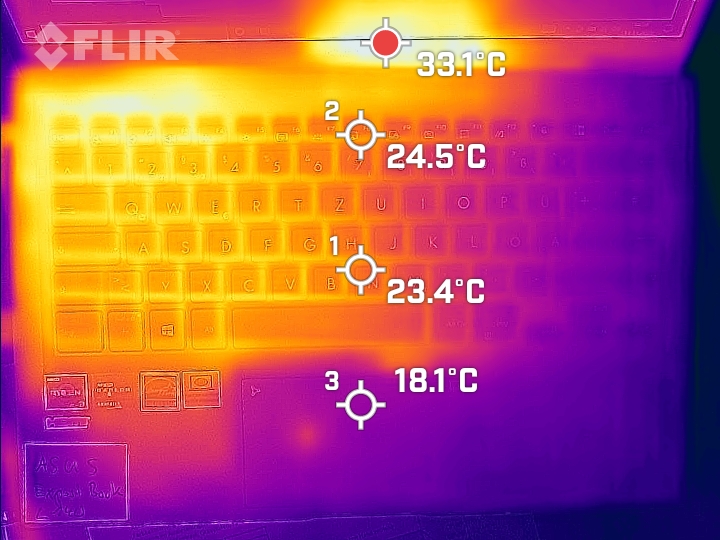

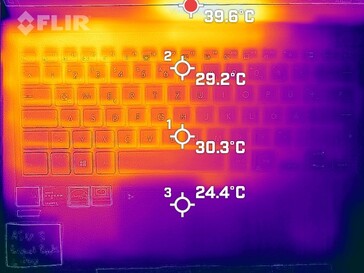

温度

笔记本没有过度升温。在压力测试中，有两个测量点的温度超过40摄氏度。在日常使用中（办公室、互联网），在 "标准模式 "激活的情况下，这些数值处于绿色区域。低声模式 "导致了与压力测试相当的热度，因为风扇运行的频率较低或较慢。

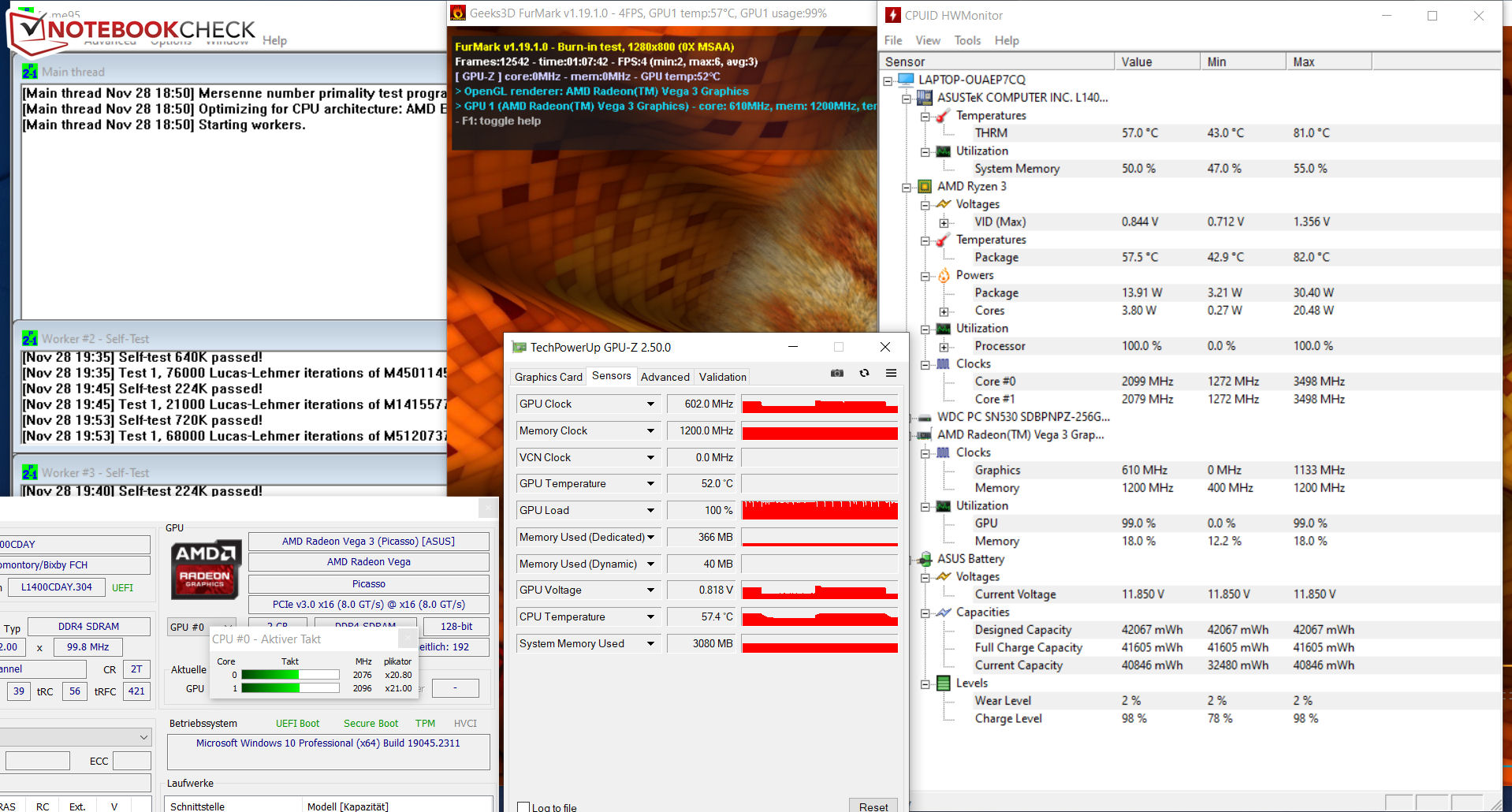

压力测试（Prime95和FurMark连续运行）代表了一种极端情况，用于检查全负荷下的系统稳定性。CPU（3.1，最高3.2GHz）和GPU（约1050MHz）在压力测试开始时具有相对较高的时钟速率，但随着测试的进行，其速率明显下降。

Max. Load

Idle


38.6 °C	31.6 °C	26.3 °C
35.6 °C	33 °C	25.2 °C
31 °C	28.1 °C	26.4 °C

Maximum: 38.6 °C
Average: 30.6 °C


26.4 °C	39.5 °C	47.3 °C
23.7 °C	37.2 °C	35.9 °C
27.8 °C	31.2 °C	30.8 °C

Maximum: 47.3 °C
Average: 33.3 °C

Power Supply (max.) 36 °C | Room Temperature 23 °C | FIRT 550-Pocket

(±) The average temperature for the upper side under maximal load is 32.5 °C / 91 F, compared to the average of 29.5 °C / 85 F for the devices in the class Office.
(±) The maximum temperature on the upper side is 42.9 °C / 109 F, compared to the average of 34.3 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(-) The bottom heats up to a maximum of 48.1 °C / 119 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 30.6 °C / 87 F, compared to the device average of 29.5 °C / 85 F.
(+) The palmrests and touchpad are reaching skin temperature as a maximum (32.3 °C / 90.1 F) and are therefore not hot.
(-) The average temperature of the palmrest area of similar devices was 27.7 °C / 81.9 F (-4.6 °C / -8.2 F).

	Asus ExpertBook L1 L1401CDA-EK0457R AMD Ryzen 3 3250U, AMD Radeon RX Vega 3	Lenovo IdeaPad 3 14ITL6 82H700CCGE Intel Celeron 6305, Intel UHD Graphics Xe G4 48EUs	Dell Inspiron 15 3505-PXHPW AMD Ryzen 5 3450U, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	Acer Extensa 15 EX215-54-5103 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
Heat		17%	12%	19%
Maximum Upper Side *	42.9	38.6 10%	40.4 6%	42 2%
Maximum Bottom *	48.1	41 15%	41.1 15%	43.3 10%
Idle Upper Side *	38.6	32.6 16%	34.6 10%	27.9 28%
Idle Bottom *	47.3	33.9 28%	40 15%	30.4 36%

* ... smaller is better

演讲者

立体声扬声器产生了体面的声音，但几乎没有任何低音。

Frequency diagram (checkboxes can be checked and unchecked to compare devices)

Asus ExpertBook L1 L1401CDA-EK0457R audio analysis

(±) | speaker loudness is average but good (81.1 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 21.6% lower than median
(±) | linearity of bass is average (11.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.4% away from median
(+) | mids are linear (5.4% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4.9% away from median
(+) | highs are linear (4.8% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (18.4% difference to median)
Compared to same class
» 29% of all tested devices in this class were better, 7% similar, 65% worse
» The best had a delta of 7%, average was 22%, worst was 53%
Compared to all devices tested
» 37% of all tested devices were better, 8% similar, 55% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Lenovo IdeaPad 3 14ITL6 82H700CCGE audio analysis

(+) | speakers can play relatively loud (82.6 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 5.1% lower than median
(±) | linearity of bass is average (9.6% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 1.6% away from median
(±) | linearity of mids is average (9.6% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.4% away from median
(±) | linearity of highs is average (11.2% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (27% difference to median)
Compared to same class
» 82% of all tested devices in this class were better, 6% similar, 12% worse
» The best had a delta of 7%, average was 22%, worst was 53%
Compared to all devices tested
» 81% of all tested devices were better, 4% similar, 15% worse
» The best had a delta of 4%, average was 25%, worst was 134%

能源消耗

对于这里安装的硬件平台来说，耗电量处于正常水平。在压力测试过程中，由于CPU和GPU的时钟降低，功耗略有下降。电源（65瓦）的大小足够了。

Power Consumption

Off / Standby	0.4 / 0.45 Watt
Idle	4.5 / 6.6 / 8.1 Watt
Load	25.7 / 36.8 Watt


Key: min: , med: , max: Metrahit Energy

Energy consumption Witcher 3 / Stresstest

Asus ExpertBook L1 L1401CDA-EK0457R; Witcher 3 ultra: Ø26 (25.1-35.1)

Asus ExpertBook L1 L1401CDA-EK0457R; 1280x720 Prime95 28.10 and Furmark 1.25: Ø35.3 (30.1-38.5)

Asus ExpertBook L1 L1401CDA-EK0457R; Idle 150cd/m2: Ø5.59 (5.34-6.35)

Consumption with external Monitor

Asus ExpertBook L1 L1401CDA-EK0457R; Prime95 V2810 Stress (external Monitor): Ø27.7 (24.9-35)

Asus ExpertBook L1 L1401CDA-EK0457R; Cinebench R15 Multi (external Monitor): Ø28 (19-33.9)

Asus ExpertBook L1 L1401CDA-EK0457R; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø23.7 (22.7-25.2)

Asus ExpertBook L1 L1401CDA-EK0457R; 1920x1080 The Witcher 3 ultra (external Monitor): Ø22.4 (21.5-23.9)

Asus ExpertBook L1 L1401CDA-EK0457R; Idle 1min (external Monitor): Ø3.47 (3.17-4.97)

电池寿命

L1在实际的WLAN测试中实现了6:07小时的运行时间（通过脚本调用网站时的典型负载）--一个可怜的价值。一台14英寸的笔记本配备了节俭的APU，在这里必须提供更多。英特尔的竞争对手也没有提供很好的速率，但它们表明，在电池容量相当的情况下，可以实现更多。

Battery Runtime


WiFi Websurfing (Edge 107)		6h 07min

Battery Runtime - WiFi Websurfing
Average of class Office (300 - 1349, n=94, last 2 years)	612 min +67%
Lenovo IdeaPad 3 14ITL6 82H700CCGE Celeron 6305, UHD Graphics Xe G4 48EUs, 38 Wh	429 min +17%
Acer Extensa 15 EX215-54-5103 i5-1135G7, Iris Xe G7 80EUs, 43 Wh	418 min +14%
Asus ExpertBook L1 L1401CDA-EK0457R R3 3250U, Vega 3, 42 Wh	367 min
Dell Inspiron 15 3505-PXHPW R5 3450U, Vega 8, 42 Wh	272 min -26%

Pros

+ 哑光屏幕

+ PCIe 3固态硬盘

+ 可容纳2.5英寸存储介质的空间

+ 运行安静

+ 可扩展内存

+ 关键照明

+ 两年保修

Cons

- TN屏幕，可视角度不稳定

- 黑暗、低对比度的显示屏

- 电池运行时间很短

- 没有存储卡读卡器（可选）。

- 焊接的工作存储器

- 没有电源传输

- 没有通过USB-C的显示端口

评语 - 低价位的办公笔记本

ExpertBook L1是14英寸规格的商务笔记本之一。起价约为330欧元（约350美元），这款安静运行的办公笔记本带有照明键盘，包括Windows 10 Pro（可升级到Windows 11），对私人用户来说价格很有吸引力。

华硕通过ExpertBook L1提供了一款价格合理的办公笔记本，它无疑具有一些优势。

华硕的Ryzen 3-3250UAPU、8GB内存（单通道模式，板载，可扩展）和PCIe-3固态硬盘（256GB）使L1具备了办公和互联网使用的能力。我们建议安装一个内存模块（=双通道模式激活），以释放AMD APU的全部潜力。

华硕在屏幕上做了减法。采用了暗色、低对比度、视角不稳定的TN显示屏。色彩空间覆盖率和色彩还原度也没有说服力。L1不是一个高度移动的笔记本。一块电池充电就能满足约6小时的WLAN运行时间--不是一个突出的价值。不太理想。按键照明只提供了一个相对较低的亮度。

尽管尺寸紧凑，但该笔记本提供了相当多的连接选项。除了四个USB插槽（3x USB-A，1x USB-C），还有两个视频输出（1x HDMI，1x VGA）。太糟糕了。通过USB-C电源适配器供电是不可能的。不支持Power Delivery（和通过USB-C的Displayport）。

L1的一个更强大的替代品是 Acer Extensa 15 EX215-54.这款笔记本（起价约为400欧元/~424美元）有一个强大的酷睿i5-1135G7每欧元有很大的计算能力。该联想IdeaPad 3 14ITL6(售价约200欧元/~212美元)可能是一个预算替代品。该设备提供的计算能力比ExpertBook少，但有更好的运行时间和更明亮的屏幕。

价格和可用性

华硕ExpertBook L1在我们测试的配置中可以在Cyberport.de上找到。价格为335欧元（约355美元）。

Asus ExpertBook L1 L1401CDA-EK0457R - 12/08/2022 v7 ^(old)
Sascha Mölck

Chassis

76 / 98 → 78%

Keyboard

80%

Pointing Device

86%

Connectivity

52 / 80 → 65%

Weight

0 / 20-75 → -36%

Display

82%

Games Performance

50 / 78 → 64%

Application Performance

79 / 95 → 83%

Temperature

86%

Noise

88%

Audio

79%

Camera

34 / 85 → 39%

Average

72%

80%

Office - Weighted Average

Price comparison

Editor of the original article: Ninh Ngoc Duy - Editorial Assistant - 463597 articles published on Notebookcheck since 2008

contact me via: Facebook

Please share our article, every link counts!

> Notebookcheck中文版（NBC中国） > 评测 > 华硕ExpertBook L1 L1401CDA在审查中。小型预算的安静办公笔记本

Sascha Mölck, 2022-12-20 (Update: 2022-12-20)

潜在的竞争对手比较

机箱与设备 - 华硕电脑提供USB-C接口

尺寸比较

输入设备--按键的照明应该更亮一些

显示屏 - 华硕L1带来了一个足够的，而不是一个杰出的屏幕。

Display Response Times

Screen Flickering / PWM (Pulse-Width Modulation)

性能 - ExpertBook依赖Ryzen APU

测试条件

处理器

Cinebench R15 Multi Endurance test

系统性能

DPC延迟

大容量存储

Continuous Read: DiskSpd Read Loop, Queue Depth 8

图形卡

排放与能源 - Windows笔记本产生的噪音很小

噪声排放

温度

演讲者

Asus ExpertBook L1 L1401CDA-EK0457R audio analysis

Lenovo IdeaPad 3 14ITL6 82H700CCGE audio analysis

能源消耗

Energy consumption Witcher 3 / Stresstest

Consumption with external Monitor

电池寿命

Pros

Cons

评语 - 低价位的办公笔记本

价格和可用性

More articles related to this device

Price comparison
