Minisforum EliteMini UM780 XTX 评测：配备 AMD Ryzen 7 7840HS 和 Radeon 780M 的迷你 PC 已获得 OCuLink 和 USB-4 连接

Name: Minisforum EliteMini UM780 XTX
Brand: Minisforum

功能强大，面向未来！

Minisforum 的 EliteMini UM780 XTX 是一款非常专业的迷你 PC，具有出色的性能和连接选项。从外观上看，这款设备可能会有些分歧，但总的来说，一切都配合得很好。在这篇评测中，我们分析并总结了这款配备 AMD Ryzen 7 7840HS 的迷你 PC 的性能。

Sebastian Bade (translated by DeepL / Ninh Duy), Published 12/01/2023 🇺🇸 🇩🇪 ...

Mini PC Desktop AMD Zen 4 Thunderbolt

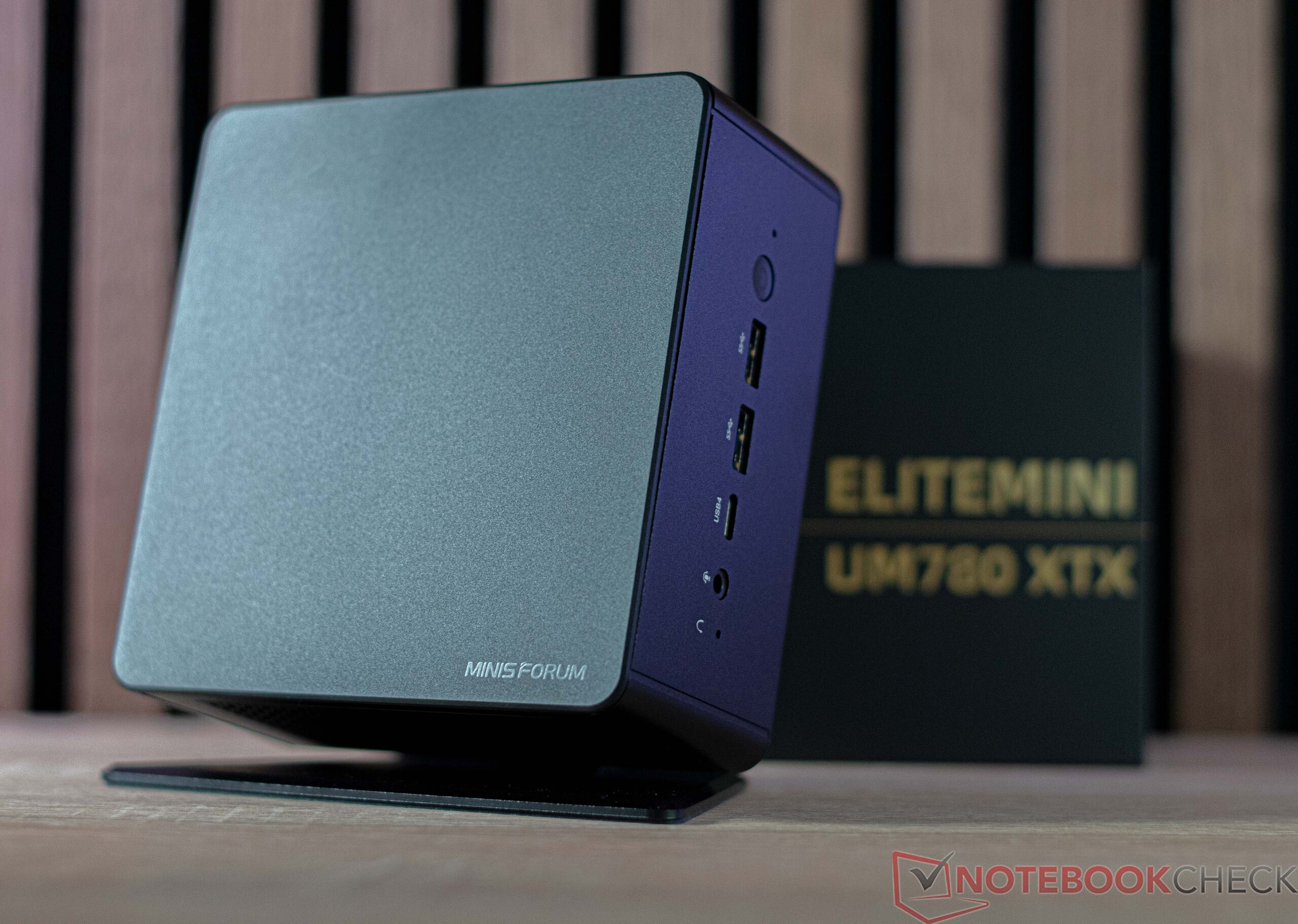

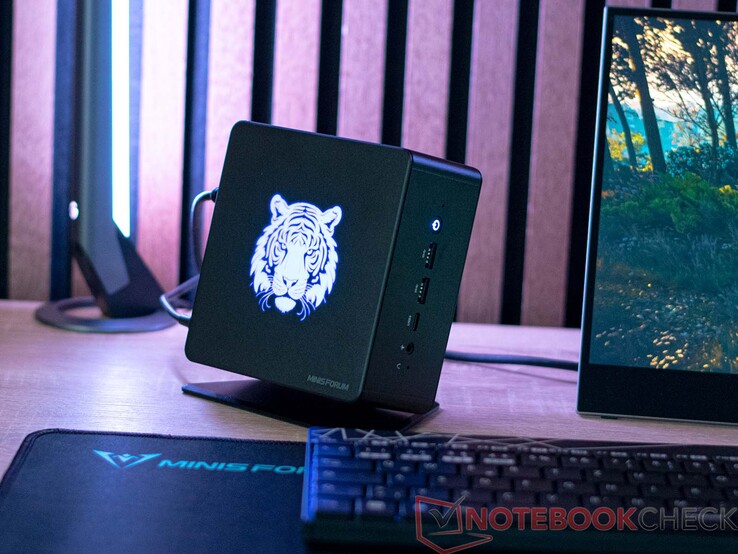

Minisforum EliteMini UM780 XTX（来源：Minisforum）

Minisforum EliteMini UM780 XTX 是一款功能强大的迷你电脑，可胜任各种任务。由于其设计，我们建议将该电脑作为高端多媒体设备使用，因为其 RGB 灯光可能有点不适合日常办公使用。性能AMD Ryzen 7 7840HS是 AMD 凤凰系列的最新 SoC。它拥有 8 个 Zen 4 内核，在快速 DDR5 内存（5,600 MT/s）的支持下性能出众。此外，我们的测试样品还配备了容量为 1 TB 的高速固态硬盘。制造商目前的售价约为 960 美元，相比之下有点贵。我们的Minisforum 维纳斯系列 UM790 Pro配备了AMD Ryzen 9 7940HS和相同的存储空间，但价格却便宜得多。Minisforum EliteMini UM780 XTX 的一大亮点是其 OCuLink 连接，可提高外置显卡的性能。稍后将详细介绍其具体含义。

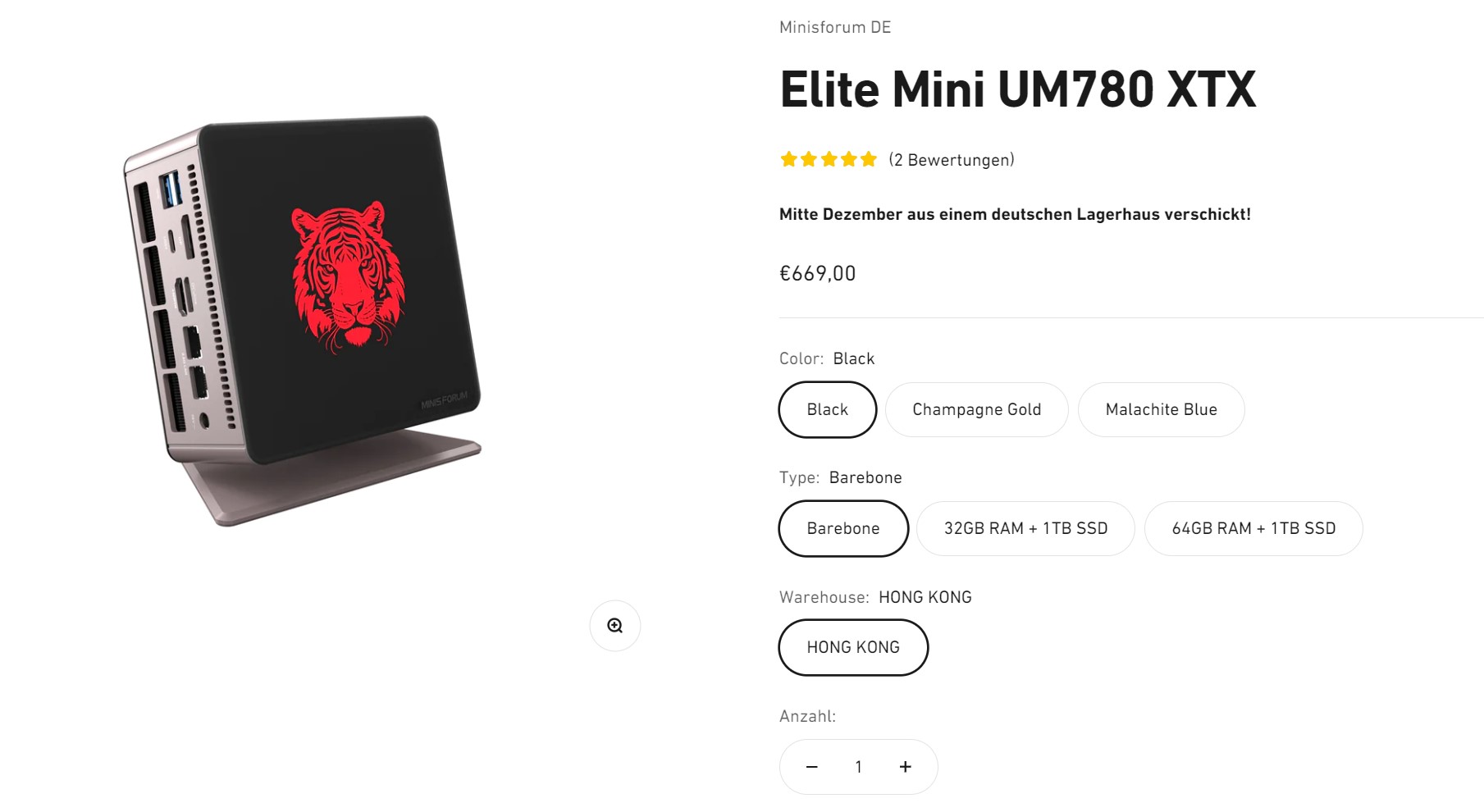

你也可以把 Minisforum EliteMini UM780 XTX 作为所谓的 "裸机"（barebone）系统购买，即不配备内存和固态硬盘。该版本目前的价格约为 730 美元。Minisforum 还提供配备 64GB 内存的版本，价格约为 1,090 美元，使其成为真正的高端设备，至少在没有专用显卡的迷你 PC 方面是如此。

在我们的比较中，Minisforum EliteMini UM780 XTX 面临着强大的内部竞争。不过，其他制造商也提供了类似配置的设备，它们将与我们的测试样品正面交锋。所有对比设备的概览见下表。

Test device courtesy of Minisforum

Download your licensed rating image as PNG / SVG

Minisforum EliteMini UM780 XTX

Processor

AMD Ryzen 7 7840HS 8 x 3.8 - 5.1 GHz, 65 W PL2 / Short Burst, 54 W PL1 / Sustained, Phoenix-HS (Zen 4)

Graphics adapter

AMD Radeon 780M, Adrenalin 23.11.1

Memory

32 GB

, DDR5-5600, 2 of 2 installed, max. 96 GB

Mainboard

AMD Promontory/Bixby FCH

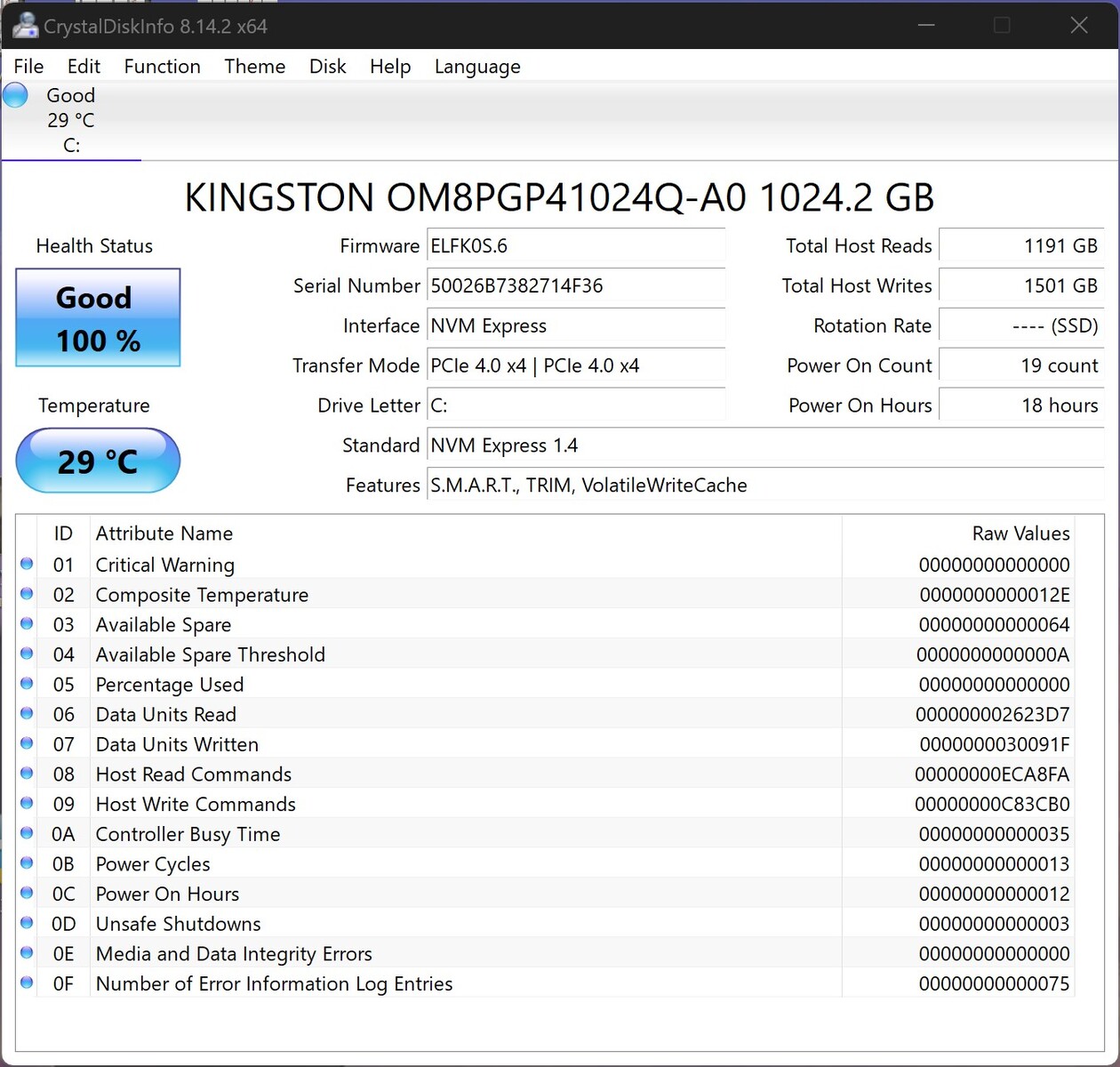

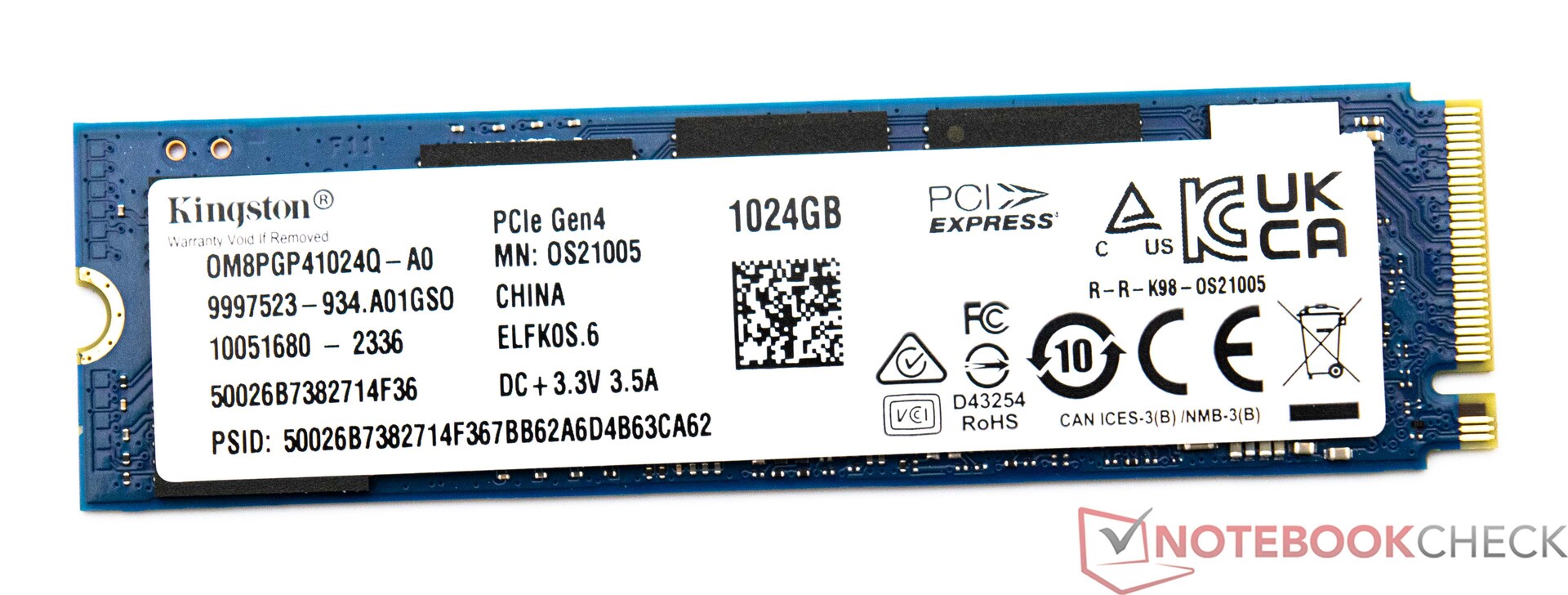

Storage

Kingston OM8PGP41024Q-A0, 1024 GB

, M.2-2280, NVMe, 930 GB free

Soundcard

AMD Zen - Audio Processor - HD Audio Controller

Connections

4 USB 3.1 Gen2, 2 USB 4.0 40 Gbps, 2 Thunderbolt, 2 HDMI, 1 DisplayPort, Audio Connections: 3,5mm Klinke, Realtek RTL8125 2.5GBe Family Ethernet Controller, OCuLink Port (64 Gbps)

Networking

Realtek RTL8125 2.5GBe Family Ethernet Controller (10/100/1000/2500MBit/s), Intel Killer Wi-Fi 6E AX1675x (210NGW) (b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/ Wi-Fi 6E 6 GHz), Bluetooth 5.3

Size

height x width x depth (in mm): 52.3 x 130 x 126

Operating System

Microsoft Windows 11 Pro

Additional features

120-Watt power supply, stand, OCuLink M.2 adapter, VESA mount

Weight

750 g, Power Supply: 278 g

Price

879 EUR

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

潜在的竞争对手比较

Rating	Date	Model	Weight	Height
87.3 % v7 ^(old)	12 / 2023	Minisforum EliteMini UM780 XTX R7 7840HS, Radeon 780M	750 g	52.3 mm
86.6 % v7 ^(old)	09 / 2023	Beelink SER7 R7 7840HS, Radeon 780M	640 g	49 mm
86.3 % v7 ^(old)	07 / 2023	Beelink GTR7 7840HS R7 7840HS, Radeon 780M	890 g	48.8 mm
86.1 % v7 ^(old)	02 / 2023	Minisforum Venus Series UM690 R9 6900HX, Radeon 680M	621 g	48 mm
82.8 % v7 ^(old)	07 / 2023	Minisforum Venus Series UM790 Pro R9 7940HS, Radeon 780M	666 g	52.3 mm
85.1 % v7 ^(old)	01 / 2023	Minisforum Neptune Series NAD9 i9-12900H, Iris Xe G7 96EUs	1.2 kg	66 mm
82.8 % v7 ^(old)	07 / 2023	Geekom AS 6, R9 6900HX R9 6900HX, Radeon 680M	753 g	58 mm
82 % v7 ^(old)	06 / 2023	ACEMagician Ace Magician AM08 Pro R9 6900HX, Radeon 680M	874 g	188.5 mm
80.8 % v7 ^(old)	04 / 2023	Intel NUC 13 Pro Kit NUC13ANK i7-1360P, Iris Xe G7 96EUs	538 g	37 mm

Minisforum EliteMini UM780 XTX Pro 详细介绍

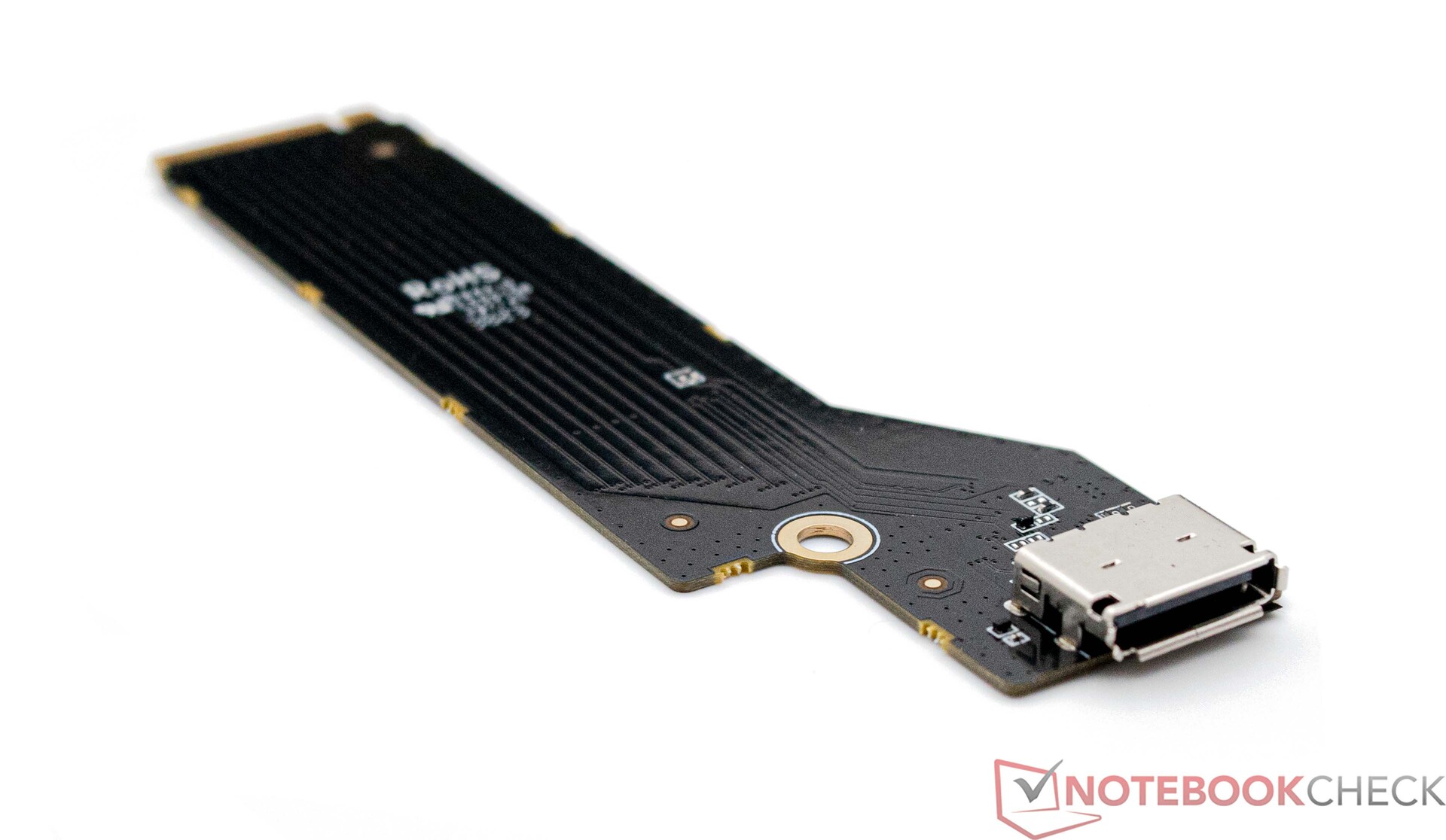

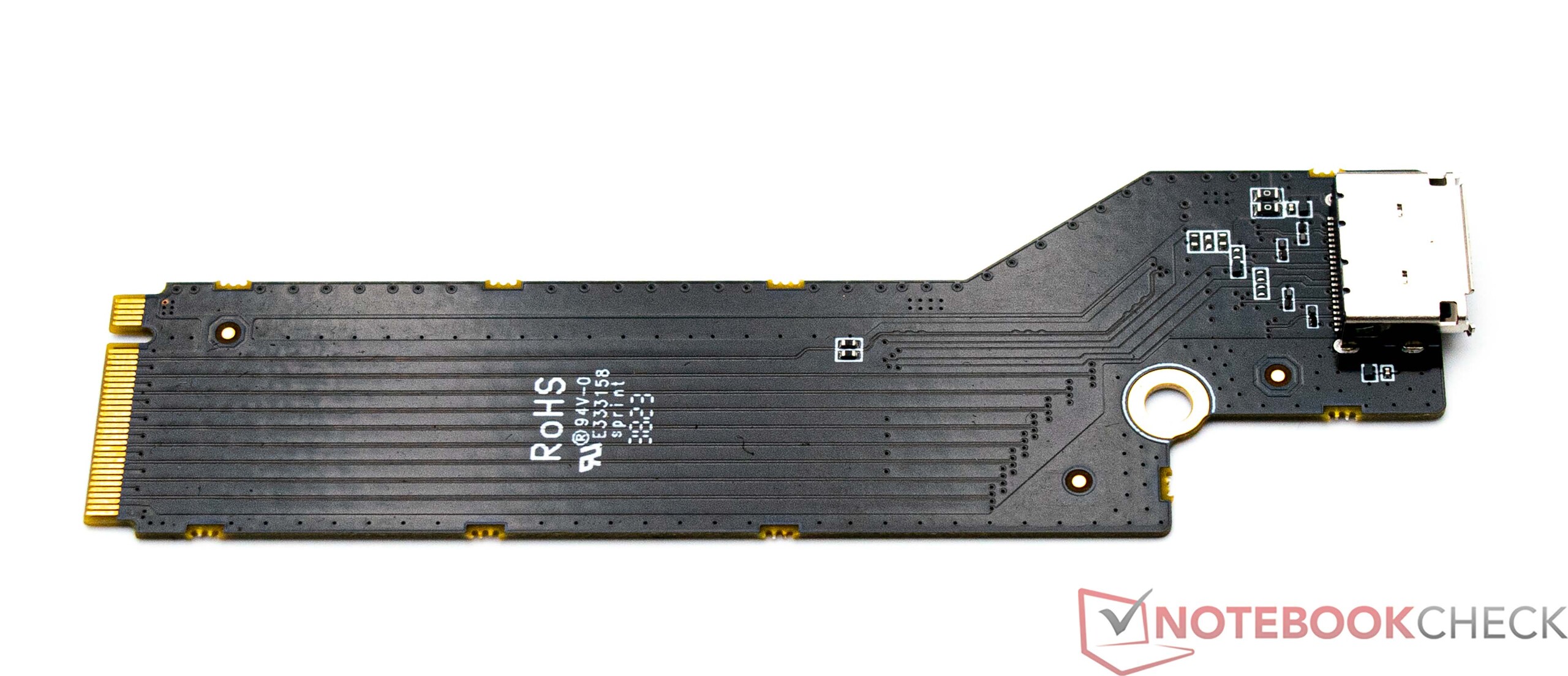

Minisforum EliteMini UM780 XTX - OCuLink M.2 适配器

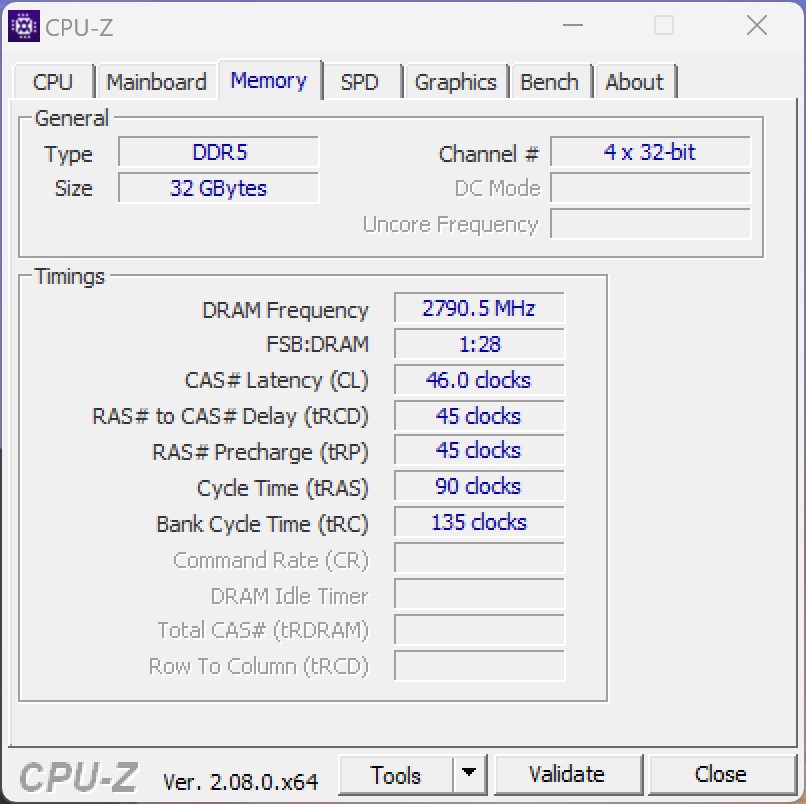

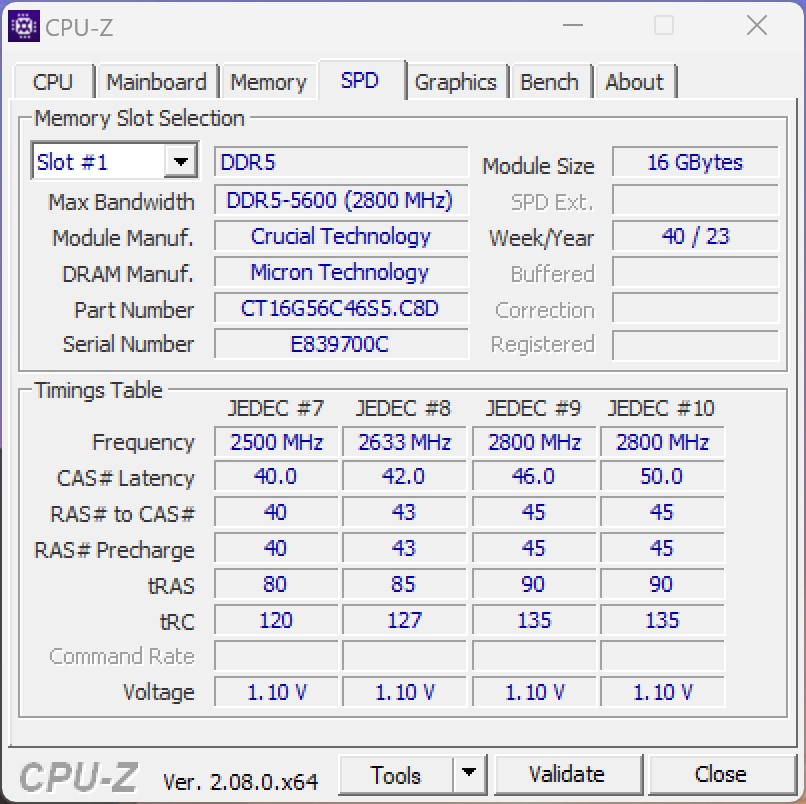

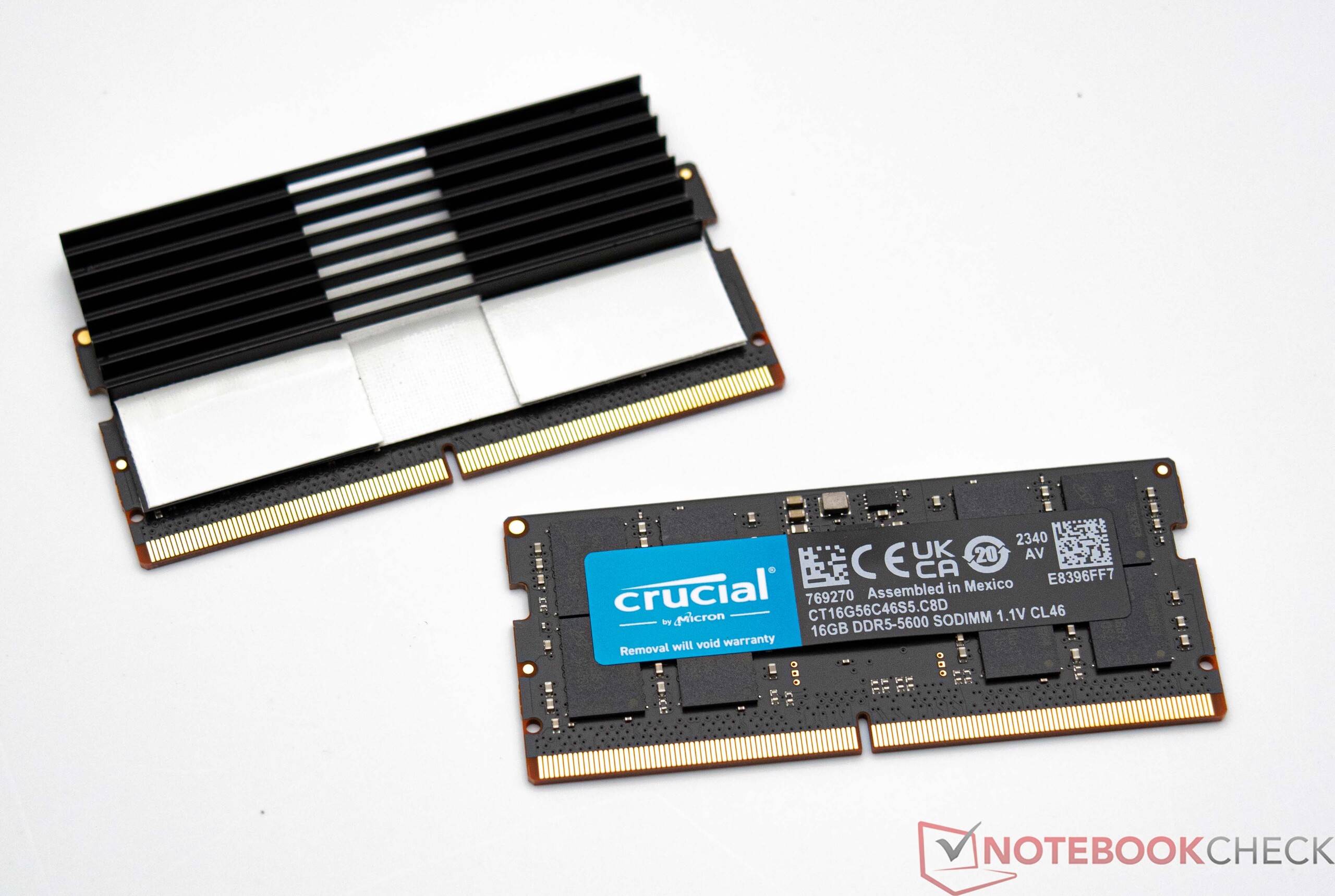

Minisforum EliteMini UM780 XTX - DDR5 内存（5600 MT/s）

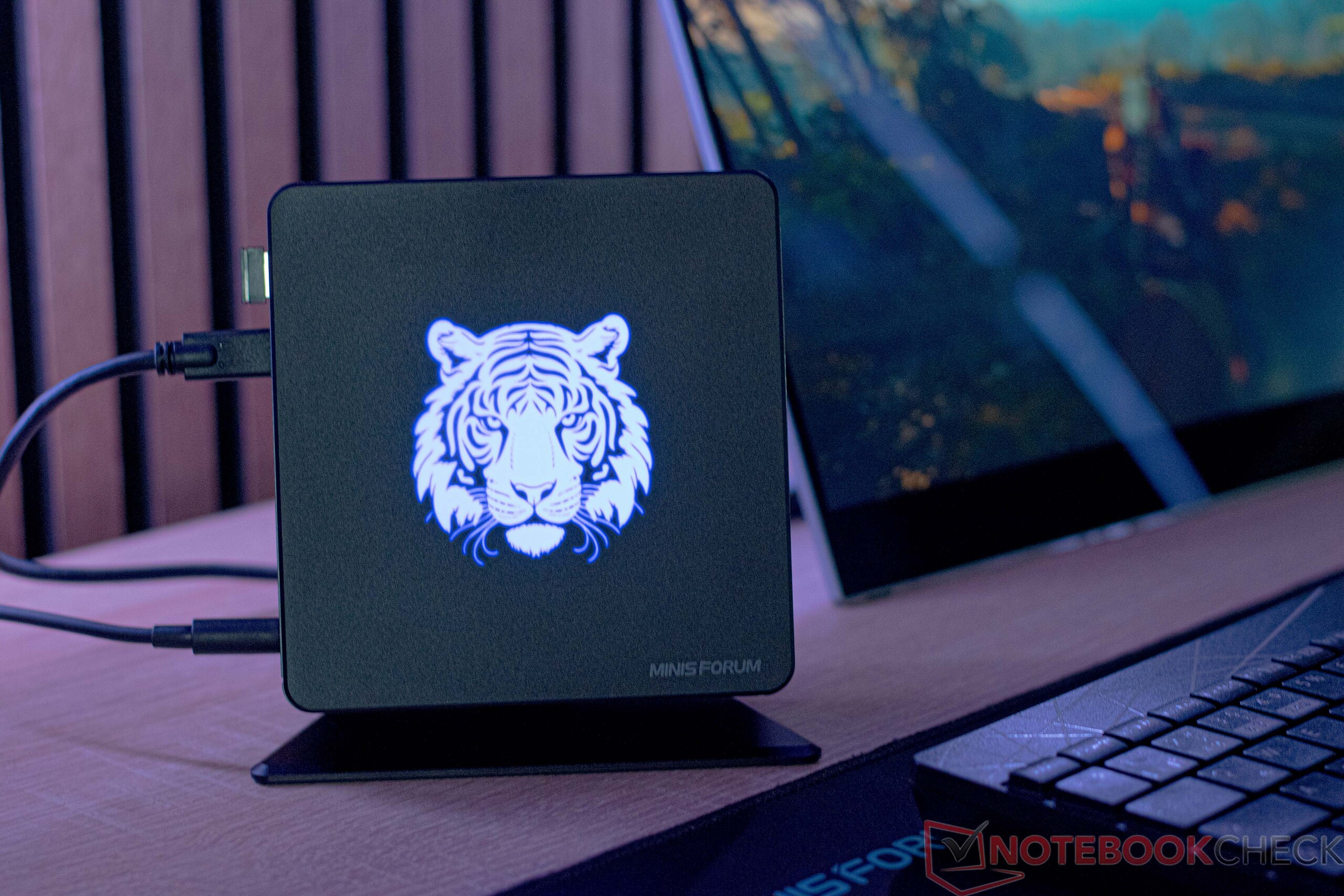

外壳 - 极为精良的金属外壳

从外观上看，Minisforum EliteMini UM780 XTX 与之前的 EliteMini 系列机型有些不同。它看起来有点像Minisforum 维纳斯系列 UM790 Pro.两者占地面积相同，都由塑料和铝混合制成。不过，它们的底座并不相同。我们测试样品的顶部是一个 LED 面板，上面有一个发光的老虎徽标。其他图案并不包括在该设备中。重要的一点是，照明灯会以 5 秒钟的间隔在蓝色、红色和绿色之间自动切换。虽然可以在 BIOS 中完全停用，但无法将其更改为不同的颜色，甚至无法改变其变化速度。

Minisforum EliteMini UM780 XTX 做工精良。它的塑料盖用磁铁连接，可以轻松取下。底部也由塑料制成，用四颗螺钉固定在机箱的其余部分上。由于采用了高质量的金属表面，PC 的手感非常好。由于材料的选择，Minisforum EliteMini UM780 XTX 具有很高的稳定性。迷你电脑既可以放在桌面上，也可以使用随附的 VESA 支架固定在显示器上。它还包括一个支架，可让您将设备垂直放置。这样可以节省一些空间，如果你愿意，还可以将迷你电脑变成桌面布置的视觉亮点。Minisforum EliteMini UM780 XTX 重 750 克，比Minisforum Venus Series UM790 Pro 稍重一些。如果使用底座，则需要增加 125 克。新的 120 瓦电源更轻，现在仅重 278 克（以前为 450 克）。

Minisforum EliteMini UM780 XTX 目前有三种颜色。其中包括黑色（我们测试样品的颜色）、香槟金色和天蓝色。这些颜色只与设备的金属表面相对应。机箱盖和底部始终为黑色。

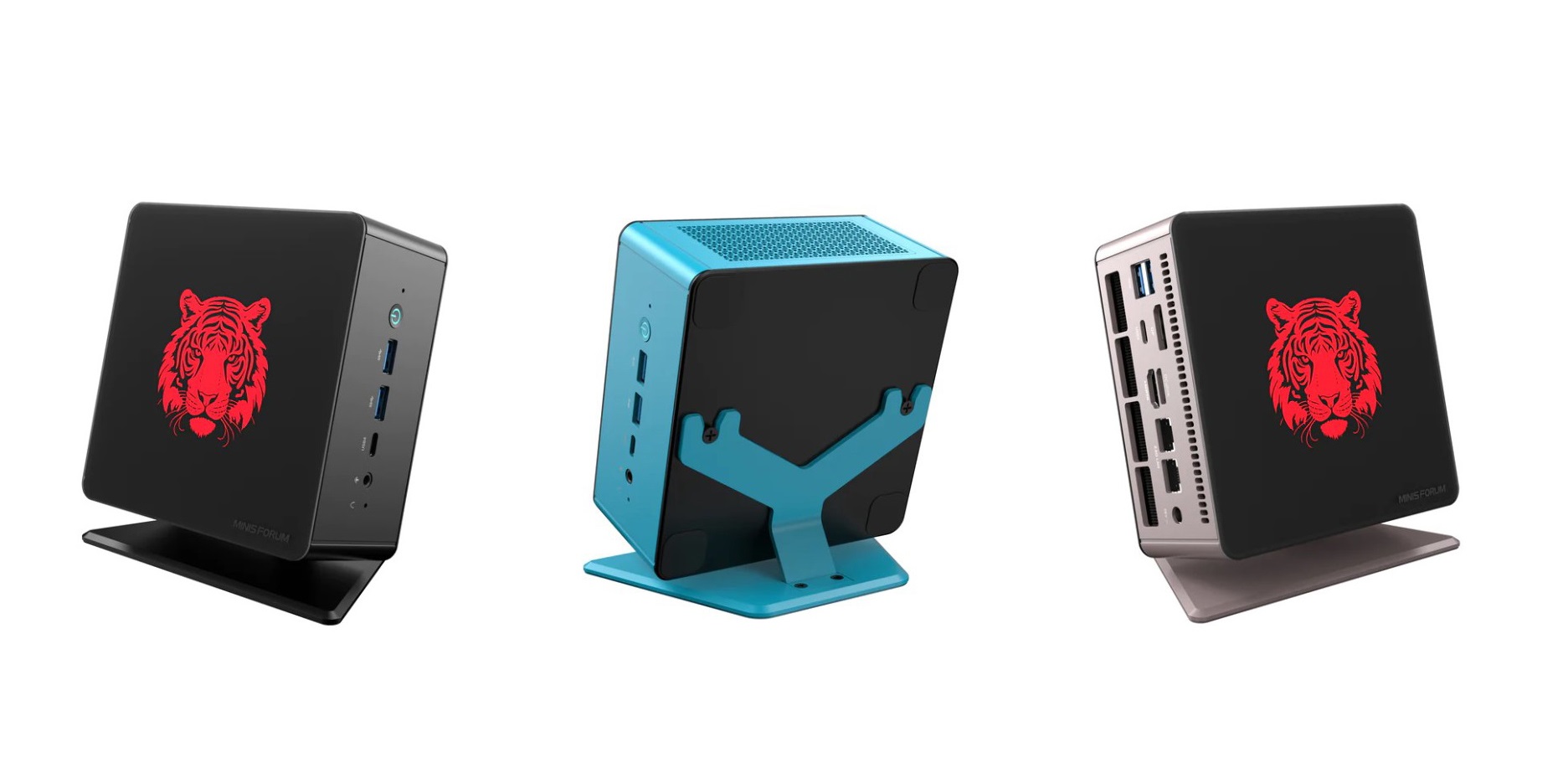

Minisforum EliteMini UM780 XTX 有三种颜色：黑色、天蓝色和香槟金（来源：Minisforum）

连接性

Minisforum EliteMini UM780 XTX 拥有大量连接选项，分布在设备的正面和背面。四个 USB Type-A 端口是标准配置，一般来说足够使用。它还配备了四个 USB-4 端口，可用于多种用途。与 Razer Core X 结合使用时，您还可以使用该接口连接外置显卡。我们对它的工作性能进行了了解，并与其他设备进行了比较。Minisforum EliteMini UM780 XTX 上的一个新端口也是用于外接显卡的，那就是 OCuLink 连接。电脑的供货范围包括一个 M.2 适配器，需要时可以安装。因此，该设备只能容纳一个存储设备。与 USB 4 相比，OCuLink 连接还能获得更高的带宽，这意味着在连接专用显卡时可以获得更高的帧速率。遗憾的是，Minisforum 本身没有提供任何用于此用途的配件。不过，它提供了GPD G1，它可以原生使用这个新端口。屏幕可以通过 HDMI 或 DisplayPort 连接。此外，两个 USB-4 端口都支持图像输出。因此，这意味着您可以同时将总共 4 台显示器连接到 Minisforum EliteMini UM780 XTX - 与 Minisforum Venus 系列 UM780 XTX 的相同。Minisforum Venus 系列 UM790 Pro 一样。.

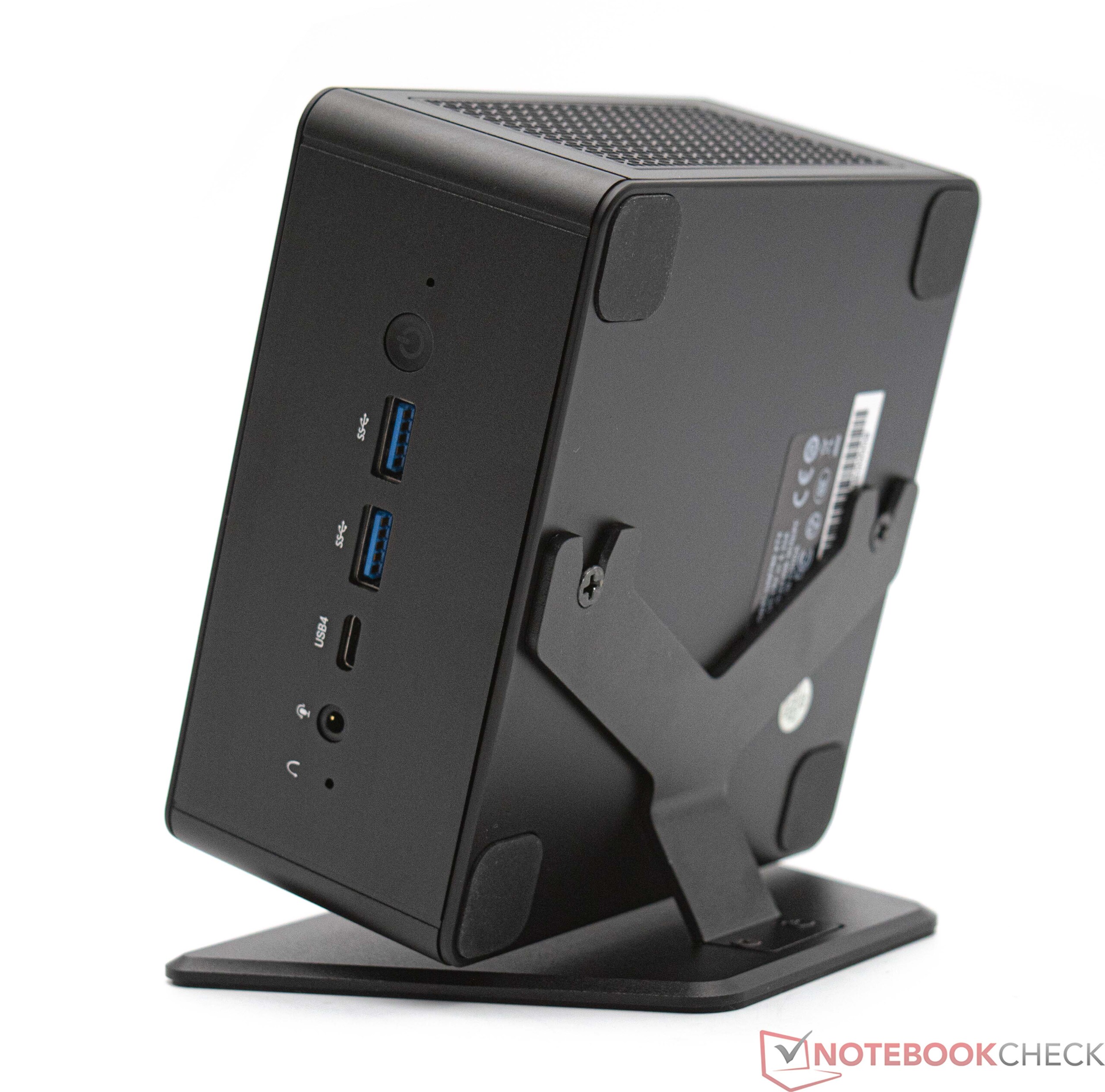

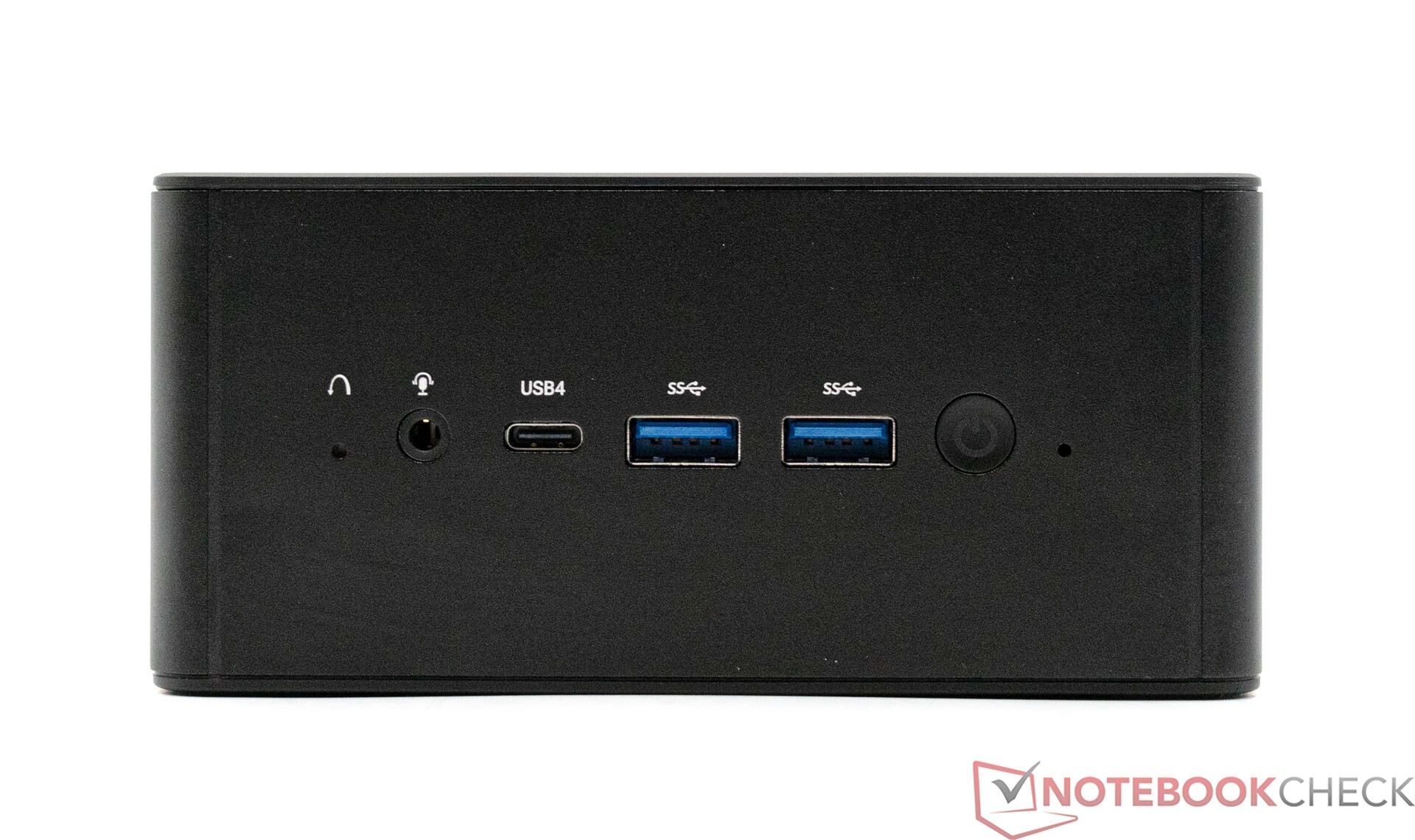

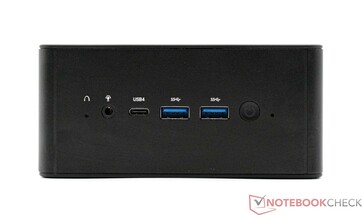

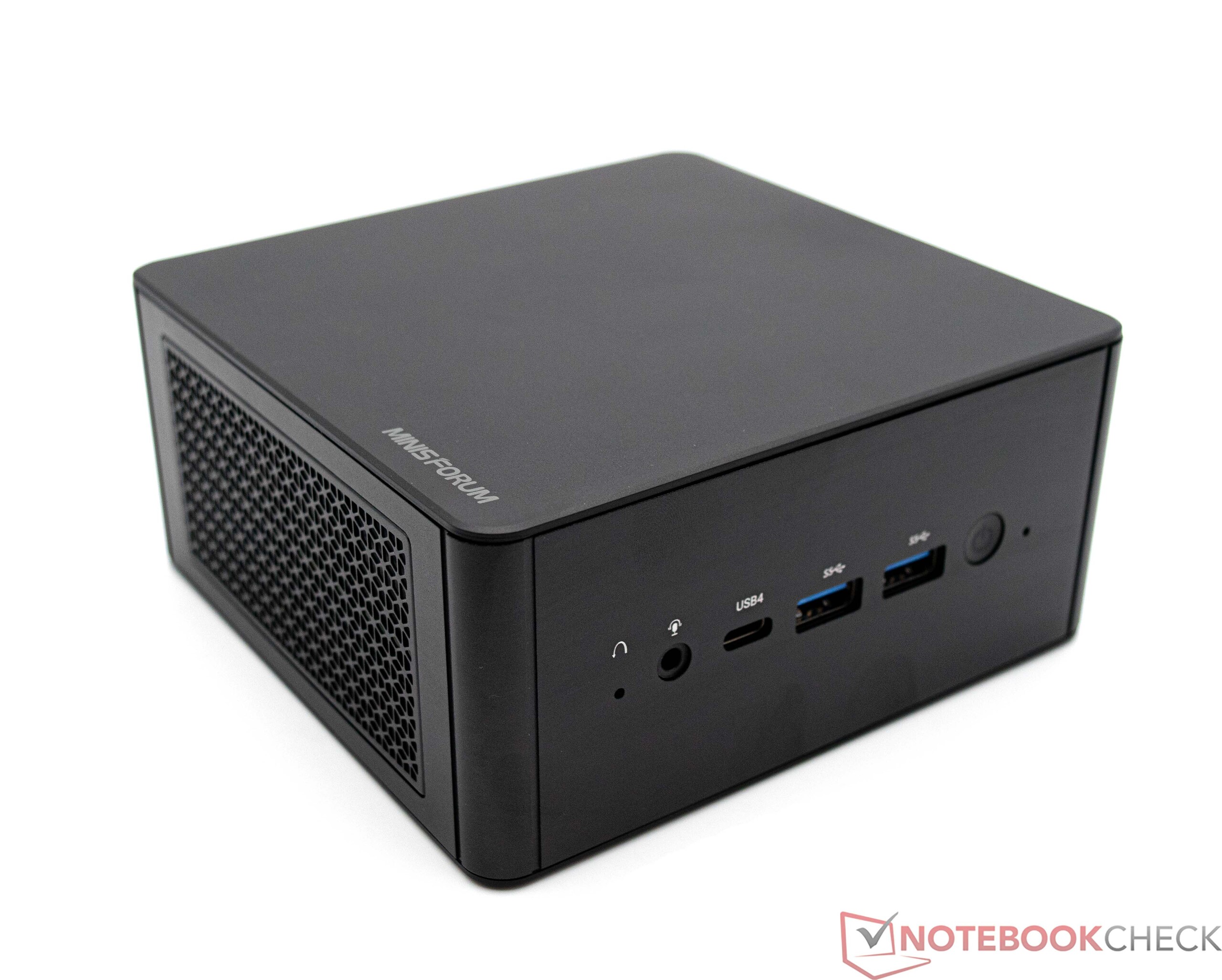

正面清晰 CMOS、3.5 毫米插孔、USB 4（40 Gbps）、2 个 USB 3.2 Gen 2

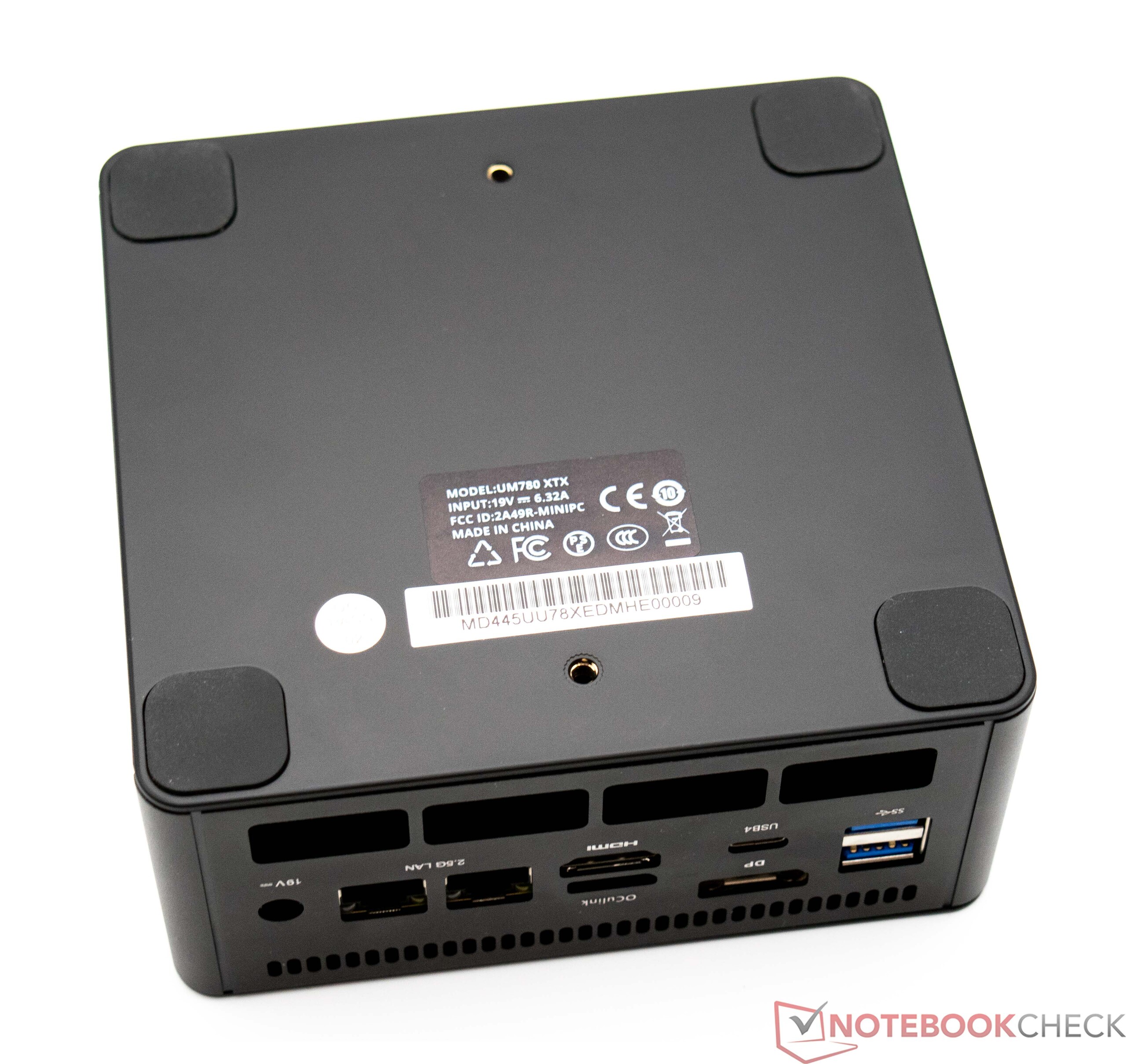

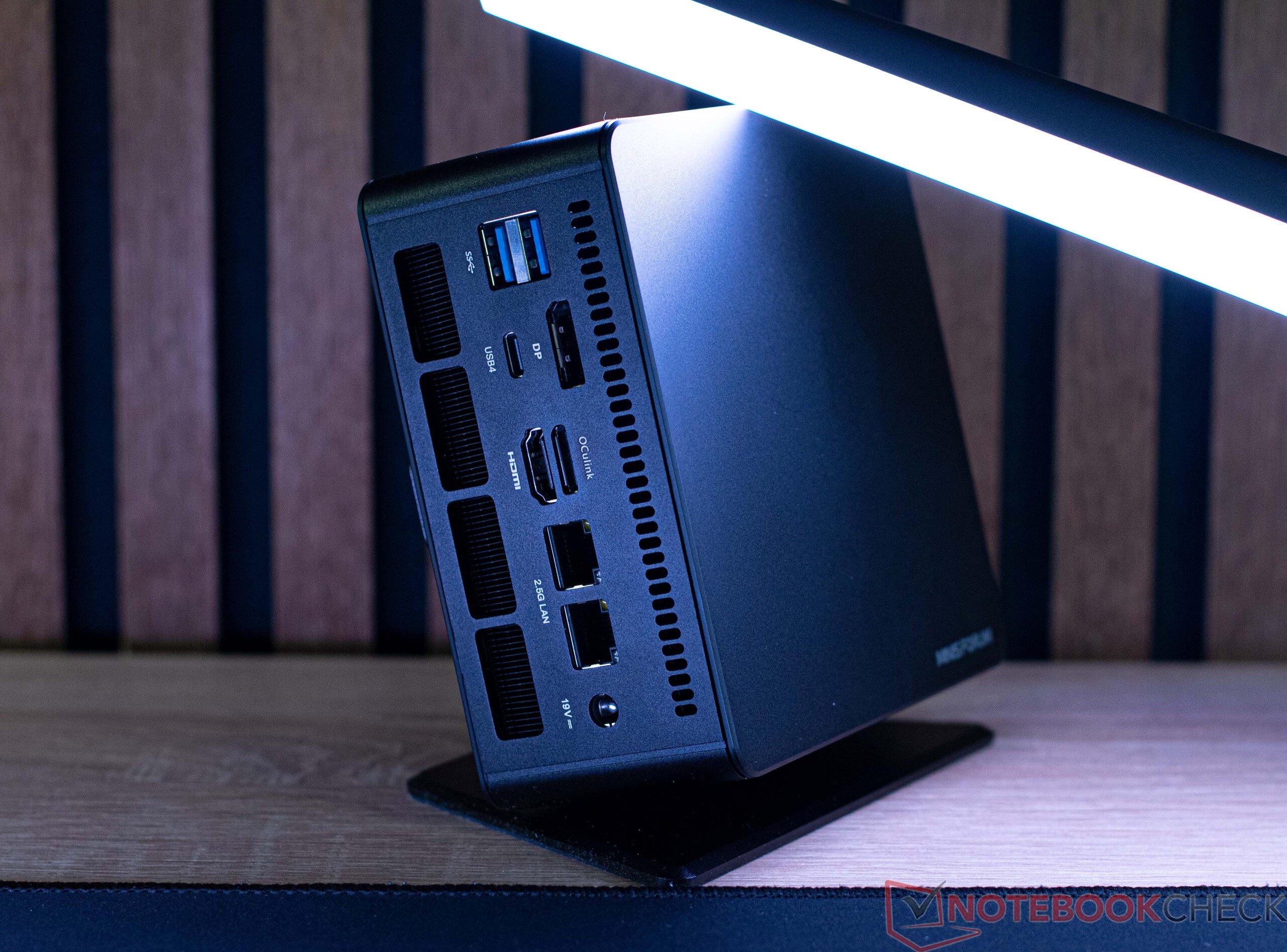

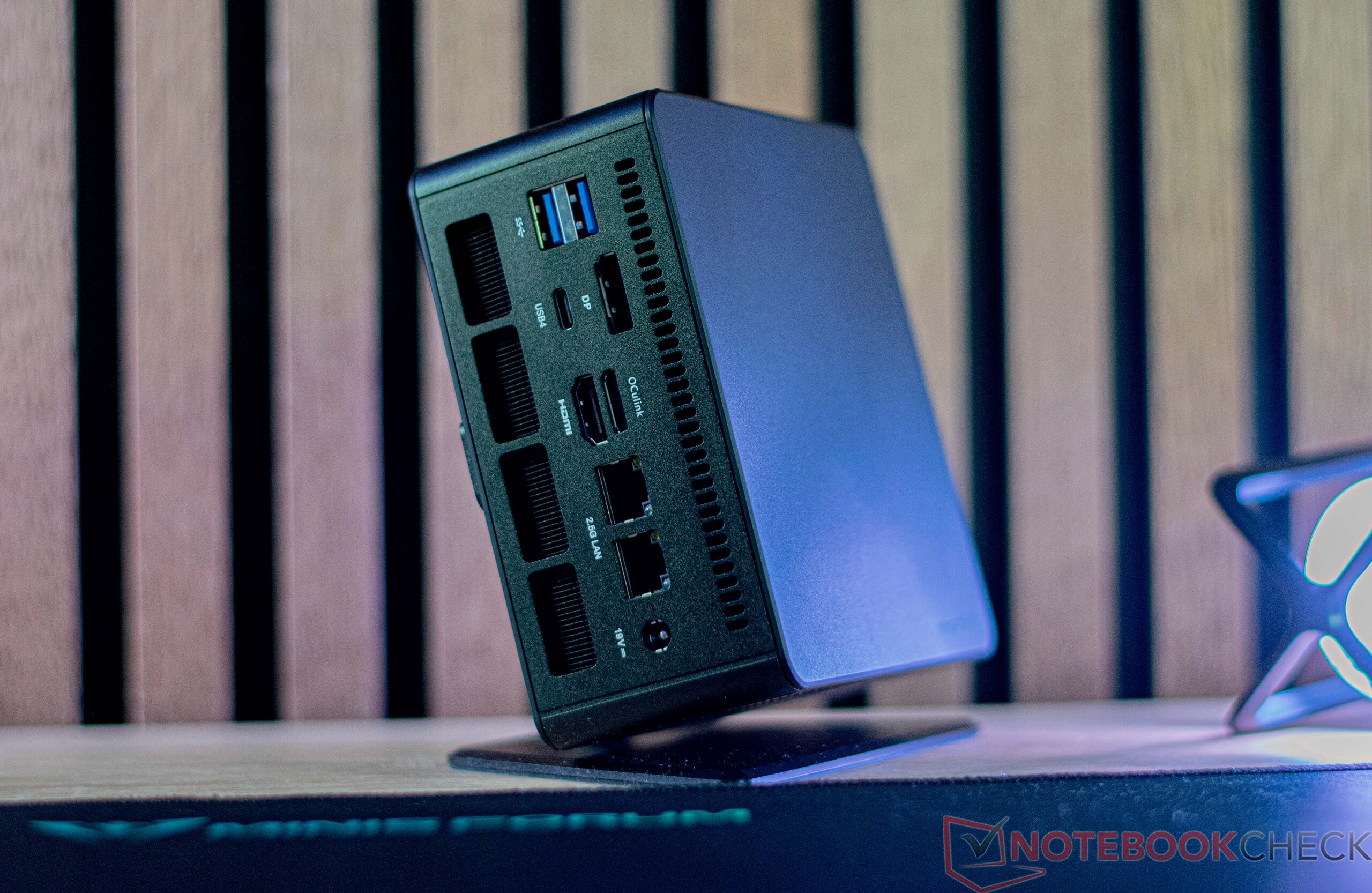

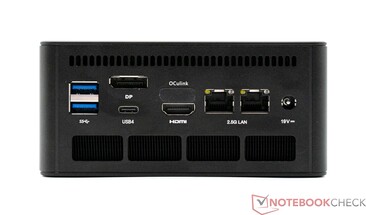

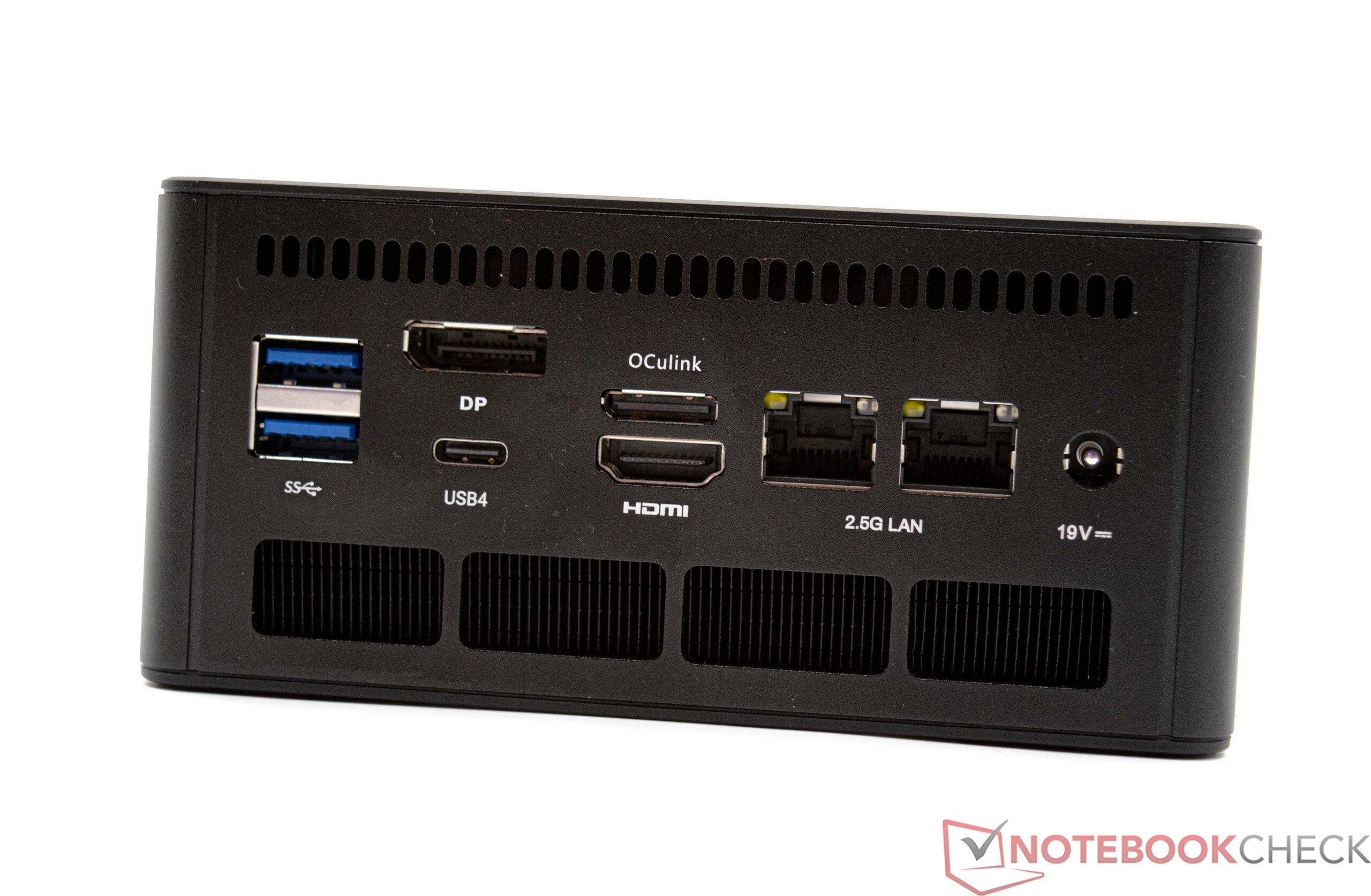

背面：2 个 USB 3.2 Gen 2、DisplayPort 1.4、USB 4 (40Gbps)、OCuLink (64Gbps)、HDMI 2.1、2 个 RJ45 2.5G、电源接口（19V、6.32A）

交流

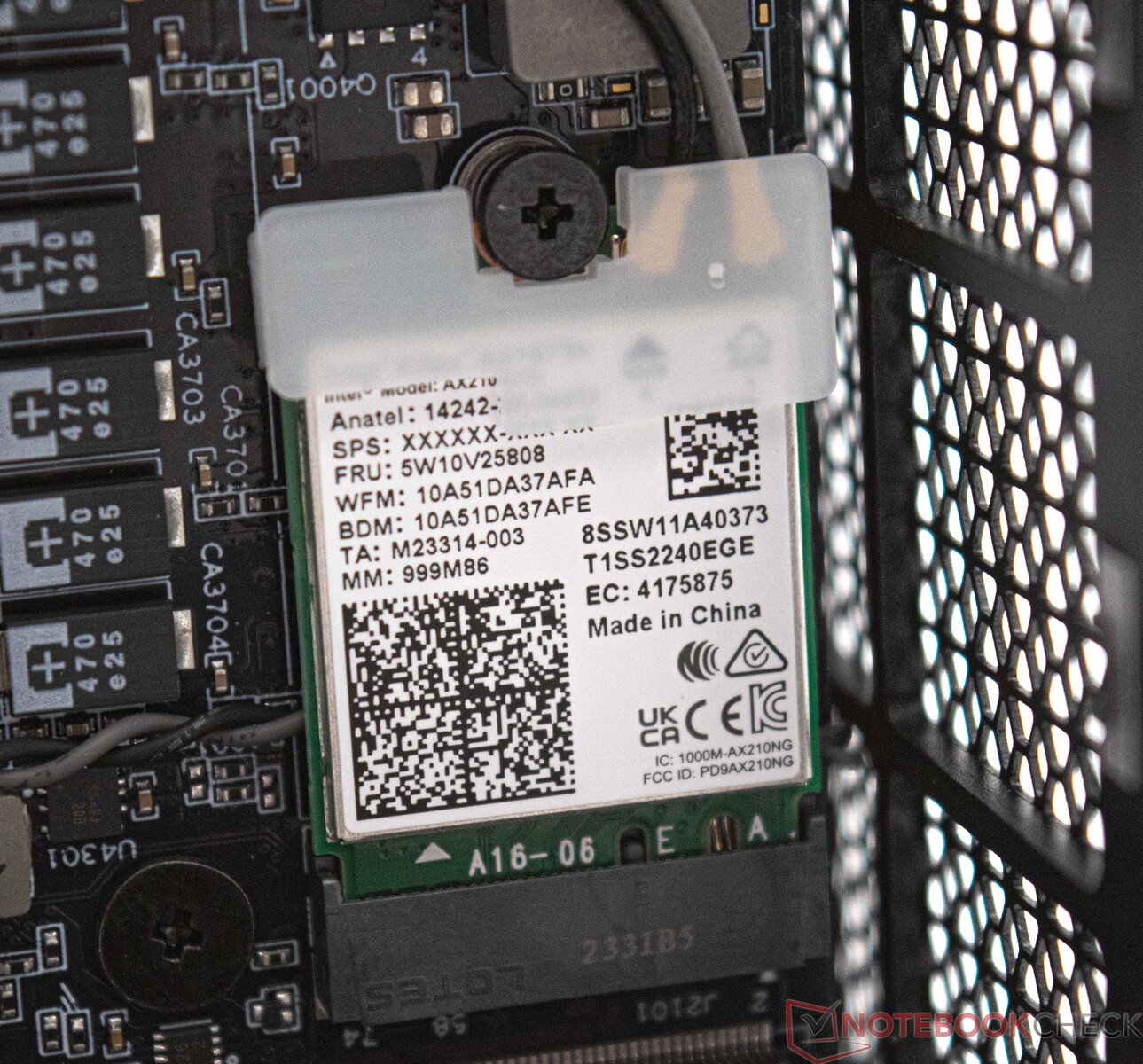

Minisforum EliteMini UM780 XTX 配备了 Intel Killer Wi-Fi 6E AX1675x (210NGW) 无线局域网模块。一般来说，这足以满足日常使用需求，但相比之下，我们的测试样品却无法与对比设备相媲美。我们使用华硕 ROG Rapture GT-AXE11000 作为测试路由器进行了测试。Minisforum EliteMini UM780 XTX 还可以选择使用有线连接，以获得更快的速度。实际上，制造商甚至为此安装了两个端口，速度可达 2.5 GBit/s。

Networking
iperf3 receive AXE11000
Minisforum Neptune Series NAD9 Intel Wi-Fi 6E AX210	1318 (663^min - 1363^max) MBit/s +41%
Beelink GTR7 7840HS Intel Wi-Fi 6 AX200	1211 (1112^min - 1284^max) MBit/s +30%
Beelink SER7 Intel Wi-Fi 6 AX200	1193 (588^min - 1333^max) MBit/s +28%
Geekom AS 6, R9 6900HX MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	959 (947^min - 969^max) MBit/s +3%
Minisforum Venus Series UM690 MediaTek RZ608	956 (944^min - 963^max) MBit/s +2%
ACEMagician Ace Magician AM08 Pro Realtek RTL8852BE	947 (787^min - 981^max) MBit/s +1%
Intel NUC 13 Pro Kit NUC13ANK Intel Wi-Fi 6E AX211	939 (921^min - 952^max) MBit/s +1%
Minisforum EliteMini UM780 XTX Intel Killer Wi-Fi 6E AX1675x (210NGW)	934 (915^min - 943^max) MBit/s
Average of class Mini PC (192.9 - 1796, n=113, last 2 years)	932 MBit/s 0%
Average Intel Killer Wi-Fi 6E AX1675x (210NGW) (774 - 934, n=4)	848 MBit/s -9%
Minisforum Venus Series UM790 Pro Intel Killer Wi-Fi 6E AX1675x (210NGW)	774 (347^min - 841^max) MBit/s -17%
iperf3 transmit AXE11000
Beelink SER7 Intel Wi-Fi 6 AX200	1324 (665^min - 1408^max) MBit/s +82%
Minisforum Neptune Series NAD9 Intel Wi-Fi 6E AX210	1320 (1165^min - 1353^max) MBit/s +81%
Beelink GTR7 7840HS Intel Wi-Fi 6 AX200	1031 (961^min - 1109^max) MBit/s +41%
Minisforum Venus Series UM690 MediaTek RZ608	943 (477^min - 981^max) MBit/s +29%
Average of class Mini PC (184.1 - 1776, n=113, last 2 years)	864 MBit/s +19%
Geekom AS 6, R9 6900HX MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	834 (769^min - 893^max) MBit/s +14%
Intel NUC 13 Pro Kit NUC13ANK Intel Wi-Fi 6E AX211	833 (805^min - 866^max) MBit/s +14%
Minisforum Venus Series UM790 Pro Intel Killer Wi-Fi 6E AX1675x (210NGW)	768 (738^min - 792^max) MBit/s +5%
Average Intel Killer Wi-Fi 6E AX1675x (210NGW) (703 - 835, n=4)	759 MBit/s +4%
ACEMagician Ace Magician AM08 Pro Realtek RTL8852BE	737 (369^min - 758^max) MBit/s +1%
Minisforum EliteMini UM780 XTX Intel Killer Wi-Fi 6E AX1675x (210NGW)	729 (668^min - 784^max) MBit/s

Minisforum EliteMini UM780 XTX Intel Killer Wi-Fi 6E AX1675x (210NGW); iperf3 receive AXE11000; iperf 3.1.3: Ø934 (915-943)

Beelink GTR7 7840HS Intel Wi-Fi 6 AX200; iperf3 receive AXE11000; iperf 3.1.3: Ø1210 (1112-1284)

Minisforum EliteMini UM780 XTX Intel Killer Wi-Fi 6E AX1675x (210NGW); iperf3 transmit AXE11000; iperf 3.1.3: Ø729 (668-784)

Beelink GTR7 7840HS Intel Wi-Fi 6 AX200; iperf3 transmit AXE11000; iperf 3.1.3: Ø1031 (961-1109)

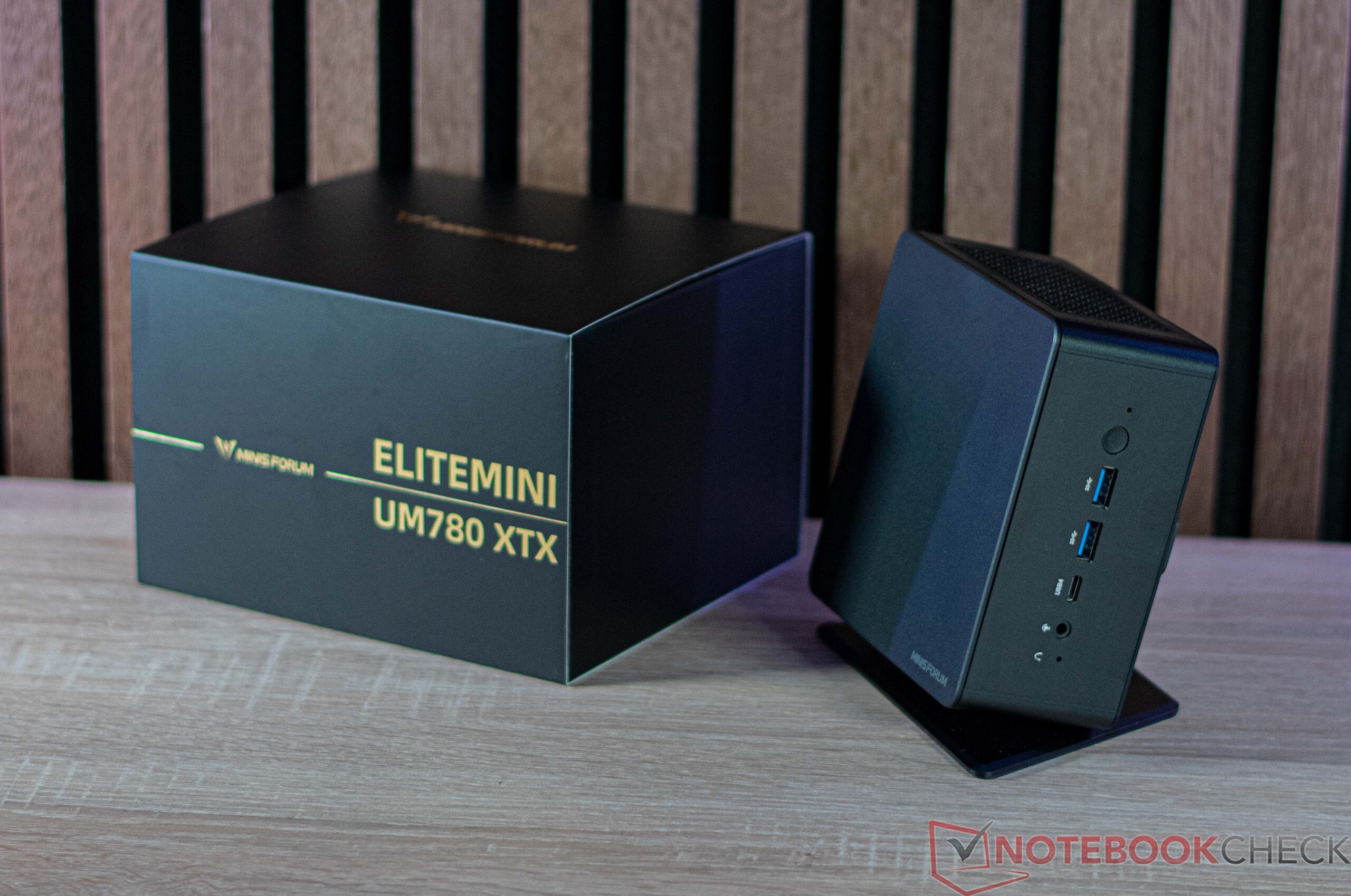

配件

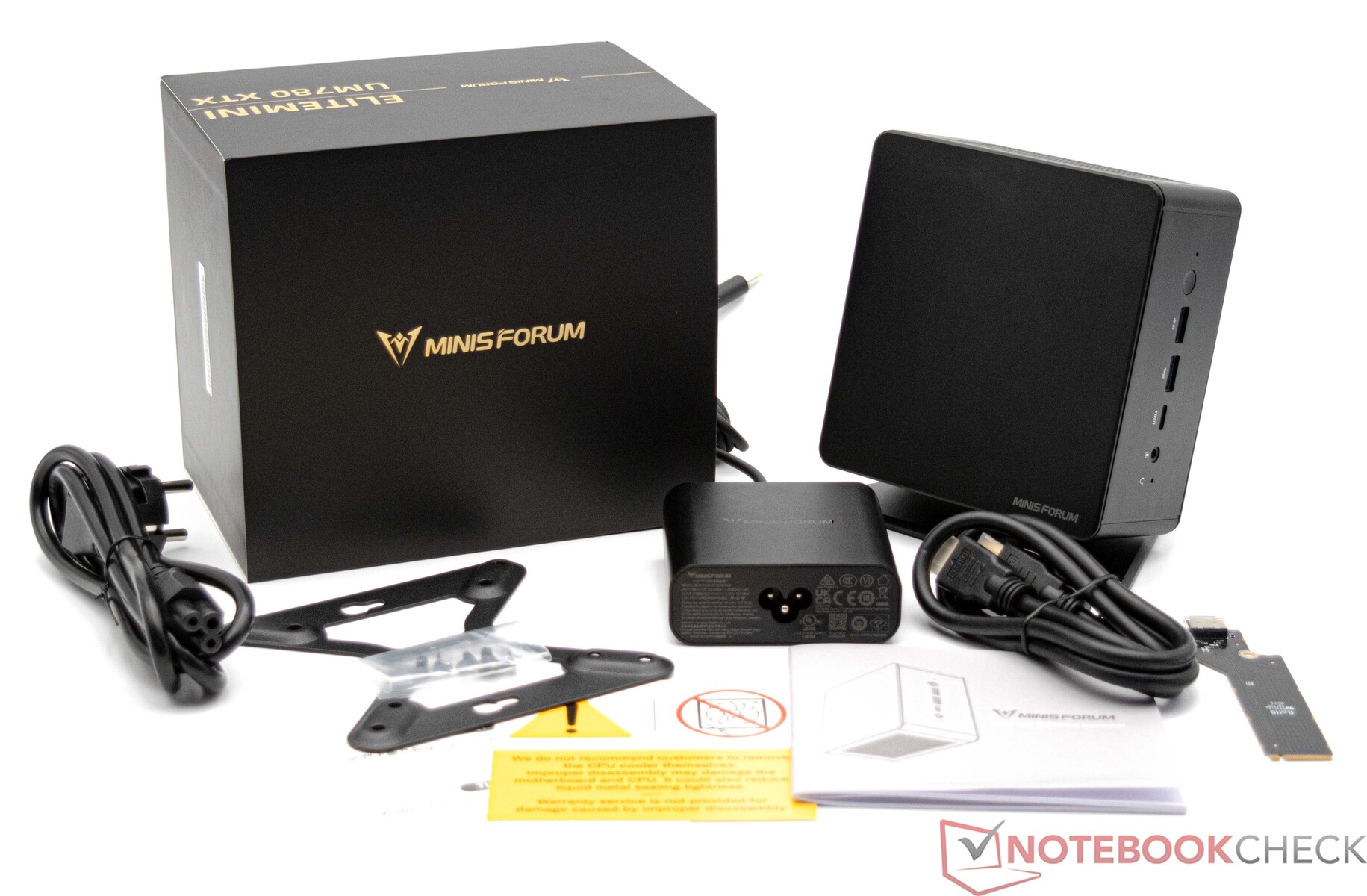

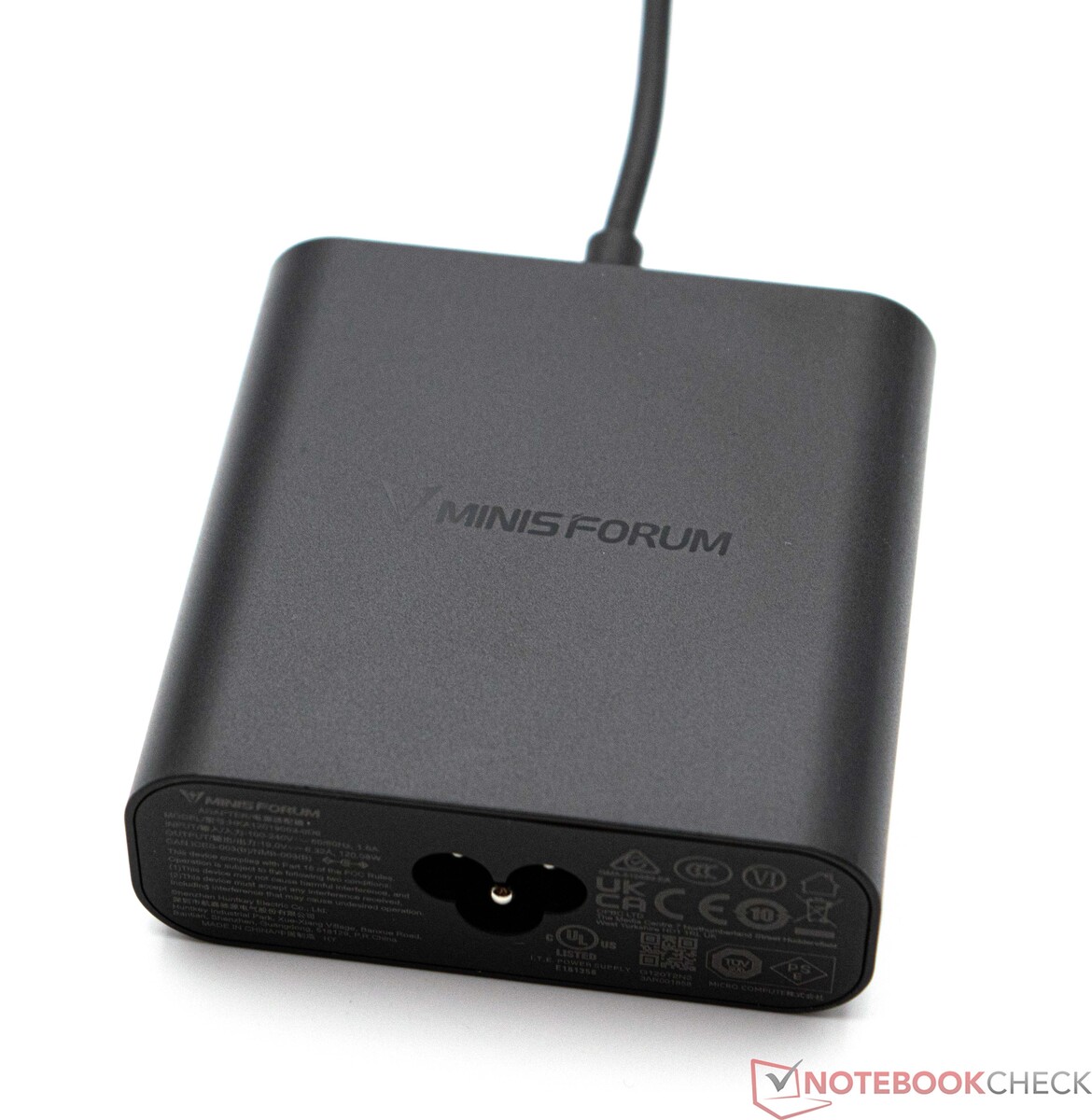

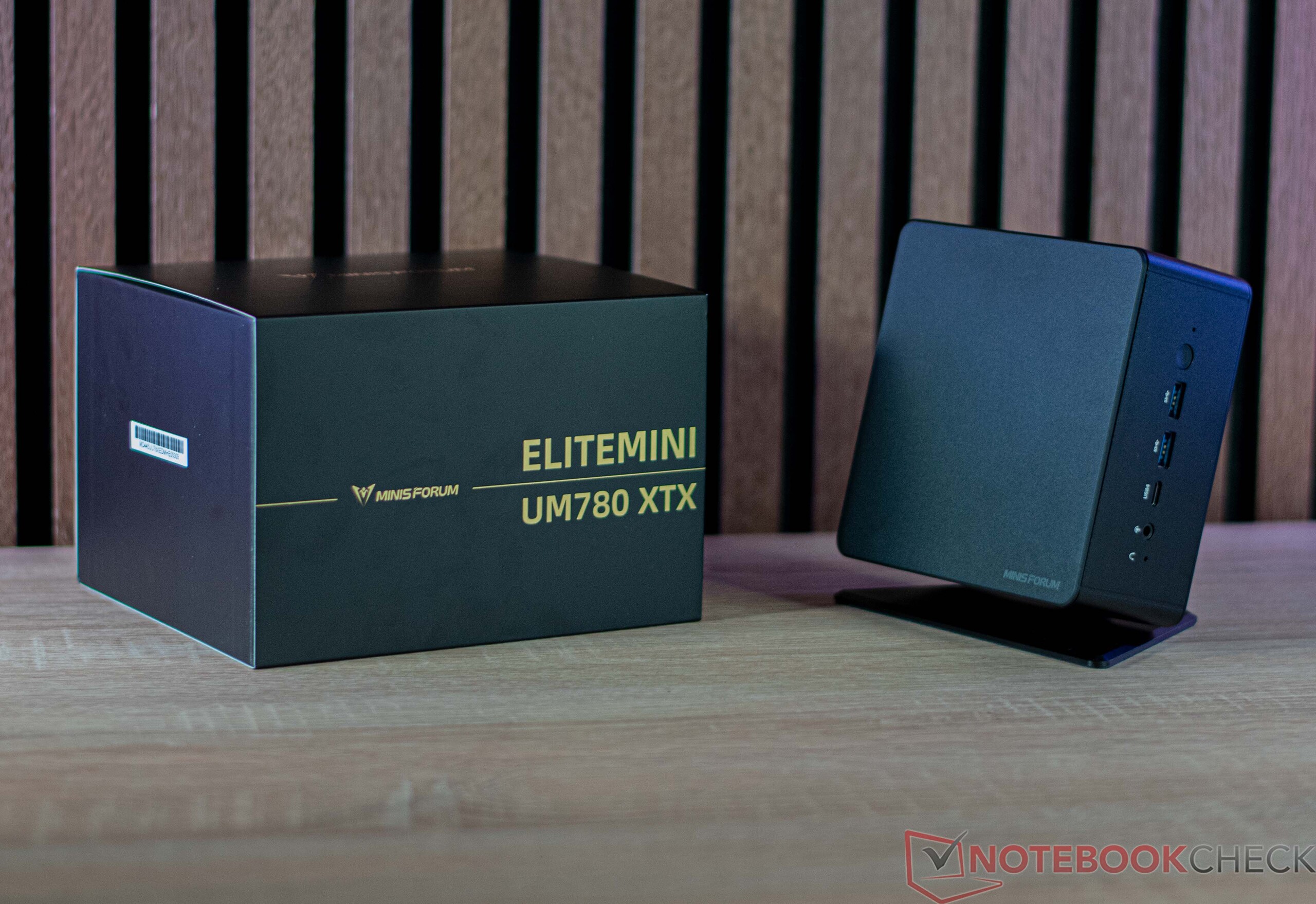

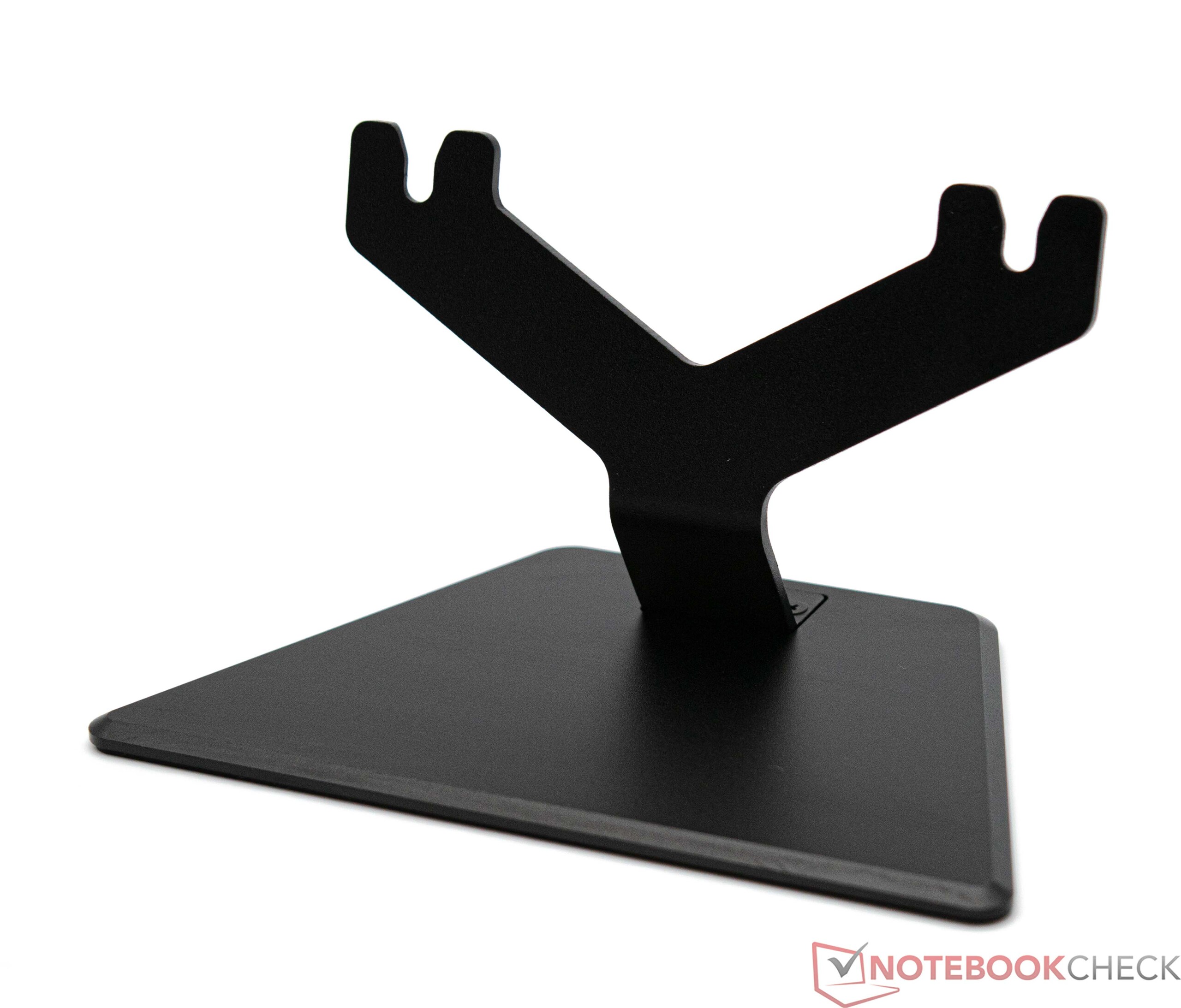

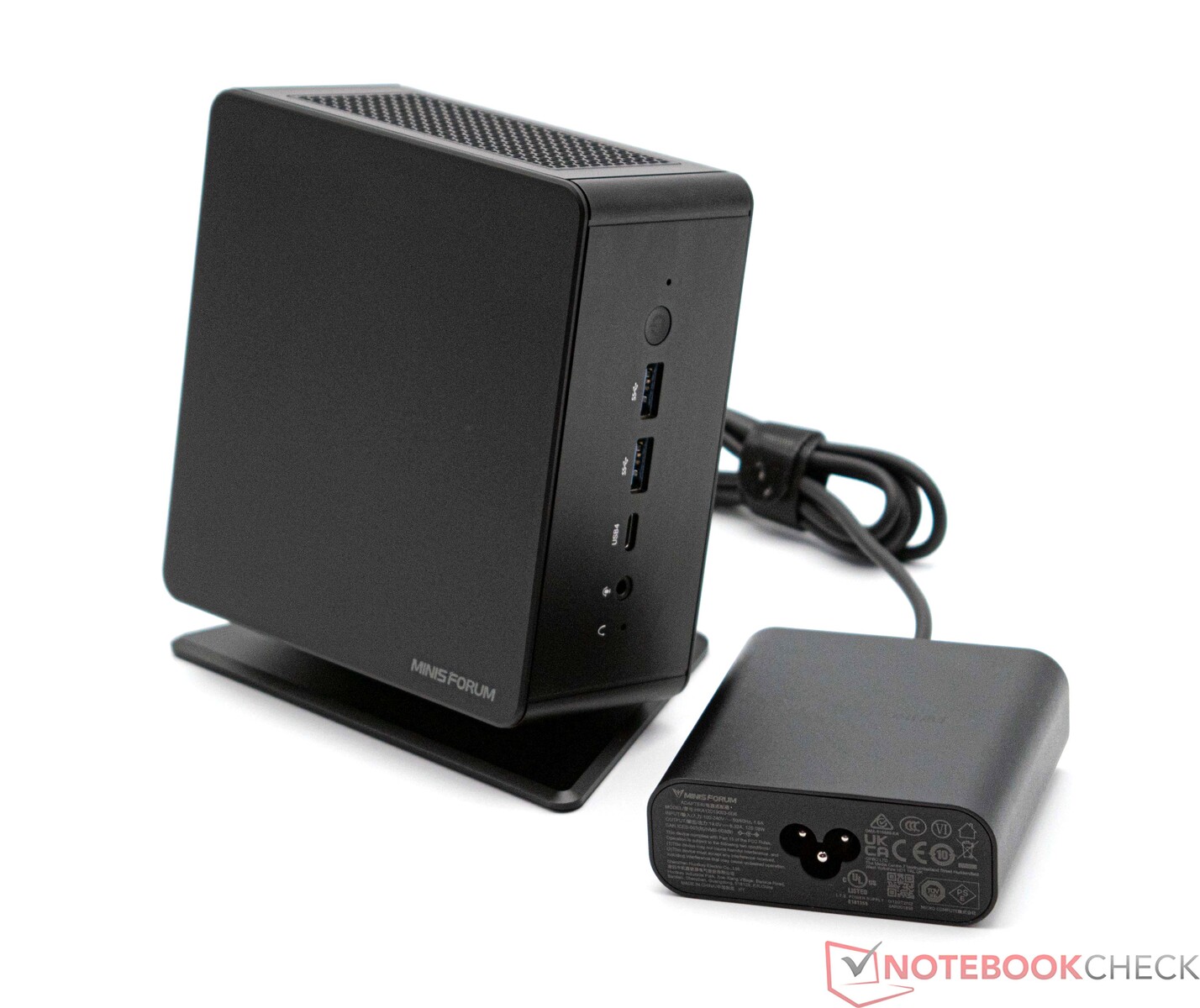

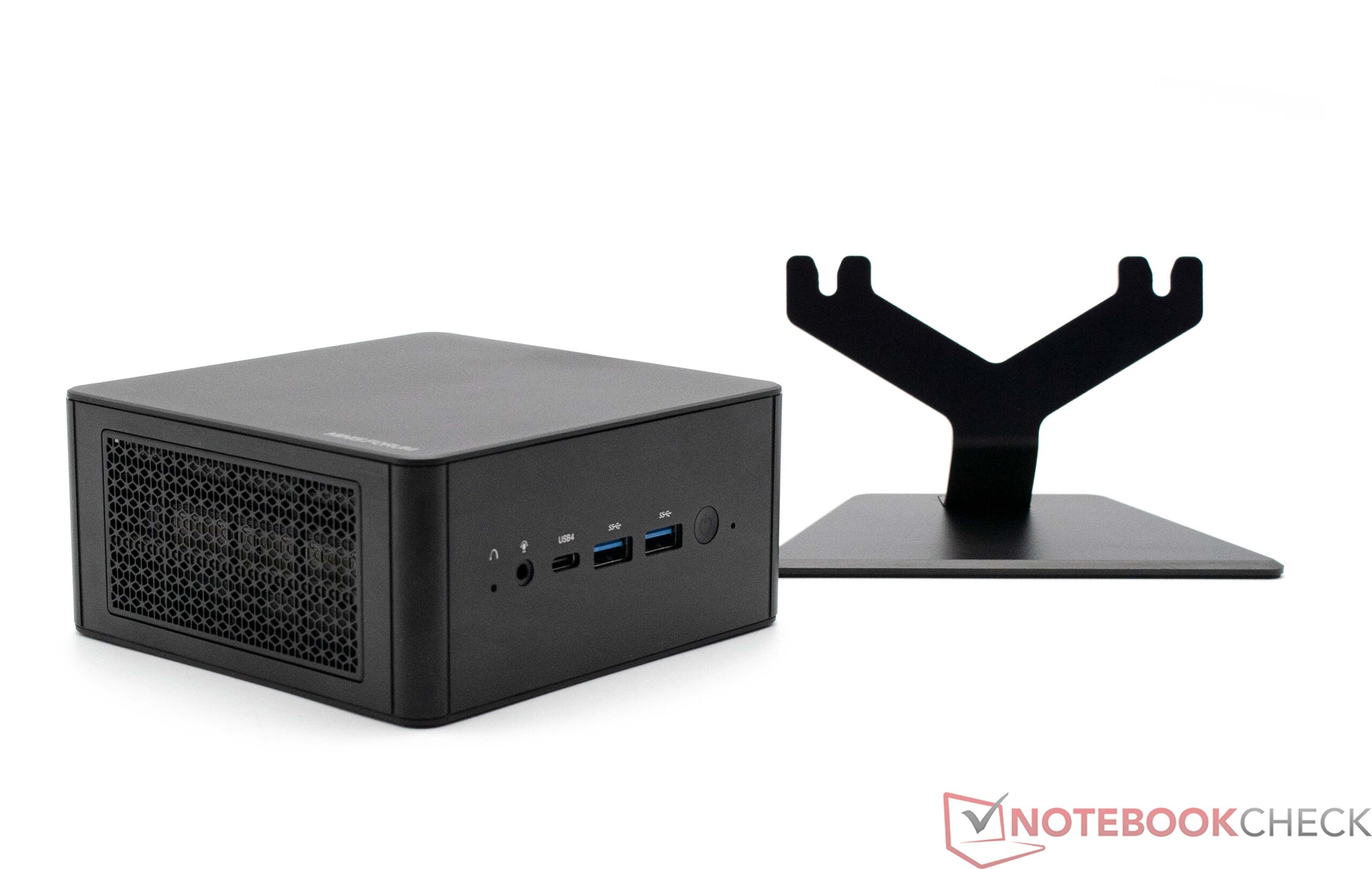

该设备的供货范围包括一个 120 瓦的电源和一个用于将 PC 固定到显示器上的安装板（VESA 安装）。如果您希望直立使用设备，则可以使用金属支架。VESA 支架和底座所需的所有材料均包含在包装内。此外，您还将收到一条 HDMI 电缆、一份简短的使用说明书以及一个可选择安装的 OCuLink 适配器。

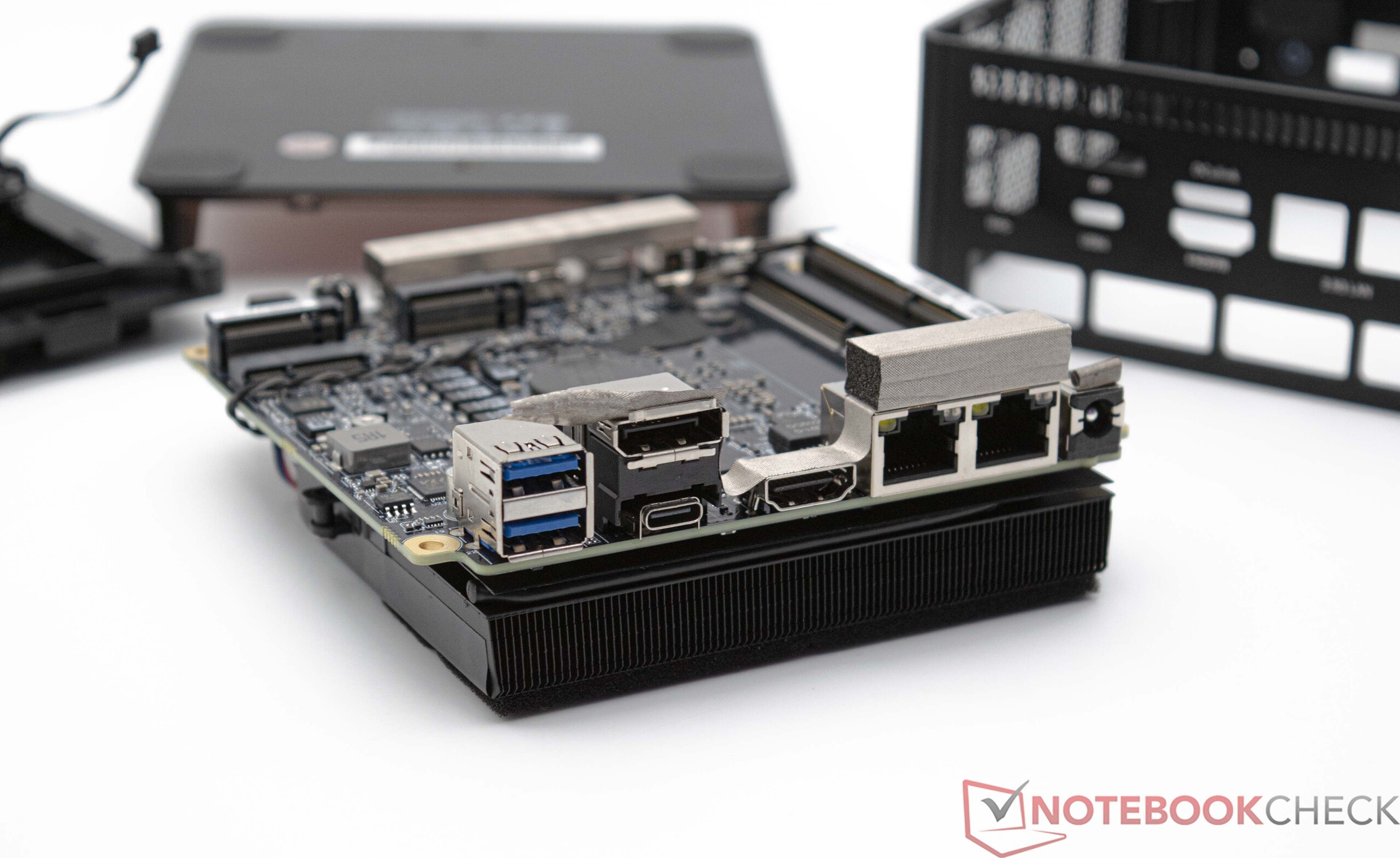

维护

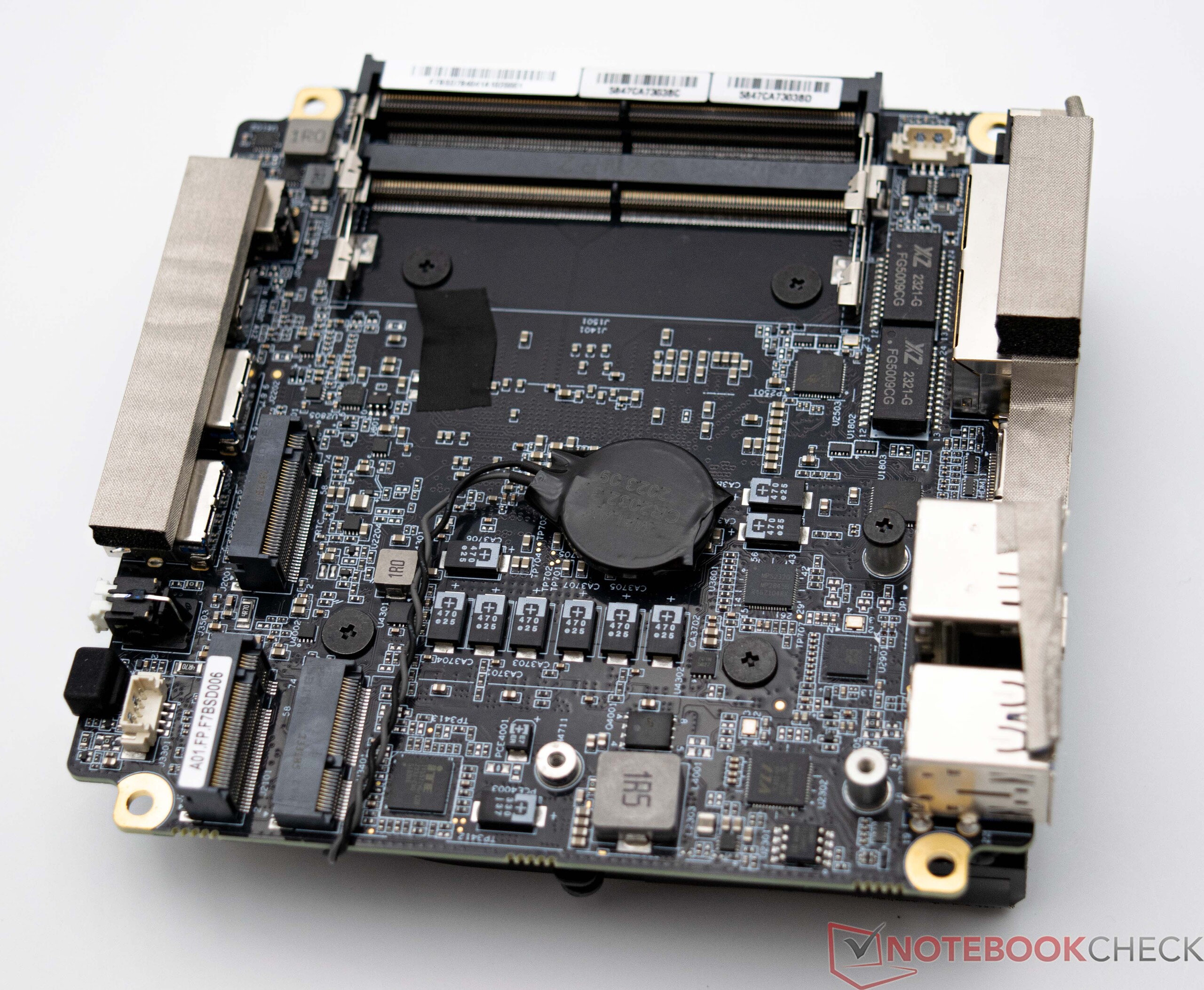

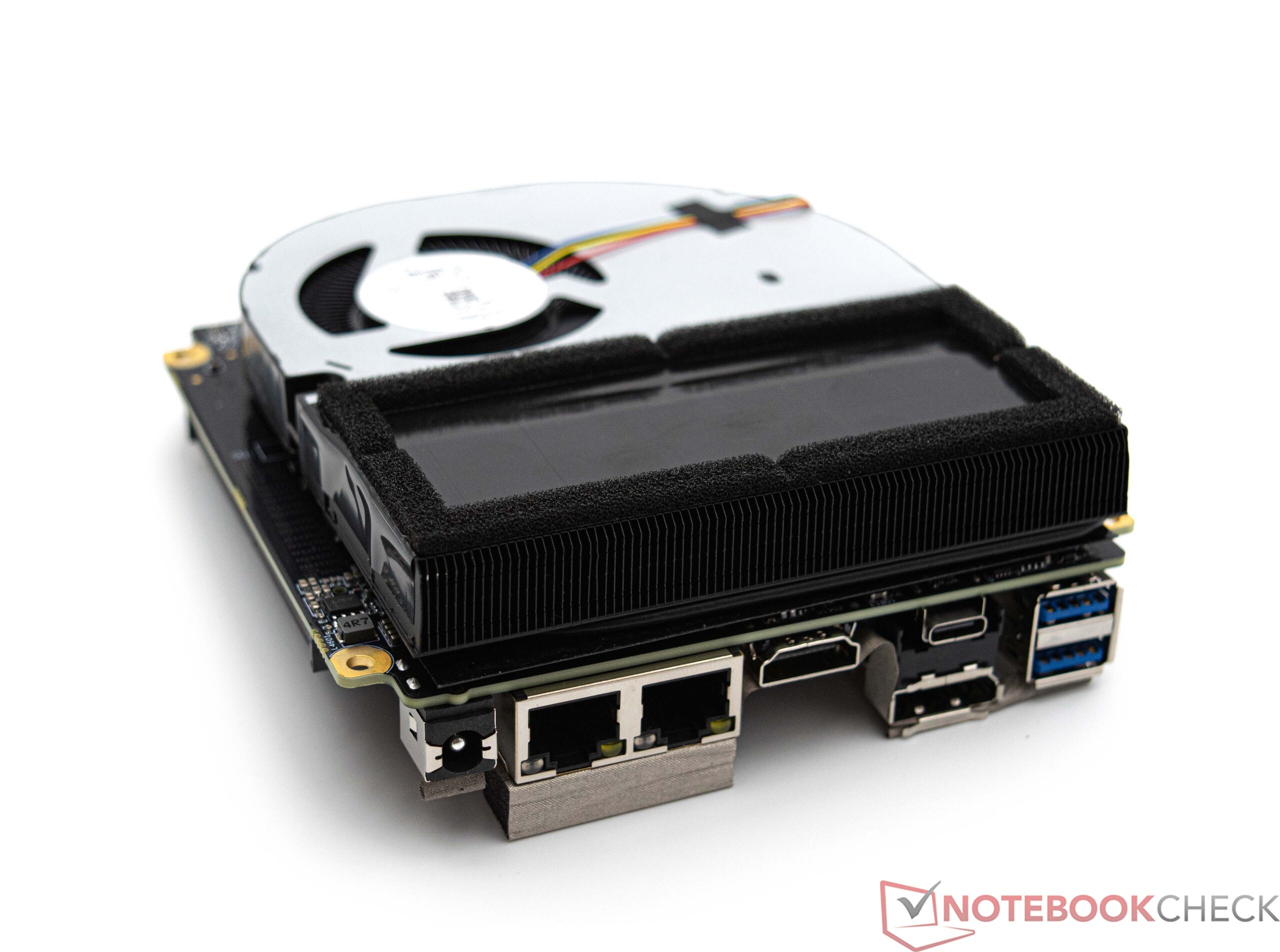

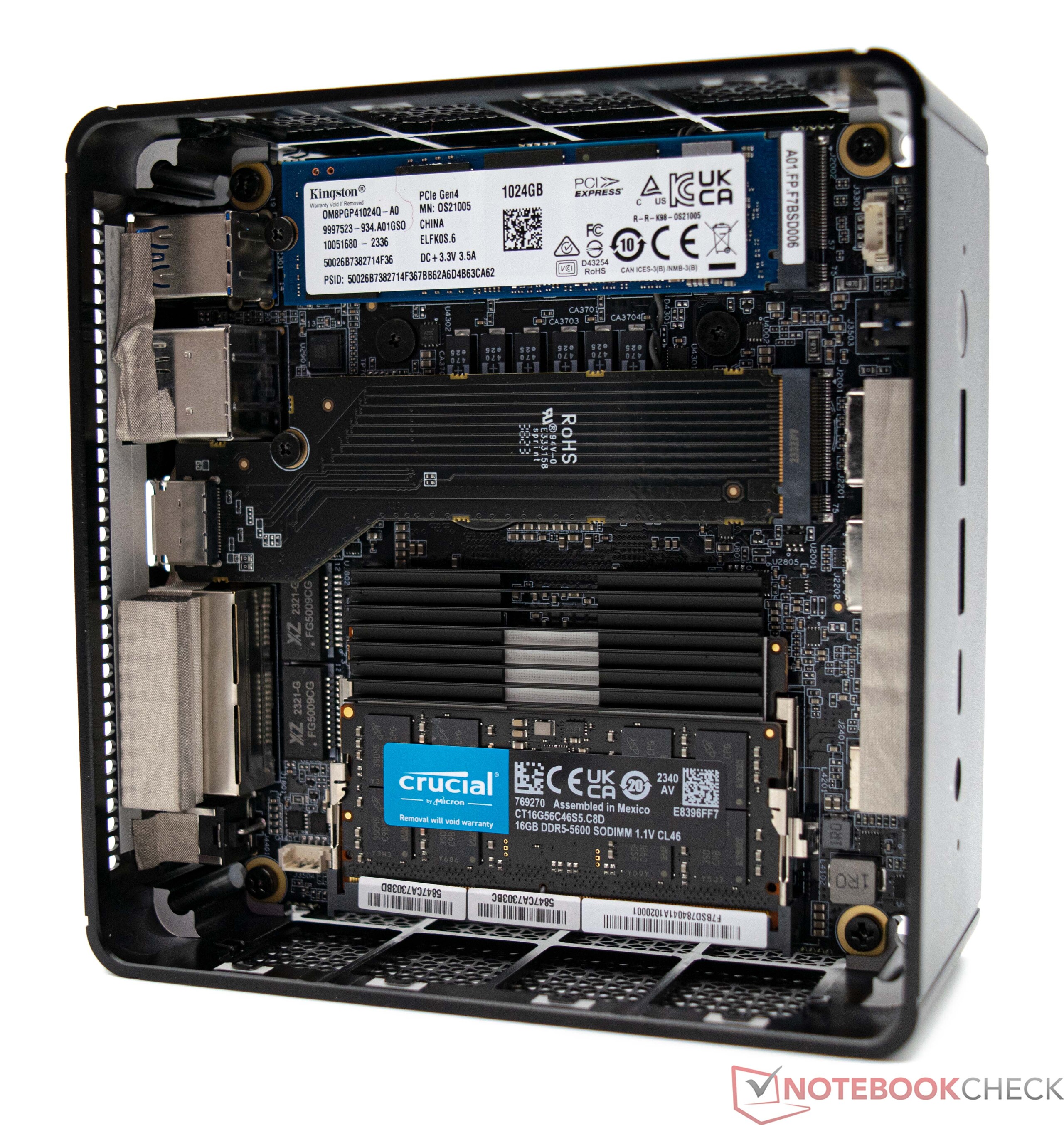

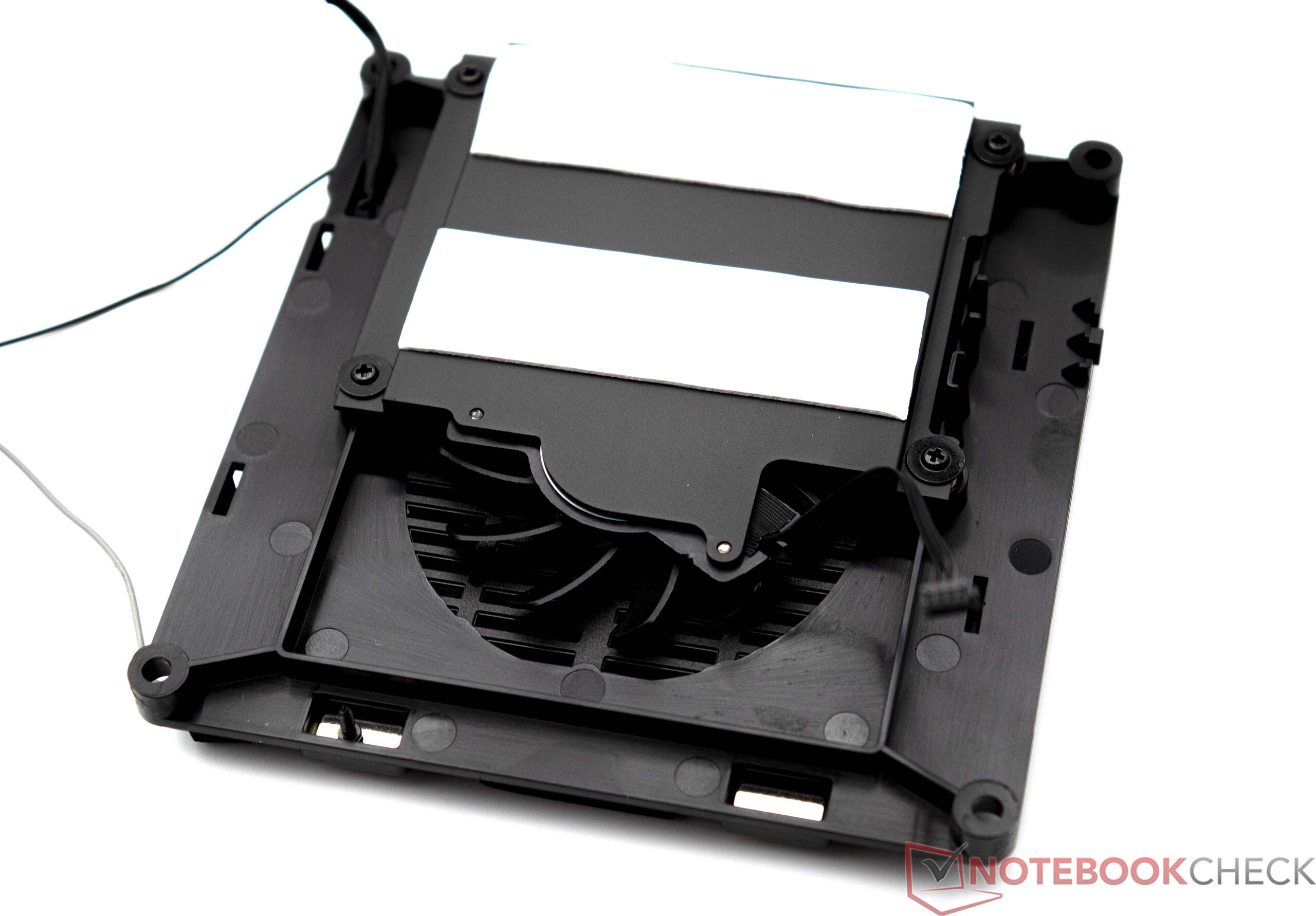

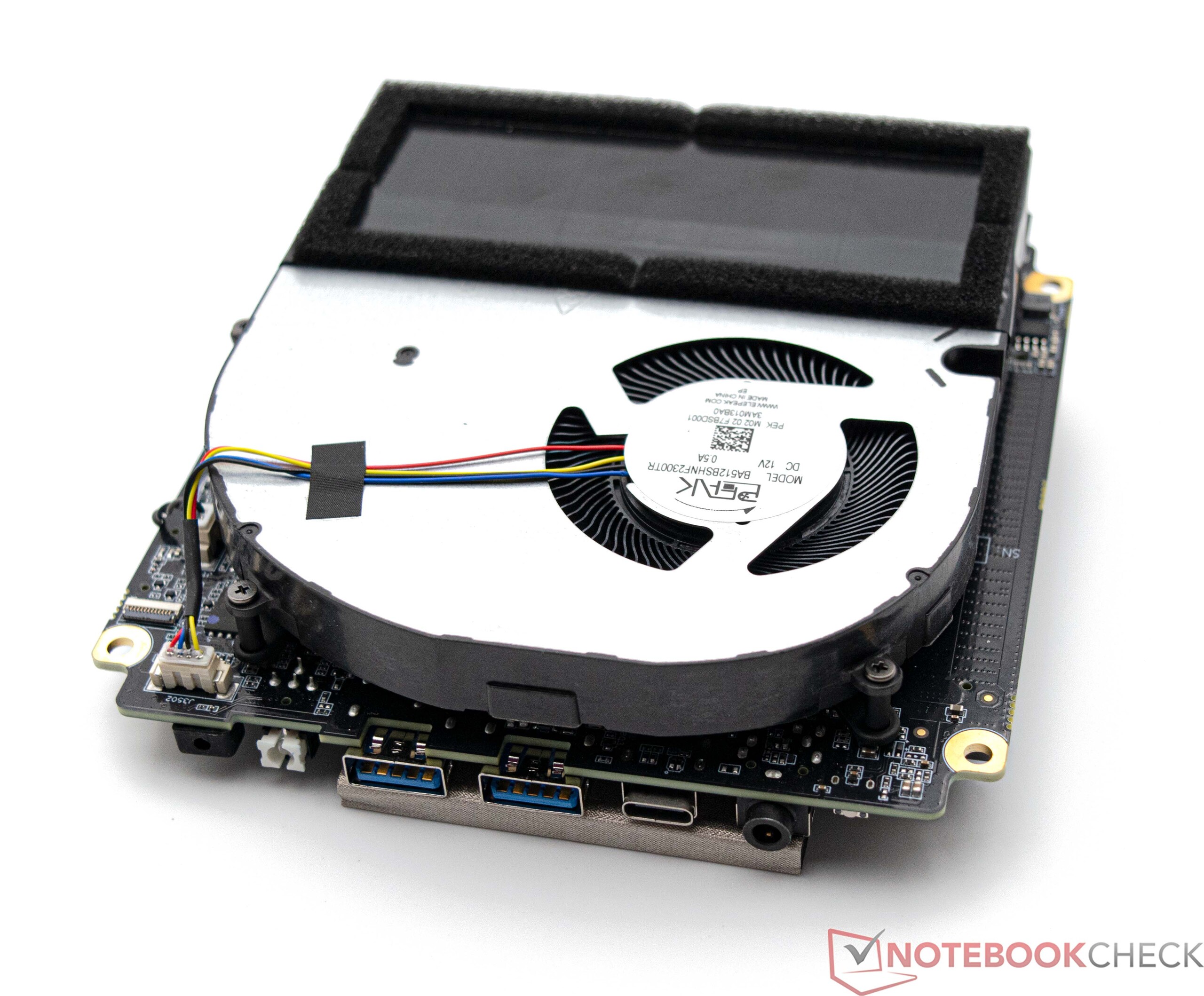

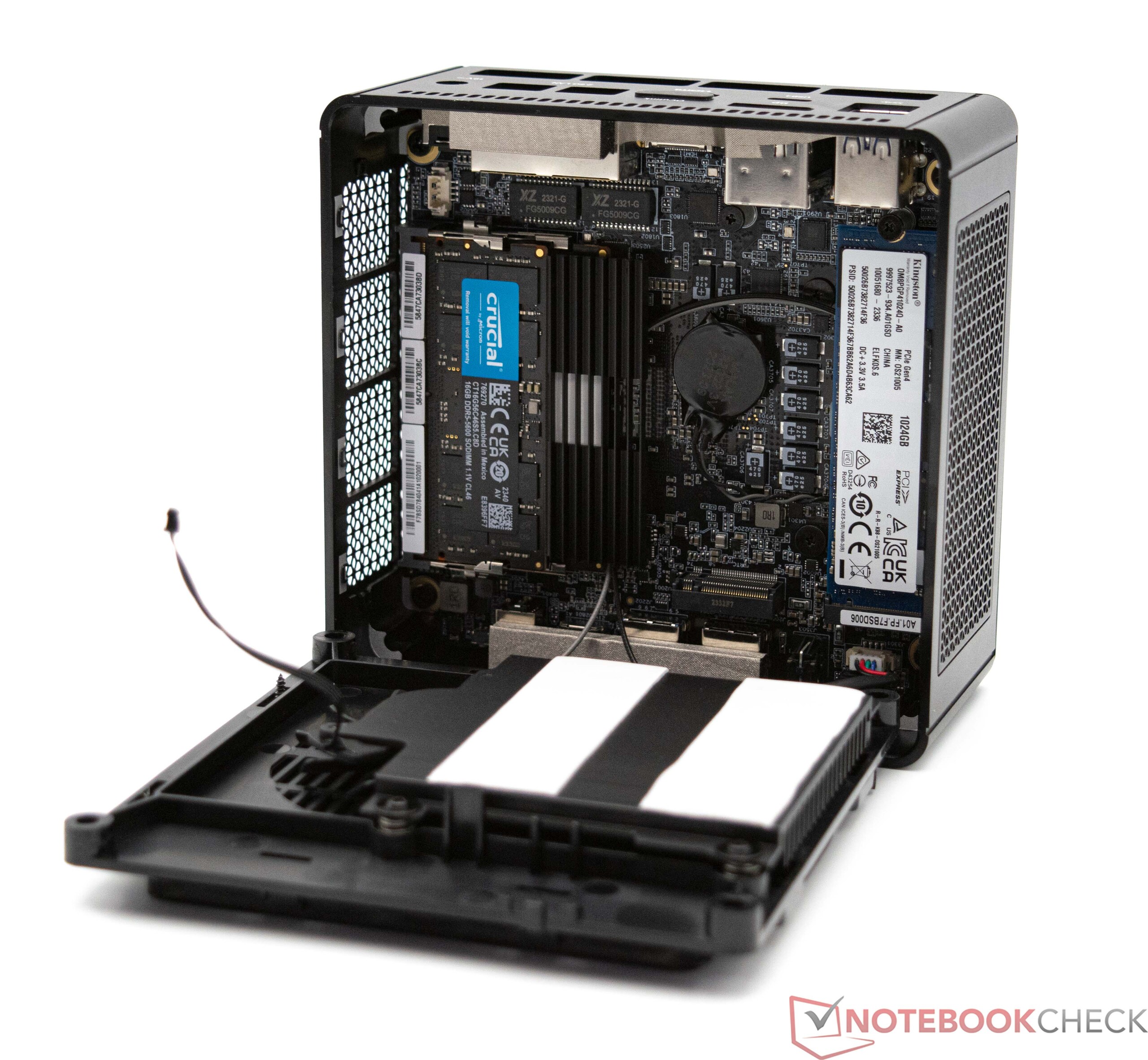

Minisforum EliteMini UM780 XTX 可以比较容易地从顶部打开。盖子是用磁铁吸住的。要访问更多组件，必须先卸下用四颗螺丝固定的 LED 模块。其中还包括一个用于冷却存储设备的主动式冷却器。由于电缆较短，拆卸时需要小心。如果您购买的是 Minisforum EliteMini UM780 XTX 裸机系统，则可以轻松安装内存和固态硬盘组件。在我们的案例中，我们只有一个空闲的 M.2 插槽，用来插入 OCuLink 适配器。如果需要清洁 CPU 冷却器，就必须拆下整个电路板。如果您小心谨慎，也可以这样做，不过制造商严禁这样做。根据该设备的规格，它使用液态金属来确保最佳散热效果。

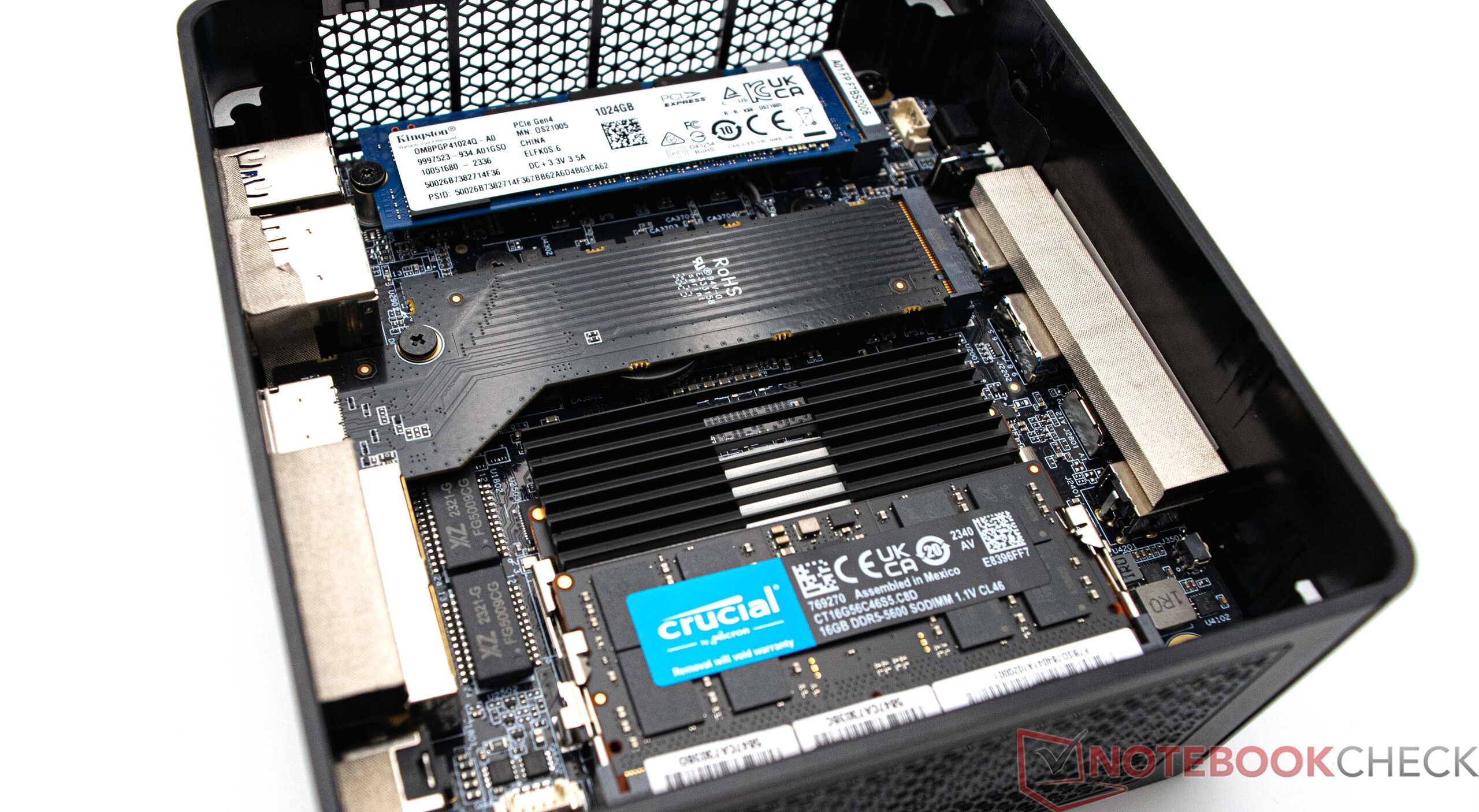

安装了 OCuLink 适配器的 Minisforum EliteMini UM780 XTX

性能 - AMD Ryzen 7 7840HS，配备 8 个 Zen 4 内核

Minisforum 为 EliteMini UM780 XTX 配备了AMD Ryzen 7 7840HS.该 SoC 基于 Zen 4，拥有 8 个内核和 16 个线程。凭借 32 GB DDR5 内存和快速固态硬盘，即使是要求苛刻的任务，这款迷你 PC 也能轻松胜任。目前，该设备还没有其他配置。更经济实惠的机型配备AMD Ryzen 5 7640HS将是一个合适的选择。

测试条件

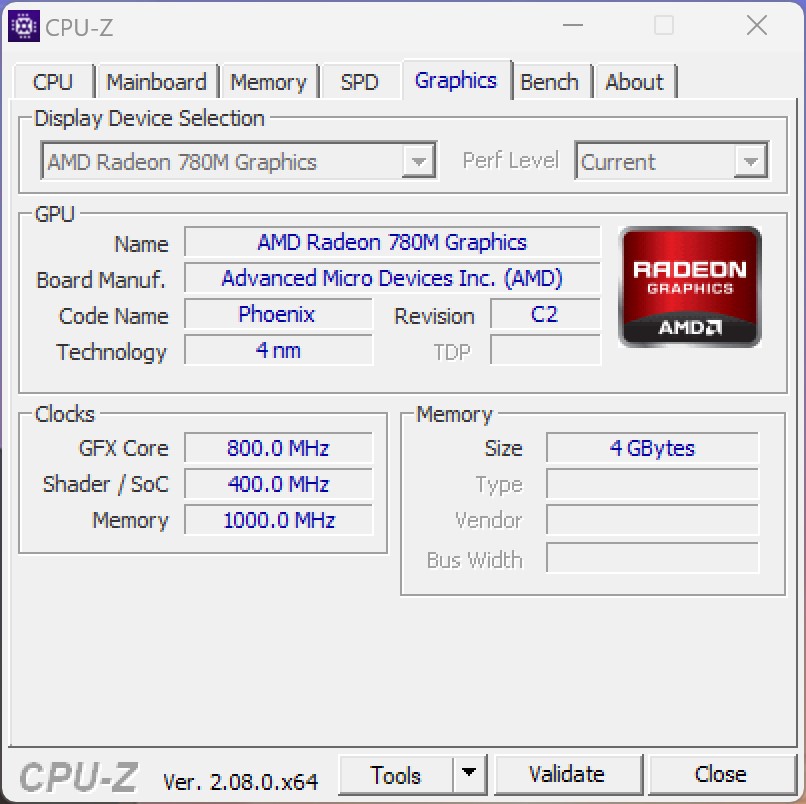

我们使用 "平衡 "能源配置文件进行了所有性能测试。SoC 的性能没有改变。iGPU 可以访问 4GB 内存。

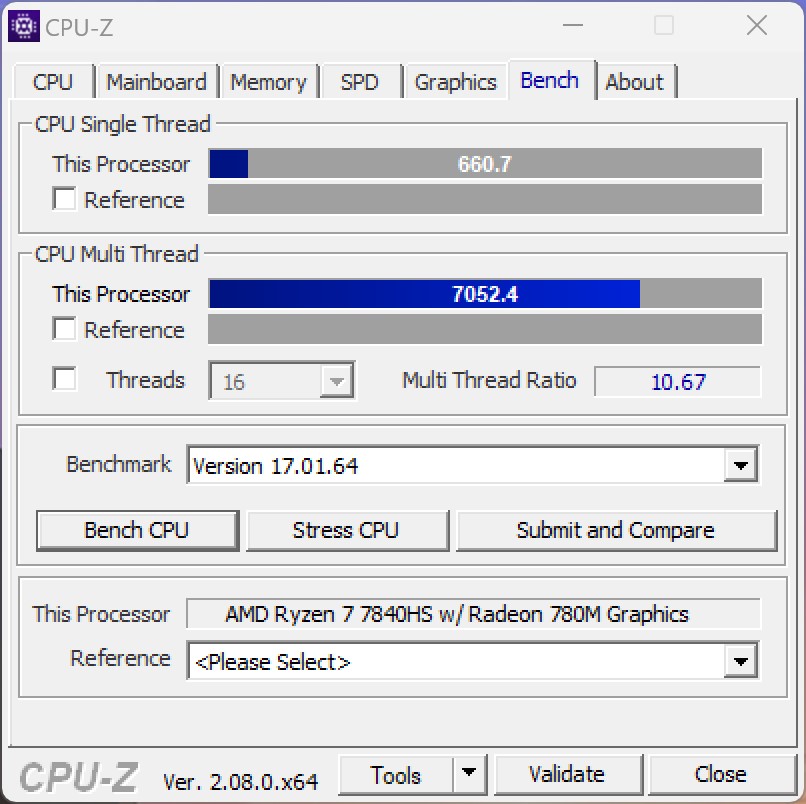

处理器

Minisforum EliteMini UM780 XTX 的AMD Ryzen 7 7840HS是一款非常强大的处理器。AMD 制造的这款现代 SoC 具有 8 个内核和 16 个线程，是基于 Zen 4 的 Phoenix 系列的一部分。Minisforum 已放弃使用AMD Ryzen 9 7940HS用于 EliteMini UM780 XTX。相比之下，我们注意到，由于 Minisforum Venus 系列 UM790 Pro（我们已经测试过）配备的是 AMD 的顶级型号，因此我们的测试样品采用了可能更慢的处理器，从而提供了更好的性能水平。安装的冷却装置似乎是关键因素，这也是 EliteMini UM780 XTX 似乎更强大的原因。

即便如此，Minisforum EliteMini UM780 XTX 的性能仍无法与Beelink SER7 相提并论。不过，从平均结果来看，两者之间的差距只有 6 个百分点。当然，这并不能说明两者在性能上有明显的差距。

有关进一步的比较和基准测试，请参阅CPU 比较表。

Performance Rating - Percent
Beelink SER7 ^-2! AMD Ryzen 7 7840HS, 3800 MHz	58.6 pt
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, 3800 MHz	55.4 pt
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	55.1 pt
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, 3800 MHz	54.8 pt
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	51 pt
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	50.6 pt
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	50.5 pt
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	49.4 pt
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	48.6 pt

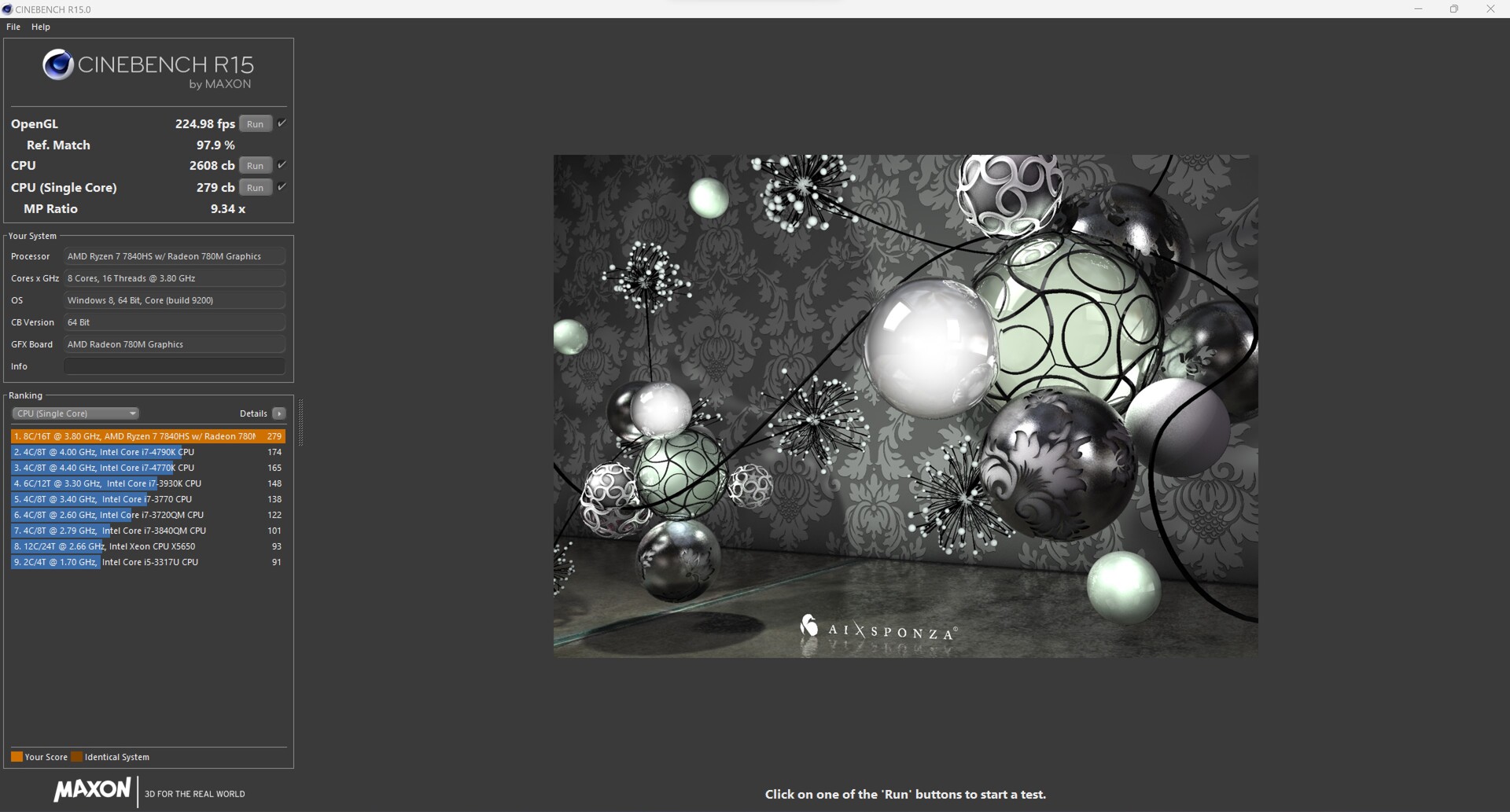

Cinebench R15
CPU Single 64Bit
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, 3800 MHz	286 Points +3%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	284 Points +2%
Beelink SER7 AMD Ryzen 7 7840HS, 3800 MHz	283 Points +1%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, 3800 MHz	279 Points
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	271 Points -3%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	261 Points -6%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	250 Points -10%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	249 Points -11%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	247 Points -11%
CPU Multi 64Bit
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, 3800 MHz	2689 (2587.99^min - 2689.08^max) Points +3%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	2663 Points +2%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, 3800 MHz	2608 Points
Beelink SER7 AMD Ryzen 7 7840HS, 3800 MHz	2565 (2511.62^min - 2564.76^max) Points -2%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	2231 Points -14%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	2071 Points -21%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	2067 Points -21%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	2030 Points -22%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	2028 Points -22%

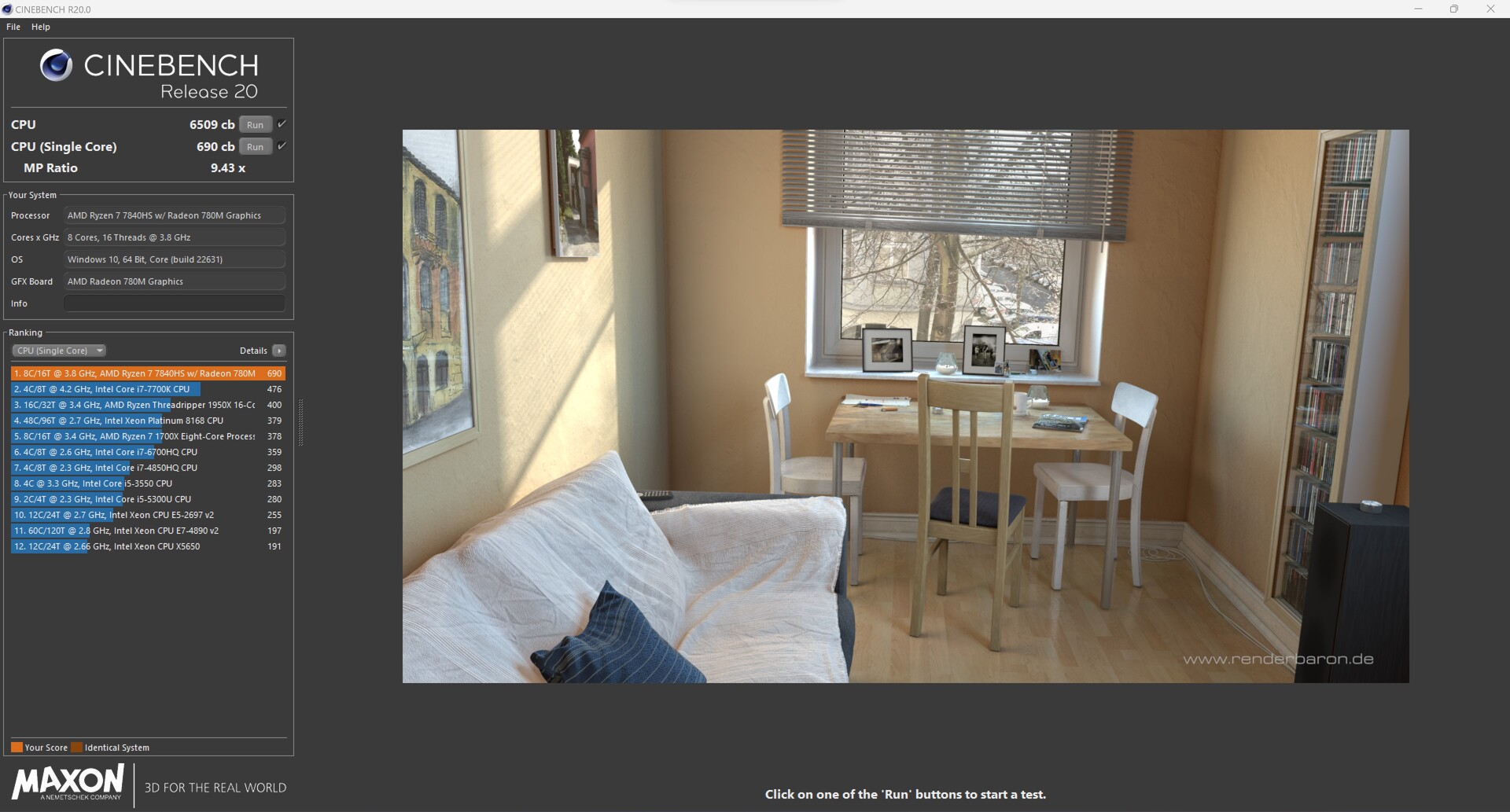

Cinebench R20
CPU (Single Core)
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	736 Points +7%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	711 Points +3%
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, 3800 MHz	705 Points +2%
Beelink SER7 AMD Ryzen 7 7840HS, 3800 MHz	698 Points +1%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, 3800 MHz	690 Points
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	682 Points -1%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	629 Points -9%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	610 Points -12%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	607 Points -12%
CPU (Multi Core)
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, 3800 MHz	6744 Points +4%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	6640 Points +2%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, 3800 MHz	6509 Points
Beelink SER7 AMD Ryzen 7 7840HS, 3800 MHz	6344 Points -3%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	5328 Points -18%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	4941 Points -24%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	4938 Points -24%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	4887 Points -25%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	4776 Points -27%

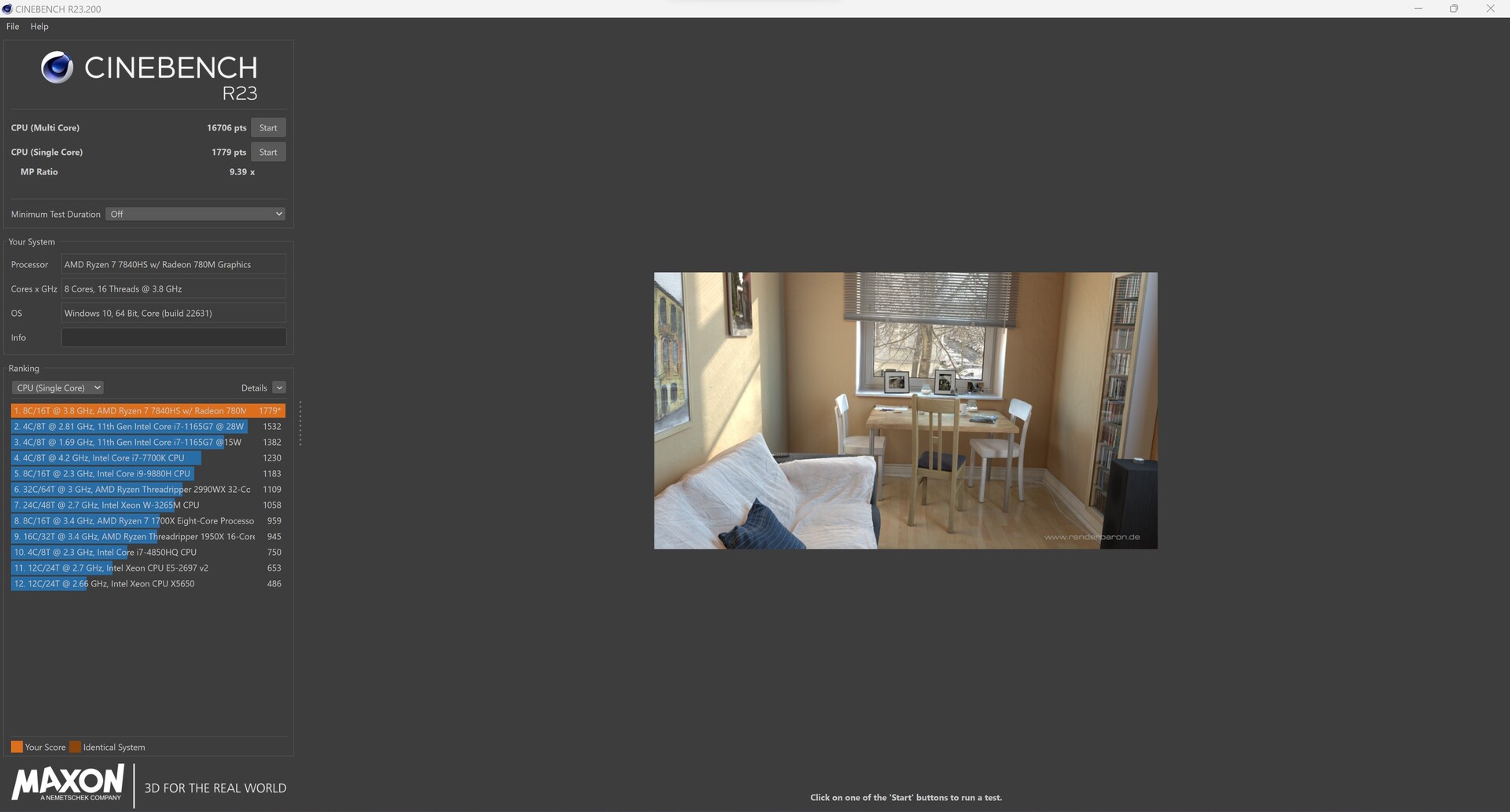

Cinebench R23
Single Core
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	1909 Points +7%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	1813 Points +2%
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, 3800 MHz	1812 Points +2%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, 3800 MHz	1779 Points
Beelink SER7 AMD Ryzen 7 7840HS, 3800 MHz	1774 Points 0%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	1743 Points -2%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	1616 Points -9%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	1558 Points -12%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1550 Points -13%
Multi Core
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, 3800 MHz	17214 (17017.5^min - 17213.9^max) Points +3%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	16985 Points +2%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, 3800 MHz	16706 Points
Beelink SER7 AMD Ryzen 7 7840HS, 3800 MHz	16105 (15785.6^min - 16105.2^max) Points -4%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	13320 Points -20%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	13222 Points -21%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	12665 Points -24%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	12637 Points -24%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	12486 Points -25%

Blender - v2.79 BMW27 CPU
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	275 Seconds * -43%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	273 Seconds * -42%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	260 Seconds * -35%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	245 Seconds * -28%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	234 Seconds * -22%
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, 3800 MHz	229 Seconds * -19%
Beelink SER7 AMD Ryzen 7 7840HS, 3800 MHz	196 Seconds * -2%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, 3800 MHz	192 Seconds *
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	188 Seconds * +2%

Geekbench 5.5
Multi-Core
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, 3800 MHz	12177 Points
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	11564 Points -5%
Beelink SER7 AMD Ryzen 7 7840HS, 3800 MHz	11423 Points -6%
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, 3800 MHz	10752 Points -12%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	10574 Points -13%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	9706 Points -20%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	9695 Points -20%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	9399 Points -23%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	9278 Points -24%
Single-Core
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, 3800 MHz	2010 Points +3%
Beelink SER7 AMD Ryzen 7 7840HS, 3800 MHz	1983 Points +2%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	1975 Points +2%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, 3800 MHz	1943 Points
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	1861 Points -4%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	1850 Points -5%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	1634 Points -16%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1586 Points -18%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	1581 Points -19%

Geekbench 5.0
5.0 Multi-Core
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, 3800 MHz	11933 Points
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	11232 Points -6%
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, 3800 MHz	10820 Points -9%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	10249 Points -14%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	10249 Points -14%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	9663 Points -19%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	9638 Points -19%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	9351 Points -22%
5.0 Single-Core
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, 3800 MHz	1936 Points +2%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, 3800 MHz	1900 Points
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	1898 Points 0%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	1838 Points -3%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	1593 Points -16%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	1557 Points -18%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	1557 Points -18%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1538 Points -19%

3DMark 11 - 1280x720 Performance Physics
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, 3800 MHz	22960 Points
Beelink SER7 AMD Ryzen 7 7840HS, 3800 MHz	22129 Points -4%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	21848 Points -5%
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, 3800 MHz	21067 Points -8%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	18393 Points -20%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	18382 Points -20%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	18277 Points -20%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	17973 Points -22%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	17810 Points -22%

7-Zip 18.03
7z b 4
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, 3800 MHz	72684 MIPS
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	70019 MIPS -4%
Beelink SER7 AMD Ryzen 7 7840HS, 3800 MHz	69882 MIPS -4%
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, 3800 MHz	65706 MIPS -10%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	61401 MIPS -16%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	58963 MIPS -19%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	56930 MIPS -22%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	52959 MIPS -27%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	51151 MIPS -30%
7z b 4 -mmt1
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, 3800 MHz	6749 MIPS +3%
Beelink SER7 AMD Ryzen 7 7840HS, 3800 MHz	6734 MIPS +3%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	6683 MIPS +2%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, 3800 MHz	6563 MIPS
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	6067 MIPS -8%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	6019 MIPS -8%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	5961 MIPS -9%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	5790 MIPS -12%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	5721 MIPS -13%

HWBOT x265 Benchmark v2.2 - 4k Preset
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, 3800 MHz	20.9 fps
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	20.7 fps -1%
Beelink SER7 AMD Ryzen 7 7840HS, 3800 MHz	20.4 fps -2%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	17.1 fps -18%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	15.8 fps -24%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	15.8 fps -24%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	14.2 fps -32%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	14.1 fps -33%
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, 3800 MHz	11.7 fps -44%

R Benchmark 2.5 - Overall mean
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	0.4887 sec * -12%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	0.4849 sec * -11%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	0.4757 sec * -9%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	0.4641 sec * -7%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	0.445 sec * -2%
Beelink SER7 AMD Ryzen 7 7840HS, 3800 MHz	0.4446 sec * -2%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, 3800 MHz	0.4354 sec *
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	0.4192 sec * +4%
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, 3800 MHz	0.4184 sec * +4%

LibreOffice - 20 Documents To PDF
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, 3800 MHz	53.9 s *
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	50.2 s * +7%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	48.8 s * +9%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	47.1 s * +13%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	46.3 s * +14%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	43.7 s * +19%
Beelink SER7 AMD Ryzen 7 7840HS, 3800 MHz	39.7 s * +26%
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, 3800 MHz	39 s * +28%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	38 s * +29%

WebXPRT 3 - Overall
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, 3800 MHz	339 Points +5%
Beelink SER7 AMD Ryzen 7 7840HS, 3800 MHz	332 Points +2%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, 3800 MHz	324 Points
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	311 Points -4%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	305 Points -6%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	302 Points -7%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	287 Points -11%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	287 Points -11%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	268 Points -17%

Mozilla Kraken 1.1 - Total
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	600 ms * -16%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	600 ms * -16%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	577 ms * -12%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	571 ms * -10%
Beelink SER7 AMD Ryzen 7 7840HS, 3800 MHz	518 ms * -0%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, 3800 MHz	517 ms *
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	494 ms * +4%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	487 ms * +6%
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, 3800 MHz	485 ms * +6%

3DMark
3840x2160 Fire Strike Ultra Physics
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, 3800 MHz	28429 Points
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, 3800 MHz	28144 Points -1%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	27579 Points -3%
Beelink SER7 AMD Ryzen 7 7840HS, 3800 MHz	26855 Points -6%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	25456 Points -10%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	24167 Points -15%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	22237 Points -22%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	21422 Points -25%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	20158 Points -29%
1920x1080 Fire Strike Physics
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, 3800 MHz	28906 Points
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, 3800 MHz	28602 Points -1%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	28247 Points -2%
Beelink SER7 AMD Ryzen 7 7840HS, 3800 MHz	27654 Points -4%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	25915 Points -10%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	24175 Points -16%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	22740 Points -21%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	22244 Points -23%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	21523 Points -26%
2560x1440 Time Spy CPU
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, 3800 MHz	11291 Points +1%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, 3800 MHz	11159 Points
Beelink SER7 AMD Ryzen 7 7840HS, 3800 MHz	11131 Points 0%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	10563 Points -5%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	10539 Points -6%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	9354 Points -16%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	9334 Points -16%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	9324 Points -16%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	9004 Points -19%

* ... smaller is better

Performance Rating | wPrime 2.10 | X264 HD Benchmark 4.0 | TrueCrypt | Geekbench 4.4

Performance Rating - Percent
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	62.3 pt
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, 3800 MHz	62.2 pt
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	57.7 pt
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	56.6 pt
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	55.3 pt
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	55.2 pt
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	54.3 pt

wPrime 2.10
32m
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	3.765 s * -43%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	3.762 s * -43%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	3.735 s * -42%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	3.461 s * -32%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	3.421 s * -30%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	2.698 s * -3%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, 3800 MHz	2.626 s *
1024m
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	277.01 s * -280%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	189.07 s * -160%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	104.788 s * -44%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	98.696 s * -36%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	93.19 s * -28%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, 3800 MHz	72.819 s *
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	66.801 s * +8%

X264 HD Benchmark 4.0
Pass 1
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	312 (305^min - 331^max) fps +5%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	304.5 (304^min - 306^max) fps +2%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, 3800 MHz	298 (288^min - 300^max) fps
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	262.5 (262^min - 266^max) fps -12%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	255.5 (254^min - 259^max) fps -14%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	249 (246^min - 255^max) fps -16%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	245 (239^min - 261^max) fps -18%
Pass 2
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	150.8 (150.7^min - 152.5^max) fps +1%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, 3800 MHz	149.3 (148.8^min - 149.8^max) fps
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	127.8 (127.3^min - 129.1^max) fps -14%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	125.25 (105.2^min - 130^max) fps -16%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	120.2 (119.9^min - 121.3^max) fps -19%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	116.4 (108.5^min - 128.8^max) fps -22%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	114.45 (113.9^min - 116.5^max) fps -23%

TrueCrypt
AES Mean 100MB
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, 3800 MHz	14.9 GB/s
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	14.8 GB/s -1%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	13.4 GB/s -10%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	12.5 GB/s -16%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	11.9 GB/s -20%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	11.8 GB/s -21%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	8.6 GB/s -42%
Twofish Mean 100MB
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	2.2 GB/s +5%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	2.1 GB/s 0%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, 3800 MHz	2.1 GB/s
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	2 GB/s -5%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	1.8 GB/s -14%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	1.7 GB/s -19%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1.7 GB/s -19%
Serpent Mean 100MB
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	1.4 GB/s +8%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, 3800 MHz	1.3 GB/s
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	1.2 GB/s -8%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	1.2 GB/s -8%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	1.1 GB/s -15%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1.1 GB/s -15%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	0.974 GB/s -25%

Geekbench 4.4
64 Bit Single-Core Score
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, 3800 MHz	8048 Points
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	8015 Points 0%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	7904 Points -2%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	6804 Points -15%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	6698 Points -17%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	6698 Points -17%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	6648 Points -17%
64 Bit Multi-Core Score
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, 3800 MHz	48743 Points
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, 4000 MHz	46270 Points -5%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	39852 Points -18%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, 3300 MHz	39852 Points -18%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	38566 Points -21%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	36780 Points -25%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	36692 Points -25%

* ... smaller is better

Performance Rating
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	99.7 pt
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, Radeon 780M	97.3 pt
Beelink SER7 AMD Ryzen 7 7840HS, Radeon 780M	93.4 pt
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, Radeon 780M	91.5 pt
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	73.9 pt
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, Radeon 680M	68.4 pt
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, Radeon 680M	68.2 pt
Average of class Mini PC	55.1 pt
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	54.5 pt
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	52.3 pt

AIDA64 / FP32 Ray-Trace
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	27538 KRay/s +2%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, Radeon 780M	26889 KRay/s
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, Radeon 780M	26146 KRay/s -3%
Beelink SER7 AMD Ryzen 7 7840HS, Radeon 780M	25685 KRay/s -4%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	15102 KRay/s -44%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, Radeon 680M	14418 KRay/s -46%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, Radeon 680M	14406 KRay/s -46%
Average of class Mini PC (561 - 51004, n=119, last 2 years)	12449 KRay/s -54%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	11040 KRay/s -59%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	10952 KRay/s -59%

AIDA64 / FPU Julia
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	116903 Points +3%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, Radeon 780M	116269 Points +2%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, Radeon 780M	113684 Points
Beelink SER7 AMD Ryzen 7 7840HS, Radeon 780M	109853 Points -3%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	98980 Points -13%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, Radeon 680M	91475 Points -20%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, Radeon 680M	89540 Points -21%
Average of class Mini PC (3604 - 214250, n=119, last 2 years)	62645 Points -45%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	55557 Points -51%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	55221 Points -51%

AIDA64 / CPU SHA3
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	5096 MB/s +3%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, Radeon 780M	4953 MB/s
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, Radeon 780M	4890 MB/s -1%
Beelink SER7 AMD Ryzen 7 7840HS, Radeon 780M	4783 MB/s -3%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	3452 MB/s -30%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, Radeon 680M	3117 MB/s -37%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, Radeon 680M	3065 MB/s -38%
Average of class Mini PC (225 - 9399, n=119, last 2 years)	2760 MB/s -44%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	2728 MB/s -45%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	2558 MB/s -48%

AIDA64 / CPU Queen
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, Radeon 780M	119569 Points +2%
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	117764 Points +1%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, Radeon 780M	117103 Points
Beelink SER7 AMD Ryzen 7 7840HS, Radeon 780M	111969 Points -4%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	103686 Points -11%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, Radeon 680M	99180 Points -15%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, Radeon 680M	93870 Points -20%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	86691 Points -26%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	85240 Points -27%
Average of class Mini PC (8172 - 184747, n=119, last 2 years)	77998 Points -33%

AIDA64 / FPU SinJulia
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	15525 Points +3%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, Radeon 780M	15312 Points +1%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, Radeon 780M	15145 Points
Beelink SER7 AMD Ryzen 7 7840HS, Radeon 780M	14705 Points -3%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	13101 Points -13%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, Radeon 680M	12642 Points -17%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, Radeon 680M	11771 Points -22%
Average of class Mini PC (408 - 29064, n=119, last 2 years)	8538 Points -44%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	7548 Points -50%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	7269 Points -52%

AIDA64 / FPU Mandel
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	62378 Points +3%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, Radeon 780M	62219 Points +2%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, Radeon 780M	60809 Points
Beelink SER7 AMD Ryzen 7 7840HS, Radeon 780M	58699 Points -3%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	52710 Points -13%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, Radeon 680M	50025 Points -18%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, Radeon 680M	49558 Points -19%
Average of class Mini PC (1958 - 113499, n=119, last 2 years)	32689 Points -46%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	28159 Points -54%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	27772 Points -54%

AIDA64 / CPU AES
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	177158 MB/s +4%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, Radeon 780M	170745 MB/s
Beelink SER7 AMD Ryzen 7 7840HS, Radeon 780M	161216 MB/s -6%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	136723 MB/s -20%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, Radeon 680M	124515 MB/s -27%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, Radeon 680M	119363 MB/s -30%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	99521 MB/s -42%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	99244 MB/s -42%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, Radeon 780M	86346 MB/s -49%
Average of class Mini PC (3691 - 325960, n=119, last 2 years)	85358 MB/s -50%

AIDA64 / CPU ZLib
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, Radeon 780M	1114 MB/s +4%
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	1103 MB/s +3%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, Radeon 780M	1075 MB/s
Beelink SER7 AMD Ryzen 7 7840HS, Radeon 780M	949 MB/s -12%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	863 MB/s -20%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	807 MB/s -25%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, Radeon 680M	754 MB/s -30%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	732 MB/s -32%
Average of class Mini PC (74.8 - 2039, n=119, last 2 years)	714 MB/s -34%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, Radeon 680M	578 MB/s -46%

AIDA64 / FP64 Ray-Trace
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	14722 KRay/s +3%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, Radeon 780M	14472 KRay/s +1%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, Radeon 780M	14284 KRay/s
Beelink SER7 AMD Ryzen 7 7840HS, Radeon 780M	13904 KRay/s -3%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	7973 KRay/s -44%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, Radeon 680M	7680 KRay/s -46%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, Radeon 680M	7551 KRay/s -47%
Average of class Mini PC (308 - 26952, n=119, last 2 years)	6658 KRay/s -53%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	5920 KRay/s -59%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	5777 KRay/s -60%

AIDA64 / CPU PhotoWorxx
Beelink SER7 AMD Ryzen 7 7840HS, Radeon 780M	41088 MPixel/s +2%
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	40726 MPixel/s +1%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, Radeon 780M	40460 MPixel/s
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, Radeon 780M	32647 MPixel/s -19%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, Radeon 680M	30049 MPixel/s -26%
ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, Radeon 680M	30038 MPixel/s -26%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	29108 MPixel/s -28%
Average of class Mini PC (4408 - 50500, n=119, last 2 years)	27805 MPixel/s -31%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	27720 MPixel/s -31%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	24323 MPixel/s -40%

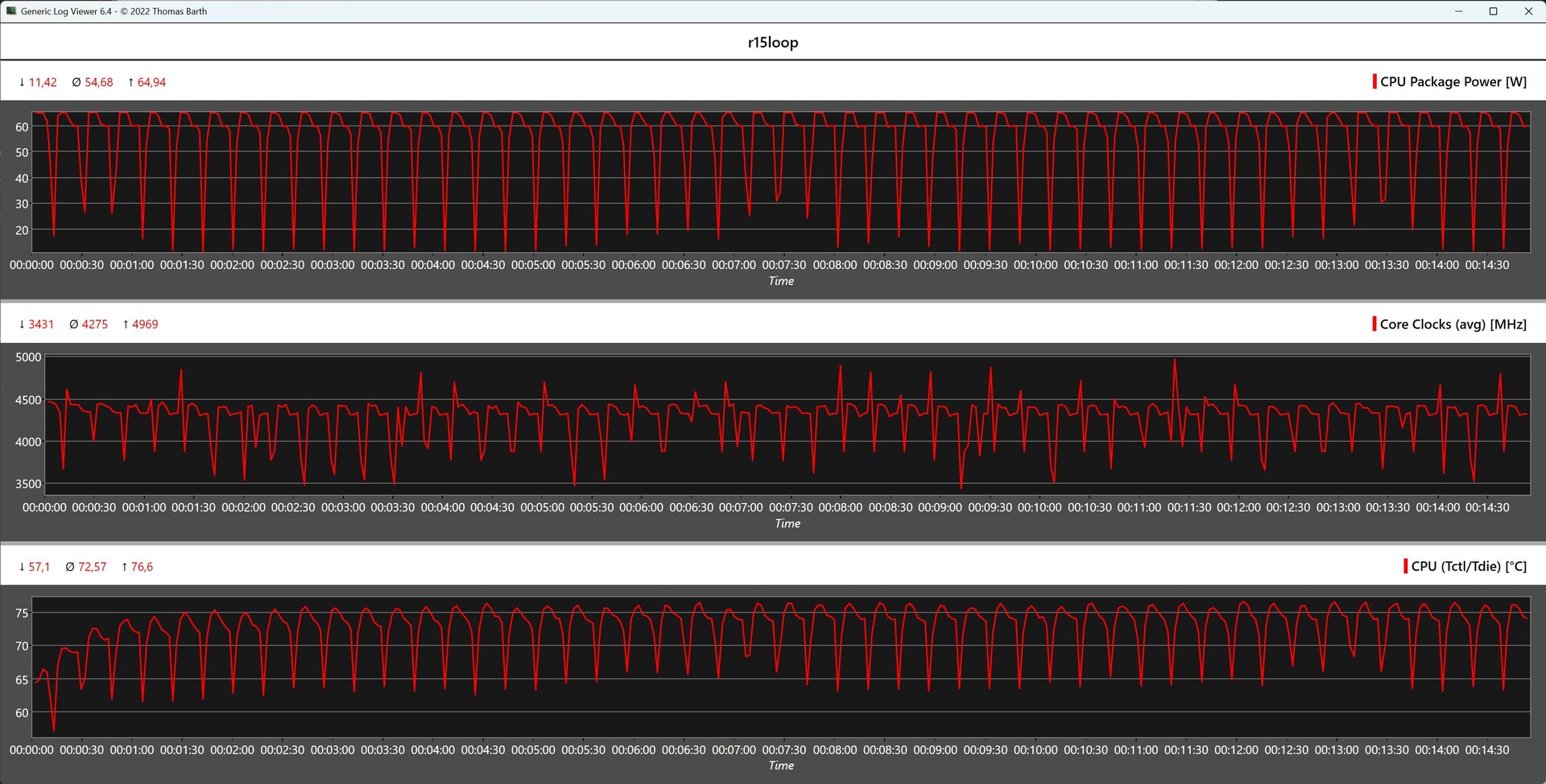

Minisforum EliteMini UM780 XTX 与 Cinebench R15 多循环对比

在 Cinebench R15 连续循环测试中，我们已经注意到 Minisforum 安装了强大的散热系统，该系统能够保持 AMD Ryzen 7 7840HS 的性能。AMD Ryzen 7 7840HS在长时间负载下保持稳定。处理器的最大功耗为 65 瓦，虽然温度峰值达到 76.6 °C，但功耗相对较低。

Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, AMD Ryzen 7 7840HS: Ø2605 (2564.1-2649.53)

Beelink SER7 AMD Ryzen 7 7840HS, AMD Ryzen 7 7840HS: Ø2544 (2511.62-2564.76)

Beelink GTR7 7840HS AMD Ryzen 7 7840HS, AMD Ryzen 7 7840HS: Ø2669 (2587.99-2689.08)

Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, AMD Ryzen 9 6900HX: Ø2111 (2087.36-2211.78)

Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Ryzen 9 7940HS: Ø2646 (2612.16-2667.2)

Minisforum Neptune Series NAD9 Intel Core i9-12900H, Intel Core i9-12900H: Ø1703 (1657.14-2261.04)

Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Ryzen 9 6900HX: Ø1878 (1825.15-2068.58)

ACEMagician Ace Magician AM08 Pro AMD Ryzen 9 6900HX, AMD Ryzen 9 6900HX: Ø2050 (2014.91-2082.68)

Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Core i7-1360P: Ø1825 (1794.93-2181.38)

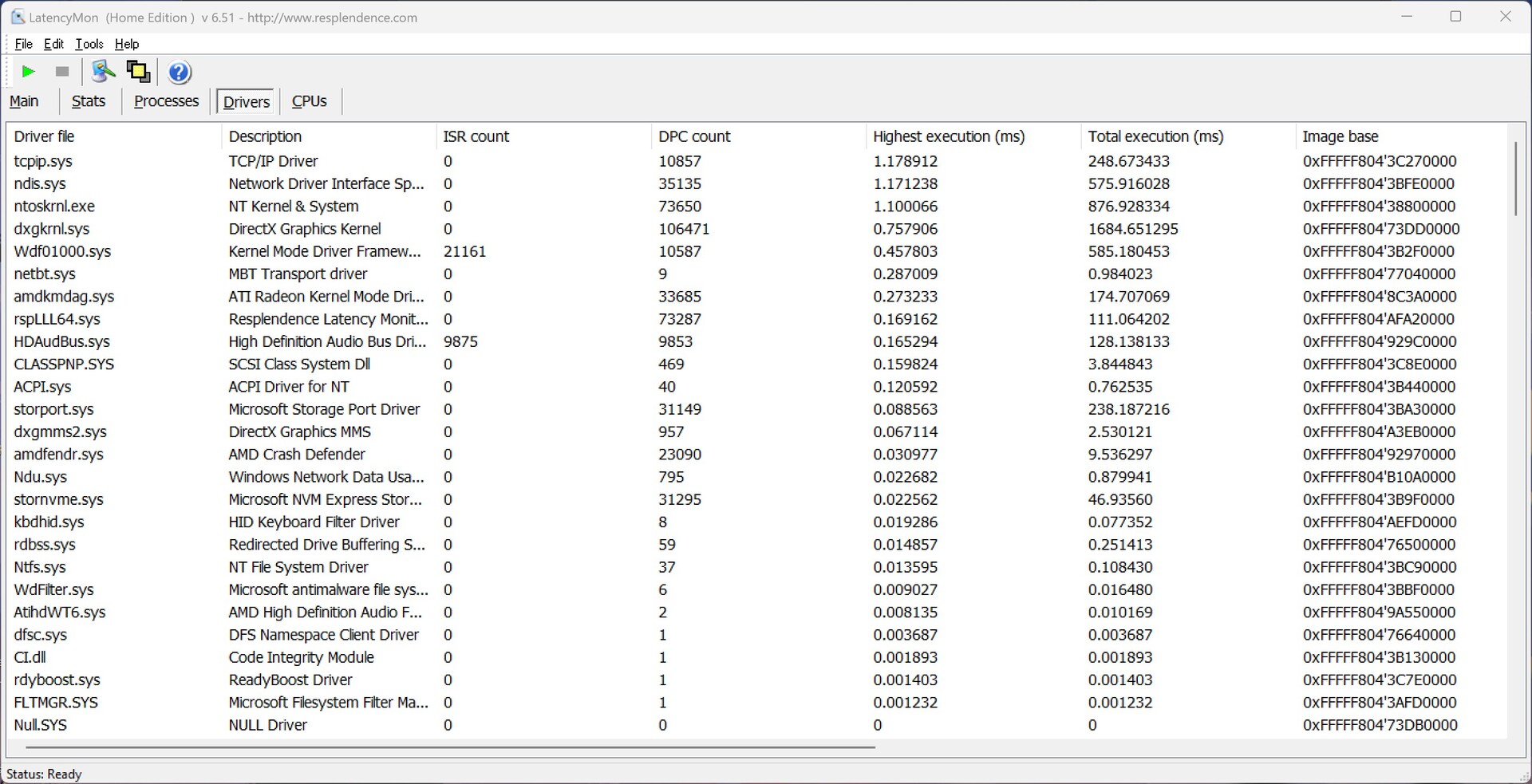

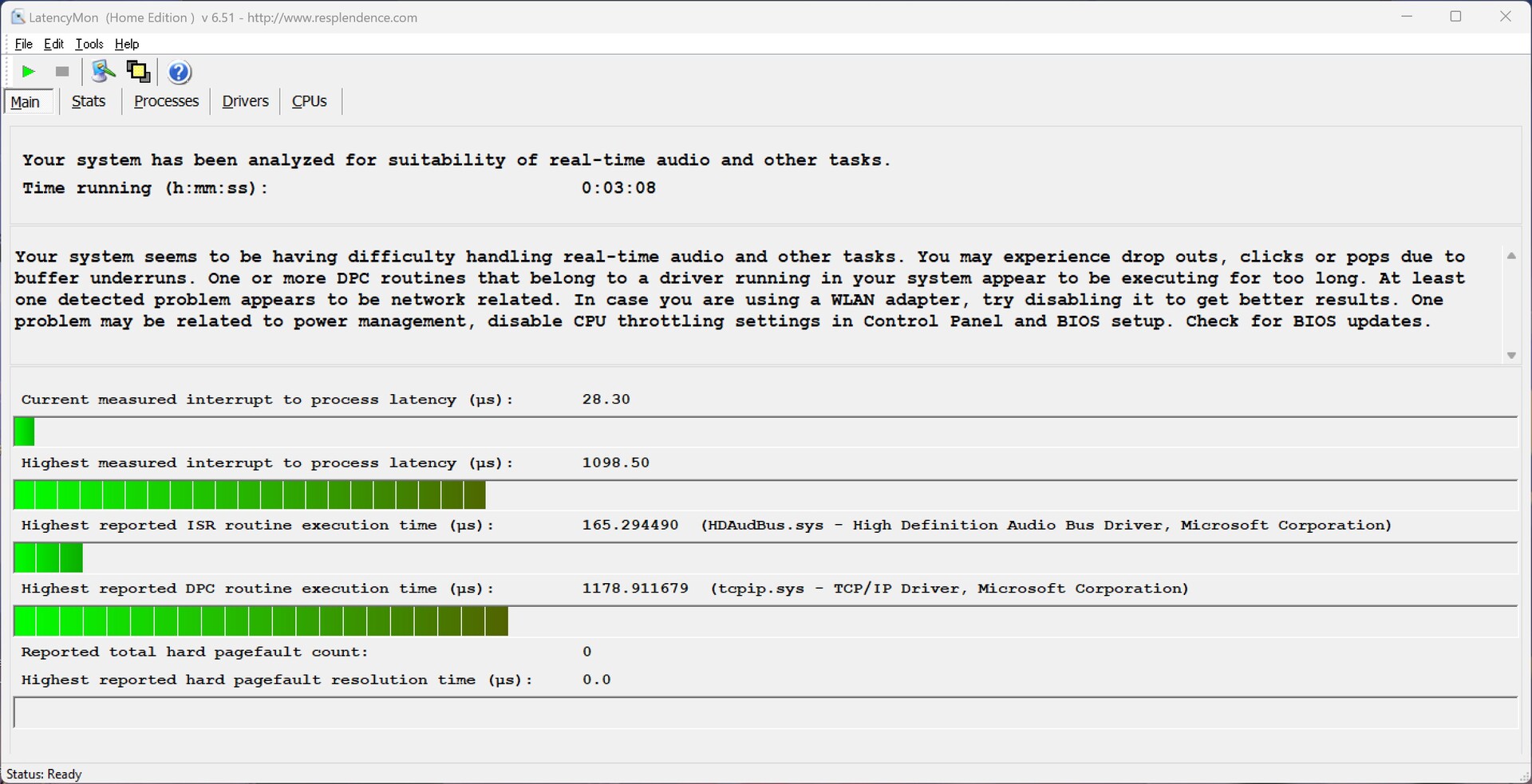

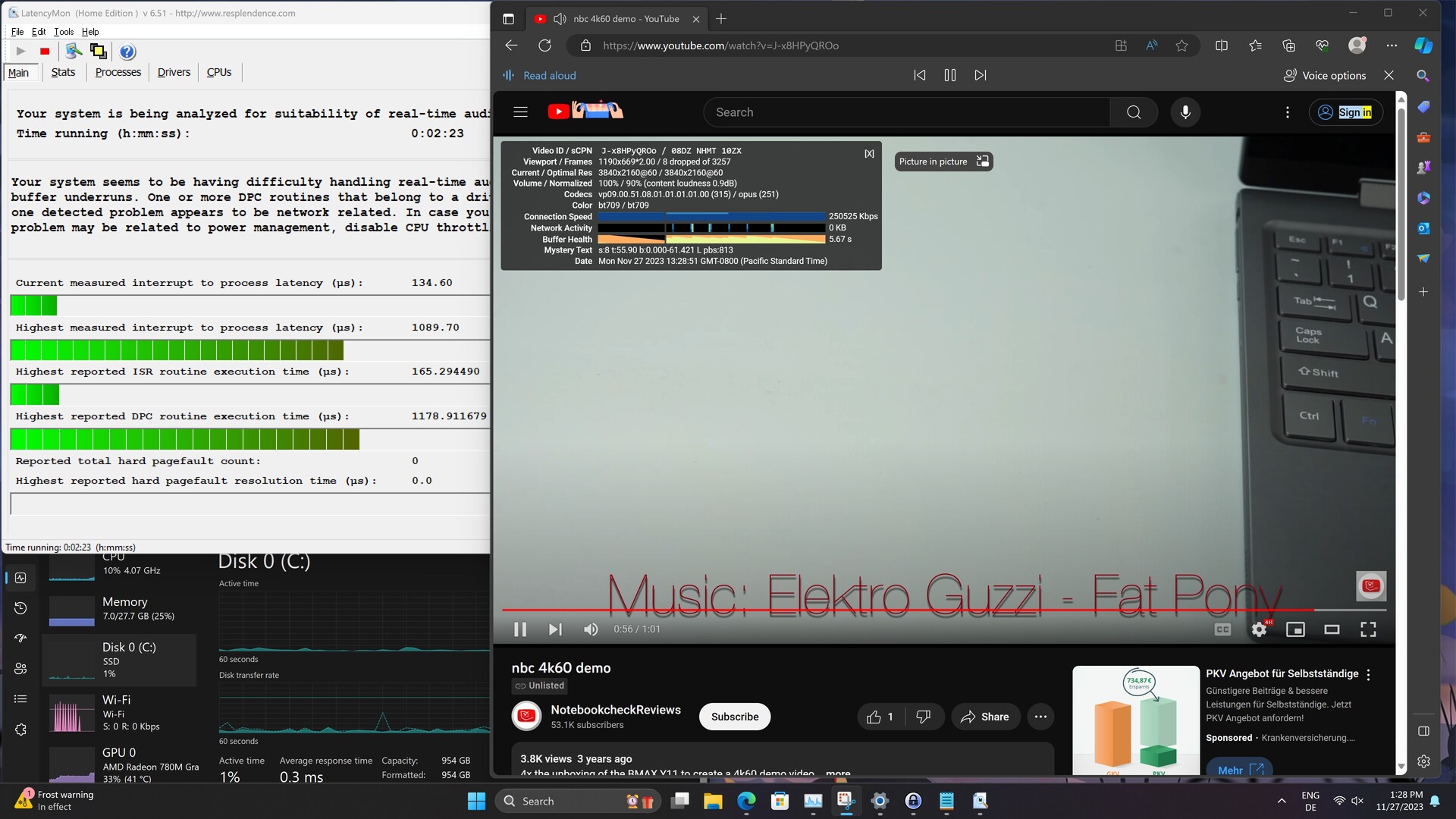

DPC 延迟

在确定延迟方面，Minisforum EliteMini UM780 XTX 的表现一般。在 Edge 中打开多个标签页时，我们的测试样本已经不得不面对延迟增加的问题。在播放 4K 测试视频时，延迟进一步增加。Beelink 在使用其GTR7和SER7.

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	1588.3 μs * -35%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	1488 μs * -26%
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	1371.2 μs * -16%
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	1178.9 μs *
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	1113.9 μs * +6%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1087 μs * +8%
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	1063 μs * +10%
Beelink GTR7 7840HS Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	718.7 μs * +39%
Beelink SER7 Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	647.9 μs * +45%

* ... smaller is better

存储设备

Minisforum 在我们的测试样品中安装了金士顿的 1-TB SSD。这款 M.2 固态硬盘通过 PCIe 4.0 x4 连接，因此传输速率不错。不过，安装的型号还不能算作顶级型号。即便如此，该固态硬盘的性能也足以满足日常使用需求。为了保证性能稳定，制造商还安装了一个主动冷却装置来保护存储设备。在我们的实际测试中，效果很好。从测试结果中可以看出，Minisforum EliteMini UM780 XTX 与 Beelink 的两款竞争产品（即GTR7和SER7和英特尔 NUC 13 Pro 套件是少数性能没有下降的设备之一。Minisforum EliteMini UM780 XTX 最多可安装两个存储设备。不过，如果要使用 OCuLink 连接，就只能使用一个固态硬盘。

有关进一步的比较和基准测试，请查看我们的比较表.

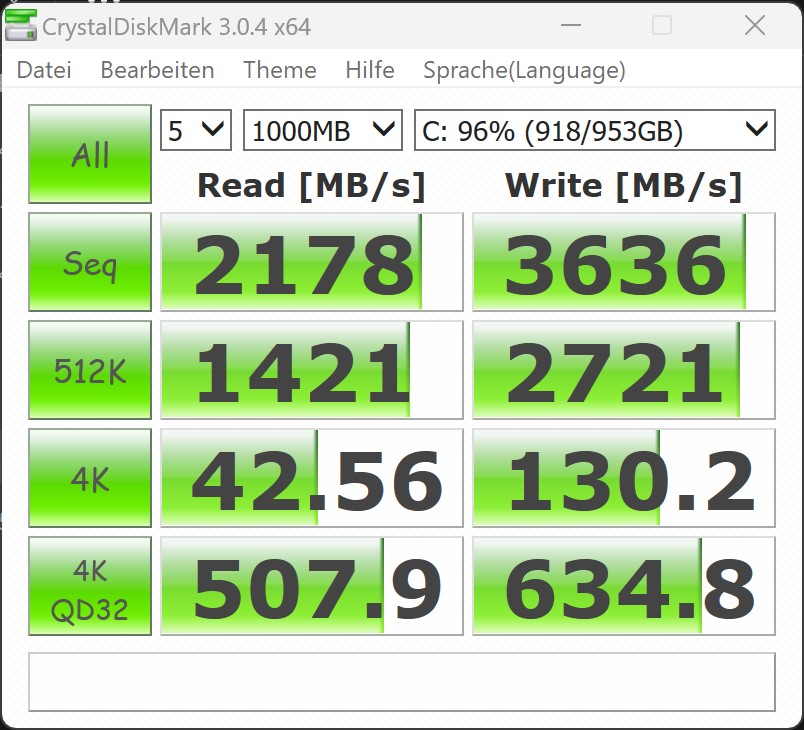

CrystalDiskMark 3.0

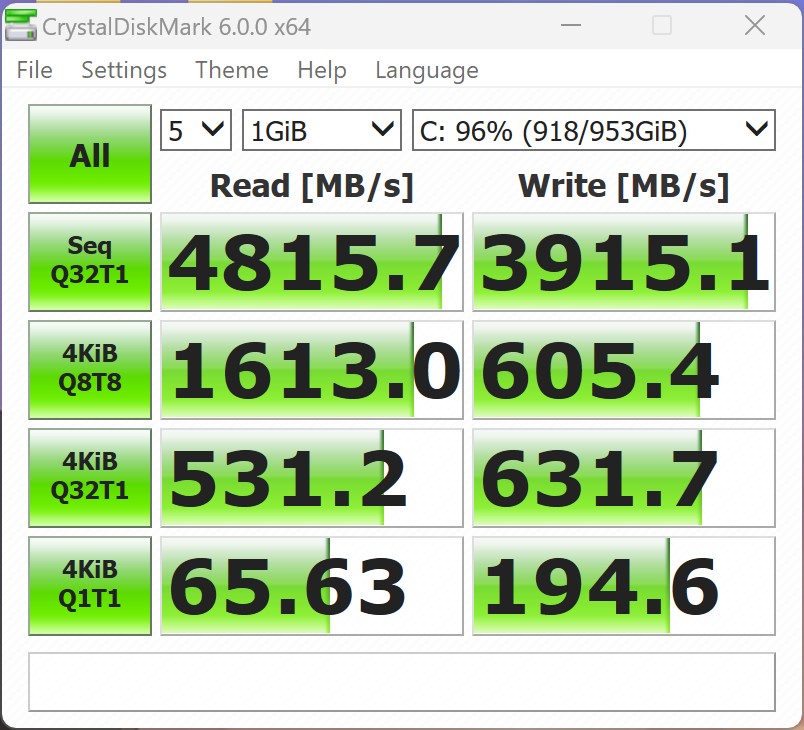

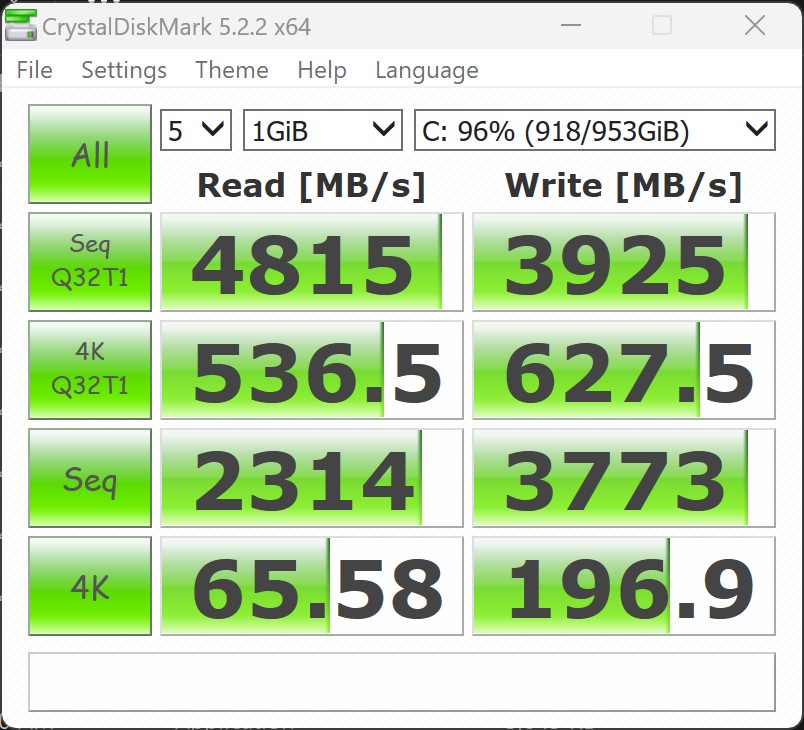

CrystalDiskMark 5.2 / 6

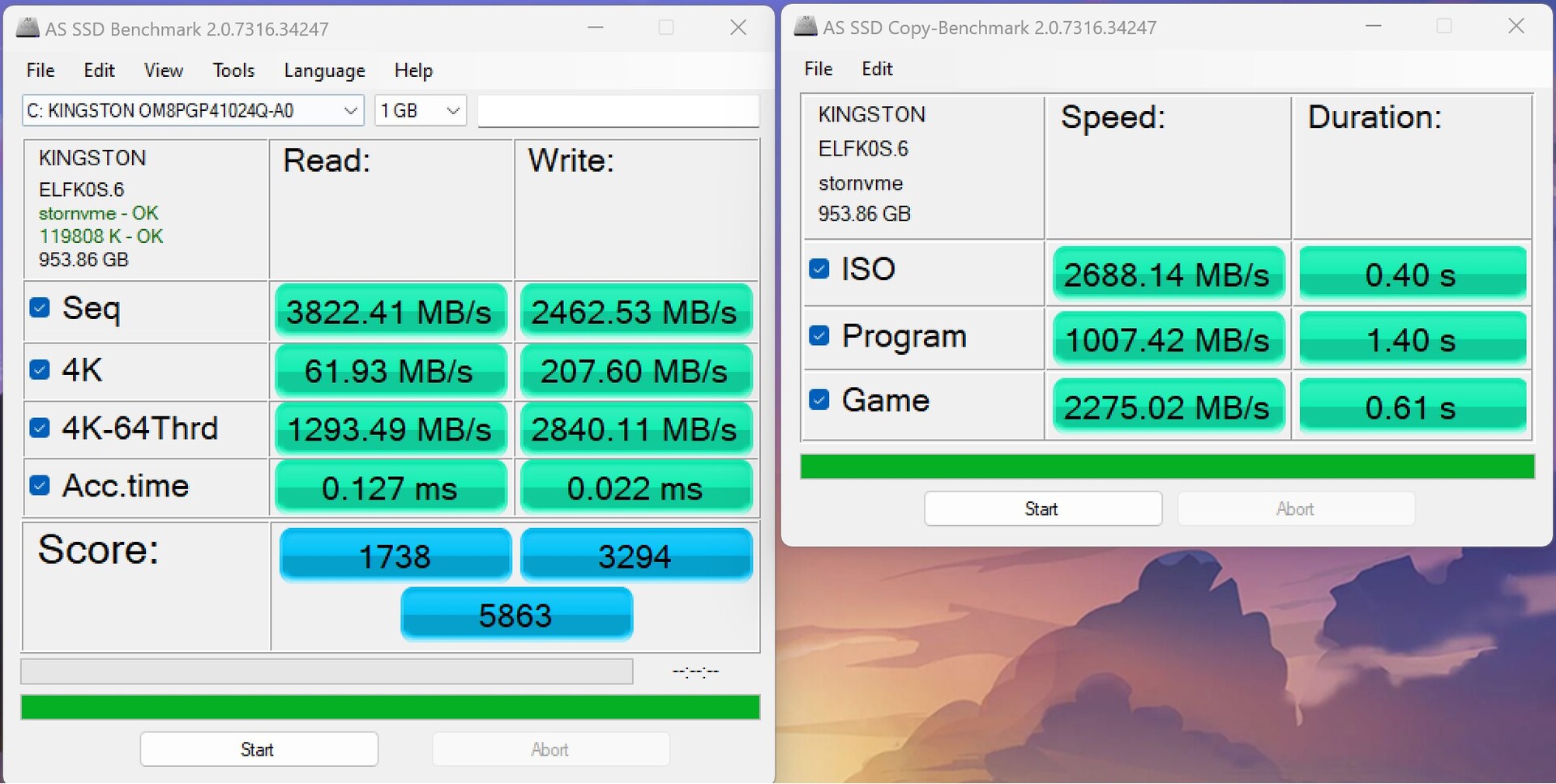

AS SSD

DiskSpd

Kingston OM8PGP41024Q-A0

Sequential Read: 2178 MB/s

Sequential Write: 3636 MB/s

512K Read: 1421 MB/s

512K Write: 2721 MB/s

4K Read: 42.56 MB/s

4K Write: 130.2 MB/s

4K QD32 Read: 507.9 MB/s

4K QD32 Write: 634.8 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	87.9 pt
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	83.6 pt
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	76.6 pt
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	73.1 pt
Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0	69.6 pt
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	56.2 pt
Average of class Mini PC	55.5 pt
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	53.1 pt
ACEMagician Ace Magician AM08 Pro BiWin CE480Y2D100-512G	30.2 pt
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	21.2 pt

DiskSpd
seq read
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	3375 (3310.44^min - 3375.33^max) MB/s +17%
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	3248 (3141.12^min - 3248.07^max) MB/s +12%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	3195 (3147.62^min - 3194.91^max) MB/s +10%
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	3033 (3026.64^min - 3032.69^max) MB/s +5%
Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0	2896 (2845^min - 2896.04^max) MB/s
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	2815 (2802.79^min - 2814.97^max) MB/s -3%
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	2718 (2645.56^min - 2717.91^max) MB/s -6%
Average of class Mini PC (233 - 4357, n=119, last 2 years)	2288 MB/s -21%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	1414 (1406.14^min - 1414.43^max) MB/s -51%
ACEMagician Ace Magician AM08 Pro BiWin CE480Y2D100-512G	1290 (1269.59^min - 1290.1^max) MB/s -55%
seq write
Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0	3736 (3562.44^min - 3735.53^max) MB/s
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	3591 (3535.23^min - 3591.16^max) MB/s -4%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	3539 (3516.6^min - 3538.94^max) MB/s -5%
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	3404 (38.3^min - 3403.58^max) MB/s -9%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	3402 (3372.67^min - 3402.21^max) MB/s -9%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	3360 (1416.73^min - 3360.47^max) MB/s -10%
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	3148 (613.87^min - 3148.03^max) MB/s -16%
Average of class Mini PC (222 - 5595, n=119, last 2 years)	2448 MB/s -34%
ACEMagician Ace Magician AM08 Pro BiWin CE480Y2D100-512G	676 (608.43^min - 676.24^max) MB/s -82%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	259 (255.55^min - 258.69^max) MB/s -93%
seq q8 t1 read
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	7654 (6491.54^min - 7653.98^max) MB/s +59%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	6729 (6134.8^min - 6728.5^max) MB/s +40%
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	5174 (4541.87^min - 5174.3^max) MB/s +7%
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	4893 (3920.33^min - 4893.08^max) MB/s +1%
Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0	4821 (4521.88^min - 4820.93^max) MB/s
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	4820 (3819.87^min - 4820.3^max) MB/s 0%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	4801 (4506.78^min - 4800.59^max) MB/s 0%
Average of class Mini PC (236 - 8430, n=119, last 2 years)	3706 MB/s -23%
ACEMagician Ace Magician AM08 Pro BiWin CE480Y2D100-512G	2557 (2087.92^min - 2556.98^max) MB/s -47%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	1976 (1110.86^min - 1975.52^max) MB/s -59%
seq q8 t1 write
Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0	3910 (3902.59^min - 3909.87^max) MB/s
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	3570 (3522.17^min - 3569.77^max) MB/s -9%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	3536 (3475.82^min - 3536.01^max) MB/s -10%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	3402 (3374.28^min - 3401.67^max) MB/s -13%
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	3301 (1115.06^min - 3301.44^max) MB/s -16%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	2830 (1138.15^min - 2830.32^max) MB/s -28%
Average of class Mini PC (228 - 6669, n=119, last 2 years)	2743 MB/s -30%
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	739 (52.85^min - 739.46^max) MB/s -81%
ACEMagician Ace Magician AM08 Pro BiWin CE480Y2D100-512G	670 (614.49^min - 669.54^max) MB/s -83%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	271 (261.51^min - 270.62^max) MB/s -93%
4k q1 t1 read
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	82.1 (81.4^min - 82.09^max) MB/s +27%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	70.8 (63.28^min - 70.81^max) MB/s +9%
Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0	64.9 (64.71^min - 64.94^max) MB/s
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	62.6 (62.13^min - 62.62^max) MB/s -4%
Average of class Mini PC (5.67 - 86.6, n=119, last 2 years)	54.7 MB/s -16%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	51.8 (51.62^min - 51.84^max) MB/s -20%
ACEMagician Ace Magician AM08 Pro BiWin CE480Y2D100-512G	48.9 (31.16^min - 48.85^max) MB/s -25%
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	48.2 (46.14^min - 48.16^max) MB/s -26%
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	44.2 (41.58^min - 44.2^max) MB/s -32%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	27.7 (27.3^min - 27.66^max) MB/s -57%
4k q1 t1 write
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	425 (415.92^min - 425.01^max) MB/s +117%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	288 (287.39^min - 288.47^max) MB/s +47%
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	269 (266.85^min - 269.05^max) MB/s +37%
Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0	196.1 (183.94^min - 196.13^max) MB/s
Average of class Mini PC (30.4 - 435, n=119, last 2 years)	194.7 MB/s -1%
ACEMagician Ace Magician AM08 Pro BiWin CE480Y2D100-512G	183.3 (149.75^min - 183.3^max) MB/s -7%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	177.7 (176.17^min - 177.7^max) MB/s -9%
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	139.4 (137.92^min - 139.38^max) MB/s -29%
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	126 (96.77^min - 125.97^max) MB/s -36%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	88 (84.11^min - 87.99^max) MB/s -55%
4k q32 t16 read
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	2810 (2697.36^min - 2809.61^max) MB/s +80%
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	2765 (2513.4^min - 2765.45^max) MB/s +78%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	1944 (1936.89^min - 1943.53^max) MB/s +25%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	1933 (1926.8^min - 1932.75^max) MB/s +24%
Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0	1557 (1529.87^min - 1556.79^max) MB/s
Average of class Mini PC (26.1 - 4158, n=119, last 2 years)	1360 MB/s -13%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	1225 (1194.7^min - 1224.8^max) MB/s -21%
ACEMagician Ace Magician AM08 Pro BiWin CE480Y2D100-512G	760 (325.52^min - 759.71^max) MB/s -51%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	740 (734.91^min - 739.88^max) MB/s -52%
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	700 (683.05^min - 700^max) MB/s -55%
4k q32 t16 write
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	3331 (2068.43^min - 3331.41^max) MB/s +490%
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	3254 (3139.57^min - 3253.57^max) MB/s +476%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	2396 (2376.28^min - 2396.46^max) MB/s +324%
Average of class Mini PC (30.2 - 4288, n=119, last 2 years)	1287 MB/s +128%
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	1066 (54.15^min - 1066.13^max) MB/s +89%
ACEMagician Ace Magician AM08 Pro BiWin CE480Y2D100-512G	635 (272.57^min - 635.12^max) MB/s +12%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	626 (605.6^min - 625.63^max) MB/s +11%
Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0	565 (557.67^min - 564.75^max) MB/s
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	425 (345.14^min - 425.25^max) MB/s -25%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	210 (203.49^min - 210.22^max) MB/s -63%

AS SSD
Score Total
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	7134 Points +22%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	6665 Points +14%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	6005 Points +2%
Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0	5863 Points
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	5182 Points -12%
Average of class Mini PC (181.5 - 10021, n=117, last 2 years)	4121 Points -30%
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	3361 Points -43%
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	2617 Points -55%
ACEMagician Ace Magician AM08 Pro BiWin CE480Y2D100-512G	2075 Points -65%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	1602 Points -73%
Score Read
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	2391 Points +38%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	2352 Points +35%
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	1796 Points +3%
Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0	1738 Points
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	1673 Points -4%
Average of class Mini PC (61 - 3741, n=117, last 2 years)	1534 Points -12%
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	1528 Points -12%
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	1215 Points -30%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	910 Points -48%
ACEMagician Ace Magician AM08 Pro BiWin CE480Y2D100-512G	899 Points -48%
Score Write
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	3574 Points +9%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	3538 Points +7%
Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0	3294 Points
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	3145 Points -5%
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	2508 Points -24%
Average of class Mini PC (88 - 4371, n=117, last 2 years)	1851 Points -44%
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	1137 Points -65%
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	800 Points -76%
ACEMagician Ace Magician AM08 Pro BiWin CE480Y2D100-512G	785 Points -76%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	325 Points -90%
Seq Read
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	5272 MB/s +38%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	4767 MB/s +25%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	4147 MB/s +9%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	4050 MB/s +6%
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	3900.61 MB/s +2%
Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0	3822 MB/s
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	3786.44 MB/s -1%
Average of class Mini PC (291 - 6620, n=117, last 2 years)	3161 MB/s -17%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	2302 MB/s -40%
ACEMagician Ace Magician AM08 Pro BiWin CE480Y2D100-512G	2229 MB/s -42%
Seq Write
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	3390.67 MB/s +38%
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	3385 MB/s +37%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	3292 MB/s +34%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	3025 MB/s +23%
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	2799.85 MB/s +14%
Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0	2463 MB/s
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	2442 MB/s -1%
Average of class Mini PC (240 - 5783, n=117, last 2 years)	2212 MB/s -10%
ACEMagician Ace Magician AM08 Pro BiWin CE480Y2D100-512G	609 MB/s -75%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	277 MB/s -89%
4K Read
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	103.66 MB/s +67%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	86.05 MB/s +39%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	78.3 MB/s +26%
Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0	61.9 MB/s
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	59.79 MB/s -3%
Average of class Mini PC (6.08 - 104.3, n=117, last 2 years)	58.9 MB/s -5%
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	53.2 MB/s -14%
ACEMagician Ace Magician AM08 Pro BiWin CE480Y2D100-512G	45 MB/s -27%
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	37.69 MB/s -39%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	27 MB/s -56%
4K Write
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	365.87 MB/s +76%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	240.66 MB/s +16%
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	210.95 MB/s +1%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	209 MB/s 0%
Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0	208 MB/s
Average of class Mini PC (30.9 - 366, n=117, last 2 years)	175.1 MB/s -16%
ACEMagician Ace Magician AM08 Pro BiWin CE480Y2D100-512G	157 MB/s -25%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	150.4 MB/s -28%
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	129.29 MB/s -38%
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	119.3 MB/s -43%
4K-64 Read
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	1872.82 MB/s +45%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	1860.96 MB/s +44%
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	1357.17 MB/s +5%
Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0	1293 MB/s
Average of class Mini PC (23.4 - 3220, n=117, last 2 years)	1159 MB/s -10%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	1118 MB/s -14%
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	947 MB/s -27%
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	787.73 MB/s -39%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	653 MB/s -49%
ACEMagician Ace Magician AM08 Pro BiWin CE480Y2D100-512G	631 MB/s -51%
4K-64 Write
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	3120 MB/s +10%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	2842.9 MB/s 0%
Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0	2840 MB/s
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	2602.12 MB/s -8%
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	2017.38 MB/s -29%
Average of class Mini PC (32.8 - 3731, n=117, last 2 years)	1455 MB/s -49%
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	679 MB/s -76%
ACEMagician Ace Magician AM08 Pro BiWin CE480Y2D100-512G	567 MB/s -80%
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	331.93 MB/s -88%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	146.7 MB/s -95%
Access Time Read
ACEMagician Ace Magician AM08 Pro BiWin CE480Y2D100-512G	0.15 ms * -18%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	0.141 ms * -11%
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	0.133 ms * -5%
Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0	0.127 ms *
Average of class Mini PC (0.022 - 0.489, n=117, last 2 years)	0.09726 ms * +23%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	0.074 ms * +42%
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	0.066 ms * +48%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	0.065 ms * +49%
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	0.047 ms * +63%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	0.045 ms * +65%
Access Time Write
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	0.263 ms * -1095%
ACEMagician Ace Magician AM08 Pro BiWin CE480Y2D100-512G	0.183 ms * -732%
Average of class Mini PC (0.014 - 0.765, n=117, last 2 years)	0.1153 ms * -424%
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	0.088 ms * -300%
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	0.076 ms * -245%
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	0.049 ms * -123%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	0.031 ms * -41%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	0.031 ms * -41%
Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0	0.022 ms *
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	0.02 ms * +9%

* ... smaller is better

Reading continuous performance: DiskSpd Read Loop, Queue Depth 8

Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0; diskspd 2.0.17 f: Ø4795 (3366.33-4823.24)

Beelink SER7 Crucial P3 Plus CT1000P3PSSD8: Ø5151 (4560.99-5169.27)

Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8: Ø5127 (4403.6-5148.3)

Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0: Ø2987 (1605.58-4819.04)

Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0): Ø6430 (5686.85-6828.93)

Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0: Ø3302 (1830.49-4799.45)

Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G: Ø1820 (713.49-2039.48)

ACEMagician Ace Magician AM08 Pro BiWin CE480Y2D100-512G: Ø2845 (145.88-3195.22)

Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ: Ø6536 (5743.42-6561.78)

显卡 - AMD Radeon 780M iGPU

AMD Radeon 780M是一款功能强大的 iGPU，适用于AMD Ryzen 7 7840HS以及AMD Ryzen 9 7940HS.与英特尔的 iGPU 解决方案相比，AMD 显然处于领先地位。相比AMD Radeon 680M相比，由于采用了现代架构，其性能略有提高。不过，AMD Radeon 780M无法媲美目前的入门级 GPU，如NvidiaGeForce RTX 4050 笔记本电脑 GPU.诚然，这不是一个可行的比较，因为专用 GPU 通常能提供更高的 3D 性能。在竞争对手之间的直接比较中，Minisforum EliteMini UM780 XTX 遥遥领先。就连 Beelink 的两款设备也不得不认输，而该设备的内部竞争对手Minisforum 维纳斯系列 UM790 Pro无法与 EliteMini UM780 XTX 相比。值得注意的是，可能的内存分配取决于所安装内存的大小。UM780 XTX 的内存容量为 32 GB，是 UM790 Pro 的两倍。

更多比较和基准测试请参见我们的G PU 对比表.

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Average NVIDIA GeForce RTX 4050 Laptop GPU	100 pt
Minisforum EliteMini UM780 XTX AMD Radeon 780M, AMD Ryzen 7 7840HS	43.7 pt
Beelink GTR7 7840HS AMD Radeon 780M, AMD Ryzen 7 7840HS	42.6 pt
Beelink SER7 AMD Radeon 780M, AMD Ryzen 7 7840HS	42.5 pt
Minisforum Venus Series UM790 Pro AMD Radeon 780M, AMD Ryzen 9 7940HS	39.2 pt
ACEMagician Ace Magician AM08 Pro AMD Radeon 680M, AMD Ryzen 9 6900HX	37.2 pt
Minisforum Venus Series UM690 AMD Radeon 680M, AMD Ryzen 9 6900HX	34.9 pt
Geekom AS 6, R9 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	33.5 pt
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	25.1 pt
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	24.8 pt

3DMark 11 - 1280x720 Performance GPU
Average NVIDIA GeForce RTX 4050 Laptop GPU (13339 - 32642, n=38)	28641 Points +115%
Minisforum EliteMini UM780 XTX AMD Radeon 780M, AMD Ryzen 7 7840HS	13347 Points
Beelink GTR7 7840HS AMD Radeon 780M, AMD Ryzen 7 7840HS	12978 Points -3%
Beelink SER7 AMD Radeon 780M, AMD Ryzen 7 7840HS	12845 Points -4%
Minisforum Venus Series UM790 Pro AMD Radeon 780M, AMD Ryzen 9 7940HS	12384 Points -7%
ACEMagician Ace Magician AM08 Pro AMD Radeon 680M, AMD Ryzen 9 6900HX	11478 Points -14%
Minisforum Venus Series UM690 AMD Radeon 680M, AMD Ryzen 9 6900HX	10845 Points -19%
Geekom AS 6, R9 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	10399 Points -22%
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	7143 Points -46%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	7057 Points -47%

3DMark
2560x1440 Time Spy Graphics
Average NVIDIA GeForce RTX 4050 Laptop GPU (5107 - 9040, n=36)	7812 Points +176%
Beelink GTR7 7840HS AMD Radeon 780M, AMD Ryzen 7 7840HS	2910 Points +3%
Beelink SER7 AMD Radeon 780M, AMD Ryzen 7 7840HS	2908 Points +3%
Minisforum EliteMini UM780 XTX AMD Radeon 780M, AMD Ryzen 7 7840HS	2832 Points
Minisforum Venus Series UM790 Pro AMD Radeon 780M, AMD Ryzen 9 7940HS	2632 Points -7%
ACEMagician Ace Magician AM08 Pro AMD Radeon 680M, AMD Ryzen 9 6900HX	2437 Points -14%
Minisforum Venus Series UM690 AMD Radeon 680M, AMD Ryzen 9 6900HX	2351 Points -17%
Geekom AS 6, R9 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	2210 Points -22%
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	1673 Points -41%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	1658 Points -41%
1920x1080 Fire Strike Graphics
Average NVIDIA GeForce RTX 4050 Laptop GPU (13591 - 24007, n=36)	21155 Points +153%
Minisforum EliteMini UM780 XTX AMD Radeon 780M, AMD Ryzen 7 7840HS	8348 Points
Beelink SER7 AMD Radeon 780M, AMD Ryzen 7 7840HS	8001 Points -4%
Beelink GTR7 7840HS AMD Radeon 780M, AMD Ryzen 7 7840HS	7980 Points -4%
ACEMagician Ace Magician AM08 Pro AMD Radeon 680M, AMD Ryzen 9 6900HX	7303 Points -13%
Minisforum Venus Series UM790 Pro AMD Radeon 780M, AMD Ryzen 9 7940HS	7284 Points -13%
Minisforum Venus Series UM690 AMD Radeon 680M, AMD Ryzen 9 6900HX	6679 Points -20%
Geekom AS 6, R9 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	6501 Points -22%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	5526 Points -34%
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	5229 Points -37%
3840x2160 Fire Strike Ultra Graphics
Average NVIDIA GeForce RTX 4050 Laptop GPU (3229 - 4578, n=9)	4212 Points +91%
Minisforum EliteMini UM780 XTX AMD Radeon 780M, AMD Ryzen 7 7840HS	2204 Points
Beelink GTR7 7840HS AMD Radeon 780M, AMD Ryzen 7 7840HS	2116 Points -4%
Beelink SER7 AMD Radeon 780M, AMD Ryzen 7 7840HS	2112 Points -4%
Minisforum Venus Series UM790 Pro AMD Radeon 780M, AMD Ryzen 9 7940HS	1911 Points -13%
ACEMagician Ace Magician AM08 Pro AMD Radeon 680M, AMD Ryzen 9 6900HX	1809 Points -18%
Minisforum Venus Series UM690 AMD Radeon 680M, AMD Ryzen 9 6900HX	1691 Points -23%
Geekom AS 6, R9 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	1634 Points -26%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	1195 Points -46%
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	1184 Points -46%

Performance Rating | Unigine Heaven 4.0 | Unigine Valley 1.0 | ComputeMark v2.1 | Affinity Photo 2

Performance Rating - Percent
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	91 pt
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	85.8 pt
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	74 pt
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	71.2 pt
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	69.3 pt
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	56.7 pt
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	52.3 pt

Unigine Heaven 4.0
Extreme Preset OpenGL
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	34.6 fps 0%
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	34.5 fps
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	34.2 fps -1%
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	29.7 fps -14%
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	28.9 fps -16%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	23.6 fps -32%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	23.3 fps -32%
Extreme Preset DX11
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	35.5 fps
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	33.4 fps -6%
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	32.6 fps -8%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	32 fps -10%
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	31.1 fps -12%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	24.5 fps -31%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	24 fps -32%

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	24 fps
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	21 fps -12%
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	20.4 fps -15%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	18.8 fps -22%
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	15.3 fps -36%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	15.1 fps -37%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	14.3 fps -40%
1920x1080 Extreme HD Preset OpenGL AA:x8
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	22.9 fps +10%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	21.3 fps +2%
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	20.8 fps
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	17.7 fps -15%
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	17.7 fps -15%
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	17 fps -18%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	15.2 fps -27%

ComputeMark v2.1
1024x600 Normal, Score
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	10495 Points +4%
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	10102 Points
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	7111 Points -30%
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	6834 Points -32%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	5602 Points -45%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	3603 Points -64%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	3390 Points -66%
1024x600 Normal, Fluid 3DTex
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	468 Points
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	427 Points -9%
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	413 Points -12%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	400 Points -15%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	393 Points -16%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	284 Points -39%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	234 Points -50%
1024x600 Normal, Fluid 2DTexArr
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	488 Points
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	427 Points -12%
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	424 Points -13%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	404 Points -17%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	400 Points -18%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	277 Points -43%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	249 Points -49%
1024x600 Normal, Mandel Vector
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	2984 Points +13%
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	2637 Points
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	2030 Points -23%
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	1914 Points -27%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	1582 Points -40%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	911 Points -65%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	851 Points -68%
1024x600 Normal, Mandel Scalar
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	2808 Points +2%
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	2757 Points
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	1945 Points -29%
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	1803 Points -35%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	1451 Points -47%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	865 Points -69%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	862 Points -69%
1024x600 Normal, QJuliaRayTrace
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	3849 Points +3%
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	3752 Points
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	2332 Points -38%
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	2279 Points -39%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	1776 Points -53%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1268 Points -66%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	1191 Points -68%

Affinity Photo 2 - Combined (Single / Multi GPU)
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	4590 Points +228%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	4176 Points +198%
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	1909 Points +36%
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	1399 Points
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	1331 Points -5%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	697 Points -50%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	697 Points -50%

3DMark 06 Standard Score		45612 points
3DMark Vantage P Result		44741 points
3DMark 11 Performance		13224 points
3DMark Ice Storm Standard Score		195646 points
3DMark Cloud Gate Standard Score		39122 points
3DMark Fire Strike Score		7625 points
3DMark Fire Strike Extreme Score		4120 points
3DMark Time Spy Score		3188 points
Help

... in comparison

游戏性能 - AMD Radeon 780M

Minisforum 并没有明确宣传 EliteMini UM780 XTX 是一款游戏电脑。即便如此，AMD Radeon 780M性能良好，通常可以运行各种游戏。当然，iGPU 无法与专用显卡相提并论。这意味着在细节方面，你必须做出一些妥协。如果您正在寻找配备专用显卡的紧凑型电脑，那么不妨看看迷你论坛 HX77G和微型论坛 NUCXi7.

此外，Minisforum EliteMini UM780 XTX 还可以连接外置显卡。为此，我们的测试样品提供了 USB 4 和 OCuLink 端口。我们将在接下来对GPD G1与AMD Radeon RX 7600M XT.

要了解 iGPU 与其他显卡相比的性能，请查看我们的GPU 游戏列表。

The Witcher 3
1024x768 Low Graphics & Postprocessing
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	153.5 (20.1^min, 43.1^P0.1, 107.8^P1) fps
Beelink GTR7 7840HS Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	148.9 (122^min) fps -3%
Beelink SER7 Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	148.1 (121^min) fps -4%
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	135.1 fps -12%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	131.8 fps -14%
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	130.7 fps -15%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	107.7 fps -30%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	101.7 fps -34%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	97.2 fps -37%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Beelink GTR7 7840HS Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	50.2 (45^min) fps +2%
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	49.1 (23.1^min, 38.4^P0.1, 40.8^P1) fps
Beelink SER7 Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	49 (45^min) fps 0%
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	43.3 fps -12%
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	42.6 fps -13%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	41.3 fps -16%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	39.3 fps -20%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	32 fps -35%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	31.1 fps -37%

Borderlands 3
1280x720 Very Low Overall Quality (DX11)
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	97.3 fps
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	90.4 fps -7%
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	86.6 fps -11%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	82.1 fps -16%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	66.4 fps -32%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	59.1 fps -39%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	55.5 fps -43%
1920x1080 High Overall Quality (DX11)
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	33.3 fps
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	29 fps -13%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	26.5 fps -20%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	26.2 fps -21%
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	17.7 fps -47%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	16.2 fps -51%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	16.2 fps -51%

GTA V
1024x768 Lowest Settings possible
Beelink SER7 Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	166 (4.54^min, 125^P1) fps +1%
Beelink GTR7 7840HS Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	164.7 (4.69^min, 111.1^P1) fps 0%
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	164.4 (4.9^min, 111.1^P1) fps
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	157.8 (4.54^min, 111.1^P1) fps -4%
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	155.4 (6.68^min, 111.1^P1) fps -5%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	149.3 (5.43^min, 100^P1) fps -9%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	135.3 (26.7^min, 90.9^P1) fps -18%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	126.2 (50.6^min, 76.9^P1) fps -23%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	125.5 (11.9^min, 83.3^P1) fps -24%
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Beelink GTR7 7840HS Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	68.6 (4.91^min, 45.5^P1) fps +3%
Beelink SER7 Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	68.3 (4.5^min, 45.5^P1) fps +2%
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	66.9 (3.09^min, 45.5^P1) fps
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	59.7 (4.52^min, 40^P1) fps -11%
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	52.2 (11.6^min, 26.3^P1) fps -22%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	49.3 (7.78^min, 34.5^P1) fps -26%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	49.2 (13.3^min, 33.3^P1) fps -26%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	21 (8.15^min, 16.1^P1) fps -69%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	20.7 (9.05^min, 15.9^P1) fps -69%

Far Cry 5
1280x720 Low Preset AA:T
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	87 (75^min) fps
Beelink SER7 Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	84 (73^min) fps -3%
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	80 (69^min) fps -8%
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	73 (65^min) fps -16%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	71 (39^min) fps -18%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	68 (58^min) fps -22%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	57 (49^min) fps -34%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	46 (37^min) fps -47%
1920x1080 High Preset AA:T
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	47 (42^min) fps
Beelink SER7 Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	46 (41^min) fps -2%
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	41 (36^min) fps -13%
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	40 (35^min) fps -15%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	39 (34^min) fps -17%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	38 (32^min) fps -19%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	27 (24^min) fps -43%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	25 (22^min) fps -47%

Far Cry New Dawn
1280x720 Low Preset
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	75 (58^min) fps
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	70 (50^min) fps -7%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	65 (50^min) fps -13%
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	64 (49^min) fps -15%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	58 (46^min) fps -23%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	52 (31^min) fps -31%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	52 (34^min) fps -31%
1920x1080 High Preset
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	45 (37^min) fps
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	40 (32^min) fps -11%
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	39 (31^min) fps -13%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	37 (17^min) fps -18%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	36 (29^min) fps -20%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	28 (21^min) fps -38%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	28 (22^min) fps -38%

Dota 2 Reborn
1280x720 min (0/3) fastest
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	161.5 (141.6^min) fps
Beelink GTR7 7840HS Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	160.6 (139.7^min) fps -1%
Beelink SER7 Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	156.9 (136.5^min) fps -3%
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	150.2 (132.8^min) fps -7%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	143 (124.5^min) fps -11%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	136.9 (106.8^min) fps -15%
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	136.8 (122.1^min) fps -15%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	123.8 (98^min) fps -23%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	110.5 (93.1^min) fps -32%
1920x1080 high (2/3)
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	97.45 (86.9^min) fps
Beelink SER7 Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	95.5 (85.2^min) fps -2%
Beelink GTR7 7840HS Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	95.1 (84.3^min) fps -2%
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	89.9 (78.3^min) fps -8%
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	85.3 (74.5^min) fps -12%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	84.3 (74.6^min) fps -13%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	69.6 (59.3^min) fps -29%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	68 (62.7^min) fps -30%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	67.6 (59.9^min) fps -31%

Tiny Tina's Wonderlands
1280x720 Lowest Preset (DX12)
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	151.2 fps
Beelink SER7 Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	140.6 fps -7%
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	131.4 fps -13%
Beelink GTR7 7840HS Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	128.4 fps -15%
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	121.7 fps -20%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	112.1 fps -26%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	106.6 fps -29%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	59.8 fps -60%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	56 fps -63%
1920x1080 High Preset (DX12)
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	38.8 fps
Beelink GTR7 7840HS Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	37.1 fps -4%
Beelink SER7 Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	37.1 fps -4%
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	33.3 fps -14%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	30.2 fps -22%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	29.8 fps -23%
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	24.4 fps -37%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	16.1 fps -59%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	15.7 fps -60%

F1 2021
1280x720 Ultra Low Preset
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	219 (179^min, 177^P1) fps
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	191.6 (154^min, 143^P1) fps -13%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	184.4 (146^min, 139^P1) fps -16%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	155.7 (107^min, 115^P1) fps -29%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	109.7 (85^min, 81^P1) fps -50%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	97.2 (76^min, 74^P1) fps -56%
1920x1080 High Preset AA:T AF:16x
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	84.5 (69^min, 66^P1) fps
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	67.5 (56^min, 51^P1) fps -20%
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	67.5 (41^min, 39^P1) fps -20%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	64.2 (51^min, 42^P1) fps -24%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	42 (35^min, 34^P1) fps -50%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	40.4 (33^min, 33^P1) fps -52%

F1 22
1280x720 Ultra Low Preset AA:T AF:16x
Beelink GTR7 7840HS Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	166.2 (135^min, 103^P1) fps +2%
Beelink SER7 Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	164.2 (129^min, 114^P1) fps 0%
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	163.5 (128^min, 115^P1) fps
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	151.3 (123^min, 105^P1) fps -7%
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	146.8 (121^min, 94^P1) fps -10%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	142.8 (111^min, 95^P1) fps -13%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	134.3 (108^min, 87^P1) fps -18%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	80.3 (64^min, 63^P1) fps -51%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	80 (64^min, 64^P1) fps -51%
1920x1080 High Preset AA:T AF:16x
Beelink GTR7 7840HS Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	66.3 (57^min, 54^P1) fps +2%
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	64.8 (54^min, 48^P1) fps
Beelink SER7 Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	63 (48^min, 51^P1) fps -3%
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	55.2 (39^min, 36^P1) fps -15%
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	55 (48^min, 40^P1) fps -15%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	53.8 (42^min, 35^P1) fps -17%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	51.7 (43^min, 39^P1) fps -20%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	31.2 (27^min, 26^P1) fps -52%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	29.9 (26^min, 25^P1) fps -54%

F1 23
1280x720 Ultra Low Preset AA:T
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	155 (118^min, 98^P1) fps
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	127.3 (103^min, 88^P1) fps -18%
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	126.8 (95^min, 74^P1) fps -18%
1920x1080 High Preset AA:T AF:16x
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	60.8 (37^min, 46^P1) fps
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	51.6 (41^min, 31^P1) fps -15%
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	40.9 (22^min, 28^P1) fps -33%

Metro Exodus
1280x720 Low Quality AF:4x
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	92.5 (56.63^min) fps
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	81.1 (49.18^min) fps -12%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	73 (41.36^min) fps -21%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	69.8 (39.41^min) fps -25%
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	57.8 (42.15^min) fps -38%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	41.3 (22.12^min) fps -55%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	40.4 (22.43^min) fps -56%
1920x1080 High Quality AF:16x
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	28.7 (14.33^min) fps
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	25 (12.18^min) fps -13%
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	23.4 (11.3^min) fps -18%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	22.9 (10.99^min) fps -20%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	22.3 (11.49^min) fps -22%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	14.9 (8.21^min) fps -48%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	14.6 (8.07^min) fps -49%

Shadow of the Tomb Raider
1280x720 Lowest Preset
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	109.2 fps
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	94.1 fps -14%
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	92.7 fps -15%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	85.7 fps -22%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	36.1 fps -67%
1920x1080 High Preset AA:SM
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	41.2 fps
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	36.3 fps -12%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	35.2 fps -15%
ACEMagician Ace Magician AM08 Pro Radeon 680M, R9 6900HX, BiWin CE480Y2D100-512G	25.2 fps -39%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	22.7 fps -45%

	low	med.	high	ultra
GTA V (2015)	164.4	157	66.9	26.1
The Witcher 3 (2015)	153.5	97.3	49.1	31.6
Dota 2 Reborn (2015)	161.5	126	97.45	91.2
Final Fantasy XV Benchmark (2018)	79.3	39.1	28.7
X-Plane 11.11 (2018)	65.4	47.1	39.2
Far Cry 5 (2018)	87	51	47	45
Strange Brigade (2018)	168.8	66.7	56.5	48.7
Shadow of the Tomb Raider (2018)	109.2	45.6	41.2	35.3
Far Cry New Dawn (2019)	75	47	45	42
Metro Exodus (2019)	92.5	37.4	28.7	23.8
Borderlands 3 (2019)	97.3	51.4	33.3	26.7
F1 2020 (2020)	201	101.6	79.3	54.6
F1 2021 (2021)	219	110.1	84.5	35.9
GRID Legends (2022)	117.3	86.3	68.8	52.6
Tiny Tina's Wonderlands (2022)	74.9	54.7	38.8	31.3
F1 22 (2022)	99.5	83.6	64.8	18
F1 23 (2023)	94.5	84.3	60.8	14.5
The First Descendant (2024)	59.2	37.6	29.2	24.5
Once Human (2024)	49.3	33.4	26.1	25.2
Black Myth: Wukong (2024)	28	21	16	9

通过 eGPU 底座和 NvidiaGeForce RTX 3060 Ti 实现 3D 性能

Minisforum EliteMini UM780 XTX 配备了两个 USB 4 端口，因此我们也借此机会来看看它与 Razer Core X 和 Nvidia RTX 3060 Ti 结合使用时的 3D 性能。英伟达GeForce RTX 3060 Ti.总的来说，这一组合在日常使用中效果不错，在我们的测试中也表现良好。不过，由于 USB 4 端口只能提供 40 GBps 的连接，iGPU 无法充分发挥其性能。不过，从基准测试中可以看出，它的 3D 性能明显提高。与外置图形适配器配合使用可始终确保出色的性能，通常比竞争对手更胜一筹。即使是耗电的游戏，现在也能最大限度地展现细节。

OCuLink 端口因其更高的带宽而优于 USB 4 端口，因为它的连接速度高达 64 GBps。我们现已收到 GPD-G1 GPU 的测试样品，我们将在接下来的几天里对其进行广泛测试。在我们的下一篇评测中，我们将仔细研究其使用 USB 4 端口与 OCuLink 接口的性能对比。

配备 Razer Core X 和 NvidiaGeForce RTX 3060 Ti 的 Minisforum EliteMini UM780 XTX

Performance Rating - Percent
Minisforum EliteMini UM780 XTX (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 7 7840HS	99.1 pt
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	98.7 pt
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	98.1 pt
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	96.6 pt
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	96.3 pt
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	96.2 pt

3DMark 11 - 1280x720 Performance GPU
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	33577 Points +152%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	33282 Points +149%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	33147 Points +148%
Minisforum EliteMini UM780 XTX (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 7 7840HS	32918 Points +147%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	32915 Points +147%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	32726 Points +145%
	13347 Points

3DMark
2560x1440 Time Spy Graphics
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	11031 Points +290%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	11012 Points +289%
Minisforum EliteMini UM780 XTX (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 7 7840HS	10827 Points +282%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	10777 Points +281%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	10764 Points +280%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	10717 Points +278%
	2832 Points
1920x1080 Fire Strike Graphics
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	25669 Points +207%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	25163 Points +201%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	24905 Points +198%
Minisforum EliteMini UM780 XTX (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 7 7840HS	24891 Points +198%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	24452 Points +193%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	24360 Points +192%
	8348 Points
3840x2160 Fire Strike Ultra Graphics
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	7114 Points +223%
Minisforum EliteMini UM780 XTX (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 7 7840HS	7079 Points +221%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	7076 Points +221%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	7036 Points +219%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	6996 Points +217%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	6967 Points +216%
	2204 Points

Unigine Superposition
1280x720 720p Low
Minisforum EliteMini UM780 XTX (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 7 7840HS	33970 Points +183%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	33051 Points +175%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	31403 Points +161%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	28935 Points +141%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	28235 Points +135%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	27313 Points +127%
	12023 Points
1920x1080 1080p High
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	15114 Points +314%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	14936 Points +309%
Minisforum EliteMini UM780 XTX (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 7 7840HS	14927 Points +309%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	14751 Points +304%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	14698 Points +303%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	14362 Points +294%
	3648 Points
1920x1080 1080p Extreme
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	7146 Points +297%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	7129 Points +296%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	7036 Points +291%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	7035 Points +291%
Minisforum EliteMini UM780 XTX (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 7 7840HS	7032 Points +291%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	6894 Points +283%
	1800 Points
3840x2160 4k Optimized
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	9335 Points
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	9308 Points
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	9193 Points
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	9152 Points
Minisforum EliteMini UM780 XTX (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 7 7840HS	9132 Points
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	8782 Points
7680x4320 8k Optimized
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	4061 Points
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	4050 Points
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	4036 Points
Minisforum EliteMini UM780 XTX (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 7 7840HS	4016 Points
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	3989 Points
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	3910 Points

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	143.1 fps +496%
Minisforum EliteMini UM780 XTX (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 7 7840HS	140.8 fps +487%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	139.8 fps +483%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	134.2 fps +459%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	133 fps +454%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	131.7 fps +449%
	24 fps
1920x1080 Extreme HD Preset OpenGL AA:x8
Minisforum EliteMini UM780 XTX (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 7 7840HS	137.3 fps +560%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	125.8 fps +505%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	125.7 fps +504%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	122.7 fps +490%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	122.2 fps +488%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	119.2 fps +473%
	20.8 fps

Unigine Heaven 4.0
Extreme Preset OpenGL
Minisforum EliteMini UM780 XTX (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 7 7840HS	174.4 fps +406%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	169.6 fps +392%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	169 fps +390%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	167.3 fps +385%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	167.3 fps +385%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	160.7 fps +366%
	34.5 fps
Extreme Preset DX11
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	164.8 fps +364%
Minisforum EliteMini UM780 XTX (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 7 7840HS	163 fps +359%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	161.9 fps +356%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	154.5 fps +335%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	154.3 fps +335%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	147.7 fps +316%
	35.5 fps

ComputeMark v2.1
1024x600 Normal, Score
Minisforum EliteMini UM780 XTX (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 7 7840HS	27978 Points +177%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	27929 Points +176%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	27847 Points +176%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	27842 Points +176%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	27811 Points +175%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	27740 Points +175%
	10102 Points
1024x600 Normal, Fluid 3DTex
Minisforum EliteMini UM780 XTX (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 7 7840HS	2694 Points +476%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	2691 Points +475%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	2689 Points +475%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	2689 Points +475%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	2681 Points +473%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	2679 Points +472%
	468 Points
1024x600 Normal, Fluid 2DTexArr
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	2622 Points +437%
Minisforum EliteMini UM780 XTX (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 7 7840HS	2622 Points +437%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	2621 Points +437%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	2619 Points +437%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	2619 Points +437%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	2614 Points +436%
	488 Points
1024x600 Normal, Mandel Vector
Minisforum EliteMini UM780 XTX (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 7 7840HS	5762 Points +119%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	5738 Points +118%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	5726 Points +117%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	5694 Points +116%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	5689 Points +116%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	5655 Points +114%
	2637 Points
1024x600 Normal, Mandel Scalar
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	6317 Points +129%
Minisforum EliteMini UM780 XTX (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 7 7840HS	6312 Points +129%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	6306 Points +129%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	6275 Points +128%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	6253 Points +127%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	6251 Points +127%
	2757 Points
1024x600 Normal, QJuliaRayTrace
Minisforum EliteMini UM780 XTX (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 7 7840HS	10588 Points +182%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	10564 Points +182%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	10555 Points +181%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	10548 Points +181%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	10539 Points +181%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	10536 Points +181%
	3752 Points

Performance Rating - Percent
Minisforum EliteMini UM780 XTX (Nvidia GeForce RTX 3060 Ti FE) ^-1! AMD Ryzen 7 7840HS	98.6 pt
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	95 pt
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	93.3 pt
Geekom AS 6 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	92.7 pt
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	87.9 pt
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	85.5 pt
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	83.4 pt
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	81.6 pt

GTA V - 1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x
Minisforum EliteMini UM780 XTX (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 7 7840HS	108.7 (11.6^min, 71.4^P1 - 245^max) fps +316%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	100.6 (9.76^min, 66.7^P1 - 197.6^max) fps +285%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	96.6 (15^min, 66.7^P1 - 168.7^max) fps +270%
Geekom AS 6 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	93.6 (18.1^min, 66.7^P1 - 185.1^max) fps +259%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	93.3 (11.5^min, 58.8^P1 - 195.1^max) fps +257%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	90.5 (15.8^min, 62.5^P1 - 187.2^max) fps +247%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	89.5 (16.6^min, 58.8^P1 - 175.8^max) fps +243%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	88.7 (13.3^min, 22.2^P1 - 196.2^max) fps +240%
	26.1 (3.93^min, 18.5^P1 - 91.8^max) fps

The Witcher 3 - 1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	74.8 fps +137%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	73.8 fps +134%
Minisforum EliteMini UM780 XTX (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 7 7840HS	65.9 (45.2^min, 48.7^P0.1, 53.5^P1 - 126.6^max) fps +109%
Geekom AS 6 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	64.8 fps +105%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	58.4 fps +85%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	57.9 fps +83%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	56.4 fps +78%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	56.3 fps +78%
	31.6 (15.4^min, 16.9^P0.1, 19.1^P1 - 132^max) fps

Dota 2 Reborn - 1920x1080 ultra (3/3) best looking
Minisforum EliteMini UM780 XTX (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 7 7840HS	137.6 (116.3^min) fps +51%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	128.3 (106.8^min) fps +41%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	127.5 (110.1^min) fps +40%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	126.2 (108.1^min) fps +38%
Geekom AS 6 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	121.2 (104.6^min) fps +33%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	113.8 (93.5^min) fps +25%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	113.3 (94.8^min) fps +24%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	111.7 (92.8^min) fps +22%
	91.2 (78.8^min) fps

Final Fantasy XV Benchmark - 1920x1080 High Quality
Geekom AS 6 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	98.7 fps +244%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	98.5 fps +243%
Minisforum EliteMini UM780 XTX (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 7 7840HS	98.4 fps +243%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	97.4 fps +239%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	93.5 fps +226%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	92.2 fps +221%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	91.8 fps +220%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	91.5 fps +219%
	28.7 fps

Strange Brigade - 1920x1080 ultra AA:ultra AF:16
Geekom AS 6 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	157.9 (77.9^min, 97.3^P1 - 300^max) fps +224%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	150 (76.6^min, 93.3^P1 - 295^max) fps +208%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	147 (76.9^min, 90.8^P1 - 300^max) fps +202%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	138.4 (68^min, 84.1^P1 - 279^max) fps +184%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	135 (67.5^min, 82.2^P1 - 274^max) fps +177%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	131.1 (68.1^min, 78.3^P1 - 270^max) fps +169%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	127.4 (45.3^min, 77.9^P1 - 260^max) fps +162%
	48.7 (24.3^min, 30.5^P1 - 191.5^max) fps

Far Cry 5 - 1920x1080 Ultra Preset AA:T
Minisforum EliteMini UM780 XTX (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 7 7840HS	126 (100^min - 164^max) fps +180%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	117 (88^min - 156^max) fps +160%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	116 (88^min - 153^max) fps +158%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	114 (85^min - 152^max) fps +153%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	111 (90^min - 149^max) fps +147%
Geekom AS 6 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	111 (86^min - 148^max) fps +147%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	107 (72^min - 143^max) fps +138%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	104 (77^min - 138^max) fps +131%
	45 (40^min - 53^max) fps

Far Cry New Dawn - 1920x1080 Ultra Preset
Minisforum EliteMini UM780 XTX (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 7 7840HS	105 (77^min - 154^max) fps +150%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	99 fps +136%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	97 (69^min - 141^max) fps +131%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	95 (69^min - 143^max) fps +126%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	93 (68^min - 140^max) fps +121%
Geekom AS 6 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	92 (65^min - 143^max) fps +119%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	88 (63^min - 132^max) fps +110%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	87 (62^min - 135^max) fps +107%
	42 (33^min - 52^max) fps

Borderlands 3 - 1920x1080 Badass Overall Quality (DX11)
Minisforum EliteMini UM780 XTX (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 7 7840HS	85.5 fps +220%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	83.2 fps +212%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	82.8 fps +210%
Geekom AS 6 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	80.8 fps +203%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	79.5 fps +198%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	77.9 fps +192%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	76.4 fps +186%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	69.8 fps +161%
	26.7 fps

F1 22 - 1920x1080 Ultra High Preset AA:T AF:16x
Minisforum EliteMini UM780 XTX (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 7 7840HS	32.5 (18^min, 10^P1 - 50^max) fps +81%
Geekom AS 6 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	31.2 (18^min, 9^P1 - 46^max) fps +73%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	28.5 (16^min, 8^P1 - 46^max) fps +58%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	27.8 (18^min, 7^P1 - 38^max) fps +54%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	24.1 (13^min, 7^P1 - 40^max) fps +34%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	23.6 (12^min, 6^P1 - 38^max) fps +31%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	22.6 (13^min, 6^P1 - 36^max) fps +26%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	20.5 (12^min, 6^P1 - 29^max) fps +14%
	18 (13^min, 13^P1 - 21^max) fps

Tiny Tina's Wonderlands - 1920x1080 Badass Preset (DX12)
Minisforum EliteMini UM780 XTX (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 7 7840HS	82.1 fps +162%
Geekom AS 6 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	81.7 fps +161%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	80.7 fps +158%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	80.4 fps +157%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	76 fps +143%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	75.3 fps +141%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	74.8 fps +139%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	74.1 fps +137%
	31.3 fps

	low	med.	high	ultra	QHD	4K
GTA V (2015)	184	179.5	173.1	108.7	93.8	102.7
The Witcher 3 (2015)	260	176.3	131.9	65.9	57.4	67.6
Dota 2 Reborn (2015)	173.3	152.2	149.6	137.6		109.2
Final Fantasy XV Benchmark (2018)	213	143	98.4		78.1	48.5
X-Plane 11.11 (2018)	139.2	121.6	94.6			82.1
Far Cry 5 (2018)	163	141	133	126	101	58
Shadow of the Tomb Raider (2018)	152.3	120	118	113.1	91.3	51.4
Far Cry New Dawn (2019)	140	123	118	105	95	61
Metro Exodus (2019)	139.5	90.2	68.3	51.6	45.3	33.5
Borderlands 3 (2019)	145.3	126.2	103.5	85.5	65.5	38.7
F1 2020 (2020)	234	142.2	142.1	109.4	93.8	62.6
F1 2021 (2021)	157.3	123.9	79.7	59.4	56.5	45.8
Far Cry 6 (2021)	82.8	71.4	60	52.6	50.7
God of War (2022)	116.5	100.9	85	63.7	57.3	40.7
GRID Legends (2022)	129.9	100.5	82.4	69.2	63	50.5
Tiny Tina's Wonderlands (2022)	178.5	140.9	101.9	82.1	62.4	36.4
F1 22 (2022)	70.9	65.7	50.2	32.5	29.9	19.8
F1 23 (2023)	77.3	78.1	63.2	39.5	33.8	8.46

排放 - 强劲冷却，依然安静

噪音排放

Minisforum EliteMini UM780 XTX 的噪音测试结果表明，其总体表现良好。在空闲模式下，我们的测量设备仅显示出 28 dB(A)，这意味着我们的测试样品可以与Beelink GTR7.不过，我们的测试样品并没有完全静音运行。在平均负载下，它的噪音排放略有上升，达到 32.7 dB(A)，我们测得的峰值为 39.6 dB(A)。这意味着，Minisforum EliteMini UM780 XTX 并不是我们对比中最安静的设备，但是，它还远远没有达到恼人的噪音水平。

Noise Level

Idle		28.5 / 28.5 / 28.7 dB(A)
Load		32.4 / 39.6 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Earthworks M23R, Arta (15 cm distance) environment noise: 24.8 dB(A)

	Minisforum EliteMini UM780 XTX R7 7840HS, Radeon 780M	Beelink SER7 R7 7840HS, Radeon 780M	Beelink GTR7 7840HS R7 7840HS, Radeon 780M	Minisforum Venus Series UM690 R9 6900HX, Radeon 680M	Minisforum Venus Series UM790 Pro R9 7940HS, Radeon 780M	Minisforum Neptune Series NAD9 i9-12900H, Iris Xe G7 96EUs	Geekom AS 6, R9 6900HX R9 6900HX, Radeon 680M	ACEMagician Ace Magician AM08 Pro R9 6900HX, Radeon 680M	Intel NUC 13 Pro Kit NUC13ANK i7-1360P, Iris Xe G7 96EUs
Noise		0%	-4%	-8%	-6%	-2%	-15%	-20%	-12%
off / environment *	24.8	24.5 1%	25.6 -3%	30.5 -23%	29.7 -20%	30.2 -22%	30 -21%	30 -21%	29.8 -20%
Idle Minimum *	28.5	25.1 12%	28.1 1%	31.6 -11%	31.7 -11%	30.5 -7%	33.2 -16%	31.3 -10%	30.2 -6%
Idle Average *	28.5	25.1 12%	28.1 1%	31.6 -11%	31.7 -11%	30.5 -7%	33.6 -18%	31.3 -10%	31.1 -9%
Idle Maximum *	28.7	25.1 13%	28.1 2%	31.6 -10%	31.7 -10%	30.5 -6%	33.6 -17%	31.4 -9%	31.9 -11%
Load Average *	32.4	35.9 -11%	34.9 -8%	33.9 -5%	32.8 -1%	30.5 6%	36.8 -14%	47.6 -47%	40 -23%
Witcher 3 ultra *	32.7	35.6 -9%	36.4 -11%		32.8 -0%
Load Maximum *	39.6	45.4 -15%	42.4 -7%	34.4 13%	35.2 11%	30.5 23%	39.8 -1%	47.8 -21%	40.5 -2%

* ... smaller is better

温度

Minisforum EliteMini UM780 XTX 的温度仅在空闲模式和负载情况下略有上升。我们在机箱底部测得的峰值温度仅为 37 °C。在这次测试中，我们没有使用底座，而是将其平放在桌面上。正如我们之前提到的，制造商使用液态金属将处理器的热量以最佳方式导入 CPU 冷却器。在实践中，这种方法非常有效，因为在我们的测试中，处理器的温度仅达到 76 °C。我们注意到，该电脑仅在短时间内达到 65 瓦的功耗极限。在接下来的压力测试过程中，其功耗稳定在 54 瓦左右--制造商称这一数值为永久负载值。在这一阶段，其温度仅达到 69 °C，这确实是一个非常好的结果。因此，制造商本可以为满负荷使用选择更为保守的风扇曲线。

Minisforum EliteMini UM780 XTX 与压力测试（垂直上方）

Minisforum EliteMini UM780 XTX 与压力测试（垂直底部）

Max. Load

Idle


30.1 °C	29.3 °C	29.8 °C
29 °C	29.6 °C	31.7 °C
31.9 °C	35.5 °C	33.5 °C

Maximum: 35.5 °C
Average: 31.2 °C


34.5 °C	37.1 °C	34.1 °C
30.6 °C	30.7 °C	29 °C
28.1 °C	29.5 °C	29 °C

Maximum: 37.1 °C
Average: 31.4 °C

Power Supply (max.) 44.3 °C | Room Temperature 22 °C | Fluke t3000FC (calibrated)

(+) The average temperature for the upper side under maximal load is 31.2 °C / 88 F, compared to the average of 32.2 °C / 90 F for the devices in the class Mini PC.
(+) The maximum temperature on the upper side is 35.5 °C / 96 F, compared to the average of 35.7 °C / 96 F, ranging from 24 to 69.5 °C for the class Mini PC.
(+) The bottom heats up to a maximum of 37.1 °C / 99 F, compared to the average of 36.2 °C / 97 F
(+) In idle usage, the average temperature for the upper side is 27.4 °C / 81 F, compared to the device average of 32.2 °C / 90 F.

耗电量

在空闲模式下，Minisforum EliteMini UM780 XTX 无法达到对比设备的最高值，因为其大型 LED 面板也需要供电。不过，在 8.5 至 12.9 瓦的情况下，我们的测试设备表现并不差。我们记录的平均功率为 67 瓦，但峰值功率达到了 97 瓦。120 瓦的紧凑型电源在任何时候为设备供电都没有问题。

配备 120 瓦电源的 Minisforum EliteMini UM780 XTX

Power Consumption

Off / Standby	0.9 / 2 Watt
Idle	8.5 / 10.5 / 12.9 Watt
Load	67.2 / 97.2 Watt


Key: min: , med: , max: Metrahit Energy

	Minisforum EliteMini UM780 XTX R7 7840HS, Radeon 780M	Beelink SER7 R7 7840HS, Radeon 780M	Beelink GTR7 7840HS R7 7840HS, Radeon 780M	Minisforum Venus Series UM690 R9 6900HX, Radeon 680M	Minisforum Venus Series UM790 Pro R9 7940HS, Radeon 780M	Minisforum Neptune Series NAD9 i9-12900H, Iris Xe G7 96EUs	Geekom AS 6, R9 6900HX R9 6900HX, Radeon 680M	ACEMagician Ace Magician AM08 Pro R9 6900HX, Radeon 680M	Intel NUC 13 Pro Kit NUC13ANK i7-1360P, Iris Xe G7 96EUs	Average AMD Radeon 780M	Average of class Mini PC
Power Consumption		14%	20%	6%	20%	-26%	12%	-1%	19%	20%	-5%
Idle Minimum *	8.5	6.7 21%	5.5 35%	8.7 -2%	4.6 46%	12.1 -42%	6.8 20%	9.6 -13%	5.1 40%	6.2 ?(2.7 - 14, n=49) 27%	9.48 ?(1.9 - 45.7, n=119, last 2 years) -12%
Idle Average *	10.5	7.3 30%	5.8 45%	9.6 9%	6 43%	13 -24%	9.4 10%	9.9 6%	5.8 45%	8.44 ?(4.7 - 17.6, n=49) 20%	11.5 ?(1.9 - 47.5, n=117, last 2 years) -10%
Idle Maximum *	12.9	11.6 10%	7.7 40%	10.5 19%	10.6 18%	18.2 -41%	13.7 -6%	11.8 9%	10.2 21%	10.8 ?(5.4 - 27, n=49) 16%	14.9 ?(2.6 - 57.1, n=119, last 2 years) -16%
Load Average *	67.2	64.1 5%	70.6 -5%	65.8 2%	72.5 -8%	70.6 -5%	45.3 33%	77.5 -15%	68.1 -1%	56.3 ?(19.7 - 93.2, n=48) 16%	57.4 ?(11.3 - 170.6, n=119, last 2 years) 15%
Load Maximum *	97.2	94.8 2%	111.8 -15%	94.5 3%	94.6 3%	113 -16%	94.8 2%	89.8 8%	108.3 -11%	75.3 ?(34.9 - 111.8, n=49) 23%	97.5 ?(18.1 - 423, n=119, last 2 years) -0%
Witcher 3 ultra *		75.8	79.8
Cyberpunk 2077 ultra external monitor *					95.7

* ... smaller is better

Power consumption with external monitor

Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0; Prime95 V2810 Stress (external Monitor): Ø91.7 (89.9-97.2)

Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0); Prime95 V2810 Stress (external Monitor): Ø89 (87.1-94.5)

Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0; Cinebench R15 Multi (external Monitor): Ø88.8 (84.1-90.6)

Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0); Cinebench R15 Multi (external Monitor): Ø89 (83.2-91.1)

Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø73.5 (66.5-84.1)

Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0); 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø64.8 (58.9-89.8)

Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0; 1920x1080 The Witcher 3 ultra (external Monitor): Ø75.7 (71-78.2)

Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0); 1920x1080 The Witcher 3 ultra (external Monitor): Ø73.9 (70.9-87.7)

Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0; Idle 1min (external Monitor): Ø11.8 (11.1-13)

Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0); Idle 1min (external Monitor): Ø6.05 (5.54-10.6)

Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0; Cinebench R23 Multi (external Monitor): Ø84.3 (81.6-89.9)

Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0); Cinebench R23 Multi (external Monitor): Ø84.1 (81.1-88.8)

Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0; Cinebench R23 Single (external Monitor): Ø33 (24.8-86.2)

Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0); Cinebench R23 Single (external Monitor): Ø35.9 (32.2-68.1)

Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0; 3DMark06 Return To Proxycon: Ø67.2 (49.8-78.4)

Pros

+ 坚固耐用的机箱，选用优质材料

+ AMD Ryzen 7 7840HS，8 核 16 线程

+ 稳定的 CPU 性能

+ 采用 RDNA3 架构的现代 iGPU

+ 良好的 iGPU 性能

+ 采用 USB4 和 OCuLink 的现代连接选项

+ 最多可同时连接四台显示器

+ 强大的冷却功能

+ 主动式固态硬盘冷却

+ 功耗相对较低

+ 支持高达 96 GB 的 DDR5 内存

+ 120 瓦紧凑型电源

Cons

- 只能安装一个存储设备（使用 OCuLink 连接时）

- DPC 延迟略有增加

- 相对昂贵

评价：功能强大、面向未来的迷你 PC

Minisforum EliteMini UM780 XTX 评测：Minisforum 提供的测试样品

Minisforum EliteMini UM780 XTX 凭借其强大的处理器脱颖而出。AMD Ryzen 7 7840HS 为您的现在和未来做好了充分准备。它拥有 8 个内核和 16 个线程，可提供出色的多核性能。由于采用了全新的 Zen 4 架构，它的单核性能也比 Zen 3 前代产品有了大幅提升。与人们认为 Minisforum EliteMini UM780 XTX 只是简单升级不同，这款迷你电脑实际上采用了全新的设计。诚然，它的 LED 灯光可能并不适合所有人，但只要稍加创意，你就可以根据自己的喜好进行定制。如果你不想要廉价的金光闪闪，也可以关闭照明。

除了出色的制造质量，Minisforum EliteMini UM780 XTX 的优势还包括完美的连接选项。在我们的测试中，我们没有错过任何一样东西，而且由于配备了 USB4 和 OCuLink，该设备可以满足您对未来的期望。Minisforum EliteMini UM780 XTX 的 CPU 性能和 3D 性能都令人印象深刻。AMD Radeon 780M 为 AMD Ryzen 7 7840HS 提供了强大的 iGPU，其性能明显优于英特尔同类产品。

Minisforum EliteMini UM780 XTX 是一款适用于多用途领域的迷你电脑。其现代化的连接选项使其具有超强的前瞻性。

在排放方面，Minisforum 坚持自我，取得了非常好的成绩。我们对 Minisforum EliteMini UM780 XTX 使用液态金属散热的决定也表示欢迎，因为我们从未遇到过任何温度问题。我们更希望看到制造商在满载情况下优化风扇转速。我们从未注意到 UM780 XTX 存在任何重大缺陷。如果说有什么不足的话，那就是价格比同类配置的对比设备高出不少。当然，我们的测试样品因其 OCuLink 连接而加分，我们还没有在许多设备上看到过这种连接。不过，我们认为连接 eGPU 的功能并不值得多花钱。此外，制造商甚至没有提供任何内部配件，使用这种连接的原生 eGPU 解决方案目前仅包括 GPD G1。

价格和供应情况

Minisforum EliteMini UM780 XTX 可直接从制造商处购买，价格约为美元 960。.裸机价格约为 730 美元。您也可以在亚马逊上以779.99 美元的价格购买该设备。

Minisforum EliteMini UM780 XTX - 03/29/2024 v7 ^(old)
Sebastian Bade

Chassis

81 / 98 → 82%

Connectivity

62 / 81 → 77%

Weight

79%

Games Performance

82%

Application Performance

98%

Workstation

80%

Temperature

93%

Noise

89%

Average

83%

87%

Mini PC - Weighted Average

Transparency

The selection of devices to be reviewed is made by our editorial team. The test sample was given to the author by the manufacturer free of charge for the purposes of review. There was no third-party influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.

This is how Notebookcheck is testing

Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.

Minisforum EliteMini UM780 XTX 评测：配备 AMD Ryzen 7 7840HS 和 Radeon 780M 的迷你 PC 已获得 OCuLink 和 USB-4 连接

功能强大，面向未来！

潜在的竞争对手比较

Minisforum EliteMini UM780 XTX Pro 详细介绍

外壳 - 极为精良的金属外壳

尺寸比较

连接性

交流

配件

维护

性能 - AMD Ryzen 7 7840HS，配备 8 个 Zen 4 内核

测试条件

处理器

Minisforum EliteMini UM780 XTX 与 Cinebench R15 多循环对比

DPC 延迟

存储设备

Reading continuous performance: DiskSpd Read Loop, Queue Depth 8

显卡 - AMD Radeon 780M iGPU

游戏性能 - AMD Radeon 780M

通过 eGPU 底座和 NvidiaGeForce RTX 3060 Ti 实现 3D 性能

排放 - 强劲冷却，依然安静

噪音排放

温度

耗电量

Power consumption with external monitor

Pros

Cons

评价：功能强大、面向未来的迷你 PC

价格和供应情况

Transparency

More articles related to this device
