Magyar三星Galaxy Book3 Pro 16回顾：具有Core-i5动力和长电池寿命的办公笔记本电脑

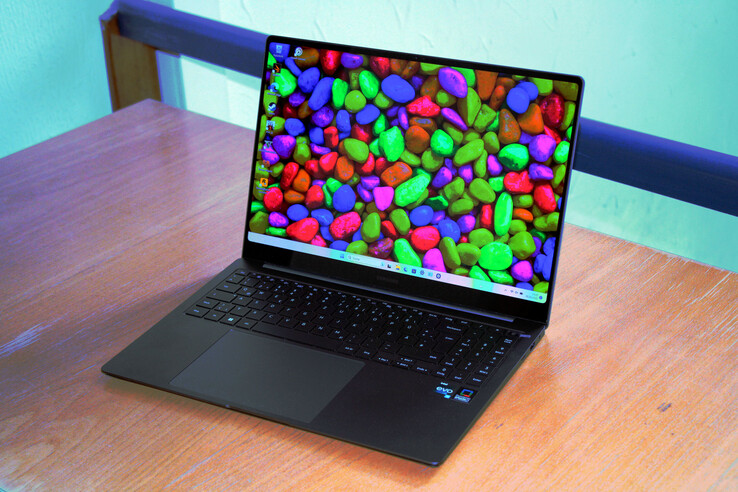

Galaxy Book3 Pro 16是一款移动、紧凑、轻便的办公笔记本电脑，我们现在看到的是三星目前16英寸阵容中的第三款也是最后一款机型。我们已经测试了它的二合一兄弟姐妹，即 Galaxy Book3 Pro 360 16和更强大的 Galaxy Book3 Ultra 16(Raptor Lake H, RTX 4050/4070)。这些笔记本电脑的共同点是采用AMOLED面板和微薄的存储设备。竞争对手包括以下设备 Acer TravelMate P4 TMP416-51，以及联想ThinkPad T16 G1，以及HP EliteBook 865 G9，以及 LG Gram 16.
潜在的竞争对手比较
Rating | Date | Model | Weight | Height | Size | Resolution | Price |
|---|---|---|---|---|---|---|---|
| 85.6 % v7 (old) | 05 / 2023 | Samsung Galaxy Book3 Pro 16 i5-1340P, Iris Xe G7 80EUs | 1.6 kg | 12.5 mm | 16.00" | 2880x1800 | |
| 86.6 % v7 (old) | 01 / 2023 | LG Gram 16Z90Q i7-1260P, Iris Xe G7 96EUs | 1.2 kg | 16.8 mm | 16.00" | 2560x1600 | |
| 86 % v7 (old) | 04 / 2023 | Acer TravelMate P4 TMP416-51-55KN i5-1240P, Iris Xe G7 80EUs | 1.6 kg | 18.5 mm | 16.00" | 1920x1200 | |
| 90.2 % v7 (old) | 02 / 2023 | Lenovo ThinkPad T16 G1 21CH004MGE R5 PRO 6650U, Radeon 660M | 1.8 kg | 20.5 mm | 16.00" | 2560x1600 | |
| 87.2 % v7 (old) | 12 / 2022 | HP EliteBook 865 G9 R7 PRO 6850U, Radeon 680M | 1.9 kg | 19 mm | 16.00" | 1920x1200 |

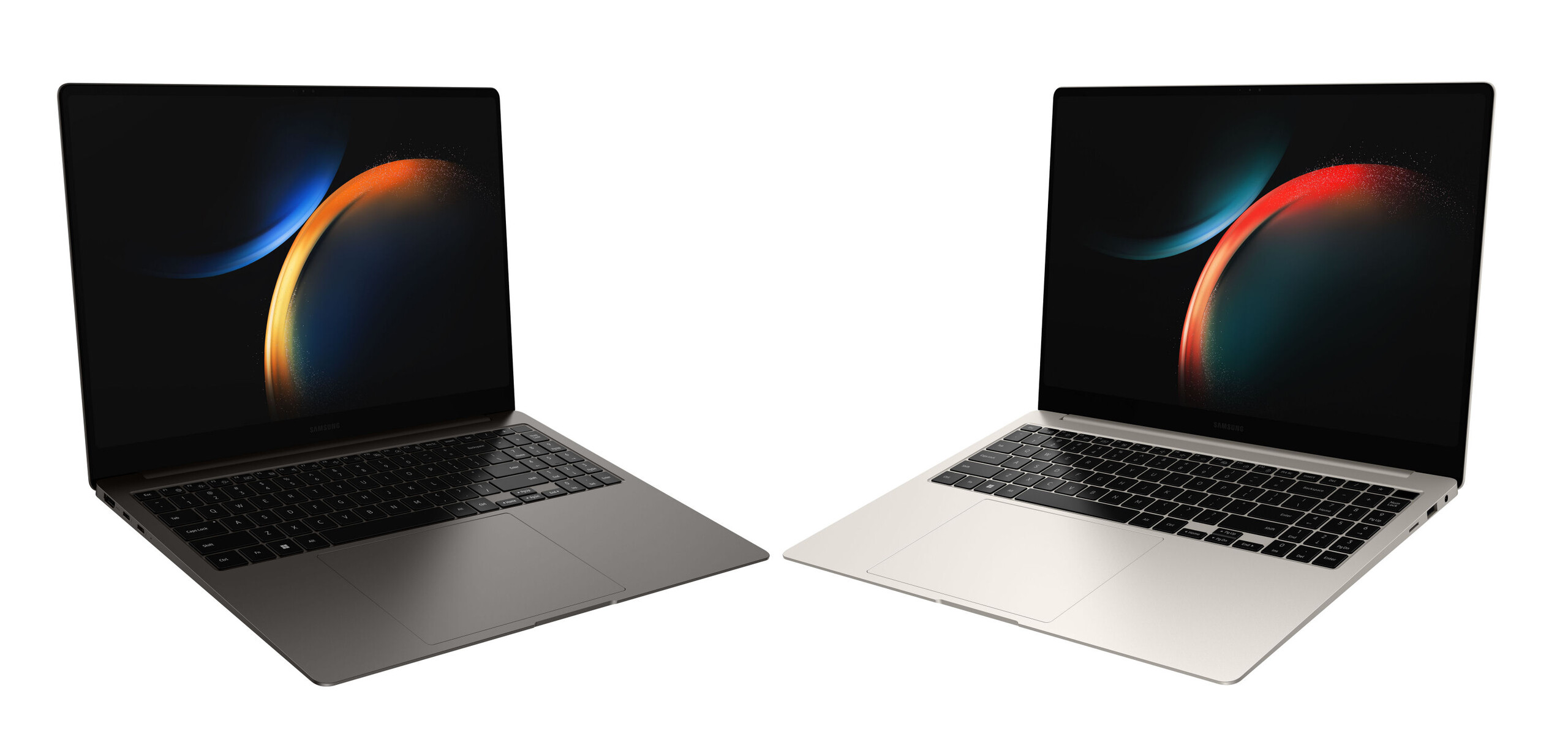

外壳 - 三星提供两种颜色的笔记本电脑
灰黑色（Graphite）的铝制外壳提供了一个优雅而清醒的外观。三星在这里使用了哑光的光滑表面，没有给笔记本添加任何炫耀性的设计元素。另外，三星还提供了一个米色的版本，应该更抢眼。
外壳在做工上没有显示出任何缺陷。缝隙小而均匀，我们没有注意到任何材料的突起。虽然底座单元可以比盖子更明显地翘起，但这仍然在限制范围之内。铰链将盖子紧紧地固定在位置上，最大打开角度约为125度，盖子可以用一只手打开。
纤细轻盈的Galaxy Book在我们的比较领域中处于中间位置，没有达到紧凑的尺寸，特别是低重量的 LG Gram 16.
设备 - 三星Galaxy 提供Thunderbolt 4
三星为这款超薄的笔记本电脑配备了一个USB-A连接（USB 3.2 Gen 1）和两个USB-C端口（Thunderbolt 4）。后面的端口还为笔记本电脑提供电源（通过Power Delivery），并且还能输出DisplayPort信号，因此总共有三个视频输出端口（2个DP，1个HDMI）。
所有的视频和电源连接都在左侧，尽管将Thunderbolt 4端口分布在两侧会更合理。
SD卡阅读器
最大传输速率为77MB/s（传输250个jpg图像文件，每个文件大小为5MB）和82MB/s（复制大数据块），该microSD存储卡读卡器提供了中等速度的存储速度（使用我们的AV PRO microSD 128 GB V60参考卡）。
| SD Card Reader | |
| average JPG Copy Test (av. of 3 runs) | |
| Acer TravelMate P4 TMP416-51-55KN | |
| Samsung Galaxy Book3 Pro 16 | |
| LG Gram 16Z90Q (AV PRO microSD 128 GB V60) | |
| Average of class Office (22.7 - 198.5, n=33, last 2 years) | |
| maximum AS SSD Seq Read Test (1GB) | |
| LG Gram 16Z90Q (AV PRO microSD 128 GB V60) | |
| Samsung Galaxy Book3 Pro 16 | |
| Acer TravelMate P4 TMP416-51-55KN | |
| Average of class Office (25 - 249, n=30, last 2 years) | |
沟通
在最佳条件下（没有任何其他WLAN设备在附近，并且笔记本电脑和服务器PC之间的距离很近），笔记本电脑达到了出色的WiFi数据速率。三星笔记本电脑使用英特尔AX211 WiFi 6E芯片。由于它不提供以太网连接，如果有必要，你必须使用相应的USB适配器或对接解决方案。

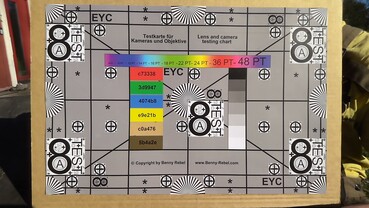

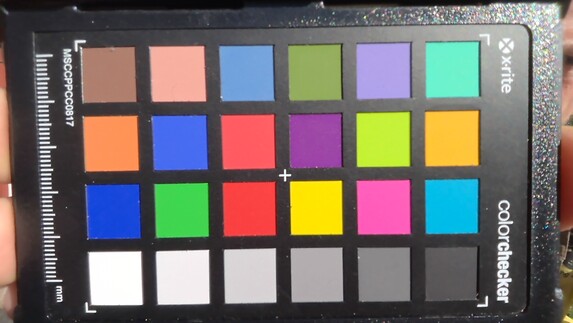

网络摄像头
网络摄像头（210万像素，最大1,920 x 1,080像素）没有提供机械镜头盖，在质量方面提供标准的服务。在色彩准确性方面有所欠缺，色彩偏差约为14，达不到DeltaE < 3的目标。
辅料
除了通常的文件（保修信息、快速启动说明），笔记本电脑没有附带任何其他附件。

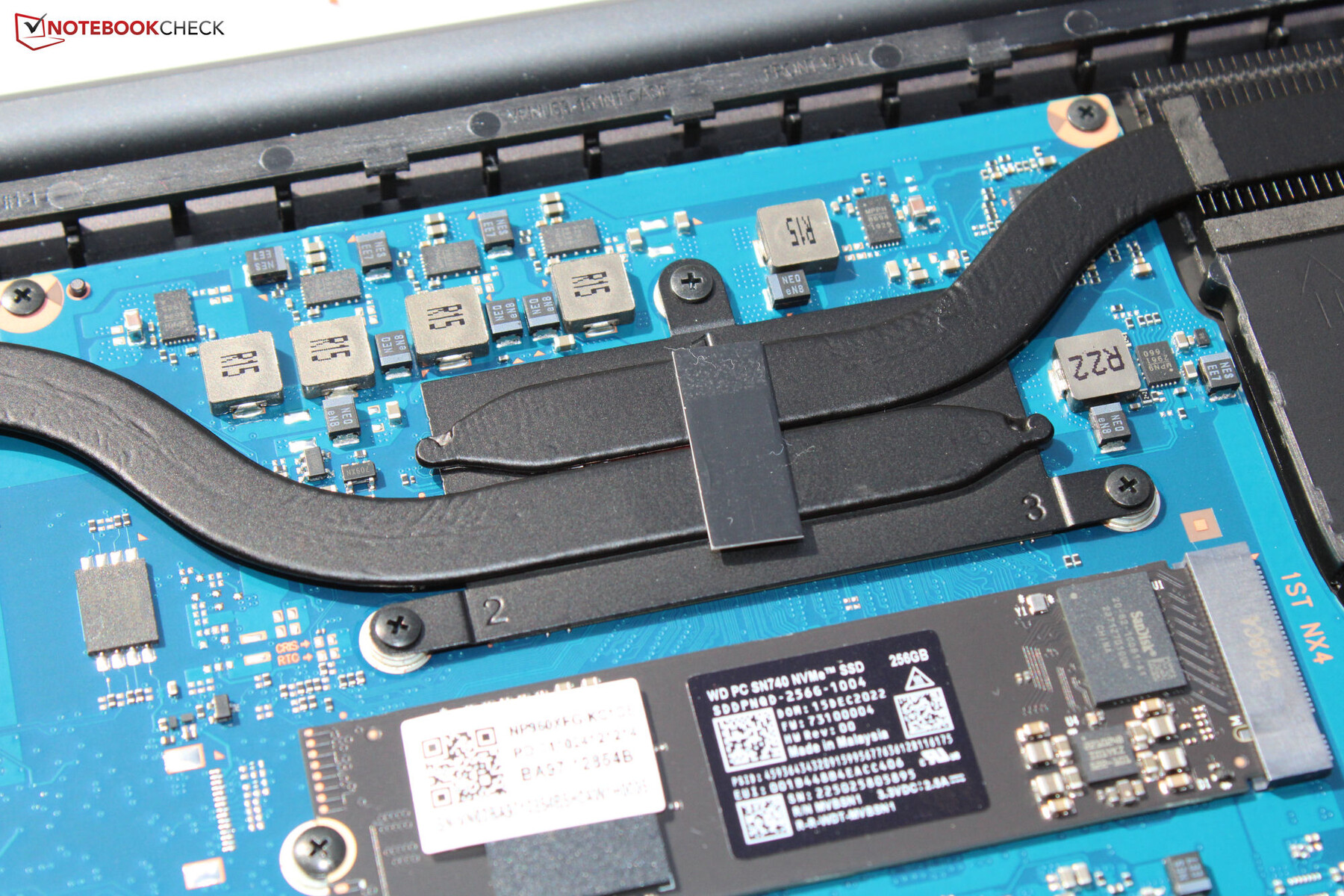

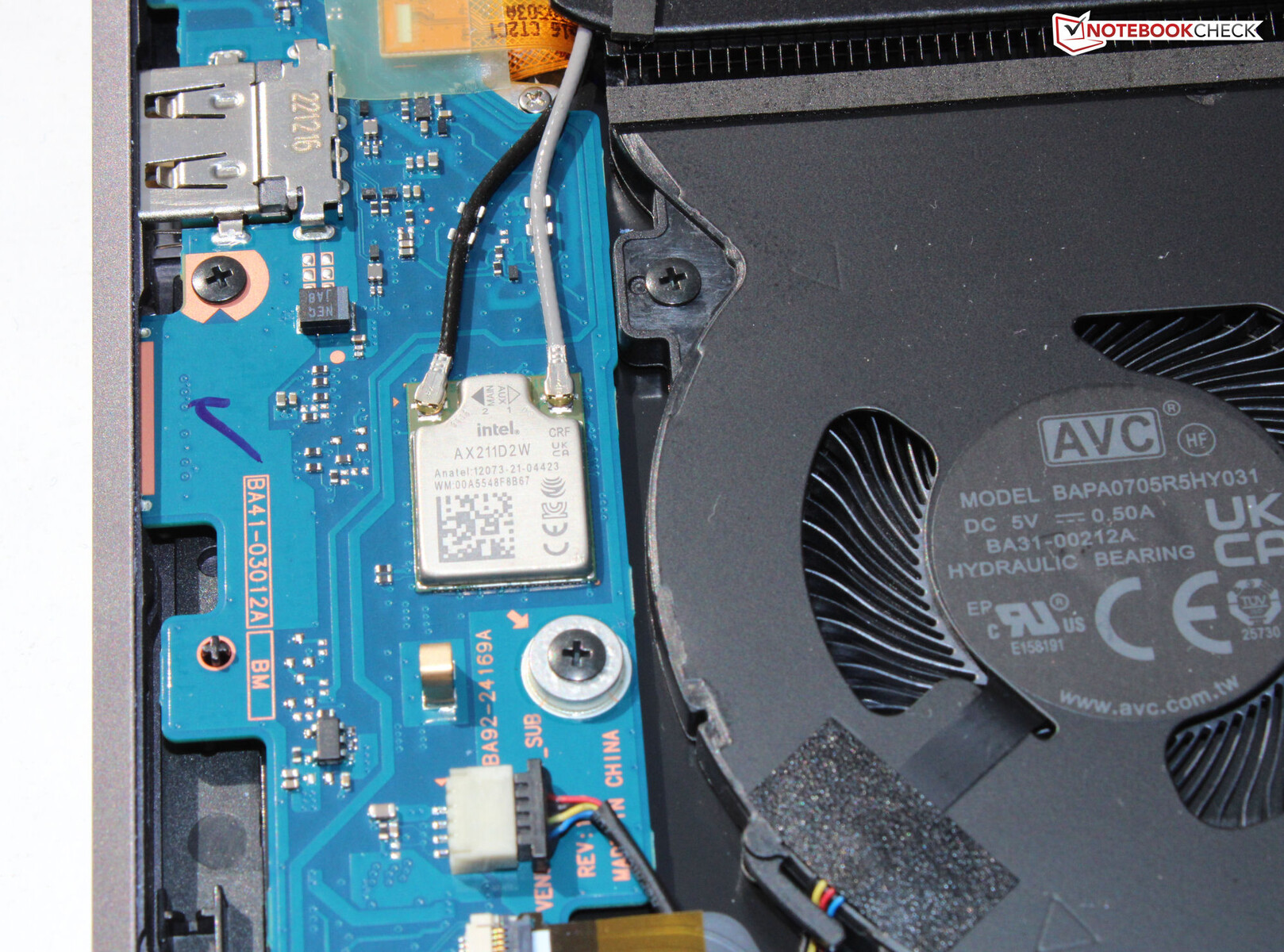

维护

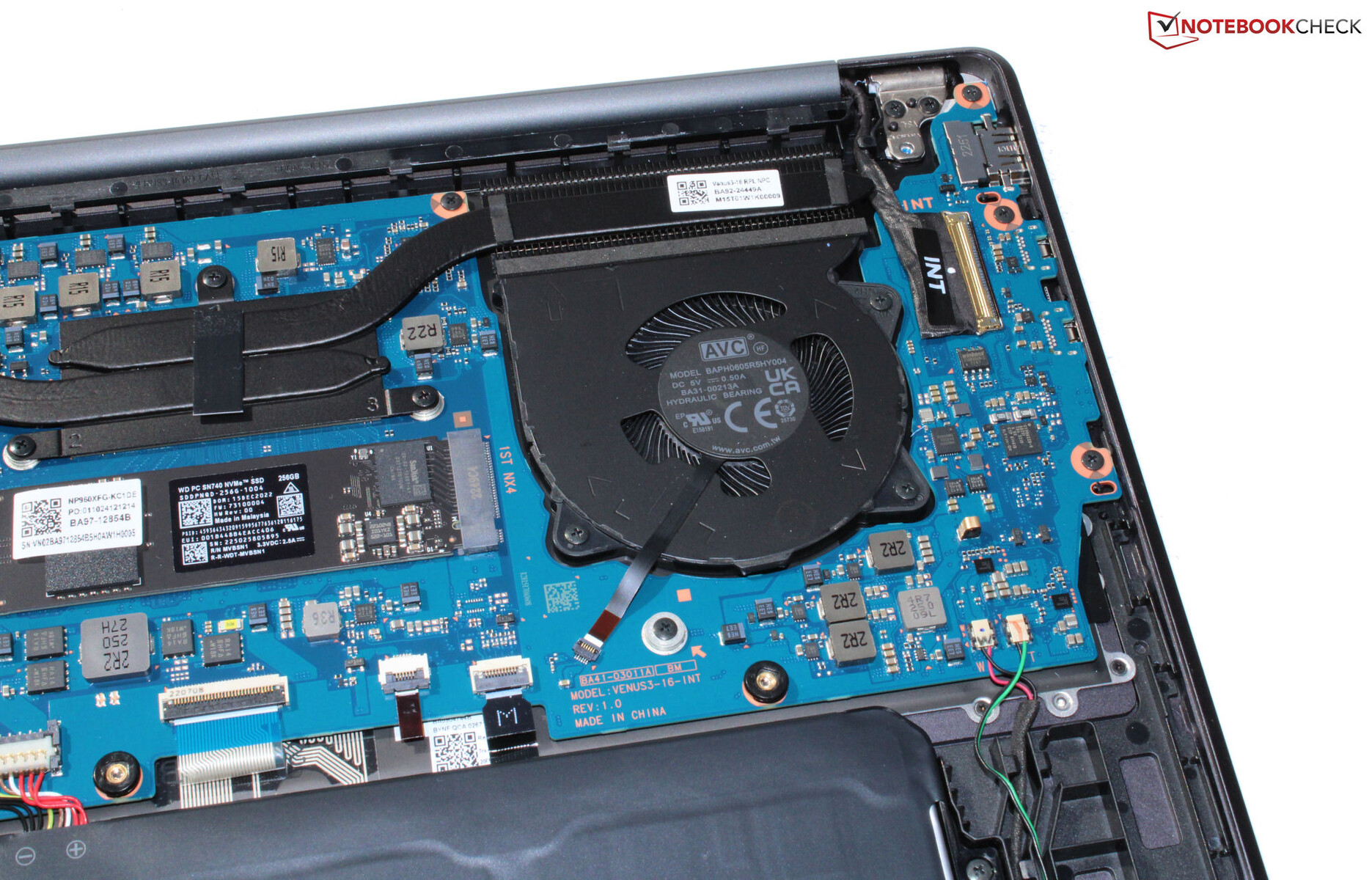

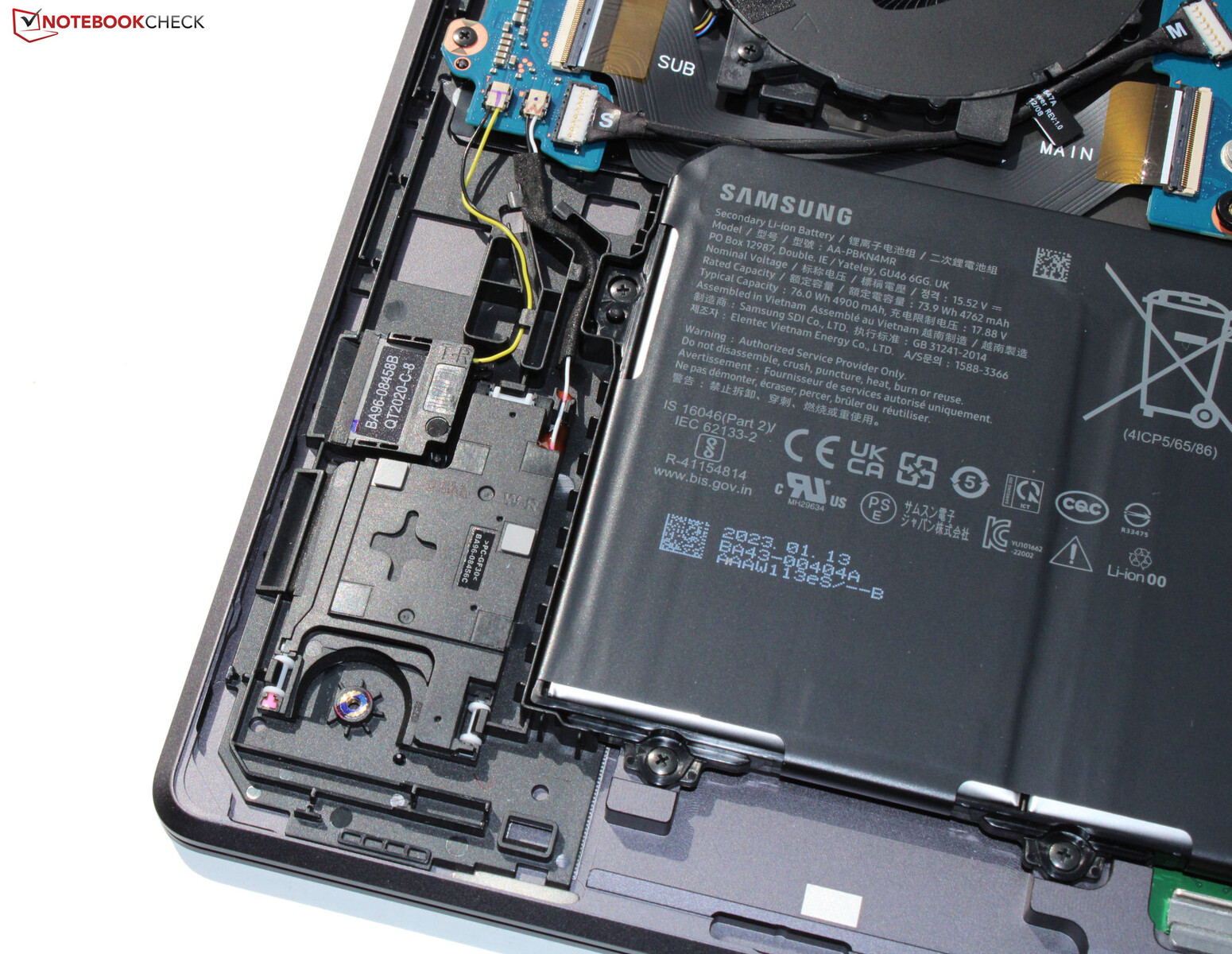

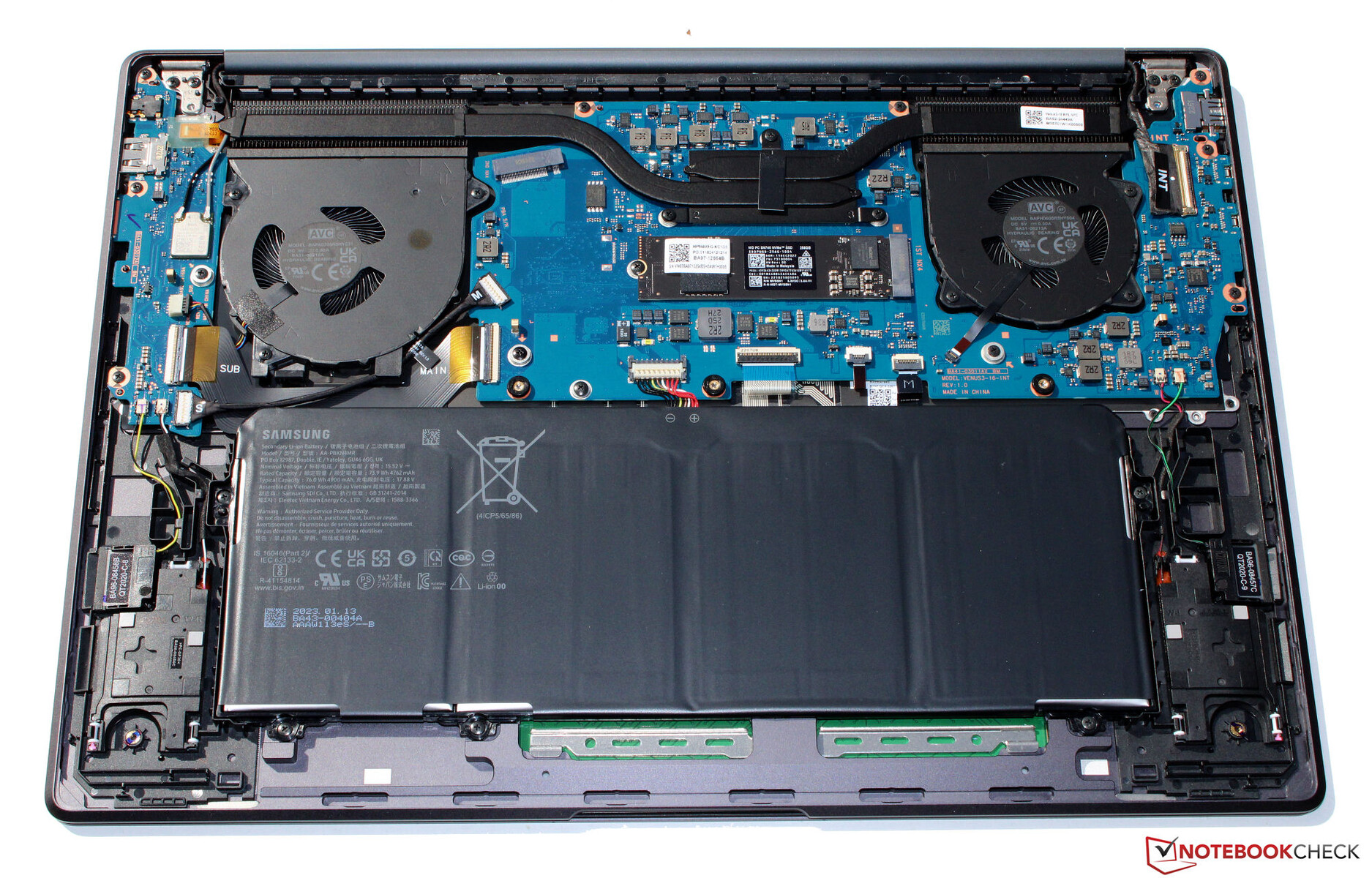

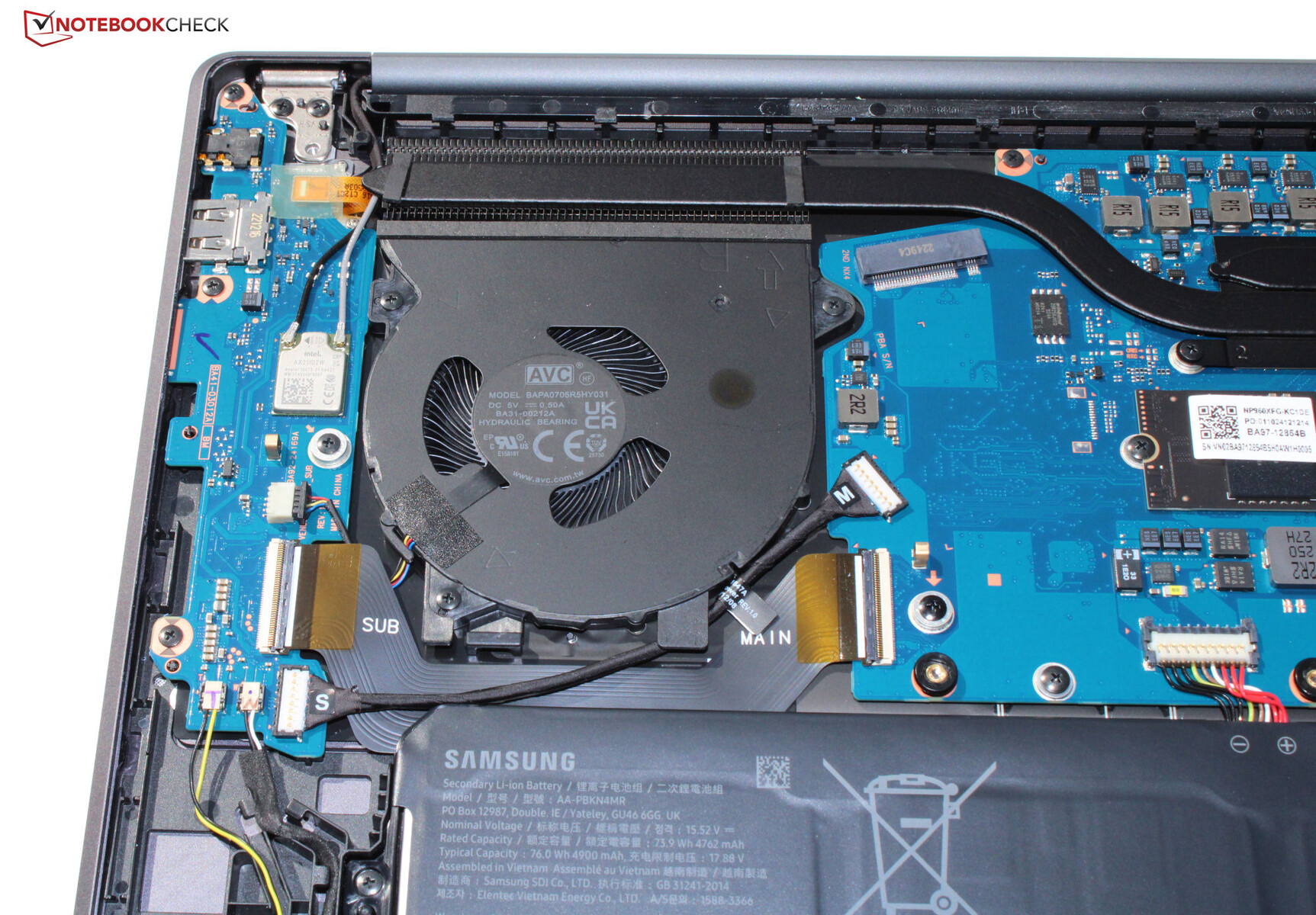

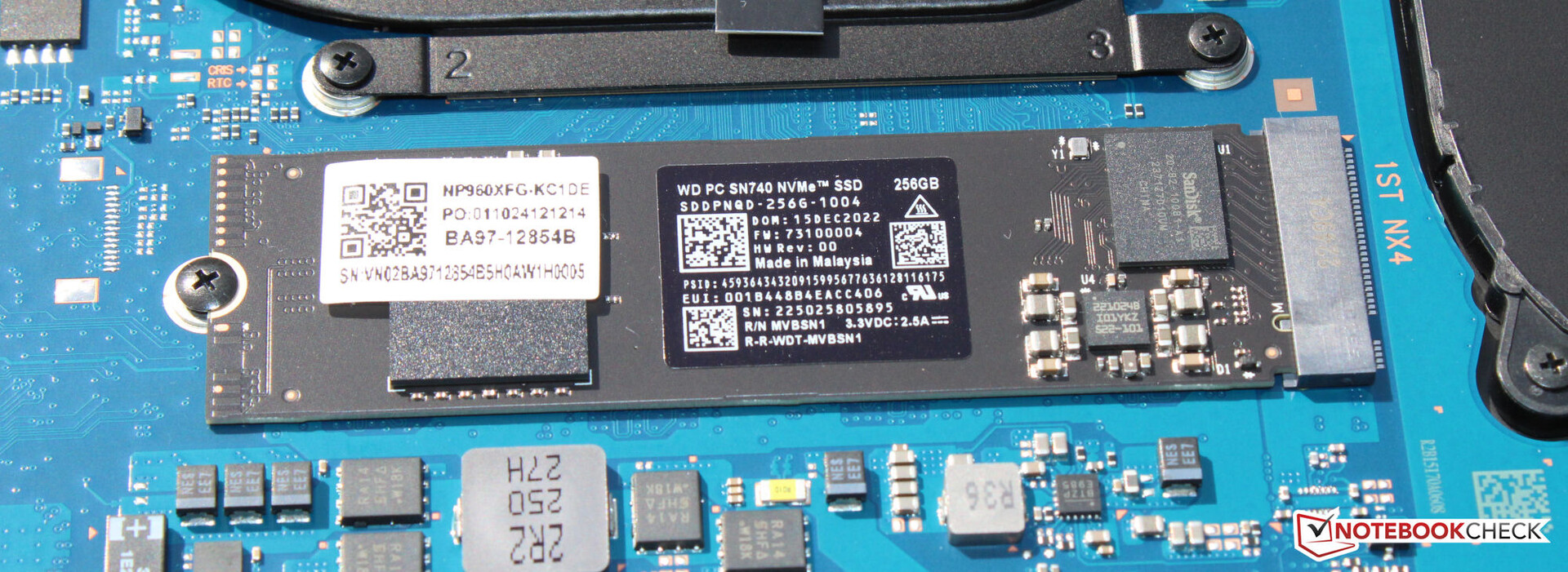

为了能够拆下机箱的底部，你首先要拆下隐藏在四个橡胶脚下的所有螺丝（有槽，没有胶水）。完成后，你必须小心地（！）拆下底板，因为它被固定得很紧，否则可能会被损坏。使用一个扁平的撬动工具或其他合适的工具，如铲子，我们建议从背面的风扇通风口区域开始。底板拆下后，你可以接触到固态硬盘（PCIe 4，M.2-2280）、风扇、扬声器和电池。
担保
三星在德国为其16英寸笔记本电脑提供两年的保修期。延长一年或两年的费用分别为79或149欧元（约87美元和165美元）。
输入设备 - NP960XFG包括一个键盘照明灯

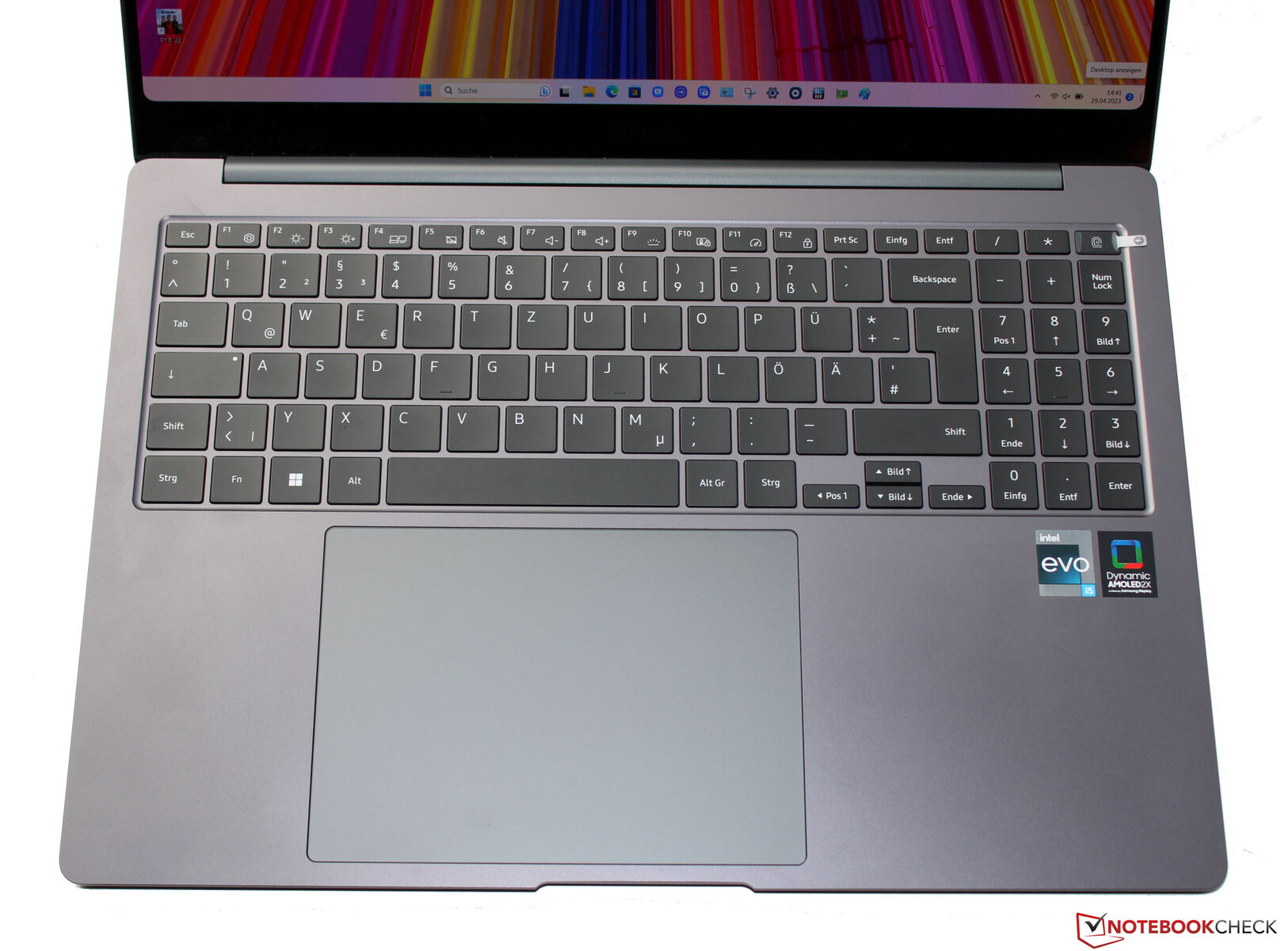

键盘
平滑的、略微凹陷的小键盘，包括数字块和三段式照明，提供了一个短的行程和清晰的压力点。 键的阻力是体面的，键盘在打字时没有任何阻力。总体而言，三星在这里提供了一个适合日常工作的键盘。
触摸板
ClickPad可作为鼠标的替代品。它的尺寸为15.1 x 10.8厘米（约5.9 x 4.3英寸），其光滑的表面有利于手指的滑动。它对角落里的输入也有反应，并提供一个短行程和清晰的压力点。
显示屏 - AMOLED，16:10格式
反射式16英寸显示屏的分辨率为2,880 x 1,800像素，采用方便工作的16：10格式。作为典型的OLED屏幕，它提供了一个优秀的黑值和短的响应时间。
虽然显示屏的亮度超过了要求，但在电池运行时，它仍然低于电源运行时确定的最大值。一个积极的特点是，该面板不显示任何PWM闪烁。笔记本 精英本提供了一个明显更亮的显示屏。
| |||||||||||||||||||||||||
Brightness Distribution: 98 %
Center on Battery: 347 cd/m²
Contrast: 27467:1 (Black: 0.015 cd/m²)
ΔE Color 2.34 | 0.5-29.43 Ø4.92, calibrated: 2.95
ΔE Greyscale 2.78 | 0.5-98 Ø5.2
97% AdobeRGB 1998 (Argyll 2.2.0 3D)
100% sRGB (Argyll 2.2.0 3D)
99.7% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.5
| Samsung Galaxy Book3 Pro 16 Samsung ATNA60CL03-0, AMOLED, 2880x1800, 16" | LG Gram 16Z90Q LG LP160WQ1-SPB2 (LGD06EB), IPS, 2560x1600, 16" | Acer TravelMate P4 TMP416-51-55KN BOE BOE0A32, IPS, 1920x1200, 16" | Lenovo ThinkPad T16 G1 21CH004MGE MNG007DA1-C, IPS-LED, 2560x1600, 16" | HP EliteBook 865 G9 X160NV42, IPS, 1920x1200, 16" | |
|---|---|---|---|---|---|
| Display | -5% | -54% | -22% | -18% | |
| Display P3 Coverage | 99.7 | 96.8 -3% | 38.9 -61% | 66.7 -33% | 71.4 -28% |
| sRGB Coverage | 100 | 99.9 0% | 58.1 -42% | 95.7 -4% | 99.3 -1% |
| AdobeRGB 1998 Coverage | 97 | 84.6 -13% | 40.2 -59% | 69.1 -29% | 73.2 -25% |
| Response Times | -1535% | -625% | -1175% | -1375% | |
| Response Time Grey 50% / Grey 80% * | 2 ? | 45.7 ? -2185% | 20 ? -900% | 32.1 ? -1505% | 35.5 ? -1675% |
| Response Time Black / White * | 2 ? | 19.7 ? -885% | 9 ? -350% | 18.9 ? -845% | 23.5 ? -1075% |
| PWM Frequency | 56.7 | ||||
| Screen | -244% | -273% | -170% | -209% | |
| Brightness middle | 412 | 366 -11% | 269 -35% | 417 1% | 865 110% |
| Brightness | 412 | 347 -16% | 265 -36% | 388 -6% | 771 87% |
| Brightness Distribution | 98 | 89 -9% | 94 -4% | 81 -17% | 72 -27% |
| Black Level * | 0.015 | 0.32 -2033% | 0.305 -1933% | 0.24 -1500% | 0.3 -1900% |
| Contrast | 27467 | 1144 -96% | 882 -97% | 1738 -94% | 2883 -90% |
| Colorchecker dE 2000 * | 2.34 | 2.82 -21% | 4.89 -109% | 1.7 27% | 2.4 -3% |
| Colorchecker dE 2000 max. * | 3.34 | 4.65 -39% | 8.81 -164% | 3.5 -5% | 5.8 -74% |
| Colorchecker dE 2000 calibrated * | 2.95 | 2.69 9% | 5.12 -74% | 1.4 53% | 1.5 49% |
| Greyscale dE 2000 * | 2.78 | 2.3 17% | 2.91 -5% | 2.4 14% | 3.8 -37% |
| Gamma | 2.5 88% | 1.971 112% | 2.28 96% | 2.16 102% | 2.36 93% |
| CCT | 6879 94% | 6796 96% | 6920 94% | 6924 94% | 6922 94% |
| Total Average (Program / Settings) | -595% /
-378% | -317% /
-276% | -456% /
-282% | -534% /
-335% |
* ... smaller is better

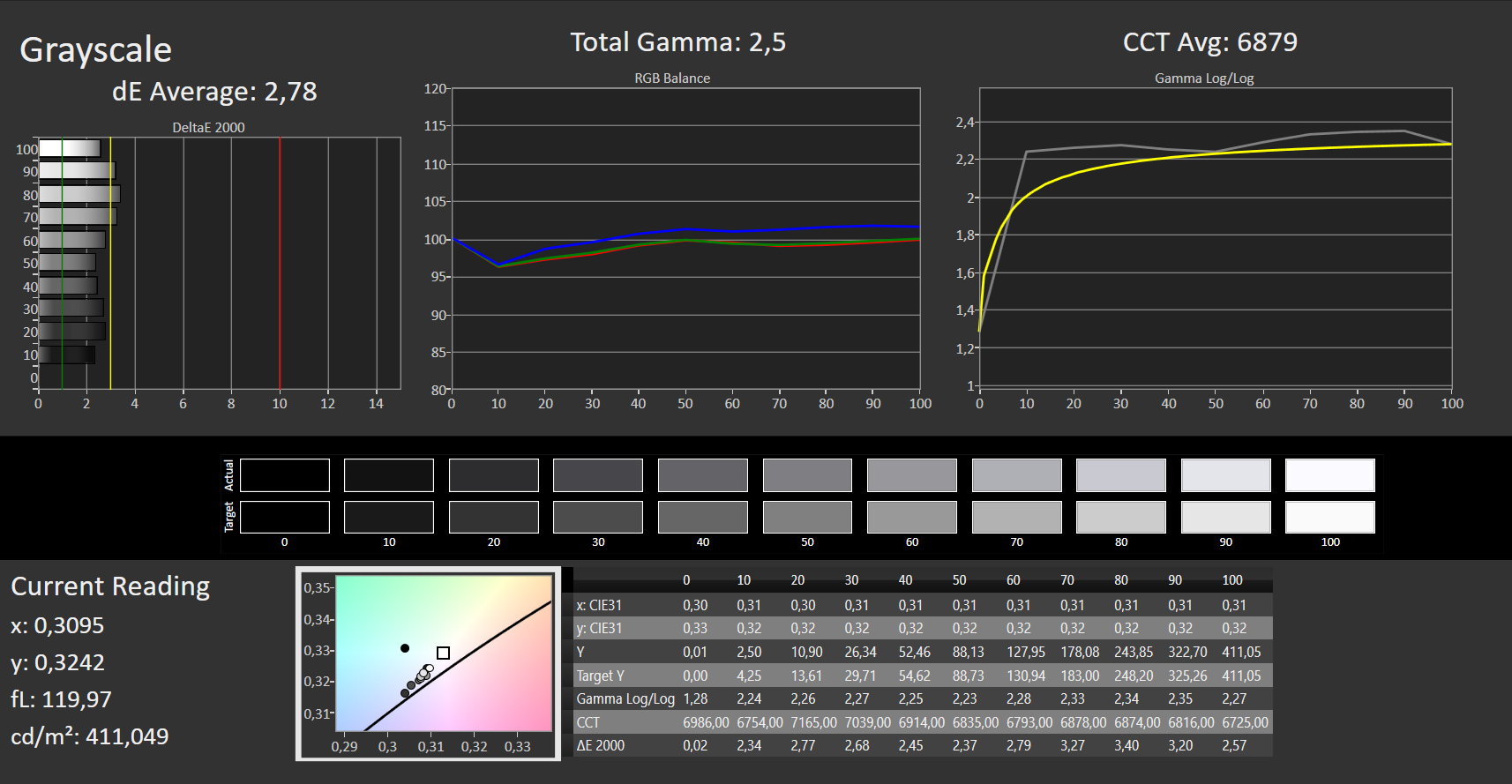

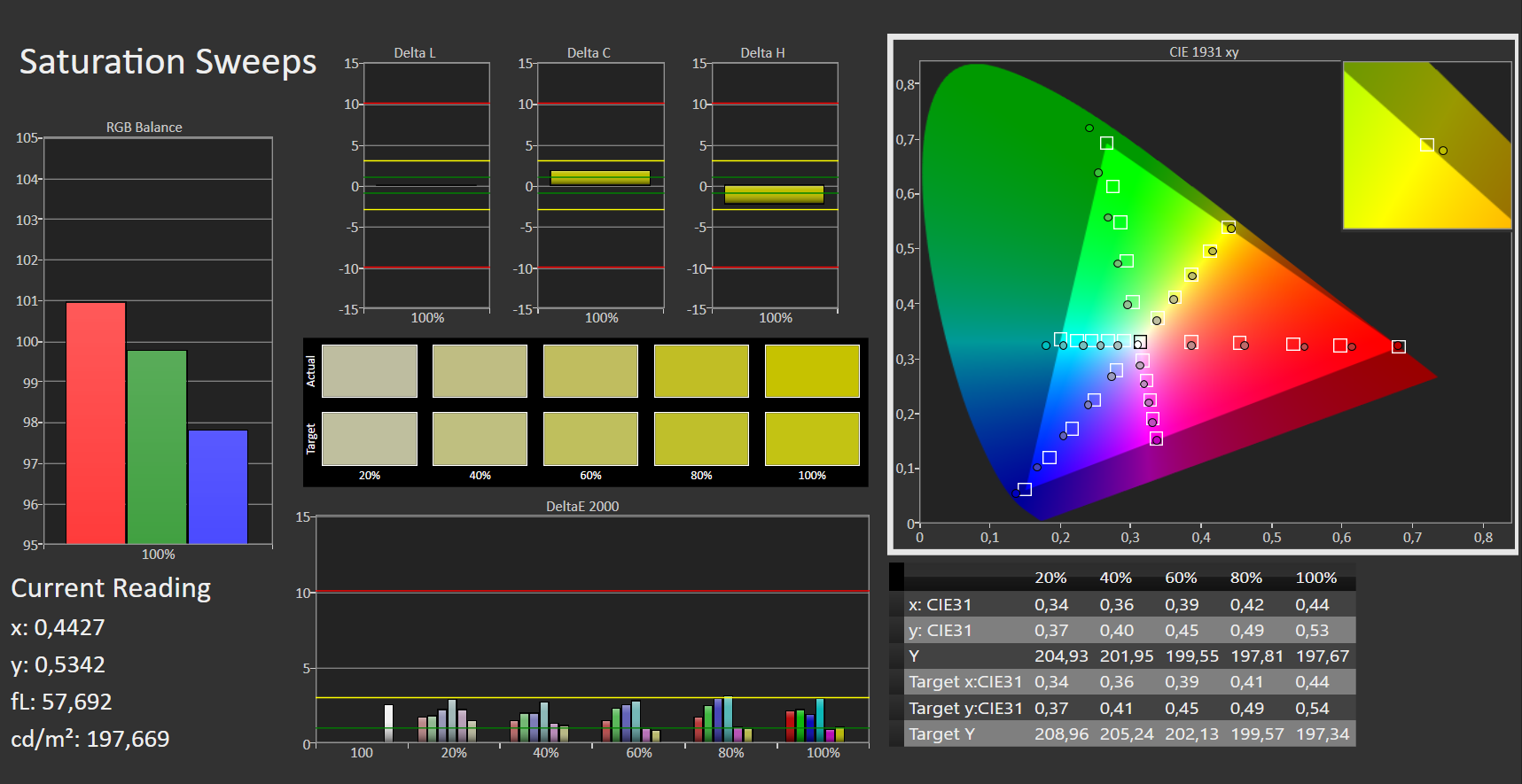

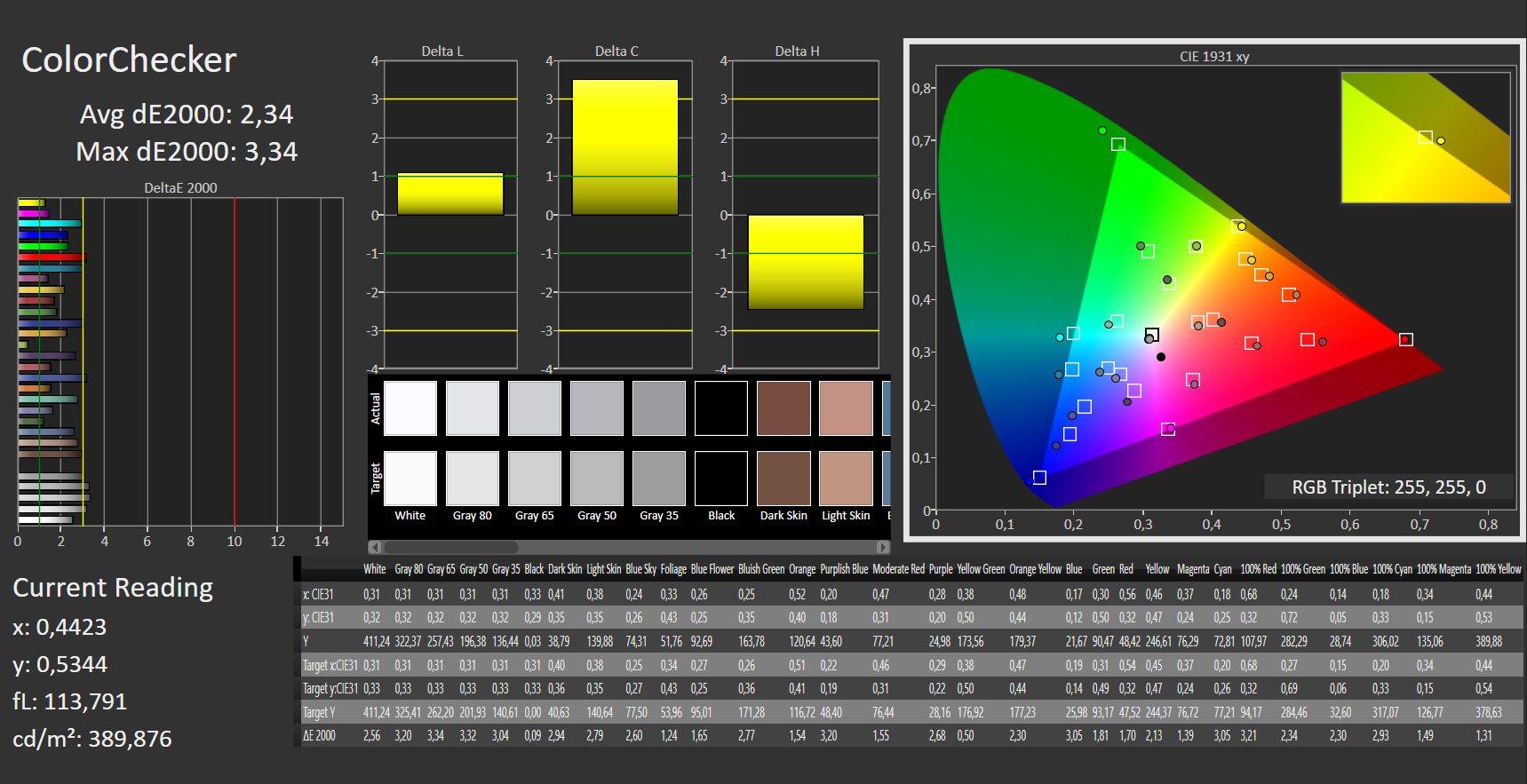

我们可以证明，在交付状态下，显示器的色彩还原性很好，而且偏差为2.3，达到了DeltaE < 3的目标。校准不会带来任何额外的改进。

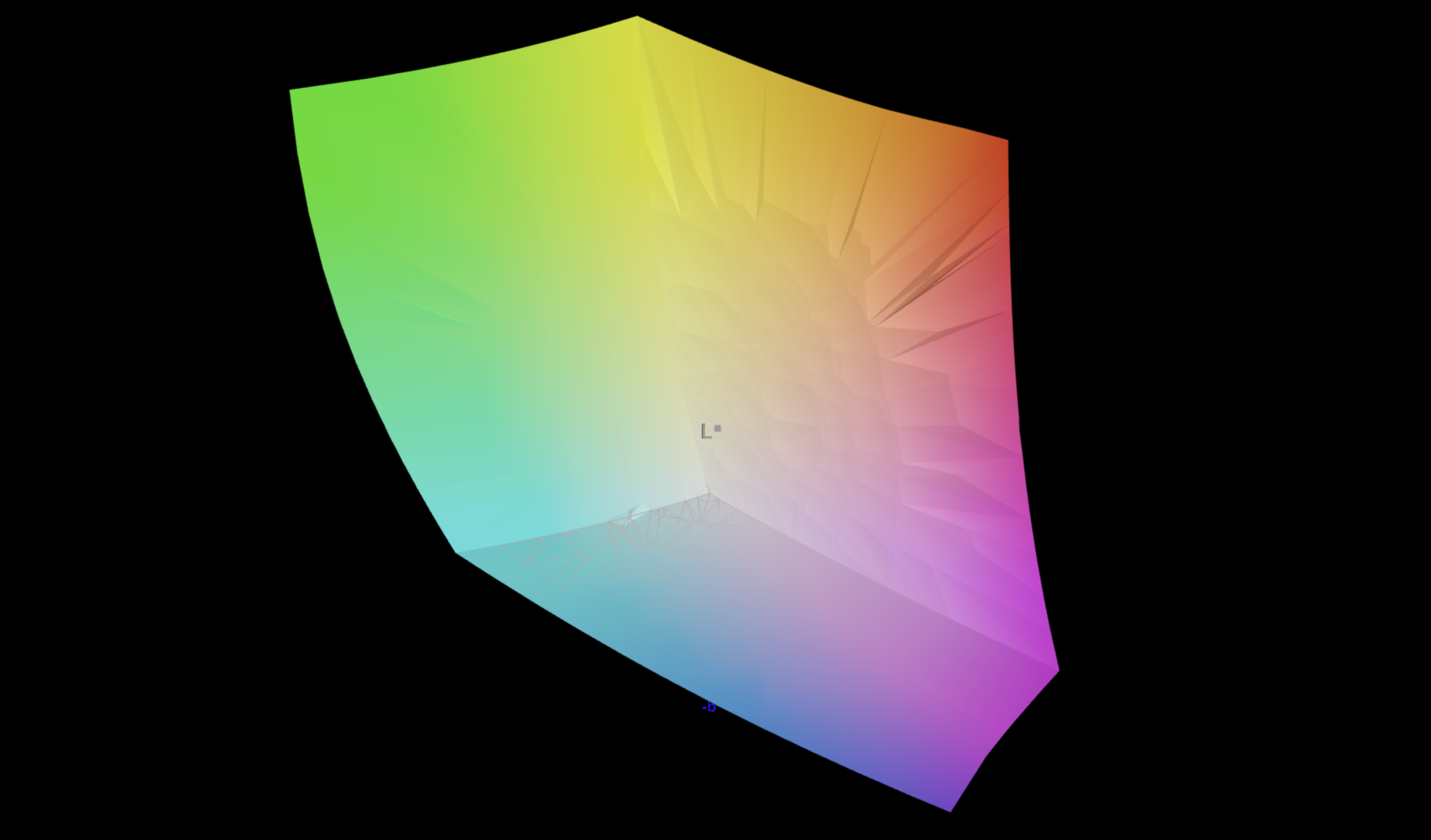

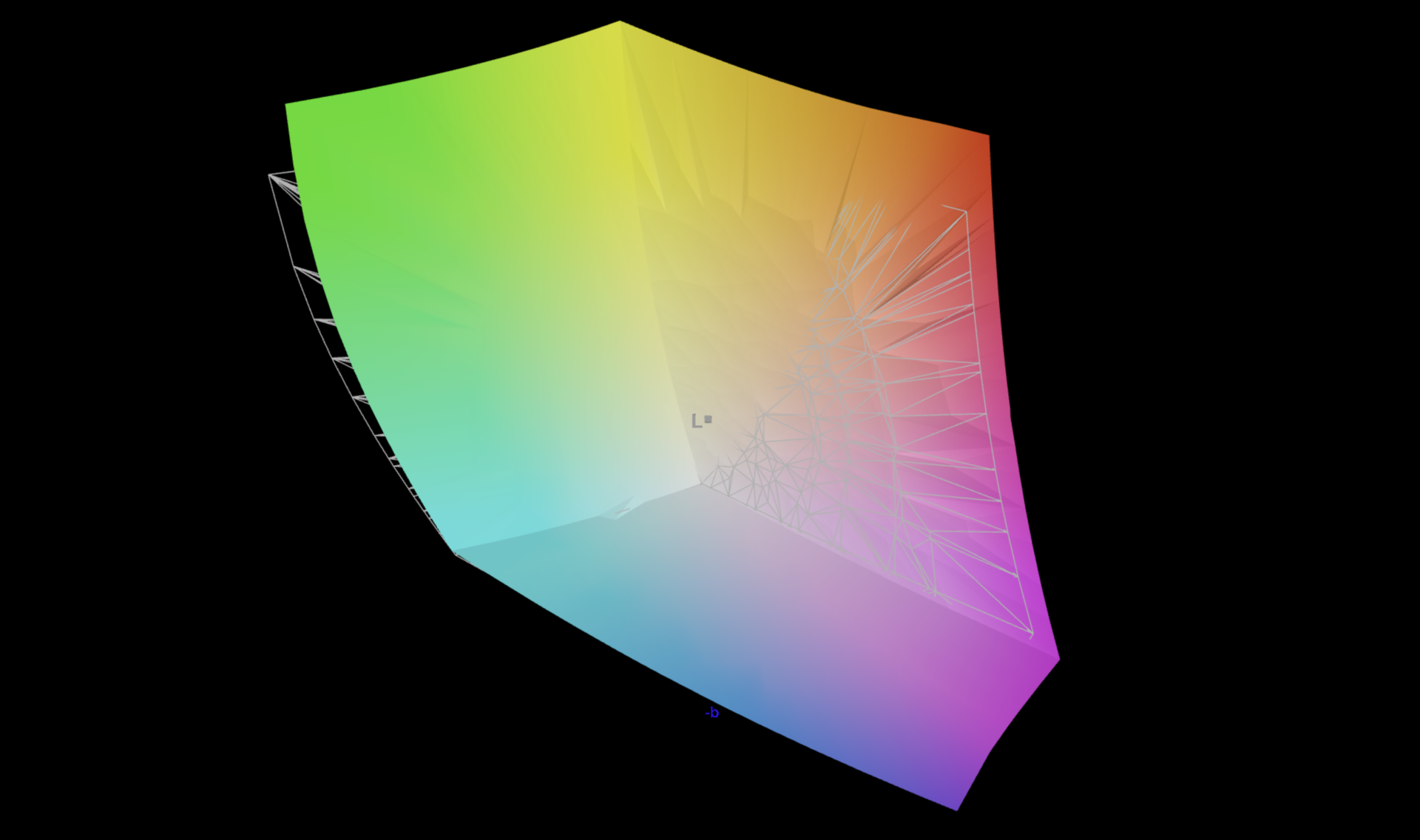

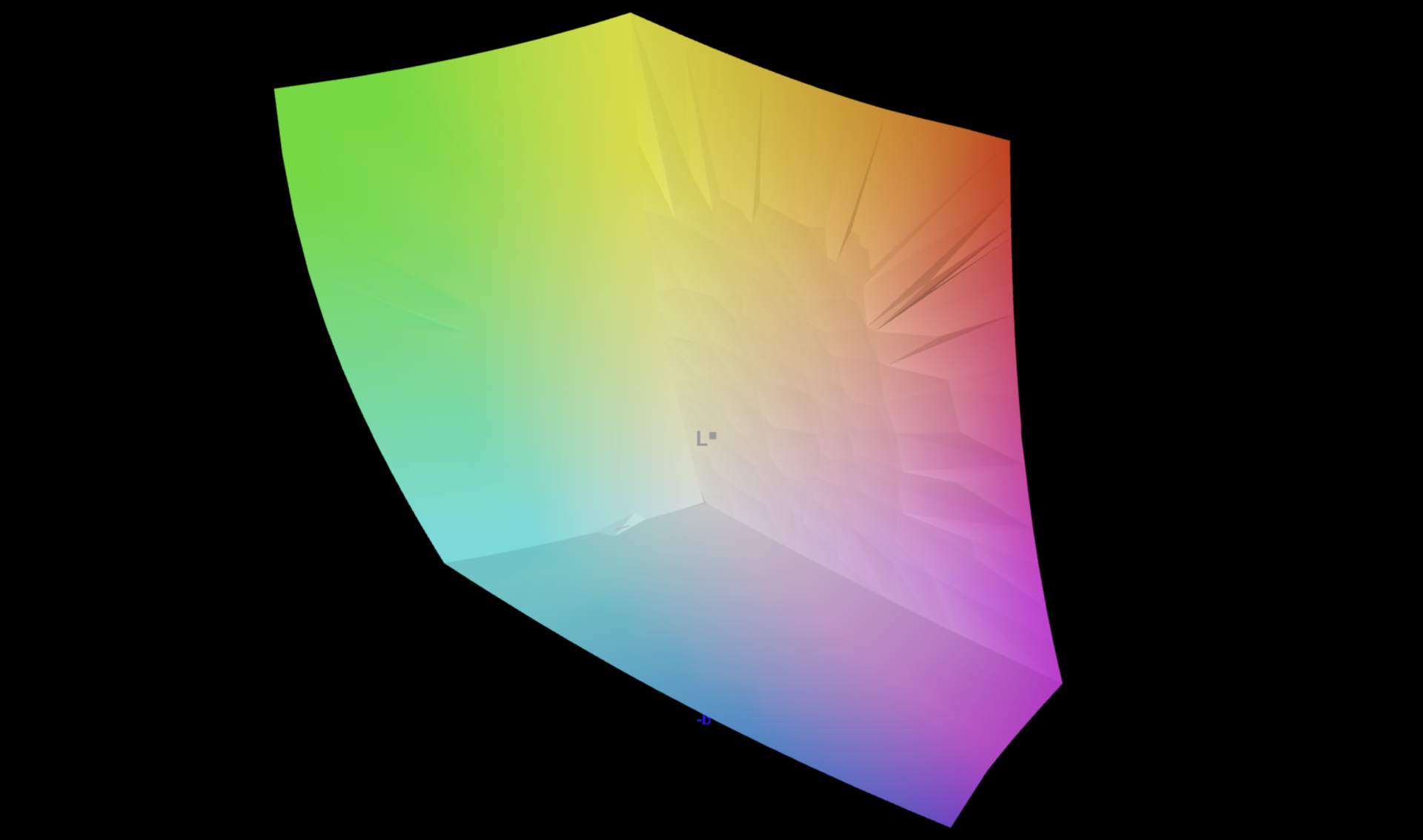

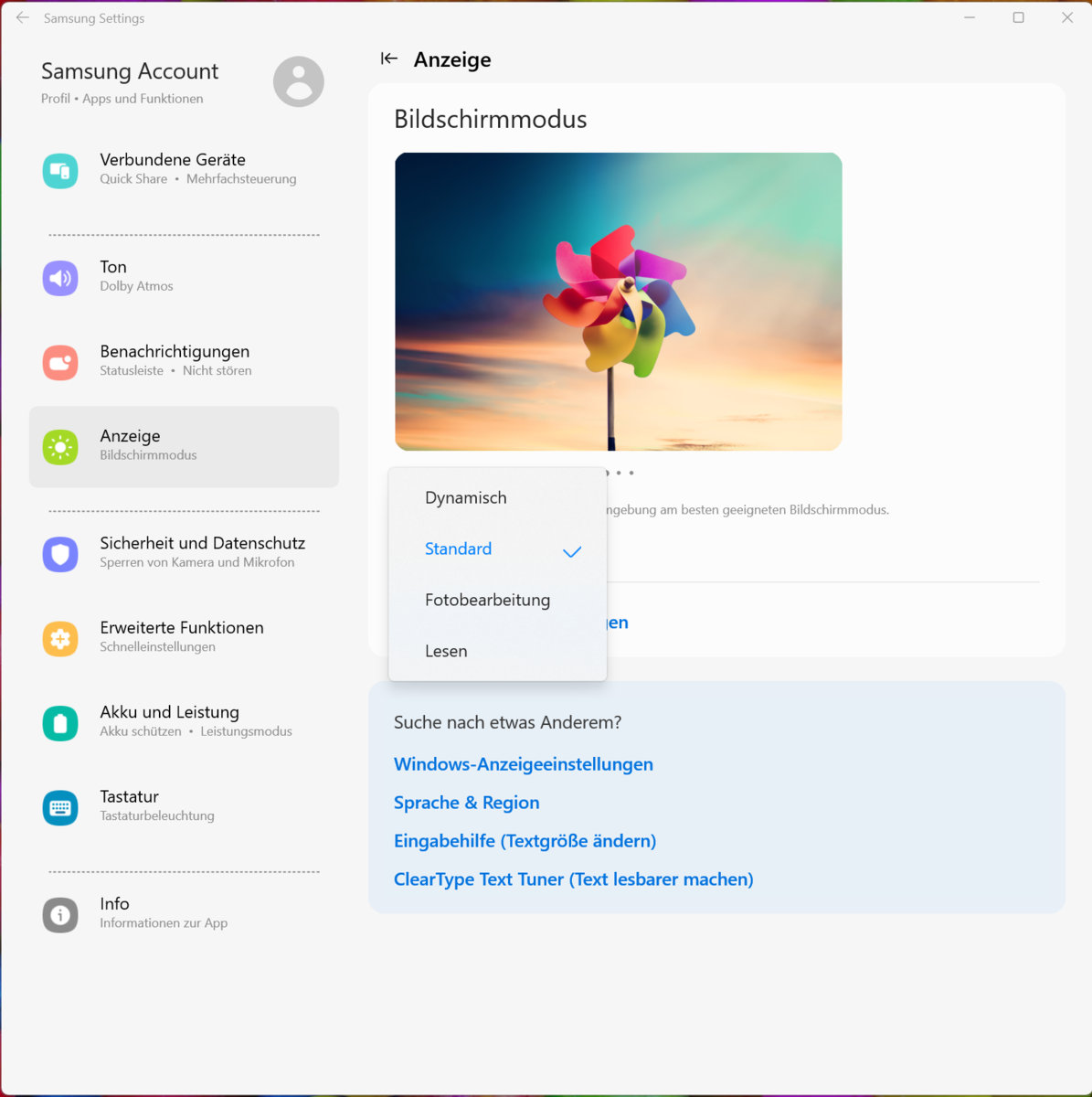

sRGB和DCI-P3色彩空间被完全覆盖，Adobe RGB色彩空间几乎被完全覆盖。使用预装的三星设置软件，可以将显示器调整为针对这三个色彩空间中的一个。这里，我们使用 "鲜艳（AMOLED原生）"的默认设置。

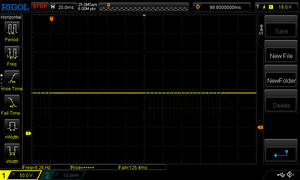

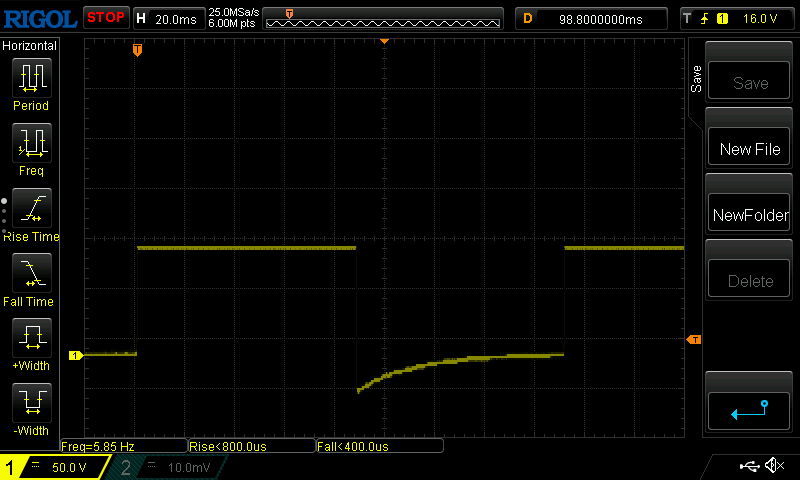

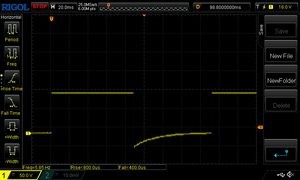

Display Response Times
| ↔ Response Time Black to White | ||
|---|---|---|
| 2 ms ... rise ↗ and fall ↘ combined | ↗ 1 ms rise |  |
| ↘ 1 ms fall | ||
| The screen shows very fast response rates in our tests and should be very well suited for fast-paced gaming. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 7 % of all devices are better. This means that the measured response time is better than the average of all tested devices (21 ms). | ||
| ↔ Response Time 50% Grey to 80% Grey | ||
| 2 ms ... rise ↗ and fall ↘ combined | ↗ 1 ms rise |  |
| ↘ 1 ms fall | ||
| The screen shows very fast response rates in our tests and should be very well suited for fast-paced gaming. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 6 % of all devices are better. This means that the measured response time is better than the average of all tested devices (32.9 ms). | ||

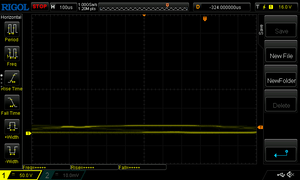

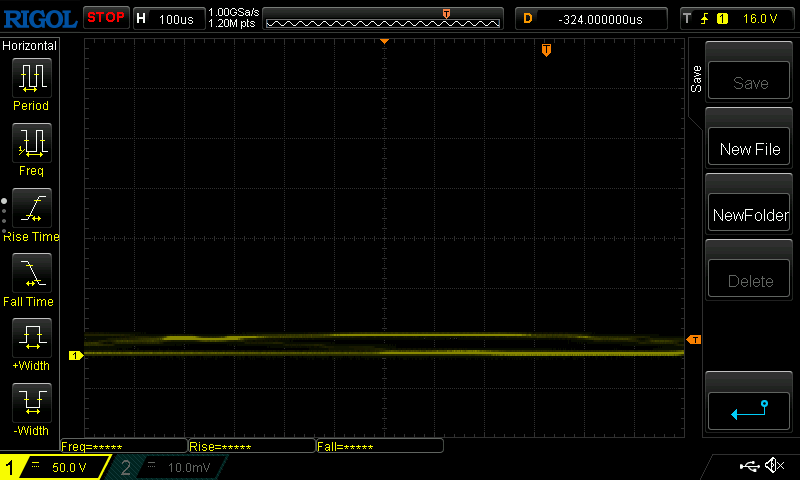

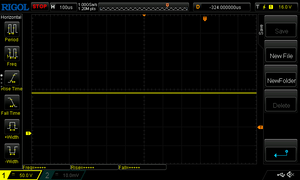

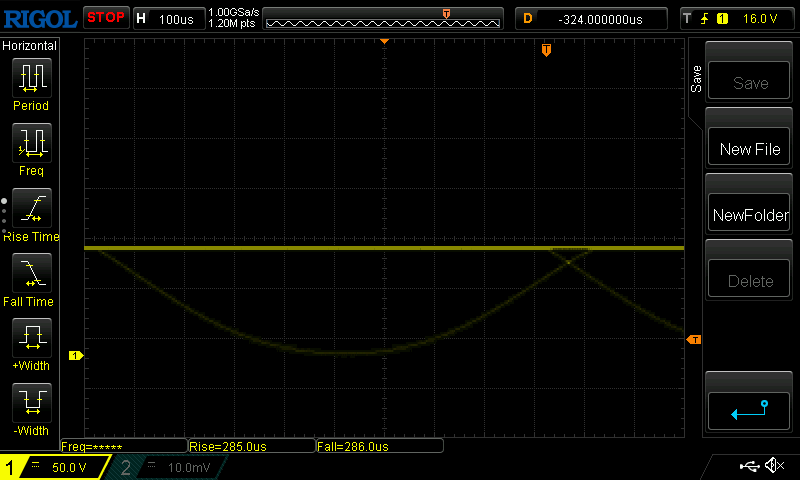

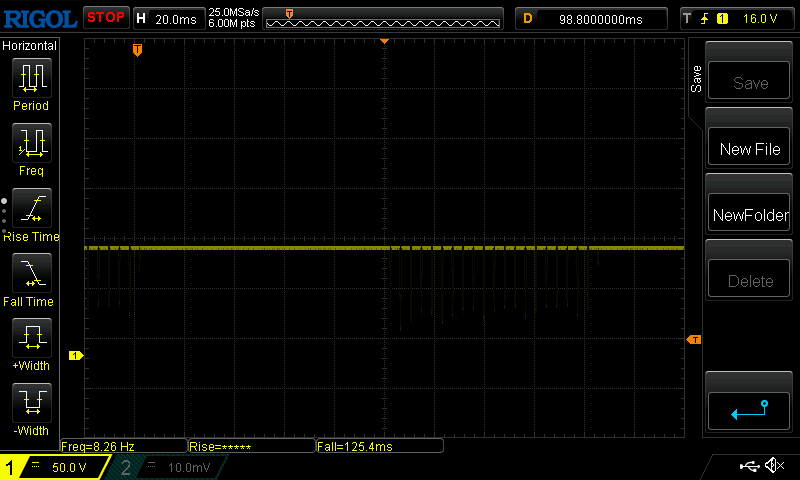

Screen Flickering / PWM (Pulse-Width Modulation)
| Screen flickering / PWM not detected |    | ||
In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8746 (minimum: 5 - maximum: 343500) Hz was measured. | |||

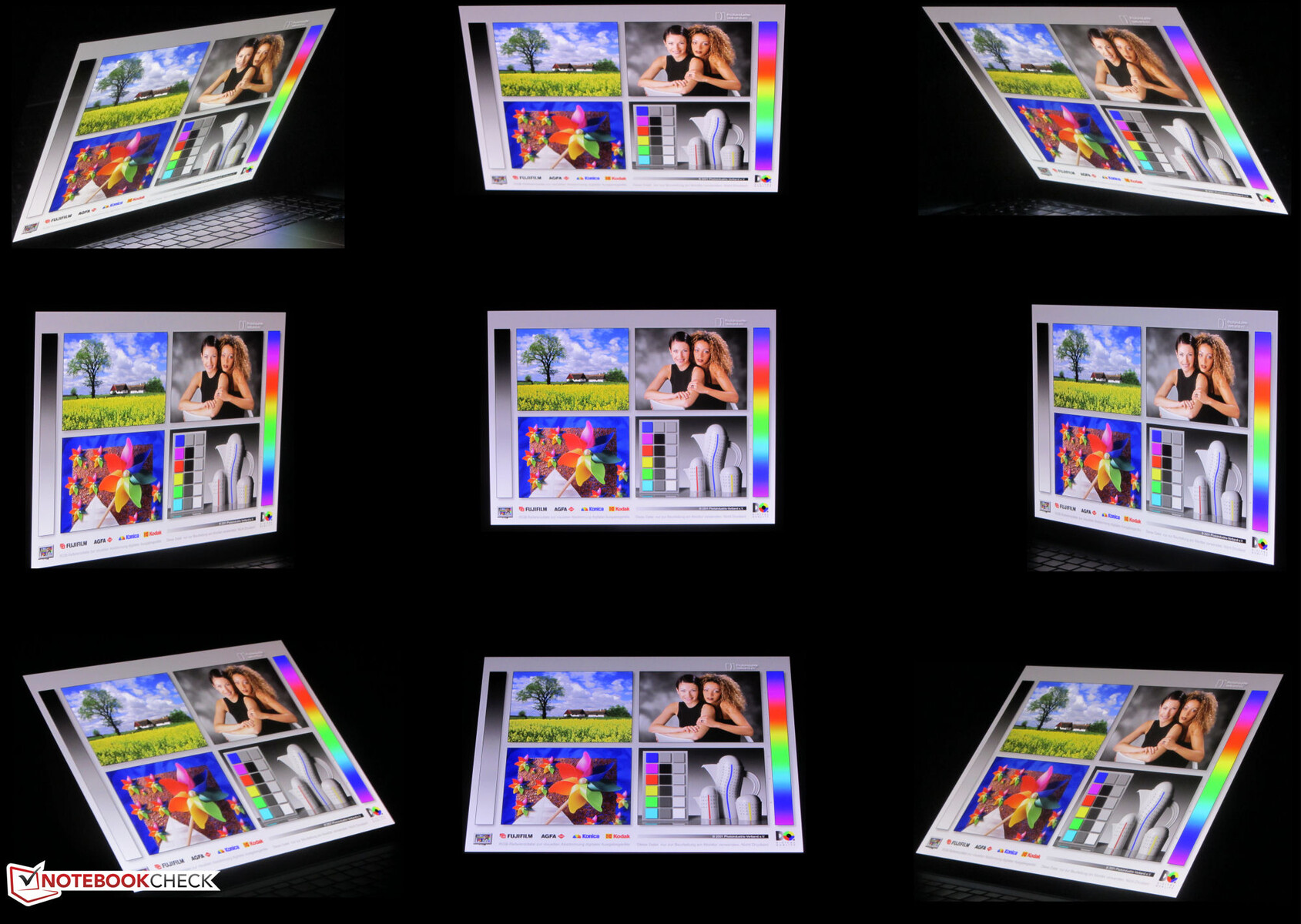

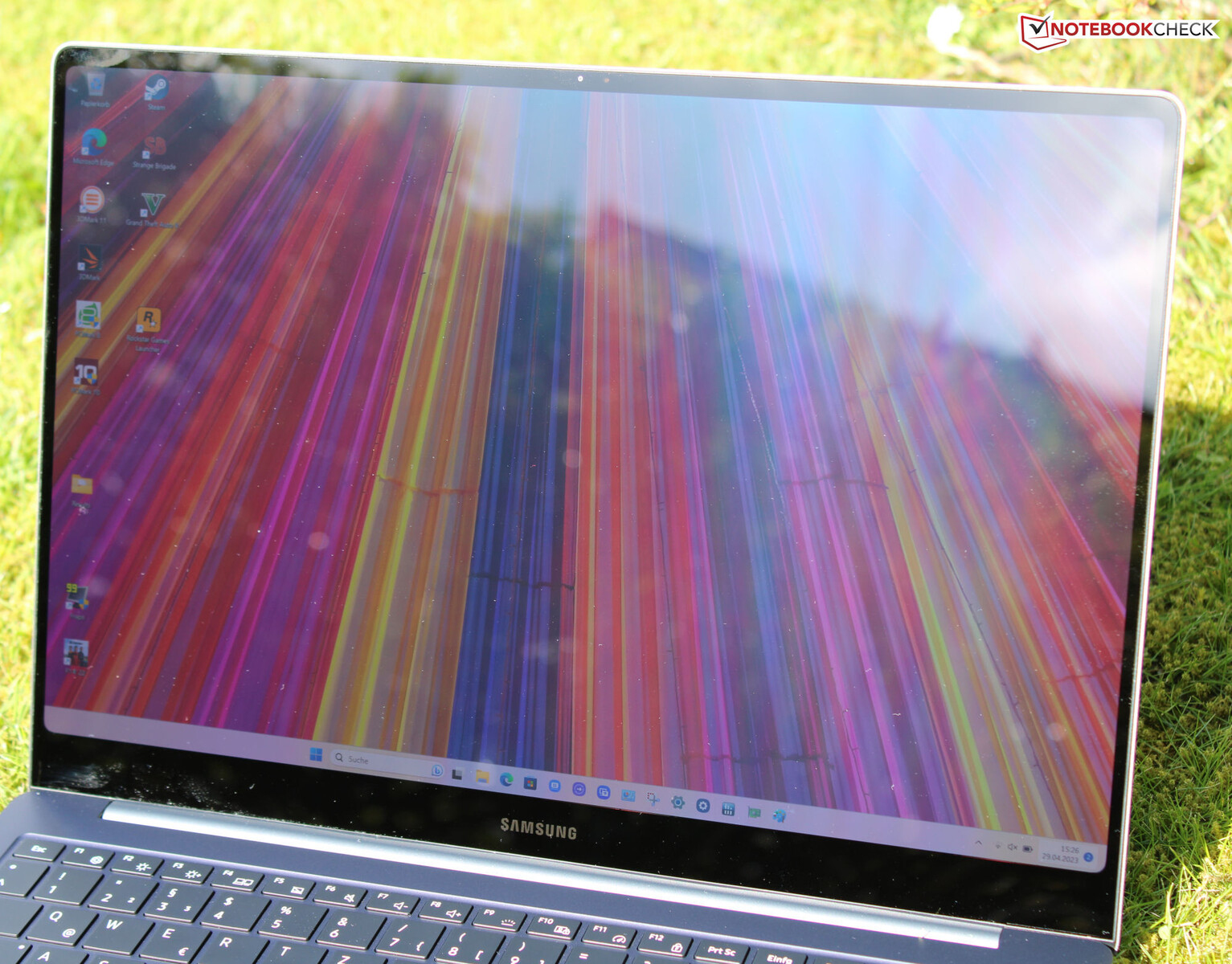

该面板提供稳定的视角，可以从任何角度阅读。由于显示表面具有反射性，在户外很难读取显示屏。
性能 - 足够用于办公和互联网
通过Galaxy Book3 Pro 16，三星提供了一系列由Raptor Lake处理器运行的高度移动的办公笔记本电脑。在本次测试时，可用的机型价格在1700至2200欧元之间（约合1,879至2,432美元）。我们的测试装置代表目前最实惠的版本。
测试条件

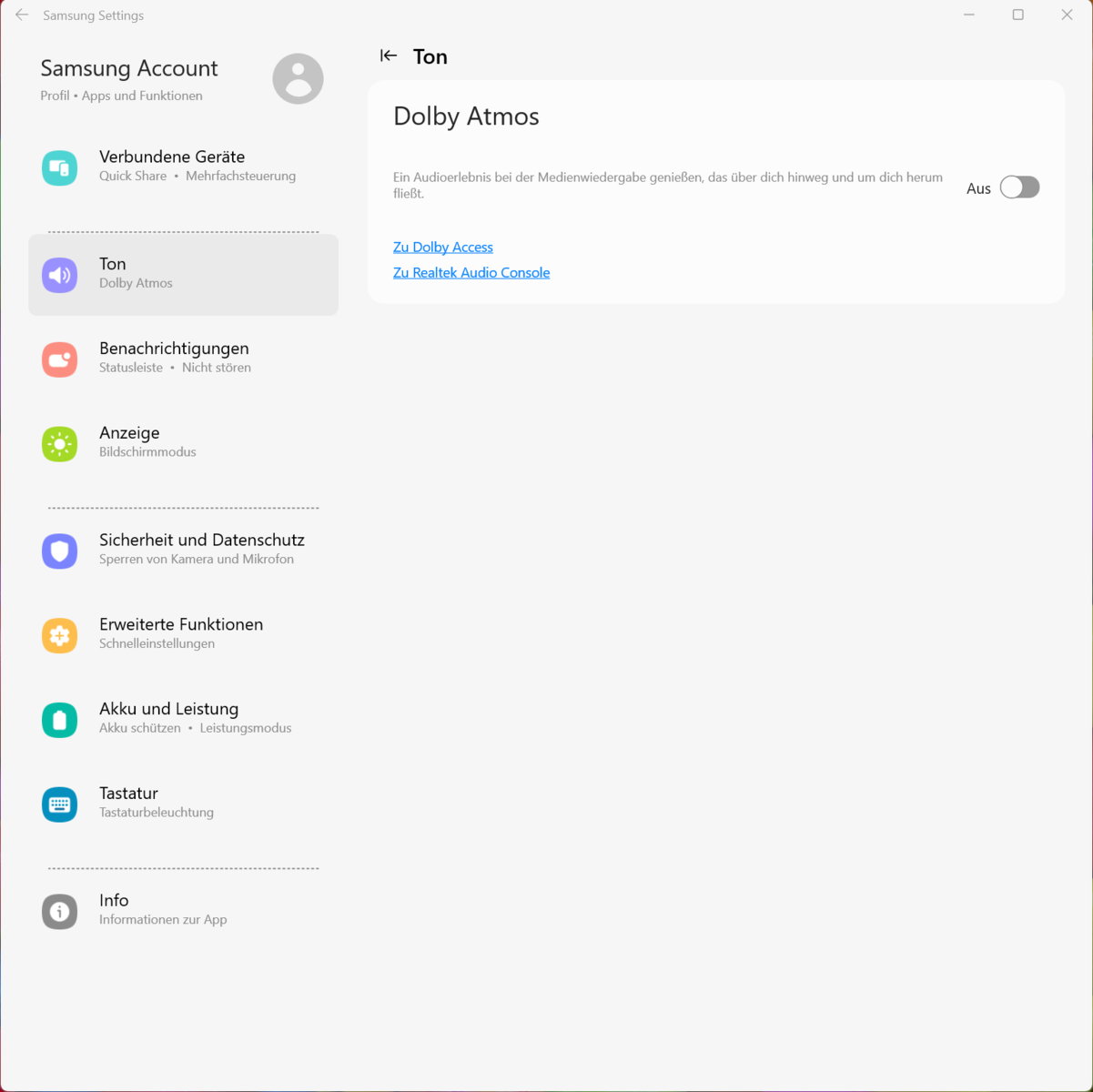

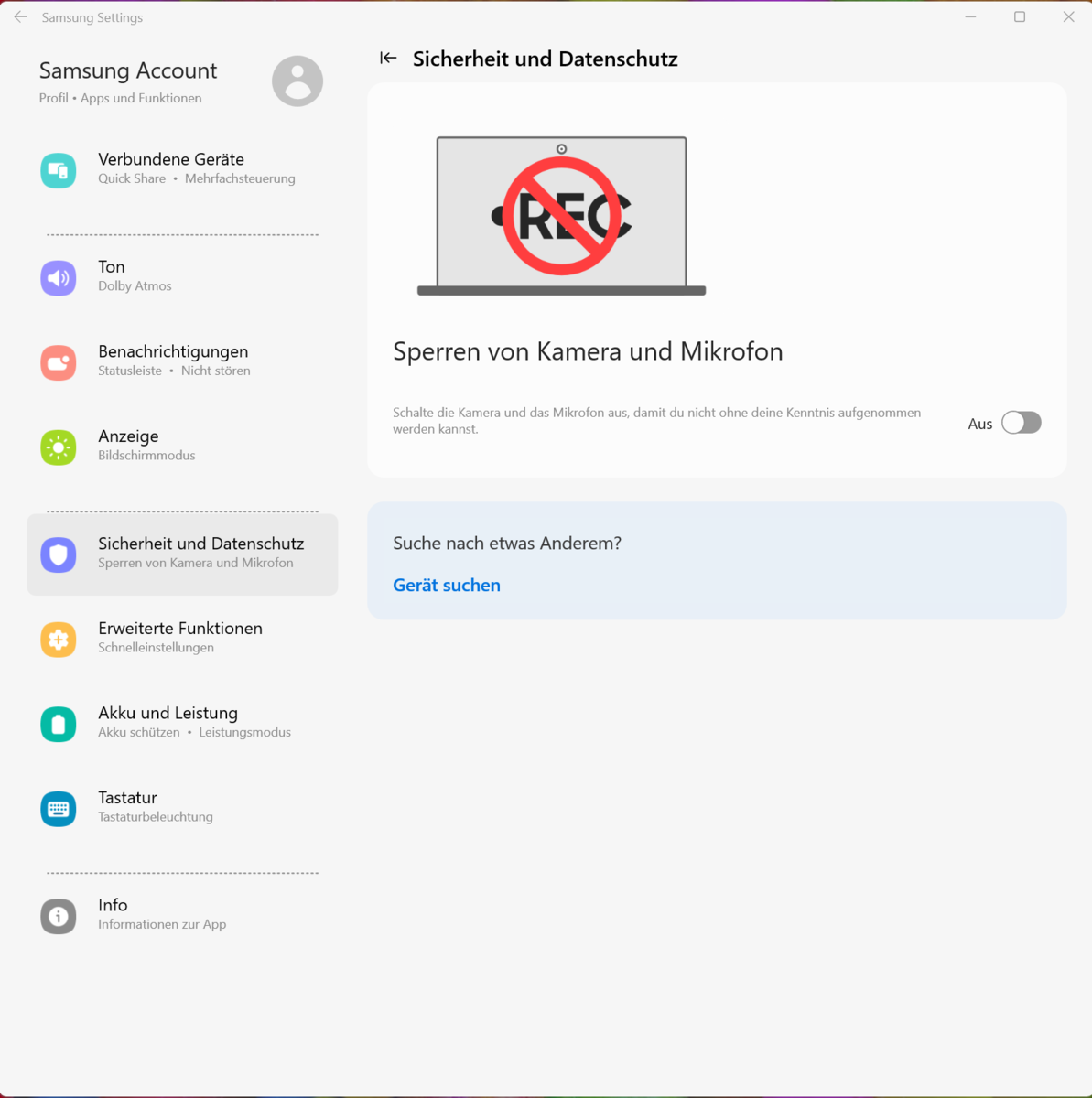

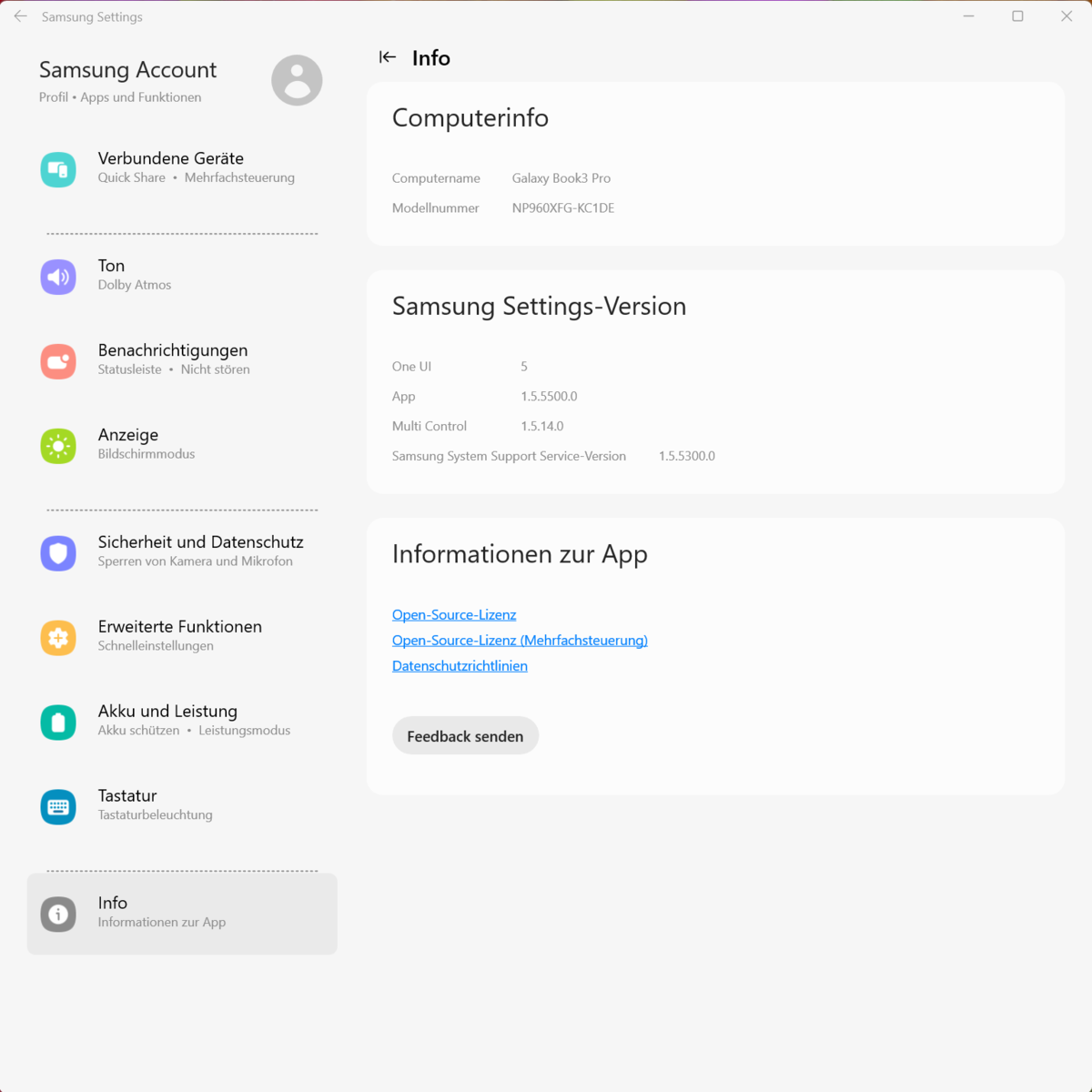

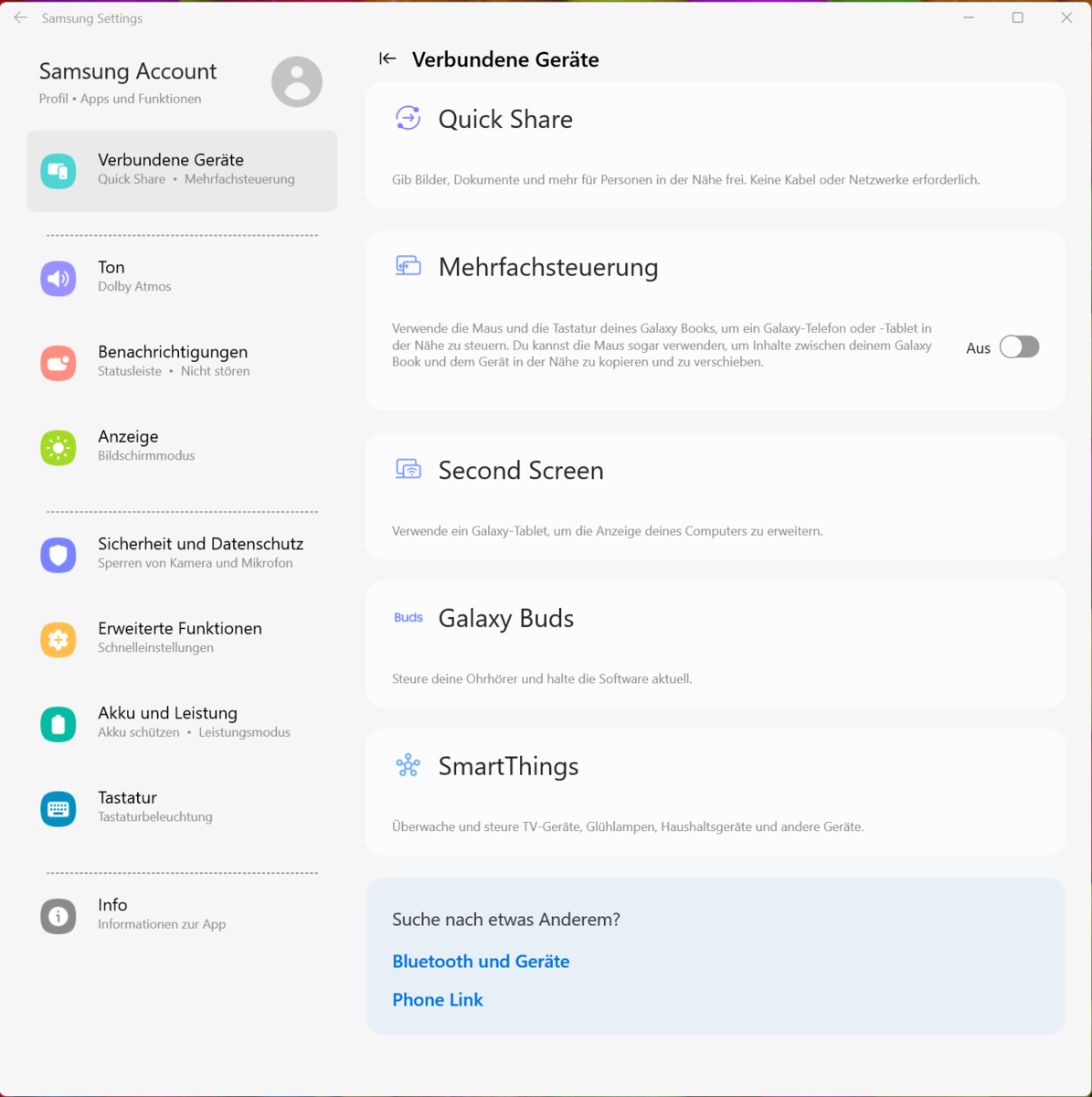

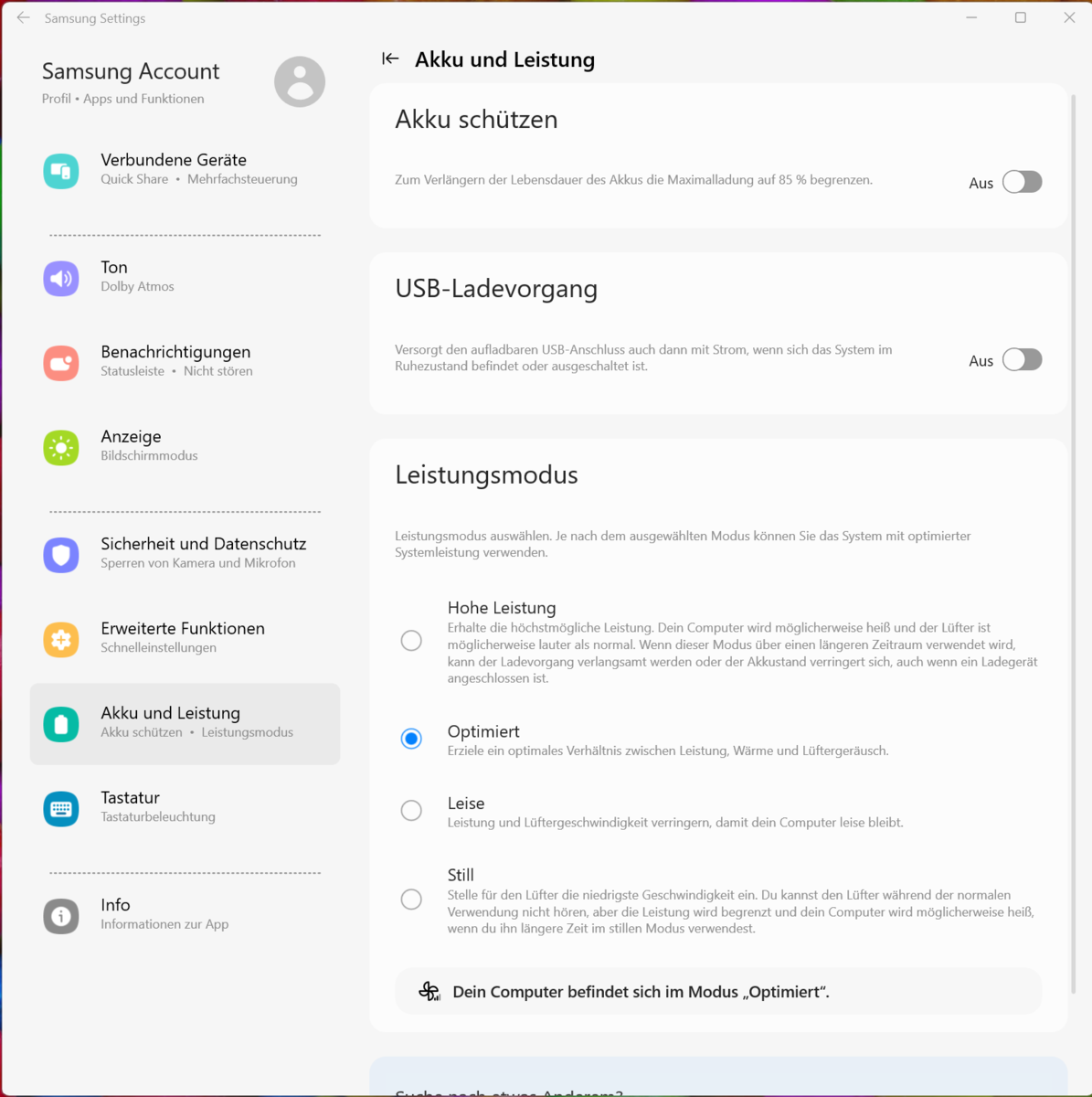

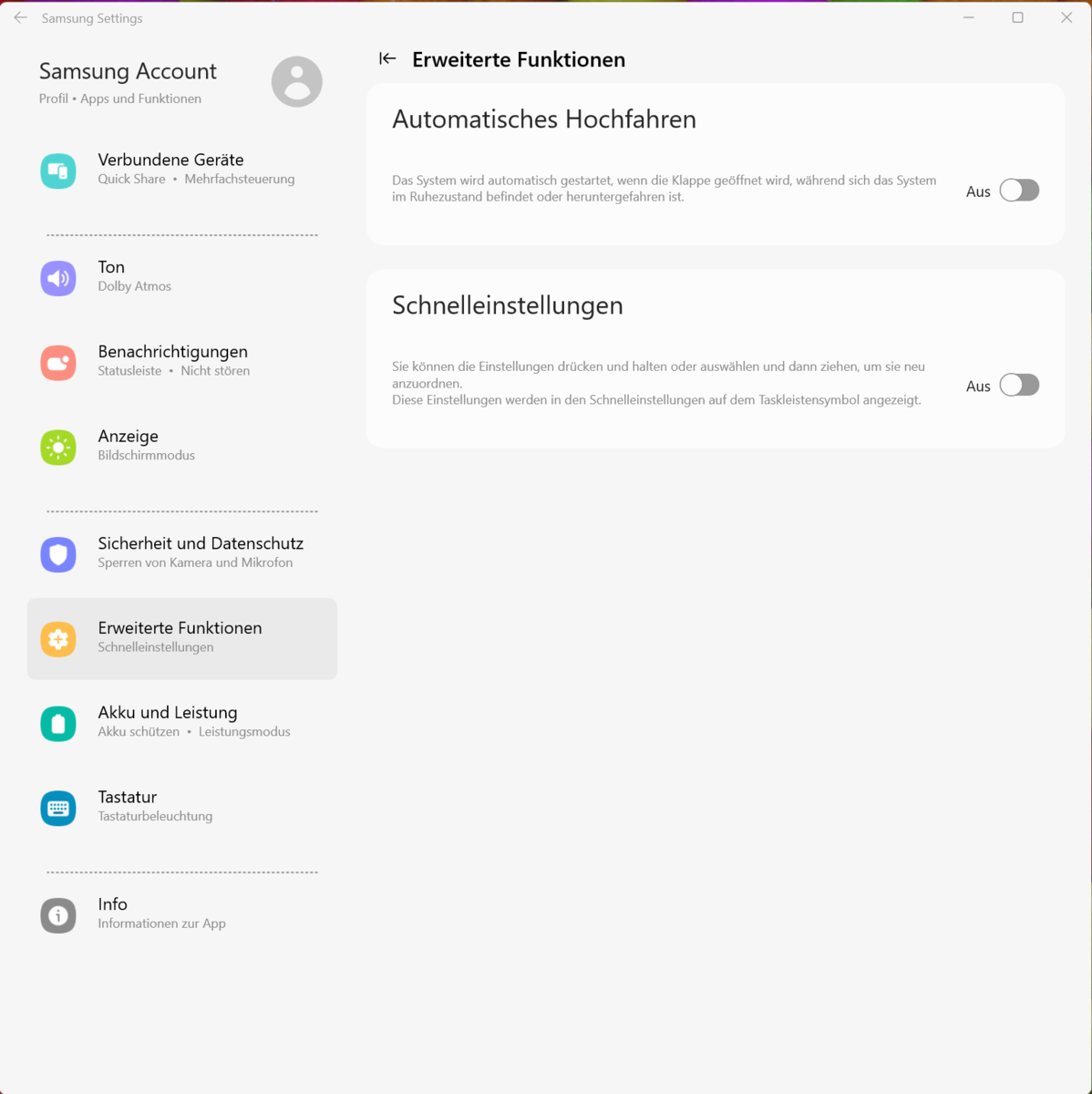

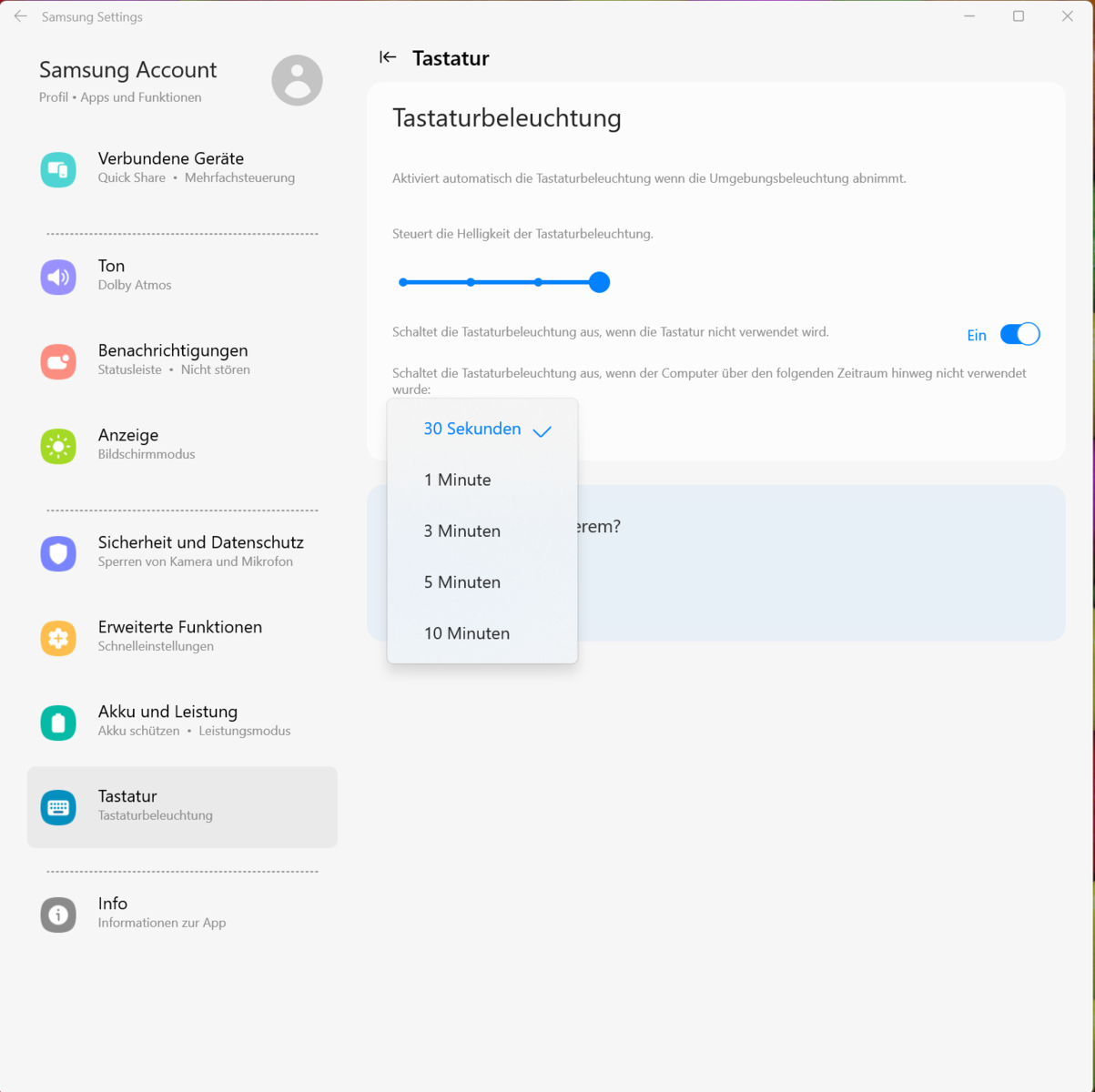

笔记本电脑提供四个制造商特定的性能模式（见下表）。你可以使用 "Fn "+"F11 "组合键或三星设置软件在这些模式之间切换，后者是笔记本电脑的控制中心。在这项测试中，我们使用 "优化 "模式进行基准测试，使用 "安静 "模式进行电池测试。
| 高性能 | 优化的 | 安静的 | 沉默的 | |
|---|---|---|---|---|
| 功率限制1（HWInfo） | 40瓦 | 40瓦 | 23瓦 | 16瓦 |
| 功率限制 2 (HWInfo) | 64 瓦 | 64 瓦 | 64 瓦 | 64 瓦 |
处理器

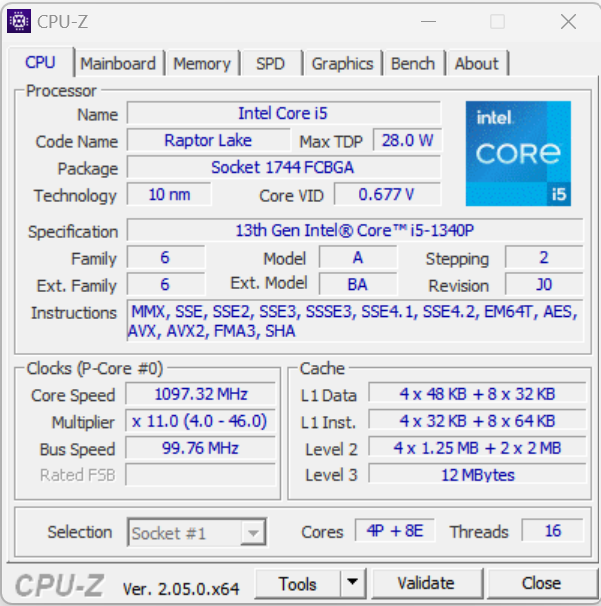

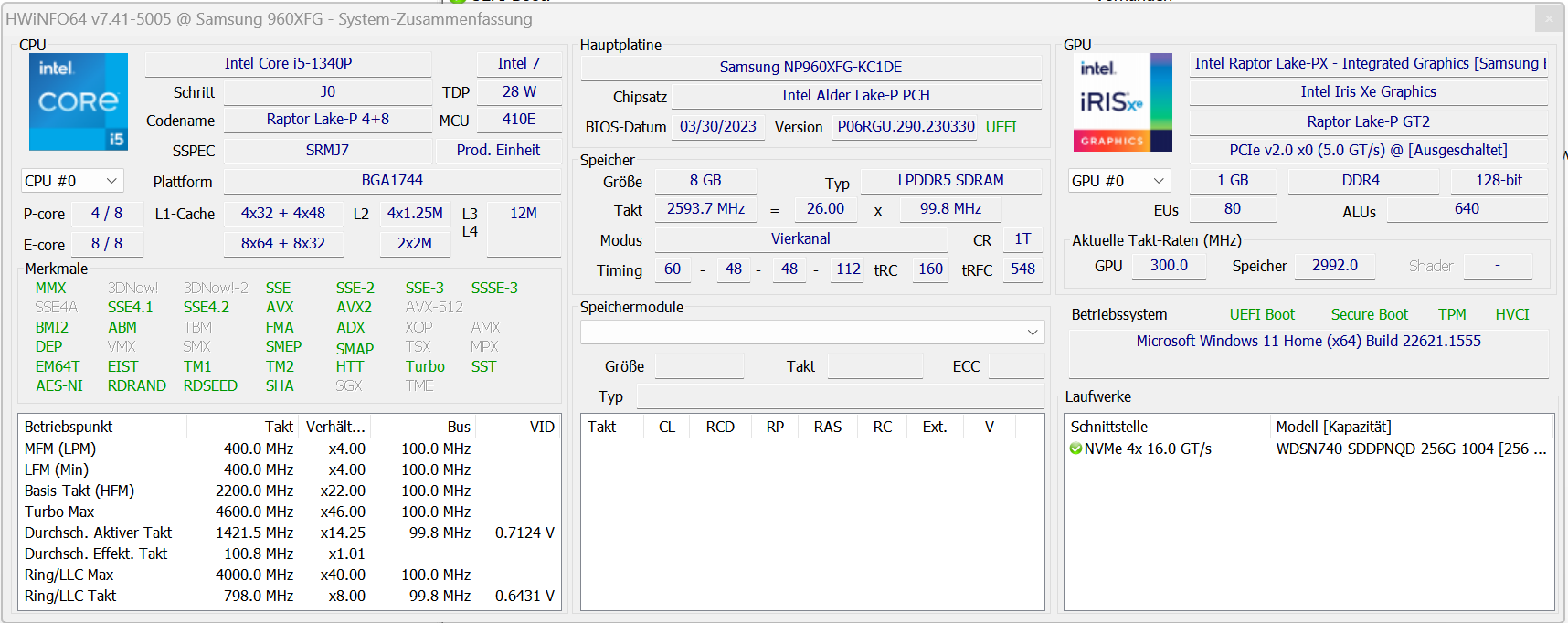

桤木湖Core-i5 1340P处理器由四个性能核心（超线程，1.9至4.6 GHz）和八个效率核心（无超线程，1.4至3.4 GHz）组成，总共有16个逻辑CPU核心。

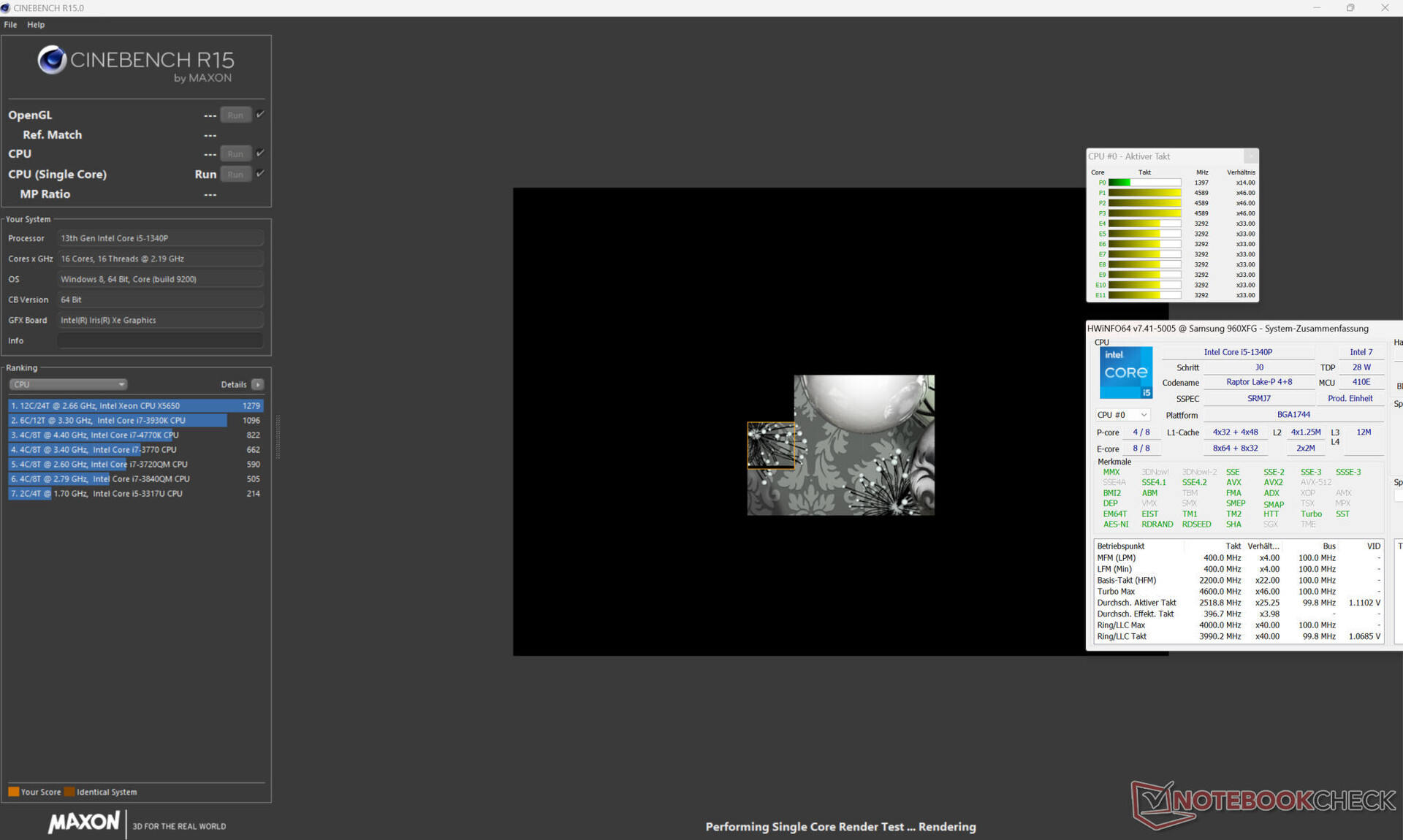

这些基准测试的结果高于（"高性能 "或 "优化"）或低于（"安静 "或 "无声"）到目前为止的CPU平均水平，这取决于所选择的性能模式。在所有情况下，都有足够的性能用于日常操作。在电池模式下，更相关的单线程性能（164分）比多线程性能（1,818分）降低更多。

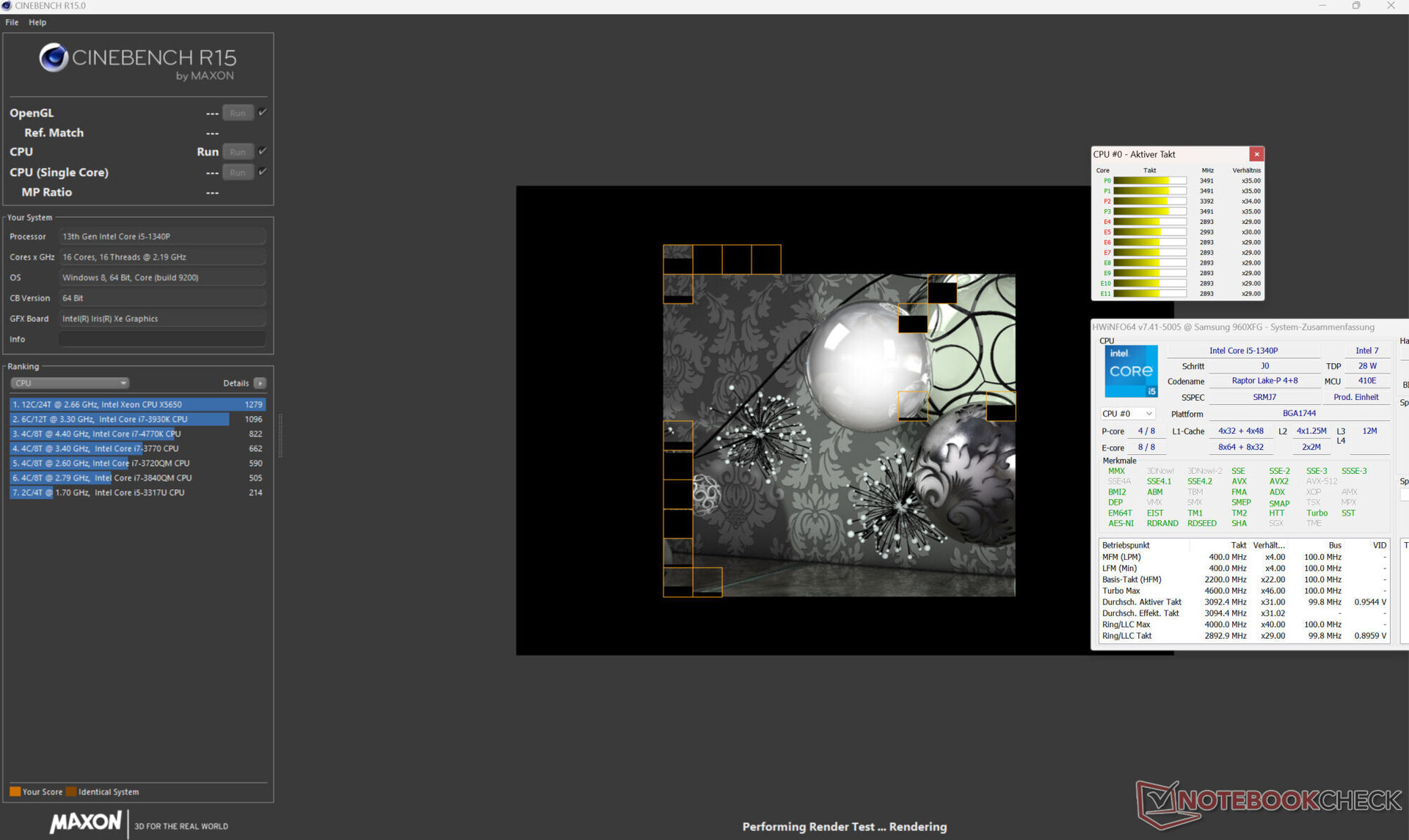

CB15循环测试表明，恒定的多线程负载将导致Turbo时钟速度在每次连续的运行中下降，然后从第七次运行开始变化。处理器无法维持一个恒定的水平。高性能 "配置文件将确保更高的平均时钟速度和更少的变化。
Cinebench R15 Multi Constant Load Test
* ... smaller is better
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
| Performance Rating | |
| HP EliteBook 865 G9 | |
| Lenovo ThinkPad T16 G1 21CH004MGE | |
| Samsung Galaxy Book3 Pro 16 | |
| Average Intel Core i5-1340P | |
| Acer TravelMate P4 TMP416-51-55KN | |
| Average of class Office | |
| LG Gram 16Z90Q | |
| AIDA64 / FP32 Ray-Trace | |
| HP EliteBook 865 G9 | |
| Lenovo ThinkPad T16 G1 21CH004MGE | |
| Average of class Office (763 - 24250, n=92, last 2 years) | |
| Acer TravelMate P4 TMP416-51-55KN | |
| Samsung Galaxy Book3 Pro 16 | |
| Average Intel Core i5-1340P (8327 - 8507, n=2) | |
| LG Gram 16Z90Q | |
| AIDA64 / FPU Julia | |
| HP EliteBook 865 G9 | |
| Lenovo ThinkPad T16 G1 21CH004MGE | |
| Samsung Galaxy Book3 Pro 16 | |
| Acer TravelMate P4 TMP416-51-55KN | |
| Average of class Office (4113 - 102228, n=92, last 2 years) | |
| Average Intel Core i5-1340P (42277 - 49719, n=2) | |
| LG Gram 16Z90Q | |
| AIDA64 / CPU SHA3 | |
| Samsung Galaxy Book3 Pro 16 | |
| HP EliteBook 865 G9 | |
| Acer TravelMate P4 TMP416-51-55KN | |
| Lenovo ThinkPad T16 G1 21CH004MGE | |
| Average Intel Core i5-1340P (2046 - 2552, n=2) | |
| Average of class Office (287 - 4551, n=92, last 2 years) | |
| LG Gram 16Z90Q | |
| AIDA64 / CPU Queen | |
| HP EliteBook 865 G9 | |
| Samsung Galaxy Book3 Pro 16 | |
| Lenovo ThinkPad T16 G1 21CH004MGE | |
| Acer TravelMate P4 TMP416-51-55KN | |
| Average Intel Core i5-1340P (68033 - 80139, n=2) | |
| LG Gram 16Z90Q | |
| Average of class Office (8185 - 115197, n=92, last 2 years) | |
| AIDA64 / FPU SinJulia | |
| HP EliteBook 865 G9 | |
| Lenovo ThinkPad T16 G1 21CH004MGE | |
| Average of class Office (404 - 14288, n=92, last 2 years) | |
| Samsung Galaxy Book3 Pro 16 | |
| Average Intel Core i5-1340P (5675 - 6671, n=2) | |
| Acer TravelMate P4 TMP416-51-55KN | |
| LG Gram 16Z90Q | |
| AIDA64 / FPU Mandel | |
| HP EliteBook 865 G9 | |
| Lenovo ThinkPad T16 G1 21CH004MGE | |
| Average of class Office (2075 - 54365, n=92, last 2 years) | |
| Samsung Galaxy Book3 Pro 16 | |
| Acer TravelMate P4 TMP416-51-55KN | |
| Average Intel Core i5-1340P (20880 - 24409, n=2) | |
| LG Gram 16Z90Q | |
| AIDA64 / CPU AES | |
| Lenovo ThinkPad T16 G1 21CH004MGE | |
| Samsung Galaxy Book3 Pro 16 | |
| Average Intel Core i5-1340P (41735 - 91493, n=2) | |
| Average of class Office (7860 - 155900, n=92, last 2 years) | |
| HP EliteBook 865 G9 | |
| Acer TravelMate P4 TMP416-51-55KN | |
| LG Gram 16Z90Q | |
| AIDA64 / CPU ZLib | |
| Samsung Galaxy Book3 Pro 16 | |
| Acer TravelMate P4 TMP416-51-55KN | |
| Average Intel Core i5-1340P (604 - 755, n=2) | |
| HP EliteBook 865 G9 | |
| Lenovo ThinkPad T16 G1 21CH004MGE | |
| Average of class Office (78 - 1018, n=92, last 2 years) | |
| LG Gram 16Z90Q | |
| AIDA64 / FP64 Ray-Trace | |
| HP EliteBook 865 G9 | |
| Lenovo ThinkPad T16 G1 21CH004MGE | |
| Average of class Office (432 - 12755, n=92, last 2 years) | |
| Acer TravelMate P4 TMP416-51-55KN | |
| Average Intel Core i5-1340P (4204 - 4512, n=2) | |
| Samsung Galaxy Book3 Pro 16 | |
| LG Gram 16Z90Q | |
| AIDA64 / CPU PhotoWorxx | |
| Samsung Galaxy Book3 Pro 16 | |
| Average Intel Core i5-1340P (40640 - 45880, n=2) | |
| LG Gram 16Z90Q | |
| Average of class Office (4814 - 54971, n=92, last 2 years) | |
| Acer TravelMate P4 TMP416-51-55KN | |
| Lenovo ThinkPad T16 G1 21CH004MGE | |
| HP EliteBook 865 G9 | |
系统性能

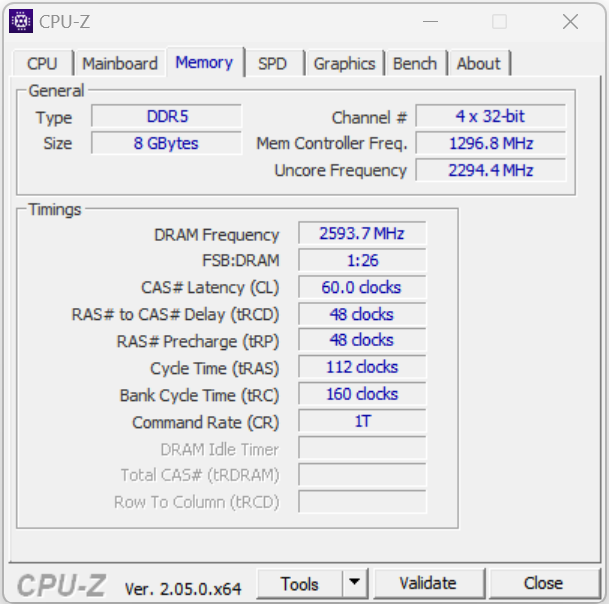

运行流畅的系统能够处理办公和互联网应用，以及低设置的游戏。工作内存提供的传输率在LPDDR5-5200内存中处于正常水平。然而，只有8GB的存储容量是非常微不足道的，以该笔记本电脑的价格水平，至少需要16GB。
CrossMark: Overall | Productivity | Creativity | Responsiveness
| PCMark 10 / Score | |
| Lenovo ThinkPad T16 G1 21CH004MGE | |
| HP EliteBook 865 G9 | |
| Average of class Office (2463 - 7344, n=86, last 2 years) | |
| Samsung Galaxy Book3 Pro 16 | |
| Acer TravelMate P4 TMP416-51-55KN | |
| LG Gram 16Z90Q | |
| Average Intel Core i5-1340P, Intel Iris Xe Graphics G7 80EUs (4259 - 5576, n=2) | |
| PCMark 10 / Essentials | |
| Samsung Galaxy Book3 Pro 16 | |
| Average of class Office (5575 - 20841, n=86, last 2 years) | |
| LG Gram 16Z90Q | |
| Lenovo ThinkPad T16 G1 21CH004MGE | |
| Acer TravelMate P4 TMP416-51-55KN | |
| HP EliteBook 865 G9 | |
| Average Intel Core i5-1340P, Intel Iris Xe Graphics G7 80EUs (7904 - 10598, n=2) | |
| PCMark 10 / Productivity | |
| Lenovo ThinkPad T16 G1 21CH004MGE | |
| HP EliteBook 865 G9 | |
| Average of class Office (3041 - 10415, n=86, last 2 years) | |
| Acer TravelMate P4 TMP416-51-55KN | |
| Samsung Galaxy Book3 Pro 16 | |
| LG Gram 16Z90Q | |
| Average Intel Core i5-1340P, Intel Iris Xe Graphics G7 80EUs (4777 - 6718, n=2) | |
| PCMark 10 / Digital Content Creation | |
| HP EliteBook 865 G9 | |
| Samsung Galaxy Book3 Pro 16 | |
| Lenovo ThinkPad T16 G1 21CH004MGE | |
| Average of class Office (2126 - 9773, n=86, last 2 years) | |
| Acer TravelMate P4 TMP416-51-55KN | |
| Average Intel Core i5-1340P, Intel Iris Xe Graphics G7 80EUs (5554 - 6608, n=2) | |
| LG Gram 16Z90Q | |
| CrossMark / Overall | |
| Average Intel Core i5-1340P, Intel Iris Xe Graphics G7 80EUs (1579 - 1612, n=2) | |
| Samsung Galaxy Book3 Pro 16 | |
| Acer TravelMate P4 TMP416-51-55KN | |
| Lenovo ThinkPad T16 G1 21CH004MGE | |
| Average of class Office (348 - 1891, n=86, last 2 years) | |
| HP EliteBook 865 G9 | |
| CrossMark / Productivity | |
| Average Intel Core i5-1340P, Intel Iris Xe Graphics G7 80EUs (1532 - 1548, n=2) | |
| Samsung Galaxy Book3 Pro 16 | |
| Acer TravelMate P4 TMP416-51-55KN | |
| Lenovo ThinkPad T16 G1 21CH004MGE | |
| Average of class Office (393 - 1870, n=86, last 2 years) | |
| HP EliteBook 865 G9 | |
| CrossMark / Creativity | |
| Average Intel Core i5-1340P, Intel Iris Xe Graphics G7 80EUs (1652 - 1715, n=2) | |
| Samsung Galaxy Book3 Pro 16 | |
| Acer TravelMate P4 TMP416-51-55KN | |
| Lenovo ThinkPad T16 G1 21CH004MGE | |
| Average of class Office (340 - 1982, n=86, last 2 years) | |
| HP EliteBook 865 G9 | |
| CrossMark / Responsiveness | |
| Acer TravelMate P4 TMP416-51-55KN | |
| Average Intel Core i5-1340P, Intel Iris Xe Graphics G7 80EUs (1511 - 1514, n=2) | |
| Samsung Galaxy Book3 Pro 16 | |
| Average of class Office (258 - 2017, n=86, last 2 years) | |
| Lenovo ThinkPad T16 G1 21CH004MGE | |
| HP EliteBook 865 G9 | |
| PCMark 8 Home Score Accelerated v2 | 4422 points | |
| PCMark 8 Work Score Accelerated v2 | 2900 points | |
| PCMark 10 Score | 5576 points | |
Help | ||
| AIDA64 / Memory Copy | |
| LG Gram 16Z90Q | |
| Samsung Galaxy Book3 Pro 16 | |
| Average Intel Core i5-1340P (59206 - 69103, n=2) | |
| Average of class Office (7158 - 108783, n=93, last 2 years) | |
| Lenovo ThinkPad T16 G1 21CH004MGE | |
| Acer TravelMate P4 TMP416-51-55KN | |
| HP EliteBook 865 G9 | |
| AIDA64 / Memory Read | |
| LG Gram 16Z90Q | |
| Samsung Galaxy Book3 Pro 16 | |
| Average Intel Core i5-1340P (55913 - 60597, n=2) | |
| Average of class Office (7325 - 112436, n=93, last 2 years) | |
| Acer TravelMate P4 TMP416-51-55KN | |
| Lenovo ThinkPad T16 G1 21CH004MGE | |
| HP EliteBook 865 G9 | |
| AIDA64 / Memory Write | |
| Samsung Galaxy Book3 Pro 16 | |
| Average Intel Core i5-1340P (75061 - 88993, n=2) | |
| LG Gram 16Z90Q | |
| Average of class Office (7579 - 117935, n=93, last 2 years) | |
| Lenovo ThinkPad T16 G1 21CH004MGE | |
| Acer TravelMate P4 TMP416-51-55KN | |
| HP EliteBook 865 G9 | |
| AIDA64 / Memory Latency | |
| Lenovo ThinkPad T16 G1 21CH004MGE | |
| LG Gram 16Z90Q | |
| Average Intel Core i5-1340P (95.4 - 112.1, n=2) | |
| Average of class Office (8.3 - 185.2, n=93, last 2 years) | |
| Samsung Galaxy Book3 Pro 16 | |
| HP EliteBook 865 G9 | |
| Acer TravelMate P4 TMP416-51-55KN | |
* ... smaller is better
DPC延迟

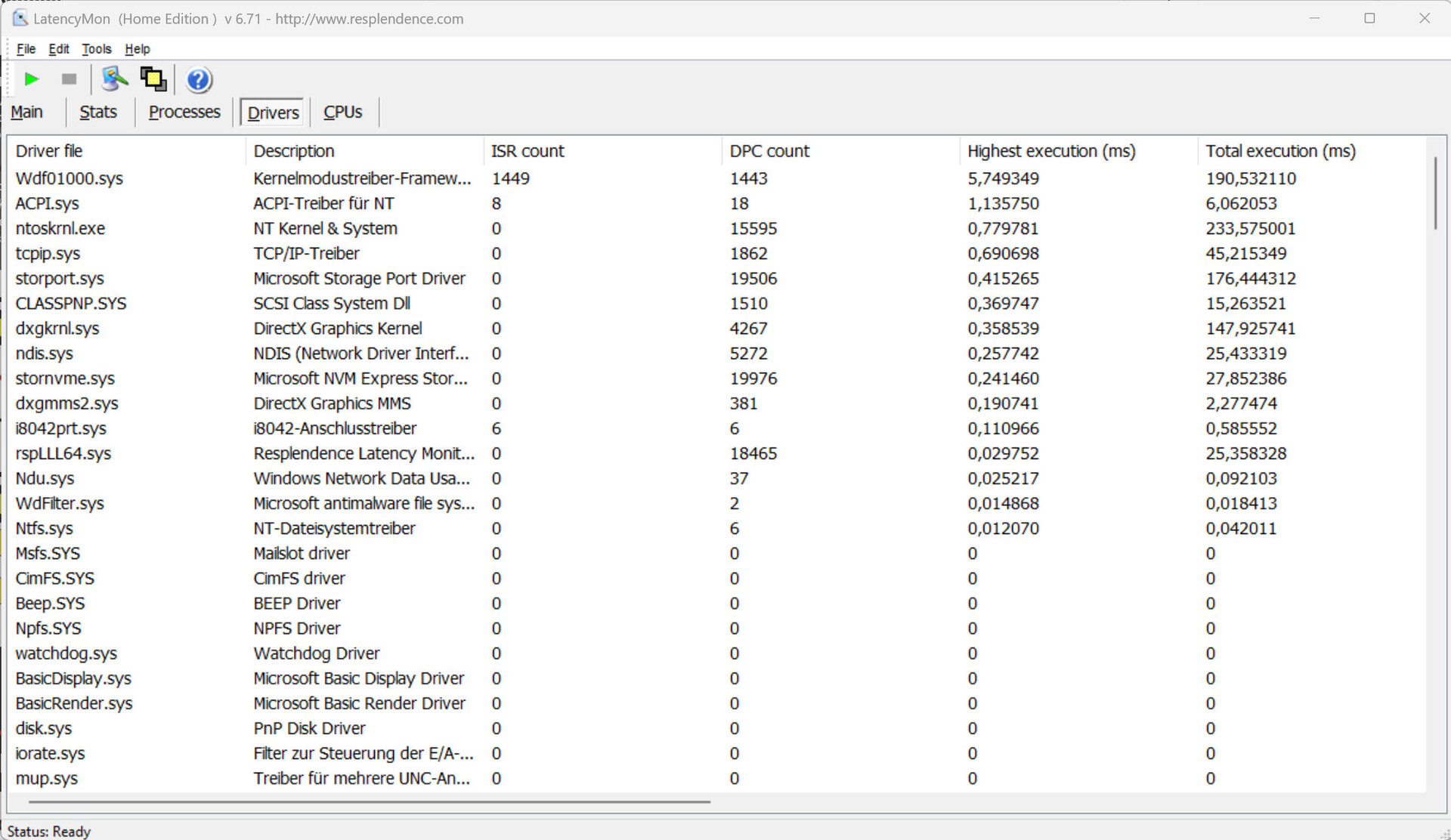

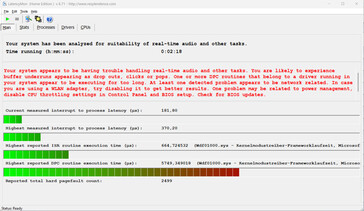

标准化的延迟监测测试（有网络冲浪、4k视频再现和Prime95高负荷）显示了一些明显的行为。尽管笔记本电脑显示出非常低的延迟，但测试显示出一个驱动问题，它阻碍了视频和音频的实时处理。未来的软件更新可能会带来一些改进，或者也会使事情变得更糟。
| DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95 | |
| Acer TravelMate P4 TMP416-51-55KN | |
| LG Gram 16Z90Q | |
| Lenovo ThinkPad T16 G1 21CH004MGE | |
| HP EliteBook 865 G9 | |
| Samsung Galaxy Book3 Pro 16 | |
* ... smaller is better
存储解决方案
三星为这台笔记本电脑配备了来自西部数据的PCIe 4固态硬盘（M.2-2280），只提供256GB的容量，这对于一台1700欧元（约1879美元）的笔记本电脑来说是不够的。虽然它能提供良好的数据速率，但它并不是固态硬盘中的顶级型号之一。在积极的一面，我们没有观察到任何热节流现象。这款三星笔记本电脑没有提供任何额外的存储介质空间。
* ... smaller is better
Disk Throttling: DiskSpd Read Loop, Queue Depth 8
图形卡

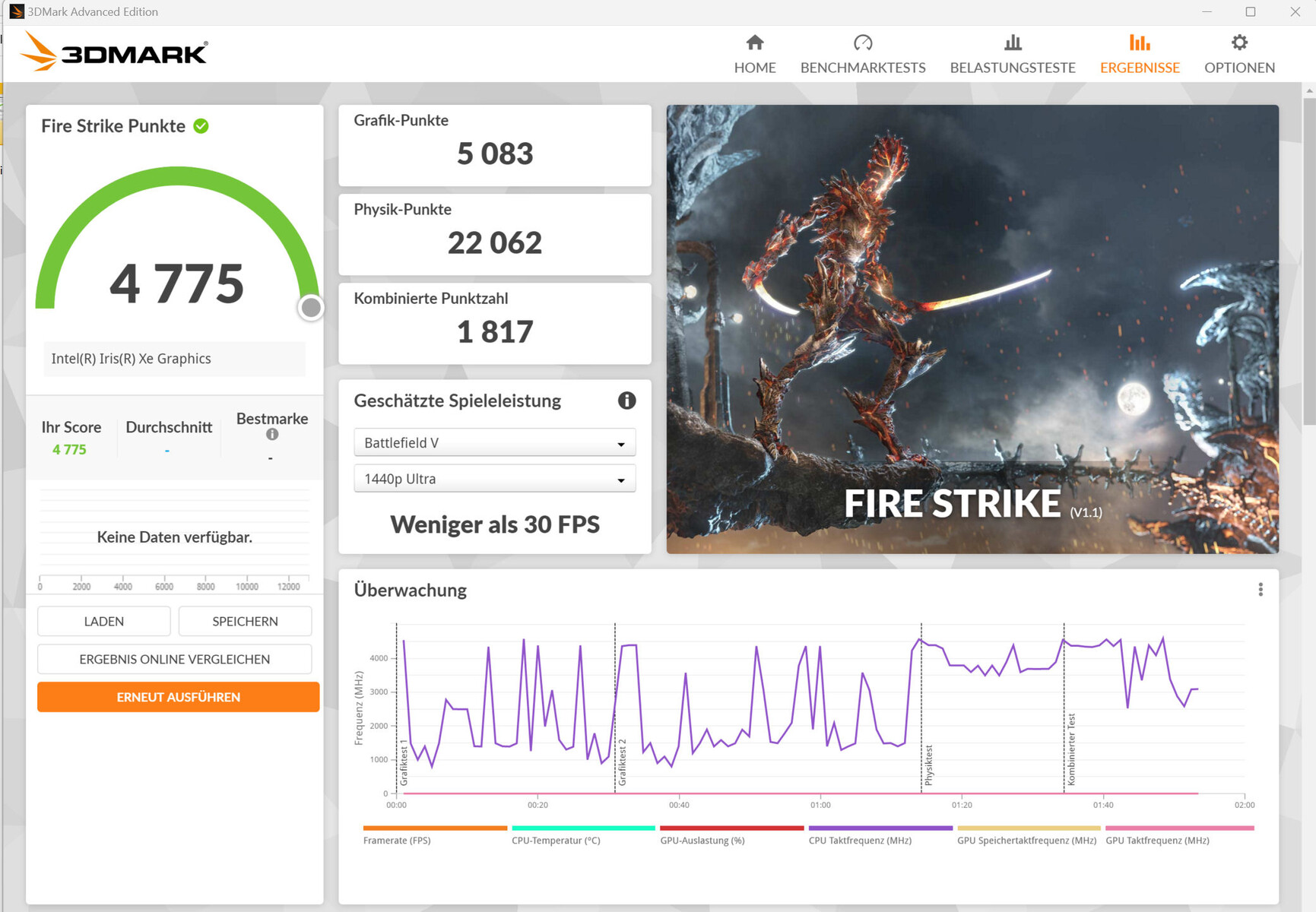

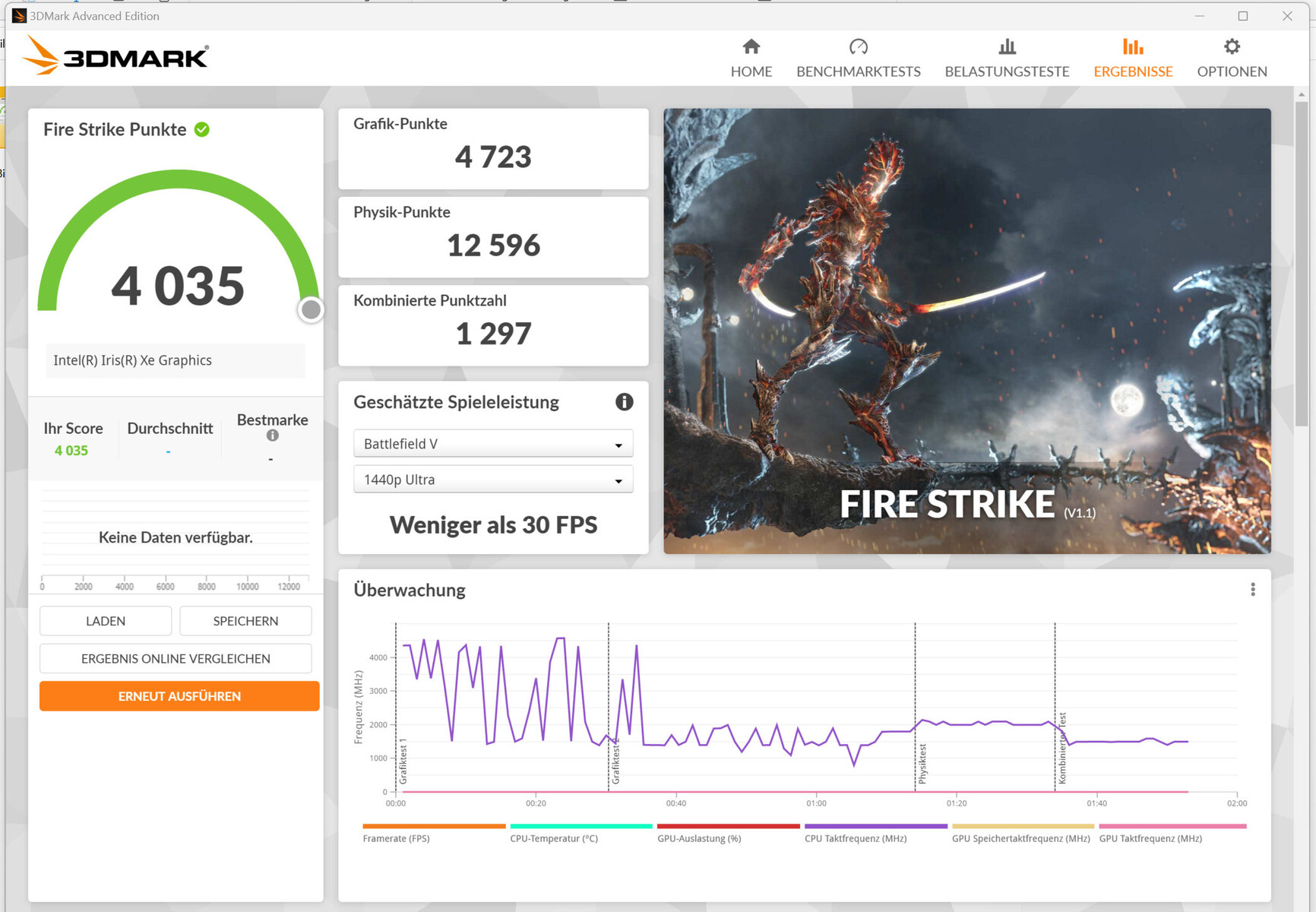

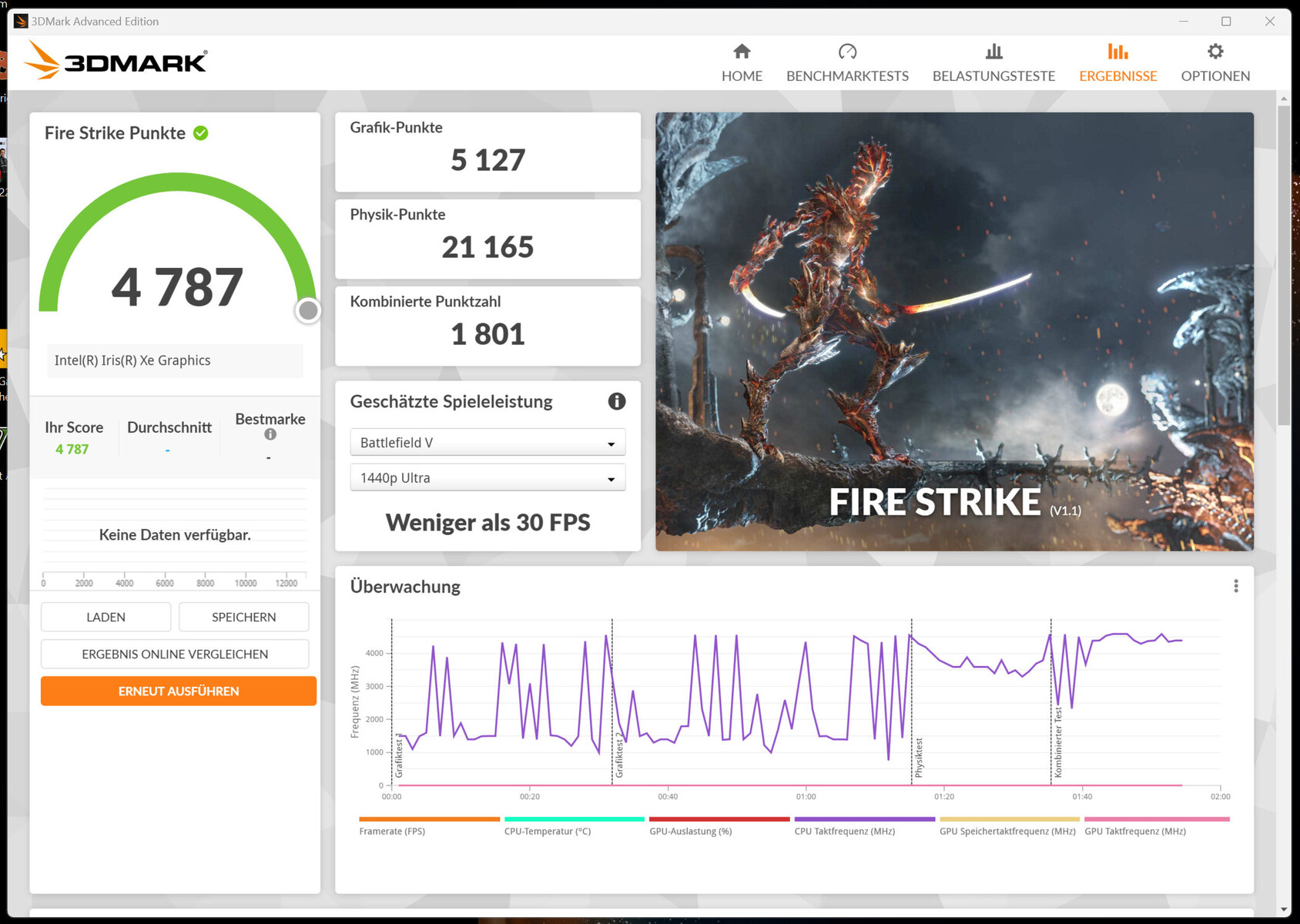

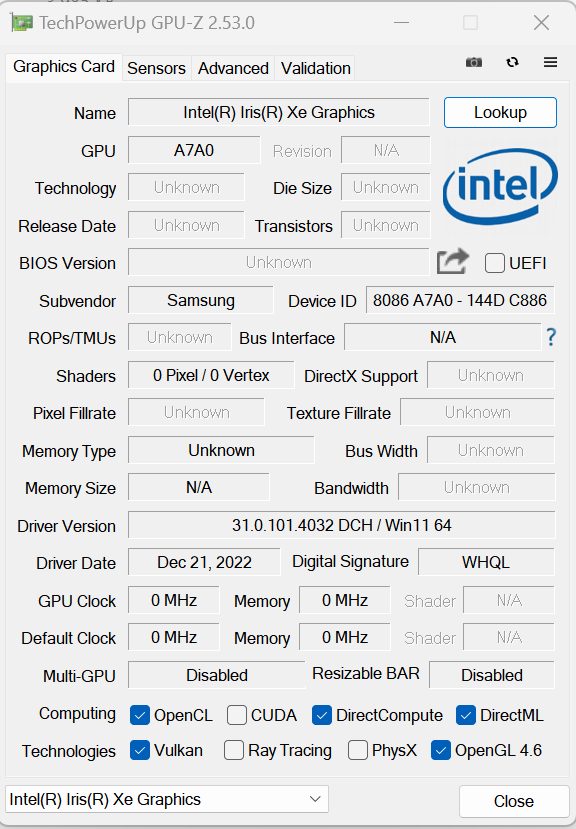

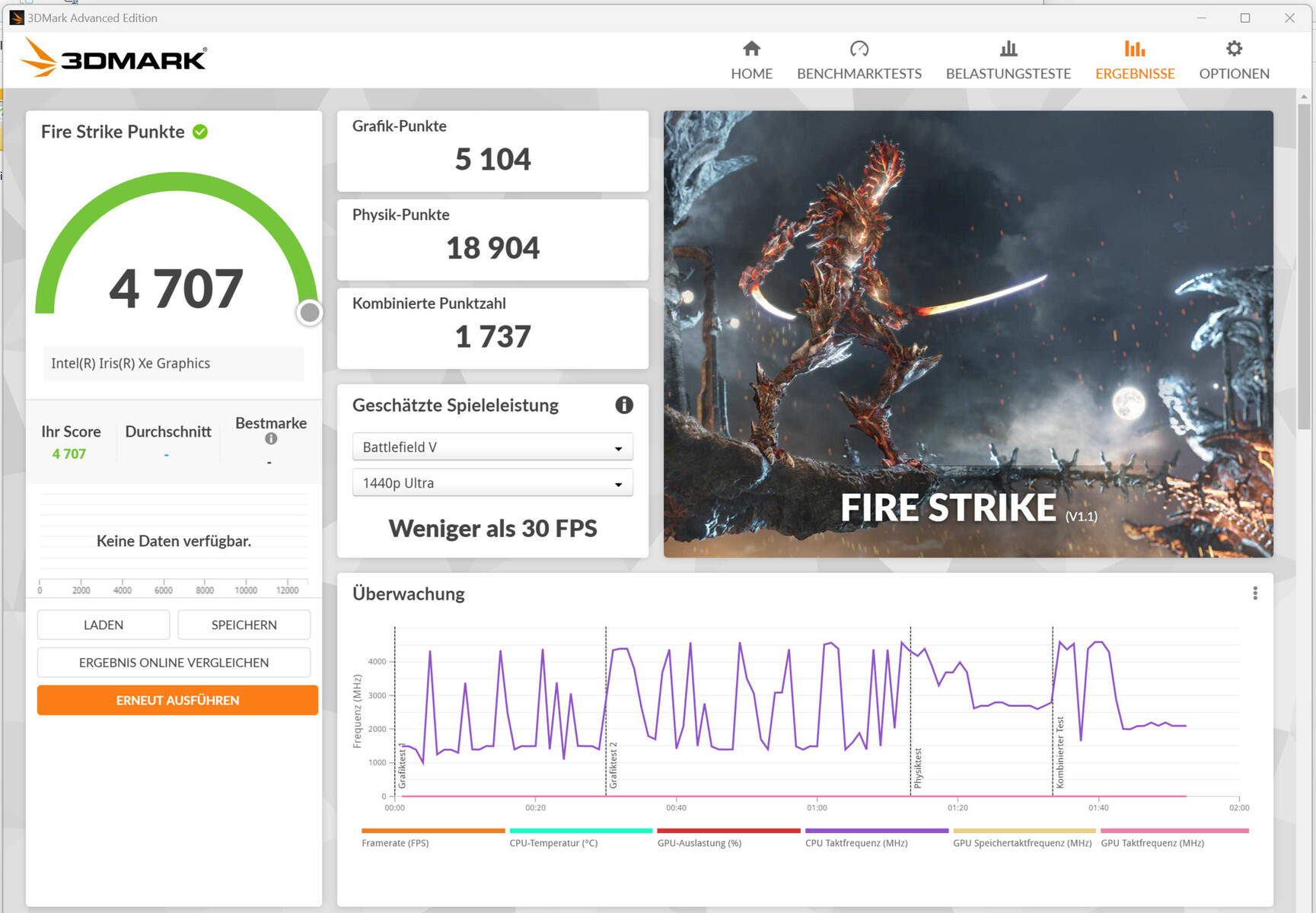

虹膜Xe-G7虹膜Xe-G7iGPU提供80个执行单元，支持DirectX 12，最大时钟速度达到1,450 MHz。根据我们的TheWitcher 3 测试，在激活 "高性能 "配置文件时，该速度可以持续保持。"优化 "确保恒定的时钟速度 "只有 "1,400 MHz。3DMark的结果范围明显高于这里使用的iGPU的平均值。
| 3DMark 06 Standard Score | 28300 points | |
| 3DMark 11 Performance | 6904 points | |
| 3DMark Cloud Gate Standard Score | 17819 points | |
| 3DMark Fire Strike Score | 4787 points | |
| 3DMark Time Spy Score | 1647 points | |
Help | ||
游戏性能
该硬件能够在中低档设置下将许多游戏流畅地呈现在屏幕上，但Galaxy Book3并不是一台游戏笔记本电脑。帧率范围明显高于这里使用的iGPU的平均值。
| The Witcher 3 - 1366x768 Medium Graphics & Postprocessing | |
| Samsung Galaxy Book3 Pro 16 | |
| Lenovo ThinkPad T16 G1 21CH004MGE | |
| Average of class Office (12 - 106.3, n=68, last 2 years) | |
| Acer TravelMate P4 TMP416-51-55KN | |
| Average Intel Iris Xe Graphics G7 80EUs (21.8 - 56.9, n=103) | |
| LG Gram 16Z90Q | |
为了评估帧率是否也能在很大程度上保持恒定，我们在全高清分辨率和最高质量设置下运行游戏 "TheWitcher 3"约60分钟，不移动游戏角色。我们没有注意到帧率的下降。
The Witcher 3 FPS Chart
| low | med. | high | ultra | QHD | |
|---|---|---|---|---|---|
| GTA V (2015) | 134.7 | 111.6 | 24.9 | 10.2 | 6.76 |
| The Witcher 3 (2015) | 89.1 | 56.9 | 30.5 | 14.4 | |
| Dota 2 Reborn (2015) | 100.3 | 81.5 | 50.7 | 44.9 | |
| Final Fantasy XV Benchmark (2018) | 38.1 | 20.7 | 13.3 | 9.61 | |
| X-Plane 11.11 (2018) | 39.2 | 30.8 | 25.1 | ||
| Far Cry 5 (2018) | 55 | 27 | 24 | 23 | 15 |
| Strange Brigade (2018) | 81.9 | 34.2 | 27.5 | ||
| Riders Republic (2021) | 30 | 18 | 14 | 7 | 5 |
排放物 - 三星笔记本电脑可能会很吵
噪声水平
负载下的噪声发展取决于所选择的性能模式。在 "高性能 "模式下，高负荷下的最大值为46.4 dB(A)。选择 "优化 "可将最大值降至适度的38.6 dB(A)，而 "安静 "和 "无声 "模式可进一步降低噪声发展。但这是以计算性能为代价的。在日常操作中，笔记本电脑通常是安静地或无声地运行，与模式无关。
Noise Level
| Idle |
| 25.2 / 25.2 / 29.3 dB(A) |
| Load |
| 46.4 / 46.4 dB(A) |
 | ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min:  , med:  , max:  Earthworks M23R, Arta (15 cm distance) environment noise: 25.2 dB(A) | ||
| Samsung Galaxy Book3 Pro 16 Iris Xe G7 80EUs, i5-1340P, WD PC SN740 256GB SDDPNQD-256G | LG Gram 16Z90Q Iris Xe G7 96EUs, i7-1260P, Samsung PM9A1 MZVL21T0HCLR | Acer TravelMate P4 TMP416-51-55KN Iris Xe G7 80EUs, i5-1240P, Micron 2450 512GB MTFDKBA512TFK | Lenovo ThinkPad T16 G1 21CH004MGE Radeon 660M, R5 PRO 6650U, Micron 2450 512GB MTFDKBA512TFK | HP EliteBook 865 G9 Radeon 680M, R7 PRO 6850U, Samsung PM991 MZVLQ512HBLU | |
|---|---|---|---|---|---|
| Noise | 5% | 4% | 18% | 19% | |
| off / environment * | 25.2 | 25 1% | 25.4 -1% | 23.1 8% | 23 9% |
| Idle Minimum * | 25.2 | 26 -3% | 25.4 -1% | 23.1 8% | 23 9% |
| Idle Average * | 25.2 | 27 -7% | 25.4 -1% | 23.1 8% | 23 9% |
| Idle Maximum * | 29.3 | 28 4% | 25.4 13% | 23.1 21% | 23 22% |
| Load Average * | 46.4 | 38 18% | 43.9 5% | 25.4 45% | 29.1 37% |
| Load Maximum * | 46.4 | 38 18% | 43.7 6% | 39.1 16% | 32.9 29% |
| Witcher 3 ultra * | 37 | 35.93 | 29.1 |
* ... smaller is better
温度
笔记本电脑总体上适度升温。最高温度在40-45°C（104-113°F）之间，并在压力测试中的五个测量点达到。在日常操作中，温度值保持在绿色范围内。
(±) The maximum temperature on the upper side is 41.6 °C / 107 F, compared to the average of 34.3 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(±) The bottom heats up to a maximum of 45 °C / 113 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 29.3 °C / 85 F, compared to the device average of 29.5 °C / 85 F.
(±) Playing The Witcher 3, the average temperature for the upper side is 32.4 °C / 90 F, compared to the device average of 29.5 °C / 85 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 30.2 °C / 86.4 F and are therefore cool to the touch.
(-) The average temperature of the palmrest area of similar devices was 27.7 °C / 81.9 F (-2.5 °C / -4.5 F).
| Samsung Galaxy Book3 Pro 16 Intel Core i5-1340P, Intel Iris Xe Graphics G7 80EUs | LG Gram 16Z90Q Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs | Acer TravelMate P4 TMP416-51-55KN Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs | Lenovo ThinkPad T16 G1 21CH004MGE AMD Ryzen 5 PRO 6650U, AMD Radeon 660M | HP EliteBook 865 G9 AMD Ryzen 7 PRO 6850U, AMD Radeon 680M | |
|---|---|---|---|---|---|
| Heat | 9% | 4% | 20% | 13% | |
| Maximum Upper Side * | 41.6 | 45 -8% | 38.6 7% | 34.6 17% | 39.4 5% |
| Maximum Bottom * | 45 | 43 4% | 44.4 1% | 41.5 8% | 47.6 -6% |
| Idle Upper Side * | 31 | 26 16% | 28.9 7% | 22.6 27% | 23.6 24% |
| Idle Bottom * | 33.6 | 26 23% | 34 -1% | 24.5 27% | 24.1 28% |
* ... smaller is better
压力测试

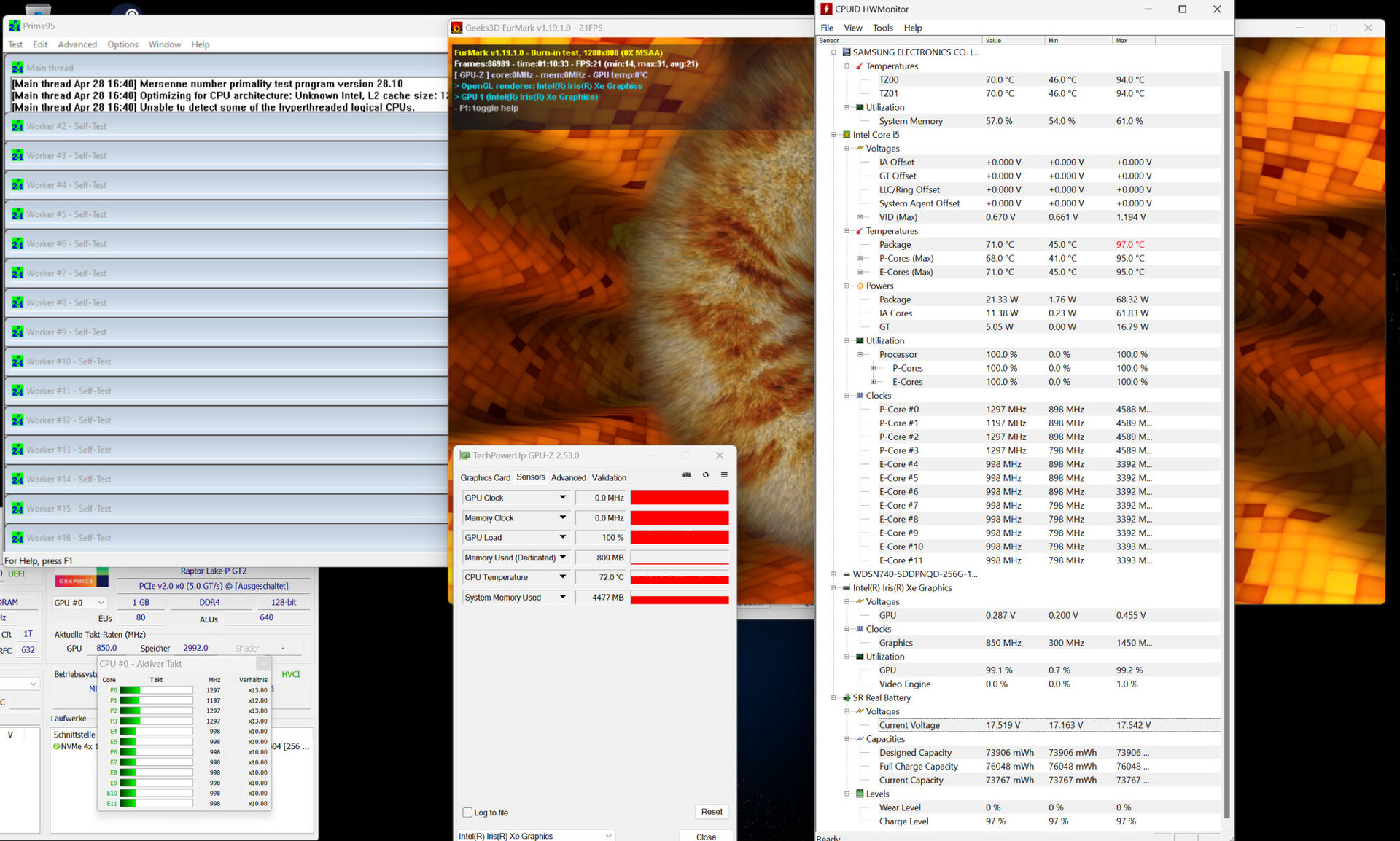

压力测试（Prime95和Furmark持续运行）代表了一种极端情况，以评估系统在全负荷下的稳定性。在测试开始时，CPU速度大约在基本时钟速度的水平上（P：2.2至2.4GHz；E：2GHz），图形速度大约为1250MHz。继续测试，这些数值在下降。
发言人
立体声扬声器产生的声音是可以接受的，尽管它几乎不包括任何低音。为了获得更好的听觉体验，我们建议使用耳机或外部扬声器。
Samsung Galaxy Book3 Pro 16 audio analysis
(+) | speakers can play relatively loud (84.8 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 15.4% lower than median
(-) | bass is not linear (15% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.7% away from median
(+) | mids are linear (5.4% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4.7% away from median
(±) | linearity of highs is average (7.9% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (13.4% difference to median)
Compared to same class
» 4% of all tested devices in this class were better, 4% similar, 92% worse
» The best had a delta of 7%, average was 22%, worst was 53%
Compared to all devices tested
» 12% of all tested devices were better, 3% similar, 85% worse
» The best had a delta of 4%, average was 25%, worst was 134%
LG Gram 16Z90Q audio analysis
(+) | speakers can play relatively loud (84 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 16% lower than median
(±) | linearity of bass is average (9.9% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 5% higher than median
(+) | mids are linear (3.2% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.4% away from median
(±) | linearity of highs is average (7.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (13.7% difference to median)
Compared to same class
» 5% of all tested devices in this class were better, 3% similar, 91% worse
» The best had a delta of 7%, average was 22%, worst was 53%
Compared to all devices tested
» 13% of all tested devices were better, 3% similar, 84% worse
» The best had a delta of 4%, average was 25%, worst was 134%
电源管理--Galaxy 笔记本电脑的续航能力很强
消耗功率
对于这里使用的硬件来说，功耗范围在预期水平左右。笔记本电脑通过压力测试和我们的TheWitcher 3 测试，耗电量略有下降。附带的65瓦的充电器提供了足够的电量。
| Off / Standby | 0.4 / 0.55 Watt |
| Idle | 3.9 / 4.8 / 10 Watt |
| Load |
44 / 63 Watt |

| |
Key:
min: ,
med: ,
max: Metrahit Energy | |
| Samsung Galaxy Book3 Pro 16 i5-1340P, Iris Xe G7 80EUs, WD PC SN740 256GB SDDPNQD-256G, AMOLED, 2880x1800, 16" | LG Gram 16Z90Q i7-1260P, Iris Xe G7 96EUs, Samsung PM9A1 MZVL21T0HCLR, IPS, 2560x1600, 16" | Acer TravelMate P4 TMP416-51-55KN i5-1240P, Iris Xe G7 80EUs, Micron 2450 512GB MTFDKBA512TFK, IPS, 1920x1200, 16" | Lenovo ThinkPad T16 G1 21CH004MGE R5 PRO 6650U, Radeon 660M, Micron 2450 512GB MTFDKBA512TFK, IPS-LED, 2560x1600, 16" | HP EliteBook 865 G9 R7 PRO 6850U, Radeon 680M, Samsung PM991 MZVLQ512HBLU, IPS, 1920x1200, 16" | Average Intel Iris Xe Graphics G7 80EUs | Average of class Office | |
|---|---|---|---|---|---|---|---|
| Power Consumption | -20% | -13% | -5% | -43% | -8% | -11% | |
| Idle Minimum * | 3.9 | 5 -28% | 5.2 -33% | 3.2 18% | 5.3 -36% | 4.48 ? -15% | 4.54 ? -16% |
| Idle Average * | 4.8 | 8 -67% | 7.1 -48% | 8.1 -69% | 12.8 -167% | 7.37 ? -54% | 7.49 ? -56% |
| Idle Maximum * | 10 | 14 -40% | 9.6 4% | 8.6 14% | 14.1 -41% | 9.24 ? 8% | 9.14 ? 9% |
| Load Average * | 44 | 47 -7% | 47 -7% | 45.4 -3% | 48.5 -10% | 36.4 ? 17% | 42.8 ? 3% |
| Witcher 3 ultra * | 42.3 | 37.8 11% | 43.3 -2% | 40 5% | 48.7 -15% | ||
| Load Maximum * | 63 | 56 11% | 56 11% | 59.6 5% | 56.6 10% | 61.7 ? 2% | 61.3 ? 3% |
* ... smaller is better
Power Consumption The Witcher 3 / Stress Test
Power Consumption With External Monitor
电池寿命
在通过脚本加载网站的WLAN测试和循环播放短片《Big Buck Bunny》（H.264编码，FHD）的视频测试中，16英寸笔记本电脑的运行时间分别达到了10:13和14:21小时。在这两项测试中，笔记本电脑的省电功能被停用，显示屏亮度被调整到大约150cd/m²。在进行视频测试时，还停用了通信模块。
三星笔记本电脑总体上提供了出色的运行时间，将大多数竞争对手甩在后面。只有 EliteBook提供了更长的电池寿命--在电池容量相同的情况下。这就是节俭的AMD APU的结果。
| Samsung Galaxy Book3 Pro 16 i5-1340P, Iris Xe G7 80EUs, 76 Wh | LG Gram 16Z90Q i7-1260P, Iris Xe G7 96EUs, 80 Wh | Acer TravelMate P4 TMP416-51-55KN i5-1240P, Iris Xe G7 80EUs, 56 Wh | Lenovo ThinkPad T16 G1 21CH004MGE R5 PRO 6650U, Radeon 660M, 52.5 Wh | HP EliteBook 865 G9 R7 PRO 6850U, Radeon 680M, 76 Wh | Average of class Office | |
|---|---|---|---|---|---|---|
| Battery Runtime | -3% | -8% | -22% | 22% | -13% | |
| Reader / Idle | 1821 | 1085 -40% | 1300 ? -29% | |||
| H.264 | 861 | 652 -24% | 1112 29% | 704 ? -18% | ||
| WiFi v1.3 | 613 | 606 -1% | 562 -8% | 635 4% | 899 47% | 600 ? -2% |
| Load | 119 | 157 32% | 64 -46% | 106 -11% | 118.1 ? -1% |
Pros
Cons
结论 - 三星在存储方面很吝啬
约1.6公斤（约3.5磅）的低重量，紧凑的外壳，以及10至14小时的实际电池寿命，造就了一台高度移动的笔记本电脑，尽管它是16英寸的格式。两个支持Thunderbolt 4的USB-C端口也为三星Galaxy Book3 Pro 16提供电源，使其能够简单地整合到现有的工作空间设置中。
通过Galaxy Book3 Pro 16，三星提供了一款高端领域的办公笔记本电脑，其购买价格定得太高了。
这款笔记本酷睿i5-1340P可以毫无问题地处理办公和互联网应用，就像简单和无要求的游戏。该CPU通过提供大量的计算性能来掌握短时的负载峰值，但它并不是为了持续的峰值性能。发热和噪音的发展还可以。
存储量不得不说是不够的。256GB的固态硬盘并不符合这个价格水平，我们应该能够期待至少1TB的型号，特别是由于笔记本没有提供任何空间来放置额外的固态硬盘。板载工作存储器的容量也很有限，只有8GB。这不是未来的证明，但至少也有一些价格较高的16GB型号。
大型AMOLED显示屏（2880×1800像素，16英寸）采用方便工作的16:10格式，亮度高，对比度好，视角稳定，色彩还原度高，色彩空间覆盖度非常好。不幸的是，它有一个反光的表面。
一个可能的选择是 HP EliteBook 865 G9，它提供了一个较低的CPU，但比三星笔记本电脑的GPU性能（在双通道操作中）更高。此外，它还具有更长的电池寿命，可扩展的工作内存，以及在本次测试时便宜300欧元（约332美元）的价格。
价格和可用性
在美国，三星Galaxy Book3 Pro 16的版本有比我们的测试设备更好的设备（16GB内存，512GB固态硬盘），在亚马逊起价1550美元。例如，BestBuy也有更高规格的版本，价格为1,750美元。
Samsung Galaxy Book3 Pro 16
- 05/02/2023 v7 (old)
Sascha Mölck
Transparency
The selection of devices to be reviewed is made by our editorial team. The test sample was provided to the author as a loan by the manufacturer or retailer for the purpose of this review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.
This is how Notebookcheck is testing
Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.
Price comparison
