三星Galaxy Book3评论:英特尔酷睿i5-1335U庆祝坚实的首演

香草模式。

作为三星2023系列笔记本电脑中最实惠的型号,Galaxy Book3配备了全新的英特尔CPU。在我们的审查中,英特尔酷睿i5-1335U以及整个笔记本电脑本身都展示了它们在与Galaxy Book3变体和其他15.6英寸笔记本电脑对决中的能力。
Intel Laptop / Notebook Raptor Lake Windows

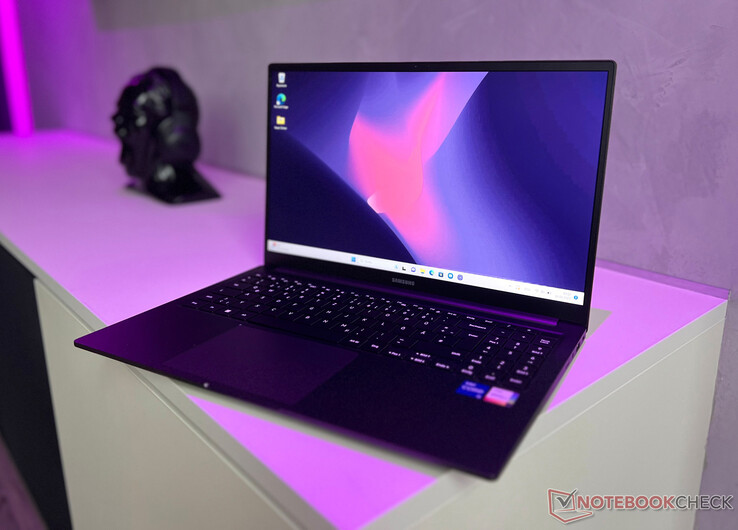

三星Galaxy Book3评论

通过Galaxy Book3系列,三星最近将其笔记本电脑型号更新到了新的一代。今年,除了旗舰产品之外,还再次推出了Galaxy 书3 Ultra(在亚马逊上通常约为2500美元)和已经审查过的Galaxy 书3 Pro(亚马逊上的价格约为1300美元),该系列由普通型号Galaxy Book3来完成,价格约为999美元

在我们的审查中,入门级Galaxy ,其工作是证明与姐妹机型相比,它的表现如何。在我们面前,我们有15.6英寸笔记本电脑的中规格版本,配置为NP750XFG-KA7DE。该设备配备了 英特尔酷睿i5-1335U以及Iris Xe图形iGPU,16GB的内存和512GB的存储。

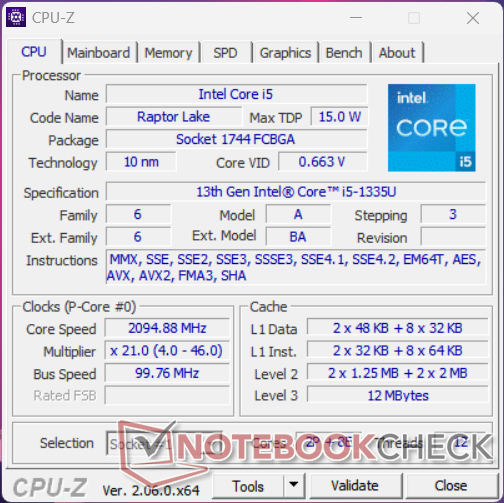

新的英特尔处理器也在庆祝其在Galaxy Book3上的首演。到目前为止,我们还没有审查过任何其他装有 英特尔酷睿i5-1335U使得直接比较有些徒劳。除了16英寸的Galaxy 书3 Pro配备了英特尔酷睿i5-1340P和去年的Galaxy 笔记本2配备了英特尔酷睿i7-1260P,15.6英寸的华为MateBook D 15 (2022)LG Gram 15 (2022)都配备了相同的iGPU。

Samsung Galaxy Book3 15, Core i5-1335U (Galaxy Book3 Series)
Processor
Intel Core i5-1335U 10 x 0.9 - 4.6 GHz, 39 W PL2 / Short Burst, 23 W PL1 / Sustained, Raptor Lake-U
Graphics adapter
Intel Iris Xe Graphics G7 80EUs - 1.024 MB VRAM, Core: 1.250 MHz, RAM: 2128 MHz
Memory
16 GB
, LPDDR4x Quad-Channel (On Board)
Display
15.60 inch 16:9, 1920 x 1080 pixel, BOE 18 NE156FHM-NS0, IPS, glossy: no, 60 Hz
Mainboard
Intel Alder Lake-P PCH
Storage
Samsung PM991a MZ9LQ512HBLU-00BD1, 512 GB
, 420 GB free
Soundcard
Intel Raptor Lake-P/U/H PCH - cAVS
Connections
4 USB 3.0 / 3.1 Gen1, 0 USB 3.1 Gen2, USB-C Power Delivery (PD), 1 HDMI, 1 Kensington Lock, Audio Connections: Combo Audio/Mic (3,5 mm), Card Reader: microSD
Networking
Intel Wi-Fi 6 AX201 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/), Bluetooth 5.1
Size
height x width x depth (in mm): 15.4 x 356.6 x 229.1
Battery
54 Wh Lithium-Ion, Battery runtime (according to manufacturer): 12 h
Operating System
Microsoft Windows 11 Home
Camera
Webcam: 1
Primary Camera: 0.9 MPix 720p HD
Additional features
Speakers: Stereo, Keyboard: Chiclet, Keyboard Light: no, 45 W USB-C PSU, Live Wallpaper, McAfee Live Safe (Trial), Samsung Gallery, Quick Search, Samsung Flow, Samsung Notes, Samsung Recovery, Samsung Settings, Studio Plus, Samsung Update, Second Screen, Samsung Pass, Quick Share, Private Share, Galaxy Book Experience, Galaxy , 24 Months Warranty
Weight
1.543 kg, Power Supply: 146 g
Price
1.069 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



潜在的竞争对手比较

Rating
Date
Model
Weight
Height
Size
Resolution
Price
80.7 %
v7 (old)
06 / 2023
Samsung Galaxy Book3 15, Core i5-1335U
i5-1335U, Iris Xe G7 80EUs
1.5 kg15.4 mm15.60"1920x1080
86.2 %
v7 (old)
11 / 2022
Acer Swift X SFX16-52G-52VE
i5-1240P, A370M
1.8 kg21.3 mm16.00"2560x1600
85.9 %
v7 (old)
12 / 2022
LG Gram 15Z90Q
i5-1240P, Iris Xe G7 80EUs
1.1 kg17.4 mm15.60"1920x1080
85.6 %
v7 (old)
05 / 2023
Samsung Galaxy Book3 Pro 16
i5-1340P, Iris Xe G7 80EUs
1.6 kg12.5 mm16.00"2880x1800
84.2 %
v7 (old)
03 / 2023
Huawei MateBook D 15 2023-53013BSJ
i5-1155G7, Iris Xe G7 80EUs
1.6 kg16 mm15.60"1920x1080
83.8 %
v7 (old)
10 / 2022
LG Ultra-PC 16 16U70Q-G.AR36G
R3 5300U, Vega 6
1.6 kg16.3 mm16.00"1280x1200
79.8 %
v7 (old)
08 / 2022
Samsung Galaxy Book2 15
i7-1260P, A350M
1.6 kg15 mm15.60"1920x1080

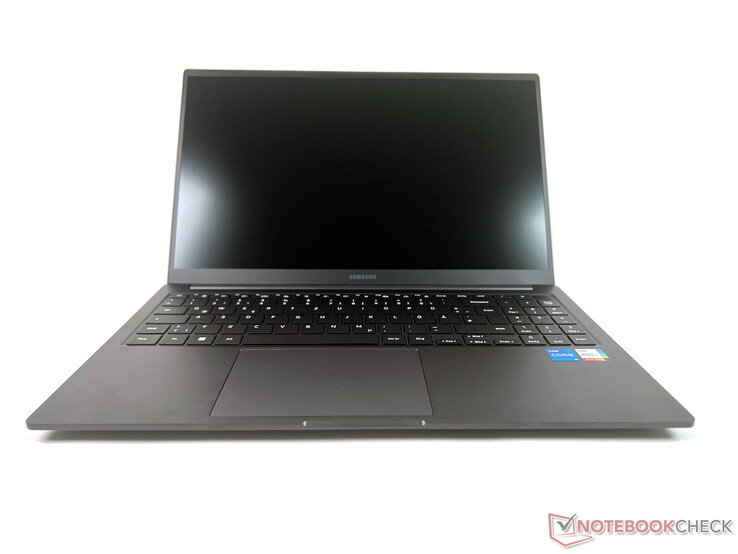

外壳:深色铝制外壳的时尚笔记本电脑

三星销售的Galaxy Book3有神秘银和石墨两种颜色。我们审查的是时尚和低调的深灰色变体。对于它的外壳材料,三星选择了高质量的铝,它的优质表面给我们留下了深刻的印象。然而,这被该设备是一个指纹磁铁的事实所掩盖。

宽大的铰链有一种平滑的感觉,有助于确保笔记本电脑可以用一只手轻松打开(尽管有轻微的吱吱声),尽管这导致箱子震动。

三星Galaxy Book3笔记本电脑评测
三星Galaxy Book3笔记本电脑评测
三星Galaxy Book3评论
三星Galaxy Book3笔记本电脑评测
三星Galaxy Book3笔记本电脑评测
三星Galaxy Book3笔记本电脑评测
三星Galaxy Book3评论
三星Galaxy Book3评论
三星Galaxy Book3

三星Galaxy Book3的体重略高于1.5公斤,是一款非常轻的15.6英寸设备。当然,在移动性和领先的耐力方面,它不能与LG Gram相提并论,但它仍然能够把其他一些大的竞争对手甩在后面。笔记本电脑的厚度为15.4毫米,相当平均,与其他尺寸一致。

尺寸比较

355 mm 243 mm 21.3 mm 1.8 kg356 mm 223 mm 17.4 mm 1.1 kg357 mm 230 mm 16 mm 1.6 kg356.3 mm 248.6 mm 16.3 mm 1.6 kg356.6 mm 229.1 mm 15.4 mm 1.5 kg357 mm 229 mm 15 mm 1.6 kg355.4 mm 250.4 mm 12.5 mm 1.6 kg297 mm 210 mm 1 mm 5.7 g

特点:Thunderbolt是为Galaxy Book3 Pro保留的。

三星已将Thunderbolt 4保留给Pro和Ultra型号。相反,Galaxy Book3不得不使用四个USB 3.2 Gen1端口,其中一半是Type-A,另一半是Type-C。其中一个USB-C端口用于供电。一个HDMI端口可用于外部显示器。这些端口是平均分配的,可以在设备的两侧找到。它们之间的距离也足够远,允许使用标准插头。

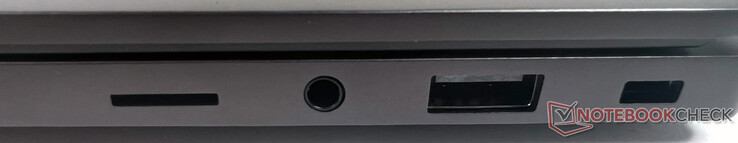

右边:1个microSD,1个组合音频/麦克风(3.5毫米),1个USB 3.2 Gen1 Typ-A,1个Kensington
右边:1个microSD,1个组合音频/麦克风(3.5毫米),1个USB 3.2 Gen1 Typ-A,1个Kensington

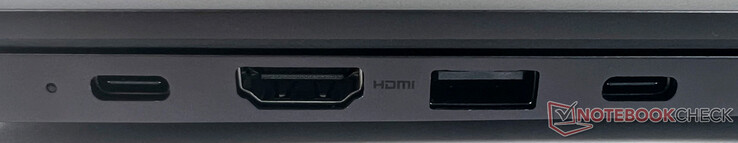

左边:2个USB 3.2 Gen1 Typ-C,1个HDMI,1个USB 3.2 Gen1 Typ-A
左边:2个USB 3.2 Gen1 Typ-C,1个HDMI,1个USB 3.2 Gen1 Typ-A

SD卡阅读器

在使用我们的参考存储卡--AV PRO microSD 128 GB V60的测试中,三星Galaxy Book3的内置microSD卡插槽的日常表现不佳,明显落后于当前的竞争对手。不幸的是,与前一代产品相比,没有任何改进。

SD Card Reader
average JPG Copy Test (av. of 3 runs)
Samsung Galaxy Book3 Pro 16
Intel Core i5-1340P
77 MB/s +220%
LG Ultra-PC 16 16U70Q-G.AR36G
AMD Ryzen 3 5300U
74.5 MB/s +209%
LG Gram 15Z90Q
Intel Core i5-1240P (AV PRO microSD 128 GB V60)
68 MB/s +182%
Average of class Office
  (22.7 - 198.5, n=33, last 2 years)
58.1 MB/s +141%
Samsung Galaxy Book2 15
Intel Core i7-1260P (Angelbird AV Pro V60)
25.6 MB/s +6%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U (AV Pro SD microSD 128 GB V60)
24.1 MB/s
maximum AS SSD Seq Read Test (1GB)
LG Gram 15Z90Q
Intel Core i5-1240P (AV PRO microSD 128 GB V60)
89 MB/s +237%
LG Ultra-PC 16 16U70Q-G.AR36G
AMD Ryzen 3 5300U
85.5 MB/s +224%
Samsung Galaxy Book3 Pro 16
Intel Core i5-1340P
81.7 MB/s +209%
Average of class Office
  (25 - 249, n=30, last 2 years)
73.1 MB/s +177%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U (AV Pro SD microSD 128 GB V60)
26.4 MB/s
Samsung Galaxy Book2 15
Intel Core i7-1260P (Angelbird AV Pro V60)
26 MB/s -2%

沟通

相比之下,安装的英特尔Wi-Fi 6 AX201 Wi-Fi模块的工作做得非常好。与同行相比,它位于性能表的顶端,远远高于平均水平,确保了快速的无线通信。由于没有局域网端口,所以不可能有有线替代方案。

Networking
iperf3 transmit AXE11000
Samsung Galaxy Book3 15, Core i5-1335U
Intel Wi-Fi 6 AX201
1649 (1353min - 1700max) MBit/s
Samsung Galaxy Book2 15
Intel Wi-Fi 6 AX201
1648 (1595min - 1700max) MBit/s 0%
Samsung Galaxy Book3 Pro 16
Intel Wi-Fi 6E AX211
1619 (1559min - 1692max) MBit/s -2%
LG Gram 15Z90Q
Intel Wi-Fi 6E AX211
1514 (739min - 1618max) MBit/s -8%
Acer Swift X SFX16-52G-52VE
Intel Wi-Fi 6E AX211
1501 (1325min - 1644max) MBit/s -9%
LG Ultra-PC 16 16U70Q-G.AR36G
Intel Wi-Fi 6 AX200
1309 (1167min - 1378max) MBit/s -21%
Average Intel Wi-Fi 6 AX201
  (438 - 1715, n=71)
1287 MBit/s -22%
Average of class Office
  (47.8 - 1793, n=89, last 2 years)
1130 MBit/s -31%
Huawei MateBook D 15 2023-53013BSJ
Intel Wi-Fi 6 AX201
801 (746min - 831max) MBit/s -51%
iperf3 receive AXE11000
Samsung Galaxy Book3 15, Core i5-1335U
Intel Wi-Fi 6 AX201
1720 (1676min - 1738max) MBit/s
Samsung Galaxy Book2 15
Intel Wi-Fi 6 AX201
1665 (1642min - 1675max) MBit/s -3%
Acer Swift X SFX16-52G-52VE
Intel Wi-Fi 6E AX211
1648 (1435min - 1675max) MBit/s -4%
LG Gram 15Z90Q
Intel Wi-Fi 6E AX211
1640 (1605min - 1663max) MBit/s -5%
Samsung Galaxy Book3 Pro 16
Intel Wi-Fi 6E AX211
1529 (1477min - 1553max) MBit/s -11%
LG Ultra-PC 16 16U70Q-G.AR36G
Intel Wi-Fi 6 AX200
1510 (1265min - 1555max) MBit/s -12%
Average Intel Wi-Fi 6 AX201
  (390 - 1734, n=76)
1421 MBit/s -17%
Average of class Office
  (104.2 - 1775, n=89, last 2 years)
1271 MBit/s -26%
Huawei MateBook D 15 2023-53013BSJ
Intel Wi-Fi 6 AX201
939 (891min - 953max) MBit/s -45%
iperf3 transmit AXE11000 6GHz
Samsung Galaxy Book3 Pro 16
Intel Wi-Fi 6E AX211
1623 (1172min - 1690max) MBit/s
Average of class Office
  (713 - 1961, n=48, last 2 years)
1404 MBit/s
LG Ultra-PC 16 16U70Q-G.AR36G
Intel Wi-Fi 6 AX200
1316 (964min - 1387max) MBit/s
Average Intel Wi-Fi 6 AX201
  (745 - 1252, n=3)
993 MBit/s
iperf3 receive AXE11000 6GHz
Average of class Office
  (1065 - 1790, n=48, last 2 years)
1542 MBit/s
Samsung Galaxy Book3 Pro 16
Intel Wi-Fi 6E AX211
1502 (1405min - 1524max) MBit/s
LG Ultra-PC 16 16U70Q-G.AR36G
Intel Wi-Fi 6 AX200
1347 (110min - 1519max) MBit/s
Average Intel Wi-Fi 6 AX201
  (390 - 1670, n=3)
993 MBit/s
050100150200250300350400450500550600650700750800850900950100010501100115012001250130013501400145015001550160016501700Tooltip
Samsung Galaxy Book3 Pro 16 Intel Wi-Fi 6E AX211; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1623 (1172-1690)
LG Ultra-PC 16 16U70Q-G.AR36G Intel Wi-Fi 6 AX200; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1316 (964-1387)
Samsung Galaxy Book3 Pro 16 Intel Wi-Fi 6E AX211; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1501 (1405-1524)
LG Ultra-PC 16 16U70Q-G.AR36G Intel Wi-Fi 6 AX200; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1470 (1193-1519)
Samsung Galaxy Book3 15, Core i5-1335U Intel Wi-Fi 6 AX201; iperf3 transmit AXE11000; iperf 3.1.3: Ø1649 (1353-1700)
LG Gram 15Z90Q Intel Wi-Fi 6E AX211; iperf3 transmit AXE11000; iperf 3.1.3: Ø1490 (739-1618)
Samsung Galaxy Book3 Pro 16 Intel Wi-Fi 6E AX211; iperf3 transmit AXE11000; iperf 3.1.3: Ø1619 (1559-1692)
Huawei MateBook D 15 2023-53013BSJ Intel Wi-Fi 6 AX201; iperf3 transmit AXE11000; iperf 3.1.3: Ø801 (746-831)
Samsung Galaxy Book2 15 Intel Wi-Fi 6 AX201; iperf3 transmit AXE11000; iperf 3.1.3: Ø1648 (1595-1700)
Acer Swift X SFX16-52G-52VE Intel Wi-Fi 6E AX211; iperf3 transmit AXE11000; iperf 3.1.3: Ø1501 (1325-1644)
LG Ultra-PC 16 16U70Q-G.AR36G Intel Wi-Fi 6 AX200; iperf3 transmit AXE11000; iperf 3.1.3: Ø1309 (1167-1378)
Samsung Galaxy Book3 15, Core i5-1335U Intel Wi-Fi 6 AX201; iperf3 receive AXE11000; iperf 3.1.3: Ø1720 (1676-1738)
LG Gram 15Z90Q Intel Wi-Fi 6E AX211; iperf3 receive AXE11000; iperf 3.1.3: Ø1640 (1605-1663)
Samsung Galaxy Book3 Pro 16 Intel Wi-Fi 6E AX211; iperf3 receive AXE11000; iperf 3.1.3: Ø1528 (1477-1553)
Huawei MateBook D 15 2023-53013BSJ Intel Wi-Fi 6 AX201; iperf3 receive AXE11000; iperf 3.1.3: Ø939 (891-953)
Samsung Galaxy Book2 15 Intel Wi-Fi 6 AX201; iperf3 receive AXE11000; iperf 3.1.3: Ø1664 (1642-1675)
Acer Swift X SFX16-52G-52VE Intel Wi-Fi 6E AX211; iperf3 receive AXE11000; iperf 3.1.3: Ø1648 (1435-1675)
LG Ultra-PC 16 16U70Q-G.AR36G Intel Wi-Fi 6 AX200; iperf3 receive AXE11000; iperf 3.1.3: Ø1509 (1265-1555)

网络摄像头

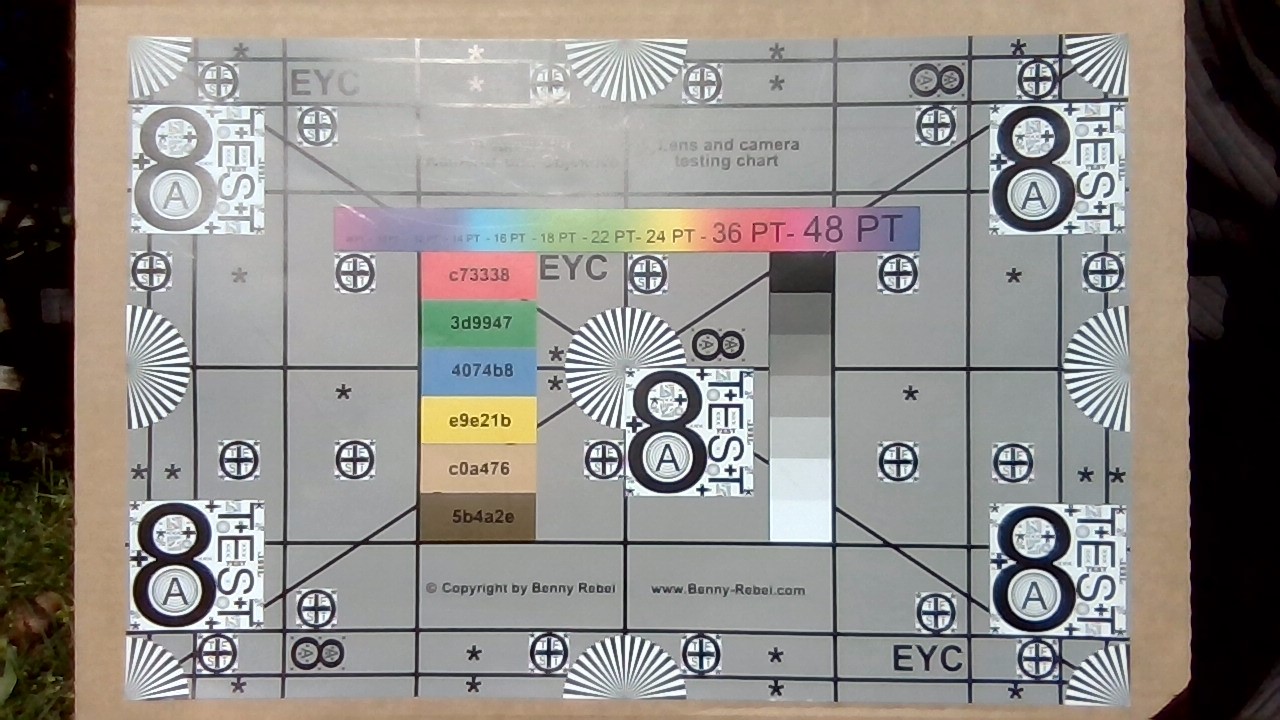

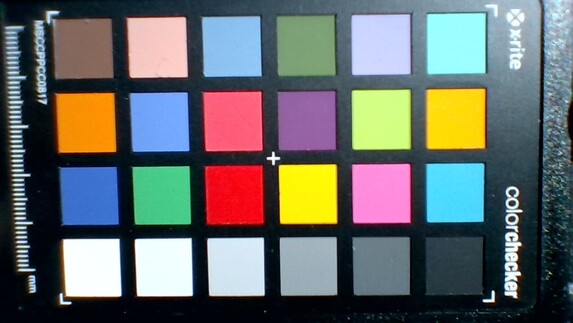

三星为其笔记本电脑配备了一个质量一般的720p高清网络摄像头和一个双阵列麦克风。拍摄的颜色偏差非常大(Delta E:27,5)。该摄像头还可用于Windows Hello。

ColorChecker
7.7 ∆E
15.2 ∆E
22.8 ∆E
19.8 ∆E
23.6 ∆E
17.3 ∆E
8.9 ∆E
27.5 ∆E
12 ∆E
17.2 ∆E
15.6 ∆E
16.8 ∆E
19 ∆E
16.5 ∆E
15.9 ∆E
11.5 ∆E
19.1 ∆E
25.3 ∆E
2.7 ∆E
13.1 ∆E
18.8 ∆E
19.3 ∆E
16.4 ∆E
8.6 ∆E
ColorChecker Samsung Galaxy Book3 15, Core i5-1335U: 16.28 ∆E min: 2.75 - max: 27.52 ∆E

安全问题

除了Kensington锁和TPM,但没有提供其他安全选项,如指纹传感器。这些只在专业版中提供。

辅料

三星为Galaxy Book3配备了一个45瓦的USB-C电源适配器。它的重量不到150克,不仅明显更轻,而且比其他笔记本电脑的经典充电器更灵活--当把设备带在路上时,这是一个优势。

还有一个好处:在包装方面,三星避免了使用塑料。在此基础上,还提供了可供选择的配件,包括封面、外壳、输入设备等。

服务

用于打开机箱的四颗螺丝可以在连接脚的角落里找到。在内部,由于有额外的免费插槽,可以安装一个额外的M.2固态硬盘。电池也可以更换。相比之下,内存是不可拆卸的。

Galaxy Book3的内部结构
Galaxy Book3的内部结构
风扇和电池
风扇和电池
一个免费的固态硬盘插槽(有盖)。
一个免费的固态硬盘插槽(有盖)。

担保

在德国,三星提供惯常的24个月保证。设备可以被送去维修,或者用户可以去当地的一个客户服务广场。

输入设备:Galaxy Book3揭示了一些小的弱点

键盘

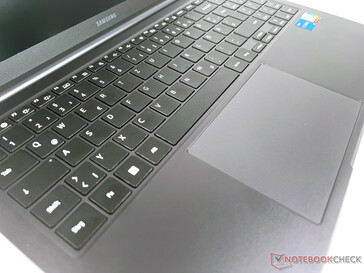

三星选择了一个带有小数字键盘的成熟的键盘。除了一半大小的方向键,16 x 16毫米,普通按键的比例很好,但由于键程较短,感觉有点松动。这导致了一个体面但不完美、相对安静的打字体验。

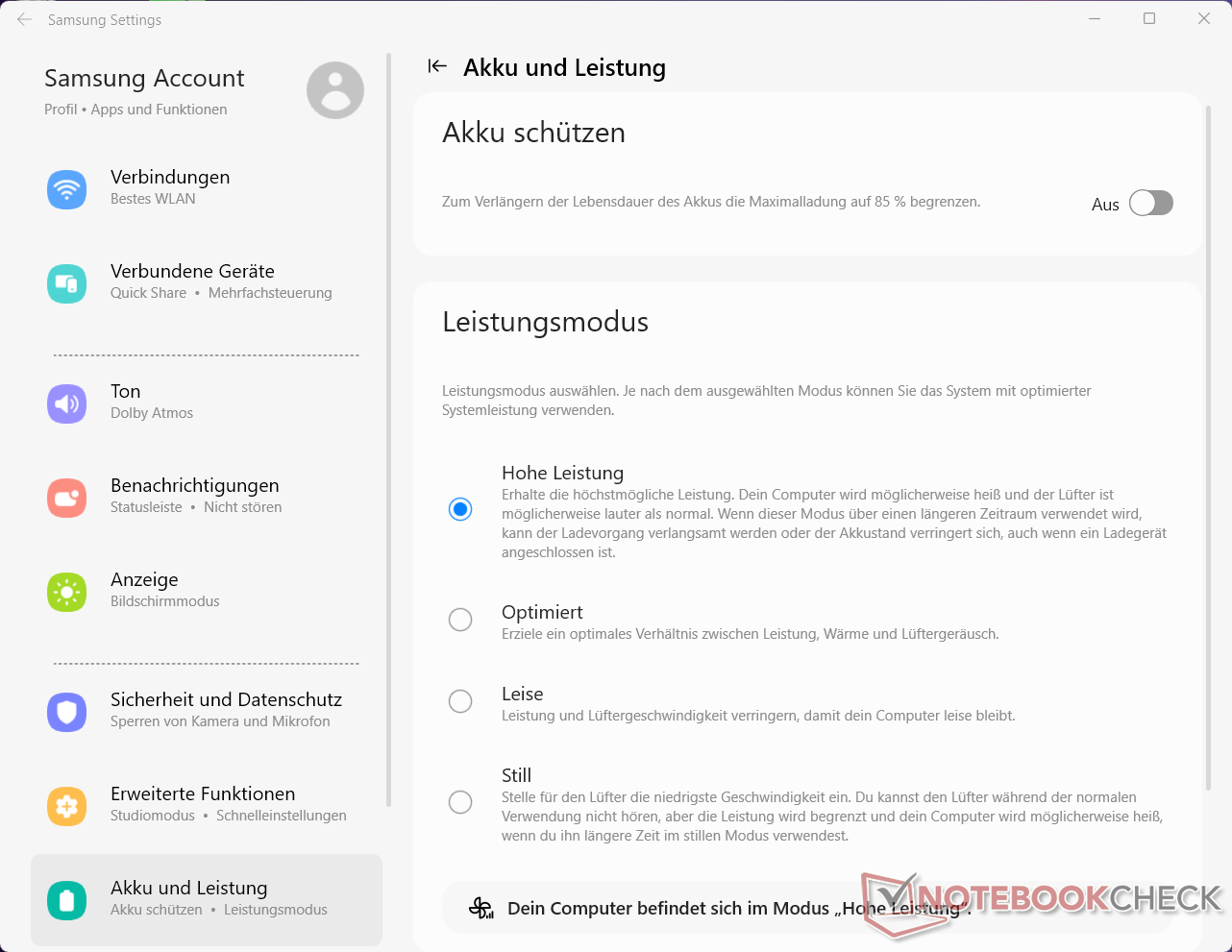

F1至F12键是通常的附加功能的所在地,例如,音量控制和显示亮度。三星的各种性能模式也可以在这里选择。相比之下,这里不可能打开和关闭键盘的背光。

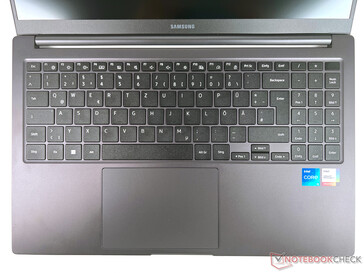

键盘上有一个狭窄的数字键盘
键盘上有一个狭窄的数字键盘
大型触摸板
大型触摸板

触摸板

12 x 8.5厘米,大小适中的触摸板位于机箱中心的左侧。由于触摸板的光滑表面,移动鼠标箭头和多点触摸都能很好地用于滚动和类似功能。不幸的是,点击下边缘的非分离式按钮会导致相当大的噪音。在图书馆等安静的环境中,这可能是相当恼人的。

显示:色彩还原性差,但对于户外使用来说足够明亮

像素网格
像素网格
最小的混浊和IPS发光(夸张的图示)。
最小的混浊和IPS发光(夸张的图示)。

三星选择全高清(1920 x 1080像素)面板并没有给自己带来什么大的好处。由于其磨砂表面,它的亮度略低于300cd/m²,在户外使用时刚刚好,甚至在阳光下也是如此(见下文照片)。然而,背光可以更均匀一些。

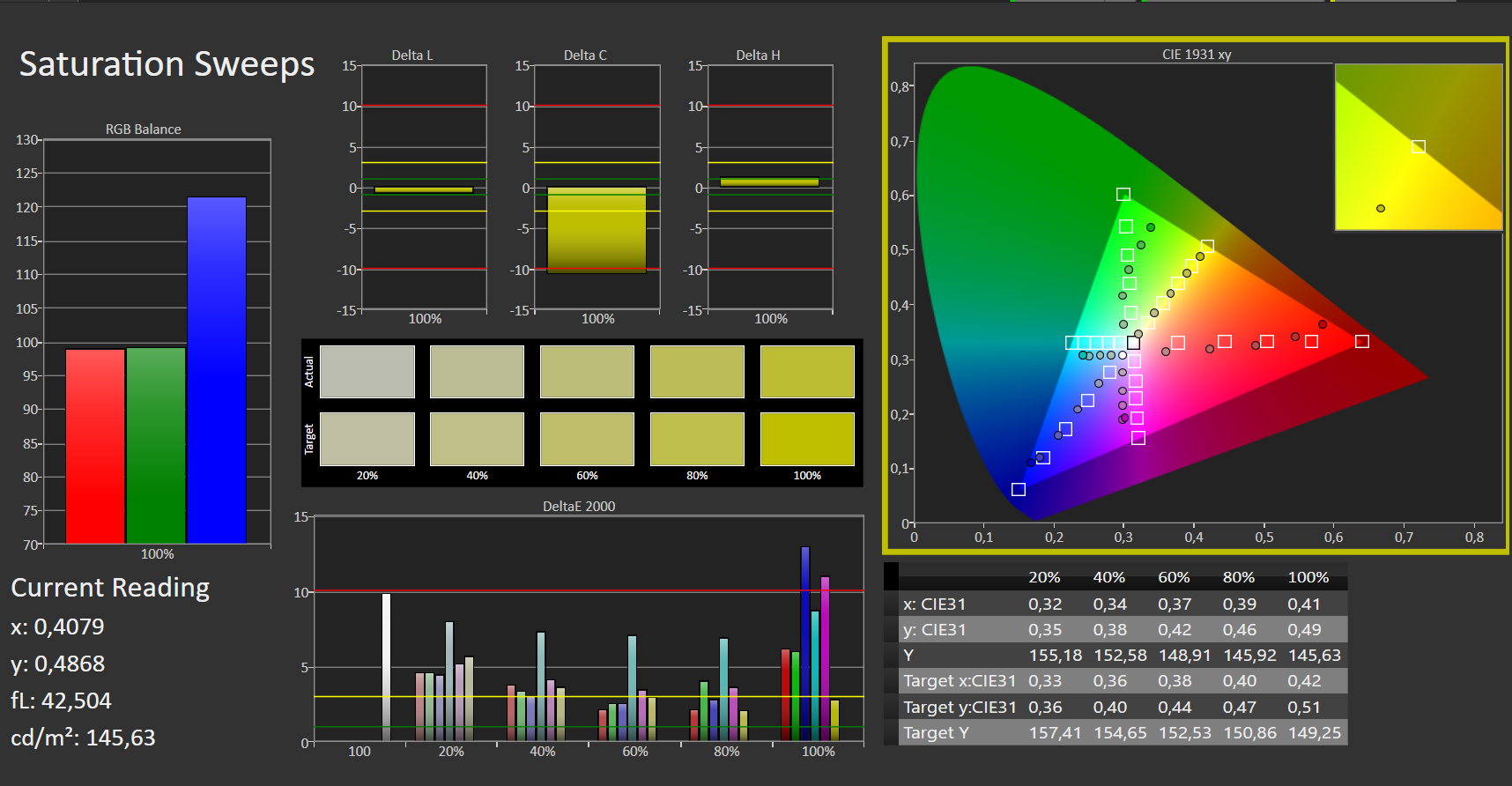

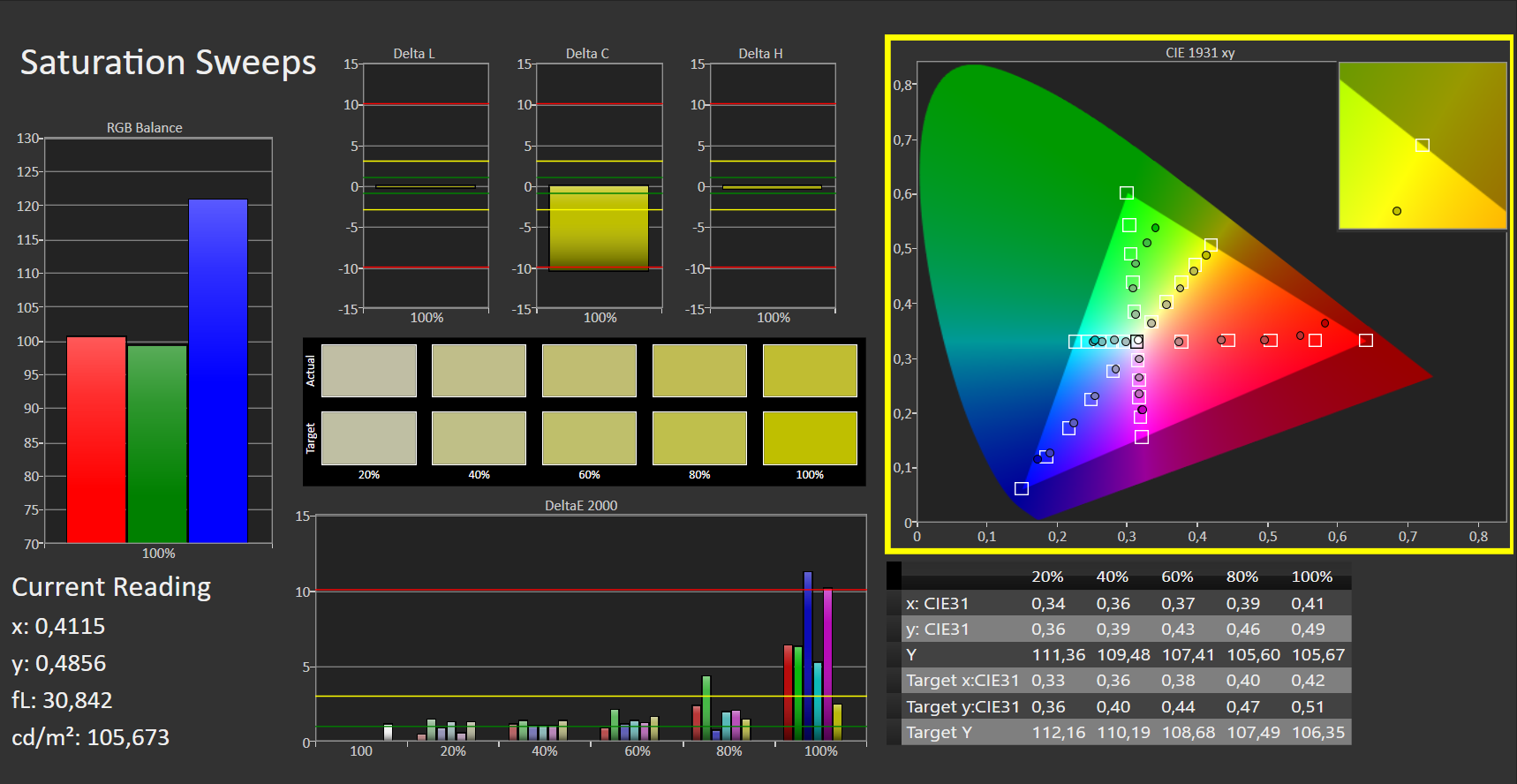

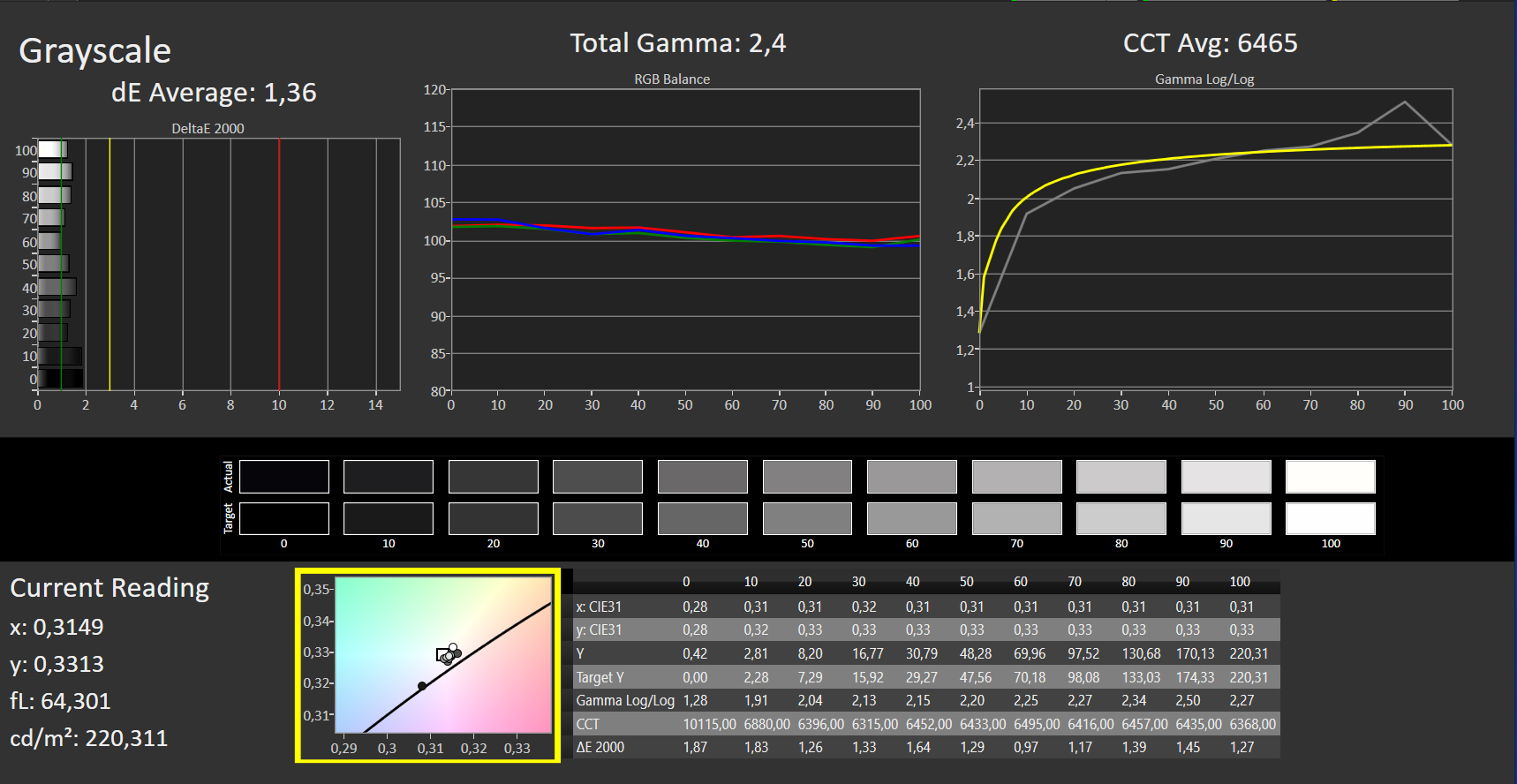

这种京东方面板通常落后于竞争对手。除其他事项外,这一事实适用于对比度和色彩再现,它在色彩空间覆盖方面显示出弱点,以及高Delta E值。然而,后者可以通过校准得到很大的改善。

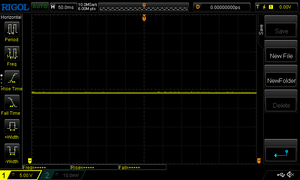

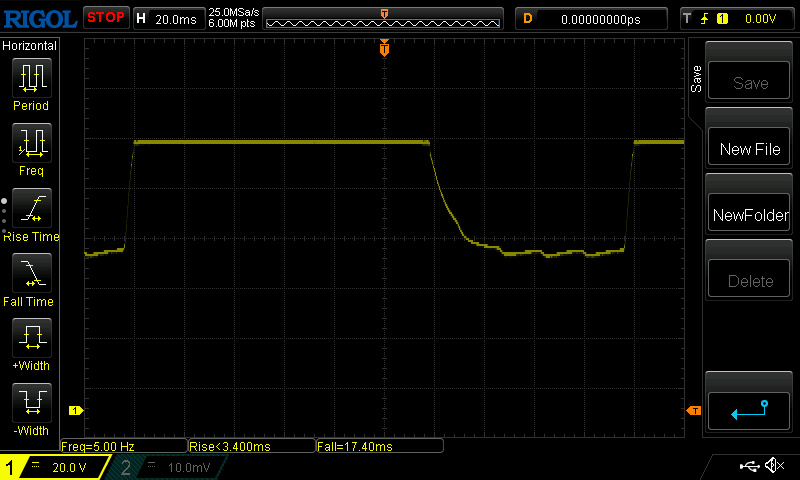

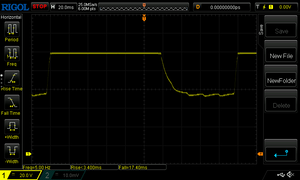

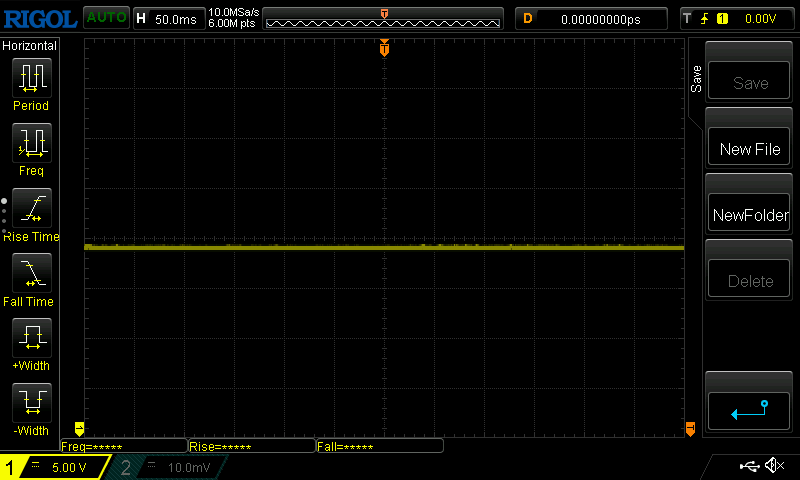

一个积极的方面是相对较低的响应时间,以及完全没有PWM闪烁的事实。此外,混浊和IPS发光也相当不明显,显示器只显示这些现象的轻微痕迹。

313
cd/m²
299
cd/m²
293
cd/m²
295
cd/m²
308
cd/m²
284
cd/m²
261
cd/m²
285
cd/m²
275
cd/m²
Distribution of brightness
BOE 18 NE156FHM-NS0 tested with X-Rite i1Pro 2
Maximum: 313 cd/m² (Nits) Average: 290.3 cd/m² Minimum: 7 cd/m²
Brightness Distribution: 83 %
Center on Battery: 308 cd/m²
Contrast: 725:1 (Black: 0.425 cd/m²)

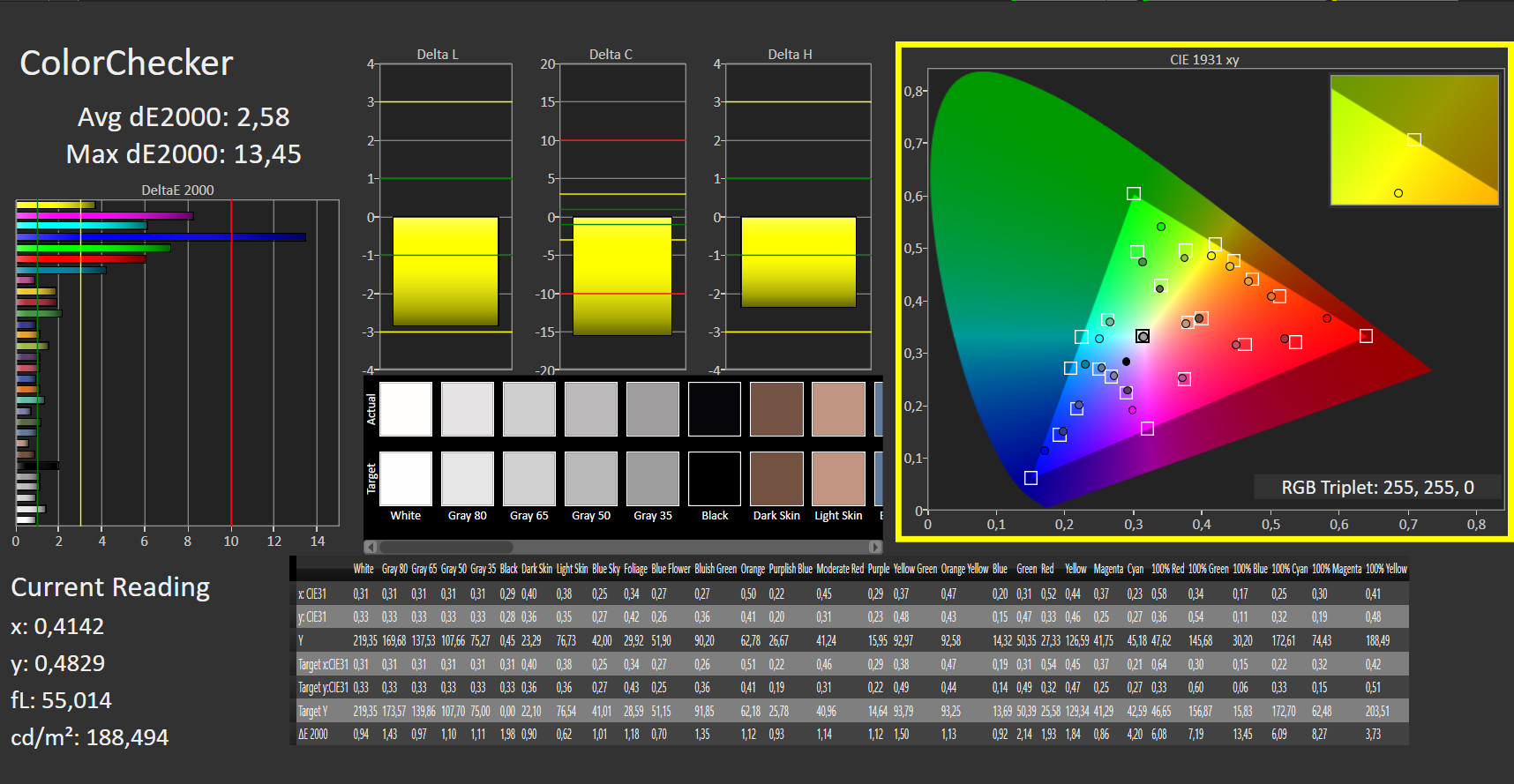

ΔE Color 5.27 | 0.5-29.43 Ø4.92, calibrated: 2.58

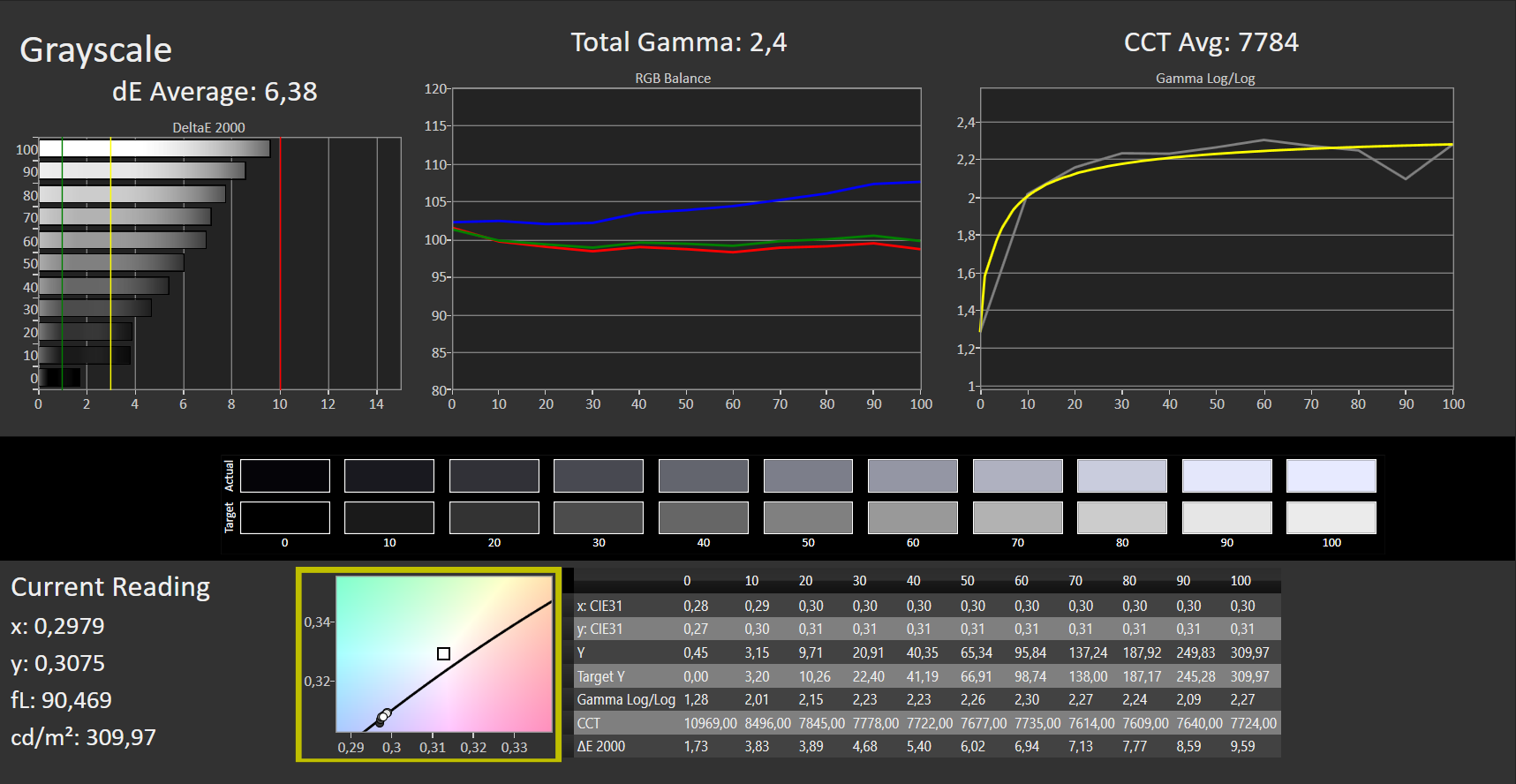

ΔE Greyscale 6.38 | 0.5-98 Ø5.2
44.6% AdobeRGB 1998 (Argyll 2.2.0 3D)
65.03% sRGB (Argyll 2.2.0 3D)
43.17% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.4
Samsung Galaxy Book3 15, Core i5-1335U
BOE 18 NE156FHM-NS0, IPS, 1920x1080, 15.6"
LG Gram 15Z90Q
LG LP156WFC-SPZ2 (LGD0706), IPS, 1920x1080, 15.6"
Samsung Galaxy Book3 Pro 16
Samsung ATNA60CL03-0, AMOLED, 2880x1800, 16"
Huawei MateBook D 15 2023-53013BSJ
BOE CQ TV156FHM-NH1 , IPS, 1920x1080, 15.6"
Samsung Galaxy Book2 15
NE156FHM-NS0, IPS, 1920x1080, 15.6"
Acer Swift X SFX16-52G-52VE
AU Optronics AUOBD9E, , 2560x1600, 16"
LG Ultra-PC 16 16U70Q-G.AR36G
LG Display LP160WU1-SPH1, IPS, 1280x1200, 16"
Display
46%
101%
-6%
15%
67%
-16%
Display P3 Coverage
43.17
63.5
47%
99.7
131%
40.7
-6%
49.6
15%
75.75
75%
36
-17%
sRGB Coverage
65.03
95
46%
100
54%
60.6
-7%
74.8
15%
100
54%
55
-15%
AdobeRGB 1998 Coverage
44.6
65.1
46%
97
117%
42
-6%
51.3
15%
76.51
72%
37
-17%

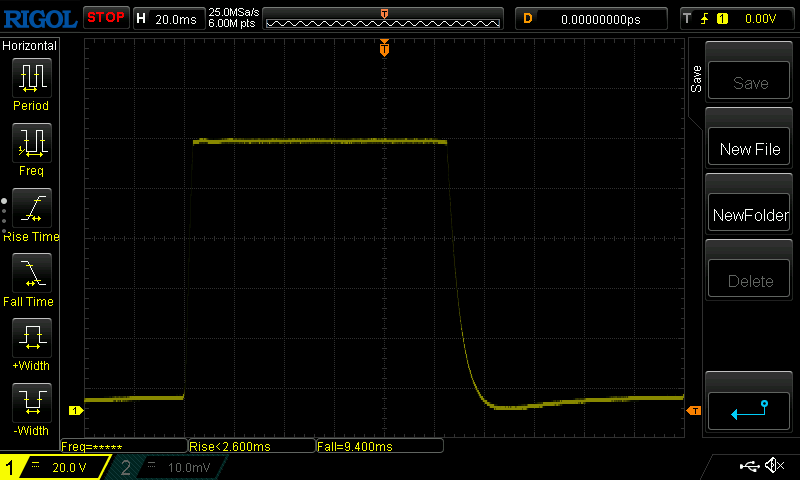

Response Times
-110%
86%
25%
-95%
-65%
-123%
Response Time Grey 50% / Grey 80% *
20 ?(3, 17)
48.4 ?(21.6, 26.8)
-142%
2 ?(1, 1)
90%
10 ?(5, 5)
50%
32.3 ?(14.8, 17.5)
-62%
37 ?(17, 20)
-85%
38 ?(19, 19)
-90%
Response Time Black / White *
11 ?(2, 9)
19.6 ?(8, 11.6)
-78%
2 ?(1, 1)
82%
11 ?(3, 8)
-0%
25 ?(13.3, 11.7)
-127%
16 ?(6, 10)
-45%
28 ?(16, 12)
-155%
PWM Frequency
6000 ?(100)
Screen
46%
451%
17%
8%
52%
10%
Brightness middle
308
420
36%
412
34%
291
-6%
337
9%
411
33%
299
-3%
Brightness
290
399
38%
412
42%
271
-7%
325
12%
364
26%
270
-7%
Brightness Distribution
83
88
6%
98
18%
82
-1%
89
7%
81
-2%
85
2%
Black Level *
0.425
0.32
25%
0.015
96%
0.18
58%
0.4
6%
0.295
31%
0.265
38%
Contrast
725
1313
81%
27467
3689%
1617
123%
843
16%
1393
92%
1128
56%
Colorchecker dE 2000 *
5.27
2.51
52%
2.34
56%
4.99
5%
4.7
11%
1.73
67%
4.57
13%
Colorchecker dE 2000 max. *
16.43
6.64
60%
3.34
80%
17.99
-9%
15.7
4%
2.7
84%
8.92
46%
Colorchecker dE 2000 calibrated *
2.58
0.89
66%
2.95
-14%
4.21
-63%
2.8
-9%
1.18
54%
5.02
-95%
Greyscale dE 2000 *
6.38
3.3
48%
2.78
56%
2.98
53%
5.4
15%
1.26
80%
3.8
40%
Gamma
2.4 92%
2.052 107%
2.5 88%
2.37 93%
2.07 106%
2.35 94%
2.6 85%
CCT
7784 84%
6921 94%
6879 94%
7045 92%
7727 84%
6616 98%
6142 106%
Total Average (Program / Settings)
-6% / 24%
213% / 324%
12% / 13%
-24% / -5%
18% / 38%
-43% / -15%

* ... smaller is better


CalMAN - 颜色检查器
CalMAN - 颜色检查器
卡尔曼--灰度
卡尔曼--灰度
CalMAN - 色彩饱和度
CalMAN - 色彩饱和度
CalMAN - 颜色检查器(已校准)
CalMAN - 颜色检查器(已校准)
CalMAN - 灰度尺(已校准)。
CalMAN - 灰度尺(已校准)。
CalMAN - 色彩饱和度(已校准)。
CalMAN - 色彩饱和度(已校准)。


Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.
       Response Time Black to White
11 ms ... rise ↗ and fall ↘ combined↗ 2 ms rise
↘ 9 ms fall
The screen shows good response rates in our tests, but may be too slow for competitive gamers.
In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 26 % of all devices are better.
This means that the measured response time is better than the average of all tested devices (21 ms).
       Response Time 50% Grey to 80% Grey
20 ms ... rise ↗ and fall ↘ combined↗ 3 ms rise
↘ 17 ms fall
The screen shows good response rates in our tests, but may be too slow for competitive gamers.
In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 29 % of all devices are better.
This means that the measured response time is better than the average of all tested devices (32.9 ms).

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM not detected

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8743 (minimum: 5 - maximum: 343500) Hz was measured.

三星Galaxy Book3在阳光下看起来不错...
三星Galaxy Book3在阳光下看起来不错...
...以及阴凉处。
...以及阴凉处。
IPS面板的稳定的可视角度
IPS面板的稳定的可视角度

性能:中端猛禽Lake-U展示了它的能力

这里介绍的三星Galaxy Book3配备了一个英特尔酷睿i5-1335U处理器。制造商选择不实施专用显卡,而是选择了 英特尔Iris Xe图形.该配置包括16GB LPDDR4x内存(不可更换),运行速度为2133MHz,四通道运行,以及512GB NVMe固态硬盘。

三星还提供Galaxy Book3的其他配置。频谱范围从一个英特尔酷睿i3-1315U配有英特尔UHD Graphics 和8GB LPDDR4x内存,直至英特尔酷睿i7-1355U搭配 英特尔Iris Xe和16GB的内存。

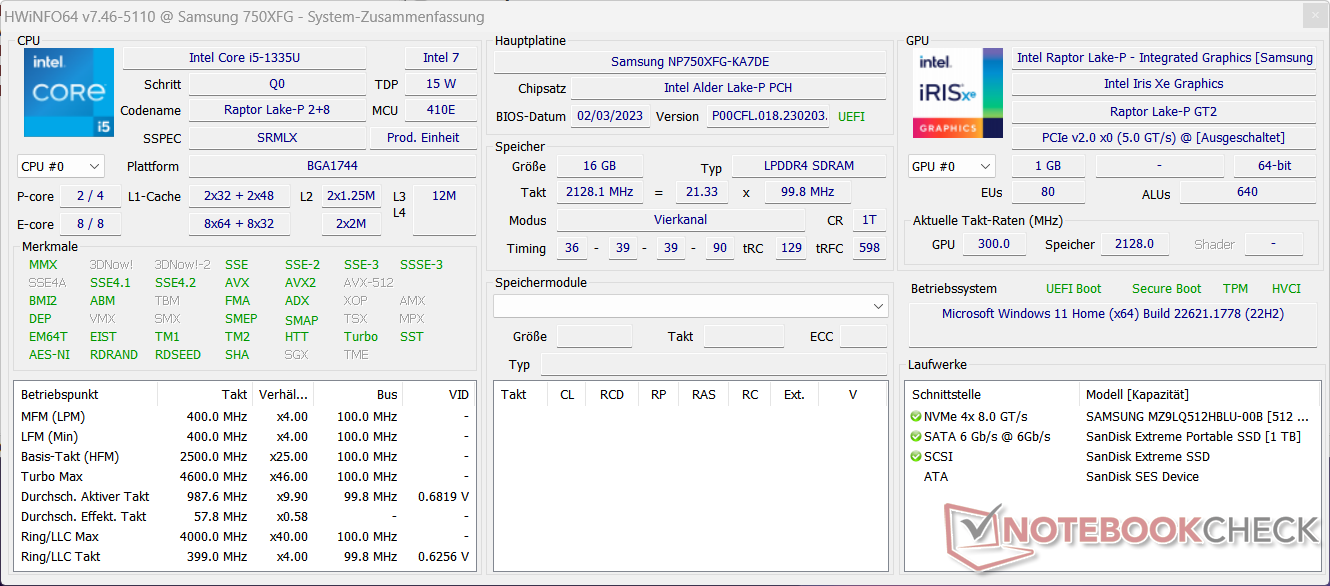

HWiNFO64
HWiNFO64
CPU-Z
CPU-Z

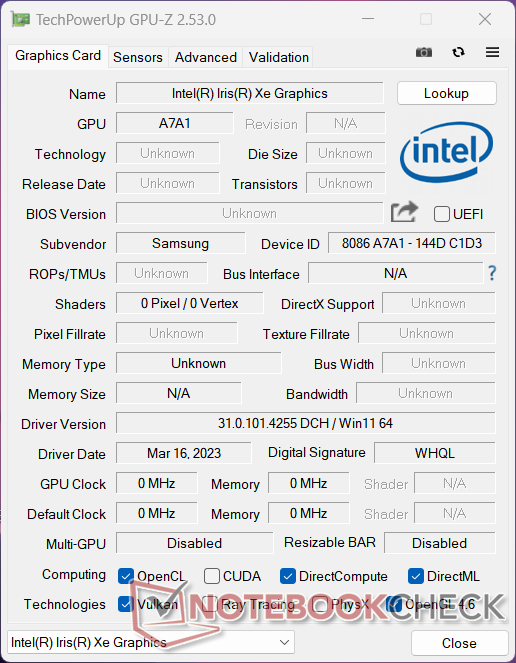

GPU-Z
GPU-Z

测试条件

三星应用程序设置
三星应用程序设置

性能测量是通过使用三星设置应用程序选择(如果没有另外说明)"高性能 "模式以及Windows "最佳性能 "设置进行的。使用这些设置,CPU时钟水平为39W PL2和23W PL1(动态)。

另外,"优化"、"安静 "和 "无声 "模式也可以在三星自己的应用程序中选择,更安静的风扇会导致性能大大降低("无声 "模式:PL1:25W;PL2:6)。性能级别之间的切换可以通过应用程序或使用组合键 "Fn "+"F11 "来完成。

处理器

集成的酷睿i5-1335U源于英特尔的Raptor Lake-U系列,基于Alder Lake架构。这里使用的芯片有两个性能核心和八个效率核心。它是为中端笔记本电脑设计的,由于P核的超线程,支持12个线程。P核的时钟速度在1.3至4.6GHz之间,E核在0.9至3.4GHz之间,使其比i5-1235U快200和100MHz左右。i5-1235U分别比上一代英特尔的i5-1235U快200和100MHz。

三星并没有完全利用该处理器的潜力。在我们的基准测试中,它不得不勉强承认败给了 Galaxy 书2.然而,去年我们评测了前代产品,其更强大的 i7-1260P.然而,它做得足够好,以保证在前面的 Acer Swift X SFX16LG Gram 15Z90Qi5-1240P其i5-1240P处理器提供了更多的核心,但由于电池寿命的原因,其调校相当保守。它与 Galaxy 书3 Pro的差距。i5-1340P的差距平均为10%至20%。

在Cinebench 15耐力测试中,集成的i5-1335U在一段时间内表现稳定,但在接近尾声时又略有下降。根据Cinebench,使用三星的 "安静 "模式设置,性能下降了约15%。另外,在电池模式下,使用Windows "平衡 "模式可获得约85%的电量。

Cinebench R15 Multi continuous test

095190285380475570665760855950104511401235133014251520161517101805Tooltip
Samsung Galaxy Book3 15, Core i5-1335U Intel Core i5-1335U: Ø1259 (1080.88-1547.27)
LG Gram 15Z90Q Intel Core i5-1240P: Ø974 (718.44-1478.52)
Samsung Galaxy Book3 Pro 16 Intel Core i5-1340P: Ø1457 (1291.45-1828.74)
Huawei MateBook D 15 2023-53013BSJ Intel Core i5-1155G7: Ø867 (842.3-890.35)
Samsung Galaxy Book2 15 Intel Core i7-1260P: Ø1115 (963.74-1308.56)
Acer Swift X SFX16-52G-52VE Intel Core i5-1240P: Ø1516 (1391.21-1858.82)
LG Ultra-PC 16 16U70Q-G.AR36G AMD Ryzen 3 5300U: Ø749 (726.74-795.75)
CPU Performance Rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
CPU Performance Rating
Samsung Galaxy Book3 Pro 16
Intel Core i5-1340P
86.1 pt
Acer Swift X SFX16-52G-52VE
Intel Core i5-1240P
83 pt
Samsung Galaxy Book2 15
Intel Core i7-1260P
79.4 pt
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U
75.7 pt
Average of class Office

73 pt
Average Intel Core i5-1335U

70.9 pt
LG Gram 15Z90Q
Intel Core i5-1240P
66.6 pt
Huawei MateBook D 15 2023-53013BSJ
Intel Core i5-1155G7
55.7 pt
LG Ultra-PC 16 16U70Q-G.AR36G -2!
AMD Ryzen 3 5300U
39.8 pt
Cinebench R23 / Multi Core
Acer Swift X SFX16-52G-52VE
Intel Core i5-1240P
11427 Points +28%
Samsung Galaxy Book3 Pro 16
Intel Core i5-1340P
11181 Points +25%
Samsung Galaxy Book2 15
Intel Core i7-1260P
10278 Points +15%
Average of class Office
  (1577 - 15743, n=92, last 2 years)
9250 Points +4%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U
8915 Points
Average Intel Core i5-1335U
  (6957 - 9438, n=12)
8383 Points -6%
LG Gram 15Z90Q
Intel Core i5-1240P
8337 Points -6%
Huawei MateBook D 15 2023-53013BSJ
Intel Core i5-1155G7
5791 Points -35%
LG Ultra-PC 16 16U70Q-G.AR36G
AMD Ryzen 3 5300U
4772 (4564.04min - 4772.47max) Points -46%
Cinebench R23 / Single Core
Samsung Galaxy Book2 15
Intel Core i7-1260P
1778 Points +6%
Samsung Galaxy Book3 Pro 16
Intel Core i5-1340P
1719 Points +2%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U
1685 Points
Average Intel Core i5-1335U
  (1532 - 1733, n=12)
1669 Points -1%
Acer Swift X SFX16-52G-52VE
Intel Core i5-1240P
1600 Points -5%
Average of class Office
  (618 - 1995, n=92, last 2 years)
1563 Points -7%
LG Gram 15Z90Q
Intel Core i5-1240P
1501 Points -11%
Huawei MateBook D 15 2023-53013BSJ
Intel Core i5-1155G7
1362 Points -19%
LG Ultra-PC 16 16U70Q-G.AR36G
AMD Ryzen 3 5300U
1102 Points -35%
Cinebench R20 / CPU (Multi Core)
Samsung Galaxy Book3 Pro 16
Intel Core i5-1340P
4517 Points +32%
Acer Swift X SFX16-52G-52VE
Intel Core i5-1240P
4365 Points +28%
Samsung Galaxy Book2 15
Intel Core i7-1260P
3947 Points +16%
Average of class Office
  (590 - 5980, n=92, last 2 years)
3556 Points +4%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U
3415 Points
Average Intel Core i5-1335U
  (2602 - 3849, n=11)
3257 Points -5%
LG Gram 15Z90Q
Intel Core i5-1240P
3175 Points -7%
Huawei MateBook D 15 2023-53013BSJ
Intel Core i5-1155G7
2273 Points -33%
LG Ultra-PC 16 16U70Q-G.AR36G
AMD Ryzen 3 5300U
1883 Points -45%
Cinebench R20 / CPU (Single Core)
Samsung Galaxy Book2 15
Intel Core i7-1260P
680 Points +6%
Samsung Galaxy Book3 Pro 16
Intel Core i5-1340P
653 Points +2%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U
643 Points
Average Intel Core i5-1335U
  (593 - 663, n=11)
636 Points -1%
Acer Swift X SFX16-52G-52VE
Intel Core i5-1240P
631 Points -2%
Average of class Office
  (229 - 764, n=92, last 2 years)
602 Points -6%
LG Gram 15Z90Q
Intel Core i5-1240P
572 Points -11%
Huawei MateBook D 15 2023-53013BSJ
Intel Core i5-1155G7
521 Points -19%
LG Ultra-PC 16 16U70Q-G.AR36G
AMD Ryzen 3 5300U
431 Points -33%
Cinebench R15 / CPU Multi 64Bit
Acer Swift X SFX16-52G-52VE
Intel Core i5-1240P
1859 (1391.21min - 1858.82max) Points +20%
Samsung Galaxy Book3 Pro 16
Intel Core i5-1340P
1828 Points +18%
Average of class Office
  (246 - 2642, n=93, last 2 years)
1561 Points +1%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U
1547 (1080.88min - 1547.27max) Points
LG Gram 15Z90Q
Intel Core i5-1240P
1479 (718.44min - 1478.52max) Points -4%
Average Intel Core i5-1335U
  (1109 - 1547, n=11)
1411 Points -9%
Samsung Galaxy Book2 15
Intel Core i7-1260P
1309 (963.74min - 1308.56max) Points -15%
Huawei MateBook D 15 2023-53013BSJ
Intel Core i5-1155G7
890 (842.3min - 890.35max) Points -42%
LG Ultra-PC 16 16U70Q-G.AR36G
AMD Ryzen 3 5300U
832 Points -46%
Cinebench R15 / CPU Single 64Bit
Samsung Galaxy Book2 15
Intel Core i7-1260P
244 Points +2%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U
240 Points
Samsung Galaxy Book3 Pro 16
Intel Core i5-1340P
238 Points -1%
Average Intel Core i5-1335U
  (222 - 248, n=11)
237 Points -1%
Acer Swift X SFX16-52G-52VE
Intel Core i5-1240P
235 Points -2%
Average of class Office
  (98 - 284, n=92, last 2 years)
230 Points -4%
Huawei MateBook D 15 2023-53013BSJ
Intel Core i5-1155G7
211 Points -12%
LG Gram 15Z90Q
Intel Core i5-1240P
209 Points -13%
LG Ultra-PC 16 16U70Q-G.AR36G
AMD Ryzen 3 5300U
166 Points -31%
Blender / v2.79 BMW27 CPU
LG Ultra-PC 16 16U70Q-G.AR36G
AMD Ryzen 3 5300U
617 Seconds * -70%
Huawei MateBook D 15 2023-53013BSJ
Intel Core i5-1155G7
536 Seconds * -48%
LG Gram 15Z90Q
Intel Core i5-1240P
477 Seconds * -32%
Average Intel Core i5-1335U
  (340 - 786, n=12)
460 Seconds * -27%
Average of class Office
  (208 - 1956, n=93, last 2 years)
419 Seconds * -16%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U
362 Seconds *
Samsung Galaxy Book2 15
Intel Core i7-1260P
359 Seconds * +1%
Acer Swift X SFX16-52G-52VE
Intel Core i5-1240P
311 Seconds * +14%
Samsung Galaxy Book3 Pro 16
Intel Core i5-1340P
290 Seconds * +20%
7-Zip 18.03 / 7z b 4
Samsung Galaxy Book3 Pro 16
Intel Core i5-1340P
46027 MIPS +20%
Acer Swift X SFX16-52G-52VE
Intel Core i5-1240P
44778 MIPS +16%
Samsung Galaxy Book2 15
Intel Core i7-1260P
41297 MIPS +7%
Average of class Office
  (7532 - 65460, n=93, last 2 years)
38934 MIPS +1%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U
38513 MIPS
Average Intel Core i5-1335U
  (25012 - 38513, n=11)
33576 MIPS -13%
LG Gram 15Z90Q
Intel Core i5-1240P
28108 MIPS -27%
Huawei MateBook D 15 2023-53013BSJ
Intel Core i5-1155G7
25203 MIPS -35%
LG Ultra-PC 16 16U70Q-G.AR36G
AMD Ryzen 3 5300U
19170 MIPS -50%
7-Zip 18.03 / 7z b 4 -mmt1
Samsung Galaxy Book2 15
Intel Core i7-1260P
5435 MIPS +4%
Samsung Galaxy Book3 Pro 16
Intel Core i5-1340P
5294 MIPS +2%
Average of class Office
  (2972 - 6687, n=93, last 2 years)
5276 MIPS +1%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U
5215 MIPS
Average Intel Core i5-1335U
  (4872 - 5545, n=11)
5202 MIPS 0%
Acer Swift X SFX16-52G-52VE
Intel Core i5-1240P
5002 MIPS -4%
LG Gram 15Z90Q
Intel Core i5-1240P
4847 MIPS -7%
Huawei MateBook D 15 2023-53013BSJ
Intel Core i5-1155G7
4603 MIPS -12%
LG Ultra-PC 16 16U70Q-G.AR36G
AMD Ryzen 3 5300U
3755 MIPS -28%
Geekbench 5.5 / Multi-Core
Samsung Galaxy Book3 Pro 16
Intel Core i5-1340P
10439 Points +30%
Acer Swift X SFX16-52G-52VE
Intel Core i5-1240P
10112 Points +26%
LG Gram 15Z90Q
Intel Core i5-1240P
8747 Points +9%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U
8044 Points
Average of class Office
  (1018 - 11980, n=92, last 2 years)
7612 Points -5%
Average Intel Core i5-1335U
  (5459 - 8618, n=11)
7429 Points -8%
Samsung Galaxy Book2 15
Intel Core i7-1260P
7270 Points -10%
Huawei MateBook D 15 2023-53013BSJ
Intel Core i5-1155G7
5761 Points -28%
Geekbench 5.5 / Single-Core
Samsung Galaxy Book2 15
Intel Core i7-1260P
1745 Points +4%
Samsung Galaxy Book3 Pro 16
Intel Core i5-1340P
1714 Points +3%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U
1672 Points
Acer Swift X SFX16-52G-52VE
Intel Core i5-1240P
1658 Points -1%
Average Intel Core i5-1335U
  (1506 - 1700, n=11)
1639 Points -2%
LG Gram 15Z90Q
Intel Core i5-1240P
1598 Points -4%
Average of class Office
  (510 - 1989, n=93, last 2 years)
1585 Points -5%
Huawei MateBook D 15 2023-53013BSJ
Intel Core i5-1155G7
1461 Points -13%
HWBOT x265 Benchmark v2.2 / 4k Preset
Samsung Galaxy Book3 Pro 16
Intel Core i5-1340P
12.8 fps +28%
Acer Swift X SFX16-52G-52VE
Intel Core i5-1240P
12.5 fps +25%
Samsung Galaxy Book2 15
Intel Core i7-1260P
11.5 fps +15%
Average of class Office
  (1.72 - 18.7, n=91, last 2 years)
10.4 fps +4%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U
10 fps
Average Intel Core i5-1335U
  (6.55 - 10.7, n=11)
9.03 fps -10%
LG Gram 15Z90Q
Intel Core i5-1240P
7.77 fps -22%
Huawei MateBook D 15 2023-53013BSJ
Intel Core i5-1155G7
7.55 fps -24%
LG Ultra-PC 16 16U70Q-G.AR36G
AMD Ryzen 3 5300U
5.87 fps -41%
LibreOffice / 20 Documents To PDF
LG Ultra-PC 16 16U70Q-G.AR36G
AMD Ryzen 3 5300U
77.1 s * -65%
LG Gram 15Z90Q
Intel Core i5-1240P
53.6 s * -15%
Average of class Office
  (31.3 - 129.6, n=91, last 2 years)
53.2 s * -14%
Average Intel Core i5-1335U
  (45 - 58.7, n=11)
51.6 s * -11%
Huawei MateBook D 15 2023-53013BSJ
Intel Core i5-1155G7
51.4 s * -10%
Acer Swift X SFX16-52G-52VE
Intel Core i5-1240P
47.2 s * -1%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U
46.6 s *
Samsung Galaxy Book2 15
Intel Core i7-1260P
43.5 s * +7%
Samsung Galaxy Book3 Pro 16
Intel Core i5-1340P
42 s * +10%
R Benchmark 2.5 / Overall mean
LG Ultra-PC 16 16U70Q-G.AR36G
AMD Ryzen 3 5300U
0.664 sec * -32%
Huawei MateBook D 15 2023-53013BSJ
Intel Core i5-1155G7
0.616 sec * -22%
LG Gram 15Z90Q
Intel Core i5-1240P
0.559 sec * -11%
Average of class Office
  (0.4244 - 1.135, n=90, last 2 years)
0.543 sec * -8%
Acer Swift X SFX16-52G-52VE
Intel Core i5-1240P
0.533 sec * -6%
Average Intel Core i5-1335U
  (0.4892 - 0.524, n=10)
0.51 sec * -1%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U
0.503 sec *
Samsung Galaxy Book3 Pro 16
Intel Core i5-1340P
0.502 sec * -0%
Samsung Galaxy Book2 15
Intel Core i7-1260P
0.4687 sec * +7%

* ... smaller is better

Cinebench R10 Shading 64Bit
11984 Points
Cinebench R10 Rendering Single 32Bit
9351
Cinebench R10 Rendering Multiple CPUs 32Bit
40266
Cinebench R10 Shading 32Bit
11807
Cinebench R10 Rendering Single CPUs 64Bit
13680 Points
Cinebench R10 Rendering Multiple CPUs 64Bit
62930 Points
Cinebench R11.5 CPU Single 32Bit
2.57 Points
Cinebench R11.5 CPU Multi 32Bit
15.42 Points
Cinebench R11.5 OpenGL 32Bit
74.05 fps
Cinebench R11.5 CPU Single 64Bit
2.97 Points
Cinebench R11.5 CPU Multi 64Bit
18.94 Points
Cinebench R11.5 OpenGL 64Bit
77.06 fps
Cinebench R15 CPU Multi 64Bit
1547 Points
Cinebench R15 OpenGL 64Bit
91.2 fps
Cinebench R15 Ref. Match 64Bit
97.8 %
Cinebench R15 CPU Single 64Bit
240 Points
Cinebench R20 CPU (Single Core)
643 Points
Cinebench R20 CPU (Multi Core)
3415 Points
Cinebench R23 Multi Core
8915 Points
Cinebench R23 Single Core
1685 Points
Help
Performance Rating
Samsung Galaxy Book3 Pro 16
Intel Core i5-1340P, Iris Xe G7 80EUs
96.1 pt
Acer Swift X SFX16-52G-52VE
Intel Core i5-1240P, A370M
90.5 pt
Average of class Office

85.8 pt
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U, Iris Xe G7 80EUs
75.2 pt
Huawei MateBook D 15 2023-53013BSJ
Intel Core i5-1155G7, Iris Xe G7 80EUs
74.1 pt
LG Gram 15Z90Q
Intel Core i5-1240P, Iris Xe G7 80EUs
68 pt
Average Intel Core i5-1335U

67.2 pt
Samsung Galaxy Book2 15
Intel Core i7-1260P, A350M
65.1 pt
LG Ultra-PC 16 16U70Q-G.AR36G -1!
AMD Ryzen 3 5300U, Vega 6
56.2 pt
AIDA64 / FP32 Ray-Trace
Acer Swift X SFX16-52G-52VE
Intel Core i5-1240P, A370M
9570 KRay/s +27%
Average of class Office
  (763 - 24250, n=92, last 2 years)
9320 KRay/s +24%
Samsung Galaxy Book3 Pro 16
Intel Core i5-1340P, Iris Xe G7 80EUs
8507 KRay/s +13%
Huawei MateBook D 15 2023-53013BSJ
Intel Core i5-1155G7, Iris Xe G7 80EUs
7751 KRay/s +3%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U, Iris Xe G7 80EUs
7525 KRay/s
Average Intel Core i5-1335U
  (5661 - 7809, n=11)
6806 KRay/s -10%
LG Gram 15Z90Q
Intel Core i5-1240P, Iris Xe G7 80EUs
6045 KRay/s -20%
Samsung Galaxy Book2 15
Intel Core i7-1260P, A350M
5722 KRay/s -24%
LG Ultra-PC 16 16U70Q-G.AR36G
AMD Ryzen 3 5300U, Vega 6
3612 KRay/s -52%
AIDA64 / FPU Julia
Samsung Galaxy Book3 Pro 16
Intel Core i5-1340P, Iris Xe G7 80EUs
49719 Points +29%
Acer Swift X SFX16-52G-52VE
Intel Core i5-1240P, A370M
48144 Points +25%
Average of class Office
  (4113 - 102228, n=92, last 2 years)
47898 Points +24%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U, Iris Xe G7 80EUs
38538 Points
Average Intel Core i5-1335U
  (29483 - 43636, n=11)
35448 Points -8%
LG Gram 15Z90Q
Intel Core i5-1240P, Iris Xe G7 80EUs
35070 Points -9%
LG Ultra-PC 16 16U70Q-G.AR36G
AMD Ryzen 3 5300U, Vega 6
33606 Points -13%
Huawei MateBook D 15 2023-53013BSJ
Intel Core i5-1155G7, Iris Xe G7 80EUs
33150 Points -14%
Samsung Galaxy Book2 15
Intel Core i7-1260P, A350M
16379 Points -57%
AIDA64 / CPU SHA3
Samsung Galaxy Book3 Pro 16
Intel Core i5-1340P, Iris Xe G7 80EUs
2552 MB/s +26%
Acer Swift X SFX16-52G-52VE
Intel Core i5-1240P, A370M
2323 MB/s +15%
Average of class Office
  (287 - 4551, n=92, last 2 years)
2212 MB/s +10%
Huawei MateBook D 15 2023-53013BSJ
Intel Core i5-1155G7, Iris Xe G7 80EUs
2201 MB/s +9%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U, Iris Xe G7 80EUs
2018 MB/s
Average Intel Core i5-1335U
  (1515 - 2278, n=11)
1840 MB/s -9%
LG Gram 15Z90Q
Intel Core i5-1240P, Iris Xe G7 80EUs
1735 MB/s -14%
Samsung Galaxy Book2 15
Intel Core i7-1260P, A350M
1194 MB/s -41%
AIDA64 / CPU Queen
Samsung Galaxy Book3 Pro 16
Intel Core i5-1340P, Iris Xe G7 80EUs
80139 Points +32%
Samsung Galaxy Book2 15
Intel Core i7-1260P, A350M
73100 Points +21%
Average of class Office
  (8185 - 115197, n=92, last 2 years)
70379 Points +16%
LG Gram 15Z90Q
Intel Core i5-1240P, Iris Xe G7 80EUs
69120 Points +14%
Acer Swift X SFX16-52G-52VE
Intel Core i5-1240P, A370M
63630 Points +5%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U, Iris Xe G7 80EUs
60626 Points
Average Intel Core i5-1335U
  (53839 - 60992, n=11)
59437 Points -2%
Huawei MateBook D 15 2023-53013BSJ
Intel Core i5-1155G7, Iris Xe G7 80EUs
52180 Points -14%
LG Ultra-PC 16 16U70Q-G.AR36G
AMD Ryzen 3 5300U, Vega 6
51411 Points -15%
AIDA64 / FPU SinJulia
Average of class Office
  (404 - 14288, n=92, last 2 years)
6714 Points +36%
LG Ultra-PC 16 16U70Q-G.AR36G
AMD Ryzen 3 5300U, Vega 6
6687 Points +35%
Samsung Galaxy Book3 Pro 16
Intel Core i5-1340P, Iris Xe G7 80EUs
6671 Points +35%
Acer Swift X SFX16-52G-52VE
Intel Core i5-1240P, A370M
6307 Points +27%
Samsung Galaxy Book2 15
Intel Core i7-1260P, A350M
6261 Points +26%
Huawei MateBook D 15 2023-53013BSJ
Intel Core i5-1155G7, Iris Xe G7 80EUs
5001 Points +1%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U, Iris Xe G7 80EUs
4950 Points
LG Gram 15Z90Q
Intel Core i5-1240P, Iris Xe G7 80EUs
4578 Points -8%
Average Intel Core i5-1335U
  (3873 - 5008, n=11)
4524 Points -9%
AIDA64 / FPU Mandel
Average of class Office
  (2075 - 54365, n=92, last 2 years)
24965 Points +30%
Samsung Galaxy Book3 Pro 16
Intel Core i5-1340P, Iris Xe G7 80EUs
24409 Points +28%
Acer Swift X SFX16-52G-52VE
Intel Core i5-1240P, A370M
23992 Points +25%
Huawei MateBook D 15 2023-53013BSJ
Intel Core i5-1155G7, Iris Xe G7 80EUs
19683 Points +3%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U, Iris Xe G7 80EUs
19131 Points
LG Ultra-PC 16 16U70Q-G.AR36G
AMD Ryzen 3 5300U, Vega 6
17564 Points -8%
Average Intel Core i5-1335U
  (14376 - 20553, n=11)
17214 Points -10%
LG Gram 15Z90Q
Intel Core i5-1240P, Iris Xe G7 80EUs
16636 Points -13%
Samsung Galaxy Book2 15
Intel Core i7-1260P, A350M
11903 Points -38%
AIDA64 / CPU AES
Samsung Galaxy Book3 Pro 16
Intel Core i5-1340P, Iris Xe G7 80EUs
91493 MB/s +131%
Huawei MateBook D 15 2023-53013BSJ
Intel Core i5-1155G7, Iris Xe G7 80EUs
76866 MB/s +94%
Average of class Office
  (7860 - 155900, n=92, last 2 years)
51340 MB/s +30%
Acer Swift X SFX16-52G-52VE
Intel Core i5-1240P, A370M
48102 MB/s +21%
Samsung Galaxy Book2 15
Intel Core i7-1260P, A350M
41262 MB/s +4%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U, Iris Xe G7 80EUs
39602 MB/s
Average Intel Core i5-1335U
  (31154 - 65997, n=11)
39412 MB/s 0%
LG Gram 15Z90Q
Intel Core i5-1240P, Iris Xe G7 80EUs
36465 MB/s -8%
LG Ultra-PC 16 16U70Q-G.AR36G
AMD Ryzen 3 5300U, Vega 6
19307 MB/s -51%
AIDA64 / CPU ZLib
Acer Swift X SFX16-52G-52VE
Intel Core i5-1240P, A370M
811 MB/s +27%
Samsung Galaxy Book3 Pro 16
Intel Core i5-1340P, Iris Xe G7 80EUs
755 MB/s +19%
Samsung Galaxy Book2 15
Intel Core i7-1260P, A350M
678 MB/s +6%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U, Iris Xe G7 80EUs
637 MB/s
Average of class Office
  (78 - 1018, n=92, last 2 years)
600 MB/s -6%
Average Intel Core i5-1335U
  (378 - 676, n=11)
552 MB/s -13%
LG Gram 15Z90Q
Intel Core i5-1240P, Iris Xe G7 80EUs
510 MB/s -20%
Huawei MateBook D 15 2023-53013BSJ
Intel Core i5-1155G7, Iris Xe G7 80EUs
421 MB/s -34%
LG Ultra-PC 16 16U70Q-G.AR36G
AMD Ryzen 3 5300U, Vega 6
374 MB/s -41%
AIDA64 / FP64 Ray-Trace
Acer Swift X SFX16-52G-52VE
Intel Core i5-1240P, A370M
5111 KRay/s +27%
Average of class Office
  (432 - 12755, n=92, last 2 years)
4939 KRay/s +23%
Samsung Galaxy Book3 Pro 16
Intel Core i5-1340P, Iris Xe G7 80EUs
4204 KRay/s +4%
Huawei MateBook D 15 2023-53013BSJ
Intel Core i5-1155G7, Iris Xe G7 80EUs
4071 KRay/s +1%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U, Iris Xe G7 80EUs
4031 KRay/s
Average Intel Core i5-1335U
  (2878 - 4214, n=11)
3589 KRay/s -11%
Samsung Galaxy Book2 15
Intel Core i7-1260P, A350M
3333 KRay/s -17%
LG Ultra-PC 16 16U70Q-G.AR36G
AMD Ryzen 3 5300U, Vega 6
3199 KRay/s -21%
LG Gram 15Z90Q
Intel Core i5-1240P, Iris Xe G7 80EUs
3137 KRay/s -22%
AIDA64 / CPU PhotoWorxx
Samsung Galaxy Book3 Pro 16
Intel Core i5-1340P, Iris Xe G7 80EUs
45880 MPixel/s +12%
Acer Swift X SFX16-52G-52VE
Intel Core i5-1240P, A370M
43661 MPixel/s +6%
LG Gram 15Z90Q
Intel Core i5-1240P, Iris Xe G7 80EUs
42613 MPixel/s +4%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U, Iris Xe G7 80EUs
41123 MPixel/s
Samsung Galaxy Book2 15
Intel Core i7-1260P, A350M
39374 MPixel/s -4%
Huawei MateBook D 15 2023-53013BSJ
Intel Core i5-1155G7, Iris Xe G7 80EUs
33302 MPixel/s -19%
Average Intel Core i5-1335U
  (13584 - 41123, n=11)
30316 MPixel/s -26%
Average of class Office
  (4814 - 54971, n=92, last 2 years)
29077 MPixel/s -29%
LG Ultra-PC 16 16U70Q-G.AR36G
AMD Ryzen 3 5300U, Vega 6
16913 MPixel/s -59%
Blender - v3.3 Classroom CPU
LG Ultra-PC 16 16U70Q-G.AR36G
AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 3 5300U
1170 Seconds * -73%
Huawei MateBook D 15 2023-53013BSJ
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1155G7
979 Seconds * -45%
Average Intel Iris Xe Graphics G7 80EUs
  (463 - 3047, n=50)
932 Seconds * -38%
LG Gram 15Z90Q
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1240P
883 Seconds * -31%
Average of class Office
  (343 - 3964, n=89, last 2 years)
773 Seconds * -14%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1335U
676 Seconds *
Samsung Galaxy Book2 15
Intel Arc A350M, Intel Core i7-1260P
636 Seconds * +6%
Samsung Galaxy Book3 Pro 16
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1340P
559 Seconds * +17%
Acer Swift X SFX16-52G-52VE
Intel Arc A370M, Intel Core i5-1240P
552 Seconds * +18%

* ... smaller is better

系统性能

说到系统的性能,我们的评测设备在PCMark 10基准测试中表现良好,即使与规格更强大的笔记本电脑相比也是如此。在使用该设备进行与工作有关的任务时,也没有出现任何负面影响。因此,这确保了用户在使用办公室或基于互联网的应用程序时可以期待流畅的性能。

PCMark 10 / Score
Acer Swift X SFX16-52G-52VE
A370M, i5-1240P, Micron 3400 MTFDKBA512TFH 512GB
5898 Points +11%
Average of class Office
  (2463 - 7344, n=86, last 2 years)
5618 Points +6%
Samsung Galaxy Book3 Pro 16
Iris Xe G7 80EUs, i5-1340P, WD PC SN740 256GB SDDPNQD-256G
5576 Points +5%
Samsung Galaxy Book2 15
A350M, i7-1260P, Samsung PM991 MZVLQ512HBLU
5486 Points +3%
Average Intel Core i5-1335U, Intel Iris Xe Graphics G7 80EUs
  (5068 - 5600, n=11)
5315 Points 0%
Samsung Galaxy Book3 15, Core i5-1335U
Iris Xe G7 80EUs, i5-1335U, Samsung PM991a MZ9LQ512HBLU-00BD1
5314 Points
Huawei MateBook D 15 2023-53013BSJ
Iris Xe G7 80EUs, i5-1155G7, 511BS0512HB-TX01
5095 Points -4%
LG Gram 15Z90Q
Iris Xe G7 80EUs, i5-1240P, Samsung PM9A1 MZVL21T0HCLR
4992 Points -6%
LG Ultra-PC 16 16U70Q-G.AR36G
Vega 6, R3 5300U, Samsung PM991 MZVLQ512HBLU
4299 Points -19%
PCMark 10 / Essentials
Samsung Galaxy Book3 Pro 16
Iris Xe G7 80EUs, i5-1340P, WD PC SN740 256GB SDDPNQD-256G
10598 Points +8%
Average Intel Core i5-1335U, Intel Iris Xe Graphics G7 80EUs
  (9828 - 11912, n=11)
10439 Points +6%
Average of class Office
  (5575 - 20841, n=86, last 2 years)
10136 Points +3%
Acer Swift X SFX16-52G-52VE
A370M, i5-1240P, Micron 3400 MTFDKBA512TFH 512GB
10039 Points +2%
Samsung Galaxy Book2 15
A350M, i7-1260P, Samsung PM991 MZVLQ512HBLU
9997 Points +2%
Huawei MateBook D 15 2023-53013BSJ
Iris Xe G7 80EUs, i5-1155G7, 511BS0512HB-TX01
9853 Points 0%
Samsung Galaxy Book3 15, Core i5-1335U
Iris Xe G7 80EUs, i5-1335U, Samsung PM991a MZ9LQ512HBLU-00BD1
9828 Points
LG Gram 15Z90Q
Iris Xe G7 80EUs, i5-1240P, Samsung PM9A1 MZVL21T0HCLR
9660 Points -2%
LG Ultra-PC 16 16U70Q-G.AR36G
Vega 6, R3 5300U, Samsung PM991 MZVLQ512HBLU
7903 Points -20%
PCMark 10 / Productivity
Average of class Office
  (3041 - 10415, n=86, last 2 years)
7689 Points +12%
Acer Swift X SFX16-52G-52VE
A370M, i5-1240P, Micron 3400 MTFDKBA512TFH 512GB
7315 Points +6%
Samsung Galaxy Book3 15, Core i5-1335U
Iris Xe G7 80EUs, i5-1335U, Samsung PM991a MZ9LQ512HBLU-00BD1
6874 Points
Average Intel Core i5-1335U, Intel Iris Xe Graphics G7 80EUs
  (6196 - 7261, n=11)
6847 Points 0%
Samsung Galaxy Book3 Pro 16
Iris Xe G7 80EUs, i5-1340P, WD PC SN740 256GB SDDPNQD-256G
6718 Points -2%
Samsung Galaxy Book2 15
A350M, i7-1260P, Samsung PM991 MZVLQ512HBLU
6714 Points -2%
LG Ultra-PC 16 16U70Q-G.AR36G
Vega 6, R3 5300U, Samsung PM991 MZVLQ512HBLU
6596 Points -4%
Huawei MateBook D 15 2023-53013BSJ
Iris Xe G7 80EUs, i5-1155G7, 511BS0512HB-TX01
6549 Points -5%
LG Gram 15Z90Q
Iris Xe G7 80EUs, i5-1240P, Samsung PM9A1 MZVL21T0HCLR
6118 Points -11%
PCMark 10 / Digital Content Creation
Acer Swift X SFX16-52G-52VE
A370M, i5-1240P, Micron 3400 MTFDKBA512TFH 512GB
7583 Points +26%
Samsung Galaxy Book2 15
A350M, i7-1260P, Samsung PM991 MZVLQ512HBLU
6677 Points +11%
Samsung Galaxy Book3 Pro 16
Iris Xe G7 80EUs, i5-1340P, WD PC SN740 256GB SDDPNQD-256G
6608 Points +10%
Average of class Office
  (2126 - 9773, n=86, last 2 years)
6335 Points +5%
Samsung Galaxy Book3 15, Core i5-1335U
Iris Xe G7 80EUs, i5-1335U, Samsung PM991a MZ9LQ512HBLU-00BD1
6029 Points
Average Intel Core i5-1335U, Intel Iris Xe Graphics G7 80EUs
  (5361 - 6164, n=11)
5747 Points -5%
LG Gram 15Z90Q
Iris Xe G7 80EUs, i5-1240P, Samsung PM9A1 MZVL21T0HCLR
5713 Points -5%
Huawei MateBook D 15 2023-53013BSJ
Iris Xe G7 80EUs, i5-1155G7, 511BS0512HB-TX01
5583 Points -7%
LG Ultra-PC 16 16U70Q-G.AR36G
Vega 6, R3 5300U, Samsung PM991 MZVLQ512HBLU
4136 Points -31%
CrossMark / Overall
Samsung Galaxy Book3 Pro 16
Iris Xe G7 80EUs, i5-1340P, WD PC SN740 256GB SDDPNQD-256G
1579 Points +9%
Samsung Galaxy Book3 15, Core i5-1335U
Iris Xe G7 80EUs, i5-1335U, Samsung PM991a MZ9LQ512HBLU-00BD1
1450 Points
Average Intel Core i5-1335U, Intel Iris Xe Graphics G7 80EUs
  (1339 - 1599, n=11)
1442 Points -1%
Acer Swift X SFX16-52G-52VE
A370M, i5-1240P, Micron 3400 MTFDKBA512TFH 512GB
1414 Points -2%
Average of class Office
  (348 - 1891, n=86, last 2 years)
1410 Points -3%
Huawei MateBook D 15 2023-53013BSJ
Iris Xe G7 80EUs, i5-1155G7, 511BS0512HB-TX01
1381 Points -5%
LG Ultra-PC 16 16U70Q-G.AR36G
Vega 6, R3 5300U, Samsung PM991 MZVLQ512HBLU
935 Points -36%
CrossMark / Productivity
Samsung Galaxy Book3 Pro 16
Iris Xe G7 80EUs, i5-1340P, WD PC SN740 256GB SDDPNQD-256G
1532 Points +7%
Average Intel Core i5-1335U, Intel Iris Xe Graphics G7 80EUs
  (1337 - 1638, n=11)
1444 Points +1%
Huawei MateBook D 15 2023-53013BSJ
Iris Xe G7 80EUs, i5-1155G7, 511BS0512HB-TX01
1442 Points +1%
Samsung Galaxy Book3 15, Core i5-1335U
Iris Xe G7 80EUs, i5-1335U, Samsung PM991a MZ9LQ512HBLU-00BD1
1428 (1479min - 1268max) Points
Average of class Office
  (393 - 1870, n=86, last 2 years)
1409 Points -1%
Acer Swift X SFX16-52G-52VE
A370M, i5-1240P, Micron 3400 MTFDKBA512TFH 512GB
1344 Points -6%
LG Ultra-PC 16 16U70Q-G.AR36G
Vega 6, R3 5300U, Samsung PM991 MZVLQ512HBLU
983 Points -31%
CrossMark / Creativity
Samsung Galaxy Book3 Pro 16
Iris Xe G7 80EUs, i5-1340P, WD PC SN740 256GB SDDPNQD-256G
1652 Points +8%
Acer Swift X SFX16-52G-52VE
A370M, i5-1240P, Micron 3400 MTFDKBA512TFH 512GB
1550 Points +1%
Samsung Galaxy Book3 15, Core i5-1335U
Iris Xe G7 80EUs, i5-1335U, Samsung PM991a MZ9LQ512HBLU-00BD1
1528 Points
Average Intel Core i5-1335U, Intel Iris Xe Graphics G7 80EUs
  (1315 - 1620, n=11)
1493 Points -2%
Average of class Office
  (340 - 1982, n=86, last 2 years)
1466 Points -4%
Huawei MateBook D 15 2023-53013BSJ
Iris Xe G7 80EUs, i5-1155G7, 511BS0512HB-TX01
1309 Points -14%
LG Ultra-PC 16 16U70Q-G.AR36G
Vega 6, R3 5300U, Samsung PM991 MZVLQ512HBLU
920 Points -40%
CrossMark / Responsiveness
Samsung Galaxy Book3 Pro 16
Iris Xe G7 80EUs, i5-1340P, WD PC SN740 256GB SDDPNQD-256G
1511 Points +16%
Huawei MateBook D 15 2023-53013BSJ
Iris Xe G7 80EUs, i5-1155G7, 511BS0512HB-TX01
1426 Points +10%
Average Intel Core i5-1335U, Intel Iris Xe Graphics G7 80EUs
  (1023 - 1868, n=11)
1310 Points +1%
Samsung Galaxy Book3 15, Core i5-1335U
Iris Xe G7 80EUs, i5-1335U, Samsung PM991a MZ9LQ512HBLU-00BD1
1299 Points
Average of class Office
  (258 - 2017, n=86, last 2 years)
1269 Points -2%
Acer Swift X SFX16-52G-52VE
A370M, i5-1240P, Micron 3400 MTFDKBA512TFH 512GB
1253 Points -4%
LG Ultra-PC 16 16U70Q-G.AR36G
Vega 6, R3 5300U, Samsung PM991 MZVLQ512HBLU
844 Points -35%
PCMark 10 Score
5314 points
Help
AIDA64 / Memory Copy
LG Gram 15Z90Q
Intel Core i5-1240P, Iris Xe G7 80EUs
70537 MB/s +16%
Samsung Galaxy Book3 Pro 16
Intel Core i5-1340P, Iris Xe G7 80EUs
69103 MB/s +13%
Acer Swift X SFX16-52G-52VE
Intel Core i5-1240P, A370M
65931 MB/s +8%
Samsung Galaxy Book2 15
Intel Core i7-1260P, A350M
63887 MB/s +5%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U, Iris Xe G7 80EUs
60884 MB/s
Huawei MateBook D 15 2023-53013BSJ
Intel Core i5-1155G7, Iris Xe G7 80EUs
53013 MB/s -13%
Average of class Office
  (7158 - 108783, n=93, last 2 years)
49017 MB/s -19%
Average Intel Core i5-1335U
  (22417 - 60884, n=11)
47107 MB/s -23%
LG Ultra-PC 16 16U70Q-G.AR36G
AMD Ryzen 3 5300U, Vega 6
36092 MB/s -41%
AIDA64 / Memory Read
LG Gram 15Z90Q
Intel Core i5-1240P, Iris Xe G7 80EUs
69396 MB/s +30%
Acer Swift X SFX16-52G-52VE
Intel Core i5-1240P, A370M
64120 MB/s +20%
Samsung Galaxy Book2 15
Intel Core i7-1260P, A350M
61806 MB/s +16%
Samsung Galaxy Book3 Pro 16
Intel Core i5-1340P, Iris Xe G7 80EUs
60597 MB/s +13%
Huawei MateBook D 15 2023-53013BSJ
Intel Core i5-1155G7, Iris Xe G7 80EUs
53497 MB/s 0%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U, Iris Xe G7 80EUs
53476 MB/s
Average of class Office
  (7325 - 112436, n=93, last 2 years)
48863 MB/s -9%
Average Intel Core i5-1335U
  (23104 - 61555, n=11)
43904 MB/s -18%
LG Ultra-PC 16 16U70Q-G.AR36G
AMD Ryzen 3 5300U, Vega 6
34493 MB/s -35%
AIDA64 / Memory Write
Samsung Galaxy Book3 Pro 16
Intel Core i5-1340P, Iris Xe G7 80EUs
88993 MB/s +35%
Samsung Galaxy Book2 15
Intel Core i7-1260P, A350M
66799 MB/s +1%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U, Iris Xe G7 80EUs
65947 MB/s
LG Gram 15Z90Q
Intel Core i5-1240P, Iris Xe G7 80EUs
62496 MB/s -5%
Acer Swift X SFX16-52G-52VE
Intel Core i5-1240P, A370M
58768 MB/s -11%
Huawei MateBook D 15 2023-53013BSJ
Intel Core i5-1155G7, Iris Xe G7 80EUs
58250 MB/s -12%
Average Intel Core i5-1335U
  (22936 - 72584, n=11)
53408 MB/s -19%
Average of class Office
  (7579 - 117935, n=93, last 2 years)
53233 MB/s -19%
LG Ultra-PC 16 16U70Q-G.AR36G
AMD Ryzen 3 5300U, Vega 6
40554 MB/s -39%
AIDA64 / Memory Latency
LG Ultra-PC 16 16U70Q-G.AR36G
AMD Ryzen 3 5300U, Vega 6
113.5 ns * -11%
LG Gram 15Z90Q
Intel Core i5-1240P, Iris Xe G7 80EUs
111.7 ns * -9%
Acer Swift X SFX16-52G-52VE
Intel Core i5-1240P, A370M
107.4 ns * -5%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U, Iris Xe G7 80EUs
102.6 ns *
Huawei MateBook D 15 2023-53013BSJ
Intel Core i5-1155G7, Iris Xe G7 80EUs
101.9 ns * +1%
Average of class Office
  (8.3 - 185.2, n=93, last 2 years)
97.1 ns * +5%
Average Intel Core i5-1335U
  (78.6 - 112.8, n=11)
96.1 ns * +6%
Samsung Galaxy Book3 Pro 16
Intel Core i5-1340P, Iris Xe G7 80EUs
95.4 ns * +7%
Samsung Galaxy Book2 15
Intel Core i7-1260P, A350M
0 ns * +100%

* ... smaller is better

DPC延迟

Galaxy Book3的DPC延迟明显高于专业版,但没有显示任何异常的高值。这意味着用户在处理实时音频时不应该遇到任何问题,尽管它确实取决于设备的配置。

延迟监测
延迟监测
LatencyMon 驱动程序
LatencyMon 驱动程序
任务管理器
任务管理器
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Huawei MateBook D 15 2023-53013BSJ
Iris Xe G7 80EUs, i5-1155G7, 511BS0512HB-TX01
1280.9 μs * -35%
Acer Swift X SFX16-52G-52VE
A370M, i5-1240P, Micron 3400 MTFDKBA512TFH 512GB
1243 μs * -31%
Samsung Galaxy Book3 15, Core i5-1335U
Iris Xe G7 80EUs, i5-1335U, Samsung PM991a MZ9LQ512HBLU-00BD1
947 μs *
LG Gram 15Z90Q
Iris Xe G7 80EUs, i5-1240P, Samsung PM9A1 MZVL21T0HCLR
882.8 μs * +7%
Samsung Galaxy Book2 15
A350M, i7-1260P, Samsung PM991 MZVLQ512HBLU
873.4 μs * +8%
LG Ultra-PC 16 16U70Q-G.AR36G
Vega 6, R3 5300U, Samsung PM991 MZVLQ512HBLU
517 μs * +45%
Samsung Galaxy Book3 Pro 16
Iris Xe G7 80EUs, i5-1340P, WD PC SN740 256GB SDDPNQD-256G
370.2 μs * +61%

* ... smaller is better

大容量存储

关于512GB固态硬盘,三星选择了它自己的一个型号。在这样做的过程中,他们并没有给自己带来很大的好处,因为基准测试显示,该大容量存储的读写速度往往只足以保证中游的排名。尽管如此,该硬盘的速度在耐力测试中是一致的,尽管是在一个较低的水平。

Samsung PM991a MZ9LQ512HBLU-00BD1
CDM 5/6 Read Seq Q32T1: 2216 MB/s
CDM 5/6 Write Seq Q32T1: 1201 MB/s
CDM 5/6 Read 4K Q32T1: 548 MB/s
CDM 5/6 Write 4K Q32T1: 486.3 MB/s
CDM 5 Read Seq: 1686 MB/s
CDM 5 Write Seq: 1777 MB/s
CDM 5/6 Read 4K: 53.54 MB/s
CDM 5/6 Write 4K: 184.4 MB/s
Drive Performance Rating - Percent
Acer Swift X SFX16-52G-52VE
Micron 3400 MTFDKBA512TFH 512GB
83.5 pt
LG Gram 15Z90Q
Samsung PM9A1 MZVL21T0HCLR
81.9 pt
Average of class Office

65.7 pt
Samsung Galaxy Book3 Pro 16
WD PC SN740 256GB SDDPNQD-256G
65.1 pt
Huawei MateBook D 15 2023-53013BSJ
511BS0512HB-TX01
61.9 pt
Average Samsung PM991a MZ9LQ512HBLU-00BD1

53.1 pt
Samsung Galaxy Book2 15
Samsung PM991 MZVLQ512HBLU
49.7 pt
Samsung Galaxy Book3 15, Core i5-1335U
Samsung PM991a MZ9LQ512HBLU-00BD1
48.8 pt
LG Ultra-PC 16 16U70Q-G.AR36G
Samsung PM991 MZVLQ512HBLU
36 pt
DiskSpd
seq read
LG Gram 15Z90Q
Samsung PM9A1 MZVL21T0HCLR
3720 (3680.27min - 3720.35max) MB/s +152%
Average of class Office
  (121 - 4554, n=89, last 2 years)
2657 MB/s +80%
Acer Swift X SFX16-52G-52VE
Micron 3400 MTFDKBA512TFH 512GB
2619 (2163.13min - 2618.71max) MB/s +77%
Average Samsung PM991a MZ9LQ512HBLU-00BD1
  (1476 - 2002, n=3)
1784 MB/s +21%
Huawei MateBook D 15 2023-53013BSJ
511BS0512HB-TX01
1657 (1628.96min - 1657.17max) MB/s +12%
Samsung Galaxy Book3 Pro 16
WD PC SN740 256GB SDDPNQD-256G
1639 (1605.72min - 1638.79max) MB/s +11%
LG Ultra-PC 16 16U70Q-G.AR36G
Samsung PM991 MZVLQ512HBLU
1596 (1575.17min - 1595.93max) MB/s +8%
Samsung Galaxy Book3 15, Core i5-1335U
Samsung PM991a MZ9LQ512HBLU-00BD1
1476 (1435.36min - 1475.98max) MB/s
Samsung Galaxy Book2 15
Samsung PM991 MZVLQ512HBLU
1188 (1150.29min - 1187.97max) MB/s -20%
seq write
Acer Swift X SFX16-52G-52VE
Micron 3400 MTFDKBA512TFH 512GB
3900 (3776.97min - 3899.82max) MB/s +129%
LG Gram 15Z90Q
Samsung PM9A1 MZVL21T0HCLR
2979 (2885.89min - 2978.58max) MB/s +75%
Average of class Office
  (43 - 5842, n=89, last 2 years)
2567 MB/s +50%
Samsung Galaxy Book2 15
Samsung PM991 MZVLQ512HBLU
1706 (1686.51min - 1705.56max) MB/s 0%
Samsung Galaxy Book3 15, Core i5-1335U
Samsung PM991a MZ9LQ512HBLU-00BD1
1706 (1502.19min - 1706.45max) MB/s
Average Samsung PM991a MZ9LQ512HBLU-00BD1
  (1620 - 1766, n=3)
1697 MB/s -1%
Samsung Galaxy Book3 Pro 16
WD PC SN740 256GB SDDPNQD-256G
1633 (1589.22min - 1633.47max) MB/s -4%
Huawei MateBook D 15 2023-53013BSJ
511BS0512HB-TX01
1342 (1321.12min - 1341.59max) MB/s -21%
LG Ultra-PC 16 16U70Q-G.AR36G
Samsung PM991 MZVLQ512HBLU
1311 (1226.41min - 1311.35max) MB/s -23%
seq q8 t1 read
Acer Swift X SFX16-52G-52VE
Micron 3400 MTFDKBA512TFH 512GB
6439 (5819.81min - 6438.55max) MB/s +202%
LG Gram 15Z90Q
Samsung PM9A1 MZVL21T0HCLR
6375 (5507.33min - 6374.71max) MB/s +199%
Average of class Office
  (124.2 - 7120, n=89, last 2 years)
4362 MB/s +105%
Samsung Galaxy Book3 Pro 16
WD PC SN740 256GB SDDPNQD-256G
3945 (2427.42min - 3944.82max) MB/s +85%
LG Ultra-PC 16 16U70Q-G.AR36G
Samsung PM991 MZVLQ512HBLU
2890 (2377.4min - 2890.29max) MB/s +35%
Average Samsung PM991a MZ9LQ512HBLU-00BD1
  (2133 - 3028, n=3)
2711 MB/s +27%
Huawei MateBook D 15 2023-53013BSJ
511BS0512HB-TX01
2395 (2104.25min - 2394.77max) MB/s +12%
Samsung Galaxy Book2 15
Samsung PM991 MZVLQ512HBLU
2139 (1967.18min - 2139.1max) MB/s 0%
Samsung Galaxy Book3 15, Core i5-1335U
Samsung PM991a MZ9LQ512HBLU-00BD1
2133 (1921.83min - 2132.73max) MB/s
seq q8 t1 write
LG Gram 15Z90Q
Samsung PM9A1 MZVL21T0HCLR
4924 (4897.9min - 4924.33max) MB/s +314%
Acer Swift X SFX16-52G-52VE
Micron 3400 MTFDKBA512TFH 512GB
3911 (3833.06min - 3910.98max) MB/s +229%
Average of class Office
  (46.7 - 6791, n=89, last 2 years)
3371 MB/s +184%
Samsung Galaxy Book3 Pro 16
WD PC SN740 256GB SDDPNQD-256G
1821 (1636.07min - 1820.67max) MB/s +53%
LG Ultra-PC 16 16U70Q-G.AR36G
Samsung PM991 MZVLQ512HBLU
1725 (1683.37min - 1724.81max) MB/s +45%
Huawei MateBook D 15 2023-53013BSJ
511BS0512HB-TX01
1684 (1678.14min - 1683.79max) MB/s +42%
Average Samsung PM991a MZ9LQ512HBLU-00BD1
  (1188 - 1791, n=3)
1575 MB/s +33%
Samsung Galaxy Book2 15
Samsung PM991 MZVLQ512HBLU
1205 (1166.44min - 1205.44max) MB/s +1%
Samsung Galaxy Book3 15, Core i5-1335U
Samsung PM991a MZ9LQ512HBLU-00BD1
1188 (1164.94min - 1187.76max) MB/s
4k q1 t1 read
Samsung Galaxy Book3 Pro 16
WD PC SN740 256GB SDDPNQD-256G
74.3 (62.98min - 74.29max) MB/s +51%
LG Gram 15Z90Q
Samsung PM9A1 MZVL21T0HCLR
69.2 (68.64min - 69.23max) MB/s +40%
Acer Swift X SFX16-52G-52VE
Micron 3400 MTFDKBA512TFH 512GB
65.3 (60.49min - 65.29max) MB/s +32%
Huawei MateBook D 15 2023-53013BSJ
511BS0512HB-TX01
59.1 (58.64min - 59.07max) MB/s +20%
Average of class Office
  (5.55 - 89.9, n=89, last 2 years)
58.3 MB/s +18%
Samsung Galaxy Book3 15, Core i5-1335U
Samsung PM991a MZ9LQ512HBLU-00BD1
49.3 (47.4min - 49.31max) MB/s
Average Samsung PM991a MZ9LQ512HBLU-00BD1
  (41.9 - 53.4, n=3)
48.2 MB/s -2%
Samsung Galaxy Book2 15
Samsung PM991 MZVLQ512HBLU
47.7 (43.46min - 47.72max) MB/s -3%
LG Ultra-PC 16 16U70Q-G.AR36G
Samsung PM991 MZVLQ512HBLU
34.5 (33.47min - 34.53max) MB/s -30%
4k q1 t1 write
Huawei MateBook D 15 2023-53013BSJ
511BS0512HB-TX01
260 (259.53min - 260.43max) MB/s +40%
Samsung Galaxy Book3 Pro 16
WD PC SN740 256GB SDDPNQD-256G
246 (239.52min - 246.23max) MB/s +33%
Acer Swift X SFX16-52G-52VE
Micron 3400 MTFDKBA512TFH 512GB
208 (176.65min - 208.23max) MB/s +12%
Samsung Galaxy Book2 15
Samsung PM991 MZVLQ512HBLU
188.2 (185.67min - 188.22max) MB/s +1%
Samsung Galaxy Book3 15, Core i5-1335U
Samsung PM991a MZ9LQ512HBLU-00BD1
185.5 (181.45min - 185.46max) MB/s
Average of class Office
  (1.23 - 429, n=89, last 2 years)
165.2 MB/s -11%
Average Samsung PM991a MZ9LQ512HBLU-00BD1
  (104 - 185.5, n=3)
157.5 MB/s -15%
LG Gram 15Z90Q
Samsung PM9A1 MZVL21T0HCLR
139.5 (127.23min - 139.46max) MB/s -25%
LG Ultra-PC 16 16U70Q-G.AR36G
Samsung PM991 MZVLQ512HBLU
94.8 (92.36min - 94.81max) MB/s -49%
4k q32 t16 read
Acer Swift X SFX16-52G-52VE
Micron 3400 MTFDKBA512TFH 512GB
1522 (1516.22min - 1521.85max) MB/s +75%
Average of class Office
  (7.49 - 4425, n=89, last 2 years)
1254 MB/s +44%
Average Samsung PM991a MZ9LQ512HBLU-00BD1
  (871 - 1390, n=3)
1208 MB/s +39%
Samsung Galaxy Book3 Pro 16
WD PC SN740 256GB SDDPNQD-256G
1000 (980.97min - 999.75max) MB/s +15%
Huawei MateBook D 15 2023-53013BSJ
511BS0512HB-TX01
874 (872.5min - 874.12max) MB/s 0%
Samsung Galaxy Book3 15, Core i5-1335U
Samsung PM991a MZ9LQ512HBLU-00BD1
871 (866.74min - 870.51max) MB/s
Samsung Galaxy Book2 15
Samsung PM991 MZVLQ512HBLU
865 (859.56min - 865.01max) MB/s -1%
LG Gram 15Z90Q
Samsung PM9A1 MZVL21T0HCLR
652 (558.01min - 652.39max) MB/s -25%
LG Ultra-PC 16 16U70Q-G.AR36G
Samsung PM991 MZVLQ512HBLU
507 (486.92min - 507.33max) MB/s -42%
4k q32 t16 write
Acer Swift X SFX16-52G-52VE
Micron 3400 MTFDKBA512TFH 512GB
2390 (2303.73min - 2390.12max) MB/s +179%
Huawei MateBook D 15 2023-53013BSJ
511BS0512HB-TX01
1681 (1674.43min - 1680.63max) MB/s +96%
Samsung Galaxy Book3 Pro 16
WD PC SN740 256GB SDDPNQD-256G
1392 (1180.35min - 1391.84max) MB/s +62%
Average Samsung PM991a MZ9LQ512HBLU-00BD1
  (858 - 1078, n=3)
994 MB/s +16%
Average of class Office
  (1.5 - 3254, n=89, last 2 years)
943 MB/s +10%
Samsung Galaxy Book3 15, Core i5-1335U
Samsung PM991a MZ9LQ512HBLU-00BD1
858 (854.84min - 857.91max) MB/s
Samsung Galaxy Book2 15
Samsung PM991 MZVLQ512HBLU
830 (821.68min - 830.14max) MB/s -3%
LG Gram 15Z90Q
Samsung PM9A1 MZVL21T0HCLR
291 (271.22min - 290.91max) MB/s -66%
LG Ultra-PC 16 16U70Q-G.AR36G
Samsung PM991 MZVLQ512HBLU
286 (268.44min - 286.33max) MB/s -67%
AS SSD
Score Total
LG Gram 15Z90Q
Samsung PM9A1 MZVL21T0HCLR
5379 Points +94%
Acer Swift X SFX16-52G-52VE
Micron 3400 MTFDKBA512TFH 512GB
4936 Points +78%
Average of class Office
  (704 - 9204, n=87, last 2 years)
4202 Points +51%
Huawei MateBook D 15 2023-53013BSJ
511BS0512HB-TX01
4151 Points +50%
Samsung Galaxy Book3 Pro 16
WD PC SN740 256GB SDDPNQD-256G
3704 Points +34%
Average Samsung PM991a MZ9LQ512HBLU-00BD1
  (2774 - 3672, n=3)
3323 Points +20%
Samsung Galaxy Book3 15, Core i5-1335U
Samsung PM991a MZ9LQ512HBLU-00BD1
2774 Points
Samsung Galaxy Book2 15
Samsung PM991 MZVLQ512HBLU
2580 Points -7%
LG Ultra-PC 16 16U70Q-G.AR36G
Samsung PM991 MZVLQ512HBLU
2229 Points -20%
Score Read
Acer Swift X SFX16-52G-52VE
Micron 3400 MTFDKBA512TFH 512GB
1737 Points +53%
LG Gram 15Z90Q
Samsung PM9A1 MZVL21T0HCLR
1546 Points +36%
Huawei MateBook D 15 2023-53013BSJ
511BS0512HB-TX01
1514 Points +33%
Average of class Office
  (252 - 3364, n=87, last 2 years)
1476 Points +30%
Average Samsung PM991a MZ9LQ512HBLU-00BD1
  (1137 - 1566, n=3)
1421 Points +25%
Samsung Galaxy Book3 Pro 16
WD PC SN740 256GB SDDPNQD-256G
1263 Points +11%
Samsung Galaxy Book3 15, Core i5-1335U
Samsung PM991a MZ9LQ512HBLU-00BD1
1137 Points
Samsung Galaxy Book2 15
Samsung PM991 MZVLQ512HBLU
1066 Points -6%
LG Ultra-PC 16 16U70Q-G.AR36G
Samsung PM991 MZVLQ512HBLU
810 Points -29%
Score Write
LG Gram 15Z90Q
Samsung PM9A1 MZVL21T0HCLR
3137 Points +188%
Acer Swift X SFX16-52G-52VE
Micron 3400 MTFDKBA512TFH 512GB
2287 Points +110%
Average of class Office
  (247 - 4111, n=87, last 2 years)
2014 Points +85%
Huawei MateBook D 15 2023-53013BSJ
511BS0512HB-TX01
1878 Points +72%
Samsung Galaxy Book3 Pro 16
WD PC SN740 256GB SDDPNQD-256G
1841 Points +69%
Average Samsung PM991a MZ9LQ512HBLU-00BD1
  (1091 - 1345, n=3)
1209 Points +11%
Samsung Galaxy Book3 15, Core i5-1335U
Samsung PM991a MZ9LQ512HBLU-00BD1
1091 Points
LG Ultra-PC 16 16U70Q-G.AR36G
Samsung PM991 MZVLQ512HBLU
1055 Points -3%
Samsung Galaxy Book2 15
Samsung PM991 MZVLQ512HBLU
990 Points -9%
Seq Read
LG Gram 15Z90Q
Samsung PM9A1 MZVL21T0HCLR
4805.77 MB/s +83%
Average of class Office
  (508 - 5796, n=87, last 2 years)
3452 MB/s +31%
Acer Swift X SFX16-52G-52VE
Micron 3400 MTFDKBA512TFH 512GB
3200 MB/s +22%
Samsung Galaxy Book3 Pro 16
WD PC SN740 256GB SDDPNQD-256G
2986.81 MB/s +14%
Samsung Galaxy Book3 15, Core i5-1335U
Samsung PM991a MZ9LQ512HBLU-00BD1
2629.16 MB/s
Average Samsung PM991a MZ9LQ512HBLU-00BD1
  (2555 - 2629, n=3)
2593 MB/s -1%
Samsung Galaxy Book2 15
Samsung PM991 MZVLQ512HBLU
2381 MB/s -9%
LG Ultra-PC 16 16U70Q-G.AR36G
Samsung PM991 MZVLQ512HBLU
2211 MB/s -16%
Huawei MateBook D 15 2023-53013BSJ
511BS0512HB-TX01
2080.49 MB/s -21%
Seq Write
Acer Swift X SFX16-52G-52VE
Micron 3400 MTFDKBA512TFH 512GB
3430 MB/s +101%
LG Gram 15Z90Q
Samsung PM9A1 MZVL21T0HCLR
2495.8 MB/s +46%
Average of class Office
  (294 - 5880, n=87, last 2 years)
2350 MB/s +38%
Average Samsung PM991a MZ9LQ512HBLU-00BD1
  (1708 - 1847, n=3)
1782 MB/s +4%
Samsung Galaxy Book2 15
Samsung PM991 MZVLQ512HBLU
1735 MB/s +2%
Samsung Galaxy Book3 15, Core i5-1335U
Samsung PM991a MZ9LQ512HBLU-00BD1
1708.34 MB/s
Samsung Galaxy Book3 Pro 16
WD PC SN740 256GB SDDPNQD-256G
1617.55 MB/s -5%
Huawei MateBook D 15 2023-53013BSJ
511BS0512HB-TX01
1467.23 MB/s -14%
LG Ultra-PC 16 16U70Q-G.AR36G
Samsung PM991 MZVLQ512HBLU
1057 MB/s -38%
4K Read
LG Gram 15Z90Q
Samsung PM9A1 MZVL21T0HCLR
76.63 MB/s +64%
Samsung Galaxy Book3 Pro 16
WD PC SN740 256GB SDDPNQD-256G
74.26 MB/s +59%
Huawei MateBook D 15 2023-53013BSJ
511BS0512HB-TX01
67.13 MB/s +44%
Acer Swift X SFX16-52G-52VE
Micron 3400 MTFDKBA512TFH 512GB
63.1 MB/s +35%
Average of class Office
  (18 - 91.1, n=87, last 2 years)
58.3 MB/s +25%
Samsung Galaxy Book3 15, Core i5-1335U
Samsung PM991a MZ9LQ512HBLU-00BD1
46.78 MB/s
Samsung Galaxy Book2 15
Samsung PM991 MZVLQ512HBLU
44.99 MB/s -4%
Average Samsung PM991a MZ9LQ512HBLU-00BD1
  (37.8 - 48.1, n=3)
44.2 MB/s -6%
LG Ultra-PC 16 16U70Q-G.AR36G
Samsung PM991 MZVLQ512HBLU
36.22 MB/s -23%
4K Write
Samsung Galaxy Book3 Pro 16
WD PC SN740 256GB SDDPNQD-256G
215.44 MB/s +34%
LG Gram 15Z90Q
Samsung PM9A1 MZVL21T0HCLR
199.57 MB/s +25%
Huawei MateBook D 15 2023-53013BSJ
511BS0512HB-TX01
195.24 MB/s +22%
Average of class Office
  (28.2 - 350, n=87, last 2 years)
167.1 MB/s +4%
Samsung Galaxy Book2 15
Samsung PM991 MZVLQ512HBLU
163.48 MB/s +2%
Samsung Galaxy Book3 15, Core i5-1335U
Samsung PM991a MZ9LQ512HBLU-00BD1
160.19 MB/s
Acer Swift X SFX16-52G-52VE
Micron 3400 MTFDKBA512TFH 512GB
141.6 MB/s -12%
Average Samsung PM991a MZ9LQ512HBLU-00BD1
  (86.7 - 160.2, n=3)
131.6 MB/s -18%
LG Ultra-PC 16 16U70Q-G.AR36G
Samsung PM991 MZVLQ512HBLU
91.17 MB/s -43%
4K-64 Read
Acer Swift X SFX16-52G-52VE
Micron 3400 MTFDKBA512TFH 512GB
1354 MB/s +64%
Huawei MateBook D 15 2023-53013BSJ
511BS0512HB-TX01
1238.56 MB/s +50%
Average Samsung PM991a MZ9LQ512HBLU-00BD1
  (824 - 1273, n=3)
1117 MB/s +36%
Average of class Office
  (182.3 - 2713, n=87, last 2 years)
1073 MB/s +30%
LG Gram 15Z90Q
Samsung PM9A1 MZVL21T0HCLR
988.75 MB/s +20%
Samsung Galaxy Book3 Pro 16
WD PC SN740 256GB SDDPNQD-256G
889.77 MB/s +8%
Samsung Galaxy Book3 15, Core i5-1335U
Samsung PM991a MZ9LQ512HBLU-00BD1
823.86 MB/s
Samsung Galaxy Book2 15
Samsung PM991 MZVLQ512HBLU
783.25 MB/s -5%
LG Ultra-PC 16 16U70Q-G.AR36G
Samsung PM991 MZVLQ512HBLU
553 MB/s -33%
4K-64 Write
LG Gram 15Z90Q
Samsung PM9A1 MZVL21T0HCLR
2688.21 MB/s +254%
Acer Swift X SFX16-52G-52VE
Micron 3400 MTFDKBA512TFH 512GB
1802 MB/s +137%
Average of class Office
  (183.4 - 3394, n=87, last 2 years)
1612 MB/s +112%
Huawei MateBook D 15 2023-53013BSJ
511BS0512HB-TX01
1535.62 MB/s +102%
Samsung Galaxy Book3 Pro 16
WD PC SN740 256GB SDDPNQD-256G
1463.63 MB/s +93%
Average Samsung PM991a MZ9LQ512HBLU-00BD1
  (760 - 1012, n=3)
899 MB/s +18%
LG Ultra-PC 16 16U70Q-G.AR36G
Samsung PM991 MZVLQ512HBLU
861 MB/s +13%
Samsung Galaxy Book3 15, Core i5-1335U
Samsung PM991a MZ9LQ512HBLU-00BD1
759.51 MB/s
Samsung Galaxy Book2 15
Samsung PM991 MZVLQ512HBLU
653.05 MB/s -14%
Access Time Read
LG Ultra-PC 16 16U70Q-G.AR36G
Samsung PM991 MZVLQ512HBLU
0.159 ms * -11%
Samsung Galaxy Book3 15, Core i5-1335U
Samsung PM991a MZ9LQ512HBLU-00BD1
0.143 ms *
Average Samsung PM991a MZ9LQ512HBLU-00BD1
  (0.079 - 0.164, n=3)
0.1287 ms * +10%
Samsung Galaxy Book3 Pro 16
WD PC SN740 256GB SDDPNQD-256G
0.103 ms * +28%
Huawei MateBook D 15 2023-53013BSJ
511BS0512HB-TX01
0.091 ms * +36%
Average of class Office
  (0.022 - 0.302, n=87, last 2 years)
0.07797 ms * +45%
Samsung Galaxy Book2 15
Samsung PM991 MZVLQ512HBLU
0.065 ms * +55%
Acer Swift X SFX16-52G-52VE
Micron 3400 MTFDKBA512TFH 512GB
0.064 ms * +55%
LG Gram 15Z90Q
Samsung PM9A1 MZVL21T0HCLR
0.028 ms * +80%
Access Time Write
Average of class Office
  (0.017 - 0.625, n=87, last 2 years)
0.06914 ms * -188%
LG Ultra-PC 16 16U70Q-G.AR36G
Samsung PM991 MZVLQ512HBLU
0.043 ms * -79%
Huawei MateBook D 15 2023-53013BSJ
511BS0512HB-TX01
0.043 ms * -79%
Average Samsung PM991a MZ9LQ512HBLU-00BD1
  (0.024 - 0.044, n=3)
0.03133 ms * -31%
Acer Swift X SFX16-52G-52VE
Micron 3400 MTFDKBA512TFH 512GB
0.026 ms * -8%
Samsung Galaxy Book3 15, Core i5-1335U
Samsung PM991a MZ9LQ512HBLU-00BD1
0.024 ms *
Samsung Galaxy Book2 15
Samsung PM991 MZVLQ512HBLU
0.023 ms * +4%
LG Gram 15Z90Q
Samsung PM9A1 MZVL21T0HCLR
0.021 ms * +12%
Samsung Galaxy Book3 Pro 16
WD PC SN740 256GB SDDPNQD-256G
0.019 ms * +21%

* ... smaller is better

Continuous performance reading: DiskSpd Read Loop, Queue Depth 8

03256509751300162519502275260029253250357539004225455048755200552558506175Tooltip
Samsung Galaxy Book3 15, Core i5-1335U Samsung PM991a MZ9LQ512HBLU-00BD1: Ø1986 (1841.63-2133.36)
LG Gram 15Z90Q Samsung PM9A1 MZVL21T0HCLR: Ø5157 (3285.96-6436.16)
Samsung Galaxy Book3 Pro 16 WD PC SN740 256GB SDDPNQD-256G: Ø3951 (3430.73-3970.54)
Huawei MateBook D 15 2023-53013BSJ 511BS0512HB-TX01: Ø2381 (2041.78-2396.45)
Samsung Galaxy Book2 15 Samsung PM991 MZVLQ512HBLU: Ø2129 (1962.36-2142.87)
Acer Swift X SFX16-52G-52VE Micron 3400 MTFDKBA512TFH 512GB: Ø2910 (1600.7-6452.63)
LG Ultra-PC 16 16U70Q-G.AR36G Samsung PM991 MZVLQ512HBLU: Ø2363 (1977.61-2904.77)

图形卡

对于这个价格和设备类别来说,三星Galaxy Book3有一个不典型的特点。 英特尔Iris Xe-的图形芯片。与i5-1335U,96个EU中的80个是活跃的,并以高达1.25GHz的时钟速度运行。为此,可使用1GB的RAM。

在基准测试中,iGPU的表现始终能够远远超过平均水平,并取得了中游的位置。其他配备相同图形芯片并在CPU基准测试中领先于Galaxy Book3的设备在这里发现自己落后了。除此之外,一个积极的因素是图形性能保持稳定,这一点在3DMark的Time Spy 压力测试中得到了99.7%的分数证明。

在电池模式下,iGPU几乎没有下降一个档次,在3DMark 11中使用三星的 "高性能 "模式和Windows的 "平衡 "模式取得了几乎相同的结果,得到5493分。

3DMark Performance Rating - Percent
Acer Swift X SFX16-52G-52VE
Intel Arc A370M, Intel Core i5-1240P
95.2 pt
Samsung Galaxy Book2 15
Intel Arc A350M, Intel Core i7-1260P
90.2 pt
Average of class Office

56.9 pt
Huawei MateBook D 15 2023-53013BSJ
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1155G7
53 pt
Samsung Galaxy Book3 Pro 16
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1340P
51 pt
Samsung Galaxy Book3 15, Core i5-1335U
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1335U
50.8 pt
LG Gram 15Z90Q
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1240P
47.7 pt
Average Intel Iris Xe Graphics G7 80EUs

44.3 pt
LG Ultra-PC 16 16U70Q-G.AR36G
AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 3 5300U
34.4 pt
3DMark 11 - 1280x720 Performance GPU
Acer Swift X SFX16-52G-52VE
Intel Arc A370M, Intel Core i5-1240P
11748 Points +112%
Samsung Galaxy Book2 15
Intel Arc A350M, Intel Core i7-1260P
10687 Points +92%
Average of class Office
  (1468 - 13132, n=88, last 2 years)
6704 Points +21%
Samsung Galaxy Book3 Pro 16
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1340P
6225 Points +12%
Huawei MateBook D 15 2023-53013BSJ
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1155G7
5892 Points +6%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1335U
5554 Points
Average Intel Iris Xe Graphics G7 80EUs
  (2246 - 6477, n=109)
5179 Points -7%
LG Gram 15Z90Q
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1240P
5069 Points -9%
LG Ultra-PC 16 16U70Q-G.AR36G
AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 3 5300U
4072 Points -27%
3DMark
1280x720 Cloud Gate Standard Graphics
Samsung Galaxy Book2 15
Intel Arc A350M, Intel Core i7-1260P
44006 Points +72%
Acer Swift X SFX16-52G-52VE
Intel Arc A370M, Intel Core i5-1240P
35604 Points +40%
Average of class Office
  (7982 - 58068, n=65, last 2 years)
26787 Points +5%
Huawei MateBook D 15 2023-53013BSJ
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1155G7
26543 Points +4%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1335U
25519 Points
LG Gram 15Z90Q
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1240P
25256 Points -1%
Average Intel Iris Xe Graphics G7 80EUs
  (6361 - 30894, n=95)
21885 Points -14%
LG Ultra-PC 16 16U70Q-G.AR36G
AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 3 5300U
19698 Points -23%
Samsung Galaxy Book3 Pro 16
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1340P
18764 Points -26%
1920x1080 Fire Strike Graphics
Acer Swift X SFX16-52G-52VE
Intel Arc A370M, Intel Core i5-1240P
8149 Points +80%
Samsung Galaxy Book2 15
Intel Arc A350M, Intel Core i7-1260P
6800 Points +50%
Samsung Galaxy Book3 Pro 16
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1340P
5127 Points +13%
Average of class Office
  (1089 - 9375, n=89, last 2 years)
4861 Points +7%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1335U
4523 Points
Huawei MateBook D 15 2023-53013BSJ
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1155G7
4507 Points 0%
LG Gram 15Z90Q
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1240P
4487 Points -1%
Average Intel Iris Xe Graphics G7 80EUs
  (1560 - 5305, n=111)
3794 Points -16%
LG Ultra-PC 16 16U70Q-G.AR36G
AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 3 5300U
2522 Points -44%
2560x1440 Time Spy Graphics
Acer Swift X SFX16-52G-52VE
Intel Arc A370M, Intel Core i5-1240P
3167 Points +135%
Samsung Galaxy Book2 15
Intel Arc A350M, Intel Core i7-1260P
2731 Points +103%
Average of class Office
  (313 - 4109, n=89, last 2 years)
1585 Points +18%
Huawei MateBook D 15 2023-53013BSJ
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1155G7
1464 Points +9%
Samsung Galaxy Book3 Pro 16
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1340P
1445 Points +7%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1335U
1348 Points
Average Intel Iris Xe Graphics G7 80EUs
  (561 - 1511, n=108)
1172 Points -13%
LG Gram 15Z90Q
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1240P
1118 Points -17%
LG Ultra-PC 16 16U70Q-G.AR36G
AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 3 5300U
862 Points -36%
3DMark 11 Performance
6147 points
3DMark Cloud Gate Standard Score
20560 points
3DMark Fire Strike Score
4239 points
3DMark Time Spy Score
1528 points
Help

游戏性能

当涉及到游戏时,该设备也表现出良好的性能,与它的iGPU得分相比。最后,这并不一定意味着Galaxy Book3真的适合游戏。这里测试的大多数游戏在最低或有时甚至是中等设置下运行得足够流畅。然而,在玩目前的游戏时,不应该期待图形上的愉悦。

Performance Rating - Percent
Samsung Galaxy Book2 15 -1!
Intel Core i7-1260P, Intel Arc A350M
85.8 pt
Acer Swift X SFX16-52G-52VE
Intel Core i5-1240P, Intel Arc A370M
78.4 pt
Huawei MateBook D 15 2023-53013BSJ -1!
Intel Core i5-1155G7, Intel Iris Xe Graphics G7 80EUs
70.1 pt
Average of class Office

69.8 pt
Samsung Galaxy Book3 Pro 16 -2!
Intel Core i5-1340P, Intel Iris Xe Graphics G7 80EUs
65.8 pt
Samsung Galaxy Book3 15, Core i5-1335U -1!
Intel Core i5-1335U, Intel Iris Xe Graphics G7 80EUs
63.2 pt
LG Ultra-PC 16 16U70Q-G.AR36G -2!
AMD Ryzen 3 5300U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)
57.9 pt
LG Gram 15Z90Q -3!
Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs
39.7 pt
The Witcher 3 - 1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Acer Swift X SFX16-52G-52VE
Intel Core i5-1240P, Intel Arc A370M
25 fps +84%
Samsung Galaxy Book2 15
Intel Core i7-1260P, Intel Arc A350M
18.4 (15min, 17P1) fps +35%
Average of class Office
  (3.8 - 34, n=79, last 2 years)
14.8 fps +9%
Samsung Galaxy Book3 Pro 16
Intel Core i5-1340P, Intel Iris Xe Graphics G7 80EUs
14.4 (12min) fps +6%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U, Intel Iris Xe Graphics G7 80EUs
13.6 (12min, 13P1) fps
Huawei MateBook D 15 2023-53013BSJ
Intel Core i5-1155G7, Intel Iris Xe Graphics G7 80EUs
13.5 (12min, 13P1) fps -1%
LG Gram 15Z90Q
Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs
9.7 (4min) fps -29%
LG Ultra-PC 16 16U70Q-G.AR36G
AMD Ryzen 3 5300U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)
8.6 fps -37%
GTA V - 1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x
Samsung Galaxy Book2 15
Intel Core i7-1260P, Intel Arc A350M
14.7 (1.712min, 9.43P1) fps
Average of class Office
  (3.35 - 47.8, n=78, last 2 years)
12.7 fps
Samsung Galaxy Book3 Pro 16
Intel Core i5-1340P, Intel Iris Xe Graphics G7 80EUs
10.2 (0.768min, 6.33P1) fps
Huawei MateBook D 15 2023-53013BSJ
Intel Core i5-1155G7, Intel Iris Xe Graphics G7 80EUs
9.92 (3.87min, 7.75P1) fps
LG Ultra-PC 16 16U70Q-G.AR36G
AMD Ryzen 3 5300U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)
8 fps
Acer Swift X SFX16-52G-52VE
Intel Core i5-1240P, Intel Arc A370M
fps
Final Fantasy XV Benchmark - 1920x1080 High Quality
Samsung Galaxy Book2 15
Intel Core i7-1260P, Intel Arc A350M
20.7 fps +34%
Acer Swift X SFX16-52G-52VE
Intel Core i5-1240P, Intel Arc A370M
19.6 fps +27%
Average of class Office
  (3.86 - 35.7, n=87, last 2 years)
15.9 fps +3%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U, Intel Iris Xe Graphics G7 80EUs
15.4 fps
Huawei MateBook D 15 2023-53013BSJ
Intel Core i5-1155G7, Intel Iris Xe Graphics G7 80EUs
15.1 fps -2%
Samsung Galaxy Book3 Pro 16
Intel Core i5-1340P, Intel Iris Xe Graphics G7 80EUs
13.3 fps -14%
LG Gram 15Z90Q
Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs
fps -100%
Strange Brigade - 1920x1080 ultra AA:ultra AF:16
Acer Swift X SFX16-52G-52VE
Intel Core i5-1240P, Intel Arc A370M
54.3 (41.2min, 42.6P1) fps +148%
Samsung Galaxy Book2 15
Intel Core i7-1260P, Intel Arc A350M
40.9 (6.8min, 30.4P1) fps +87%
Average of class Office
  (9.6 - 56.5, n=73, last 2 years)
27.1 fps +24%
Huawei MateBook D 15 2023-53013BSJ
Intel Core i5-1155G7, Intel Iris Xe Graphics G7 80EUs
24 (6.4min, 7.66P1) fps +10%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U, Intel Iris Xe Graphics G7 80EUs
21.9 (5min, 6.51P1) fps
LG Ultra-PC 16 16U70Q-G.AR36G
AMD Ryzen 3 5300U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)
18.1 (5min, 14.6P1) fps -17%
Dota 2 Reborn - 1920x1080 ultra (3/3) best looking
LG Ultra-PC 16 16U70Q-G.AR36G
AMD Ryzen 3 5300U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)
66.1 (49.7min) fps +17%
Samsung Galaxy Book2 15
Intel Core i7-1260P, Intel Arc A350M
62.1 (41.4min) fps +10%
Acer Swift X SFX16-52G-52VE
Intel Core i5-1240P, Intel Arc A370M
57.7 (43.4min) fps +2%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U, Intel Iris Xe Graphics G7 80EUs
56.5 (49min) fps
Huawei MateBook D 15 2023-53013BSJ
Intel Core i5-1155G7, Intel Iris Xe Graphics G7 80EUs
54.3 (47.6min) fps -4%
Average of class Office
  (13.4 - 121.2, n=94, last 2 years)
51.6 fps -9%
Samsung Galaxy Book3 Pro 16
Intel Core i5-1340P, Intel Iris Xe Graphics G7 80EUs
44.9 (40min) fps -21%
LG Gram 15Z90Q
Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs
33.7 (28.8min) fps -40%
X-Plane 11.11 - 1920x1080 high (fps_test=3)
Huawei MateBook D 15 2023-53013BSJ
Intel Core i5-1155G7, Intel Iris Xe Graphics G7 80EUs
35.9 fps +34%
Average of class Office
  (8.88 - 92.6, n=92, last 2 years)
30.1 fps +12%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U, Intel Iris Xe Graphics G7 80EUs
26.8 fps
Samsung Galaxy Book2 15
Intel Core i7-1260P, Intel Arc A350M
25.8 fps -4%
Samsung Galaxy Book3 Pro 16
Intel Core i5-1340P, Intel Iris Xe Graphics G7 80EUs
25.1 fps -6%
LG Gram 15Z90Q
Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs
24.8 fps -7%
LG Ultra-PC 16 16U70Q-G.AR36G
AMD Ryzen 3 5300U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)
24.2 fps -10%
Acer Swift X SFX16-52G-52VE
Intel Core i5-1240P, Intel Arc A370M
23.9 fps -11%
F1 22 - 1920x1080 Ultra High Preset AA:T AF:16x
Acer Swift X SFX16-52G-52VE
Intel Core i5-1240P, Intel Arc A370M
33 (26min, 24P1) fps +101%
Average of class Office
  (7.85 - 26.8, n=23, last 2 years)
17.9 fps +9%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U, Intel Iris Xe Graphics G7 80EUs
16.4 (14min, 12P1) fps
The Witcher 3 - 1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Acer Swift X SFX16-52G-52VE
Intel Core i5-1240P, Intel Arc A370M
45 fps +61%
Samsung Galaxy Book2 15
Intel Core i7-1260P, Intel Arc A350M
41 fps +47%
Samsung Galaxy Book3 Pro 16
Intel Core i5-1340P, Intel Iris Xe Graphics G7 80EUs
30.5 (26min) fps +9%
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U, Intel Iris Xe Graphics G7 80EUs
27.9 fps
Huawei MateBook D 15 2023-53013BSJ
Intel Core i5-1155G7, Intel Iris Xe Graphics G7 80EUs
27.8 (24min, 24P1) fps 0%
Average of class Office
  (7.6 - 59.1, n=76, last 2 years)
27.3 fps -2%
Average Intel Iris Xe Graphics G7 80EUs
  (9.3 - 33.5, n=101)
21.6 fps -23%
LG Gram 15Z90Q
Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs
16.9 (12min) fps -39%
LG Ultra-PC 16 16U70Q-G.AR36G
AMD Ryzen 3 5300U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)
14.5 fps -48%

在《Witcher 3 》中,集成硬件在Ultra设置下取得了稳定的帧率,即使不是可玩的。

Witcher 3 FPS diagram

0510152025Tooltip
Samsung Galaxy Book3 15, Core i5-1335U i5-1335U, Iris Xe G7 80EUs: Ø13.6 (12-15)
LG Gram 15Z90Q i5-1240P, Iris Xe G7 80EUs: Ø10.8 (7-14)
Samsung Galaxy Book3 Pro 16 i5-1340P, Iris Xe G7 80EUs: Ø14 (11-16)
Huawei MateBook D 15 2023-53013BSJ i5-1155G7, Iris Xe G7 80EUs: Ø13.5 (12-14)
Samsung Galaxy Book2 15 i7-1260P, A350M: Ø18.4 (15-23)
Acer Swift X SFX16-52G-52VE i5-1240P, A370M: Ø22.8 (21-26)
LG Ultra-PC 16 16U70Q-G.AR36G R3 5300U, Vega 6: Ø8.77 (2-10)
lowmed.highultraQHD
GTA V (2015) 107.6 95.2 21.7
The Witcher 3 (2015) 81.7 53.5 27.9 13.6
Dota 2 Reborn (2015) 103.7 82.2 62.4 56.5
Final Fantasy XV Benchmark (2018) 37.7 21.6 15.4 11.1
X-Plane 11.11 (2018) 34.2 29.1 26.8
Strange Brigade (2018) 77.9 33.8 27.5 21.9
F1 22 (2022) 41.4 37 26.2 16.4

排放物:不是特别安静和悠扬

噪声排放

与同行相比,三星的Galaxy Book3在负载下的噪音为45分贝,属于噪音较大的设备,但是,比其前辈要安静一些。风扇相当持续地运行,意味着背景噪音没有持续变化。空闲时运行,和大多数竞争对手一样,该设备几乎听不到。评论中的笔记本电脑没有发出其他噪音。

Noise Level

Idle
25.2 / 25.2 / 31.6 dB(A)
Load
45.4 / 45.4 dB(A)
  red to green bar


30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light   Earthworks M23R, Arta (15 cm distance)   environment noise: 25.2 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2034.923.635.221.734.92534.82935.327.934.8313228.533.530.2324036.525.228.225.636.55034.531.231.833.234.56327.422.426.822.127.48025.423.123.316.625.41002418.518.621.22412517.718.319.216.517.716016.720.319.115.216.720015.919.12013.615.92501421.321.513.61431515.924.625.117.215.940014.323.524.312.314.350013.424.724.911.913.463014.32424.511.214.380015.125.625.712.415.1100018.3303011.718.3125019.3303011.619.3160019.530.730.511.819.5200023.53535.112.323.5250023.434.93512.623.4315019.8323213.319.8400020.134.334.413.320.1500017.636.736.513.617.6630016.336.536.513.716.3800016.635.235.214.516.61000018.734.834.91518.71250016.428.828.614.116.4160001419.719.312.914SPL31.645.445.425.231.6N1.34.74.80.61.3median 16.7median 28.8median 28.6median 13.3median 16.7Delta2.16.86.91.72.128.534.826.121.728.529.738.935.927.929.730.434.839.730.230.424.730.627.525.624.726.327.329.233.226.323.221.826.522.123.216.228.228.516.616.220.620.923.721.220.615.61923.216.515.616.721.221.715.216.715.522.422.713.615.51526.726.413.61516.828.729.117.216.814.427.126.612.314.414.128.628.211.914.116.62827.811.216.616.128.528.512.416.117.731.431.411.717.717.331.131.411.617.318.433.83411.818.418.935.435.112.318.917.434.434.312.617.41735.935.713.31716.5363613.316.516.136.936.813.616.115.837.137.213.715.818.235.235.114.518.219.435.1351519.415.827.427.214.115.814.919.118.312.914.929.346.446.425.229.31.15.45.40.61.1median 16.6median 28.7median 29.1median 13.3median 16.61.26.25.81.71.231.629.231.125.831.331.728.929.730.328.828.431.528.824.424.128.530.628.926.925.12624.728.128.824.32928.329.321.726.429.934.133.924.132.623.523.828.120.6292224.425.419.826.321.523.124.719.425.222.923.927.616.826.922.624.328.815.928.123.126.530.314.829.126.12933.913.532.427.931.336.311.335.226.329.93511.134.12629.833.311.43426.329.832.510.53425.429.834.41135.727.23137.110.735.926.830.737.211.336.626.631.137.511.437.625.43036.211.736.224.72936.212.635.624.828.936.412.635.619.826.435.912.836.616.522.332.61333.113.816.727.112.827.413.21524.212.425.112.513.320.41220.337.241.447.524.347.42.63.86.10.66median 24.7median 28.9median 33.3median 12.6median 343.23.85.21.74.6hearing rangehide median Fan NoiseSamsung Galaxy Book3 15, Core i5-1335USamsung Galaxy Book3 Pro 16Samsung Galaxy Book2 15
Samsung Galaxy Book3 15, Core i5-1335U
Iris Xe G7 80EUs, i5-1335U, Samsung PM991a MZ9LQ512HBLU-00BD1
LG Gram 15Z90Q
Iris Xe G7 80EUs, i5-1240P, Samsung PM9A1 MZVL21T0HCLR
Samsung Galaxy Book3 Pro 16
Iris Xe G7 80EUs, i5-1340P, WD PC SN740 256GB SDDPNQD-256G
Huawei MateBook D 15 2023-53013BSJ
Iris Xe G7 80EUs, i5-1155G7, 511BS0512HB-TX01
Samsung Galaxy Book2 15
A350M, i7-1260P, Samsung PM991 MZVLQ512HBLU
Acer Swift X SFX16-52G-52VE
A370M, i5-1240P, Micron 3400 MTFDKBA512TFH 512GB
LG Ultra-PC 16 16U70Q-G.AR36G
Vega 6, R3 5300U, Samsung PM991 MZVLQ512HBLU
Noise
7%
1%
3%
1%
7%
11%
off / environment *
25.2
25
1%
25.2
-0%
26
-3%
24.3
4%
25
1%
25
1%
Idle Minimum *
25.2
26
-3%
25.2
-0%
26
-3%
24.3
4%
25
1%
25
1%
Idle Average *
25.2
27
-7%
25.2
-0%
26
-3%
24.3
4%
25
1%
25
1%
Idle Maximum *
31.6
28
11%
29.3
7%
26
18%
29.8
6%
26.4
16%
25.4
20%
Load Average *
45.4
37
19%
46.4
-2%
42.6
6%
47.5
-5%
36.5
20%
36.2
20%
Load Maximum *
45.4
37
19%
46.4
-2%
43
5%
47.5
-5%
43
5%
36.4
20%
Witcher 3 ultra *
37
47.5

* ... smaller is better

温度

在负载下,笔记本电脑出现了两个热点。一个在设备顶部的左上方区域,另一个在底部的中上方区域。在将近46℃的温度下,它们仍然可以被认为是适度的高温,不会使使用笔记本电脑的人感到不舒服。只要设备在空闲使用时不被推动,它的平均温度低于30℃。

 31.1 °C30.1 °C26.5 °C
 30.4 °C29.2 °C25.9 °C
 27.4 °C26.3 °C25 °C
Maximum: 31.1 °C
Average: 28 °C
29.8 °C31.6 °C31.1 °C
26.5 °C29.8 °C29.9 °C
25.8 °C28.6 °C29.1 °C
Maximum: 31.6 °C
Average: 29.1 °C
Power Supply (max.)  37.7 °C | Room Temperature 22.8 °C | FIRT 550-Pocket
(±) The average temperature for the upper side under maximal load is 34.8 °C / 95 F, compared to the average of 29.5 °C / 85 F for the devices in the class Office.
(-) The maximum temperature on the upper side is 45.9 °C / 115 F, compared to the average of 34.3 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(±) The bottom heats up to a maximum of 43.5 °C / 110 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 28 °C / 82 F, compared to the device average of 29.5 °C / 85 F.
(±) Playing The Witcher 3, the average temperature for the upper side is 32.4 °C / 90 F, compared to the device average of 29.5 °C / 85 F.
(+) The palmrests and touchpad are reaching skin temperature as a maximum (32.2 °C / 90 F) and are therefore not hot.
(-) The average temperature of the palmrest area of similar devices was 27.7 °C / 81.9 F (-4.5 °C / -8.1 F).
散热顶部(负载)
散热顶部(负载)
散热顶部(怠速)
散热顶部(怠速)
散热顶 (Witcher 3)
散热顶 (Witcher 3)
散热底部(负载)
散热底部(负载)
散热底层(空闲时)
散热底层(空闲时)
散热底部 (Witcher 3)
散热底部 (Witcher 3)
Samsung Galaxy Book3 15, Core i5-1335U
Intel Core i5-1335U, Intel Iris Xe Graphics G7 80EUs
LG Gram 15Z90Q
Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs
Samsung Galaxy Book3 Pro 16
Intel Core i5-1340P, Intel Iris Xe Graphics G7 80EUs
Huawei MateBook D 15 2023-53013BSJ
Intel Core i5-1155G7, Intel Iris Xe Graphics G7 80EUs
Samsung Galaxy Book2 15
Intel Core i7-1260P, Intel Arc A350M
Acer Swift X SFX16-52G-52VE
Intel Core i5-1240P, Intel Arc A370M
LG Ultra-PC 16 16U70Q-G.AR36G
AMD Ryzen 3 5300U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)
Heat
10%
0%
12%
7%
-7%
9%
Maximum Upper Side *
45.9
46
-0%
41.6
9%
37.6
18%
44.6
3%
52
-13%
39.5
14%
Maximum Bottom *
43.5
45
-3%
45
-3%
38.5
11%
47.5
-9%
50.4
-16%
45
-3%
Idle Upper Side *
31.1
25
20%
31
-0%
28.5
8%
25.8
17%
30
4%
26.7
14%
Idle Bottom *
31.6
24
24%
33.6
-6%
28.4
10%
26.1
17%
32.4
-3%
28.2
11%

* ... smaller is better

压力测试

在我们的标准化压力测试中,我们的评测样品没有显示任何异常,其中Furmark和Prime95将系统置于最大负荷下至少一个小时。CPU的平均时钟速度为1400MHz,温度为73℃。关于GPU,它的频率为1000MHz,温度接近76℃。

三星Galaxy Book3压力测试
三星Galaxy Book3压力测试
CPU时钟(GHz) GPU时钟(MHz) CPU平均温度(°C) GPU平均温度(°C)
系统空闲 1.830 300 40 43
Prime95压力 2.260 300 76 69
Prime95 + FurMark 压力 1.390 1.030 74 76
Witcher 3 应力 460 1.240 64 70

发言人

相对响亮的扬声器在平衡的中音和线性的高音方面得分很高,但几乎没有低音可言。然而,这对于办公任务来说仍然是足够的。任何希望听音乐或看电影的人最好通过3.5毫米音频插孔将笔记本电脑连接到外部解决方案。

dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2029.521.729.52526.527.926.5312930.2294028.525.628.55034.933.234.96325.822.125.88018.516.618.510023.221.223.212532.416.532.41603615.23620034.813.634.825046.513.646.531554.217.254.240059.712.359.750057.811.957.863059.211.259.280068.512.468.5100070.111.770.112506911.669160061.211.861.220006112.361250064.512.664.5315064.513.364.5400065.713.365.7500065.513.665.5630068.813.768.8800078.114.578.11000081.21581.21250073.814.173.81600056.912.956.9SPL83.125.283.1N49.70.649.7median 61.2median 13.3median 61.2Delta9.51.79.526.325.821.422.12624.925.127.622.532.523.448.72655.818.860.922.167.2267019.372.317.674.217.774.319.575.31571.711.871.311.27410.574.21072.710.17210.67210.97511.374.811.671.71269.71269.612.371.112.669.61270.111.269.824.784.70.666.6median 12median 71.73.42.2hearing rangehide median Pink NoiseSamsung Galaxy Book3 15, Core i5-1335UApple MacBook Pro 16 2021 M1 Pro
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
Samsung Galaxy Book3 15, Core i5-1335U audio analysis

(+) | speakers can play relatively loud (83.1 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 23.4% lower than median
(±) | linearity of bass is average (13.3% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.9% away from median
(±) | linearity of mids is average (7.5% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 8.6% higher than median
(+) | highs are linear (6.1% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (23.5% difference to median)
Compared to same class
» 63% of all tested devices in this class were better, 9% similar, 28% worse
» The best had a delta of 7%, average was 22%, worst was 53%
Compared to all devices tested
» 67% of all tested devices were better, 7% similar, 26% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Apple MacBook Pro 16 2021 M1 Pro audio analysis

(+) | speakers can play relatively loud (84.7 dB)
Bass 100 - 315 Hz
(+) | good bass - only 3.8% away from median
(+) | bass is linear (5.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 1.3% away from median
(+) | mids are linear (2.1% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 1.9% away from median
(+) | highs are linear (2.7% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (4.6% difference to median)
Compared to same class
» 0% of all tested devices in this class were better, 0% similar, 100% worse
» The best had a delta of 5%, average was 18%, worst was 45%
Compared to all devices tested
» 0% of all tested devices were better, 0% similar, 100% worse
» The best had a delta of 4%, average was 25%, worst was 134%

电源管理:一台缺乏持久力的经济型办公笔记本电脑

消耗功率

说到功耗,三星的笔记本电脑明显比大多数竞争对手更经济。在空闲状态下,它的平均耗电量为7瓦,在负载状态下,平均耗电量为33瓦。测量的峰值消耗量为44瓦,这意味着附带的45瓦电源适配器正好能完成任务。

在空闲状态下,专业型号甚至更经济,但由于其更高的性能,在负载下需要更多的电力。

Power Consumption
Off / Standbydarklight 0.4 / 1 Watt
Idledarkmidlight 3.5 / 7 / 7.6 Watt
Load midlight 33 / 44 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Samsung Galaxy Book3 15, Core i5-1335U
i5-1335U, Iris Xe G7 80EUs, Samsung PM991a MZ9LQ512HBLU-00BD1, IPS, 1920x1080, 15.6"
LG Gram 15Z90Q
i5-1240P, Iris Xe G7 80EUs, Samsung PM9A1 MZVL21T0HCLR, IPS, 1920x1080, 15.6"
Samsung Galaxy Book3 Pro 16
i5-1340P, Iris Xe G7 80EUs, WD PC SN740 256GB SDDPNQD-256G, AMOLED, 2880x1800, 16"
Huawei MateBook D 15 2023-53013BSJ
i5-1155G7, Iris Xe G7 80EUs, 511BS0512HB-TX01, IPS, 1920x1080, 15.6"
Samsung Galaxy Book2 15
i7-1260P, A350M, Samsung PM991 MZVLQ512HBLU, IPS, 1920x1080, 15.6"
Acer Swift X SFX16-52G-52VE
i5-1240P, A370M, Micron 3400 MTFDKBA512TFH 512GB, , 2560x1600, 16"
LG Ultra-PC 16 16U70Q-G.AR36G
R3 5300U, Vega 6, Samsung PM991 MZVLQ512HBLU, IPS, 1280x1200, 16"
Average Intel Iris Xe Graphics G7 80EUs

Average of class Office

Power Consumption
-30%
-20%
-18%
-39%
-81%
-0%
-21%
-25%
Idle Minimum *
3.5
4
-14%
3.9
-11%
4.2
-20%
4
-14%
5.7
-63%
3.7
-6%
4.48 ?(2.3 - 15.8, n=105)
-28%
Idle Average *
7
7
-0%
4.8
31%
7.5
-7%
7.8
-11%
8
-14%
6.8
3%
Idle Maximum *
7.6
13
-71%
10
-32%
8.7
-14%
8.5
-12%
10.4
-37%
8.6
-13%
9.24 ?(4.5 - 17, n=105)
-22%
Load Average *
33
45
-36%
44
-33%
37
-12%
59.1
-79%
74
-124%
30
9%
36.4 ?(14.3 - 70, n=103)
-10%
Witcher 3 ultra *
32.7
35.2
-8%
42.3
-29%
35.6
-9%
56.7
-73%
65
-99%
30.2
8%
Load Maximum *
44
66
-50%
63
-43%
64.6
-47%
62.4
-42%
108.5
-147%
45
-2%
61.7 ?(24.2 - 149, n=105)
-40%

* ... smaller is better

Power consumption Witcher 3 / stress test

051015202530354045505560Tooltip
Samsung Galaxy Book3 15, Core i5-1335U i5-1335U, Iris Xe G7 80EUs; Witcher 3 ultra: Ø32.7 (30.4-43.3)
Samsung Galaxy Book3 Pro 16 i5-1340P, Iris Xe G7 80EUs; Witcher 3 ultra: Ø42.3 (39.2-61.6)
Samsung Galaxy Book3 15, Core i5-1335U i5-1335U, Iris Xe G7 80EUs; 1280x720 Prime95 28.10 and Furmark 1.25: Ø42.8 (39.4-44)
Samsung Galaxy Book3 Pro 16 i5-1340P, Iris Xe G7 80EUs; 1280x720 Prime95 28.10 and Furmark 1.25: Ø62.3 (58.2-63.3)
Samsung Galaxy Book3 15, Core i5-1335U i5-1335U, Iris Xe G7 80EUs; Idle 150cd/m2: Ø5.7 (5.01-7.63)
Samsung Galaxy Book3 Pro 16 i5-1340P, Iris Xe G7 80EUs; Idle 150cd/m2: Ø4.21 (3.62-6.35)

Power consumption with an external monitor

051015202530354045505560Tooltip
Samsung Galaxy Book3 15, Core i5-1335U i5-1335U, Iris Xe G7 80EUs; Prime95 V2810 Stress (external Monitor): Ø35.9 (16.5-41.5)
Samsung Galaxy Book3 Pro 16 i5-1340P, Iris Xe G7 80EUs; Prime95 V2810 Stress (external Monitor): Ø58.1 (55.5-63.1)
Samsung Galaxy Book3 15, Core i5-1335U i5-1335U, Iris Xe G7 80EUs; Cinebench R15 Multi (external Monitor): Ø38 (14.5-44)
Samsung Galaxy Book3 Pro 16 i5-1340P, Iris Xe G7 80EUs; Cinebench R15 Multi (external Monitor): Ø62.4 (60.4-63.1)
Samsung Galaxy Book3 15, Core i5-1335U i5-1335U, Iris Xe G7 80EUs; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø27.4 (24.7-33.2)
Samsung Galaxy Book3 Pro 16 i5-1340P, Iris Xe G7 80EUs; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø39.5 (36.1-51.9)
Samsung Galaxy Book3 15, Core i5-1335U i5-1335U, Iris Xe G7 80EUs; 1920x1080 The Witcher 3 ultra (external Monitor): Ø29.6 (27.9-41.5)
Samsung Galaxy Book3 Pro 16 i5-1340P, Iris Xe G7 80EUs; 1920x1080 The Witcher 3 ultra (external Monitor): Ø38.6 (36.1-63.1)
Samsung Galaxy Book3 15, Core i5-1335U i5-1335U, Iris Xe G7 80EUs; Idle 1min (external Monitor): Ø3.03 (2.36-5.32)
Samsung Galaxy Book3 Pro 16 i5-1340P, Iris Xe G7 80EUs; Idle 1min (external Monitor): Ø4.62 (4.04-7.96)

电池寿命

与同行相比,Galaxy Book3的电池是最小的。得益于其54Wh的电量,它在最大负荷下仍能保持约两小时的运行时间。在观看视频和上网时,它比竞争对手落后很多,分别在7小时和6.5小时后就会熄灭。这意味着离开墙壁的完整工作日是不可能的。

Battery Runtime
WiFi Websurfing
6h 37min
WiFi Websurfing max. Brightness
7h 06min
Big Buck Bunny H.264 1080p
7h 06min
Load (maximum brightness)
2h 01min
Samsung Galaxy Book3 15, Core i5-1335U
i5-1335U, Iris Xe G7 80EUs, 54 Wh
LG Gram 15Z90Q
i5-1240P, Iris Xe G7 80EUs, 80 Wh
Samsung Galaxy Book3 Pro 16
i5-1340P, Iris Xe G7 80EUs, 76 Wh
Huawei MateBook D 15 2023-53013BSJ
i5-1155G7, Iris Xe G7 80EUs, 56 Wh
Samsung Galaxy Book2 15
i7-1260P, A350M, 54 Wh
Acer Swift X SFX16-52G-52VE
i5-1240P, A370M, 56 Wh
LG Ultra-PC 16 16U70Q-G.AR36G
R3 5300U, Vega 6, 72 Wh
Average of class Office

Battery Runtime
62%
51%
32%
16%
10%
88%
38%
H.264
426
861
102%
724
70%
635
49%
586
38%
WiFi v1.3
397
716
80%
613
54%
588
48%
494
24%
583
47%
1026
158%
Load
121
173
43%
119
-2%
94
-22%
90
-26%
54
-55%
141
17%
Reader / Idle
1384
1821
1937

Pros

+ 扎实的CPU和iGPU性能
+ 高水平的Wi-Fi性能
+ 足够明亮的显示屏,适合户外使用
+ 优质的铝制外壳
+ 高效的操作
+ 可容纳第二块固态硬盘的空间

Cons

- 没有Thunderbolt
- 不可更换的内存
- 读卡器速度慢
- 没有背光键盘,输入噪音大
- 慢的固态硬盘
- 电池寿命弱

结论:我们的审查显示,三星的Galaxy Book3只是平庸的。

三星Galaxy Book3提供的是:
三星Galaxy Book3提供的是:
笔记本billiger.de

在我们的审查中,三星Galaxy Book3在每个技术领域都没有表现出很大的缺陷。然而,该设备的功能设置揭示了它是如何在目前的Galaxy Book3系列中赢得 "经济适用型 "的标签的,因为它缺少,除其他外,Thunderbolt。同样,不仅在键盘背光方面,而且在这里或那里的奇怪组件方面也走了弯路。例如,显示器的色彩再现和固态硬盘的速度都不太理想。

另一方面,中档的猛禽湖-U代处理器给我们留下了深刻印象。该英特尔酷睿i5-1335U展示了它的能力,并在iGPU的表现也高于平均水平的情况下,进行了一次坚实的展示。

当涉及到典型的1000美元笔记本电脑要求时,如办公室工作、互联网和多媒体,这台15.6英寸设备所提供的一套慷慨的功能足以处理大多数任务。任何寻求更多动力的人应该看看 三星Galaxy Book3 Pro.如果低于平均水平的电池寿命不能满足要求,那么LG的格拉姆型号值得研究。

价格和可用性

根据制造商的零售价,三星Galaxy Book3 (英特尔酷睿i5-1335U, 英特尔Iris Xe图形16GB LPDDR4x内存,512GB SSD)的价格为999美元,目前可在亚马逊购买。

Samsung Galaxy Book3 15, Core i5-1335U - 06/01/2023 v7 (old)
Marcus Schwarten

Chassis
85 / 98 → 87%
Keyboard
73%
Pointing Device
86%
Connectivity
52 / 80 → 65%
Weight
69 / 20-75 → 88%
Battery
71%
Display
81%
Games Performance
68 / 78 → 87%
Application Performance
91 / 95 → 96%
Temperature
90%
Noise
83%
Audio
73%
Camera
41 / 85 → 48%
Average
74%
81%
Office - Weighted Average

Transparency

The selection of devices to be reviewed is made by our editorial team. The test sample was provided to the author as a loan by the manufacturer or retailer for the purpose of this review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.

This is how Notebookcheck is testing

Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.

Price comparison

Please share our article, every link counts!
Mail Logo
> Notebookcheck中文版(NBC中国) > 评测 > 三星Galaxy Book3评论:英特尔酷睿i5-1335U庆祝坚实的首演
Marcus Schwarten, 2023-06- 5 (Update: 2023-06- 5)
