预算有限却想拥有高端迷你电脑？看看 Geekom Mini IT13 2025 版在我们的评测中表现如何

Name: Geekom Mini IT13
Brand: Geekom

核心能力。

Geekom 的 Mini IT13（2025 版）是一款搭载英特尔酷睿 i9-13900HK 处理器的功能强大的迷你电脑，小巧、高效、用途广泛。但这款小型电脑的实际性能如何呢？在这次评测中，我们测试了 IT13 是否是经典台式电脑的真正替代品。
Sebastian Bade, 👁 Sebastian Bade (translated by DeepL / Ninh Duy) Published 04/12/2025 🇺🇸 🇩🇪 ...
Mini PC Desktop Intel Raptor Lake

评价：熟悉的设计，强大的 CPU，使用时几乎始终保持安静

在我们的测试过程中，Geekom Mini IT13（2025 版）被证明是一款功能强大、品质卓越的迷你电脑。不过，它的概念并没有改变，因为 Geekom 保留了该设备熟悉的设计。在性能方面，其英特尔酷睿 i9-13900HK 处理器可满足苛刻的办公使用、多媒体任务甚至简单的创意工作负载。尽管硬件性能强大，但该系统在使用过程中仍能保持安静和高效，这主要归功于其保守的功耗限制。它的连接范围非常广泛，允许用户连接大量外部设备。

Test device courtesy of Geekom

Download your licensed rating image as PNG / SVG

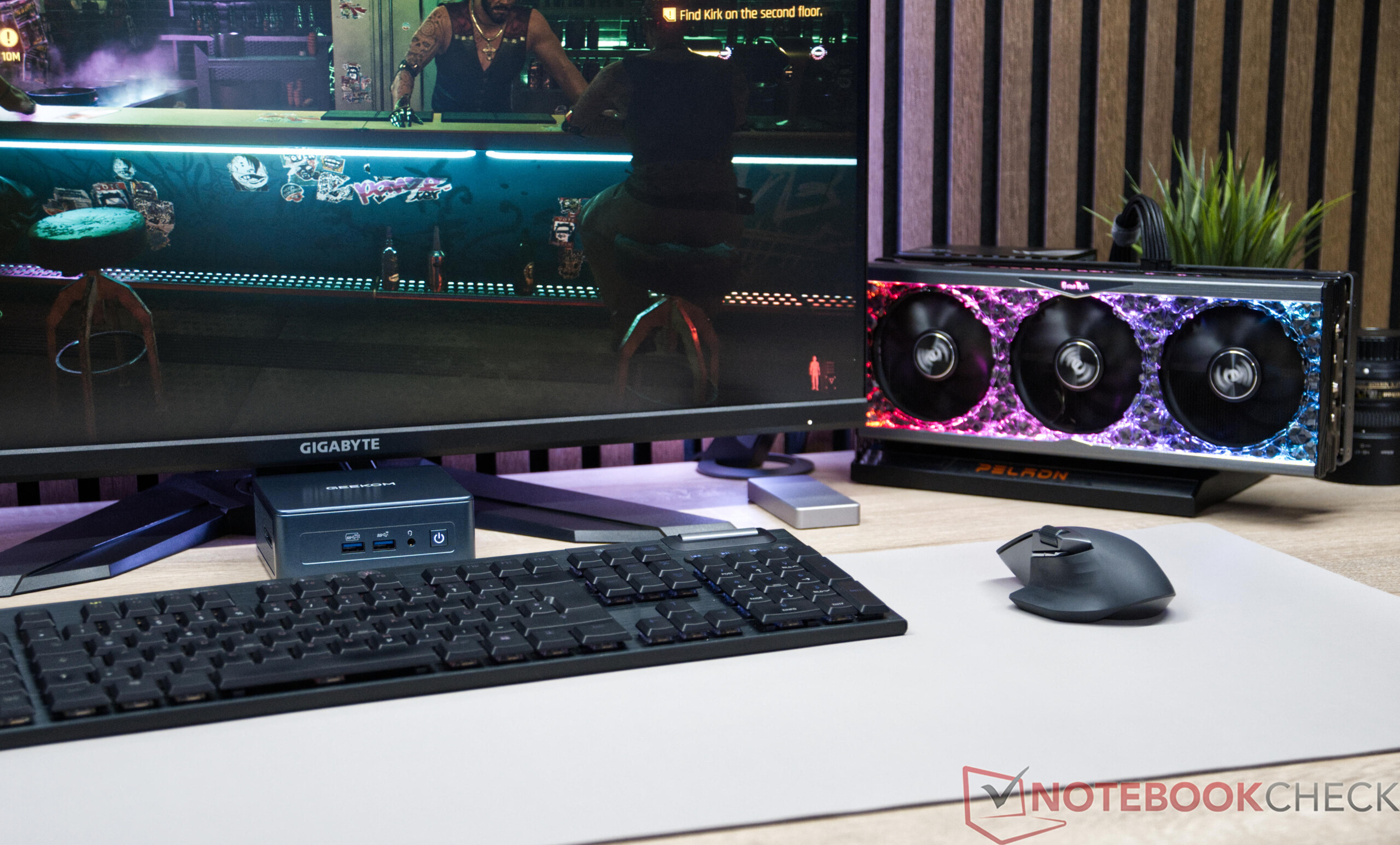

Geekom IT13 2025 版最大的弱点是 3D 性能较低。在这方面，许多采用较新 SoC 的设备往往能提供明显更好的性能。外接显卡可能是一个补救措施，但只能通过 USB4 连接，而 Minisforum 或 Aoostar 的设备则配备了性能稍好的 OCuLink 连接。

迷你 PC 的紧凑设计加上良好的可升级性，使其成为适用于各种应用的灵活解决方案。IT13 在能效方面的表现同样出色。如果您正在寻找一款小巧、可靠、功能强大的迷你 PC，Geekom Mini IT13 将为您提供包括三年保修在内的全套服务。

Pros

+ 稳定、紧凑的机箱

+ 良好的系统性能

+ 易于打开

+ 2x USB4

+ 使用时基本无噪音

+ 快速 SD 读卡器

+ 最多可容纳三个存储设备

+ 36 个月保修

Cons

- 熟悉而过时的设计

- SoC 的涡轮使用率低

- SoC 速度比竞争对手慢

- iGPU 不再具有竞争力

- 无 OCuLink 连接

价格和供应情况

您可以直接从制造商处以 659 美元的价格订购 Geekom IT13 2025 版。使用代码NBCIT1325，还可享受额外 6% 的折扣。

$699.00

GEEKOM Mini PC Mini IT13 S, 13th Intel Core i9-13900HK (14C/20T, up to 5.4GHz), 32GB DDR4 RAM/1TB PCIe Gen4 SSD Mini Desktop, USB4.0/8K UHD/WiFi 6E/BT5.2/Windows 11 Pro, Home&Office Mini Computers

$749.00
GEEKOM Mini PC Mini IT13, 13th Gen Intel i9-13900HK NUC13 Mini Computers（14C/20T,up to 5.4GHz, 32GB DDR4/2TB M.2 2280 NVMe Gen4*4 SSD Windows 11 Pro Support Wi-Fi 6E/Bluetooth 5.2/USB 4.0/2.5G LAN/8K
$449.00
GEEKOM A6 Mini PC, AMD Ryzen 7 6800H(8C/16T, up to 4.7GHz), 32GB DDR5 RAM, 1TB PCIe 4.0 NVMe SSD, Radeon 680M, Compact Aluminium Design Windows 11 Pro Desktop Computer with USB4/8K UHD/Wi-Fi 6E/BT 5.2

评价：熟悉的设计，强大的 CPU，使用时几乎始终保持安静
规格
机箱和连接性 - 双 USB4，但无 OCuLink
性能 - 配备 14 个内核的高端 CPU
排放 - 均衡且声音不大
电源管理 - 大型电源几乎过于节俭
Notebookcheck 总评分
Possible alternatives compared

Mini IT13 2025 版是 Geekom 生产的又一款功能强大的小型 PC。顶级版本配备了英特尔酷睿 i9-13900HK14 个内核和 20 个线程。它在双通道模式下最多支持 64 GB DDR4 内存，并有两个 M.2 插槽用于快速固态硬盘。Geekom Mini IT13 2025 版配备 32 GB DDR4 内存和 1 TB SSD，售价 659 美元。Geekom 对配备 2 TB 存储空间的迷你电脑额外收取 90 美元。

规格

Geekom Mini IT13

Processor

Intel Core i9-13900HK 14 x 1.9 - 5.4 GHz, 55 W PL2 / Short Burst, 35 W PL1 / Sustained, Raptor Lake-H

Graphics adapter

Intel Iris Xe Graphics G7 96EUs, Core: 1500 MHz, 30.0.101.6129 DCH

Memory

32 GB

, DDR4-3200, 2x SO-DIMM, Dual-Channel, max. 64 GB

Mainboard

Intel Alder Lake-P PCH

Storage

Kingston OM8PGP41024N-A0, 1024 GB

, 940 GB free

Soundcard

Intel Raptor Lake-P/U/H PCH - cAVS

Connections

1 USB 2.0, 3 USB 3.0 / 3.1 Gen1, 2 USB 4.0 40 Gbps, 2 HDMI, 2 DisplayPort, 1 Kensington Lock, Audio Connections: 3.5mm Audio-Jack, Card Reader: Full-sized card reader

Networking

Intel Ethernet Controller I226-V (10/2500MBit/s), MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/ Wi-Fi 6E 6 GHz), Bluetooth 5.2

Size

height x width x depth (in mm): 49.2 x 117 x 112

Operating System

Microsoft Windows 11 Pro

Additional features

120W-watt power adapter, 36 Months Warranty

Weight

580 g, Power Supply: 270 g

Price

749 EUR

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

机箱和连接性 - 双 USB4，但无 OCuLink

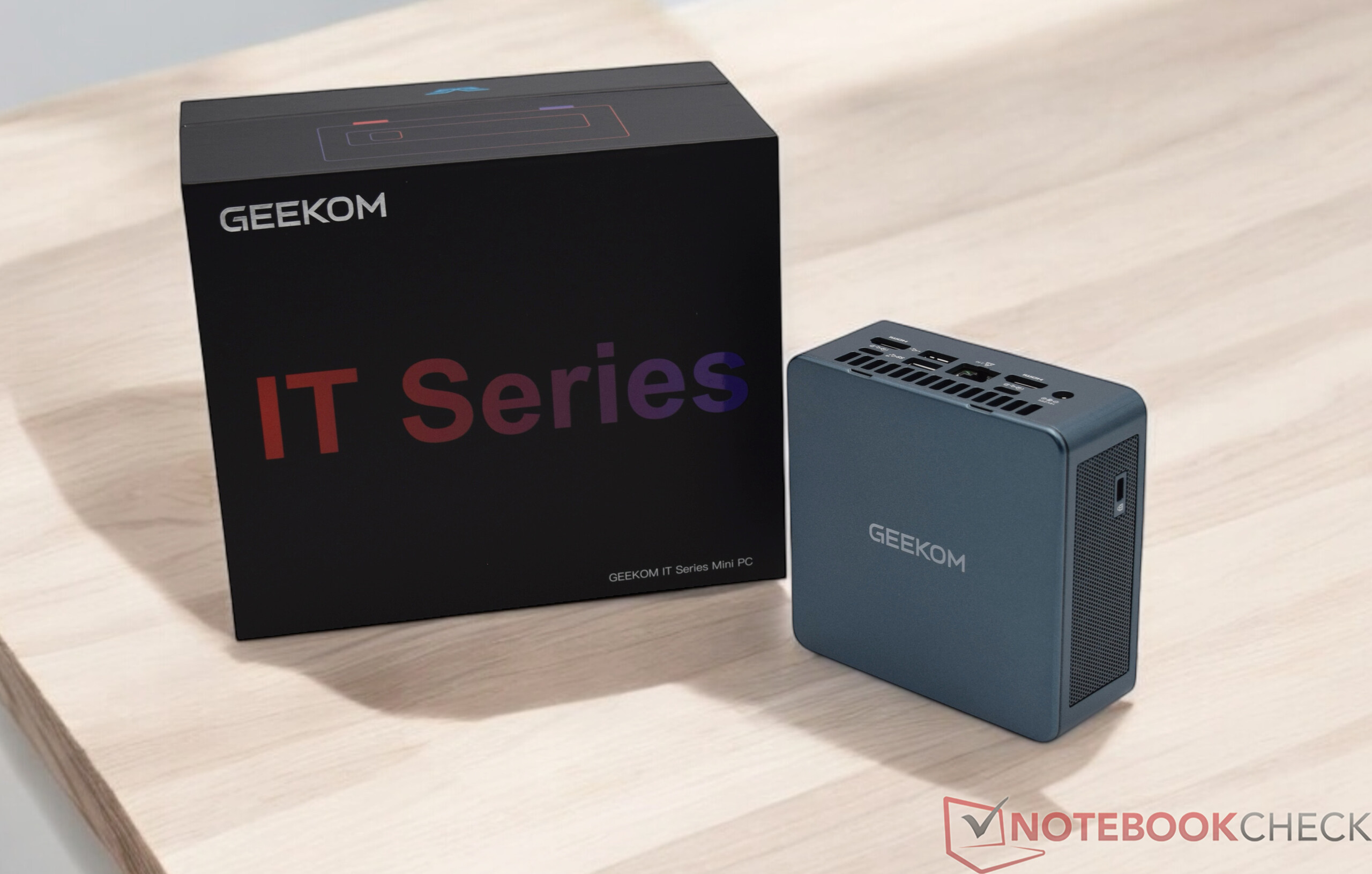

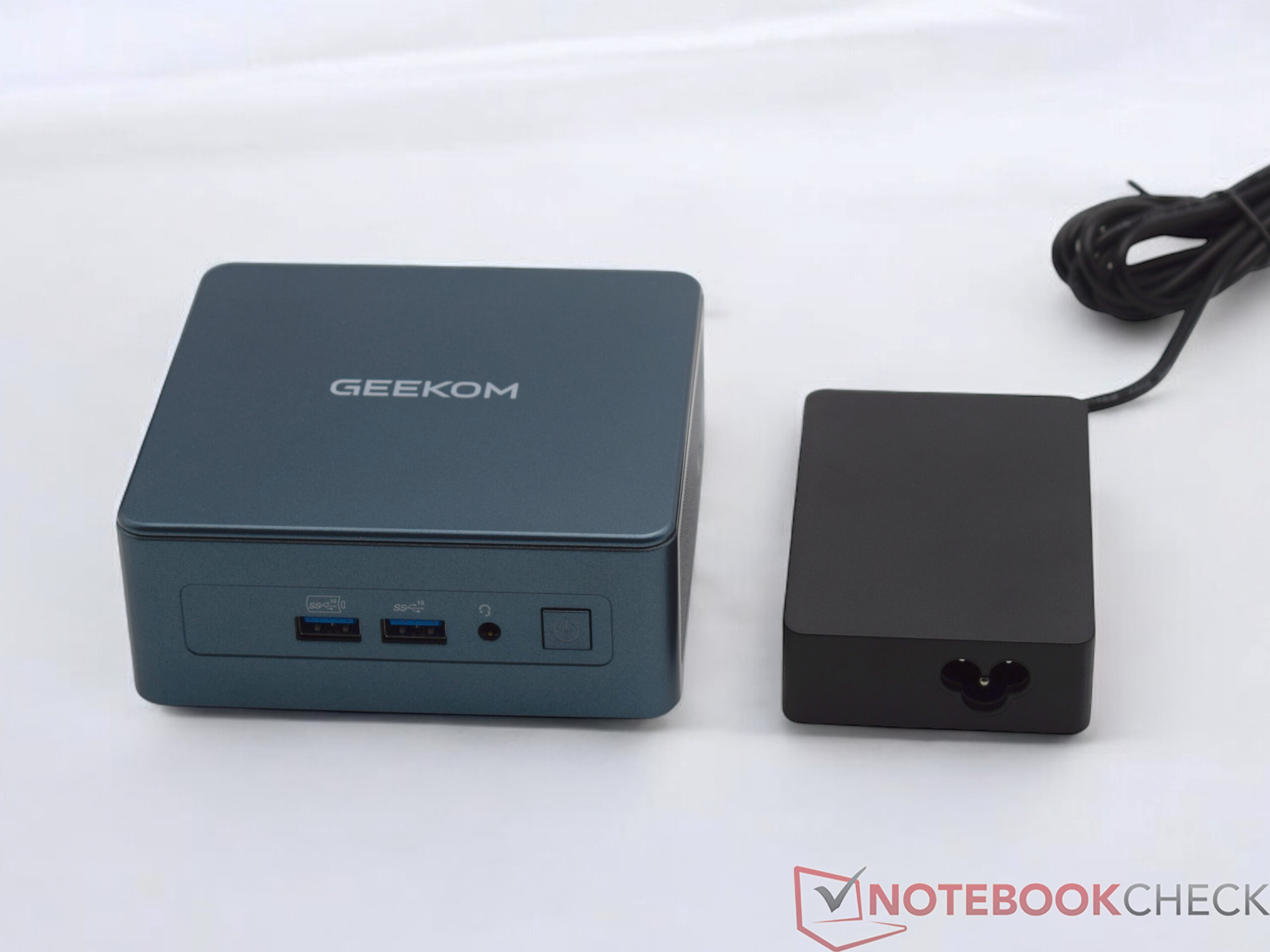

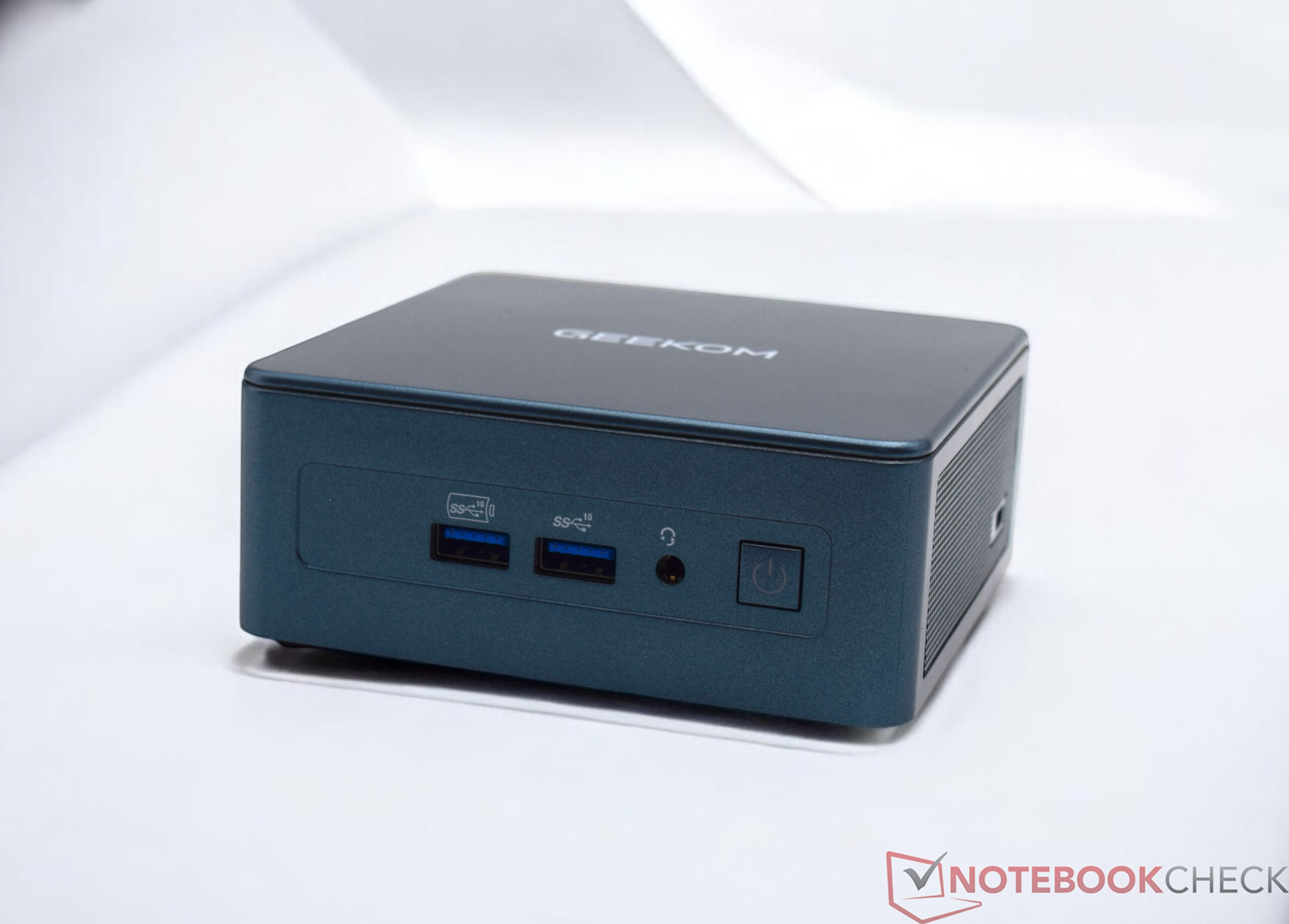

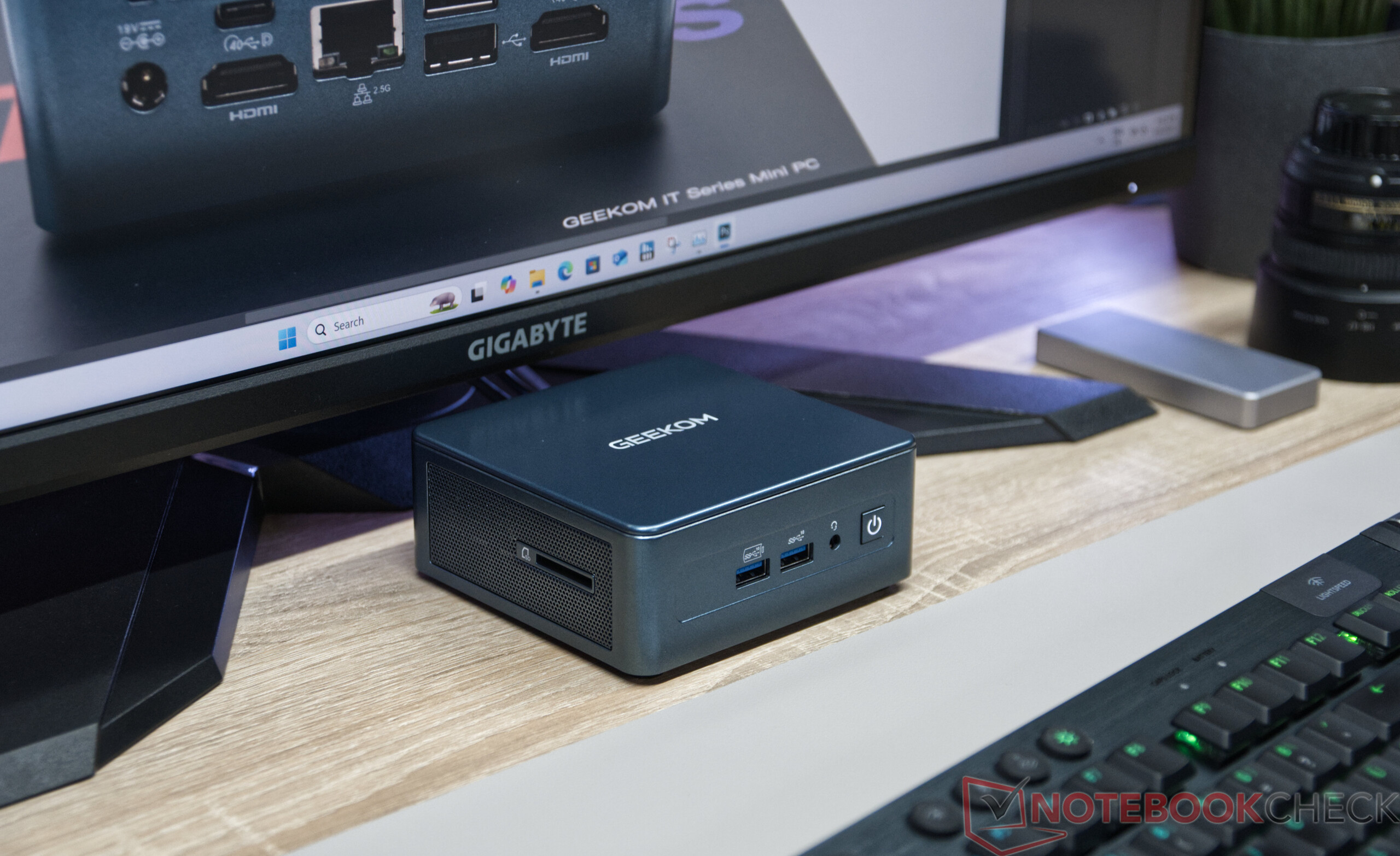

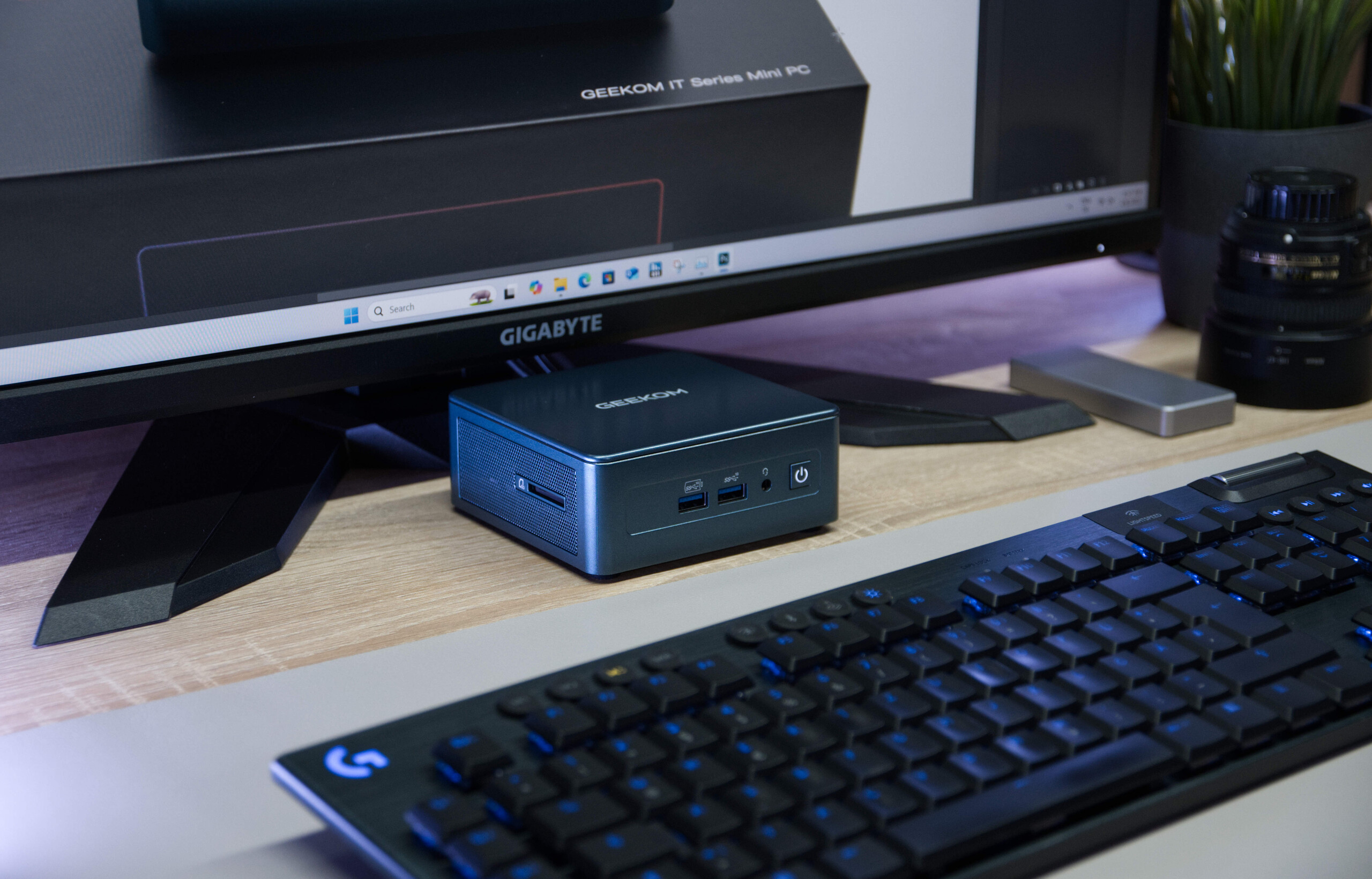

从外观上看，Geekom Mini IT13 与英特尔 NUC 型号非常相似，占地面积也是 11.7 × 11.2 厘米。它的高度略大于英特尔 NUC，为 4.5 厘米，因为它为 2.5 英寸硬盘预留了空间，这与英特尔 NUC 的高机型相似。虽然 Geekom 将 Mini IT13 宣传为 2025 版，但与 Mini IT12 相比，它在外观上没有任何变化。它的设计与旧款相似，Geekom 还保留了绿松石外壳。

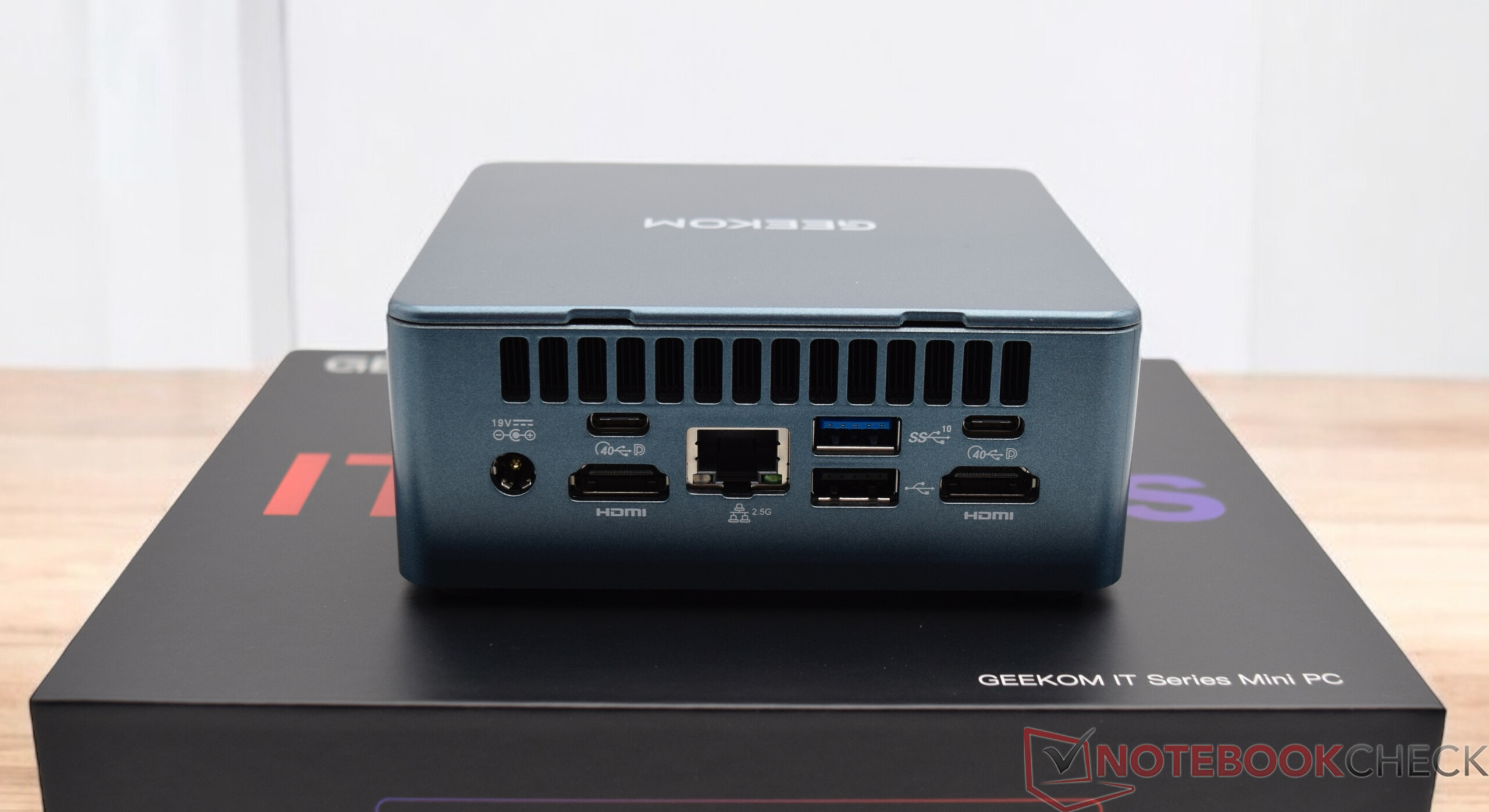

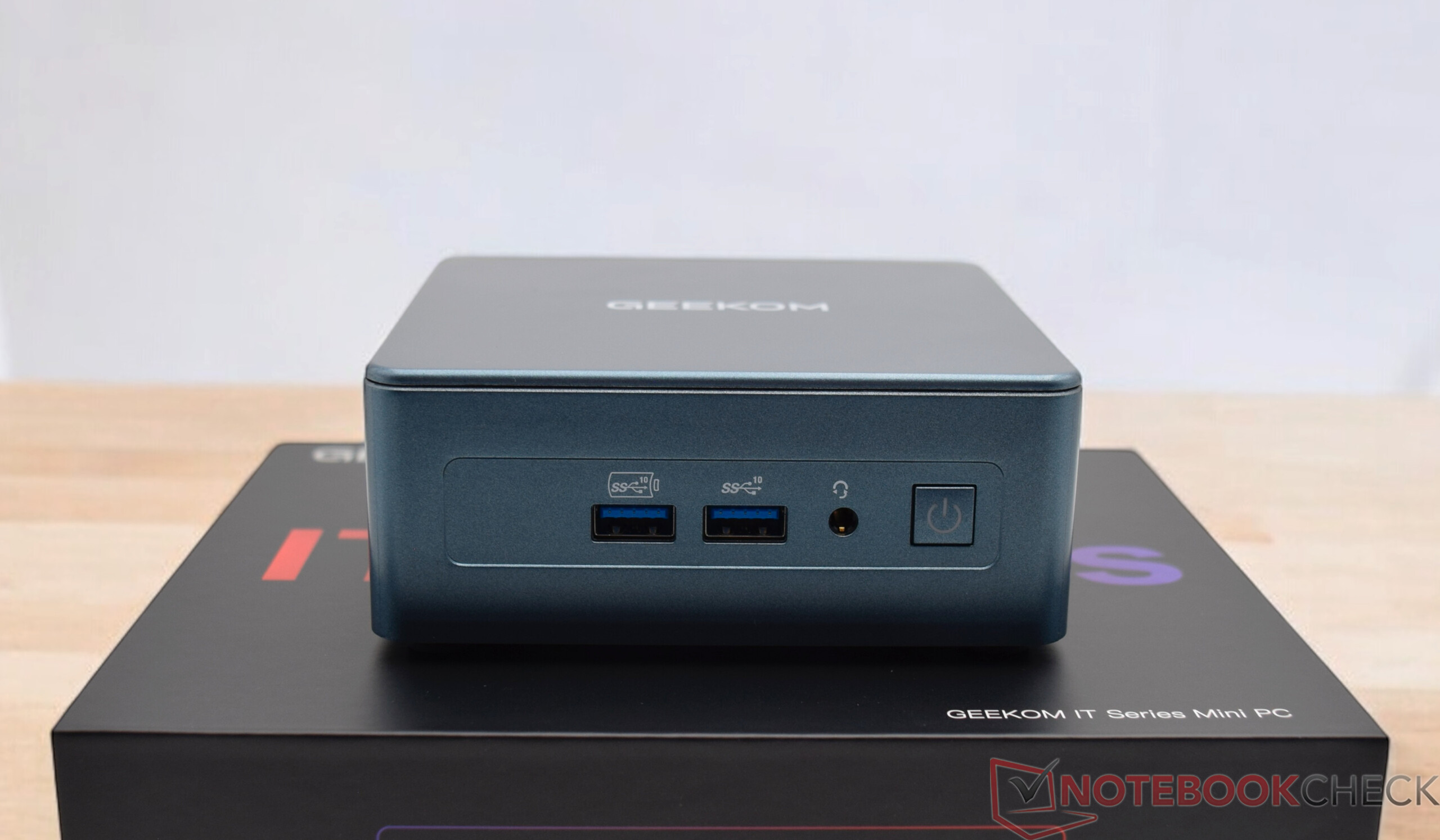

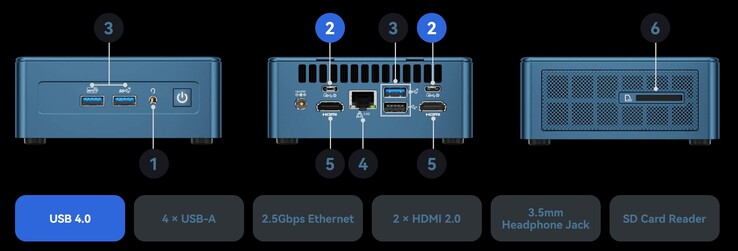

Geekom Mini IT13 配备了多种接口。它有四个 USB-A 端口，其中一个仅支持 USB 2.0，非常适合鼠标或键盘。两个现代 USB 4 端口（40 Gbps）大大扩展了其应用范围，例如用于快速存储或扩展坞。通过 HDMI 和 USB4，最多可同时操作四台显示器。迷你电脑的连接还包括一个 2.5 Gbit LAN 端口和一个快速 SD 读卡器（UHS II）。Geekom 采用联发科的无线模块进行无线通信。该设备的无线局域网性能始终保持在良好到非常好的水平，可确保快速稳定的连接。

尺寸比较

SD 读卡器

SD Card Reader
average JPG Copy Test (av. of 3 runs)
Khadas Mind Intel Core i7-1360P (AV Pro SD microSD 128 GB V60)	181.79 MB/s +6%
Geekom A5 AMD Ryzen 7 5800H (AV Pro SD microSD 128 GB V60)	176.8 MB/s +3%
Geekom Mini IT13 Intel Core i9-13900HK (AV Pro SD microSD 128 GB V60)	170.92 MB/s
Geekom Mini IT13 Intel Core i9-13900H	154.449 MB/s -10%
Geekom Mini IT12 Intel Core i7-1260P (AV Pro SD microSD 128 GB V60)	129.2 MB/s -24%
Average of class Mini PC (15.1 - 214, n=28, last 2 years)	95.9 MB/s -44%
Zotac ZBOX Magnus EN173070C Intel Core i7-11800H (AV Pro SD microSD 128 GB V60)	65 MB/s -62%
maximum AS SSD Seq Read Test (1GB)
Khadas Mind Intel Core i7-1360P (AV Pro SD microSD 128 GB V60)	200.48 MB/s +10%
Geekom A5 AMD Ryzen 7 5800H (AV Pro SD microSD 128 GB V60)	182.5 MB/s 0%
Geekom Mini IT13 Intel Core i9-13900HK (AV Pro SD microSD 128 GB V60)	181.98 MB/s
Geekom Mini IT13 Intel Core i9-13900H	180.4 MB/s -1%
Geekom Mini IT12 Intel Core i7-1260P (AV Pro SD microSD 128 GB V60)	176.8 MB/s -3%
Average of class Mini PC (18.2 - 221, n=28, last 2 years)	109.7 MB/s -40%
Zotac ZBOX Magnus EN173070C Intel Core i7-11800H (AV Pro SD microSD 128 GB V60)	69.9 MB/s -62%

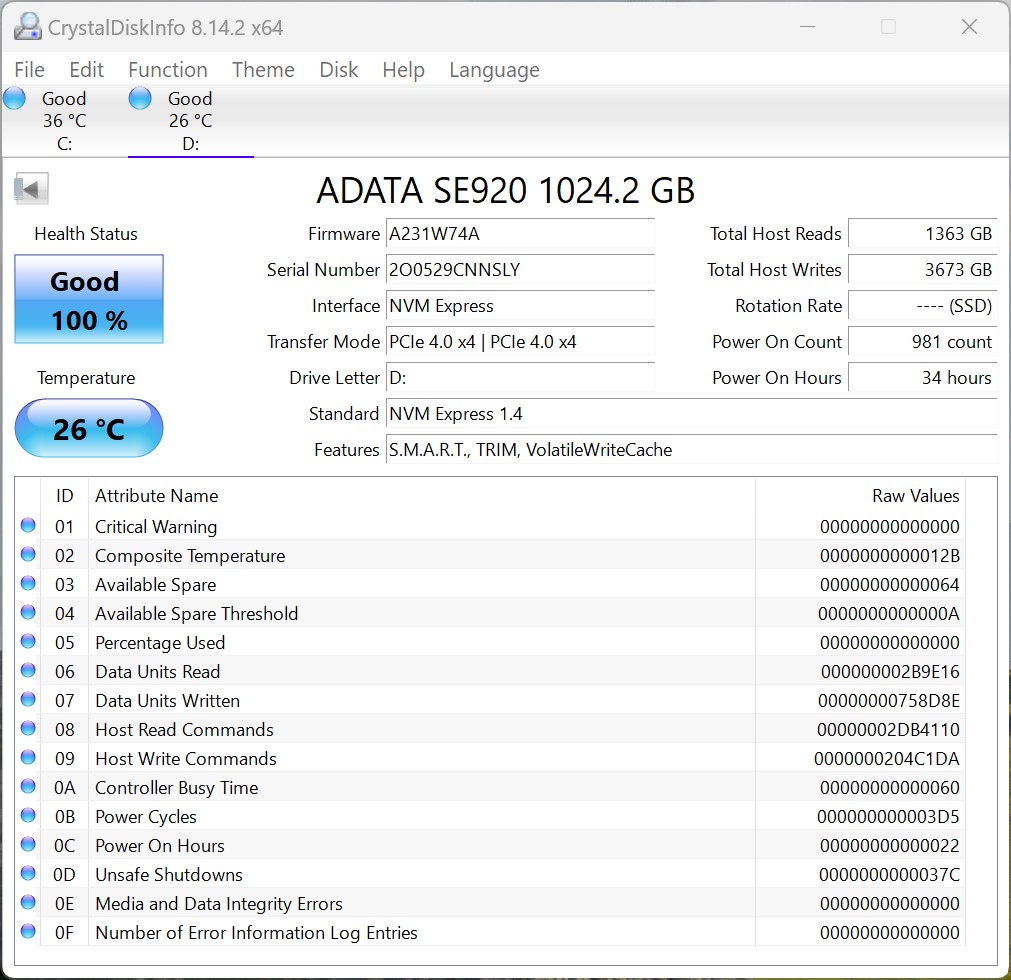

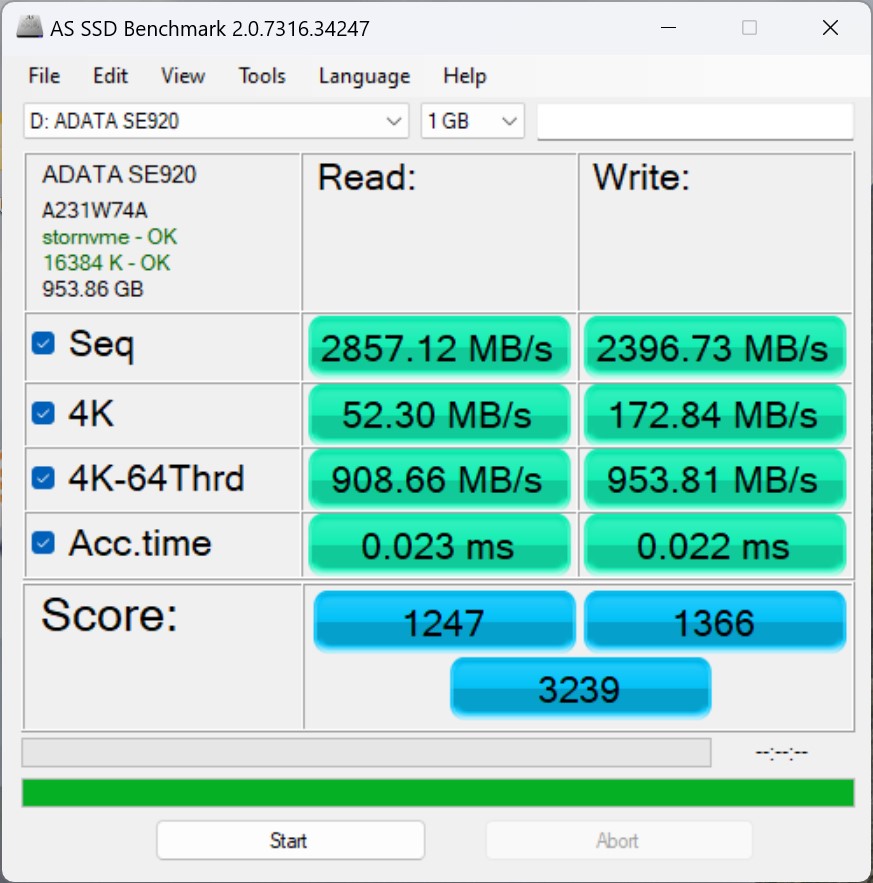

Connectivity - USB 3.x / USB4 / TB - AS SSD Seq Read Test (1GB)
Apple Mac Mini M4 Pro M4 Pro 16-Core GPU, M4 Pro (12 cores), Apple SSD AP2048Z	3809 MB/s
Minisforum MS-A1 Radeon 780M, Ryzen 7 8700G, Kingston OM8PGP41024Q-A0	3245.45 MB/s
Khadas Mind 2 Arc 8-Core, Ultra 7 155H, WD PC SN740 SDDPTQD-1T00	3165.4 MB/s
Average of class Mini PC (1611 - 3906, n=11, last 2 years)	2932 MB/s
Geekom Mini IT13 Iris Xe G7 96EUs, i9-13900HK, Kingston OM8PGP41024N-A0	2857.12 MB/s

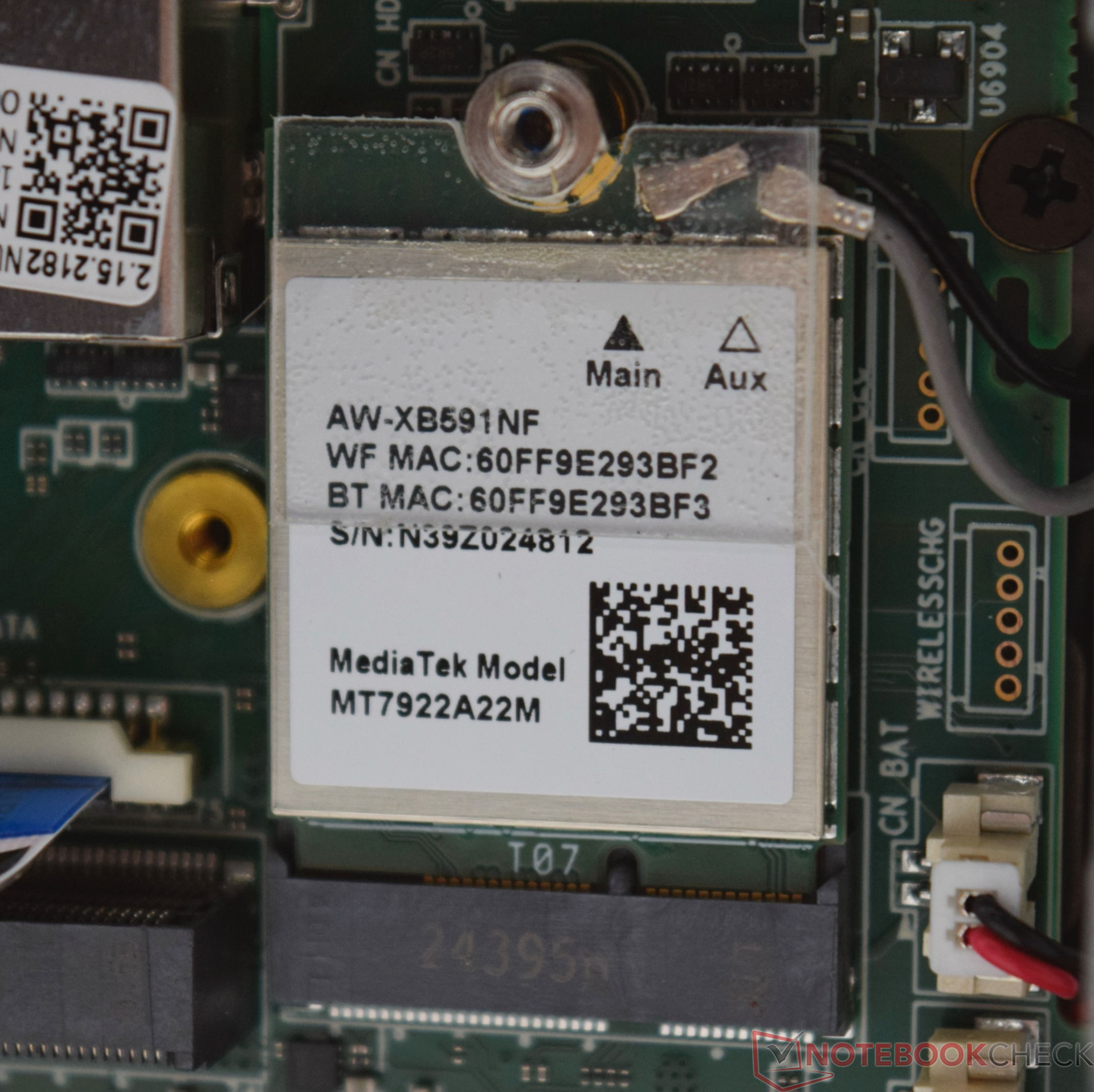

Networking
iperf3 receive AXE11000 6GHz
Minisforum UH125 Pro Intel Wi-Fi 6E AX210	1755 (1737^min - 1766^max) MBit/s +26%
Geekom Mini IT12 Intel Wi-Fi 6E AX211	1519 (1392^min - 1699^max) MBit/s +9%
Average MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card (684 - 1771, n=43)	1448 MBit/s +4%
Average of class Mini PC (684 - 1806, n=56, last 2 years)	1405 MBit/s +1%
Geekom Mini IT13 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1394 (1177^min - 1484^max) MBit/s
iperf3 transmit AXE11000 6GHz
Geekom Mini IT12 Intel Wi-Fi 6E AX211	1622 (1561^min - 1670^max) MBit/s +41%
Minisforum UH125 Pro Intel Wi-Fi 6E AX210	1605 (1238^min - 1652^max) MBit/s +39%
Average MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card (394 - 1890, n=42)	1400 MBit/s +22%
Average of class Mini PC (394 - 1800, n=56, last 2 years)	1358 MBit/s +18%
Geekom Mini IT13 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1151 (1008^min - 1230^max) MBit/s
iperf3 receive AXE11000
Average MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card (707 - 1775, n=60)	1393 MBit/s +43%
Geekom Mini IT13 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	972 (960^min - 985^max) MBit/s
Average of class Mini PC (267 - 1796, n=109, last 2 years)	952 MBit/s -2%
Geekom A5 Realtek RTL8852BE	946 (856^min - 970^max) MBit/s -3%
Geekom Mini IT12 Intel Wi-Fi 6E AX211	943 (923^min - 960^max) MBit/s -3%
Minisforum UH125 Pro Intel Wi-Fi 6E AX210	936 (907^min - 946^max) MBit/s -4%
Acemagic AM18 Realtek RTL8852BE	455 (221^min - 519^max) MBit/s -53%
Aoostar GEM10 Intel Wi-Fi 6 AX200	451 (228^min - 466^max) MBit/s -54%
iperf3 transmit AXE11000
Average MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card (358 - 1785, n=60)	1284 MBit/s +74%
Geekom Mini IT12 Intel Wi-Fi 6E AX211	918 (892^min - 938^max) MBit/s +25%
Average of class Mini PC (251 - 1776, n=109, last 2 years)	881 MBit/s +20%
Geekom A5 Realtek RTL8852BE	834 (730^min - 861^max) MBit/s +13%
Minisforum UH125 Pro Intel Wi-Fi 6E AX210	758 (727^min - 793^max) MBit/s +3%
Geekom Mini IT13 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	736 (553^min - 783^max) MBit/s
Acemagic AM18 Realtek RTL8852BE	665 (343^min - 743^max) MBit/s -10%
Aoostar GEM10 Intel Wi-Fi 6 AX200	429 (325^min - 510^max) MBit/s -42%

Geekom Mini IT13; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1151 (1008-1230)

Geekom Mini IT13; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1394 (1177-1484)

Geekom Mini IT13; iperf3 receive AXE11000; iperf 3.1.3: Ø972 (960-985)

Geekom Mini IT13; iperf3 transmit AXE11000; iperf 3.1.3: Ø736 (553-783)

配件

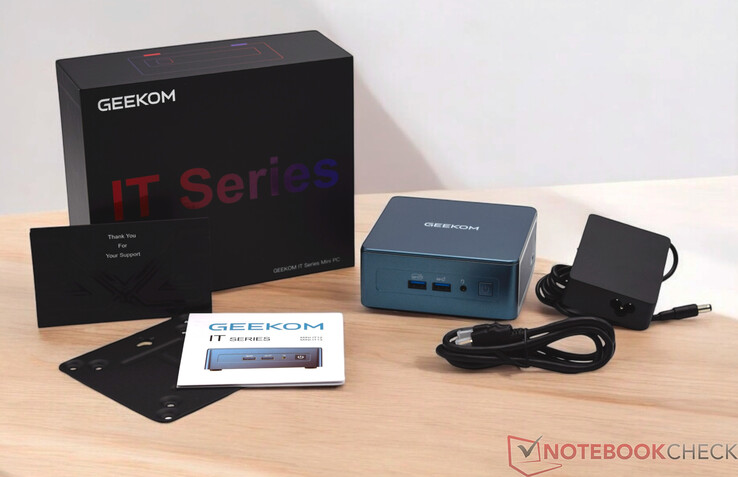

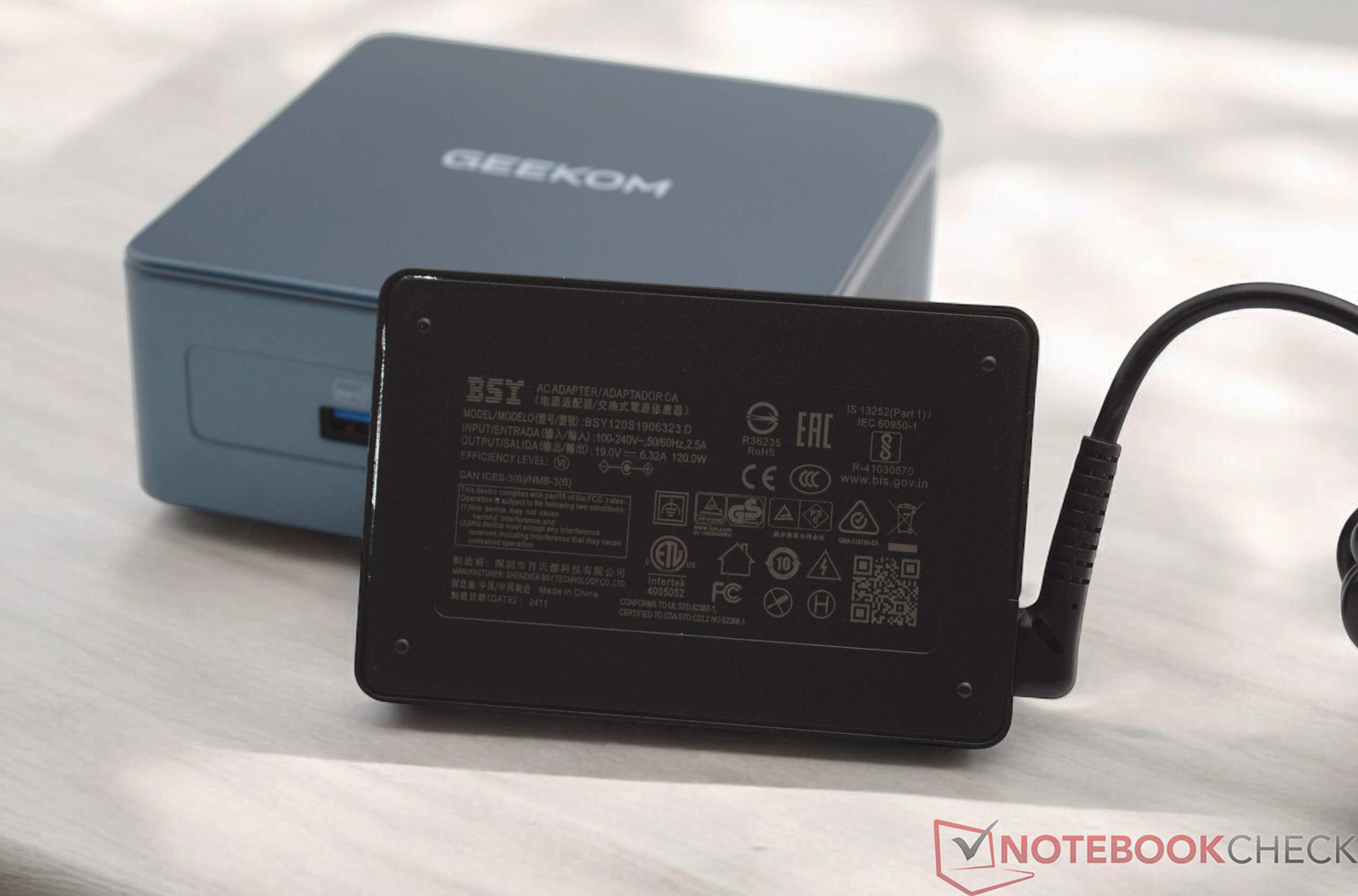

除了迷你电脑本身，购买者还将获得一个 120 瓦的电源、一个 VESA 支架、一条 HDMI 线缆和一本简短的说明书。

维护

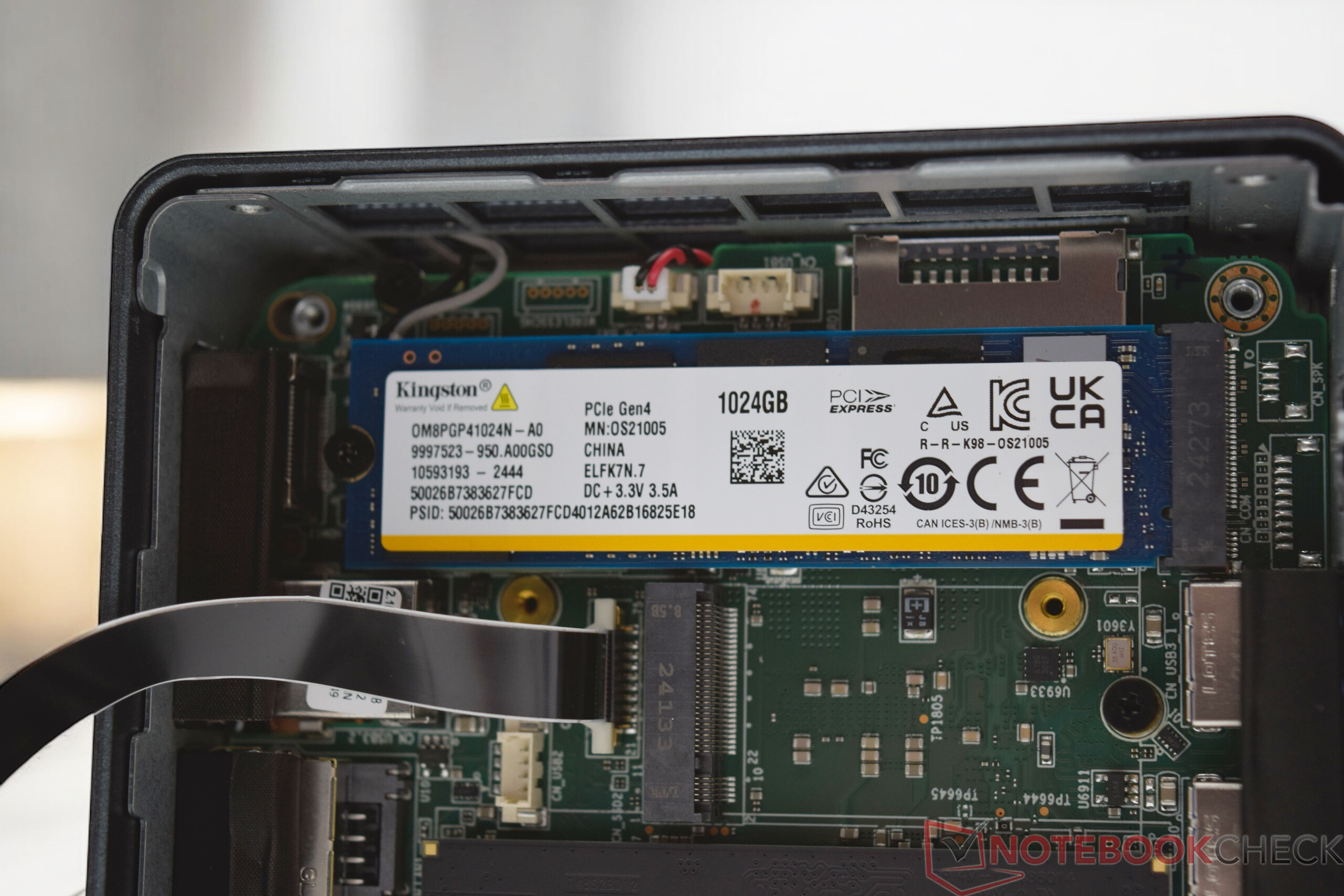

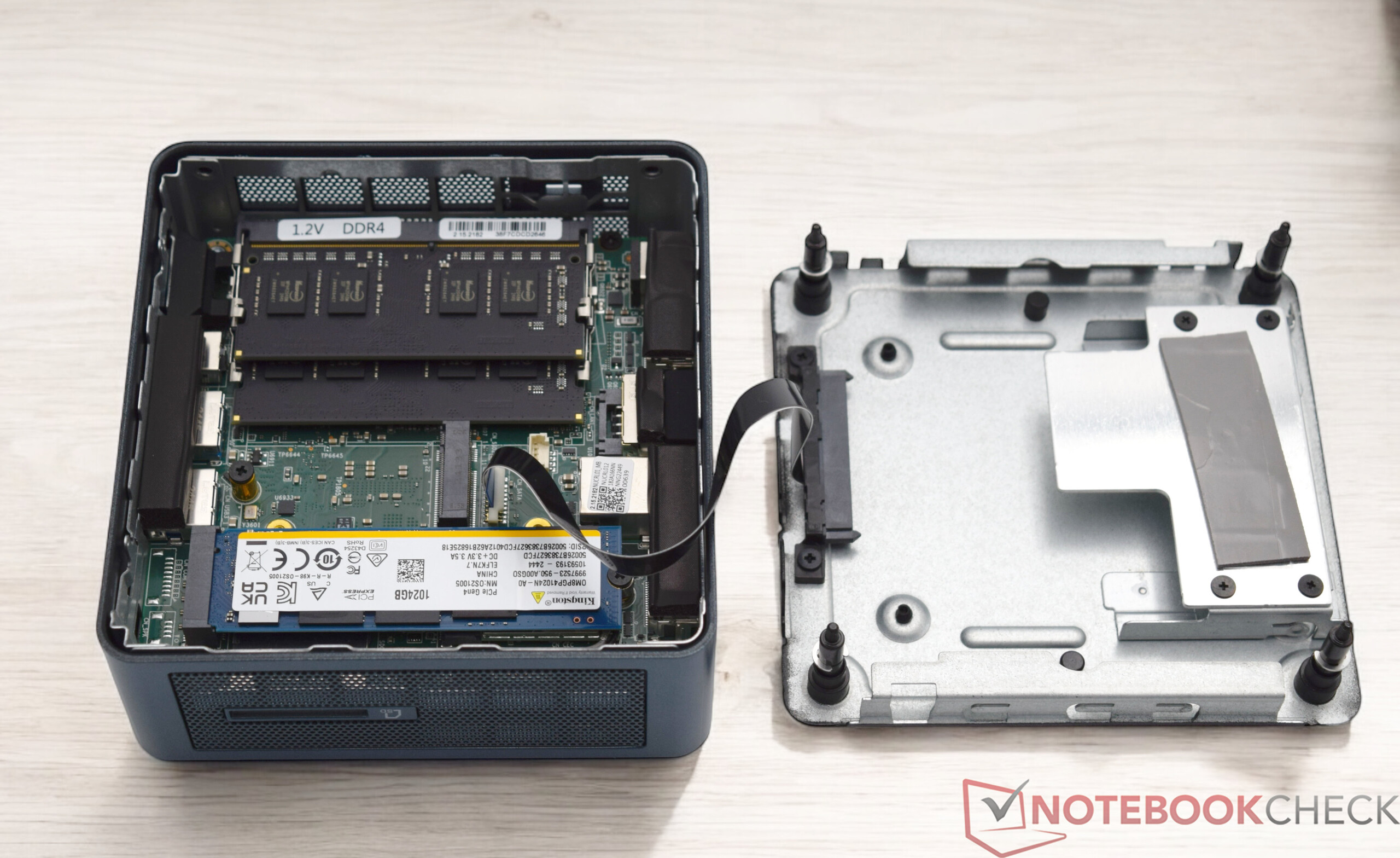

Geekom Mini IT13 2025 版可以轻松地从底部打开。四颗螺丝固定了底板，底板也是固态硬盘的被动散热器。打开后，内存、固态硬盘插槽和 WLAN 模块都很容易接触到，还可以安装 2.5 英寸硬盘。而风扇则较难接触到，需要进一步拆卸。

可持续性

Geekom Mini IT13 2025 版是一款小巧的迷你电脑，由于其构造原因，其维修选项非常有限。值得一提的积极因素包括其 36 个月的保修期，这使 Geekom 有别于许多竞争对手。其小巧的包装使运输更加方便，与台式电脑相比，它的功耗较低，有利于设备的可持续发展--尽管制造商尚未公布其使用可回收材料的任何细节。

性能 - 配备 14 个内核的高端 CPU

Geekom Mini IT13 2025 版配备的英特尔酷睿 i9-13900HK 处理器可在日常使用中提供强劲的性能。得益于性能与效率核心的完美结合，该 SoC 甚至可以轻松胜任要求更高的任务，丝毫不逊于采用 AMD SoC 的竞争对手。

测试条件

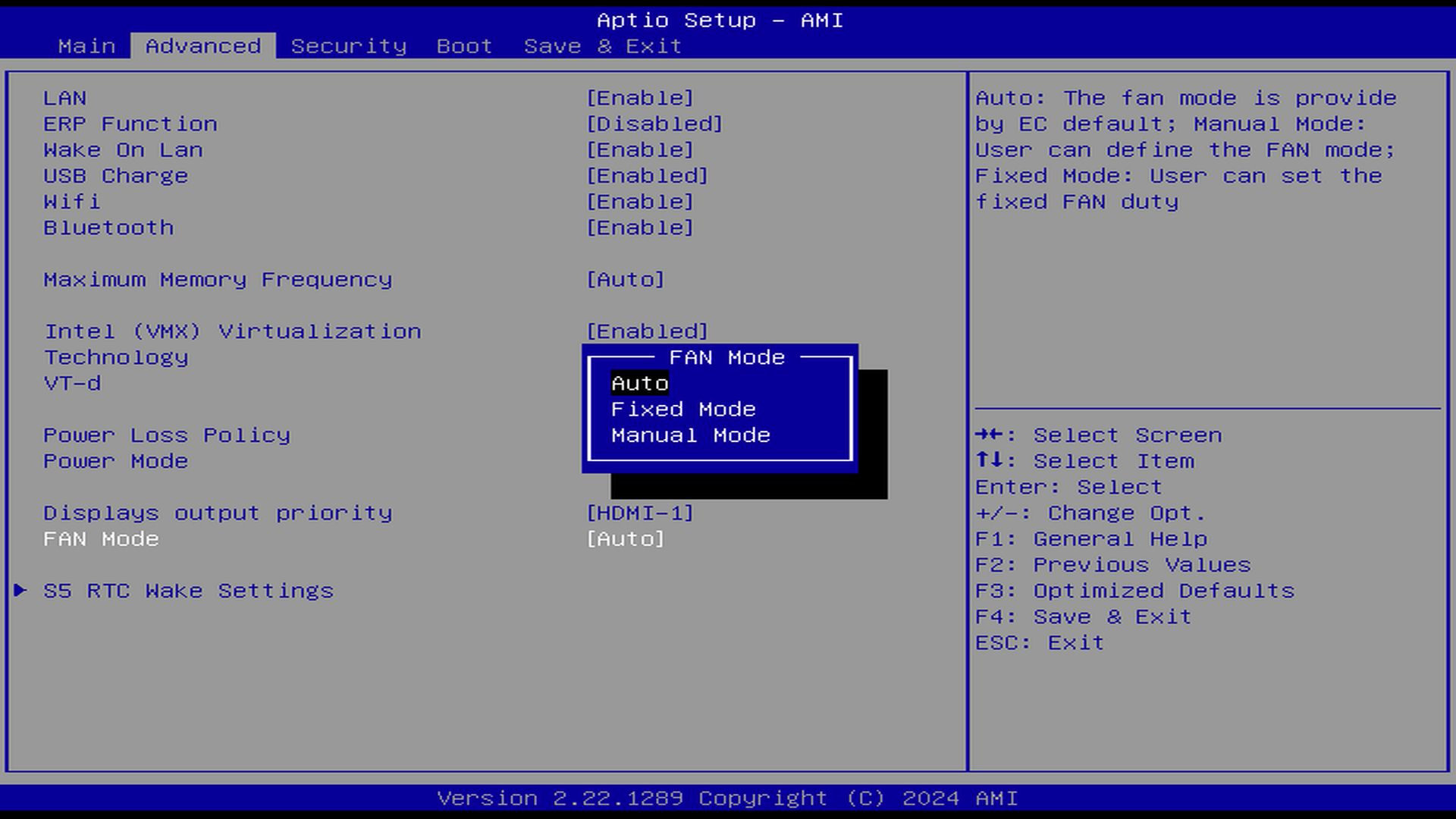

本评测中的所有测试都是在预设功率限制的设备交付状态下进行的。可在 BIOS 中更改风扇速度，但可能会对性能产生影响。

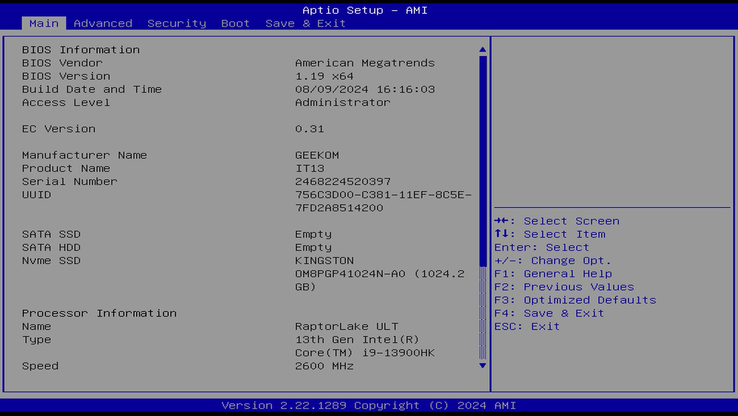

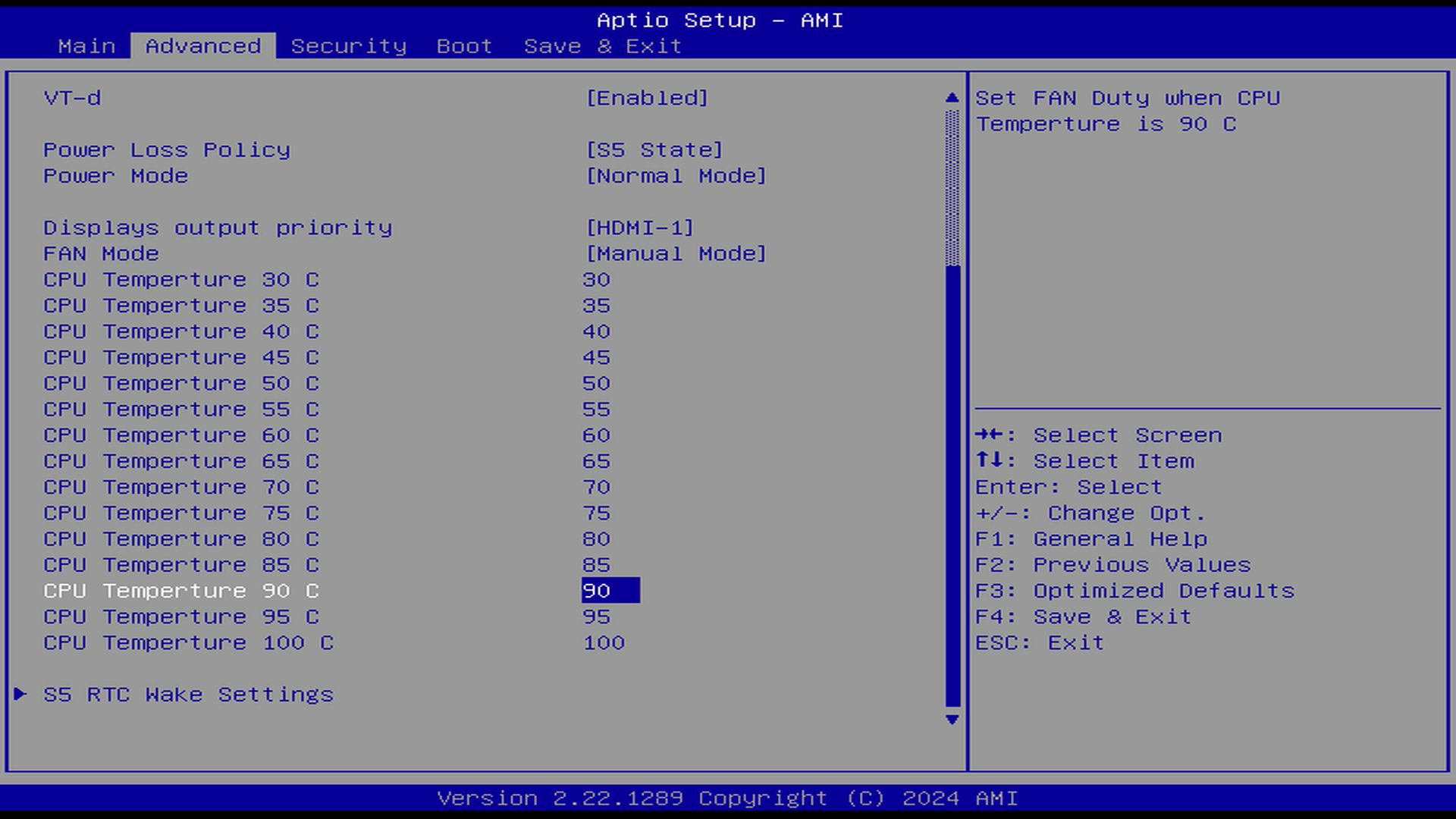

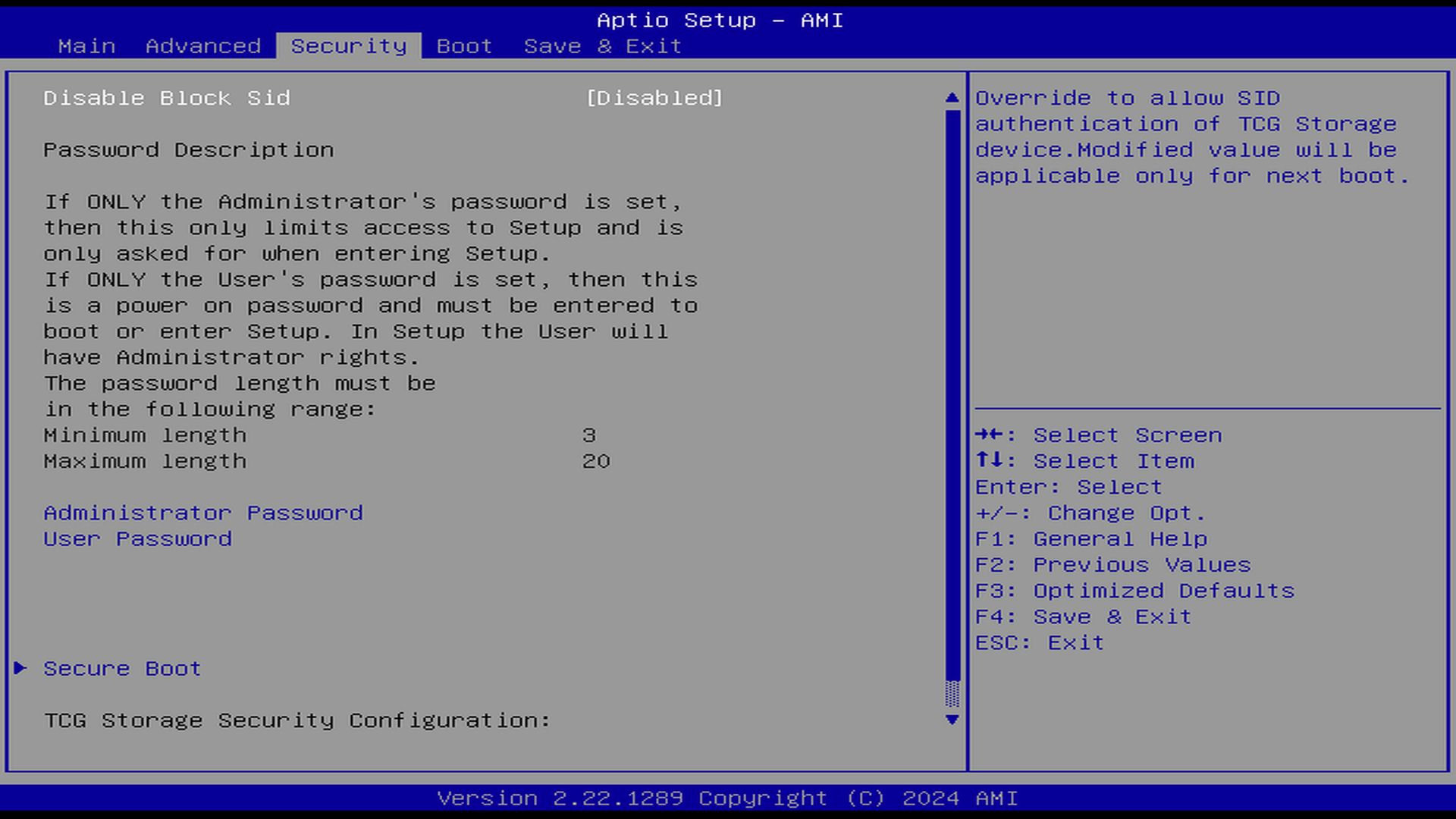

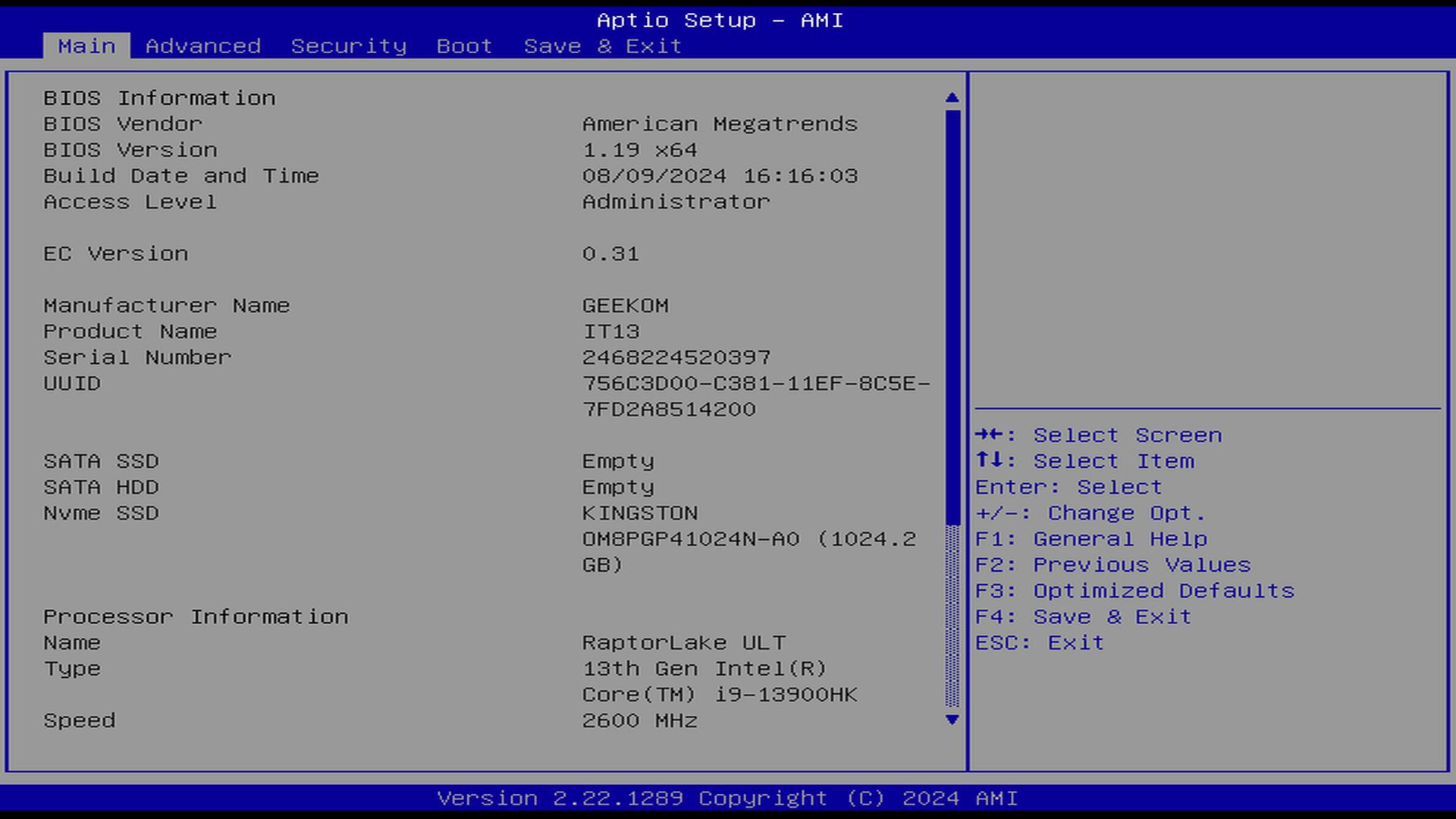

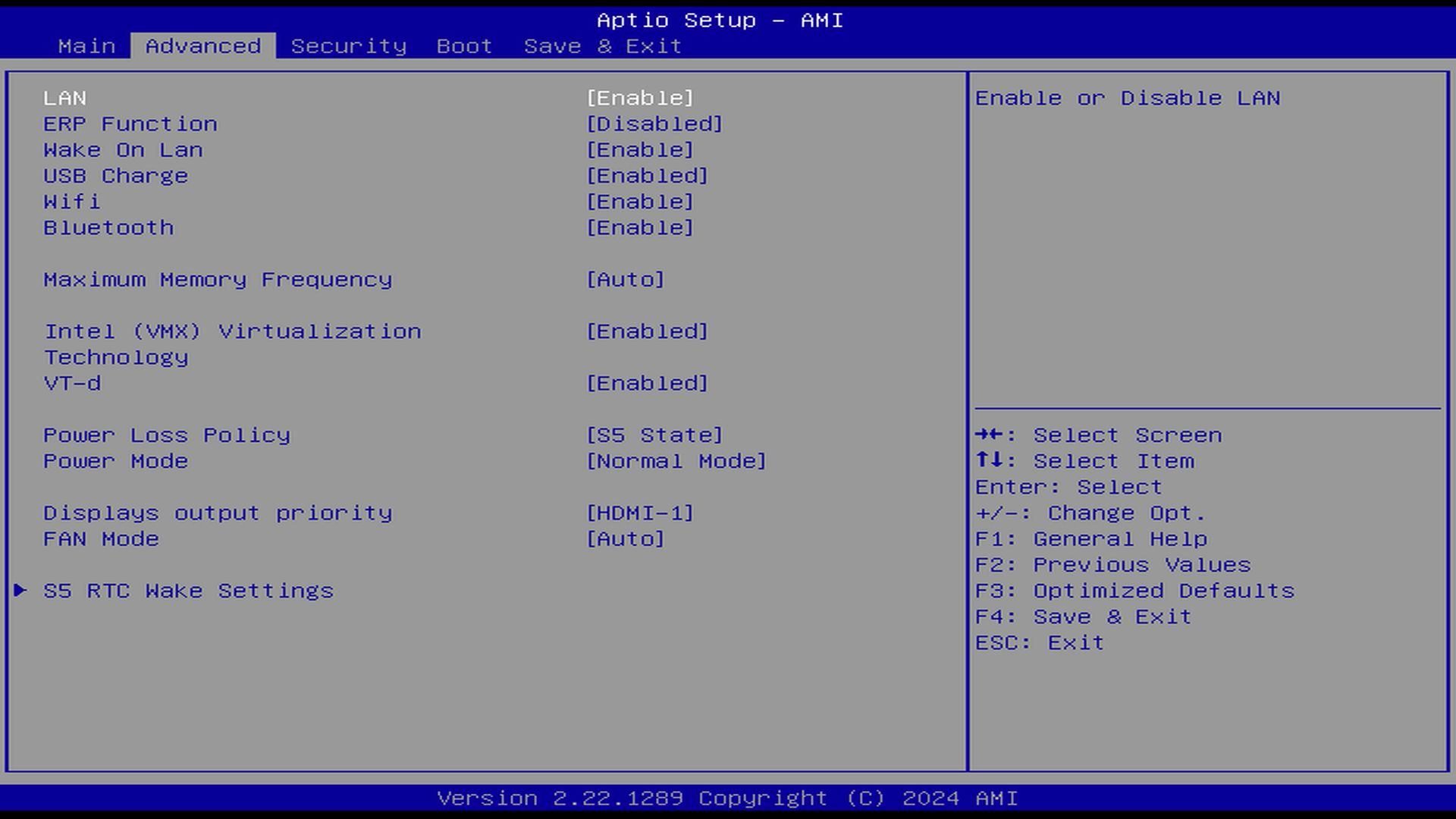

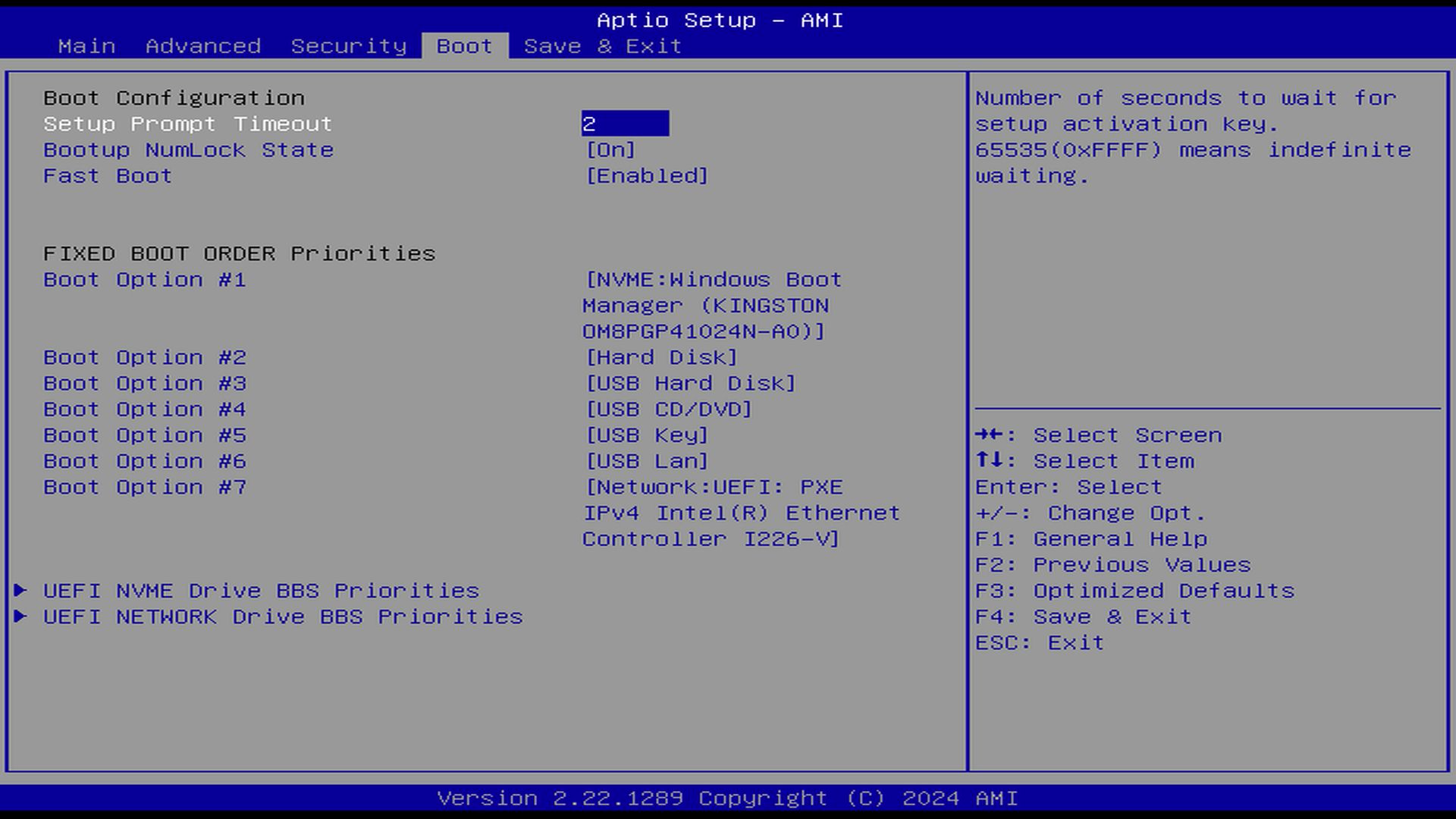

BIOS 选项

处理器

Geekom Mini IT13 2025 版配备了英特尔酷睿 i9-13900HK是一款拥有 14 个核心和 20 个线程的高端处理器。得益于强大的 P 核心和高效的 E 核心的混合架构，该 SoC 在性能和能效之间实现了极佳的平衡。Geekom 将其短期最大输出功率限制在 55 瓦，而在连续负载情况下则降至 35 瓦。相比之下，Geekom Mini IT13 2025 版直接落后于 Minisforum UH125 Pro的英特尔酷睿 5 125H.

Performance Rating - Percent
Acemagic AM18 AMD Ryzen 7 7840HS	55.9 pt
Geekom Mini IT13 Intel Core i9-13900HK	50.6 pt
Minisforum UH125 Pro Intel Core Ultra 5 125H	50.6 pt
Aoostar GEM10 AMD Ryzen 7 6800H	48.5 pt
Geekom Mini IT12 Intel Core i7-1260P	46.7 pt
Geekom A5 AMD Ryzen 7 5800H	46.6 pt

Cinebench 2024
CPU Multi Core
Acemagic AM18 AMD Ryzen 7 7840HS	923 Points +29%
Minisforum UH125 Pro Intel Core Ultra 5 125H	814 Points +14%
Geekom Mini IT13 Intel Core i9-13900HK	716 Points
Aoostar GEM10 AMD Ryzen 7 6800H	709 Points -1%
Geekom A5 AMD Ryzen 7 5800H	618 Points -14%
Geekom Mini IT12 Intel Core i7-1260P	435 Points -39%
CPU Single Core
Acemagic AM18 AMD Ryzen 7 7840HS	104 Points 0%
Geekom Mini IT13 Intel Core i9-13900HK	104 Points
Minisforum UH125 Pro Intel Core Ultra 5 125H	97 Points -7%
Geekom Mini IT12 Intel Core i7-1260P	94 Points -10%
Aoostar GEM10 AMD Ryzen 7 6800H	88 Points -15%
Geekom A5 AMD Ryzen 7 5800H	86 Points -17%

Cinebench R23
Multi Core
Acemagic AM18 AMD Ryzen 7 7840HS	15979 Points +25%
Minisforum UH125 Pro Intel Core Ultra 5 125H	14564 Points +14%
Aoostar GEM10 AMD Ryzen 7 6800H	13117 Points +2%
Geekom Mini IT13 Intel Core i9-13900HK	12799 Points
Geekom A5 AMD Ryzen 7 5800H	10819 Points -15%
Geekom Mini IT12 Intel Core i7-1260P	8846 Points -31%
Single Core
Acemagic AM18 AMD Ryzen 7 7840HS	1737 Points +1%
Geekom Mini IT13 Intel Core i9-13900HK	1727 Points
Geekom Mini IT12 Intel Core i7-1260P	1693 Points -2%
Minisforum UH125 Pro Intel Core Ultra 5 125H	1640 Points -5%
Aoostar GEM10 AMD Ryzen 7 6800H	1542 Points -11%
Geekom A5 AMD Ryzen 7 5800H	1405 Points -19%

Cinebench R20
CPU (Multi Core)
Acemagic AM18 AMD Ryzen 7 7840HS	6250 Points +26%
Minisforum UH125 Pro Intel Core Ultra 5 125H	5618 Points +13%
Aoostar GEM10 AMD Ryzen 7 6800H	5216 Points +5%
Geekom Mini IT13 Intel Core i9-13900HK	4968 Points
Geekom A5 AMD Ryzen 7 5800H	4229 Points -15%
Geekom Mini IT12 Intel Core i7-1260P	3427 Points -31%
CPU (Single Core)
Acemagic AM18 AMD Ryzen 7 7840HS	673 Points +1%
Geekom Mini IT13 Intel Core i9-13900HK	666 Points
Geekom Mini IT12 Intel Core i7-1260P	652 Points -2%
Minisforum UH125 Pro Intel Core Ultra 5 125H	629 Points -6%
Aoostar GEM10 AMD Ryzen 7 6800H	598 Points -10%
Geekom A5 AMD Ryzen 7 5800H	551 Points -17%

Cinebench R15
CPU Multi 64Bit
Acemagic AM18 AMD Ryzen 7 7840HS	2505 Points +25%
Minisforum UH125 Pro Intel Core Ultra 5 125H	2245 Points +12%
Aoostar GEM10 AMD Ryzen 7 6800H	2117 Points +6%
Geekom Mini IT13 Intel Core i9-13900HK	2004 Points
Geekom A5 AMD Ryzen 7 5800H	1773 Points -12%
Geekom Mini IT12 Intel Core i7-1260P	1565 Points -22%
CPU Single 64Bit
Acemagic AM18 AMD Ryzen 7 7840HS	274 Points +11%
Geekom Mini IT13 Intel Core i9-13900HK	247 Points
Geekom Mini IT12 Intel Core i7-1260P	241 Points -2%
Aoostar GEM10 AMD Ryzen 7 6800H	240 Points -3%
Minisforum UH125 Pro Intel Core Ultra 5 125H	235 Points -5%
Geekom A5 AMD Ryzen 7 5800H	227 Points -8%

Cinebench R11.5
CPU Multi 64Bit
Acemagic AM18 AMD Ryzen 7 7840HS	29.7 Points +24%
Minisforum UH125 Pro Intel Core Ultra 5 125H	27.02 Points +13%
Aoostar GEM10 AMD Ryzen 7 6800H	24.57 Points +3%
Geekom Mini IT13 Intel Core i9-13900HK	23.87 Points
Geekom A5 AMD Ryzen 7 5800H	21.25 Points -11%
Geekom Mini IT12 Intel Core i7-1260P	20.06 Points -16%
CPU Single 64Bit
Acemagic AM18 AMD Ryzen 7 7840HS	3.29 Points +10%
Geekom Mini IT13 Intel Core i9-13900HK	3 Points
Geekom Mini IT12 Intel Core i7-1260P	2.93 Points -2%
Aoostar GEM10 AMD Ryzen 7 6800H	2.86 Points -5%
Minisforum UH125 Pro Intel Core Ultra 5 125H	2.86 Points -5%
Geekom A5 AMD Ryzen 7 5800H	2.69 Points -10%

Cinebench R10
Rendering Single CPUs 64Bit
Acemagic AM18 AMD Ryzen 7 7840HS	14015 Points +1%
Geekom Mini IT13 Intel Core i9-13900HK	13932 Points
Geekom Mini IT12 Intel Core i7-1260P	13568 Points -3%
Minisforum UH125 Pro Intel Core Ultra 5 125H	12858 Points -8%
Aoostar GEM10 AMD Ryzen 7 6800H	12142 Points -13%
Geekom A5 AMD Ryzen 7 5800H	11378 Points -18%
Rendering Multiple CPUs 64Bit
Acemagic AM18 AMD Ryzen 7 7840HS	83726 Points +25%
Minisforum UH125 Pro Intel Core Ultra 5 125H	78817 Points +18%
Aoostar GEM10 AMD Ryzen 7 6800H	70792 Points +6%
Geekom Mini IT13 Intel Core i9-13900HK	67051 Points
Geekom A5 AMD Ryzen 7 5800H	62312 Points -7%
Geekom Mini IT12 Intel Core i7-1260P	53950 Points -20%

Blender
v2.79 BMW27 CPU
Geekom A5 AMD Ryzen 7 5800H	293 Seconds * -16%
Geekom Mini IT12 Intel Core i7-1260P	279 Seconds * -10%
Aoostar GEM10 AMD Ryzen 7 6800H	259 Seconds * -2%
Geekom Mini IT13 Intel Core i9-13900HK	253 Seconds *
Minisforum UH125 Pro Intel Core Ultra 5 125H	230 Seconds * +9%
Acemagic AM18 AMD Ryzen 7 7840HS	202 Seconds * +20%
v3.3 Classroom CPU
Geekom Mini IT12 Intel Core i7-1260P	660 Seconds * -46%
Geekom A5 AMD Ryzen 7 5800H	513 Seconds * -14%
Geekom Mini IT13 Intel Core i9-13900HK	451 Seconds *
Aoostar GEM10 AMD Ryzen 7 6800H	438 Seconds * +3%
Minisforum UH125 Pro Intel Core Ultra 5 125H	391 Seconds * +13%
Acemagic AM18 AMD Ryzen 7 7840HS	323 Seconds * +28%
v4.3 Barbershop CPU
Geekom Mini IT12 Intel Core i7-1260P	3321 Seconds * -49%
Geekom A5 AMD Ryzen 7 5800H	2559 Seconds * -15%
Geekom Mini IT13 Intel Core i9-13900HK	2234 Seconds *
Aoostar GEM10 AMD Ryzen 7 6800H	2165 Seconds * +3%
Minisforum UH125 Pro Intel Core Ultra 5 125H	1963 Seconds * +12%
Acemagic AM18 AMD Ryzen 7 7840HS	1596 Seconds * +29%

wPrime 2.10
32m
Geekom Mini IT12 Intel Core i7-1260P	4.485 s * -16%
Minisforum UH125 Pro Intel Core Ultra 5 125H	4.48 s * -16%
Geekom A5 AMD Ryzen 7 5800H	3.93 s * -2%
Geekom Mini IT13 Intel Core i9-13900HK	3.851 s *
Aoostar GEM10 AMD Ryzen 7 6800H	3.55 s * +8%
Acemagic AM18 AMD Ryzen 7 7840HS	2.658 s * +31%
1024m
Geekom Mini IT13 Intel Core i9-13900HK	414.073 s *
Minisforum UH125 Pro Intel Core Ultra 5 125H	246.982 s * +40%
Geekom Mini IT12 Intel Core i7-1260P	237.123 s * +43%
Geekom A5 AMD Ryzen 7 5800H	111.714 s * +73%
Aoostar GEM10 AMD Ryzen 7 6800H	97.298 s * +77%
Acemagic AM18 AMD Ryzen 7 7840HS	71.922 s * +83%

X264 HD Benchmark 4.0
Pass 1
Minisforum UH125 Pro Intel Core Ultra 5 125H	304.5 (304^min - 306^max) fps +7%
Geekom Mini IT13 Intel Core i9-13900HK	285 (283^min - 287^max) fps
Acemagic AM18 AMD Ryzen 7 7840HS	281.5 (277^min - 286^max) fps -1%
Aoostar GEM10 AMD Ryzen 7 6800H	251.5 (250^min - 256^max) fps -12%
Geekom A5 AMD Ryzen 7 5800H	244 (242^min - 246^max) fps -14%
Geekom Mini IT12 Intel Core i7-1260P	224 (222^min - 258^max) fps -21%
Pass 2
Acemagic AM18 AMD Ryzen 7 7840HS	144.1 (143.9^min - 145.6^max) fps +26%
Minisforum UH125 Pro Intel Core Ultra 5 125H	134 (133.7^min - 134.5^max) fps +17%
Aoostar GEM10 AMD Ryzen 7 6800H	122.2 (120.3^min - 126.1^max) fps +6%
Geekom Mini IT13 Intel Core i9-13900HK	114.75 (114^min - 115.3^max) fps
Geekom A5 AMD Ryzen 7 5800H	104.65 (104.1^min - 106.9^max) fps -9%
Geekom Mini IT12 Intel Core i7-1260P	77.75 (77.6^min - 113.9^max) fps -32%

WinRAR - Result
Geekom A5 AMD Ryzen 7 5800H	7042 KB/s +1%
Geekom Mini IT13 Intel Core i9-13900HK	6974 KB/s
Geekom Mini IT12 Intel Core i7-1260P	6559 KB/s -6%
Acemagic AM18 AMD Ryzen 7 7840HS	6428 KB/s -8%
Aoostar GEM10 AMD Ryzen 7 6800H	5890 KB/s -16%
Minisforum UH125 Pro Intel Core Ultra 5 125H	5594 KB/s -20%

TrueCrypt
AES Mean 100MB
Acemagic AM18 AMD Ryzen 7 7840HS	14.7 GB/s +36%
Aoostar GEM10 AMD Ryzen 7 6800H	13.5 GB/s +25%
Geekom A5 AMD Ryzen 7 5800H	11.5 GB/s +6%
Geekom Mini IT13 Intel Core i9-13900HK	10.8 GB/s
Geekom Mini IT12 Intel Core i7-1260P	10.4 GB/s -4%
Minisforum UH125 Pro Intel Core Ultra 5 125H	9 GB/s -17%
Twofish Mean 100MB
Acemagic AM18 AMD Ryzen 7 7840HS	2.1 GB/s 0%
Geekom Mini IT13 Intel Core i9-13900HK	2.1 GB/s
Geekom Mini IT12 Intel Core i7-1260P	1.8 GB/s -14%
Aoostar GEM10 AMD Ryzen 7 6800H	1.8 GB/s -14%
Geekom A5 AMD Ryzen 7 5800H	1.6 GB/s -24%
Minisforum UH125 Pro Intel Core Ultra 5 125H	1.4 GB/s -33%
Serpent Mean 100MB
Acemagic AM18 AMD Ryzen 7 7840HS	1.3 GB/s +18%
Aoostar GEM10 AMD Ryzen 7 6800H	1.2 GB/s +9%
Geekom Mini IT13 Intel Core i9-13900HK	1.1 GB/s
Geekom Mini IT12 Intel Core i7-1260P	1 GB/s -9%
Geekom A5 AMD Ryzen 7 5800H	1 GB/s -9%
Minisforum UH125 Pro Intel Core Ultra 5 125H	0.854 GB/s -22%

Geekbench AI
Single Precision CPU 1.2
Acemagic AM18 AMD Ryzen 7 7840HS	4041 Points +61%
Aoostar GEM10 AMD Ryzen 7 6800H	3006 Points +20%
Minisforum UH125 Pro Intel Core Ultra 5 125H	2857 Points +14%
Geekom A5 AMD Ryzen 7 5800H	2696 Points +7%
Geekom Mini IT13 Intel Core i9-13900HK	2509 Points
Geekom Mini IT12 Intel Core i7-1260P	2506 Points 0%
Half Precision CPU 1.2
Acemagic AM18 AMD Ryzen 7 7840HS	1808 Points +83%
Aoostar GEM10 AMD Ryzen 7 6800H	1414 Points +43%
Minisforum UH125 Pro Intel Core Ultra 5 125H	1266 Points +28%
Geekom A5 AMD Ryzen 7 5800H	1254 Points +27%
Geekom Mini IT12 Intel Core i7-1260P	1027 Points +4%
Geekom Mini IT13 Intel Core i9-13900HK	987 Points
Quantized CPU 1.2
Acemagic AM18 AMD Ryzen 7 7840HS	5584 Points +50%
Minisforum UH125 Pro Intel Core Ultra 5 125H	5543 Points +49%
Geekom A5 AMD Ryzen 7 5800H	4199 Points +13%
Geekom Mini IT13 Intel Core i9-13900HK	3727 Points
Geekom Mini IT12 Intel Core i7-1260P	3706 Points -1%
Aoostar GEM10 AMD Ryzen 7 6800H	3680 Points -1%
Single Precision CPU 1.3
Acemagic AM18 AMD Ryzen 7 7840HS	3928 Points +54%
Aoostar GEM10 AMD Ryzen 7 6800H	3164 Points +24%
Minisforum UH125 Pro Intel Core Ultra 5 125H	2951 Points +16%
Geekom A5 AMD Ryzen 7 5800H	2870 Points +12%
Geekom Mini IT13 Intel Core i9-13900HK	2552 Points
Geekom Mini IT12 Intel Core i7-1260P	2540 Points 0%
Half Precision CPU 1.3
Acemagic AM18 AMD Ryzen 7 7840HS	1796 Points +79%
Aoostar GEM10 AMD Ryzen 7 6800H	1434 Points +43%
Minisforum UH125 Pro Intel Core Ultra 5 125H	1302 Points +30%
Geekom A5 AMD Ryzen 7 5800H	1256 Points +25%
Geekom Mini IT12 Intel Core i7-1260P	1051 Points +5%
Geekom Mini IT13 Intel Core i9-13900HK	1002 Points
Quantized CPU 1.3
Acemagic AM18 AMD Ryzen 7 7840HS	5724 Points +53%
Minisforum UH125 Pro Intel Core Ultra 5 125H	5560 Points +49%
Geekom A5 AMD Ryzen 7 5800H	4218 Points +13%
Aoostar GEM10 AMD Ryzen 7 6800H	3777 Points +1%
Geekom Mini IT12 Intel Core i7-1260P	3769 Points +1%
Geekom Mini IT13 Intel Core i9-13900HK	3739 Points

Geekbench 6.4
Multi-Core
Acemagic AM18 AMD Ryzen 7 7840HS	13161 Points +29%
Minisforum UH125 Pro Intel Core Ultra 5 125H	11268 Points +11%
Geekom Mini IT13 Intel Core i9-13900HK	10195 Points
Geekom Mini IT12 Intel Core i7-1260P	9532 Points -7%
Aoostar GEM10 AMD Ryzen 7 6800H	9527 Points -7%
Geekom A5 AMD Ryzen 7 5800H	9411 Points -8%
Single-Core
Acemagic AM18 AMD Ryzen 7 7840HS	2639 Points +9%
Geekom Mini IT12 Intel Core i7-1260P	2424 Points 0%
Geekom Mini IT13 Intel Core i9-13900HK	2416 Points
Minisforum UH125 Pro Intel Core Ultra 5 125H	2199 Points -9%
Aoostar GEM10 AMD Ryzen 7 6800H	2049 Points -15%
Geekom A5 AMD Ryzen 7 5800H	1991 Points -18%

Geekbench 6.0
Multi-Core
Minisforum UH125 Pro Intel Core Ultra 5 125H	21003 Points 0%
Geekom Mini IT13 Intel Core i9-13900HK	21003 Points
Acemagic AM18 AMD Ryzen 7 7840HS	12742 Points -39%
Aoostar GEM10 AMD Ryzen 7 6800H	9217 Points -56%
Geekom Mini IT12 Intel Core i7-1260P	9157 Points -56%
Geekom A5 AMD Ryzen 7 5800H	8803 Points -58%
Single-Core
Minisforum UH125 Pro Intel Core Ultra 5 125H	3105 Points 0%
Geekom Mini IT13 Intel Core i9-13900HK	3105 Points
Acemagic AM18 AMD Ryzen 7 7840HS	2533 Points -18%
Geekom Mini IT12 Intel Core i7-1260P	2268 Points -27%
Aoostar GEM10 AMD Ryzen 7 6800H	1973 Points -36%
Geekom A5 AMD Ryzen 7 5800H	1912 Points -38%

Geekbench 5.5
Multi-Core
Acemagic AM18 AMD Ryzen 7 7840HS	12049 Points +21%
Minisforum UH125 Pro Intel Core Ultra 5 125H	10788 Points +8%
Geekom Mini IT13 Intel Core i9-13900HK	9973 Points
Geekom Mini IT12 Intel Core i7-1260P	8918 Points -11%
Aoostar GEM10 AMD Ryzen 7 6800H	8898 Points -11%
Geekom A5 AMD Ryzen 7 5800H	8823 Points -12%
Single-Core
Acemagic AM18 AMD Ryzen 7 7840HS	1946 Points +15%
Geekom Mini IT12 Intel Core i7-1260P	1782 Points +5%
Geekom Mini IT13 Intel Core i9-13900HK	1699 Points
Minisforum UH125 Pro Intel Core Ultra 5 125H	1593 Points -6%
Aoostar GEM10 AMD Ryzen 7 6800H	1552 Points -9%
Geekom A5 AMD Ryzen 7 5800H	1494 Points -12%

Geekbench 5.0
5.0 Multi-Core
Acemagic AM18 AMD Ryzen 7 7840HS	12019 Points +22%
Minisforum UH125 Pro Intel Core Ultra 5 125H	10676 Points +8%
Geekom Mini IT12 Intel Core i7-1260P	10249 Points +4%
Geekom Mini IT13 Intel Core i9-13900HK	9859 Points
Aoostar GEM10 AMD Ryzen 7 6800H	8868 Points -10%
Geekom A5 AMD Ryzen 7 5800H	8568 Points -13%
5.0 Single-Core
Acemagic AM18 AMD Ryzen 7 7840HS	1870 Points +12%
Geekom Mini IT13 Intel Core i9-13900HK	1674 Points
Minisforum UH125 Pro Intel Core Ultra 5 125H	1596 Points -5%
Geekom Mini IT12 Intel Core i7-1260P	1557 Points -7%
Aoostar GEM10 AMD Ryzen 7 6800H	1509 Points -10%
Geekom A5 AMD Ryzen 7 5800H	1421 Points -15%

Geekbench 4.4
64 Bit Multi-Core Score
Acemagic AM18 AMD Ryzen 7 7840HS	47599 Points +31%
Geekom Mini IT12 Intel Core i7-1260P	39852 Points +10%
Minisforum UH125 Pro Intel Core Ultra 5 125H	38648 Points +7%
Geekom Mini IT13 Intel Core i9-13900HK	36281 Points
Aoostar GEM10 AMD Ryzen 7 6800H	35898 Points -1%
Geekom A5 AMD Ryzen 7 5800H	34200 Points -6%
64 Bit Single-Core Score
Acemagic AM18 AMD Ryzen 7 7840HS	7924 Points +8%
Geekom Mini IT13 Intel Core i9-13900HK	7352 Points
Minisforum UH125 Pro Intel Core Ultra 5 125H	6734 Points -8%
Geekom Mini IT12 Intel Core i7-1260P	6698 Points -9%
Aoostar GEM10 AMD Ryzen 7 6800H	6341 Points -14%
Geekom A5 AMD Ryzen 7 5800H	6295 Points -14%

3DMark 11 - 1280x720 Performance Physics
Acemagic AM18 AMD Ryzen 7 7840HS	22786 Points +43%
Minisforum UH125 Pro Intel Core Ultra 5 125H	17138 Points +8%
Geekom A5 AMD Ryzen 7 5800H	16933 Points +6%
Aoostar GEM10 AMD Ryzen 7 6800H	16034 Points +1%
Geekom Mini IT13 Intel Core i9-13900HK	15902 Points
Geekom Mini IT12 Intel Core i7-1260P	13067 Points -18%

7-Zip 18.03
7z b 4
Acemagic AM18 AMD Ryzen 7 7840HS	70723 MIPS +32%
Aoostar GEM10 AMD Ryzen 7 6800H	55067 MIPS +3%
Geekom A5 AMD Ryzen 7 5800H	53954 MIPS +1%
Geekom Mini IT13 Intel Core i9-13900HK	53572 MIPS
Geekom Mini IT12 Intel Core i7-1260P	37570 MIPS -30%
Minisforum UH125 Pro Intel Core Ultra 5 125H	0 MIPS -100%
7z b 4 -mmt1
Acemagic AM18 AMD Ryzen 7 7840HS	6545 MIPS +14%
Geekom Mini IT13 Intel Core i9-13900HK	5730 MIPS
Geekom Mini IT12 Intel Core i7-1260P	5577 MIPS -3%
Aoostar GEM10 AMD Ryzen 7 6800H	5521 MIPS -4%
Geekom A5 AMD Ryzen 7 5800H	5486 MIPS -4%
Minisforum UH125 Pro Intel Core Ultra 5 125H	4699 MIPS -18%

HWBOT x265 Benchmark v2.2 - 4k Preset
Acemagic AM18 AMD Ryzen 7 7840HS	20.5 fps +44%
Minisforum UH125 Pro Intel Core Ultra 5 125H	16.7 fps +18%
Aoostar GEM10 AMD Ryzen 7 6800H	14.9 fps +5%
Geekom Mini IT13 Intel Core i9-13900HK	14.2 fps
Geekom A5 AMD Ryzen 7 5800H	13.3 fps -6%
Geekom Mini IT12 Intel Core i7-1260P	10.1 fps -29%

R Benchmark 2.5 - Overall mean
Geekom A5 AMD Ryzen 7 5800H	0.523 sec * -9%
Aoostar GEM10 AMD Ryzen 7 6800H	0.515 sec * -7%
Minisforum UH125 Pro Intel Core Ultra 5 125H	0.513 sec * -7%
Geekom Mini IT13 Intel Core i9-13900HK	0.4799 sec *
Geekom Mini IT12 Intel Core i7-1260P	0.4718 sec * +2%
Acemagic AM18 AMD Ryzen 7 7840HS	0.4398 sec * +8%

LibreOffice - 20 Documents To PDF
Minisforum UH125 Pro Intel Core Ultra 5 125H	70.9 s * -28%
Geekom Mini IT13 Intel Core i9-13900HK	55.2 s *
Geekom A5 AMD Ryzen 7 5800H	54.3 s * +2%
Aoostar GEM10 AMD Ryzen 7 6800H	51.2 s * +7%
Geekom Mini IT12 Intel Core i7-1260P	48.1 s * +13%
Acemagic AM18 AMD Ryzen 7 7840HS	47.7 s * +14%

WebXPRT 4 - Overall
Acemagic AM18 AMD Ryzen 7 7840HS	259 Points +12%
Geekom Mini IT12 Intel Core i7-1260P	258 Points +12%
Geekom Mini IT13 Intel Core i9-13900HK	231 Points
Minisforum UH125 Pro Intel Core Ultra 5 125H	227 Points -2%
Aoostar GEM10 AMD Ryzen 7 6800H	223 Points -3%
Geekom A5 AMD Ryzen 7 5800H	201 Points -13%

WebXPRT 3 - Overall
Acemagic AM18 AMD Ryzen 7 7840HS	320 Points +19%
Geekom Mini IT12 Intel Core i7-1260P	287 Points +7%
Aoostar GEM10 AMD Ryzen 7 6800H	275 Points +3%
Geekom A5 AMD Ryzen 7 5800H	269 Points 0%
Geekom Mini IT13 Intel Core i9-13900HK	268 Points
Minisforum UH125 Pro Intel Core Ultra 5 125H	254 Points -5%

Mozilla Kraken 1.1 - Total
Geekom A5 AMD Ryzen 7 5800H	653 ms * -19%
Minisforum UH125 Pro Intel Core Ultra 5 125H	595 ms * -8%
Aoostar GEM10 AMD Ryzen 7 6800H	591 ms * -7%
Geekom Mini IT13 Intel Core i9-13900HK	551 ms *
Geekom Mini IT12 Intel Core i7-1260P	539 ms * +2%
Acemagic AM18 AMD Ryzen 7 7840HS	518 ms * +6%

3DMark
1920x1080 Fire Strike Physics
Acemagic AM18 AMD Ryzen 7 7840HS	27120 Points +28%
Aoostar GEM10 AMD Ryzen 7 6800H	23807 Points +13%
Geekom A5 AMD Ryzen 7 5800H	22433 Points +6%
Minisforum UH125 Pro Intel Core Ultra 5 125H	21391 Points +1%
Geekom Mini IT13 Intel Core i9-13900HK	21107 Points
Geekom Mini IT12 Intel Core i7-1260P	16568 Points -22%
2560x1440 Time Spy CPU
Acemagic AM18 AMD Ryzen 7 7840HS	10926 Points +20%
Minisforum UH125 Pro Intel Core Ultra 5 125H	9182 Points +1%
Geekom Mini IT13 Intel Core i9-13900HK	9118 Points
Geekom A5 AMD Ryzen 7 5800H	8481 Points -7%
Aoostar GEM10 AMD Ryzen 7 6800H	8128 Points -11%
Geekom Mini IT12 Intel Core i7-1260P	6487 Points -29%

Super Pi mod 1.5 XS 1M - 1M
Geekom A5 AMD Ryzen 7 5800H	9.415 s * -27%
Aoostar GEM10 AMD Ryzen 7 6800H	7.839 s * -5%
Minisforum UH125 Pro Intel Core Ultra 5 125H	7.744 s * -4%
Geekom Mini IT12 Intel Core i7-1260P	7.718 s * -4%
Geekom Mini IT13 Intel Core i9-13900HK	7.434 s *
Acemagic AM18 AMD Ryzen 7 7840HS	7.112 s * +4%

Super Pi mod 1.5 XS 2M - 2M
Geekom A5 AMD Ryzen 7 5800H	20.257 s * -24%
Aoostar GEM10 AMD Ryzen 7 6800H	19.101 s * -17%
Acemagic AM18 AMD Ryzen 7 7840HS	17.697 s * -8%
Geekom Mini IT12 Intel Core i7-1260P	17.183 s * -5%
Minisforum UH125 Pro Intel Core Ultra 5 125H	16.967 s * -4%
Geekom Mini IT13 Intel Core i9-13900HK	16.364 s *

Affinity Photo 2 - Combined (Multi CPU)
Minisforum UH125 Pro Intel Core Ultra 5 125H	615 Points +23%
Acemagic AM18 AMD Ryzen 7 7840HS	610 Points +22%
Aoostar GEM10 AMD Ryzen 7 6800H	513 Points +3%
Geekom Mini IT13 Intel Core i9-13900HK	498 Points
Geekom A5 AMD Ryzen 7 5800H	439 Points -12%
Geekom Mini IT12 Intel Core i7-1260P	368 Points -26%

SPECworkstation 4.0 - CPU Score
Acemagic AM18 AMD Ryzen 7 7840HS	1 Points +20%
Minisforum UH125 Pro Intel Core Ultra 5 125H	0.88 Points +6%
Geekom Mini IT13 Intel Core i9-13900HK	0.83 Points
Aoostar GEM10 AMD Ryzen 7 6800H	0.76 Points -8%
Geekom A5 AMD Ryzen 7 5800H	0.69 Points -17%
Geekom Mini IT12 Intel Core i7-1260P	0.63 Points -24%

* ... smaller is better

Cinebench R10 Rendering Single 32Bit

9622

Cinebench R10 Shading 64Bit

16312 Points

Cinebench R10 Rendering Multiple CPUs 64Bit

67051 Points

Cinebench R10 Rendering Single CPUs 64Bit

13932 Points

Cinebench R10 Shading 32Bit

15457

Cinebench R10 Rendering Multiple CPUs 32Bit

46928

Cinebench R11.5 CPU Single 32Bit

2.66 Points

Cinebench R11.5 CPU Multi 32Bit

22.05 Points

Cinebench R11.5 OpenGL 32Bit

83.86 fps

Cinebench R11.5 CPU Single 64Bit

3 Points

Cinebench R11.5 CPU Multi 64Bit

23.87 Points

Cinebench R11.5 OpenGL 64Bit

85.07 fps

Cinebench R15 CPU Single 64Bit

247 Points

Cinebench R15 CPU Multi 64Bit

2004 Points

Cinebench R15 Ref. Match 64Bit

97.8 %

Cinebench R15 OpenGL 64Bit

82.55 fps

Cinebench R20 CPU (Single Core)

666 Points

Cinebench R20 CPU (Multi Core)

4968 Points

Cinebench R23 Multi Core

12799 Points

Cinebench R23 Single Core

1727 Points

Cinebench 2024 CPU Single Core

104 Points

Cinebench 2024 CPU Multi Core

716 Points

Help

... in comparison

Performance Rating
Acemagic AM18 AMD Ryzen 7 7840HS, Radeon 780M	98.9 pt
Aoostar GEM10 AMD Ryzen 7 6800H, Radeon 680M	70.3 pt
Minisforum UH125 Pro Intel Core Ultra 5 125H, Arc 7-Core	66.1 pt
Geekom A5 AMD Ryzen 7 5800H, Vega 8	64.1 pt
Average of class Mini PC	62.6 pt
Geekom Mini IT13 Intel Core i9-13900HK, Iris Xe G7 96EUs	58.6 pt
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	43.9 pt

AIDA64 / FP32 Ray-Trace
Acemagic AM18 AMD Ryzen 7 7840HS, Radeon 780M	25725 KRay/s +108%
Average of class Mini PC (764 - 51004, n=117, last 2 years)	14037 KRay/s +14%
Aoostar GEM10 AMD Ryzen 7 6800H, Radeon 680M	13726 KRay/s +11%
Minisforum UH125 Pro Intel Core Ultra 5 125H, Arc 7-Core	13639 KRay/s +10%
Geekom A5 AMD Ryzen 7 5800H, Vega 8	12468 KRay/s +1%
Geekom Mini IT13 Intel Core i9-13900HK, Iris Xe G7 96EUs	12351 KRay/s
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	7933 KRay/s -36%

AIDA64 / FPU Julia
Acemagic AM18 AMD Ryzen 7 7840HS, Radeon 780M	108506 Points +77%
Aoostar GEM10 AMD Ryzen 7 6800H, Radeon 680M	86223 Points +40%
Geekom A5 AMD Ryzen 7 5800H, Vega 8	77847 Points +27%
Minisforum UH125 Pro Intel Core Ultra 5 125H, Arc 7-Core	70880 Points +15%
Average of class Mini PC (4140 - 214250, n=117, last 2 years)	68432 Points +11%
Geekom Mini IT13 Intel Core i9-13900HK, Iris Xe G7 96EUs	61409 Points
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	40251 Points -34%

AIDA64 / CPU SHA3
Acemagic AM18 AMD Ryzen 7 7840HS, Radeon 780M	4769 MB/s +63%
Minisforum UH125 Pro Intel Core Ultra 5 125H, Arc 7-Core	3404 MB/s +16%
Average of class Mini PC (290 - 9399, n=117, last 2 years)	3025 MB/s +3%
Aoostar GEM10 AMD Ryzen 7 6800H, Radeon 680M	2953 MB/s +1%
Geekom Mini IT13 Intel Core i9-13900HK, Iris Xe G7 96EUs	2923 MB/s
Geekom A5 AMD Ryzen 7 5800H, Vega 8	2707 MB/s -7%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	2006 MB/s -31%

AIDA64 / CPU Queen
Acemagic AM18 AMD Ryzen 7 7840HS, Radeon 780M	115133 Points +52%
Aoostar GEM10 AMD Ryzen 7 6800H, Radeon 680M	98582 Points +30%
Geekom A5 AMD Ryzen 7 5800H, Vega 8	91846 Points +21%
Average of class Mini PC (8172 - 184747, n=117, last 2 years)	81013 Points +7%
Minisforum UH125 Pro Intel Core Ultra 5 125H, Arc 7-Core	78098 Points +3%
Geekom Mini IT13 Intel Core i9-13900HK, Iris Xe G7 96EUs	75615 Points
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	73765 Points -2%

AIDA64 / FPU SinJulia
Acemagic AM18 AMD Ryzen 7 7840HS, Radeon 780M	14590 Points +96%
Aoostar GEM10 AMD Ryzen 7 6800H, Radeon 680M	12159 Points +64%
Geekom A5 AMD Ryzen 7 5800H, Vega 8	10972 Points +48%
Average of class Mini PC (408 - 29064, n=117, last 2 years)	9229 Points +24%
Minisforum UH125 Pro Intel Core Ultra 5 125H, Arc 7-Core	7842 Points +6%
Geekom Mini IT13 Intel Core i9-13900HK, Iris Xe G7 96EUs	7427 Points
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	5567 Points -25%

AIDA64 / FPU Mandel
Acemagic AM18 AMD Ryzen 7 7840HS, Radeon 780M	57881 Points +89%
Aoostar GEM10 AMD Ryzen 7 6800H, Radeon 680M	47463 Points +55%
Geekom A5 AMD Ryzen 7 5800H, Vega 8	42543 Points +39%
Average of class Mini PC (2088 - 113499, n=117, last 2 years)	35690 Points +17%
Minisforum UH125 Pro Intel Core Ultra 5 125H, Arc 7-Core	35321 Points +16%
Geekom Mini IT13 Intel Core i9-13900HK, Iris Xe G7 96EUs	30549 Points
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	19857 Points -35%

AIDA64 / CPU AES
Acemagic AM18 AMD Ryzen 7 7840HS, Radeon 780M	163604 MB/s +62%
Aoostar GEM10 AMD Ryzen 7 6800H, Radeon 680M	119681 MB/s +19%
Geekom A5 AMD Ryzen 7 5800H, Vega 8	108262 MB/s +7%
Geekom Mini IT13 Intel Core i9-13900HK, Iris Xe G7 96EUs	100891 MB/s
Average of class Mini PC (3691 - 325960, n=117, last 2 years)	89187 MB/s -12%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	74716 MB/s -26%
Minisforum UH125 Pro Intel Core Ultra 5 125H, Arc 7-Core	65304 MB/s -35%

AIDA64 / CPU ZLib
Acemagic AM18 AMD Ryzen 7 7840HS, Radeon 780M	1042 MB/s +31%
Minisforum UH125 Pro Intel Core Ultra 5 125H, Arc 7-Core	994 MB/s +25%
Geekom Mini IT13 Intel Core i9-13900HK, Iris Xe G7 96EUs	797 MB/s
Average of class Mini PC (76.7 - 2039, n=117, last 2 years)	780 MB/s -2%
Aoostar GEM10 AMD Ryzen 7 6800H, Radeon 680M	757 MB/s -5%
Geekom A5 AMD Ryzen 7 5800H, Vega 8	700 MB/s -12%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	575 MB/s -28%

AIDA64 / FP64 Ray-Trace
Acemagic AM18 AMD Ryzen 7 7840HS, Radeon 780M	13617 KRay/s +99%
Average of class Mini PC (432 - 26952, n=117, last 2 years)	7513 KRay/s +10%
Aoostar GEM10 AMD Ryzen 7 6800H, Radeon 680M	7279 KRay/s +6%
Minisforum UH125 Pro Intel Core Ultra 5 125H, Arc 7-Core	7221 KRay/s +6%
Geekom Mini IT13 Intel Core i9-13900HK, Iris Xe G7 96EUs	6839 KRay/s
Geekom A5 AMD Ryzen 7 5800H, Vega 8	6380 KRay/s -7%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	4156 KRay/s -39%

AIDA64 / CPU PhotoWorxx
Minisforum UH125 Pro Intel Core Ultra 5 125H, Arc 7-Core	45789 MPixel/s +61%
Acemagic AM18 AMD Ryzen 7 7840HS, Radeon 780M	40655 MPixel/s +43%
Average of class Mini PC (5296 - 51727, n=117, last 2 years)	29709 MPixel/s +4%
Geekom Mini IT13 Intel Core i9-13900HK, Iris Xe G7 96EUs	28439 MPixel/s
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	28118 MPixel/s -1%
Aoostar GEM10 AMD Ryzen 7 6800H, Radeon 680M	26496 MPixel/s -7%
Geekom A5 AMD Ryzen 7 5800H, Vega 8	25113 MPixel/s -12%

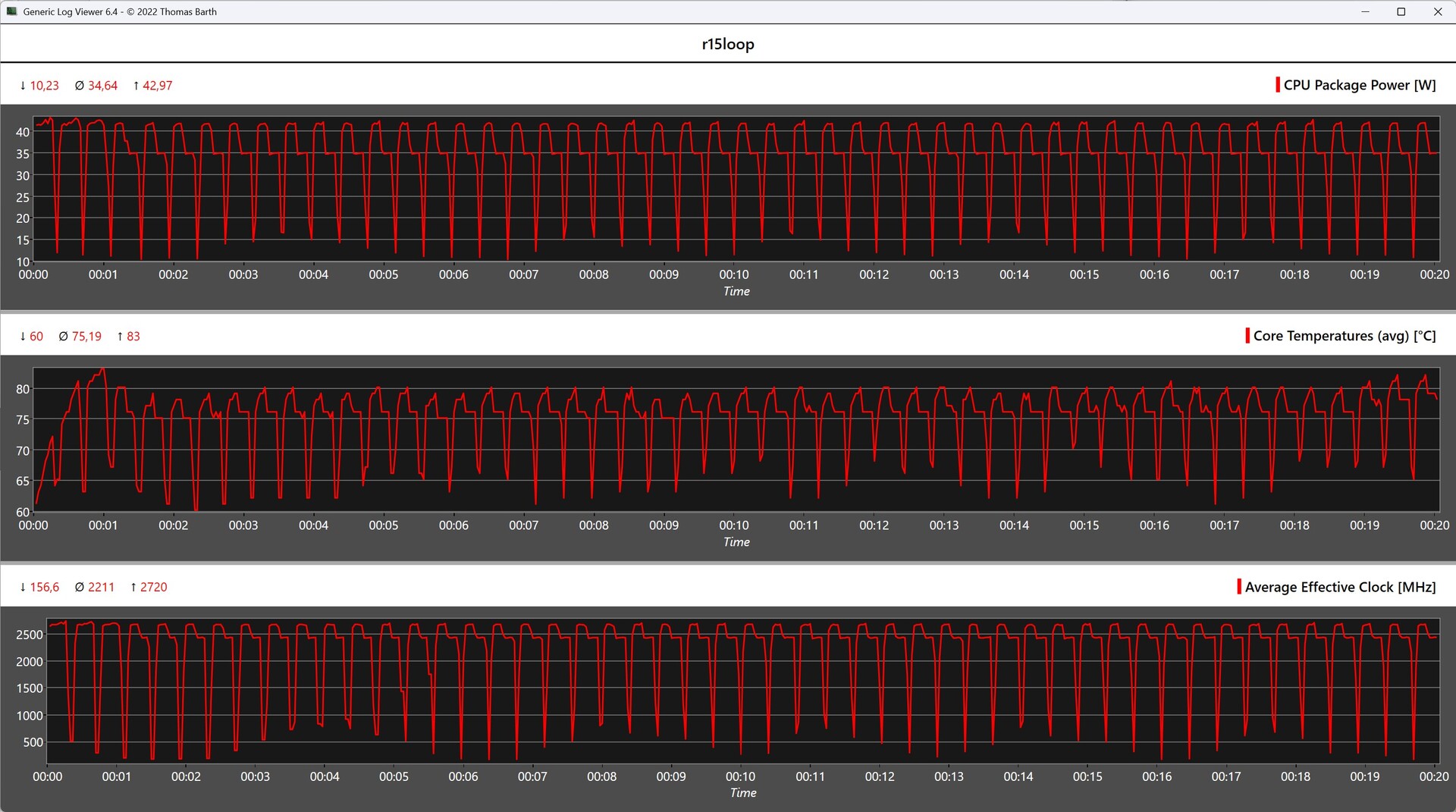

Cinebench R15 多连续测试

总体而言，Geekom Mini IT13（2025）在 Cinebench R15 压力测试中表现良好。其性能基本保持稳定，在连续负载下仅有极小的下降。即便如此，由于温度限制首先启动，它也没有完全利用 55 瓦的最大功率限制。

Geekom Mini IT13 Intel Core i9-13900HK, Intel Core i9-13900HK: Ø1900 (1875.47-2011.87)

Minisforum UH125 Pro Intel Core Ultra 5 125H, Intel Core Ultra 5 125H: Ø2186 (2040.4-2248.33)

Aoostar GEM10 AMD Ryzen 7 6800H, AMD Ryzen 7 6800H: Ø1983 (1919.75-2106.82)

Geekom Mini IT12 Intel Core i7-1260P, Intel Core i7-1260P: Ø1280 (1241-1619.37)

Acemagic AM18 AMD Ryzen 7 7840HS, AMD Ryzen 7 7840HS: Ø2489 (2476.93-2539.84)

Geekom A5 AMD Ryzen 7 5800H, AMD Ryzen 7 5800H: Ø1715 (1692.05-1838.74)

系统性能

在合成基准测试中，尤其是在 PCMark 10 中，Geekom Mini IT13 保守的 PL2 降低了系统性能。不过，它在 Crossmark 和内存测试中表现较好，在某些情况下甚至超过了竞争对手。与 DDR5 相比，DDR4 的劣势在内存测试中尤为明显。遗憾的是，Geekom 没有选择 DDR5 内存。

PCMark 10: Score | Essentials | Productivity

PCMark 10 / Score
Acemagic AM18, AMD Ryzen 7 7840HS AMD Radeon 780M, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	7651 Points +34%
Aoostar GEM10, AMD Ryzen 7 6800H AMD Radeon 680M, BIWIN CE980Y28900-1TB	6749 Points +18%
Minisforum UH125 Pro, Intel Core Ultra 5 125H Intel Arc 7-Core iGPU, Kingston OM8PGP41024Q-A0	6194 Points +8%
Geekom A5, AMD Ryzen 7 5800H AMD Radeon RX Vega 8 (Ryzen 4000/5000), Lexar NM620 512GB	6149 Points +7%
Geekom Mini IT13, Intel Core i9-13900HK Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP41024N-A0	5730 Points
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	5658 Points -1%

PCMark 10 / Essentials
Acemagic AM18, AMD Ryzen 7 7840HS AMD Radeon 780M, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	11097 Points +15%
Aoostar GEM10, AMD Ryzen 7 6800H AMD Radeon 680M, BIWIN CE980Y28900-1TB	10522 Points +9%
Geekom A5, AMD Ryzen 7 5800H AMD Radeon RX Vega 8 (Ryzen 4000/5000), Lexar NM620 512GB	10356 Points +8%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	10139 Points +5%
Geekom Mini IT13, Intel Core i9-13900HK Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP41024N-A0	9629 Points
Minisforum UH125 Pro, Intel Core Ultra 5 125H Intel Arc 7-Core iGPU, Kingston OM8PGP41024Q-A0	9427 Points -2%

PCMark 10 / Productivity
Acemagic AM18, AMD Ryzen 7 7840HS AMD Radeon 780M, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	10970 Points +48%
Aoostar GEM10, AMD Ryzen 7 6800H AMD Radeon 680M, BIWIN CE980Y28900-1TB	9367 Points +26%
Geekom A5, AMD Ryzen 7 5800H AMD Radeon RX Vega 8 (Ryzen 4000/5000), Lexar NM620 512GB	9311 Points +25%
Minisforum UH125 Pro, Intel Core Ultra 5 125H Intel Arc 7-Core iGPU, Kingston OM8PGP41024Q-A0	7715 Points +4%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	7427 Points 0%
Geekom Mini IT13, Intel Core i9-13900HK Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP41024N-A0	7426 Points

CrossMark: Overall | Responsiveness | Creativity | Productivity

CrossMark / Overall
Acemagic AM18, AMD Ryzen 7 7840HS AMD Radeon 780M, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	1828 Points +2%
Geekom Mini IT13, Intel Core i9-13900HK Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP41024N-A0	1788 Points
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	1738 Points -3%
Aoostar GEM10, AMD Ryzen 7 6800H AMD Radeon 680M, BIWIN CE980Y28900-1TB	1648 Points -8%
Minisforum UH125 Pro, Intel Core Ultra 5 125H Intel Arc 7-Core iGPU, Kingston OM8PGP41024Q-A0	1533 Points -14%
Geekom A5, AMD Ryzen 7 5800H AMD Radeon RX Vega 8 (Ryzen 4000/5000), Lexar NM620 512GB	1429 Points -20%

CrossMark / Responsiveness
Geekom Mini IT13, Intel Core i9-13900HK Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP41024N-A0	1964 Points
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	1734 Points -12%
Aoostar GEM10, AMD Ryzen 7 6800H AMD Radeon 680M, BIWIN CE980Y28900-1TB	1566 Points -20%
Acemagic AM18, AMD Ryzen 7 7840HS AMD Radeon 780M, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	1541 Points -22%
Minisforum UH125 Pro, Intel Core Ultra 5 125H Intel Arc 7-Core iGPU, Kingston OM8PGP41024Q-A0	1332 Points -32%
Geekom A5, AMD Ryzen 7 5800H AMD Radeon RX Vega 8 (Ryzen 4000/5000), Lexar NM620 512GB	1233 Points -37%

CrossMark / Creativity
Acemagic AM18, AMD Ryzen 7 7840HS AMD Radeon 780M, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	2030 Points +17%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	1749 Points +1%
Geekom Mini IT13, Intel Core i9-13900HK Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP41024N-A0	1737 Points
Aoostar GEM10, AMD Ryzen 7 6800H AMD Radeon 680M, BIWIN CE980Y28900-1TB	1696 Points -2%
Minisforum UH125 Pro, Intel Core Ultra 5 125H Intel Arc 7-Core iGPU, Kingston OM8PGP41024Q-A0	1683 Points -3%
Geekom A5, AMD Ryzen 7 5800H AMD Radeon RX Vega 8 (Ryzen 4000/5000), Lexar NM620 512GB	1523 Points -12%

CrossMark / Productivity
Geekom Mini IT13, Intel Core i9-13900HK Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP41024N-A0	1783 Points
Acemagic AM18, AMD Ryzen 7 7840HS AMD Radeon 780M, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	1743 Points -2%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	1729 Points -3%
Aoostar GEM10, AMD Ryzen 7 6800H AMD Radeon 680M, BIWIN CE980Y28900-1TB	1629 Points -9%
Minisforum UH125 Pro, Intel Core Ultra 5 125H Intel Arc 7-Core iGPU, Kingston OM8PGP41024Q-A0	1463 Points -18%
Geekom A5, AMD Ryzen 7 5800H AMD Radeon RX Vega 8 (Ryzen 4000/5000), Lexar NM620 512GB	1408 Points -21%

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Minisforum UH125 Pro Intel Core Ultra 5 125H, Arc 7-Core	69592 MB/s +52%
Acemagic AM18 AMD Ryzen 7 7840HS, Radeon 780M	68299 MB/s +49%
Aoostar GEM10 AMD Ryzen 7 6800H, Radeon 680M	50829 MB/s +11%
Average of class Mini PC (8377 - 89287, n=117, last 2 years)	50110 MB/s +9%
Geekom Mini IT13 Intel Core i9-13900HK, Iris Xe G7 96EUs	45935 MB/s
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	44726 MB/s -3%
Geekom A5 AMD Ryzen 7 5800H, Vega 8	43870 MB/s -4%

AIDA64 / Memory Read
Minisforum UH125 Pro Intel Core Ultra 5 125H, Arc 7-Core	72711 MB/s +60%
Acemagic AM18 AMD Ryzen 7 7840HS, Radeon 780M	61463 MB/s +36%
Average of class Mini PC (8974 - 100086, n=117, last 2 years)	51161 MB/s +13%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	47491 MB/s +5%
Geekom A5 AMD Ryzen 7 5800H, Vega 8	46241 MB/s +2%
Geekom Mini IT13 Intel Core i9-13900HK, Iris Xe G7 96EUs	45323 MB/s
Aoostar GEM10 AMD Ryzen 7 6800H, Radeon 680M	43828 MB/s -3%

AIDA64 / Memory Write
Acemagic AM18 AMD Ryzen 7 7840HS, Radeon 780M	86273 MB/s +82%
Minisforum UH125 Pro Intel Core Ultra 5 125H, Arc 7-Core	71514 MB/s +51%
Average of class Mini PC (8762 - 100538, n=117, last 2 years)	54994 MB/s +16%
Aoostar GEM10 AMD Ryzen 7 6800H, Radeon 680M	51116 MB/s +8%
Geekom Mini IT13 Intel Core i9-13900HK, Iris Xe G7 96EUs	47347 MB/s
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	46785 MB/s -1%
Geekom A5 AMD Ryzen 7 5800H, Vega 8	46407 MB/s -2%

AIDA64 / Memory Latency
Minisforum UH125 Pro Intel Core Ultra 5 125H, Arc 7-Core	184.8 ns * -121%
Aoostar GEM10 AMD Ryzen 7 6800H, Radeon 680M	104.1 ns * -24%
Average of class Mini PC (44.9 - 184.8, n=117, last 2 years)	91.5 ns * -9%
Acemagic AM18 AMD Ryzen 7 7840HS, Radeon 780M	87.9 ns * -5%
Geekom Mini IT13 Intel Core i9-13900HK, Iris Xe G7 96EUs	83.7 ns *
Geekom A5 AMD Ryzen 7 5800H, Vega 8	81.4 ns * +3%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	80.2 ns * +4%

* ... smaller is better

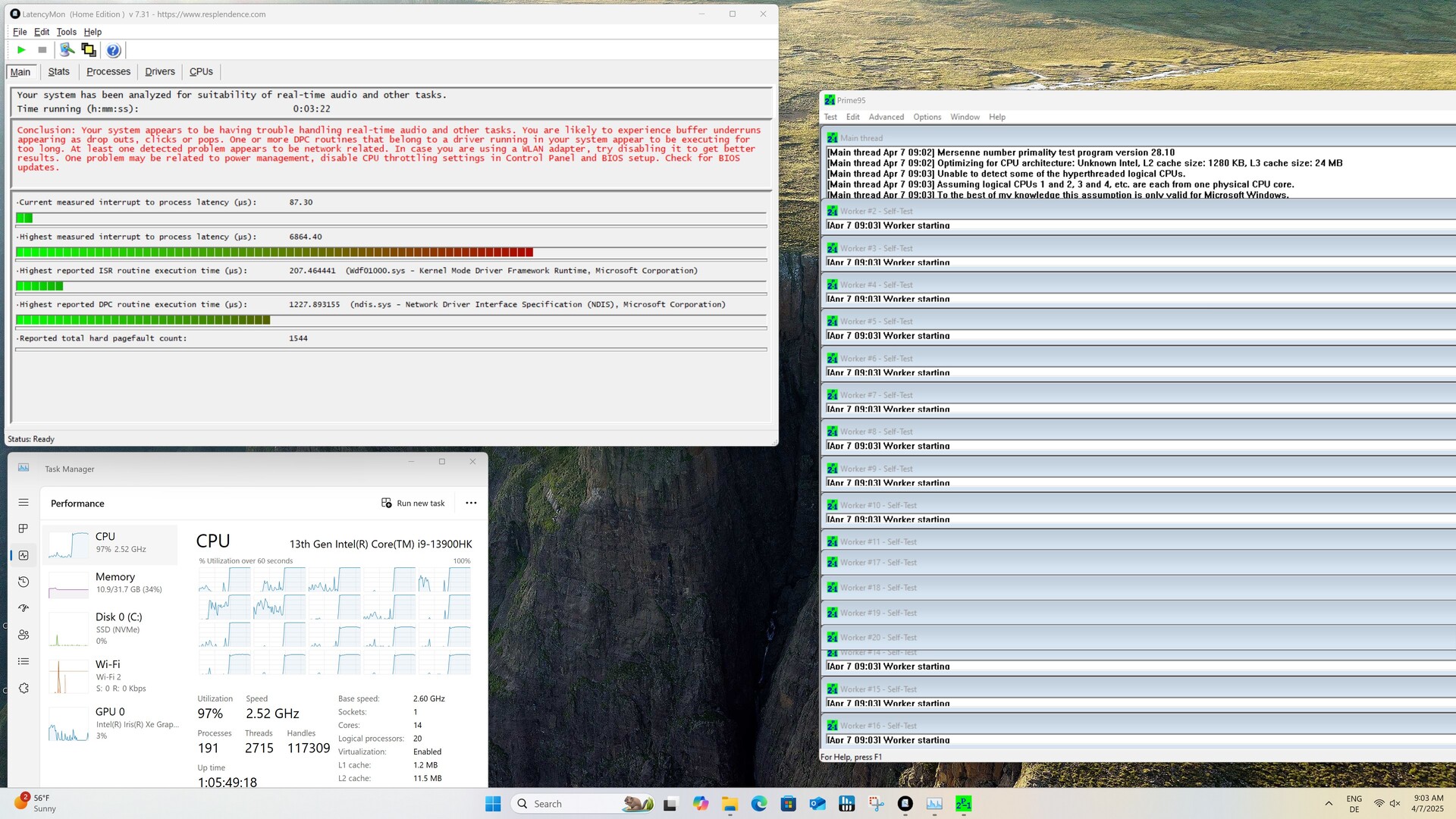

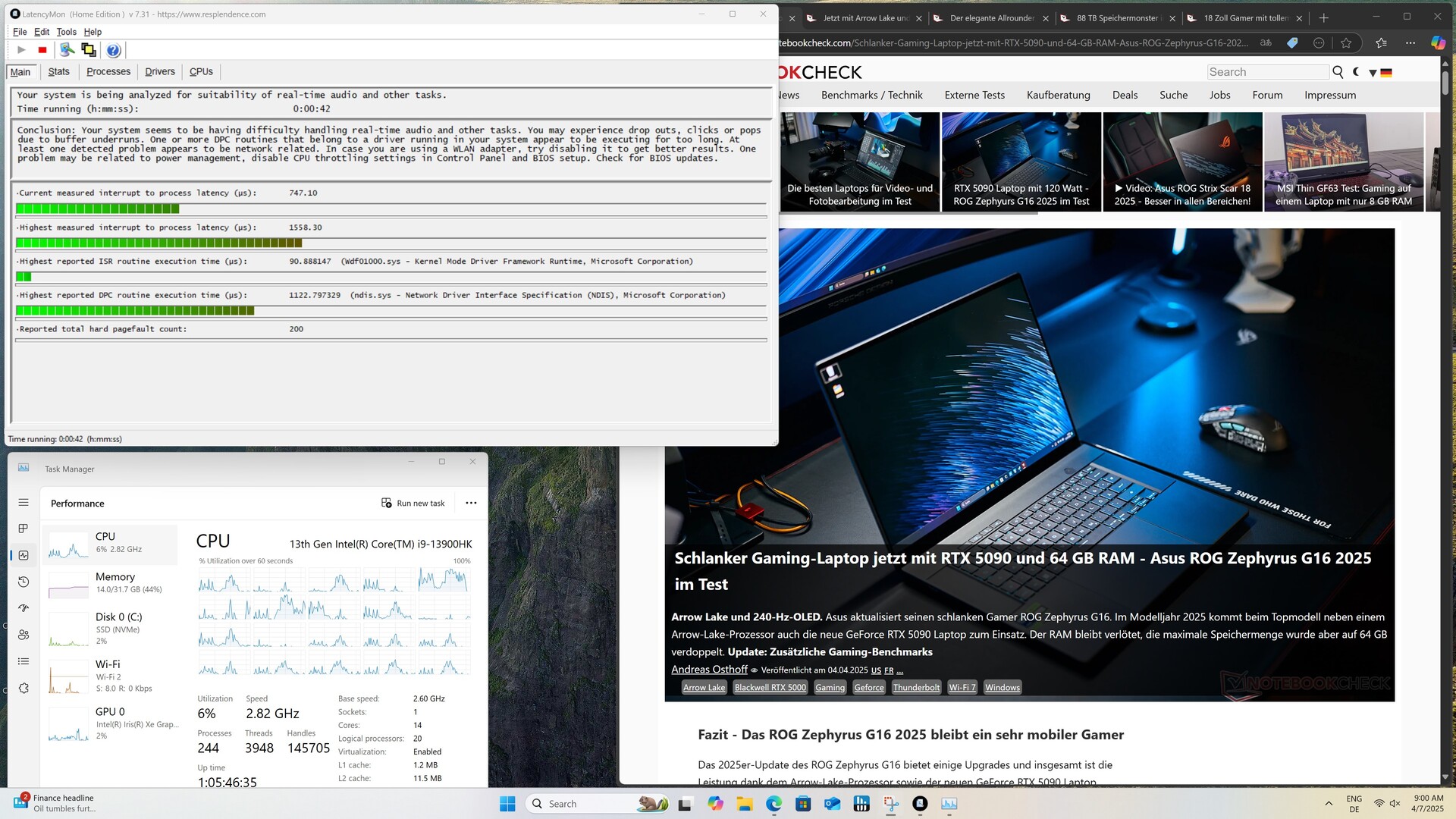

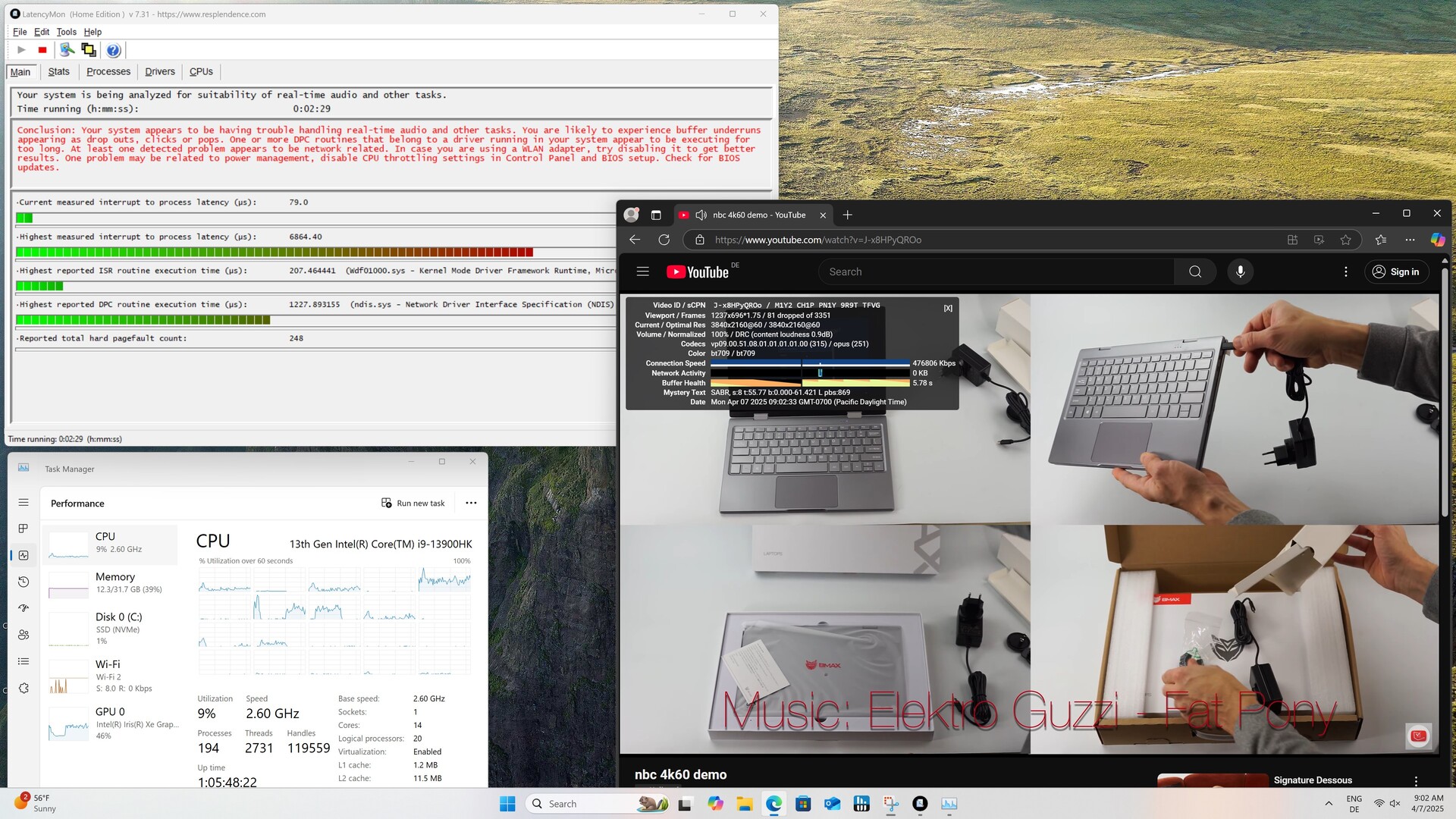

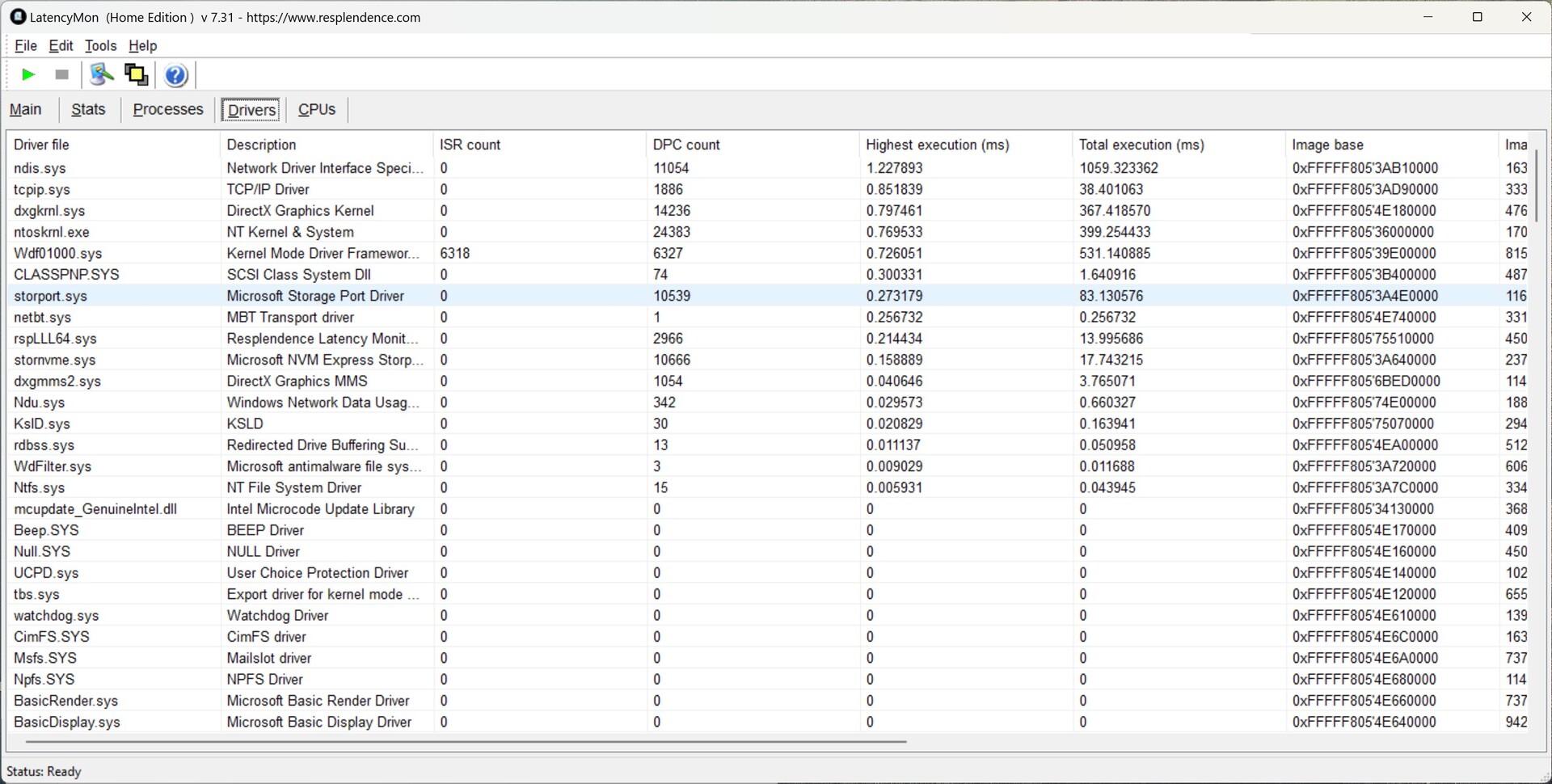

DPC 延迟

我们测量的 Geekom Mini IT13 (2025) 的 DPC 延迟适中。对于视频流或普通音频应用等日常任务来说，这已经足够，但对于实时音频或对延迟要求特别高的应用，不建议使用这款迷你电脑。

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Minisforum UH125 Pro Arc 7-Core, Ultra 5 125H, Kingston OM8PGP41024Q-A0	1438 μs * -17%
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	1310.5 μs * -7%
Geekom Mini IT13 Iris Xe G7 96EUs, i9-13900HK, Kingston OM8PGP41024N-A0	1227.9 μs *
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	985.8 μs * +20%
Aoostar GEM10 Radeon 680M, R7 6800H, BIWIN CE980Y28900-1TB	962.8 μs * +22%
Acemagic AM18 Radeon 780M, R7 7840HS, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	900 μs * +27%

* ... smaller is better

存储设备

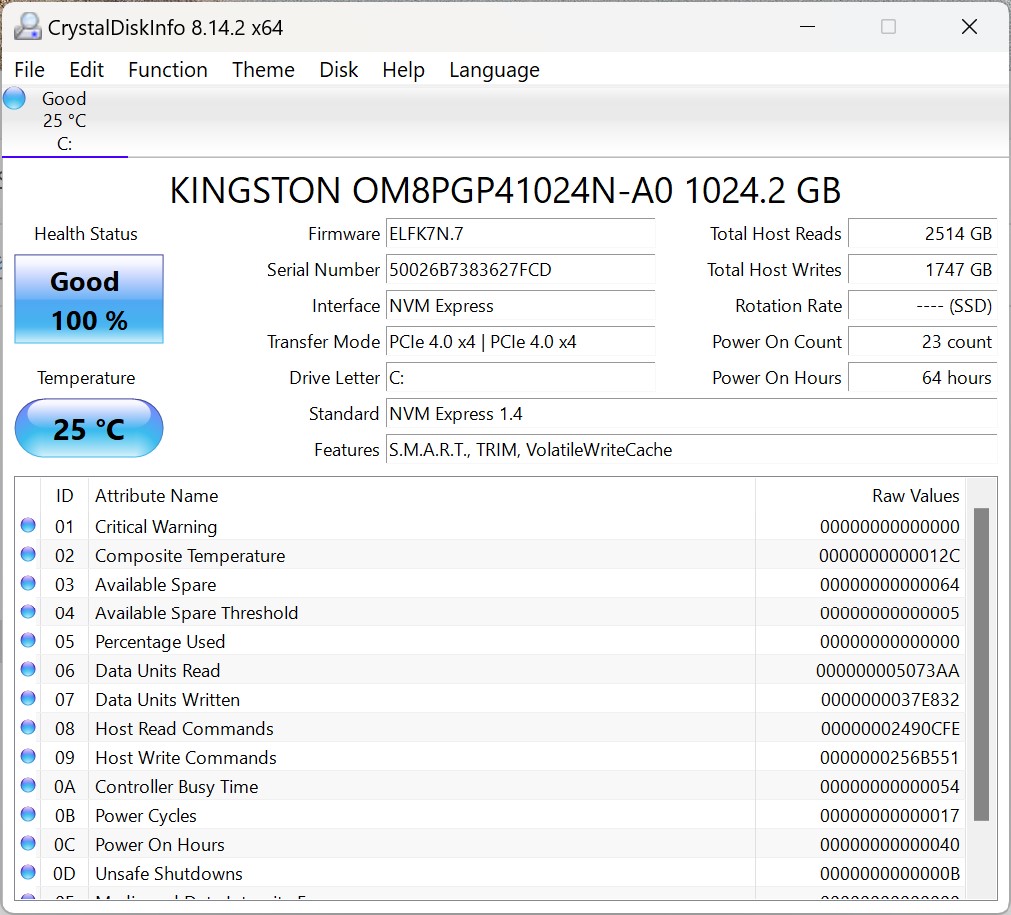

Geekom Mini IT13 (2025) 通过 PCIe Gen4 连接安装了 1 TB、M.2 格式的金士顿 NVMe 固态硬盘。该固态硬盘可为日常任务提供稳定的性能，但更适合主流市场而非高端用户。其性能足以胜任典型的办公、多媒体和系统应用。这款迷你 PC 最多支持三个驱动器：一个 NVMe 固态硬盘、一个额外的 M.2-2242 固态硬盘（SATA）和一个 2.5 英寸存储设备。

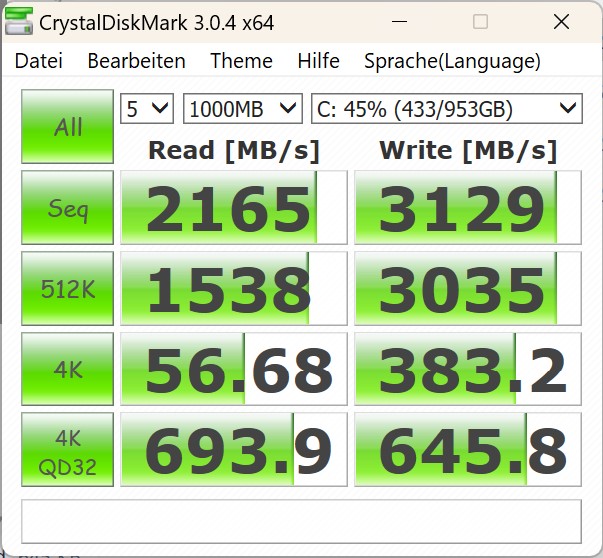

CrystalDiskMark 3.0

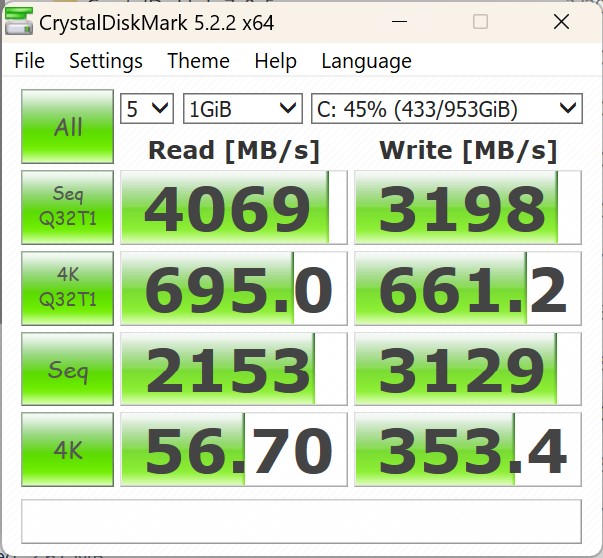

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

Kingston OM8PGP41024N-A0

Sequential Read: 2165 MB/s

Sequential Write: 3129 MB/s

512K Read: 1538 MB/s

512K Write: 3035 MB/s

4K Read: 56.68 MB/s

4K Write: 383.2 MB/s

4K QD32 Read: 693.9 MB/s

4K QD32 Write: 645.8 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Aoostar GEM10 BIWIN CE980Y28900-1TB	89.5 pt
Geekom Mini IT13 Kingston OM8PGP41024N-A0	75.9 pt
Minisforum UH125 Pro Kingston OM8PGP41024Q-A0	63.2 pt
Average of class Mini PC	62.1 pt
Geekom A5 Lexar NM620 512GB	61.1 pt
Acemagic AM18 Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	56.6 pt
Geekom Mini IT12 Kingston OM8SEP4512N-A0	43.6 pt

DiskSpd
seq read
Aoostar GEM10 BIWIN CE980Y28900-1TB	4000 (3961.36^min - 3999.66^max) MB/s +101%
Geekom A5 Lexar NM620 512GB	2371 (2315.68^min - 2370.91^max) MB/s +19%
Average of class Mini PC (277 - 4357, n=116, last 2 years)	2355 MB/s +18%
Minisforum UH125 Pro Kingston OM8PGP41024Q-A0	2351 (2320.68^min - 2350.61^max) MB/s +18%
Acemagic AM18 Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	2279 (2272.33^min - 2279.03^max) MB/s +14%
Geekom Mini IT13 Kingston OM8PGP41024N-A0	1992 (1970.27^min - 1992.29^max) MB/s
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1451 (1441.37^min - 1451.23^max) MB/s -27%
seq write
Aoostar GEM10 BIWIN CE980Y28900-1TB	4553 (4417.86^min - 4552.92^max) MB/s +46%
Minisforum UH125 Pro Kingston OM8PGP41024Q-A0	3331 (3244.92^min - 3330.75^max) MB/s +7%
Geekom Mini IT13 Kingston OM8PGP41024N-A0	3111 (3082.06^min - 3110.5^max) MB/s
Geekom A5 Lexar NM620 512GB	2668 (292.6^min - 2668^max) MB/s -14%
Acemagic AM18 Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	2629 (1414.22^min - 2628.56^max) MB/s -15%
Average of class Mini PC (229 - 5595, n=116, last 2 years)	2574 MB/s -17%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1203 (1169.58^min - 1202.51^max) MB/s -61%
seq q8 t1 read
Aoostar GEM10 BIWIN CE980Y28900-1TB	4878 (4476.29^min - 4877.98^max) MB/s +20%
Minisforum UH125 Pro Kingston OM8PGP41024Q-A0	4802 (4169.19^min - 4801.68^max) MB/s +18%
Acemagic AM18 Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	4684 (4089.86^min - 4684.2^max) MB/s +15%
Geekom Mini IT13 Kingston OM8PGP41024N-A0	4060 (3382.65^min - 4059.52^max) MB/s
Average of class Mini PC (274 - 8430, n=116, last 2 years)	3862 MB/s -5%
Geekom A5 Lexar NM620 512GB	3444 (2979.63^min - 3443.98^max) MB/s -15%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1694 (1415.05^min - 1693.87^max) MB/s -58%
seq q8 t1 write
Aoostar GEM10 BIWIN CE980Y28900-1TB	4505 (4403.81^min - 4505.09^max) MB/s +41%
Minisforum UH125 Pro Kingston OM8PGP41024Q-A0	3902 (3839.68^min - 3901.75^max) MB/s +22%
Geekom Mini IT13 Kingston OM8PGP41024N-A0	3191 (3136.73^min - 3190.52^max) MB/s
Geekom A5 Lexar NM620 512GB	3117 (3075.4^min - 3117.21^max) MB/s -2%
Average of class Mini PC (239 - 6669, n=116, last 2 years)	2888 MB/s -9%
Acemagic AM18 Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	2627 (2402.52^min - 2626.88^max) MB/s -18%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1213 (1155.74^min - 1212.78^max) MB/s -62%
4k q1 t1 read
Aoostar GEM10 BIWIN CE980Y28900-1TB	61.7 (61.26^min - 61.71^max) MB/s +13%
Minisforum UH125 Pro Kingston OM8PGP41024Q-A0	60 (58.44^min - 60.02^max) MB/s +9%
Average of class Mini PC (6.85 - 87.3, n=116, last 2 years)	55.8 MB/s +2%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	55.6 (54.87^min - 55.6^max) MB/s +1%
Acemagic AM18 Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	55.6 (53.92^min - 55.58^max) MB/s +1%
Geekom Mini IT13 Kingston OM8PGP41024N-A0	54.8 (52.85^min - 54.76^max) MB/s
Geekom A5 Lexar NM620 512GB	54.5 (37.15^min - 54.54^max) MB/s -1%
4k q1 t1 write
Geekom Mini IT13 Kingston OM8PGP41024N-A0	397 (389.84^min - 396.88^max) MB/s
Geekom Mini IT12 Kingston OM8SEP4512N-A0	276 (193.9^min - 275.81^max) MB/s -30%
Aoostar GEM10 BIWIN CE980Y28900-1TB	235 (230.8^min - 235.02^max) MB/s -41%
Average of class Mini PC (30.4 - 435, n=116, last 2 years)	198.4 MB/s -50%
Acemagic AM18 Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	151.3 (148.71^min - 151.28^max) MB/s -62%
Geekom A5 Lexar NM620 512GB	148.4 (147.43^min - 148.38^max) MB/s -63%
Minisforum UH125 Pro Kingston OM8PGP41024Q-A0	136.8 (131.56^min - 136.81^max) MB/s -66%
4k q32 t16 read
Aoostar GEM10 BIWIN CE980Y28900-1TB	2004 (2002.37^min - 2004.23^max) MB/s +155%
Geekom A5 Lexar NM620 512GB	1960 MB/s +149%
Average of class Mini PC (26.1 - 4158, n=116, last 2 years)	1431 MB/s +82%
Acemagic AM18 Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	910 (889.36^min - 909.64^max) MB/s +16%
Geekom Mini IT13 Kingston OM8PGP41024N-A0	787 (747.83^min - 787.27^max) MB/s
Minisforum UH125 Pro Kingston OM8PGP41024Q-A0	698 (691.89^min - 697.84^max) MB/s -11%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	420 (418.45^min - 419.54^max) MB/s -47%
4k q32 t16 write
Geekom Mini IT13 Kingston OM8PGP41024N-A0	2886 (593.45^min - 2886.36^max) MB/s
Aoostar GEM10 BIWIN CE980Y28900-1TB	2681 (2560.18^min - 2680.76^max) MB/s -7%
Acemagic AM18 Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	1583 (825.5^min - 1583.41^max) MB/s -45%
Geekom A5 Lexar NM620 512GB	1370 (84.65^min - 1370.23^max) MB/s -53%
Average of class Mini PC (32.6 - 4288, n=116, last 2 years)	1364 MB/s -53%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	942 (402.72^min - 941.71^max) MB/s -67%
Minisforum UH125 Pro Kingston OM8PGP41024Q-A0	311 (252.72^min - 310.91^max) MB/s -89%

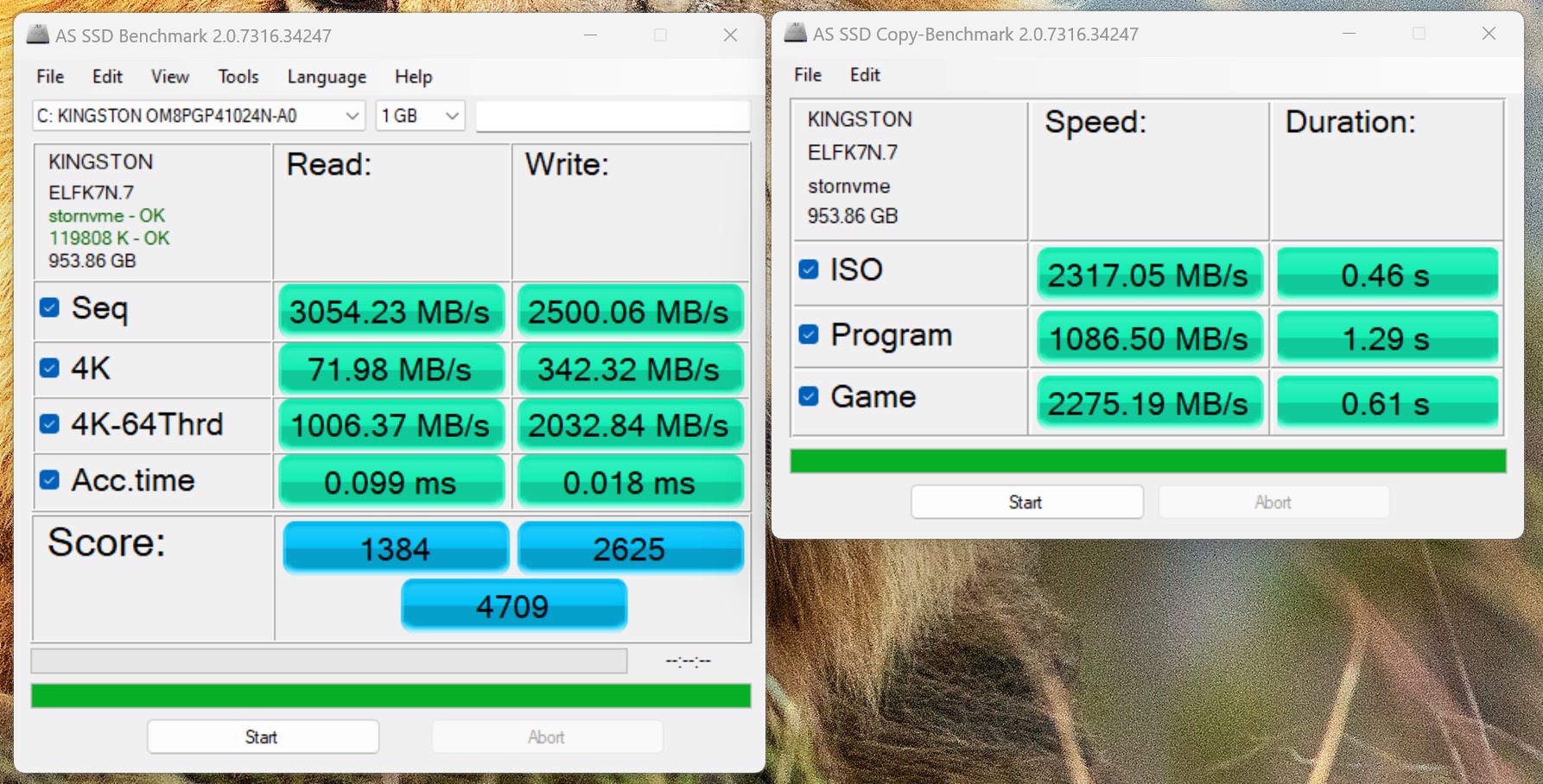

AS SSD
Score Total
Aoostar GEM10 BIWIN CE980Y28900-1TB	6147 Points +31%
Geekom Mini IT13 Kingston OM8PGP41024N-A0	4709 Points
Average of class Mini PC (211 - 10021, n=114, last 2 years)	4216 Points -10%
Geekom A5 Lexar NM620 512GB	4006 Points -15%
Minisforum UH125 Pro Kingston OM8PGP41024Q-A0	3878 Points -18%
Acemagic AM18 Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	3435 Points -27%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	2491 Points -47%
Score Read
Aoostar GEM10 BIWIN CE980Y28900-1TB	2109 Points +52%
Average of class Mini PC (76 - 3741, n=114, last 2 years)	1552 Points +12%
Geekom A5 Lexar NM620 512GB	1502 Points +9%
Geekom Mini IT13 Kingston OM8PGP41024N-A0	1384 Points
Acemagic AM18 Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	1248 Points -10%
Minisforum UH125 Pro Kingston OM8PGP41024Q-A0	1096 Points -21%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	725 Points -48%
Score Write
Aoostar GEM10 BIWIN CE980Y28900-1TB	2964 Points +13%
Geekom Mini IT13 Kingston OM8PGP41024N-A0	2625 Points
Minisforum UH125 Pro Kingston OM8PGP41024Q-A0	2306 Points -12%
Average of class Mini PC (88 - 4371, n=114, last 2 years)	1910 Points -27%
Geekom A5 Lexar NM620 512GB	1739 Points -34%
Acemagic AM18 Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	1600 Points -39%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1457 Points -44%
Seq Read
Aoostar GEM10 BIWIN CE980Y28900-1TB	4264 MB/s +40%
Acemagic AM18 Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	3835 MB/s +26%
Minisforum UH125 Pro Kingston OM8PGP41024Q-A0	3808 MB/s +25%
Average of class Mini PC (291 - 6620, n=114, last 2 years)	3242 MB/s +6%
Geekom Mini IT13 Kingston OM8PGP41024N-A0	3054 MB/s
Geekom A5 Lexar NM620 512GB	3020 MB/s -1%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	2789 MB/s -9%
Seq Write
Aoostar GEM10 BIWIN CE980Y28900-1TB	3970 MB/s +59%
Geekom A5 Lexar NM620 512GB	2714 MB/s +9%
Acemagic AM18 Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	2568 MB/s +3%
Geekom Mini IT13 Kingston OM8PGP41024N-A0	2500 MB/s
Average of class Mini PC (242 - 5783, n=114, last 2 years)	2342 MB/s -6%
Minisforum UH125 Pro Kingston OM8PGP41024Q-A0	1787 MB/s -29%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1232 MB/s -51%
4K Read
Geekom Mini IT13 Kingston OM8PGP41024N-A0	72 MB/s
Aoostar GEM10 BIWIN CE980Y28900-1TB	68.4 MB/s -5%
Average of class Mini PC (18.2 - 104.3, n=114, last 2 years)	58.9 MB/s -18%
Geekom A5 Lexar NM620 512GB	57.7 MB/s -20%
Minisforum UH125 Pro Kingston OM8PGP41024Q-A0	57.3 MB/s -20%
Acemagic AM18 Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	52.4 MB/s -27%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	48.9 MB/s -32%
4K Write
Geekom Mini IT13 Kingston OM8PGP41024N-A0	342 MB/s
Geekom Mini IT12 Kingston OM8SEP4512N-A0	273 MB/s -20%
Aoostar GEM10 BIWIN CE980Y28900-1TB	196.5 MB/s -43%
Minisforum UH125 Pro Kingston OM8PGP41024Q-A0	182.1 MB/s -47%
Average of class Mini PC (30.9 - 366, n=114, last 2 years)	178.5 MB/s -48%
Acemagic AM18 Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	139.4 MB/s -59%
Geekom A5 Lexar NM620 512GB	125.5 MB/s -63%
4K-64 Read
Aoostar GEM10 BIWIN CE980Y28900-1TB	1614 MB/s +60%
Average of class Mini PC (23.4 - 3220, n=114, last 2 years)	1169 MB/s +16%
Geekom A5 Lexar NM620 512GB	1143 MB/s +14%
Geekom Mini IT13 Kingston OM8PGP41024N-A0	1006 MB/s
Acemagic AM18 Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	812 MB/s -19%
Minisforum UH125 Pro Kingston OM8PGP41024Q-A0	658 MB/s -35%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	397 MB/s -61%
4K-64 Write
Aoostar GEM10 BIWIN CE980Y28900-1TB	2370 MB/s +17%
Geekom Mini IT13 Kingston OM8PGP41024N-A0	2033 MB/s
Minisforum UH125 Pro Kingston OM8PGP41024Q-A0	1945 MB/s -4%
Average of class Mini PC (32.8 - 3731, n=114, last 2 years)	1497 MB/s -26%
Geekom A5 Lexar NM620 512GB	1342 MB/s -34%
Acemagic AM18 Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	1204 MB/s -41%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1060 MB/s -48%
Access Time Read
Acemagic AM18 Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	0.173 ms * -75%
Minisforum UH125 Pro Kingston OM8PGP41024Q-A0	0.101 ms * -2%
Average of class Mini PC (0.025 - 0.489, n=114, last 2 years)	0.09939 ms * -0%
Geekom Mini IT13 Kingston OM8PGP41024N-A0	0.099 ms *
Geekom Mini IT12 Kingston OM8SEP4512N-A0	0.098 ms * +1%
Aoostar GEM10 BIWIN CE980Y28900-1TB	0.098 ms * +1%
Geekom A5 Lexar NM620 512GB	0.08 ms * +19%
Access Time Write
Geekom A5 Lexar NM620 512GB	0.13 ms * -622%
Average of class Mini PC (0.014 - 0.765, n=114, last 2 years)	0.1203 ms * -568%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	0.118 ms * -556%
Acemagic AM18 Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	0.078 ms * -333%
Aoostar GEM10 BIWIN CE980Y28900-1TB	0.061 ms * -239%
Minisforum UH125 Pro Kingston OM8PGP41024Q-A0	0.024 ms * -33%
Geekom Mini IT13 Kingston OM8PGP41024N-A0	0.018 ms *

* ... smaller is better

Reading continuous performance: DiskSpd Read Loop, Queue Depth 8

Geekom Mini IT13 Kingston OM8PGP41024N-A0; diskspd 2.0.17 f: Ø4046 (3379.61-4063.86)

Minisforum UH125 Pro Kingston OM8PGP41024Q-A0; diskspd 2.0.17 f: Ø4790 (4223.81-4803.95)

Aoostar GEM10 BIWIN CE980Y28900-1TB; diskspd 2.0.17 f: Ø4833 (4418.07-4847.99)

Geekom Mini IT12 Kingston OM8SEP4512N-A0: Ø2178 (1555.46-2595.65)

Acemagic AM18 Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe; diskspd 2.0.17 f: Ø4663 (3995.26-4684.2)

Geekom A5 Lexar NM620 512GB: Ø3437 (3126.47-3454.22)

图形卡和游戏性能

Geekom Mini IT13 配备的英特尔 Iris Xe 图形处理器性能有限，主要用于简单的图像输出。基准测试显示，该 iGPU 已不再是最新的 iGPU，因此，它落后于当前的机型，如 Minisforum UH125 Pro.IT13 几乎不适合玩游戏，只能运行较老或要求不高的游戏。对于要求较高的图形应用程序，需要通过 USB4 外接 GPU。

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Acemagic AM18 AMD Radeon 780M, AMD Ryzen 7 7840HS	100 pt
Aoostar GEM10 AMD Radeon 680M, AMD Ryzen 7 6800H	88 pt
Minisforum UH125 Pro Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	85.4 pt
Geekom Mini IT13 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900HK	57.1 pt
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	53.1 pt
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	51.9 pt

3DMark 11 - 1280x720 Performance GPU
Acemagic AM18 AMD Radeon 780M, AMD Ryzen 7 7840HS	13636 Points +100%
Aoostar GEM10 AMD Radeon 680M, AMD Ryzen 7 6800H	11668 Points +71%
Minisforum UH125 Pro Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	10303 Points +51%
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	7101 Points +4%
Geekom Mini IT13 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900HK	6810 Points
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	6599 Points -3%

3DMark
2560x1440 Time Spy Graphics
Acemagic AM18 AMD Radeon 780M, AMD Ryzen 7 7840HS	2912 Points +80%
Minisforum UH125 Pro Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	2796 Points +73%
Aoostar GEM10 AMD Radeon 680M, AMD Ryzen 7 6800H	2518 Points +56%
Geekom Mini IT13 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900HK	1615 Points
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	1528 Points -5%
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	1418 Points -12%
1920x1080 Fire Strike Graphics
Acemagic AM18 AMD Radeon 780M, AMD Ryzen 7 7840HS	8327 Points +52%
Aoostar GEM10 AMD Radeon 680M, AMD Ryzen 7 6800H	7653 Points +39%
Minisforum UH125 Pro Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	7047 Points +28%
Geekom Mini IT13 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900HK	5490 Points
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	4860 Points -11%
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	4567 Points -17%

Unigine Heaven 4.0
Extreme Preset OpenGL
Aoostar GEM10 AMD Radeon 680M, AMD Ryzen 7 6800H	37 fps +54%
Acemagic AM18 AMD Radeon 780M, AMD Ryzen 7 7840HS	34 fps +41%
Minisforum UH125 Pro Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	29.6 fps +23%
Geekom Mini IT13 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900HK	24.1 fps
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	22.8 fps -5%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	21 fps -13%
Extreme Preset DX11
Acemagic AM18 AMD Radeon 780M, AMD Ryzen 7 7840HS	35.3 fps +43%
Aoostar GEM10 AMD Radeon 680M, AMD Ryzen 7 6800H	34.7 fps +41%
Minisforum UH125 Pro Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	31.5 fps +28%
Geekom Mini IT13 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900HK	24.6 fps
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	22 fps -11%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	21.7 fps -12%

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Acemagic AM18 AMD Radeon 780M, AMD Ryzen 7 7840HS	24 fps +62%
Aoostar GEM10 AMD Radeon 680M, AMD Ryzen 7 6800H	23.7 fps +60%
Minisforum UH125 Pro Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	16.9 fps +14%
Geekom Mini IT13 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900HK	14.8 fps
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	14.2 fps -4%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	13.2 fps -11%
1920x1080 Extreme HD Preset OpenGL AA:x8
Aoostar GEM10 AMD Radeon 680M, AMD Ryzen 7 6800H	25.5 fps +67%
Acemagic AM18 AMD Radeon 780M, AMD Ryzen 7 7840HS	20.8 fps +36%
Minisforum UH125 Pro Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	18.3 fps +20%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	16.1 fps +5%
Geekom Mini IT13 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900HK	15.3 fps
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	14.7 fps -4%

Unigine Superposition
1280x720 720p Low
Aoostar GEM10 AMD Radeon 680M, AMD Ryzen 7 6800H	11940 Points +91%
Acemagic AM18 AMD Radeon 780M, AMD Ryzen 7 7840HS	11903 Points +90%
Minisforum UH125 Pro Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	10026 Points +60%
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	7952 Points +27%
Geekom Mini IT13 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900HK	6260 Points
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	5141 Points -18%
1920x1080 1080p High
Acemagic AM18 AMD Radeon 780M, AMD Ryzen 7 7840HS	3631 Points +64%
Aoostar GEM10 AMD Radeon 680M, AMD Ryzen 7 6800H	3380 Points +53%
Minisforum UH125 Pro Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	3066 Points +38%
Geekom Mini IT13 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900HK	2215 Points
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	1949 Points -12%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	1923 Points -13%
1920x1080 1080p Extreme
Acemagic AM18 AMD Radeon 780M, AMD Ryzen 7 7840HS	1777 Points +67%
Minisforum UH125 Pro Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	1686 Points +59%
Aoostar GEM10 AMD Radeon 680M, AMD Ryzen 7 6800H	1424 Points +34%
Geekom Mini IT13 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900HK	1062 Points
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	992 Points -7%
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	914 Points -14%

ComputeMark v2.1
1024x600 Normal, Score
Acemagic AM18 AMD Radeon 780M, AMD Ryzen 7 7840HS	9863 Points +180%
Aoostar GEM10 AMD Radeon 680M, AMD Ryzen 7 6800H	6763 Points +92%
Minisforum UH125 Pro Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	5613 Points +60%
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	4020 Points +14%
Geekom Mini IT13 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900HK	3517 Points
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	3308 Points -6%
1024x600 Normal, Fluid 3DTex
Acemagic AM18 AMD Radeon 780M, AMD Ryzen 7 7840HS	471 Points +59%
Minisforum UH125 Pro Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	471 Points +59%
Aoostar GEM10 AMD Radeon 680M, AMD Ryzen 7 6800H	427 Points +44%
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	296 Points 0%
Geekom Mini IT13 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900HK	296 Points
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	237 Points -20%
1024x600 Normal, Fluid 2DTexArr
Acemagic AM18 AMD Radeon 780M, AMD Ryzen 7 7840HS	486 Points +68%
Aoostar GEM10 AMD Radeon 680M, AMD Ryzen 7 6800H	468 Points +61%
Minisforum UH125 Pro Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	439 Points +51%
Geekom Mini IT13 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900HK	290 Points
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	280 Points -3%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	237 Points -18%
1024x600 Normal, Mandel Vector
Acemagic AM18 AMD Radeon 780M, AMD Ryzen 7 7840HS	2589 Points +214%
Aoostar GEM10 AMD Radeon 680M, AMD Ryzen 7 6800H	1900 Points +131%
Minisforum UH125 Pro Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	1447 Points +76%
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	1236 Points +50%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	827 Points 0%
Geekom Mini IT13 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900HK	824 Points
1024x600 Normal, Mandel Scalar
Acemagic AM18 AMD Radeon 780M, AMD Ryzen 7 7840HS	2651 Points +205%
Aoostar GEM10 AMD Radeon 680M, AMD Ryzen 7 6800H	1812 Points +109%
Minisforum UH125 Pro Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	1112 Points +28%
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	1062 Points +22%
Geekom Mini IT13 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900HK	869 Points
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	834 Points -4%
1024x600 Normal, QJuliaRayTrace
Acemagic AM18 AMD Radeon 780M, AMD Ryzen 7 7840HS	3667 Points +196%
Aoostar GEM10 AMD Radeon 680M, AMD Ryzen 7 6800H	2157 Points +74%
Minisforum UH125 Pro Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	2143 Points +73%
Geekom Mini IT13 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900HK	1238 Points
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	1174 Points -5%
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	1145 Points -8%

LuxMark v2.0 64Bit
Room GPUs-only
Acemagic AM18 AMD Radeon 780M, AMD Ryzen 7 7840HS	808 Samples/s +27%
Minisforum UH125 Pro Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	710 Samples/s +11%
Geekom Mini IT13 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900HK	638 Samples/s
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	586 Samples/s -8%
Aoostar GEM10 AMD Radeon 680M, AMD Ryzen 7 6800H	567 Samples/s -11%
Sala GPUs-only
Minisforum UH125 Pro Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	2517 Samples/s +32%
Geekom Mini IT13 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900HK	1913 Samples/s
Acemagic AM18 AMD Radeon 780M, AMD Ryzen 7 7840HS	1512 Samples/s -21%
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	1383 Samples/s -28%
Aoostar GEM10 AMD Radeon 680M, AMD Ryzen 7 6800H	1288 Samples/s -33%

Affinity Photo 2 - Combined (Single / Multi GPU)
Minisforum UH125 Pro Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	5244 Points +41%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	3797 Points +2%
Geekom Mini IT13 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900HK	3716 Points
Aoostar GEM10 AMD Radeon 680M, AMD Ryzen 7 6800H	2339 Points -37%
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	1683 Points -55%
Acemagic AM18 AMD Radeon 780M, AMD Ryzen 7 7840HS	1371 Points -63%

	Geekom Mini IT13, Intel Iris Xe Graphics G7 96EUs i9-13900HK	Minisforum UH125 Pro, Intel Arc 7-Core iGPU Ultra 5 125H	Aoostar GEM10, AMD Radeon 680M R7 6800H	Geekom Mini IT12, Intel Iris Xe Graphics G7 96EUs i7-1260P	Acemagic AM18, AMD Radeon 780M R7 7840HS	Geekom A5, AMD Radeon RX Vega 8 (Ryzen 4000/5000) R7 5800H	Average of class Mini PC
SPECviewperf 2020		19%	286%	21%	315%	120%	208%
3840x2160 Medical (medical-03)	3.46	4.8 39%	10.7 209%	3.37 -3%	13 276%	4.82 39%	7.95 ?(0.78 - 30.8, n=65, last 2 years) 130%
3840x2160 Energy (energy-03)	3.03	3.38 12%	10.6 250%	7.39 144%	14.2 369%	5.33 76%	11.4 ?(0.52 - 44, n=65, last 2 years) 276%
3840x2160 Creo (creo-03)	15.5	15.4 -1%	32 106%	15.1 -3%	31.2 101%	19.1 23%	30.1 ?(7.73 - 97.5, n=65, last 2 years) 94%
3840x2160 CATIA (catia-06)	7.96	9.7 22%	22.8 186%	8.23 3%	24.7 210%	13.1 65%	18.3 ?(4.61 - 64.1, n=64, last 2 years) 130%
3840x2160 3ds Max (3dsmax-07)	9.94	13.2 33%	18.9 90%	9.65 -3%	20.7 108%	11.3 14%	22.1 ?(5.53 - 87.5, n=65, last 2 years) 122%
3840x2160 Siemens NX (snx-04)	5.24	5.54 6%	61.4 1072%	6.23 19%	61.1 1066%	38 625%	36.3 ?(2.25 - 224, n=63, last 2 years) 593%
3840x2160 Maya (maya-06)	26.5	32.8 24%	49.7 88%	23.7 -11%	46.7 76%	25.8 -3%	56.6 ?(11.8 - 223, n=65, last 2 years) 114%

3DMark 05 Standard		29814 points
3DMark 06 Standard Score		26510 points
3DMark Vantage P Result		26546 points
3DMark 11 Performance		7301 points
3DMark Ice Storm Standard Score		138293 points
3DMark Cloud Gate Standard Score		24262 points
3DMark Fire Strike Score		5071 points
3DMark Fire Strike Extreme Score		2473 points
3DMark Time Spy Score		1842 points
Help

... in comparison

Performance Rating - Percent
Acemagic AM18 Radeon 780M, R7 7840HS, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	100 pt
Aoostar GEM10 Radeon 680M, R7 6800H, BIWIN CE980Y28900-1TB	81.8 pt
Minisforum UH125 Pro Arc 7-Core, Ultra 5 125H, Kingston OM8PGP41024Q-A0	71 pt
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	57.5 pt
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	48.2 pt
Geekom Mini IT13 Iris Xe G7 96EUs, i9-13900HK, Kingston OM8PGP41024N-A0	47.2 pt

GTA V
1024x768 Lowest Settings possible
Acemagic AM18 Radeon 780M, R7 7840HS, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	165.1 (4.54^min, 100^P1) fps +54%
Aoostar GEM10 Radeon 680M, R7 6800H, BIWIN CE980Y28900-1TB	145.3 (5.31^min, 100^P1) fps +35%
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	140.1 (17.4^min, 90.9^P1) fps +30%
Minisforum UH125 Pro Arc 7-Core, Ultra 5 125H, Kingston OM8PGP41024Q-A0	132.4 (4.93^min, 90.9^P1) fps +23%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	119.3 (25.1^min, 76.9^P1) fps +11%
Geekom Mini IT13 Iris Xe G7 96EUs, i9-13900HK, Kingston OM8PGP41024N-A0	107.4 (14.4^min, 62.5^P1) fps
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Acemagic AM18 Radeon 780M, R7 7840HS, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	66.7 (4.68^min, 45.5^P1) fps +225%
Aoostar GEM10 Radeon 680M, R7 6800H, BIWIN CE980Y28900-1TB	53.9 (3.82^min, 38.5^P1) fps +163%
Minisforum UH125 Pro Arc 7-Core, Ultra 5 125H, Kingston OM8PGP41024Q-A0	38.9 (3.15^min, 28.6^P1) fps +90%
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	35.1 (10.8^min, 25.6^P1) fps +71%
Geekom Mini IT13 Iris Xe G7 96EUs, i9-13900HK, Kingston OM8PGP41024N-A0	20.5 (5.87^min, 15.6^P1) fps
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	18.6 (8^min, 14.3^P1) fps -9%

Dota 2 Reborn
1280x720 min (0/3) fastest
Acemagic AM18 Radeon 780M, R7 7840HS, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	163.1 (143^min) fps +70%
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	129.5 (112.6^min) fps +35%
Aoostar GEM10 Radeon 680M, R7 6800H, BIWIN CE980Y28900-1TB	124 (8.9^min) fps +29%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	108.1 (86.6^min) fps +13%
Geekom Mini IT13 Iris Xe G7 96EUs, i9-13900HK, Kingston OM8PGP41024N-A0	96 (70.5^min) fps
Minisforum UH125 Pro Arc 7-Core, Ultra 5 125H, Kingston OM8PGP41024Q-A0	95.5 (63.7^min) fps -1%
1920x1080 high (2/3)
Acemagic AM18 Radeon 780M, R7 7840HS, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	82.9 (69.1^min) fps +27%
Aoostar GEM10 Radeon 680M, R7 6800H, BIWIN CE980Y28900-1TB	81.6 (72.3^min) fps +25%
Minisforum UH125 Pro Arc 7-Core, Ultra 5 125H, Kingston OM8PGP41024Q-A0	73.6 (47.5^min) fps +13%
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	67.7 (59.9^min) fps +4%
Geekom Mini IT13 Iris Xe G7 96EUs, i9-13900HK, Kingston OM8PGP41024N-A0	65.2 (48^min) fps
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	60.9 (55.7^min) fps -7%

Cyberpunk 2077 2.2 Phantom Liberty
1920x1080 Low Preset (FSR off)
Acemagic AM18 Radeon 780M, R7 7840HS, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	45.4 (38.4^min) fps +172%
Aoostar GEM10 Radeon 680M, R7 6800H, BIWIN CE980Y28900-1TB	34.8 (29.9^min) fps +108%
Minisforum UH125 Pro Arc 7-Core, Ultra 5 125H, Kingston OM8PGP41024Q-A0	29.5 (25.4^min) fps +77%
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	19.9 (15.9^min) fps +19%
Geekom Mini IT13 Iris Xe G7 96EUs, i9-13900HK, Kingston OM8PGP41024N-A0	16.7 (13.1^min) fps
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	16.5 (13^min) fps -1%
1920x1080 High Preset (FSR off)
Acemagic AM18 Radeon 780M, R7 7840HS, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	27.8 (23.7^min) fps +146%
Aoostar GEM10 Radeon 680M, R7 6800H, BIWIN CE980Y28900-1TB	21.3 (18.4^min) fps +88%
Minisforum UH125 Pro Arc 7-Core, Ultra 5 125H, Kingston OM8PGP41024Q-A0	20.6 (17.9^min) fps +82%
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	12.3 (10.3^min) fps +9%
Geekom Mini IT13 Iris Xe G7 96EUs, i9-13900HK, Kingston OM8PGP41024N-A0	11.3 (9.59^min) fps
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	11.1 (9.45^min) fps -2%

Baldur's Gate 3
1280x720 Low Preset
Acemagic AM18 Radeon 780M, R7 7840HS, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	65.7 (44.8^min, 50.6^P0.1, 57.8^P1) fps +174%
Aoostar GEM10 Radeon 680M, R7 6800H, BIWIN CE980Y28900-1TB	48.9 (16.6^min, 29.1^P0.1, 36.8^P1) fps +104%
Minisforum UH125 Pro Arc 7-Core, Ultra 5 125H, Kingston OM8PGP41024Q-A0	45 (14.9^min, 19.4^P0.1, 29^P1) fps +88%
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	30.4 (17.2^min, 20.6^P0.1, 24.4^P1) fps +27%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	26.1 (19.5^min, 19.5^P0.1, 21.1^P1) fps +9%
Geekom Mini IT13 Iris Xe G7 96EUs, i9-13900HK, Kingston OM8PGP41024N-A0	24 (20.3^min, 20.3^P0.1, 20.8^P1) fps
1920x1080 High Preset
Acemagic AM18 Radeon 780M, R7 7840HS, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	26.6 (20.2^min, 22.7^P0.1, 24.3^P1) fps +127%
Aoostar GEM10 Radeon 680M, R7 6800H, BIWIN CE980Y28900-1TB	23.3 (16.6^min, 16.7^P0.1, 18.3^P1) fps +99%
Minisforum UH125 Pro Arc 7-Core, Ultra 5 125H, Kingston OM8PGP41024Q-A0	19.5 (9.2^min, 10.4^P0.1, 12.7^P1) fps +67%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	11.9 (9.23^min, 9.26^P0.1, 10.8^P1) fps +2%
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	11.7 (9.29^min, 9.56^P0.1, 10.1^P1) fps 0%
Geekom Mini IT13 Iris Xe G7 96EUs, i9-13900HK, Kingston OM8PGP41024N-A0	11.7 (8.86^min, 8.87^P0.1, 9.38^P1) fps

F1 24
1920x1080 Low Preset AA:T AF:16x
Acemagic AM18 Radeon 780M, R7 7840HS, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	89.4 (78^min, 64^P1) fps +148%
Aoostar GEM10 Radeon 680M, R7 6800H, BIWIN CE980Y28900-1TB	72.2 (57^min, 50^P1) fps +100%
Minisforum UH125 Pro Arc 7-Core, Ultra 5 125H, Kingston OM8PGP41024Q-A0	64.3 (55^min, 53^P1) fps +78%
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	43.9 (35^min, 33^P1) fps +22%
Geekom Mini IT13 Iris Xe G7 96EUs, i9-13900HK, Kingston OM8PGP41024N-A0	36.1 (30^min, 29^P1) fps
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	35 (26^min, 28^P1) fps -3%
1920x1080 High Preset AA:T AF:16x
Acemagic AM18 Radeon 780M, R7 7840HS, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	58.8 (51^min, 45^P1) fps +146%
Aoostar GEM10 Radeon 680M, R7 6800H, BIWIN CE980Y28900-1TB	46 (34^min, 31^P1) fps +92%
Minisforum UH125 Pro Arc 7-Core, Ultra 5 125H, Kingston OM8PGP41024Q-A0	41.7 (34^min, 34^P1) fps +74%
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	28.8 (24^min, 21^P1) fps +21%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	24.7 (18^min, 20^P1) fps +3%
Geekom Mini IT13 Iris Xe G7 96EUs, i9-13900HK, Kingston OM8PGP41024N-A0	23.9 (19^min, 19^P1) fps

FPS diagram - 30 minutes of Cyberpunk 2077 1920 x 1080 Ultra Preset (FSR off)

Geekom Mini IT13 i9-13900HK, Iris Xe G7 96EUs: Ø9.68 (9.17-9.89)

Aoostar GEM10 R7 6800H, Radeon 680M: Ø17 (13-17.6)

	low	med.	high	ultra
GTA V (2015)	107.4		20.5	8.5
Dota 2 Reborn (2015)	96	70.1	65.2	59.9
Final Fantasy XV Benchmark (2018)	39.6	23.5	16.7
Baldur's Gate 3 (2023)	17.8	13.8	11.7	11.5
Cyberpunk 2077 2.2 Phantom Liberty (2023)	16.7	13.4	11.3
F1 24 (2024)	36.1	32.7	23.9

Geekom Mini IT13 2025 版通过 USB4 与 NvidiaGeForce RTX 4090 进行性能测试

Geekom Mini IT13 2025 版允许外接显卡，如 GeForce RTX 4090可通过 USB4 连接外置显卡，从而将迷你 PC 变为强大的游戏或工作站系统。不过，与 OCuLink 解决方案相比，USB4 在游戏性能方面有明显的劣势，正如基准测试所显示的那样。

Performance Rating - Percent
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	99.3 pt
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	96 pt
Geekom Mini IT13 2025 Edition (Nvidia GeForce RTX 4090 @USB4) Intel Core i9-13900HK	87.7 pt
Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) Intel Core Ultra 9 185H	86.6 pt

3DMark 11 - 1280x720 Performance GPU
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	103919 Points +1426%
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	100303 Points +1373%
Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) Intel Core Ultra 9 185H	64648 Points +849%
Geekom Mini IT13 2025 Edition (Nvidia GeForce RTX 4090 @USB4) Intel Core i9-13900HK	63482 Points +832%
	6810 Points

3DMark
2560x1440 Time Spy Graphics
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	33302 Points +1962%
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	31852 Points +1872%
Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) Intel Core Ultra 9 185H	28844 Points +1686%
Geekom Mini IT13 2025 Edition (Nvidia GeForce RTX 4090 @USB4) Intel Core i9-13900HK	27100 Points +1578%
	1615 Points
1920x1080 Fire Strike Graphics
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	75788 Points +1280%
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	73143 Points +1232%
Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) Intel Core Ultra 9 185H	53367 Points +872%
Geekom Mini IT13 2025 Edition (Nvidia GeForce RTX 4090 @USB4) Intel Core i9-13900HK	50831 Points +826%
	5490 Points
3840x2160 Fire Strike Ultra Graphics
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	24022 Points +1877%
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	23434 Points +1829%
Geekom Mini IT13 2025 Edition (Nvidia GeForce RTX 4090 @USB4) Intel Core i9-13900HK	21611 Points +1679%
Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) Intel Core Ultra 9 185H	21506 Points +1670%
	1215 Points

Unigine Superposition
1280x720 720p Low
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	37409 Points +498%
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	34512 Points +451%
Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) Intel Core Ultra 9 185H	33318 Points +432%
Geekom Mini IT13 2025 Edition (Nvidia GeForce RTX 4090 @USB4) Intel Core i9-13900HK	31961 Points +411%
	6260 Points
1920x1080 1080p High
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	33491 Points +1412%
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	32149 Points +1351%
Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) Intel Core Ultra 9 185H	30115 Points +1260%
Geekom Mini IT13 2025 Edition (Nvidia GeForce RTX 4090 @USB4) Intel Core i9-13900HK	29777 Points +1244%
	2215 Points
1920x1080 1080p Extreme
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	21366 Points +1912%
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	21164 Points +1893%
Geekom Mini IT13 2025 Edition (Nvidia GeForce RTX 4090 @USB4) Intel Core i9-13900HK	20360 Points +1817%
Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) Intel Core Ultra 9 185H	19915 Points +1775%
	1062 Points
3840x2160 4k Optimized
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	30152 Points
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	30138 Points
Geekom Mini IT13 2025 Edition (Nvidia GeForce RTX 4090 @USB4) Intel Core i9-13900HK	27704 Points
Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) Intel Core Ultra 9 185H	27686 Points
7680x4320 8k Optimized
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	12219 Points
Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) Intel Core Ultra 9 185H	12132 Points
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	12056 Points
Geekom Mini IT13 2025 Edition (Nvidia GeForce RTX 4090 @USB4) Intel Core i9-13900HK	12011 Points

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	271.1 fps +1732%
Geekom Mini IT13 2025 Edition (Nvidia GeForce RTX 4090 @USB4) Intel Core i9-13900HK	217.2 fps +1368%
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	211 fps +1326%
Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) Intel Core Ultra 9 185H	208.7 fps +1310%
	14.8 fps
1920x1080 Extreme HD Preset OpenGL AA:x8
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	286.7 fps +1774%
Geekom Mini IT13 2025 Edition (Nvidia GeForce RTX 4090 @USB4) Intel Core i9-13900HK	231.8 fps +1415%
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	227 fps +1384%
Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) Intel Core Ultra 9 185H	224.4 fps +1367%
	15.3 fps

Unigine Heaven 4.0
Extreme Preset OpenGL
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	449.2 fps +1764%
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	427.2 fps +1673%
Geekom Mini IT13 2025 Edition (Nvidia GeForce RTX 4090 @USB4) Intel Core i9-13900HK	389.1 fps +1515%
Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) Intel Core Ultra 9 185H	386.5 fps +1504%
	24.1 fps
Extreme Preset DX11
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	454.1 fps +1746%
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	413 fps +1579%
Geekom Mini IT13 2025 Edition (Nvidia GeForce RTX 4090 @USB4) Intel Core i9-13900HK	347.1 fps +1311%
Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) Intel Core Ultra 9 185H	343 fps +1294%
	24.6 fps

ComputeMark v2.1
1024x600 Normal, Score
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	90418 Points +2471%
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	90036 Points +2460%
Geekom Mini IT13 2025 Edition (Nvidia GeForce RTX 4090 @USB4) Intel Core i9-13900HK	87402 Points +2385%
Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) Intel Core Ultra 9 185H	83349 Points +2270%
	3517 Points
1024x600 Normal, Fluid 3DTex
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	10635 Points +3493%
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	10559 Points +3467%
Geekom Mini IT13 2025 Edition (Nvidia GeForce RTX 4090 @USB4) Intel Core i9-13900HK	10430 Points +3424%
Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) Intel Core Ultra 9 185H	9972 Points +3269%
	296 Points
1024x600 Normal, Fluid 2DTexArr
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	6879 Points +2272%
Geekom Mini IT13 2025 Edition (Nvidia GeForce RTX 4090 @USB4) Intel Core i9-13900HK	6811 Points +2249%
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	6790 Points +2241%
Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) Intel Core Ultra 9 185H	6566 Points +2164%
	290 Points
1024x600 Normal, Mandel Vector
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	16912 Points +1952%
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	16899 Points +1951%
Geekom Mini IT13 2025 Edition (Nvidia GeForce RTX 4090 @USB4) Intel Core i9-13900HK	16298 Points +1878%
Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) Intel Core Ultra 9 185H	15583 Points +1791%
	824 Points
1024x600 Normal, Mandel Scalar
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	22490 Points +2488%
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	22391 Points +2477%
Geekom Mini IT13 2025 Edition (Nvidia GeForce RTX 4090 @USB4) Intel Core i9-13900HK	21651 Points +2391%
Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) Intel Core Ultra 9 185H	20574 Points +2268%
	869 Points
1024x600 Normal, QJuliaRayTrace
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	33578 Points +2612%
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	33320 Points +2591%
Geekom Mini IT13 2025 Edition (Nvidia GeForce RTX 4090 @USB4) Intel Core i9-13900HK	32212 Points +2502%
Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) Intel Core Ultra 9 185H	30654 Points +2376%
	1238 Points

Performance Rating | Cyberpunk 2077 2.2 Phantom Liberty | Baldur's Gate 3 | F1 24

Performance Rating - Percent
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	99.3 pt
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	92.7 pt
Geekom Mini IT13 2025 Edition (Nvidia GeForce RTX 4090 @USB4) Intel Core i9-13900HK	57.9 pt
Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) Intel Core Ultra 9 185H	56.7 pt

Cyberpunk 2077 2.2 Phantom Liberty
1280x720 Low Preset (FSR off)
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	168.9 (135.4^min - 199^max) fps +528%
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	138.5 (109.3^min - 170.9^max) fps +415%
Geekom Mini IT13 2025 Edition (Nvidia GeForce RTX 4090 @USB4) Intel Core i9-13900HK	100.6 (81.7^min - 125.2^max) fps +274%
Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) Intel Core Ultra 9 185H	88.9 (67.9^min - 123.3^max) fps +230%
	26.9 (21.5^min - 33.2^max) fps
1920x1080 Medium Preset (FSR off)
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	168 (133.8^min - 195.9^max) fps +1154%
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	143.1 (113^min - 169.5^max) fps +968%
Geekom Mini IT13 2025 Edition (Nvidia GeForce RTX 4090 @USB4) Intel Core i9-13900HK	99.9 (81.8^min - 125.2^max) fps +646%
Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) Intel Core Ultra 9 185H	87.8 (65.1^min - 123^max) fps +555%
	13.4 (11.3^min - 15.8^max) fps
1920x1080 Ultra Preset (FSR off)
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	146.9 (101.6^min - 181.1^max) fps
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	125.3 (85.8^min - 157.1^max) fps
Geekom Mini IT13 2025 Edition (Nvidia GeForce RTX 4090 @USB4) Intel Core i9-13900HK	88.8 (65.3^min - 111.6^max) fps
Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) Intel Core Ultra 9 185H	75 (50.3^min - 110.2^max) fps

Baldur's Gate 3
1920x1080 Low Preset
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	203 (67.8^min, 99.1^P0.1, 144.4^P1 - 371^max) fps +1040%
Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) Intel Core Ultra 9 185H	189.1 (95.1^min, 108.7^P0.1, 136.8^P1 - 323^max) fps +962%
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	187.3 (23^min, 74.9^P0.1, 125.7^P1 - 610^max) fps +952%
Geekom Mini IT13 2025 Edition (Nvidia GeForce RTX 4090 @USB4) Intel Core i9-13900HK	144.7 (55.8^min, 66.8^P0.1, 84.5^P1 - 248^max) fps +713%
	17.8 (16^min, 16^P0.1, 16.1^P1 - 19.8^max) fps
1920x1080 Medium Preset
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	192.4 (76.6^min, 93.4^P0.1, 133.6^P1 - 299^max) fps +1294%
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	185.4 (6.25^min, 62.7^P0.1, 115.5^P1 - 864^max) fps +1243%
Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) Intel Core Ultra 9 185H	168.3 (71.8^min, 94^P0.1, 117.8^P1 - 266^max) fps +1120%
Geekom Mini IT13 2025 Edition (Nvidia GeForce RTX 4090 @USB4) Intel Core i9-13900HK	133.4 (50.7^min, 66.2^P0.1, 81^P1 - 197.2^max) fps +867%
	13.8 (12.2^min, 12.3^P0.1, 12.5^P1 - 15.5^max) fps
1920x1080 Ultra Preset
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	183.9 (67.1^min, 95.8^P0.1, 126.6^P1 - 269^max) fps +1499%
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	172.2 (46.8^min, 84.2^P0.1, 117.9^P1 - 435^max) fps +1397%
Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) Intel Core Ultra 9 185H	151.8 (67.2^min, 82^P0.1, 101.9^P1 - 254^max) fps +1220%
Geekom Mini IT13 2025 Edition (Nvidia GeForce RTX 4090 @USB4) Intel Core i9-13900HK	134.5 (59^min, 66.1^P0.1, 81^P1 - 190.1^max) fps +1070%
	11.5 (10.5^min, 10.5^P0.1, 10.6^P1 - 13.1^max) fps

F1 24
1920x1080 Low Preset AA:T AF:16x
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	241 (189^min, 148^P1 - 267^max) fps +568%
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	236 (187^min, 153^P1 - 258^max) fps +554%
Geekom Mini IT13 2025 Edition (Nvidia GeForce RTX 4090 @USB4) Intel Core i9-13900HK	105.8 (69^min, 38^P1 - 135^max) fps +193%
Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) Intel Core Ultra 9 185H	78.1 (43^min, 45^P1 - 98^max) fps +116%
	36.1 (30^min, 29^P1 - 42^max) fps
1920x1080 Medium Preset AA:T AF:16x
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	234 (190^min, 143^P1 - 268^max) fps +616%
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	226 (196^min, 147^P1 - 259^max) fps +591%
Geekom Mini IT13 2025 Edition (Nvidia GeForce RTX 4090 @USB4) Intel Core i9-13900HK	98.7 (56^min, 33^P1 - 127^max) fps +202%
Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) Intel Core Ultra 9 185H	74.4 (42^min, 44^P1 - 86^max) fps +128%
	32.7 (28^min, 27^P1 - 36^max) fps
1920x1080 High Preset AA:T AF:16x
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	231 (182^min, 147^P1 - 255^max) fps +867%
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	229 (178^min, 148^P1 - 253^max) fps +858%
Geekom Mini IT13 2025 Edition (Nvidia GeForce RTX 4090 @USB4) Intel Core i9-13900HK	95.9 (51^min, 37^P1 - 113^max) fps +301%
Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) Intel Core Ultra 9 185H	61.7 (35^min, 37^P1 - 75^max) fps +158%
	23.9 (19^min, 19^P1 - 26^max) fps

	Geekom Mini IT13, Intel Iris Xe Graphics G7 96EUs i9-13900HK	Geekom Mini IT13 2025 Edition (Nvidia GeForce RTX 4090 @USB4) , i9-13900HK	Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) , Ultra 9 185H	Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) , R9 8945HS	Average of class Mini PC
SPECviewperf 2020		726%	1252%	1703%	208%
3840x2160 Medical (medical-03)	3.46	33.2 860%	42.1 1117%	43.4 1154%	7.95 ?(0.78 - 30.8, n=65, last 2 years) 130%
3840x2160 Energy (energy-03)	3.03	86.8 2765%	92.8 2963%	141 4553%	11.4 ?(0.52 - 44, n=65, last 2 years) 276%
3840x2160 Creo (creo-03)	15.5	37.3 141%	91.1 488%	120 674%	30.1 ?(7.73 - 97.5, n=65, last 2 years) 94%
3840x2160 CATIA (catia-06)	7.96	42.6 435%	77.3 871%	84.3 959%	18.3 ?(4.61 - 64.1, n=64, last 2 years) 130%
3840x2160 3ds Max (3dsmax-07)	9.94	55.6 459%	158 1490%	208 1993%	22.1 ?(5.53 - 87.5, n=65, last 2 years) 122%
3840x2160 Siemens NX (snx-04)	5.24	19.6 274%	31.9 509%	39.5 654%	36.3 ?(2.25 - 224, n=63, last 2 years) 593%
3840x2160 Maya (maya-06)	26.5	66 149%	378 1326%	539 1934%	56.6 ?(11.8 - 223, n=65, last 2 years) 114%

	low	med.	high	ultra	QHD	4K
The Witcher 3 (2015)	359	320	284	152.1	142.6	187.3
Dota 2 Reborn (2015)	154.5	134.1	128.5	121.3		114.8
Final Fantasy XV Benchmark (2018)	170.1	161.9	136.4		135.6	116.7
X-Plane 11.11 (2018)	150.1	128.9	103.5			91.1
Baldur's Gate 3 (2023)	144.7	133.4	132.2	134.5	116.4	98.6
Cyberpunk 2077 2.2 Phantom Liberty (2023)	101	99.9	92.4	88.8	87.7	56.5
F1 24 (2024)	105.8	98.7	95.9	65.5	64	54.9

排放 - 均衡且声音不大

噪音排放

说到噪音，Geekom Mini IT13 通常都能保持安静。其风扇在空转时几乎听不到声音，我们在轻负载时仅测得 29.3 分贝（A），这是一个非常好的值。在满载情况下，噪音水平上升到最高 42.6 dB(A)，但这并不是永久性的。实际上，在负载情况下，噪音水平通常稳定在 39.6 到 42.6 dB（A）之间。

Noise Level

Idle		24.1 / 24.2 / 24.3 dB(A)
Load		29.3 / 42.6 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Earthworks M23R (15 cm distance) environment noise: 23.8 dB(A)

	Geekom Mini IT13 i9-13900HK, Iris Xe G7 96EUs	Minisforum UH125 Pro Ultra 5 125H, Arc 7-Core	Aoostar GEM10 R7 6800H, Radeon 680M	Geekom Mini IT12 i7-1260P, Iris Xe G7 96EUs	Acemagic AM18 R7 7840HS, Radeon 780M	Geekom A5 R7 5800H, Vega 8
Noise		-27%	-28%	-14%	-24%	-22%
off / environment *	23.8	24.8 -4%	24.3 -2%	29.8 -25%	24.8 -4%	25 -5%
Idle Minimum *	24.1	35 -45%	36.5 -51%	29.9 -24%	31 -29%	28.2 -17%
Idle Average *	24.2	35 -45%	36.6 -51%	30.1 -24%	31.2 -29%	28.2 -17%
Idle Maximum *	24.3	35 -44%	36.6 -51%	30.2 -24%	31.4 -29%	28.2 -16%
Load Average *	29.3	42.2 -44%	41.7 -42%	32.1 -10%	37.1 -27%	47.8 -63%
Cyberpunk 2077 ultra *	39.5	40.8 -3%	40.3 -2%
Load Maximum *	42.6	43.9 -3%	40.8 4%	32.5 24%	53.7 -26%	47.4 -11%
Witcher 3 ultra *			40.18		37.6

* ... smaller is better

温度

Geekom Mini IT13（2025）的外壳仅在空闲时略微发热。在负载情况下，我们注意到某些点的温度略有升高，但总体上从未达到临界值。在 Prime95 的压力测试中，英特尔酷睿 i9-13900HK 的最高温度达到 82 °C，这对于移动 SoC 来说是一个非临界值。在接下来的测试过程中，由于微型 PC 的 35 瓦 PL1，CPU 的平均温度降至 75 °C。

Max. Load

Idle

Cyberpunk


34 °C	42.8 °C	40.6 °C
29.3 °C	36.9 °C	35.2 °C
28.9 °C	32.2 °C	31.2 °C

Maximum: 42.8 °C
Average: 34.6 °C


35.4 °C	35.9 °C	35.9 °C
34.7 °C	34.6 °C	33.8 °C
34.4 °C	34 °C	34 °C

Maximum: 35.9 °C
Average: 34.7 °C

Power Supply (max.) 47.5 °C | Room Temperature 21.9 °C | Fluke t3000FC (calibrated)

Max. Load

Idle

Cyberpunk


32.1 °C	32.5 °C	32.2 °C
29.1 °C	31.2 °C	28.6 °C
29.7 °C	30.9 °C	28.7 °C

Maximum: 32.5 °C
Average: 30.6 °C


30.2 °C	31 °C	31.5 °C
30.3 °C	30.7 °C	30.9 °C
30.4 °C	30.7 °C	30.7 °C

Maximum: 31.5 °C
Average: 30.7 °C

Power Supply (max.) 33.8 °C | Room Temperature 21.9 °C | Fluke t3000FC (calibrated)

Max. Load

Idle

Cyberpunk


35.8 °C	39.9 °C	37.8 °C
28.3 °C	35 °C	33.7 °C
28.9 °C	31.5 °C	29.6 °C

Maximum: 39.9 °C
Average: 33.4 °C


33.5 °C	33.6 °C	34.2 °C
32.4 °C	32.9 °C	32.6 °C
32.3 °C	32.4 °C	32.8 °C

Maximum: 34.2 °C
Average: 33 °C

Power Supply (max.) 46.9 °C | Room Temperature 21.8 °C | Fluke t3000FC (calibrated)

(±) The average temperature for the upper side under maximal load is 34.6 °C / 94 F, compared to the average of 32.3 °C / 90 F for the devices in the class Mini PC.
(±) The maximum temperature on the upper side is 42.8 °C / 109 F, compared to the average of 35.8 °C / 96 F, ranging from 21.6 to 69.5 °C for the class Mini PC.
(+) The bottom heats up to a maximum of 35.9 °C / 97 F, compared to the average of 36.1 °C / 97 F
(+) In idle usage, the average temperature for the upper side is 30.6 °C / 87 F, compared to the device average of 32.3 °C / 90 F.
(±) 3: The average temperature for the upper side is 33.4 °C / 92 F, compared to the average of 32.3 °C / 90 F for the class Mini PC.

电源管理 - 大型电源几乎过于节俭

得益于 SoC 保守的功耗目标，Geekom Mini IT13 非常节能。在空闲模式下，它的功耗仅为 8 至 12 瓦，是本次比较中较为节俭的迷你电脑之一。在平均负载下，它的能耗需求升至 35 瓦，而在最大负载下，我们只注意到 62.5 瓦。之所以能达到如此低的能耗值，归根结底是因为该设备选择了保守的功率限制。附带的电源可提供高达 120 瓦的功率。

Power Consumption

Off / Standby	1.7 / 2.5 Watt
Idle	8.3 / 9.7 / 11.8 Watt
Load	35 / 62.5 Watt


Key: min: , med: , max: Metrahit Energy

	Geekom Mini IT13 i9-13900HK, Iris Xe G7 96EUs	Minisforum UH125 Pro Ultra 5 125H, Arc 7-Core	Aoostar GEM10 R7 6800H, Radeon 680M	Geekom Mini IT12 i7-1260P, Iris Xe G7 96EUs	Acemagic AM18 R7 7840HS, Radeon 780M	Geekom A5 R7 5800H, Vega 8	Average Intel Iris Xe Graphics G7 96EUs	Average of class Mini PC
Power Consumption		-39%	-27%	0%	-49%	-11%	3%	-37%
Idle Minimum *	8.3	11.9 -43%	7.3 12%	5 40%	9.8 -18%	6.9 17%	5.41 ?(2.2 - 46.5, n=196) 35%	9.45 ?(1.9 - 45.7, n=119, last 2 years) -14%
Idle Average *	9.7	14.6 -51%	8.7 10%	7 28%	11.5 -19%	7.9 19%	8.6 ?(3.8 - 63, n=196) 11%	11.6 ?(1.9 - 47.5, n=117, last 2 years) -20%
Idle Maximum *	11.8	15.4 -31%	10.4 12%	10.7 9%	15.3 -30%	8.9 25%	10.9 ?(5.8 - 68.9, n=196) 8%	14.8 ?(2.6 - 49, n=119, last 2 years) -25%
Load Average *	35	48.3 -38%	67.2 -92%	50.3 -44%	75.3 -115%	60.8 -74%	45.4 ?(12.5 - 87.3, n=196) -30%	58.4 ?(11.3 - 170.6, n=119, last 2 years) -67%
Cyberpunk 2077 ultra external monitor *	41.6	52.7 -27%	58.8 -41%
Load Maximum *	62.5	89.8 -44%	101.6 -63%	82 -31%	102.8 -64%	89.7 -44%	67.6 ?(30.1 - 123.3, n=196) -8%	99 ?(18.1 - 423, n=119, last 2 years) -58%

* ... smaller is better

Efficiency overview

Performance Rating | Power Consumption

Performance Rating - Percent
Minisforum UH125 Pro Intel Core Ultra 5 125H, Arc 7-Core	87.5 pt
Geekom Mini IT13 Intel Core i9-13900HK, Iris Xe G7 96EUs	84.6 pt

Power Consumption
Cinebench R23 Multi Power Efficiency - external Monitor
Geekom Mini IT13 Intel Core i9-13900HK, Iris Xe G7 96EUs	228 Points per Watt
Minisforum UH125 Pro Intel Core Ultra 5 125H, Arc 7-Core	181.1 Points per Watt -21%
Cinebench R23 Single Power Efficiency - external Monitor
Minisforum UH125 Pro Intel Core Ultra 5 125H, Arc 7-Core	57.1 Points per Watt +85%
Geekom Mini IT13 Intel Core i9-13900HK, Iris Xe G7 96EUs	30.8 Points per Watt
Cinebench R15 Multi Efficiency (external Monitor)
Geekom Mini IT13 Intel Core i9-13900HK, Iris Xe G7 96EUs	33.7 Points per Watt
Minisforum UH125 Pro Intel Core Ultra 5 125H, Arc 7-Core	28 Points per Watt -17%

Power consumption with external monitor

Geekom Mini IT13 i9-13900HK, Iris Xe G7 96EUs; Idle 1min (external Monitor): Ø9.72 (8.69-11.8)

Minisforum UH125 Pro Ultra 5 125H, Arc 7-Core; Idle 1min (external Monitor): Ø14.4 (13.7-16.8)

Aoostar GEM10 R7 6800H, Radeon 680M; Idle 1min (external Monitor): Ø9.01 (8.45-10.4)

Geekom Mini IT12 i7-1260P, Iris Xe G7 96EUs; Idle 1min (external Monitor): Ø9.57 (8.74-19.4)

Acemagic AM18 R7 7840HS, Radeon 780M; Idle 1min (external Monitor): Ø11.5 (10.5-15.3)

Geekom A5 R7 5800H, Vega 8; Idle 1min (external Monitor): Ø7.9 (7.41-8.93)

Aoostar GEM10 R7 6800H, Radeon 680M; 1920x1080 The Witcher 3 ultra (external Monitor): Ø63.2 (61.3-86)

Geekom Mini IT12 i7-1260P, Iris Xe G7 96EUs; 1920x1080 The Witcher 3 ultra (external Monitor): Ø46.3 (43.8-53.4)

Acemagic AM18 R7 7840HS, Radeon 780M; 1920x1080 The Witcher 3 ultra (external Monitor): Ø84 (78.4-92.3)

Geekom A5 R7 5800H, Vega 8; 1920x1080 The Witcher 3 ultra (external Monitor): Ø55.8 (54.2-68)

Geekom Mini IT13 i9-13900HK, Iris Xe G7 96EUs; 1280x720 Prime95 28.10 and Furmark 1.25: Ø57.4 (56.8-58.4)

Minisforum UH125 Pro Ultra 5 125H, Arc 7-Core; 1280x720 Prime95 28.10 and Furmark 1.25: Ø82.9 (81.3-87.6)

Aoostar GEM10 R7 6800H, Radeon 680M; 1280x720 Prime95 28.10 and Furmark 1.25: Ø87.3 (85-101.6)

Geekom Mini IT12 i7-1260P, Iris Xe G7 96EUs; 1280x720 Prime95 28.10 and Furmark 1.25: Ø48.5 (44.7-81.9)

Acemagic AM18 R7 7840HS, Radeon 780M; 1280x720 Prime95 28.10 and Furmark 1.25: Ø88.5 (87.3-102.8)

Geekom A5 R7 5800H, Vega 8; 1280x720 Prime95 28.10 and Furmark 1.25: Ø62.5 (59.3-89.8)

Geekom Mini IT13 i9-13900HK, Iris Xe G7 96EUs; Cyberpunk 2077 FHD ultra no FSR (external Monitor): Ø41.6 (40.6-47.7)

Minisforum UH125 Pro Ultra 5 125H, Arc 7-Core; Cyberpunk 2077 FHD ultra no FSR (external Monitor): Ø52.7 (51.9-55.2)

Aoostar GEM10 R7 6800H, Radeon 680M; Cyberpunk 2077 FHD ultra no FSR (external Monitor): Ø58.8 (56.1-62.3)

Geekom Mini IT13 i9-13900HK, Iris Xe G7 96EUs; 3DMark06 Return To Proxycon: Ø35 (32.3-40.8)

Minisforum UH125 Pro Ultra 5 125H, Arc 7-Core; 3DMark06 Return To Proxycon: Ø48.4 (45.1-51.5)

Aoostar GEM10 R7 6800H, Radeon 680M; 3DMark06 Return To Proxycon: Ø67.2 (55.9-76)

Acemagic AM18 R7 7840HS, Radeon 780M; 3DMark06 Return To Proxycon: Ø75.3 (59.7-88.4)

Power consumption with external monitor

Geekom Mini IT13 i9-13900HK, Iris Xe G7 96EUs; Prime95 V2810 Stress (external Monitor): Ø56.8 (52.1-62.5)

Minisforum UH125 Pro Ultra 5 125H, Arc 7-Core; Prime95 V2810 Stress (external Monitor): Ø83 (67.7-89.8)

Aoostar GEM10 R7 6800H, Radeon 680M; Prime95 V2810 Stress (external Monitor): Ø76.4 (71.4-100.8)

Geekom Mini IT12 i7-1260P, Iris Xe G7 96EUs; Prime95 V2810 Stress (external Monitor): Ø48.4 (44.7-80.8)

Acemagic AM18 R7 7840HS, Radeon 780M; Prime95 V2810 Stress (external Monitor): Ø87.8 (85.8-101.4)

Geekom A5 R7 5800H, Vega 8; Prime95 V2810 Stress (external Monitor): Ø61.1 (56.6-88.9)

Geekom Mini IT13 i9-13900HK, Iris Xe G7 96EUs; Cinebench R15 Multi (external Monitor): Ø59.5 (58-61.1)

Minisforum UH125 Pro Ultra 5 125H, Arc 7-Core; Cinebench R15 Multi (external Monitor): Ø80.3 (80-81.4)

Aoostar GEM10 R7 6800H, Radeon 680M; Cinebench R15 Multi (external Monitor): Ø87.9 (81.6-97.1)

Geekom Mini IT12 i7-1260P, Iris Xe G7 96EUs; Cinebench R15 Multi (external Monitor): Ø10.7 (10-19.2)

Acemagic AM18 R7 7840HS, Radeon 780M; Cinebench R15 Multi (external Monitor): Ø87.9 (80.6-96.2)

Geekom A5 R7 5800H, Vega 8; Cinebench R15 Multi (external Monitor): Ø67.1 (61.7-83.2)

Geekom Mini IT13 i9-13900HK, Iris Xe G7 96EUs; Cinebench R23 Single (external Monitor): Ø56.1 (50.3-58.2)

Minisforum UH125 Pro Ultra 5 125H, Arc 7-Core; Cinebench R23 Single (external Monitor): Ø28.7 (27-62.8)

Aoostar GEM10 R7 6800H, Radeon 680M; Cinebench R23 Single (external Monitor): Ø30.1 (28.4-45.5)

Acemagic AM18 R7 7840HS, Radeon 780M; Cinebench R23 Single (external Monitor): Ø37.3 (29.6-62.4)

Geekom A5 R7 5800H, Vega 8; Cinebench R23 Single (external Monitor): Ø28.3 (27.1-50.8)

Geekom Mini IT13 i9-13900HK, Iris Xe G7 96EUs; Cinebench R23 Multi (external Monitor): Ø56.1 (50.3-58.2)

Minisforum UH125 Pro Ultra 5 125H, Arc 7-Core; Cinebench R23 Multi (external Monitor): Ø80.4 (79.8-81.1)

Aoostar GEM10 R7 6800H, Radeon 680M; Cinebench R23 Multi (external Monitor): Ø78.2 (71.1-95.8)

Acemagic AM18 R7 7840HS, Radeon 780M; Cinebench R23 Multi (external Monitor): Ø81.5 (79.2-94.5)

Geekom A5 R7 5800H, Vega 8; Cinebench R23 Multi (external Monitor): Ø63 (61.3-83.4)

Geekom Mini IT13 i9-13900HK, Iris Xe G7 96EUs; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø52.5 (45.8-54.9)

Minisforum UH125 Pro Ultra 5 125H, Arc 7-Core; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø48 (46.2-53.5)

Aoostar GEM10 R7 6800H, Radeon 680M; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø76.4 (69.1-84.4)

Geekom Mini IT12 i7-1260P, Iris Xe G7 96EUs; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø45.6 (42.8-72)

Acemagic AM18 R7 7840HS, Radeon 780M; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø85.6 (78-95.5)

Geekom A5 R7 5800H, Vega 8; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø56.5 (53-63.2)

Notebookcheck 总评分

在我们的测试中，Geekom Mini IT13（2025）给我们留下了深刻印象，其强劲的 CPU 性能得益于所安装的英特尔酷睿 i9-13900HK、良好的连接性（包括 USB4）以及适中的噪音水平。由于采用了保守的功率限制，它的能效非常出色。这款迷你电脑是办公和多媒体任务的理想之选--小巧、快速，适合日常使用。

Back to the verdict

Geekom Mini IT13 - 04/08/2025 v8
Sebastian Bade

Chassis

83 / 98 → 85%

Connectivity

66 / 81 → 81%

Weight

82%

Games Performance

26 / 80 → 32%

Application Performance

81 / 92 → 88%

AI Performance

77%

Temperature

90%

Noise

87%

Average

53%

75%

Mini PC - Weighted Average

CO2 Emissions
No Data

Materials
25%

Packaging
25%

Power Use
64.8%

Repairability
20%

Software Updates
39%

Total Sustainability Score: 29%

Possible alternatives compared

Image	Model / Review	Price	Weight	Dimensions
1. 74.5%	Geekom Mini IT13 Intel Core i9-13900HK ⎘ Intel Iris Xe Graphics G7 96EUs ⎘ 32 GB Memory, 1024 GB SSD	Amazon: 1. $699.00 GEEKOM Mini PC Mini IT13 S, ... 2. $749.00 GEEKOM Mini PC Mini IT13, 13... 3. $449.00 GEEKOM A6 Mini PC, AMD Ryzen... List Price: 749 EUR	580 g	112 x 117 x 49.2 mm
2. 74.5%	Minisforum UH125 Pro Intel Core Ultra 5 125H ⎘ Intel Arc 7-Core iGPU ⎘ 32 GB Memory, 1024 GB SSD	Amazon: 1. $539.90 MINISFORUM UH125 Pro Mini PC... 2. $727.90 MINISFORUM UM890 Pro Mini PC... 3. $615.00 MINISFORUM Venus UM790 Pro M... List Price: 879 EUR	797 g	145 x 145 x 49 mm
3. 73.7%	Aoostar GEM10 AMD Ryzen 7 6800H ⎘ AMD Radeon 680M ⎘ 32 GB Memory, 1024 GB SSD	Amazon: 1. $389.95 AOOSTAR GEM10 PRO Three NVME... 2. $399.99 AOOSTAR GEM10 PRO Mini PC AM... 3. $59.99 PowerHOOD 19V AC/DC Adapter ... List Price: 459 US-Dollar	525 g	107 x 107 x 60 mm
4. 82.3% ^{v7 (old)}	Geekom Mini IT12 Intel Core i7-1260P ⎘ Intel Iris Xe Graphics G7 96EUs ⎘ 16 GB Memory, 512 GB SSD	Amazon: 1. $599.00 GEEKOM IT12 Mini PC, 12th Ge... 2. $199.00 GEEKOM Mini PC Mini Air12, I... 3. $749.00 GEEKOM Mini PC Mini IT13, 13... List Price: 639 EUR	572 g	112 x 117 x 45.6 mm
5. 82.3% ^{v7 (old)}	Acemagic AM18 AMD Ryzen 7 7840HS ⎘ AMD Radeon 780M ⎘ 32 GB Memory, 512 GB SSD	Amazon: 1. $769.00 ACEMAGIC F1A Mini PC, AM18 7... List Price: 659 EUR	600 g	134 x 130 x 58 mm
6. 81.2% ^{v7 (old)}	Geekom A5 AMD Ryzen 7 5800H ⎘ AMD Radeon RX Vega 8 (Ryzen 4000/5000) ⎘ 32 GB Memory, 512 GB SSD	Amazon: 1. $299.00 GEEKOM A5 Mini PC, AMD Ryzen... 2. $449.00 GEEKOM A6 Mini PC, AMD Ryzen... 3. $199.00 GEEKOM Mini PC Mini Air12, I... List Price: 429 EUR	555 g	112 x 117 x 49.2 mm

Transparency

The selection of devices to be reviewed is made by our editorial team. The test sample was given to the author by the manufacturer free of charge for the purposes of review. There was no third-party influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.

This is how Notebookcheck is testing

Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.

Cinebench 2024 CPU Multi Core in comparison
Asus ExpertCenter PN42-BBN200MV (min) N200, UHD Graphics Xe 750 32EUs	91
...
Apple MacBook Pro 14 2023 M3 M3, M3 10-Core GPU	712
Apple MacBook Pro 14 2023 M3 M3, M3 10-Core GPU	712
Aoostar GOD77 R7 7735HS, Radeon 680M	713
Geekom Mini IT13 i9-13900HK, Iris Xe G7 96EUs	716
Acemagic M2A i9-12900H, GeForce RTX 3080 Laptop GPU	721
ACEMagician Ace Magician AM08 Pro R9 6900HX, Radeon 680M	724
Lenovo ThinkBook Plus Gen5 Hybrid Ultra 7 155H, Arc 8-Core	726
...
(max) TR Pro 7995WX, RTX 6000 Ada Generation	5372

预算有限却想拥有高端迷你电脑？看看 Geekom Mini IT13 2025 版在我们的评测中表现如何

核心能力。

评价：熟悉的设计，强大的 CPU，使用时几乎始终保持安静

Pros

Cons

价格和供应情况

Table of Contents

规格

机箱和连接性 - 双 USB4，但无 OCuLink

尺寸比较

SD 读卡器

配件

维护

可持续性

性能 - 配备 14 个内核的高端 CPU

测试条件

BIOS 选项

处理器

Cinebench R15 多连续测试

系统性能

DPC 延迟

存储设备

Reading continuous performance: DiskSpd Read Loop, Queue Depth 8

图形卡和游戏性能

FPS diagram - 30 minutes of Cyberpunk 2077 1920 x 1080 Ultra Preset (FSR off)

Geekom Mini IT13 2025 版通过 USB4 与 NvidiaGeForce RTX 4090 进行性能测试

排放 - 均衡且声音不大

噪音排放

温度

电源管理 - 大型电源几乎过于节俭

Efficiency overview

Power consumption with external monitor

Power consumption with external monitor

Notebookcheck 总评分

Possible alternatives compared

Transparency

More articles related to this device

3DMark 11 in comparison
HP Stream 7 5700ng (min) Z3735G, HD Graphics (Bay Trail)	183
...
Prime Computer Primestation Pulsar R7 PRO 5750G, Vega 8	7271
Lenovo Yoga 7 16IAP7 i7-1260P, Iris Xe G7 96EUs	7279
MSI PS63 Modern 8RC i7-8565U, GeForce GTX 1050 Max-Q	7299
Geekom Mini IT13 i9-13900HK, Iris Xe G7 96EUs	7301
Morefine S600-Apex Engineer i9-12900HK, Iris Xe G7 96EUs	7321
HP Pavilion 16-ag0057ng R5 8540U, Radeon 740M	7334
Lenovo ThinkPad T16 Gen 3 21MN005XGE Ultra 5 125U, Graphics 4-Core	7344
...
NVIDIA GeForce RTX 5090 Founders Edition (max) R7 9800X3D, GeForce RTX 5090	82642
