Geekom MiniAir 12 评论:经济实惠的迷你 PC,采用著名的 Intel NUC 设计,配备 Intel N100 和 DDR5 内存

优秀的流媒体客户端

去年,Geekom 推出了全新的 MiniAir 11 特别版。不过,制造商并没有为它配备新的 SoC,而 MiniAir 12 却并非如此。它的英特尔赛扬已被更新的英特尔 N100 所取代。这应该会让 Geekom MiniAir12 的性能得到提升。我们对该设备进行了更近距离的观察和基准测试分析。
Mini PC Desktop Intel Alder Lake

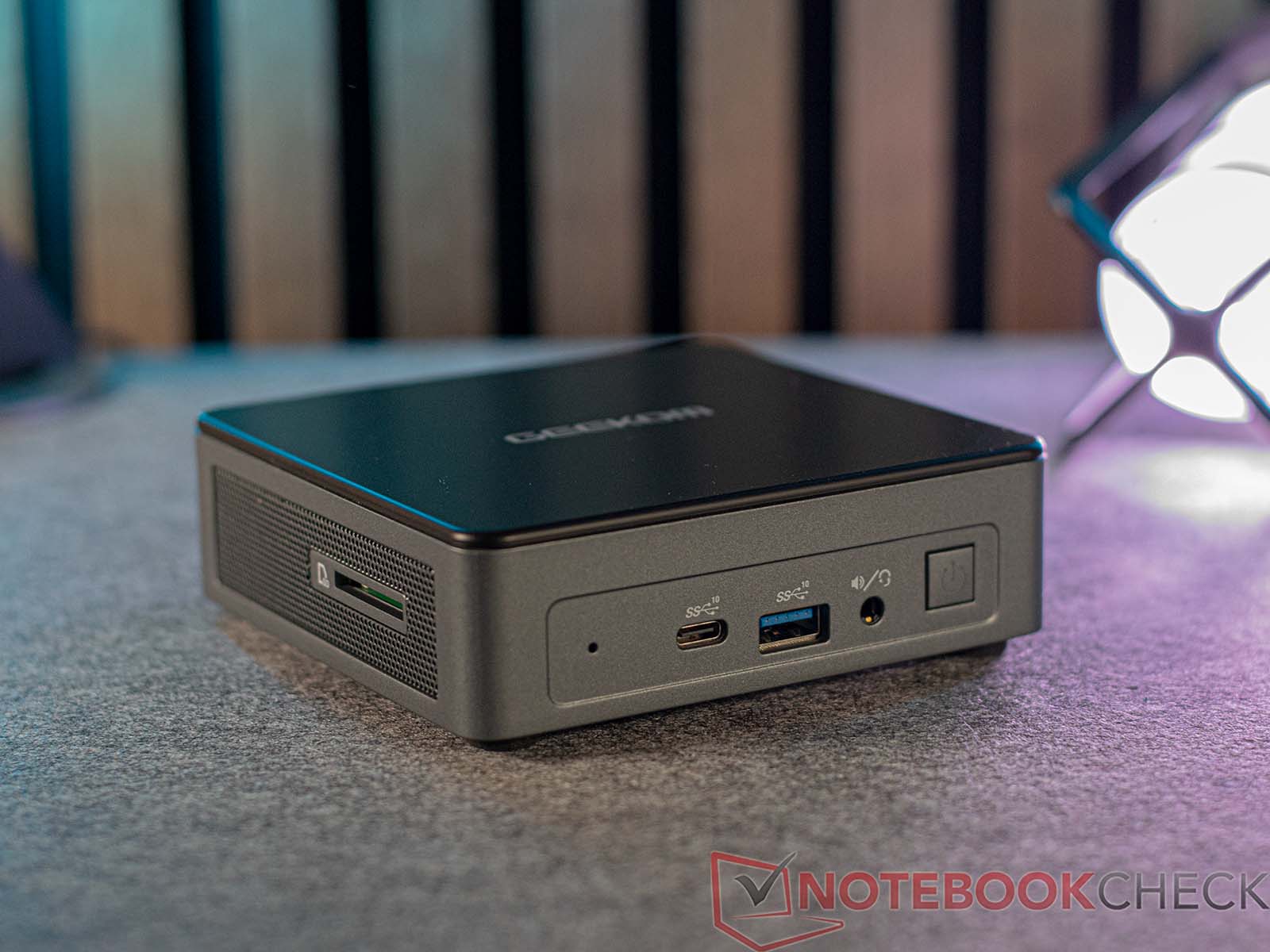

Geekom MiniAir 12
Geekom MiniAir 12

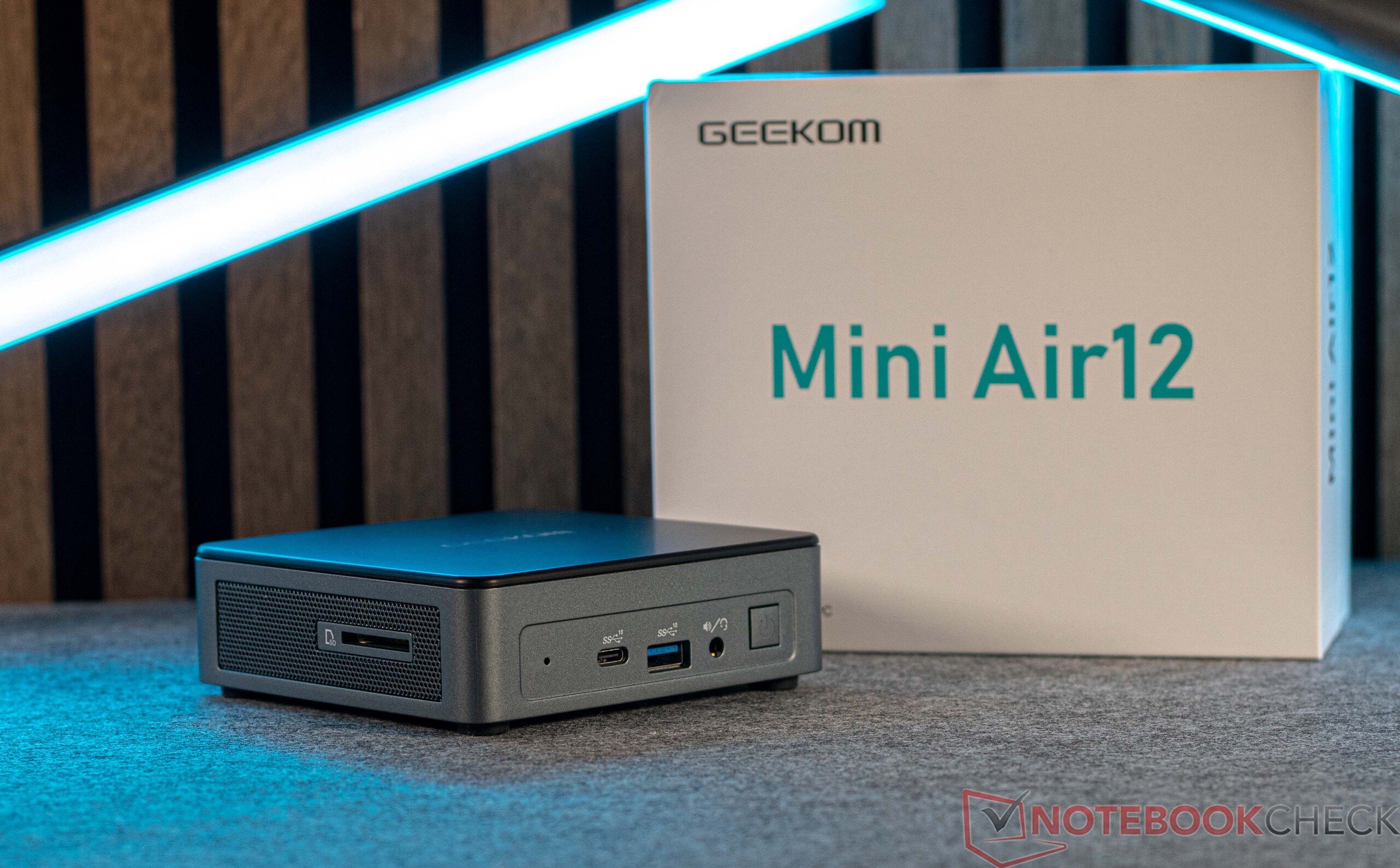

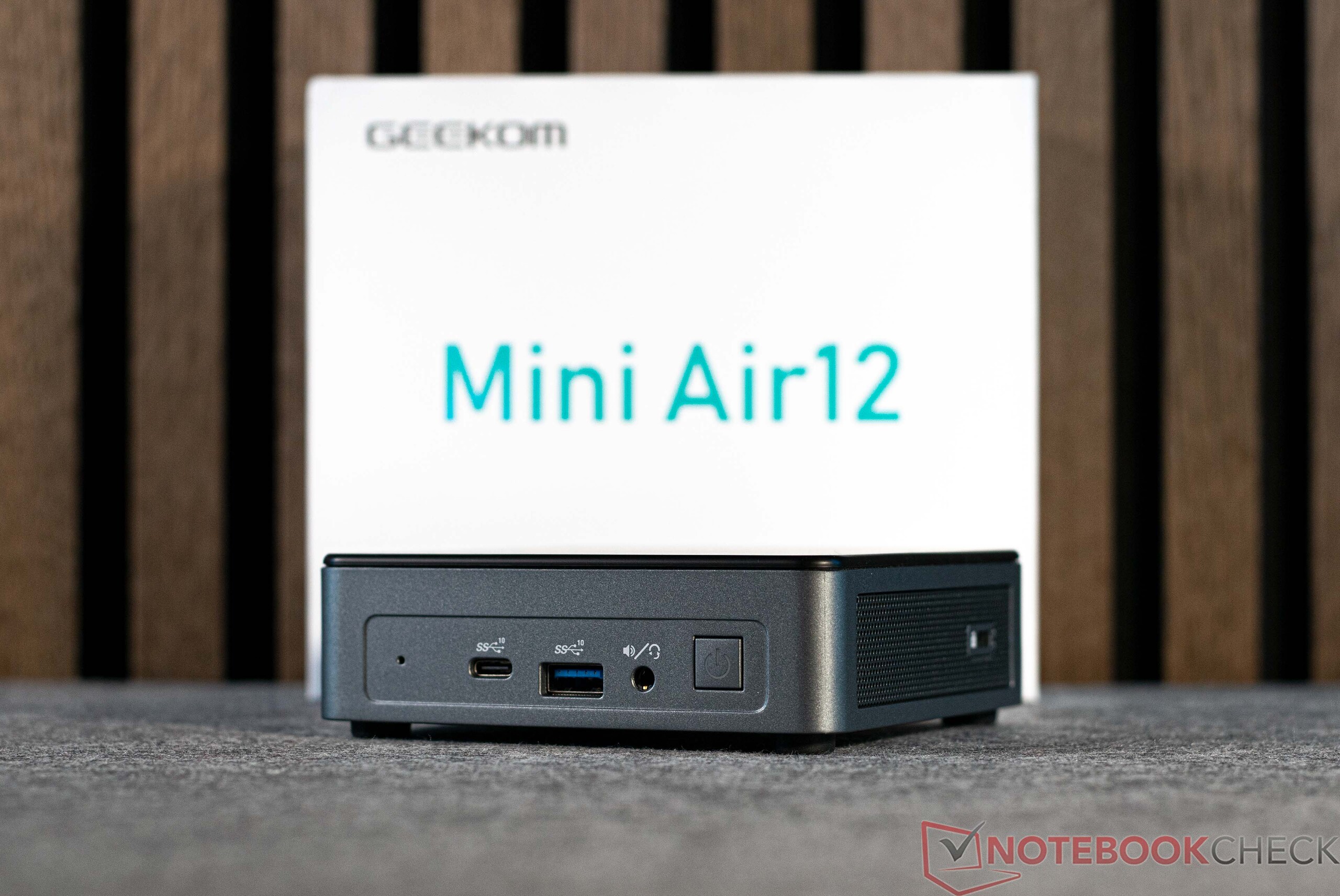

Geekom MiniAir 12 是继其前身迷你 Air 11之后的又一款经济型办公迷你电脑。现在,制造商采用了英特尔 N100 处理器,比前代产品的老式英特尔赛扬 N5095.尽管如此,MiniAir 11 在我们测试时已经表现出色,并显示出它是一款节俭的流媒体客户端。至于 Geekom MiniAir 12 在这方面的表现如何,我们稍后会详细介绍。由于使用了 DDR5 内存,Geekom 并没有人为地减慢英特尔 N100 的运行速度,因为它实际上通常仍依赖于较老的 DDR4 标准。它的 16GB 内存和 512GB 固态硬盘都足够用了。目前,你可以直接从制造商处购买 Geekom MiniAir 12,价格为 249 美元。这是一个合理的价格,Geekom 将其与前代产品以及具有类似规格的竞争机型进行了比较。概览见下表:

Geekom MiniAir 12
Processor
Intel Processor N100 4 x 1 - 3.4 GHz, 25 W PL2 / Short Burst, 15 W PL1 / Sustained, Alder Lake-N
Graphics adapter
Intel UHD Graphics 24EUs (Alder Lake-N), Core: 750 MHz, RAM: 1200 MHz, 31.0.101.4575 DCH
Memory
16 GB
, DDR5-4800
Mainboard
Intel Alder Lake-N PCH
Storage

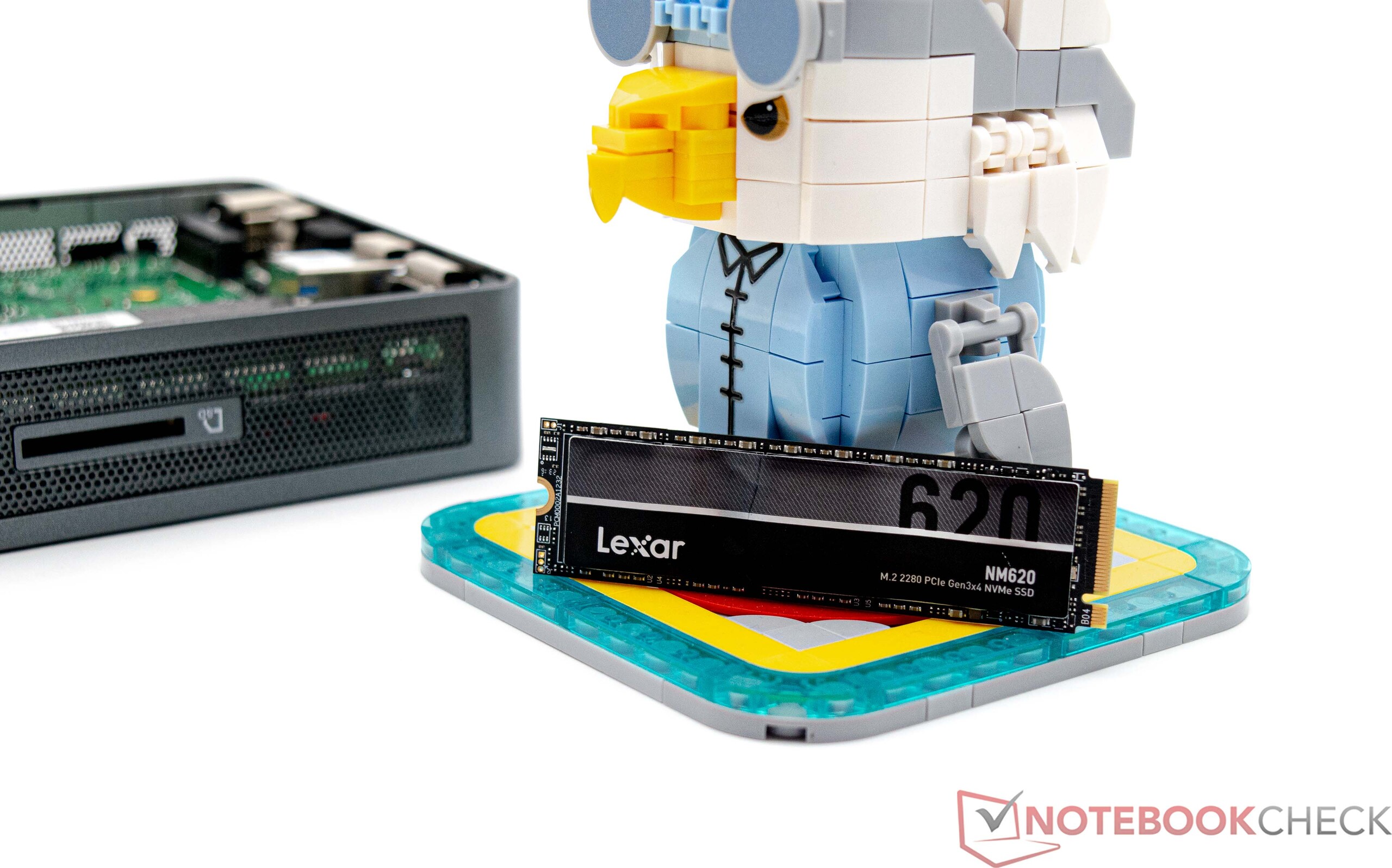

Lexar NM620 512GB, 512 GB
, M.2-2280, NVMe, 450 GB free
Soundcard
Intel Alder Lake-N PCH - cAVS
Connections
1 USB 3.0 / 3.1 Gen1, 4 USB 3.1 Gen2, 1 HDMI, 2 DisplayPort, 1 Kensington Lock, Audio Connections: 3,5mm Klinke, Card Reader: SD/SDHC/SDXC
Networking
Realtek PCIe GBE Family Controller (10/100/1000MBit/s), Realtek RTL8852BE (b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/), Bluetooth 5.2
Size
height x width x depth (in mm): 34.2 x 117 x 112
Operating System
Microsoft Windows 11 Pro
Additional features
24 Months Warranty
Weight
453 g, Power Supply: 193 g
Price
279 EUR
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



潜在的竞争对手比较

Rating
Date
Model
Weight
Price
77.4 %
v7 (old)
11 / 2023
Geekom MiniAir 12
N100, UHD Graphics 24EUs (Alder Lake-N)
453 g279 EUR
74.1 %
v7 (old)
11 / 2023
Acemagic S1
N95, UHD Graphics 24EUs (Alder Lake-N)
440 g239 EUR
73.1 %
v7 (old)
10 / 2023
Beelink Mini S12 Pro
N100, UHD Graphics 24EUs (Alder Lake-N)
335 g200 USD
73.5 %
v7 (old)
09 / 2023
Blackview MP80
N95, UHD Graphics 24EUs (Alder Lake-N)
214 g250 EUR
71.1 %
v7 (old)
08 / 2023
BOSGAME N95
N95, UHD Graphics 24EUs (Alder Lake-N)
392 g179 EUR
70.1 %
v7 (old)
11 / 2023
Trigkey G4
N100, UHD Graphics 24EUs (Alder Lake-N)
272 g189 EUR
68.2 %
v7 (old)
03 / 2023
Minipc Union NiPoGi GK3PLUS - N95
N95, UHD Graphics 24EUs (Alder Lake-N)
381 g399 EUR
65.9 %
v7 (old)
01 / 2023
Minipc Union Ace Magician T8Pro
Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
209 g280 EUR
66.5 %
v7 (old)
Geekom MiniAir 11 Special Edition
Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
496 g289 EUR

Geekom MiniAir 12 的详细介绍

Geekom MiniAir 12
Geekom MiniAir 12
Geekom MiniAir 12
Geekom MiniAir 12
Geekom MiniAir 12
Geekom MiniAir 12
Geekom MiniAir 12
Geekom MiniAir 12
Geekom MiniAir 12
Geekom MiniAir 12
Geekom MiniAir 12
Geekom MiniAir 12
Geekom MiniAir 12
Geekom MiniAir 12
Geekom MiniAir 12
Geekom MiniAir 12

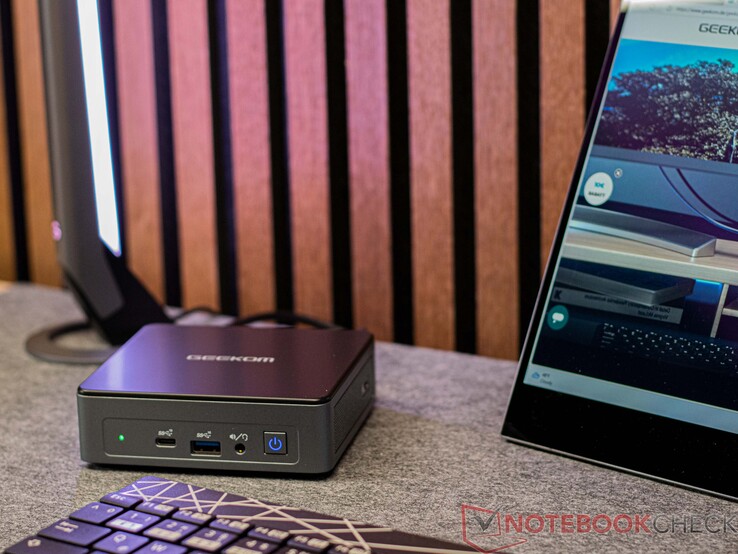

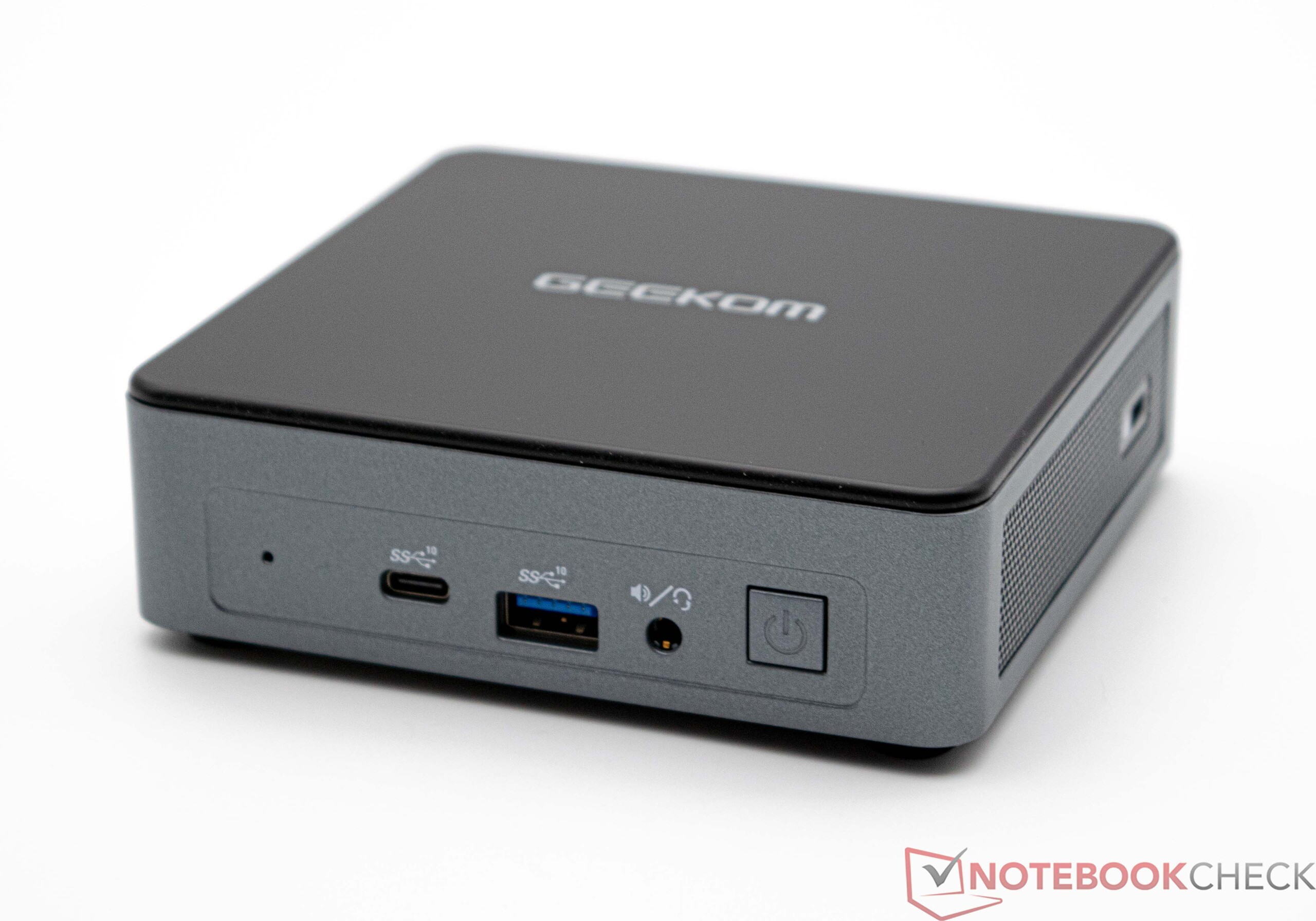

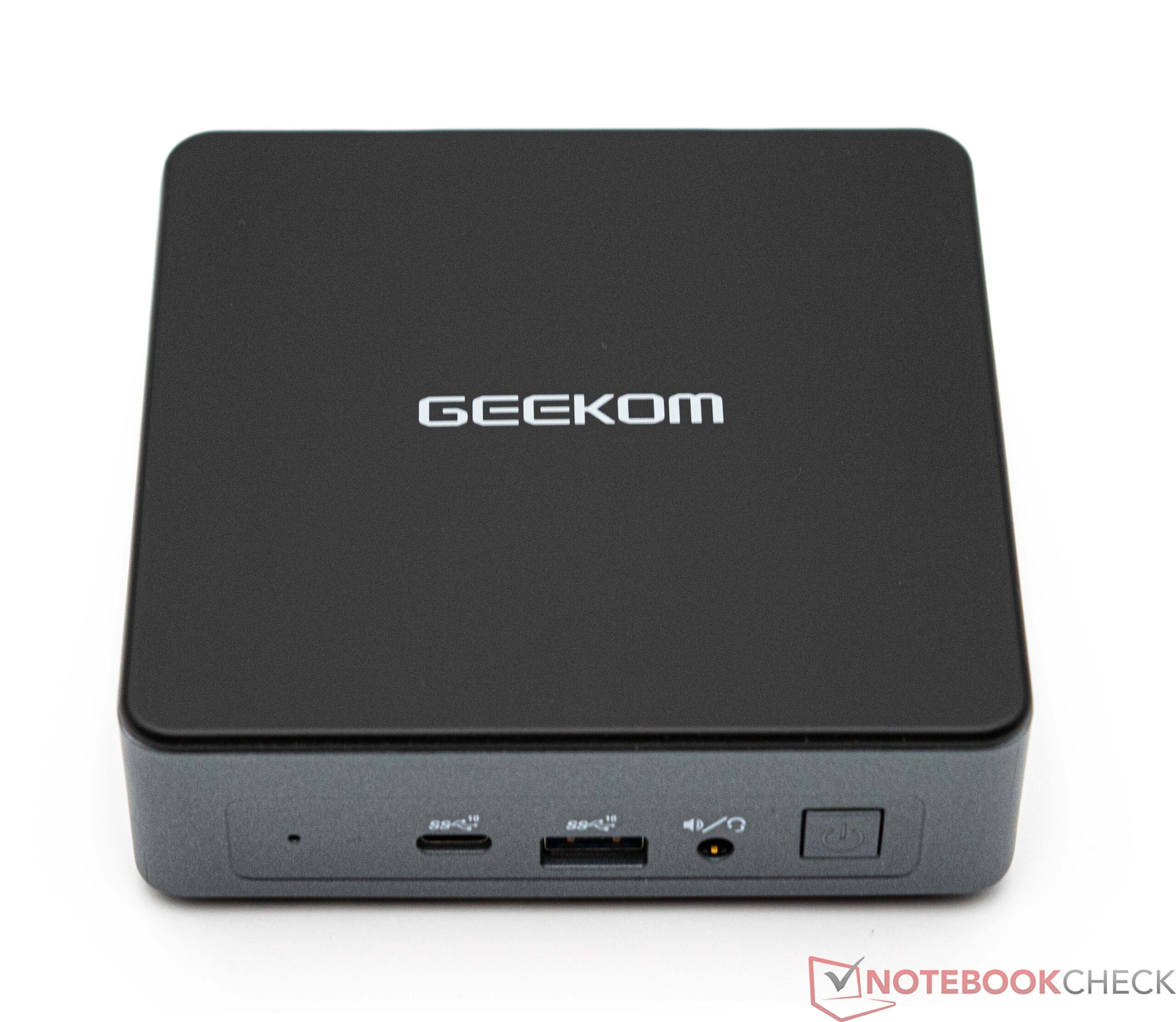

表壳 - 没有太多装饰的知名设计

Geekom MiniAir 12 看起来与英特尔 NUC 系统相似,仔细观察它们的物理结构也有很多相似之处。与 Geekom MiniAir 11 相同,制造商采用了塑料和金属混合材料。后者用于内部构造,赋予了设备出色的稳定性。这意味着 Geekom 的大多数设备都不能被归类为轻量级,这款产品重约 453 克,在同类产品中排名第二。11 x 11 厘米的占地面积相当小,尽管还有更小巧的设备可供选择。它的机身高度令人印象深刻,仅为 3.5 厘米。正如 Geekom 所称,该电脑的制造质量完美无瑕。

尺寸比较

132 mm 132 mm 47 mm 381 g128 mm 124 mm 42 mm 440 g126 mm 112 mm 40.8 mm 392 g115 mm 102 mm 39.1 mm 335 g117 mm 112 mm 34.2 mm 453 g117 mm 112 mm 34.2 mm 524 g87 mm 87 mm 43.5 mm 209 g87.7 mm 87.7 mm 37 mm 214 g210 mm 148 mm 1 mm 2.9 g

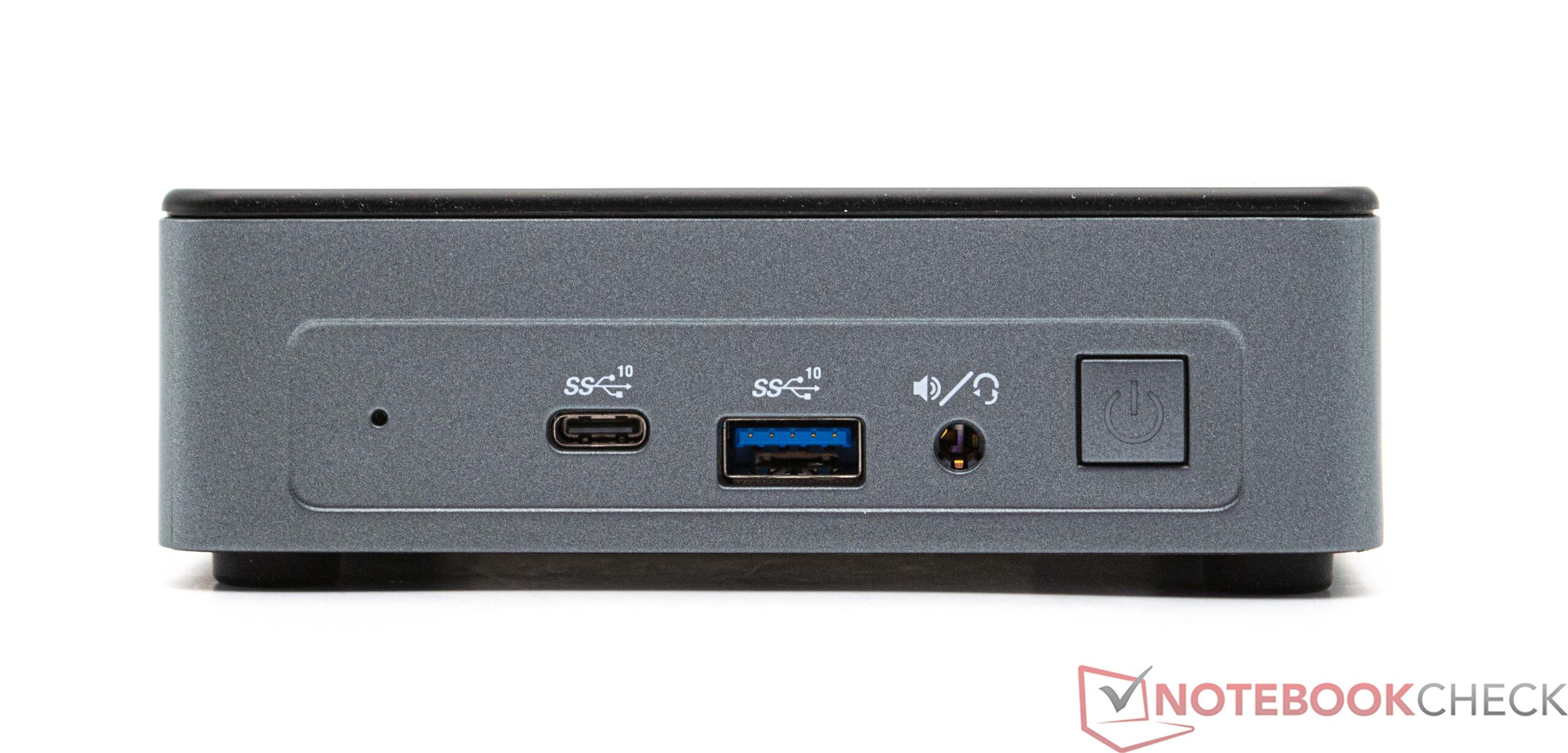

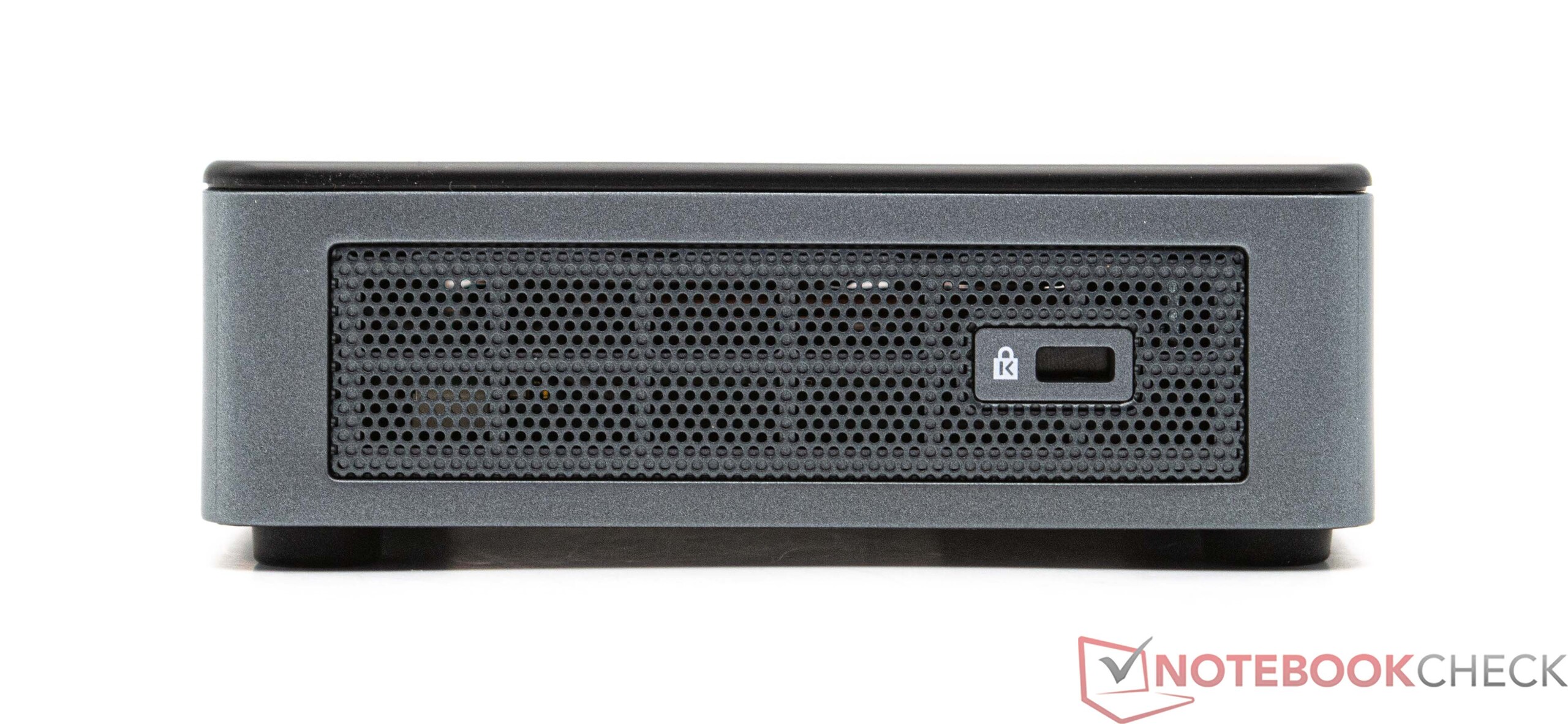

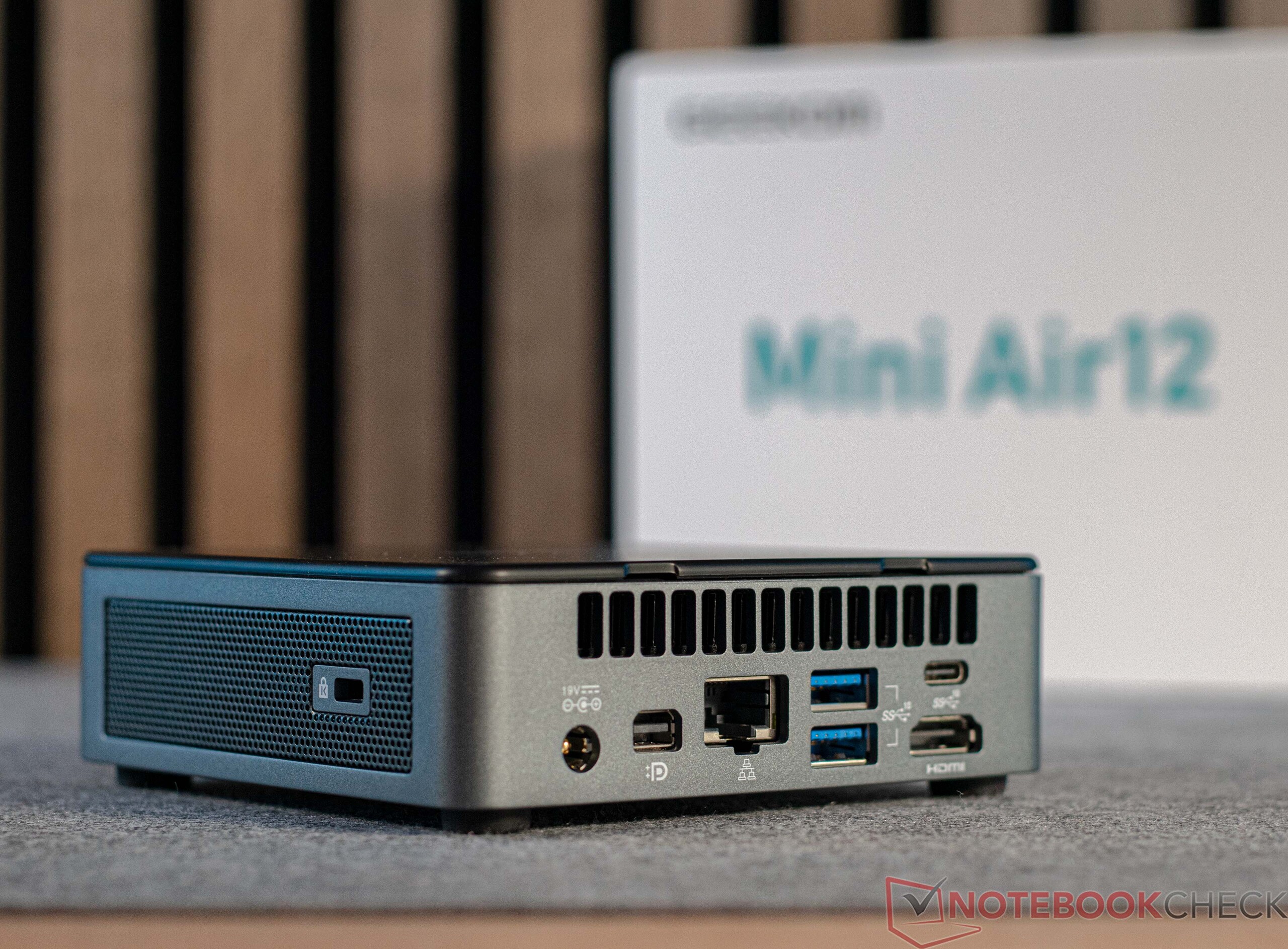

连接性 - 前后均有大量端口

Geekom MiniAir 12 的连接选项没有任何问题。USB 端口足够多,其中两个是 Type-C,而且分布合理。这款迷你电脑总共可以同时控制三个屏幕。值得注意的是,只有背面的 USB-C 接口还支持图像输出。越来越多的设备都没有配备 SD 读卡器,但 Geekom MiniAir 12 却没有。

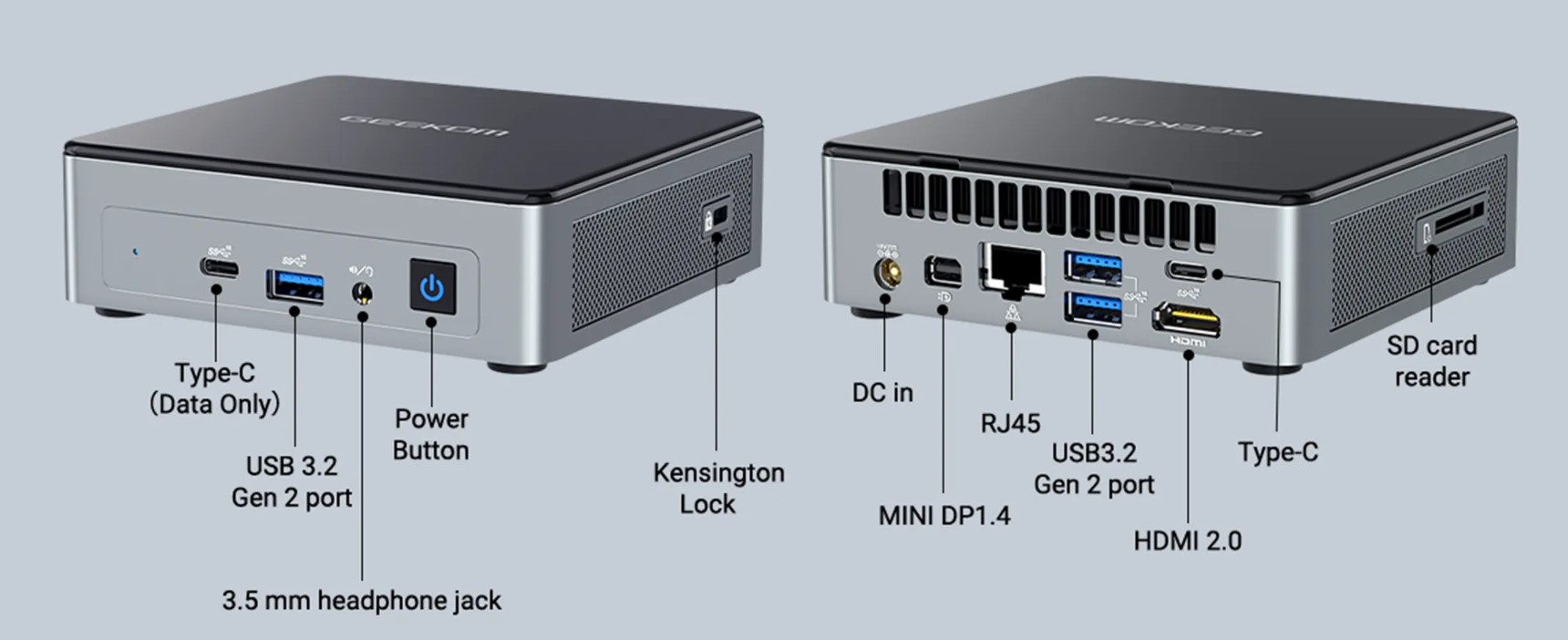

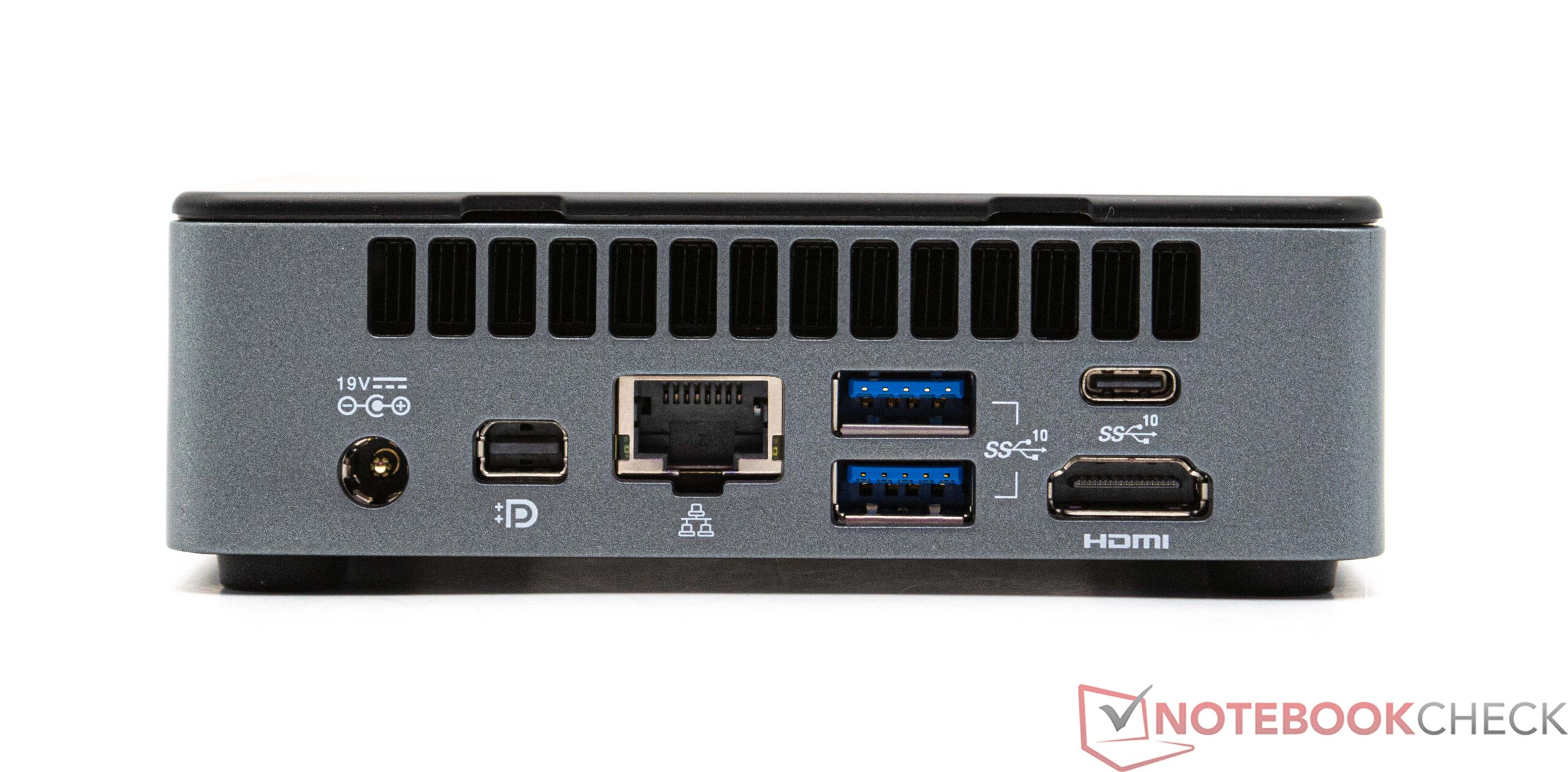

Geekom MiniAir 12 的外部端口(来源:Geekom)
Geekom MiniAir 12 的外部端口(来源:Geekom)

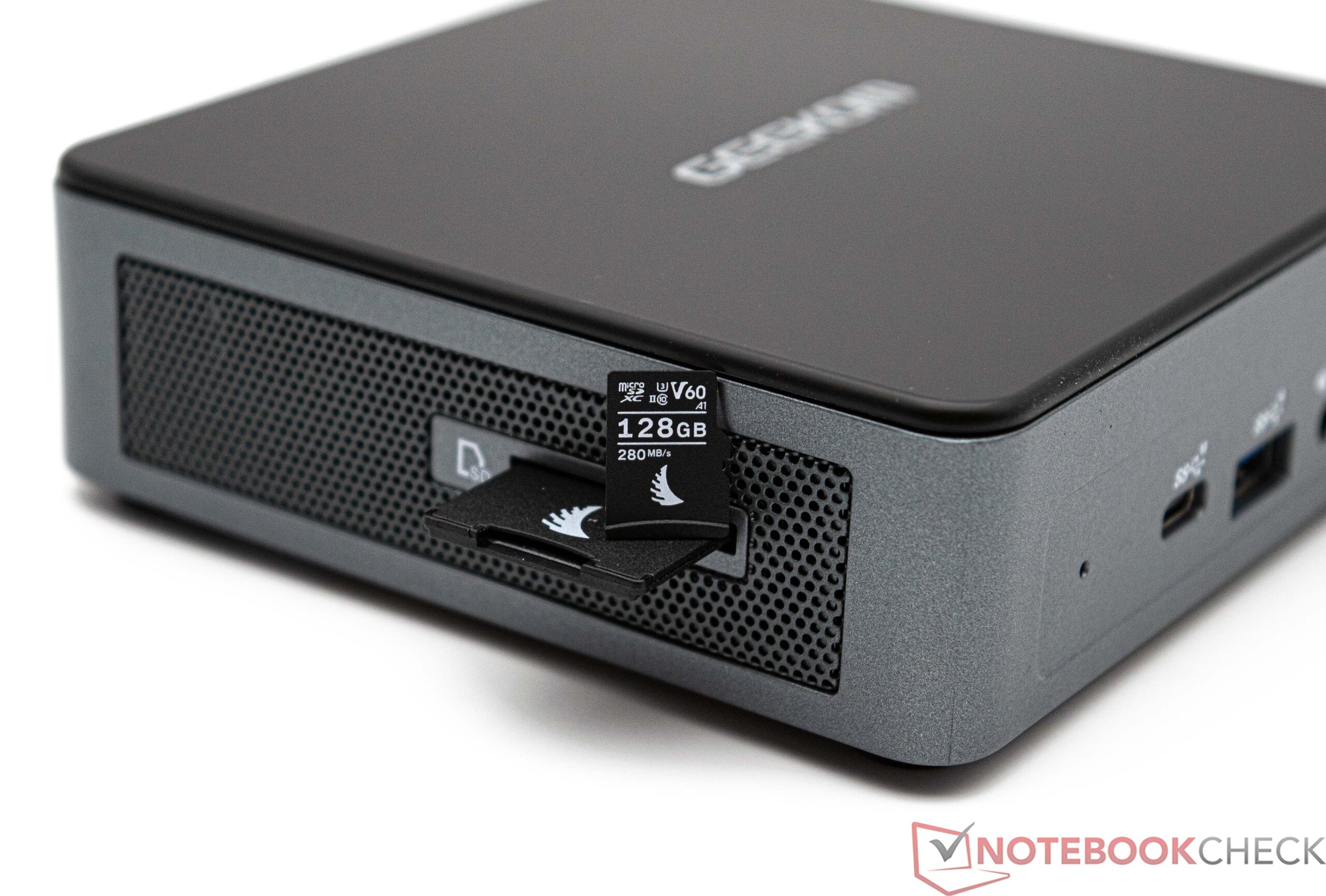

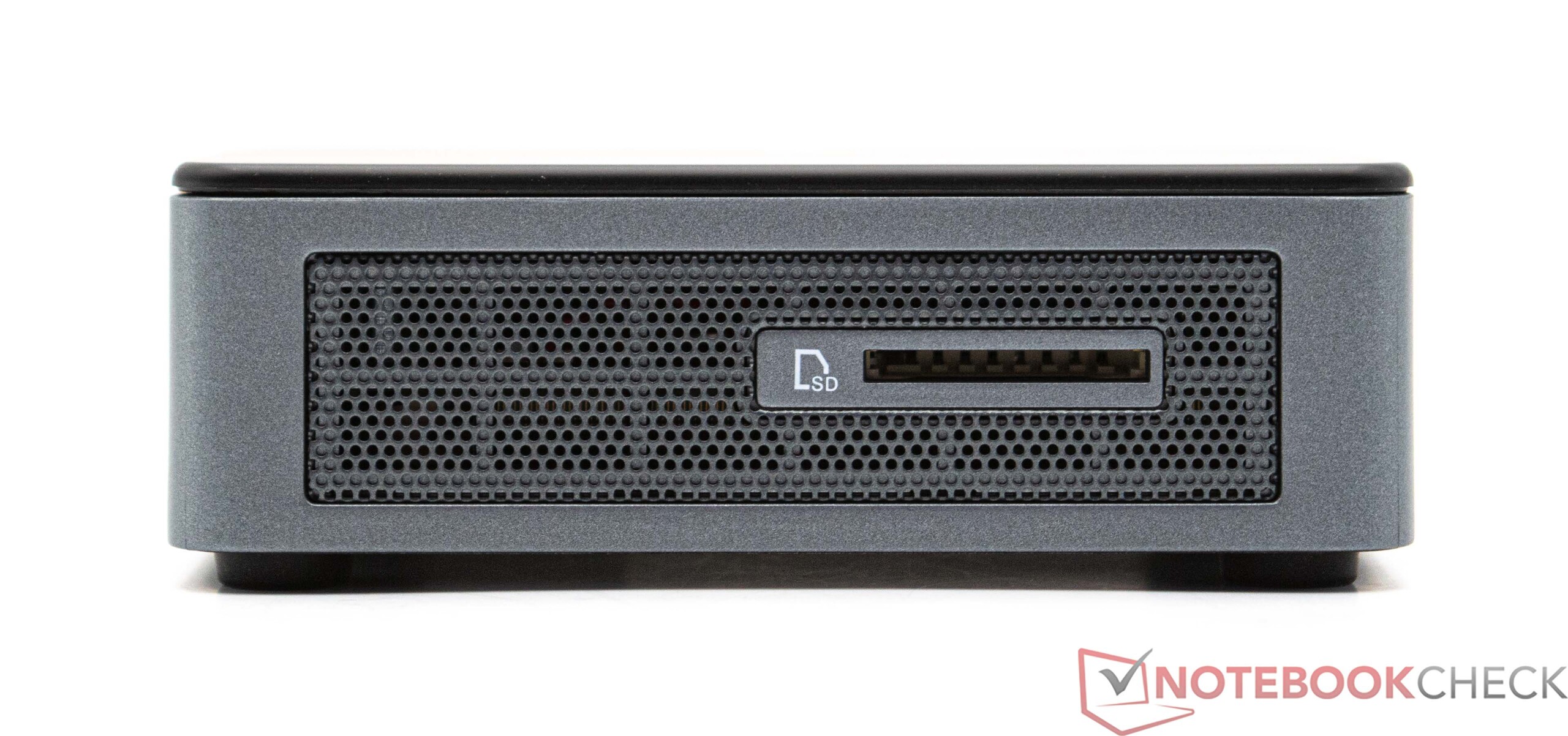

SD 读卡器

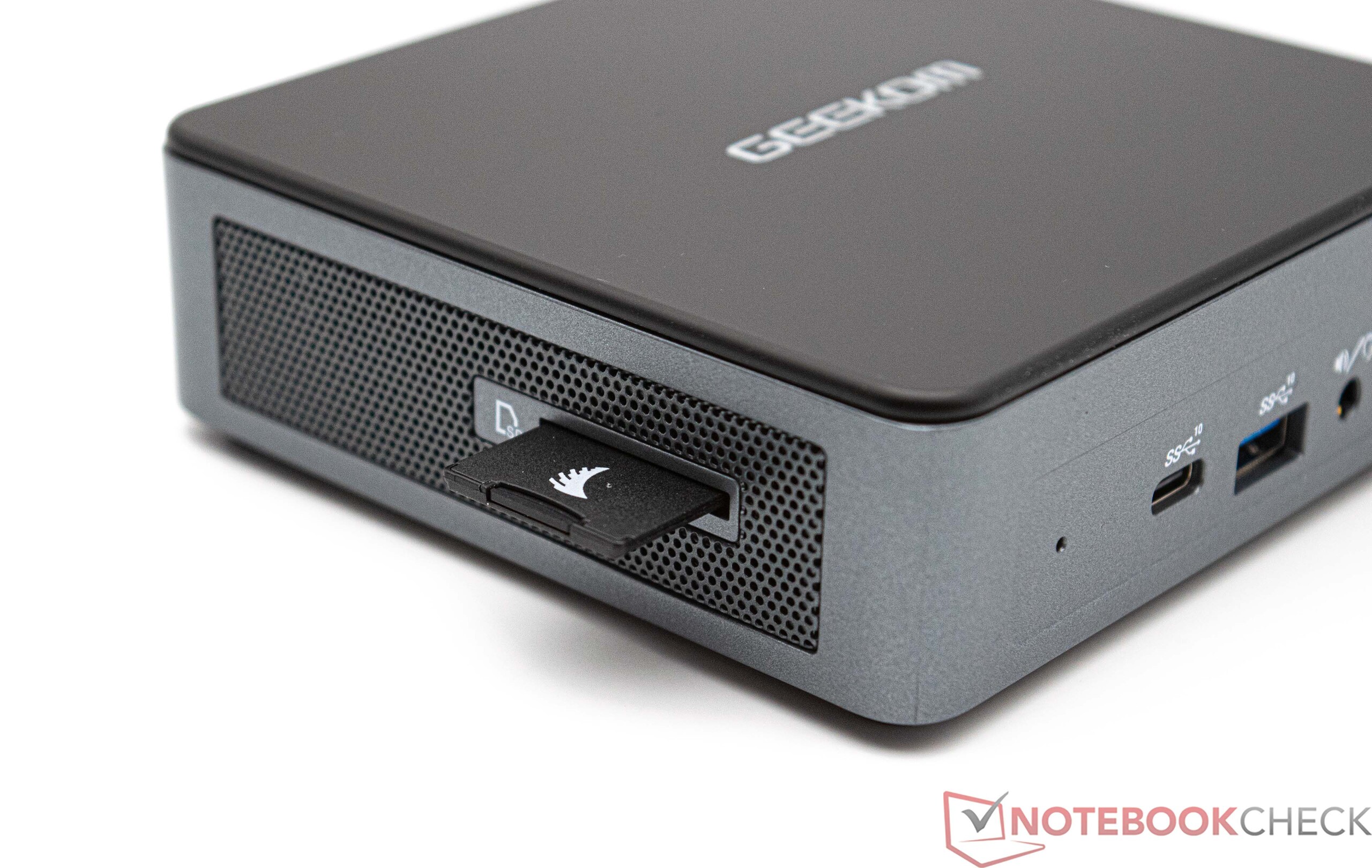

如前所述,Geekom MiniAir 12 集成了 SD 读卡器。与上一代产品相比,其性能略有提高。尽管如此,由于采用 USB-2.0 连接,其传输速率并不是最高的。我们使用参考卡(Angelbird AV Pro V60)进行了测试。

SD Card Reader - average JPG Copy Test (av. of 3 runs)
Average of class Mini PC
  (15.1 - 214, n=26, last 2 years)
91.7 MB/s +264%
Geekom MiniAir 12
Intel Processor N100 (AV Pro SD microSD 128 GB V60)
25.19 MB/s
Zotac ZBOX PI336 pico
Intel Celeron N6211 (AV PRO MICROSD V60)
24.44 MB/s -3%
AC6-M Mini-PC
Intel Celeron J4125 (AV PRO MICROSD V60)
18.46 MB/s -27%
Newsmay AC8 N6005
Intel Pentium Silver N6005 (AV Pro SD microSD 128 GB V60)
17.02 MB/s -32%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095 (AV Pro SD microSD 128 GB V60)
16.9 MB/s -33%

交流

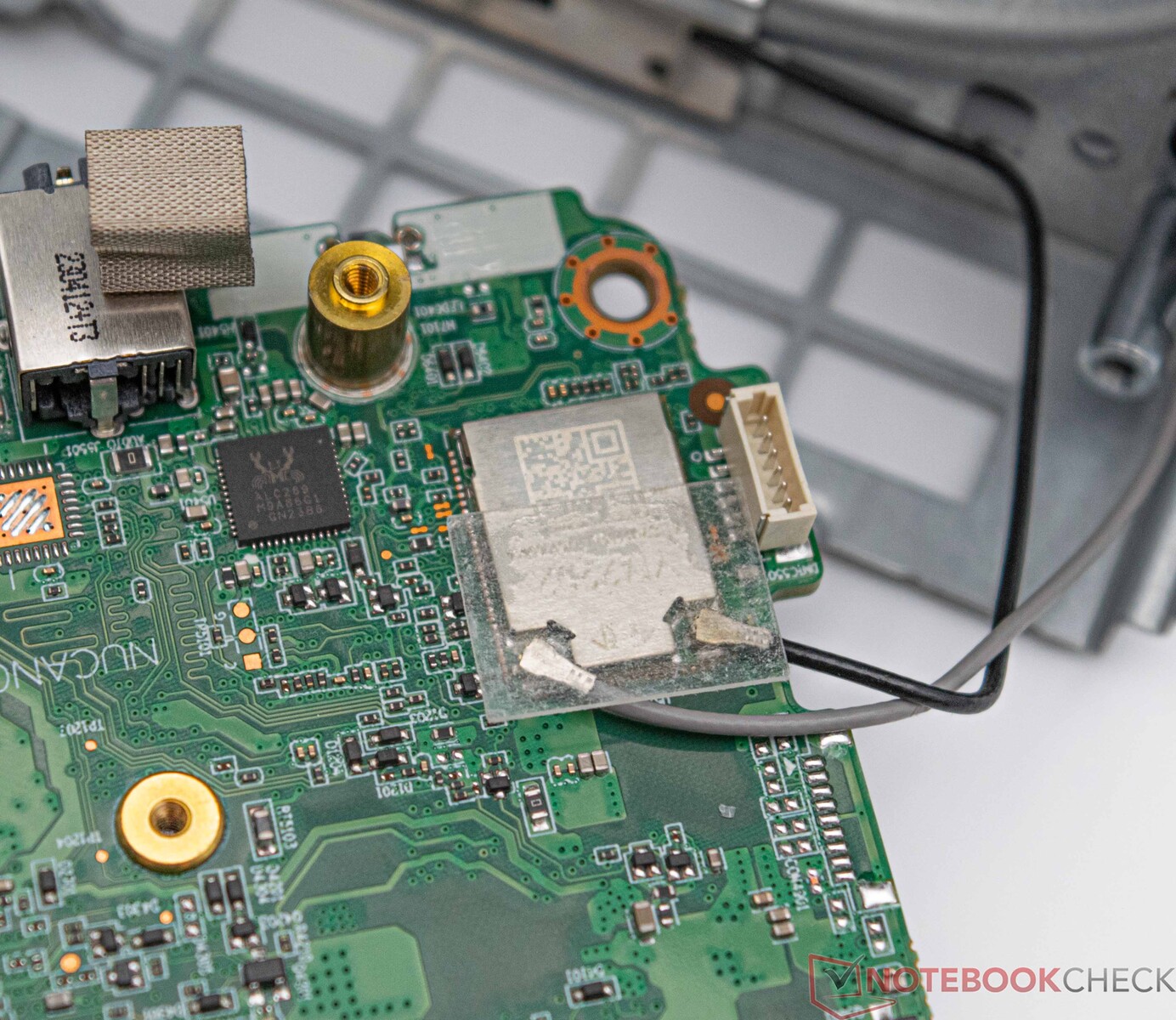

Geekom MiniAir 12 内部的 WLAN 模块是焊接式的
Geekom MiniAir 12 内部的 WLAN 模块是焊接式的

Geekom MiniAir 12 的无线通信由 Realtek 模块提供。在我们的测试中,该样品表现出色,让竞争对手望尘莫及。我们使用华硕 ROG Rapture GT-AXE11000 路由器进行了性能测试。通过 RJ45 端口,Geekom MiniAir 12 提供了更多的网络连接选择。传输速率最高可达 1 GBit/s。

Networking
iperf3 receive AXE11000
Average of class Mini PC
  (192.9 - 1796, n=113, last 2 years)
932 MBit/s +17%
Average Realtek RTL8852BE
  (455 - 984, n=43)
847 MBit/s +6%
Geekom MiniAir 12
Realtek RTL8852BE
797 (752min - 847max) MBit/s
BOSGAME N95
Intel Dual Band Wireless-AC 8265
719 (702min - 729max) MBit/s -10%
Acemagic S1
Realtek RTL8852BE
503 (357min - 676max) MBit/s -37%
Trigkey G4
Intel Wi-Fi 6 AX101
491 (483min - 495max) MBit/s -38%
Beelink Mini S12 Pro
Intel Wi-Fi 6 AX201
470 (445min - 491max) MBit/s -41%
Minipc Union Ace Magician T8Pro
Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC
363 (359min - 365max) MBit/s -54%
Blackview MP80
Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC
361 (326min - 365max) MBit/s -55%
Minipc Union NiPoGi GK3PLUS - N95
Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC
358 (180min - 362max) MBit/s -55%
Geekom MiniAir 11 Special Edition
Intel Dual Band Wireless-AC 7265
290 (279min - 299max) MBit/s -64%
iperf3 transmit AXE11000
Average of class Mini PC
  (184.1 - 1776, n=113, last 2 years)
864 MBit/s +11%
Average Realtek RTL8852BE
  (536 - 925, n=42)
792 MBit/s +1%
Geekom MiniAir 12
Realtek RTL8852BE
781 (657min - 820max) MBit/s
Acemagic S1
Realtek RTL8852BE
536 (515min - 553max) MBit/s -31%
BOSGAME N95
Intel Dual Band Wireless-AC 8265
519 (510min - 547max) MBit/s -34%
Trigkey G4
Intel Wi-Fi 6 AX101
487 (459min - 504max) MBit/s -38%
Beelink Mini S12 Pro
Intel Wi-Fi 6 AX201
438 (376min - 489max) MBit/s -44%
Blackview MP80
Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC
274 (266min - 281max) MBit/s -65%
Minipc Union NiPoGi GK3PLUS - N95
Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC
269 (136min - 276max) MBit/s -66%
Geekom MiniAir 11 Special Edition
Intel Dual Band Wireless-AC 7265
225 (210min - 237max) MBit/s -71%
Minipc Union Ace Magician T8Pro
Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC
184.1 (94min - 191max) MBit/s -76%
050100150200250300350400450500550600650700750800Tooltip
Geekom MiniAir 12 Realtek RTL8852BE; iperf3 receive AXE11000; iperf 3.1.3: Ø796 (752-847)
Acemagic S1 Realtek RTL8852BE; iperf3 receive AXE11000; iperf 3.1.3: Ø503 (357-676)
Geekom MiniAir 12 Realtek RTL8852BE; iperf3 transmit AXE11000; iperf 3.1.3: Ø781 (657-820)
Acemagic S1 Realtek RTL8852BE; iperf3 transmit AXE11000; iperf 3.1.3: Ø536 (515-553)

交付范围

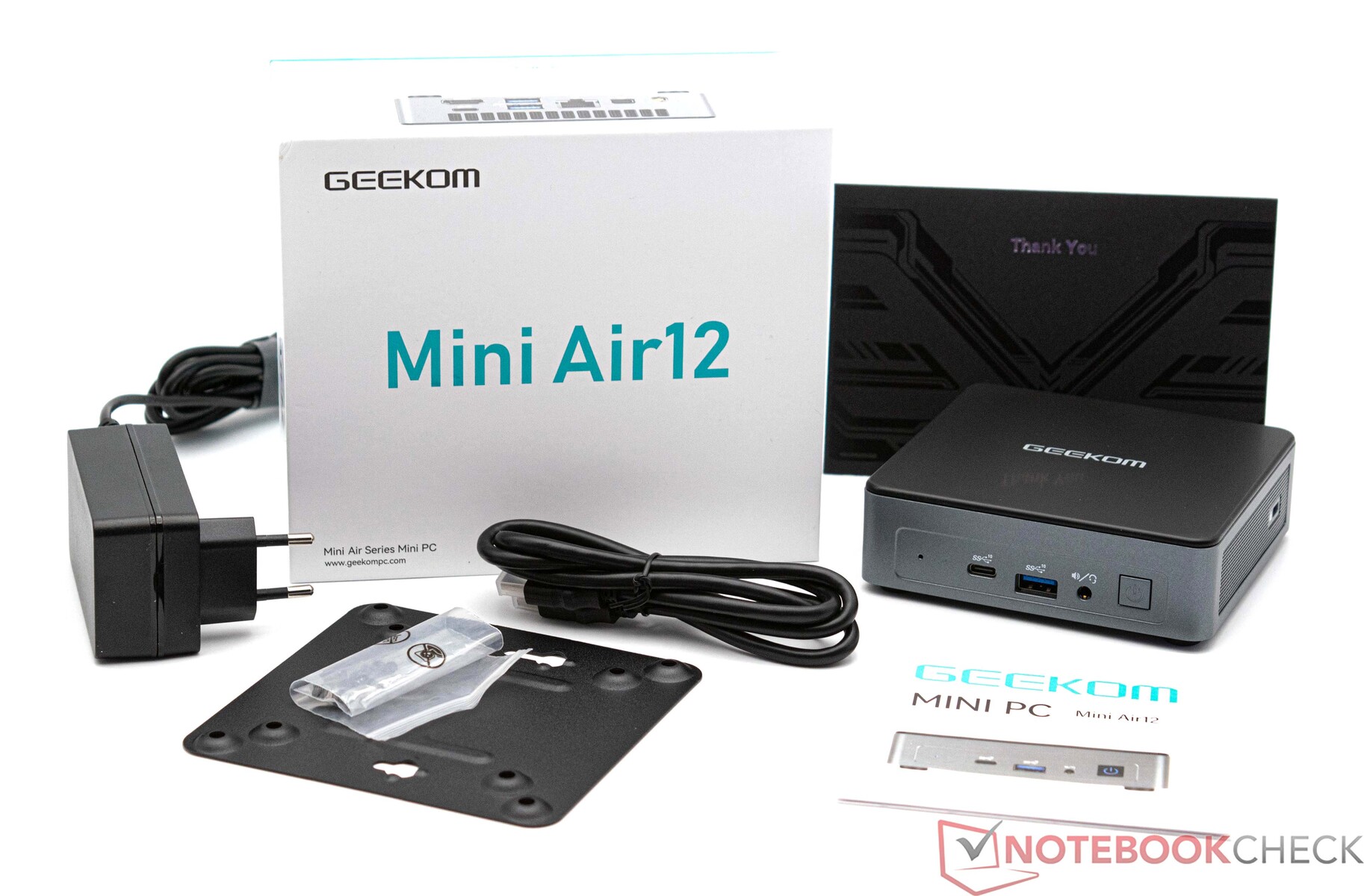

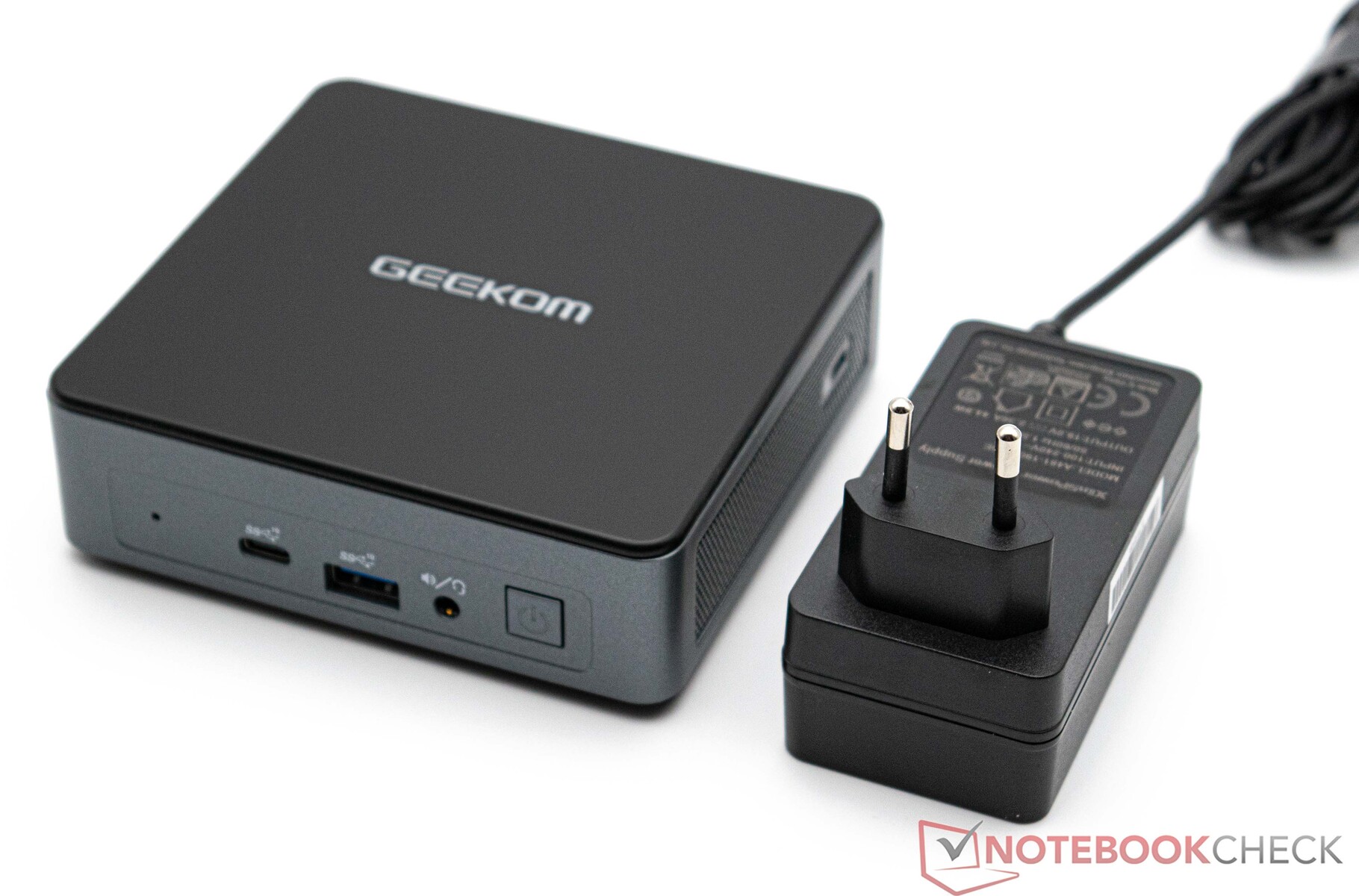

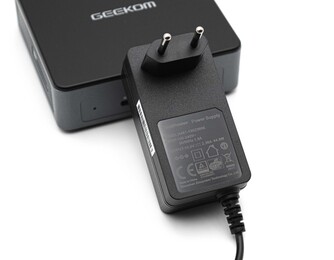

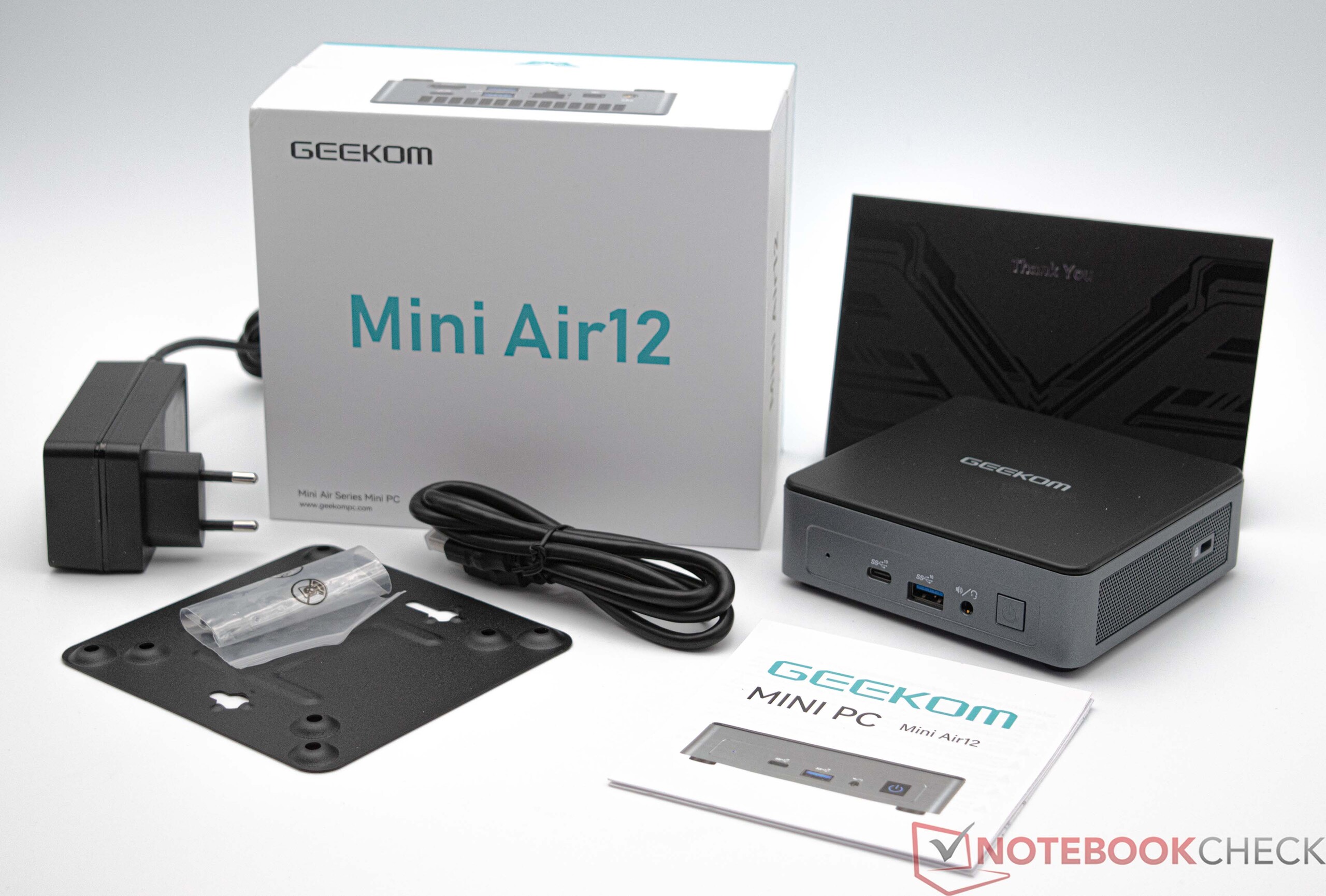

Geekom MiniAir 12 的供货范围包括一个 45 瓦的电源(19V,2.36A)、一条 HDMI 电缆和一个 VESA 支架,用于将迷你电脑连接到显示器上。

Geekom MiniAir 12(带配件
Geekom MiniAir 12(带配件

维护

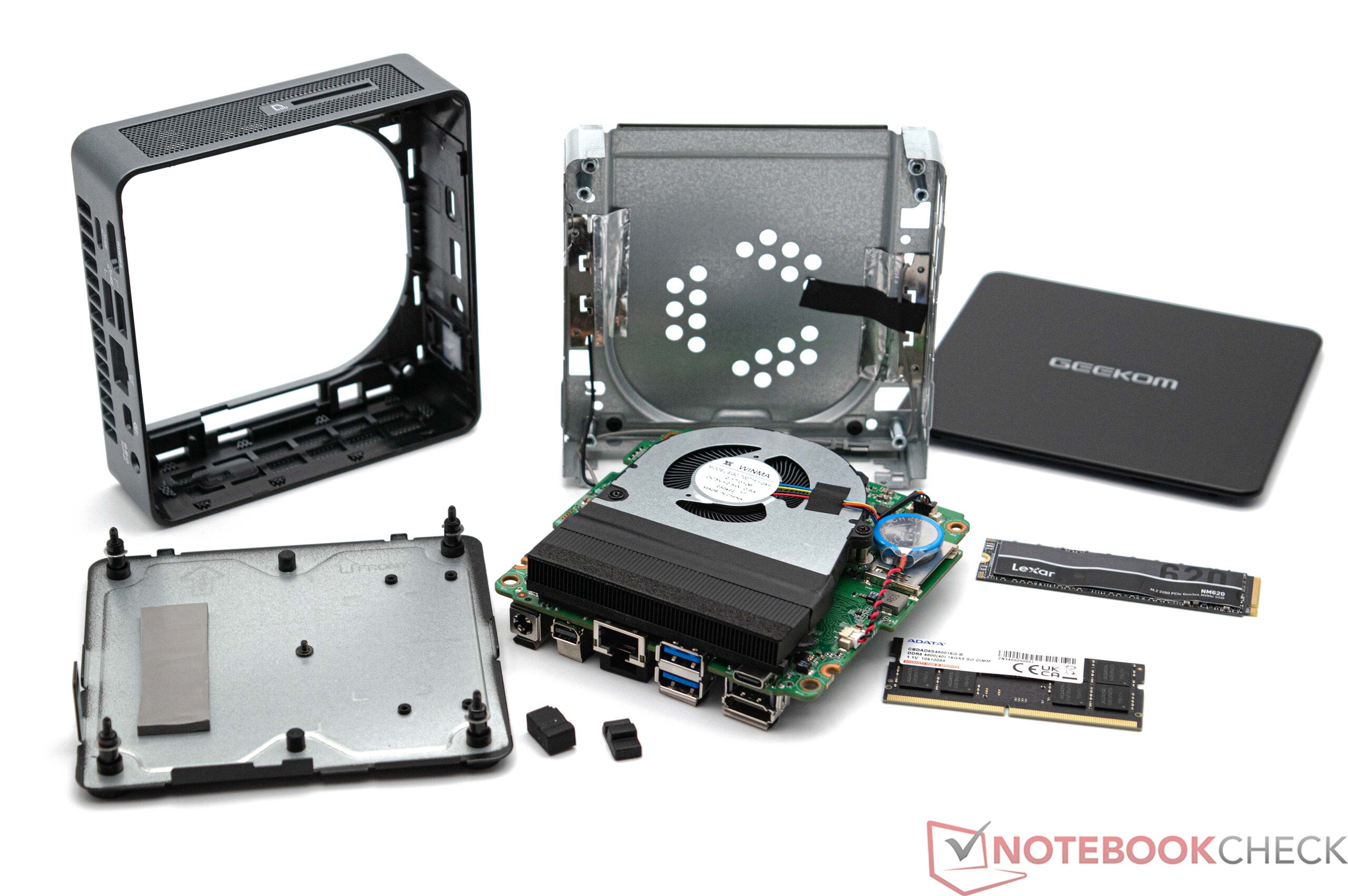

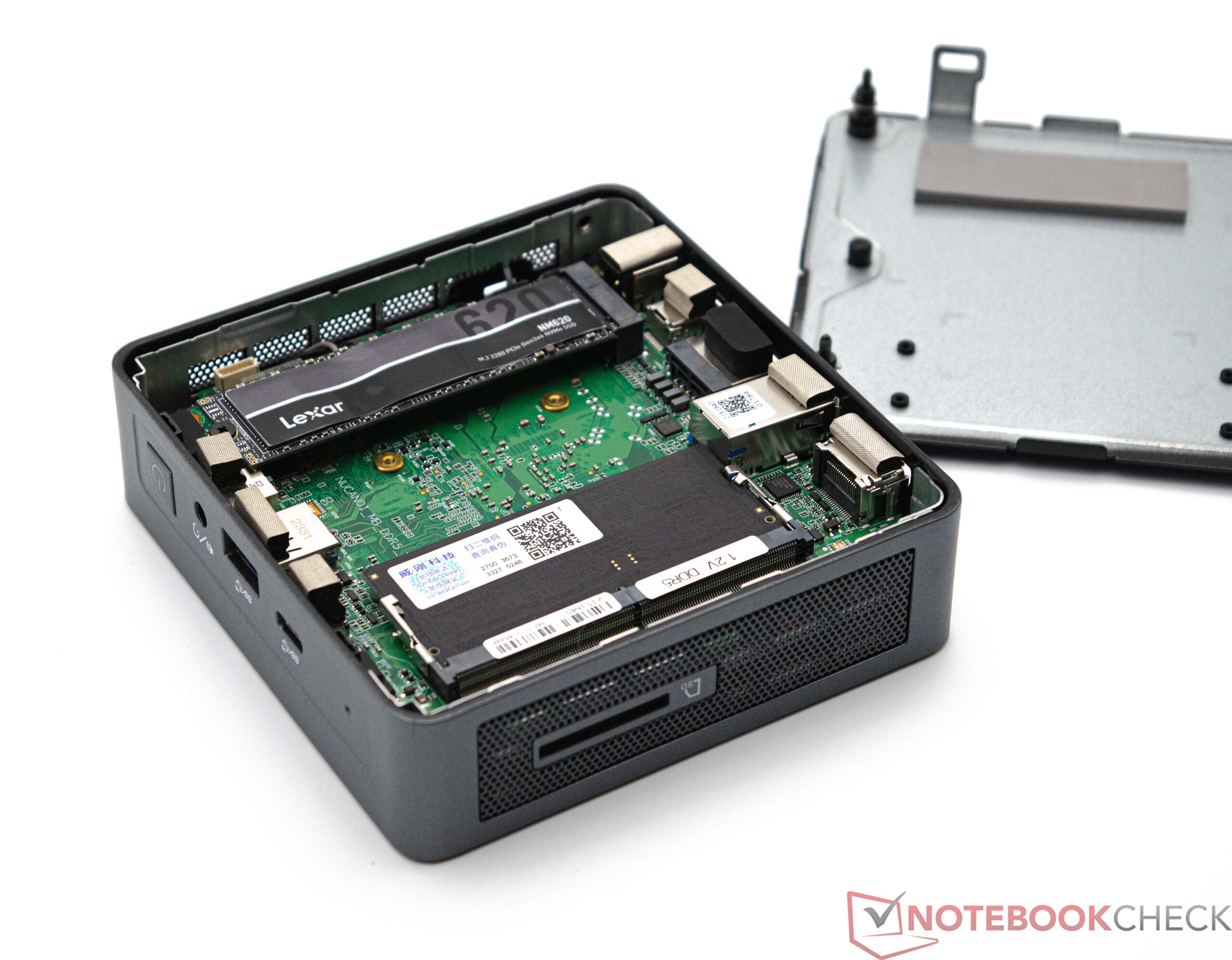

Geekom MiniAir 12 可以轻松地从底部打开。内存和固态硬盘组件可以更换。要接触 CPU 冷却器,必须进一步拆开设备。只需确保不损坏无线局域网天线即可。设备本身只能容纳一个固态硬盘和一个内存模块。

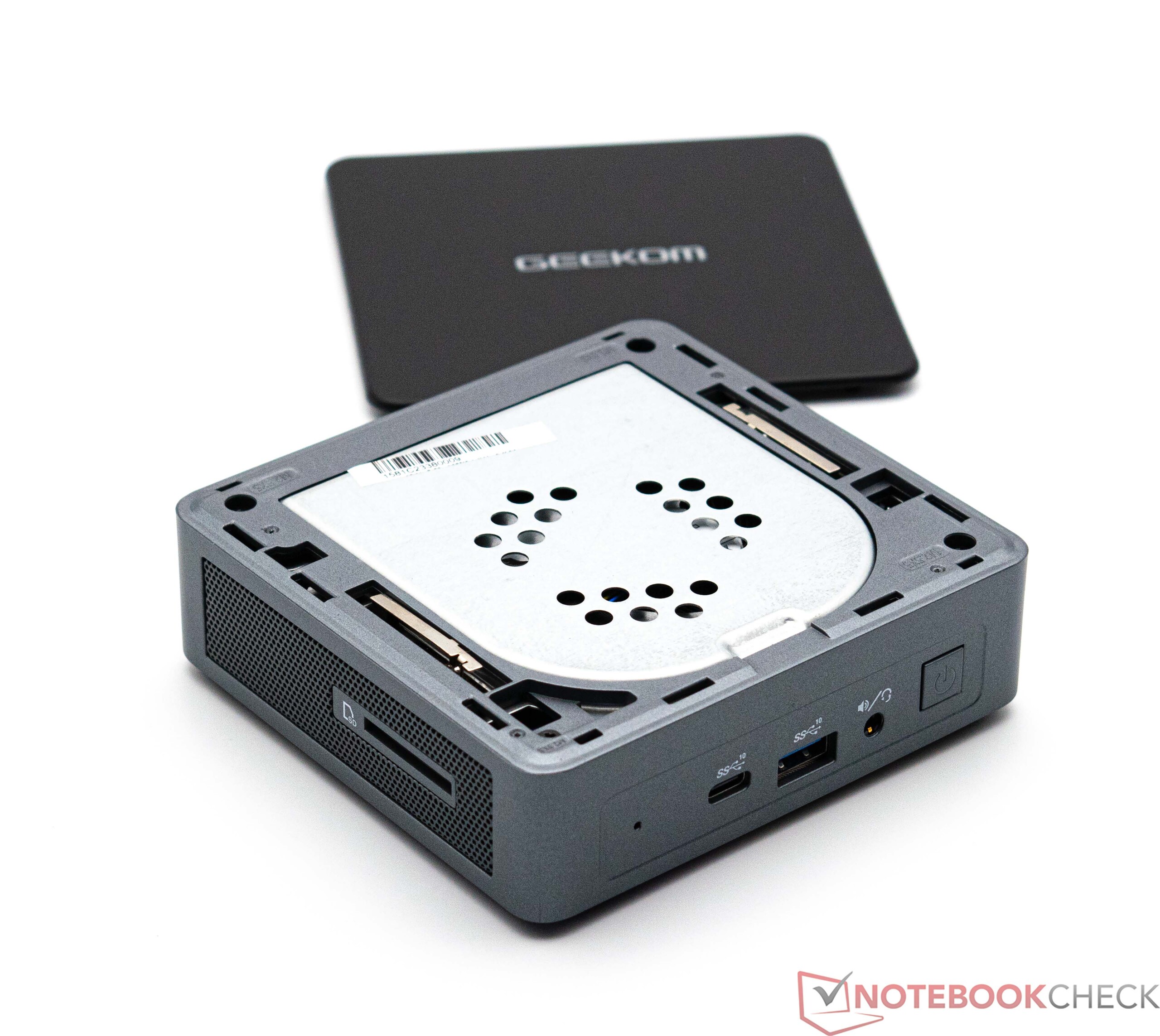

拆开 Geekom MiniAir 12
拆开 Geekom MiniAir 12
不带盒盖的 Geekom MiniAir 12

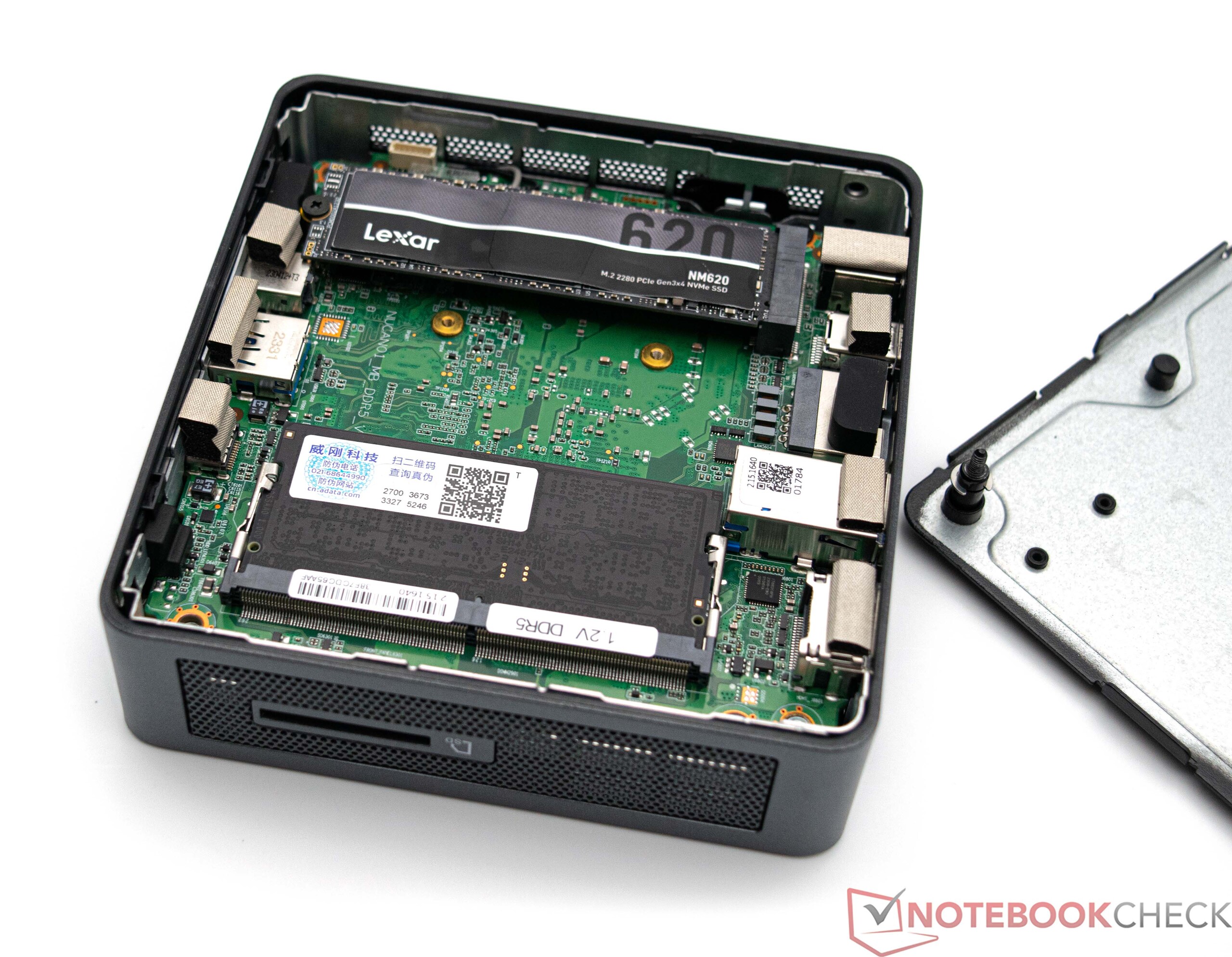

拆除底板的 Geekom MiniAir 12
拆除底板的 Geekom MiniAir 12

性能 - 配备四个 Alder-Lake 内核的英特尔 N100

英特尔英特尔 N100提供四个基于英特尔 Alder Lake 架构的原生计算内核。与英特尔赛扬 N5095相比,Geekom MiniAir 11 的 SoC 应该能提供更高的性能,再加上 DDR5 内存,理论上应该能很好地实现这一性能。遗憾的是,MiniAir 12 只有一个 SO-DIMM 插槽,这意味着内存只能在单通道模式下运行。Geekom MiniAir 12 的性能足以编辑办公文档或上网冲浪。

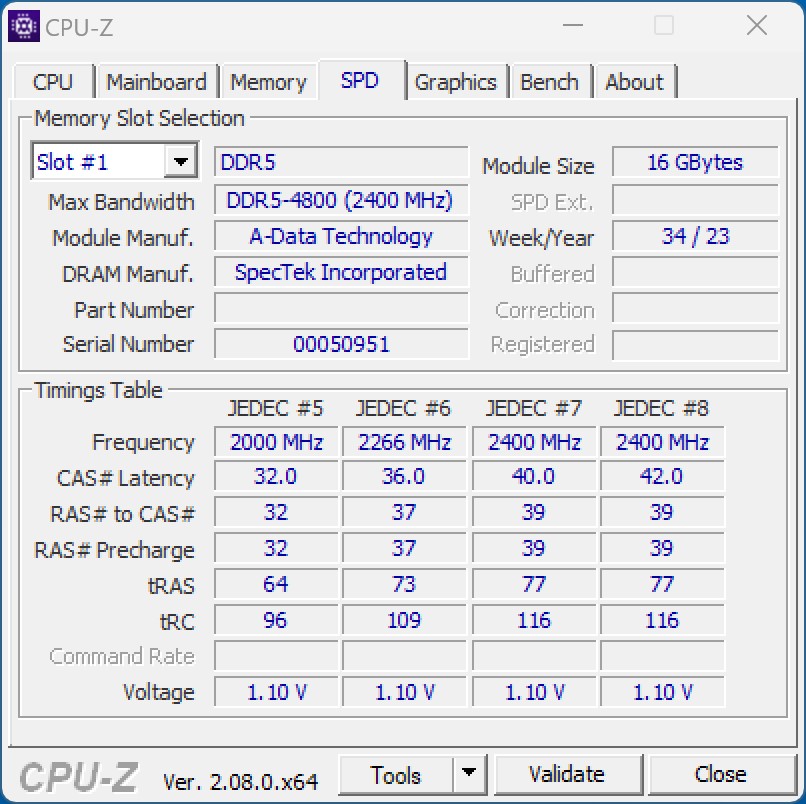

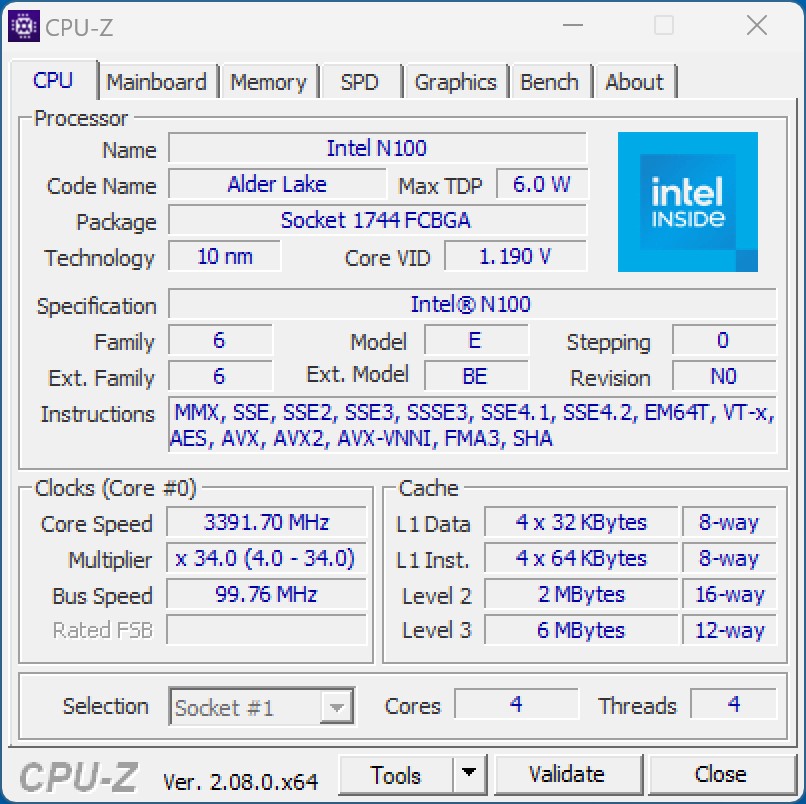

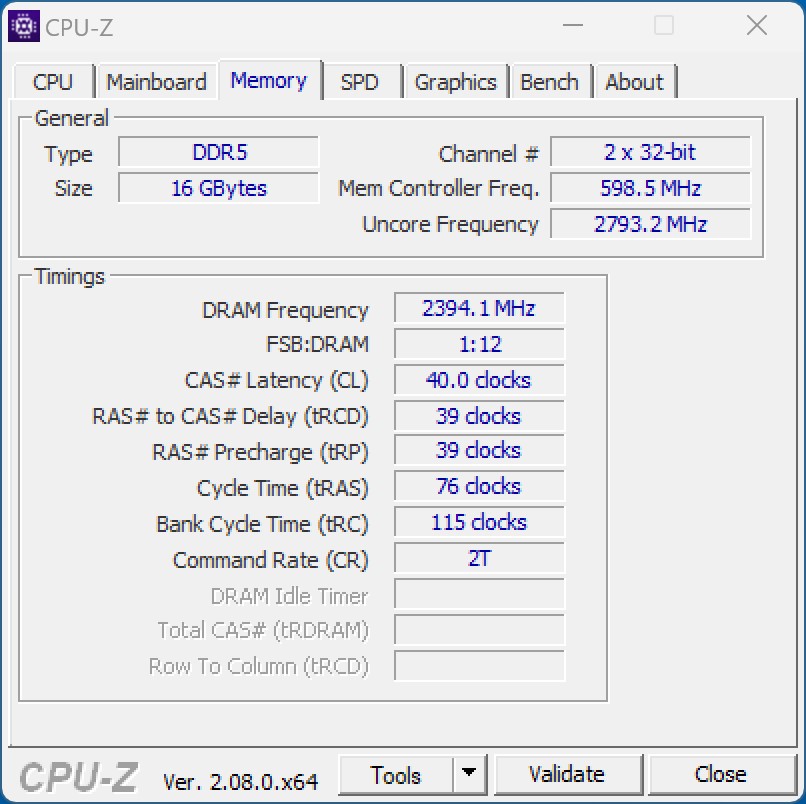

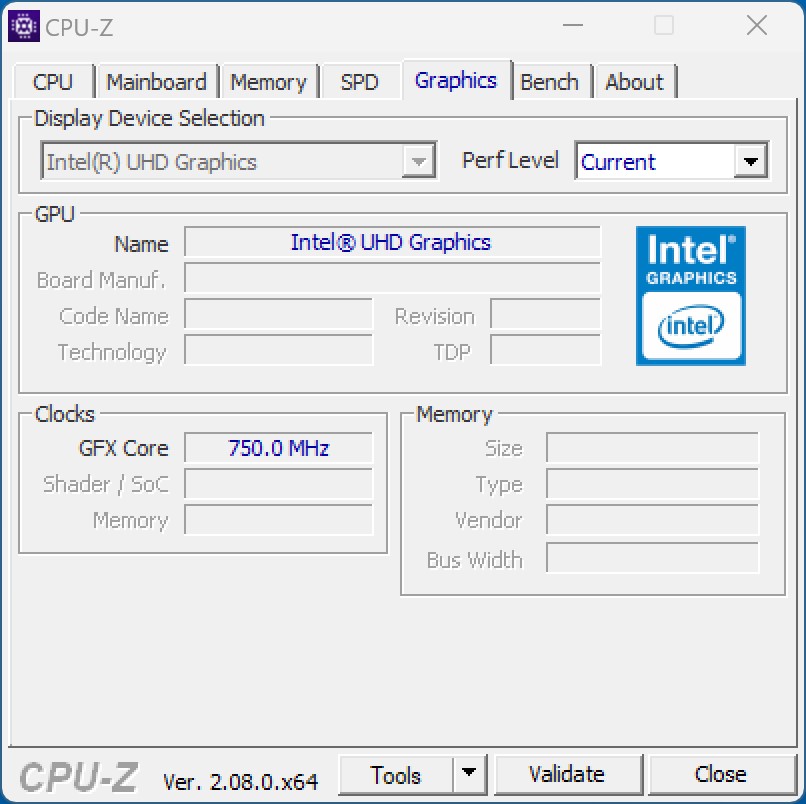

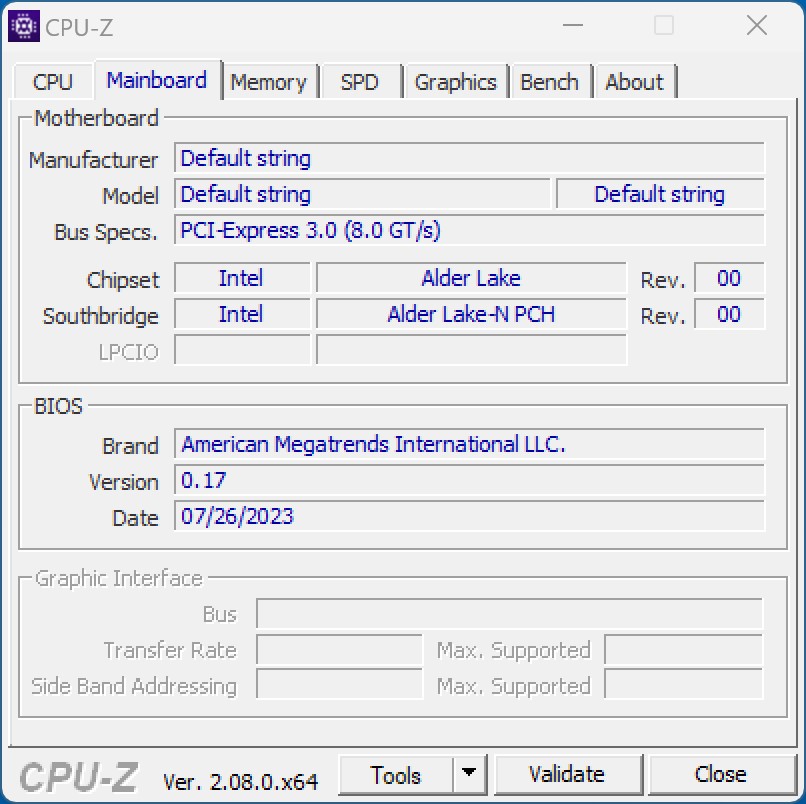

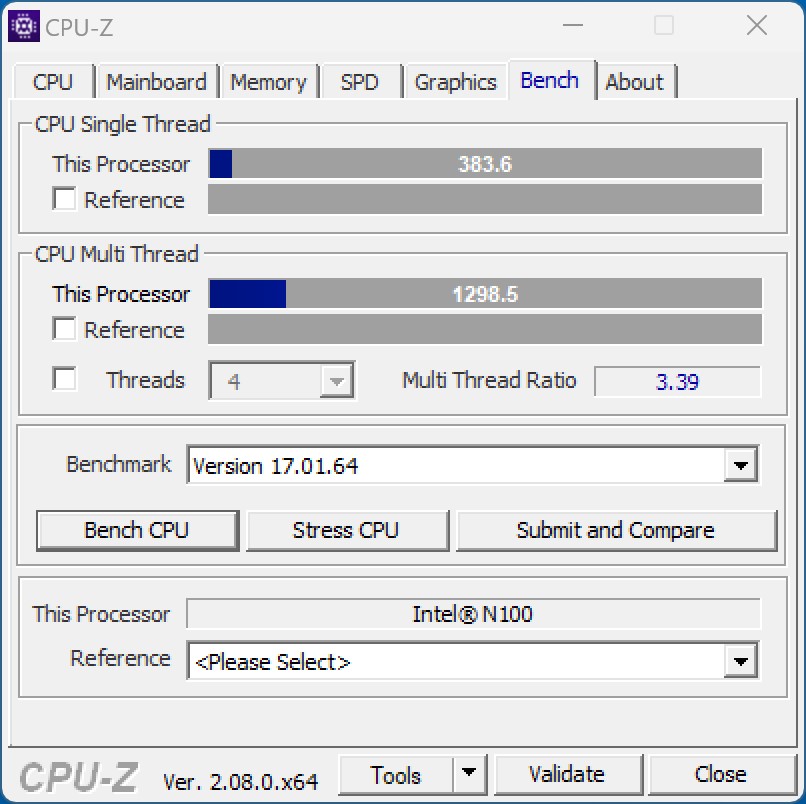

CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z

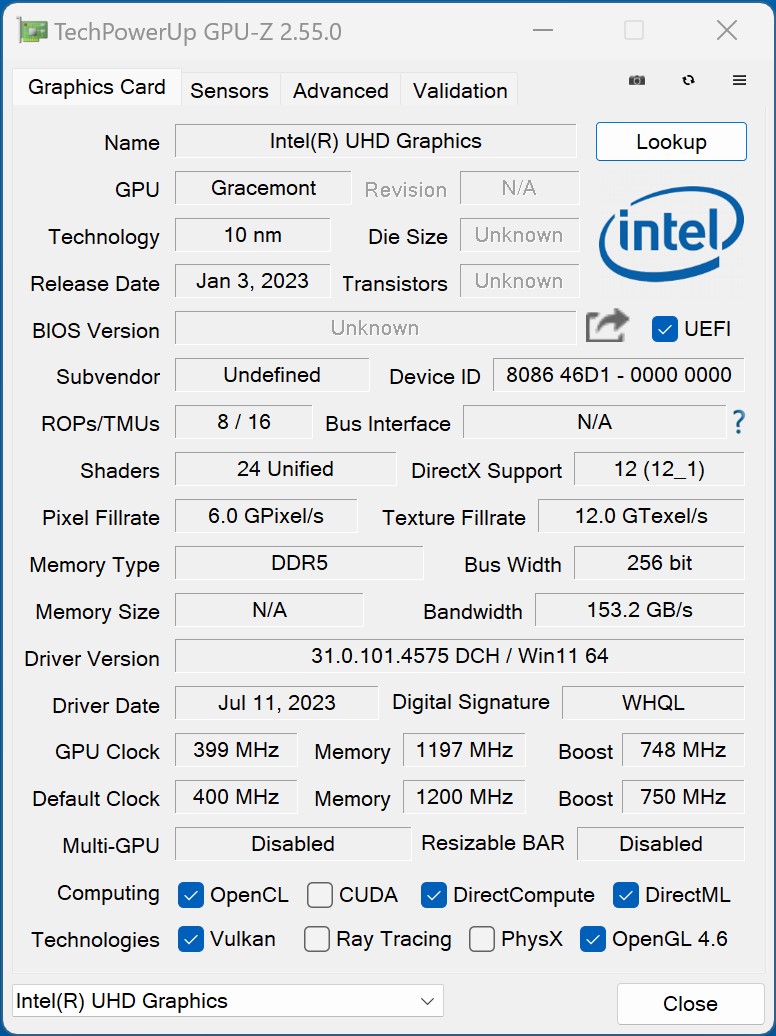

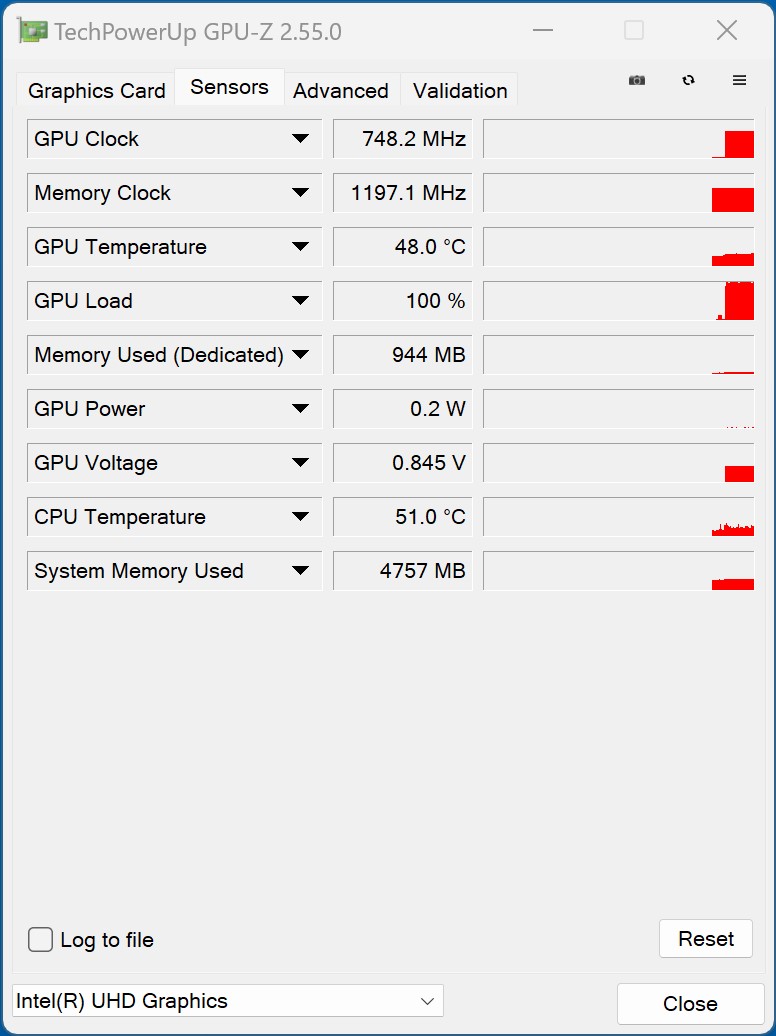

GPU-Z
GPU-Z

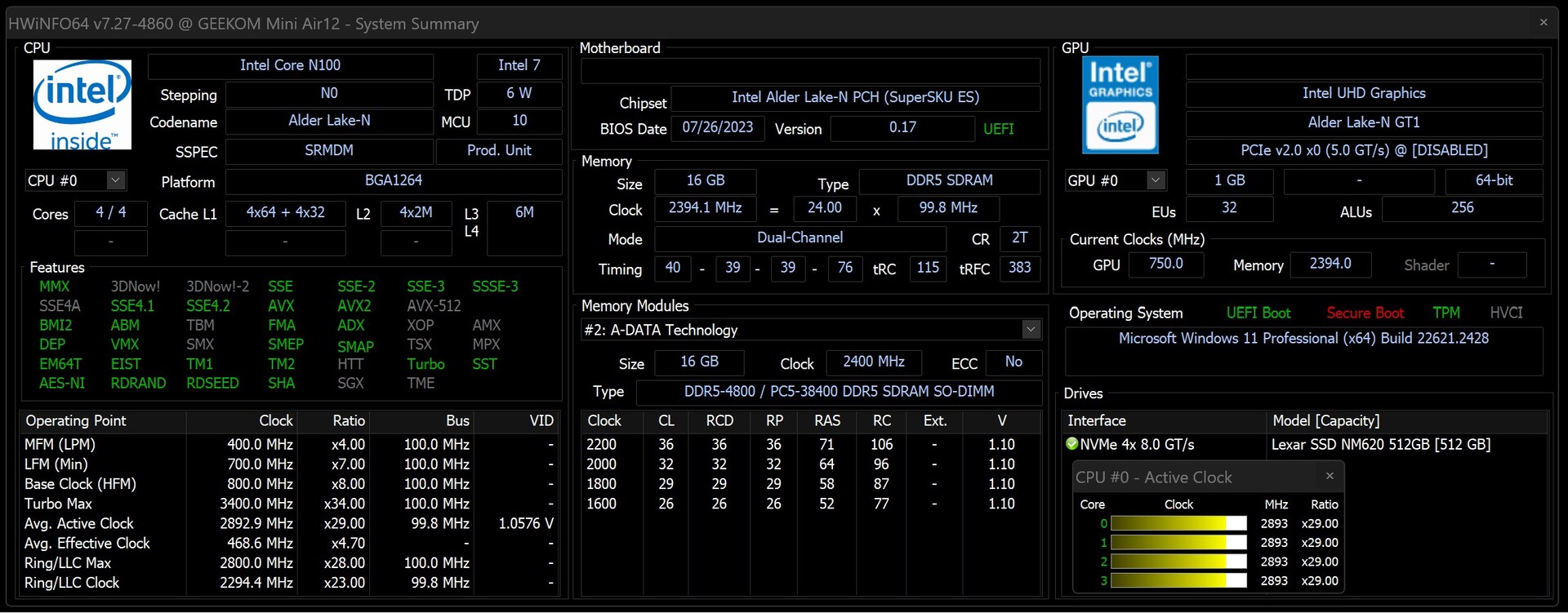

HWiNFO

测试条件

我们使用 "最高性能 "能耗模式进行了所有性能测试。偏离节能模式仅用于功耗测量和噪声排放测量。有关测试标准的更多详情,请点击 这里.

处理器

英特尔 N100(来源:Geekom)
英特尔 N100(来源:Geekom)

Geekom MiniAir 12 安装的英特尔 N100 是一款拥有四个计算核心的节俭型 SoC。Geekom MiniAir 11 im Test: Preiswerter Mini-PC in einer Special-Edition neu aufgelegt! 平均而言,Geekom MiniAir 12 的性能提高了 19%。不过,相比之下,这还不足以让该设备获得第一名。Trigkey G4 也配备了英特尔 N100。由于Trigkey G4 只提供 DDR4 内存,因此我们无法确定更快内存带来的所谓性能优势。为了说明它与当前顶级迷你 PC 的比较,我们在比较表中加入了配备英特尔酷睿 i7-1360P 的英特尔 NUC 13 Pro。

您可以在

找到更多处理器基准测试结果。.

Cinebench R15
Cinebench R15

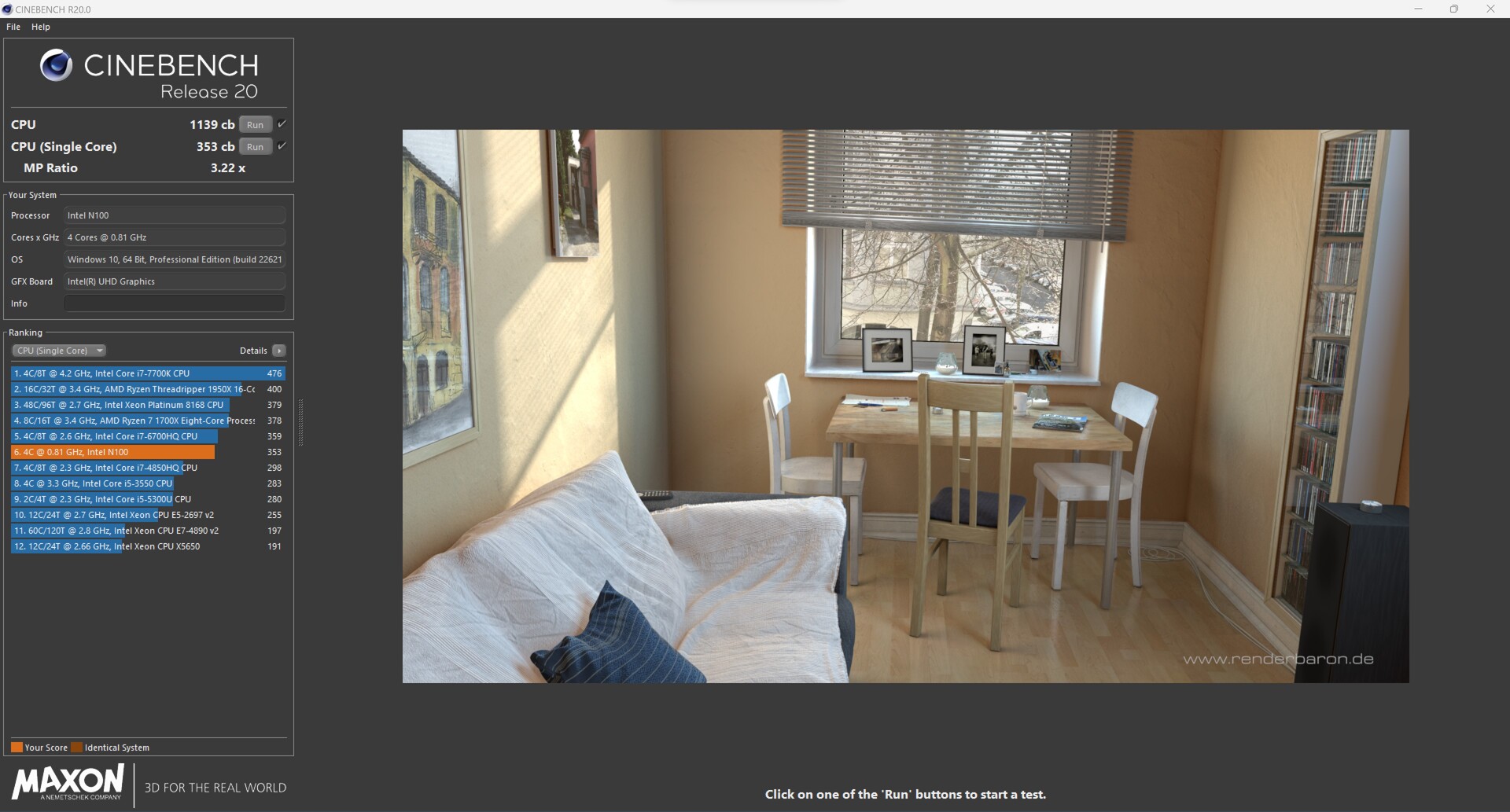

Cinebench R20
Cinebench R20

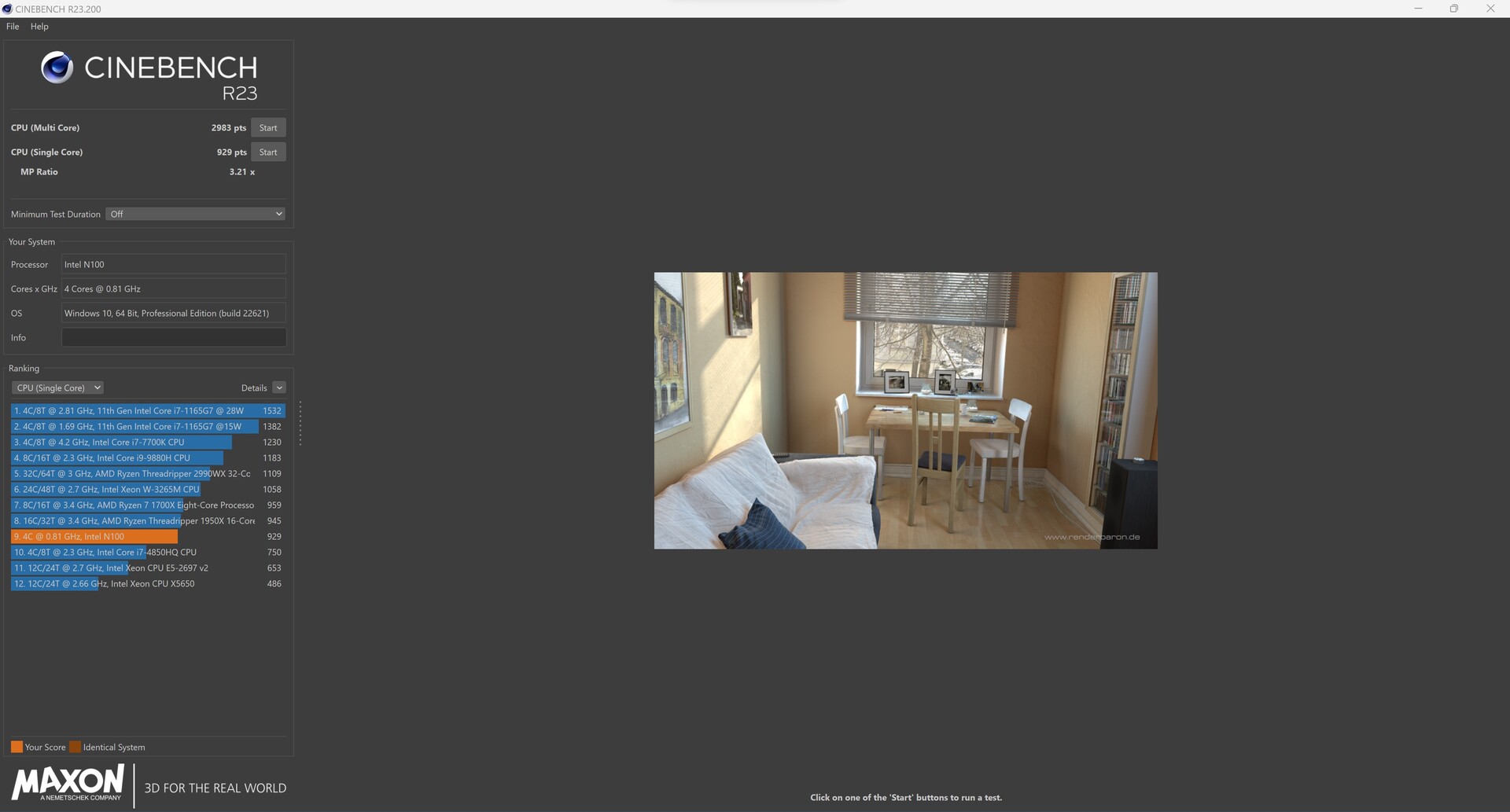

Cinebench R23
Cinebench R23

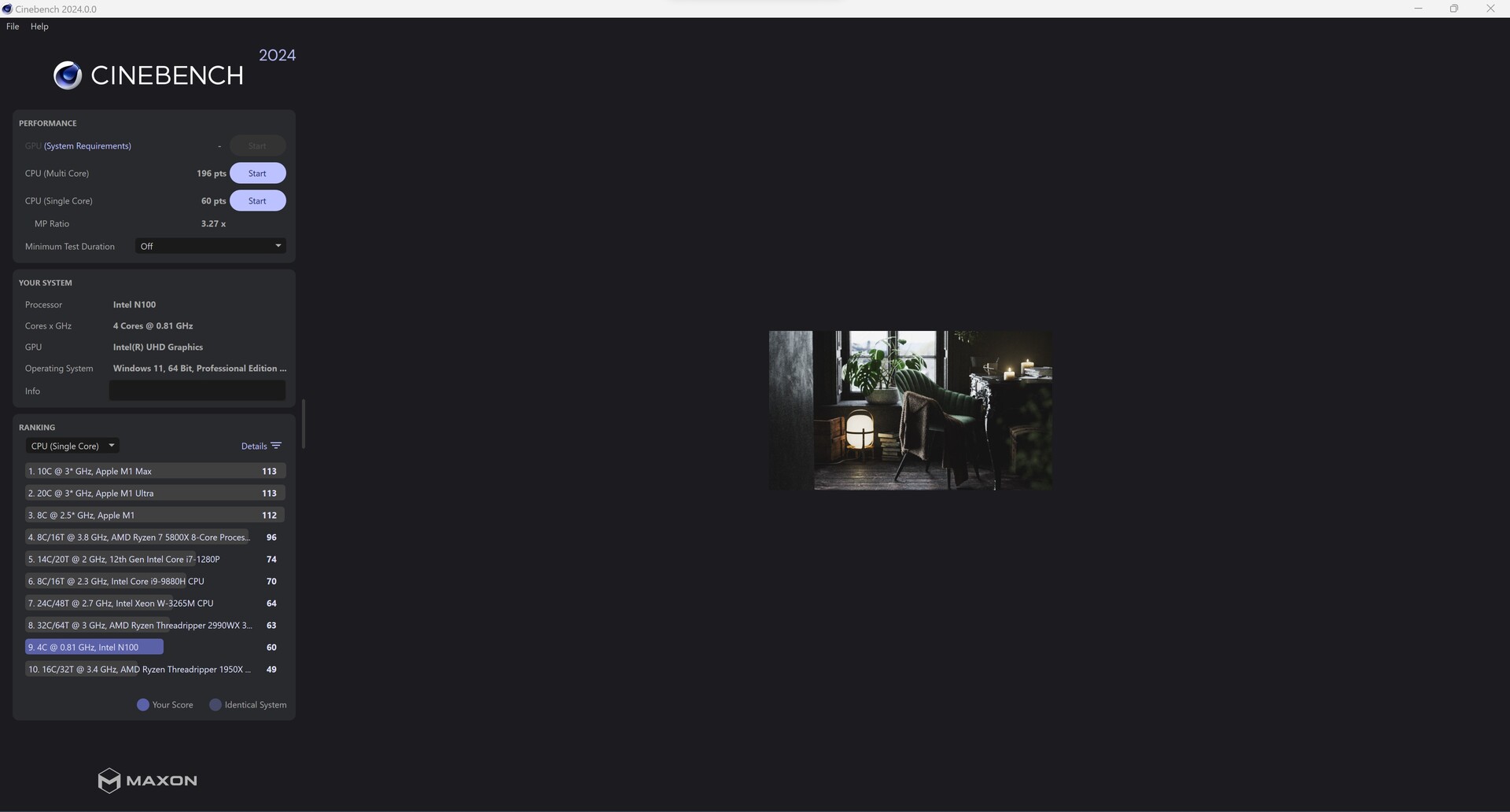

Cinebench 2024
Cinebench 2024
Performance Rating - Percent
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, 1600 MHz
52.2 pt
Trigkey G4
Intel Processor N100, 1000 MHz
32.2 pt
Geekom MiniAir 12
Intel Processor N100, 1000 MHz
31.8 pt
Blackview MP80
Intel Processor N95,  MHz
31.6 pt
BOSGAME N95
Intel Processor N95,  MHz
31.5 pt
Acemagic S1
Intel Processor N95,  MHz
31.4 pt
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95,  MHz
29 pt
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
26.9 pt
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
26.7 pt
Cinebench R15
CPU Single 64Bit
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, 1600 MHz
267 Points +76%
BOSGAME N95
Intel Processor N95,  MHz
155 Points +2%
Trigkey G4
Intel Processor N100, 1000 MHz
155 Points +2%
Acemagic S1
Intel Processor N95,  MHz
154 Points +1%
Geekom MiniAir 12
Intel Processor N100, 1000 MHz
152 Points
Blackview MP80
Intel Processor N95,  MHz
151 Points -1%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95,  MHz
123 Points -19%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
106 Points -30%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
102 Points -33%
CPU Multi 64Bit
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, 1600 MHz
1990 Points +315%
Geekom MiniAir 12
Intel Processor N100, 1000 MHz
479 Points
Trigkey G4
Intel Processor N100, 1000 MHz
477 Points 0%
BOSGAME N95
Intel Processor N95,  MHz
452 Points -6%
Acemagic S1
Intel Processor N95,  MHz
446 Points -7%
Blackview MP80
Intel Processor N95,  MHz
434 Points -9%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95,  MHz
408 Points -15%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
369 Points -23%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
359 Points -25%
Cinebench R20
CPU (Single Core)
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, 1600 MHz
723 Points +105%
Trigkey G4
Intel Processor N100, 1000 MHz
358 Points +1%
BOSGAME N95
Intel Processor N95,  MHz
357 Points +1%
Acemagic S1
Intel Processor N95,  MHz
357 Points +1%
Geekom MiniAir 12
Intel Processor N100, 1000 MHz
353 Points
Blackview MP80
Intel Processor N95,  MHz
350 Points -1%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95,  MHz
241 Points -32%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
234 Points -34%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
233 Points -34%
CPU (Multi Core)
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, 1600 MHz
4687 Points +312%
Geekom MiniAir 12
Intel Processor N100, 1000 MHz
1139 Points
Trigkey G4
Intel Processor N100, 1000 MHz
1138 Points 0%
BOSGAME N95
Intel Processor N95,  MHz
1067 Points -6%
Acemagic S1
Intel Processor N95,  MHz
1050 Points -8%
Blackview MP80
Intel Processor N95,  MHz
1029 Points -10%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95,  MHz
976 Points -14%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
828 Points -27%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
822 Points -28%
Cinebench R11.5
CPU Single 64Bit
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, 1600 MHz
3.25 Points +78%
Trigkey G4
Intel Processor N100, 1000 MHz
1.87 Points +2%
BOSGAME N95
Intel Processor N95,  MHz
1.86 Points +2%
Acemagic S1
Intel Processor N95,  MHz
1.85 Points +1%
Blackview MP80
Intel Processor N95,  MHz
1.83 Points 0%
Geekom MiniAir 12
Intel Processor N100, 1000 MHz
1.83 Points
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95,  MHz
1.49 Points -19%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
1.29 Points -30%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
1.25 Points -32%
CPU Multi 64Bit
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, 1600 MHz
24.69 Points +377%
Trigkey G4
Intel Processor N100, 1000 MHz
5.99 Points +16%
BOSGAME N95
Intel Processor N95,  MHz
5.62 Points +8%
Acemagic S1
Intel Processor N95,  MHz
5.55 Points +7%
Blackview MP80
Intel Processor N95,  MHz
5.41 Points +4%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95,  MHz
5.18 Points 0%
Geekom MiniAir 12
Intel Processor N100, 1000 MHz
5.18 Points
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
4.76 Points -8%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
4.65 Points -10%
Cinebench R10
Rendering Single CPUs 64Bit
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, 1600 MHz
15176 Points +87%
Trigkey G4
Intel Processor N100, 1000 MHz
8227 Points +2%
Acemagic S1
Intel Processor N95,  MHz
8177 Points +1%
Geekom MiniAir 12
Intel Processor N100, 1000 MHz
8098 Points
Blackview MP80
Intel Processor N95,  MHz
8080 Points 0%
BOSGAME N95
Intel Processor N95,  MHz
7574 Points -6%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95,  MHz
6562 Points -19%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
5451 Points -33%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
5224 Points -35%
Rendering Multiple CPUs 64Bit
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, 1600 MHz
73480 Points +207%
Trigkey G4
Intel Processor N100, 1000 MHz
24225 Points +1%
Geekom MiniAir 12
Intel Processor N100, 1000 MHz
23912 Points
BOSGAME N95
Intel Processor N95,  MHz
22275 Points -7%
Acemagic S1
Intel Processor N95,  MHz
22261 Points -7%
Blackview MP80
Intel Processor N95,  MHz
20565 Points -14%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95,  MHz
20429 Points -15%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
17278 Points -28%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
16442 Points -31%
Blender - v2.79 BMW27 CPU
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
1550 Seconds * -49%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
1547 Seconds * -49%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95,  MHz
1152 Seconds * -11%
Blackview MP80
Intel Processor N95,  MHz
1124 Seconds * -8%
Acemagic S1
Intel Processor N95,  MHz
1113 Seconds * -7%
BOSGAME N95
Intel Processor N95,  MHz
1103 Seconds * -6%
Geekom MiniAir 12
Intel Processor N100, 1000 MHz
1038 Seconds *
Trigkey G4
Intel Processor N100, 1000 MHz
1017 Seconds * +2%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, 1600 MHz
268 Seconds * +74%
wPrime 2.10
32m
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
19.779 s * -24%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
19.202 s * -21%
BOSGAME N95
Intel Processor N95,  MHz
18.213 s * -14%
Blackview MP80
Intel Processor N95,  MHz
17.521 s * -10%
Acemagic S1
Intel Processor N95,  MHz
16.565 s * -4%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95,  MHz
16.449 s * -3%
Geekom MiniAir 12
Intel Processor N100, 1000 MHz
15.908 s *
Trigkey G4
Intel Processor N100, 1000 MHz
15.795 s * +1%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, 1600 MHz
3.754 s * +76%
1024m
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
617.326 s * -24%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
605.375 s * -22%
BOSGAME N95
Intel Processor N95,  MHz
568.939 s * -15%
Blackview MP80
Intel Processor N95,  MHz
538.757 s * -8%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95,  MHz
535.88 s * -8%
Acemagic S1
Intel Processor N95,  MHz
519.662 s * -5%
Geekom MiniAir 12
Intel Processor N100, 1000 MHz
496.78 s *
Trigkey G4
Intel Processor N100, 1000 MHz
481.652 s * +3%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, 1600 MHz
304.68 s * +39%
X264 HD Benchmark 4.0
Pass 1
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, 1600 MHz
312.5 (304min - 328max) fps +81%
Geekom MiniAir 12
Intel Processor N100, 1000 MHz
173 (172.8min - 173.5max) fps
Trigkey G4
Intel Processor N100, 1000 MHz
172.55 (171.6min - 175.2max) fps 0%
Blackview MP80
Intel Processor N95,  MHz
163.3 (162.1min - 163.7max) fps -6%
BOSGAME N95
Intel Processor N95,  MHz
162.4 (161.9min - 162.4max) fps -6%
Acemagic S1
Intel Processor N95,  MHz
161.9 (158.9min - 162.5max) fps -6%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95,  MHz
145.25 (144.9min - 145.6max) fps -16%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
120.25 (119.9min - 120.3max) fps -30%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
112.75 (112min - 114.5max) fps -35%
Pass 2
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, 1600 MHz
114.95 (107min - 127.4max) fps +231%
Geekom MiniAir 12
Intel Processor N100, 1000 MHz
34.7 (34.7min - 34.8max) fps
Trigkey G4
Intel Processor N100, 1000 MHz
33.85 (33.7min - 35max) fps -2%
BOSGAME N95
Intel Processor N95,  MHz
32.45 (32.4min - 32.5max) fps -6%
Blackview MP80
Intel Processor N95,  MHz
32.4 (32.4min - 32.4max) fps -7%
Acemagic S1
Intel Processor N95,  MHz
32.4 (32.4min - 32.5max) fps -7%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95,  MHz
29.65 (29.5min - 29.7max) fps -15%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
25.25 (25.2min - 25.4max) fps -27%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
24.75 (24.5min - 25max) fps -29%
WinRAR - Result
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, 1600 MHz
4933 KB/s +108%
Trigkey G4
Intel Processor N100, 1000 MHz
2431 KB/s +2%
Acemagic S1
Intel Processor N95,  MHz
2391 KB/s +1%
Geekom MiniAir 12
Intel Processor N100, 1000 MHz
2372 KB/s
BOSGAME N95
Intel Processor N95,  MHz
2362 KB/s 0%
Blackview MP80
Intel Processor N95,  MHz
2277 KB/s -4%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95,  MHz
2181 KB/s -8%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
1781 KB/s -25%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
1630 KB/s -31%
TrueCrypt
AES Mean 100MB
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, 1600 MHz
12.3 GB/s +324%
Trigkey G4
Intel Processor N100, 1000 MHz
2.9 GB/s 0%
Geekom MiniAir 12
Intel Processor N100, 1000 MHz
2.9 GB/s
Blackview MP80
Intel Processor N95,  MHz
2.8 GB/s -3%
BOSGAME N95
Intel Processor N95,  MHz
2.7 GB/s -7%
Acemagic S1
Intel Processor N95,  MHz
2.7 GB/s -7%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
2.5 GB/s -14%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
2.5 GB/s -14%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95,  MHz
2.4 GB/s -17%
Twofish Mean 100MB
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, 1600 MHz
2.3 GB/s +332%
Trigkey G4
Intel Processor N100, 1000 MHz
0.538 GB/s +1%
Geekom MiniAir 12
Intel Processor N100, 1000 MHz
0.532 GB/s
Blackview MP80
Intel Processor N95,  MHz
0.501 GB/s -6%
Acemagic S1
Intel Processor N95,  MHz
0.498 GB/s -6%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95,  MHz
0.497 GB/s -7%
BOSGAME N95
Intel Processor N95,  MHz
0.492 GB/s -8%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
0.37 GB/s -30%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
0.37 GB/s -30%
Serpent Mean 100MB
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, 1600 MHz
1.2 GB/s +360%
Trigkey G4
Intel Processor N100, 1000 MHz
0.262 GB/s 0%
Geekom MiniAir 12
Intel Processor N100, 1000 MHz
0.261 GB/s
Blackview MP80
Intel Processor N95,  MHz
0.244 GB/s -7%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95,  MHz
0.243 GB/s -7%
BOSGAME N95
Intel Processor N95,  MHz
0.239 GB/s -8%
Acemagic S1
Intel Processor N95,  MHz
0.236 GB/s -10%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
0.198 GB/s -24%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
0.198 GB/s -24%
Geekbench 5.5
Multi-Core
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, 1600 MHz
10269 Points +255%
Geekom MiniAir 12
Intel Processor N100, 1000 MHz
2896 Points
Trigkey G4
Intel Processor N100, 1000 MHz
2796 Points -3%
Blackview MP80
Intel Processor N95,  MHz
2793 Points -4%
BOSGAME N95
Intel Processor N95,  MHz
2616 Points -10%
Acemagic S1
Intel Processor N95,  MHz
2566 Points -11%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95,  MHz
2391 Points -17%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
2052 Points -29%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
2020 Points -30%
Single-Core
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, 1600 MHz
1832 Points +84%
Trigkey G4
Intel Processor N100, 1000 MHz
1014 Points +2%
Blackview MP80
Intel Processor N95,  MHz
1013 Points +2%
BOSGAME N95
Intel Processor N95,  MHz
1007 Points +1%
Acemagic S1
Intel Processor N95,  MHz
999 Points 0%
Geekom MiniAir 12
Intel Processor N100, 1000 MHz
998 Points
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95,  MHz
804 Points -19%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
657 Points -34%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
637 Points -36%
Geekbench 5.0
5.0 Multi-Core
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, 1600 MHz
10213 Points +257%
Geekom MiniAir 12
Intel Processor N100, 1000 MHz
2862 Points
Trigkey G4
Intel Processor N100, 1000 MHz
2753 Points -4%
Blackview MP80
Intel Processor N95,  MHz
2737 Points -4%
BOSGAME N95
Intel Processor N95,  MHz
2585 Points -10%
Acemagic S1
Intel Processor N95,  MHz
2531 Points -12%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95,  MHz
2382 Points -17%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
2041 Points -29%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
1985 Points -31%
5.0 Single-Core
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, 1600 MHz
1784 Points +80%
Trigkey G4
Intel Processor N100, 1000 MHz
1008 Points +2%
Blackview MP80
Intel Processor N95,  MHz
1005 Points +1%
BOSGAME N95
Intel Processor N95,  MHz
1000 Points +1%
Acemagic S1
Intel Processor N95,  MHz
993 Points 0%
Geekom MiniAir 12
Intel Processor N100, 1000 MHz
993 Points
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95,  MHz
804 Points -19%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
655 Points -34%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
638 Points -36%
Geekbench 4.4
64 Bit Single-Core Score
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, 1600 MHz
7950 Points +78%
Blackview MP80
Intel Processor N95,  MHz
4553 Points +2%
Trigkey G4
Intel Processor N100, 1000 MHz
4518 Points +1%
BOSGAME N95
Intel Processor N95,  MHz
4495 Points +1%
Geekom MiniAir 12
Intel Processor N100, 1000 MHz
4467 Points
Acemagic S1
Intel Processor N95,  MHz
4450 Points 0%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95,  MHz
3591 Points -20%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
2929 Points -34%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
2858 Points -36%
64 Bit Multi-Core Score
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, 1600 MHz
39116 Points +247%
Geekom MiniAir 12
Intel Processor N100, 1000 MHz
11264 Points
Trigkey G4
Intel Processor N100, 1000 MHz
10938 Points -3%
Blackview MP80
Intel Processor N95,  MHz
10798 Points -4%
BOSGAME N95
Intel Processor N95,  MHz
10299 Points -9%
Acemagic S1
Intel Processor N95,  MHz
10228 Points -9%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95,  MHz
9662 Points -14%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
7968 Points -29%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
7842 Points -30%
3DMark 11 - 1280x720 Performance Physics
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, 1600 MHz
18679 Points +208%
Trigkey G4
Intel Processor N100, 1000 MHz
6129 Points +1%
Geekom MiniAir 12
Intel Processor N100, 1000 MHz
6062 Points
Blackview MP80
Intel Processor N95,  MHz
5806 Points -4%
BOSGAME N95
Intel Processor N95,  MHz
5767 Points -5%
Acemagic S1
Intel Processor N95,  MHz
5661 Points -7%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95,  MHz
5084 Points -16%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
4287 Points -29%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
4272 Points -30%
7-Zip 18.03
7z b 4
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, 1600 MHz
51340 MIPS +290%
Trigkey G4
Intel Processor N100, 1000 MHz
13255 MIPS +1%
Geekom MiniAir 12
Intel Processor N100, 1000 MHz
13177 MIPS
BOSGAME N95
Intel Processor N95,  MHz
12224 MIPS -7%
Acemagic S1
Intel Processor N95,  MHz
12190 MIPS -7%
Blackview MP80
Intel Processor N95,  MHz
12177 MIPS -8%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95,  MHz
11654 MIPS -12%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
10994 MIPS -17%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
10924 MIPS -17%
7z b 4 -mmt1
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, 1600 MHz
5840 MIPS +61%
Trigkey G4
Intel Processor N100, 1000 MHz
3908 MIPS +8%
Acemagic S1
Intel Processor N95,  MHz
3866 MIPS +6%
Blackview MP80
Intel Processor N95,  MHz
3843 MIPS +6%
BOSGAME N95
Intel Processor N95,  MHz
3803 MIPS +5%
Geekom MiniAir 12
Intel Processor N100, 1000 MHz
3635 MIPS
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95,  MHz
3121 MIPS -14%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
3098 MIPS -15%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
2935 MIPS -19%
HWBOT x265 Benchmark v2.2 - 4k Preset
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, 1600 MHz
13.9 fps +301%
Trigkey G4
Intel Processor N100, 1000 MHz
3.49 fps +1%
Geekom MiniAir 12
Intel Processor N100, 1000 MHz
3.47 fps
Blackview MP80
Intel Processor N95,  MHz
3.29 fps -5%
BOSGAME N95
Intel Processor N95,  MHz
3.25 fps -6%
Acemagic S1
Intel Processor N95,  MHz
3.17 fps -9%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95,  MHz
3.03 fps -13%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
2.02 fps -42%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
2.01 fps -42%
R Benchmark 2.5 - Overall mean
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
1.2 sec * -44%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
1.166 sec * -40%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95,  MHz
1.032 sec * -24%
Acemagic S1
Intel Processor N95,  MHz
0.837 sec * -1%
BOSGAME N95
Intel Processor N95,  MHz
0.834 sec * -0%
Geekom MiniAir 12
Intel Processor N100, 1000 MHz
0.831 sec *
Blackview MP80
Intel Processor N95,  MHz
0.83 sec * -0%
Trigkey G4
Intel Processor N100, 1000 MHz
0.824 sec * +1%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, 1600 MHz
0.45 sec * +46%
LibreOffice - 20 Documents To PDF
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
103.6 s * -42%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
103.2 s * -42%
Acemagic S1
Intel Processor N95,  MHz
89.3 s * -22%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95,  MHz
80.4 s * -10%
BOSGAME N95
Intel Processor N95,  MHz
74.6 s * -2%
Geekom MiniAir 12
Intel Processor N100, 1000 MHz
72.9 s *
Blackview MP80
Intel Processor N95,  MHz
68.3 s * +6%
Trigkey G4
Intel Processor N100, 1000 MHz
67 s * +8%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, 1600 MHz
46.9 s * +36%
WebXPRT 3 - Overall
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, 1600 MHz
301 Points +66%
Trigkey G4
Intel Processor N100, 1000 MHz
187.4 Points +3%
Blackview MP80
Intel Processor N95,  MHz
183.4 Points +1%
Geekom MiniAir 12
Intel Processor N100, 1000 MHz
181.4 Points
BOSGAME N95
Intel Processor N95,  MHz
179.4 Points -1%
Acemagic S1
Intel Processor N95,  MHz
178.3 Points -2%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95,  MHz
155.3 Points -14%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
127.2 Points -30%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
122.2 Points -33%
Mozilla Kraken 1.1 - Total
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
1619 ms * -59%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
1581 ms * -55%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95,  MHz
1238 ms * -21%
BOSGAME N95
Intel Processor N95,  MHz
1056 ms * -4%
Acemagic S1
Intel Processor N95,  MHz
1033 ms * -1%
Blackview MP80
Intel Processor N95,  MHz
1026 ms * -1%
Geekom MiniAir 12
Intel Processor N100, 1000 MHz
1020 ms *
Trigkey G4
Intel Processor N100, 1000 MHz
1004 ms * +2%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, 1600 MHz
496 ms * +51%
3DMark - 1920x1080 Fire Strike Physics
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, 1600 MHz
25349 Points +288%
Geekom MiniAir 12
Intel Processor N100, 1000 MHz
6525 Points
Trigkey G4
Intel Processor N100, 1000 MHz
6522 Points 0%
Blackview MP80
Intel Processor N95,  MHz
6062 Points -7%
BOSGAME N95
Intel Processor N95,  MHz
5952 Points -9%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95,  MHz
5903 Points -10%
Acemagic S1
Intel Processor N95,  MHz
5701 Points -13%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
5535 Points -15%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
5474 Points -16%

* ... smaller is better

Performance Rating
Average of class Mini PC

97.7 pt
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, Iris Xe G7 96EUs
90 pt
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
18.1 pt
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
17.3 pt
Geekom MiniAir 12
Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)
9.6 pt
Beelink Mini S12 Pro
Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)
9.6 pt
Trigkey G4
Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)
9.3 pt
Blackview MP80
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
9.2 pt
Acemagic S1
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
8.8 pt
BOSGAME N95
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
8.8 pt
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
8.3 pt
AIDA64 / FP32 Ray-Trace
Average of class Mini PC
  (561 - 51004, n=119, last 2 years)
12449 KRay/s +1387%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, Iris Xe G7 96EUs
11188 KRay/s +1237%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
1242 KRay/s +48%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
1241 KRay/s +48%
Beelink Mini S12 Pro
Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)
837 KRay/s 0%
Trigkey G4
Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)
837 KRay/s 0%
Geekom MiniAir 12
Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)
837 KRay/s
Acemagic S1
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
770 KRay/s -8%
Blackview MP80
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
769 KRay/s -8%
BOSGAME N95
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
764 KRay/s -9%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
744 KRay/s -11%
AIDA64 / FPU Julia
Average of class Mini PC
  (3604 - 214250, n=119, last 2 years)
62645 Points +1324%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, Iris Xe G7 96EUs
56942 Points +1195%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
7457 Points +70%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
7446 Points +69%
Geekom MiniAir 12
Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)
4398 Points
Trigkey G4
Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)
4397 Points 0%
Beelink Mini S12 Pro
Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)
4395 Points 0%
BOSGAME N95
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
4144 Points -6%
Acemagic S1
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
4141 Points -6%
Blackview MP80
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
4140 Points -6%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
3970 Points -10%
AIDA64 / CPU SHA3
Average of class Mini PC
  (225 - 9399, n=119, last 2 years)
2760 MB/s +796%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, Iris Xe G7 96EUs
2669 MB/s +767%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
514 MB/s +67%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
513 MB/s +67%
Trigkey G4
Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)
308 MB/s 0%
Geekom MiniAir 12
Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)
308 MB/s
Beelink Mini S12 Pro
Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)
307 MB/s 0%
BOSGAME N95
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
290 MB/s -6%
Blackview MP80
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
290 MB/s -6%
Acemagic S1
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
290 MB/s -6%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
270 MB/s -12%
AIDA64 / CPU Queen
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, Iris Xe G7 96EUs
86881 Points +898%
Average of class Mini PC
  (8172 - 184747, n=119, last 2 years)
77998 Points +796%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
22326 Points +157%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
22138 Points +154%
Geekom MiniAir 12
Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)
8704 Points
Beelink Mini S12 Pro
Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)
8691 Points 0%
Trigkey G4
Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)
8663 Points 0%
Acemagic S1
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
8208 Points -6%
Blackview MP80
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
8186 Points -6%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
8178 Points -6%
BOSGAME N95
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
8172 Points -6%
AIDA64 / FPU SinJulia
Average of class Mini PC
  (408 - 29064, n=119, last 2 years)
8538 Points +1876%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, Iris Xe G7 96EUs
7246 Points +1577%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
1002 Points +132%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
1000 Points +131%
Trigkey G4
Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)
432 Points 0%
Geekom MiniAir 12
Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)
432 Points
Beelink Mini S12 Pro
Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)
430 Points 0%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
408 Points -6%
BOSGAME N95
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
408 Points -6%
Blackview MP80
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
408 Points -6%
Acemagic S1
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
408 Points -6%
AIDA64 / FPU Mandel
Average of class Mini PC
  (1958 - 113499, n=119, last 2 years)
32689 Points +1372%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, Iris Xe G7 96EUs
28019 Points +1162%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
3961 Points +78%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
3954 Points +78%
Trigkey G4
Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)
2220 Points 0%
Geekom MiniAir 12
Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)
2220 Points
Beelink Mini S12 Pro
Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)
2217 Points 0%
BOSGAME N95
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
2092 Points -6%
Acemagic S1
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
2089 Points -6%
Blackview MP80
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
2088 Points -6%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
1987 Points -10%
AIDA64 / CPU AES
Average of class Mini PC
  (3691 - 325960, n=119, last 2 years)
85358 MB/s +911%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, Iris Xe G7 96EUs
53328 MB/s +532%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
19354 MB/s +129%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
19350 MB/s +129%
Geekom MiniAir 12
Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)
8439 MB/s
Beelink Mini S12 Pro
Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)
8426 MB/s 0%
Trigkey G4
Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)
8421 MB/s 0%
Blackview MP80
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
7961 MB/s -6%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
7954 MB/s -6%
BOSGAME N95
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
7951 MB/s -6%
Acemagic S1
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
7948 MB/s -6%
AIDA64 / CPU ZLib
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, Iris Xe G7 96EUs
775 MB/s +839%
Average of class Mini PC
  (74.8 - 2039, n=119, last 2 years)
714 MB/s +765%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
188.1 MB/s +128%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
188 MB/s +128%
Geekom MiniAir 12
Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)
82.5 MB/s
Trigkey G4
Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)
81.9 MB/s -1%
Beelink Mini S12 Pro
Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)
81.7 MB/s -1%
Acemagic S1
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
77.7 MB/s -6%
Blackview MP80
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
77.4 MB/s -6%
BOSGAME N95
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
76.7 MB/s -7%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
74.9 MB/s -9%
AIDA64 / FP64 Ray-Trace
Average of class Mini PC
  (308 - 26952, n=119, last 2 years)
6658 KRay/s +1332%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, Iris Xe G7 96EUs
5957 KRay/s +1181%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
676 KRay/s +45%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
676 KRay/s +45%
Beelink Mini S12 Pro
Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)
465 KRay/s 0%
Trigkey G4
Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)
465 KRay/s 0%
Geekom MiniAir 12
Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)
465 KRay/s
BOSGAME N95
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
433 KRay/s -7%
Blackview MP80
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
432 KRay/s -7%
Acemagic S1
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
432 KRay/s -7%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
412 KRay/s -11%
AIDA64 / CPU PhotoWorxx
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, Iris Xe G7 96EUs
29263 MPixel/s +366%
Average of class Mini PC
  (4408 - 50500, n=119, last 2 years)
27805 MPixel/s +343%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
9899 MPixel/s +58%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
7654 MPixel/s +22%
Blackview MP80
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
6599 MPixel/s +5%
Beelink Mini S12 Pro
Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)
6535 MPixel/s +4%
Geekom MiniAir 12
Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)
6278 MPixel/s
Trigkey G4
Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)
5384 MPixel/s -14%
Acemagic S1
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
5333 MPixel/s -15%
BOSGAME N95
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
5296 MPixel/s -16%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
4408 MPixel/s -30%

Geekom MiniAir 12 在 Cinebench R15 多环测试中的表现

通过 Cinebench R15 连续循环测试,我们首次了解了所安装冷却装置的性能。15 瓦和 25 瓦的功率极限从未达到。制造商似乎设定了相当保守的温度限制,因为在最多 67 °C 的温度下,SoC 从未变得特别热。因此,Geekom MiniAir 12 能够提供稳定的性能。在我们的比较中,Geekom MiniAir 12 排名第一。我们的测试设备平均达到了 472 分。比Geekom MiniAir 11管理得当。

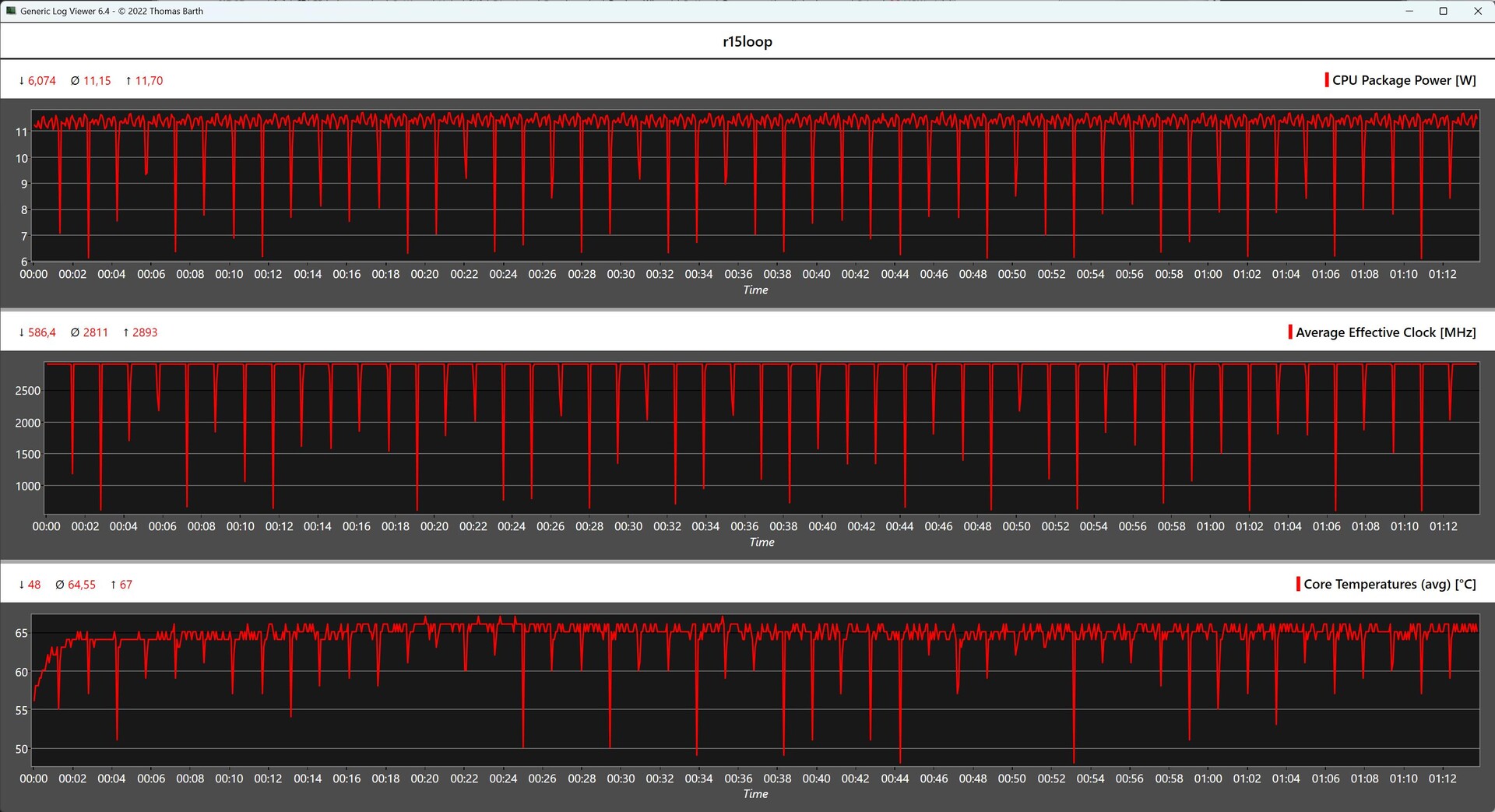

Cinebench R15 循环期间的 CPU 指标
Cinebench R15 循环期间的 CPU 指标
0255075100125150175200225250275300325350375400425450Tooltip
Geekom MiniAir 12 Intel Processor N100, Intel Processor N100: Ø472 (462.09-474.18)
Acemagic S1 Intel Processor N95, Intel Processor N95: Ø440 (431.21-442.98)
Beelink Mini S12 Pro Intel Processor N100, Intel Processor N100: Ø461 (458.73-467.21)
Blackview MP80 Intel Processor N95, Intel Processor N95: Ø425 (410.8-428.48)
BOSGAME N95 Intel Processor N95, Intel Processor N95: Ø421 (417.99-423.28)
Trigkey G4 Intel Processor N100, Intel Processor N100: Ø465 (453-467.97)
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, Intel Processor N95: Ø404 (398.46-406.91)
Minipc Union Ace Magician T8Pro Intel Celeron N5095, Intel Celeron N5095: Ø362 (359.44-363.62)
Geekom MiniAir 11 Special Edition Intel Celeron N5095, Intel Celeron N5095: Ø371 (367.43-373.05)

系统性能

从系统性能基准测试中可以看出,整个系统都得益于其良好的 CPU 性能。不过,竞争对手之间的差距有时微乎其微,因此没有出现明显的赢家。在使用 AIDA64 进行的内存测试中,Geekom MiniAir 12 的表现并不理想。考虑到 Geekom 为其 Mini PC 配备了 DDR5 内存,测试结果没有达到我们的预期。

PCMark 10 / Score
Intel NUC 13 Pro Desk Edition Kit, Intel Core i7-1360P
Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ
5882 Points +85%
Blackview MP80, Intel Processor N95
Intel UHD Graphics 24EUs (Alder Lake-N), Netac NS512GSSD330
3220 Points +1%
Trigkey G4, Intel Processor N100
Intel UHD Graphics 24EUs (Alder Lake-N),
3207 Points +1%
BOSGAME N95, Intel Processor N95
Intel UHD Graphics 24EUs (Alder Lake-N), Kingston OM8SEP4256Q-A0
3192 Points 0%
Geekom MiniAir 12, Intel Processor N100
Intel UHD Graphics 24EUs (Alder Lake-N), Lexar NM620 512GB
3183 Points
Beelink Mini S12 Pro, Intel Processor N100
Intel UHD Graphics 24EUs (Alder Lake-N),
3164 Points -1%
Acemagic S1, Intel Processor N95
Intel UHD Graphics 24EUs (Alder Lake-N), BiWin CE480Y2D100-1TB
3153 Points -1%
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95
Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB
2983 Points -6%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G
2417 Points -24%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280
2351 Points -26%
PCMark 10 / Essentials
Intel NUC 13 Pro Desk Edition Kit, Intel Core i7-1360P
Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ
11035 Points +53%
Beelink Mini S12 Pro, Intel Processor N100
Intel UHD Graphics 24EUs (Alder Lake-N),
7295 Points +1%
Geekom MiniAir 12, Intel Processor N100
Intel UHD Graphics 24EUs (Alder Lake-N), Lexar NM620 512GB
7198 Points
Trigkey G4, Intel Processor N100
Intel UHD Graphics 24EUs (Alder Lake-N),
7123 Points -1%
Blackview MP80, Intel Processor N95
Intel UHD Graphics 24EUs (Alder Lake-N), Netac NS512GSSD330
7079 Points -2%
BOSGAME N95, Intel Processor N95
Intel UHD Graphics 24EUs (Alder Lake-N), Kingston OM8SEP4256Q-A0
7021 Points -2%
Acemagic S1, Intel Processor N95
Intel UHD Graphics 24EUs (Alder Lake-N), BiWin CE480Y2D100-1TB
6731 Points -6%
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95
Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB
6650 Points -8%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G
5866 Points -19%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280
5679 Points -21%
PCMark 10 / Productivity
Intel NUC 13 Pro Desk Edition Kit, Intel Core i7-1360P
Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ
6576 Points +35%
Trigkey G4, Intel Processor N100
Intel UHD Graphics 24EUs (Alder Lake-N),
5033 Points +3%
Blackview MP80, Intel Processor N95
Intel UHD Graphics 24EUs (Alder Lake-N), Netac NS512GSSD330
4993 Points +2%
Acemagic S1, Intel Processor N95
Intel UHD Graphics 24EUs (Alder Lake-N), BiWin CE480Y2D100-1TB
4950 Points +1%
BOSGAME N95, Intel Processor N95
Intel UHD Graphics 24EUs (Alder Lake-N), Kingston OM8SEP4256Q-A0
4923 Points +1%
Geekom MiniAir 12, Intel Processor N100
Intel UHD Graphics 24EUs (Alder Lake-N), Lexar NM620 512GB
4886 Points
Beelink Mini S12 Pro, Intel Processor N100
Intel UHD Graphics 24EUs (Alder Lake-N),
4764 Points -2%
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95
Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB
4524 Points -7%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G
3666 Points -25%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280
3547 Points -27%
CrossMark / Overall
Intel NUC 13 Pro Desk Edition Kit, Intel Core i7-1360P
Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ
1596 Points +103%
Beelink Mini S12 Pro, Intel Processor N100
Intel UHD Graphics 24EUs (Alder Lake-N),
839 Points +7%
Acemagic S1, Intel Processor N95
Intel UHD Graphics 24EUs (Alder Lake-N), BiWin CE480Y2D100-1TB
820 Points +4%
Geekom MiniAir 12, Intel Processor N100
Intel UHD Graphics 24EUs (Alder Lake-N), Lexar NM620 512GB
786 Points
BOSGAME N95, Intel Processor N95
Intel UHD Graphics 24EUs (Alder Lake-N), Kingston OM8SEP4256Q-A0
773 Points -2%
Blackview MP80, Intel Processor N95
Intel UHD Graphics 24EUs (Alder Lake-N), Netac NS512GSSD330
764 Points -3%
Trigkey G4, Intel Processor N100
Intel UHD Graphics 24EUs (Alder Lake-N),
735 Points -6%
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95
Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB
666 Points -15%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G
495 Points -37%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280
473 Points -40%
CrossMark / Responsiveness
Intel NUC 13 Pro Desk Edition Kit, Intel Core i7-1360P
Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ
1311 Points +57%
Acemagic S1, Intel Processor N95
Intel UHD Graphics 24EUs (Alder Lake-N), BiWin CE480Y2D100-1TB
895 Points +7%
Beelink Mini S12 Pro, Intel Processor N100
Intel UHD Graphics 24EUs (Alder Lake-N),
856 Points +3%
Geekom MiniAir 12, Intel Processor N100
Intel UHD Graphics 24EUs (Alder Lake-N), Lexar NM620 512GB
835 Points
BOSGAME N95, Intel Processor N95
Intel UHD Graphics 24EUs (Alder Lake-N), Kingston OM8SEP4256Q-A0
755 Points -10%
Trigkey G4, Intel Processor N100
Intel UHD Graphics 24EUs (Alder Lake-N),
710 Points -15%
Blackview MP80, Intel Processor N95
Intel UHD Graphics 24EUs (Alder Lake-N), Netac NS512GSSD330
709 Points -15%
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95
Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB
661 Points -21%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G
497 Points -40%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280
403 Points -52%
CrossMark / Creativity
Intel NUC 13 Pro Desk Edition Kit, Intel Core i7-1360P
Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ
1769 Points +145%
Beelink Mini S12 Pro, Intel Processor N100
Intel UHD Graphics 24EUs (Alder Lake-N),
773 Points +7%
Blackview MP80, Intel Processor N95
Intel UHD Graphics 24EUs (Alder Lake-N), Netac NS512GSSD330
739 Points +2%
Geekom MiniAir 12, Intel Processor N100
Intel UHD Graphics 24EUs (Alder Lake-N), Lexar NM620 512GB
723 Points
Acemagic S1, Intel Processor N95
Intel UHD Graphics 24EUs (Alder Lake-N), BiWin CE480Y2D100-1TB
721 Points 0%
BOSGAME N95, Intel Processor N95
Intel UHD Graphics 24EUs (Alder Lake-N), Kingston OM8SEP4256Q-A0
714 Points -1%
Trigkey G4, Intel Processor N100
Intel UHD Graphics 24EUs (Alder Lake-N),
676 Points -7%
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95
Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB
616 Points -15%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280
440 Points -39%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G
438 Points -39%
CrossMark / Productivity
Intel NUC 13 Pro Desk Edition Kit, Intel Core i7-1360P
Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ
1537 Points +84%
Acemagic S1, Intel Processor N95
Intel UHD Graphics 24EUs (Alder Lake-N), BiWin CE480Y2D100-1TB
907 Points +8%
Beelink Mini S12 Pro, Intel Processor N100
Intel UHD Graphics 24EUs (Alder Lake-N),
905 Points +8%
BOSGAME N95, Intel Processor N95
Intel UHD Graphics 24EUs (Alder Lake-N), Kingston OM8SEP4256Q-A0
843 Points +1%
Geekom MiniAir 12, Intel Processor N100
Intel UHD Graphics 24EUs (Alder Lake-N), Lexar NM620 512GB
837 Points
Blackview MP80, Intel Processor N95
Intel UHD Graphics 24EUs (Alder Lake-N), Netac NS512GSSD330
810 Points -3%
Trigkey G4, Intel Processor N100
Intel UHD Graphics 24EUs (Alder Lake-N),
808 Points -3%
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95
Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB
721 Points -14%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G
558 Points -33%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280
535 Points -36%
AIDA64 / Memory Copy
Average of class Mini PC
  (6481 - 89287, n=119, last 2 years)
47585 MB/s +346%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, Iris Xe G7 96EUs
44299 MB/s +315%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
22138 MB/s +108%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
16422 MB/s +54%
Blackview MP80
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
12715 MB/s +19%
Beelink Mini S12 Pro
Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)
11580 MB/s +9%
Geekom MiniAir 12
Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)
10663 MB/s
Acemagic S1
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
8472 MB/s -21%
BOSGAME N95
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
8458 MB/s -21%
Trigkey G4
Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)
8377 MB/s -21%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
6481 MB/s -39%
AIDA64 / Memory Read
Average of class Mini PC
  (6914 - 99171, n=119, last 2 years)
48328 MB/s +316%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, Iris Xe G7 96EUs
44751 MB/s +285%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
16615 MB/s +43%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
15464 MB/s +33%
Beelink Mini S12 Pro
Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)
12488 MB/s +7%
Geekom MiniAir 12
Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)
11626 MB/s
Blackview MP80
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
11247 MB/s -3%
Acemagic S1
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
9130 MB/s -21%
BOSGAME N95
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
9027 MB/s -22%
Trigkey G4
Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)
8974 MB/s -23%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
6914 MB/s -41%
AIDA64 / Memory Write
Average of class Mini PC
  (6862 - 98583, n=119, last 2 years)
52056 MB/s +344%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, Iris Xe G7 96EUs
45887 MB/s +291%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
30843 MB/s +163%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
18612 MB/s +59%
Blackview MP80
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
14266 MB/s +22%
Beelink Mini S12 Pro
Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)
12305 MB/s +5%
Geekom MiniAir 12
Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)
11728 MB/s
Acemagic S1
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
9047 MB/s -23%
BOSGAME N95
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
8959 MB/s -24%
Trigkey G4
Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)
8762 MB/s -25%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
6862 MB/s -41%
AIDA64 / Memory Latency
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
146 ns * -4%
Geekom MiniAir 12
Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)
139.9 ns *
Acemagic S1
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
125.8 ns * +10%
Blackview MP80
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
124.9 ns * +11%
Trigkey G4
Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)
120.6 ns * +14%
BOSGAME N95
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
119.8 ns * +14%
Beelink Mini S12 Pro
Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)
114.8 ns * +18%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, Iris Xe G7 96EUs
96.2 ns * +31%
Average of class Mini PC
  (44.9 - 184.8, n=119, last 2 years)
91.9 ns * +34%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
74.1 ns * +47%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
59.3 ns * +58%

* ... smaller is better

DPC 延迟

Geekom MiniAir 12 在延迟测试中取得了不错的成绩。在使用 Edge 浏览器打开多个标签页或播放 4K 测试视频时,LatencyMon 工具没有报告任何增加值。这使得 Geekom MiniAir 12 成为小型流媒体客户端的理想之选。

打开多个浏览器标签页和播放 4K 视频时的最大延迟
打开多个浏览器标签页和播放 4K 视频时的最大延迟
Prime95 十秒后的最大延迟时间
Prime95 十秒后的最大延迟时间
按最长执行时间排列的驱动程序
按最长执行时间排列的驱动程序
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Beelink Mini S12 Pro, Intel Processor N100
Intel UHD Graphics 24EUs (Alder Lake-N),
7391.7 μs * -1703%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G
4075 μs * -894%
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95
Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB
3463 μs * -745%
BOSGAME N95, Intel Processor N95
Intel UHD Graphics 24EUs (Alder Lake-N), Kingston OM8SEP4256Q-A0
1165.5 μs * -184%
Blackview MP80, Intel Processor N95
Intel UHD Graphics 24EUs (Alder Lake-N), Netac NS512GSSD330
817.1 μs * -99%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280
687.3 μs * -68%
Trigkey G4, Intel Processor N100
Intel UHD Graphics 24EUs (Alder Lake-N),
561.2 μs * -37%
Geekom MiniAir 12, Intel Processor N100
Intel UHD Graphics 24EUs (Alder Lake-N), Lexar NM620 512GB
409.9 μs *
Acemagic S1, Intel Processor N95
Intel UHD Graphics 24EUs (Alder Lake-N), BiWin CE480Y2D100-1TB
367.2 μs * +10%

* ... smaller is better

存储设备

雷克沙 512GB 固态硬盘
雷克沙 512GB 固态硬盘

Geekom MiniAir 12 安装了一块 512GB 的 Lexar 固态硬盘。安装的模块使用 M.2 插槽并通过 PCIe 3.0 x4 连接。反过来,我们的测试设备使用该存储设备取得了非常好的性能。不过,在压力测试中,我们也发现了一些持续性的性能问题--由于温度过高,电脑难以保持稳定的性能。另一方面,即使存在这些限制,雷克沙固态硬盘的性能仍然优于对比设备。竞争对手都没有机会,只能以更差的成绩勉强应付。MiniAir 12 没有安装第二个存储设备的选项。因此,你要么只能使用已安装的 512GB 存储设备,要么就得更换存储容量更大的固态硬盘。

有关进一步的比较和基准测试,请查看我们的比较表。

AS 固态硬盘
AS 固态硬盘
CDM 3
CDM 3
CDM 5
CDM 5
CDM 6
CDM 6
CDI
CDI
Lexar NM620 512GB
Sequential Read: 2534 MB/s
Sequential Write: 2688 MB/s
512K Read: 1689 MB/s
512K Write: 2383 MB/s
4K Read: 58.12 MB/s
4K Write: 140 MB/s
4K QD32 Read: 436.9 MB/s
4K QD32 Write: 303.4 MB/s
Drive Performance Rating - Percent
Average of class Mini PC

92.8 pt
Geekom MiniAir 12
Lexar NM620 512GB
74 pt
Acemagic S1
BiWin CE480Y2D100-1TB
63.1 pt
Beelink Mini S12 Pro

50.6 pt
Trigkey G4

39.2 pt
BOSGAME N95
Kingston OM8SEP4256Q-A0
38.4 pt
Blackview MP80
Netac NS512GSSD330
27.8 pt
Minipc Union NiPoGi GK3PLUS - N95
Kimtigo KTB900SM28/512GB
27.1 pt
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
24.2 pt
Geekom MiniAir 11 Special Edition
NF830 256GB M.2 2280
13.6 pt
DiskSpd
seq read
Average of class Mini PC
  (233 - 4357, n=119, last 2 years)
2288 MB/s +28%
Geekom MiniAir 12
Lexar NM620 512GB
1781 (456.55min - 1780.69max) MB/s
Acemagic S1
BiWin CE480Y2D100-1TB
1354 (1350.96min - 1354.32max) MB/s -24%
BOSGAME N95
Kingston OM8SEP4256Q-A0
762 (757.28min - 762.31max) MB/s -57%
Trigkey G4

729 (705.12min - 729.18max) MB/s -59%
Beelink Mini S12 Pro

724 (713.03min - 723.5max) MB/s -59%
Blackview MP80
Netac NS512GSSD330
542 (541.31min - 542.36max) MB/s -70%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
472 (470.6min - 472.28max) MB/s -73%
Minipc Union NiPoGi GK3PLUS - N95
Kimtigo KTB900SM28/512GB
459 (458.57min - 459.41max) MB/s -74%
Geekom MiniAir 11 Special Edition
NF830 256GB M.2 2280
434 (226.49min - 434.29max) MB/s -76%
seq write
Average of class Mini PC
  (222 - 5595, n=119, last 2 years)
2448 MB/s +15%
Geekom MiniAir 12
Lexar NM620 512GB
2130 (210.13min - 2130.43max) MB/s
Acemagic S1
BiWin CE480Y2D100-1TB
1553 (1542.6min - 1552.69max) MB/s -27%
Beelink Mini S12 Pro

715 (699.61min - 714.88max) MB/s -66%
BOSGAME N95
Kingston OM8SEP4256Q-A0
649 (644.49min - 649.49max) MB/s -70%
Minipc Union NiPoGi GK3PLUS - N95
Kimtigo KTB900SM28/512GB
494 (488.92min - 494.36max) MB/s -77%
Blackview MP80
Netac NS512GSSD330
476 (138.2min - 475.75max) MB/s -78%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
463 (451.31min - 462.72max) MB/s -78%
Geekom MiniAir 11 Special Edition
NF830 256GB M.2 2280
409 (44.25min - 408.73max) MB/s -81%
Trigkey G4

339 (329.88min - 338.64max) MB/s -84%
seq q8 t1 read
Average of class Mini PC
  (236 - 8430, n=119, last 2 years)
3706 MB/s +11%
Geekom MiniAir 12
Lexar NM620 512GB
3339 (2794.11min - 3338.91max) MB/s
Acemagic S1
BiWin CE480Y2D100-1TB
1776 (1520.44min - 1776.28max) MB/s -47%
Beelink Mini S12 Pro

874 (761min - 873.67max) MB/s -74%
Trigkey G4

864 (619.52min - 864.45max) MB/s -74%
BOSGAME N95
Kingston OM8SEP4256Q-A0
820 (687.12min - 820.02max) MB/s -75%
Blackview MP80
Netac NS512GSSD330
556 (424.25min - 556.44max) MB/s -83%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
550 (465.68min - 549.87max) MB/s -84%
Minipc Union NiPoGi GK3PLUS - N95
Kimtigo KTB900SM28/512GB
504 (458.23min - 504.4max) MB/s -85%
Geekom MiniAir 11 Special Edition
NF830 256GB M.2 2280
447 (396.95min - 446.64max) MB/s -87%
seq q8 t1 write
Geekom MiniAir 12
Lexar NM620 512GB
3029 (212.44min - 3028.52max) MB/s
Average of class Mini PC
  (228 - 6669, n=119, last 2 years)
2743 MB/s -9%
Acemagic S1
BiWin CE480Y2D100-1TB
1658 (1643.05min - 1658.18max) MB/s -45%
Beelink Mini S12 Pro

867 (858.82min - 866.96max) MB/s -71%
BOSGAME N95
Kingston OM8SEP4256Q-A0
684 (677.48min - 683.67max) MB/s -77%
Minipc Union NiPoGi GK3PLUS - N95
Kimtigo KTB900SM28/512GB
519 (472.8min - 519.47max) MB/s -83%
Blackview MP80
Netac NS512GSSD330
489 (220.62min - 488.78max) MB/s -84%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
466 (442.13min - 465.87max) MB/s -85%
Geekom MiniAir 11 Special Edition
NF830 256GB M.2 2280
346 (118.46min - 345.82max) MB/s -89%
Trigkey G4

346 (322.53min - 346.45max) MB/s -89%
4k q1 t1 read
Acemagic S1
BiWin CE480Y2D100-1TB
59.4 (58.56min - 59.37max) MB/s +38%
Average of class Mini PC
  (5.67 - 86.6, n=119, last 2 years)
54.7 MB/s +27%
Beelink Mini S12 Pro

50.2 (48.32min - 50.22max) MB/s +16%
BOSGAME N95
Kingston OM8SEP4256Q-A0
45.9 (45.49min - 45.92max) MB/s +6%
Geekom MiniAir 12
Lexar NM620 512GB
43.1 (20.32min - 43.07max) MB/s
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
33.9 (33.27min - 33.91max) MB/s -21%
Blackview MP80
Netac NS512GSSD330
32.5 (32.38min - 32.5max) MB/s -25%
Minipc Union NiPoGi GK3PLUS - N95
Kimtigo KTB900SM28/512GB
25.9 (25.82min - 25.85max) MB/s -40%
Geekom MiniAir 11 Special Edition
NF830 256GB M.2 2280
12.9 (5.79min - 12.85max) MB/s -70%
Trigkey G4

8.85 (2.72min - 8.85max) MB/s -79%
4k q1 t1 write
Average of class Mini PC
  (30.4 - 435, n=119, last 2 years)
194.7 MB/s +42%
Geekom MiniAir 12
Lexar NM620 512GB
136.8 (103.17min - 136.84max) MB/s
Beelink Mini S12 Pro

131.7 (124.21min - 131.65max) MB/s -4%
Trigkey G4

128.4 (124.08min - 128.36max) MB/s -6%
Acemagic S1
BiWin CE480Y2D100-1TB
128.1 (126.86min - 128.09max) MB/s -6%
BOSGAME N95
Kingston OM8SEP4256Q-A0
96.7 (95.09min - 96.72max) MB/s -29%
Minipc Union NiPoGi GK3PLUS - N95
Kimtigo KTB900SM28/512GB
96 (93.72min - 96.04max) MB/s -30%
Blackview MP80
Netac NS512GSSD330
88.1 (66.88min - 88.14max) MB/s -36%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
74.1 (72.55min - 74.09max) MB/s -46%
Geekom MiniAir 11 Special Edition
NF830 256GB M.2 2280
22 (19.72min - 21.99max) MB/s -84%
4k q32 t16 read
Average of class Mini PC
  (26.1 - 4158, n=119, last 2 years)
1360 MB/s +135%
Acemagic S1
BiWin CE480Y2D100-1TB
1175 (1165.24min - 1174.82max) MB/s +103%
Beelink Mini S12 Pro

861 (842.97min - 860.59max) MB/s +49%
Trigkey G4

581 (553.76min - 581.49max) MB/s +1%
Geekom MiniAir 12
Lexar NM620 512GB
578 (567.96min - 578.39max) MB/s
BOSGAME N95
Kingston OM8SEP4256Q-A0
440 (438.98min - 440.28max) MB/s -24%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
266 (264.89min - 265.82max) MB/s -54%
Minipc Union NiPoGi GK3PLUS - N95
Kimtigo KTB900SM28/512GB
260 (259.46min - 259.7max) MB/s -55%
Blackview MP80
Netac NS512GSSD330
179.4 (173.35min - 179.35max) MB/s -69%
Geekom MiniAir 11 Special Edition
NF830 256GB M.2 2280
170.2 (157.55min - 170.17max) MB/s -71%
4k q32 t16 write
Average of class Mini PC
  (30.2 - 4288, n=119, last 2 years)
1287 MB/s +76%
Acemagic S1
BiWin CE480Y2D100-1TB
762 (759.1min - 762.44max) MB/s +4%
Geekom MiniAir 12
Lexar NM620 512GB
732 (50.3min - 732.45max) MB/s
Beelink Mini S12 Pro

721 (676.73min - 721.31max) MB/s -2%
BOSGAME N95
Kingston OM8SEP4256Q-A0
411 (406.46min - 410.69max) MB/s -44%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
319 (315.72min - 318.72max) MB/s -56%
Blackview MP80
Netac NS512GSSD330
276 (99.25min - 275.55max) MB/s -62%
Minipc Union NiPoGi GK3PLUS - N95
Kimtigo KTB900SM28/512GB
259 (224.2min - 258.97max) MB/s -65%
Geekom MiniAir 11 Special Edition
NF830 256GB M.2 2280
168.3 (88.04min - 168.3max) MB/s -77%
Trigkey G4

70.3 (60.61min - 70.32max) MB/s -90%
AS SSD
Score Total
Average of class Mini PC
  (181.5 - 10021, n=117, last 2 years)
4121 Points +40%
Geekom MiniAir 12
Lexar NM620 512GB
2938 Points
Acemagic S1
BiWin CE480Y2D100-1TB
2427 Points -17%
Beelink Mini S12 Pro

2210 Points -25%
Trigkey G4

1857 Points -37%
BOSGAME N95
Kingston OM8SEP4256Q-A0
1423 Points -52%
Blackview MP80
Netac NS512GSSD330
796 Points -73%
Minipc Union NiPoGi GK3PLUS - N95
Kimtigo KTB900SM28/512GB
736 Points -75%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
698 Points -76%
Geekom MiniAir 11 Special Edition
NF830 256GB M.2 2280
151.3 (331.02min) Points -95%
Score Read
Average of class Mini PC
  (61 - 3741, n=117, last 2 years)
1534 Points +20%
Geekom MiniAir 12
Lexar NM620 512GB
1282 Points
Acemagic S1
BiWin CE480Y2D100-1TB
1000 Points -22%
Trigkey G4

934 Points -27%
Beelink Mini S12 Pro

920 Points -28%
BOSGAME N95
Kingston OM8SEP4256Q-A0
522 Points -59%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
320 Points -75%
Blackview MP80
Netac NS512GSSD330
265 Points -79%
Minipc Union NiPoGi GK3PLUS - N95
Kimtigo KTB900SM28/512GB
232 Points -82%
Geekom MiniAir 11 Special Edition
NF830 256GB M.2 2280
217 Points -83%
Score Write
Average of class Mini PC
  (88 - 4371, n=117, last 2 years)
1851 Points +84%
Geekom MiniAir 12
Lexar NM620 512GB
1008 Points
Acemagic S1
BiWin CE480Y2D100-1TB
903 Points -10%
Beelink Mini S12 Pro

801 Points -21%
BOSGAME N95
Kingston OM8SEP4256Q-A0
626 Points -38%
Trigkey G4

458 Points -55%
Blackview MP80
Netac NS512GSSD330
387 Points -62%
Minipc Union NiPoGi GK3PLUS - N95
Kimtigo KTB900SM28/512GB
373 Points -63%
Geekom MiniAir 11 Special Edition
NF830 256GB M.2 2280
312 Points -69%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
208 Points -79%
Seq Read
Average of class Mini PC
  (291 - 6620, n=117, last 2 years)
3161 MB/s +8%
Geekom MiniAir 12
Lexar NM620 512GB
2934 MB/s
Acemagic S1
BiWin CE480Y2D100-1TB
1582 MB/s -46%
Trigkey G4

794 MB/s -73%
Beelink Mini S12 Pro

704.36 MB/s -76%
BOSGAME N95
Kingston OM8SEP4256Q-A0
700 MB/s -76%
Blackview MP80
Netac NS512GSSD330
526 MB/s -82%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
489 MB/s -83%
Minipc Union NiPoGi GK3PLUS - N95
Kimtigo KTB900SM28/512GB
470 MB/s -84%
Geekom MiniAir 11 Special Edition
NF830 256GB M.2 2280
433 MB/s -85%
Seq Write
Geekom MiniAir 12
Lexar NM620 512GB
2449 MB/s
Average of class Mini PC
  (240 - 5783, n=117, last 2 years)
2212 MB/s -10%
Acemagic S1
BiWin CE480Y2D100-1TB
1526 MB/s -38%
Beelink Mini S12 Pro

736.89 MB/s -70%
BOSGAME N95
Kingston OM8SEP4256Q-A0
595 MB/s -76%
Minipc Union NiPoGi GK3PLUS - N95
Kimtigo KTB900SM28/512GB
484 MB/s -80%
Blackview MP80
Netac NS512GSSD330
466 MB/s -81%
Geekom MiniAir 11 Special Edition
NF830 256GB M.2 2280
385 MB/s -84%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
344 MB/s -86%
Trigkey G4

326 MB/s -87%
4K Read
Geekom MiniAir 12
Lexar NM620 512GB
62.1 MB/s
Average of class Mini PC
  (6.08 - 104.3, n=117, last 2 years)
58.9 MB/s -5%
Beelink Mini S12 Pro

55.88 MB/s -10%
Acemagic S1
BiWin CE480Y2D100-1TB
54.7 MB/s -12%
Trigkey G4

44.4 MB/s -29%
BOSGAME N95
Kingston OM8SEP4256Q-A0
38.7 MB/s -38%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
35.45 MB/s -43%
Blackview MP80
Netac NS512GSSD330
30.2 MB/s -51%
Minipc Union NiPoGi GK3PLUS - N95
Kimtigo KTB900SM28/512GB
27.5 MB/s -56%
Geekom MiniAir 11 Special Edition
NF830 256GB M.2 2280
16.2 MB/s -74%
4K Write
Average of class Mini PC
  (30.9 - 366, n=117, last 2 years)
175.1 MB/s +43%
Geekom MiniAir 12
Lexar NM620 512GB
122.1 MB/s
Beelink Mini S12 Pro

113.72 MB/s -7%
Trigkey G4

113.5 MB/s -7%
Acemagic S1
BiWin CE480Y2D100-1TB
108.9 MB/s -11%
BOSGAME N95
Kingston OM8SEP4256Q-A0
100.9 MB/s -17%
Minipc Union NiPoGi GK3PLUS - N95
Kimtigo KTB900SM28/512GB
85.6 MB/s -30%
Blackview MP80
Netac NS512GSSD330
84.3 MB/s -31%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
38 MB/s -69%
Geekom MiniAir 11 Special Edition
NF830 256GB M.2 2280
36.63 MB/s -70%
4K-64 Read
Average of class Mini PC
  (23.4 - 3220, n=117, last 2 years)
1159 MB/s +25%
Geekom MiniAir 12
Lexar NM620 512GB
927 MB/s
Trigkey G4

810 MB/s -13%
Beelink Mini S12 Pro

793.52 MB/s -14%
Acemagic S1
BiWin CE480Y2D100-1TB
787 MB/s -15%
BOSGAME N95
Kingston OM8SEP4256Q-A0
413 MB/s -55%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
235.66 MB/s -75%
Blackview MP80
Netac NS512GSSD330
181.8 MB/s -80%
Minipc Union NiPoGi GK3PLUS - N95
Kimtigo KTB900SM28/512GB
157.7 MB/s -83%
Geekom MiniAir 11 Special Edition
NF830 256GB M.2 2280
157.18 MB/s -83%
4K-64 Write
Average of class Mini PC
  (32.8 - 3731, n=117, last 2 years)
1455 MB/s +127%
Acemagic S1
BiWin CE480Y2D100-1TB
641 MB/s 0%
Geekom MiniAir 12
Lexar NM620 512GB
641 MB/s
Beelink Mini S12 Pro

613.44 MB/s -4%
BOSGAME N95
Kingston OM8SEP4256Q-A0
466 MB/s -27%
Trigkey G4

312 MB/s -51%
Blackview MP80
Netac NS512GSSD330
256 MB/s -60%
Minipc Union NiPoGi GK3PLUS - N95
Kimtigo KTB900SM28/512GB
239 MB/s -63%
Geekom MiniAir 11 Special Edition
NF830 256GB M.2 2280
237.24 MB/s -63%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
135.39 MB/s -79%
Access Time Read
Geekom MiniAir 11 Special Edition
NF830 256GB M.2 2280
0.205 ms * -280%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
0.148 ms * -174%
BOSGAME N95
Kingston OM8SEP4256Q-A0
0.101 ms * -87%
Average of class Mini PC
  (0.022 - 0.489, n=117, last 2 years)
0.09726 ms * -80%
Beelink Mini S12 Pro

0.086 ms * -59%
Blackview MP80
Netac NS512GSSD330
0.077 ms * -43%
Minipc Union NiPoGi GK3PLUS - N95
Kimtigo KTB900SM28/512GB
0.076 ms * -41%
Acemagic S1
BiWin CE480Y2D100-1TB
0.076 ms * -41%
Trigkey G4

0.064 ms * -19%
Geekom MiniAir 12
Lexar NM620 512GB
0.054 ms *
Access Time Write
Geekom MiniAir 11 Special Edition
NF830 256GB M.2 2280
0.203 ms * -62%
Blackview MP80
Netac NS512GSSD330
0.136 ms * -9%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
0.132 ms * -6%
Minipc Union NiPoGi GK3PLUS - N95
Kimtigo KTB900SM28/512GB
0.127 ms * -2%
Geekom MiniAir 12
Lexar NM620 512GB
0.125 ms *
Average of class Mini PC
  (0.014 - 0.765, n=117, last 2 years)
0.1153 ms * +8%
Beelink Mini S12 Pro

0.114 ms * +9%
BOSGAME N95
Kingston OM8SEP4256Q-A0
0.109 ms * +13%
Acemagic S1
BiWin CE480Y2D100-1TB
0.098 ms * +22%
Trigkey G4

0.061 ms * +51%

* ... smaller is better

Reading continuous performance: DiskSpd Read Loop, Queue Depth 8

0130260390520650780910104011701300143015601690182019502080221023402470Tooltip
Geekom MiniAir 12 Lexar NM620 512GB; diskspd 2.0.17 f: Ø2163 (895.27-2580.55)
Acemagic S1 BiWin CE480Y2D100-1TB: Ø1772 (1604.38-1776.91)
Beelink Mini S12 Pro  : Ø853 (744.93-890.66)
Blackview MP80 Netac NS512GSSD330: Ø551 (425.51-553.5)
BOSGAME N95 Kingston OM8SEP4256Q-A0: Ø817 (676.33-820.44)
Trigkey G4  : Ø839 (658.14-865.55)
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB: Ø498 (453.55-500.22)
Minipc Union Ace Magician T8Pro FPT310M4SSD256G: Ø553 (484.52-559.31)
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280: Ø444 (380-447.8)

图形卡

Geekom MiniAir 12 的图形输出由配备 24 个 EU 的英特尔 UHD 显卡负责。遗憾的是,作为英特尔 N100 SoC 的一部分,iGPU 只能提供有限的 3D 性能。由于我们测试样本的内存配置,它的性能相对较好,与 Blackview MP80 差不多。与Geekom MiniAir 11.新机型的速度提高了约 45%。

如需了解更多英特尔UHD Graphics 基准测试信息,请访问

3DMark Performance Rating - Percent
Blackview MP80
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95
96 pt
Geekom MiniAir 12
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100
95.7 pt
BOSGAME N95
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95
92 pt
Trigkey G4
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100
91.4 pt
Acemagic S1
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95
89.4 pt
Minipc Union NiPoGi GK3PLUS - N95
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95
89 pt
Minipc Union Ace Magician T8Pro
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
68.9 pt
Geekom MiniAir 11 Special Edition
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
65.8 pt
3DMark 11 - 1280x720 Performance GPU
BOSGAME N95
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95
1494 Points 0%
Trigkey G4
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100
1492 Points 0%
Blackview MP80
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95
1490 Points 0%
Geekom MiniAir 12
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100
1489 Points
Acemagic S1
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95
1485 Points 0%
Minipc Union NiPoGi GK3PLUS - N95
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95
1467 Points -1%
Minipc Union Ace Magician T8Pro
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
859 Points -42%
Geekom MiniAir 11 Special Edition
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
837 Points -44%
3DMark
1280x720 Cloud Gate Standard Graphics
Blackview MP80
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95
8548 Points +3%
BOSGAME N95
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95
8304 Points 0%
Geekom MiniAir 12
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100
8303 Points
Trigkey G4
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100
8233 Points -1%
Minipc Union NiPoGi GK3PLUS - N95
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95
8035 Points -3%
Acemagic S1
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95
7218 Points -13%
Minipc Union Ace Magician T8Pro
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
5217 Points -37%
Geekom MiniAir 11 Special Edition
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
4958 Points -40%
1920x1080 Fire Strike Graphics
Geekom MiniAir 12
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100
1217 Points
Trigkey G4
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100
1184 Points -3%
Blackview MP80
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95
1172 Points -4%
BOSGAME N95
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95
1124 Points -8%
Acemagic S1
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95
1106 Points -9%
Minipc Union NiPoGi GK3PLUS - N95
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95
1080 Points -11%
Minipc Union Ace Magician T8Pro
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
662 Points -46%
Geekom MiniAir 11 Special Edition
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
637 Points -48%
ComputeMark v2.1
1024x600 Normal, Score
Geekom MiniAir 12
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100
684 Points
Blackview MP80
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95
670 Points -2%
BOSGAME N95
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95
650 Points -5%
Trigkey G4
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100
638 Points -7%
Acemagic S1
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95
638 Points -7%
Minipc Union NiPoGi GK3PLUS - N95
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95
628 Points -8%
Minipc Union Ace Magician T8Pro
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
555 Points -19%
Geekom MiniAir 11 Special Edition
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
536 Points -22%
1024x600 Normal, Fluid 3DTex
Geekom MiniAir 12
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100
155 Points
Blackview MP80
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95
133 Points -14%
Trigkey G4
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100
122 Points -21%
BOSGAME N95
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95
116 Points -25%
Acemagic S1
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95
116 Points -25%
Minipc Union Ace Magician T8Pro
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
109 Points -30%
Minipc Union NiPoGi GK3PLUS - N95
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95
103 Points -34%
Geekom MiniAir 11 Special Edition
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
99 Points -36%
1024x600 Normal, Fluid 2DTexArr
Geekom MiniAir 12
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100
122 Points
Trigkey G4
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100
109 Points -11%
Blackview MP80
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95
106 Points -13%
BOSGAME N95
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95
97 Points -20%
Acemagic S1
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95
95 Points -22%
Minipc Union NiPoGi GK3PLUS - N95
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95
90 Points -26%
Minipc Union Ace Magician T8Pro
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
71 Points -42%
Geekom MiniAir 11 Special Edition
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
64 Points -48%
1024x600 Normal, Mandel Vector
Minipc Union NiPoGi GK3PLUS - N95
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95
126 Points +7%
Blackview MP80
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95
126 Points +7%
BOSGAME N95
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95
125 Points +6%
Acemagic S1
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95
122 Points +3%
Trigkey G4
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100
120 Points +2%
Geekom MiniAir 12
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100
118 Points
Geekom MiniAir 11 Special Edition
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
105 Points -11%
Minipc Union Ace Magician T8Pro
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
105 Points -11%
1024x600 Normal, Mandel Scalar
Minipc Union NiPoGi GK3PLUS - N95
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95
112 Points +13%
BOSGAME N95
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95
110 Points +11%
Blackview MP80
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95
110 Points +11%
Acemagic S1
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95
109 Points +10%
Trigkey G4
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100
101 Points +2%
Geekom MiniAir 12
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100
99 Points
Geekom MiniAir 11 Special Edition
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
86 Points -13%
Minipc Union Ace Magician T8Pro
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
86 Points -13%
1024x600 Normal, QJuliaRayTrace
BOSGAME N95
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95
203 Points +7%
Minipc Union NiPoGi GK3PLUS - N95
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95
197 Points +4%
Acemagic S1
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95
196 Points +4%
Blackview MP80
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95
194 Points +3%
Geekom MiniAir 12
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100
189 Points
Trigkey G4
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100
186 Points -2%
Minipc Union Ace Magician T8Pro
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
185 Points -2%
Geekom MiniAir 11 Special Edition
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
182 Points -4%
3DMark 06 - 1280x1024 Standard Score AA:0x AF:0x
Blackview MP80
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95
12203 Points +18%
Geekom MiniAir 12
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100
10352 Points
BOSGAME N95
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95
10165 Points -2%
Acemagic S1
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95
10088 Points -3%
Trigkey G4
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100
10026 Points -3%
Minipc Union NiPoGi GK3PLUS - N95
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95
9774 Points -6%
Minipc Union Ace Magician T8Pro
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
6704 Points -35%
Geekom MiniAir 11 Special Edition
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
5796 Points -44%
3DMark Performance Rating - Percent
Geekom MiniAir 12
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100
98.8 pt
Blackview MP80
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95
98.1 pt
Trigkey G4
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100
89.3 pt
BOSGAME N95
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95
86.4 pt
Acemagic S1
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95
86 pt
Minipc Union NiPoGi GK3PLUS - N95
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95
80.6 pt
Minipc Union Ace Magician T8Pro
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
56.9 pt
Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Blackview MP80
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95
5.3 fps +2%
Geekom MiniAir 12
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100
5.2 fps
BOSGAME N95
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95
4.6 fps -12%
Trigkey G4
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100
4.6 fps -12%
Acemagic S1
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95
4.6 fps -12%
Minipc Union NiPoGi GK3PLUS - N95
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95
4.1 fps -21%
Minipc Union Ace Magician T8Pro
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
3.5 fps -33%
1920x1080 Extreme HD Preset OpenGL AA:x8
Blackview MP80
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95
6 fps 0%
Geekom MiniAir 12
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100
6 fps
BOSGAME N95
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95
5.4 fps -10%
Acemagic S1
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95
5.3 fps -12%
Trigkey G4
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100
5.1 fps -15%
Minipc Union NiPoGi GK3PLUS - N95
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95
4.8 fps -20%
Minipc Union Ace Magician T8Pro
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
3.5 fps -42%
Unigine Heaven 4.0
Extreme Preset DX11
Geekom MiniAir 12
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100
7.7 fps
Blackview MP80
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95
7.5 fps -3%
Trigkey G4
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100
7.2 fps -6%
BOSGAME N95
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95
6.8 fps -12%
Acemagic S1
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95
6.7 fps -13%
Minipc Union NiPoGi GK3PLUS - N95
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95
6.4 fps -17%
Minipc Union Ace Magician T8Pro
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
4.3 fps -44%
Extreme Preset OpenGL
Geekom MiniAir 12
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100
7.6 fps
Blackview MP80
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95
7.2 fps -5%
Trigkey G4
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100
6.9 fps -9%
BOSGAME N95
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95
6.7 fps -12%
Acemagic S1
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95
6.7 fps -12%
Minipc Union NiPoGi GK3PLUS - N95
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95
6.3 fps -17%
Minipc Union Ace Magician T8Pro
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
4 fps -47%
Unigine Superposition
1280x720 720p Low
Blackview MP80
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95
2505 Points +5%
Geekom MiniAir 12
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100
2376 Points
Trigkey G4
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100
2141 Points -10%
Acemagic S1
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95
1937 Points -18%
BOSGAME N95
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95
1924 Points -19%
Minipc Union NiPoGi GK3PLUS - N95
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95
1871 Points -21%
Minipc Union Ace Magician T8Pro
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
1358 Points -43%
1920x1080 1080p High
Geekom MiniAir 12
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100
530 Points
Blackview MP80
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95
512 Points -3%
Trigkey G4
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100
500 Points -6%
BOSGAME N95
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95
469 Points -12%
Acemagic S1
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95
468 Points -12%
Minipc Union NiPoGi GK3PLUS - N95
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95
454 Points -14%
Minipc Union Ace Magician T8Pro
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
287 Points -46%
3DMark 05 Standard
18691 points
3DMark 06 Standard Score
10352 points
3DMark Vantage P Result
6457 points
3DMark 11 Performance
1724 points
3DMark Ice Storm Standard Score
46049 points
3DMark Cloud Gate Standard Score
7021 points
3DMark Fire Strike Score
1169 points
3DMark Fire Strike Extreme Score
550 points
3DMark Time Spy Score
369 points
Help

游戏性能

由于英特尔 UHD 显卡的 3D 性能有限,Geekom MiniAir 12 并不适合要求苛刻的游戏。这款迷你 PC 只能在一些特定游戏中达到可玩的帧率。Geekom MiniAir 12 更适合休闲游戏或浏览器游戏。以下迷你电脑配备了 AMD Ryzen 9 6900HX可明显提高 3D 性能:Geekom AS 6,Morefine M600Ace Magican AM08 Pro.

lowmed.highultra
GTA V (2015) 59 48
The Witcher 3 (2015) 22.9 14.7 8.22
Dota 2 Reborn (2015) 74 49.9 20.3 18.8
Final Fantasy XV Benchmark (2018) 13.3 6.38 4.62
X-Plane 11.11 (2018) 19.6 12.5 11.2
Far Cry 5 (2018) 15 7 6 6
Strange Brigade (2018) 27.8 10.8 10.1
Shadow of the Tomb Raider (2018) 15.2 6.5 6
Far Cry New Dawn (2019) 14 7 7 6
Metro Exodus (2019) 12.6 5.76 4.37
Borderlands 3 (2019) 13.7 5.89 3.41 2.42
Tiny Tina's Wonderlands (2022) 7.01 5.49 3.35

排放--节俭且几乎听不到

噪音排放

安装的冷却装置表现出色。在空闲模式下,Geekom PC 的噪音仅为 28.7 dB(A),非常安静,有时甚至听不到它的声音。在平均负载情况下,噪音仅略有上升。即使在压力测试中,我们也只注意到 30.2 dB(A)。Geekom 成功地改进了迷你 Air 11已经很不错的性能。

Noise Level

Idle
24.8 / 28.6 / 28.7 dB(A)
Load
29 / 30.2 dB(A)
  red to green bar


30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light   Earthworks M23R (15 cm distance)   environment noise: 24.8 dB(A)
Geekom MiniAir 12
N100, UHD Graphics 24EUs (Alder Lake-N)
Acemagic S1
N95, UHD Graphics 24EUs (Alder Lake-N)
Beelink Mini S12 Pro
N100, UHD Graphics 24EUs (Alder Lake-N)
Blackview MP80
N95, UHD Graphics 24EUs (Alder Lake-N)
BOSGAME N95
N95, UHD Graphics 24EUs (Alder Lake-N)
Trigkey G4
N100, UHD Graphics 24EUs (Alder Lake-N)
Minipc Union NiPoGi GK3PLUS - N95
N95, UHD Graphics 24EUs (Alder Lake-N)
Minipc Union Ace Magician T8Pro
Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
Geekom MiniAir 11 Special Edition
Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
Noise
-7%
-3%
-2%
-10%
-15%
-21%
-10%
-9%
off / environment *
24.8
25
-1%
23.3
6%
25.2
-2%
29.7
-20%
24.8
-0%
30.4
-23%
30.2
-22%
29.6
-19%
Idle Minimum *
24.8
25.5
-3%
26.3
-6%
25.4
-2%
30.2
-22%
30.6
-23%
31
-25%
30.2
-22%
29.6
-19%
Idle Average *
28.6
26.9
6%
26.3
8%
25.5
11%
30.2
-6%
31.3
-9%
31.1
-9%
30.2
-6%
29.6
-3%
Idle Maximum *
28.7
27
6%
26.3
8%
25.5
11%
30.2
-5%
32.1
-12%
31.8
-11%
30.2
-5%
29.6
-3%
Load Average *
29
34.3
-18%
31.9
-10%
32.3
-11%
30.4
-5%
34.8
-20%
33.3
-15%
30.5
-5%
30
-3%
Load Maximum *
30.2
40.3
-33%
36.7
-22%
36.4
-21%
31.4
-4%
37.1
-23%
42.5
-41%
30.9
-2%
32.9
-9%
Witcher 3 ultra *
33

* ... smaller is better

温度

由于功耗低,散热系统为英特尔 N100 提供可靠的散热不成问题。在同时运行 Prime95 和 FurMark 的压力测试中,我们注意到最高温度为 77 °C。这个最高值也不是永久性的。在压力测试期间,处理器的温度稳定在 73 °C。这些都是非临界值,机箱本身也不会特别热。Geekom MiniAir 12 的机箱在这方面确实很有优势,因为金属结构可以很好地吸收和散发热量。这使得机箱本身没有明显的热点。

压力测试 Prime95,单人
压力测试 Prime95,单人
压力测试 FurMark,独奏
压力测试 FurMark,独奏
压力测试 Prime95 + FurMark
压力测试 Prime95 + FurMark
压力测试中的 Geekom MiniAir 12(正面)
压力测试中的 Geekom MiniAir 12(正面)
压力测试中的 Geekom MiniAir 12(背面)
压力测试中的 Geekom MiniAir 12(背面)
Max. Load
 28.2 °C30.9 °C29.5 °C
 27.2 °C29.1 °C29 °C
 27.2 °C27.5 °C27.3 °C
Maximum: 30.9 °C
Average: 28.4 °C
31.9 °C31.2 °C30.1 °C
31.9 °C30.8 °C29.8 °C
30.9 °C30.6 °C29.6 °C
Maximum: 31.9 °C
Average: 30.8 °C
Power Supply (max.)  36.4 °C | Room Temperature 21.8 °C | Fluke t3000FC (calibrated)
(+) The average temperature for the upper side under maximal load is 28.4 °C / 83 F, compared to the average of 32.2 °C / 90 F for the devices in the class Mini PC.
(+) The maximum temperature on the upper side is 30.9 °C / 88 F, compared to the average of 35.7 °C / 96 F, ranging from 24 to 69.5 °C for the class Mini PC.
(+) The bottom heats up to a maximum of 31.9 °C / 89 F, compared to the average of 36.2 °C / 97 F
(+) In idle usage, the average temperature for the upper side is 29.2 °C / 85 F, compared to the device average of 32.2 °C / 90 F.

耗电量

总体而言,相比之下,我们的测试样本功耗较低。当然,仍有改进的余地,但从大局来看,没有任何设备在这一领域表现糟糕。在空闲模式下,我们注意到功耗仅为 5.9 至 9.3 瓦。在平均负载情况下,其值升至 18.9 瓦,最大值为 30 瓦。45 瓦的电源从未出现过为 Geekom MiniAir 12 稳定供电的问题。

配备 45 瓦电源的 Geekom MiniAir 12
配备 45 瓦电源的 Geekom MiniAir 12
45 瓦电源
45 瓦电源
Power Consumption
Off / Standbydarklight 0.5 / 1.1 Watt
Idledarkmidlight 5.9 / 7 / 9.3 Watt
Load midlight 18.9 / 30 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Geekom MiniAir 12
N100, UHD Graphics 24EUs (Alder Lake-N)
Acemagic S1
N95, UHD Graphics 24EUs (Alder Lake-N)
Beelink Mini S12 Pro
N100, UHD Graphics 24EUs (Alder Lake-N)
Blackview MP80
N95, UHD Graphics 24EUs (Alder Lake-N)
BOSGAME N95
N95, UHD Graphics 24EUs (Alder Lake-N)
Trigkey G4
N100, UHD Graphics 24EUs (Alder Lake-N)
Minipc Union NiPoGi GK3PLUS - N95
N95, UHD Graphics 24EUs (Alder Lake-N)
Minipc Union Ace Magician T8Pro
Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
Geekom MiniAir 11 Special Edition
Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
Average Intel UHD Graphics 24EUs (Alder Lake-N)

Average of class Mini PC

Power Consumption
-36%
-15%
8%
26%
-17%
5%
-11%
20%
-4%
-123%
Idle Minimum *
5.9
7.1
-20%
8.3
-41%
4.9
17%
3.5
41%
8.2
-39%
6.1
-3%
8.4
-42%
4.8
19%
Idle Average *
7
12.1
-73%
8.8
-26%
7.1
-1%
3.6
49%
8.6
-23%
6.9
1%
8.4
-20%
4.8
31%
7.73 ?(3.6 - 12.1, n=13)
-10%
Idle Maximum *
9.3
13.9
-49%
8.9
4%
7.3
22%
6.2
33%
10.4
-12%
8.9
4%
11.1
-19%
6.7
28%
Load Average *
18.9
23.8
-26%
20.1
-6%
20.6
-9%
20.4
-8%
19.4
-3%
20
-6%
16.5
13%
15.9
16%
Load Maximum *
30
33
-10%
32.2
-7%
26.2
13%
25
17%
33.1
-10%
21.1
30%
26.3
12%
28.4
5%
Witcher 3 ultra *
21.5

* ... smaller is better

Power consumption with external monitor

0510152025Tooltip
Geekom MiniAir 12; Prime95 V2810 Stress (external Monitor): Ø29.1 (27.4-30)
Geekom MiniAir 12; Cinebench R15 Multi (external Monitor): Ø24 (23.2-24.7)
Geekom MiniAir 12; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø16.3 (14.3-26.5)
Geekom MiniAir 12; Idle 1min (external Monitor): Ø8.23 (7.94-9.36)
Geekom MiniAir 12; Cinebench R23 Single (external Monitor): Ø19.2 (16.7-23.9)
Geekom MiniAir 12; Cinebench R23 Multi (external Monitor): Ø22.8 (21.2-24.3)
Geekom MiniAir 12; 3DMark06 Return To Proxycon: Ø18.9 (15.9-26.4)

Pros

+ 紧凑型微型 PC
+ 现代 SoC
+ 16 GB DDR5 内存
+ 快速 512GB NVMe 固态硬盘
+ 高品质制造
+ 稳定的机箱
+ 良好的连接选项
+ 低功耗
+ 负载时非常安静
+ 低 DPC 延迟

Cons

- 图形性能有限
- SD读卡器速度慢
- 只有一个 M.2 插槽

评语 - 日常使用的节俭好帮手

Geekom MiniAir 12 特别版评测,测试样品由 Geekom 提供
Geekom MiniAir 12 特别版评测,测试样品由 Geekom 提供

Geekom MiniAir 12 是一款外形小巧的迷你 PC,机箱很有辨识度。从外观上看,MiniAir 12 与 MiniAir 11 相比变化不大。不过,在内部,英特尔 N100 现在作为处理器工作,它比前一代的英特尔赛扬 N5095 快得多。英特尔 N100 采用新的 Alder Lake 架构,性能更佳,而且无需明显增加功耗。为了跟上其他迷你 PC 的步伐,Geekom 不得不对 MiniAir 12 进行改造。不过,其他制造商则更进一步,赋予其设备特殊功能。相反,如果你购买的是 Geekom MiniAir 12,你得到的将是一个装在高质量、稳定外壳中的可靠设备。它没有显示屏或照明等亮点。

Geekom MiniAir 12 是一款适用于简单办公任务的可靠工作设备。MiniAir 12 还能很好地用作客厅的流媒体客户端。

我们对制造商安装 DDR5 内存的决定表示欢迎。反过来说,Geekom MiniAir 12 并不能从中获得特别的收益。不过,在电脑的存储设备方面,制造商还是做得很好的,因为安装的机型受益于性能的提升。对于已安装的 WLAN 模块,我们没有太多可批评的地方。它的性能可以提高很多,但仍然没有配备 Wi-Fi 6E 模块。在购买该设备后,我们无法更换焊接模块。即便如此,Geekom MiniAir 12 还是提供了丰富的连接选项,对大多数用户来说绰绰有余。值得注意的是,PC 的延迟很低,这意味着它适合用作流媒体客户端。

价格和供应情况

目前,您可以从Geekom 在线商店以 249 美元的促销价购买GeekomMiniAir 12。

Geekom MiniAir 12 - 11/22/2023 v7 (old)
Sebastian Bade

Chassis
83 / 98 → 85%
Connectivity
60 / 81 → 74%
Weight
84%
Games Performance
51%
Application Performance
84%
Workstation
49%
Temperature
93%
Noise
94%
Average
75%
77%
Mini PC - Weighted Average

Transparency

The selection of devices to be reviewed is made by our editorial team. The test sample was given to the author by the manufacturer free of charge for the purposes of review. There was no third-party influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.

This is how Notebookcheck is testing

Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.

Please share our article, every link counts!
Mail Logo
> Notebookcheck中文版(NBC中国) > 评测 > Geekom MiniAir 12 评论:经济实惠的迷你 PC,采用著名的 Intel NUC 设计,配备 Intel N100 和 DDR5 内存
Sebastian Bade, 2023-11-24 (Update: 2023-11-24)
