HP EliteBook 835 G9评测。强大的商务笔记本，明亮的屏幕和出色的键盘

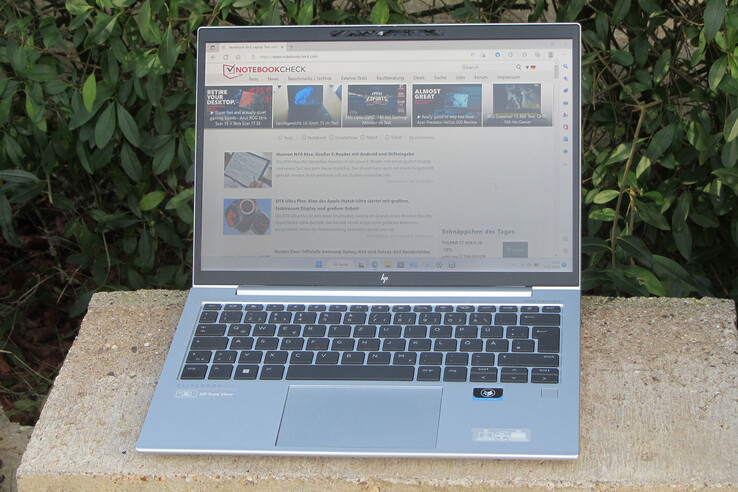

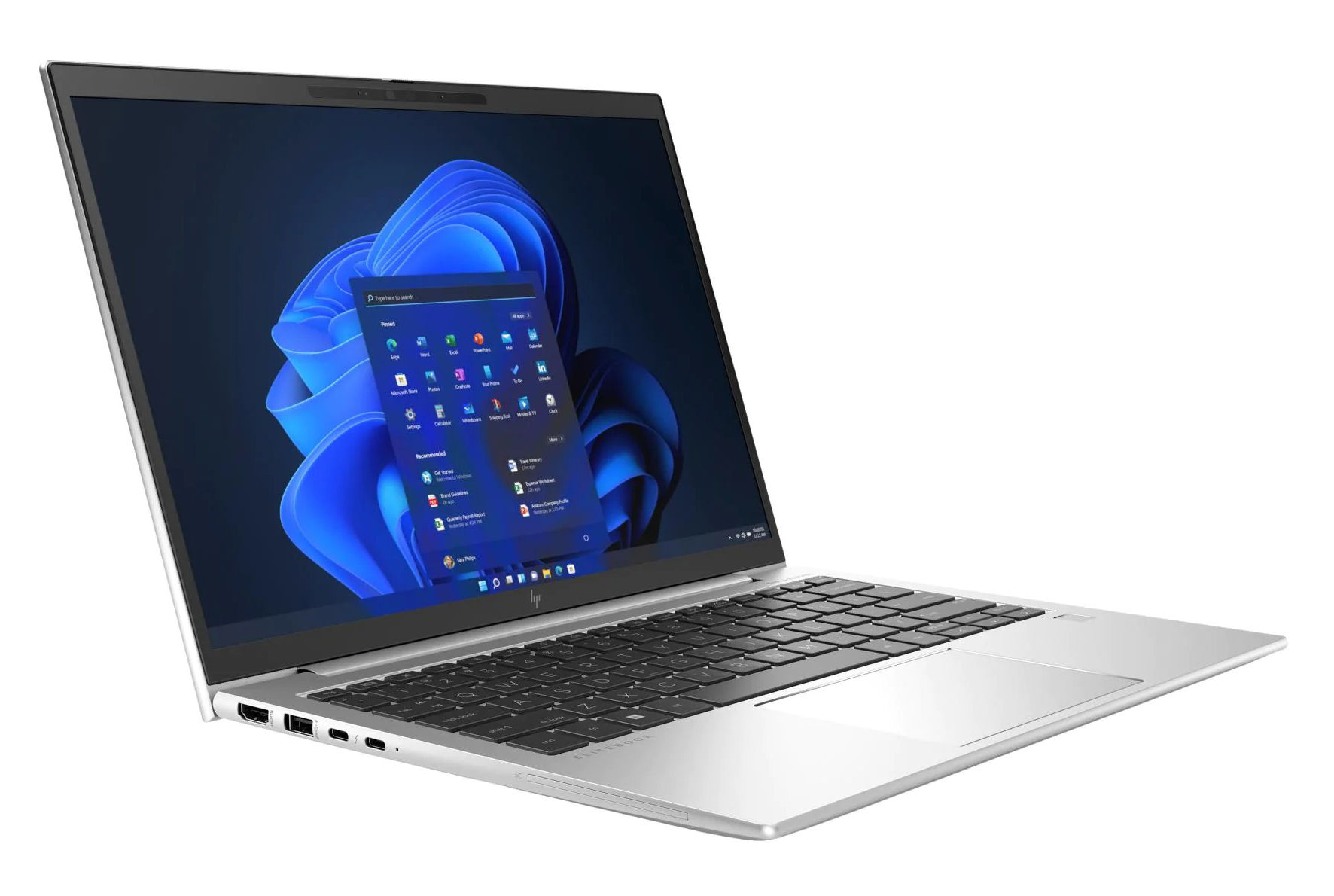

惠普的EliteBook 835 G9是一款高端商务笔记本，起价约为1,600美元。作为回报，你可以得到一个紧凑的13.3英寸笔记本，其明亮的屏幕由一个 Ryzen 5 PRO 6650U或 Ryzen 7 PRO 6850UAPU（Rembrandt）。我们最近审查了一个16英寸的兄弟姐妹模型，是几乎相同的装备，在 EliteBook 865 G9.竞争的设备包括 联想ThinkPad X13 G3，以及 戴尔Latitude 13 7330和 Dynabook Portégé X30L-K.
潜在的竞争对手比较
Rating | Date | Model | Weight | Height | Size | Resolution | Price |
|---|---|---|---|---|---|---|---|
| 89.2 % v7 (old) | 01 / 2023 | HP EliteBook 835 G9 R7 PRO 6850U, Radeon 680M | 1.3 kg | 19.2 mm | 13.30" | 1920x1200 | |
| 89.4 % v7 (old) | 11 / 2022 | Lenovo ThinkPad X13 G3 21BN0046GE i5-1235U, Iris Xe G7 80EUs | 1.3 kg | 18.9 mm | 13.30" | 1920x1200 | |
| 85.1 % v7 (old) | 08 / 2022 | Dynabook Portégé X30L-K-139 i5-1240P, Iris Xe G7 80EUs | 905 g | 17.9 mm | 13.30" | 1920x1080 | |
| 89 % v7 (old) | 07 / 2022 | Dell Latitude 13 7330 i7-1265U, Iris Xe G7 96EUs | 1 kg | 16.96 mm | 13.30" | 1920x1080 |

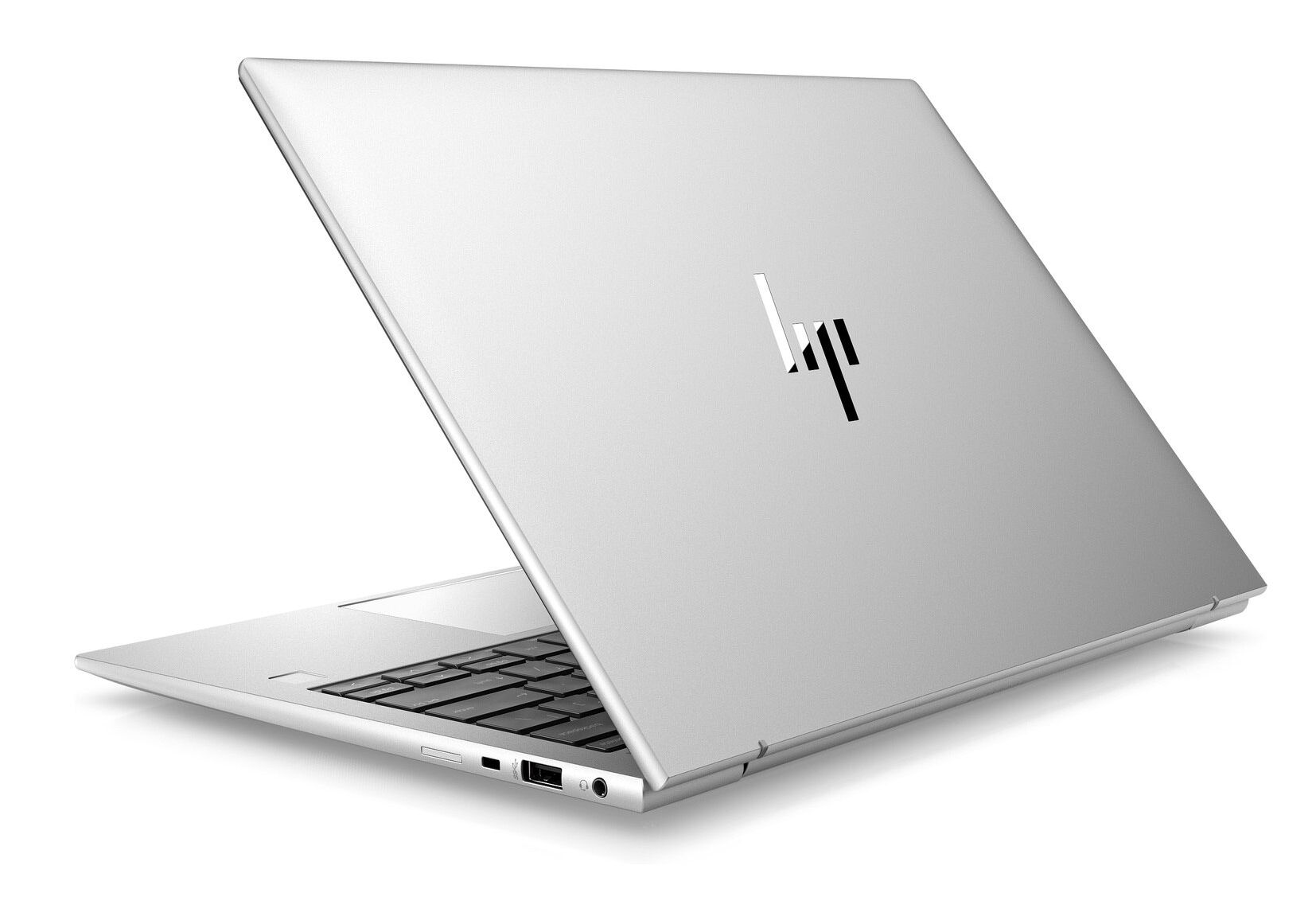

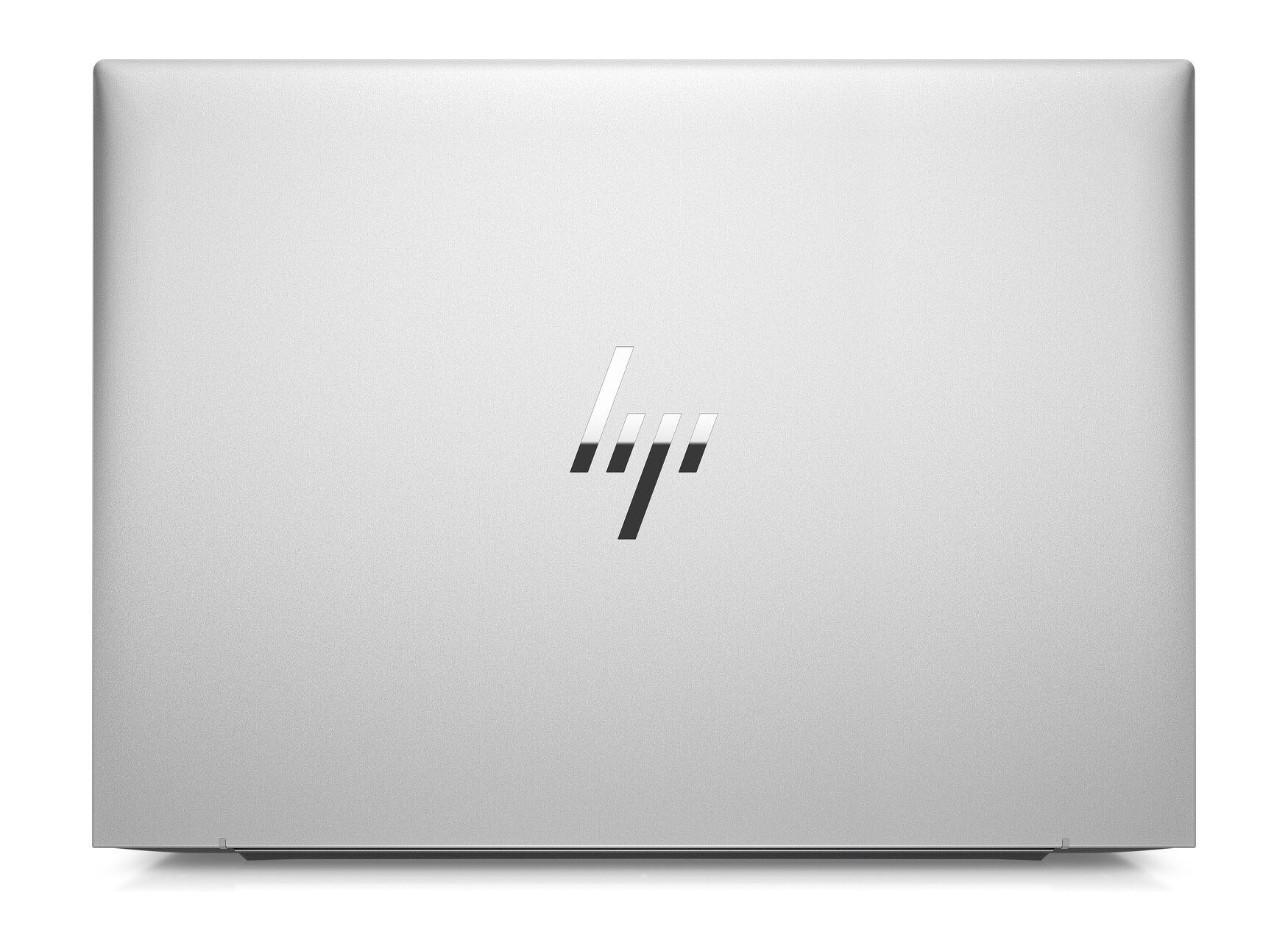

外壳--惠普在835上使用金属材料

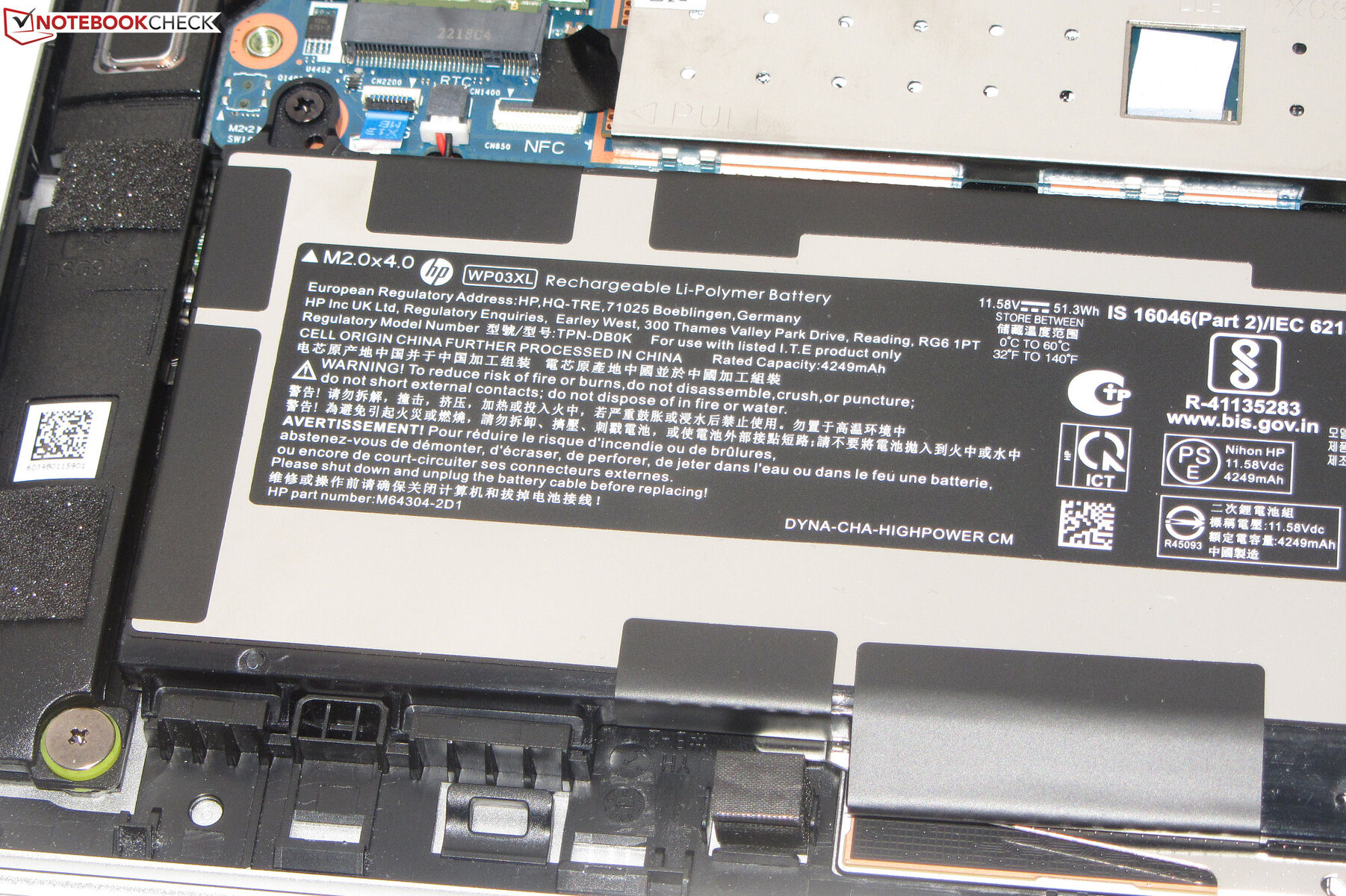

笔记本的硬件被装在一个银灰色的金属外壳里，表面磨砂光滑。惠普采用了直截了当的中性设计。笔记本在视觉上并不突出。电池（用螺丝固定，而不是用胶粘）和其余的内部组件可以在拆下底壳后进入。
做工方面没有批评的余地。缝隙尺寸均匀，没有发现任何材料的突起。底部单元和盖子在扭转应力下有一点屈服，但仍在极限范围内。铰链将盖子牢牢地固定住。最大打开角度约为170度。单手打开盖子是可能的。
设备 - EliteBook配备了USB 4

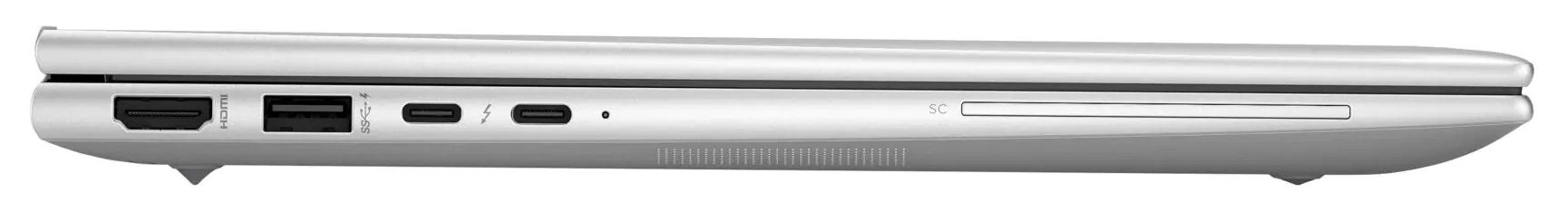

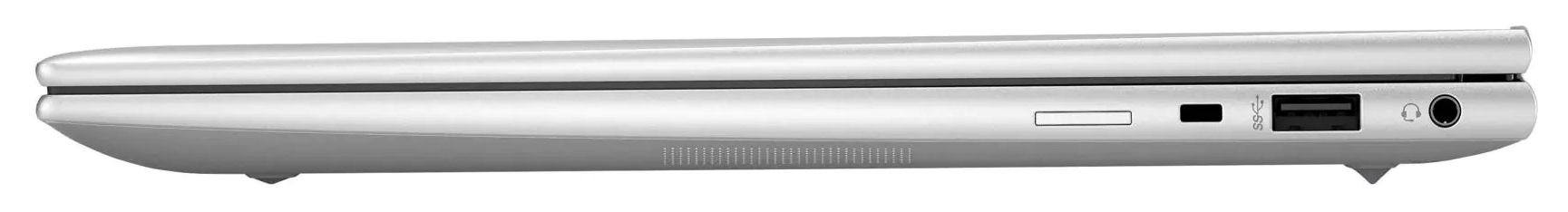

EliteBook配备了两个USB-A端口（USB 3.2 Gen 1）和两个USB-C端口（USB 4；Power Delivery，DisplayPort）。后者为电脑供电，并能使用对接解决方案。笔记本电脑有三个视频输出（2个DP，1个HDMI）。一个组合音频插孔和一个智能卡读卡器完善了端口的选择。机上没有存储卡读卡器。
沟通
在最佳条件下确定的WLAN传输率（附近没有其他WLAN设备，笔记本和服务器PC之间的距离很短）非常好，与Wi-Fi芯片的能力（Qualcomm FastConnect 6900 Wi-Fi 6E）相符。没有以太网插槽。

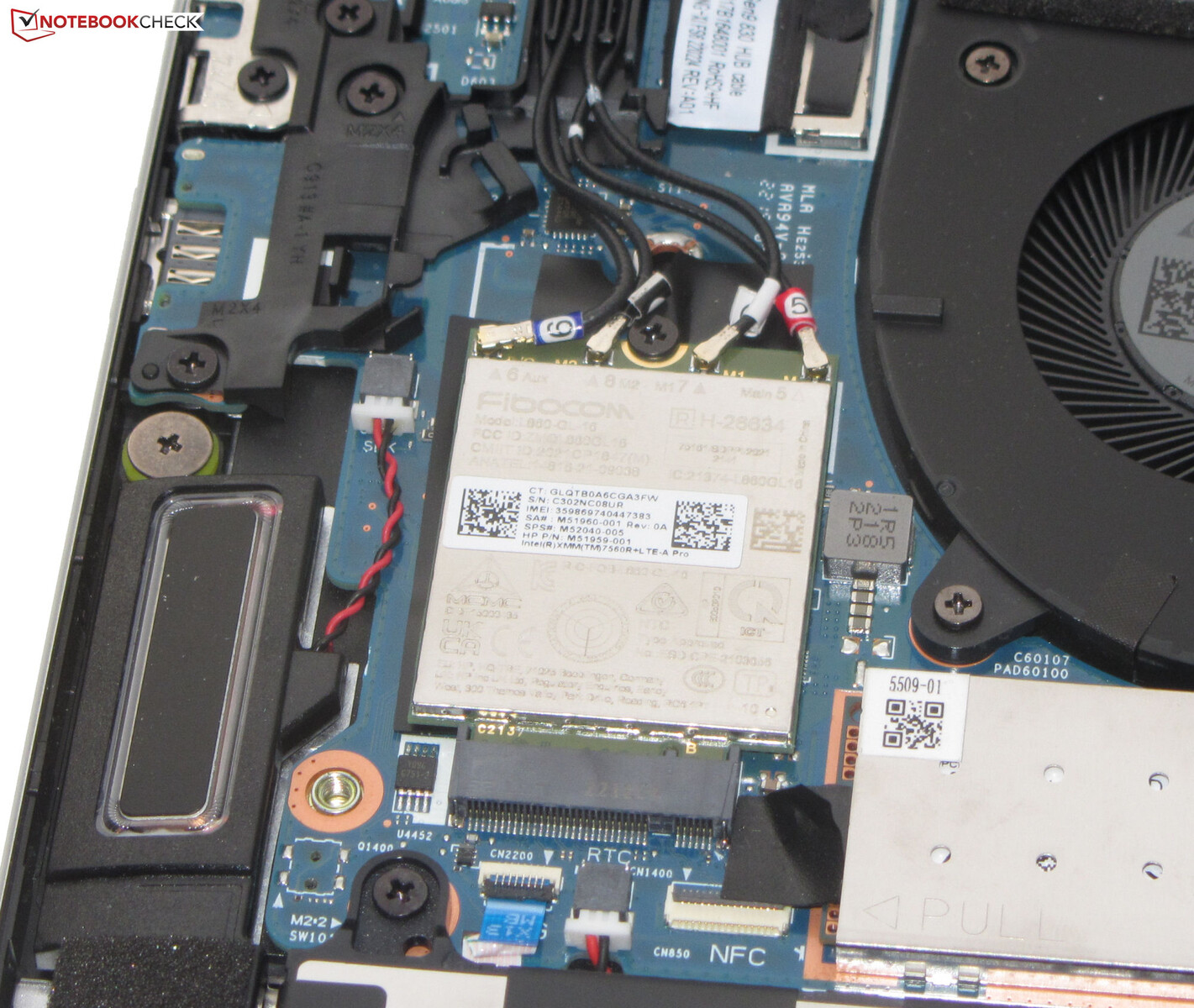

由于有相应的调制解调器（英特尔XMM 7560 LTE Advanced Pro），还可以通过LTE网络建立无线连接。惠普只为基于英特尔的EliteBook 830 G9姐妹机型提供5G调制解调器。一个积极的方面。不需要工具（SIM卡针）就可以取出SIM卡托盘。

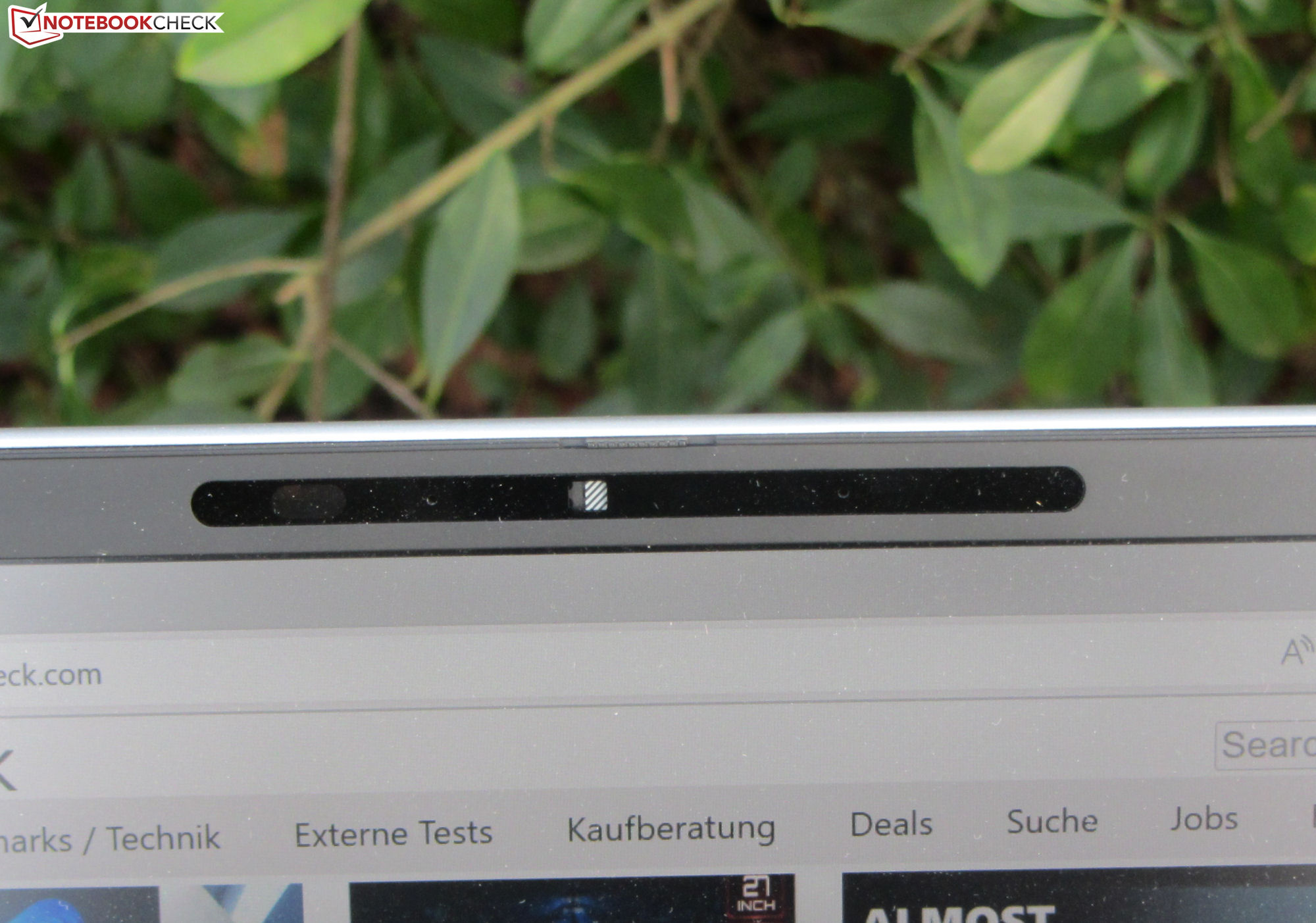

网络摄像头

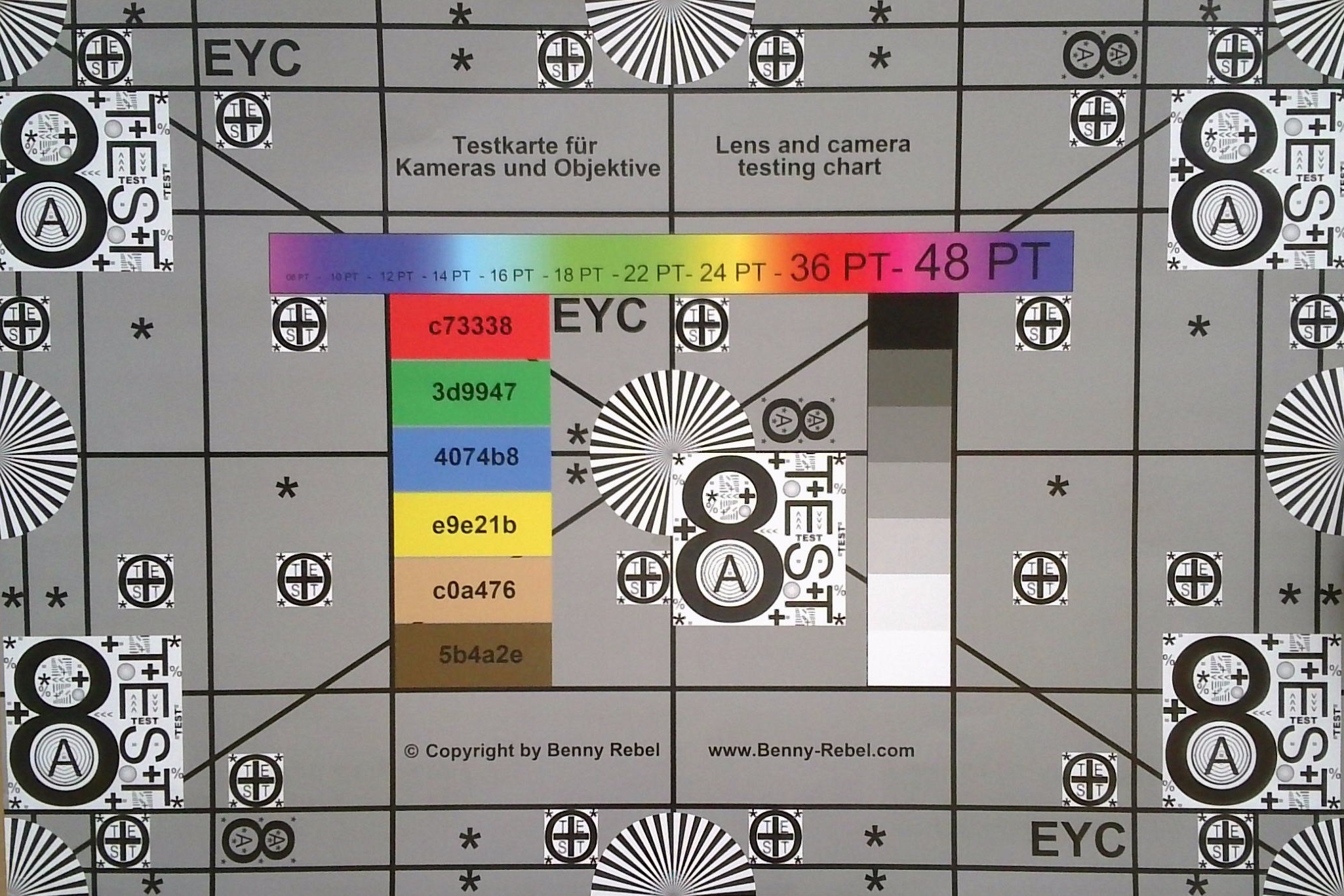

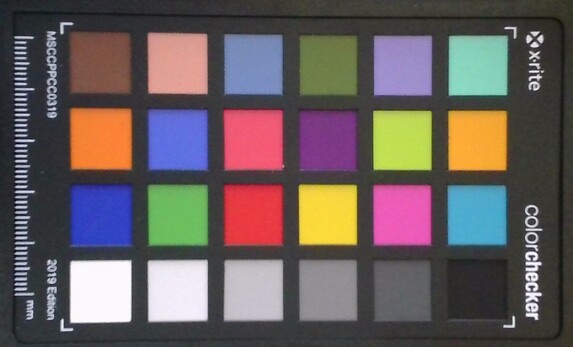

500万像素的红外摄像头（最大2,560 x 1,920）为EliteBook配备了视频会议和缩放会议。它产生了非常可观的结果，但颜色偏差有点高--这在竞争中没有更好的。在软件方面，惠普提供了一些改善图像亮度的功能，在预装的MyHP应用程序中找到。一个积极的方面。该相机有一个机械快门。
安全问题

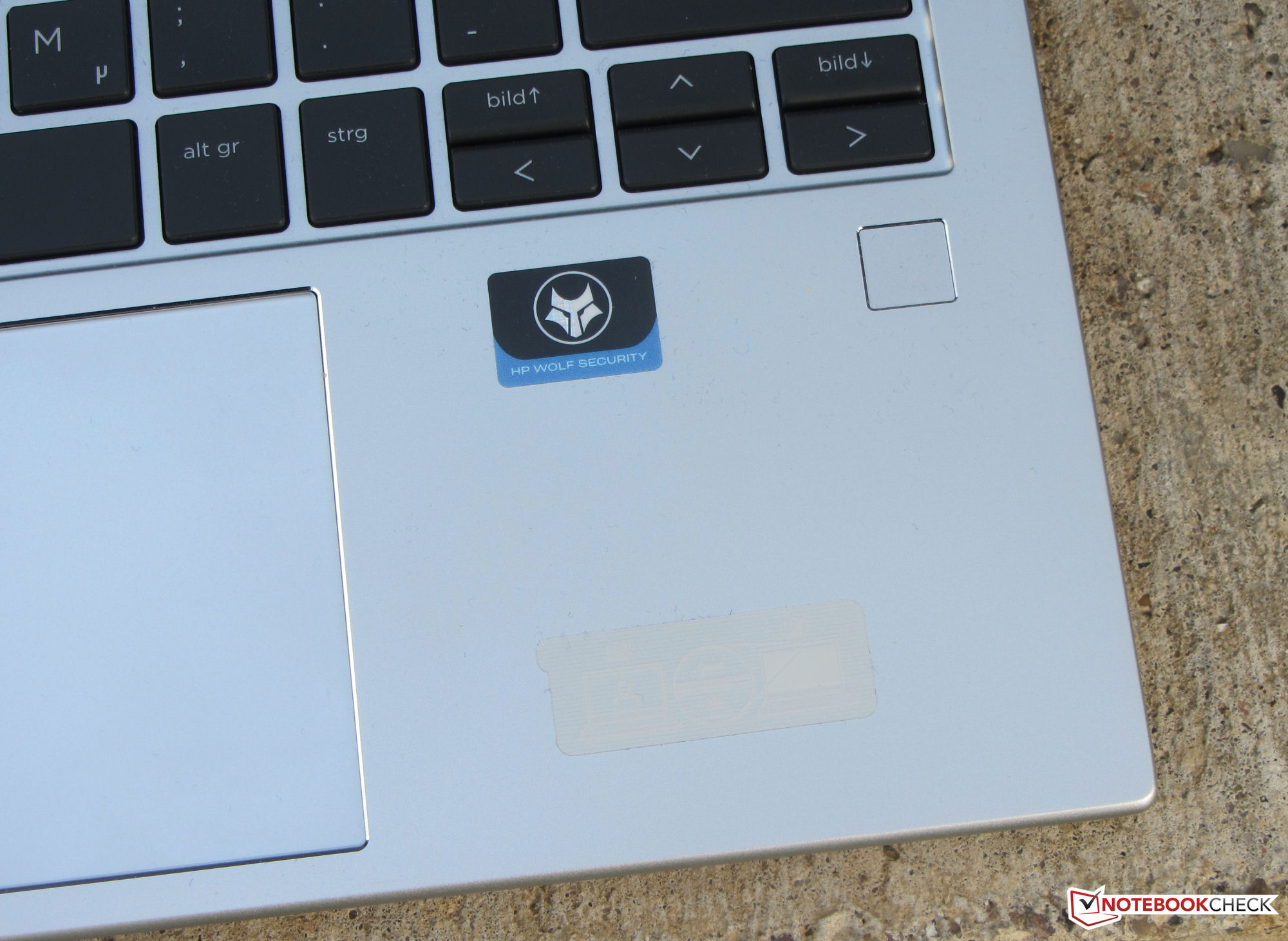

这款13.3英寸的机器通过指纹扫描、Windows Hello或智能卡提供访问保护。一个可信赖的平台模块（2.0）也在船上。该设备可以通过一个电缆锁进行物理保护。在软件方面，有各种惠普应用程序，如Sure Click（应用程序和文件的虚拟机）或Secure Erase（驱动器的安全删除）。
辅料
除了通常的文件（保修信息、快速入门指南），EliteBook没有包含其他附件。
维护

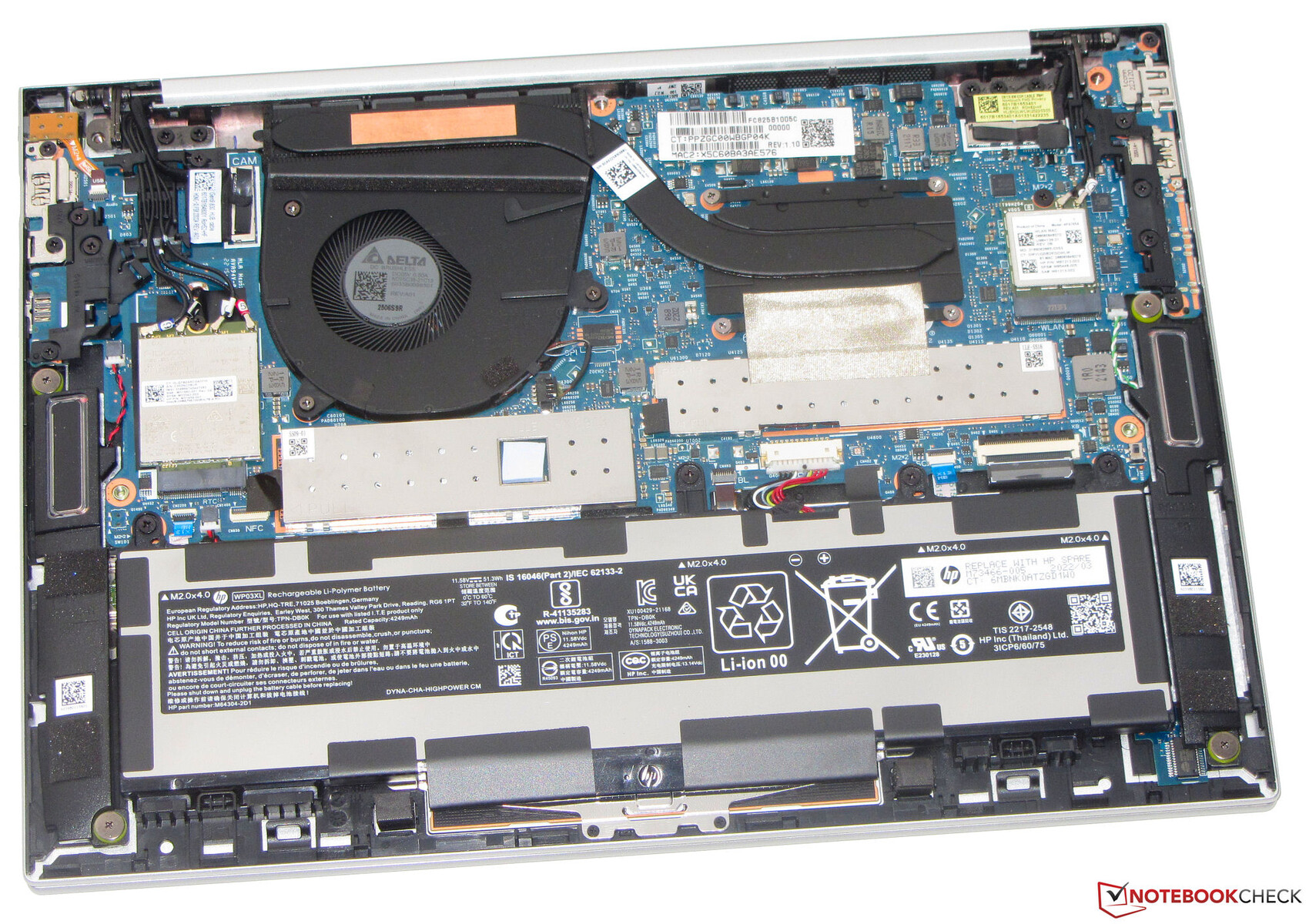

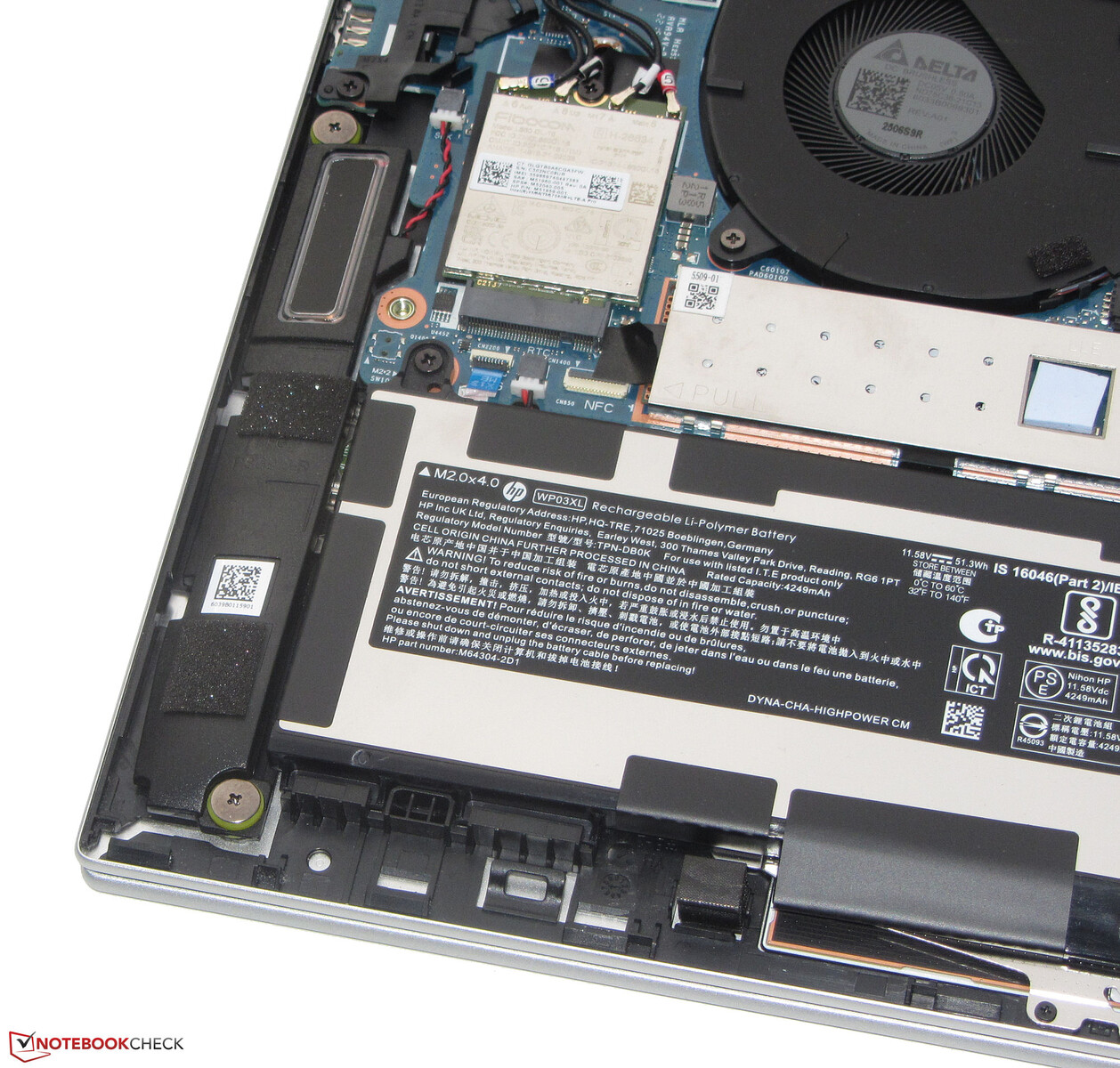

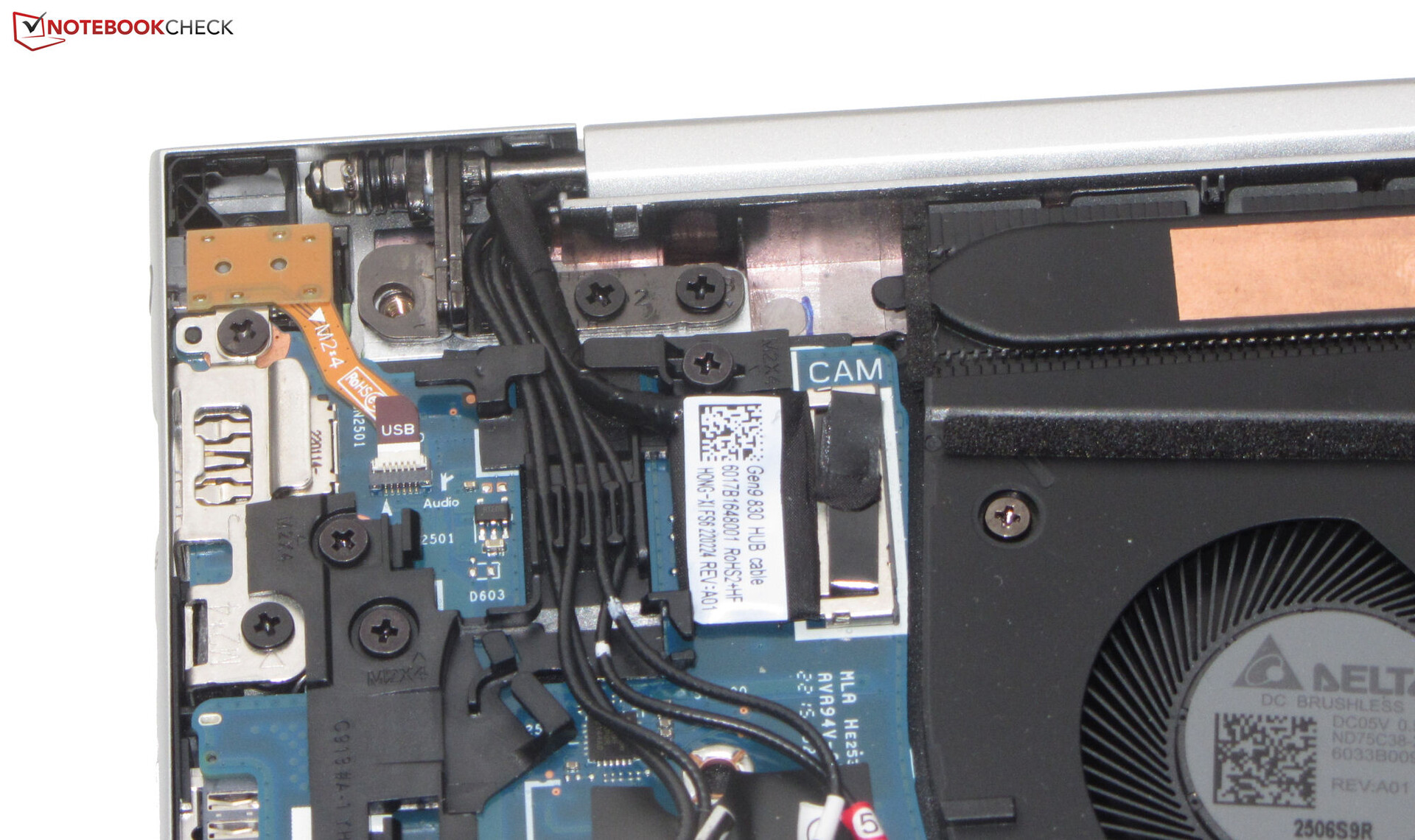

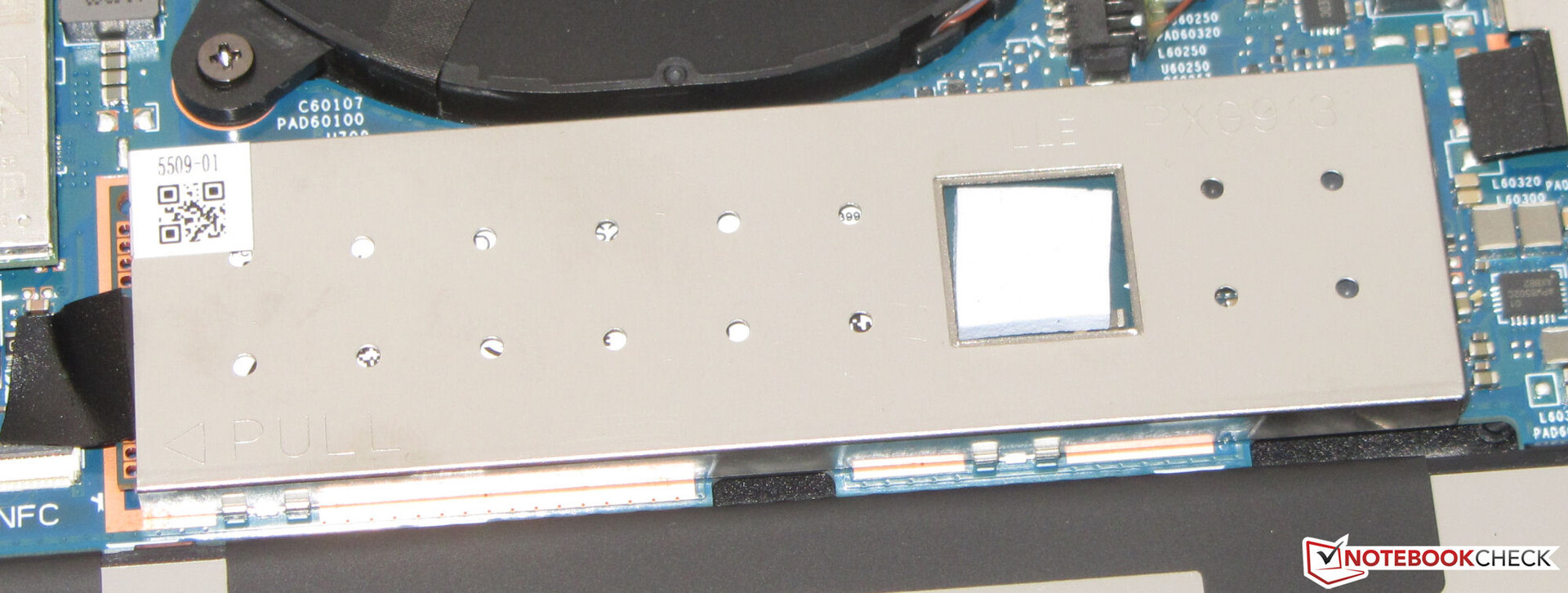

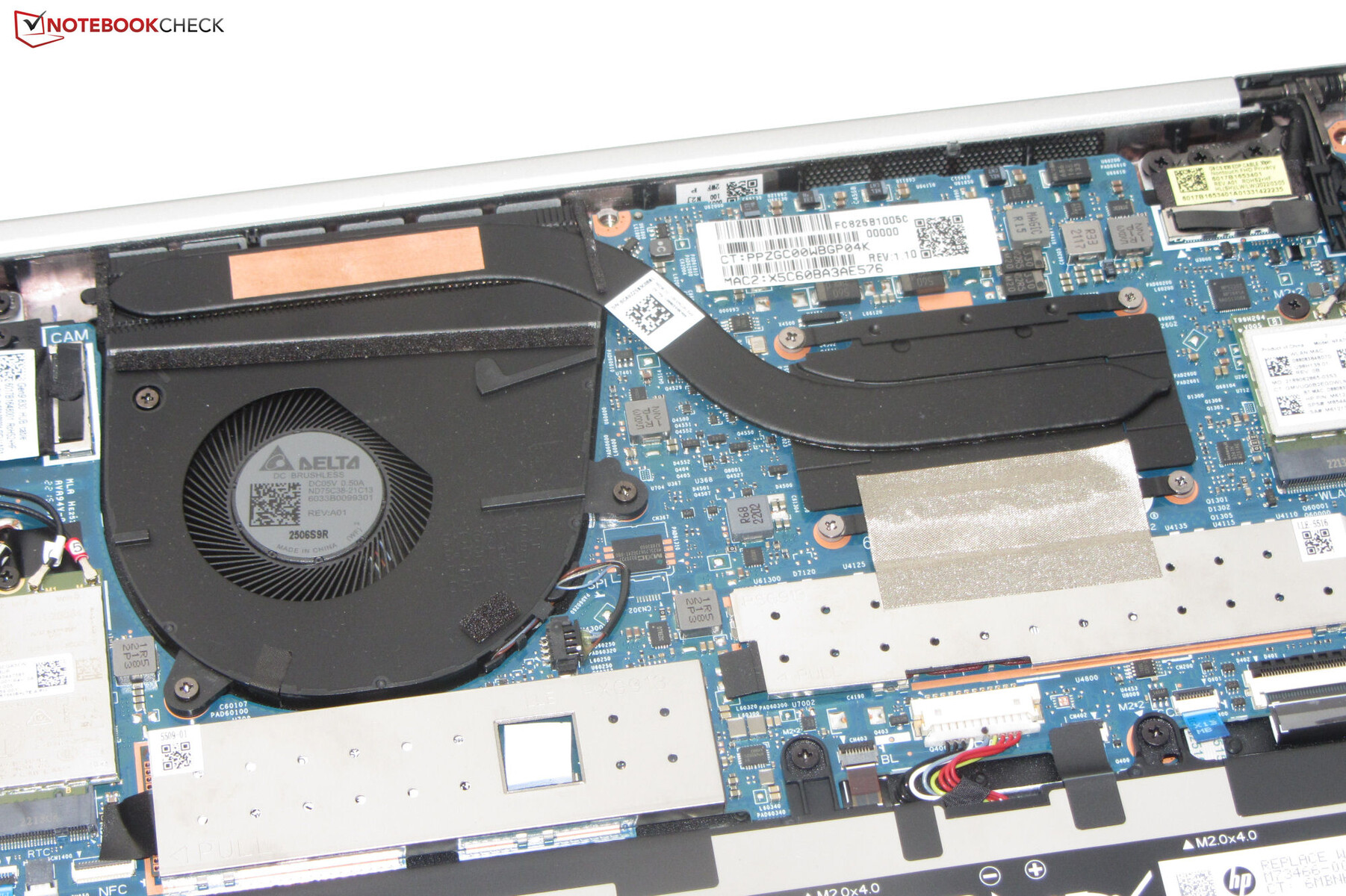

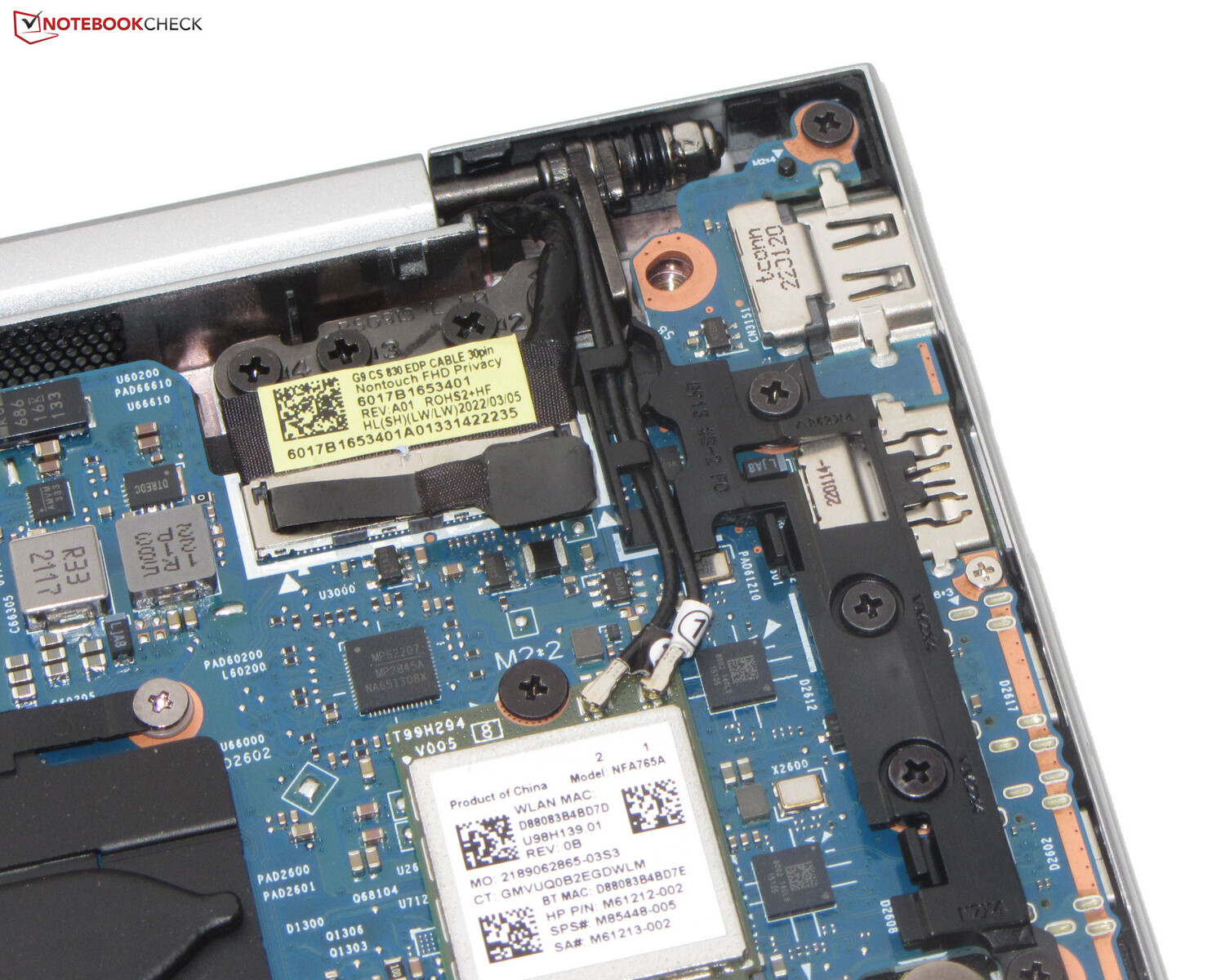

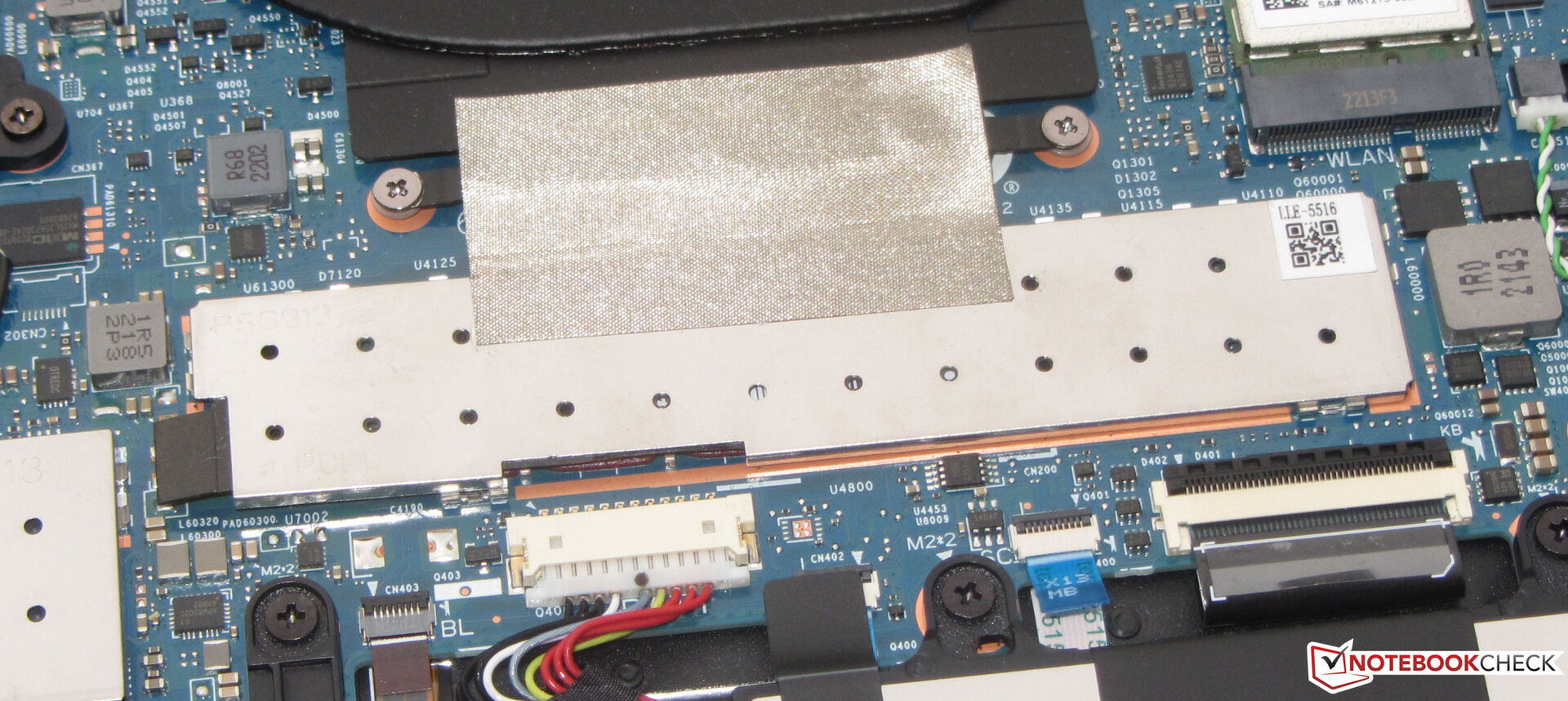

拆卸底板是很容易的。松开底板上的螺丝后，可以用一把平铲子将底板卸下--我们建议从铰链处开始。之后，就可以拿到SSD（PCIe 4）、WLAN模块、风扇、BIOS电池、LTE调制解调器、扬声器和电池。内存是焊接的，因此不能升级。
担保
惠普为EliteBook配备了在美国的一年保修期--包括提货服务。这可以延长到两年的 "下一个工作日现场响应和/或意外损坏保护 "保修，价格为212.00美元，或三年的 "Active Care下一个工作日现场响应和/或意外损坏保护 "保修，价格为391.00美元。
保修条款可能因地而异，所以在购买前一定要仔细检查。
输入设备 - 惠普笔记本有一个优秀的键盘

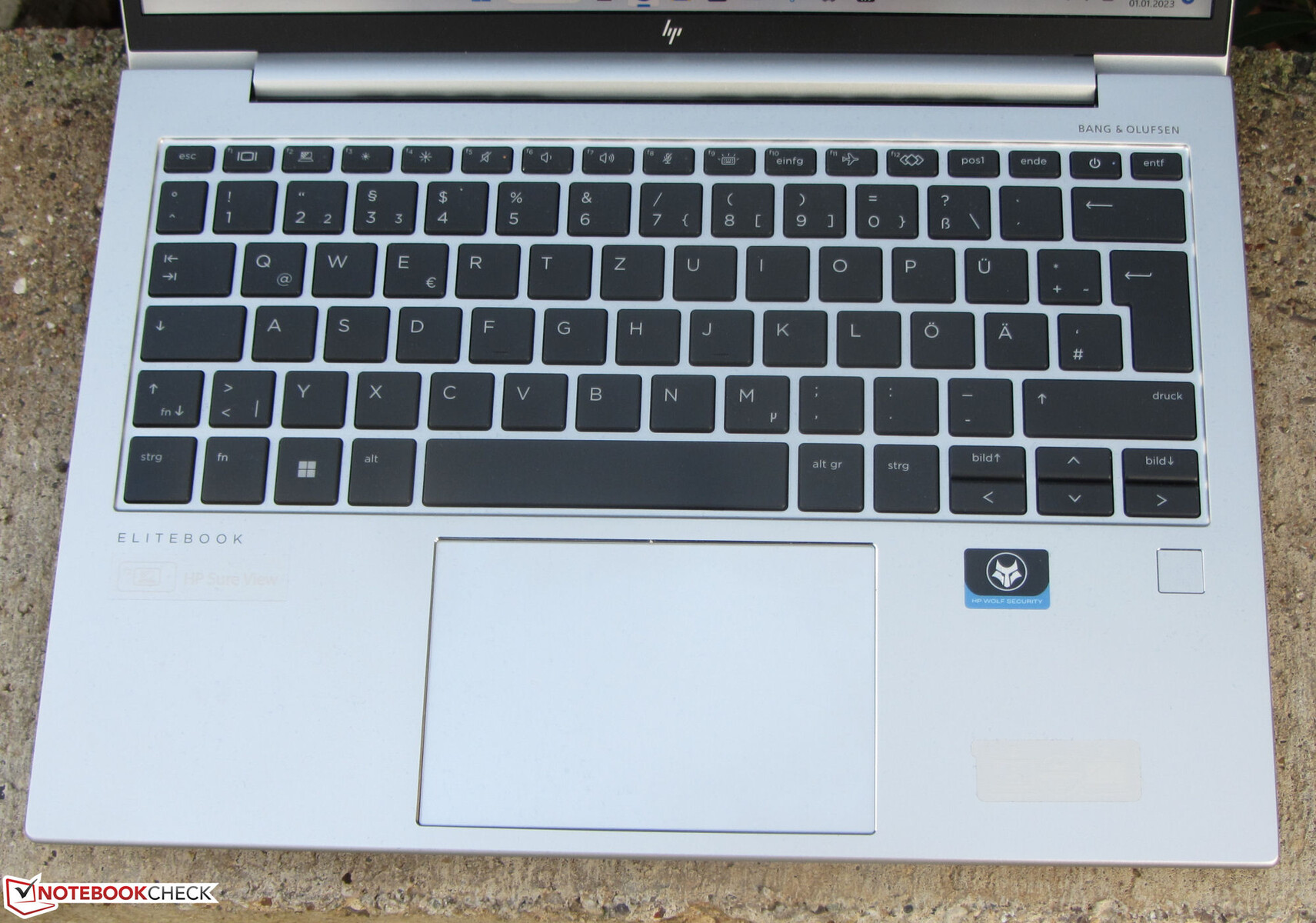

键盘

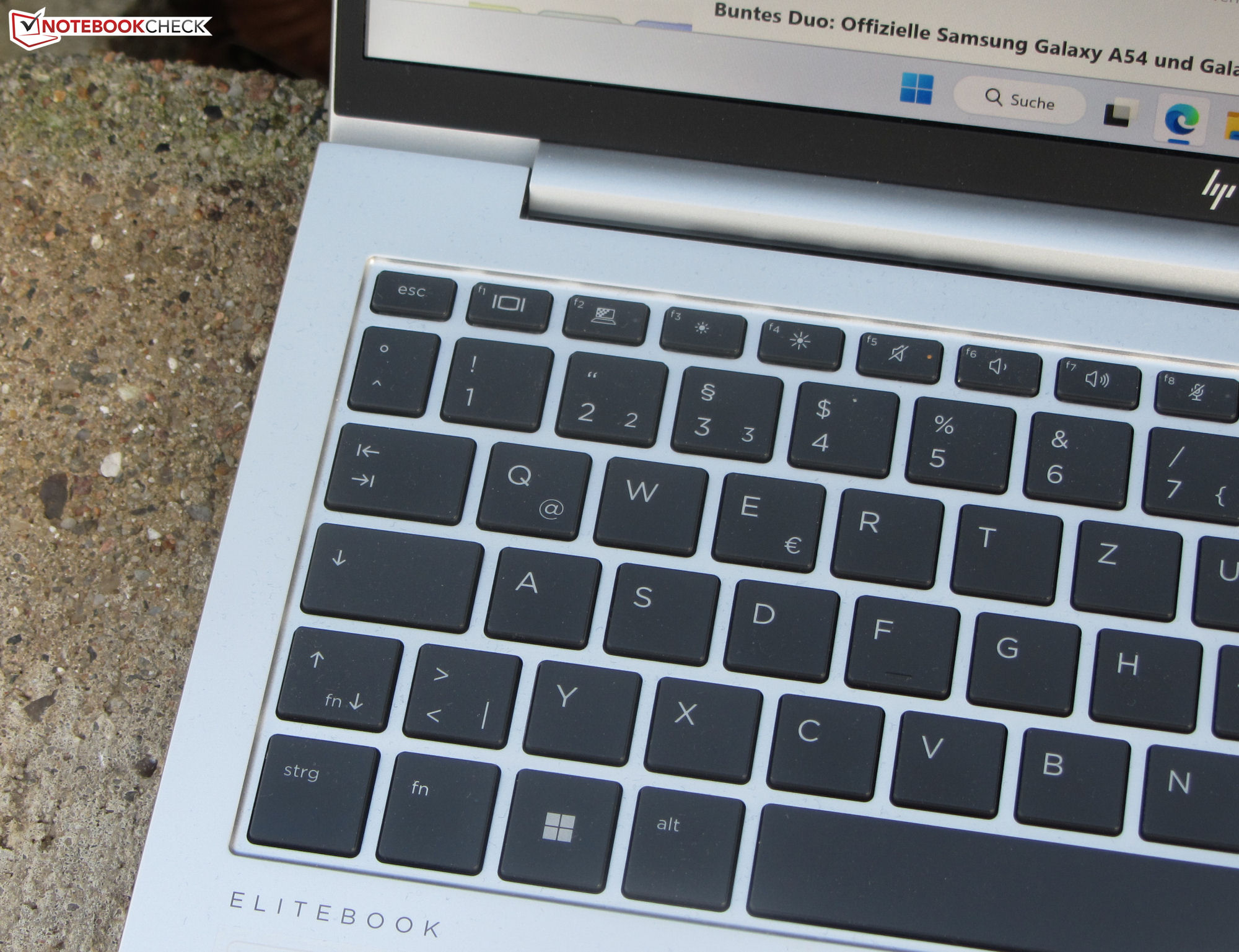

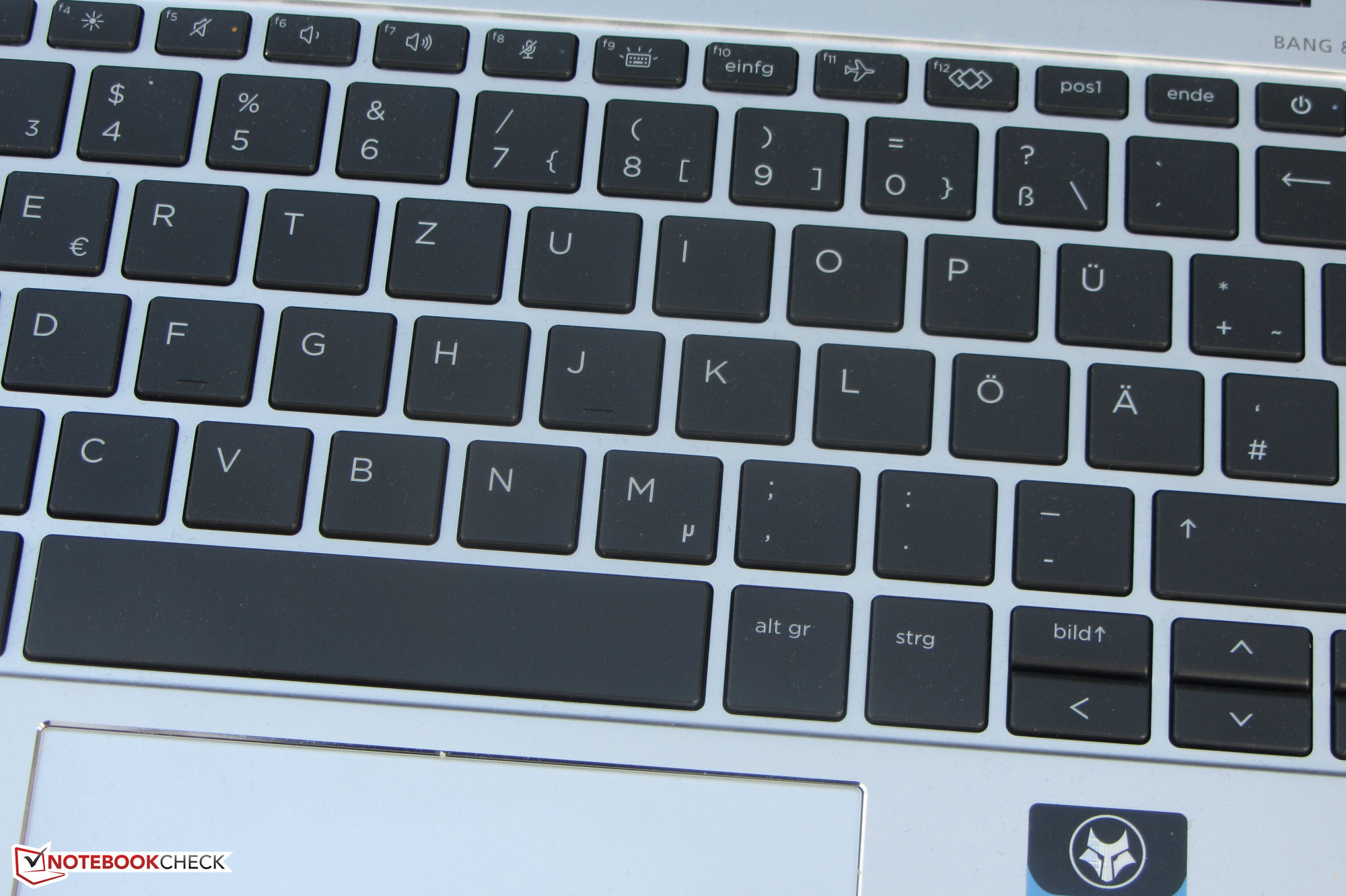

凹陷、光滑的发光小键盘的键程短，压力点清晰。清晰的按键阻力非常讨人喜欢，而且键盘在打字过程中不会屈服。缺点是。左移键和方向键相当小。两段式按键的背光是通过一个功能键控制的。总而言之，惠普提供了一个适合日常使用的键盘。
触摸板
一个具有多点触摸功能的点击板（约10.7 x 7.2厘米）可作为鼠标的替代品。其光滑的表面使手指易于滑动。它对角落里的输入也有反应。行程短，压力点清晰。
显示屏--惠普安装了一个明亮的、高对比度的面板，带有隐私过滤器

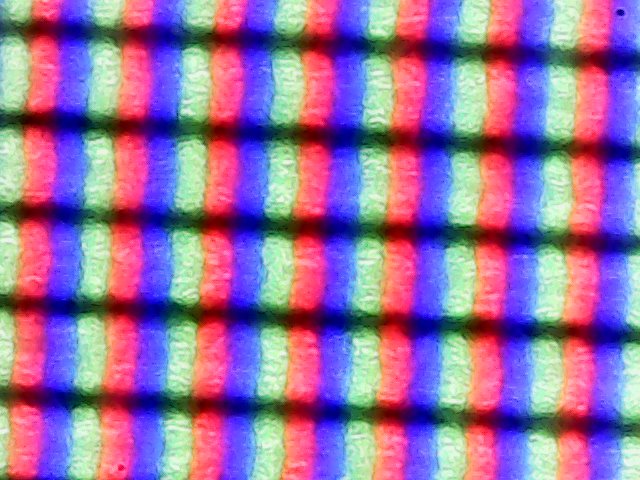

惠普为835配备了一个13.3英寸的屏幕（1,920 x 1,200），采用方便工作的16：10格式。哑光显示屏的亮度（827.8cd/m²）和对比度（2,651:1）都很好。一个积极的方面。在任何亮度下都不会出现PWM闪烁。

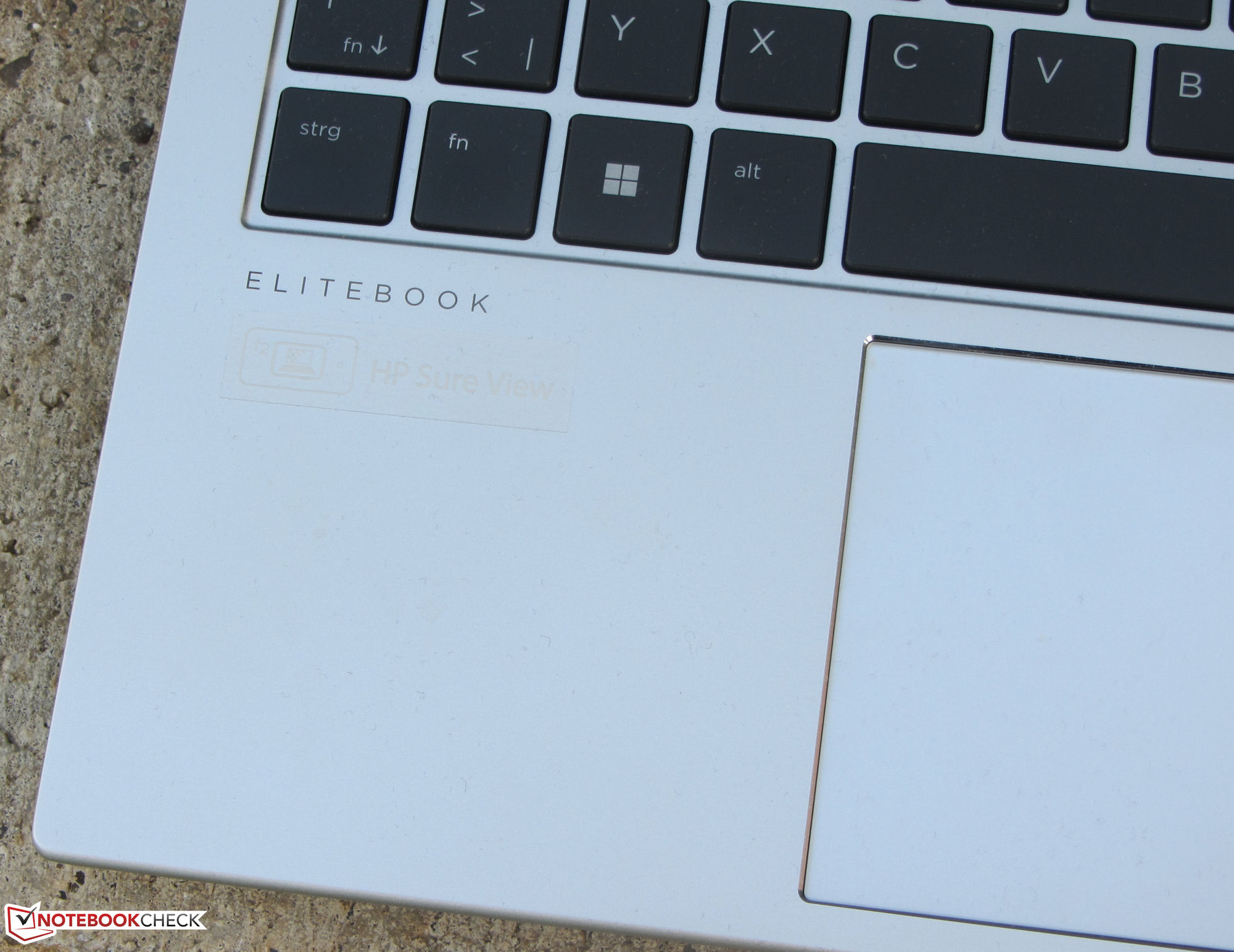

一个隐私过滤器（HP Sure View）可以通过点击按钮激活，旨在阻碍或防止从侧面观看显示屏。你是否真的需要一个带有防眩光过滤器的屏幕，应该仔细考虑。即使稍微偏离最佳视角（中心，90度），过滤器也会导致对比度和亮度的明显下降--在关闭时也是如此。对某些人来说，可供选择的400尼特显示屏（无隐私保护）可能是更好的选择。
| |||||||||||||||||||||||||
Brightness Distribution: 65 %
Center on Battery: 928 cd/m²
Contrast: 2651:1 (Black: 0.35 cd/m²)
ΔE Color 1.76 | 0.5-29.43 Ø4.91, calibrated: 1.09
ΔE Greyscale 2.4 | 0.5-98 Ø5.2

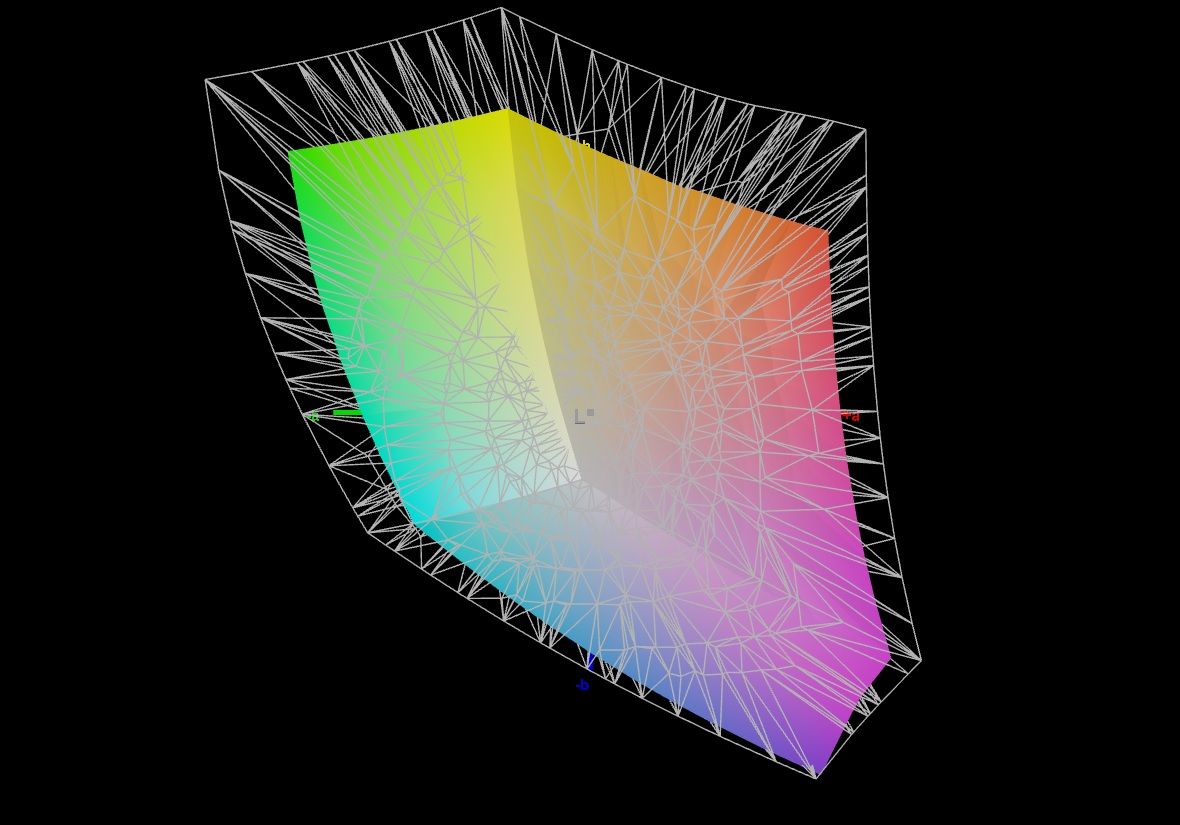

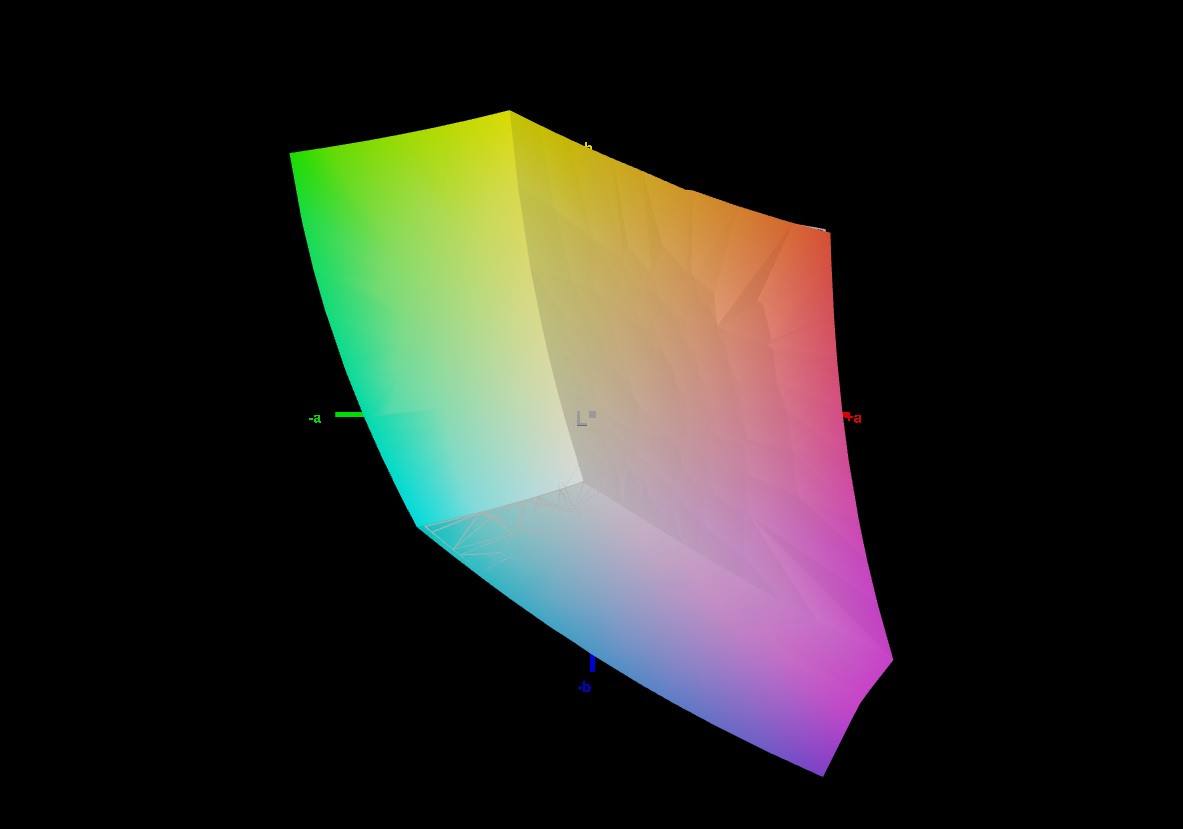

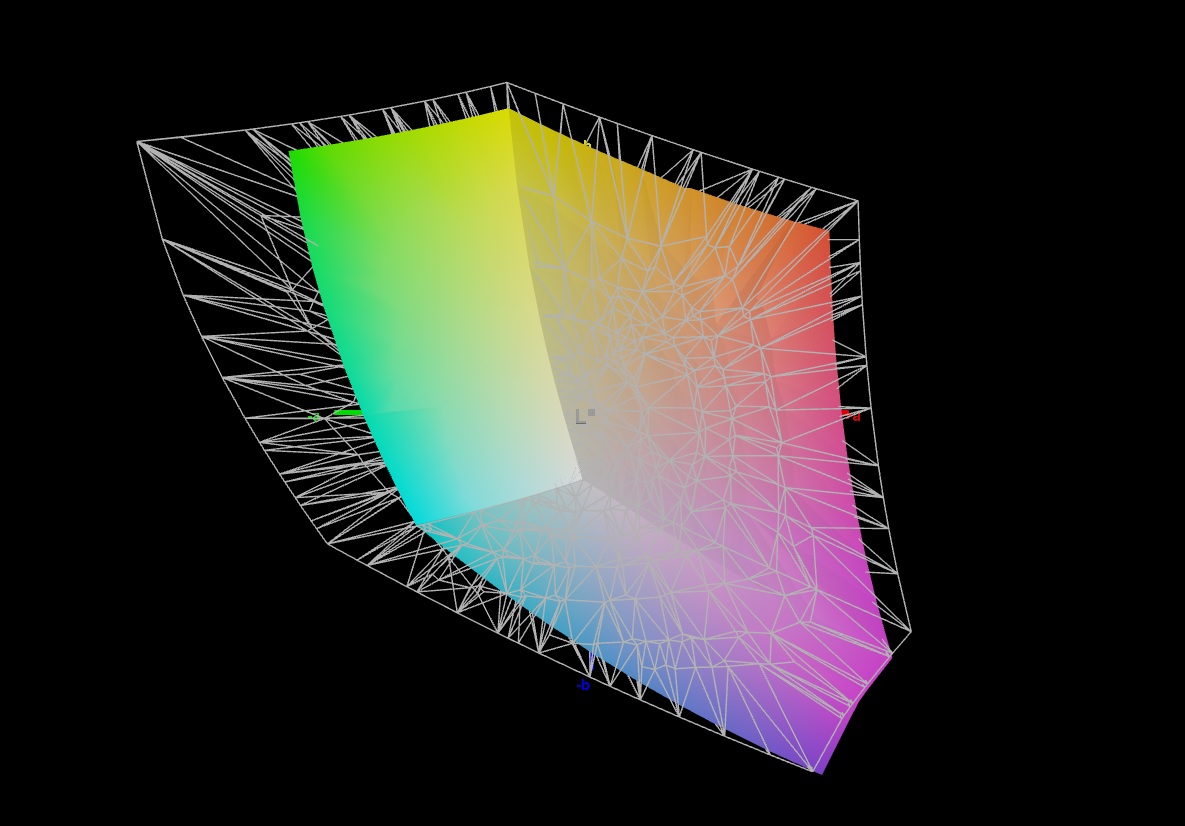

72.1% AdobeRGB 1998 (Argyll 2.2.0 3D)
100% sRGB (Argyll 2.2.0 3D)
70.7% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.324
| HP EliteBook 835 G9 InfoVision X133NV4M R0, IPS, 1920x1200, 13.3" | Lenovo ThinkPad X13 G3 21BN0046GE NV133WUM-N61, IPS Grade, 1920x1200, 13.3" | Dynabook Portégé X30L-K-139 LQ133M1JW41, IGZO, 1920x1080, 13.3" | Dell Latitude 13 7330 LG Philips 133WF9, IPS, 1920x1080, 13.3" | |
|---|---|---|---|---|
| Display | -1% | -8% | -6% | |
| Display P3 Coverage | 70.7 | 70.4 0% | 64.3 -9% | 66.1 -7% |
| sRGB Coverage | 100 | 99.8 0% | 94.5 -5% | 93.5 -6% |
| AdobeRGB 1998 Coverage | 72.1 | 71 -2% | 64.8 -10% | 68.2 -5% |
| Response Times | 37% | -18% | -29% | |
| Response Time Grey 50% / Grey 80% * | 37.7 ? | 22.9 ? 39% | 39 ? -3% | 48.4 ? -28% |
| Response Time Black / White * | 22.7 ? | 14.8 ? 35% | 30.3 ? -33% | 29.6 ? -30% |
| PWM Frequency | 23600 ? | |||
| Screen | -11% | -62% | -11% | |
| Brightness middle | 928 | 290 -69% | 494 -47% | 460.1 -50% |
| Brightness | 828 | 288 -65% | 451 -46% | 445 -46% |
| Brightness Distribution | 65 | 88 35% | 88 35% | 89 37% |
| Black Level * | 0.35 | 0.21 40% | 0.34 3% | 0.31 11% |
| Contrast | 2651 | 1381 -48% | 1453 -45% | 1484 -44% |
| Colorchecker dE 2000 * | 1.76 | 1.9 -8% | 3.8 -116% | 2.42 -38% |
| Colorchecker dE 2000 max. * | 3.94 | 4 -2% | 10.2 -159% | 3.97 -1% |
| Colorchecker dE 2000 calibrated * | 1.09 | 0.8 27% | 1.1 -1% | 0.77 29% |
| Greyscale dE 2000 * | 2.4 | 2.6 -8% | 6.8 -183% | 2.3 4% |
| Gamma | 2.324 95% | 2.23 99% | 2.18 101% | 2.23 99% |
| CCT | 6689 97% | 6195 105% | 6894 94% | 6262 104% |
| Total Average (Program / Settings) | 8% /
-2% | -29% /
-44% | -15% /
-12% |
* ... smaller is better

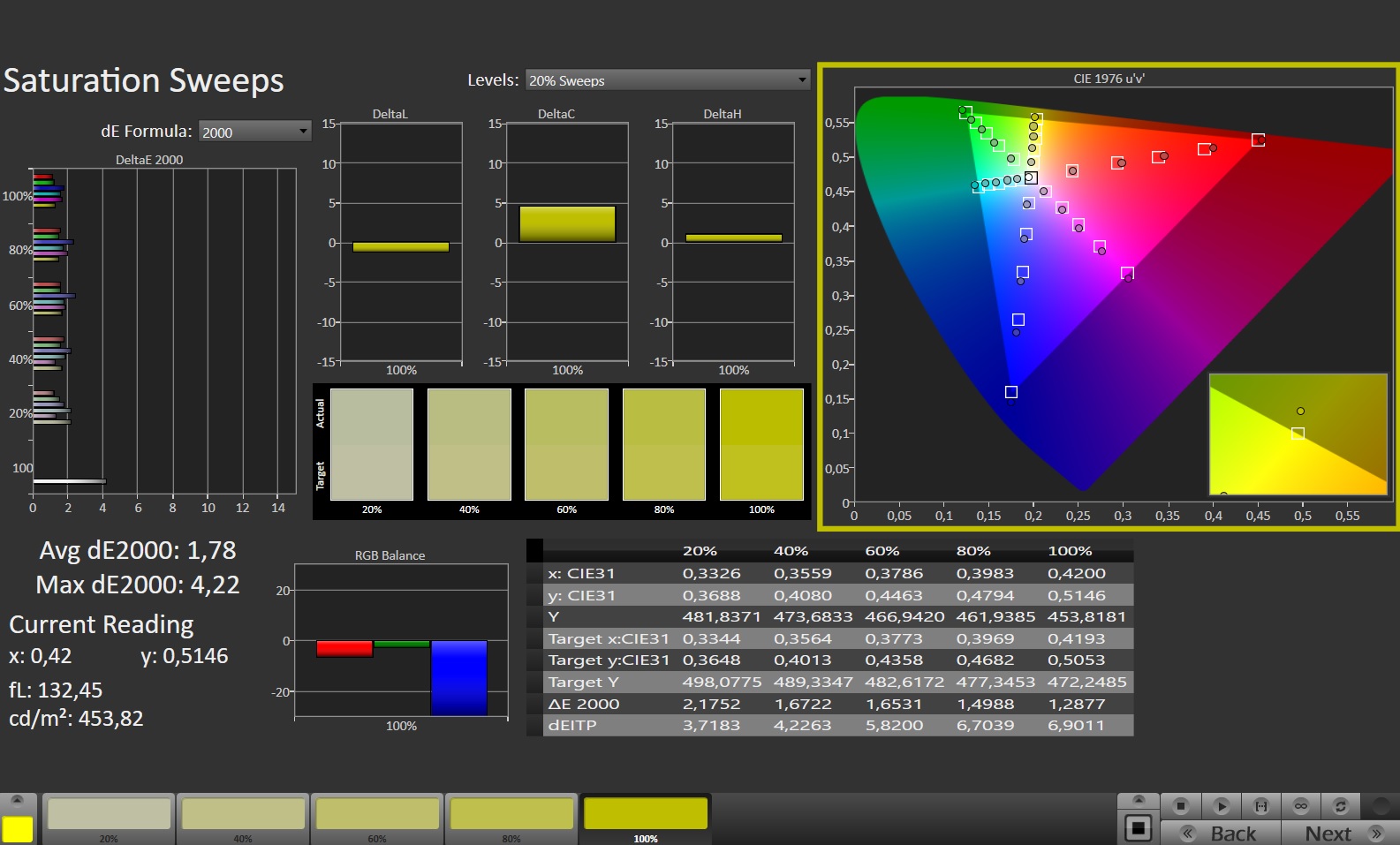

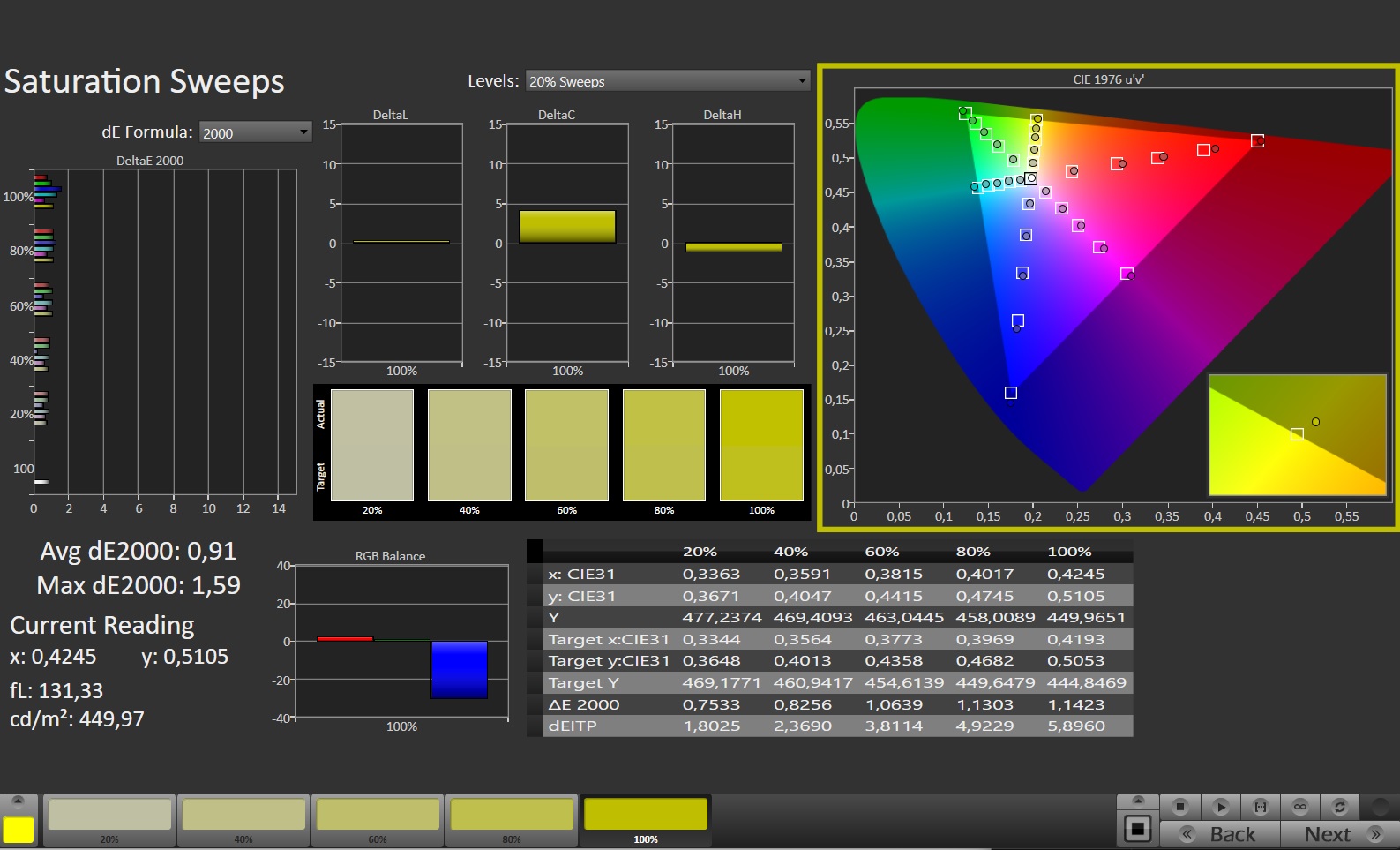

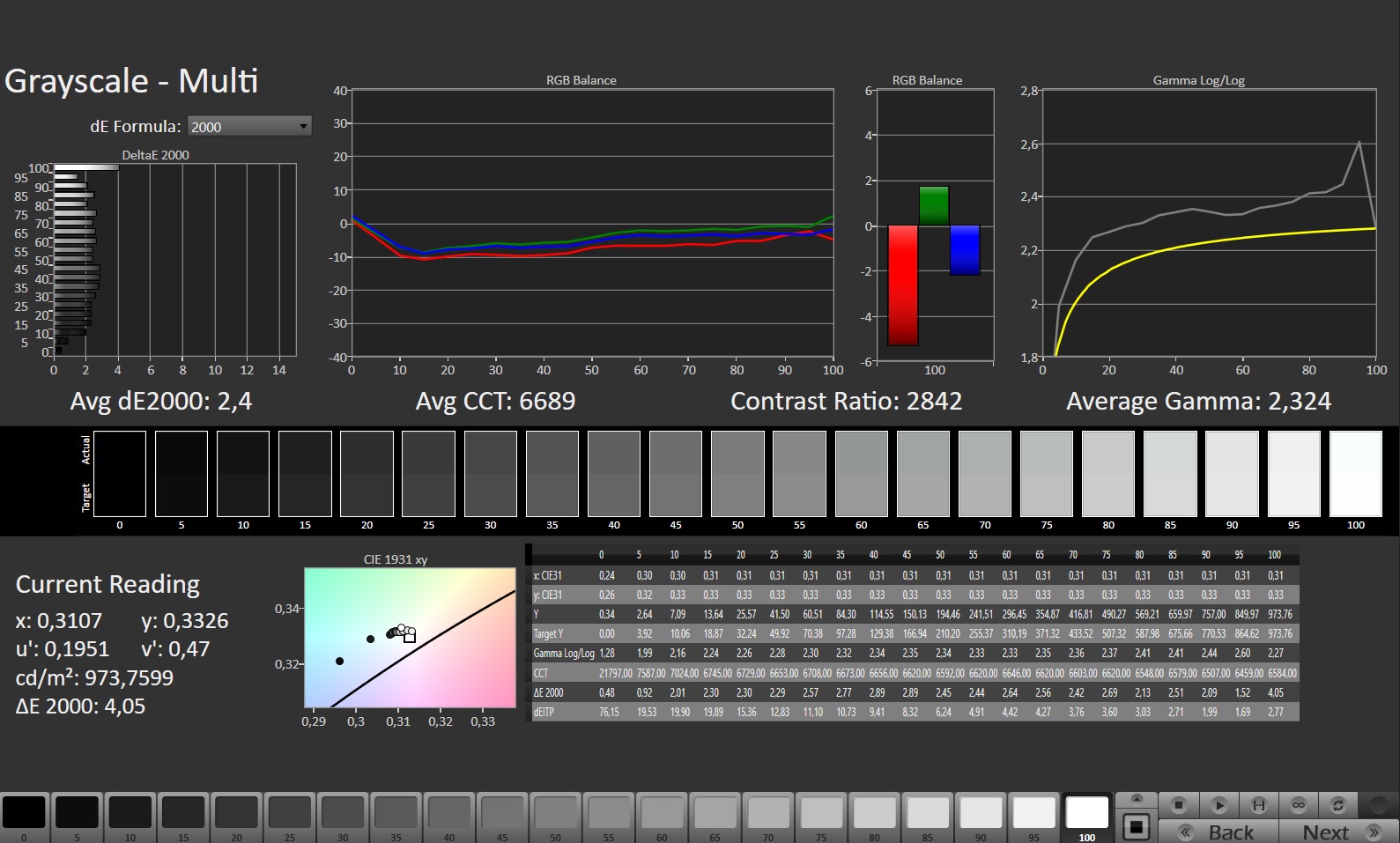

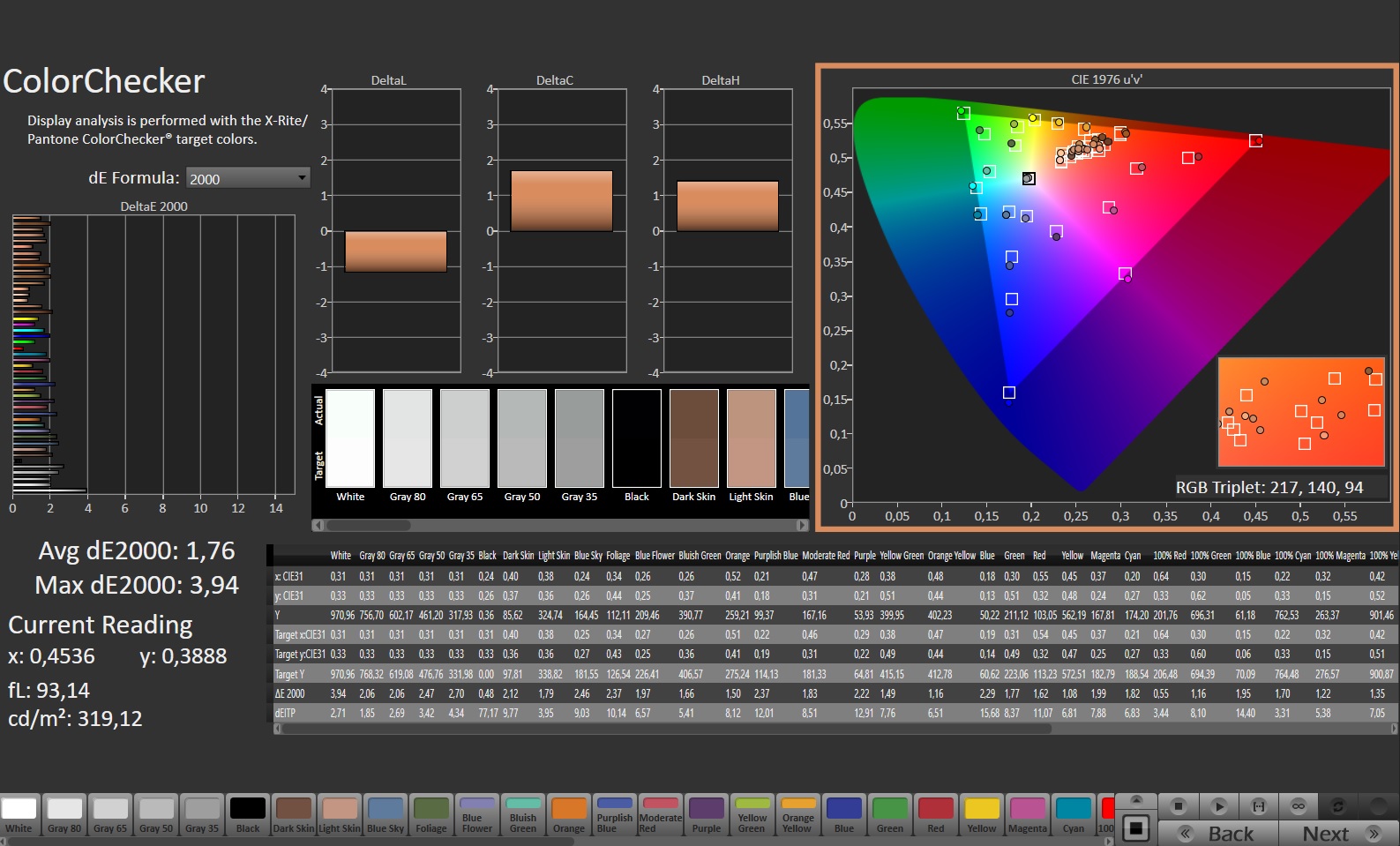

屏幕颜色在交付状态下显示得非常好。偏差为1.76，结果（DeltaE<3）明显在范围之内。校准后，偏差进一步降低到1.09，并确保灰度的表现更加均匀。该显示器完全再现了sRGB色彩空间（100%），但没有再现AdobeRGB（72%）和DCI-P3（71%）色彩空间。但这在竞争对手的屏幕中并无太大区别。

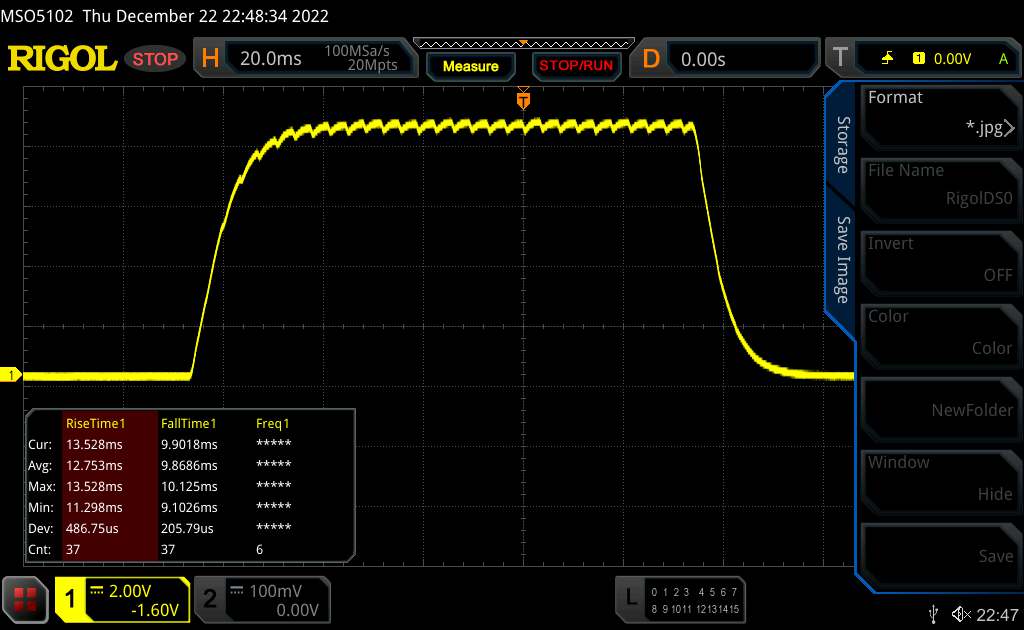

Display Response Times

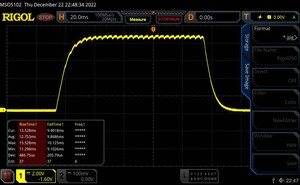

| ↔ Response Time Black to White | ||
|---|---|---|
| 22.7 ms ... rise ↗ and fall ↘ combined | ↗ 12.8 ms rise |  |
| ↘ 9.9 ms fall | ||
| The screen shows good response rates in our tests, but may be too slow for competitive gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 47 % of all devices are better. This means that the measured response time is similar to the average of all tested devices (20.9 ms). | ||

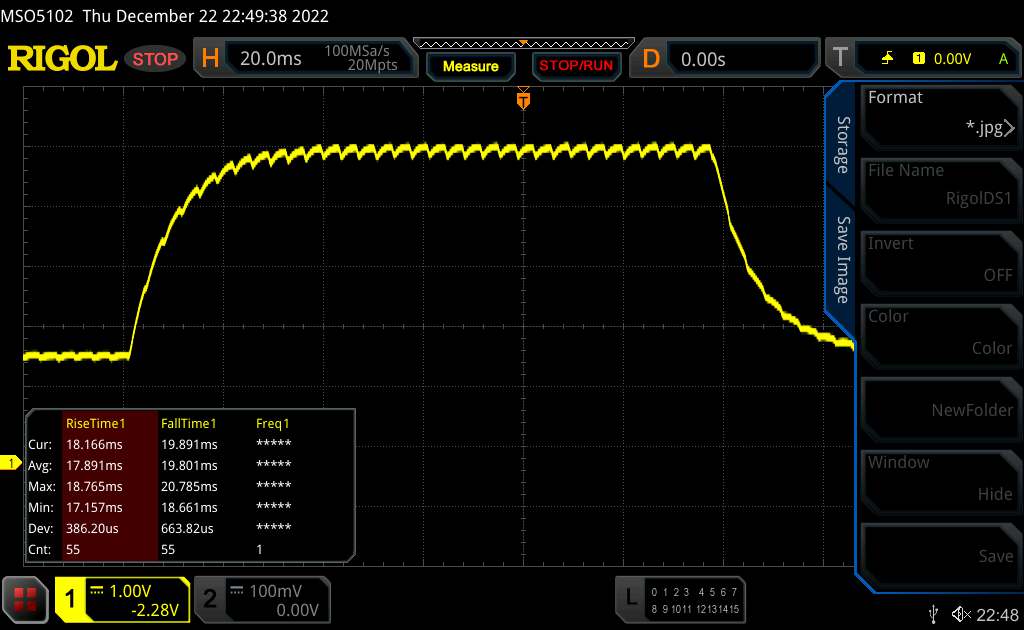

| ↔ Response Time 50% Grey to 80% Grey | ||
| 37.7 ms ... rise ↗ and fall ↘ combined | ↗ 17.9 ms rise |  |
| ↘ 19.8 ms fall | ||
| The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 51 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (32.8 ms). | ||

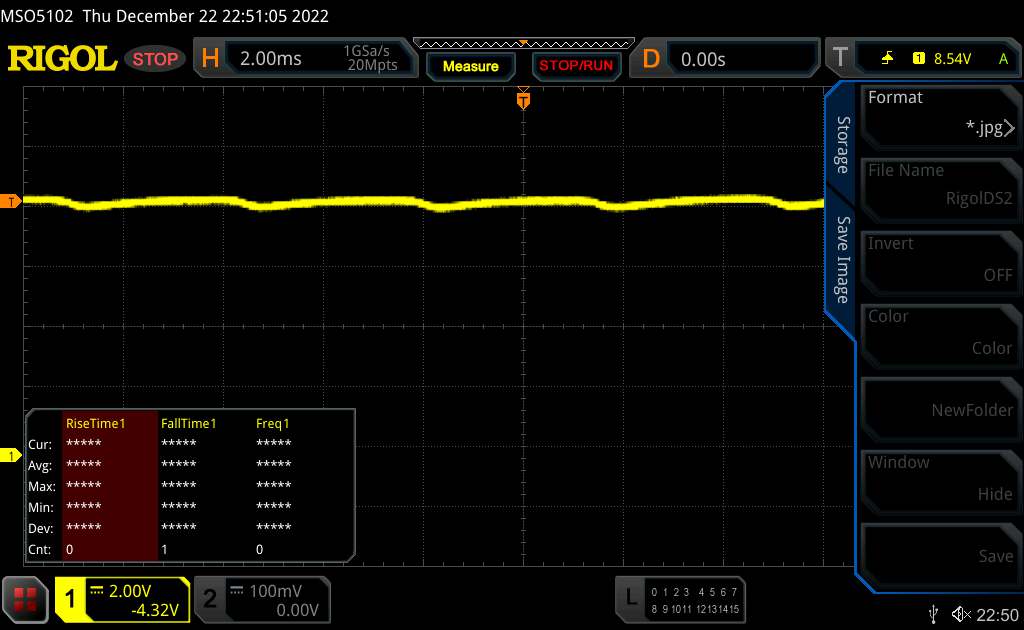

Screen Flickering / PWM (Pulse-Width Modulation)
| Screen flickering / PWM not detected |  | ||
In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8715 (minimum: 5 - maximum: 343500) Hz was measured. | |||

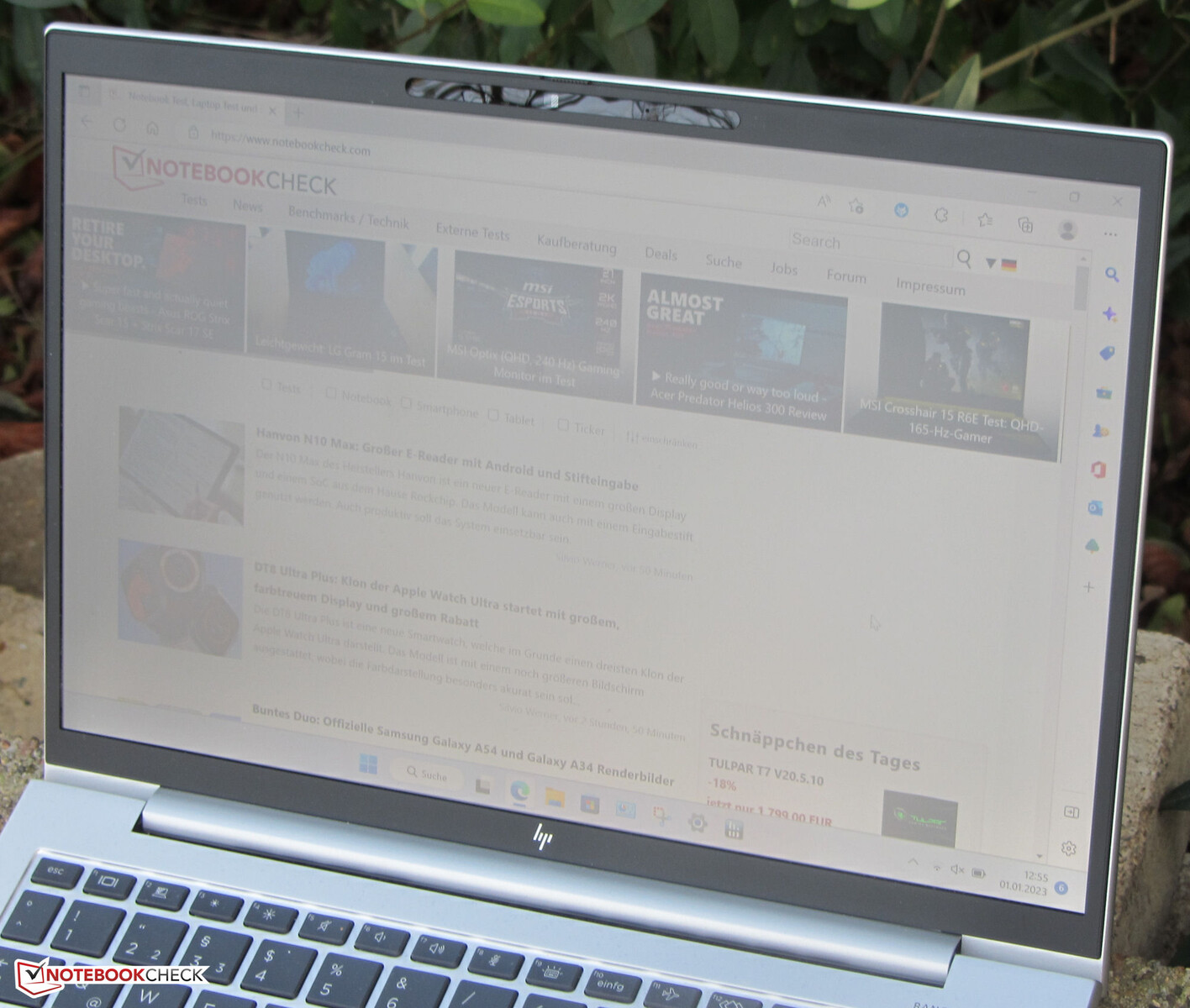

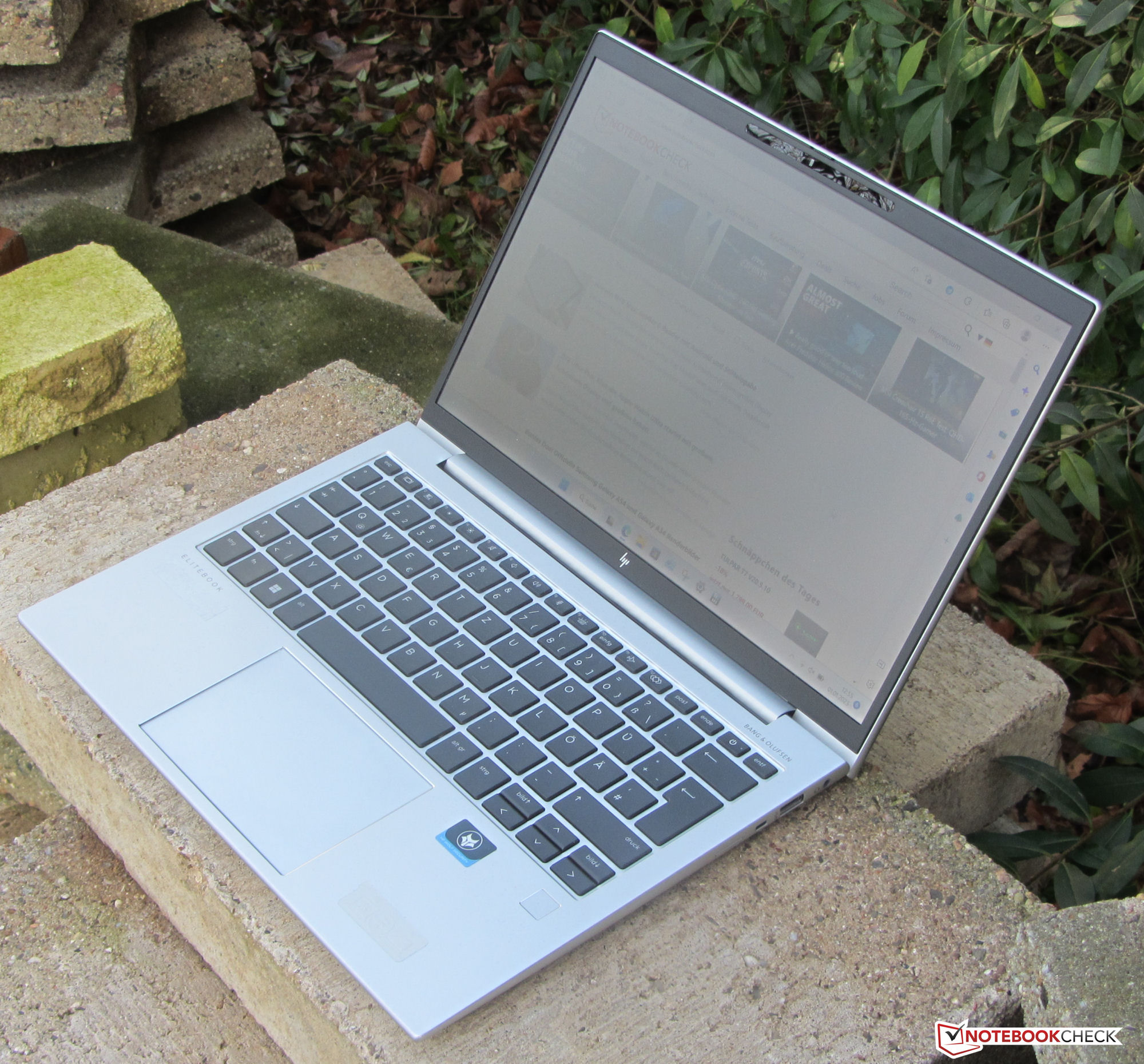

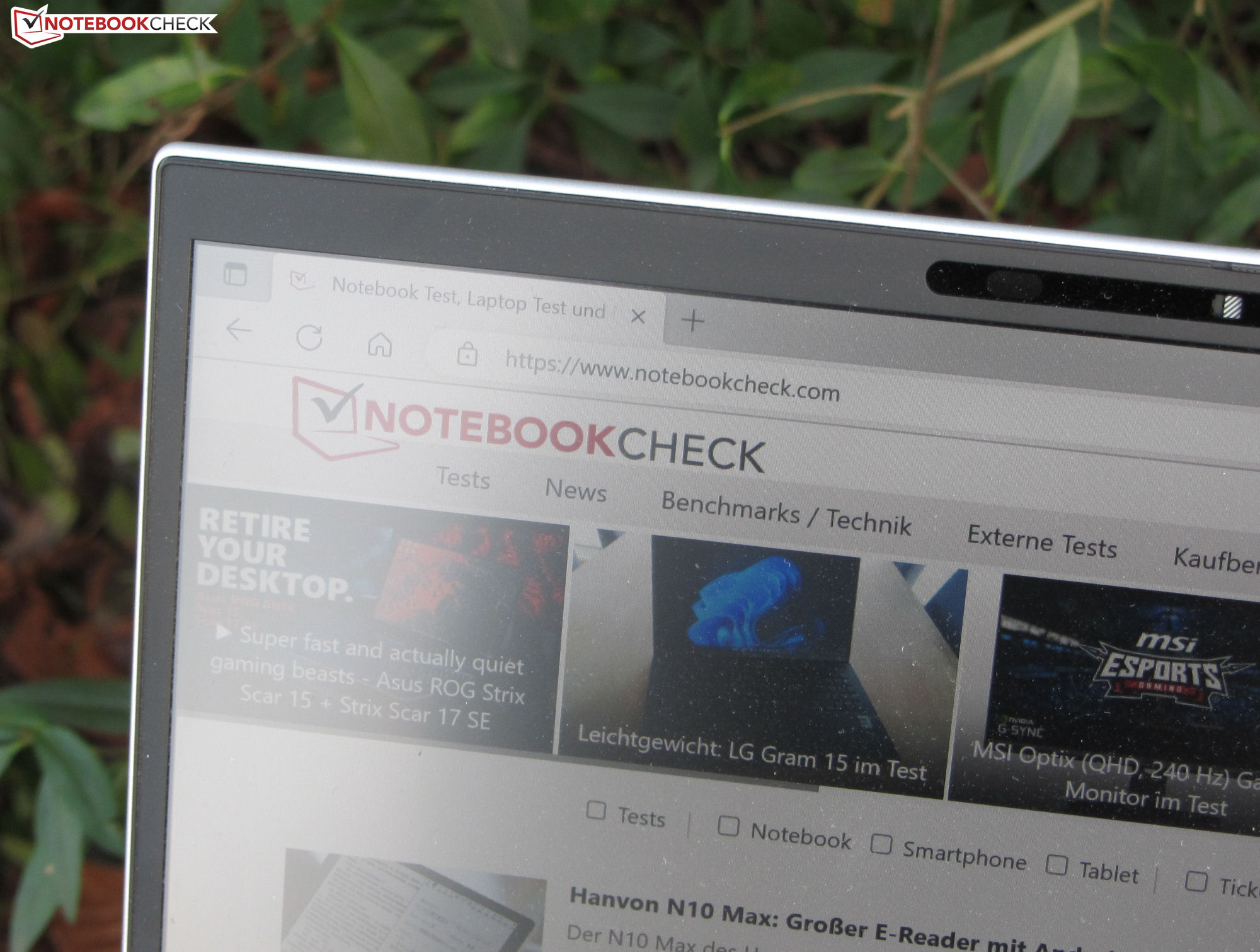

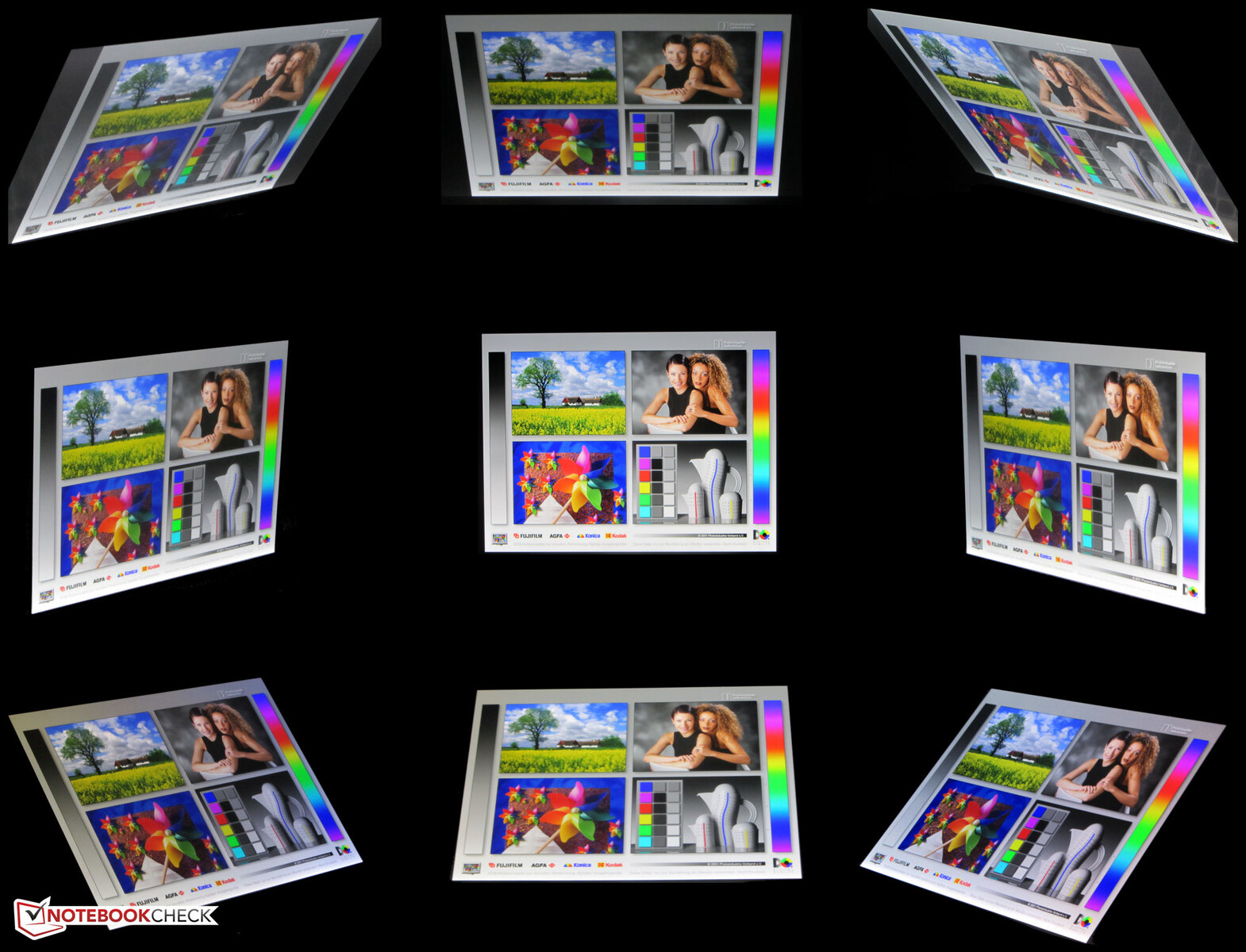

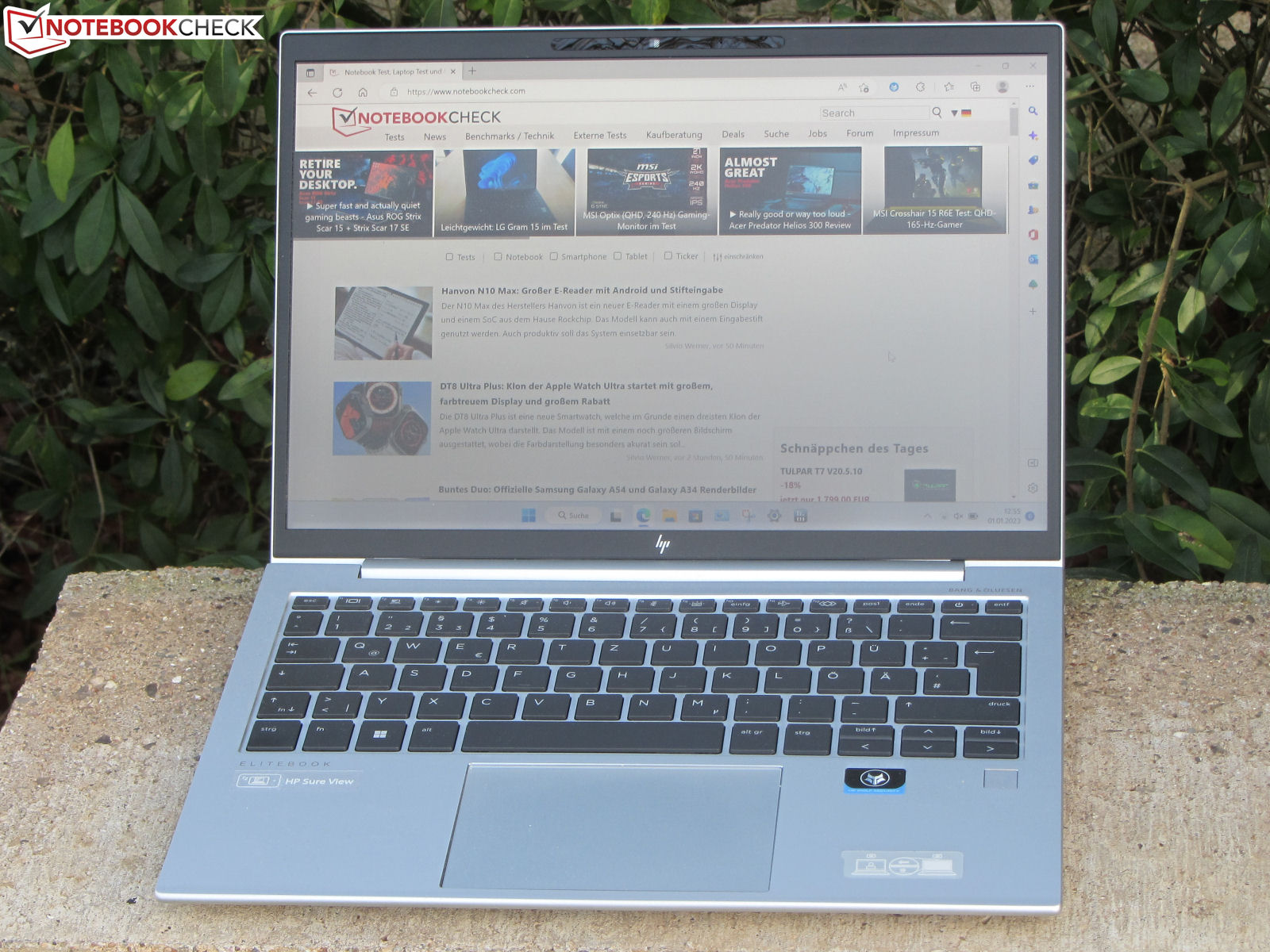

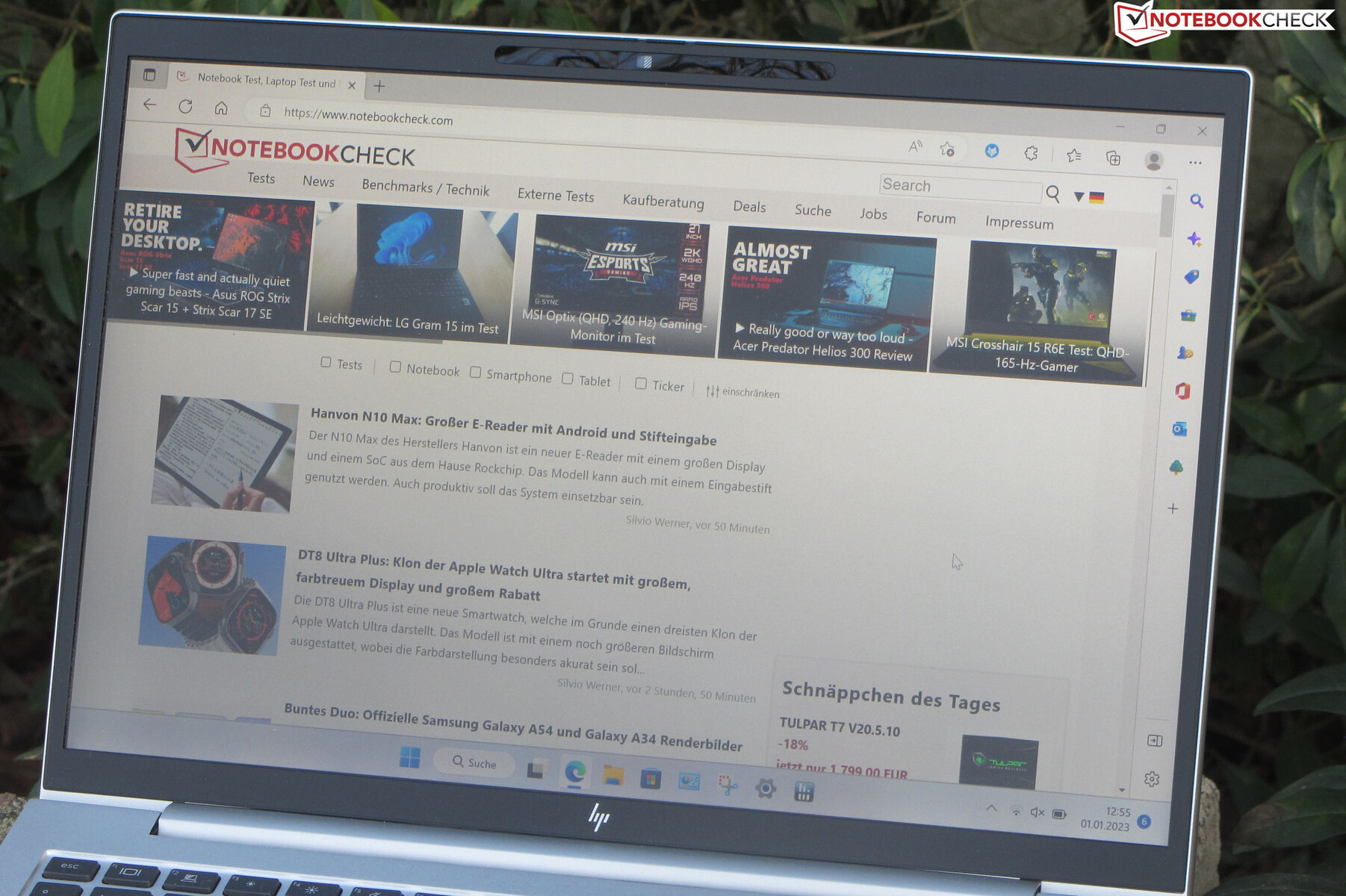

视角稳定的IPS面板基本上可以从任何位置阅读，但防眩光过滤器有时会使阅读变得困难。显示器的高亮度允许在户外阅读。但这也自然受到滤光片的影响，取决于视角。
性能 - 伦勃朗提供了大量的蒸汽
惠普的EliteBook 835 G9是一款高端商务笔记本，为办公和互联网应用以及轻型游戏提供足够的计算能力。该系列中部署了Rembrandt一代的AMD APU。该系列的价格约为1600美元起。
测试条件
笔记本没有提供制造商特定的性能配置文件；使用的是Windows自己的配置文件。我们使用了 "平衡 "配置文件，它在默认情况下是激活的。最佳性能 "配置文件并没有带来性能的提高。
处理器

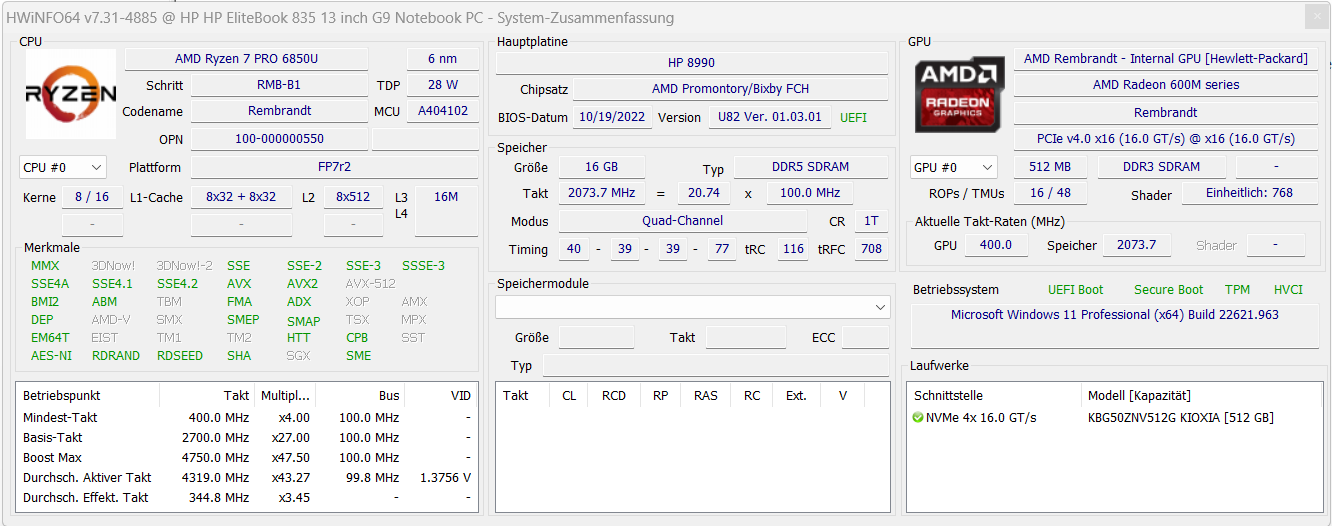

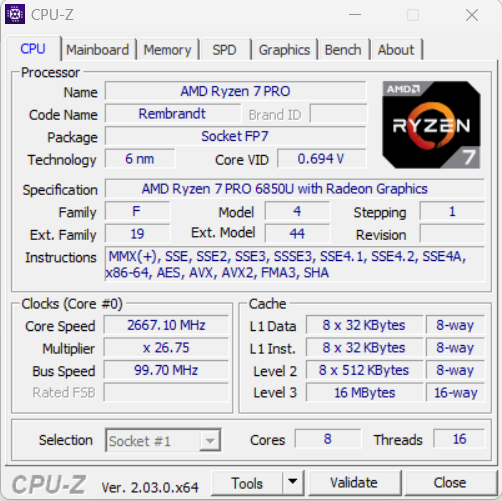

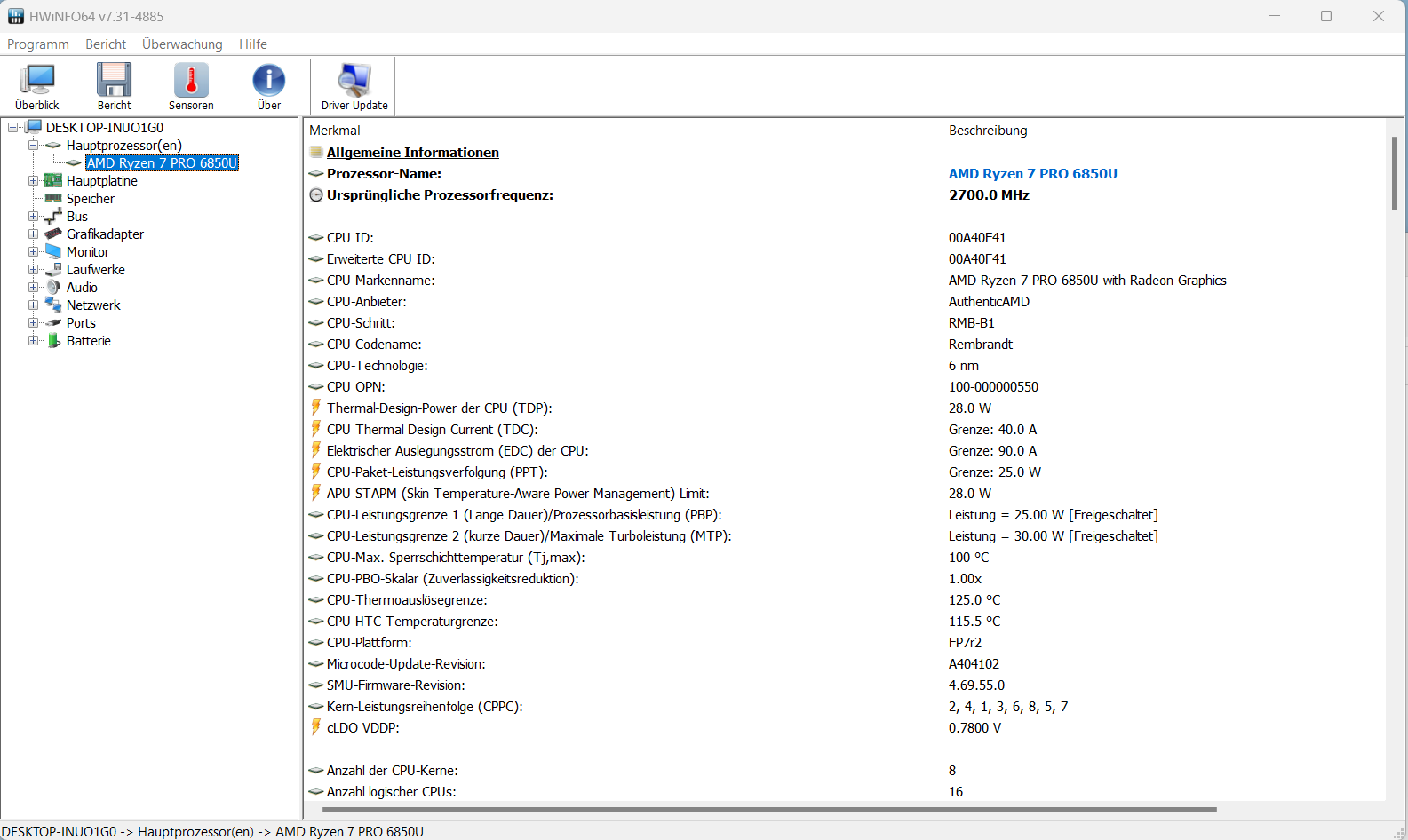

八核处理器的Ryzen 7 PRO 6850UAPU（Rembrandt）的基本时钟为2.7 GHz。通过涡轮增压可以提高到4.75 GHz。支持同步多线程（每个核心两个线程）。基准测试结果仅低于CPU的平均水平。

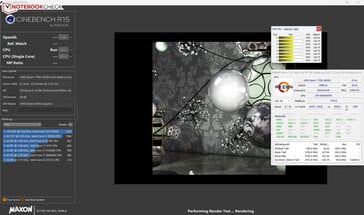

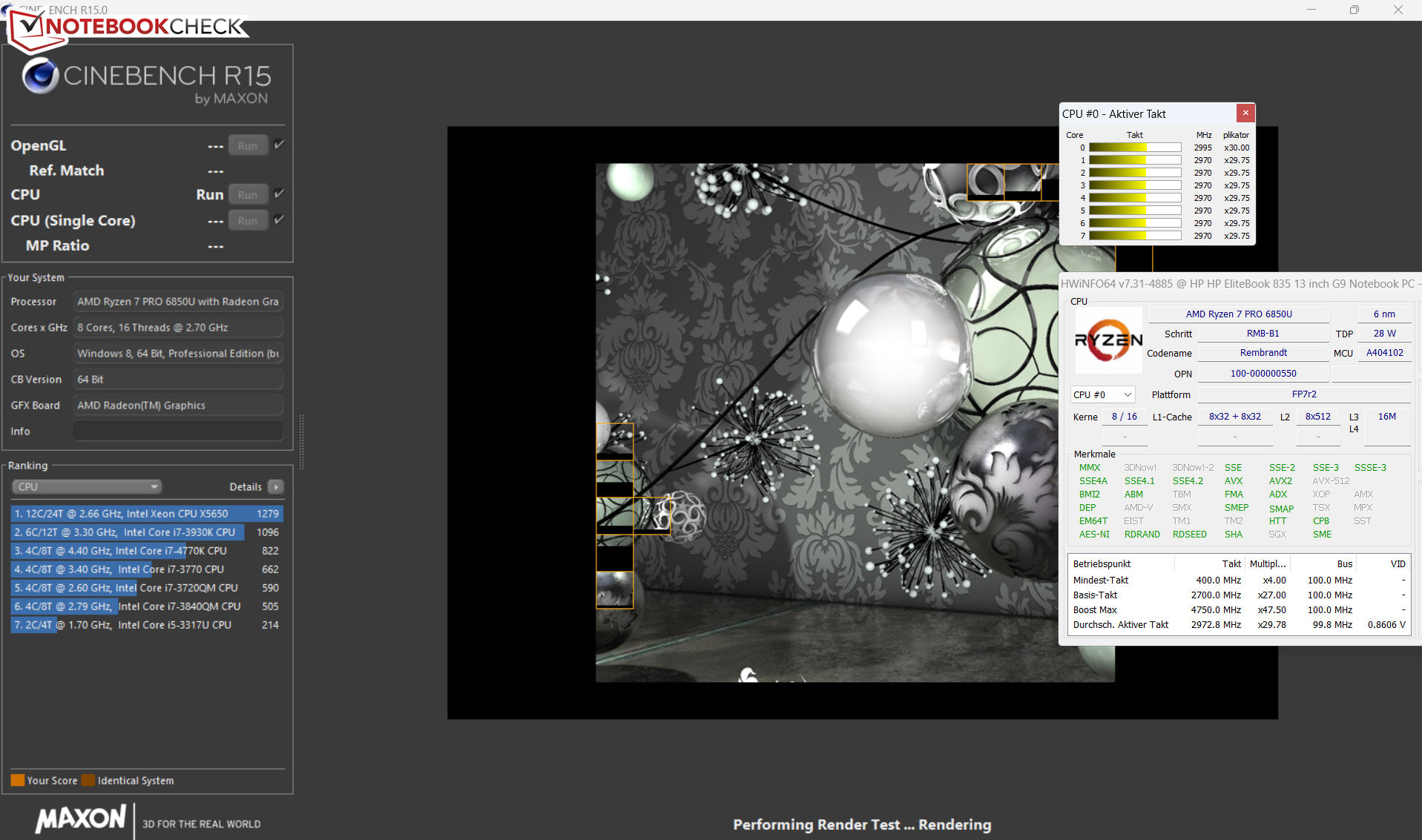

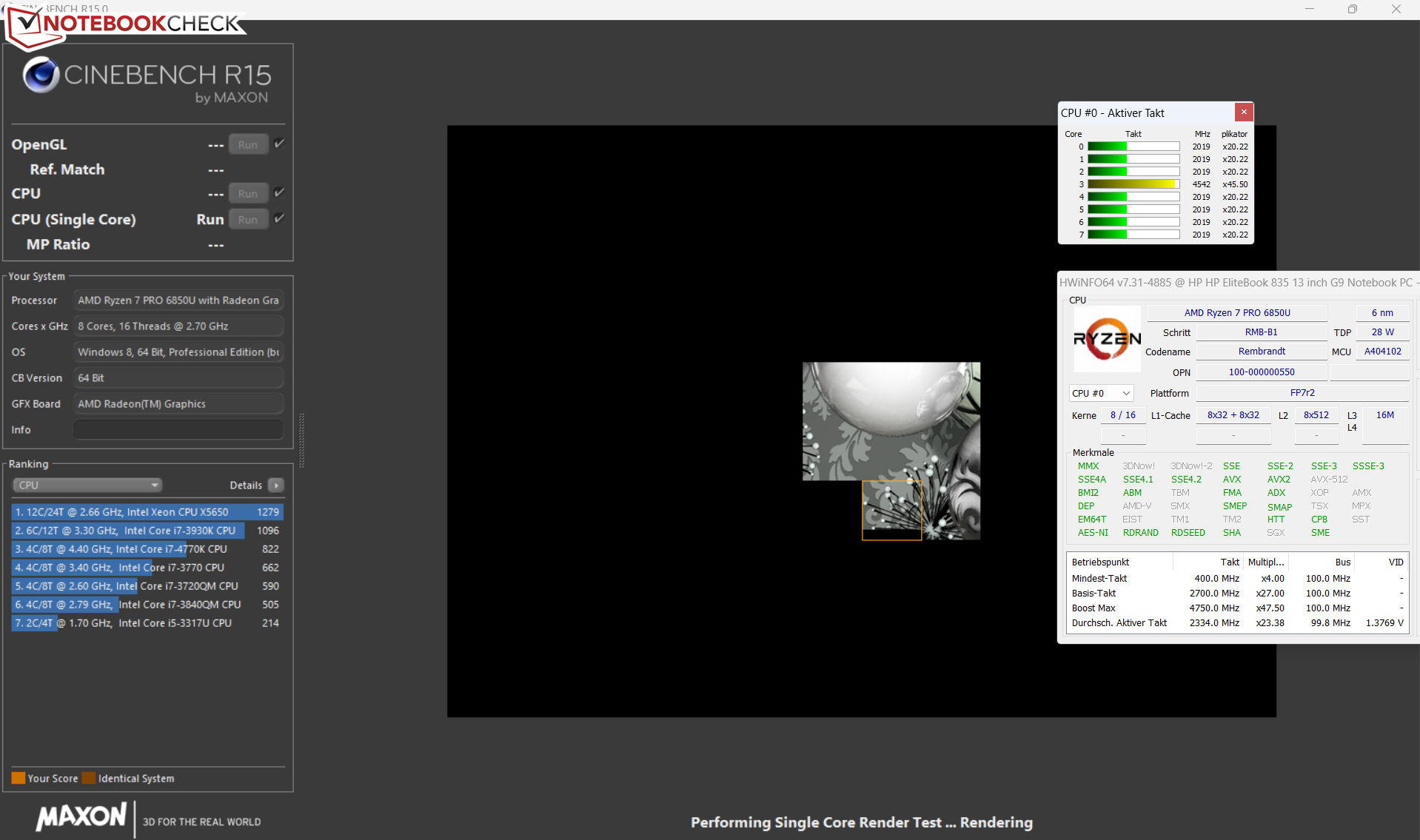

Cinebench R15基准测试的多线程测试短暂地运行在4GHz，然后下降到3GHz左右。单线程测试运行在2至4.75GHz。在电池模式下，时钟速率略低。

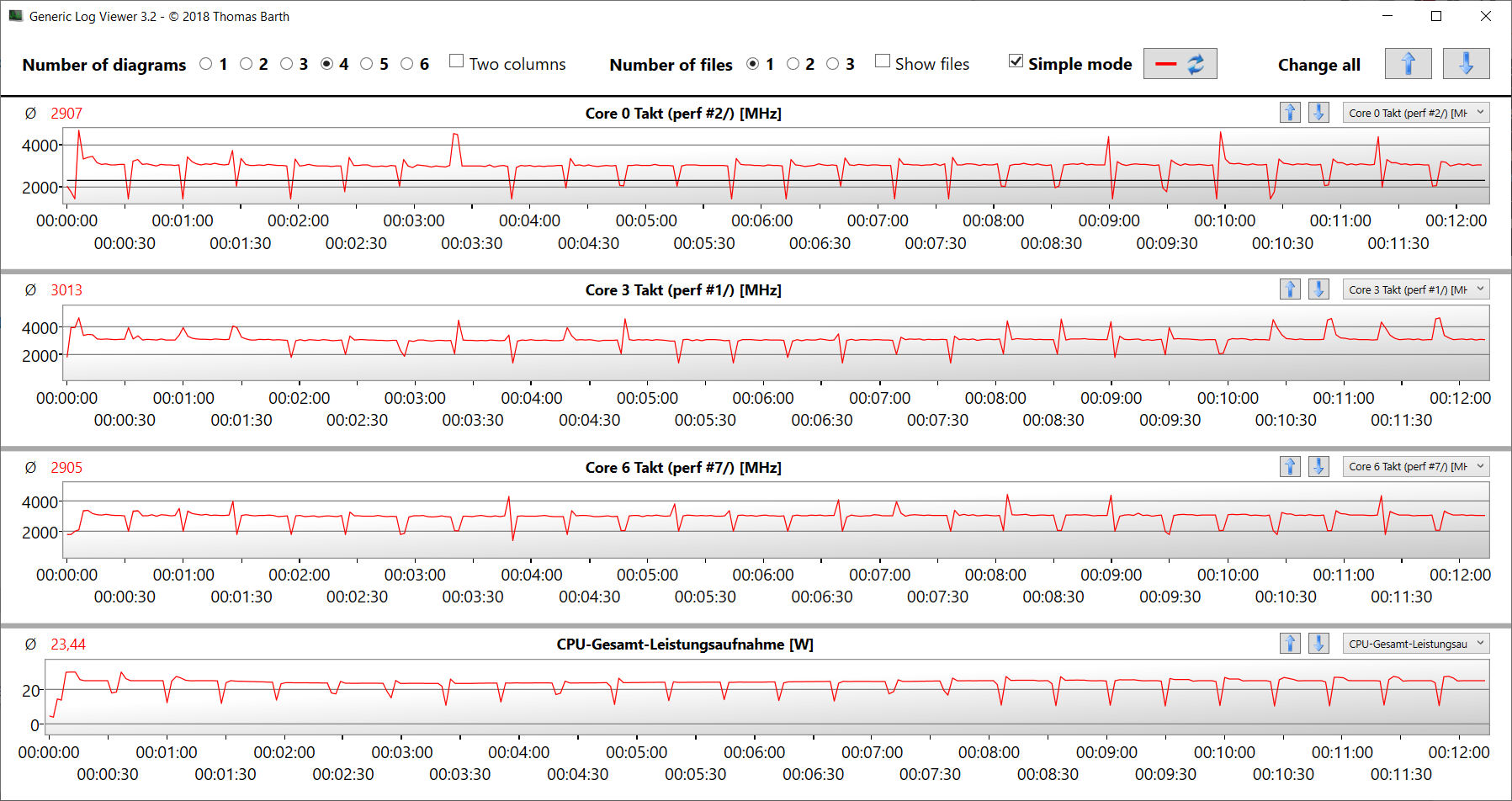

如CB15循环测试所示，高Turbo时钟只能使用几秒钟。在大多数情况下，CPU以略高于基础时钟的时钟速率运行。尽管如此，它还是提供了出色的性能，在多线程应用中明显优于竞争对手。此外，它非常节能，每瓦特提供的性能比竞争对手的英特尔CPU更多。
Cinebench R15 Multi Sustained Load
| CPU Performance Rating - Percent | |
| Average of class Subnotebook | |
| Average AMD Ryzen 7 PRO 6850U | |
| HP EliteBook 835 G9 | |
| Dell Latitude 13 7330 | |
| Lenovo ThinkPad X13 G3 21BN0046GE | |
| Dynabook Portégé X30L-K-139 | |
* ... smaller is better
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
| Performance Rating | |
| Average of class Subnotebook | |
| Average AMD Ryzen 7 PRO 6850U | |
| HP EliteBook 835 G9 | |
| Lenovo ThinkPad X13 G3 21BN0046GE | |
| Dell Latitude 13 7330 | |
| Dynabook Portégé X30L-K-139 | |
| AIDA64 / FP32 Ray-Trace | |
| Average of class Subnotebook (1141 - 32888, n=59, last 2 years) | |
| Average AMD Ryzen 7 PRO 6850U (11272 - 12485, n=6) | |
| HP EliteBook 835 G9 | |
| Lenovo ThinkPad X13 G3 21BN0046GE | |
| Dell Latitude 13 7330 | |
| Dynabook Portégé X30L-K-139 | |
| AIDA64 / FPU Julia | |
| Average AMD Ryzen 7 PRO 6850U (72242 - 79484, n=6) | |
| HP EliteBook 835 G9 | |
| Average of class Subnotebook (6838 - 123315, n=59, last 2 years) | |
| Lenovo ThinkPad X13 G3 21BN0046GE | |
| Dell Latitude 13 7330 | |
| Dynabook Portégé X30L-K-139 | |
| AIDA64 / CPU SHA3 | |
| Average of class Subnotebook (444 - 5287, n=59, last 2 years) | |
| Average AMD Ryzen 7 PRO 6850U (2419 - 2638, n=6) | |
| HP EliteBook 835 G9 | |
| Lenovo ThinkPad X13 G3 21BN0046GE | |
| Dell Latitude 13 7330 | |
| Dynabook Portégé X30L-K-139 | |
| AIDA64 / CPU Queen | |
| Average AMD Ryzen 7 PRO 6850U (86644 - 92945, n=6) | |
| HP EliteBook 835 G9 | |
| Average of class Subnotebook (11579 - 115682, n=59, last 2 years) | |
| Dynabook Portégé X30L-K-139 | |
| Dell Latitude 13 7330 | |
| Lenovo ThinkPad X13 G3 21BN0046GE | |
| AIDA64 / FPU SinJulia | |
| Average AMD Ryzen 7 PRO 6850U (10917 - 11637, n=6) | |
| HP EliteBook 835 G9 | |
| Average of class Subnotebook (744 - 18418, n=59, last 2 years) | |
| Lenovo ThinkPad X13 G3 21BN0046GE | |
| Dell Latitude 13 7330 | |
| Dynabook Portégé X30L-K-139 | |
| AIDA64 / FPU Mandel | |
| Average AMD Ryzen 7 PRO 6850U (39609 - 43843, n=6) | |
| HP EliteBook 835 G9 | |
| Average of class Subnotebook (3366 - 65433, n=59, last 2 years) | |
| Lenovo ThinkPad X13 G3 21BN0046GE | |
| Dell Latitude 13 7330 | |
| Dynabook Portégé X30L-K-139 | |
| AIDA64 / CPU AES | |
| Average of class Subnotebook (638 - 161430, n=59, last 2 years) | |
| Average AMD Ryzen 7 PRO 6850U (45568 - 50859, n=6) | |
| HP EliteBook 835 G9 | |
| Lenovo ThinkPad X13 G3 21BN0046GE | |
| Dell Latitude 13 7330 | |
| Dynabook Portégé X30L-K-139 | |
| AIDA64 / CPU ZLib | |
| Average of class Subnotebook (166.9 - 1379, n=59, last 2 years) | |
| Average AMD Ryzen 7 PRO 6850U (641 - 713, n=6) | |
| HP EliteBook 835 G9 | |
| Lenovo ThinkPad X13 G3 21BN0046GE | |
| Dell Latitude 13 7330 | |
| Dynabook Portégé X30L-K-139 | |
| AIDA64 / FP64 Ray-Trace | |
| Average of class Subnotebook (610 - 17495, n=59, last 2 years) | |
| Average AMD Ryzen 7 PRO 6850U (5967 - 6637, n=6) | |
| HP EliteBook 835 G9 | |
| Lenovo ThinkPad X13 G3 21BN0046GE | |
| Dell Latitude 13 7330 | |
| Dynabook Portégé X30L-K-139 | |
| AIDA64 / CPU PhotoWorxx | |
| Average of class Subnotebook (6569 - 54881, n=59, last 2 years) | |
| Lenovo ThinkPad X13 G3 21BN0046GE | |
| Dynabook Portégé X30L-K-139 | |
| HP EliteBook 835 G9 | |
| Average AMD Ryzen 7 PRO 6850U (19707 - 26584, n=6) | |
| Dell Latitude 13 7330 | |
系统性能

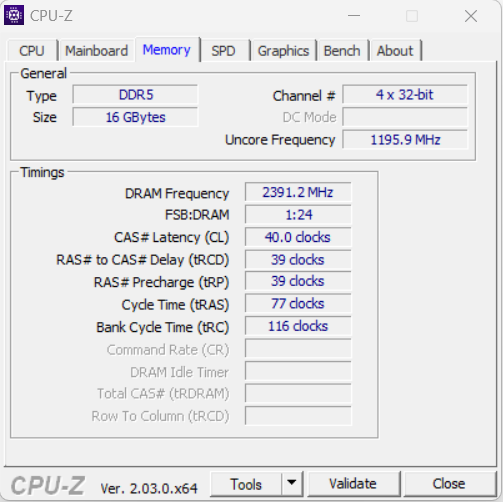

运行平稳的系统可以处理办公和互联网应用，以及在中低档设置下的游戏。PCMark的结果非常好。对于DDR5-4800内存来说，可用工作内存的传输率处于正常水平。遗憾的是，惠普没有安装更快的LPDDR4/5内存来压榨出更多的硬件性能。
CrossMark: Overall | Productivity | Creativity | Responsiveness
| PCMark 10 / Score | |
| Average of class Subnotebook (4993 - 7788, n=51, last 2 years) | |
| HP EliteBook 835 G9 | |
| Average AMD Ryzen 7 PRO 6850U, AMD Radeon 680M (5873 - 6152, n=6) | |
| Dell Latitude 13 7330 | |
| Dynabook Portégé X30L-K-139 | |
| Lenovo ThinkPad X13 G3 21BN0046GE | |
| PCMark 10 / Essentials | |
| Dell Latitude 13 7330 | |
| Average of class Subnotebook (9476 - 11331, n=51, last 2 years) | |
| HP EliteBook 835 G9 | |
| Dynabook Portégé X30L-K-139 | |
| Average AMD Ryzen 7 PRO 6850U, AMD Radeon 680M (9151 - 10263, n=6) | |
| Lenovo ThinkPad X13 G3 21BN0046GE | |
| PCMark 10 / Productivity | |
| Average of class Subnotebook (6440 - 10623, n=51, last 2 years) | |
| Average AMD Ryzen 7 PRO 6850U, AMD Radeon 680M (8435 - 8891, n=6) | |
| HP EliteBook 835 G9 | |
| Dell Latitude 13 7330 | |
| Dynabook Portégé X30L-K-139 | |
| Lenovo ThinkPad X13 G3 21BN0046GE | |
| PCMark 10 / Digital Content Creation | |
| Average of class Subnotebook (5305 - 10983, n=51, last 2 years) | |
| HP EliteBook 835 G9 | |
| Average AMD Ryzen 7 PRO 6850U, AMD Radeon 680M (6796 - 7417, n=6) | |
| Dynabook Portégé X30L-K-139 | |
| Dell Latitude 13 7330 | |
| Lenovo ThinkPad X13 G3 21BN0046GE | |
| CrossMark / Overall | |
| Average of class Subnotebook (365 - 1971, n=57, last 2 years) | |
| Dell Latitude 13 7330 | |
| Dynabook Portégé X30L-K-139 | |
| HP EliteBook 835 G9 | |
| Lenovo ThinkPad X13 G3 21BN0046GE | |
| Average AMD Ryzen 7 PRO 6850U, AMD Radeon 680M (1154 - 1430, n=6) | |
| CrossMark / Productivity | |
| Average of class Subnotebook (364 - 1875, n=57, last 2 years) | |
| Dell Latitude 13 7330 | |
| HP EliteBook 835 G9 | |
| Dynabook Portégé X30L-K-139 | |
| Average AMD Ryzen 7 PRO 6850U, AMD Radeon 680M (1188 - 1426, n=6) | |
| Lenovo ThinkPad X13 G3 21BN0046GE | |
| CrossMark / Creativity | |
| Average of class Subnotebook (385 - 2210, n=57, last 2 years) | |
| Dell Latitude 13 7330 | |
| Dynabook Portégé X30L-K-139 | |
| Lenovo ThinkPad X13 G3 21BN0046GE | |
| HP EliteBook 835 G9 | |
| Average AMD Ryzen 7 PRO 6850U, AMD Radeon 680M (1180 - 1523, n=6) | |
| CrossMark / Responsiveness | |
| Average of class Subnotebook (312 - 1899, n=57, last 2 years) | |
| Lenovo ThinkPad X13 G3 21BN0046GE | |
| Dynabook Portégé X30L-K-139 | |
| Dell Latitude 13 7330 | |
| HP EliteBook 835 G9 | |
| Average AMD Ryzen 7 PRO 6850U, AMD Radeon 680M (990 - 1243, n=6) | |
| PCMark 8 Home Score Accelerated v2 | 4730 points | |
| PCMark 8 Work Score Accelerated v2 | 5271 points | |
| PCMark 10 Score | 6090 points | |
Help | ||
| AIDA64 / Memory Copy | |
| Average of class Subnotebook (14916 - 108756, n=59, last 2 years) | |
| Lenovo ThinkPad X13 G3 21BN0046GE | |
| Dynabook Portégé X30L-K-139 | |
| HP EliteBook 835 G9 | |
| Average AMD Ryzen 7 PRO 6850U (31003 - 48605, n=6) | |
| Dell Latitude 13 7330 | |
| AIDA64 / Memory Read | |
| Average of class Subnotebook (15948 - 122210, n=59, last 2 years) | |
| Dynabook Portégé X30L-K-139 | |
| Lenovo ThinkPad X13 G3 21BN0046GE | |
| HP EliteBook 835 G9 | |
| Dell Latitude 13 7330 | |
| Average AMD Ryzen 7 PRO 6850U (34682 - 45079, n=6) | |
| AIDA64 / Memory Write | |
| Average of class Subnotebook (16513 - 117898, n=59, last 2 years) | |
| Lenovo ThinkPad X13 G3 21BN0046GE | |
| Dynabook Portégé X30L-K-139 | |
| HP EliteBook 835 G9 | |
| Average AMD Ryzen 7 PRO 6850U (34532 - 51096, n=6) | |
| Dell Latitude 13 7330 | |
| AIDA64 / Memory Latency | |
| Average AMD Ryzen 7 PRO 6850U (92 - 135.3, n=6) | |
| Average of class Subnotebook (7.2 - 187.8, n=59, last 2 years) | |
| HP EliteBook 835 G9 | |
| Lenovo ThinkPad X13 G3 21BN0046GE | |
| Dell Latitude 13 7330 | |
* ... smaller is better

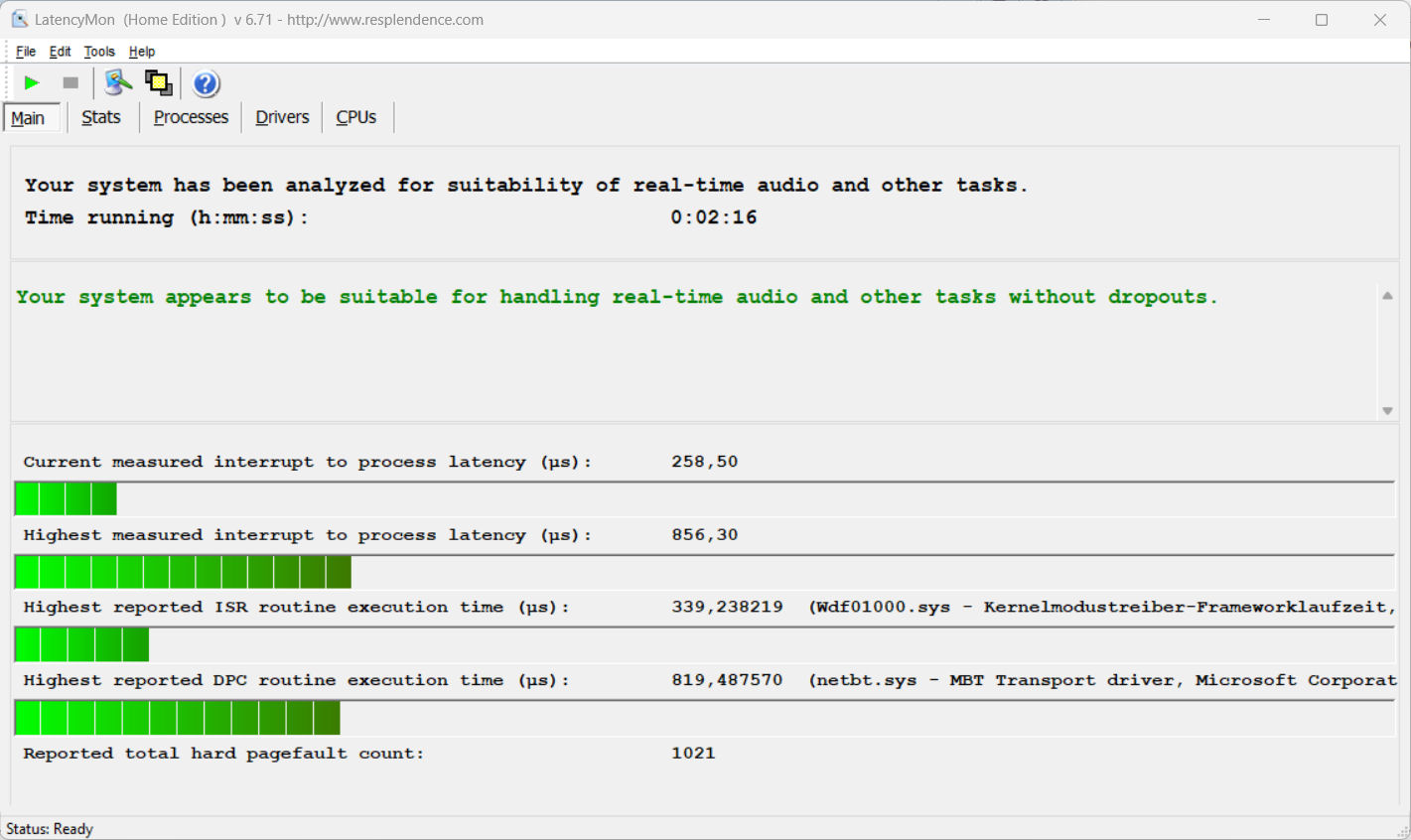

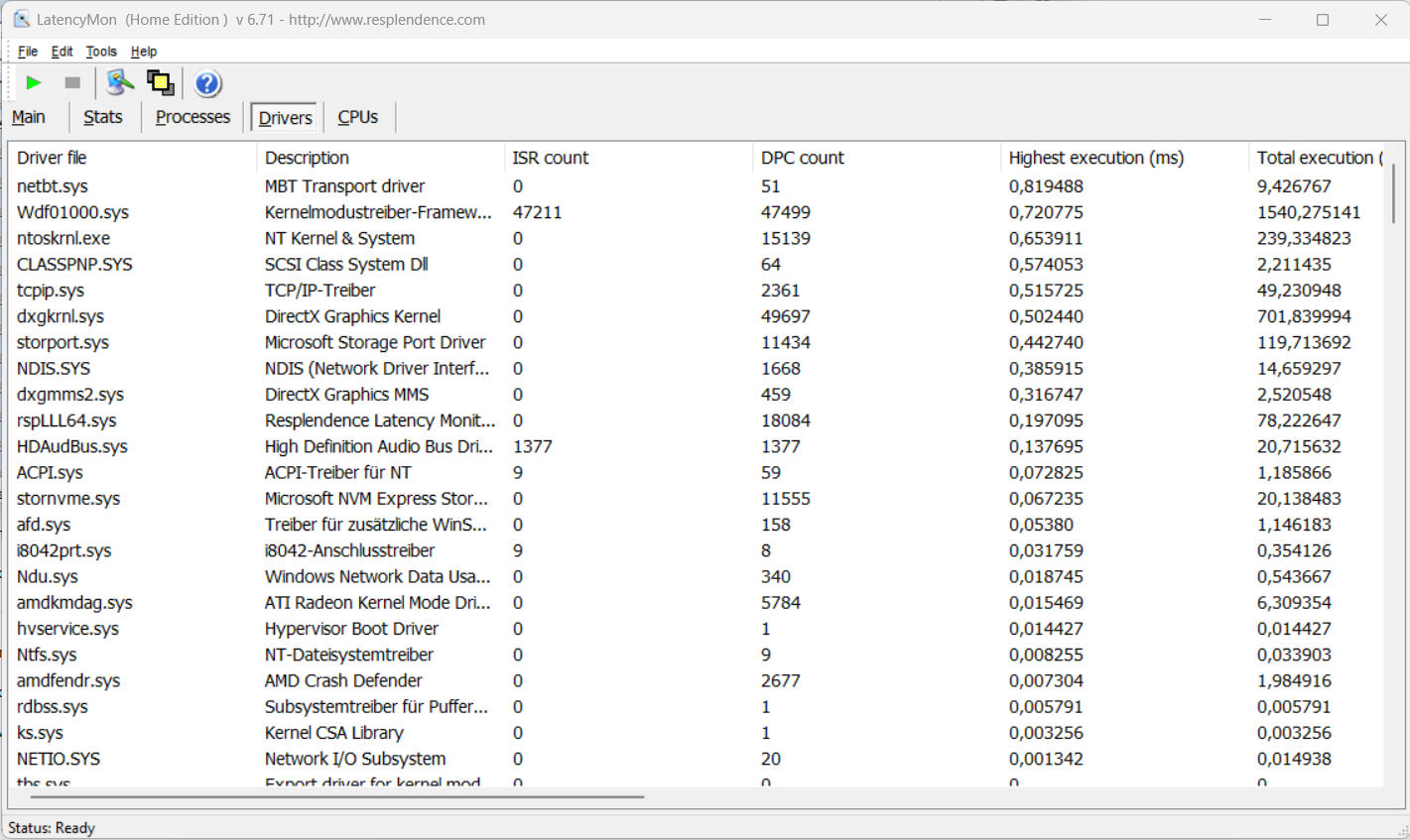

DPC延时
标准化的延迟监测测试（网络冲浪、4k视频播放、高负荷下的Prime95）没有发现任何异常情况。该系统似乎适用于实时视频和音频编辑。未来的软件更新可能会导致改进，甚至恶化。
| DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95 | |
| Dynabook Portégé X30L-K-139 | |
| Lenovo ThinkPad X13 G3 21BN0046GE | |
| HP EliteBook 835 G9 | |
| Dell Latitude 13 7330 | |
* ... smaller is better
存储设备
惠普为EliteBook配备了来自Kioxia的PCIe-4-SSD（M.2-2280），它的存储容量为512GB。传输速率很好，但它不属于顶级SSD。835 G9不提供额外存储介质的空间。
| Drive Performance Rating - Percent | |
| Lenovo ThinkPad X13 G3 21BN0046GE | |
| Average of class Subnotebook | |
| Dynabook Portégé X30L-K-139 | |
| HP EliteBook 835 G9 | |
| Average Kioxia BG5 KBG50ZNV512G | |
| Dell Latitude 13 7330 | |
* ... smaller is better
Sustained Read Performance: DiskSpd Read Loop, Queue Depth 8
图形卡

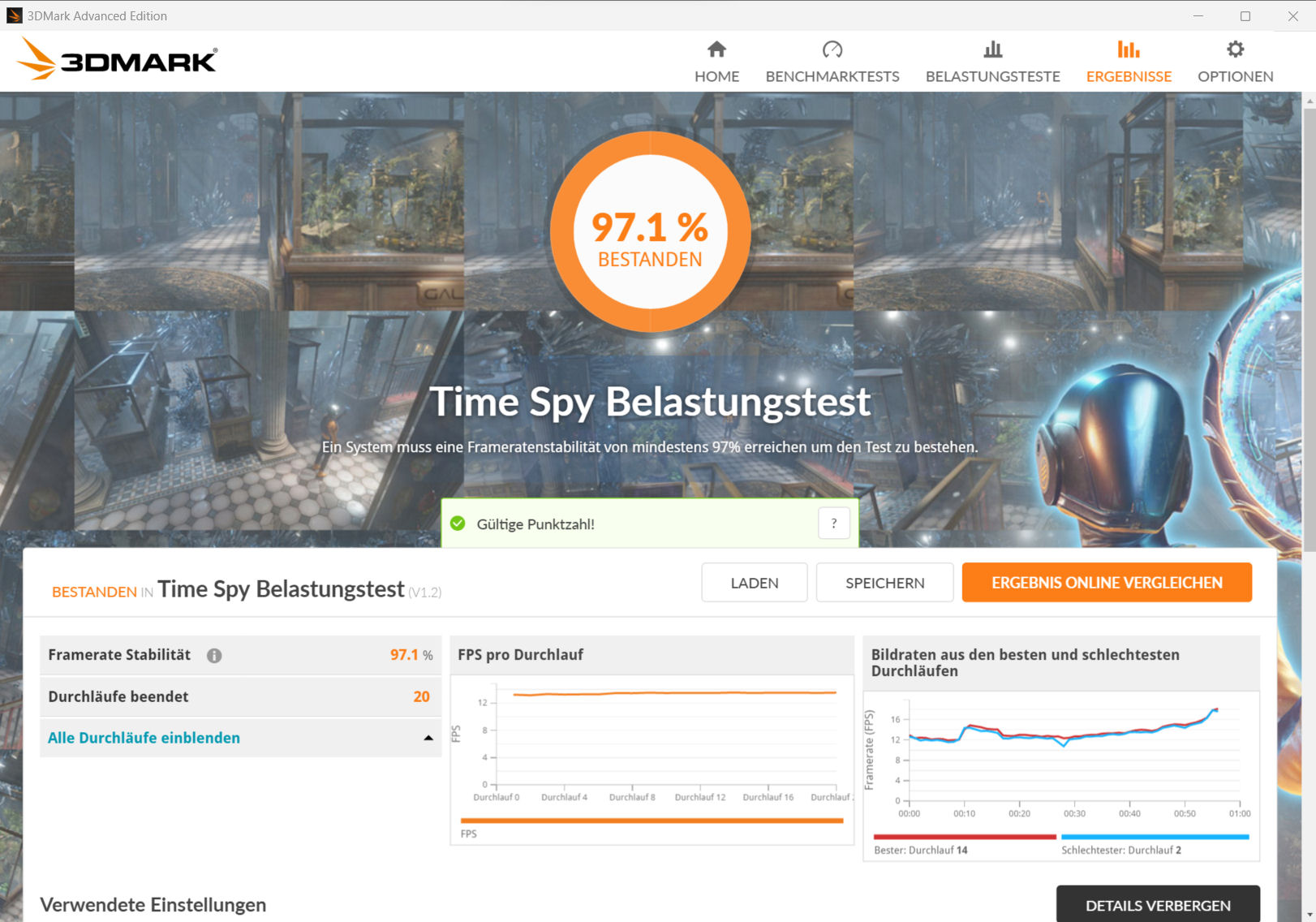

芯片 Radeon 680M图形核心是目前最强大的iGPU之一。然而，它只能在短时间内以最大的时钟速度（2,200 MHz）工作，正如Witcher 3 测试中所展示的那样。长时间运行的时钟速度约为1,800MHz是可能的。该基准测试结果与迄今为止确定的GPU平均水平相当。
| 3DMark Performance Rating - Percent | |
| Average of class Subnotebook | |
| Average AMD Radeon 680M | |
| HP EliteBook 835 G9 | |
| Dell Latitude 13 7330 | |
| Lenovo ThinkPad X13 G3 21BN0046GE | |
| Dynabook Portégé X30L-K-139 | |
| 3DMark 06 Standard Score | 30052 points | |
| 3DMark 11 Performance | 9294 points | |
| 3DMark Cloud Gate Standard Score | 29014 points | |

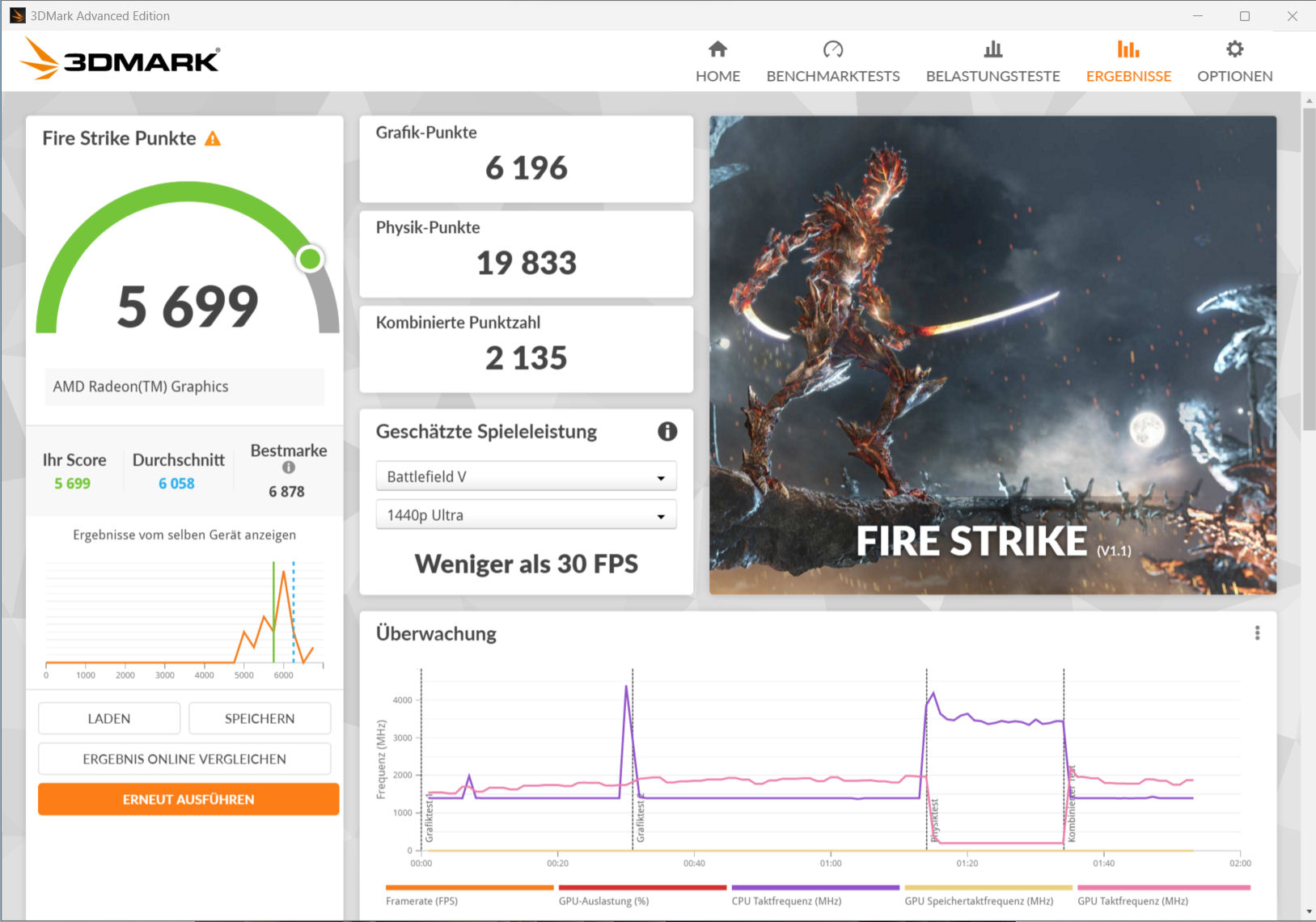

| 3DMark Fire Strike Score | 5699 points | |
| 3DMark Time Spy Score | 2136 points | |
Help | ||
| V-Ray 5 Benchmark - CPU | |
| Average AMD Radeon 680M (6710 - 9834, n=24) | |
| Average of class Subnotebook (4784 - 14978, n=21, last 2 years) | |
| HP EliteBook 835 G9 | |
| Dell Latitude 13 7330 | |
* ... smaller is better
游戏性能
EliteBook不是一款游戏笔记本。尽管如此，Ryzen APU提供了足够的动力，可以在低到中等设置下流畅地玩大量的游戏--较轻的游戏允许更高设置。帧率又与这里安装的iGPU的平均值持平。
| Performance Rating - Percent | |
| Average AMD Radeon 680M | |
| Average of class Subnotebook | |
| HP EliteBook 835 G9 | |
| Lenovo ThinkPad X13 G3 21BN0046GE | |
| Dell Latitude 13 7330 | |
| Dynabook Portégé X30L-K-139 | |
| The Witcher 3 - 1920x1080 Ultra Graphics & Postprocessing (HBAO+) | |
| Average AMD Radeon 680M (14.3 - 27.1, n=32) | |
| HP EliteBook 835 G9 | |
| Average of class Subnotebook (8.5 - 43.7, n=53, last 2 years) | |
| Dell Latitude 13 7330 | |
| Dynabook Portégé X30L-K-139 | |
| Lenovo ThinkPad X13 G3 21BN0046GE | |
| GTA V - 1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x | |
| Average AMD Radeon 680M (11.3 - 24.8, n=31) | |
| Average of class Subnotebook (7.81 - 53, n=56, last 2 years) | |
| HP EliteBook 835 G9 | |
| Lenovo ThinkPad X13 G3 21BN0046GE | |
| Dynabook Portégé X30L-K-139 | |
| Dell Latitude 13 7330 | |
| Final Fantasy XV Benchmark - 1920x1080 High Quality | |
| Average of class Subnotebook (11.9 - 44.2, n=62, last 2 years) | |
| Average AMD Radeon 680M (12.9 - 26.2, n=35) | |
| HP EliteBook 835 G9 | |
| Lenovo ThinkPad X13 G3 21BN0046GE | |
| Dell Latitude 13 7330 | |
| Dynabook Portégé X30L-K-139 | |
| Strange Brigade - 1920x1080 ultra AA:ultra AF:16 | |
| Average of class Subnotebook (17.7 - 70.7, n=61, last 2 years) | |
| Average AMD Radeon 680M (22 - 44.2, n=34) | |
| HP EliteBook 835 G9 | |
| Dell Latitude 13 7330 | |
| Lenovo ThinkPad X13 G3 21BN0046GE | |
| Dynabook Portégé X30L-K-139 | |
| Dota 2 Reborn - 1920x1080 ultra (3/3) best looking | |
| Average AMD Radeon 680M (33.2 - 84.9, n=36) | |
| Average of class Subnotebook (13 - 99.5, n=64, last 2 years) | |
| HP EliteBook 835 G9 | |
| Dell Latitude 13 7330 | |
| Lenovo ThinkPad X13 G3 21BN0046GE | |
| Dynabook Portégé X30L-K-139 | |
| X-Plane 11.11 - 1920x1080 high (fps_test=3) | |
| Average AMD Radeon 680M (16.6 - 44.5, n=36) | |
| HP EliteBook 835 G9 | |
| Average of class Subnotebook (20.7 - 97.1, n=57, last 2 years) | |
| Dell Latitude 13 7330 | |
| Lenovo ThinkPad X13 G3 21BN0046GE | |
| Dynabook Portégé X30L-K-139 | |

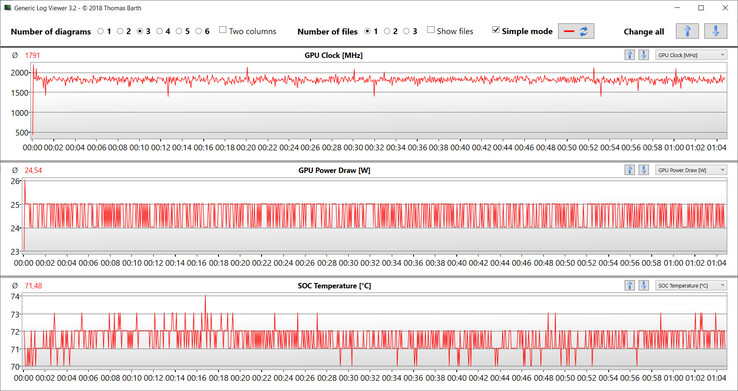

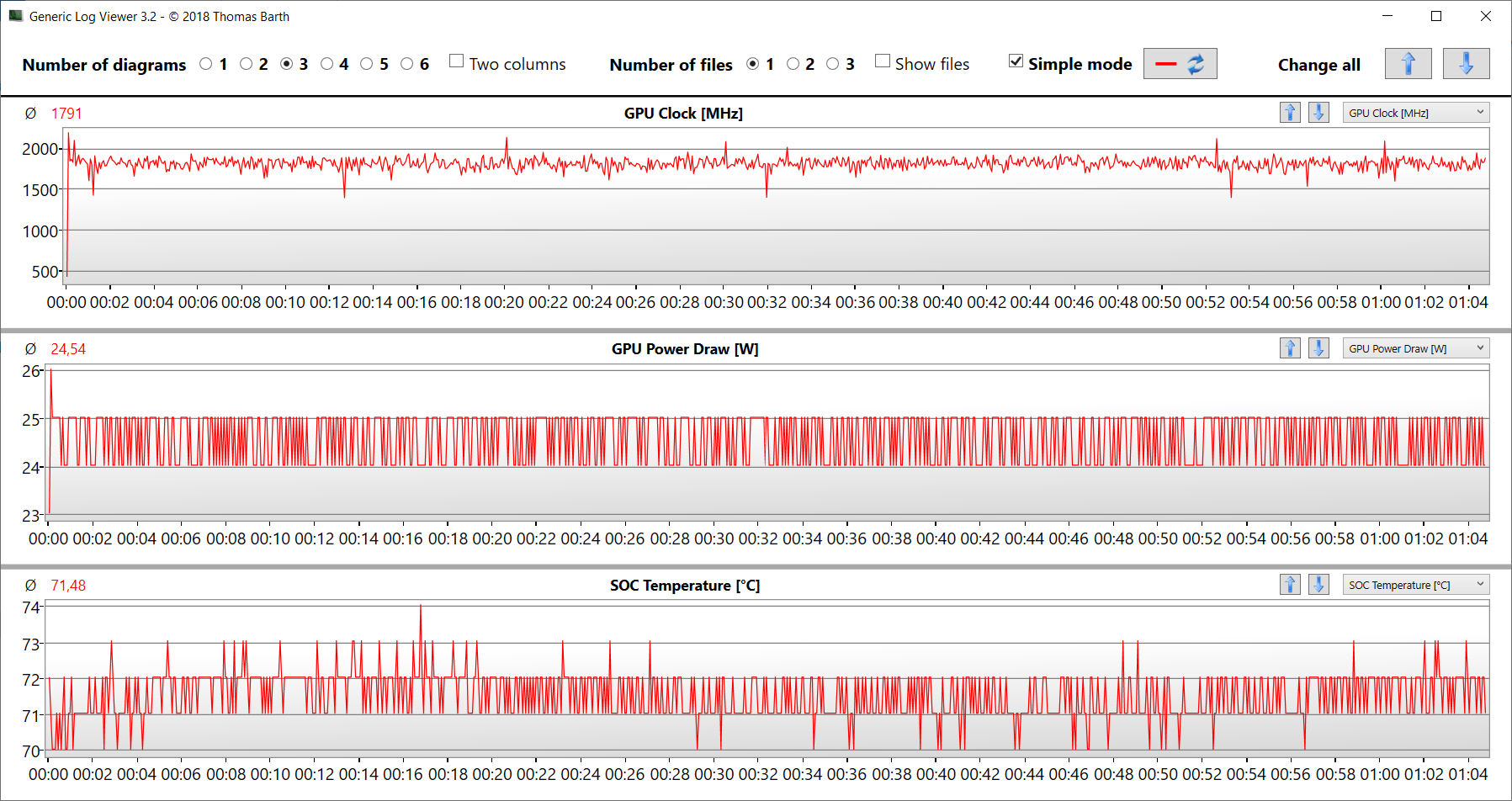

为了检查帧率是否在长时间内基本保持不变，我们在全高清分辨率和最高质量设置下运行了 "TheWitcher 3" 游戏约60分钟。游戏人物没有移动。没有发现帧率下降的情况。
Witcher 3 FPS Chart
| low | med. | high | ultra | |
|---|---|---|---|---|
| GTA V (2015) | 131.3 | 116.4 | 44.1 | 18.8 |
| The Witcher 3 (2015) | 108 | 66 | 35.1 | 22 |
| Dota 2 Reborn (2015) | 119.9 | 98 | 69.2 | 60.5 |
| Final Fantasy XV Benchmark (2018) | 57.9 | 28.6 | 20.4 | |
| X-Plane 11.11 (2018) | 54.2 | 43.2 | 35.7 | |
| Far Cry 5 (2018) | 56 | 33 | 31 | 29 |
| Strange Brigade (2018) | 115.6 | 49 | 40.9 | 34.3 |
| Shadow of the Tomb Raider (2018) | 81 | 33 | 30 | 25 |
| Metro Exodus (2019) | 54.5 | 25.2 | 19.2 | 15.5 |
| The Division 2 (2019) | 81 | 35 | 29 | 22 |
| Gears Tactics (2020) | 136.2 | 53.9 | 33.3 | 21.2 |
| F1 2020 (2020) | 140.4 | 67 | 52.7 | 36 |
| Riders Republic (2021) | 55 | 33 | 25 | 23 |
| Forza Horizon 5 (2021) | 92 | 44 | 38 | |
| Rainbow Six Extraction (2022) | 53 | 39 | 37 | 28 |
| Cyberpunk 2077 1.6 (2022) | 26 | 20.1 | 16.3 | 14.7 |
| Tiny Tina's Wonderlands (2022) | 47.3 | 35.5 | 23.1 | 18.1 |
| The Quarry (2022) | 31.8 | 23.7 | 17.4 | 12 |
| A Plague Tale Requiem (2022) | 23.8 | 19.3 | 14.3 | 13.9 |
| Call of Duty Modern Warfare 2 2022 (2022) | 54 | 46 | 38 | 34 |
| Spider-Man Miles Morales (2022) | 33.4 | 28.8 | 23.8 | 21.1 |
| The Callisto Protocol (2022) | 29.6 | 19.4 | 10.8 | 11.7 |
排放 - 在可接受的水平上
噪声
在整个负载范围内，这台商务笔记本没有产生任何过度的噪音。在空转和日常使用中（办公室、互联网），风扇通常是不活动的，因此沉默占主导地位。在中高负荷下（压力测试，Witcher 3 测试），噪音水平可以增加到37 dB(A) - 一个非常可接受的数值。
风扇控制值得单独提一下。惠普似乎在这里把重点放在了防止噪音上。风扇启动需要一些时间。例如，PCMark基准测试大多在没有风扇活动的情况下运行。
Noise Level
| Idle |
| 26 / 27 / 28 dB(A) |
| Load |
| 35 / 37 dB(A) |
 | ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min:  , med:  , max:  Earthworks M23R, Arta (15 cm distance) environment noise: 26 dB(A) | ||
| HP EliteBook 835 G9 Radeon 680M, R7 PRO 6850U, Kioxia BG5 KBG50ZNV512G | Lenovo ThinkPad X13 G3 21BN0046GE Iris Xe G7 80EUs, i5-1235U, SK Hynix HFS512 GDE9X081N | Dynabook Portégé X30L-K-139 Iris Xe G7 80EUs, i5-1240P, Samsung PM9A1 MZVL2512HCJQ | Dell Latitude 13 7330 Iris Xe G7 96EUs, i7-1265U, Toshiba KBG40ZNS512G NVMe | |
|---|---|---|---|---|
| Noise | 7% | 3% | 3% | |
| off / environment * | 26 | 24.6 5% | 24.9 4% | 23.4 10% |
| Idle Minimum * | 26 | 24.6 5% | 24.9 4% | 23.4 10% |
| Idle Average * | 27 | 24.6 9% | 24.9 8% | 23.4 13% |
| Idle Maximum * | 28 | 25.9 7% | 28.7 -3% | 23.4 16% |
| Load Average * | 35 | 30.7 12% | 35.6 -2% | 37.8 -8% |
| Witcher 3 ultra * | 37 | 34.6 6% | 35.6 4% | 39.2 -6% |
| Load Maximum * | 37 | 34.6 6% | 35.6 4% | 43 -16% |
* ... smaller is better

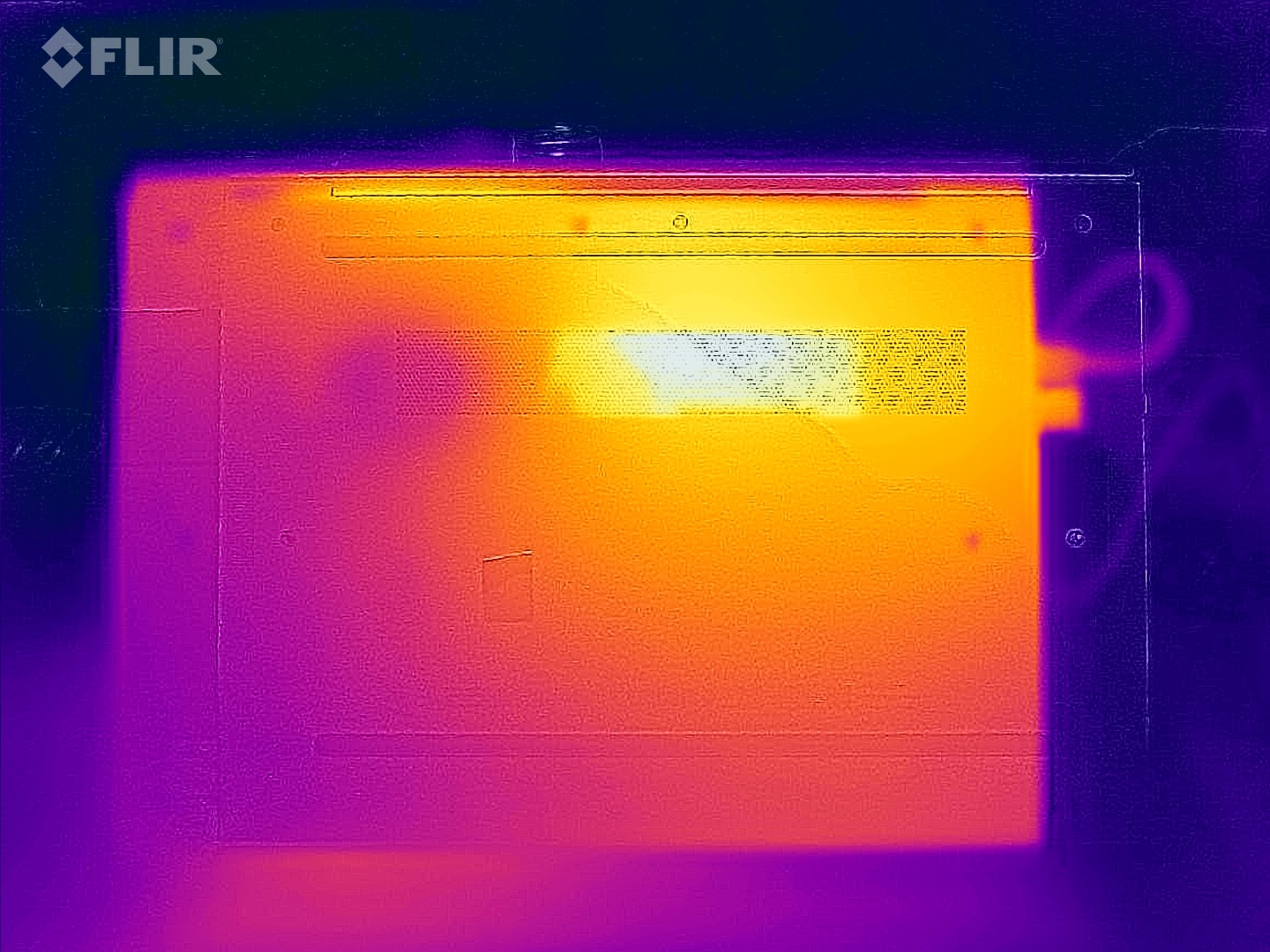

温度

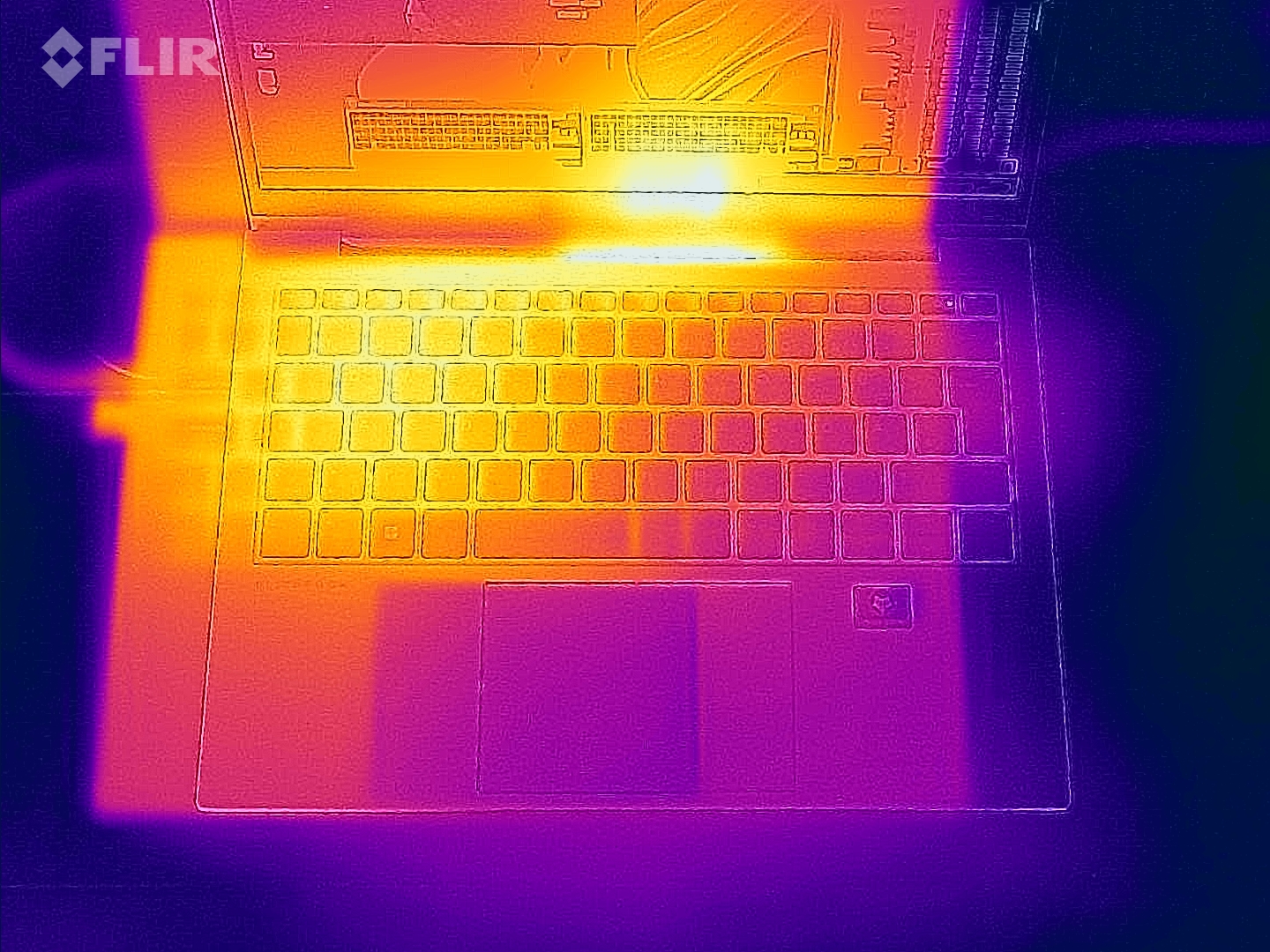

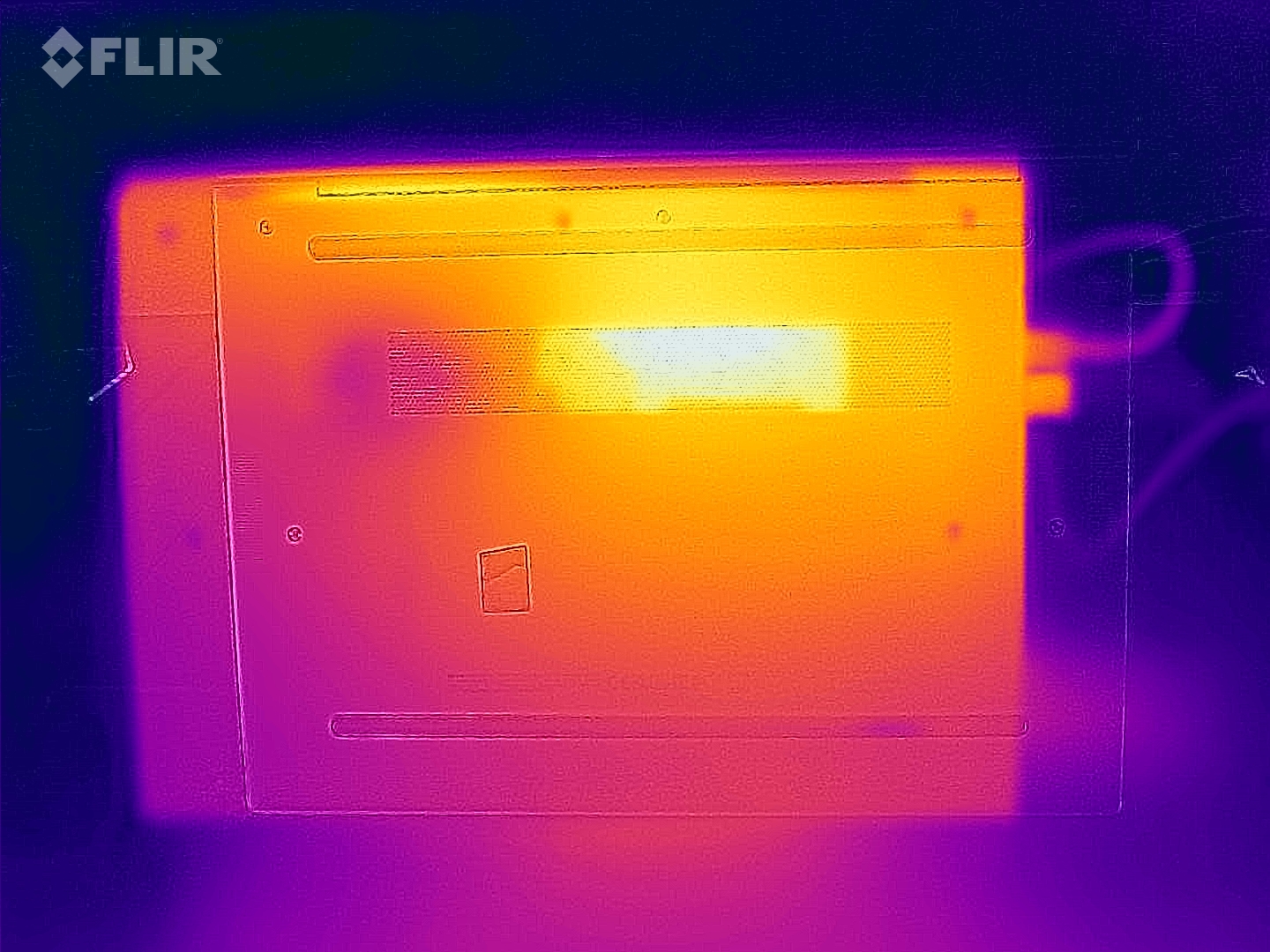

笔记本明显发热。在负载下的某些时候，温度会达到45到50摄氏度之间。在日常使用中（办公室、互联网），该比率落在绿色区域。
(-) The maximum temperature on the upper side is 46 °C / 115 F, compared to the average of 35.9 °C / 97 F, ranging from 21.4 to 59 °C for the class Subnotebook.
(-) The bottom heats up to a maximum of 49 °C / 120 F, compared to the average of 39.4 °C / 103 F
(+) In idle usage, the average temperature for the upper side is 23.4 °C / 74 F, compared to the device average of 30.8 °C / 87 F.
(-) Playing The Witcher 3, the average temperature for the upper side is 38.2 °C / 101 F, compared to the device average of 30.8 °C / 87 F.
(+) The palmrests and touchpad are reaching skin temperature as a maximum (34 °C / 93.2 F) and are therefore not hot.
(-) The average temperature of the palmrest area of similar devices was 28.3 °C / 82.9 F (-5.7 °C / -10.3 F).
| HP EliteBook 835 G9 AMD Ryzen 7 PRO 6850U, AMD Radeon 680M | Lenovo ThinkPad X13 G3 21BN0046GE Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs | Dynabook Portégé X30L-K-139 Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs | Dell Latitude 13 7330 Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs | |
|---|---|---|---|---|
| Heat | -13% | -1% | 7% | |
| Maximum Upper Side * | 46 | 45.3 2% | 42.8 7% | 38.6 16% |
| Maximum Bottom * | 49 | 41.8 15% | 39.8 19% | 42 14% |
| Idle Upper Side * | 24 | 31.6 -32% | 27 -13% | 23.8 1% |
| Idle Bottom * | 24 | 32.6 -36% | 28 -17% | 24.6 -3% |
* ... smaller is better
压力测试

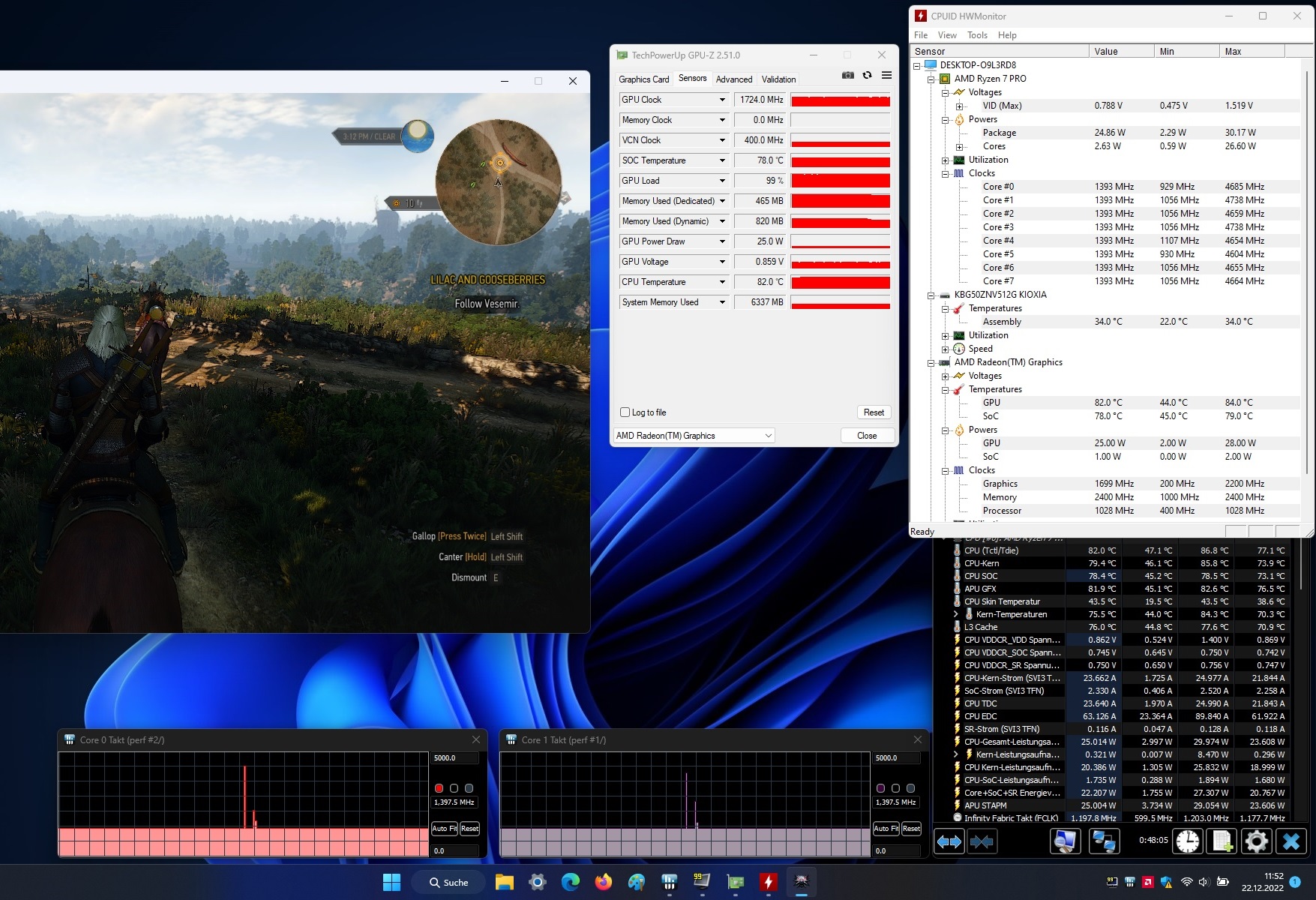

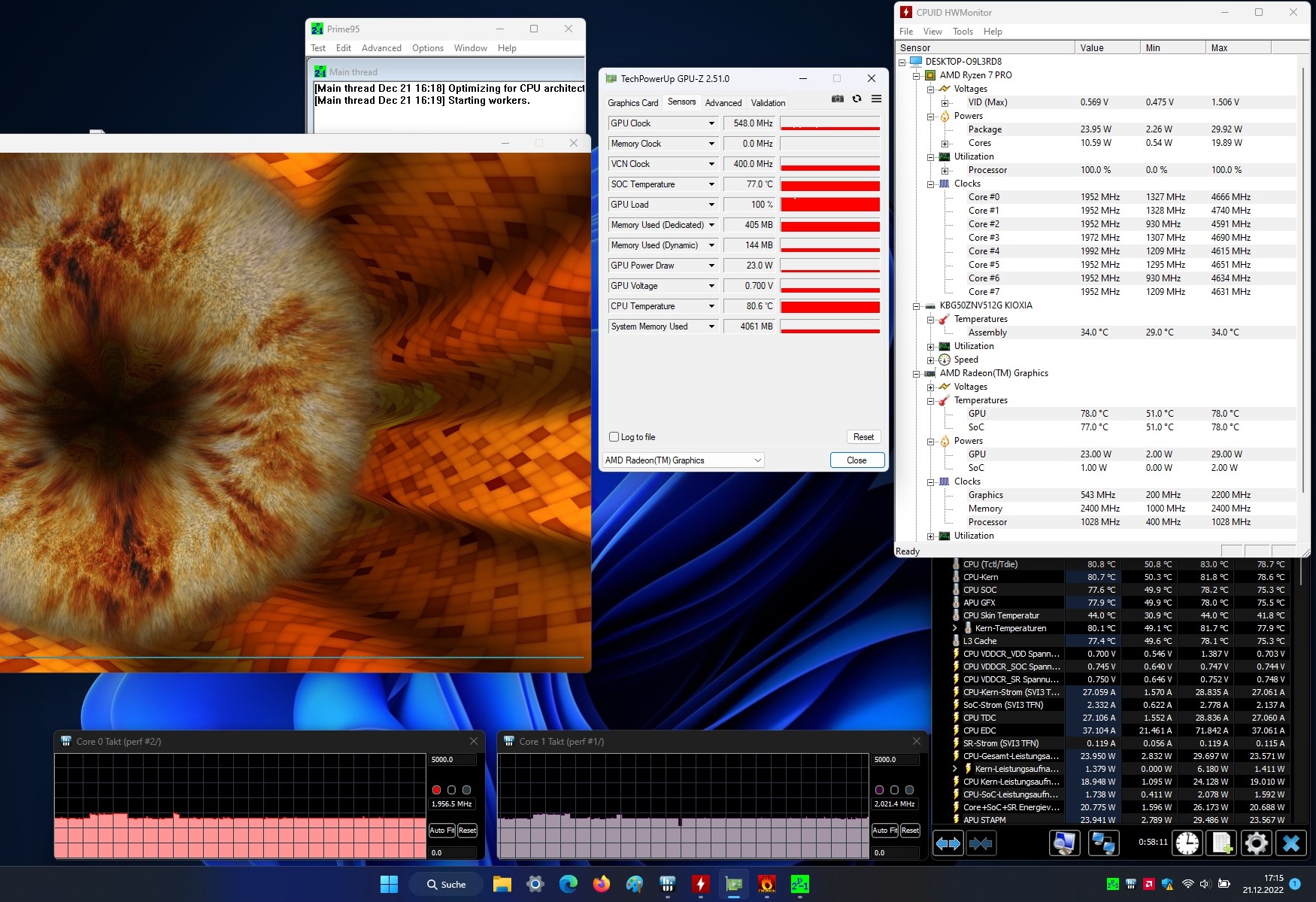

压力测试（Prime95和Furmark连续运行）代表了检查系统在全负荷下的稳定性的一个极端情况。CPU（2 GHz）和GPU（550 MHz）都以相对较低的时钟速率完成测试。
发言人
立体声扬声器能产生体面的声音，但几乎没有任何低音。建议使用耳机或外部扬声器以获得更好的声音体验。
HP EliteBook 835 G9 audio analysis
(±) | speaker loudness is average but good (79 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 17.8% lower than median
(±) | linearity of bass is average (11.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 1.7% away from median
(+) | mids are linear (3.2% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.2% away from median
(±) | linearity of highs is average (8% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (14.7% difference to median)
Compared to same class
» 27% of all tested devices in this class were better, 6% similar, 67% worse
» The best had a delta of 5%, average was 19%, worst was 53%
Compared to all devices tested
» 17% of all tested devices were better, 4% similar, 79% worse
» The best had a delta of 4%, average was 25%, worst was 134%
Lenovo ThinkPad X13 G3 21BN0046GE audio analysis
(±) | speaker loudness is average but good (74.4 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 18.7% lower than median
(±) | linearity of bass is average (14.1% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.5% away from median
(+) | mids are linear (6.1% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 1.6% away from median
(+) | highs are linear (3.9% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (16.6% difference to median)
Compared to same class
» 39% of all tested devices in this class were better, 6% similar, 55% worse
» The best had a delta of 5%, average was 19%, worst was 53%
Compared to all devices tested
» 26% of all tested devices were better, 5% similar, 69% worse
» The best had a delta of 4%, average was 25%, worst was 134%
电源管理--惠普笔记本电脑的运行时间非常好
消耗功率
对于安装在这里的硬件来说，能量需求处于正常水平。压力测试和Witcher 3 测试是在相对较低的水平上持续耗电运行的--CPU和GPU不在全功率下工作。附带的电源（65瓦）的大小足够了。
| Off / Standby | 0.4 / 0.6 Watt |
| Idle | 5 / 6 / 11 Watt |
| Load |
45 / 48 Watt |

| |
Key:
min: ,
med: ,
max: Metrahit Energy | |
| HP EliteBook 835 G9 R7 PRO 6850U, Radeon 680M | Lenovo ThinkPad X13 G3 21BN0046GE i5-1235U, Iris Xe G7 80EUs | Dynabook Portégé X30L-K-139 i5-1240P, Iris Xe G7 80EUs | Dell Latitude 13 7330 i7-1265U, Iris Xe G7 96EUs | Average AMD Radeon 680M | Average of class Subnotebook | |
|---|---|---|---|---|---|---|
| Power Consumption | 14% | 12% | 13% | -30% | -9% | |
| Idle Minimum * | 5 | 2.7 46% | 3.9 22% | 2.8 44% | 6.94 ? -39% | 4.44 ? 11% |
| Idle Average * | 6 | 5.2 13% | 6.4 -7% | 4.8 20% | 8.92 ? -49% | 7.55 ? -26% |
| Idle Maximum * | 11 | 6.2 44% | 7.2 35% | 7.3 34% | 10.5 ? 5% | 9.45 ? 14% |
| Load Average * | 45 | 38.4 15% | 35.8 20% | 48.1 -7% | 53.9 ? -20% | 45.8 ? -2% |
| Witcher 3 ultra * | 45.2 | 41.9 7% | 29.4 35% | 35.4 22% | ||
| Load Maximum * | 48 | 66.7 -39% | 63.4 -32% | 63.6 -33% | 70.8 ? -48% | 68.4 ? -43% |
* ... smaller is better
Power consumption Witcher 3 / Stress test
Power consumption with an external monitor
电池寿命
在WLAN测试（通过脚本调用网站）和视频测试（短片Big Buck Bunny，H.264编码，FHD，循环播放）中，这台13.3英寸的笔记本分别达到了9:07小时和12:40小时的运行时间。在这两项测试中，笔记本的节能功能被禁用，显示屏亮度被设置为大约150cd/m²。在视频测试中，无线模块也被禁用。
| HP EliteBook 835 G9 R7 PRO 6850U, Radeon 680M, 51 Wh | Lenovo ThinkPad X13 G3 21BN0046GE i5-1235U, Iris Xe G7 80EUs, 54.7 Wh | Dynabook Portégé X30L-K-139 i5-1240P, Iris Xe G7 80EUs, 53 Wh | Dell Latitude 13 7330 i7-1265U, Iris Xe G7 96EUs, 41 Wh | Average of class Subnotebook | |
|---|---|---|---|---|---|
| Battery Runtime | 25% | 12% | 13% | 47% | |
| Reader / Idle | 1113 | 853 -23% | 1314 18% | 1750 ? 57% | |
| H.264 | 760 | 911 ? 20% | |||
| WiFi v1.3 | 547 | 613 12% | 611 12% | 497 -9% | 726 ? 33% |
| Load | 65 | 121 86% | 84 29% | 115.4 ? 78% |
Pros
Cons
评语。一个成功的工作工具
惠普的紧凑型商务笔记本有一个非常好的键盘，一个LTE调制解调器（5G不可用）和9到13小时的实用电池运行时间。由于有两个USB 4插槽（Power Delivery、Displayport），将该笔记本整合到现有的工作场所设置中应该不是问题。
惠普在EliteBook 835 G9中推出了一款成功的商务笔记本。
办公和互联网应用以及轻量级游戏都可以通过以下组合轻松应对 Ryzen 7 PRO 6850UAPU和16GB的内存。该CPU以相对较低的功耗水平提供持续的高性能值。热量和噪音的发展基本上是可以接受的，但在满负荷的情况下，热量可以更低一点。
惠普为835 G9提供了一个哑光的、视角稳定的13.3英寸屏幕（1920 x 1200像素），采用方便工作的16:10格式，提供高亮度、非常好的对比度和出色的色彩还原。可切换的隐私过滤器（HP Sure View）会导致对比度和亮度的降低，即使是在稍微偏离最佳视角（居中，90度）的情况下。因此，在购买前应充分考虑显示器的选择。有两种没有隐私滤镜的替代显示器可供选择。在这里，可用的400尼特面板与全sRGB覆盖将是首选。
这款 Dynabook Portégé X30L-K例如，可以考虑作为835 G9的更多移动替代品。总的来说，它提供的计算能力较低，但电池寿命稍好，重量约为900克，比EliteBook少400克。
价格和可用性
惠普EliteBook 835 G9的各款产品在美国通过惠普的官方网站发售。起价为1,629.00美元。其他国家的感兴趣的买家应通过惠普的网店（如适用）或通过其他分销商如亚马逊查询供货情况。
HP EliteBook 835 G9
- 01/12/2023 v7 (old)
Sascha Mölck
Price comparison
