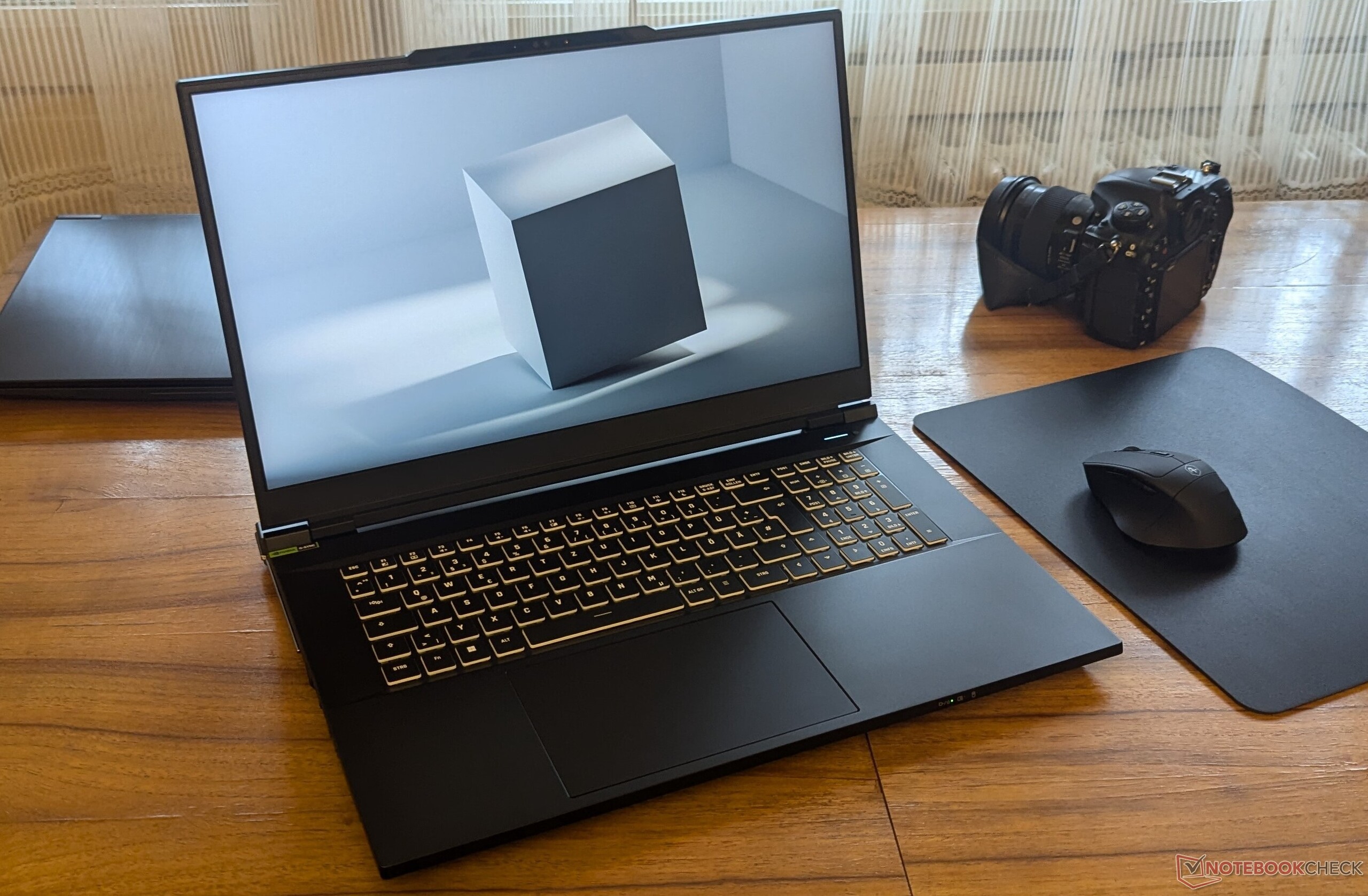

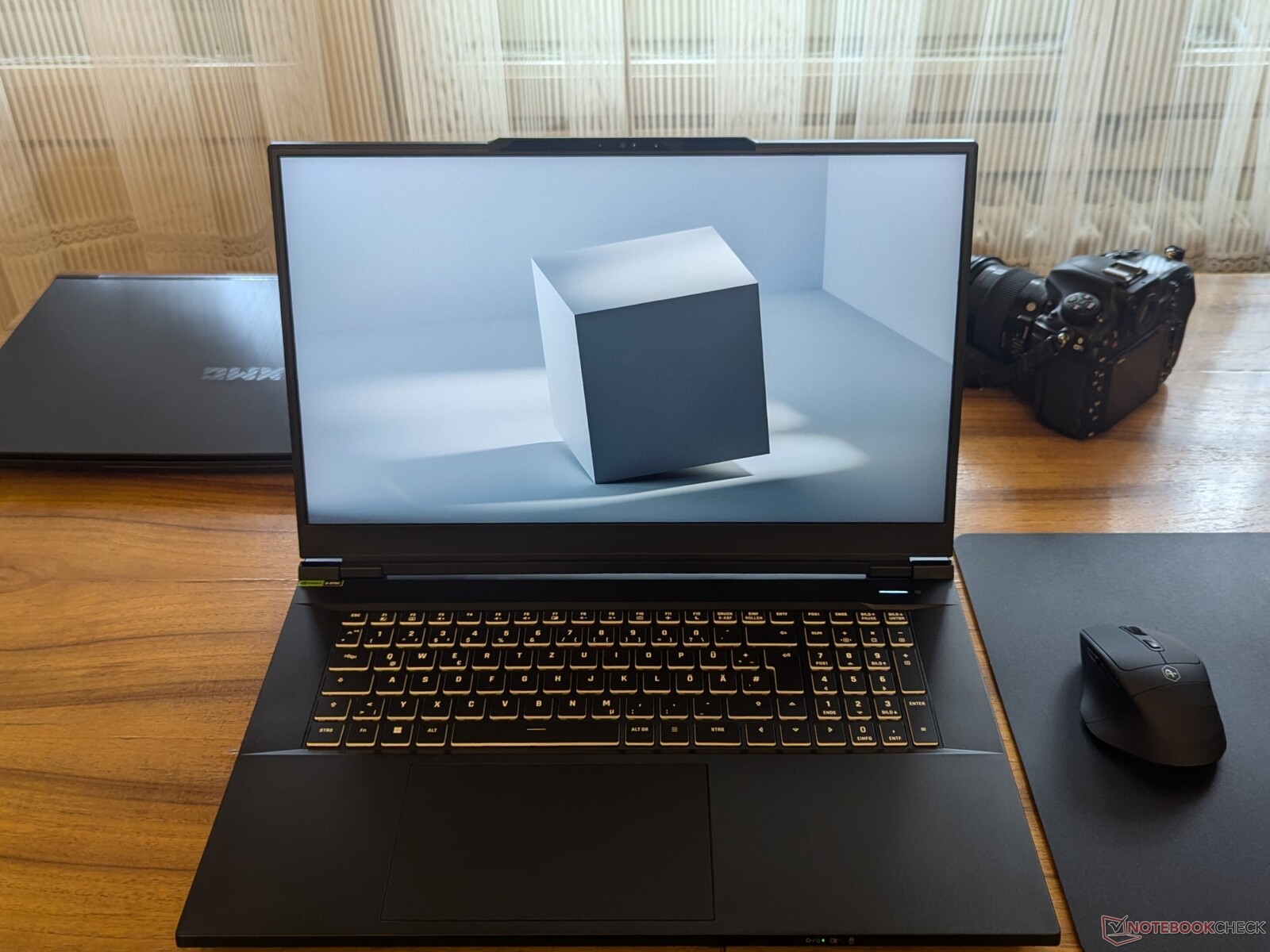

Schenker Key 17 Pro M24

申克 Key 17 Pro (M24) 评测--超快双雷电 5 接口和 i9-14900HX 电源

申克 KEY 17 Pro 是首批配备双 Thunderbolt 5 端口的高端台式机替代移动工作站之一。它集成了顶级组件，包括升级版英特尔 i9-14900HX 处理器和 Nvidia RTX 4090，以及最快的 Wi-Fi 7 连接。
Bogdan Solca, 👁 Bogdan Solca (translated by DeepL / Ninh Duy) Published 🇺🇸 🇫🇷 ...
Gaming Geforce GPU Intel Laptop / Notebook Nvidia Raptor Lake Thunderbolt Workstation

判决

申克公司在 2024 年更新了 Key 17 Pro 工作站级笔记本电脑，升级了 CPU，并增加了一些令人印象深刻的配置。最新的工作站迭代版保留了去年型号的 Clevo 机箱，但更换了 i9-13900HX更换为速度更快的 i9-14900HX目前它仍然是英特尔最快的移动解决方案。申克还增加了 Wi-Fi 7支持和两个 雷电 5端口，每个端口的带宽为 80 Gbps，这些功能都可以轻松添加到专业版中。

虽然内存和存储空间与前代机型相同，但仍能提供出色的性能。显卡 RTX 4090移动 GPU 总是一个很好的补充，但我们的测试表明，申克的实现并不是最好的。总的来说，性能还是不错的。

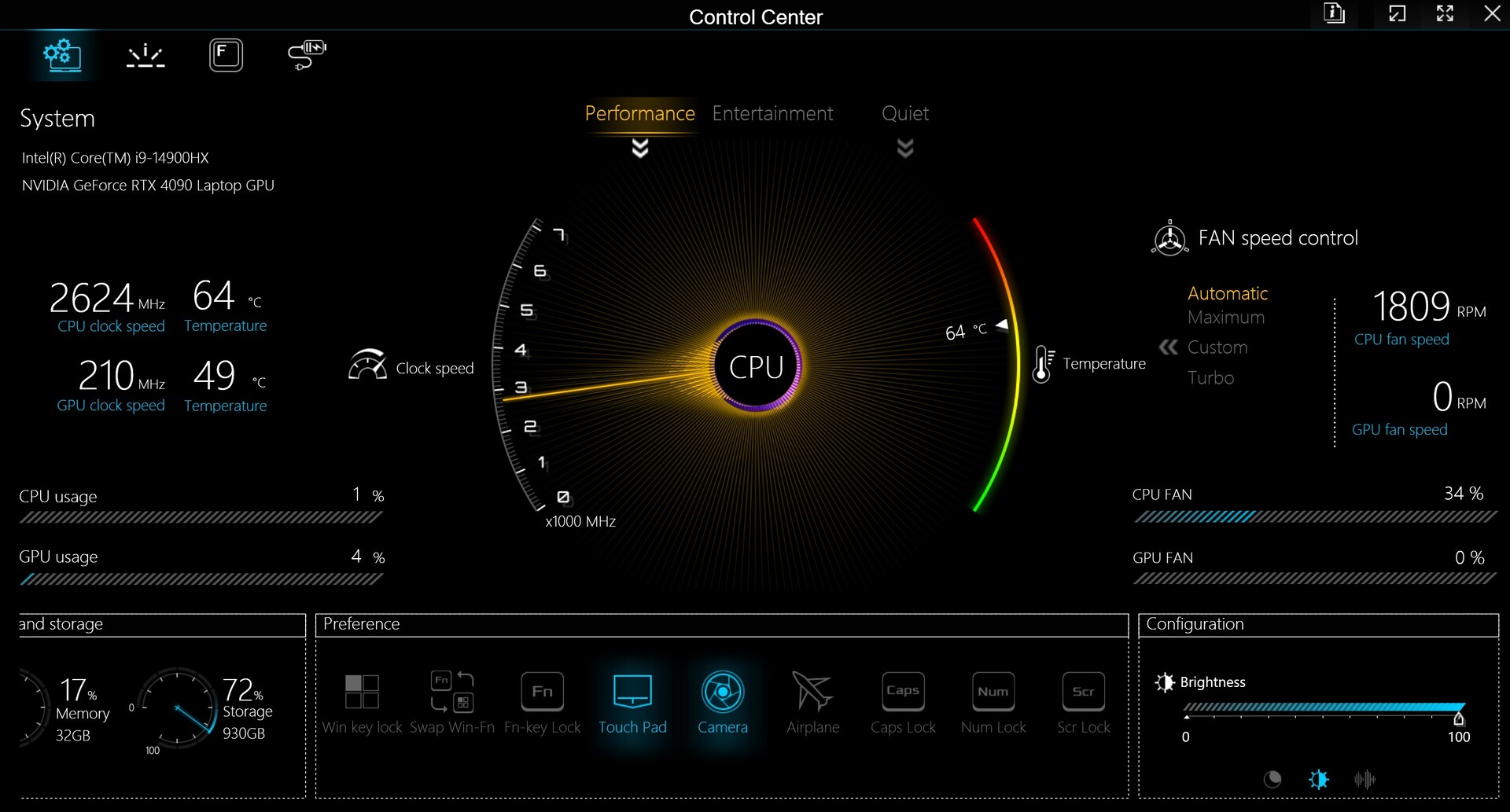

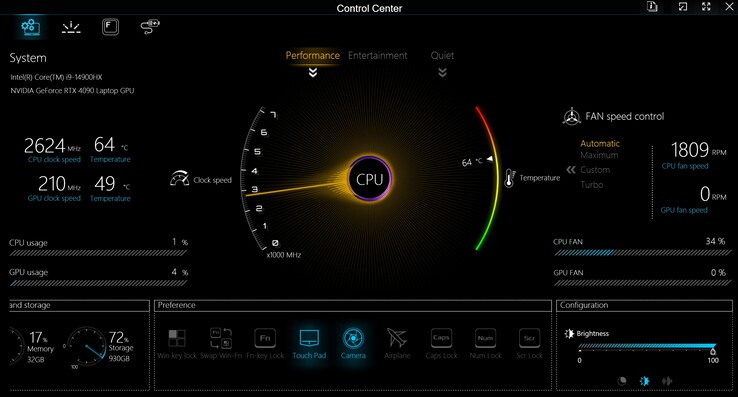

在缺点方面，申克没有改进冷却系统，尤其是在性能配置文件中，即使在中等负荷下，噪音仍然很大。控制中心应用程序允许自定义风扇曲线，但需要根据应用进行设置。与去年的版本相比，Key 17 Pro 的电池续航时间有所缩短，尽管容量仍为 99 Wh。因此，Key 17 Pro M24 可能会被用作台式机的替代品，或最多用于混合工作流程。4K IPS 屏幕足够亮，但对比度和黑度在这个价位上似乎偏低，另外附带的 1080p 网络摄像头也相当一般。

Pros

+ 坚固的铝制机箱
+ 高速 i9-14900HX CPU 和 Nvidia RTX 4090 GPU
+ 快速内存和存储，具有升级潜力
+ 两个雷电 5 端口
+ Wi-Fi 7 连接

Cons

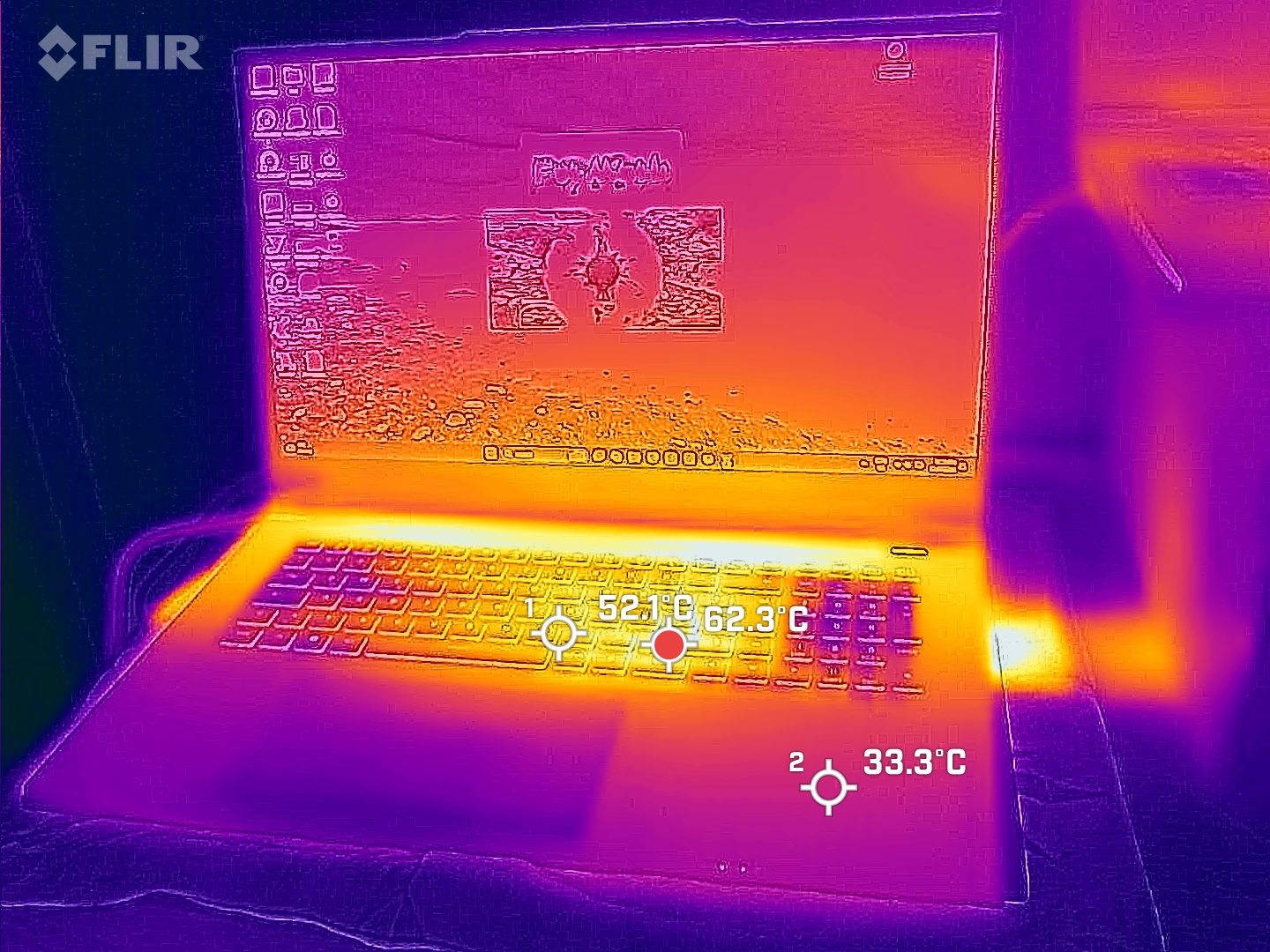

- 冷却系统噪音大，满负荷时温度较高
- 电池运行时间短
- 电池性能降低 66% 以上
- 显示屏对比度有待提高
- 1080p 网络摄像头效果一般

价格和供应情况

测试配置可直接从Bestware 订购，价格为 4273 欧元。

可能的替代品比较

Model / Review
Geizhals
Weight
Height
Display
1.
85.1%
SCHENKER Key 17 Pro (M24)
SCHENKER Key 17 Pro (M24)
Intel Core i9-14900HX ⎘
NVIDIA GeForce RTX 4090 Laptop GPU ⎘
32 GB Memory, 1024 GB SSD		Listenpreis 4273€3.4 kg24.9 mm17.30"
3840x2160
255 PPI
IPS
2.
87.2% v7 (old)
Asus ROG Strix Scar 17 G733PYV-LL053X
Asus ROG Strix Scar 17 G733PYV-LL053X
AMD Ryzen 9 7945HX3D ⎘
NVIDIA GeForce RTX 4090 Laptop GPU ⎘
32 GB Memory, 1024 GB SSD		Geizhals Suche2.9 kg28.3 mm17.30"
2560x1440
170 PPI
IPS
3.
85.2% v7 (old)
Eurocom Raptor X17 Core i9-14900HX
Eurocom Raptor X17 Core i9-14900HX
Intel Core i9-14900HX ⎘
NVIDIA GeForce RTX 4090 Laptop GPU ⎘
32 GB Memory, 2048 GB SSD		Listenpreis 4500 USD3.4 kg24.9 mm17.30"
3840x2160
255 PPI
IPS
4.
85.9%
HP ZBook Fury 16 G11
HP ZBook Fury 16 G11
Intel Core i9-14900HX ⎘
NVIDIA RTX 3500 Ada Generation Laptop GPU ⎘
64 GB Memory, 1024 GB SSD
Bestpreis 3812.76€ Cyclotron
2. 3816€ MetaComp
3. 3832€ HEINZSOFT
2.6 kg28.5 mm16.00"
3840x2400
283 PPI
IPS
5.
86% v7 (old)
Aorus 17X AZF
Aorus 17X AZF
Intel Core i9-13900HX ⎘
NVIDIA GeForce RTX 4090 Laptop GPU ⎘
32 GB Memory, 1024 GB SSD		Listenpreis 3800 EUR
Geizhals Suche		2.9 kg21.8 mm17.30"
2560x1440
170 PPI
IPS

Table of Contents

  1. 判决
  2. 规格
  3. 外壳和连接
  4. 输入设备
  5. 显示屏
  6. 性能
  7. 排放与功耗
  8. 笔记本检查评级

申克公司宣传 Key 17 Pro (M24) 是一款高端工作站，因此我们的测试也反映了这一点。在此之前，我们曾评测过 E23 版本但随着 i9-14900HX CPU 的升级，我们现在推荐将 M24 版作为工作站使用。不过，我们不能只把它与工作站相提并论，因为 Key 17 Pro 采用的是 RTX 4090 GPU，而不是专业 GPU。因此，我们选择的竞争对手包括配备 RTX 4090 和类似或相同 CPU 的游戏笔记本电脑。

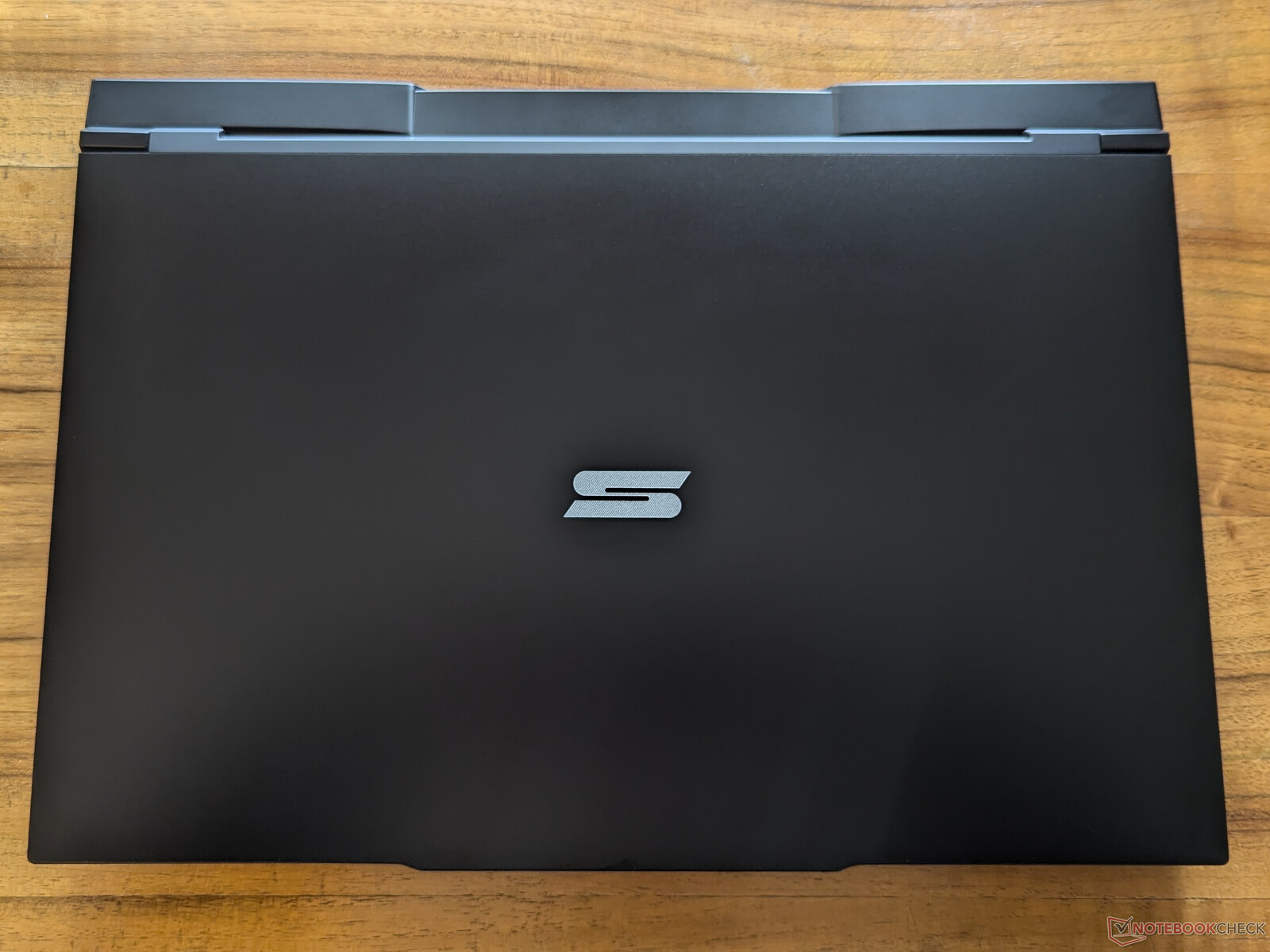

机箱似乎与上一次迭代没有变化，采用了相同的 Clevo 裸机。不过，除了更强大的 CPU 之外，M24 还引入了一些重要的升级，如 Wi-Fi 7 和两个 Thunderbolt 5 接口。随着 CPU 的升级和新功能的加入，不幸的是 M24 的电池受到了影响，续航时间不如 E23。

规格

SCHENKER Key 17 Pro (M24)
Processor
Intel Core i9-14900HX 24 x 1.6 - 5.8 GHz, Raptor Lake-HX Refresh
Graphics adapter
NVIDIA GeForce RTX 4090 Laptop GPU - 15.6 GB VRAM, 175 W TDP ( including 25 W Dynamic Boost), 566.03, MUX switch
Memory
32 GB
, DDR5-5600
Display
17.30 inch 16:9, 3840 x 2160 pixel 255 PPI, BOE, IPS, glossy: no, 144 Hz, Adaptive Sync
Mainboard
Intel HM770 (Raptor Lake-S PCH)
Storage
Samsung 990 Pro 1 TB, 1024 GB
Soundcard
Creative Sound Blaster Recon3Di @ Intel Panther Point PCH - High Definition Audio Controller
Connections
2 USB 3.1 Gen2, 2 USB 4.0 40 Gbps, 2 Thunderbolt, USB-C Power Delivery (PD), 1 HDMI, 3 DisplayPort, 1 Kensington Lock, Audio Connections: 2-in-1 jack
Networking
Intel/Killer E3100X 2.5 Gigabit Ethernet Controller (10/100/1000/2500MBit/s), Intel Wi-Fi 7 BE200 320MHz (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/ Wi-Fi 6E 6 GHz be = Wi-Fi 7), Bluetooth 5.3
Size
height x width x depth (in mm): 24.9 x 396 x 278
Battery
99 Wh Lithium-Polymer
Operating System
Microsoft Windows 11 Home
Camera
Webcam: 1080p
Additional features
Speakers: stereo, Keyboard Light: yes, 36 Months Warranty, dual Thunderbolt 5 ports
Weight

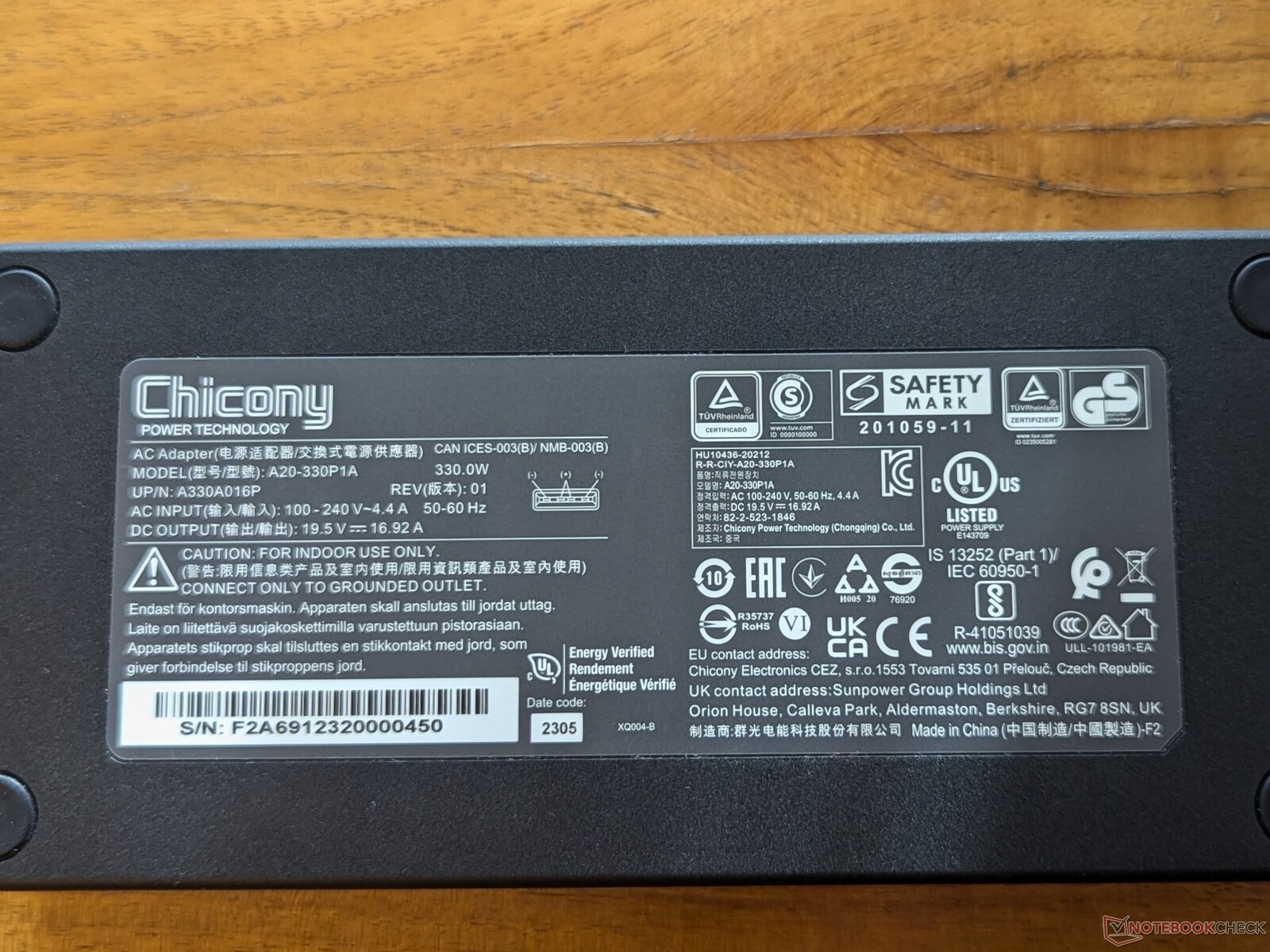

3.4 kg, Power Supply: 1.178 kg
Price
4273 Euro
Links
SCHENKER homepage
SCHENKER notebook section
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



外壳和连接

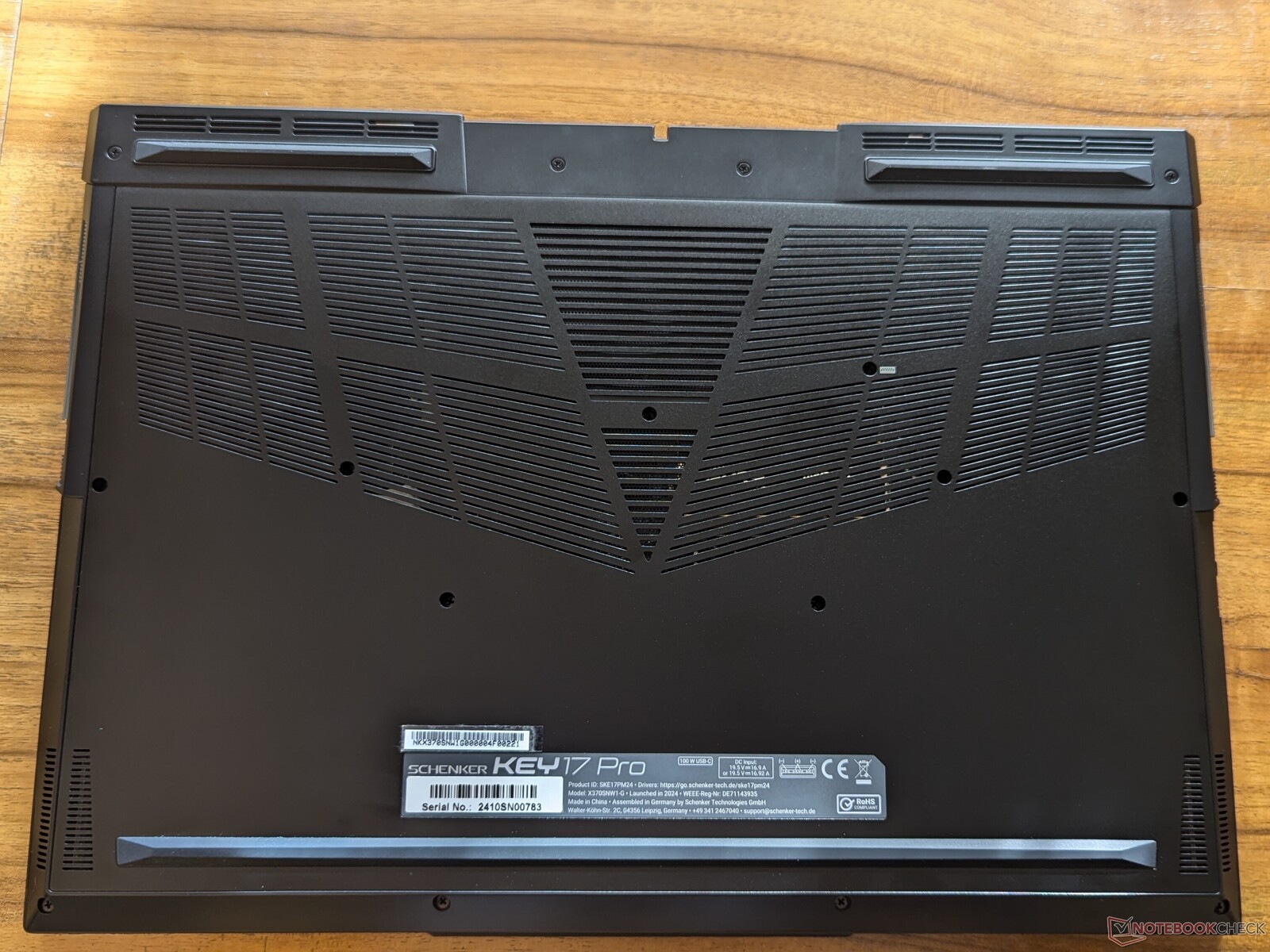

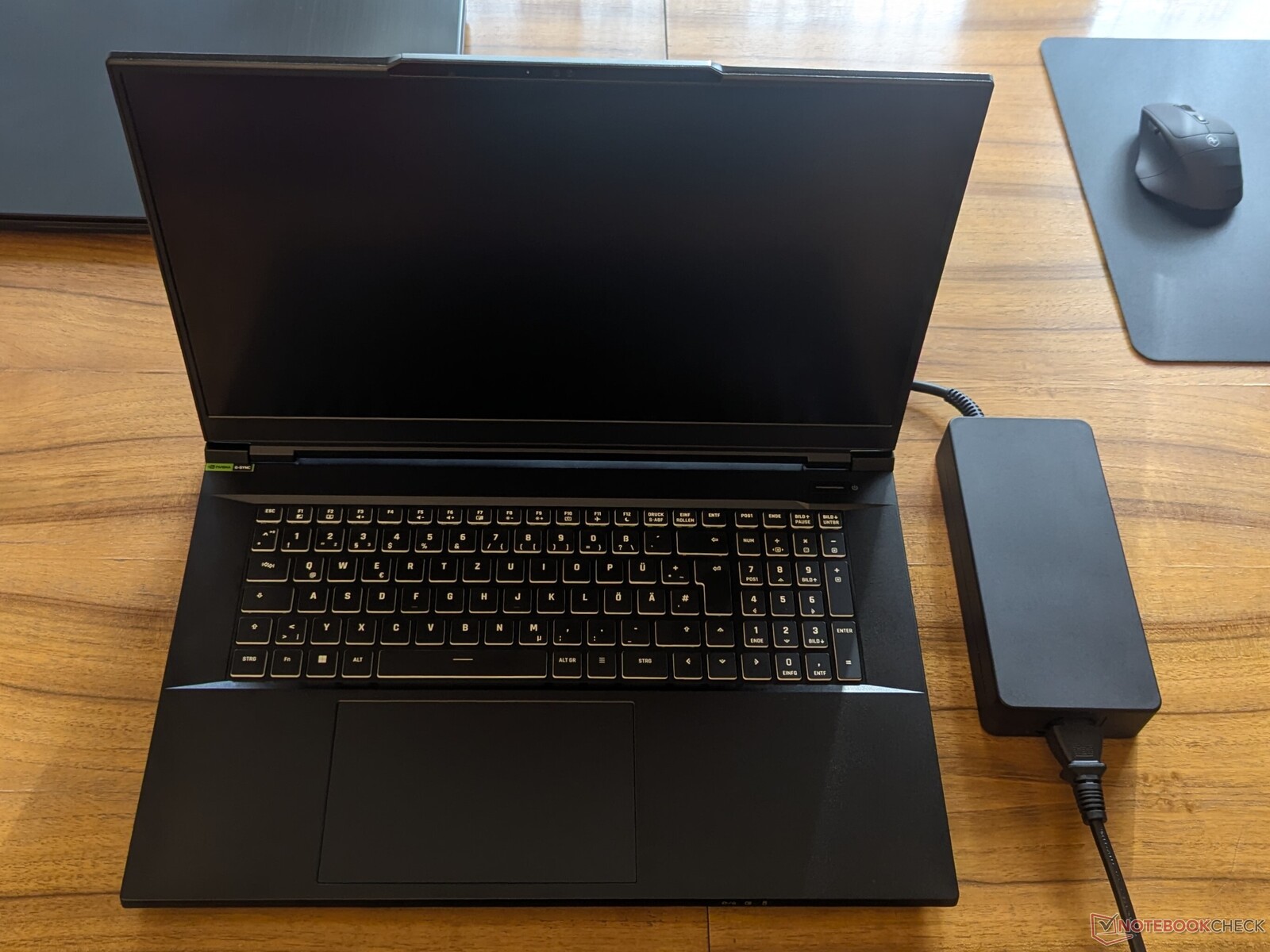

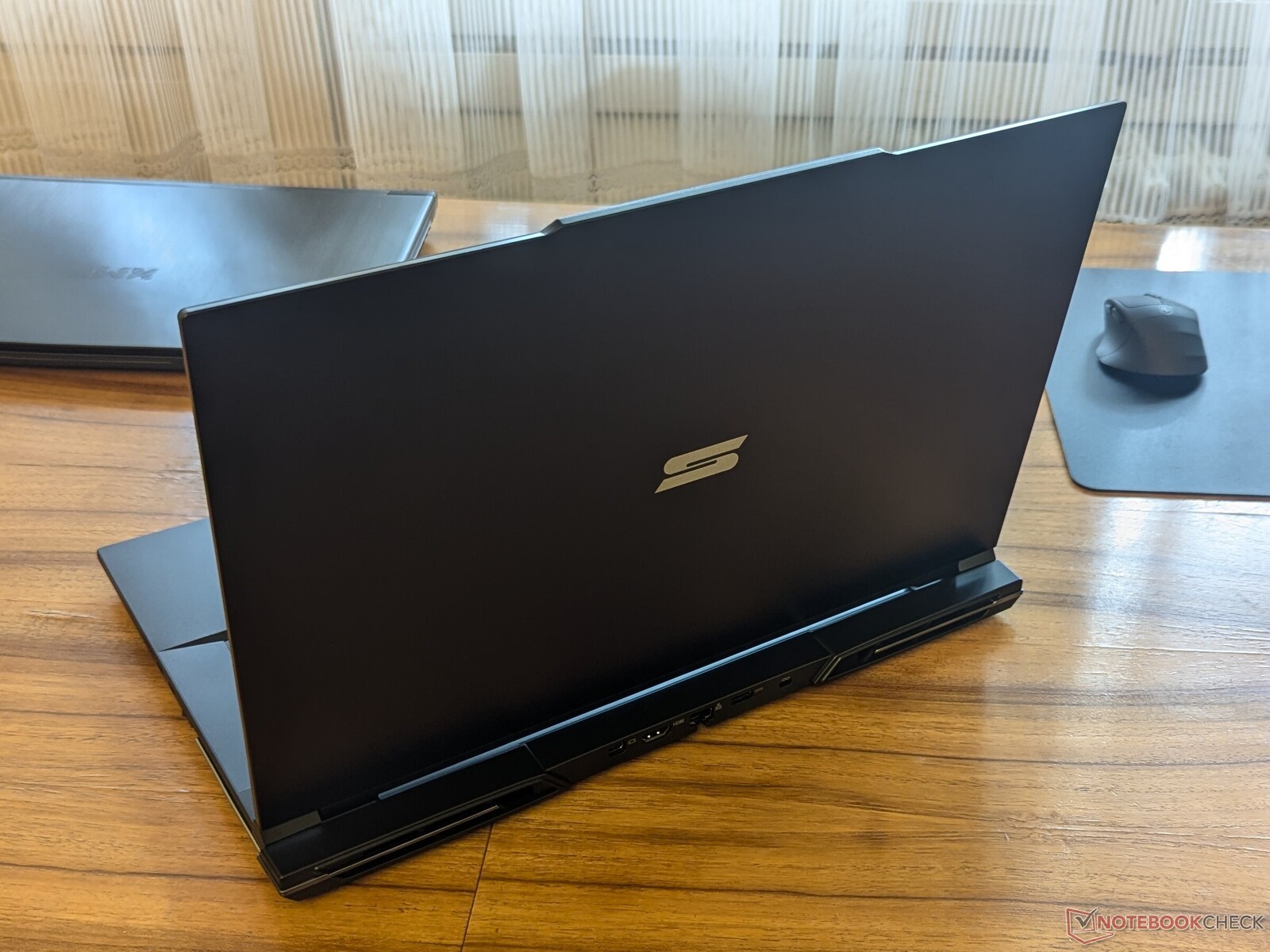

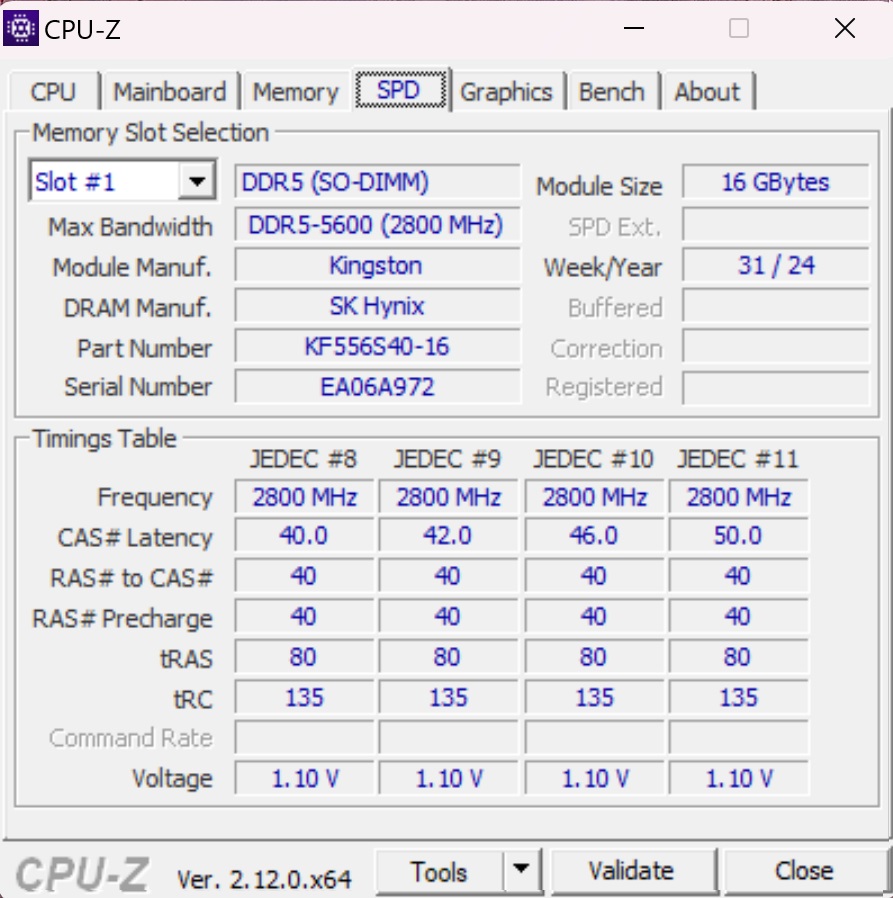

该系统是在 Clevo 提供的裸机上构建的，我们在性能对比中使用的 Eurocom 笔记本电脑也采用了该裸机。由于背板易于拆卸，内存和存储设备可以根据需要随时升级。

在连接性方面，Key 17 Pro 可靠的面向未来的端口选择和最新的网速给人留下了深刻印象。它是少数几个在右侧提供两个雷电 5 接口的机型之一，每个接口的带宽都达到了 80 Gbps。遗憾的是，由于 Nvidia RTX 4090 和英特尔 iGPU 的速度仅限于 DP 1.4 / HDMI 2.1，此外，Barlow Ridge Thunderbolt 5 控制器始终受限于 PCIe 4.0 x4 速度，因此即使同时使用两个端口，总带宽也不会超过 8 GB/s。我们用两块 OWC Envoy Ultra 外置固态硬盘进行了测试，其中一块的速度总是比另一块快，但总带宽最多也只能维持在 8 GB/s 左右。看来新的 Lunar Lake 平台并没有解决这个问题。

因此无法提供 120 Gbps 的提升选项。不过，PCIe 5.0 外置 SSD 还是可以很好地利用双 80 Gbps 带宽。 左侧有两个 USB-A 3.2 Gen 2 端口（只有一个具有电源传输功能），以及麦克风输入或 S/PDIF 光纤和耳机输出音频接口。背面包括电源接口、LAN 插口、HDMI 2.1 全带宽和 mini DisplayPort 1.4a 视频输出。

网络连接速度很快，5G 连接速度可达 900 多 Mb/s，而 6G 速度是我们测试过的最高速度之一，在接收器模式下可达 1.7 Gb/s。

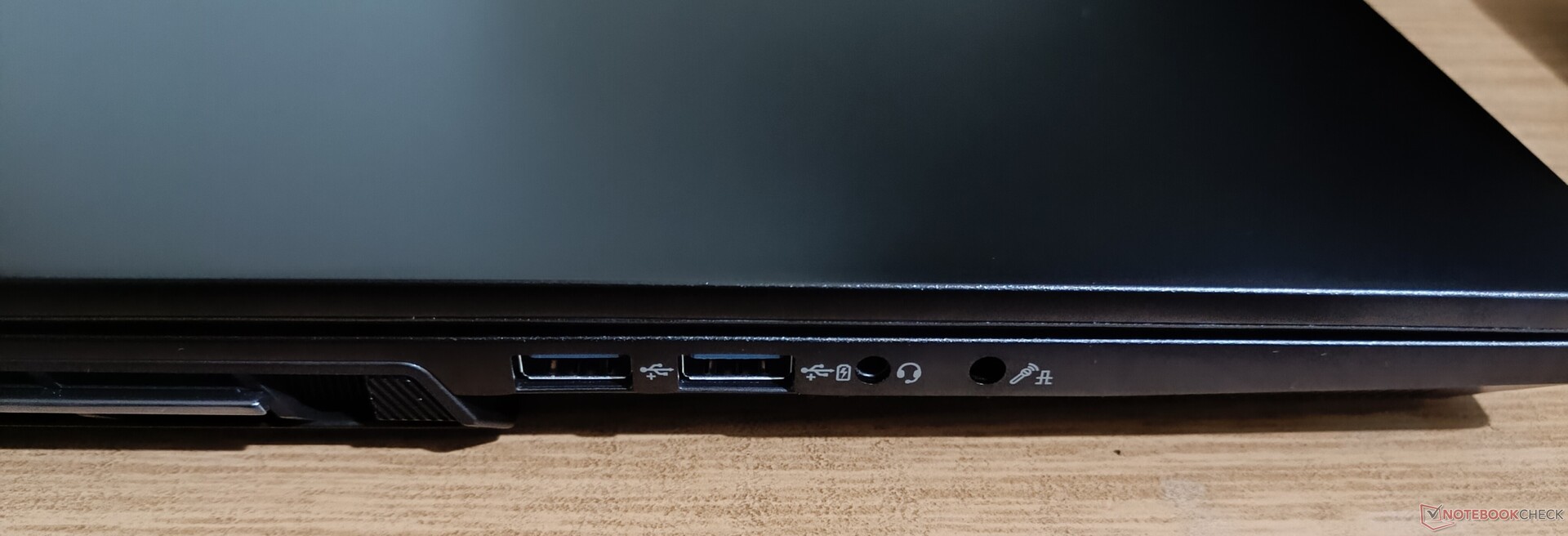

左侧接口：两个 USB-A 3.2 Gen 2（一个供电）、耳机输出 + 麦克风输入 S/PDIF 音频接口
左侧接口：两个 USB-A 3.2 Gen 2（一个供电）、耳机输出 + 麦克风输入 S/PDIF 音频接口

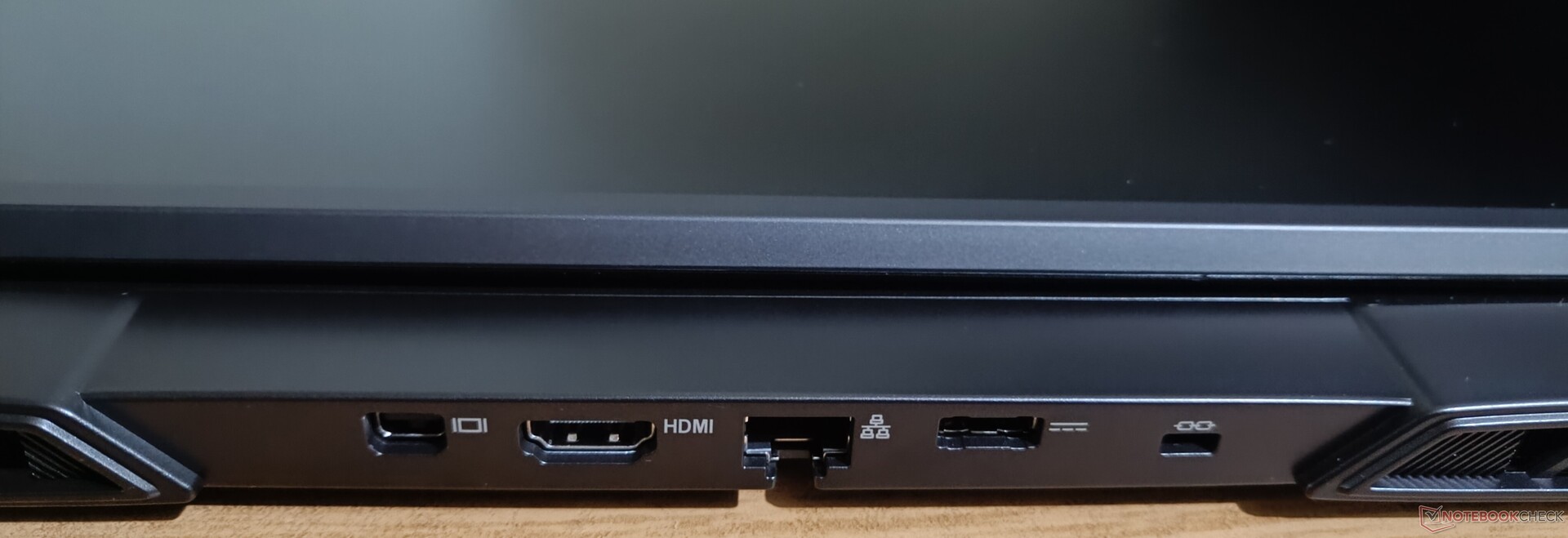

后部连接器：迷你 DisplayPort 1.4a、HDMI 2.1、2.5 GbE 插孔、Poer 插孔、Kensington 锁
后部连接器：迷你 DisplayPort 1.4a、HDMI 2.1、2.5 GbE 插孔、Poer 插孔、Kensington 锁

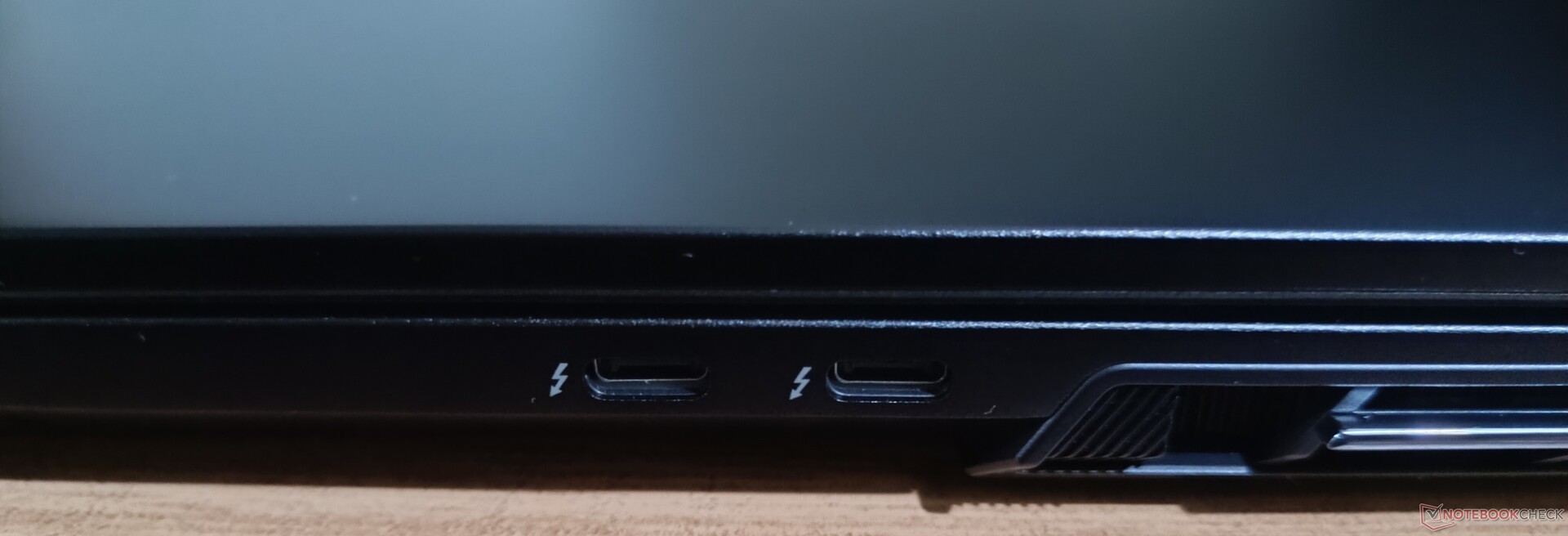

右侧连接器：两个 Thunderbolt 5 端口
右侧连接器：两个 Thunderbolt 5 端口

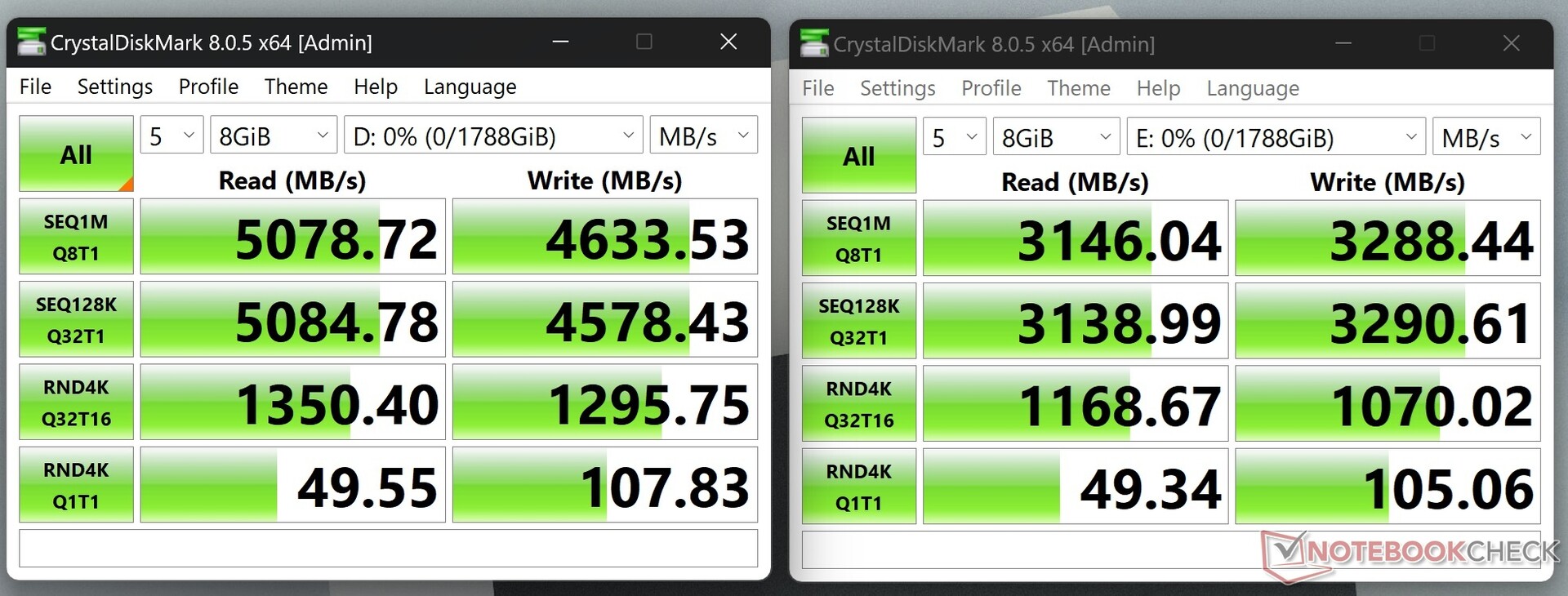

CrystalDiskMark 同步固态硬盘测试（读取速度达到 8 GB/秒）
CrystalDiskMark 同步固态硬盘测试（读取速度达到 8 GB/秒）

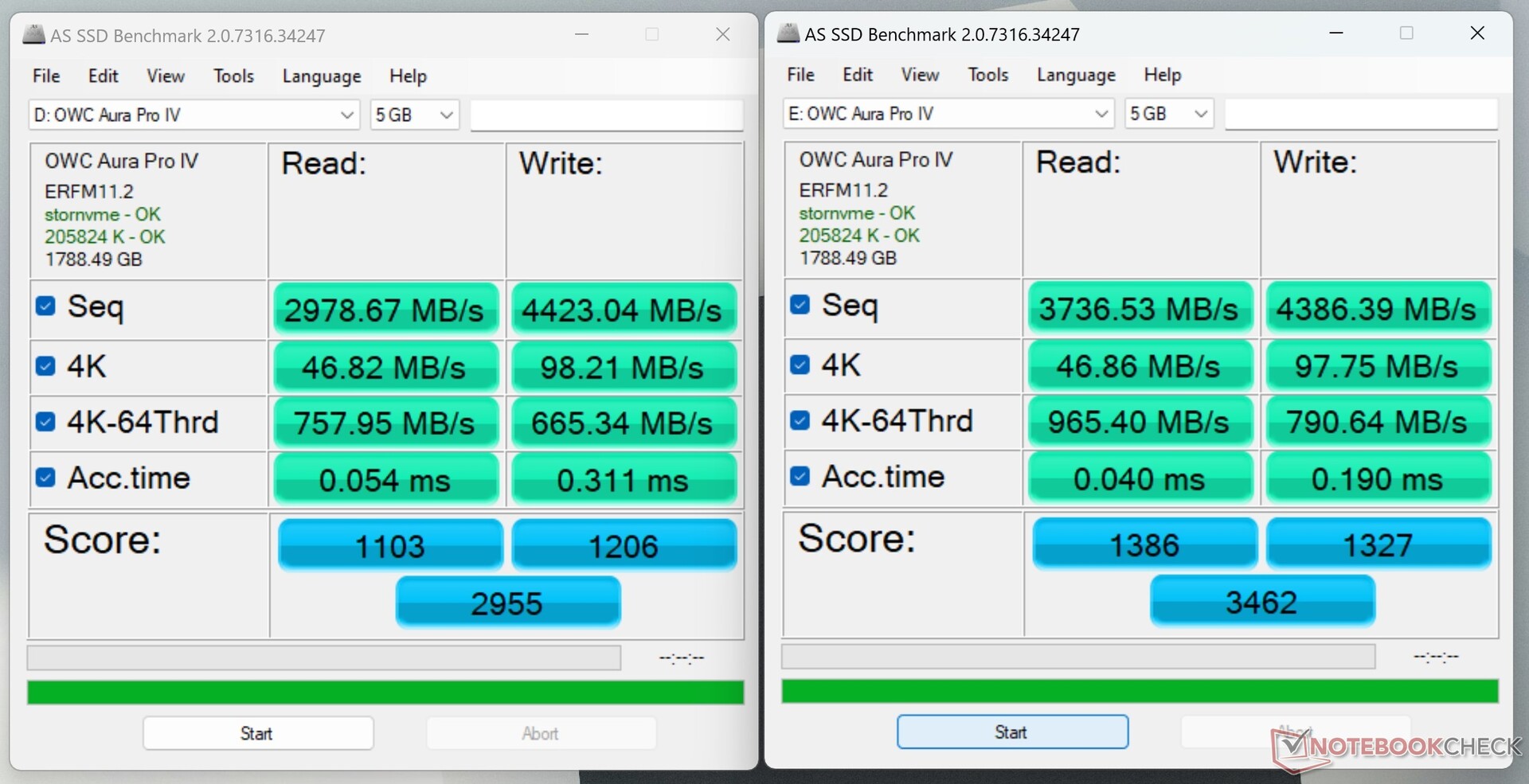

AS SSD 同步测试（写入速度略高于 8 GB/s）
AS SSD 同步测试（写入速度略高于 8 GB/s）

尺寸比较

❌
395 mm 282.1 mm 28.3 mm 2.9 kg396 mm 278 mm 24.9 mm 3.4 kg396 mm 278 mm 24.9 mm 3.4 kg396 mm 293 mm 21.8 mm 2.9 kg363 mm 250 mm 28.5 mm 2.6 kg297 mm 210 mm 1 mm 5.7 g
Networking
iperf3 transmit AXE11000
Aorus 17X AZF
Intel Wi-Fi 6E AX210
1456 (1068min - 1561max) MBit/s +59%
Average Intel Wi-Fi 7 BE200 320MHz
  (469 - 1642, n=20)
1192 MBit/s +30%
Average of class Workstation
  (521 - 1838, n=29, last 2 years)
1135 MBit/s +24%
SCHENKER Key 17 Pro (M24)
Intel Wi-Fi 7 BE200 320MHz
916 (448min - 965max) MBit/s
HP ZBook Fury 16 G11

878 (829min - 937max) MBit/s -4%
Eurocom Raptor X17 Core i9-14900HX
Intel Wi-Fi 6E AX211
793 (386min - 871max) MBit/s -13%
iperf3 receive AXE11000
Aorus 17X AZF
Intel Wi-Fi 6E AX210
1619 (1579min - 1691max) MBit/s +70%
Average of class Workstation
  (827 - 1777, n=29, last 2 years)
1409 MBit/s +48%
Average Intel Wi-Fi 7 BE200 320MHz
  (838 - 1701, n=20)
1358 MBit/s +43%
Eurocom Raptor X17 Core i9-14900HX
Intel Wi-Fi 6E AX211
1214 (1011min - 1285max) MBit/s +28%
SCHENKER Key 17 Pro (M24)
Intel Wi-Fi 7 BE200 320MHz
951 (473min - 961max) MBit/s
HP ZBook Fury 16 G11

852 (750min - 875max) MBit/s -10%
iperf3 transmit AXE11000 6GHz
SCHENKER Key 17 Pro (M24)
Intel Wi-Fi 7 BE200 320MHz
1634 (812min - 1725max) MBit/s
HP ZBook Fury 16 G11

1505 (760min - 1591max) MBit/s -8%
Average Intel Wi-Fi 7 BE200 320MHz
  (943 - 1653, n=15)
1390 MBit/s -15%
Average of class Workstation
  (623 - 1634, n=24, last 2 years)
1235 MBit/s -24%
Eurocom Raptor X17 Core i9-14900HX
Intel Wi-Fi 6E AX211
691 (640min - 779max) MBit/s -58%
iperf3 receive AXE11000 6GHz
SCHENKER Key 17 Pro (M24)
Intel Wi-Fi 7 BE200 320MHz
1714 (853min - 1741max) MBit/s
HP ZBook Fury 16 G11

1599 (1565min - 1622max) MBit/s -7%
Average of class Workstation
  (1106 - 1774, n=24, last 2 years)
1547 MBit/s -10%
Average Intel Wi-Fi 7 BE200 320MHz
  (1149 - 1770, n=15)
1537 MBit/s -10%
Eurocom Raptor X17 Core i9-14900HX
Intel Wi-Fi 6E AX211
1227 (1158min - 1258max) MBit/s -28%
050100150200250300350400450500550600650700750800850900950100010501100115012001250130013501400145015001550160016501700Tooltip
SCHENKER Key 17 Pro (M24) Intel Wi-Fi 7 BE200 320MHz; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1607 (812-1725)
Eurocom Raptor X17 Core i9-14900HX Intel Wi-Fi 6E AX211; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø691 (640-779)
HP ZBook Fury 16 G11  ; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1480 (760-1591)
SCHENKER Key 17 Pro (M24) Intel Wi-Fi 7 BE200 320MHz; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1685 (853-1741)
Eurocom Raptor X17 Core i9-14900HX Intel Wi-Fi 6E AX211; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1226 (1158-1258)
HP ZBook Fury 16 G11  ; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1598 (1565-1622)
SCHENKER Key 17 Pro (M24) Intel Wi-Fi 7 BE200 320MHz; iperf3 transmit AXE11000; iperf 3.1.3: Ø902 (448-965)
Eurocom Raptor X17 Core i9-14900HX Intel Wi-Fi 6E AX211; iperf3 transmit AXE11000; iperf 3.1.3: Ø780 (386-871)
HP ZBook Fury 16 G11  ; iperf3 transmit AXE11000; iperf 3.1.3: Ø878 (829-937)
Aorus 17X AZF Intel Wi-Fi 6E AX210; iperf3 transmit AXE11000; iperf 3.1.3: Ø1456 (1068-1561)
SCHENKER Key 17 Pro (M24) Intel Wi-Fi 7 BE200 320MHz; iperf3 receive AXE11000; iperf 3.1.3: Ø935 (473-961)
Eurocom Raptor X17 Core i9-14900HX Intel Wi-Fi 6E AX211; iperf3 receive AXE11000; iperf 3.1.3: Ø1213 (1011-1285)
HP ZBook Fury 16 G11  ; iperf3 receive AXE11000; iperf 3.1.3: Ø852 (750-875)
Aorus 17X AZF Intel Wi-Fi 6E AX210; iperf3 receive AXE11000; iperf 3.1.3: Ø1618 (1579-1691)

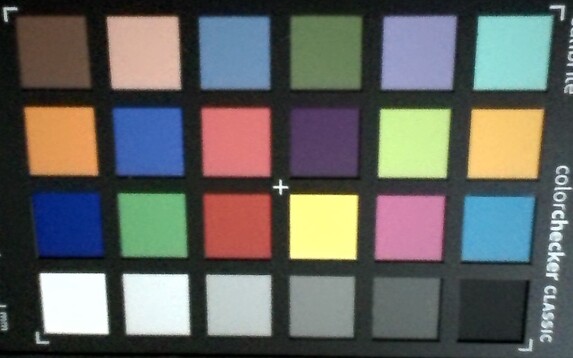

ColorChecker
5.5 ∆E
8 ∆E
7.8 ∆E
6.9 ∆E
8 ∆E
9.4 ∆E
7.5 ∆E
6 ∆E
11.3 ∆E
3.8 ∆E
14.8 ∆E
10.8 ∆E
7.3 ∆E
11.8 ∆E
9.3 ∆E
15.1 ∆E
12.9 ∆E
11.8 ∆E
3.4 ∆E
11.5 ∆E
13.6 ∆E
12.2 ∆E
9.6 ∆E
5.6 ∆E
ColorChecker SCHENKER Key 17 Pro (M24): 9.34 ∆E min: 3.43 - max: 15.07 ∆E

输入设备

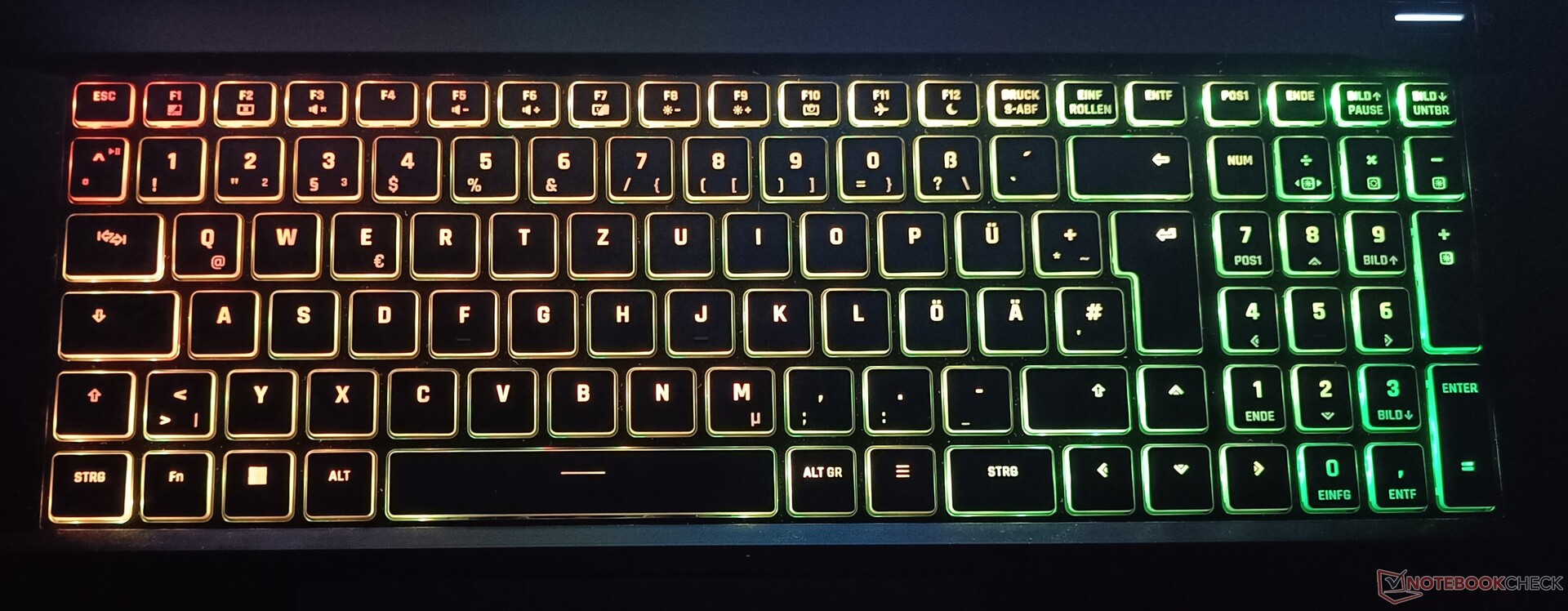

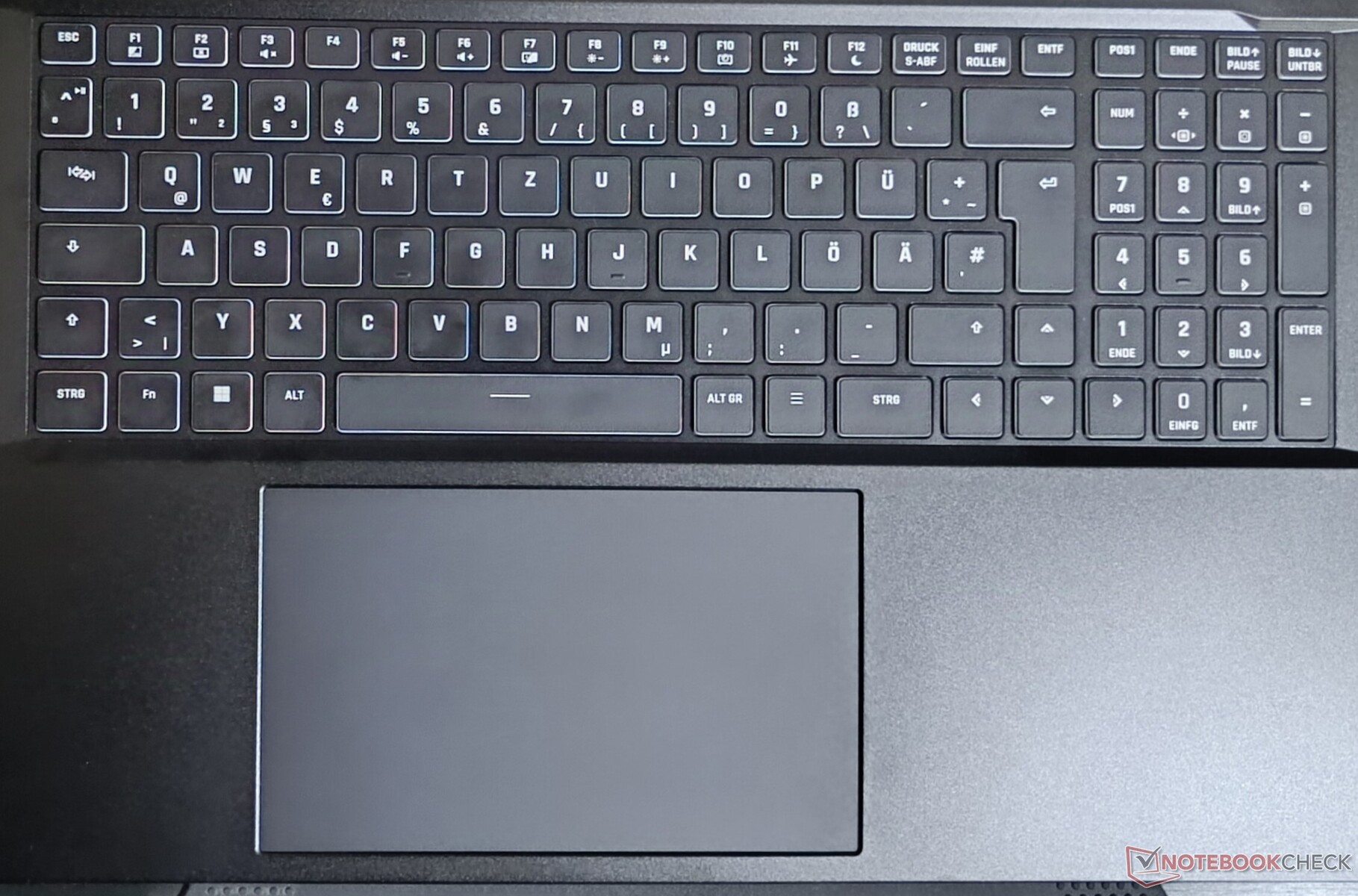

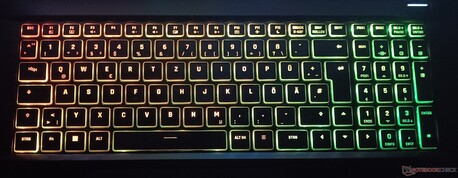

由于这是一款 17 英寸笔记本电脑，因此它配备了带数字键盘和方向键的全尺寸键盘。chiclet机构允许中等行程，提供足够舒适的打字体验。测试机型采用德文布局，但申克提供其他欧洲布局和美国 EN 默认布局。按键具有每个像素的 RGB 灯光，可在专门的控制中心应用程序中进行自定义。

触摸板的尺寸足够大（150 x 90 毫米），由于采用了创新的表面设计，触感如丝般顺滑，从而提高了滑动性。它还具有手掌识别功能，当手掌下侧放在触摸板上时，可防止意外输入。

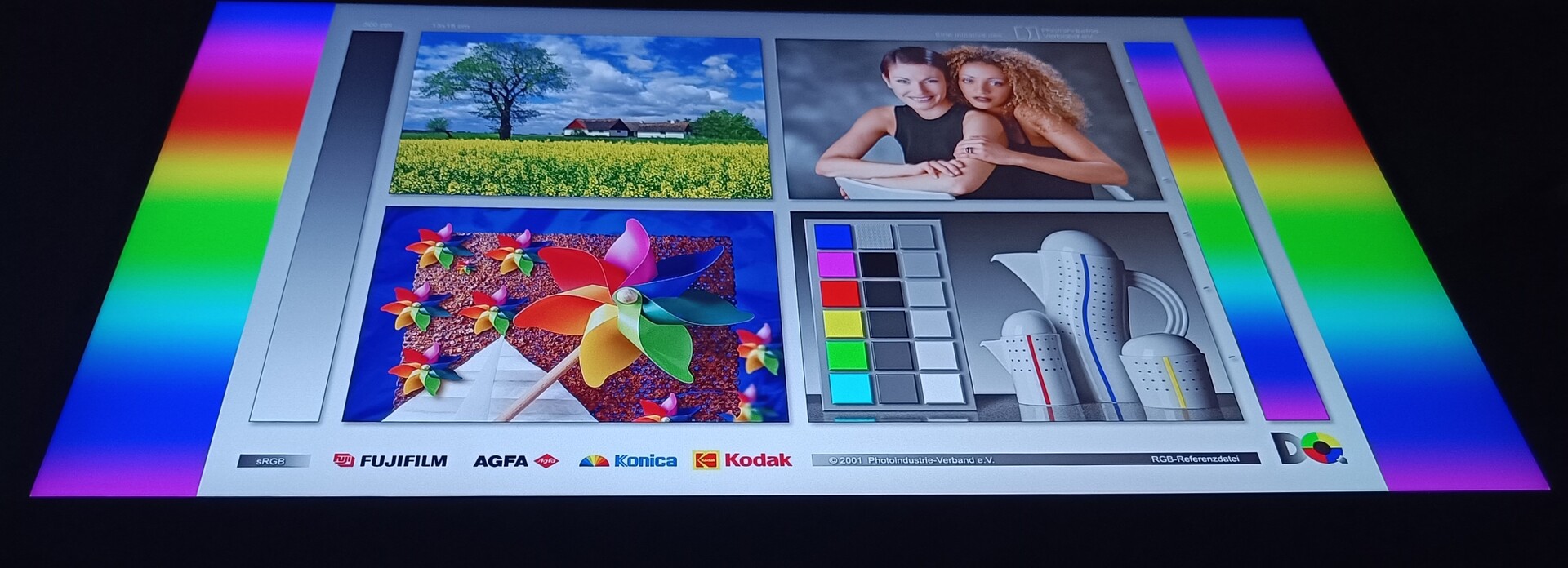

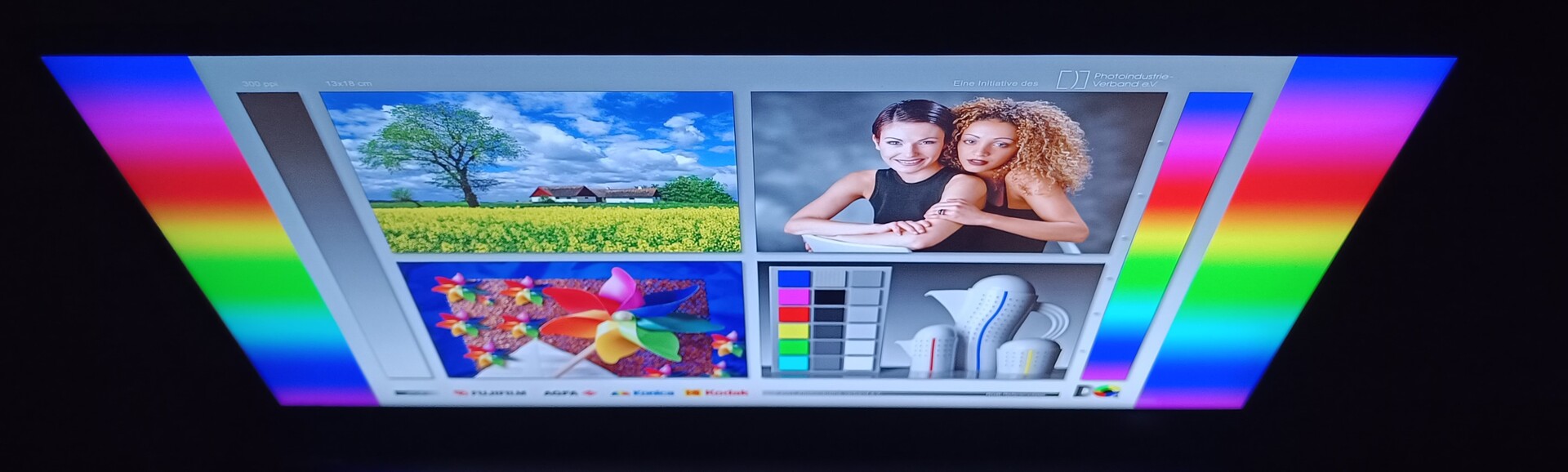

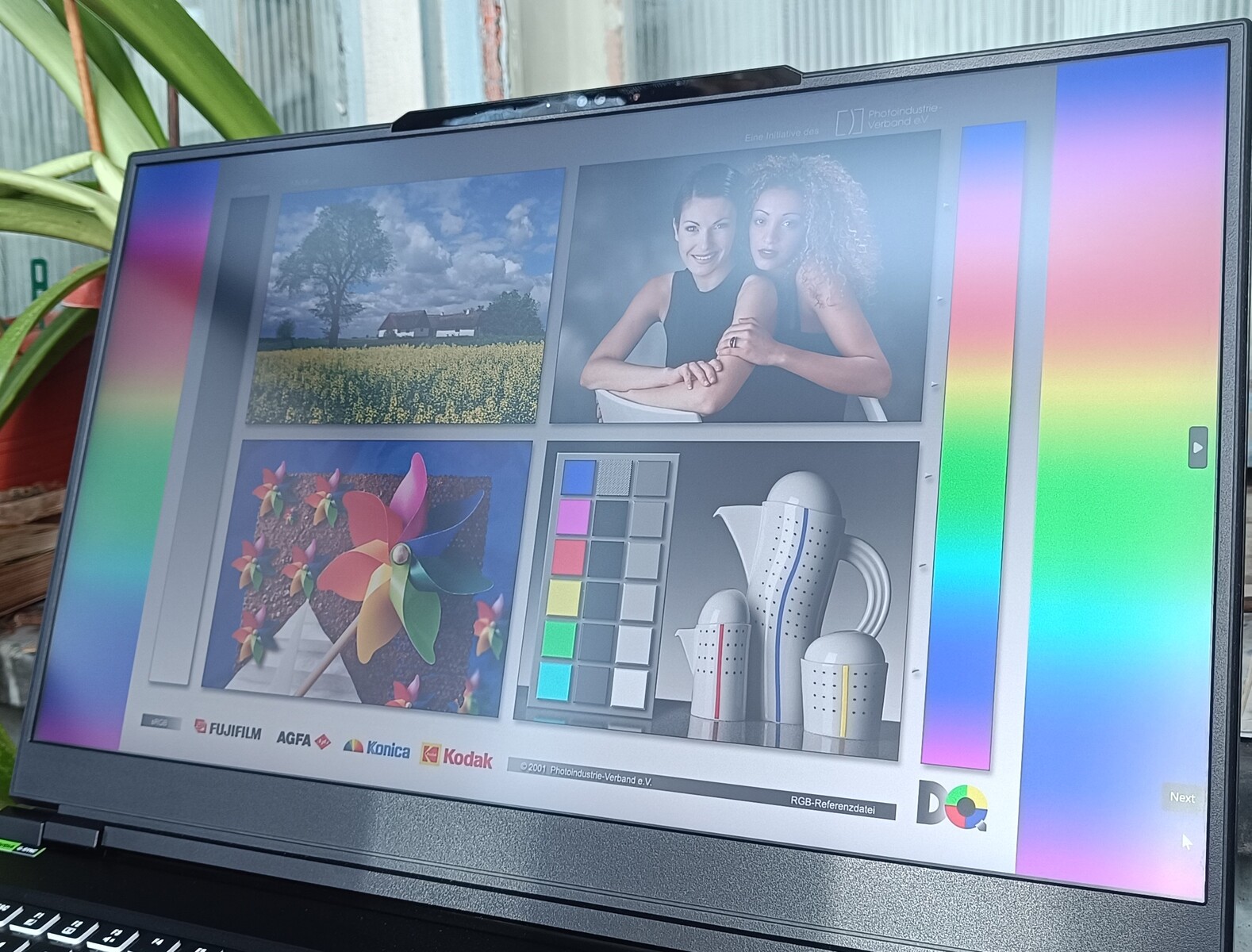

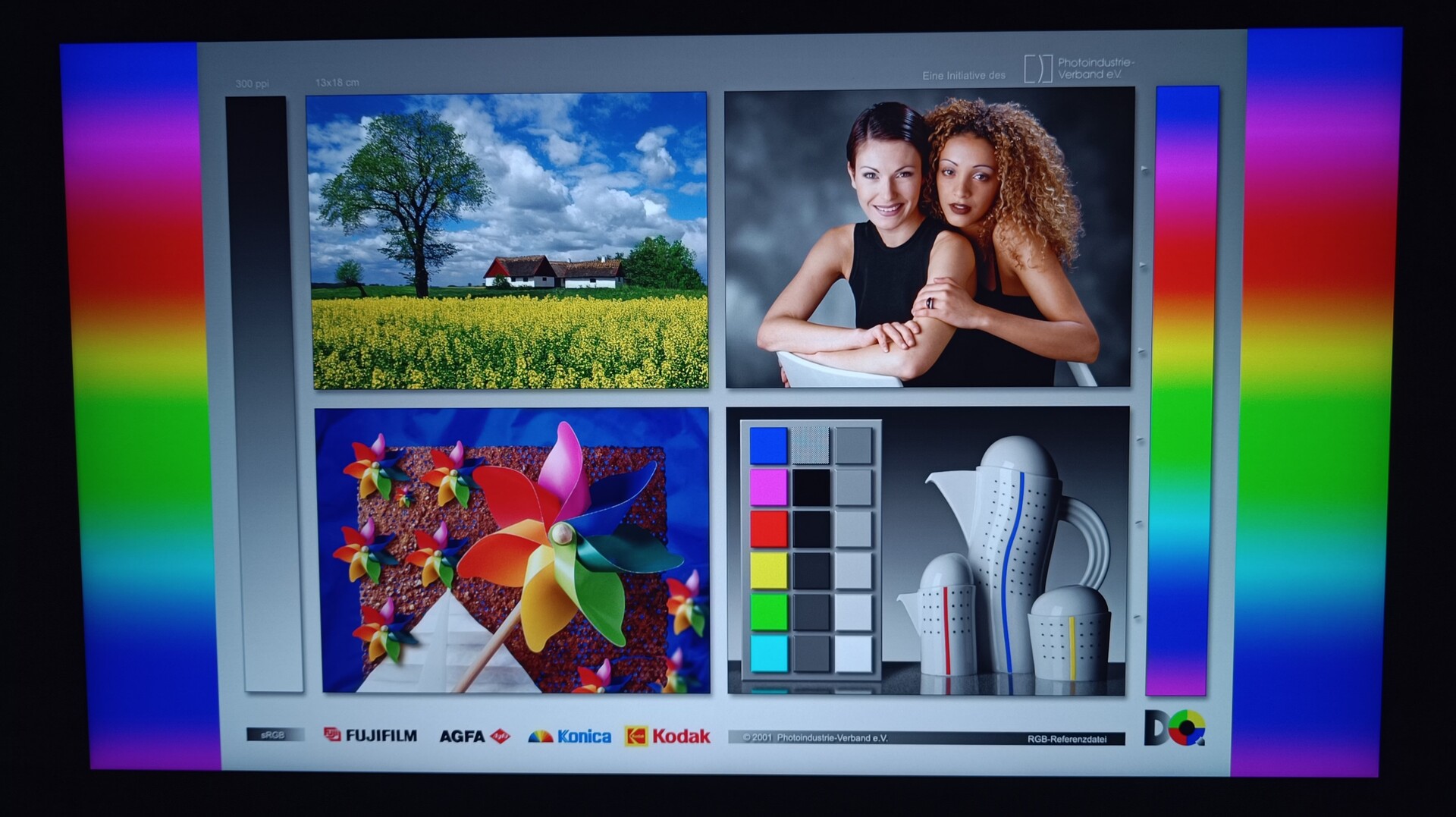

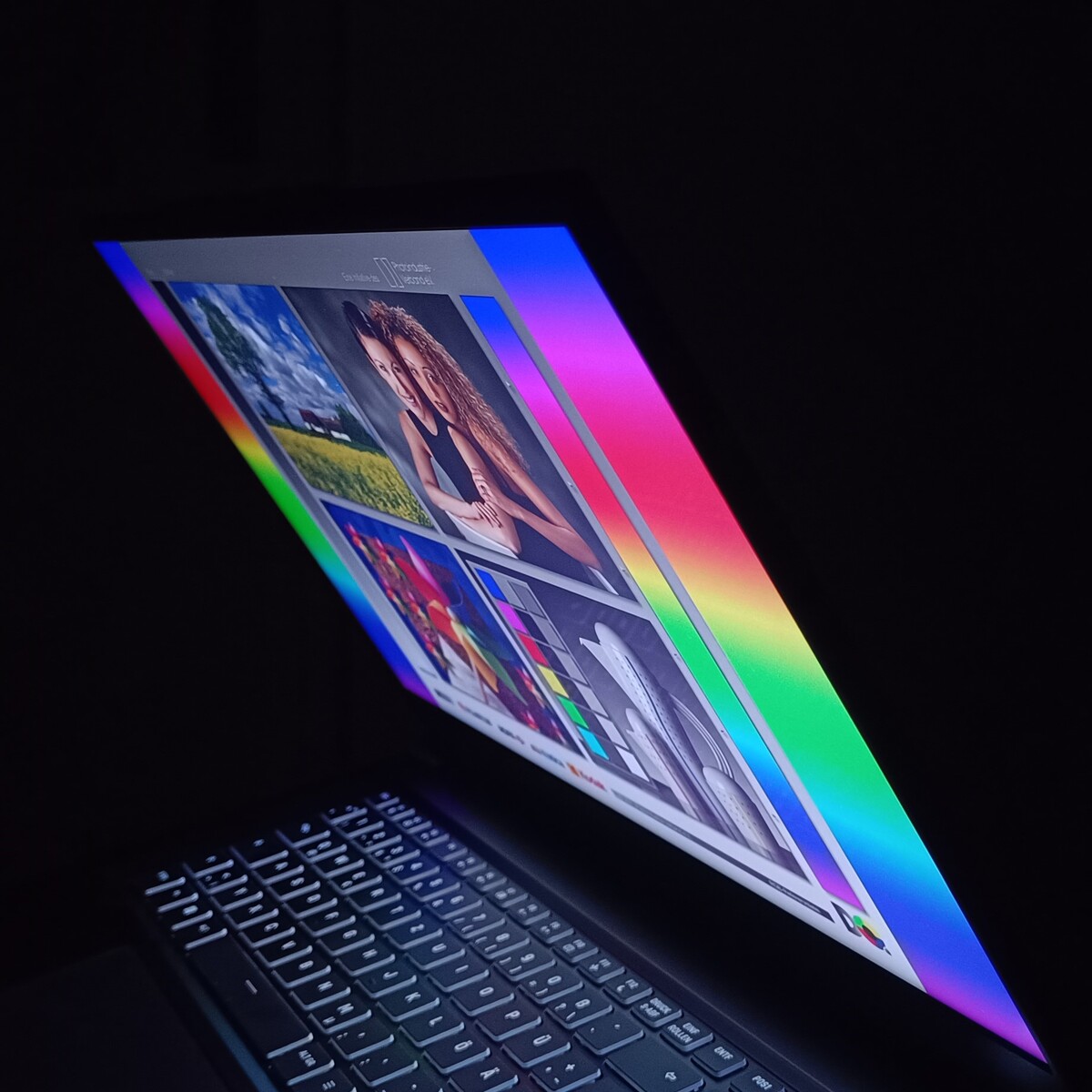

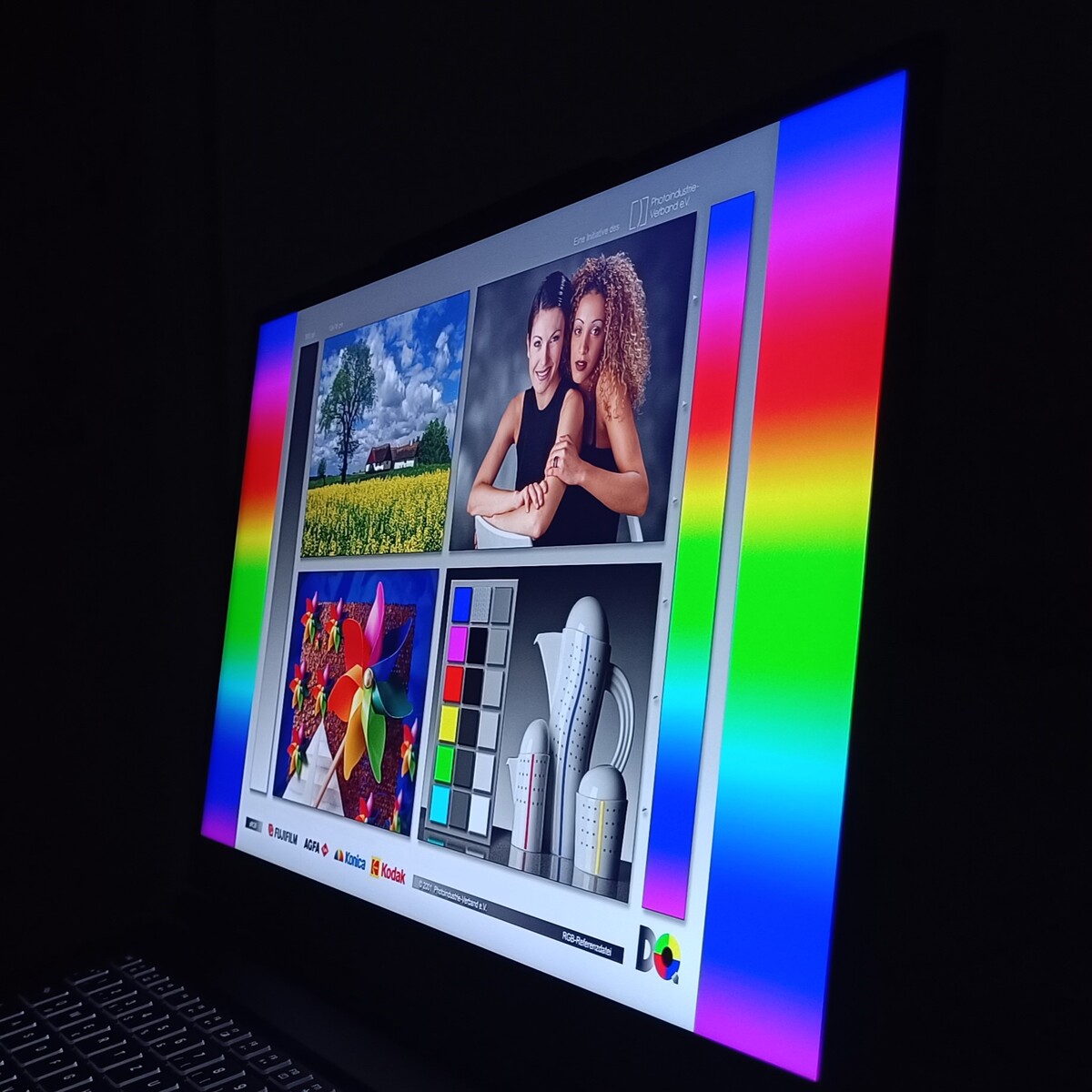

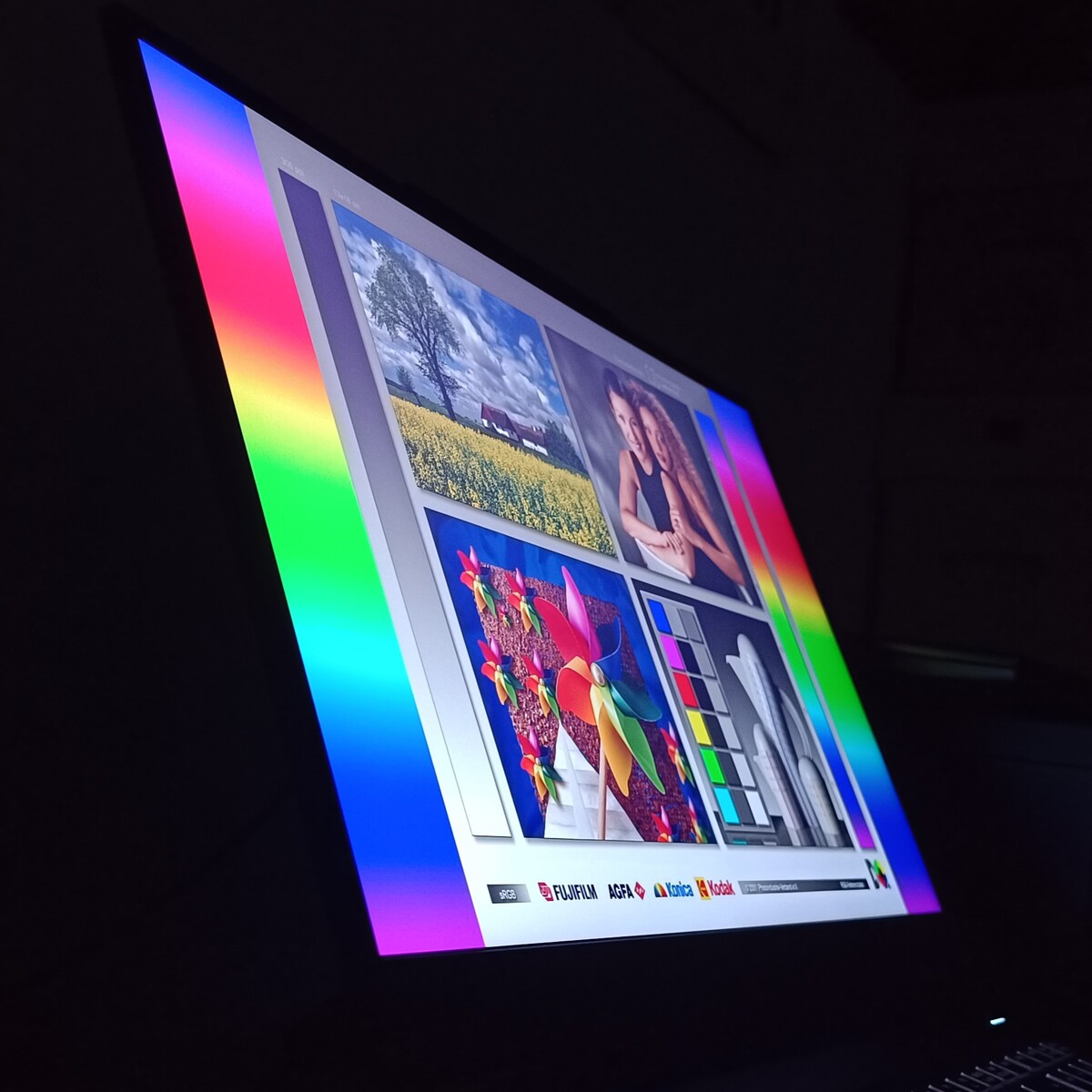

显示屏

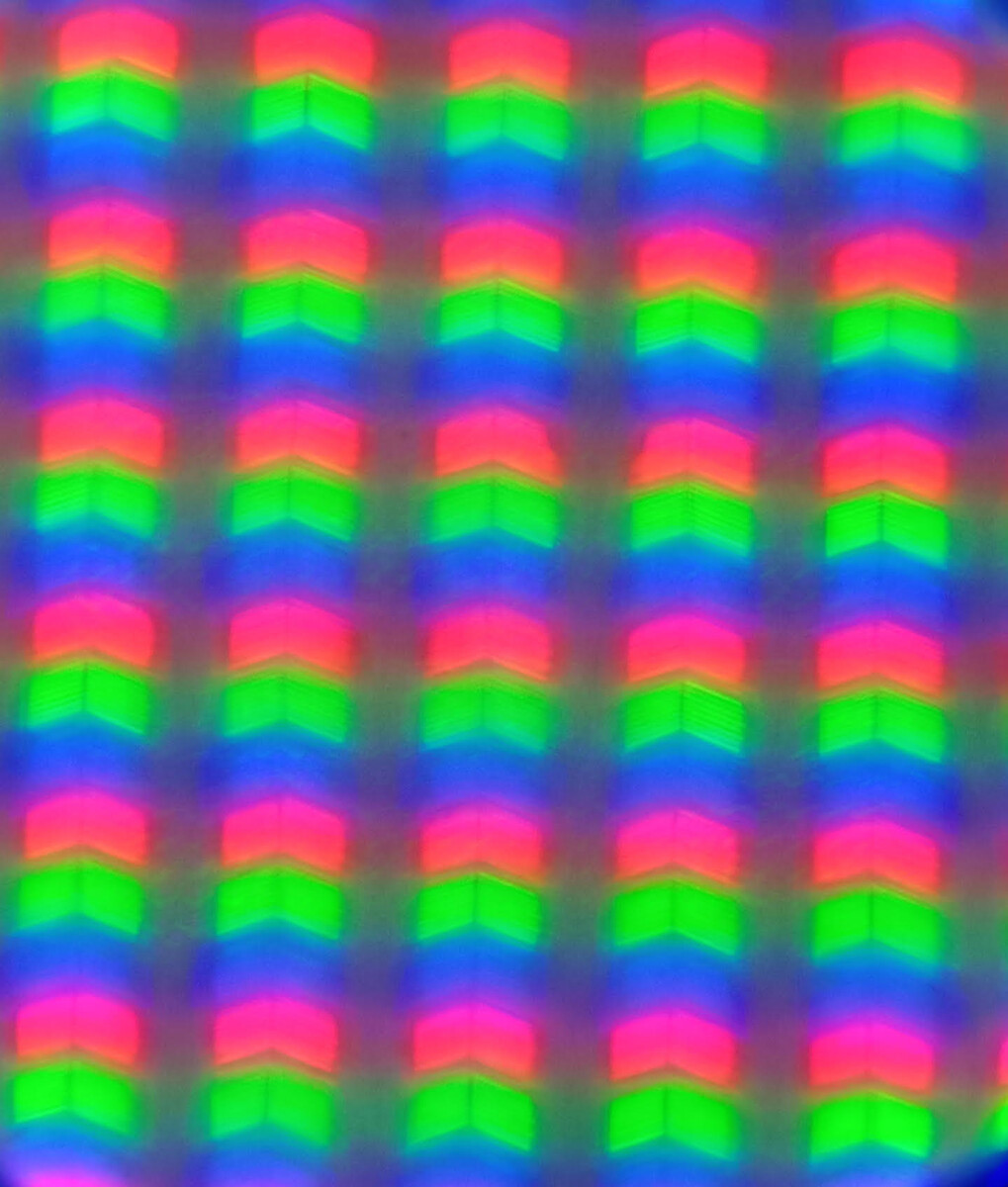

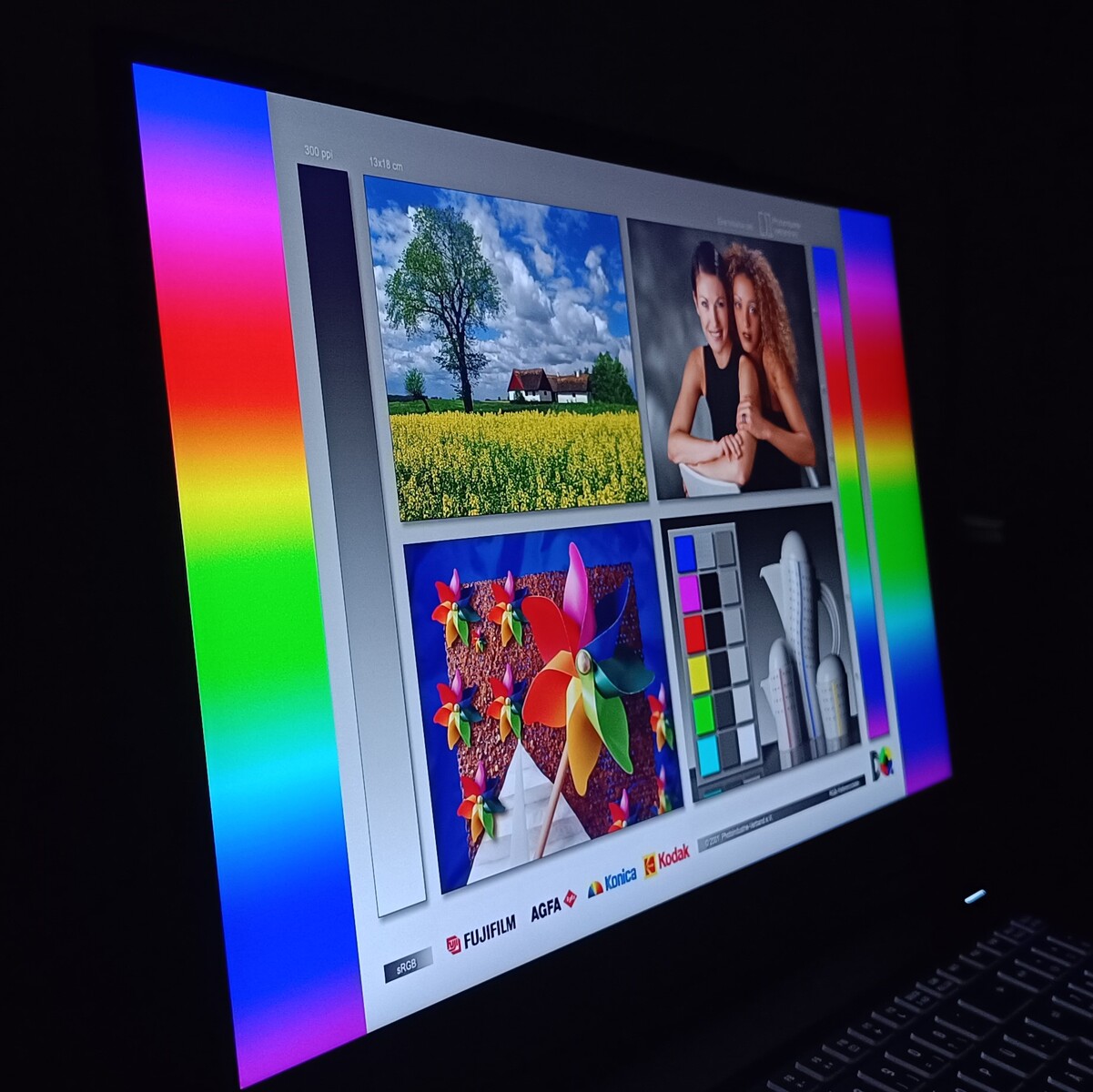

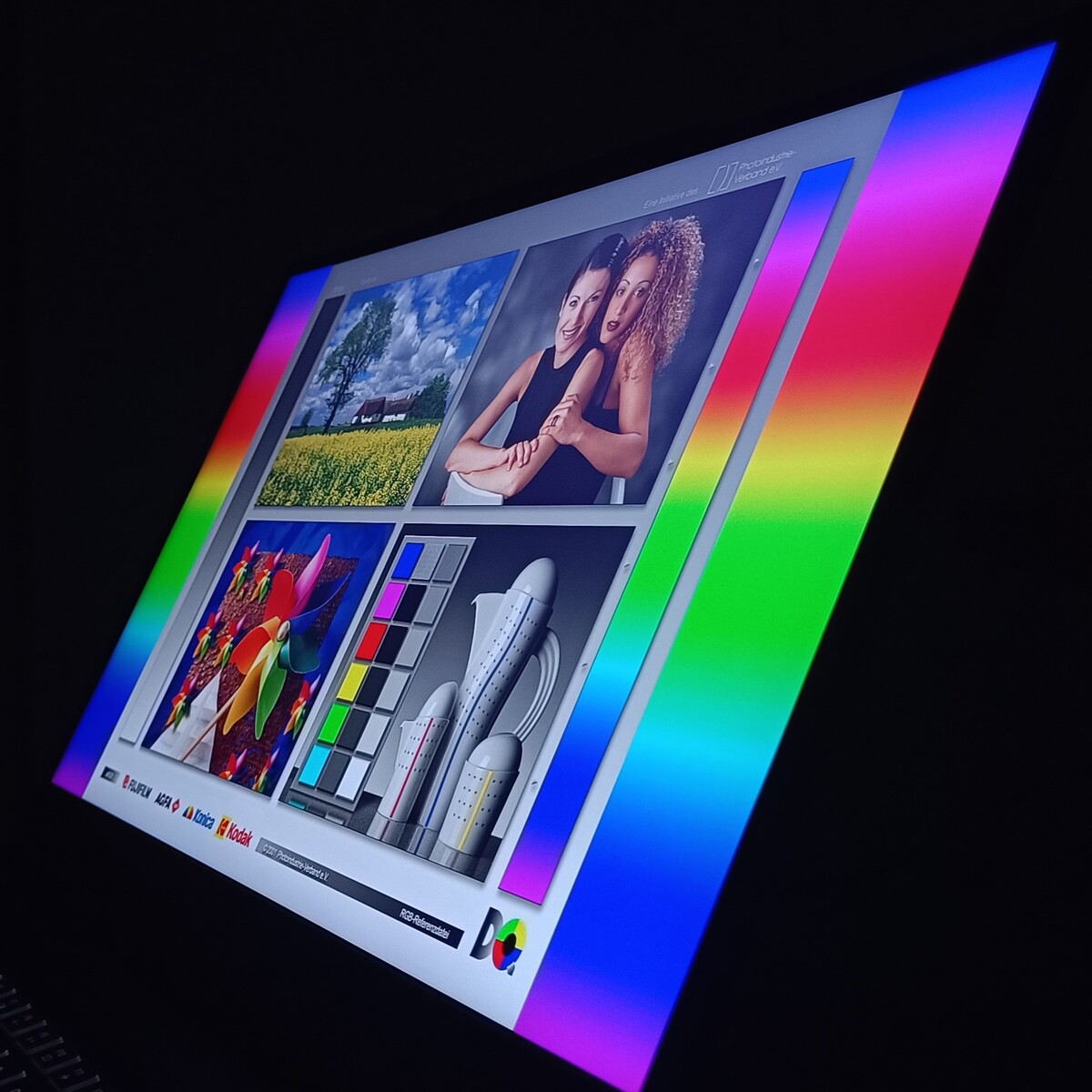

测试机配备了京东方生产的 3840 X 2160 IPS 液晶屏。它的最大刷新率为 144 Hz，支持 G-SYNC。此外，还有 2560 X 1440 240 Hz 300 nit 版本。

sRGB 色彩还原度确实如宣传的那样达到了 99%，但 DCI-P3 色域为 93%，而不是宣传的 99%。由于采用了非亮光涂层，对比度略有下降，黑色水平略有提高，为 0.54 cd/m²。不过，更亮的屏幕弥补了对比度较低的不足。开箱后的色彩准确度有些偏差，我们能够将 DCI-P3 色域的 dE 从 3.81 降低到 2.54。

响应时间对于一般使用和内容创建来说不错，但对于快节奏的射击游戏来说，11.6 毫秒的响应时间可能会略显缓慢。未检测到 PWM 或屏幕闪烁。

503
cd/m²		499
cd/m²		519
cd/m²
496
cd/m²		548
cd/m²		500
cd/m²
491
cd/m²		517
cd/m²		472
cd/m²
Distribution of brightness
BOE tested with X-Rite i1Pro 3
Maximum: 548 cd/m² (Nits) Average: 505 cd/m² Minimum: 29 cd/m²
Brightness Distribution: 86 %
Center on Battery: 555 cd/m²
Contrast: 1015:1 (Black: 0.54 cd/m²)
ΔE Color 3.81 | 0.5-29.43 Ø4.91, calibrated: 2.54
ΔE Greyscale 5.4 | 0.5-98 Ø5.2
84.33% AdobeRGB 1998 (Argyll 2.2.0 3D)
99.86% sRGB (Argyll 2.2.0 3D)
93.51% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.062
SCHENKER Key 17 Pro (M24)
BOE, IPS, 3840x2160, 17.3", 144 Hz		Eurocom Raptor X17 Core i9-14900HX
BOE CQ NE173QUM-NY1, IPS, 3840x2160, 17.3", 144 Hz		HP ZBook Fury 16 G11
AUO87A8, IPS, 3840x2400, 16", 120 Hz		Aorus 17X AZF
BOE09F9, IPS, 2560x1440, 17.3", 240 Hz
Display
1%
2%
1%
Display P3 Coverage
93.51
95.9
3%
98.4
5%
96.7
3%
sRGB Coverage
99.86
99.8
0%
99.9
0%
99.9
0%
AdobeRGB 1998 Coverage
84.33
84.2
0%
86
2%
84.5
0%
Response Times
-59%
-19%
-45%
Response Time Grey 50% / Grey 80% *
11.593 ?(5.307, 6.286)
14.8 ?(7.2, 7.6)
-28%
11.4 ?(5.3, 6.1)
2%
14 ?(6.9, 7.1)
-21%
Response Time Black / White *
6 ?(1.5, 4.5)
11.4 ?(6.1, 5.3)
-90%
8.4 ?(4.7, 3.7)
-40%
10.1 ?(5.3, 4.8)
-68%
PWM Frequency
Screen
12%
18%
14%
Brightness middle
548
544.6
-1%
457.6
-16%
294
-46%
Brightness
505
507
0%
466
-8%
276
-45%
Brightness Distribution
86
77
-10%
83
-3%
90
5%
Black Level *
0.54
0.48
11%
0.43
20%
0.28
48%
Contrast
1015
1135
12%
1064
5%
1050
3%
Colorchecker dE 2000 *
3.81
3.38
11%
2.78
27%
2.81
26%
Colorchecker dE 2000 max. *
7.9
7.13
10%
5.53
30%
5.7
28%
Colorchecker dE 2000 calibrated *
2.54
1.03
59%
1.37
46%
0.86
66%
Greyscale dE 2000 *
5.4
4.3
20%
2
63%
3.4
37%
Gamma
2.062 107%
2.42 91%
2.28 96%
2.301 96%
CCT
7224 90%
7356 88%
6806 96%
7389 88%
Total Average (Program / Settings)
-15% / -0%
0% / 10%
-10% / 3%

* ... smaller is better

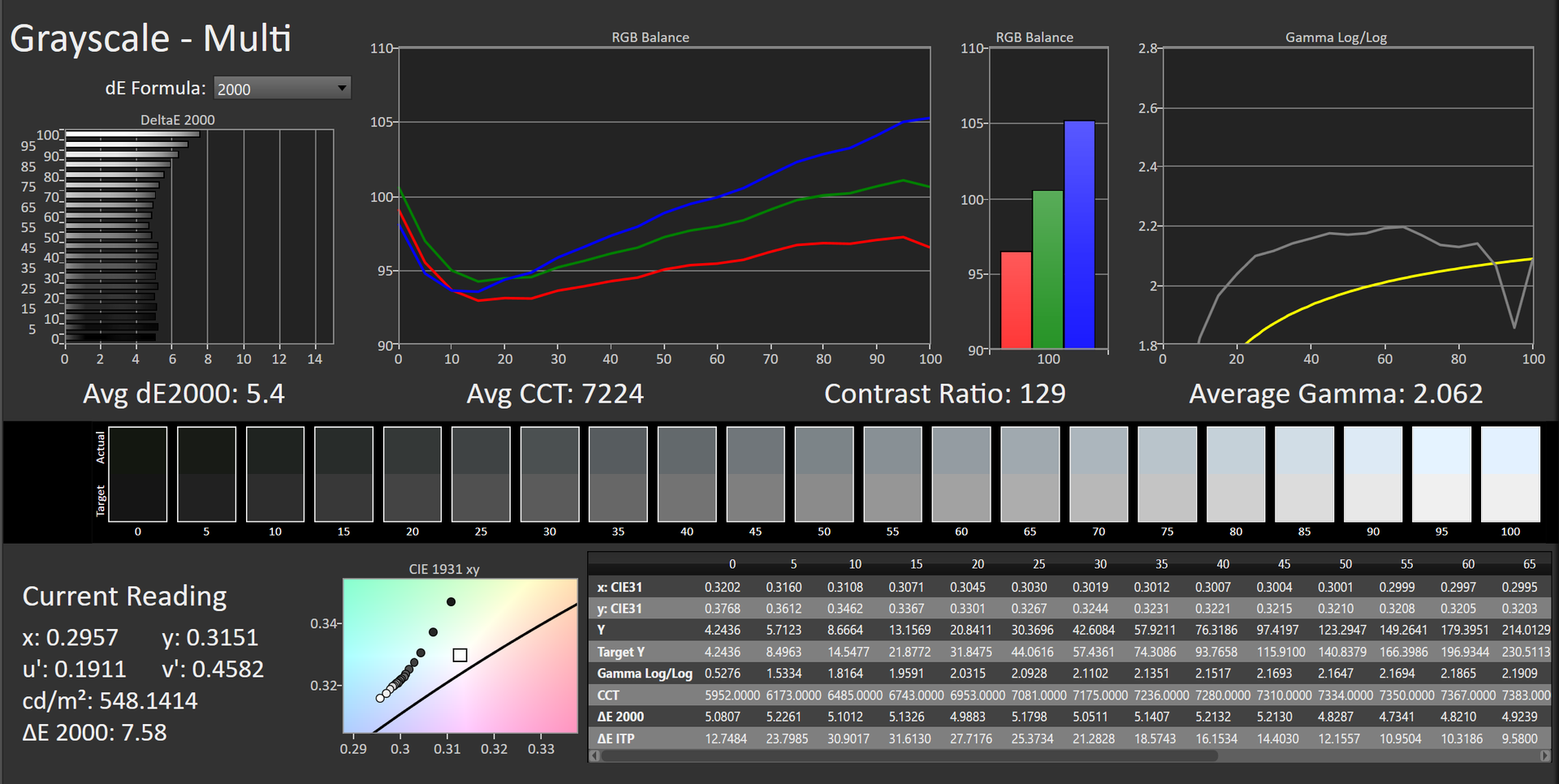

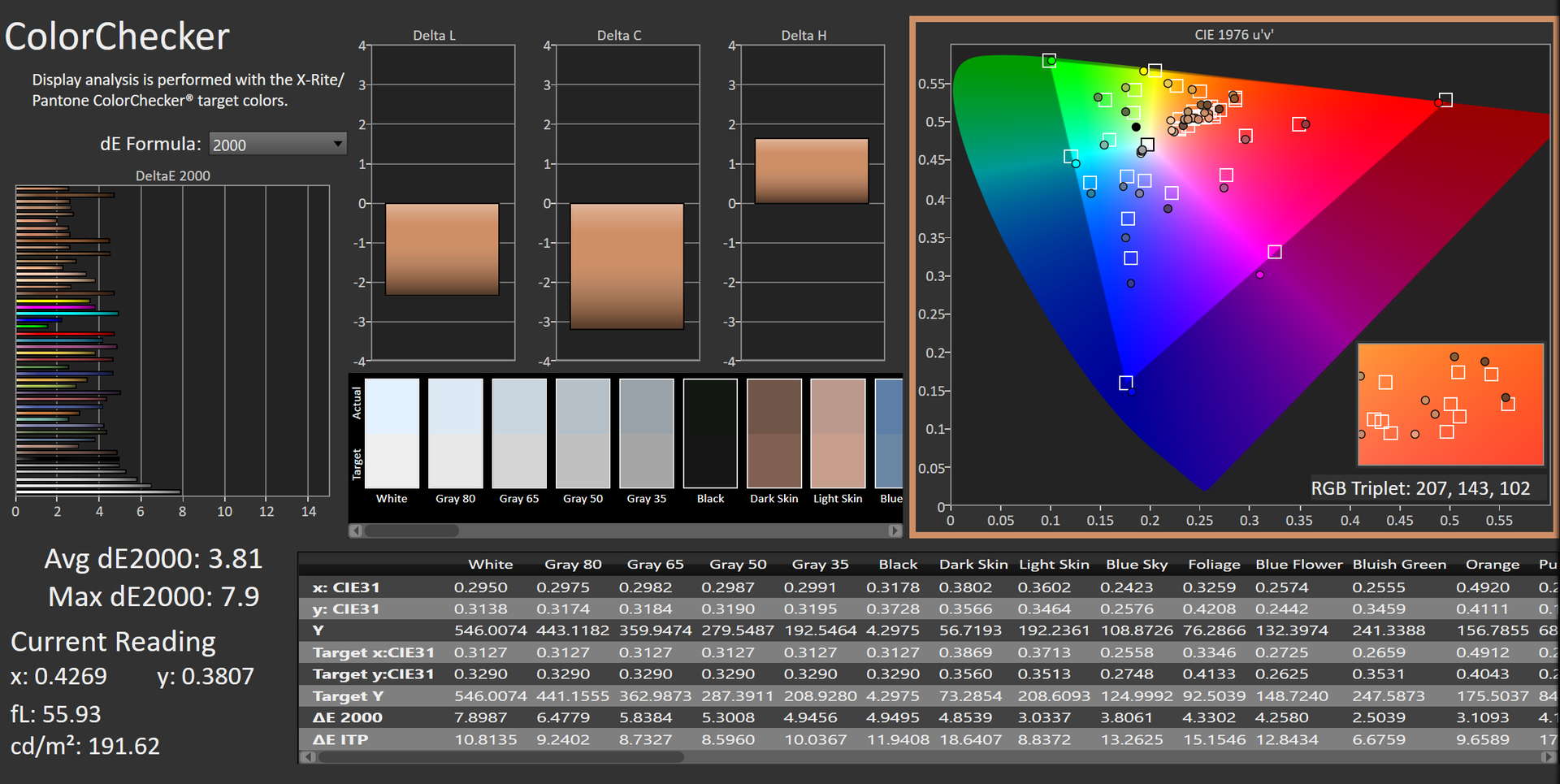

默认灰度向蓝色偏移，将平均 deltaE 推高至 5.4。使用 X-Rite i1Pro 3 色度计进行 DCI-P3 校准后，deltaE 降至 2.8，但蓝色、红色和少量紫色色调仍有些偏差，因此对于需要更精确色彩的内容创作，可能不建议使用该显示器。由此产生的校准 ICM 配置文件可在上面免费下载。

默认灰度
默认灰度
默认颜色检查器
默认颜色检查器
默认饱和度
默认饱和度

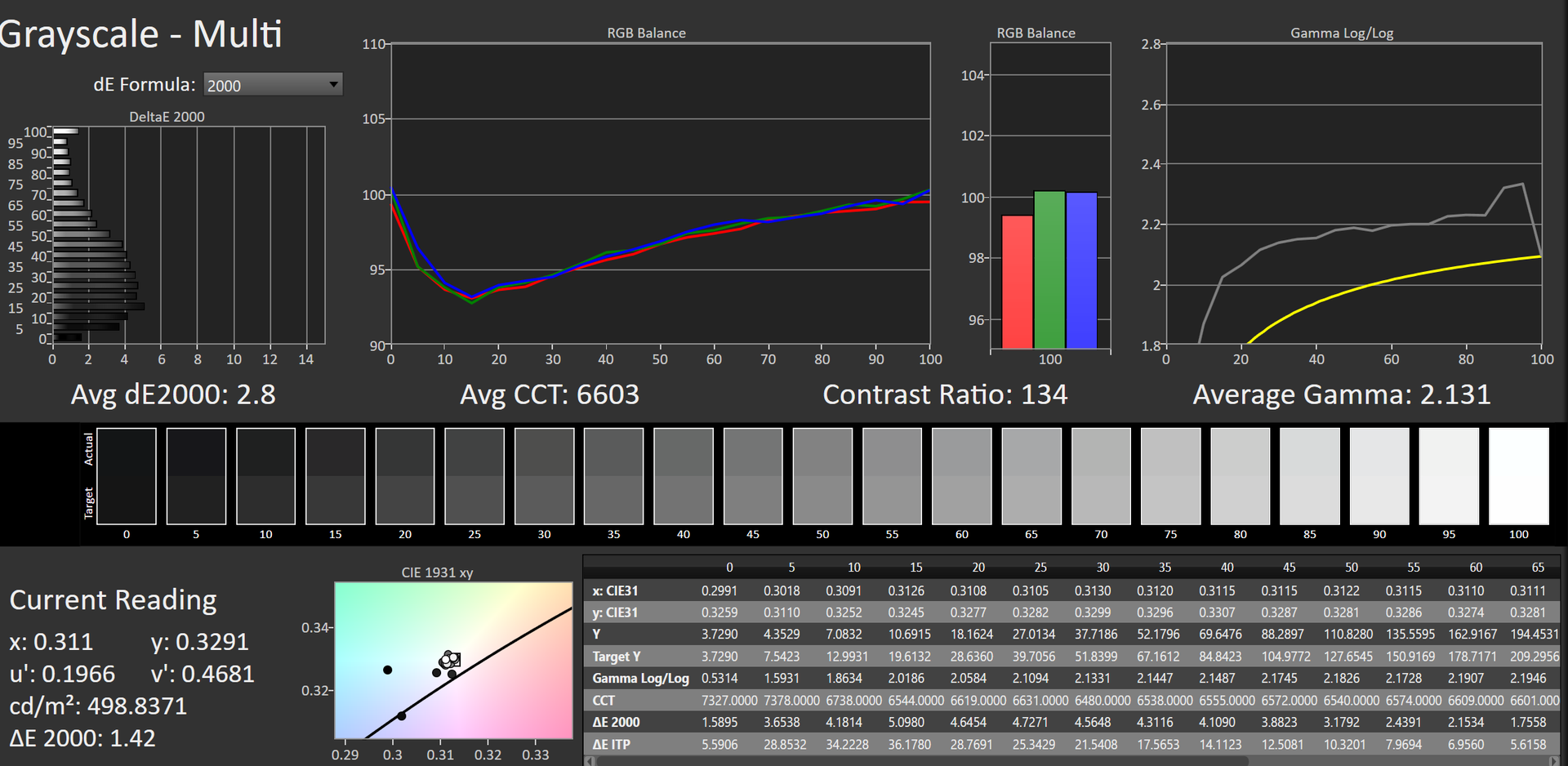

校准灰度
校准灰度

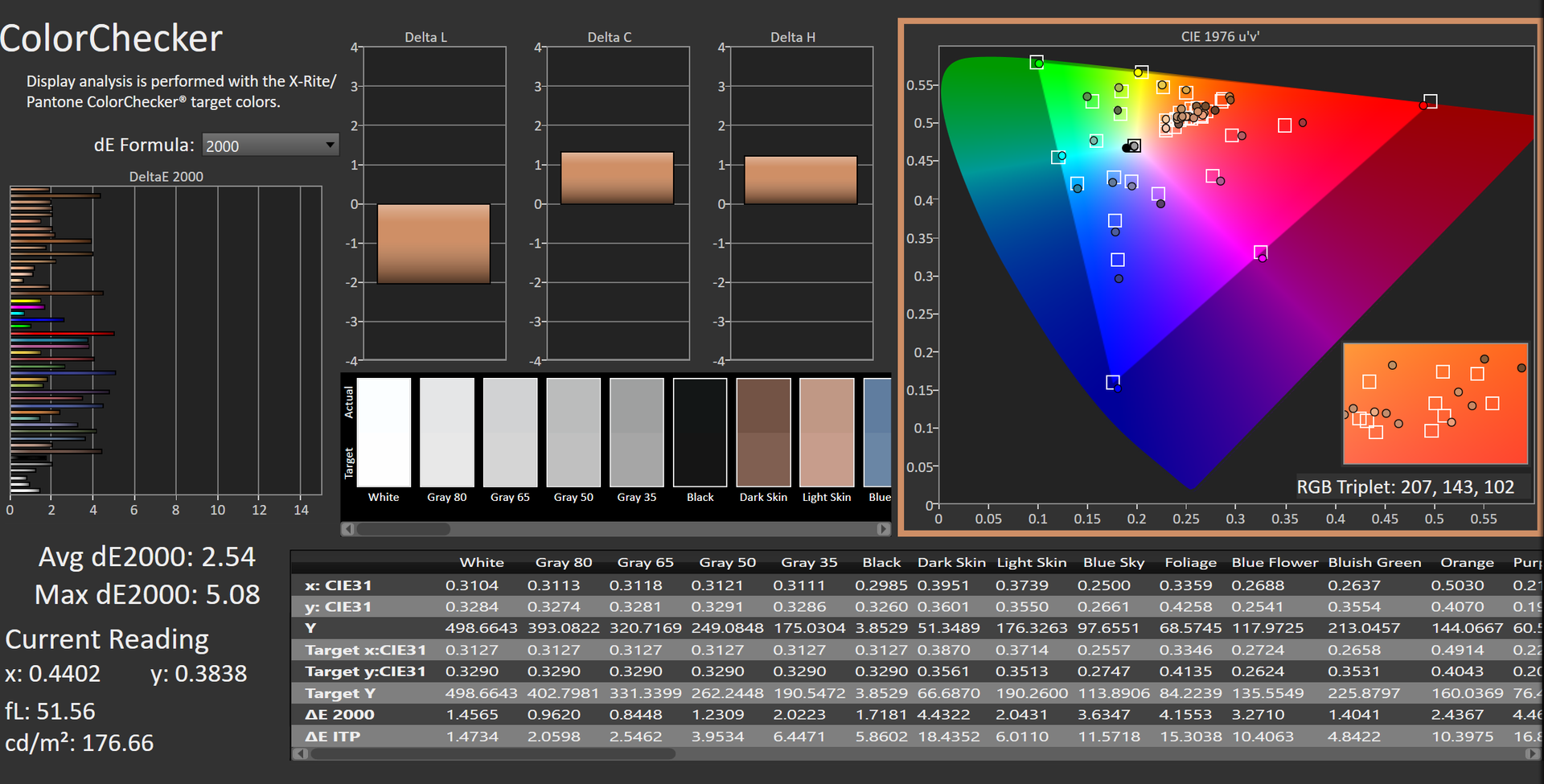

校准色彩检查仪
校准色彩检查仪

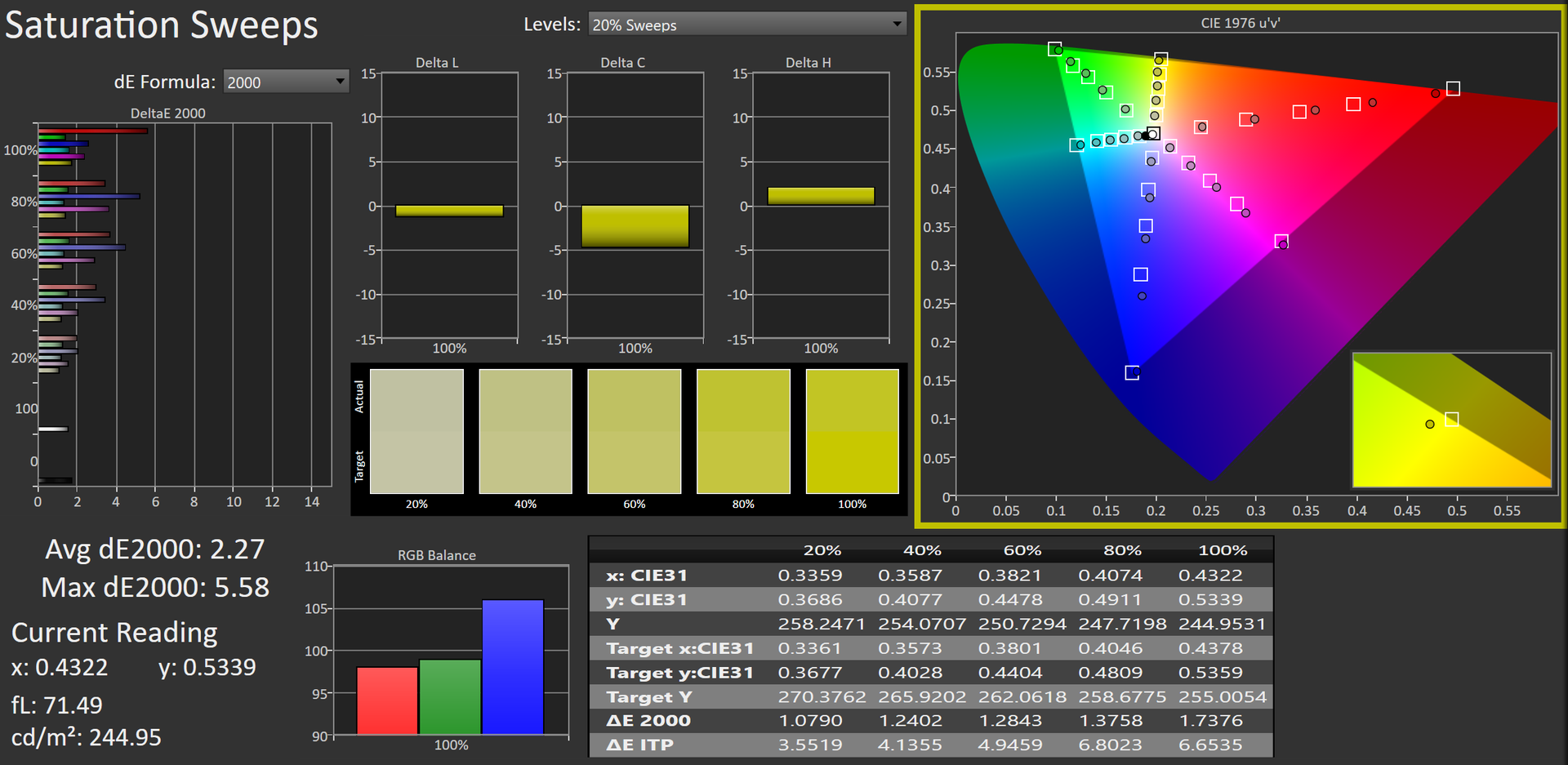

校准饱和度
校准饱和度

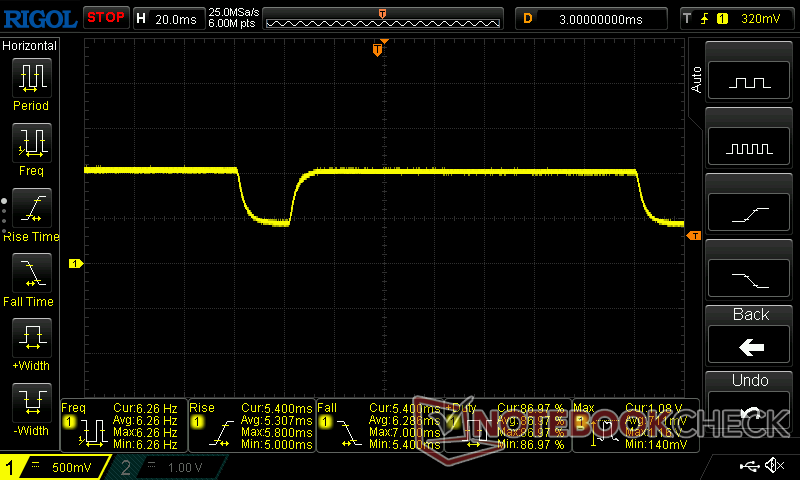

Display Response Times

ℹ
Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

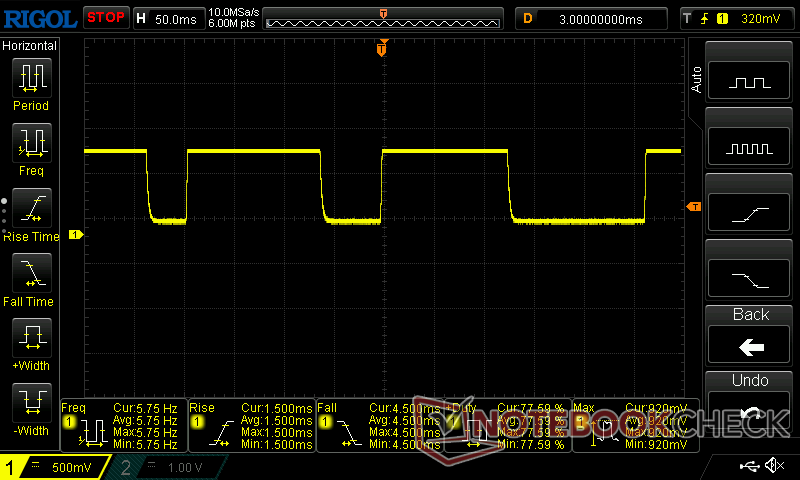

   ↔    Response Time Black to White
6 ms ... rise ↗ and fall ↘ combined↗ 1.5 ms rise
↘ 4.5 ms fall
The screen shows very fast response rates in our tests and should be very well suited for fast-paced gaming.
In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 15 % of all devices are better.
This means that the measured response time is better than the average of all tested devices (20.9 ms).

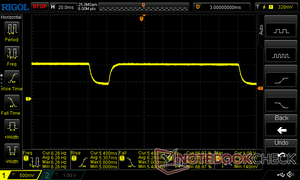

   ↔    Response Time 50% Grey to 80% Grey
11.593 ms ... rise ↗ and fall ↘ combined↗ 5.307 ms rise
↘ 6.286 ms fall
The screen shows good response rates in our tests, but may be too slow for competitive gamers.
In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 22 % of all devices are better.
This means that the measured response time is better than the average of all tested devices (32.8 ms).

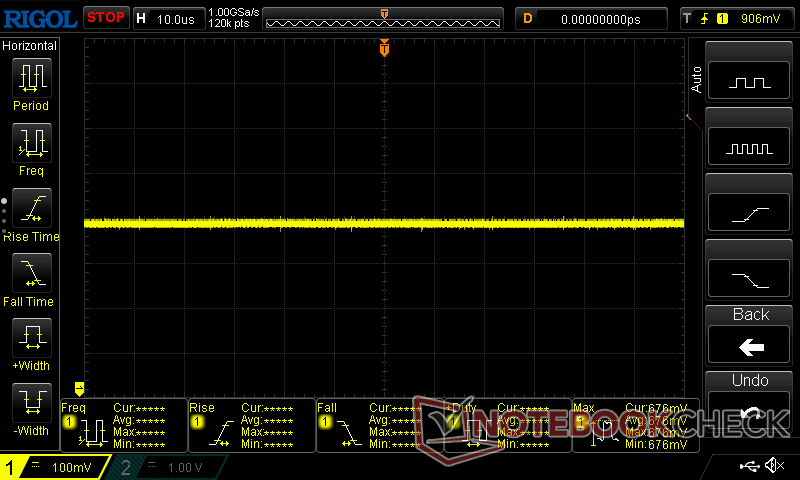

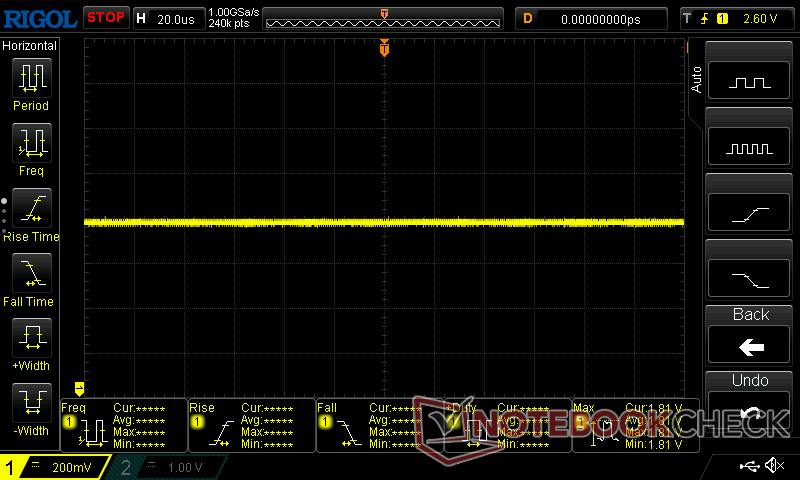

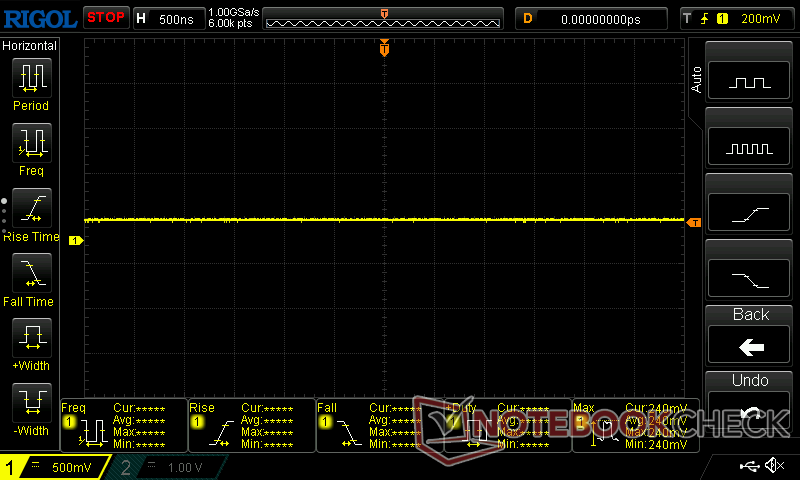

Screen Flickering / PWM (Pulse-Width Modulation)

ℹ
To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM not detected

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8710 (minimum: 5 - maximum: 343500) Hz was measured.

0% 亮度
0% 亮度
50% 亮度
50% 亮度
100% 亮度
100% 亮度

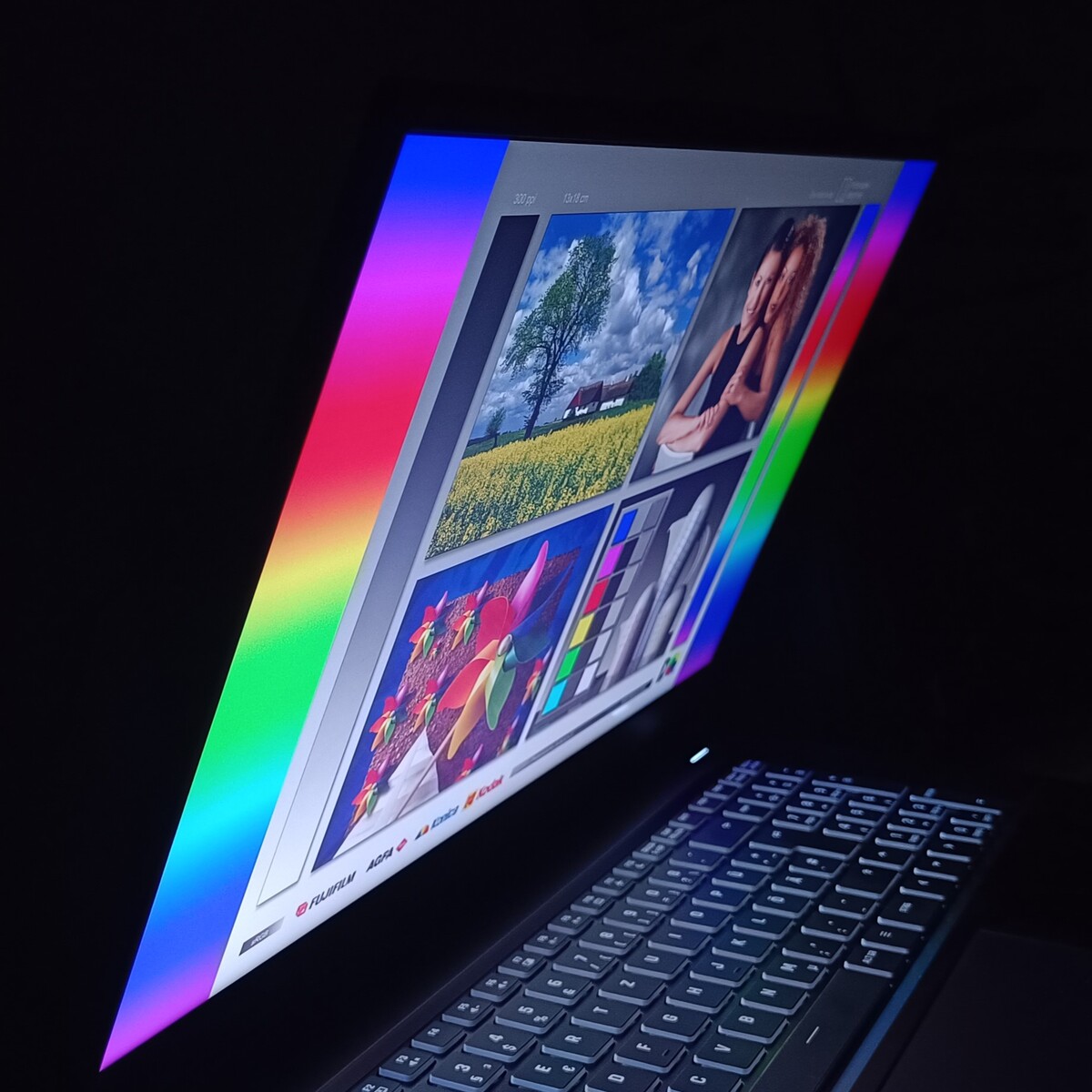

可视角度与其他 IPS 屏幕一致，这意味着对比度开始偏离轴线。尽管如此，与 TN 和 VA 面板相比，IPS 屏幕在这方面仍然更胜一筹。

背光均匀度显示上角有适度出血。遗憾的是，由于磨砂表面会对直射或间接光线产生明显的散射，因此对户外使用没有太大帮助。不过，500 多 nit 的最大亮度在间接阳光下确实有所帮助。

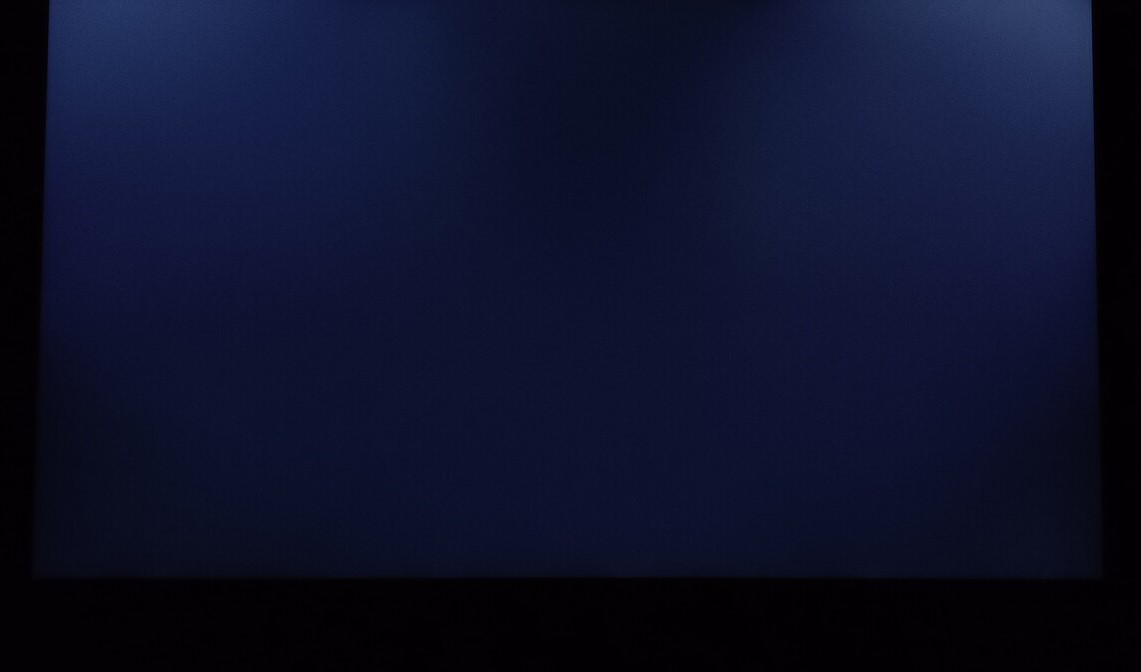

背光均匀性
背光均匀性

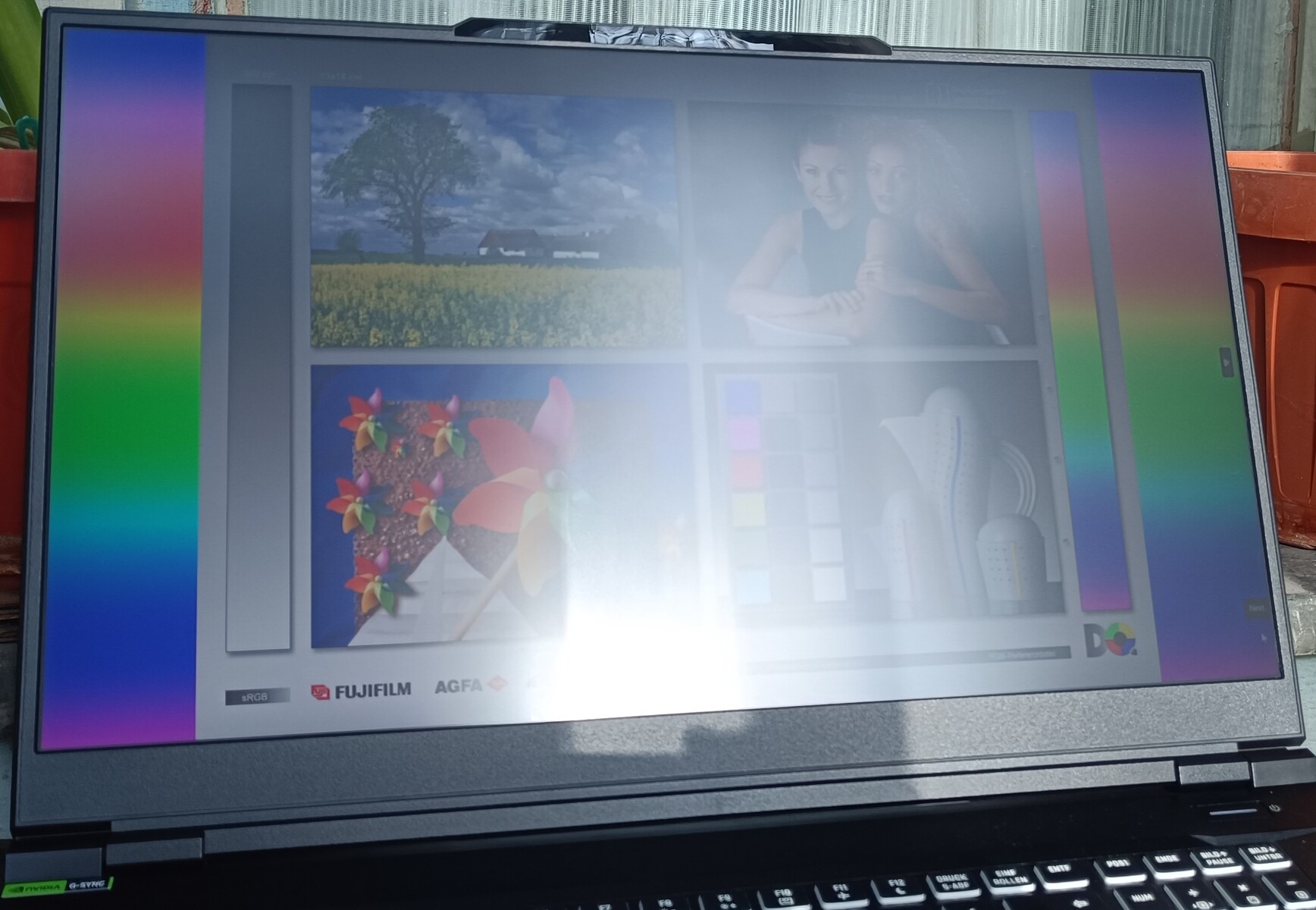

阳光直射
阳光直射
间接阳光
间接阳光

性能

测试条件

性能测试使用特殊控制中心应用程序中激活的 "性能 "配置文件进行。该配置文件使用最大 TDP、提升时钟和风扇速度。

处理器

我们对 CPU 性能的综合评分显示，Schenker 的 i9-14900HX 是测试的英特尔型号中第二快的，落后 Eurocom 4%，领先 Aorus 2%。不出所料，AMD Ryzen 9 7945HX3D 比英特尔产品至少领先 10%，尽管单核性能在大多数情况下不如所有英特尔 CPU。在 Cinebench R15 的节流循环中，Schenker i9-14900HX 一开始的性能与 Eurocom 实现的性能大致相同，但在接下来的两次运行中下降了 15%，然后在循环的剩余时间里，它是唯一一个表现出上升和下降变化的型号，这表明涡轮增压模式在效率方面没有调整得太好。

在 Cinebench R23 测试中，使用电池的 CPU 性能降低了至少 66%，GPU 性能也是如此。

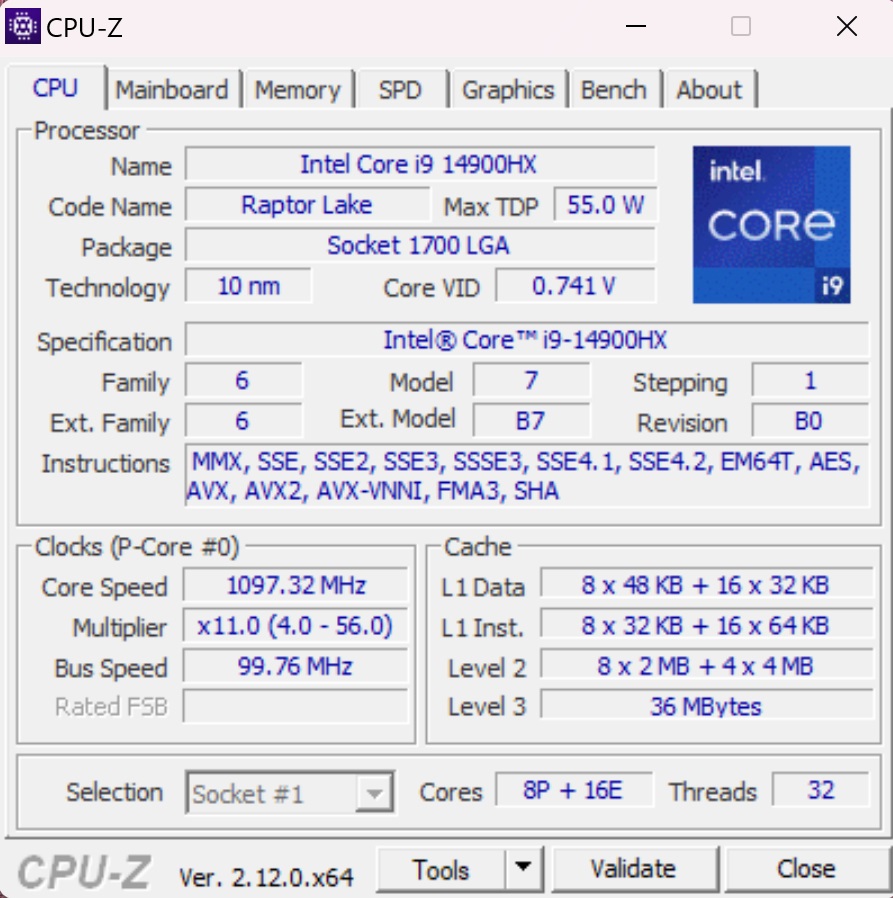

CPU 信息
CPU 信息

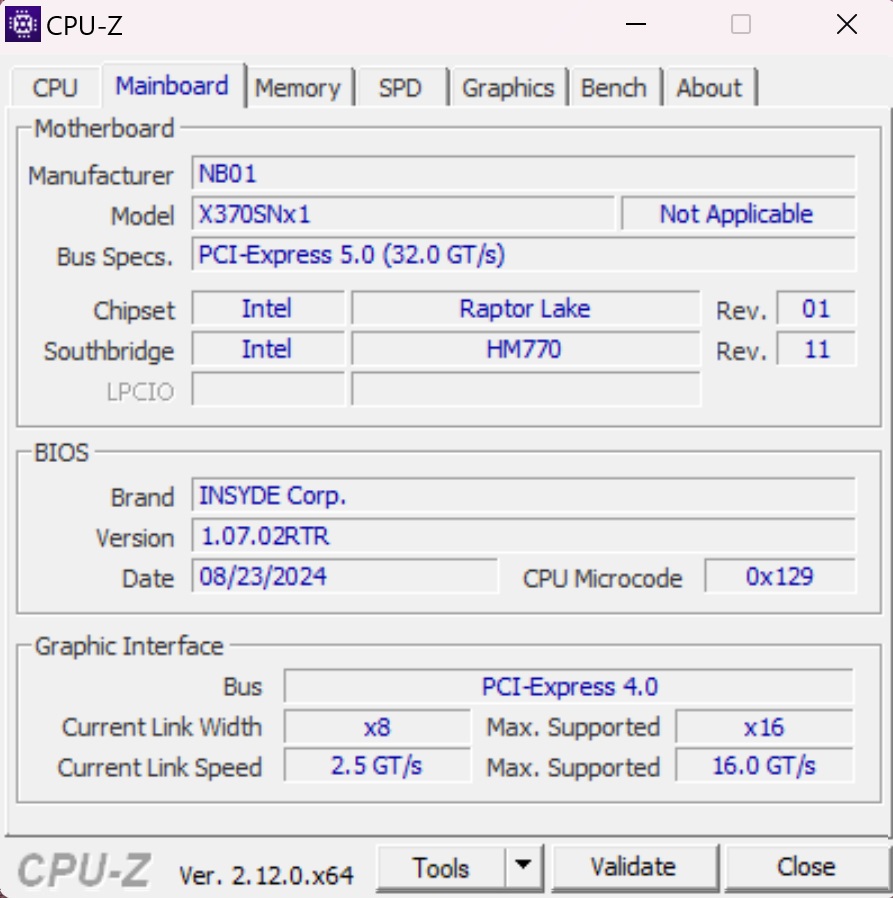

主板信息
主板信息

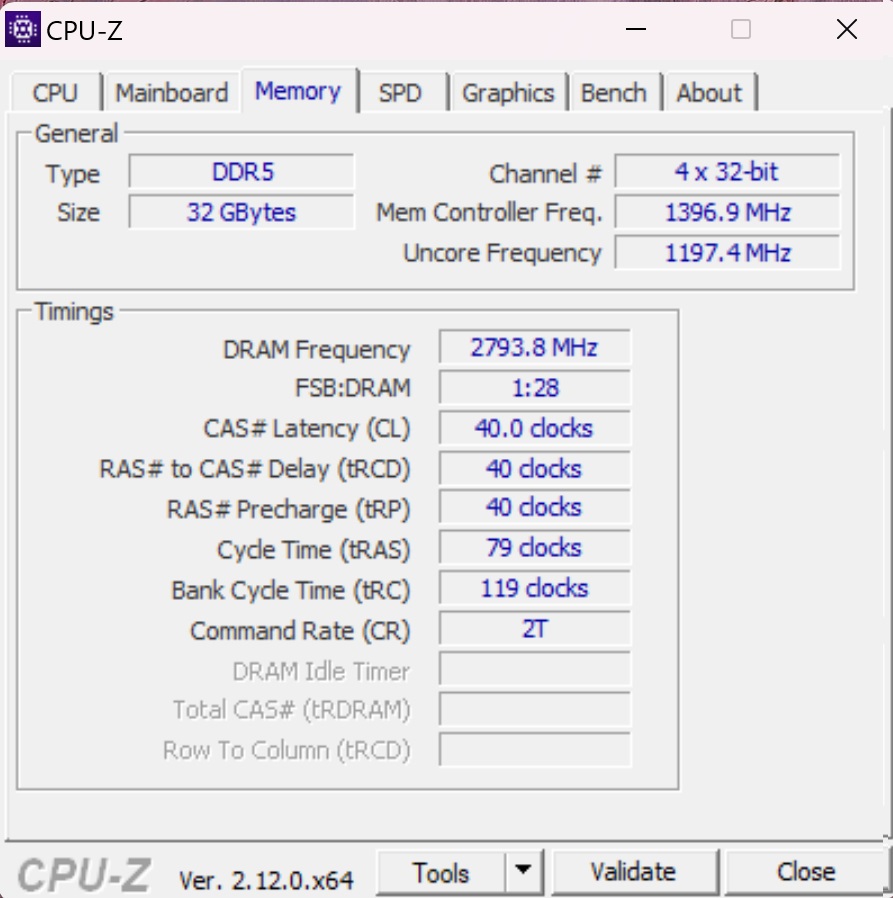

内存信息
内存信息
内存定时
内存定时

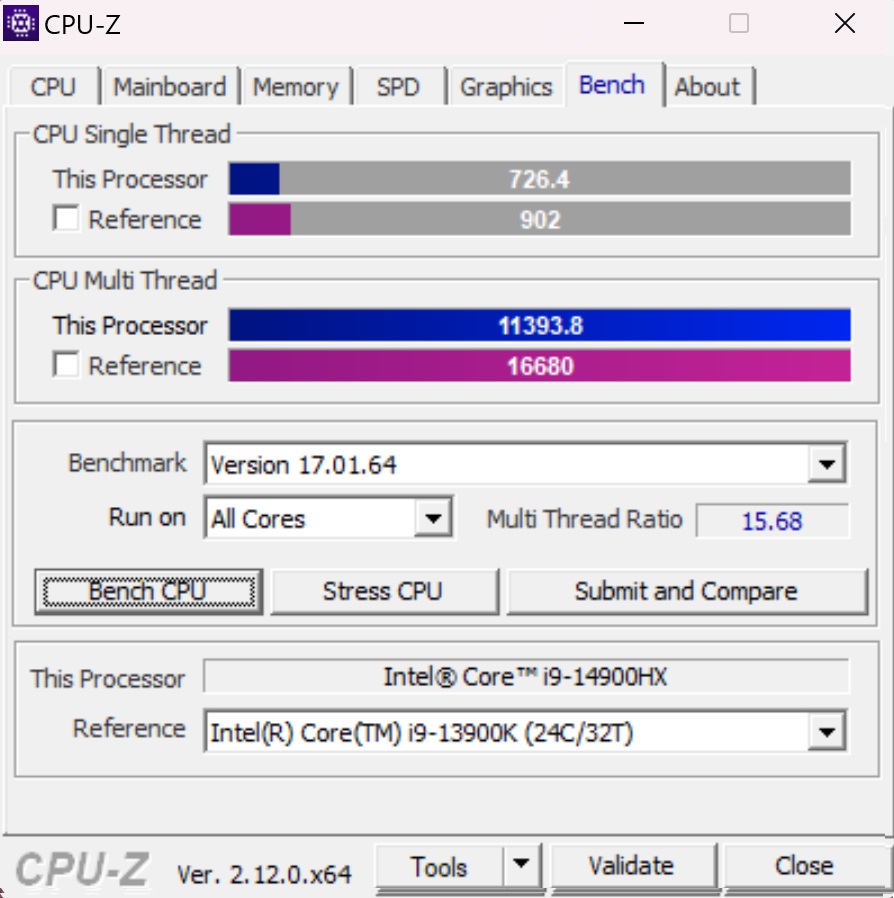

CPUZ 基准测试与 i9-13900K 对比
CPUZ 基准测试与 i9-13900K 对比

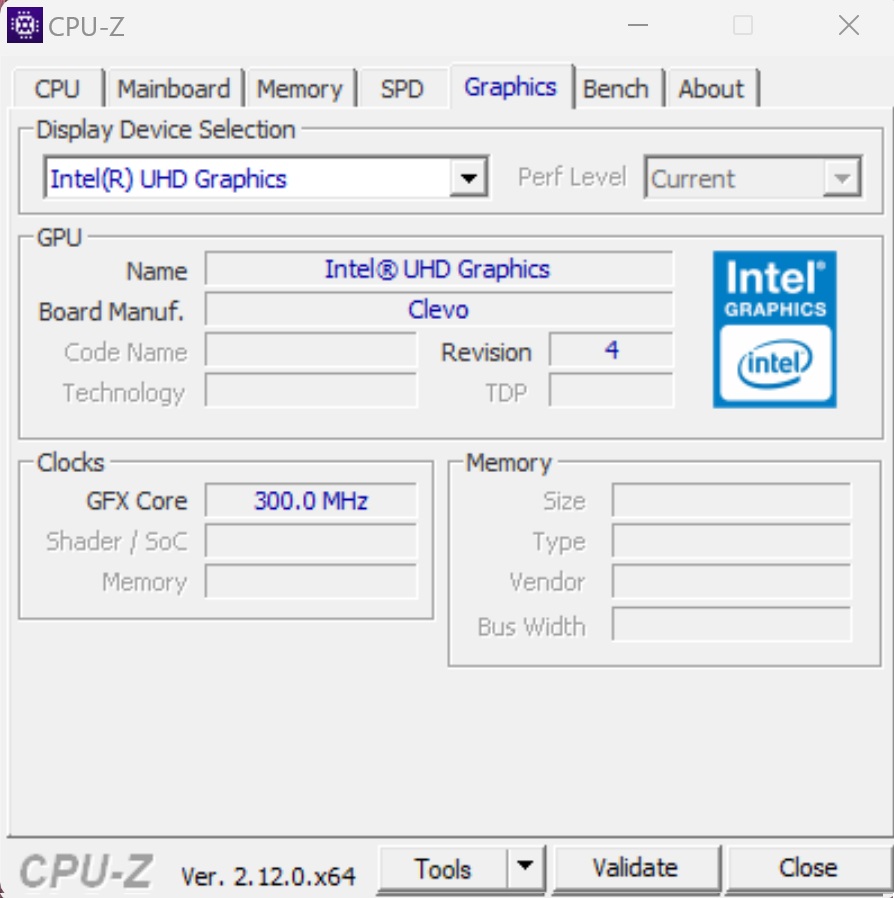

iGPU 信息
iGPU 信息

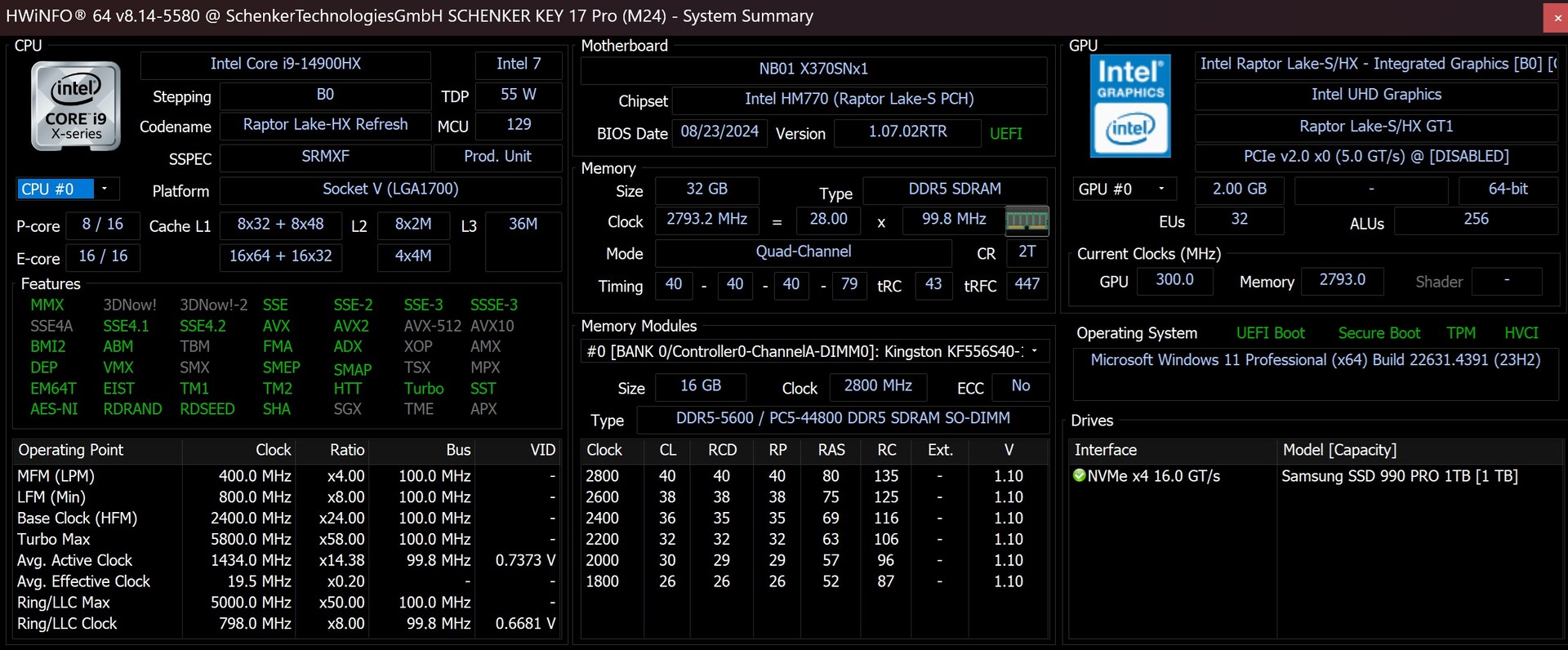

HWInfo
HWInfo


Cinebench R15 Multi Loop

02805608401120140016801960224025202800308033603640392042004480476050405320Tooltip
SCHENKER Key 17 Pro (M24) Intel Core i9-14900HX: Ø3786 (3488.57-4363)
Asus ROG Strix Scar 17 G733PYV-LL053X AMD Ryzen 9 7945HX3D: Ø5282 (5177.32-5599.89)
Eurocom Raptor X17 Core i9-14900HX Intel Core i9-14900HX: Ø4467 (4379.24-4648.46)
HP ZBook Fury 16 G11 Intel Core i9-14900HX: Ø3302 (2849.61-4173.19)
Aorus 17X AZF Intel Core i9-13900HX: Ø3258 (3190.05-4396.09)
CPU Performance Rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 6.3: Multi-Core | Single-Core
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
CPU Performance Rating
Asus ROG Strix Scar 17 G733PYV-LL053X
AMD Ryzen 9 7945HX3D
84.4 pt
Average Intel Core i9-14900HX

77.9 pt
Eurocom Raptor X17 Core i9-14900HX
Intel Core i9-14900HX
76.8 pt
HP ZBook Fury 16 G11
Intel Core i9-14900HX
74.2 pt
SCHENKER Key 17 Pro (M24)
Intel Core i9-14900HX
73.8 pt
Aorus 17X AZF -2!
Intel Core i9-13900HX
72 pt
Average of class Workstation

57.4 pt
Cinebench R23 / Multi Core
Asus ROG Strix Scar 17 G733PYV-LL053X
AMD Ryzen 9 7945HX3D
32782 Points +20%
Eurocom Raptor X17 Core i9-14900HX
Intel Core i9-14900HX
31323 (28572.5min - 31322.6max) Points +15%
Average Intel Core i9-14900HX
  (17078 - 36249, n=38)
28781 Points +5%
Aorus 17X AZF
Intel Core i9-13900HX
27776 Points +2%
SCHENKER Key 17 Pro (M24)
Intel Core i9-14900HX
27338 Points
HP ZBook Fury 16 G11
Intel Core i9-14900HX
27130 (20747.4min - 27130max) Points -1%
Average of class Workstation
  (11026 - 30783, n=30, last 2 years)
18161 Points -34%
Cinebench R23 / Single Core
HP ZBook Fury 16 G11
Intel Core i9-14900HX
2178 Points +7%
Average Intel Core i9-14900HX
  (1720 - 2245, n=39)
2146 Points +6%
Eurocom Raptor X17 Core i9-14900HX
Intel Core i9-14900HX
2100 Points +4%
Aorus 17X AZF
Intel Core i9-13900HX
2097 Points +3%
SCHENKER Key 17 Pro (M24)
Intel Core i9-14900HX
2028 Points
Asus ROG Strix Scar 17 G733PYV-LL053X
AMD Ryzen 9 7945HX3D
1935 Points -5%
Average of class Workstation
  (1469 - 2178, n=30, last 2 years)
1843 Points -9%
Cinebench R20 / CPU (Multi Core)
Asus ROG Strix Scar 17 G733PYV-LL053X
AMD Ryzen 9 7945HX3D
13033 Points +27%
Eurocom Raptor X17 Core i9-14900HX
Intel Core i9-14900HX
11543 Points +12%
Average Intel Core i9-14900HX
  (6579 - 13832, n=37)
10930 Points +6%
Aorus 17X AZF
Intel Core i9-13900HX
10557 Points +3%
SCHENKER Key 17 Pro (M24)
Intel Core i9-14900HX
10276 Points
HP ZBook Fury 16 G11
Intel Core i9-14900HX
10069 Points -2%
Average of class Workstation
  (2990 - 11924, n=31, last 2 years)
6857 Points -33%
Cinebench R20 / CPU (Single Core)
HP ZBook Fury 16 G11
Intel Core i9-14900HX
827 Points +6%
Average Intel Core i9-14900HX
  (657 - 859, n=37)
824 Points +6%
Aorus 17X AZF
Intel Core i9-13900HX
810 Points +4%
Eurocom Raptor X17 Core i9-14900HX
Intel Core i9-14900HX
804 Points +3%
SCHENKER Key 17 Pro (M24)
Intel Core i9-14900HX
779 Points
Asus ROG Strix Scar 17 G733PYV-LL053X
AMD Ryzen 9 7945HX3D
755 Points -3%
Average of class Workstation
  (564 - 827, n=31, last 2 years)
705 Points -9%
Cinebench R15 / CPU Multi 64Bit
Asus ROG Strix Scar 17 G733PYV-LL053X
AMD Ryzen 9 7945HX3D
5600 (5177.32min - 5599.89max) Points +28%
Eurocom Raptor X17 Core i9-14900HX
Intel Core i9-14900HX
4648 (4379.24min - 4648.46max) Points +7%
Aorus 17X AZF
Intel Core i9-13900HX
4487 Points +3%
Average Intel Core i9-14900HX
  (3263 - 5589, n=38)
4424 Points +1%
SCHENKER Key 17 Pro (M24)
Intel Core i9-14900HX
4363 (3488.57min - 4363max) Points
HP ZBook Fury 16 G11
Intel Core i9-14900HX
4173 (2849.61min - 4173.19max) Points -4%
Average of class Workstation
  (1863 - 5224, n=30, last 2 years)
2854 Points -35%
Cinebench R15 / CPU Single 64Bit
Asus ROG Strix Scar 17 G733PYV-LL053X
AMD Ryzen 9 7945HX3D
311 Points +8%
Average Intel Core i9-14900HX
  (247 - 323, n=37)
305 Points +6%
Aorus 17X AZF
Intel Core i9-13900HX
304 Points +6%
Eurocom Raptor X17 Core i9-14900HX
Intel Core i9-14900HX
300 Points +4%
HP ZBook Fury 16 G11
Intel Core i9-14900HX
297 Points +3%
SCHENKER Key 17 Pro (M24)
Intel Core i9-14900HX
288 Points
Average of class Workstation
  (166.2 - 301, n=30, last 2 years)
266 Points -8%
Blender / v2.79 BMW27 CPU
Average of class Workstation
  (100 - 295, n=30, last 2 years)
197 Seconds * -63%
Aorus 17X AZF
Intel Core i9-13900HX
144 Seconds * -19%
HP ZBook Fury 16 G11
Intel Core i9-14900HX
134 Seconds * -11%
Average Intel Core i9-14900HX
  (91 - 206, n=37)
121.2 Seconds * -0%
SCHENKER Key 17 Pro (M24)
Intel Core i9-14900HX
121 Seconds *
Eurocom Raptor X17 Core i9-14900HX
Intel Core i9-14900HX
105 Seconds * +13%
Asus ROG Strix Scar 17 G733PYV-LL053X
AMD Ryzen 9 7945HX3D
95 Seconds * +21%
7-Zip 18.03 / 7z b 4
Asus ROG Strix Scar 17 G733PYV-LL053X
AMD Ryzen 9 7945HX3D
136201 MIPS +25%
Eurocom Raptor X17 Core i9-14900HX
Intel Core i9-14900HX
121036 MIPS +11%
Average Intel Core i9-14900HX
  (66769 - 136645, n=37)
111239 MIPS +2%
SCHENKER Key 17 Pro (M24)
Intel Core i9-14900HX
109204 MIPS
HP ZBook Fury 16 G11
Intel Core i9-14900HX
101027 MIPS -7%
Aorus 17X AZF
Intel Core i9-13900HX
93947 MIPS -14%
Average of class Workstation
  (47244 - 130368, n=30, last 2 years)
72718 MIPS -33%
7-Zip 18.03 / 7z b 4 -mmt1
Asus ROG Strix Scar 17 G733PYV-LL053X
AMD Ryzen 9 7945HX3D
7573 MIPS +10%
Aorus 17X AZF
Intel Core i9-13900HX
7177 MIPS +5%
Average Intel Core i9-14900HX
  (5452 - 7545, n=37)
7021 MIPS +2%
HP ZBook Fury 16 G11
Intel Core i9-14900HX
6960 MIPS +1%
SCHENKER Key 17 Pro (M24)
Intel Core i9-14900HX
6858 MIPS
Eurocom Raptor X17 Core i9-14900HX
Intel Core i9-14900HX
6658 MIPS -3%
Average of class Workstation
  (4981 - 7337, n=30, last 2 years)
6100 MIPS -11%
Geekbench 6.3 / Multi-Core
Eurocom Raptor X17 Core i9-14900HX
Intel Core i9-14900HX
18291 Points +11%
Average Intel Core i9-14900HX
  (13158 - 19665, n=37)
17321 Points +5%
Asus ROG Strix Scar 17 G733PYV-LL053X
AMD Ryzen 9 7945HX3D
16957 Points +3%
SCHENKER Key 17 Pro (M24)
Intel Core i9-14900HX
16482 Points
HP ZBook Fury 16 G11
Intel Core i9-14900HX
15279 Points -7%
Average of class Workstation
  (10200 - 16482, n=23, last 2 years)
13459 Points -18%
Geekbench 6.3 / Single-Core
Average Intel Core i9-14900HX
  (2419 - 3129, n=37)
2967 Points +14%
HP ZBook Fury 16 G11
Intel Core i9-14900HX
2924 Points +12%
Asus ROG Strix Scar 17 G733PYV-LL053X
AMD Ryzen 9 7945HX3D
2916 Points +12%
Eurocom Raptor X17 Core i9-14900HX
Intel Core i9-14900HX
2874 Points +10%
SCHENKER Key 17 Pro (M24)
Intel Core i9-14900HX
2611 Points
Average of class Workstation
  (2352 - 2949, n=23, last 2 years)
2606 Points 0%
Geekbench 5.5 / Multi-Core
Asus ROG Strix Scar 17 G733PYV-LL053X
AMD Ryzen 9 7945HX3D
19875 Points +3%
Average Intel Core i9-14900HX
  (8618 - 23194, n=37)
19449 Points +1%
SCHENKER Key 17 Pro (M24)
Intel Core i9-14900HX
19316 Points
Aorus 17X AZF
Intel Core i9-13900HX
19272 Points 0%
HP ZBook Fury 16 G11
Intel Core i9-14900HX
18407 Points -5%
Average of class Workstation
  (8050 - 19514, n=30, last 2 years)
13271 Points -31%
Eurocom Raptor X17 Core i9-14900HX
Intel Core i9-14900HX
8618 Points -55%
Geekbench 5.5 / Single-Core
Asus ROG Strix Scar 17 G733PYV-LL053X
AMD Ryzen 9 7945HX3D
2133 Points +11%
Average Intel Core i9-14900HX
  (1669 - 2210, n=37)
2092 Points +9%
Aorus 17X AZF
Intel Core i9-13900HX
2063 Points +7%
HP ZBook Fury 16 G11
Intel Core i9-14900HX
2030 Points +6%
SCHENKER Key 17 Pro (M24)
Intel Core i9-14900HX
1924 Points
Average of class Workstation
  (1474 - 2095, n=30, last 2 years)
1864 Points -3%
Eurocom Raptor X17 Core i9-14900HX
Intel Core i9-14900HX
1669 Points -13%
HWBOT x265 Benchmark v2.2 / 4k Preset
Asus ROG Strix Scar 17 G733PYV-LL053X
AMD Ryzen 9 7945HX3D
36.4 fps +34%
Eurocom Raptor X17 Core i9-14900HX
Intel Core i9-14900HX
33.8 fps +25%
Average Intel Core i9-14900HX
  (16.8 - 38.9, n=37)
29.3 fps +8%
SCHENKER Key 17 Pro (M24)
Intel Core i9-14900HX
27.1 fps
HP ZBook Fury 16 G11
Intel Core i9-14900HX
27 fps 0%
Aorus 17X AZF
Intel Core i9-13900HX
24.2 fps -11%
Average of class Workstation
  (12.7 - 34.3, n=30, last 2 years)
20 fps -26%
LibreOffice / 20 Documents To PDF
Average of class Workstation
  (36.5 - 95.2, n=30, last 2 years)
48.3 s * -4%
HP ZBook Fury 16 G11
Intel Core i9-14900HX
48 s * -3%
Average Intel Core i9-14900HX
  (31.4 - 199, n=37)
47.5 s * -2%
SCHENKER Key 17 Pro (M24)
Intel Core i9-14900HX
46.6 s *
Aorus 17X AZF
Intel Core i9-13900HX
44.7 s * +4%
Asus ROG Strix Scar 17 G733PYV-LL053X
AMD Ryzen 9 7945HX3D
39 s * +16%
Eurocom Raptor X17 Core i9-14900HX
Intel Core i9-14900HX
37.6 s * +19%
R Benchmark 2.5 / Overall mean
Average of class Workstation
  (0.3825 - 0.54, n=30, last 2 years)
0.4482 sec * -8%
SCHENKER Key 17 Pro (M24)
Intel Core i9-14900HX
0.4143 sec *
Asus ROG Strix Scar 17 G733PYV-LL053X
AMD Ryzen 9 7945HX3D
0.4127 sec * -0%
Aorus 17X AZF
Intel Core i9-13900HX
0.3935 sec * +5%
Average Intel Core i9-14900HX
  (0.3604 - 0.4859, n=37)
0.385 sec * +7%
Eurocom Raptor X17 Core i9-14900HX
Intel Core i9-14900HX
0.3845 sec * +7%
HP ZBook Fury 16 G11
Intel Core i9-14900HX
0.3825 sec * +8%

* ... smaller is better

Cinebench R15 CPU Multi 64Bit
4363 Points
Cinebench R15 OpenGL 64Bit
279 fps
Cinebench R15 Ref. Match 64Bit
99.6 %
Cinebench R15 CPU Single 64Bit
288 Points
Cinebench R20 CPU (Multi Core)
10276 Points
Cinebench R20 CPU (Single Core)
779 Points
Cinebench R23 Single Core
2028 Points
Cinebench R23 Multi Core
27338 Points
Help
Performance Rating: Percent
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
Performance Rating
Asus ROG Strix Scar 17 G733PYV-LL053X
AMD Ryzen 9 7945HX3D, NVIDIA GeForce RTX 4090 Laptop GPU
97.1 pt
Eurocom Raptor X17 Core i9-14900HX
Intel Core i9-14900HX, NVIDIA GeForce RTX 4090 Laptop GPU
70.1 pt
Average Intel Core i9-14900HX

61.3 pt
SCHENKER Key 17 Pro (M24)
Intel Core i9-14900HX, NVIDIA GeForce RTX 4090 Laptop GPU
57.4 pt
Aorus 17X AZF
Intel Core i9-13900HX, NVIDIA GeForce RTX 4090 Laptop GPU
53.8 pt
HP ZBook Fury 16 G11
Intel Core i9-14900HX, NVIDIA RTX 3500 Ada Generation Laptop GPU
51 pt
Average of class Workstation

45.5 pt
AIDA64 / FP32 Ray-Trace
Asus ROG Strix Scar 17 G733PYV-LL053X
AMD Ryzen 9 7945HX3D, NVIDIA GeForce RTX 4090 Laptop GPU
53908 KRay/s +147%
Eurocom Raptor X17 Core i9-14900HX
Intel Core i9-14900HX, NVIDIA GeForce RTX 4090 Laptop GPU
26984 KRay/s +23%
Average Intel Core i9-14900HX
  (13098 - 33474, n=36)
24763 KRay/s +13%
SCHENKER Key 17 Pro (M24)
Intel Core i9-14900HX, NVIDIA GeForce RTX 4090 Laptop GPU
21858 KRay/s
HP ZBook Fury 16 G11
Intel Core i9-14900HX, NVIDIA RTX 3500 Ada Generation Laptop GPU
20058 KRay/s -8%
Aorus 17X AZF
Intel Core i9-13900HX, NVIDIA GeForce RTX 4090 Laptop GPU
19255 KRay/s -12%
Average of class Workstation
  (10658 - 50388, n=30, last 2 years)
19162 KRay/s -12%
AIDA64 / FPU Julia
Asus ROG Strix Scar 17 G733PYV-LL053X
AMD Ryzen 9 7945HX3D, NVIDIA GeForce RTX 4090 Laptop GPU
222115 Points +96%
Eurocom Raptor X17 Core i9-14900HX
Intel Core i9-14900HX, NVIDIA GeForce RTX 4090 Laptop GPU
138436 Points +22%
Average Intel Core i9-14900HX
  (67573 - 166040, n=36)
124114 Points +10%
SCHENKER Key 17 Pro (M24)
Intel Core i9-14900HX, NVIDIA GeForce RTX 4090 Laptop GPU
113270 Points
HP ZBook Fury 16 G11
Intel Core i9-14900HX, NVIDIA RTX 3500 Ada Generation Laptop GPU
101926 Points -10%
Aorus 17X AZF
Intel Core i9-13900HX, NVIDIA GeForce RTX 4090 Laptop GPU
95343 Points -16%
Average of class Workstation
  (56664 - 201874, n=30, last 2 years)
93170 Points -18%
AIDA64 / CPU SHA3
Asus ROG Strix Scar 17 G733PYV-LL053X
AMD Ryzen 9 7945HX3D, NVIDIA GeForce RTX 4090 Laptop GPU
9582 MB/s +71%
Eurocom Raptor X17 Core i9-14900HX
Intel Core i9-14900HX, NVIDIA GeForce RTX 4090 Laptop GPU
7026 MB/s +26%
Average Intel Core i9-14900HX
  (3589 - 7979, n=36)
6130 MB/s +10%
SCHENKER Key 17 Pro (M24)
Intel Core i9-14900HX, NVIDIA GeForce RTX 4090 Laptop GPU
5598 MB/s
HP ZBook Fury 16 G11
Intel Core i9-14900HX, NVIDIA RTX 3500 Ada Generation Laptop GPU
4972 MB/s -11%
Aorus 17X AZF
Intel Core i9-13900HX, NVIDIA GeForce RTX 4090 Laptop GPU
4880 MB/s -13%
Average of class Workstation
  (2598 - 8623, n=30, last 2 years)
4158 MB/s -26%
AIDA64 / CPU Queen
Asus ROG Strix Scar 17 G733PYV-LL053X
AMD Ryzen 9 7945HX3D, NVIDIA GeForce RTX 4090 Laptop GPU
181270 Points +31%
Eurocom Raptor X17 Core i9-14900HX
Intel Core i9-14900HX, NVIDIA GeForce RTX 4090 Laptop GPU
144137 Points +4%
SCHENKER Key 17 Pro (M24)
Intel Core i9-14900HX, NVIDIA GeForce RTX 4090 Laptop GPU
138708 Points
Average Intel Core i9-14900HX
  (118405 - 148966, n=36)
138261 Points 0%
HP ZBook Fury 16 G11
Intel Core i9-14900HX, NVIDIA RTX 3500 Ada Generation Laptop GPU
136844 Points -1%
Aorus 17X AZF
Intel Core i9-13900HX, NVIDIA GeForce RTX 4090 Laptop GPU
128728 Points -7%
Average of class Workstation
  (84022 - 181505, n=30, last 2 years)
109324 Points -21%
AIDA64 / FPU SinJulia
Asus ROG Strix Scar 17 G733PYV-LL053X
AMD Ryzen 9 7945HX3D, NVIDIA GeForce RTX 4090 Laptop GPU
29487 Points +112%
Eurocom Raptor X17 Core i9-14900HX
Intel Core i9-14900HX, NVIDIA GeForce RTX 4090 Laptop GPU
16403 Points +18%
Average Intel Core i9-14900HX
  (10475 - 18517, n=36)
15241 Points +10%
SCHENKER Key 17 Pro (M24)
Intel Core i9-14900HX, NVIDIA GeForce RTX 4090 Laptop GPU
13903 Points
HP ZBook Fury 16 G11
Intel Core i9-14900HX, NVIDIA RTX 3500 Ada Generation Laptop GPU
13331 Points -4%
Aorus 17X AZF
Intel Core i9-13900HX, NVIDIA GeForce RTX 4090 Laptop GPU
12939 Points -7%
Average of class Workstation
  (7906 - 28794, n=30, last 2 years)
12287 Points -12%
AIDA64 / FPU Mandel
Asus ROG Strix Scar 17 G733PYV-LL053X
AMD Ryzen 9 7945HX3D, NVIDIA GeForce RTX 4090 Laptop GPU
118813 Points +118%
Eurocom Raptor X17 Core i9-14900HX
Intel Core i9-14900HX, NVIDIA GeForce RTX 4090 Laptop GPU
67115 Points +23%
Average Intel Core i9-14900HX
  (32543 - 83662, n=36)
61081 Points +12%
SCHENKER Key 17 Pro (M24)
Intel Core i9-14900HX, NVIDIA GeForce RTX 4090 Laptop GPU
54428 Points
HP ZBook Fury 16 G11
Intel Core i9-14900HX, NVIDIA RTX 3500 Ada Generation Laptop GPU
50518 Points -7%
Aorus 17X AZF
Intel Core i9-13900HX, NVIDIA GeForce RTX 4090 Laptop GPU
47560 Points -13%
Average of class Workstation
  (27301 - 105740, n=30, last 2 years)
47026 Points -14%
AIDA64 / CPU AES
Asus ROG Strix Scar 17 G733PYV-LL053X
AMD Ryzen 9 7945HX3D, NVIDIA GeForce RTX 4090 Laptop GPU
328679 MB/s +209%
Eurocom Raptor X17 Core i9-14900HX
Intel Core i9-14900HX, NVIDIA GeForce RTX 4090 Laptop GPU
241777 MB/s +127%
Aorus 17X AZF
Intel Core i9-13900HX, NVIDIA GeForce RTX 4090 Laptop GPU
174819 MB/s +64%
Average Intel Core i9-14900HX
  (86964 - 241777, n=36)
139038 MB/s +31%
SCHENKER Key 17 Pro (M24)
Intel Core i9-14900HX, NVIDIA GeForce RTX 4090 Laptop GPU
106371 MB/s
HP ZBook Fury 16 G11
Intel Core i9-14900HX, NVIDIA RTX 3500 Ada Generation Laptop GPU
99014 MB/s -7%
Average of class Workstation
  (45568 - 128243, n=30, last 2 years)
82818 MB/s -22%
AIDA64 / CPU ZLib
Asus ROG Strix Scar 17 G733PYV-LL053X
AMD Ryzen 9 7945HX3D, NVIDIA GeForce RTX 4090 Laptop GPU
2043 MB/s +21%
Eurocom Raptor X17 Core i9-14900HX
Intel Core i9-14900HX, NVIDIA GeForce RTX 4090 Laptop GPU
2037 MB/s +20%
Average Intel Core i9-14900HX
  (1054 - 2292, n=36)
1791 MB/s +6%
SCHENKER Key 17 Pro (M24)
Intel Core i9-14900HX, NVIDIA GeForce RTX 4090 Laptop GPU
1691 MB/s
HP ZBook Fury 16 G11
Intel Core i9-14900HX, NVIDIA RTX 3500 Ada Generation Laptop GPU
1473 MB/s -13%
Aorus 17X AZF
Intel Core i9-13900HX, NVIDIA GeForce RTX 4090 Laptop GPU
1353 MB/s -20%
Average of class Workstation
  (713 - 2022, n=30, last 2 years)
1125 MB/s -33%
AIDA64 / FP64 Ray-Trace
Asus ROG Strix Scar 17 G733PYV-LL053X
AMD Ryzen 9 7945HX3D, NVIDIA GeForce RTX 4090 Laptop GPU
29140 KRay/s +146%
Eurocom Raptor X17 Core i9-14900HX
Intel Core i9-14900HX, NVIDIA GeForce RTX 4090 Laptop GPU
14781 KRay/s +25%
Average Intel Core i9-14900HX
  (6809 - 18349, n=36)
13332 KRay/s +13%
SCHENKER Key 17 Pro (M24)
Intel Core i9-14900HX, NVIDIA GeForce RTX 4090 Laptop GPU
11838 KRay/s
HP ZBook Fury 16 G11
Intel Core i9-14900HX, NVIDIA RTX 3500 Ada Generation Laptop GPU
10878 KRay/s -8%
Aorus 17X AZF
Intel Core i9-13900HX, NVIDIA GeForce RTX 4090 Laptop GPU
10268 KRay/s -13%
Average of class Workstation
  (5580 - 26875, n=30, last 2 years)
10193 KRay/s -14%
AIDA64 / CPU PhotoWorxx
Eurocom Raptor X17 Core i9-14900HX
Intel Core i9-14900HX, NVIDIA GeForce RTX 4090 Laptop GPU
51118 MPixel/s +1%
SCHENKER Key 17 Pro (M24)
Intel Core i9-14900HX, NVIDIA GeForce RTX 4090 Laptop GPU
50465 MPixel/s
Aorus 17X AZF
Intel Core i9-13900HX, NVIDIA GeForce RTX 4090 Laptop GPU
50348 MPixel/s 0%
Average Intel Core i9-14900HX
  (23903 - 54702, n=36)
46878 MPixel/s -7%
Average of class Workstation
  (18157 - 51686, n=30, last 2 years)
39308 MPixel/s -22%
HP ZBook Fury 16 G11
Intel Core i9-14900HX, NVIDIA RTX 3500 Ada Generation Laptop GPU
37151 MPixel/s -26%
Asus ROG Strix Scar 17 G733PYV-LL053X
AMD Ryzen 9 7945HX3D, NVIDIA GeForce RTX 4090 Laptop GPU
36406 MPixel/s -28%

系统性能

与其他两款 i9-14900HX 相比，Key 17 Pro 似乎是 PCMark 10 中速度最快的英特尔机型，但华硕笔记本上的 AMD Ryzen 9 7945HX3D 最多领先 10%。与 Zbook Fury i9-14900HX 相比，Aorus 机型上较老的 i9-13900HX 竟然快了一小截。

不过，事实证明，Schenker 机型配备的金士顿 DDR5-5600 内存的平均速度最快。它在 AIDA64 内存复制和内存写入测试中排名第一，内存读取排名第二，延迟排名第三。

PCMark 10: Score | Essentials | Productivity | Digital Content Creation
CrossMark: Overall | Productivity | Creativity | Responsiveness
WebXPRT 3: Overall
WebXPRT 4: Overall
Mozilla Kraken 1.1: Total
PCMark 10 / Score
Asus ROG Strix Scar 17 G733PYV-LL053X
NVIDIA GeForce RTX 4090 Laptop GPU, R9 7945HX3D, SK hynix PC801 HFS001TEJ9X101N
9117 Points +10%
Average Intel Core i9-14900HX, NVIDIA GeForce RTX 4090 Laptop GPU
  (8230 - 9234, n=13)
8674 Points +5%
SCHENKER Key 17 Pro (M24)
NVIDIA GeForce RTX 4090 Laptop GPU, i9-14900HX, Samsung 990 Pro 1 TB
8277 Points
Aorus 17X AZF
NVIDIA GeForce RTX 4090 Laptop GPU, i9-13900HX, Gigabyte AG470S1TB-SI B10
7690 Points -7%
HP ZBook Fury 16 G11
NVIDIA RTX 3500 Ada Generation Laptop GPU, i9-14900HX, SK hynix PC801 HFS001TEJ9X101N
7607 Points -8%
Average of class Workstation
  (5953 - 8587, n=30, last 2 years)
7294 Points -12%
PCMark 10 / Essentials
Asus ROG Strix Scar 17 G733PYV-LL053X
NVIDIA GeForce RTX 4090 Laptop GPU, R9 7945HX3D, SK hynix PC801 HFS001TEJ9X101N
11561 Points +7%
Aorus 17X AZF
NVIDIA GeForce RTX 4090 Laptop GPU, i9-13900HX, Gigabyte AG470S1TB-SI B10
11188 Points +4%
Average Intel Core i9-14900HX, NVIDIA GeForce RTX 4090 Laptop GPU
  (10778 - 11628, n=13)
11125 Points +3%
SCHENKER Key 17 Pro (M24)
NVIDIA GeForce RTX 4090 Laptop GPU, i9-14900HX, Samsung 990 Pro 1 TB
10778 Points
Average of class Workstation
  (9151 - 12197, n=30, last 2 years)
10627 Points -1%
HP ZBook Fury 16 G11
NVIDIA RTX 3500 Ada Generation Laptop GPU, i9-14900HX, SK hynix PC801 HFS001TEJ9X101N
9647 Points -10%
PCMark 10 / Productivity
Asus ROG Strix Scar 17 G733PYV-LL053X
NVIDIA GeForce RTX 4090 Laptop GPU, R9 7945HX3D, SK hynix PC801 HFS001TEJ9X101N
10881 Points +15%
Average Intel Core i9-14900HX, NVIDIA GeForce RTX 4090 Laptop GPU
  (9458 - 11759, n=13)
10610 Points +12%
Aorus 17X AZF
NVIDIA GeForce RTX 4090 Laptop GPU, i9-13900HX, Gigabyte AG470S1TB-SI B10
10403 Points +10%
HP ZBook Fury 16 G11
NVIDIA RTX 3500 Ada Generation Laptop GPU, i9-14900HX, SK hynix PC801 HFS001TEJ9X101N
9554 Points +1%
Average of class Workstation
  (7846 - 10820, n=30, last 2 years)
9466 Points 0%
SCHENKER Key 17 Pro (M24)
NVIDIA GeForce RTX 4090 Laptop GPU, i9-14900HX, Samsung 990 Pro 1 TB
9458 Points
PCMark 10 / Digital Content Creation
Asus ROG Strix Scar 17 G733PYV-LL053X
NVIDIA GeForce RTX 4090 Laptop GPU, R9 7945HX3D, SK hynix PC801 HFS001TEJ9X101N
16348 Points +8%
SCHENKER Key 17 Pro (M24)
NVIDIA GeForce RTX 4090 Laptop GPU, i9-14900HX, Samsung 990 Pro 1 TB
15093 Points
Average Intel Core i9-14900HX, NVIDIA GeForce RTX 4090 Laptop GPU
  (13219 - 16462, n=13)
15042 Points 0%
HP ZBook Fury 16 G11
NVIDIA RTX 3500 Ada Generation Laptop GPU, i9-14900HX, SK hynix PC801 HFS001TEJ9X101N
12961 Points -14%
Aorus 17X AZF
NVIDIA GeForce RTX 4090 Laptop GPU, i9-13900HX, Gigabyte AG470S1TB-SI B10
10605 Points -30%
Average of class Workstation
  (7417 - 15093, n=30, last 2 years)
10578 Points -30%
CrossMark / Overall
Eurocom Raptor X17 Core i9-14900HX
NVIDIA GeForce RTX 4090 Laptop GPU, i9-14900HX, Corsair MP700 Pro 2TB
2238 Points
Aorus 17X AZF
NVIDIA GeForce RTX 4090 Laptop GPU, i9-13900HX, Gigabyte AG470S1TB-SI B10
2163 Points
Average Intel Core i9-14900HX, NVIDIA GeForce RTX 4090 Laptop GPU
  (1877 - 2344, n=10)
2119 Points
Asus ROG Strix Scar 17 G733PYV-LL053X
NVIDIA GeForce RTX 4090 Laptop GPU, R9 7945HX3D, SK hynix PC801 HFS001TEJ9X101N
2086 Points
HP ZBook Fury 16 G11
NVIDIA RTX 3500 Ada Generation Laptop GPU, i9-14900HX, SK hynix PC801 HFS001TEJ9X101N
2037 Points
Average of class Workstation
  (1154 - 2044, n=28, last 2 years)
1766 Points
CrossMark / Productivity
Eurocom Raptor X17 Core i9-14900HX
NVIDIA GeForce RTX 4090 Laptop GPU, i9-14900HX, Corsair MP700 Pro 2TB
2113 Points
Aorus 17X AZF
NVIDIA GeForce RTX 4090 Laptop GPU, i9-13900HX, Gigabyte AG470S1TB-SI B10
2050 Points
Average Intel Core i9-14900HX, NVIDIA GeForce RTX 4090 Laptop GPU
  (1738 - 2162, n=10)
1968 Points
Asus ROG Strix Scar 17 G733PYV-LL053X
NVIDIA GeForce RTX 4090 Laptop GPU, R9 7945HX3D, SK hynix PC801 HFS001TEJ9X101N
1948 Points
HP ZBook Fury 16 G11
NVIDIA RTX 3500 Ada Generation Laptop GPU, i9-14900HX, SK hynix PC801 HFS001TEJ9X101N
1902 Points
Average of class Workstation
  (1188 - 1909, n=28, last 2 years)
1681 Points
CrossMark / Creativity
Asus ROG Strix Scar 17 G733PYV-LL053X
NVIDIA GeForce RTX 4090 Laptop GPU, R9 7945HX3D, SK hynix PC801 HFS001TEJ9X101N
2415 Points
Average Intel Core i9-14900HX, NVIDIA GeForce RTX 4090 Laptop GPU
  (2195 - 2660, n=10)
2387 Points
Eurocom Raptor X17 Core i9-14900HX
NVIDIA GeForce RTX 4090 Laptop GPU, i9-14900HX, Corsair MP700 Pro 2TB
2341 Points
Aorus 17X AZF
NVIDIA GeForce RTX 4090 Laptop GPU, i9-13900HX, Gigabyte AG470S1TB-SI B10
2319 Points
HP ZBook Fury 16 G11
NVIDIA RTX 3500 Ada Generation Laptop GPU, i9-14900HX, SK hynix PC801 HFS001TEJ9X101N
2304 Points
Average of class Workstation
  (1180 - 2335, n=28, last 2 years)
1971 Points
CrossMark / Responsiveness
Eurocom Raptor X17 Core i9-14900HX
NVIDIA GeForce RTX 4090 Laptop GPU, i9-14900HX, Corsair MP700 Pro 2TB
2327 Points
Aorus 17X AZF
NVIDIA GeForce RTX 4090 Laptop GPU, i9-13900HX, Gigabyte AG470S1TB-SI B10
2063 Points
Average Intel Core i9-14900HX, NVIDIA GeForce RTX 4090 Laptop GPU
  (1478 - 2327, n=10)
1862 Points
HP ZBook Fury 16 G11
NVIDIA RTX 3500 Ada Generation Laptop GPU, i9-14900HX, SK hynix PC801 HFS001TEJ9X101N
1730 Points
Asus ROG Strix Scar 17 G733PYV-LL053X
NVIDIA GeForce RTX 4090 Laptop GPU, R9 7945HX3D, SK hynix PC801 HFS001TEJ9X101N
1649 Points
Average of class Workstation
  (990 - 1805, n=28, last 2 years)
1478 Points
WebXPRT 3 / Overall
Asus ROG Strix Scar 17 G733PYV-LL053X
NVIDIA GeForce RTX 4090 Laptop GPU, R9 7945HX3D, SK hynix PC801 HFS001TEJ9X101N
480 Points +56%
Aorus 17X AZF
NVIDIA GeForce RTX 4090 Laptop GPU, i9-13900HX, Gigabyte AG470S1TB-SI B10
340 Points +10%
Eurocom Raptor X17 Core i9-14900HX
NVIDIA GeForce RTX 4090 Laptop GPU, i9-14900HX, Corsair MP700 Pro 2TB
332 Points +8%
Average Intel Core i9-14900HX, NVIDIA GeForce RTX 4090 Laptop GPU
  (279 - 339, n=10)
323 Points +5%
HP ZBook Fury 16 G11
NVIDIA RTX 3500 Ada Generation Laptop GPU, i9-14900HX, SK hynix PC801 HFS001TEJ9X101N
319 Points +4%
SCHENKER Key 17 Pro (M24)
NVIDIA GeForce RTX 4090 Laptop GPU, i9-14900HX, Samsung 990 Pro 1 TB
308 Points
Average of class Workstation
  (218 - 415, n=31, last 2 years)
302 Points -2%
WebXPRT 4 / Overall
Asus ROG Strix Scar 17 G733PYV-LL053X
NVIDIA GeForce RTX 4090 Laptop GPU, R9 7945HX3D, SK hynix PC801 HFS001TEJ9X101N
328 Points +19%
Eurocom Raptor X17 Core i9-14900HX
NVIDIA GeForce RTX 4090 Laptop GPU, i9-14900HX, Corsair MP700 Pro 2TB
308 Points +12%
HP ZBook Fury 16 G11
NVIDIA RTX 3500 Ada Generation Laptop GPU, i9-14900HX, SK hynix PC801 HFS001TEJ9X101N
302 Points +10%
Aorus 17X AZF
NVIDIA GeForce RTX 4090 Laptop GPU, i9-13900HX, Gigabyte AG470S1TB-SI B10
297 Points +8%
Average Intel Core i9-14900HX, NVIDIA GeForce RTX 4090 Laptop GPU
  (246 - 309, n=8)
291 Points +6%
SCHENKER Key 17 Pro (M24)
NVIDIA GeForce RTX 4090 Laptop GPU, i9-14900HX, Samsung 990 Pro 1 TB
275 Points
Average of class Workstation
  (166.7 - 338, n=27, last 2 years)
264 Points -4%
Mozilla Kraken 1.1 / Total
Average of class Workstation
  (447 - 612, n=31, last 2 years)
517 ms * -7%
SCHENKER Key 17 Pro (M24)
NVIDIA GeForce RTX 4090 Laptop GPU, i9-14900HX, Samsung 990 Pro 1 TB
481 ms *
Aorus 17X AZF
NVIDIA GeForce RTX 4090 Laptop GPU, i9-13900HX, Gigabyte AG470S1TB-SI B10
473 ms * +2%
Eurocom Raptor X17 Core i9-14900HX
NVIDIA GeForce RTX 4090 Laptop GPU, i9-14900HX, Corsair MP700 Pro 2TB
467 ms * +3%
Average Intel Core i9-14900HX, NVIDIA GeForce RTX 4090 Laptop GPU
  (428 - 535, n=11)
456 ms * +5%
HP ZBook Fury 16 G11
NVIDIA RTX 3500 Ada Generation Laptop GPU, i9-14900HX, SK hynix PC801 HFS001TEJ9X101N
447 ms * +7%
Asus ROG Strix Scar 17 G733PYV-LL053X
NVIDIA GeForce RTX 4090 Laptop GPU, R9 7945HX3D, SK hynix PC801 HFS001TEJ9X101N
421.3 ms * +12%

* ... smaller is better

PCMark 10 Score
8277 points
Help
AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency
AIDA64 / Memory Copy
SCHENKER Key 17 Pro (M24)
Intel Core i9-14900HX, NVIDIA GeForce RTX 4090 Laptop GPU
78820 MB/s
Aorus 17X AZF
Intel Core i9-13900HX, NVIDIA GeForce RTX 4090 Laptop GPU
78171 MB/s -1%
Eurocom Raptor X17 Core i9-14900HX
Intel Core i9-14900HX, NVIDIA GeForce RTX 4090 Laptop GPU
76328 MB/s -3%
Average Intel Core i9-14900HX
  (38028 - 83392, n=36)
75105 MB/s -5%
Average of class Workstation
  (30324 - 95718, n=30, last 2 years)
63278 MB/s -20%
HP ZBook Fury 16 G11
Intel Core i9-14900HX, NVIDIA RTX 3500 Ada Generation Laptop GPU
60295 MB/s -24%
Asus ROG Strix Scar 17 G733PYV-LL053X
AMD Ryzen 9 7945HX3D, NVIDIA GeForce RTX 4090 Laptop GPU
50335 MB/s -36%
AIDA64 / Memory Read
Aorus 17X AZF
Intel Core i9-13900HX, NVIDIA GeForce RTX 4090 Laptop GPU
88462 MB/s +3%
SCHENKER Key 17 Pro (M24)
Intel Core i9-14900HX, NVIDIA GeForce RTX 4090 Laptop GPU
85763 MB/s
Average Intel Core i9-14900HX
  (43306 - 87568, n=36)
81377 MB/s -5%
Eurocom Raptor X17 Core i9-14900HX
Intel Core i9-14900HX, NVIDIA GeForce RTX 4090 Laptop GPU
80139 MB/s -7%
Average of class Workstation
  (30787 - 86584, n=30, last 2 years)
61530 MB/s -28%
Asus ROG Strix Scar 17 G733PYV-LL053X
AMD Ryzen 9 7945HX3D, NVIDIA GeForce RTX 4090 Laptop GPU
59921 MB/s -30%
HP ZBook Fury 16 G11
Intel Core i9-14900HX, NVIDIA RTX 3500 Ada Generation Laptop GPU
59863 MB/s -30%
AIDA64 / Memory Write
SCHENKER Key 17 Pro (M24)
Intel Core i9-14900HX, NVIDIA GeForce RTX 4090 Laptop GPU
77439 MB/s
Aorus 17X AZF
Intel Core i9-13900HX, NVIDIA GeForce RTX 4090 Laptop GPU
76529 MB/s -1%
Eurocom Raptor X17 Core i9-14900HX
Intel Core i9-14900HX, NVIDIA GeForce RTX 4090 Laptop GPU
76442 MB/s -1%
Average Intel Core i9-14900HX
  (37146 - 80589, n=36)
72406 MB/s -6%
Average of class Workstation
  (32728 - 93871, n=30, last 2 years)
67146 MB/s -13%
Asus ROG Strix Scar 17 G733PYV-LL053X
AMD Ryzen 9 7945HX3D, NVIDIA GeForce RTX 4090 Laptop GPU
58774 MB/s -24%
HP ZBook Fury 16 G11
Intel Core i9-14900HX, NVIDIA RTX 3500 Ada Generation Laptop GPU
56987 MB/s -26%
AIDA64 / Memory Latency
Average of class Workstation
  (83.4 - 140.8, n=30, last 2 years)
104.6 ns * -24%
HP ZBook Fury 16 G11
Intel Core i9-14900HX, NVIDIA RTX 3500 Ada Generation Laptop GPU
96.3 ns * -14%
Asus ROG Strix Scar 17 G733PYV-LL053X
AMD Ryzen 9 7945HX3D, NVIDIA GeForce RTX 4090 Laptop GPU
88.6 ns * -5%
Eurocom Raptor X17 Core i9-14900HX
Intel Core i9-14900HX, NVIDIA GeForce RTX 4090 Laptop GPU
85.5 ns * -1%
Average Intel Core i9-14900HX
  (76.1 - 105, n=36)
84.7 ns * -0%
SCHENKER Key 17 Pro (M24)
Intel Core i9-14900HX, NVIDIA GeForce RTX 4090 Laptop GPU
84.5 ns *
Aorus 17X AZF
Intel Core i9-13900HX, NVIDIA GeForce RTX 4090 Laptop GPU
80.4 ns * +5%

* ... smaller is better

DPC 延迟

在本次比较中，申克的 Key 17 Pro M24 在所有 i9-14900HX 实施方案中延迟第二高，但由于较好的实施方案仅在 1000 微秒范围内，因此延迟并不明显更高。技嘉的 i9-13900HX 和 Zbook Fury 上的 i9-14900HX 的延迟明显更差，达到 11000 - 12000 微秒以上。Latencymon 认为，1.9K μs 的延迟对于实时音频和其他任务来说太高了，因此这可能会对视频编辑等内容创作产生负面影响。不过，在播放 Youtube 上的 4K@60 fps 视频时，没有出现掉帧现象，CPU 利用率也相对较低。

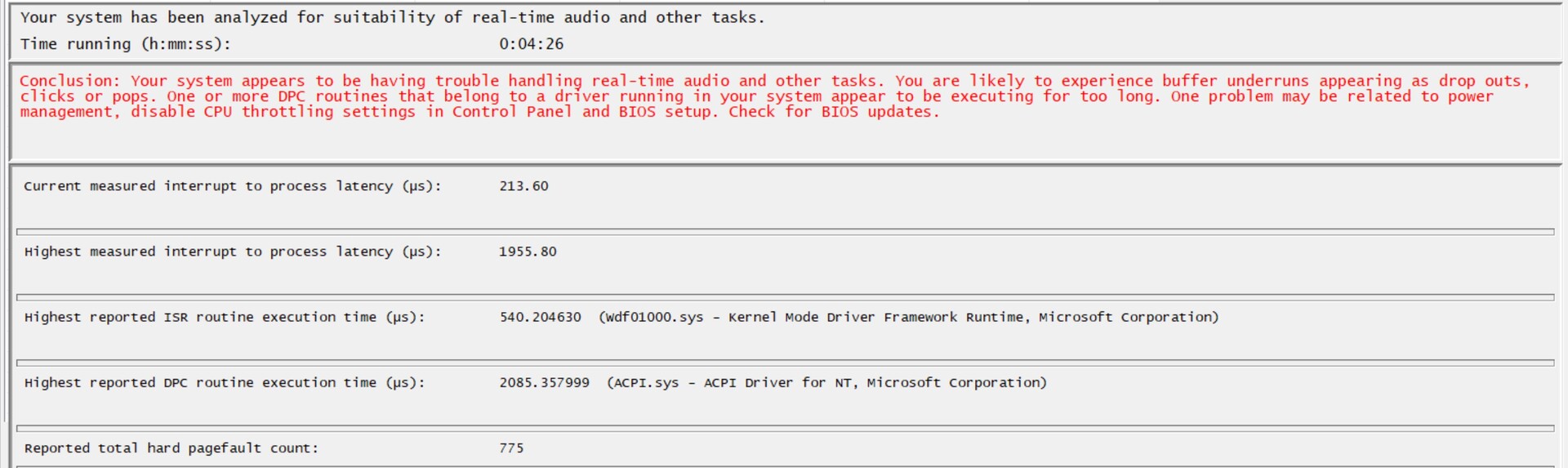

Latencymon 主选项卡
Latencymon 主选项卡

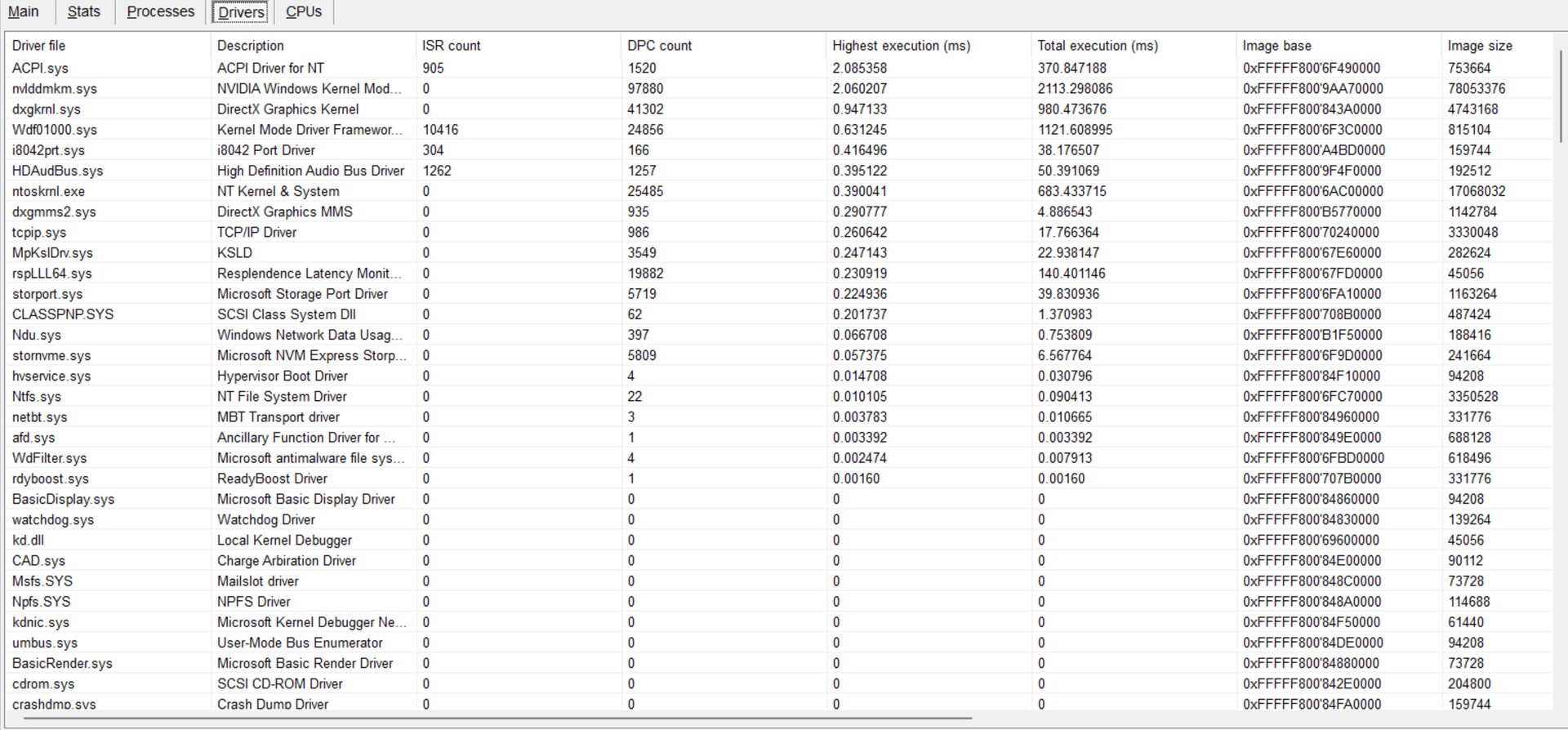

Latencymon 驱动程序选项卡
Latencymon 驱动程序选项卡

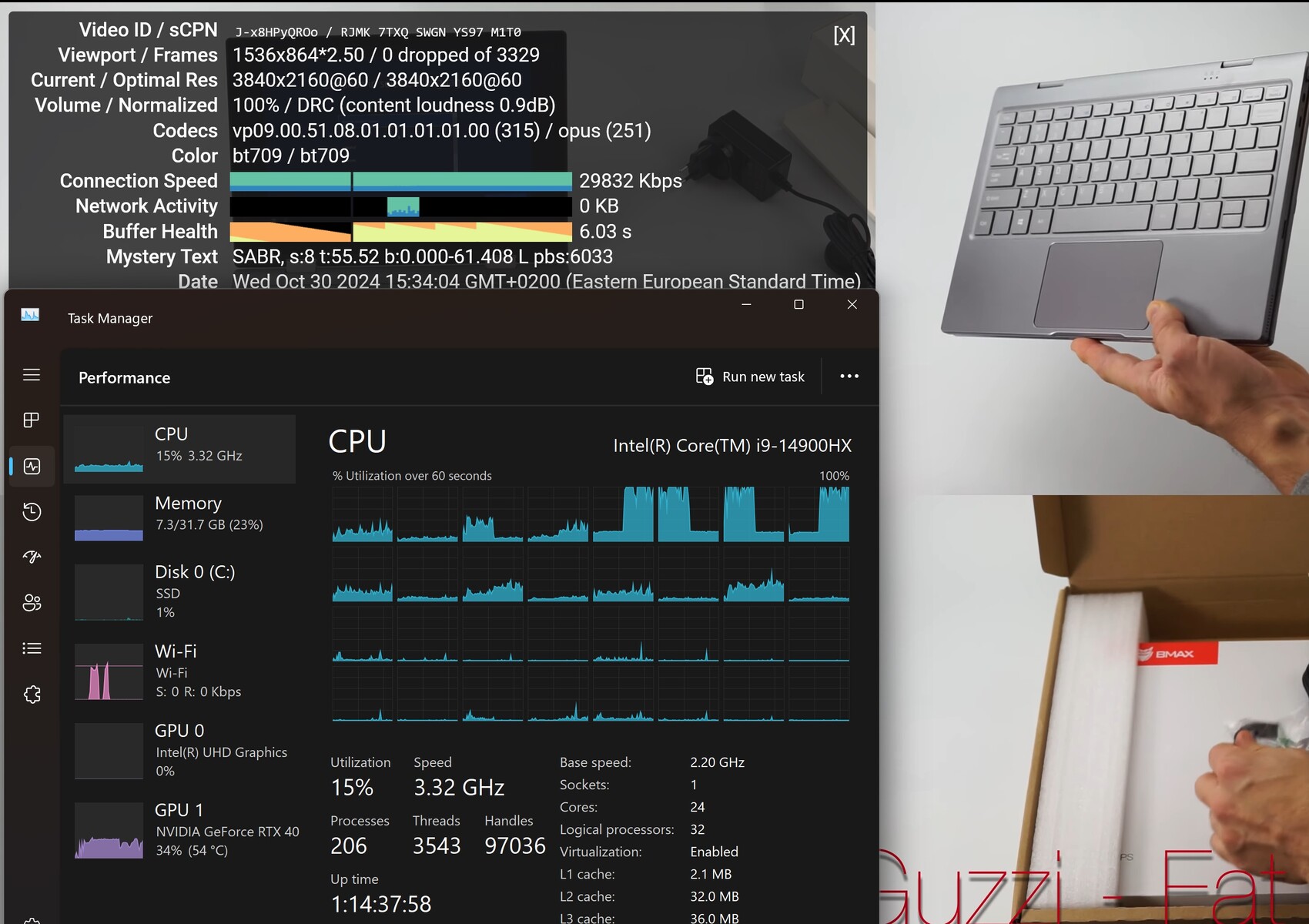

4K 视频的 Youtube 统计数据和 CPU 使用率
4K 视频的 Youtube 统计数据和 CPU 使用率
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Aorus 17X AZF
NVIDIA GeForce RTX 4090 Laptop GPU, i9-13900HX, Gigabyte AG470S1TB-SI B10
12614 μs * -545%
HP ZBook Fury 16 G11
NVIDIA RTX 3500 Ada Generation Laptop GPU, i9-14900HX, SK hynix PC801 HFS001TEJ9X101N
11167.3 μs * -471%
SCHENKER Key 17 Pro (M24)
NVIDIA GeForce RTX 4090 Laptop GPU, i9-14900HX, Samsung 990 Pro 1 TB
1955.8 μs *
Eurocom Raptor X17 Core i9-14900HX
NVIDIA GeForce RTX 4090 Laptop GPU, i9-14900HX, Corsair MP700 Pro 2TB
1123.4 μs * +43%
Asus ROG Strix Scar 17 G733PYV-LL053X
NVIDIA GeForce RTX 4090 Laptop GPU, R9 7945HX3D, SK hynix PC801 HFS001TEJ9X101N
1100.8 μs * +44%

* ... smaller is better

存储设备

三星 990 ProPCIe 4.0 1 TB 固态硬盘的平均速度比所有其他固态硬盘型号都要快，除了 科赛尔 MP700是一款 PCIe 5.0解决方案。三星固态硬盘的速度也比其他配备该固态硬盘的笔记本电脑型号的平均速度快 14%。 在节流环路中，三星990 Pro没有显示出任何明显的变化，尽管与其他PCIe 4.0固态硬盘相比，最高速度似乎低了几个百分点。

AS SSD
DiskSpd
hddimg
Samsung 990 Pro 1 TB
Sequential Read: 5346MB/s
Sequential Write: 5012MB/s
4K Read: 90.9MB/s
4K Write: 260MB/s
4K-64 Read: 3182MB/s
4K-64 Write: 4090MB/s
Access Time Read: 0.046ms
Access Time Write: 0.015ms
Score Read: 3807Points
Score Write: 4852Points
Score Total: 10591Points
Drive Performance Rating | DiskSpd | AS SSD
Drive Performance Rating - Percent
Eurocom Raptor X17 Core i9-14900HX
Corsair MP700 Pro 2TB
90.9 pt
SCHENKER Key 17 Pro (M24)
Samsung 990 Pro 1 TB
73.2 pt
Average Samsung 990 Pro 1 TB

62.6 pt
Aorus 17X AZF
Gigabyte AG470S1TB-SI B10
59.6 pt
HP ZBook Fury 16 G11
SK hynix PC801 HFS001TEJ9X101N
53.2 pt
Average of class Workstation

45.9 pt
Asus ROG Strix Scar 17 G733PYV-LL053X
SK hynix PC801 HFS001TEJ9X101N
45.3 pt
DiskSpd
seq read
HP ZBook Fury 16 G11
SK hynix PC801 HFS001TEJ9X101N
4835 (4788.71min - 4834.56max) MB/s +54%
Average of class Workstation
  (888 - 5715, n=30, last 2 years)
3526 MB/s +12%
Average Samsung 990 Pro 1 TB
  (2556 - 4234, n=19)
3283 MB/s +4%
Aorus 17X AZF
Gigabyte AG470S1TB-SI B10
3185 (2979.13min - 3184.87max) MB/s +1%
SCHENKER Key 17 Pro (M24)
Samsung 990 Pro 1 TB
3142 (3005.43min - 3141.53max) MB/s
Eurocom Raptor X17 Core i9-14900HX
Corsair MP700 Pro 2TB
2672 (2652.21min - 2671.88max) MB/s -15%
Asus ROG Strix Scar 17 G733PYV-LL053X
SK hynix PC801 HFS001TEJ9X101N
2570 (2552.37min - 2570.06max) MB/s -18%
seq write
Eurocom Raptor X17 Core i9-14900HX
Corsair MP700 Pro 2TB
9307 (5304.83min - 9307.21max) MB/s +90%
SCHENKER Key 17 Pro (M24)
Samsung 990 Pro 1 TB
4891 (4759.07min - 4890.56max) MB/s
Average Samsung 990 Pro 1 TB
  (3598 - 5842, n=19)
4816 MB/s -2%
Average of class Workstation
  (848 - 7289, n=30, last 2 years)
3580 MB/s -27%
HP ZBook Fury 16 G11
SK hynix PC801 HFS001TEJ9X101N
3548 (3467.85min - 3547.93max) MB/s -27%
Aorus 17X AZF
Gigabyte AG470S1TB-SI B10
2988 (2534.41min - 2987.71max) MB/s -39%
Asus ROG Strix Scar 17 G733PYV-LL053X
SK hynix PC801 HFS001TEJ9X101N
1690 (1454.82min - 1690.3max) MB/s -65%
seq q8 t1 read
Eurocom Raptor X17 Core i9-14900HX
Corsair MP700 Pro 2TB
12029 (6621.31min - 12029.1max) MB/s +71%
SCHENKER Key 17 Pro (M24)
Samsung 990 Pro 1 TB
7033 (6025.44min - 7033.01max) MB/s
Average Samsung 990 Pro 1 TB
  (4958 - 7148, n=19)
6979 MB/s -1%
Asus ROG Strix Scar 17 G733PYV-LL053X
SK hynix PC801 HFS001TEJ9X101N
6971 (6127.67min - 6971.35max) MB/s -1%
HP ZBook Fury 16 G11
SK hynix PC801 HFS001TEJ9X101N
6961 (6365.34min - 6960.66max) MB/s -1%
Aorus 17X AZF
Gigabyte AG470S1TB-SI B10
6936 (6051.54min - 6936.09max) MB/s -1%
Average of class Workstation
  (944 - 12631, n=30, last 2 years)
6451 MB/s -8%
seq q8 t1 write
Eurocom Raptor X17 Core i9-14900HX
Corsair MP700 Pro 2TB
11581 (11375.7min - 11581max) MB/s +75%
Average Samsung 990 Pro 1 TB
  (6531 - 6898, n=19)
6796 MB/s +3%
SCHENKER Key 17 Pro (M24)
Samsung 990 Pro 1 TB
6620 (6576.94min - 6620.29max) MB/s
HP ZBook Fury 16 G11
SK hynix PC801 HFS001TEJ9X101N
6159 (6120.41min - 6159.34max) MB/s -7%
Average of class Workstation
  (867 - 9890, n=30, last 2 years)
5270 MB/s -20%
Aorus 17X AZF
Gigabyte AG470S1TB-SI B10
4348 (4155.37min - 4348.35max) MB/s -34%
Asus ROG Strix Scar 17 G733PYV-LL053X
SK hynix PC801 HFS001TEJ9X101N
2382 (920.86min - 2382.42max) MB/s -64%
4k q1 t1 read
SCHENKER Key 17 Pro (M24)
Samsung 990 Pro 1 TB
99 (97.84min - 99.01max) MB/s
Eurocom Raptor X17 Core i9-14900HX
Corsair MP700 Pro 2TB
95.9 (94.45min - 95.94max) MB/s -3%
Average Samsung 990 Pro 1 TB
  (55.3 - 99, n=19)
77.1 MB/s -22%
Average of class Workstation
  (52.4 - 99, n=30, last 2 years)
65.7 MB/s -34%
HP ZBook Fury 16 G11
SK hynix PC801 HFS001TEJ9X101N
64.3 (64.19min - 64.33max) MB/s -35%
Aorus 17X AZF
Gigabyte AG470S1TB-SI B10
55 (54.75min - 55.02max) MB/s -44%
Asus ROG Strix Scar 17 G733PYV-LL053X
SK hynix PC801 HFS001TEJ9X101N
54.3 (54.23min - 54.34max) MB/s -45%
4k q1 t1 write
Eurocom Raptor X17 Core i9-14900HX
Corsair MP700 Pro 2TB
397 (385.91min - 396.86max) MB/s +26%
Aorus 17X AZF
Gigabyte AG470S1TB-SI B10
324 (317.18min - 324.02max) MB/s +3%
SCHENKER Key 17 Pro (M24)
Samsung 990 Pro 1 TB
316 (303.92min - 316.48max) MB/s
Average Samsung 990 Pro 1 TB
  (133.9 - 343, n=19)
235 MB/s -26%
Asus ROG Strix Scar 17 G733PYV-LL053X
SK hynix PC801 HFS001TEJ9X101N
183.8 (182.06min - 183.78max) MB/s -42%
HP ZBook Fury 16 G11
SK hynix PC801 HFS001TEJ9X101N
162.1 (160.38min - 162.08max) MB/s -49%
Average of class Workstation
  (106.8 - 316, n=30, last 2 years)
158 MB/s -50%
4k q32 t16 read
Eurocom Raptor X17 Core i9-14900HX
Corsair MP700 Pro 2TB
6172 (6083.33min - 6171.85max) MB/s +25%
SCHENKER Key 17 Pro (M24)
Samsung 990 Pro 1 TB
4926 (4895.9min - 4926.27max) MB/s
Aorus 17X AZF
Gigabyte AG470S1TB-SI B10
3583 (3572.22min - 3582.76max) MB/s -27%
Average Samsung 990 Pro 1 TB
  (818 - 4926, n=19)
3398 MB/s -31%
Average of class Workstation
  (561 - 4926, n=30, last 2 years)
1485 MB/s -70%
Asus ROG Strix Scar 17 G733PYV-LL053X
SK hynix PC801 HFS001TEJ9X101N
1331 (1250.04min - 1330.81max) MB/s -73%
HP ZBook Fury 16 G11
SK hynix PC801 HFS001TEJ9X101N
905 (889.91min - 905max) MB/s -82%
4k q32 t16 write
Eurocom Raptor X17 Core i9-14900HX
Corsair MP700 Pro 2TB
4485 (4443.23min - 4484.95max) MB/s +25%
Aorus 17X AZF
Gigabyte AG470S1TB-SI B10
3622 (3512.08min - 3621.76max) MB/s +1%
SCHENKER Key 17 Pro (M24)
Samsung 990 Pro 1 TB
3579 (3433.86min - 3579.4max) MB/s
Average Samsung 990 Pro 1 TB
  (413 - 4683, n=19)
2584 MB/s -28%
Average of class Workstation
  (361 - 3579, n=30, last 2 years)
960 MB/s -73%
Asus ROG Strix Scar 17 G733PYV-LL053X
SK hynix PC801 HFS001TEJ9X101N
730 (694.74min - 729.67max) MB/s -80%
HP ZBook Fury 16 G11
SK hynix PC801 HFS001TEJ9X101N
526 (510.99min - 525.65max) MB/s -85%
AS SSD
Score Total
Eurocom Raptor X17 Core i9-14900HX
Corsair MP700 Pro 2TB
13854 Points +31%
SCHENKER Key 17 Pro (M24)
Samsung 990 Pro 1 TB
10591 Points
Aorus 17X AZF
Gigabyte AG470S1TB-SI B10
8788 Points -17%
Average Samsung 990 Pro 1 TB
  (5405 - 10591, n=19)
8285 Points -22%
HP ZBook Fury 16 G11
SK hynix PC801 HFS001TEJ9X101N
6724 Points -37%
Asus ROG Strix Scar 17 G733PYV-LL053X
SK hynix PC801 HFS001TEJ9X101N
6546 Points -38%
Average of class Workstation
  (2419 - 10591, n=30, last 2 years)
5599 Points -47%
Score Read
Eurocom Raptor X17 Core i9-14900HX
Corsair MP700 Pro 2TB
4345 Points +14%
SCHENKER Key 17 Pro (M24)
Samsung 990 Pro 1 TB
3807 Points
Aorus 17X AZF
Gigabyte AG470S1TB-SI B10
3522 Points -7%
Average Samsung 990 Pro 1 TB
  (1349 - 4721, n=19)
2874 Points -25%
Average of class Workstation
  (962 - 3807, n=30, last 2 years)
1723 Points -55%
Asus ROG Strix Scar 17 G733PYV-LL053X
SK hynix PC801 HFS001TEJ9X101N
1689 Points -56%
HP ZBook Fury 16 G11
SK hynix PC801 HFS001TEJ9X101N
1574 Points -59%
Score Write
Eurocom Raptor X17 Core i9-14900HX
Corsair MP700 Pro 2TB
7208 Points +49%
SCHENKER Key 17 Pro (M24)
Samsung 990 Pro 1 TB
4852 Points
HP ZBook Fury 16 G11
SK hynix PC801 HFS001TEJ9X101N
4428 Points -9%
Asus ROG Strix Scar 17 G733PYV-LL053X
SK hynix PC801 HFS001TEJ9X101N
4073 Points -16%
Average Samsung 990 Pro 1 TB
  (2308 - 4852, n=19)
4041 Points -17%
Aorus 17X AZF
Gigabyte AG470S1TB-SI B10
3618 Points -25%
Average of class Workstation
  (742 - 4852, n=30, last 2 years)
3081 Points -37%
Seq Read
Eurocom Raptor X17 Core i9-14900HX
Corsair MP700 Pro 2TB
7812.91 MB/s +46%
Asus ROG Strix Scar 17 G733PYV-LL053X
SK hynix PC801 HFS001TEJ9X101N
5739 MB/s +7%
HP ZBook Fury 16 G11
SK hynix PC801 HFS001TEJ9X101N
5639.52 MB/s +5%
SCHENKER Key 17 Pro (M24)
Samsung 990 Pro 1 TB
5346 MB/s
Average Samsung 990 Pro 1 TB
  (4362 - 5760, n=19)
5223 MB/s -2%
Average of class Workstation
  (837 - 7437, n=30, last 2 years)
5029 MB/s -6%
Aorus 17X AZF
Gigabyte AG470S1TB-SI B10
4887 MB/s -9%
Seq Write
Eurocom Raptor X17 Core i9-14900HX
Corsair MP700 Pro 2TB
9485.67 MB/s +89%
SCHENKER Key 17 Pro (M24)
Samsung 990 Pro 1 TB
5012 MB/s
Average Samsung 990 Pro 1 TB
  (3376 - 5651, n=19)
4740 MB/s -5%
Asus ROG Strix Scar 17 G733PYV-LL053X
SK hynix PC801 HFS001TEJ9X101N
3972 MB/s -21%
HP ZBook Fury 16 G11
SK hynix PC801 HFS001TEJ9X101N
3610.72 MB/s -28%
Average of class Workstation
  (778 - 5882, n=30, last 2 years)
3032 MB/s -40%
Aorus 17X AZF
Gigabyte AG470S1TB-SI B10
1891 MB/s -62%
4K Read
SCHENKER Key 17 Pro (M24)
Samsung 990 Pro 1 TB
90.9 MB/s
Eurocom Raptor X17 Core i9-14900HX
Corsair MP700 Pro 2TB
89.1 MB/s -2%
Aorus 17X AZF
Gigabyte AG470S1TB-SI B10
72.6 MB/s -20%
Average Samsung 990 Pro 1 TB
  (52.7 - 90.9, n=19)
71.9 MB/s -21%
HP ZBook Fury 16 G11
SK hynix PC801 HFS001TEJ9X101N
71.74 MB/s -21%
Average of class Workstation
  (46.6 - 90.9, n=30, last 2 years)
62 MB/s -32%
Asus ROG Strix Scar 17 G733PYV-LL053X
SK hynix PC801 HFS001TEJ9X101N
56 MB/s -38%
4K Write
Eurocom Raptor X17 Core i9-14900HX
Corsair MP700 Pro 2TB
350.79 MB/s +35%
Aorus 17X AZF
Gigabyte AG470S1TB-SI B10
284 MB/s +9%
HP ZBook Fury 16 G11
SK hynix PC801 HFS001TEJ9X101N
262.32 MB/s +1%
SCHENKER Key 17 Pro (M24)
Samsung 990 Pro 1 TB
260 MB/s
Average Samsung 990 Pro 1 TB
  (172.3 - 306, n=19)
221 MB/s -15%
Asus ROG Strix Scar 17 G733PYV-LL053X
SK hynix PC801 HFS001TEJ9X101N
192.1 MB/s -26%
Average of class Workstation
  (98.6 - 262, n=30, last 2 years)
175.5 MB/s -32%
4K-64 Read
Eurocom Raptor X17 Core i9-14900HX
Corsair MP700 Pro 2TB
3474.56 MB/s +9%
SCHENKER Key 17 Pro (M24)
Samsung 990 Pro 1 TB
3182 MB/s
Aorus 17X AZF
Gigabyte AG470S1TB-SI B10
2961 MB/s -7%
Average Samsung 990 Pro 1 TB
  (787 - 3182, n=19)
2235 MB/s -30%
Average of class Workstation
  (649 - 3182, n=30, last 2 years)
1162 MB/s -63%
Asus ROG Strix Scar 17 G733PYV-LL053X
SK hynix PC801 HFS001TEJ9X101N
1059 MB/s -67%
HP ZBook Fury 16 G11
SK hynix PC801 HFS001TEJ9X101N
938.68 MB/s -71%
4K-64 Write
Eurocom Raptor X17 Core i9-14900HX
Corsair MP700 Pro 2TB
5908.55 MB/s +44%
SCHENKER Key 17 Pro (M24)
Samsung 990 Pro 1 TB
4090 MB/s
HP ZBook Fury 16 G11
SK hynix PC801 HFS001TEJ9X101N
3804.93 MB/s -7%
Asus ROG Strix Scar 17 G733PYV-LL053X
SK hynix PC801 HFS001TEJ9X101N
3484 MB/s -15%
Average Samsung 990 Pro 1 TB
  (1592 - 4090, n=19)
3352 MB/s -18%
Aorus 17X AZF
Gigabyte AG470S1TB-SI B10
3145 MB/s -23%
Average of class Workstation
  (431 - 4090, n=30, last 2 years)
2603 MB/s -36%
Access Time Read
Aorus 17X AZF
Gigabyte AG470S1TB-SI B10
0.086 ms * -87%
Asus ROG Strix Scar 17 G733PYV-LL053X
SK hynix PC801 HFS001TEJ9X101N
0.062 ms * -35%
Average of class Workstation
  (0.017 - 0.105, n=30, last 2 years)
0.0514 ms * -12%
SCHENKER Key 17 Pro (M24)
Samsung 990 Pro 1 TB
0.046 ms *
Average Samsung 990 Pro 1 TB
  (0.018 - 0.074, n=19)
0.03384 ms * +26%
Eurocom Raptor X17 Core i9-14900HX
Corsair MP700 Pro 2TB
0.02 ms * +57%
HP ZBook Fury 16 G11
SK hynix PC801 HFS001TEJ9X101N
0.017 ms * +63%
Access Time Write
Eurocom Raptor X17 Core i9-14900HX
Corsair MP700 Pro 2TB
0.1 ms * -567%
HP ZBook Fury 16 G11
SK hynix PC801 HFS001TEJ9X101N
0.052 ms * -247%
Average of class Workstation
  (0.015 - 0.092, n=30, last 2 years)
0.04593 ms * -206%
Average Samsung 990 Pro 1 TB
  (0.012 - 0.053, n=19)
0.01995 ms * -33%
Asus ROG Strix Scar 17 G733PYV-LL053X
SK hynix PC801 HFS001TEJ9X101N
0.019 ms * -27%
SCHENKER Key 17 Pro (M24)
Samsung 990 Pro 1 TB
0.015 ms *
Aorus 17X AZF
Gigabyte AG470S1TB-SI B10
0.014 ms * +7%

* ... smaller is better

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

0620124018602480310037204340496055806200682074408060868093009920105401116011780Tooltip
SCHENKER Key 17 Pro (M24) Samsung 990 Pro 1 TB; diskspd 2.0.17 f: Ø5981 (4453.3-6104.14)
Asus ROG Strix Scar 17 G733PYV-LL053X SK hynix PC801 HFS001TEJ9X101N: Ø6593 (4837.89-6648.18)
Eurocom Raptor X17 Core i9-14900HX Corsair MP700 Pro 2TB; diskspd 2.0.17 f: Ø12251 (10175.58-12345.09)
Eurocom Raptor X17 Core i9-14900HX Corsair MP700 Pro 2TB; diskspd 2.0.17 f: Ø6127 (3845.97-12312.59)
HP ZBook Fury 16 G11 SK hynix PC801 HFS001TEJ9X101N; diskspd 2.0.17 f: Ø5610 (3481.65-6919.34)
Aorus 17X AZF Gigabyte AG470S1TB-SI B10: Ø6890 (5212.74-6934.62)

图形处理器性能

GPUZ iinfo
GPUZ iinfo

申克 RTX 4090 的整体游戏性能排在最后一位，但与基于英特尔的最快竞争对手相比，也没有落后太多（最多 9%）。不过，基于 AMD 的华硕笔记本电脑要快 16%。

在《赛博朋克 2077》1080p 超 30 分钟运行中出现了一个奇怪的现象，Schenker RTX 4090 每 5 分钟左右就会下降到 20 帧以下，尽管平均帧数仍保持在 100 以上。

此外，GPU 性能在电池模式下也会大幅降低。例如，Furmark 压力测试的平均帧数仅为 30，而在连接电源适配器的情况下，帧数可达 581。同样，《赛博朋克 2077》 1080p ultra 和Fire Strike ，在电池状态下的运行速度约为 30 帧/秒。通过Fire Strike 基准测试显示，当将电源限制在平衡（娱乐）或省电（安静）模式时，GPU 性能也会下降不少。

电源配置文件
图形分数
物理得分
综合得分
性能模式
456003061910857
娱乐模式
34723 (-24%)
19943 (-35%)6499 (-41%)
安静模式
30603 (-33%)
17142 (-44%)
4452 (-59%)
电池电量
6899 (-85%)
9512 (-69%)
3095 (-72%)


3DMark Performance Rating | 3DMark 11 | 3DMark
3DMark Performance Rating - Percent
Asus ROG Strix Scar 17 G733PYV-LL053X -1!
NVIDIA GeForce RTX 4090 Laptop GPU, AMD Ryzen 9 7945HX3D
98.4 pt
Average NVIDIA GeForce RTX 4090 Laptop GPU

97.1 pt
Eurocom Raptor X17 Core i9-14900HX -1!
NVIDIA GeForce RTX 4090 Laptop GPU, Intel Core i9-14900HX
96.9 pt
Aorus 17X AZF
NVIDIA GeForce RTX 4090 Laptop GPU, Intel Core i9-13900HX
95.7 pt
SCHENKER Key 17 Pro (M24)
NVIDIA GeForce RTX 4090 Laptop GPU, Intel Core i9-14900HX
92.5 pt
HP ZBook Fury 16 G11 -1!
NVIDIA RTX 3500 Ada Generation Laptop GPU, Intel Core i9-14900HX
60.4 pt
Average of class Workstation

45.1 pt
3DMark 11 - 1280x720 Performance GPU
Average NVIDIA GeForce RTX 4090 Laptop GPU
  (54073 - 73027, n=42)
65041 Points +9%
Asus ROG Strix Scar 17 G733PYV-LL053X
NVIDIA GeForce RTX 4090 Laptop GPU, AMD Ryzen 9 7945HX3D
64166 Points +7%
Eurocom Raptor X17 Core i9-14900HX
NVIDIA GeForce RTX 4090 Laptop GPU, Intel Core i9-14900HX
63191 Points +6%
Aorus 17X AZF
NVIDIA GeForce RTX 4090 Laptop GPU, Intel Core i9-13900HX
62544 Points +5%
SCHENKER Key 17 Pro (M24)
NVIDIA GeForce RTX 4090 Laptop GPU, Intel Core i9-14900HX
59715 Points
HP ZBook Fury 16 G11
NVIDIA RTX 3500 Ada Generation Laptop GPU, Intel Core i9-14900HX
41630 Points -30%
Average of class Workstation
  (9356 - 59715, n=31, last 2 years)
29156 Points -51%
3DMark
1280x720 Cloud Gate Standard Graphics
Average NVIDIA GeForce RTX 4090 Laptop GPU
  (95671 - 164399, n=14)
142227 Points +3%
SCHENKER Key 17 Pro (M24)
NVIDIA GeForce RTX 4090 Laptop GPU, Intel Core i9-14900HX
137440 Points
Aorus 17X AZF
NVIDIA GeForce RTX 4090 Laptop GPU, Intel Core i9-13900HX
132812 Points -3%
Average of class Workstation
  (40615 - 152418, n=16, last 2 years)
79957 Points -42%
1920x1080 Fire Strike Graphics
Asus ROG Strix Scar 17 G733PYV-LL053X
NVIDIA GeForce RTX 4090 Laptop GPU, AMD Ryzen 9 7945HX3D
49422 Points +8%
Aorus 17X AZF
NVIDIA GeForce RTX 4090 Laptop GPU, Intel Core i9-13900HX
48251 Points +6%
Average NVIDIA GeForce RTX 4090 Laptop GPU
  (40259 - 53059, n=41)
46365 Points +2%
Eurocom Raptor X17 Core i9-14900HX
NVIDIA GeForce RTX 4090 Laptop GPU, Intel Core i9-14900HX
46191 Points +1%
SCHENKER Key 17 Pro (M24)
NVIDIA GeForce RTX 4090 Laptop GPU, Intel Core i9-14900HX
45600 Points
HP ZBook Fury 16 G11
NVIDIA RTX 3500 Ada Generation Laptop GPU, Intel Core i9-14900HX
29248 Points -36%
Average of class Workstation
  (6121 - 45600, n=31, last 2 years)
20659 Points -55%
2560x1440 Time Spy Graphics
Eurocom Raptor X17 Core i9-14900HX
NVIDIA GeForce RTX 4090 Laptop GPU, Intel Core i9-14900HX
22104 Points +12%
Asus ROG Strix Scar 17 G733PYV-LL053X
NVIDIA GeForce RTX 4090 Laptop GPU, AMD Ryzen 9 7945HX3D
21353 Points +8%
Aorus 17X AZF
NVIDIA GeForce RTX 4090 Laptop GPU, Intel Core i9-13900HX
21158 Points +7%
Average NVIDIA GeForce RTX 4090 Laptop GPU
  (16950 - 23292, n=43)
20950 Points +6%
SCHENKER Key 17 Pro (M24)
NVIDIA GeForce RTX 4090 Laptop GPU, Intel Core i9-14900HX
19741 Points
HP ZBook Fury 16 G11
NVIDIA RTX 3500 Ada Generation Laptop GPU, Intel Core i9-14900HX
12806 Points -35%
Average of class Workstation
  (1997 - 19741, n=31, last 2 years)
8309 Points -58%
3DMark 11 Performance
40366 points
3DMark Cloud Gate Standard Score
59382 points
3DMark Fire Strike Score
32725 points
3DMark Time Spy Score
18674 points
Help
Blender
v3.3 Classroom OPTIX/RTX
Average of class Workstation
  (13 - 95, n=26, last 2 years)
33.5 Seconds * -158%
HP ZBook Fury 16 G11
NVIDIA RTX 3500 Ada Generation Laptop GPU, Intel Core i9-14900HX
21 Seconds * -62%
Aorus 17X AZF
NVIDIA GeForce RTX 4090 Laptop GPU, Intel Core i9-13900HX
14 Seconds * -8%
SCHENKER Key 17 Pro (M24)
NVIDIA GeForce RTX 4090 Laptop GPU, Intel Core i9-14900HX
13 Seconds *
Average NVIDIA GeForce RTX 4090 Laptop GPU
  (9 - 19, n=39)
12.1 Seconds * +7%
Eurocom Raptor X17 Core i9-14900HX
NVIDIA GeForce RTX 4090 Laptop GPU, Intel Core i9-14900HX
12 Seconds * +8%
Asus ROG Strix Scar 17 G733PYV-LL053X
NVIDIA GeForce RTX 4090 Laptop GPU, AMD Ryzen 9 7945HX3D
11 Seconds * +15%
v3.3 Classroom CUDA
Average of class Workstation
  (18 - 155, n=26, last 2 years)
60.7 Seconds * -237%
HP ZBook Fury 16 G11
NVIDIA RTX 3500 Ada Generation Laptop GPU, Intel Core i9-14900HX
33 Seconds * -83%
Aorus 17X AZF
NVIDIA GeForce RTX 4090 Laptop GPU, Intel Core i9-13900HX
21 Seconds * -17%
Eurocom Raptor X17 Core i9-14900HX
NVIDIA GeForce RTX 4090 Laptop GPU, Intel Core i9-14900HX
19 Seconds * -6%
Average NVIDIA GeForce RTX 4090 Laptop GPU
  (16 - 24, n=39)
18.3 Seconds * -2%
Asus ROG Strix Scar 17 G733PYV-LL053X
NVIDIA GeForce RTX 4090 Laptop GPU, AMD Ryzen 9 7945HX3D
18 Seconds * -0%
SCHENKER Key 17 Pro (M24)
NVIDIA GeForce RTX 4090 Laptop GPU, Intel Core i9-14900HX
18 Seconds *

* ... smaller is better

Performance Rating | Cyberpunk 2077 2.1 Phantom Liberty | The Witcher 3 v4.00 | Baldur's Gate 3 | GTA V | Final Fantasy XV Benchmark | Strange Brigade | Dota 2 Reborn | X-Plane 11.11
Performance Rating - Percent
Asus ROG Strix Scar 17 G733PYV-LL053X -3!
AMD Ryzen 9 7945HX3D, NVIDIA GeForce RTX 4090 Laptop GPU
100 pt
Eurocom Raptor X17 Core i9-14900HX -2!
Intel Core i9-14900HX, NVIDIA GeForce RTX 4090 Laptop GPU
94.3 pt
Aorus 17X AZF -3!
Intel Core i9-13900HX, NVIDIA GeForce RTX 4090 Laptop GPU
86.9 pt
SCHENKER Key 17 Pro (M24)
Intel Core i9-14900HX, NVIDIA GeForce RTX 4090 Laptop GPU
86.3 pt
HP ZBook Fury 16 G11 -1!
Intel Core i9-14900HX, NVIDIA RTX 3500 Ada Generation Laptop GPU
64.5 pt
Average of class Workstation

48.2 pt
Cyberpunk 2077 2.1 Phantom Liberty - 1920x1080 Ultra Preset (FSR off)
Eurocom Raptor X17 Core i9-14900HX
Intel Core i9-14900HX, NVIDIA GeForce RTX 4090 Laptop GPU
144.7 (63.1min) fps +27%
SCHENKER Key 17 Pro (M24)
Intel Core i9-14900HX, NVIDIA GeForce RTX 4090 Laptop GPU
113.5 (84.3min) fps
HP ZBook Fury 16 G11
Intel Core i9-14900HX, NVIDIA RTX 3500 Ada Generation Laptop GPU
90.3 (73.1min) fps -20%
Average of class Workstation
  (19.6 - 113.5, n=16, last 2 years)
61.5 fps -46%
The Witcher 3 v4.00 - 1920x1080 Ultra Preset / On AA:FX
SCHENKER Key 17 Pro (M24)
Intel Core i9-14900HX, NVIDIA GeForce RTX 4090 Laptop GPU
217 fps
Average of class Workstation
  (66.7 - 217, n=2, last 2 years)
141.9 fps -35%
Baldur's Gate 3 - 1920x1080 Ultra Preset
Eurocom Raptor X17 Core i9-14900HX
Intel Core i9-14900HX, NVIDIA GeForce RTX 4090 Laptop GPU
200.4 fps +13%
SCHENKER Key 17 Pro (M24)
Intel Core i9-14900HX, NVIDIA GeForce RTX 4090 Laptop GPU
177 fps
HP ZBook Fury 16 G11
Intel Core i9-14900HX, NVIDIA RTX 3500 Ada Generation Laptop GPU
117.3 fps -34%
Average of class Workstation
  (23.7 - 177, n=14, last 2 years)
85.5 fps -52%
GTA V - 1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x
Asus ROG Strix Scar 17 G733PYV-LL053X
AMD Ryzen 9 7945HX3D, NVIDIA GeForce RTX 4090 Laptop GPU
167.7 (1.87min, 111.1P1) fps +32%
Eurocom Raptor X17 Core i9-14900HX
Intel Core i9-14900HX, NVIDIA GeForce RTX 4090 Laptop GPU
152.2 (3.85min, 111.1P1) fps +20%
Aorus 17X AZF
Intel Core i9-13900HX, NVIDIA GeForce RTX 4090 Laptop GPU
135.3 (6.48min, 90.9P1) fps +7%
SCHENKER Key 17 Pro (M24)
Intel Core i9-14900HX, NVIDIA GeForce RTX 4090 Laptop GPU
126.7 (8.43min, 83.3P1) fps
HP ZBook Fury 16 G11
Intel Core i9-14900HX, NVIDIA RTX 3500 Ada Generation Laptop GPU
115.5 (4.64min, 76.9P1) fps -9%
Average of class Workstation
  (18.3 - 141.6, n=27, last 2 years)
82.7 fps -35%
Final Fantasy XV Benchmark - 1920x1080 High Quality
Asus ROG Strix Scar 17 G733PYV-LL053X
AMD Ryzen 9 7945HX3D, NVIDIA GeForce RTX 4090 Laptop GPU
180 fps +3%
Aorus 17X AZF
Intel Core i9-13900HX, NVIDIA GeForce RTX 4090 Laptop GPU
177.6 fps +2%
SCHENKER Key 17 Pro (M24)
Intel Core i9-14900HX, NVIDIA GeForce RTX 4090 Laptop GPU
174.6 fps
HP ZBook Fury 16 G11
Intel Core i9-14900HX, NVIDIA RTX 3500 Ada Generation Laptop GPU
128.9 fps -26%
Average of class Workstation
  (21.2 - 174.6, n=31, last 2 years)
80.1 fps -54%
Strange Brigade - 1920x1080 ultra AA:ultra AF:16
Asus ROG Strix Scar 17 G733PYV-LL053X
AMD Ryzen 9 7945HX3D, NVIDIA GeForce RTX 4090 Laptop GPU
420 (64.7min, 302P1) fps +17%
Eurocom Raptor X17 Core i9-14900HX
Intel Core i9-14900HX, NVIDIA GeForce RTX 4090 Laptop GPU
402 (69.8min, 280P1) fps +12%
Aorus 17X AZF
Intel Core i9-13900HX, NVIDIA GeForce RTX 4090 Laptop GPU
386 (35.7min, 279P1) fps +7%
SCHENKER Key 17 Pro (M24)
Intel Core i9-14900HX, NVIDIA GeForce RTX 4090 Laptop GPU
360 (22.5min, 268P1) fps
HP ZBook Fury 16 G11
Intel Core i9-14900HX, NVIDIA RTX 3500 Ada Generation Laptop GPU
223 (52.5min, 159.8P1) fps -38%
Average of class Workstation
  (34.1 - 360, n=27, last 2 years)
142.2 fps -60%
Dota 2 Reborn - 1920x1080 ultra (3/3) best looking
Asus ROG Strix Scar 17 G733PYV-LL053X
AMD Ryzen 9 7945HX3D, NVIDIA GeForce RTX 4090 Laptop GPU
220 (175min) fps +23%
Eurocom Raptor X17 Core i9-14900HX
Intel Core i9-14900HX, NVIDIA GeForce RTX 4090 Laptop GPU
195.2 (163.9min) fps +9%
SCHENKER Key 17 Pro (M24)
Intel Core i9-14900HX, NVIDIA GeForce RTX 4090 Laptop GPU
178.4 (149.2min) fps
Aorus 17X AZF
Intel Core i9-13900HX, NVIDIA GeForce RTX 4090 Laptop GPU
176.1 (149.8min) fps -1%
HP ZBook Fury 16 G11
Intel Core i9-14900HX, NVIDIA RTX 3500 Ada Generation Laptop GPU
153.9 (131.9min) fps -14%
Average of class Workstation
  (57.8 - 178.4, n=31, last 2 years)
127.4 fps -29%
X-Plane 11.11 - 1920x1080 high (fps_test=3)
Asus ROG Strix Scar 17 G733PYV-LL053X
AMD Ryzen 9 7945HX3D, NVIDIA GeForce RTX 4090 Laptop GPU
166.2 fps +19%
Eurocom Raptor X17 Core i9-14900HX
Intel Core i9-14900HX, NVIDIA GeForce RTX 4090 Laptop GPU
150.2 fps +8%
SCHENKER Key 17 Pro (M24)
Intel Core i9-14900HX, NVIDIA GeForce RTX 4090 Laptop GPU
139.7 fps
Aorus 17X AZF
Intel Core i9-13900HX, NVIDIA GeForce RTX 4090 Laptop GPU
138.5 fps -1%
HP ZBook Fury 16 G11
Intel Core i9-14900HX, NVIDIA RTX 3500 Ada Generation Laptop GPU
110.9 fps -21%
Average of class Workstation
  (27.7 - 139.7, n=32, last 2 years)
82.4 fps -41%

Cyberpunk 2077 ultra FPS Chart

0102030405060708090100110120Tooltip
SCHENKER Key 17 Pro (M24) i9-14900HX, NVIDIA GeForce RTX 4090 Laptop GPU: Ø105 (17.74-129.39)
HP ZBook Fury 16 G11 i9-14900HX, NVIDIA RTX 3500 Ada Generation Laptop GPU: Ø67.6 (57.7-73.7)
lowmed.highultraQHD4K DLSS4K
GTA V (2015) 179.1 126.7 124.3 83.5
Dota 2 Reborn (2015) 240 209 199.8 178.4 170.9
Final Fantasy XV Benchmark (2018) 208 174.6 147.8 86.1
X-Plane 11.11 (2018) 201 178.2 139.7 114.8
Strange Brigade (2018) 480 389 379 360 281 145.5
The Witcher 3 v4.00 (2023) 241 217 165.7 84.4
Baldur's Gate 3 (2023) 183 177 124.7 107.9 66.5
Cyberpunk 2077 2.1 Phantom Liberty (2023) 134.1 129.8 127.7 113.5 89.7 40.4

排放与功耗

系统噪音

与其他冷却系统相比，申克的冷却解决方案在空载和中等负载时噪音相对较小。值得注意的是，在空闲状态下，风扇显然会发出一些非常轻微的呜呜声。问题是，一旦我们切换到自动风扇转速的性能模式，风扇就会始终以最大转速运转，即使负载并不高。在这种情况下，冷却系统的噪音最大，达到了惊人的 62.14 分贝。Eurocom 型号紧随其后，因为它基本上采用了与申克公司相同的 Clevo 机箱。其他型号的噪音要小得多，最大风扇转速时最多只有 54 分贝。

Noise Level

Idle
25.33 / 25.33 / 25.33 dB(A)
Load
33.57 / 62.14 dB(A)
  red to green bar


30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light   Earthworks M23R, Arta (15 cm distance)   environment noise: 23.41 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2024.522.120.721.623.324.52528.730.528.728.125.828.73129.229.727.927.523.529.24029.530.228.128.223.729.55043.64442.743.436.443.66328.831.124.126.728.928.8803033.620.118.824.63010031.432.120.817.224.431.412532.433.521.52020.732.416037.137.220.416.81437.120037.838.120.915.113.937.825042.14224.617.415.442.131544.445.226.118.21744.440046.747.329.418.614.146.750044.144.22614.612.144.163046.646.924.413.89.146.680047.848.523.412.48.647.8100048.848.623.311.38.748.8125049.850.122.711.58.949.8160048.248.320.910.39.648.2200049.149.323.611.69.949.1250051.351.52013.610.551.3315053.353.418.313.511.353.3400051.651.315.912.111.551.6500053.153.614.112.311.653.1630048.748.913.512.611.848.7800046.646.613.312.211.946.61000042.843.113.712.311.842.81250038.939.313.812.311.638.91600034.634.812.91210.934.6SPL6262.133.625.323.462N15.8161.80.70.515.8median 46.6median 46.9median 20.9median 12.6median 11.6median 46.6Delta5.15.34.42.12.45.1hearing rangehide median Fan NoiseSCHENKER Key 17 Pro (M24)
SCHENKER Key 17 Pro (M24)
NVIDIA GeForce RTX 4090 Laptop GPU, i9-14900HX, Samsung 990 Pro 1 TB		Asus ROG Strix Scar 17 G733PYV-LL053X
NVIDIA GeForce RTX 4090 Laptop GPU, R9 7945HX3D, SK hynix PC801 HFS001TEJ9X101N		Eurocom Raptor X17 Core i9-14900HX
NVIDIA GeForce RTX 4090 Laptop GPU, i9-14900HX, Corsair MP700 Pro 2TB		HP ZBook Fury 16 G11
NVIDIA RTX 3500 Ada Generation Laptop GPU, i9-14900HX, SK hynix PC801 HFS001TEJ9X101N		Aorus 17X AZF
NVIDIA GeForce RTX 4090 Laptop GPU, i9-13900HX, Gigabyte AG470S1TB-SI B10
Noise
-13%
-14%
2%
-18%
off / environment *
23.41
23
2%
23.7
-1%
23.2
1%
25
-7%
Idle Minimum *
25.33
23
9%
31.7
-25%
23.2
8%
28
-11%
Idle Average *
25.33
27.7
-9%
31.7
-25%
23.2
8%
29
-14%
Idle Maximum *
25.33
34.7
-37%
32.9
-30%
29.5
-16%
34
-34%
Load Average *
33.57
53.4
-59%
34
-1%
43
-28%
51
-52%
Cyberpunk 2077 ultra *
61.97
48.2
22%
Load Maximum *
62.14
53.4
14%
61.6
1%
48.2
22%
54
13%
Witcher 3 ultra *
53.4
61.6
57

* ... smaller is better

温度

键盘一侧的平均温度在空闲和负载之间仅略有不同。触控板区域的温度仍低于皮肤温度，而键盘的中上部和左上角温度较高。另一方面，底部在空闲时温度略高，但中上部区域的温度超过 60°C，因此并不适合膝上使用。与其他测试机型相比，空闲和负载温度明显偏高。热图像显示，后部和侧面通风口的温度最高。电源的温度在负载和空闲时变化不大，不会超过 40 摄氏度。

Max. Load
 49 °C51 °C29 °C
 33.5 °C45 °C34.2 °C
 30.3 °C29.3 °C32.2 °C
Maximum: 51 °C
Average: 37.1 °C
60 °C63.6 °C60 °C
44.3 °C64 °C40 °C
38.6 °C38.5 °C35.4 °C
Maximum: 64 °C
Average: 49.4 °C
Power Supply (max.)  43.6 °C | Room Temperature 24.6 °C | Fluke t3000FC (calibrated), Fluke 62 MAX
(±) The average temperature for the upper side under maximal load is 37.1 °C / 99 F, compared to the average of 32 °C / 90 F for the devices in the class Workstation.
(-) The maximum temperature on the upper side is 51 °C / 124 F, compared to the average of 38.2 °C / 101 F, ranging from 22.2 to 69.8 °C for the class Workstation.
(-) The bottom heats up to a maximum of 64 °C / 147 F, compared to the average of 41.3 °C / 106 F
(±) In idle usage, the average temperature for the upper side is 35.4 °C / 96 F, compared to the device average of 32 °C / 90 F.
(+) The palmrests and touchpad are reaching skin temperature as a maximum (33.1 °C / 91.6 F) and are therefore not hot.
(-) The average temperature of the palmrest area of similar devices was 27.8 °C / 82 F (-5.3 °C / -9.6 F).
前部温度（怠速）
前部温度（怠速）
背温（闲置）
背温（闲置）
电源适配器温度（空闲）
电源适配器温度（空闲）
前部温度（压力测试）
前部温度（压力测试）
背部温度（压力测试）
背部温度（压力测试）
电源适配器温度（压力测试）
电源适配器温度（压力测试）
SCHENKER Key 17 Pro (M24)
Intel Core i9-14900HX, NVIDIA GeForce RTX 4090 Laptop GPU		Asus ROG Strix Scar 17 G733PYV-LL053X
AMD Ryzen 9 7945HX3D, NVIDIA GeForce RTX 4090 Laptop GPU		Eurocom Raptor X17 Core i9-14900HX
Intel Core i9-14900HX, NVIDIA GeForce RTX 4090 Laptop GPU		HP ZBook Fury 16 G11
Intel Core i9-14900HX, NVIDIA RTX 3500 Ada Generation Laptop GPU		Aorus 17X AZF
Intel Core i9-13900HX, NVIDIA GeForce RTX 4090 Laptop GPU
Heat
31%
21%
19%
23%
Maximum Upper Side *
51
40.1
21%
52.2
-2%
42.2
17%
47
8%
Maximum Bottom *
64
46.7
27%
53.2
17%
48
25%
51
20%
Idle Upper Side *
42.3
26.5
37%
28.6
32%
37
13%
30
29%
Idle Bottom *
46
27.7
40%
29.8
35%
36.8
20%
31
33%

* ... smaller is better

发言人

在最大音量时，一些中频和高频会与底盘产生共振。由于音响系统没有配备低音炮，因此低音效果并不明显。

dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2023.622.623.62531.131.331.13125.42025.44027.919.927.95038.22838.26327.519.627.58031.421.231.410041.415.141.412551.116.751.116053.112.553.120059.312.859.325059.719.259.731561.519.761.540061.117.161.150068.713.668.763067.112.367.180067.410.467.4100069.79.769.7125073.31073.3160067.310.467.3200067.810.867.8250067.811.267.8315060.111.660.1400068.411.768.4500073.411.973.46300671267800069.41269.41000064.612.164.61250065.711.865.71600057.311.157.3SPL80.924.280.9N51.60.651.6median 67median 12median 67Delta4.41.94.426.325.821.422.12624.925.127.622.532.523.448.72655.818.860.922.167.2267019.372.317.674.217.774.319.575.31571.711.871.311.27410.574.21072.710.17210.67210.97511.374.811.671.71269.71269.612.371.112.669.61270.111.269.824.784.70.666.6median 12median 71.73.42.2hearing rangehide median Pink NoiseSCHENKER Key 17 Pro (M24)Apple MacBook Pro 16 2021 M1 Pro
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
SCHENKER Key 17 Pro (M24) audio analysis

(±) | speaker loudness is average but good (80.9 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 12.7% lower than median
(±) | linearity of bass is average (9.1% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.3% away from median
(+) | mids are linear (5.1% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.9% away from median
(±) | linearity of highs is average (8.9% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (11.2% difference to median)
Compared to same class
» 9% of all tested devices in this class were better, 3% similar, 88% worse
» The best had a delta of 7%, average was 18%, worst was 35%
Compared to all devices tested
» 5% of all tested devices were better, 2% similar, 93% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Apple MacBook Pro 16 2021 M1 Pro audio analysis

(+) | speakers can play relatively loud (84.7 dB)
Bass 100 - 315 Hz
(+) | good bass - only 3.8% away from median
(+) | bass is linear (5.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 1.3% away from median
(+) | mids are linear (2.1% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 1.9% away from median
(+) | highs are linear (2.7% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (4.6% difference to median)
Compared to same class
» 0% of all tested devices in this class were better, 0% similar, 100% worse
» The best had a delta of 5%, average was 18%, worst was 45%
Compared to all devices tested
» 0% of all tested devices were better, 0% similar, 100% worse
» The best had a delta of 4%, average was 25%, worst was 134%

耗电量

怠速功耗明显高于本次对比的所有机型，约为 40 瓦，几乎是上一代 i9-13900HX 和 AMD Ryzen 9 7945HX3D 的两倍。不过，满载时的平均功耗是第二低的。开始时为 300 瓦，但几分钟后降至 200 瓦左右。相比之下，Aorus 机型上的 i9-13900HX 在满载时的功耗却相差甚远。在赛博朋克 2077 1080p 超 150 nit 测试中，Key 17 Pro 的平均功耗最高，达到 274 W。

在外部显示器测试中，闲置功耗如预期的那样略低（29 W），但《赛博朋克 2077 1080p Ultra》的功耗略高（280 W）。

Power Consumption
Off / Standbydarklight 0.62 / 2 Watt
Idledarkmidlight 12.16 / 15.97 / 23.71 Watt
Load midlight 113.06 / 301 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy

Power Consumption Cyberpunk / Stress Test

020406080100120140160180200220240260280300320Tooltip
SCHENKER Key 17 Pro (M24) i9-14900HX, NVIDIA GeForce RTX 4090 Laptop GPU; 1280x720 Prime95 28.10 and Furmark 1.25: Ø248 (199.5-300)
Asus ROG Strix Scar 17 G733PYV-LL053X R9 7945HX3D, NVIDIA GeForce RTX 4090 Laptop GPU; 1280x720 Prime95 28.10 and Furmark 1.25: Ø287 (278-327)
HP ZBook Fury 16 G11 i9-14900HX, NVIDIA RTX 3500 Ada Generation Laptop GPU; 1280x720 Prime95 28.10 and Furmark 1.25: Ø177.3 (156.9-236)
Aorus 17X AZF i9-13900HX, NVIDIA GeForce RTX 4090 Laptop GPU; 1280x720 Prime95 28.10 and Furmark 1.25: Ø163.2 (123.4-275)
SCHENKER Key 17 Pro (M24) i9-14900HX, NVIDIA GeForce RTX 4090 Laptop GPU; Idle 150cd/m2: Ø16 (12.2-23.7)
Asus ROG Strix Scar 17 G733PYV-LL053X R9 7945HX3D, NVIDIA GeForce RTX 4090 Laptop GPU; Idle 150cd/m2: Ø17.2 (14.8-22.6)
HP ZBook Fury 16 G11 i9-14900HX, NVIDIA RTX 3500 Ada Generation Laptop GPU; Idle 150cd/m2: Ø9.03 (5.95-16.7)
Aorus 17X AZF i9-13900HX, NVIDIA GeForce RTX 4090 Laptop GPU; Idle 150cd/m2: Ø16.9 (11.9-21)
SCHENKER Key 17 Pro (M24) i9-14900HX, NVIDIA GeForce RTX 4090 Laptop GPU; Cyberpunk 2077 FHD ultra no FSR 150cd: Ø274 (178.4-310)
HP ZBook Fury 16 G11 i9-14900HX, NVIDIA RTX 3500 Ada Generation Laptop GPU; Cyberpunk 2077 FHD ultra no FSR 150cd: Ø199.4 (186.2-223)

Power Consumption external Monitor

020406080100120140160180200220240260280300Tooltip
SCHENKER Key 17 Pro (M24) i9-14900HX, NVIDIA GeForce RTX 4090 Laptop GPU; Prime95 V2810 Stress (external Monitor): Ø171.9 (158.8-211)
Asus ROG Strix Scar 17 G733PYV-LL053X R9 7945HX3D, NVIDIA GeForce RTX 4090 Laptop GPU; Prime95 V2810 Stress (external Monitor): Ø157.2 (155-164.7)
HP ZBook Fury 16 G11 i9-14900HX, NVIDIA RTX 3500 Ada Generation Laptop GPU; Prime95 V2810 Stress (external Monitor): Ø132.3 (110.2-196.2)
Aorus 17X AZF i9-13900HX, NVIDIA GeForce RTX 4090 Laptop GPU; Prime95 V2810 Stress (external Monitor): Ø126.3 (116.6-203)
Asus ROG Strix Scar 17 G733PYV-LL053X R9 7945HX3D, NVIDIA GeForce RTX 4090 Laptop GPU; Cinebench R15 Multi (external Monitor): Ø187.3 (172.4-195.5)
HP ZBook Fury 16 G11 i9-14900HX, NVIDIA RTX 3500 Ada Generation Laptop GPU; Cinebench R15 Multi (external Monitor): Ø209 (207-221)
SCHENKER Key 17 Pro (M24) i9-14900HX, NVIDIA GeForce RTX 4090 Laptop GPU; Cinebench R23 Single (external Monitor): Ø76.2 (67.2-92.4)
Asus ROG Strix Scar 17 G733PYV-LL053X R9 7945HX3D, NVIDIA GeForce RTX 4090 Laptop GPU; Cinebench R23 Single (external Monitor): Ø71.9 (70.8-86)
SCHENKER Key 17 Pro (M24) i9-14900HX, NVIDIA GeForce RTX 4090 Laptop GPU; Cinebench R23 Multi (external Monitor): Ø136.1 (84.2-156.1)
Asus ROG Strix Scar 17 G733PYV-LL053X R9 7945HX3D, NVIDIA GeForce RTX 4090 Laptop GPU; Cinebench R23 Multi (external Monitor): Ø158.5 (149.9-171.1)
Aorus 17X AZF i9-13900HX, NVIDIA GeForce RTX 4090 Laptop GPU; Cinebench R23 Multi (external Monitor): Ø160.8 (158.2-169.2)
SCHENKER Key 17 Pro (M24) i9-14900HX, NVIDIA GeForce RTX 4090 Laptop GPU; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø235 (229-245)
Asus ROG Strix Scar 17 G733PYV-LL053X R9 7945HX3D, NVIDIA GeForce RTX 4090 Laptop GPU; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø242 (225-263)
HP ZBook Fury 16 G11 i9-14900HX, NVIDIA RTX 3500 Ada Generation Laptop GPU; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø175.5 (160.4-203)
Aorus 17X AZF i9-13900HX, NVIDIA GeForce RTX 4090 Laptop GPU; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø239 (233-273)
SCHENKER Key 17 Pro (M24) i9-14900HX, NVIDIA GeForce RTX 4090 Laptop GPU; Idle 1min (external Monitor): Ø29 (22.5-36.9)
Asus ROG Strix Scar 17 G733PYV-LL053X R9 7945HX3D, NVIDIA GeForce RTX 4090 Laptop GPU; Idle 1min (external Monitor): Ø28.9 (22.6-43.7)
HP ZBook Fury 16 G11 i9-14900HX, NVIDIA RTX 3500 Ada Generation Laptop GPU; Idle 1min (external Monitor): Ø8.59 (4.29-17.9)
Aorus 17X AZF i9-13900HX, NVIDIA GeForce RTX 4090 Laptop GPU; Idle 1min (external Monitor): Ø22.5 (18.2-30.9)
SCHENKER Key 17 Pro (M24) i9-14900HX, NVIDIA GeForce RTX 4090 Laptop GPU; Cyberpunk 2077 FHD ultra no FSR (external Monitor): Ø280 (250-312)
HP ZBook Fury 16 G11 i9-14900HX, NVIDIA RTX 3500 Ada Generation Laptop GPU; Cyberpunk 2077 FHD ultra no FSR (external Monitor): Ø192.6 (181.9-209)

电池寿命

尽管 Key 17 Pro 的电池容量高达 99 Wh，但与其他机型相比，它的表现并不理想。在 150 尼特的 Wi-Fi 网页浏览条件下，电池续航时间仅为 203 分钟，而其他机型的续航时间则长 40% 至 96%。在满载情况下，Key 17 Pro 的续航时间为 64 分钟，仅次于最低续航时间，而在《赛博朋克 2077》1080p 超 150 cd 条件下，电池续航时间仅多出 3 分钟。该机型似乎是作为台式机的替代品而非移动设备设计的。

Battery Runtime
Cyberpunk 2077 ultra 150cd
1h 07min
WiFi Websurfing
3h 23min
Load (maximum brightness)
1h 04min
SCHENKER Key 17 Pro (M24)
i9-14900HX, NVIDIA GeForce RTX 4090 Laptop GPU, 99 Wh		Asus ROG Strix Scar 17 G733PYV-LL053X
R9 7945HX3D, NVIDIA GeForce RTX 4090 Laptop GPU, 90 Wh		Eurocom Raptor X17 Core i9-14900HX
i9-14900HX, NVIDIA GeForce RTX 4090 Laptop GPU, 99 Wh		HP ZBook Fury 16 G11
i9-14900HX, NVIDIA RTX 3500 Ada Generation Laptop GPU, 95 Wh		Aorus 17X AZF
i9-13900HX, NVIDIA GeForce RTX 4090 Laptop GPU, 99 Wh		Average of class Workstation

Battery Runtime
14%
40%
98%
96%
86%
WiFi v1.3
203
287
41%
284
40%
402
98%
389
92%
500 ?(148 - 897, n=30, last 2 years)
146%
Cyberpunk 2077 ultra 150cd
67
Load
64
55
-14%
128
100%
80.3 ?(55 - 114, n=16, last 2 years)
25%
H.264
302
403
671 ?(347 - 1067, n=8, last 2 years)
Reader / Idle
541
927 ?(319 - 1566, n=4, last 2 years)

笔记本检查评级

申克公司今年推出的 Key 17 Pro 移动工作站给人留下了深刻印象，它新增了两个超快的 Thunderbolt 5 端口和 Wi-Fi 7 速度等出色的连接功能。英特尔 i9-14900HX 和 Nvidia RTX 4090 提供了出色的性能，但与竞争对手相比并不尽如人意。明显的缺点包括冷却系统噪音较大，电池续航时间较短。

SCHENKER Key 17 Pro (M24) - 11/15/2024 v8
Bogdan Solca

Chassis
84 / 98 → 86%
Keyboard
96%
Pointing Device
94%
Connectivity
76 / 80 → 95%
Weight
54 / 10-66 → 78%
Battery
51 / 95 → 53%
Display
83%
Games Performance
90%
Application Performance
88%
Workstation
80%
AI Performance
99%
Temperature
82 / 95 → 86%
Noise
56 / 90 → 63%
Audio
81%
Camera
50 / 75 → 67%
Average
73%
85%
Workstation - Weighted Average

Transparency

The selection of devices to be reviewed is made by our editorial team. The test sample was provided to the author as a loan by the manufacturer or retailer for the purpose of this review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.

This is how Notebookcheck is testing

Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.

Please share our article, every link counts!
Mail Logo
> Notebookcheck中文版（NBC中国） > 评测 > 申克 Key 17 Pro (M24) 评测--超快双雷电 5 接口和 i9-14900HX 电源
Bogdan Solca, 2024-11-22 (Update: 2024-12- 7)
