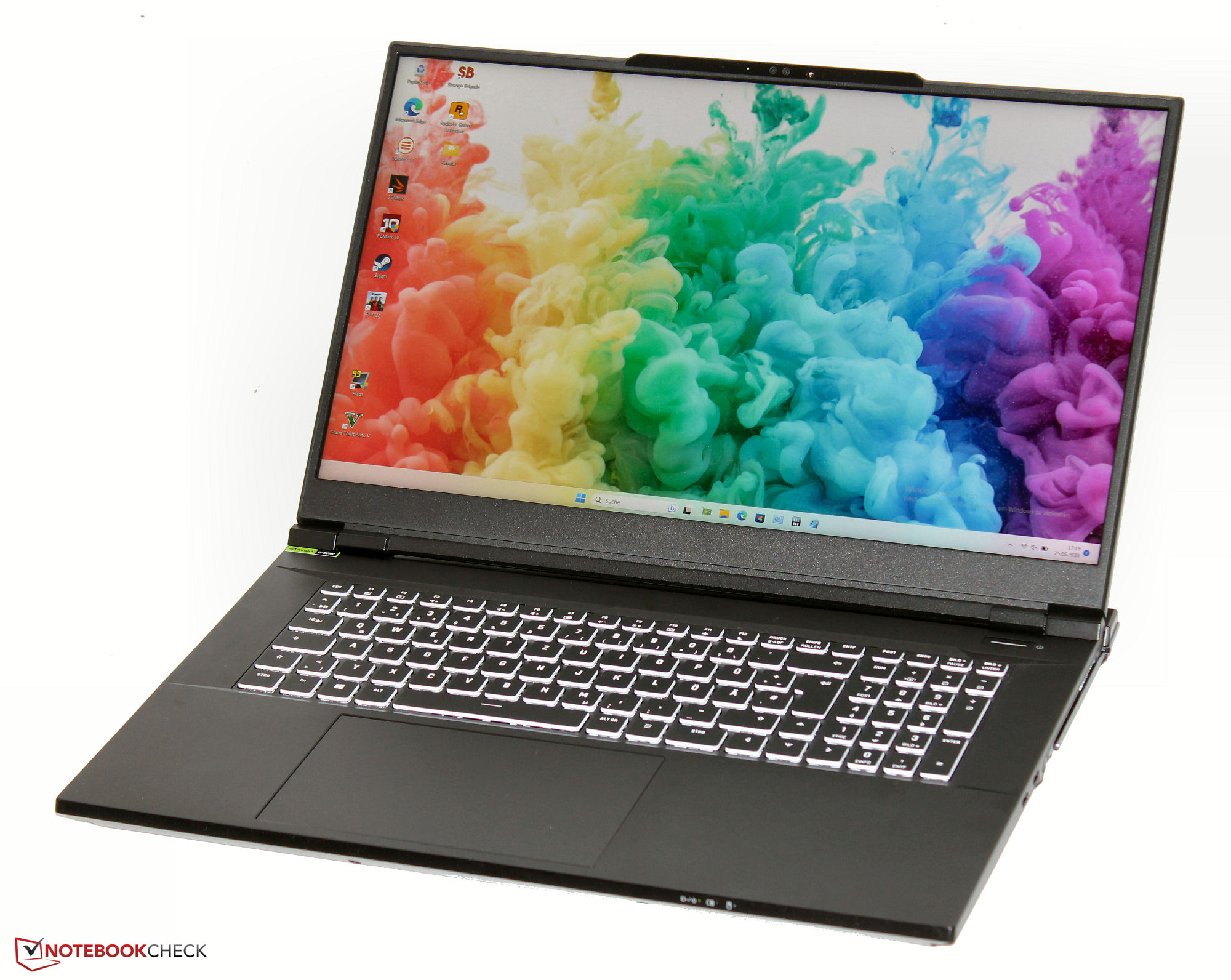

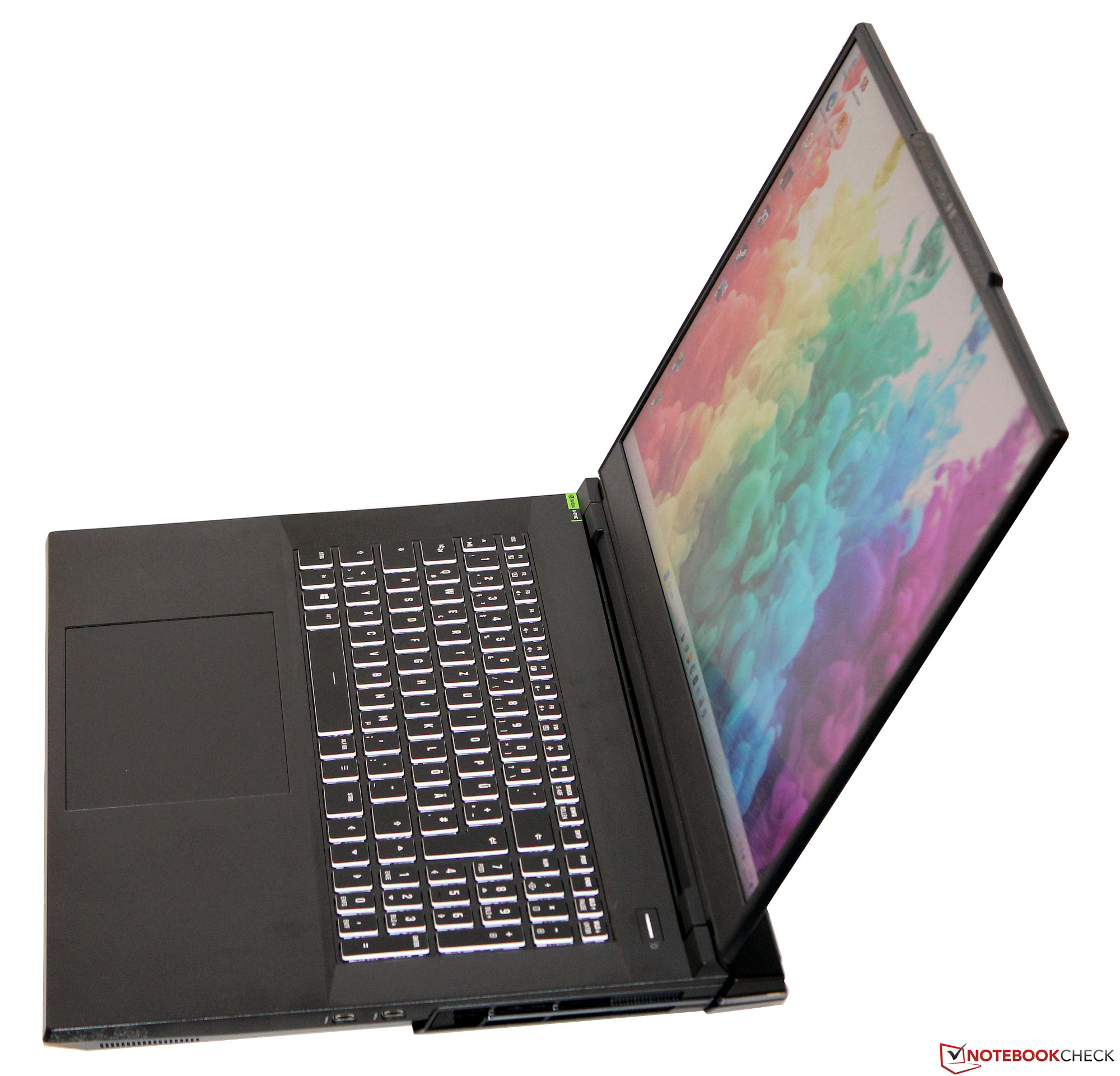

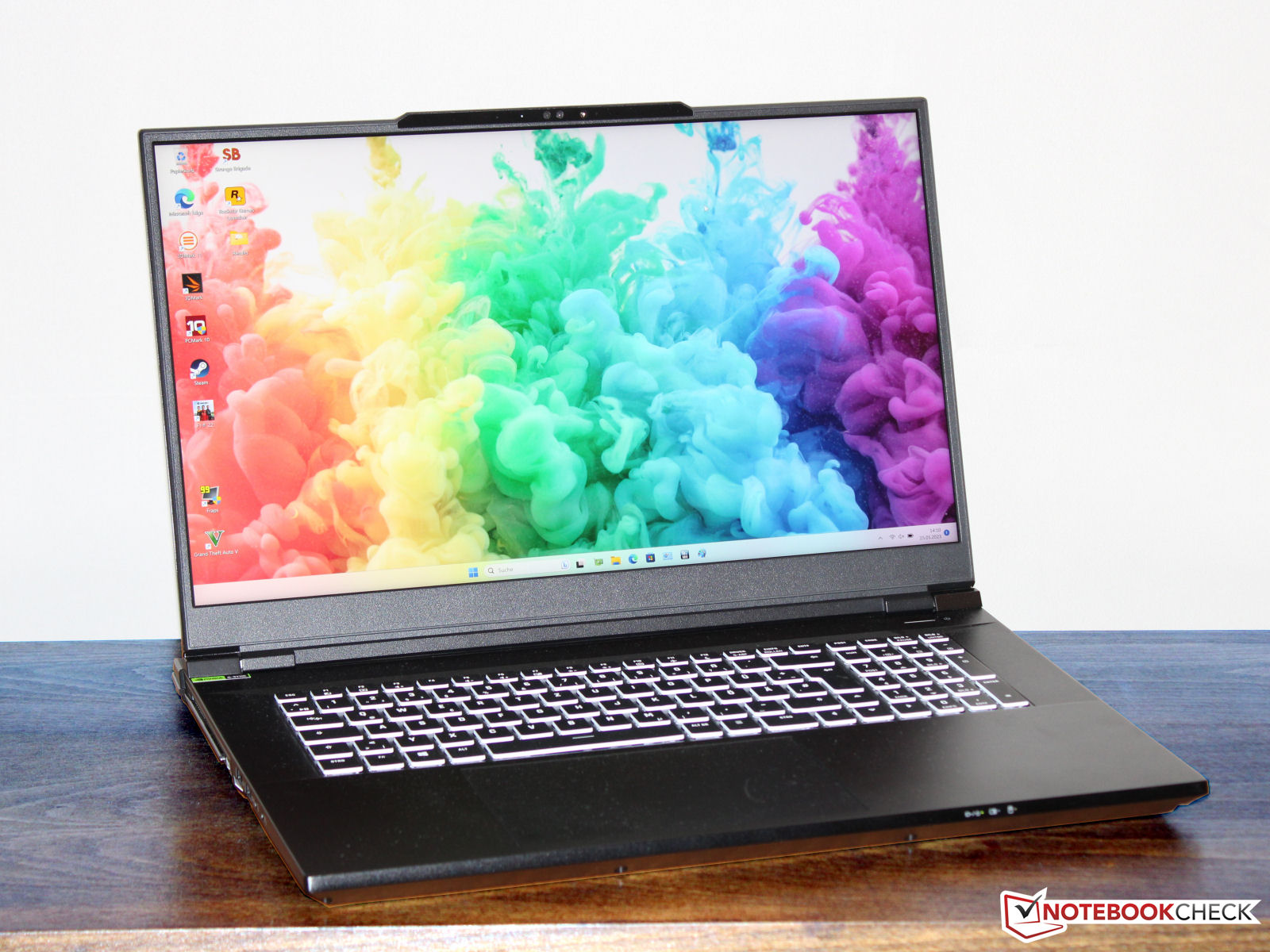

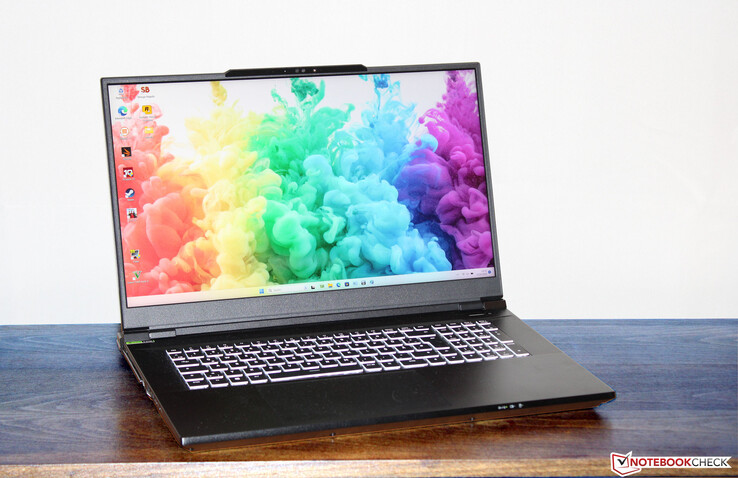

斯堪的纳维亚钥匙17 Pro（早期23）回顾：配备Core i9和RTX 4090的4k游戏笔记本
强大的Key 17 Pro针对的是创意者和游戏者。猛禽湖和Ada Lovelace为这款笔记本电脑提供了必要的计算能力，它的特点是采用了 酷睿i9-13900HX和一个GeForce RTX 4090并基于Clevo裸机（X370SNW-G）。它的竞争对象是诸如 微星 Stealth 17 Studio A13VH，以及 华硕ROG Strix Scar 17 G733PY，以及 Aorus 17X AZF和 Medion Erazer Beast X40.
潜在的竞争对手比较
Rating | Date | Model | Weight | Height | Size | Resolution | Price |
|---|---|---|---|---|---|---|---|
| 85.5 % v7 (old) | 06 / 2023 | SCHENKER Key 17 Pro (Early 23) i9-13900HX, NVIDIA GeForce RTX 4090 Laptop GPU | 3.4 kg | 24.9 mm | 17.30" | 3840x2160 | |
| 89.2 % v7 (old) | 04 / 2023 | MSI Stealth 17 Studio A13VH-014 i9-13900H, NVIDIA GeForce RTX 4080 Laptop GPU | 3 kg | 21.3 mm | 17.30" | 3840x2160 | |
| 88.3 % v7 (old) | 04 / 2023 | Asus ROG Strix Scar 17 G733PY-XS96 R9 7945HX, NVIDIA GeForce RTX 4090 Laptop GPU | 2.9 kg | 28.3 mm | 17.30" | 2560x1440 | |
| 86 % v7 (old) | 04 / 2023 | Aorus 17X AZF i9-13900HX, NVIDIA GeForce RTX 4090 Laptop GPU | 2.9 kg | 21.8 mm | 17.30" | 2560x1440 | |
| 88.4 % v7 (old) | 03 / 2023 | Medion Erazer Beast X40 i9-13900HX, NVIDIA GeForce RTX 4090 Laptop GPU | 2.9 kg | 33 mm | 17.00" | 2560x1600 |
外壳和规格 - Clevo裸机提供Thunderbolt 4

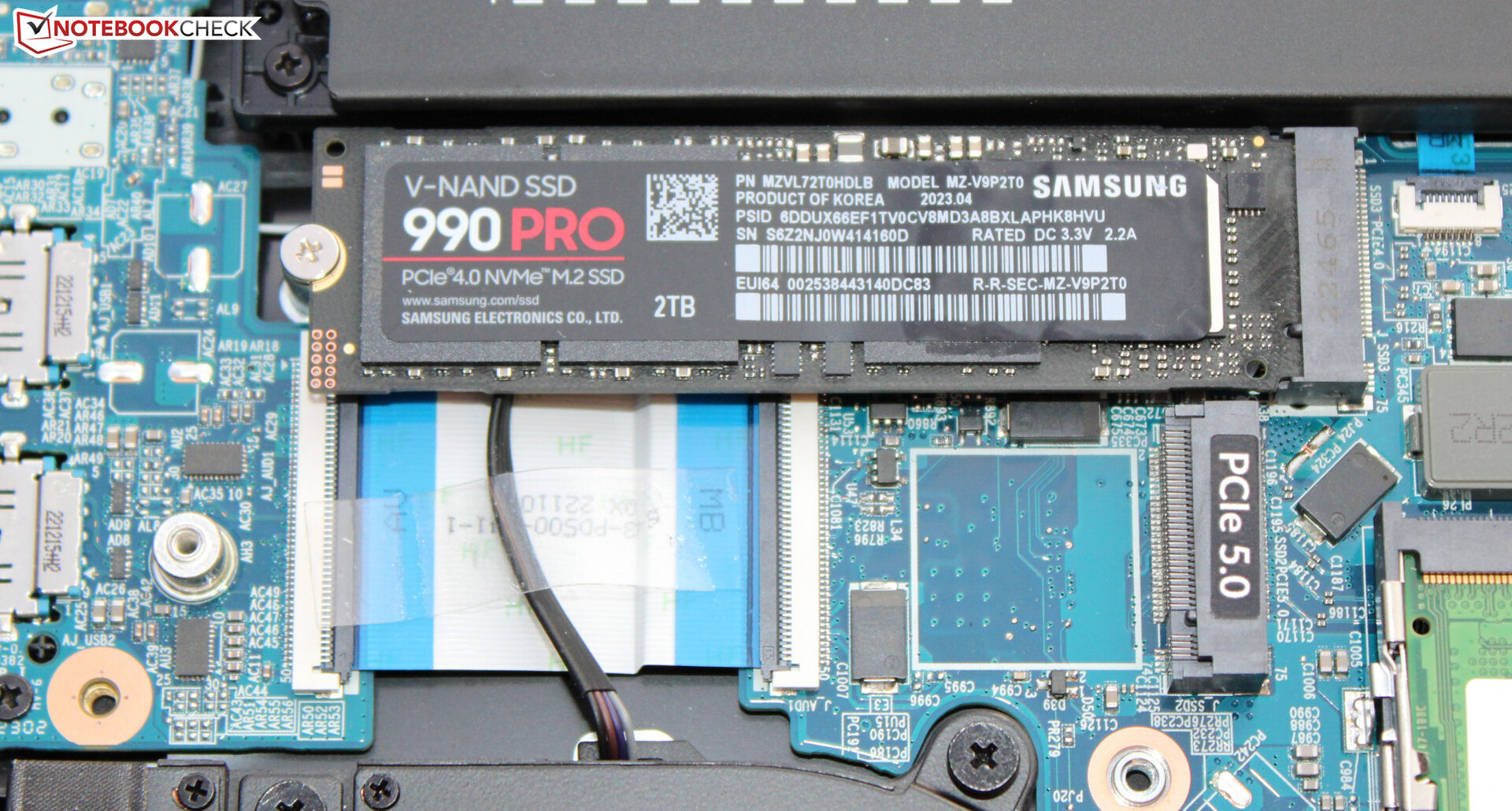

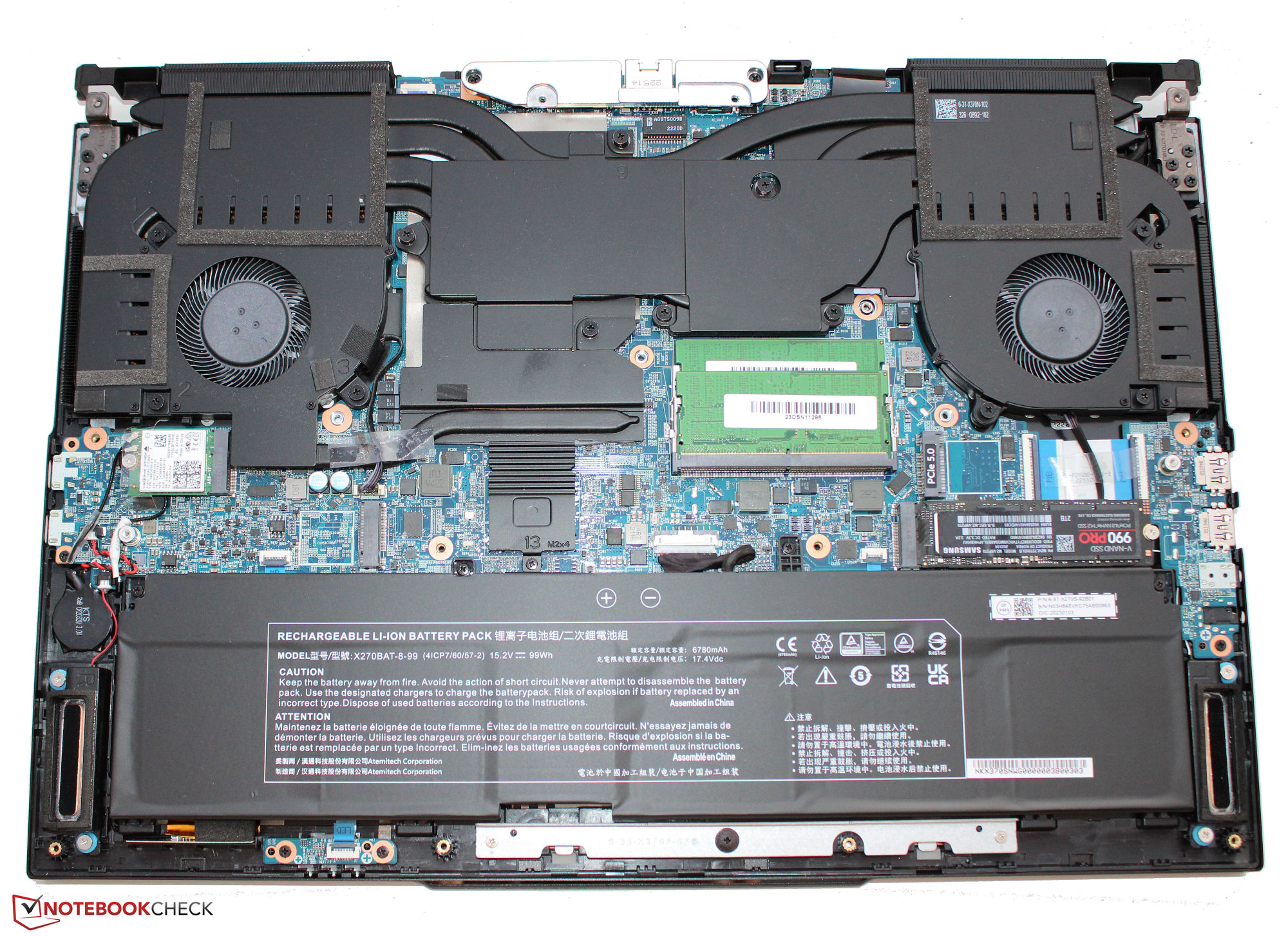

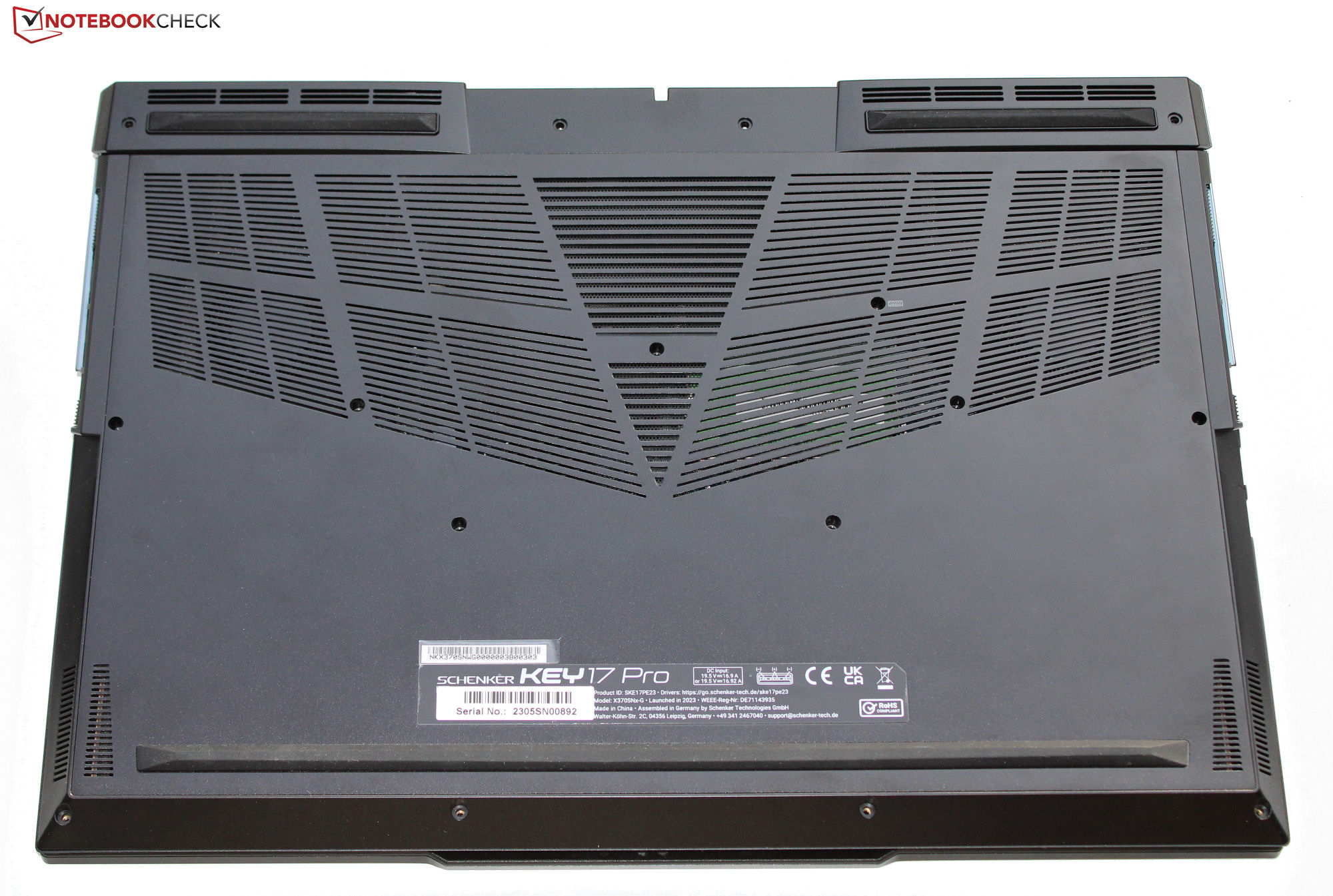

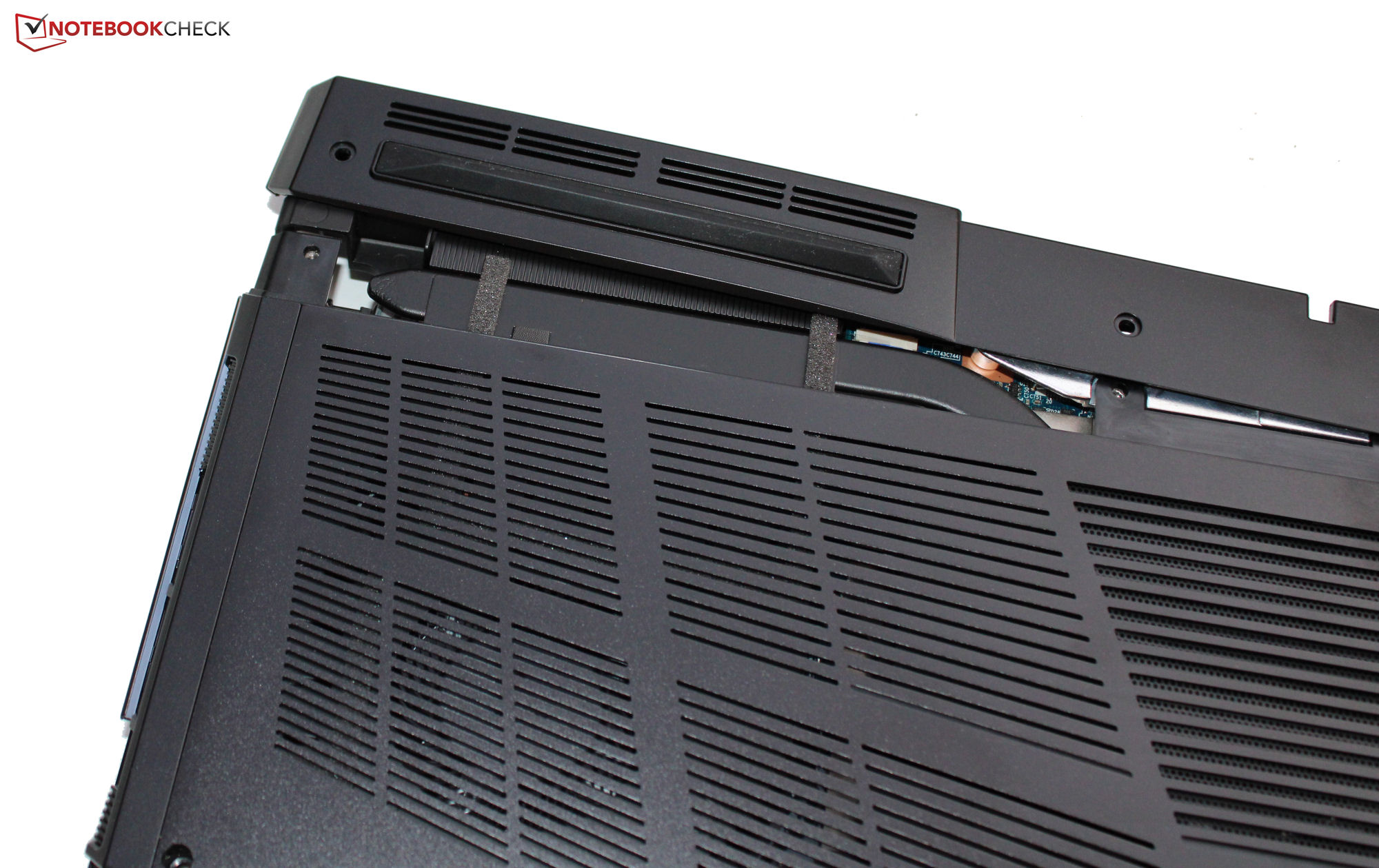

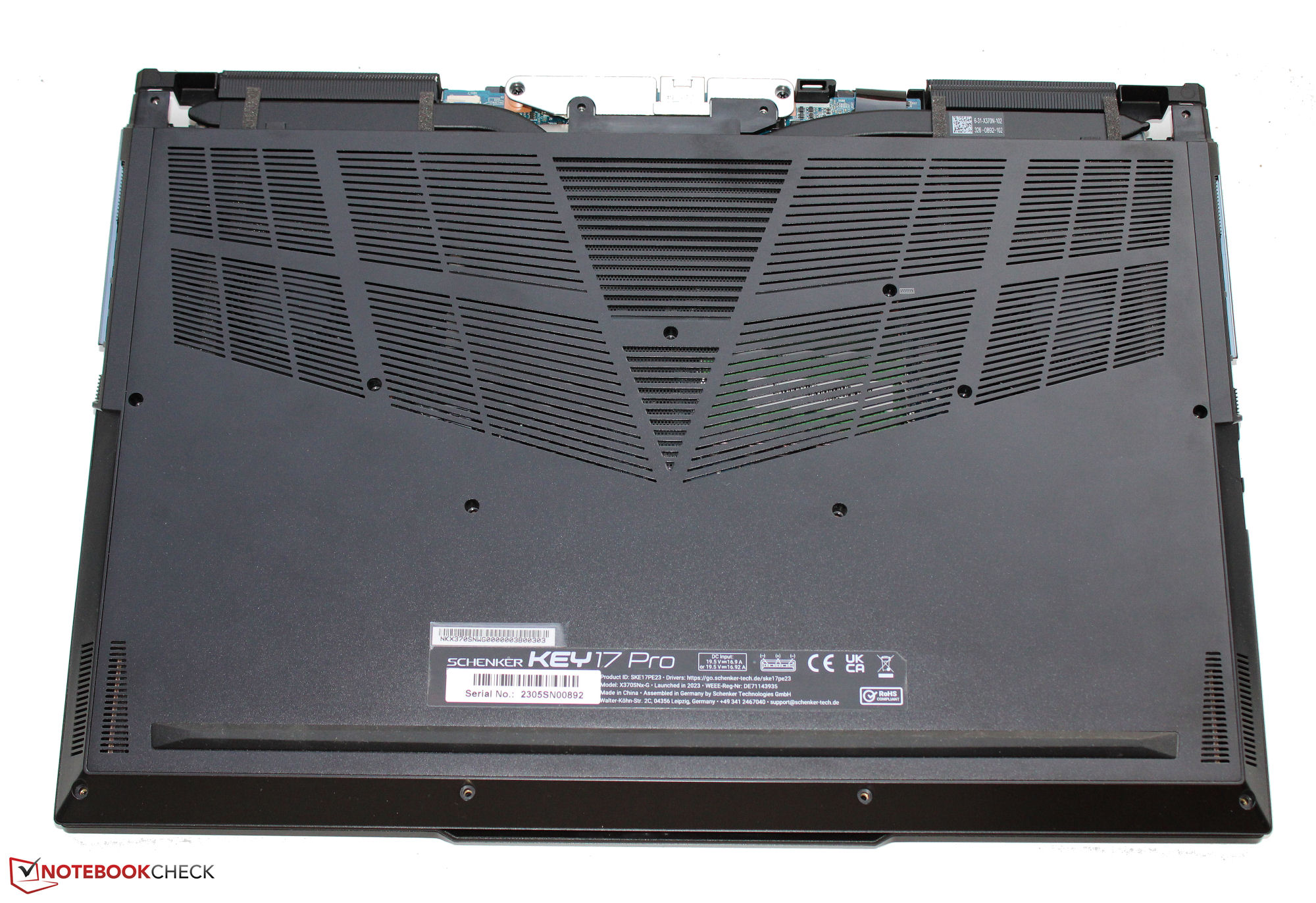

在我们的评测单元上，微妙的哑黑色金属底盘没有表现出任何工艺问题。底座几乎没有任何弯曲，盖子有一个小的但非常可接受的量。一旦你取下两件式底盖，就可以接触到笔记本的电池（拧下来的，不是粘上去的）和其他内部零件。

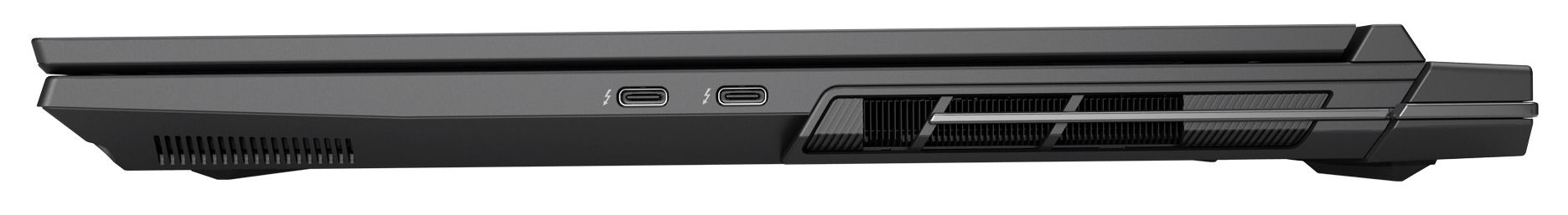

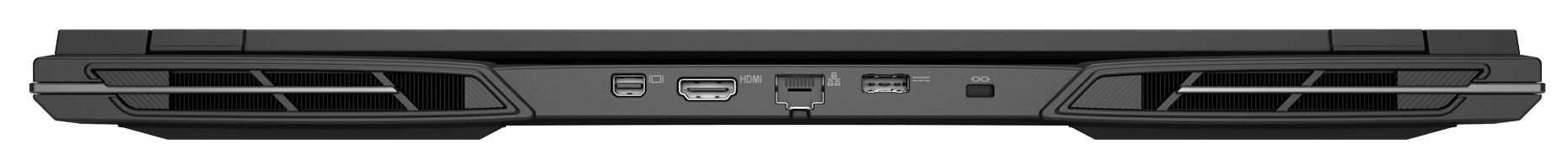

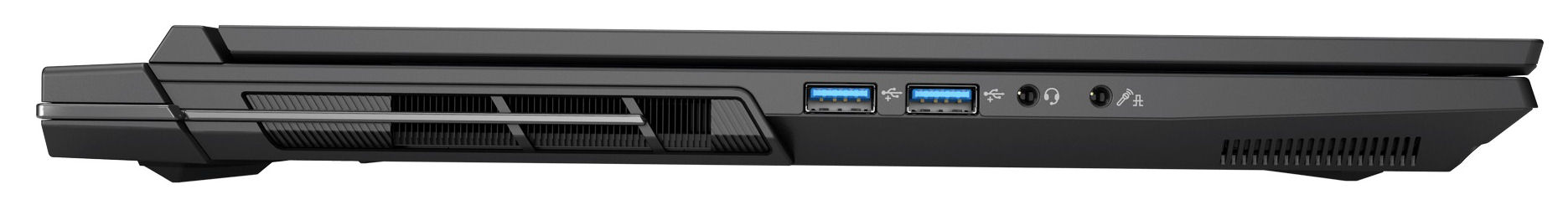

钥匙有两个USB-A（USB 3.2 Gen 2）和两个USB-C端口（Thunderbolt 4）。只有一个Thunderbolt 4端口支持Power Delivery，但两个端口都能输出DisplayPort信号。笔记本电脑总共提供四个视频输出（1x HDMI，3x DP）。不幸的是，该设备没有配备读卡器，而且网络摄像头（210万像素，最大分辨率为1,920 x 1,080，没有隐私快门）也没什么可写的。
由于其Wi-Fi 6E卡（英特尔AX211），Key 17 Pro在理想条件下（即附近没有其他Wi-Fi设备，笔记本电脑和服务器PC之间距离较短）能够达到出色的Wi-Fi数据速率。有线连接由Killer E3100X控制器处理（2.5Gbit/s）。

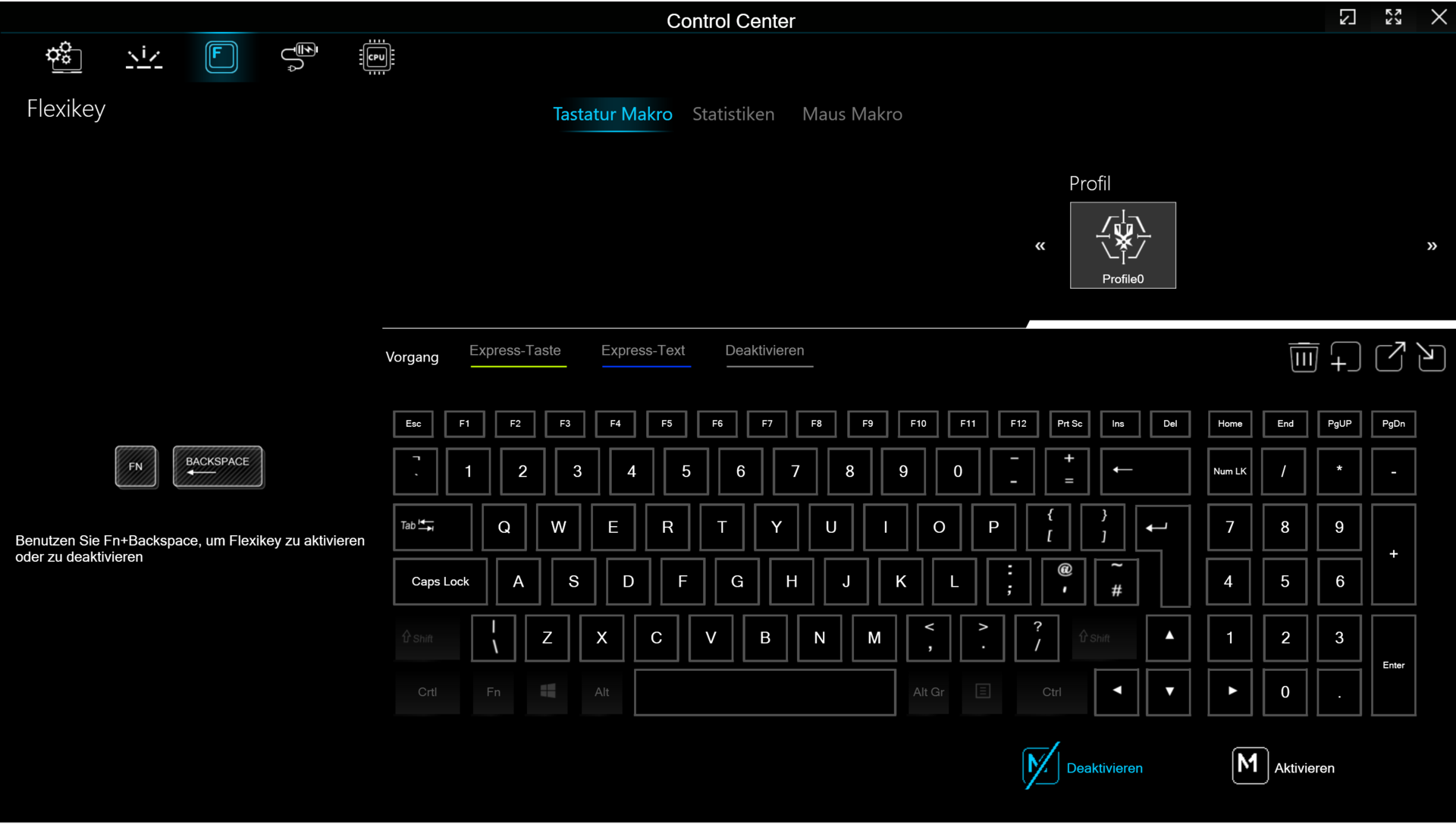

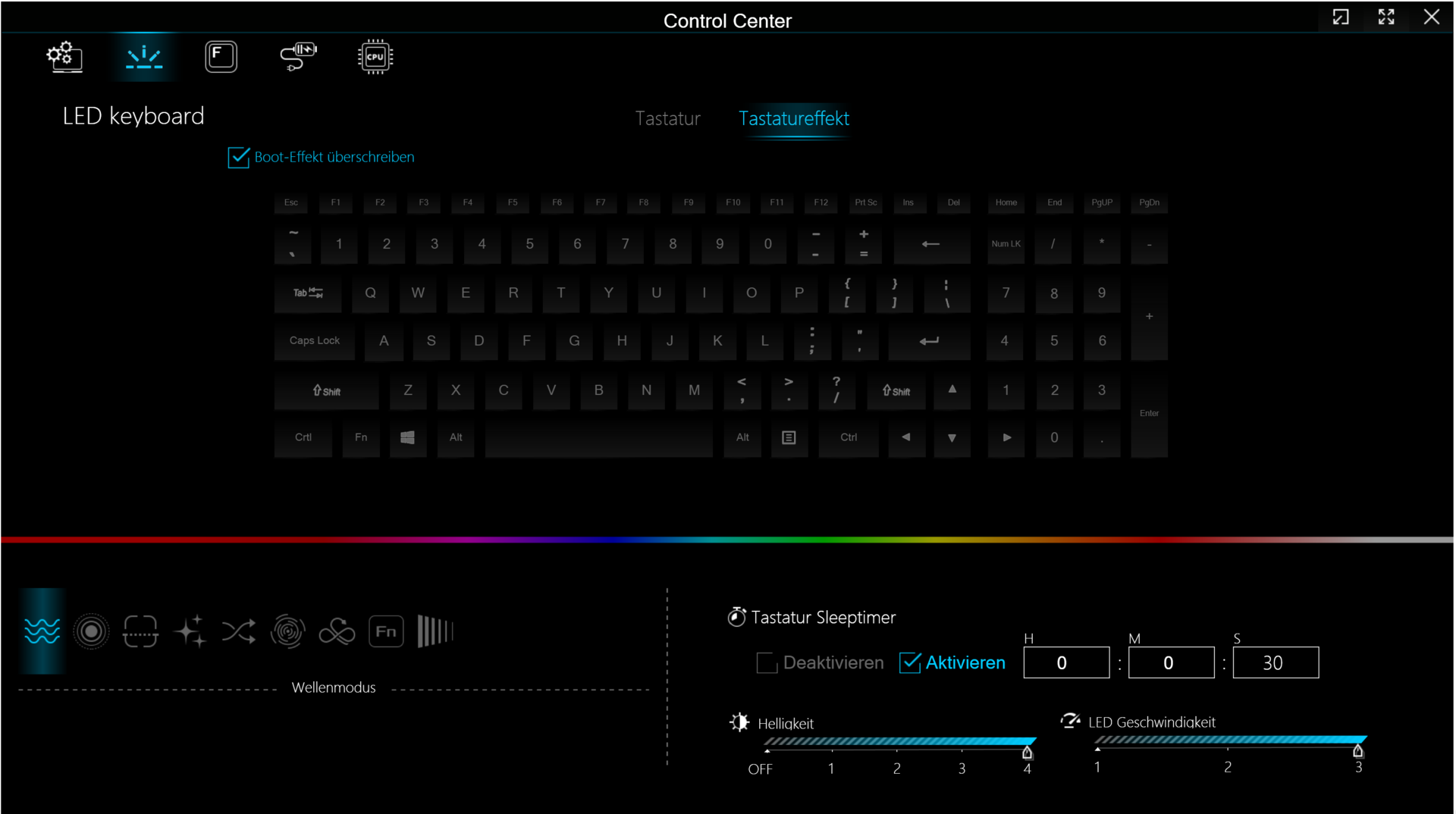

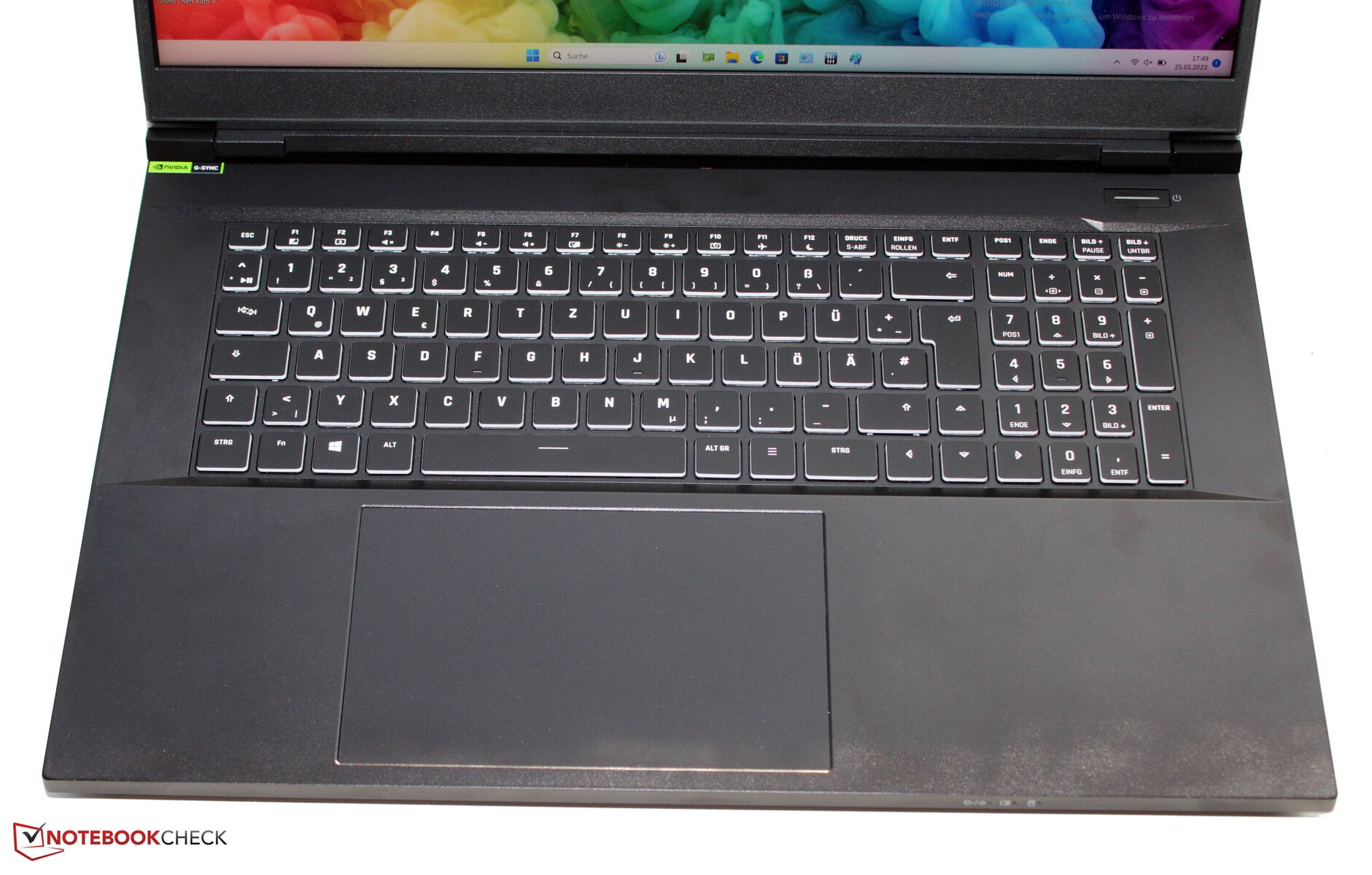

输入设备 - 带有每键RGB的Schenker笔记本电脑

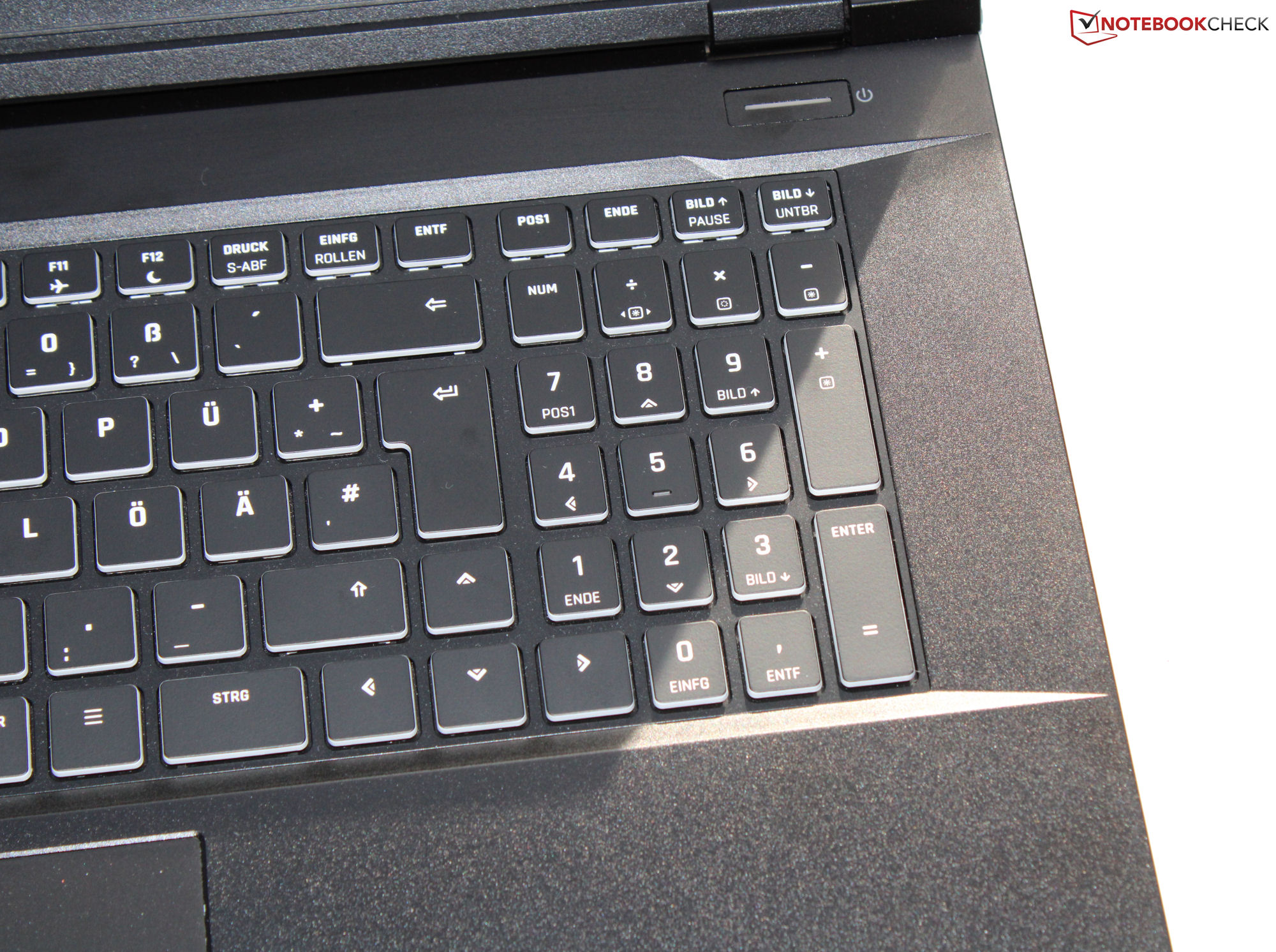

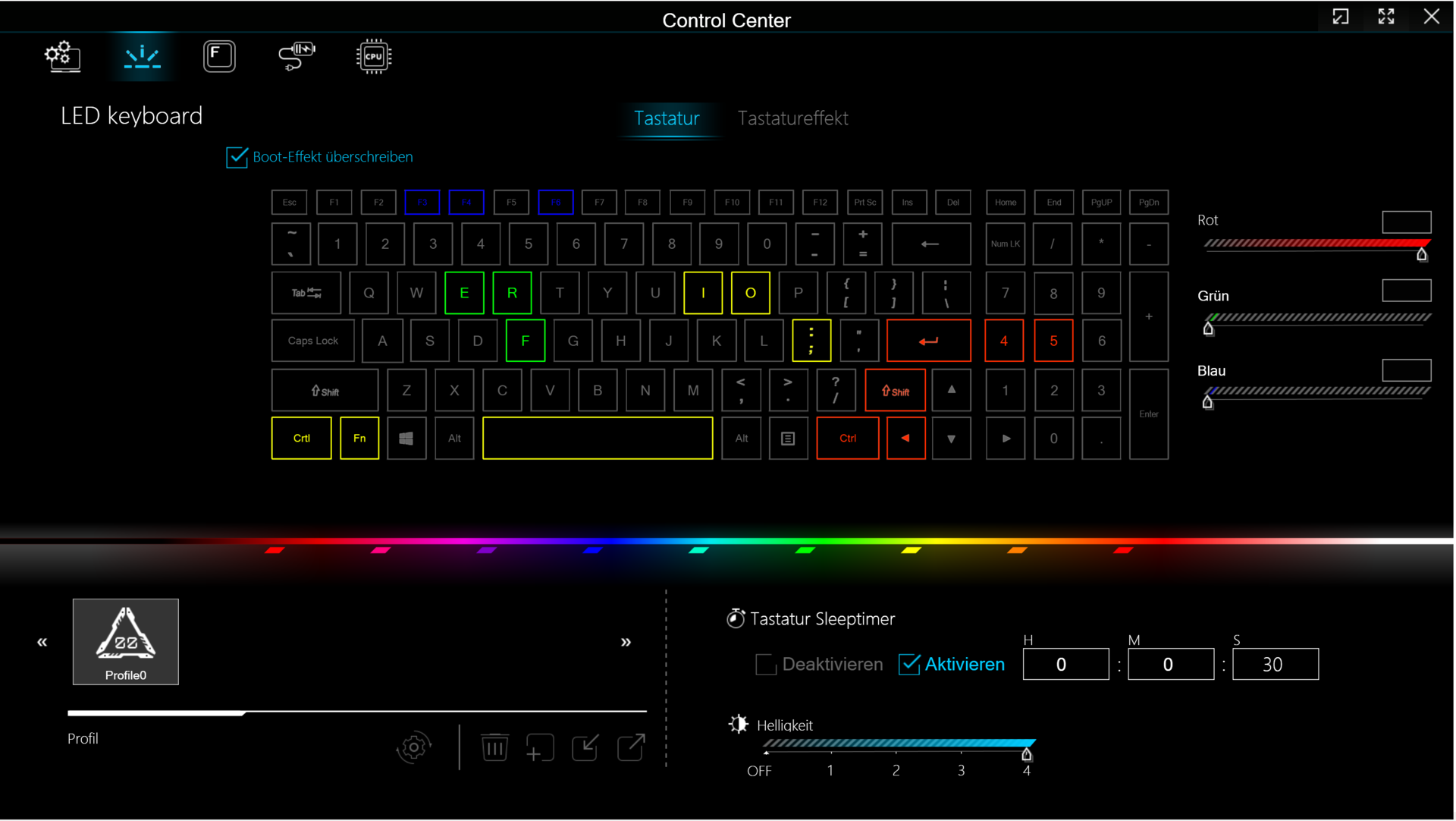

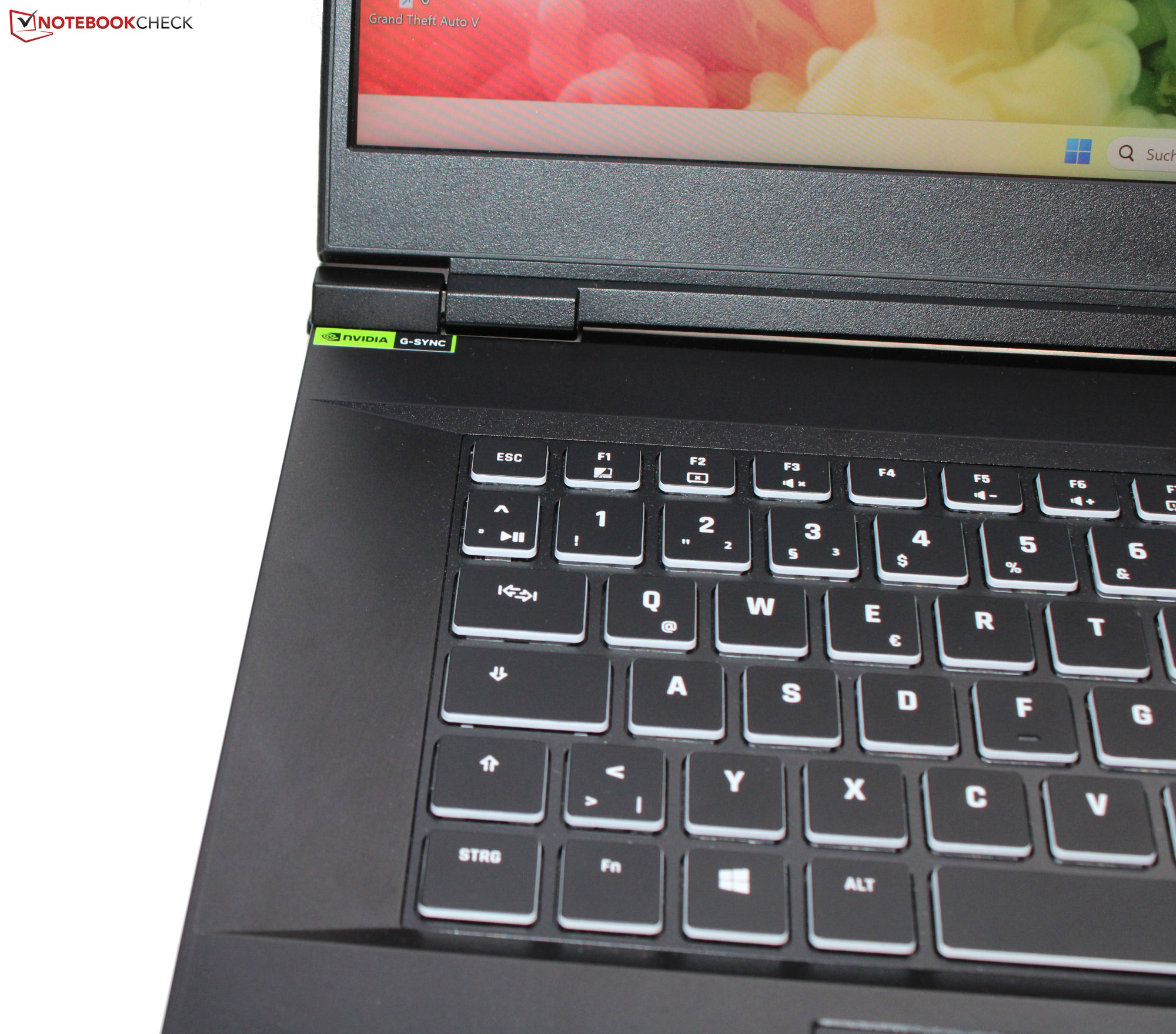

Chiclet键盘上的平坦、光滑的按键（带有每个按键的RGB照明）有一个适度的行程和一个独特的启动点。尽管在我们看来，按键的阻力可以更清晰。键盘甲板在打字时有一点弯曲，但申克公司总体上提供了一个适合日常使用的键盘。Key 17 Pro还配备了一个触摸板（尺寸约为15 x 9.1厘米，或5.9 x 3.6英寸），其移动距离短，点击点清晰。
显示屏 - 覆盖DCI-P3的UHD面板
除了评论单元上的4K IPS显示屏（3840 x 2,150像素，144Hz），申克公司还提供带有QHD IPS面板（2560 x 1,440像素，240Hz）的Key 17 Pro--两个17.3英寸屏幕都支持G-Sync。
4K面板的特点是亮度高，没有PWM闪烁，还提供高刷新率（144Hz）和快速响应时间。也就是说，在对比度方面，它没有达到标准（>1,000:1）。
| |||||||||||||||||||||||||
Brightness Distribution: 87 %
Center on Battery: 487 cd/m²
Contrast: 955:1 (Black: 0.51 cd/m²)
ΔE Color 1.51 | 0.5-29.43 Ø4.92
ΔE Greyscale 1.2 | 0.5-98 Ø5.2
84.3% AdobeRGB 1998 (Argyll 2.2.0 3D)
99.9% sRGB (Argyll 2.2.0 3D)

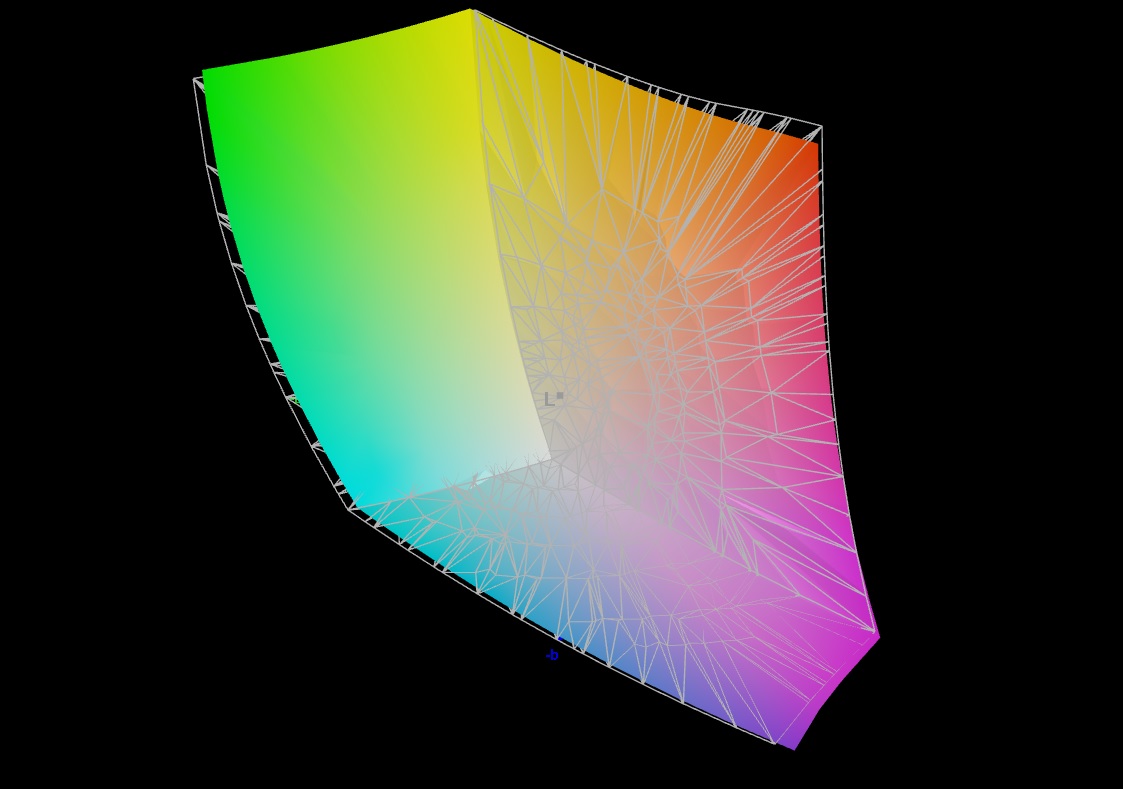

96.4% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.273
| SCHENKER Key 17 Pro (Early 23) BOE CQ NE173QUM-NY1, IPS, 3840x2160, 17.3" | MSI Stealth 17 Studio A13VH-014 AUO41A2 B173ZAN06.C, Mini LED, 3840x2160, 17.3" | Asus ROG Strix Scar 17 G733PY-XS96 NE173QHM-NZ2, IPS, 2560x1440, 17.3" | Aorus 17X AZF BOE09F9, IPS, 2560x1440, 17.3" | Medion Erazer Beast X40 BOE NE170QDM-NZ1, IPS, 2560x1600, 17" | |
|---|---|---|---|---|---|
| Display | 2% | 1% | 0% | -16% | |
| Display P3 Coverage | 96.4 | 92 -5% | 98 2% | 96.7 0% | 68.6 -29% |
| sRGB Coverage | 99.9 | 99.1 -1% | 100 0% | 99.9 0% | 99.8 0% |
| AdobeRGB 1998 Coverage | 84.3 | 94.07 12% | 85.6 2% | 84.5 0% | 69.4 -18% |
| Response Times | -62% | 0% | -18% | 10% | |
| Response Time Grey 50% / Grey 80% * | 14.8 ? | 46.4 ? -214% | 6.2 ? 58% | 14 ? 5% | 11.3 ? 24% |
| Response Time Black / White * | 7.2 ? | 0.62 ? 91% | 11.4 ? -58% | 10.1 ? -40% | 7.5 ? -4% |
| PWM Frequency | 2400 | ||||
| Screen | 221% | -8% | -57% | -29% | |
| Brightness middle | 487 | 397.29 -18% | 322.5 -34% | 294 -40% | 384 -21% |
| Brightness | 485 | 392 -19% | 317 -35% | 276 -43% | 377 -22% |
| Brightness Distribution | 87 | 93 7% | 86 -1% | 90 3% | 90 3% |
| Black Level * | 0.51 | 0.02 96% | 0.29 43% | 0.28 45% | 0.45 12% |
| Contrast | 955 | 19865 1980% | 1112 16% | 1050 10% | 853 -11% |
| Colorchecker dE 2000 * | 1.51 | 2.52 -67% | 1.15 24% | 2.81 -86% | 2.05 -36% |
| Colorchecker dE 2000 max. * | 2.19 | 3.91 -79% | 3.03 -38% | 5.7 -160% | 3.64 -66% |
| Greyscale dE 2000 * | 1.2 | 2.78 -132% | 1.7 -42% | 3.4 -183% | 2.3 -92% |
| Gamma | 2.273 97% | 2.63 84% | 2.27 97% | 2.301 96% | 2.017 109% |
| CCT | 6451 101% | 6412 101% | 6299 103% | 7389 88% | 6546 99% |
| Colorchecker dE 2000 calibrated * | 2.52 | 0.56 | 0.86 | 0.74 | |
| Total Average (Program / Settings) | 54% /
127% | -2% /
-5% | -25% /
-38% | -12% /
-20% |
* ... smaller is better

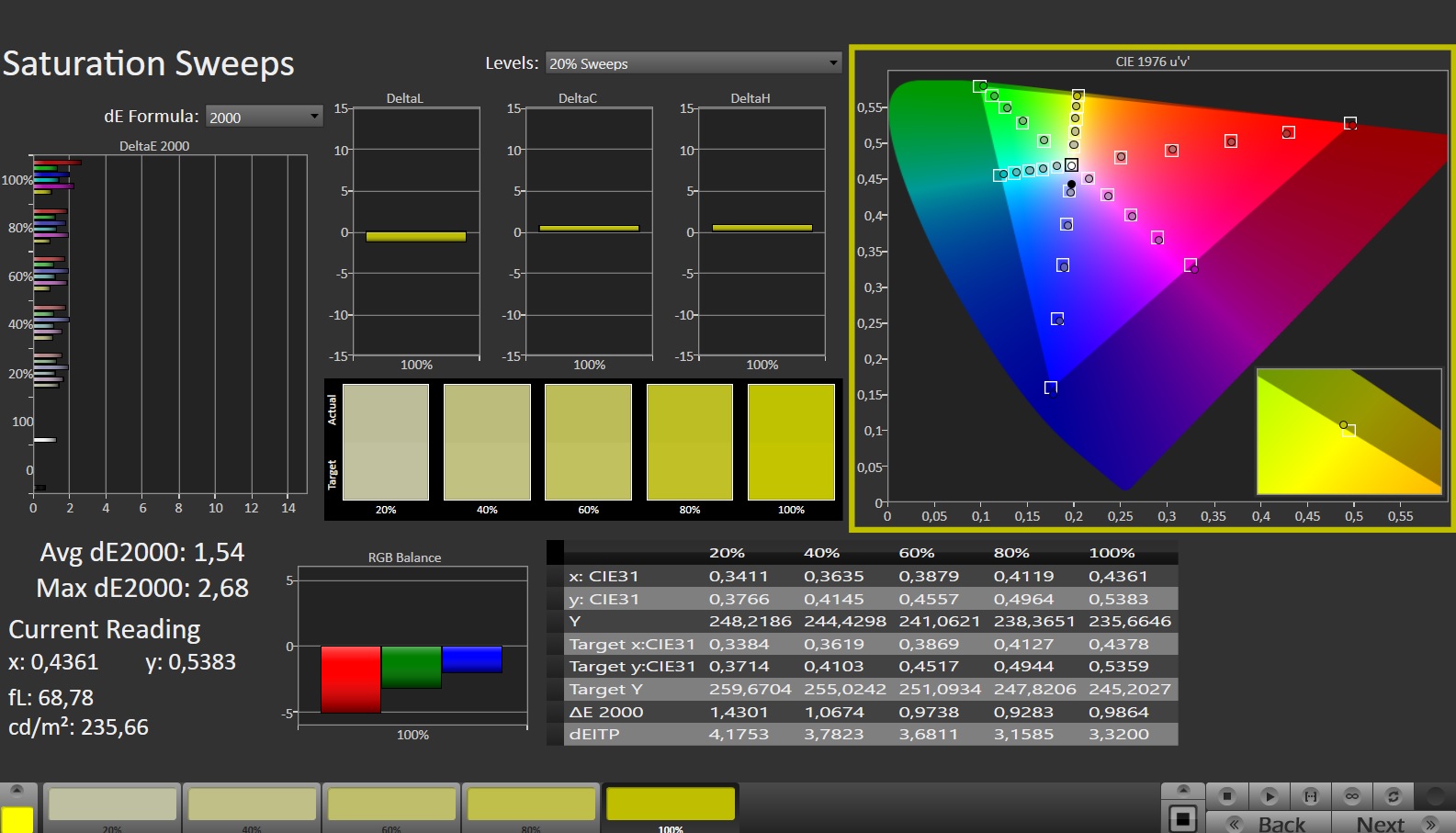

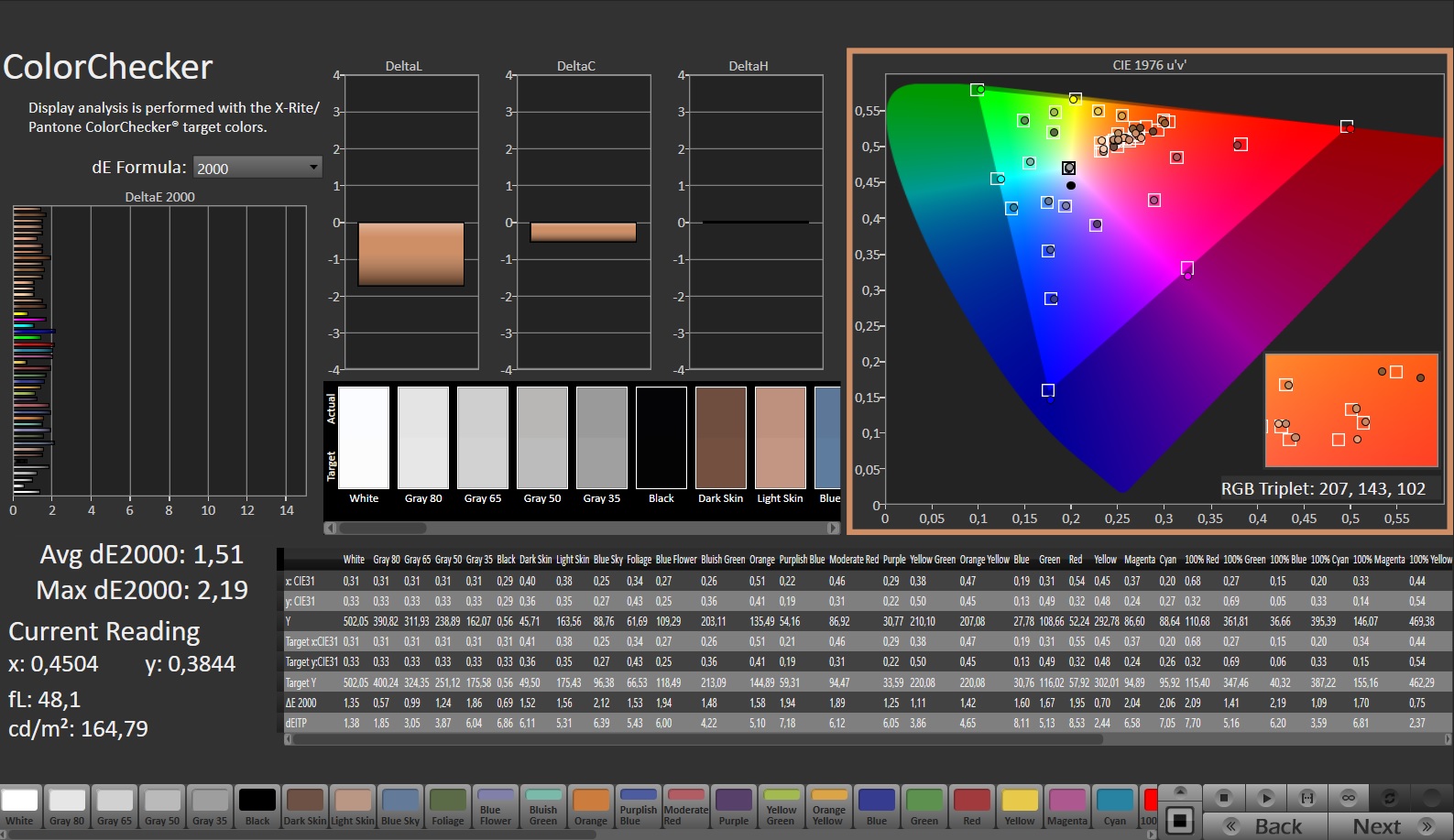

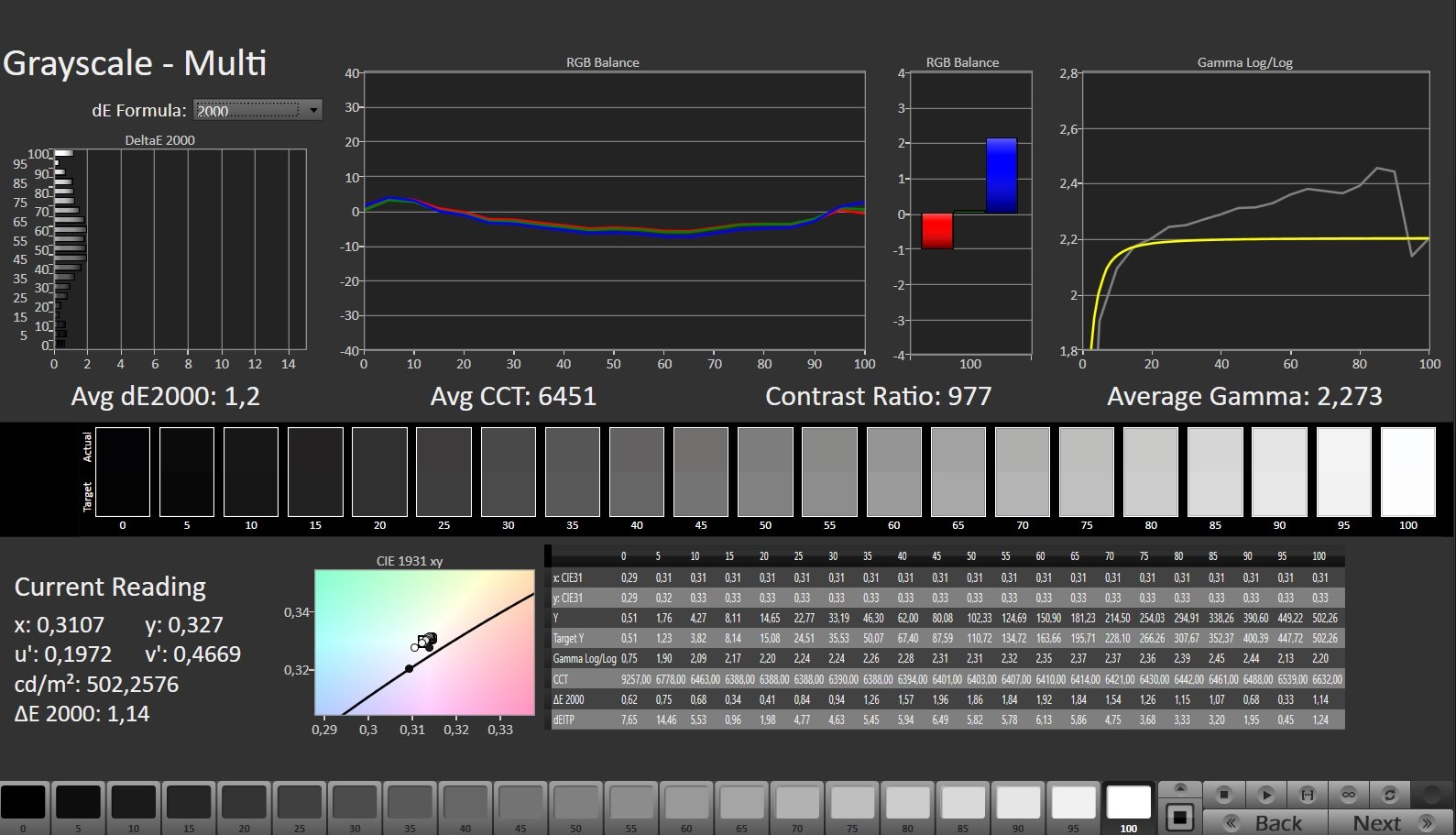

这款显示器在开箱时就已经有了出色的色彩还原能力。大约为1.5，其平均色差肯定属于我们认为的良好范围（Delta E < 3）。色彩准确度是必然的：该面板具有完整的sRGB覆盖率，几乎可以覆盖整个DCI-P3空间；它还能够再现高达84%的AdobeRGB色域。

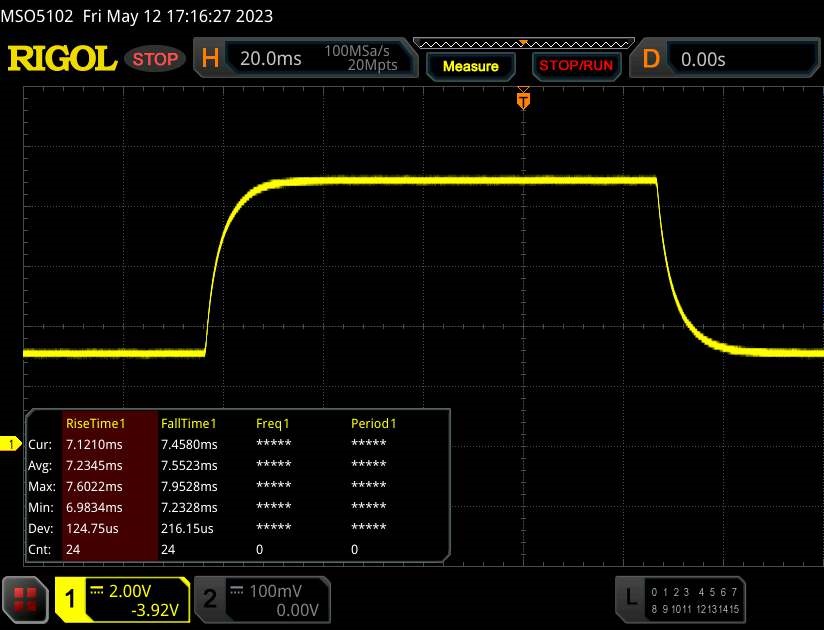

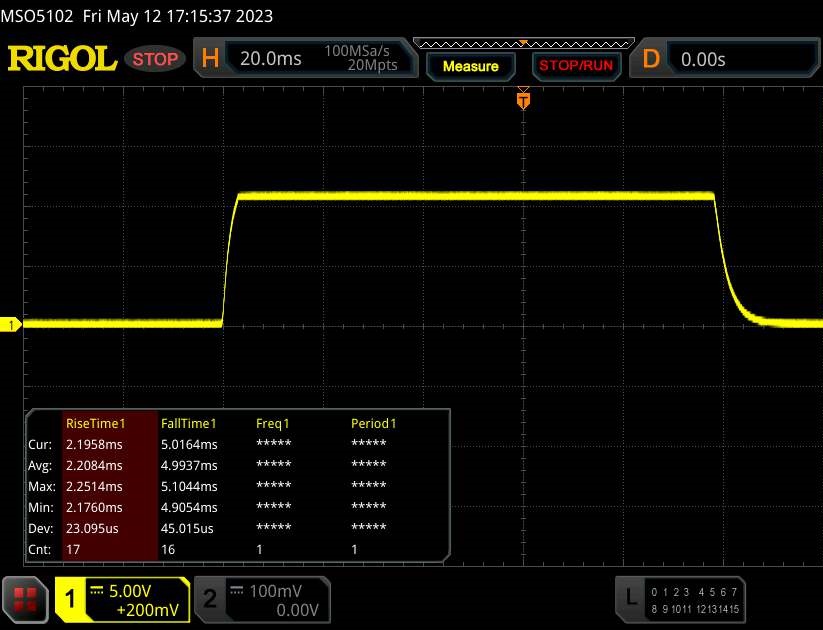

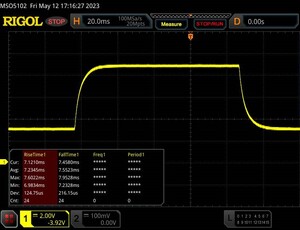

Display Response Times
| ↔ Response Time Black to White | ||
|---|---|---|
| 7.2 ms ... rise ↗ and fall ↘ combined | ↗ 2.2 ms rise |  |
| ↘ 5 ms fall | ||
| The screen shows very fast response rates in our tests and should be very well suited for fast-paced gaming. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 18 % of all devices are better. This means that the measured response time is better than the average of all tested devices (21 ms). | ||
| ↔ Response Time 50% Grey to 80% Grey | ||
| 14.8 ms ... rise ↗ and fall ↘ combined | ↗ 7.2 ms rise |  |
| ↘ 7.6 ms fall | ||
| The screen shows good response rates in our tests, but may be too slow for competitive gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 25 % of all devices are better. This means that the measured response time is better than the average of all tested devices (32.9 ms). | ||

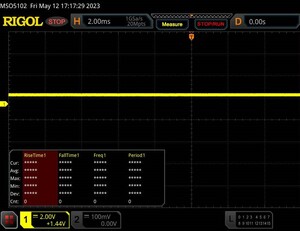

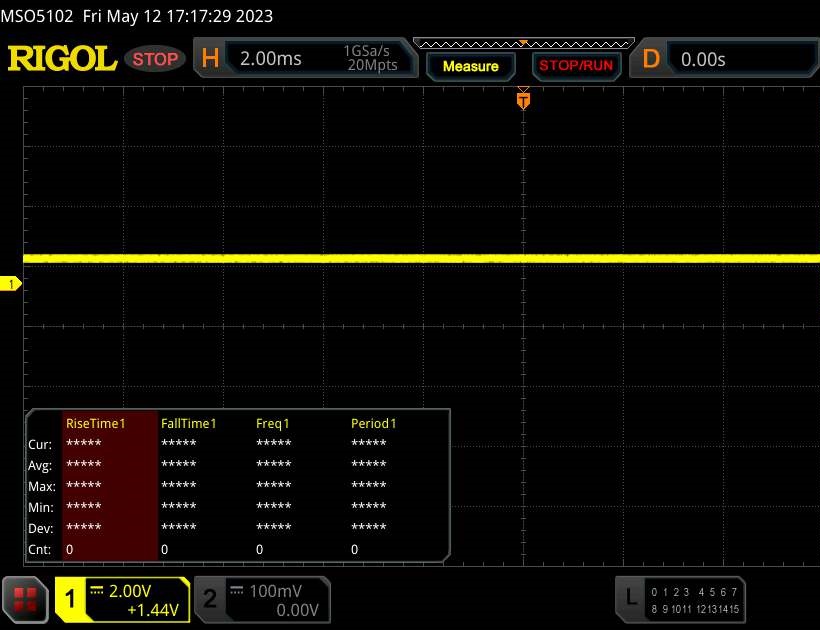

Screen Flickering / PWM (Pulse-Width Modulation)
| Screen flickering / PWM not detected |  | ||
In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8743 (minimum: 5 - maximum: 343500) Hz was measured. | |||

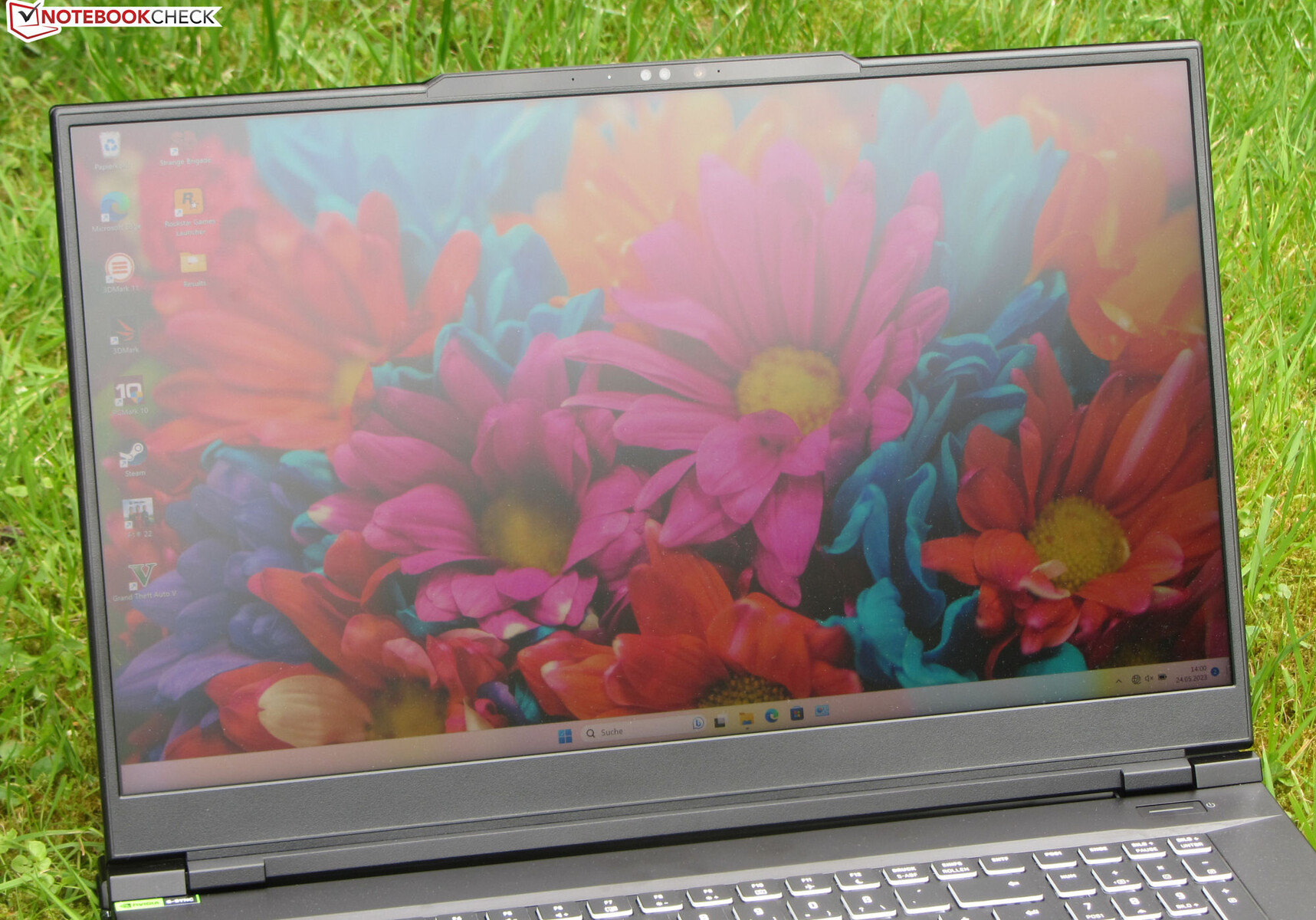

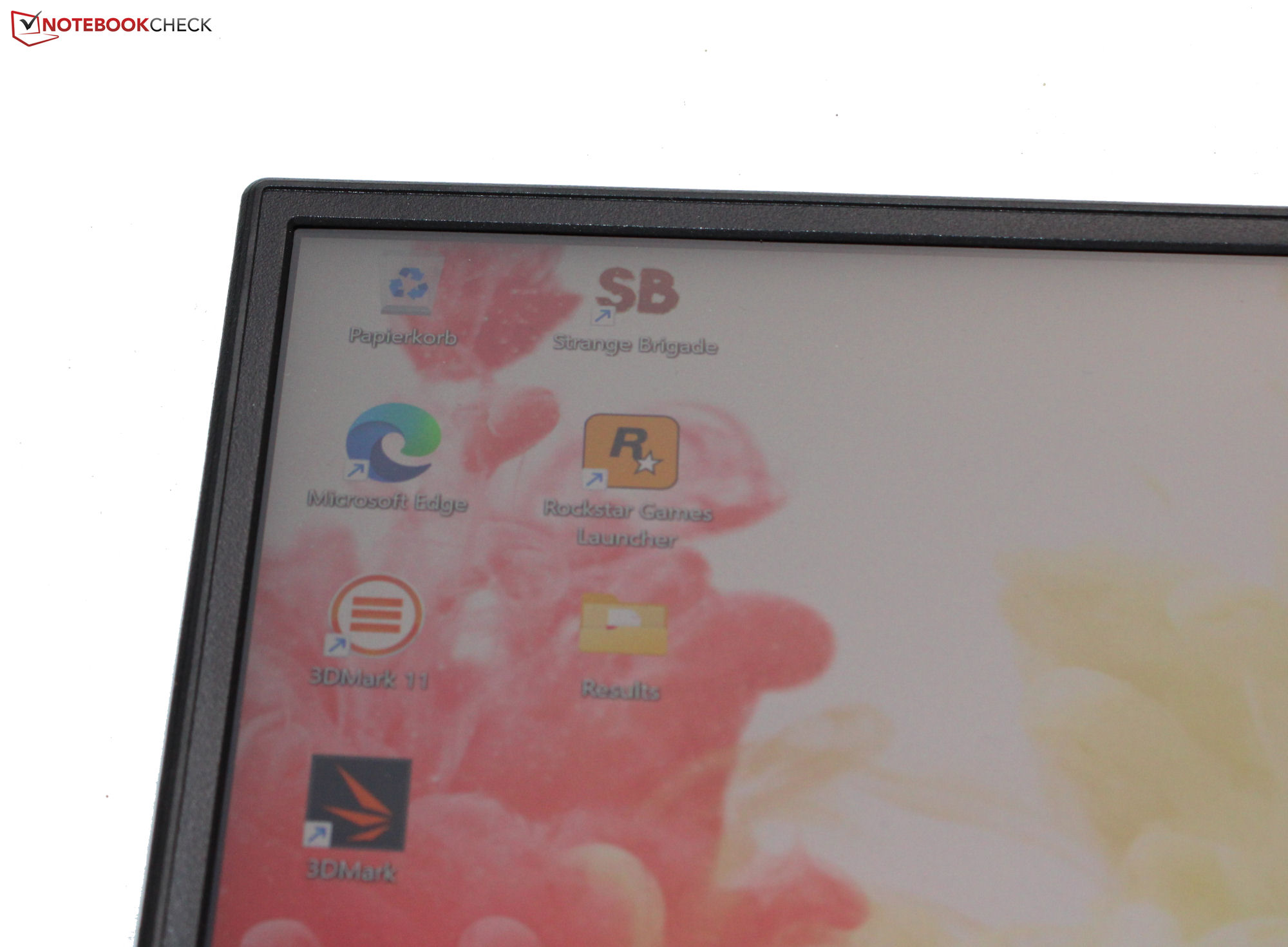

由于其宽广的视角，IPS显示屏在任何位置都可以阅读。即使在户外，只要阳光不是太亮，你也肯定能看清屏幕上的内容。
性能 - Key 17具有高端硬件
Schenker Key 17 Pro是一款高端的17.3英寸笔记本电脑，利用了Raptor Lake和Ada Lovelace的力量。你可以在Schenker的网上商店根据你的需要配置笔记本电脑。我们的评测单位价格约为4,500欧元（4,820美元）。而价格从3,200欧元（3,427美元）起。
测试条件

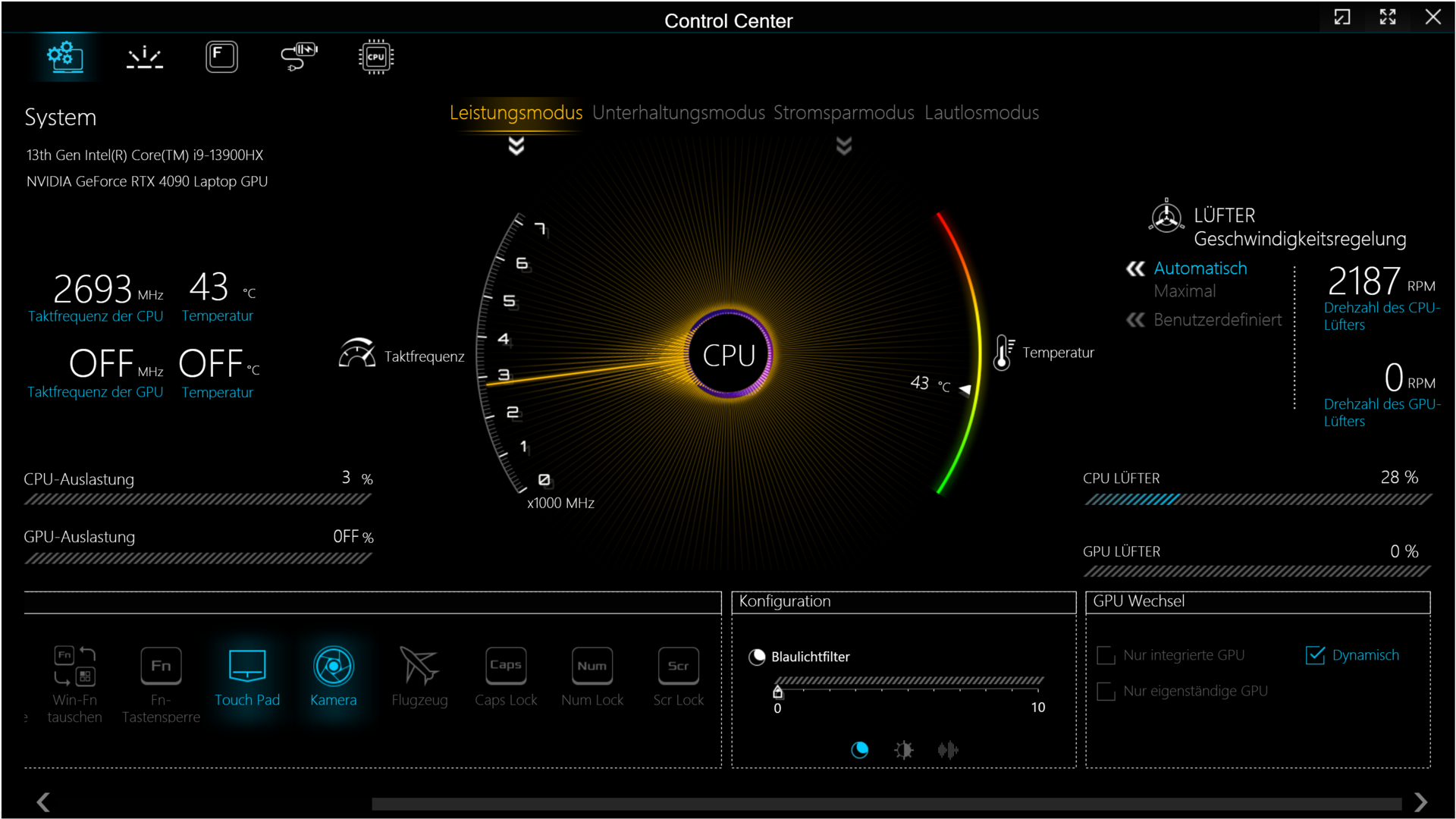

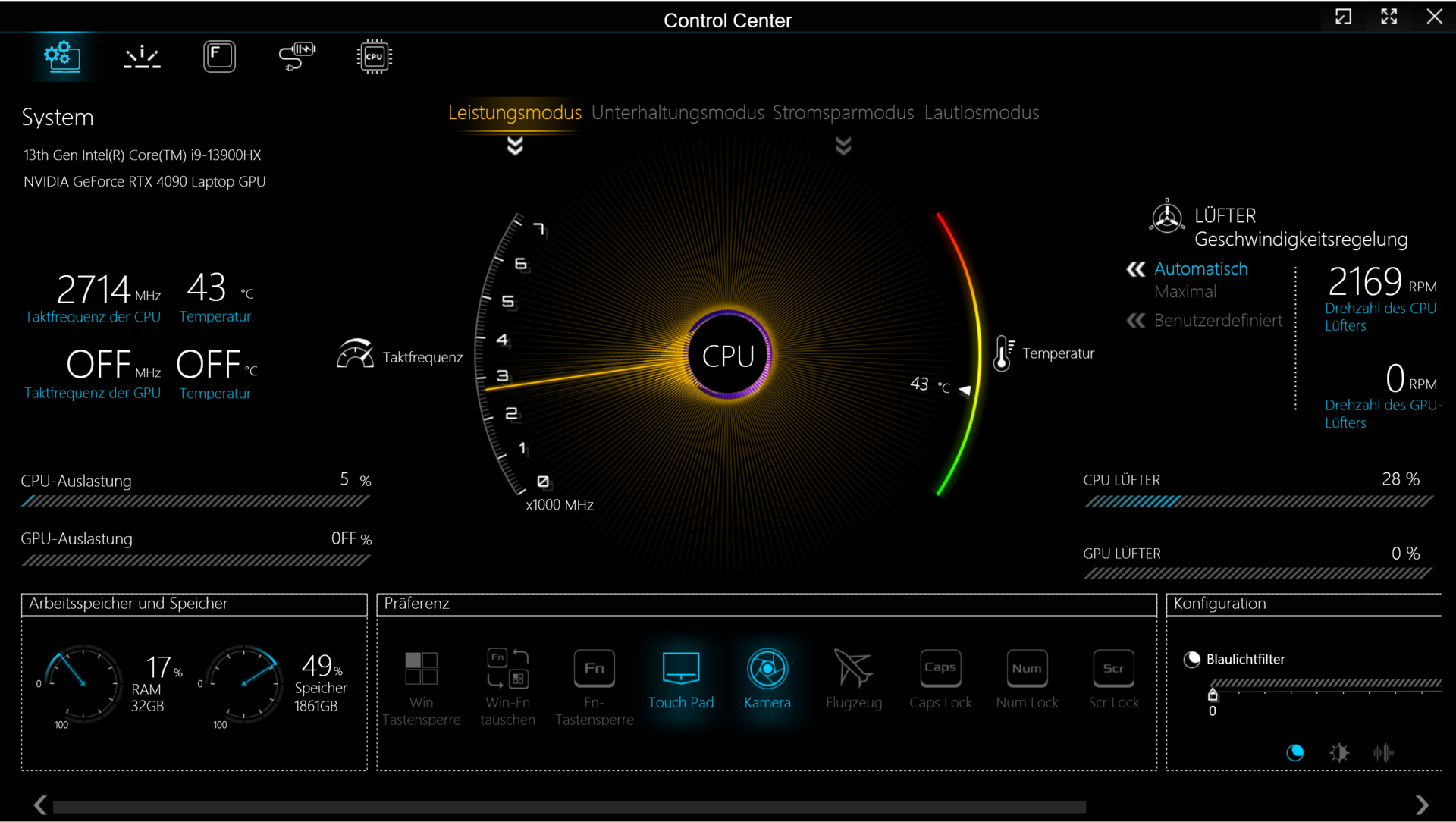

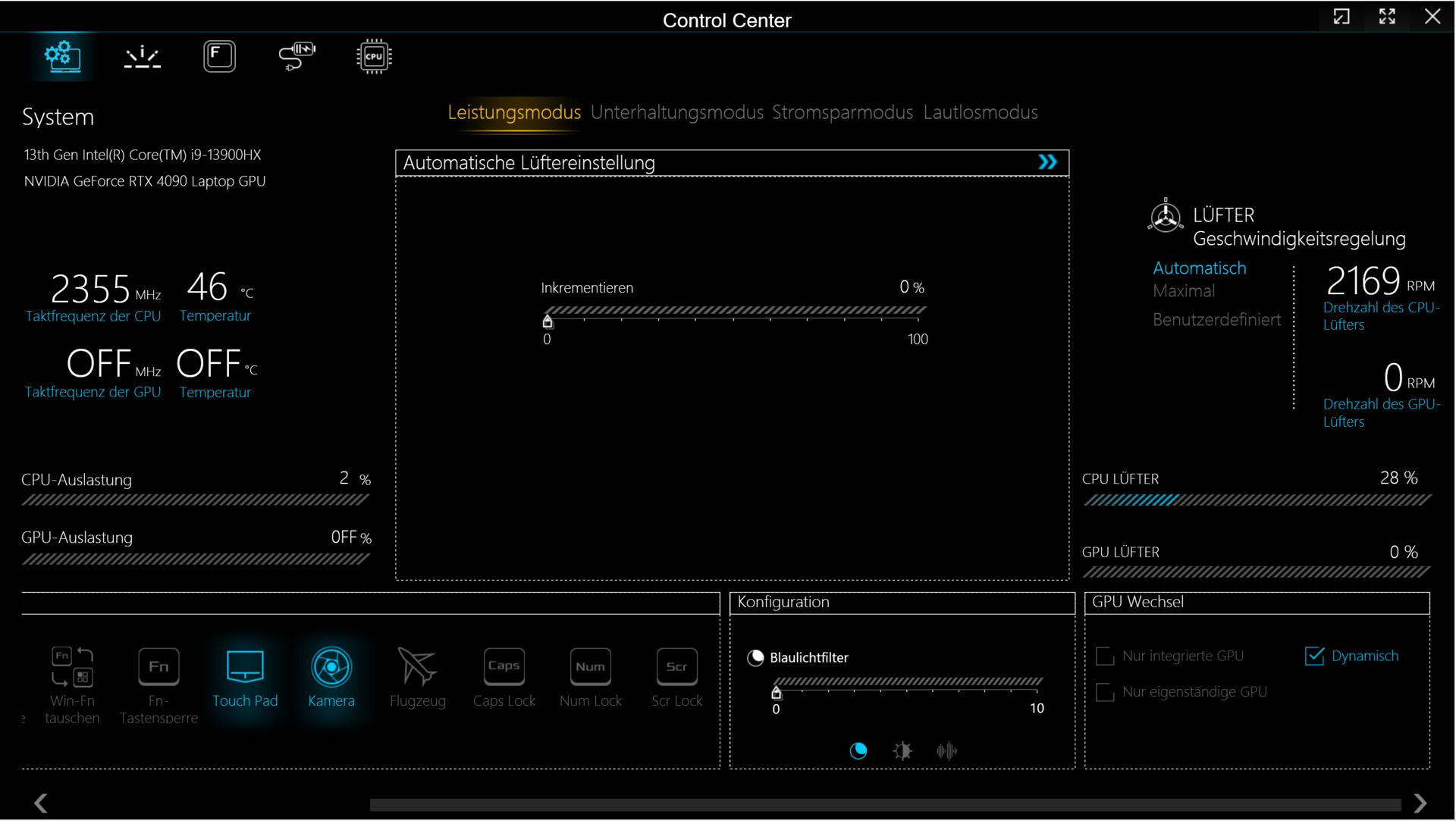

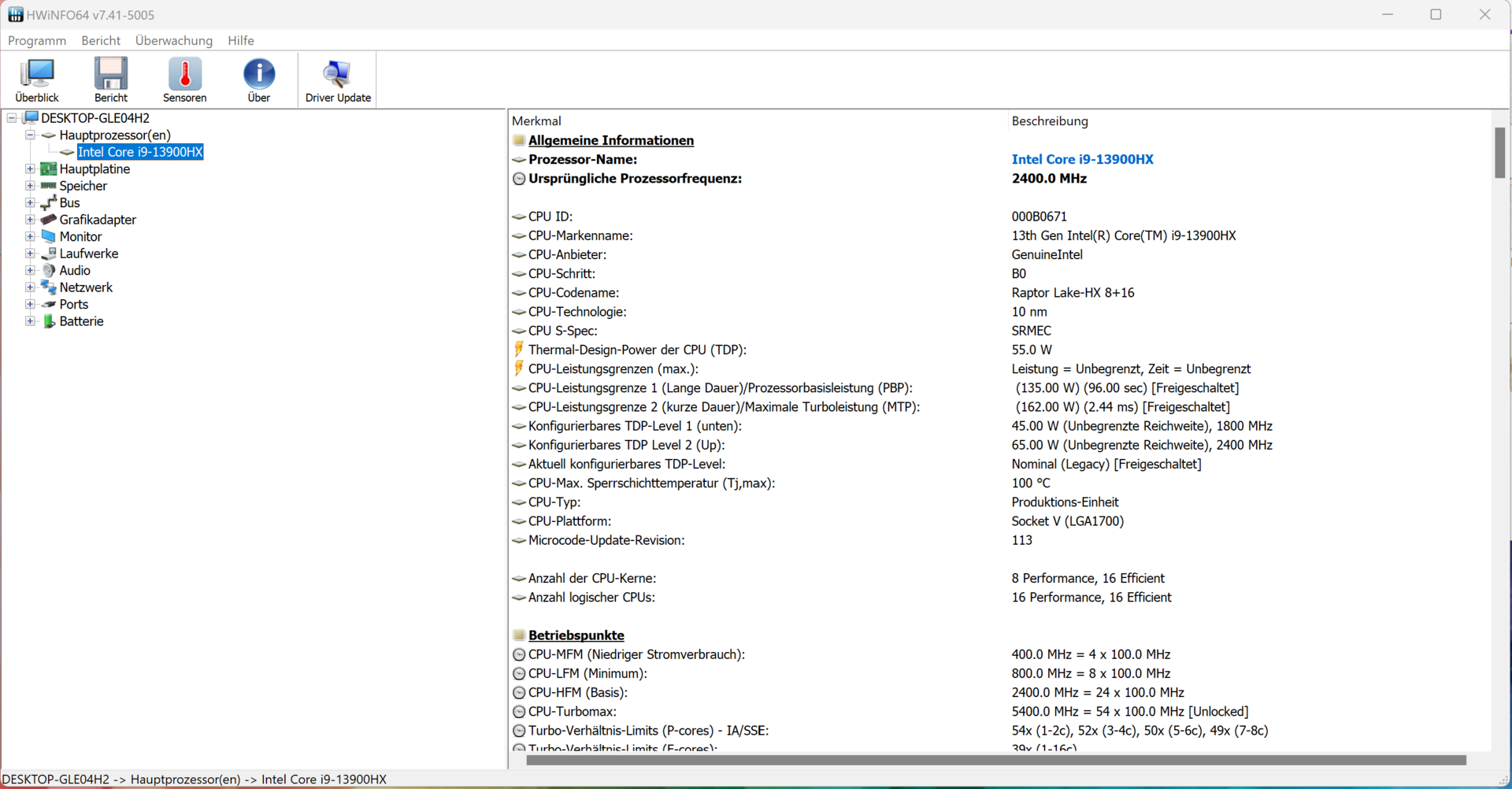

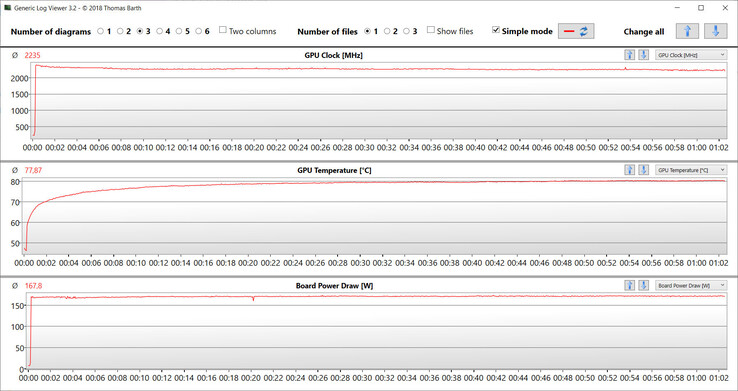

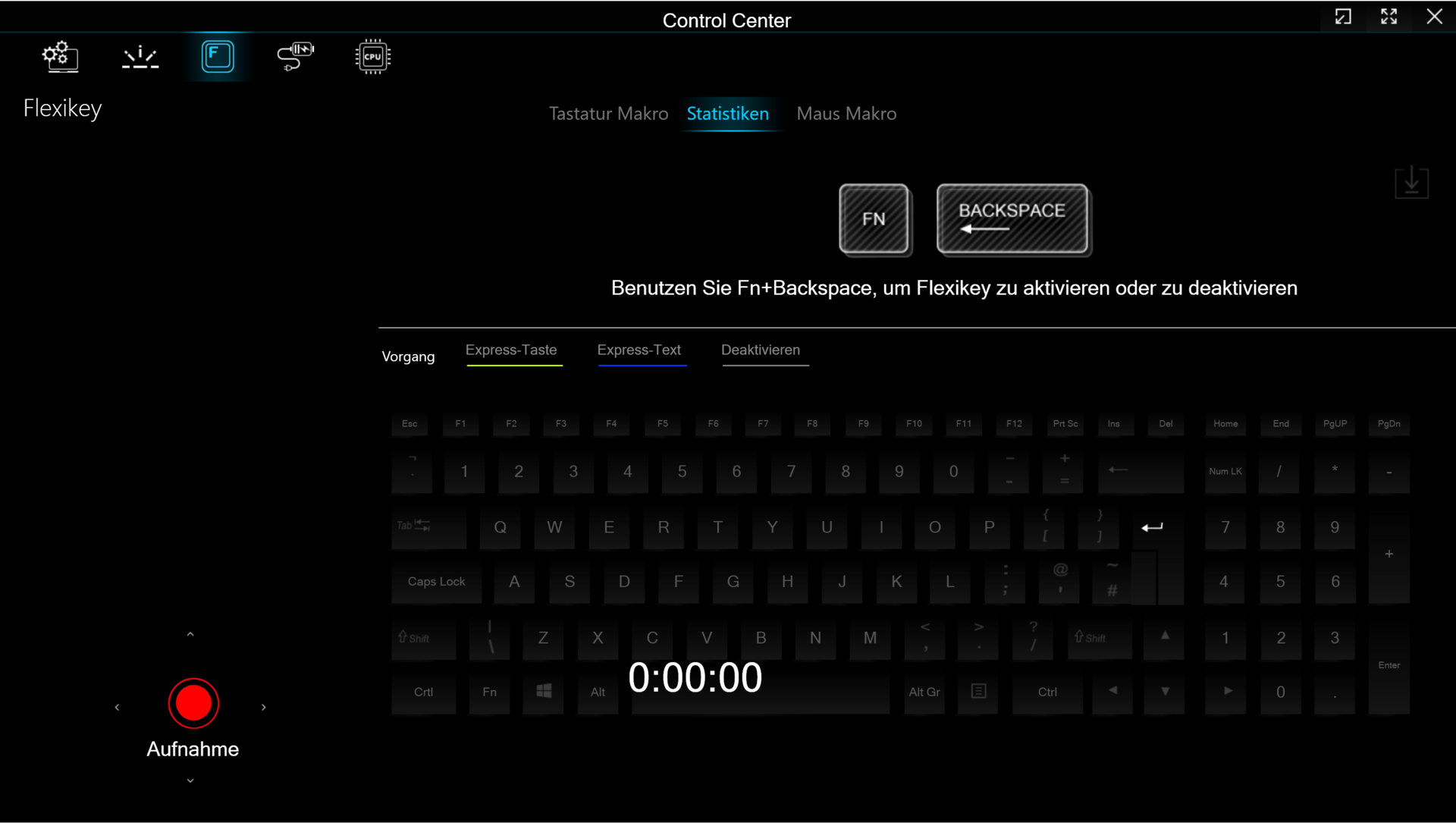

Key 17 Pro提供四个制造商指定的电源模式（见表）。你可以使用安装在笔记本电脑上的控制中心软件在它们之间切换。我们在 "性能模式 "下运行我们的基准测试，在 "省电模式 "下进行电池寿命测试（禁用RTX 4090。在我们的测试中，Optimus被启用。

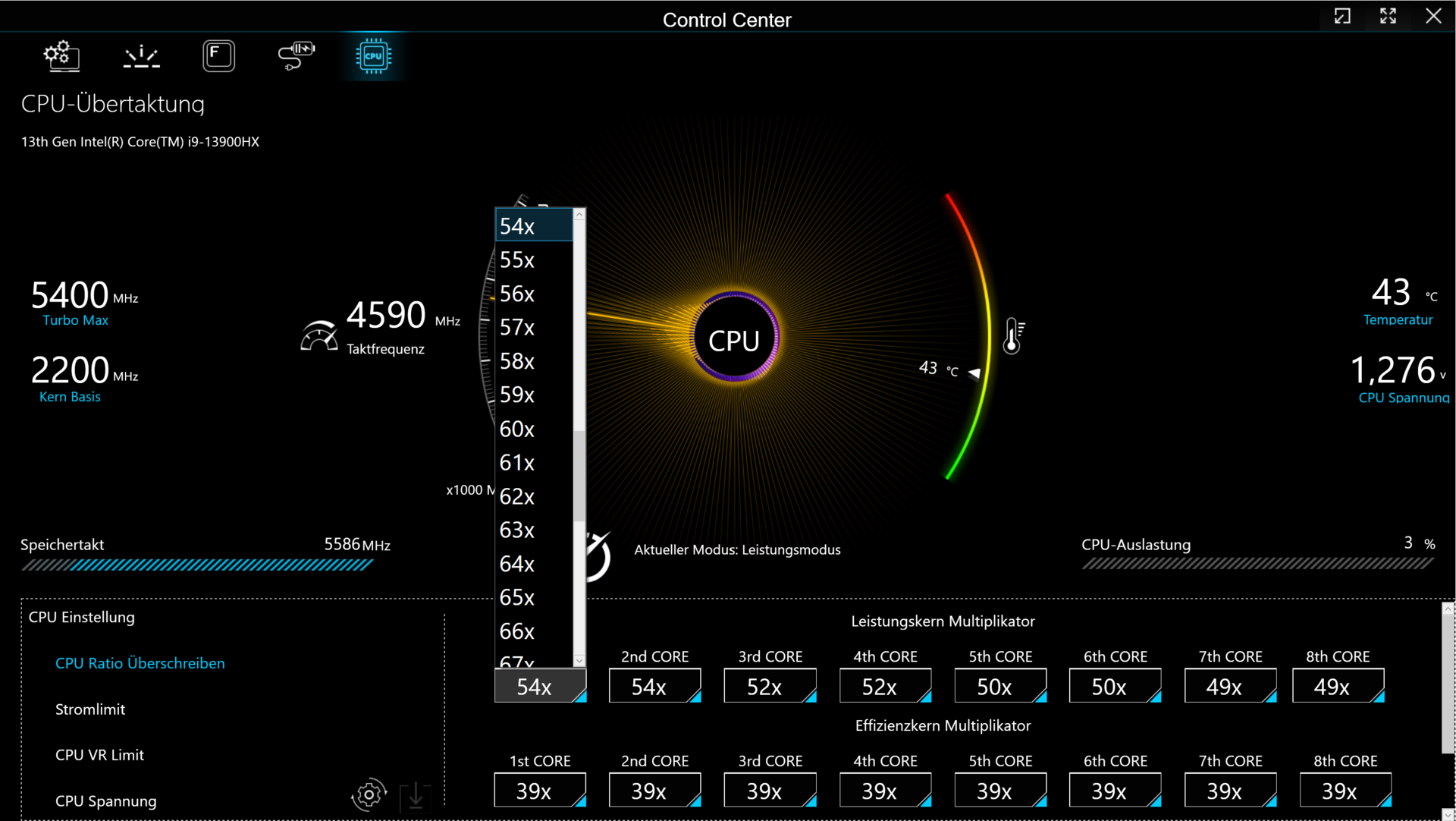

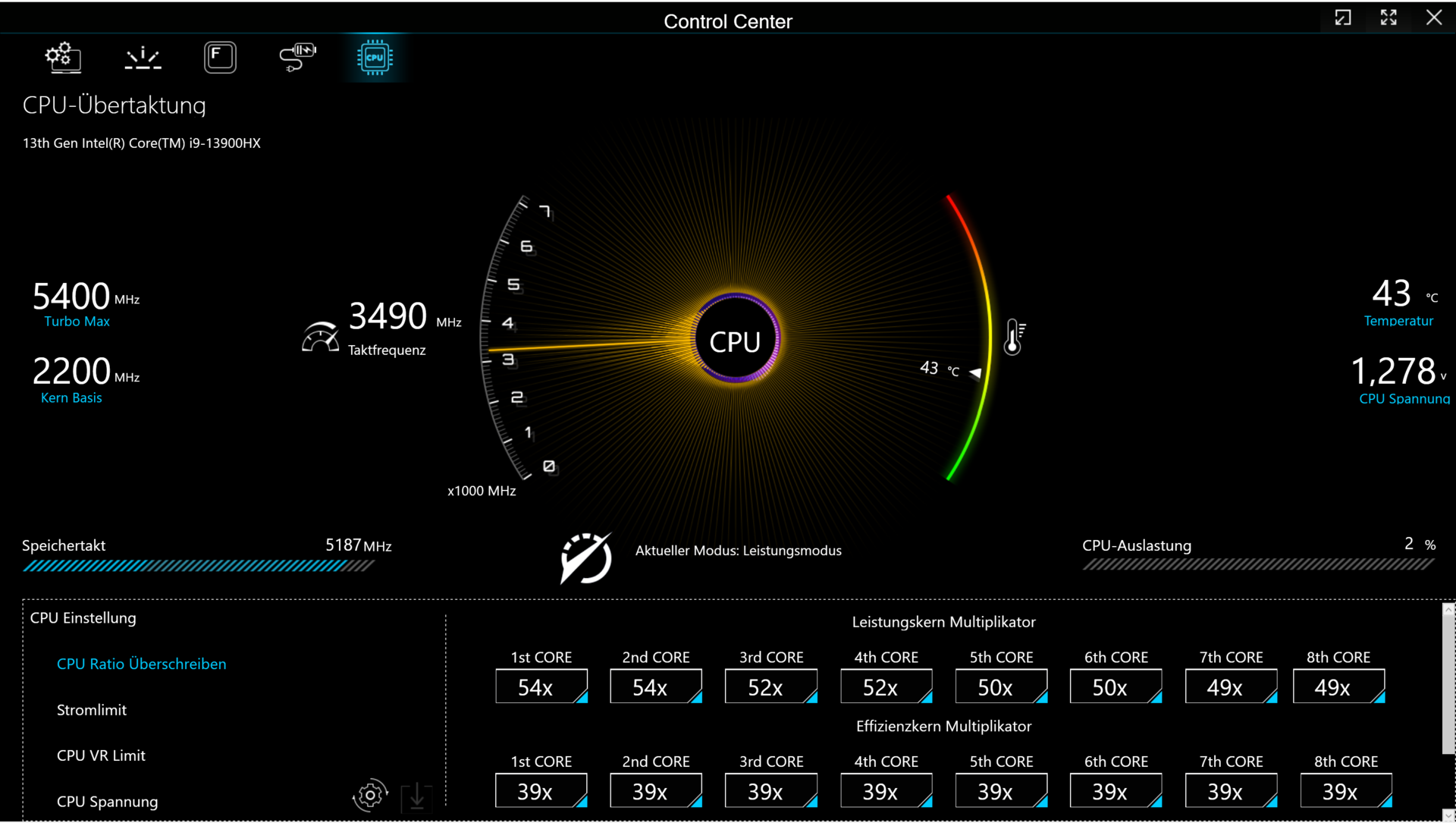

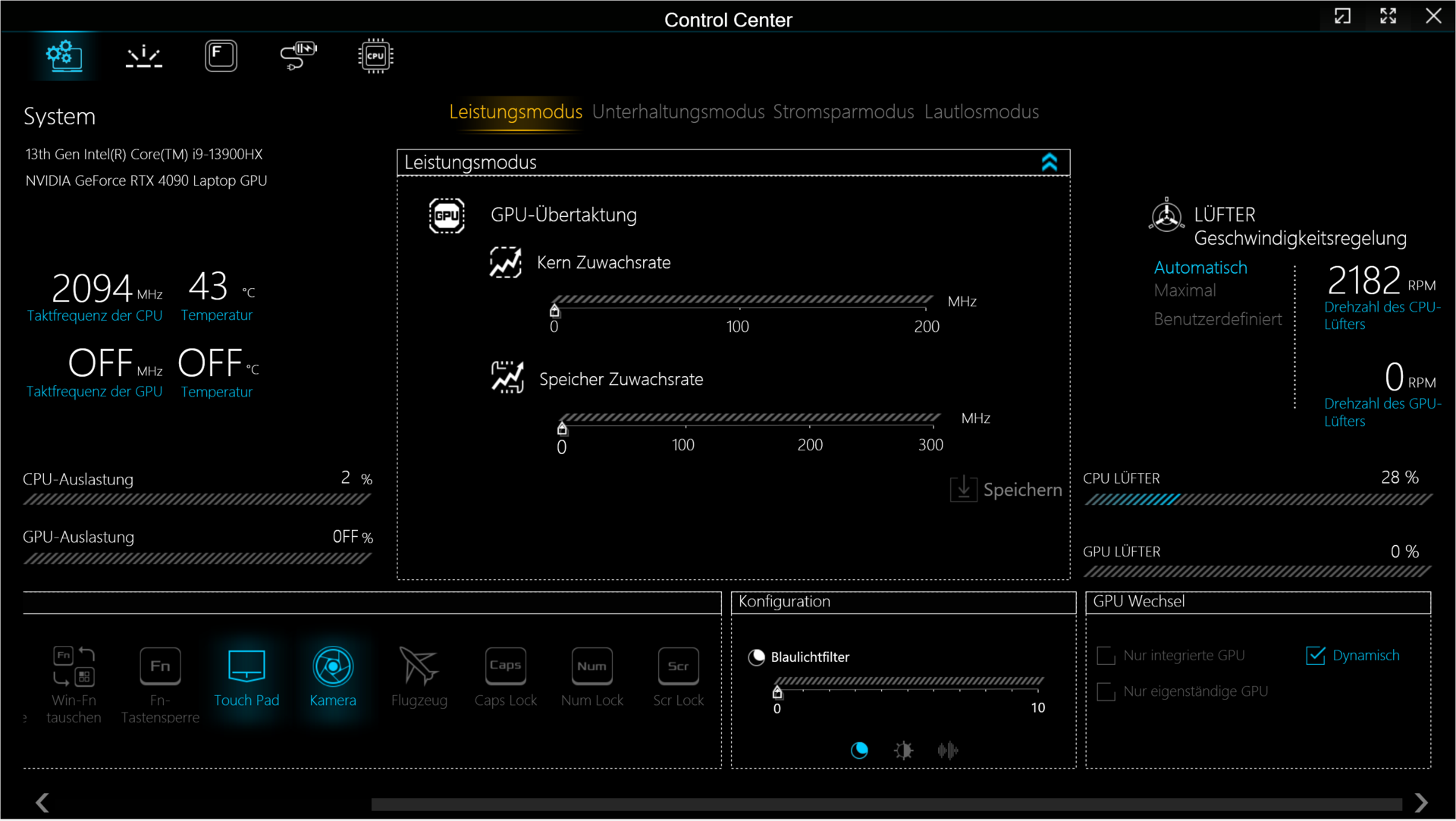

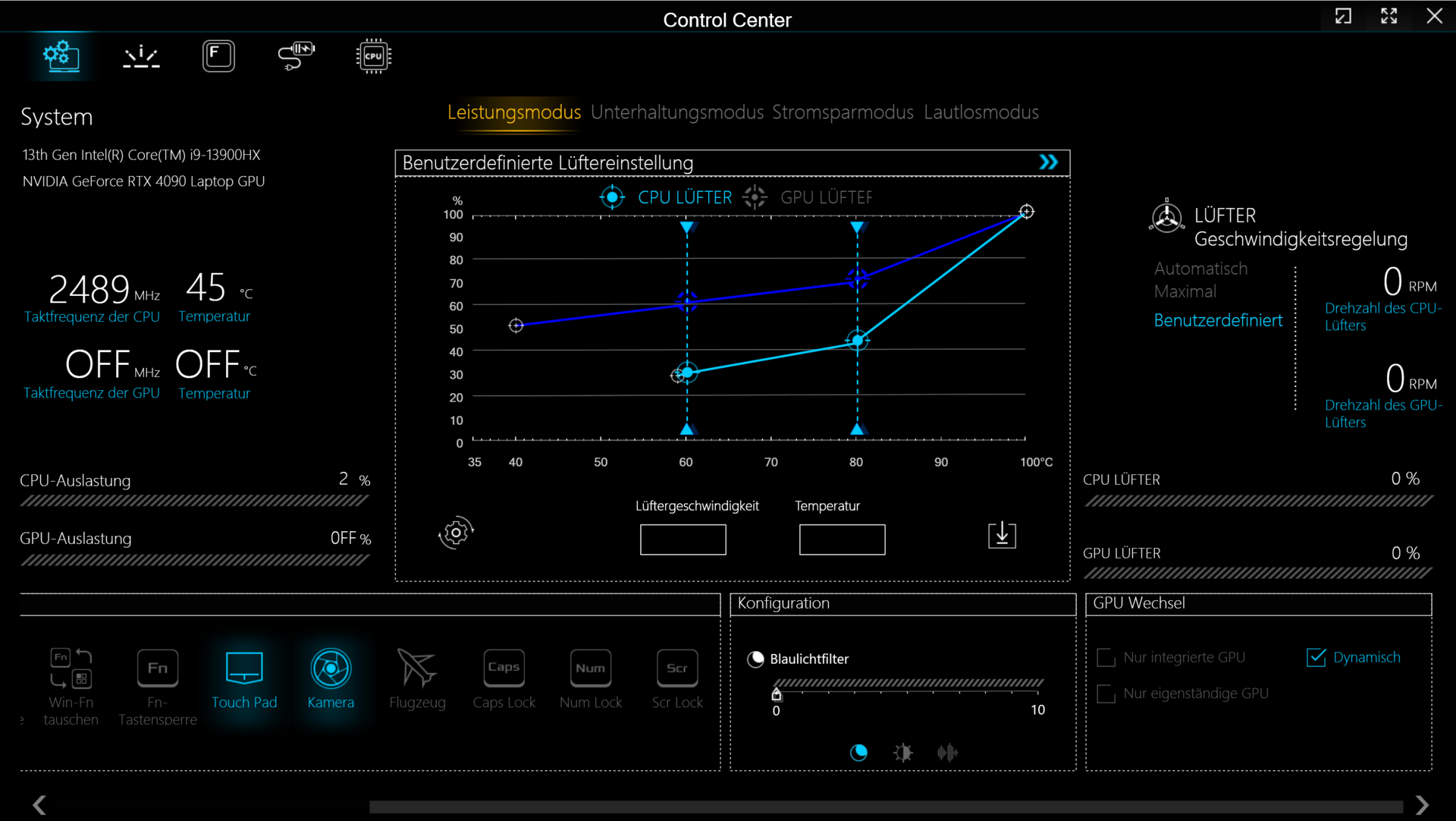

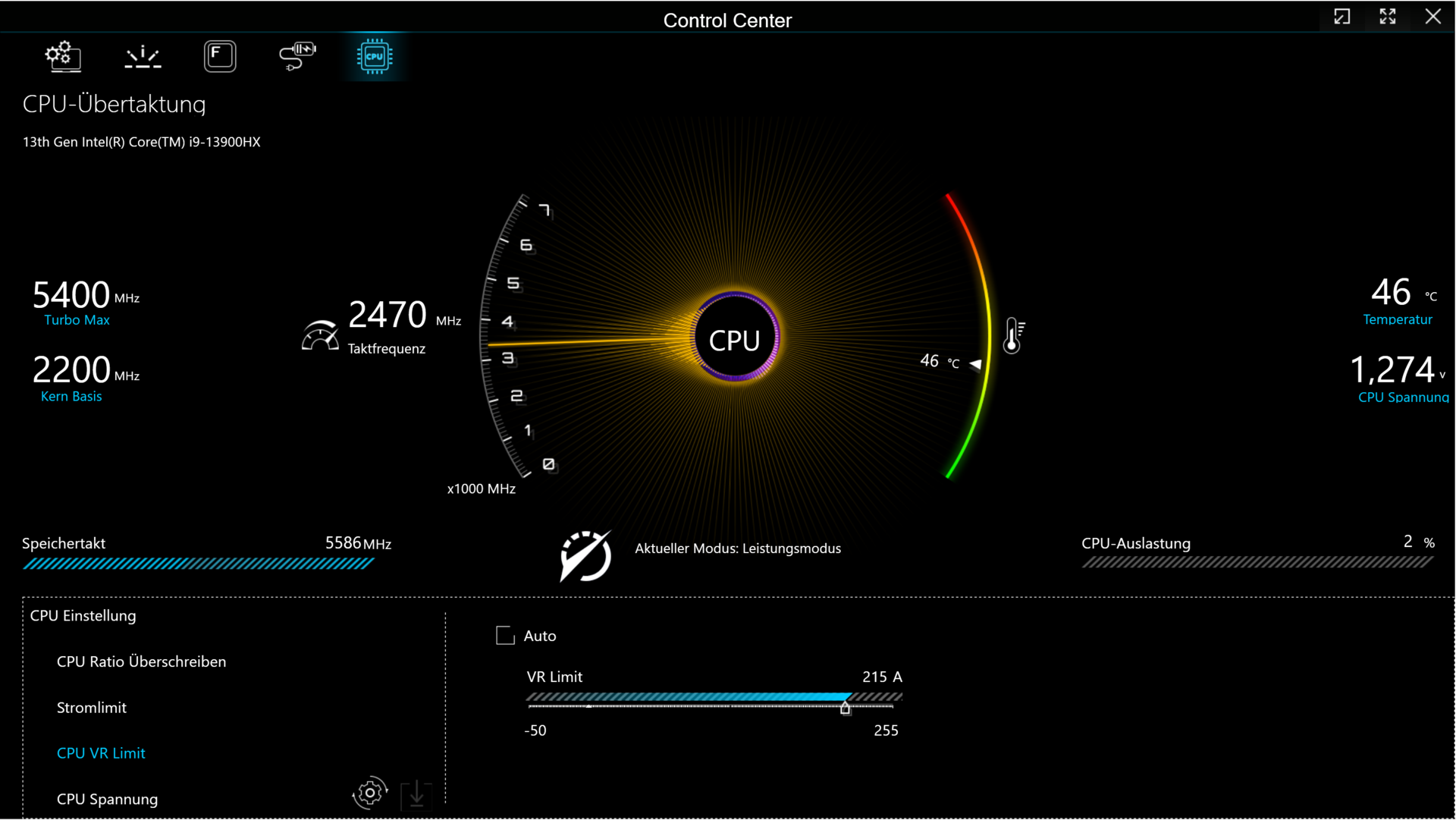

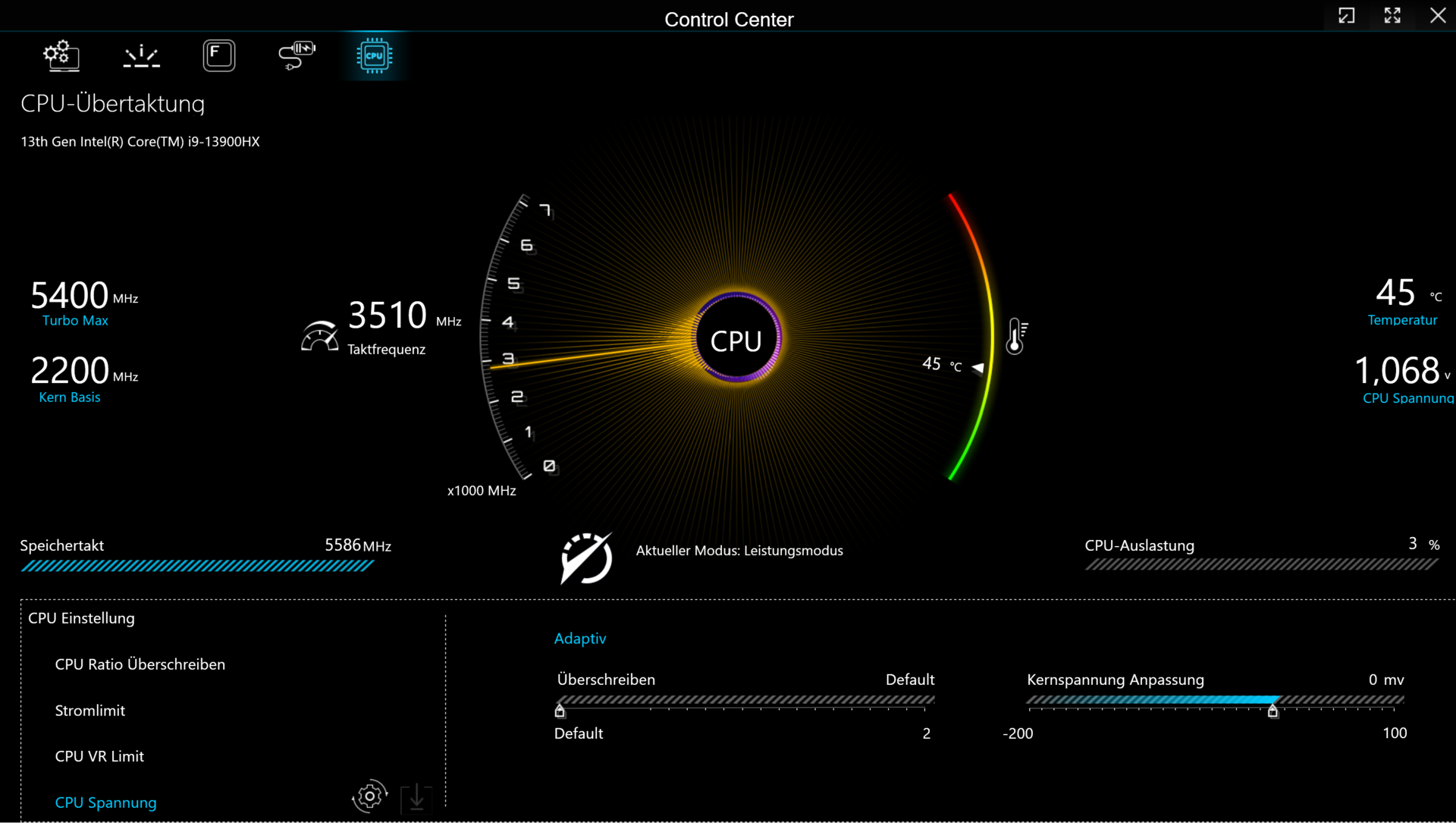

"性能模式 "允许用户在控制中心对GPU和VRAM进行超频。点击两个向下的箭头将打开相应的菜单（图3）。你需要在BIOS中启用CPU超频，然后在控制中心显示一个新的标签（见图12至16）。但要注意：超频硬件的风险由你自己承担--你要对由此产生的任何损失负责。
| 性能模式 | 娱乐模式 | 节电模式 | 静音模式 | |
|---|---|---|---|---|
| CPU PL1 (HWInfo) | 135 Watt | 75 Watt | 15 Watt | 15 Watt |
| CPU PL2 (HWInfo) | 162 瓦 | 130 瓦 | 30 瓦 | 30 瓦 |

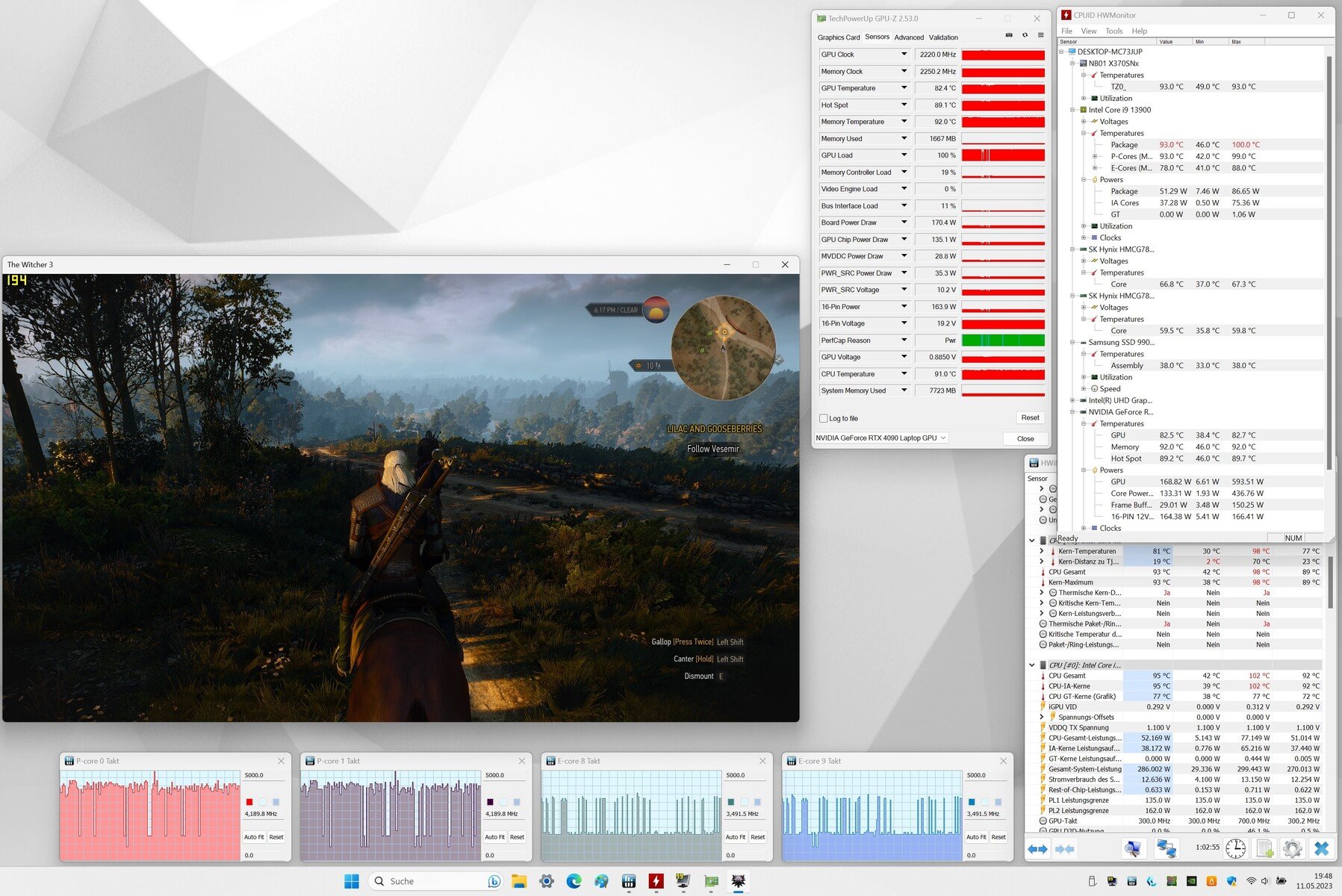

| 噪音 (Witcher 3) | 62 dB(A) | 54 dB(A) | - | 42 dB(A) |
| 性能 (Witcher 3) | ~204 fps | ~188 fps | - | 50 bis 60 fps |
处理器

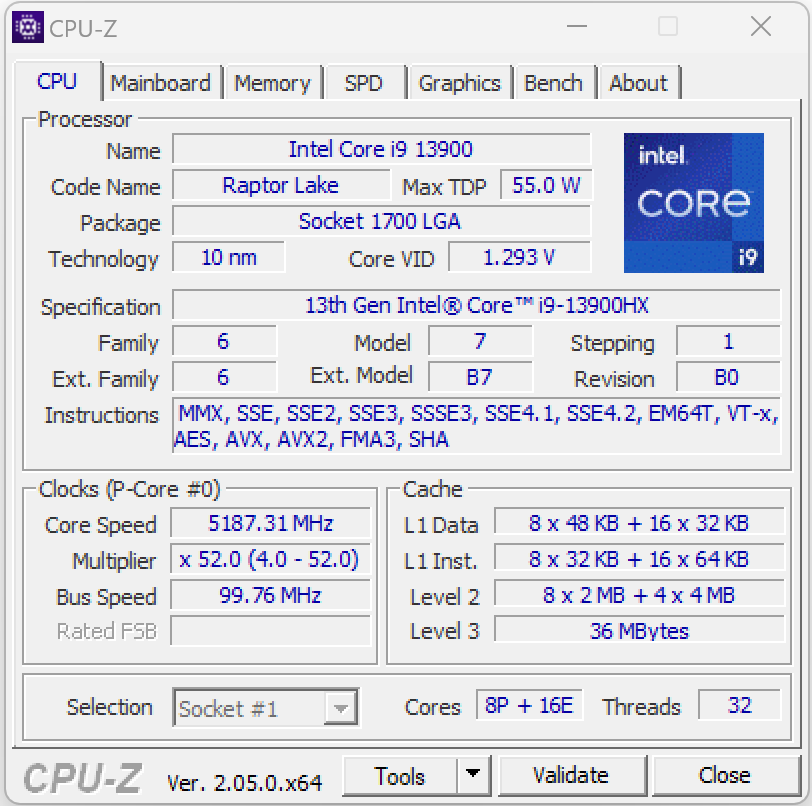

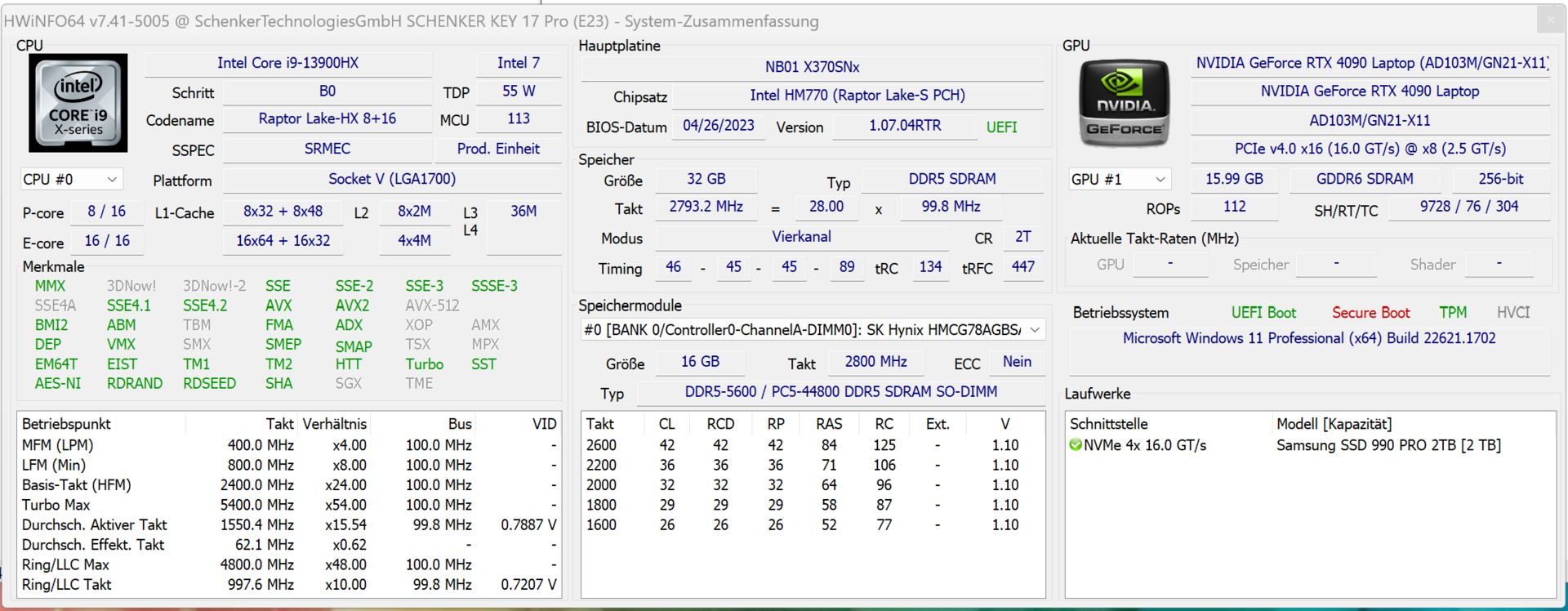

酷睿i9-13900HX猛禽湖处理器由八个性能核心（超线程，2.2至5.4GHz）和十六个效率核心（无超线程，1.6至3.9GHz）组成，总共有32个逻辑CPU核心。

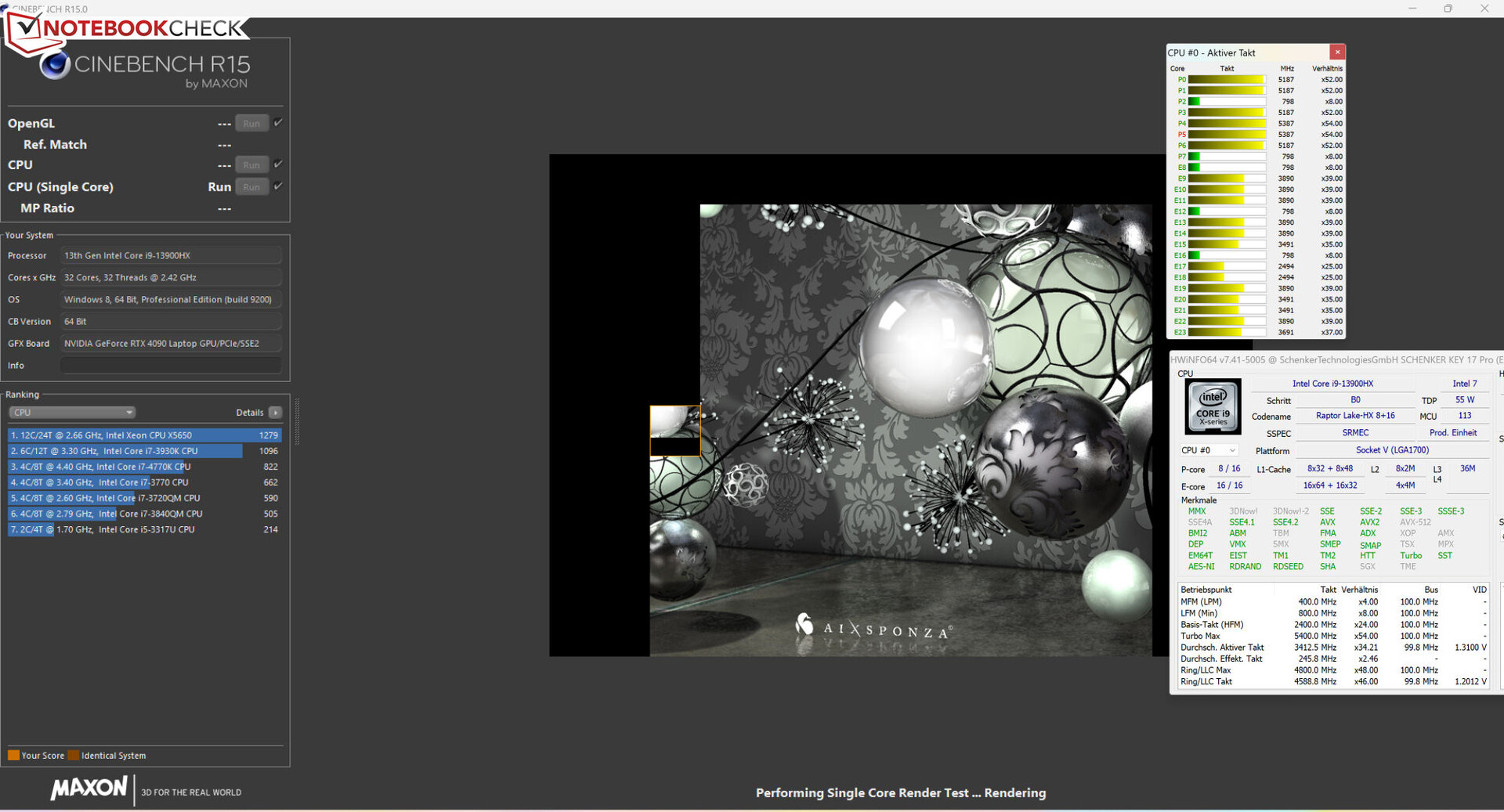

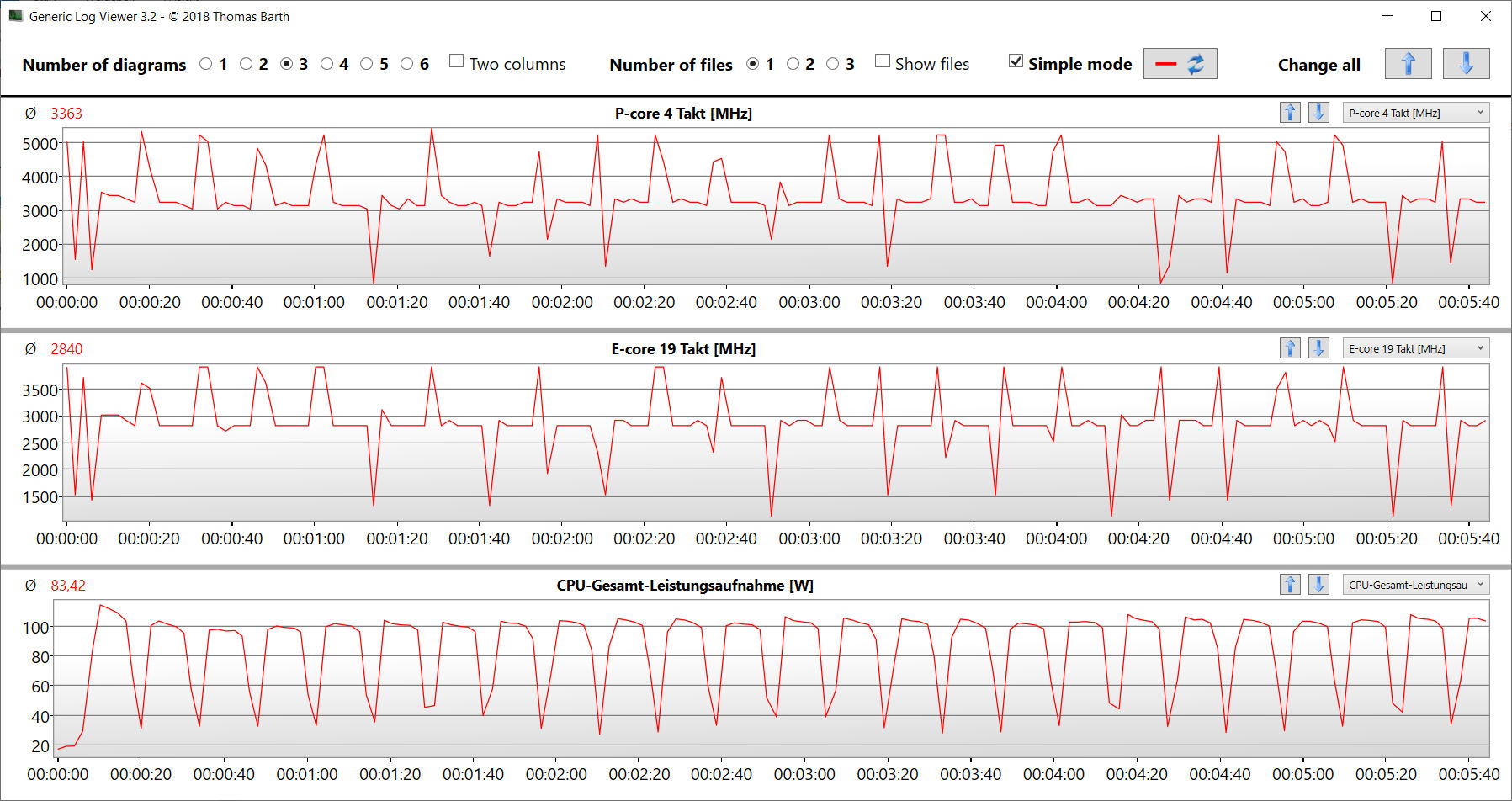

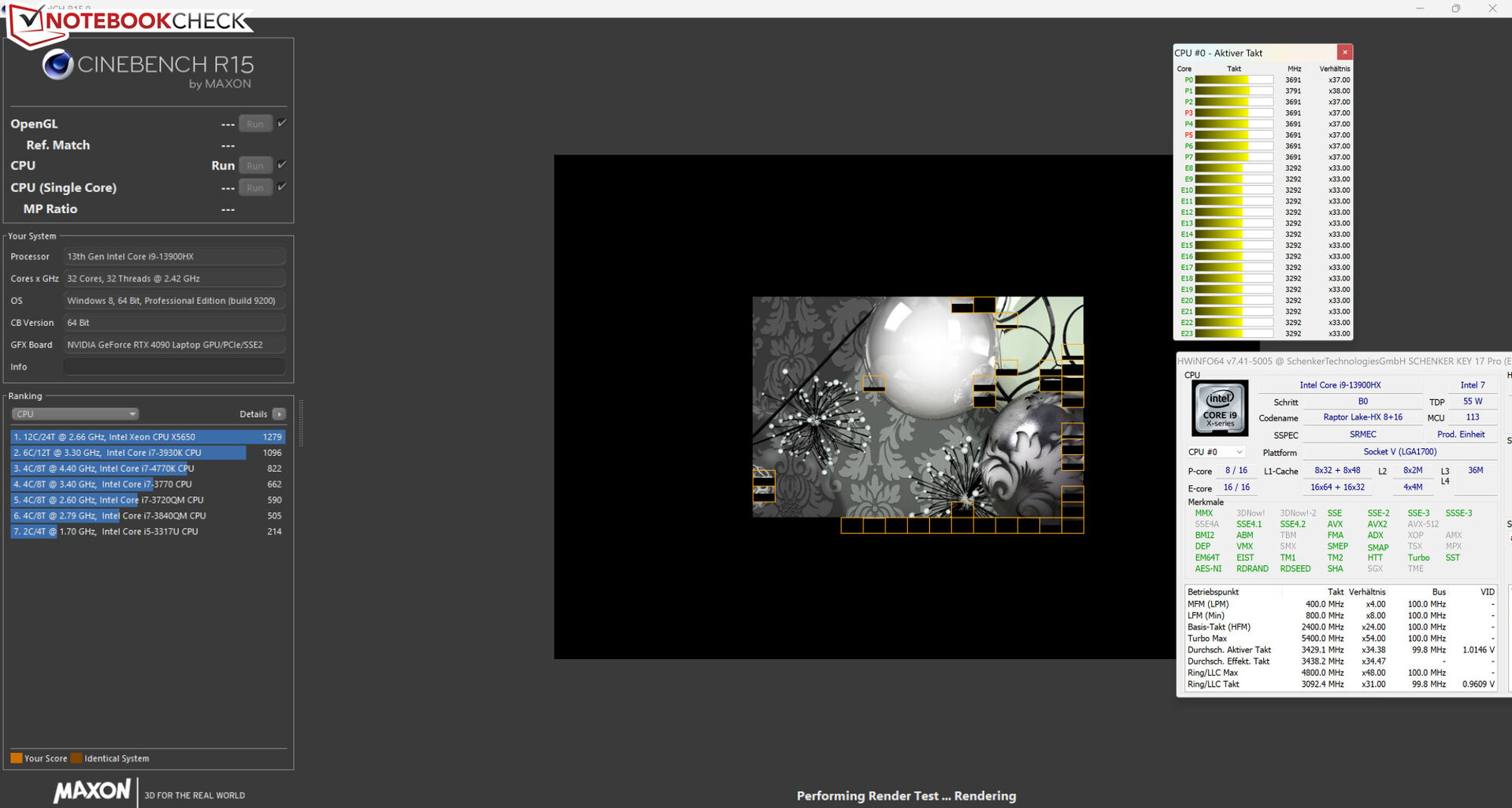

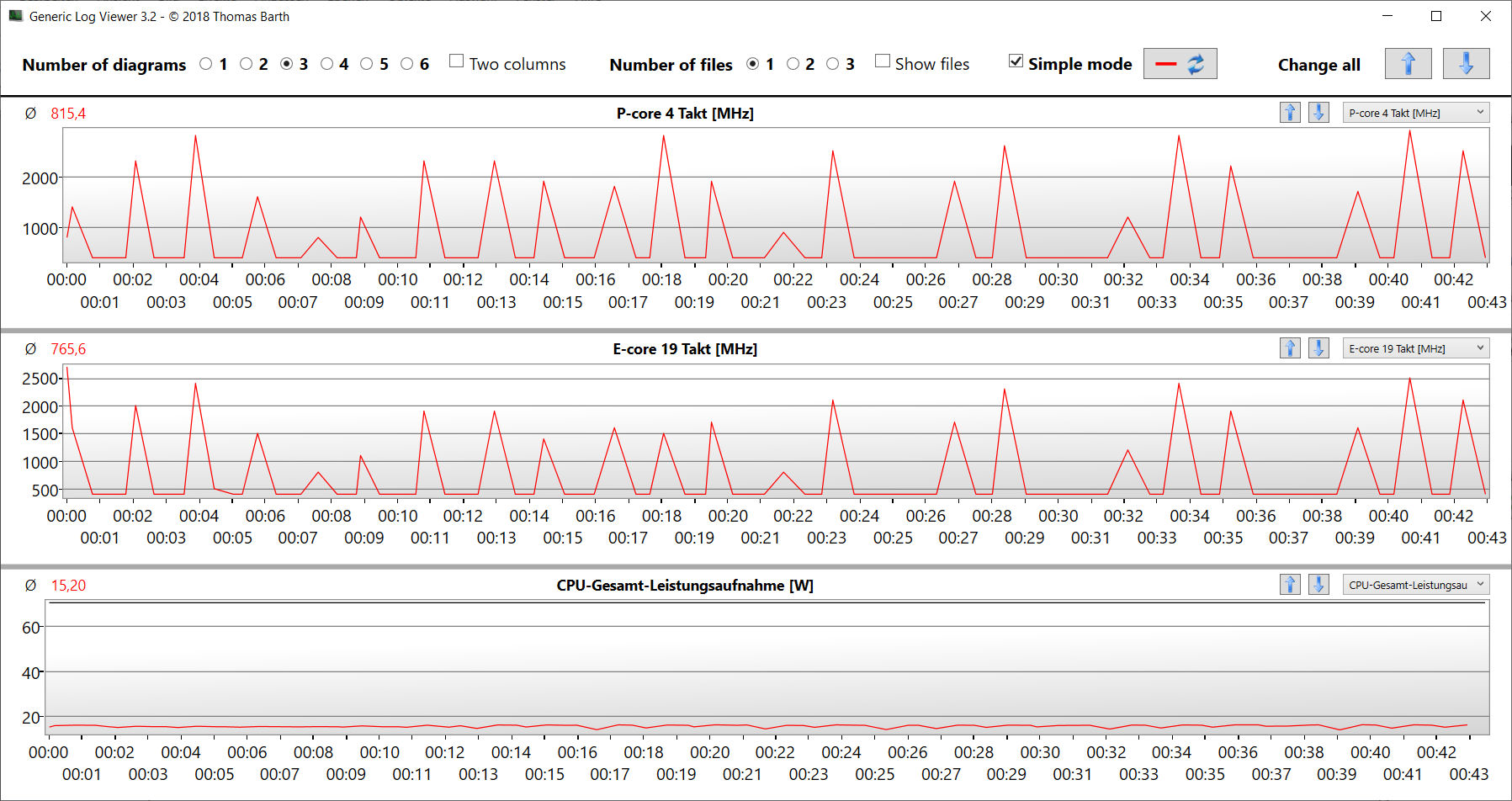

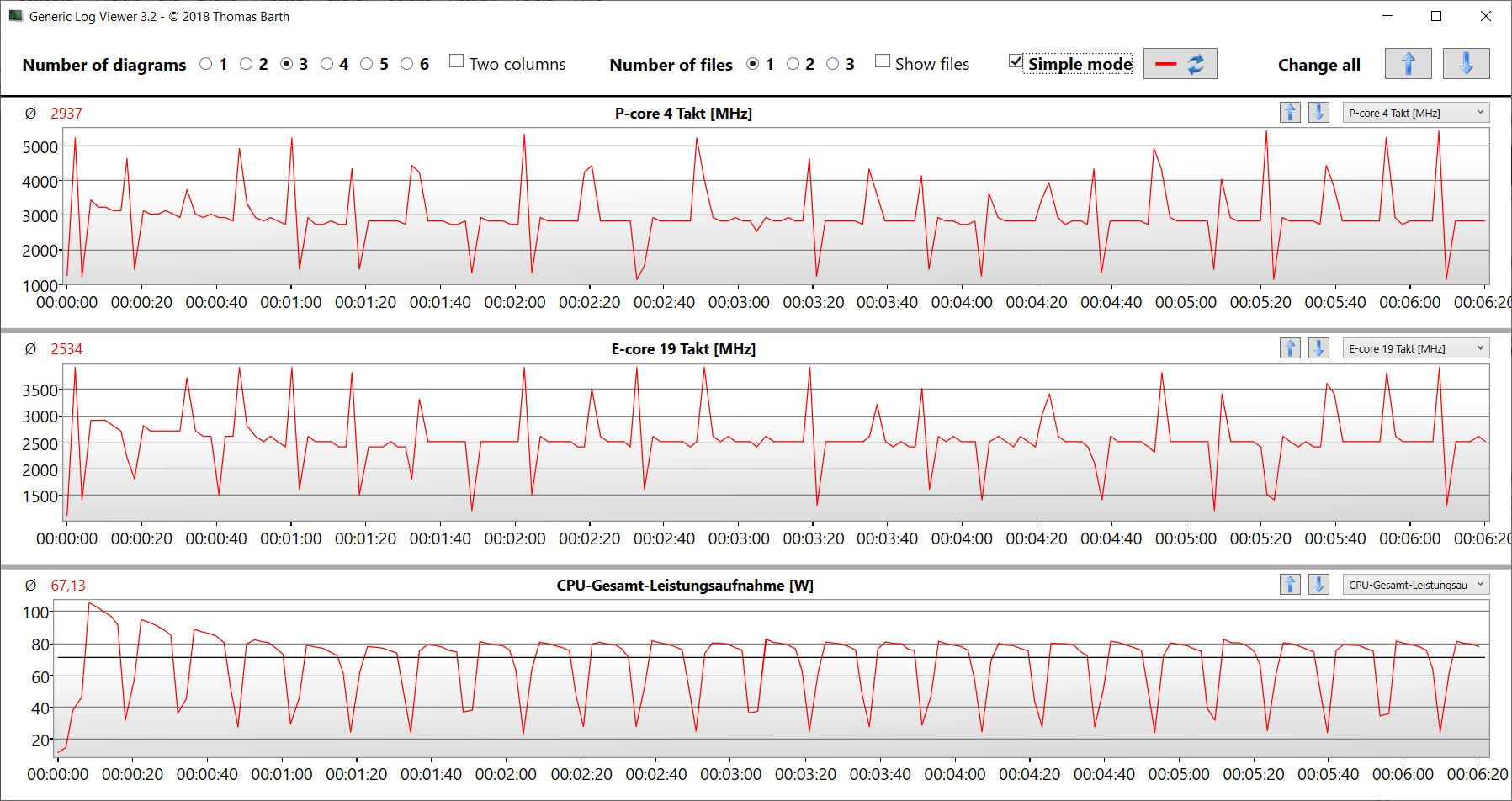

从Key 17 Pro获得的基准测试结果与我们从该CPU平均看到的结果大致相同。在我们的Cinebench 15循环测试中，持续的多线程负载导致CPU的涡轮时钟速度在前两次运行中略有下降，最后稳定在一个恒定的水平。

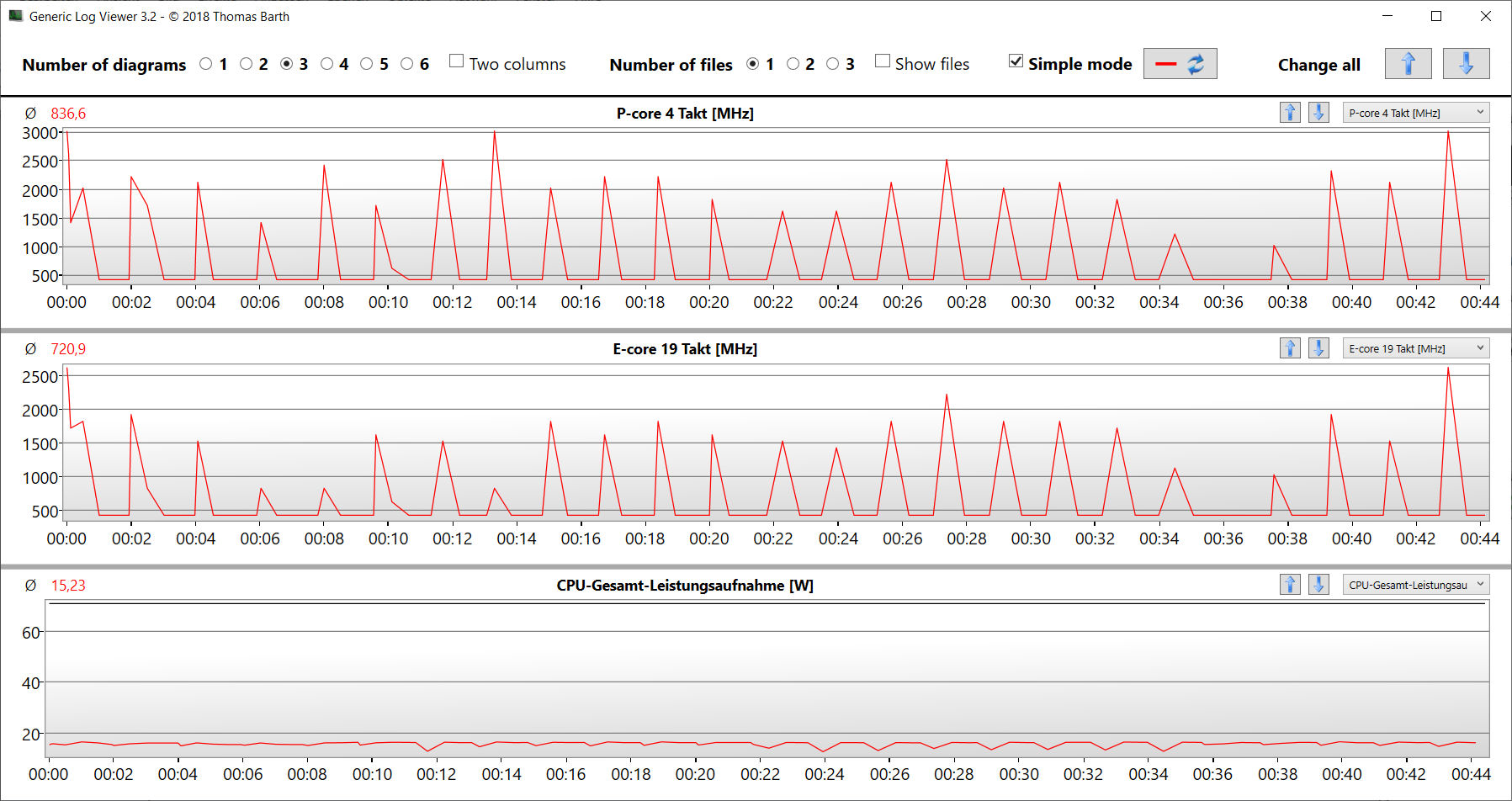

Cinebench R15 Multi sustained load
* ... smaller is better
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
| Performance Rating | |
| Asus ROG Strix Scar 17 G733PY-XS96 | |
| SCHENKER Key 17 Pro (Early 23) | |
| Medion Erazer Beast X40 | |
| Average Intel Core i9-13900HX | |
| Aorus 17X AZF | |
| Average of class Gaming | |
| MSI Stealth 17 Studio A13VH-014 | |
| AIDA64 / FP32 Ray-Trace | |
| Asus ROG Strix Scar 17 G733PY-XS96 | |
| Medion Erazer Beast X40 | |
| Average Intel Core i9-13900HX (17589 - 27615, n=21) | |
| SCHENKER Key 17 Pro (Early 23) | |
| Average of class Gaming (4986 - 60169, n=186, last 2 years) | |
| MSI Stealth 17 Studio A13VH-014 | |
| Aorus 17X AZF | |
| AIDA64 / FPU Julia | |
| Asus ROG Strix Scar 17 G733PY-XS96 | |
| Medion Erazer Beast X40 | |
| Average Intel Core i9-13900HX (88686 - 137015, n=21) | |
| SCHENKER Key 17 Pro (Early 23) | |
| Average of class Gaming (25360 - 252486, n=186, last 2 years) | |
| MSI Stealth 17 Studio A13VH-014 | |
| Aorus 17X AZF | |
| AIDA64 / CPU SHA3 | |
| Asus ROG Strix Scar 17 G733PY-XS96 | |
| Medion Erazer Beast X40 | |
| SCHENKER Key 17 Pro (Early 23) | |
| Average Intel Core i9-13900HX (4362 - 7029, n=21) | |
| Aorus 17X AZF | |
| Average of class Gaming (1339 - 10389, n=186, last 2 years) | |
| MSI Stealth 17 Studio A13VH-014 | |
| AIDA64 / CPU Queen | |
| Asus ROG Strix Scar 17 G733PY-XS96 | |
| SCHENKER Key 17 Pro (Early 23) | |
| Average Intel Core i9-13900HX (125644 - 141385, n=21) | |
| Medion Erazer Beast X40 | |
| Aorus 17X AZF | |
| Average of class Gaming (50699 - 200651, n=186, last 2 years) | |
| MSI Stealth 17 Studio A13VH-014 | |
| AIDA64 / FPU SinJulia | |
| Asus ROG Strix Scar 17 G733PY-XS96 | |
| Medion Erazer Beast X40 | |
| Average Intel Core i9-13900HX (12334 - 17179, n=21) | |
| SCHENKER Key 17 Pro (Early 23) | |
| Average of class Gaming (4800 - 32988, n=186, last 2 years) | |
| Aorus 17X AZF | |
| MSI Stealth 17 Studio A13VH-014 | |
| AIDA64 / FPU Mandel | |
| Asus ROG Strix Scar 17 G733PY-XS96 | |
| Medion Erazer Beast X40 | |
| Average Intel Core i9-13900HX (43850 - 69202, n=21) | |
| SCHENKER Key 17 Pro (Early 23) | |
| Average of class Gaming (12321 - 134044, n=186, last 2 years) | |
| MSI Stealth 17 Studio A13VH-014 | |
| Aorus 17X AZF | |
| AIDA64 / CPU AES | |
| SCHENKER Key 17 Pro (Early 23) | |
| Asus ROG Strix Scar 17 G733PY-XS96 | |
| Aorus 17X AZF | |
| Average Intel Core i9-13900HX (89413 - 237881, n=21) | |
| Medion Erazer Beast X40 | |
| Average of class Gaming (19065 - 328679, n=186, last 2 years) | |
| MSI Stealth 17 Studio A13VH-014 | |
| AIDA64 / CPU ZLib | |
| Asus ROG Strix Scar 17 G733PY-XS96 | |
| Medion Erazer Beast X40 | |
| Average Intel Core i9-13900HX (1284 - 1958, n=21) | |
| SCHENKER Key 17 Pro (Early 23) | |
| Aorus 17X AZF | |
| Average of class Gaming (373 - 2409, n=186, last 2 years) | |
| MSI Stealth 17 Studio A13VH-014 | |
| AIDA64 / FP64 Ray-Trace | |
| Asus ROG Strix Scar 17 G733PY-XS96 | |
| Medion Erazer Beast X40 | |
| Average Intel Core i9-13900HX (9481 - 15279, n=21) | |
| SCHENKER Key 17 Pro (Early 23) | |
| Average of class Gaming (2540 - 31796, n=186, last 2 years) | |
| MSI Stealth 17 Studio A13VH-014 | |
| Aorus 17X AZF | |
| AIDA64 / CPU PhotoWorxx | |
| SCHENKER Key 17 Pro (Early 23) | |
| MSI Stealth 17 Studio A13VH-014 | |
| Aorus 17X AZF | |
| Average Intel Core i9-13900HX (42994 - 51994, n=21) | |
| Medion Erazer Beast X40 | |
| Average of class Gaming (10805 - 60161, n=187, last 2 years) | |
| Asus ROG Strix Scar 17 G733PY-XS96 | |
系统性能

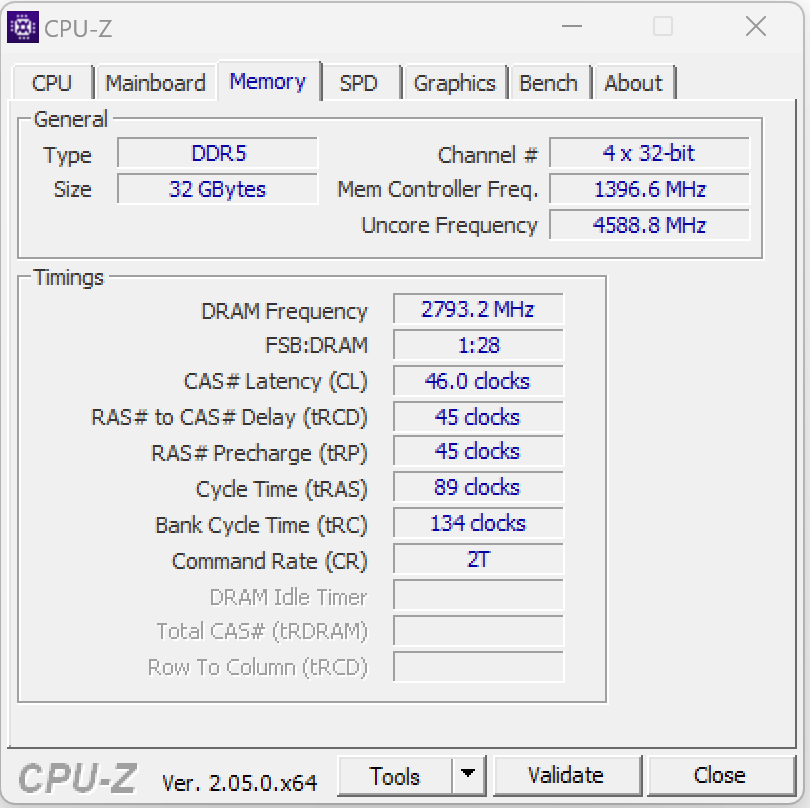

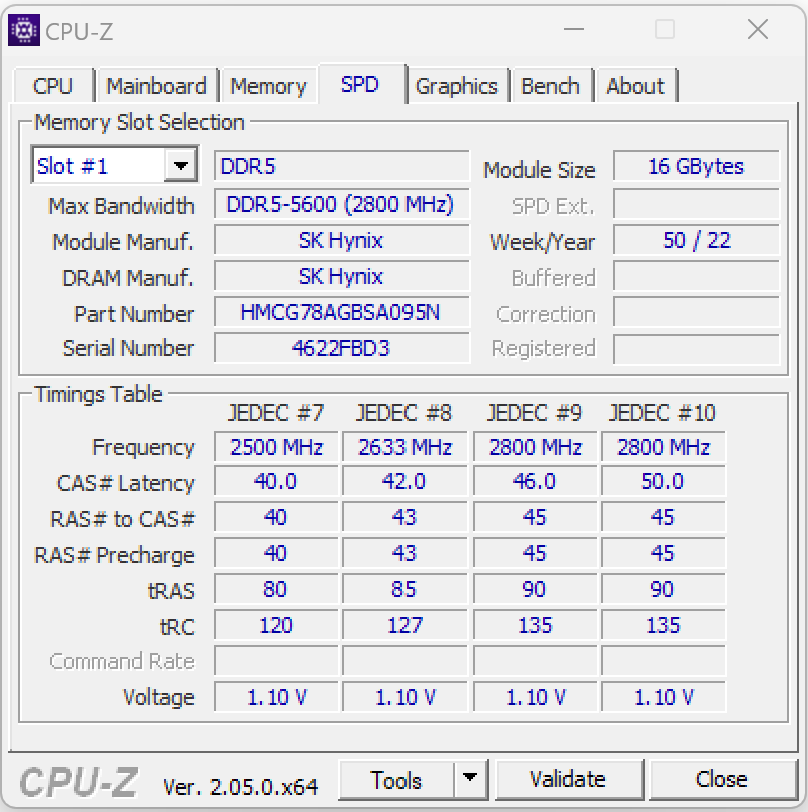

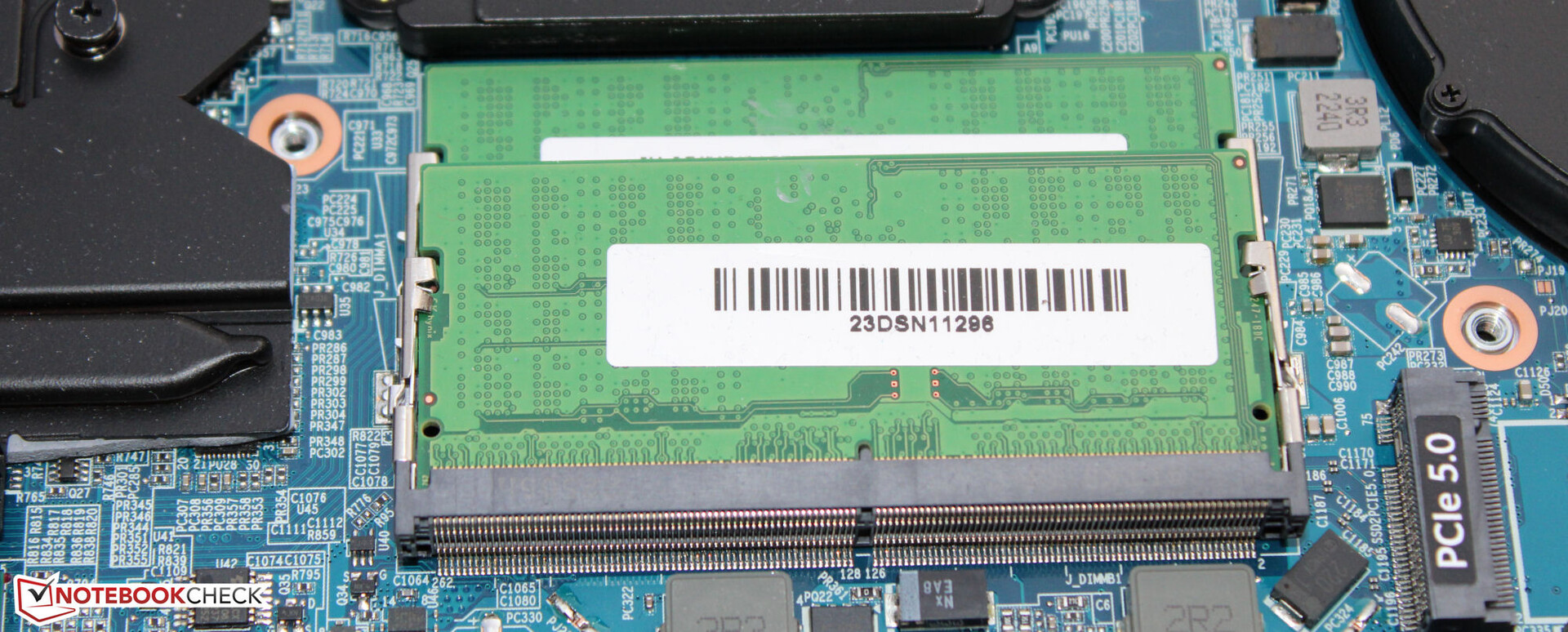

该系统运行平稳，有足够的计算能力来舒适地处理渲染、视频编辑和游戏。内存的传输速率对于DDR5-5600内存来说是相当标准的。
CrossMark: Overall | Productivity | Creativity | Responsiveness
| PCMark 10 / Score | |
| SCHENKER Key 17 Pro (Early 23) | |
| Asus ROG Strix Scar 17 G733PY-XS96 | |
| Average Intel Core i9-13900HX, NVIDIA GeForce RTX 4090 Laptop GPU (7690 - 9331, n=8) | |
| Medion Erazer Beast X40 | |
| Average of class Gaming (5776 - 9852, n=167, last 2 years) | |
| Aorus 17X AZF | |
| MSI Stealth 17 Studio A13VH-014 | |
| PCMark 10 / Essentials | |
| SCHENKER Key 17 Pro (Early 23) | |
| Average Intel Core i9-13900HX, NVIDIA GeForce RTX 4090 Laptop GPU (10972 - 11983, n=8) | |
| Medion Erazer Beast X40 | |
| Aorus 17X AZF | |
| Asus ROG Strix Scar 17 G733PY-XS96 | |
| Average of class Gaming (9057 - 12334, n=166, last 2 years) | |
| MSI Stealth 17 Studio A13VH-014 | |
| PCMark 10 / Productivity | |
| Medion Erazer Beast X40 | |
| SCHENKER Key 17 Pro (Early 23) | |
| Average Intel Core i9-13900HX, NVIDIA GeForce RTX 4090 Laptop GPU (9038 - 11680, n=8) | |
| Aorus 17X AZF | |
| Asus ROG Strix Scar 17 G733PY-XS96 | |
| MSI Stealth 17 Studio A13VH-014 | |
| Average of class Gaming (6662 - 14612, n=166, last 2 years) | |
| PCMark 10 / Digital Content Creation | |
| Asus ROG Strix Scar 17 G733PY-XS96 | |
| SCHENKER Key 17 Pro (Early 23) | |
| Average Intel Core i9-13900HX, NVIDIA GeForce RTX 4090 Laptop GPU (10605 - 16395, n=8) | |
| Average of class Gaming (6703 - 18475, n=166, last 2 years) | |
| MSI Stealth 17 Studio A13VH-014 | |
| Medion Erazer Beast X40 | |
| Aorus 17X AZF | |
| CrossMark / Overall | |
| SCHENKER Key 17 Pro (Early 23) | |
| Aorus 17X AZF | |
| Medion Erazer Beast X40 | |
| Average Intel Core i9-13900HX, NVIDIA GeForce RTX 4090 Laptop GPU (1825 - 2295, n=8) | |
| Asus ROG Strix Scar 17 G733PY-XS96 | |
| Average of class Gaming (1247 - 2344, n=150, last 2 years) | |
| MSI Stealth 17 Studio A13VH-014 | |
| CrossMark / Productivity | |
| SCHENKER Key 17 Pro (Early 23) | |
| Aorus 17X AZF | |
| Medion Erazer Beast X40 | |
| Average Intel Core i9-13900HX, NVIDIA GeForce RTX 4090 Laptop GPU (1666 - 2166, n=8) | |
| Asus ROG Strix Scar 17 G733PY-XS96 | |
| Average of class Gaming (1299 - 2204, n=150, last 2 years) | |
| MSI Stealth 17 Studio A13VH-014 | |
| CrossMark / Creativity | |
| SCHENKER Key 17 Pro (Early 23) | |
| Medion Erazer Beast X40 | |
| Average Intel Core i9-13900HX, NVIDIA GeForce RTX 4090 Laptop GPU (2162 - 2514, n=8) | |
| Asus ROG Strix Scar 17 G733PY-XS96 | |
| Aorus 17X AZF | |
| Average of class Gaming (1275 - 2660, n=150, last 2 years) | |
| MSI Stealth 17 Studio A13VH-014 | |
| CrossMark / Responsiveness | |
| SCHENKER Key 17 Pro (Early 23) | |
| Aorus 17X AZF | |
| Medion Erazer Beast X40 | |
| Average Intel Core i9-13900HX, NVIDIA GeForce RTX 4090 Laptop GPU (1441 - 2275, n=8) | |
| Average of class Gaming (1030 - 2330, n=150, last 2 years) | |
| Asus ROG Strix Scar 17 G733PY-XS96 | |
| MSI Stealth 17 Studio A13VH-014 | |
| PCMark 10 Score | 8913 points | |
Help | ||
| AIDA64 / Memory Copy | |
| SCHENKER Key 17 Pro (Early 23) | |
| Aorus 17X AZF | |
| Average Intel Core i9-13900HX (67716 - 78835, n=21) | |
| MSI Stealth 17 Studio A13VH-014 | |
| Medion Erazer Beast X40 | |
| Average of class Gaming (21842 - 94222, n=186, last 2 years) | |
| Asus ROG Strix Scar 17 G733PY-XS96 | |
| AIDA64 / Memory Read | |
| Aorus 17X AZF | |
| SCHENKER Key 17 Pro (Early 23) | |
| Average Intel Core i9-13900HX (73998 - 88462, n=21) | |
| MSI Stealth 17 Studio A13VH-014 | |
| Medion Erazer Beast X40 | |
| Average of class Gaming (23681 - 99713, n=186, last 2 years) | |
| Asus ROG Strix Scar 17 G733PY-XS96 | |
| AIDA64 / Memory Write | |
| SCHENKER Key 17 Pro (Early 23) | |
| Aorus 17X AZF | |
| MSI Stealth 17 Studio A13VH-014 | |
| Average Intel Core i9-13900HX (65472 - 77045, n=21) | |
| Average of class Gaming (22986 - 108954, n=186, last 2 years) | |
| Medion Erazer Beast X40 | |
| Asus ROG Strix Scar 17 G733PY-XS96 | |
| AIDA64 / Memory Latency | |
| Average of class Gaming (59.5 - 259, n=186, last 2 years) | |
| MSI Stealth 17 Studio A13VH-014 | |
| SCHENKER Key 17 Pro (Early 23) | |
| Medion Erazer Beast X40 | |
| Average Intel Core i9-13900HX (80.4 - 91.1, n=21) | |
| Asus ROG Strix Scar 17 G733PY-XS96 | |
| Aorus 17X AZF | |
* ... smaller is better

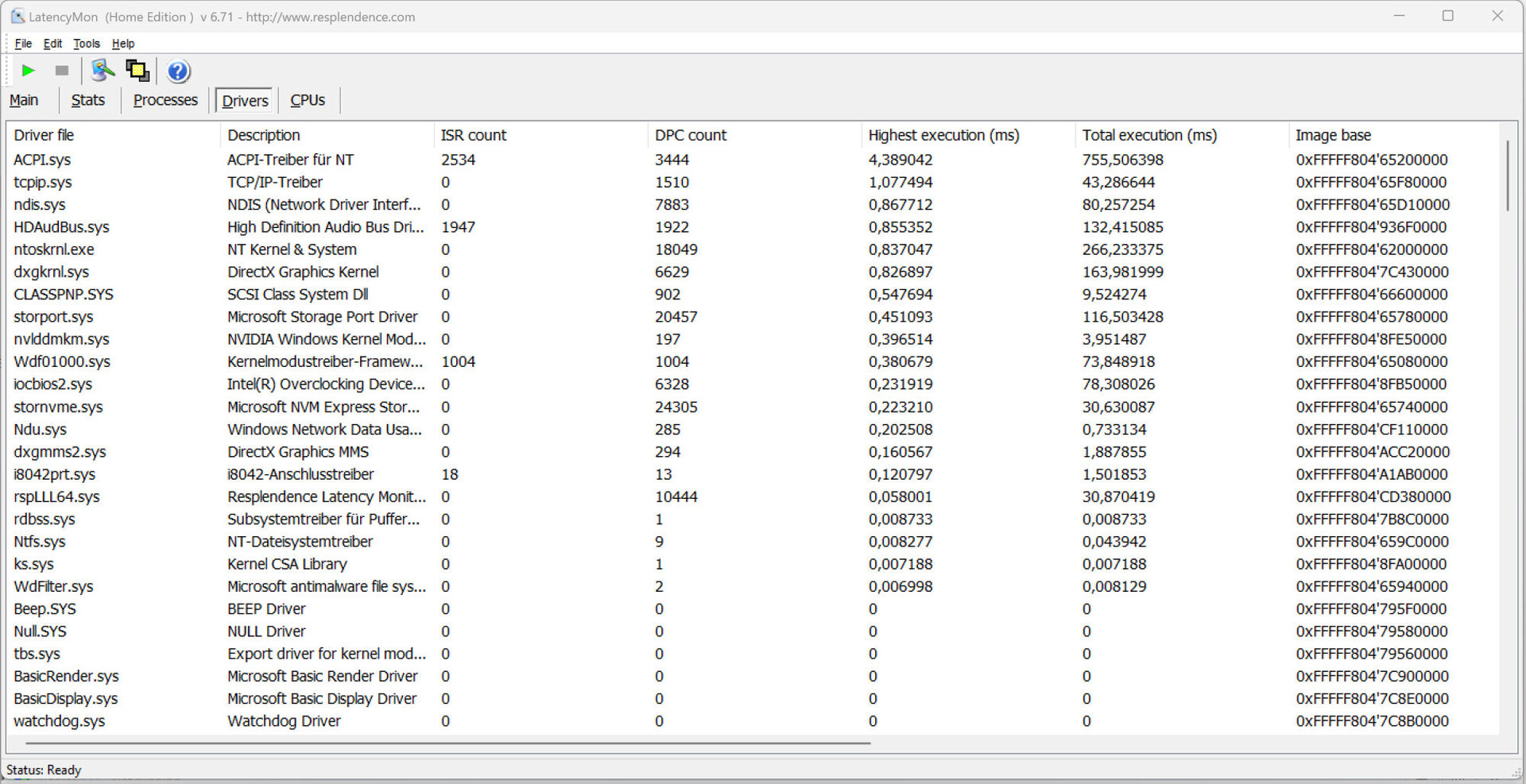

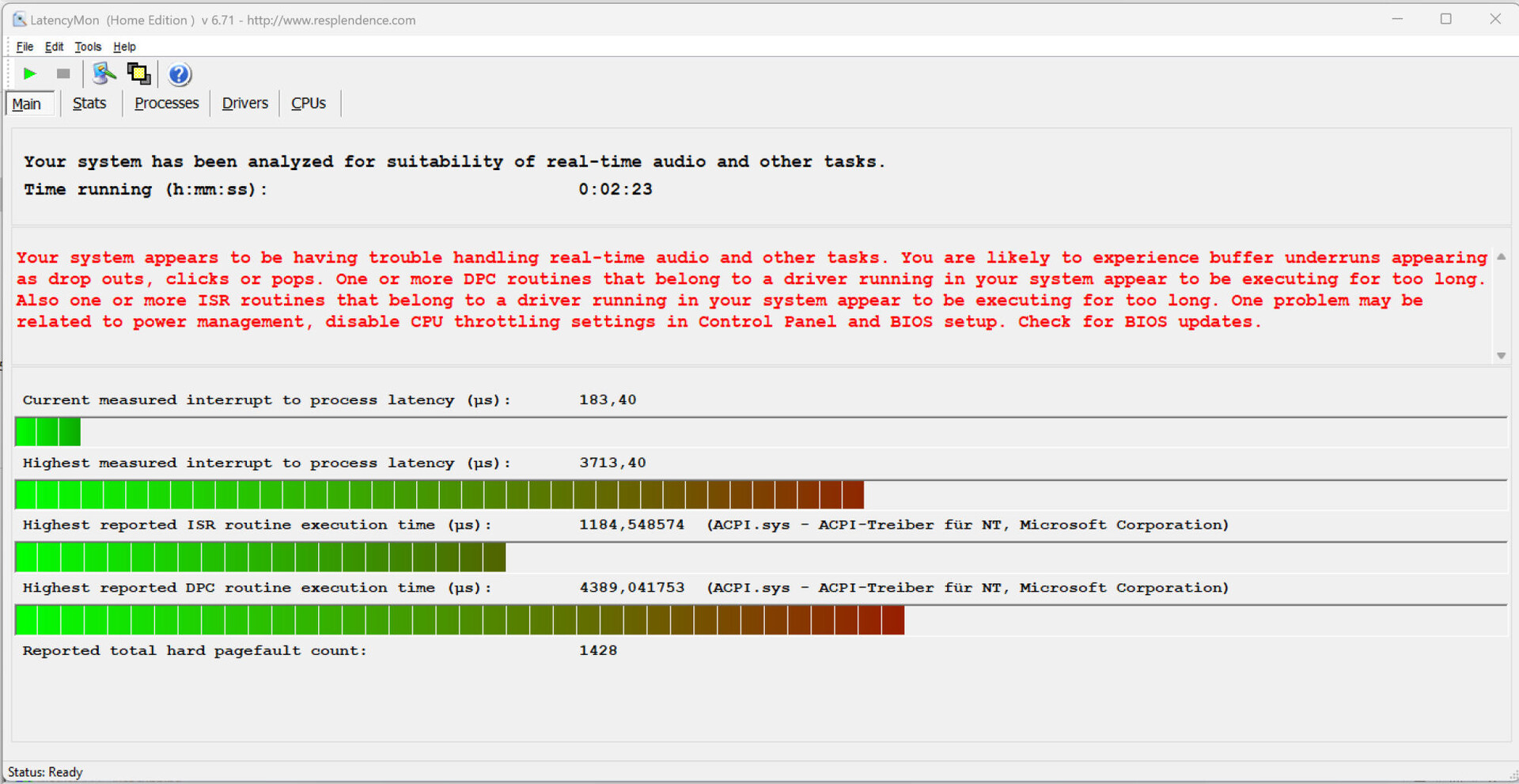

DPC延时
我们的标准化延迟监测测试（互联网浏览、4K视频播放、Prime95高负载）发现了一些延迟问题。该系统似乎并不适合处理实时视频和音频任务。希望这些问题能在未来的软件更新中得到解决。
| DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95 | |
| Aorus 17X AZF | |
| SCHENKER Key 17 Pro (Early 23) | |
| MSI Stealth 17 Studio A13VH-014 | |
| Medion Erazer Beast X40 | |
| Asus ROG Strix Scar 17 G733PY-XS96 | |
* ... smaller is better
大容量存储

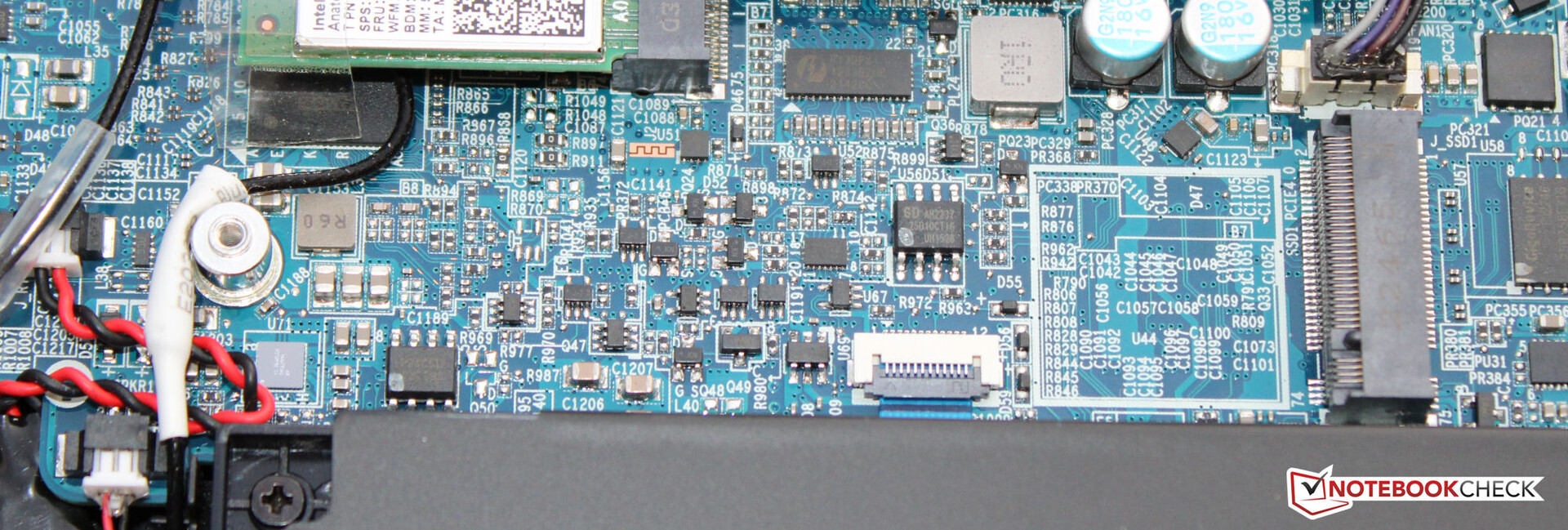

Schenker Key 17 Pro能够容纳多达三个M.2-2280固态硬盘（2个PCIe 4.0，1个PCIe 5.0）。预装的PCIe 4.0三星驱动器提供了大量的存储空间（2TB），并提供了奇妙的传输速率。我们没有注意到由热节流引起的任何性能下降。
* ... smaller is better
Sustained load Read: DiskSpd Read Loop, Queue Depth 8
图形卡

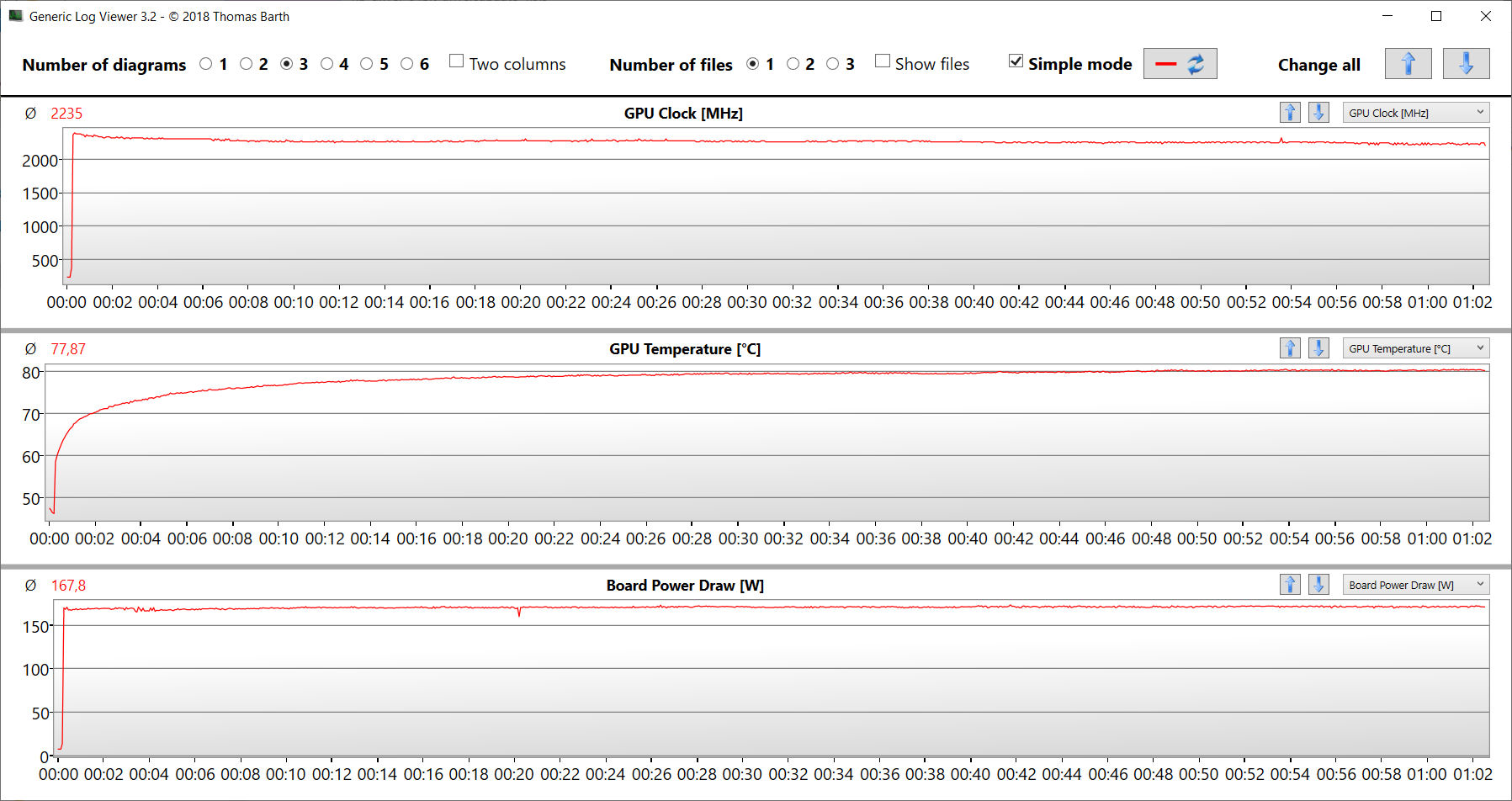

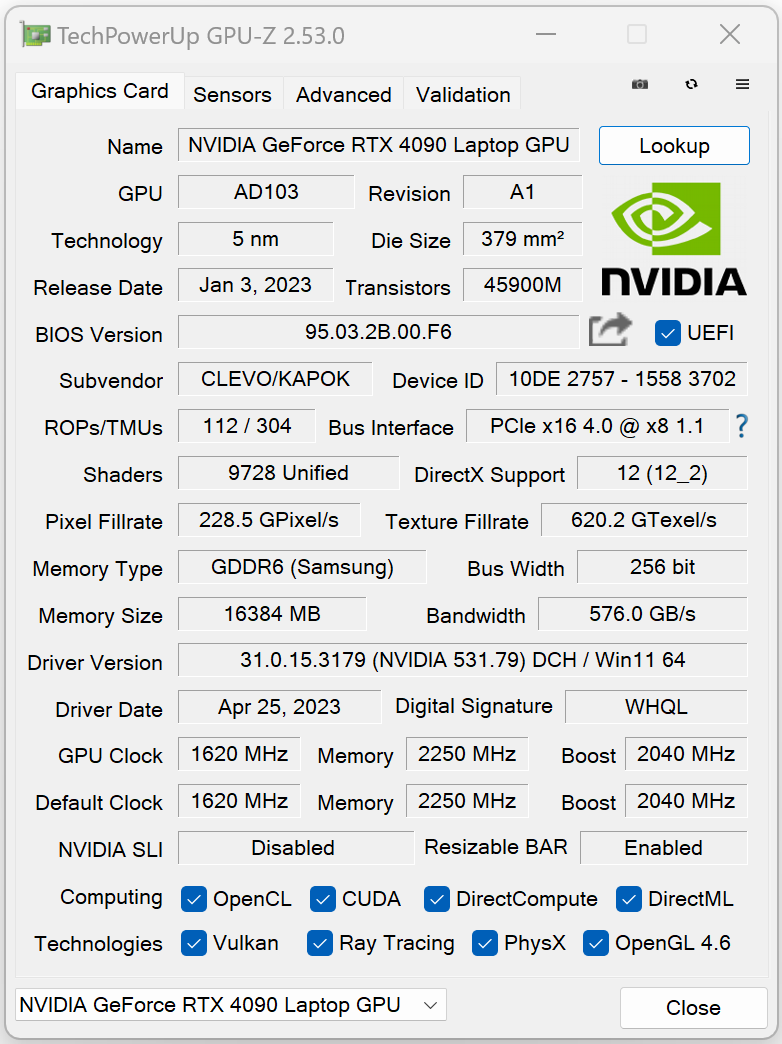

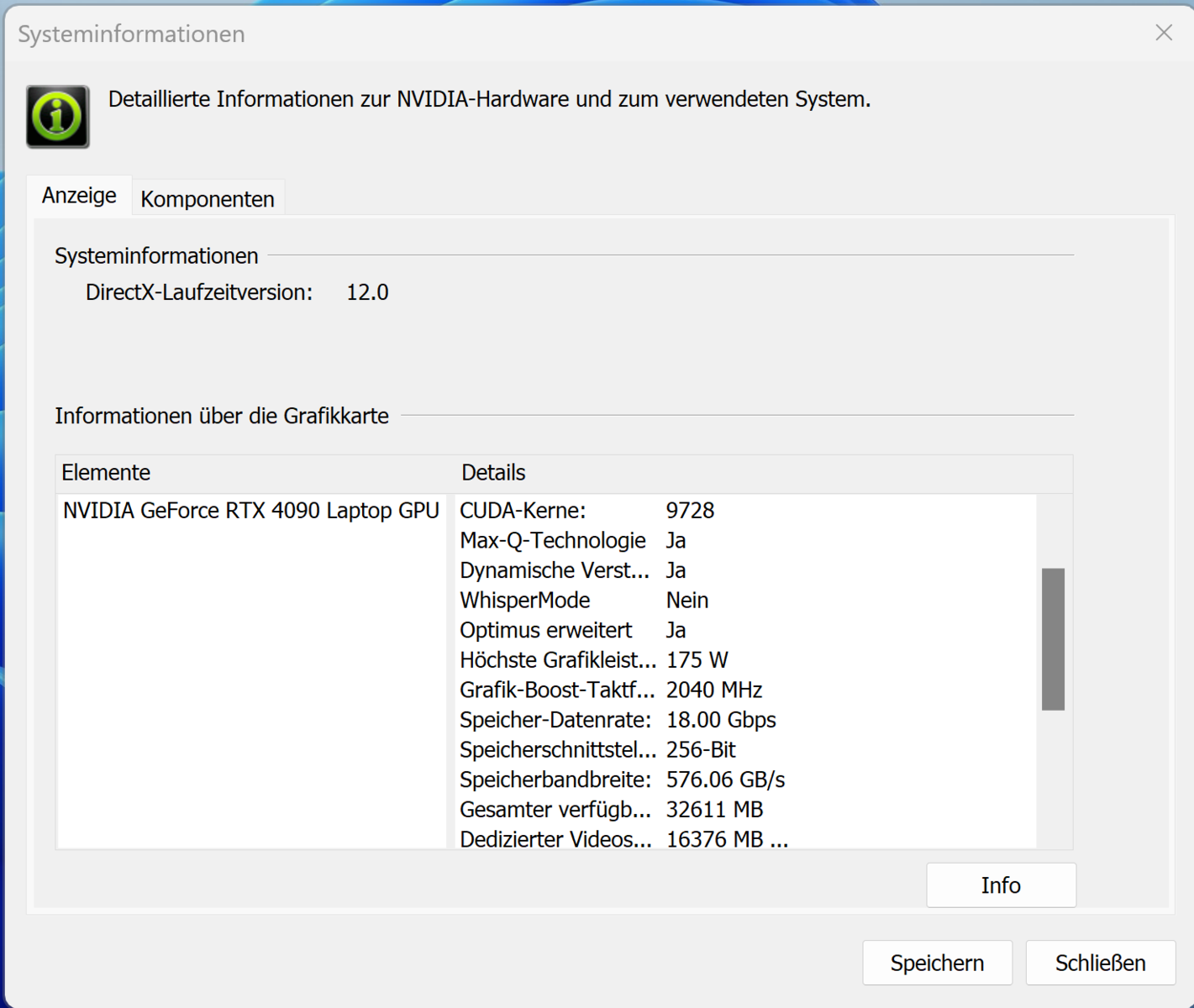

GeForce RTX 4090 Laptop 是Nvidia目前最顶级的移动GPU。它配备了9,728个着色器单元，256位内存总线和16GB的高速GDDR6内存。该显卡的最大TGP为175瓦（150瓦+25瓦动态提升）--这是它的最高值。在我们的Witcher 3 测试中，TGP并没有被完全利用。

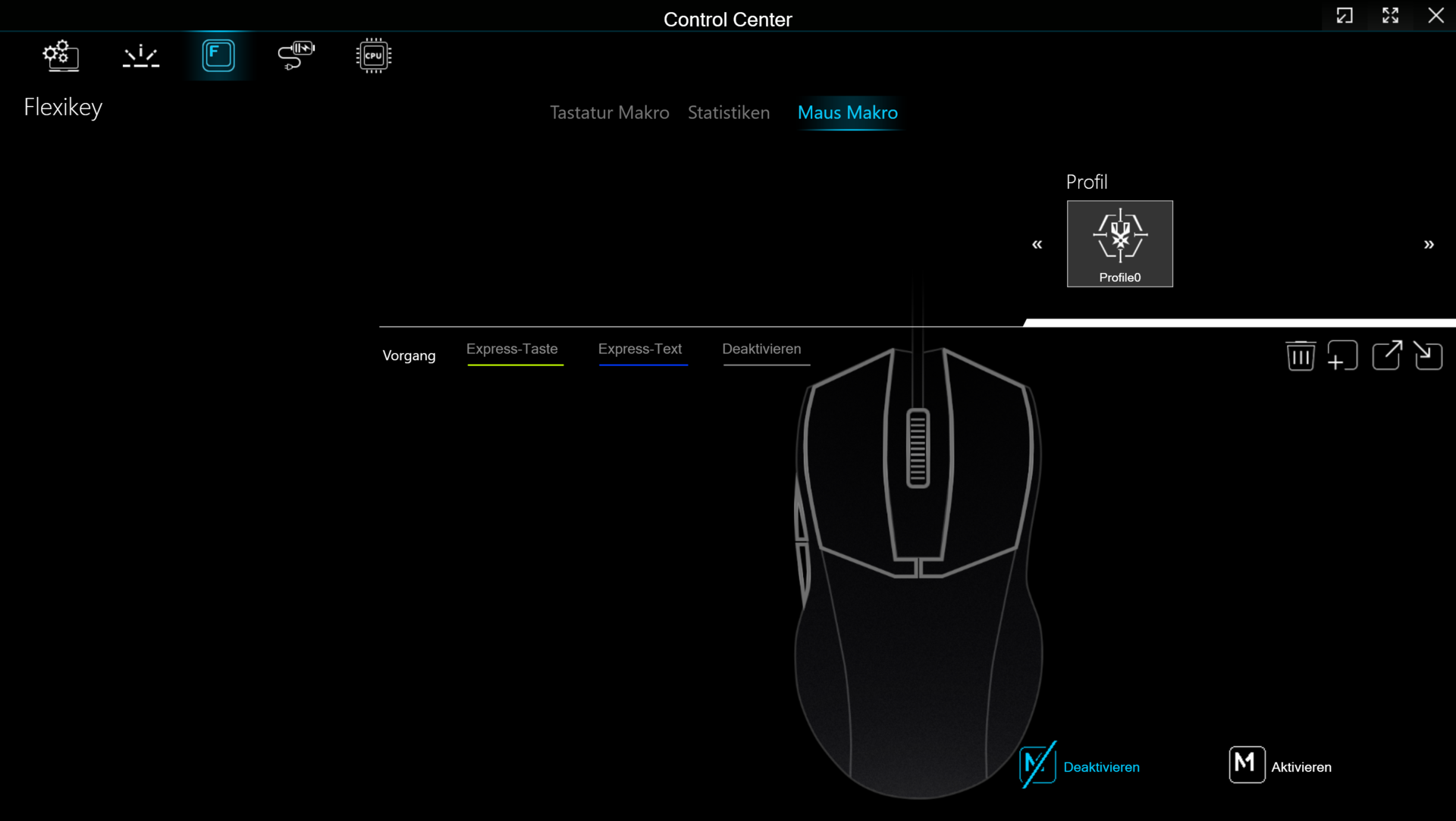

尽管GPU在合成GPU基准测试中提供了低于平均水平的结果，但它在实际游戏中的表现却高于平均水平。切换到dGPU模式（通过控制中心）也提供了一个性能提升。有了这样强大的硬件，这台笔记本电脑绝对有能力在高至最大设置下进行4K游戏。
| 3DMark 11 Performance | 44742 points | |
| 3DMark Cloud Gate Standard Score | 54257 points | |

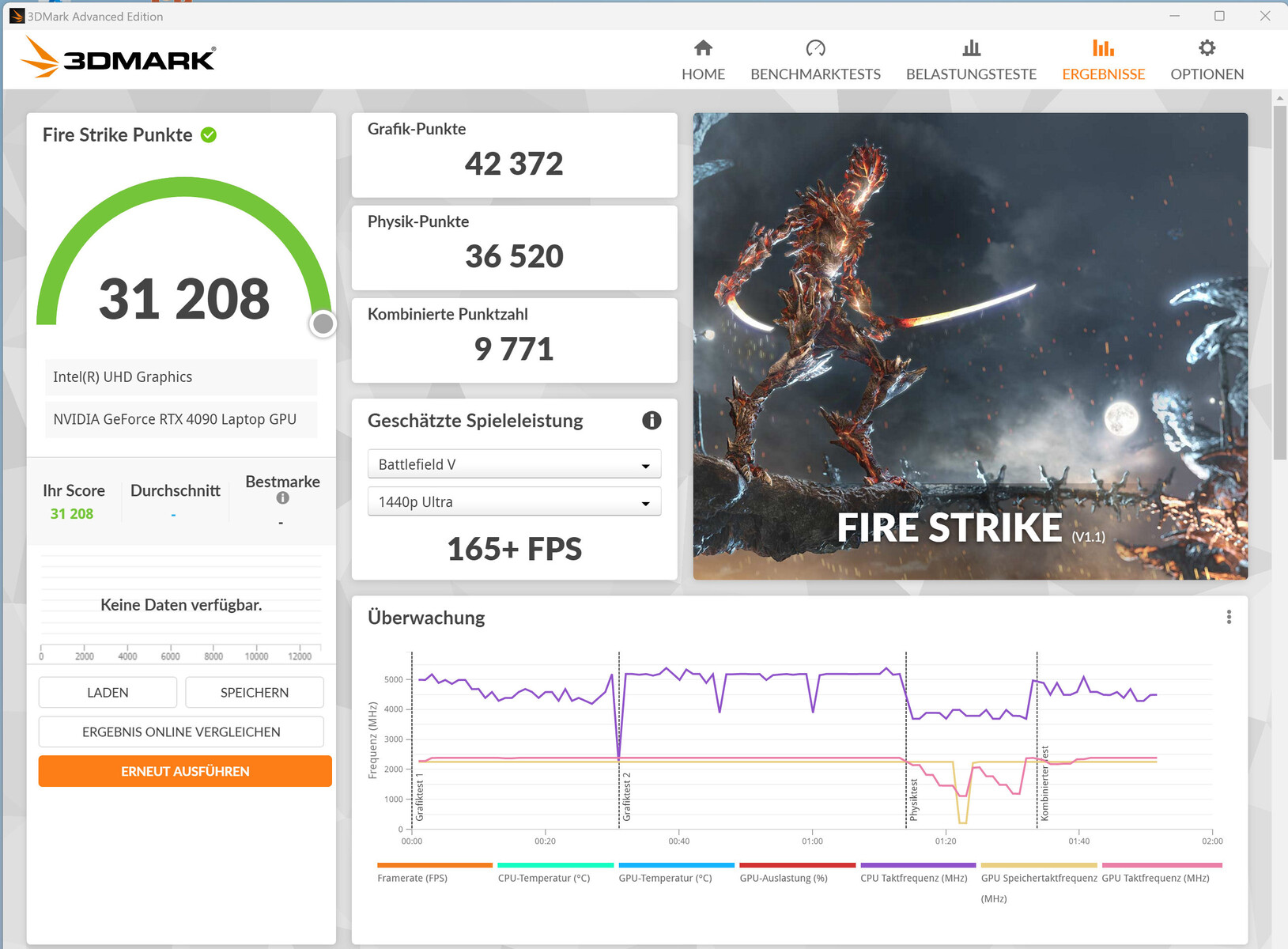

| 3DMark Fire Strike Score | 31208 points | |
| 3DMark Time Spy Score | 19893 points | |
Help | ||
* ... smaller is better
| The Witcher 3 - 1920x1080 Ultra Graphics & Postprocessing (HBAO+) | |
| SCHENKER Key 17 Pro (Early 23) | |
| Asus ROG Strix Scar 17 G733PY-XS96 | |
| Aorus 17X AZF | |
| Average NVIDIA GeForce RTX 4090 Laptop GPU (139.2 - 216, n=35) | |
| Medion Erazer Beast X40 | |
| MSI Stealth 17 Studio A13VH-014 | |
| Average of class Gaming (18.4 - 216, n=167, last 2 years) | |
| GTA V - 1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x | |
| Medion Erazer Beast X40 | |
| SCHENKER Key 17 Pro (Early 23) | |
| Average NVIDIA GeForce RTX 4090 Laptop GPU (91.1 - 167.7, n=40) | |
| Aorus 17X AZF | |
| MSI Stealth 17 Studio A13VH-014 | |
| Average of class Gaming (12.1 - 167.7, n=170, last 2 years) | |
| Asus ROG Strix Scar 17 G733PY-XS96 | |
| Strange Brigade - 1920x1080 ultra AA:ultra AF:16 | |
| Aorus 17X AZF | |
| SCHENKER Key 17 Pro (Early 23) | |
| Medion Erazer Beast X40 | |
| Average NVIDIA GeForce RTX 4090 Laptop GPU (233 - 421, n=39) | |
| MSI Stealth 17 Studio A13VH-014 | |
| Average of class Gaming (38.9 - 421, n=181, last 2 years) | |
| Sons of the Forest | |
| 1920x1080 Ultra Preset AA:T | |
| SCHENKER Key 17 Pro (Early 23) | |
| Average NVIDIA GeForce RTX 4090 Laptop GPU (85.7 - 93.9, n=2) | |
| Medion Erazer Beast X40 | |
| Average of class Gaming (14.8 - 93.9, n=19, last 2 years) | |
| 3840x2160 Ultra Preset AA:T | |
| SCHENKER Key 17 Pro (Early 23) | |
| Average NVIDIA GeForce RTX 4090 Laptop GPU () | |
| Average of class Gaming (26.1 - 72.5, n=3, last 2 years) | |
| Dead Island 2 | |
| 1920x1080 Ultra Preset AA:High T | |
| Average NVIDIA GeForce RTX 4090 Laptop GPU (181.7 - 206, n=2) | |
| SCHENKER Key 17 Pro (Early 23) | |
| Average of class Gaming (14.6 - 181.7, n=11, last 2 years) | |
| 3840x2160 Ultra Preset AA:High T | |
| Average NVIDIA GeForce RTX 4090 Laptop GPU (94.8 - 101.2, n=2) | |
| SCHENKER Key 17 Pro (Early 23) | |
| Average of class Gaming (32.8 - 94.8, n=2, last 2 years) | |
| The Callisto Protocol | |
| 1920x1080 Ultra Preset (without FSR Upscaling) | |
| SCHENKER Key 17 Pro (Early 23) | |
| Aorus 17X AZF | |
| Average NVIDIA GeForce RTX 4090 Laptop GPU (102.6 - 150.7, n=6) | |
| Average of class Gaming (10.3 - 150.7, n=21, last 2 years) | |
| 3840x2160 Ultra Preset (without FSR Upscaling) | |
| SCHENKER Key 17 Pro (Early 23) | |
| Average NVIDIA GeForce RTX 4090 Laptop GPU (48.1 - 81.4, n=6) | |
| Aorus 17X AZF | |
| Average of class Gaming (20.9 - 81.4, n=10, last 2 years) | |
Witcher 3 FPS chart
| low | med. | high | ultra | QHD | 4K | |
|---|---|---|---|---|---|---|
| GTA V (2015) | 187.7 | 186.4 | 184.8 | 142.3 | 141.5 | 167.9 |
| The Witcher 3 (2015) | 474.4 | 382.6 | 299.2 | 206 | 96.3 | |
| Dota 2 Reborn (2015) | 231 | 207 | 195.3 | 182.5 | 141.9 | |
| Final Fantasy XV Benchmark (2018) | 230 | 217 | 183.1 | 156.4 | 91.9 | |
| X-Plane 11.11 (2018) | 180.8 | 171.7 | 136.6 | 109.7 | ||
| Strange Brigade (2018) | 558 | 437 | 410 | 378 | 291 | 153.4 |
| The Callisto Protocol (2022) | 194.5 | 182.6 | 175.5 | 150.7 | 126.7 | 81.4 |
| Sons of the Forest (2023) | 103.2 | 97.5 | 93.9 | 93.9 | 89.6 | 72.5 |
| Resident Evil 4 Remake (2023) | 203 | 194.6 | 173.1 | 143.2 | 113.2 | 64.9 |
| Dead Island 2 (2023) | 226 | 212 | 190.3 | 181.7 | 178.5 | 94.8 |
| Star Wars Jedi Survivor (2023) | 131.2 | 127.6 | 122.1 | 117.4 | 84.4 | 41.8 |
排放和电源管理 - 申克的笔记本电脑可能会有相当大的噪音
噪声排放
像Key 17 Pro这样强大的笔记本在负载下会产生巨大的噪音：当笔记本在 "性能模式 "下运行游戏时，噪音水平达到了62 dB(A)。即使在 "娱乐模式 "下，该设备仍能达到54分贝（A）的极高噪音。其他两种电源模式帮助Key 17 Pro在大多数情况下安静地运行，但性能明显降低。
笔记本在空闲或日常使用时（如办公软件、互联网浏览）一般都很安静，有时甚至无声。然而，风扇偶尔会无缘无故地旋转起来（这种现象通常发生在Clevo裸机上）。
Noise Level
| Idle |
| 26 / 33 / 46 dB(A) |
| Load |
| 56 / 64 dB(A) |
 | ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min:  , med:  , max:  Earthworks M23R, Arta (15 cm distance) environment noise: 26 dB(A) | ||
| SCHENKER Key 17 Pro (Early 23) i9-13900HX, NVIDIA GeForce RTX 4090 Laptop GPU | MSI Stealth 17 Studio A13VH-014 i9-13900H, NVIDIA GeForce RTX 4080 Laptop GPU | Asus ROG Strix Scar 17 G733PY-XS96 R9 7945HX, NVIDIA GeForce RTX 4090 Laptop GPU | Aorus 17X AZF i9-13900HX, NVIDIA GeForce RTX 4090 Laptop GPU | Medion Erazer Beast X40 i9-13900HX, NVIDIA GeForce RTX 4090 Laptop GPU | |
|---|---|---|---|---|---|
| Noise | 25% | 22% | 10% | 13% | |
| off / environment * | 26 | 24 8% | 22.7 13% | 25 4% | 24 8% |
| Idle Minimum * | 26 | 24 8% | 23.5 10% | 28 -8% | 25 4% |
| Idle Average * | 33 | 24 27% | 27.7 16% | 29 12% | 29 12% |
| Idle Maximum * | 46 | 24 48% | 27.7 40% | 34 26% | 35 24% |
| Load Average * | 56 | 34.49 38% | 30.5 46% | 51 9% | 51 9% |
| Witcher 3 ultra * | 62 | 48.29 22% | 51.4 17% | 57 8% | 51 18% |
| Load Maximum * | 64 | 49.66 22% | 54.1 15% | 54 16% | 53 17% |
* ... smaller is better
温度

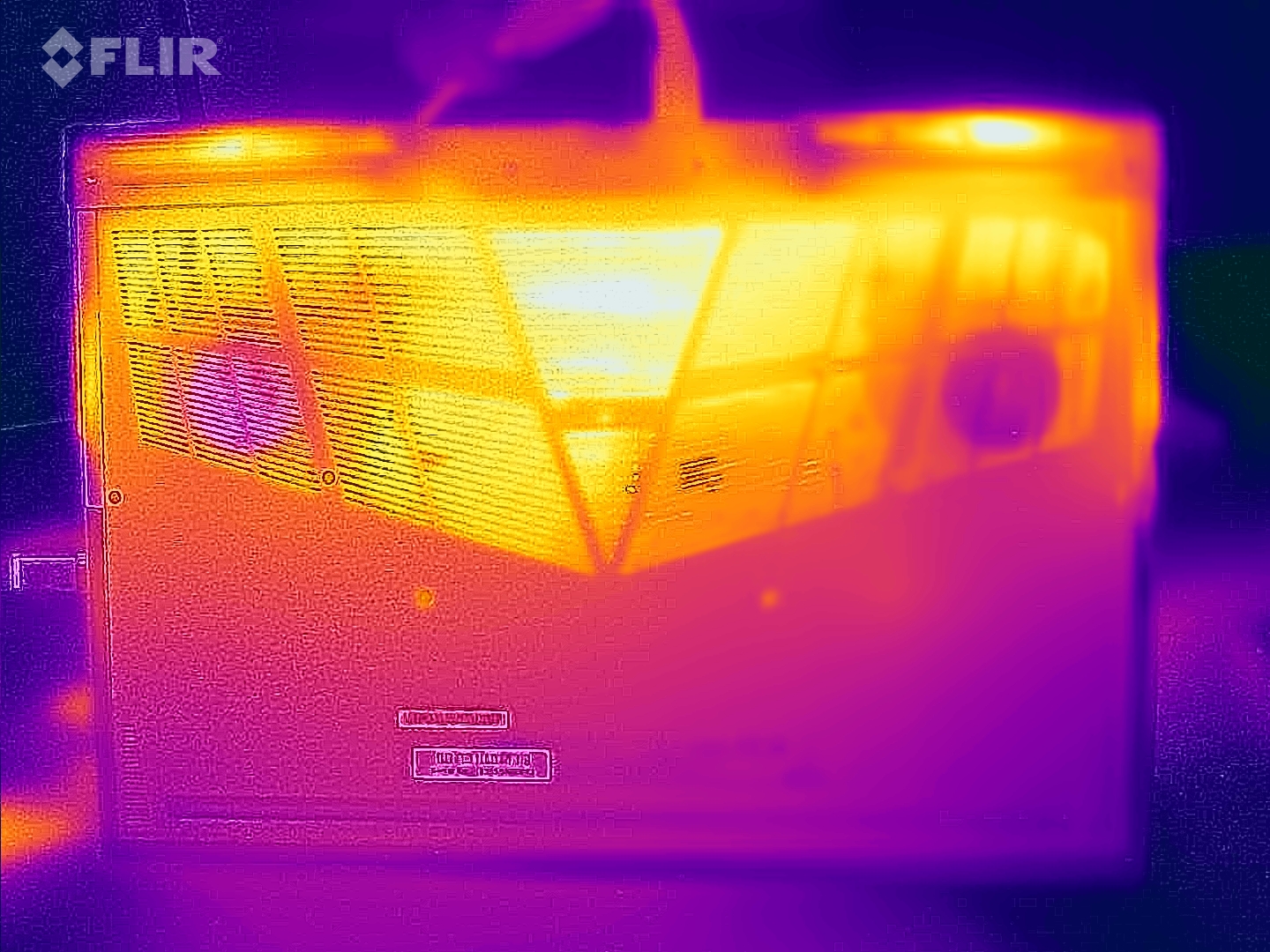

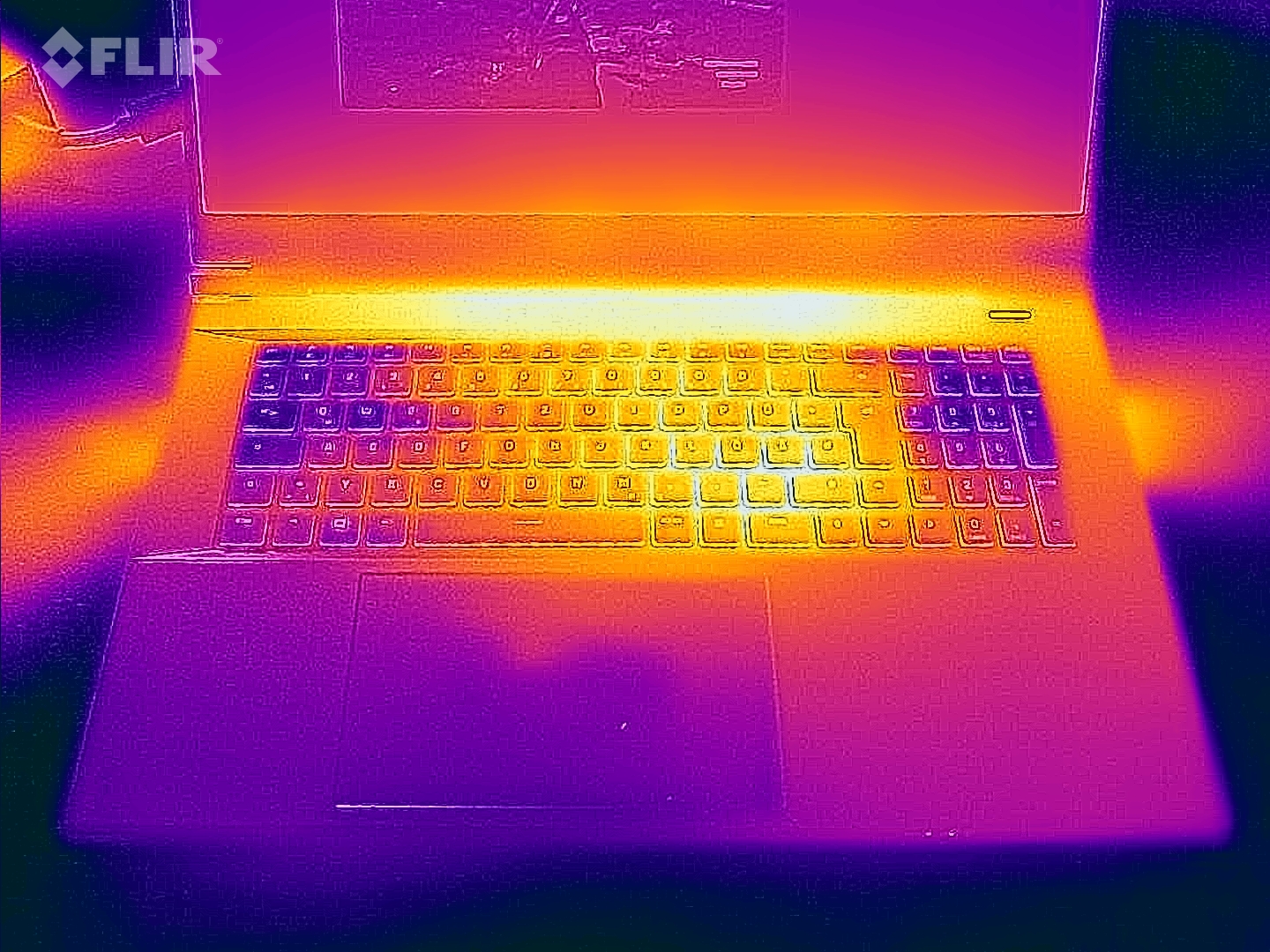

笔记本电脑在负载下会明显变热：我们在机箱的某些位置测量到的温度在55至60°C（131至140°F）之间。不过在正常使用中，机箱温度保持在一个舒适的范围内。

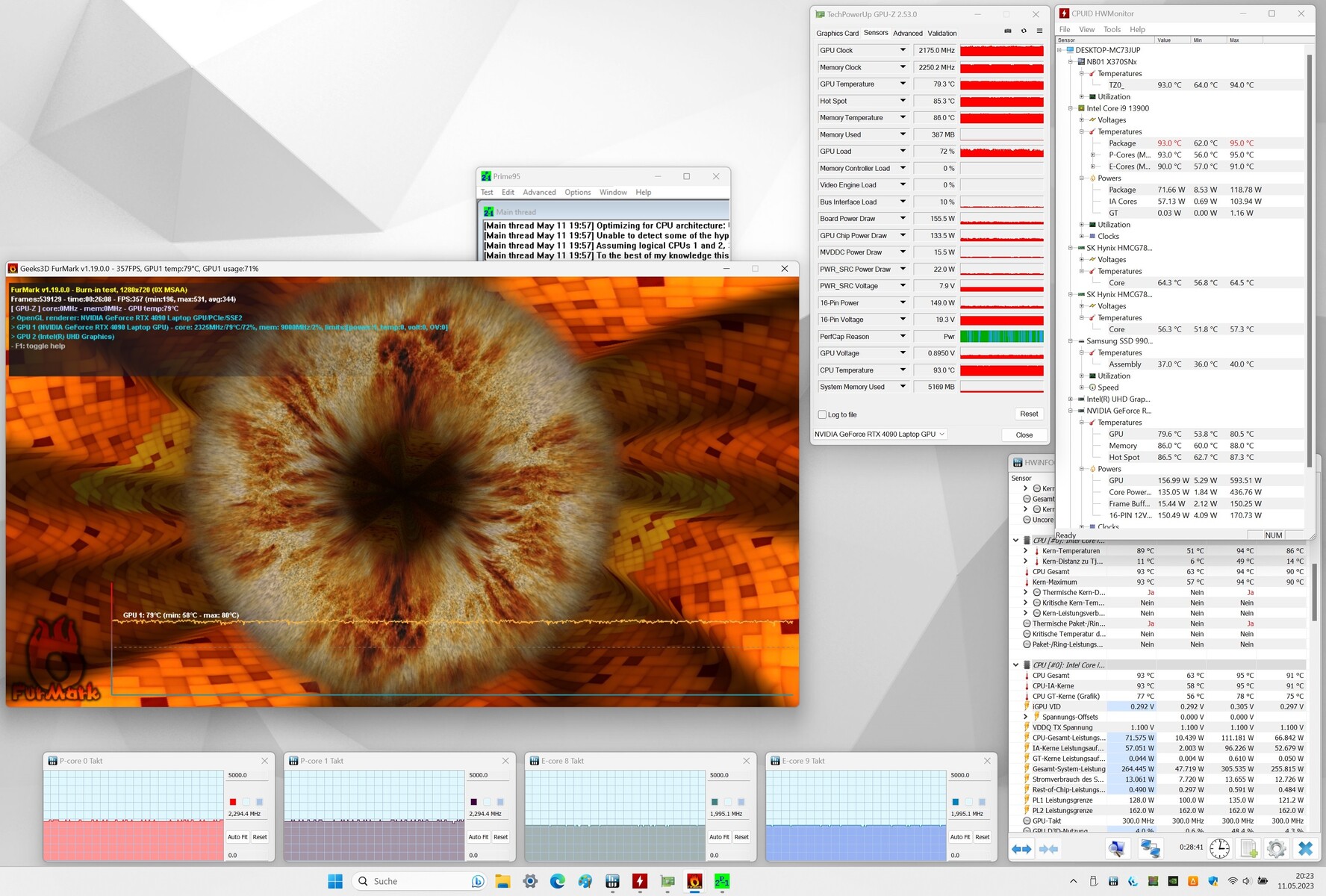

我们的压力测试（长时间运行Prime95和FurMark）代表了一种极端情况，旨在检查系统在全负荷下的稳定性。CPU一开始就以高时钟速度运行（P核：3.4至3.5GHz，E核：3.1至3.2GHz），而GPU以1.0至1.6GHz的速度运行。随后，CPU时钟相对快速下降，而GPU时钟则攀升至2GHz以上。
(-) The maximum temperature on the upper side is 57 °C / 135 F, compared to the average of 40.5 °C / 105 F, ranging from 21.2 to 68.8 °C for the class Gaming.
(-) The bottom heats up to a maximum of 60 °C / 140 F, compared to the average of 43.2 °C / 110 F
(+) In idle usage, the average temperature for the upper side is 28.7 °C / 84 F, compared to the device average of 33.9 °C / 93 F.
(-) Playing The Witcher 3, the average temperature for the upper side is 47.3 °C / 117 F, compared to the device average of 33.9 °C / 93 F.
(±) The palmrests and touchpad can get very hot to the touch with a maximum of 38 °C / 100.4 F.
(-) The average temperature of the palmrest area of similar devices was 28.9 °C / 84 F (-9.1 °C / -16.4 F).
| SCHENKER Key 17 Pro (Early 23) Intel Core i9-13900HX, NVIDIA GeForce RTX 4090 Laptop GPU | MSI Stealth 17 Studio A13VH-014 Intel Core i9-13900H, NVIDIA GeForce RTX 4080 Laptop GPU | Asus ROG Strix Scar 17 G733PY-XS96 AMD Ryzen 9 7945HX, NVIDIA GeForce RTX 4090 Laptop GPU | Aorus 17X AZF Intel Core i9-13900HX, NVIDIA GeForce RTX 4090 Laptop GPU | Medion Erazer Beast X40 Intel Core i9-13900HX, NVIDIA GeForce RTX 4090 Laptop GPU | |
|---|---|---|---|---|---|
| Heat | 10% | 27% | 12% | 11% | |
| Maximum Upper Side * | 57 | 47 18% | 34.6 39% | 47 18% | 48 16% |
| Maximum Bottom * | 60 | 54 10% | 35.6 41% | 51 15% | 52 13% |
| Idle Upper Side * | 32 | 30 6% | 27.2 15% | 30 6% | 30 6% |
| Idle Bottom * | 34 | 32 6% | 30 12% | 31 9% | 31 9% |
* ... smaller is better
发言人
立体声扬声器的声音总体上相当不错。
SCHENKER Key 17 Pro (Early 23) audio analysis
(±) | speaker loudness is average but good (78 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 11.7% lower than median
(±) | linearity of bass is average (7.1% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.1% away from median
(+) | mids are linear (3.5% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 1.8% away from median
(+) | highs are linear (6.4% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (11.9% difference to median)
Compared to same class
» 11% of all tested devices in this class were better, 4% similar, 85% worse
» The best had a delta of 6%, average was 18%, worst was 132%
Compared to all devices tested
» 7% of all tested devices were better, 2% similar, 90% worse
» The best had a delta of 4%, average was 25%, worst was 134%
MSI Stealth 17 Studio A13VH-014 audio analysis
(+) | speakers can play relatively loud (82.44 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 8% lower than median
(±) | linearity of bass is average (8.8% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 8.2% higher than median
(+) | mids are linear (6.8% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 1% away from median
(+) | highs are linear (4% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (11.6% difference to median)
Compared to same class
» 9% of all tested devices in this class were better, 3% similar, 88% worse
» The best had a delta of 6%, average was 18%, worst was 132%
Compared to all devices tested
» 6% of all tested devices were better, 2% similar, 91% worse
» The best had a delta of 4%, average was 25%, worst was 134%
消耗功率
Key 17 Pro没有显示任何电源使用问题。在进行压力测试和Witcher 3 测试时，它保持了稳定的电力消耗。附带的适配器（330瓦）对该设备来说是足够强大的。
| Off / Standby | 0.1 / Watt |
| Idle | 18 / 20 / 25 Watt |
| Load |
136 / 358 Watt |

| |
Key:
min: ,
med: ,
max: Metrahit Energy | |
Power consumption Witcher 3 / Stresstest
Power consumption with external monitor
电池寿命
我们的Wi-Fi测试是为了模拟现实生活中的使用，包括使用脚本访问各种网站。这台17.3英寸的笔记本电脑在测试中成功地坚持了6小时51分钟--对于这样一台强大的4K笔记本电脑来说，这是一个非常值得尊敬的结果。
Pros
Cons
结论 - 可定制的动力源
Key 17 Pro是为需要大量计算能力的使用场景制作的，如视频编辑、游戏和渲染。该 GeForce RTX 4090 笔记本电脑和 酷睿i9-13900HX提供了处理这些任务所需的力量--这两个组件都能以高速持续运行。这款笔记本产生的热量和噪音对于这个级别的设备来说是正常的。
Schenker通过Key 17 Pro（早期23）提供了一个强大的高端笔记本。
Key 17 Pro有三个固态硬盘插槽（1个PCIe 5.0，2个PCIe 4.0；M.2-2280），这意味着如果你的存储空间不足，你可以快速添加更多的驱动器。两个PCIe 4.0插槽支持RAID 0/1。安装额外的固态硬盘并不是一件过于复杂的事情。在你解开所有的螺丝后，底板可以不使用任何工具而被移除。
两个USB-C端口（Thunderbolt 4）让你毫不费力地将笔记本电脑整合到现有的桌面设置中，并开辟了扩展选项（如外部GPU）。其中一个端口还支持Power Delivery。该设备的电池寿命非常好。哑光的17.3英寸显示屏（4K，IPS，144Hz，G-Sync和DCI-P3）在我们的测试中留下了大部分积极的印象，尽管它可以从更高的对比度中受益。
钥匙17 Pro的一个替代品是 MSI Stealth 17 Studio.它配备了一个迷你LED屏幕，在全速运转时产生的噪音要小得多。在这次审查的时候，几乎相同规格的 Aorus 17X AZF(尽管是QHD而不是4K面板)可以以比Key低得多的价格买到，因此是一个更适合钱包的选择。
价格和供应情况
按照本评论中的规格，Schenker Key 17 Pro (Early 23)将为您提供大约4,479欧元（4,820美元）。另外，你也可以在Schenker网上商店根据你的需要来配置设备。价格从3,199欧元（3,445美元）起。
SCHENKER Key 17 Pro (Early 23)
- 05/30/2023 v7 (old)
Sascha Mölck
Transparency
The selection of devices to be reviewed is made by our editorial team. The test sample was provided to the author as a loan by the manufacturer or retailer for the purpose of this review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.
This is how Notebookcheck is testing
Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.
Price comparison
