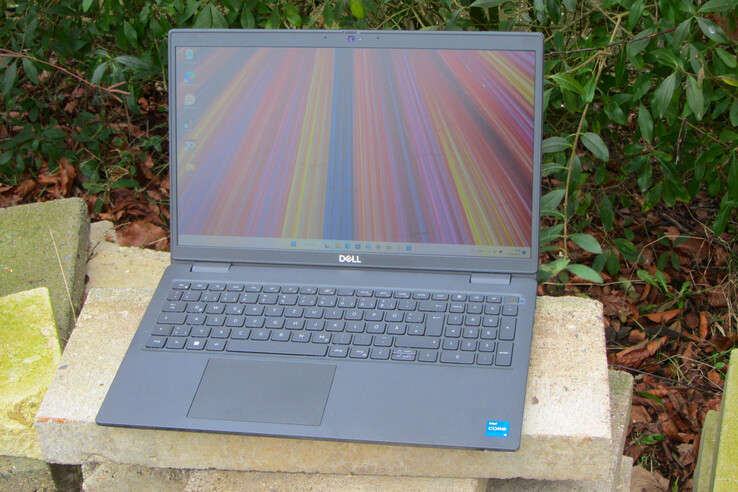

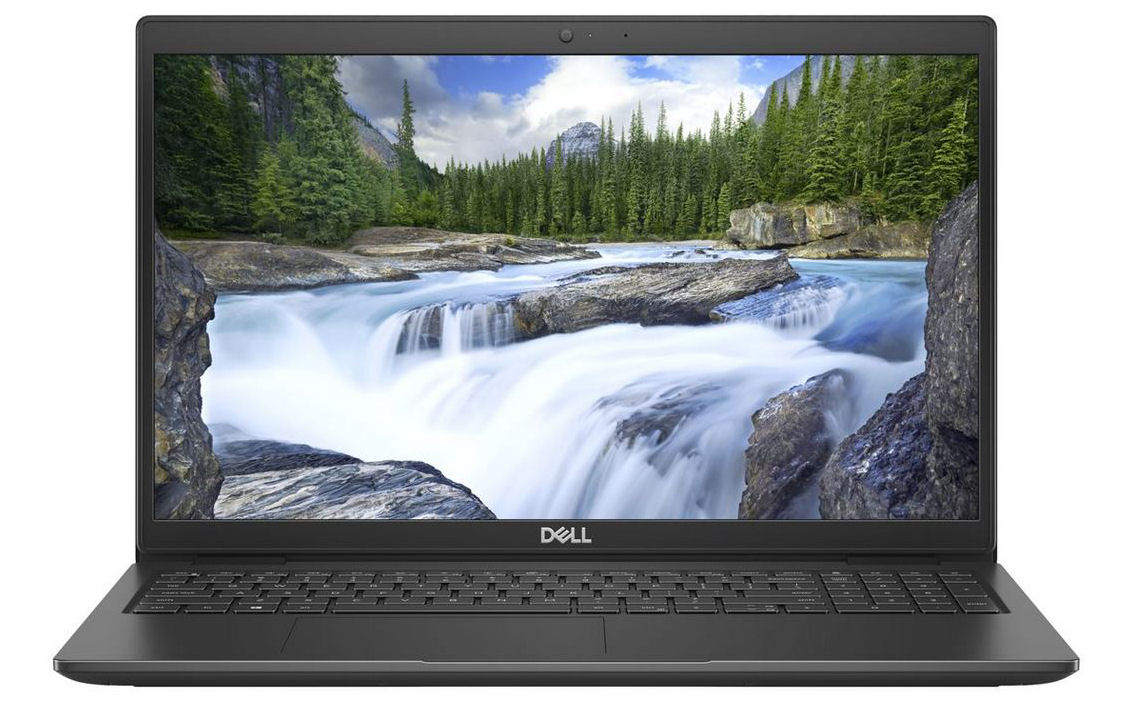

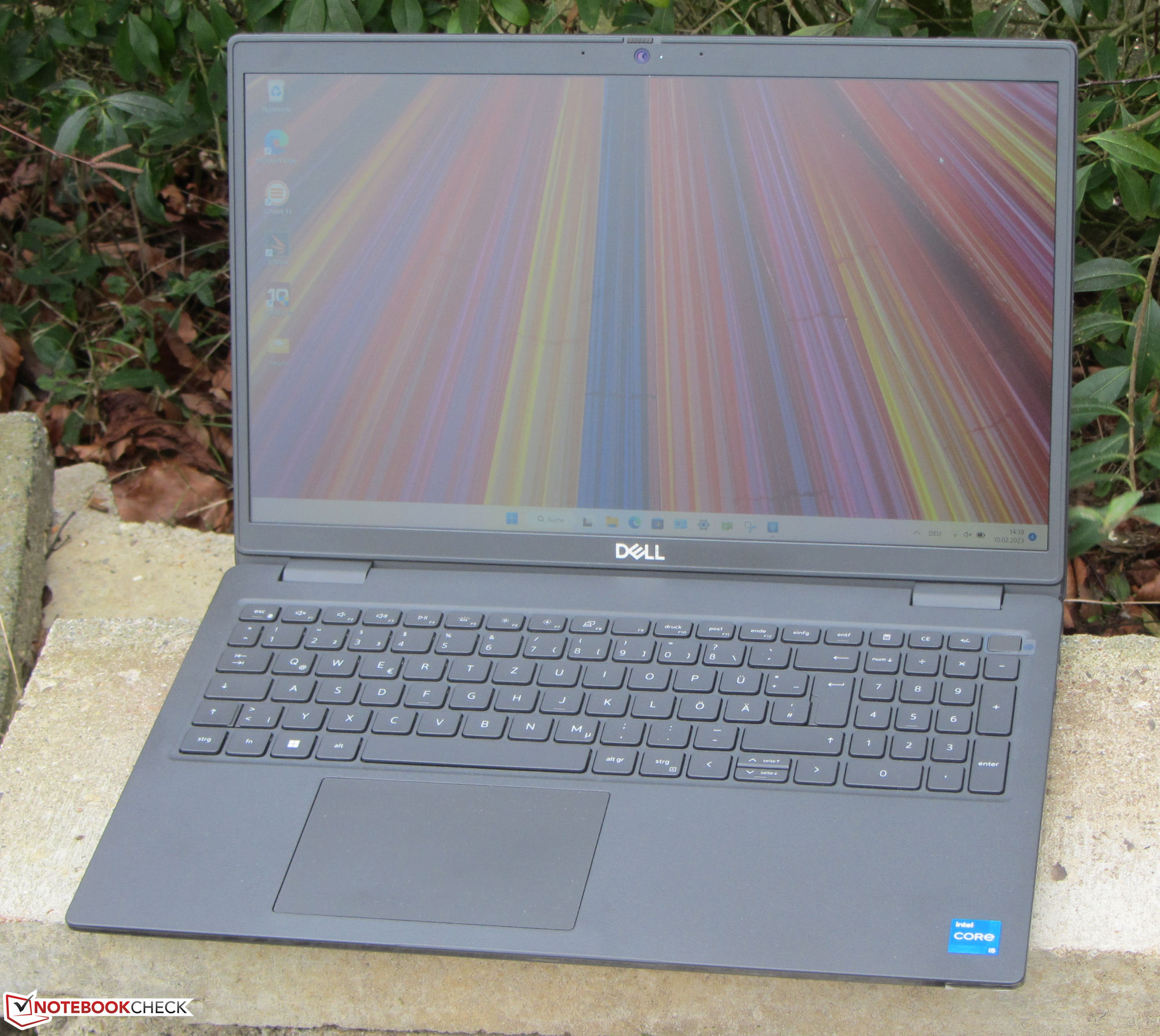

戴尔Latitude 3520 在审查。酷睿i5办公笔记本电脑提供良好的运行时间
戴尔在其产品线中拥有一系列办公笔记本，Latitude-3520系列，主要针对私人和专业用户。该机型的价格从500欧元左右（约530美元）开始。你得到一个由Core i5-1135G7 CPU、8GB内存和256GB SSD组成的软件包。竞争者包括以下设备 联想ThinkBook 15 G4，以及 华硕ExpertBook B1 B1500CEAE和 惠普ProBook 450 G9，华硕ExpertBook B1 B1500CEAE和惠普ProBook 450 G9。 Acer Extensa 15 EX215-54.
潜在的竞争对手比较
Rating | Date | Model | Weight | Height | Size | Resolution | Price |
|---|---|---|---|---|---|---|---|
| 84.6 % v7 (old) | 02 / 2023 | Dell Latitude 3520 i5-1135G7, Iris Xe G7 80EUs | 1.8 kg | 18.06 mm | 15.60" | 1920x1080 | |
| 84.9 % v7 (old) | 09 / 2022 | Lenovo ThinkBook 15 G4 21DL0009GE R5 5625U, Vega 7 | 1.8 kg | 23 mm | 15.60" | 1920x1080 | |
| 84.8 % v7 (old) | 11 / 2021 | Asus ExpertBook B1 B1500CEAE, i5-1135G7 i5-1135G7, Iris Xe G7 80EUs | 1.7 kg | 19.4 mm | 15.60" | 1920x1080 | |
| 85 % v7 (old) | 08 / 2022 | HP ProBook 450 G9 6A180EA i7-1255U, Iris Xe G7 96EUs | 1.7 kg | 19.9 mm | 15.60" | 1920x1080 | |
| 78 % v7 (old) | 02 / 2022 | Acer Extensa 15 EX215-54-5103 i5-1135G7, Iris Xe G7 80EUs | 1.9 kg | 19.9 mm | 15.60" | 1920x1080 |
外壳和功能 -Latitude ，带USB 3.2 Gen 2

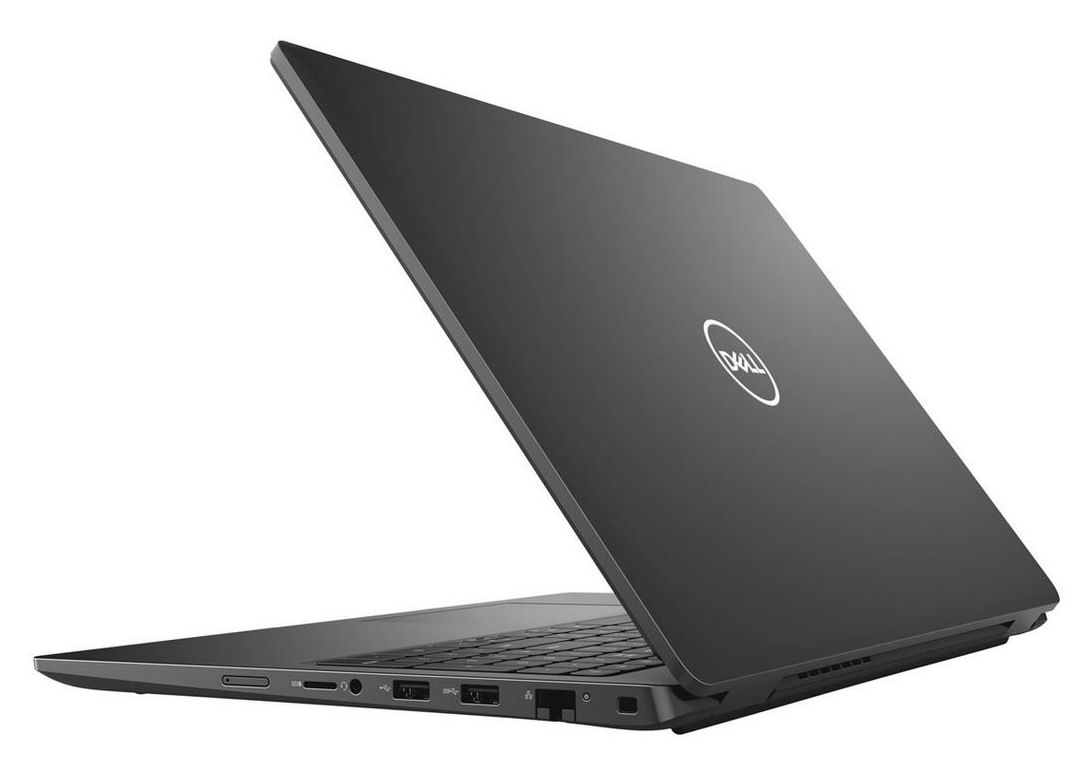

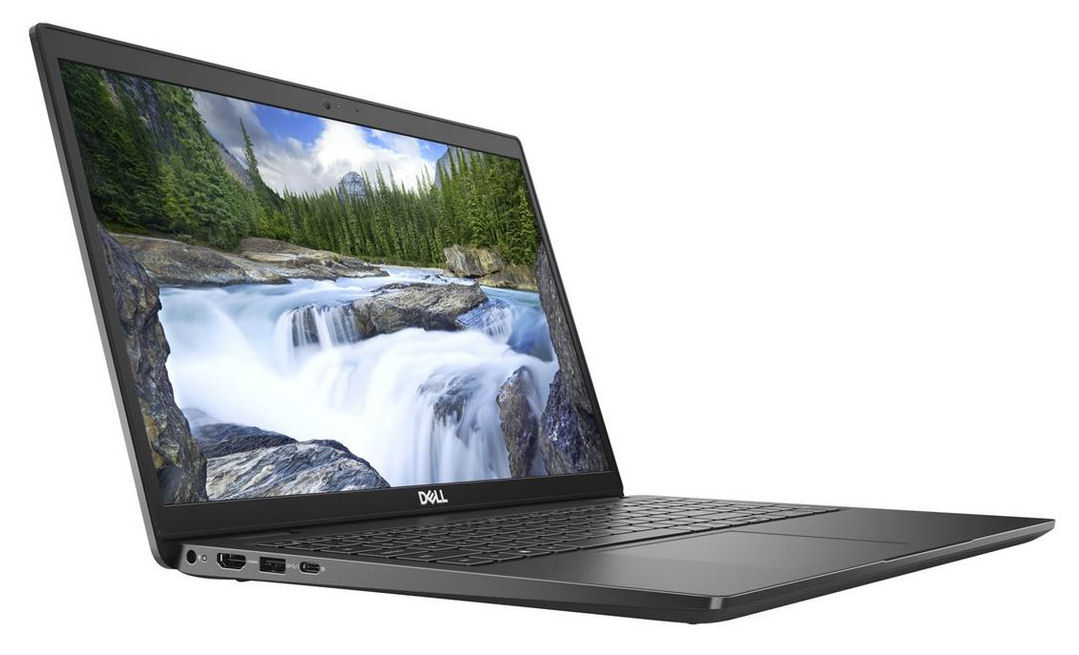

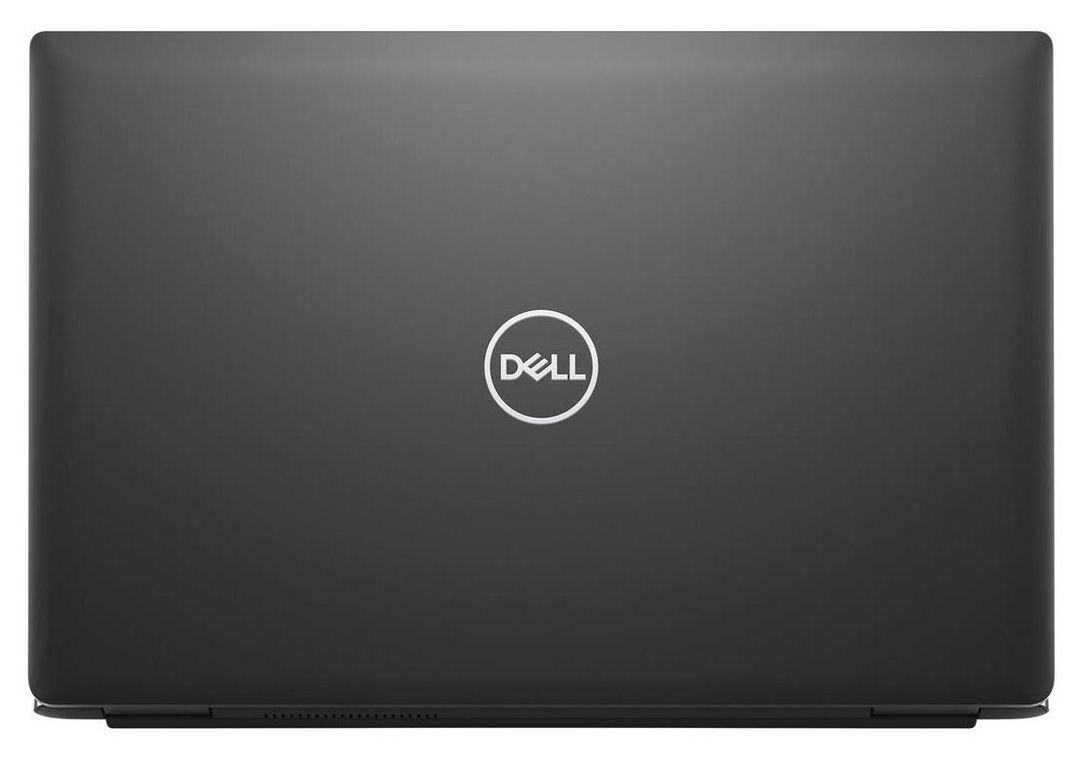

不显眼的黑色塑料外壳以磨砂、粗糙的表面为主，可以防止指纹。外壳的窄边提供了一些变化。它们有光滑的、有光泽的表面。机箱没有显示出任何工艺上的缺陷。底座单元可以扭动得有点多--它缺乏硬度。电池（用螺丝固定，不是用胶水）和其他内部零件在拆下底座后可以接触到。

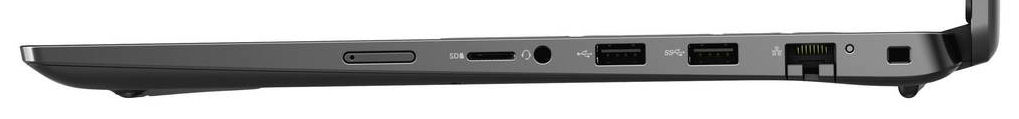

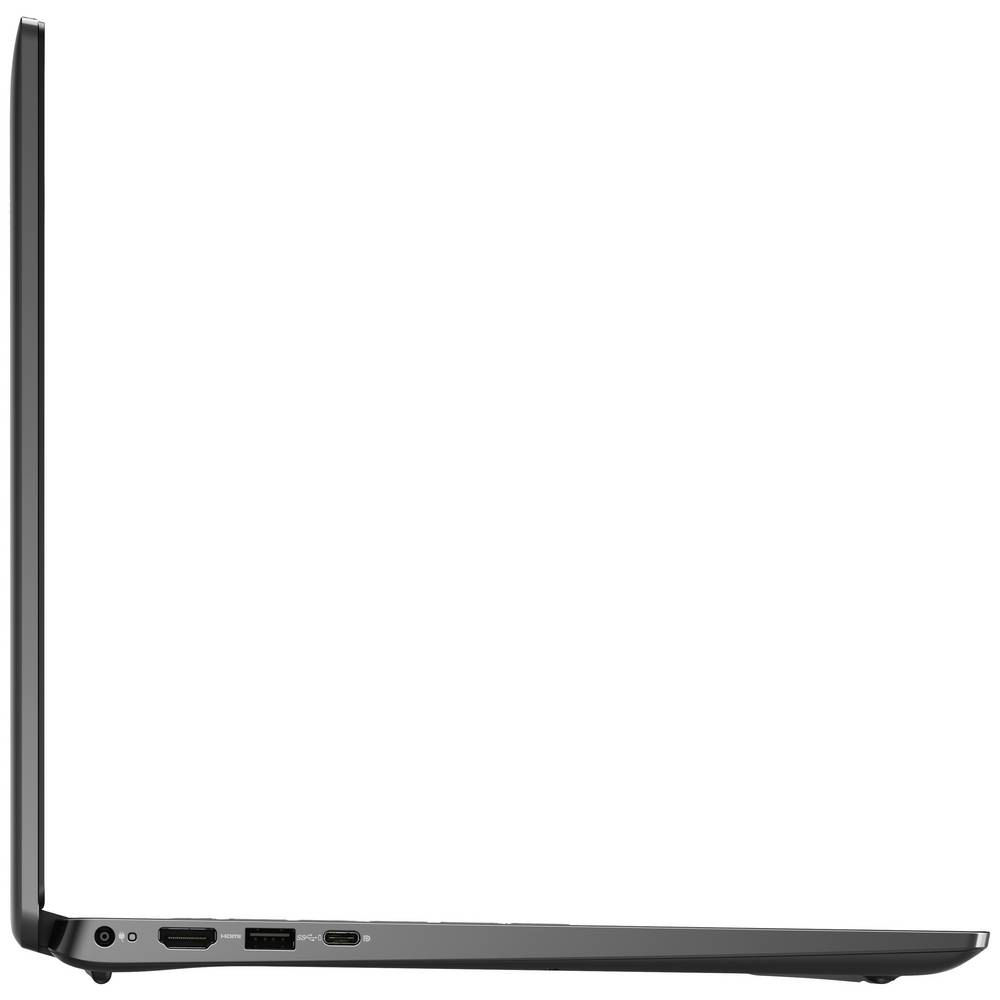

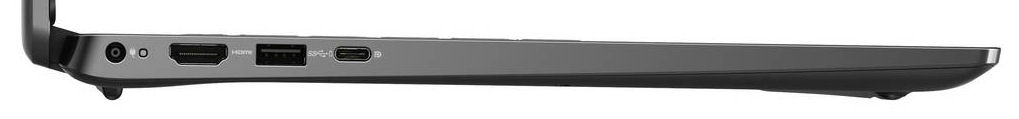

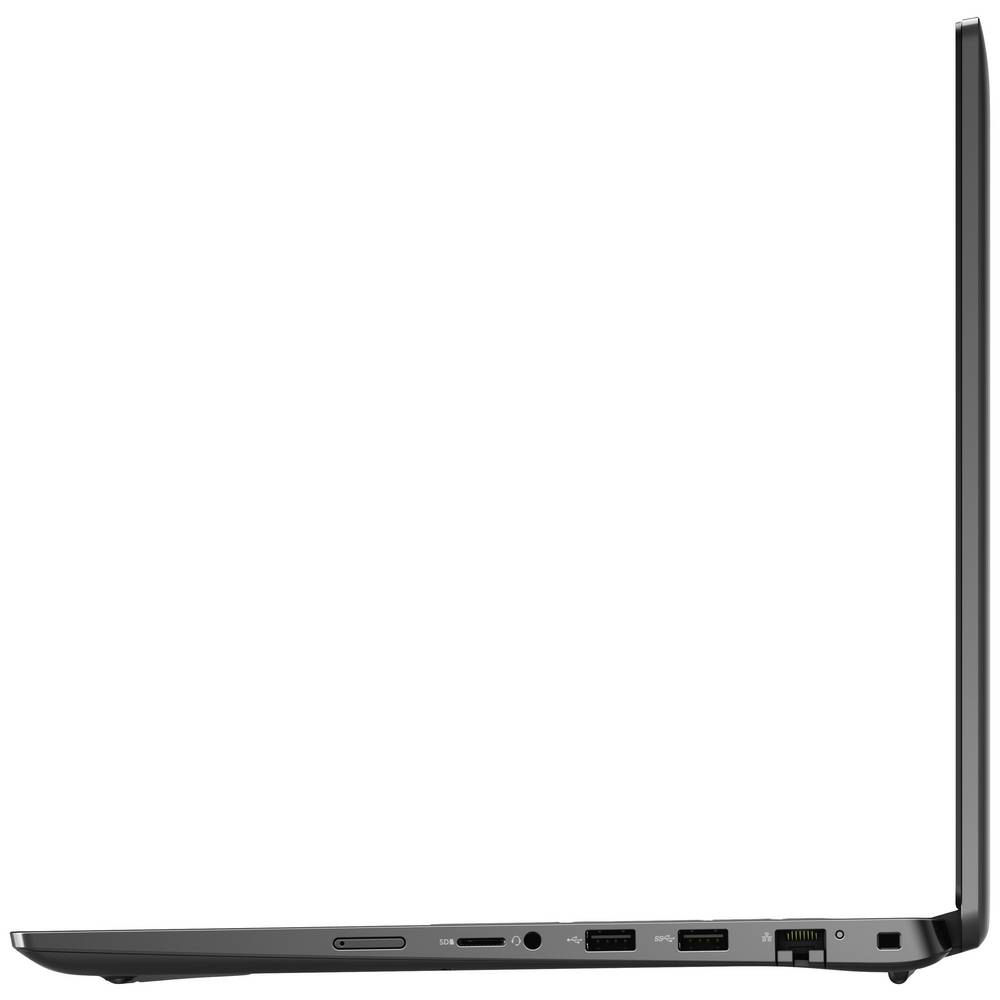

3520有三个USB-A端口（2个USB 3.2 Gen 1，1个USB 2.0）和一个USB-C端口（USB 3.2 Gen 2）。后者通过USB-C支持Power Delivery和Displayport。与HDMI端口一起，该笔记本有两个视频输出。SD存储卡读卡器（参考卡：AV Pro SD microSD 128 GB V60）是其中一个较慢的。积极的一面。网络摄像头（0.9MP）提供一个机械盖。

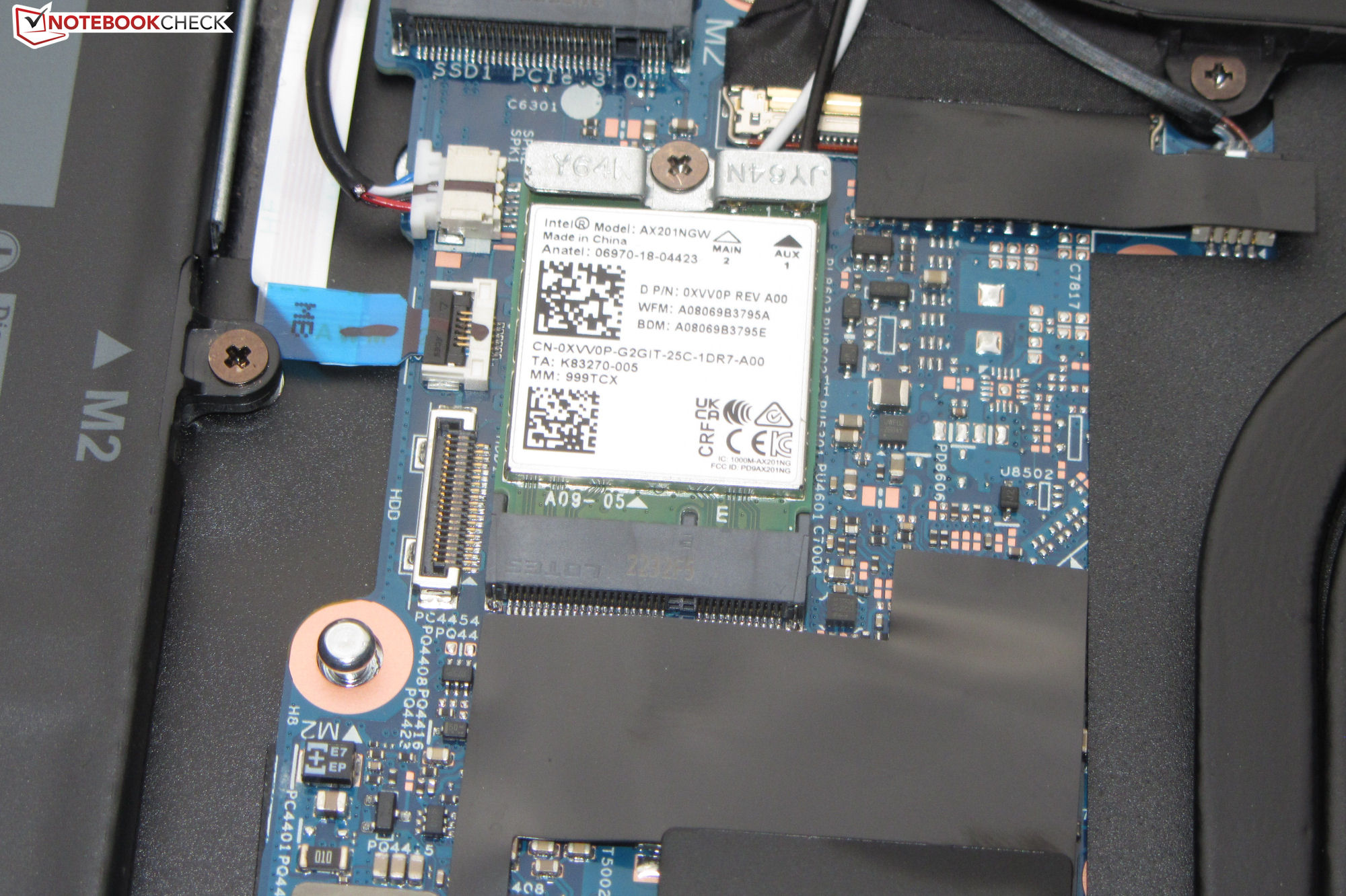

在最佳条件下确定的WLAN传输率（附近没有其他WLAN设备，笔记本和服务器PC之间的距离很小）非常好，与WiFi芯片（英特尔AX201；802.11 ax）的能力相符。戴尔有Latitude ，有集成LTE调制解调器的版本--本测试设备不是其中之一。改装是不可能的，因为插槽、天线和SIM卡座都不见了。
| SD Card Reader | |
| average JPG Copy Test (av. of 3 runs) | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
| Average of class Office (22.7 - 198.5, n=35, last 2 years) | |
| Dell Latitude 3520 (AV Pro SD microSD 128 GB V60) | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 (AV Pro V60) | |
| maximum AS SSD Seq Read Test (1GB) | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
| Average of class Office (25 - 249, n=31, last 2 years) | |
| Dell Latitude 3520 (AV Pro SD microSD 128 GB V60) | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 (AV Pro V60) | |

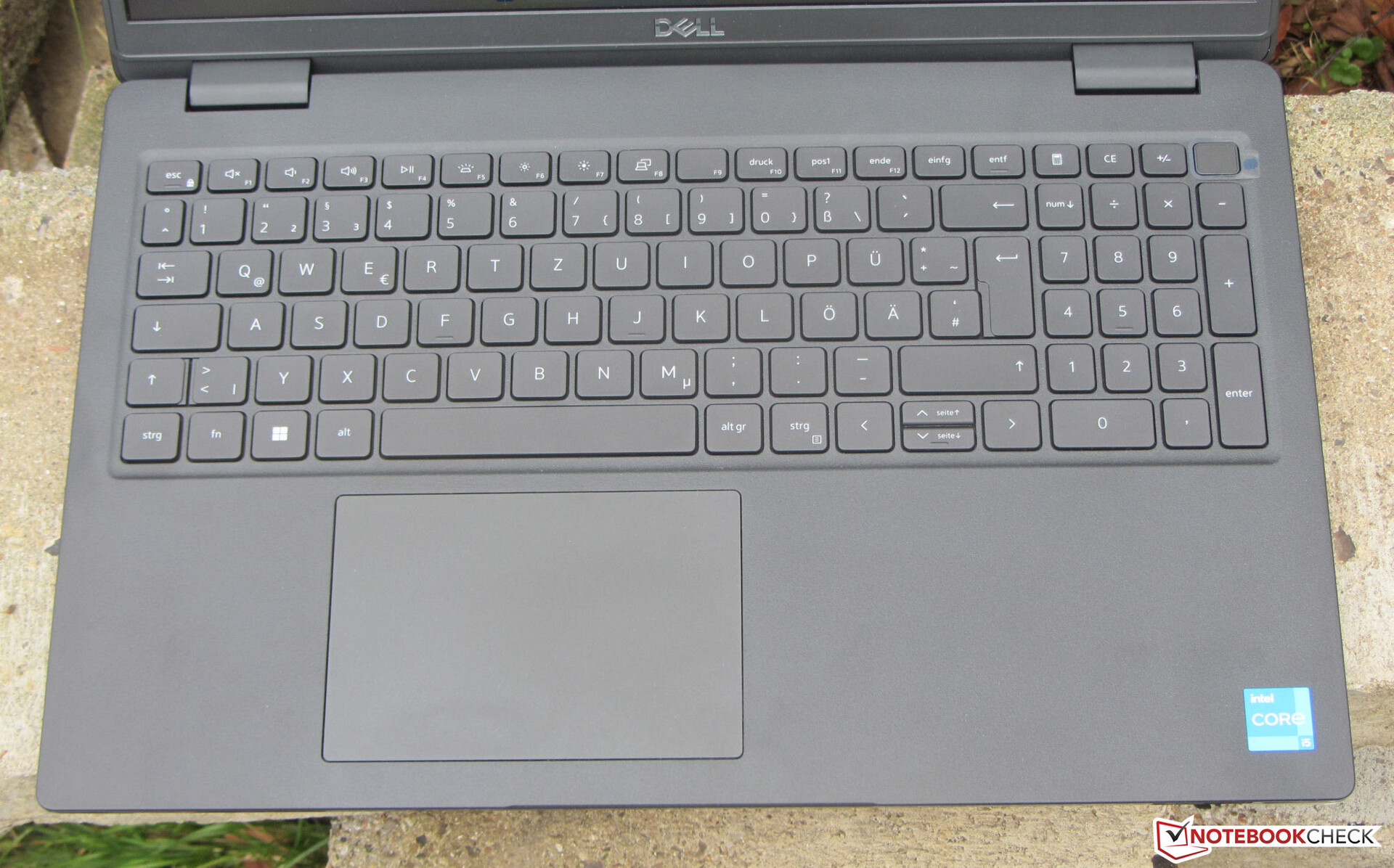

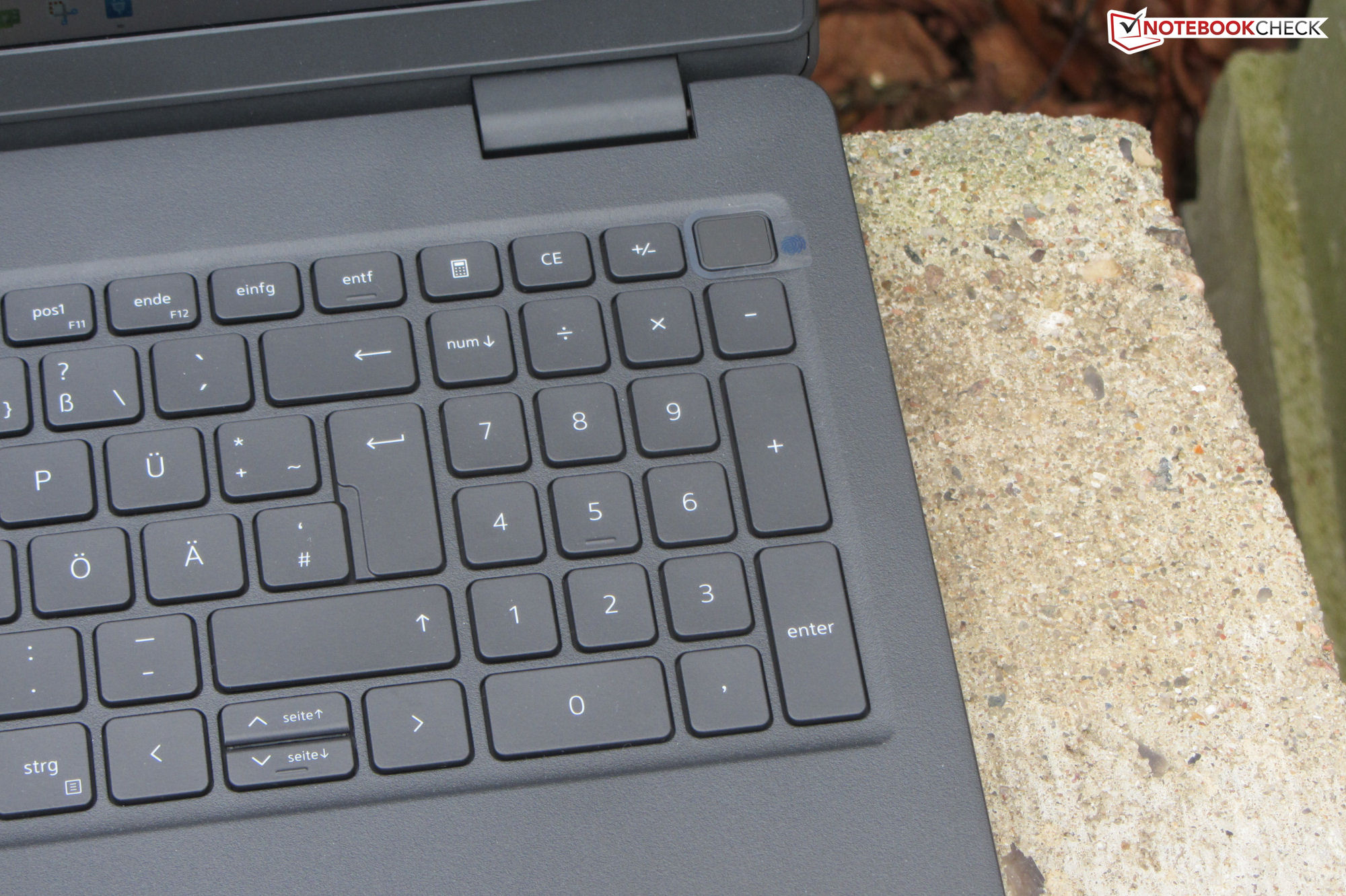

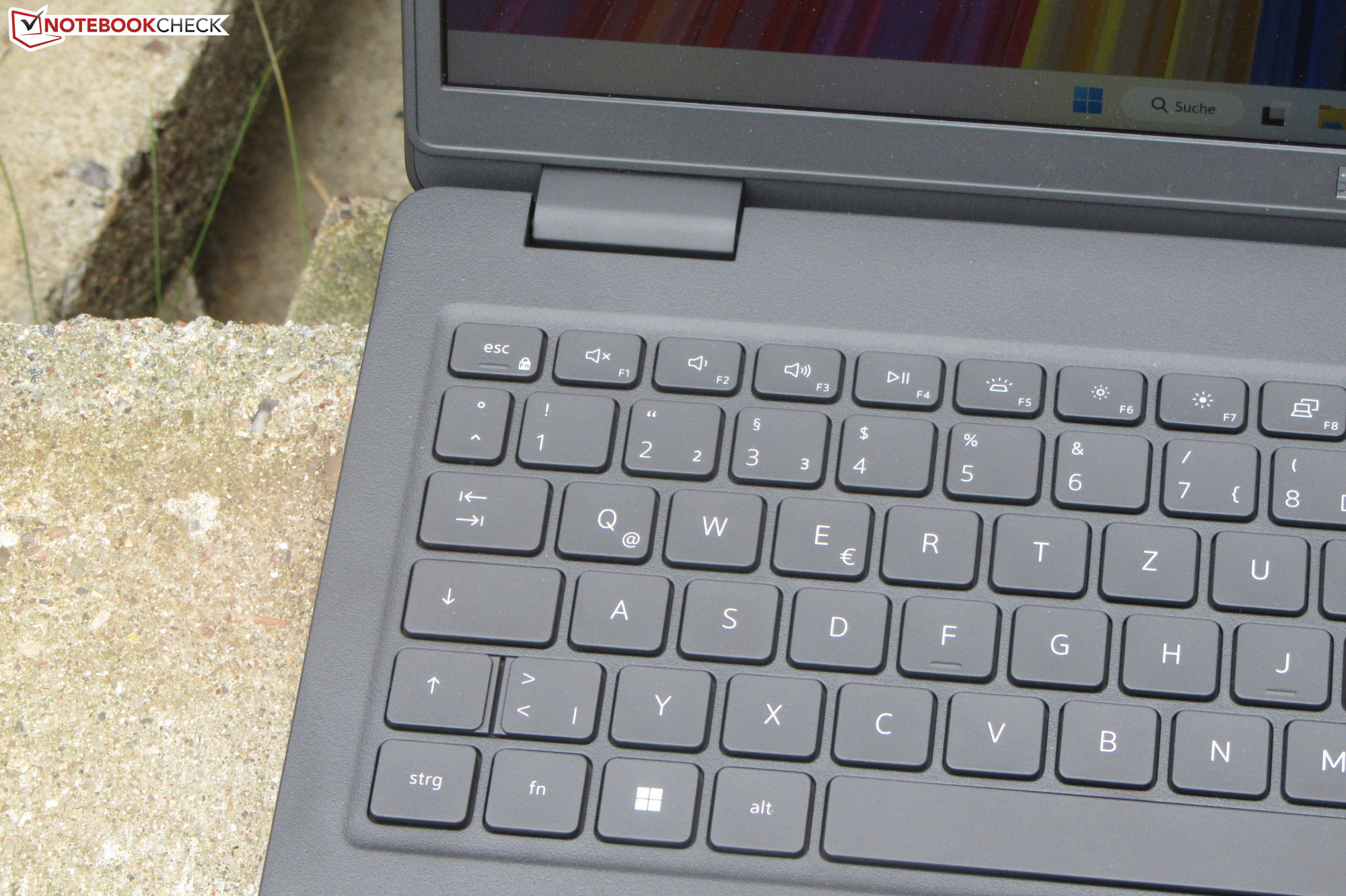

输入设备 - 3520配备了一个背光键盘

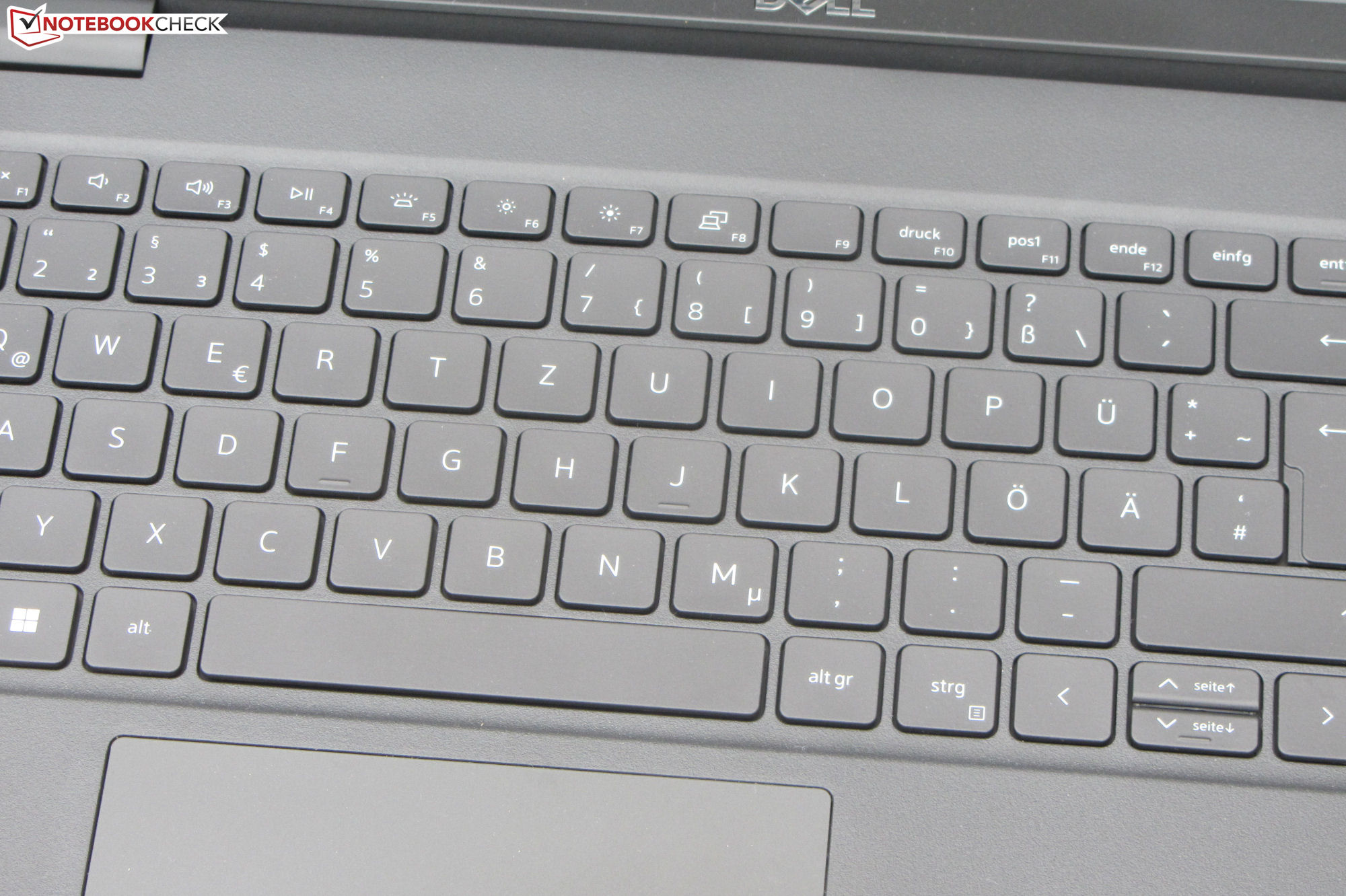

Chiclet键盘的光滑按键提供了一个短的行程和一个清晰的压力点。键的阻力还可以。键盘的轻微晃动并没有被证明是令人讨厌的。两段式的按键照明是通过一个功能键来调节的。总的来说，戴尔在这里提供了一个适合日常使用的键盘。

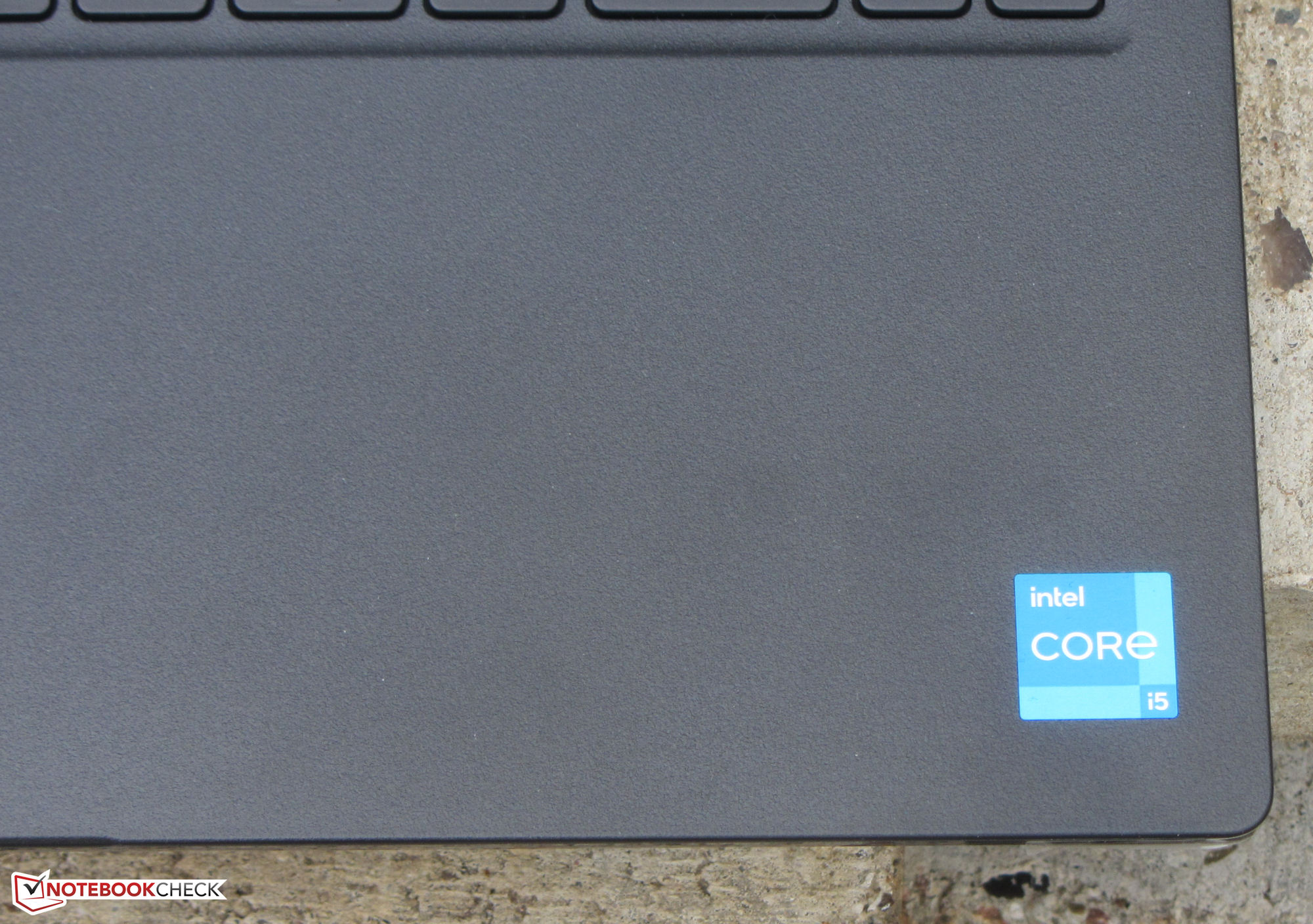

一个具有多点触摸功能的点击板（约11.5 x 8厘米/~4.5 x 3.2英寸）可作为鼠标的替代品。其光滑的表面使手指很容易滑行。触摸板对角落里的输入有反应，行程短，并提供一个清晰的压力点。

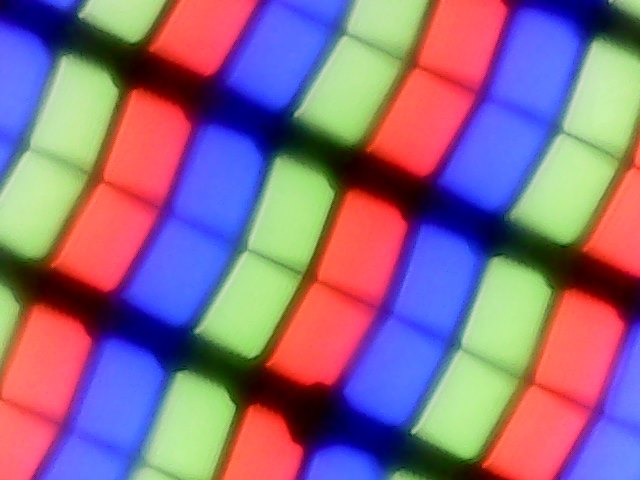

显示屏 - FHD面板，色彩空间覆盖率低
哑光的15.6英寸屏幕（1,920 x 1,080像素）在任何亮度设置下都没有显示出PWM闪烁。亮度和对比度没有达到各自的目标（分别为>300 cd/m²和1,000:1）--尽管有时只是勉强达到。一些竞争对手的屏幕有时会提供一个明显更好的对比度。
| |||||||||||||||||||||||||
Brightness Distribution: 87 %
Center on Battery: 271 cd/m²
Contrast: 724:1 (Black: 0.445 cd/m²)
ΔE Color 4.54 | 0.5-29.43 Ø4.91, calibrated: 4.43

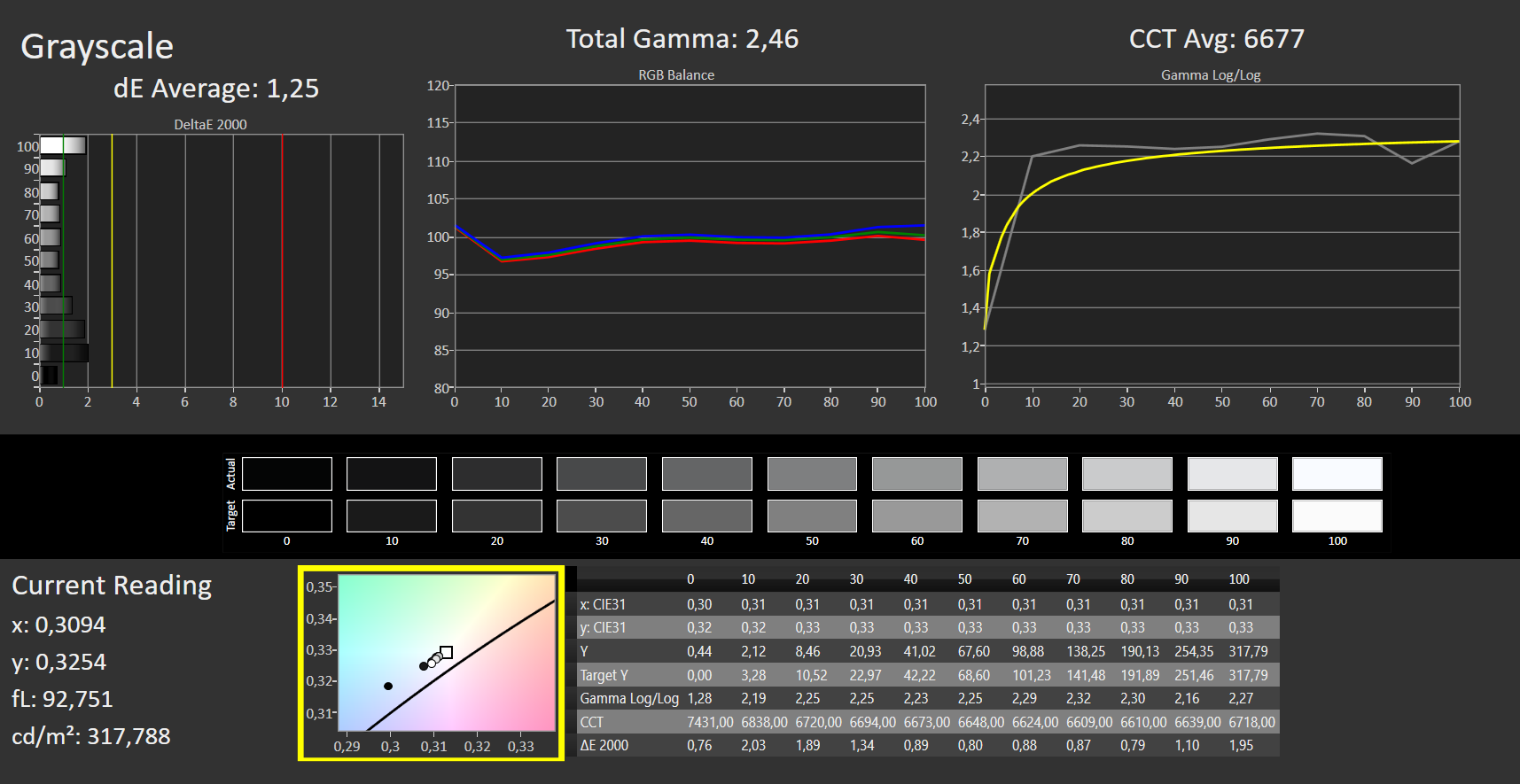

ΔE Greyscale 1.25 | 0.5-98 Ø5.2
41.4% AdobeRGB 1998 (Argyll 2.2.0 3D)
60.2% sRGB (Argyll 2.2.0 3D)
40% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.46
| Dell Latitude 3520 BOE NE156FH, IPS, 1920x1080, 15.6" | Lenovo ThinkBook 15 G4 21DL0009GE LENOVO LEN156FHD , IPS, 1920x1080, 15.6" | Asus ExpertBook B1 B1500CEAE, i5-1135G7 CEC Panda LM156LF-5L06, IPS, 1920x1080, 15.6" | HP ProBook 450 G9 6A180EA Chi Mei CMN1512, , 1920x1080, 15.6" | Acer Extensa 15 EX215-54-5103 AU Optronics B156HTN06.1, TN LED, 1920x1080, 15.6" | |
|---|---|---|---|---|---|
| Display | 12% | 4% | 7% | -7% | |
| Display P3 Coverage | 40 | 44.8 12% | 41.6 4% | 42.76 7% | 37 -7% |
| sRGB Coverage | 60.2 | 66.8 11% | 62.3 3% | 63.9 6% | 55.7 -7% |
| AdobeRGB 1998 Coverage | 41.4 | 46.3 12% | 43 4% | 44.2 7% | 38.2 -8% |
| Response Times | -32% | -117% | -36% | -60% | |
| Response Time Grey 50% / Grey 80% * | 24 ? | 29 ? -21% | 44.8 ? -87% | 28 ? -17% | 38 ? -58% |
| Response Time Black / White * | 13 ? | 18.5 ? -42% | 32 ? -146% | 20 ? -54% | 21 ? -62% |
| PWM Frequency | 37037 ? | 52 ? | |||
| Screen | -12% | 2% | -18% | -135% | |
| Brightness middle | 322 | 313 -3% | 304 -6% | 234 -27% | 220 -32% |
| Brightness | 294 | 301 2% | 285 -3% | 218 -26% | 203 -31% |
| Brightness Distribution | 87 | 90 3% | 89 2% | 85 -2% | 82 -6% |
| Black Level * | 0.445 | 0.21 53% | 0.19 57% | 0.17 62% | 0.43 3% |
| Contrast | 724 | 1490 106% | 1600 121% | 1376 90% | 512 -29% |
| Colorchecker dE 2000 * | 4.54 | 5.3 -17% | 5.2 -15% | 5.04 -11% | 10.74 -137% |
| Colorchecker dE 2000 max. * | 17.27 | 18.7 -8% | 18.5 -7% | 18.04 -4% | 20.92 -21% |
| Colorchecker dE 2000 calibrated * | 4.43 | 4 10% | 4.5 -2% | 4.13 7% | 4.44 -0% |
| Greyscale dE 2000 * | 1.25 | 4.4 -252% | 2.9 -132% | 4.43 -254% | 13.29 -963% |
| Gamma | 2.46 89% | 2.08 106% | 2.14 103% | 2.41 91% | 2.63 84% |
| CCT | 6677 97% | 6479 100% | 6639 98% | 6350 102% | 14880 44% |
| Total Average (Program / Settings) | -11% /
-10% | -37% /
-15% | -16% /
-15% | -67% /
-97% |
* ... smaller is better

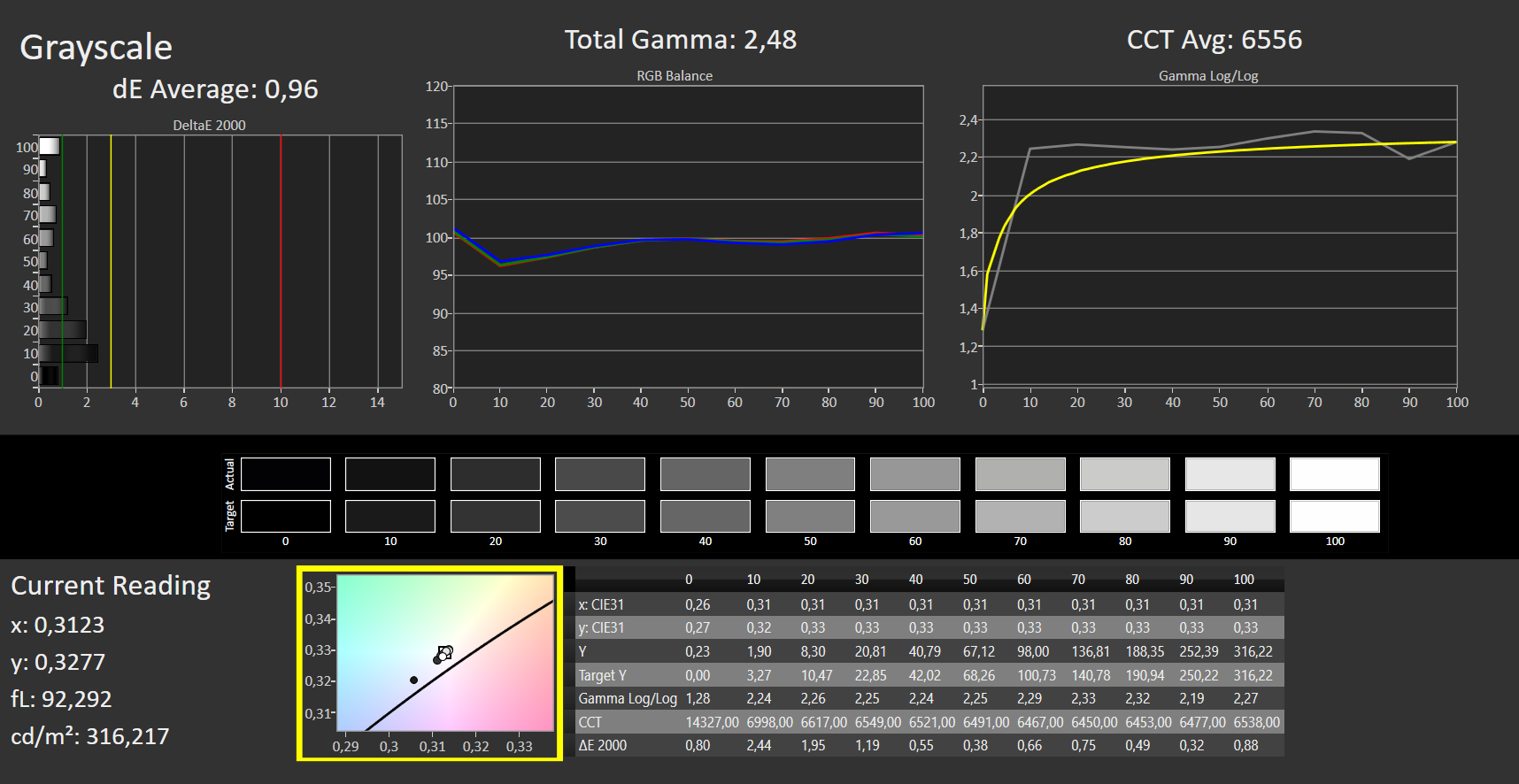

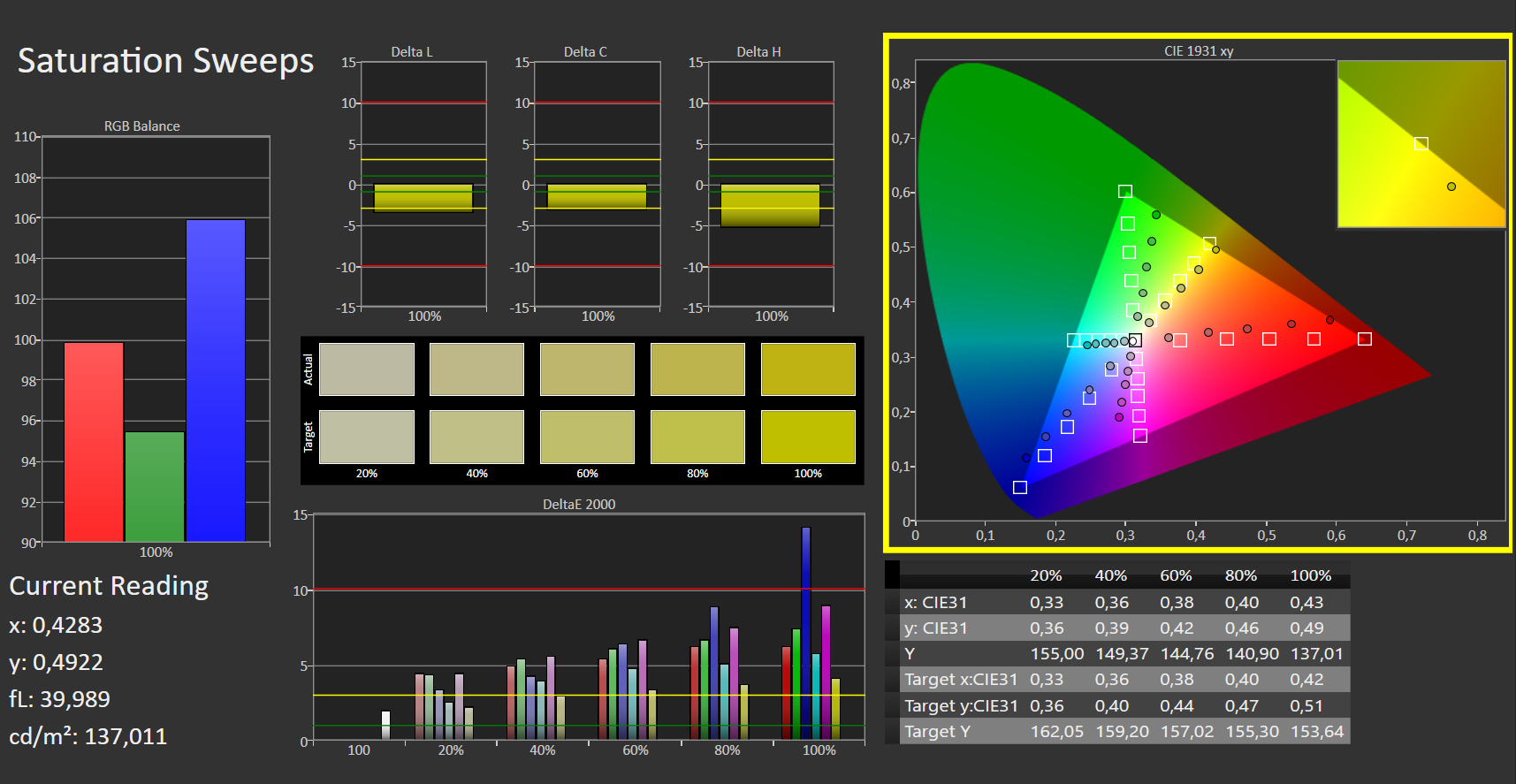

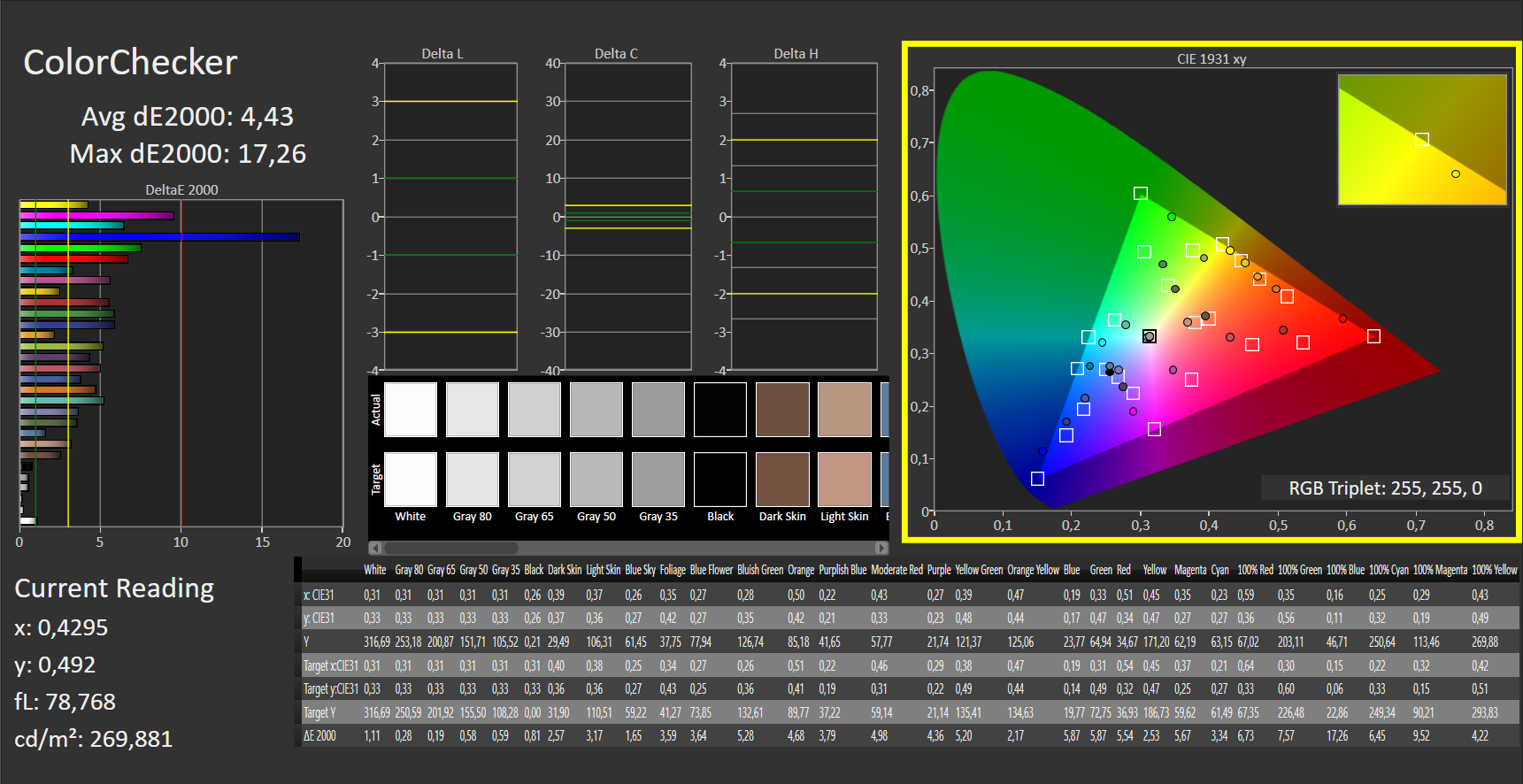

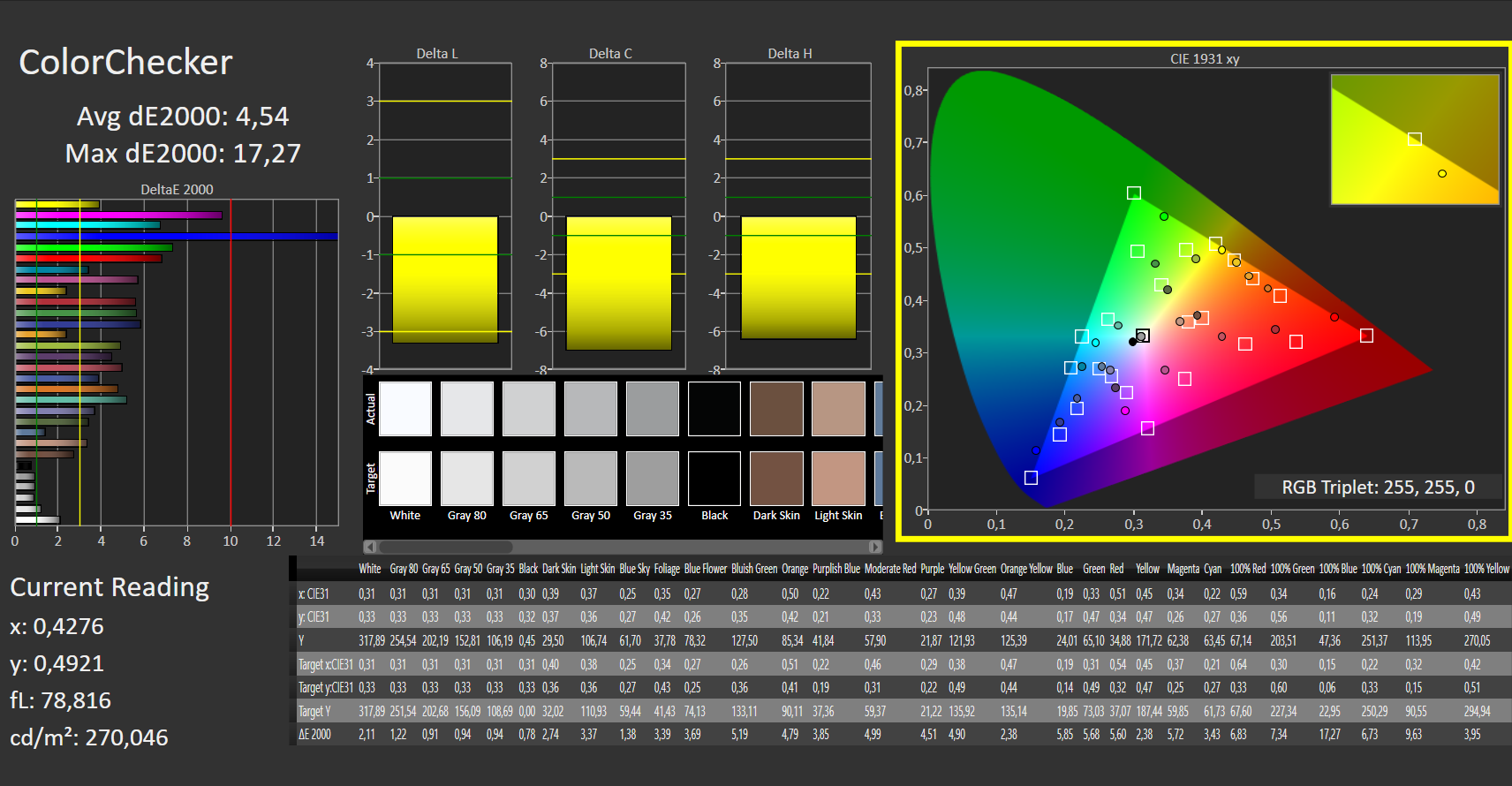

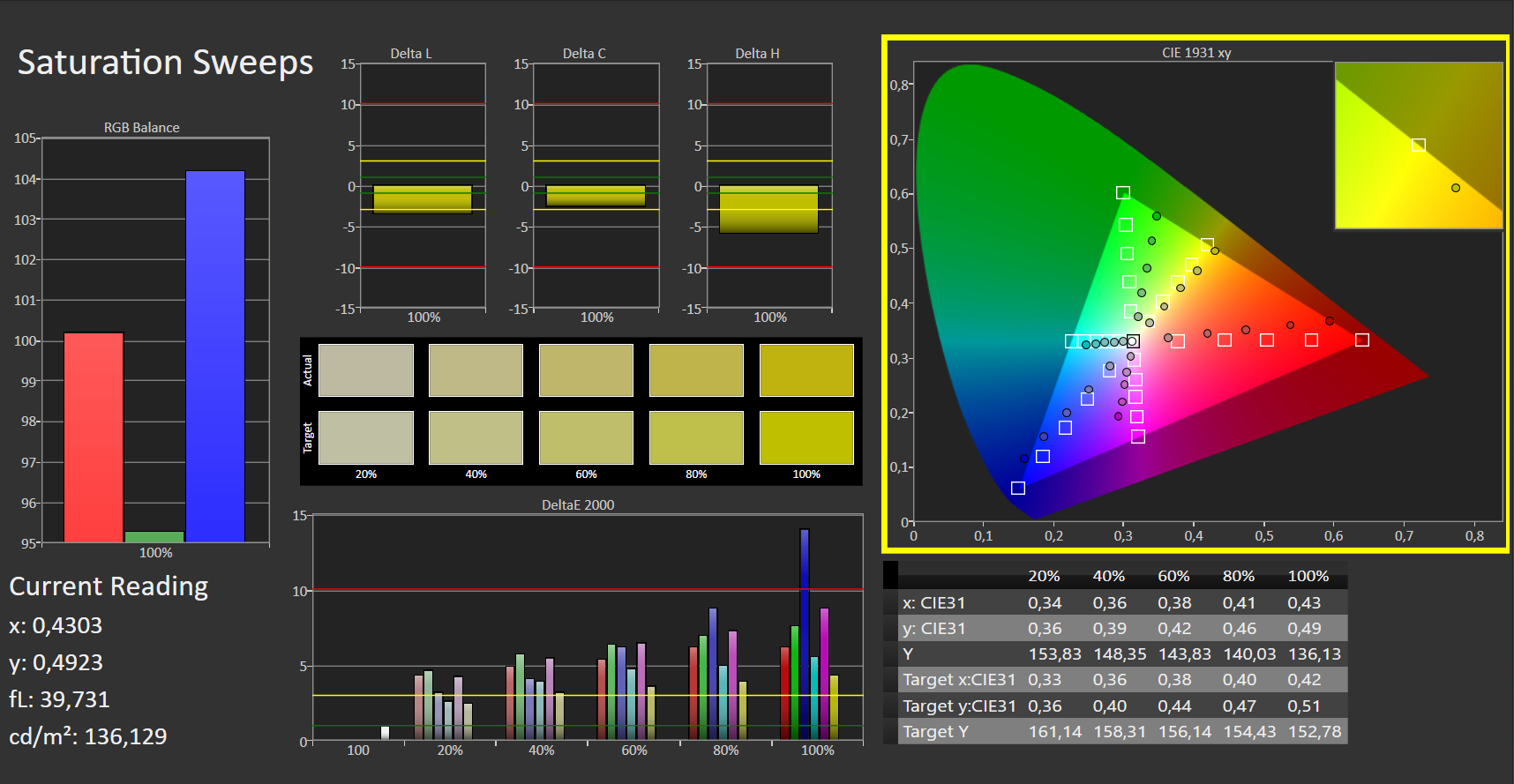

在交付状态下，屏幕显示的颜色相当好。然而，目标（DeltaE<3）没有达到，偏差约为4.5。校准只提供了微小的改进。
该显示器不能再现AdobeRGB（41%）、sRGB（60%）和DCI-P3（40%）色彩空间。因此，该面板不适合依赖色彩保真度的应用场景。竞争对手在这方面并没有更好的表现。

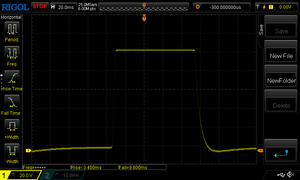

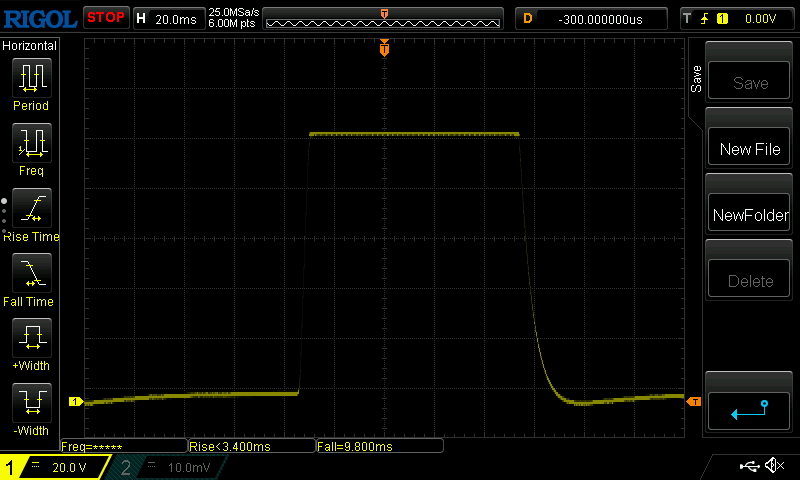

Display Response Times
| ↔ Response Time Black to White | ||
|---|---|---|
| 13 ms ... rise ↗ and fall ↘ combined | ↗ 3 ms rise |  |
| ↘ 10 ms fall | ||
| The screen shows good response rates in our tests, but may be too slow for competitive gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 30 % of all devices are better. This means that the measured response time is better than the average of all tested devices (20.9 ms). | ||

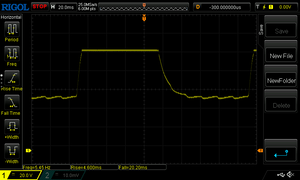

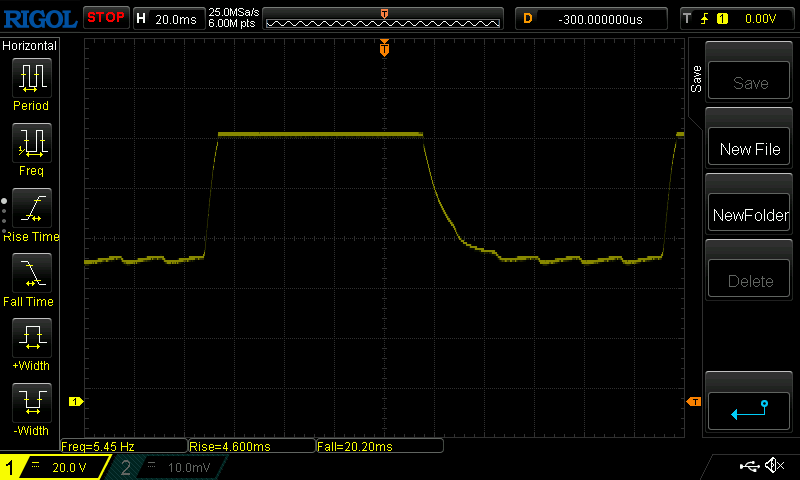

| ↔ Response Time 50% Grey to 80% Grey | ||
| 24 ms ... rise ↗ and fall ↘ combined | ↗ 4 ms rise |  |
| ↘ 20 ms fall | ||
| The screen shows good response rates in our tests, but may be too slow for competitive gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 31 % of all devices are better. This means that the measured response time is better than the average of all tested devices (32.8 ms). | ||

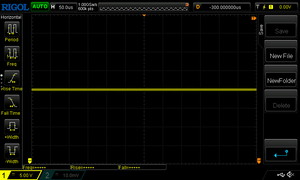

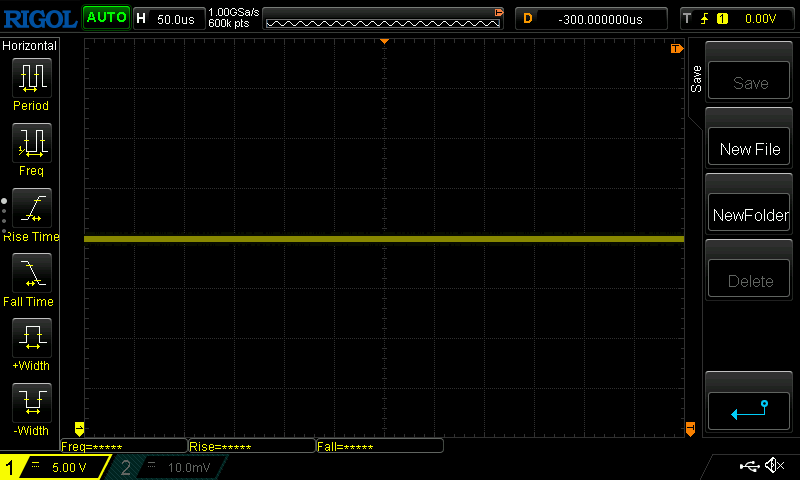

Screen Flickering / PWM (Pulse-Width Modulation)
| Screen flickering / PWM not detected |  | ||
In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8710 (minimum: 5 - maximum: 343500) Hz was measured. | |||

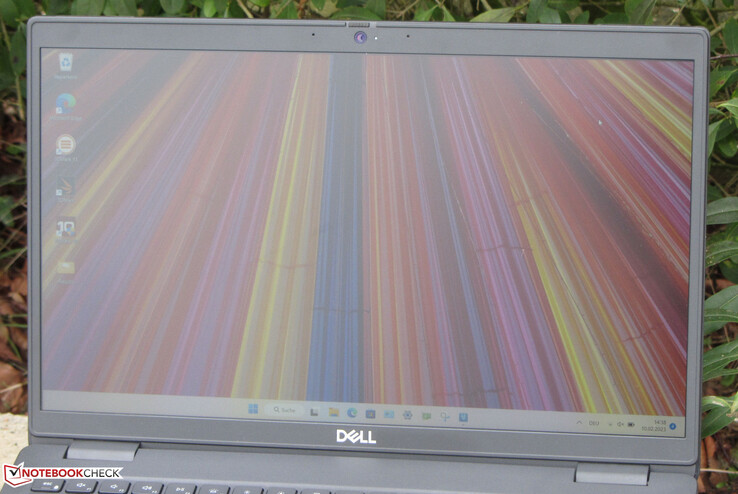

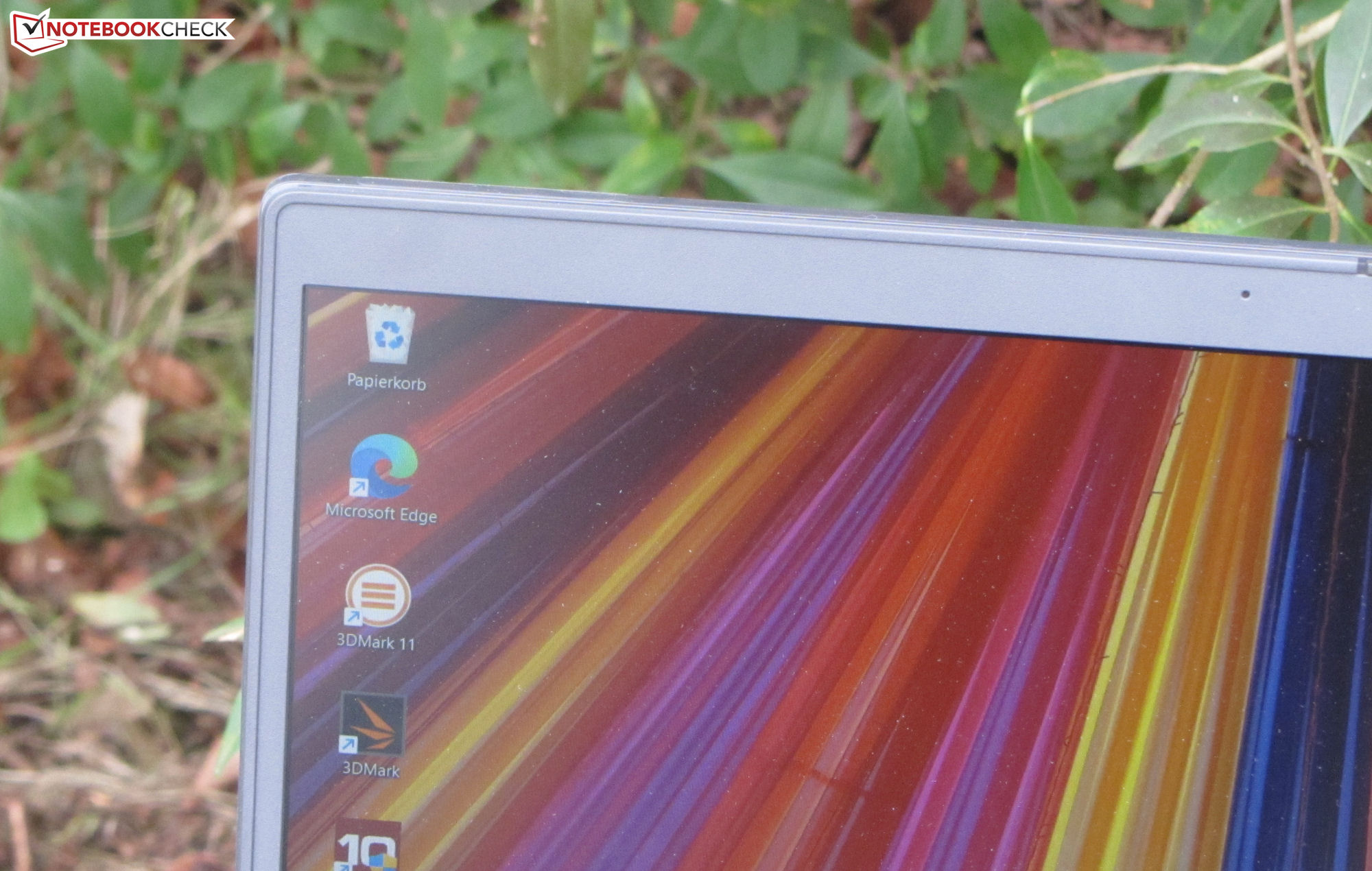

视角稳定的IPS面板可以从任何位置阅读。如果阳光不是太亮，在户外阅读屏幕是很有可能的。
性能 - 戴尔依靠的是Tiger Lake
戴尔的Inspiron 15 3520是一款15.6英寸的办公笔记本，主要针对商务和私人用户。Tiger Lake 处理器（赛扬到酷睿i7）--英特尔的倒数第二代CPU，在该范围内使用。价格在500到900欧元之间（约合529美元到953美元）--取决于配置。
测试条件

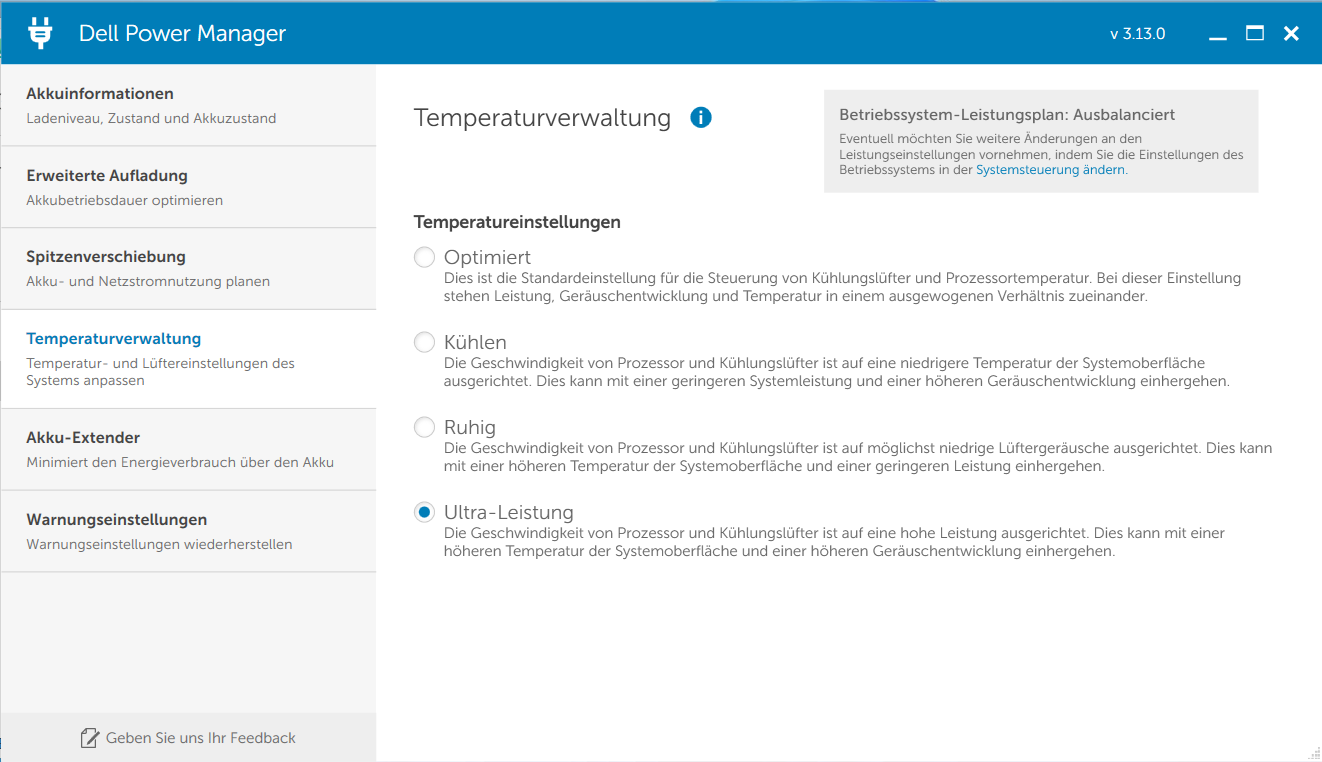

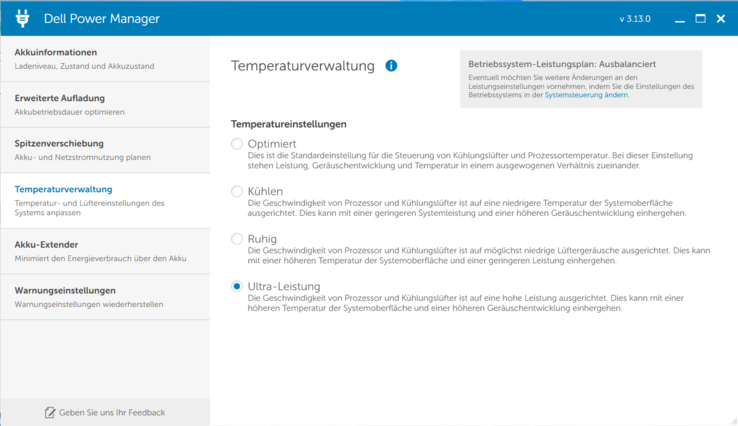

戴尔电源管理器提供配置文件（见表）以影响笔记本的温度和功率发展。这些影响CPU的性能，GPU的性能不受影响。使用了 "超性能"（基准测试）和 "优化"（电池测试）配置文件。
| 超大功率 | 优化 | 冷却 | 静音 | |
|---|---|---|---|---|
| 功率限制1 | 30瓦 | 25瓦 | 14.75瓦 | 14.75瓦 |
| 功率限制2 | 51瓦 | 51瓦 | 51瓦 | 51瓦 |
处理器

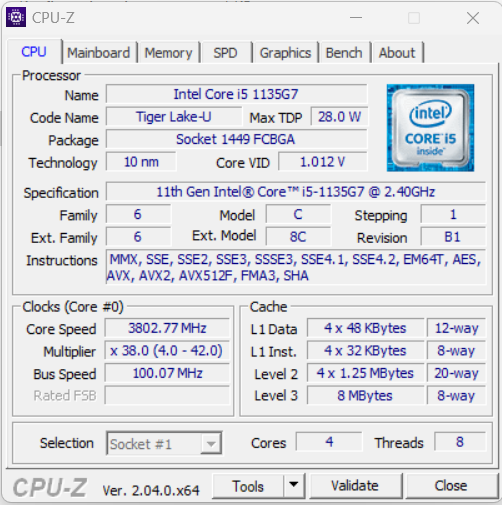

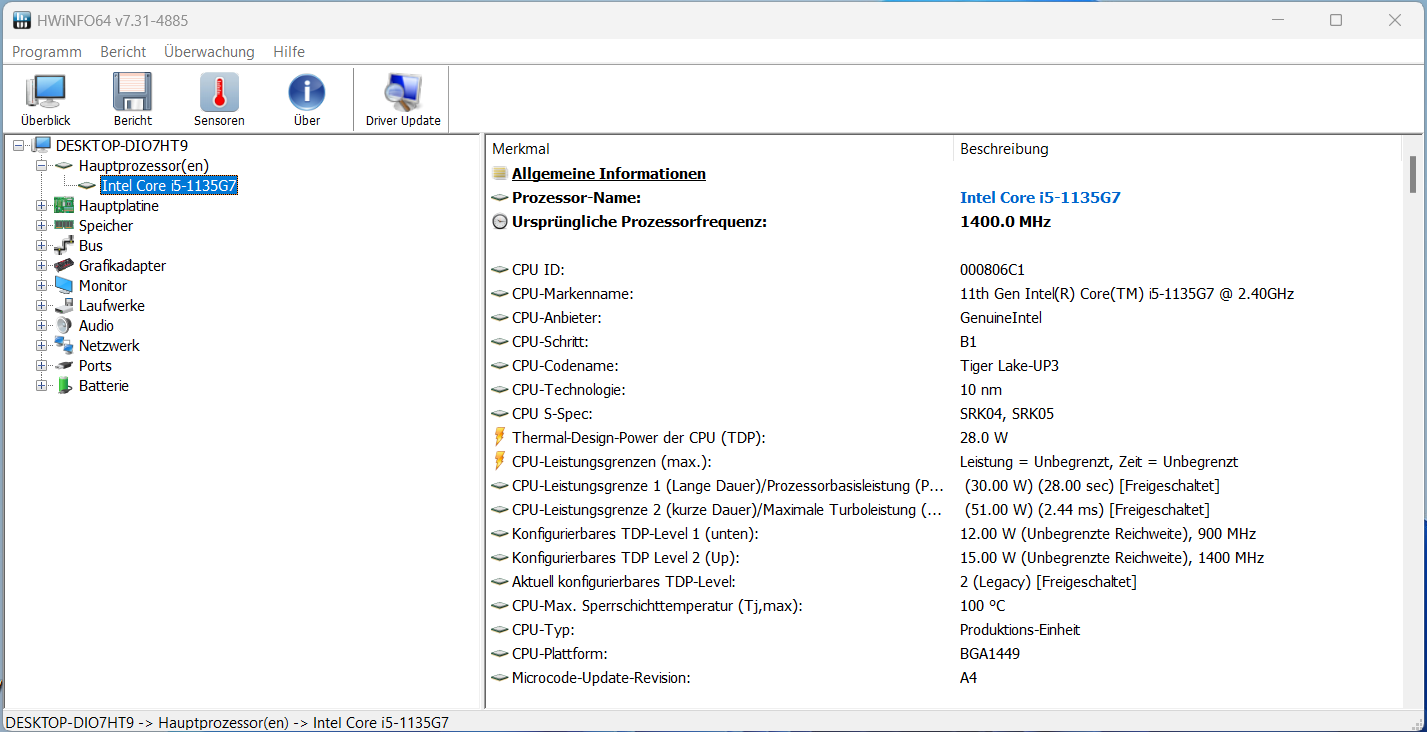

芯片 酷睿i5-1135G7四核处理器（Tiger Lake ）的基本时钟为2.4 GHz。通过涡轮增压可以提高到3.8GHz（所有核心），最高4.2GHz（一个核心）。支持超线程。基准测试结果往往低于迄今为止测试的所有1135G7笔记本电脑的平均值。

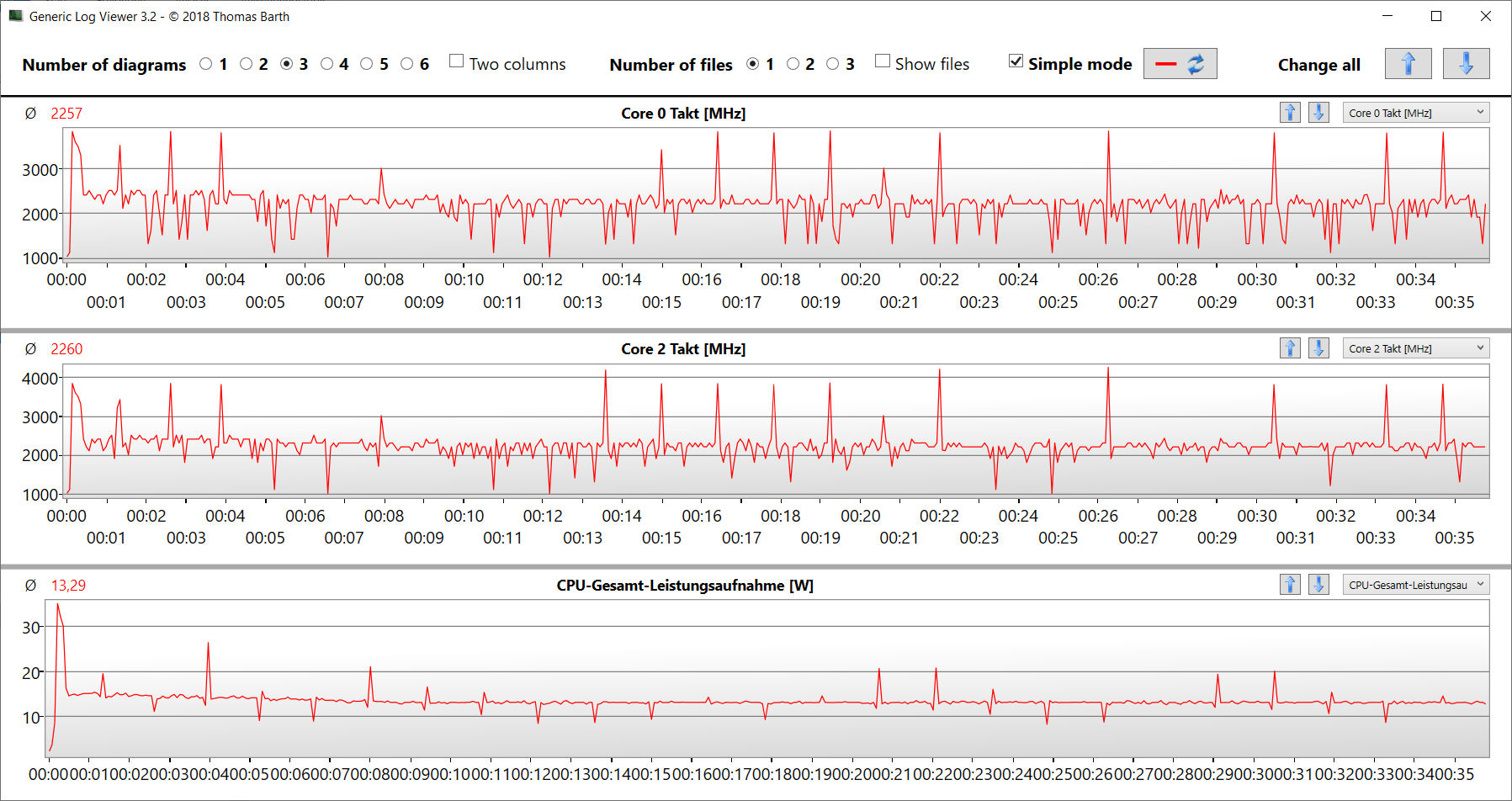

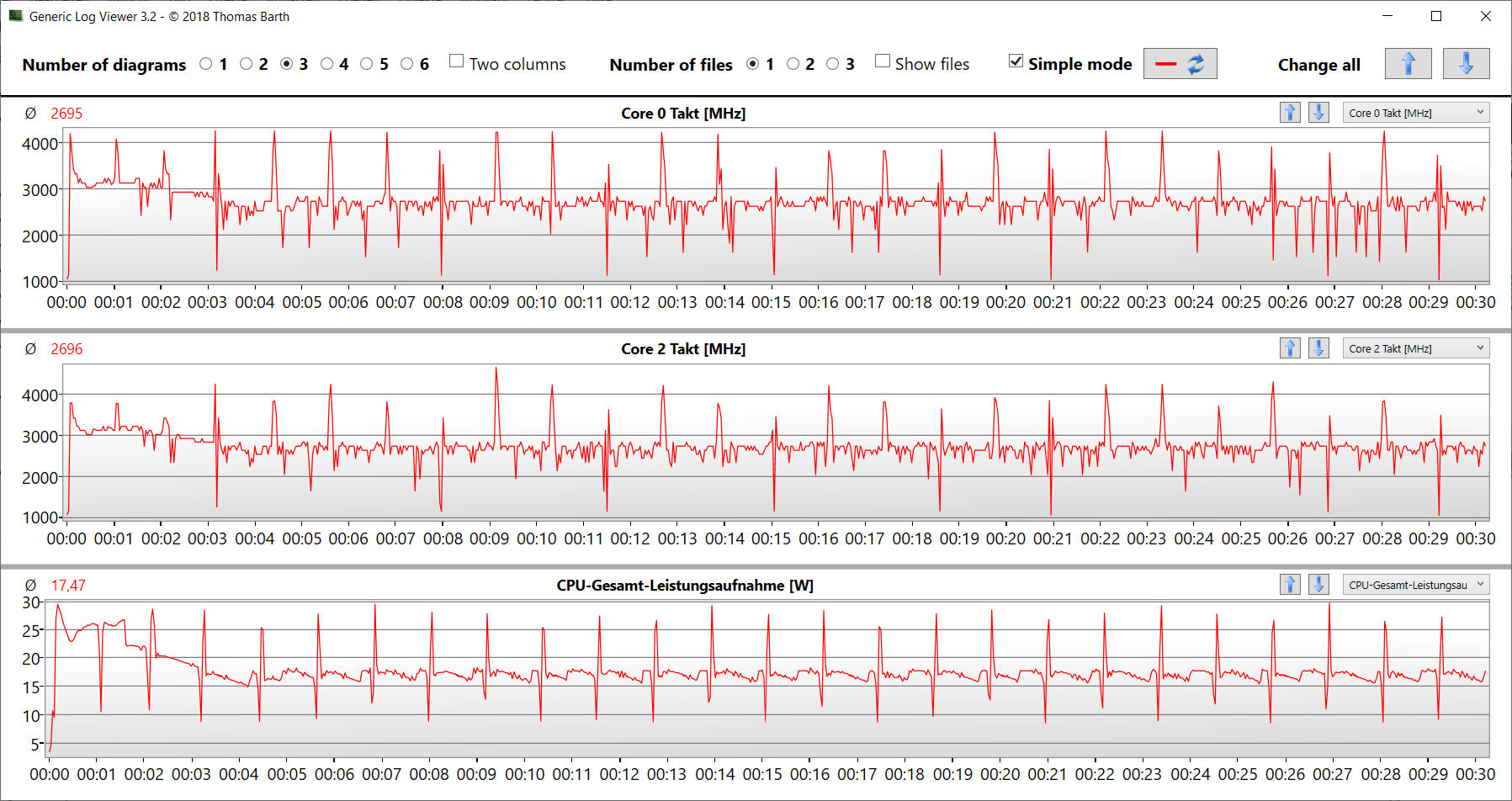

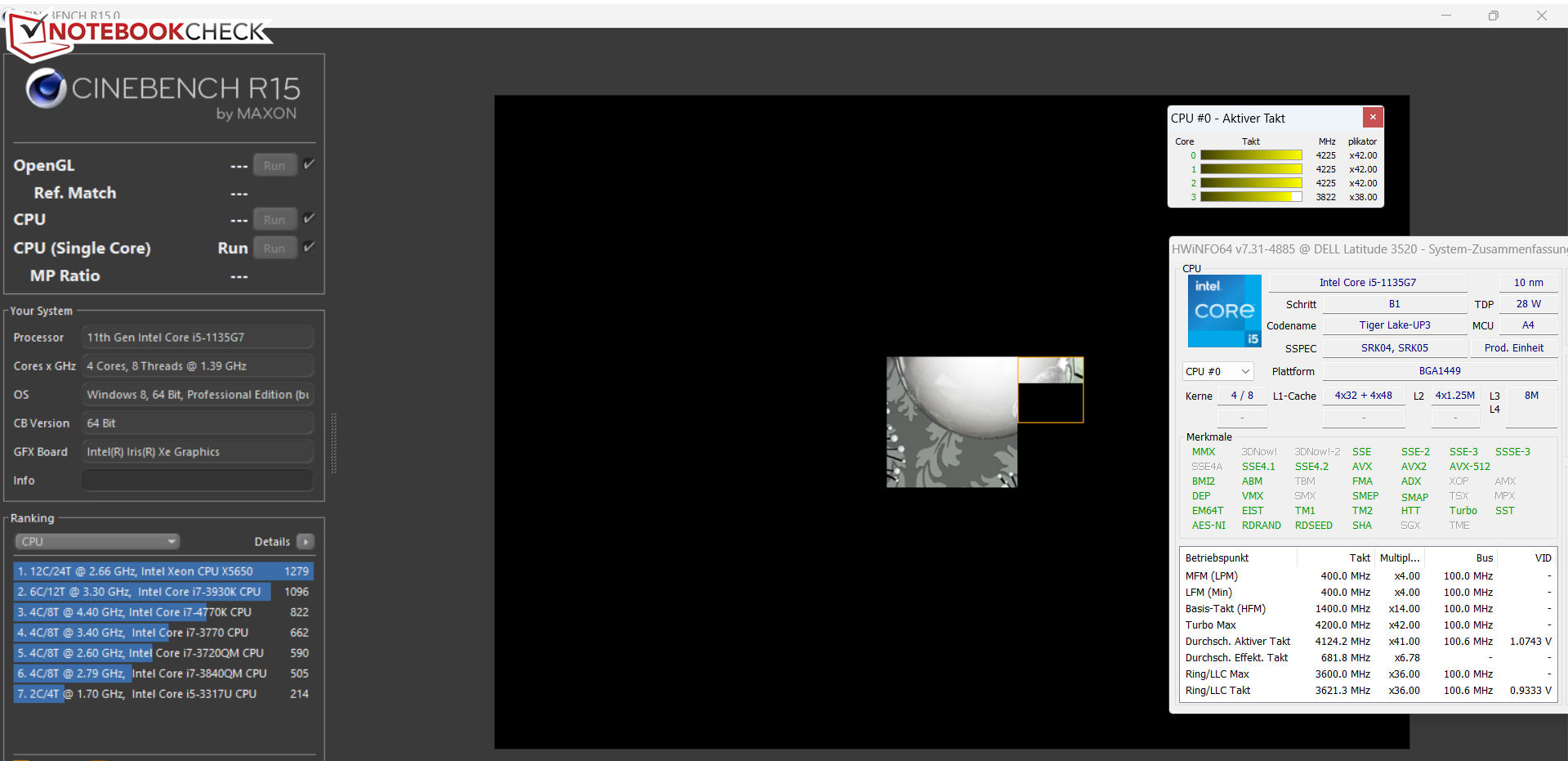

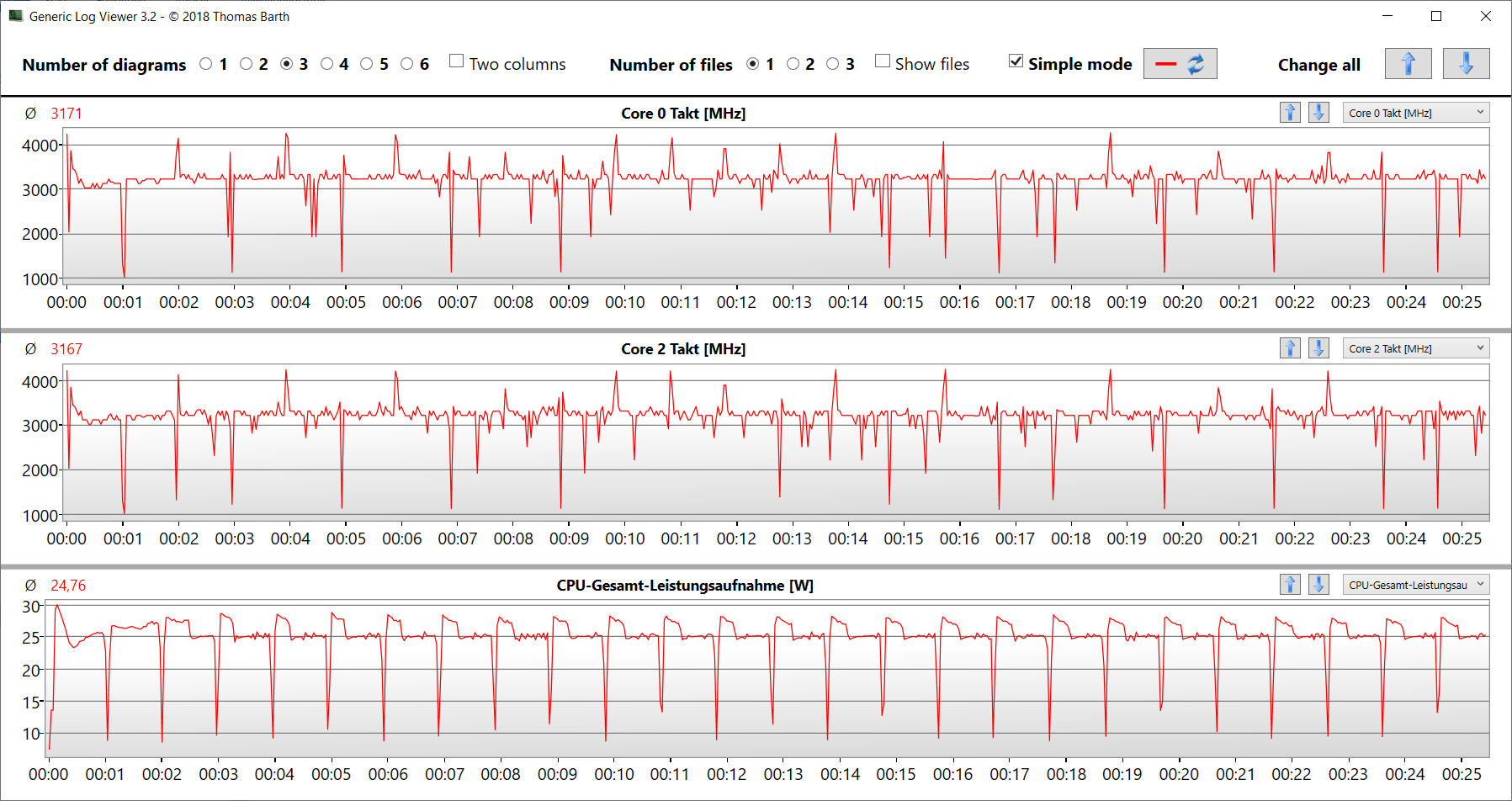

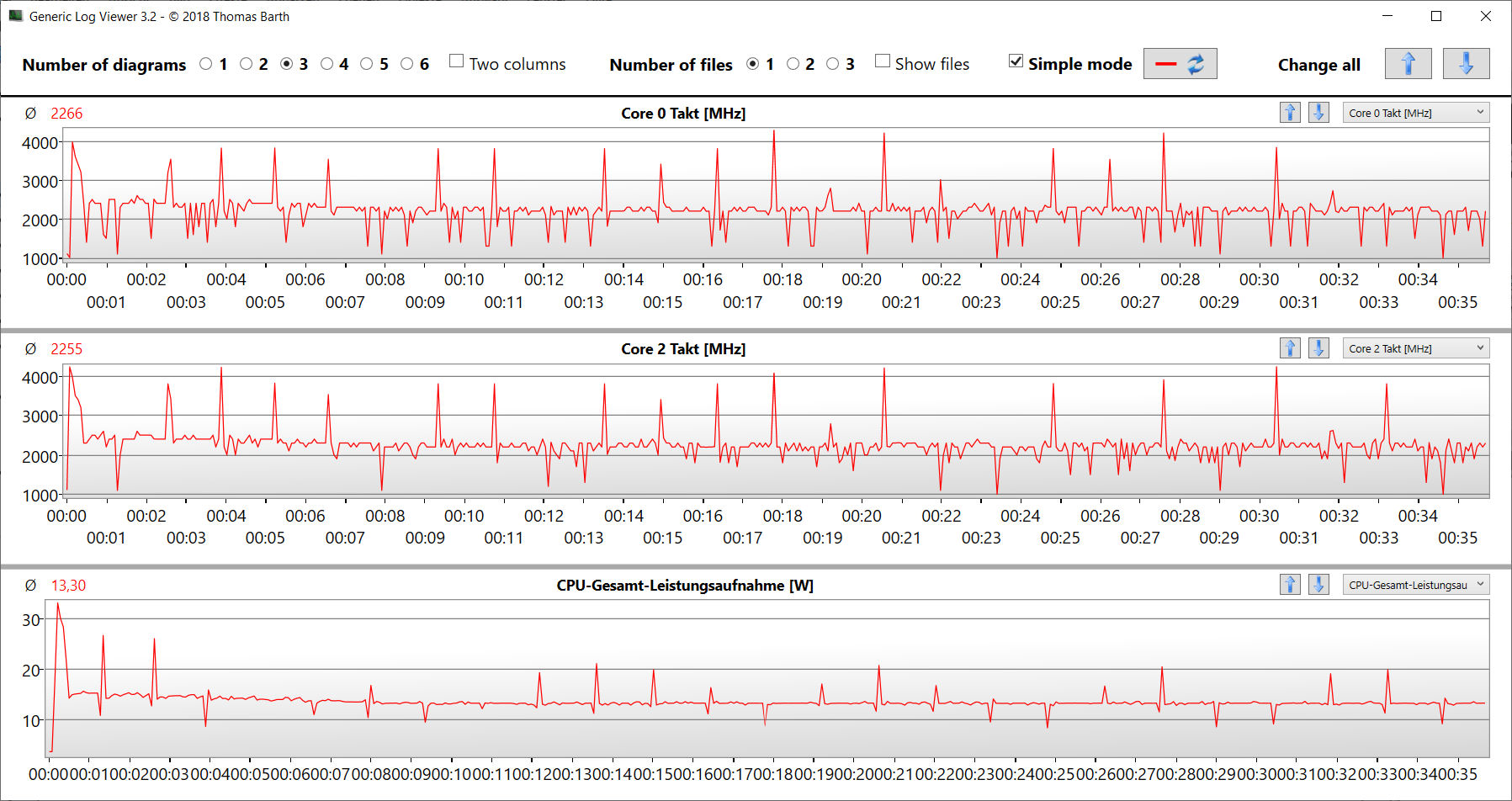

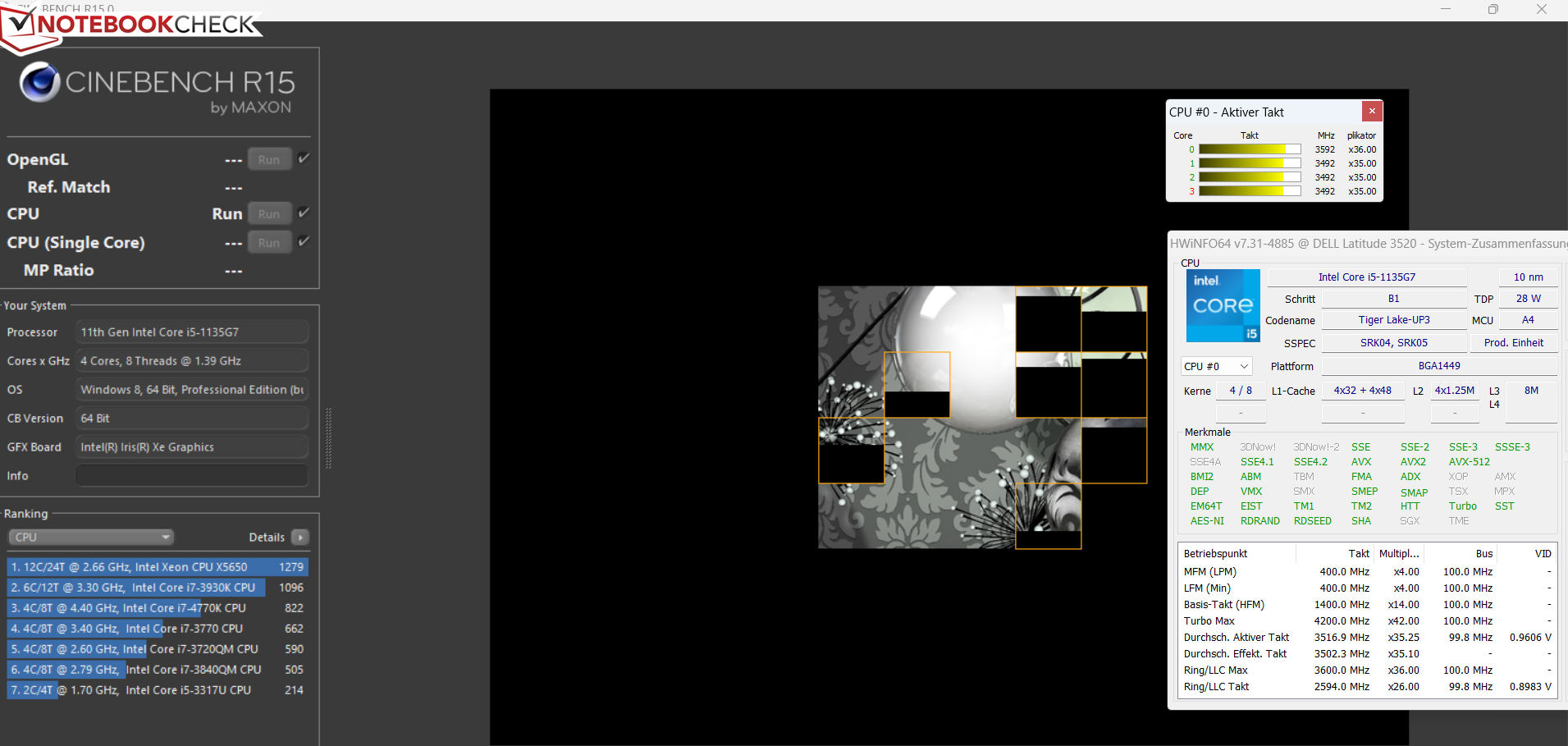

Cinebench R15基准的多线程测试最初以3.3至3.5GHz处理，然后时钟降至3.1至3.2GHz。单线程测试以1.5至4.2GHz运行。在电池模式下，时钟速率较低。CB15循环测试证实了CPU Turbo在中等水平上的永久使用。
Cinebench R15 Multi Loop
* ... smaller is better
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
| Performance Rating | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
| Average of class Office | |
| Acer Extensa 15 EX215-54-5103 | |
| Average Intel Core i5-1135G7 | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| Dell Latitude 3520 | |
| HP ProBook 450 G9 6A180EA | |
| AIDA64 / FP32 Ray-Trace | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
| Average of class Office (763 - 24250, n=92, last 2 years) | |
| Acer Extensa 15 EX215-54-5103 | |
| Average Intel Core i5-1135G7 (4313 - 7952, n=45) | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| Dell Latitude 3520 | |
| HP ProBook 450 G9 6A180EA | |
| AIDA64 / FPU Julia | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
| Average of class Office (4113 - 102228, n=92, last 2 years) | |
| Acer Extensa 15 EX215-54-5103 | |
| Average Intel Core i5-1135G7 (19402 - 32283, n=45) | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| HP ProBook 450 G9 6A180EA | |
| Dell Latitude 3520 | |
| AIDA64 / CPU SHA3 | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
| Average of class Office (287 - 4551, n=92, last 2 years) | |
| Acer Extensa 15 EX215-54-5103 | |
| Average Intel Core i5-1135G7 (1316 - 2172, n=45) | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| Dell Latitude 3520 | |
| HP ProBook 450 G9 6A180EA | |
| AIDA64 / CPU Queen | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
| Average of class Office (8185 - 115197, n=92, last 2 years) | |
| HP ProBook 450 G9 6A180EA | |
| Acer Extensa 15 EX215-54-5103 | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| Dell Latitude 3520 | |
| Average Intel Core i5-1135G7 (39000 - 46951, n=45) | |
| AIDA64 / FPU SinJulia | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
| Average of class Office (404 - 14288, n=92, last 2 years) | |
| Acer Extensa 15 EX215-54-5103 | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| Dell Latitude 3520 | |
| Average Intel Core i5-1135G7 (3497 - 4445, n=45) | |
| HP ProBook 450 G9 6A180EA | |
| AIDA64 / FPU Mandel | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
| Average of class Office (2075 - 54365, n=92, last 2 years) | |
| Acer Extensa 15 EX215-54-5103 | |
| Average Intel Core i5-1135G7 (12569 - 19635, n=45) | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| Dell Latitude 3520 | |
| HP ProBook 450 G9 6A180EA | |
| AIDA64 / CPU AES | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
| Acer Extensa 15 EX215-54-5103 | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| Dell Latitude 3520 | |
| Average Intel Core i5-1135G7 (28988 - 67977, n=45) | |
| Average of class Office (7254 - 155900, n=92, last 2 years) | |
| HP ProBook 450 G9 6A180EA | |
| AIDA64 / CPU ZLib | |
| Average of class Office (78 - 1018, n=92, last 2 years) | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
| HP ProBook 450 G9 6A180EA | |
| Acer Extensa 15 EX215-54-5103 | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| Dell Latitude 3520 | |
| Average Intel Core i5-1135G7 (265 - 373, n=51) | |
| AIDA64 / FP64 Ray-Trace | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
| Average of class Office (432 - 12755, n=92, last 2 years) | |
| Acer Extensa 15 EX215-54-5103 | |
| Average Intel Core i5-1135G7 (2226 - 4291, n=45) | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| Dell Latitude 3520 | |
| HP ProBook 450 G9 6A180EA | |
| AIDA64 / CPU PhotoWorxx | |
| Average of class Office (4814 - 54971, n=92, last 2 years) | |
| Average Intel Core i5-1135G7 (9004 - 45366, n=45) | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
| HP ProBook 450 G9 6A180EA | |
| Dell Latitude 3520 | |
| Acer Extensa 15 EX215-54-5103 | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
系统性能

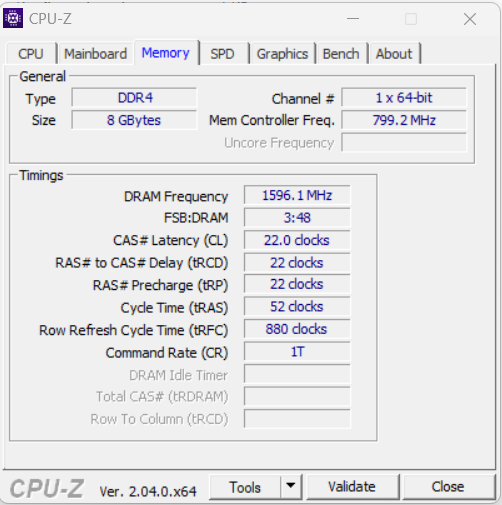

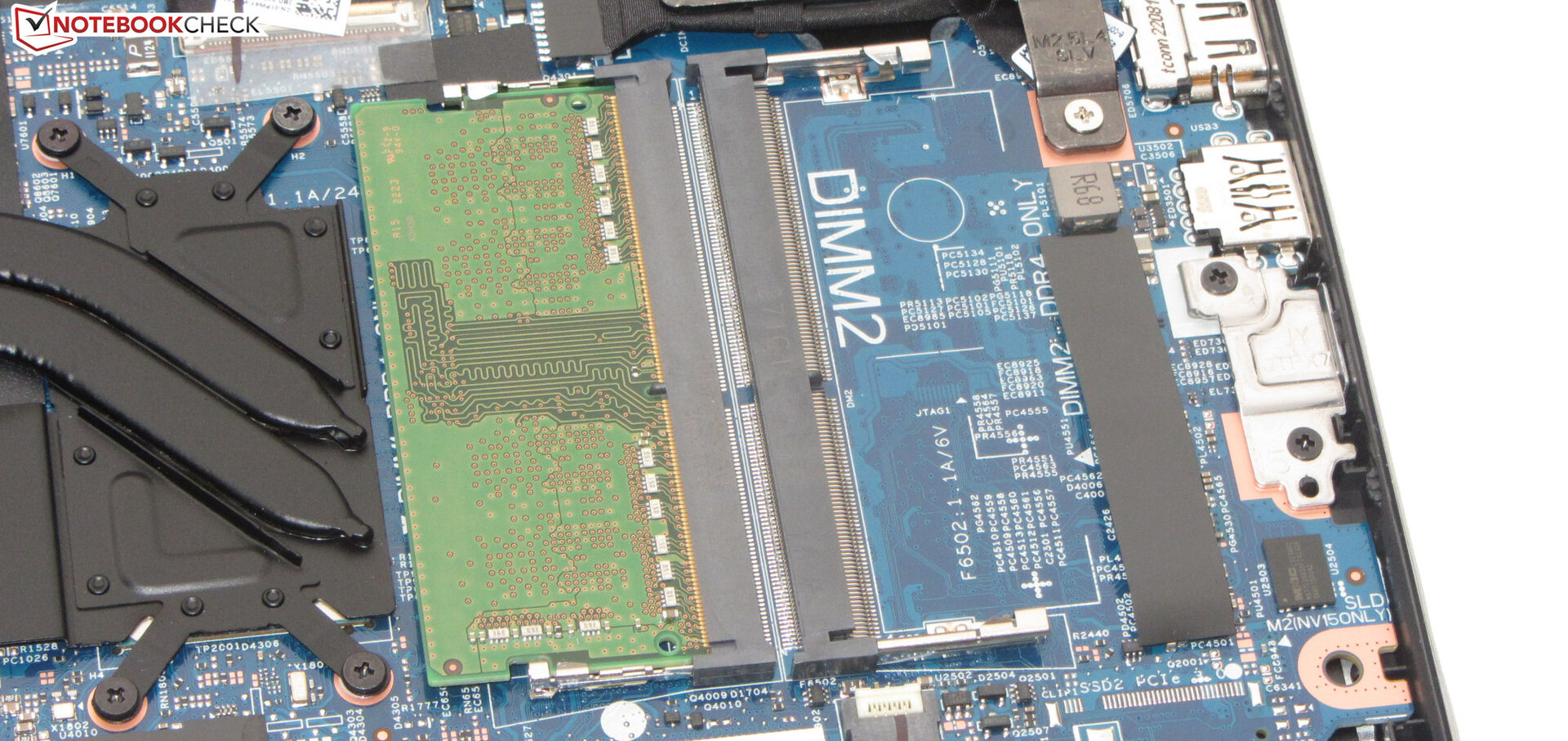

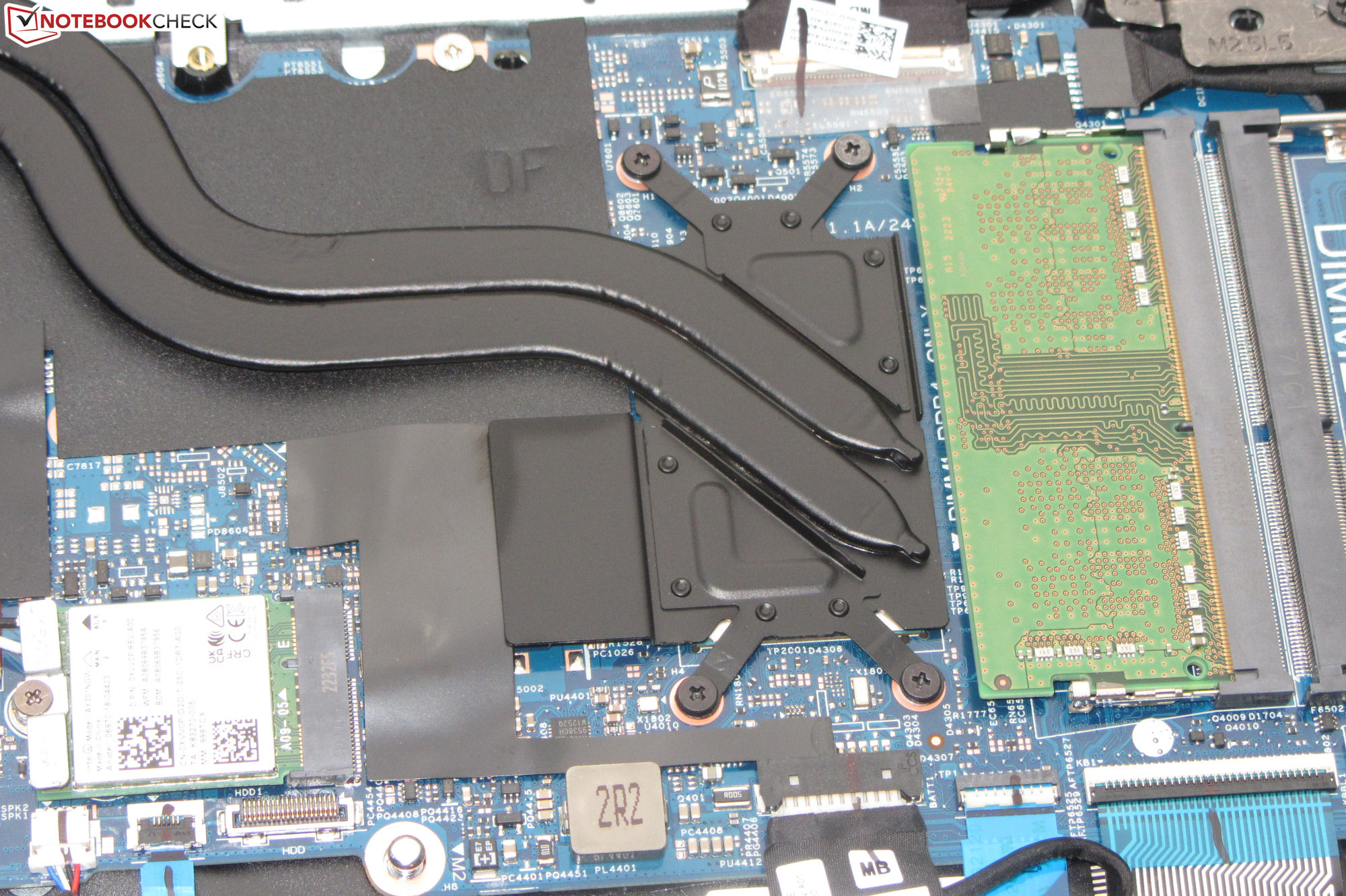

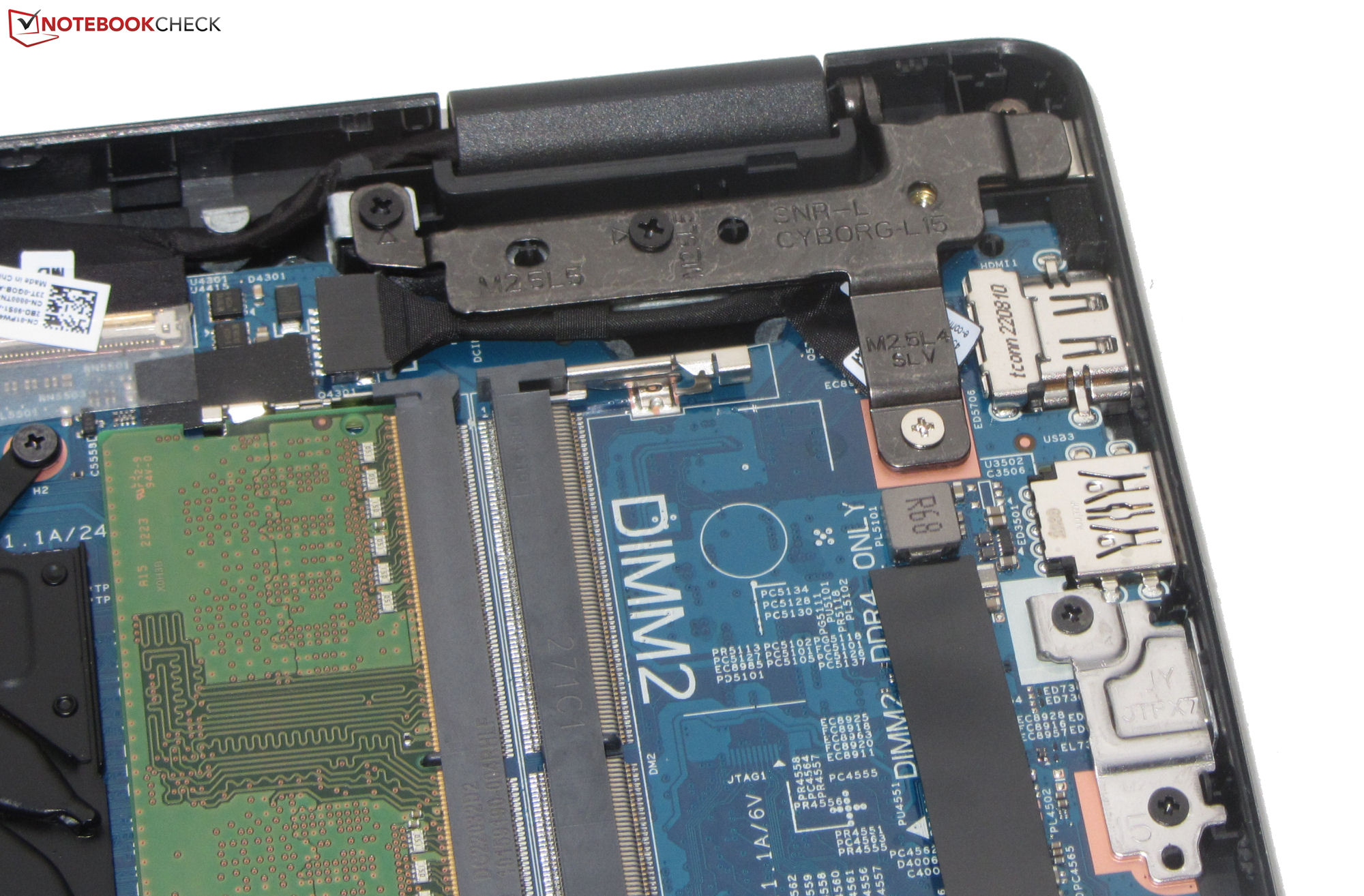

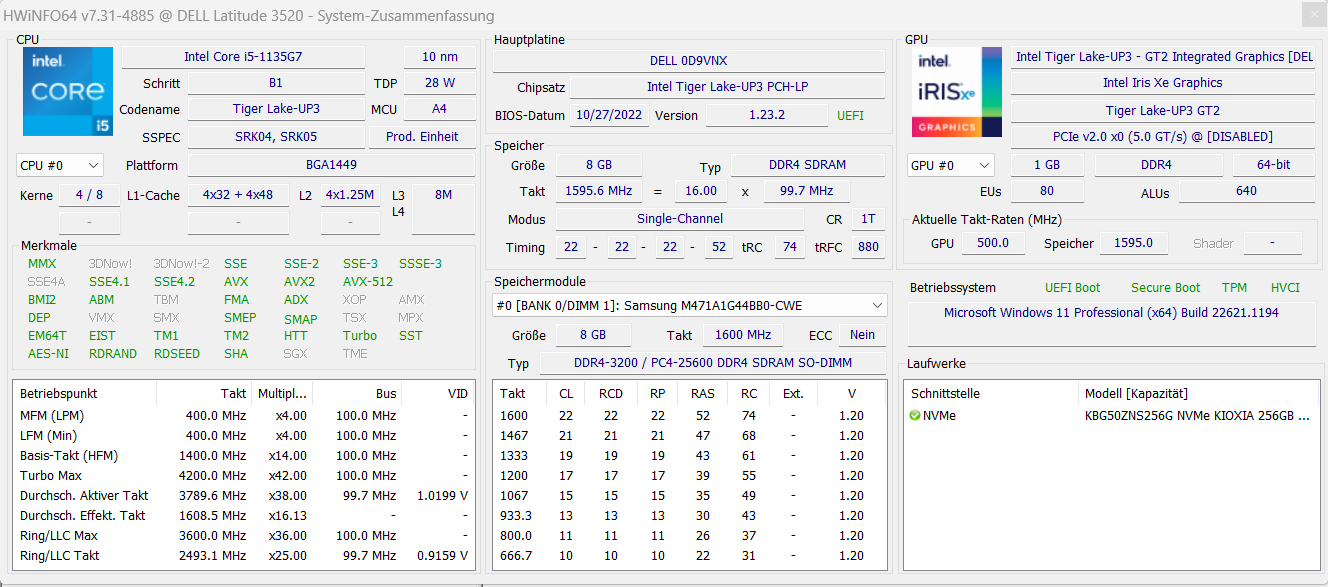

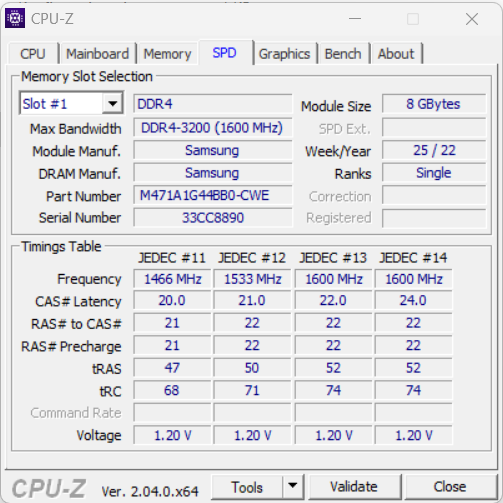

运行流畅的系统可以处理办公和互联网应用以及适度的游戏。在单通道模式下运行的工作内存（8GB）妨碍了最大可能的计算能力的释放。安装第二个内存模块（=双通道模式激活）可以弥补这一缺陷，特别是对图形性能有积极影响。对于DDR4-3200内存来说，该内存的传输率处于正常水平。
单通道模式和（低于）平均水平的CPU性能的结合使3520在PCMark 10和Crossmark基准的比较领域中处于落后的位置。
CrossMark: Overall | Productivity | Creativity | Responsiveness
| PCMark 10 / Score | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
| Average of class Office (2463 - 7344, n=85, last 2 years) | |
| Acer Extensa 15 EX215-54-5103 | |
| HP ProBook 450 G9 6A180EA | |
| Average Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs (4026 - 4952, n=53) | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| Dell Latitude 3520 | |
| PCMark 10 / Essentials | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
| Average of class Office (5575 - 20841, n=85, last 2 years) | |
| HP ProBook 450 G9 6A180EA | |
| Average Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs (8149 - 9917, n=53) | |
| Acer Extensa 15 EX215-54-5103 | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| Dell Latitude 3520 | |
| PCMark 10 / Productivity | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
| Average of class Office (3041 - 10415, n=85, last 2 years) | |
| HP ProBook 450 G9 6A180EA | |
| Acer Extensa 15 EX215-54-5103 | |
| Average Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs (5040 - 6619, n=53) | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| Dell Latitude 3520 | |
| PCMark 10 / Digital Content Creation | |
| Average of class Office (2049 - 9773, n=85, last 2 years) | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
| Acer Extensa 15 EX215-54-5103 | |
| Dell Latitude 3520 | |
| Average Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs (3548 - 5255, n=53) | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| HP ProBook 450 G9 6A180EA | |
| CrossMark / Overall | |
| Average of class Office (348 - 1891, n=87, last 2 years) | |
| HP ProBook 450 G9 6A180EA | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
| Average Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs (1058 - 1293, n=11) | |
| Dell Latitude 3520 | |
| Acer Extensa 15 EX215-54-5103 | |
| CrossMark / Productivity | |
| Average of class Office (393 - 1870, n=87, last 2 years) | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
| HP ProBook 450 G9 6A180EA | |
| Dell Latitude 3520 | |
| Average Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs (1148 - 1332, n=11) | |
| Acer Extensa 15 EX215-54-5103 | |
| CrossMark / Creativity | |
| Average of class Office (340 - 1982, n=87, last 2 years) | |
| HP ProBook 450 G9 6A180EA | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
| Average Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs (895 - 1263, n=11) | |
| Dell Latitude 3520 | |
| Acer Extensa 15 EX215-54-5103 | |
| CrossMark / Responsiveness | |
| Average of class Office (258 - 2017, n=87, last 2 years) | |
| Acer Extensa 15 EX215-54-5103 | |
| Dell Latitude 3520 | |
| Average Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs (923 - 1320, n=11) | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
| HP ProBook 450 G9 6A180EA | |
| PCMark 10 Score | 4410 points | |
Help | ||
| AIDA64 / Memory Copy | |
| Average of class Office (7158 - 108783, n=93, last 2 years) | |
| Average Intel Core i5-1135G7 (17443 - 63889, n=45) | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
| HP ProBook 450 G9 6A180EA | |
| Dell Latitude 3520 | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| Acer Extensa 15 EX215-54-5103 | |
| AIDA64 / Memory Read | |
| Average of class Office (7325 - 127282, n=93, last 2 years) | |
| Average Intel Core i5-1135G7 (19716 - 63705, n=45) | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
| HP ProBook 450 G9 6A180EA | |
| Dell Latitude 3520 | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| Acer Extensa 15 EX215-54-5103 | |
| AIDA64 / Memory Write | |
| Average of class Office (7579 - 117935, n=93, last 2 years) | |
| Average Intel Core i5-1135G7 (18722 - 66778, n=45) | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| HP ProBook 450 G9 6A180EA | |
| Dell Latitude 3520 | |
| Acer Extensa 15 EX215-54-5103 | |
| AIDA64 / Memory Latency | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
| Average of class Office (6.9 - 185.2, n=92, last 2 years) | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| HP ProBook 450 G9 6A180EA | |
| Dell Latitude 3520 | |
| Average Intel Core i5-1135G7 (68.3 - 107, n=51) | |
| Acer Extensa 15 EX215-54-5103 | |
* ... smaller is better

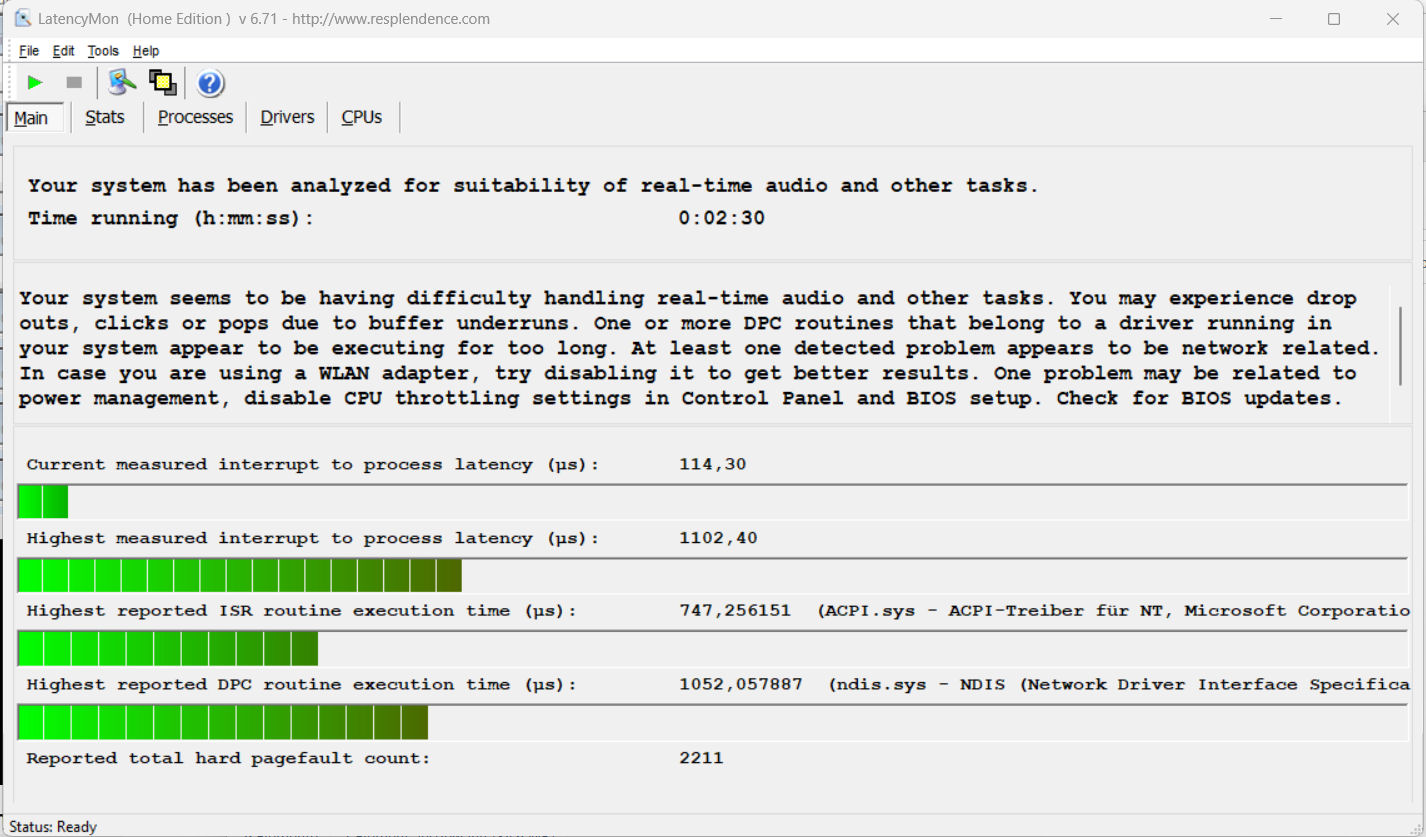

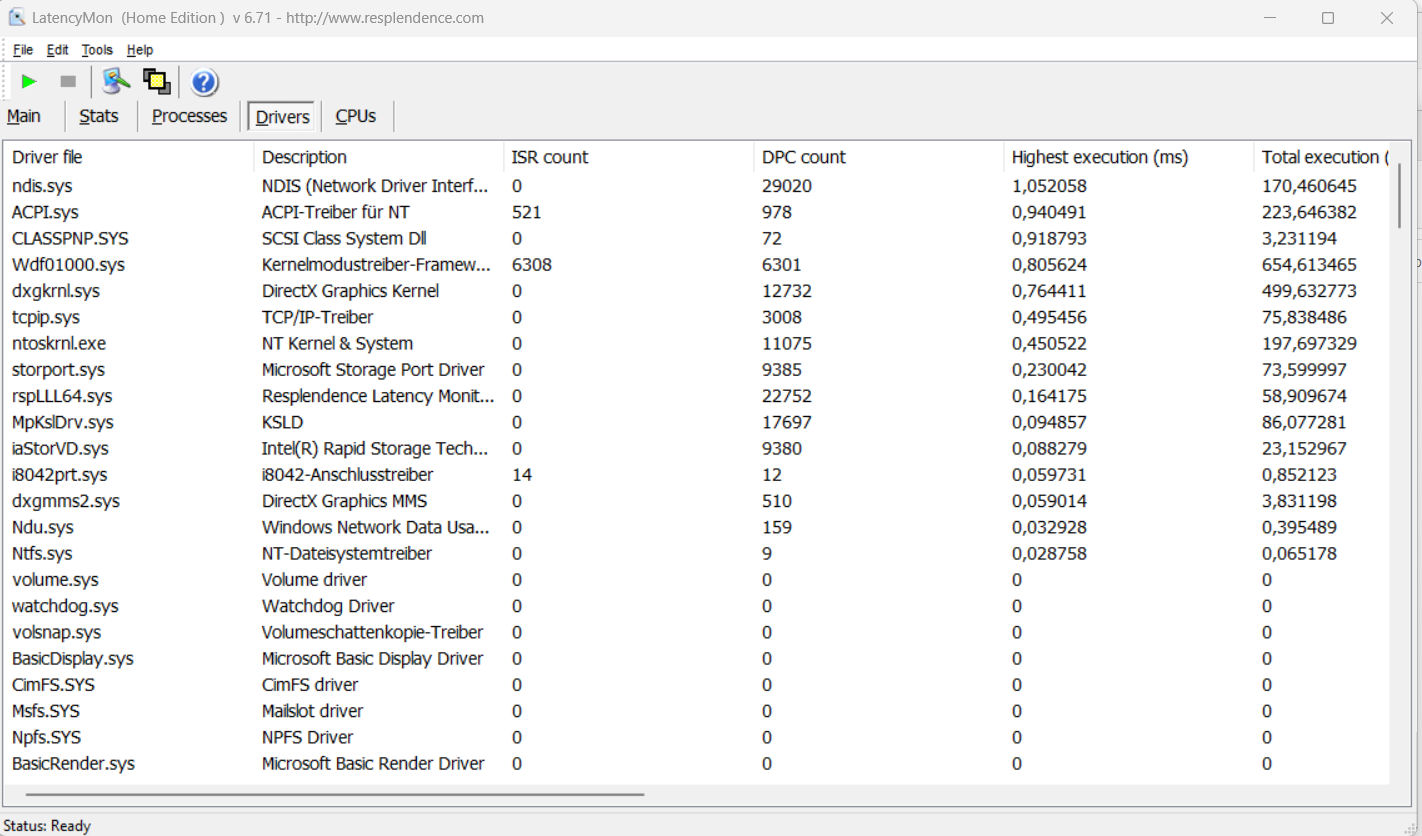

DPC延迟
标准化的延迟监测测试（网上冲浪、4k视频播放、Prime95高负荷）发现了可能与网络适配器有关的异常情况。该系统似乎不适合实时视频和音频编辑。未来的软件更新可能会导致改进，甚至是退化。
| DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95 | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
| HP ProBook 450 G9 6A180EA | |
| Acer Extensa 15 EX215-54-5103 | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| Dell Latitude 3520 | |
* ... smaller is better
大容量存储

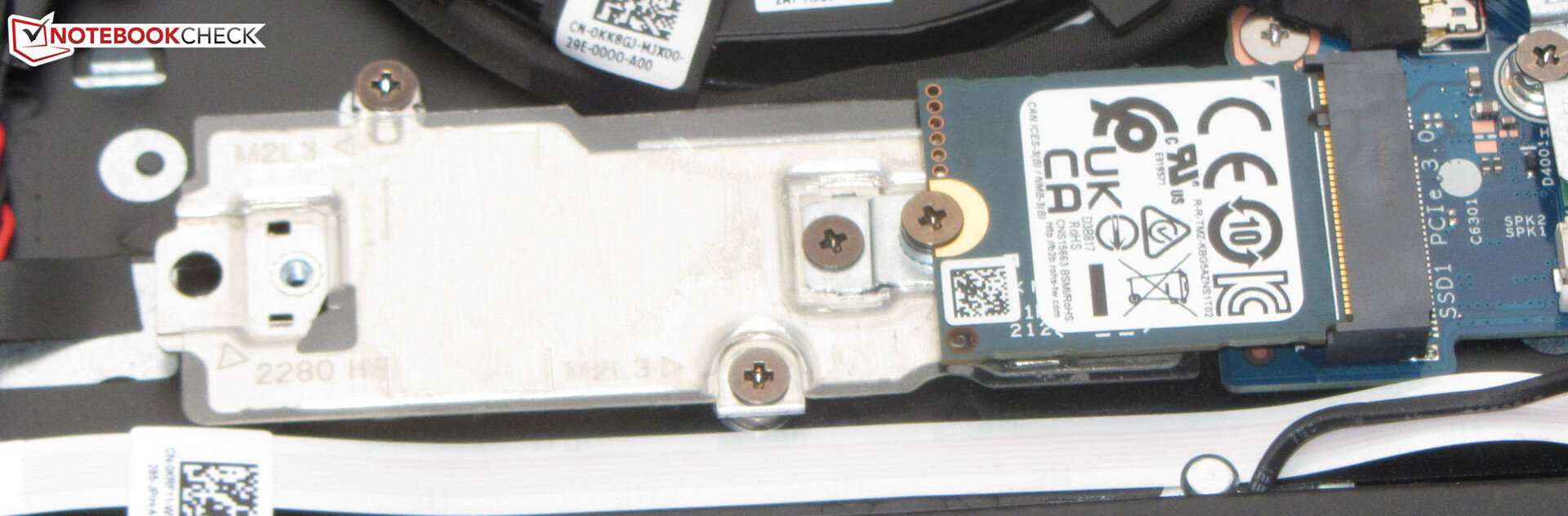

戴尔为Latitude ，配备了来自Kioxia的PCI-4-SSD（M.2-2230；M.2-2280型号也适合），提供256GB的存储容量。传输速率很好，但它不是顶级SSD之一。笔记本没有空间容纳额外的存储介质。
* ... smaller is better
Continuous Read: DiskSpd Read Loop, Queue Depth 8

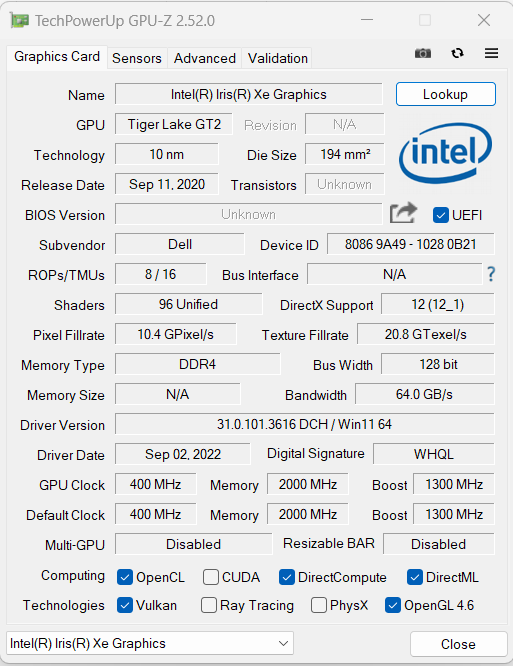

图形卡

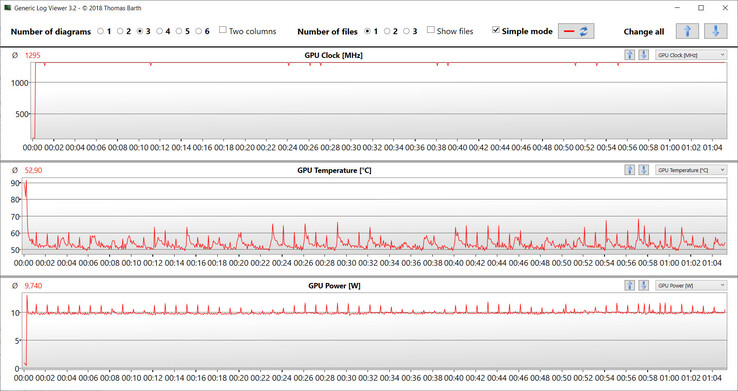

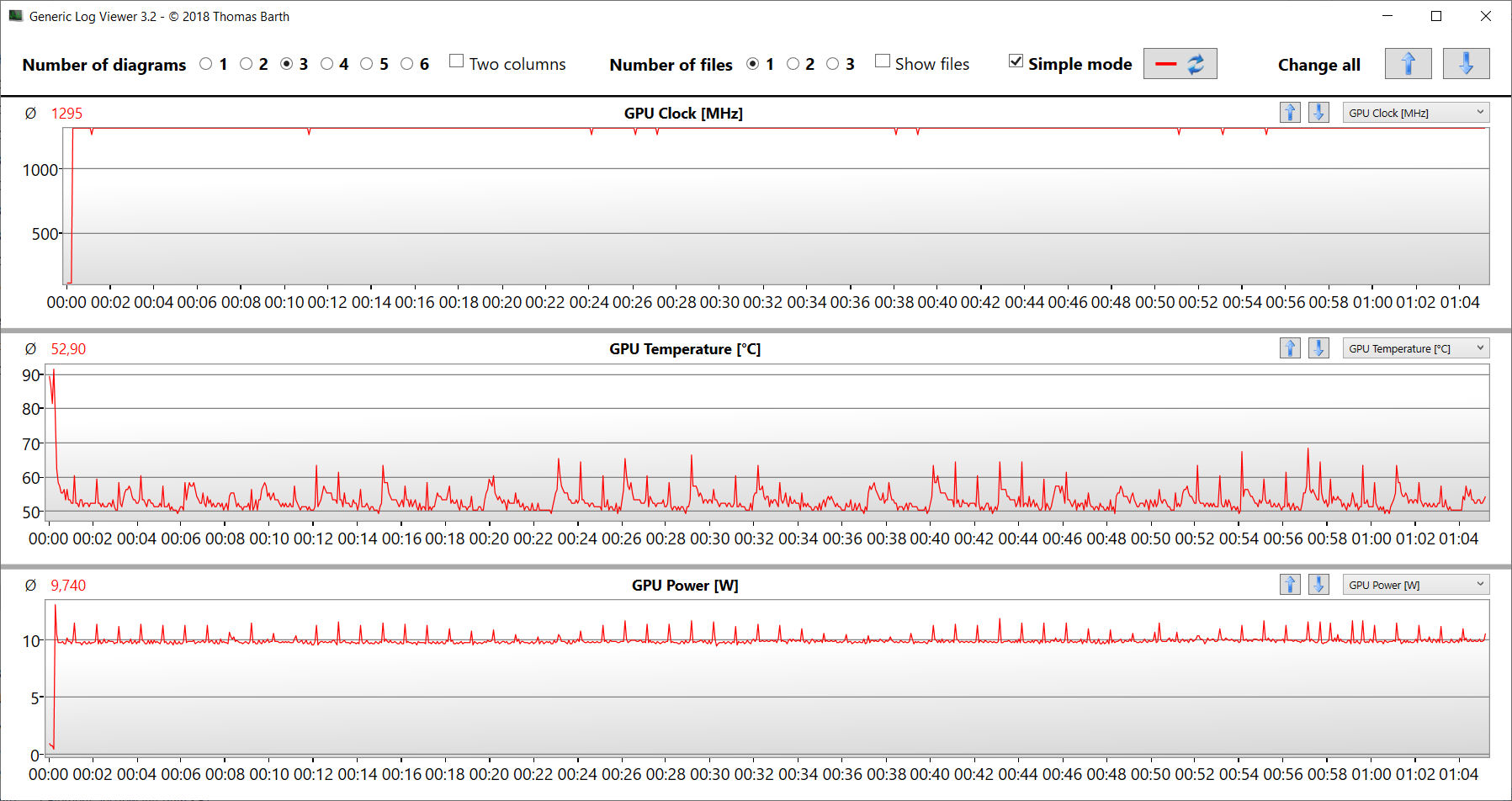

英特尔的iGPU可以在全功率（1300MHz）下永久工作--测试显示 Witcher 3测试显示了这一点。3520不是一款游戏笔记本。尽管如此，它可以在低设置下流畅地运行适度的游戏。低于平均水平的基准测试结果是由于工作内存在单通道模式下运行。通过安装第二个内存模块（=双通道模式激活），可以实现图形性能的提高。

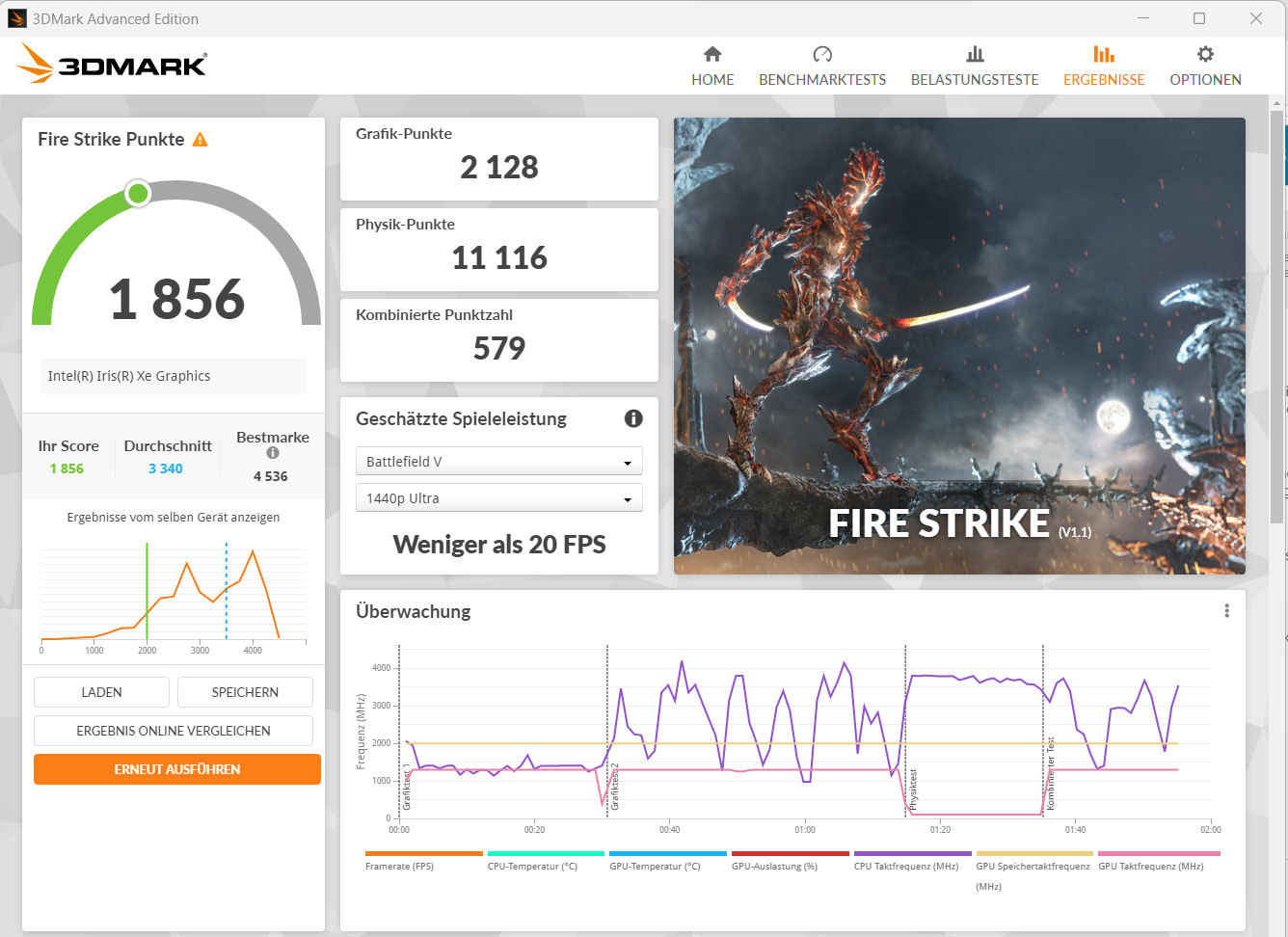

| 3DMark 11 Performance | 3870 points | |
| 3DMark Cloud Gate Standard Score | 11875 points | |

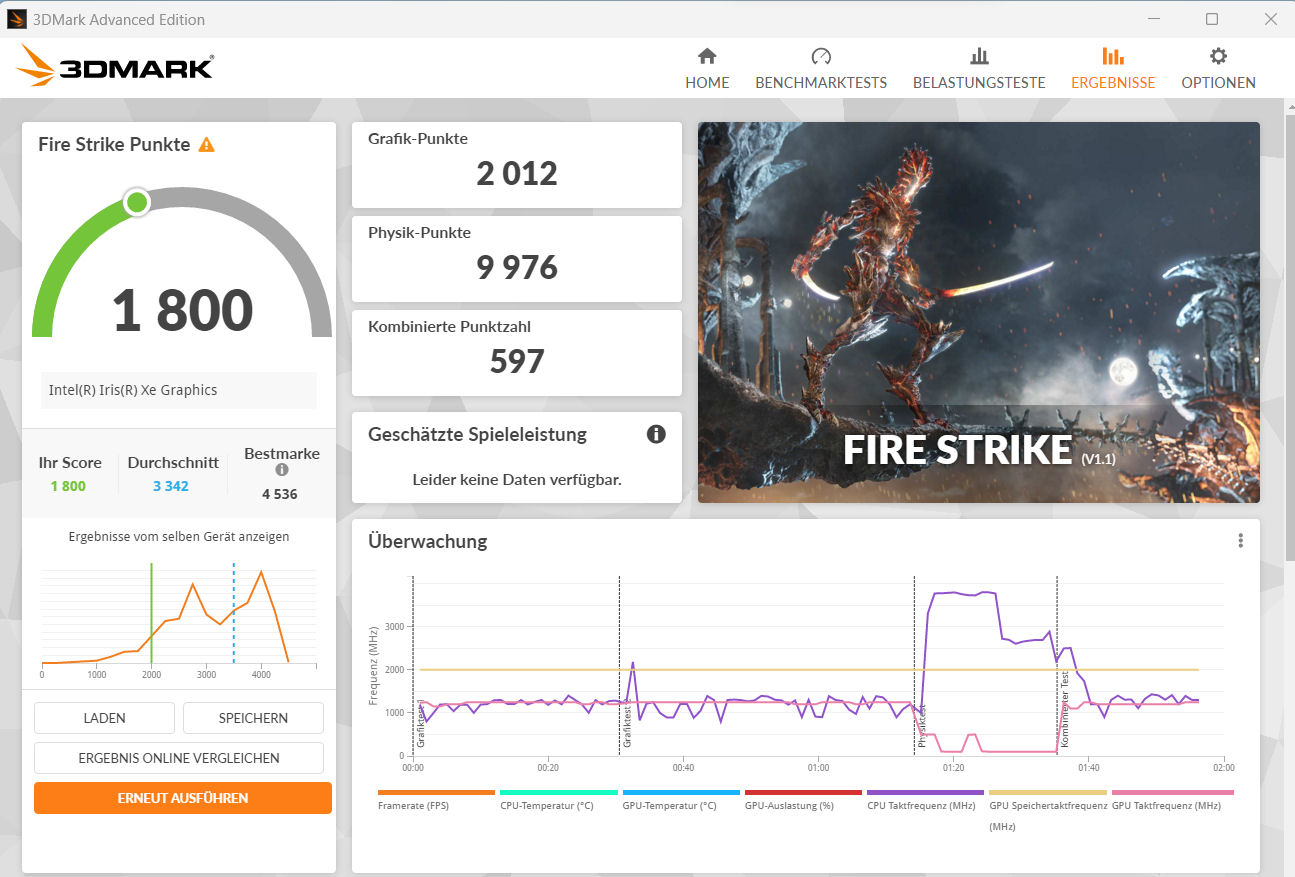

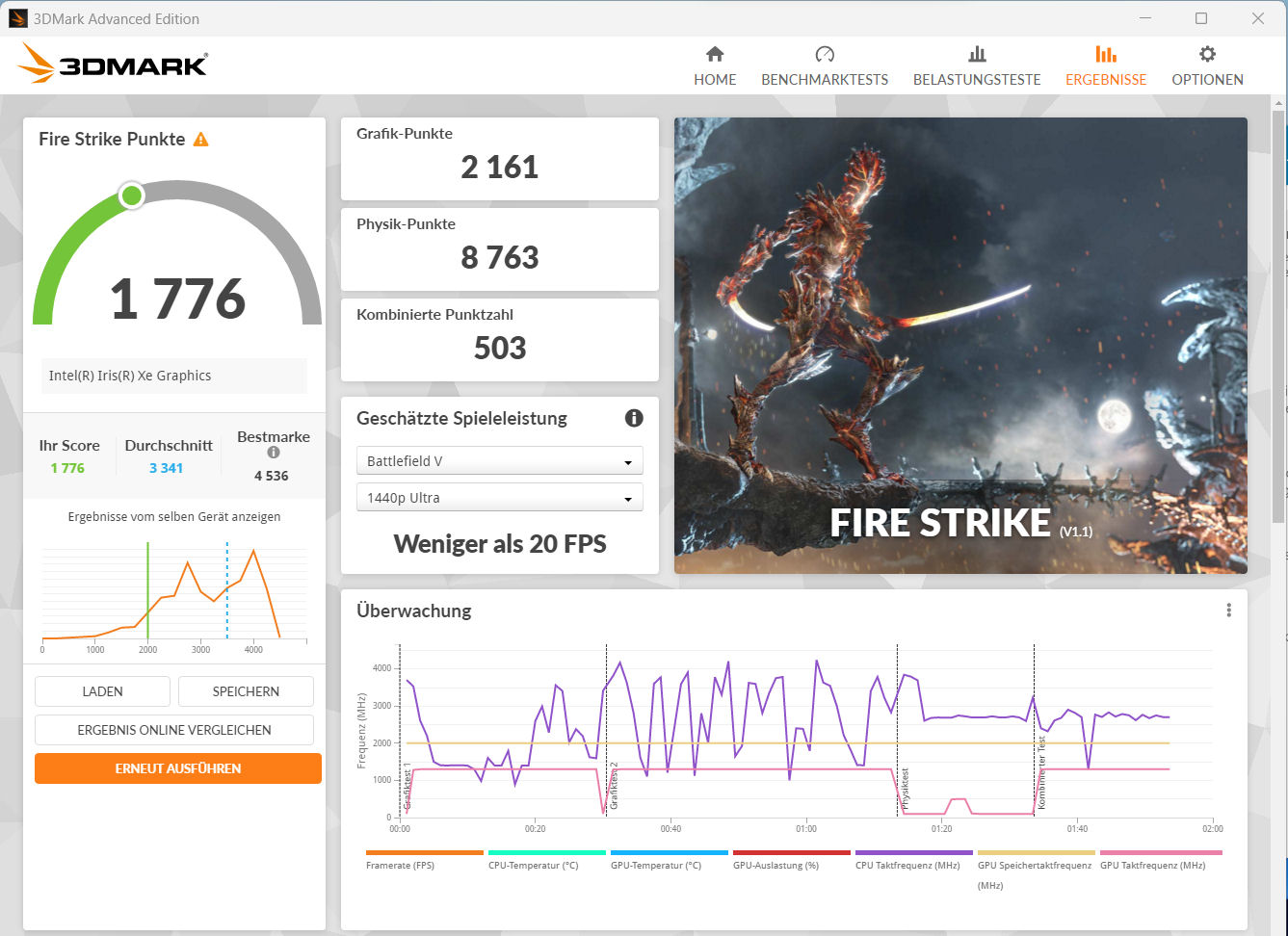

| 3DMark Fire Strike Score | 1856 points | |
| 3DMark Time Spy Score | 903 points | |
Help | ||
| low | med. | high | ultra | |
|---|---|---|---|---|
| GTA V (2015) | 41.2 | 32.1 | 8.49 | 3.35 |
| The Witcher 3 (2015) | 34.3 | 22.8 | 11 | 6.8 |
| Dota 2 Reborn (2015) | 78.7 | 52.3 | 27.2 | 25.1 |
| Final Fantasy XV Benchmark (2018) | 17.9 | 8.8 | 6.59 | |
| X-Plane 11.11 (2018) | 33.4 | 27.1 | 25.1 | |
| Strange Brigade (2018) | 37.7 | 13.5 | 11.4 |
排放与能源 -Latitude 笔记本电脑提供了良好的运行时间
噪声排放

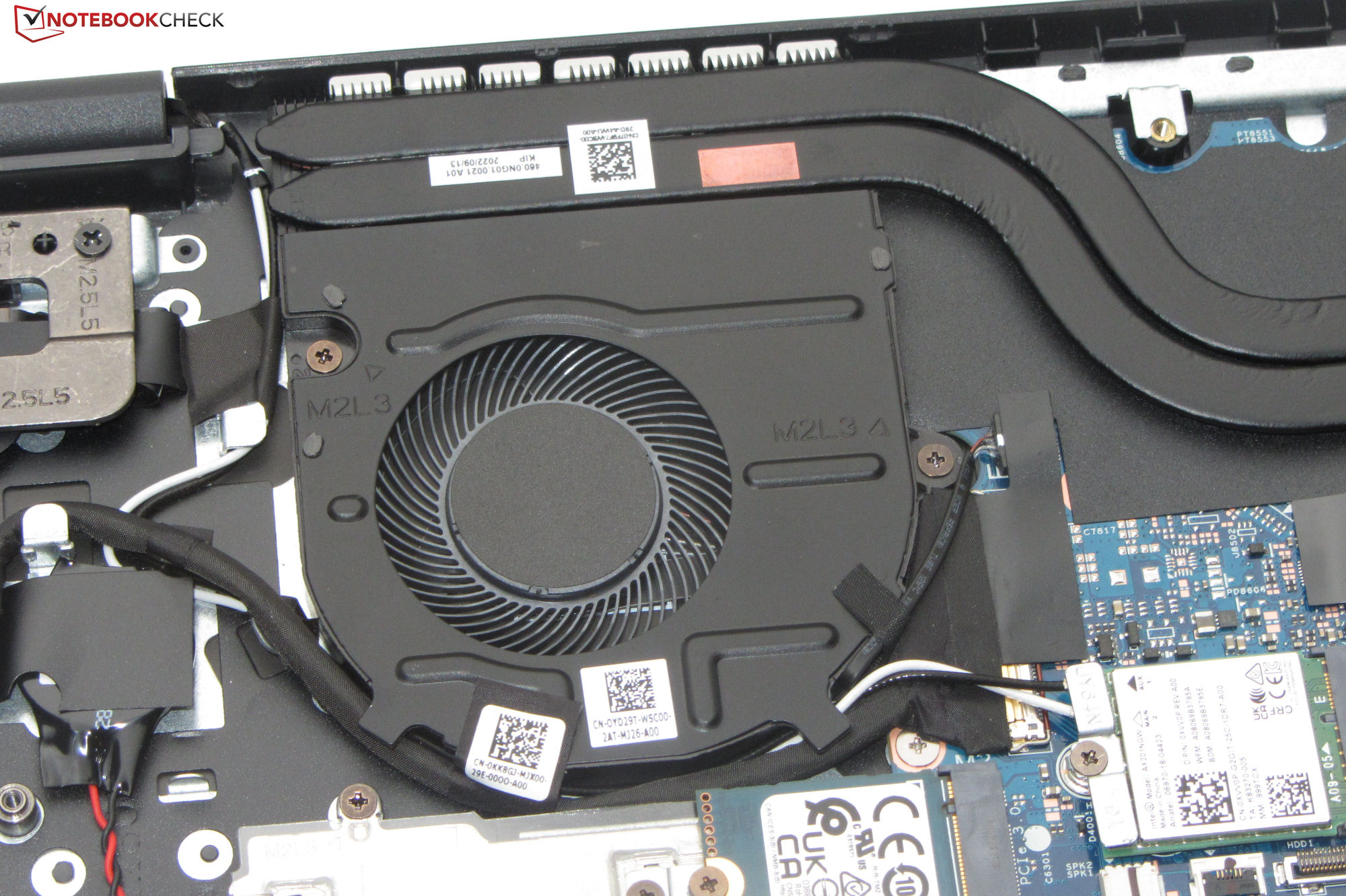

在日常使用中（办公室、互联网）和空转时，风扇经常是静止的--安静的统治。在高负荷情况下，它的转速会升高。声压级可能达到近41.5 dB(A)。温度曲线 "静音 "通常会减少噪音的发展--以牺牲计算性能为代价。
Noise Level
| Idle |
| 26 / 26 / 26 dB(A) |
| Load |
| 31.1 / 41.5 dB(A) |
 | ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min:  , med:  , max:  Earthworks M23R, Arta (15 cm distance) environment noise: 26 dB(A) | ||
| Dell Latitude 3520 Iris Xe G7 80EUs, i5-1135G7, Kioxia BG5 KBG50ZNS256G | Lenovo ThinkBook 15 G4 21DL0009GE Vega 7, R5 5625U, Samsung PM991a MZALQ512HBLU | Asus ExpertBook B1 B1500CEAE, i5-1135G7 Iris Xe G7 80EUs, i5-1135G7, WDC PC SN530 SDBPNPZ-512G | HP ProBook 450 G9 6A180EA Iris Xe G7 96EUs, i7-1255U, SK Hynix HFM512GD3JX013N | Acer Extensa 15 EX215-54-5103 Iris Xe G7 80EUs, i5-1135G7, WDC PC SN530 SDBPNPZ-265G | |
|---|---|---|---|---|---|
| Noise | 6% | 8% | 9% | -3% | |
| off / environment * | 26 | 23.21 11% | 23.8 8% | 25.5 2% | 25 4% |
| Idle Minimum * | 26 | 23.21 11% | 23.8 8% | 25.5 2% | 25 4% |
| Idle Average * | 26 | 23.21 11% | 23.8 8% | 25.5 2% | 25 4% |
| Idle Maximum * | 26 | 23.21 11% | 25 4% | 25.5 2% | 27 -4% |
| Load Average * | 31.1 | 33 -6% | 32.2 -4% | 28 10% | 32.3 -4% |
| Load Maximum * | 41.5 | 43.34 -4% | 32.2 22% | 27.7 33% | 50 -20% |
| Witcher 3 ultra * | 32.2 |
* ... smaller is better
温度

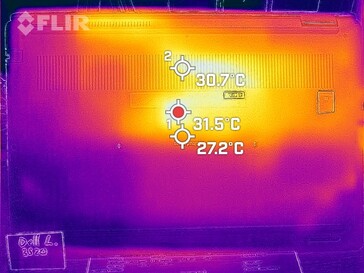

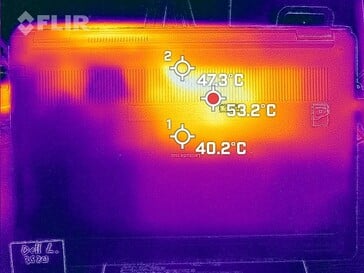

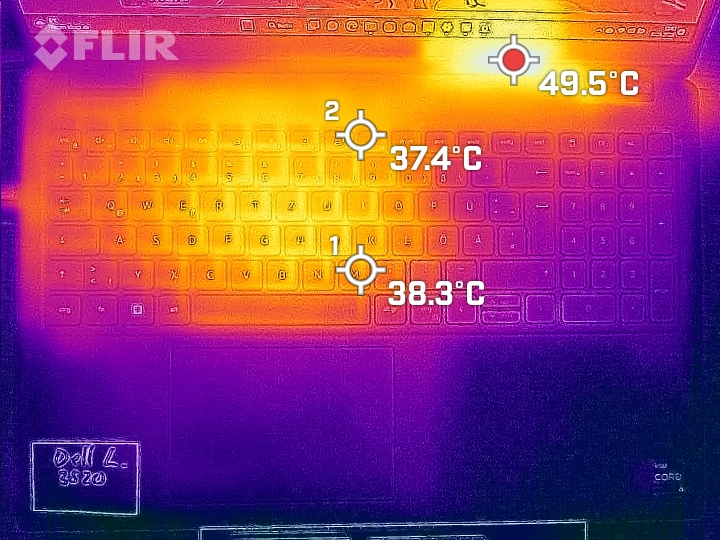

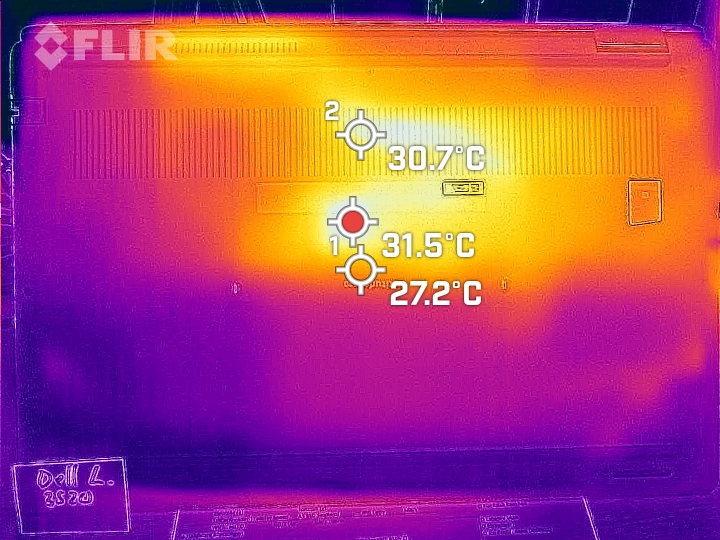

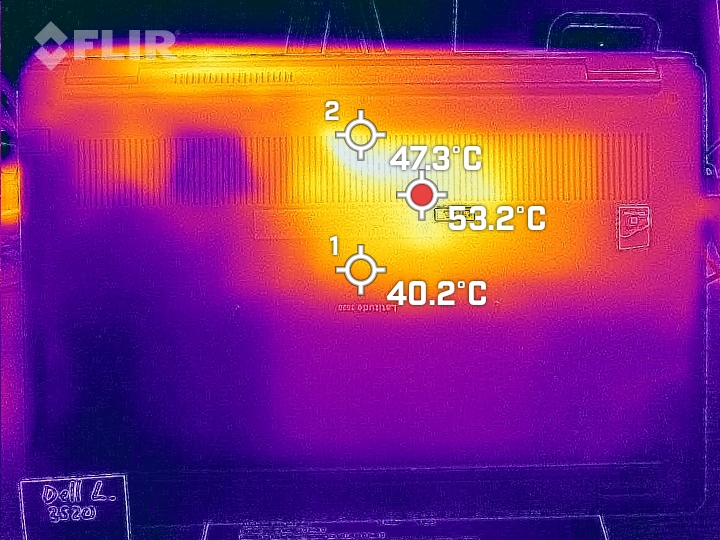

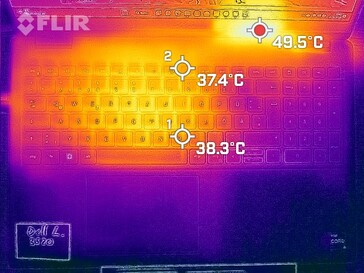

在日常使用中（办公室、互联网），机箱温度保持在绿色区域内。在负载（压力测试。 Witcher 3测试），笔记本平均仅有轻微发热，但在某些地方明显发热。在一个测量点，温度几乎达到50摄氏度（约122华氏度）。CPU的温度（约77摄氏度/~171华氏度）并没有引起关注。

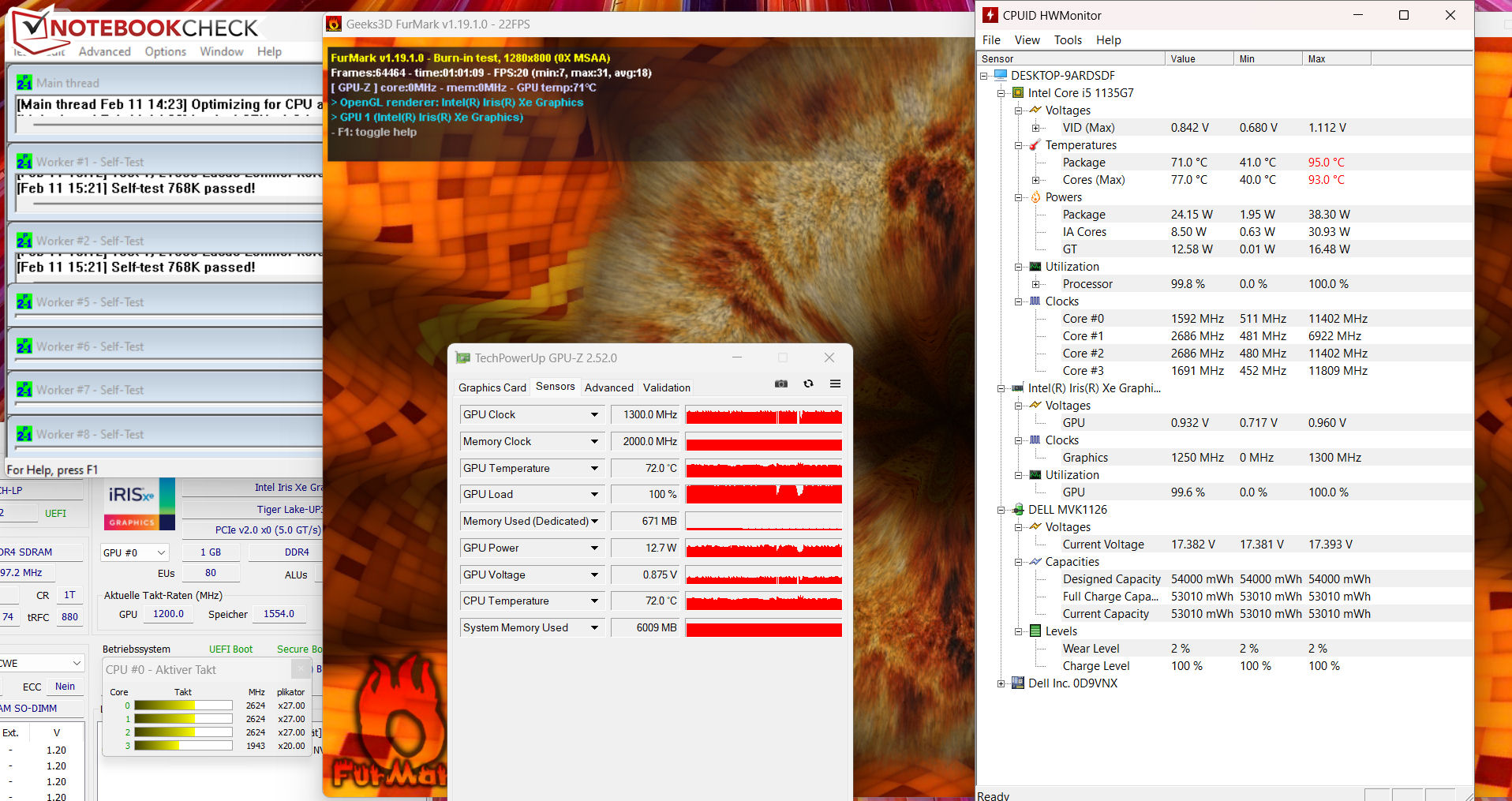

压力测试（Prime95和FurMark连续运行）是测试全负荷下系统稳定性的一个极端情况。CPU（3.5 GHz）和GPU（1,200至1,300 MHz）以高时钟速率开始测试。虽然GPU的时钟在整个持续时间内基本保持不变，但CPU的时钟在几秒钟后就下降了。
(+) The maximum temperature on the upper side is 37.5 °C / 100 F, compared to the average of 34.3 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(-) The bottom heats up to a maximum of 49.7 °C / 121 F, compared to the average of 36.8 °C / 98 F

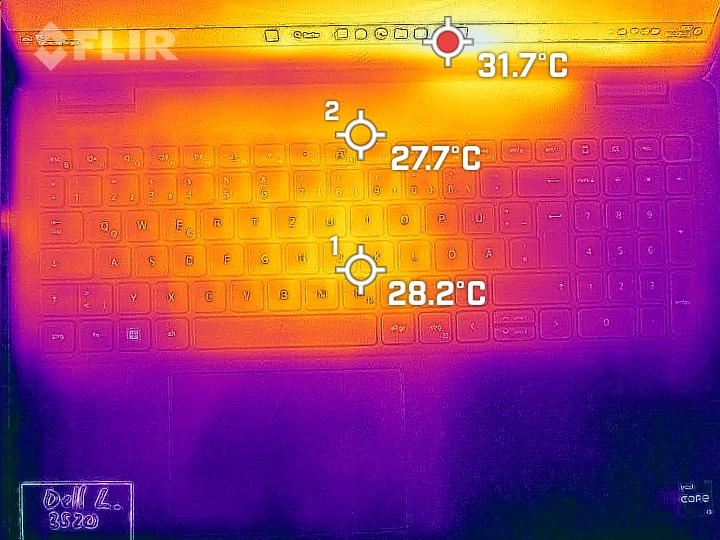

(+) In idle usage, the average temperature for the upper side is 25 °C / 77 F, compared to the device average of 29.5 °C / 85 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 24.8 °C / 76.6 F and are therefore cool to the touch.
(+) The average temperature of the palmrest area of similar devices was 27.6 °C / 81.7 F (+2.8 °C / 5.1 F).
| Dell Latitude 3520 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs | Lenovo ThinkBook 15 G4 21DL0009GE AMD Ryzen 5 5625U, AMD Radeon RX Vega 7 | Asus ExpertBook B1 B1500CEAE, i5-1135G7 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs | HP ProBook 450 G9 6A180EA Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs | Acer Extensa 15 EX215-54-5103 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs | |
|---|---|---|---|---|---|
| Heat | -8% | 4% | -8% | 1% | |
| Maximum Upper Side * | 37.5 | 41.1 -10% | 41.9 -12% | 40.5 -8% | 42 -12% |
| Maximum Bottom * | 49.7 | 45.6 8% | 48.6 2% | 47.6 4% | 43.3 13% |
| Idle Upper Side * | 29 | 31.6 -9% | 25.1 13% | 32.6 -12% | 27.9 4% |
| Idle Bottom * | 30.1 | 36.5 -21% | 26.4 12% | 34.2 -14% | 30.4 -1% |
* ... smaller is better
演讲者
立体声扬声器产生了体面的声音，但几乎没有任何低音。
Dell Latitude 3520 audio analysis
(+) | speakers can play relatively loud (87.9 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 24.8% lower than median
(±) | linearity of bass is average (11.5% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.6% away from median
(±) | linearity of mids is average (8.5% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 5% higher than median
(+) | highs are linear (5.9% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (17.2% difference to median)
Compared to same class
» 21% of all tested devices in this class were better, 7% similar, 71% worse
» The best had a delta of 7%, average was 21%, worst was 53%
Compared to all devices tested
» 28% of all tested devices were better, 8% similar, 64% worse
» The best had a delta of 4%, average was 25%, worst was 134%
Lenovo ThinkBook 15 G4 21DL0009GE audio analysis
(-) | not very loud speakers (64.28 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 13.6% lower than median
(-) | bass is not linear (15.1% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 4.9% away from median
(±) | linearity of mids is average (8.1% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.2% away from median
(±) | linearity of highs is average (9.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (21.2% difference to median)
Compared to same class
» 48% of all tested devices in this class were better, 9% similar, 43% worse
» The best had a delta of 7%, average was 21%, worst was 53%
Compared to all devices tested
» 55% of all tested devices were better, 7% similar, 37% worse
» The best had a delta of 4%, average was 25%, worst was 134%
能源消耗
对于这里安装的硬件来说，耗电量处于正常水平。在压力测试期间，由于CPU时钟被降低，所以功耗下降了。电源（65瓦）的大小足够了。
| Off / Standby | 0.4 / 0.45 Watt |
| Idle | 3.2 / 7.2 / 7.8 Watt |
| Load |
34 / 65 Watt |

| |
Key:
min: ,
med: ,
max: Metrahit Energy | |
Power consumption Witcher 3 / Stress test
Power consumption with external Monitor
电池寿命
Latitude 在实际的WLAN测试中实现了9:07小时的运行时间（通过脚本调用网站时的负载映射）--这是一个不错的速度。它将大多数竞争对手甩在后面，只有 ProBook有更大的耐力。
Pros
Cons
结论 - 一个坚实的，但（太）昂贵的办公笔记本
戴尔的工作笔记本是一个真正的赢家，这得益于 酷睿i5-1135G7CPU、8GB内存（单通道模式）和PCIe-4-SSD（256GB）。不再是全新的Tiger-Lake处理器提供的性能率仅低于迄今为止测试的所有1135G7笔记本的平均水平。
一个电池的电量足以让WLAN运行约9小时--这是一个很好的速率。电源是通过USB-C电源适配器补充的。另外，也可以使用戴尔专有的电源适配器；有一个合适的插槽。然后USB-C端口（USB 3.2 Gen 2）将可用于其他任务。
屏幕变成了Latitude 3520的最大弱点。
哑光FHD屏幕（15.6英寸，IPS）的亮度、对比度和色彩空间覆盖率原来太低--目前价格水平的笔记本电脑必须提供更多。这在其他方面也是如此。一年的保修期和在单通道模式下运行的工作内存都太少了。至少这款笔记本电脑有一个背光键盘。
另一个选择是 联想ThinkBook 15 G4.它的电池运行时间略短，但计算能力有明显提高。装备了1135G7的 Acer Extensa 15 EX215-54这将是一个需要妥协的预算选择：约500欧元（约529美元）的价格将与较短的电池运行时间和视角不稳定的TN屏幕相对立。此外，没有Windows操作系统。
价格和可用性
戴尔Latitude 15 3520在测试配置中的价格为774欧元（约合819美元），在Cyberport.de上有售。.
Dell Latitude 3520
- 04/24/2023 v7 (old)
Sascha Mölck
Transparency
The selection of devices to be reviewed is made by our editorial team. The test sample was provided to the author as a loan by the manufacturer or retailer for the purpose of this review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.
This is how Notebookcheck is testing
Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.
Price comparison
