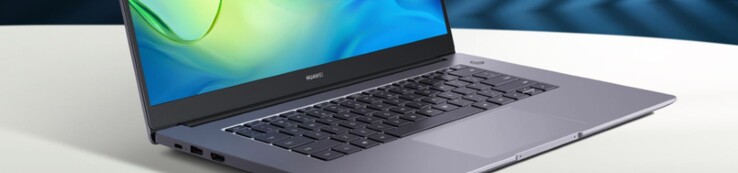

华为MateBook D 15 AMD：预算多媒体笔记本电脑的回顾
华为的MateBook D系列提供实惠的多媒体笔记本电脑，有14英寸或15英寸显示屏。今天我们来看看最新版本的大型MateBook D 15，它结合了熟悉的金属底盘和AMD的Ryzen 5000移动处理器。此外，你还可以得到一个哑光的IPS显示屏，一个512GB的固态硬盘和8GB的内存，建议零售价为569欧元（约600美元）。
潜在的竞争对手比较
Rating | Date | Model | Weight | Height | Size | Resolution | Price |
|---|---|---|---|---|---|---|---|
| 82.6 % v7 (old) | 05 / 2022 | Huawei MateBook D 15 Ryzen 5 5500U R5 5500U, Vega 7 | 1.6 kg | 16.9 mm | 15.60" | 1920x1080 | |
| 80 % v7 (old) | 04 / 2022 | Lenovo V15 G2 ALC-82KD003XGE R5 5500U, Vega 7 | 1.6 kg | 19.9 mm | 15.60" | 1920x1080 | |
| 75.9 % v7 (old) | 04 / 2022 | Dell Inspiron 15 3505-PXHPW R5 3450U, Vega 8 | 2 kg | 19.89 mm | 15.60" | 1920x1080 | |
| 81 % v7 (old) | 02 / 2022 | Acer Aspire 5 A515-45-R4R1 R7 5700U, Vega 8 | 1.7 kg | 18 mm | 15.60" | 1920x1080 | |
| 84.6 % v7 (old) | 12 / 2021 | Lenovo ThinkPad L15 G2-20X4S0KU00 i3-1115G4, UHD Graphics Xe G4 48EUs | 1.9 kg | 21 mm | 15.60" | 1920x1080 |
外壳和连接

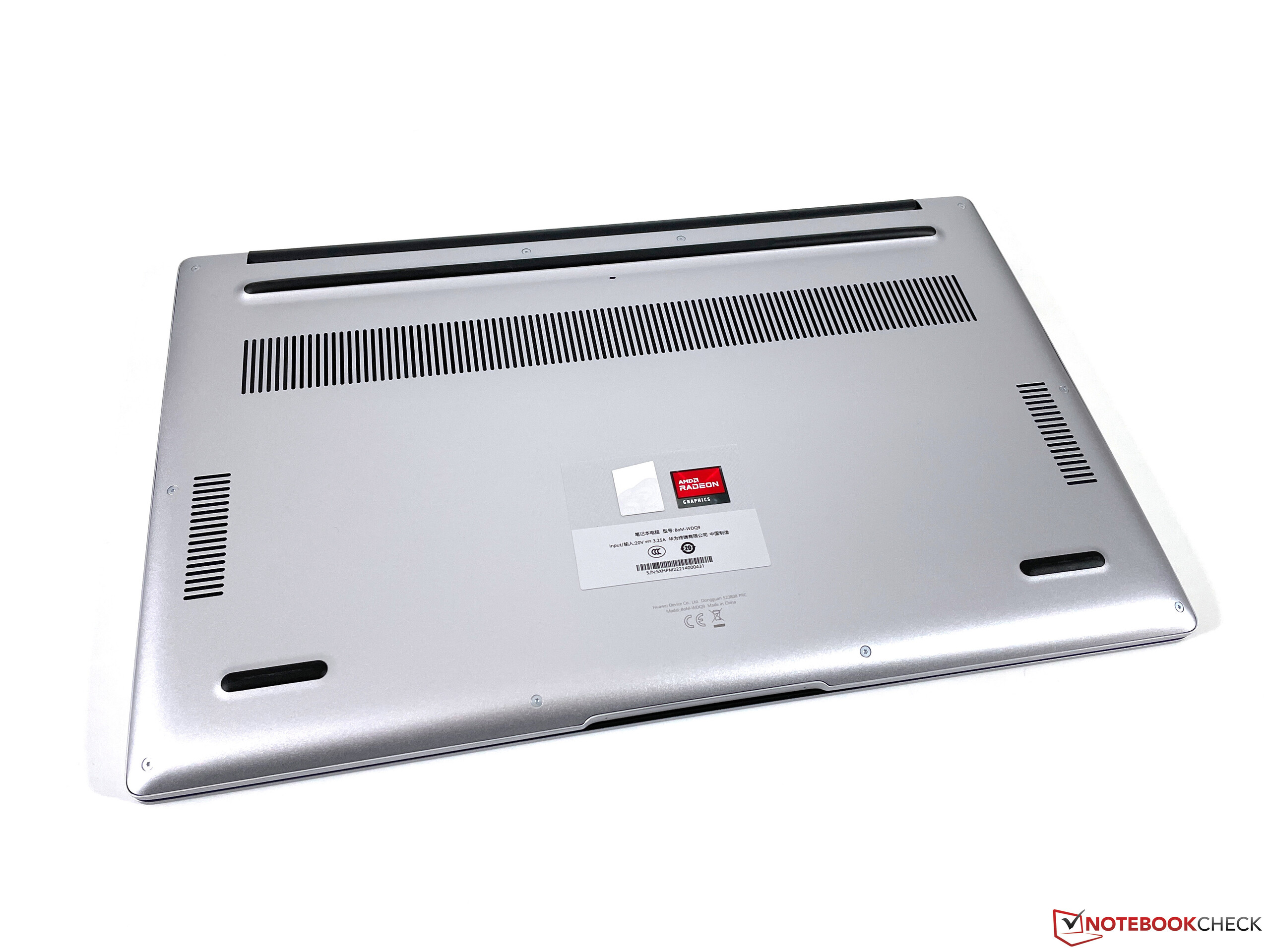

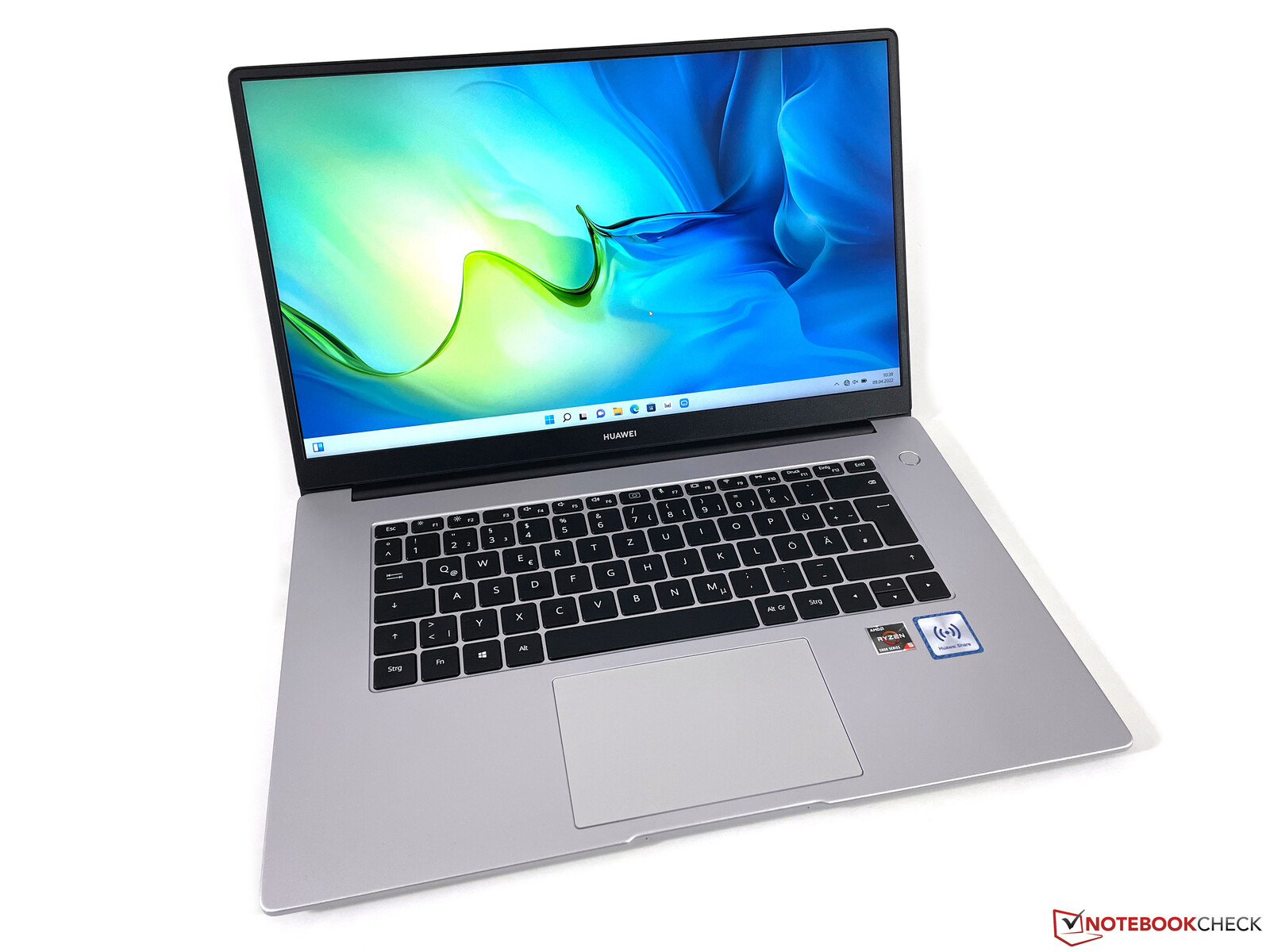

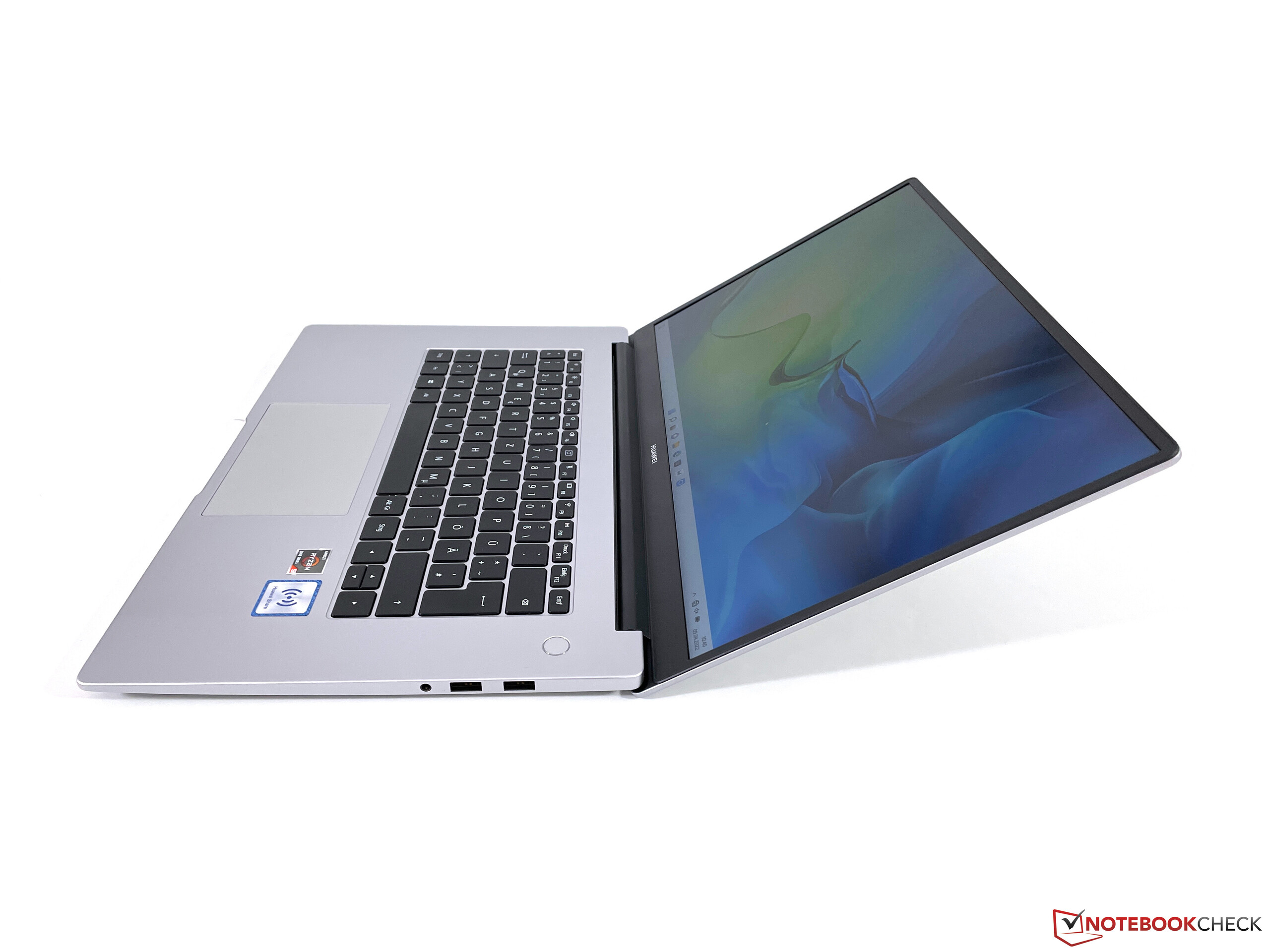

银色的金属外壳与上一代相比没有变化。 前代产品但MateBook D 15继续给人留下非常好的印象，特别是在这个价格范围。该设备看起来非常高质量，而且在稳定性方面也没有问题。和以前一样，采用了16:9的显示屏，但显示屏边框并不宽，整体屏占比为79%，很不错。

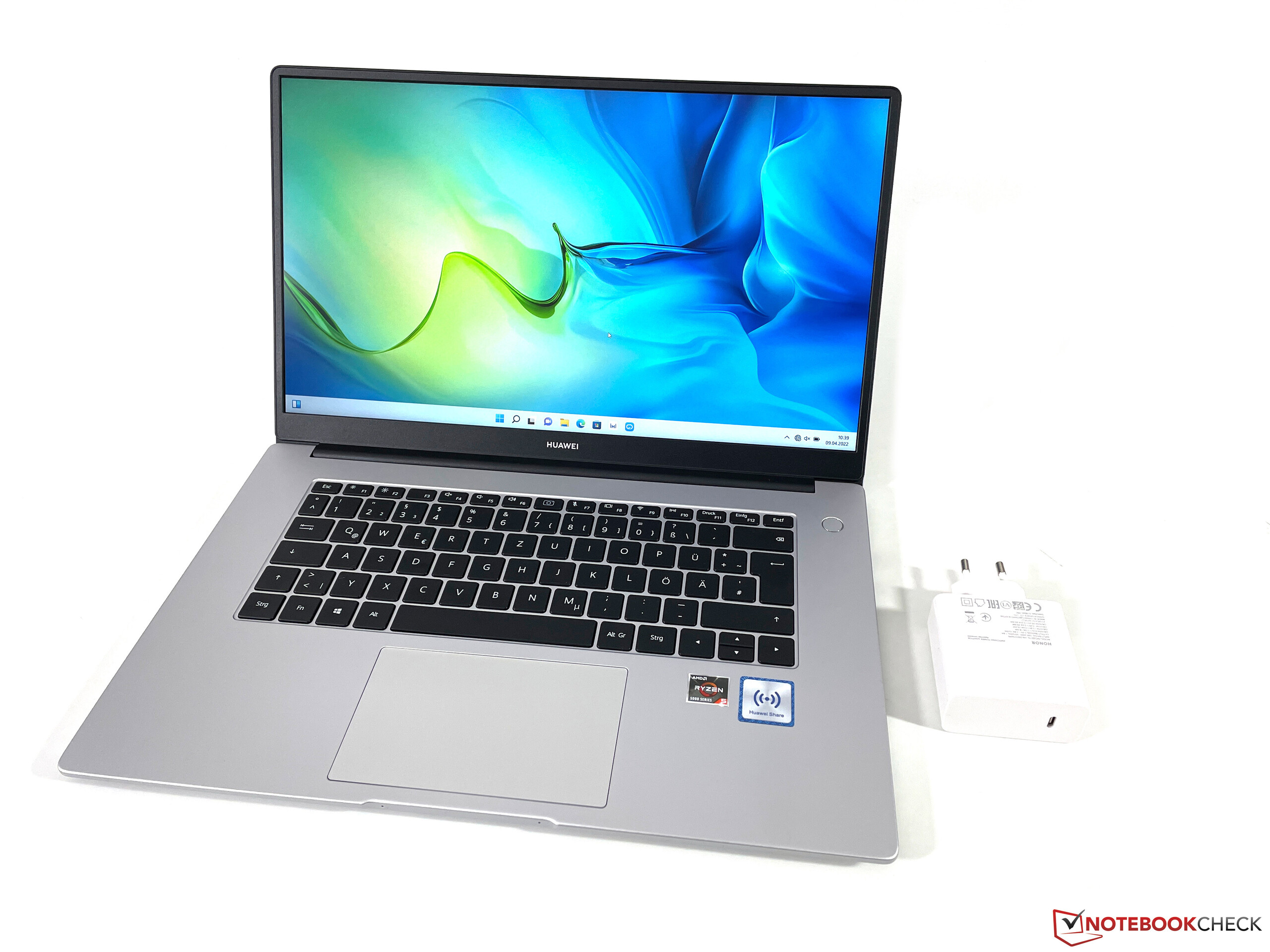

MateBook D 15是对比组中最紧凑的设备之一，其重量为1.6公斤，也是最轻的设备之一。华为包括熟悉的65瓦的电源适配器，它也不是特别重，只有200克。底盖用总共10颗Torx螺钉（T5）固定，可以很容易地取下。内部提供了对风扇、M.2固态硬盘和Wi-Fi模块的访问，但内存是焊接的，不能扩展。

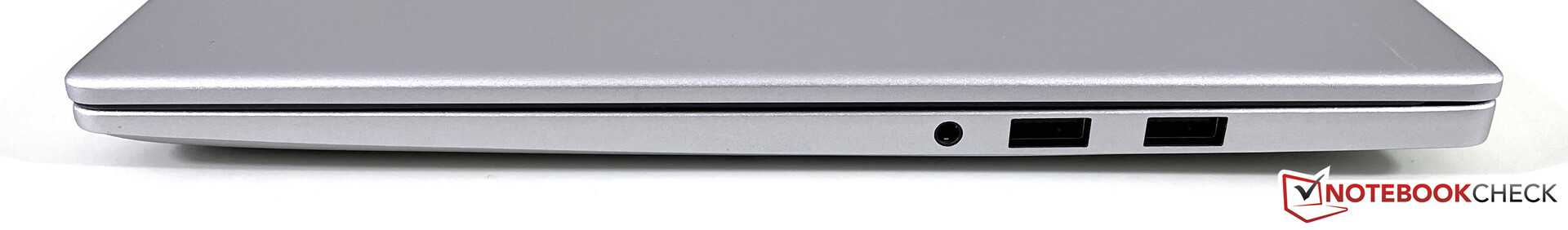

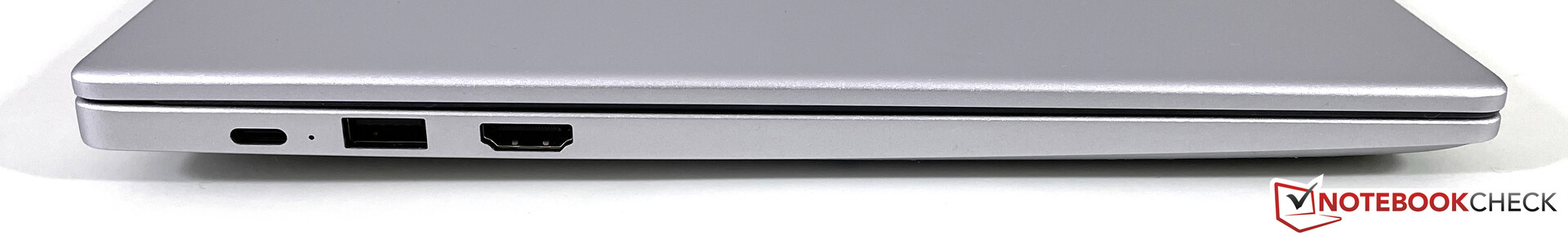

然而，当涉及到端口时，用户将不得不做出妥协，因为这里只有绝对的最低限度。你总共有三个普通的USB-A端口，但右边的两个只支持慢速2.0标准。此外，还有一个USB-C端口，也可用于充电，但不能用于连接外部显示器。为此，必须使用HDMI输出。
来自RealTek的Wi-Fi模块还不支持Wi-Fi 6，但在我们用Netgear Nighthawk AX12路由器进行的标准化测试中，其性能很稳定，在日常使用中应该不会有任何问题。720p网络摄像头仍然集成在键盘上，这对安全很有帮助，但图像质量仍然很差，特别是视角仍然有点失真。

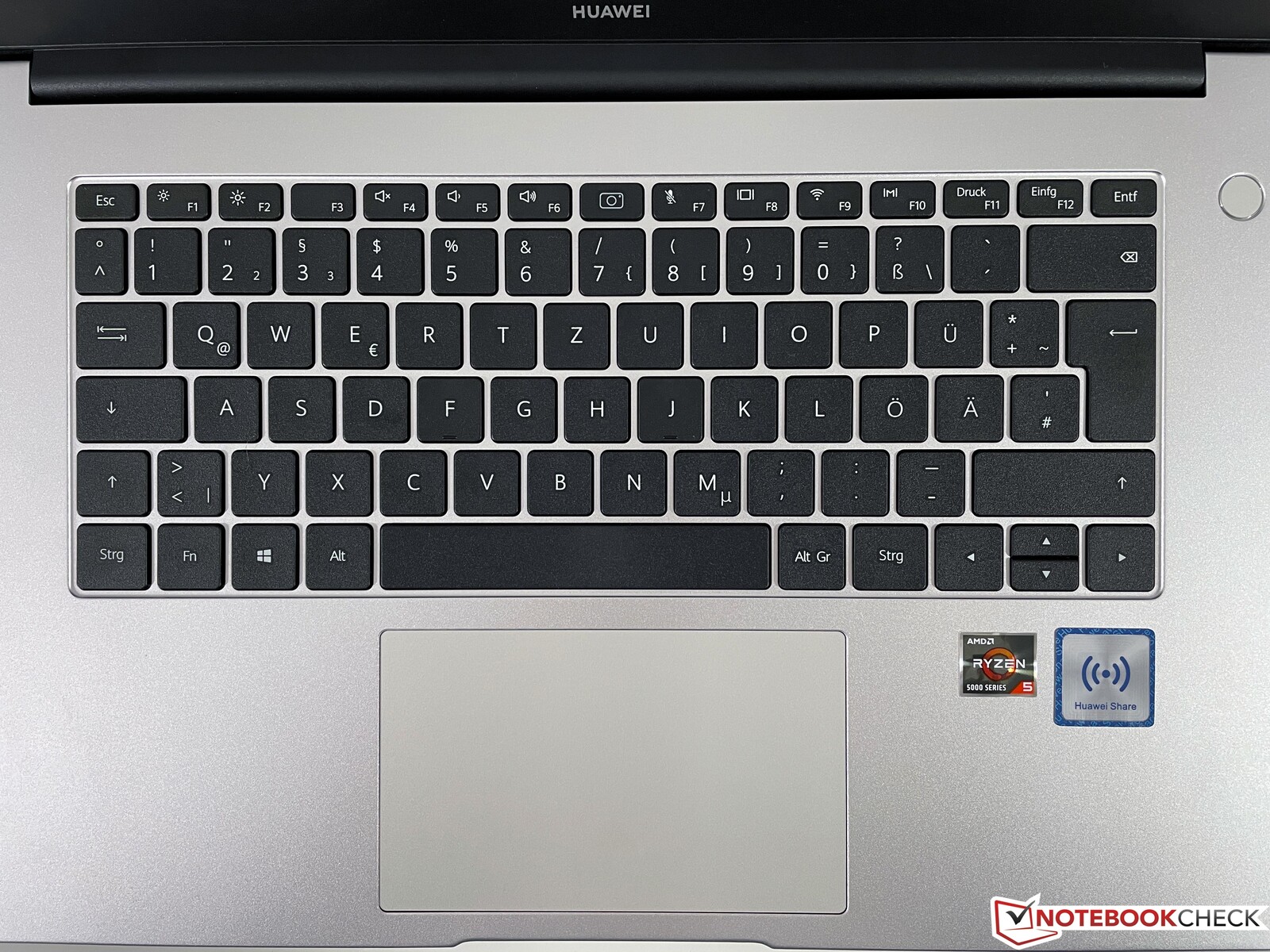

输入设备 - MateBook缺乏背光键盘

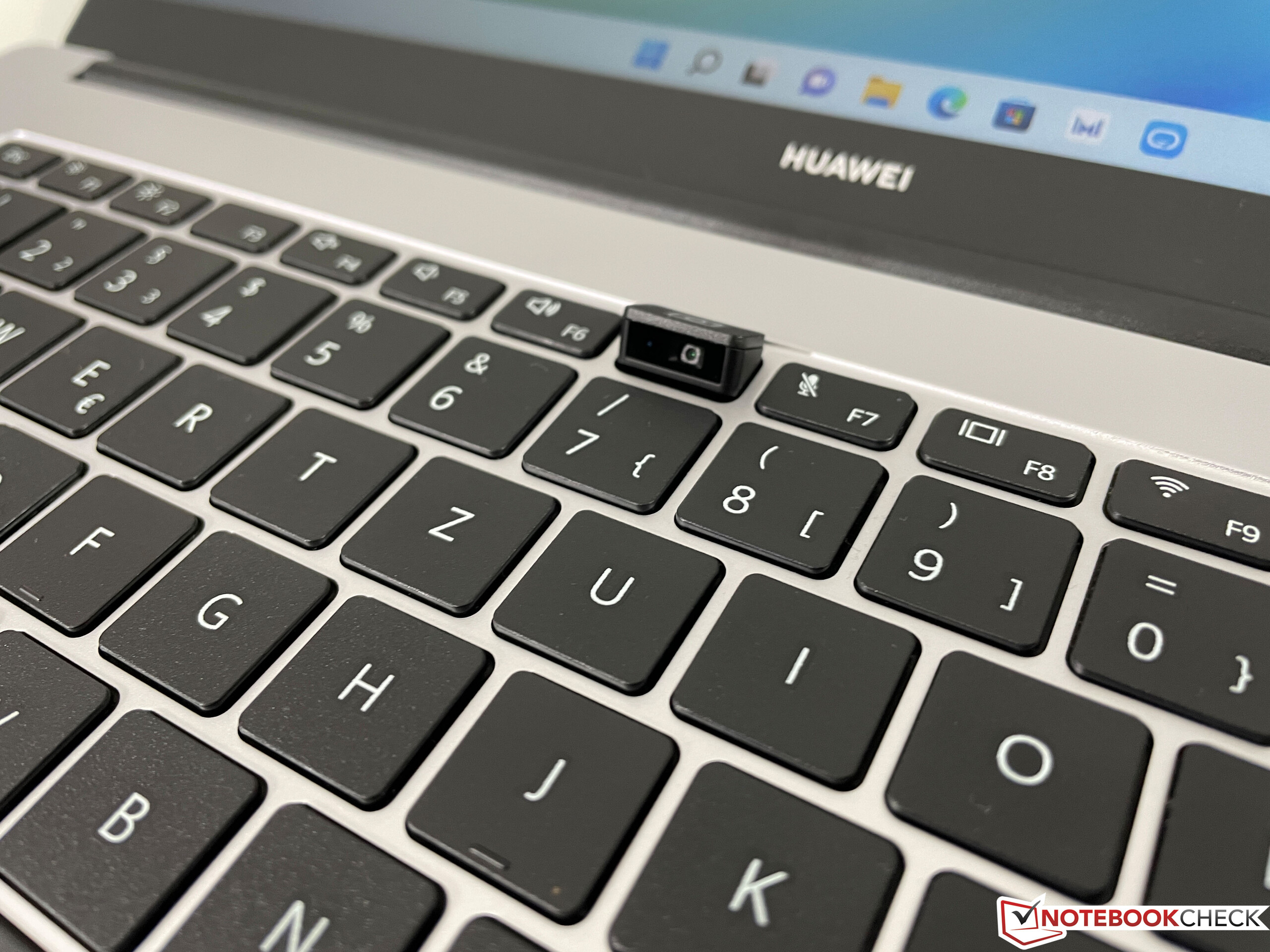

MateBook D 15的黑色键盘提供了相当低的键程，但键程本身仍然很精确。然而，键盘整体感觉有点嘎嘎作响，打字时也相当响亮，所以你在这里只能获得一般的打字体验。相比之下，较小的 MateBook D 14MateBook D 15没有配备背光键盘，这意味着在黑暗的环境中使用该设备会受到限制，或者根本没有那么舒适。右上方的电源按钮还提供了一个指纹扫描仪，效果很好。
ClickPad支持微软的Precision 标准，在日常使用中表现良好。它最多可以用四个手指顺利地处理输入和手势。垫子可以被压在下部区域，但这伴随着巨大的噪音。在这种情况下，我们建议简单地敲击键盘进行输入（敲击即可）。
显示屏 - 华为采用了哑光的IPS显示屏

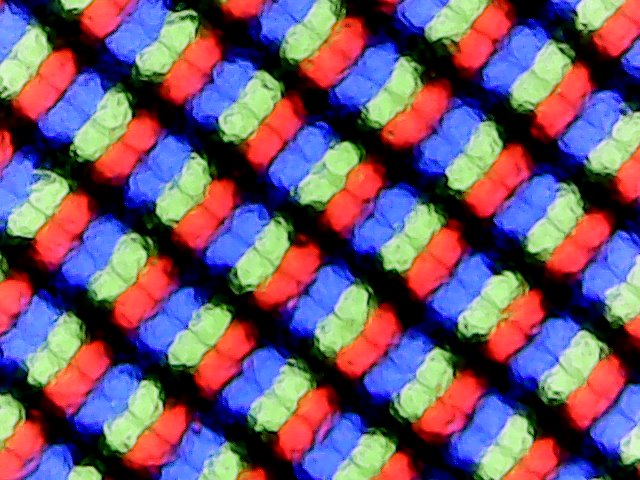

华为为MateBook D 15配备了一块15.6英寸的IPS显示屏，提供全高清分辨率（1920x1080像素，16:9）。从主观上讲，在磨砂表面下，图像质量受到一些影响，因为内容看起来有点颗粒感，总体而言，图像看起来不如高质量的IPS显示屏那么清晰和有活力。
根据规格表，亮度只有250cd/m²，但我们的评测样本略微超过了这个数值，平均为280cd/m²。由于0.2的低黑值，产生的对比度非常高，几乎为1500:1。响应时间并不是最快的，但在实践中，重影并不是一个真正的问题。我们没有检测到PWM的闪烁。
| |||||||||||||||||||||||||
Brightness Distribution: 89 %
Center on Battery: 299 cd/m²
Contrast: 1495:1 (Black: 0.2 cd/m²)
ΔE Color 5.2 | 0.5-29.43 Ø4.91, calibrated: 4.2
ΔE Greyscale 4.1 | 0.5-98 Ø5.2

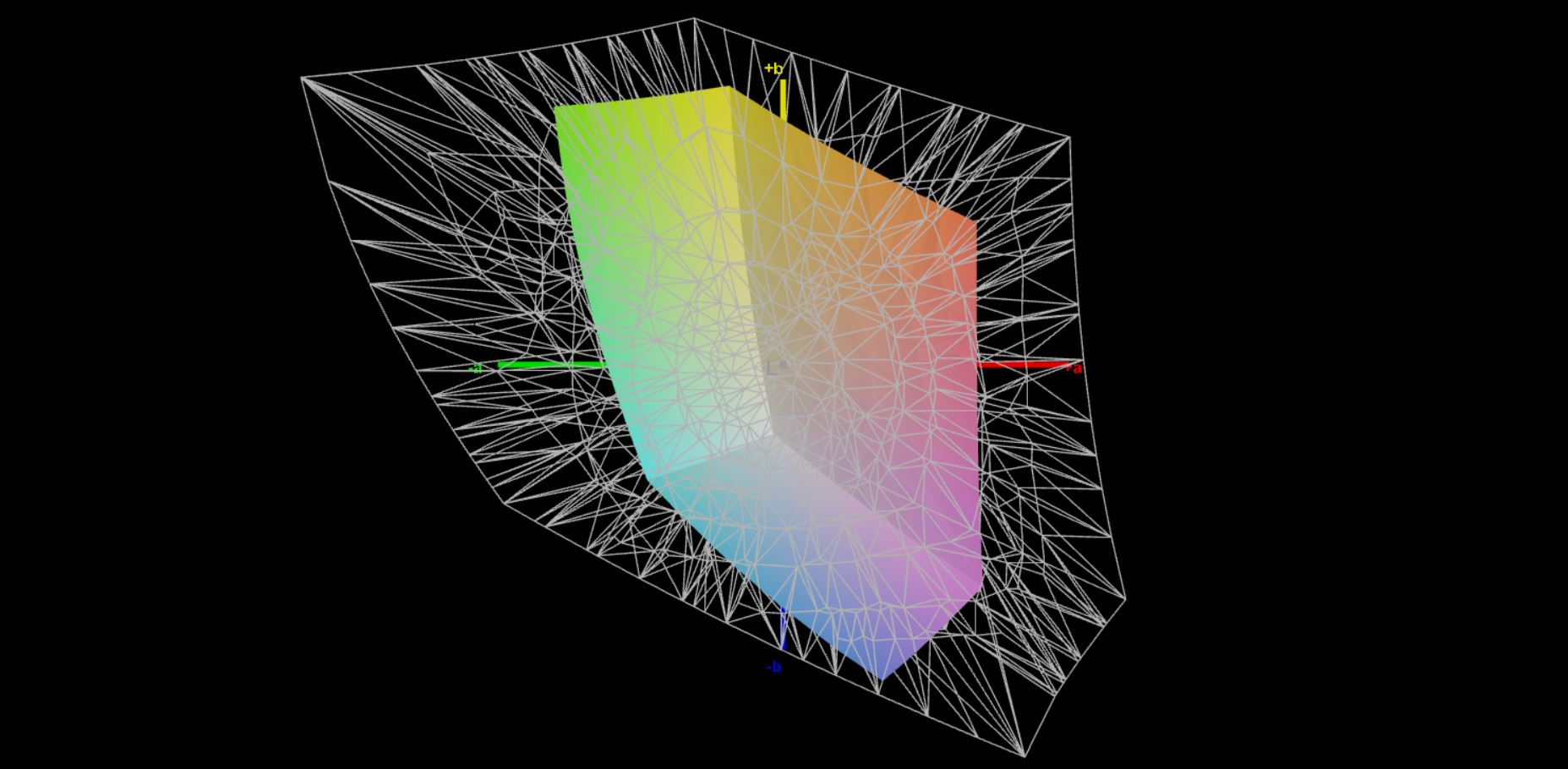

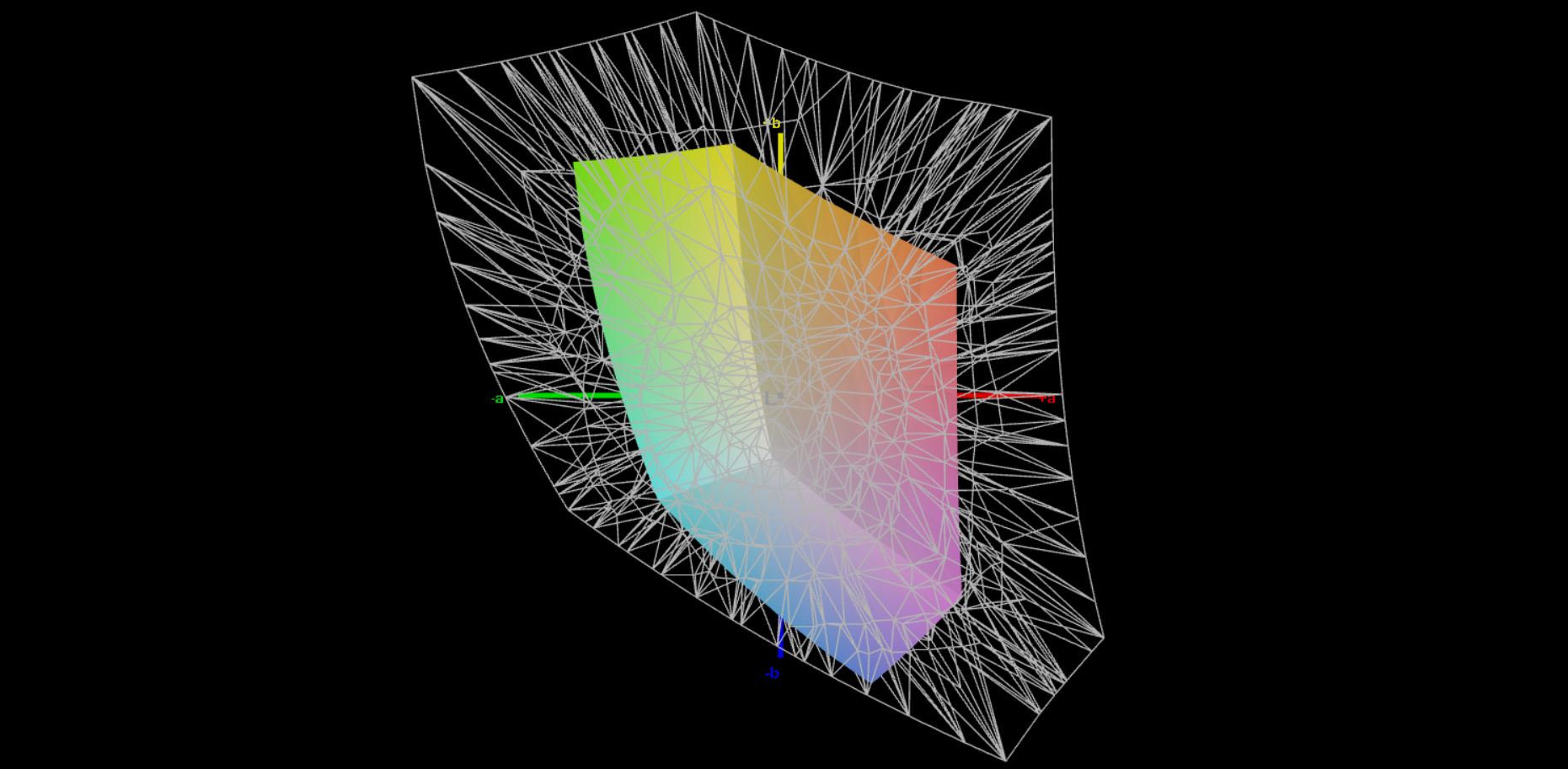

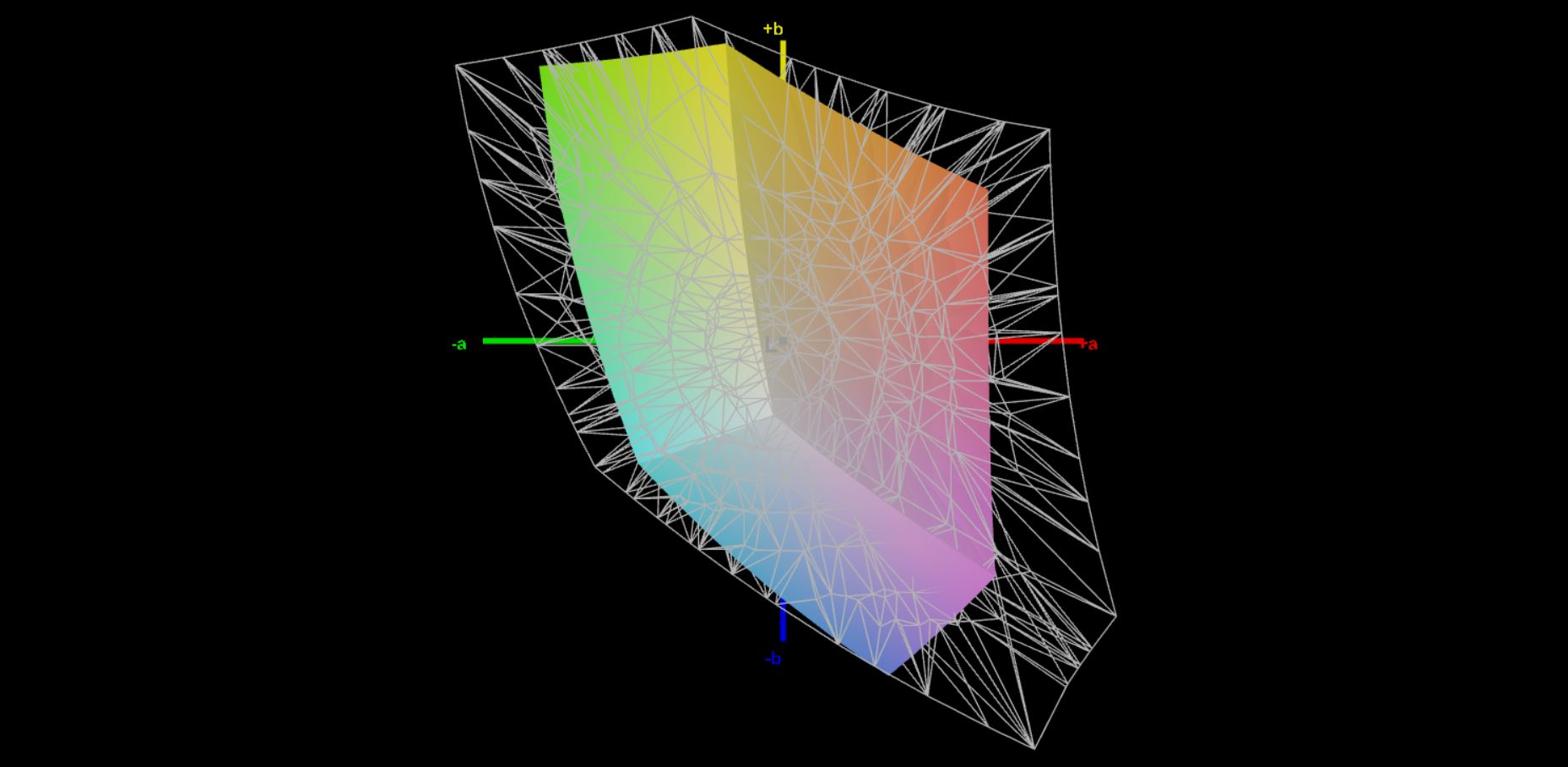

43.7% AdobeRGB 1998 (Argyll 2.2.0 3D)
63.4% sRGB (Argyll 2.2.0 3D)
42.3% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.2
| Huawei MateBook D 15 Ryzen 5 5500U B156HAN02.8, IPS, 1920x1080, 15.6" | Lenovo V15 G2 ALC-82KD003XGE BOE CQ NT156FHM-N43, TN, 1920x1080, 15.6" | Dell Inspiron 15 3505-PXHPW AU Optronics B156HAN, IPS, 1920x1080, 15.6" | Acer Aspire 5 A515-45-R4R1 CEC PANDA LM156LF-CL13, IPS, 1920x1080, 15.6" | Lenovo ThinkPad L15 G2-20X4S0KU00 LP156WFC-SPD1, IPS, 1920x1080, 15.6" | Huawei MateBook D 15-53010TUY AU Optronics AUO28ED, IPS, 1920x1080, 15.6" | |
|---|---|---|---|---|---|---|
| Display | -8% | -5% | -10% | -6% | -4% | |
| Display P3 Coverage | 42.3 | 38.8 -8% | 40.3 -5% | 38.09 -10% | 39.9 -6% | 40.49 -4% |
| sRGB Coverage | 63.4 | 58.4 -8% | 60.4 -5% | 57.3 -10% | 59.8 -6% | 60.9 -4% |
| AdobeRGB 1998 Coverage | 43.7 | 40.09 -8% | 41.7 -5% | 39.35 -10% | 41.2 -6% | 41.84 -4% |
| Response Times | 43% | 25% | 24% | 21% | 12% | |
| Response Time Grey 50% / Grey 80% * | 51.2 ? | 38 ? 26% | 36 ? 30% | 38 ? 26% | 40 ? 22% | 43.6 ? 15% |
| Response Time Black / White * | 34.4 ? | 14 ? 59% | 28 ? 19% | 27 ? 22% | 28 ? 19% | 31.2 ? 9% |
| PWM Frequency | 66 ? | |||||
| Screen | -50% | 1% | 14% | -4% | 10% | |
| Brightness middle | 299 | 235 -21% | 235 -21% | 229 -23% | 279 -7% | 271 -9% |
| Brightness | 280 | 231 -17% | 231 -17% | 224 -20% | 269 -4% | 256 -9% |
| Brightness Distribution | 89 | 84 -6% | 84 -6% | 73 -18% | 81 -9% | 90 1% |
| Black Level * | 0.2 | 0.25 -25% | 0.25 -25% | 0.12 40% | 0.23 -15% | 0.15 25% |
| Contrast | 1495 | 940 -37% | 940 -37% | 1908 28% | 1213 -19% | 1807 21% |
| Colorchecker dE 2000 * | 5.2 | 10.59 -104% | 4.11 21% | 3.76 28% | 5.7 -10% | 4.7 10% |
| Colorchecker dE 2000 max. * | 20.8 | 22.08 -6% | 6.72 68% | 5.97 71% | 16.4 21% | 20.4 2% |
| Colorchecker dE 2000 calibrated * | 4.2 | 5.41 -29% | 4.56 -9% | 4.44 -6% | 4.7 -12% | 4.6 -10% |
| Greyscale dE 2000 * | 4.1 | 12.5 -205% | 2.79 32% | 3.01 27% | 3.5 15% | 1.6 61% |
| Gamma | 2.2 100% | 2.43 91% | 2.53 87% | 2.41 91% | 2.4 92% | 2.17 101% |
| CCT | 6548 99% | 16404 40% | 6666 98% | 6484 100% | 6860 95% | 6649 98% |
| Color Space (Percent of AdobeRGB 1998) | 38.5 | |||||
| Color Space (Percent of sRGB) | 60.6 | |||||
| Total Average (Program / Settings) | -5% /
-28% | 7% /
3% | 9% /
10% | 4% /
-1% | 6% /
7% |
* ... smaller is better

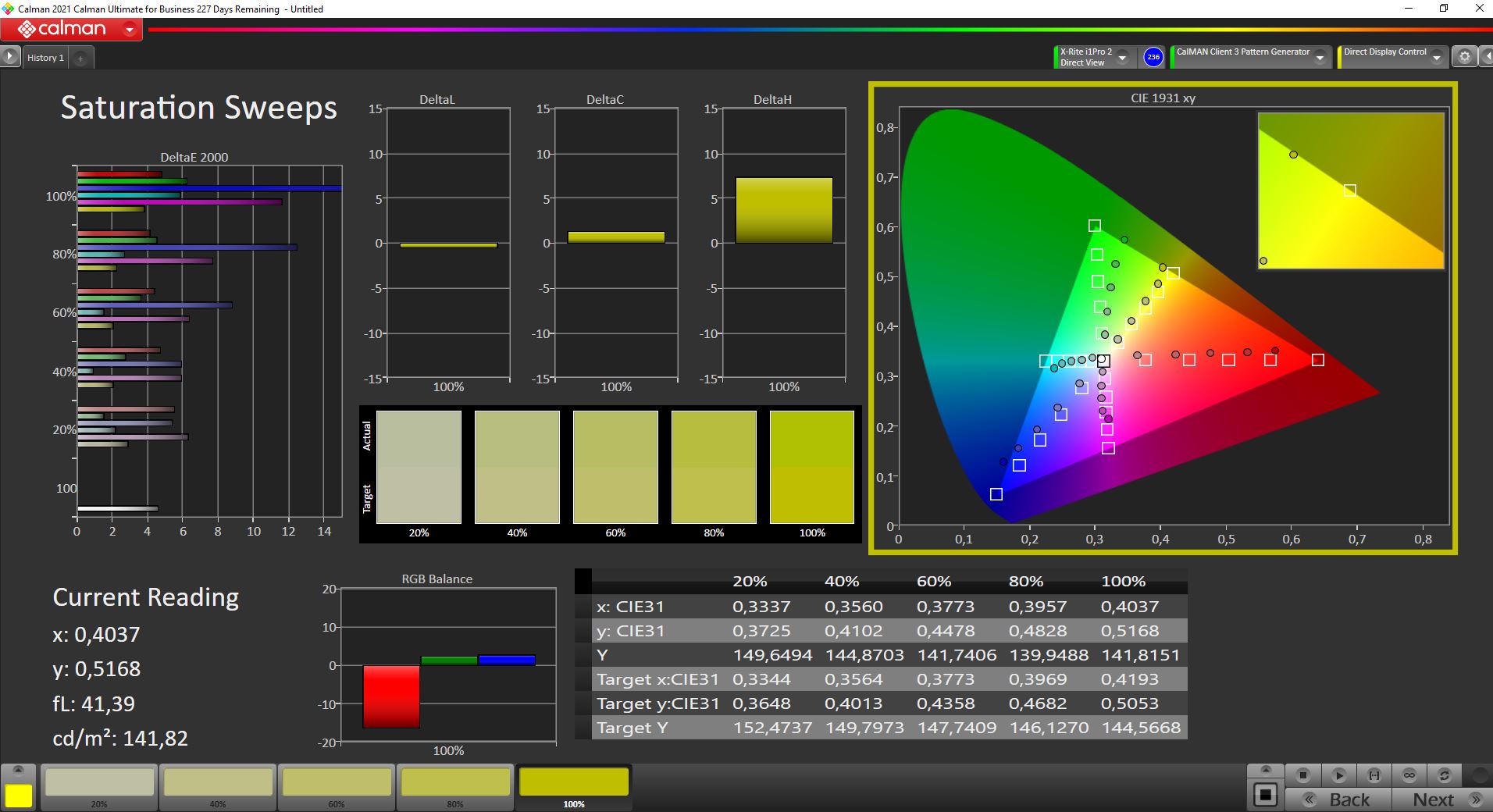

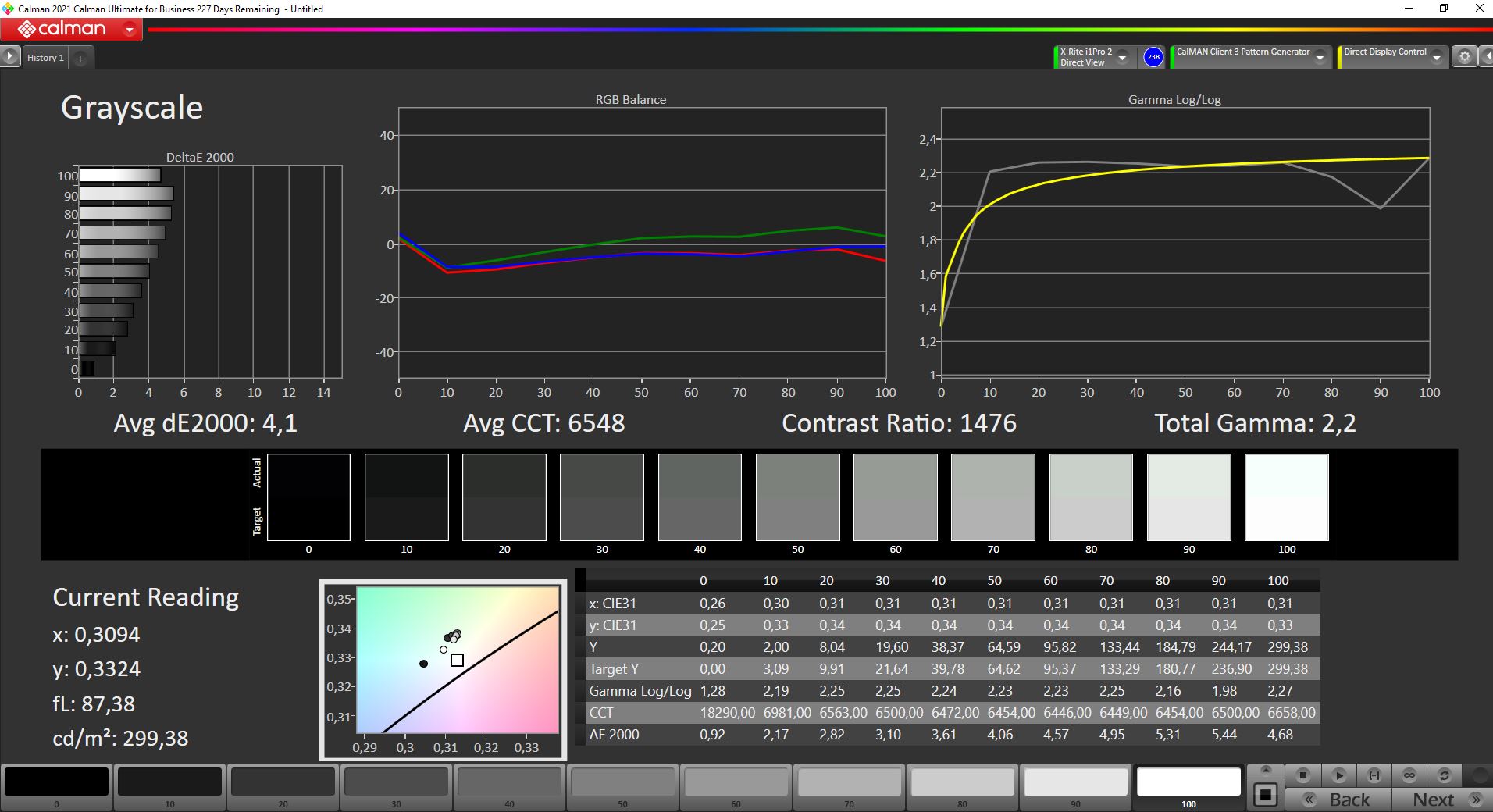

我们用专业的CalMAN软件分析证实，这是一个低成本的IPS显示屏。灰度只显示轻微的绿色色调，这还是可以的，但色彩偏差非常大。通过我们自己的校准，我们主要可以改善灰度，但在颜色方面就没有什么可做的。伴随着低色域覆盖率（只有63.4%），MateBook D 15没有资格用于编辑图像或视频。

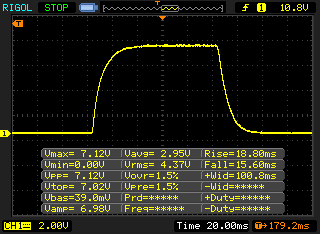

Display Response Times
| ↔ Response Time Black to White | ||
|---|---|---|
| 34.4 ms ... rise ↗ and fall ↘ combined | ↗ 18.8 ms rise |  |
| ↘ 15.6 ms fall | ||
| The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 91 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (20.9 ms). | ||

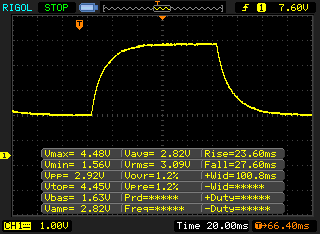

| ↔ Response Time 50% Grey to 80% Grey | ||
| 51.2 ms ... rise ↗ and fall ↘ combined | ↗ 23.6 ms rise |  |
| ↘ 27.6 ms fall | ||
| The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 87 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (32.8 ms). | ||

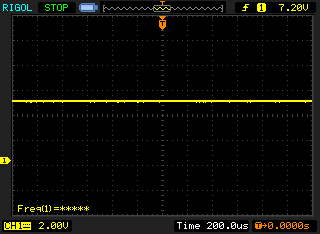

Screen Flickering / PWM (Pulse-Width Modulation)
| Screen flickering / PWM not detected |  | ||
In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8705 (minimum: 5 - maximum: 343500) Hz was measured. | |||

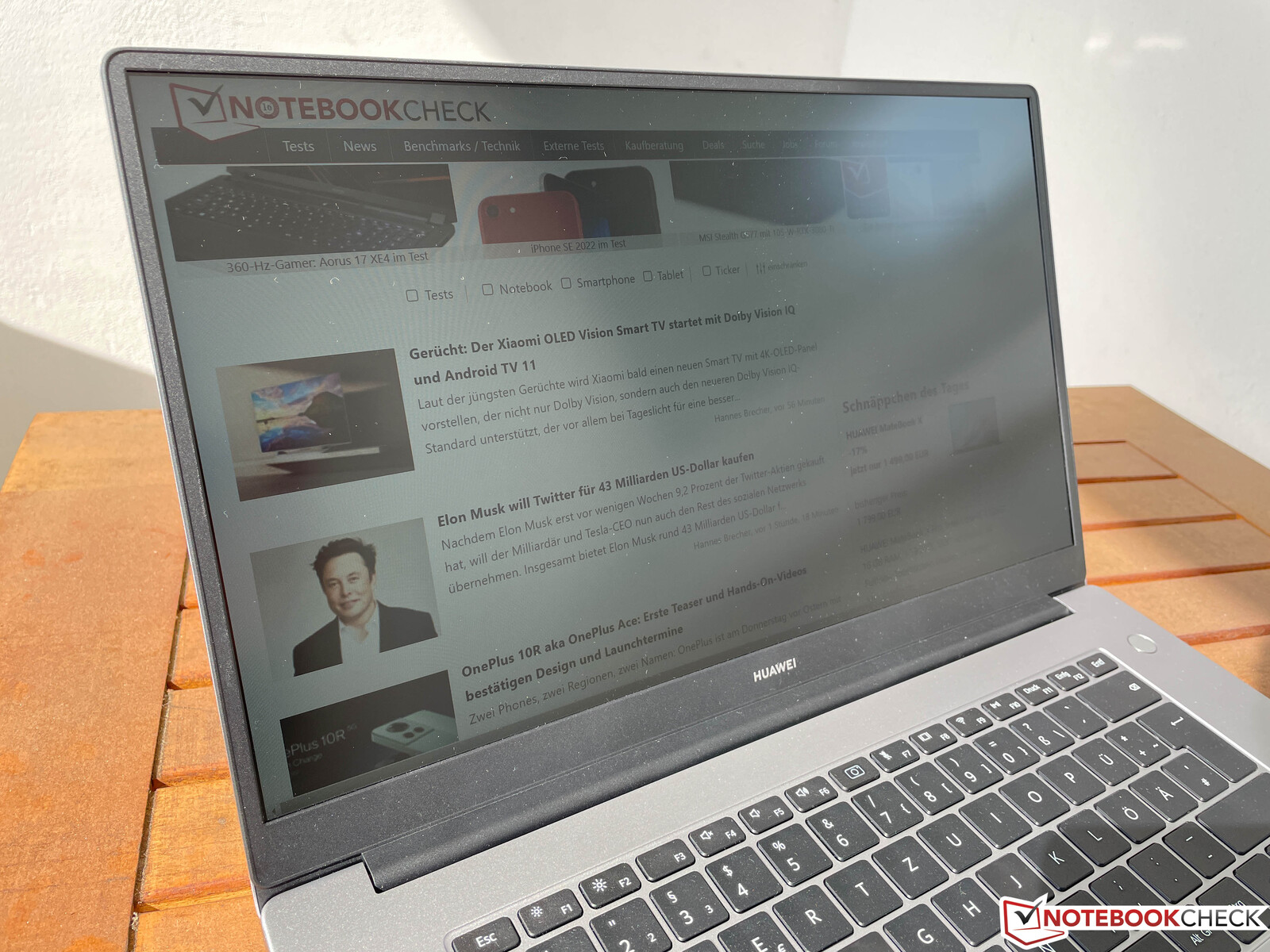

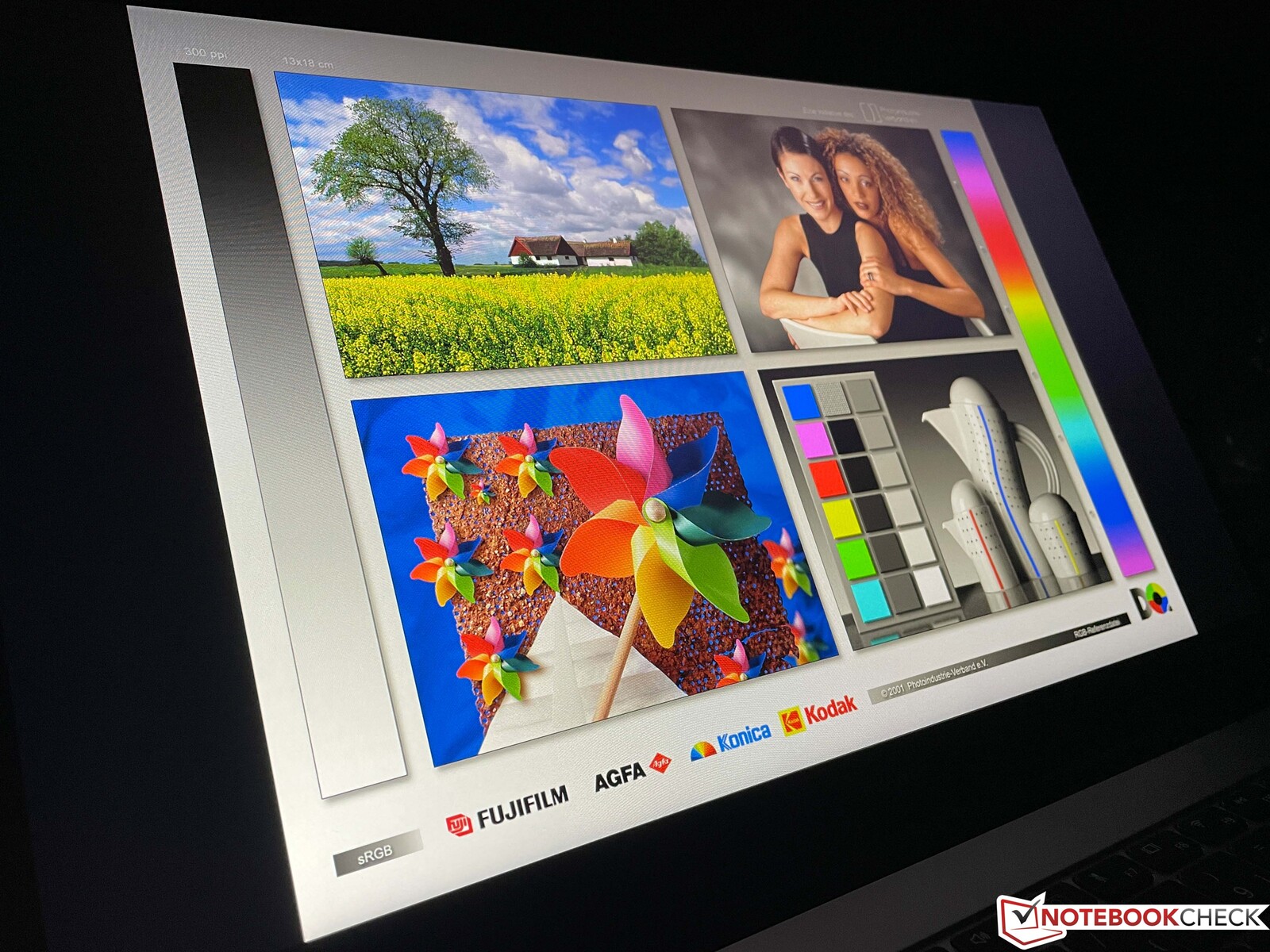

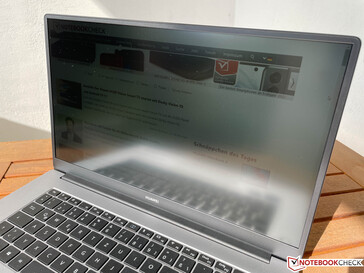

当然，哑光的表面在户外也有一定的帮助，但低的显示亮度是有局限性的，在明亮的日子里你已经看不到什么了。IPS面板的视角稳定性还算不错。
性能 - 配备Zen 2的MateBook D 15
测试条件
预装的华为PC管理器提供了一个可选的性能模式，但就像华为和Honor"以前的AMD笔记本电脑一样，它并不影响性能或风扇噪音。因此，我们使用默认的 "平衡 "模式和Windows设置的 "最佳性能 "进行了以下基准测试和测量。
处理器 - Ryzen 5 5500U

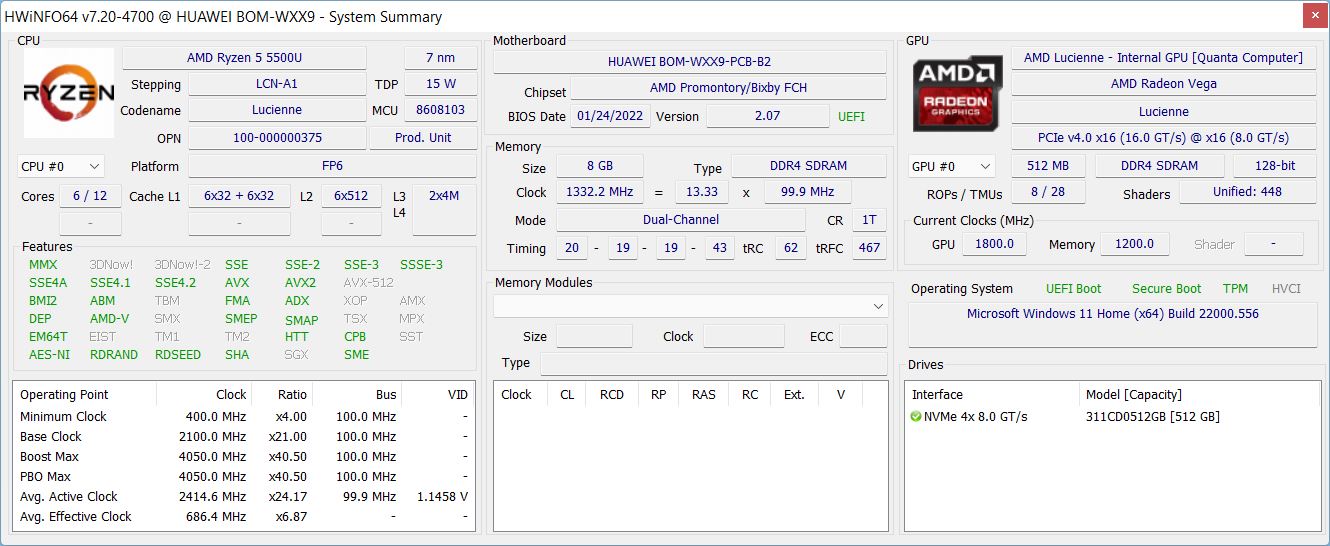

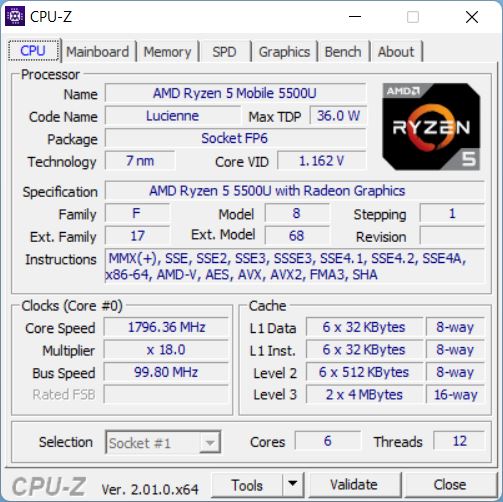

正如最近评论的 华为MateBook 14的情况一样，目前的MateBook D 15也配备了AMDRyzen 5 5500U处理器，它不再是完全最新的，有6个核心和12个线程。性能产量很好，因为CPU在短暂消耗36瓦特后，迅速稳定在31瓦特。
在多核测试中，性能特别好，新的MateBook D 15的速度大约是采用旧的 Ryzen 5 3500U.然而，单核测试显示，Ryzen 5 5500U仍然使用较旧的Zen 2核心，但结果总体上仍然不错，特别是考虑到价格范围。另外，性能并没有因为电池电量而降低。更多的基准测试结果可在我们的 CPU基准测试文章.

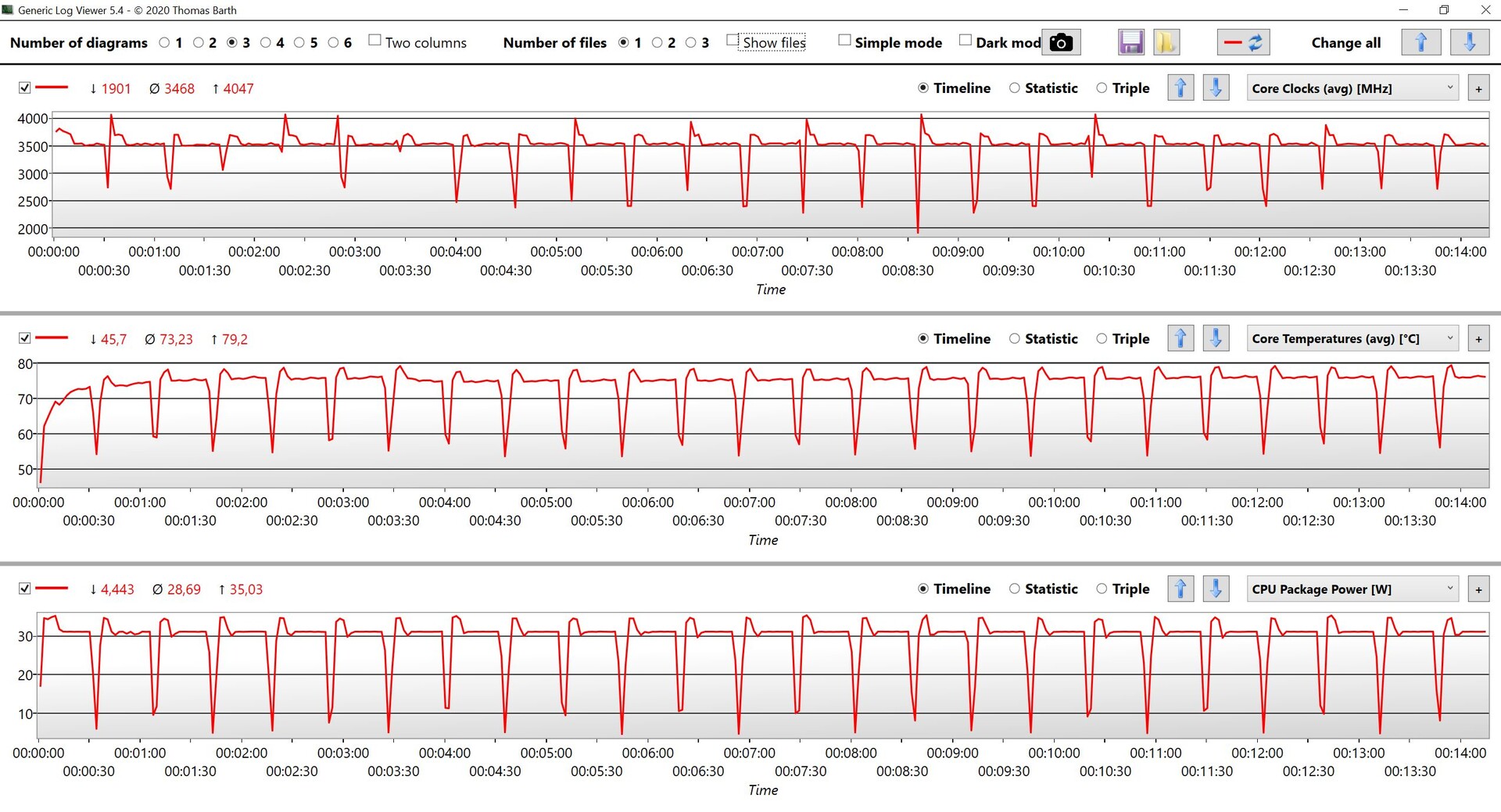

Cinebench R15 Multi endurance test
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
| CPU Performance Rating | |
| Average of class Multimedia | |
| Acer Aspire 5 A515-45-R4R1 | |
| Huawei MateBook D 15 Ryzen 5 5500U | |
| Average AMD Ryzen 5 5500U | |
| Lenovo V15 G2 ALC-82KD003XGE -1! | |
| Lenovo ThinkPad L15 G2-20X4S0KU00 | |
| Huawei MateBook D 15-53010TUY -3! | |
| Dell Inspiron 15 3505-PXHPW | |
| Cinebench R23 / Multi Core | |
| Average of class Multimedia (6936 - 30789, n=103, last 2 years) | |
| Acer Aspire 5 A515-45-R4R1 | |
| Huawei MateBook D 15 Ryzen 5 5500U | |
| Average AMD Ryzen 5 5500U (6030 - 8565, n=19) | |
| Lenovo V15 G2 ALC-82KD003XGE | |
| Lenovo ThinkPad L15 G2-20X4S0KU00 | |
| Dell Inspiron 15 3505-PXHPW | |
| Cinebench R23 / Single Core | |
| Average of class Multimedia (878 - 2290, n=94, last 2 years) | |
| Lenovo ThinkPad L15 G2-20X4S0KU00 | |
| Acer Aspire 5 A515-45-R4R1 | |
| Huawei MateBook D 15 Ryzen 5 5500U | |
| Average AMD Ryzen 5 5500U (1149 - 1183, n=18) | |
| Lenovo V15 G2 ALC-82KD003XGE | |
| Dell Inspiron 15 3505-PXHPW | |
| Cinebench R20 / CPU (Multi Core) | |
| Average of class Multimedia (2681 - 11768, n=87, last 2 years) | |
| Acer Aspire 5 A515-45-R4R1 | |
| Huawei MateBook D 15 Ryzen 5 5500U | |
| Average AMD Ryzen 5 5500U (2223 - 3316, n=20) | |
| Lenovo V15 G2 ALC-82KD003XGE | |
| Huawei MateBook D 15-53010TUY | |
| Lenovo ThinkPad L15 G2-20X4S0KU00 | |
| Dell Inspiron 15 3505-PXHPW | |
| Cinebench R20 / CPU (Single Core) | |
| Average of class Multimedia (341 - 853, n=87, last 2 years) | |
| Lenovo ThinkPad L15 G2-20X4S0KU00 | |
| Acer Aspire 5 A515-45-R4R1 | |
| Huawei MateBook D 15 Ryzen 5 5500U | |
| Average AMD Ryzen 5 5500U (449 - 461, n=19) | |
| Lenovo V15 G2 ALC-82KD003XGE | |
| Huawei MateBook D 15-53010TUY | |
| Dell Inspiron 15 3505-PXHPW | |
| Cinebench R15 / CPU Multi 64Bit | |
| Average of class Multimedia (1252 - 4774, n=94, last 2 years) | |
| Acer Aspire 5 A515-45-R4R1 | |
| Huawei MateBook D 15 Ryzen 5 5500U | |
| Average AMD Ryzen 5 5500U (995 - 1412, n=20) | |
| Lenovo V15 G2 ALC-82KD003XGE | |
| Huawei MateBook D 15-53010TUY | |
| Dell Inspiron 15 3505-PXHPW | |
| Lenovo ThinkPad L15 G2-20X4S0KU00 | |
| Cinebench R15 / CPU Single 64Bit | |
| Average of class Multimedia (99.6 - 323, n=89, last 2 years) | |
| Lenovo ThinkPad L15 G2-20X4S0KU00 | |
| Acer Aspire 5 A515-45-R4R1 | |
| Huawei MateBook D 15 Ryzen 5 5500U | |
| Lenovo V15 G2 ALC-82KD003XGE | |
| Average AMD Ryzen 5 5500U (170 - 179, n=18) | |
| Huawei MateBook D 15-53010TUY | |
| Dell Inspiron 15 3505-PXHPW | |
| Blender / v2.79 BMW27 CPU | |
| Dell Inspiron 15 3505-PXHPW | |
| Lenovo ThinkPad L15 G2-20X4S0KU00 | |
| Huawei MateBook D 15-53010TUY | |
| Lenovo V15 G2 ALC-82KD003XGE | |
| Average AMD Ryzen 5 5500U (358 - 490, n=18) | |
| Acer Aspire 5 A515-45-R4R1 | |
| Huawei MateBook D 15 Ryzen 5 5500U | |
| Average of class Multimedia (107 - 502, n=85, last 2 years) | |
| 7-Zip 18.03 / 7z b 4 | |
| Average of class Multimedia (30592 - 121228, n=79, last 2 years) | |
| Huawei MateBook D 15 Ryzen 5 5500U | |
| Acer Aspire 5 A515-45-R4R1 | |
| Average AMD Ryzen 5 5500U (29585 - 36896, n=18) | |
| Huawei MateBook D 15-53010TUY | |
| Dell Inspiron 15 3505-PXHPW | |
| Lenovo ThinkPad L15 G2-20X4S0KU00 | |
| 7-Zip 18.03 / 7z b 4 -mmt1 | |
| Average of class Multimedia (3398 - 7545, n=79, last 2 years) | |
| Acer Aspire 5 A515-45-R4R1 | |
| Lenovo ThinkPad L15 G2-20X4S0KU00 | |
| Huawei MateBook D 15 Ryzen 5 5500U | |
| Average AMD Ryzen 5 5500U (4174 - 4378, n=19) | |
| Lenovo V15 G2 ALC-82KD003XGE | |
| Huawei MateBook D 15-53010TUY | |
| Dell Inspiron 15 3505-PXHPW | |
| Geekbench 5.5 / Multi-Core | |
| Average of class Multimedia (4990 - 23059, n=87, last 2 years) | |
| Huawei MateBook D 15 Ryzen 5 5500U | |
| Average AMD Ryzen 5 5500U (4063 - 5917, n=20) | |
| Acer Aspire 5 A515-45-R4R1 | |
| Lenovo V15 G2 ALC-82KD003XGE | |
| Huawei MateBook D 15-53010TUY | |
| Dell Inspiron 15 3505-PXHPW | |
| Lenovo ThinkPad L15 G2-20X4S0KU00 | |
| Geekbench 5.5 / Single-Core | |
| Average of class Multimedia (891 - 2555, n=87, last 2 years) | |
| Lenovo ThinkPad L15 G2-20X4S0KU00 | |
| Acer Aspire 5 A515-45-R4R1 | |
| Lenovo V15 G2 ALC-82KD003XGE | |
| Average AMD Ryzen 5 5500U (1070 - 1126, n=20) | |
| Huawei MateBook D 15 Ryzen 5 5500U | |
| Huawei MateBook D 15-53010TUY | |
| Dell Inspiron 15 3505-PXHPW | |
| HWBOT x265 Benchmark v2.2 / 4k Preset | |
| Average of class Multimedia (5.26 - 30.5, n=78, last 2 years) | |
| Huawei MateBook D 15 Ryzen 5 5500U | |
| Acer Aspire 5 A515-45-R4R1 | |
| Average AMD Ryzen 5 5500U (6.7 - 9.74, n=20) | |
| Lenovo V15 G2 ALC-82KD003XGE | |
| Huawei MateBook D 15-53010TUY | |
| Lenovo ThinkPad L15 G2-20X4S0KU00 | |
| Dell Inspiron 15 3505-PXHPW | |
| LibreOffice / 20 Documents To PDF | |
| Dell Inspiron 15 3505-PXHPW | |
| Huawei MateBook D 15 Ryzen 5 5500U | |
| Average AMD Ryzen 5 5500U (60 - 80.7, n=17) | |
| Lenovo V15 G2 ALC-82KD003XGE | |
| Acer Aspire 5 A515-45-R4R1 | |
| Average of class Multimedia (6.7 - 146.7, n=81, last 2 years) | |
| Lenovo ThinkPad L15 G2-20X4S0KU00 | |
| R Benchmark 2.5 / Overall mean | |
| Dell Inspiron 15 3505-PXHPW | |
| Huawei MateBook D 15-53010TUY | |
| Lenovo ThinkPad L15 G2-20X4S0KU00 | |
| Lenovo V15 G2 ALC-82KD003XGE | |
| Average AMD Ryzen 5 5500U (0.607 - 0.67, n=19) | |
| Huawei MateBook D 15 Ryzen 5 5500U | |
| Acer Aspire 5 A515-45-R4R1 | |
| Average of class Multimedia (0.3604 - 0.947, n=79, last 2 years) | |
* ... smaller is better
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
| Performance Rating | |
| Average of class Multimedia | |
| Huawei MateBook D 15 Ryzen 5 5500U | |
| Average AMD Ryzen 5 5500U | |
| Lenovo V15 G2 ALC-82KD003XGE | |
| Acer Aspire 5 A515-45-R4R1 | |
| Huawei MateBook D 15-53010TUY | |
| Lenovo ThinkPad L15 G2-20X4S0KU00 | |
| Dell Inspiron 15 3505-PXHPW | |
| AIDA64 / FP32 Ray-Trace | |
| Average of class Multimedia (4906 - 36957, n=76, last 2 years) | |
| Huawei MateBook D 15 Ryzen 5 5500U | |
| Average AMD Ryzen 5 5500U (7222 - 10680, n=18) | |
| Lenovo V15 G2 ALC-82KD003XGE | |
| Acer Aspire 5 A515-45-R4R1 | |
| Lenovo ThinkPad L15 G2-20X4S0KU00 | |
| Huawei MateBook D 15-53010TUY | |
| Dell Inspiron 15 3505-PXHPW | |
| AIDA64 / FPU Julia | |
| Average of class Multimedia (14528 - 147248, n=77, last 2 years) | |
| Acer Aspire 5 A515-45-R4R1 | |
| Huawei MateBook D 15 Ryzen 5 5500U | |
| Average AMD Ryzen 5 5500U (41815 - 58107, n=18) | |
| Lenovo V15 G2 ALC-82KD003XGE | |
| Lenovo ThinkPad L15 G2-20X4S0KU00 | |
| Huawei MateBook D 15-53010TUY | |
| Dell Inspiron 15 3505-PXHPW | |
| AIDA64 / CPU SHA3 | |
| Average of class Multimedia (1529 - 6698, n=77, last 2 years) | |
| Huawei MateBook D 15 Ryzen 5 5500U | |
| Average AMD Ryzen 5 5500U (1354 - 1907, n=18) | |
| Lenovo V15 G2 ALC-82KD003XGE | |
| Lenovo ThinkPad L15 G2-20X4S0KU00 | |
| Acer Aspire 5 A515-45-R4R1 | |
| Huawei MateBook D 15-53010TUY | |
| Dell Inspiron 15 3505-PXHPW | |
| AIDA64 / CPU Queen | |
| Average of class Multimedia (21547 - 141074, n=77, last 2 years) | |
| Huawei MateBook D 15 Ryzen 5 5500U | |
| Average AMD Ryzen 5 5500U (68235 - 74033, n=18) | |
| Lenovo V15 G2 ALC-82KD003XGE | |
| Acer Aspire 5 A515-45-R4R1 | |
| Dell Inspiron 15 3505-PXHPW | |
| Huawei MateBook D 15-53010TUY | |
| Lenovo ThinkPad L15 G2-20X4S0KU00 | |
| AIDA64 / FPU SinJulia | |
| Huawei MateBook D 15 Ryzen 5 5500U | |
| Average AMD Ryzen 5 5500U (9007 - 10446, n=18) | |
| Lenovo V15 G2 ALC-82KD003XGE | |
| Average of class Multimedia (1240 - 19021, n=77, last 2 years) | |
| Acer Aspire 5 A515-45-R4R1 | |
| Huawei MateBook D 15-53010TUY | |
| Dell Inspiron 15 3505-PXHPW | |
| Lenovo ThinkPad L15 G2-20X4S0KU00 | |
| AIDA64 / FPU Mandel | |
| Average of class Multimedia (9903 - 75780, n=76, last 2 years) | |
| Acer Aspire 5 A515-45-R4R1 | |
| Huawei MateBook D 15 Ryzen 5 5500U | |
| Average AMD Ryzen 5 5500U (21894 - 30659, n=18) | |
| Lenovo V15 G2 ALC-82KD003XGE | |
| Lenovo ThinkPad L15 G2-20X4S0KU00 | |
| Huawei MateBook D 15-53010TUY | |
| Dell Inspiron 15 3505-PXHPW | |
| AIDA64 / CPU AES | |
| Average of class Multimedia (31432 - 169946, n=77, last 2 years) | |
| Huawei MateBook D 15 Ryzen 5 5500U | |
| Average AMD Ryzen 5 5500U (31792 - 54455, n=18) | |
| Lenovo V15 G2 ALC-82KD003XGE | |
| Lenovo ThinkPad L15 G2-20X4S0KU00 | |
| Acer Aspire 5 A515-45-R4R1 | |
| Huawei MateBook D 15-53010TUY | |
| Dell Inspiron 15 3505-PXHPW | |
| AIDA64 / CPU ZLib | |
| Average of class Multimedia (454 - 1973, n=77, last 2 years) | |
| Acer Aspire 5 A515-45-R4R1 | |
| Huawei MateBook D 15 Ryzen 5 5500U | |
| Average AMD Ryzen 5 5500U (234 - 614, n=18) | |
| Huawei MateBook D 15-53010TUY | |
| Dell Inspiron 15 3505-PXHPW | |
| Lenovo V15 G2 ALC-82KD003XGE | |
| Lenovo ThinkPad L15 G2-20X4S0KU00 | |
| AIDA64 / FP64 Ray-Trace | |
| Average of class Multimedia (2738 - 20608, n=77, last 2 years) | |
| Huawei MateBook D 15 Ryzen 5 5500U | |
| Average AMD Ryzen 5 5500U (3943 - 5717, n=18) | |
| Lenovo V15 G2 ALC-82KD003XGE | |
| Acer Aspire 5 A515-45-R4R1 | |
| Lenovo ThinkPad L15 G2-20X4S0KU00 | |
| Huawei MateBook D 15-53010TUY | |
| Dell Inspiron 15 3505-PXHPW | |
| AIDA64 / CPU PhotoWorxx | |
| Average of class Multimedia (7419 - 53918, n=77, last 2 years) | |
| Huawei MateBook D 15 Ryzen 5 5500U | |
| Lenovo V15 G2 ALC-82KD003XGE | |
| Average AMD Ryzen 5 5500U (7765 - 22932, n=18) | |
| Huawei MateBook D 15-53010TUY | |
| Lenovo ThinkPad L15 G2-20X4S0KU00 | |
| Acer Aspire 5 A515-45-R4R1 | |
| Dell Inspiron 15 3505-PXHPW | |
系统性能
由于快速的处理器和PCIe固态硬盘，MateBook D 15在日常使用中是一个反应极其迅速的伙伴，合成基准测试结果也非常好。这款笔记本电脑配备了Windows 11 Home，我们在测试中没有遇到任何问题。
CrossMark: Overall | Productivity | Creativity | Responsiveness
| PCMark 10 / Score | |
| Average of class Multimedia (4542 - 8670, n=72, last 2 years) | |
| Lenovo V15 G2 ALC-82KD003XGE | |
| Huawei MateBook D 15 Ryzen 5 5500U | |
| Average AMD Ryzen 5 5500U, AMD Radeon RX Vega 7 (4626 - 5301, n=13) | |
| Acer Aspire 5 A515-45-R4R1 | |
| Lenovo ThinkPad L15 G2-20X4S0KU00 | |
| Huawei MateBook D 15-53010TUY | |
| Dell Inspiron 15 3505-PXHPW | |
| PCMark 10 / Essentials | |
| Average of class Multimedia (8480 - 12420, n=72, last 2 years) | |
| Lenovo V15 G2 ALC-82KD003XGE | |
| Average AMD Ryzen 5 5500U, AMD Radeon RX Vega 7 (8390 - 9789, n=13) | |
| Huawei MateBook D 15 Ryzen 5 5500U | |
| Acer Aspire 5 A515-45-R4R1 | |
| Lenovo ThinkPad L15 G2-20X4S0KU00 | |
| Huawei MateBook D 15-53010TUY | |
| Dell Inspiron 15 3505-PXHPW | |
| PCMark 10 / Productivity | |
| Average of class Multimedia (6089 - 10742, n=72, last 2 years) | |
| Lenovo V15 G2 ALC-82KD003XGE | |
| Acer Aspire 5 A515-45-R4R1 | |
| Huawei MateBook D 15 Ryzen 5 5500U | |
| Average AMD Ryzen 5 5500U, AMD Radeon RX Vega 7 (6262 - 7958, n=13) | |
| Lenovo ThinkPad L15 G2-20X4S0KU00 | |
| Dell Inspiron 15 3505-PXHPW | |
| Huawei MateBook D 15-53010TUY | |
| PCMark 10 / Digital Content Creation | |
| Average of class Multimedia (3651 - 13548, n=72, last 2 years) | |
| Huawei MateBook D 15 Ryzen 5 5500U | |
| Average AMD Ryzen 5 5500U, AMD Radeon RX Vega 7 (4513 - 5540, n=13) | |
| Lenovo V15 G2 ALC-82KD003XGE | |
| Acer Aspire 5 A515-45-R4R1 | |
| Lenovo ThinkPad L15 G2-20X4S0KU00 | |
| Huawei MateBook D 15-53010TUY | |
| Dell Inspiron 15 3505-PXHPW | |
| CrossMark / Overall | |
| Average of class Multimedia (978 - 2255, n=90, last 2 years) | |
| Huawei MateBook D 15 Ryzen 5 5500U | |
| Average AMD Ryzen 5 5500U, AMD Radeon RX Vega 7 (958 - 1103, n=6) | |
| Lenovo V15 G2 ALC-82KD003XGE | |
| Lenovo ThinkPad L15 G2-20X4S0KU00 | |
| Dell Inspiron 15 3505-PXHPW | |
| CrossMark / Productivity | |
| Average of class Multimedia (913 - 2064, n=90, last 2 years) | |
| Huawei MateBook D 15 Ryzen 5 5500U | |
| Lenovo V15 G2 ALC-82KD003XGE | |
| Average AMD Ryzen 5 5500U, AMD Radeon RX Vega 7 (1039 - 1153, n=6) | |
| Lenovo ThinkPad L15 G2-20X4S0KU00 | |
| Dell Inspiron 15 3505-PXHPW | |
| CrossMark / Creativity | |
| Average of class Multimedia (1054 - 2795, n=90, last 2 years) | |
| Huawei MateBook D 15 Ryzen 5 5500U | |
| Average AMD Ryzen 5 5500U, AMD Radeon RX Vega 7 (895 - 1054, n=6) | |
| Lenovo V15 G2 ALC-82KD003XGE | |
| Lenovo ThinkPad L15 G2-20X4S0KU00 | |
| Dell Inspiron 15 3505-PXHPW | |
| CrossMark / Responsiveness | |
| Average of class Multimedia (869 - 2171, n=90, last 2 years) | |
| Huawei MateBook D 15 Ryzen 5 5500U | |
| Lenovo V15 G2 ALC-82KD003XGE | |
| Average AMD Ryzen 5 5500U, AMD Radeon RX Vega 7 (918 - 1112, n=6) | |
| Lenovo ThinkPad L15 G2-20X4S0KU00 | |
| Dell Inspiron 15 3505-PXHPW | |
| PCMark 10 Score | 5070 points | |
Help | ||
| AIDA64 / Memory Copy | |
| Average of class Multimedia (20549 - 104459, n=77, last 2 years) | |
| Lenovo V15 G2 ALC-82KD003XGE | |
| Huawei MateBook D 15 Ryzen 5 5500U | |
| Average AMD Ryzen 5 5500U (19083 - 40547, n=18) | |
| Acer Aspire 5 A515-45-R4R1 | |
| Lenovo ThinkPad L15 G2-20X4S0KU00 | |
| Dell Inspiron 15 3505-PXHPW | |
| AIDA64 / Memory Read | |
| Average of class Multimedia (22917 - 125604, n=77, last 2 years) | |
| Lenovo V15 G2 ALC-82KD003XGE | |
| Average AMD Ryzen 5 5500U (23005 - 47024, n=18) | |
| Huawei MateBook D 15 Ryzen 5 5500U | |
| Acer Aspire 5 A515-45-R4R1 | |
| Lenovo ThinkPad L15 G2-20X4S0KU00 | |
| Dell Inspiron 15 3505-PXHPW | |
| AIDA64 / Memory Write | |
| Average of class Multimedia (20226 - 117933, n=77, last 2 years) | |
| Huawei MateBook D 15 Ryzen 5 5500U | |
| Average AMD Ryzen 5 5500U (20150 - 42337, n=18) | |
| Lenovo V15 G2 ALC-82KD003XGE | |
| Acer Aspire 5 A515-45-R4R1 | |
| Lenovo ThinkPad L15 G2-20X4S0KU00 | |
| Dell Inspiron 15 3505-PXHPW | |
| AIDA64 / Memory Latency | |
| Average of class Multimedia (7 - 346, n=77, last 2 years) | |
| Dell Inspiron 15 3505-PXHPW | |
| Lenovo V15 G2 ALC-82KD003XGE | |
| Average AMD Ryzen 5 5500U (87.3 - 119, n=18) | |
| Huawei MateBook D 15 Ryzen 5 5500U | |
| Lenovo ThinkPad L15 G2-20X4S0KU00 | |
| Acer Aspire 5 A515-45-R4R1 | |
* ... smaller is better

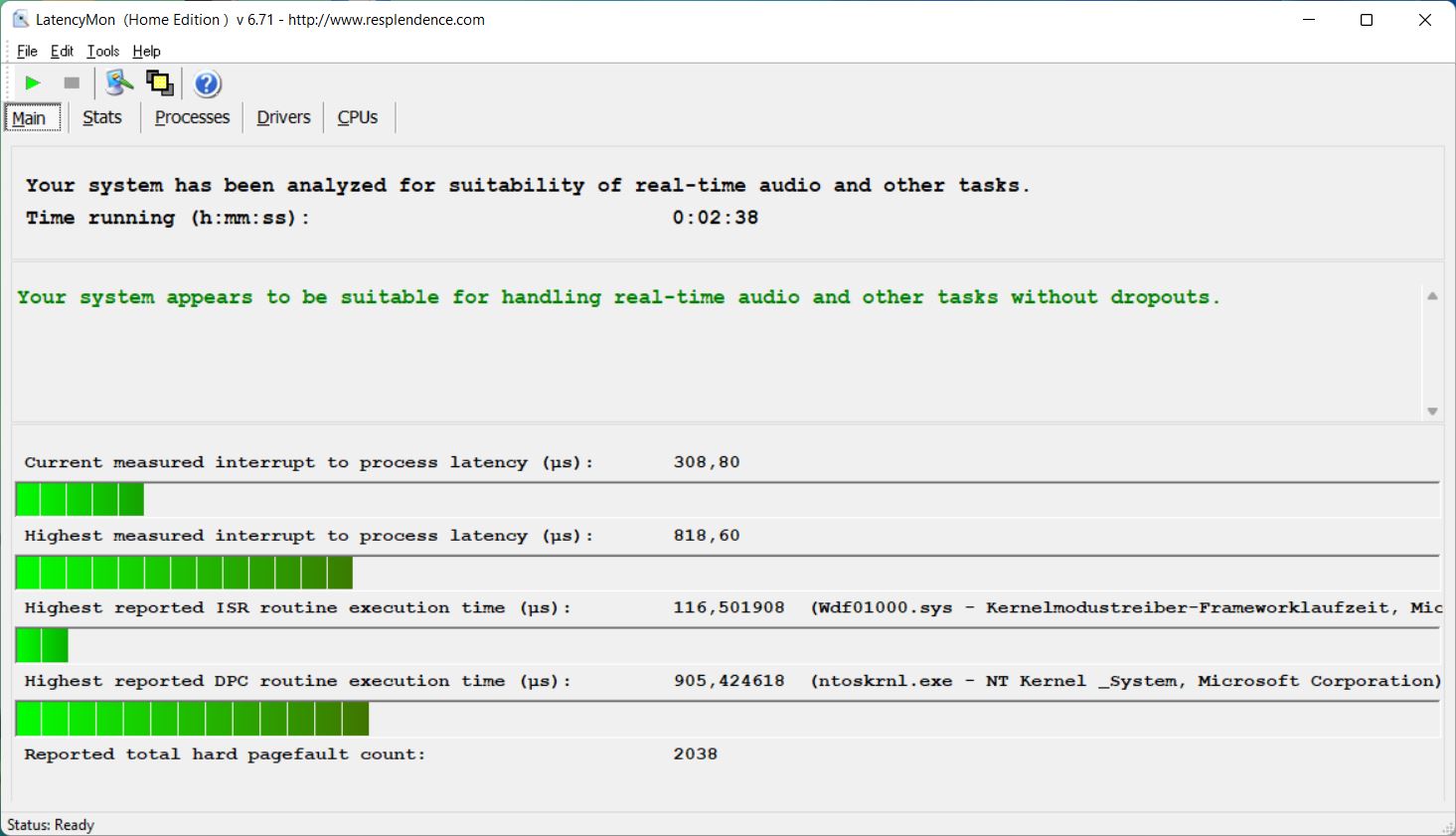

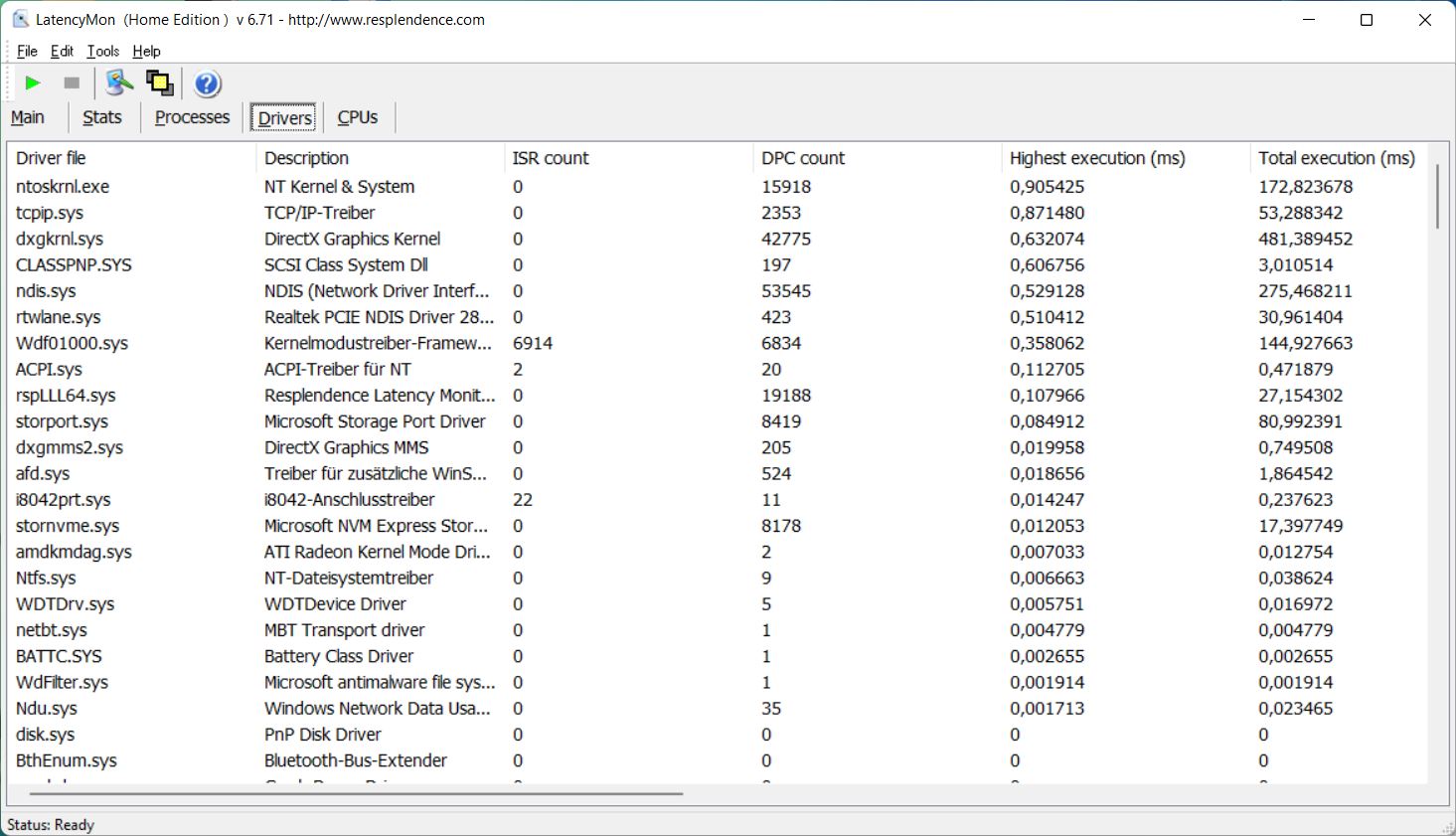

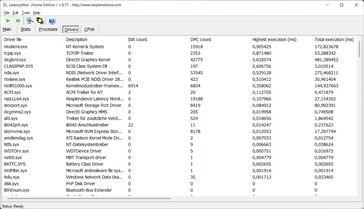

DPC延迟
我们的标准化延迟测试（网页浏览、4K YouTube、CPU负载）并没有显示当前BIOS版本有任何问题。
| DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95 | |
| Dell Inspiron 15 3505-PXHPW | |
| Acer Aspire 5 A515-45-R4R1 | |
| Lenovo V15 G2 ALC-82KD003XGE | |
| Lenovo ThinkPad L15 G2-20X4S0KU00 | |
| Huawei MateBook D 15 Ryzen 5 5500U | |
* ... smaller is better
储存

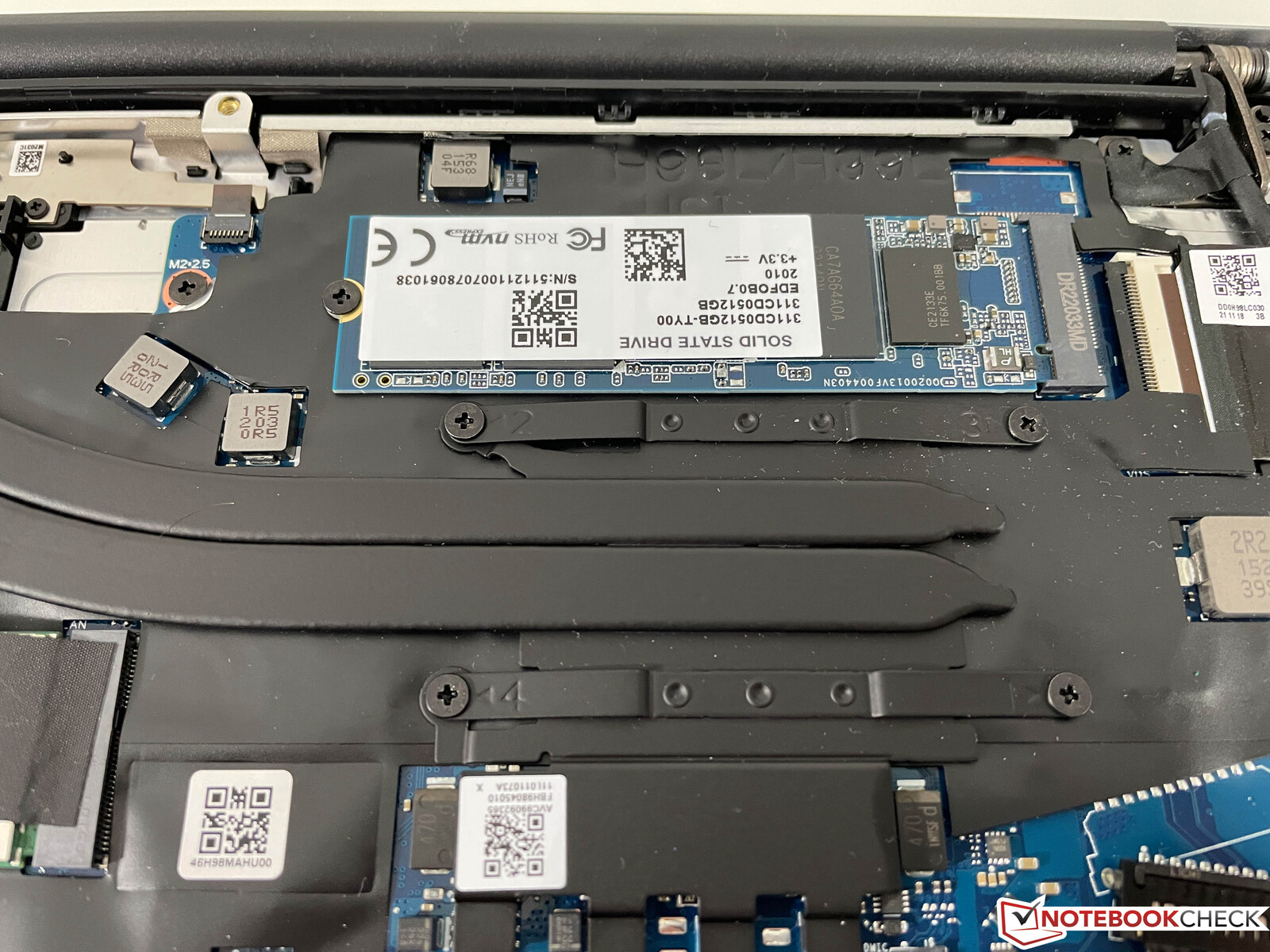

尽管价格低廉，华为为MateBook D 15配备了512GB PCIe 3.0 x4固态硬盘，在我们的评测样本中，它来自Phison。它的性能是完全可以接受的，但SSD的分区再次让人恼火。系统驱动器只有大约76GB可用，所以如果你不注意下载和安装，容量问题会很快出现在这里。剩余的~340GB在D分区中可用。更多的SSD基准测试可以在 这里.
* ... smaller is better
Continuous load read: DiskSpd Read Loop, Queue Depth 8
图形卡
集成的Vega 6 GPURyzen处理器非常适用于所有日常事务，由于强大的视频解码器，它在播放高分辨率视频方面没有任何问题。iGPU也受益于双通道内存配置，在合成3DMarks中的表现达到了预期水平。
然而，MateBook D 15只在非常有限的范围内适用于游戏。像《DOTA 2》这样的简单游戏即使在较高的细节下也能顺利运行，但在大多数现代游戏中，你将不得不降低细节水平或分辨率。
即使在长时间的负载以及电池供电的情况下，性能仍然稳定。进一步的GPU基准测试列在 这里.
| 3DMark 11 Performance | 5136 points | |
| 3DMark Cloud Gate Standard Score | 19080 points | |
| 3DMark Fire Strike Score | 2820 points | |
| 3DMark Time Spy Score | 1096 points | |
Help | ||
The Witcher 3 FPS diagram
| low | med. | high | ultra | |
|---|---|---|---|---|
| GTA V (2015) | 78.6 | 72 | 21.6 | 9.04 |
| The Witcher 3 (2015) | 56 | 17 | 11.3 | |
| Dota 2 Reborn (2015) | 93 | 71.1 | 43.1 | 40.8 |
| Final Fantasy XV Benchmark (2018) | 29.8 | 15.4 | 10.1 | |
| X-Plane 11.11 (2018) | 39.2 | 32 | 28.8 | |
| Strange Brigade (2018) | 59 | 23 | 21 | 19 |
| F1 2021 (2021) | 75 | 31 |
排放和能源
噪声排放
MateBook D 15只配备了一个风扇，但它在日常使用中通常保持非常安静，而且由于也没有任何恼人的电子噪音，如线圈啸叫，所以笔记本电脑经常完全无声。在游戏或运行要求更高的应用程序时，你可以期待大约36 dB(A)，这是一个舒适的噪音水平。风扇只有在满载时才会转起来，而且也非常好听，略低于44 dB(A)。
Noise Level
| Idle |
| 24.1 / 24.1 / 28 dB(A) |
| Load |
| 35.9 / 43.9 dB(A) |
 | ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min:  , med:  , max:  Earthworks M23R, Arta (15 cm distance) environment noise: 24.1 dB(A) | ||
| Huawei MateBook D 15 Ryzen 5 5500U Vega 7, R5 5500U, Phison PS5013 311CD0512GB | Lenovo V15 G2 ALC-82KD003XGE Vega 7, R5 5500U, WDC PC SN530 SDBPMPZ-512G | Dell Inspiron 15 3505-PXHPW Vega 8, R5 3450U, KDI OM3PDP3-AD NVMe KDI 256GB | Acer Aspire 5 A515-45-R4R1 Vega 8, R7 5700U, Micron 2210 MTFDHBA512QFD | Lenovo ThinkPad L15 G2-20X4S0KU00 UHD Graphics Xe G4 48EUs, i3-1115G4, Samsung SSD PM981a MZVLB256HBHQ | Huawei MateBook D 15-53010TUY Vega 8, R5 3500U, Samsung SSD PM981 MZVLB256HAHQ | |
|---|---|---|---|---|---|---|
| Noise | 4% | 4% | -2% | 4% | -6% | |
| off / environment * | 24.1 | 25 -4% | 25 -4% | 25 -4% | 25.96 -8% | 29.6 -23% |
| Idle Minimum * | 24.1 | 25 -4% | 25 -4% | 25 -4% | 25.96 -8% | 29.6 -23% |
| Idle Average * | 24.1 | 25 -4% | 25 -4% | 25 -4% | 25.96 -8% | 29.6 -23% |
| Idle Maximum * | 28 | 25 11% | 25 11% | 29.5 -5% | 25.96 7% | 29.6 -6% |
| Load Average * | 35.9 | 33.6 6% | 33.6 6% | 38.6 -8% | 25.96 28% | 30.6 15% |
| Witcher 3 ultra * | 35.9 | |||||
| Load Maximum * | 43.9 | 34.5 21% | 34.5 21% | 38.6 12% | 37.86 14% | 33.8 23% |
* ... smaller is better
温度

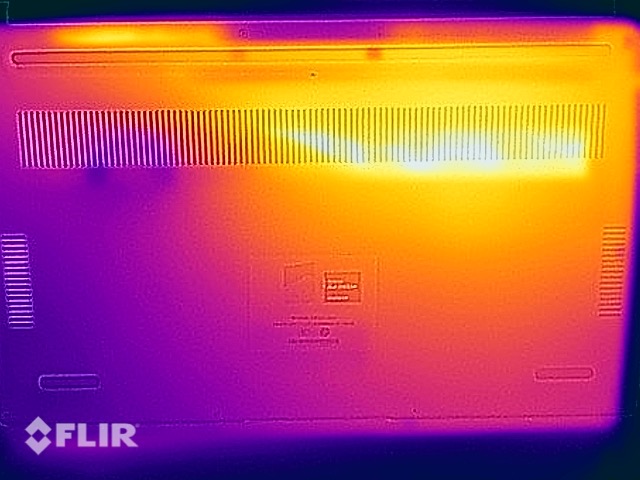

不对称的冷却导致热量发展也集中在左侧。除了分布不均外，没有明显的问题，压力测试中的最高表面温度保持在43℃（约109°F）左右，绝对无害。在日常使用中，金属外壳几乎没有可察觉的升温。

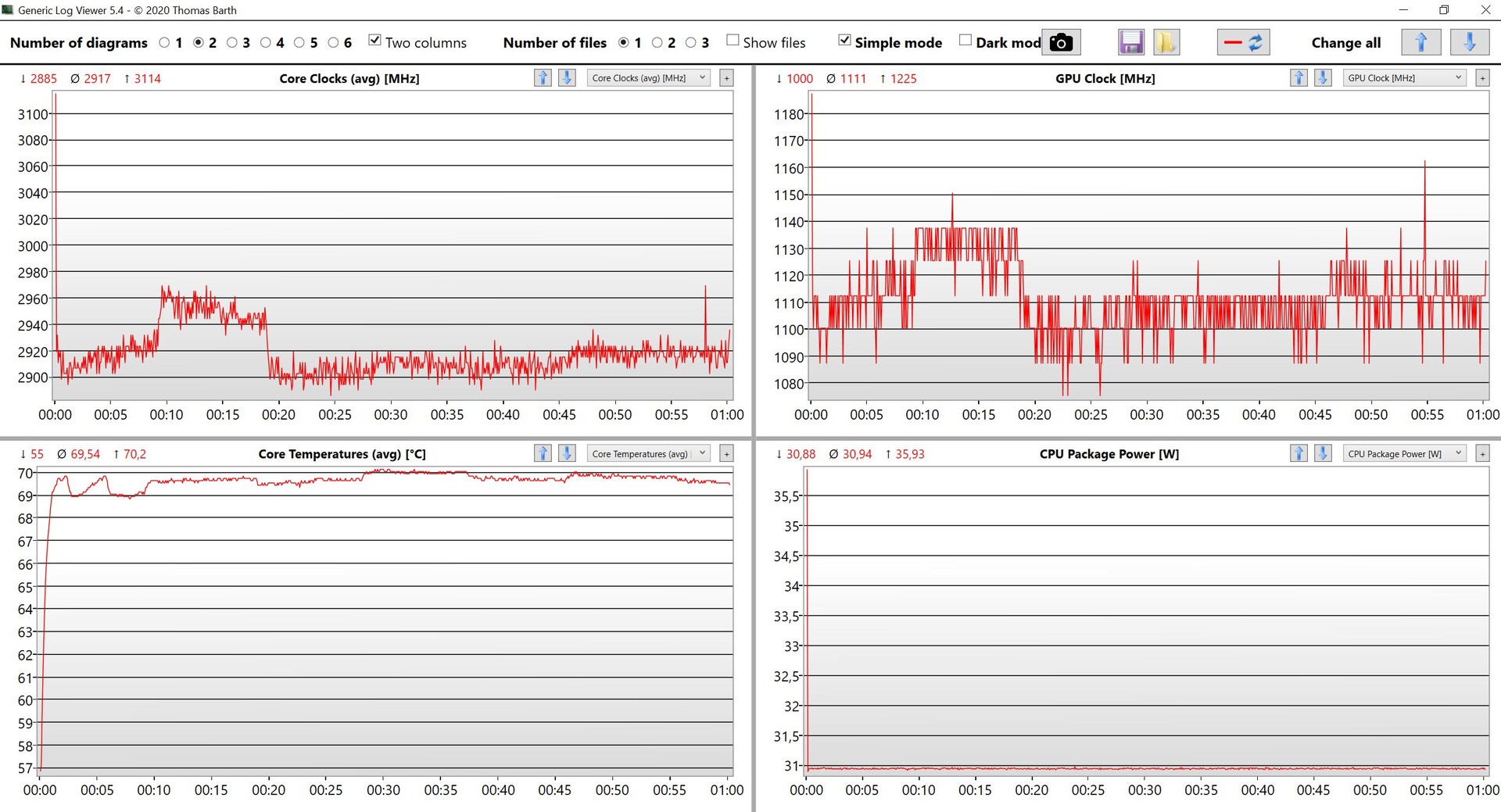

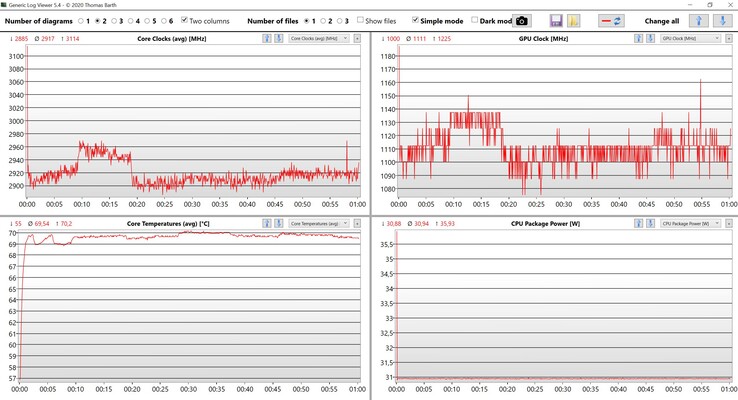

在我们的压力测试中，评测样品显示出极其稳定的行为，在最初的36瓦峰值之后，TDP保持在31瓦的水平。
(±) The maximum temperature on the upper side is 40.6 °C / 105 F, compared to the average of 36.9 °C / 98 F, ranging from 21.1 to 71 °C for the class Multimedia.
(±) The bottom heats up to a maximum of 43.9 °C / 111 F, compared to the average of 39.2 °C / 103 F
(+) In idle usage, the average temperature for the upper side is 24.5 °C / 76 F, compared to the device average of 31.3 °C / 88 F.
(+) Playing The Witcher 3, the average temperature for the upper side is 31.5 °C / 89 F, compared to the device average of 31.3 °C / 88 F.
(+) The palmrests and touchpad are reaching skin temperature as a maximum (33.1 °C / 91.6 F) and are therefore not hot.
(-) The average temperature of the palmrest area of similar devices was 28.8 °C / 83.8 F (-4.3 °C / -7.8 F).
| Huawei MateBook D 15 Ryzen 5 5500U AMD Ryzen 5 5500U, AMD Radeon RX Vega 7 | Lenovo V15 G2 ALC-82KD003XGE AMD Ryzen 5 5500U, AMD Radeon RX Vega 7 | Dell Inspiron 15 3505-PXHPW AMD Ryzen 5 3450U, AMD Radeon RX Vega 8 (Ryzen 2000/3000) | Acer Aspire 5 A515-45-R4R1 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) | Lenovo ThinkPad L15 G2-20X4S0KU00 Intel Core i3-1115G4, Intel UHD Graphics Xe G4 48EUs | Huawei MateBook D 15-53010TUY AMD Ryzen 5 3500U, AMD Radeon RX Vega 8 (Ryzen 2000/3000) | |
|---|---|---|---|---|---|---|
| Heat | -21% | -21% | -9% | 1% | 0% | |
| Maximum Upper Side * | 40.6 | 40.4 -0% | 40.4 -0% | 40 1% | 44.4 -9% | 39.3 3% |
| Maximum Bottom * | 43.9 | 41.1 6% | 41.1 6% | 42.8 3% | 53.1 -21% | 45.6 -4% |
| Idle Upper Side * | 25.6 | 34.6 -35% | 34.6 -35% | 32.4 -27% | 21.7 15% | 25.2 2% |
| Idle Bottom * | 26.2 | 40 -53% | 40 -53% | 29.4 -12% | 21.6 18% | 26.1 -0% |
* ... smaller is better
发言人
两个立体声扬声器基本上保持不变，但MateBook现在配备了Nahimic的音频软件。这提供了不同的配置文件，明显改善了声音。总的来说，性能还不错，你可以在这里播放一些视频或一些音乐，没有任何问题，但低音基本上没有。
Huawei MateBook D 15 Ryzen 5 5500U audio analysis
(+) | speakers can play relatively loud (84.2 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 19.9% lower than median
(±) | linearity of bass is average (9.5% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.1% away from median
(+) | mids are linear (4.9% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.6% away from median
(+) | highs are linear (3.4% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (14.1% difference to median)
Compared to same class
» 28% of all tested devices in this class were better, 4% similar, 68% worse
» The best had a delta of 5%, average was 18%, worst was 45%
Compared to all devices tested
» 14% of all tested devices were better, 4% similar, 82% worse
» The best had a delta of 4%, average was 25%, worst was 134%
Lenovo V15 G2 ALC-82KD003XGE audio analysis
(-) | not very loud speakers (65.1 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 27.6% lower than median
(-) | bass is not linear (16.7% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 4.2% away from median
(±) | linearity of mids is average (9% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.2% away from median
(+) | highs are linear (6.1% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (23.6% difference to median)
Compared to same class
» 64% of all tested devices in this class were better, 9% similar, 27% worse
» The best had a delta of 7%, average was 21%, worst was 53%
Compared to all devices tested
» 68% of all tested devices were better, 7% similar, 26% worse
» The best had a delta of 4%, average was 25%, worst was 134%
Dell Inspiron 15 3505-PXHPW audio analysis
(+) | speakers can play relatively loud (82 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 33.6% lower than median
(±) | linearity of bass is average (11.4% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | reduced mids - on average 5.8% lower than median
(±) | linearity of mids is average (7.1% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 5.8% higher than median
(+) | highs are linear (5.2% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (21.8% difference to median)
Compared to same class
» 51% of all tested devices in this class were better, 10% similar, 39% worse
» The best had a delta of 7%, average was 21%, worst was 53%
Compared to all devices tested
» 59% of all tested devices were better, 7% similar, 34% worse
» The best had a delta of 4%, average was 25%, worst was 134%
Acer Aspire 5 A515-45-R4R1 audio analysis
(-) | not very loud speakers (70.4 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 25.8% lower than median
(±) | linearity of bass is average (14.7% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.4% away from median
(±) | linearity of mids is average (8.1% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4.6% away from median
(+) | highs are linear (6.4% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (21% difference to median)
Compared to same class
» 70% of all tested devices in this class were better, 8% similar, 22% worse
» The best had a delta of 5%, average was 18%, worst was 45%
Compared to all devices tested
» 54% of all tested devices were better, 8% similar, 39% worse
» The best had a delta of 4%, average was 25%, worst was 134%
能源消耗
总的来说，MateBook D 15在我们的消耗测量中没有显示出任何问题，即使在全亮度下，它在空闲使用时仍低于10瓦。在压力测试中，我们测得的最大功率略低于60瓦，与处理器的TDP类似，这个数值在测试过程中下降到55瓦左右。这意味着附带的65瓦的电源适配器有足够的容量。
| Off / Standby | 0.33 / 0.86 Watt |
| Idle | 5.5 / 9.1 / 9.7 Watt |
| Load |
40 / 59.5 Watt |

| |
Key:
min: ,
med: ,
max: Metrahit Energy | |
Energy consumption during The Witcher 3 / stress test
Energy consumption with external monitor
电池寿命

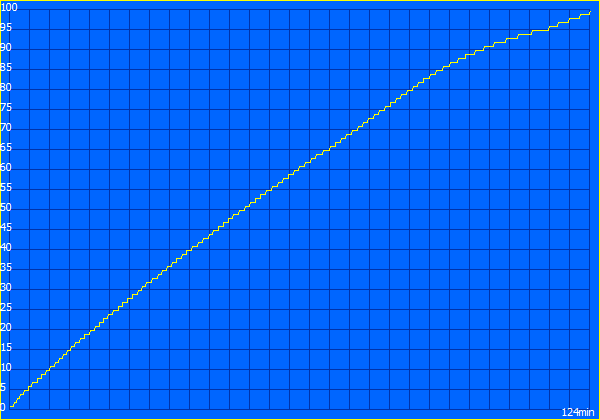

56Wh的电池提供了良好的电池寿命。在我们的Wi-Fi测试中，在150cd/m²（相当于测试设备最大亮度的72%）下，它几乎可以持续9小时，而在最大亮度下，它仍然可以持续7:30小时，这也超过了几乎所有的对比设备。当设备开启时，一个完整的充电过程大约需要2小时。
| Huawei MateBook D 15 Ryzen 5 5500U R5 5500U, Vega 7, 56 Wh | Lenovo V15 G2 ALC-82KD003XGE R5 5500U, Vega 7, 38 Wh | Dell Inspiron 15 3505-PXHPW R5 3450U, Vega 8, 42 Wh | Acer Aspire 5 A515-45-R4R1 R7 5700U, Vega 8, 48 Wh | Lenovo ThinkPad L15 G2-20X4S0KU00 i3-1115G4, UHD Graphics Xe G4 48EUs, 45 Wh | Huawei MateBook D 15-53010TUY R5 3500U, Vega 8, 42 Wh | Average of class Multimedia | |
|---|---|---|---|---|---|---|---|
| Battery Runtime | |||||||
| WiFi v1.3 | 529 | 479 -9% | 272 -49% | 652 23% | 379 -28% | 470 -11% | 640 ? 21% |
Pros
Cons
结论 - MateBook D 15具有良好的性价比
华为MateBook D 15的更新版本作为一款经济实惠的多媒体笔记本电脑，也能在很多方面给人留下深刻印象。这要从优雅而坚固的金属外壳说起，这不是这个价格范围内的常规做法。尽管它的年龄很大，但使用AMD Ryzen 5 5500U也是一个不错的选择，因为它除了提供充足的性能外，还提供了良好的效率，这使得电池寿命很长。
通过当前型号的MateBook D 15，华为再次以低价提供了一个良好的多媒体笔记本电脑。金属外壳和AMD处理器令人信服，但在这个价格下，没有办法避免在某些方面做出妥协。
自然，在这个价格范围内，你将不得不在某些方面做出妥协，你不能期望在每个方面都有最新的技术。例如，两个USB 2.0端口似乎有点不合时宜，但由于另一侧还有一个快速端口，在这方面应该很少有实际的限制。这也适用于Wi-Fi 5模块。虽然这里有更快的对手，但性能也完全可以满足日常使用。
不幸的是，内存（8GB）不能扩展，这在未来几年也许会成为问题。然而，在我们看来，两个最大的缺点是缺乏键盘背光，以及哑光IPS面板的图像看起来很有颗粒感。与更好的显示屏相比，你可以清楚地看到这是一个廉价的IPS显示屏。然而，直接的竞争者在某些情况下甚至还不如它。
尽管如此，能够接受这一点的用户将得到一台具有良好性价比的多媒体笔记本电脑。在与竞争者的比较中 联想, Acer或 戴尔由于采用了金属外壳，MateBook看起来质量要高得多。
价格和可用性
在撰写本文时，MateBook D 15似乎还没有在美国的商店里出售。
Huawei MateBook D 15 Ryzen 5 5500U
- 04/28/2022 v7 (old)
Andreas Osthoff
Price comparison
