华为MateBook E笔记本电脑评测--采用OLED的新型Windows平板电脑

MatePad Pro遇到了Windows。

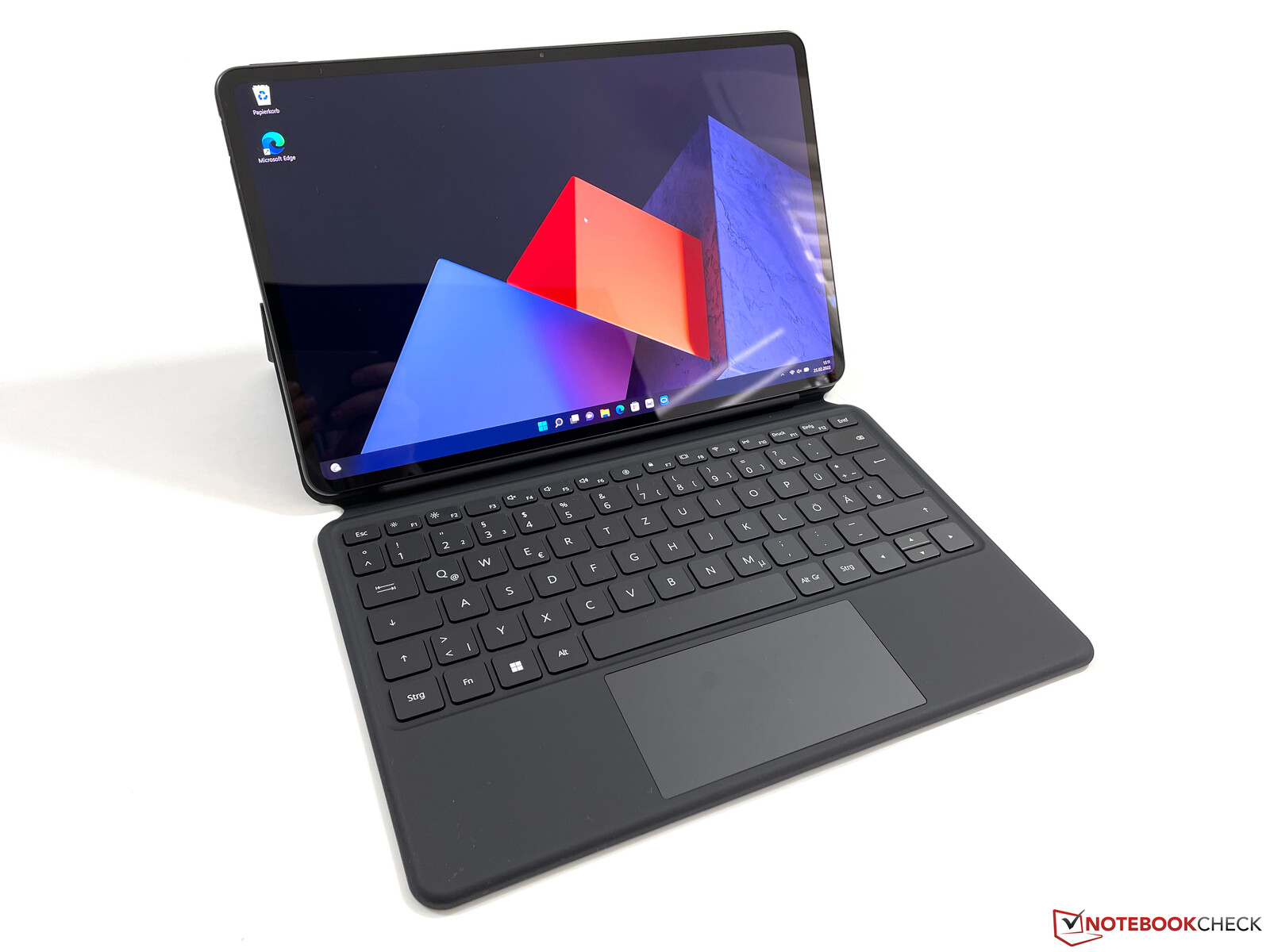

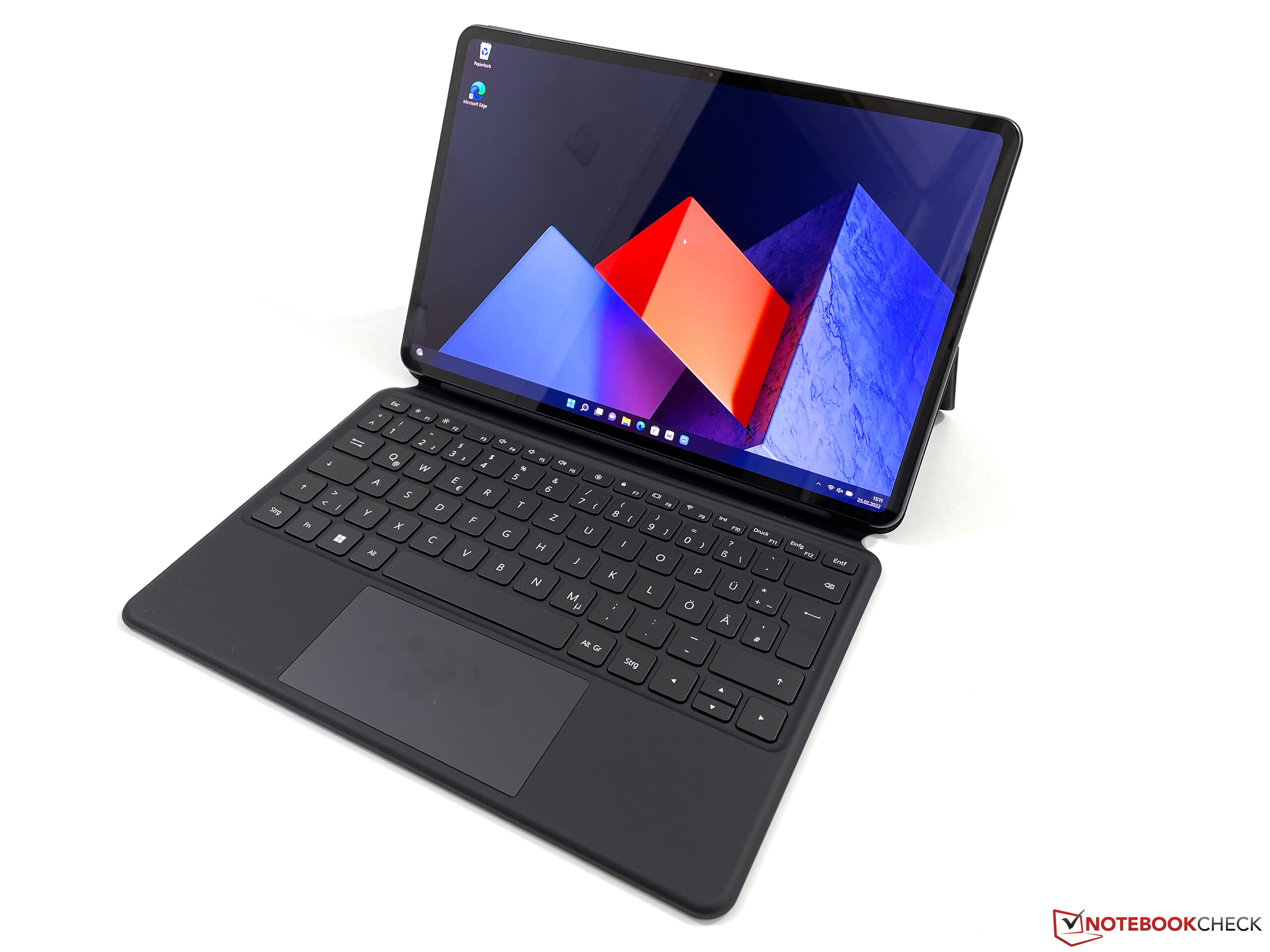

我们已经熟悉了华为的平板电脑和笔记本电脑,但该制造商现在推出了一款名为MateBook E的新的敞篷车。它基本上还是一款类似于MatePads的平板电脑,但它具有Windows 11、Tiger Lake CPU和Thunderbolt 4。
Convertible / 2-in-1 Laptop / Notebook Thunderbolt Tiger Lake Touchscreen Tablet Windows

华为在其MatePad平板电脑系列方面有丰富的经验,现在又进一步推出了新的MateBook E,这是一款二合一笔记本电脑或可转换电脑,采用Windows 11以及Tiger Lake UP4处理器。制造商将其宣传为可折叠式,但与市场上几乎所有其他机型相反,它没有集成脚架,所以它基本上是一款Windows平板电脑。

华为使用高效的UP4版本的移动英特尔Tiger Lake 处理器,并提供两个SKU,一个配备酷睿i3处理器、8GB内存和128GB固态硬盘存储,售价649欧元;我们的评测单元配备酷睿i5芯片、16GB内存和512GB固态硬盘存储,售价1199欧元。酷睿i5单元会自动与相应的键盘盖一起发货。所有型号都采用相同的12.6英寸OLED屏幕,分辨率为2560 x 1600像素(16:10)。

Huawei MateBook E Core i5 (MateBook E Series)
Processor
Intel Core i5-1130G7 4 x 1.8 - 4 GHz, 30 W PL2 / Short Burst, 10 W PL1 / Sustained, Tiger Lake-UP4
Graphics adapter
Intel Iris Xe Graphics G7 80EUs, Core: 1100 MHz, RAM: 1400 MHz
Memory
16 GB
, LPDDR4x-3733, Dual-Channel, onboard
Display
12.60 inch 16:10, 2560 x 1600 pixel 240 PPI, capacitive, native pen support, EDOC660, OLED, glossy: yes, HDR, 60 Hz
Mainboard
Intel Tiger Lake-UP4 PCH-LP
Storage
Silicon Motion PCIe-8 SSD, 512 GB
, 408 GB free
Soundcard
Intel Tiger Lake-U/Y PCH-LP - cAVS (Audio, Voice, Speech)
Connections
1 USB 3.2 Gen 2x2 20Gbps, 1 Thunderbolt, USB-C Power Delivery (PD), 1 DisplayPort, Audio Connections: 3.5 mm Stereo, 1 Fingerprint Reader, Brightness Sensor, Sensors: Gyroscope, Accelerometer, Hall
Networking
Intel Wi-Fi 6 AX201 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/), Bluetooth 5.1
Size
height x width x depth (in mm): 7.99 x 286.5 x 184.7
Battery
42 Wh, 3665 mAh Lithium-Polymer
Operating System
Microsoft Windows 11 Home
Camera
Primary Camera: 13 MPix F1.8, auto focus
Secondary Camera: 8 MPix F2.0, fix focus
Additional features
Speakers: Qaud speakers, Keyboard: Chiclet, Keyboard Light: no, 65W PSU, Huawei PC Manager, 24 Months Warranty
Weight
719 g, Power Supply: 200 g
Price
1199 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



潜在的竞争对手比较

Rating
Date
Model
Weight
Height
Size
Resolution
Price
85.3 %
v7 (old)
03 / 2022
Huawei MateBook E Core i5
i5-1130G7, Iris Xe G7 80EUs
719 g7.99 mm12.60"2560x1600
89.1 %
v7 (old)
11 / 2021
Microsoft Surface Pro 8, i7-1185G7
i7-1185G7, Iris Xe G7 96EUs
891 g8.5 mm13.00"2880x1920
87.1 %
v7 (old)
Lenovo Yoga Duet 7 13IML05-82AS000WGE
i5-10210U, UHD Graphics 620
1.2 kg9.2 mm13.00"2160x1350
88.8 %
v7 (old)
10 / 2021
Huawei MatePad Pro 12.6 2021
Kirin 9000E, Mali-G78 MP22
609 g6.7 mm12.60"2560x1600
91.3 %
v7 (old)
06 / 2021
Apple iPad Pro 12.9 2021 A2378
M1, M1 8-Core GPU
682 g6.4 mm12.90"2732x2048

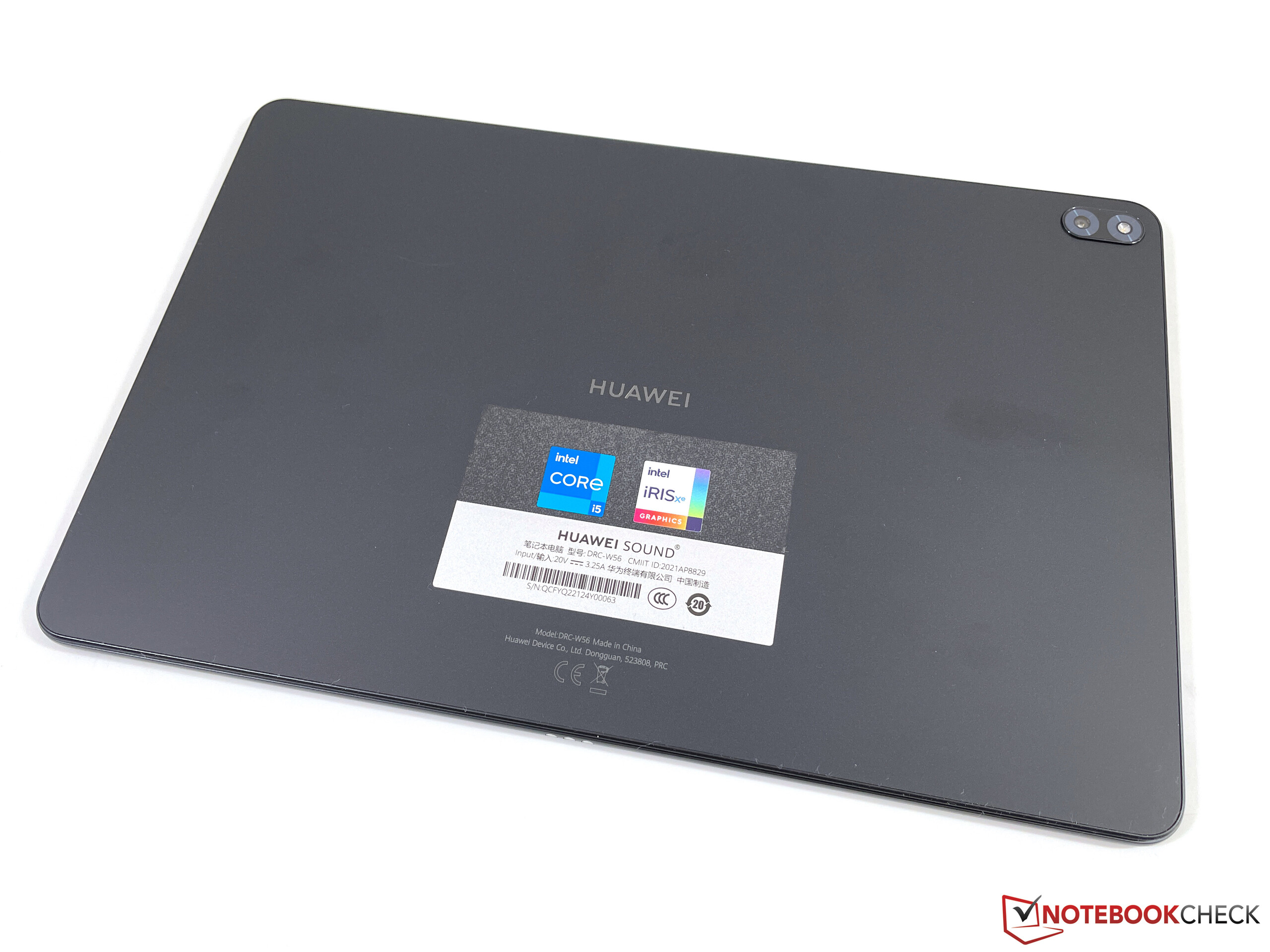

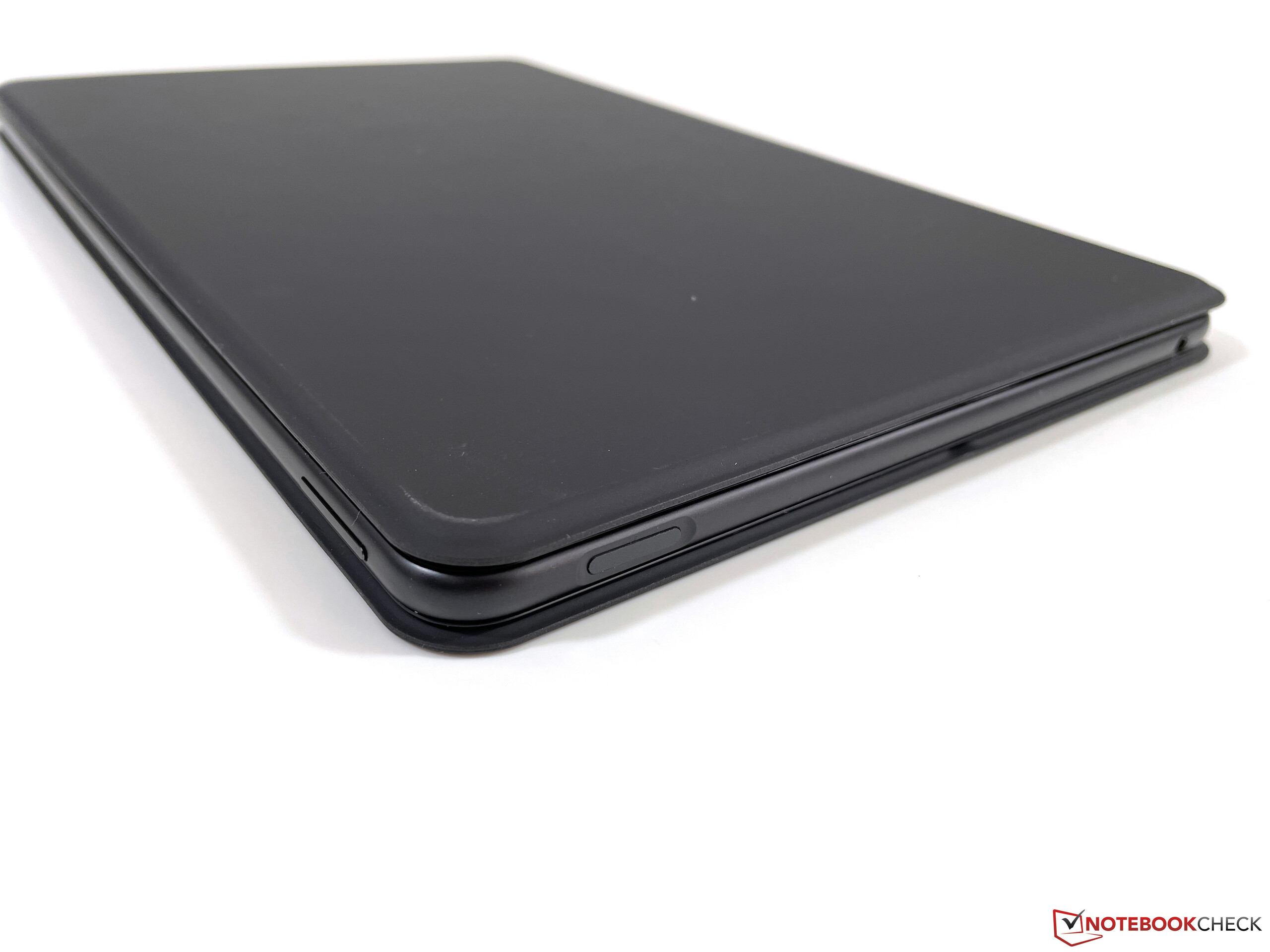

外壳 - 像MatePad Pro

要将新的MateBook E与MatePad Pro区分开来并不容易。笔记本基于设计,因为星云灰的视觉效果以及带有圆角的底盘设计在这两台机器之间几乎是相同的。边框只有5.6毫米宽,导致机身与屏幕的比例高达近90%。这款平板电脑的制造质量和稳定性都非常好,当我们试图扭转设备时,没有吱吱嘎嘎的声音或图片失真。平板电脑的背面由略微粗糙的材料制成,提供了良好的抓地力,但你可以很快看到指纹,而且也不容易清洁表面。

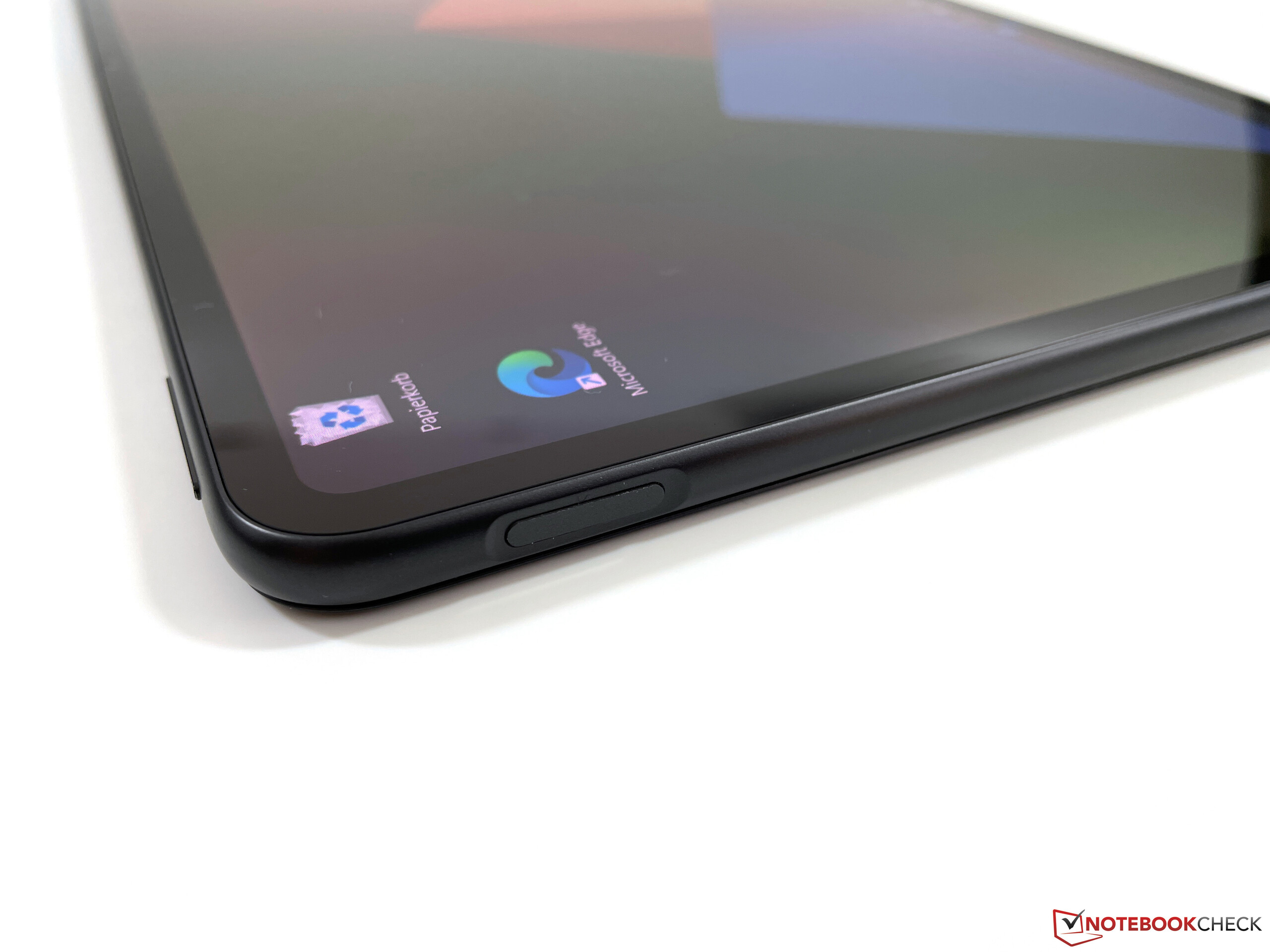

与MatePad Pro的直接比较显示出顶部的风扇排气口,这是主动冷却解决方案所需要的。按钮的集成度很高,不会发出响声,而且电源按钮还实现了指纹扫描。也可以将可选的M-Pencil磁力吸附在顶部边缘,但后面会有更多介绍。

我们已经提到,MateBook E没有提供一个集成的脚架。问题是,与华为自己在MatePad Pro上的HarmonyOS相比,仅仅用手指操作Windows要难得多,例如,建议使用键盘盖(包括触摸板)。与平板电脑的连接非常稳定,键盘盖的质量也给人留下了不错的印象。黑色材料略带橡胶,很光滑。

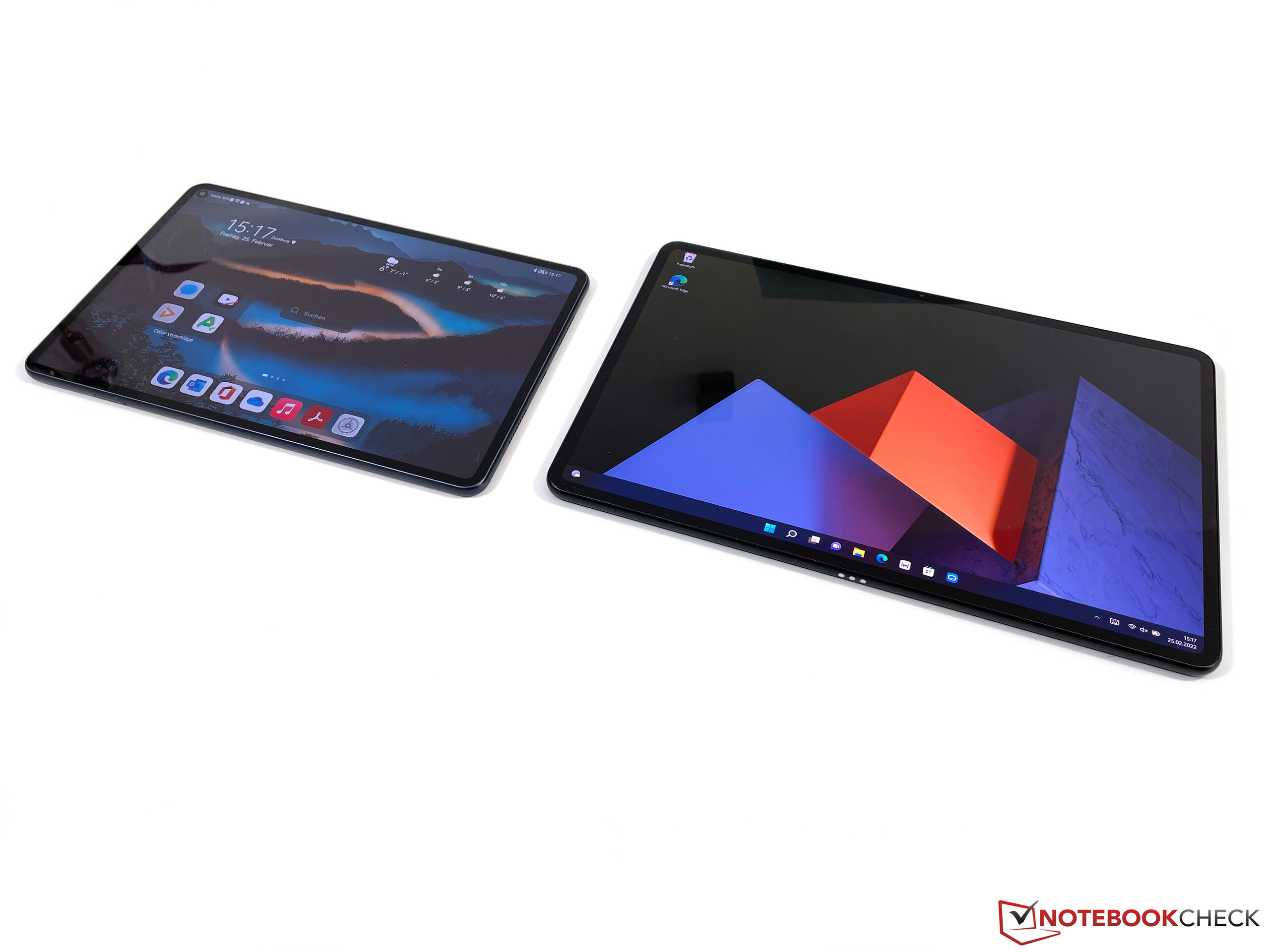

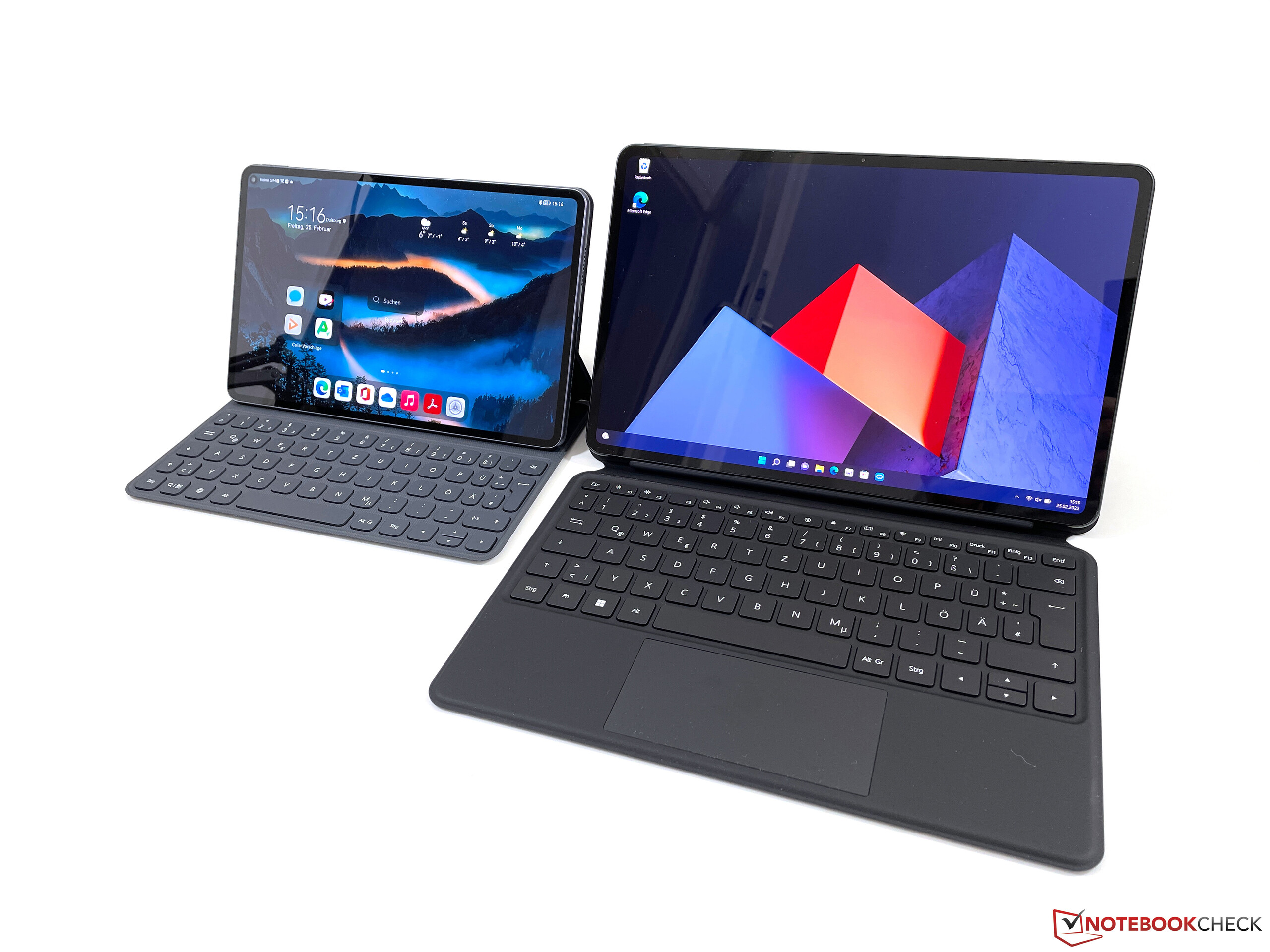

华为MatePad Pro(左)与MateBook E(右)对比
华为MatePad Pro(左)与MateBook E(右)对比

尽管有主动冷却解决方案,这款平板电脑的重量仅略多于700克,因此比像Surface Pro这样的可转换产品要轻。转换器.带键盘盖的全套产品的重量约为1.15公斤,因此它仍然是一个非常紧凑的装置。

尺寸比较

297 mm 207 mm 9.2 mm 1.2 kg292 mm 201 mm 8.5 mm 891 g286.5 mm 184.7 mm 7.99 mm 719 g286.5 mm 184.7 mm 6.7 mm 609 g280.6 mm 214.9 mm 6.4 mm 682 g297 mm 210 mm 1 mm 5.7 g

连接性 - 华为使用雷电4

华为在端口方面没有省钱,因为你得到了一个现代的USB-C端口,包括完全的雷电4支持。然而,你是有限的,因为只有一个端口。例如,如果你想安装一个外部屏幕,它应该是一个通过USB-C供电的屏幕,否则MateBook E将不得不靠电池供电运行。当你想连接USB驱动器或外部硬盘时,总是断开电源适配器,这在生产任务中也是很烦人的。我们以后会看到,MateBook E的电池运行时间并不长,所以你将不得不经常使用电源适配器。

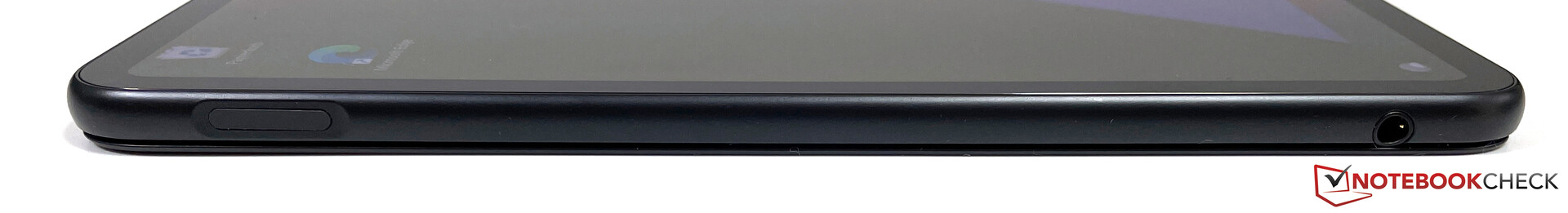

左侧。带指纹扫描仪的电源按钮,3.5毫米立体声插孔
左侧。带指纹扫描仪的电源按钮,3.5毫米立体声插孔

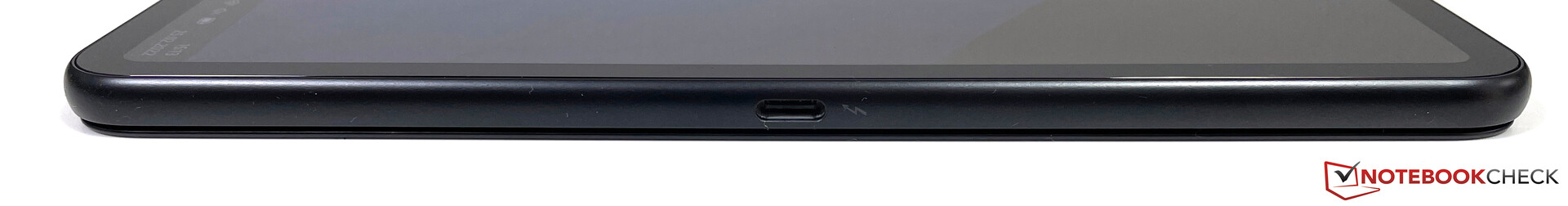

右侧。USB-C和Thunderbolt 4 (Power Delivery, DisplayPort)
右侧。USB-C和Thunderbolt 4 (Power Delivery, DisplayPort)

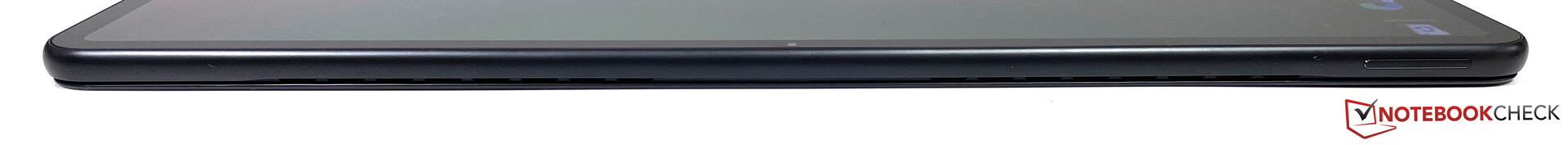

顶部:风扇排气管,音量摇杆
顶部:风扇排气管,音量摇杆

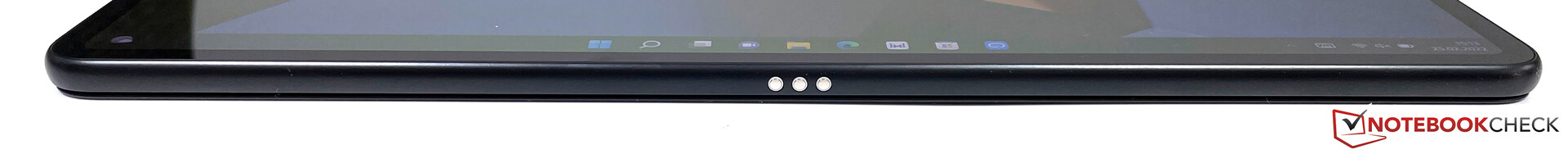

底部。键盘盖的Pogo插销
底部。键盘盖的Pogo插销

通信 - 华为实现了Wi-Fi 6,但没有LTE或5G

像其他现代Windows设备一样,MateBook E配备了现代Wi-Fi模块(在这种情况下是英特尔AX201),包括对Wi-Fi 6以及蓝牙5.1的支持。与我们的Netgear参考路由器(Nighthawk AX12)相结合,传输速率非常好,在我们的审查期间,我们没有发现任何信号问题。华为还提供HuaweiShare技术,可用于在兼容的华为设备之间传输文件(例如从智能手机到MateBook),与Apple的Air Drop技术相似。不过,没有LTE甚至5G调制解调器的选项。

Networking
iperf3 transmit AX12
Huawei MatePad Pro 12.6 2021
802.11 a/b/g/n/ac/ax
1750 (878min - 1870max) MBit/s +20%
Huawei MateBook E Core i5
Intel Wi-Fi 6 AX201
1455 (1260min - 1560max) MBit/s
Microsoft Surface Pro 8, i7-1185G7
Intel Wi-Fi 6 AX201
1451 (1385min - 1504max) MBit/s 0%
Lenovo Yoga Duet 7 13IML05-82AS000WGE
Intel Wi-Fi 6 AX201
1320 (1237min - 1367max) MBit/s -9%
Average Intel Wi-Fi 6 AX201
  (49.8 - 1775, n=324)
1161 MBit/s -20%
Apple iPad Pro 12.9 2021 A2378
802.11 a/b/g/n/ac/ax
722 (678min - 737max) MBit/s -50%
iperf3 receive AX12
Microsoft Surface Pro 8, i7-1185G7
Intel Wi-Fi 6 AX201
1425 (1295min - 1493max) MBit/s +6%
Huawei MateBook E Core i5
Intel Wi-Fi 6 AX201
1340 (1165min - 1508max) MBit/s
Average Intel Wi-Fi 6 AX201
  (136 - 1743, n=324)
1261 MBit/s -6%
Huawei MatePad Pro 12.6 2021
802.11 a/b/g/n/ac/ax
1250 (1126min - 1368max) MBit/s -7%
Lenovo Yoga Duet 7 13IML05-82AS000WGE
Intel Wi-Fi 6 AX201
928 (877min - 942max) MBit/s -31%
Apple iPad Pro 12.9 2021 A2378
802.11 a/b/g/n/ac/ax
780 (699min - 882max) MBit/s -42%
050100150200250300350400450500550600650700750800850900950100010501100115012001250130013501400145015001550Tooltip
Huawei MateBook E Core i5; iperf3 receive AX12; iperf 3.1.3: Ø1340 (1165-1508)
Huawei MateBook E Core i5; iperf3 transmit AX12; iperf 3.1.3: Ø1455 (1260-1560)

网络摄像头

的密切关系。与MatePad Pro的密切关系当我们看网络摄像头的时候就会发现,因为它们对于Windows设备来说是非常好的。除了后置的1300万像素传感器(f/1.8,自动对焦),它可以由闪光灯支持,华为还在前面实现了一个800万像素传感器(f/2.0,固定对焦)。与通常的720p模块相比,质量要好得多,而且MateBook E只是拍摄更清晰的图像,也非常适用于视频会议。

测试图后向1300万像素的摄像头
测试图后向1300万像素的摄像头
ColorChecker
13.3 ∆E
10.8 ∆E
16.1 ∆E
17.2 ∆E
12.1 ∆E
15.1 ∆E
9.4 ∆E
11.6 ∆E
10 ∆E
6.5 ∆E
15.4 ∆E
10.8 ∆E
7.8 ∆E
18.9 ∆E
15.3 ∆E
7.8 ∆E
9.9 ∆E
20.9 ∆E
2.3 ∆E
9.3 ∆E
12.6 ∆E
12.5 ∆E
8 ∆E
6.8 ∆E
ColorChecker Huawei MateBook E Core i5: 11.69 ∆E min: 2.33 - max: 20.89 ∆E

输入设备 - 无照明的智能磁键盘

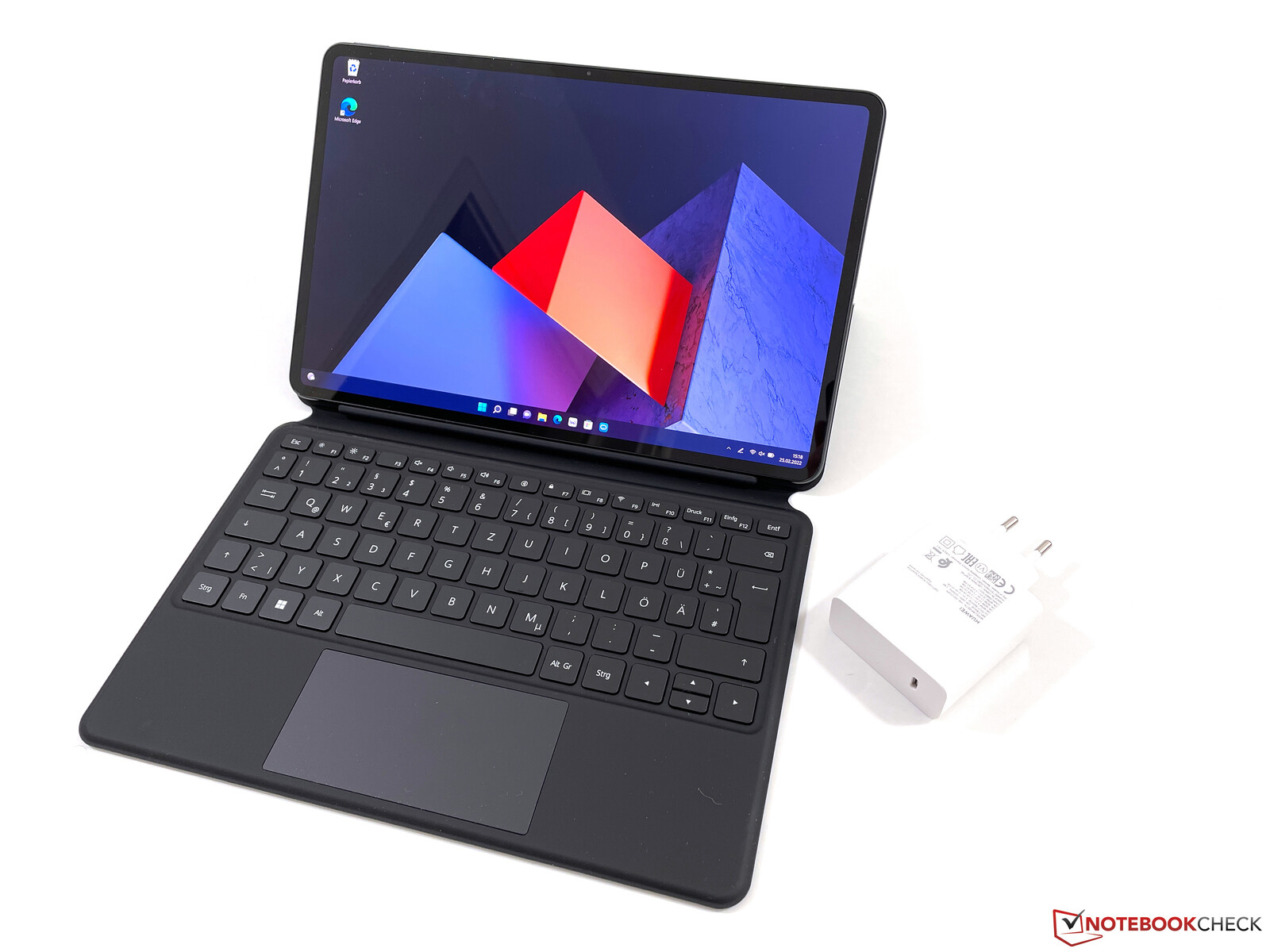

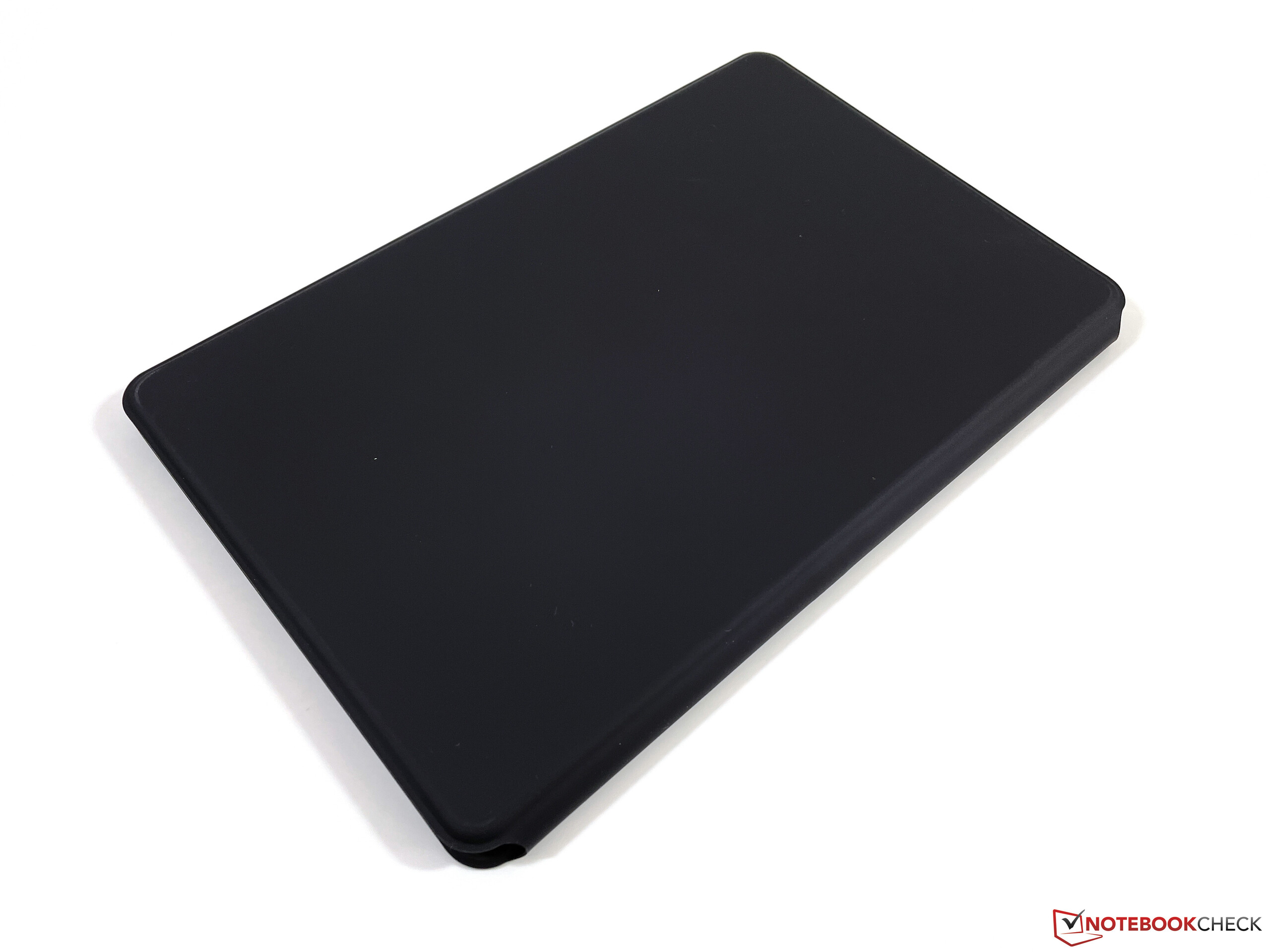

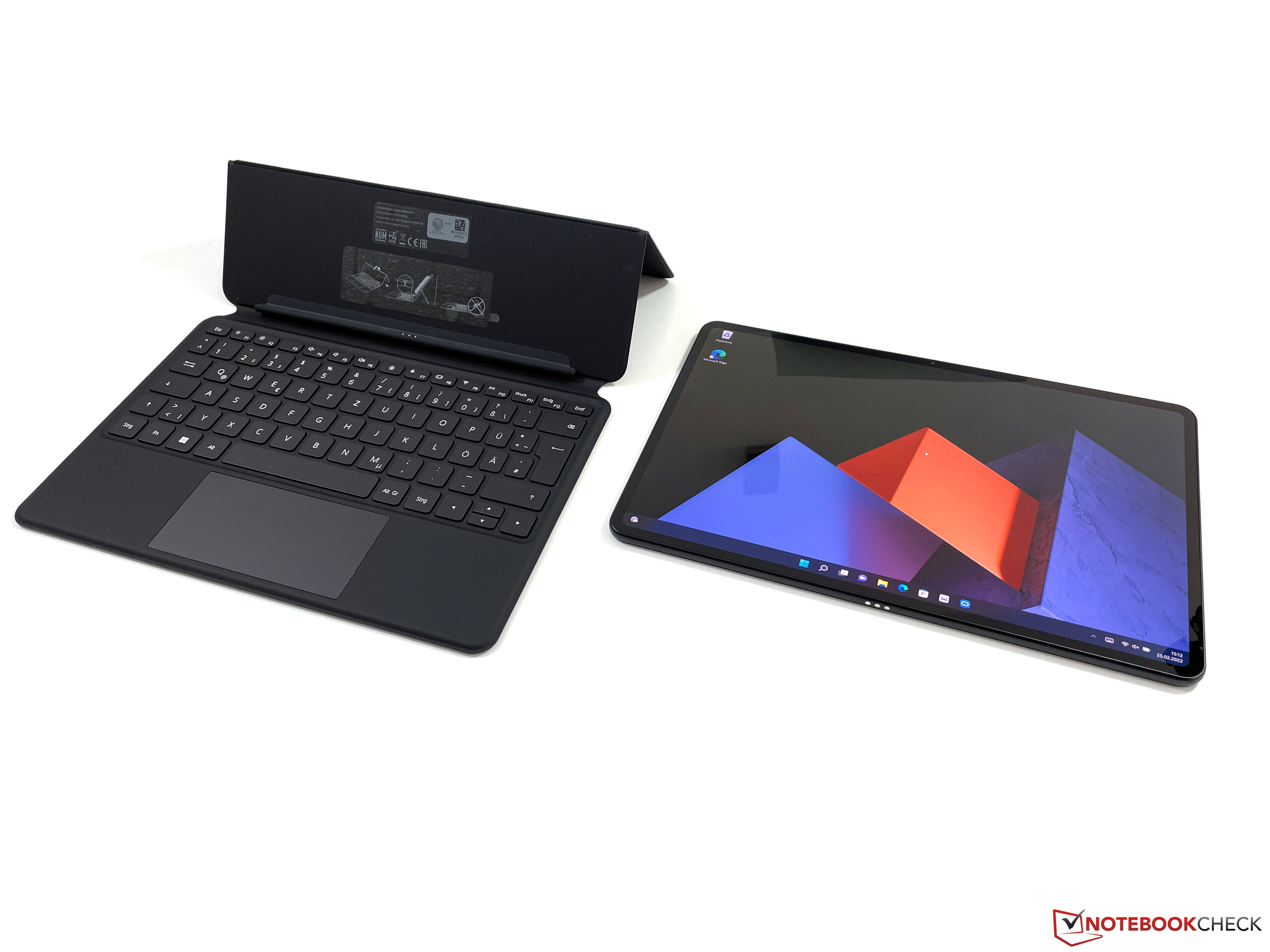

新款MateBook E的Core i5 SKU默认搭载了新的华为智能磁力键盘。这是一个包括触摸板和可调支架的键盘盖。与移动操作系统相比,Windows仍然很难通过触摸输入来使用,而且MateBook E没有集成支架,所以键盘盖对于价格较低的Core i3单元来说也是必须的。

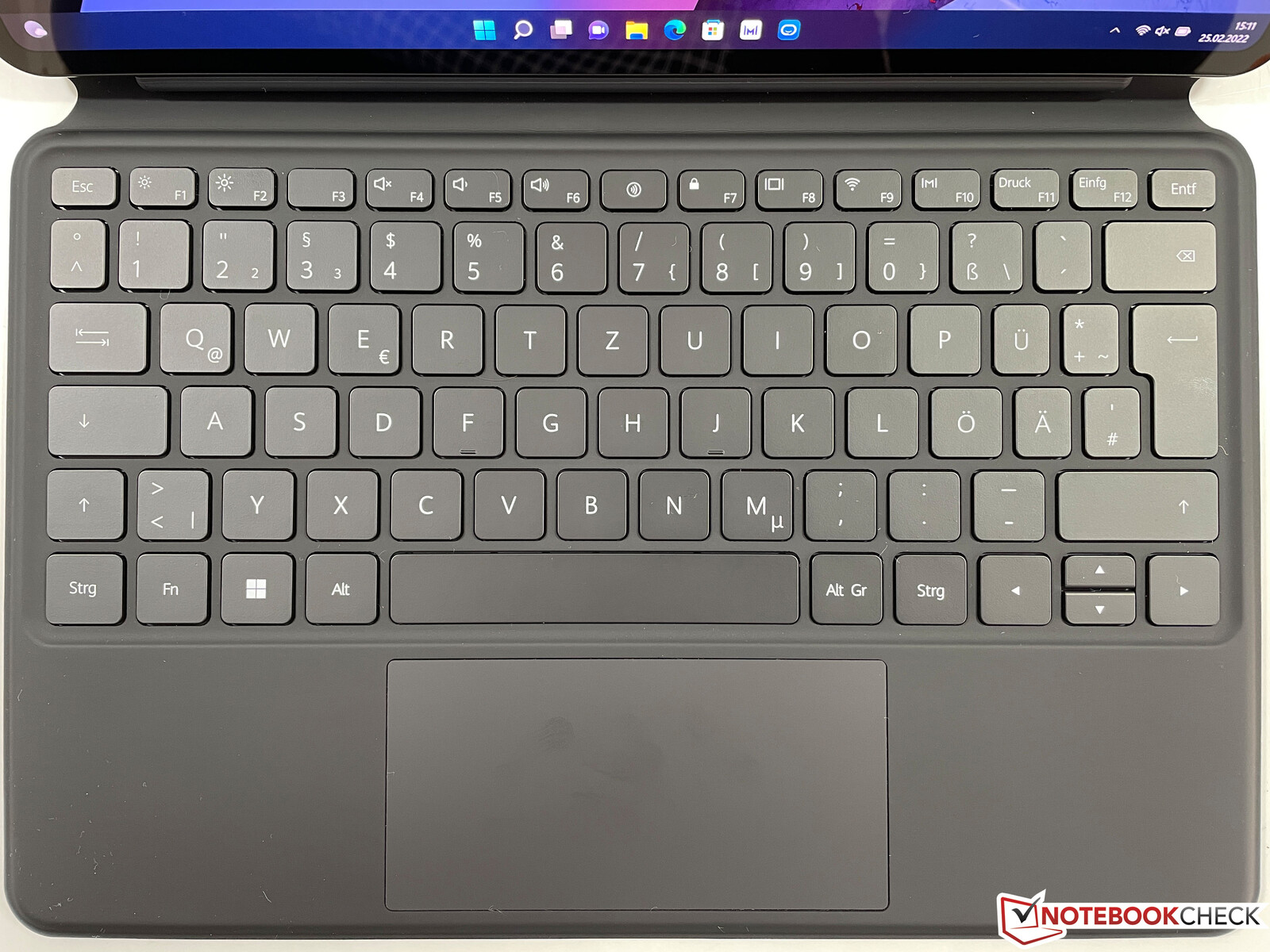

键盘本身有相当浅的按键,但由于精确和相当安静的按键,打字体验还是可以的。键盘右侧的布局有点拥挤,垂直方向键非常小,但更大的问题是缺乏发光的按键。

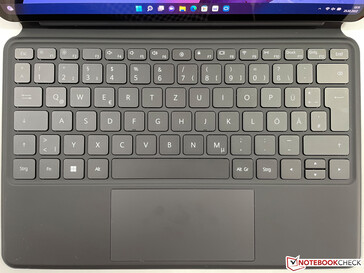

输入设备
输入设备

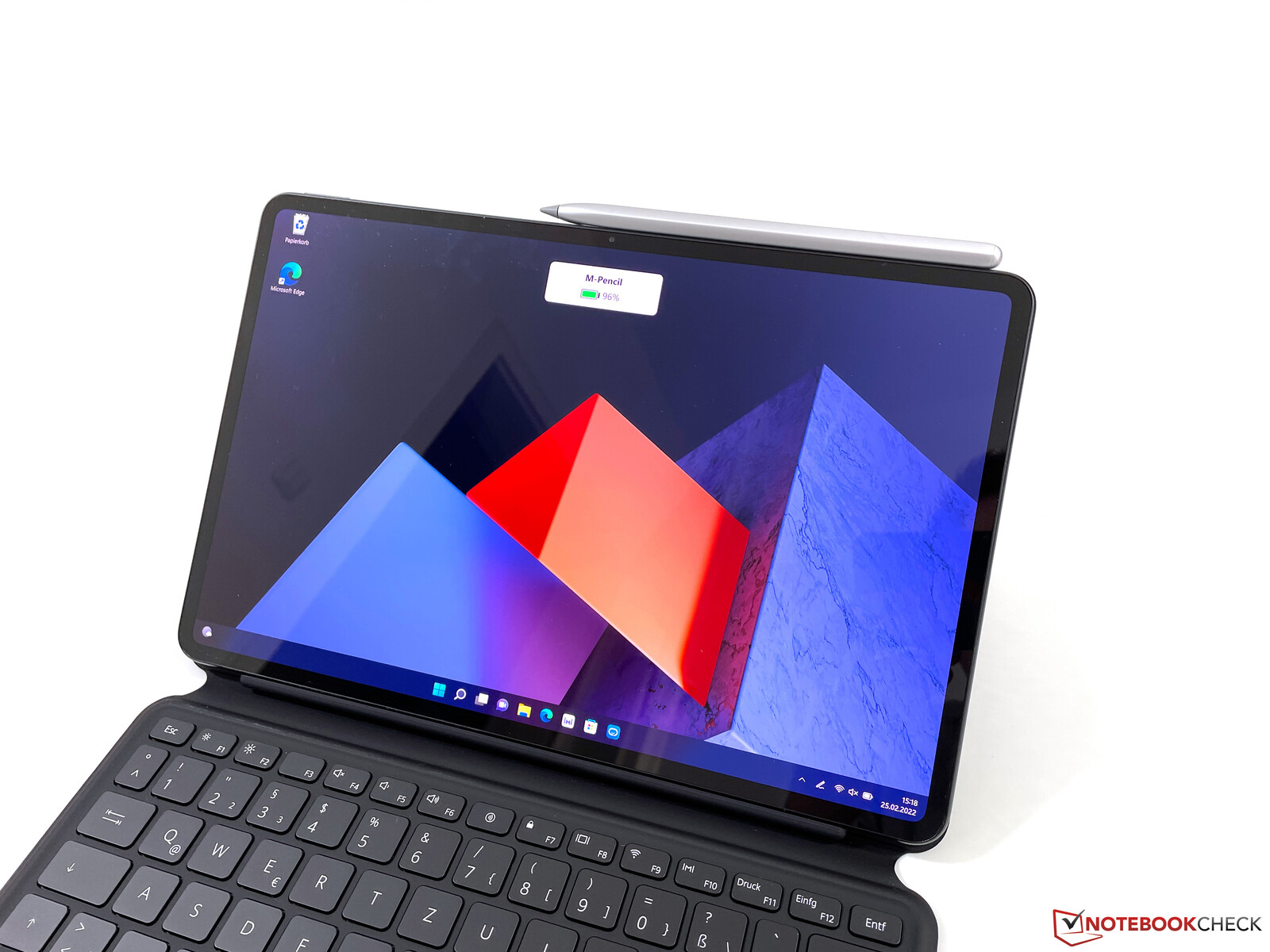

M-Pencil是通过顶部的磁铁固定的。
M-Pencil是通过顶部的磁铁固定的。

键盘下面的小点击板(11.3 x 5.7厘米)工作良好,提供了良好的滑动能力,但我们的模型上的装置有点儿咔咔作响。当我们轻轻敲击表面或重新定位我们的手指时,这一点也很明显。如果你在下半部压下垫子,你还会遇到一个非常响亮的点击声。我们建议使用外部蓝牙鼠标,至少当你把它作为一个固定的设备使用时。

显然,你可以使用电容式触摸屏进行输入,效果非常好。华为还提供可选的M-Pencil(第一代或第二代)。它可以通过磁铁固定在平板电脑的顶部,并自动充电和连接(蓝牙)。我们不能告诉你关于新的第二代M-Pencil的任何情况,但我们可以测试我们仍然拥有的MatePad pro的第一代模型。输入效果很好,但书写时触摸屏表面的阻力有点大。

显示屏 - MateBook E配备16:10 OLED显示屏

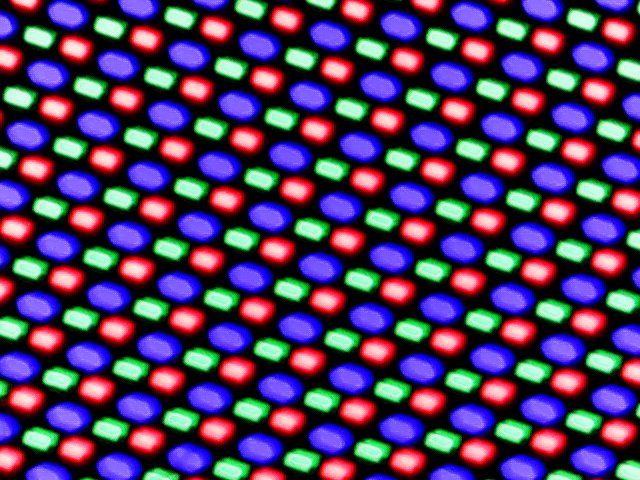

子像素阵列
子像素阵列

新款MateBook E的亮点无疑是显示屏,因为华为使用了12.6英寸OLED触摸屏,分辨率为2560 x 1600像素(16:10)。由于高分辨率和非常高的对比度,主观的图片印象非常好,这创造了清晰和生动的图像。由于边框的圆形边缘,图片内容在角落里略微隐藏。这在实践中并不是一个大问题,但还是可以看到。

华为宣传的亮度为400尼特,我们在测量后可以确认这一数值。作为典型的OLED屏幕,黑值为0,所以理论上对比度是无限的。制造商还宣传了一个可选的高亮度模式,亮度高达600尼特,但我们无法在软件中找到相应的选项,通过组合键或亮度传感器。我们已经联系了制造商,一旦得到答案,我们将立即公布。

背光出血对OLED屏幕来说不是问题,但我们可以检测到典型的PWM闪烁,频率为60赫兹,只要亮度下降到80%(相当于226尼特的亮度)或更低。下面PWM框中的两张截图显示了80%和40%亮度时的PWM闪烁。如果你对PWM闪烁很敏感,也许已经注意到OLED智能手机的问题,你可能不会对新MateBook E感到满意。

407
cd/m²
398
cd/m²
397
cd/m²
411
cd/m²
399
cd/m²
400
cd/m²
423
cd/m²
410
cd/m²
418
cd/m²
Distribution of brightness
EDOC660 tested with X-Rite i1Pro 2
Maximum: 423 cd/m² (Nits) Average: 407 cd/m² Minimum: 9.4 cd/m²
Brightness Distribution: 94 %
Center on Battery: 401 cd/m²
Contrast: ∞:1 (Black: 0 cd/m²)
ΔE Color 1 | 0.5-29.43 Ø4.91
ΔE Greyscale 1.1 | 0.5-98 Ø5.2
72.9% AdobeRGB 1998 (Argyll 2.2.0 3D)
100% sRGB (Argyll 2.2.0 3D)
99.9% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.14
Huawei MateBook E Core i5
EDOC660, OLED, 2560x1600, 12.6"
Microsoft Surface Pro 8, i7-1185G7
LP129WT212166, IPS, 2880x1920, 13"
Lenovo Yoga Duet 7 13IML05-82AS000WGE
CSOT T3 LEN8290, IPS, 2160x1350, 13"
Huawei MatePad Pro 12.6 2021
OLED, 2560x1600, 12.6"
Apple iPad Pro 12.9 2021 A2378
Liquid Retina XDR, IPS mini-LED, 2732x2048, 12.9"
Display
-5%
-12%
-11%
Display P3 Coverage
99.9
78.2
-22%
68.9
-31%
68.7
-31%
sRGB Coverage
100
100
0%
98.2
-2%
99.9
0%
AdobeRGB 1998 Coverage
72.9
77.6
6%
71.1
-2%
70.5
-3%
Response Times
15883%
-1032%
-26%
9857%
Response Time Grey 50% / Grey 80% *
4 ?(2, 2)
46.4 ?(22.8, 23.6)
-1060%
58 ?(24, 34)
-1350%
5.6 ?(2.8, 2.8)
-40%
40 ?(21, 19)
-900%
Response Time Black / White *
3.2 ?(1.2, 2)
23.2 ?(10.8, 12.4)
-625%
26 ?(14, 12)
-713%
4.4 ?(2.8, 1.6)
-38%
45 ?(35, 10)
-1306%
PWM Frequency
60.2 ?(80, 226)
29760 ?(50)
49335%
61 ?(100)
1%
19190 ?(100)
31777%
Screen
-41%
-239%
-57%
-60%
Brightness middle
399
444
11%
450
13%
383
-4%
620
55%
Brightness
407
451
11%
411
1%
390
-4%
612
50%
Brightness Distribution
94
91
-3%
83
-12%
94
0%
96
2%
Black Level *
0.43
0.22
Colorchecker dE 2000 *
1
2
-100%
4.15
-315%
2.1
-110%
1.8
-80%
Colorchecker dE 2000 max. *
1.6
3.2
-100%
11.49
-618%
3.7
-131%
4.9
-206%
Greyscale dE 2000 *
1.1
1.8
-64%
6.66
-505%
2.1
-91%
3.1
-182%
Gamma
2.14 103%
2.11 104%
2.42 91%
2.14 103%
2214 0%
CCT
6434 101%
6417 101%
6043 108%
6258 104%
6892 94%
Contrast
1033
2045
Colorchecker dE 2000 calibrated *
1.7
1.09
Color Space (Percent of AdobeRGB 1998)
65
Color Space (Percent of sRGB)
98
Total Average (Program / Settings)
5279% / 3949%
-428% / -321%
-42% / -46%
3262% / 2431%

* ... smaller is better

与其他MateBooks一样,你会得到额外的显示软件来调整某些方面,如色温、蓝光过滤器,或者在MateBook E的情况下甚至是色彩空间(sRGB或P3)。你还可以选择通过亮度传感器根据环境自动调整色温。

CalMAN灰度(目标色彩空间DCI-P3)。
CalMAN灰度(目标色彩空间DCI-P3)。

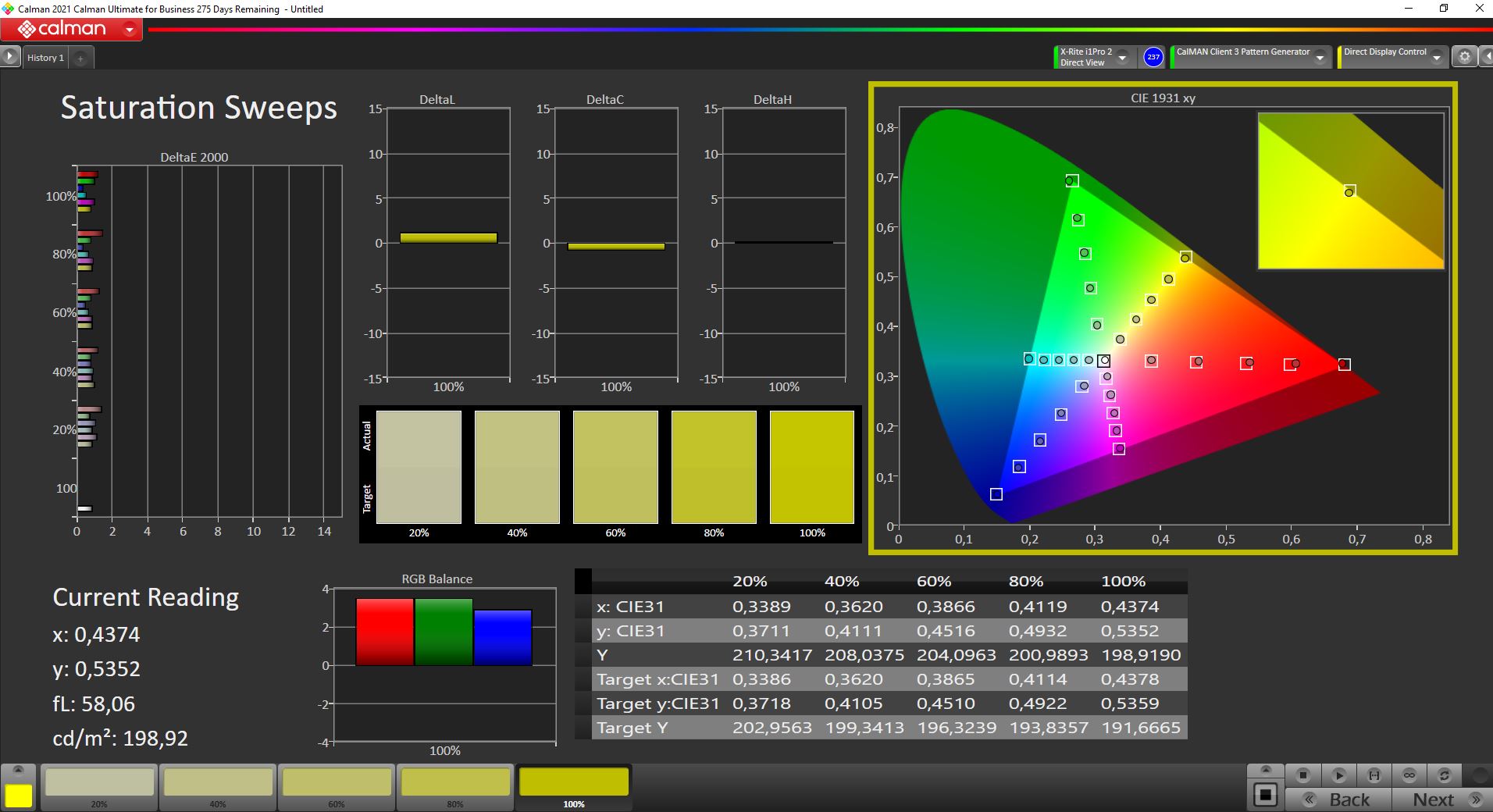

卡尔曼饱和度扫描(目标色彩空间DCI-P3)。
卡尔曼饱和度扫描(目标色彩空间DCI-P3)。
CalMAN ColorChecker(目标色彩空间DCI-P3)。
CalMAN ColorChecker(目标色彩空间DCI-P3)。

我们用专业的CalMAN软件(X-Rite i1 Pro 2)进行的分析表明,开箱后的图片质量已经非常好。没有明显的偏色,与P3参考色彩空间相比,DeltaE-2000的偏差已经低于3的重要标志。结合全P3色域,编辑图片/视频是没有问题的。

我们无法通过自己的校准来提高显示性能,所以我们目前没有提供一个配置文件。

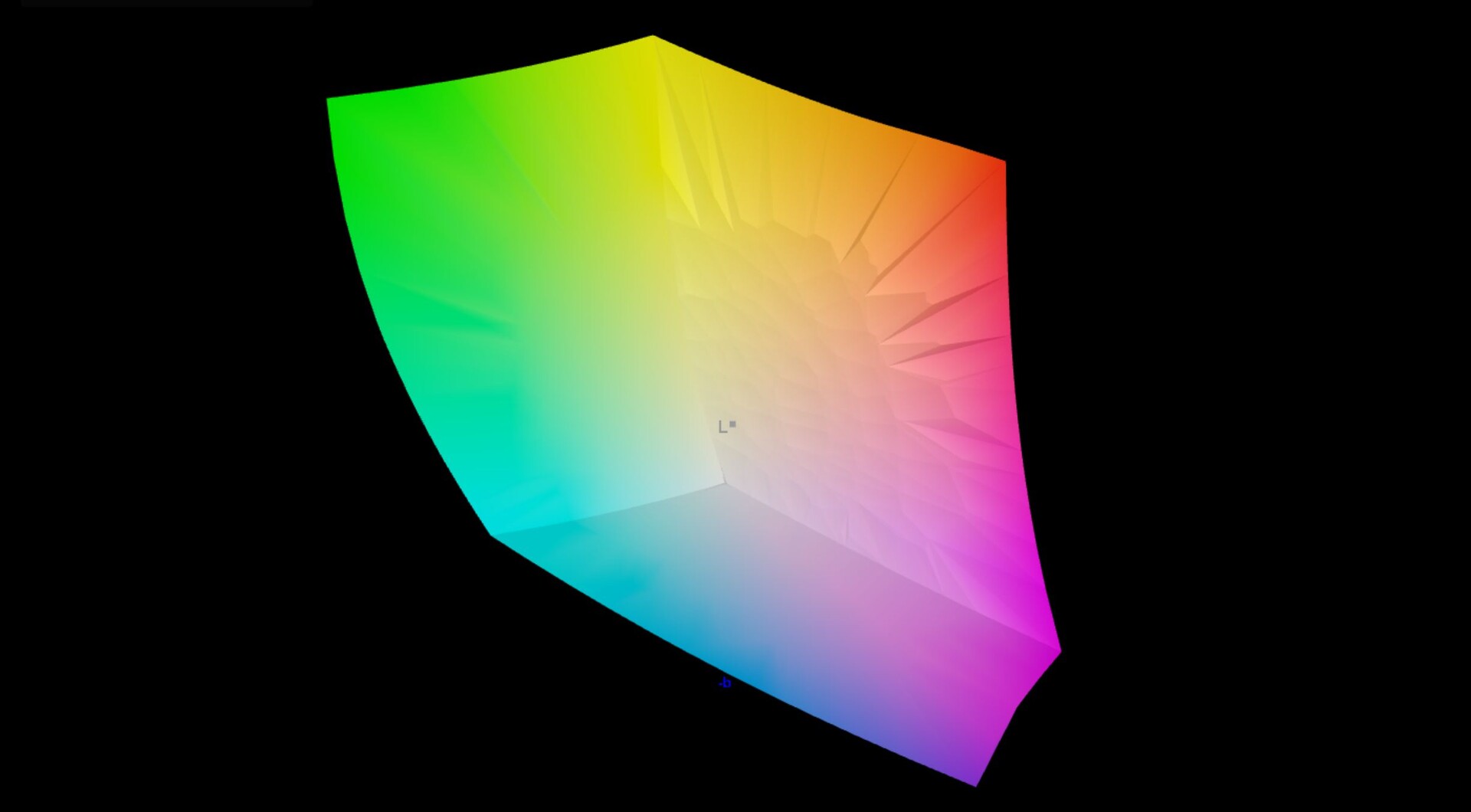

vs. sRGB
vs. sRGB

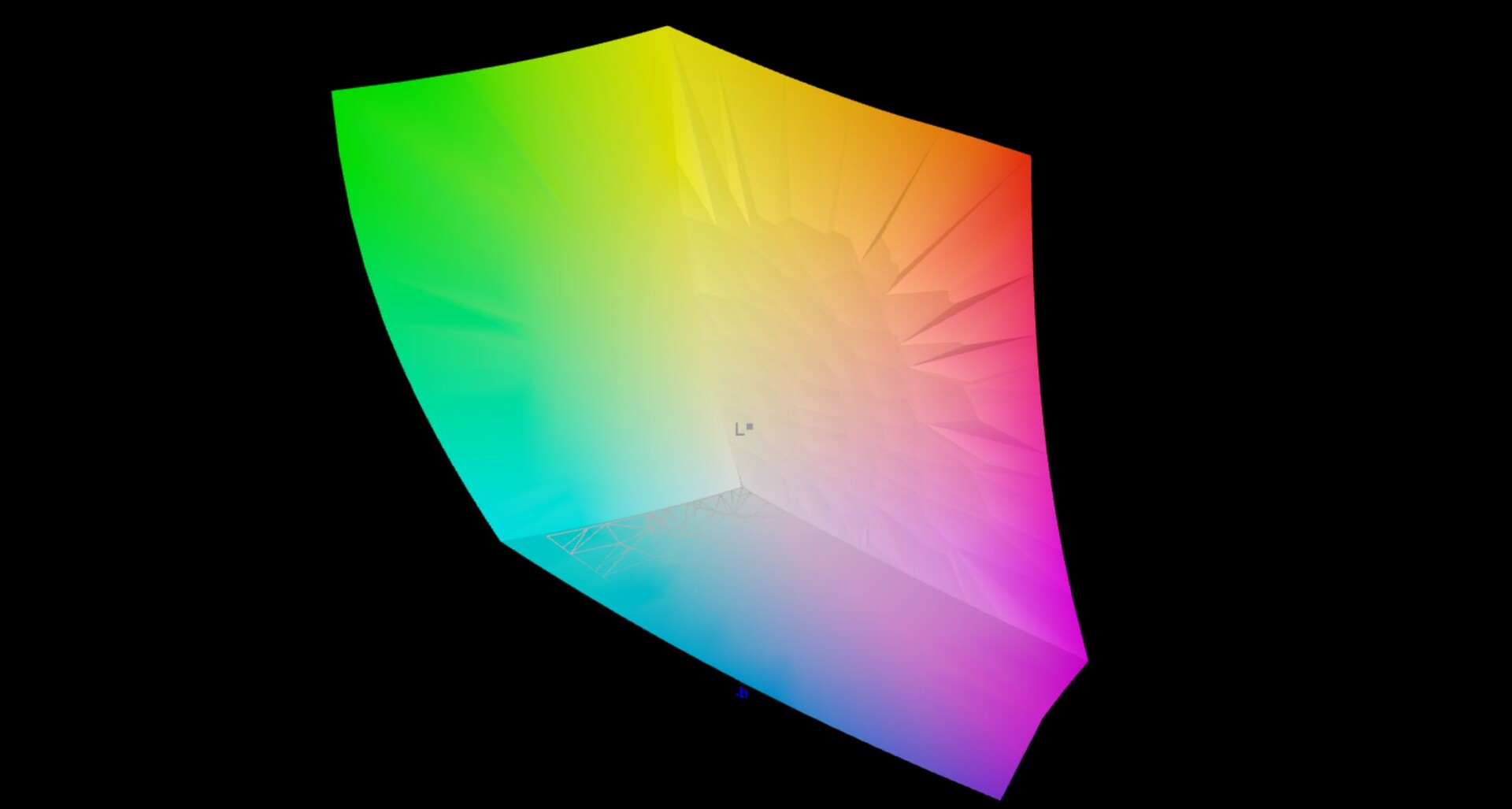

vs. DCI-P3
vs. DCI-P3

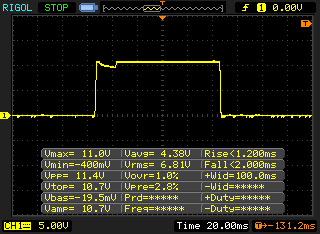

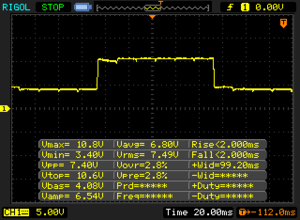

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

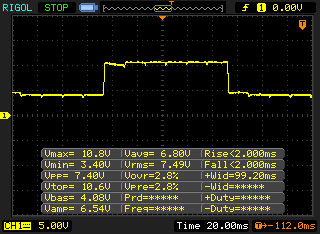

       Response Time Black to White
3.2 ms ... rise ↗ and fall ↘ combined↗ 1.2 ms rise
↘ 2 ms fall
The screen shows very fast response rates in our tests and should be very well suited for fast-paced gaming.
In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 11 % of all devices are better.
This means that the measured response time is better than the average of all tested devices (20.9 ms).
       Response Time 50% Grey to 80% Grey
4 ms ... rise ↗ and fall ↘ combined↗ 2 ms rise
↘ 2 ms fall
The screen shows very fast response rates in our tests and should be very well suited for fast-paced gaming.
In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 11 % of all devices are better.
This means that the measured response time is better than the average of all tested devices (32.8 ms).

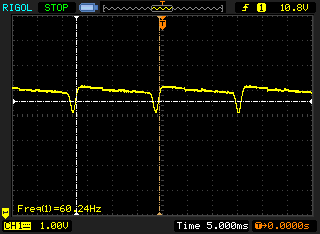

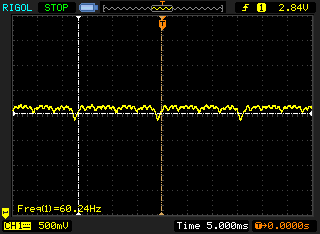

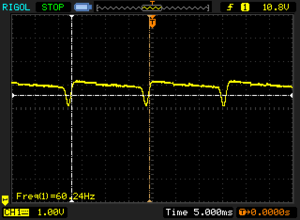

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM detected 60.2 Hz ≤ 80 % brightness setting
≤ 226 cd/m² brightness

The display backlight flickers at 60.2 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 80 % (226 cd/m²) and below. There should be no flickering or PWM above this brightness setting.

The frequency of 60.2 Hz is very low, so the flickering may cause eyestrain and headaches after extended use.

Flickering occurs even at high brightness setting and may have an effect on the user during everyday use.

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8710 (minimum: 5 - maximum: 343500) Hz was measured.

宣传的高亮度模式在非常明亮和阳光充足的日子里肯定会有帮助,因为光面触摸屏的反射肯定是个问题。你应该在阴凉处找一个地方,以便看清显示内容。OLED面板的整体可视角度稳定性非常好,但从某些角度看有OLED典型的蓝色光泽。

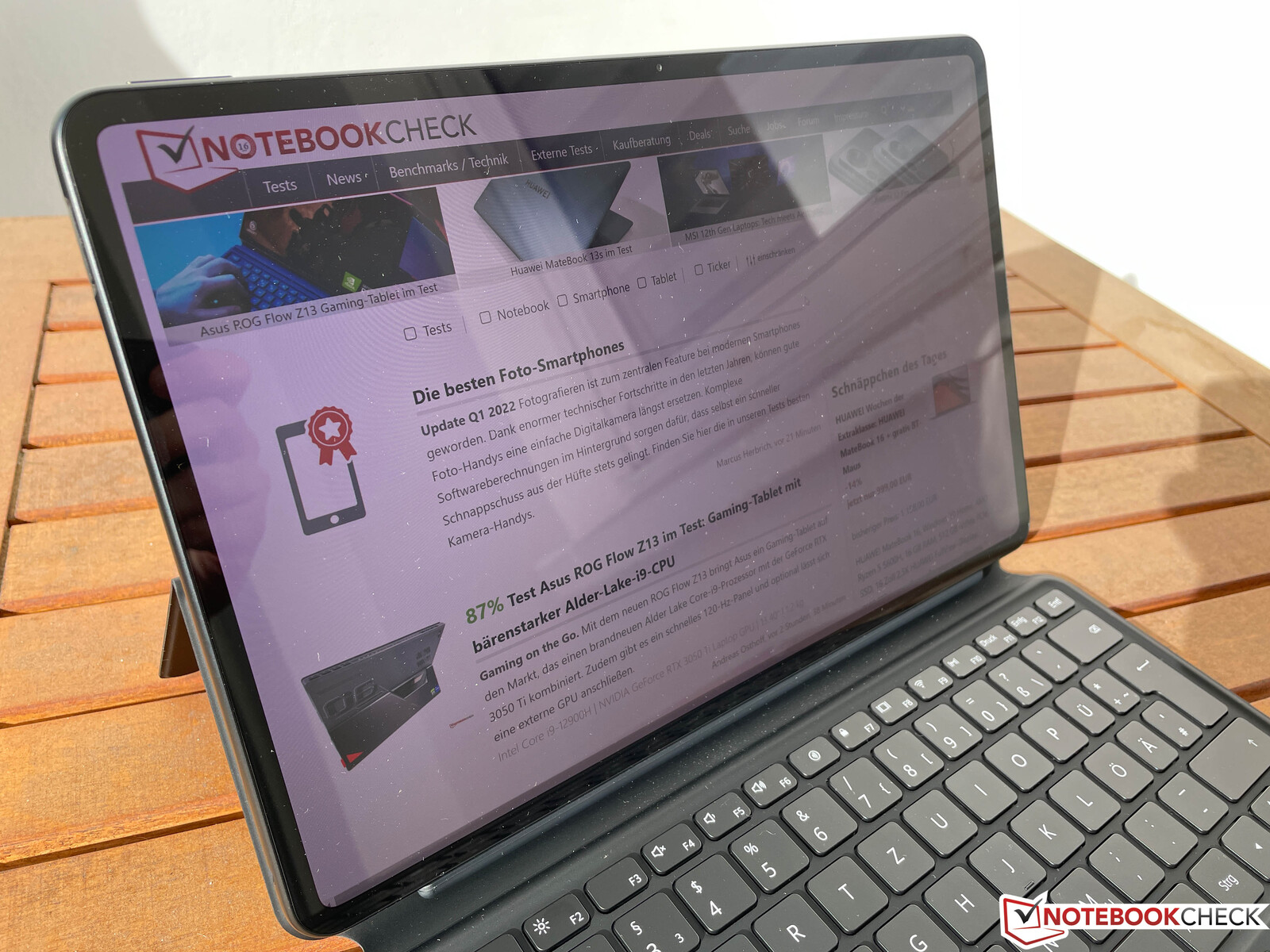

在阳光下
在阳光下
在阳光下
在阳光下

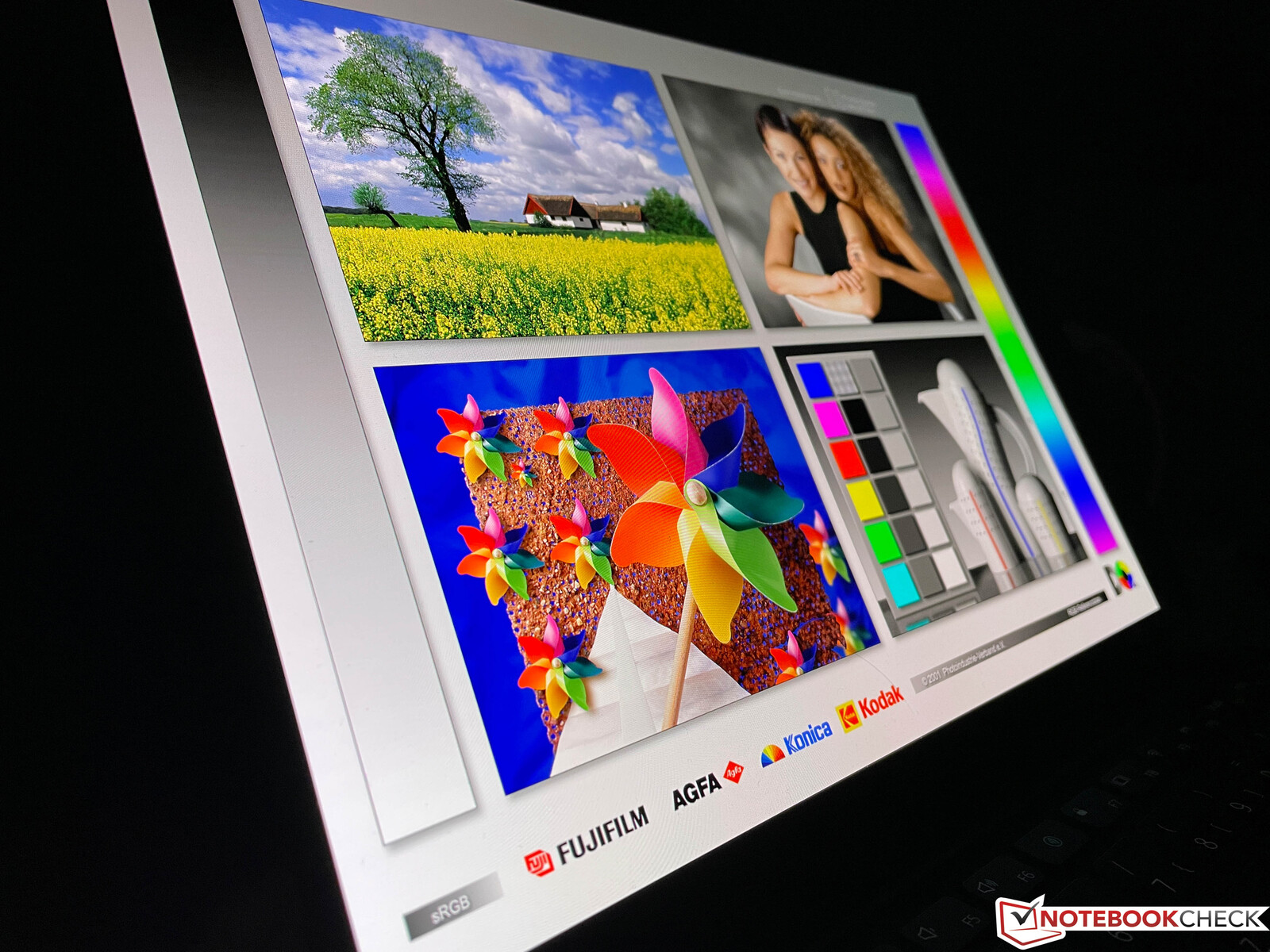

视角稳定
视角稳定

性能 -Tiger Lake-UP4

MateBook E配备了英特尔Tiger Lake CPU,但只有非常高效的UP4型号,与通常的UP3型号相比,其运行的TDP值要低很多,如酷睿i5-1135G7,这是许多现代超极本所熟悉的。除了我们评测单元中的酷睿i5(4个核心),你还可以得到一个入门级SKU与酷睿i3-1110G4只有两个核心,而且还有一个较慢版本的iGPU。

审查设置

华为通常为其MateBooks配备一个可选的性能模式,新的MateBook E也不例外。你可以通过PC Manager软件或组合键(Fn + P)激活它。在这两种模式下,CPU在短时间内可以消耗30瓦特,但很快就会在10瓦特(平衡)或12瓦特(性能)时分别趋于平稳,所以差别不是很大。我们在一般情况下使用默认的平衡模式进行以下基准测试和测量,只在某些部分检查性能模式的效果。

处理器 - 酷睿i5-1130G7

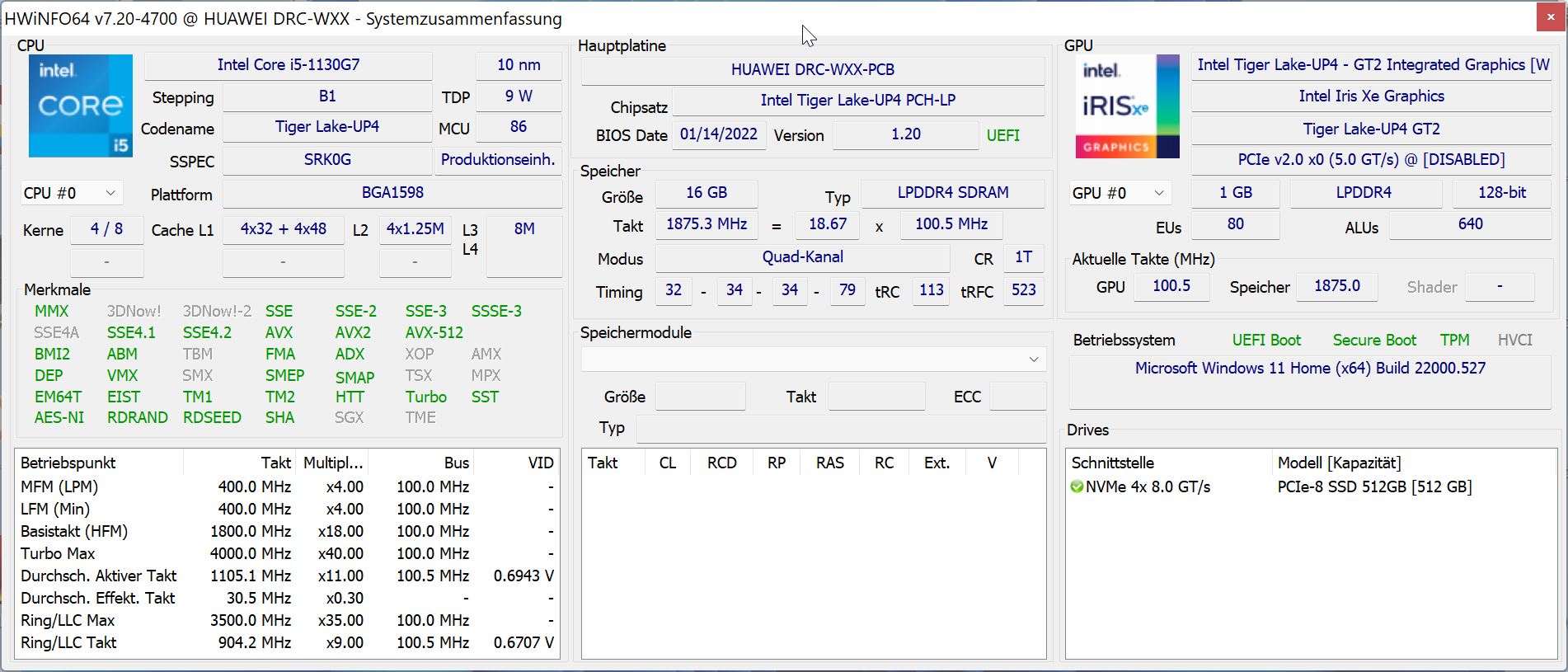

英特尔的酷睿i5-1130G7是一款Tiger Lake-UP4芯片,有四个核心(八个线程),所有活动核心的最高时钟分别为4GHz或3.4GHz。短期功耗被设定为30瓦,这确保了在峰值负载情况下的坚实性能数据,这在日常工作负荷中非常常见。在持续工作负荷下,性能迅速下降,考虑到1200欧元的价格,整体性能水平相当低。使用可选的性能模式,结果会好一点,但总体上仍然很低。在电池供电的情况下,性能没有进一步下降。更多的基准测试结果可在 我们的CPU部分.

Cinebench R15 Multi Loop

050100150200250300350400450500550600650700750800850900950Tooltip
Huawei MateBook E Core i5 Intel Core i5-1130G7; Performance: Ø440 (418.58-699.73)
Huawei MateBook E Core i5 Intel Core i5-1130G7: Ø374 (343.59-585.33)
Microsoft Surface Pro 8, i7-1185G7 Intel Core i7-1185G7: Ø839 (789.09-994.68)
Lenovo Yoga Duet 7 13IML05-82AS000WGE Intel Core i5-10210U: Ø563 (548.1-634.71)
Lenovo ThinkBook Plus Gen2 Core i5 Intel Core i5-1130G7; High Performance Mode: Ø582 (554.91-647.79)
Lenovo ThinkBook Plus Gen2 Core i5 Intel Core i5-1130G7: Ø464 (447.15-563.64)

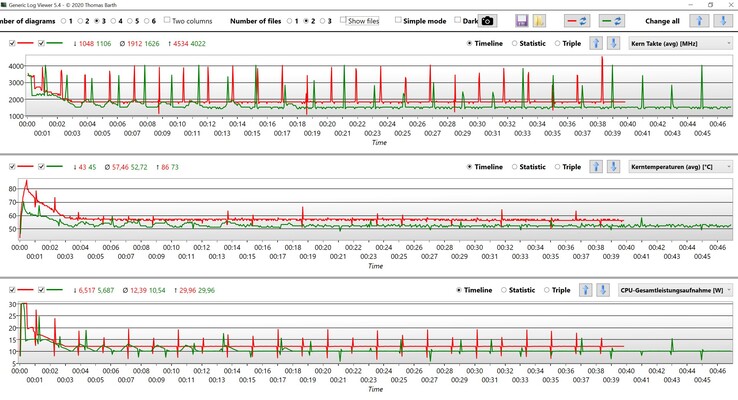

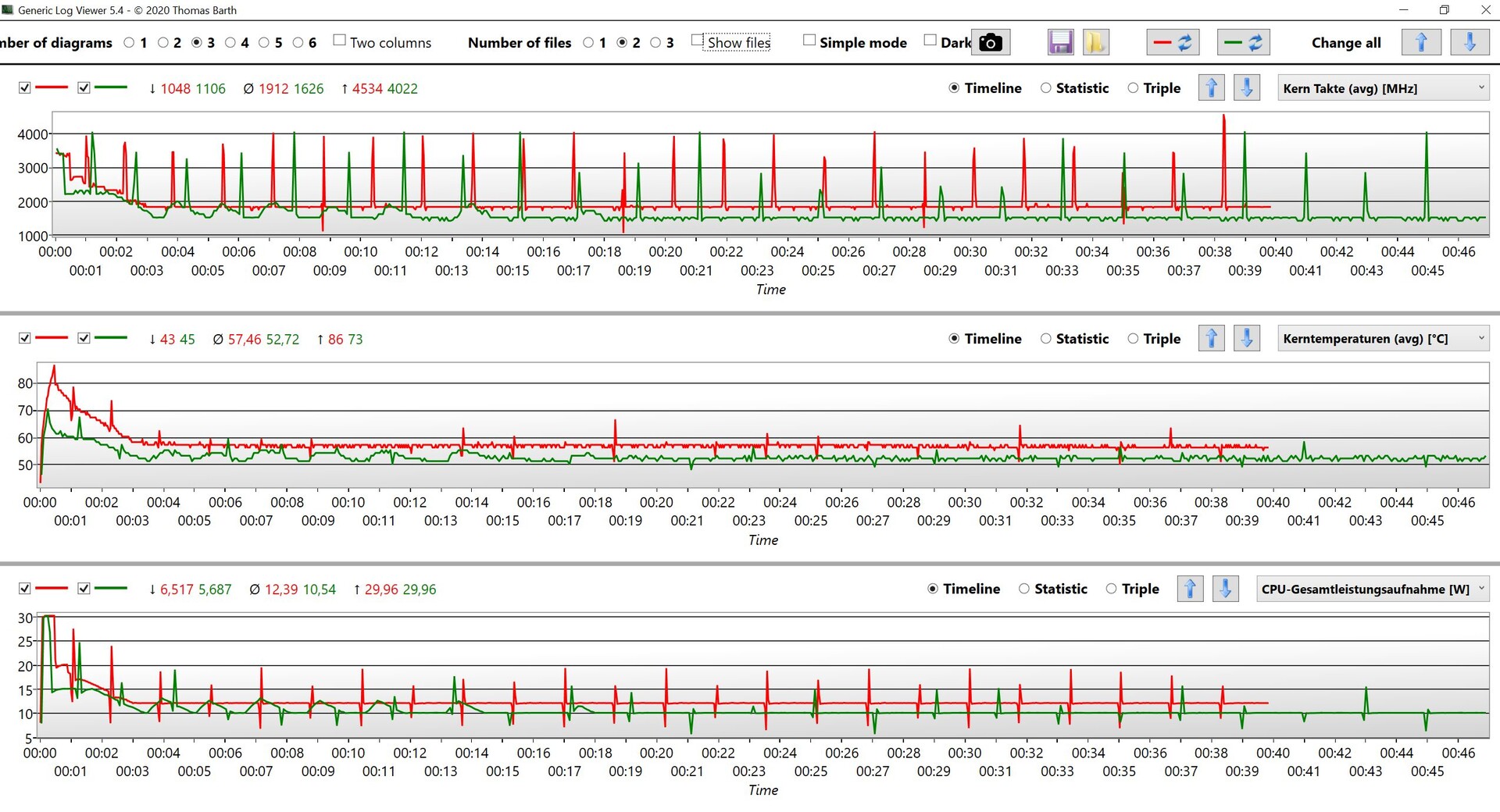

CPU数据CBR15多循环(红色:性能,绿色:平衡)。
CPU数据CBR15多循环(红色:性能,绿色:平衡)。
CPU Performance Rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
CPU Performance Rating
Apple iPad Pro 12.9 2021 A2378 -12!
Apple M1
92.3 pt
Average of class Convertible

88.4 pt
Microsoft Surface Pro 8, i7-1185G7
Intel Core i7-1185G7
67 pt
Average Intel Core i5-1130G7

44.3 pt
Huawei MateBook E Core i5
Intel Core i5-1130G7
41.1 pt
Lenovo Yoga Duet 7 13IML05-82AS000WGE -2!
Intel Core i5-10210U
32 pt
Cinebench R23 / Multi Core
Average of class Convertible
  (616 - 18698, n=63, last 2 years)
10386 Points +364%
Microsoft Surface Pro 8, i7-1185G7
Intel Core i7-1185G7
5668 Points +153%
Average Intel Core i5-1130G7
  (2237 - 3240, n=2)
2739 Points +22%
Huawei MateBook E Core i5
Intel Core i5-1130G7
2237 Points
Cinebench R23 / Single Core
Average of class Convertible
  (308 - 1980, n=63, last 2 years)
1614 Points +50%
Microsoft Surface Pro 8, i7-1185G7
Intel Core i7-1185G7
1512 Points +40%
Average Intel Core i5-1130G7
  (1077 - 1226, n=2)
1152 Points +7%
Huawei MateBook E Core i5
Intel Core i5-1130G7
1077 Points
Cinebench R20 / CPU (Multi Core)
Average of class Convertible
  (242 - 7303, n=63, last 2 years)
3943 Points +353%
Microsoft Surface Pro 8, i7-1185G7
Intel Core i7-1185G7
2097 Points +141%
Average Intel Core i5-1130G7
  (870 - 1251, n=2)
1061 Points +22%
Huawei MateBook E Core i5
Intel Core i5-1130G7
870 Points
Lenovo Yoga Duet 7 13IML05-82AS000WGE
Intel Core i5-10210U
771 Points -11%
Cinebench R20 / CPU (Single Core)
Average of class Convertible
  (149.8 - 781, n=62, last 2 years)
619 Points +48%
Microsoft Surface Pro 8, i7-1185G7
Intel Core i7-1185G7
578 Points +38%
Average Intel Core i5-1130G7
  (418 - 478, n=2)
448 Points +7%
Huawei MateBook E Core i5
Intel Core i5-1130G7
418 Points
Lenovo Yoga Duet 7 13IML05-82AS000WGE
Intel Core i5-10210U
322 Points -23%
Cinebench R15 / CPU Multi 64Bit
Average of class Convertible
  (110.1 - 2889, n=65, last 2 years)
1733 Points +148%
Microsoft Surface Pro 8, i7-1185G7
Intel Core i7-1185G7
995 (789.61min - 994.68max) Points +42%
Huawei MateBook E Core i5
Intel Core i5-1130G7
700 (418.76min - 699.73max) Points
Huawei MateBook E Core i5
Intel Core i5-1130G7
585 (344.92min - 585.33max) Points -16%
Lenovo Yoga Duet 7 13IML05-82AS000WGE
Intel Core i5-10210U
634 (338.11min - 341.64max) Points -9%
Average Intel Core i5-1130G7
  (564 - 700, n=4)
624 Points -11%
Cinebench R15 / CPU Single 64Bit
Average of class Convertible
  (68.6 - 302, n=62, last 2 years)
236 Points +107%
Microsoft Surface Pro 8, i7-1185G7
Intel Core i7-1185G7
224 Points +96%
Lenovo Yoga Duet 7 13IML05-82AS000WGE
Intel Core i5-10210U
165 Points +45%
Average Intel Core i5-1130G7
  (114 - 189.7, n=3)
160.9 Points +41%
Huawei MateBook E Core i5
Intel Core i5-1130G7
114 Points
Blender / v2.79 BMW27 CPU
Lenovo Yoga Duet 7 13IML05-82AS000WGE
Intel Core i5-10210U
1339 Seconds * -7%
Huawei MateBook E Core i5
Intel Core i5-1130G7
1255 Seconds *
Average Intel Core i5-1130G7
  (1124 - 1255, n=2)
1190 Seconds * +5%
Microsoft Surface Pro 8, i7-1185G7
Intel Core i7-1185G7
569 Seconds * +55%
Average of class Convertible
  (175 - 1059, n=59, last 2 years)
367 Seconds * +71%
7-Zip 18.03 / 7z b 4
Average of class Convertible
  (12977 - 72400, n=60, last 2 years)
43051 MIPS +187%
Microsoft Surface Pro 8, i7-1185G7
Intel Core i7-1185G7
24679 MIPS +65%
Huawei MateBook E Core i5
Intel Core i5-1130G7
14999 MIPS
Average Intel Core i5-1130G7
  (14453 - 14999, n=2)
14726 MIPS -2%
Lenovo Yoga Duet 7 13IML05-82AS000WGE
Intel Core i5-10210U
10950 MIPS -27%
7-Zip 18.03 / 7z b 4 -mmt1
Average of class Convertible
  (3672 - 6493, n=60, last 2 years)
5220 MIPS +28%
Microsoft Surface Pro 8, i7-1185G7
Intel Core i7-1185G7
5168 MIPS +26%
Average Intel Core i5-1130G7
  (4094 - 4256, n=2)
4175 MIPS +2%
Huawei MateBook E Core i5
Intel Core i5-1130G7
4094 MIPS
Lenovo Yoga Duet 7 13IML05-82AS000WGE
Intel Core i5-10210U
3737 MIPS -9%
Geekbench 5.5 / Multi-Core
Average of class Convertible
  (663 - 14016, n=63, last 2 years)
8712 Points +85%
Apple iPad Pro 12.9 2021 A2378
Apple M1
7378 Points +57%
Microsoft Surface Pro 8, i7-1185G7
Intel Core i7-1185G7
5759 Points +22%
Average Intel Core i5-1130G7
  (4710 - 4894, n=2)
4802 Points +2%
Huawei MateBook E Core i5
Intel Core i5-1130G7
4710 Points
Lenovo Yoga Duet 7 13IML05-82AS000WGE
Intel Core i5-10210U
2079 Points -56%
Geekbench 5.5 / Single-Core
Apple iPad Pro 12.9 2021 A2378
Apple M1
1710 Points +28%
Average of class Convertible
  (319 - 2062, n=63, last 2 years)
1647 Points +23%
Microsoft Surface Pro 8, i7-1185G7
Intel Core i7-1185G7
1548 Points +16%
Huawei MateBook E Core i5
Intel Core i5-1130G7
1337 Points
Average Intel Core i5-1130G7
  (1306 - 1337, n=2)
1322 Points -1%
Lenovo Yoga Duet 7 13IML05-82AS000WGE
Intel Core i5-10210U
1059 Points -21%
HWBOT x265 Benchmark v2.2 / 4k Preset
Average of class Convertible
  (0.73 - 22.4, n=62, last 2 years)
11.5 fps +278%
Microsoft Surface Pro 8, i7-1185G7
Intel Core i7-1185G7
6.49 fps +113%
Huawei MateBook E Core i5
Intel Core i5-1130G7
3.04 fps
Average Intel Core i5-1130G7
  ()
3.04 fps 0%
Lenovo Yoga Duet 7 13IML05-82AS000WGE
Intel Core i5-10210U
2.66 fps -12%
LibreOffice / 20 Documents To PDF
Lenovo Yoga Duet 7 13IML05-82AS000WGE
Intel Core i5-10210U
72.8 s * -26%
Average Intel Core i5-1130G7
  (57.7 - 58.9, n=2)
58.3 s * -1%
Huawei MateBook E Core i5
Intel Core i5-1130G7
57.7 s *
Average of class Convertible
  (42 - 121.5, n=59, last 2 years)
51.8 s * +10%
Microsoft Surface Pro 8, i7-1185G7
Intel Core i7-1185G7
51.1 s * +11%
R Benchmark 2.5 / Overall mean
Lenovo Yoga Duet 7 13IML05-82AS000WGE
Intel Core i5-10210U
0.862 sec * -14%
Huawei MateBook E Core i5
Intel Core i5-1130G7
0.753 sec *
Average Intel Core i5-1130G7
  (0.714 - 0.753, n=2)
0.734 sec * +3%
Microsoft Surface Pro 8, i7-1185G7
Intel Core i7-1185G7
0.568 sec * +25%
Average of class Convertible
  (0.4102 - 1.013, n=59, last 2 years)
0.517 sec * +31%

* ... smaller is better

Cinebench R15 OpenGL 64Bit
38.2 fps
Cinebench R15 Ref. Match 64Bit
97.8 %
Cinebench R15 CPU Single 64Bit
114 Points
Cinebench R15 CPU Multi 64Bit
700 Points
Cinebench R20 CPU (Multi Core)
870 Points
Cinebench R20 CPU (Single Core)
418 Points
Cinebench R23 Single Core
1077 Points
Cinebench R23 Multi Core
2237 Points
Help
Performance Rating
Average of class Convertible

99.8 pt
Microsoft Surface Pro 8, i7-1185G7
Intel Core i7-1185G7, Iris Xe G7 96EUs
71.4 pt
Average Intel Core i5-1130G7

55.6 pt
Huawei MateBook E Core i5
Intel Core i5-1130G7, Iris Xe G7 80EUs
49.4 pt
Lenovo Yoga Duet 7 13IML05-82AS000WGE
Intel Core i5-10210U, UHD Graphics 620
31.7 pt
AIDA64 / FP32 Ray-Trace
Average of class Convertible
  (468 - 29594, n=63, last 2 years)
10340 KRay/s +207%
Microsoft Surface Pro 8, i7-1185G7
Intel Core i7-1185G7, Iris Xe G7 96EUs
7249 KRay/s +115%
Average Intel Core i5-1130G7
  (3370 - 5199, n=2)
4285 KRay/s +27%
Huawei MateBook E Core i5
Intel Core i5-1130G7, Iris Xe G7 80EUs
3370 KRay/s
Lenovo Yoga Duet 7 13IML05-82AS000WGE
Intel Core i5-10210U, UHD Graphics 620
2947 KRay/s -13%
AIDA64 / FPU Julia
Average of class Convertible
  (2644 - 114033, n=62, last 2 years)
51677 Points +216%
Microsoft Surface Pro 8, i7-1185G7
Intel Core i7-1185G7, Iris Xe G7 96EUs
30075 Points +84%
Average Intel Core i5-1130G7
  (16379 - 20972, n=2)
18676 Points +14%
Huawei MateBook E Core i5
Intel Core i5-1130G7, Iris Xe G7 80EUs
16379 Points
Lenovo Yoga Duet 7 13IML05-82AS000WGE
Intel Core i5-10210U, UHD Graphics 620
16137 Points -1%
AIDA64 / CPU SHA3
Average of class Convertible
  (182 - 4841, n=62, last 2 years)
2425 MB/s +101%
Microsoft Surface Pro 8, i7-1185G7
Intel Core i7-1185G7, Iris Xe G7 96EUs
1983 MB/s +65%
Average Intel Core i5-1130G7
  (1205 - 1477, n=2)
1341 MB/s +11%
Huawei MateBook E Core i5
Intel Core i5-1130G7, Iris Xe G7 80EUs
1205 MB/s
Lenovo Yoga Duet 7 13IML05-82AS000WGE
Intel Core i5-10210U, UHD Graphics 620
740 MB/s -39%
AIDA64 / CPU Queen
Average of class Convertible
  (10502 - 120368, n=62, last 2 years)
69746 Points +68%
Microsoft Surface Pro 8, i7-1185G7
Intel Core i7-1185G7, Iris Xe G7 96EUs
47866 Points +15%
Lenovo Yoga Duet 7 13IML05-82AS000WGE
Intel Core i5-10210U, UHD Graphics 620
43273 Points +4%
Average Intel Core i5-1130G7
  (41459 - 41466, n=2)
41463 Points 0%
Huawei MateBook E Core i5
Intel Core i5-1130G7, Iris Xe G7 80EUs
41459 Points
AIDA64 / FPU SinJulia
Average of class Convertible
  (659 - 16315, n=62, last 2 years)
7101 Points +167%
Microsoft Surface Pro 8, i7-1185G7
Intel Core i7-1185G7, Iris Xe G7 96EUs
4598 Points +73%
Average Intel Core i5-1130G7
  (2658 - 3861, n=2)
3260 Points +23%
Lenovo Yoga Duet 7 13IML05-82AS000WGE
Intel Core i5-10210U, UHD Graphics 620
2894 Points +9%
Huawei MateBook E Core i5
Intel Core i5-1130G7, Iris Xe G7 80EUs
2658 Points
AIDA64 / FPU Mandel
Average of class Convertible
  (1420 - 61249, n=62, last 2 years)
26332 Points +165%
Microsoft Surface Pro 8, i7-1185G7
Intel Core i7-1185G7, Iris Xe G7 96EUs
18122 Points +82%
Average Intel Core i5-1130G7
  (9932 - 12746, n=2)
11339 Points +14%
Huawei MateBook E Core i5
Intel Core i5-1130G7, Iris Xe G7 80EUs
9932 Points
Lenovo Yoga Duet 7 13IML05-82AS000WGE
Intel Core i5-10210U, UHD Graphics 620
7902 Points -20%
AIDA64 / CPU AES
Average Intel Core i5-1130G7
  (45912 - 55456, n=2)
50684 MB/s +10%
Average of class Convertible
  (1279 - 169089, n=62, last 2 years)
50344 MB/s +10%
Huawei MateBook E Core i5
Intel Core i5-1130G7, Iris Xe G7 80EUs
45912 MB/s
Microsoft Surface Pro 8, i7-1185G7
Intel Core i7-1185G7, Iris Xe G7 96EUs
42339 MB/s -8%
Lenovo Yoga Duet 7 13IML05-82AS000WGE
Intel Core i5-10210U, UHD Graphics 620
11231 MB/s -76%
AIDA64 / CPU ZLib
Average of class Convertible
  (61.4 - 1243, n=62, last 2 years)
679 MB/s +199%
Microsoft Surface Pro 8, i7-1185G7
Intel Core i7-1185G7, Iris Xe G7 96EUs
319 MB/s +41%
Average Intel Core i5-1130G7
  (227 - 325, n=2)
276 MB/s +22%
Huawei MateBook E Core i5
Intel Core i5-1130G7, Iris Xe G7 80EUs
227 MB/s
Lenovo Yoga Duet 7 13IML05-82AS000WGE
Intel Core i5-10210U, UHD Graphics 620
179 MB/s -21%
AIDA64 / FP64 Ray-Trace
Average of class Convertible
  (254 - 16065, n=62, last 2 years)
5445 KRay/s +198%
Microsoft Surface Pro 8, i7-1185G7
Intel Core i7-1185G7, Iris Xe G7 96EUs
3857 KRay/s +111%
Average Intel Core i5-1130G7
  (1830 - 2601, n=2)
2216 KRay/s +21%
Huawei MateBook E Core i5
Intel Core i5-1130G7, Iris Xe G7 80EUs
1830 KRay/s
Lenovo Yoga Duet 7 13IML05-82AS000WGE
Intel Core i5-10210U, UHD Graphics 620
1274 KRay/s -30%
AIDA64 / CPU PhotoWorxx
Microsoft Surface Pro 8, i7-1185G7
Intel Core i7-1185G7, Iris Xe G7 96EUs
37197 MPixel/s +15%
Average of class Convertible
  (5136 - 53406, n=62, last 2 years)
36826 MPixel/s +13%
Average Intel Core i5-1130G7
  (32482 - 37334, n=2)
34908 MPixel/s +7%
Huawei MateBook E Core i5
Intel Core i5-1130G7, Iris Xe G7 80EUs
32482 MPixel/s
Lenovo Yoga Duet 7 13IML05-82AS000WGE
Intel Core i5-10210U, UHD Graphics 620
8266 MPixel/s -75%

系统性能

MateBook E的主观性能印象很扎实,16GB的内存也很充足,但当你给系统施加更多压力时,会有一些停顿或延迟。例如,我们在安装应用程序时注意到了这一点,在那里没有太多的空间来完成额外的任务。不过,只要你只把它用于普通任务,就不应该有任何问题。

PCMark 10 / Score
Average of class Convertible
  (1486 - 7963, n=59, last 2 years)
6015 Points +47%
Microsoft Surface Pro 8, i7-1185G7
Iris Xe G7 96EUs, i7-1185G7, Toshiba KBG40ZNS256G NVMe
5041 Points +23%
Average Intel Core i5-1130G7, Intel Iris Xe Graphics G7 80EUs
  (4082 - 4482, n=2)
4282 Points +5%
Huawei MateBook E Core i5
Iris Xe G7 80EUs, i5-1130G7, Silicon Motion PCIe-8 SSD
4082 Points
Lenovo Yoga Duet 7 13IML05-82AS000WGE
UHD Graphics 620, i5-10210U, Lenovo UMIS RPJTJ256MEE1OWX
3862 Points -5%
PCMark 10 / Essentials
Average of class Convertible
  (3975 - 12059, n=59, last 2 years)
10570 Points +19%
Microsoft Surface Pro 8, i7-1185G7
Iris Xe G7 96EUs, i7-1185G7, Toshiba KBG40ZNS256G NVMe
9689 Points +9%
Average Intel Core i5-1130G7, Intel Iris Xe Graphics G7 80EUs
  (8873 - 10226, n=2)
9550 Points +8%
Huawei MateBook E Core i5
Iris Xe G7 80EUs, i5-1130G7, Silicon Motion PCIe-8 SSD
8873 Points
Lenovo Yoga Duet 7 13IML05-82AS000WGE
UHD Graphics 620, i5-10210U, Lenovo UMIS RPJTJ256MEE1OWX
7981 Points -10%
PCMark 10 / Productivity
Average of class Convertible
  (2764 - 10800, n=59, last 2 years)
8027 Points +37%
Microsoft Surface Pro 8, i7-1185G7
Iris Xe G7 96EUs, i7-1185G7, Toshiba KBG40ZNS256G NVMe
6537 Points +11%
Lenovo Yoga Duet 7 13IML05-82AS000WGE
UHD Graphics 620, i5-10210U, Lenovo UMIS RPJTJ256MEE1OWX
6455 Points +10%
Average Intel Core i5-1130G7, Intel Iris Xe Graphics G7 80EUs
  (5875 - 6004, n=2)
5940 Points +1%
Huawei MateBook E Core i5
Iris Xe G7 80EUs, i5-1130G7, Silicon Motion PCIe-8 SSD
5875 Points
PCMark 10 / Digital Content Creation
Average of class Convertible
  (811 - 12360, n=59, last 2 years)
7119 Points +101%
Microsoft Surface Pro 8, i7-1185G7
Iris Xe G7 96EUs, i7-1185G7, Toshiba KBG40ZNS256G NVMe
5488 Points +55%
Average Intel Core i5-1130G7, Intel Iris Xe Graphics G7 80EUs
  (3543 - 3982, n=2)
3763 Points +6%
Huawei MateBook E Core i5
Iris Xe G7 80EUs, i5-1130G7, Silicon Motion PCIe-8 SSD
3543 Points
Lenovo Yoga Duet 7 13IML05-82AS000WGE
UHD Graphics 620, i5-10210U, Lenovo UMIS RPJTJ256MEE1OWX
3035 Points -14%
CrossMark / Overall
Average of class Convertible
  (310 - 1912, n=60, last 2 years)
1489 Points +17%
Microsoft Surface Pro 8, i7-1185G7
Iris Xe G7 96EUs, i7-1185G7, Toshiba KBG40ZNS256G NVMe
1394 Points +9%
Apple iPad Pro 12.9 2021 A2378
M1 8-Core GPU, M1, 128 GB NVMe
1283 Points +1%
Huawei MateBook E Core i5
Iris Xe G7 80EUs, i5-1130G7, Silicon Motion PCIe-8 SSD
1274 Points
Average Intel Core i5-1130G7, Intel Iris Xe Graphics G7 80EUs
  ()
1274 Points 0%
CrossMark / Productivity
Average of class Convertible
  (389 - 1790, n=60, last 2 years)
1454 Points +11%
Microsoft Surface Pro 8, i7-1185G7
Iris Xe G7 96EUs, i7-1185G7, Toshiba KBG40ZNS256G NVMe
1389 Points +6%
Huawei MateBook E Core i5
Iris Xe G7 80EUs, i5-1130G7, Silicon Motion PCIe-8 SSD
1313 Points
Average Intel Core i5-1130G7, Intel Iris Xe Graphics G7 80EUs
  ()
1313 Points 0%
Apple iPad Pro 12.9 2021 A2378
M1 8-Core GPU, M1, 128 GB NVMe
1197 Points -9%
CrossMark / Creativity
Average of class Convertible
  (252 - 2183, n=60, last 2 years)
1600 Points +33%
Apple iPad Pro 12.9 2021 A2378
M1 8-Core GPU, M1, 128 GB NVMe
1558 Points +30%
Microsoft Surface Pro 8, i7-1185G7
Iris Xe G7 96EUs, i7-1185G7, Toshiba KBG40ZNS256G NVMe
1513 Points +26%
Huawei MateBook E Core i5
Iris Xe G7 80EUs, i5-1130G7, Silicon Motion PCIe-8 SSD
1203 Points
Average Intel Core i5-1130G7, Intel Iris Xe Graphics G7 80EUs
  ()
1203 Points 0%
CrossMark / Responsiveness
Huawei MateBook E Core i5
Iris Xe G7 80EUs, i5-1130G7, Silicon Motion PCIe-8 SSD
1378 Points
Average Intel Core i5-1130G7, Intel Iris Xe Graphics G7 80EUs
  ()
1378 Points 0%
Average of class Convertible
  (295 - 1868, n=60, last 2 years)
1271 Points -8%
Microsoft Surface Pro 8, i7-1185G7
Iris Xe G7 96EUs, i7-1185G7, Toshiba KBG40ZNS256G NVMe
1103 Points -20%
Apple iPad Pro 12.9 2021 A2378
M1 8-Core GPU, M1, 128 GB NVMe
886 Points -36%
PCMark 10 Score
4082 points
Help
AIDA64 / Memory Copy
Average of class Convertible
  (16353 - 108544, n=62, last 2 years)
65186 MB/s +15%
Microsoft Surface Pro 8, i7-1185G7
Intel Core i7-1185G7, Iris Xe G7 96EUs
59683 MB/s +6%
Average Intel Core i5-1130G7
  (56482 - 59281, n=2)
57882 MB/s +2%
Huawei MateBook E Core i5
Intel Core i5-1130G7, Iris Xe G7 80EUs
56482 MB/s
Lenovo Yoga Duet 7 13IML05-82AS000WGE
Intel Core i5-10210U, UHD Graphics 620
16906 MB/s -70%
AIDA64 / Memory Read
Average Intel Core i5-1130G7
  (56256 - 61956, n=2)
59106 MB/s +5%
Average of class Convertible
  (12706 - 125359, n=62, last 2 years)
58623 MB/s +4%
Microsoft Surface Pro 8, i7-1185G7
Intel Core i7-1185G7, Iris Xe G7 96EUs
58483 MB/s +4%
Huawei MateBook E Core i5
Intel Core i5-1130G7, Iris Xe G7 80EUs
56256 MB/s
Lenovo Yoga Duet 7 13IML05-82AS000WGE
Intel Core i5-10210U, UHD Graphics 620
18047 MB/s -68%
AIDA64 / Memory Write
Average of class Convertible
  (10177 - 117920, n=62, last 2 years)
65641 MB/s +12%
Average Intel Core i5-1130G7
  (58608 - 65584, n=2)
62096 MB/s +6%
Microsoft Surface Pro 8, i7-1185G7
Intel Core i7-1185G7, Iris Xe G7 96EUs
61266 MB/s +5%
Huawei MateBook E Core i5
Intel Core i5-1130G7, Iris Xe G7 80EUs
58608 MB/s
Lenovo Yoga Duet 7 13IML05-82AS000WGE
Intel Core i5-10210U, UHD Graphics 620
18375 MB/s -69%
AIDA64 / Memory Latency
Average of class Convertible
  (7.4 - 173, n=62, last 2 years)
114.5 ns * -23%
Microsoft Surface Pro 8, i7-1185G7
Intel Core i7-1185G7, Iris Xe G7 96EUs
101 ns * -8%
Huawei MateBook E Core i5
Intel Core i5-1130G7, Iris Xe G7 80EUs
93.4 ns *
Average Intel Core i5-1130G7
  (92.8 - 93.4, n=2)
93.1 ns * -0%
Lenovo Yoga Duet 7 13IML05-82AS000WGE
Intel Core i5-10210U, UHD Graphics 620
86.8 ns * +7%

* ... smaller is better

DPC Lateny

我们的标准化延迟测试显示,在使用当前BIOS版本播放4K YouTube视频时,延迟增加以及丢帧。这意味着MateBook E目前不适合实时音频应用。

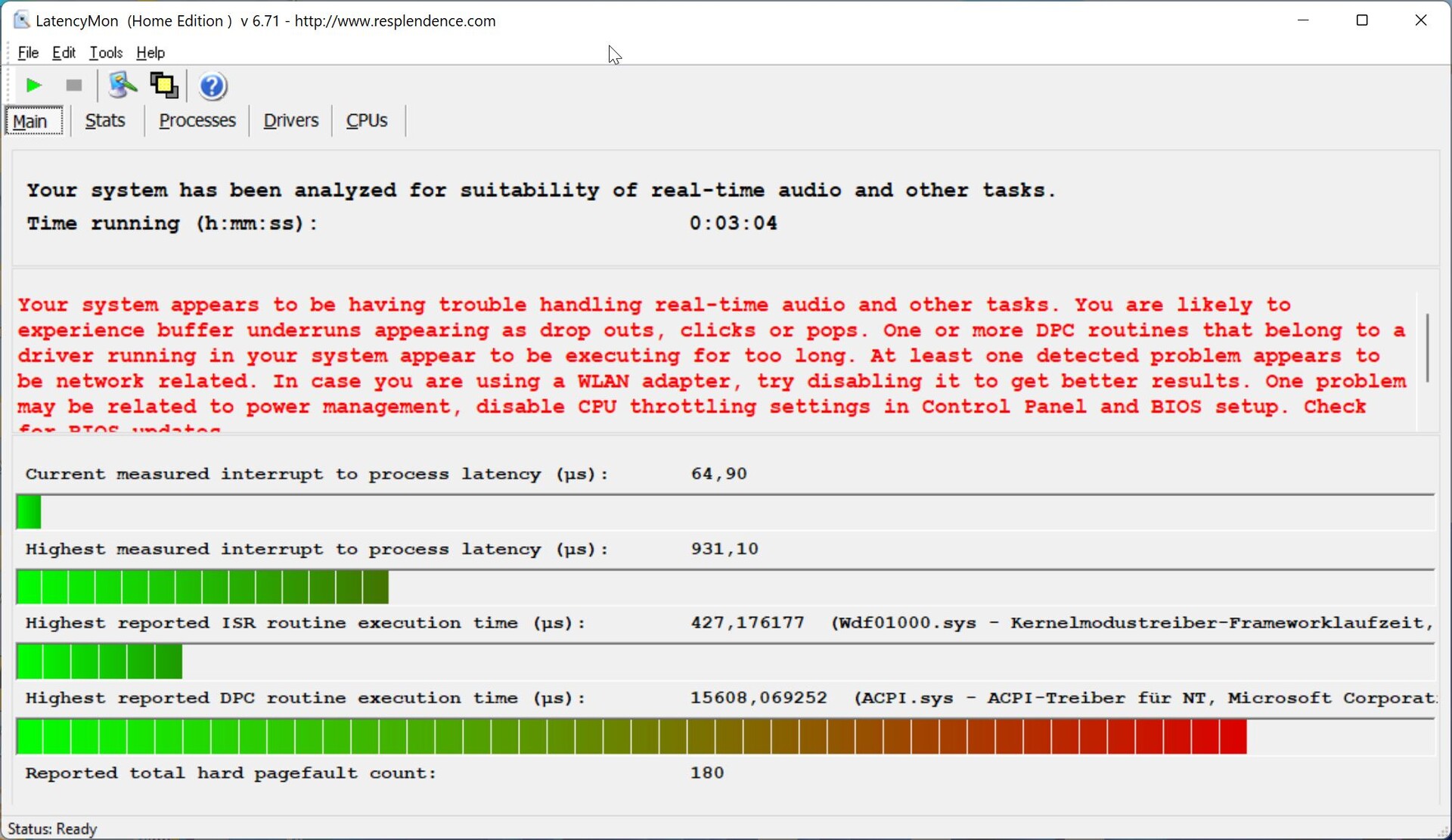

LatencyMon概述
LatencyMon概述

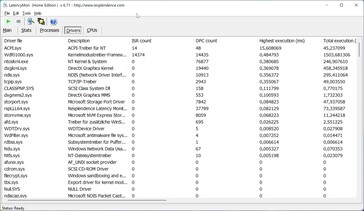

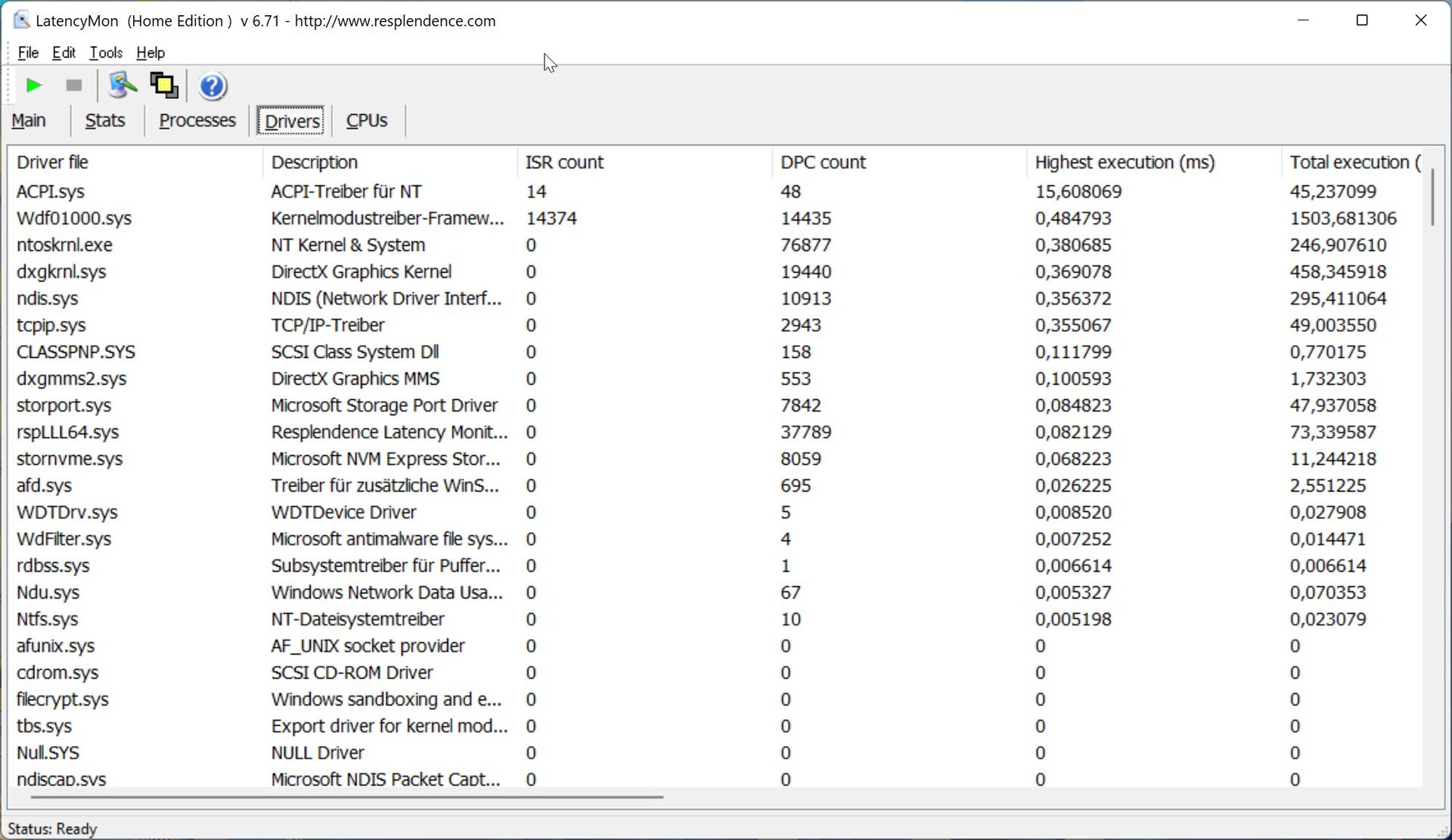

LatencyMon 驱动程序
LatencyMon 驱动程序
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Lenovo Yoga Duet 7 13IML05-82AS000WGE
UHD Graphics 620, i5-10210U, Lenovo UMIS RPJTJ256MEE1OWX
5702 μs * -512%
Huawei MateBook E Core i5
Iris Xe G7 80EUs, i5-1130G7, Silicon Motion PCIe-8 SSD
931 μs *
Microsoft Surface Pro 8, i7-1185G7
Iris Xe G7 96EUs, i7-1185G7, Toshiba KBG40ZNS256G NVMe
489 μs * +47%

* ... smaller is better

存储设备

华为使用M.2-SSD,通过PCIe 3.0 x4接口连接,基准性能良好,所以应该不会有任何限制。固态硬盘提供512GB的存储容量,在初始设置后,你可以用大约408GB的容量来存放自己的文件/应用程序。然而,像其他目前的MateBooks一样,固态硬盘是分区的,你在系统驱动器上只得到72GB。当你不小心安装和下载时,这可能很快导致容量问题。我们再次认为这是完全不必要的,我们只能希望华为在未来的产品中停止使用这种方法。更多SSD基准测试可在 这里.

Silicon Motion PCIe-8 SSD
CDM 5/6 Read Seq Q32T1: 3312 MB/s
CDM 5/6 Write Seq Q32T1: 2301 MB/s
CDM 5/6 Read 4K Q32T1: 717 MB/s
CDM 5/6 Write 4K Q32T1: 465.8 MB/s
CDM 5/6 Read 4K: 66.5 MB/s
CDM 5/6 Write 4K: 261.4 MB/s
CDM 6 Write 4K Q8T8: 1255 MB/s
CDM 6 Read 4K Q8T8: 1195 MB/s
Drive Performance Rating - Percent
Average Silicon Motion PCIe-8 SSD

91.2 pt
Huawei MateBook E Core i5
Silicon Motion PCIe-8 SSD
90.2 pt
Average of class Convertible

80 pt
Microsoft Surface Pro 8, i7-1185G7
Toshiba KBG40ZNS256G NVMe
56.6 pt
Lenovo Yoga Duet 7 13IML05-82AS000WGE
Lenovo UMIS RPJTJ256MEE1OWX
44.3 pt
DiskSpd
seq read
Huawei MateBook E Core i5
Silicon Motion PCIe-8 SSD
2668 (2660.58min - 2668.32max) MB/s
Average of class Convertible
  (321 - 4714, n=61, last 2 years)
2664 MB/s 0%
Average Silicon Motion PCIe-8 SSD
  (2012 - 2849, n=3)
2510 MB/s -6%
Microsoft Surface Pro 8, i7-1185G7
Toshiba KBG40ZNS256G NVMe
1770 (1735.81min - 1770.42max) MB/s -34%
Lenovo Yoga Duet 7 13IML05-82AS000WGE
Lenovo UMIS RPJTJ256MEE1OWX
1635 (1529.24min - 1634.52max) MB/s -39%
seq write
Average of class Convertible
  (195.5 - 5301, n=61, last 2 years)
2508 MB/s +9%
Huawei MateBook E Core i5
Silicon Motion PCIe-8 SSD
2302 (2269.61min - 2302.45max) MB/s
Average Silicon Motion PCIe-8 SSD
  (1438 - 2518, n=3)
2086 MB/s -9%
Microsoft Surface Pro 8, i7-1185G7
Toshiba KBG40ZNS256G NVMe
1324 (1199.03min - 1323.72max) MB/s -42%
Lenovo Yoga Duet 7 13IML05-82AS000WGE
Lenovo UMIS RPJTJ256MEE1OWX
1206 (1169.97min - 1206.28max) MB/s -48%
seq q8 t1 read
Average of class Convertible
  (399 - 7152, n=61, last 2 years)
4639 MB/s +45%
Huawei MateBook E Core i5
Silicon Motion PCIe-8 SSD
3191 (3015.75min - 3190.91max) MB/s
Average Silicon Motion PCIe-8 SSD
  (2883 - 3415, n=3)
3163 MB/s -1%
Microsoft Surface Pro 8, i7-1185G7
Toshiba KBG40ZNS256G NVMe
2260 (1924min - 2259.89max) MB/s -29%
Lenovo Yoga Duet 7 13IML05-82AS000WGE
Lenovo UMIS RPJTJ256MEE1OWX
2139 (1984.13min - 2138.68max) MB/s -33%
seq q8 t1 write
Average of class Convertible
  (215 - 5667, n=61, last 2 years)
3381 MB/s +45%
Average Silicon Motion PCIe-8 SSD
  (1911 - 2917, n=3)
2386 MB/s +2%
Huawei MateBook E Core i5
Silicon Motion PCIe-8 SSD
2330 (1055.9min - 2330.4max) MB/s
Microsoft Surface Pro 8, i7-1185G7
Toshiba KBG40ZNS256G NVMe
1588 (1424.3min - 1588.17max) MB/s -32%
Lenovo Yoga Duet 7 13IML05-82AS000WGE
Lenovo UMIS RPJTJ256MEE1OWX
1287 (729.39min - 1286.76max) MB/s -45%
4k q1 t1 read
Average of class Convertible
  (11.3 - 81.6, n=61, last 2 years)
57.2 MB/s +3%
Microsoft Surface Pro 8, i7-1185G7
Toshiba KBG40ZNS256G NVMe
55.7 (54.81min - 55.71max) MB/s 0%
Huawei MateBook E Core i5
Silicon Motion PCIe-8 SSD
55.5 (55.16min - 55.48max) MB/s
Average Silicon Motion PCIe-8 SSD
  (43.1 - 63.3, n=3)
54 MB/s -3%
Lenovo Yoga Duet 7 13IML05-82AS000WGE
Lenovo UMIS RPJTJ256MEE1OWX
47.1 (44.81min - 47.12max) MB/s -15%
4k q1 t1 write
Average Silicon Motion PCIe-8 SSD
  (270 - 279, n=3)
274 MB/s +1%
Huawei MateBook E Core i5
Silicon Motion PCIe-8 SSD
270 (267.54min - 270.49max) MB/s
Average of class Convertible
  (48.4 - 398, n=61, last 2 years)
141.9 MB/s -47%
Microsoft Surface Pro 8, i7-1185G7
Toshiba KBG40ZNS256G NVMe
139 (135.15min - 138.9max) MB/s -49%
Lenovo Yoga Duet 7 13IML05-82AS000WGE
Lenovo UMIS RPJTJ256MEE1OWX
127 (94.17min - 127.28max) MB/s -53%
4k q32 t16 read
Huawei MateBook E Core i5
Silicon Motion PCIe-8 SSD
1385 (1380.06min - 1385.45max) MB/s
Average Silicon Motion PCIe-8 SSD
  (1336 - 1391, n=3)
1371 MB/s -1%
Average of class Convertible
  (156.4 - 3881, n=61, last 2 years)
964 MB/s -30%
Microsoft Surface Pro 8, i7-1185G7
Toshiba KBG40ZNS256G NVMe
805 (800.4min - 804.86max) MB/s -42%
Lenovo Yoga Duet 7 13IML05-82AS000WGE
Lenovo UMIS RPJTJ256MEE1OWX
462 (333.04min - 462.07max) MB/s -67%
4k q32 t16 write
Average Silicon Motion PCIe-8 SSD
  (1241 - 1512, n=3)
1353 MB/s +4%
Huawei MateBook E Core i5
Silicon Motion PCIe-8 SSD
1306 (934.59min - 1306.23max) MB/s
Average of class Convertible
  (99.8 - 3537, n=61, last 2 years)
679 MB/s -48%
Microsoft Surface Pro 8, i7-1185G7
Toshiba KBG40ZNS256G NVMe
384 (378.78min - 383.65max) MB/s -71%
Lenovo Yoga Duet 7 13IML05-82AS000WGE
Lenovo UMIS RPJTJ256MEE1OWX
276 (178.85min - 275.78max) MB/s -79%
AS SSD
Score Total
Average Silicon Motion PCIe-8 SSD
  (3787 - 4264, n=3)
4030 Points +6%
Huawei MateBook E Core i5
Silicon Motion PCIe-8 SSD
3787 Points
Average of class Convertible
  (394 - 8028, n=60, last 2 years)
3771 Points 0%
Microsoft Surface Pro 8, i7-1185G7
Toshiba KBG40ZNS256G NVMe
2566 Points -32%
Lenovo Yoga Duet 7 13IML05-82AS000WGE
Lenovo UMIS RPJTJ256MEE1OWX
1441 Points -62%
Score Read
Average Silicon Motion PCIe-8 SSD
  (1279 - 1574, n=3)
1443 Points +13%
Huawei MateBook E Core i5
Silicon Motion PCIe-8 SSD
1279 Points
Average of class Convertible
  (186 - 3137, n=60, last 2 years)
1263 Points -1%
Microsoft Surface Pro 8, i7-1185G7
Toshiba KBG40ZNS256G NVMe
1184 Points -7%
Lenovo Yoga Duet 7 13IML05-82AS000WGE
Lenovo UMIS RPJTJ256MEE1OWX
614 Points -52%
Score Write
Average of class Convertible
  (116 - 3348, n=60, last 2 years)
1916 Points +2%
Huawei MateBook E Core i5
Silicon Motion PCIe-8 SSD
1872 Points
Average Silicon Motion PCIe-8 SSD
  (1839 - 1895, n=3)
1869 Points 0%
Microsoft Surface Pro 8, i7-1185G7
Toshiba KBG40ZNS256G NVMe
818 Points -56%
Lenovo Yoga Duet 7 13IML05-82AS000WGE
Lenovo UMIS RPJTJ256MEE1OWX
550 Points -71%
Seq Read
Average of class Convertible
  (473 - 5684, n=60, last 2 years)
3539 MB/s +19%
Huawei MateBook E Core i5
Silicon Motion PCIe-8 SSD
2967 MB/s
Average Silicon Motion PCIe-8 SSD
  (2769 - 2967, n=3)
2846 MB/s -4%
Microsoft Surface Pro 8, i7-1185G7
Toshiba KBG40ZNS256G NVMe
1972 MB/s -34%
Lenovo Yoga Duet 7 13IML05-82AS000WGE
Lenovo UMIS RPJTJ256MEE1OWX
1629 MB/s -45%
Seq Write
Huawei MateBook E Core i5
Silicon Motion PCIe-8 SSD
2270 MB/s
Average of class Convertible
  (180 - 5229, n=60, last 2 years)
2222 MB/s -2%
Average Silicon Motion PCIe-8 SSD
  (1879 - 2328, n=3)
2159 MB/s -5%
Microsoft Surface Pro 8, i7-1185G7
Toshiba KBG40ZNS256G NVMe
856 MB/s -62%
Lenovo Yoga Duet 7 13IML05-82AS000WGE
Lenovo UMIS RPJTJ256MEE1OWX
694 MB/s -69%
4K Read
Huawei MateBook E Core i5
Silicon Motion PCIe-8 SSD
62.2 MB/s
Average Silicon Motion PCIe-8 SSD
  (59.5 - 62.2, n=3)
60.9 MB/s -2%
Microsoft Surface Pro 8, i7-1185G7
Toshiba KBG40ZNS256G NVMe
56.7 MB/s -9%
Average of class Convertible
  (11.4 - 82.4, n=60, last 2 years)
53.7 MB/s -14%
Lenovo Yoga Duet 7 13IML05-82AS000WGE
Lenovo UMIS RPJTJ256MEE1OWX
47.87 MB/s -23%
4K Write
Average Silicon Motion PCIe-8 SSD
  (236 - 249, n=3)
244 MB/s +3%
Huawei MateBook E Core i5
Silicon Motion PCIe-8 SSD
236.4 MB/s
Microsoft Surface Pro 8, i7-1185G7
Toshiba KBG40ZNS256G NVMe
176.4 MB/s -25%
Average of class Convertible
  (41.5 - 347, n=60, last 2 years)
160.8 MB/s -32%
Lenovo Yoga Duet 7 13IML05-82AS000WGE
Lenovo UMIS RPJTJ256MEE1OWX
107 MB/s -55%
4K-64 Read
Average Silicon Motion PCIe-8 SSD
  (920 - 1237, n=3)
1098 MB/s +19%
Microsoft Surface Pro 8, i7-1185G7
Toshiba KBG40ZNS256G NVMe
930 MB/s +1%
Huawei MateBook E Core i5
Silicon Motion PCIe-8 SSD
920 MB/s
Average of class Convertible
  (126.9 - 2508, n=60, last 2 years)
857 MB/s -7%
Lenovo Yoga Duet 7 13IML05-82AS000WGE
Lenovo UMIS RPJTJ256MEE1OWX
411 MB/s -55%
4K-64 Write
Average of class Convertible
  (38.4 - 2855, n=60, last 2 years)
1533 MB/s +9%
Average Silicon Motion PCIe-8 SSD
  (1403 - 1416, n=3)
1409 MB/s 0%
Huawei MateBook E Core i5
Silicon Motion PCIe-8 SSD
1408 MB/s
Microsoft Surface Pro 8, i7-1185G7
Toshiba KBG40ZNS256G NVMe
557 MB/s -60%
Lenovo Yoga Duet 7 13IML05-82AS000WGE
Lenovo UMIS RPJTJ256MEE1OWX
377 MB/s -73%
Access Time Read
Average of class Convertible
  (0.021 - 0.244, n=60, last 2 years)
0.08748 ms * -202%
Lenovo Yoga Duet 7 13IML05-82AS000WGE
Lenovo UMIS RPJTJ256MEE1OWX
0.068 ms * -134%
Microsoft Surface Pro 8, i7-1185G7
Toshiba KBG40ZNS256G NVMe
0.036 ms * -24%
Huawei MateBook E Core i5
Silicon Motion PCIe-8 SSD
0.029 ms *
Average Silicon Motion PCIe-8 SSD
  (0.02 - 0.029, n=3)
0.02467 ms * +15%
Access Time Write
Microsoft Surface Pro 8, i7-1185G7
Toshiba KBG40ZNS256G NVMe
0.156 ms * -721%
Average of class Convertible
  (0.017 - 0.445, n=60, last 2 years)
0.09485 ms * -399%
Lenovo Yoga Duet 7 13IML05-82AS000WGE
Lenovo UMIS RPJTJ256MEE1OWX
0.035 ms * -84%
Huawei MateBook E Core i5
Silicon Motion PCIe-8 SSD
0.019 ms *
Average Silicon Motion PCIe-8 SSD
  (0.015 - 0.019, n=3)
0.01667 ms * +12%

* ... smaller is better

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

01603204806408009601120128014401600176019202080224024002560272028803040Tooltip
Huawei MateBook E Core i5: Ø3172 (2976.41-3180.61)

GPU性能 - Iris Xe Graphics G7

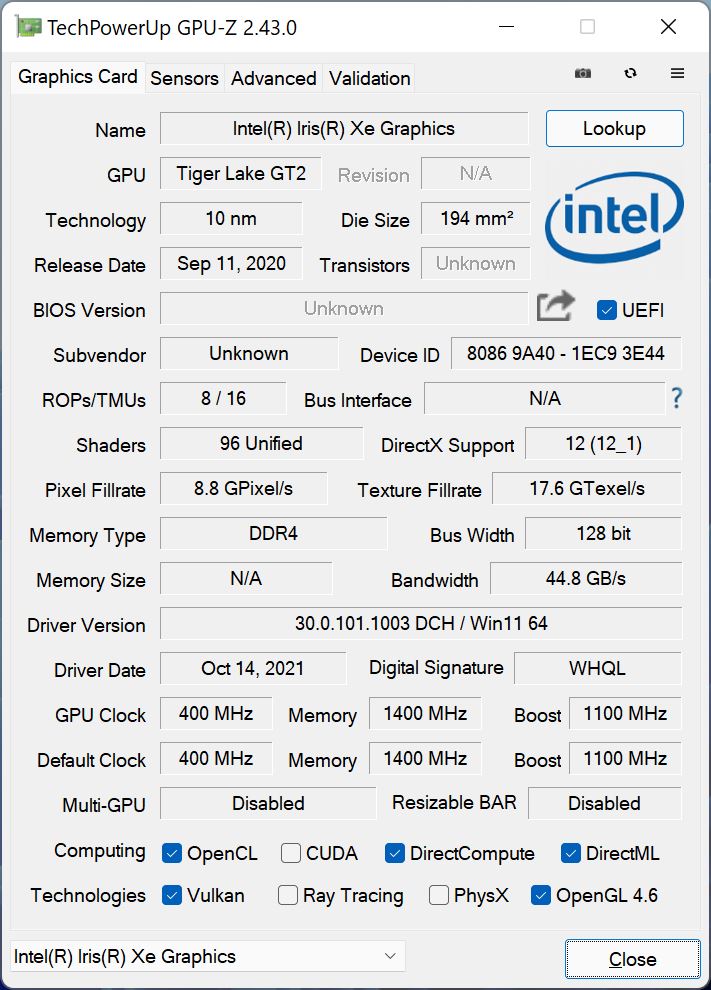

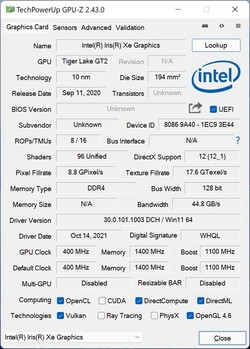

GPU-Z Iris Xe Graphics G7
GPU-Z Iris Xe Graphics G7

所有的图形计算都由标准的Iris Xe Graphics G7,有80个EUs。这也被用于Tiger Lake-U芯片,如Core i5-1135G7。这款iGPU是日常工作负荷的良好选择,由于强大的视频解码器,高分辨率视频播放也不成问题。然而,该iGPU几乎不适合游戏。一般性能非常低,几分钟后又会下降30%。你应该专注于非常古老或非常简单的Windows商店的游戏。至少在电池电量方面,性能不会进一步下降。请看 我们的技术部分了解更多GPU基准测试。

3DMark Performance Rating - Percent
Average of class Convertible

100 pt
Microsoft Surface Pro 8, i7-1185G7
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7
79.8 pt
Average Intel Iris Xe Graphics G7 80EUs

57 pt
Huawei MateBook E Core i5
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1130G7
47.5 pt
Lenovo Yoga Duet 7 13IML05-82AS000WGE -3!
Intel UHD Graphics 620, Intel Core i5-10210U
18.8 pt
3DMark 11 - 1280x720 Performance GPU
Average of class Convertible
  (471 - 40768, n=61, last 2 years)
8816 Points +126%
Microsoft Surface Pro 8, i7-1185G7
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7
6825 Points +75%
Average Intel Iris Xe Graphics G7 80EUs
  (2246 - 6477, n=109)
5179 Points +33%
Huawei MateBook E Core i5
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1130G7
3906 Points
Lenovo Yoga Duet 7 13IML05-82AS000WGE
Intel UHD Graphics 620, Intel Core i5-10210U
1657 Points -58%
3DMark
1280x720 Cloud Gate Standard Graphics
Average of class Convertible
  (2965 - 154219, n=44, last 2 years)
36939 Points +70%
Microsoft Surface Pro 8, i7-1185G7
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7
30384 Points +40%
Average Intel Iris Xe Graphics G7 80EUs
  (6361 - 30894, n=95)
21885 Points +1%
Huawei MateBook E Core i5
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1130G7
21704 Points
1920x1080 Fire Strike Graphics
Average of class Convertible
  (365 - 29684, n=62, last 2 years)
6449 Points +91%
Microsoft Surface Pro 8, i7-1185G7
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7
5570 Points +65%
Average Intel Iris Xe Graphics G7 80EUs
  (1560 - 5305, n=111)
3794 Points +12%
Huawei MateBook E Core i5
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1130G7
3381 Points
2560x1440 Time Spy Graphics
Average of class Convertible
  (94 - 11749, n=61, last 2 years)
2283 Points +191%
Microsoft Surface Pro 8, i7-1185G7
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7
1666 Points +113%
Average Intel Iris Xe Graphics G7 80EUs
  (561 - 1511, n=108)
1172 Points +49%
Huawei MateBook E Core i5
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1130G7
784 Points
3DMark 11 Performance
3764 points
3DMark Cloud Gate Standard Score
12877 points
3DMark Fire Strike Score
2646 points
3DMark Time Spy Score
865 points
Help

Witcher 3 FPS Chart (medium settings)

05101520253035Tooltip
Huawei MateBook E Core i5 i5-1130G7, Iris Xe G7 80EUs: Ø23.9 (20-39)
lowmed.highultraQHD
GTA V (2015) 57.9 39.2 13.2
The Witcher 3 (2015) 39 23.9 13
Dota 2 Reborn (2015) 76.6 28.3 21.2 20.8
Final Fantasy XV Benchmark (2018) 21.7 12.1 7.56 5.8
X-Plane 11.11 (2018) 12.4 11.1 10.3
Far Cry 5 (2018) 25 15 13 12
Strange Brigade (2018) 59.4 19.6 15.7 13.6
F1 2021 (2021) 69.1 26.3 26.2 15

排放--拥有出色扬声器的MateBook E

系统噪音

MateBook E使用了一个小风扇,在负载下迅速启动。测量结果相当低,但风扇主观上更响,你只是注意到它是一个非常小的风扇。在比较简单的任务中,如播放4K YouTube视频,它也会旋转起来。普通平板电脑,如MatePad ProiPad Pro在这方面有很大的优势,这要归功于被动冷却解决方案。

可选的 "性能 "模式并不增加风扇转速,但它更快地达到最大转速,而且在持续的工作负荷下,这个水平保持得更久。我们没有注意到任何其他电子噪音。

Noise Level

Idle
24.3 / 24.3 / 24.3 dB(A)
Load
28.6 / 32.4 dB(A)
  red to green bar


30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light   Earthworks M23R, Arta (15 cm distance)   environment noise: 24.3 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs20292931.332.432.12529.634.833.831.130.53128.131.825.226.429.64028.731.928.73131.25025.125.525.924.427.26325.125.723.42525.58021.823.320.921.421.610020.524.320.318.32112522.521.120.32020.31602019.718.617.518.120021.919.72018.818.825019.920.318.31919.531518.718.116.516.117.840018.316.815.413.517.250018.917.315.7131863017.115.515.413.316.180017.415.714.411.916.1100020.51917.212.218.5125023.822.92010.926160023.921.219.21122.2200022.520.617.710.920.4250020.919.51711.221315020.218.316.411.518.940001917.115.21218500018.116.214.311.916.3630017.215.413.812.215.8800013.913.112.712.213.41000013.512.712.512.412.91250012.912.512.412.312.71600012.211.91211.612SPL32.430.728.624.331.9N1.51.310.61.4median 19median 18.1median 16.4median 12.2median 18Delta1.92.52.32.42.2hearing rangehide median Fan NoiseHuawei MateBook E Core i5
Huawei MateBook E Core i5
Iris Xe G7 80EUs, i5-1130G7, Silicon Motion PCIe-8 SSD
Microsoft Surface Pro 8, i7-1185G7
Iris Xe G7 96EUs, i7-1185G7, Toshiba KBG40ZNS256G NVMe
Lenovo Yoga Duet 7 13IML05-82AS000WGE
UHD Graphics 620, i5-10210U, Lenovo UMIS RPJTJ256MEE1OWX
Noise
-13%
-2%
off / environment *
24.3
24.7
-2%
25.4
-5%
Idle Minimum *
24.3
24.7
-2%
25.4
-5%
Idle Average *
24.3
24.7
-2%
25.4
-5%
Idle Maximum *
24.3
24.7
-2%
25.4
-5%
Load Average *
28.6
36.8
-29%
30
-5%
Witcher 3 ultra *
30.7
36.8
-20%
Load Maximum *
32.4
43.8
-35%
27.5
15%

* ... smaller is better

温度

表面温度没有问题,在日常工作中,平板电脑经常只是温热的。最大负荷只导致某些地方略高于40℃,所以没有任何限制。

根据能源设置,功耗迅速下降到10或12W。处理器和iGPU现在都共享相同的TDP包络,所以在压力测试期间,时钟非常低。

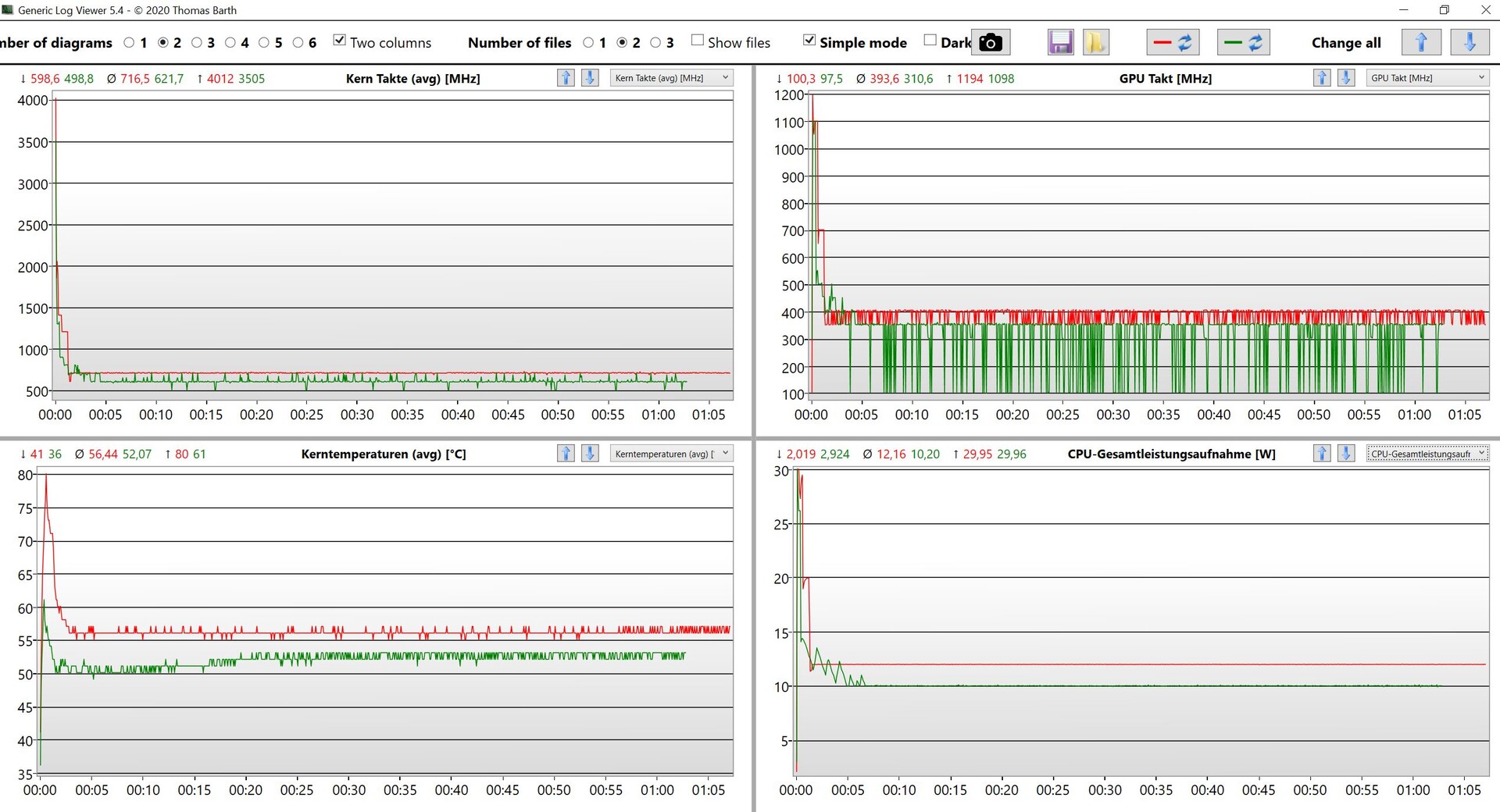

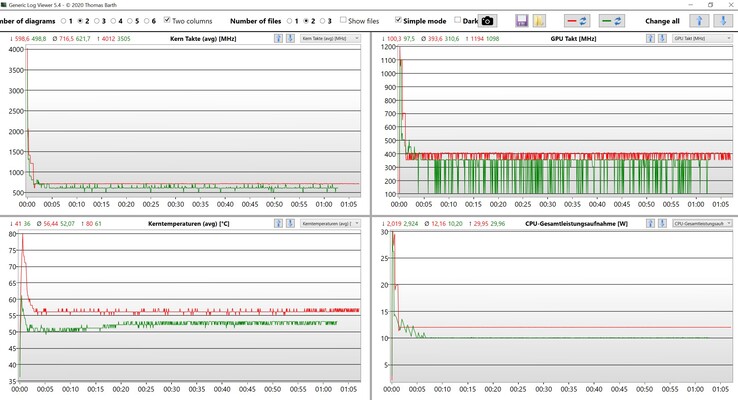

CPU和iGPU数据压力测试(红色:性能,绿色:平衡)。
CPU和iGPU数据压力测试(红色:性能,绿色:平衡)。
Max. Load
 40 °C40.5 °C38.4 °C
 36.1 °C34.7 °C34.7 °C
 30.5 °C31.3 °C31.2 °C
Maximum: 40.5 °C
Average: 35.3 °C
40.3 °C41.6 °C37.7 °C
36.8 °C37.3 °C35.1 °C
33.2 °C34 °C32.5 °C
Maximum: 41.6 °C
Average: 36.5 °C
Power Supply (max.)  38.1 °C | Room Temperature 20.4 °C | Fluke t3000FC (calibrated), Voltcraft IR-900
(±) The average temperature for the upper side under maximal load is 35.3 °C / 96 F, compared to the average of 30.3 °C / 87 F for the devices in the class Convertible.
(±) The maximum temperature on the upper side is 40.5 °C / 105 F, compared to the average of 35.4 °C / 96 F, ranging from 19.6 to 60 °C for the class Convertible.
(±) The bottom heats up to a maximum of 41.6 °C / 107 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 25.3 °C / 78 F, compared to the device average of 30.3 °C / 87 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 31.3 °C / 88.3 F and are therefore cool to the touch.
(-) The average temperature of the palmrest area of similar devices was 28 °C / 82.4 F (-3.3 °C / -5.9 F).
表面温度应力测试(前)。
表面温度应力测试(前)。

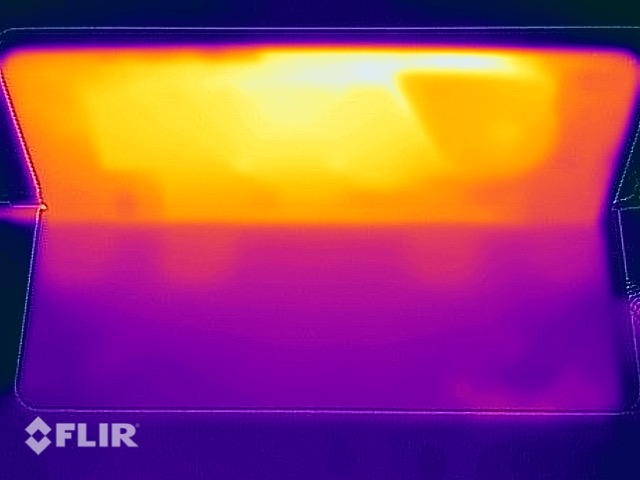

表面温度应力测试(后部带盖)。
表面温度应力测试(后部带盖)。

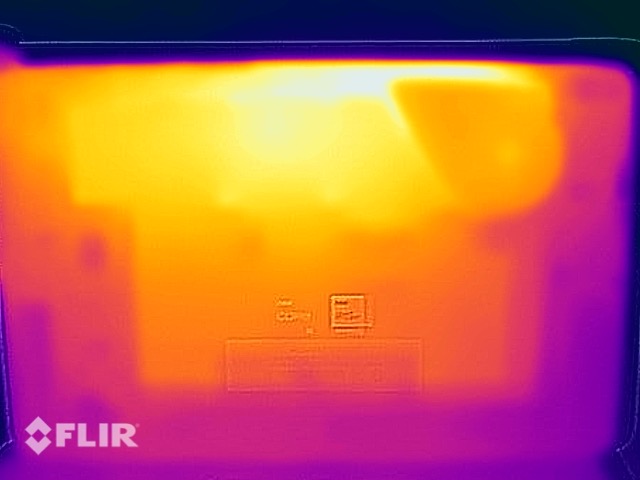

表面温度应力测试(后部无盖)。
表面温度应力测试(后部无盖)。
Huawei MateBook E Core i5
Intel Core i5-1130G7, Intel Iris Xe Graphics G7 80EUs
Microsoft Surface Pro 8, i7-1185G7
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
Lenovo Yoga Duet 7 13IML05-82AS000WGE
Intel Core i5-10210U, Intel UHD Graphics 620
Huawei MatePad Pro 12.6 2021
HiSilicon Kirin 9000E, ARM Mali-G78 MP22
Apple iPad Pro 12.9 2021 A2378
Apple M1, Apple M1 8-Core GPU
Heat
-0%
12%
8%
-3%
Maximum Upper Side *
40.5
45
-11%
33.6
17%
31.3
23%
37
9%
Maximum Bottom *
41.6
47.2
-13%
33.9
19%
30.8
26%
35
16%
Idle Upper Side *
26.2
24.1
8%
24.8
5%
29.9
-14%
33
-26%
Idle Bottom *
27.4
23.4
15%
25.4
7%
28.7
-5%
30
-9%

* ... smaller is better

发言人

华为为MateBook E配备了四个扬声器,它们非常好。它们可以非常响亮(没有明显的失真),实际上提供了一个相对的空间声音体验。评测单位不必躲在这个级别中最好的设备后面,即Apple iPad Pro,也是如此,在直接比较中,它只是稍微领先。只有低音再现可以改进,但这是超薄结构的结果,这对其他对手来说也是一个问题。在我们的审查中,麦克风也留下了良好的印象。

dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2032.443.82531.130.13126.428.8403133.25024.433.8632539.78021.444.910018.354.51252058.216017.556.420018.863.32501965.431516.167.540013.568.25001371.863013.365.580011.972.6100012.276.8125010.979.516001177.7200010.979.9250011.279.2315011.573.840001273.5500011.968.7630012.264800012.264.91000012.465.71250012.363.91600011.653.4SPL24.387.6N0.669.2median 12.2median 68.2Delta2.4540.840.724.323.326.527.326.324.323.720.627.523.441.822.557.318.763.421.764.622.863.117.867.417.469.517.871.918.974.215.27011.573.610.374.210.175.710.972.510.271.110.569.310.864.810.871.211.269.611.36511.47311.374.511.471.411.357.110.583.924.260.50.5median 70median 11.34.23.5hearing rangehide median Pink NoiseHuawei MateBook E Core i5Apple iPad Pro 12.9 2021 A2378
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
Huawei MateBook E Core i5 audio analysis

(+) | speakers can play relatively loud (87.6 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 7.3% lower than median
(±) | linearity of bass is average (7.8% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 6.4% higher than median
(+) | mids are linear (6.4% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4.6% away from median
(+) | highs are linear (4.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (11.9% difference to median)
Compared to same class
» 10% of all tested devices in this class were better, 3% similar, 87% worse
» The best had a delta of 6%, average was 21%, worst was 57%
Compared to all devices tested
» 7% of all tested devices were better, 2% similar, 91% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Apple iPad Pro 12.9 2021 A2378 audio analysis

(+) | speakers can play relatively loud (83.9 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 5.8% lower than median
(±) | linearity of bass is average (8.7% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.9% away from median
(+) | mids are linear (4.1% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.9% away from median
(+) | highs are linear (6.9% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (7.9% difference to median)
Compared to same class
» 0% of all tested devices in this class were better, 0% similar, 99% worse
» The best had a delta of 7%, average was 22%, worst was 129%
Compared to all devices tested
» 1% of all tested devices were better, 0% similar, 98% worse
» The best had a delta of 4%, average was 25%, worst was 134%

能源管理 - OLED面板的运行时间成本

消耗功率

65W电源适配器
65W电源适配器

要确定OLED设备的功耗并不简单,因为根据内容的不同会有很大的差异。华为默认使用深色的Windows设计和深色的背景图像,这是有道理的。因此,空闲值仍然可以,但你可以期待在更明亮的内容下多出2-3瓦特。在压力测试中,最大消耗高达48瓦特,但几分钟后就平息在20瓦特。

MateBook E配备了熟悉的65瓦电源适配器,这也用于许多其他MateBook笔记本电脑。它的功率消耗绰绰有余,由于有USB-C电缆,你还可以把它用于许多其他设备。

Power Consumption
Off / Standbydarklight 0.41 / 0.5 Watt
Idledarkmidlight 5.5 / 8.9 / 9.5 Watt
Load midlight 26.6 / 48.5 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Huawei MateBook E Core i5
i5-1130G7, Iris Xe G7 80EUs, Silicon Motion PCIe-8 SSD, OLED, 2560x1600, 12.6"
Microsoft Surface Pro 8, i7-1185G7
i7-1185G7, Iris Xe G7 96EUs, Toshiba KBG40ZNS256G NVMe, IPS, 2880x1920, 13"
Lenovo Yoga Duet 7 13IML05-82AS000WGE
i5-10210U, UHD Graphics 620, Lenovo UMIS RPJTJ256MEE1OWX, IPS, 2160x1350, 13"
Huawei MatePad Pro 12.6 2021
Kirin 9000E, Mali-G78 MP22, 256 GB UFS 3.1 Flash, OLED, 2560x1600, 12.6"
Apple iPad Pro 12.9 2021 A2378
M1, M1 8-Core GPU, 128 GB NVMe, IPS mini-LED, 2732x2048, 12.9"
Average Intel Iris Xe Graphics G7 80EUs

Average of class Convertible

Power Consumption
-30%
33%
26%
37%
-5%
-24%
Idle Minimum *
5.5
3.9
29%
3.1
44%
6.2
-13%
1.8
67%
Idle Average *
8.9
8.5
4%
5.7
36%
9.07
-2%
9.6
-8%
Idle Maximum *
9.5
9.8
-3%
8.7
8%
9.12
4%
9.8
-3%
Load Average *
26.6
48
-80%
20.5
23%
8.79
67%
12.2
54%
36.4 ?(14.3 - 70, n=103)
-37%
Witcher 3 ultra *
20.6
41.5
-101%
Load Maximum *
48.5
63
-30%
22.6
53%
12.07
75%
12.6
74%
61.7 ?(24.2 - 149, n=105)
-27%

* ... smaller is better

Power consumption Witcher 3 / Stress test

051015202530354045Tooltip
Huawei MateBook E Core i5; Witcher 3 ultra: Ø20.6 (20-21.3)
Huawei MateBook E Core i5; 1280x720 Prime95 28.10 and Furmark 1.25: Ø26.1 (19.7-48.5)

电池运行时间

电池运行时间是MateBook E的致命弱点,因为42Wh的电池只能提供4-6小时的运行时间,具体取决于亮度。这不是很长,即使与其他Windows设备相比,MateBook E也没有机会与平板电脑如MatePad ProApple iPad Pro.

当设备打开时,大约40分钟后就可以使用50%的电池容量,而充满电需要2小时左右。

Battery Runtime
WiFi Websurfing (Edge 98)
6h 03min
WiFi Websurfing max. Brightness (Edge 98)
3h 58min
Big Buck Bunny H.264 1080p
6h 14min
Load (maximum brightness)
2h 44min
Huawei MateBook E Core i5
i5-1130G7, Iris Xe G7 80EUs, 42 Wh
Microsoft Surface Pro 8, i7-1185G7
i7-1185G7, Iris Xe G7 96EUs, 51.5 Wh
Lenovo Yoga Duet 7 13IML05-82AS000WGE
i5-10210U, UHD Graphics 620, 39 Wh
Huawei MatePad Pro 12.6 2021
Kirin 9000E, Mali-G78 MP22,  Wh
Apple iPad Pro 12.9 2021 A2378
M1, M1 8-Core GPU, 40.88 Wh
Average of class Convertible

Battery Runtime
10%
11%
160%
86%
46%
H.264
374
604
61%
494
32%
1367
266%
818
119%
WiFi v1.3
363
456
26%
523
44%
740
104%
673
85%
Load
164
70
-57%
95
-42%
342
109%
255
55%
Reader / Idle
768
2080

Pros

+ 坚固和高质量的底盘
+ 非常好的OLED触摸屏
+ 准确的色彩和P3色域
+ 雷电4和Wi-Fi 6
+ 伟大的扬声器
+ 良好的相机

Cons

- 只有1个USB-C
- 电池运行时间短
- 定期的风扇活动
- PWM闪动
- 没有键盘照明
- 没有集成的脚架

结论 - 只有带Windows的MatePad Pro?

在审查中。华为MateBook E.测试模型由华为德国提供。
在审查中。华为MateBook E.测试模型由华为德国提供。

华为宣传新的MateBook E是一款可转换的产品,但它基本上是一款类似于MatePad Pro的Windows平板电脑,有一个主动冷却解决方案。与常见的Windows敞篷车相反,它没有集成的脚架,使用Windows的触摸控制仍然不完美,所以当你把它作为平板电脑使用时,它并不出色。这意味着键盘盖对于生产性工作负荷是必不可少的。酷睿i5 SKU自动配备了键盘盖,但对于酷睿i3型号来说,它是一个可选配件。

当你观看视频等媒体内容时,MateBook E有其优势,该平板电脑得益于非常好的OLED屏幕和出色的扬声器。Tiger Lake-UP4处理器也为所有 "常规 "工作负荷提供了足够的性能,但当你给设备施加更多压力时,小风扇会迅速启动。电池运行时间短是另一个问题,特别是与华为自己的MatePad pro等普通平板电脑相比。另一方面,摄像头非常好,是视频通话或会议的一大优势。

华为为其MatePad Pro配备了Tiger Lake CPU以及Windows 11,并将其称为MateBook E。新的平板电脑功能更多,但其最大的优势仍然是媒体内容,这得益于非常好的OLED屏幕和出色的扬声器。

我们认为其他设备更适合生产性工作负载,因为你只得到一个USB-C端口,它经常被电源适配器挡住,而且键盘没有照明。也没有LTE或5G调制解调器的选项。然后是1200欧元的价格,这几乎不是一个便宜的价格。微软的Surface Pro 8在这方面可能是一个更好的伴侣。如果你主要是在家里寻找一个平板电脑,只是偶尔写写邮件或信件,你可能会更好地选择传统的平板电脑,比如华为自己的MatePad Pro或像Apple iPad Pro.

Huawei MateBook E Core i5 - 08/30/2022 v7 (old)
Andreas Osthoff

Chassis
82 / 98 → 84%
Keyboard
77%
Pointing Device
93%
Connectivity
55 / 75 → 74%
Weight
80 / 20-75 → 100%
Battery
68%
Display
91%
Games Performance
50 / 78 → 64%
Application Performance
79 / 85 → 93%
Temperature
91%
Noise
88%
Audio
85 / 91 → 93%
Camera
59 / 85 → 69%
Average
77%
85%
Convertible - Weighted Average

Price comparison

Please share our article, every link counts!
Mail Logo
> Notebookcheck中文版(NBC中国) > 评测 > 华为MateBook E笔记本电脑评测--采用OLED的新型Windows平板电脑
Andreas Osthoff, 2022-03- 7 (Update: 2022-03- 7)
