Minisforum Venus Series UM690台式机评测:配备Ryzen 9 6900HX和USB4的小型办公电脑

小巧、快速、高效!

中国系统制造商MINISFORUM提供了大量为广泛的应用量身定做的紧凑型台式电脑。维纳斯系列的UM690使用AMD最新的Rembrandt SoC,支持USB4和Thunderbolt。在这篇包含大量基准和测量的深入评论中,我们将告诉你这个设备有哪些优势,以及它在竞争中的地位如何。
AMD Mini PC Desktop Radeon Business

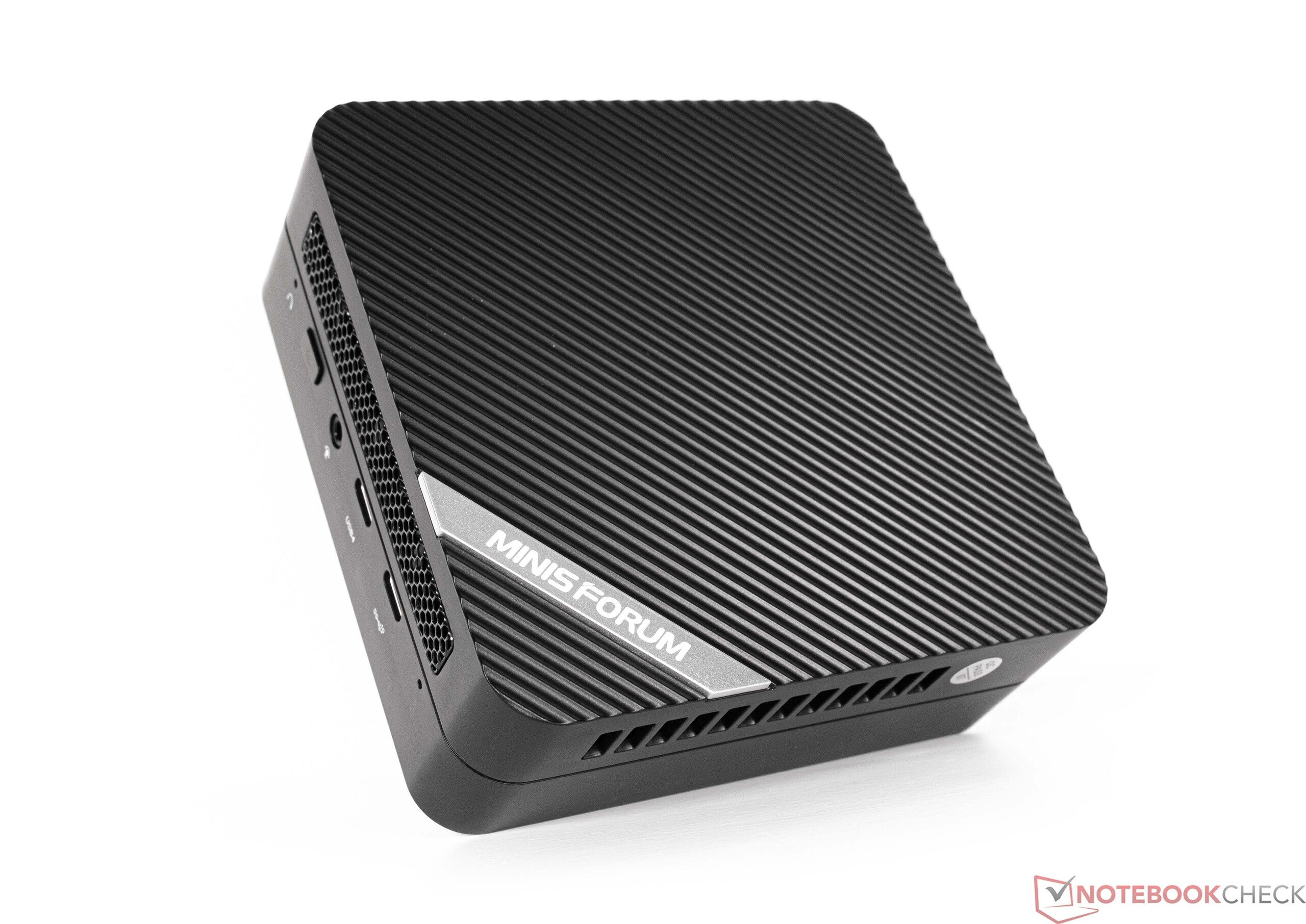

维纳斯系列 UM690
维纳斯系列 UM690

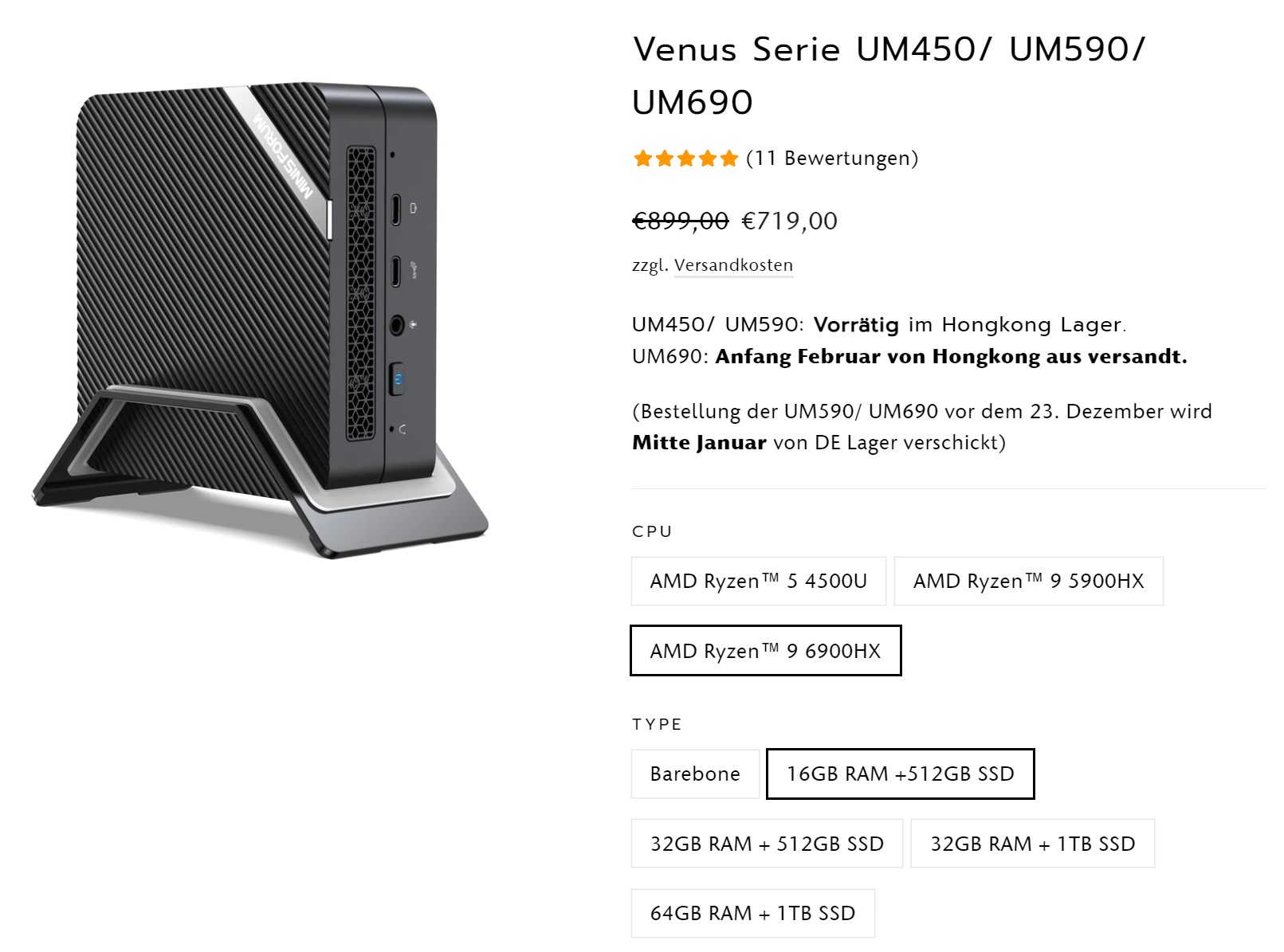

Minisforum维纳斯系列UM690配置(来源:Minisforum)
Minisforum维纳斯系列UM690配置(来源:Minisforum)

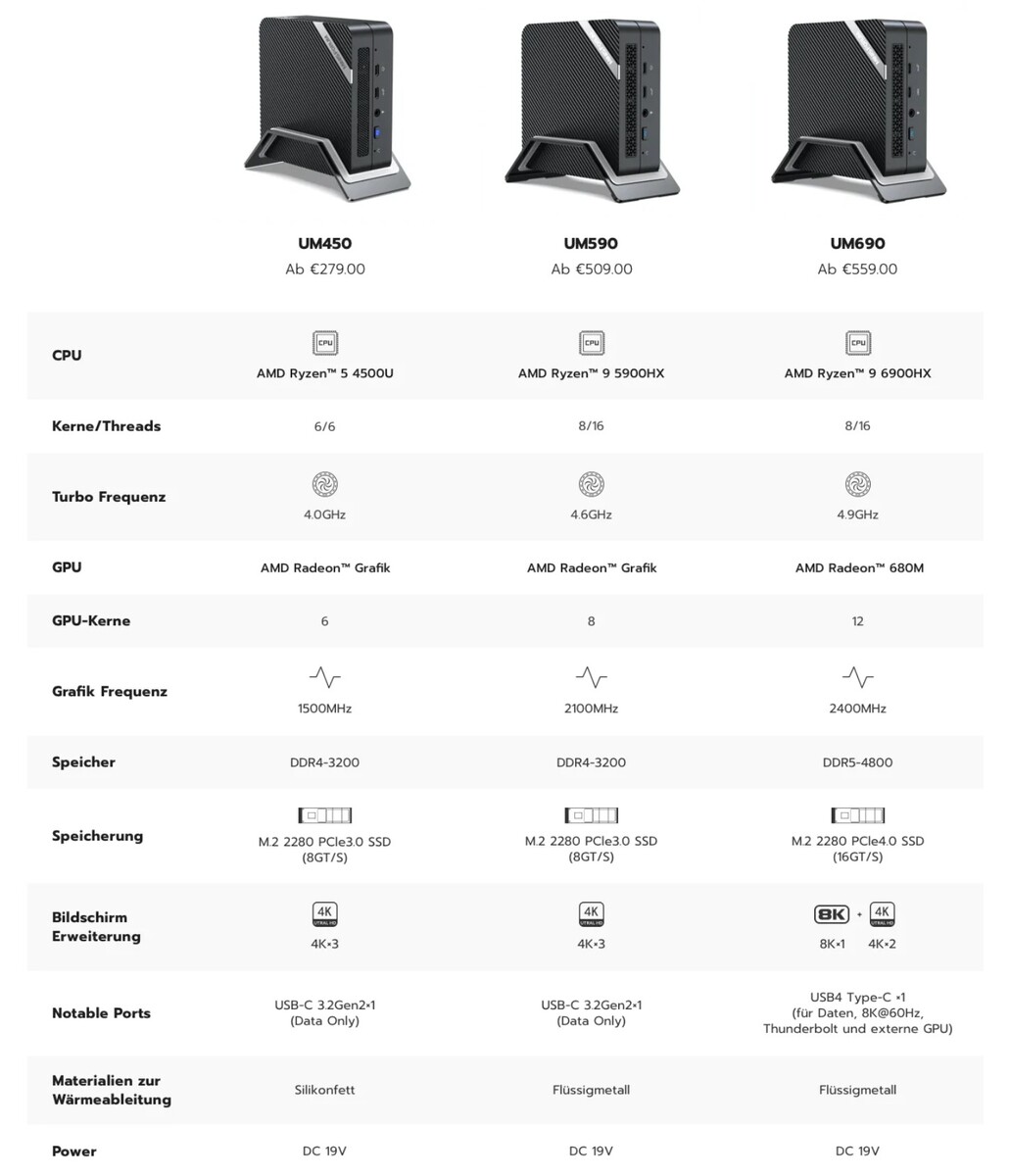

Minisforum 维纳斯系列 UM450, UM590, UM690 (来源: Minisforum)
Minisforum 维纳斯系列 UM450, UM590, UM690 (来源: Minisforum)

Miniforum已经很好地确立了自己作为高度紧凑的桌面系统制造商的地位。现在,Venus系列的特点是采用AMD最新的Rembrandt SoC的非常强大的迷你PC。UM690是该系列目前的旗舰机型,但也有稍微便宜和不太强大的设备,如UM450和UM590。剧透:我们现在可以告诉你,UM690的性能和多功能性给我们留下了深刻印象。

这台电脑基于AMD Ryzen 9 6900HX ,这是一个高效而又非常快的CPU,具有强大的集成图形--即AMD Radeon 680M 。APU的侧面是16GB的DDR5内存,这是最新的标准,还有一个512GB的SSD。Minisforum Venus系列UM690也可以作为裸机套件提供,不含内存和存储。用户将不得不单独购买一个Windows许可证。目前,UM690的价格从559欧元(499美元)开始,我们的审查模型将让你花719欧元(649美元)。Minisforum Venus系列UM690最多可配置64GB内存和1TB SSD。

在这次审查中,我们将把UM690与其他高度紧凑的台式电脑进行比较。下表将为您提供比较中的设备概况。

Minisforum Venus Series UM690
Processor
AMD Ryzen 9 6900HX 8 x 3.3 - 4.9 GHz, 65 W PL2 / Short Burst, 45 W PL1 / Sustained, Rembrandt-H (Zen 3+)
Graphics adapter
AMD Radeon 680M, Adrenalin 22.20.27.07
Memory
16 GB
, DDR5-4800, 2 of 2 in use, max. 64 GB
Mainboard
AMD Promontory/Bixby FCH
Storage
Kingston OM8PGP4512Q-A0, 512 GB
, M.2-2280 NVMe, 450 GB free
Soundcard
AMD Zen - Audio Processor - HD Audio Controller
Connections
2 USB 2.0, 3 USB 3.1 Gen2, 1 USB 4.0 40 Gbps, 1 Thunderbolt, 2 HDMI, 2 DisplayPort, 1 Kensington Lock
Networking
Intel Ethernet Controller I225-V (10/100/1000/2500MBit/s), MediaTek RZ608 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/ Wi-Fi 6E 6 GHz), Bluetooth 5.2
Size
height x width x depth (in mm): 48 x 129 x 126
Operating System
Microsoft Windows 11 Pro
Additional features
Power adapter with cable, HDMI cable, computer stand, VESA mount kit, manual, 24 Months Warranty
Weight
621 g, Power Supply: 449 g
Price
719 EUR
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



潜在的竞争对手比较

Rating
Date
Model
Weight
Height
Price
86.1 %
v7 (old)
02 / 2023
Minisforum Venus Series UM690
R9 6900HX, Radeon 680M
621 g48 mm

v (old)
01 / 2022
Morefine S500+
R9 5900HX, Vega 8
697 g40 mm

v (old)
06 / 2022
Minisforum EliteMini B550
R7 5700G, Vega 8
1.1 kg67 mm

v7 (old)
09 / 2022
Minipc Union Ace Magician TK11-A0
i5-1135G7, Iris Xe G7 96EUs
586 g53 mm

v7 (old)
10 / 2022
Morefine S600-Apex Engineer
i9-12900HK, Iris Xe G7 96EUs
795 g63.5 mm
85.1 %
v7 (old)
01 / 2023
Minisforum Neptune Series NAD9
i9-12900H, Iris Xe G7 96EUs
1.2 kg66 mm
78.9 %
v7 (old)
11 / 2022
Intel NUC 12 Pro Kit NUC12WSKi7
i7-1260P, Iris Xe G7 96EUs
511 g37 mm

详细了解Minisforum Venus系列UM690

维纳斯系列 UM690
维纳斯系列 UM690
维纳斯系列 UM690
维纳斯系列 UM690
维纳斯系列 UM690
维纳斯系列 UM690
维纳斯系列 UM690
维纳斯系列 UM690
维纳斯系列 UM690
维纳斯系列 UM690
维纳斯系列 UM690
维纳斯系列 UM690
维纳斯系列 UM690
维纳斯系列 UM690

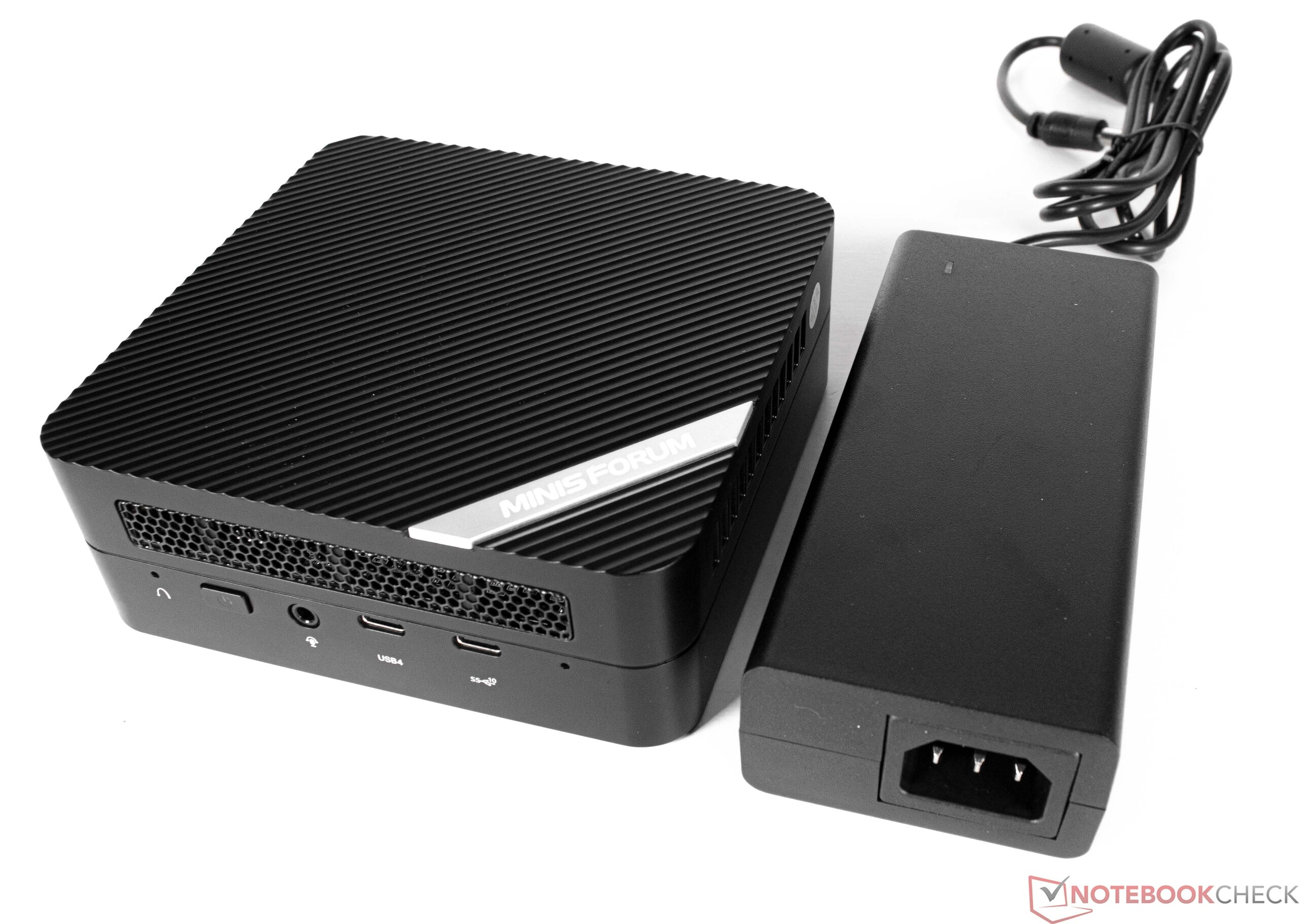

Minisforum Venus系列UM690与PSU的比较
维纳斯系列 UM690
维纳斯系列 UM690

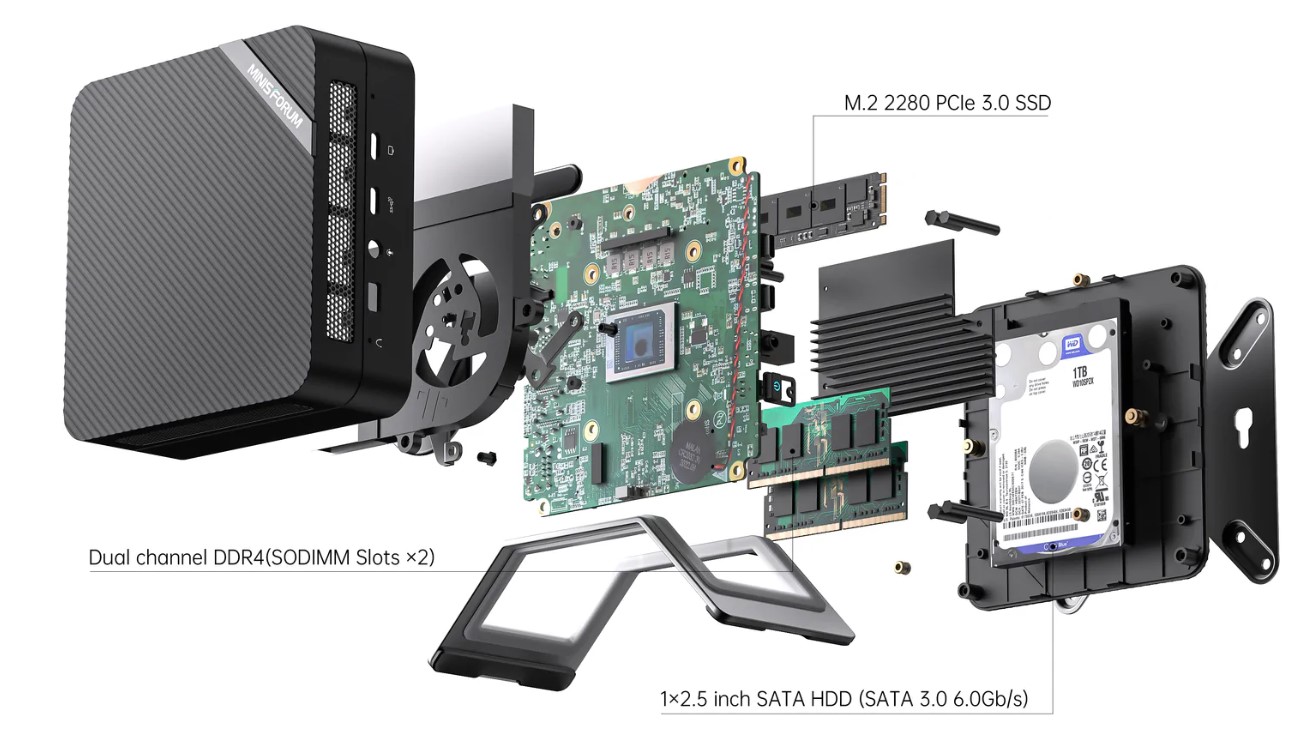

Minisforum 维纳斯系列 UM690 - 爆炸视图 (来源: Minisforum)

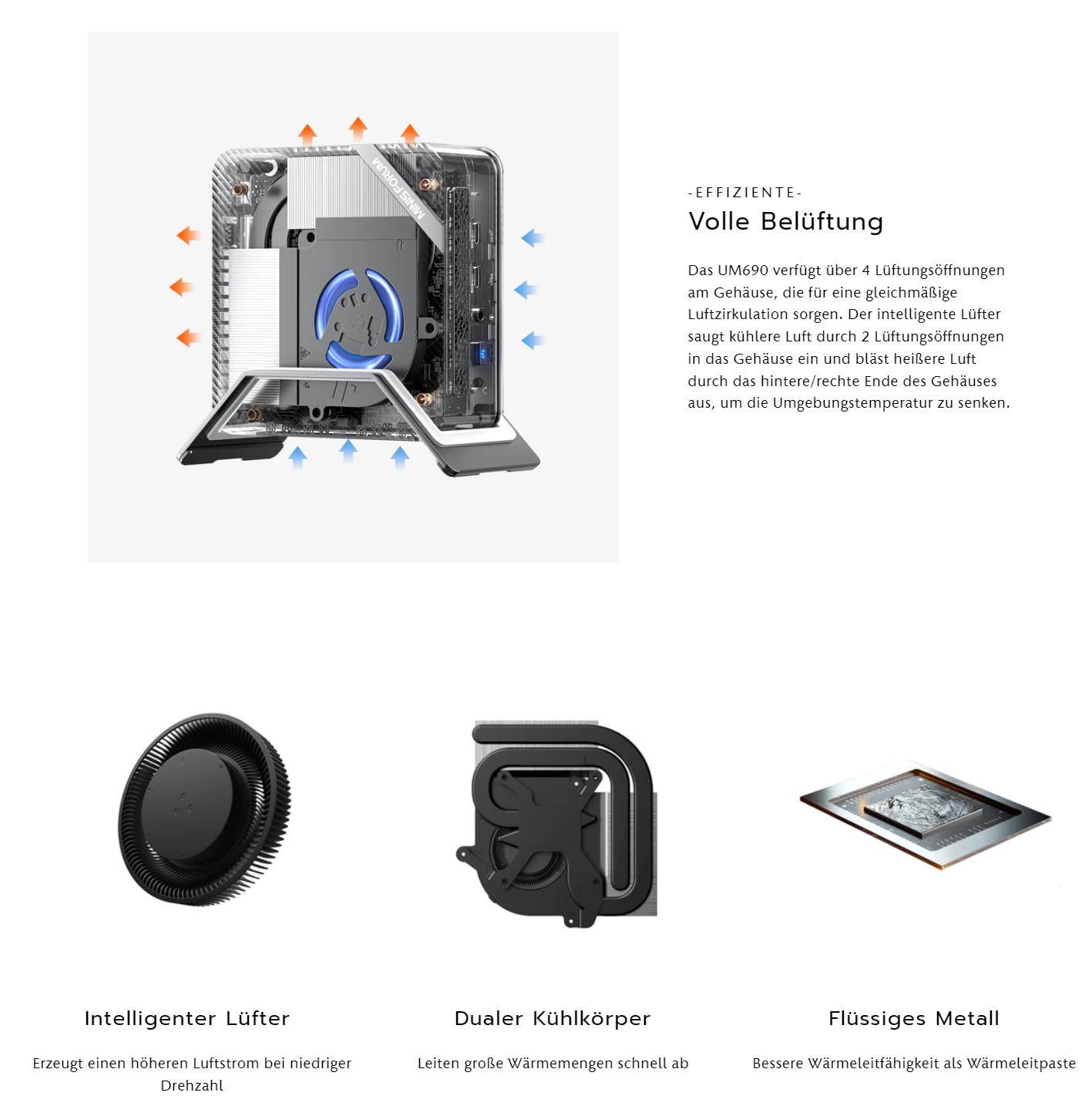

Minisforum Venus系列UM690 - 冷却(来源:MINISFORUM)。

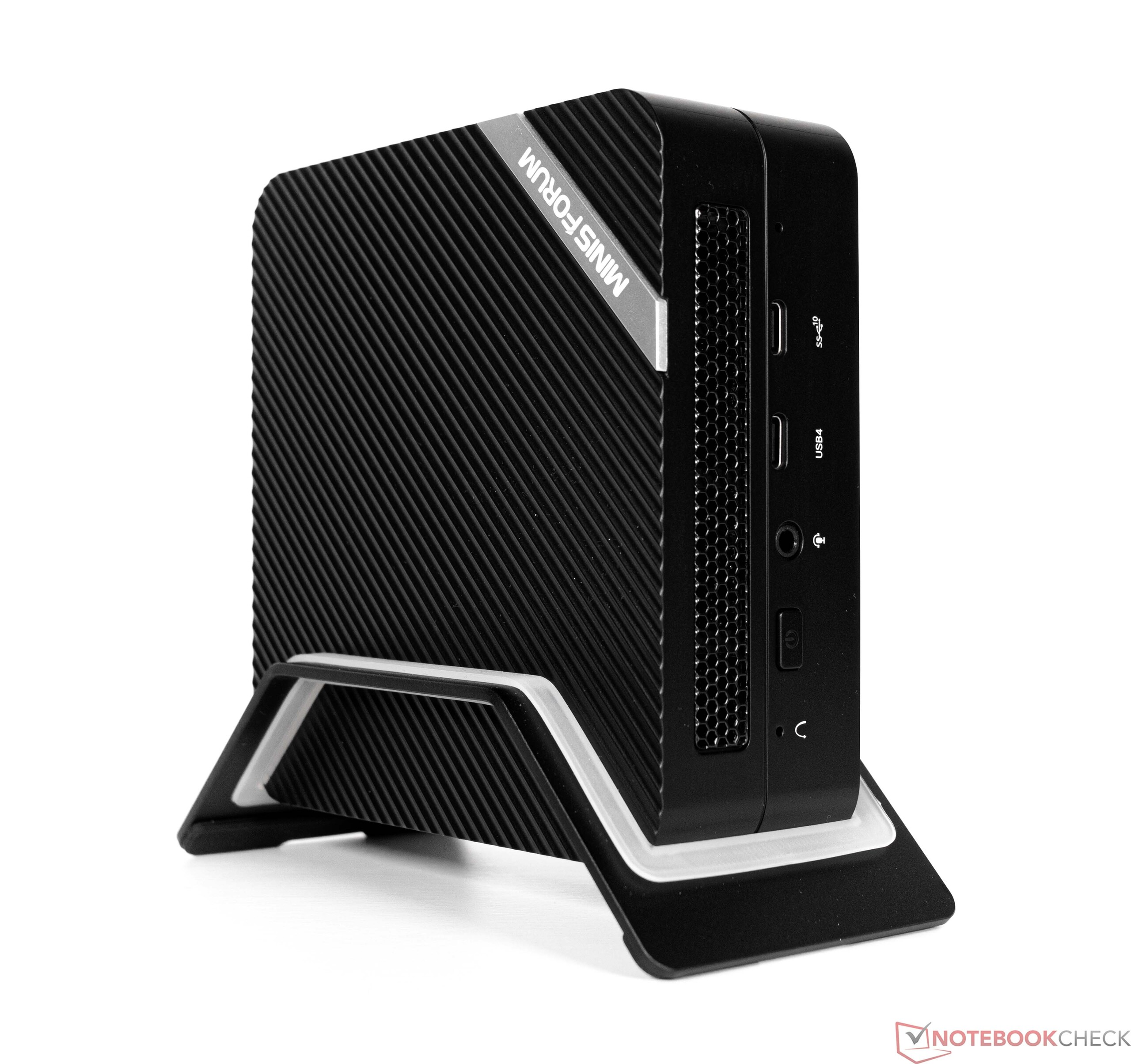

案例

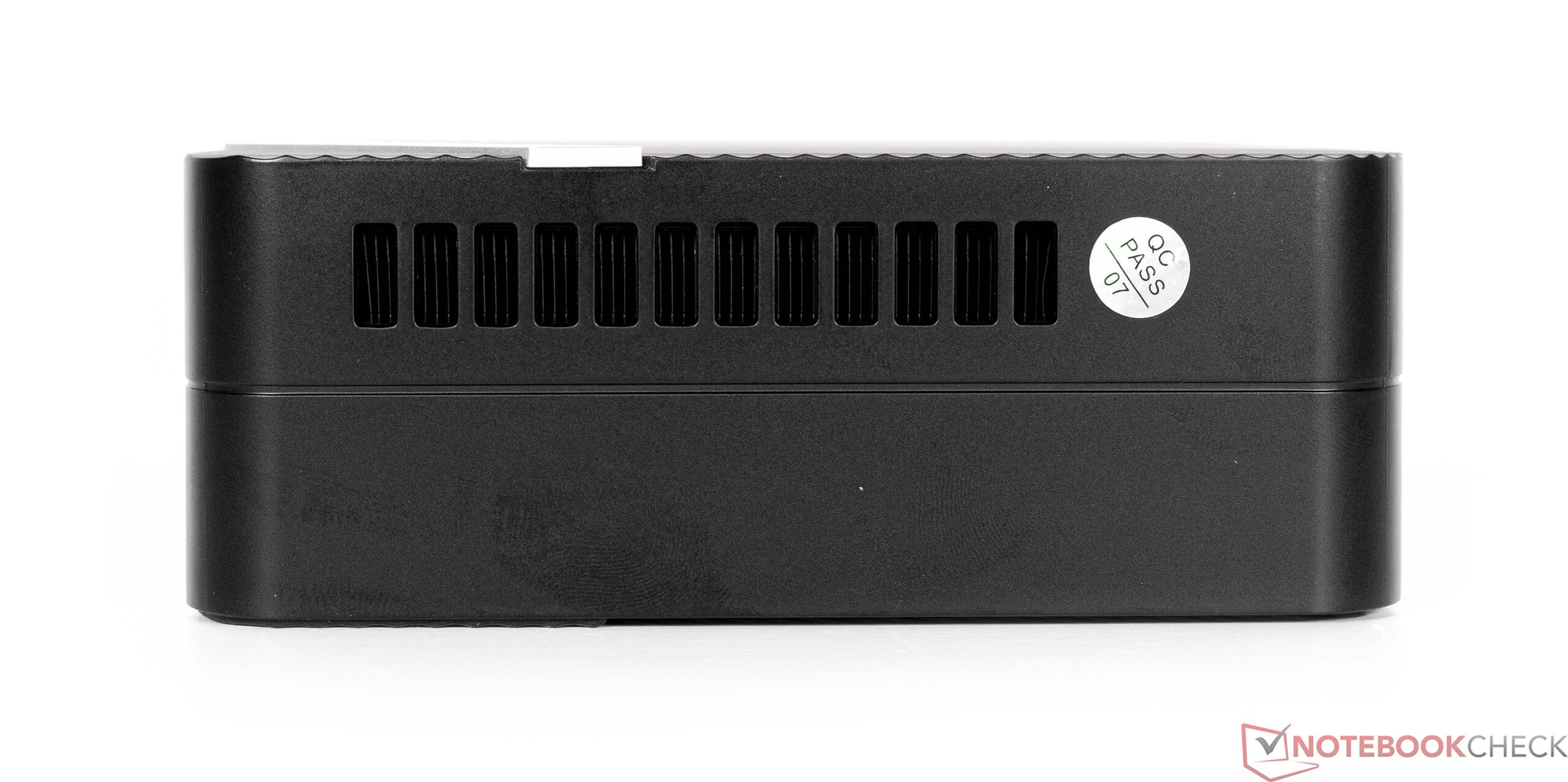

Minisforum Venus系列UM690的外部主要由塑料制成。不过,在内部,你会发现系统中内置了金属,以提高机箱的整体坚固性。该设备给人以高档的感觉,其做工没有什么可抱怨的。我们在评测单元上没有发现任何不精确的缝隙或尖锐的边缘。该设备可以平放在桌面上,或垂直安装在附带的支架上。你不需要任何工具就可以将UM690插入其坚固的支架,支架(与机箱不同)是由铝制成的,在颜色上与UM690的整体外观完美互补。

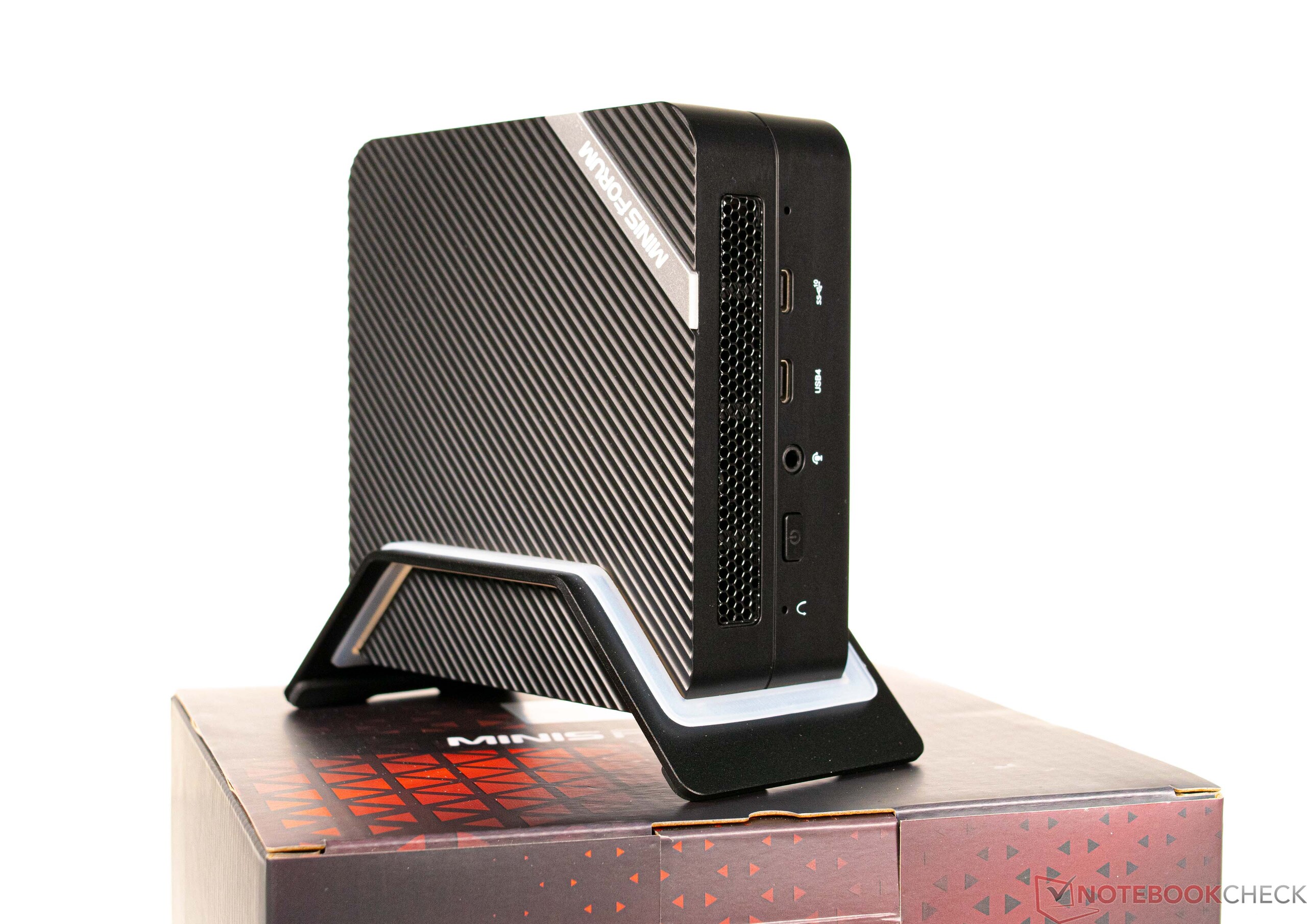

由于其紧凑的尺寸,Minisforum Venus系列UM690在桌面上不会占用太多空间。例如,该设备还可以使用附带的安装套件(VESA)安装在显示器的背面。更重要的是,UM690的重量惊人的轻,只有621克(1.36英寸)。它的电源适配器重449克(0.99磅),与竞争对手的设备所含的电源适配器一样重。

尺寸比较

208 mm 180 mm 66 mm 1.2 kg158 mm 166 mm 67 mm 1.1 kg144 mm 149 mm 63.5 mm 795 g138 mm 138 mm 53 mm 586 g145 mm 149 mm 40 mm 697 g129 mm 126 mm 48 mm 621 g297 mm 210 mm 1 mm 5.7 g

规格

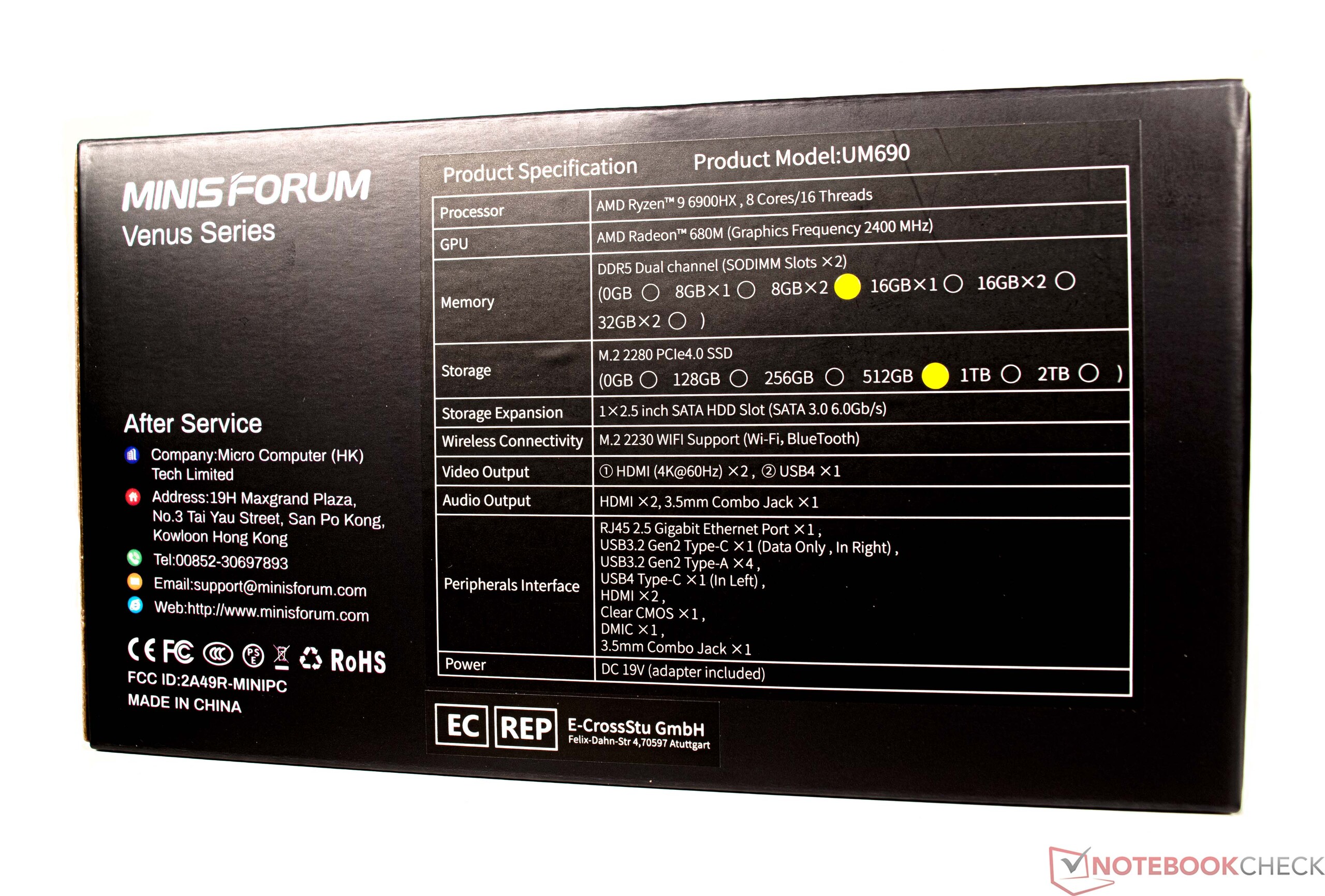

尽管如此紧凑,Minisforum Venus系列UM690拥有所有必要的接口。总共六个USB端口应该足够大多数用户使用,即使其中两个是USB-C端口。此外,其中一个USB-C输出支持Thunderbolt,这极大地拓宽了这台小电脑的潜在应用。你可以同时连接三个显示器到UM690--两个通过背面的HDMI端口,一个通过正面的USB-C端口。

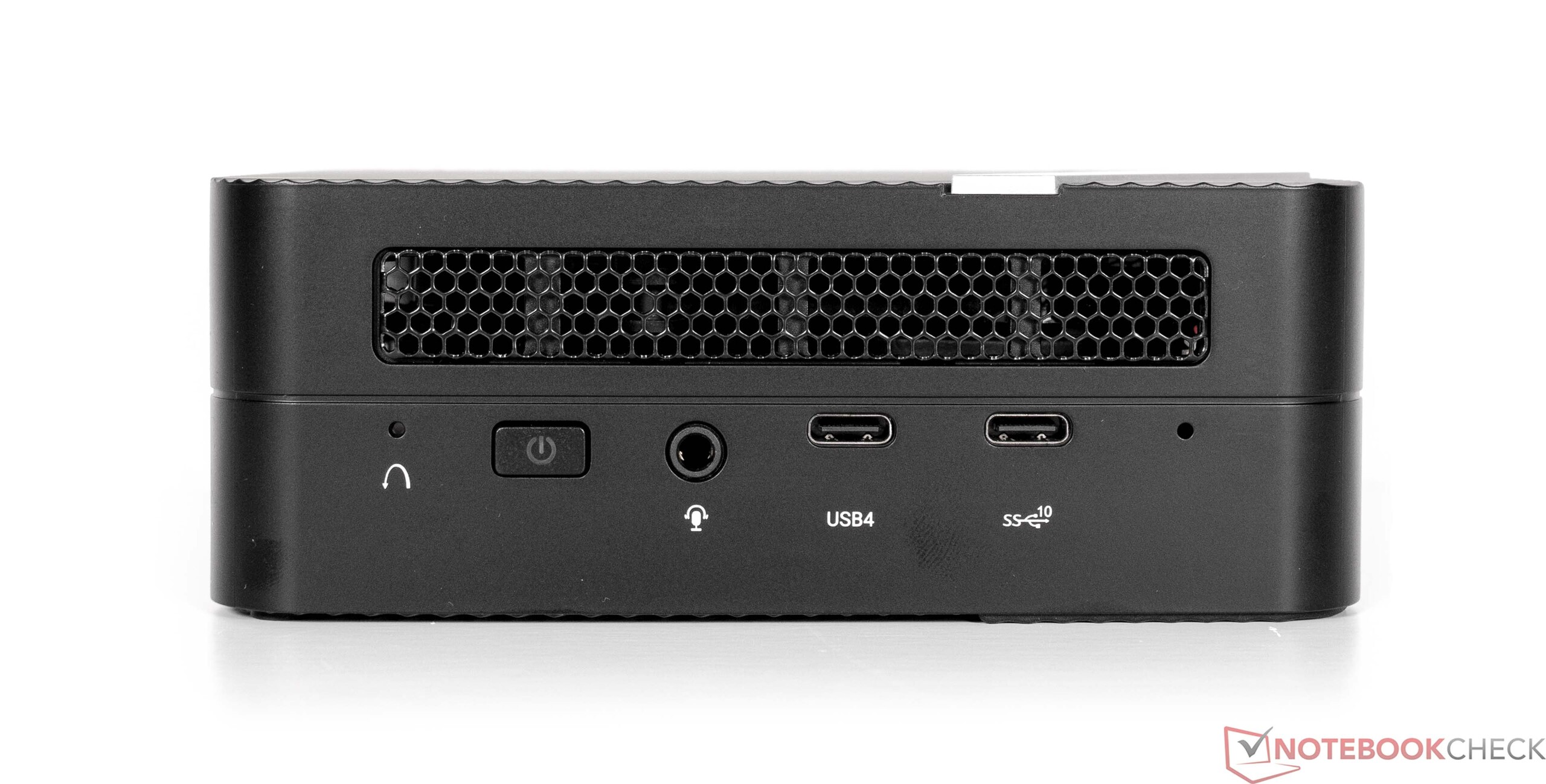

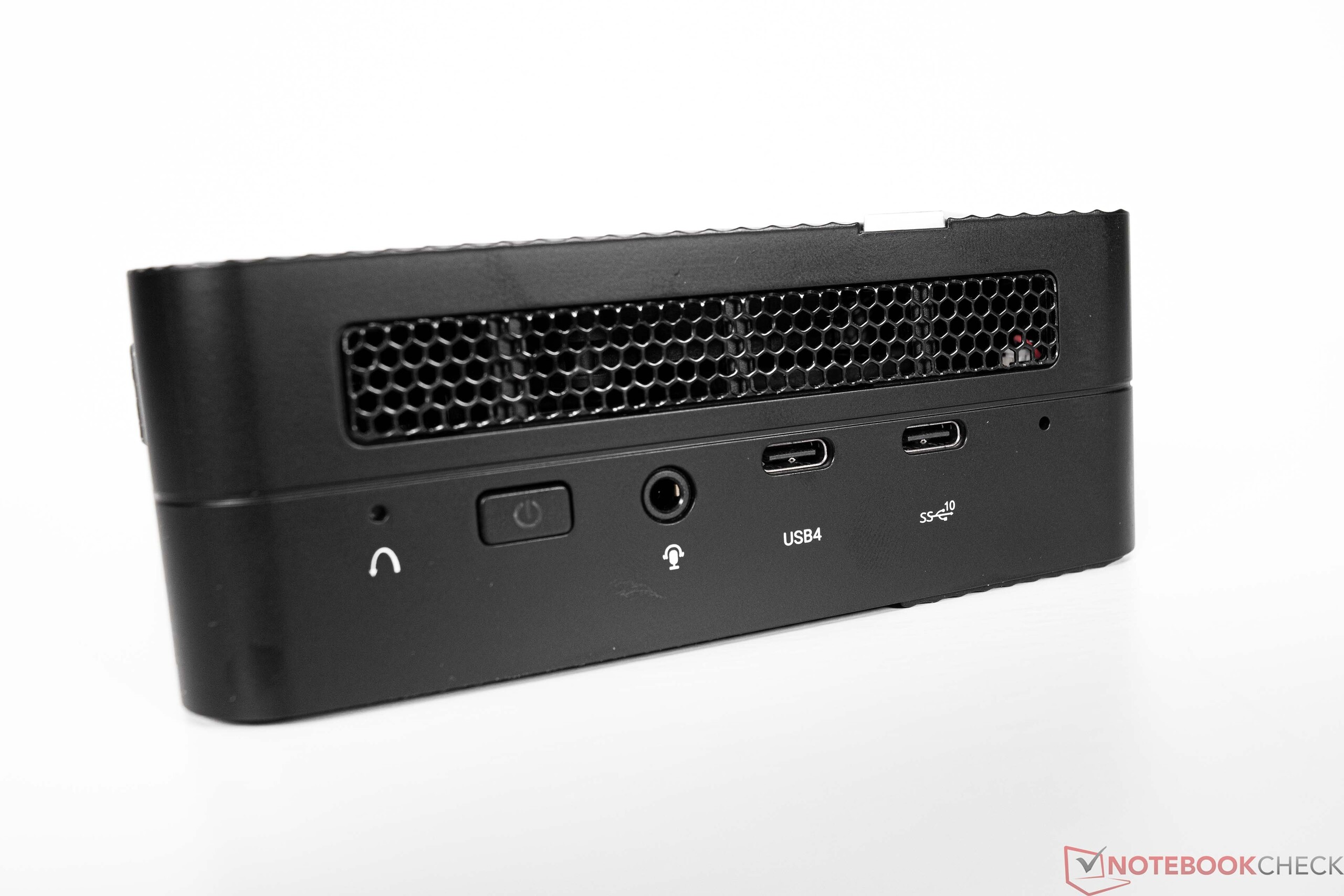

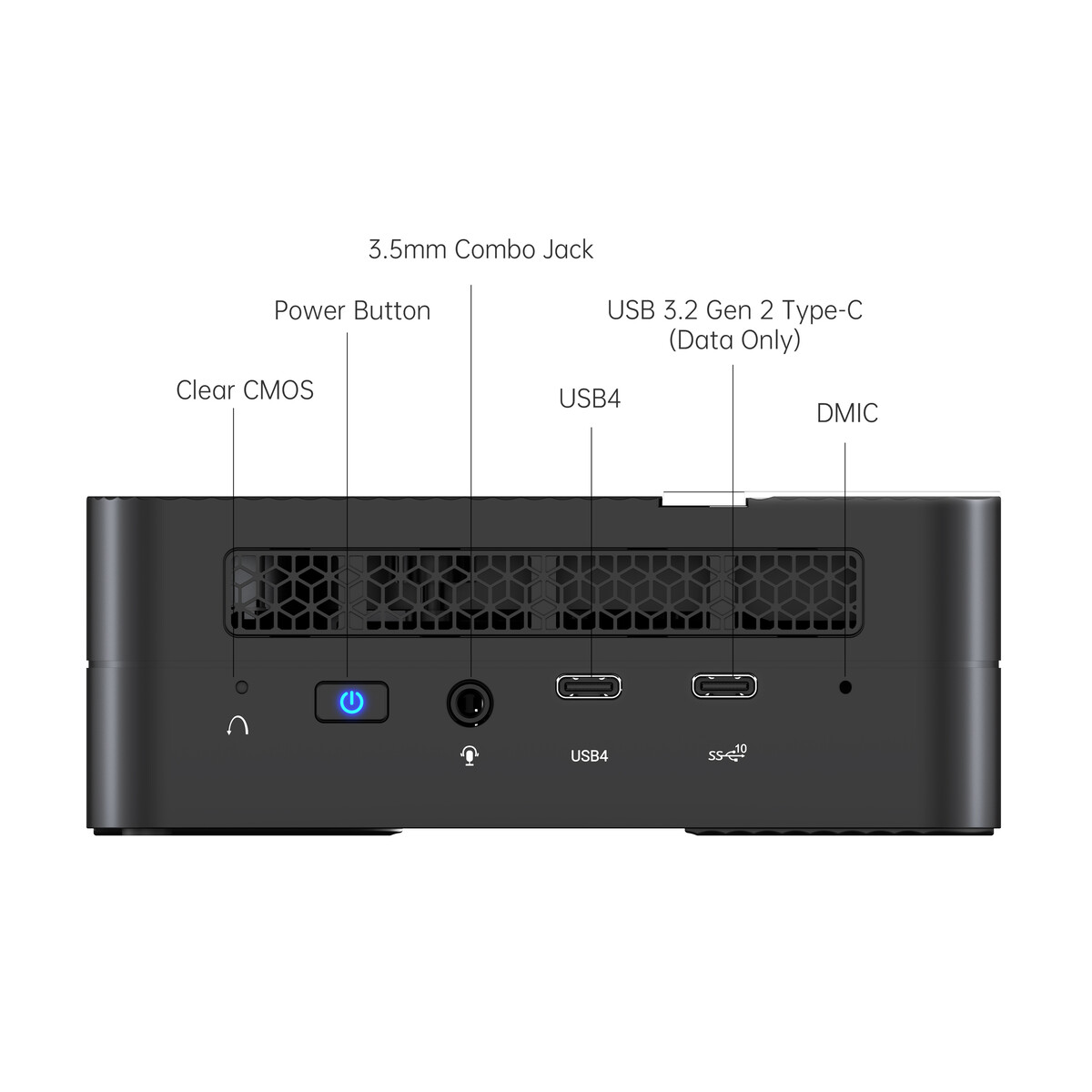

前面的外部I/O(来源:Minisforum)。
前面的外部I/O(来源:Minisforum)。

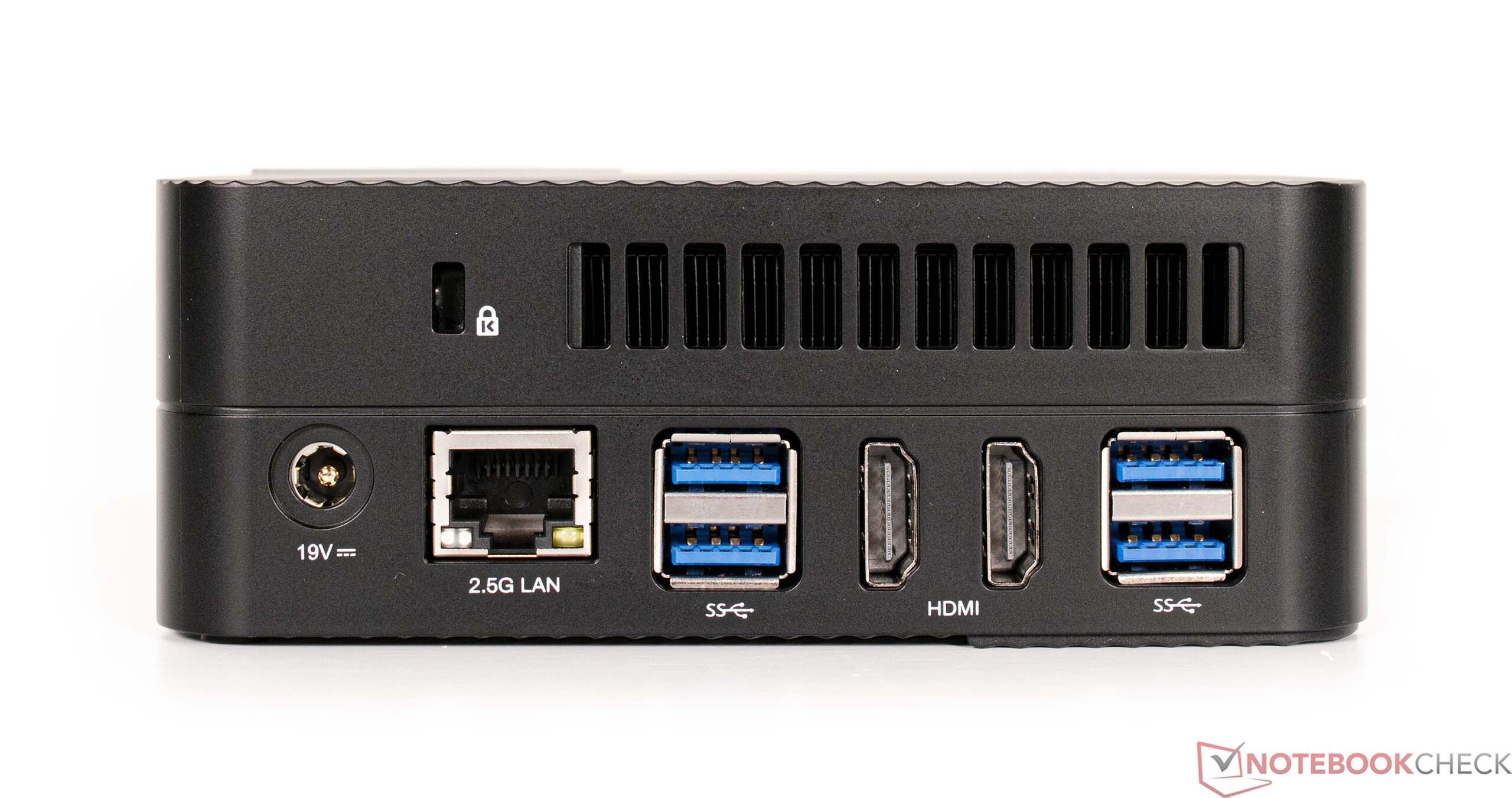

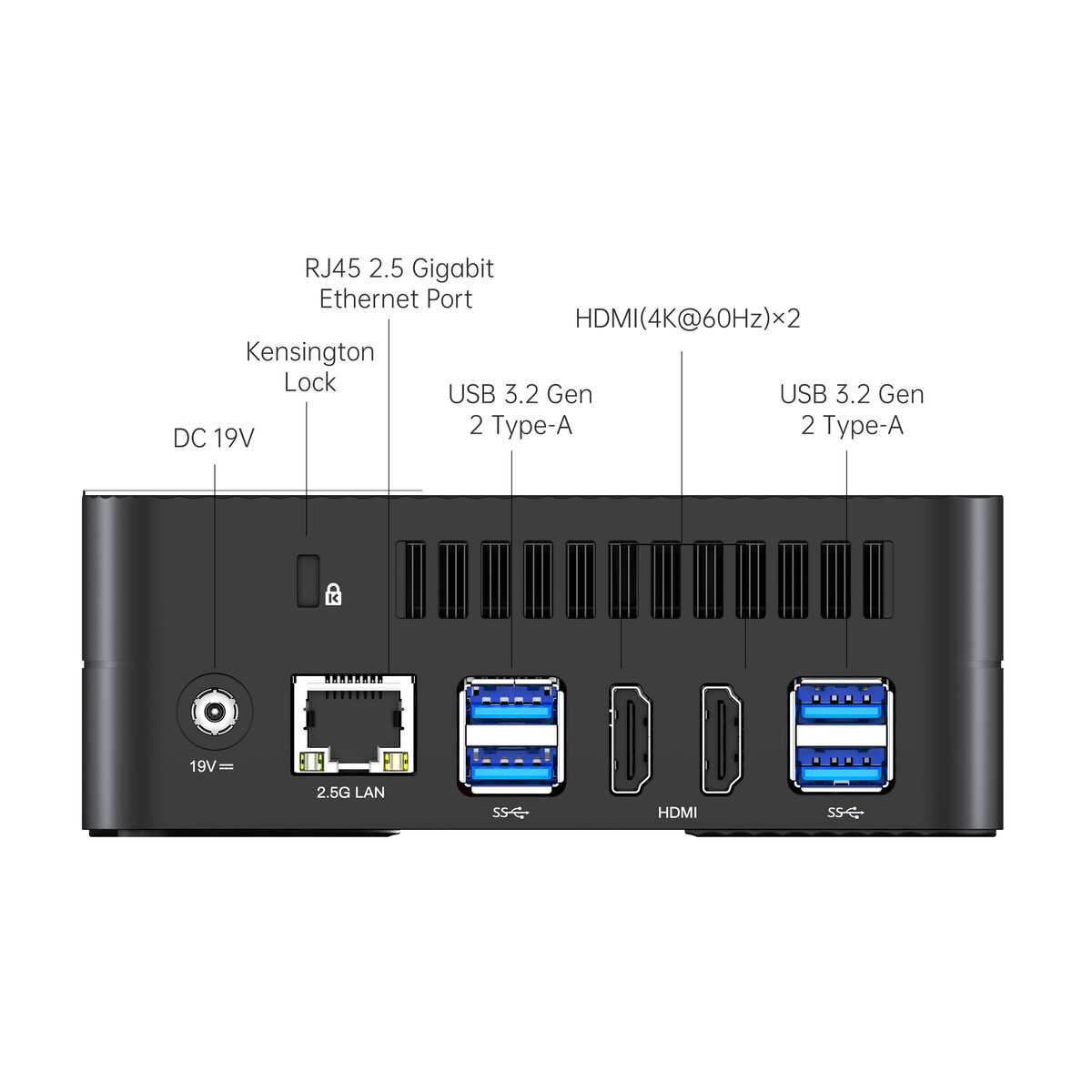

UM690后面的外部I/O(来源:Minisforum)。
UM690后面的外部I/O(来源:Minisforum)。

连接性

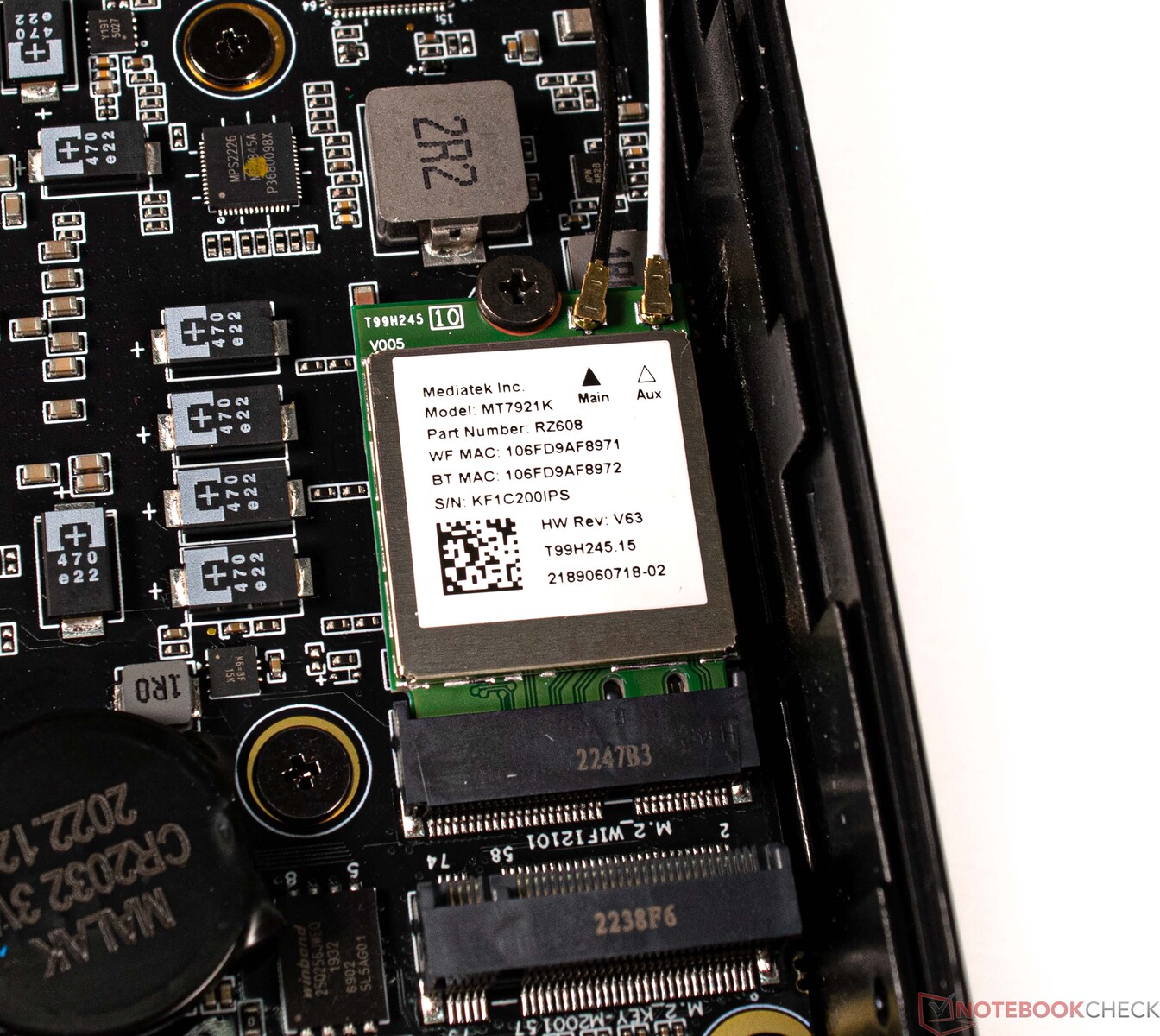

Minisforum Venus系列UM690中的Wi-Fi模块
Minisforum Venus系列UM690中的Wi-Fi模块

Minisforum在UM690中包括一个联发科Wi-Fi 6E模块。在与我们的参考路由器(华硕ROG Rapture GT-AXE11000)进行的实际测试中,该电脑成功实现了良好和稳定的传输速率。然而,联发科芯片无法与英特尔Wi-Fi 6E AX210的性能相媲美,尽管在日常使用中你不会注意到这一点。另外,LAN端口可以用来建立更快的网络连接。它可以以高达2.5Gbit/s的速度传输数据。

Networking
iperf3 receive AXE11000 6GHz
Average of class Mini PC
  (684 - 1771, n=55, last 2 years)
1380 MBit/s +44%
Morefine S600-Apex Engineer
Intel Wi-Fi 6E AX211
1044 (1009min - 1058max) MBit/s +9%
Minisforum Venus Series UM690
MediaTek RZ608
961 (954min - 967max) MBit/s
Average MediaTek RZ608
  (430 - 961, n=16)
826 MBit/s -14%
Minisforum EliteMini B550
MediaTek RZ608
430 (379min - 451max) MBit/s -55%
Minipc Union Ace Magician TK11-A0
Intel Wi-Fi 6 AX201
390 (322min - 478max) MBit/s -59%
iperf3 transmit AXE11000 6GHz
Morefine S600-Apex Engineer
Intel Wi-Fi 6E AX211
1658 (1514min - 1706max) MBit/s +111%
Average of class Mini PC
  (394 - 1800, n=55, last 2 years)
1330 MBit/s +69%
Average MediaTek RZ608
  (572 - 980, n=16)
825 MBit/s +5%
Minisforum Venus Series UM690
MediaTek RZ608
787 (638min - 865max) MBit/s
Minipc Union Ace Magician TK11-A0
Intel Wi-Fi 6 AX201
745 (381min - 876max) MBit/s -5%
Minisforum EliteMini B550
MediaTek RZ608
572 (532min - 680max) MBit/s -27%
iperf3 receive AXE11000
Minisforum Neptune Series NAD9
Intel Wi-Fi 6E AX210
1318 (663min - 1363max) MBit/s +38%
Minisforum Venus Series UM690
MediaTek RZ608
956 (944min - 963max) MBit/s
Average of class Mini PC
  (320 - 1796, n=113, last 2 years)
945 MBit/s -1%
Average MediaTek RZ608
  (430 - 975, n=20)
886 MBit/s -7%
Minisforum EliteMini B550
MediaTek RZ608
430 MBit/s -55%
Minipc Union Ace Magician TK11-A0
Intel Wi-Fi 6 AX201
390 MBit/s -59%
iperf3 transmit AXE11000
Minisforum Neptune Series NAD9
Intel Wi-Fi 6E AX210
1320 (1165min - 1353max) MBit/s +40%
Minisforum Venus Series UM690
MediaTek RZ608
943 (477min - 981max) MBit/s
Average of class Mini PC
  (184.1 - 1776, n=113, last 2 years)
874 MBit/s -7%
Average MediaTek RZ608
  (572 - 979, n=20)
860 MBit/s -9%
Minipc Union Ace Magician TK11-A0
Intel Wi-Fi 6 AX201
745 MBit/s -21%
Minisforum EliteMini B550
MediaTek RZ608
572 MBit/s -39%
050100150200250300350400450500550600650700750800850900950Tooltip
Minisforum Venus Series UM690; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø787 (638-865)
Minisforum Venus Series UM690; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø960 (954-967)
Minisforum Venus Series UM690; iperf3 receive AXE11000; iperf 3.1.3: Ø956 (944-963)
Minisforum Venus Series UM690; iperf3 transmit AXE11000; iperf 3.1.3: Ø928 (477-981)

辅料

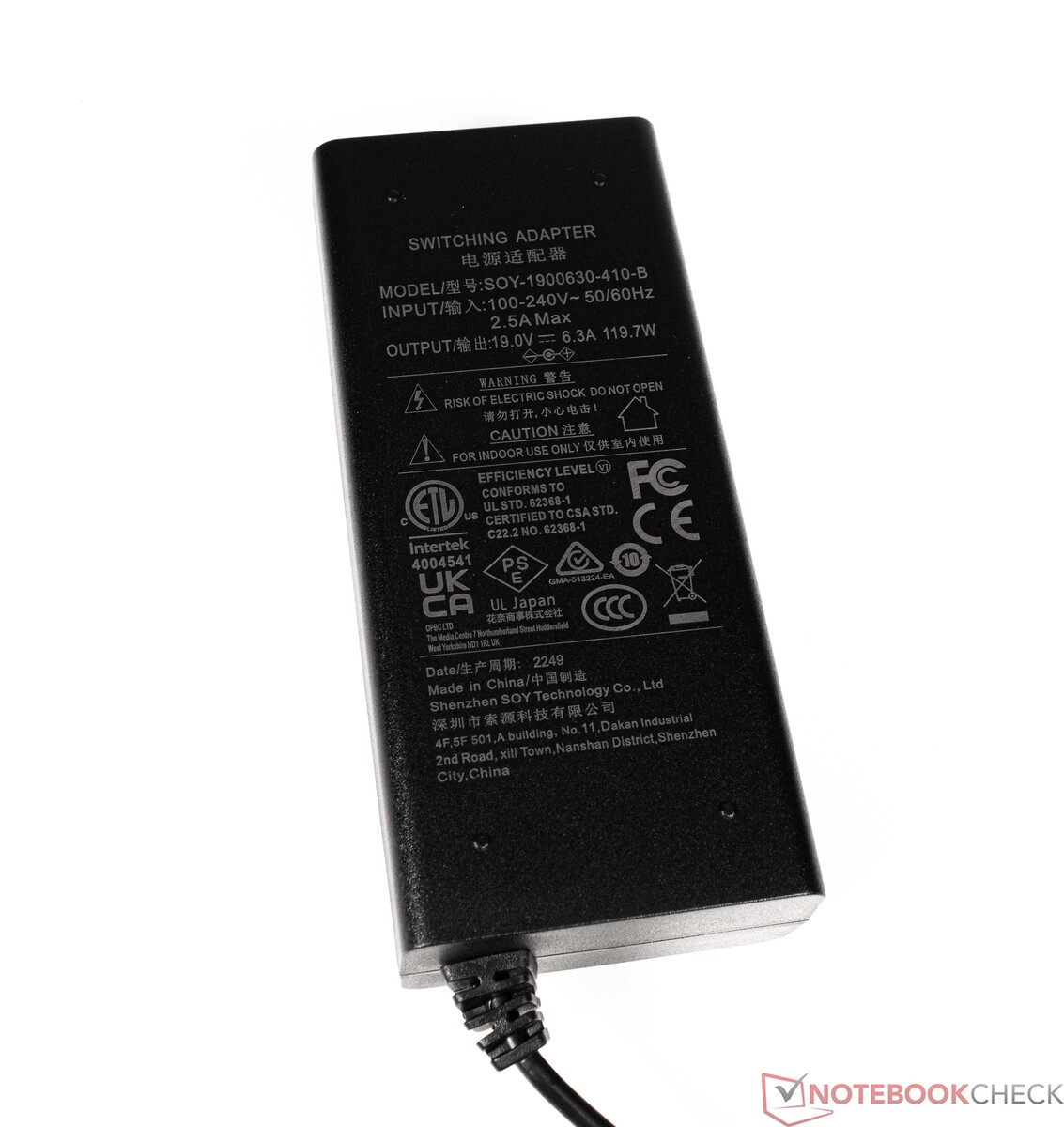

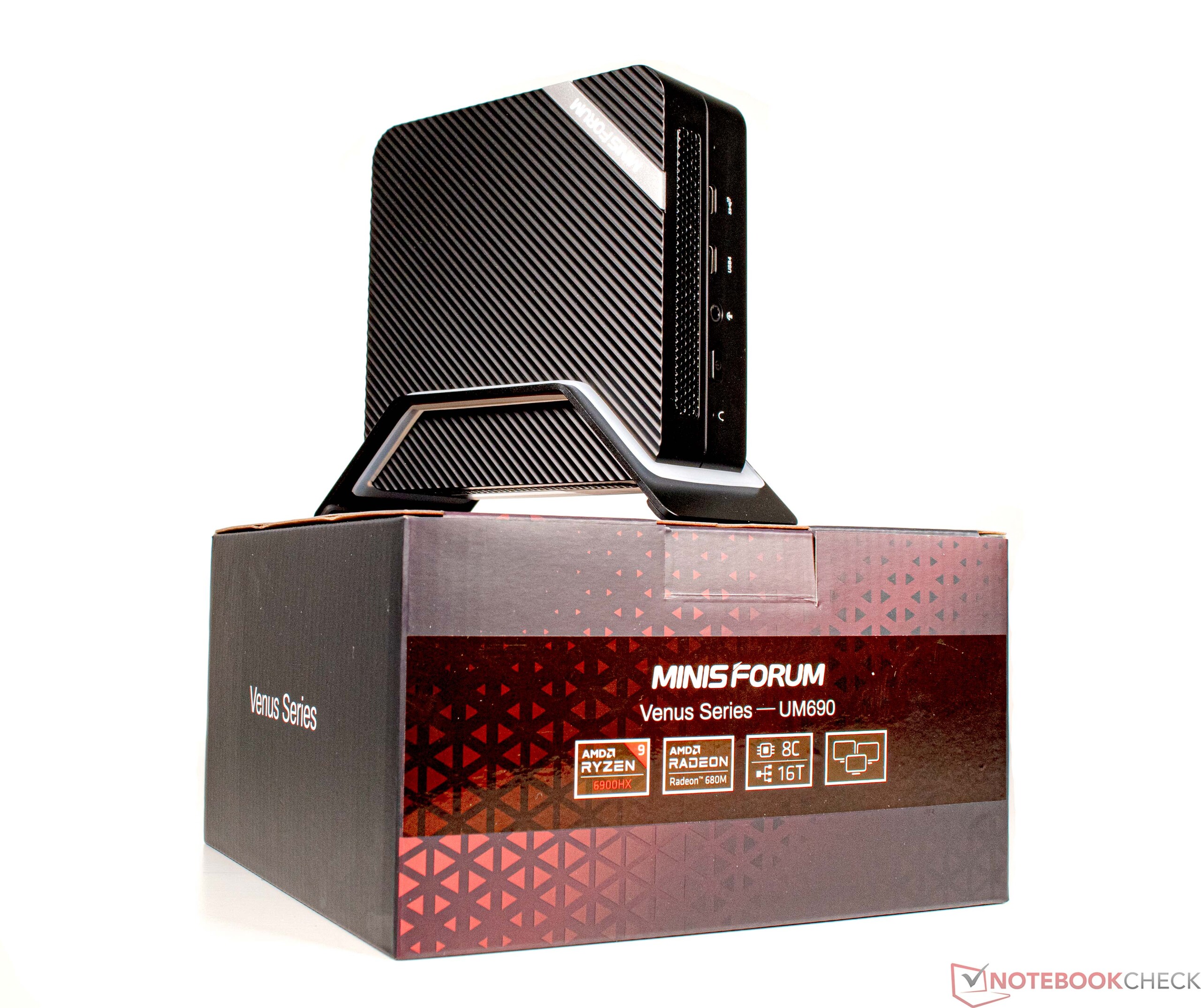

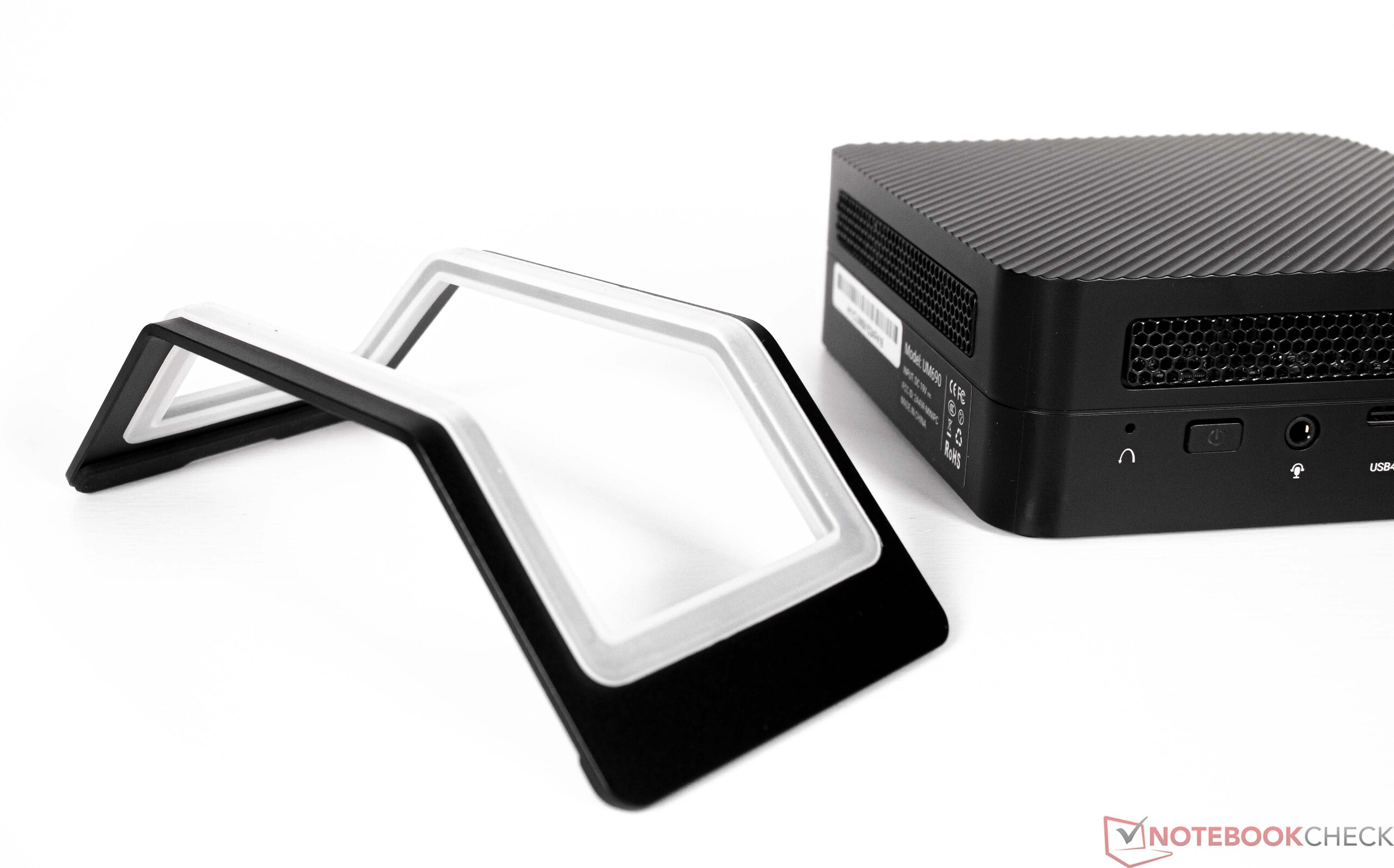

除了设备本身,盒子里的其他物品还包括一个坚固的支架、一个120瓦的适配器和一个VESA支架,用于将UM690直接安装在显示器上。

维护

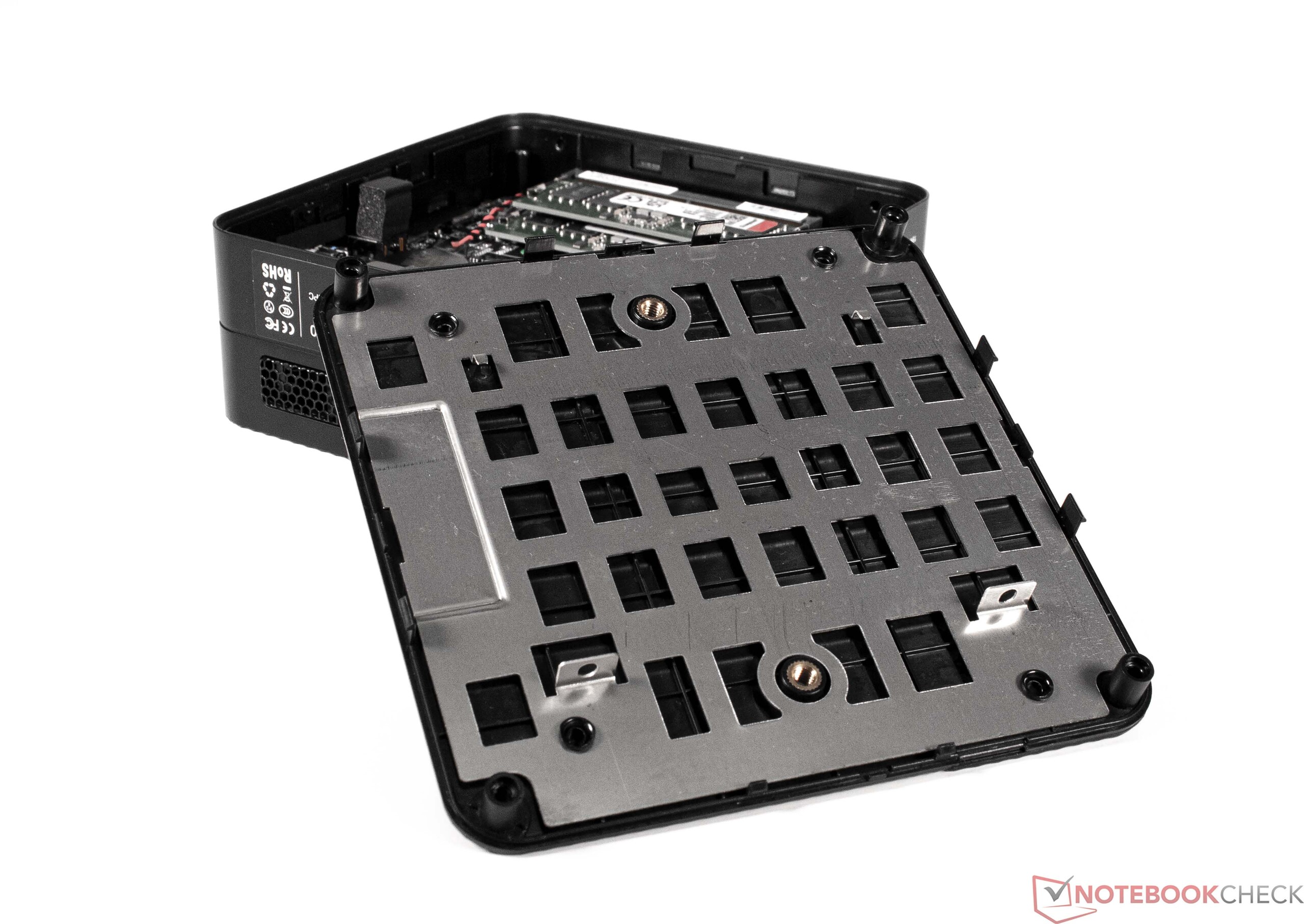

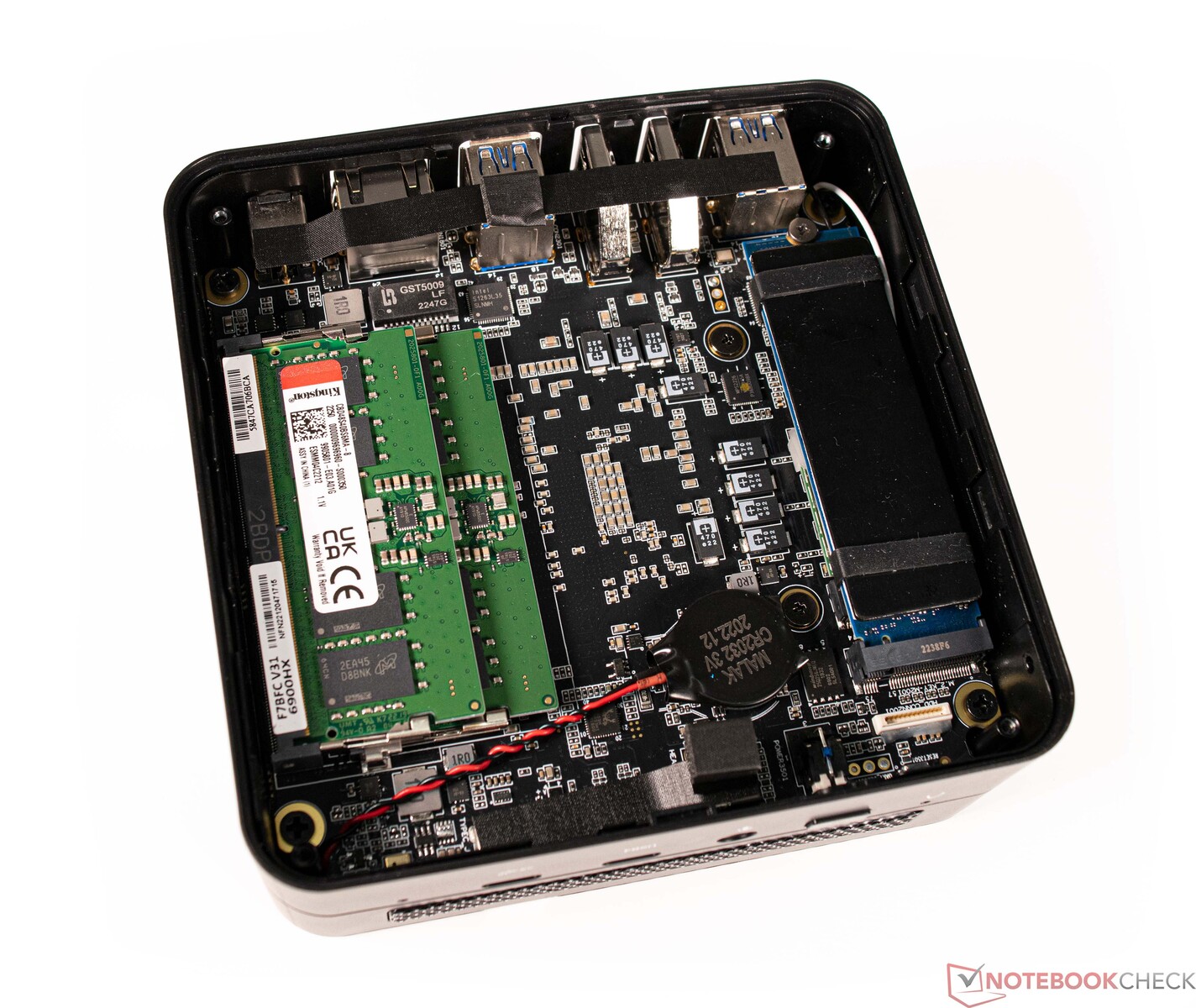

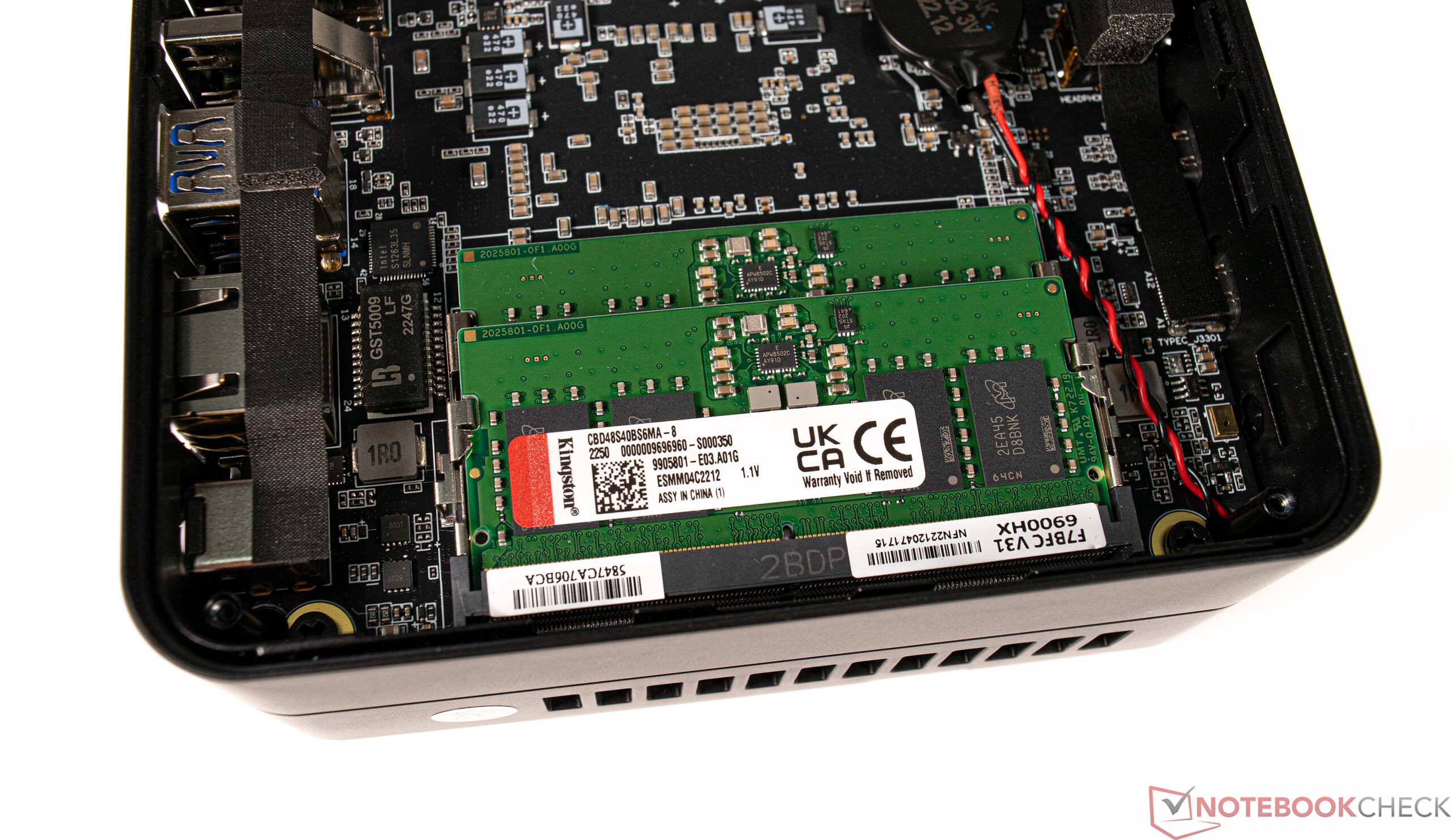

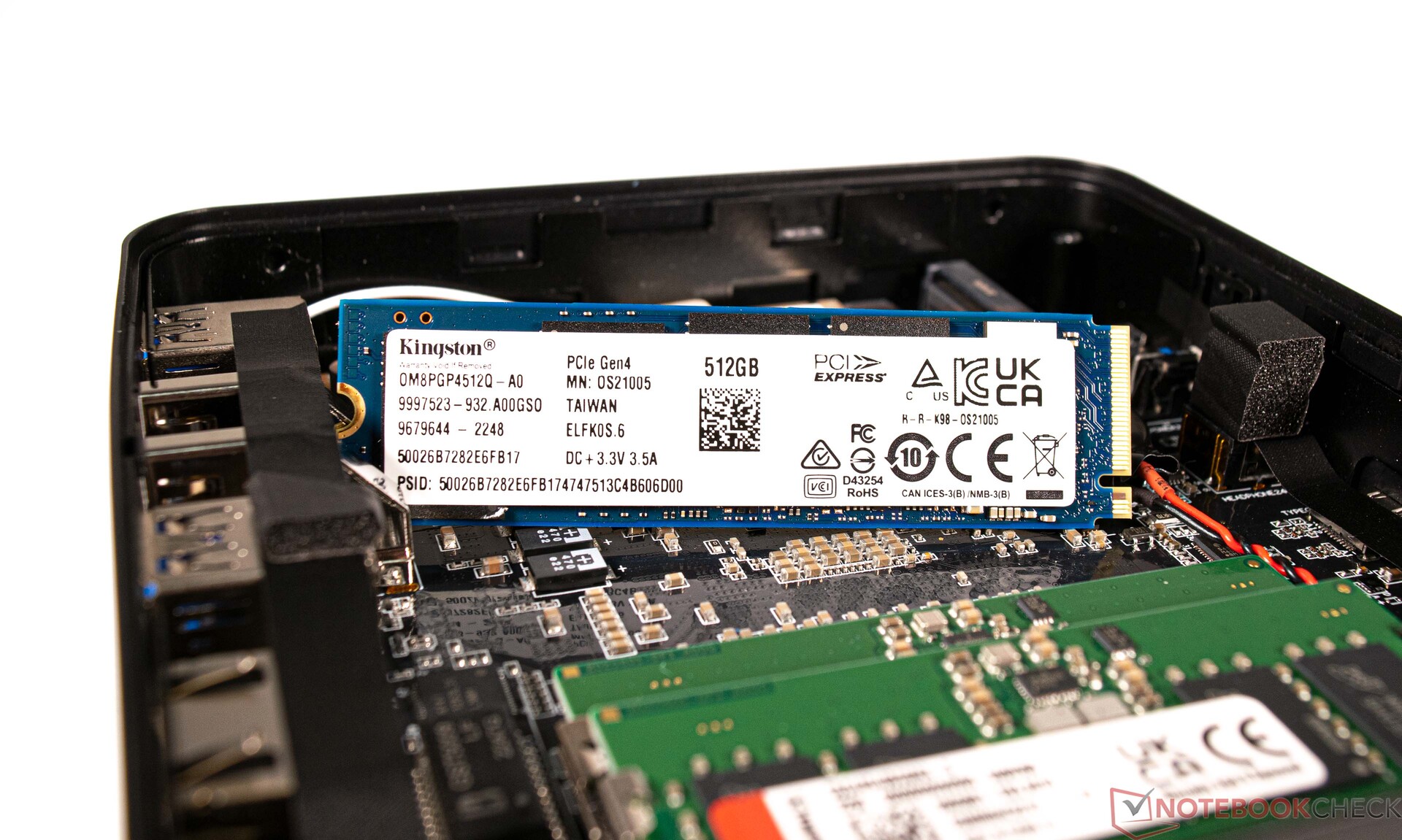

一般来说,Minisforum Venus系列UM690可以被打开,让用户安装或更换各种部件,如内存和SSD。但这些螺丝都藏在橡胶脚下,需要先取下。该设备内部看起来非常整洁,所有重要的组件都可以快速访问。不过,如果冷却装置需要清洁,你就必须进一步拆开设备。但Minisforum已经包括了一个明确的警告,建议用户不要拆开冷却器,因为该系统使用液态金属作为热熔胶。

Minisforum维纳斯系列UM690没有底板
Minisforum维纳斯系列UM690没有底板

性能--AMD的Rembrandt SoC提供出色的性能

Minisforum为UM690配备了AMD的新款 Ryzen 9 6900HX处理器。这是一个很好的选择,因为该设备从新的SoC在各种应用中提供的性能中全面受益。而且该SoC具有快速的iGPU (Radeon 680M).该公司还提供这种Venus系列机型,其SoC功率较小,名称为UM590 (Ryzen 9 5900HX)和UM450 (Ryzen 5 4500U).

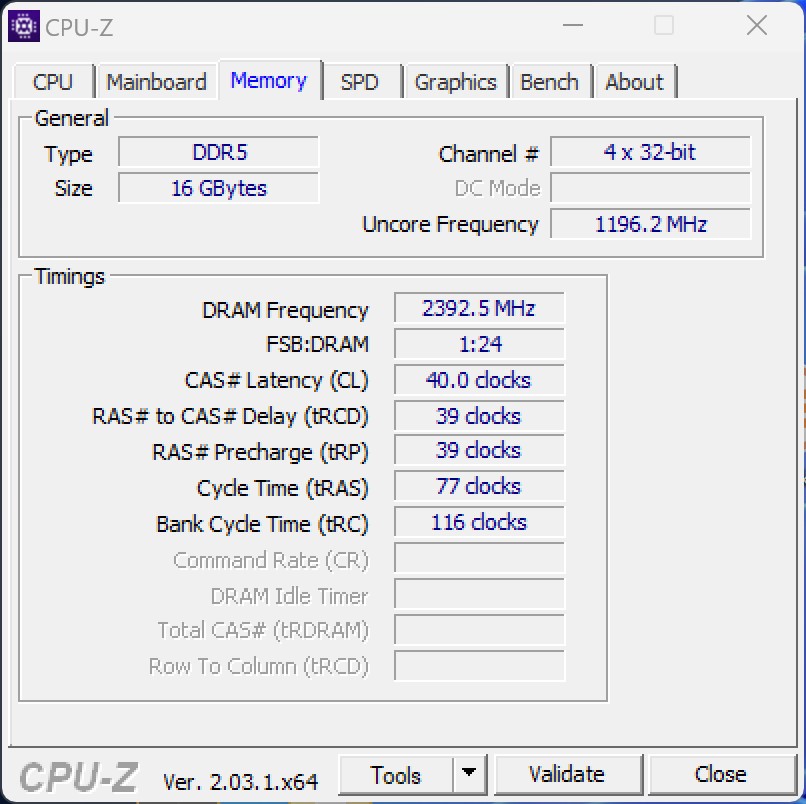

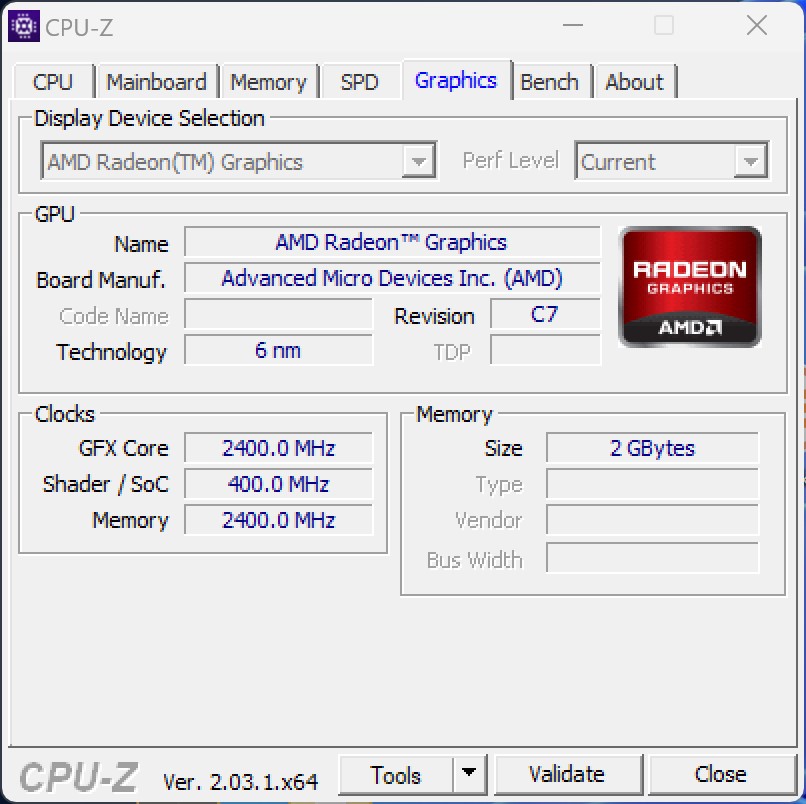

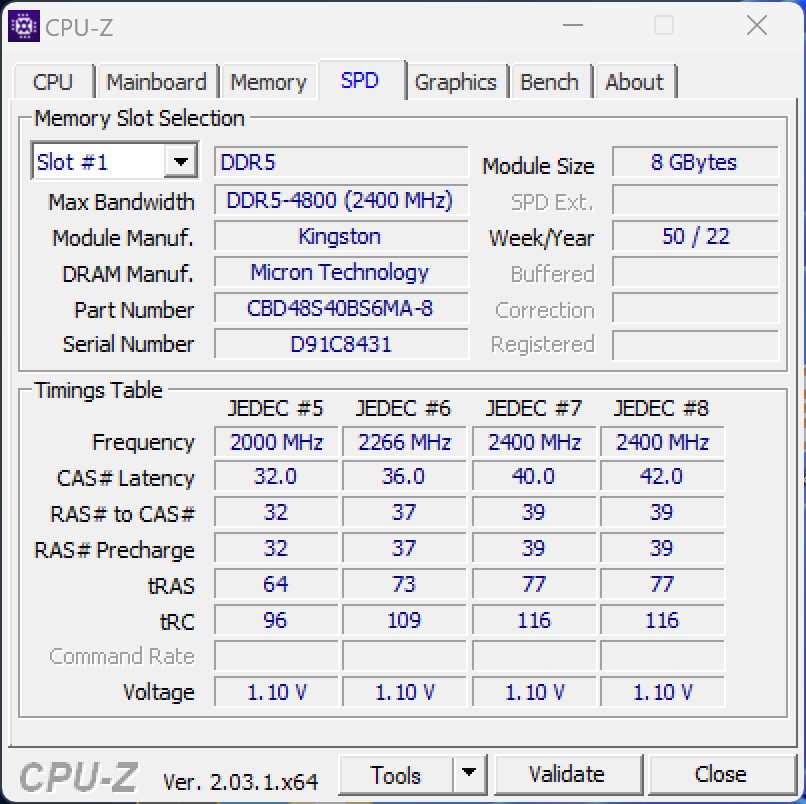

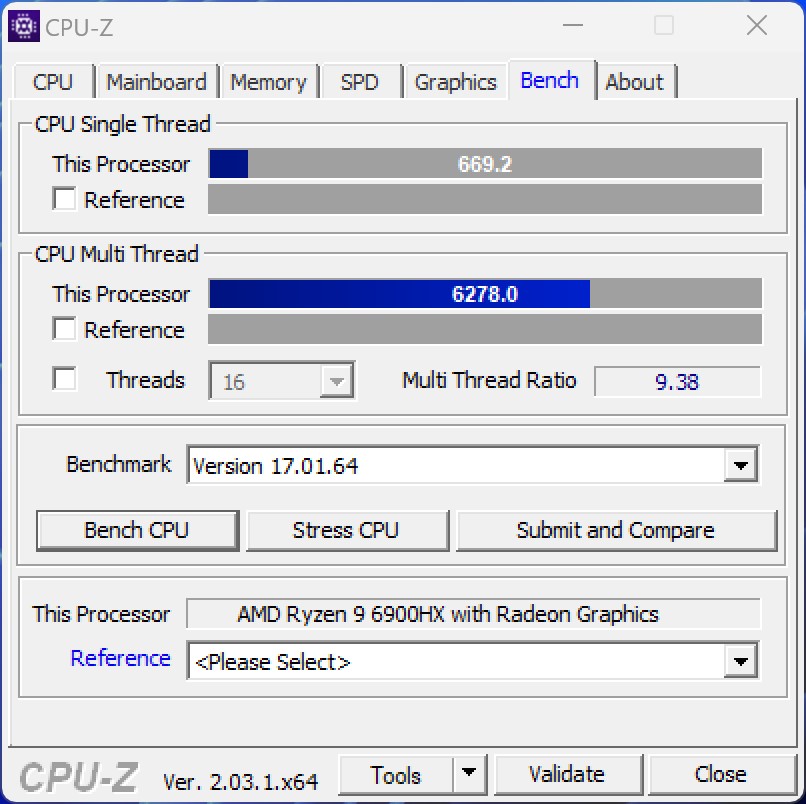

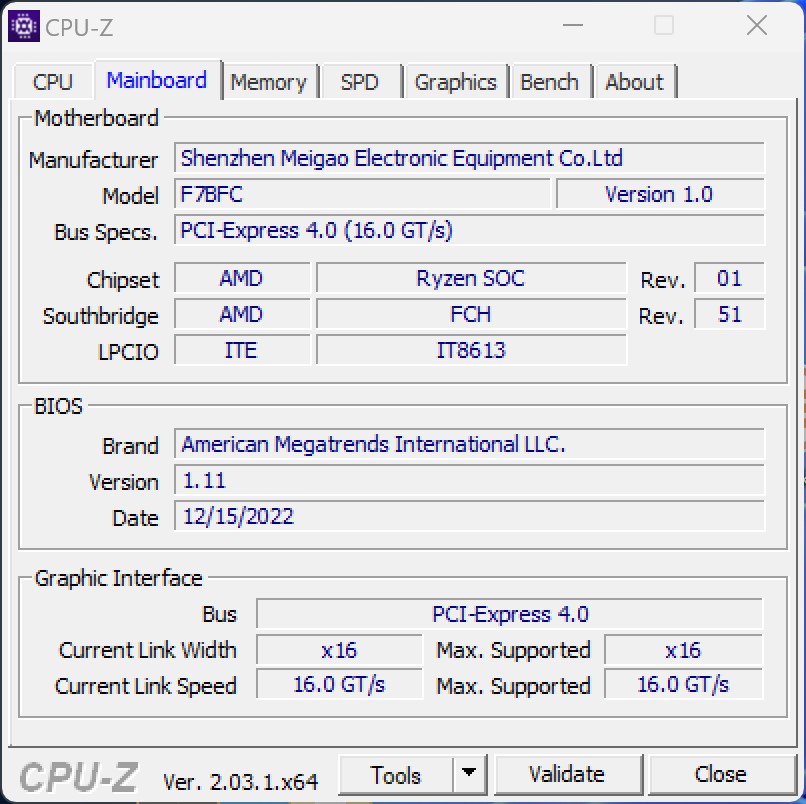

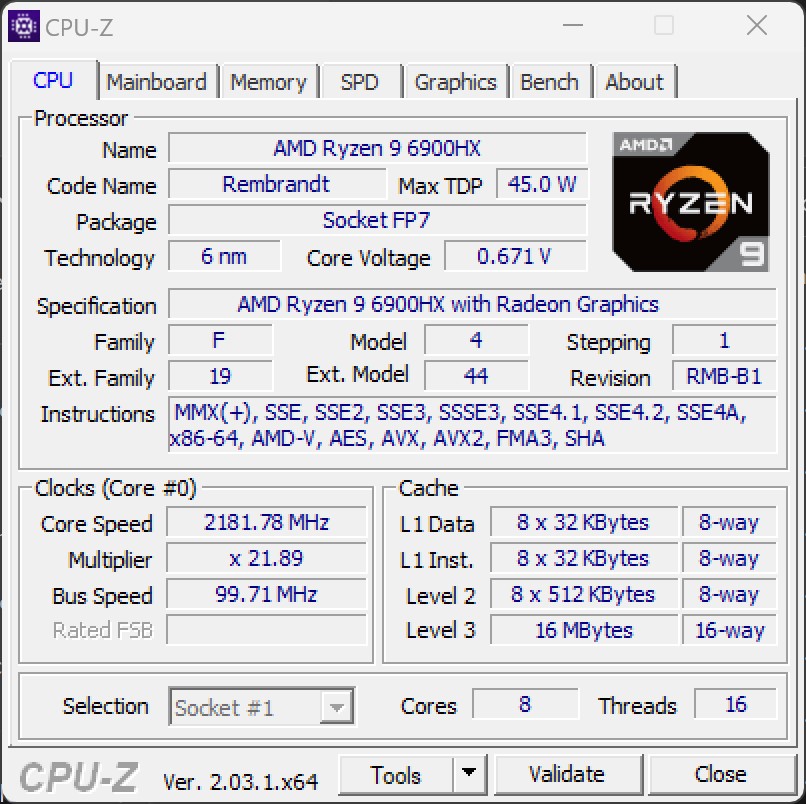

CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z

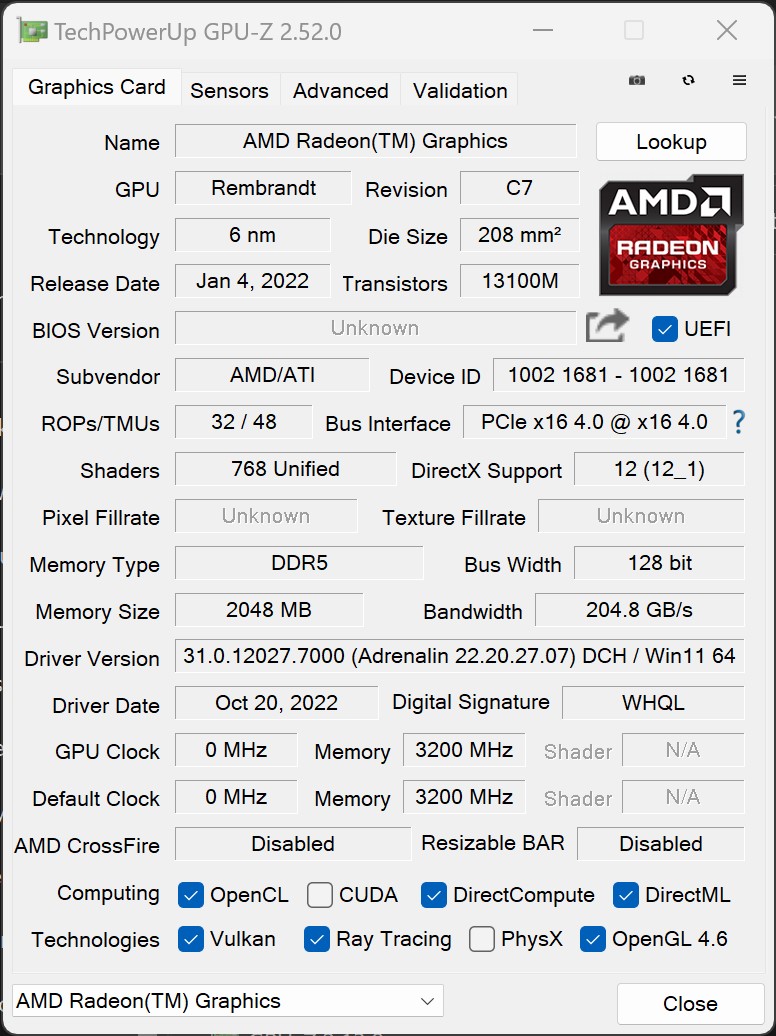

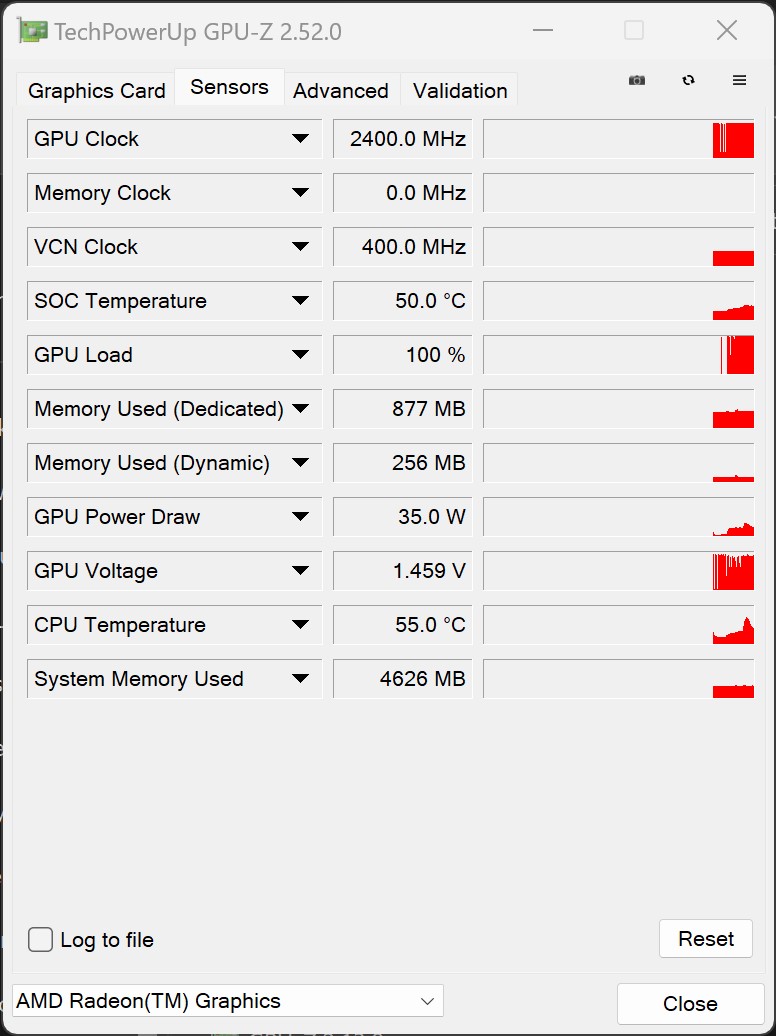

GPU-Z
GPU-Z

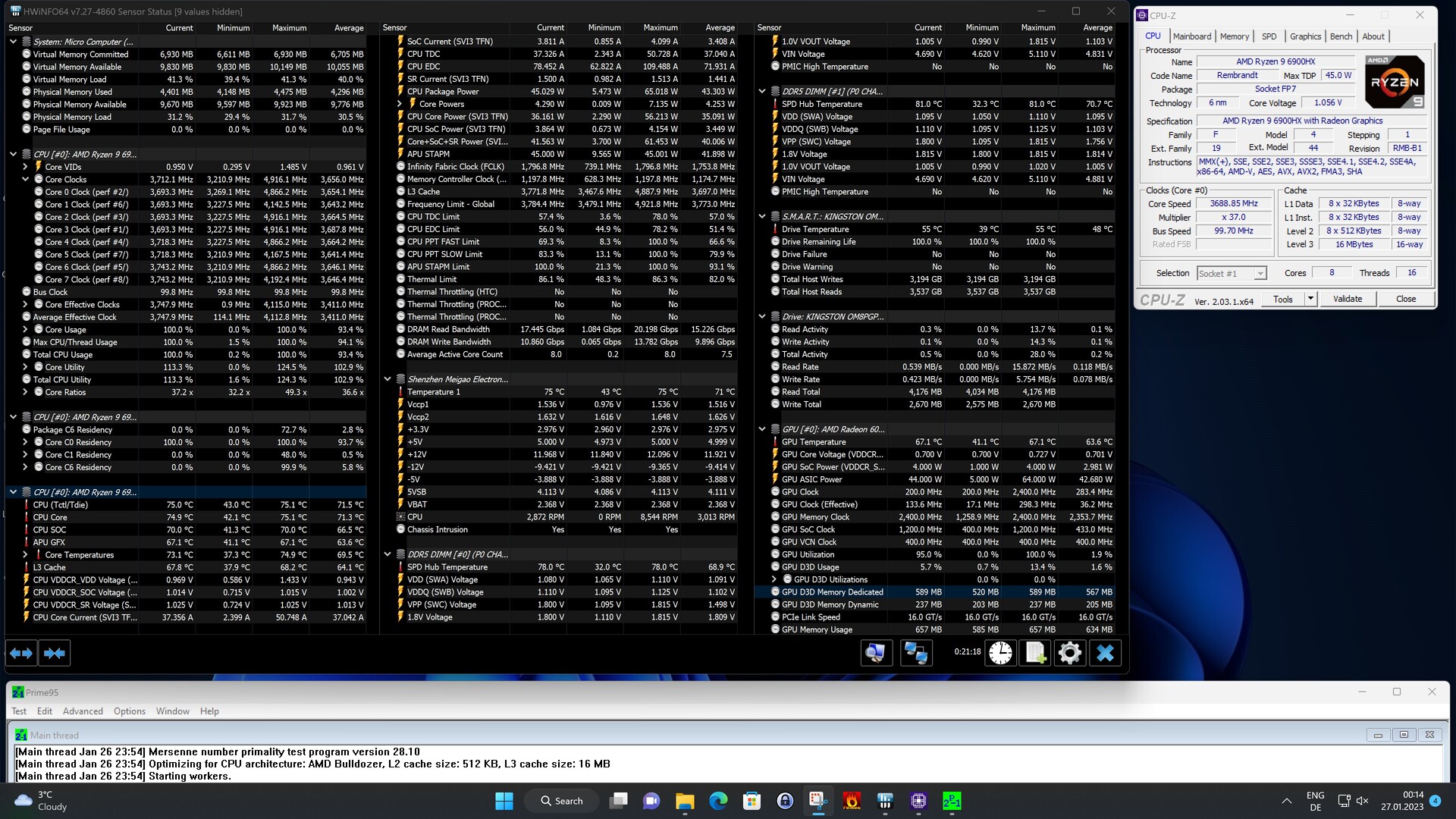

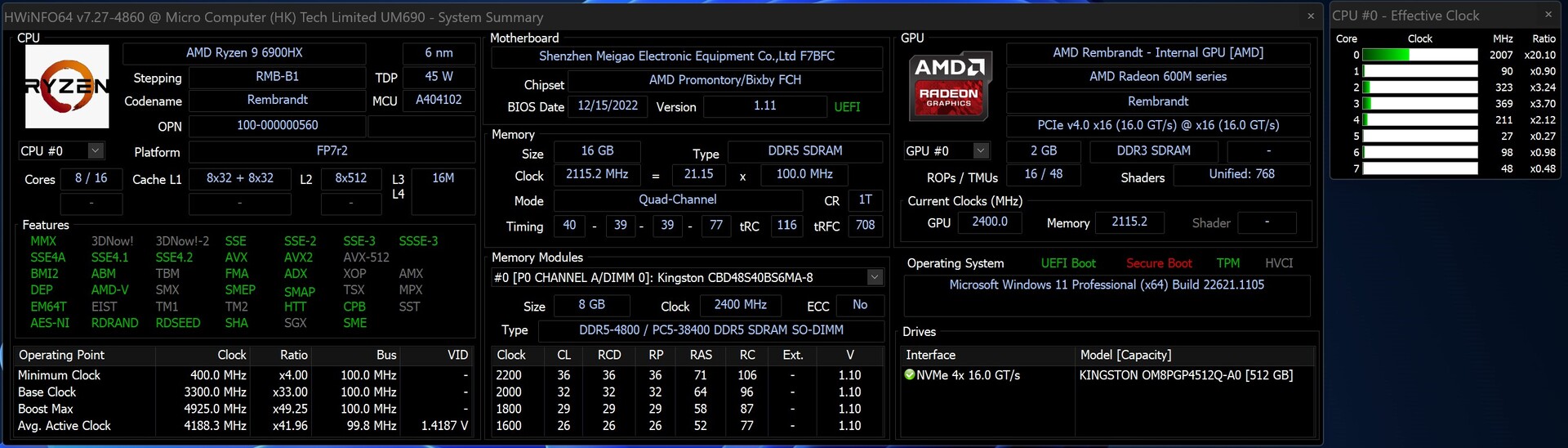

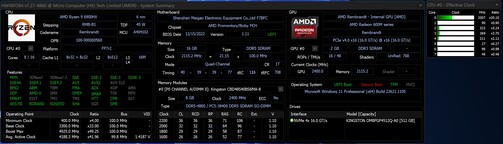

HWiNFO

测试条件

在这次评测中,我们使用 "高性能 "电源计划进行所有的性能测试,并且根据我们的测试标准,只有在测量电源使用和噪音水平时才会偏离这一计划。CPU和冷却性能在BIOS中没有变化。

处理器

AMD Ryzen 9 6900HX(来源:Minisforum)
AMD Ryzen 9 6900HX(来源:Minisforum)

淘宝网 AMD Ryzen 9 6900HX是一个八核Rembrandt处理器,可以并行执行总共16个线程。UM690中的SoC被允许在45瓦的限制生效之前短时间内消耗65瓦的功率。尽管如此,我们的评测单元在我们的比较中表现非常好,与 英特尔酷睿i9-12900H相提并论,后者出现在 Minisforum Neptune系列NAD9.为了让你对金星系列UM450和UM590的性能有一个大致的了解,我们在比较表中加入了它们各自的SoC。

你可以参考这个页面了解更多的处理器基准测试。

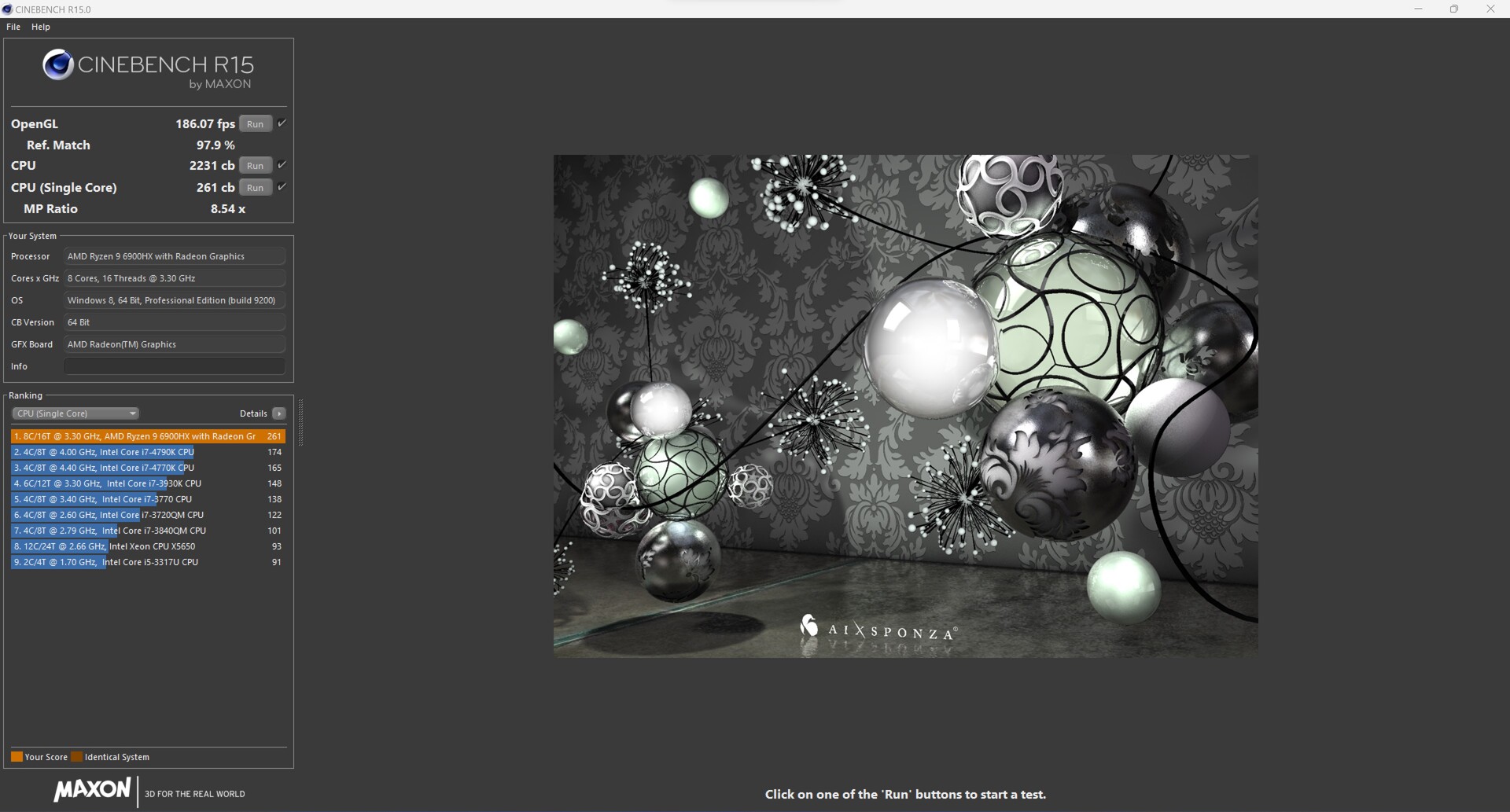

Cinebench R15
Cinebench R15

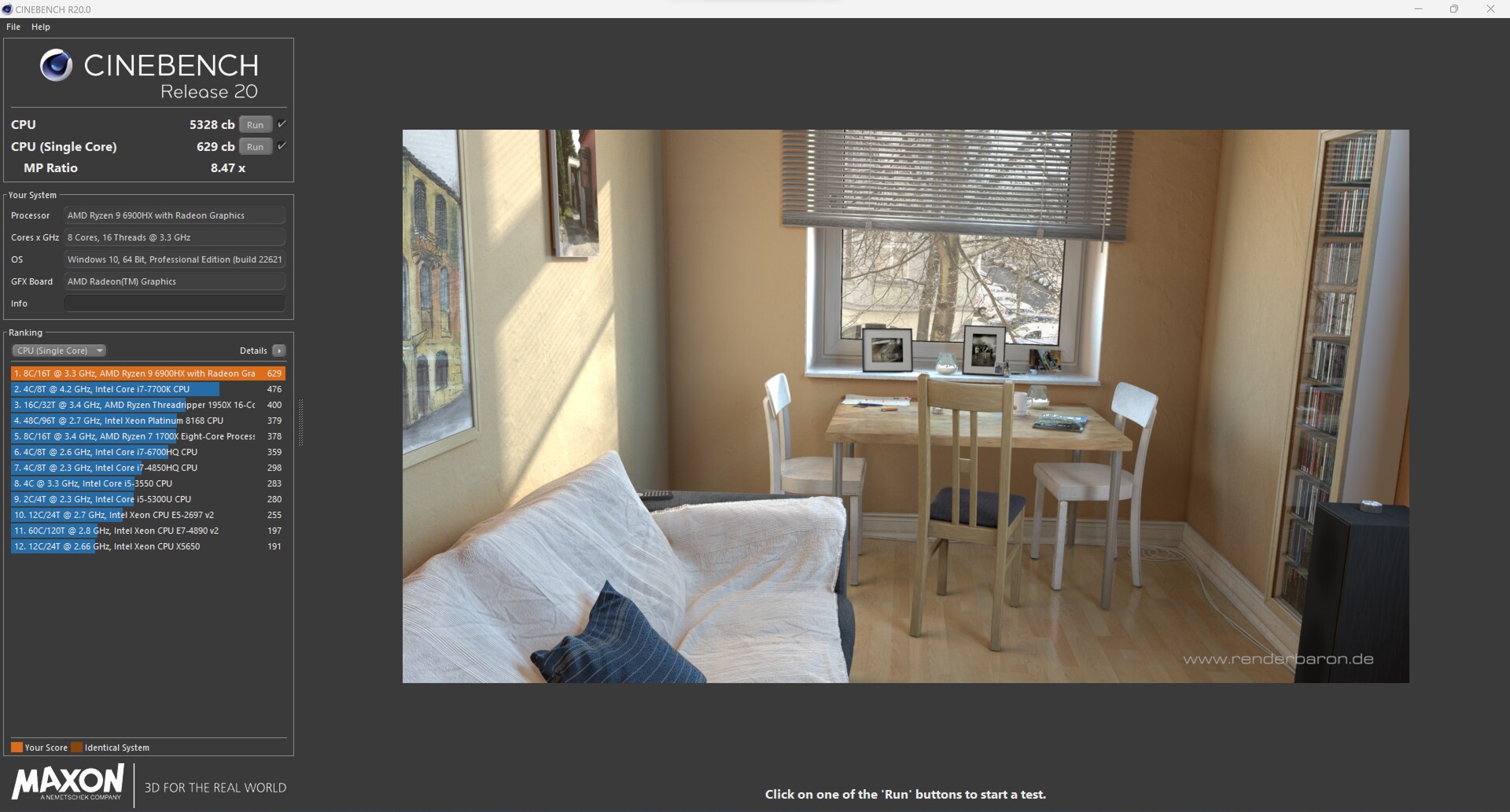

Cinebench R20
Cinebench R20

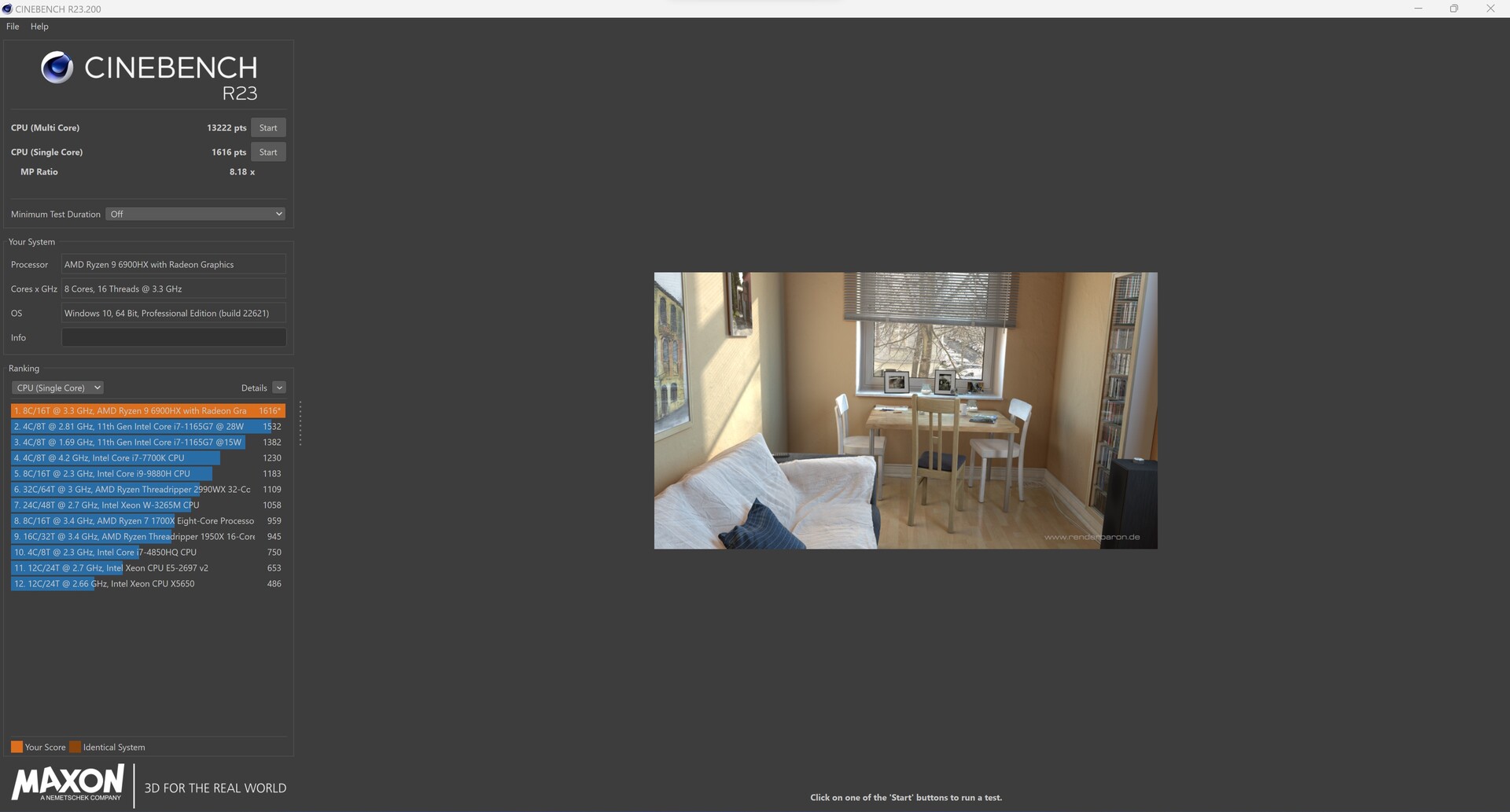

电影院R23
电影院R23
Performance Rating - Percent
Morefine S600-Apex Engineer -6!
Intel Core i9-12900HK, 1800 MHz
51.9 pt
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
50.6 pt
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
50.1 pt
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
49.4 pt
Average AMD Ryzen 9 6900HX

49.3 pt
Average AMD Ryzen 9 5900HX

48.2 pt
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
47.6 pt
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
47.3 pt
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
35.8 pt
Average AMD Ryzen 5 4500U

35.6 pt
Cinebench R15
CPU Single 64Bit
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
261 Points
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
260 Points 0%
Average AMD Ryzen 9 6900HX
  (241 - 261, n=19)
250 Points -4%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
247 Points -5%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
243 Points -7%
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
240 Points -8%
Average AMD Ryzen 9 5900HX
  (197 - 243, n=25)
238 Points -9%
Morefine S600-Apex Engineer
Intel Core i9-12900HK, 1800 MHz
226 Points -13%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
197 Points -25%
Average AMD Ryzen 5 4500U
  (156 - 177, n=13)
172.8 Points -34%
CPU Multi 64Bit
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
2231 Points
Average AMD Ryzen 9 6900HX
  (1588 - 2411, n=19)
2163 Points -3%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
2067 Points -7%
Average AMD Ryzen 9 5900HX
  (1076 - 2267, n=29)
2050 Points -8%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
1980 Points -11%
Morefine S600-Apex Engineer
Intel Core i9-12900HK, 1800 MHz
1975 Points -11%
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
1919 (1862.02min - 1893.4max) Points -14%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
1879 Points -16%
Average AMD Ryzen 5 4500U
  (715 - 1007, n=18)
896 Points -60%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
560 Points -75%
Cinebench R20
CPU (Single Core)
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
698 Points +11%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
682 Points +8%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
629 Points
Average AMD Ryzen 9 6900HX
  (595 - 631, n=19)
610 Points -3%
Morefine S600-Apex Engineer
Intel Core i9-12900HK, 1800 MHz
608 Points -3%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
585 Points -7%
Average AMD Ryzen 9 5900HX
  (471 - 584, n=29)
573 Points -9%
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
567 Points -10%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
517 Points -18%
Average AMD Ryzen 5 4500U
  (424 - 453, n=12)
446 Points -29%
CPU (Multi Core)
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
5328 Points
Morefine S600-Apex Engineer
Intel Core i9-12900HK, 1800 MHz
5168 Points -3%
Average AMD Ryzen 9 6900HX
  (3742 - 5813, n=19)
5162 Points -3%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
4941 Points -7%
Average AMD Ryzen 9 5900HX
  (2242 - 5476, n=30)
4847 Points -9%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
4660 Points -13%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
4578 Points -14%
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
4495 Points -16%
Average AMD Ryzen 5 4500U
  (1843 - 2530, n=13)
2236 Points -58%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
1440 Points -73%
Cinebench R11.5
CPU Single 64Bit
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
3.15 Points +3%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
3.07 Points
Average AMD Ryzen 9 6900HX
  (2.86 - 3.07, n=8)
2.94 Points -4%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
2.87 Points -7%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
2.86 Points -7%
Average AMD Ryzen 9 5900HX
  (2.8 - 2.86, n=5)
2.84 Points -7%
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
2.8 Points -9%
Morefine S600-Apex Engineer
Intel Core i9-12900HK, 1800 MHz
2.69 Points -12%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
2.31 Points -25%
Average AMD Ryzen 5 4500U
  (2.02 - 2.04, n=2)
2.03 Points -34%
CPU Multi 64Bit
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
26.35 Points
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
25.96 Points -1%
Average AMD Ryzen 9 5900HX
  (22 - 25.6, n=5)
24 Points -9%
Average AMD Ryzen 9 6900HX
  (19 - 26.4, n=8)
23.9 Points -9%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
23.6 Points -10%
Morefine S600-Apex Engineer
Intel Core i9-12900HK, 1800 MHz
23.44 Points -11%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
22.79 Points -14%
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
22 Points -17%
Average AMD Ryzen 5 4500U
  (10.2 - 11.6, n=2)
10.9 Points -59%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
6.37 Points -76%
Cinebench R10
Rendering Single CPUs 64Bit
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
14504 Points +12%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
12943 Points
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
12846 Points -1%
Morefine S600-Apex Engineer
Intel Core i9-12900HK, 1800 MHz
12378 Points -4%
Average AMD Ryzen 9 6900HX
  (11870 - 12943, n=8)
12332 Points -5%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
12113 Points -6%
Average AMD Ryzen 9 5900HX
  (11811 - 12152, n=5)
12020 Points -7%
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
11811 Points -9%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
10395 Points -20%
Average AMD Ryzen 5 4500U
  ()
9139 Points -29%
Rendering Multiple CPUs 64Bit
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
77409 Points +1%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
76758 Points
Morefine S600-Apex Engineer
Intel Core i9-12900HK, 1800 MHz
75223 Points -2%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
73492 Points -4%
Average AMD Ryzen 9 5900HX
  (64320 - 74772, n=5)
70380 Points -8%
Average AMD Ryzen 9 6900HX
  (55915 - 77450, n=8)
69650 Points -9%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
66237 Points -14%
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
64320 Points -16%
Average AMD Ryzen 5 4500U
  ()
38477 Points -50%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
24499 Points -68%
Blender - v2.79 BMW27 CPU
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
750 Seconds * -221%
Average AMD Ryzen 5 4500U
  (533 - 748, n=11)
603 Seconds * -158%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
280 Seconds * -20%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
273 Seconds * -17%
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
265 Seconds * -13%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
252.1 Seconds * -8%
Average AMD Ryzen 9 5900HX
  (219 - 442, n=29)
250 Seconds * -7%
Average AMD Ryzen 9 6900HX
  (212 - 357, n=21)
239 Seconds * -2%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
234 Seconds *
Morefine S600-Apex Engineer
Intel Core i9-12900HK, 1800 MHz
232 Seconds * +1%
wPrime 2.10
32m
Average AMD Ryzen 5 4500U
  (5.7 - 9.48, n=3)
7.83 s * -126%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
6.799 s * -96%
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
4.4 s * -27%
Average AMD Ryzen 9 6900HX
  (3.46 - 4.69, n=7)
4 s * -16%
Average AMD Ryzen 9 5900HX
  (3.31 - 4.4, n=4)
3.66 s * -6%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
3.641 s * -5%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
3.595 s * -4%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
3.461 s *
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
3.421 s * +1%
Morefine S600-Apex Engineer
Intel Core i9-12900HK, 1800 MHz
3.375 s * +2%
1024m
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
286.835 s * -208%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
235.874 s * -153%
Morefine S600-Apex Engineer
Intel Core i9-12900HK, 1800 MHz
201.062 s * -116%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
189.07 s * -103%
Average AMD Ryzen 5 4500U
  (170.4 - 173.4, n=2)
171.9 s * -84%
Average AMD Ryzen 9 6900HX
  (93.2 - 149.4, n=7)
114.7 s * -23%
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
106.7 s * -14%
Average AMD Ryzen 9 5900HX
  (91.6 - 106.7, n=4)
98.7 s * -6%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
98.635 s * -6%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
93.19 s *
X264 HD Benchmark 4.0
Pass 1
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
276.5 (274min - 278max) fps +5%
Morefine S600-Apex Engineer
Intel Core i9-12900HK, 1800 MHz
276 (273min - 294max) fps +5%
Average AMD Ryzen 9 5900HX
  (272 - 278, n=4)
275 fps +5%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
266 (264min - 271max) fps +1%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
263.5 (262min - 266max) fps 0%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
262.5 (262min - 266max) fps
Average AMD Ryzen 9 6900HX
  (241 - 263, n=7)
254 fps -3%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
245 (239min - 261max) fps -7%
Average AMD Ryzen 5 4500U
  ()
210 fps -20%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
165.55 (163.6min - 204max) fps -37%
Pass 2
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
127.8 (127.3min - 129.1max) fps
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
125.25 (105.2min - 130max) fps -2%
Average AMD Ryzen 9 5900HX
  (112 - 128.4, n=4)
120.2 fps -6%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
116.8 (116.8min - 117.3max) fps -9%
Average AMD Ryzen 9 6900HX
  (93.3 - 127.8, n=7)
115.2 fps -10%
Morefine S600-Apex Engineer
Intel Core i9-12900HK, 1800 MHz
113.7 (113.5min - 122.2max) fps -11%
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
112 (112min - 112max) fps -12%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
110.5 (101.7min - 125.3max) fps -14%
Average AMD Ryzen 5 4500U
  ()
59.3 fps -54%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
36.7 (36.7min - 37.6max) fps -71%
WinRAR - Result
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
7937 KB/s +15%
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
7722 KB/s +12%
Morefine S600-Apex Engineer
Intel Core i9-12900HK, 1800 MHz
7387 KB/s +7%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
7200 KB/s +5%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
6960 KB/s +1%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
6882 KB/s
Average AMD Ryzen 9 6900HX
  (6795 - 6980, n=7)
6875 KB/s 0%
Average AMD Ryzen 9 5900HX
  (4297 - 7722, n=4)
6535 KB/s -5%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
4185 KB/s -39%
Average AMD Ryzen 5 4500U
  (3420 - 3566, n=2)
3493 KB/s -49%
TrueCrypt
AES Mean 100MB
Morefine S600-Apex Engineer
Intel Core i9-12900HK, 1800 MHz
14.1 GB/s +5%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
13.4 GB/s
Average AMD Ryzen 9 6900HX
  (9.3 - 13.5, n=7)
11.8 GB/s -12%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
11.6 GB/s -13%
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
10.8 GB/s -19%
Average AMD Ryzen 9 5900HX
  (7.4 - 12.3, n=4)
10.5 GB/s -22%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
8.6 GB/s -36%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
7.6 GB/s -43%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
5.3 GB/s -60%
Average AMD Ryzen 5 4500U
  (4.9 - 4.9, n=2)
4.9 GB/s -63%
Twofish Mean 100MB
Morefine S600-Apex Engineer
Intel Core i9-12900HK, 1800 MHz
2.3 GB/s +28%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
2 GB/s +11%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
1.9 GB/s +6%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
1.8 GB/s
Average AMD Ryzen 9 5900HX
  (1.6 - 2, n=4)
1.775 GB/s -1%
Average AMD Ryzen 9 6900HX
  (1.3 - 1.8, n=7)
1.643 GB/s -9%
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
1.6 GB/s -11%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
1.5 GB/s -17%
Average AMD Ryzen 5 4500U
  (0.865 - 0.922, n=2)
0.894 GB/s -50%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
0.755 GB/s -58%
Serpent Mean 100MB
Morefine S600-Apex Engineer
Intel Core i9-12900HK, 1800 MHz
1.3 GB/s +8%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
1.2 GB/s
Average AMD Ryzen 9 5900HX
  (1.1 - 1.2, n=4)
1.15 GB/s -4%
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
1.1 GB/s -8%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
1.1 GB/s -8%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
1.1 GB/s -8%
Average AMD Ryzen 9 6900HX
  (0.857 - 1.2, n=7)
1.094 GB/s -9%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
0.974 GB/s -19%
Average AMD Ryzen 5 4500U
  (0.511 - 0.541, n=2)
0.526 GB/s -56%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
0.448 GB/s -63%
Geekbench 5.5
Multi-Core
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
9935 Points +2%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
9706 Points
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
9695 Points 0%
Average AMD Ryzen 9 6900HX
  (8313 - 10490, n=21)
9642 Points -1%
Average AMD Ryzen 9 5900HX
  (5057 - 9294, n=27)
8188 Points -16%
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
7855 Points -19%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
7818 Points -19%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
4898 Points -50%
Average AMD Ryzen 5 4500U
  (4352 - 6234, n=10)
4774 Points -51%
Single-Core
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
1861 Points +14%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
1715 Points +5%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
1634 Points
Average AMD Ryzen 9 6900HX
  (1523 - 1652, n=21)
1589 Points -3%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
1560 Points -5%
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
1552 Points -5%
Average AMD Ryzen 9 5900HX
  (1271 - 1574, n=27)
1517 Points -7%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
1391 Points -15%
Average AMD Ryzen 5 4500U
  (1082 - 1220, n=10)
1109 Points -32%
Geekbench 5.0
5.0 Multi-Core
Average AMD Ryzen 9 6900HX
  (9220 - 10426, n=15)
9880 Points +3%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
9817 Points +2%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
9663 Points 0%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
9638 Points
Average AMD Ryzen 9 5900HX
  (7327 - 9053, n=9)
8267 Points -14%
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
7847 Points -19%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
7806 Points -19%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
4841 Points -50%
Average AMD Ryzen 5 4500U
  ()
4282 Points -56%
5.0 Single-Core
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
1838 Points +15%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
1694 Points +6%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
1593 Points
Average AMD Ryzen 9 6900HX
  (1531 - 1603, n=15)
1561 Points -2%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
1518 Points -5%
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
1504 Points -6%
Average AMD Ryzen 9 5900HX
  (1233 - 1517, n=9)
1460 Points -8%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
1385 Points -13%
Average AMD Ryzen 5 4500U
  ()
1074 Points -33%
Geekbench 4.4
64 Bit Single-Core Score
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
8015 Points +18%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
7554 Points +11%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
6804 Points
Average AMD Ryzen 9 6900HX
  (6191 - 6804, n=11)
6642 Points -2%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
6517 Points -4%
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
6434 Points -5%
Average AMD Ryzen 9 5900HX
  (5249 - 6591, n=8)
6240 Points -8%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
5911 Points -13%
Average AMD Ryzen 5 4500U
  (4486 - 4762, n=2)
4624 Points -32%
64 Bit Multi-Core Score
Average AMD Ryzen 9 6900HX
  (36780 - 39852, n=11)
39028 Points +1%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
38566 Points
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
36974 Points -4%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
36692 Points -5%
Average AMD Ryzen 9 5900HX
  (30451 - 35465, n=8)
33068 Points -14%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
31835 Points -17%
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
31724 Points -18%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
19288 Points -50%
Average AMD Ryzen 5 4500U
  (17798 - 19324, n=2)
18561 Points -52%
3DMark 11 - 1280x720 Performance Physics
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
18382 Points +1%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
18277 Points
Average AMD Ryzen 9 6900HX
  (15855 - 21036, n=23)
18161 Points -1%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
18044 Points -1%
Morefine S600-Apex Engineer
Intel Core i9-12900HK, 1800 MHz
17378 Points -5%
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
16783 Points -8%
Average AMD Ryzen 9 5900HX
  (13940 - 18790, n=28)
16642 Points -9%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
14277 Points -22%
Average AMD Ryzen 5 4500U
  (7061 - 8704, n=12)
8121 Points -56%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
7792 Points -57%
7-Zip 18.03
7z b 4
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
61401 MIPS
Average AMD Ryzen 9 6900HX
  (49526 - 65336, n=20)
60091 MIPS -2%
Average AMD Ryzen 9 5900HX
  (36011 - 62503, n=29)
57266 MIPS -7%
Morefine S600-Apex Engineer
Intel Core i9-12900HK, 1800 MHz
56455 MIPS -8%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
55046 MIPS -10%
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
54998 MIPS -10%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
51151 MIPS -17%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
47064 MIPS -23%
Average AMD Ryzen 5 4500U
  (22466 - 25891, n=11)
24384 MIPS -60%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
17636 MIPS -71%
7z b 4 -mmt1
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
6067 MIPS
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
6019 MIPS -1%
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
5905 MIPS -3%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
5809 MIPS -4%
Average AMD Ryzen 9 6900HX
  (5090 - 6070, n=20)
5799 MIPS -4%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
5738 MIPS -5%
Average AMD Ryzen 9 5900HX
  (4791 - 5905, n=29)
5701 MIPS -6%
Morefine S600-Apex Engineer
Intel Core i9-12900HK, 1800 MHz
5347 MIPS -12%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
4788 MIPS -21%
Average AMD Ryzen 5 4500U
  (4235 - 4338, n=11)
4290 MIPS -29%
HWBOT x265 Benchmark v2.2 - 4k Preset
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
17.1 fps
Average AMD Ryzen 9 6900HX
  (12.6 - 18.7, n=20)
16.7 fps -2%
Morefine S600-Apex Engineer
Intel Core i9-12900HK, 1800 MHz
15.7 fps -8%
Average AMD Ryzen 9 5900HX
  (8.26 - 17.1, n=29)
15.2 fps -11%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
14.8 fps -13%
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
14.5 fps -15%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
14.1 fps -18%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
13.2 fps -23%
Average AMD Ryzen 5 4500U
  (5.86 - 7.33, n=10)
6.8 fps -60%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
5.26 fps -69%
R Benchmark 2.5 - Overall mean
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
0.639 sec * -34%
Average AMD Ryzen 5 4500U
  (0.614 - 0.654, n=10)
0.636 sec * -34%
Average AMD Ryzen 9 5900HX
  (0.48 - 0.599, n=29)
0.507 sec * -7%
Morefine S600-Apex Engineer
Intel Core i9-12900HK, 1800 MHz
0.4997 sec * -5%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
0.4975 sec * -5%
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
0.493 sec * -4%
Average AMD Ryzen 9 6900HX
  (0.4627 - 0.4974, n=20)
0.483 sec * -2%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
0.4787 sec * -1%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
0.4757 sec *
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
0.4641 sec * +2%
LibreOffice - 20 Documents To PDF
Average AMD Ryzen 5 4500U
  (58.2 - 78, n=11)
66.4 s * -36%
Average AMD Ryzen 9 5900HX
  (44.1 - 87.4, n=29)
53.3 s * -9%
Average AMD Ryzen 9 6900HX
  (44.8 - 81.7, n=20)
53.1 s * -9%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
52 s * -7%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
50.7 s * -4%
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
50.4 s * -3%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
48.8 s *
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
45 s * +8%
Morefine S600-Apex Engineer
Intel Core i9-12900HK, 1800 MHz
41.9 s * +14%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
38 s * +22%
WebXPRT 3 - Overall
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
311 Points +8%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
287 Points
Morefine S600-Apex Engineer
Intel Core i9-12900HK, 1800 MHz
285 Points -1%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
285 Points -1%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
284 Points -1%
Average AMD Ryzen 9 6900HX
  (248 - 304, n=17)
280 Points -2%
Average AMD Ryzen 9 5900HX
  (230 - 291, n=28)
275 Points -4%
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
274 Points -5%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
236 Points -18%
Average AMD Ryzen 5 4500U
  (191 - 202, n=8)
196.5 Points -32%
Mozilla Kraken 1.1 - Total
Average AMD Ryzen 5 4500U
  (819 - 871, n=11)
851 ms * -49%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
724 ms * -27%
Average AMD Ryzen 9 5900HX
  (595 - 728, n=29)
617 ms * -8%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
604 ms * -6%
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
602 ms * -5%
Average AMD Ryzen 9 6900HX
  (564 - 607, n=18)
588 ms * -3%
Morefine S600-Apex Engineer
Intel Core i9-12900HK, 1800 MHz
582 ms * -2%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
577 ms * -1%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
571 ms *
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
534 ms * +6%
3DMark
3840x2160 Fire Strike Ultra Physics
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
25456 Points
Average AMD Ryzen 9 5900HX
  (22976 - 26958, n=19)
25146 Points -1%
Average AMD Ryzen 9 6900HX
  (17731 - 26684, n=18)
24448 Points -4%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
23939 Points -6%
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
23269 Points -9%
Morefine S600-Apex Engineer
Intel Core i9-12900HK, 1800 MHz
22101 Points -13%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
21422 Points -16%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
19357 Points -24%
Average AMD Ryzen 5 4500U
  ()
11843 Points -53%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
9561 Points -62%
1920x1080 Fire Strike Physics
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
25915 Points
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
25160 Points -3%
Average AMD Ryzen 9 5900HX
  (17714 - 27288, n=31)
24899 Points -4%
Average AMD Ryzen 9 6900HX
  (18389 - 27338, n=23)
24551 Points -5%
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
23903 Points -8%
Morefine S600-Apex Engineer
Intel Core i9-12900HK, 1800 MHz
23308 Points -10%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
22244 Points -14%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
20684 Points -20%
Average AMD Ryzen 5 4500U
  (9800 - 12259, n=11)
11318 Points -56%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
9354 Points -64%
2560x1440 Time Spy CPU
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
10539 Points +13%
Average AMD Ryzen 9 6900HX
  (6621 - 11039, n=23)
9584 Points +2%
Morefine S600-Apex Engineer
Intel Core i9-12900HK, 1800 MHz
9449 Points +1%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
9354 Points
Average AMD Ryzen 9 5900HX
  (6932 - 10603, n=31)
9224 Points -1%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
8393 Points -10%
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
8191 Points -12%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
7087 Points -24%
Average AMD Ryzen 5 4500U
  (3316 - 4187, n=9)
3759 Points -60%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
2867 Points -69%

* ... smaller is better

Geekbench 5.5
Multi-Core
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
9935 Points +2%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
9706 Points
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
9695 Points 0%
Average AMD Ryzen 9 6900HX
  (8313 - 10490, n=21)
9642 Points -1%
Average AMD Ryzen 9 5900HX
  (5057 - 9294, n=27)
8188 Points -16%
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
7855 Points -19%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
7818 Points -19%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
4898 Points -50%
Average AMD Ryzen 5 4500U
  (4352 - 6234, n=10)
4774 Points -51%
Single-Core
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
1861 Points +14%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
1715 Points +5%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
1634 Points
Average AMD Ryzen 9 6900HX
  (1523 - 1652, n=21)
1589 Points -3%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
1560 Points -5%
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
1552 Points -5%
Average AMD Ryzen 9 5900HX
  (1271 - 1574, n=27)
1517 Points -7%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
1391 Points -15%
Average AMD Ryzen 5 4500U
  (1082 - 1220, n=10)
1109 Points -32%
Geekbench 5.0
5.0 Multi-Core
Average AMD Ryzen 9 6900HX
  (9220 - 10426, n=15)
9880 Points +3%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
9817 Points +2%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
9663 Points 0%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
9638 Points
Average AMD Ryzen 9 5900HX
  (7327 - 9053, n=9)
8267 Points -14%
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
7847 Points -19%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
7806 Points -19%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
4841 Points -50%
Average AMD Ryzen 5 4500U
  ()
4282 Points -56%
5.0 Single-Core
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
1838 Points +15%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
1694 Points +6%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
1593 Points
Average AMD Ryzen 9 6900HX
  (1531 - 1603, n=15)
1561 Points -2%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
1518 Points -5%
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
1504 Points -6%
Average AMD Ryzen 9 5900HX
  (1233 - 1517, n=9)
1460 Points -8%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
1385 Points -13%
Average AMD Ryzen 5 4500U
  ()
1074 Points -33%
Geekbench 4.4
64 Bit Single-Core Score
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
8015 Points +18%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
7554 Points +11%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
6804 Points
Average AMD Ryzen 9 6900HX
  (6191 - 6804, n=11)
6642 Points -2%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
6517 Points -4%
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
6434 Points -5%
Average AMD Ryzen 9 5900HX
  (5249 - 6591, n=8)
6240 Points -8%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
5911 Points -13%
Average AMD Ryzen 5 4500U
  (4486 - 4762, n=2)
4624 Points -32%
64 Bit Multi-Core Score
Average AMD Ryzen 9 6900HX
  (36780 - 39852, n=11)
39028 Points +1%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
38566 Points
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
36974 Points -4%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
36692 Points -5%
Average AMD Ryzen 9 5900HX
  (30451 - 35465, n=8)
33068 Points -14%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
31835 Points -17%
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
31724 Points -18%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
19288 Points -50%
Average AMD Ryzen 5 4500U
  (17798 - 19324, n=2)
18561 Points -52%
Performance Rating
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
99.2 pt
Morefine S500+
AMD Ryzen 9 5900HX, Vega 8
85.9 pt
Minisforum EliteMini B550
AMD Ryzen 7 5700G, Vega 8
85.8 pt
Average of class Mini PC

77.3 pt
Morefine S600-Apex Engineer
Intel Core i9-12900HK, Iris Xe G7 96EUs
76.1 pt
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
70.7 pt
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, Iris Xe G7 96EUs
69.2 pt
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, Iris Xe G7 96EUs
41.4 pt
AIDA64 / FP32 Ray-Trace
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
15102 KRay/s
Minisforum EliteMini B550
AMD Ryzen 7 5700G, Vega 8
13631 KRay/s -10%
Morefine S500+
AMD Ryzen 9 5900HX, Vega 8
13460 KRay/s -11%
Average of class Mini PC
  (646 - 51004, n=119, last 2 years)
12878 KRay/s -15%
Morefine S600-Apex Engineer
Intel Core i9-12900HK, Iris Xe G7 96EUs
12208 KRay/s -19%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
10952 KRay/s -27%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, Iris Xe G7 96EUs
10351 KRay/s -31%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, Iris Xe G7 96EUs
5612 KRay/s -63%
AIDA64 / FPU Julia
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
98980 Points
Minisforum EliteMini B550
AMD Ryzen 7 5700G, Vega 8
86825 Points -12%
Morefine S500+
AMD Ryzen 9 5900HX, Vega 8
85294 Points -14%
Average of class Mini PC
  (3857 - 214250, n=119, last 2 years)
64921 Points -34%
Morefine S600-Apex Engineer
Intel Core i9-12900HK, Iris Xe G7 96EUs
61600 Points -38%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
55221 Points -44%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, Iris Xe G7 96EUs
52136 Points -47%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, Iris Xe G7 96EUs
24138 Points -76%
AIDA64 / CPU SHA3
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
3452 MB/s
Minisforum EliteMini B550
AMD Ryzen 7 5700G, Vega 8
2953 MB/s -14%
Morefine S500+
AMD Ryzen 9 5900HX, Vega 8
2924 MB/s -15%
Average of class Mini PC
  (260 - 9399, n=119, last 2 years)
2856 MB/s -17%
Morefine S600-Apex Engineer
Intel Core i9-12900HK, Iris Xe G7 96EUs
2844 MB/s -18%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, Iris Xe G7 96EUs
2590 MB/s -25%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
2558 MB/s -26%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, Iris Xe G7 96EUs
1649 MB/s -52%
AIDA64 / CPU Queen
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
103686 Points
Minisforum EliteMini B550
AMD Ryzen 7 5700G, Vega 8
97720 Points -6%
Morefine S600-Apex Engineer
Intel Core i9-12900HK, Iris Xe G7 96EUs
95602 Points -8%
Morefine S500+
AMD Ryzen 9 5900HX, Vega 8
94655 Points -9%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
85240 Points -18%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, Iris Xe G7 96EUs
82493 Points -20%
Average of class Mini PC
  (8172 - 184747, n=119, last 2 years)
80187 Points -23%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, Iris Xe G7 96EUs
46646 Points -55%
AIDA64 / FPU SinJulia
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
13101 Points
Minisforum EliteMini B550
AMD Ryzen 7 5700G, Vega 8
12202 Points -7%
Morefine S500+
AMD Ryzen 9 5900HX, Vega 8
11929 Points -9%
Average of class Mini PC
  (408 - 29064, n=119, last 2 years)
8812 Points -33%
Morefine S600-Apex Engineer
Intel Core i9-12900HK, Iris Xe G7 96EUs
8213 Points -37%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
7548 Points -42%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, Iris Xe G7 96EUs
6728 Points -49%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, Iris Xe G7 96EUs
3964 Points -70%
AIDA64 / FPU Mandel
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
52710 Points
Minisforum EliteMini B550
AMD Ryzen 7 5700G, Vega 8
47597 Points -10%
Morefine S500+
AMD Ryzen 9 5900HX, Vega 8
47010 Points -11%
Average of class Mini PC
  (1987 - 113499, n=119, last 2 years)
33863 Points -36%
Morefine S600-Apex Engineer
Intel Core i9-12900HK, Iris Xe G7 96EUs
30804 Points -42%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
28159 Points -47%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, Iris Xe G7 96EUs
25996 Points -51%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, Iris Xe G7 96EUs
14905 Points -72%
AIDA64 / CPU AES
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
136723 MB/s
Minisforum EliteMini B550
AMD Ryzen 7 5700G, Vega 8
119844 MB/s -12%
Morefine S500+
AMD Ryzen 9 5900HX, Vega 8
115382 MB/s -16%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
99521 MB/s -27%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, Iris Xe G7 96EUs
92356 MB/s -32%
Average of class Mini PC
  (3691 - 325960, n=119, last 2 years)
88382 MB/s -35%
Morefine S600-Apex Engineer
Intel Core i9-12900HK, Iris Xe G7 96EUs
59882 MB/s -56%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, Iris Xe G7 96EUs
58910 MB/s -57%
AIDA64 / CPU ZLib
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
863 MB/s
Morefine S600-Apex Engineer
Intel Core i9-12900HK, Iris Xe G7 96EUs
828 MB/s -4%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, Vega 8
774 MB/s -10%
Morefine S500+
AMD Ryzen 9 5900HX, Vega 8
747 MB/s -13%
Average of class Mini PC
  (74.9 - 2039, n=119, last 2 years)
740 MB/s -14%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
732 MB/s -15%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, Iris Xe G7 96EUs
722 MB/s -16%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, Iris Xe G7 96EUs
265 MB/s -69%
AIDA64 / FP64 Ray-Trace
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
7973 KRay/s
Morefine S500+
AMD Ryzen 9 5900HX, Vega 8
7193 KRay/s -10%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, Vega 8
7184 KRay/s -10%
Average of class Mini PC
  (350 - 26952, n=119, last 2 years)
6881 KRay/s -14%
Morefine S600-Apex Engineer
Intel Core i9-12900HK, Iris Xe G7 96EUs
6612 KRay/s -17%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
5777 KRay/s -28%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, Iris Xe G7 96EUs
5613 KRay/s -30%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, Iris Xe G7 96EUs
2997 KRay/s -62%
AIDA64 / CPU PhotoWorxx
Morefine S600-Apex Engineer
Intel Core i9-12900HK, Iris Xe G7 96EUs
30098 MPixel/s +9%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, Iris Xe G7 96EUs
28377 MPixel/s +2%
Average of class Mini PC
  (4408 - 50500, n=119, last 2 years)
28301 MPixel/s +2%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
27720 MPixel/s
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, Iris Xe G7 96EUs
26959 MPixel/s -3%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
24323 MPixel/s -12%
Morefine S500+
AMD Ryzen 9 5900HX, Vega 8
19885 MPixel/s -28%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, Vega 8
14810 MPixel/s -47%

Minisforum Venus系列UM690运行Cinebench R15多循环。

长期循环运行Cinebench R15让我们很好地看到UM690的冷却解决方案有多有效。在第四次运行后确实有一个小的性能下降,但它并不像MINISFORUM Neptune系列NAD9那样严重,例如。我们的评测单元成功地以2111分的平均分夺得了第一名。

在Cinebench R15循环中的CPU指标
在Cinebench R15循环中的CPU指标
011523034546057569080592010351150126513801495161017251840195520702185Tooltip
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, AMD Ryzen 9 6900HX: Ø2111 (2087.36-2211.78)
Morefine S500+ AMD Ryzen 9 5900HX, AMD Ryzen 9 5900HX: Ø1892 (1879.35-1907.49)
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Ryzen 7 5700G: Ø1980 (1960.21-1996.81)
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Core i5-1135G7: Ø574 (568.03-615.59)
Morefine S600-Apex Engineer Intel Core i9-12900HK, Intel Core i9-12900HK: Ø1986 (1882.53-2086.59)
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Intel Core i9-12900H: Ø1703 (1657.14-2261.04)

系统性能

整个系统得益于迅捷的SoC与DDR5内存的搭配。维纳斯系列UM690可以非常好地处理日常工作。在AIDA64测试中,内存较高的数据速率变得很明显,竞争对手无法跟上UM690的步伐。也就是说,所含内存的延迟并不是最短的。Minisforum Venus系列UM690在这方面略有不足,但你在日常使用中不太可能注意到它。

Performance Rating - Percent
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX
AMD Ryzen 9 6900HX, AMD Radeon 680M, Kingston OM8PGP4512Q-A0
98.9 pt
Minisforum EliteMini B550, AMD Ryzen 7 5700G
AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1
92.5 pt
Morefine S500+, AMD Ryzen 9 5900HX
AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB
92.4 pt
Minisforum Neptune Series NAD9, Intel Core i9-12900H
Intel Core i9-12900H, Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0
88 pt
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P
Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S
84.9 pt
Morefine S600-Apex Engineer, Intel Core i9-12900HK
Intel Core i9-12900HK, Intel Iris Xe Graphics G7 96EUs, Crucial P1 SSD CT1000P1SSD8
81.9 pt
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G
68.9 pt
PCMark 10
Score
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX
AMD Ryzen 9 6900HX, AMD Radeon 680M, Kingston OM8PGP4512Q-A0
7045 Points
Morefine S500+, AMD Ryzen 9 5900HX
AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB
6290 Points -11%
Minisforum EliteMini B550, AMD Ryzen 7 5700G
AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1
6214 Points -12%
Minisforum Neptune Series NAD9, Intel Core i9-12900H
Intel Core i9-12900H, Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0
6187 Points -12%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P
Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S
5915 Points -16%
Morefine S600-Apex Engineer, Intel Core i9-12900HK
Intel Core i9-12900HK, Intel Iris Xe Graphics G7 96EUs, Crucial P1 SSD CT1000P1SSD8
5658 Points -20%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G
4521 Points -36%
Essentials
Minisforum Neptune Series NAD9, Intel Core i9-12900H
Intel Core i9-12900H, Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0
11217 Points +3%
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX
AMD Ryzen 9 6900HX, AMD Radeon 680M, Kingston OM8PGP4512Q-A0
10838 Points
Morefine S600-Apex Engineer, Intel Core i9-12900HK
Intel Core i9-12900HK, Intel Iris Xe Graphics G7 96EUs, Crucial P1 SSD CT1000P1SSD8
10700 Points -1%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P
Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S
10661 Points -2%
Minisforum EliteMini B550, AMD Ryzen 7 5700G
AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1
10148 Points -6%
Morefine S500+, AMD Ryzen 9 5900HX
AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB
10087 Points -7%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G
8910 Points -18%
Productivity
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX
AMD Ryzen 9 6900HX, AMD Radeon 680M, Kingston OM8PGP4512Q-A0
10060 Points
Minisforum EliteMini B550, AMD Ryzen 7 5700G
AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1
9941 Points -1%
Morefine S500+, AMD Ryzen 9 5900HX
AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB
9856 Points -2%
Minisforum Neptune Series NAD9, Intel Core i9-12900H
Intel Core i9-12900H, Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0
7673 Points -24%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P
Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S
7626 Points -24%
Morefine S600-Apex Engineer, Intel Core i9-12900HK
Intel Core i9-12900HK, Intel Iris Xe Graphics G7 96EUs, Crucial P1 SSD CT1000P1SSD8
7041 Points -30%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G
6357 Points -37%
CrossMark / Overall
Minisforum Neptune Series NAD9, Intel Core i9-12900H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0
1894 Points +9%
Morefine S600-Apex Engineer, Intel Core i9-12900HK
Intel Iris Xe Graphics G7 96EUs, Crucial P1 SSD CT1000P1SSD8
1804 Points +4%
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX
AMD Radeon 680M, Kingston OM8PGP4512Q-A0
1731 Points
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P
Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S
1679 Points -3%
Minisforum EliteMini B550, AMD Ryzen 7 5700G
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1
1424 Points -18%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7
Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G
1245 Points -28%
CrossMark / Productivity
Minisforum Neptune Series NAD9, Intel Core i9-12900H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0
1921 Points +11%
Morefine S600-Apex Engineer, Intel Core i9-12900HK
Intel Iris Xe Graphics G7 96EUs, Crucial P1 SSD CT1000P1SSD8
1740 Points 0%
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX
AMD Radeon 680M, Kingston OM8PGP4512Q-A0
1738 Points
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P
Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S
1649 Points -5%
Minisforum EliteMini B550, AMD Ryzen 7 5700G
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1
1453 Points -16%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7
Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G
1306 Points -25%
CrossMark / Creativity
Morefine S600-Apex Engineer, Intel Core i9-12900HK
Intel Iris Xe Graphics G7 96EUs, Crucial P1 SSD CT1000P1SSD8
1867 Points +7%
Minisforum Neptune Series NAD9, Intel Core i9-12900H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0
1800 Points +3%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P
Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S
1785 Points +2%
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX
AMD Radeon 680M, Kingston OM8PGP4512Q-A0
1745 Points
Minisforum EliteMini B550, AMD Ryzen 7 5700G
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1
1448 Points -17%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7
Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G
1193 Points -32%
CrossMark / Responsiveness
Minisforum Neptune Series NAD9, Intel Core i9-12900H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0
2116 Points +27%
Morefine S600-Apex Engineer, Intel Core i9-12900HK
Intel Iris Xe Graphics G7 96EUs, Crucial P1 SSD CT1000P1SSD8
1811 Points +8%
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX
AMD Radeon 680M, Kingston OM8PGP4512Q-A0
1671 Points
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P
Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S
1476 Points -12%
Minisforum EliteMini B550, AMD Ryzen 7 5700G
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1
1271 Points -24%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7
Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G
1224 Points -27%
AIDA64 / Memory Copy
Average AMD Ryzen 9 6900HX
  (47938 - 53345, n=20)
50405 MB/s +5%
Average of class Mini PC
  (6481 - 89287, n=119, last 2 years)
48357 MB/s +1%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
47938 MB/s
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
45941 MB/s -4%
Morefine S600-Apex Engineer
Intel Core i9-12900HK, Iris Xe G7 96EUs
44965 MB/s -6%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, Iris Xe G7 96EUs
44661 MB/s -7%
Morefine S500+
AMD Ryzen 9 5900HX, Vega 8
41969 MB/s -12%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, Vega 8
37840 MB/s -21%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, Iris Xe G7 96EUs
35423 MB/s -26%
AIDA64 / Memory Read
Average AMD Ryzen 9 6900HX
  (43892 - 53321, n=20)
51062 MB/s +2%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
49936 MB/s
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
49559 MB/s -1%
Average of class Mini PC
  (6914 - 99171, n=119, last 2 years)
49177 MB/s -2%
Morefine S500+
AMD Ryzen 9 5900HX, Vega 8
46906 MB/s -6%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, Iris Xe G7 96EUs
46644 MB/s -7%
Morefine S600-Apex Engineer
Intel Core i9-12900HK, Iris Xe G7 96EUs
44775 MB/s -10%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, Vega 8
42996 MB/s -14%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, Iris Xe G7 96EUs
40348 MB/s -19%
AIDA64 / Memory Write
Average AMD Ryzen 9 6900HX
  (51085 - 57202, n=20)
55188 MB/s +1%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
54750 MB/s
Average of class Mini PC
  (6862 - 98583, n=119, last 2 years)
52856 MB/s -3%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
46815 MB/s -14%
Morefine S600-Apex Engineer
Intel Core i9-12900HK, Iris Xe G7 96EUs
46454 MB/s -15%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, Iris Xe G7 96EUs
46223 MB/s -16%
Morefine S500+
AMD Ryzen 9 5900HX, Vega 8
41806 MB/s -24%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, Iris Xe G7 96EUs
39154 MB/s -28%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, Vega 8
35371 MB/s -35%
AIDA64 / Memory Latency
Morefine S600-Apex Engineer
Intel Core i9-12900HK, Iris Xe G7 96EUs
101.5 ns * -22%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
100 ns * -20%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, Iris Xe G7 96EUs
92.7 ns * -12%
Average of class Mini PC
  (44.9 - 184.8, n=119, last 2 years)
92.1 ns * -11%
Average AMD Ryzen 9 6900HX
  (80.7 - 120.6, n=20)
88.7 ns * -7%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
83 ns *
Minisforum EliteMini B550
AMD Ryzen 7 5700G, Vega 8
74.2 ns * +11%
Morefine S500+
AMD Ryzen 9 5900HX, Vega 8
73.5 ns * +11%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, Iris Xe G7 96EUs
69 ns * +17%

* ... smaller is better

DPC延时

LatencyMon已经表明,当我们在Microsoft Edge中保持几个标签打开时,延迟略有增加。但回放我们的4K演示视频和运行Prime95并没有导致延迟进一步上升。

在打开多个浏览器标签和播放4K视频时的最大延迟
在打开多个浏览器标签和播放4K视频时的最大延迟
运行Prime95十秒钟后的最大延时
运行Prime95十秒钟后的最大延时
根据执行时间排序的驱动程序(从高到低)。
根据执行时间排序的驱动程序(从高到低)。
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Minisforum EliteMini B550, AMD Ryzen 7 5700G
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1
1867 μs * -25%
Morefine S500+, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB
1625 μs * -9%
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX
AMD Radeon 680M, Kingston OM8PGP4512Q-A0
1488 μs *
Minisforum Neptune Series NAD9, Intel Core i9-12900H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0
1113.9 μs * +25%
Morefine S600-Apex Engineer, Intel Core i9-12900HK
Intel Iris Xe Graphics G7 96EUs, Crucial P1 SSD CT1000P1SSD8
961.5 μs * +35%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P
Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S
779 μs * +48%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7
Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G
659.1 μs * +56%

* ... smaller is better

大容量存储

512GB金士顿固态硬盘
512GB金士顿固态硬盘

我们对UM690的评测样品配备了512GB的金士顿固态硬盘。我们已经看到相同的型号用于 Minisforum 海王星系列 NAD9.该硬盘在UM690中的表现同样出色,比其他对比设备中的存储解决方案要快。然而,金士顿硬盘在持续负载下表现出同样的弱点。小的散热器不足以让硬盘的性能在很长一段时间内保持恒定。Minisforum UM690还可以安装一个额外的2.5英寸存储驱动器;所需的电缆包括在盒子里。

你可以参考我们的存储驱动器比较表更多信息和基准。

AS SSD
AS SSD
CDM 3
CDM 3
CDM 5
CDM 5
CDM 6
CDM 6
CDI
CDI
Kingston OM8PGP4512Q-A0
Sequential Read: 2854 MB/s
Sequential Write: 3552 MB/s
512K Read: 1729 MB/s
512K Write: 3481 MB/s
4K Read: 69.39 MB/s
4K Write: 247.7 MB/s
4K QD32 Read: 589.3 MB/s
4K QD32 Write: 378.7 MB/s
Drive Performance Rating - Percent
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
93.5 pt
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
89.1 pt
Average of class Mini PC

58.7 pt
Morefine S600-Apex Engineer -8!
Crucial P1 SSD CT1000P1SSD8
54.8 pt
Minipc Union Ace Magician TK11-A0
Future Path FPE220M8SSD512G
45.1 pt
Minisforum EliteMini B550
Kingston OM8PDP3512B-AI1
43 pt
Intel NUC 12 Pro Kit NUC12WSKi7
Transcend M.2 SSD 2200S TS512GMTE220S
37.1 pt
Morefine S500+
ADATA XPG Gammix S11L 1024GB
33.8 pt
DiskSpd
seq read
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
3195 (3147.62min - 3194.91max) MB/s
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
2815 (2802.79min - 2814.97max) MB/s -12%
Average of class Mini PC
  (277 - 4357, n=119, last 2 years)
2333 MB/s -27%
Minipc Union Ace Magician TK11-A0
Future Path FPE220M8SSD512G
2184 (2176.42min - 2183.52max) MB/s -32%
Morefine S500+
ADATA XPG Gammix S11L 1024GB
2034 (2023.33min - 2033.61max) MB/s -36%
Intel NUC 12 Pro Kit NUC12WSKi7
Transcend M.2 SSD 2200S TS512GMTE220S
1790 (1744.2min - 1789.7max) MB/s -44%
Minisforum EliteMini B550
Kingston OM8PDP3512B-AI1
1713 (1703.57min - 1712.81max) MB/s -46%
seq write
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
3539 (3516.6min - 3538.94max) MB/s
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
3402 (3372.67min - 3402.21max) MB/s -4%
Average of class Mini PC
  (229 - 5595, n=119, last 2 years)
2509 MB/s -29%
Minipc Union Ace Magician TK11-A0
Future Path FPE220M8SSD512G
1790 (1681.49min - 1789.9max) MB/s -49%
Morefine S500+
ADATA XPG Gammix S11L 1024GB
1277 (1270.04min - 1277.38max) MB/s -64%
Minisforum EliteMini B550
Kingston OM8PDP3512B-AI1
1185 (1181.38min - 1184.95max) MB/s -67%
Intel NUC 12 Pro Kit NUC12WSKi7
Transcend M.2 SSD 2200S TS512GMTE220S
984 (154.77min - 984.48max) MB/s -72%
seq q8 t1 read
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
4820 (3819.87min - 4820.3max) MB/s
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
4801 (4506.78min - 4800.59max) MB/s 0%
Average of class Mini PC
  (236 - 8430, n=119, last 2 years)
3790 MB/s -21%
Minipc Union Ace Magician TK11-A0
Future Path FPE220M8SSD512G
2525 (2269.25min - 2525.2max) MB/s -48%
Minisforum EliteMini B550
Kingston OM8PDP3512B-AI1
2378 (2126.78min - 2378.31max) MB/s -51%
Intel NUC 12 Pro Kit NUC12WSKi7
Transcend M.2 SSD 2200S TS512GMTE220S
2273 (1501.91min - 2273.31max) MB/s -53%
Morefine S500+
ADATA XPG Gammix S11L 1024GB
2167 (2086.44min - 2166.57max) MB/s -55%
seq q8 t1 write
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
3536 (3475.82min - 3536.01max) MB/s
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
3402 (3374.28min - 3401.67max) MB/s -4%
Average of class Mini PC
  (239 - 6669, n=119, last 2 years)
2810 MB/s -21%
Minipc Union Ace Magician TK11-A0
Future Path FPE220M8SSD512G
1790 (1687.16min - 1790.13max) MB/s -49%
Intel NUC 12 Pro Kit NUC12WSKi7
Transcend M.2 SSD 2200S TS512GMTE220S
1758 (161.06min - 1758.04max) MB/s -50%
Morefine S500+
ADATA XPG Gammix S11L 1024GB
1316 (1309.25min - 1315.54max) MB/s -63%
Minisforum EliteMini B550
Kingston OM8PDP3512B-AI1
1200 (1191.05min - 1200.08max) MB/s -66%
4k q1 t1 read
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
82.1 (81.4min - 82.09max) MB/s +16%
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
70.8 (63.28min - 70.81max) MB/s
Intel NUC 12 Pro Kit NUC12WSKi7
Transcend M.2 SSD 2200S TS512GMTE220S
63 (57.2min - 63.02max) MB/s -11%
Average of class Mini PC
  (6.85 - 86.6, n=119, last 2 years)
55.3 MB/s -22%
Minipc Union Ace Magician TK11-A0
Future Path FPE220M8SSD512G
45.1 (43.96min - 45.09max) MB/s -36%
Minisforum EliteMini B550
Kingston OM8PDP3512B-AI1
44.4 (44.23min - 44.37max) MB/s -37%
Morefine S500+
ADATA XPG Gammix S11L 1024GB
29.5 (29.27min - 29.48max) MB/s -58%
4k q1 t1 write
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
425 (415.92min - 425.01max) MB/s +48%
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
288 (287.39min - 288.47max) MB/s
Intel NUC 12 Pro Kit NUC12WSKi7
Transcend M.2 SSD 2200S TS512GMTE220S
199.5 (150.75min - 199.48max) MB/s -31%
Average of class Mini PC
  (30.4 - 435, n=119, last 2 years)
196.9 MB/s -32%
Minipc Union Ace Magician TK11-A0
Future Path FPE220M8SSD512G
196.3 (179.94min - 196.31max) MB/s -32%
Minisforum EliteMini B550
Kingston OM8PDP3512B-AI1
160 (158.59min - 159.95max) MB/s -44%
Morefine S500+
ADATA XPG Gammix S11L 1024GB
138 (136.12min - 137.6max) MB/s -52%
4k q32 t16 read
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
1944 (1936.89min - 1943.53max) MB/s +1%
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
1933 (1926.8min - 1932.75max) MB/s
Average of class Mini PC
  (26.1 - 4158, n=119, last 2 years)
1411 MB/s -27%
Morefine S500+
ADATA XPG Gammix S11L 1024GB
1063 (1053.81min - 1062.87max) MB/s -45%
Minipc Union Ace Magician TK11-A0
Future Path FPE220M8SSD512G
1005 (1003.31min - 1005.12max) MB/s -48%
Minisforum EliteMini B550
Kingston OM8PDP3512B-AI1
803 (785.8min - 802.75max) MB/s -58%
Intel NUC 12 Pro Kit NUC12WSKi7
Transcend M.2 SSD 2200S TS512GMTE220S
350 (213.46min - 349.65max) MB/s -82%
4k q32 t16 write
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
3331 (2068.43min - 3331.41max) MB/s
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
2396 (2376.28min - 2396.46max) MB/s -28%
Average of class Mini PC
  (32.6 - 4288, n=119, last 2 years)
1332 MB/s -60%
Minisforum EliteMini B550
Kingston OM8PDP3512B-AI1
1032 (1014.5min - 1032.27max) MB/s -69%
Morefine S500+
ADATA XPG Gammix S11L 1024GB
890 (860.72min - 889.72max) MB/s -73%
Minipc Union Ace Magician TK11-A0
Future Path FPE220M8SSD512G
774 (725.33min - 774.03max) MB/s -77%
Intel NUC 12 Pro Kit NUC12WSKi7
Transcend M.2 SSD 2200S TS512GMTE220S
561 (408.83min - 561.15max) MB/s -83%
AS SSD
Score Total
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
7134 Points +7%
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
6665 Points
Average of class Mini PC
  (211 - 10021, n=117, last 2 years)
4244 Points -36%
Morefine S600-Apex Engineer
Crucial P1 SSD CT1000P1SSD8
4023 Points -40%
Minipc Union Ace Magician TK11-A0
Future Path FPE220M8SSD512G
2887 Points -57%
Minisforum EliteMini B550
Kingston OM8PDP3512B-AI1
2722 Points -59%
Morefine S500+
ADATA XPG Gammix S11L 1024GB
2248 Points -66%
Intel NUC 12 Pro Kit NUC12WSKi7
Transcend M.2 SSD 2200S TS512GMTE220S
1340 Points -80%
Score Read
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
2391 Points +2%
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
2352 Points
Average of class Mini PC
  (76 - 3741, n=117, last 2 years)
1578 Points -33%
Morefine S600-Apex Engineer
Crucial P1 SSD CT1000P1SSD8
1365 Points -42%
Minipc Union Ace Magician TK11-A0
Future Path FPE220M8SSD512G
1152 Points -51%
Minisforum EliteMini B550
Kingston OM8PDP3512B-AI1
1000 Points -57%
Morefine S500+
ADATA XPG Gammix S11L 1024GB
855 Points -64%
Intel NUC 12 Pro Kit NUC12WSKi7
Transcend M.2 SSD 2200S TS512GMTE220S
655 Points -72%
Score Write
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
3538 Points +12%
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
3145 Points
Morefine S600-Apex Engineer
Crucial P1 SSD CT1000P1SSD8
1959 Points -38%
Average of class Mini PC
  (88 - 4371, n=117, last 2 years)
1902 Points -40%
Minisforum EliteMini B550
Kingston OM8PDP3512B-AI1
1251 Points -60%
Minipc Union Ace Magician TK11-A0
Future Path FPE220M8SSD512G
1169 Points -63%
Morefine S500+
ADATA XPG Gammix S11L 1024GB
992 Points -68%
Intel NUC 12 Pro Kit NUC12WSKi7
Transcend M.2 SSD 2200S TS512GMTE220S
406 Points -87%
Seq Read
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
4147 MB/s +2%
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
4050 MB/s
Average of class Mini PC
  (291 - 6620, n=117, last 2 years)
3231 MB/s -20%
Intel NUC 12 Pro Kit NUC12WSKi7
Transcend M.2 SSD 2200S TS512GMTE220S
2723 MB/s -33%
Minisforum EliteMini B550
Kingston OM8PDP3512B-AI1
2303.9 MB/s -43%
Minipc Union Ace Magician TK11-A0
Future Path FPE220M8SSD512G
2204 MB/s -46%
Morefine S600-Apex Engineer
Crucial P1 SSD CT1000P1SSD8
2133 MB/s -47%
Morefine S500+
ADATA XPG Gammix S11L 1024GB
2048 MB/s -49%
Seq Write
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
3292 MB/s +9%
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
3025 MB/s
Average of class Mini PC
  (242 - 5783, n=117, last 2 years)
2292 MB/s -24%
Morefine S600-Apex Engineer
Crucial P1 SSD CT1000P1SSD8
1699 MB/s -44%
Minipc Union Ace Magician TK11-A0
Future Path FPE220M8SSD512G
1603 MB/s -47%
Intel NUC 12 Pro Kit NUC12WSKi7
Transcend M.2 SSD 2200S TS512GMTE220S
1405 MB/s -54%
Morefine S500+
ADATA XPG Gammix S11L 1024GB
1254 MB/s -59%
Minisforum EliteMini B550
Kingston OM8PDP3512B-AI1
1145 MB/s -62%
4K Read
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
103.66 MB/s +20%
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
86.05 MB/s
Morefine S600-Apex Engineer
Crucial P1 SSD CT1000P1SSD8
77.46 MB/s -10%
Average of class Mini PC
  (21.4 - 104.3, n=117, last 2 years)
59.7 MB/s -31%
Minisforum EliteMini B550
Kingston OM8PDP3512B-AI1
57.87 MB/s -33%
Minipc Union Ace Magician TK11-A0
Future Path FPE220M8SSD512G
39.71 MB/s -54%
Intel NUC 12 Pro Kit NUC12WSKi7
Transcend M.2 SSD 2200S TS512GMTE220S
34.41 MB/s -60%
Morefine S500+
ADATA XPG Gammix S11L 1024GB
27.6 MB/s -68%
4K Write
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
365.87 MB/s +52%
Morefine S600-Apex Engineer
Crucial P1 SSD CT1000P1SSD8
247.2 MB/s +3%
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
240.66 MB/s
Minipc Union Ace Magician TK11-A0
Future Path FPE220M8SSD512G
185.32 MB/s -23%
Average of class Mini PC
  (30.9 - 366, n=117, last 2 years)
177.5 MB/s -26%
Minisforum EliteMini B550
Kingston OM8PDP3512B-AI1
152.35 MB/s -37%
Morefine S500+
ADATA XPG Gammix S11L 1024GB
121.3 MB/s -50%
Intel NUC 12 Pro Kit NUC12WSKi7
Transcend M.2 SSD 2200S TS512GMTE220S
100.35 MB/s -58%
4K-64 Read
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
1872.82 MB/s +1%
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
1860.96 MB/s
Average of class Mini PC
  (23.4 - 3220, n=117, last 2 years)
1195 MB/s -36%
Morefine S600-Apex Engineer
Crucial P1 SSD CT1000P1SSD8
1073.73 MB/s -42%
Minipc Union Ace Magician TK11-A0
Future Path FPE220M8SSD512G
891.59 MB/s -52%
Minisforum EliteMini B550
Kingston OM8PDP3512B-AI1
711.88 MB/s -62%
Morefine S500+
ADATA XPG Gammix S11L 1024GB
622 MB/s -67%
Intel NUC 12 Pro Kit NUC12WSKi7
Transcend M.2 SSD 2200S TS512GMTE220S
348.68 MB/s -81%
4K-64 Write
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
2842.9 MB/s +9%
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
2602.12 MB/s
Morefine S600-Apex Engineer
Crucial P1 SSD CT1000P1SSD8
1541.66 MB/s -41%
Average of class Mini PC
  (32.8 - 3731, n=117, last 2 years)
1495 MB/s -43%
Minisforum EliteMini B550
Kingston OM8PDP3512B-AI1
984.11 MB/s -62%
Minipc Union Ace Magician TK11-A0
Future Path FPE220M8SSD512G
823.51 MB/s -68%
Morefine S500+
ADATA XPG Gammix S11L 1024GB
745 MB/s -71%
Intel NUC 12 Pro Kit NUC12WSKi7
Transcend M.2 SSD 2200S TS512GMTE220S
164.61 MB/s -94%
Access Time Read
Morefine S500+
ADATA XPG Gammix S11L 1024GB
0.154 ms * -137%
Morefine S600-Apex Engineer
Crucial P1 SSD CT1000P1SSD8
0.154 ms * -137%
Minisforum EliteMini B550
Kingston OM8PDP3512B-AI1
0.105 ms * -62%
Average of class Mini PC
  (0.022 - 0.489, n=117, last 2 years)
0.09579 ms * -47%
Intel NUC 12 Pro Kit NUC12WSKi7
Transcend M.2 SSD 2200S TS512GMTE220S
0.084 ms * -29%
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
0.074 ms * -14%
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
0.065 ms *
Minipc Union Ace Magician TK11-A0
Future Path FPE220M8SSD512G
0.06 ms * +8%
Access Time Write
Average of class Mini PC
  (0.014 - 0.765, n=117, last 2 years)
0.1133 ms * -265%
Morefine S500+
ADATA XPG Gammix S11L 1024GB
0.103 ms * -232%
Minipc Union Ace Magician TK11-A0
Future Path FPE220M8SSD512G
0.103 ms * -232%
Intel NUC 12 Pro Kit NUC12WSKi7
Transcend M.2 SSD 2200S TS512GMTE220S
0.035 ms * -13%
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
0.031 ms * -0%
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
0.031 ms *
Minisforum EliteMini B550
Kingston OM8PDP3512B-AI1
0.029 ms * +6%
Morefine S600-Apex Engineer
Crucial P1 SSD CT1000P1SSD8
0.026 ms * +16%

* ... smaller is better

Sustained Load Read: DiskSpd Read Loop, Queue Depth 8

0245490735980122514701715196022052450269529403185343036753920416544104655Tooltip
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0: Ø2987 (1605.58-4819.04)
Morefine S500+ ADATA XPG Gammix S11L 1024GB: Ø2165 (2034.95-2173.28)
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1: Ø2353 (2170.7-2362.34)
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G: Ø2219 (1791.18-2464.68)
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0: Ø3302 (1830.49-4799.45)

图形卡

新的Rembrandt SoC伴随着集成图形性能的明显提升。UM690中的AMD Radeon 680M 是一个伟大的iGPU,比Intel Iris Xe Graphics G7 。根据我们的测试,我们的评测单元比Minisforum Neptune系列NAD9 (配备Iris Xe Graphics)快50%。

那些需要更多3D性能的人可以通过Thunderbolt端口连接一个外部显卡。使用一个Razer Core X和一个 NvidiaGeForce RTX 3060 Ti我们研究了我们可以从eGPU设置中期待什么样的性能。专用显卡的结果已经包括在比较表中。

前往本页 ,查看AMD Radeon 680M的更多基准测试。

3DMark Performance Rating - Percent
Intel NUC 12 Pro Kit NUC12WSKi7
NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P
100 pt
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 9 6900HX
97.2 pt
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti
Intel Core i5-1135G7
95.9 pt
Minisforum Venus Series UM690
AMD Radeon 680M, AMD Ryzen 9 6900HX
28 pt
Minisforum Neptune Series NAD9
Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H
20.3 pt
Morefine S600-Apex Engineer
Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK
20.1 pt
Morefine S500+
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX
18.5 pt
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P
17.7 pt
Minisforum EliteMini B550
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G
14.8 pt
Minipc Union Ace Magician TK11-A0
Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7
14.3 pt
3DMark 11 - 1280x720 Performance GPU
Intel NUC 12 Pro Kit NUC12WSKi7
NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P
33425 Points +208%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 9 6900HX
32726 Points +202%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti
Intel Core i5-1135G7
32630 Points +201%
Minisforum Venus Series UM690
AMD Radeon 680M, AMD Ryzen 9 6900HX
10845 Points
Morefine S500+
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX
7122 Points -34%
Minisforum Neptune Series NAD9
Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H
7057 Points -35%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P
6840 Points -37%
Morefine S600-Apex Engineer
Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK
6687 Points -38%
Minisforum EliteMini B550
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G
5777 Points -47%
Minipc Union Ace Magician TK11-A0
Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7
5565 Points -49%
3DMark
1280x720 Cloud Gate Standard Graphics
Intel NUC 12 Pro Kit NUC12WSKi7
NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P
121918 Points +182%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 9 6900HX
116516 Points +169%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti
Intel Core i5-1135G7
112625 Points +160%
Minisforum Venus Series UM690
AMD Radeon 680M, AMD Ryzen 9 6900HX
43275 Points
Morefine S500+
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX
32899 Points -24%
Minisforum Neptune Series NAD9
Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H
30434 Points -30%
Morefine S600-Apex Engineer
Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK
30433 Points -30%
Minisforum EliteMini B550
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G
26183 Points -39%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P
21114 Points -51%
Minipc Union Ace Magician TK11-A0
Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7
20432 Points -53%
1920x1080 Fire Strike Graphics
Intel NUC 12 Pro Kit NUC12WSKi7
NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P
25071 Points +275%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 9 6900HX
24360 Points +265%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti
Intel Core i5-1135G7
24193 Points +262%
Minisforum Venus Series UM690
AMD Radeon 680M, AMD Ryzen 9 6900HX
6679 Points
Morefine S600-Apex Engineer
Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK
5543 Points -17%
Minisforum Neptune Series NAD9
Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H
5526 Points -17%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P
4883 Points -27%
Morefine S500+
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX
4369 Points -35%
Minipc Union Ace Magician TK11-A0
Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7
3725 Points -44%
Minisforum EliteMini B550
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G
3379 Points -49%
2560x1440 Time Spy Graphics
Intel NUC 12 Pro Kit NUC12WSKi7
NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P
11032 Points +369%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 9 6900HX
10717 Points +356%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti
Intel Core i5-1135G7
10530 Points +348%
Minisforum Venus Series UM690
AMD Radeon 680M, AMD Ryzen 9 6900HX
2351 Points
Minisforum Neptune Series NAD9
Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H
1658 Points -29%
Morefine S600-Apex Engineer
Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK
1633 Points -31%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P
1630 Points -31%
Morefine S500+
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX
1412 Points -40%
Minisforum EliteMini B550
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G
1150 Points -51%
Minipc Union Ace Magician TK11-A0
Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7
1109 Points -53%
Fire Strike Extreme Graphics
Intel NUC 12 Pro Kit NUC12WSKi7
NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P
13264 Points +314%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 9 6900HX
13007 Points +306%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti
Intel Core i5-1135G7
12943 Points +304%
Minisforum Venus Series UM690
AMD Radeon 680M, AMD Ryzen 9 6900HX
3206 Points
Morefine S600-Apex Engineer
Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK
2498 Points -22%
Minisforum Neptune Series NAD9
Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H
2455 Points -23%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P
2161 Points -33%
Morefine S500+
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX
1823 Points -43%
Minipc Union Ace Magician TK11-A0
Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7
1735 Points -46%
Minisforum EliteMini B550
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G
1509 Points -53%
Performance Rating - Percent
Intel NUC 12 Pro Kit NUC12WSKi7 -2!
NVIDIA GeForce RTX 3060 Ti, i7-1260P
100 pt
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3)
, R9 6900HX
98.3 pt
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
20.6 pt
Morefine S600-Apex Engineer
Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8
12.9 pt
Morefine S500+
Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB
12.7 pt
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
12.4 pt
Intel NUC 12 Pro Kit NUC12WSKi7 -2!
Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S
11.9 pt
Minisforum EliteMini B550
Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1
10.7 pt
Minipc Union Ace Magician TK11-A0
Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G
9.5 pt
Unigine Heaven 4.0
Extreme Preset OpenGL
Intel NUC 12 Pro Kit NUC12WSKi7
NVIDIA GeForce RTX 3060 Ti, i7-1260P
169.6 fps +390%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3)
, R9 6900HX
167.3 fps +384%
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
34.6 fps
Morefine S600-Apex Engineer
Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8
24.1 fps -30%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
23.3 fps -33%
Intel NUC 12 Pro Kit NUC12WSKi7
Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S
22.2 fps -36%
Morefine S500+
Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB
19.6 fps -43%
Minipc Union Ace Magician TK11-A0
Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G
17.3 fps -50%
Minisforum EliteMini B550
Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1
14.9 fps -57%
Extreme Preset DX11
Intel NUC 12 Pro Kit NUC12WSKi7
NVIDIA GeForce RTX 3060 Ti, i7-1260P
164.4 fps +392%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3)
, R9 6900HX
154.5 fps +363%
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
33.4 fps
Morefine S600-Apex Engineer
Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8
24.7 fps -26%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
24 fps -28%
Intel NUC 12 Pro Kit NUC12WSKi7
Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S
22.5 fps -33%
Morefine S500+
Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB
21.4 fps -36%
Minipc Union Ace Magician TK11-A0
Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G
17.7 fps -47%
Minisforum EliteMini B550
Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1
16.8 fps -50%
Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Intel NUC 12 Pro Kit NUC12WSKi7
NVIDIA GeForce RTX 3060 Ti, i7-1260P
141.6 fps +653%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3)
, R9 6900HX
134.2 fps +614%
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
18.8 fps
Morefine S600-Apex Engineer
Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8
15.5 fps -18%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
14.3 fps -24%
Morefine S500+
Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB
14.2 fps -24%
Intel NUC 12 Pro Kit NUC12WSKi7
Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S
13.6 fps -28%
Minipc Union Ace Magician TK11-A0
Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G
11.5 fps -39%
Minisforum EliteMini B550
Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1
10.6 fps -44%
1920x1080 Extreme HD Preset OpenGL AA:x8
Intel NUC 12 Pro Kit NUC12WSKi7
NVIDIA GeForce RTX 3060 Ti, i7-1260P
127.2 fps +497%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3)
, R9 6900HX
122.7 fps +476%
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
21.3 fps
Morefine S600-Apex Engineer
Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8
16.4 fps -23%
Intel NUC 12 Pro Kit NUC12WSKi7
Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S
16.2 fps -24%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
15.2 fps -29%
Minipc Union Ace Magician TK11-A0
Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G
13.7 fps -36%
Morefine S500+
Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB
12.8 fps -40%
Minisforum EliteMini B550
Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1
9.2 fps -57%
Unigine Superposition
1920x1080 1080p High
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3)
, R9 6900HX
14698 Points +361%
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
3187 Points
Morefine S600-Apex Engineer
Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8
2191 Points -31%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
2095 Points -34%
Morefine S500+
Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB
1926 Points -40%
Minisforum EliteMini B550
Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1
1579 Points -50%
Minipc Union Ace Magician TK11-A0
Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G
1530 Points -52%
1920x1080 1080p Extreme
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3)
, R9 6900HX
7035 Points +375%
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
1481 Points
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
1076 Points -27%
Morefine S600-Apex Engineer
Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8
1041 Points -30%
Morefine S500+
Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB
868 Points -41%
Minipc Union Ace Magician TK11-A0
Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G
776 Points -48%
Minisforum EliteMini B550
Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1
736 Points -50%
ComputeMark v2.1
1024x600 Normal, Score
Intel NUC 12 Pro Kit NUC12WSKi7
NVIDIA GeForce RTX 3060 Ti, i7-1260P
27847 Points +292%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3)
, R9 6900HX
27740 Points +290%
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
7111 Points
Morefine S500+
Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB
4148 Points -42%
Minisforum EliteMini B550
Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1
3843 Points -46%
Intel NUC 12 Pro Kit NUC12WSKi7
Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S
3535 Points -50%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
3390 Points -52%
Morefine S600-Apex Engineer
Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8
3343 Points -53%
Minipc Union Ace Magician TK11-A0
Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G
2693 Points -62%
1024x600 Normal, Fluid 3DTex
Intel NUC 12 Pro Kit NUC12WSKi7
NVIDIA GeForce RTX 3060 Ti, i7-1260P
2698 Points +575%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3)
, R9 6900HX
2679 Points +570%
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
400 Points
Morefine S600-Apex Engineer
Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8
298 Points -25%
Morefine S500+
Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB
276 Points -31%
Minisforum EliteMini B550
Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1
235 Points -41%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
234 Points -41%
Intel NUC 12 Pro Kit NUC12WSKi7
Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S
224 Points -44%
Minipc Union Ace Magician TK11-A0
Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G
186 Points -53%
1024x600 Normal, Fluid 2DTexArr
Intel NUC 12 Pro Kit NUC12WSKi7
NVIDIA GeForce RTX 3060 Ti, i7-1260P
2629 Points +551%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3)
, R9 6900HX
2619 Points +548%
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
404 Points
Morefine S600-Apex Engineer
Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8
286 Points -29%
Morefine S500+
Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB
272 Points -33%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
249 Points -38%
Intel NUC 12 Pro Kit NUC12WSKi7
Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S
242 Points -40%
Minisforum EliteMini B550
Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1
220 Points -46%
Minipc Union Ace Magician TK11-A0
Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G
204 Points -50%
1024x600 Normal, Mandel Vector
Intel NUC 12 Pro Kit NUC12WSKi7
NVIDIA GeForce RTX 3060 Ti, i7-1260P
5711 Points +181%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3)
, R9 6900HX
5655 Points +179%
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
2030 Points
Morefine S500+
Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB
1280 Points -37%
Minisforum EliteMini B550
Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1
1217 Points -40%
Intel NUC 12 Pro Kit NUC12WSKi7
Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S
891 Points -56%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
851 Points -58%
Morefine S600-Apex Engineer
Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8
808 Points -60%
Minipc Union Ace Magician TK11-A0
Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G
558 Points -73%
1024x600 Normal, QJuliaRayTrace
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3)
, R9 6900HX
10536 Points +352%
Intel NUC 12 Pro Kit NUC12WSKi7
NVIDIA GeForce RTX 3060 Ti, i7-1260P
10532 Points +352%
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
2332 Points
Intel NUC 12 Pro Kit NUC12WSKi7
Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S
1303 Points -44%
Morefine S500+
Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB
1205 Points -48%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
1191 Points -49%
Minisforum EliteMini B550
Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1
1123 Points -52%
Morefine S600-Apex Engineer
Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8
1115 Points -52%
Minipc Union Ace Magician TK11-A0
Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G
994 Points -57%

游戏性能

尽管新的 锐龙680M的性能大大超过了 Radeon RX Vega 8,但该iGPU只略微适合要求较高的游戏。也就是说,我们不能完全否定Radeon 680M的游戏性能。这是因为绝对有一些游戏可以在iGPU上顺利运行,但在这种情况下,你往往不得不用中度或高度预设来应付。

如前所述,我们还用Razer Core X和Nvidia RTX 30测试了UM690。 NvidiaGeForce RTX 3060 Ti.该设备的3D性能可以通过合适的外围设备得到大幅提升。然而,在我们测试的其他设备中,评测单位无法在相同的eGPU设置下保持自己的优势。例如, 英特尔Nuc 12 Pro与专用显卡一起提供了相当好的性能。

请参考我们的GPU游戏列表了解更多信息和基准测试。

The Witcher 3
1024x768 Low Graphics & Postprocessing
Intel NUC 12 Pro Kit NUC12WSKi7
NVIDIA GeForce RTX 3060 Ti, i7-1260P
308 (14.9min, 95.6P0.1, 204P1) fps +134%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti
, i5-1135G7, Future Path FPE220M8SSD512G
219 (9.36min, 50.7P0.1, 139.8P1) fps +66%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3)
, R9 6900HX
210.7 fps +60%
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
131.8 fps
Morefine S600-Apex Engineer
Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8
97.6 (8.8min, 27.5P0.1, 58.5P1) fps -26%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
97.2 fps -26%
Intel NUC 12 Pro Kit NUC12WSKi7
Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S
88.1 (3.39min, 21.4P0.1, 52.9P1) fps -33%
Morefine S500+
Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB
84.5 (18.4min, 24P0.1, 61.8P1) fps -36%
Minisforum EliteMini B550
Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1
69 (13.2min, 36.3P0.1, 41.6P1) fps -48%
Minipc Union Ace Magician TK11-A0
Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G
65.9 (1.678min, 12.6P0.1, 39.7P1) fps -50%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Intel NUC 12 Pro Kit NUC12WSKi7
NVIDIA GeForce RTX 3060 Ti, i7-1260P
151.2 (24.1min, 86.8P0.1, 114.5P1) fps +266%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti
, i5-1135G7, Future Path FPE220M8SSD512G
117 (21.2min, 58.9P0.1, 77.8P1) fps +183%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3)
, R9 6900HX
110 fps +166%
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
41.3 fps
Morefine S600-Apex Engineer
Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8
32.1 (3.28min, 14.8P0.1, 18.7P1) fps -22%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
32 fps -23%
Morefine S500+
Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB
25.6 (19.1min, 20P0.1, 22.1P1) fps -38%
Minipc Union Ace Magician TK11-A0
Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G
23.7 (1.923min, 13.5P0.1, 19.7P1) fps -43%
Minisforum EliteMini B550
Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1
19.3 (2.25min, 2.26P0.1, 2.92P1) fps -53%
Intel NUC 12 Pro Kit NUC12WSKi7
Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S
15.2 (8.49min, 8.73P0.1, 9.27P1) fps -63%
Borderlands 3
1280x720 Very Low Overall Quality (DX11)
Intel NUC 12 Pro Kit NUC12WSKi7
NVIDIA GeForce RTX 3060 Ti, i7-1260P
145.2 fps +77%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3)
, R9 6900HX
118.3 fps +44%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti
, i5-1135G7, Future Path FPE220M8SSD512G
97.1 fps +18%
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
82.1 fps
Morefine S500+
Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB
72.7 fps -11%
Minisforum EliteMini B550
Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1
61 fps -26%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
59.1 fps -28%
Morefine S600-Apex Engineer
Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8
55.5 fps -32%
Intel NUC 12 Pro Kit NUC12WSKi7
Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S
52.4 fps -36%
Minipc Union Ace Magician TK11-A0
Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G
33.9 fps -59%
1920x1080 High Overall Quality (DX11)
Intel NUC 12 Pro Kit NUC12WSKi7
NVIDIA GeForce RTX 3060 Ti, i7-1260P
101.3 fps +282%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3)
, R9 6900HX
89.3 fps +237%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti
, i5-1135G7, Future Path FPE220M8SSD512G
81 fps +206%
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
26.5 fps
Morefine S500+
Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB
17.7 fps -33%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
16.2 fps -39%
Morefine S600-Apex Engineer
Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8
15.7 fps -41%
Intel NUC 12 Pro Kit NUC12WSKi7
Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S
15 fps -43%
Minisforum EliteMini B550
Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1
14.8 fps -44%
Minipc Union Ace Magician TK11-A0
Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G
10.5 fps -60%
GTA V
1024x768 Lowest Settings possible
Intel NUC 12 Pro Kit NUC12WSKi7
NVIDIA GeForce RTX 3060 Ti, i7-1260P
178.5 (4.33min, 125P1) fps +20%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3)
, R9 6900HX
176.8 (3.31min, 125P1) fps +18%
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
149.3 (5.43min, 100P1) fps
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti
, i5-1135G7, Future Path FPE220M8SSD512G
140.8 (1.722min, 4.74P1) fps -6%
Morefine S500+
Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB
136 (6.37min, 90.9P1) fps -9%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
135.3 (26.7min, 90.9P1) fps -9%
Morefine S600-Apex Engineer
Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8
114.9 (9.31min, 76.9P1) fps -23%
Minisforum EliteMini B550
Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1
113.4 (25.6min, 76.9P1) fps -24%
Intel NUC 12 Pro Kit NUC12WSKi7
Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S
108.6 (21.4min, 71.4P1) fps -27%
Minipc Union Ace Magician TK11-A0
Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G
68.3 (18.7min, 45.5P1) fps -54%
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3)
, R9 6900HX
152.7 (3.6min, 100P1) fps +210%
Intel NUC 12 Pro Kit NUC12WSKi7
NVIDIA GeForce RTX 3060 Ti, i7-1260P
128.2 (33.8min, 83.3P1) fps +160%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti
, i5-1135G7, Future Path FPE220M8SSD512G
96.1 (25.8min, 55.6P1) fps +95%
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
49.3 (7.78min, 34.5P1) fps
Morefine S500+
Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB
33.9 (11min, 24.4P1) fps -31%
Minisforum EliteMini B550
Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1
26.5 (10.4min, 18.9P1) fps -46%
Morefine S600-Apex Engineer
Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8
22.2 (5.57min, 17.5P1) fps -55%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
21 (8.15min, 16.1P1) fps -57%
Intel NUC 12 Pro Kit NUC12WSKi7
Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S
19.4 (8.25min, 15.2P1) fps -61%
Minipc Union Ace Magician TK11-A0
Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G
16.4 (5.82min, 11.9P1) fps -67%
Far Cry 5
1280x720 Low Preset AA:T
Intel NUC 12 Pro Kit NUC12WSKi7
NVIDIA GeForce RTX 3060 Ti, i7-1260P
153 (116min) fps +115%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3)
, R9 6900HX
137 (107min) fps +93%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti
, i5-1135G7, Future Path FPE220M8SSD512G
79 (61min) fps +11%
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
71 (39min) fps
Morefine S500+
Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB
62 (57min) fps -13%
Morefine S600-Apex Engineer
Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8
59 (53min) fps -17%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
57 (49min) fps -20%
Intel NUC 12 Pro Kit NUC12WSKi7
Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S
52 (45min) fps -27%
Minisforum EliteMini B550
Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1
44 (19min) fps -38%
Minipc Union Ace Magician TK11-A0
Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G
25 (19min) fps -65%
1920x1080 High Preset AA:T
Intel NUC 12 Pro Kit NUC12WSKi7
NVIDIA GeForce RTX 3060 Ti, i7-1260P
127 (101min) fps +226%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3)
, R9 6900HX
112 (93min) fps +187%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti
, i5-1135G7, Future Path FPE220M8SSD512G
65 (44min) fps +67%
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
39 (34min) fps
Morefine S600-Apex Engineer
Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8
28 (25min) fps -28%
Morefine S500+
Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB
27 (24min) fps -31%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
27 (24min) fps -31%
Intel NUC 12 Pro Kit NUC12WSKi7
Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S
25 (23min) fps -36%
Minisforum EliteMini B550
Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1
20 (10min) fps -49%
Minipc Union Ace Magician TK11-A0
Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G
16 (13min) fps -59%
Far Cry New Dawn
1280x720 Low Preset
Intel NUC 12 Pro Kit NUC12WSKi7
NVIDIA GeForce RTX 3060 Ti, i7-1260P
133 (97min) fps +105%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3)
, R9 6900HX
114 (75min) fps +75%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti
, i5-1135G7, Future Path FPE220M8SSD512G
72 (50min) fps +11%
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
65 (50min) fps
Morefine S500+
Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB
56 (43min) fps -14%
Morefine S600-Apex Engineer
Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8
53 (31min) fps -18%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
52 (31min) fps -20%
Intel NUC 12 Pro Kit NUC12WSKi7
Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S
47 (30min) fps -28%
Minisforum EliteMini B550
Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1
42 (33min) fps -35%
Minipc Union Ace Magician TK11-A0
Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G
29 (19min) fps -55%
1920x1080 High Preset
Intel NUC 12 Pro Kit NUC12WSKi7
NVIDIA GeForce RTX 3060 Ti, i7-1260P
111 (89min) fps +200%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3)
, R9 6900HX
97 (75min) fps +162%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti
, i5-1135G7, Future Path FPE220M8SSD512G
58 (44min) fps +57%
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
37 (17min) fps
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
28 (21min) fps -24%
Morefine S600-Apex Engineer
Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8
27 (21min) fps -27%
Morefine S500+
Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB
26 (21min) fps -30%
Intel NUC 12 Pro Kit NUC12WSKi7
Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S
26 (19min) fps -30%
Minisforum EliteMini B550
Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1
19 (6min) fps -49%
Minipc Union Ace Magician TK11-A0
Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G
15 (12min) fps -59%
Dota 2 Reborn
1280x720 min (0/3) fastest
Intel NUC 12 Pro Kit NUC12WSKi7
NVIDIA GeForce RTX 3060 Ti, i7-1260P
167.7 (148.7min) fps +17%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3)
, R9 6900HX
146.6 (129.5min) fps +3%
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
143 (124.5min) fps
Morefine S600-Apex Engineer
Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8
141 (113.7min) fps -1%
Morefine S500+
Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB
137.4 (117.3min) fps -4%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
136.9 (106.8min) fps -4%
Minisforum EliteMini B550
Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1
124.2 (110.5min) fps -13%
Intel NUC 12 Pro Kit NUC12WSKi7
Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S
116.4 (93.7min) fps -19%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti
, i5-1135G7, Future Path FPE220M8SSD512G
115.5 (101.9min) fps -19%
Minipc Union Ace Magician TK11-A0
Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G
79.1 (53.9min) fps -45%
1920x1080 high (2/3)
Intel NUC 12 Pro Kit NUC12WSKi7
NVIDIA GeForce RTX 3060 Ti, i7-1260P
144.9 (126.6min) fps +72%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3)
, R9 6900HX
125.8 (107.5min) fps +49%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti
, i5-1135G7, Future Path FPE220M8SSD512G
94.8 (81.6min) fps +12%
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
84.3 (74.6min) fps
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
68 (62.7min) fps -19%
Morefine S600-Apex Engineer
Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8
67 (61.5min) fps -21%
Morefine S500+
Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB
66.7 (61min) fps -21%
Intel NUC 12 Pro Kit NUC12WSKi7
Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S
63.1 (57.2min) fps -25%
Minisforum EliteMini B550
Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1
51.7 (47.2min) fps -39%
Minipc Union Ace Magician TK11-A0
Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G
43.4 (31.3min) fps -49%

Minisforum Venus Series UM690 + iGPU

lowmed.highultra
GTA V (2015) 149.3 138.1 49.3 22.3
The Witcher 3 (2015) 131.8 81.4 41.3 27
Dota 2 Reborn (2015) 143 121.4 84.3 73.6
Final Fantasy XV Benchmark (2018) 66.7 32.3 23.6
X-Plane 11.11 (2018) 66.1 53.1 43.1
Far Cry 5 (2018) 71 43 39 37
Strange Brigade (2018) 140.6 55.8 46.8 40.4
Far Cry New Dawn (2019) 65 39 37 34
Metro Exodus (2019) 73 29.8 22.9 19.5
Borderlands 3 (2019) 82.1 42.5 26.5 21.9
F1 2020 (2020) 177 86.3 67.6 46.7
F1 2021 (2021) 184.4 90.5 67.5 29.1
Tiny Tina's Wonderlands (2022) 59.5 44.2 29.8 24.4
F1 22 (2022) 82 72.9 53.8 13.2
The Witcher 3 v4.00 (2023) 43.3 38.9 35.1 29.3

Minisforum Venus Series UM690 + Nvidia GeForce RTX 3060 Ti (Razer Core X via Thunderbolt)

lowmed.highultraQHD4K
GTA V (2015) 176.8 169.8 152.7 90.5 84.4 96.2
The Witcher 3 (2015) 210.7 145.6 110 57.9 62.4
Dota 2 Reborn (2015) 146.6 130.6 125.8 113.3 96.9
Final Fantasy XV Benchmark (2018) 181.7 133.9 91.5 74.3 46.3
X-Plane 11.11 (2018) 108.9 96 77.5 66.9
Far Cry 5 (2018) 137 125 112 107 90 55
Strange Brigade (2018) 166.6 130.9 129 127.4 116.8 79.6
Far Cry New Dawn (2019) 114 101 97 88 82 56
Metro Exodus (2019) 112.6 76.3 59.1 44.5 39.7 30.5
Borderlands 3 (2019) 118.3 104.9 89.3 76.4 60.8 36.9
F1 2020 (2020) 168.9 99.2 98.1 82.4 73.3 52.3
F1 2021 (2021) 112 87 55.7 43.5 39.4 34.6
Tiny Tina's Wonderlands (2022) 150.3 122.1 90.5 74.1 57.6 33.8
F1 22 (2022) 50.2 44.9 35 22.6 21.8 17.4
The Witcher 3 v4.00 (2023) 108.8 94.1 83.1 75.2 63.9 43.1

排放 - 高效但可闻

噪声排放

直到现在,我们一直对MINISFORUM的产品在负载下运行的安静程度感到非常惊讶。我们的测量表明,MINISFORUM维纳斯系列UM690的冷却装置在负载下非常安静。然而,该设备并非完全无声。根据我们的测量,该机器在中等负荷下产生34 dB(A)的噪音,在全负荷下没有变得更响,为34.4 dB(A)。但是,由于风扇的频率很高,对我们来说,风扇的噪音比预期的要突出得多。这款 Minisforum Neptune系列NAD9在这方面做得很好,在满负荷情况下几乎听不到。

Noise Level

Idle
31.6 / 31.6 / 31.6 dB(A)
Load
33.9 / 34.4 dB(A)
  red to green bar


30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light   Earthworks M23R, Arta (15 cm distance)   environment noise: 30.5 dB(A)
Minisforum Venus Series UM690
R9 6900HX, Radeon 680M
Morefine S500+
R9 5900HX, Vega 8
Minisforum EliteMini B550
R7 5700G, Vega 8
Minipc Union Ace Magician TK11-A0
i5-1135G7, Iris Xe G7 96EUs
Morefine S600-Apex Engineer
i9-12900HK, Iris Xe G7 96EUs
Minisforum Neptune Series NAD9
i9-12900H, Iris Xe G7 96EUs
Intel NUC 12 Pro Kit NUC12WSKi7
i7-1260P, Iris Xe G7 96EUs
Noise
-8%
3%
-4%
-17%
5%
-9%
off / environment *
30.5
30.1
1%
30.2
1%
30.28
1%
29.6
3%
30.2
1%
30.4
-0%
Idle Minimum *
31.6
30.5
3%
31.82
-1%
36.1
-14%
30.5
3%
33.1
-5%
Idle Average *
31.6
33.15
-5%
30.5
3%
32.27
-2%
37.6
-19%
30.5
3%
33.1
-5%
Idle Maximum *
31.6
30.5
3%
33.17
-5%
39.2
-24%
30.5
3%
33.1
-5%
Load Average *
33.9
31.2
8%
35.82
-6%
42.6
-26%
30.5
10%
38.1
-12%
Load Maximum *
34.4
41.63
-21%
35.1
-2%
37.1
-8%
42.4
-23%
30.5
11%
43.6
-27%

* ... smaller is better

温度

Minisforum UM690的机箱上有许多通风口,这样可以有效地将热量排出机箱。内置的冷却装置由两个热管和一个小风扇组成。此外,液态金属已被应用于SoC,以确保最佳的热传导。在实际使用中,该冷却解决方案的效果相当好,使机箱温度始终保持凉爽。相比之下,在我们的测试中,SoC在负载下最高达到了76°C(169°F),这与里面的笔记本电脑组件的安全温度限制还相差甚远。

压力测试 Prime95, solo
压力测试 Prime95, solo
压力测试FurMark,独奏
压力测试FurMark,独奏
压力测试 Prime95 + FurMark
压力测试 Prime95 + FurMark
Minisforum Venus系列UM690在压力测试中的表现
Minisforum Venus系列UM690在压力测试中的表现
Minisforum Venus系列UM690在压力测试中的表现
Minisforum Venus系列UM690在压力测试中的表现
Minisforum Venus系列UM690在压力测试中的表现
Minisforum Venus系列UM690在压力测试中的表现
压力测试中UM690的适配器
压力测试中UM690的适配器

消耗功率

120瓦的适配器
120瓦的适配器

Minisforum Venus系列UM690是比较中最高效的设备之一。单纯看耗电量,我们的评测设备与以下设备处于同一水平 Minisforum Neptune系列NAD9的水平,但AMD SoC的效率略高。我们的监测设备报告说,空闲时的功耗只有8.7至10.5瓦。在压力测试中,UM690的耗电量高达94.5瓦,120瓦的电源适配器可以轻松应对。

Power Consumption
Off / Standbydarklight 0.55 / 1.25 Watt
Idledarkmidlight 8.7 / 9.6 / 10.5 Watt
Load midlight 65.8 / 94.5 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Minisforum Venus Series UM690
R9 6900HX, Radeon 680M
Minisforum EliteMini B550
R7 5700G, Vega 8
Minipc Union Ace Magician TK11-A0
i5-1135G7, Iris Xe G7 96EUs
Morefine S600-Apex Engineer
i9-12900HK, Iris Xe G7 96EUs
Minisforum Neptune Series NAD9
i9-12900H, Iris Xe G7 96EUs
Intel NUC 12 Pro Kit NUC12WSKi7
i7-1260P, Iris Xe G7 96EUs
Average AMD Radeon 680M

Average of class Mini PC

Power Consumption
-14%
42%
-309%
-35%
-17%
14%
-15%
Idle Minimum *
8.7
8.9
-2%
3.4
61%
46.5
-434%
12.1
-39%
12.1
-39%
Idle Average *
9.6
9.6
-0%
5.7
41%
63
-556%
13
-35%
12.2
-27%
8.92 ?(4.4 - 15, n=33)
7%
Idle Maximum *
10.5
11.8
-12%
7
33%
68.9
-556%
18.2
-73%
12.3
-17%
Load Average *
65.8
98.9
-50%
36.5
45%
73.9
-12%
70.6
-7%
64
3%
53.9 ?(20 - 80.4, n=33)
18%
Load Maximum *
94.5
101.8
-8%
68
28%
80.8
14%
113
-20%
98.8
-5%

* ... smaller is better

Power consumption with external monitor

051015202530354045505560657075808590Tooltip
Minisforum Venus Series UM690; Prime95 V2810 Stress (external Monitor): Ø71.7 (66.7-93.8)
Minisforum Venus Series UM690; Cinebench R15 Multi (external Monitor): Ø81.6 (75.6-89.7)
Minisforum Venus Series UM690; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø72.4 (64.2-86.5)
Minisforum Venus Series UM690; Idle 1min (external Monitor): Ø9.57 (8.74-19.4)

Pros

+ 卓越的系统性能
+ 时尚的设计
+ 合理的电源要求
+ 快速的Wi-Fi
+ 非常紧凑的机箱
+ 可以驱动三个显示器
+ 许多USB端口
+ USB4 Thunderbolt
+ 坚固的金属支架
+ VESA安装选项

Cons

- 没有SD卡读卡器
- 显示器输出只支持最高4K@60Hz
- 负载下有声音的冷却装置

结论 - 具有现代端口选项的小型动力装置

Minisforum Venus Series UM690评论。该产品由MINISFORUM慷慨提供。
Minisforum Venus系列UM690评测。该产品由MINISFORUM友好地提供。
Minisforum Venus系列UM690评测。该产品由MINISFORUM友好地提供。

Minisforum Venus系列UM690是一款尖端的迷你电脑,也提供了大量的性能。的 AMD Ryzen 9 6900HX是UM690的最佳选择,可以持续提供出色的性能,而不会受到散热限制的阻碍。新的Rembrandt SoC具有最新的iGPU,其形式为 AMD Radeon 680M它完全有能力流畅地运行要求不高的游戏,并且在性能方面几乎一直能够超越英特尔Iris Xe iGPU。该设备的装配和加工没有什么可批评的。每样东西都很合身,在我们的评测设备上没有明显的缝隙。然而,我们希望MINISFORUM选择了更好的材料,而不是主要依靠塑料结构。但至少该公司已经证明它有能力用不同的方式来做事情。 海王星系列NAD9.

尽管UM690非常紧凑,但MINISFORUM并没有在外部接口上吝啬。众多的USB端口,包括对Thunderbolt的支持,使该设备具有吸引力,尤其是面向未来的。我们测试了使用外部显卡还能从迷你PC中获得什么。结果是:UM690可以非常迅速地变成一个真正好的游戏设备,能够流畅地运行最新的游戏。

Minisforum Venus Series UM690采用了AMD Ryzen 9 6900HX,提供了极好的性能,而不会消耗太多的电力。

我们对电脑内部的冷却装置确实有一个小小的不满。虽然根据我们的测量,它实际上运行得相当安静,但我们的主观印象是,该设备在负载下是可以听到的,比海王星系列NAD9的声音大得多。 海王星系列NAD9.值得称赞的是,UM690可以同时驱动三个显示器,尽管你在现实生活中可能不会经常看到这种使用情况。不幸的是,当用户将设备连接到4K显示器时,仍被限制在60Hz的刷新率。在我们看来,未来必须提供4K@144Hz支持。

价格和可用性

你可以直接从Minicforum订购维纳斯系列UM690。该公司目前正在提供有吸引力的预售折扣:评测机型通常价格为899欧元/759美元,但折扣后只需719欧元/649美元 。最便宜的裸机型号起价为€559/US$499 。所有显示的价格都包括税费。

该产品目前从香港发货,通常需要2-3周左右的时间来交付。今后,该产品将在德语区市场上市,从而大大缩短该地区的运输时间。

审查样本是由制造商免费借给作者用于审查的。该公司对这篇评论没有影响,在发表前也没有收到任何版本。没有义务发表关于该产品的任何文章。

Minisforum Venus Series UM690 - 01/30/2023 v7 (old)
Sebastian Bade

Chassis
81 / 98 → 83%
Connectivity
68 / 81 → 84%
Weight
81%
Games Performance
78%
Application Performance
97%
Workstation
77%
Noise
85%
Average
81%
86%
Mini PC - Weighted Average
Please share our article, every link counts!
Mail Logo
> Notebookcheck中文版(NBC中国) > 评测 > Minisforum Venus Series UM690台式机评测:配备Ryzen 9 6900HX和USB4的小型办公电脑
Sebastian Bade, 2023-02- 3 (Update: 2023-02- 3)
