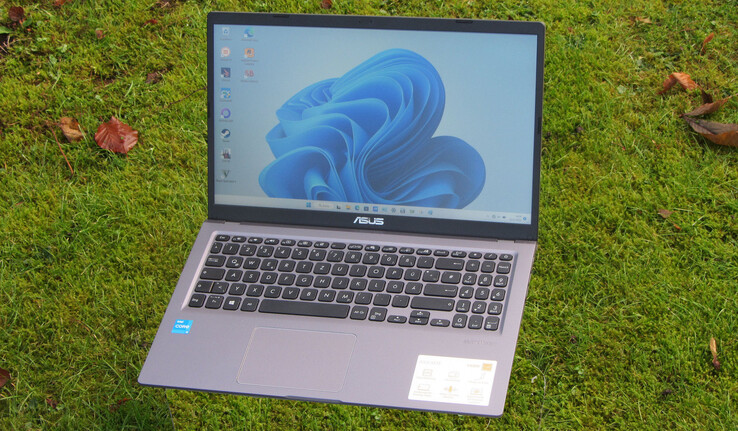

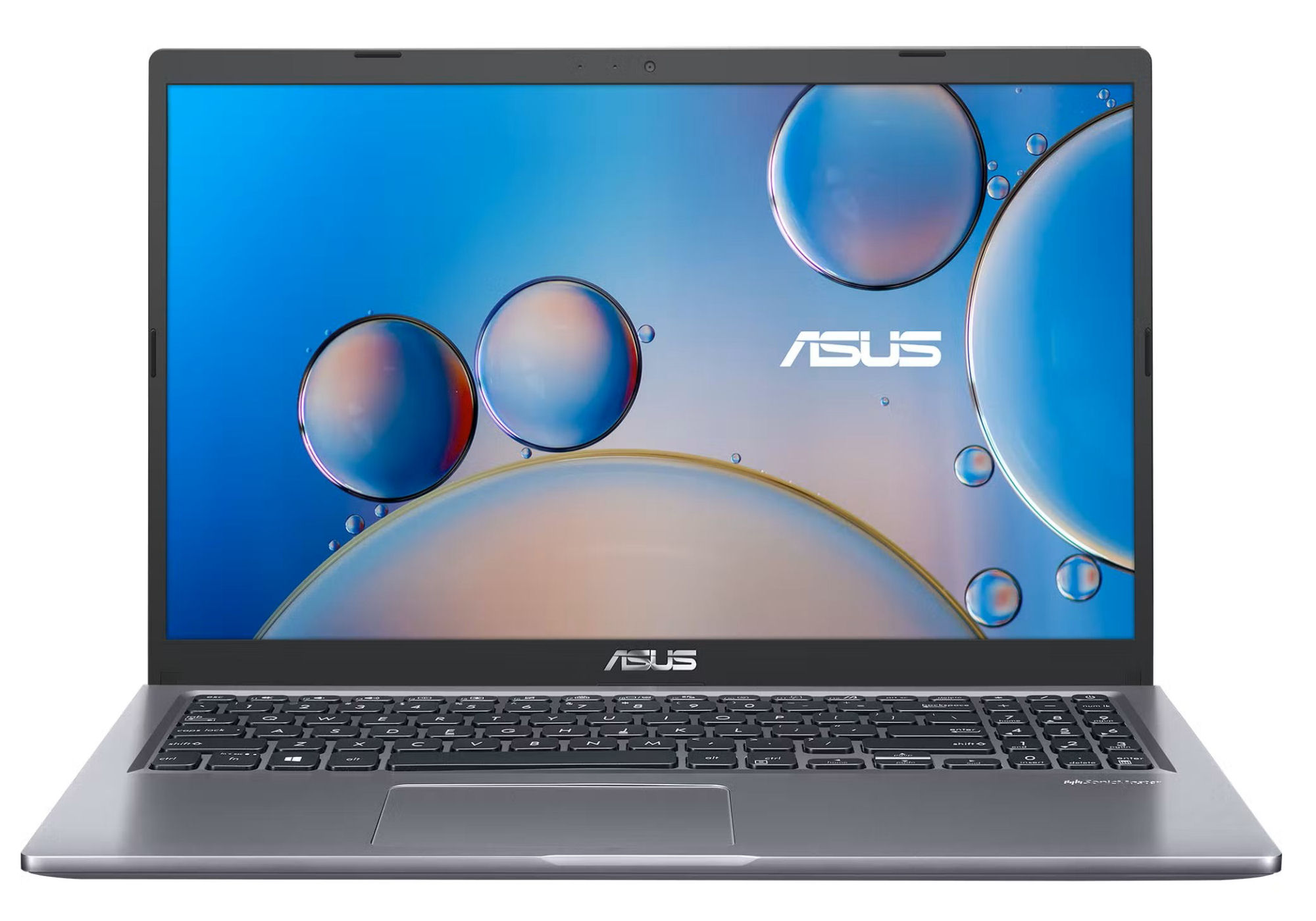

华硕P1511CEA回顾:一台经济实惠的办公笔记本电脑,适用于学校、办公室、休闲场所
通过P1511CEA,华硕在其产品系列中拥有了一款面向私人和企业用户的办公笔记本电脑。这个价格点使该设备很有吸引力:这款笔记本电脑可以以350美元左右的价格买到,包装中包括一个 酷睿-i3-1115G4CPU,8GB内存,256GB固态硬盘,以及Windows 10 Pro(可升级到Windows 11)。可能的竞争对手包括以下设备联想IdeaPad 3 15ITL05诸如联想IdeaPad 3 15ITL05,戴尔Inspiron 15 3505。戴尔 Inspiron 15 3505,以及富士通Lifebook A3510,联想联想V15 ADA,以及Acer Extensa 15 EX215-54.
一台笔记本,许多名字:尽管包装上有正确的名字 "华硕P1511CEA",但笔记本掌托上的贴纸表明该设备是X515。在其他地区,该设备被作为Vivobook 15 X515销售。此外,在各种网上商店可以找到 "ExpertBook P1 "的名字。
潜在的竞争对手比较
Rating | Date | Model | Weight | Height | Size | Resolution | Price |
---|---|---|---|---|---|---|---|
77.5 % v7 (old) | 01 / 2023 | Asus P1511CEA-BQ753R i3-1115G4, UHD Graphics Xe G4 48EUs | 1.8 kg | 19.9 mm | 15.60" | 1920x1080 | |
79.3 % v7 (old) | 02 / 2022 | Lenovo IdeaPad 3 15ITL05 81X80074GE i3-1115G4, UHD Graphics Xe G4 48EUs | 1.7 kg | 19.9 mm | 15.60" | 1920x1080 | |
76.5 % v7 (old) | Lenovo V15-ADA 82C7009SGE Athlon 3150U, Vega 3 | 1.9 kg | 20 mm | 15.60" | 1920x1080 | ||
75.9 % v7 (old) | 04 / 2022 | Dell Inspiron 15 3505-PXHPW R5 3450U, Vega 8 | 2 kg | 19.89 mm | 15.60" | 1920x1080 | |
81.2 % v7 (old) | 02 / 2022 | Fujitsu Lifebook A3510 (FPC04905BP) i3-1005G1, UHD Graphics G1 (Ice Lake 32 EU) | 1.8 kg | 23.9 mm | 15.60" | 1920x1080 | |
78 % v7 (old) | 02 / 2022 | Acer Extensa 15 EX215-54-5103 i5-1135G7, Iris Xe G7 80EUs | 1.9 kg | 19.9 mm | 15.60" | 1920x1080 |
» Notebookcheck多媒体笔记本电脑Top 10排名
» Notebookcheck游戏笔记本电脑Top 10排名
» Notebookcheck低价办公/商务笔记本电脑Top 10排名
» Notebookcheck高端办公/商务笔记本电脑Top 10排名
» Notebookcheck工作站笔记本电脑Top 10排名
» Notebookcheck亚笔记本电脑Top 10排名
» Notebookcheck超级本产品Top 10排名
» Notebookcheck变形本产品Top 10排名
» Notebookcheck平板电脑Top 10排名
» Notebookcheck智能手机Top 10排名
» Notebookcheck评测过最出色的笔记本电脑屏幕
» Notebookcheck售价500欧元以下笔记本电脑Top 10排名
» Notebookcheck售价300欧元以下笔记本电脑Top 10排名
外壳和功能 - 华硕笔记本电脑配备了USB-C

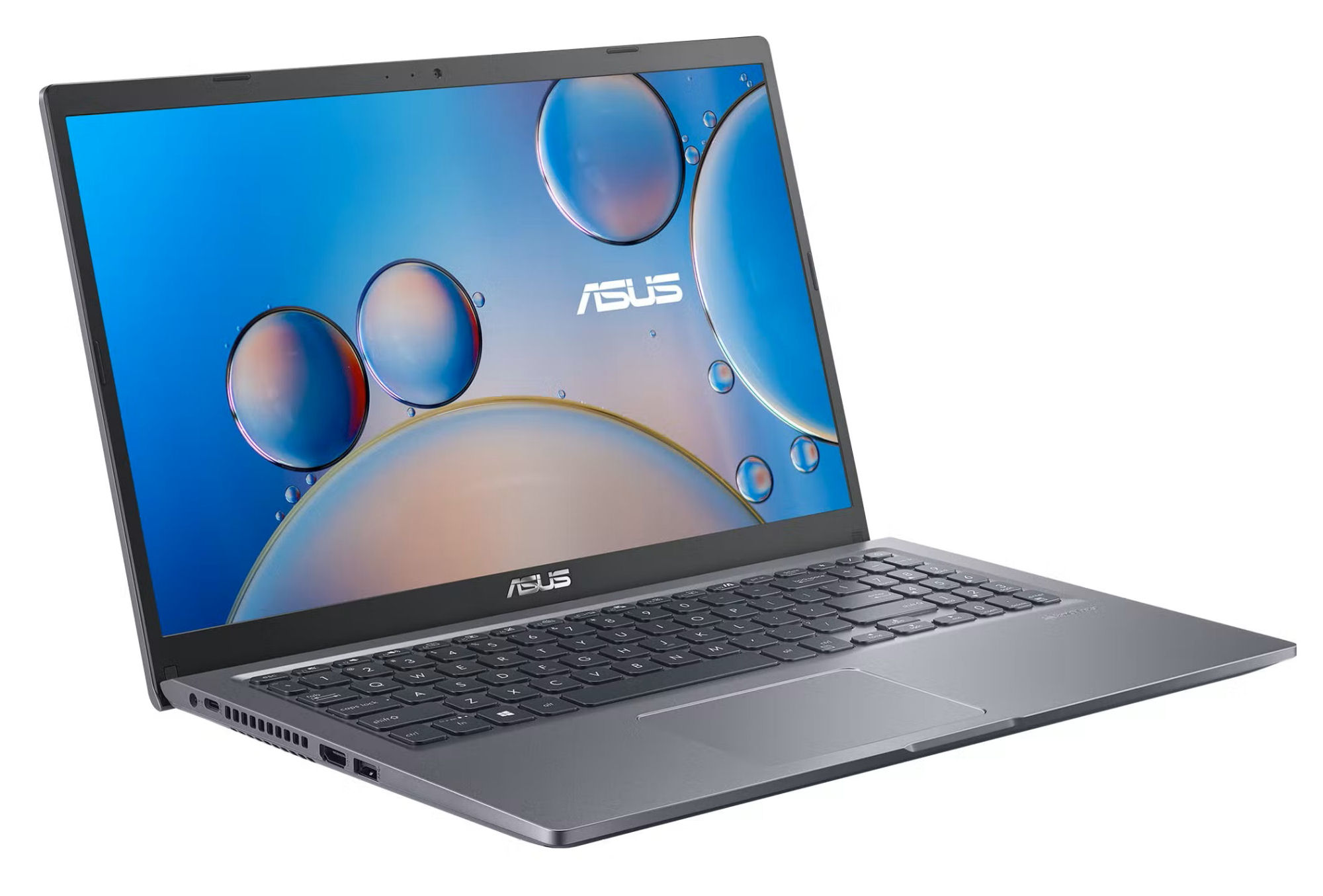

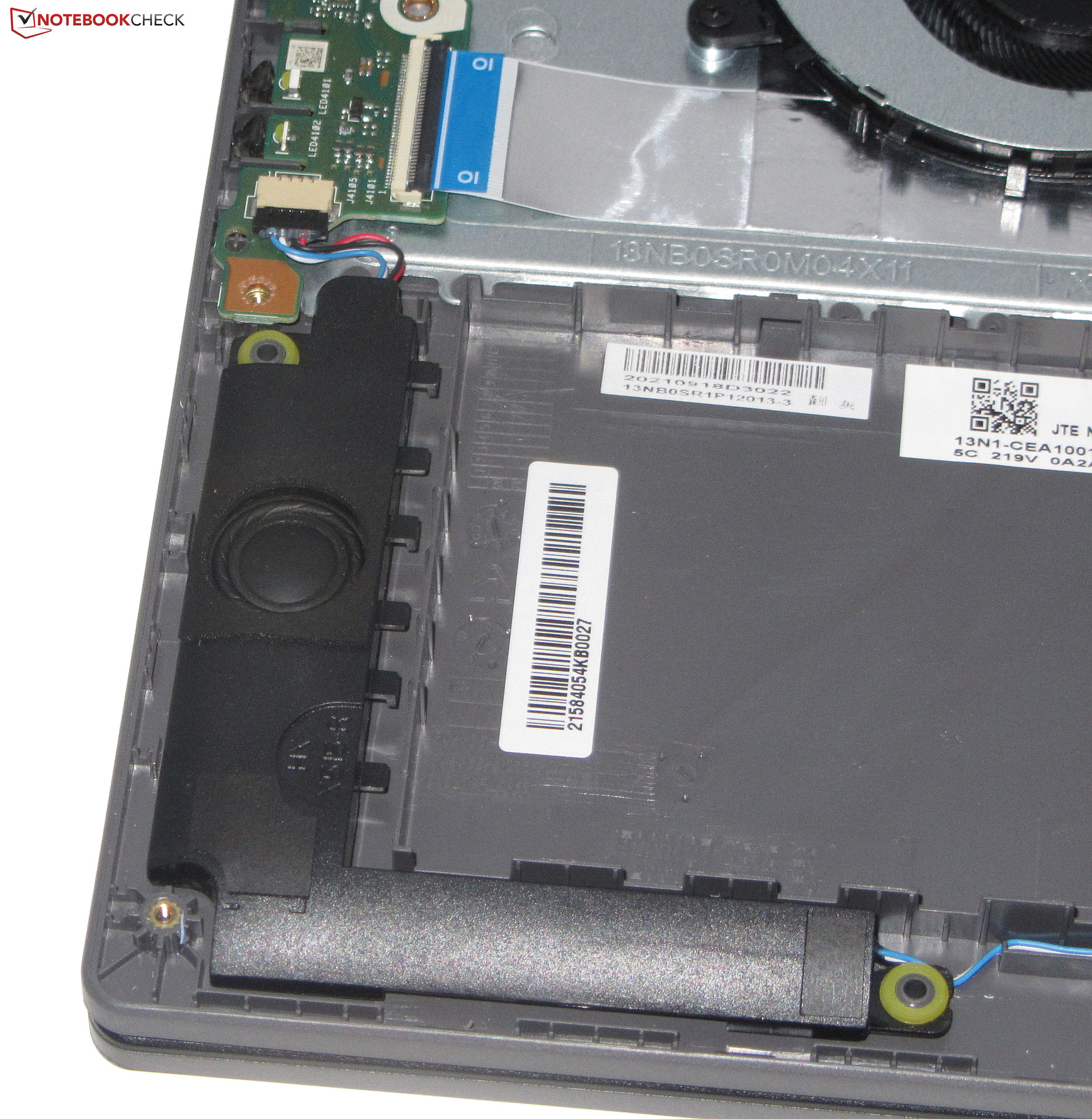

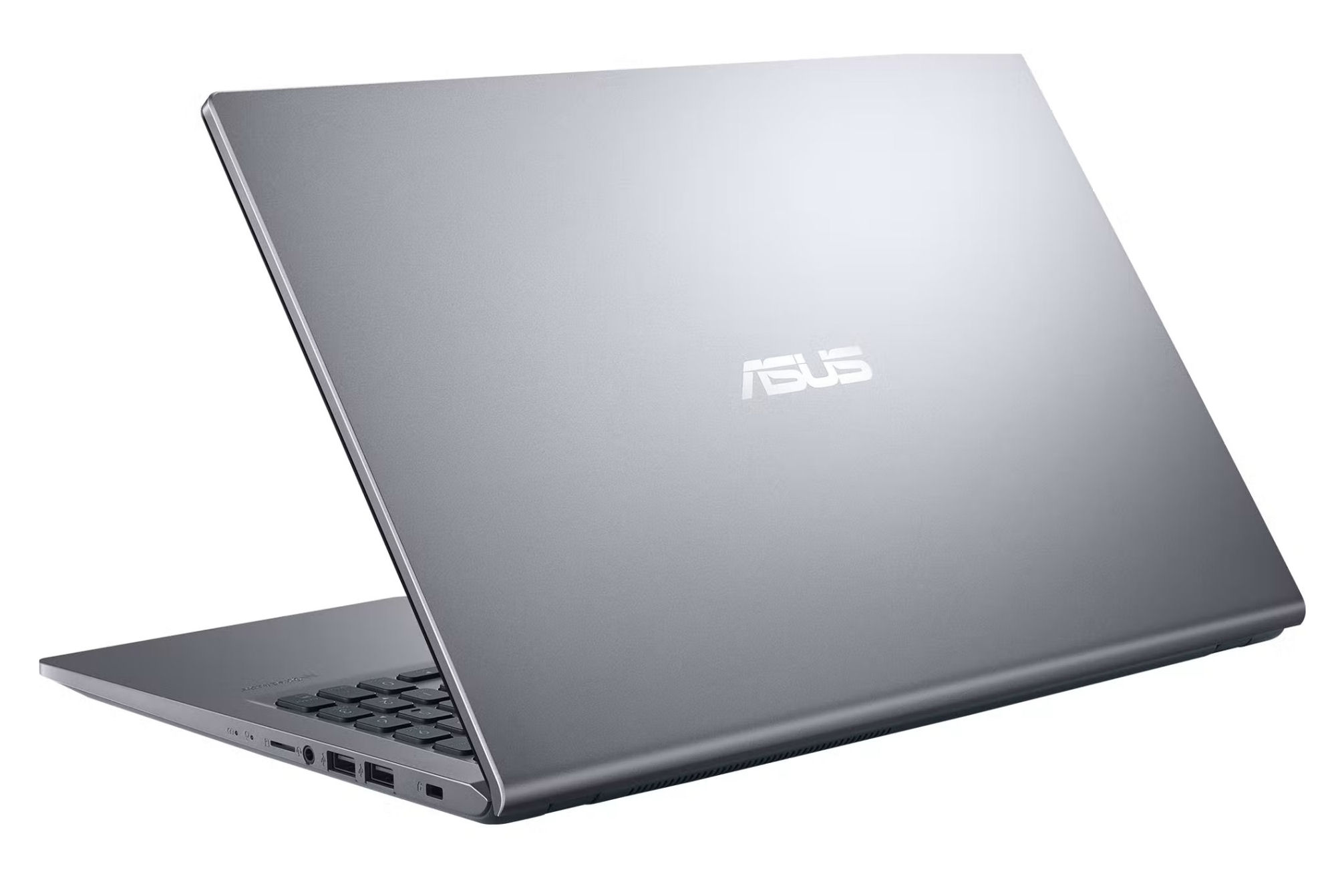

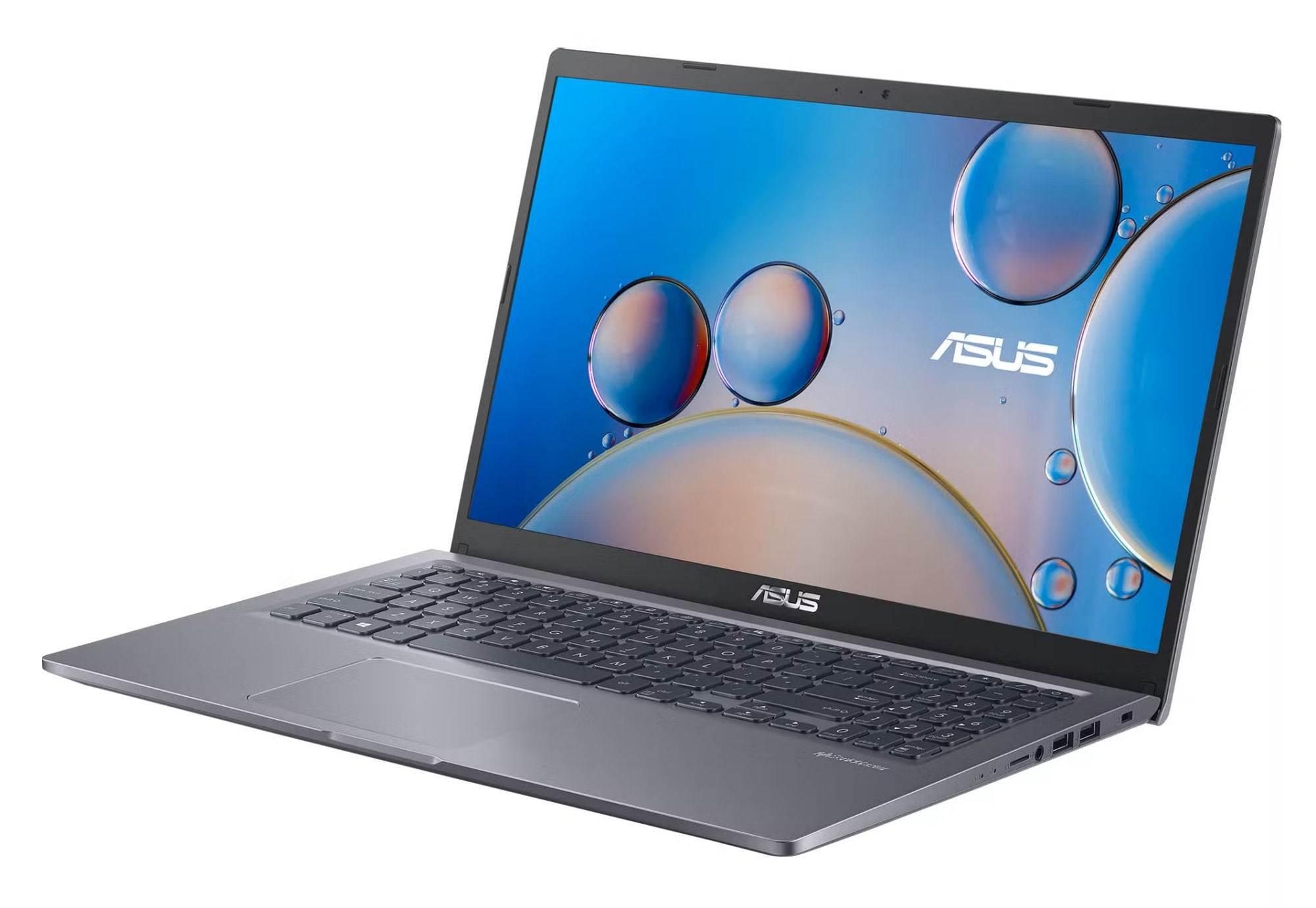

华硕选择了一个灰色的塑料外壳,表面光滑、无光泽。由于感觉不到突起,所以单元的间隙很紧凑。底座和盖子可以扭动,但一切都在限制之内。电池(用螺丝固定,不是用胶水)以及其他内部零件在拆下底壳后可以接触到。内置网络摄像头(0.3MP,最大640 x 480像素)没有机械盖。

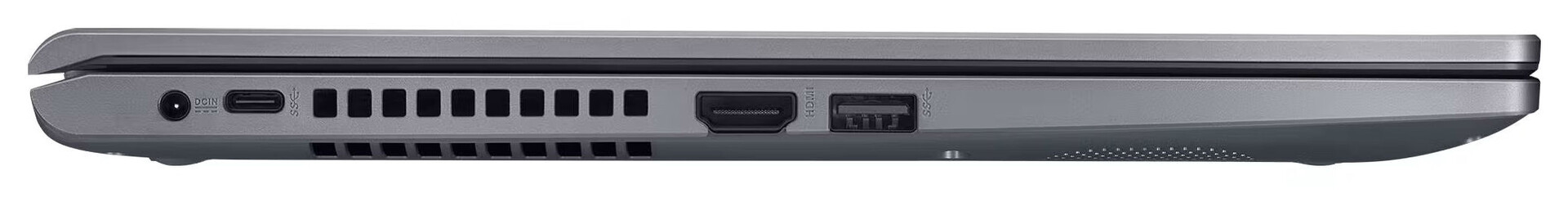

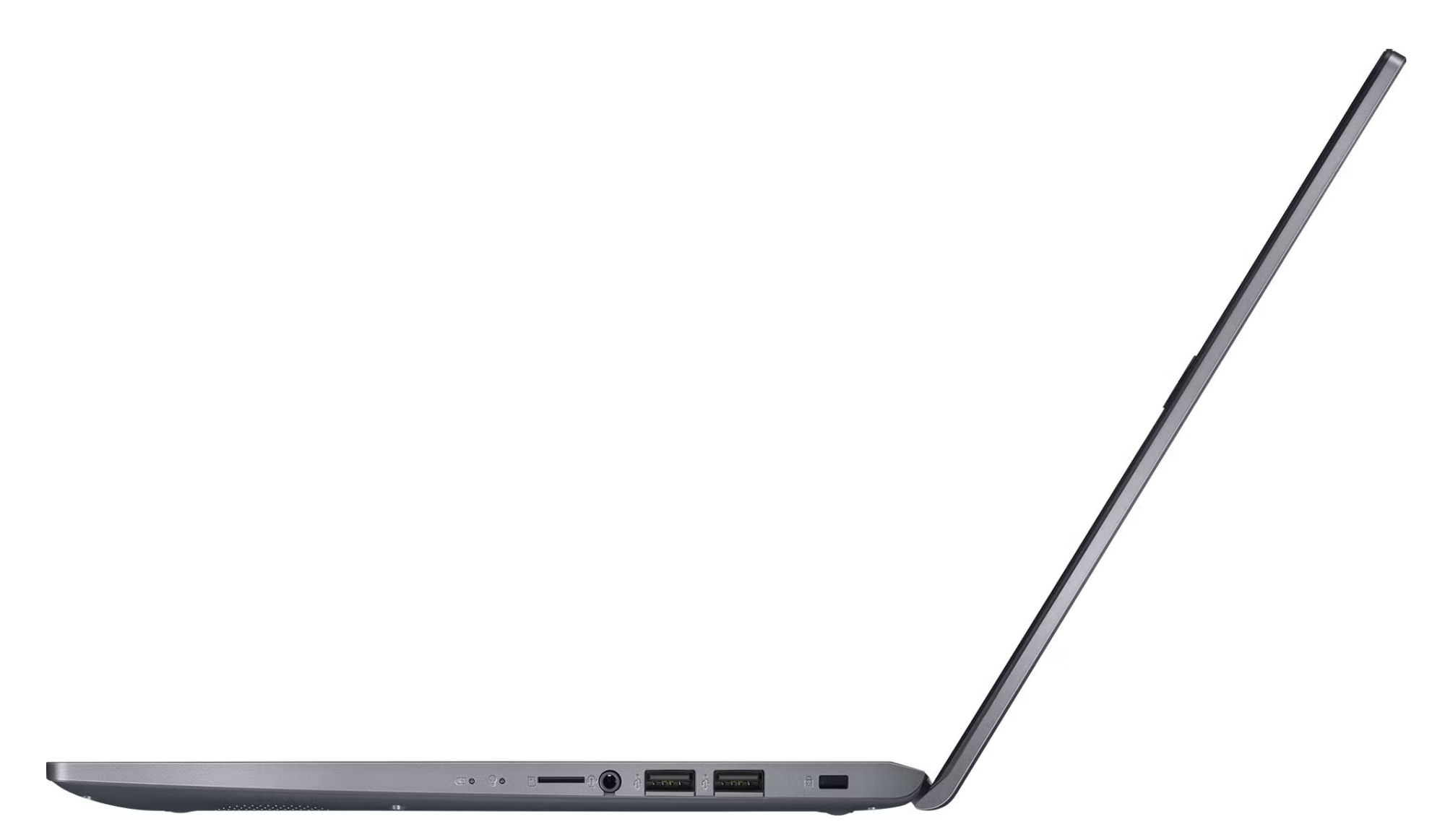

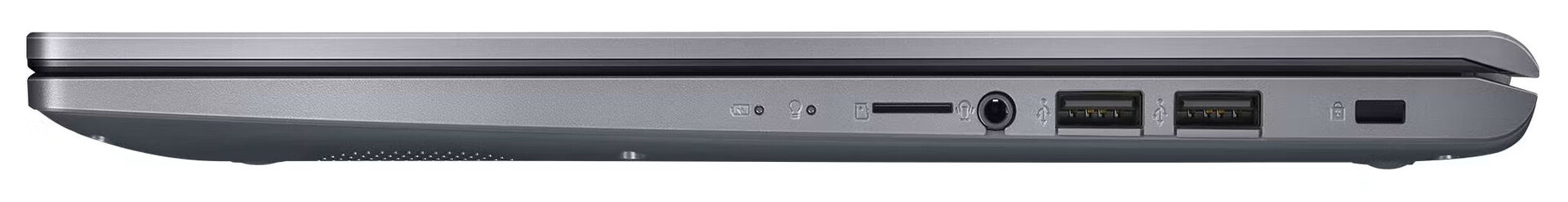

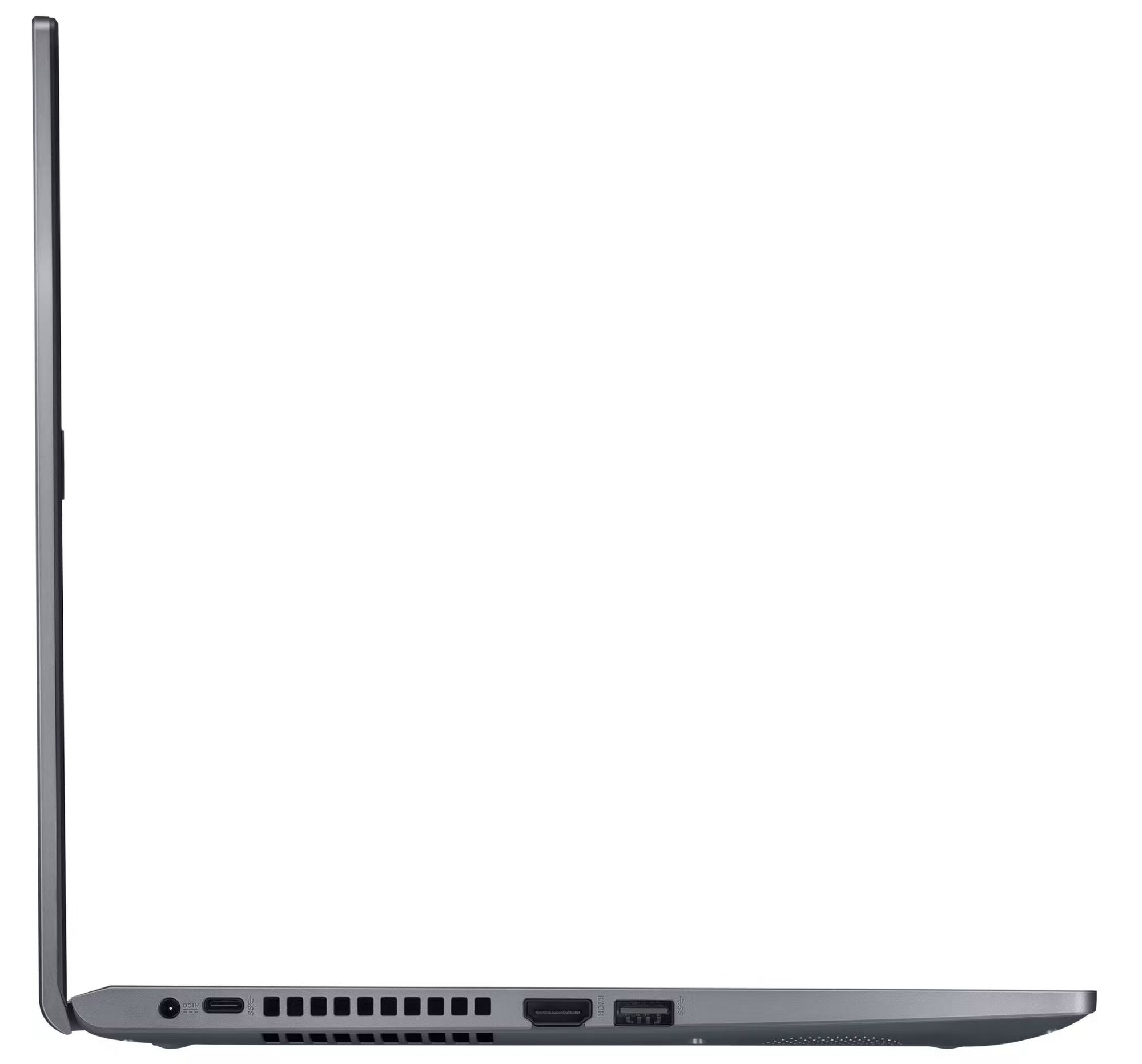

该电脑拥有三个USB-A端口(2个USB 2.0,1个USB 3.2 Gen 1)和一个USB-C端口(USB 3.2 Gen 1)。后者既不支持Power Delivery,也不支持通过USB-C的DisplayPort。此外,还有一个HDMI输出。存储卡读卡器可作为一个可选配件(microSD);我们的评测设备上没有这个。

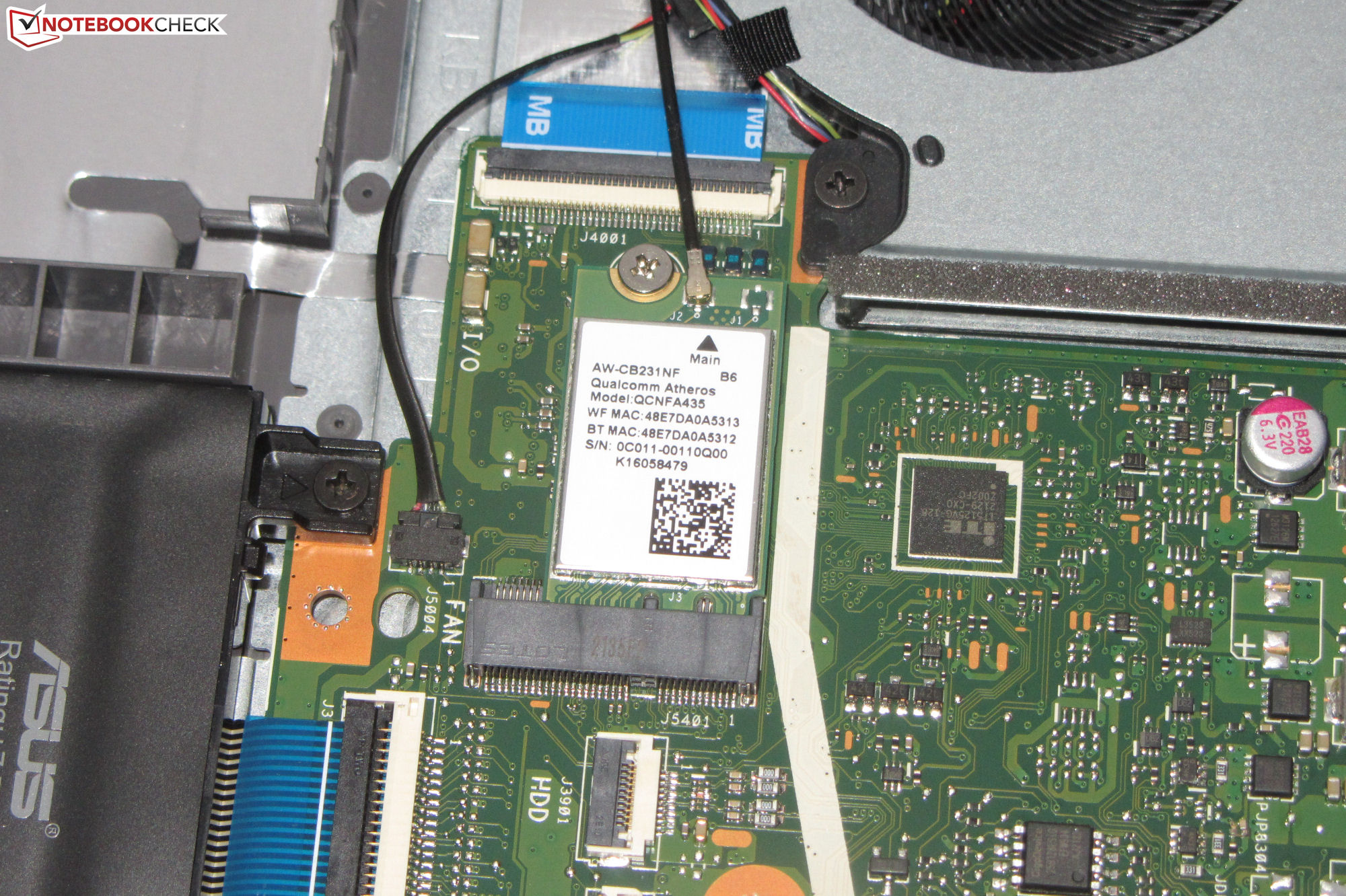

在最佳条件下的WiFi数据传输率(附近没有其他WiFi设备,笔记本电脑和服务器PC之间的距离很短)并没有达到最新水平。很快就发现了原因:内置的WiFi模块(Qualcomm Atheros QCA9377)允许的最大传输速率为433 MBit/s。有线网络连接可以使用附带的USB-A转以太网适配器。
输入设备 - X515不具备背光键盘的功能

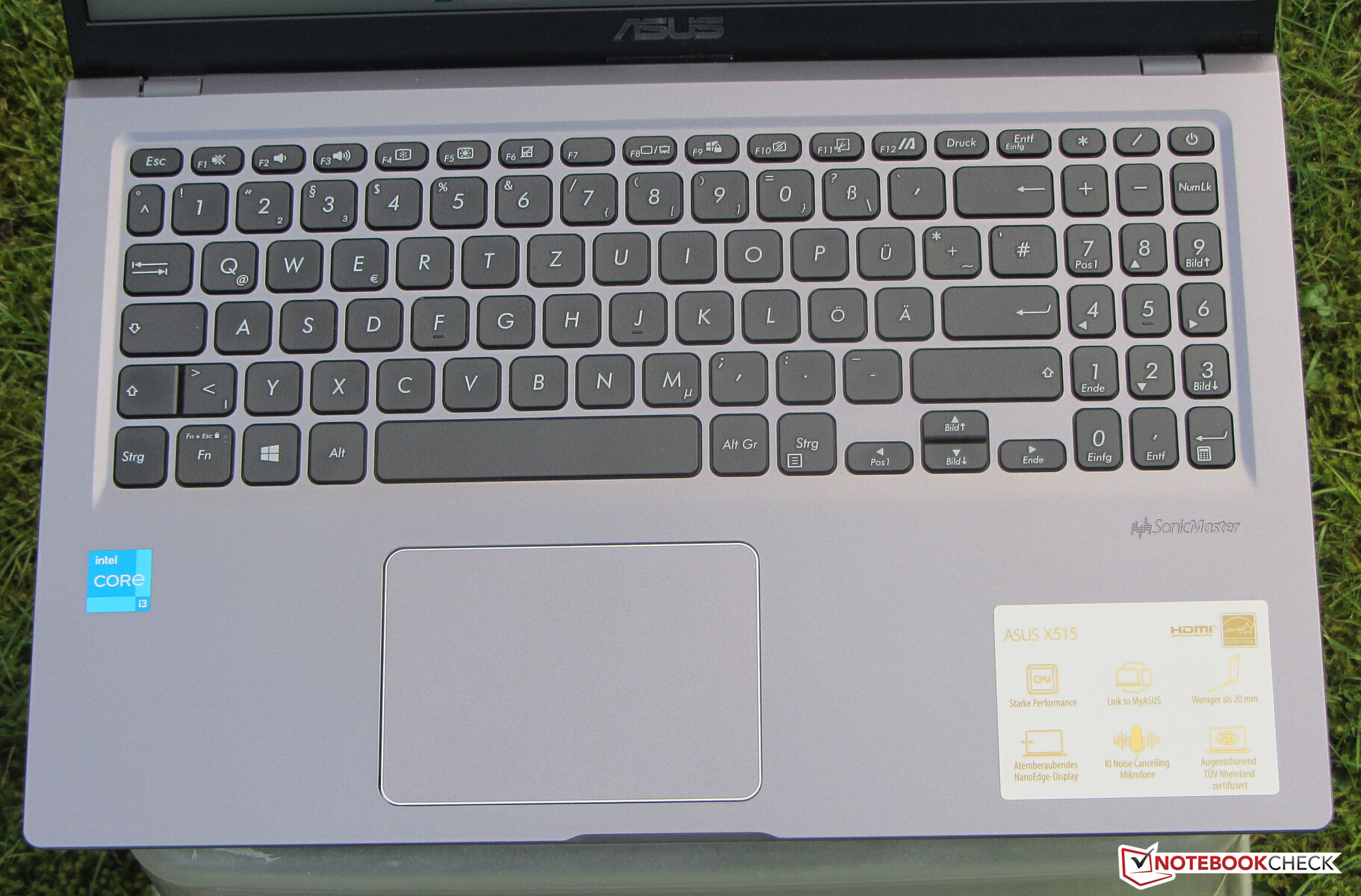

Chiclet键盘的非背光、扁平、粗糙纹理的按键具有短程和明确的压力点。键盘的阻力缺乏清晰度,而且在打字时,键盘会有轻微的弯曲,尽管这并没有被证明是令人讨厌的。总而言之,华硕提供了一个适合日常使用的键盘。
多点触控触控板(约10.5 x 7.3厘米)可作为鼠标的替代品,其光滑的表面带来了无摩擦的用户体验。与键盘类似,它的行程短,压力点明确。
显示器 - 板载IPS
华硕为Vivobook配备了一个哑光的15.6英寸显示屏(1920 x 1080像素),无论亮度设置如何,都没有显示PWM闪烁的迹象。亮度和对比度没有达到各自的目标(分别为>300 cd/m²和1.000:1)--对于一台低价位的笔记本电脑来说并不令人惊讶。竞争者看起来非常相似,只有 生活本的屏幕以出色的对比度脱颖而出。
|
Brightness Distribution: 85 %
Center on Battery: 235 cd/m²
Contrast: 401:1 (Black: 0.67 cd/m²)
ΔE Color 3.81 | 0.5-29.43 Ø4.92, calibrated: 3.91
ΔE Greyscale 2.46 | 0.5-98 Ø5.2
44.3% AdobeRGB 1998 (Argyll 2.2.0 3D)
64.1% sRGB (Argyll 2.2.0 3D)
42.8% Display P3 (Argyll 2.2.0 3D)
Gamma: 6451
Asus P1511CEA-BQ753R Chi Mei N156HCA-EAB, IPS, 1920x1080, 15.6" | Lenovo IdeaPad 3 15ITL05 81X80074GE BOE CQ 3, IPS, 1920x1080, 15.6" | Lenovo V15-ADA 82C7009SGE Chi Mei CMN15F5, TN, 1920x1080, 15.6" | Dell Inspiron 15 3505-PXHPW AU Optronics B156HAN, IPS, 1920x1080, 15.6" | Fujitsu Lifebook A3510 (FPC04905BP) BOE CQ NV156FHM-N48, IPS, 1920x1080, 15.6" | Acer Extensa 15 EX215-54-5103 AU Optronics B156HTN06.1, TN LED, 1920x1080, 15.6" | |
---|---|---|---|---|---|---|
Display | -11% | -13% | -6% | -7% | -14% | |
Display P3 Coverage | 42.8 | 38.5 -10% | 37.13 -13% | 40.3 -6% | 39.9 -7% | 37 -14% |
sRGB Coverage | 64.1 | 56.7 -12% | 55.8 -13% | 60.4 -6% | 58.9 -8% | 55.7 -13% |
AdobeRGB 1998 Coverage | 44.3 | 39.8 -10% | 38.36 -13% | 41.7 -6% | 41.3 -7% | 38.2 -14% |
Response Times | -29% | 30% | -16% | -38% | -3% | |
Response Time Grey 50% / Grey 80% * | 33 ? | 42 ? -27% | 26 ? 21% | 36 ? -9% | 45 ? -36% | 38 ? -15% |
Response Time Black / White * | 23 ? | 30 ? -30% | 14 ? 39% | 28 ? -22% | 32 ? -39% | 21 ? 9% |
PWM Frequency | 52 ? | |||||
Screen | 1% | -54% | 16% | 42% | -89% | |
Brightness middle | 269 | 258 -4% | 232 -14% | 235 -13% | 218 -19% | 220 -18% |
Brightness | 250 | 237 -5% | 211 -16% | 231 -8% | 209 -16% | 203 -19% |
Brightness Distribution | 85 | 72 -15% | 82 -4% | 84 -1% | 64 -25% | 82 -4% |
Black Level * | 0.67 | 0.26 61% | 0.41 39% | 0.25 63% | 0.11 84% | 0.43 36% |
Contrast | 401 | 992 147% | 566 41% | 940 134% | 1982 394% | 512 28% |
Colorchecker dE 2000 * | 3.81 | 6.01 -58% | 6.83 -79% | 4.11 -8% | 4.89 -28% | 10.74 -182% |
Colorchecker dE 2000 max. * | 7.34 | 9.38 -28% | 18.77 -156% | 6.72 8% | 8.3 -13% | 20.92 -185% |
Colorchecker dE 2000 calibrated * | 3.91 | 4.56 -17% | 3.88 1% | 4.44 -14% | ||
Greyscale dE 2000 * | 2.46 | 4.69 -91% | 8.52 -246% | 2.79 -13% | 2.57 -4% | 13.29 -440% |
Gamma | 6451 0% | 2.21 100% | 2.45 90% | 2.53 87% | 2.22 99% | 2.63 84% |
CCT | 6451 101% | 6260 104% | 9753 67% | 6666 98% | 6272 104% | 14880 44% |
Color Space (Percent of AdobeRGB 1998) | 35 | |||||
Color Space (Percent of sRGB) | 56 | |||||
Total Average (Program / Settings) | -13% /
-6% | -12% /
-32% | -2% /
7% | -1% /
20% | -35% /
-60% |
* ... smaller is better

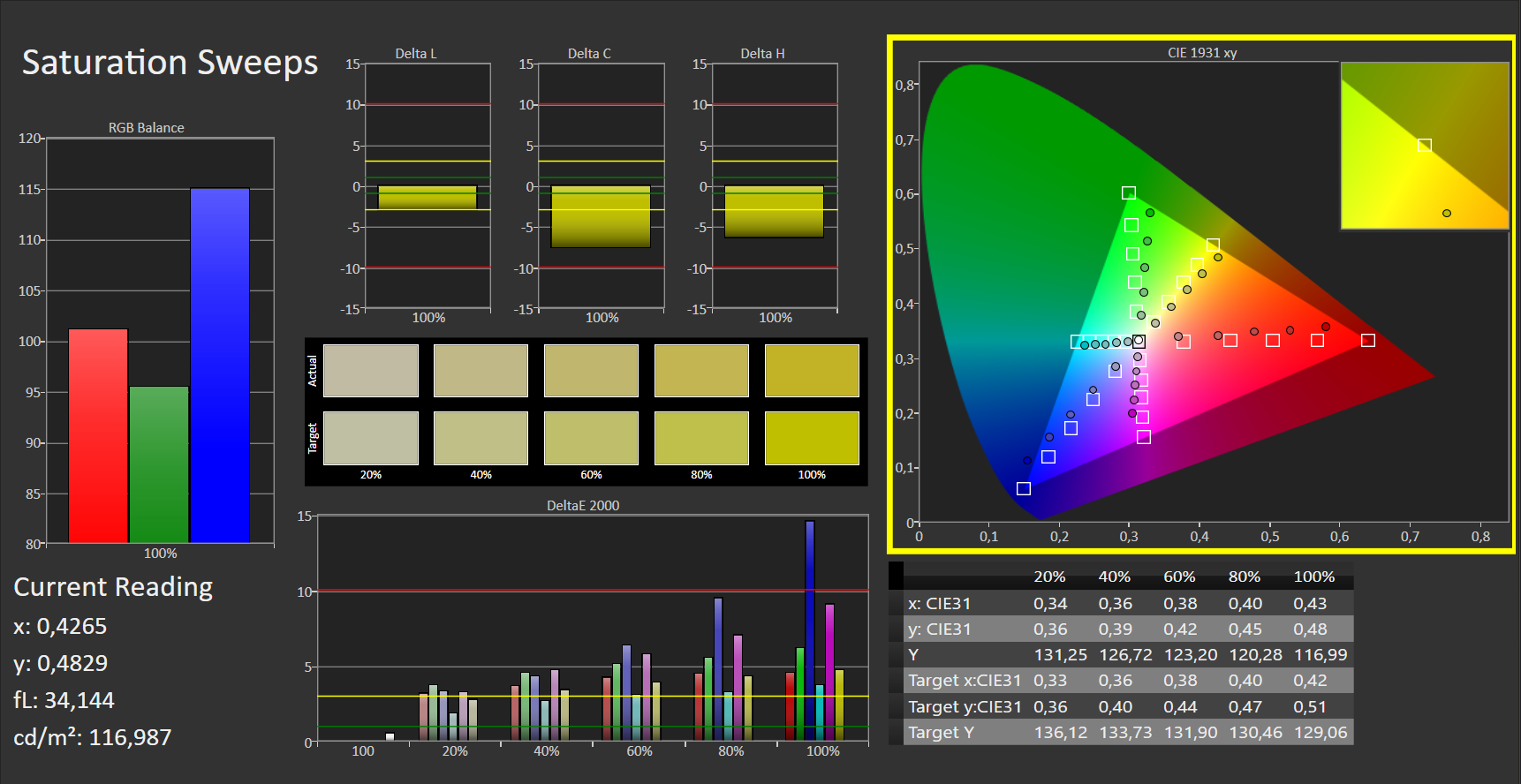

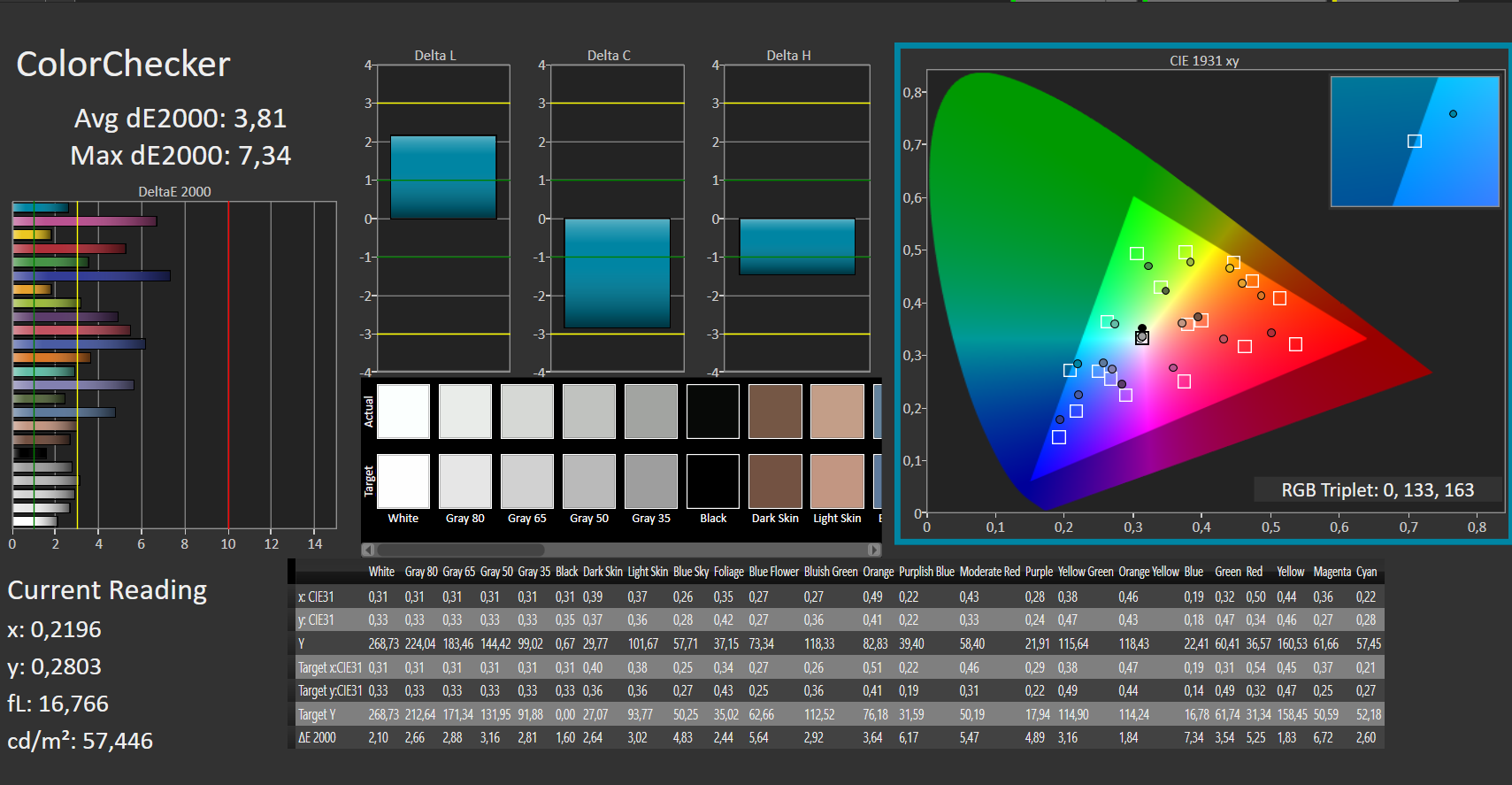

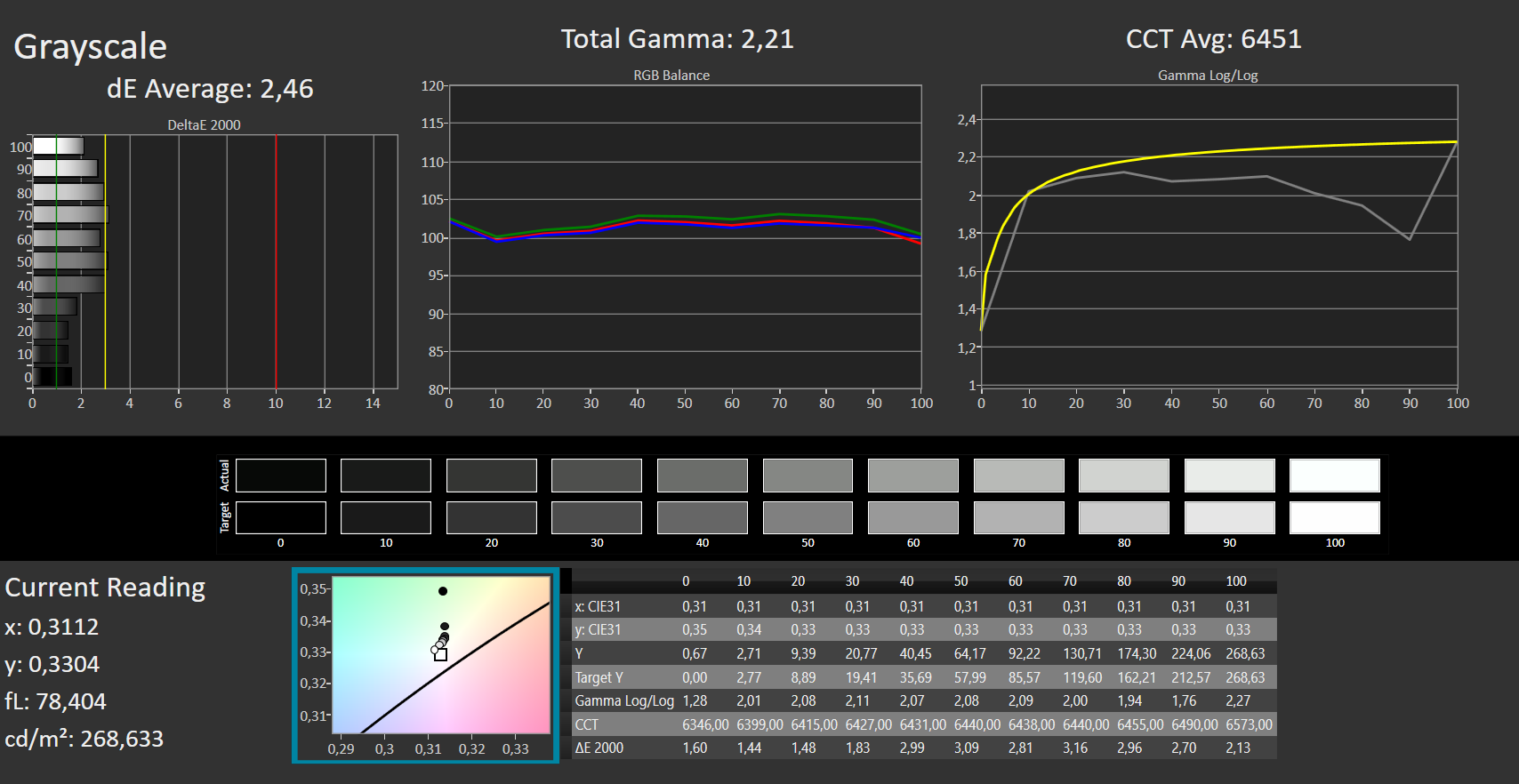

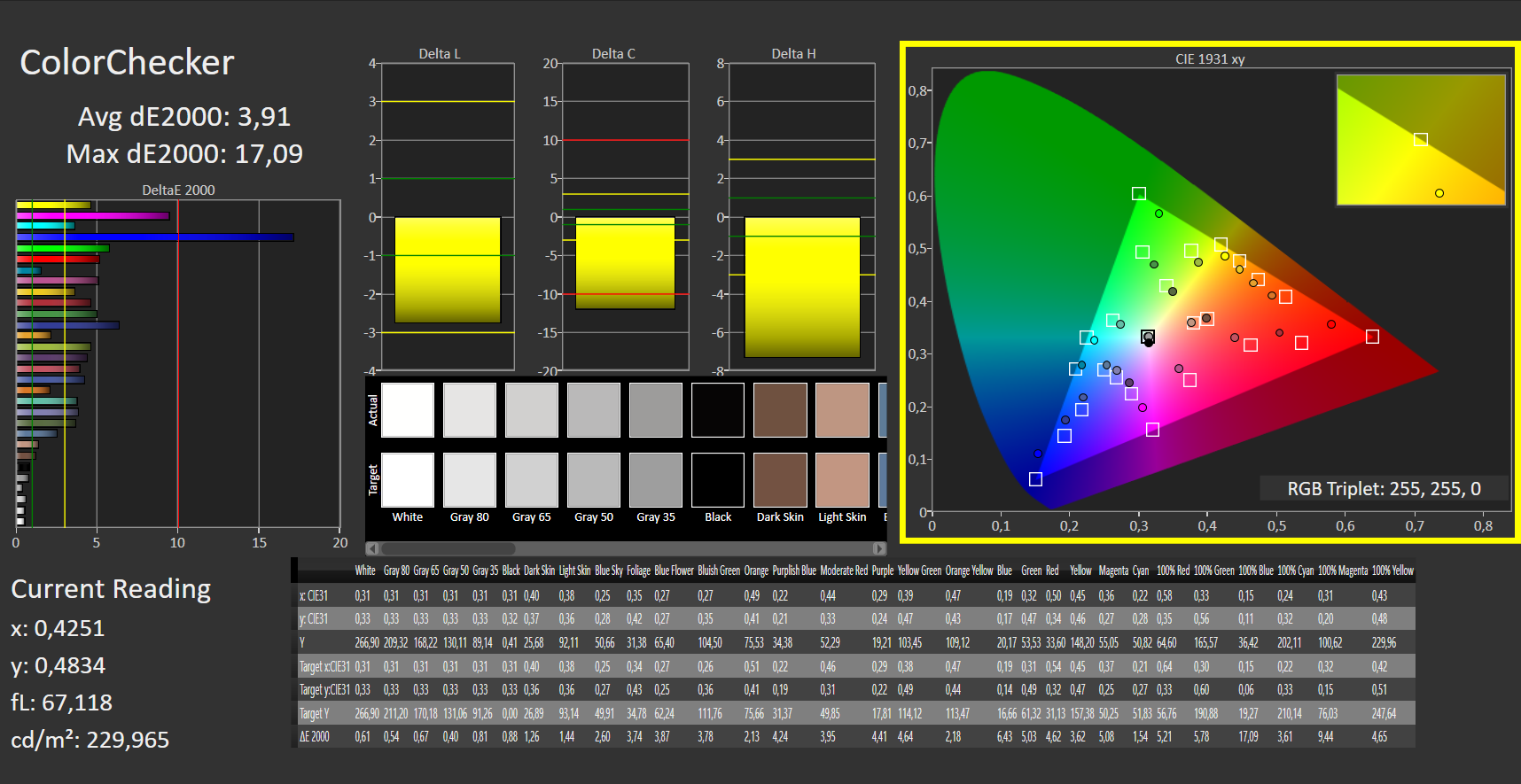

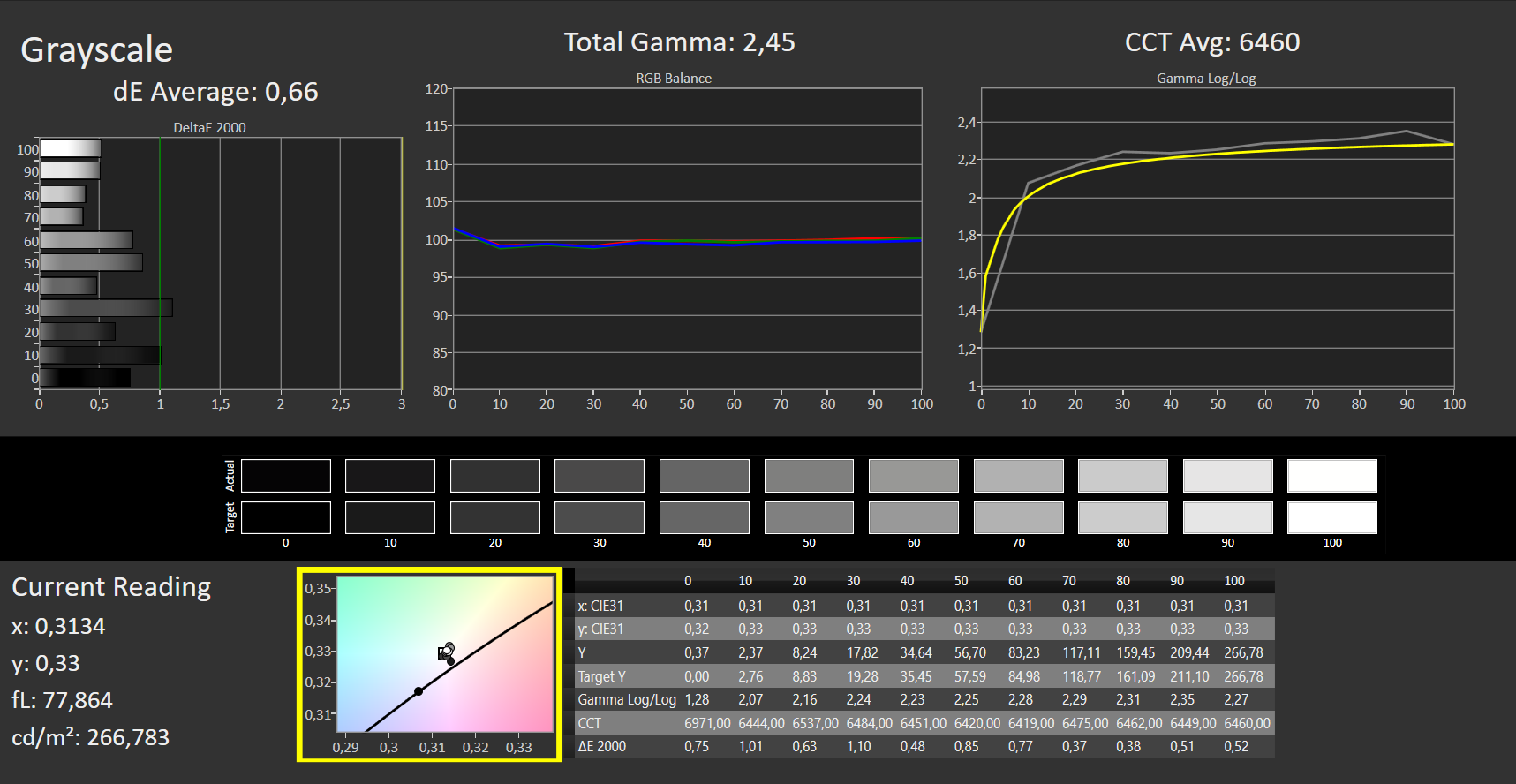

开箱后,屏幕的颜色显示非常好:偏差为3.8,它几乎没有达到目标(DeltaE<3)。校准无助于改善色彩表现,但能确保灰度更加平衡。该显示器无法再现AdobeRGB(44%)、sRGB(64%)和DCI-P3(43%)色彩空间。由于这个原因,该面板不适合依赖色彩准确性的基于应用的场景。然而,在这方面,竞争对手的表现也好不到哪里去。

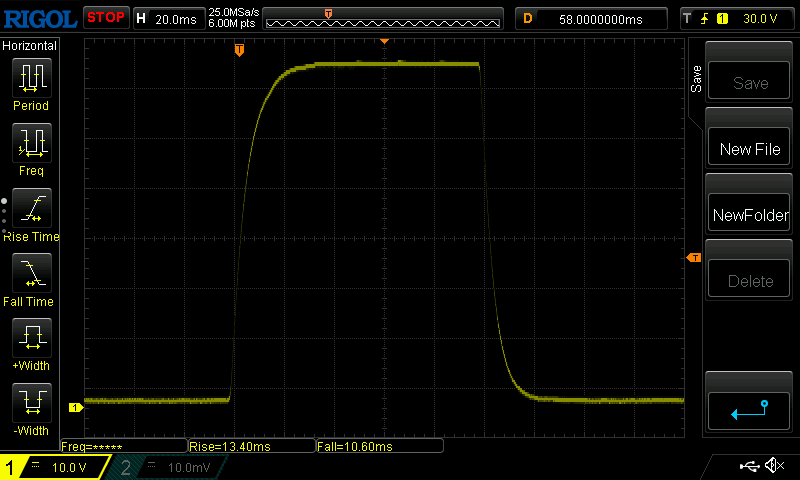

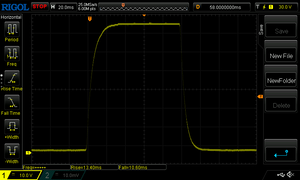

Display Response Times
↔ Response Time Black to White | ||
---|---|---|
23 ms ... rise ↗ and fall ↘ combined | ↗ 13 ms rise | |
↘ 10 ms fall | ||
The screen shows good response rates in our tests, but may be too slow for competitive gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 47 % of all devices are better. This means that the measured response time is similar to the average of all tested devices (21 ms). | ||

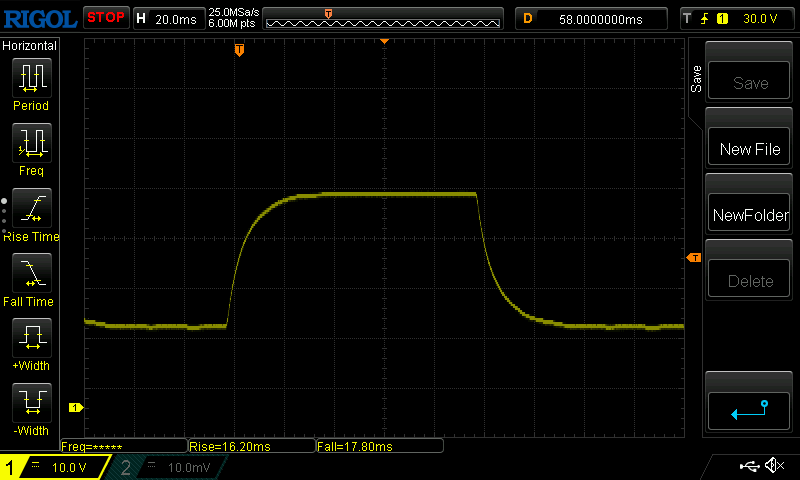

↔ Response Time 50% Grey to 80% Grey | ||
33 ms ... rise ↗ and fall ↘ combined | ↗ 16 ms rise | |
↘ 17 ms fall | ||
The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 40 % of all devices are better. This means that the measured response time is similar to the average of all tested devices (32.9 ms). |

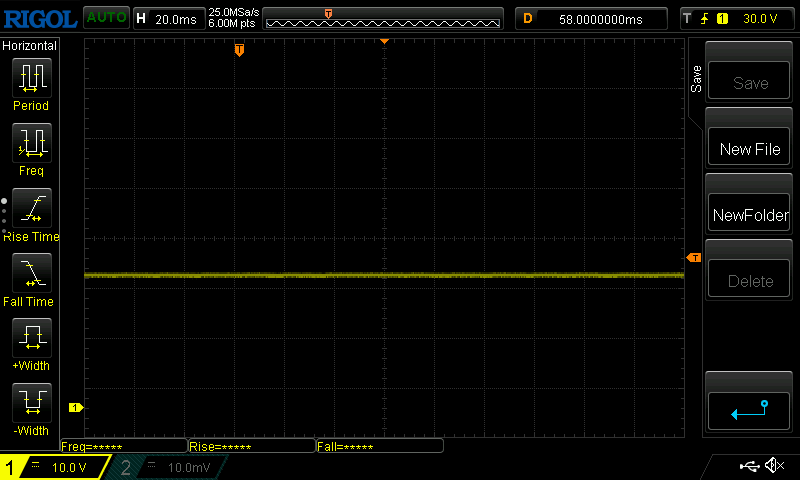

Screen Flickering / PWM (Pulse-Width Modulation)
Screen flickering / PWM not detected | |||
In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8774 (minimum: 5 - maximum: 343500) Hz was measured. |

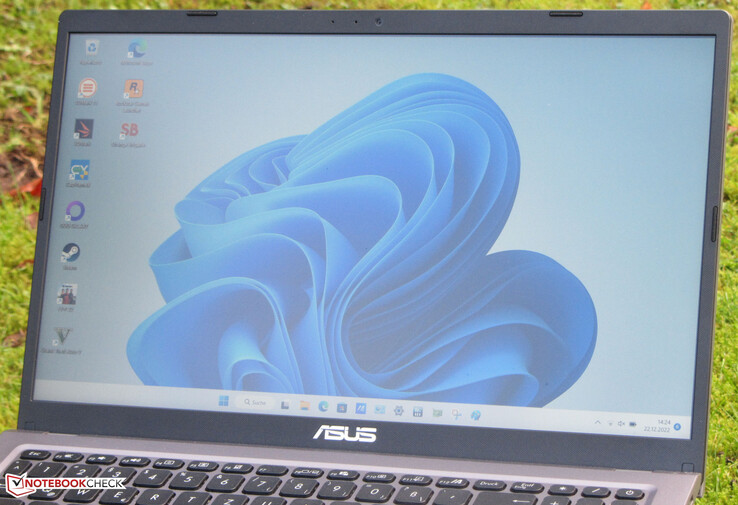

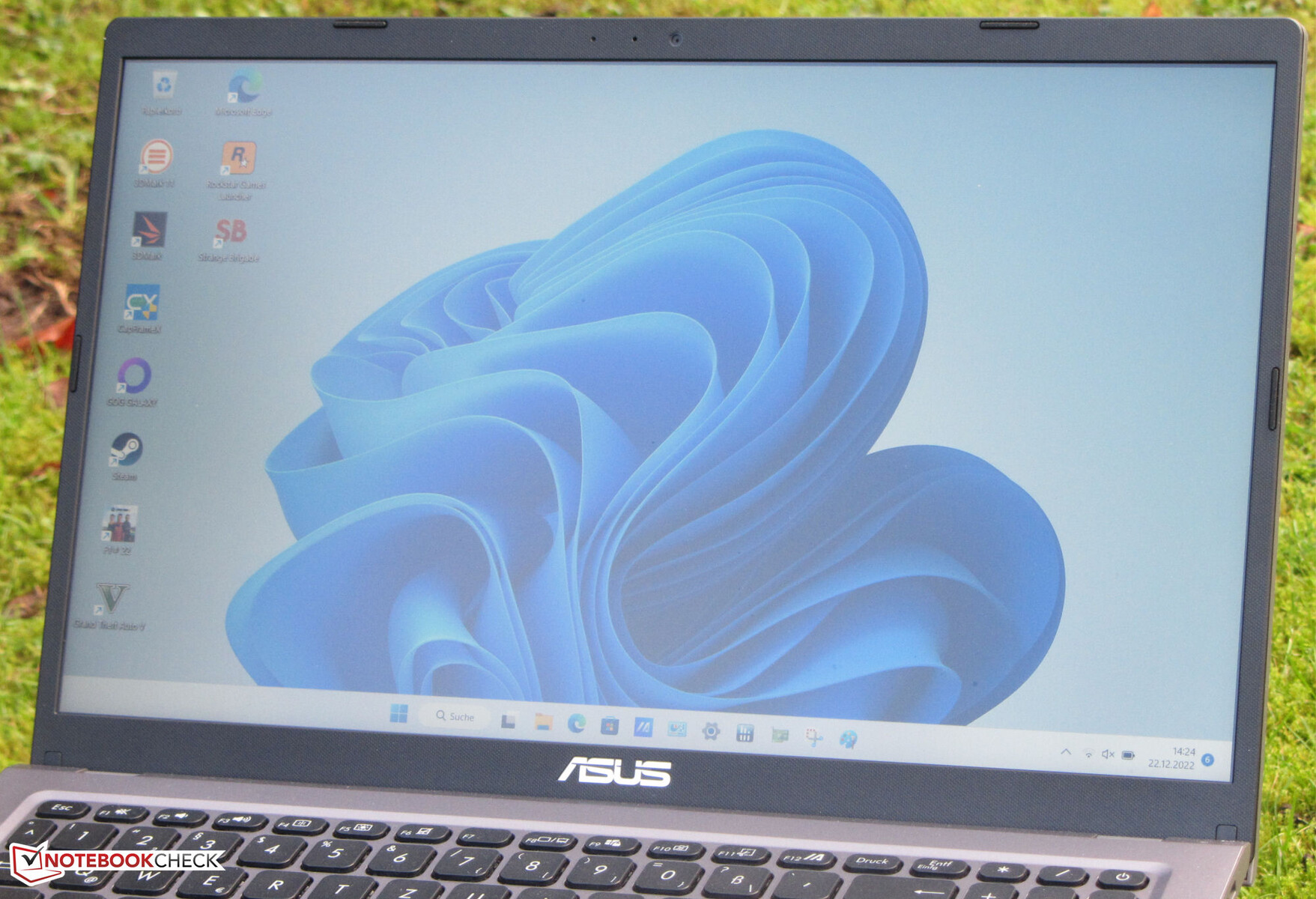

IPS面板具有稳定的可视角度,从任何角度都可以看到。在户外,只要阳光不是太亮,屏幕就可以看到。
性能 - 足够的功率用于办公和互联网使用
办公用笔记本电脑的目标直指私人和商业用户。在这个范围内,华硕使用Tiger Lake 代英特尔CPU。除了采用酷睿i3 CPU的型号外,还有酷睿i5和酷睿i7的变种。根据不同的规格,价格从350美元左右到650美元不等。
测试条件
ExpertBook有三种制造商特定的风扇模式(见表),可以通过使用组合键 "Fn "+"F "进行切换。测试是在 "标准模式 "激活的情况下进行的。
"性能模式 "导致的性能提高可以忽略不计。当 "标准模式 "激活时,节俭的Core i3已经在全功率下运行。这对于配备酷睿i5/i7的P1511机型来说应该是不同的。"低声模式 "大大降低了负载下的运行噪音--以牺牲计算能力为代价。
性能模式 | 标准模式 | 悄悄话模式 | |
---|---|---|---|
功率限制1 | 64瓦 | 40瓦 | 20瓦 |
功率限制2 | 64瓦 | 64瓦 | 64瓦 |
处理器

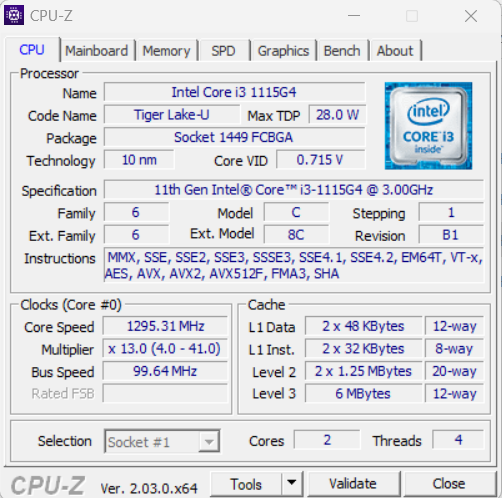

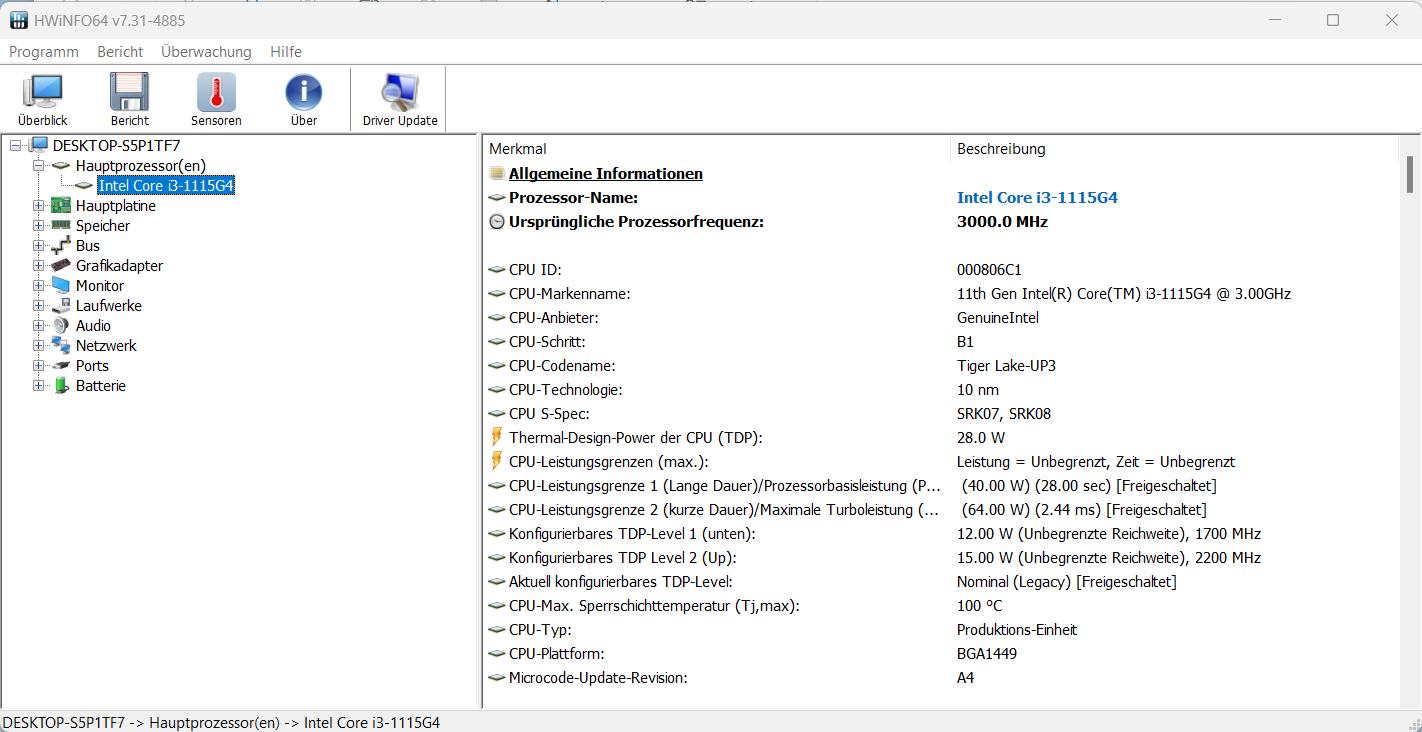

芯片酷睿-i3-1115G4双核处理器(Tiger Lake )以3 GHz的基本时钟速度运行。有可能提高到4.1 GHz。超线程(每个核心有两个线程)是可能的。

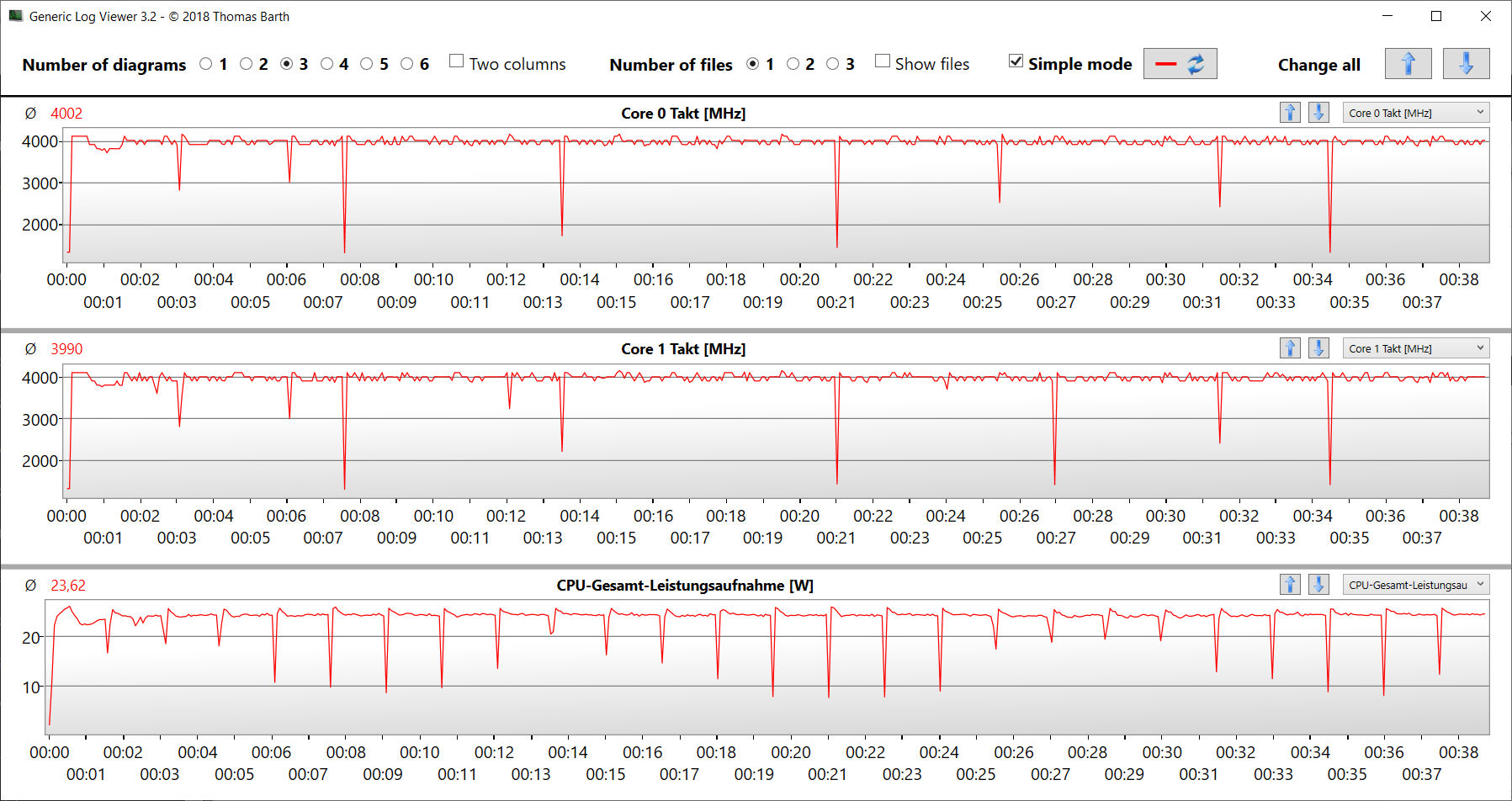

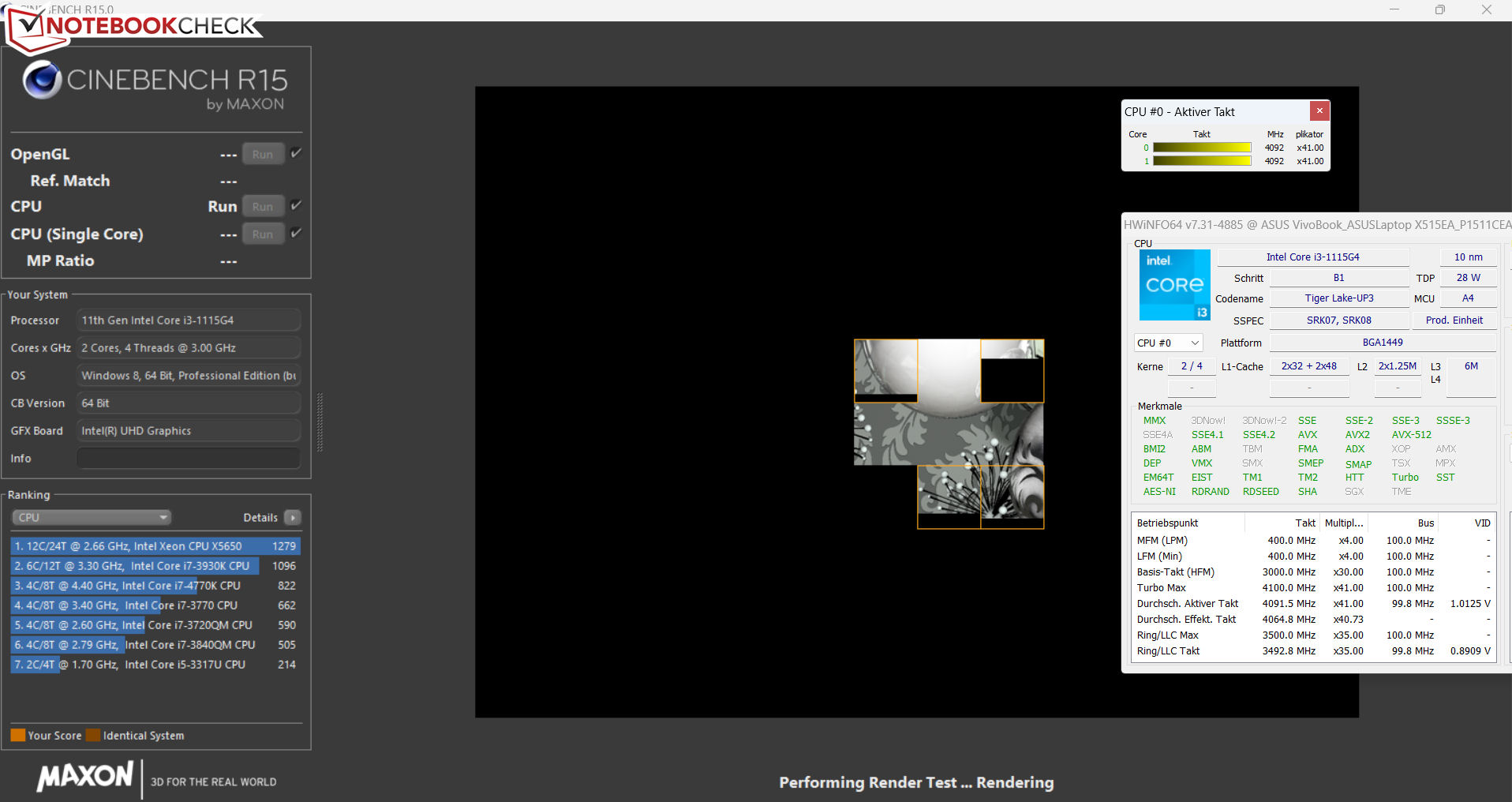

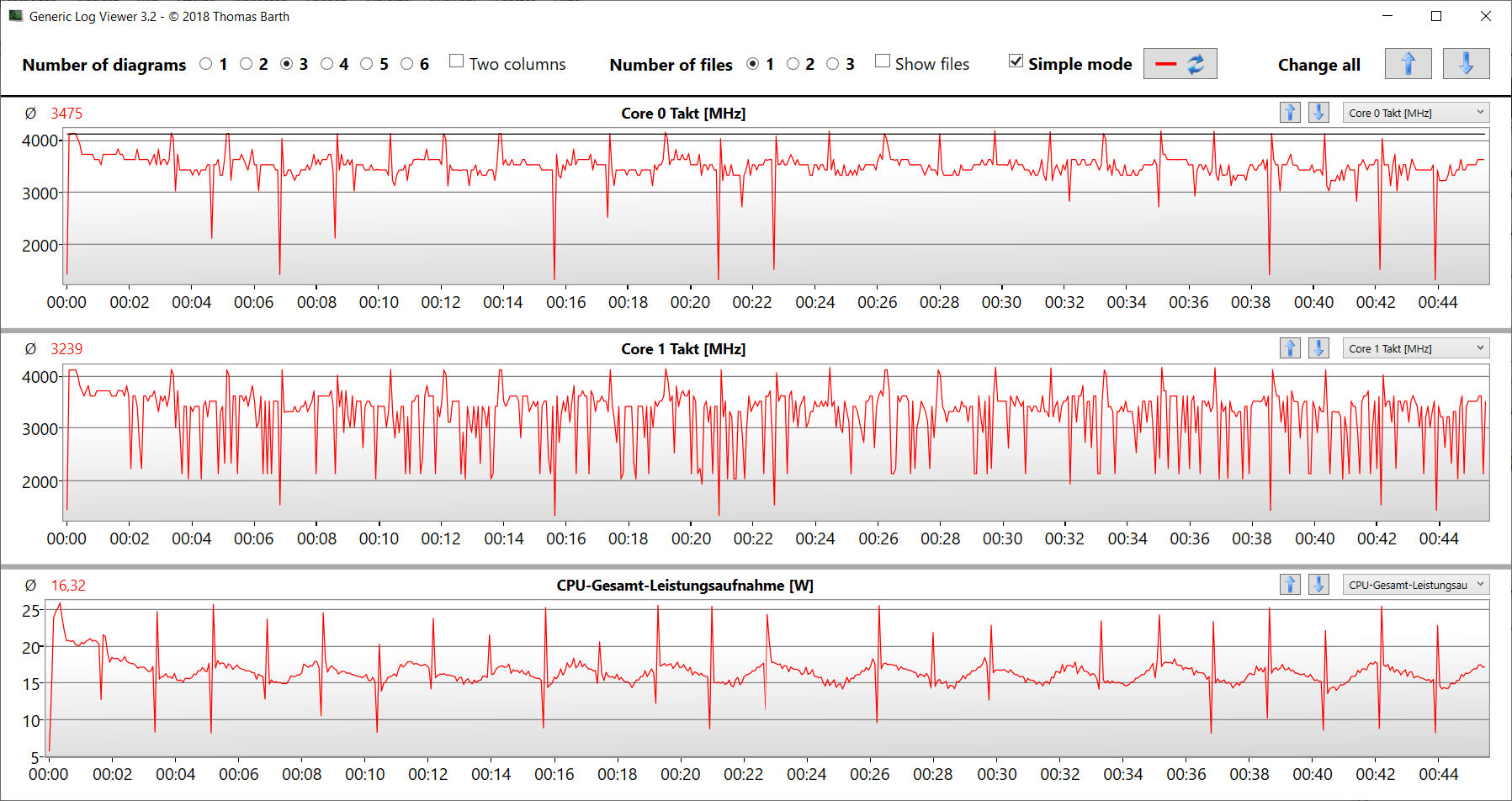

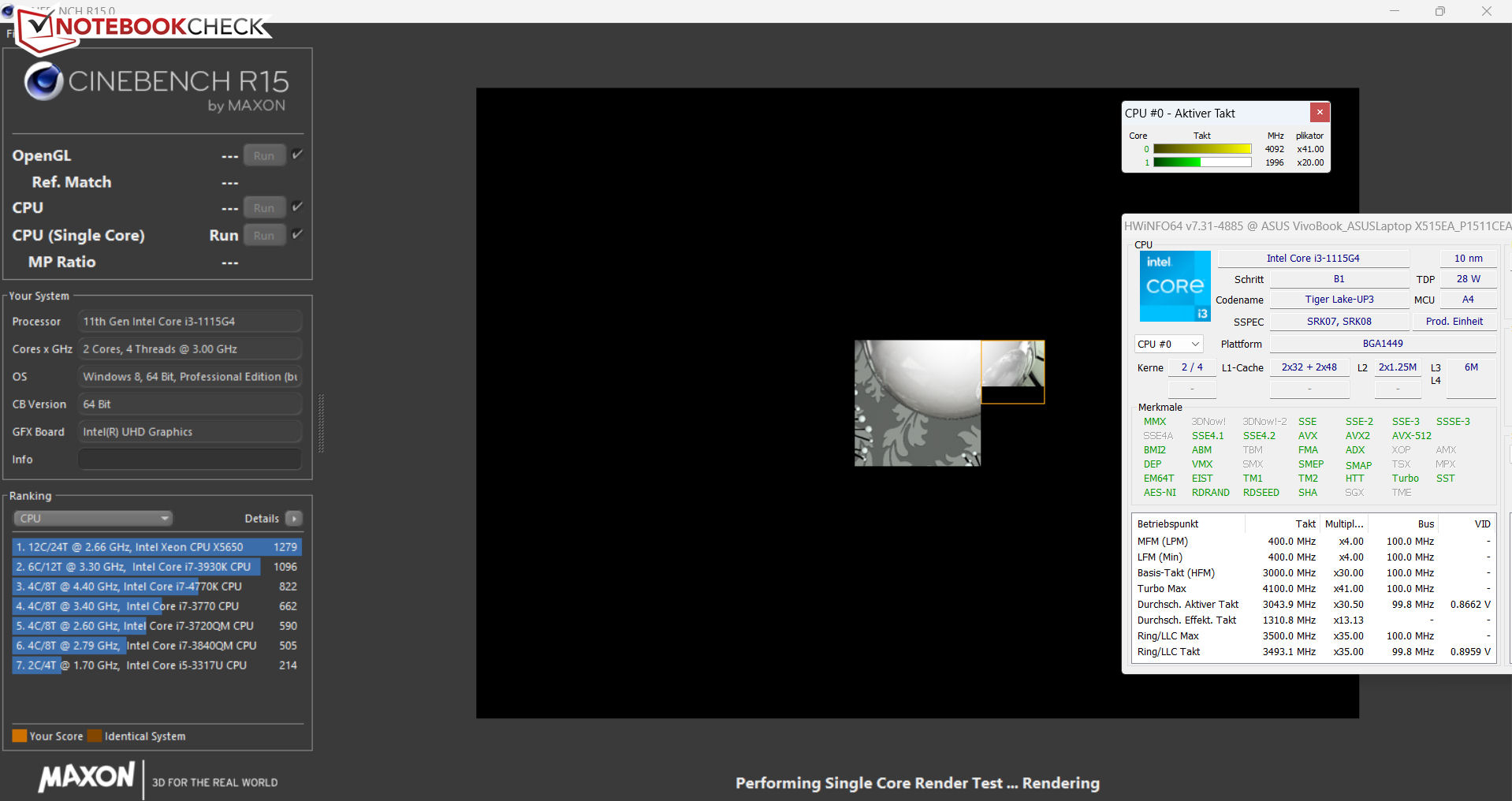

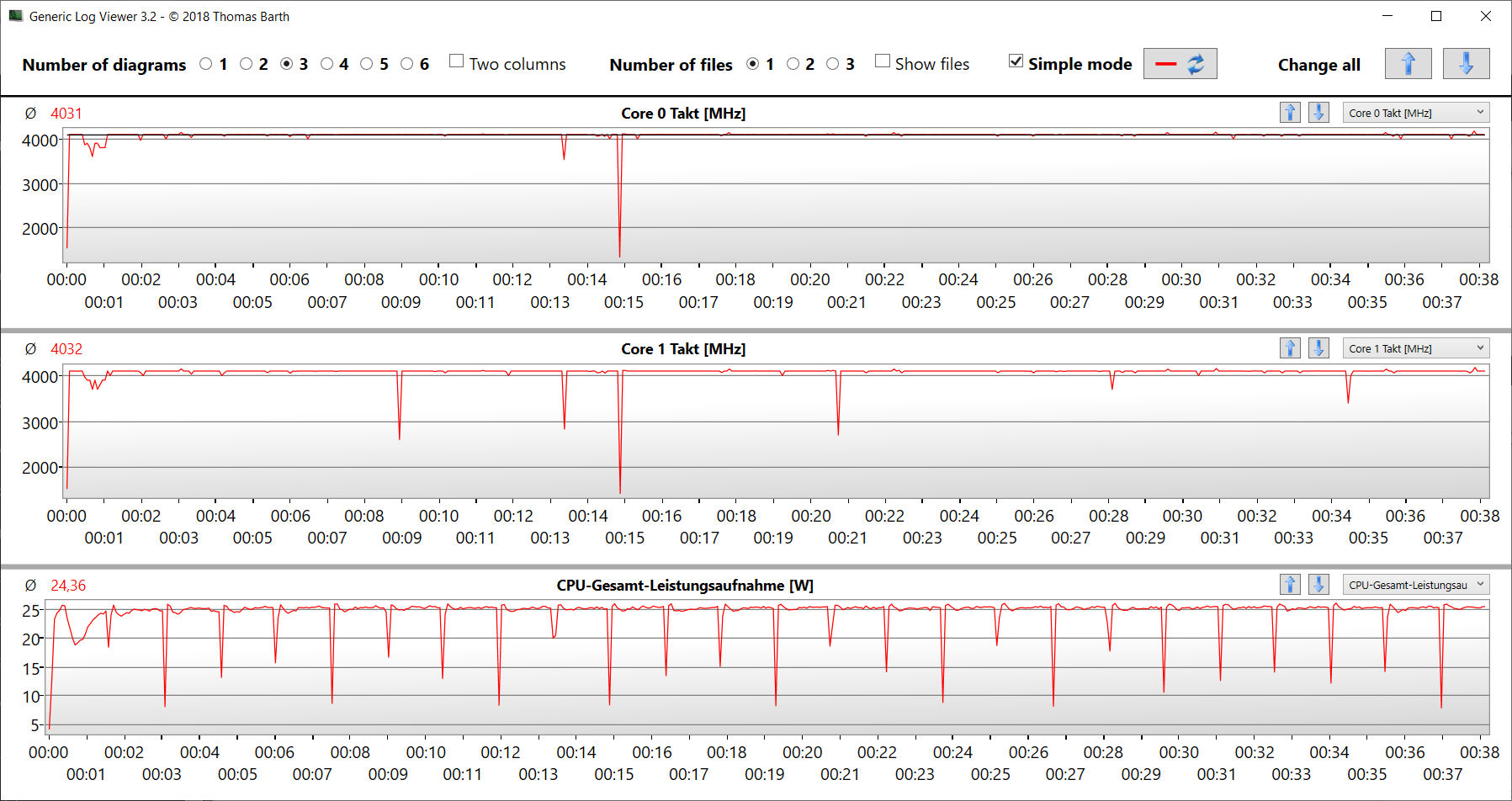

Cinebench-R15基准多线程测试在4.1GHz下进行,单线程测试在2至4.1GHz下进行。在电池模式下,时钟速度更低。CB15循环测试证实了对CPU涡轮的持续使用。总体而言,CPU的得分略高于平均水平。
Cinebench R15 Multi Continuous test
CPU Performance Rating - Percent | |
Average of class Office | |
Acer Extensa 15 EX215-54-5103 | |
Asus P1511CEA-BQ753R | |
Average Intel Core i3-1115G4 | |
Lenovo IdeaPad 3 15ITL05 81X80074GE | |
Fujitsu Lifebook A3510 (FPC04905BP) | |
Dell Inspiron 15 3505-PXHPW | |
Lenovo V15-ADA 82C7009SGE -2! |
HWBOT x265 Benchmark v2.2 - 4k Preset | |
Average of class Office (1.55 - 18.7, n=101, last 2 years) | |
Acer Extensa 15 EX215-54-5103 | |
Asus P1511CEA-BQ753R | |
Average Intel Core i3-1115G4 (3.25 - 4.1, n=6) | |
Lenovo IdeaPad 3 15ITL05 81X80074GE | |
Fujitsu Lifebook A3510 (FPC04905BP) | |
Dell Inspiron 15 3505-PXHPW | |
Lenovo V15-ADA 82C7009SGE |
LibreOffice - 20 Documents To PDF | |
Lenovo V15-ADA 82C7009SGE | |
Dell Inspiron 15 3505-PXHPW | |
Fujitsu Lifebook A3510 (FPC04905BP) | |
Asus P1511CEA-BQ753R | |
Average of class Office (31.3 - 129.6, n=101, last 2 years) | |
Acer Extensa 15 EX215-54-5103 | |
Average Intel Core i3-1115G4 (40.6 - 62.8, n=7) | |
Lenovo IdeaPad 3 15ITL05 81X80074GE |
* ... smaller is better
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
Performance Rating | |
Average of class Office | |
Acer Extensa 15 EX215-54-5103 | |
Asus P1511CEA-BQ753R | |
Lenovo IdeaPad 3 15ITL05 81X80074GE | |
Average Intel Core i3-1115G4 | |
Dell Inspiron 15 3505-PXHPW | |
Fujitsu Lifebook A3510 (FPC04905BP) | |
Lenovo V15-ADA 82C7009SGE |
AIDA64 / FP32 Ray-Trace | |
Average of class Office (763 - 24250, n=102, last 2 years) | |
Acer Extensa 15 EX215-54-5103 | |
Average Intel Core i3-1115G4 (3791 - 4159, n=4) | |
Asus P1511CEA-BQ753R | |
Lenovo IdeaPad 3 15ITL05 81X80074GE | |
Fujitsu Lifebook A3510 (FPC04905BP) | |
Dell Inspiron 15 3505-PXHPW | |
Lenovo V15-ADA 82C7009SGE |
AIDA64 / FPU Julia | |
Average of class Office (4113 - 102228, n=102, last 2 years) | |
Acer Extensa 15 EX215-54-5103 | |
Average Intel Core i3-1115G4 (15694 - 16971, n=4) | |
Asus P1511CEA-BQ753R | |
Lenovo IdeaPad 3 15ITL05 81X80074GE | |
Dell Inspiron 15 3505-PXHPW | |
Fujitsu Lifebook A3510 (FPC04905BP) | |
Lenovo V15-ADA 82C7009SGE |
AIDA64 / CPU SHA3 | |
Average of class Office (287 - 4551, n=102, last 2 years) | |
Acer Extensa 15 EX215-54-5103 | |
Average Intel Core i3-1115G4 (1081 - 1141, n=4) | |
Asus P1511CEA-BQ753R | |
Lenovo IdeaPad 3 15ITL05 81X80074GE | |
Fujitsu Lifebook A3510 (FPC04905BP) | |
Dell Inspiron 15 3505-PXHPW | |
Lenovo V15-ADA 82C7009SGE |
AIDA64 / CPU Queen | |
Average of class Office (8185 - 115197, n=102, last 2 years) | |
Acer Extensa 15 EX215-54-5103 | |
Dell Inspiron 15 3505-PXHPW | |
Lenovo IdeaPad 3 15ITL05 81X80074GE | |
Average Intel Core i3-1115G4 (27914 - 28126, n=4) | |
Asus P1511CEA-BQ753R | |
Lenovo V15-ADA 82C7009SGE | |
Fujitsu Lifebook A3510 (FPC04905BP) |
AIDA64 / FPU SinJulia | |
Average of class Office (404 - 14288, n=102, last 2 years) | |
Dell Inspiron 15 3505-PXHPW | |
Acer Extensa 15 EX215-54-5103 | |
Lenovo V15-ADA 82C7009SGE | |
Lenovo IdeaPad 3 15ITL05 81X80074GE | |
Average Intel Core i3-1115G4 (2382 - 2397, n=4) | |
Asus P1511CEA-BQ753R | |
Fujitsu Lifebook A3510 (FPC04905BP) |
AIDA64 / FPU Mandel | |
Average of class Office (2075 - 54365, n=102, last 2 years) | |
Acer Extensa 15 EX215-54-5103 | |
Average Intel Core i3-1115G4 (9519 - 10308, n=4) | |
Asus P1511CEA-BQ753R | |
Lenovo IdeaPad 3 15ITL05 81X80074GE | |
Fujitsu Lifebook A3510 (FPC04905BP) | |
Dell Inspiron 15 3505-PXHPW | |
Lenovo V15-ADA 82C7009SGE |
AIDA64 / CPU AES | |
Acer Extensa 15 EX215-54-5103 | |
Average of class Office (5426 - 155900, n=102, last 2 years) | |
Asus P1511CEA-BQ753R | |
Lenovo IdeaPad 3 15ITL05 81X80074GE | |
Average Intel Core i3-1115G4 (35658 - 35779, n=4) | |
Fujitsu Lifebook A3510 (FPC04905BP) | |
Dell Inspiron 15 3505-PXHPW | |
Lenovo V15-ADA 82C7009SGE |
AIDA64 / CPU ZLib | |
Average of class Office (78 - 1018, n=102, last 2 years) | |
Acer Extensa 15 EX215-54-5103 | |
Dell Inspiron 15 3505-PXHPW | |
Lenovo IdeaPad 3 15ITL05 81X80074GE | |
Average Intel Core i3-1115G4 (196.6 - 201, n=4) | |
Asus P1511CEA-BQ753R | |
Fujitsu Lifebook A3510 (FPC04905BP) | |
Lenovo V15-ADA 82C7009SGE |
AIDA64 / FP64 Ray-Trace | |
Average of class Office (432 - 12755, n=102, last 2 years) | |
Acer Extensa 15 EX215-54-5103 | |
Asus P1511CEA-BQ753R | |
Average Intel Core i3-1115G4 (1963 - 2283, n=4) | |
Lenovo IdeaPad 3 15ITL05 81X80074GE | |
Fujitsu Lifebook A3510 (FPC04905BP) | |
Dell Inspiron 15 3505-PXHPW | |
Lenovo V15-ADA 82C7009SGE |
AIDA64 / CPU PhotoWorxx | |
Average of class Office (4814 - 54971, n=102, last 2 years) | |
Asus P1511CEA-BQ753R | |
Lenovo IdeaPad 3 15ITL05 81X80074GE | |
Fujitsu Lifebook A3510 (FPC04905BP) | |
Average Intel Core i3-1115G4 (9819 - 19868, n=4) | |
Lenovo V15-ADA 82C7009SGE | |
Acer Extensa 15 EX215-54-5103 | |
Dell Inspiron 15 3505-PXHPW |
系统性能

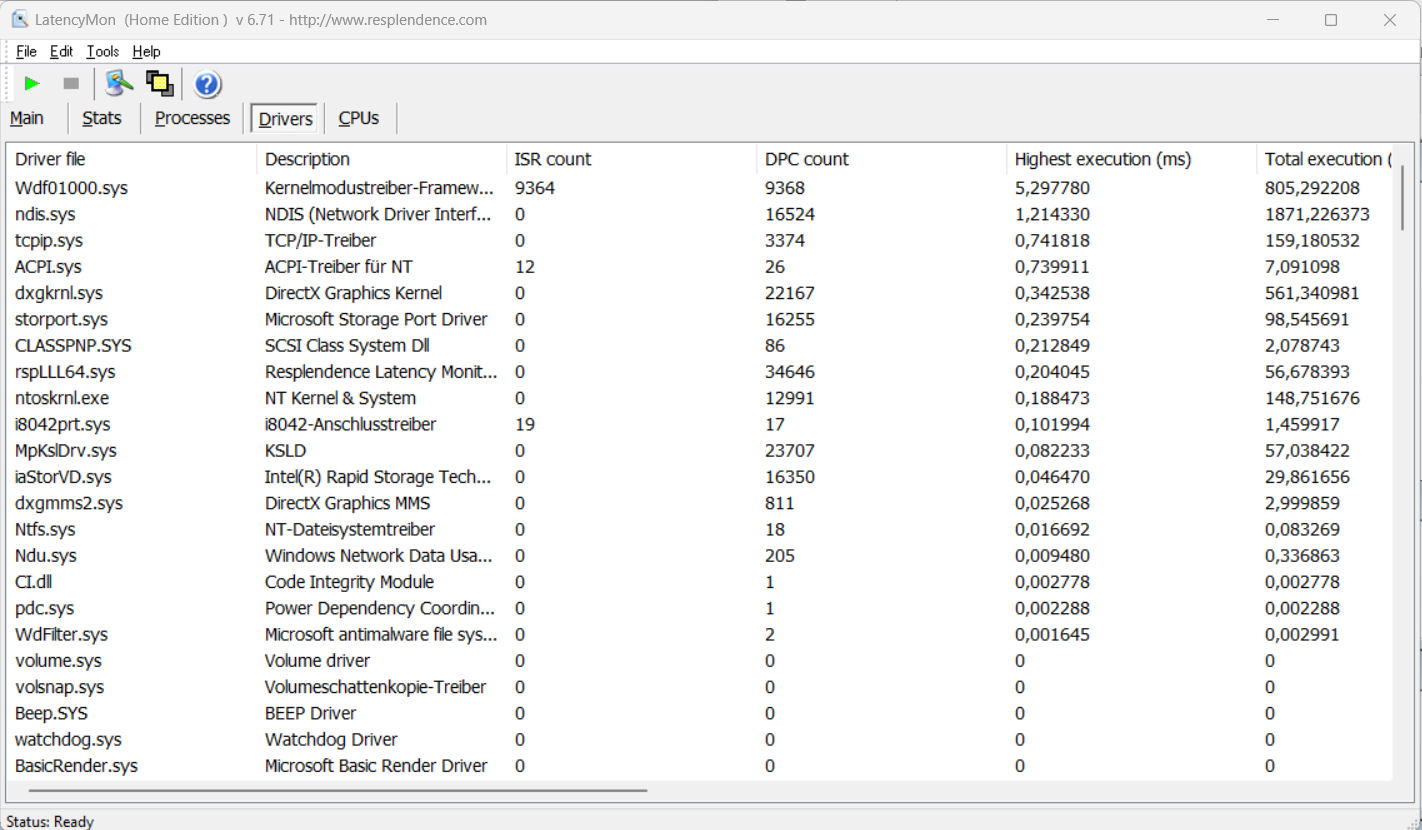

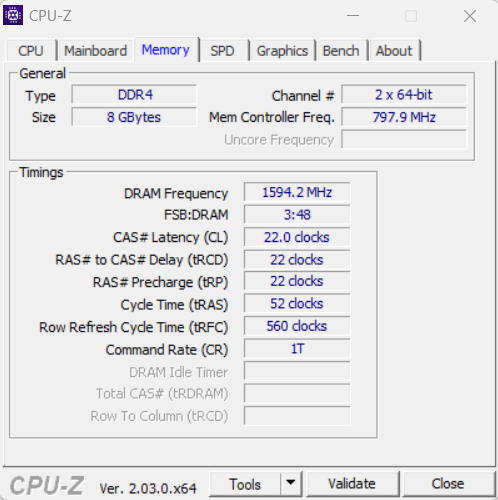

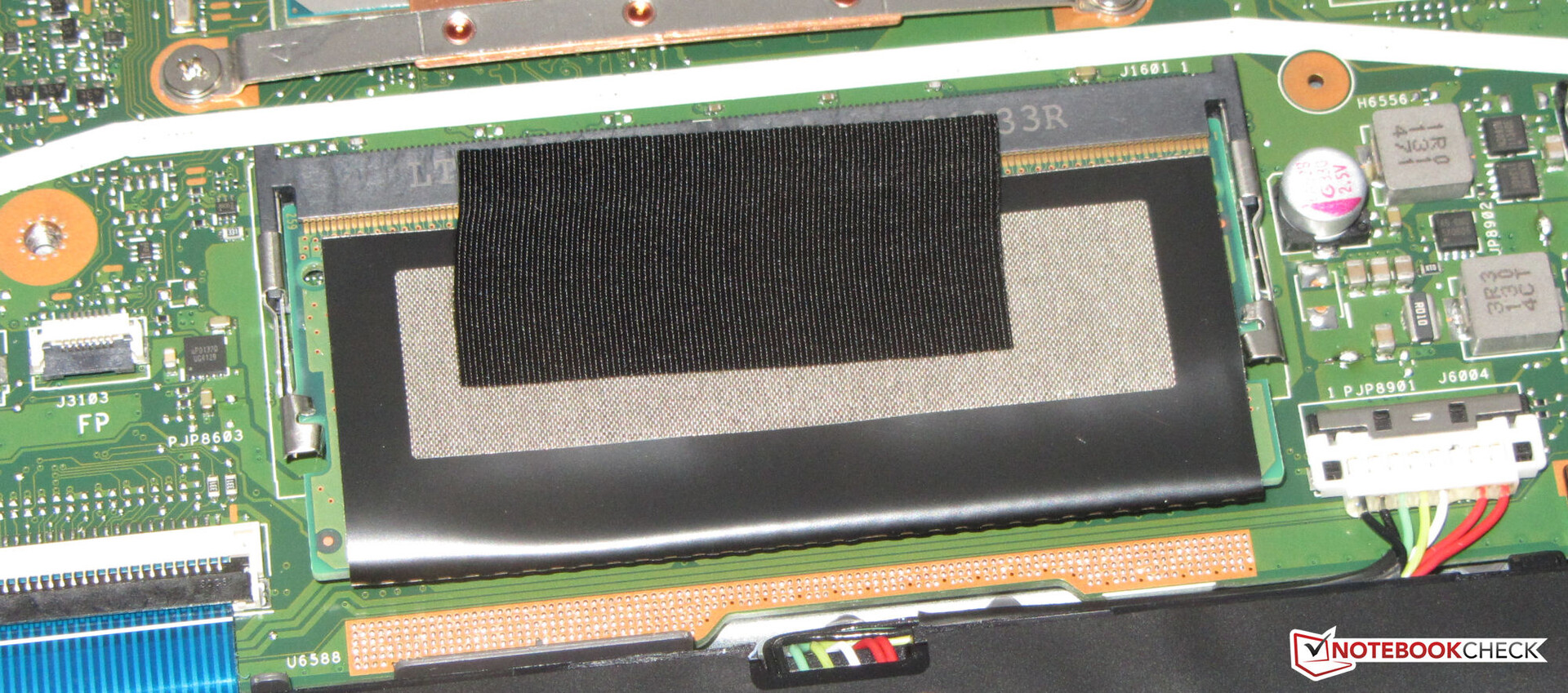

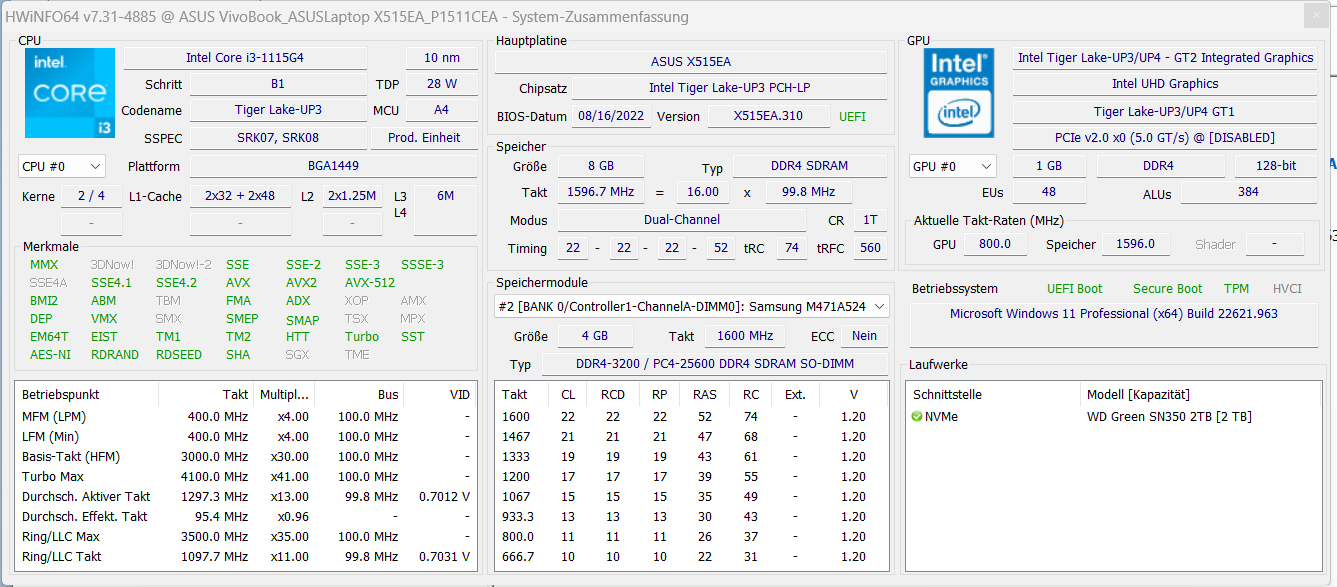

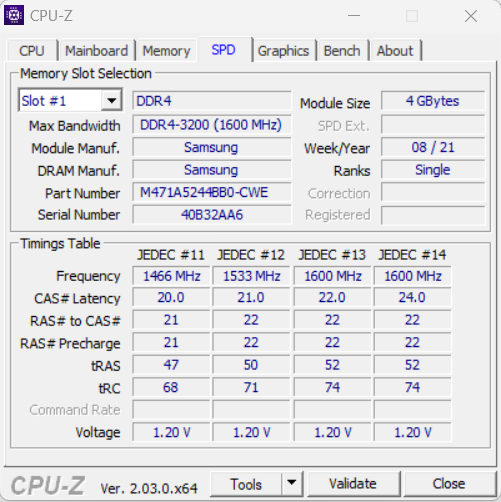

运行平稳的系统提供了足够的计算能力来应对办公和互联网应用。PCMark的结果很好。内存的传输速率(8GB,双通道模式)是典型的DDR4-3200内存。
CrossMark: Overall | Productivity | Creativity | Responsiveness
PCMark 10 / Score | |
Average of class Office (2463 - 7344, n=93, last 2 years) | |
Acer Extensa 15 EX215-54-5103 | |
Lenovo IdeaPad 3 15ITL05 81X80074GE | |
Average Intel Core i3-1115G4, Intel UHD Graphics Xe G4 48EUs (3898 - 4390, n=6) | |
Asus P1511CEA-BQ753R | |
Dell Inspiron 15 3505-PXHPW | |
Fujitsu Lifebook A3510 (FPC04905BP) | |
Lenovo V15-ADA 82C7009SGE |
PCMark 10 / Essentials | |
Average of class Office (5575 - 20841, n=93, last 2 years) | |
Acer Extensa 15 EX215-54-5103 | |
Lenovo IdeaPad 3 15ITL05 81X80074GE | |
Average Intel Core i3-1115G4, Intel UHD Graphics Xe G4 48EUs (8205 - 9090, n=6) | |
Asus P1511CEA-BQ753R | |
Fujitsu Lifebook A3510 (FPC04905BP) | |
Dell Inspiron 15 3505-PXHPW | |
Lenovo V15-ADA 82C7009SGE |
PCMark 10 / Productivity | |
Average of class Office (3041 - 10415, n=93, last 2 years) | |
Acer Extensa 15 EX215-54-5103 | |
Average Intel Core i3-1115G4, Intel UHD Graphics Xe G4 48EUs (6166 - 6488, n=6) | |
Asus P1511CEA-BQ753R | |
Lenovo IdeaPad 3 15ITL05 81X80074GE | |
Dell Inspiron 15 3505-PXHPW | |
Fujitsu Lifebook A3510 (FPC04905BP) | |
Lenovo V15-ADA 82C7009SGE |
PCMark 10 / Digital Content Creation | |
Average of class Office (1912 - 9773, n=93, last 2 years) | |
Acer Extensa 15 EX215-54-5103 | |
Lenovo IdeaPad 3 15ITL05 81X80074GE | |
Asus P1511CEA-BQ753R | |
Average Intel Core i3-1115G4, Intel UHD Graphics Xe G4 48EUs (3161 - 3895, n=6) | |
Dell Inspiron 15 3505-PXHPW | |
Fujitsu Lifebook A3510 (FPC04905BP) | |
Lenovo V15-ADA 82C7009SGE |
CrossMark / Overall | |
Average of class Office (348 - 1891, n=93, last 2 years) | |
Lenovo IdeaPad 3 15ITL05 81X80074GE | |
Acer Extensa 15 EX215-54-5103 | |
Asus P1511CEA-BQ753R | |
Average Intel Core i3-1115G4, Intel UHD Graphics Xe G4 48EUs (950 - 1094, n=5) | |
Fujitsu Lifebook A3510 (FPC04905BP) | |
Dell Inspiron 15 3505-PXHPW |
CrossMark / Productivity | |
Average of class Office (393 - 1870, n=93, last 2 years) | |
Lenovo IdeaPad 3 15ITL05 81X80074GE | |
Acer Extensa 15 EX215-54-5103 | |
Asus P1511CEA-BQ753R | |
Average Intel Core i3-1115G4, Intel UHD Graphics Xe G4 48EUs (1088 - 1225, n=5) | |
Fujitsu Lifebook A3510 (FPC04905BP) | |
Dell Inspiron 15 3505-PXHPW |
CrossMark / Creativity | |
Average of class Office (340 - 1982, n=93, last 2 years) | |
Lenovo IdeaPad 3 15ITL05 81X80074GE | |
Asus P1511CEA-BQ753R | |
Acer Extensa 15 EX215-54-5103 | |
Average Intel Core i3-1115G4, Intel UHD Graphics Xe G4 48EUs (833 - 951, n=5) | |
Fujitsu Lifebook A3510 (FPC04905BP) | |
Dell Inspiron 15 3505-PXHPW |
CrossMark / Responsiveness | |
Average of class Office (258 - 2017, n=93, last 2 years) | |
Acer Extensa 15 EX215-54-5103 | |
Lenovo IdeaPad 3 15ITL05 81X80074GE | |
Asus P1511CEA-BQ753R | |
Average Intel Core i3-1115G4, Intel UHD Graphics Xe G4 48EUs (933 - 1186, n=5) | |
Fujitsu Lifebook A3510 (FPC04905BP) | |
Dell Inspiron 15 3505-PXHPW |
PCMark 10 Score | 4104 points | |
Help |
AIDA64 / Memory Copy | |
Average of class Office (7158 - 108783, n=103, last 2 years) | |
Asus P1511CEA-BQ753R | |
Lenovo IdeaPad 3 15ITL05 81X80074GE | |
Lenovo V15-ADA 82C7009SGE | |
Average Intel Core i3-1115G4 (18640 - 32607, n=4) | |
Fujitsu Lifebook A3510 (FPC04905BP) | |
Acer Extensa 15 EX215-54-5103 | |
Dell Inspiron 15 3505-PXHPW |
AIDA64 / Memory Read | |
Average of class Office (7325 - 112436, n=103, last 2 years) | |
Asus P1511CEA-BQ753R | |
Lenovo IdeaPad 3 15ITL05 81X80074GE | |
Lenovo V15-ADA 82C7009SGE | |
Average Intel Core i3-1115G4 (21152 - 36250, n=4) | |
Fujitsu Lifebook A3510 (FPC04905BP) | |
Acer Extensa 15 EX215-54-5103 | |
Dell Inspiron 15 3505-PXHPW |
AIDA64 / Memory Write | |
Average of class Office (7579 - 117935, n=103, last 2 years) | |
Asus P1511CEA-BQ753R | |
Lenovo IdeaPad 3 15ITL05 81X80074GE | |
Lenovo V15-ADA 82C7009SGE | |
Average Intel Core i3-1115G4 (19536 - 42454, n=4) | |
Fujitsu Lifebook A3510 (FPC04905BP) | |
Acer Extensa 15 EX215-54-5103 | |
Dell Inspiron 15 3505-PXHPW |
AIDA64 / Memory Latency | |
Lenovo V15-ADA 82C7009SGE | |
Dell Inspiron 15 3505-PXHPW | |
Average of class Office (8.3 - 185.2, n=103, last 2 years) | |
Asus P1511CEA-BQ753R | |
Average Intel Core i3-1115G4 (75.2 - 89.2, n=4) | |
Lenovo IdeaPad 3 15ITL05 81X80074GE | |
Fujitsu Lifebook A3510 (FPC04905BP) | |
Acer Extensa 15 EX215-54-5103 |
* ... smaller is better
DPC延迟

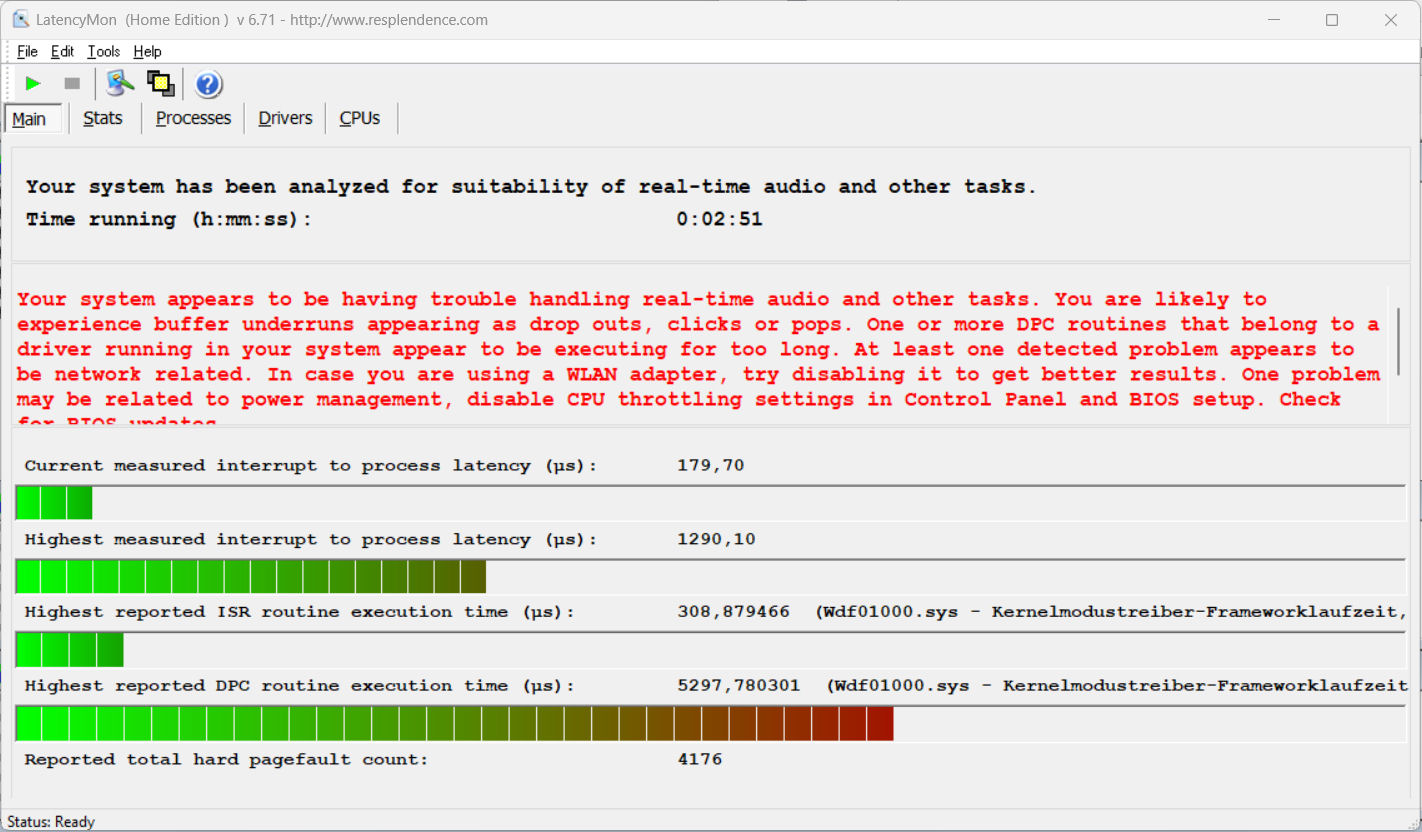

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95 | |
Lenovo V15-ADA 82C7009SGE | |
Dell Inspiron 15 3505-PXHPW | |
Acer Extensa 15 EX215-54-5103 | |
Fujitsu Lifebook A3510 (FPC04905BP) | |
Asus P1511CEA-BQ753R | |
Lenovo IdeaPad 3 15ITL05 81X80074GE |
* ... smaller is better
大容量存储

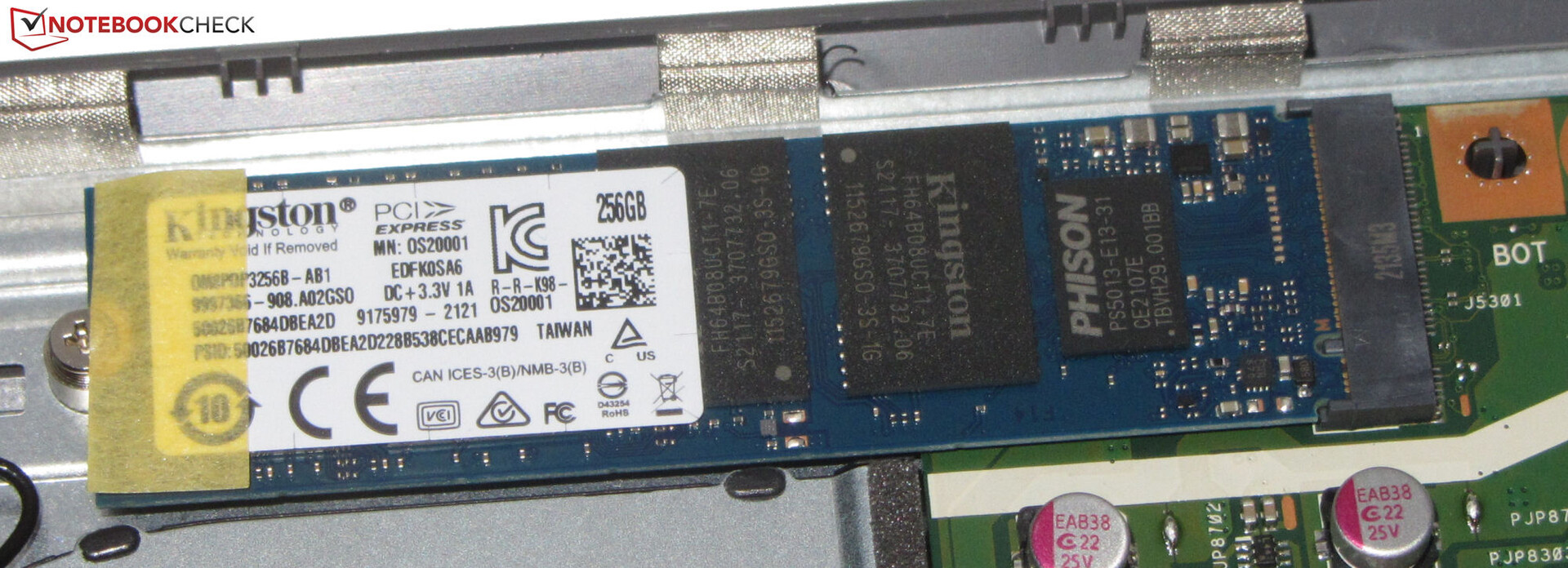

金士顿的PCIe 3.0固态硬盘(M.2-2280)的存储容量为256GB,提供良好的传输速率,但不属于顶级固态硬盘型号。笔记本电脑提供了2.5英寸存储介质的空间。然而,安装框架、螺丝和SATA插槽并不是包装的一部分。
Drive Performance Rating - Percent | |
Average of class Office | |
Lenovo IdeaPad 3 15ITL05 81X80074GE | |
Asus P1511CEA-BQ753R | |
Fujitsu Lifebook A3510 (FPC04905BP) | |
Acer Extensa 15 EX215-54-5103 | |
Dell Inspiron 15 3505-PXHPW | |
Average Kingston OM8PDP3256B | |
Lenovo V15-ADA 82C7009SGE |
* ... smaller is better
Continious performance read: DiskSpd Read Loop, Queue Depth 8
图形卡

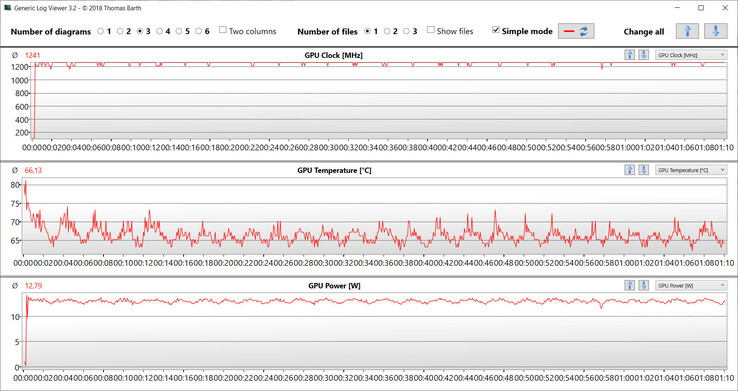

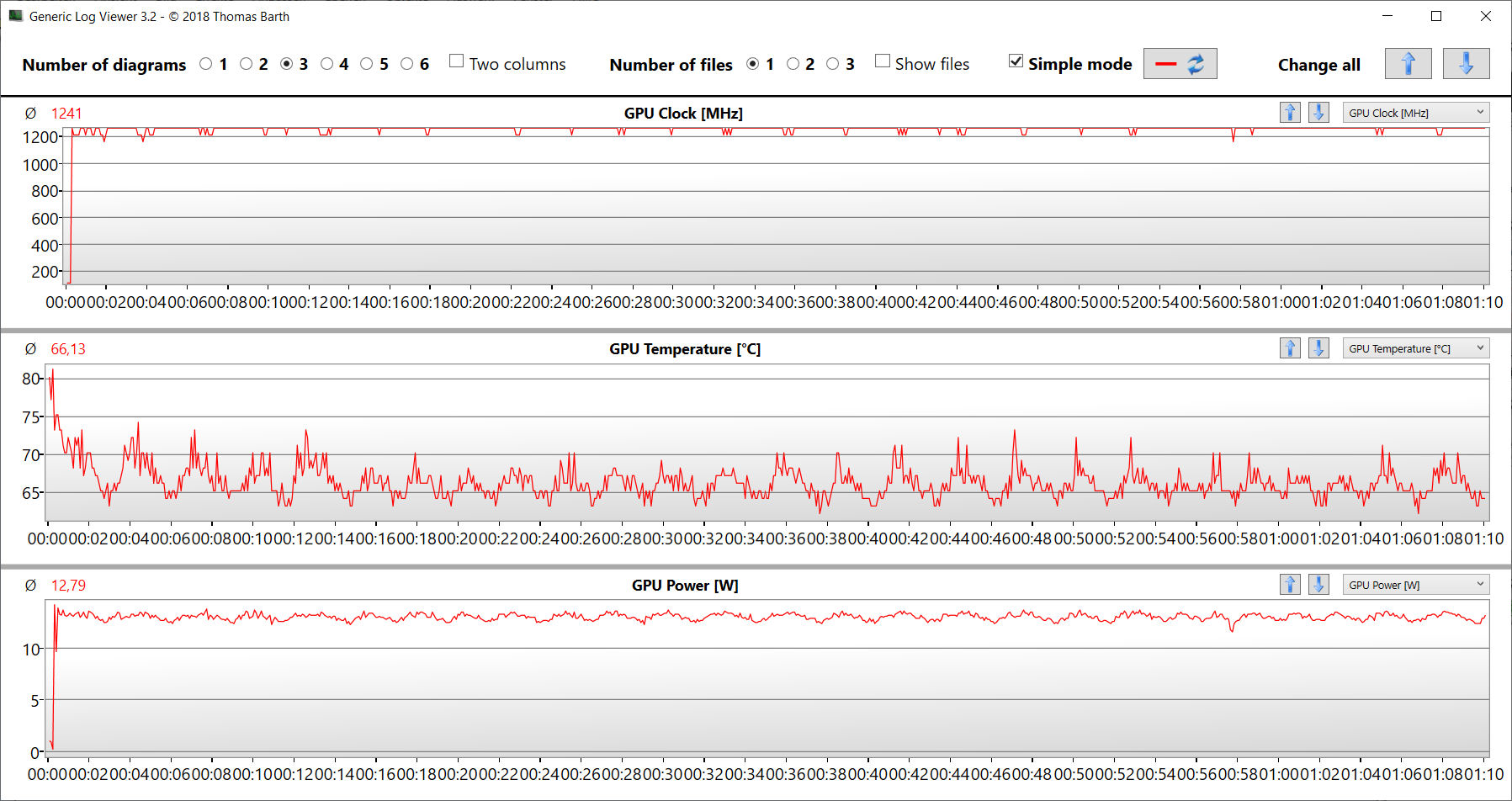

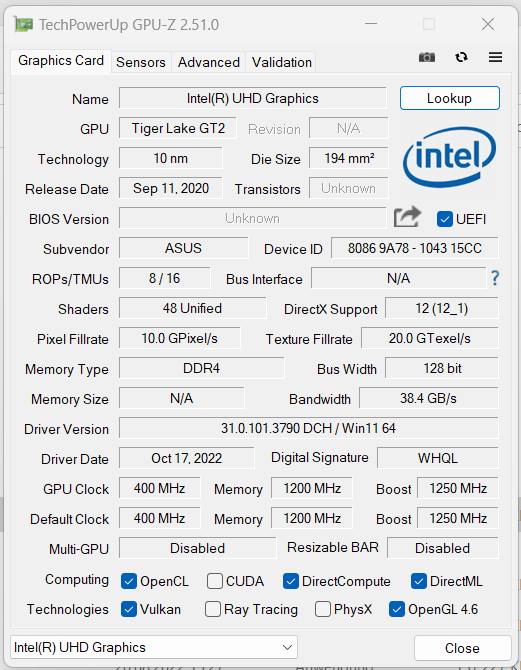

芯片 UHD-Graphics Xe G4图形核心几乎可以持续运行,最大时钟速度为1250 MHz)--这在Witcher 3 测试中得到了证明。然而,P1511不应该被认为是一台游戏笔记本电脑。尽管如此,在低设置下,它可以顺利地玩一些要求不高的游戏。3DMark的结果以及帧率对于这里配备的iGPU来说略高于平均水平。
3DMark Performance Rating - Percent | |
Average of class Office | |
Asus P1511CEA-BQ753R | |
Lenovo IdeaPad 3 15ITL05 81X80074GE | |
Acer Extensa 15 EX215-54-5103 | |
Average Intel UHD Graphics Xe G4 48EUs | |
Dell Inspiron 15 3505-PXHPW | |
Lenovo V15-ADA 82C7009SGE | |
Fujitsu Lifebook A3510 (FPC04905BP) |
3DMark 11 - 1280x720 Performance GPU | |
Average of class Office (1468 - 13132, n=94, last 2 years) | |
Acer Extensa 15 EX215-54-5103 | |
Asus P1511CEA-BQ753R | |
Lenovo IdeaPad 3 15ITL05 81X80074GE | |
Average Intel UHD Graphics Xe G4 48EUs (2156 - 3906, n=11) | |
Dell Inspiron 15 3505-PXHPW | |
Fujitsu Lifebook A3510 (FPC04905BP) | |
Lenovo V15-ADA 82C7009SGE |
3DMark | |
1280x720 Cloud Gate Standard Graphics | |
Average of class Office (5681 - 58068, n=72, last 2 years) | |
Asus P1511CEA-BQ753R | |
Lenovo IdeaPad 3 15ITL05 81X80074GE | |
Average Intel UHD Graphics Xe G4 48EUs (11270 - 21778, n=11) | |
Acer Extensa 15 EX215-54-5103 | |
Dell Inspiron 15 3505-PXHPW | |
Lenovo V15-ADA 82C7009SGE | |
Fujitsu Lifebook A3510 (FPC04905BP) | |

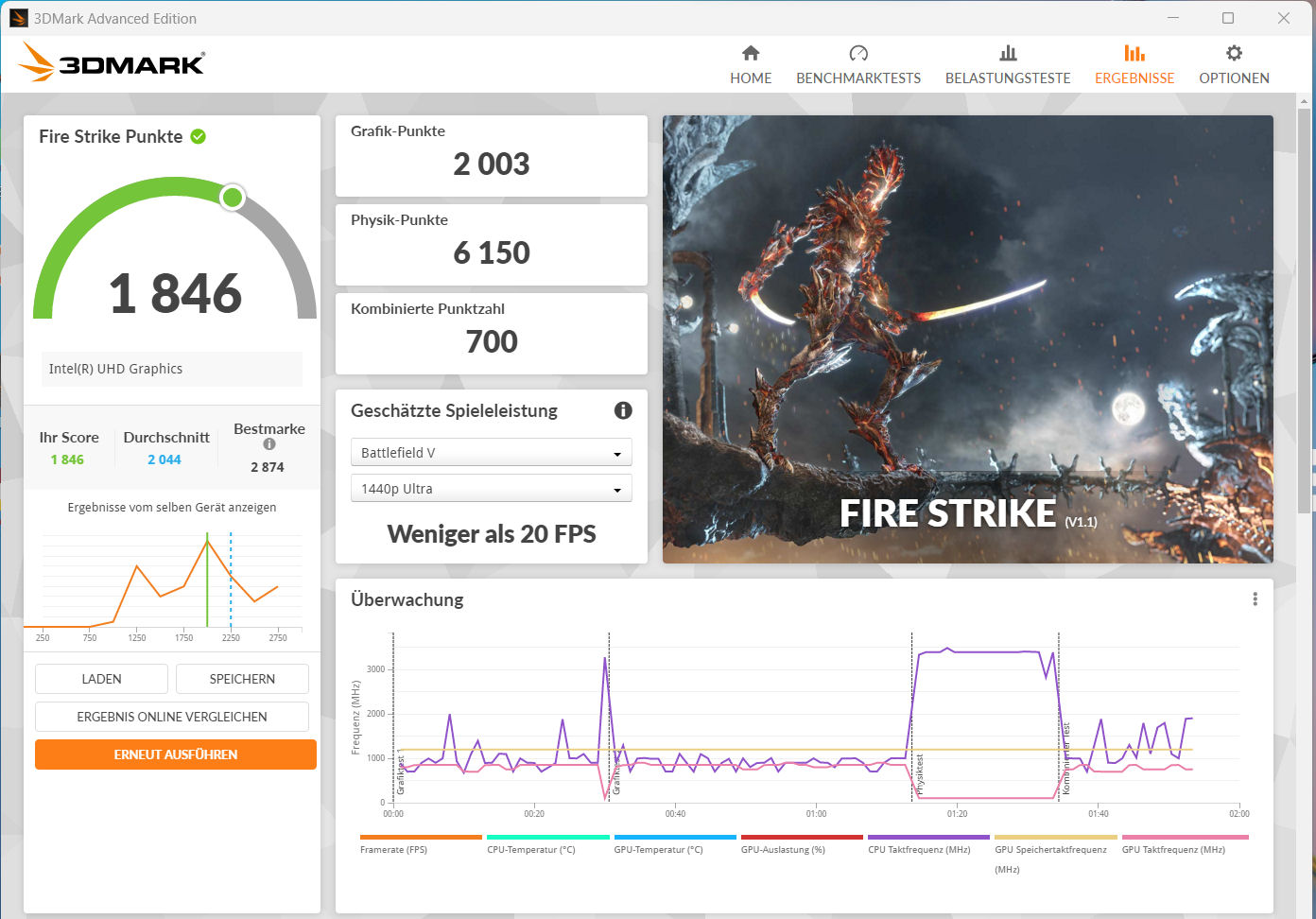

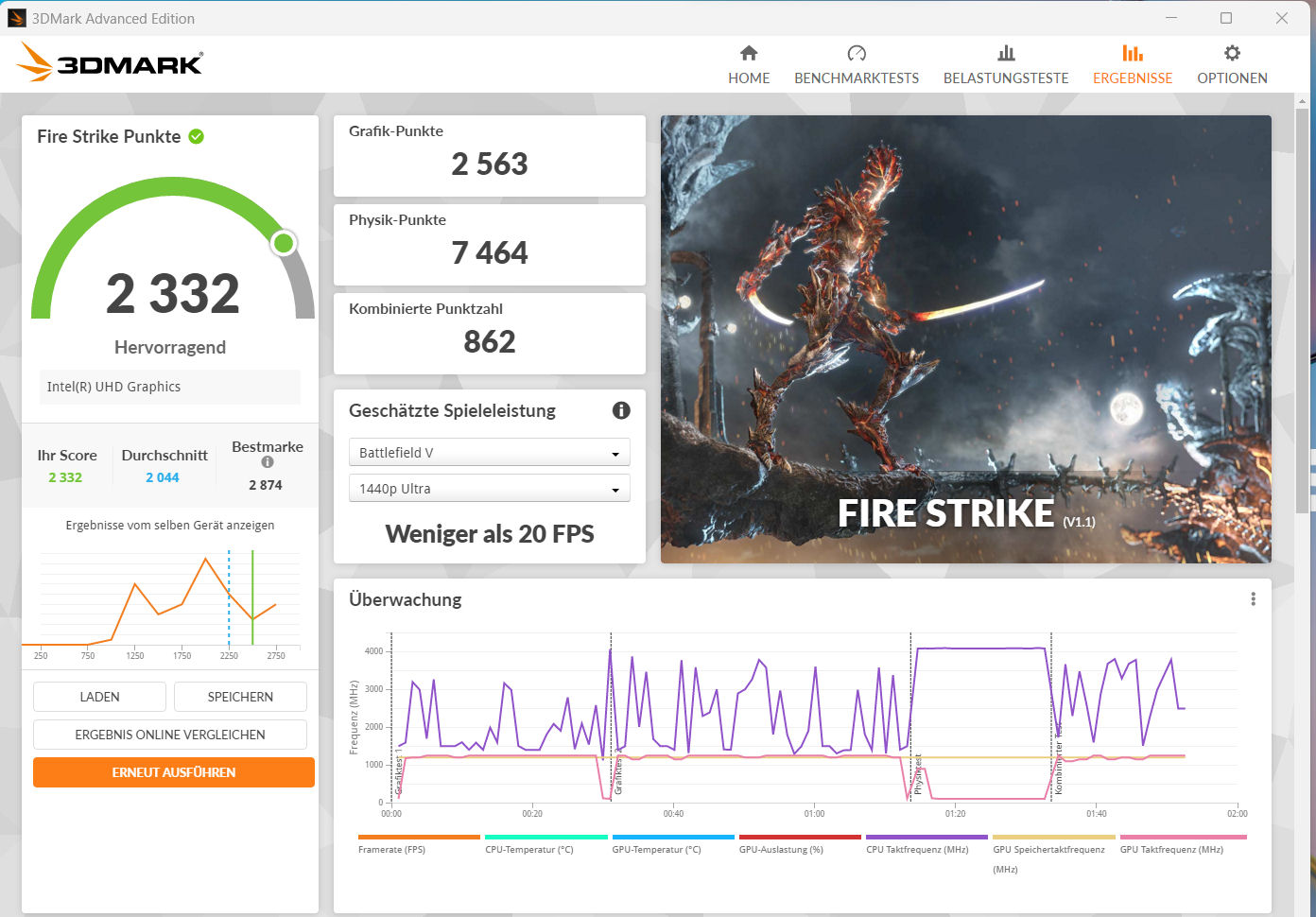

1920x1080 Fire Strike Graphics | |
Average of class Office (712 - 9375, n=97, last 2 years) | |
Asus P1511CEA-BQ753R | |
Lenovo IdeaPad 3 15ITL05 81X80074GE | |
Average Intel UHD Graphics Xe G4 48EUs (1602 - 3131, n=11) | |
Acer Extensa 15 EX215-54-5103 | |
Dell Inspiron 15 3505-PXHPW | |
Lenovo V15-ADA 82C7009SGE | |
Fujitsu Lifebook A3510 (FPC04905BP) | |
2560x1440 Time Spy Graphics | |
Average of class Office (242 - 4109, n=97, last 2 years) | |
Asus P1511CEA-BQ753R | |
Lenovo IdeaPad 3 15ITL05 81X80074GE | |
Acer Extensa 15 EX215-54-5103 | |
Average Intel UHD Graphics Xe G4 48EUs (634 - 913, n=9) | |
Dell Inspiron 15 3505-PXHPW | |
Fujitsu Lifebook A3510 (FPC04905BP) | |
Lenovo V15-ADA 82C7009SGE |
3DMark 11 Performance | 3844 points | |
3DMark Cloud Gate Standard Score | 11081 points | |

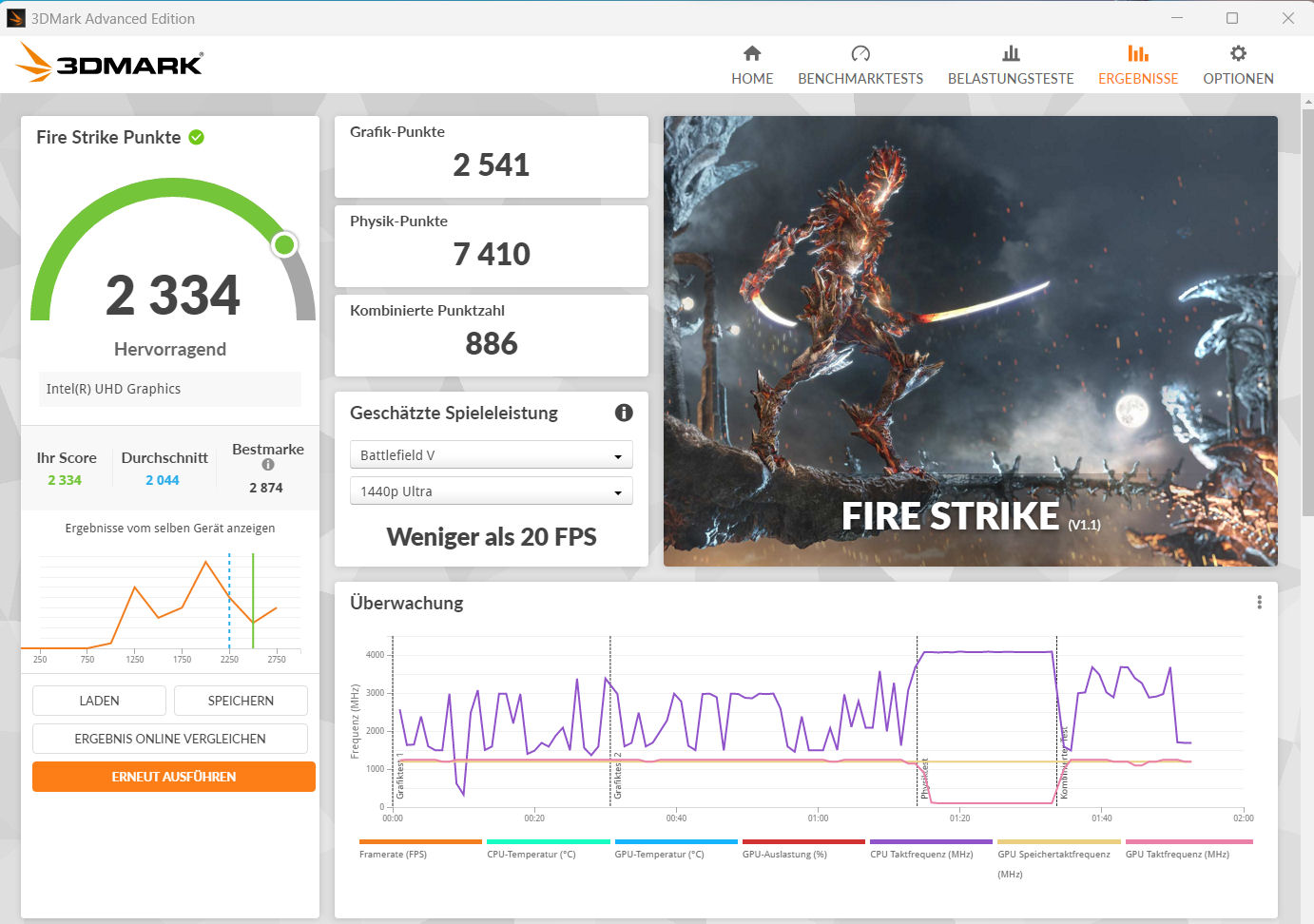

3DMark Fire Strike Score | 2332 points | |
3DMark Time Spy Score | 896 points | |
Help |
Performance Rating - Percent | |
Average of class Office | |
Asus P1511CEA-BQ753R | |
Lenovo IdeaPad 3 15ITL05 81X80074GE | |
Average Intel UHD Graphics Xe G4 48EUs | |
Lenovo V15-ADA 82C7009SGE -3! | |
Fujitsu Lifebook A3510 (FPC04905BP) | |
Dell Inspiron 15 3505-PXHPW |
The Witcher 3 - 1024x768 Low Graphics & Postprocessing | |
Average of class Office (8.4 - 177, n=82, last 2 years) | |
Asus P1511CEA-BQ753R | |
Lenovo IdeaPad 3 15ITL05 81X80074GE | |
Average Intel UHD Graphics Xe G4 48EUs (20.6 - 62.3, n=11) | |
Fujitsu Lifebook A3510 (FPC04905BP) | |
Dell Inspiron 15 3505-PXHPW |
Dota 2 Reborn - 1280x720 min (0/3) fastest | |
Average of class Office (35.2 - 161.8, n=104, last 2 years) | |
Asus P1511CEA-BQ753R | |
Lenovo IdeaPad 3 15ITL05 81X80074GE | |
Fujitsu Lifebook A3510 (FPC04905BP) | |
Average Intel UHD Graphics Xe G4 48EUs (37 - 95.8, n=12) | |
Lenovo V15-ADA 82C7009SGE | |
Dell Inspiron 15 3505-PXHPW |
X-Plane 11.11 - 1280x720 low (fps_test=1) | |
Average of class Office (13.6 - 128.2, n=103, last 2 years) | |
Lenovo IdeaPad 3 15ITL05 81X80074GE | |
Average Intel UHD Graphics Xe G4 48EUs (21.8 - 42.5, n=11) | |
Asus P1511CEA-BQ753R | |
Fujitsu Lifebook A3510 (FPC04905BP) | |
Lenovo V15-ADA 82C7009SGE | |
Dell Inspiron 15 3505-PXHPW |
Final Fantasy XV Benchmark - 1280x720 Lite Quality | |
Average of class Office (5.42 - 103.1, n=97, last 2 years) | |
Lenovo IdeaPad 3 15ITL05 81X80074GE | |
Asus P1511CEA-BQ753R | |
Average Intel UHD Graphics Xe G4 48EUs (14.6 - 29.3, n=12) | |
Fujitsu Lifebook A3510 (FPC04905BP) | |
Dell Inspiron 15 3505-PXHPW | |
Lenovo V15-ADA 82C7009SGE |
low | med. | high | ultra | |
---|---|---|---|---|
GTA V (2015) | 66.3 | 57.1 | 14.9 | 5.18 |
The Witcher 3 (2015) | 45.9 | 30.6 | 15.2 | 8.11 |
Dota 2 Reborn (2015) | 85.8 | 33.1 | 27.5 | 26.1 |
Final Fantasy XV Benchmark (2018) | 24.4 | 12.9 | 3.86 | |
X-Plane 11.11 (2018) | 31.3 | 19.4 | 17.3 | |
Strange Brigade (2018) | 52.7 | 21.1 | 17.3 |
排放与能源 - 华硕的电脑几乎不发热
噪声排放
在日常使用中(办公室、互联网),ExpertBook的风扇经常处于静止状态,完全无声。在负载情况下,声压级可能达到46dB(A)--对于一个没有任何装饰的Core-i3笔记本电脑来说,这是一个很高的水平。然而,不应高估这一极端值。这台电脑通常运行得很安静。一般来说,"耳语模式 "配置文件减少了噪音的产生--以牺牲计算能力为代价。
Noise Level
Idle |
| 26 / 29.5 / 29.5 dB(A) |
Load |
| 43.1 / 46 dB(A) |
| ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min: , med: , max: Earthworks M23R, Arta (15 cm distance) environment noise: 26 dB(A) |
Asus P1511CEA-BQ753R UHD Graphics Xe G4 48EUs, i3-1115G4, Kingston OM8PDP3256B | Lenovo IdeaPad 3 15ITL05 81X80074GE UHD Graphics Xe G4 48EUs, i3-1115G4, Lenovo UMIS RPJTJ256MEE1OWX | Lenovo V15-ADA 82C7009SGE Vega 3, Athlon 3150U, WDC PC SN530 SDBPMPZ-265G | Dell Inspiron 15 3505-PXHPW Vega 8, R5 3450U, KDI OM3PDP3-AD NVMe KDI 256GB | Fujitsu Lifebook A3510 (FPC04905BP) UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1, Samsung PM991 MZVLQ256HAJD | Acer Extensa 15 EX215-54-5103 Iris Xe G7 80EUs, i5-1135G7, WDC PC SN530 SDBPNPZ-265G | |
---|---|---|---|---|---|---|
Noise | 11% | 13% | 14% | 10% | 8% | |
off / environment * | 26 | 25 4% | 25 4% | 25 4% | 25 4% | 25 4% |
Idle Minimum * | 26 | 25 4% | 25 4% | 25 4% | 25 4% | 25 4% |
Idle Average * | 29.5 | 25 15% | 25 15% | 25 15% | 25 15% | 25 15% |
Idle Maximum * | 29.5 | 25 15% | 26.3 11% | 25 15% | 25 15% | 27 8% |
Load Average * | 43.1 | 37.9 12% | 31.5 27% | 33.6 22% | 39.2 9% | 32.3 25% |
Load Maximum * | 46 | 38 17% | 38 17% | 34.5 25% | 39 15% | 50 -9% |
* ... smaller is better
温度

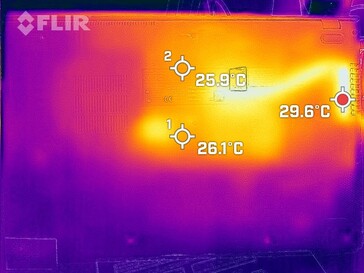

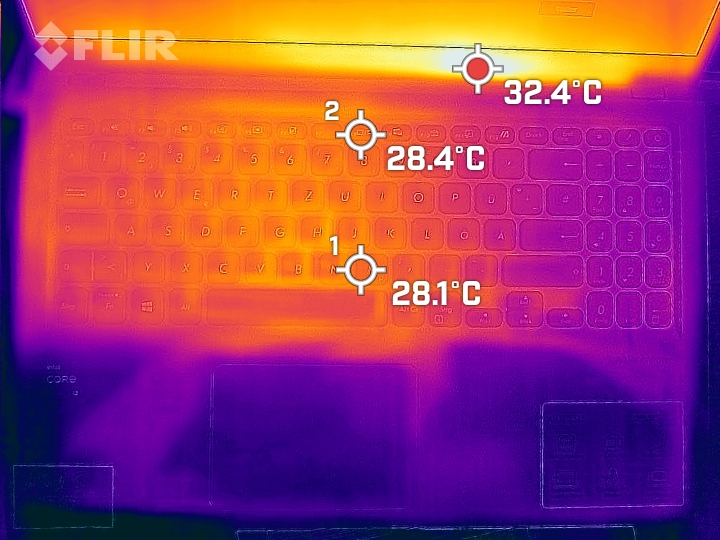

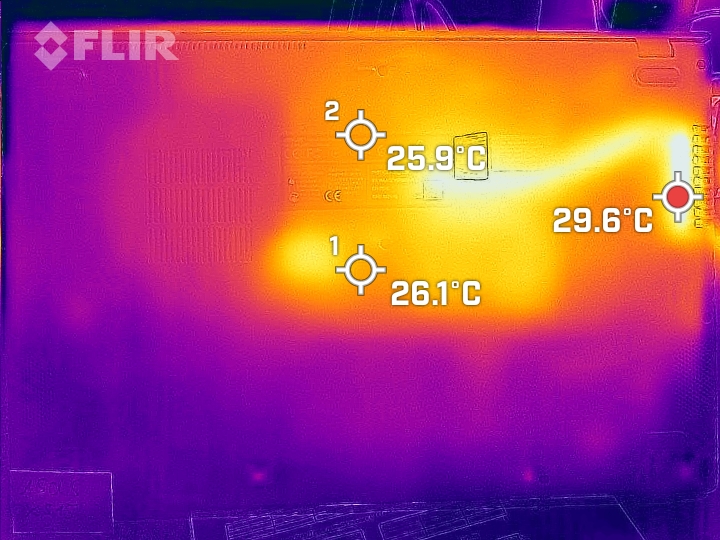

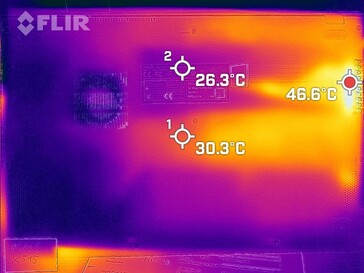

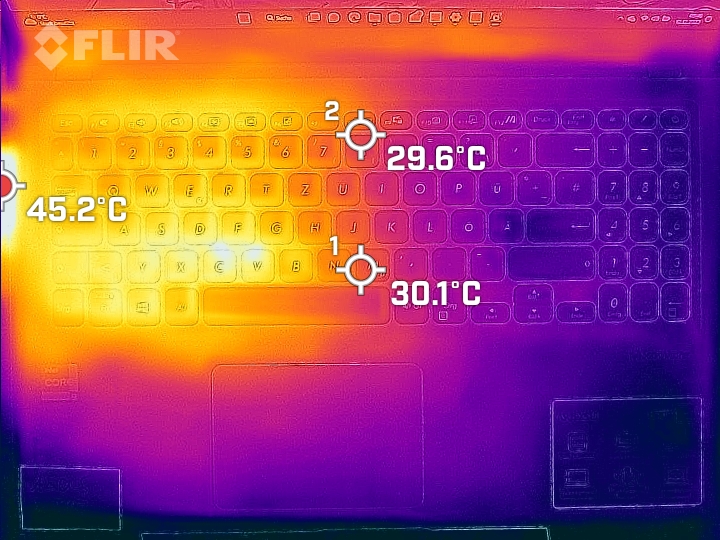

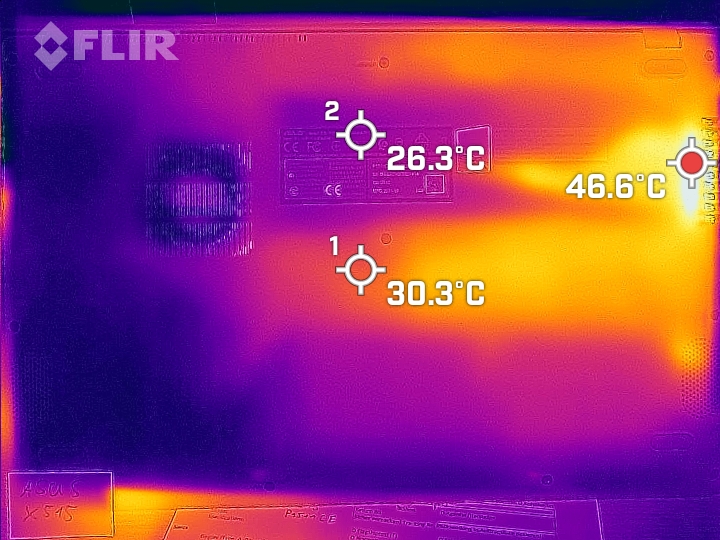

笔记本电脑并没有变得特别热。在压力测试期间,我们在笔记本电脑的一个区域测得的温度刚刚超过40摄氏度。在日常使用中(办公室、互联网),温度水平处于绿色区域。

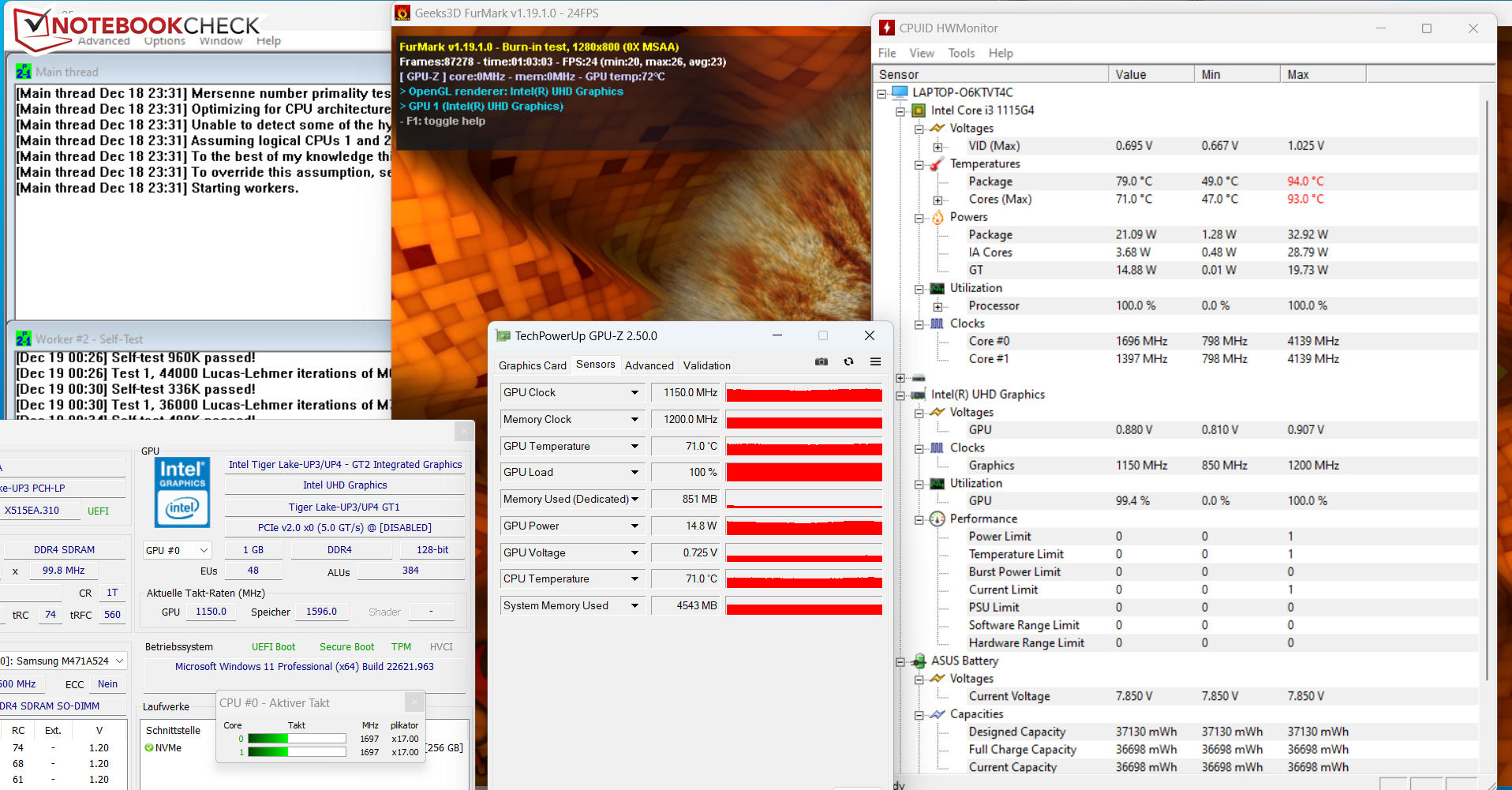

压力测试(Prime95和FurMark连续运行)代表了一种极端情况,用于检查系统在全负荷下的稳定性。在测试过程中,CPU的时钟速度从2.8GHz的起点下降到1.6GHz。图形核心的速度只从1200MHz略微下降到1150MHz。
(±) The maximum temperature on the upper side is 40.3 °C / 105 F, compared to the average of 34.3 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(+) The bottom heats up to a maximum of 39.2 °C / 103 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 25 °C / 77 F, compared to the device average of 29.5 °C / 85 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 27.3 °C / 81.1 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 27.7 °C / 81.9 F (+0.4 °C / 0.8 F).
Asus P1511CEA-BQ753R Intel Core i3-1115G4, Intel UHD Graphics Xe G4 48EUs | Lenovo IdeaPad 3 15ITL05 81X80074GE Intel Core i3-1115G4, Intel UHD Graphics Xe G4 48EUs | Lenovo V15-ADA 82C7009SGE AMD Athlon Gold 3150U, AMD Radeon RX Vega 3 | Dell Inspiron 15 3505-PXHPW AMD Ryzen 5 3450U, AMD Radeon RX Vega 8 (Ryzen 2000/3000) | Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1, Intel UHD Graphics G1 (Ice Lake 32 EU) | Acer Extensa 15 EX215-54-5103 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs | |
---|---|---|---|---|---|---|
Heat | 2% | 10% | -18% | 8% | -6% | |
Maximum Upper Side * | 40.3 | 37.2 8% | 32.1 20% | 40.4 -0% | 34.4 15% | 42 -4% |
Maximum Bottom * | 39.2 | 38 3% | 31 21% | 41.1 -5% | 30.9 21% | 43.3 -10% |
Idle Upper Side * | 27.3 | 27.3 -0% | 27.3 -0% | 34.6 -27% | 27.7 -1% | 27.9 -2% |
Idle Bottom * | 28.5 | 29.1 -2% | 29 -2% | 40 -40% | 29.2 -2% | 30.4 -7% |
* ... smaller is better
发言人
立体声扬声器能产生体面的声音,但几乎没有任何低音。
Asus P1511CEA-BQ753R audio analysis
(±) | speaker loudness is average but good (76.6 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 19.4% lower than median
(±) | linearity of bass is average (12.5% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3% away from median
(+) | mids are linear (5.5% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.7% away from median
(±) | linearity of highs is average (7.6% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (16.9% difference to median)
Compared to same class
» 19% of all tested devices in this class were better, 6% similar, 75% worse
» The best had a delta of 7%, average was 22%, worst was 53%
Compared to all devices tested
» 27% of all tested devices were better, 7% similar, 66% worse
» The best had a delta of 4%, average was 25%, worst was 134%
Lenovo V15-ADA 82C7009SGE audio analysis
(-) | not very loud speakers (70.6 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 29.9% lower than median
(-) | bass is not linear (16.3% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | reduced mids - on average 6.2% lower than median
(+) | mids are linear (6.5% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4% away from median
(+) | highs are linear (5.8% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (25.9% difference to median)
Compared to same class
» 77% of all tested devices in this class were better, 8% similar, 15% worse
» The best had a delta of 7%, average was 22%, worst was 53%
Compared to all devices tested
» 77% of all tested devices were better, 5% similar, 18% worse
» The best had a delta of 4%, average was 25%, worst was 134%
消耗功率
这台电脑在功耗方面没有显示任何异常,对于配备这种硬件的笔记本电脑来说,所有数值都可以被认为是正常的。在压力测试过程中,由于降低了时钟速度,功耗下降。电源装置(45瓦)完全适合手头的工作。
Off / Standby | 0.25 / 0.15 Watt |
Idle | 3.1 / 7.3 / 9 Watt |
Load |
37 / 43 Watt |
Key:
min: ,
med: ,
max: Metrahit Energy |

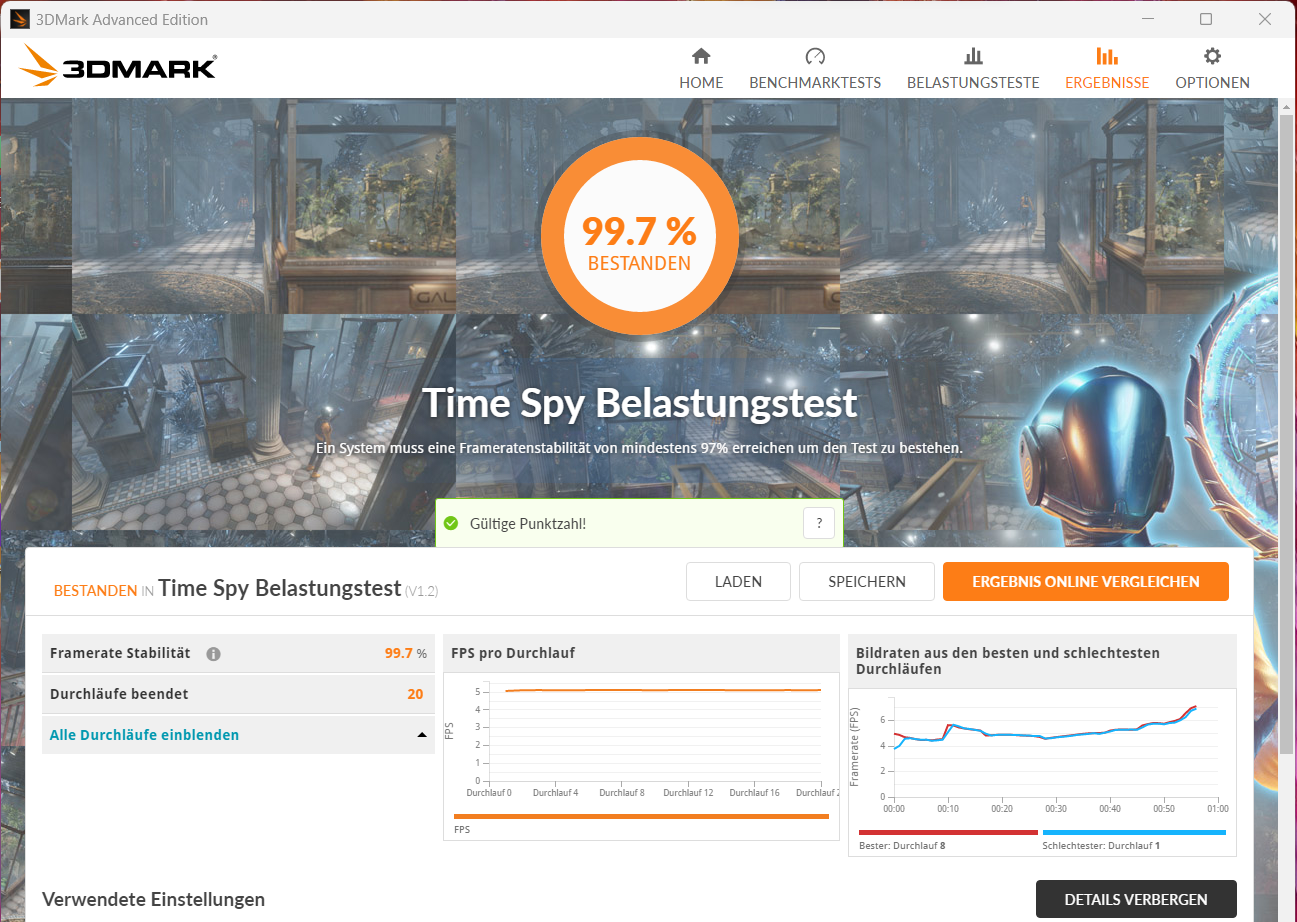

Power consumption Witcher 3 / stress test
Power consumption with an external monitor
电池寿命
Battery Runtime - WiFi Websurfing | |
Average of class Office (300 - 1349, n=96, last 2 years) | |
Acer Extensa 15 EX215-54-5103 | |
Fujitsu Lifebook A3510 (FPC04905BP) | |
Lenovo IdeaPad 3 15ITL05 81X80074GE | |
Asus P1511CEA-BQ753R | |
Dell Inspiron 15 3505-PXHPW | |
Lenovo V15-ADA 82C7009SGE |
Pros
Cons
结论 - 一个价格合理的办公笔记本电脑
P1配备了一个 酷睿i3-1115G4CPU,8GB内存(双通道模式),以及用于办公和互联网的PCIe 3.0 SSD(256GB)。热噪音和产量基本可以接受。
P1511CEA的价格点使它成为一个有吸引力的主张:大约350美元,你可以得到一个简单的Tiger Lake 笔记本电脑和Windows 10/11 Pro。然而,这样的价格意味着妥协:哑光的FHD显示屏受到低亮度和低对比度的影响。尽管如此,华硕还是采用了具有良好视角稳定性的IPS面板。在这个预算价格段,TN显示屏通常是一天中最重要的。
电池寿命没什么可写的。出门在外,该设备可以通过紧凑的专有PSU(145克)来供电,但通过USB-C适配器供电是不可能的。质量差的网络摄像头(0.3MP)只应考虑用于参加视频会议,如果有必要,应使用外部摄像头。
华硕笔记本电脑的另一个选择是 延伸15 EX215-54.这个竞争者提供了相当多的计算能力,以及比华硕笔记本电脑更好的电池寿命。然而,可以发现它的弱点是没有Windows操作系统,而且视角稳定性较差。第二个替代设备是 LifeBook A3510,提供的处理能力比P1511少。然而,在其他方面,这款笔记本电脑脱颖而出:这台机器有一个可移动的DVD刻录机和一个维护挡板。
价格和供应情况
华硕P1511CEA评测模型可以在亚马逊网站上购买,价格为349美元。
Asus P1511CEA-BQ753R
-
01/14/2023 v7 (old)
Sascha Mölck
