PrimeBook Circular回顾。模块化的14英寸基于NUC的笔记本电脑
Prime Computer是一家总部设在瑞士的系统制造商，它将产品的可持续性作为其首要目标。根据它自己的声明，设备生产和头五年的运作是100%气候中立的。此外，PrimeBook Circular采用模块化设计，使系统非常容易适应用户的需求，这也是为了延长产品的生命周期。想了解更多信息的人可以访问该公司的主页了解更多信息。

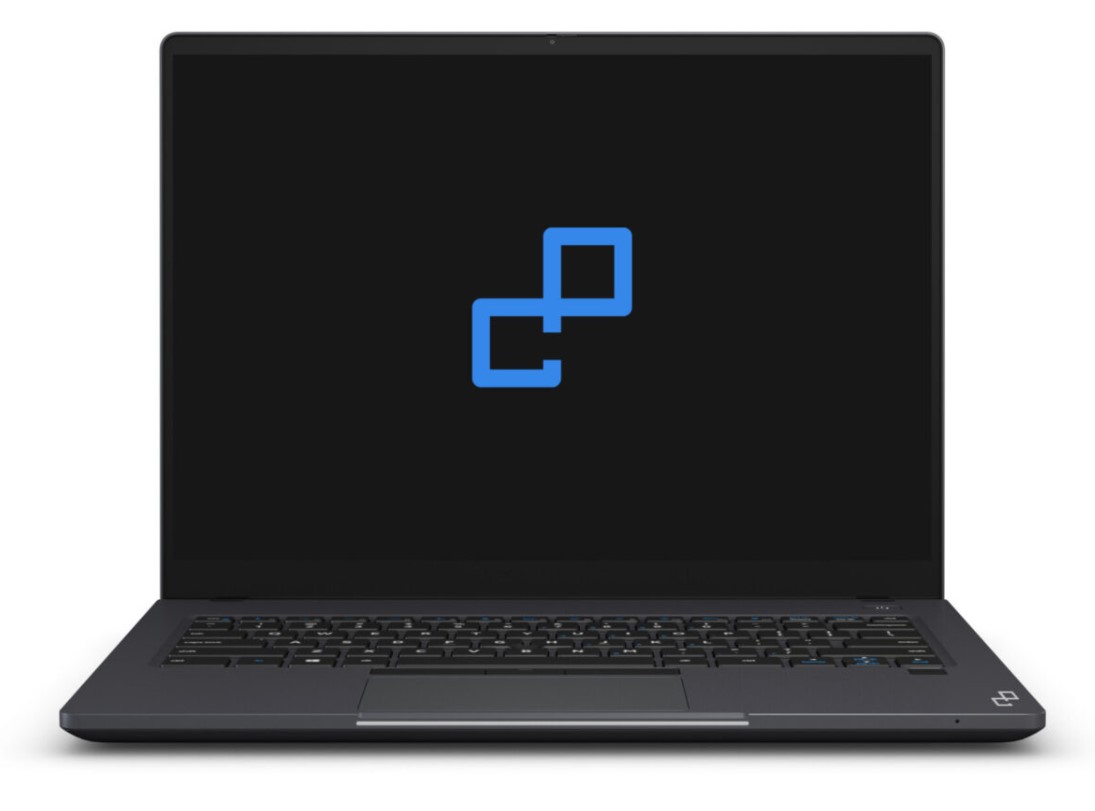

PrimeBook Circular是一款14英寸规格的商务笔记本。我们的审查配置是基于英特尔的NUC计算元素CM11EBI716W，并提供一个英特尔酷睿i7-1165G7与16GB的内存和Wi-Fi 6。进一步的设备包括一个高分辨率的13.9英寸触摸显示屏和一个快速的500GB SSD。读者应记住，固态硬盘和计算元素是可配置的组件，可以有所不同。Prime Computer对我们的配置收取1,668欧元（税前）。最便宜的配置是使用 Intel Celeron 6305和4GB内存的最便宜配置目前的价格是1055欧元，而最快的英特尔型号(酷睿i7-1185G7)售价为1753欧元。同样，这两个价格不包括增值税。你还应该知道，计算元素是一种插件卡，可以很容易地换掉，包含所有的基本组件（CPU、内存等）。关于安装的计算元素的所有细节可以在这里找到https://ark.intel.com/content/www/us/en/ark/products/212012/intel-nuc-11-compute-element-cm11ebi716w.html.
基于Alder Lake芯片的计算元素预计将在晚些时候推出，制造商称2022年第四季度是预期的时间框架。到那时，i7型号也应该有高达32GB内存的变种。然后，i5型号应该提供高达16GB的内存。
PrimeBook Circular的竞争设备包括目前具有类似设备的14英寸格式的办公笔记本。
与可能的竞争对手比较
Rating | Date | Model | Weight | Height | Size | Resolution | Price |
|---|---|---|---|---|---|---|---|
| 87.3 % v7 (old) | 07 / 2022 | Prime Computer PrimeBook Circular-i7-1165G7 i7-1165G7, Iris Xe G7 96EUs | 1.6 kg | 16 mm | 13.90" | 3000x2000 | |
| 87.7 % v7 (old) | 04 / 2022 | Asus ZenBook 14X OLED UX5400EA-L7154W i7-1165G7, GeForce MX450 | 1.4 kg | 16.9 mm | 14.00" | 2880x1800 | |
| 84.8 % v7 (old) | 12 / 2021 | Dell Inspiron 14 5410-D3D7T i7-1165G7, Iris Xe G7 96EUs | 1.5 kg | 21 mm | 14.00" | 1920x1080 | |
| 89.4 % v7 (old) | 08 / 2021 | Lenovo ThinkPad T14s G2 20WM003TGE i7-1165G7, Iris Xe G7 96EUs | 1.3 kg | 16.14 mm | 14.00" | 1920x1080 | |
| 90.1 % v7 (old) | 03 / 2022 | Lenovo ThinkPad T14s G2 20XGS01100 R7 PRO 5850U, Vega 8 | 1.3 kg | 16.14 mm | 14.00" | 1920x1080 | |
v (old) | 09 / 2021 | Acer TravelMate P614P-52 i7-1165G7, Iris Xe G7 96EUs | 1 kg | 16.8 mm | 14.00" | 1920x1200 |
案例

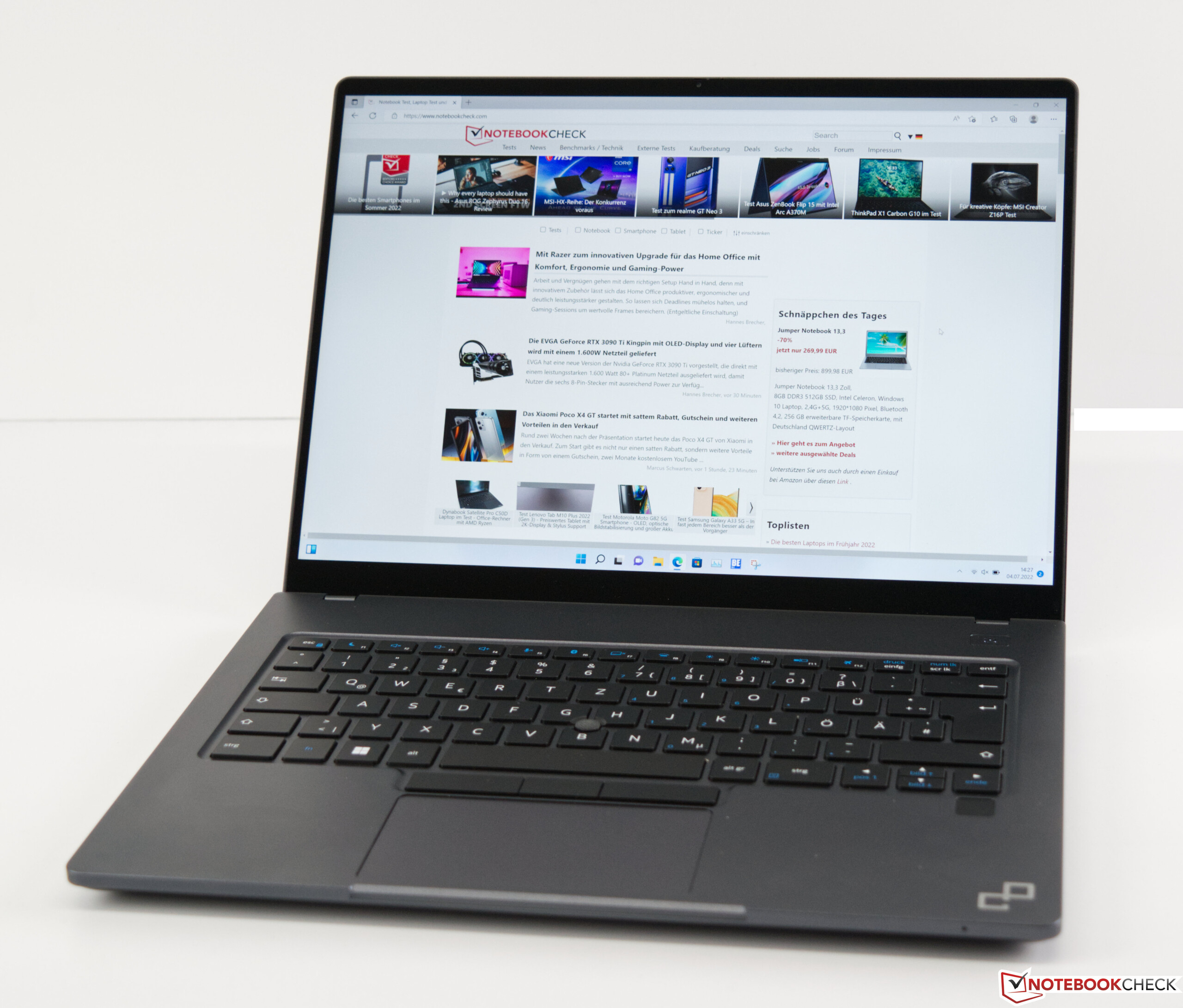

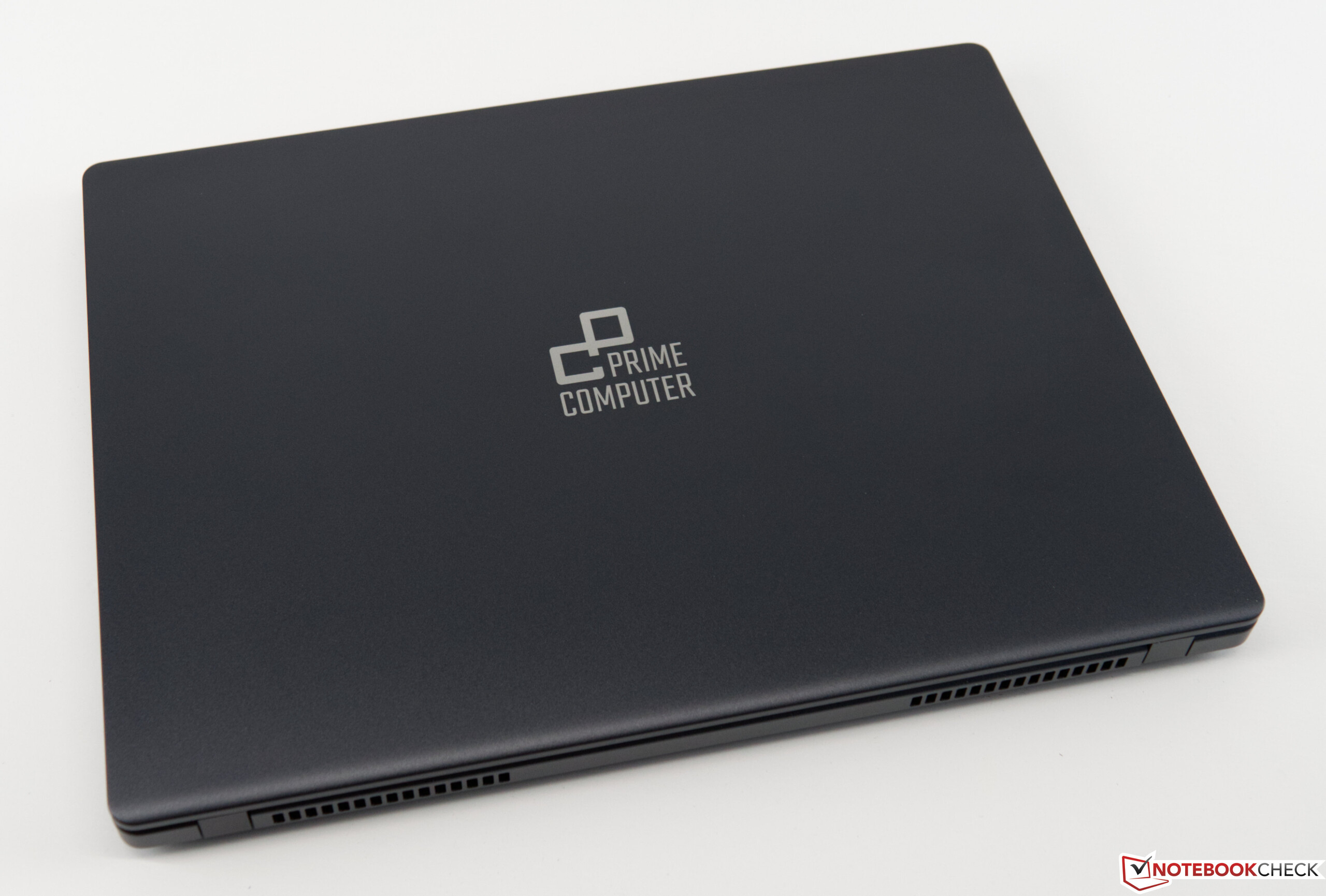

PrimeBook Circular的外壳完全由阳极氧化铝制成，因此非常坚固。这也适用于显示屏盖子，它只能非常轻微地扭曲。关于颜色，制造商指定PrimeBook Circular为深灰色，这也是准确的。没有光学亮点，这是一件好事，因为该设备主要是面向商业和生产性工作的使用。打开显示屏可以达到180度，屏幕被铰链很好地固定住了。单手打开也是可能的。
尺寸比较

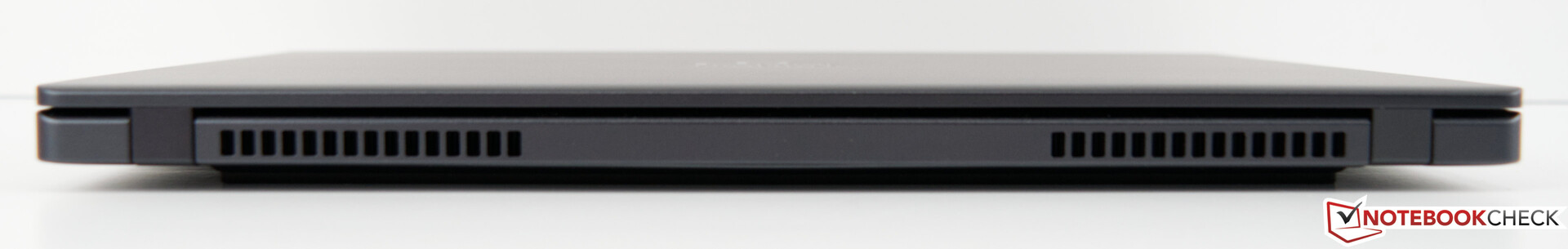

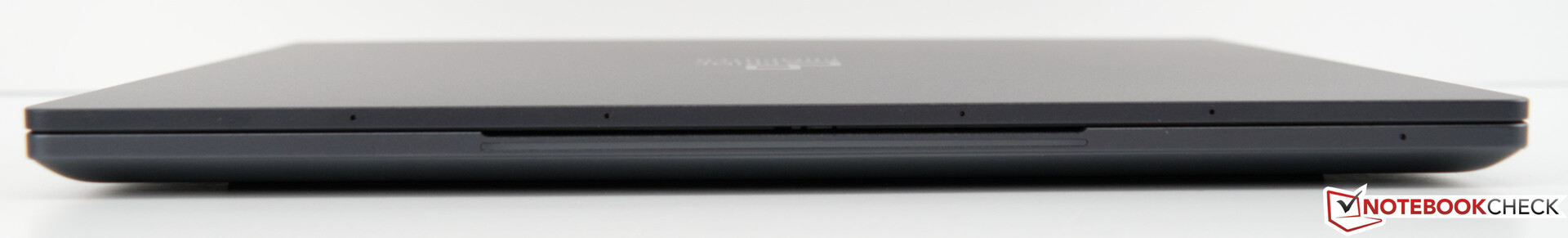

PrimeBook Circular的总尺寸为30.4 x 23.0厘米，使其与我们的对比设备大致相同。我们的审查样本相对较薄，只有16毫米。只有 戴尔Inspiron 14相比之下要厚得多。PrimeBook Circular结实耐用的外壳是造成其相对较高的1.6公斤重量的原因，而电源适配器的重量为330克。
装备

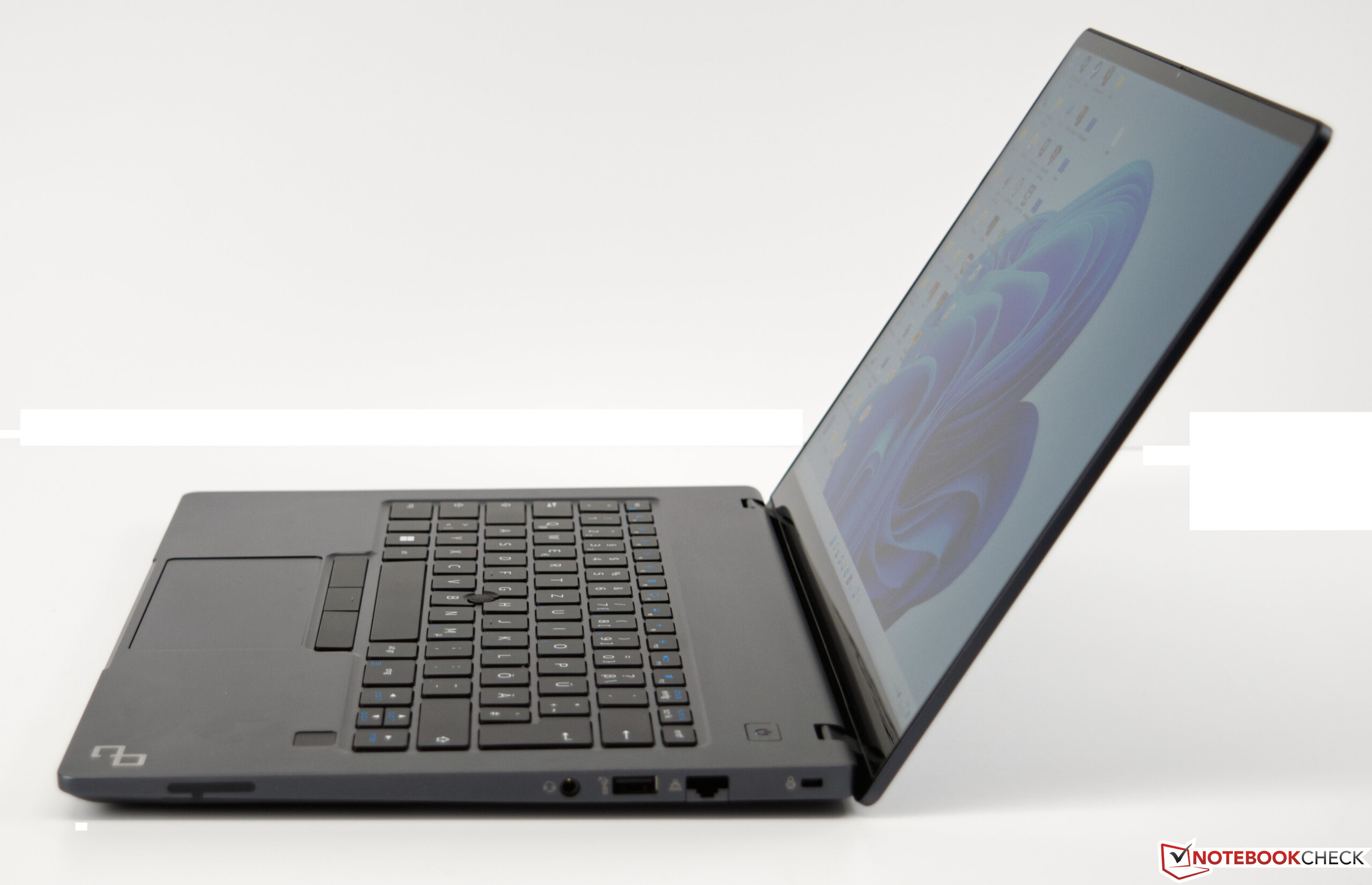

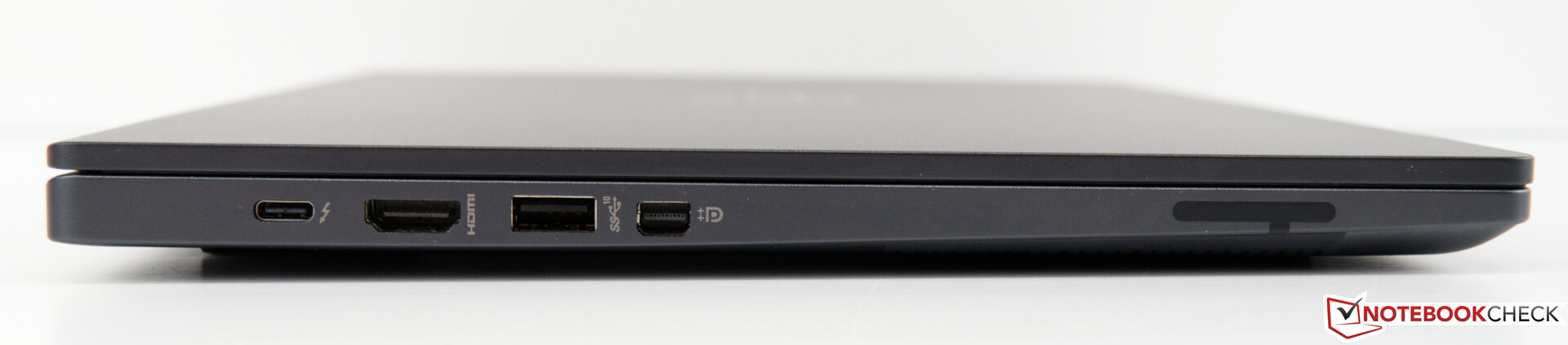

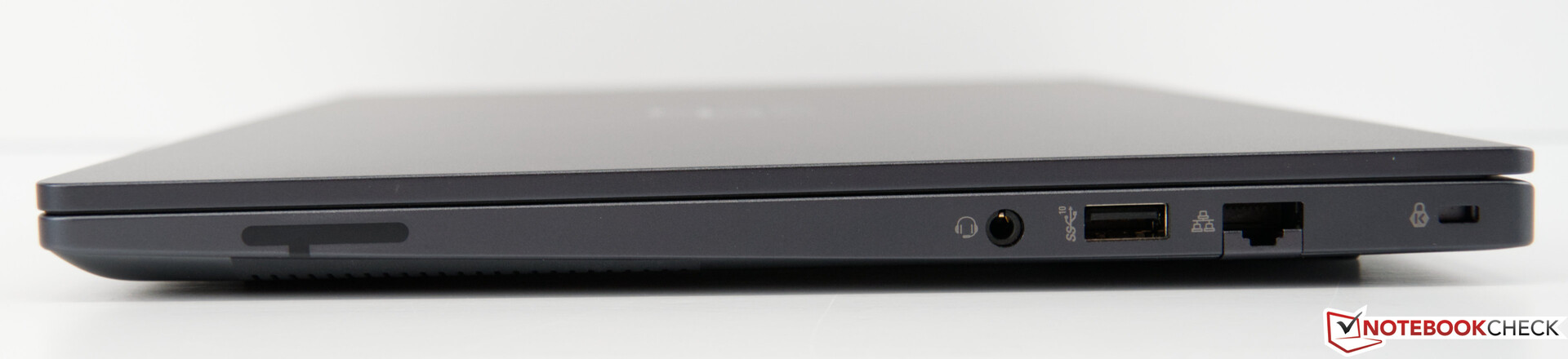

连接方式的选择包括最重要的接口。有两个USB Type-A端口，并适当地分布在设备的两侧。Type-C端口主要作为电源连接，但它也支持Thunderbolt 4，这有力地加强了PrimeBook Circular的用途。因此，这样一个多功能的接口也可以用来连接外部显卡。监视器可以通过HDMI或Mini DisplayPort连接。唯一值得批评的一点是缺乏读卡器。
沟通
安装在计算元素中的英特尔Wi-Fi 6 AX201模块与我们的参考路由器（华硕ROG Rapture GT-AXE11000）一起提供了非常好的性能。与有线网络连接相比，Wi-Fi模块甚至有明显的速度优势。不幸的是，RJ45接口最高只能达到1GBit/s。
网络摄像头
720p的网络摄像头只是有条件地适用于日常使用，因为其分辨率不是特别高，只有0.9MPix。这里唯一的补救措施是使用外部解决方案。作为一个重要的安全方面，该网络摄像头还提供了一个机械快门。
安全问题
安全功能包括一个指纹扫描仪和一个红外摄像头，它还支持 "Windows Hello"。这两种登录方式都可以快速设置，使认证过程更容易。还提供了一个肯辛顿锁，以防止适时的盗窃。
辅料

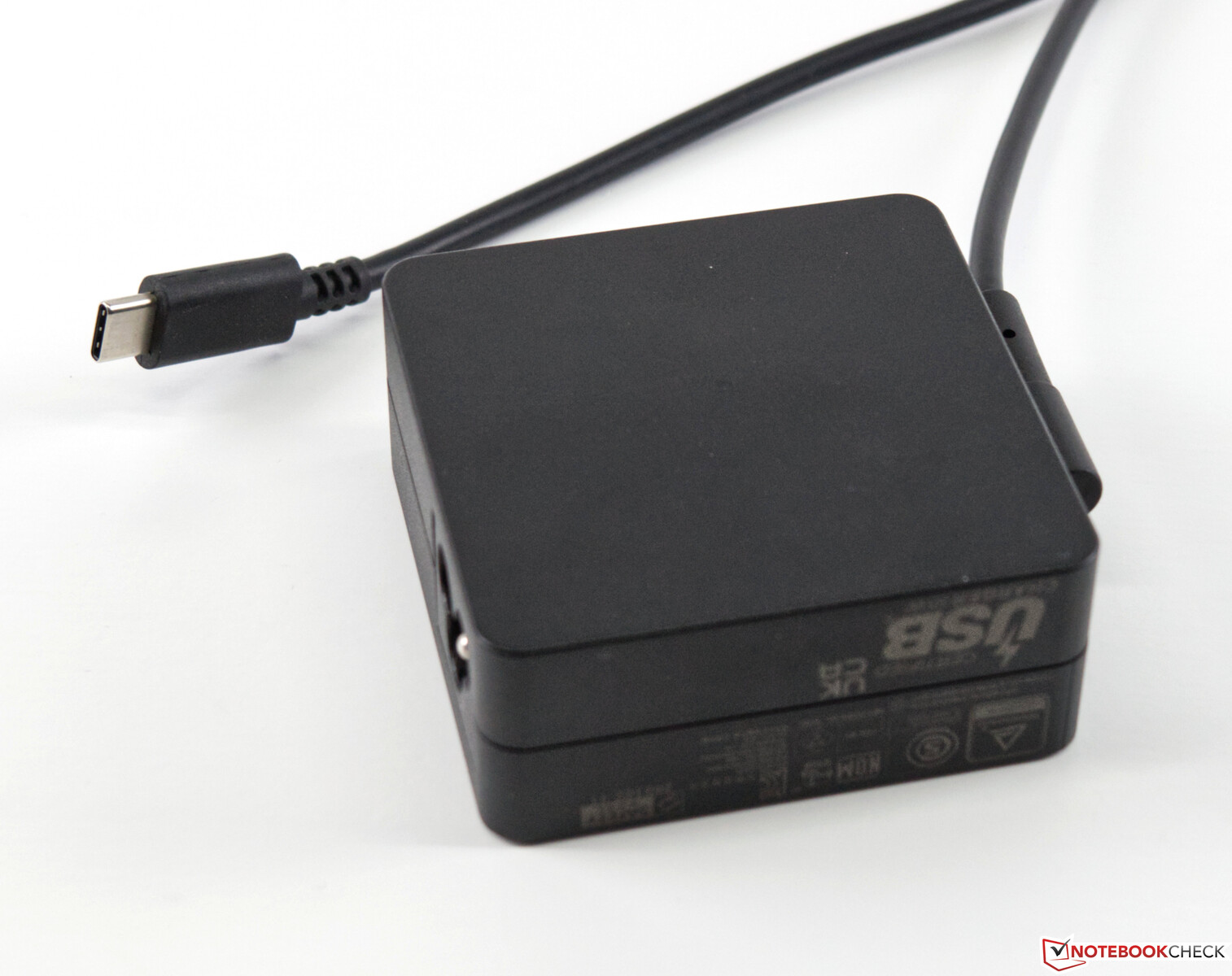

除笔记本外，交货范围内只包括配套的65瓦电源适配器。笔记本电脑以不含塑料的环保包装交付，再次强化了制造商对可持续发展的承诺。
维护

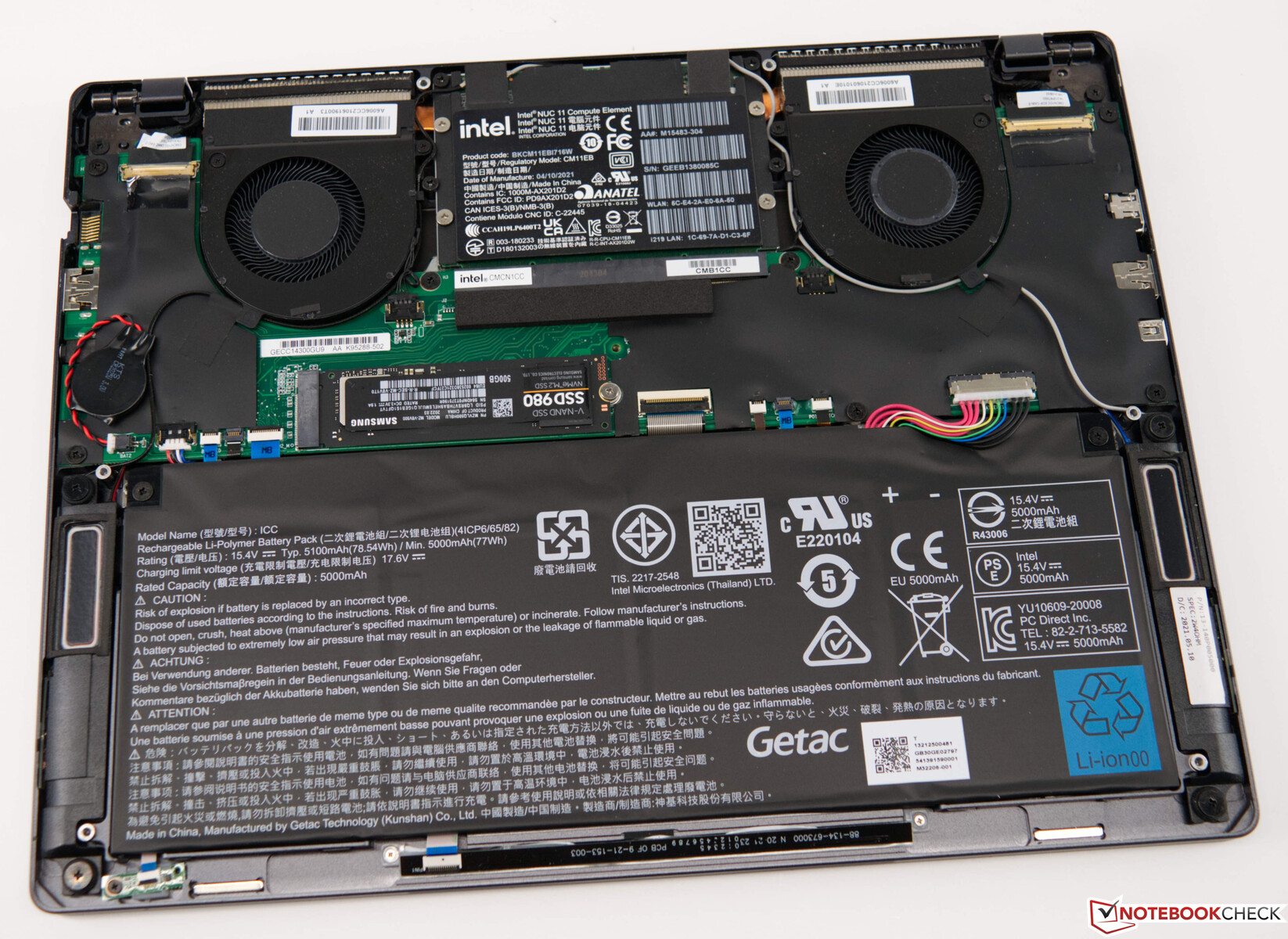

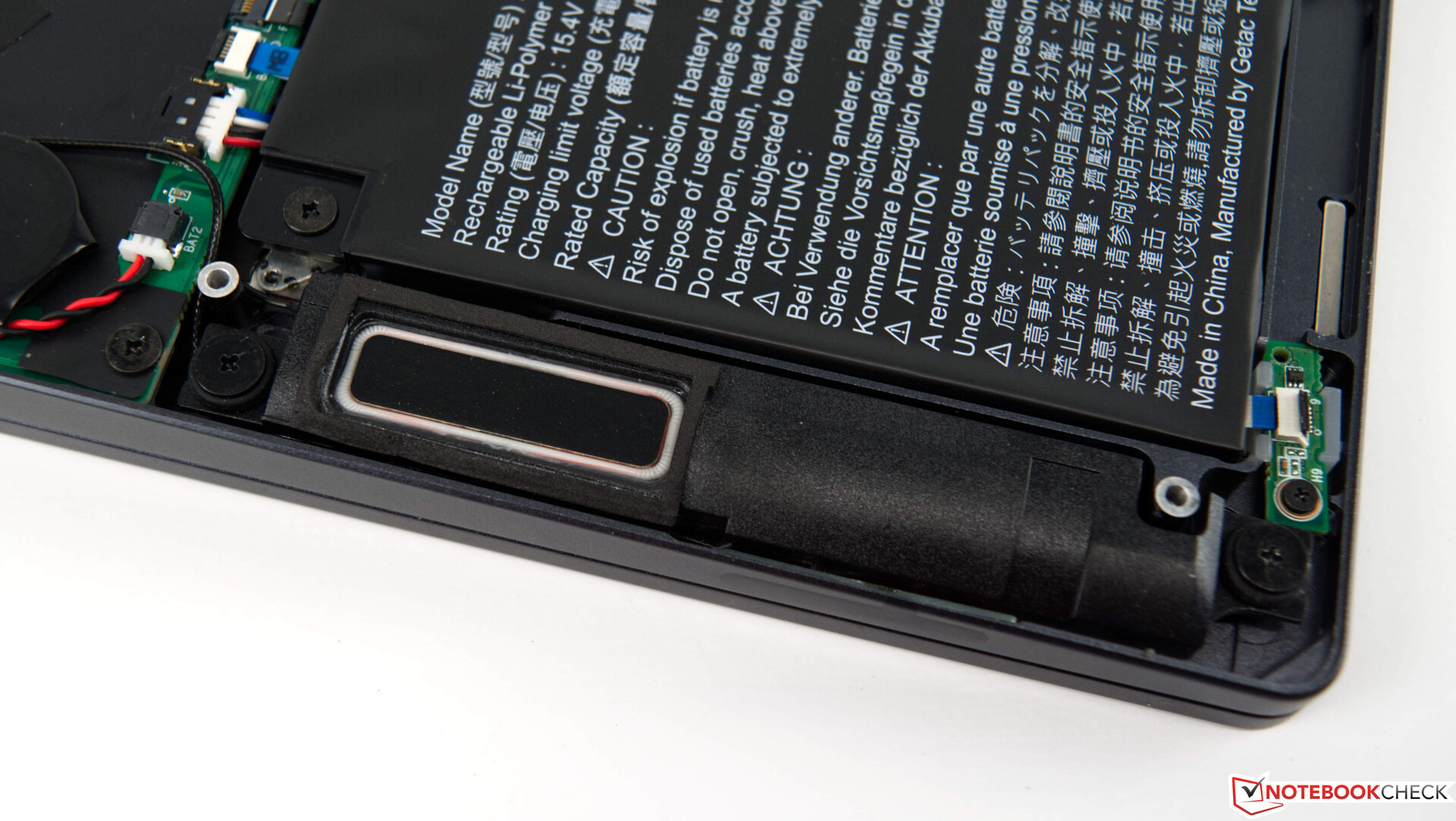

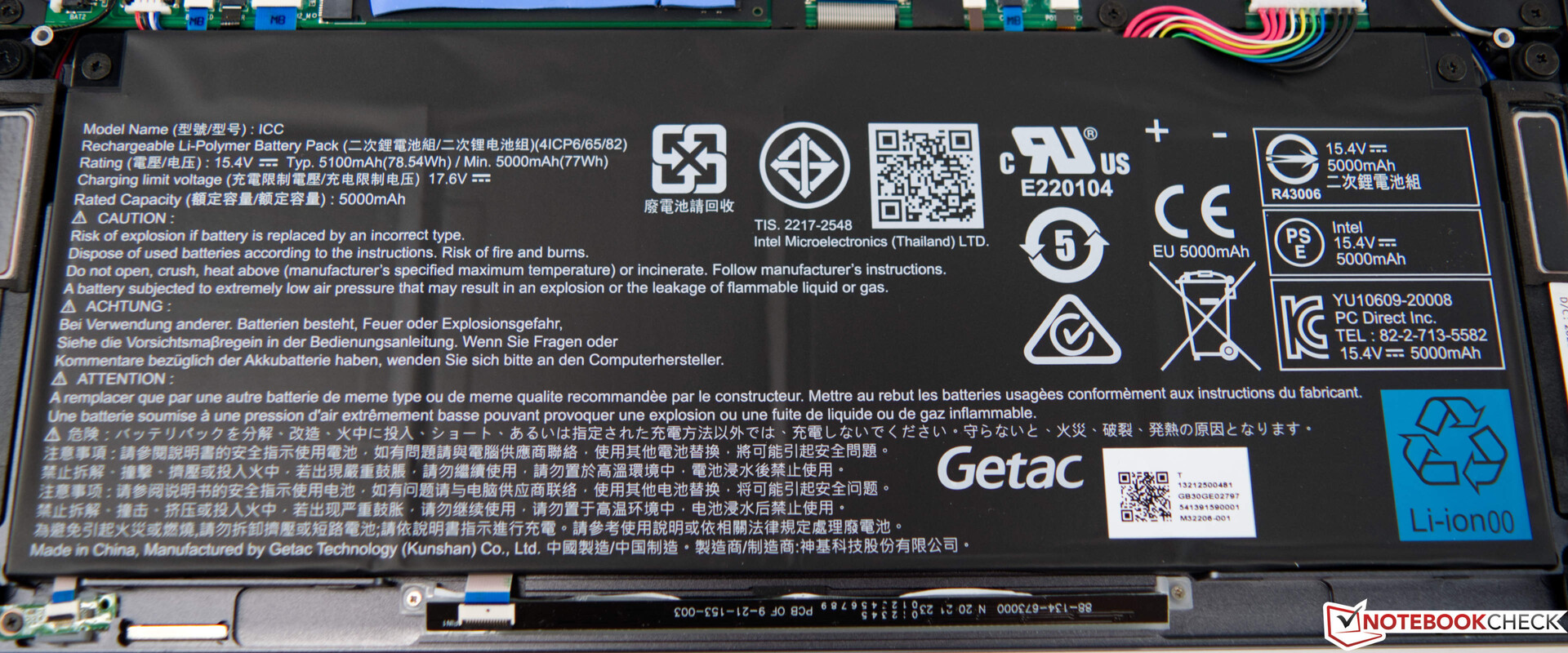

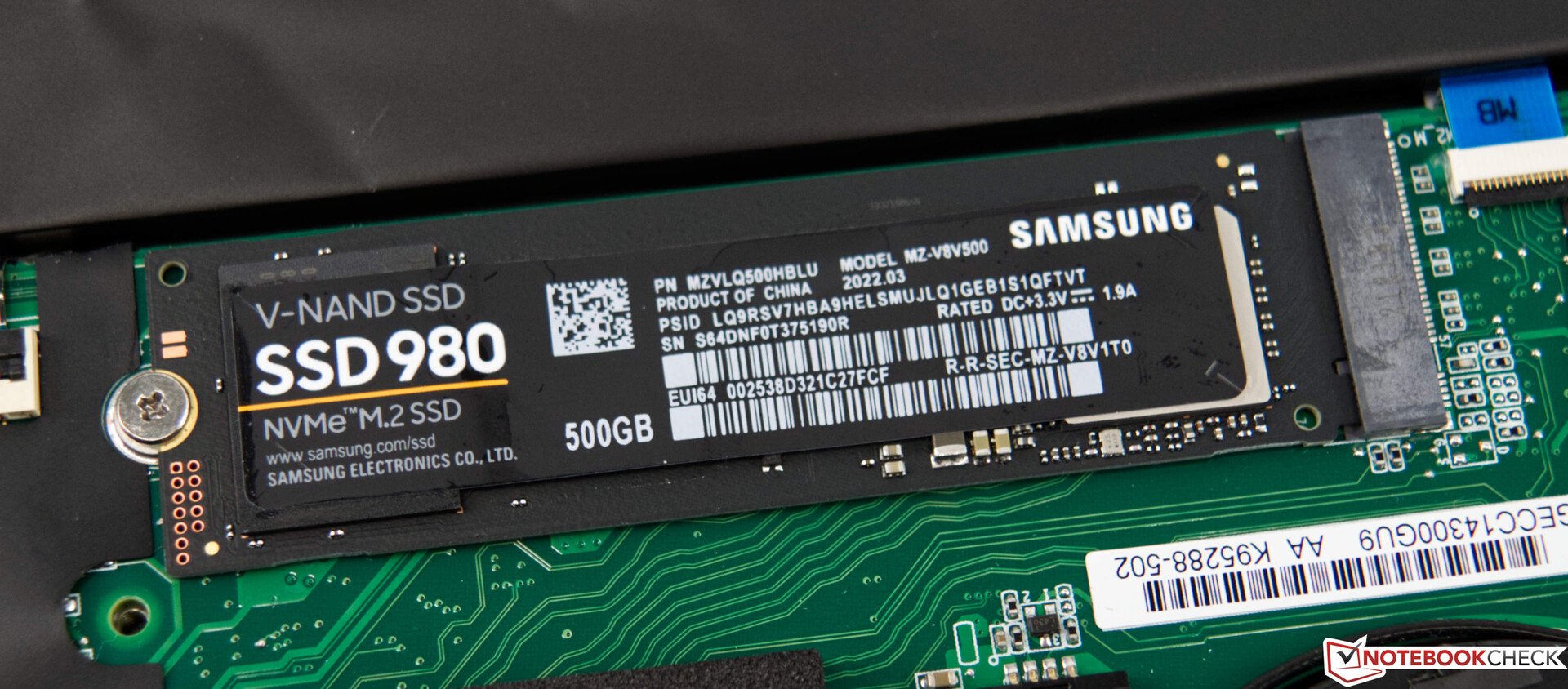

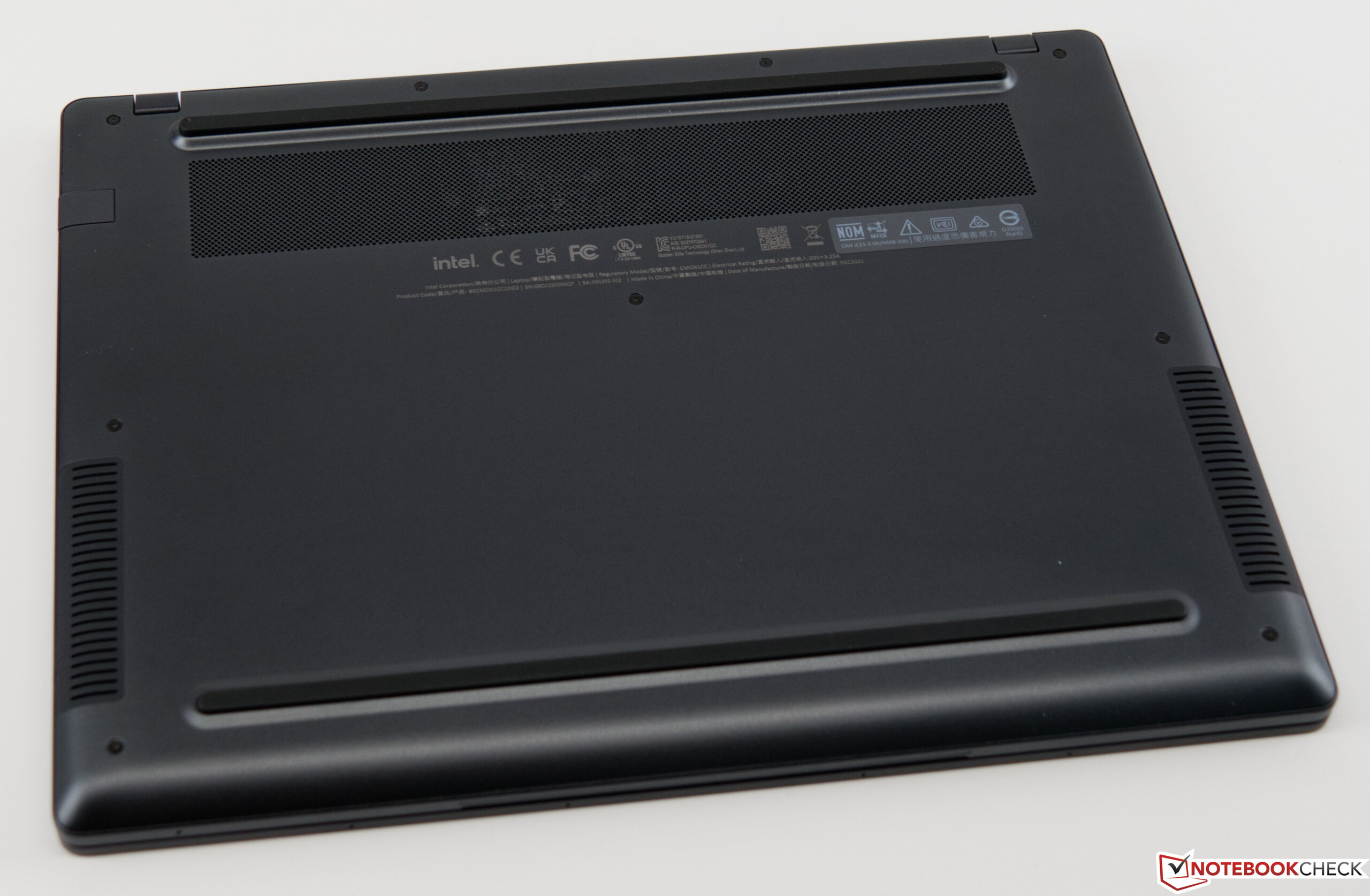

对PrimeBook Circular的维护工作仅限于精华部分。没有维护舱口，所以那些想进入内部的人必须拆除底板。但是，只要有一点技巧和合适的工具，就可以很快完成。SoC、RAM和Wi-Fi模块位于英特尔NUC计算元件中，可以被替换。这意味着未来的升级是可能的。大容量存储也很容易获得和更换。
担保
Prime Computer在购买PrimeBook Circular时给予客户36个月的保修期，该保修期在全球范围内有效，可以选择延长到5年。这方面的附加费是139欧元（140美元），外加增值税。
输入设备
键盘

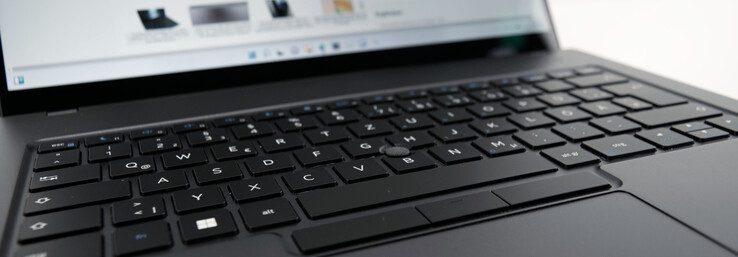

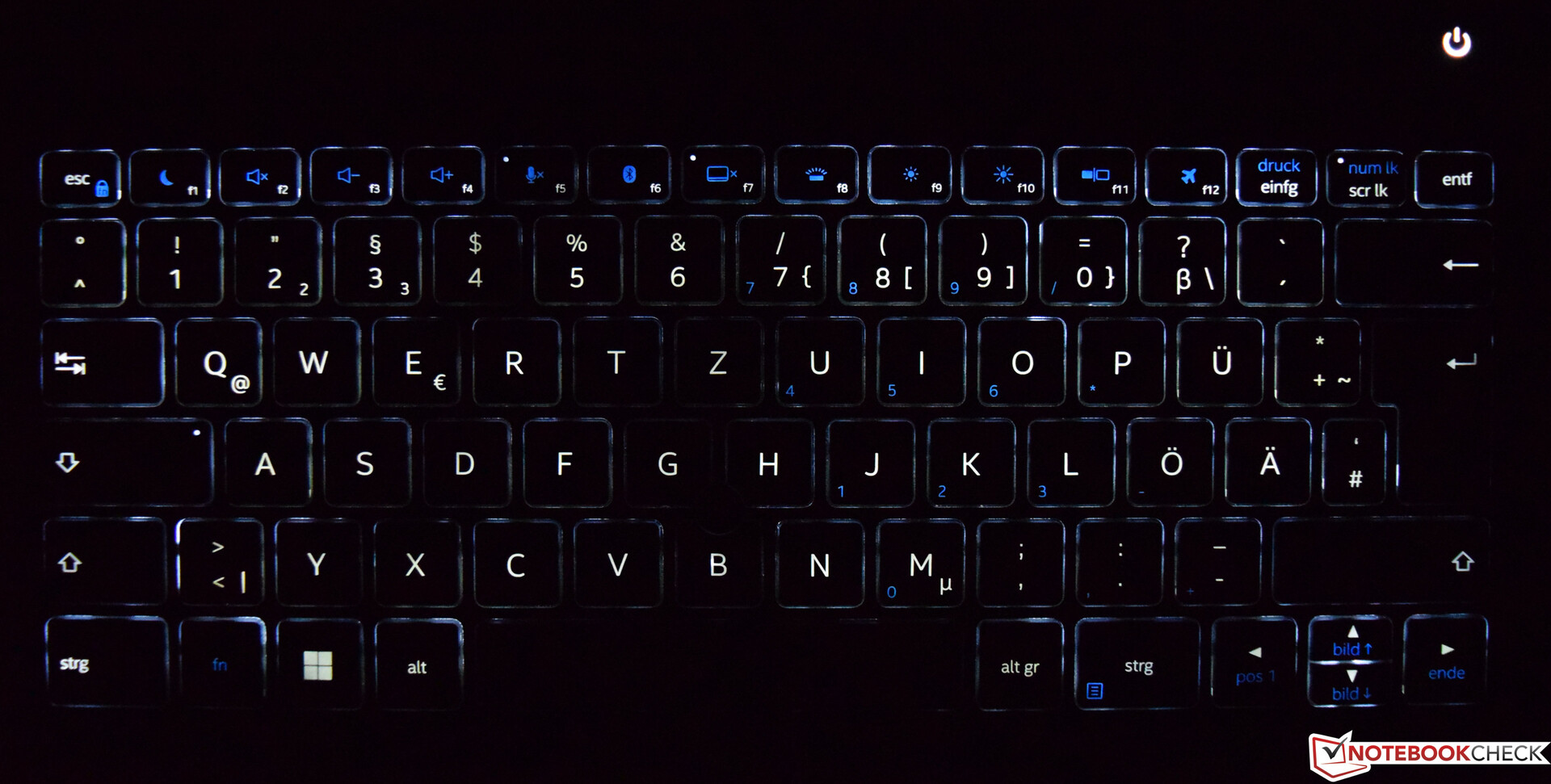

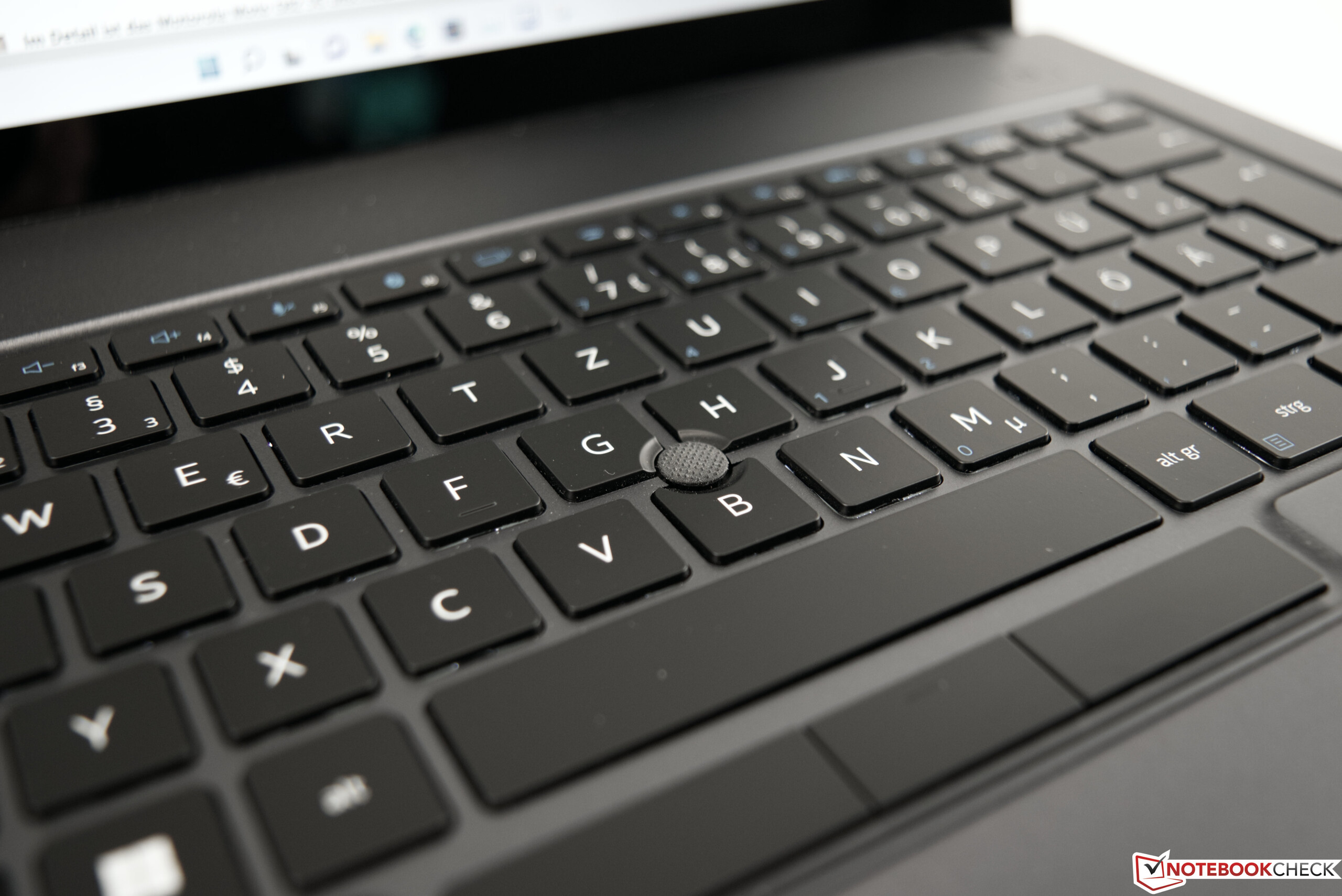

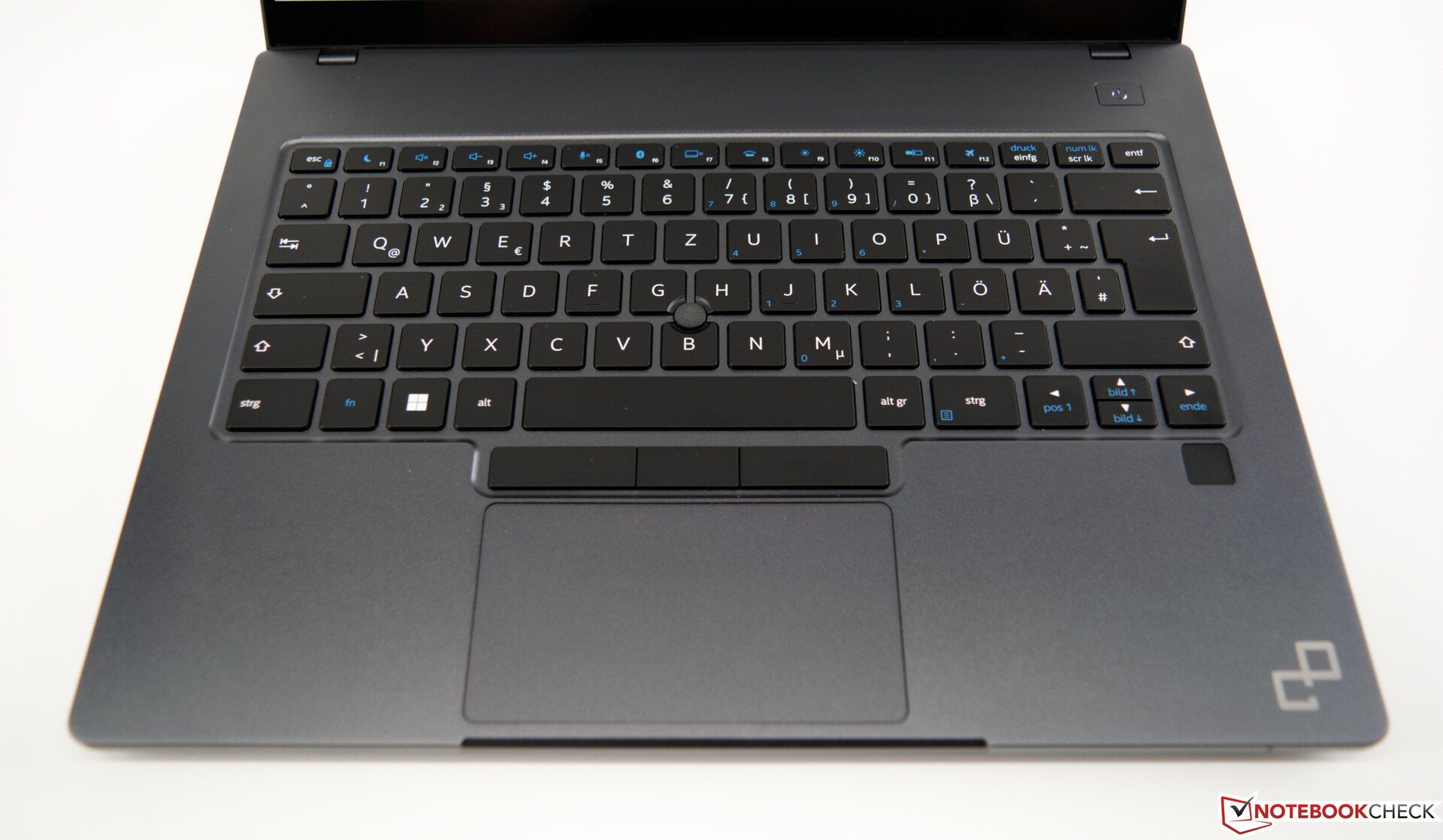

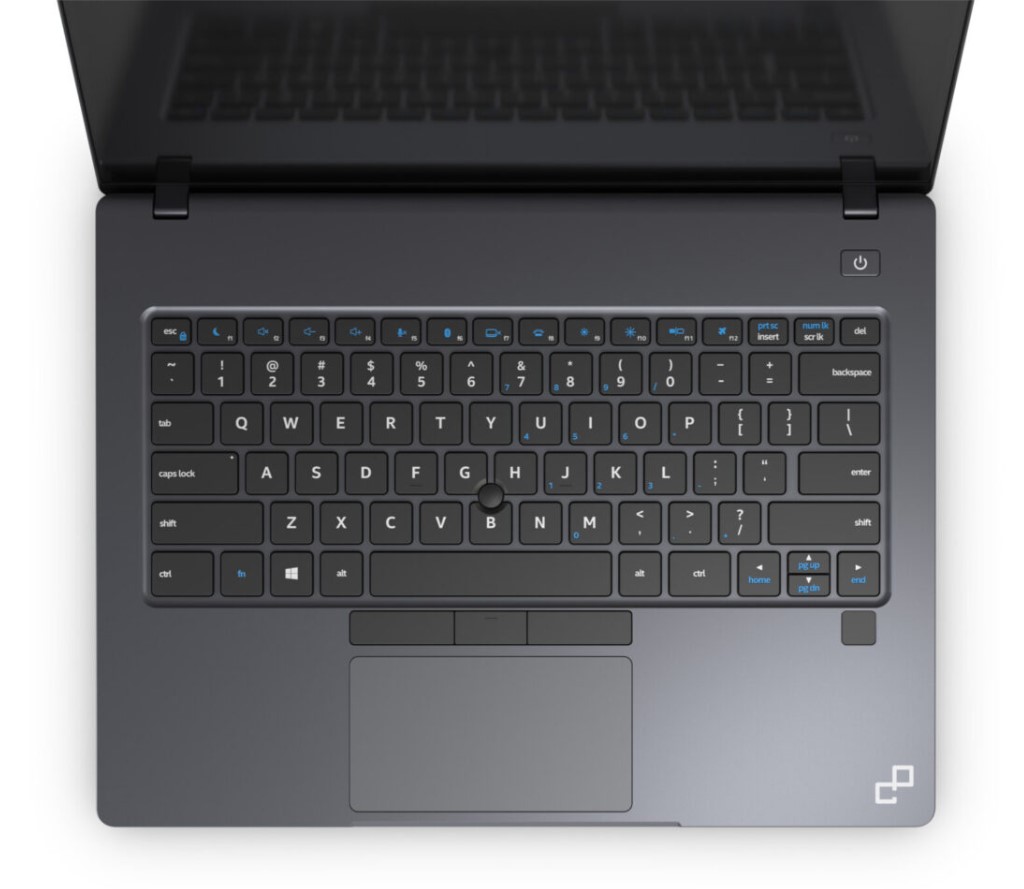

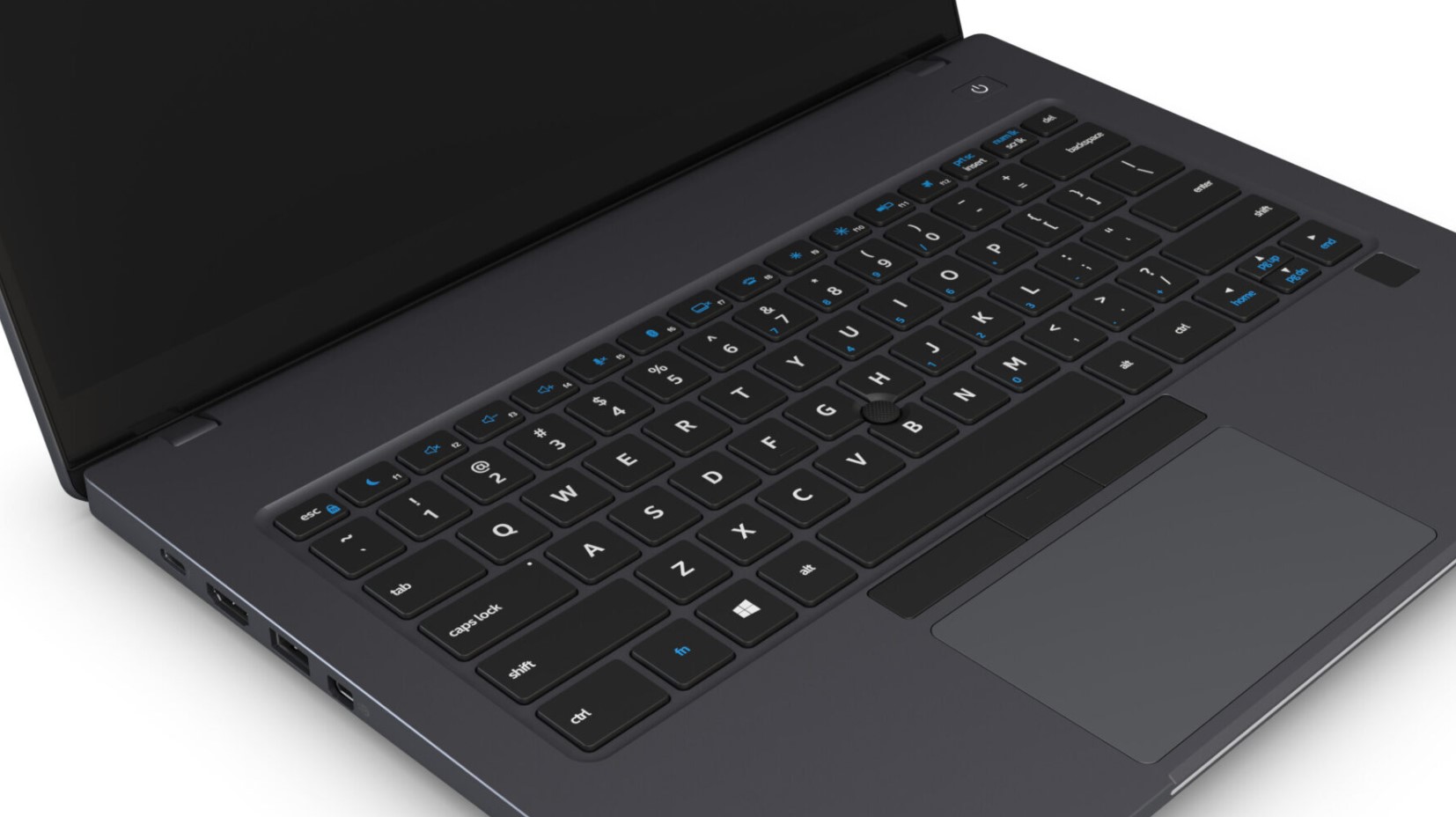

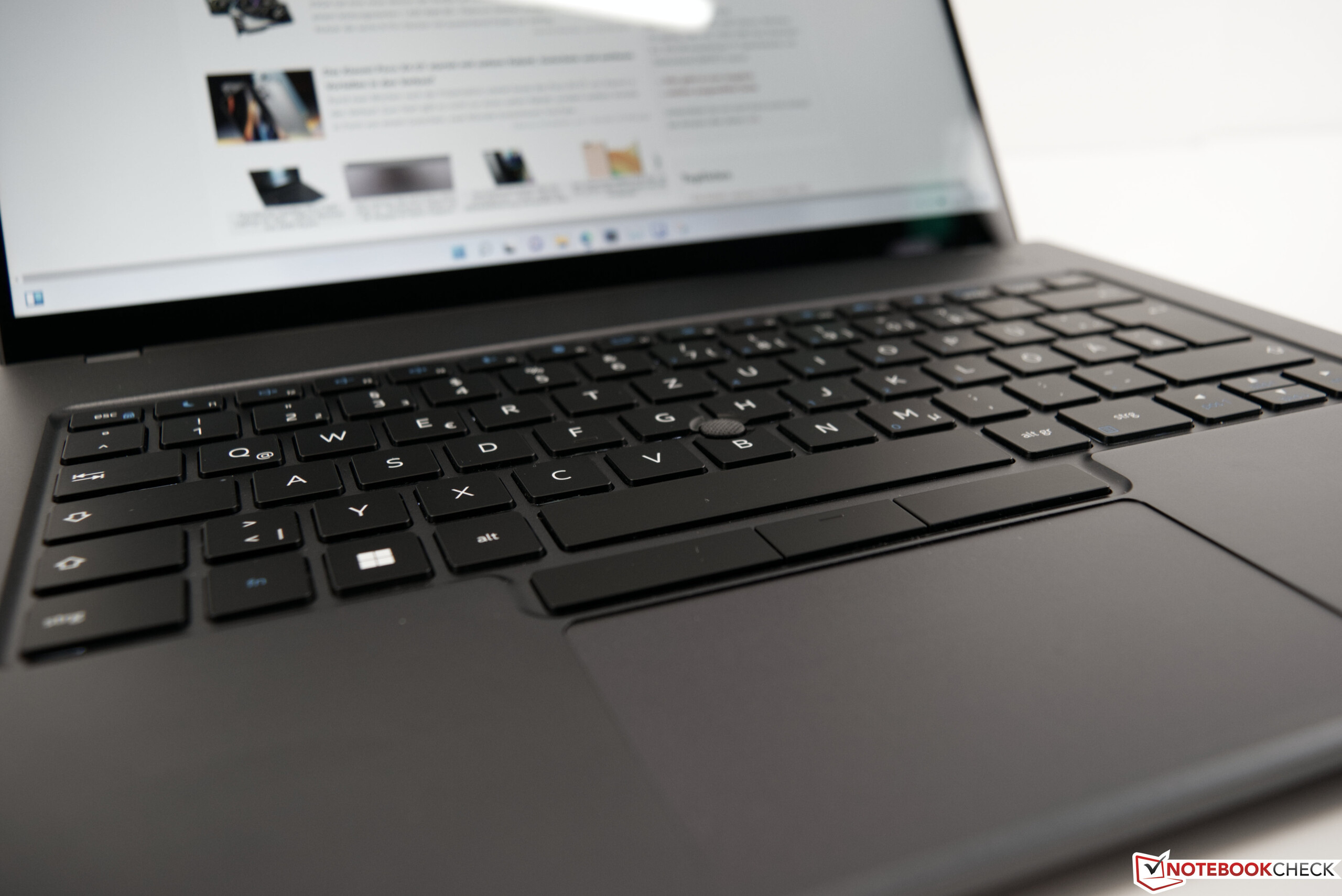

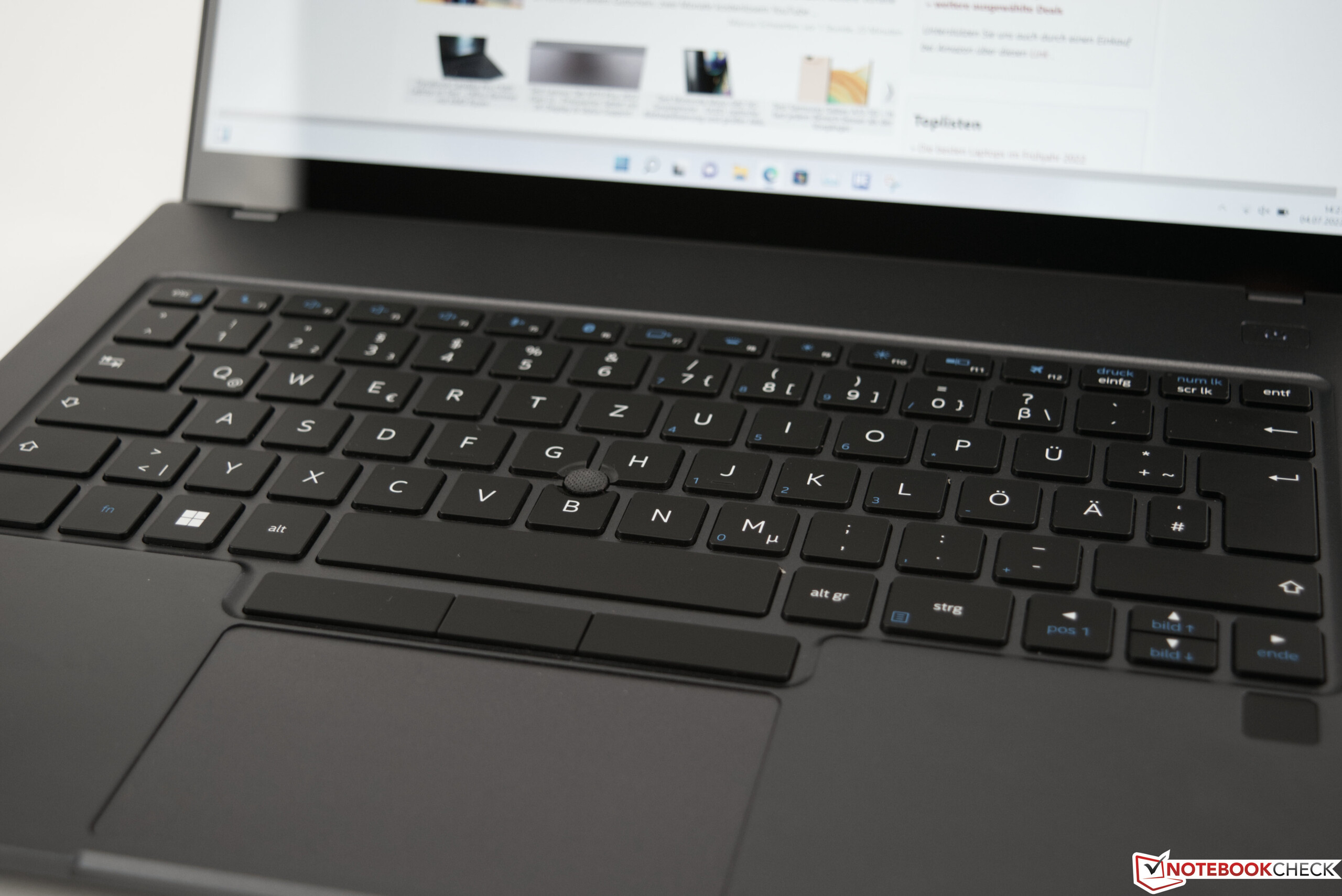

PrimeBook Circular的6行Chiclet键盘提供了一个坚实的打字感觉。压力点很明显，行程也不闷热。虽然由于光学原因，"上 "和 "下 "的方向键只有一半的高度，但按键的尺寸足够大，为15 x 15毫米。在光线不好的情况下，你可以依靠两级背光灯。这也可以被关闭。
触摸板
点击板尺寸为10.2 x 5.1厘米，很好地利用了分配的空间。输入面与掌托不在同一高度，但这不是一个问题，因为它实际上使定位非常容易。像联想、戴尔或惠普的许多商务设备一样，也有一个跟踪点。这一点做得非常好，那些习惯于此的人可以很快地进行导航，而不必将手从键盘上拿开。这也包括触摸板上方的三个附加键。
显示

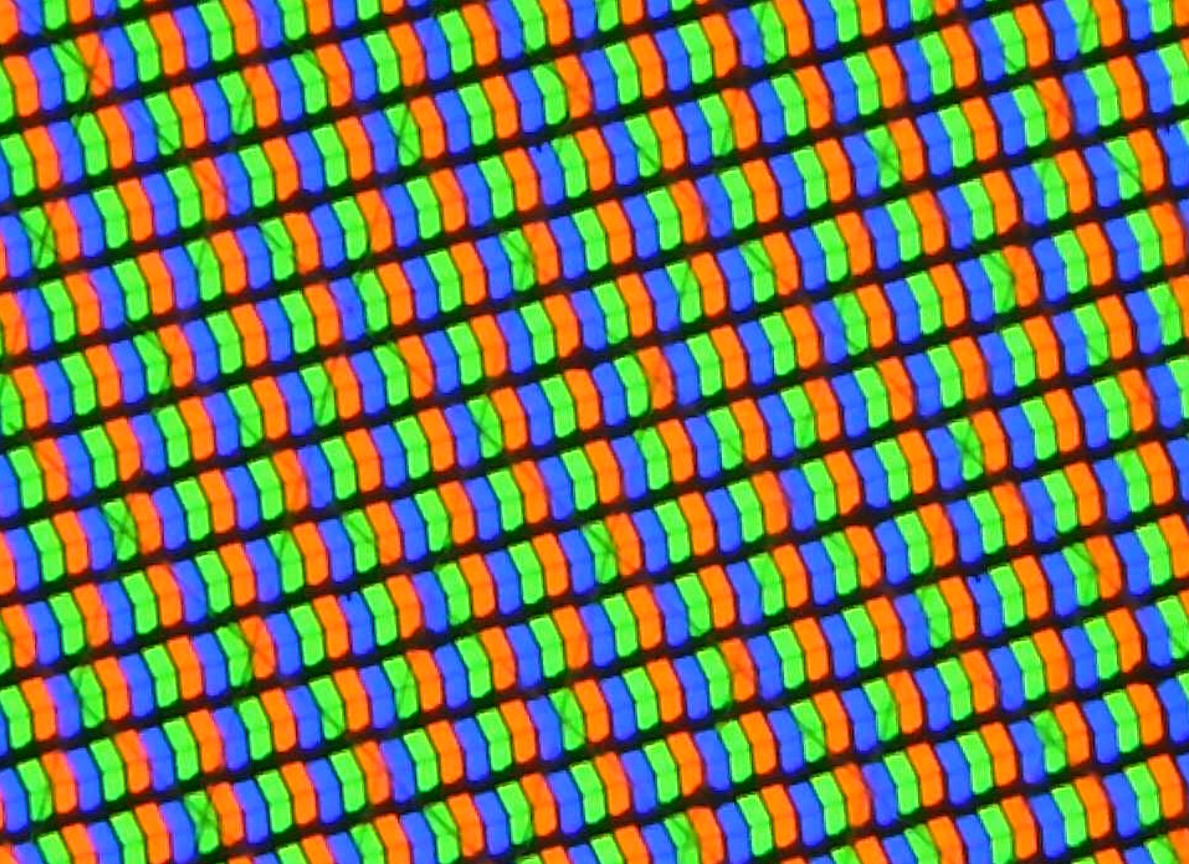

内置的显示屏是一个3:2格式的IPS触摸显示屏，分辨率为3,000 x 2,000。承诺的400cd/m²在测试中已经实现，在某些情况下还超过了。尽管如此，我们的评测样本只实现了85%的照度，这并不是很均匀的。另一方面，在实践中，没有发现任何缺点。0.27的黑值更多是在中场。但与良好的亮度相结合，这仍然足以实现良好的对比度。没有发现PWM的闪烁。
Prime Computer目前没有提供替代的显示选项。在寿命和长期使用的问题上，120或144赫兹的选项是可取的。
| |||||||||||||||||||||||||

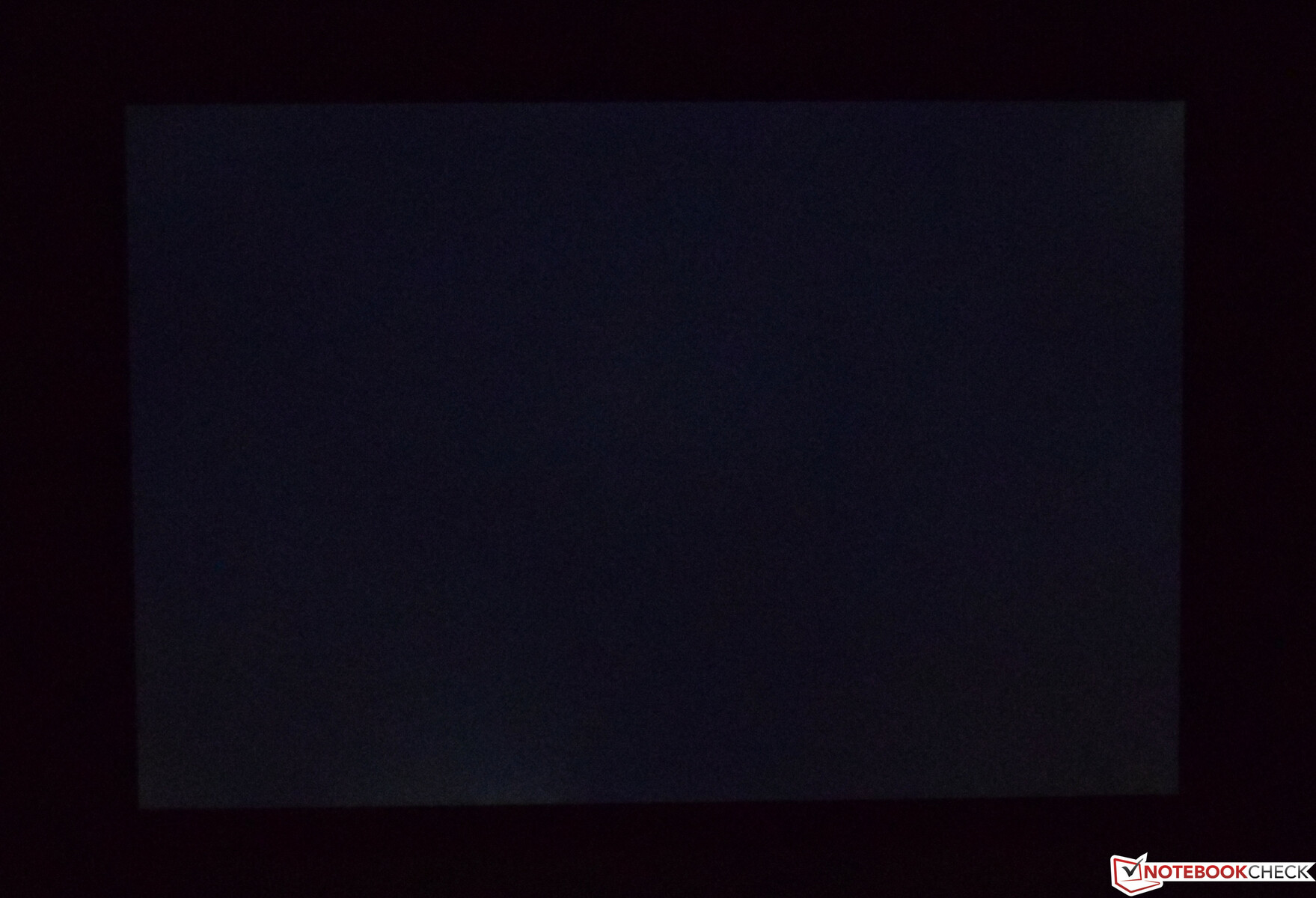

Brightness Distribution: 85 %
Center on Battery: 388 cd/m²
Contrast: 1489:1 (Black: 0.27 cd/m²)
ΔE Color 2.25 | 0.5-29.43 Ø4.91, calibrated: 0.93
ΔE Greyscale 2.52 | 0.5-98 Ø5.2

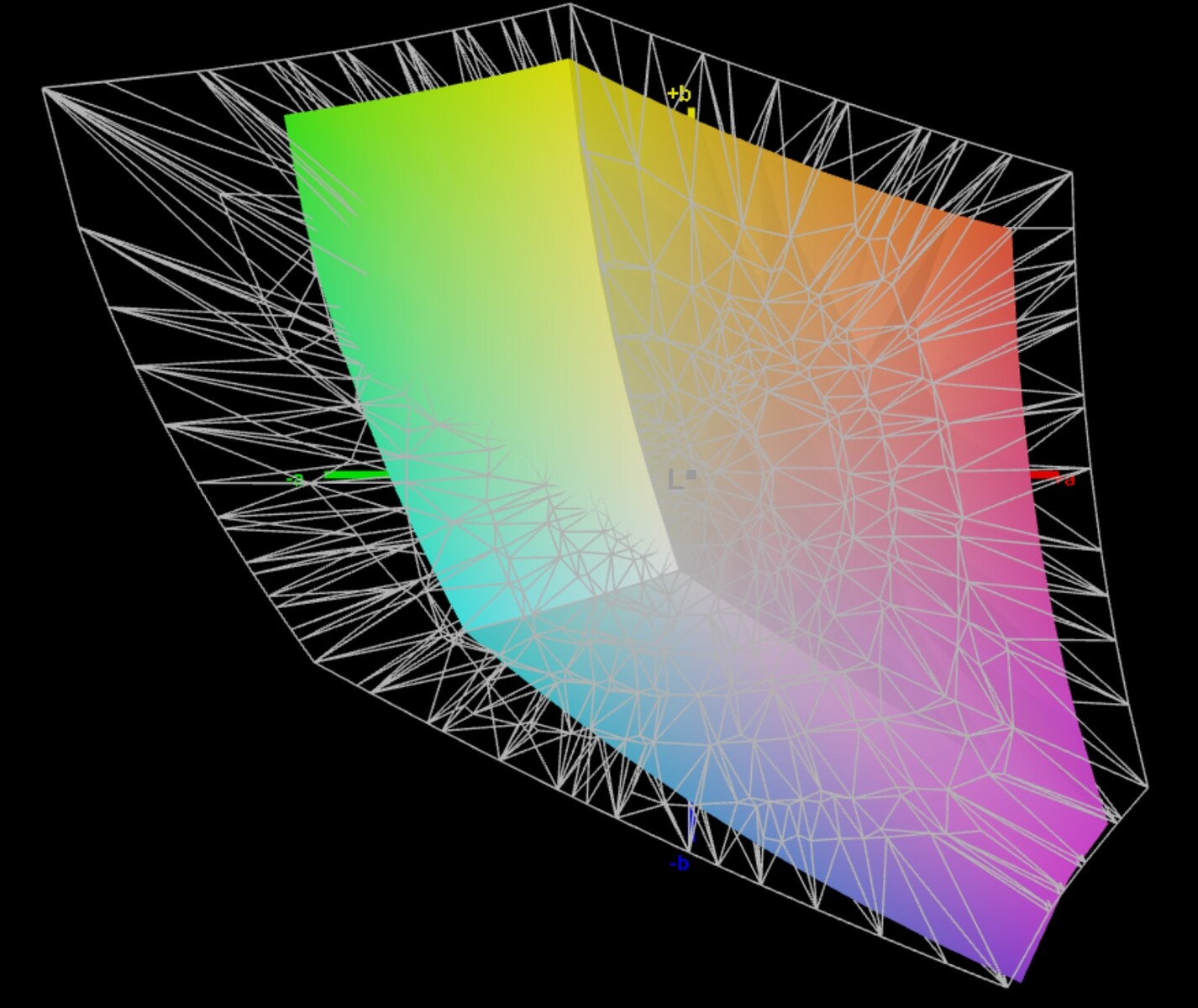

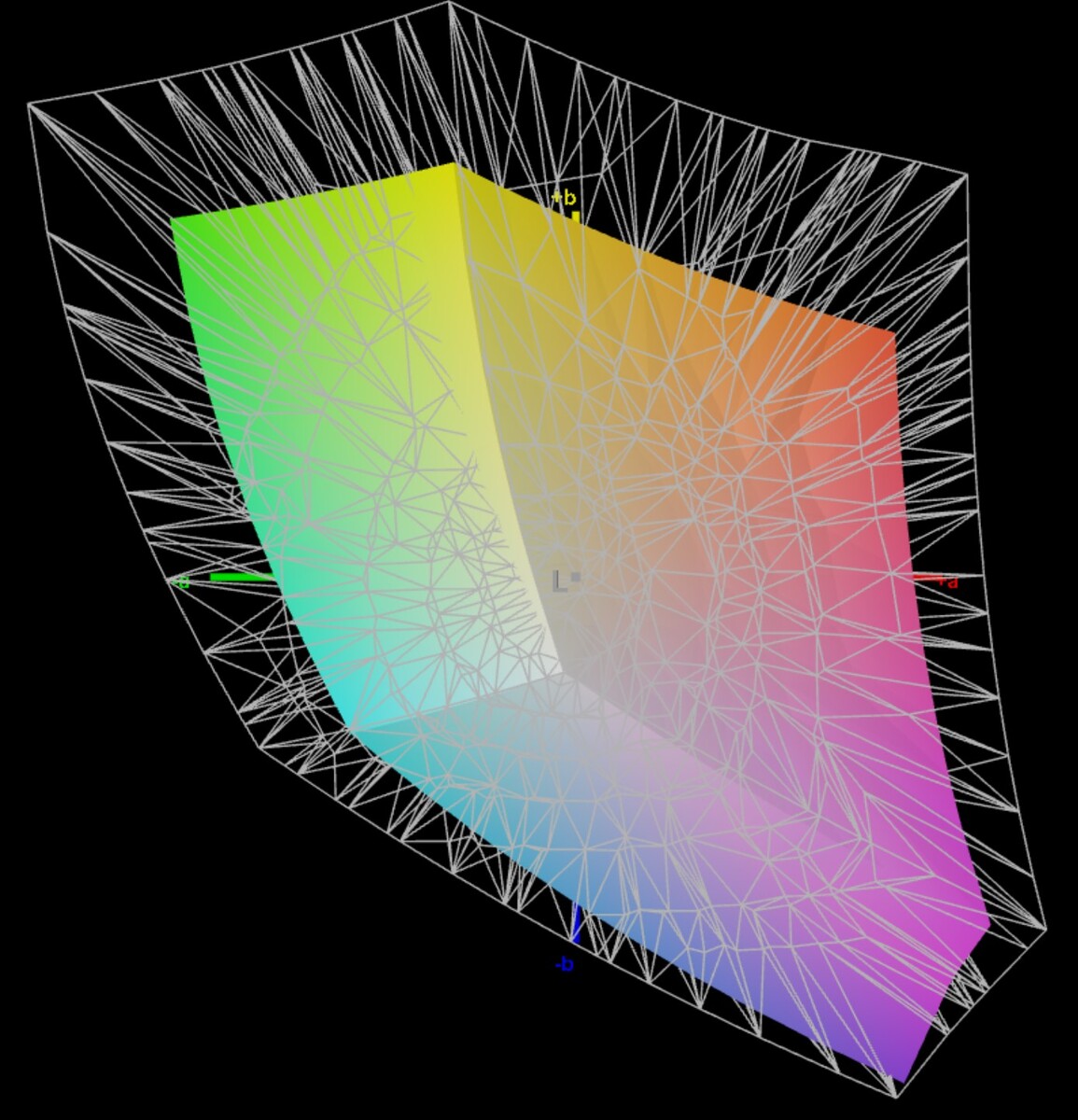

65.8% AdobeRGB 1998 (Argyll 2.2.0 3D)

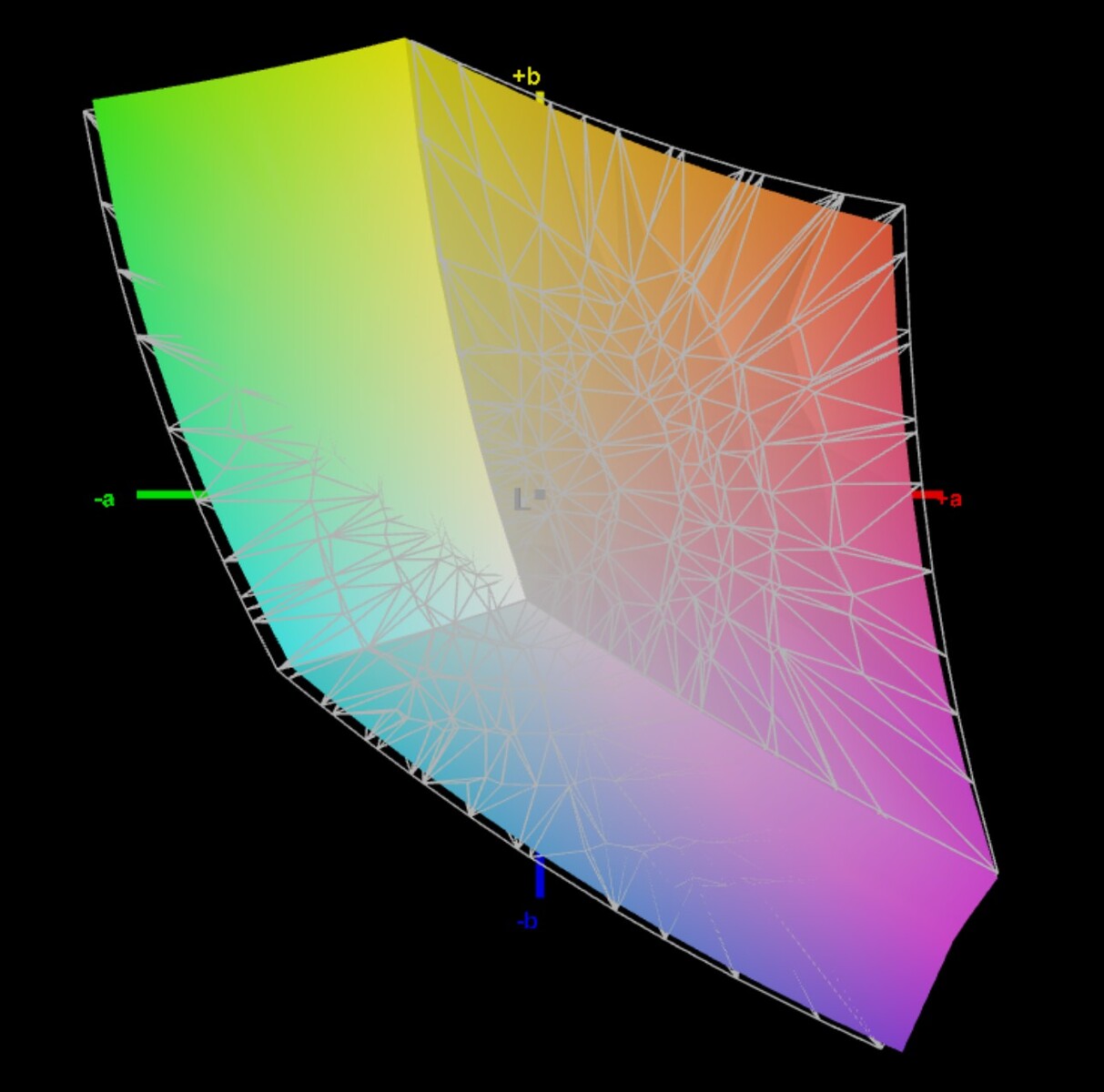

95.6% sRGB (Argyll 2.2.0 3D)
64% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.31
| Prime Computer PrimeBook Circular-i7-1165G7 Tinama XM, IPS, 3000x2000, 13.9" | Asus ZenBook 14X OLED UX5400EA-L7154W Samsung SDC415B ATNA40YN04-0, OLED, 2880x1800, 14" | Dell Inspiron 14 5410-D3D7T LGD068D, IPS-Grade, 1920x1080, 14" | Lenovo ThinkPad T14s G2 20WM003TGE NE140FHM-N61, IPS LED, 1920x1080, 14" | Lenovo ThinkPad T14s G2 20XGS01100 NE140FHM-N61, IPS LED, 1920x1080, 14" | Acer TravelMate P614P-52 AU Optronics B140UAV01.0, IPS, 1920x1200, 14" | |
|---|---|---|---|---|---|---|
| Display | 37% | -44% | 1% | 2% | 13% | |
| Display P3 Coverage | 64 | 100 56% | 36 -44% | 68.1 6% | 69.7 9% | 76 19% |
| sRGB Coverage | 95.6 | 100 5% | 53.9 -44% | 91.7 -4% | 91.8 -4% | 99.4 4% |
| AdobeRGB 1998 Coverage | 65.8 | 98 49% | 37.04 -44% | 67.1 2% | 67.2 2% | 75.5 15% |
| Response Times | 92% | -3% | -82% | -160% | -16% | |
| Response Time Grey 50% / Grey 80% * | 35 ? | 2 ? 94% | 32 ? 9% | 68 ? -94% | 84 ? -140% | 40.79 ? -17% |
| Response Time Black / White * | 20 ? | 2 ? 90% | 23 ? -15% | 34 ? -70% | 56 ? -180% | 22.9 ? -15% |
| PWM Frequency | 240 ? | 22730 ? | 2451 ? | 1000 ? | ||
| Screen | 3% | -52% | -61% | -89% | 2% | |
| Brightness middle | 402 | 345 -14% | 219 -46% | 422.9 5% | 397 -1% | 504.15 25% |
| Brightness | 403 | 348 -14% | 210 -48% | 397 -1% | 386 -4% | 482 20% |
| Brightness Distribution | 85 | 98 15% | 91 7% | 91 7% | 88 4% | 77 -9% |
| Black Level * | 0.27 | 0.18 33% | 0.32 -19% | 0.28 -4% | 0.19 30% | |
| Contrast | 1489 | 1217 -18% | 1322 -11% | 1418 -5% | 2653 78% | |
| Colorchecker dE 2000 * | 2.25 | 1.92 15% | 5.47 -143% | 4.8 -113% | 5.8 -158% | 2.75 -22% |
| Colorchecker dE 2000 max. * | 3.17 | 4.72 -49% | 7.67 -142% | 8.7 -174% | 12.6 -297% | 4.66 -47% |
| Colorchecker dE 2000 calibrated * | 0.93 | 1.9 -104% | 1.9 -104% | 1.72 -85% | ||
| Greyscale dE 2000 * | 2.52 | 0.85 66% | 3.9 -55% | 6.1 -142% | 8.3 -229% | 1.9 25% |
| Gamma | 2.31 95% | 2.37 93% | 2.28 96% | 2.23 99% | 2.07 106% | 2.13 103% |
| CCT | 6928 94% | 6475 100% | 6002 108% | 7635 85% | 6867 95% | 6426 101% |
| Total Average (Program / Settings) | 44% /
28% | -33% /
-42% | -47% /
-51% | -82% /
-79% | -0% /
2% |
* ... smaller is better

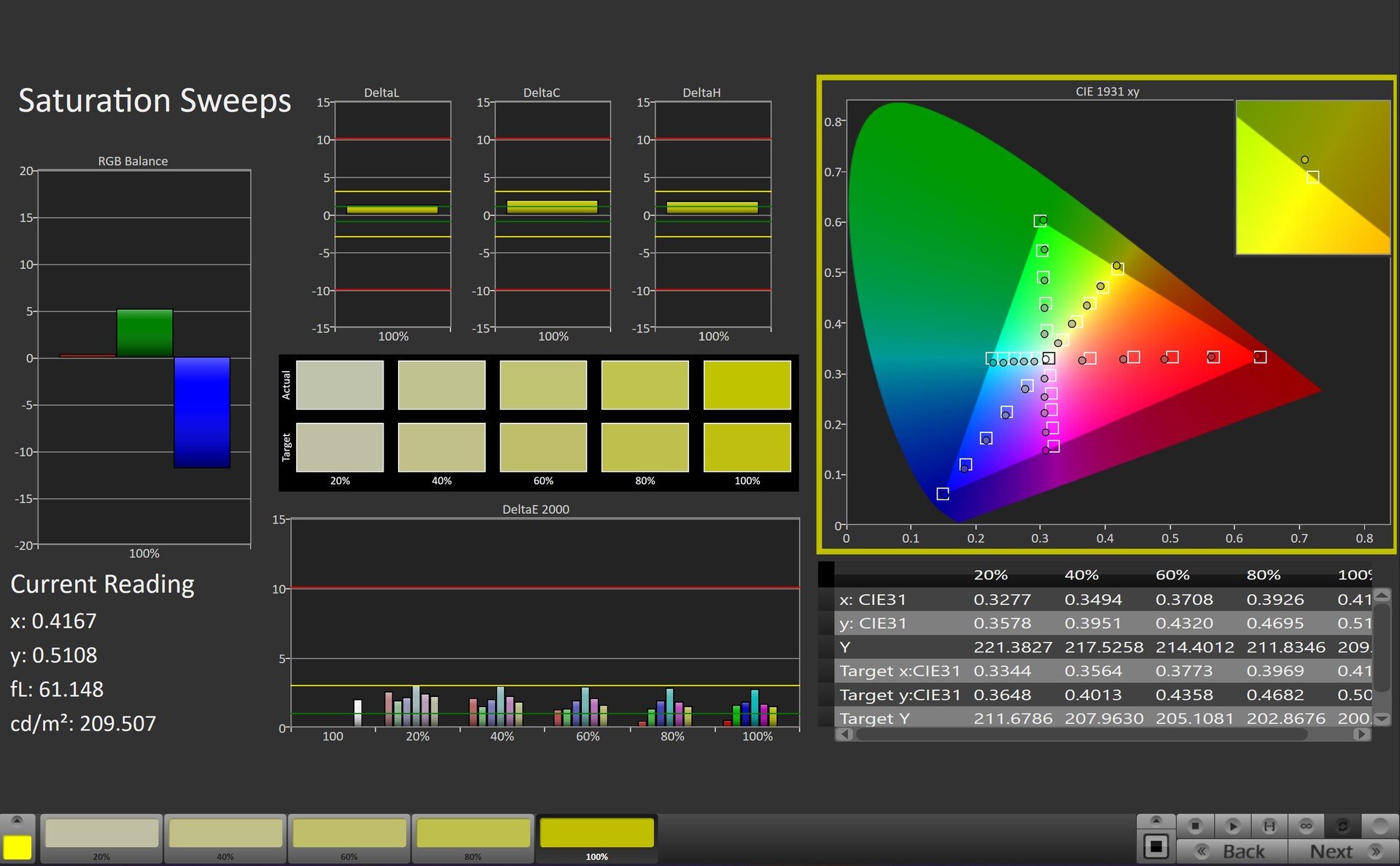

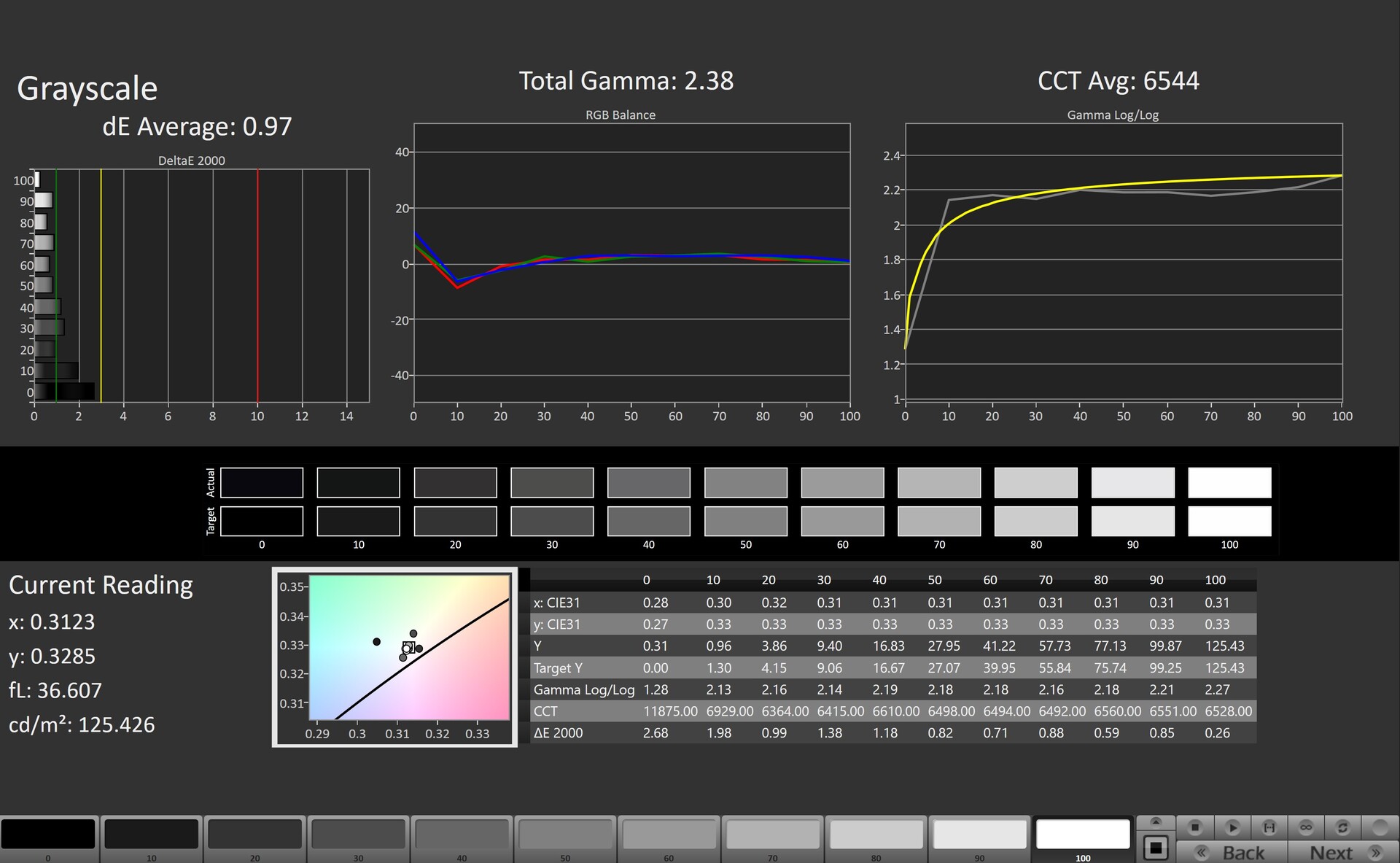

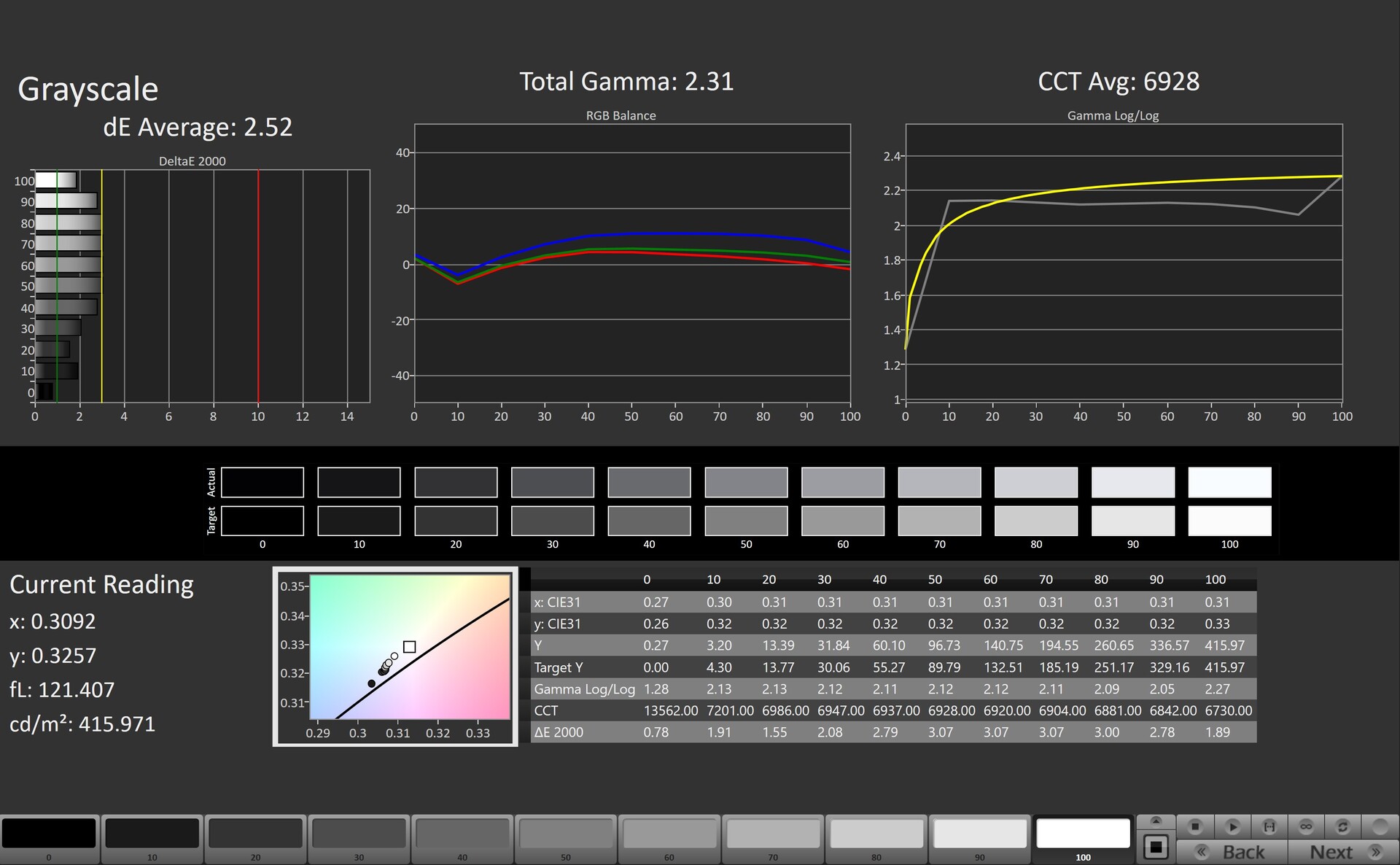

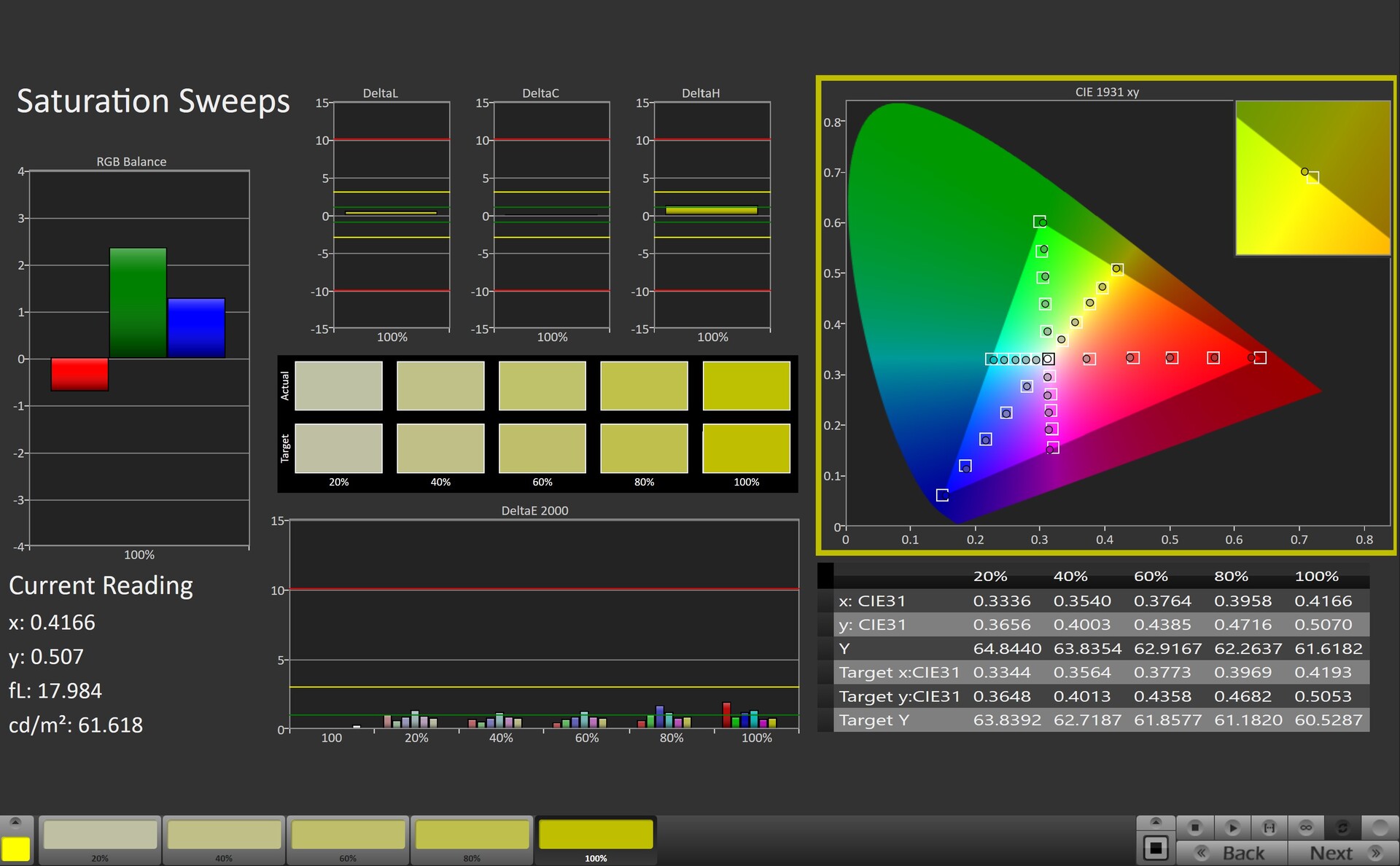

即使在交付状态下，与sRGB色彩空间相比，测量的Delta E-2000色彩偏差也非常低，在某些情况下低于目标值3。华硕ZenBook 14x和 宏碁Travelmate P614P在这里也取得了类似的好成绩。经过手动校准，我们在某些情况下能够显著改善测量结果，正如你在图片中看到的那样。对应的ICC配置文件可以在对比表上面找到。然而，在色彩空间覆盖方面，我们的评测样本并没有完全达到预期。根据技术数据，sRGB色彩空间应该有100%的覆盖率。我们测得的结果是95.6%，因此，幸运的是，偏差在限度之内。对于AdobeRGB和P3色彩空间，这大约是65%。这使得该面板相当不适合用于专业照片或视频编辑。
Display Response Times

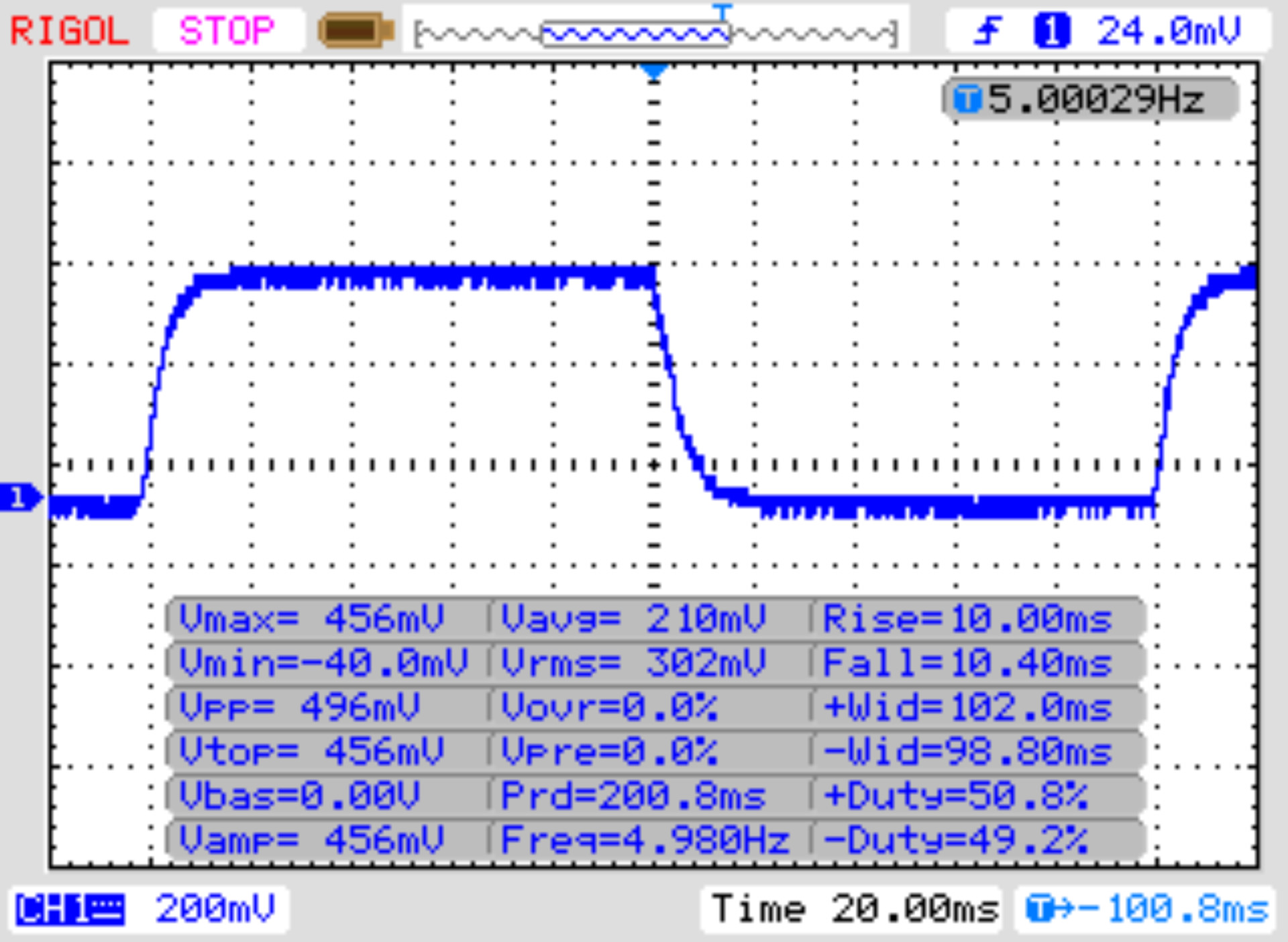

| ↔ Response Time Black to White | ||
|---|---|---|
| 20 ms ... rise ↗ and fall ↘ combined | ↗ 10 ms rise |  |
| ↘ 10 ms fall | ||
| The screen shows good response rates in our tests, but may be too slow for competitive gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 40 % of all devices are better. This means that the measured response time is similar to the average of all tested devices (20.9 ms). | ||

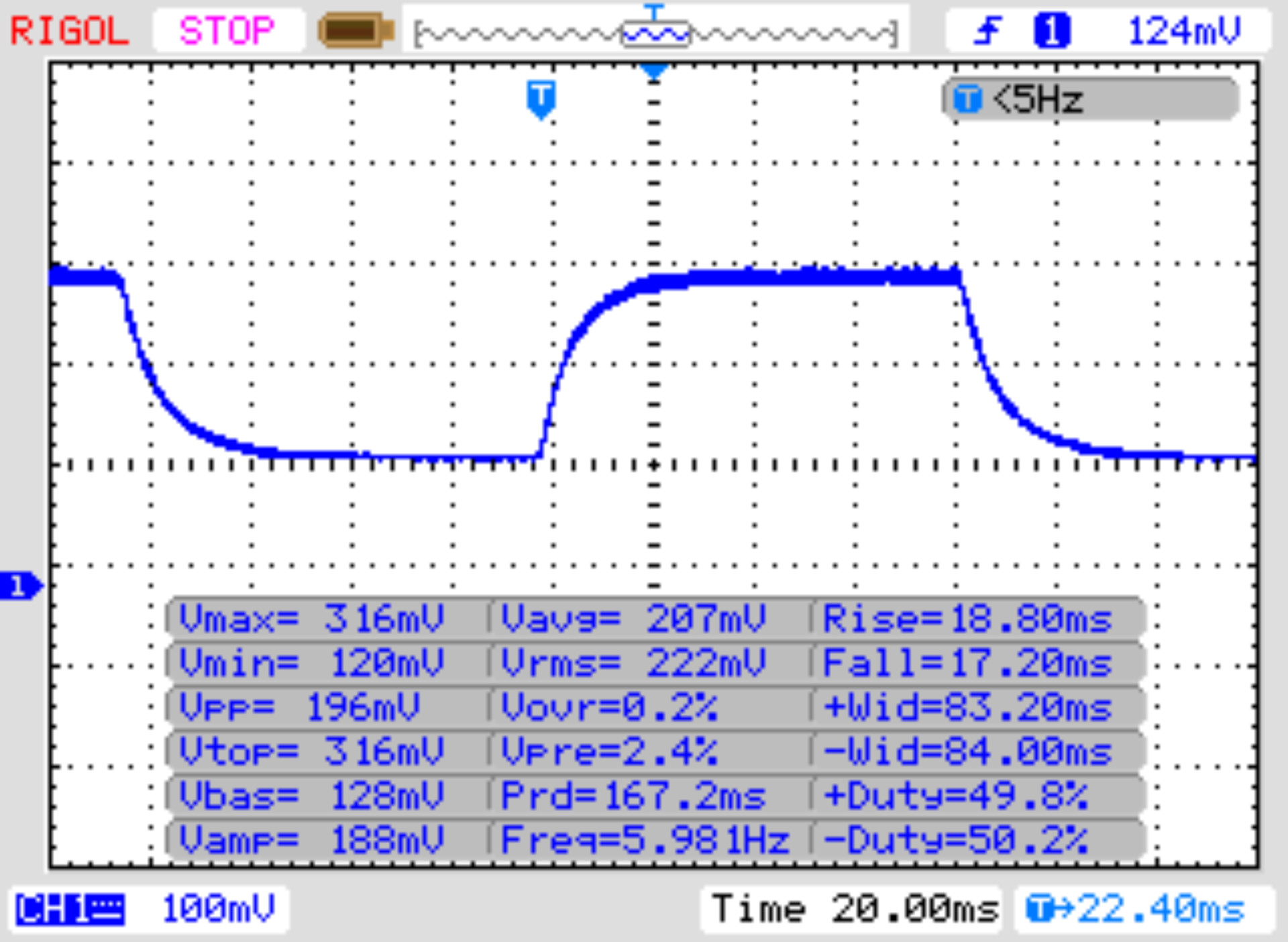

| ↔ Response Time 50% Grey to 80% Grey | ||
| 35 ms ... rise ↗ and fall ↘ combined | ↗ 18 ms rise |  |
| ↘ 17 ms fall | ||
| The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 44 % of all devices are better. This means that the measured response time is similar to the average of all tested devices (32.8 ms). | ||

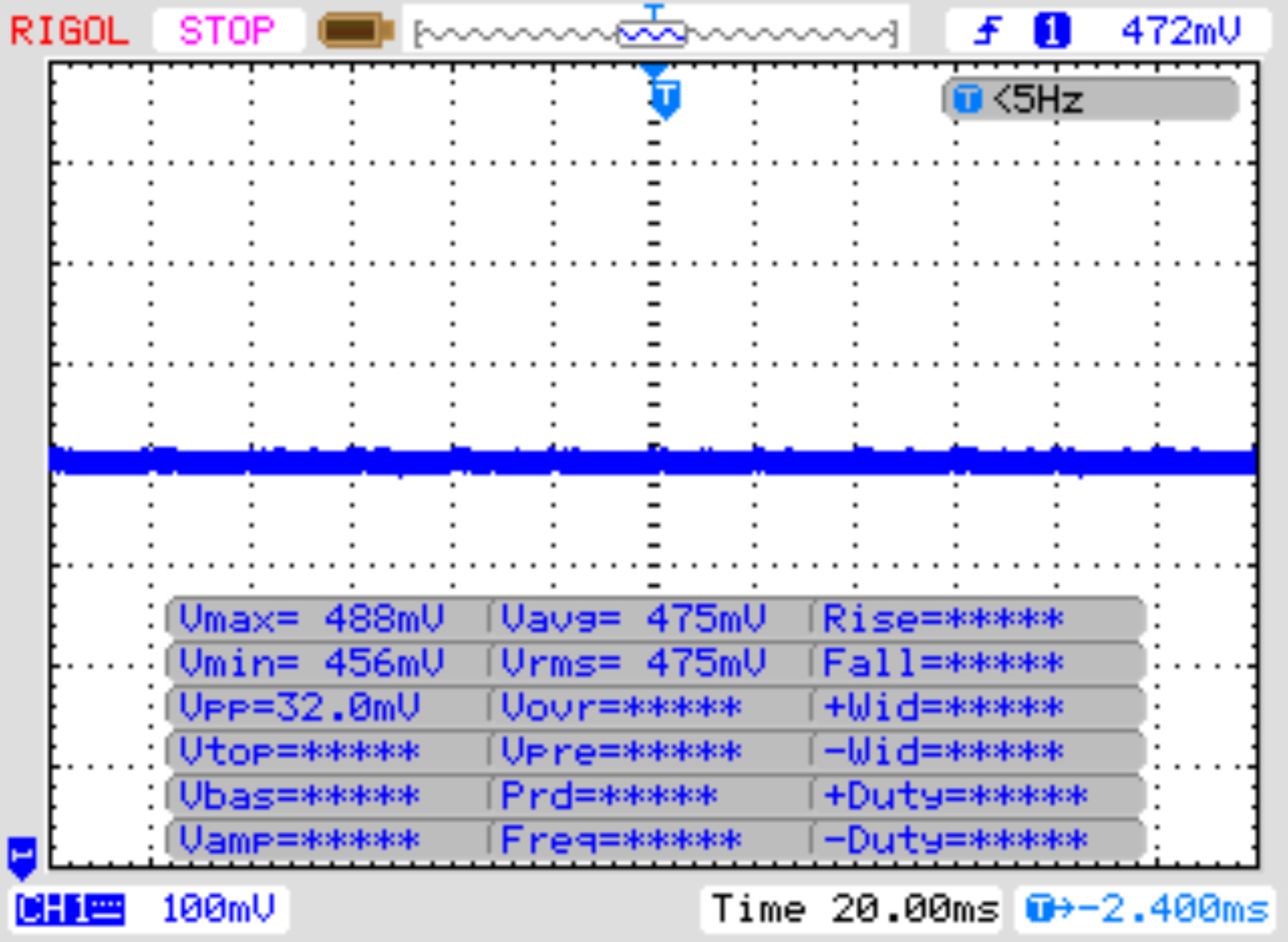

Screen Flickering / PWM (Pulse-Width Modulation)
| Screen flickering / PWM not detected |  | ||
In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8710 (minimum: 5 - maximum: 343500) Hz was measured. | |||

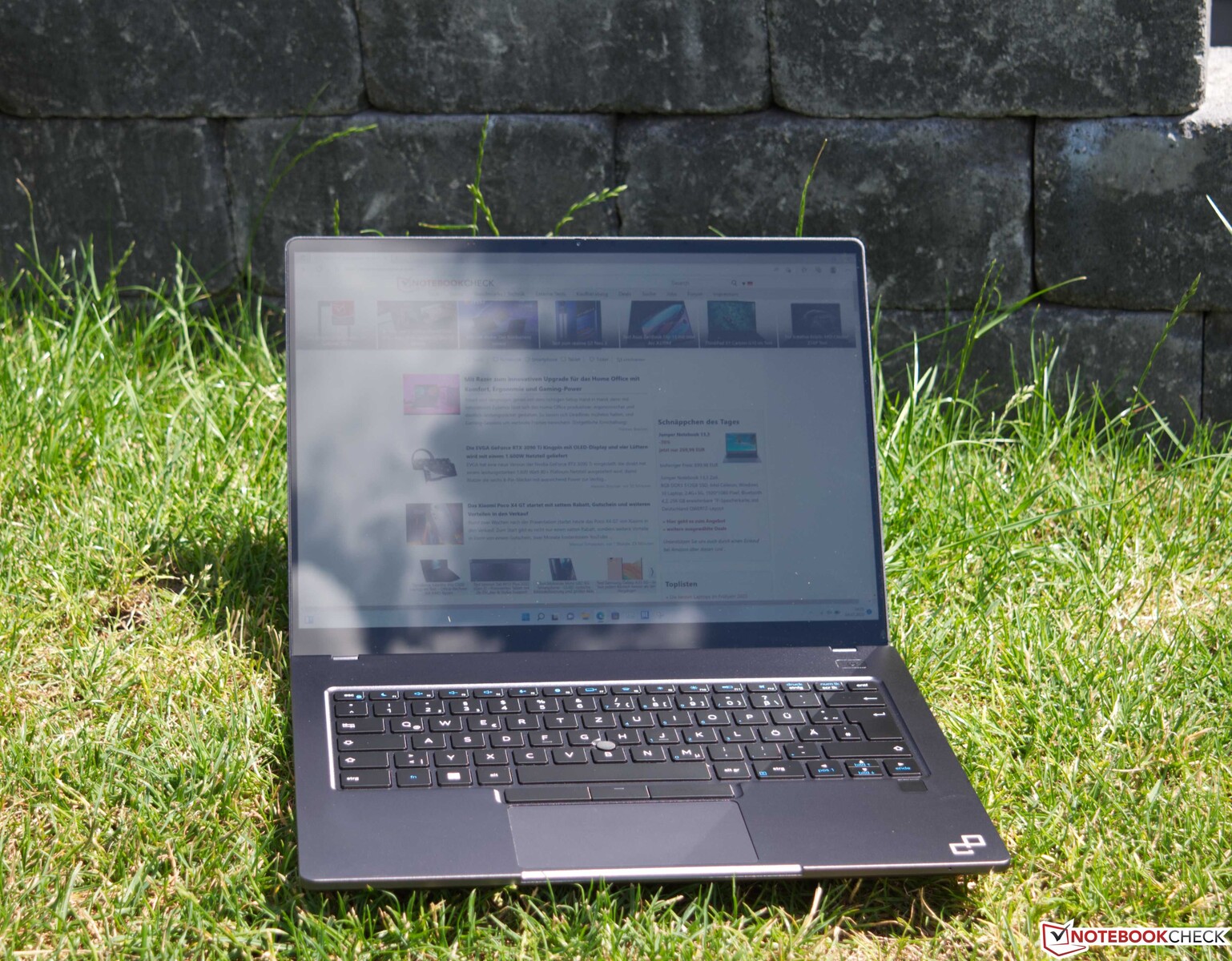

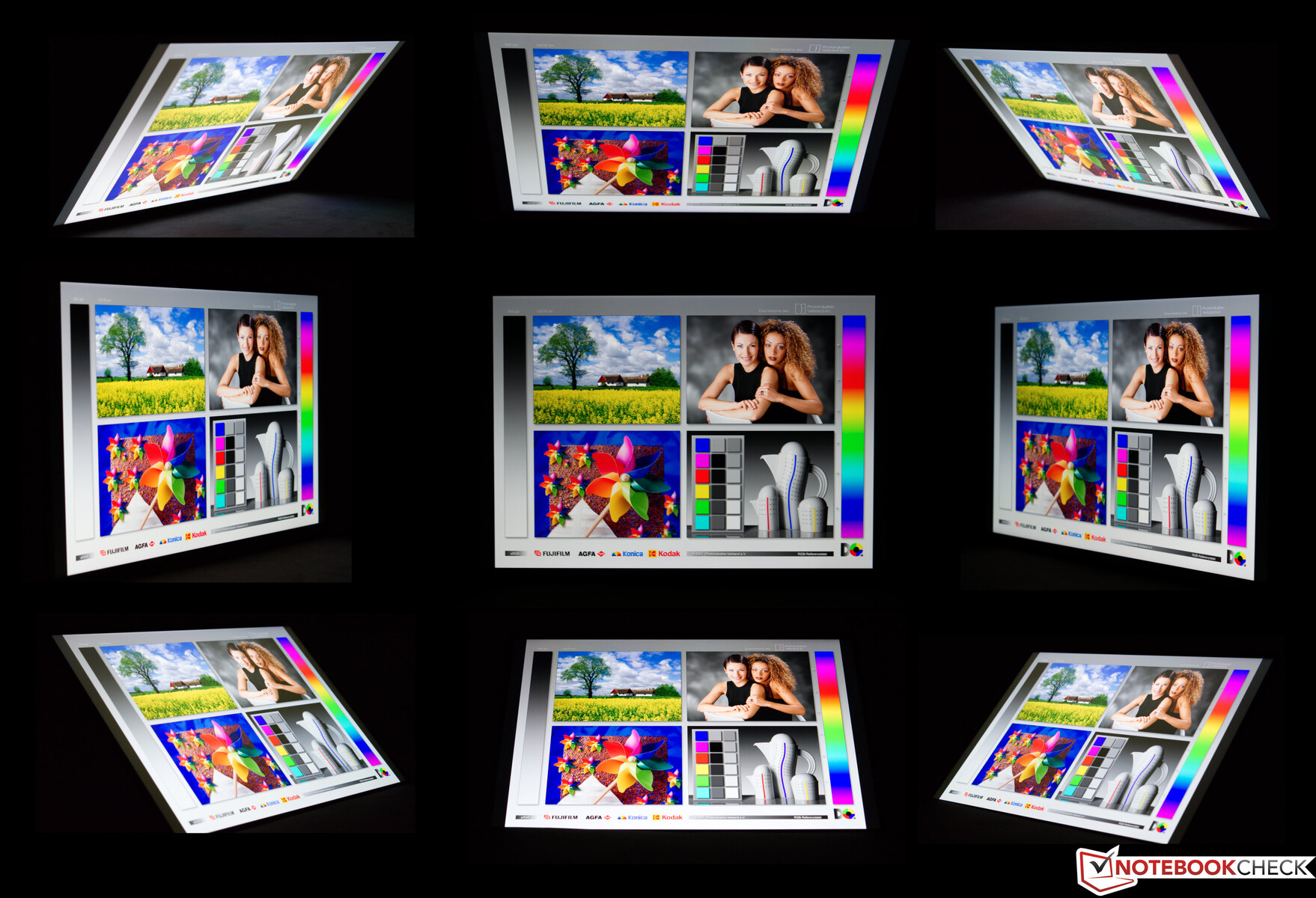

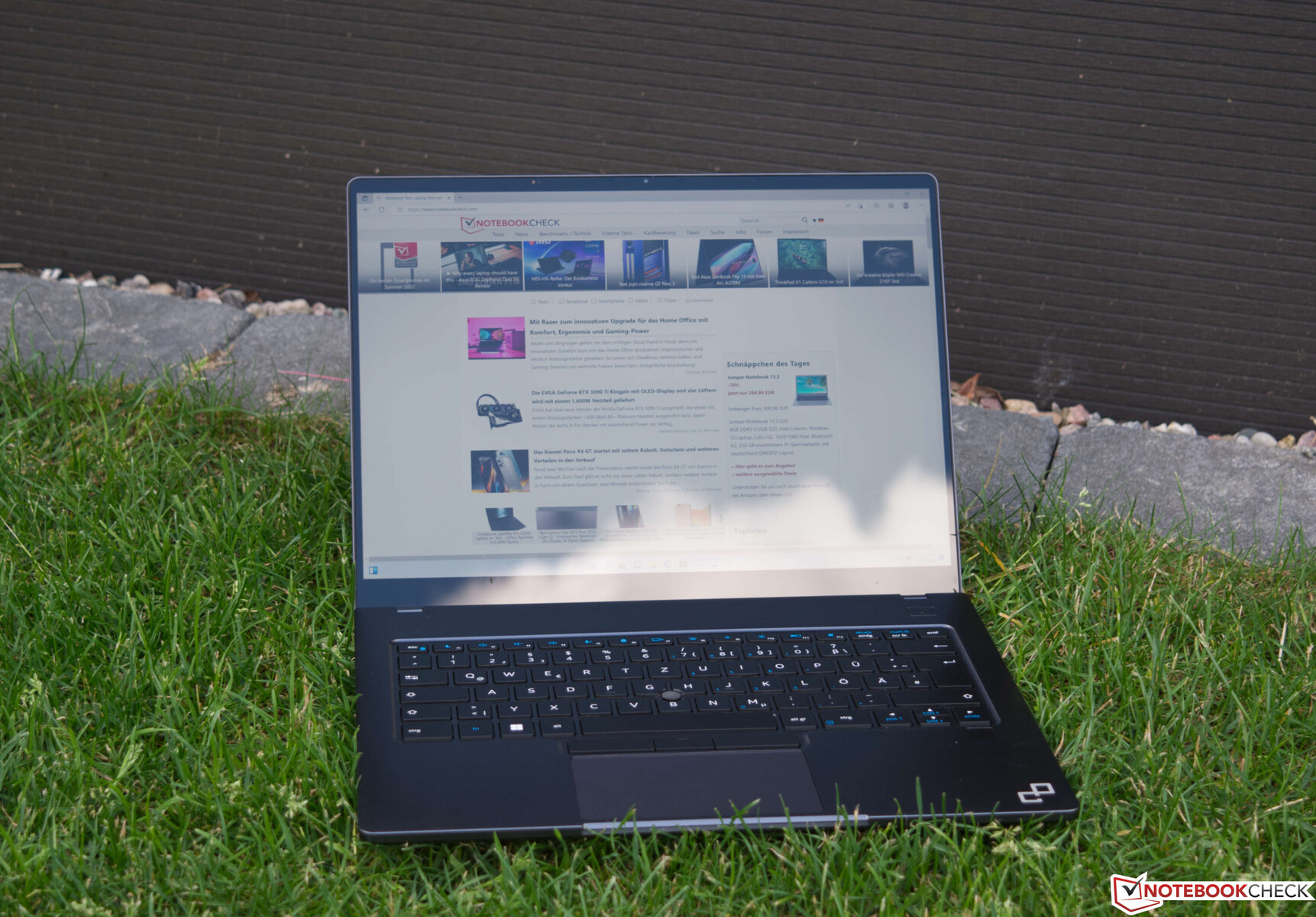

在视角测试中，我们观察到了IPS面板的典型结果：显示屏在所有视角下都非常稳定，只在很小的程度上可以看到颜色变化。良好的显示亮度在户外也很方便。然而，由于强烈的反射，你最好找一个阴凉的地方，这使得在笔记本电脑上工作的时间越长越累。
业绩

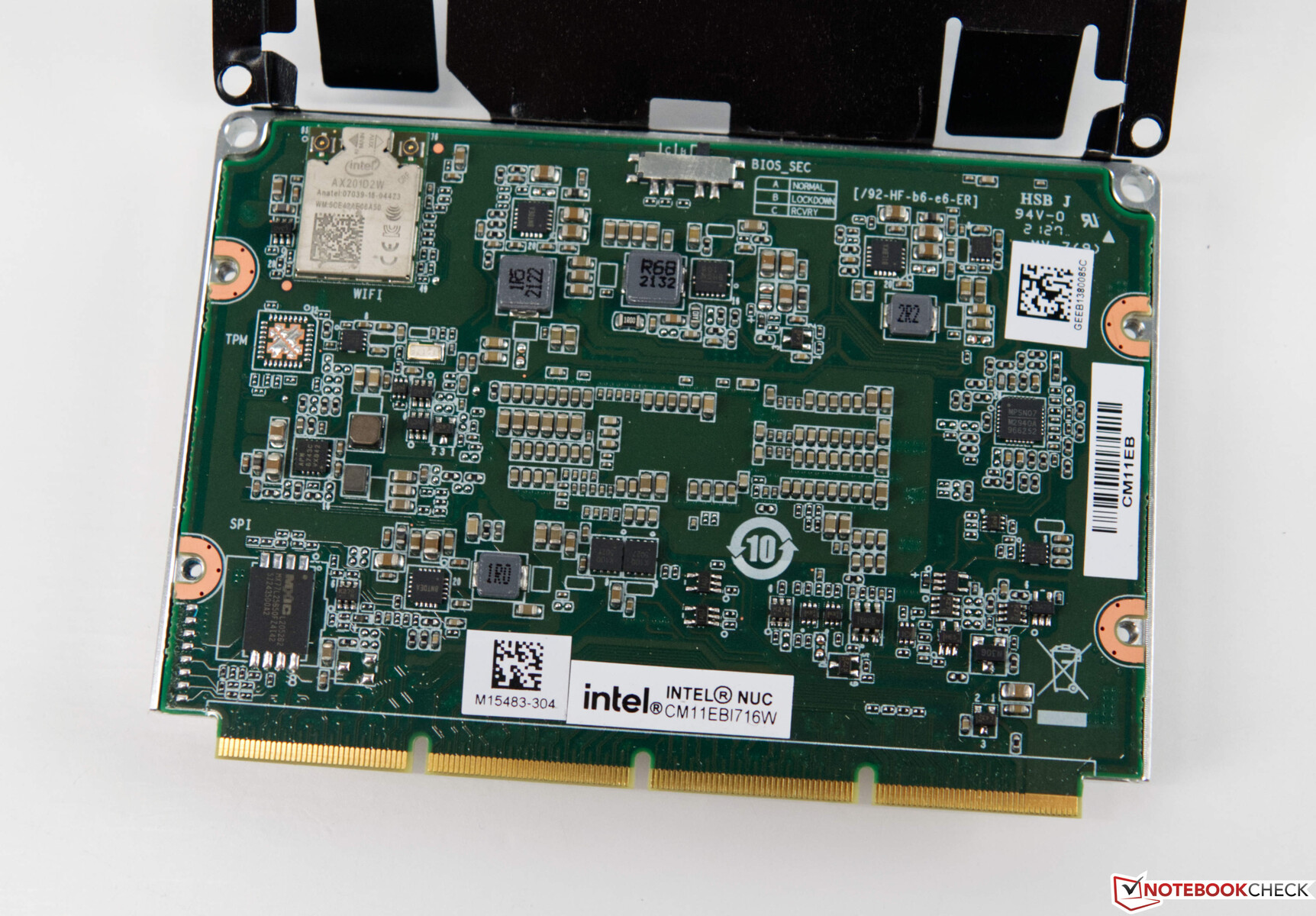

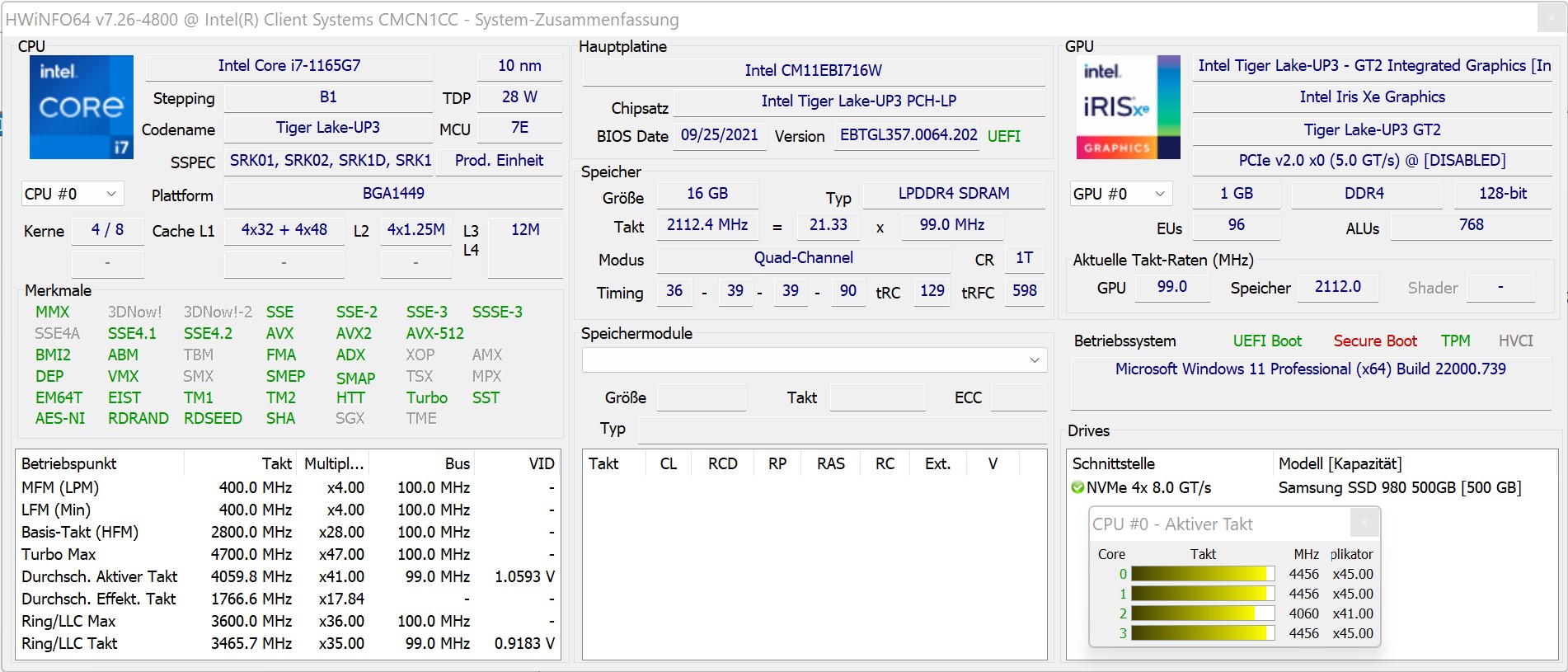

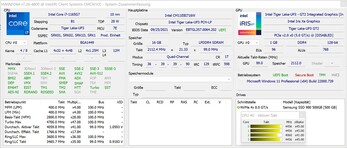

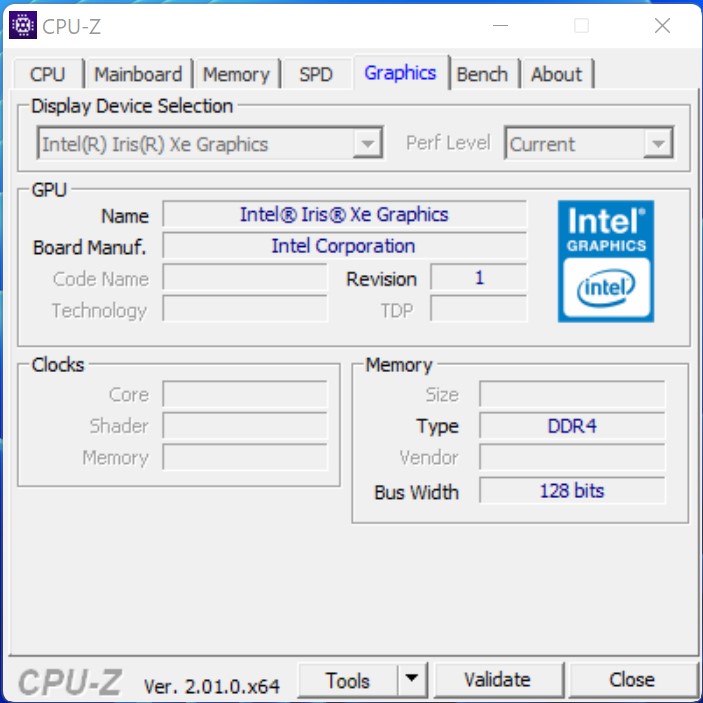

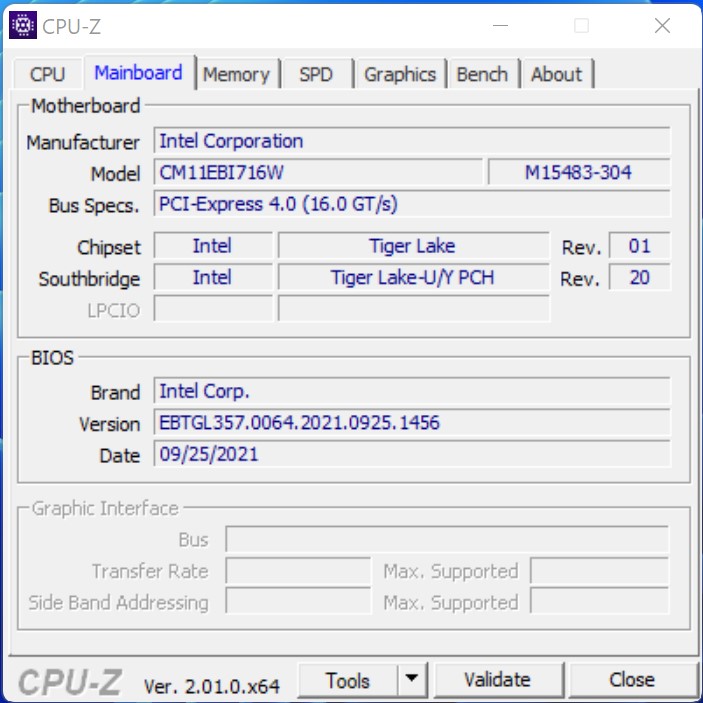

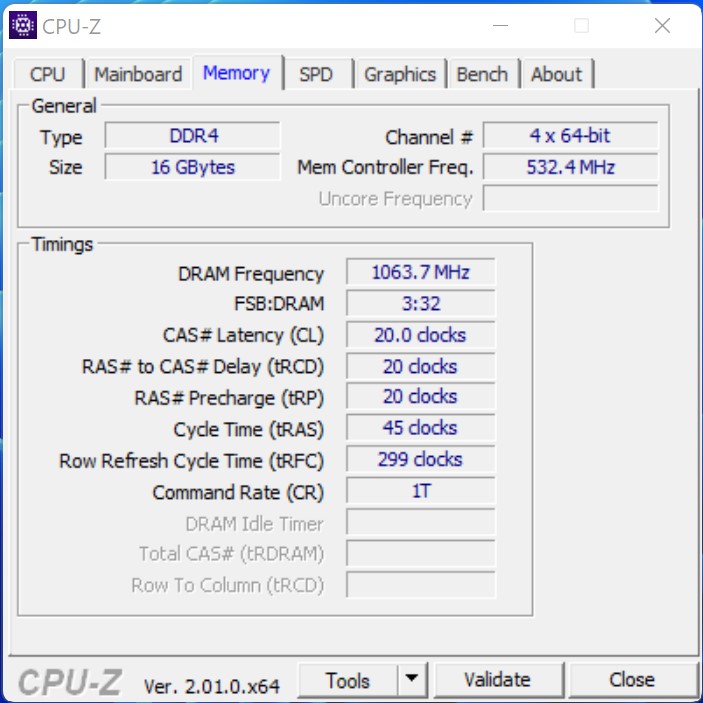

英特尔NUC计算元件CM11EBI716W，其中包含一个英特尔酷睿i7-1165G7与16 GB的内存，使PrimeBook圆形非常好地配备了作为一个办公室的笔记本电脑，并适用于苛刻的任务，超越了正常的日常业务使用。
测试条件
所有的性能测试都是在Windows的高性能模式下运行的，以达到最佳性能。我们建议在日常使用中使用 "平衡 "能源选项。我们在实际的WLAN电池测试中也使用了这个选项。
处理器

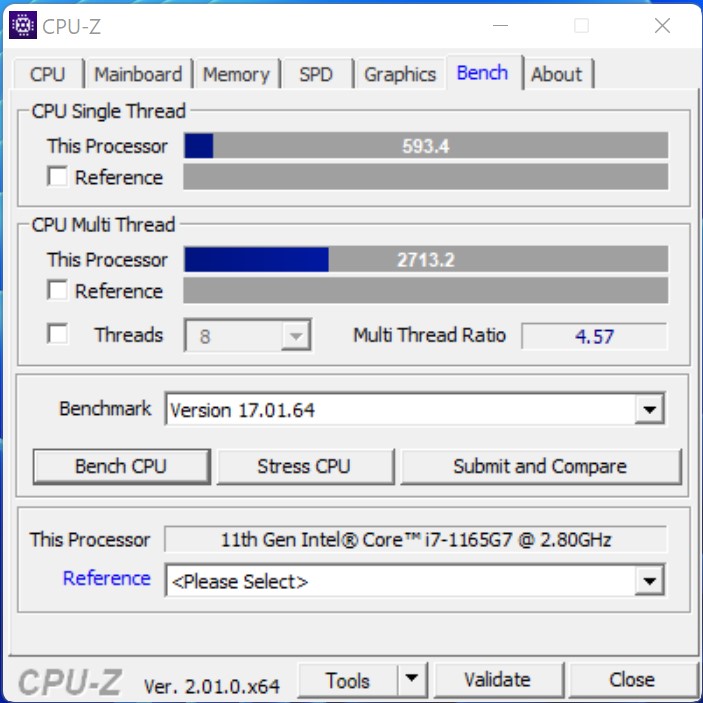

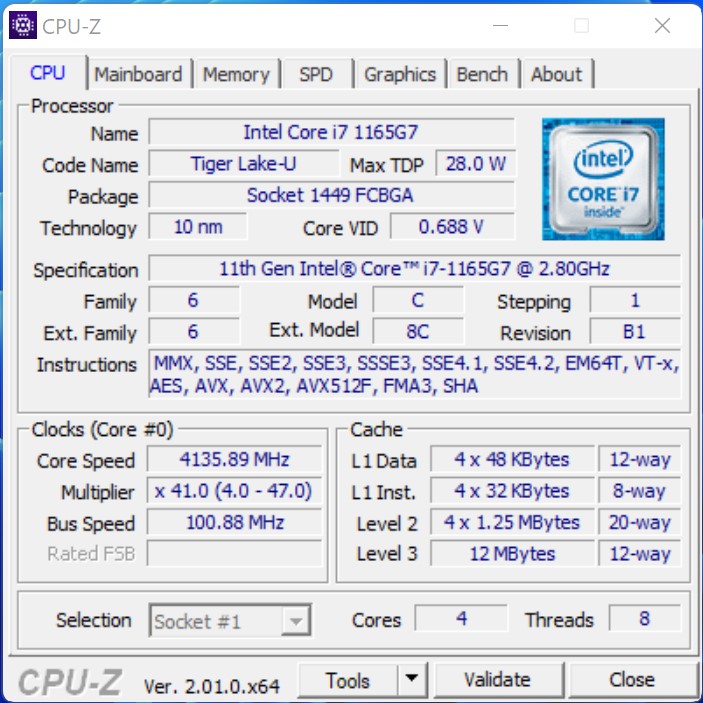

芯片 英特尔酷睿i7-1165G7为PrimeBook Circular提供动力，与传统的笔记本电脑不同，它不是永久性地安装在设备中。SoC仍然是焊接的，但在英特尔NUC计算元素CM11EBI716W上，你可以在图片的右边看到。该模块可以很容易地被拆下并替换成另一个模块。这使得笔记本电脑甚至可以在CPU方面进行升级，这在紧凑型笔记本中通常是不可能的。
SoC提供4个核心，8个线程，基本时钟速度为2.8GHz。在涡轮增压状态下，最高可达到4.7GHz。然而，英特尔酷睿i7-1165G7的性能并没有完全达到测试中基于相同SoC的对比设备的水平。这方面的原因在于PL值。我们评测设备中的SoC必须在最大45瓦的情况下进行，而在宏碁TravelMate P614中则可能达到64瓦的功率。 Acer TravelMate P614P。考虑到这一点，只有8%的差距仍然是可以接受的，在日常使用中并不十分明显。
在Cinebench R15多循环中，英特尔酷睿i7-1165G7开始时略低于930分，随着测试的进行，平均达到808分，即在永久负载下损失约10%的性能。
关于进一步的比较和基准测试，我们可以参考我们的 CPU比较表.
Cinebench R15 Multi Sustained Load
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
| CPU Performance Rating | |
| Average of class Office | |
| Lenovo ThinkPad T14s G2 20XGS01100 | |
| Acer TravelMate P614P-52 | |
| Lenovo ThinkPad T14s G2 20WM003TGE | |
| Asus ZenBook 14X OLED UX5400EA-L7154W | |
| Average Intel Core i7-1165G7 | |
| Prime Computer PrimeBook Circular-i7-1165G7 | |
| Dell Inspiron 14 5410-D3D7T | |
| Cinebench R23 / Multi Core | |
| Average of class Office (1577 - 15743, n=92, last 2 years) | |
| Lenovo ThinkPad T14s G2 20XGS01100 | |
| Asus ZenBook 14X OLED UX5400EA-L7154W | |
| Acer TravelMate P614P-52 | |
| Prime Computer PrimeBook Circular-i7-1165G7 | |
| Average Intel Core i7-1165G7 (2525 - 6862, n=64) | |
| Lenovo ThinkPad T14s G2 20WM003TGE | |
| Dell Inspiron 14 5410-D3D7T | |
| Cinebench R23 / Single Core | |
| Average of class Office (618 - 1995, n=92, last 2 years) | |
| Prime Computer PrimeBook Circular-i7-1165G7 | |
| Acer TravelMate P614P-52 | |
| Asus ZenBook 14X OLED UX5400EA-L7154W | |
| Lenovo ThinkPad T14s G2 20XGS01100 | |
| Average Intel Core i7-1165G7 (1110 - 1539, n=59) | |
| Lenovo ThinkPad T14s G2 20WM003TGE | |
| Dell Inspiron 14 5410-D3D7T | |
| Cinebench R20 / CPU (Multi Core) | |
| Average of class Office (590 - 5980, n=91, last 2 years) | |
| Lenovo ThinkPad T14s G2 20XGS01100 | |
| Asus ZenBook 14X OLED UX5400EA-L7154W | |
| Acer TravelMate P614P-52 | |
| Prime Computer PrimeBook Circular-i7-1165G7 | |
| Average Intel Core i7-1165G7 (1060 - 2657, n=81) | |
| Lenovo ThinkPad T14s G2 20WM003TGE | |
| Dell Inspiron 14 5410-D3D7T | |
| Cinebench R20 / CPU (Single Core) | |
| Average of class Office (229 - 766, n=91, last 2 years) | |
| Prime Computer PrimeBook Circular-i7-1165G7 | |
| Acer TravelMate P614P-52 | |
| Asus ZenBook 14X OLED UX5400EA-L7154W | |
| Lenovo ThinkPad T14s G2 20XGS01100 | |
| Average Intel Core i7-1165G7 (442 - 589, n=81) | |
| Lenovo ThinkPad T14s G2 20WM003TGE | |
| Dell Inspiron 14 5410-D3D7T | |
| Cinebench R15 / CPU Multi 64Bit | |
| Average of class Office (246 - 2642, n=94, last 2 years) | |
| Lenovo ThinkPad T14s G2 20XGS01100 | |
| Lenovo ThinkPad T14s G2 20WM003TGE | |
| Asus ZenBook 14X OLED UX5400EA-L7154W | |
| Acer TravelMate P614P-52 | |
| Average Intel Core i7-1165G7 (553 - 1027, n=86) | |
| Prime Computer PrimeBook Circular-i7-1165G7 | |
| Dell Inspiron 14 5410-D3D7T | |
| Dell Inspiron 14 5410-D3D7T | |
| Dell Inspiron 14 5410-D3D7T | |
| Cinebench R15 / CPU Single 64Bit | |
| Average of class Office (98 - 284, n=93, last 2 years) | |
| Lenovo ThinkPad T14s G2 20XGS01100 | |
| Lenovo ThinkPad T14s G2 20WM003TGE | |
| Prime Computer PrimeBook Circular-i7-1165G7 | |
| Acer TravelMate P614P-52 | |
| Asus ZenBook 14X OLED UX5400EA-L7154W | |
| Average Intel Core i7-1165G7 (115 - 230, n=78) | |
| Dell Inspiron 14 5410-D3D7T | |
| Dell Inspiron 14 5410-D3D7T | |
| Dell Inspiron 14 5410-D3D7T | |
| Blender / v2.79 BMW27 CPU | |
| Prime Computer PrimeBook Circular-i7-1165G7 | |
| Dell Inspiron 14 5410-D3D7T | |
| Average Intel Core i7-1165G7 (468 - 1138, n=80) | |
| Lenovo ThinkPad T14s G2 20WM003TGE | |
| Acer TravelMate P614P-52 | |
| Asus ZenBook 14X OLED UX5400EA-L7154W | |
| Average of class Office (208 - 1956, n=93, last 2 years) | |
| Lenovo ThinkPad T14s G2 20XGS01100 | |
| 7-Zip 18.03 / 7z b 4 | |
| Lenovo ThinkPad T14s G2 20XGS01100 | |
| Average of class Office (7532 - 65460, n=94, last 2 years) | |
| Asus ZenBook 14X OLED UX5400EA-L7154W | |
| Lenovo ThinkPad T14s G2 20WM003TGE | |
| Acer TravelMate P614P-52 | |
| Prime Computer PrimeBook Circular-i7-1165G7 | |
| Average Intel Core i7-1165G7 (15347 - 27405, n=80) | |
| Dell Inspiron 14 5410-D3D7T | |
| 7-Zip 18.03 / 7z b 4 -mmt1 | |
| Prime Computer PrimeBook Circular-i7-1165G7 | |
| Average of class Office (2972 - 6687, n=93, last 2 years) | |
| Lenovo ThinkPad T14s G2 20XGS01100 | |
| Average Intel Core i7-1165G7 (4478 - 5507, n=80) | |
| Lenovo ThinkPad T14s G2 20WM003TGE | |
| Acer TravelMate P614P-52 | |
| Asus ZenBook 14X OLED UX5400EA-L7154W | |
| Dell Inspiron 14 5410-D3D7T | |
| Geekbench 5.5 / Multi-Core | |
| Average of class Office (1018 - 11980, n=93, last 2 years) | |
| Lenovo ThinkPad T14s G2 20XGS01100 | |
| Acer TravelMate P614P-52 | |
| Asus ZenBook 14X OLED UX5400EA-L7154W | |
| Asus ZenBook 14X OLED UX5400EA-L7154W | |
| Lenovo ThinkPad T14s G2 20WM003TGE | |
| Average Intel Core i7-1165G7 (3078 - 5926, n=77) | |
| Prime Computer PrimeBook Circular-i7-1165G7 | |
| Dell Inspiron 14 5410-D3D7T | |
| Geekbench 5.5 / Single-Core | |
| Average of class Office (510 - 1995, n=94, last 2 years) | |
| Acer TravelMate P614P-52 | |
| Prime Computer PrimeBook Circular-i7-1165G7 | |
| Average Intel Core i7-1165G7 (1302 - 1595, n=77) | |
| Asus ZenBook 14X OLED UX5400EA-L7154W | |
| Asus ZenBook 14X OLED UX5400EA-L7154W | |
| Lenovo ThinkPad T14s G2 20WM003TGE | |
| Dell Inspiron 14 5410-D3D7T | |
| Lenovo ThinkPad T14s G2 20XGS01100 | |
| HWBOT x265 Benchmark v2.2 / 4k Preset | |
| Lenovo ThinkPad T14s G2 20XGS01100 | |
| Average of class Office (1.72 - 18.7, n=91, last 2 years) | |
| Asus ZenBook 14X OLED UX5400EA-L7154W | |
| Lenovo ThinkPad T14s G2 20WM003TGE | |
| Acer TravelMate P614P-52 | |
| Average Intel Core i7-1165G7 (1.39 - 8.47, n=80) | |
| Dell Inspiron 14 5410-D3D7T | |
| Prime Computer PrimeBook Circular-i7-1165G7 | |
| LibreOffice / 20 Documents To PDF | |
| Asus ZenBook 14X OLED UX5400EA-L7154W | |
| Average of class Office (31.3 - 129.6, n=91, last 2 years) | |
| Prime Computer PrimeBook Circular-i7-1165G7 | |
| Average Intel Core i7-1165G7 (21.5 - 88.1, n=78) | |
| Lenovo ThinkPad T14s G2 20XGS01100 | |
| Acer TravelMate P614P-52 | |
| Dell Inspiron 14 5410-D3D7T | |
| Lenovo ThinkPad T14s G2 20WM003TGE | |
| R Benchmark 2.5 / Overall mean | |
| Dell Inspiron 14 5410-D3D7T | |
| Asus ZenBook 14X OLED UX5400EA-L7154W | |
| Prime Computer PrimeBook Circular-i7-1165G7 | |
| Acer TravelMate P614P-52 | |
| Average Intel Core i7-1165G7 (0.552 - 1.002, n=80) | |
| Lenovo ThinkPad T14s G2 20WM003TGE | |
| Average of class Office (0.4244 - 1.135, n=90, last 2 years) | |
| Lenovo ThinkPad T14s G2 20XGS01100 | |
* ... smaller is better
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
| Performance Rating | |
| Lenovo ThinkPad T14s G2 20XGS01100 | |
| Average of class Office | |
| Asus ZenBook 14X OLED UX5400EA-L7154W | |
| Lenovo ThinkPad T14s G2 20WM003TGE | |
| Acer TravelMate P614P-52 | |
| Prime Computer PrimeBook Circular-i7-1165G7 | |
| Average Intel Core i7-1165G7 | |
| Dell Inspiron 14 5410-D3D7T | |
| AIDA64 / FP32 Ray-Trace | |
| Lenovo ThinkPad T14s G2 20XGS01100 | |
| Average of class Office (763 - 24250, n=92, last 2 years) | |
| Asus ZenBook 14X OLED UX5400EA-L7154W | |
| Lenovo ThinkPad T14s G2 20WM003TGE | |
| Acer TravelMate P614P-52 | |
| Average Intel Core i7-1165G7 (3933 - 8184, n=58) | |
| Prime Computer PrimeBook Circular-i7-1165G7 | |
| Dell Inspiron 14 5410-D3D7T | |
| AIDA64 / FPU Julia | |
| Lenovo ThinkPad T14s G2 20XGS01100 | |
| Average of class Office (4113 - 102228, n=92, last 2 years) | |
| Asus ZenBook 14X OLED UX5400EA-L7154W | |
| Lenovo ThinkPad T14s G2 20WM003TGE | |
| Acer TravelMate P614P-52 | |
| Average Intel Core i7-1165G7 (17720 - 34369, n=58) | |
| Prime Computer PrimeBook Circular-i7-1165G7 | |
| Dell Inspiron 14 5410-D3D7T | |
| AIDA64 / CPU SHA3 | |
| Average of class Office (287 - 4551, n=92, last 2 years) | |
| Lenovo ThinkPad T14s G2 20XGS01100 | |
| Asus ZenBook 14X OLED UX5400EA-L7154W | |
| Lenovo ThinkPad T14s G2 20WM003TGE | |
| Acer TravelMate P614P-52 | |
| Average Intel Core i7-1165G7 (958 - 2338, n=58) | |
| Prime Computer PrimeBook Circular-i7-1165G7 | |
| Dell Inspiron 14 5410-D3D7T | |
| AIDA64 / CPU Queen | |
| Lenovo ThinkPad T14s G2 20XGS01100 | |
| Average of class Office (8185 - 115197, n=92, last 2 years) | |
| Acer TravelMate P614P-52 | |
| Asus ZenBook 14X OLED UX5400EA-L7154W | |
| Prime Computer PrimeBook Circular-i7-1165G7 | |
| Lenovo ThinkPad T14s G2 20WM003TGE | |
| Average Intel Core i7-1165G7 (44161 - 50624, n=58) | |
| Dell Inspiron 14 5410-D3D7T | |
| AIDA64 / FPU SinJulia | |
| Lenovo ThinkPad T14s G2 20XGS01100 | |
| Average of class Office (404 - 14288, n=92, last 2 years) | |
| Acer TravelMate P614P-52 | |
| Asus ZenBook 14X OLED UX5400EA-L7154W | |
| Lenovo ThinkPad T14s G2 20WM003TGE | |
| Average Intel Core i7-1165G7 (3183 - 4796, n=58) | |
| Prime Computer PrimeBook Circular-i7-1165G7 | |
| Dell Inspiron 14 5410-D3D7T | |
| AIDA64 / FPU Mandel | |
| Lenovo ThinkPad T14s G2 20XGS01100 | |
| Average of class Office (2075 - 54365, n=92, last 2 years) | |
| Asus ZenBook 14X OLED UX5400EA-L7154W | |
| Lenovo ThinkPad T14s G2 20WM003TGE | |
| Acer TravelMate P614P-52 | |
| Average Intel Core i7-1165G7 (11876 - 20468, n=58) | |
| Prime Computer PrimeBook Circular-i7-1165G7 | |
| Dell Inspiron 14 5410-D3D7T | |
| AIDA64 / CPU AES | |
| Lenovo ThinkPad T14s G2 20XGS01100 | |
| Asus ZenBook 14X OLED UX5400EA-L7154W | |
| Lenovo ThinkPad T14s G2 20WM003TGE | |
| Acer TravelMate P614P-52 | |
| Prime Computer PrimeBook Circular-i7-1165G7 | |
| Average Intel Core i7-1165G7 (29506 - 73387, n=58) | |
| Dell Inspiron 14 5410-D3D7T | |
| Average of class Office (7254 - 155900, n=92, last 2 years) | |
| AIDA64 / CPU ZLib | |
| Average of class Office (78 - 1018, n=92, last 2 years) | |
| Lenovo ThinkPad T14s G2 20XGS01100 | |
| Asus ZenBook 14X OLED UX5400EA-L7154W | |
| Lenovo ThinkPad T14s G2 20WM003TGE | |
| Acer TravelMate P614P-52 | |
| Prime Computer PrimeBook Circular-i7-1165G7 | |
| Average Intel Core i7-1165G7 (169 - 402, n=65) | |
| Dell Inspiron 14 5410-D3D7T | |
| AIDA64 / FP64 Ray-Trace | |
| Lenovo ThinkPad T14s G2 20XGS01100 | |
| Average of class Office (432 - 12755, n=92, last 2 years) | |
| Asus ZenBook 14X OLED UX5400EA-L7154W | |
| Lenovo ThinkPad T14s G2 20WM003TGE | |
| Acer TravelMate P614P-52 | |
| Average Intel Core i7-1165G7 (2033 - 4461, n=58) | |
| Prime Computer PrimeBook Circular-i7-1165G7 | |
| Dell Inspiron 14 5410-D3D7T | |
| AIDA64 / CPU PhotoWorxx | |
| Acer TravelMate P614P-52 | |
| Prime Computer PrimeBook Circular-i7-1165G7 | |
| Asus ZenBook 14X OLED UX5400EA-L7154W | |
| Lenovo ThinkPad T14s G2 20WM003TGE | |
| Average Intel Core i7-1165G7 (12392 - 45694, n=58) | |
| Average of class Office (4814 - 54971, n=92, last 2 years) | |
| Lenovo ThinkPad T14s G2 20XGS01100 | |
| Dell Inspiron 14 5410-D3D7T | |
系统性能
在PCMark 10结果中，PrimeBook Circular取得了与纯CPU测试类似的结果。然而，在Crossmark结果中，事情看起来完全不同。在这里，我们的评测设备在所有单独的测试中战胜了竞争对手。
CrossMark: Overall | Productivity | Creativity | Responsiveness
| PCMark 10 / Score | |
| Lenovo ThinkPad T14s G2 20XGS01100 | |
| Average of class Office (2463 - 7344, n=85, last 2 years) | |
| Asus ZenBook 14X OLED UX5400EA-L7154W | |
| Acer TravelMate P614P-52 | |
| Lenovo ThinkPad T14s G2 20WM003TGE | |
| Dell Inspiron 14 5410-D3D7T | |
| Average Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs (4531 - 5454, n=50) | |
| Prime Computer PrimeBook Circular-i7-1165G7 | |
| PCMark 10 / Essentials | |
| Acer TravelMate P614P-52 | |
| Lenovo ThinkPad T14s G2 20XGS01100 | |
| Lenovo ThinkPad T14s G2 20WM003TGE | |
| Average of class Office (5575 - 20841, n=85, last 2 years) | |
| Dell Inspiron 14 5410-D3D7T | |
| Prime Computer PrimeBook Circular-i7-1165G7 | |
| Average Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs (8997 - 11505, n=50) | |
| Asus ZenBook 14X OLED UX5400EA-L7154W | |
| PCMark 10 / Productivity | |
| Lenovo ThinkPad T14s G2 20XGS01100 | |
| Asus ZenBook 14X OLED UX5400EA-L7154W | |
| Average of class Office (3041 - 10415, n=85, last 2 years) | |
| Acer TravelMate P614P-52 | |
| Lenovo ThinkPad T14s G2 20WM003TGE | |
| Dell Inspiron 14 5410-D3D7T | |
| Prime Computer PrimeBook Circular-i7-1165G7 | |
| Average Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs (5570 - 7136, n=50) | |
| PCMark 10 / Digital Content Creation | |
| Average of class Office (2049 - 9773, n=85, last 2 years) | |
| Lenovo ThinkPad T14s G2 20XGS01100 | |
| Acer TravelMate P614P-52 | |
| Asus ZenBook 14X OLED UX5400EA-L7154W | |
| Lenovo ThinkPad T14s G2 20WM003TGE | |
| Dell Inspiron 14 5410-D3D7T | |
| Average Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs (4083 - 5550, n=50) | |
| Prime Computer PrimeBook Circular-i7-1165G7 | |
| CrossMark / Overall | |
| Prime Computer PrimeBook Circular-i7-1165G7 | |
| Average of class Office (348 - 1891, n=87, last 2 years) | |
| Average Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs (1341 - 1477, n=4) | |
| Lenovo ThinkPad T14s G2 20XGS01100 | |
| Asus ZenBook 14X OLED UX5400EA-L7154W | |
| CrossMark / Productivity | |
| Prime Computer PrimeBook Circular-i7-1165G7 | |
| Average Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs (1430 - 1492, n=4) | |
| Average of class Office (393 - 1870, n=87, last 2 years) | |
| Lenovo ThinkPad T14s G2 20XGS01100 | |
| Asus ZenBook 14X OLED UX5400EA-L7154W | |
| CrossMark / Creativity | |
| Prime Computer PrimeBook Circular-i7-1165G7 | |
| Average of class Office (340 - 1982, n=87, last 2 years) | |
| Lenovo ThinkPad T14s G2 20XGS01100 | |
| Average Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs (1237 - 1483, n=4) | |
| Asus ZenBook 14X OLED UX5400EA-L7154W | |
| CrossMark / Responsiveness | |
| Prime Computer PrimeBook Circular-i7-1165G7 | |
| Average Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs (1273 - 1414, n=4) | |
| Average of class Office (258 - 2017, n=87, last 2 years) | |
| Lenovo ThinkPad T14s G2 20XGS01100 | |
| Asus ZenBook 14X OLED UX5400EA-L7154W | |
| PCMark 10 Score | 4892 points | |
Help | ||
| AIDA64 / Memory Copy | |
| Acer TravelMate P614P-52 | |
| Prime Computer PrimeBook Circular-i7-1165G7 | |
| Asus ZenBook 14X OLED UX5400EA-L7154W | |
| Lenovo ThinkPad T14s G2 20WM003TGE | |
| Average of class Office (7158 - 108783, n=93, last 2 years) | |
| Average Intel Core i7-1165G7 (20032 - 65446, n=58) | |
| Lenovo ThinkPad T14s G2 20XGS01100 | |
| Dell Inspiron 14 5410-D3D7T | |
| AIDA64 / Memory Read | |
| Acer TravelMate P614P-52 | |
| Prime Computer PrimeBook Circular-i7-1165G7 | |
| Asus ZenBook 14X OLED UX5400EA-L7154W | |
| Lenovo ThinkPad T14s G2 20WM003TGE | |
| Average of class Office (7325 - 127282, n=93, last 2 years) | |
| Average Intel Core i7-1165G7 (23033 - 64524, n=58) | |
| Lenovo ThinkPad T14s G2 20XGS01100 | |
| Dell Inspiron 14 5410-D3D7T | |
| AIDA64 / Memory Write | |
| Acer TravelMate P614P-52 | |
| Prime Computer PrimeBook Circular-i7-1165G7 | |
| Asus ZenBook 14X OLED UX5400EA-L7154W | |
| Lenovo ThinkPad T14s G2 20WM003TGE | |
| Average of class Office (7579 - 117935, n=93, last 2 years) | |
| Average Intel Core i7-1165G7 (21736 - 66791, n=58) | |
| Lenovo ThinkPad T14s G2 20XGS01100 | |
| Dell Inspiron 14 5410-D3D7T | |
| AIDA64 / Memory Latency | |
| Lenovo ThinkPad T14s G2 20XGS01100 | |
| Asus ZenBook 14X OLED UX5400EA-L7154W | |
| Average of class Office (6.9 - 185.2, n=92, last 2 years) | |
| Acer TravelMate P614P-52 | |
| Prime Computer PrimeBook Circular-i7-1165G7 | |
| Lenovo ThinkPad T14s G2 20WM003TGE | |
| Average Intel Core i7-1165G7 (69 - 110, n=65) | |
| Dell Inspiron 14 5410-D3D7T | |
* ... smaller is better

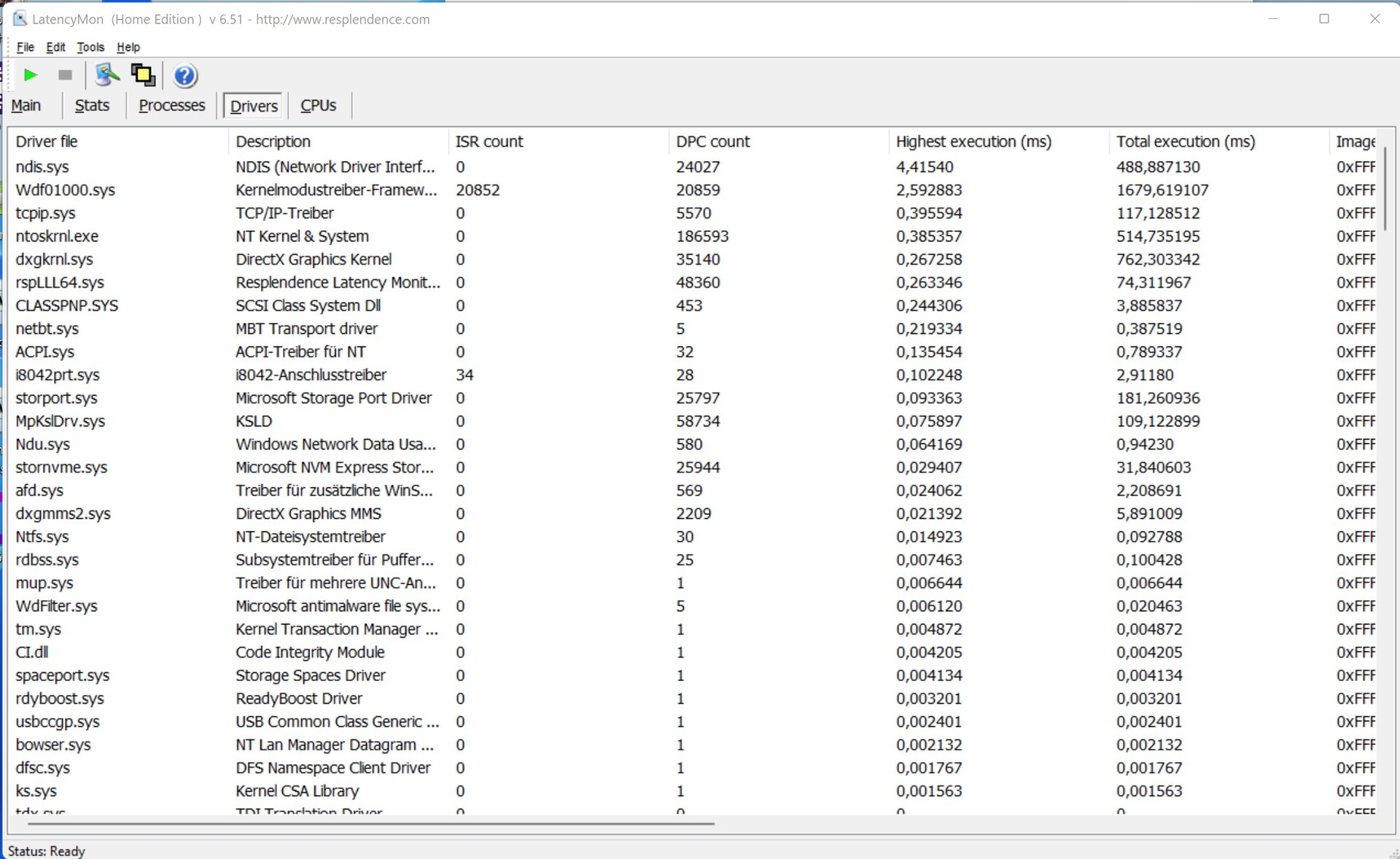

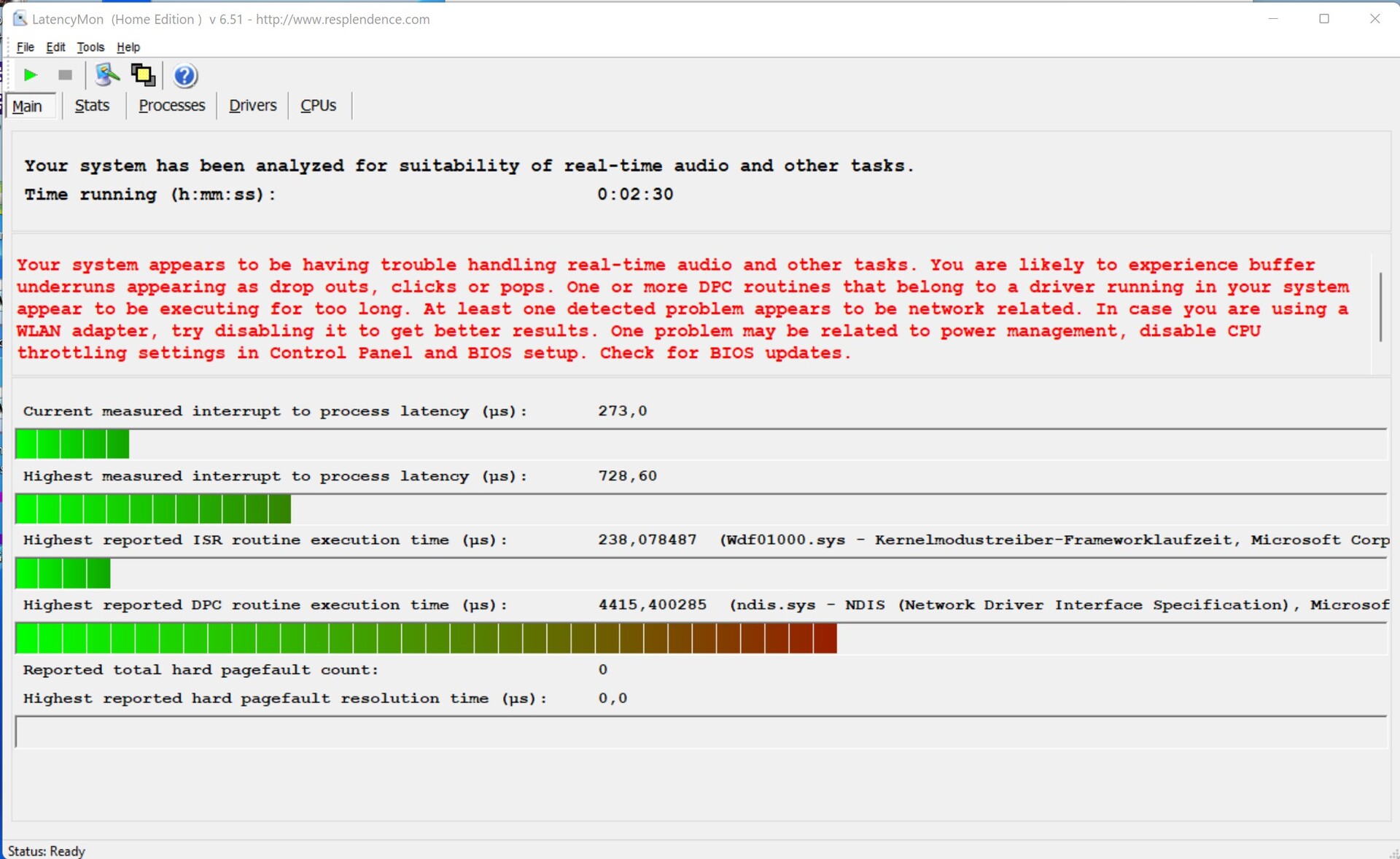

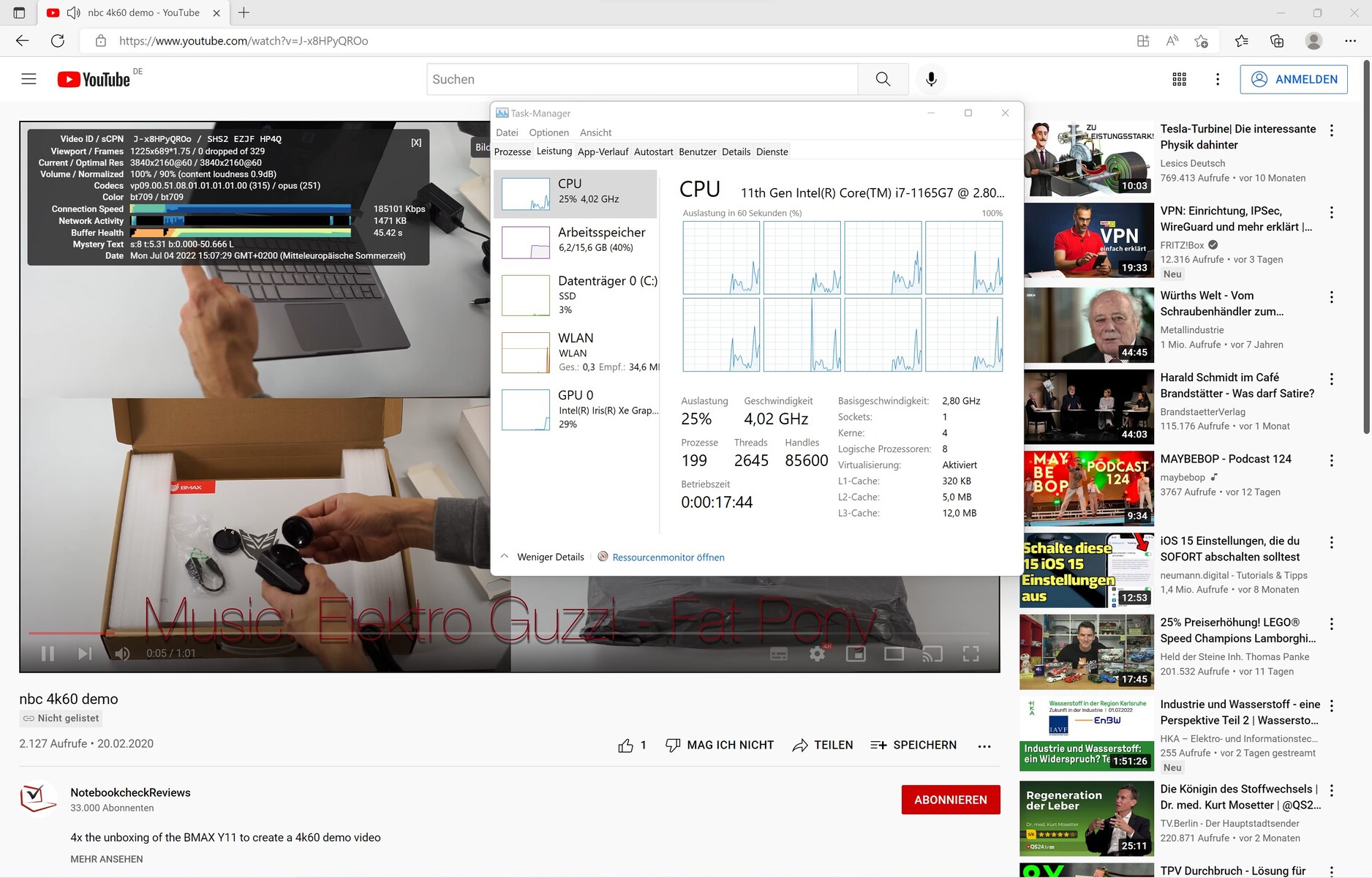

DPC延时
这里有改进的余地，因为DPC延迟实在太高，因此在实时的音频或视频工作中会导致掉线。
| DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95 | |
| Prime Computer PrimeBook Circular-i7-1165G7 | |
| Lenovo ThinkPad T14s G2 20XGS01100 | |
| Lenovo ThinkPad T14s G2 20WM003TGE | |
| Asus ZenBook 14X OLED UX5400EA-L7154W | |
| Acer TravelMate P614P-52 | |
| Dell Inspiron 14 5410-D3D7T | |
* ... smaller is better

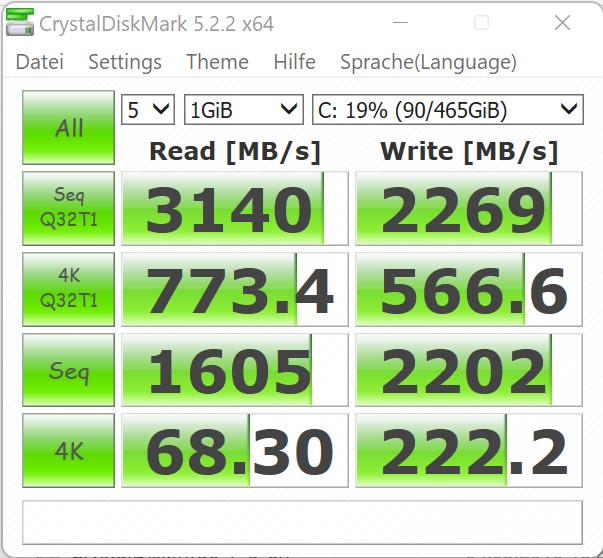

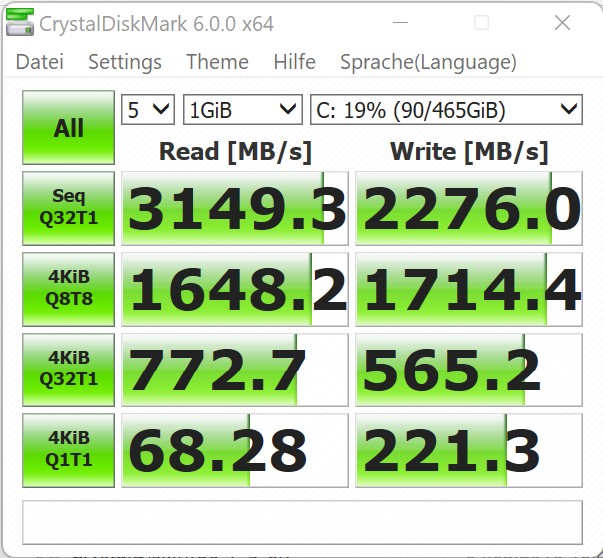

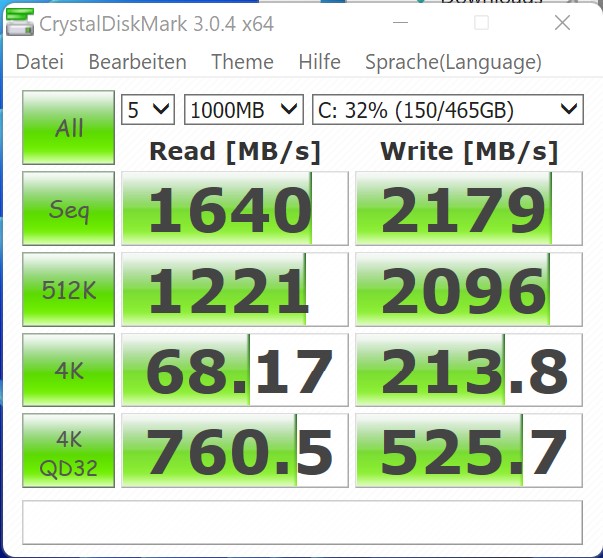

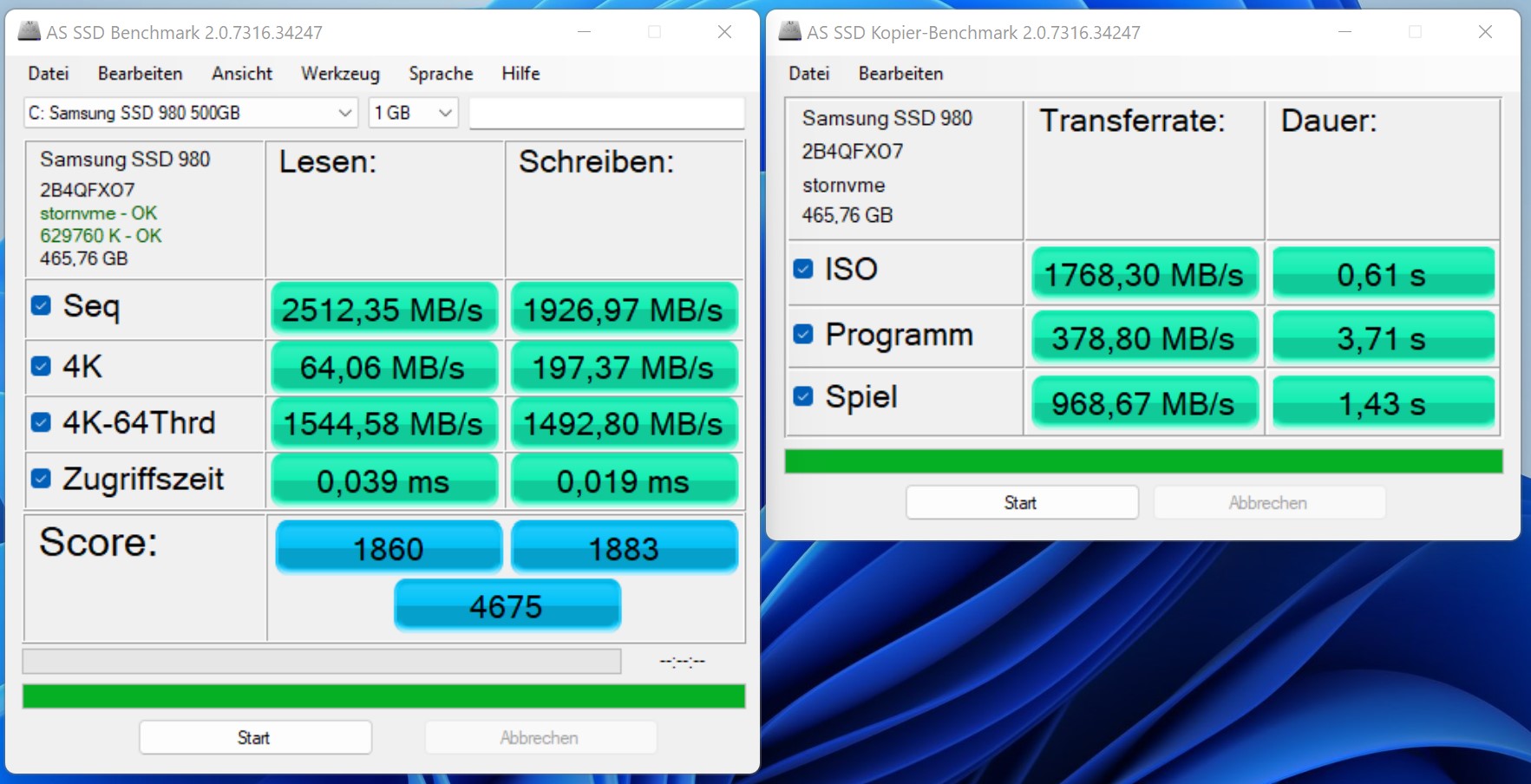

存储设备

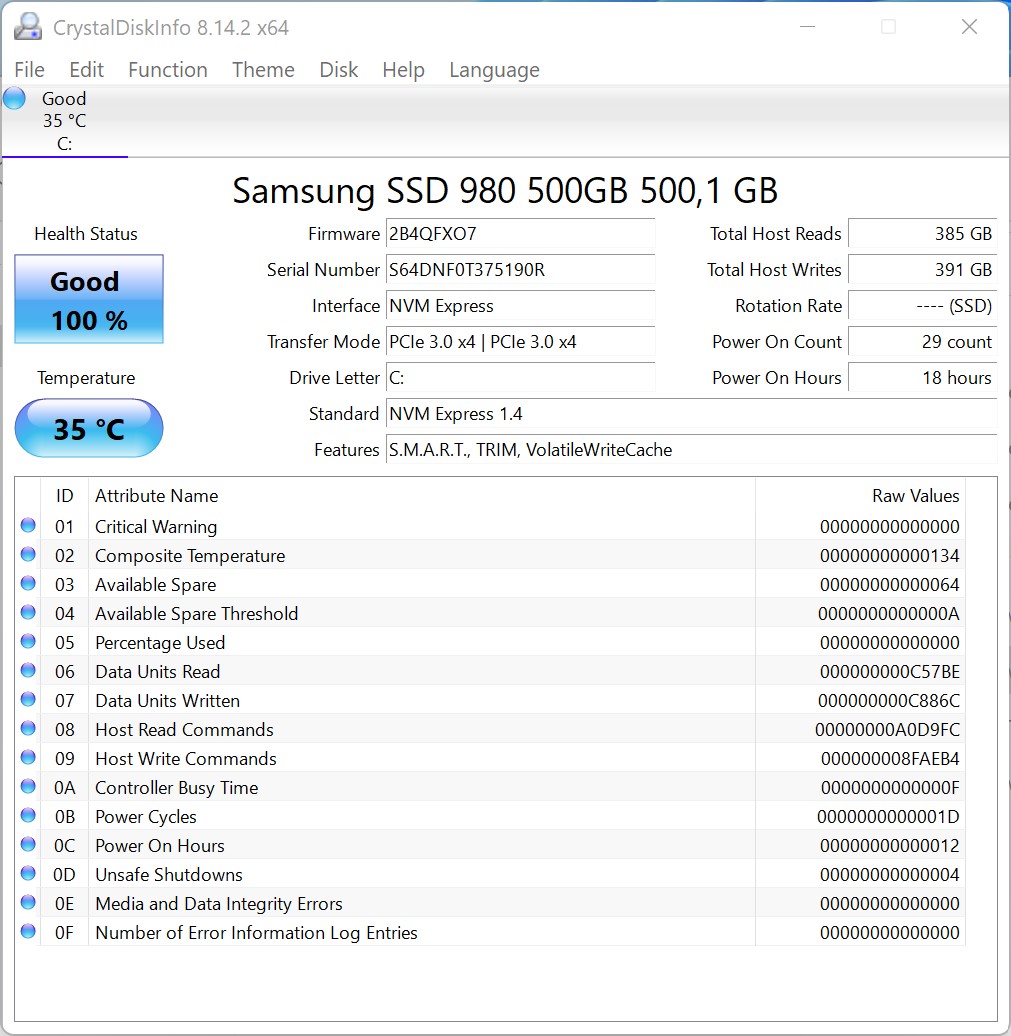

Prime Computer使用了三星的SDD，在我们看来，这是一个非常好的选择，因为传输速度快且稳定。特别值得注意的是体面的4K读取值，这加快了许多小文件的加载速度。不幸的是，PrimeBook Circular中只能容纳一个大容量存储设备。根据制造商的说法，支持高达1TB的大小。
对于更多的比较和基准，看看我们的 比较表.
* ... smaller is better
Sustained Performance Read: DiskSpd Read Loop, Queue Depth 8

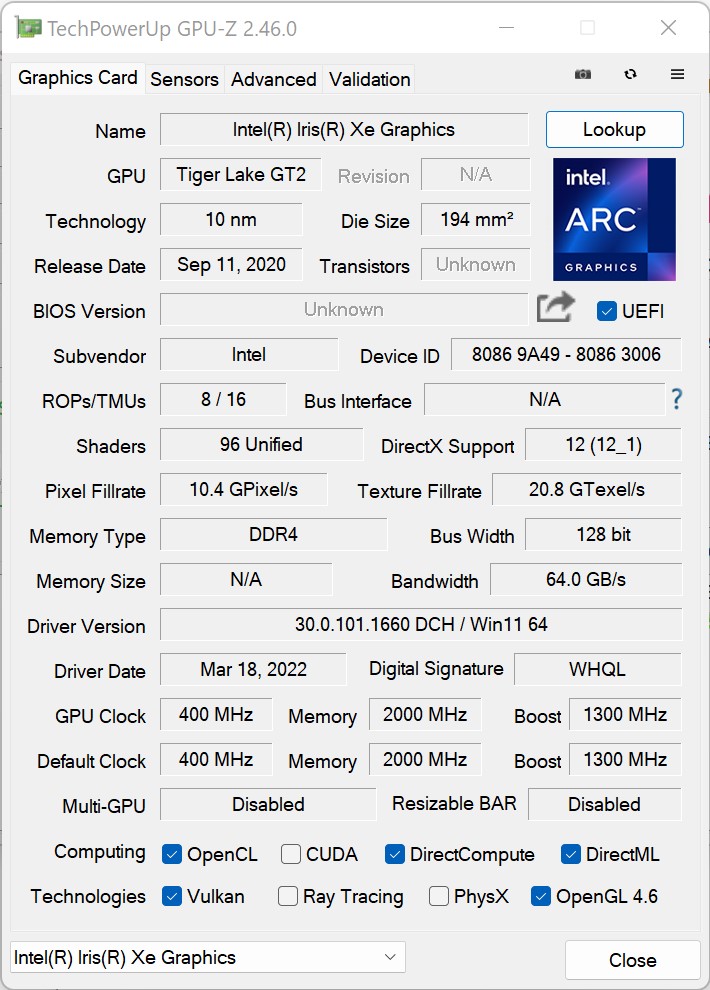

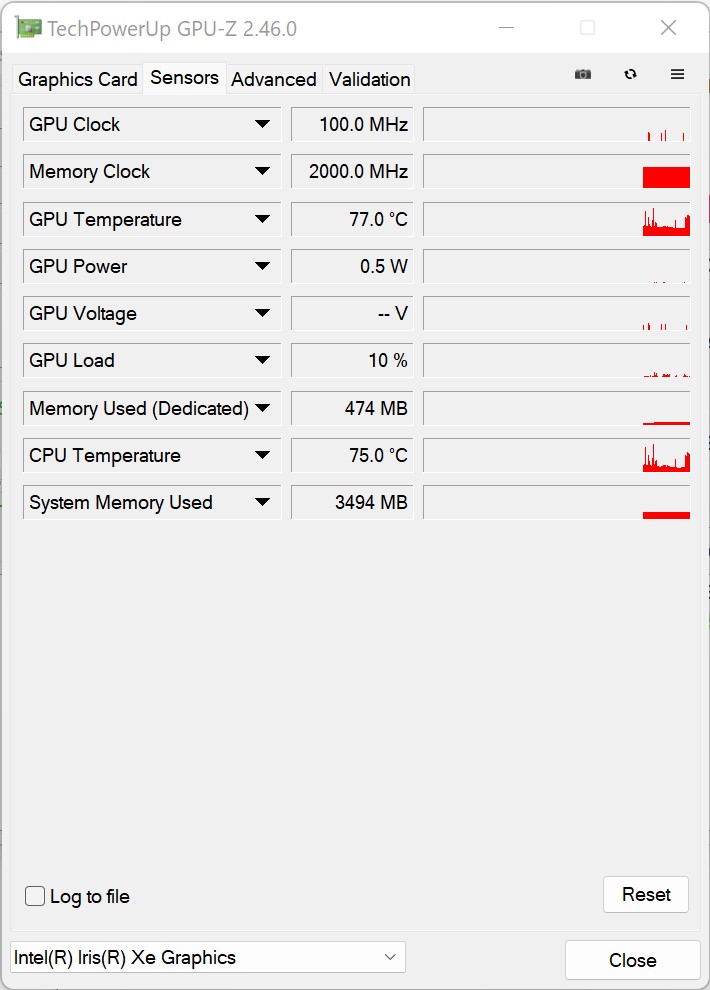

图形卡
由于英特尔的集成GPU 酷睿i7-1165G7的，是 英特尔Iris Xe Graphics G7现在是一个广泛使用的图形芯片，在性能方面可与AMD Radeon RX Vega 8相媲美。由于快速的RAM（4,266 MHz），也可以在双通道模式下工作，理论上的最佳性能被挤出了PrimeBook Circular中的iGPU。在 Acer TravelMate P614P显示了在更高的功率允许范围内可能出现的情况。关于更多的比较和基准，请看我们的GPU比较表。
| 3DMark 05 Standard | 23832 points | |
| 3DMark 06 Standard Score | 19983 points | |
| 3DMark Vantage P Result | 17234 points | |

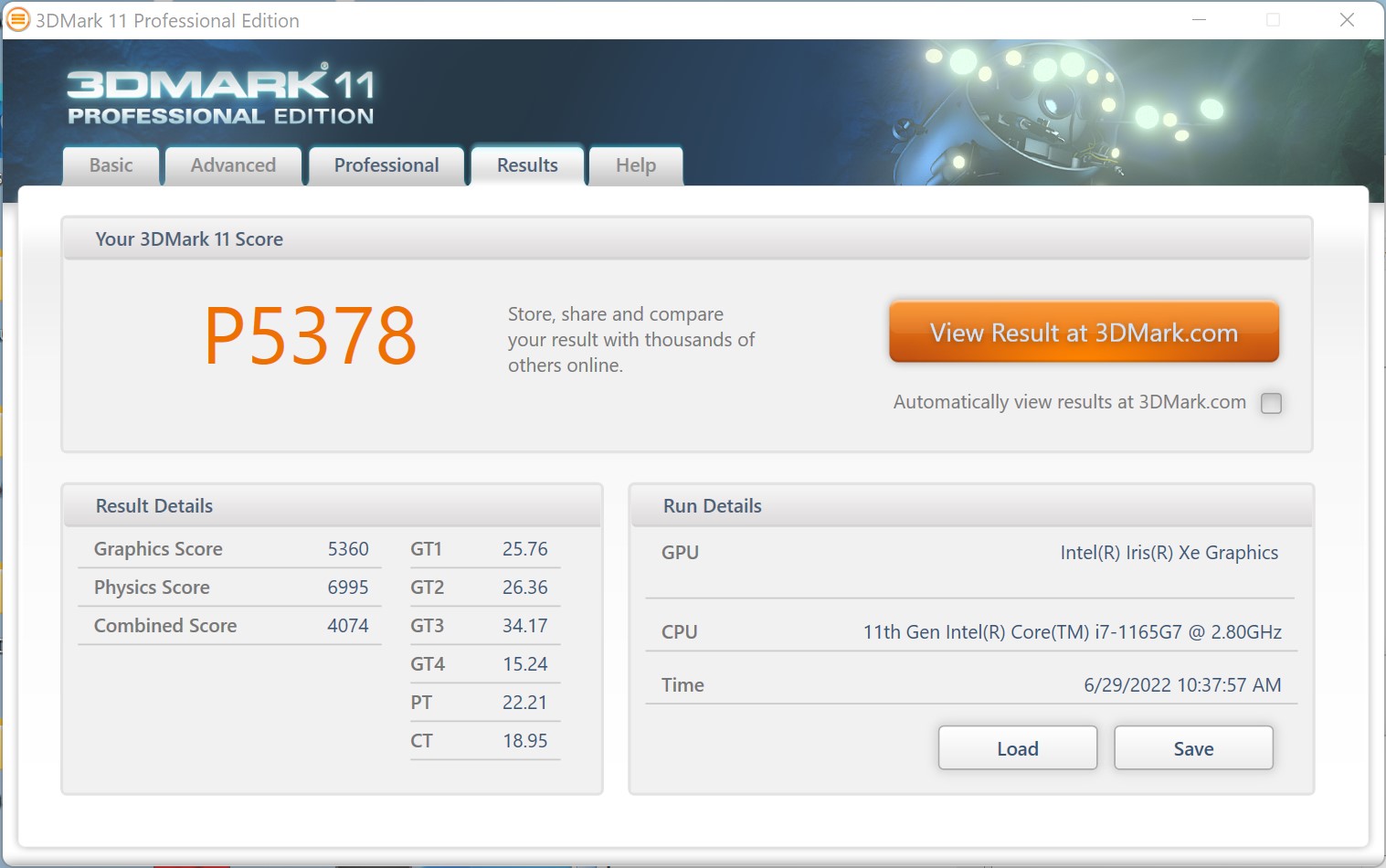

| 3DMark 11 Performance | 6121 points | |
| 3DMark Ice Storm Standard Score | 61091 points | |
| 3DMark Cloud Gate Standard Score | 13746 points | |
| 3DMark Fire Strike Score | 3877 points | |
| 3DMark Fire Strike Extreme Score | 2067 points | |
| 3DMark Time Spy Score | 1409 points | |
Help | ||
游戏性能
PrimeBook Circular不是一款游戏笔记本电脑，这也反映在性能上。英特尔Iris Xe图形G7.iGPU只适用于运行简单或较老的游戏。此外，为了达到可玩的帧率，往往不得不接受对细节或分辨率的限制。
| The Witcher 3 - 1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off) | |
| Asus ZenBook 14X OLED UX5400EA-L7154W | |
| Prime Computer PrimeBook Circular-i7-1165G7 | |
| Acer TravelMate P614P-52 | |
| Lenovo ThinkPad T14s G2 20WM003TGE | |
| Average Intel Iris Xe Graphics G7 96EUs (10.6 - 45.9, n=189) | |
| Average of class Office (7.6 - 59.1, n=70, last 2 years) | |
| Lenovo ThinkPad T14s G2 20XGS01100 | |
| Dell Inspiron 14 5410-D3D7T | |
| low | med. | high | ultra | |
|---|---|---|---|---|
| GTA V (2015) | 80.7 | 74.4 | 28.5 | 11.7 |
| The Witcher 3 (2015) | 97 | 63.8 | 34.4 | 17 |
| Dota 2 Reborn (2015) | 107.3 | 88.4 | 52.2 | 47.9 |
| Final Fantasy XV Benchmark (2018) | 30.4 | 18.9 | 13.8 | |
| X-Plane 11.11 (2018) | 46.1 | 32.9 | 28.1 | |
| Strange Brigade (2018) | 96.5 | 42.1 | 33.2 | 26.6 |
| F1 2020 (2020) | 93.5 | 36 | 27.6 | 18.5 |
| F1 2021 (2021) | 70.5 | 32.3 | 27.6 | 19.6 |
排放
系统噪音
我们对噪音水平的测量产生了良好的结果。即使在压力测试中，我们记录的最大噪音水平也只有32.7 dB(A)。此外，这两个风扇没有产生任何令人不快的噪音，这对人的主观感受有积极的影响。
Noise Level
| Idle |
| 29.9 / 30.1 / 30.2 dB(A) |
| Load |
| 30.2 / 32.7 dB(A) |
 | ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min:  , med:  , max:  Earthworks M23R, Arta (15 cm distance) environment noise: 29.9 dB(A) | ||
| Prime Computer PrimeBook Circular-i7-1165G7 Iris Xe G7 96EUs, i7-1165G7, Samsung SSD 980 500GB (MZ-V8V500BW) | Asus ZenBook 14X OLED UX5400EA-L7154W GeForce MX450, i7-1165G7, Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H) | Dell Inspiron 14 5410-D3D7T Iris Xe G7 96EUs, i7-1165G7, Toshiba KBG40ZNS512G NVMe | Lenovo ThinkPad T14s G2 20WM003TGE Iris Xe G7 96EUs, i7-1165G7, Samsung PM981a MZVLB1T0HBLR | Lenovo ThinkPad T14s G2 20XGS01100 Vega 8, R7 PRO 5850U, Lenovo UMIS AM630 RPETJ1T24MGE2QDQ | Acer TravelMate P614P-52 Iris Xe G7 96EUs, i7-1165G7, WDC PC SN730 SDBQNTY-1T00 | |
|---|---|---|---|---|---|---|
| Noise | -2% | 14% | 8% | 6% | -5% | |
| off / environment * | 29.9 | 26.6 11% | 25 16% | 24.81 17% | 26.81 10% | 26.61 11% |
| Idle Minimum * | 29.9 | 26.6 11% | 25 16% | 24.81 17% | 26.81 10% | 26.61 11% |
| Idle Average * | 30.1 | 26.6 12% | 25 17% | 24.81 18% | 26.81 11% | 26.61 12% |
| Idle Maximum * | 30.2 | 27.2 10% | 25 17% | 24.81 18% | 26.81 11% | 26.61 12% |
| Load Average * | 30.2 | 40.1 -33% | 27.5 9% | 35.14 -16% | 30.16 -0% | 42.1 -39% |
| Load Maximum * | 32.7 | 40.4 -24% | 29.6 9% | 35.14 -7% | 33.98 -4% | 43.71 -34% |
| Witcher 3 ultra * | 40.7 |
* ... smaller is better
温度
Prime Computer将PrimeBook Circular的外壳温度控制得很好。表面温度只在英特尔NUC计算元素的区域稍高。我们的评测样品在上侧的热量方面胜过竞争对手，产生的最高温度为41.1℃。只有Acer Travelmate P614P产生了几乎相同的结果。

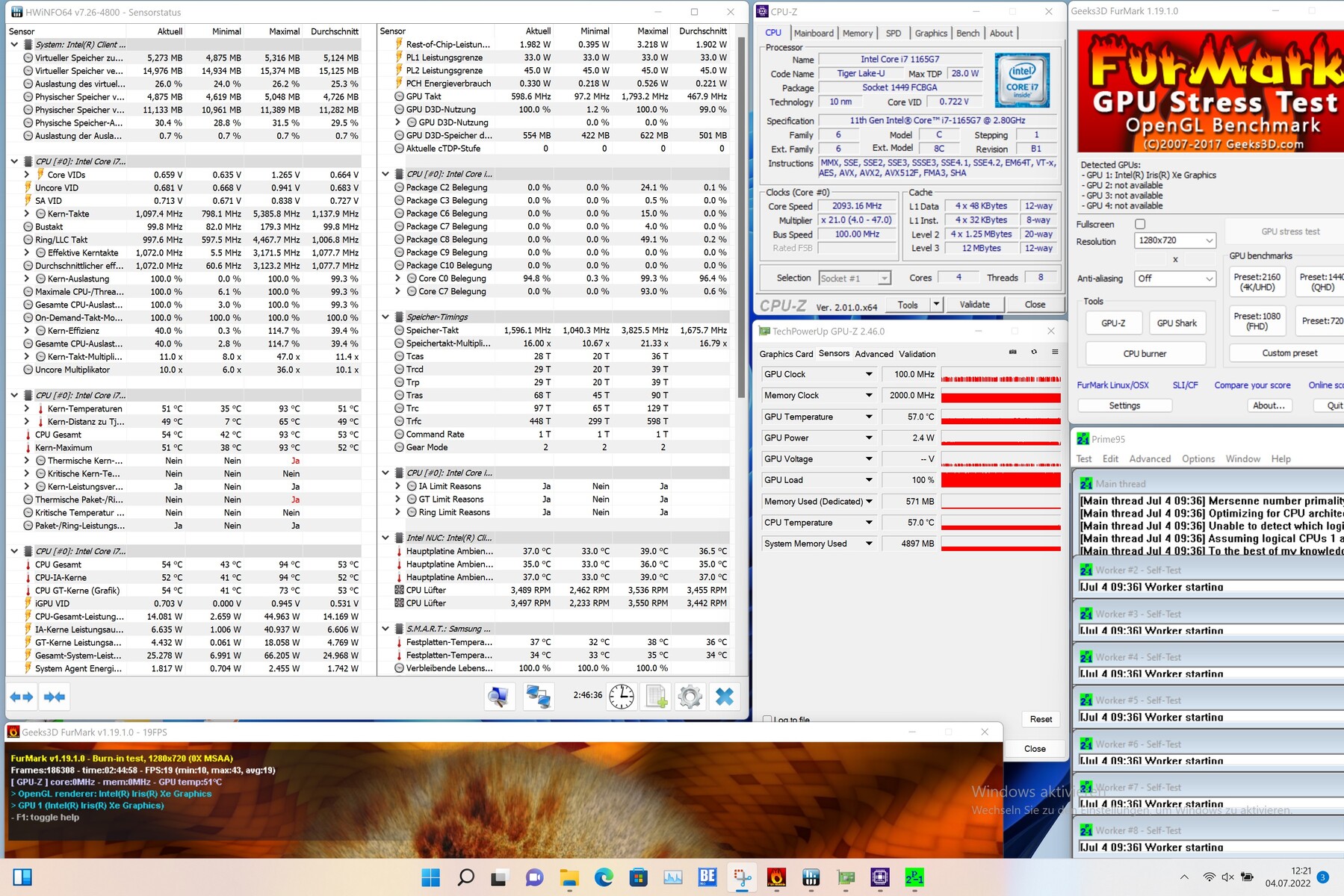

在94℃时，SoC在负载下发热相当大，我们不得不进行干预以避免过热（也见CPU测试中的性能下降）。这可能是由于非常保守的风扇曲线造成的，但内置的热管也可能是这里的原因。与其他没有安装英特尔NUC计算元件的笔记本不同，在这种情况下，热管并不直接位于CPU上，而是从计算元件的表面散发出热量。

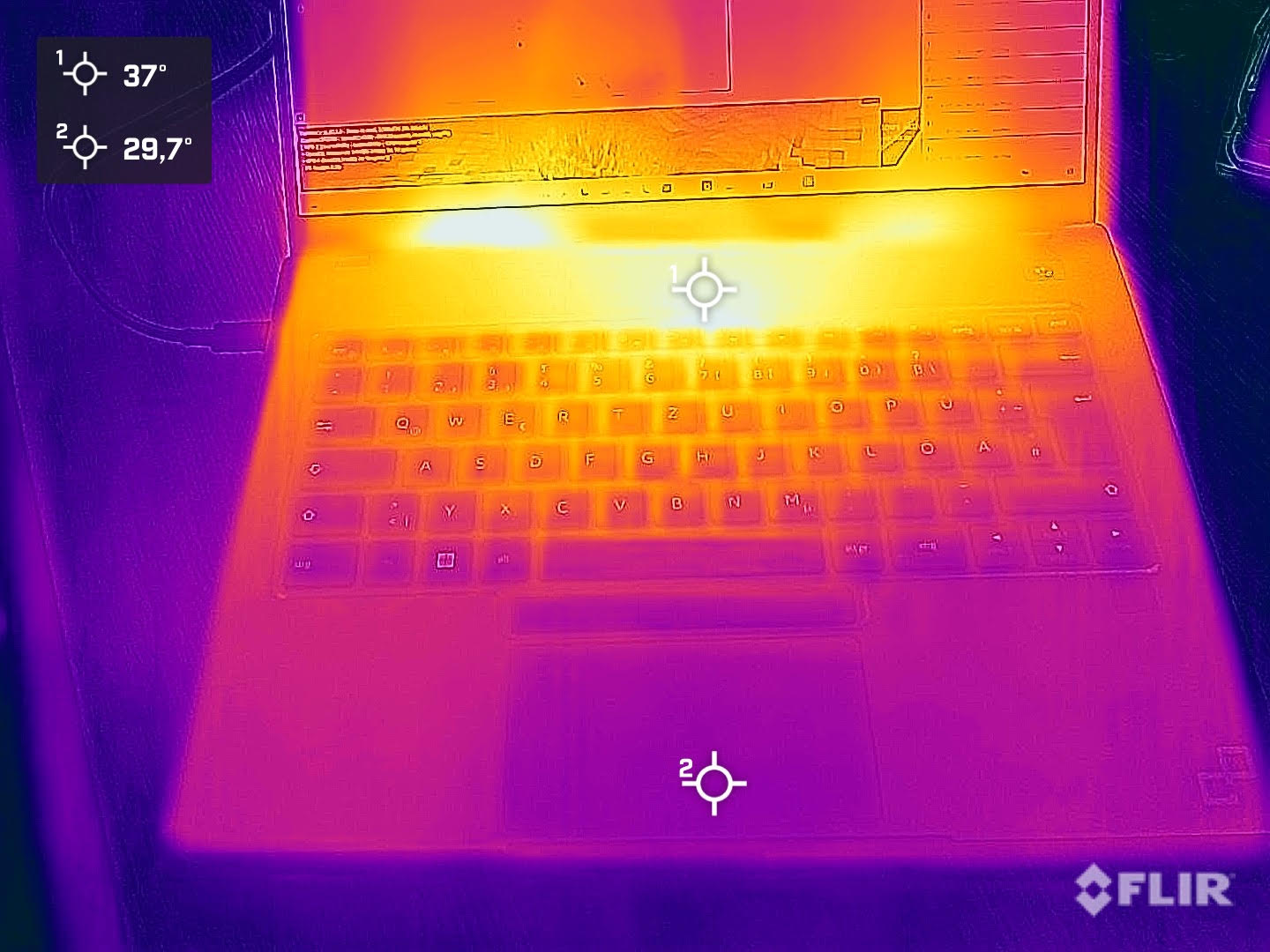

(±) The maximum temperature on the upper side is 41.1 °C / 106 F, compared to the average of 34.3 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.

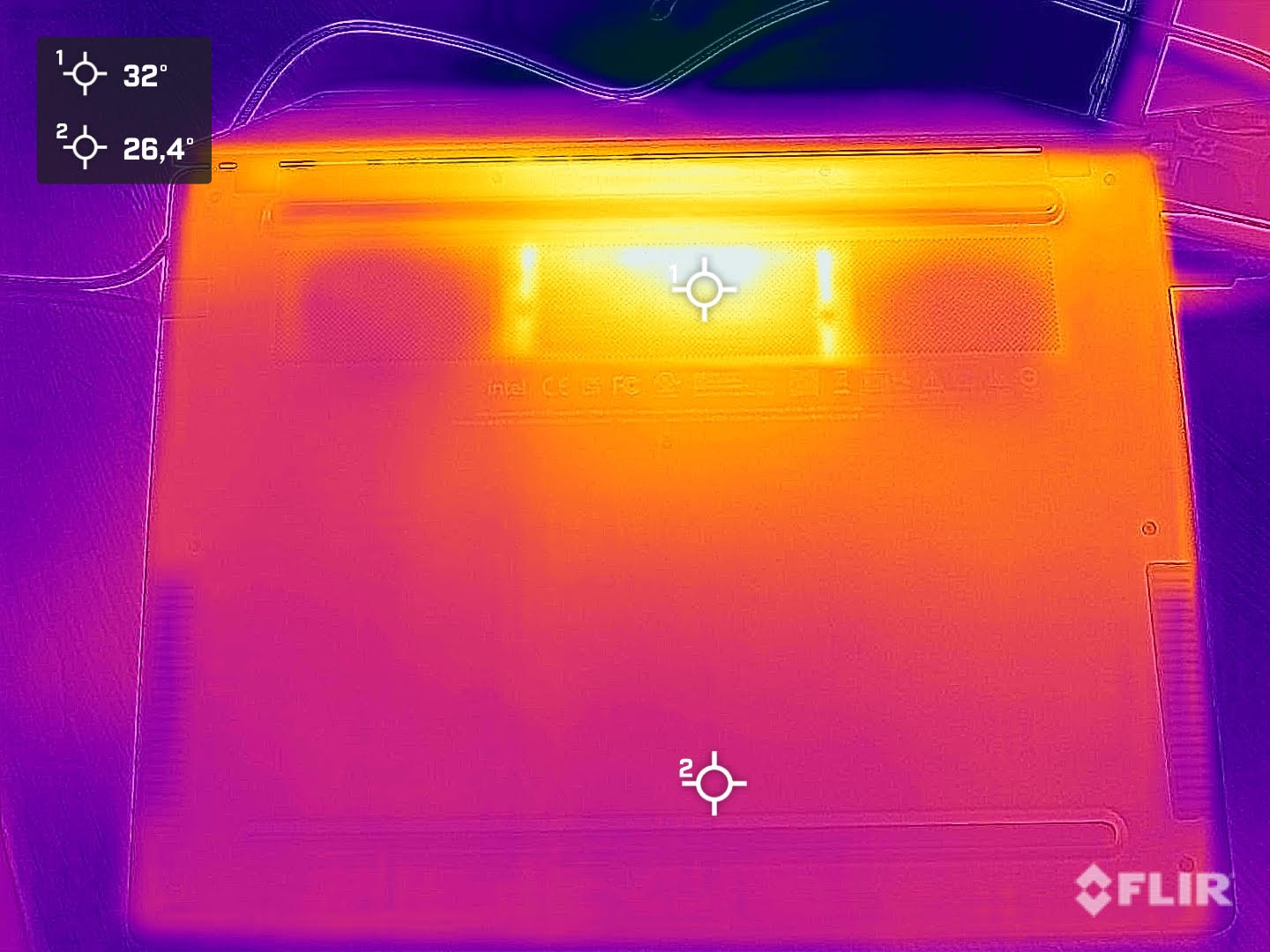

(+) The bottom heats up to a maximum of 38.1 °C / 101 F, compared to the average of 36.8 °C / 98 F

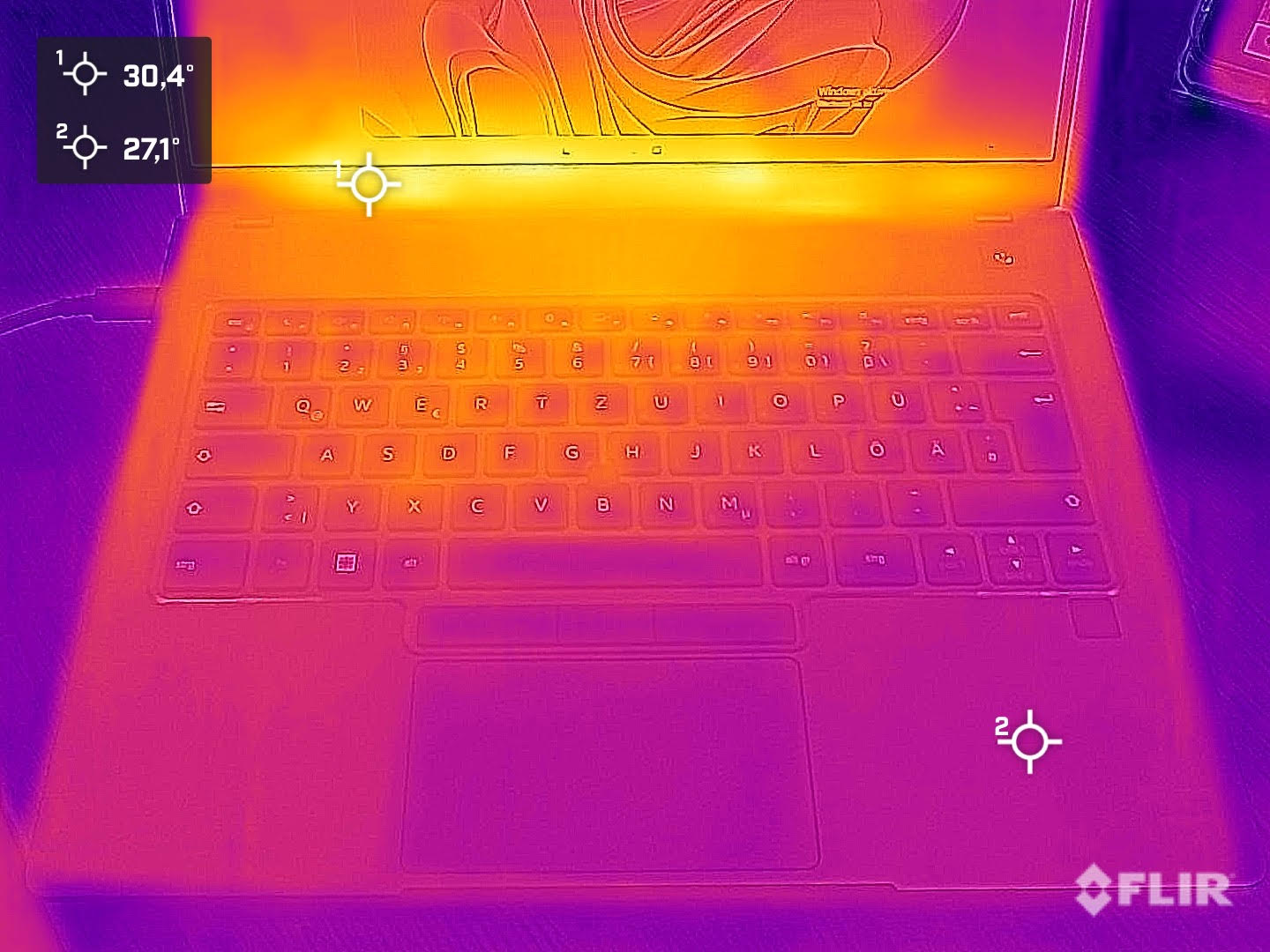

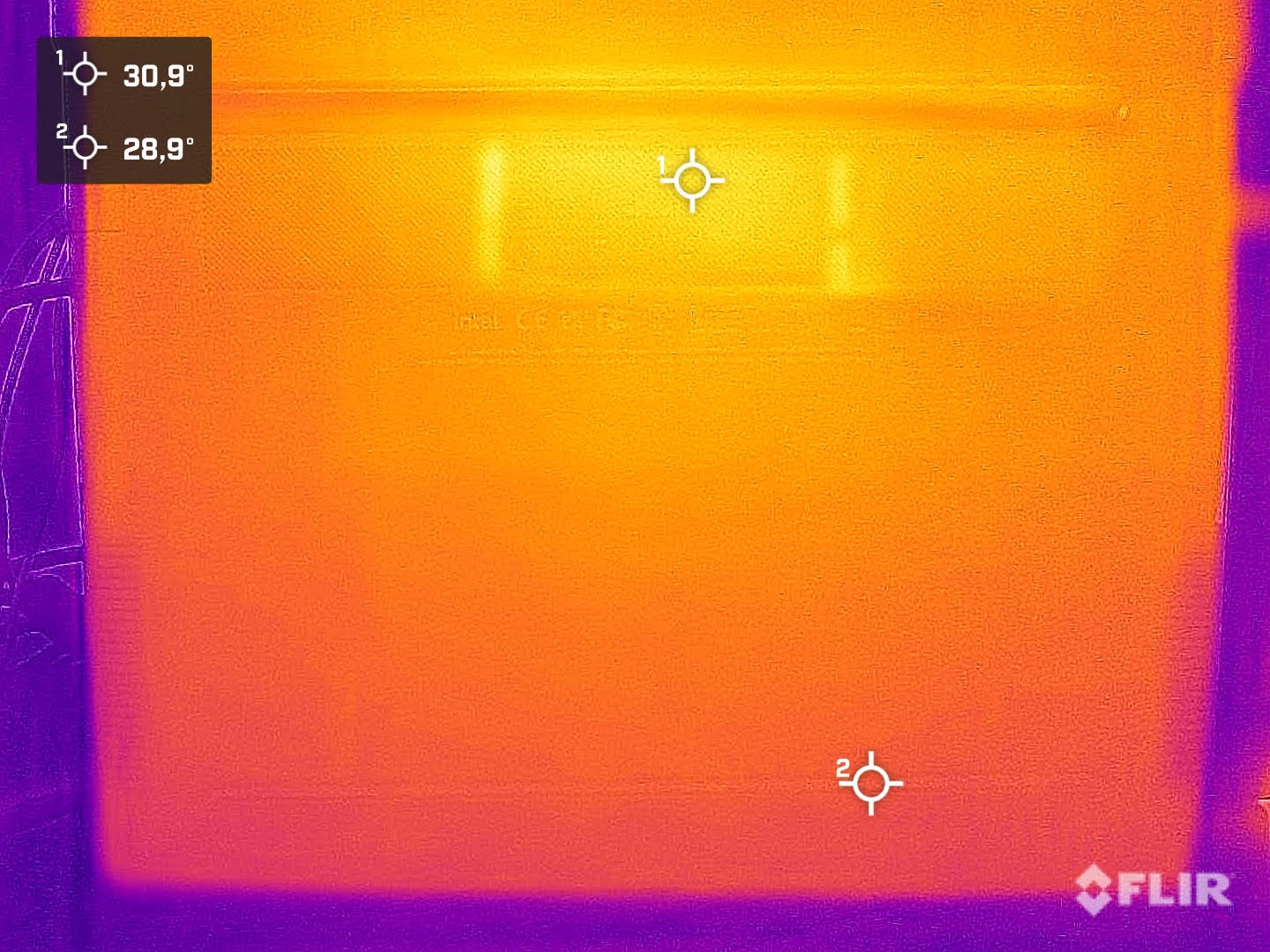

(+) In idle usage, the average temperature for the upper side is 31.3 °C / 88 F, compared to the device average of 29.5 °C / 85 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 31.8 °C / 89.2 F and are therefore cool to the touch.
(-) The average temperature of the palmrest area of similar devices was 27.6 °C / 81.7 F (-4.2 °C / -7.5 F).
| Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs | Asus ZenBook 14X OLED UX5400EA-L7154W Intel Core i7-1165G7, NVIDIA GeForce MX450 | Dell Inspiron 14 5410-D3D7T Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs | Lenovo ThinkPad T14s G2 20WM003TGE Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs | Lenovo ThinkPad T14s G2 20XGS01100 AMD Ryzen 7 PRO 5850U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) | Acer TravelMate P614P-52 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs | |
|---|---|---|---|---|---|---|
| Heat | -14% | 1% | -1% | 5% | 2% | |
| Maximum Upper Side * | 41.1 | 49.1 -19% | 41.8 -2% | 47.5 -16% | 44.2 -8% | 41 -0% |
| Maximum Bottom * | 38.1 | 50.4 -32% | 45.3 -19% | 43.4 -14% | 38.9 -2% | 43 -13% |
| Idle Upper Side * | 32.8 | 33.6 -2% | 27.9 15% | 28.4 13% | 27.7 16% | 29.4 10% |
| Idle Bottom * | 32.5 | 33.6 -3% | 29.4 10% | 28.3 13% | 28.3 13% | 29.6 9% |
* ... smaller is better
发言人
两个扬声器位于掌托下，当笔记本放在坚实光滑的表面上时，会产生最好的声音。然而，声音是由高音和中音主导的。不过，低音在某种程度上被再现，并没有完全被省略。PrimeBook Circular非常适用于办公室使用，包括视频电话。然而，对于真正的音频享受，没有办法绕过一个外部解决方案。配件可以通过USB或3.5毫米插孔连接到设备上。另外，蓝牙选项也可以与兼容的终端设备一起使用。
Prime Computer PrimeBook Circular-i7-1165G7 audio analysis
(±) | speaker loudness is average but good (78.5 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 17.9% lower than median
(±) | linearity of bass is average (8.9% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 5.5% higher than median
(+) | mids are linear (4.9% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 6.6% higher than median
(±) | linearity of highs is average (9.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (22.1% difference to median)
Compared to same class
» 54% of all tested devices in this class were better, 9% similar, 37% worse
» The best had a delta of 7%, average was 21%, worst was 53%
Compared to all devices tested
» 61% of all tested devices were better, 7% similar, 33% worse
» The best had a delta of 4%, average was 25%, worst was 134%
Acer TravelMate P614P-52 audio analysis
(±) | speaker loudness is average but good (73.5 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 21.4% lower than median
(±) | linearity of bass is average (8.1% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 7.4% higher than median
(±) | linearity of mids is average (12% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 1.1% away from median
(+) | highs are linear (3.7% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (24% difference to median)
Compared to same class
» 66% of all tested devices in this class were better, 10% similar, 24% worse
» The best had a delta of 7%, average was 21%, worst was 53%
Compared to all devices tested
» 69% of all tested devices were better, 7% similar, 24% worse
» The best had a delta of 4%, average was 25%, worst was 134%
能源管理
消耗功率
仅使用3.3至8.4瓦，该设备在闲置时非常经济。在平均负荷下，65瓦的电源装置要持续提供高达43.6瓦的功率，也有高达62瓦的峰值。与竞争对手相比，PrimeBook Circular的表现相当出色。戴尔的类似设备(Inspiron 14 5410)和宏碁(TravelMate P614P-52)需要的能量最多增加25%。这些只是短暂的，通常在短时间内需要SoC的全部负载时发生。这意味着电源没有过载，电池在插入电源时不会放电。
| Off / Standby | 0.5 / 3 Watt |
| Idle | 3.3 / 7.5 / 8.4 Watt |
| Load |
43.6 / 48.6 Watt |

| |
Key:
min: ,
med: ,
max: Metrahit Energy | |
| Prime Computer PrimeBook Circular-i7-1165G7 i7-1165G7, Iris Xe G7 96EUs, Samsung SSD 980 500GB (MZ-V8V500BW), IPS, 3000x2000, 13.9" | Asus ZenBook 14X OLED UX5400EA-L7154W i7-1165G7, GeForce MX450, Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H), OLED, 2880x1800, 14" | Dell Inspiron 14 5410-D3D7T i7-1165G7, Iris Xe G7 96EUs, Toshiba KBG40ZNS512G NVMe, IPS-Grade, 1920x1080, 14" | Lenovo ThinkPad T14s G2 20WM003TGE i7-1165G7, Iris Xe G7 96EUs, Samsung PM981a MZVLB1T0HBLR, IPS LED, 1920x1080, 14" | Lenovo ThinkPad T14s G2 20XGS01100 R7 PRO 5850U, Vega 8, Lenovo UMIS AM630 RPETJ1T24MGE2QDQ, IPS LED, 1920x1080, 14" | Acer TravelMate P614P-52 i7-1165G7, Iris Xe G7 96EUs, WDC PC SN730 SDBQNTY-1T00, IPS, 1920x1200, 14" | Average Intel Iris Xe Graphics G7 96EUs | Average of class Office | |
|---|---|---|---|---|---|---|---|---|
| Power Consumption | -77% | -18% | 10% | 12% | -25% | -30% | -13% | |
| Idle Minimum * | 3.3 | 8.1 -145% | 4.7 -42% | 2.2 33% | 3.16 4% | 6.99 -112% | 5.34 ? -62% | 4.47 ? -35% |
| Idle Average * | 7.5 | 10 -33% | 6.8 9% | 5.5 27% | 5.6 25% | 8.32 -11% | 8.55 ? -14% | 7.42 ? 1% |
| Idle Maximum * | 8.4 | 11 -31% | 13 -55% | 6.1 27% | 7.13 15% | 12.18 -45% | 10.8 ? -29% | 8.9 ? -6% |
| Load Average * | 43.6 | 67.8 -56% | 40.3 8% | 41.3 5% | 30.86 29% | 38.08 13% | 45.3 ? -4% | 42.1 ? 3% |
| Witcher 3 ultra * | 35.6 | 57 -60% 72.3 -103% | 40.4 -13% | 34.5 3% | 37 -4% | 35.7 -0% | ||
| Load Maximum * | 48.6 | 104 -114% | 54.4 -12% | 67.3 -38% | 46.55 4% | 44.99 7% | 67.5 ? -39% | 61.8 ? -27% |
* ... smaller is better
Power consumption Witcher 3 / Stress test
Power consumption with an external monitor
电池寿命

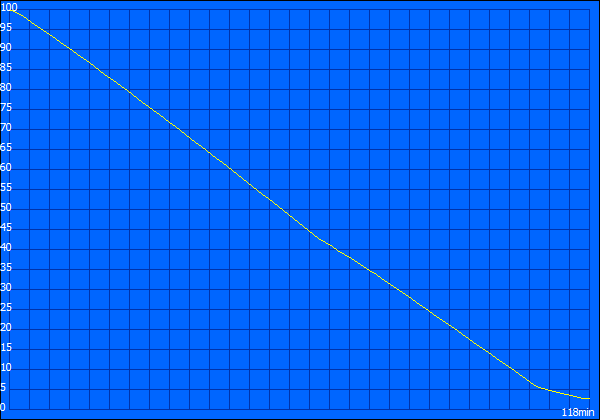

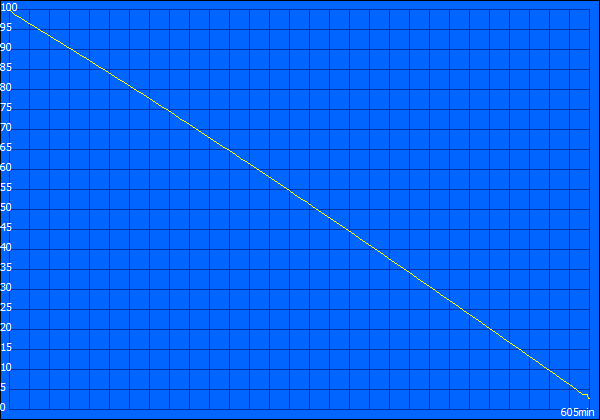

与其他竞争性14英寸笔记本电脑相比，内置电池提供了最高的容量。在我们的实际WLAN测试中，77Wh的电量足以为该设备提供近14小时的能量。显示屏的亮度被降低到38%，以达到150cd/m²的统一测量值。凭借10小时的运行时间，我们的评测样本在播放H264测试视频时也达到了一个非常好的数值。在电池寿命方面，一些竞争对手明显被超越了。只有联想ThinkPad T14s G2可以在这里竞争。
| Prime Computer PrimeBook Circular-i7-1165G7 i7-1165G7, Iris Xe G7 96EUs, 77 Wh | Asus ZenBook 14X OLED UX5400EA-L7154W i7-1165G7, GeForce MX450, 63 Wh | Dell Inspiron 14 5410-D3D7T i7-1165G7, Iris Xe G7 96EUs, 41 Wh | Lenovo ThinkPad T14s G2 20WM003TGE i7-1165G7, Iris Xe G7 96EUs, 57 Wh | Lenovo ThinkPad T14s G2 20XGS01100 R7 PRO 5850U, Vega 8, 57 Wh | Acer TravelMate P614P-52 i7-1165G7, Iris Xe G7 96EUs, 56 Wh | Average of class Office | |
|---|---|---|---|---|---|---|---|
| Battery Runtime | -52% | -41% | -5% | 13% | -24% | -14% | |
| Reader / Idle | 2359 | 675 -71% | 895 -62% | 1260 -47% | 1234 ? -48% | ||
| H.264 | 605 | 874 44% | 891 47% | 716 18% | 716 ? 18% | ||
| WiFi v1.3 | 828 | 334 -60% | 380 -54% | 580 -30% | 877 6% | 534 -36% | 611 ? -26% |
| Load | 118 | 89 -25% | 110 -7% | 85 -28% | 101 -14% | 80 -32% | 116.7 ? -1% |
| Witcher 3 ultra | 98 | 120 | 142 ? |
Pros
Cons
评语。有升级选项的现代商务笔记本
PrimeBook Circular首先是一个传统的商务笔记本。可持续性方面只有在仔细检查后才会显现出来。制造商Prime Computer承诺，在制造、销售和使用的前五年内，将实现100%的气候中立。
就性能而言，我们可以说PrimeBook Circular（假设配置与我们的审查样本相同）有可能成为一个持久的伴侣。英特尔NUC计算元素目前提供了一个强大的 英特尔酷睿i7-1165G7但是，它无法利用其最大潜力。尽管如此，快速运行始终是有保证的。以后有可能用更新的英特尔NUC计算单元来升级系统，从而提高性能，这的确是一个非常有吸引力的前景。其余的硬件也是最新的，甚至还包括Thunderbolt 4。高分辨率的触摸显示屏在测试中给出了很好的结果，但由于其光泽的显示表面，并不适合在户外移动使用。
由于其模块化设计，PrimeBook Circular有可能成为一个长期伴侣。
我们非常喜欢PrimeBook Circular的排放率。简而言之，空转和低负荷时的低能量需求使得电池运行时间非常长。一个完整的工作日没有中断应该是可能的。
缺点包括缺乏读卡器，以及计算元件的固定内存。如果你意识到这些缺点并能接受它们，你会得到一个现代的、适合未来的Primebook Circular的笔记本。
价格和可用性
PrimeBook Circular目前的价格是1980欧元（约2000美元）。这家瑞士制造商似乎只在欧洲某些国家（即瑞士、德国、奥地利、英国、爱尔兰和科索沃）通过某些分销商提供该机型。这方面的概述可以在这里访问https://primecomputer.co/buy-online/private-customers/(向下滚动并点击所有经销商，所有国家）。在阿拉伯半岛（科威特、巴林、阿联酋、阿曼和沙特阿拉伯）也有分销商。
Prime Computer PrimeBook Circular-i7-1165G7
- 07/14/2022 v7 (old)
Sebastian Bade
Price comparison
