华硕ROG Phone 5 Ultimate评论--游戏智能手机中的收藏品
Possible competitors in comparison
Rating | Version | Date | Model | Weight | Drive | Size | Resolution | Price |
|---|---|---|---|---|---|---|---|---|
| 88.9 % v7 (old) | v7 (old) | 09 / 2021 | Asus ROG Phone 5 Ultimate SD 888 5G, Adreno 660 | 239 g | 512 GB UFS 3.1 Flash | 6.78" | 2448x1080 | |
| 87.7 % v7 (old) | v7 (old) | 04 / 2021 | Lenovo Legion Phone Duel 2 SD 888 5G, Adreno 660 | 259 g | 512 GB UFS 3.1 Flash | 6.92" | 2460x1080 | |
| 86.3 % v7 (old) | v7 (old) | 08 / 2021 | Xiaomi Black Shark 4 SD 870, Adreno 650 | 210 g | 128 GB UFS 3.1 Flash | 6.67" | 2400x1080 | |
| 88 % v7 (old) | v7 (old) | 03 / 2021 | Asus ROG Phone 5 SD 888 5G, Adreno 660 | 239 g | 256 GB UFS 3.1 Flash | 6.78" | 2448x1080 |
案例、设备和操作

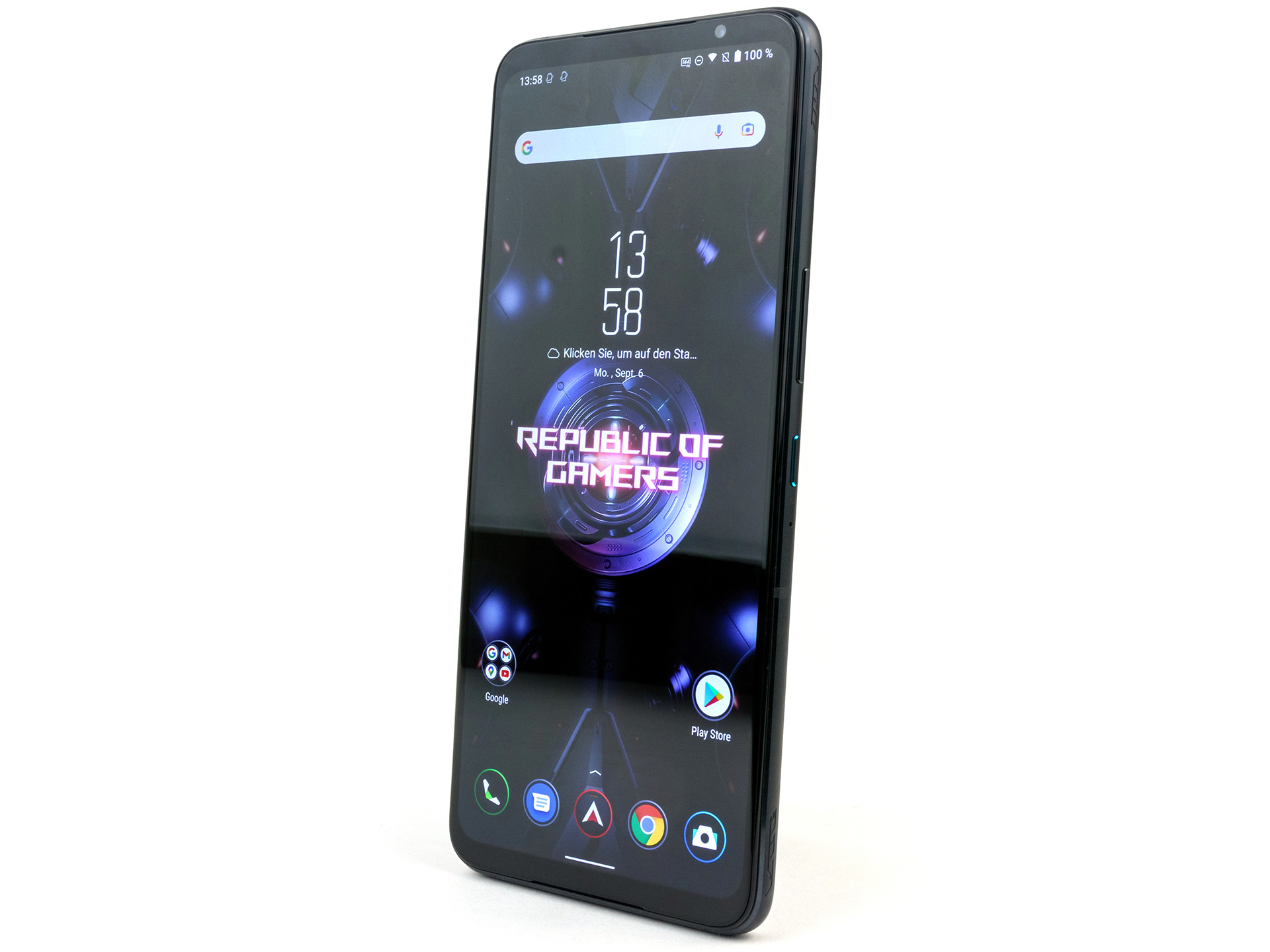

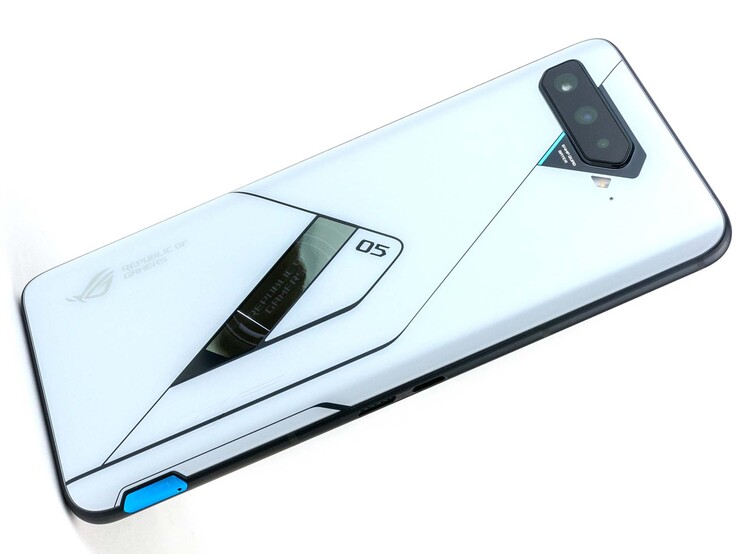

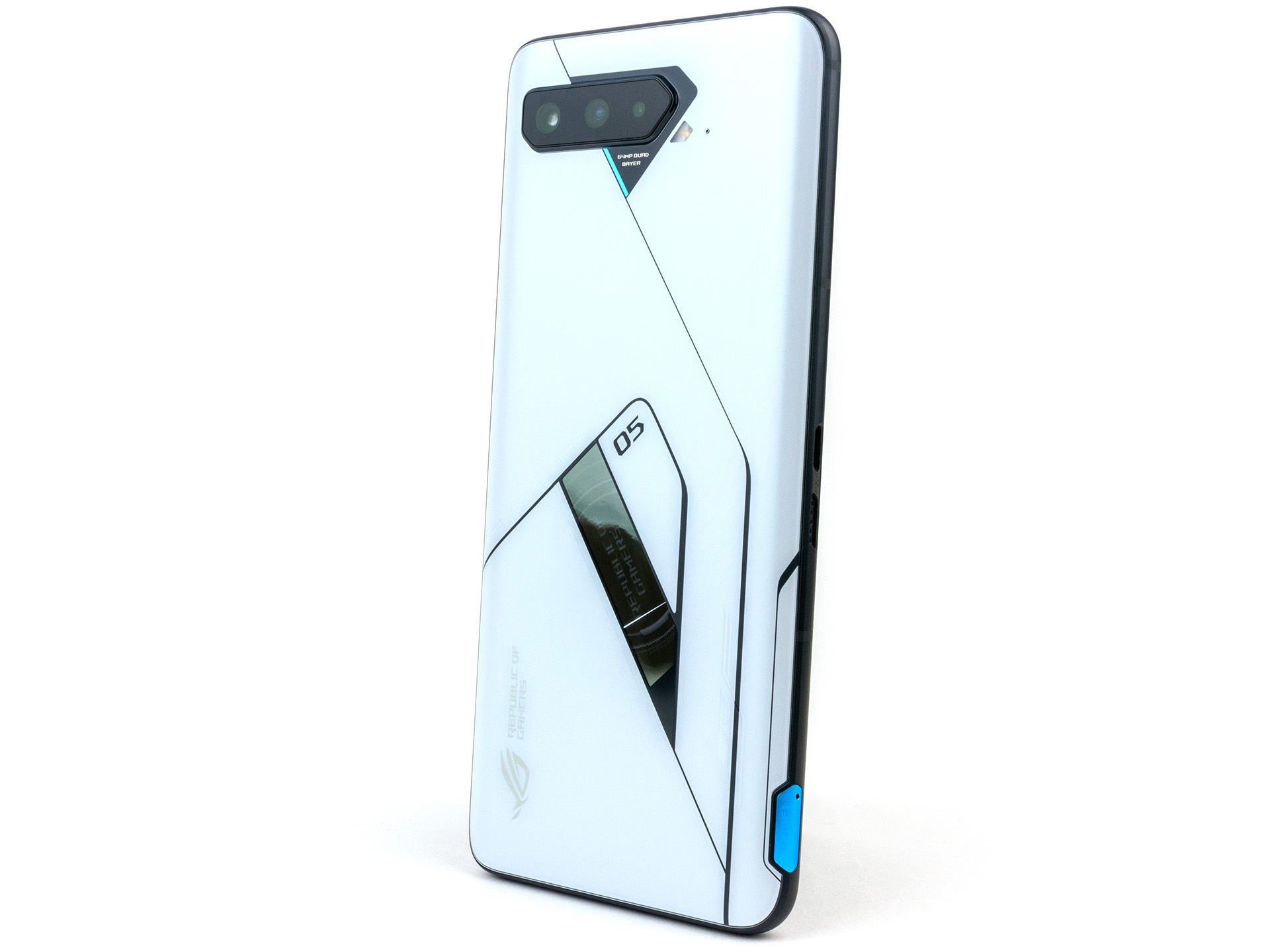

乍一看，华硕ROG手机5终极版很难与 标准变体因为尺寸和颜色方案是相同的。然而，虽然ROG Phone 5的背面有一个点状RGB矩阵，但Ultimate在那里有一个ROG Vision显示屏。像 专业型，这可以显示较小的动画，也与智能手机的互动有关。然而，Ultimate没有彩色显示屏，而是一个单色的PMOLED，看起来应该很精致。
背面还有两个额外的电容式感应键，可以识别刷卡动作。由于设计元素在这一点上被刻在了玻璃上，所以可以很好地识别这些触觉。加上超声波键AirTrigger 5和AeroActive Cooler 5的摇杆键，ROG Phone 5 Ultimate因此有六个额外的输入键。

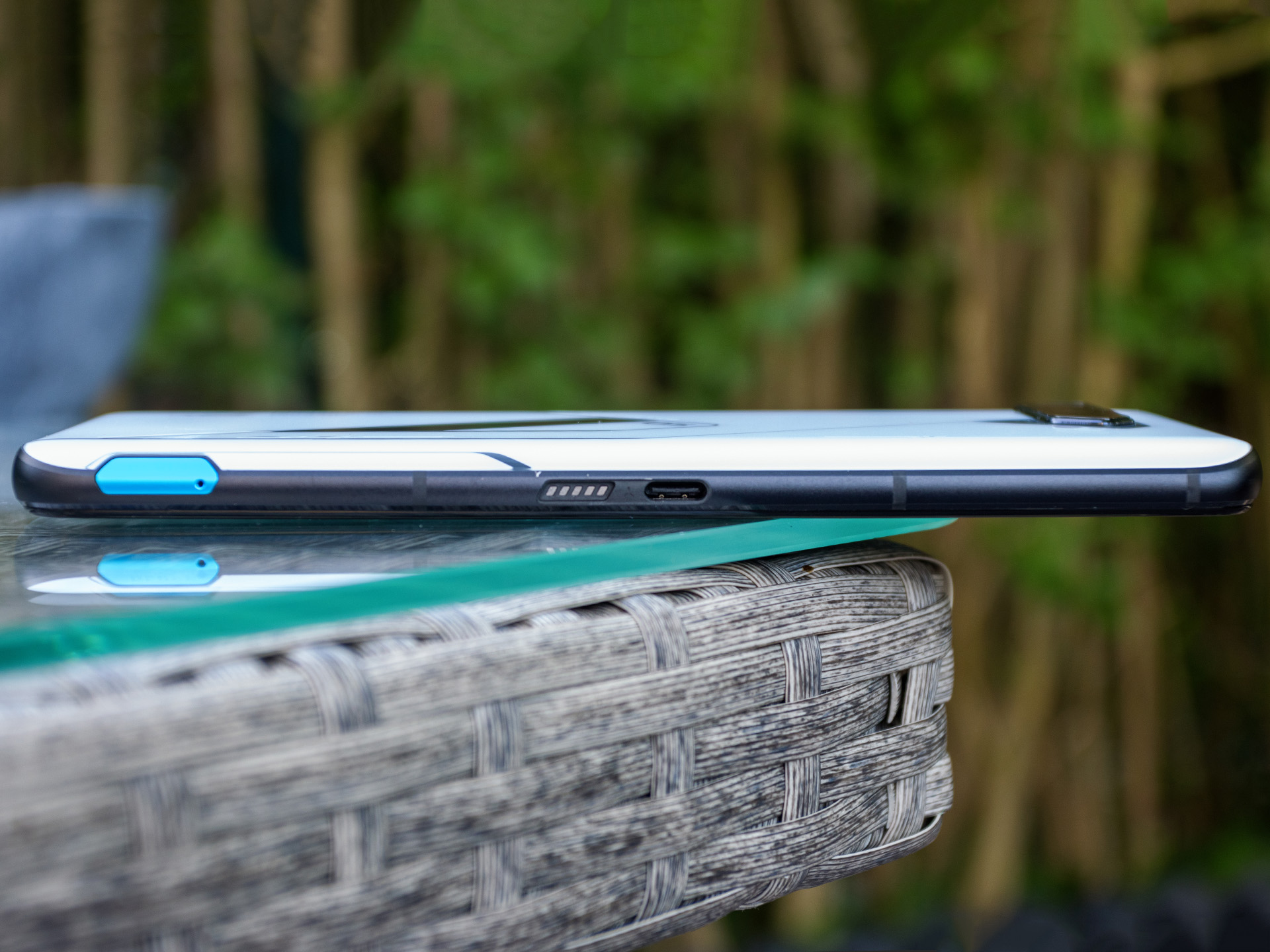

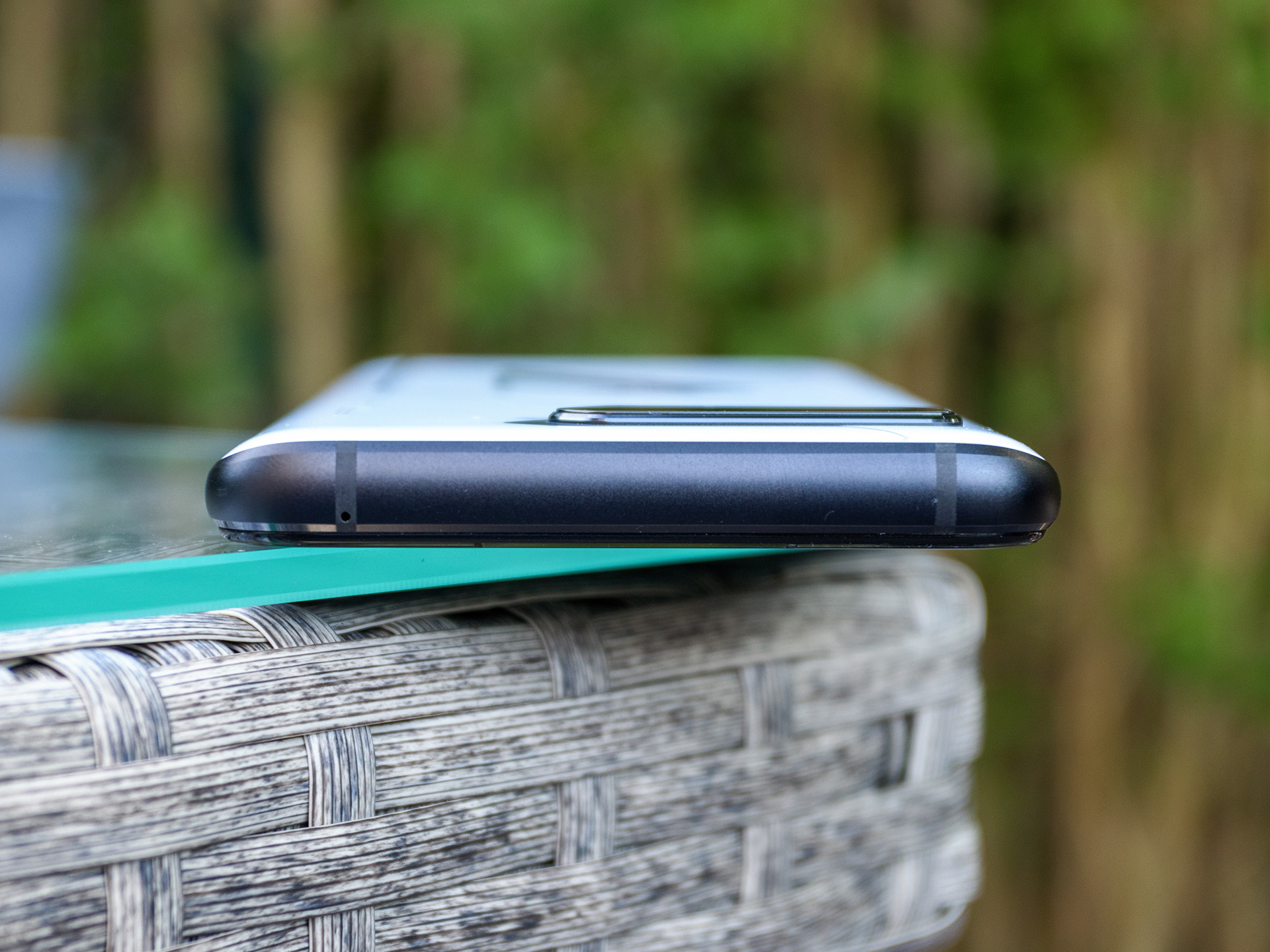

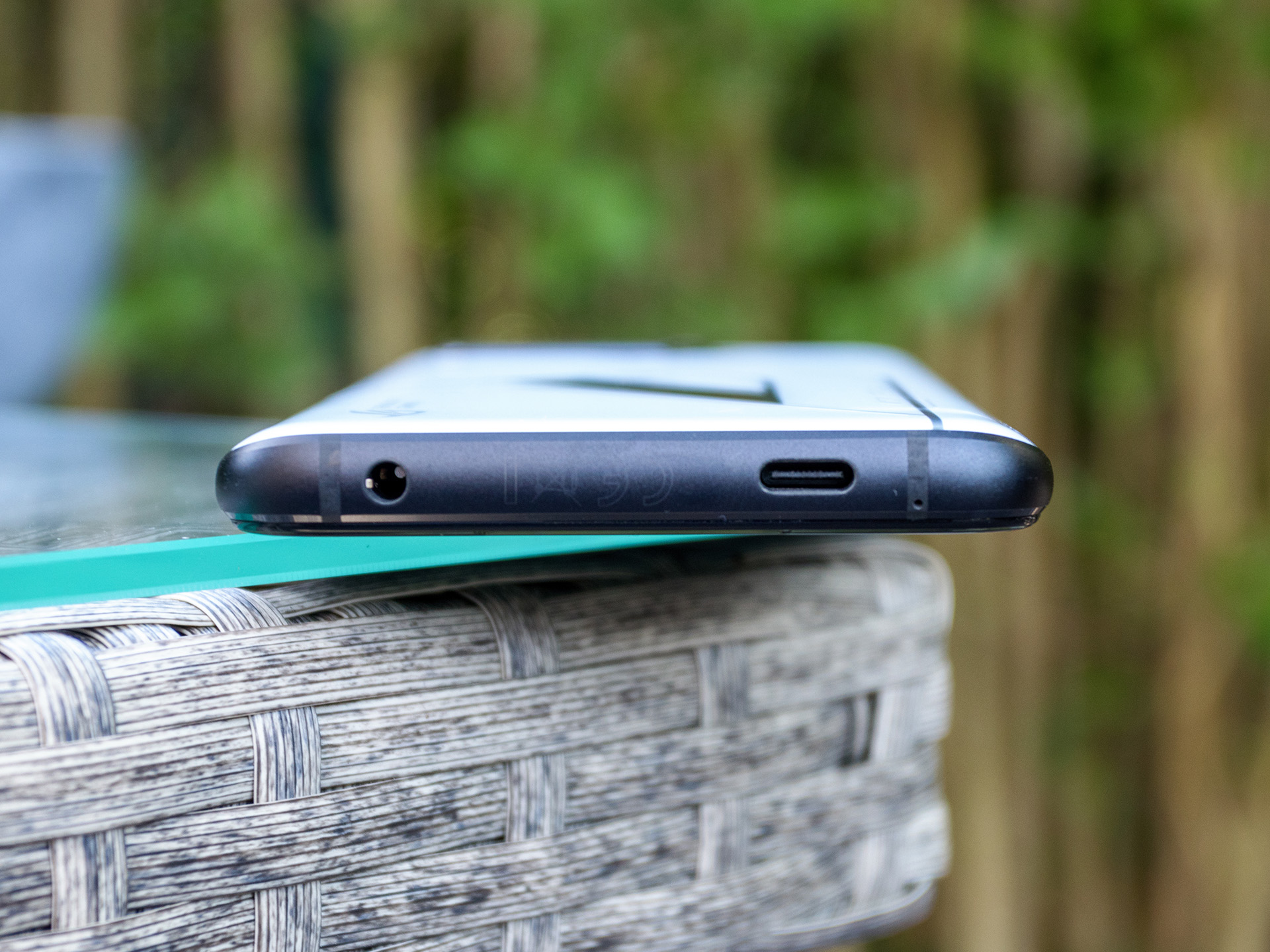

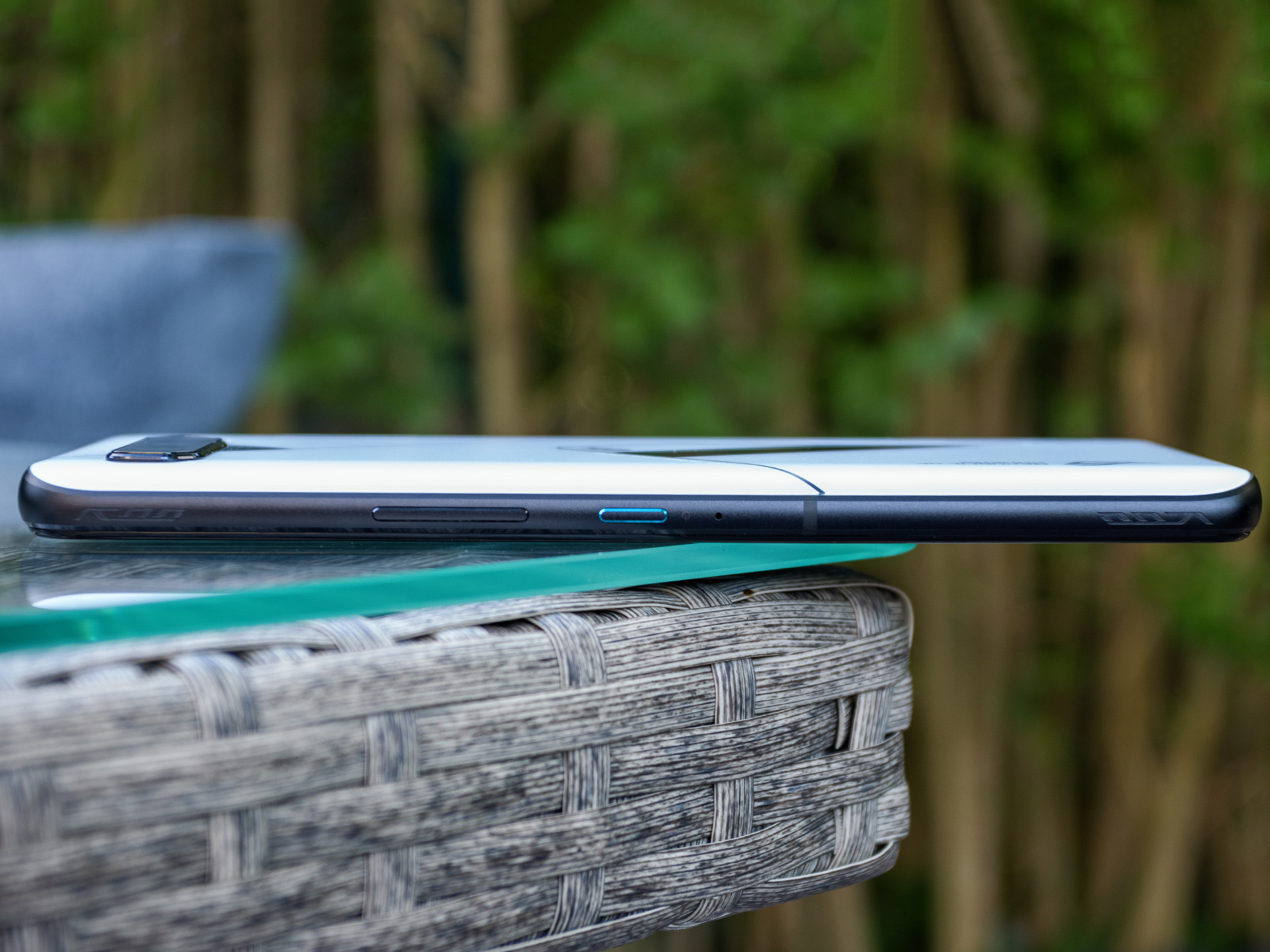

Ultimate与它的兄弟姐妹们共享强大的功能。除了用于连接风扇的Pogo PIN，旁边还有一个USB 3.2端口（第2代，最高10GBit/s，支持HDMI和dP，最高UHD，QC 5.0），底部边缘还有一个USB 2.0端口（QC 3.0），可用于游戏时供电。此外，一个带有高保真音频DAC的音频插孔也在机上。
使用带有内部ROG UI的操作系统Android 11。那些不喜欢它的人可以在设置过程中切换到标准UI，这非常接近于一个纯粹的Android 。
所有现代标准都用于移动数据连接，支持LTE和5G的频段数量在终极版中再次增加。Wi-Fi 6E是一种快速的WLAN标准，可以通过双WLAN同时连接到两个网络，在与Netgear Nighthawk AX12的测试中实现了高而稳定的数据速率。
ROG手机的语音质量确实很好，拿在耳边时能提供非常好的清晰度，只有在非常大的环境噪音中才能达到极限。扬声器模式略有混响，但具有良好的麦克风范围和质量。这款华硕智能手机可以接受两张nano-SIM卡，并支持VoLTE。
ROG Phone 5不仅有高达144赫兹的刷新率，而且300赫兹的触摸采样率也非常高，有望在触摸屏上快速实现输入，延迟为24.3毫秒。在生物识别安全方面，显示屏上有一个光学指纹扫描仪，它的识别率相当可靠，但不是最快的之一。二维人脸识别也是可能的。
| Networking | |
| iperf3 transmit AX12 | |
| Asus ROG Phone 5 Ultimate | |
| Asus ROG Phone 5 | |
| Nubia RedMagic 6S Pro | |
| Lenovo Legion Phone Duel 2 | |
| iperf3 receive AX12 | |
| Nubia RedMagic 6S Pro | |
| Lenovo Legion Phone Duel 2 | |
| Asus ROG Phone 5 | |
| Asus ROG Phone 5 Ultimate | |
照相机 - 不是终极的，但却很坚固

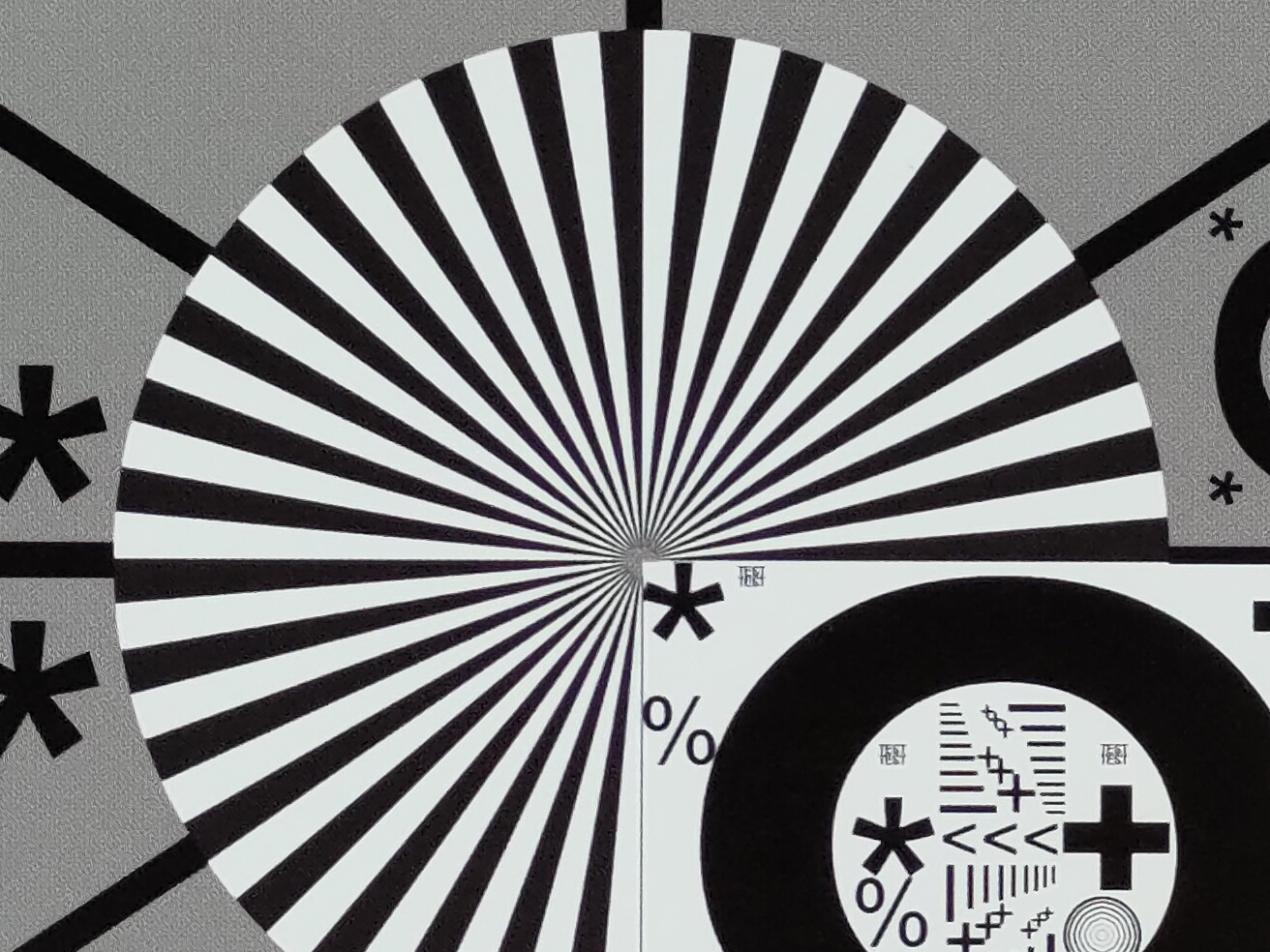

华硕的ROG Phone 5 Ultimate的相机设置与它的姐妹机型相比没有变化。背面的三个镜头由熟悉的索尼64MP传感器、一个超广角镜头和一个微距镜头组成。主摄像头的成像性能很好，高分辨率允许有用的放大，即使没有光学变焦。
前置摄像头的自拍效果也很好，只是逆光拍摄显示出无法通过算法进行补偿的烧毁区域。
前置摄像头以全高清（最高60FPS）记录视频，后置摄像头则以8K（最高30FPS）记录。

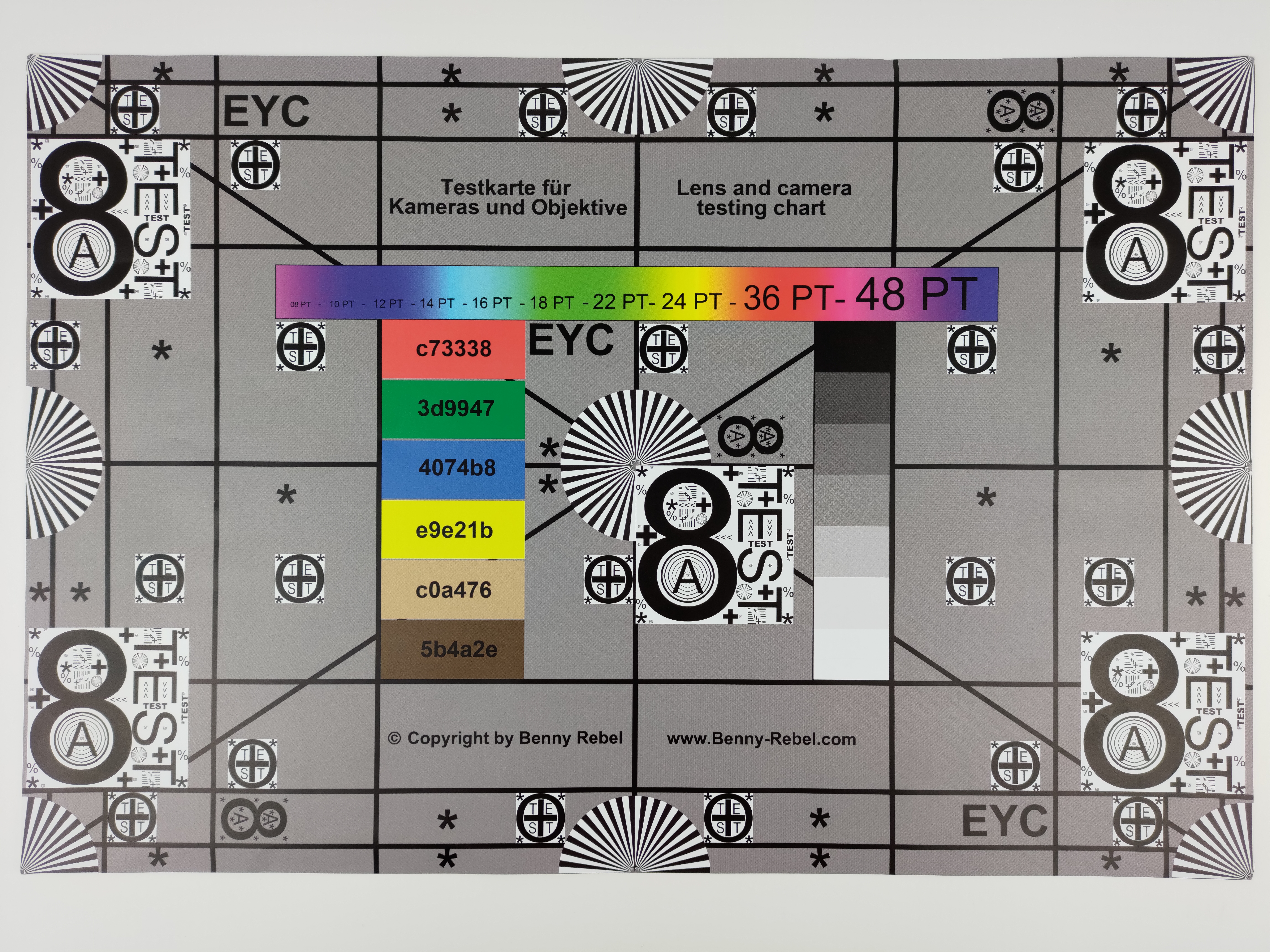

Image Comparison
Choose a scene and navigate within the first image. One click changes the position on touchscreens. One click on the zoomed-in image opens the original in a new window. The first image shows the scaled photograph of the test device.

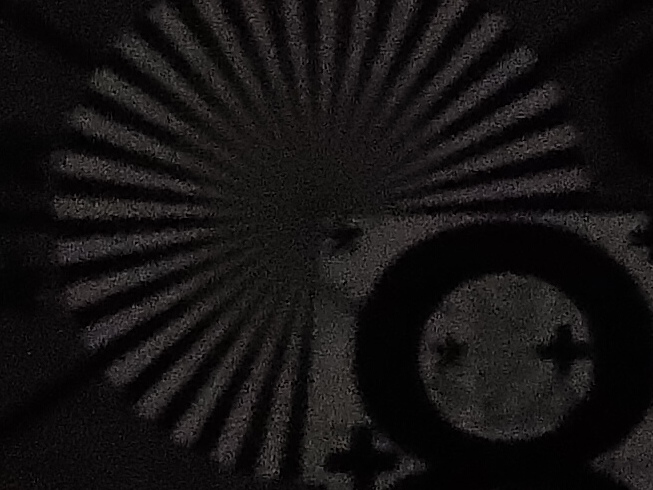

Wide-angleWide-angleUltra wide-angle5x ZoomLow-Light
显示屏 - ROG Phone 5 Ultimate中明亮的144赫兹AMOLED显示屏

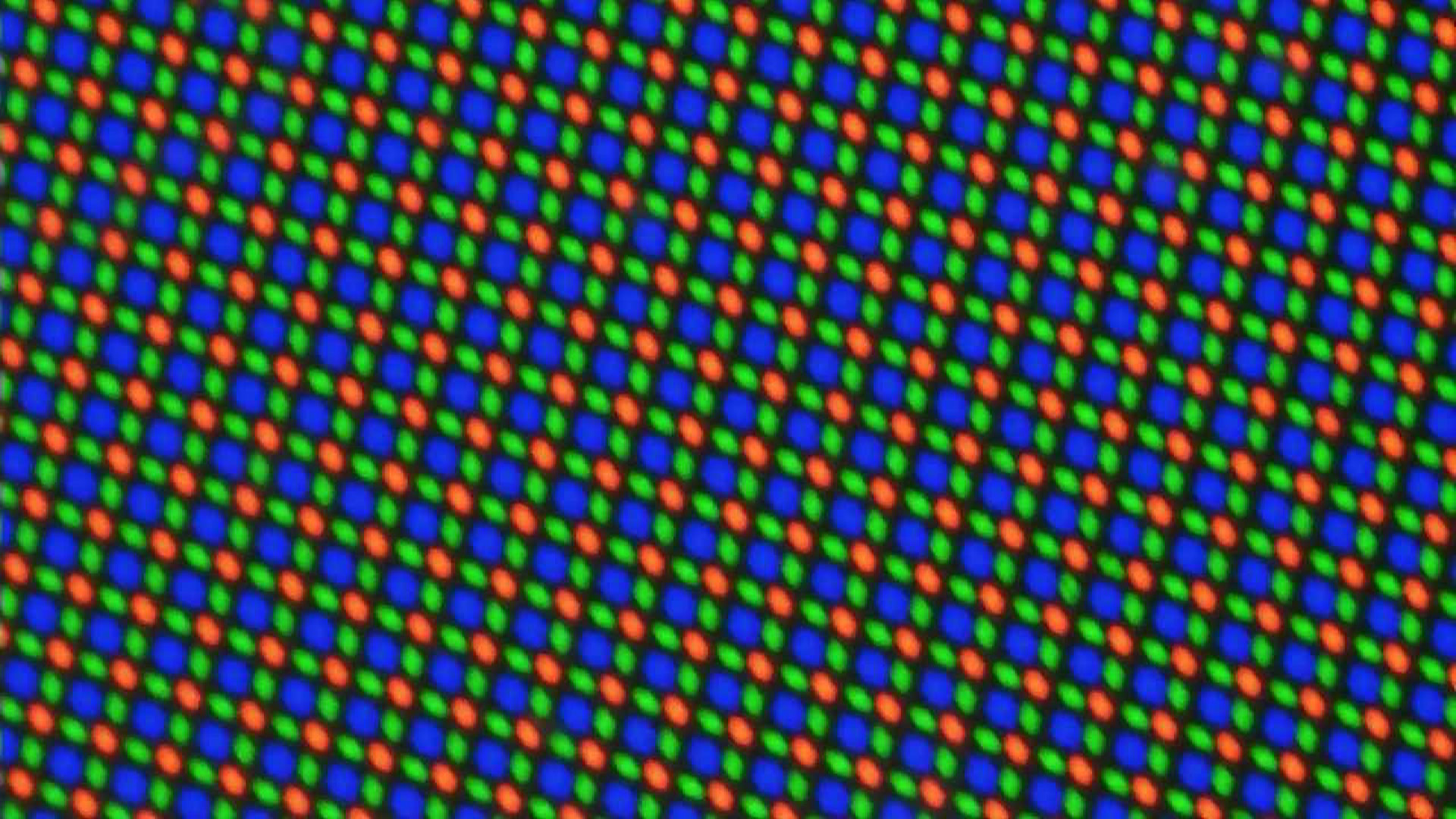

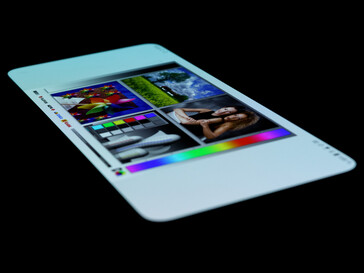

华硕ROG Phone 5 Ultimate的AMOLED显示屏与其他两个版本的显示屏相同。它的尺寸为6.78英寸，采用全高清Plus分辨率，最高频率为144Hz。该面板达到806 cd/m²，采用纯白色显示，并启用环境光传感器。随着明亮和黑暗区域的均匀分布（APL50），它是1,088 cd/m²，APL10是1,136 cd/m²。那些手动调整亮度的人有488 cd/m²可供他们使用。
如果你对OLED闪烁很敏感，你可以使用直流调光模式，但你将不得不使用60赫兹。
| |||||||||||||||||||||||||
Brightness Distribution: 98 %
Center on Battery: 789 cd/m²
Contrast: ∞:1 (Black: 0 cd/m²)

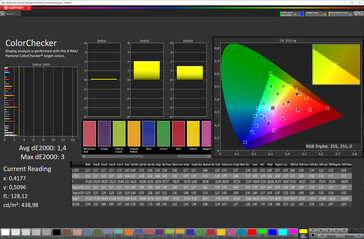

ΔE Color 1.4 | 0.5-29.43 Ø4.91

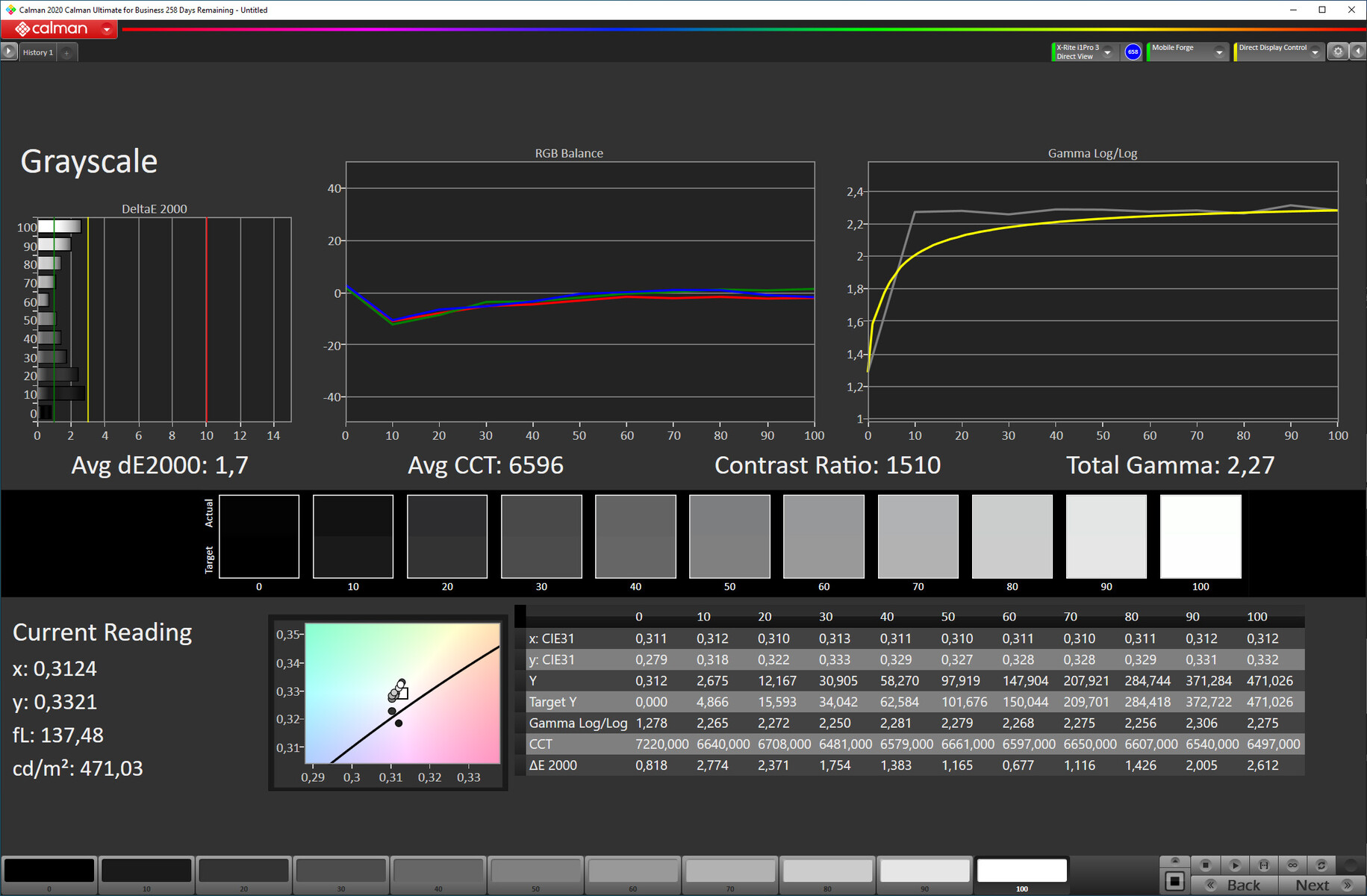

ΔE Greyscale 1.7 | 0.5-98 Ø5.2

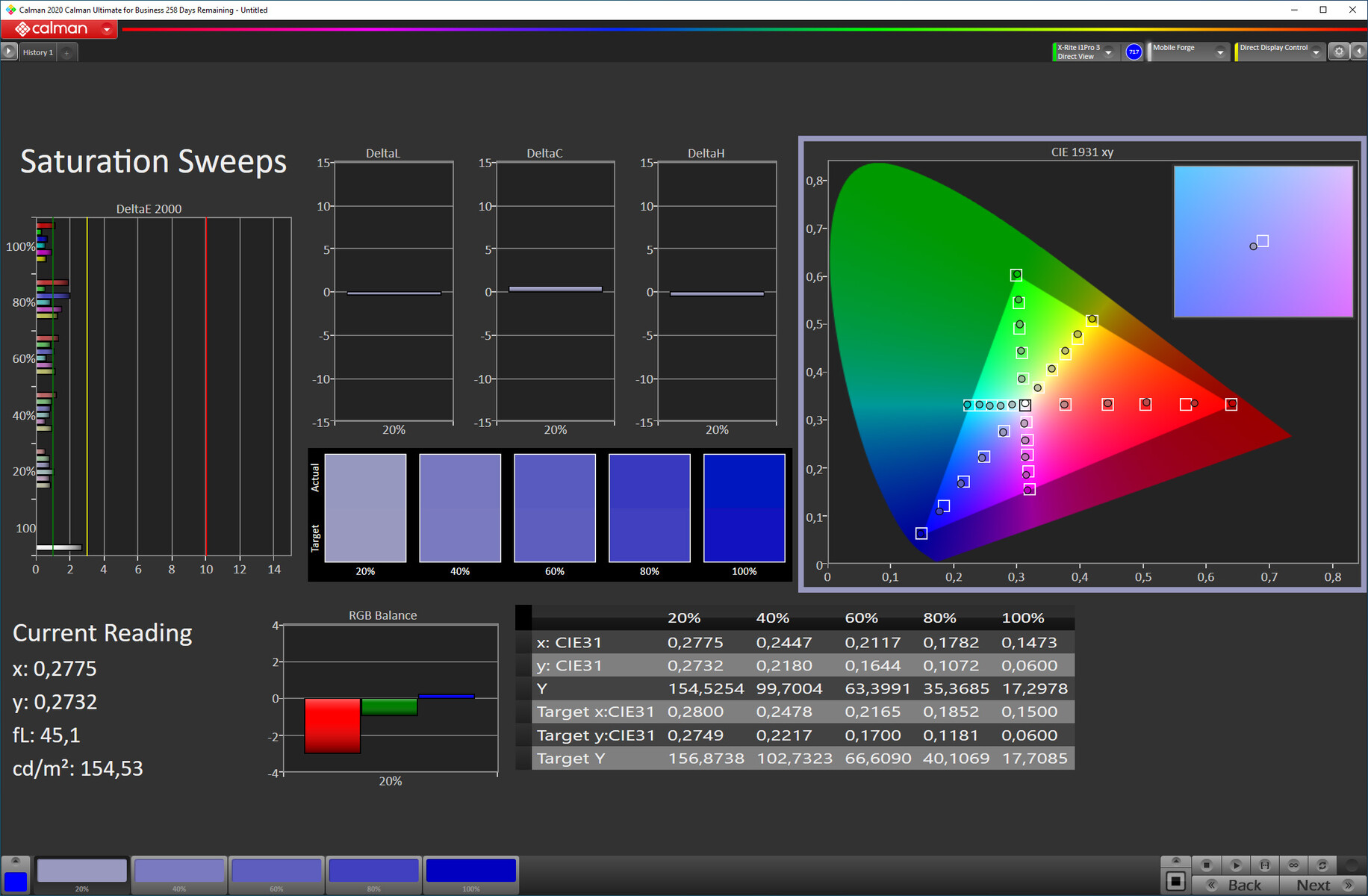

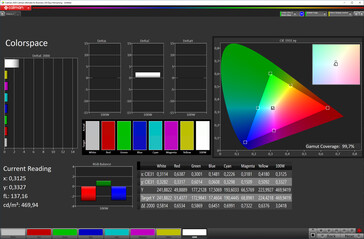

99.7% sRGB (Calman 2D)
Gamma: 2.27
| Asus ROG Phone 5 Ultimate AMOLED, 2448x1080, 6.8" | Lenovo Legion Phone Duel 2 AMOLED, 2460x1080, 6.9" | Nubia RedMagic 6S Pro AMOLED, 2400x1080, 6.8" | Xiaomi Black Shark 4 Super AMOLED, 2400x1080, 6.7" | |
|---|---|---|---|---|
| Response Times | -30% | -12% | -165% | |
| Response Time Grey 50% / Grey 80% * | 2.4 ? | 8 ? -233% | 2.4 ? -0% | 11 ? -358% |
| Response Time Black / White * | 2.4 ? | 6 ? -150% | 2.4 ? -0% | 6 ? -150% |
| PWM Frequency | 144.5 ? | 568 293% | 90.6 ? -37% | 162.3 12% |
| Screen | -77% | -139% | -115% | |
| Brightness middle | 789 | 463 -41% | 714 -10% | 676 -14% |
| Brightness | 795 | 466 -41% | 705 -11% | 669 -16% |
| Brightness Distribution | 98 | 98 0% | 96 -2% | 98 0% |
| Black Level * | ||||
| Colorchecker dE 2000 * | 1.4 | 3.24 -131% | 5.9 -321% | 5.77 -312% |
| Colorchecker dE 2000 max. * | 3 | 5.75 -92% | 8.7 -190% | 9.81 -227% |
| Greyscale dE 2000 * | 1.7 | 4.4 -159% | 6.8 -300% | 3.7 -118% |
| Gamma | 2.27 97% | 2.201 100% | 2.25 98% | 1.959 112% |
| CCT | 6596 99% | 7273 89% | 7774 84% | 6584 99% |
| Total Average (Program / Settings) | -54% /
-62% | -76% /
-97% | -140% /
-131% |
* ... smaller is better

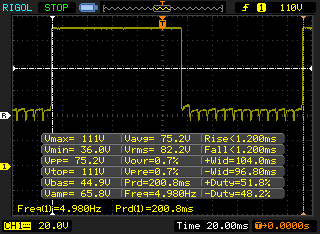

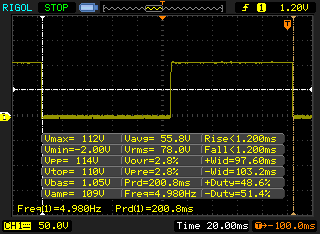

Display Response Times
| ↔ Response Time Black to White | ||
|---|---|---|
| 2.4 ms ... rise ↗ and fall ↘ combined | ↗ 1.2 ms rise |  |
| ↘ 1.2 ms fall | ||
| The screen shows very fast response rates in our tests and should be very well suited for fast-paced gaming. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 9 % of all devices are better. This means that the measured response time is better than the average of all tested devices (20.9 ms). | ||
| ↔ Response Time 50% Grey to 80% Grey | ||
| 2.4 ms ... rise ↗ and fall ↘ combined | ↗ 1.2 ms rise |  |
| ↘ 1.2 ms fall | ||
| The screen shows very fast response rates in our tests and should be very well suited for fast-paced gaming. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 8 % of all devices are better. This means that the measured response time is better than the average of all tested devices (32.8 ms). | ||

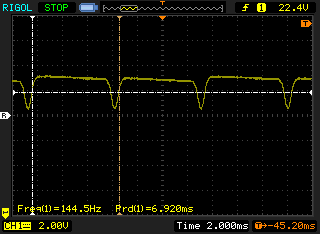

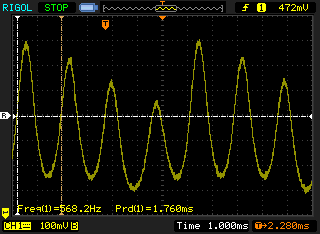

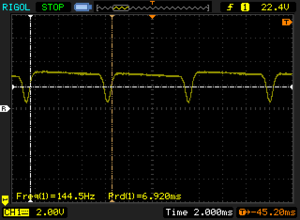

Screen Flickering / PWM (Pulse-Width Modulation)
| Screen flickering / PWM detected | 144.5 Hz | ≤ 100 % brightness setting |   |
The display backlight flickers at 144.5 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 100 % and below. There should be no flickering or PWM above this brightness setting. The frequency of 144.5 Hz is very low, so the flickering may cause eyestrain and headaches after extended use. In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8705 (minimum: 5 - maximum: 343500) Hz was measured. | |||
性能、排放和电池寿命
与它的兄弟姐妹一样，华硕ROG Phone 5 Ultimate搭载了 骁龙888但它可以获得巨大的18GB工作内存。只有联想的Legion Phone Duel 2 Pro，目前只在中国销售，也能拥有这么大的内存。然而，至少在2021年，额外的两到四千兆字节是否会有多大用处，是值得怀疑的。
另一方面，背面的两个额外的电容式触摸元件，对于游戏玩家来说已经是一个更大的附加值。它们对触摸的反应非常可靠和迅速，但它们的位置相当靠近下部长边。如果不采取不寻常的姿势，就很难用小手使用上长边的AirTrigger和独家触摸键。然而，华硕不可能将这些按键放在更高的位置，因为否则它们会被风扇覆盖。然而，那些喜欢许多输入键的人将会喜欢它。
在表面温度和SoC冷却方面，ROG Phone 5 Ultimate显示了其最好的一面。3DMark压力测试也显示，结合可连接的风扇，在框架稳定性方面有小的优势。
两个前置扬声器不仅可以变得非常响亮，还能提供相对较好的声音图像。此外，还有对蓝牙编解码器的广泛支持，以及一个优秀的音频插孔。
在电池运行时间方面，终极版机型与标准版机型呈现出类似的水平。
| Asus ROG Phone 5 Ultimate | Asus ROG Phone 5 | Lenovo Legion Phone Duel 2 | Nubia RedMagic 6S Pro | Average 512 GB UFS 3.1 Flash | Average of class Smartphone | |
|---|---|---|---|---|---|---|
| AndroBench 3-5 | 0% | -2% | -6% | 19% | 24% | |
| Sequential Read 256KB | 1779 | 1779 0% | 1999 12% | 1607 -10% | 1846 ? 4% | 1863 ? 5% |
| Sequential Write 256KB | 780 | 795 2% | 754 -3% | 765 -2% | 1199 ? 54% | 1446 ? 85% |
| Random Read 4KB | 287.9 | 291.4 1% | 262.6 -9% | 285.8 -1% | 282 ? -2% | 278 ? -3% |
| Random Write 4KB | 284.5 | 278 -2% | 261.5 -8% | 254.9 -10% | 338 ? 19% | 309 ? 9% |

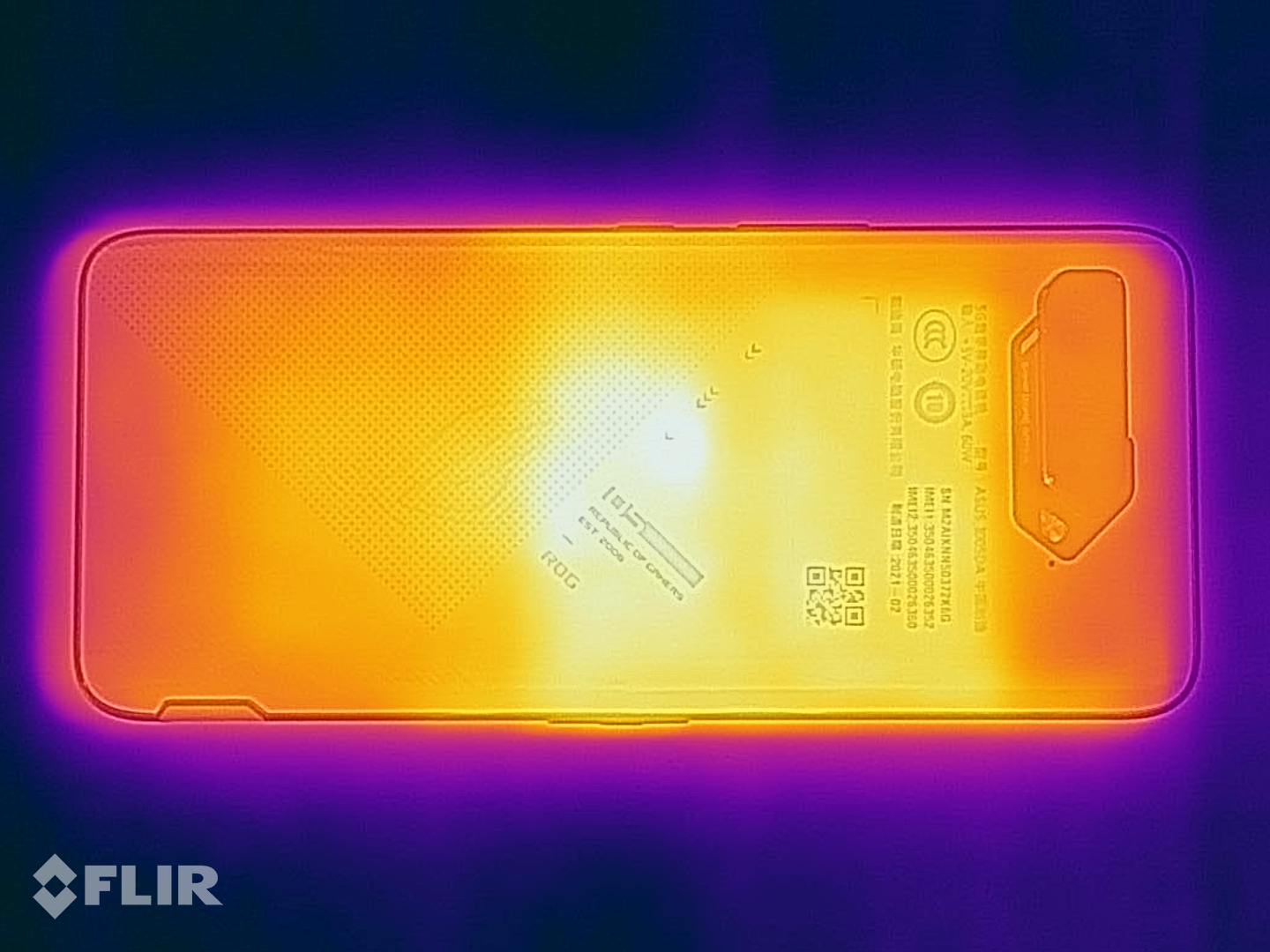

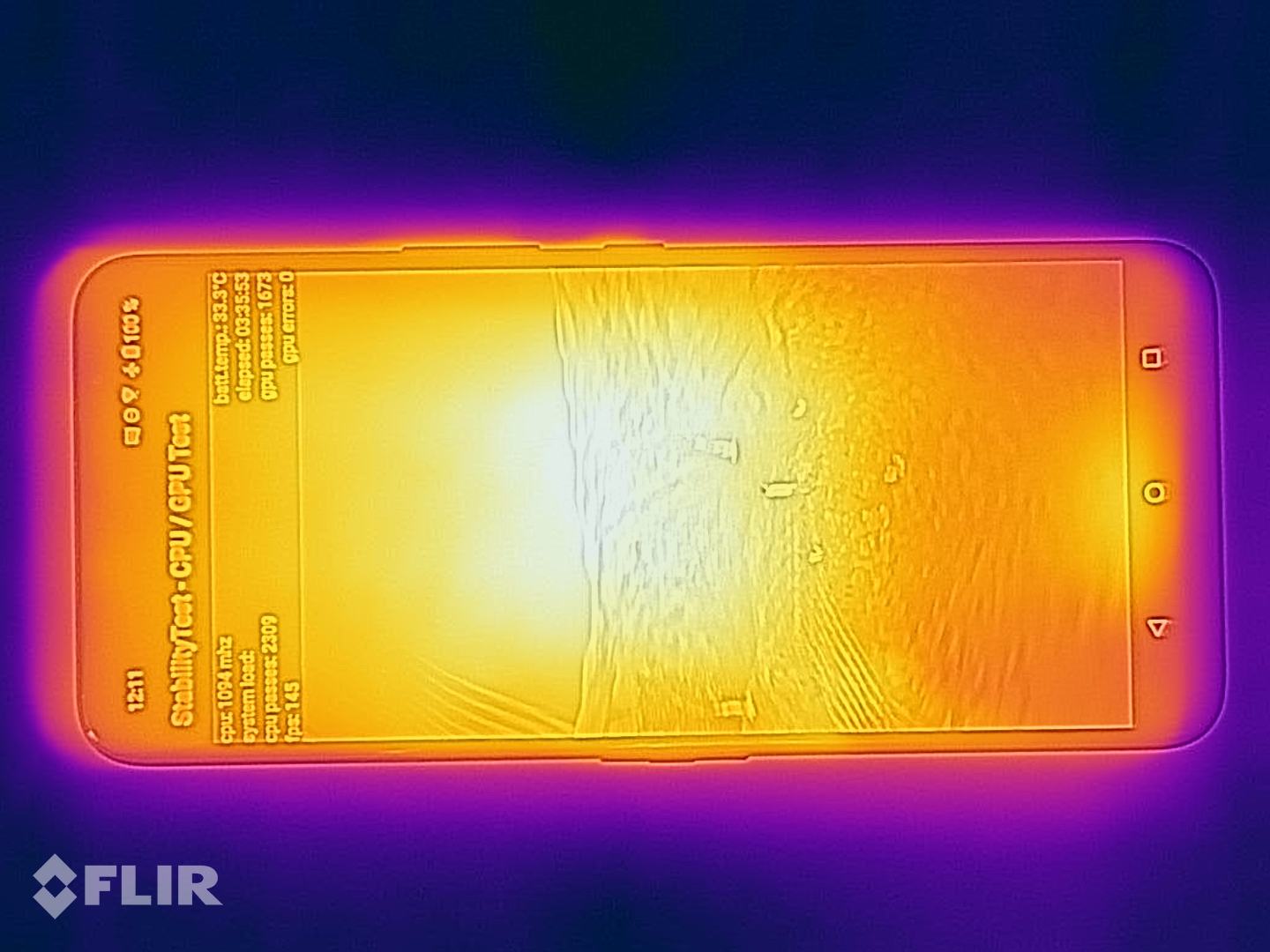

温度
(+) The maximum temperature on the upper side is 37.3 °C / 99 F, compared to the average of 35.1 °C / 95 F, ranging from 21.9 to 63.7 °C for the class Smartphone.
(+) The bottom heats up to a maximum of 35.8 °C / 96 F, compared to the average of 33.9 °C / 93 F
(+) In idle usage, the average temperature for the upper side is 27.6 °C / 82 F, compared to the device average of 32.8 °C / 91 F.
3DMark Wild Life Stress Test
演讲者
Asus ROG Phone 5 Ultimate audio analysis
(+) | speakers can play relatively loud (92.4 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 20.8% lower than median
(+) | bass is linear (4.4% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.9% away from median
(+) | mids are linear (4.9% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4.1% away from median
(+) | highs are linear (3% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (14% difference to median)
Compared to same class
» 1% of all tested devices in this class were better, 1% similar, 99% worse
» The best had a delta of 12%, average was 37%, worst was 134%
Compared to all devices tested
» 14% of all tested devices were better, 4% similar, 82% worse
» The best had a delta of 4%, average was 25%, worst was 134%
Lenovo Legion Phone Duel 2 audio analysis
(+) | speakers can play relatively loud (84.9 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 17.7% lower than median
(±) | linearity of bass is average (7.4% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 4.1% away from median
(+) | mids are linear (4.7% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 0.9% away from median
(+) | highs are linear (2% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (12.9% difference to median)
Compared to same class
» 0% of all tested devices in this class were better, 0% similar, 99% worse
» The best had a delta of 12%, average was 37%, worst was 134%
Compared to all devices tested
» 10% of all tested devices were better, 3% similar, 87% worse
» The best had a delta of 4%, average was 25%, worst was 134%
电池寿命
| Asus ROG Phone 5 Ultimate 6000 mAh | Asus ROG Phone 5 6000 mAh | Lenovo Legion Phone Duel 2 5500 mAh | Nubia RedMagic 6S Pro 5050 mAh | Average of class Smartphone | |
|---|---|---|---|---|---|
| Battery Runtime | |||||
| WiFi Websurfing | 762 | 754 -1% | 907 19% | 829 9% | 985 ? 29% |
Pros
Cons
结论--终极游戏者
Ultimate的性能比传统的 ROG Phone 5并主要针对该系列的粉丝。工作内存的升级确实不错，规格表上共有18GB，但它在日常使用中只提供了很少的附加值。相比之下，512GB UFS 3.1存储空间为众多游戏和其他数据提供了大量空间。像 专业机型Ultimate也配备了AeroActive Cooler 5，但华硕还增加了一个风扇盒。
华硕ROG Phone 5 Ultimate让游戏玩家心跳加速。
单色的ROG Vision显示屏可能是一个品味问题，但两个额外的后部触摸传感器工作良好，但对于小手来说，离AirTriggers有点太远。总的来说，ROG Phone 5 Ultimate还是比它的兄弟姐妹们好一点，尽管核心功能是相同的。
一个强有力的选择是 联想Legion Phone Duel 2.如果你还必须在性能方面做出让步，那么 黑鲨4可以作为一种选择。
价格和可用性
华硕ROG Phone 5 Ultimate在测试时，华硕电子商店已经缺货，但在TradingShenzhen或HandyGermany可以买到。
