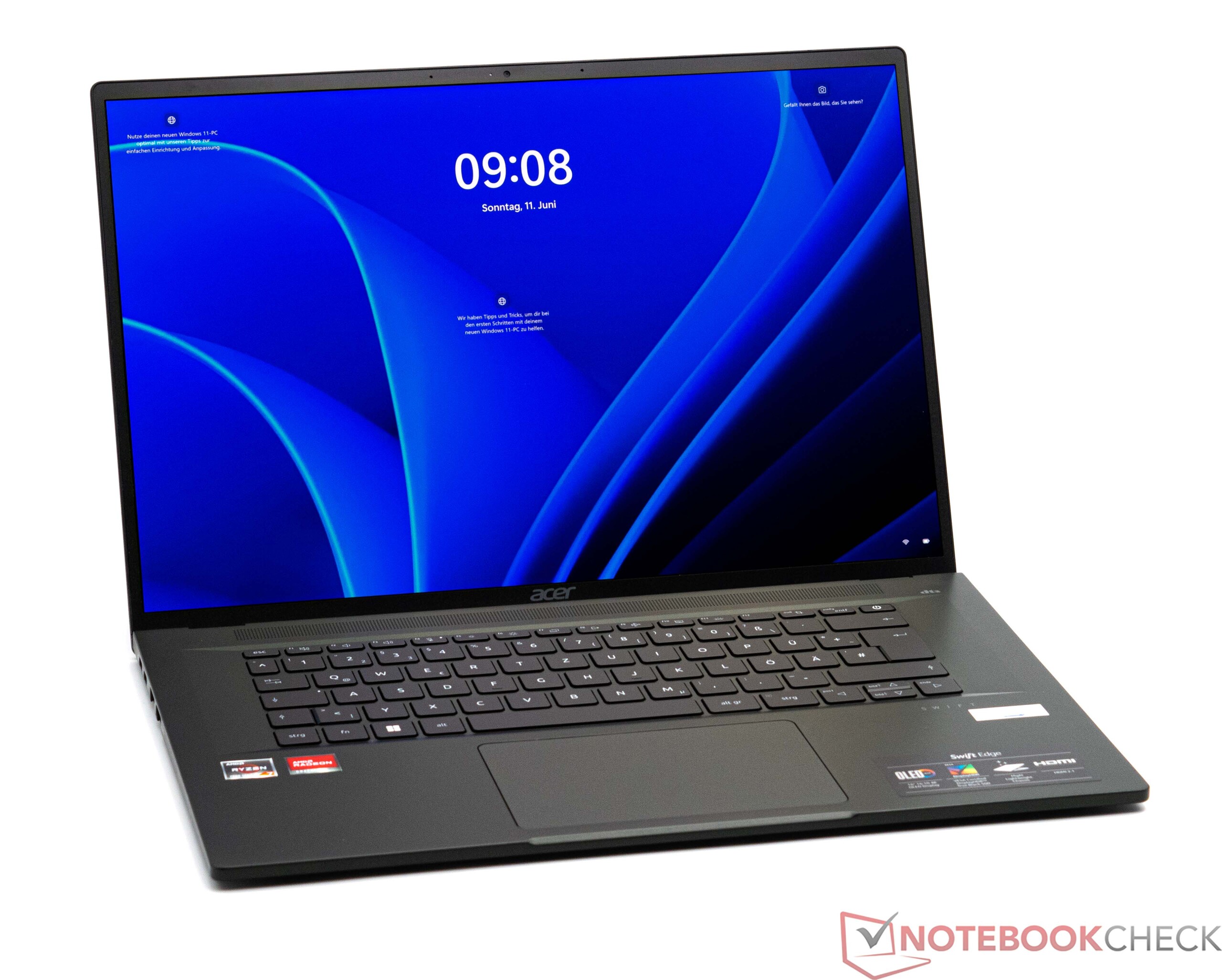

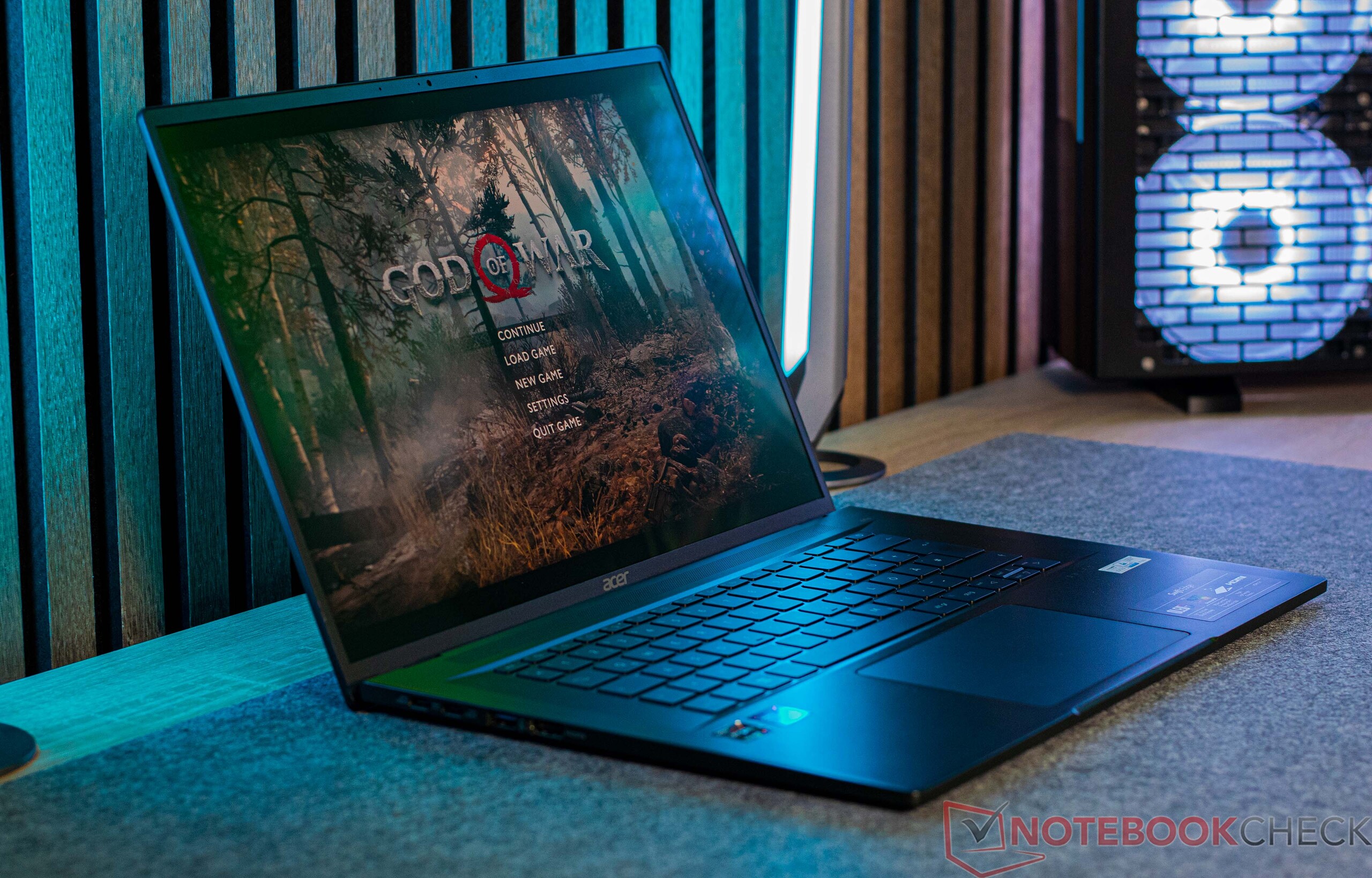

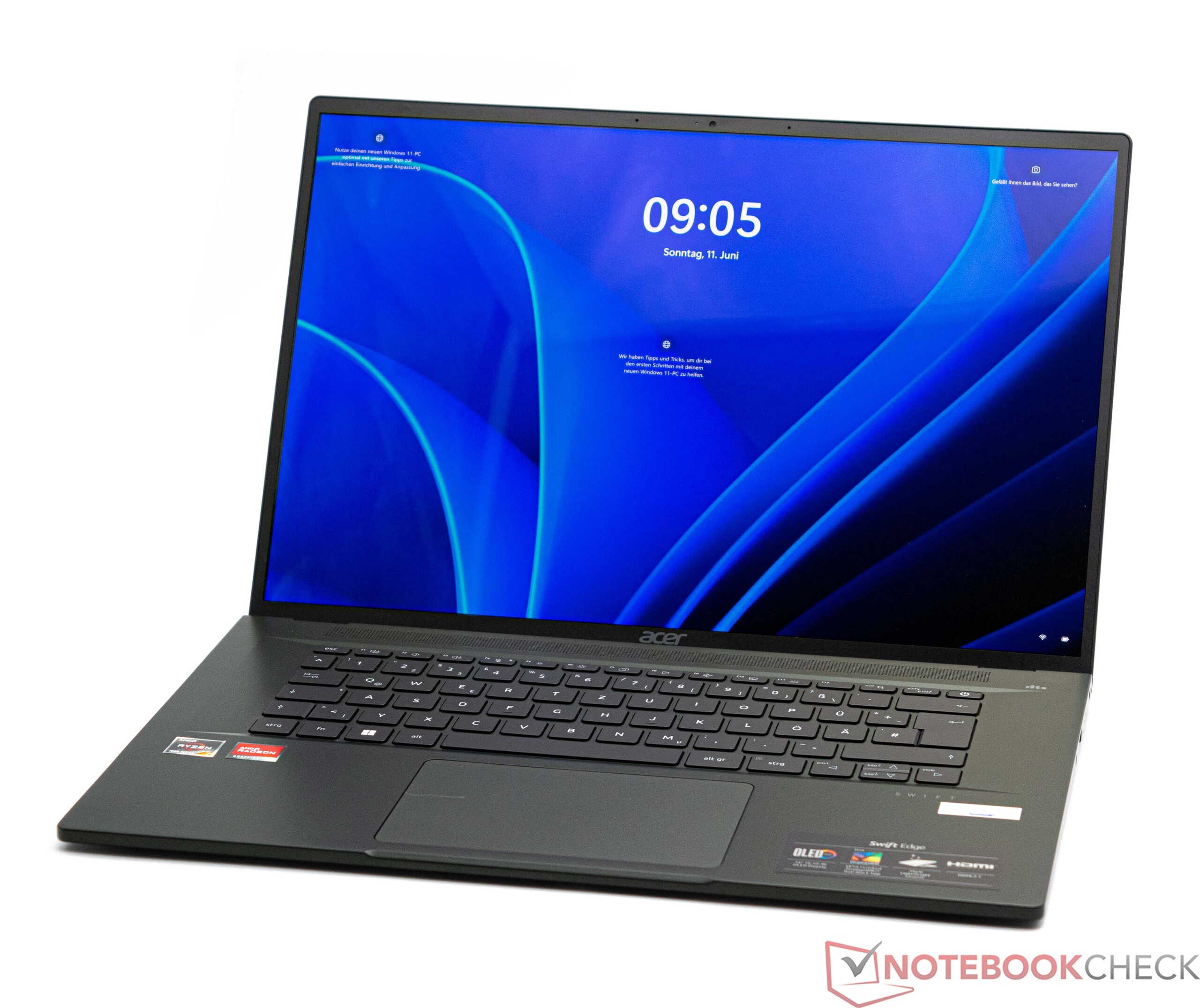

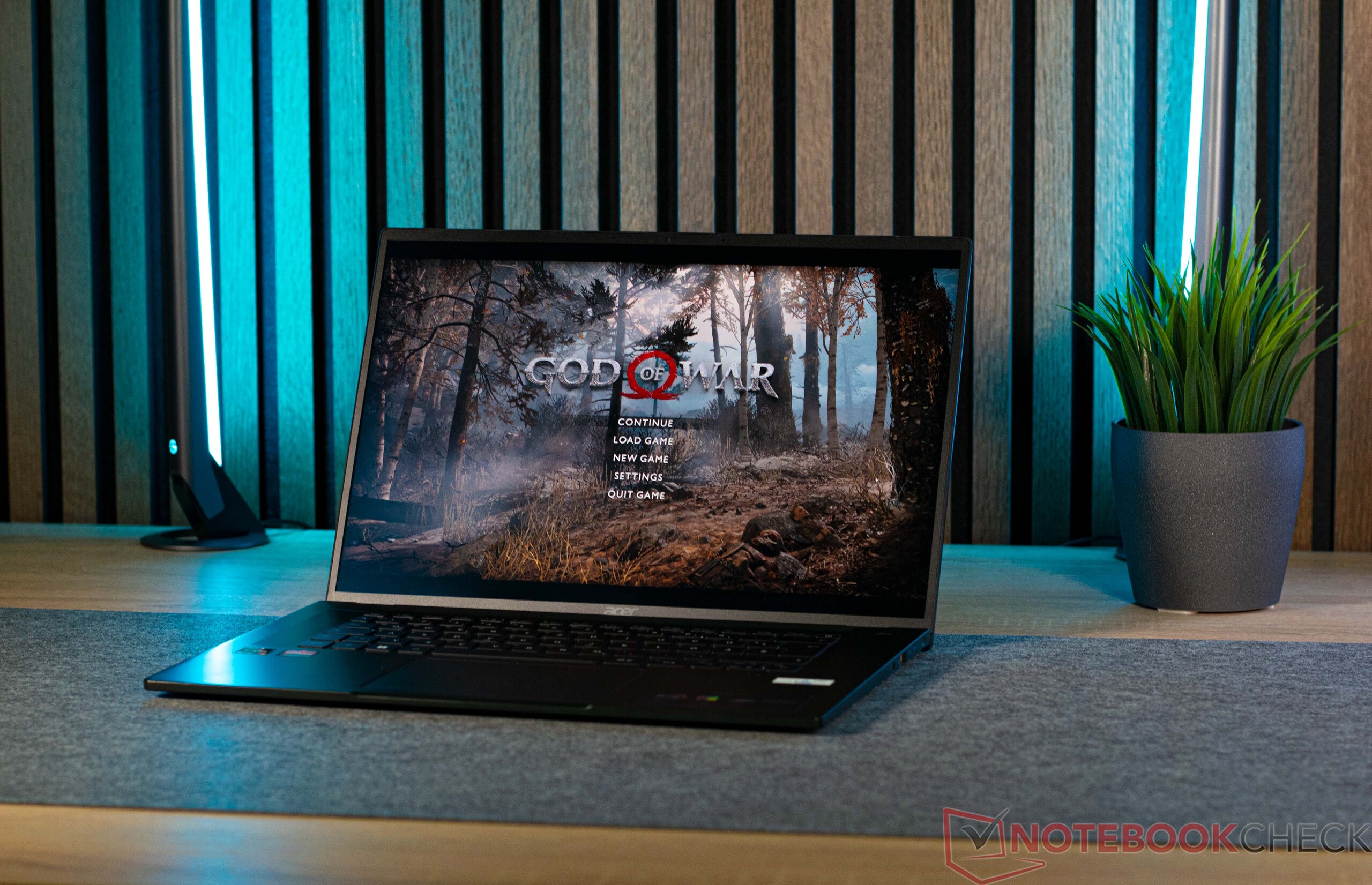

宏碁Swift Edge SFE16评测--轻巧的16英寸笔记本电脑,拥有AMD动力和OLED显示屏
宏碁Swift Edge SFE16是一款超轻量级的16英寸笔记本电脑,凭借其AMD Ryzen 7 7735U它提供了一个全新的和顶级的SoC与一个强大的iGPU。这意味着,目前,AMD提供了更好的整体包装,特别是在涉及到3D性能时,与英特尔相比。它的CPU性能也不容忽视,因为这款笔记本电脑拥有一个原生的8核处理器。我们将在后面的评论中进一步讨论这方面的细节。目前,这款笔记本电脑可以在网上购买,价格为1079美元。这个设置包括16GB DDR5内存,一个1TB的固态硬盘和一个OLED面板。这个价格使该笔记本电脑成为中上等设备,在我们的测试中,它将与类似的强大竞争对手相抗衡。我们所比较的所有设备都是16英寸机型。你可以在下面找到所有这些竞争对手的名单。
潜在的竞争对手比较
Rating | Date | Model | Weight | Height | Size | Resolution | Price |
---|---|---|---|---|---|---|---|
87.5 % v7 (old) | 06 / 2023 | Acer Swift Edge SFE16-42-R1GM R7 7735U, Radeon 680M | 1.2 kg | 13.95 mm | 16.00" | 3840x2400 | |
90.2 % v7 (old) | 02 / 2023 | Lenovo ThinkPad T16 G1 21CH004MGE R5 PRO 6650U, Radeon 660M | 1.8 kg | 20.5 mm | 16.00" | 2560x1600 | |
86.6 % v7 (old) | 01 / 2023 | LG Gram 16Z90Q i7-1260P, Iris Xe G7 96EUs | 1.2 kg | 16.8 mm | 16.00" | 2560x1600 | |
86 % v7 (old) | 04 / 2023 | Acer TravelMate P4 TMP416-51-55KN i5-1240P, Iris Xe G7 80EUs | 1.6 kg | 18.5 mm | 16.00" | 1920x1200 | |
85.6 % v7 (old) | 05 / 2023 | Samsung Galaxy Book3 Pro 16 i5-1340P, Iris Xe G7 80EUs | 1.6 kg | 12.5 mm | 16.00" | 2880x1800 | |
83.8 % v7 (old) | 10 / 2022 | LG Ultra-PC 16 16U70Q-G.AR36G R3 5300U, Vega 6 | 1.6 kg | 16.3 mm | 16.00" | 1280x1200 |
» Notebookcheck多媒体笔记本电脑Top 10排名
» Notebookcheck游戏笔记本电脑Top 10排名
» Notebookcheck低价办公/商务笔记本电脑Top 10排名
» Notebookcheck高端办公/商务笔记本电脑Top 10排名
» Notebookcheck工作站笔记本电脑Top 10排名
» Notebookcheck亚笔记本电脑Top 10排名
» Notebookcheck超级本产品Top 10排名
» Notebookcheck变形本产品Top 10排名
» Notebookcheck平板电脑Top 10排名
» Notebookcheck智能手机Top 10排名
» Notebookcheck评测过最出色的笔记本电脑屏幕
» Notebookcheck售价500欧元以下笔记本电脑Top 10排名
» Notebookcheck售价300欧元以下笔记本电脑Top 10排名

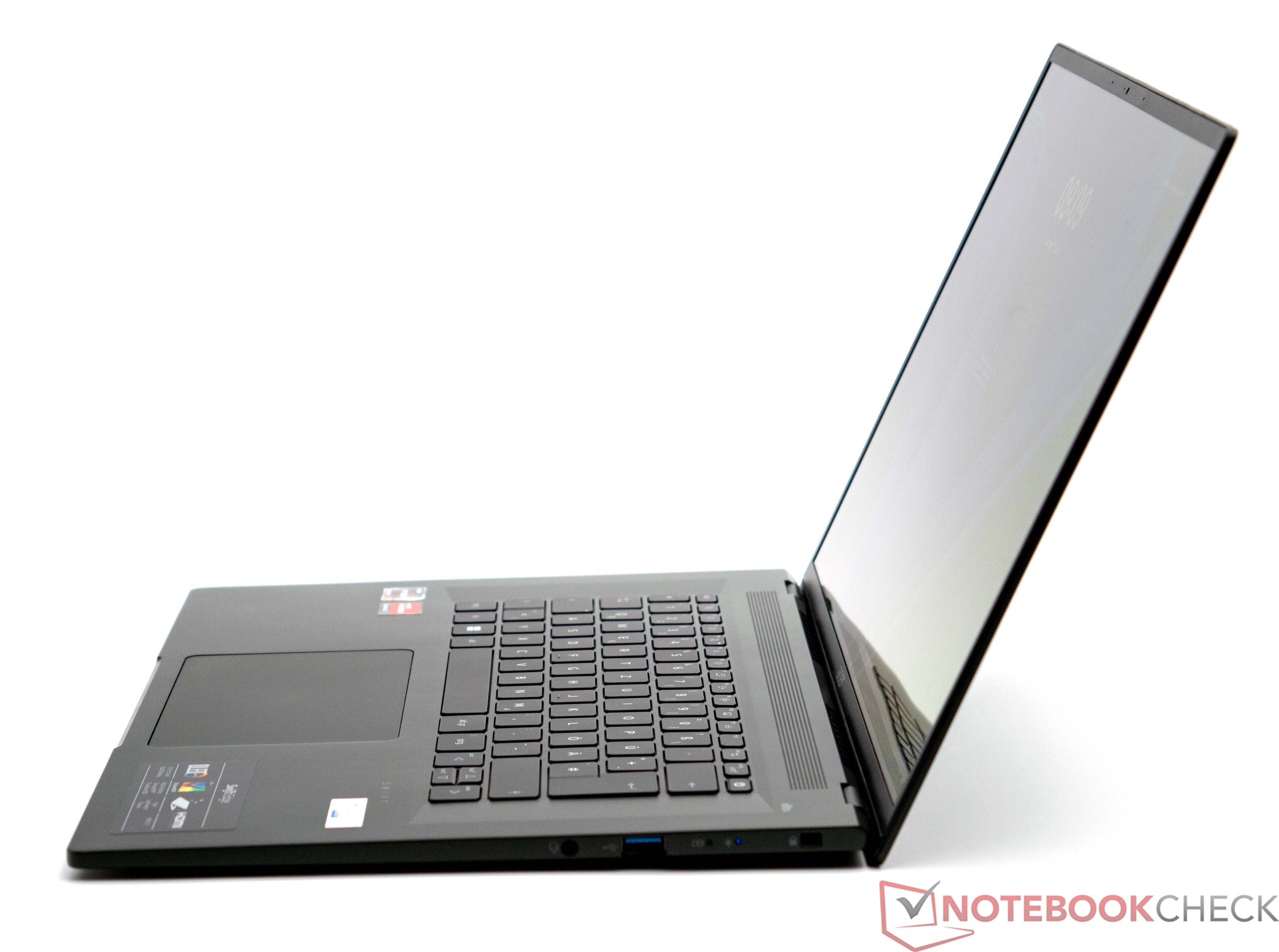

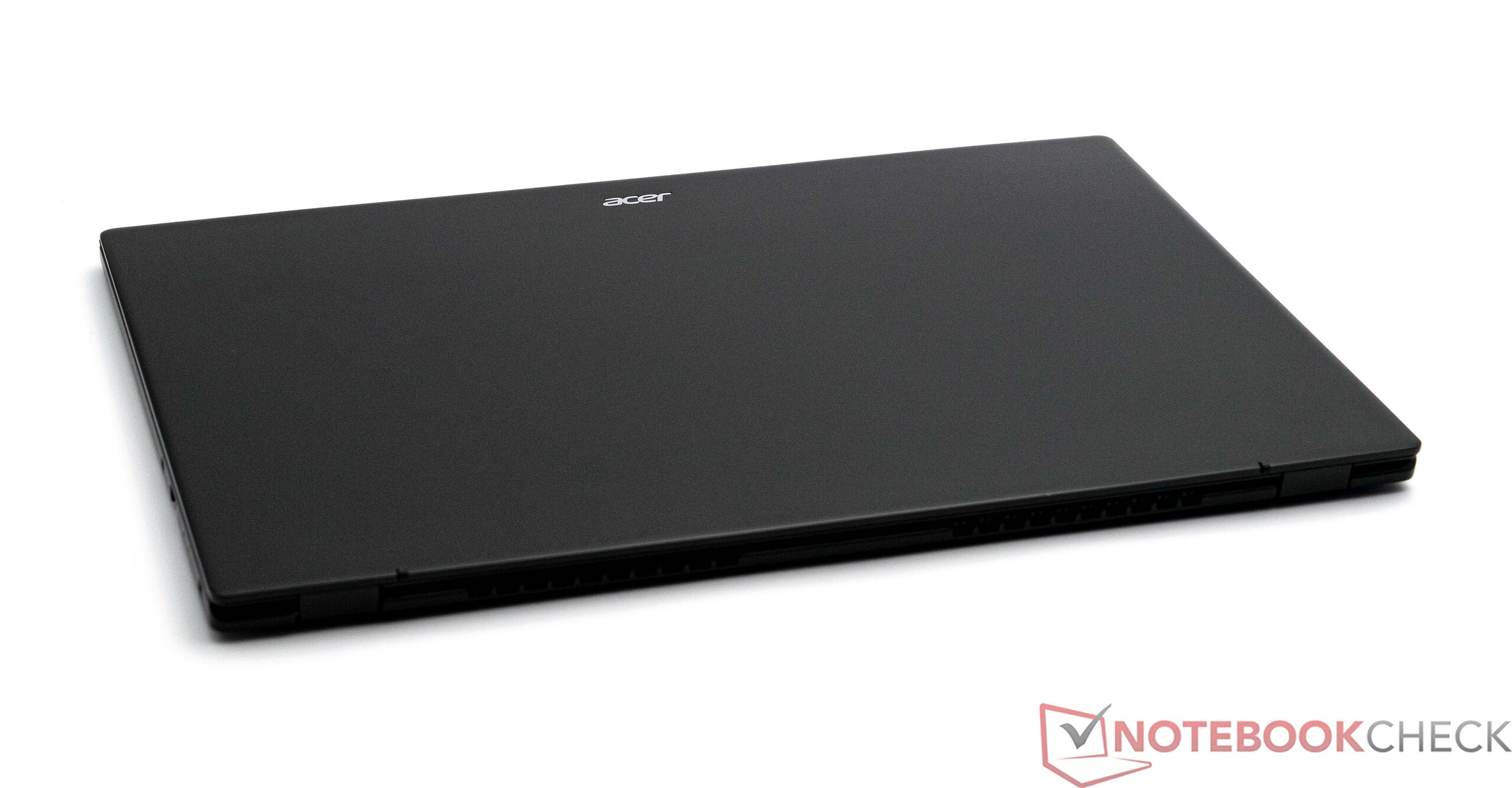

外壳 - 镁和铝保持轻盈
宏碁Swift Edge SFE16是一个由高质量材料(镁和铝)完美制成的极其纤薄的设备。底座足够坚硬,尽管由于使用的金属,它确实保留了一定程度的灵活性。值得庆幸的是,当你用一只手握住笔记本电脑时,这并不构成问题,因为该设备反正很轻。只有当你明确尝试这样做的时候,底座和显示盖才会被弯曲。键盘的情况也是如此:有几个地方你可以把它稍微压进去--特别是键盘的顶部背面部分。同样,这在日常使用中不应该成为一个问题。宏碁Swift Edge SFE16在颜色上没有尝试任何疯狂的东西--该设备是全黑的。不过,必须说,在笔记本电脑的光滑表面上,指纹是相当明显的。
就重量而言,宏碁Swift Edge SFE16是迄今为止我们测试的设备中最轻的设备之一,与之并列的还有LG Gram 16Z90Q.该设备的占地面积没有什么值得注意的地方--既不是消极的也不是积极的。在只有14毫米厚的情况下,我们的测试样品确实非常薄--但这一测量值被以下产品击败三星Galaxy Book3.

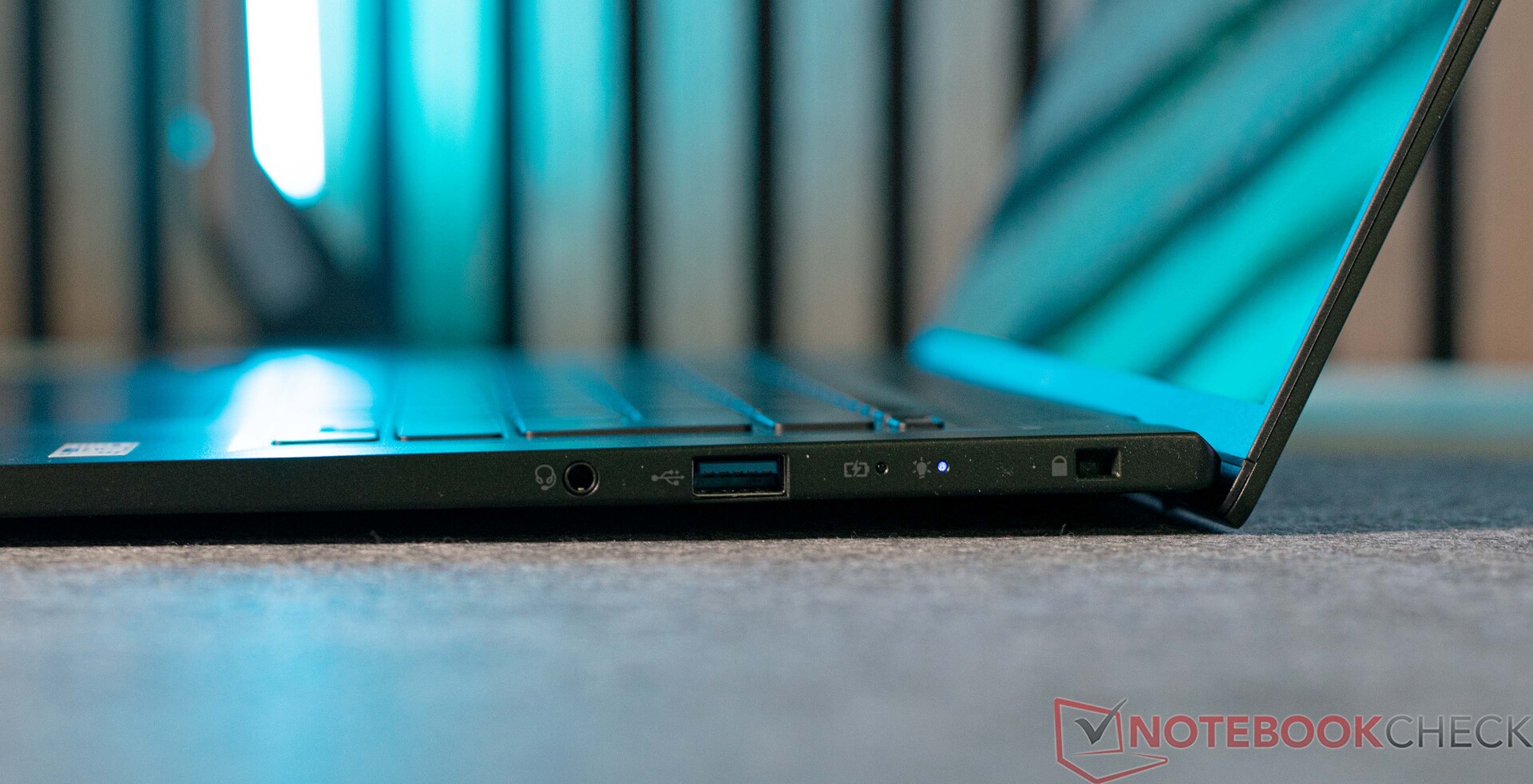

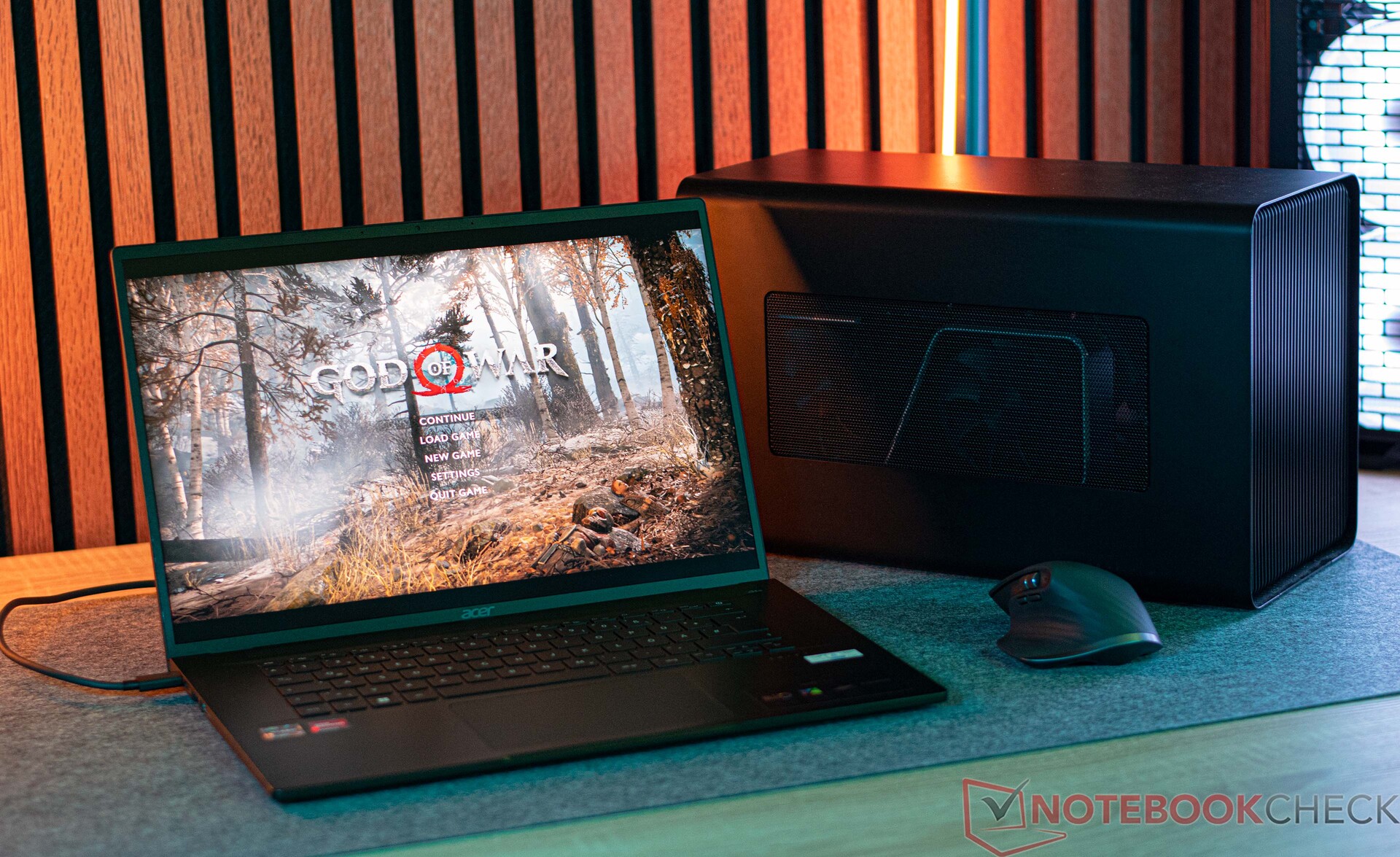

连接性--配备雷电4的宏碁Swift Edge

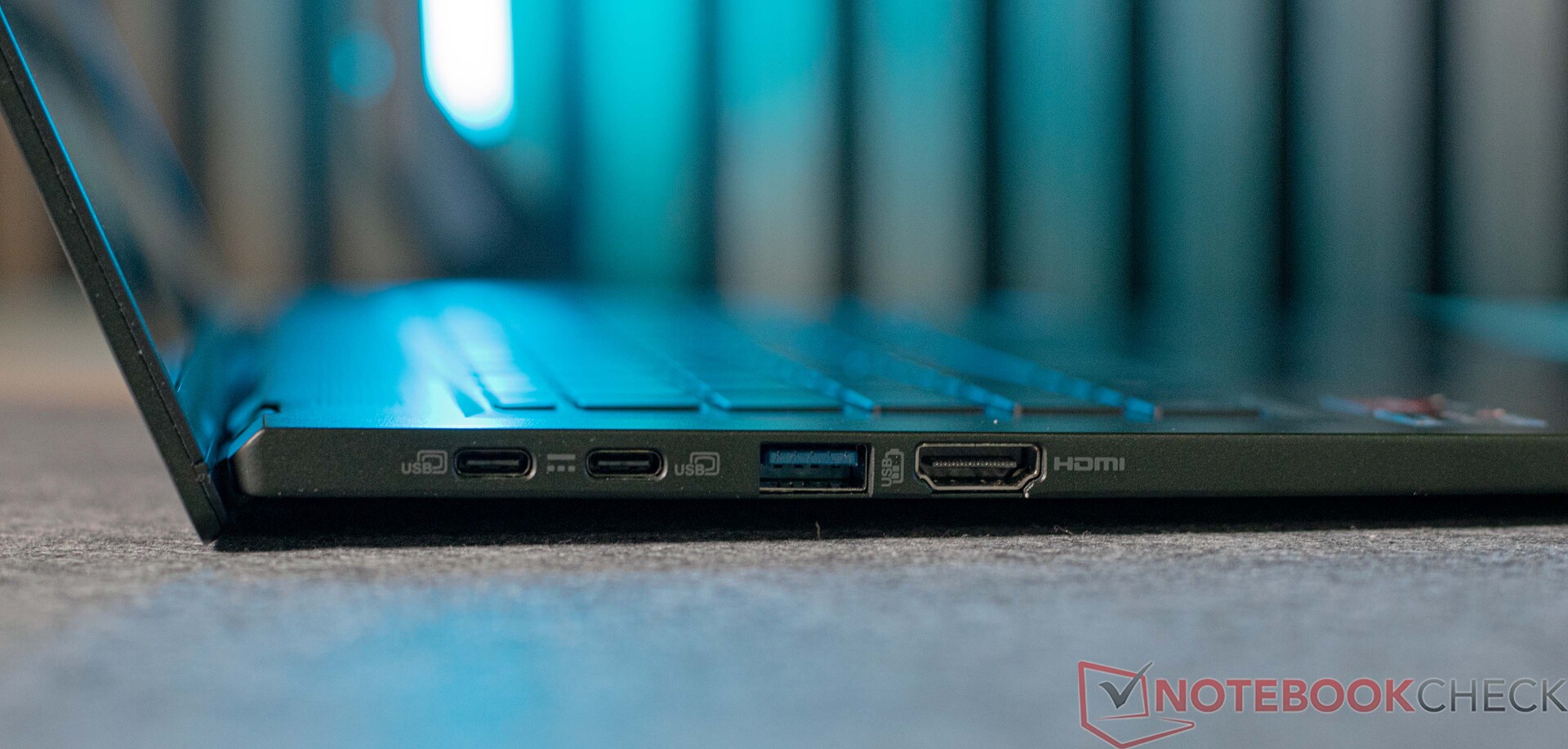

宏碁Swift Edge SFE16具有现代连接选项,包括雷电4,它位于笔记本电脑的左侧。此外,它有两个USB-A端口和一个HDMI端口。另外,你可以通过Thunderbolt连接外部显示器。不幸的是,该设备没有以太网连接。
沟通

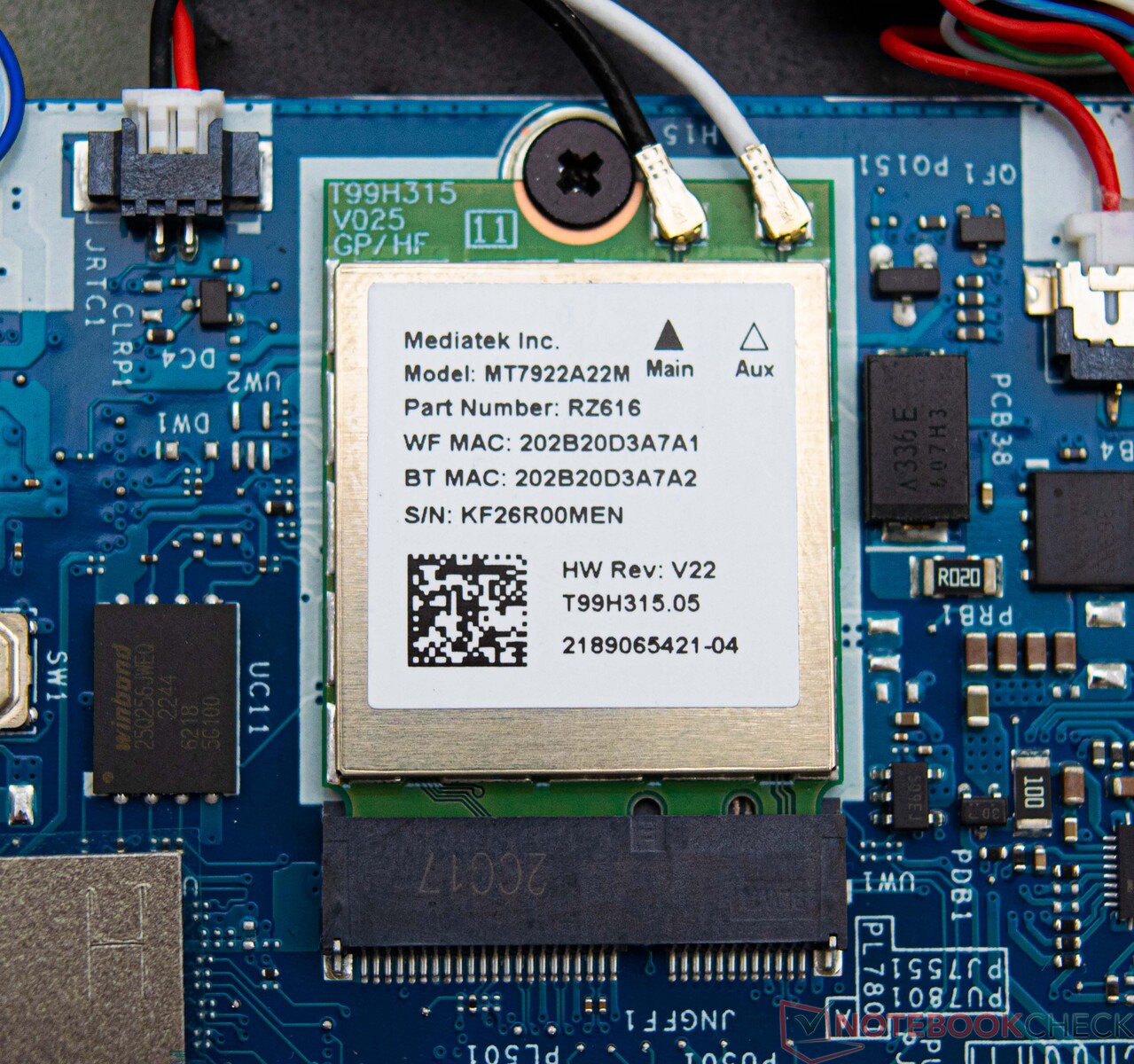

宏碁Swift Edge SFE16配备了一个现代的Wi-Fi 6E模块,也支持蓝牙5.2,你可以用它来连接更多的配件。在我们的测试中,我们在5GHz频段内测得一些有点令人失望的结果。使用6GHz,结果稍好一些,尽管该笔记本电脑的竞争对手总体上做得更好一些。我们使用华硕ROG Rapture GT-AXE11000作为测试路由器进行这些测试。
网络摄像头
这款笔记本电脑的网络摄像头的分辨率为1080p(高清),这意味着它比大多数基本的720p型号的摄像头更详细一些。必须说,它的色彩准确性不是最好的。
辅料

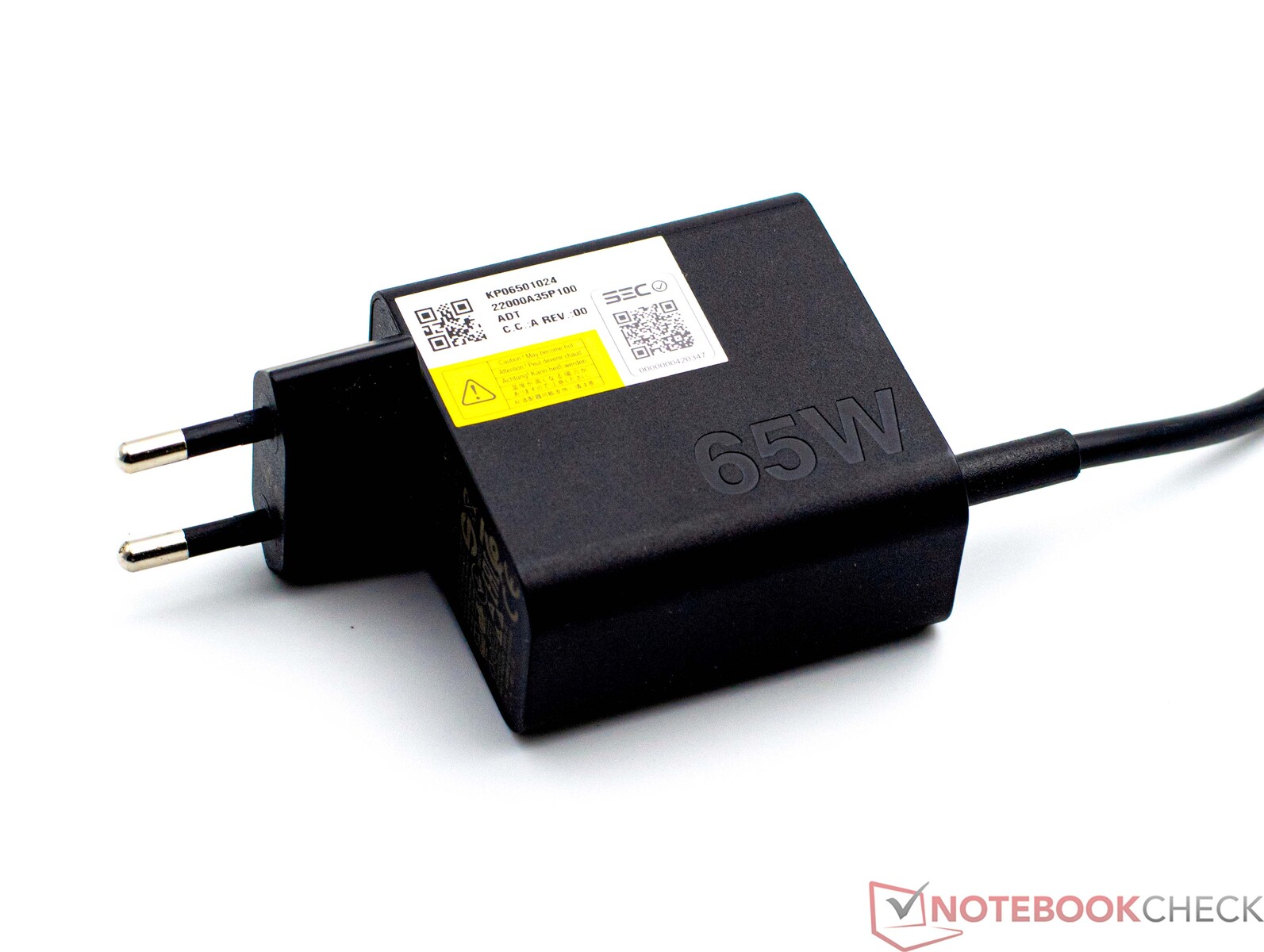

笔记本电脑还包括一个轻巧的65瓦USB-C电源(194克)和一些信息小册子。

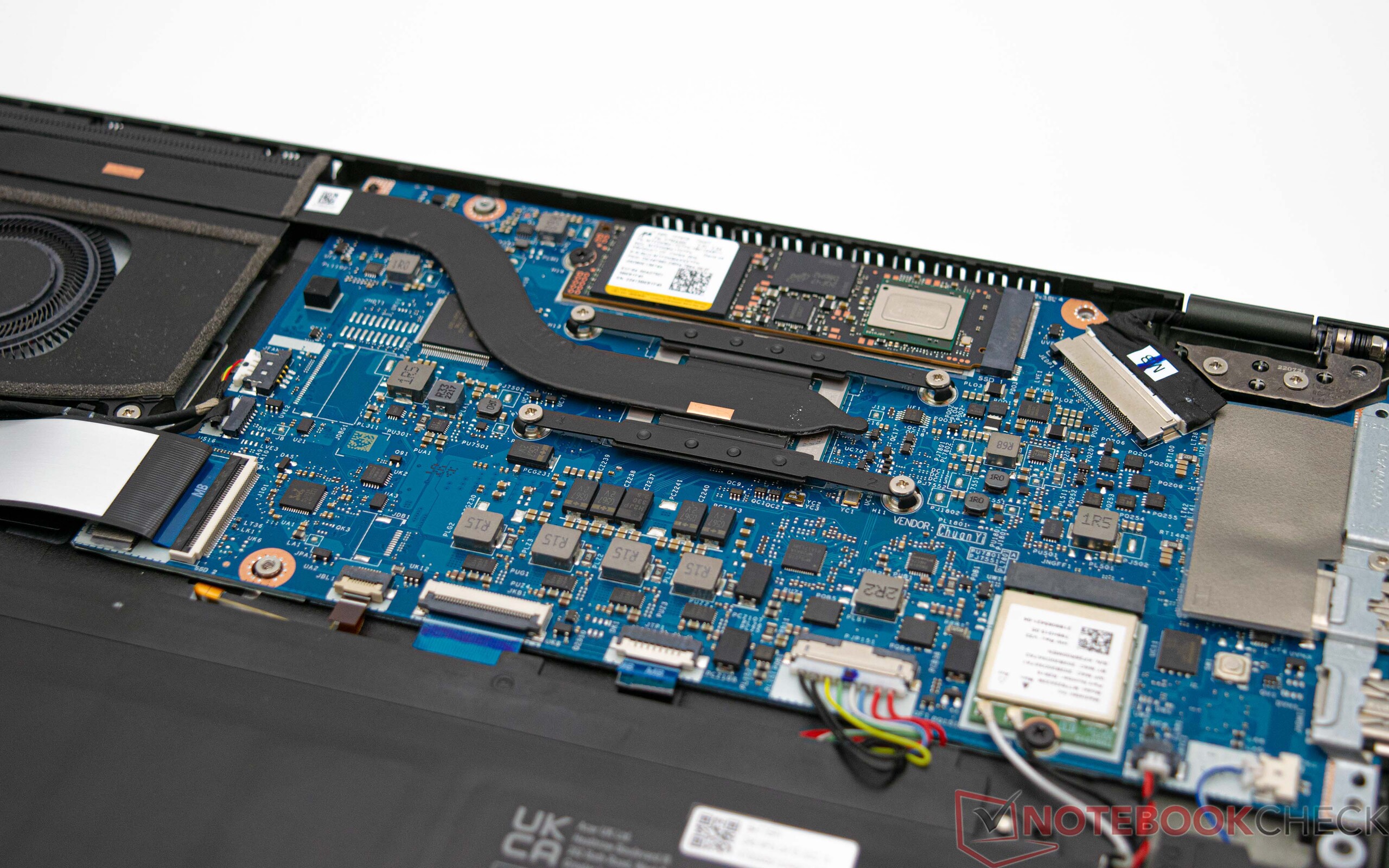

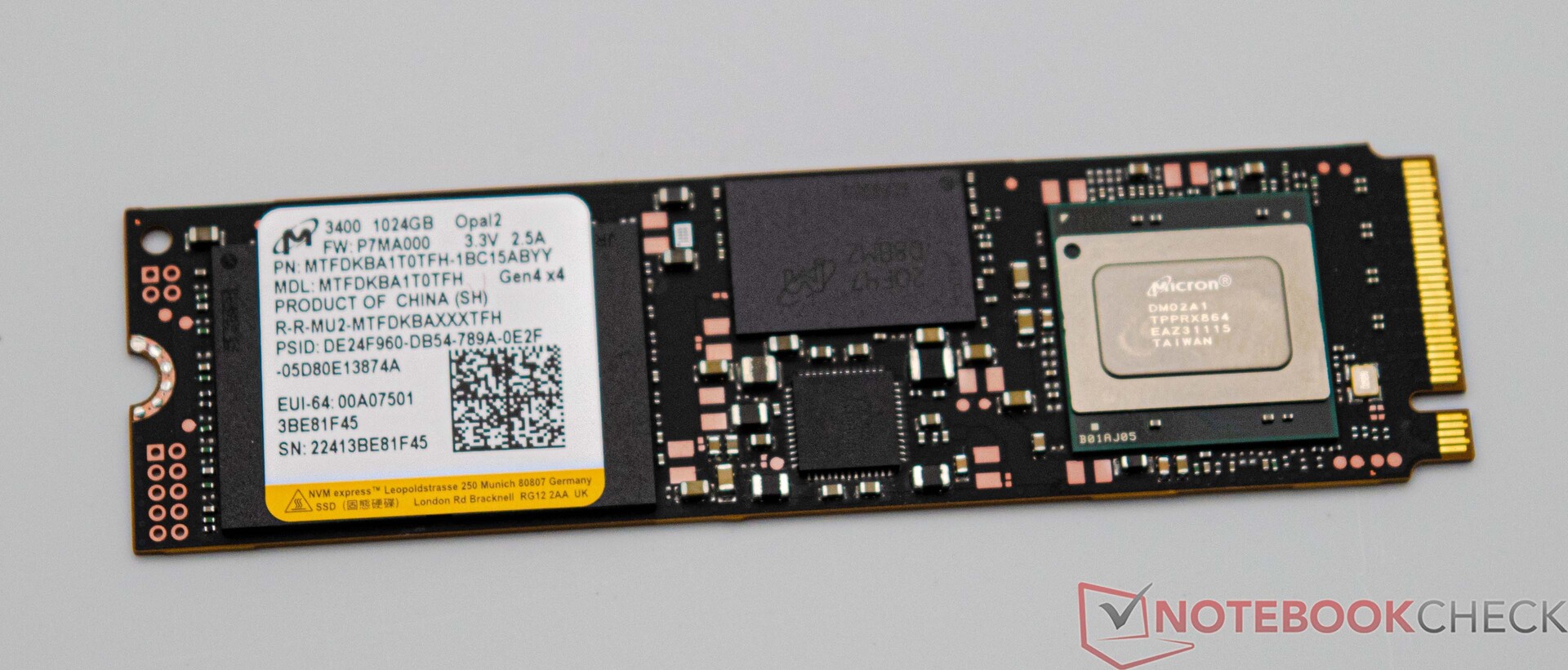

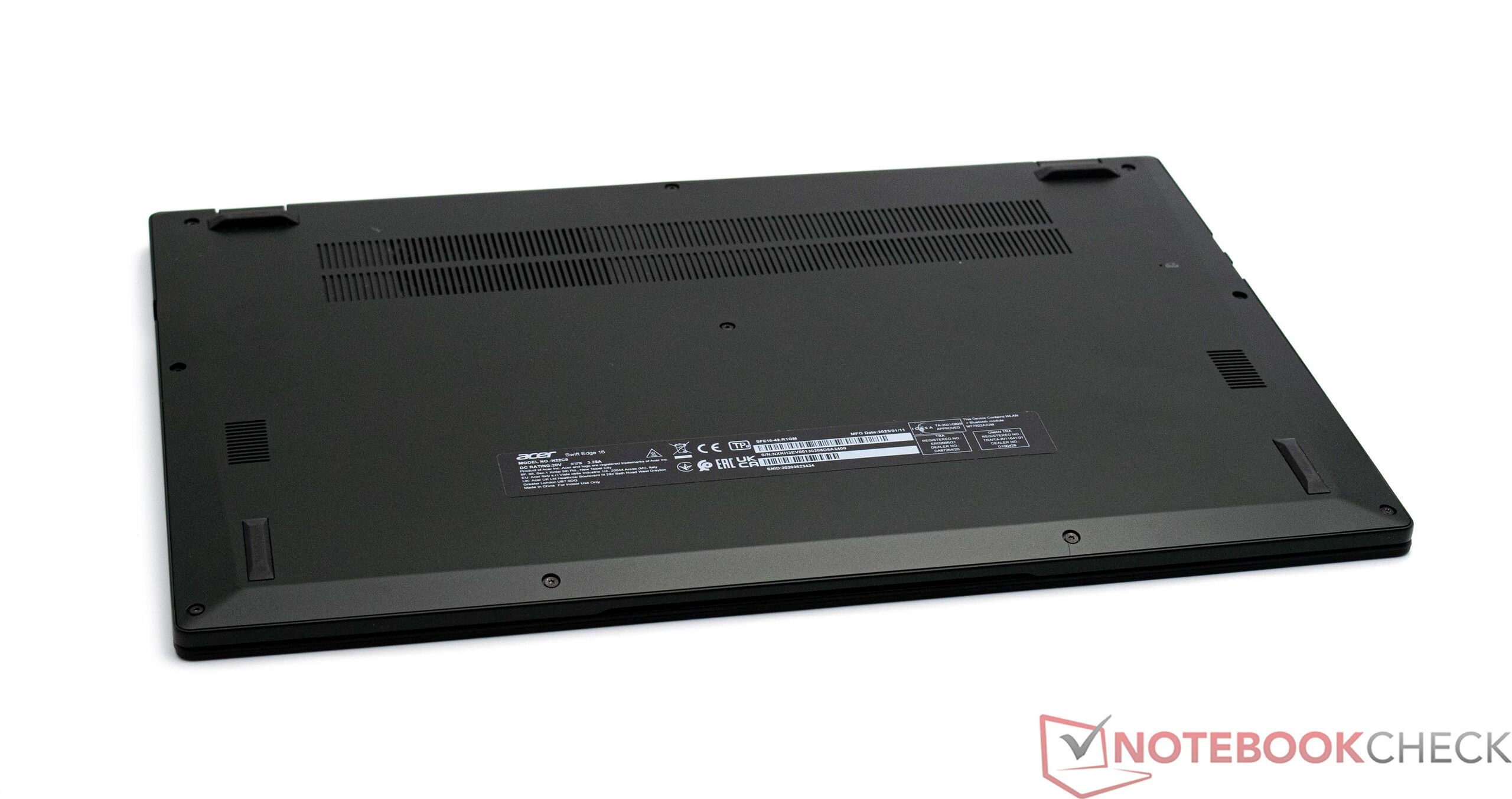

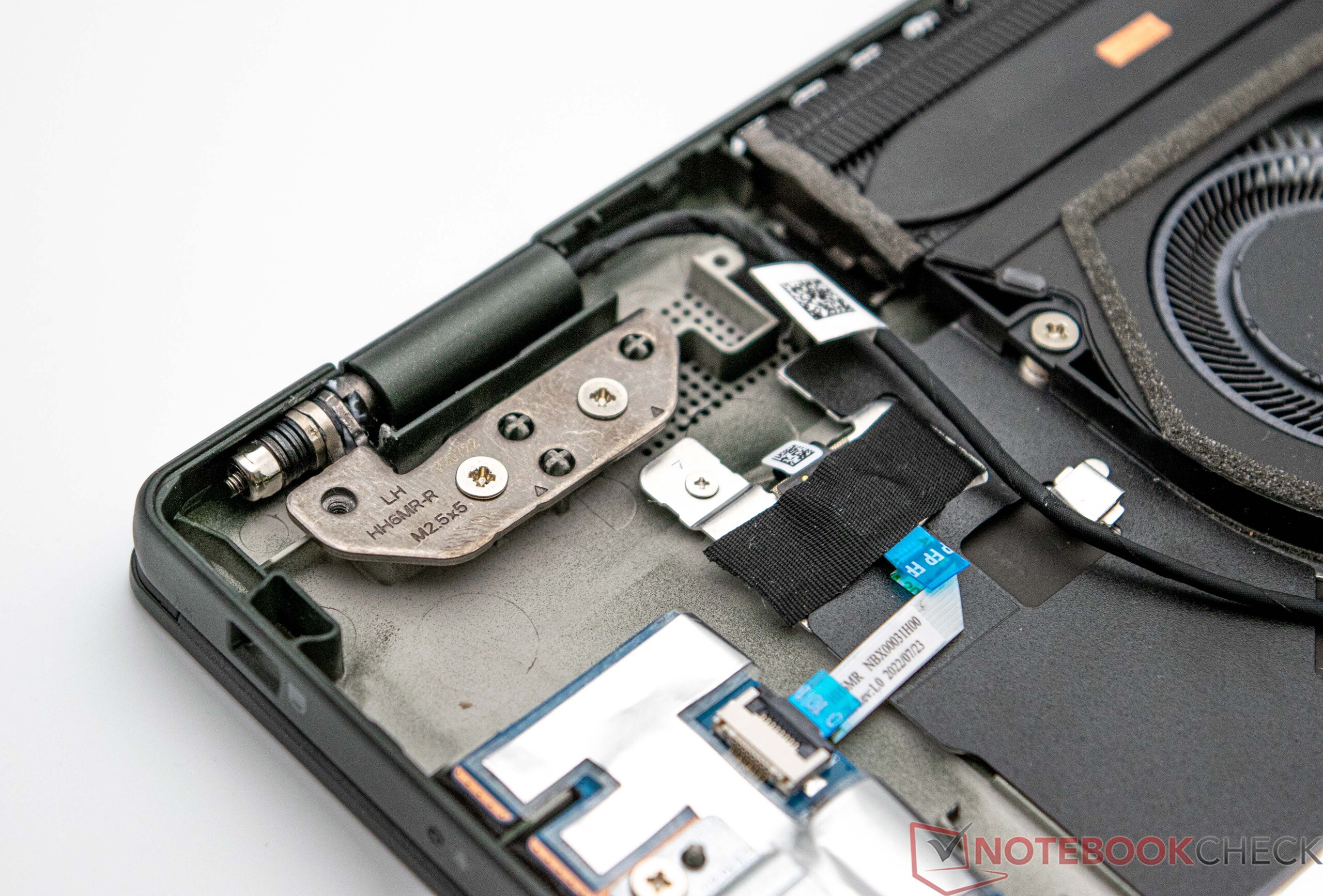

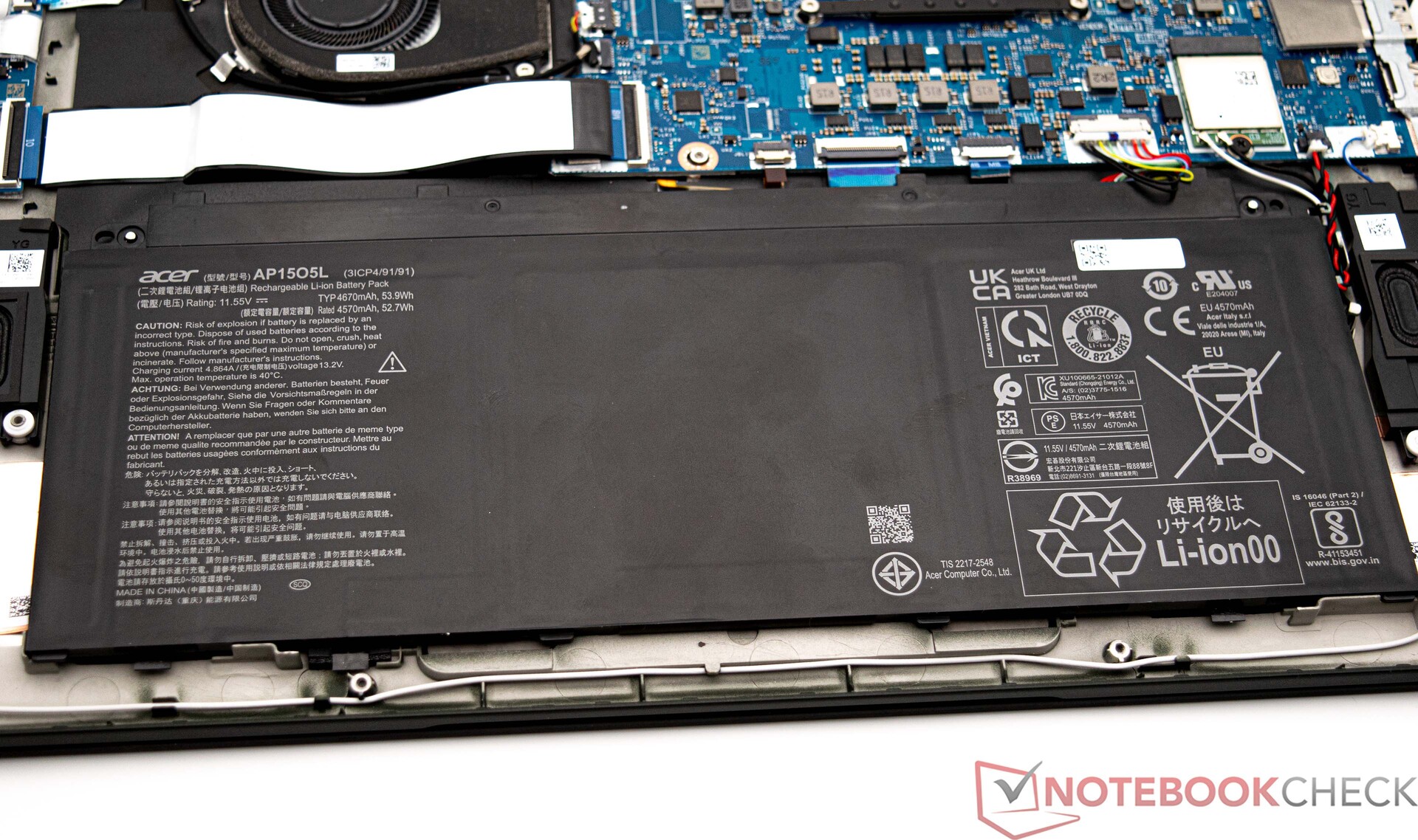

维护

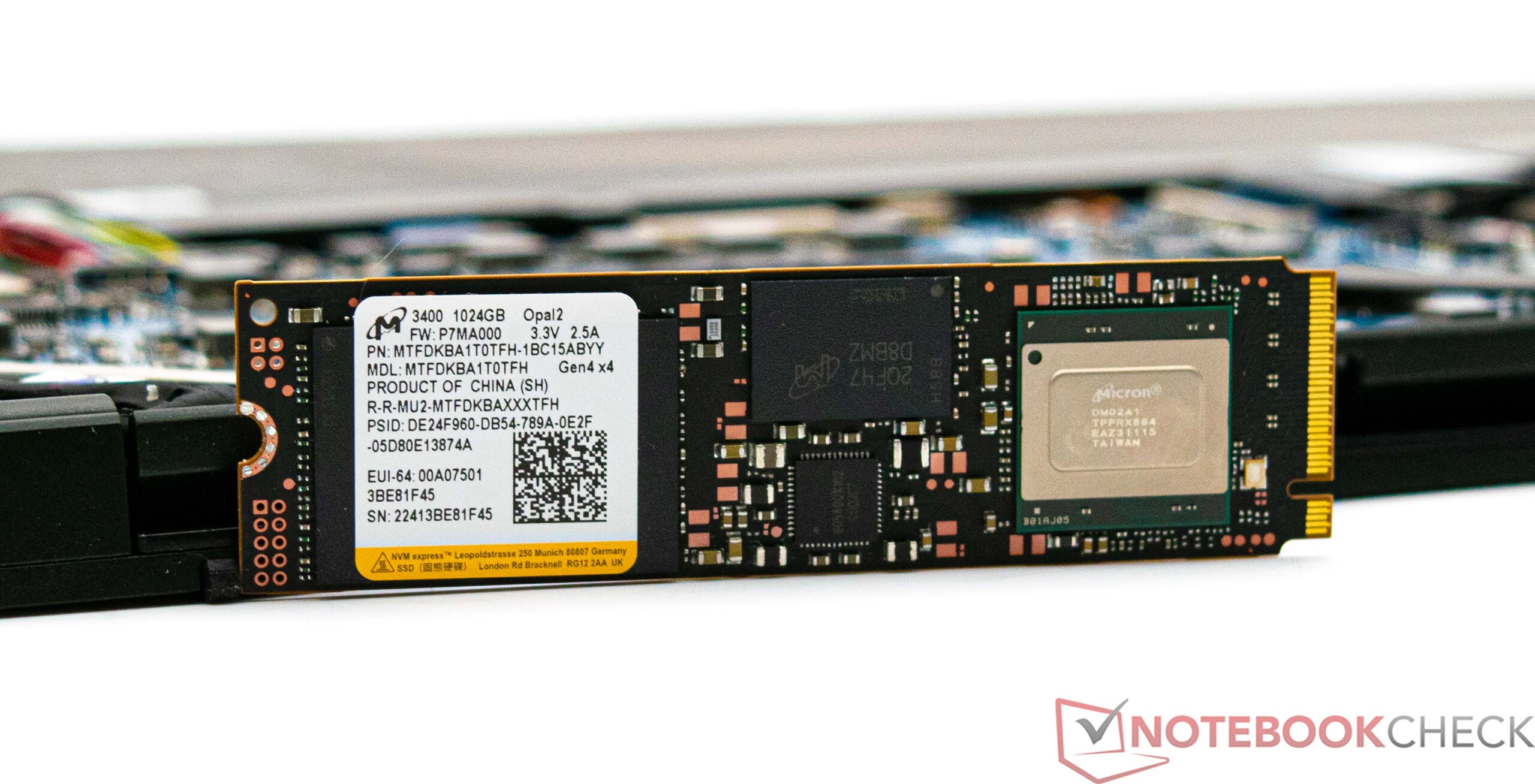

一般来说,可以在宏碁Swift Edge SFE16上做一些维护工作。同时,必须指出的是,笔记本电脑的内存是安全内置的,你也不能安装第二个固态硬盘。即便如此,底板还是可以很容易地被卸下,例如,从设备上清除污垢。你可以换掉SSD以及WLAN模块。
担保
该笔记本电脑在美国享有一年的标准保修期,目前不能延长。

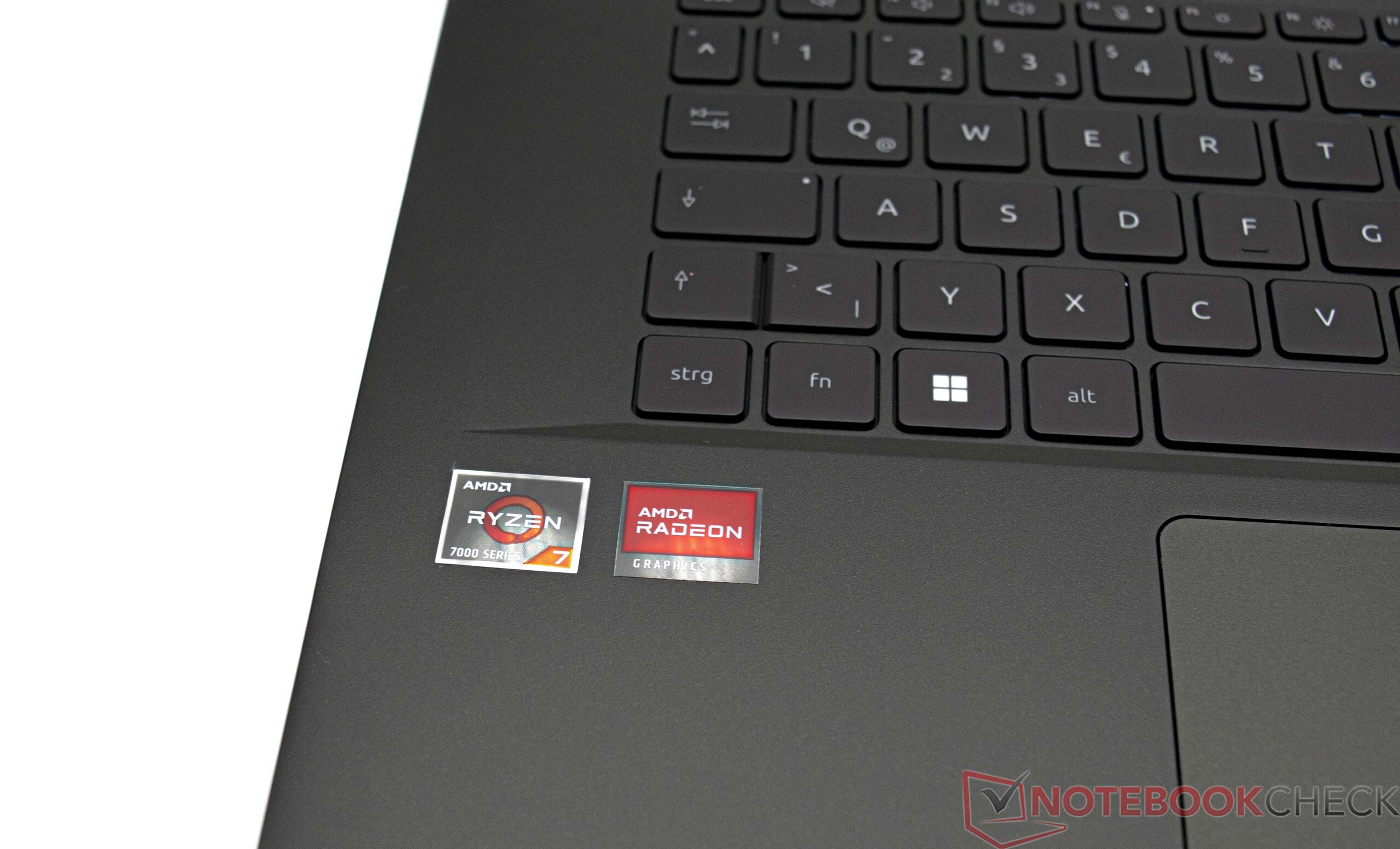

输入设备 - Swift Edge没有数字键盘

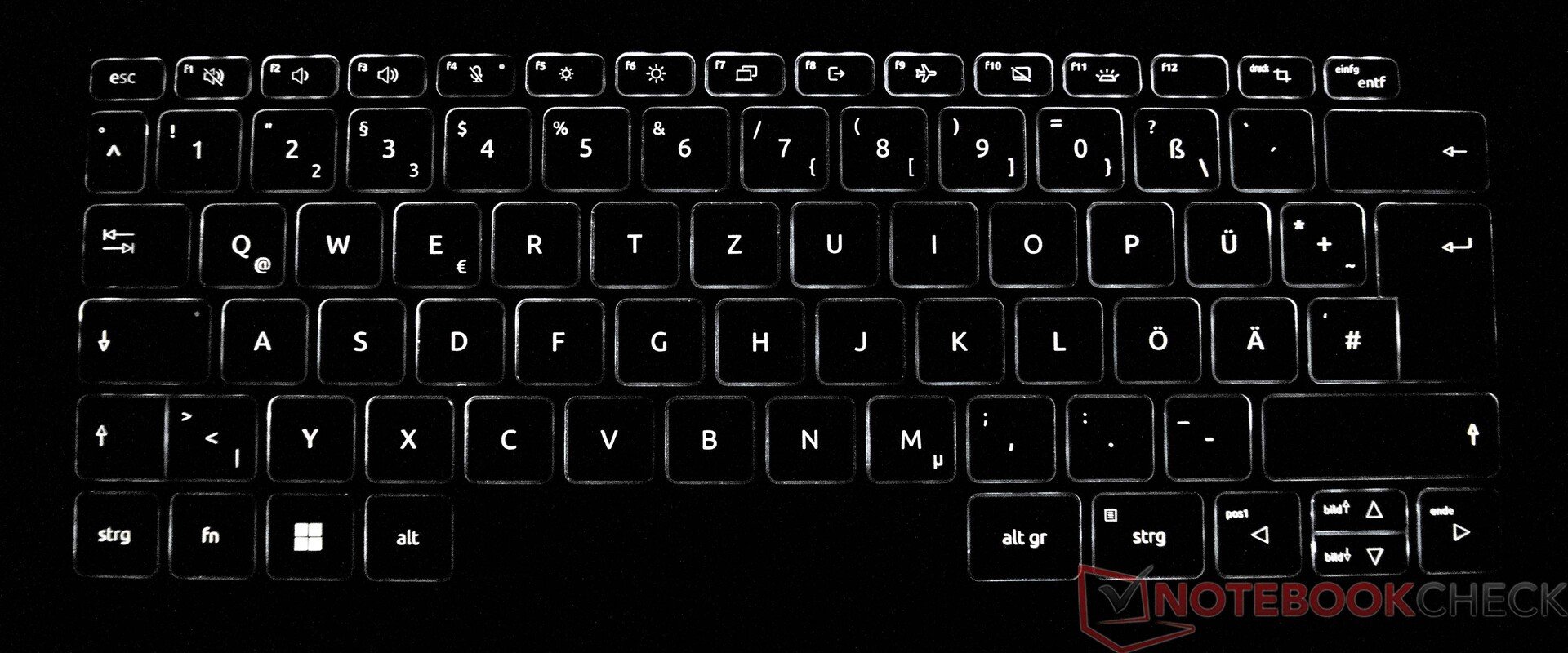

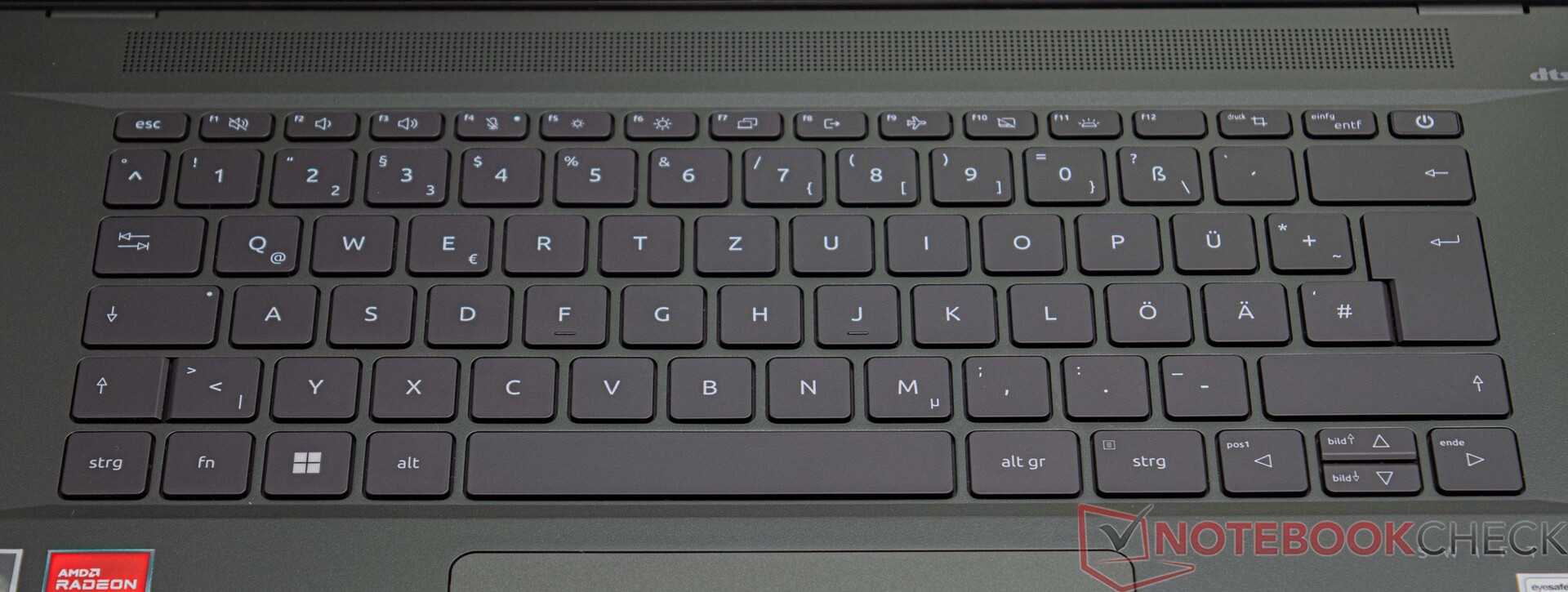

键盘
我们已经谈到了稳定性的问题--在日常使用中,一点点的灵活性应该不会构成问题。总的来说,这个键盘给我们留下了相当好的印象。然而,你必须考虑到数字键盘的缺失。此外,第一行的功能键有点小。方向键 "上 "和 "下 "也是如此。你在打字时得到的主观反馈很好,大多数人用这个键盘应该能应付自如。作为目前大多数设备的标准,宏碁Swift Edge SFE16的键盘有白色背光,有两个强度级别可供选择。

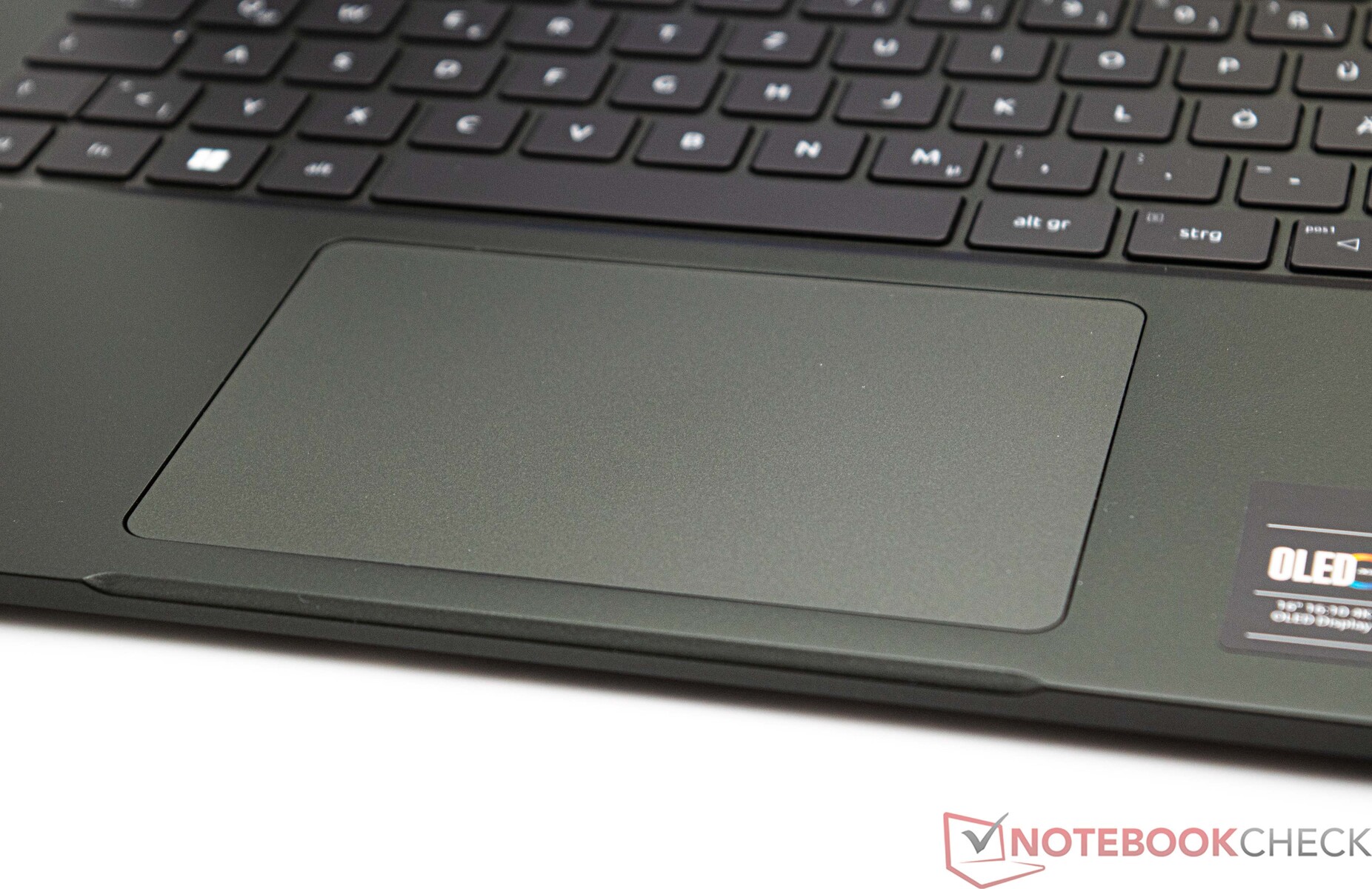

触摸板

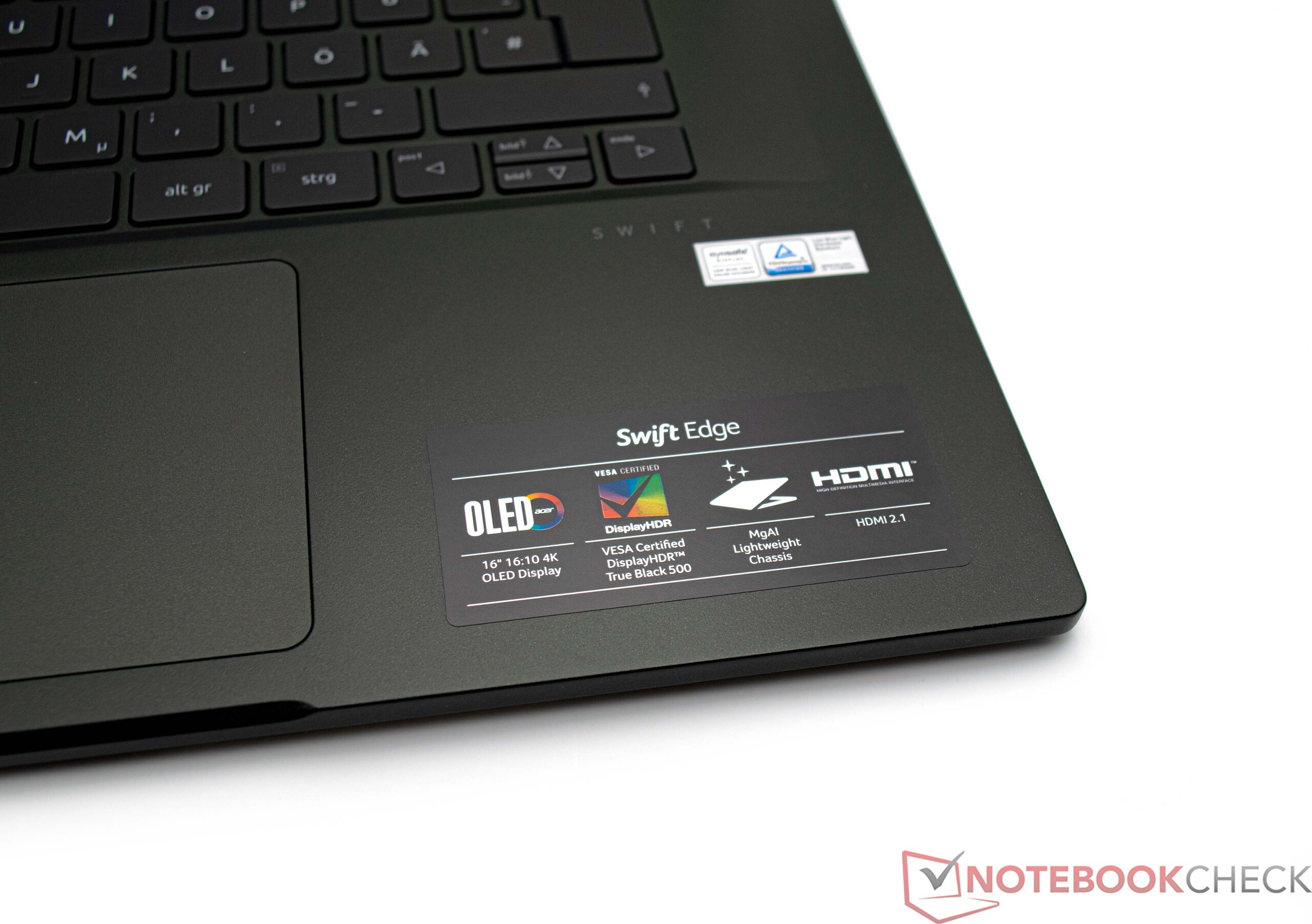

笔记本电脑的触摸板尺寸为12.6 x 8.4厘米,大小适中。同时,该笔记本上的触摸板也是一个不错的选择。三星Galaxy Book3的触摸板略大。即便如此,我们发现这款笔记本电脑上的触摸板足以替代鼠标--它对输入的反应很好,表面感觉很光滑。它的精确性和手势支持功能没有必要进行批评。两个点击区在按下时都能给你清晰的声音反馈。虽然,它的压力点可以更硬一点。
显示屏 - OLED,色彩准确
宏碁Swift Edge SFE16有一个16英寸的OLED显示屏,分辨率为3840 x 2,400像素。由于比例为16:10,在该设备上工作很有乐趣。再加上它的高分辨率,这使笔记本电脑的像素密度达到283PPI。
在我们的测试中,我们取得了很好的测量结果,有时将其竞争对手甩在了后面。即便如此,我们注意到它的平均亮度为369cd/m²,这是它最大的批评点。从主观上讲,这是一个最高标准的小问题,因为该显示屏对于日常使用来说绝对足够明亮。此外,更亮的显示屏将意味着给该设备已经很小的电池带来更大的压力。由于采用了OLED技术,其照明水平几乎完美(97%)。由于没有背光灯,宏碁Swift Edge SFE16没有出现混浊的问题。虽然,我们确实测量了一个相对较低的PWM频率,在显示屏亮度为50%及以下时开始出现。
|
Brightness Distribution: 97 %
Center on Battery: 369 cd/m²
Contrast: ∞:1 (Black: 0 cd/m²)
ΔE Color 2.3 | 0.5-29.43 Ø4.93, calibrated: 2.87
ΔE Greyscale 1.83 | 0.5-98 Ø5.2

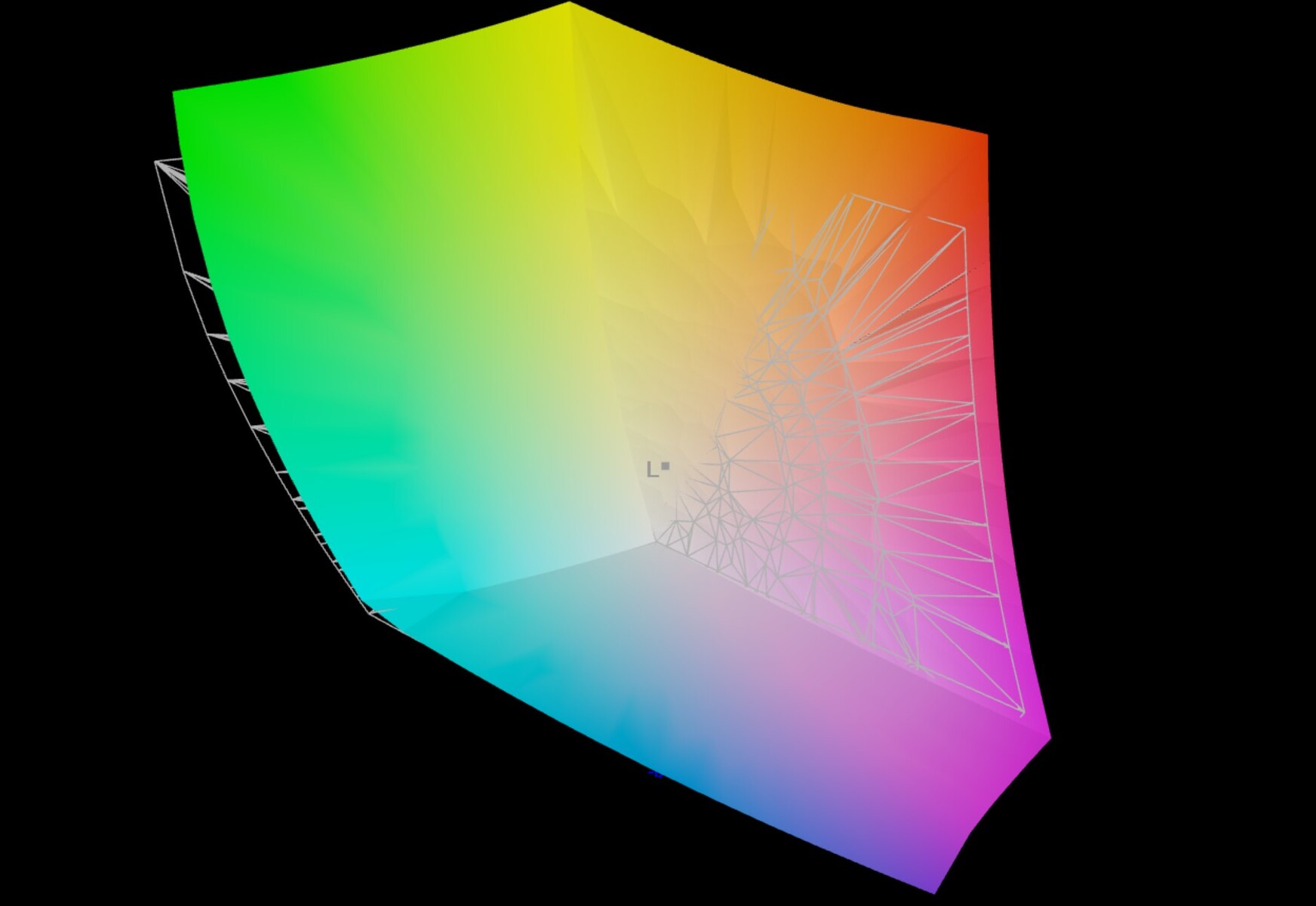

97.2% AdobeRGB 1998 (Argyll 2.2.0 3D)

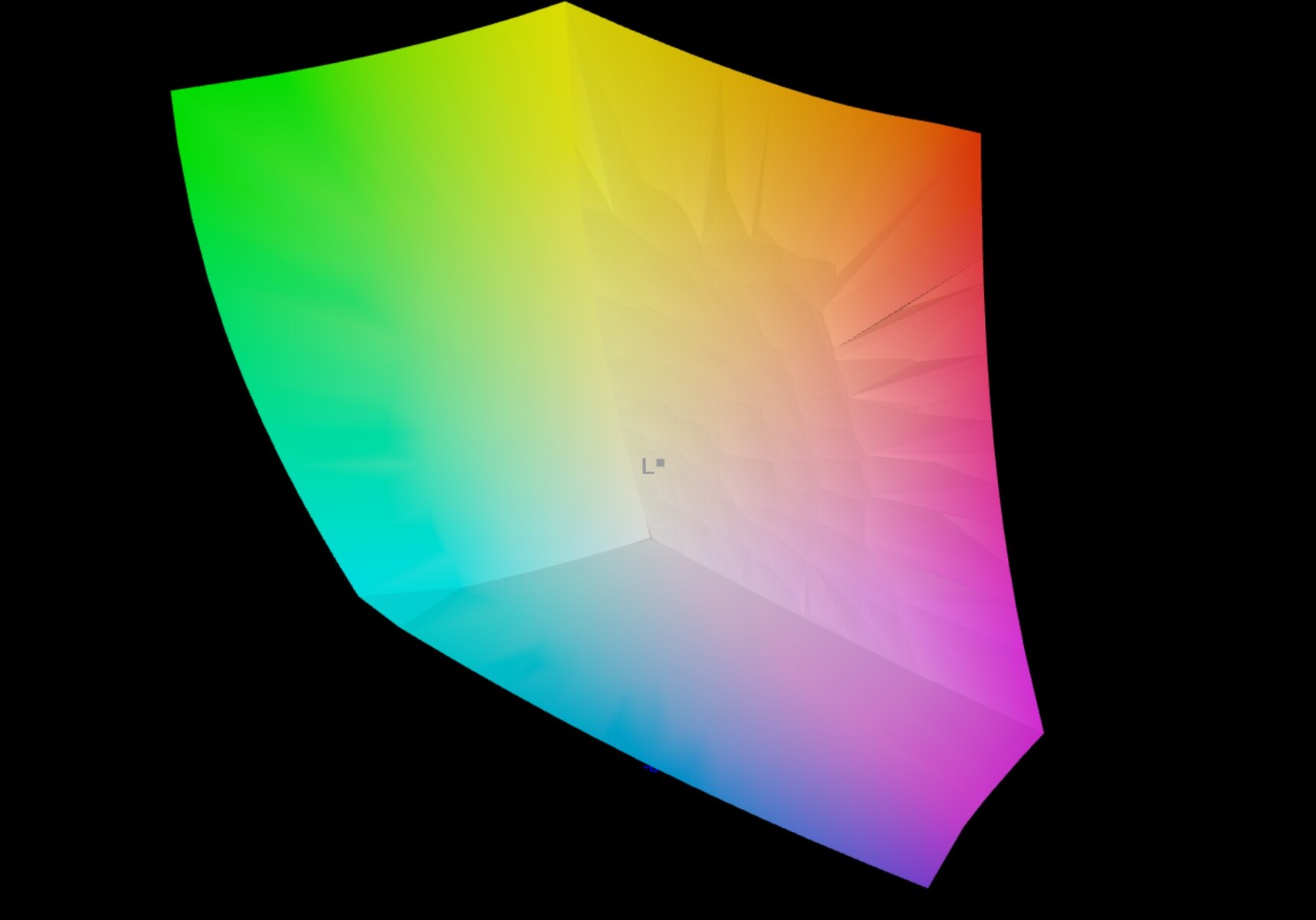

100% sRGB (Argyll 2.2.0 3D)

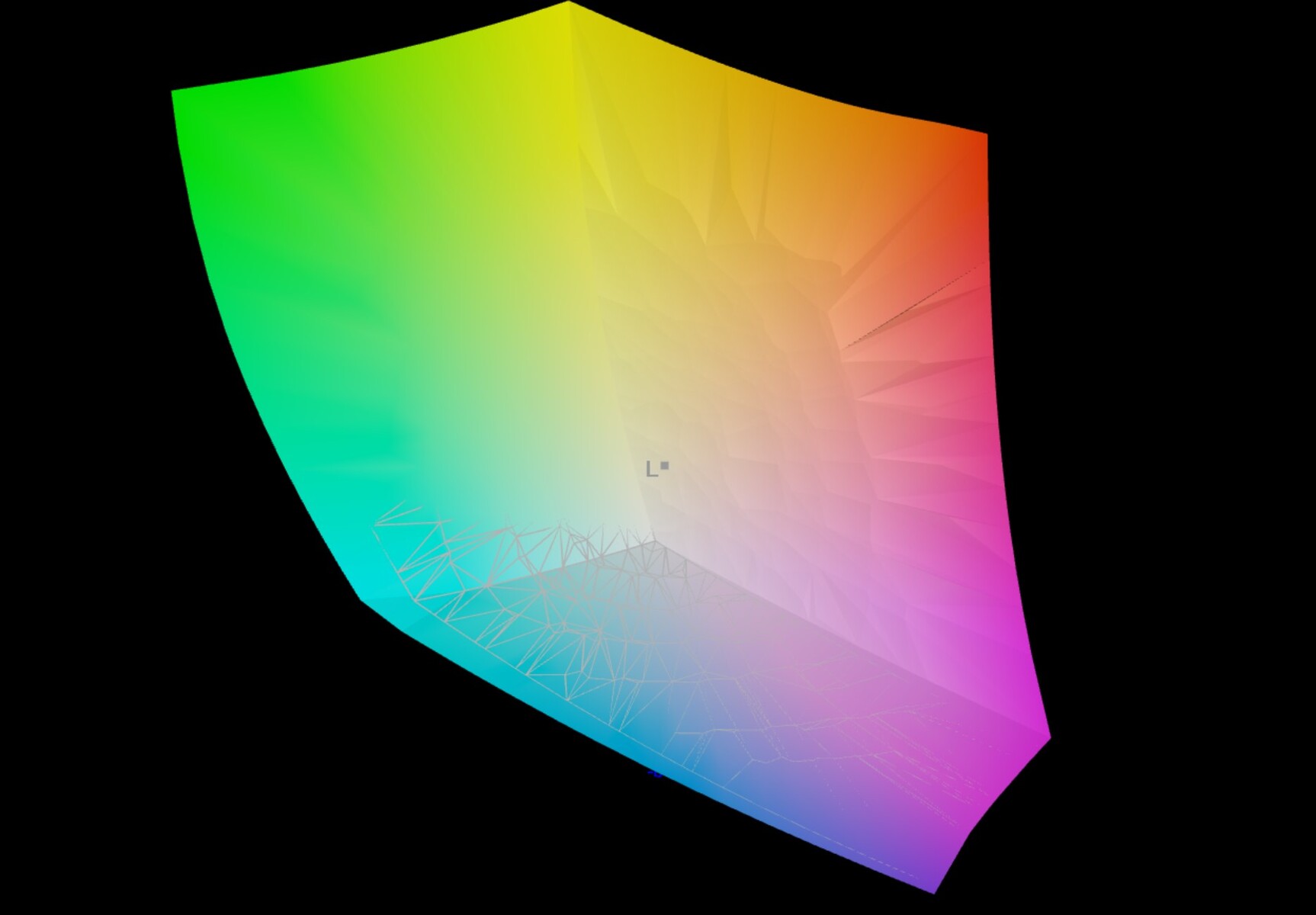

99.7% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.39
Acer Swift Edge SFE16-42-R1GM Samsung SDC4168, OLED, 3840x2400, 16" | LG Gram 16Z90Q LG LP160WQ1-SPB2 (LGD06EB), IPS, 2560x1600, 16" | Samsung Galaxy Book3 Pro 16 Samsung ATNA60CL03-0, AMOLED, 2880x1800, 16" | Acer TravelMate P4 TMP416-51-55KN BOE BOE0A32, IPS, 1920x1200, 16" | LG Ultra-PC 16 16U70Q-G.AR36G LG Display LP160WU1-SPH1, IPS, 1280x1200, 16" | Lenovo ThinkPad T16 G1 21CH004MGE MNG007DA1-C, IPS-LED, 2560x1600, 16" | |
---|---|---|---|---|---|---|
Display | -5% | 0% | -54% | -57% | -22% | |
Display P3 Coverage | 99.7 | 96.8 -3% | 99.7 0% | 38.9 -61% | 36 -64% | 66.7 -33% |
sRGB Coverage | 100 | 99.9 0% | 100 0% | 58.1 -42% | 55 -45% | 95.7 -4% |
AdobeRGB 1998 Coverage | 97.2 | 84.6 -13% | 97 0% | 40.2 -59% | 37 -62% | 69.1 -29% |
Response Times | -1371% | 17% | -550% | -1317% | -1018% | |
Response Time Grey 50% / Grey 80% * | 2 ? | 45.7 ? -2185% | 2 ? -0% | 20 ? -900% | 38 ? -1800% | 32.1 ? -1505% |
Response Time Black / White * | 3 ? | 19.7 ? -557% | 2 ? 33% | 9 ? -200% | 28 ? -833% | 18.9 ? -530% |
PWM Frequency | 239 ? | |||||
Screen | -9% | -1% | -59% | -63% | 10% | |
Brightness middle | 369 | 366 -1% | 412 12% | 269 -27% | 299 -19% | 417 13% |
Brightness | 371 | 347 -6% | 412 11% | 265 -29% | 270 -27% | 388 5% |
Brightness Distribution | 97 | 89 -8% | 98 1% | 94 -3% | 85 -12% | 81 -16% |
Black Level * | 0.32 | 0.015 | 0.305 | 0.265 | 0.24 | |
Colorchecker dE 2000 * | 2.3 | 2.82 -23% | 2.34 -2% | 4.89 -113% | 4.57 -99% | 1.7 26% |
Colorchecker dE 2000 max. * | 4.37 | 4.65 -6% | 3.34 24% | 8.81 -102% | 8.92 -104% | 3.5 20% |
Colorchecker dE 2000 calibrated * | 2.87 | 2.69 6% | 2.95 -3% | 5.12 -78% | 5.02 -75% | 1.4 51% |
Greyscale dE 2000 * | 1.83 | 2.3 -26% | 2.78 -52% | 2.91 -59% | 3.8 -108% | 2.4 -31% |
Gamma | 2.39 92% | 1.971 112% | 2.5 88% | 2.28 96% | 2.6 85% | 2.16 102% |
CCT | 6392 102% | 6796 96% | 6879 94% | 6920 94% | 6142 106% | 6924 94% |
Contrast | 1144 | 27467 | 882 | 1128 | 1738 | |
Total Average (Program / Settings) | -462% /
-235% | 5% /
2% | -221% /
-139% | -479% /
-271% | -343% /
-169% |
* ... smaller is better

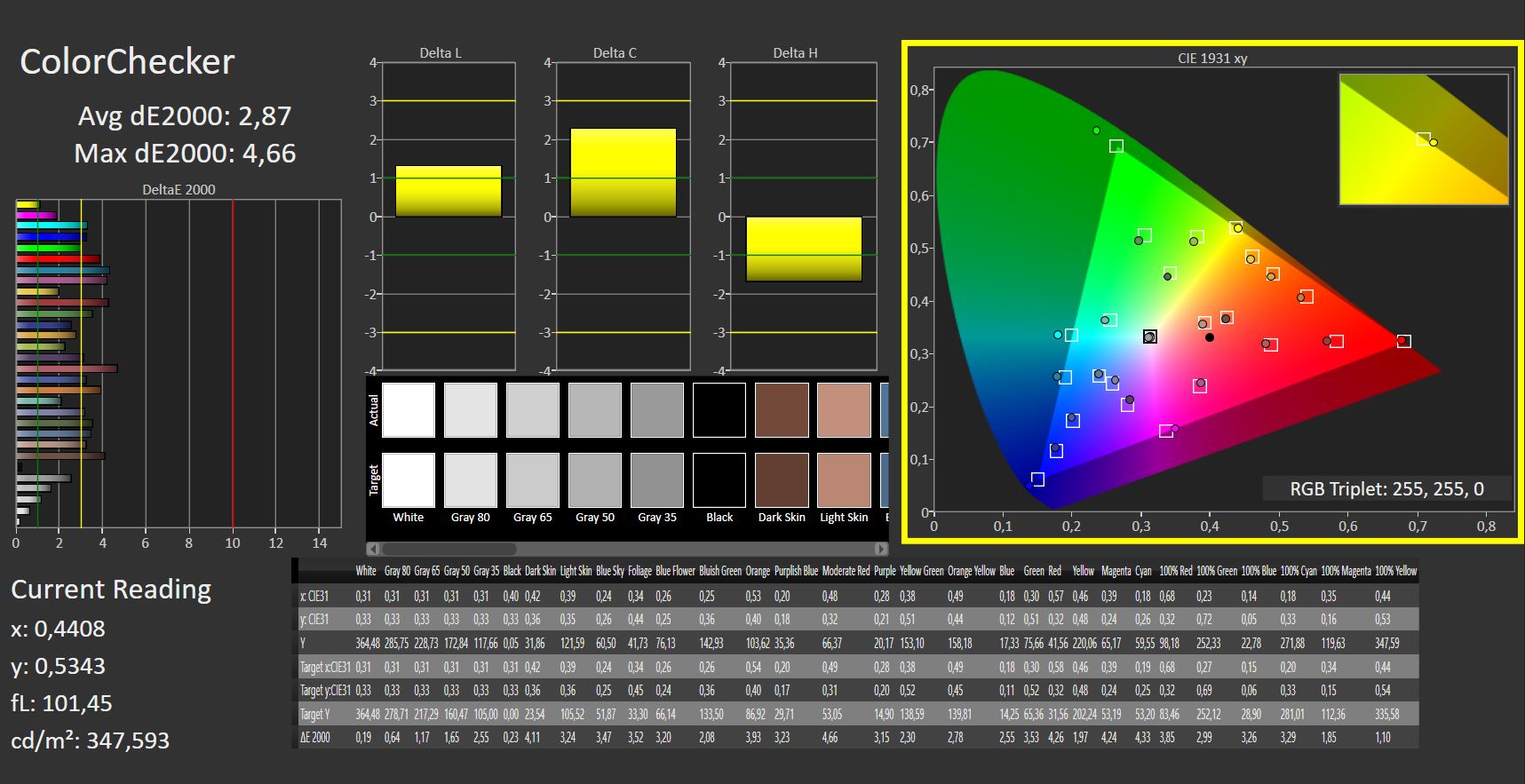

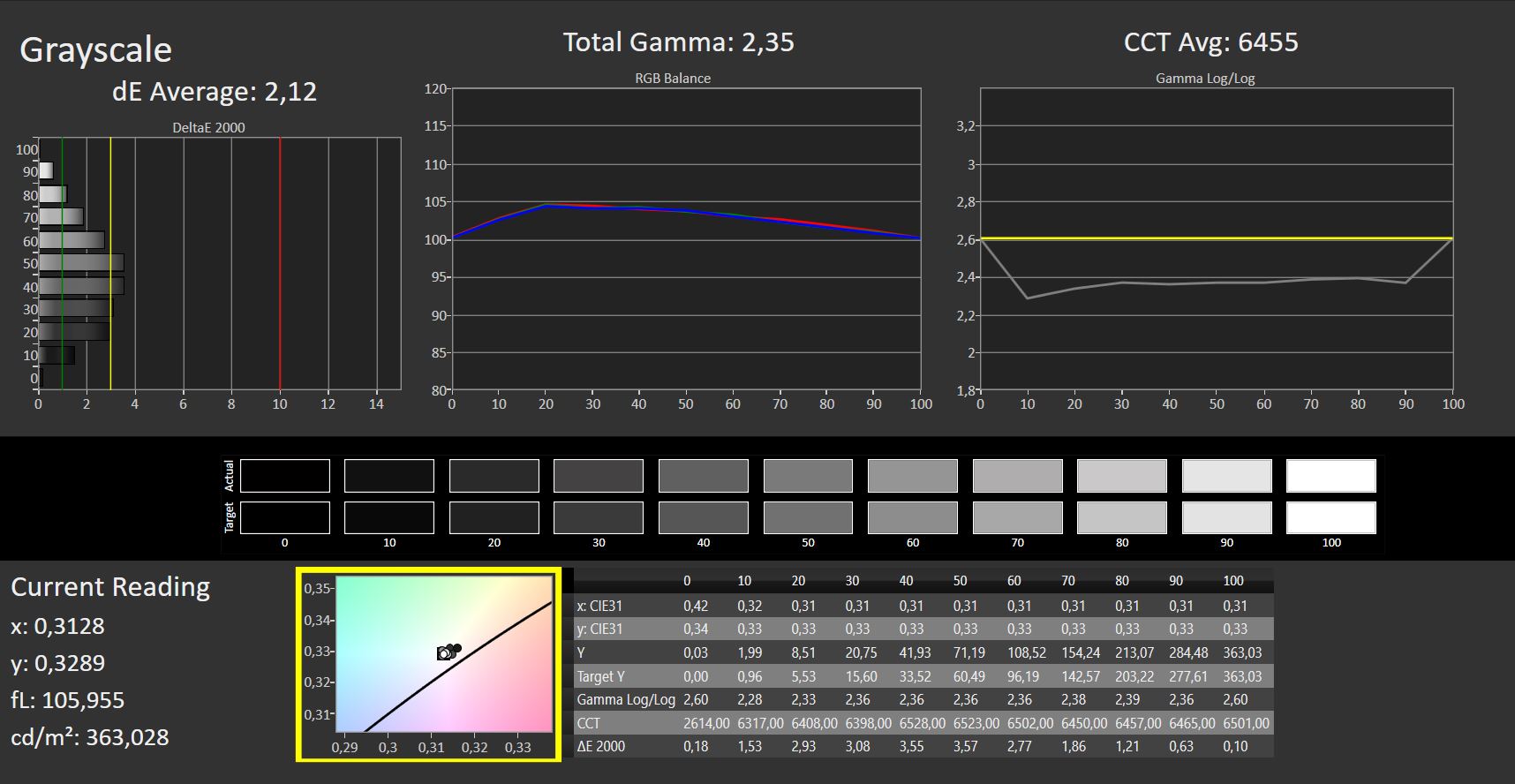

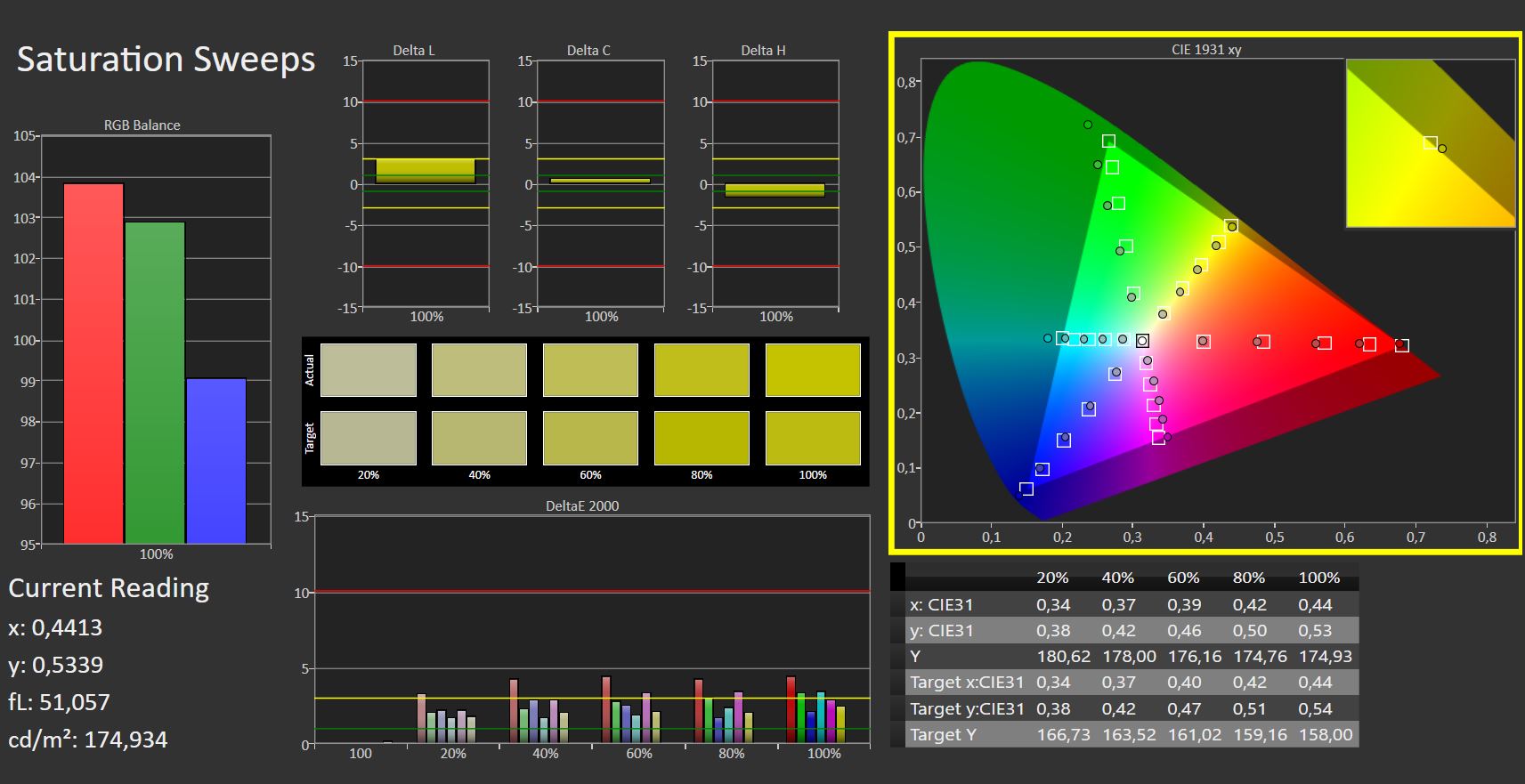

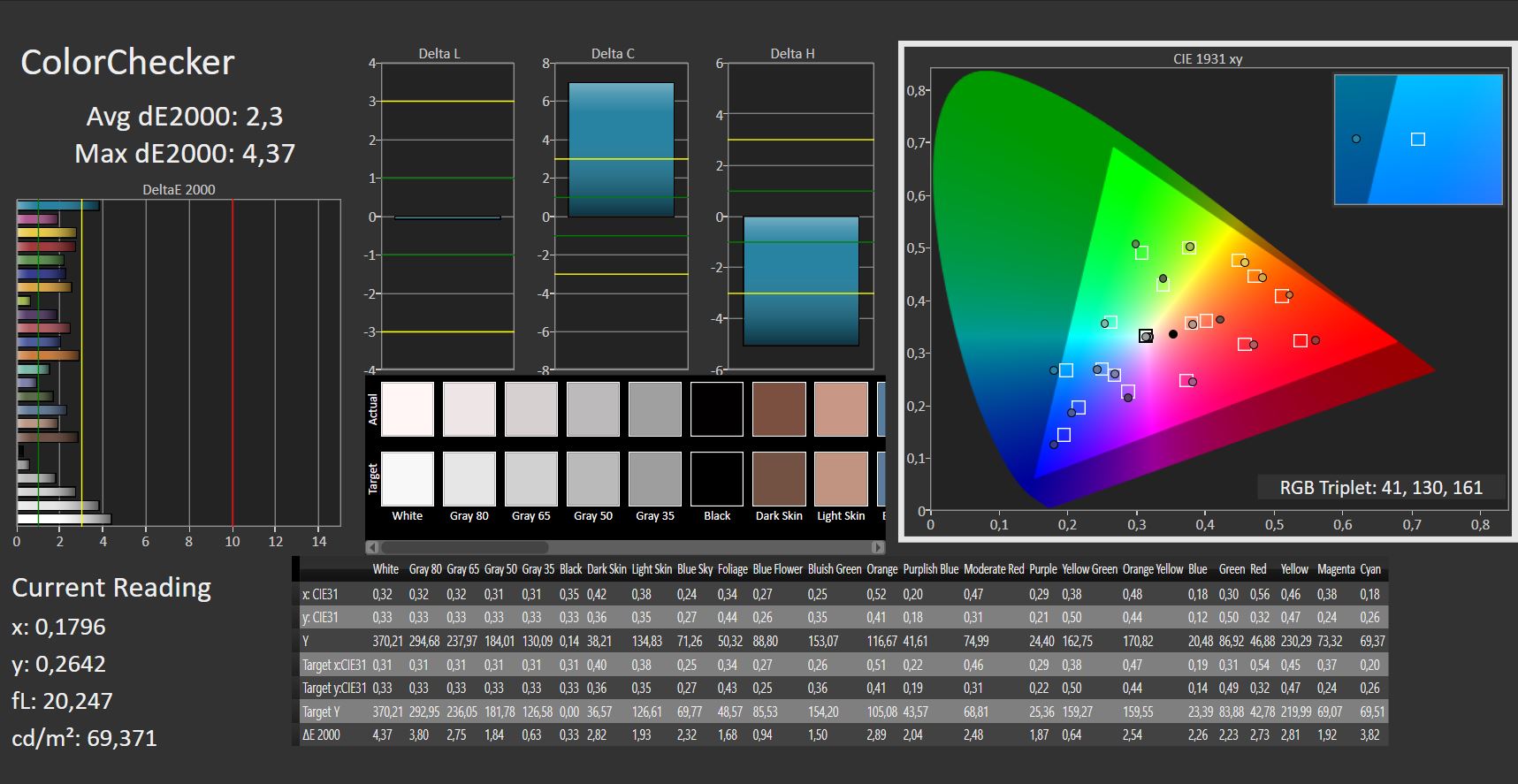

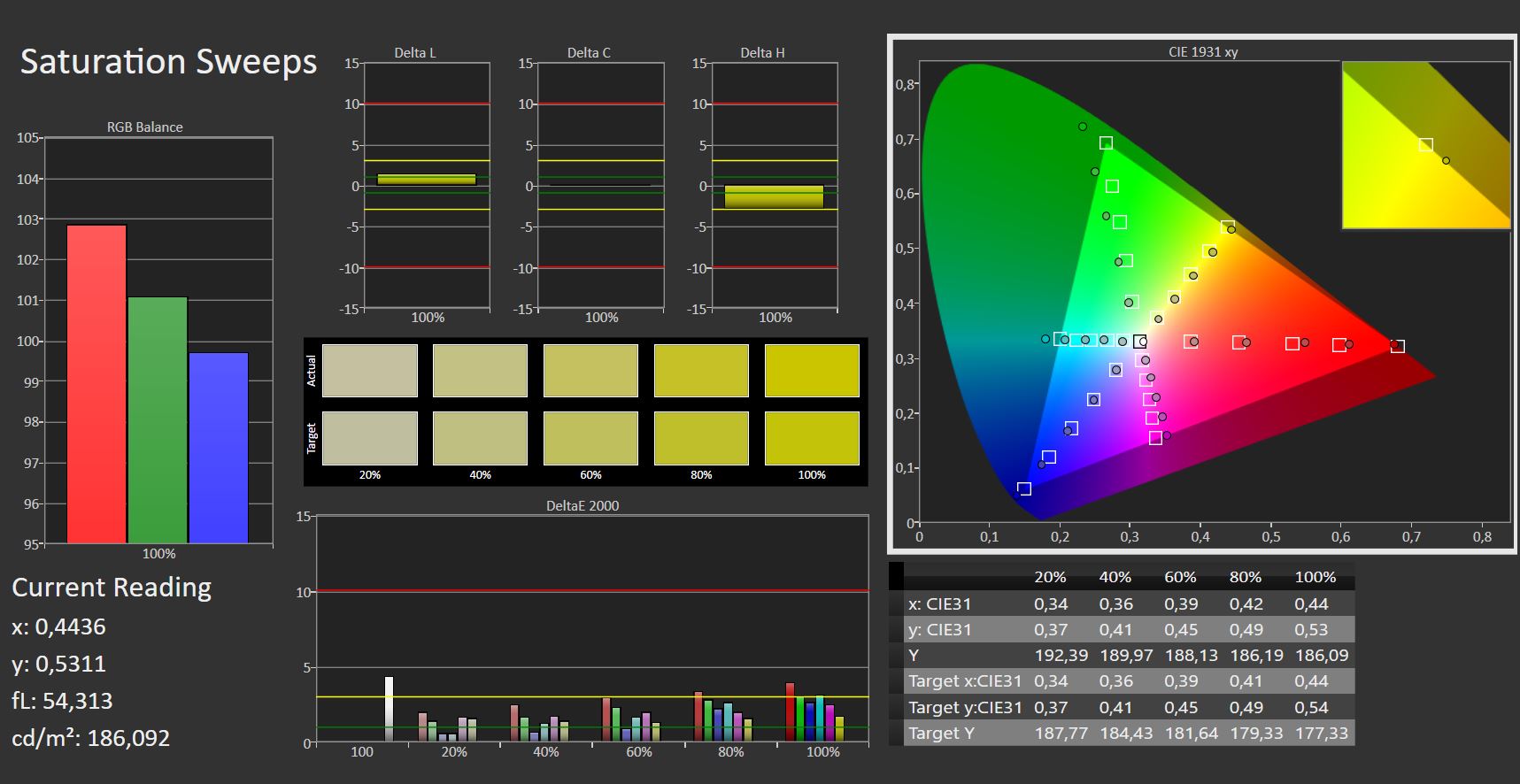

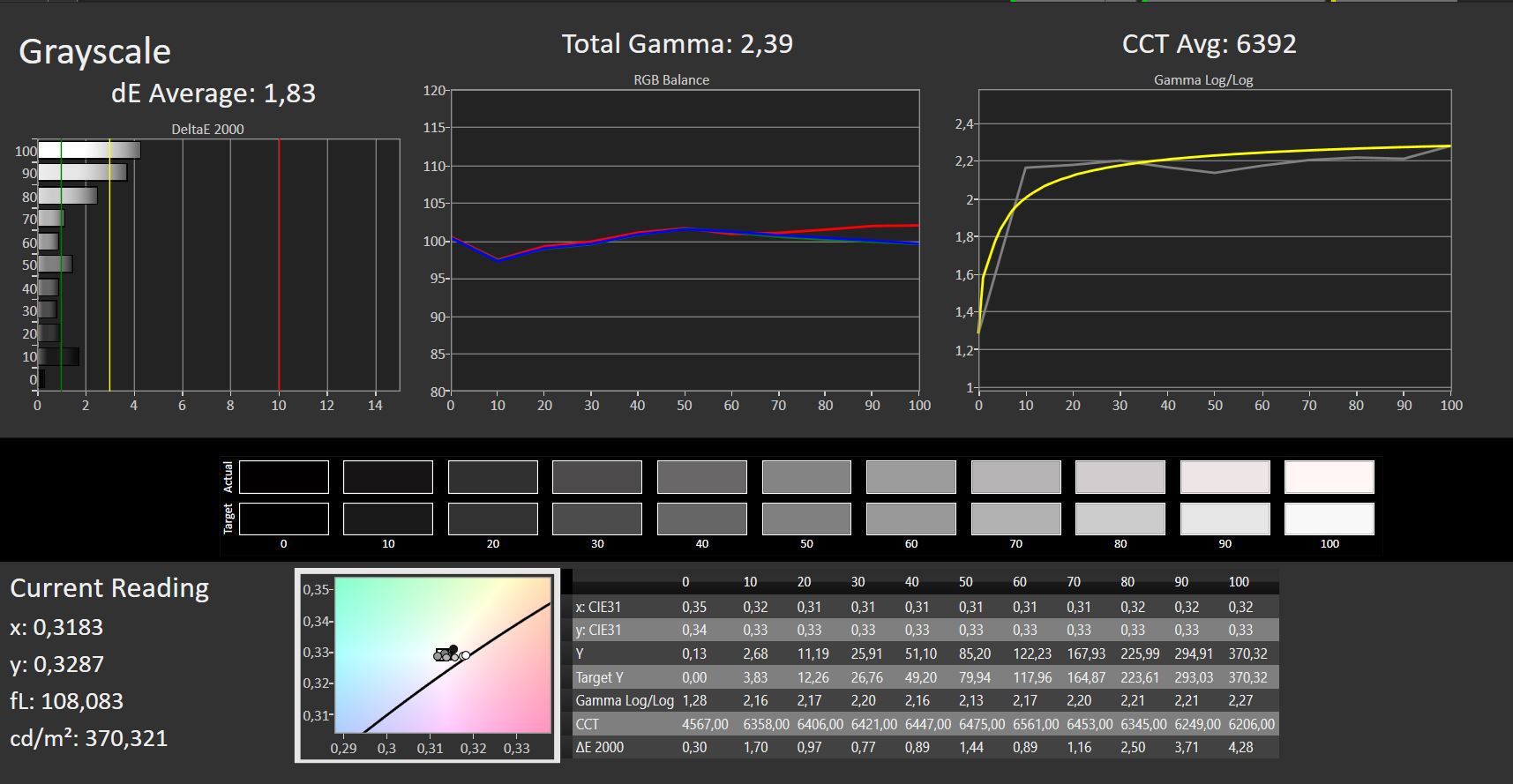

它的描写质量几乎是完美的--我们的DeltaE 2000色彩测量证实了这一点。前工程,我们注意到价值低于目标值3,这意味着宏碁提供的Swift Edge SFE16有一个制造商特定的校准。在色彩准确性方面,这台笔记本电脑也达到了近乎完美的比率,因此,将自己置于与AMOLED显示屏相同的水平上。三星Galaxy Book3.这意味着我们绝对可以看到宏碁Swift Edge SFE16被用于专业领域。

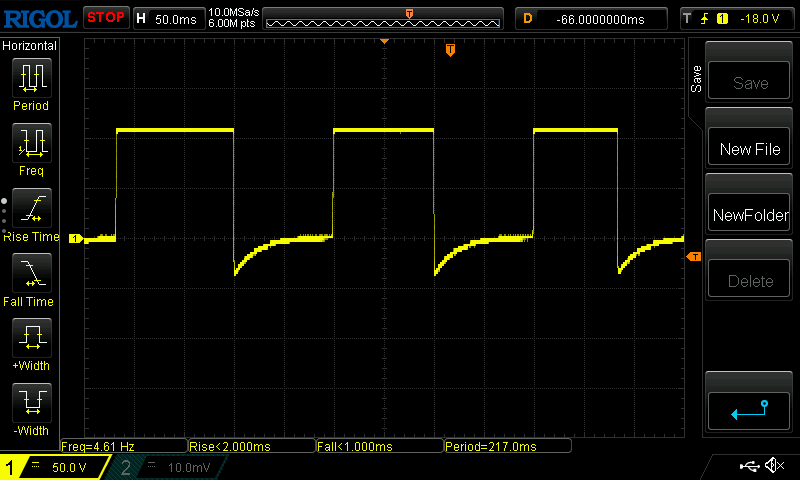

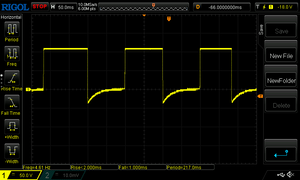

Display Response Times
↔ Response Time Black to White | ||
---|---|---|
3 ms ... rise ↗ and fall ↘ combined | ↗ 2 ms rise | |
↘ 1 ms fall | ||
The screen shows very fast response rates in our tests and should be very well suited for fast-paced gaming. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 11 % of all devices are better. This means that the measured response time is better than the average of all tested devices (21 ms). | ||
↔ Response Time 50% Grey to 80% Grey | ||
2 ms ... rise ↗ and fall ↘ combined | ↗ 1 ms rise | |
↘ 1 ms fall | ||
The screen shows very fast response rates in our tests and should be very well suited for fast-paced gaming. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 6 % of all devices are better. This means that the measured response time is better than the average of all tested devices (32.9 ms). |

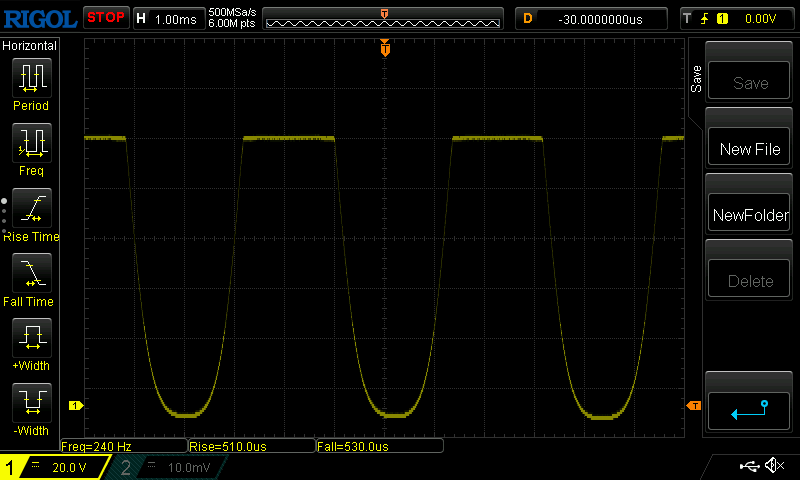

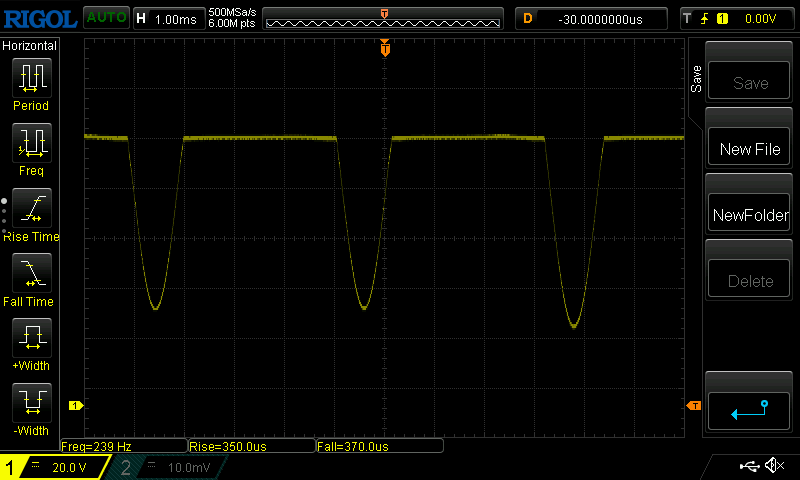

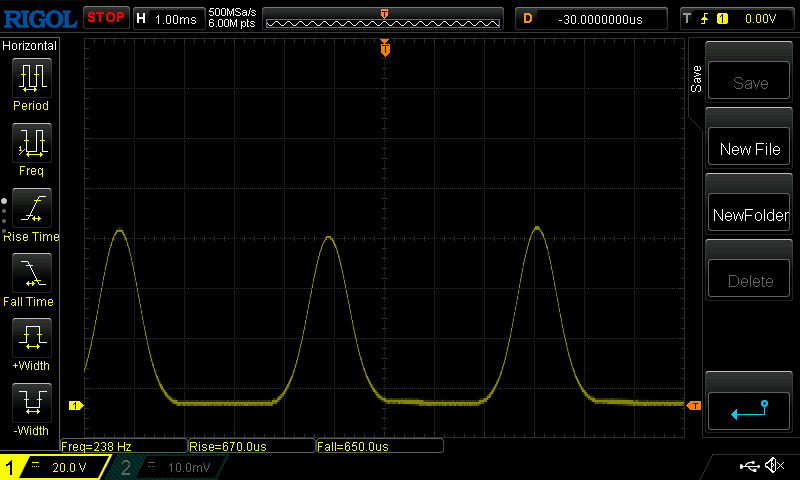

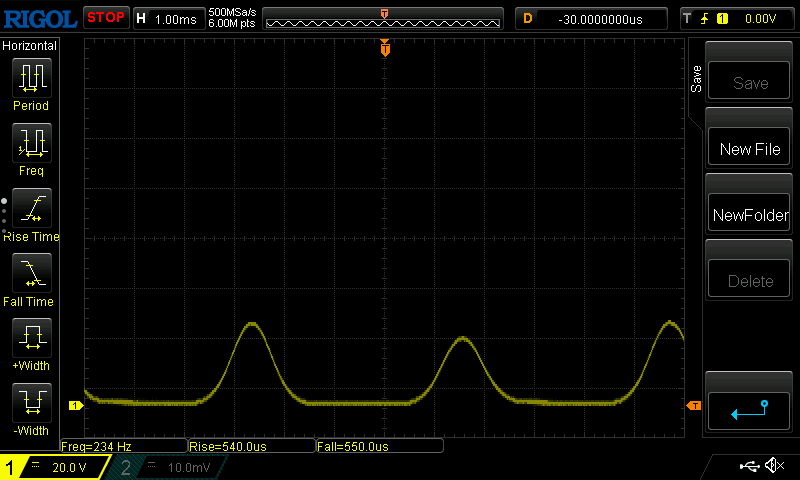

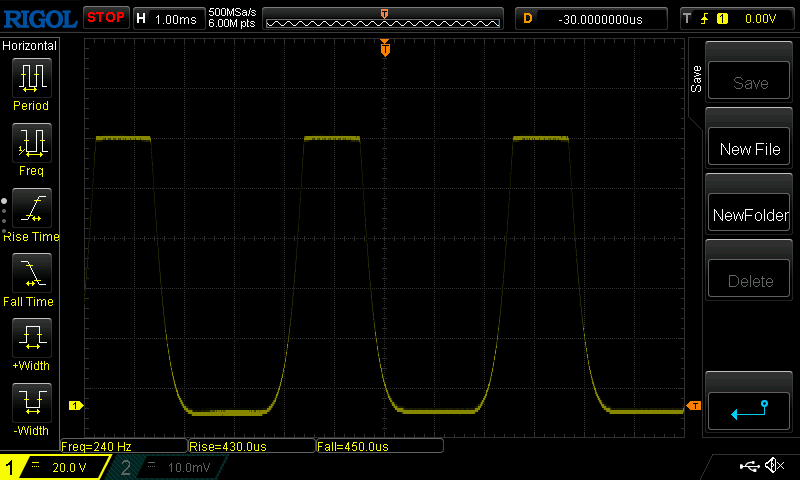

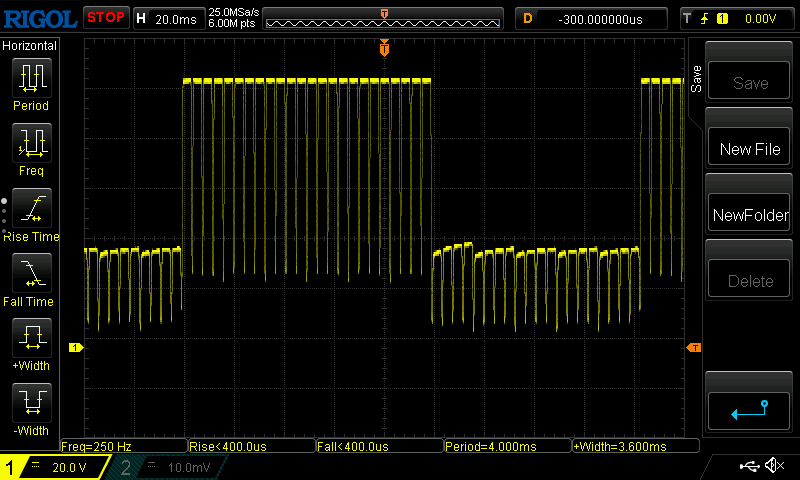

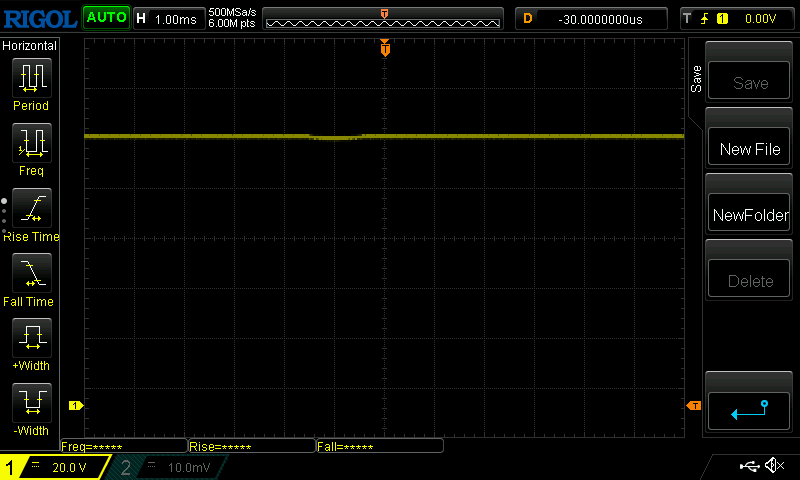

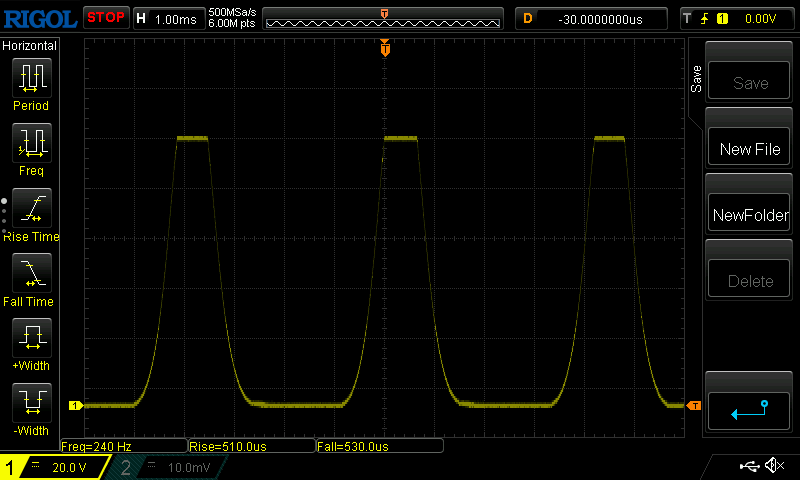

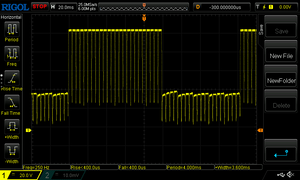

Screen Flickering / PWM (Pulse-Width Modulation)
Screen flickering / PWM detected | 239 Hz | ≤ 50 % brightness setting | |
The display backlight flickers at 239 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 50 % and below. There should be no flickering or PWM above this brightness setting. The frequency of 239 Hz is relatively low, so sensitive users will likely notice flickering and experience eyestrain at the stated brightness setting and below. In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8774 (minimum: 5 - maximum: 343500) Hz was measured. |

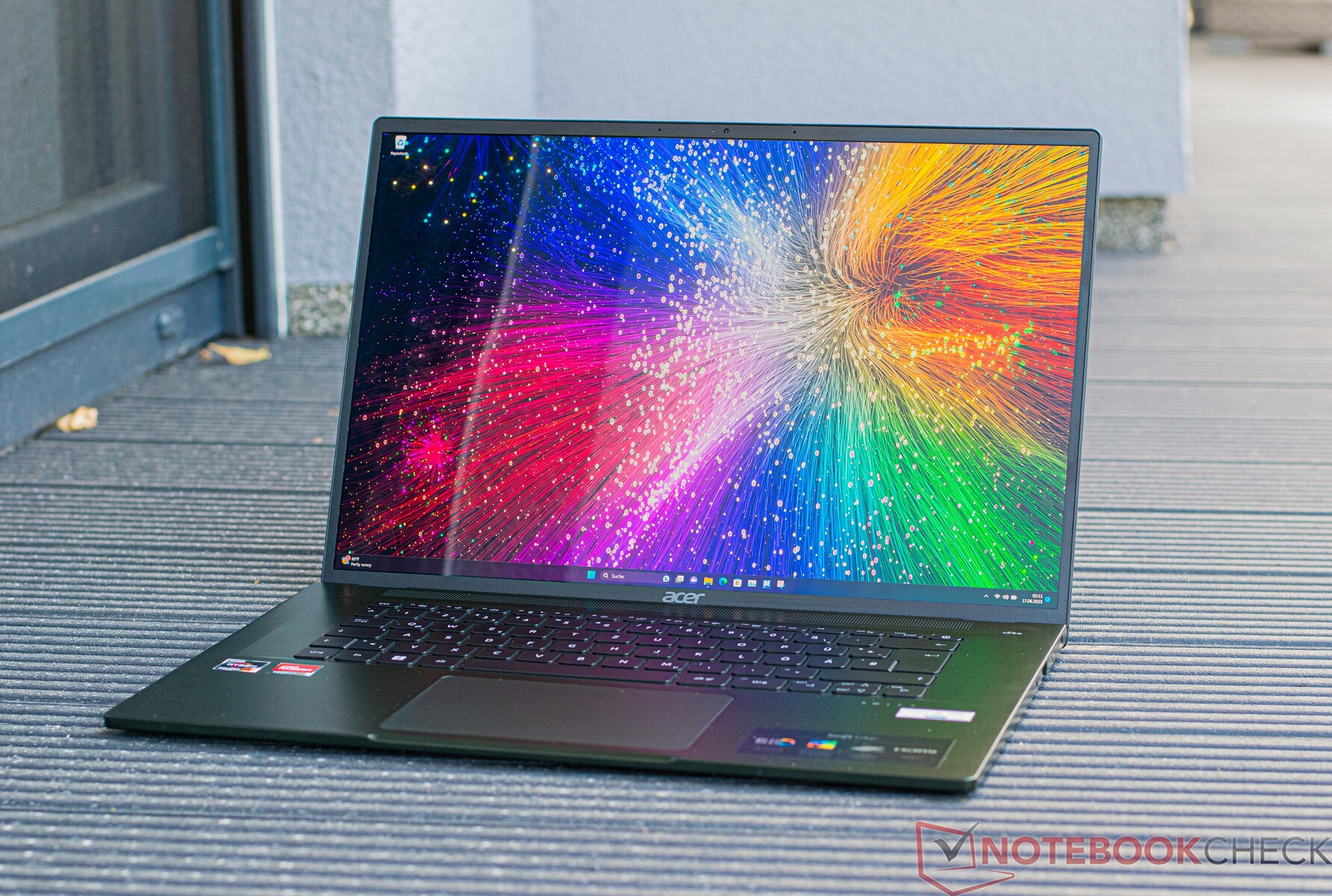

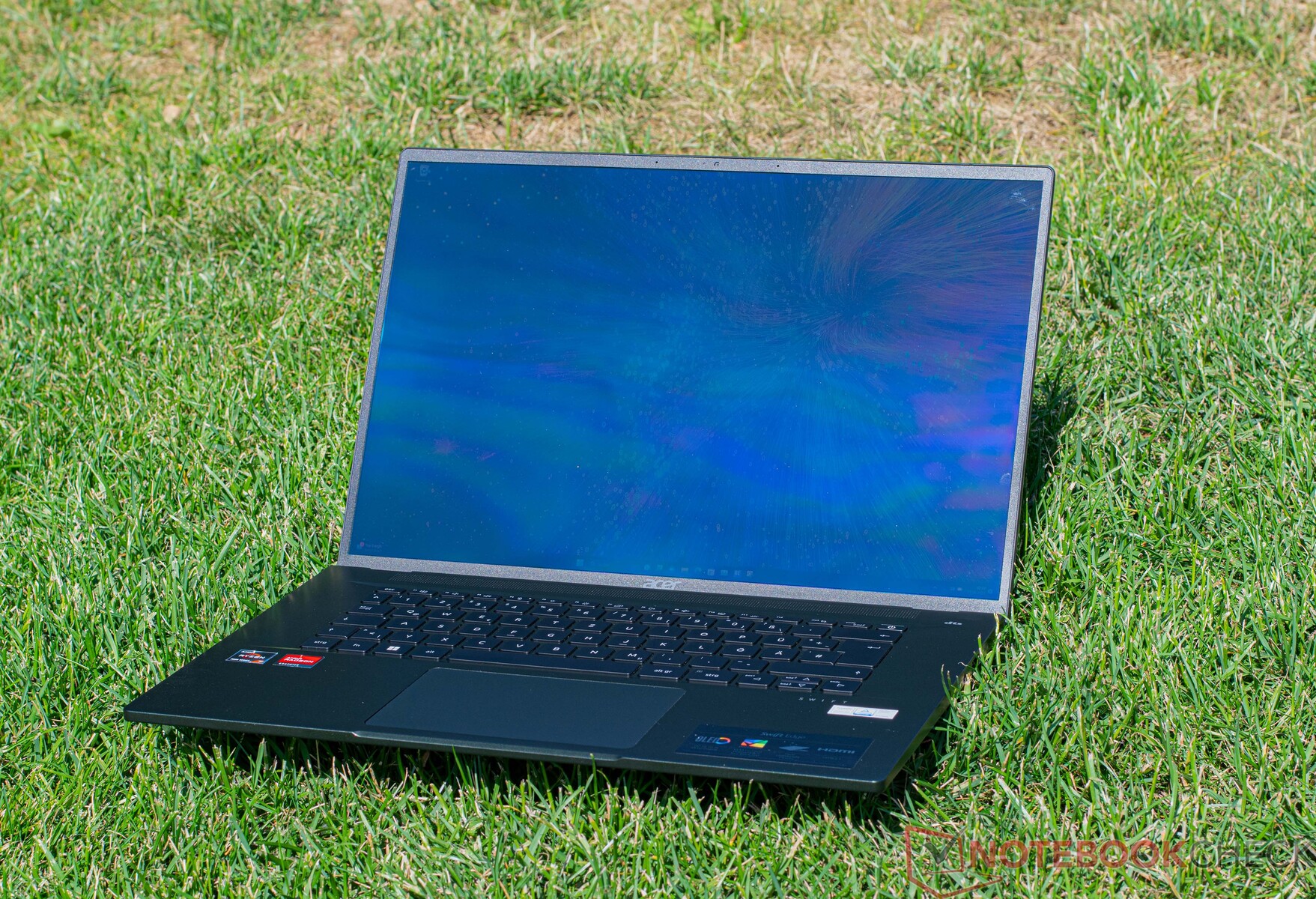

笔记本电脑闪亮的显示屏导致了相当恼人的外部反射,这大大限制了它的用途。显示屏的亮度也没有任何帮助。这意味着,如果你必须在外面使用笔记本电脑,你唯一的解决办法就是找一个非常阴暗的地方坐下。

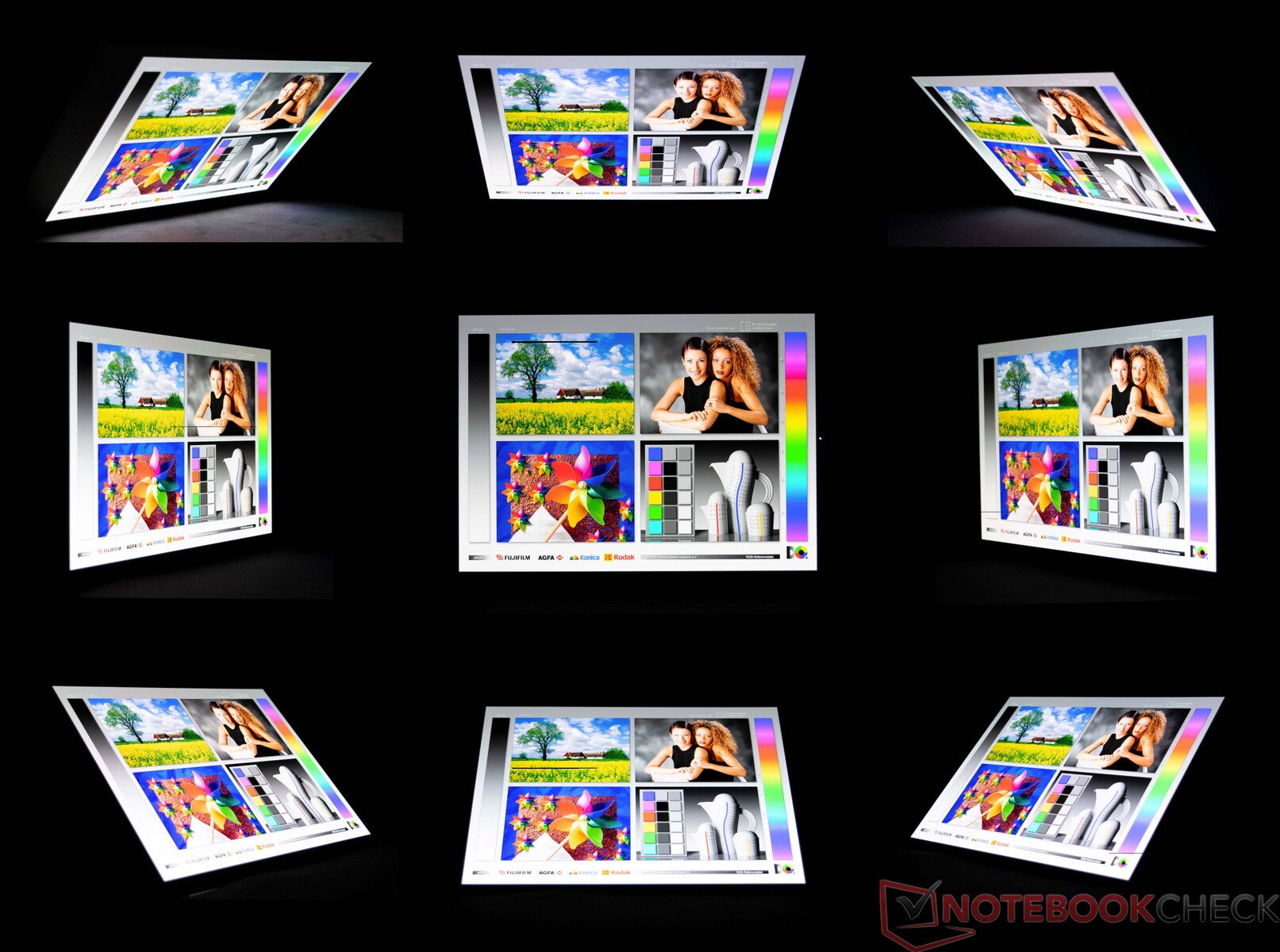

笔记本电脑的OLED面板的可视角度非常稳定,你可以在下面的图形中看到这一点。我们没有注意到任何朦胧或颜色的变化。
性能--节俭的Ryzen 7 7735U

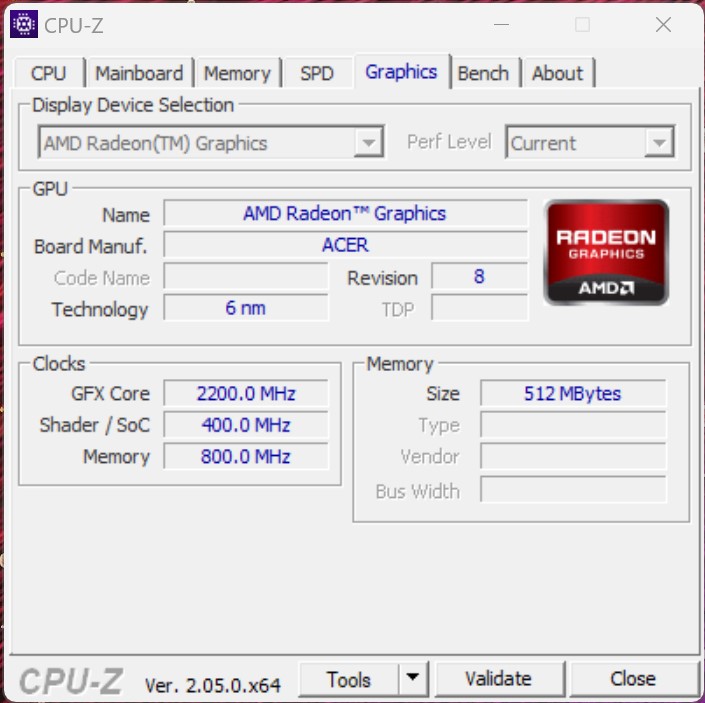

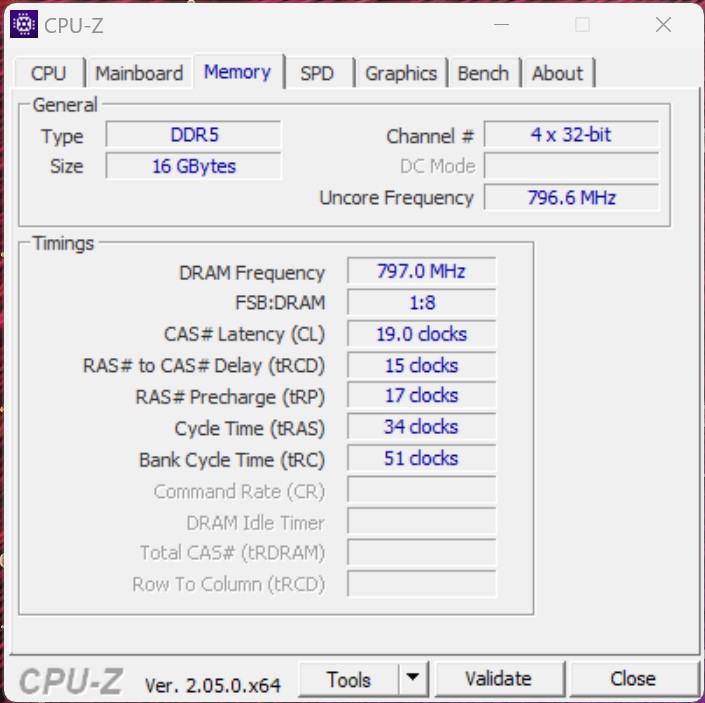

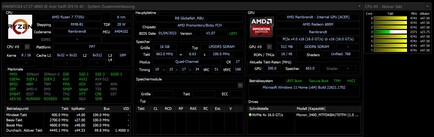

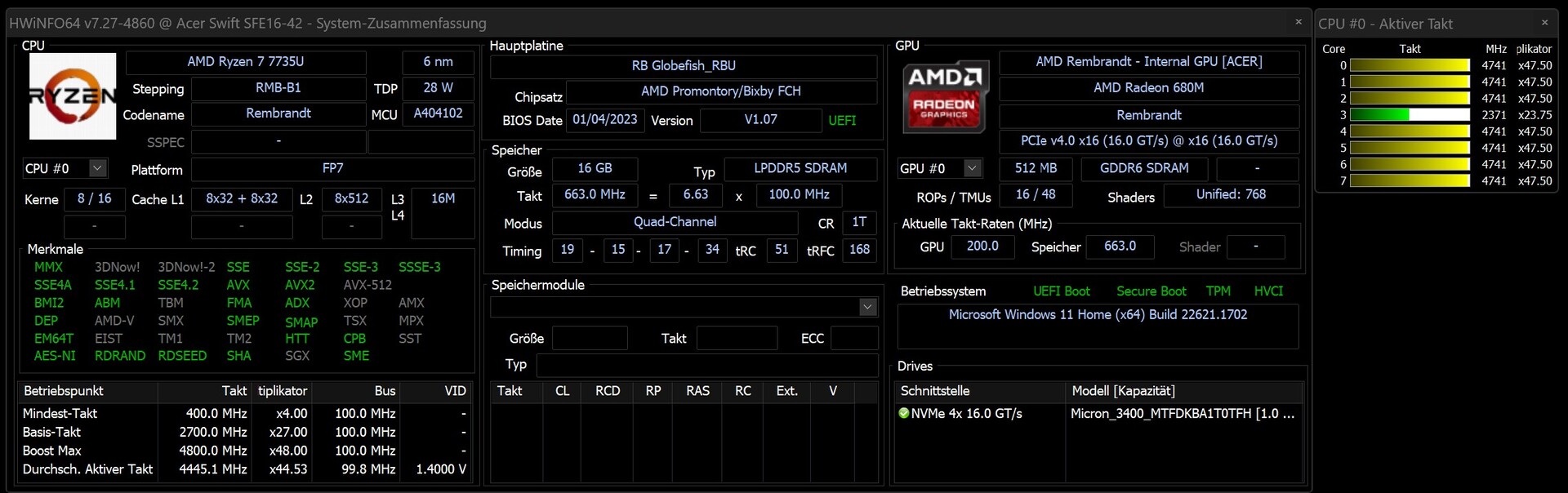

Acer Swift Edge SFE16的AMD Ryzen 7 7735U是一个现代的SoC,具有良好的iGPU和16GB内存。另外,也可以购买同样基础的笔记本电脑,但有32GB内存。你必须牢记,购买后不能升级内存。其价格为1079-1288美元,取决于型号。
测试条件
你可以使用组合键 "Fn "+"F "在三个制造商特定的性能模式之间切换,改变风扇速度。我们使用了 "性能模式"(基准测试)和 "静音模式"(电池测试)。

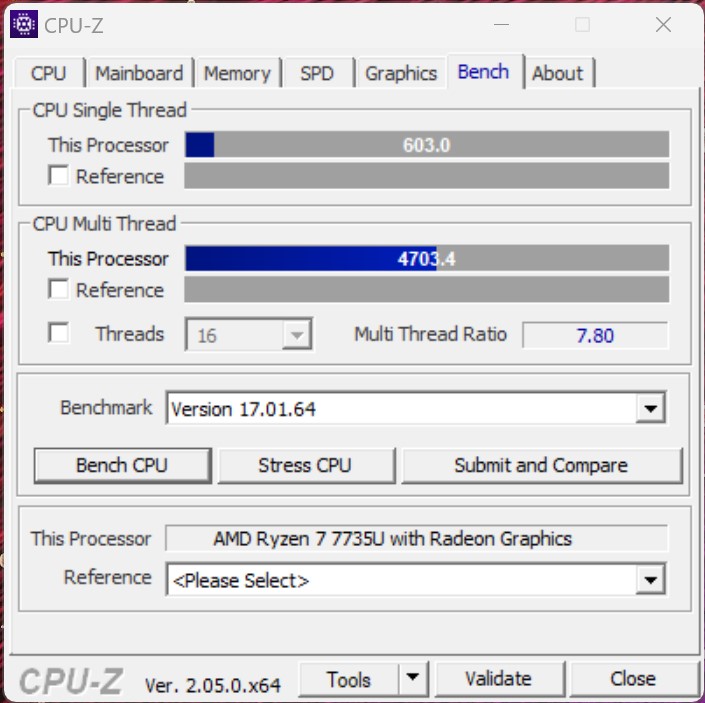

处理器

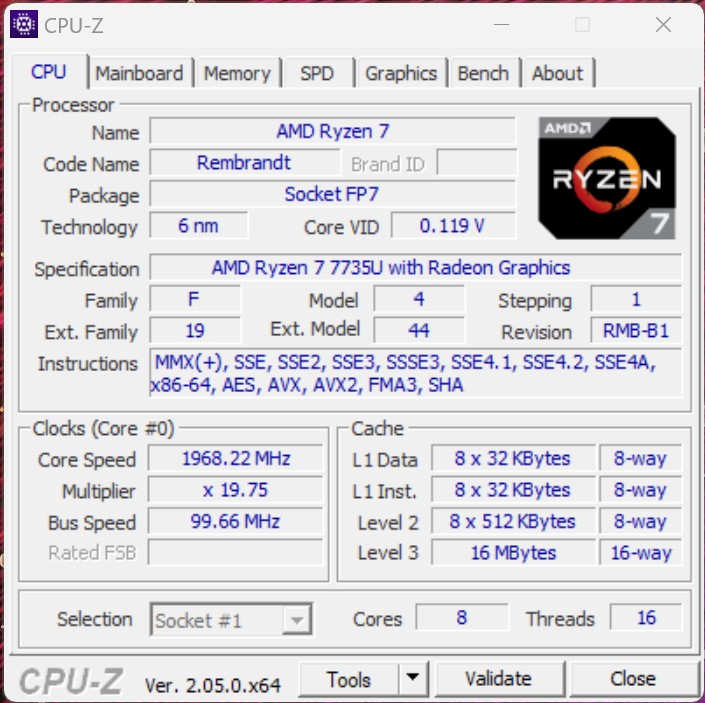

一个AMD Ryzen 7 7735U是宏碁Swift Edge SFE16的动力源。该SoC有8个核心,可以同时处理总共16个线程。伦勃朗SoC的功耗最多限制在28瓦。然而,在我们的测试中,我们没有达到这个数值--从Cinebench R15多循环结果中可以看出,笔记本电脑的SoC最多只用了23.5瓦。平均而言,AMD Ryzen 7 7735U的功耗稳定在略高于18瓦。
在我们的CPU测试中,我们注意到了良好的结果--优于联想ThinkPad T16基于AMD Ryzen 5 PRO 6650U.必须指出的是,该设备的核心数量少了两个。其单核性能大约在同一水平上。这款 英特尔酷睿i5-1240P和英特尔酷睿i5-1340P提供了更好的性能,这意味着三星Galaxy Book3和Acer TravelMate P4分别获得第一和第二名。
关于进一步的比较和基准,请看我们的CPU比较表 。

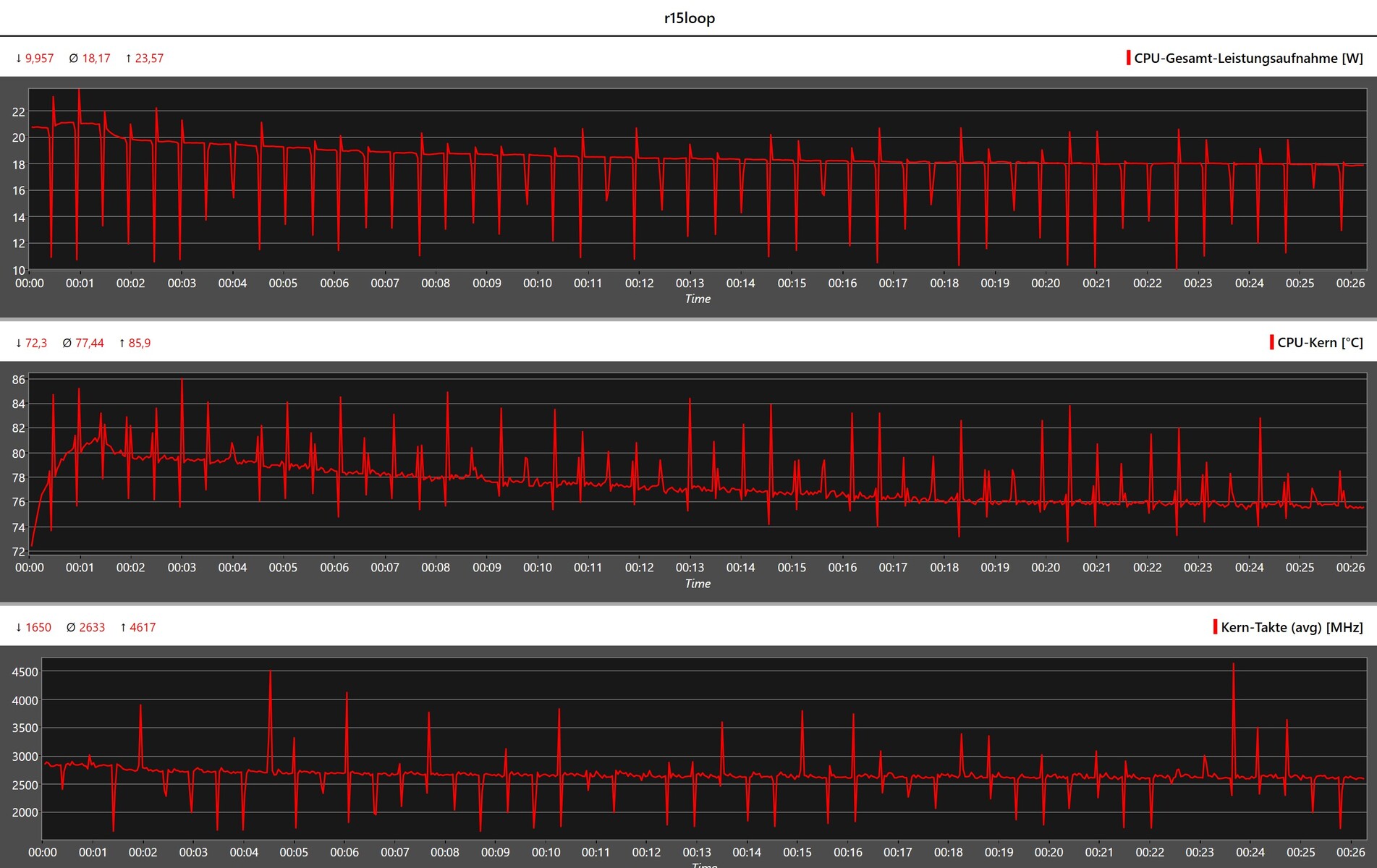

Cinebench R15 Multi continuous test
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
CPU Performance Rating | |
Samsung Galaxy Book3 Pro 16 | |
Acer TravelMate P4 TMP416-51-55KN | |
Acer Swift Edge SFE16-42-R1GM | |
Average AMD Ryzen 7 7735U | |
Lenovo ThinkPad T16 G1 21CH004MGE | |
Average of class Office | |
LG Gram 16Z90Q | |
LG Ultra-PC 16 16U70Q-G.AR36G -2! |
Cinebench R23 / Multi Core | |
Samsung Galaxy Book3 Pro 16 | |
Acer TravelMate P4 TMP416-51-55KN | |
Acer Swift Edge SFE16-42-R1GM | |
Average AMD Ryzen 7 7735U () | |
Lenovo ThinkPad T16 G1 21CH004MGE | |
Average of class Office (1577 - 15743, n=101, last 2 years) | |
LG Gram 16Z90Q | |
LG Ultra-PC 16 16U70Q-G.AR36G |
Cinebench R23 / Single Core | |
Samsung Galaxy Book3 Pro 16 | |
Acer TravelMate P4 TMP416-51-55KN | |
LG Gram 16Z90Q | |
Average of class Office (618 - 1995, n=101, last 2 years) | |
Acer Swift Edge SFE16-42-R1GM | |
Average AMD Ryzen 7 7735U () | |
Lenovo ThinkPad T16 G1 21CH004MGE | |
LG Ultra-PC 16 16U70Q-G.AR36G |
Cinebench R20 / CPU (Multi Core) | |
Samsung Galaxy Book3 Pro 16 | |
Acer TravelMate P4 TMP416-51-55KN | |
Acer Swift Edge SFE16-42-R1GM | |
Average AMD Ryzen 7 7735U () | |
Lenovo ThinkPad T16 G1 21CH004MGE | |
Average of class Office (590 - 5980, n=101, last 2 years) | |
LG Gram 16Z90Q | |
LG Ultra-PC 16 16U70Q-G.AR36G |
Cinebench R20 / CPU (Single Core) | |
Samsung Galaxy Book3 Pro 16 | |
Acer TravelMate P4 TMP416-51-55KN | |
LG Gram 16Z90Q | |
Average of class Office (229 - 764, n=101, last 2 years) | |
Lenovo ThinkPad T16 G1 21CH004MGE | |
Acer Swift Edge SFE16-42-R1GM | |
Average AMD Ryzen 7 7735U () | |
LG Ultra-PC 16 16U70Q-G.AR36G |
Cinebench R15 / CPU Multi 64Bit | |
Acer TravelMate P4 TMP416-51-55KN | |
Samsung Galaxy Book3 Pro 16 | |
Acer Swift Edge SFE16-42-R1GM | |
Average AMD Ryzen 7 7735U () | |
Lenovo ThinkPad T16 G1 21CH004MGE | |
Average of class Office (242 - 2642, n=102, last 2 years) | |
LG Gram 16Z90Q | |
LG Ultra-PC 16 16U70Q-G.AR36G |
Cinebench R15 / CPU Single 64Bit | |
Samsung Galaxy Book3 Pro 16 | |
Acer TravelMate P4 TMP416-51-55KN | |
Acer Swift Edge SFE16-42-R1GM | |
Average AMD Ryzen 7 7735U () | |
Lenovo ThinkPad T16 G1 21CH004MGE | |
Average of class Office (98 - 284, n=101, last 2 years) | |
LG Gram 16Z90Q | |
LG Ultra-PC 16 16U70Q-G.AR36G |
Blender / v2.79 BMW27 CPU | |
LG Ultra-PC 16 16U70Q-G.AR36G | |
LG Gram 16Z90Q | |
Average of class Office (208 - 2248, n=103, last 2 years) | |
Lenovo ThinkPad T16 G1 21CH004MGE | |
Acer TravelMate P4 TMP416-51-55KN | |
Acer Swift Edge SFE16-42-R1GM | |
Average AMD Ryzen 7 7735U () | |
Samsung Galaxy Book3 Pro 16 |
7-Zip 18.03 / 7z b 4 | |
Acer Swift Edge SFE16-42-R1GM | |
Average AMD Ryzen 7 7735U () | |
Samsung Galaxy Book3 Pro 16 | |
Acer TravelMate P4 TMP416-51-55KN | |
Lenovo ThinkPad T16 G1 21CH004MGE | |
Average of class Office (7212 - 65460, n=103, last 2 years) | |
LG Gram 16Z90Q | |
LG Ultra-PC 16 16U70Q-G.AR36G |
7-Zip 18.03 / 7z b 4 -mmt1 | |
Acer Swift Edge SFE16-42-R1GM | |
Average AMD Ryzen 7 7735U () | |
Acer TravelMate P4 TMP416-51-55KN | |
Samsung Galaxy Book3 Pro 16 | |
Lenovo ThinkPad T16 G1 21CH004MGE | |
Average of class Office (2769 - 6687, n=103, last 2 years) | |
LG Gram 16Z90Q | |
LG Ultra-PC 16 16U70Q-G.AR36G |
Geekbench 5.5 / Multi-Core | |
Samsung Galaxy Book3 Pro 16 | |
Acer TravelMate P4 TMP416-51-55KN | |
LG Gram 16Z90Q | |
Acer Swift Edge SFE16-42-R1GM | |
Average AMD Ryzen 7 7735U () | |
Average of class Office (1018 - 11980, n=102, last 2 years) | |
Lenovo ThinkPad T16 G1 21CH004MGE |
Geekbench 5.5 / Single-Core | |
Samsung Galaxy Book3 Pro 16 | |
LG Gram 16Z90Q | |
Acer TravelMate P4 TMP416-51-55KN | |
Average of class Office (510 - 1989, n=103, last 2 years) | |
Acer Swift Edge SFE16-42-R1GM | |
Average AMD Ryzen 7 7735U () | |
Lenovo ThinkPad T16 G1 21CH004MGE |
HWBOT x265 Benchmark v2.2 / 4k Preset | |
Samsung Galaxy Book3 Pro 16 | |
Acer Swift Edge SFE16-42-R1GM | |
Average AMD Ryzen 7 7735U () | |
Acer TravelMate P4 TMP416-51-55KN | |
Lenovo ThinkPad T16 G1 21CH004MGE | |
Average of class Office (1.55 - 18.7, n=101, last 2 years) | |
LG Gram 16Z90Q | |
LG Ultra-PC 16 16U70Q-G.AR36G |
LibreOffice / 20 Documents To PDF | |
LG Ultra-PC 16 16U70Q-G.AR36G | |
Acer Swift Edge SFE16-42-R1GM | |
Average AMD Ryzen 7 7735U () | |
LG Gram 16Z90Q | |
Average of class Office (31.3 - 129.6, n=101, last 2 years) | |
Acer TravelMate P4 TMP416-51-55KN | |
Lenovo ThinkPad T16 G1 21CH004MGE | |
Samsung Galaxy Book3 Pro 16 |
R Benchmark 2.5 / Overall mean | |
LG Ultra-PC 16 16U70Q-G.AR36G | |
Average of class Office (0.4244 - 1.192, n=100, last 2 years) | |
LG Gram 16Z90Q | |
Lenovo ThinkPad T16 G1 21CH004MGE | |
Acer TravelMate P4 TMP416-51-55KN | |
Acer Swift Edge SFE16-42-R1GM | |
Average AMD Ryzen 7 7735U () | |
Samsung Galaxy Book3 Pro 16 |
* ... smaller is better
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
Performance Rating | |
Acer Swift Edge SFE16-42-R1GM | |
Average AMD Ryzen 7 7735U | |
Lenovo ThinkPad T16 G1 21CH004MGE | |
Samsung Galaxy Book3 Pro 16 | |
Acer TravelMate P4 TMP416-51-55KN | |
Average of class Office | |
LG Gram 16Z90Q | |
LG Ultra-PC 16 16U70Q-G.AR36G -1! |
AIDA64 / FP32 Ray-Trace | |
Acer Swift Edge SFE16-42-R1GM | |
Average AMD Ryzen 7 7735U () | |
Lenovo ThinkPad T16 G1 21CH004MGE | |
Average of class Office (763 - 24250, n=102, last 2 years) | |
Acer TravelMate P4 TMP416-51-55KN | |
Samsung Galaxy Book3 Pro 16 | |
LG Gram 16Z90Q | |
LG Ultra-PC 16 16U70Q-G.AR36G |
AIDA64 / FPU Julia | |
Acer Swift Edge SFE16-42-R1GM | |
Average AMD Ryzen 7 7735U () | |
Lenovo ThinkPad T16 G1 21CH004MGE | |
Samsung Galaxy Book3 Pro 16 | |
Acer TravelMate P4 TMP416-51-55KN | |
Average of class Office (4113 - 102228, n=102, last 2 years) | |
LG Ultra-PC 16 16U70Q-G.AR36G | |
LG Gram 16Z90Q |
AIDA64 / CPU SHA3 | |
Samsung Galaxy Book3 Pro 16 | |
Acer Swift Edge SFE16-42-R1GM | |
Average AMD Ryzen 7 7735U () | |
Acer TravelMate P4 TMP416-51-55KN | |
Lenovo ThinkPad T16 G1 21CH004MGE | |
Average of class Office (287 - 4551, n=102, last 2 years) | |
LG Gram 16Z90Q |
AIDA64 / CPU Queen | |
Acer Swift Edge SFE16-42-R1GM | |
Average AMD Ryzen 7 7735U () | |
Samsung Galaxy Book3 Pro 16 | |
Lenovo ThinkPad T16 G1 21CH004MGE | |
Acer TravelMate P4 TMP416-51-55KN | |
LG Gram 16Z90Q | |
Average of class Office (8185 - 115197, n=102, last 2 years) | |
LG Ultra-PC 16 16U70Q-G.AR36G |
AIDA64 / FPU SinJulia | |
Acer Swift Edge SFE16-42-R1GM | |
Average AMD Ryzen 7 7735U () | |
Lenovo ThinkPad T16 G1 21CH004MGE | |
Average of class Office (404 - 14288, n=102, last 2 years) | |
LG Ultra-PC 16 16U70Q-G.AR36G | |
Samsung Galaxy Book3 Pro 16 | |
Acer TravelMate P4 TMP416-51-55KN | |
LG Gram 16Z90Q |
AIDA64 / FPU Mandel | |
Acer Swift Edge SFE16-42-R1GM | |
Average AMD Ryzen 7 7735U () | |
Lenovo ThinkPad T16 G1 21CH004MGE | |
Average of class Office (2075 - 54365, n=102, last 2 years) | |
Samsung Galaxy Book3 Pro 16 | |
Acer TravelMate P4 TMP416-51-55KN | |
LG Ultra-PC 16 16U70Q-G.AR36G | |
LG Gram 16Z90Q |
AIDA64 / CPU AES | |
Lenovo ThinkPad T16 G1 21CH004MGE | |
Samsung Galaxy Book3 Pro 16 | |
Average of class Office (5426 - 155900, n=102, last 2 years) | |
Acer TravelMate P4 TMP416-51-55KN | |
Acer Swift Edge SFE16-42-R1GM | |
Average AMD Ryzen 7 7735U () | |
LG Gram 16Z90Q | |
LG Ultra-PC 16 16U70Q-G.AR36G |
AIDA64 / CPU ZLib | |
Samsung Galaxy Book3 Pro 16 | |
Acer TravelMate P4 TMP416-51-55KN | |
Acer Swift Edge SFE16-42-R1GM | |
Average AMD Ryzen 7 7735U () | |
Lenovo ThinkPad T16 G1 21CH004MGE | |
Average of class Office (78 - 1018, n=102, last 2 years) | |
LG Gram 16Z90Q | |
LG Ultra-PC 16 16U70Q-G.AR36G |
AIDA64 / FP64 Ray-Trace | |
Acer Swift Edge SFE16-42-R1GM | |
Average AMD Ryzen 7 7735U () | |
Lenovo ThinkPad T16 G1 21CH004MGE | |
Average of class Office (432 - 12755, n=102, last 2 years) | |
Acer TravelMate P4 TMP416-51-55KN | |
Samsung Galaxy Book3 Pro 16 | |
LG Gram 16Z90Q | |
LG Ultra-PC 16 16U70Q-G.AR36G |
AIDA64 / CPU PhotoWorxx | |
Samsung Galaxy Book3 Pro 16 | |
LG Gram 16Z90Q | |
Acer TravelMate P4 TMP416-51-55KN | |
Average of class Office (4814 - 54971, n=102, last 2 years) | |
Acer Swift Edge SFE16-42-R1GM | |
Average AMD Ryzen 7 7735U () | |
Lenovo ThinkPad T16 G1 21CH004MGE | |
LG Ultra-PC 16 16U70Q-G.AR36G |
系统性能
全新的SoC与强大的iGPU和DDR5内存的组合在性能方面给我们留下了非常好的主观印象,这在基准测试结果中得到了证实。然而,在我们的排名中,由英特尔驱动的设备做得更好一些,这意味着宏碁Swift Edge SFE16落在了中间位置。
CrossMark: Overall | Productivity | Creativity | Responsiveness
PCMark 10 / Score | |
Acer Swift Edge SFE16-42-R1GM | |
Average AMD Ryzen 7 7735U, AMD Radeon 680M () | |
Lenovo ThinkPad T16 G1 21CH004MGE | |
Samsung Galaxy Book3 Pro 16 | |
Average of class Office (2463 - 7344, n=93, last 2 years) | |
Acer TravelMate P4 TMP416-51-55KN | |
LG Gram 16Z90Q | |
LG Ultra-PC 16 16U70Q-G.AR36G |
PCMark 10 / Essentials | |
Samsung Galaxy Book3 Pro 16 | |
Average of class Office (5575 - 20841, n=93, last 2 years) | |
LG Gram 16Z90Q | |
Lenovo ThinkPad T16 G1 21CH004MGE | |
Acer TravelMate P4 TMP416-51-55KN | |
Acer Swift Edge SFE16-42-R1GM | |
Average AMD Ryzen 7 7735U, AMD Radeon 680M () | |
LG Ultra-PC 16 16U70Q-G.AR36G |
PCMark 10 / Productivity | |
Acer Swift Edge SFE16-42-R1GM | |
Average AMD Ryzen 7 7735U, AMD Radeon 680M () | |
Lenovo ThinkPad T16 G1 21CH004MGE | |
Average of class Office (3041 - 10415, n=93, last 2 years) | |
Acer TravelMate P4 TMP416-51-55KN | |
Samsung Galaxy Book3 Pro 16 | |
LG Gram 16Z90Q | |
LG Ultra-PC 16 16U70Q-G.AR36G |
PCMark 10 / Digital Content Creation | |
Acer Swift Edge SFE16-42-R1GM | |
Average AMD Ryzen 7 7735U, AMD Radeon 680M () | |
Samsung Galaxy Book3 Pro 16 | |
Lenovo ThinkPad T16 G1 21CH004MGE | |
Average of class Office (1912 - 9773, n=93, last 2 years) | |
Acer TravelMate P4 TMP416-51-55KN | |
LG Gram 16Z90Q | |
LG Ultra-PC 16 16U70Q-G.AR36G |
CrossMark / Overall | |
Samsung Galaxy Book3 Pro 16 | |
Acer TravelMate P4 TMP416-51-55KN | |
Lenovo ThinkPad T16 G1 21CH004MGE | |
Average of class Office (348 - 1891, n=93, last 2 years) | |
Acer Swift Edge SFE16-42-R1GM | |
Average AMD Ryzen 7 7735U, AMD Radeon 680M () | |
LG Ultra-PC 16 16U70Q-G.AR36G |
CrossMark / Productivity | |
Samsung Galaxy Book3 Pro 16 | |
Acer TravelMate P4 TMP416-51-55KN | |
Lenovo ThinkPad T16 G1 21CH004MGE | |
Average of class Office (393 - 1870, n=93, last 2 years) | |
Acer Swift Edge SFE16-42-R1GM | |
Average AMD Ryzen 7 7735U, AMD Radeon 680M () | |
LG Ultra-PC 16 16U70Q-G.AR36G |
CrossMark / Creativity | |
Samsung Galaxy Book3 Pro 16 | |
Acer TravelMate P4 TMP416-51-55KN | |
Lenovo ThinkPad T16 G1 21CH004MGE | |
Average of class Office (340 - 1982, n=93, last 2 years) | |
Acer Swift Edge SFE16-42-R1GM | |
Average AMD Ryzen 7 7735U, AMD Radeon 680M () | |
LG Ultra-PC 16 16U70Q-G.AR36G |
CrossMark / Responsiveness | |
Acer TravelMate P4 TMP416-51-55KN | |
Samsung Galaxy Book3 Pro 16 | |
Average of class Office (258 - 2017, n=93, last 2 years) | |
Lenovo ThinkPad T16 G1 21CH004MGE | |
Acer Swift Edge SFE16-42-R1GM | |
Average AMD Ryzen 7 7735U, AMD Radeon 680M () | |
LG Ultra-PC 16 16U70Q-G.AR36G |
PCMark 10 Score | 6147 points | |
Help |
AIDA64 / Memory Copy | |
LG Gram 16Z90Q | |
Samsung Galaxy Book3 Pro 16 | |
Acer Swift Edge SFE16-42-R1GM | |
Average AMD Ryzen 7 7735U () | |
Lenovo ThinkPad T16 G1 21CH004MGE | |
Average of class Office (7158 - 108783, n=103, last 2 years) | |
Acer TravelMate P4 TMP416-51-55KN | |
LG Ultra-PC 16 16U70Q-G.AR36G |
AIDA64 / Memory Read | |
LG Gram 16Z90Q | |
Samsung Galaxy Book3 Pro 16 | |
Average of class Office (7325 - 112436, n=103, last 2 years) | |
Acer TravelMate P4 TMP416-51-55KN | |
Acer Swift Edge SFE16-42-R1GM | |
Average AMD Ryzen 7 7735U () | |
Lenovo ThinkPad T16 G1 21CH004MGE | |
LG Ultra-PC 16 16U70Q-G.AR36G |
AIDA64 / Memory Write | |
Samsung Galaxy Book3 Pro 16 | |
LG Gram 16Z90Q | |
Average of class Office (7579 - 117935, n=103, last 2 years) | |
Lenovo ThinkPad T16 G1 21CH004MGE | |
Acer Swift Edge SFE16-42-R1GM | |
Average AMD Ryzen 7 7735U () | |
Acer TravelMate P4 TMP416-51-55KN | |
LG Ultra-PC 16 16U70Q-G.AR36G |
AIDA64 / Memory Latency | |
Lenovo ThinkPad T16 G1 21CH004MGE | |
LG Ultra-PC 16 16U70Q-G.AR36G | |
LG Gram 16Z90Q | |
Acer Swift Edge SFE16-42-R1GM | |
Average AMD Ryzen 7 7735U () | |
Average of class Office (8.3 - 185.2, n=103, last 2 years) | |
Samsung Galaxy Book3 Pro 16 | |
Acer TravelMate P4 TMP416-51-55KN |
* ... smaller is better

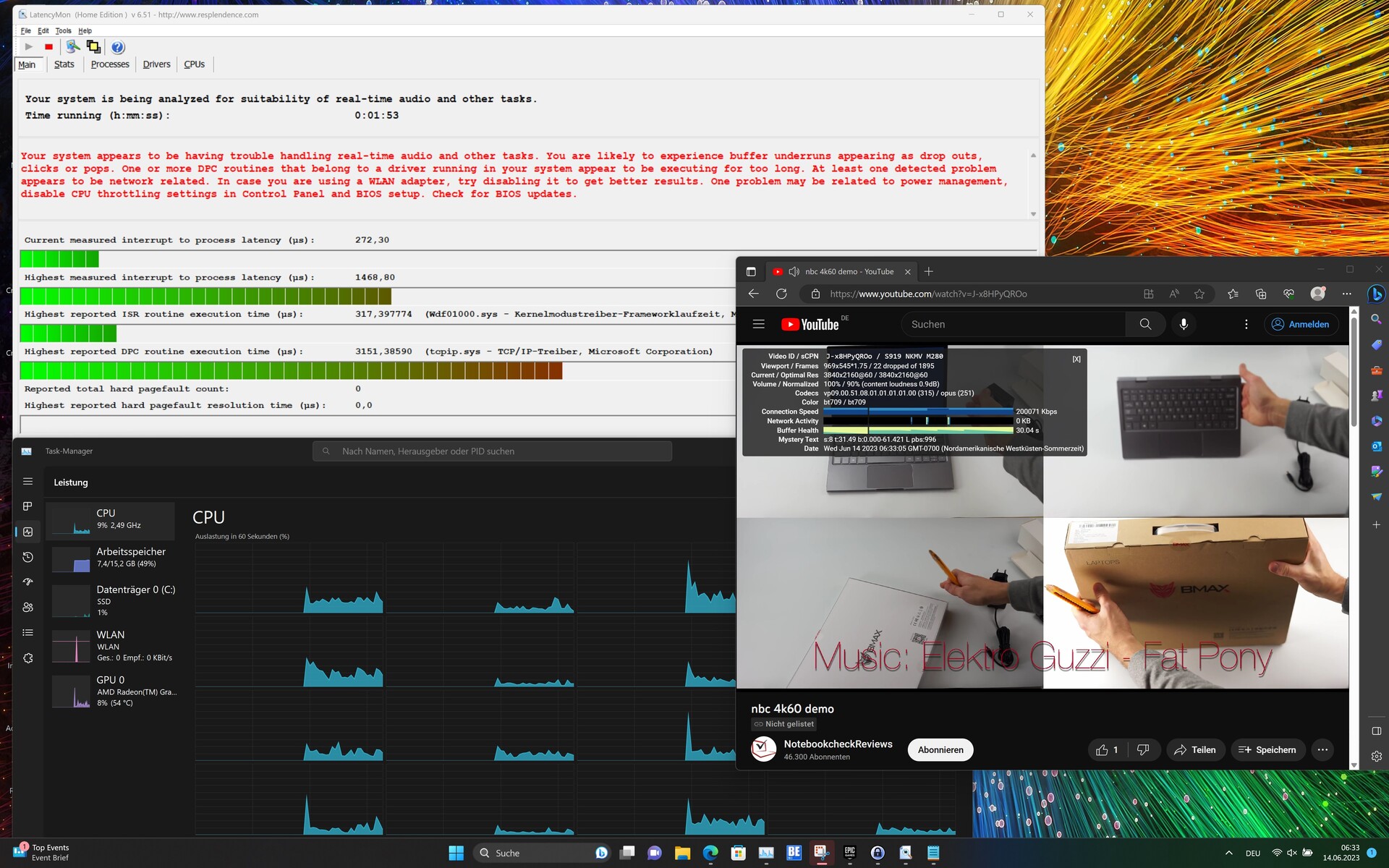

DPC延时

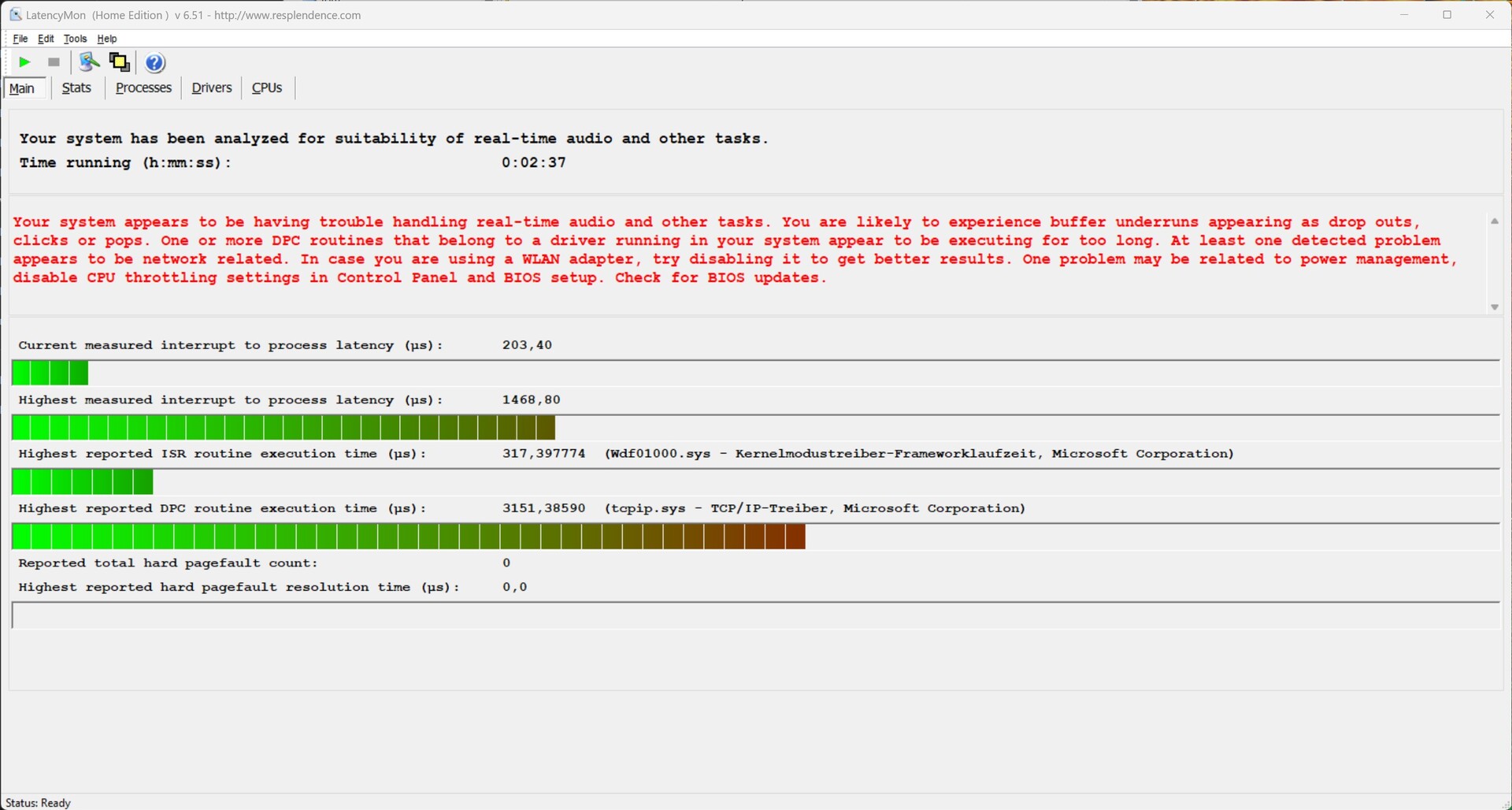

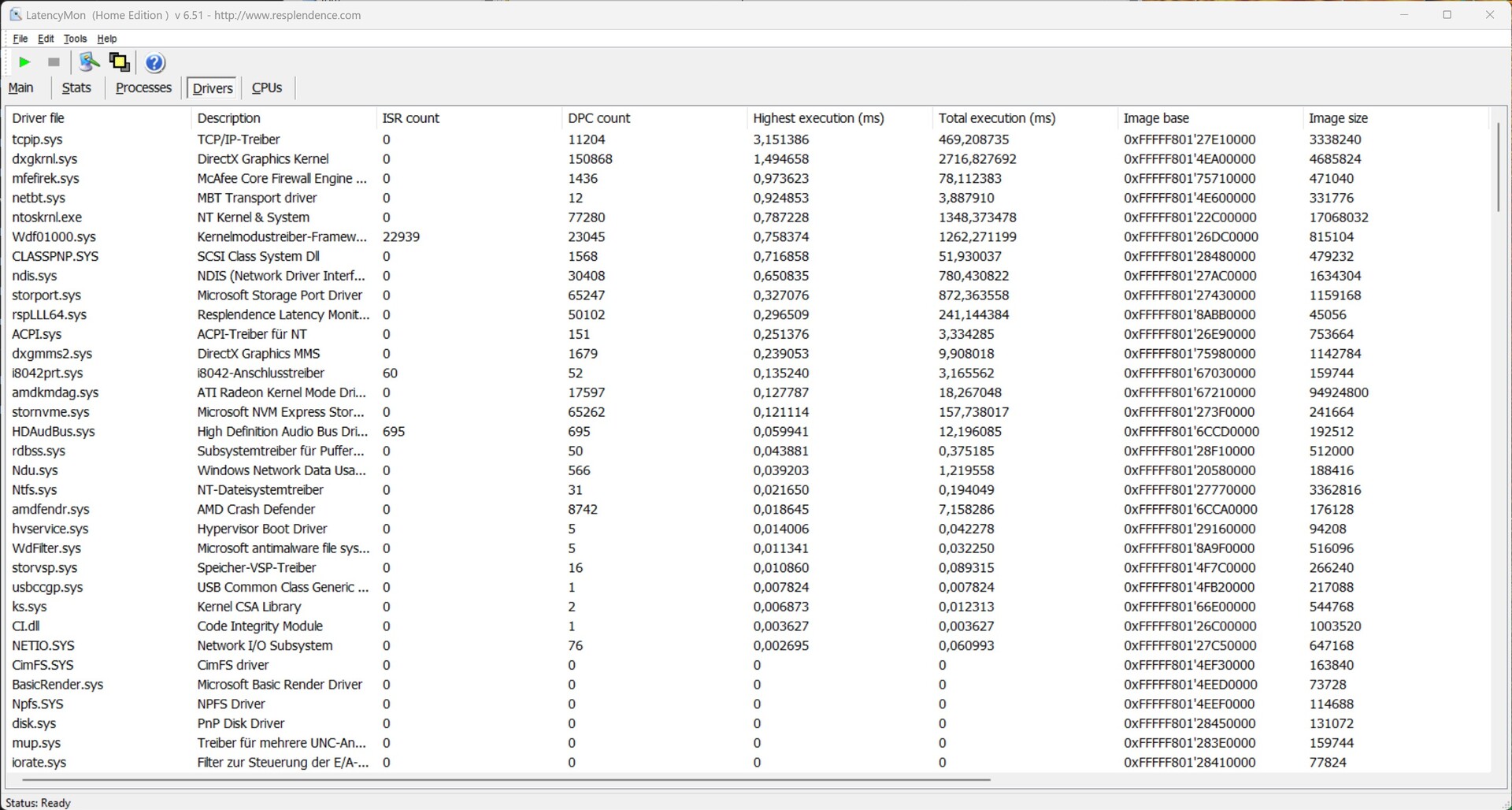

在Edge中打开几个标签时,LatencyMon工具已经显示了一个高延迟值,在播放我们的4K测试视频和使用Prime95时,这个延迟没有进一步恶化。
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95 | |
Acer Swift Edge SFE16-42-R1GM | |
Acer TravelMate P4 TMP416-51-55KN | |
LG Gram 16Z90Q | |
Lenovo ThinkPad T16 G1 21CH004MGE | |
LG Ultra-PC 16 16U70Q-G.AR36G | |
Samsung Galaxy Book3 Pro 16 |
* ... smaller is better

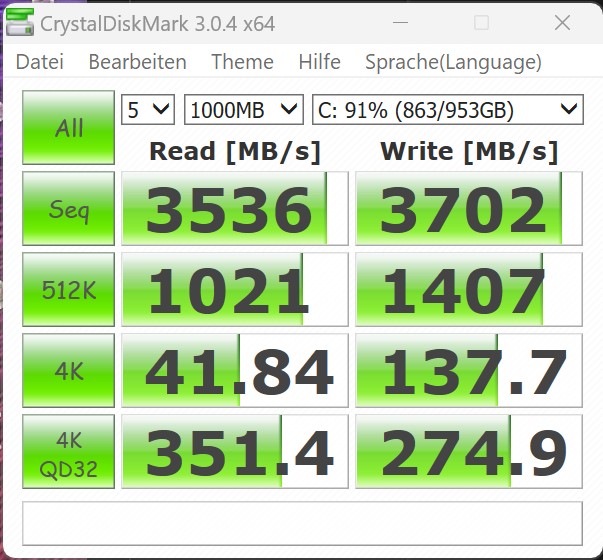

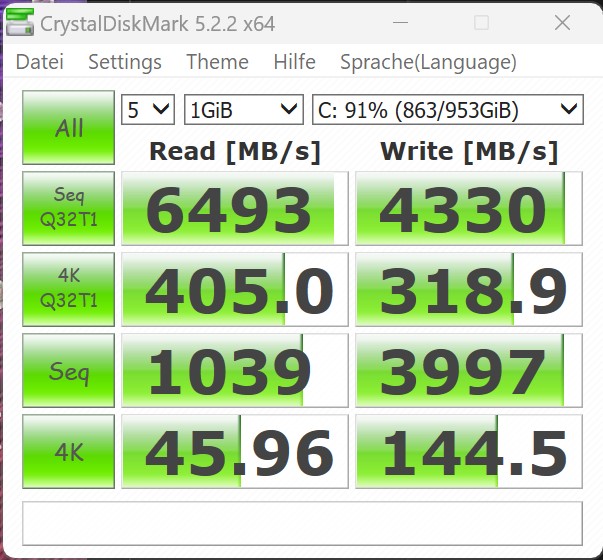

存储设备

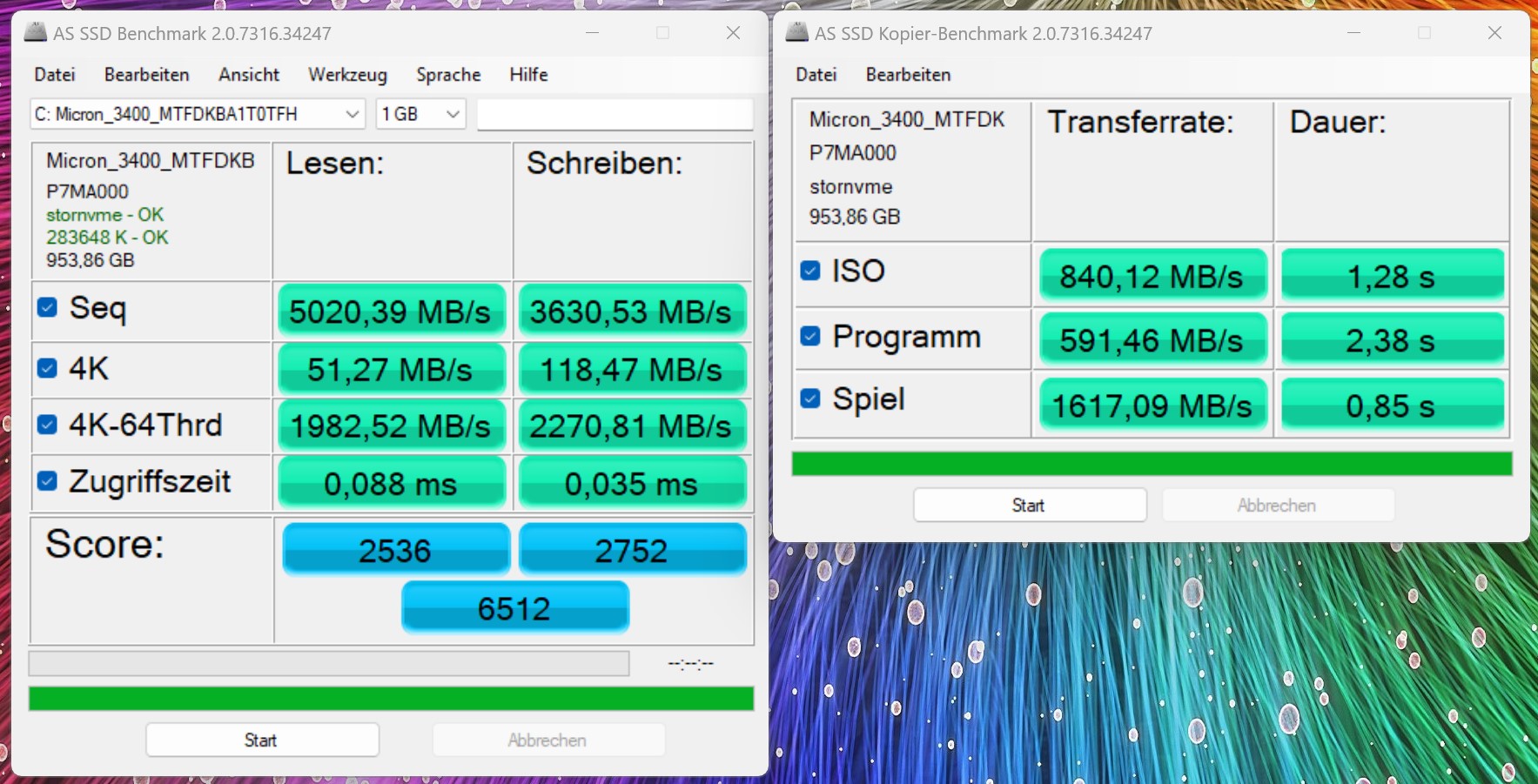

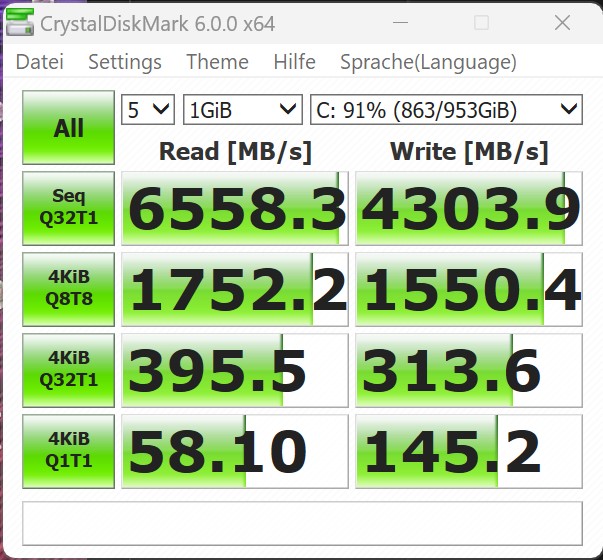

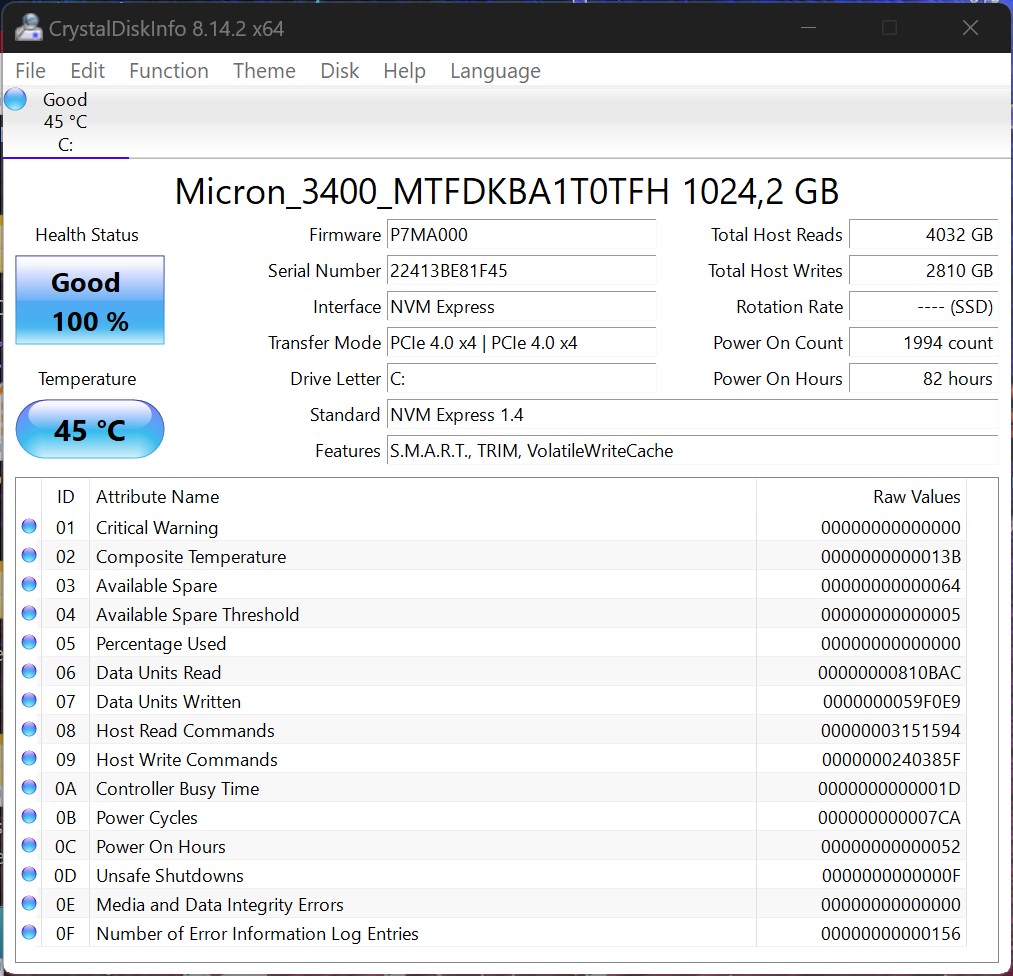

宏碁Swift Edge SFE16内有一块来自美光的快速SSD。目前的模型有1TB的存储空间,没有被分割成不同的分区。 M.2接口得到了最佳的利用,因为安装的SSD也原生支持全带宽的PCIe 4.0接口。这导致了一个很好的分数,使我们的审查样本在这次比较中排名第一。排名第二的是LG Gram 16被明显击败,差距为18个百分点。
为了稍微限制热负荷,底板被用来冷却设备。在美光控制器的区域有一个小的热传导垫。然而,这不能完全防止在连续性能期间出现过载。这导致读取时零星的性能下降到大约1700MB/s。然而,在我们大量安装的测试阶段,我们无法确定明显的性能损失。
关于进一步的比较和基准,请看我们的比较表 。
* ... smaller is better
Reading continuous performance: DiskSpd Read Loop, Queue Depth 8
图形卡
淘宝网锐龙77735U是目前Rembrandt系列的一部分,意味着它也有一个AMD Radeon 680MiGPU。我们已经在其他设备中分析了这个iGPU,不得不说,AMD在性能方面比其竞争对手做得更好。英特尔凭借其Iris Xe AMD,根本无法跟上。在目前的比较中,我们注意到宏碁Swift Edge SFE16提供了确切的性能水平,这是可以预期的。AMD Radeon 680M之前记录的平均性能水平有时甚至会被超过。
更多的AMD Radeon 680M基准测试可以在下面找到这里.
AMD Radeon 680M
3DMark 05 Standard | 35594 points | |
3DMark 06 Standard Score | 28361 points | |
3DMark Vantage P Result | 26483 points | |
3DMark 11 Performance | 9712 points | |
3DMark Ice Storm Standard Score | 132250 points | |
3DMark Cloud Gate Standard Score | 30339 points | |
3DMark Fire Strike Score | 6208 points | |
3DMark Fire Strike Extreme Score | 3175 points | |
3DMark Time Spy Score | 2532 points | |
Help |
* ... smaller is better
游戏性能
得益于其相对强大的AMD Radeon 680M在我们的游戏测试中,宏碁Swift Edge SFE16拔得头筹。即便如此,你必须记住,这款笔记本电脑是一款办公/多媒体设备。因此,我们只能在低到中等细节设置下测量可玩的帧率。然而,它的性能在很大程度上取决于个别游戏,所以我们无法对这台笔记本电脑是否适合游戏形成一个普遍的看法。
关于iGPU的性能与其他显卡相比的进一步细节,请看我们的GPU游戏列表.
The Witcher 3 - 1920x1080 Ultra Graphics & Postprocessing (HBAO+) | |
Acer Swift Edge SFE16-42-R1GM | |
Lenovo ThinkPad T16 G1 21CH004MGE | |
Average of class Office (2.66 - 34, n=86, last 2 years) | |
Samsung Galaxy Book3 Pro 16 | |
LG Gram 16Z90Q | |
Acer TravelMate P4 TMP416-51-55KN | |
LG Ultra-PC 16 16U70Q-G.AR36G |
GTA V - 1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x | |
Acer Swift Edge SFE16-42-R1GM | |
Lenovo ThinkPad T16 G1 21CH004MGE | |
Average of class Office (3.35 - 47.8, n=83, last 2 years) | |
Samsung Galaxy Book3 Pro 16 | |
LG Ultra-PC 16 16U70Q-G.AR36G | |
LG Gram 16Z90Q | |
Acer TravelMate P4 TMP416-51-55KN |
Final Fantasy XV Benchmark - 1920x1080 High Quality | |
Acer Swift Edge SFE16-42-R1GM | |
Lenovo ThinkPad T16 G1 21CH004MGE | |
Average of class Office (2.03 - 35.7, n=94, last 2 years) | |
Acer TravelMate P4 TMP416-51-55KN | |
Samsung Galaxy Book3 Pro 16 | |
LG Gram 16Z90Q |
Strange Brigade - 1920x1080 ultra AA:ultra AF:16 | |
Acer Swift Edge SFE16-42-R1GM | |
Lenovo ThinkPad T16 G1 21CH004MGE | |
Average of class Office (9.6 - 56.5, n=80, last 2 years) | |
Acer TravelMate P4 TMP416-51-55KN | |
LG Ultra-PC 16 16U70Q-G.AR36G | |
LG Gram 16Z90Q |
Far Cry New Dawn | |
1280x720 Low Preset | |
Average AMD Radeon 680M (36 - 66, n=12) | |
Acer Swift Edge SFE16-42-R1GM | |
Average of class Office (last 2 years) | |
1920x1080 Medium Preset | |
Average AMD Radeon 680M (23 - 42, n=12) | |
Acer Swift Edge SFE16-42-R1GM | |
Average of class Office (last 2 years) | |
1920x1080 High Preset | |
Average AMD Radeon 680M (21 - 40, n=12) | |
Acer Swift Edge SFE16-42-R1GM | |
Average of class Office (last 2 years) | |
1920x1080 Ultra Preset | |
Average AMD Radeon 680M (20 - 37, n=12) | |
Acer Swift Edge SFE16-42-R1GM | |
Average of class Office (last 2 years) |
Metro Exodus | |
1280x720 Low Quality AF:4x | |
Average AMD Radeon 680M (41.9 - 76.2, n=13) | |
Acer Swift Edge SFE16-42-R1GM | |
Average of class Office (17 - 57.6, n=3, last 2 years) | |
1920x1080 Medium Quality AF:4x | |
Average AMD Radeon 680M (17.6 - 31, n=13) | |
Acer Swift Edge SFE16-42-R1GM | |
Average of class Office (8.7 - 24.7, n=3, last 2 years) | |
1920x1080 High Quality AF:16x | |
Average AMD Radeon 680M (13.8 - 24.1, n=13) | |
Acer Swift Edge SFE16-42-R1GM | |
Average of class Office (last 2 years) | |
1920x1080 Ultra Quality AF:16x | |
Average AMD Radeon 680M (11.7 - 19.8, n=13) | |
Acer Swift Edge SFE16-42-R1GM | |
Average of class Office (last 2 years) |
Borderlands 3 | |
1280x720 Very Low Overall Quality (DX11) | |
Average AMD Radeon 680M (38.3 - 90.7, n=13) | |
Acer Swift Edge SFE16-42-R1GM | |
Average of class Office (21 - 53.7, n=3, last 2 years) | |
1920x1080 Medium Overall Quality (DX11) | |
Average AMD Radeon 680M (23.8 - 45.6, n=13) | |
Acer Swift Edge SFE16-42-R1GM | |
Average of class Office (8.8 - 30.7, n=3, last 2 years) | |
1920x1080 High Overall Quality (DX11) | |
Average AMD Radeon 680M (15.7 - 28.4, n=13) | |
Acer Swift Edge SFE16-42-R1GM | |
Average of class Office (last 2 years) | |
1920x1080 Badass Overall Quality (DX11) | |
Average AMD Radeon 680M (12.5 - 22.4, n=13) | |
Acer Swift Edge SFE16-42-R1GM | |
Average of class Office (last 2 years) |
F1 2020 | |
1280x720 Ultra Low Preset | |
Average AMD Radeon 680M (92.3 - 177, n=13) | |
Acer Swift Edge SFE16-42-R1GM | |
Average of class Office (27.7 - 137.4, n=3, last 2 years) | |
1920x1080 Medium Preset AF:16x | |
Average AMD Radeon 680M (49.8 - 87.4, n=13) | |
Acer Swift Edge SFE16-42-R1GM | |
Average of class Office (13.1 - 66.3, n=3, last 2 years) | |
1920x1080 High Preset AA:T AF:16x | |
Average AMD Radeon 680M (39.1 - 67.6, n=13) | |
Acer Swift Edge SFE16-42-R1GM | |
Average of class Office (16 - 49.7, n=3, last 2 years) | |
1920x1080 Ultra High Preset AA:T AF:16x | |
Average AMD Radeon 680M (27.5 - 46.7, n=13) | |
Acer Swift Edge SFE16-42-R1GM | |
Average of class Office (12.6 - 32.5, n=2, last 2 years) |
F1 2021 | |
1280x720 Ultra Low Preset | |
Average AMD Radeon 680M (97 - 193, n=20) | |
Acer Swift Edge SFE16-42-R1GM | |
Average of class Office (73.1 - 197.8, n=14, last 2 years) | |
LG Ultra-PC 16 16U70Q-G.AR36G | |
1920x1080 Medium Preset AA:T AF:16x | |
Average AMD Radeon 680M (49.7 - 92.3, n=20) | |
Acer Swift Edge SFE16-42-R1GM | |
Average of class Office (34.8 - 93.7, n=14, last 2 years) | |
LG Ultra-PC 16 16U70Q-G.AR36G | |
1920x1080 High Preset AA:T AF:16x | |
Average AMD Radeon 680M (26.8 - 69, n=21) | |
Acer Swift Edge SFE16-42-R1GM | |
Average of class Office (26.3 - 69.9, n=14, last 2 years) | |
1920x1080 Ultra High Preset + Raytracing AA:T AF:16x | |
Average AMD Radeon 680M (16.1 - 29.1, n=18) | |
Average of class Office (16.1 - 31.5, n=14, last 2 years) | |
Acer Swift Edge SFE16-42-R1GM |
Far Cry 6 | |
1280x720 Low Graphics Quality | |
Average AMD Radeon 680M (29.6 - 82, n=11) | |
Acer Swift Edge SFE16-42-R1GM | |
Average of class Office (last 2 years) | |
1920x1080 Medium Graphics Quality AA:SM | |
Average AMD Radeon 680M (18.8 - 46, n=11) | |
Acer Swift Edge SFE16-42-R1GM | |
Average of class Office (last 2 years) | |
1920x1080 High Graphics Quality AA:T | |
Average AMD Radeon 680M (16.1 - 38.4, n=11) | |
Acer Swift Edge SFE16-42-R1GM | |
Average of class Office (last 2 years) |
GRID Legends | |
1280x720 Low Preset | |
Average AMD Radeon 680M (42.1 - 170, n=12) | |
Acer Swift Edge SFE16-42-R1GM | |
Average of class Office (37.3 - 82.3, n=5, last 2 years) | |
1920x1080 Medium Preset | |
Average AMD Radeon 680M (29.5 - 82.2, n=12) | |
Acer Swift Edge SFE16-42-R1GM | |
Average of class Office (16.9 - 47.4, n=5, last 2 years) | |
1920x1080 High Preset | |
Average AMD Radeon 680M (24.4 - 64.9, n=12) | |
Acer Swift Edge SFE16-42-R1GM | |
Average of class Office (16.6 - 36.7, n=4, last 2 years) | |
1920x1080 Ultra Preset | |
Average AMD Radeon 680M (21.2 - 46.3, n=12) | |
Acer Swift Edge SFE16-42-R1GM | |
Average of class Office (21.6 - 26.9, n=2, last 2 years) |
Tiny Tina's Wonderlands | |
1280x720 Lowest Preset (DX12) | |
Average AMD Radeon 680M (59.3 - 126.2, n=16) | |
Acer Swift Edge SFE16-42-R1GM | |
Average of class Office (15.5 - 111.8, n=13, last 2 years) | |
1920x1080 Medium Preset (DX12) | |
Average AMD Radeon 680M (28.2 - 47.1, n=17) | |
Acer Swift Edge SFE16-42-R1GM | |
Average of class Office (15.3 - 44.8, n=9, last 2 years) | |
1920x1080 High Preset (DX12) | |
Average AMD Radeon 680M (19.8 - 31.2, n=17) | |
Average of class Office (10.4 - 31.5, n=9, last 2 years) | |
Acer Swift Edge SFE16-42-R1GM | |
1920x1080 Badass Preset (DX12) | |
Average AMD Radeon 680M (16 - 24.4, n=17) | |
Average of class Office (8.1 - 25.2, n=9, last 2 years) | |
Acer Swift Edge SFE16-42-R1GM |
F1 22 | |
1280x720 Ultra Low Preset AA:T AF:16x | |
Average AMD Radeon 680M (75.5 - 147.3, n=18) | |
Acer Swift Edge SFE16-42-R1GM | |
Average of class Office (41.4 - 181.9, n=30, last 2 years) | |
1920x1080 Low Preset AA:T AF:16x | |
Average AMD Radeon 680M (44.1 - 85.4, n=24) | |
Acer Swift Edge SFE16-42-R1GM | |
Average of class Office (19.9 - 107.4, n=38, last 2 years) | |
LG Ultra-PC 16 16U70Q-G.AR36G | |
1920x1080 Medium Preset AA:T AF:16x | |
Average AMD Radeon 680M (38 - 74.6, n=24) | |
Acer Swift Edge SFE16-42-R1GM | |
Average of class Office (18.8 - 93.4, n=38, last 2 years) | |
LG Ultra-PC 16 16U70Q-G.AR36G | |
1920x1080 High Preset AA:T AF:16x | |
Average AMD Radeon 680M (30 - 55, n=24) | |
Acer Swift Edge SFE16-42-R1GM | |
Average of class Office (12.5 - 68.5, n=38, last 2 years) |
我们在运行《Witcher 3 》时测量的帧率显示,在较长的时间内,3D性能略有下降。这LG Gram 16在实现稳定的3D性能水平方面更加挣扎。
Witcher 3 FPS diagram
low | med. | high | ultra | |
---|---|---|---|---|
GTA V (2015) | 122.2 | 108.3 | 44.2 | 19.4 |
The Witcher 3 (2015) | 104.3 | 32.7 | 20.3 | |
Dota 2 Reborn (2015) | 112.9 | 97.2 | 69.7 | 61 |
Final Fantasy XV Benchmark (2018) | 57.9 | 26.7 | 19.3 | |
X-Plane 11.11 (2018) | 48.2 | 36.6 | 30.2 | |
Far Cry 5 (2018) | 59 | 33 | 31 | 28 |
Strange Brigade (2018) | 128.9 | 54.3 | 44.9 | 36.4 |
Shadow of the Tomb Raider (2018) | 70.6 | 30.8 | 27.5 | 22.9 |
Far Cry New Dawn (2019) | 52 | 30 | 29 | 26 |
Metro Exodus (2019) | 57.6 | 24.7 | 18.8 | 15.1 |
Borderlands 3 (2019) | 53.7 | 30.7 | 20.2 | 14.5 |
F1 2020 (2020) | 137.4 | 66.3 | 49.7 | 32.5 |
F1 2021 (2021) | 133.3 | 67.7 | 51.6 | 20.7 |
Far Cry 6 (2021) | 60.6 | 34.7 | 27.8 | |
God of War (2022) | 25.2 | 20.3 | 16.2 | 11.5 |
GRID Legends (2022) | 62.1 | 47.4 | 36.7 | 26.9 |
Tiny Tina's Wonderlands (2022) | 37.9 | 30 | 19.8 | 16 |
F1 22 (2022) | 66.7 | 55.4 | 36.9 | 7.85 |
通过eGPU底座与NvidiaGeForce RTX 3060 Ti的3D性能
你可以通过使用Thunderbolt端口来连接外部显卡,从而获得更好的3D性能。我们正是这样做的,使用Razer Core X和一个NvidiaGeForce RTX 3060 Ti.在我们的合成基准中,我们可以看到,这种组合甚至能够跟上华为MateBook X,我们最近在一个类似的星座中仔细研究了它。
当然,不想让笔记本电脑在相同组合中的现实游戏性能对你保密。使用这些配件,它绝对适合于游戏。在这个星座中,许多游戏可以毫不费力地以最大的细节水平运行。唯一突出的游戏是《F1 22》,估计是受带宽限制影响太大:使用Thunderbolt,你只能用4条通道达到PCI Express 3.0的速度。
Performance Rating - Percent | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Huawei MateBook X Pro 2023 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Acer Swift Edge SFE16 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) |
3DMark 11 - 1280x720 Performance GPU | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Huawei MateBook X Pro 2023 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Acer Swift Edge SFE16 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
3DMark | |
1280x720 Cloud Gate Standard Graphics | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Huawei MateBook X Pro 2023 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Acer Swift Edge SFE16 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
1920x1080 Fire Strike Graphics | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Huawei MateBook X Pro 2023 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Acer Swift Edge SFE16 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
2560x1440 Time Spy Graphics | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Huawei MateBook X Pro 2023 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Acer Swift Edge SFE16 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Fire Strike Extreme Graphics | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Huawei MateBook X Pro 2023 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Acer Swift Edge SFE16 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Performance Rating - Percent | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Huawei MateBook X Pro 2023 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Acer Swift Edge SFE16 (Nvidia GeForce RTX 3060 Ti FE TB3) -5! |
Unigine Heaven 4.0 | |
Extreme Preset OpenGL | |
Huawei MateBook X Pro 2023 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Acer Swift Edge SFE16 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Extreme Preset DX11 | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Huawei MateBook X Pro 2023 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Acer Swift Edge SFE16 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Unigine Valley 1.0 | |
1920x1080 Extreme HD DirectX AA:x8 | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Huawei MateBook X Pro 2023 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Acer Swift Edge SFE16 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
1920x1080 Extreme HD Preset OpenGL AA:x8 | |
Huawei MateBook X Pro 2023 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Acer Swift Edge SFE16 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Unigine Superposition | |
1920x1080 1080p High | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Acer Swift Edge SFE16 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Huawei MateBook X Pro 2023 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
1920x1080 1080p Extreme | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Huawei MateBook X Pro 2023 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Acer Swift Edge SFE16 (Nvidia GeForce RTX 3060 Ti FE TB3) |
ComputeMark v2.1 | |
1024x600 Normal, Score | |
Huawei MateBook X Pro 2023 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
1024x600 Normal, Fluid 3DTex | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Huawei MateBook X Pro 2023 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
1024x600 Normal, Fluid 2DTexArr | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Huawei MateBook X Pro 2023 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
1024x600 Normal, Mandel Vector | |
Huawei MateBook X Pro 2023 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
1024x600 Normal, QJuliaRayTrace | |
Huawei MateBook X Pro 2023 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Performance Rating - Percent | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Huawei MateBook X Pro 2023 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Acer Swift Edge SFE16 (Nvidia GeForce RTX 3060 Ti FE TB3) |
GTA V - 1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Huawei MateBook X Pro 2023 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Acer Swift Edge SFE16 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
The Witcher 3 - 1920x1080 Ultra Graphics & Postprocessing (HBAO+) | |
Huawei MateBook X Pro 2023 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Acer Swift Edge SFE16 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Dota 2 Reborn - 1920x1080 ultra (3/3) best looking | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Huawei MateBook X Pro 2023 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Acer Swift Edge SFE16 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Final Fantasy XV Benchmark - 1920x1080 High Quality | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Huawei MateBook X Pro 2023 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Acer Swift Edge SFE16 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Strange Brigade - 1920x1080 ultra AA:ultra AF:16 | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Huawei MateBook X Pro 2023 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Acer Swift Edge SFE16 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Far Cry 5 - 1920x1080 Ultra Preset AA:T | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Huawei MateBook X Pro 2023 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Acer Swift Edge SFE16 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Far Cry New Dawn - 1920x1080 Ultra Preset | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Huawei MateBook X Pro 2023 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Acer Swift Edge SFE16 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
F1 2020 - 1920x1080 Ultra High Preset AA:T AF:16x | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Huawei MateBook X Pro 2023 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Acer Swift Edge SFE16 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
F1 2021 - 1920x1080 Ultra High Preset + Raytracing AA:T AF:16x | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Acer Swift Edge SFE16 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Huawei MateBook X Pro 2023 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Borderlands 3 - 1920x1080 Badass Overall Quality (DX11) | |
Huawei MateBook X Pro 2023 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Acer Swift Edge SFE16 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
low | med. | high | ultra | QHD | 4K | |
---|---|---|---|---|---|---|
GTA V (2015) | 158.4 | 150.4 | 119.7 | 70.8 | 70.8 | 97.8 |
The Witcher 3 (2015) | 234.6 | 168.2 | 125.4 | 65.3 | 65.9 | |
Dota 2 Reborn (2015) | 107.9 | 97.9 | 95.6 | 90.4 | 89.5 | |
Final Fantasy XV Benchmark (2018) | 130 | 121.5 | 91.9 | 75.9 | 48 | |
X-Plane 11.11 (2018) | 77.8 | 67.4 | 56.3 | 49.6 | ||
Far Cry 5 (2018) | 102 | 88 | 85 | 82 | 81 | 56 |
Strange Brigade (2018) | 182 | 143.8 | 131.1 | 136.1 | 127.1 | 84.3 |
Shadow of the Tomb Raider (2018) | 106.5 | 96.5 | 96.1 | 92 | 84.6 | 54.3 |
Far Cry New Dawn (2019) | 98 | 86 | 82 | 76 | 73 | 58 |
Metro Exodus (2019) | 133.4 | 89.4 | 67.7 | 51.3 | 45 | 33.5 |
Borderlands 3 (2019) | 120.3 | 104.3 | 94.9 | 80.8 | 64.4 | 38.1 |
F1 2020 (2020) | 167.3 | 105.5 | 115 | 97.4 | 86.5 | 59.5 |
F1 2021 (2021) | 128.4 | 104.3 | 68.1 | 51.3 | 49.3 | 41.2 |
Far Cry 6 (2021) | 65.5 | 59.3 | 50 | 44.5 | 42 | |
God of War (2022) | 104.3 | 94.7 | 81.8 | 61.3 | 52.5 | 39.2 |
GRID Legends (2022) | 94.1 | 84.3 | 75.4 | 67.5 | 62.2 | 49.5 |
Tiny Tina's Wonderlands (2022) | 151.3 | 131.4 | 99.8 | 81.1 | 61.6 | 36.1 |
F1 22 (2022) | 62.3 | 57.5 | 46.1 | 29 | 27.6 | 19.8 |
排放 - 冷却效果足够好,但电池太小
噪声排放
该设备的内置冷却系统相对紧凑,由一个小热管和一个风扇组成。在空闲模式下,我们注意到非常安静的音量水平--只比测量的环境噪音多一点。一旦笔记本电脑被置于任何形式的负载之下,你就会开始听到小风扇的呼啸声。在最多的时候,我们测量了42.7分贝(A),平均噪音排放约为42.3分贝(A)。当涉及到风扇旋转的速度时,中度和高度负载之间并没有那么大的区别。从主观上讲,宏碁Swift Edge SFE16确实感觉它的声音大了一点,因为气流产生的频率很高。即便如此,我们测试的三星和宏碁设备的声音甚至更大。
Noise Level
Idle |
| 25.7 / 27 / 29.3 dB(A) |
Load |
| 42.3 / 42.7 dB(A) |
| ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min: , med: , max: Earthworks M23R, Arta (15 cm distance) environment noise: 25.7 dB(A) |
Acer Swift Edge SFE16-42-R1GM Radeon 680M, R7 7735U, Micron 3400 1TB MTFDKBA1T0TFH | LG Gram 16Z90Q Iris Xe G7 96EUs, i7-1260P, Samsung PM9A1 MZVL21T0HCLR | Samsung Galaxy Book3 Pro 16 Iris Xe G7 80EUs, i5-1340P, WD PC SN740 256GB SDDPNQD-256G | Acer TravelMate P4 TMP416-51-55KN Iris Xe G7 80EUs, i5-1240P, Micron 2450 512GB MTFDKBA512TFK | LG Ultra-PC 16 16U70Q-G.AR36G Vega 6, R3 5300U, Samsung PM991 MZVLQ512HBLU | Lenovo ThinkPad T16 G1 21CH004MGE Radeon 660M, R5 PRO 6650U, Micron 2450 512GB MTFDKBA512TFK | |
---|---|---|---|---|---|---|
Noise | 5% | -1% | 3% | 9% | 17% | |
off / environment * | 25.7 | 25 3% | 25.2 2% | 25.4 1% | 25 3% | 23.1 10% |
Idle Minimum * | 25.7 | 26 -1% | 25.2 2% | 25.4 1% | 25 3% | 23.1 10% |
Idle Average * | 27 | 27 -0% | 25.2 7% | 25.4 6% | 25 7% | 23.1 14% |
Idle Maximum * | 29.3 | 28 4% | 29.3 -0% | 25.4 13% | 25.4 13% | 23.1 21% |
Load Average * | 42.3 | 38 10% | 46.4 -10% | 43.9 -4% | 36.2 14% | 25.4 40% |
Load Maximum * | 42.7 | 38 11% | 46.4 -9% | 43.7 -2% | 36.4 15% | 39.1 8% |
Witcher 3 ultra * | 37 | 35.93 |
* ... smaller is better

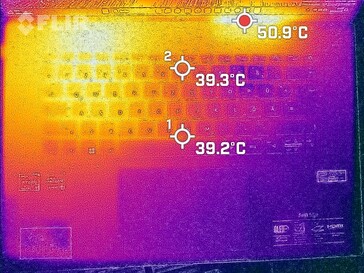

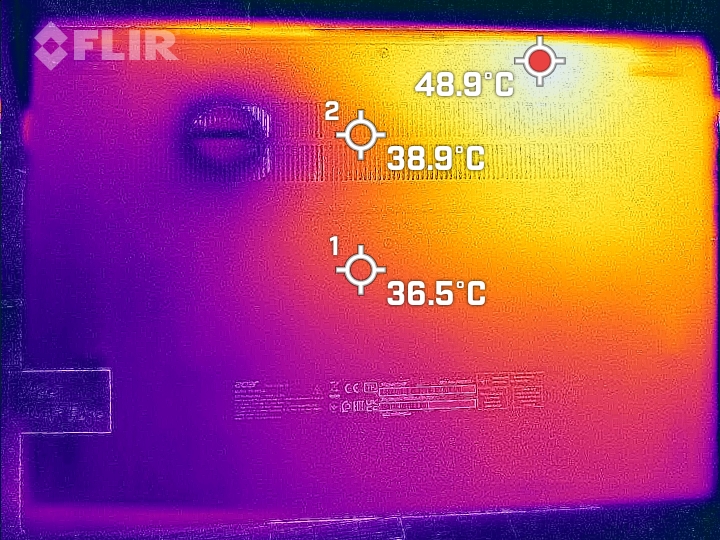

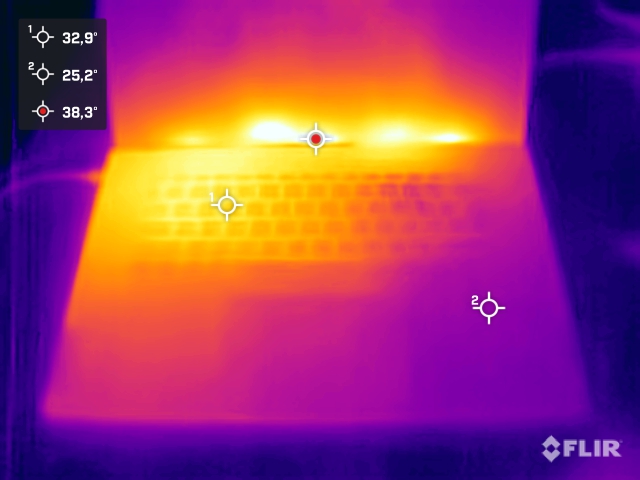

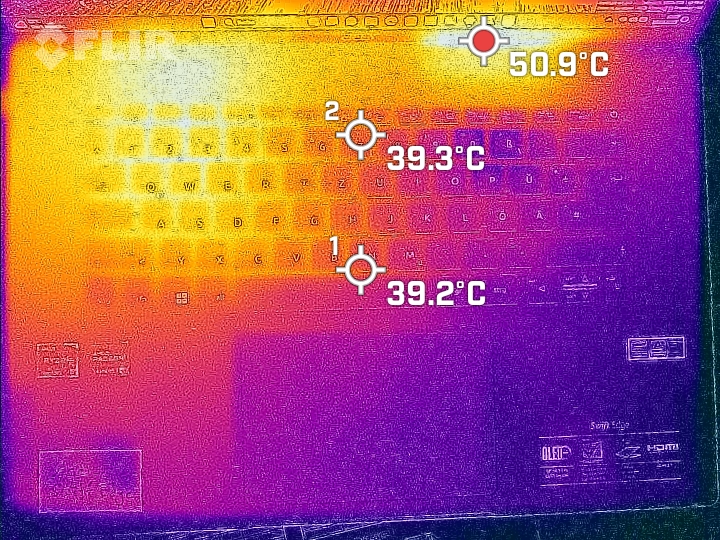

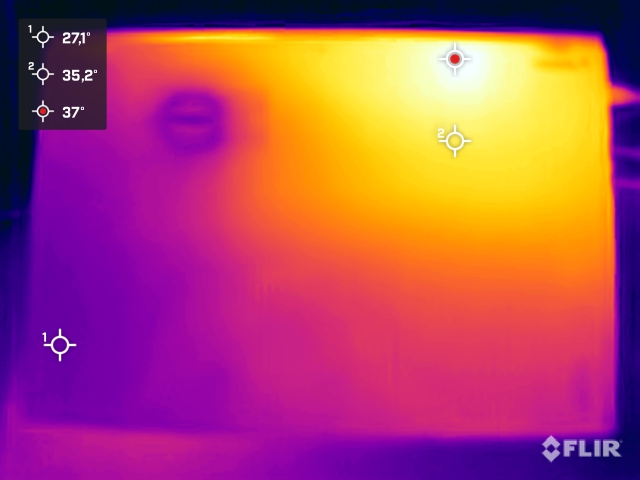

温度
在闲置模式下,我们最初没有观察到笔记本表面有任何极端的温度热点。即使在负载情况下,我们也只在几个区域测量到超过40℃的温度。与其竞争对手相比,宏碁Swift Edge SFE16的外壳发热较高。然而,我们认为这在日常使用中不会有问题。
(-) The maximum temperature on the upper side is 49.4 °C / 121 F, compared to the average of 34.3 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(±) The bottom heats up to a maximum of 44.7 °C / 112 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 28.4 °C / 83 F, compared to the device average of 29.5 °C / 85 F.
(+) The palmrests and touchpad are reaching skin temperature as a maximum (33 °C / 91.4 F) and are therefore not hot.
(-) The average temperature of the palmrest area of similar devices was 27.7 °C / 81.9 F (-5.3 °C / -9.5 F).
Acer Swift Edge SFE16-42-R1GM AMD Ryzen 7 7735U, AMD Radeon 680M | LG Gram 16Z90Q Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs | Samsung Galaxy Book3 Pro 16 Intel Core i5-1340P, Intel Iris Xe Graphics G7 80EUs | Acer TravelMate P4 TMP416-51-55KN Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs | LG Ultra-PC 16 16U70Q-G.AR36G AMD Ryzen 3 5300U, AMD Radeon RX Vega 6 (Ryzen 4000/5000) | Lenovo ThinkPad T16 G1 21CH004MGE AMD Ryzen 5 PRO 6650U, AMD Radeon 660M | |
---|---|---|---|---|---|---|
Heat | 14% | 5% | 8% | 13% | 23% | |
Maximum Upper Side * | 49.4 | 45 9% | 41.6 16% | 38.6 22% | 39.5 20% | 34.6 30% |
Maximum Bottom * | 44.7 | 43 4% | 45 -1% | 44.4 1% | 45 -1% | 41.5 7% |
Idle Upper Side * | 34 | 26 24% | 31 9% | 28.9 15% | 26.7 21% | 22.6 34% |
Idle Bottom * | 31.6 | 26 18% | 33.6 -6% | 34 -8% | 28.2 11% | 24.5 22% |
* ... smaller is better

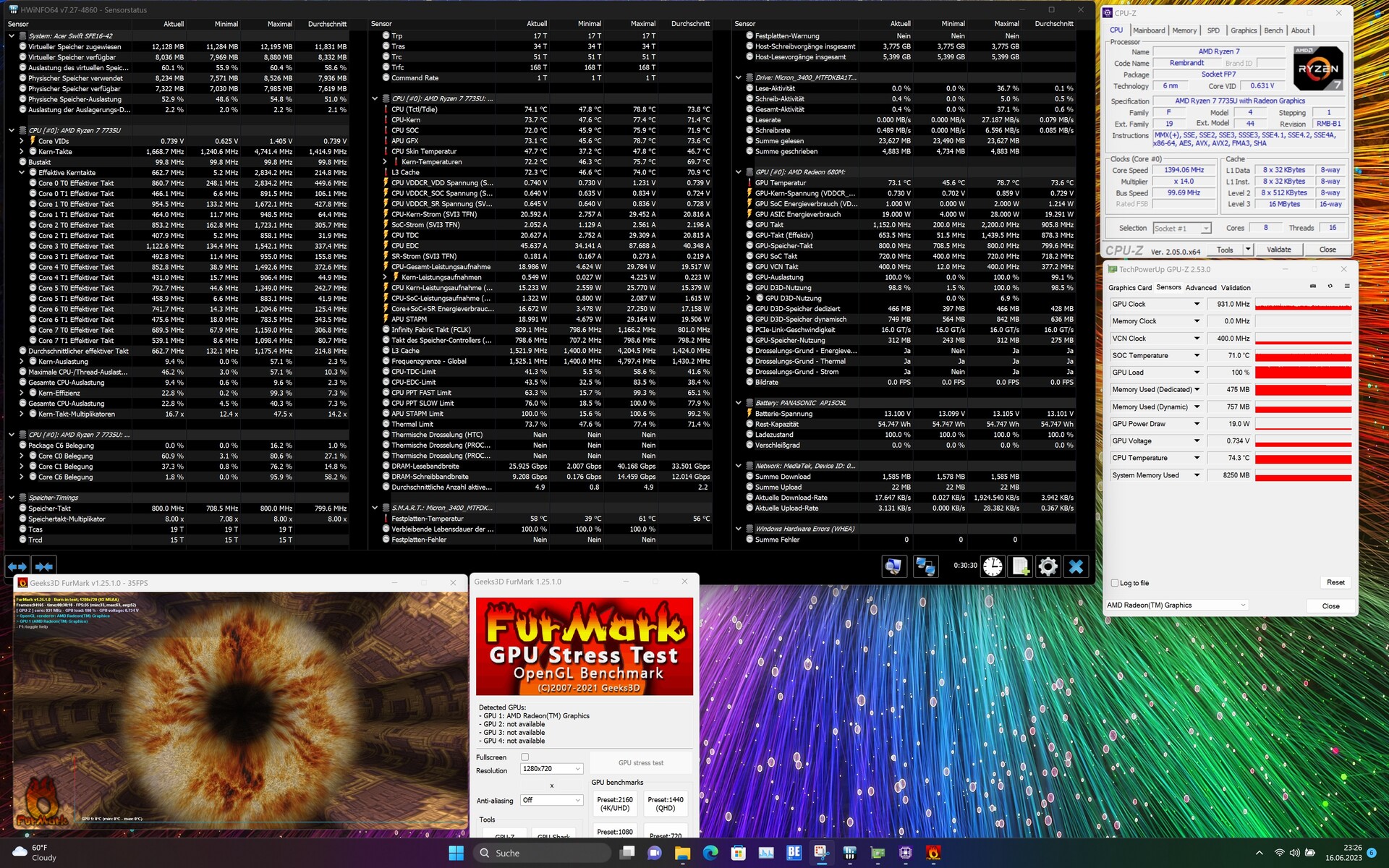

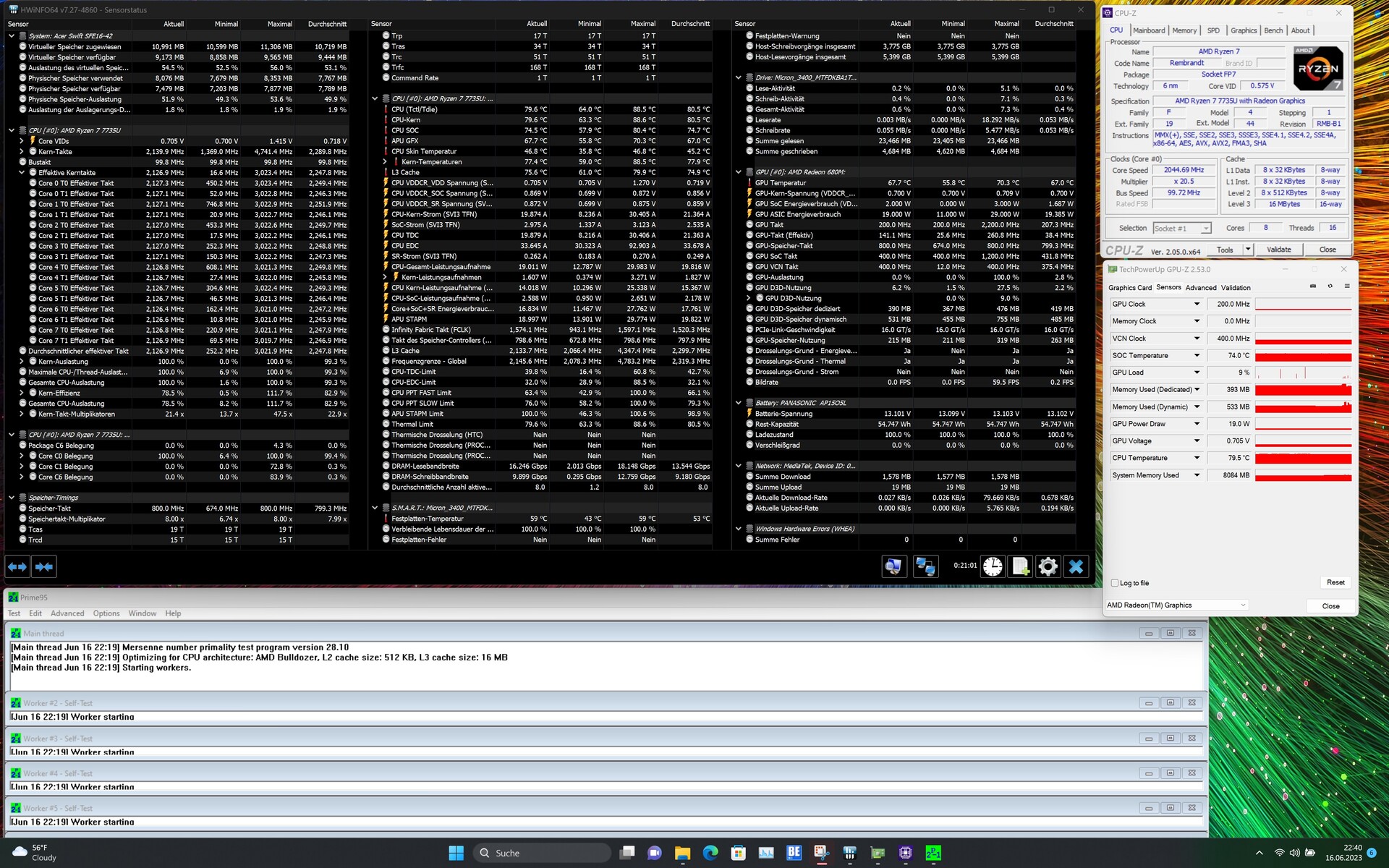

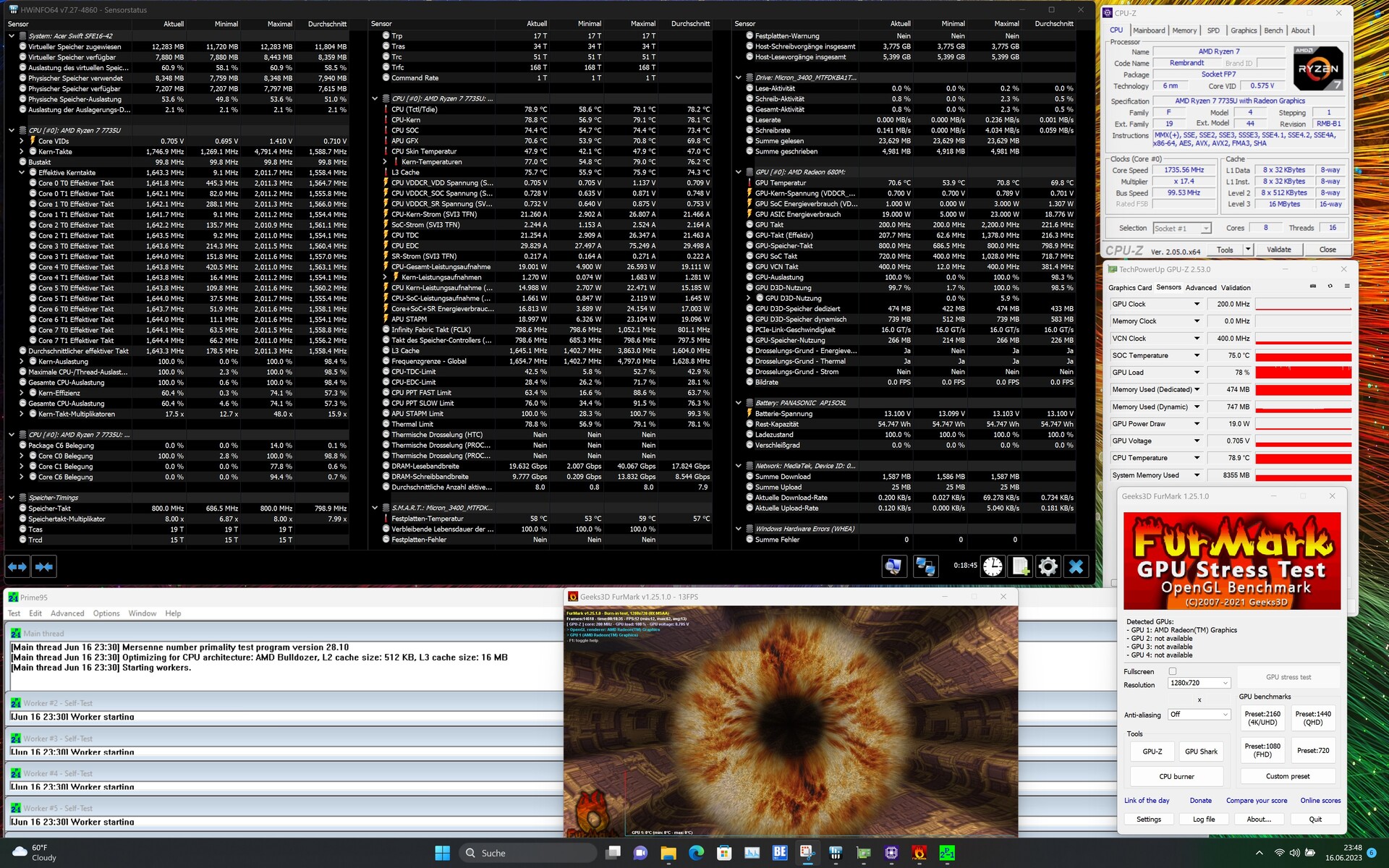

压力测试
在谈论宏碁Swift Edge SFE16时,我们很难说到温度问题。在任何时候,我们都没有测量任何临界温度。我们注意到使用Prime95的最高温度为88℃。在进一步的过程中,这在80℃左右趋于平缓。然而,我们也看到,PL1值在较长的负载期间可以保持在20瓦,而且不会有大的波动。我们测量了一个短暂的峰值,达到30瓦左右,这也是温度达到峰值的时候。

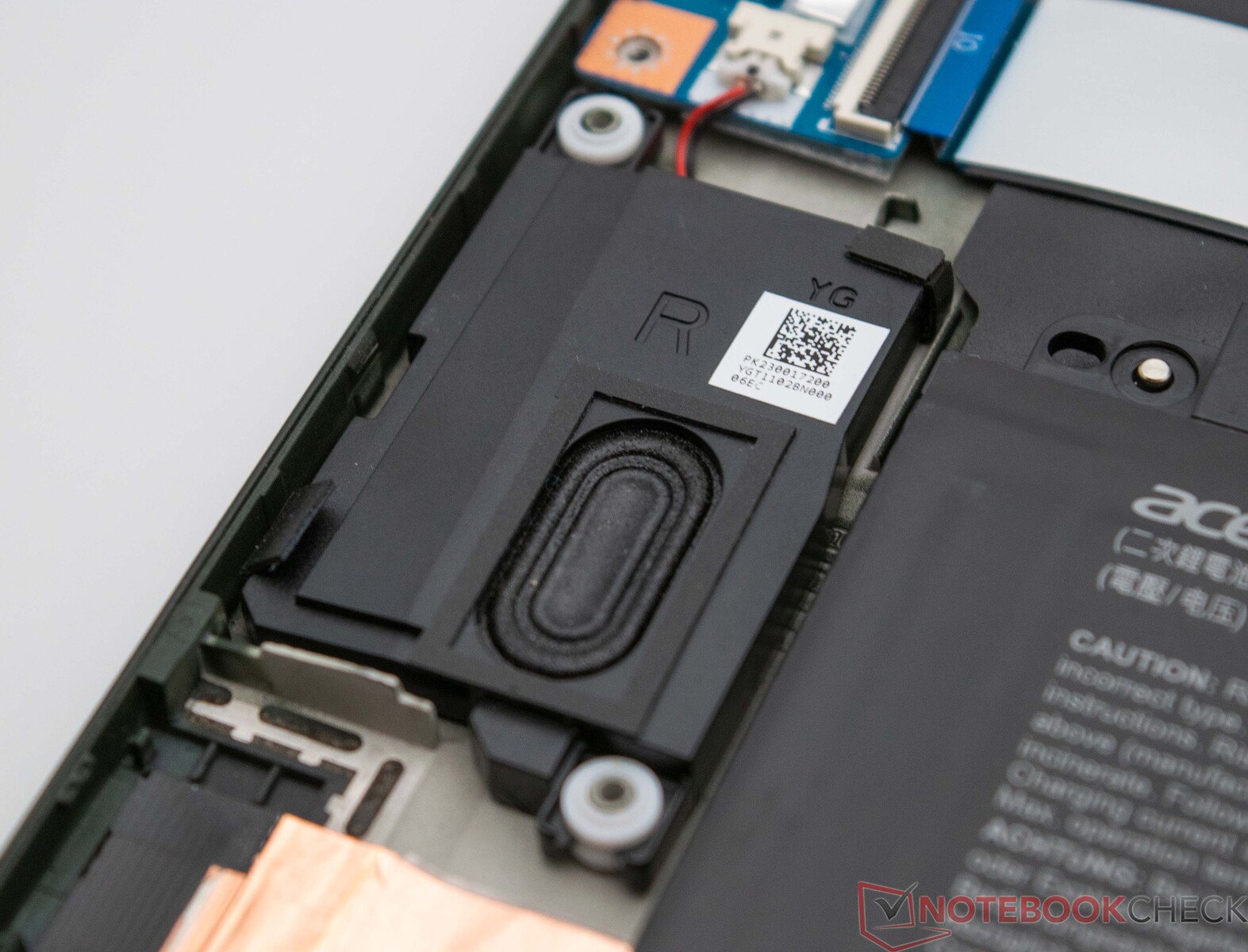

发言人
两个扬声器位于键盘旁边,方向朝下。因此,音质差异很大,取决于设备放置的表面。一般来说,高音和中音占主导地位,尽管低音实际上也存在--在某种程度上。扬声器对于视频通话来说足够好,而且可以清楚地听到声音。
Acer Swift Edge SFE16-42-R1GM audio analysis
(+) | speakers can play relatively loud (83.7 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 30% lower than median
(±) | linearity of bass is average (12.4% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.7% away from median
(±) | linearity of mids is average (8% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 7.4% higher than median
(±) | linearity of highs is average (8% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (23.3% difference to median)
Compared to same class
» 62% of all tested devices in this class were better, 8% similar, 30% worse
» The best had a delta of 7%, average was 22%, worst was 53%
Compared to all devices tested
» 66% of all tested devices were better, 6% similar, 28% worse
» The best had a delta of 4%, average was 25%, worst was 134%
Apple MacBook Pro 16 2021 M1 Pro audio analysis
(+) | speakers can play relatively loud (84.7 dB)
Bass 100 - 315 Hz
(+) | good bass - only 3.8% away from median
(+) | bass is linear (5.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 1.3% away from median
(+) | mids are linear (2.1% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 1.9% away from median
(+) | highs are linear (2.7% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (4.6% difference to median)
Compared to same class
» 0% of all tested devices in this class were better, 0% similar, 100% worse
» The best had a delta of 5%, average was 18%, worst was 45%
Compared to all devices tested
» 0% of all tested devices were better, 0% similar, 100% worse
» The best had a delta of 4%, average was 25%, worst was 134%
电源管理
消耗功率
相比之下,宏碁Swift Edge SFE16并不十分节俭。不过,我们测得的负载下的平均功率为48瓦,峰值为56瓦,这是一个适度的功耗水平。尽管如此,这款笔记本电脑在空闲模式下仍有改进的余地,因为其竞争对手有时要节俭得多。它的充电器通过USB-C接口为设备充电,最大可提供65瓦的功率。这对宏碁Swift Edge SFE16来说是绰绰有余的。
Off / Standby | 0.36 / 1.16 Watt |
Idle | 8.6 / 7.7 / 9.3 Watt |
Load |
47.9 / 56 Watt |
Key:
min: ,
med: ,
max: Metrahit Energy |
Acer Swift Edge SFE16-42-R1GM R7 7735U, Radeon 680M, Micron 3400 1TB MTFDKBA1T0TFH, OLED, 3840x2400, 16" | LG Gram 16Z90Q i7-1260P, Iris Xe G7 96EUs, Samsung PM9A1 MZVL21T0HCLR, IPS, 2560x1600, 16" | Samsung Galaxy Book3 Pro 16 i5-1340P, Iris Xe G7 80EUs, WD PC SN740 256GB SDDPNQD-256G, AMOLED, 2880x1800, 16" | Acer TravelMate P4 TMP416-51-55KN i5-1240P, Iris Xe G7 80EUs, Micron 2450 512GB MTFDKBA512TFK, IPS, 1920x1200, 16" | LG Ultra-PC 16 16U70Q-G.AR36G R3 5300U, Vega 6, Samsung PM991 MZVLQ512HBLU, IPS, 1280x1200, 16" | Lenovo ThinkPad T16 G1 21CH004MGE R5 PRO 6650U, Radeon 660M, Micron 2450 512GB MTFDKBA512TFK, IPS-LED, 2560x1600, 16" | Average AMD Radeon 680M | Average of class Office | |
---|---|---|---|---|---|---|---|---|
Power Consumption | 1% | 15% | 9% | 28% | 13% | -8% | 11% | |
Idle Minimum * | 8.6 | 5 42% | 3.9 55% | 5.2 40% | 3.7 57% | 3.2 63% | 6.7 ? 22% | 4.51 ? 48% |
Idle Average * | 7.7 | 8 -4% | 4.8 38% | 7.1 8% | 6.8 12% | 8.1 -5% | 8.73 ? -13% | 7.47 ? 3% |
Idle Maximum * | 9.3 | 14 -51% | 10 -8% | 9.6 -3% | 8.6 8% | 8.6 8% | 10.3 ? -11% | 9.11 ? 2% |
Load Average * | 47.9 | 47 2% | 44 8% | 47 2% | 30 37% | 45.4 5% | 53.1 ? -11% | 42.4 ? 11% |
Witcher 3 ultra * | 46.3 | 37.8 18% | 42.3 9% | 43.3 6% | 30.2 35% | 40 14% | ||
Load Maximum * | 56 | 56 -0% | 63 -13% | 56 -0% | 45 20% | 59.6 -6% | 70.3 ? -26% | 60.5 ? -8% |
* ... smaller is better
Power consumption Witcher 3 / stress test
Power consumption with external monitor
运行时间
安装的电池容量为54瓦时,意味着与我们测试的其他设备相比,宏碁Swift Edge SFE16的电池相当小。只有联想ThinkPad T16的电池更小,即使如此,我们在这个设备上测得的运行时间比我们的测试样本长得多。由于其相对较小的电力存储,宏碁Swift Edge SFE16根本无法跟上其竞争对手。即便如此,在我们的WLAN测试中,其运行时间刚刚超过7小时,仍足以满足日常使用。在这项测试中,笔记本电脑的显示亮度被降低了三个等级,降至150cd/m²。在最大显示亮度下,你将不得不考虑更短的运行时间--准确地说,大约5小时。
在我们的测试中,为笔记本电脑完全充电需要163分钟。这比预期的要长一些,在使用过程中应该考虑到。然而,在不到一半的时间里,已经达到了90%的目标。
Acer Swift Edge SFE16-42-R1GM R7 7735U, Radeon 680M, 54 Wh | LG Gram 16Z90Q i7-1260P, Iris Xe G7 96EUs, 80 Wh | Samsung Galaxy Book3 Pro 16 i5-1340P, Iris Xe G7 80EUs, 76 Wh | Acer TravelMate P4 TMP416-51-55KN i5-1240P, Iris Xe G7 80EUs, 56 Wh | LG Ultra-PC 16 16U70Q-G.AR36G R3 5300U, Vega 6, 72 Wh | Lenovo ThinkPad T16 G1 21CH004MGE R5 PRO 6650U, Radeon 660M, 52.5 Wh | Average of class Office | |
---|---|---|---|---|---|---|---|
Battery Runtime | 60% | 80% | 29% | 130% | 14% | 51% | |
Reader / Idle | 653 | 1085 66% | 1821 179% | 1937 197% | 1300 ? 99% | ||
H.264 | 518 | 861 66% | 652 26% | 703 ? 36% | |||
WiFi v1.3 | 437 | 606 39% | 613 40% | 562 29% | 1026 135% | 635 45% | 598 ? 37% |
Load | 89 | 157 76% | 119 34% | 141 58% | 64 -28% | 117.1 ? 32% |
Pros
Cons
结论 - 一个具有良好性能的轻型笔记本电脑
宏碁Swift Edge SFE16作为办公笔记本电脑有很多优点,也可以很容易地作为多媒体设备使用。这款16英寸的设备是比较领域中最轻的设备之一,除此之外,它还非常薄,而且仍然表现良好。安装的AMD Ryzen 7 7735U具有8个核心,能够提供很好的多核心性能,即使在负载下也不会有太大的节流现象。此外,该SoC有一个很好的iGPU--比本测试中的几乎所有英特尔设备都好。你仍然必须考虑到,在CPU性能方面,英特尔是明显的赢家。
关于这台笔记本电脑的构造,我们只有积极的东西可说。它的高质量材料证明了该设备的价格是合理的--尽管它光滑的表面往往会吸引不少指纹。制造商已经确保让宏碁Swift Edge SFE16与时俱进,给它配备了两个Thunderbolt 4端口。我们会很高兴看到一个额外的SD卡读卡器。不幸的是,这款笔记本电脑只能容纳一块固态硬盘,而且内存也有其局限性,因为你根本无法升级它。如果你想安全起见,你最好多花点钱,买32GB内存的型号。不过,1TB的存储容量对大多数人来说应该是足够的。
宏碁Swift Edge SFE16有一个惊人的OLED显示屏和一个快速而节俭的处理器。由于其有限的升级选项,你应该确保只选择32GB内存的Swift Edge。
宏碁Swift Edge SFE16的亮点显然是其OLED显示屏。它超级清晰,在我们的测试中表现惊人。由于其高色彩准确度和良好的Delta E 2000值,这款宏碁笔记本电脑可以很容易地在许多专业内容创作者的愿望清单上找到自己。当涉及到电池寿命时,你确实必须做出妥协;LG 和三星 设备在这方面做得更好一些。LG Gram 16 仍然是其最大的竞争对手之一,因为它的屏幕与Swift Edge SFE16的屏幕处于类似的高水平。这两款设备目前都比宏碁Swift Edge SFE16便宜一点,但它们也有各自的批评点。
价格和可用性
宏碁Swift Edge SFE16目前在亚马逊上可以找到1079美元起。
Acer Swift Edge SFE16-42-R1GM
-
06/18/2023 v7 (old)
Sebastian Bade
Transparency
The selection of devices to be reviewed is made by our editorial team. The test sample was provided to the author as a loan by the manufacturer or retailer for the purpose of this review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.
This is how Notebookcheck is testing
Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.
