联想 ThinkPad L14 G4 AMD 评测：经济实惠的笔记本电脑，具有良好的可升级性和电池续航能力

Name: Lenovo ThinkPad L14 G4 21H6S00900
Brand: Lenovo

经济实惠的黑匣子

联想面向企业客户销售的价格更实惠的 ThinkPad 笔记本电脑是 ThinkPad L 系列。ThinkPad L14 Gen 4 AMD 是一款采用 AMD 技术的经济型机型，不过采用的是 Ryzen 7030。联想没有使用 Ryzen 7040 并不意味着 L14 是一款糟糕的笔记本电脑，但它会带来一些负面影响。

Benjamin Herzig, 👁 Benjamin Herzig (translated by DeepL / Ninh Duy), Published 08/10/2023 🇺🇸 🇩🇪 ...

AMD Business Laptop / Notebook ThinkPad Windows Zen Ryzen (Zen)

在 ThinkPad 的世界里，ThinkPad L 系列标志着它进入了商务系列。这意味着它是面向商务用户的笔记本电脑系列，在成本方面进行了大量优化，并提供了较低的入门级价格。联想 THinkPad L14 Gen 4 AMD 就是今天要评测的设备，它是 14 英寸型号 ThinkPad L14 的第四代产品，这次采用的是 AMD Ryzen 7000。

由于设计与第三代 ThinkPad L14 相比没有变化，我们在联想 ThinkPad L14 Gen 3 的综合评测中介绍了连接选项、机箱/设计和输入设备等方面的情况。

Test device courtesy of campuspoint.de

Download your licensed rating image as PNG / SVG

Lenovo ThinkPad L14 G4 21H6S00900 (ThinkPad L14 G4 Series)

Processor

AMD Ryzen 5 7530U 6 x 2 - 4.5 GHz, 40 W PL2 / Short Burst, 23.5 W PL1 / Sustained, Barcelo-U Refresh

Graphics adapter

AMD Radeon RX Vega 7

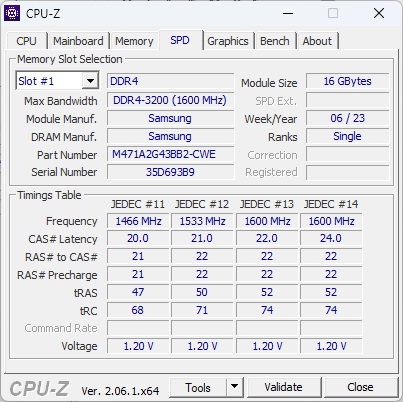

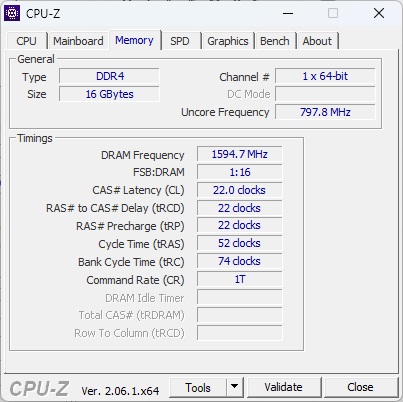

Memory

16 GB

, DDR4-3200, 2x SO-DIMM, Single-Channel

Display

14.00 inch 16:9, 1920 x 1080 pixel 157 PPI, B140HAN06.9, IPS LED, glossy: no

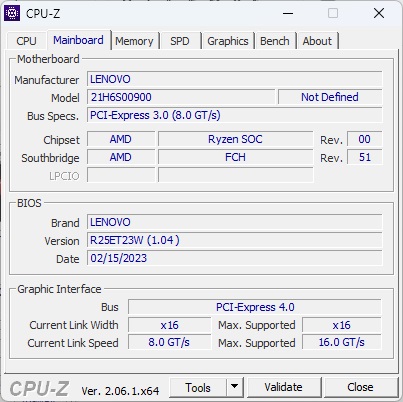

Mainboard

AMD Promontory/Bixby FCH

Storage

Kioxia BG5 KBG5AZNT512G, 512 GB

, M.2 2242, NVMe PCIe 4.0, 512 GB free

Soundcard

Realtek ALC3287

Connections

2 USB 3.0 / 3.1 Gen1, 2 USB 3.1 Gen2, USB-C Power Delivery (PD), 1 HDMI, 2 DisplayPort, 1 Kensington Lock, Audio Connections: 3.5mm Audio, Card Reader: microSD, 1 Fingerprint Reader

Networking

Realtek Semiconductor RTL8168/8111 PCI-E Gigabit Ethernet NIC (10/100/1000MBit/s), MediaTek RZ616 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/ Wi-Fi 6E 6 GHz), Bluetooth 5.2

Size

height x width x depth (in mm): 19.83 x 325.4 x 217

Battery

57 Wh Lithium-Polymer

Camera

Webcam: 1080p w/IR & ThinkShutter

Additional features

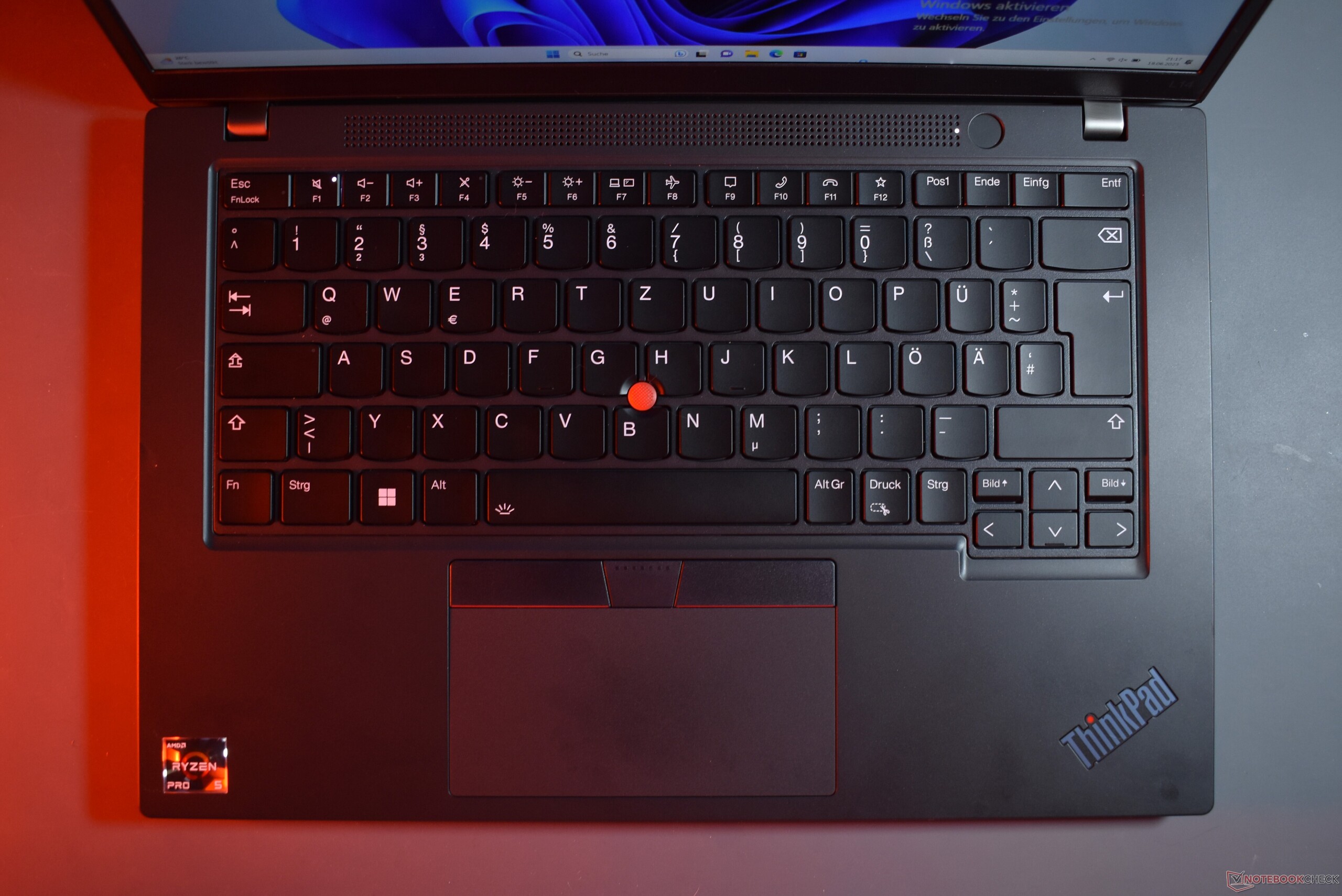

Speakers: 2 W Stereo, Keyboard: 6 row Chiclet full-size, 1.5 mm travel, Keyboard Light: yes, 65 W USB C charger, 36 Months Warranty

Weight

1.509 kg, Power Supply: 338 g

Price

700 Euro

Links

Lenovo homepage

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

潜在的竞争对手比较

Rating	Date	Model	Weight	Height	Size	Resolution
88.6 % v7 ^(old)	08 / 2023	Lenovo ThinkPad L14 G4 21H6S00900 R5 7530U, Vega 7	1.5 kg	19.83 mm	14.00"	1920x1080
86.5 % v7 ^(old)	10 / 2022	Lenovo ThinkPad L14 G3 21C50030GE R5 PRO 5675U, Vega 7	1.6 kg	19.83 mm	14.00"	1920x1080
85.3 % v7 ^(old)	06 / 2023	Dell Latitude 3440 i5-1345U, Iris Xe G7 80EUs	1.5 kg	19.4 mm	14.00"	1920x1080
89.1 % v7 ^(old)	05 / 2023	HP EliteBook 645 G9, Ryzen 7 5825U R7 5825U, Vega 8	1.4 kg	19.9 mm	14.00"	1920x1080
85.3 % v7 ^(old)	03 / 2023	HP ProBook 440 G9-5Y3Z3EA i7-1255U, Iris Xe G7 96EUs	1.4 kg	20.4 mm	14.00"	1920x1080
88.8 % v7 ^(old)	09 / 2022	Lenovo ThinkPad T14 G3-21CF004NGE R7 PRO 6850U, Radeon 680M	1.4 kg	17.9 mm	14.00"	1920x1200

尺寸比较

Lenovo ThinkPad L14 G4 21H6S00900 Lenovo ThinkPad L14 G3 21C50030GE HP ProBook 440 G9-5Y3Z3EA HP EliteBook 645 G9, Ryzen 7 5825U Dell Latitude 3440 Lenovo ThinkPad T14 G3-21CF004NGE DIN A4 ❌

连接性

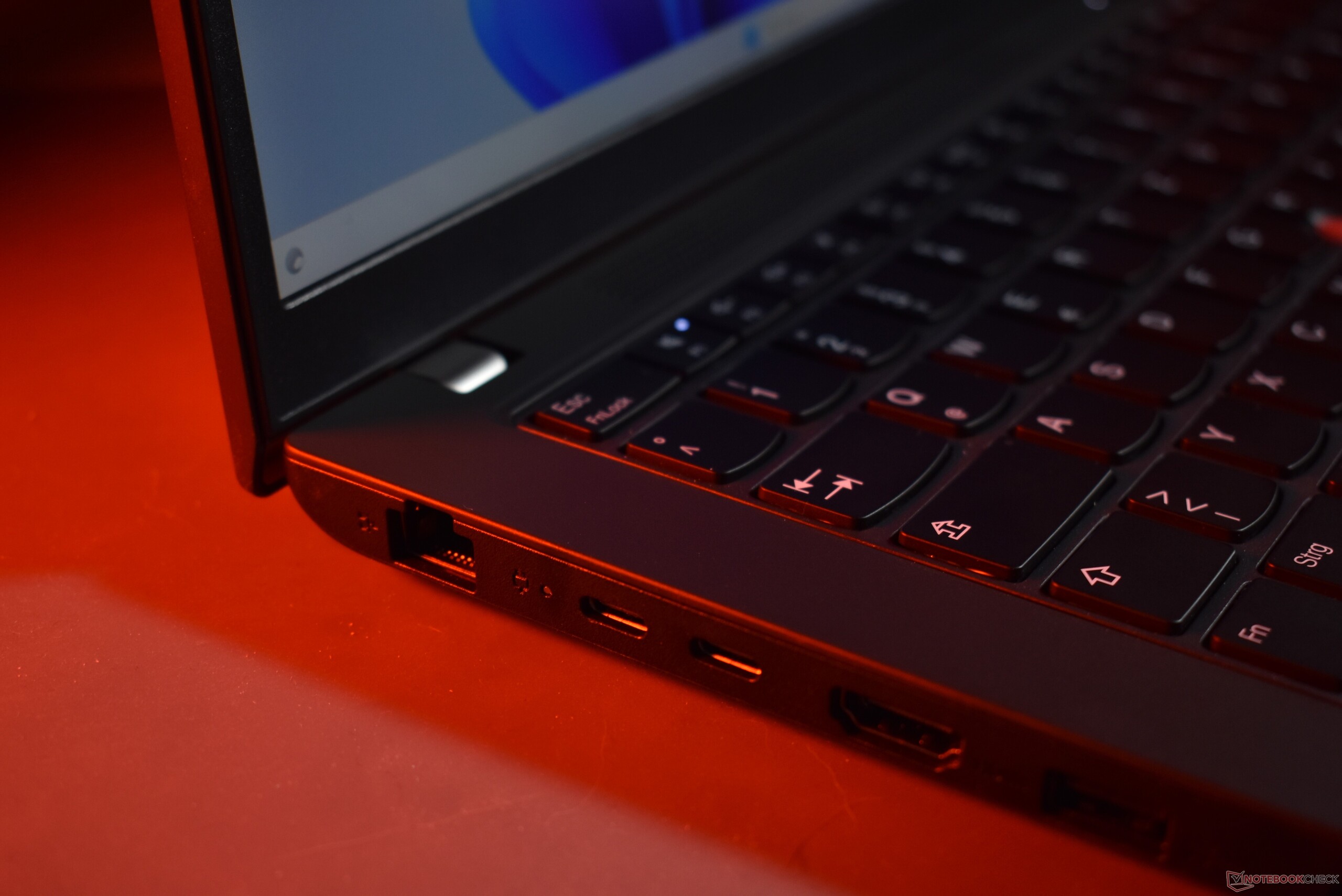

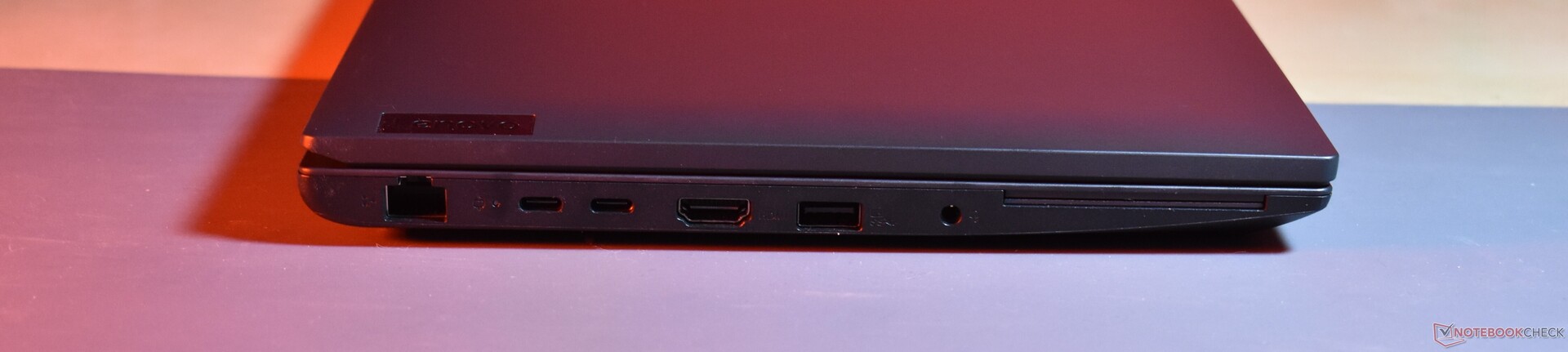

左侧RJ45 以太网、2x USB C 3.2 Gen 2、HDMI、USB A 3.2 Gen 1、3.5mm 音频

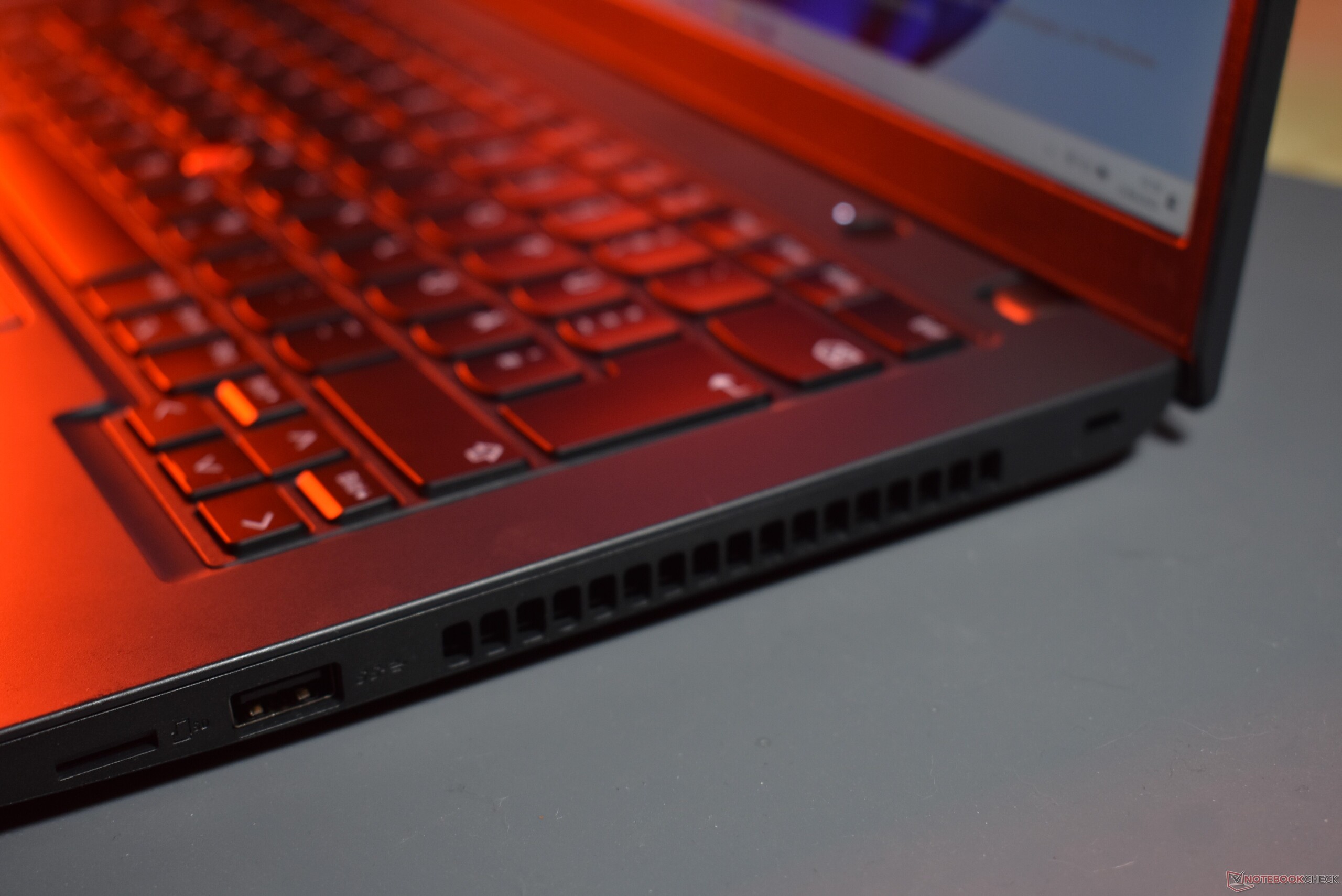

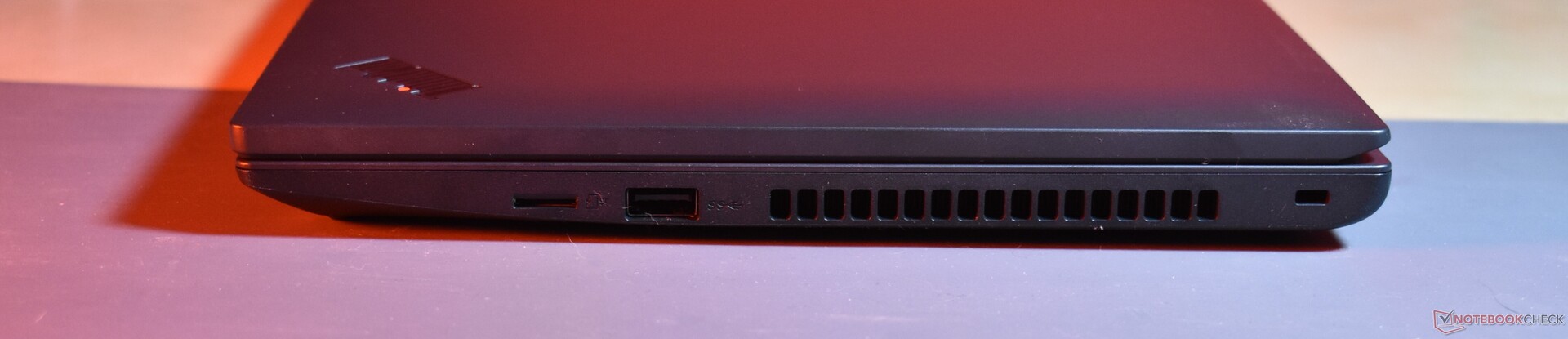

右：microSD、USB A 3.2 Gen 1、Kensington Lock 插槽

SD Card Reader
average JPG Copy Test (av. of 3 runs)
Lenovo ThinkPad L14 G4 21H6S00900 AMD Ryzen 5 7530U	60.98 MB/s
Lenovo ThinkPad L14 G3 21C50030GE AMD Ryzen 5 PRO 5675U	59.78 MB/s -2%
Average of class Office (22.7 - 198.5, n=34, last 2 years)	58.1 MB/s -5%
HP EliteBook 645 G9, Ryzen 7 5825U AMD Ryzen 7 5825U (AV Pro SD microSD 128 GB V60)	8 MB/s -87%
maximum AS SSD Seq Read Test (1GB)
Lenovo ThinkPad L14 G4 21H6S00900 AMD Ryzen 5 7530U (AV Pro V60)	89.7 MB/s
Lenovo ThinkPad L14 G3 21C50030GE AMD Ryzen 5 PRO 5675U	89.04 MB/s -1%
Average of class Office (25 - 249, n=30, last 2 years)	73.1 MB/s -19%

Networking
Lenovo ThinkPad L14 G4 21H6S00900 MediaTek RZ616
iperf3 transmit AXE11000	783 (min: 529) MBit/s ∼49%
iperf3 receive AXE11000	1660 (min: 1594) MBit/s ∼95%
iperf3 transmit AXE11000 6GHz	960 (min: 629) MBit/s ∼51%
iperf3 receive AXE11000 6GHz	1735 (min: 1685) MBit/s ∼98%
Lenovo ThinkPad L14 G3 21C50030GE MediaTek RZ616
iperf3 transmit AXE11000	1556 (min: 816) MBit/s ∼96%
iperf3 receive AXE11000	1694 (min: 1649) MBit/s ∼97%
Dell Latitude 3440 Intel Wi-Fi 6E AX211
iperf3 transmit AXE11000	1180 (min: 1037) MBit/s ∼73%
iperf3 receive AXE11000	1075 (min: 897) MBit/s ∼61%
iperf3 transmit AXE11000 6GHz	1303 (min: 995) MBit/s ∼69%
iperf3 receive AXE11000 6GHz	1254 (min: 1121) MBit/s ∼71%
HP EliteBook 645 G9, Ryzen 7 5825U Qualcomm Fast Connect 6900 Wi-Fi 6E Dual Band Simultaneous
iperf3 transmit AXE11000	1613 (min: 784) MBit/s ∼100%
iperf3 receive AXE11000	1748 (min: 1703) MBit/s ∼100%
iperf3 transmit AXE11000 6GHz	1750 (min: 1489) MBit/s ∼92%
iperf3 receive AXE11000 6GHz	1762 (min: 1637) MBit/s ∼100%
HP ProBook 440 G9-5Y3Z3EA Intel Wi-Fi 6E AX211
iperf3 transmit AXE11000	1471 (min: 1299) MBit/s ∼91%
iperf3 receive AXE11000	1673 (min: 1649) MBit/s ∼96%
iperf3 transmit AXE11000 6GHz	1596 (min: 1404) MBit/s ∼84%
iperf3 receive AXE11000 6GHz	1665 (min: 868) MBit/s ∼94%
Lenovo ThinkPad T14 G3-21CF004NGE Qualcomm WCN685x
iperf3 transmit AXE11000 6GHz	1892 (min: 1820) MBit/s ∼100%
iperf3 receive AXE11000 6GHz	1724 (min: 1705) MBit/s ∼98%

Lenovo ThinkPad L14 G4 21H6S00900; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø961 (629-1568)

Lenovo ThinkPad L14 G4 21H6S00900; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1734 (1685-1761)

Lenovo ThinkPad L14 G4 21H6S00900; iperf3 transmit AXE11000; iperf 3.1.3: Ø783 (529-1434)

Lenovo ThinkPad L14 G4 21H6S00900; iperf3 receive AXE11000; iperf 3.1.3: Ø1659 (1594-1748)

ColorChecker Lenovo ThinkPad L14 G4 21H6S00900: 10.47 ∆E min: 2.01 - max: 22.32 ∆E

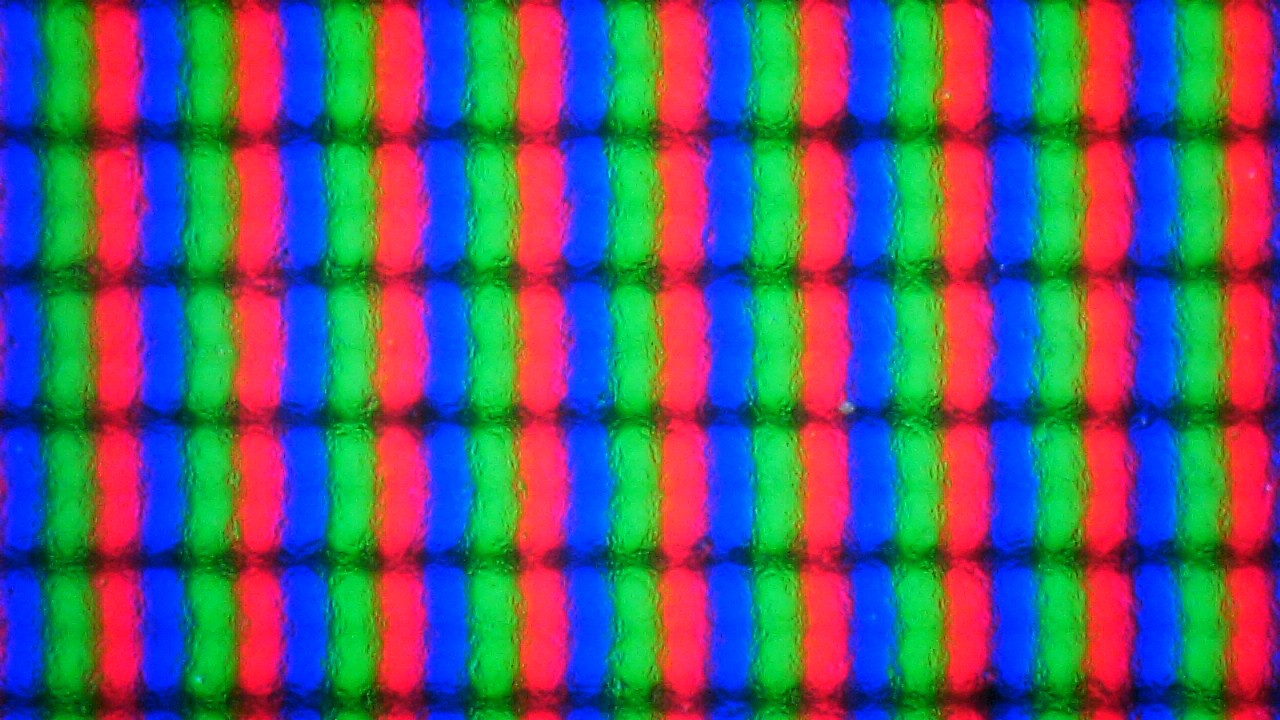

显示屏：ThinkPad L 首次采用低功耗屏幕

ThinkPad L 系列的传统弱点是屏幕质量。作为经济型商务系列，屏幕通常是节省成本的领域之一。因此，这些笔记本电脑使用的显示屏往往亮度和色域覆盖率较低。就联想 ThinkPad L14 G4 AMD 而言，四款 14 英寸显示器中有三款符合这一特点。幸运的是，我们有了第四个选项。所有显示器仍然使用 16:9 宽高比，这使得 ThinkPad L14 成为最后几款使用这种宽高比的 ThinkPad 机型之一：

高清（1,366 x 768）、TN、220 cd/m²、45 % NTSC
全高清（1,920 x 1,080），IPS，250 cd/m²，45 % NTSC
全高清（1,920 x 1,080），IPS，300 cd/m²，45 % NTSC，多点触控
全高清（1,920 x 1,080），IPS，400 cd/m²，72 % NTSC，低功耗

我们已经从 T 系列的老款 ThinkPad 上了解到了这款产品所采用的低功耗屏幕，在此我们将首次对 ThinkPad L14 进行评测。显示屏亮度符合预期，整体亮度为 409 cd/m²。与其他经济型商用竞争产品相比，这是一个不错的亮度。但 AUD 面板的响应时间稍逊一筹，因为同类笔记本电脑的响应时间都很慢。对于办公用途来说，这并不是一个非常关键的问题，但用户会面临一些重影现象。


426 cd/m²	422 cd/m²	391 cd/m²
406 cd/m²	430 cd/m²	380 cd/m²
428 cd/m²	415 cd/m²	382 cd/m²

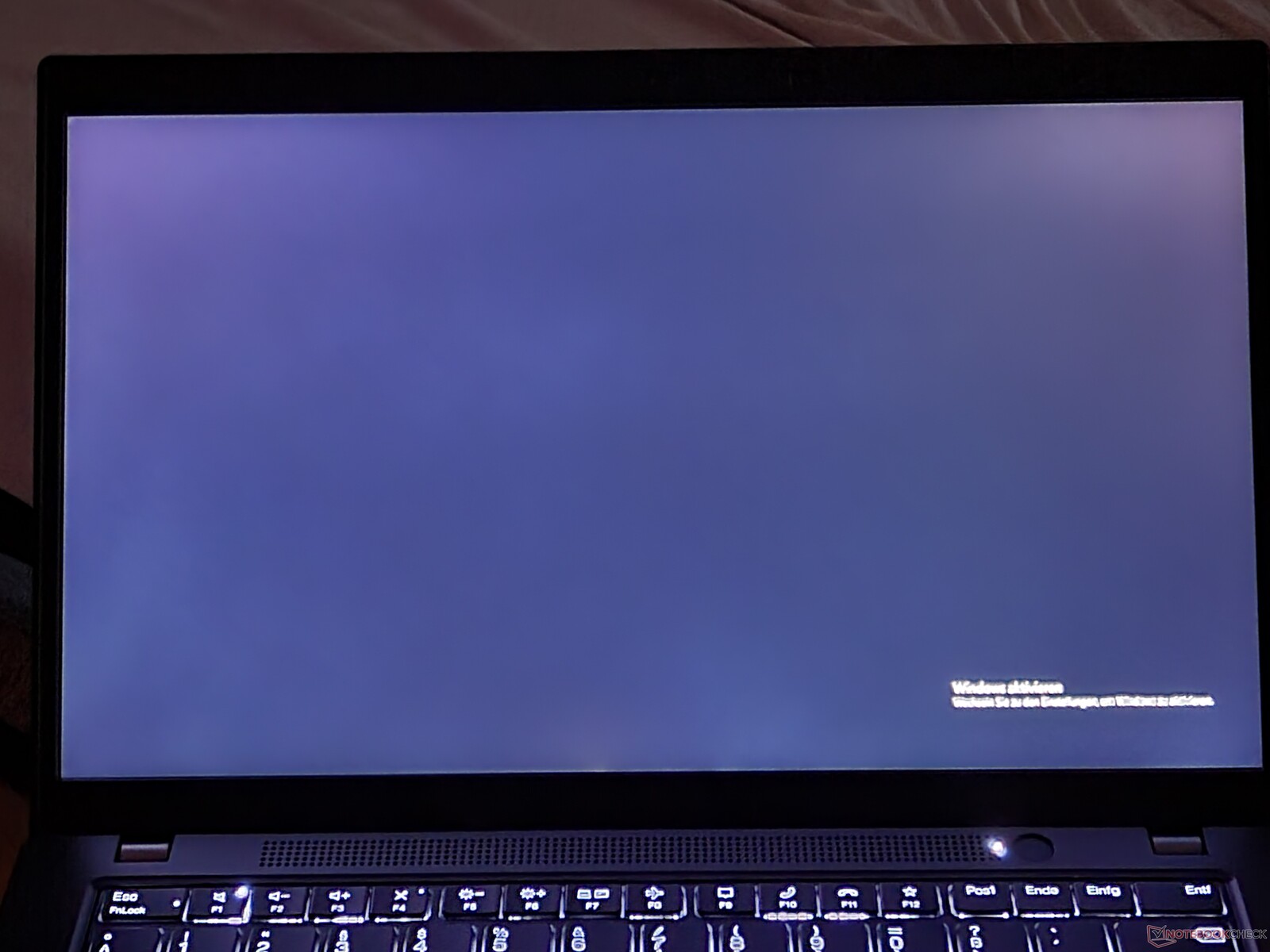

Distribution of brightness

B140HAN06.9 tested with X-Rite i1Pro 2

Maximum: 430 cd/m² (Nits) Average: 408.9 cd/m² Minimum: 8 cd/m²
Brightness Distribution: 88 %
Center on Battery: 430 cd/m²
Contrast: 1387:1 (Black: 0.31 cd/m²)
ΔE Color 2.4 | 0.5-29.43 Ø4.91, calibrated: 1.4
ΔE Greyscale 3 | 0.5-98 Ø5.2

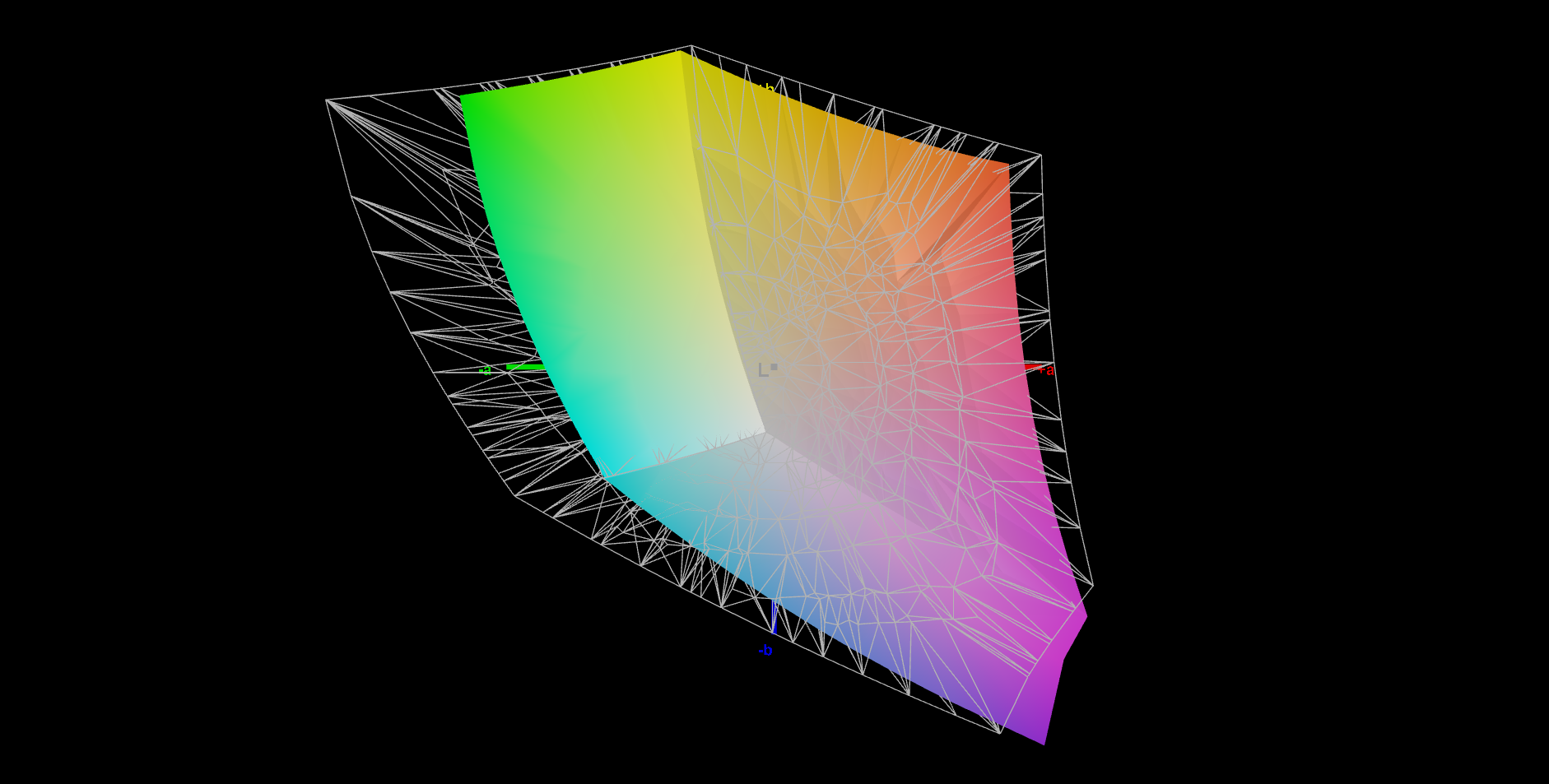

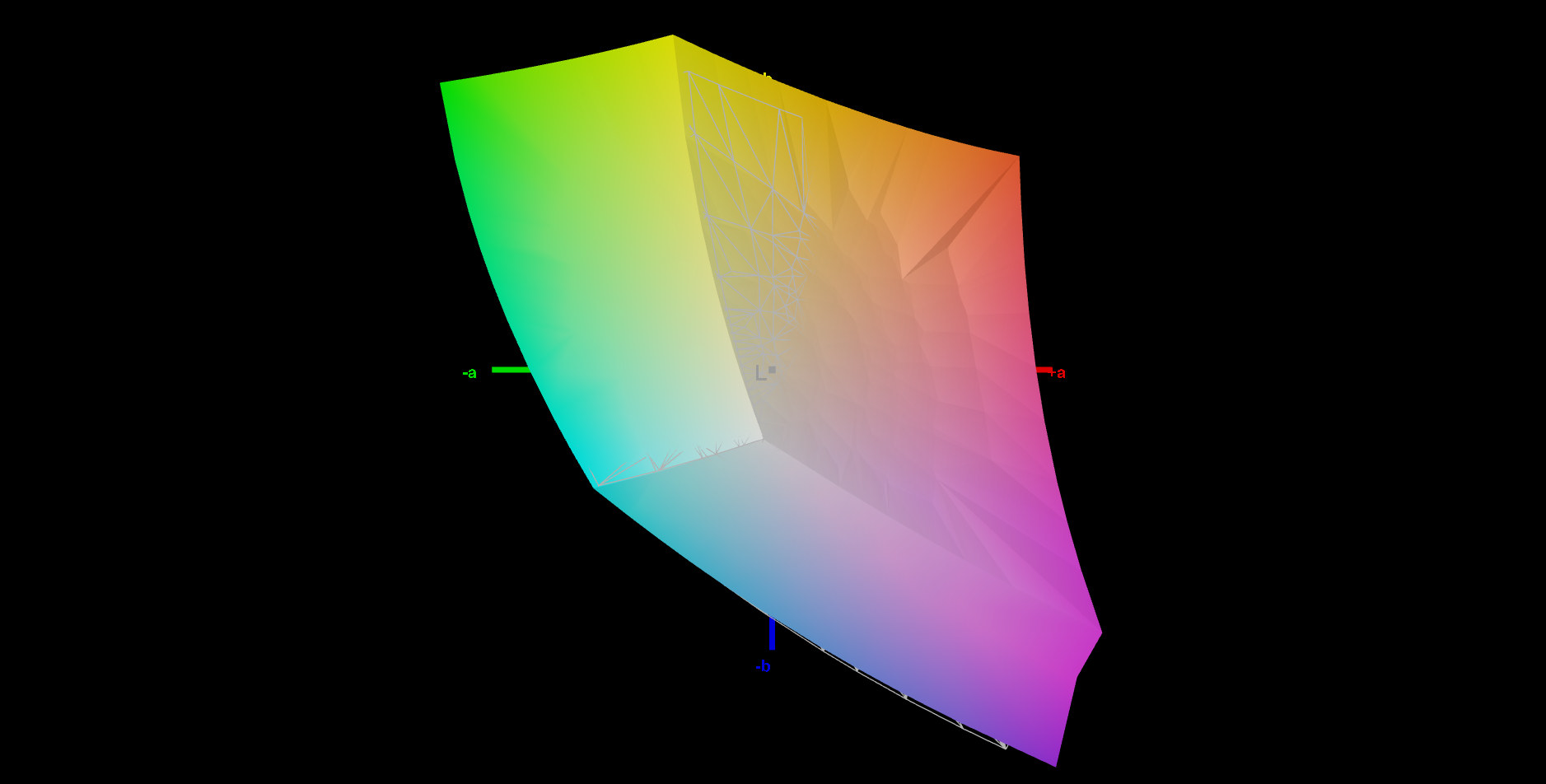

73.9% AdobeRGB 1998 (Argyll 2.2.0 3D)
98.9% sRGB (Argyll 2.2.0 3D)
73.2% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.3

Download ICC File (X-Rite i1Pro 2)

	Lenovo ThinkPad L14 G4 21H6S00900 B140HAN06.9, IPS LED, 1920x1080, 14"	Lenovo ThinkPad L14 G3 21C50030GE BOE NV140FHM-N4U, IPS, 1920x1080, 14"	Dell Latitude 3440 BOE NE140FH, IPS, 1920x1080, 14"	HP EliteBook 645 G9, Ryzen 7 5825U Chi Mei CMN141D, IPS, 1920x1080, 14"	HP ProBook 440 G9-5Y3Z3EA AUO559C, , 1920x1080, 14"	Lenovo ThinkPad T14 G3-21CF004NGE LP140WU1-SPB2, IPS, 1920x1200, 14"
Display		-41%	-42%	-7%	-47%	-3%
Display P3 Coverage	73.2	41.4 -43%	40.4 -45%	66.2 -10%	37 -49%	69.2 -5%
sRGB Coverage	98.9	60.8 -39%	60.7 -39%	95.7 -3%	55.5 -44%	97.4 -2%
AdobeRGB 1998 Coverage	73.9	42.7 -42%	41.8 -43%	67.3 -9%	38.2 -48%	71.5 -3%
Response Times		67%	24%	58%	41%	35%
Response Time Grey 50% / Grey 80% *	58.1 ?(27.2, 30.9)	25 ?(12, 13) 57%	35.3 ?(16.3, 19) 39%	22 ?(1, 21) 62%	42 ?(18, 24) 28%	41.4 ?(18.8, 22.6) 29%
Response Time Black / White *	32.7 ?(15.4, 17.3)	8 ?(8, 8) 76%	29.8 ?(17.1, 12.7) 9%	15 ?(3, 12) 54%	15 ?(4, 11) 54%	19.2 ?(6.8, 12.4) 41%
PWM Frequency
Screen		-80%	-48%	26%	-113%	13%
Brightness middle	430	292 -32%	292.6 -32%	419 -3%	255 -41%	451 5%
Brightness	409	282 -31%	270 -34%	392 -4%	233 -43%	435 6%
Brightness Distribution	88	91 3%	88 0%	86 -2%	86 -2%	94 7%
Black Level *	0.31	0.24 23%	0.19 39%	0.24 23%		0.21 32%
Contrast	1387	1217 -12%	1540 11%	1746 26%		2148 55%
Colorchecker dE 2000 *	2.4	5.8 -142%	4.63 -93%	1.13 53%	8.41 -250%	2.4 -0%
Colorchecker dE 2000 max. *	4.7	18.1 -285%	17.1 -264%	2.46 48%	13.51 -187%	4.1 13%
Colorchecker dE 2000 calibrated *	1.4	4.5 -221%	2.13 -52%			1.3 7%
Greyscale dE 2000 *	3	3.7 -23%	3.2 -7%	0.94 69%	7.6 -153%	3.3 -10%
Gamma	2.3 ^96%	2.07 ^106%	2.34 ^94%	2.38 ^92%	3.12 ^71%	2.13 ^103%
CCT	6489 ^100%	7071 ^92%	7184 ^90%	6585 ^99%	6233 ^104%	6848 ^95%
Total Average (Program / Settings)		-18% / -51%	-22% / -37%	26% / 23%	-40% / -67%	15% / 13%

* ... smaller is better

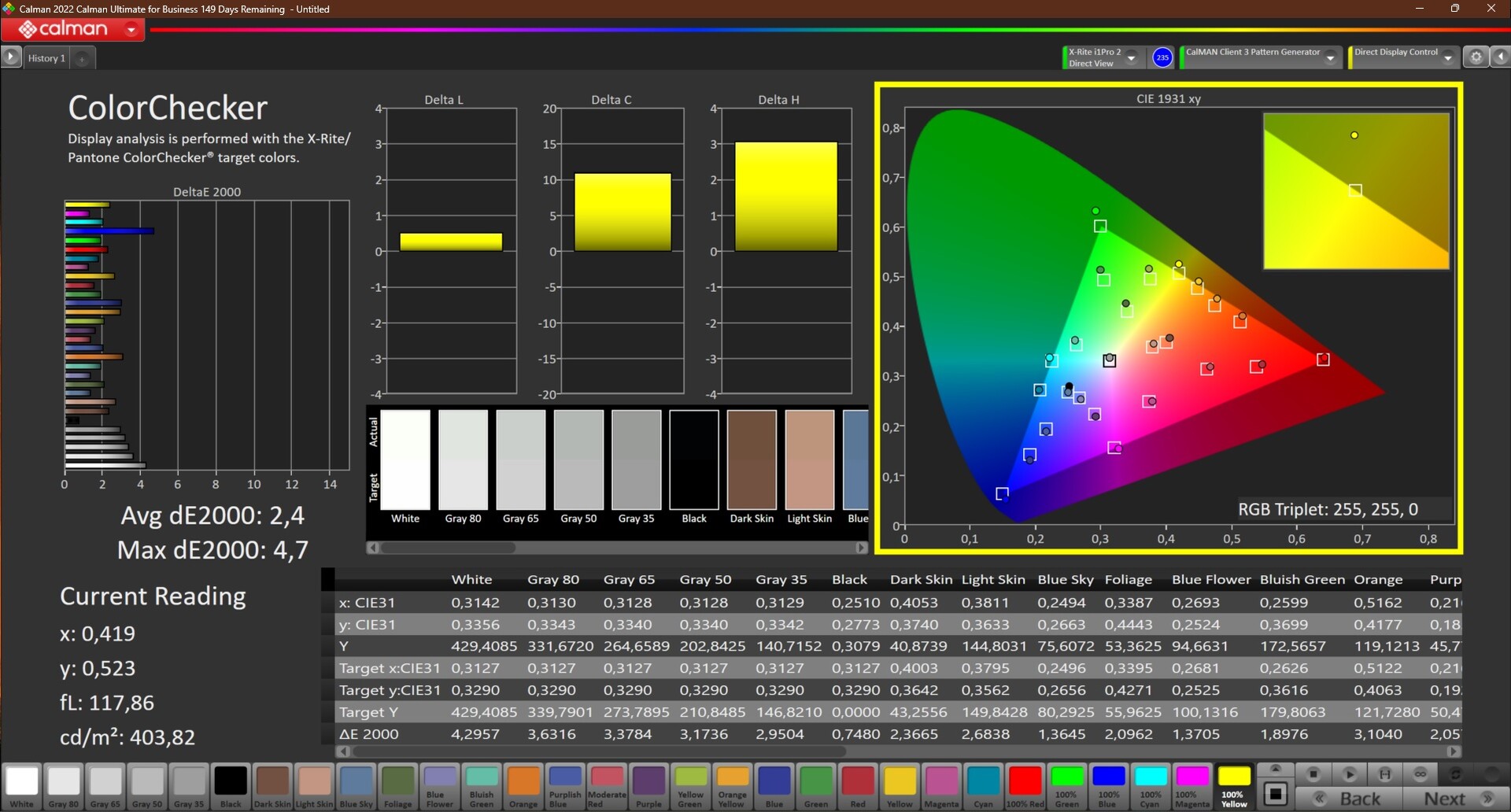

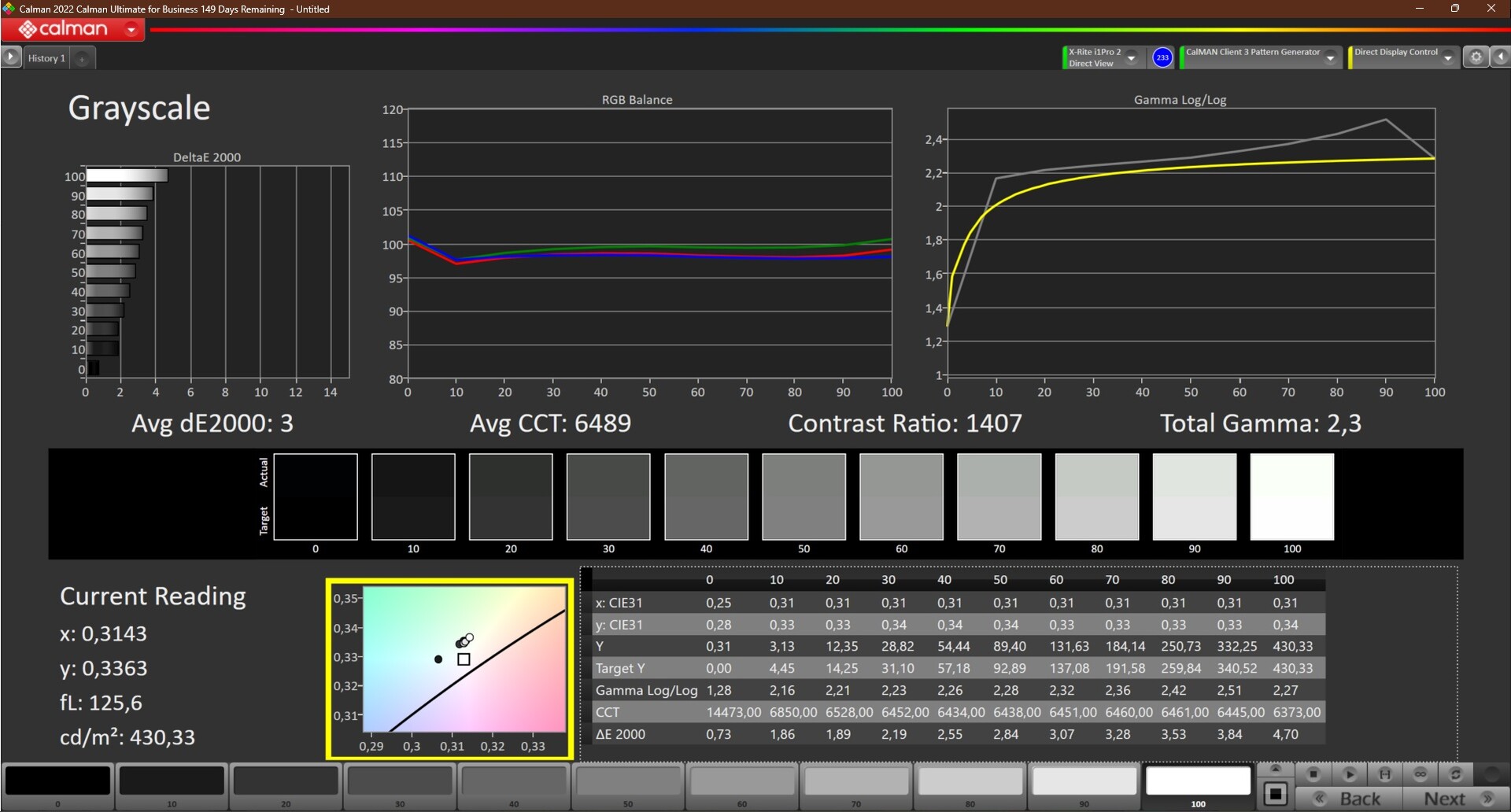

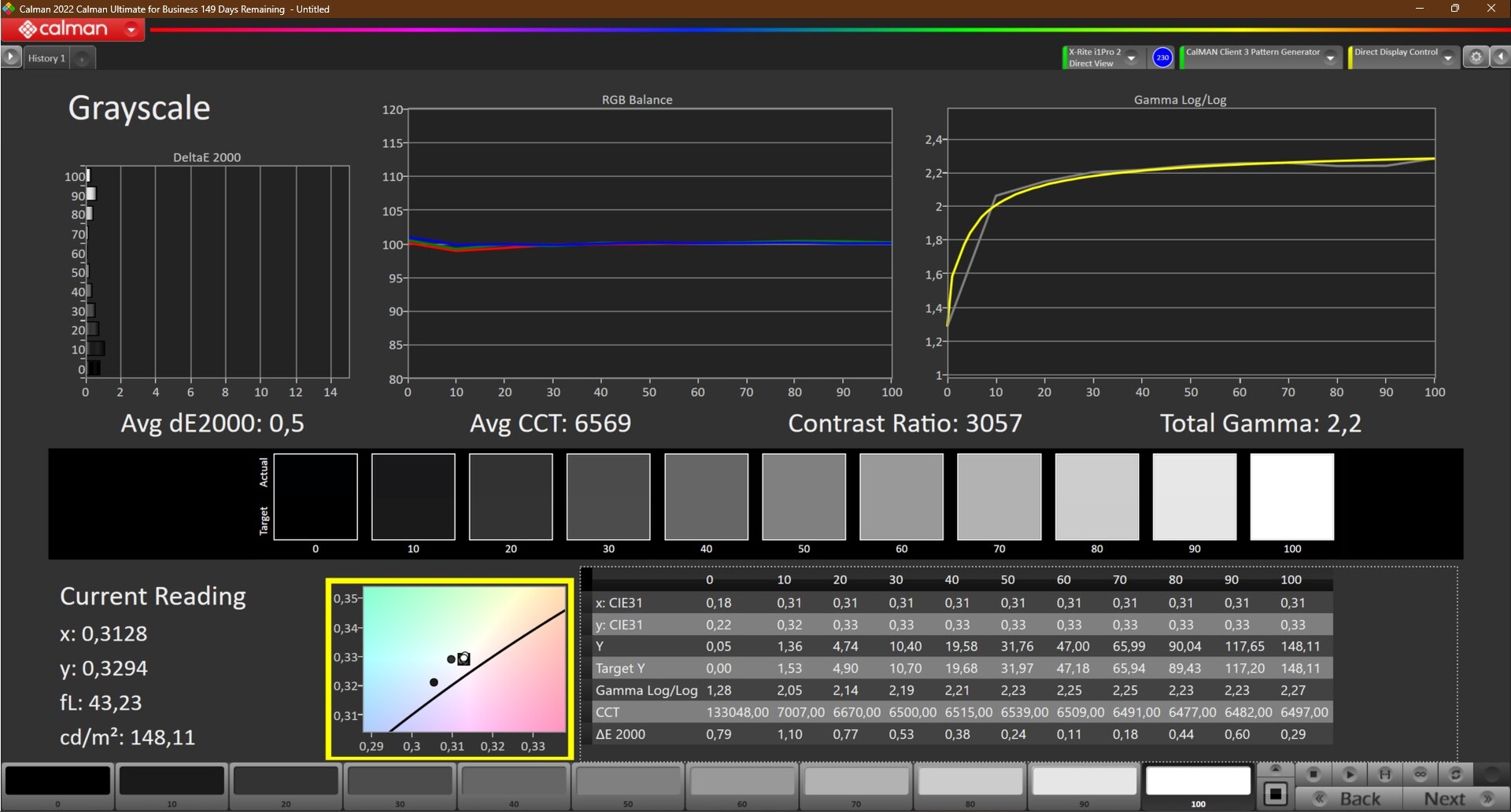

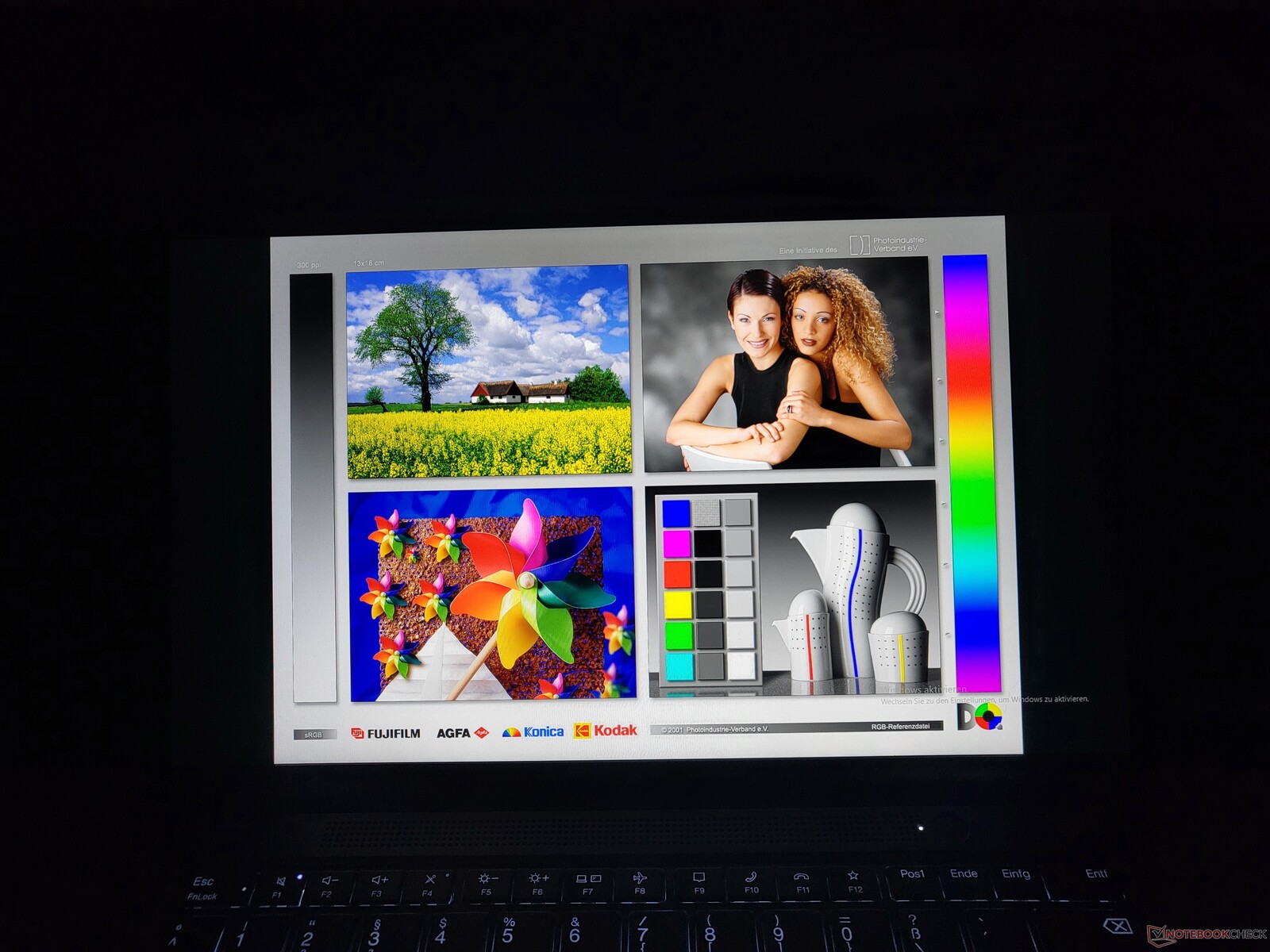

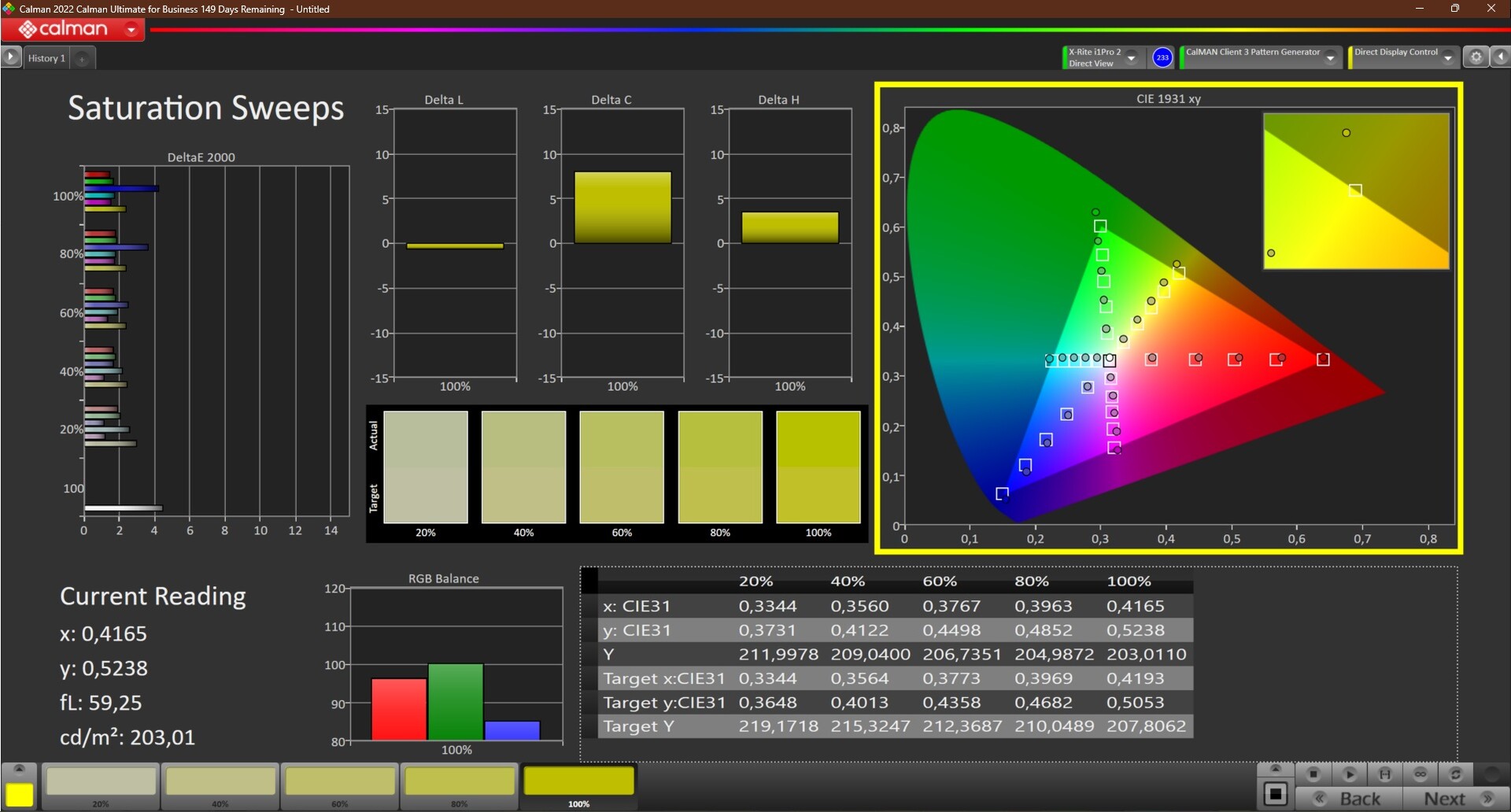

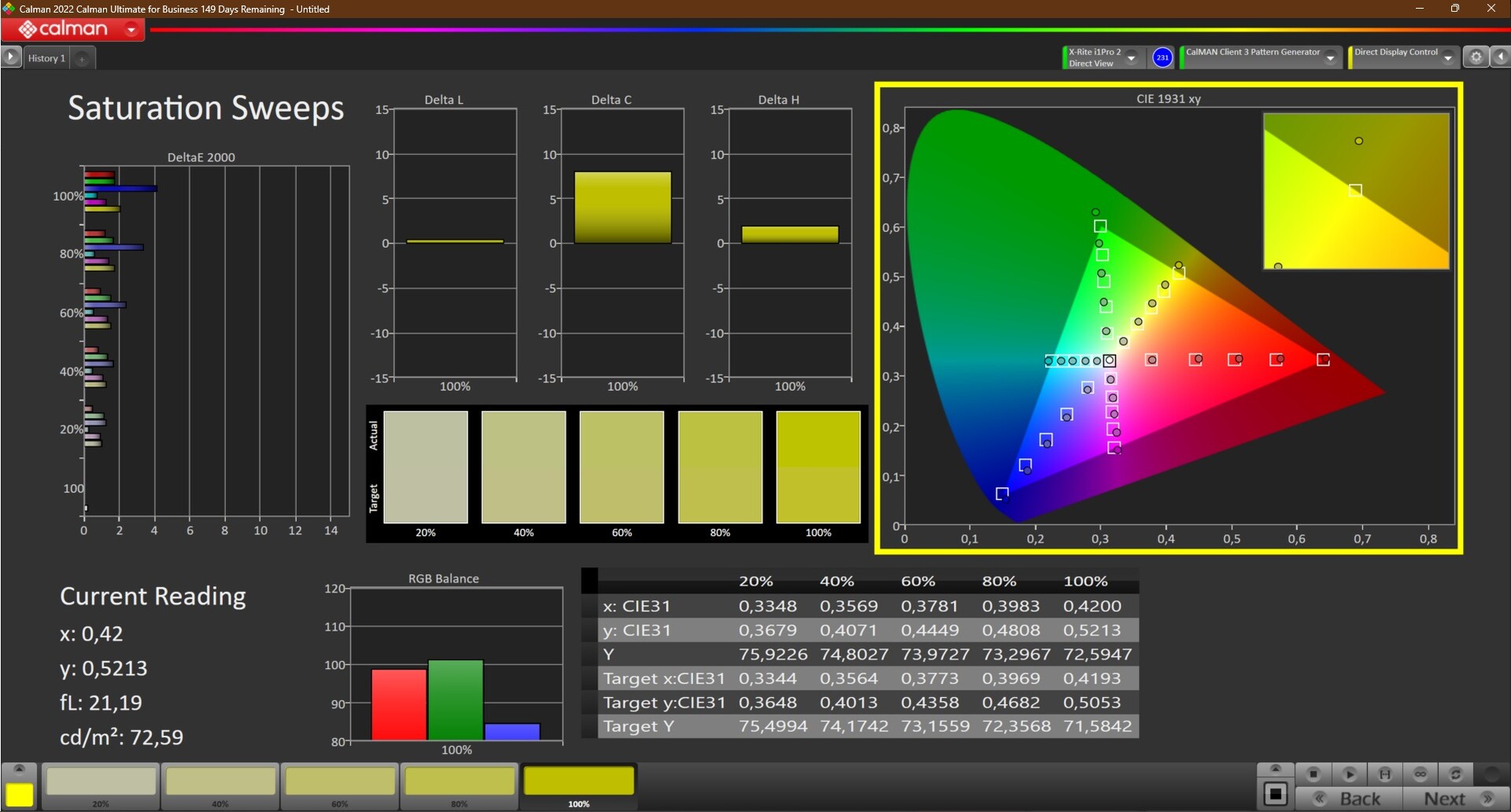

出厂时，屏幕略微偏冷，我们使用 X-Rite i1Pro 2 和 CalMan 进行了测量。在使用 X-Rite i1Profiler 校准后，我们将 deltaE 从 2.4 降到了 1.4--就色彩准确性而言，这是一个不错的值，但不是一个非常好的值。尤其是蓝色的准确度相当低。

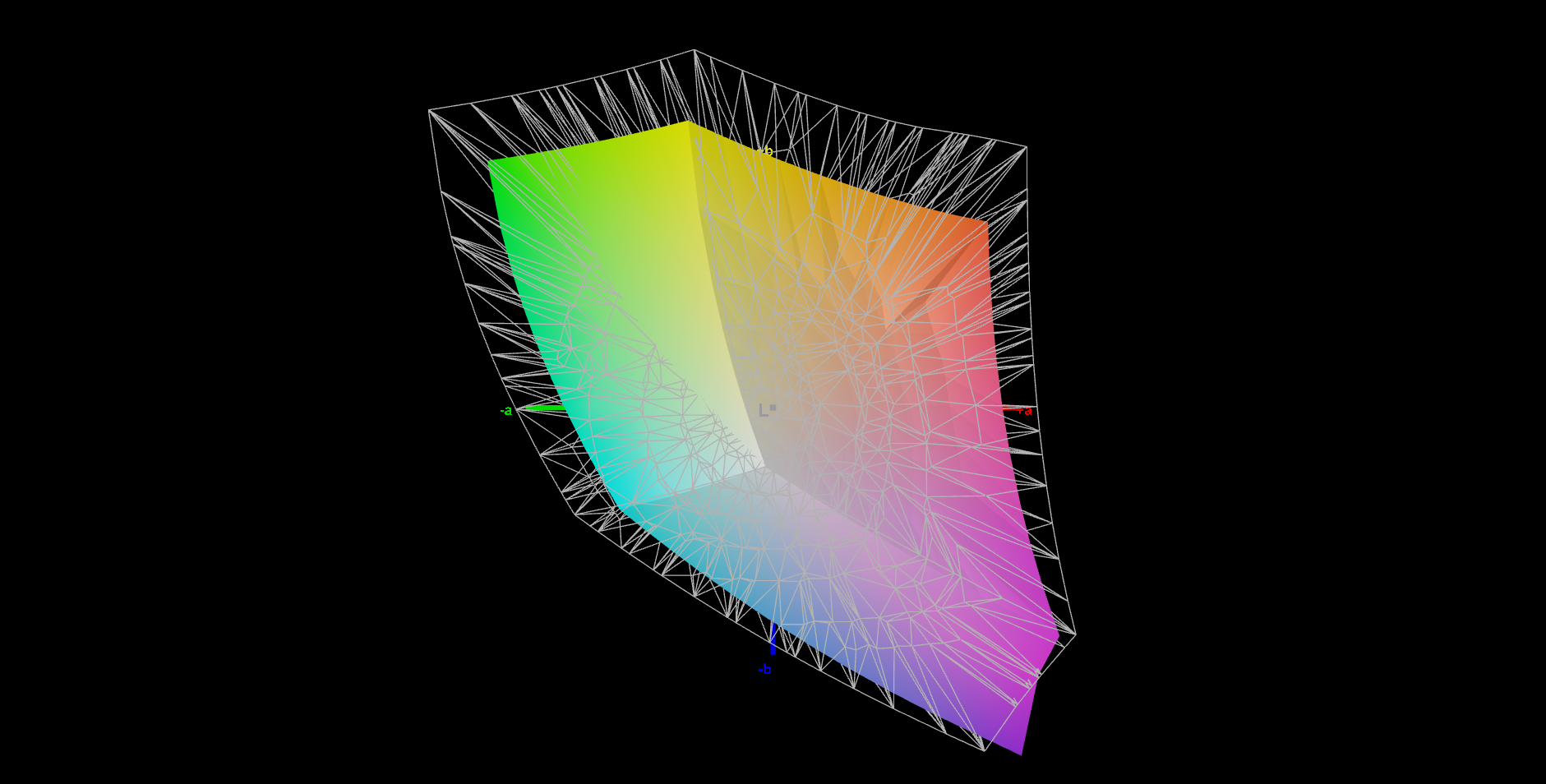

由于基本上完全覆盖了 sRGB 色域，该面板的色域覆盖范围足以满足简单的照片编辑需求。DCI P3 和 AdobeRGB 的覆盖范围不足，说明这不是一款高端面板。

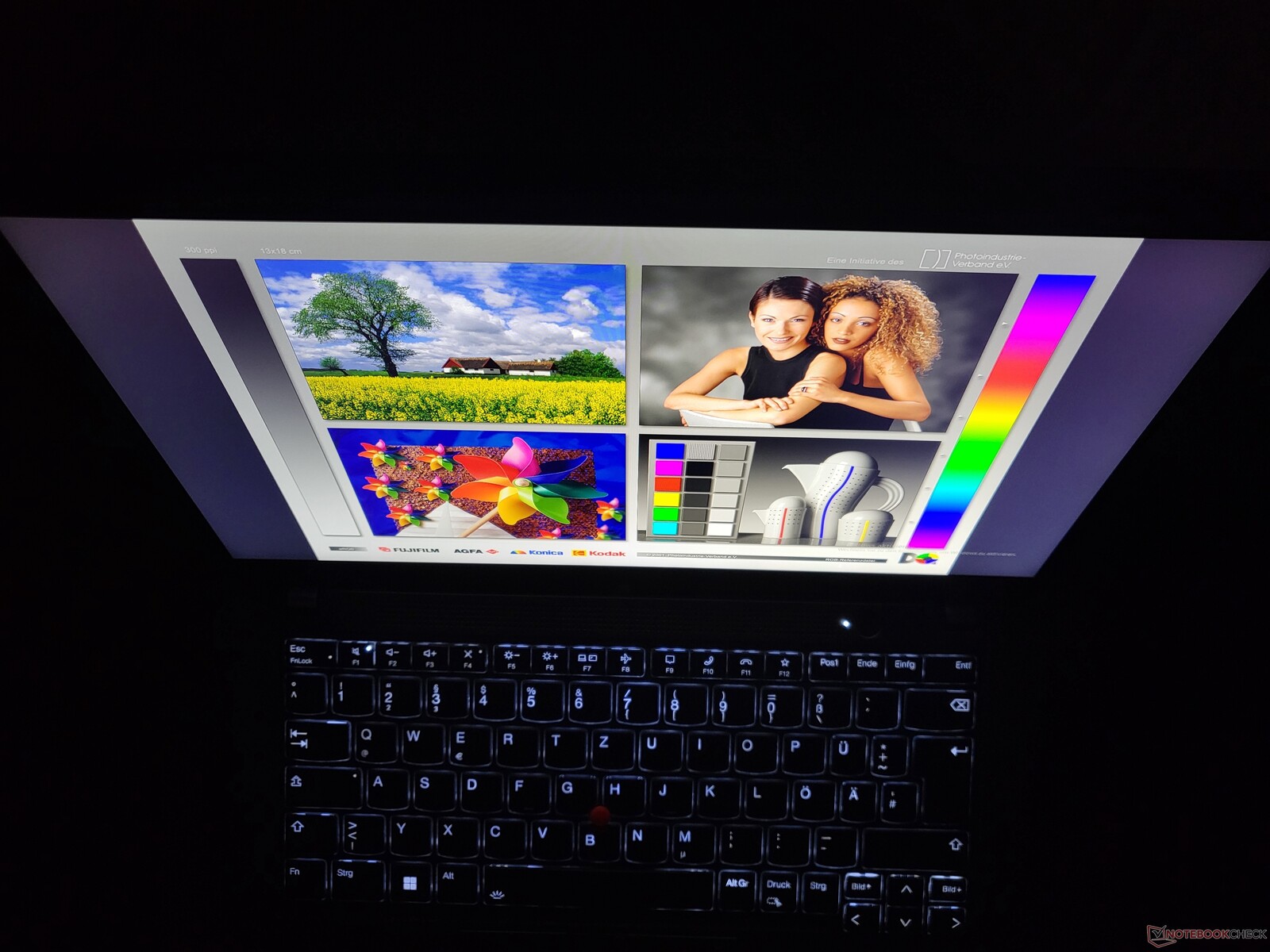

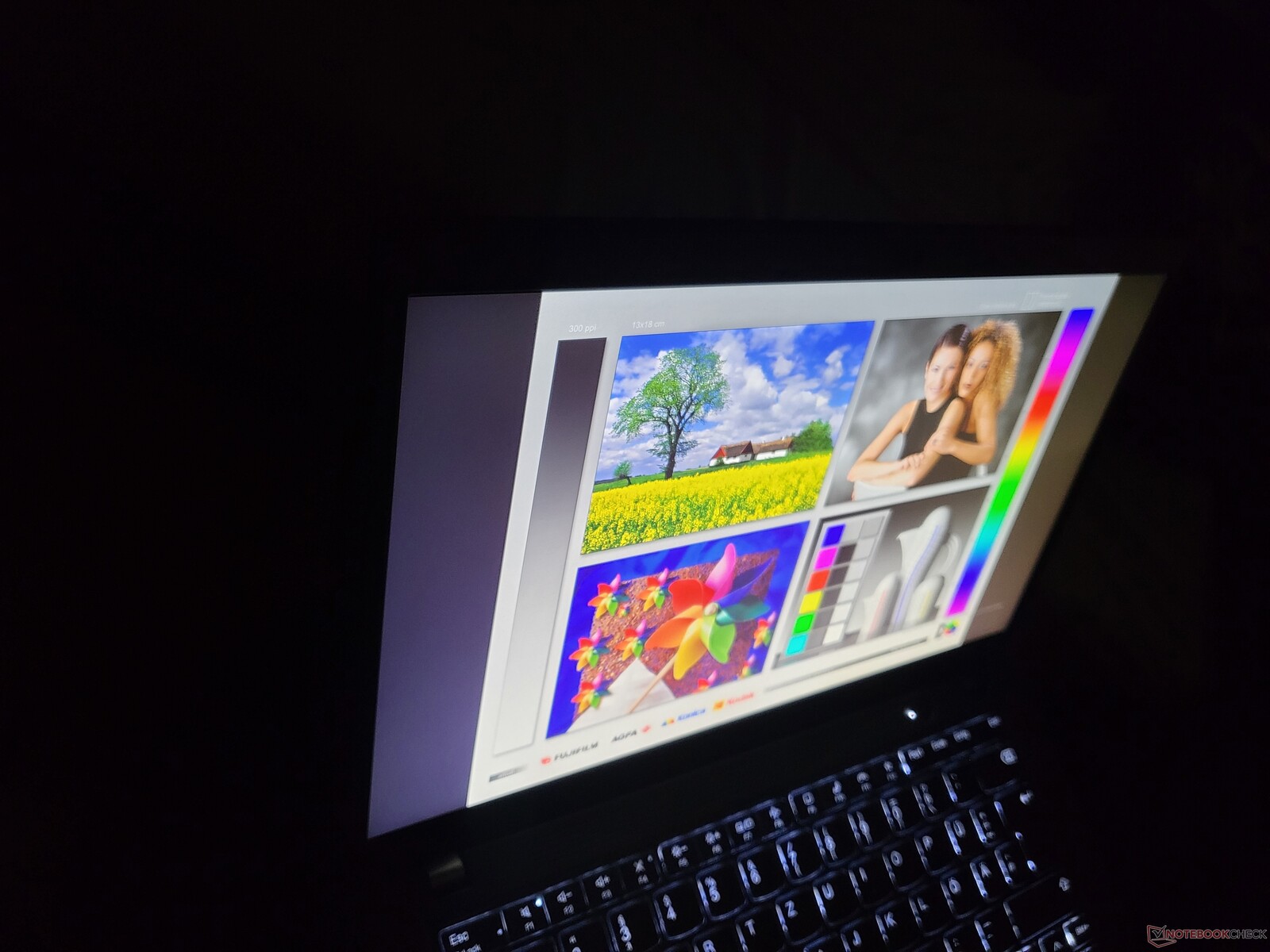

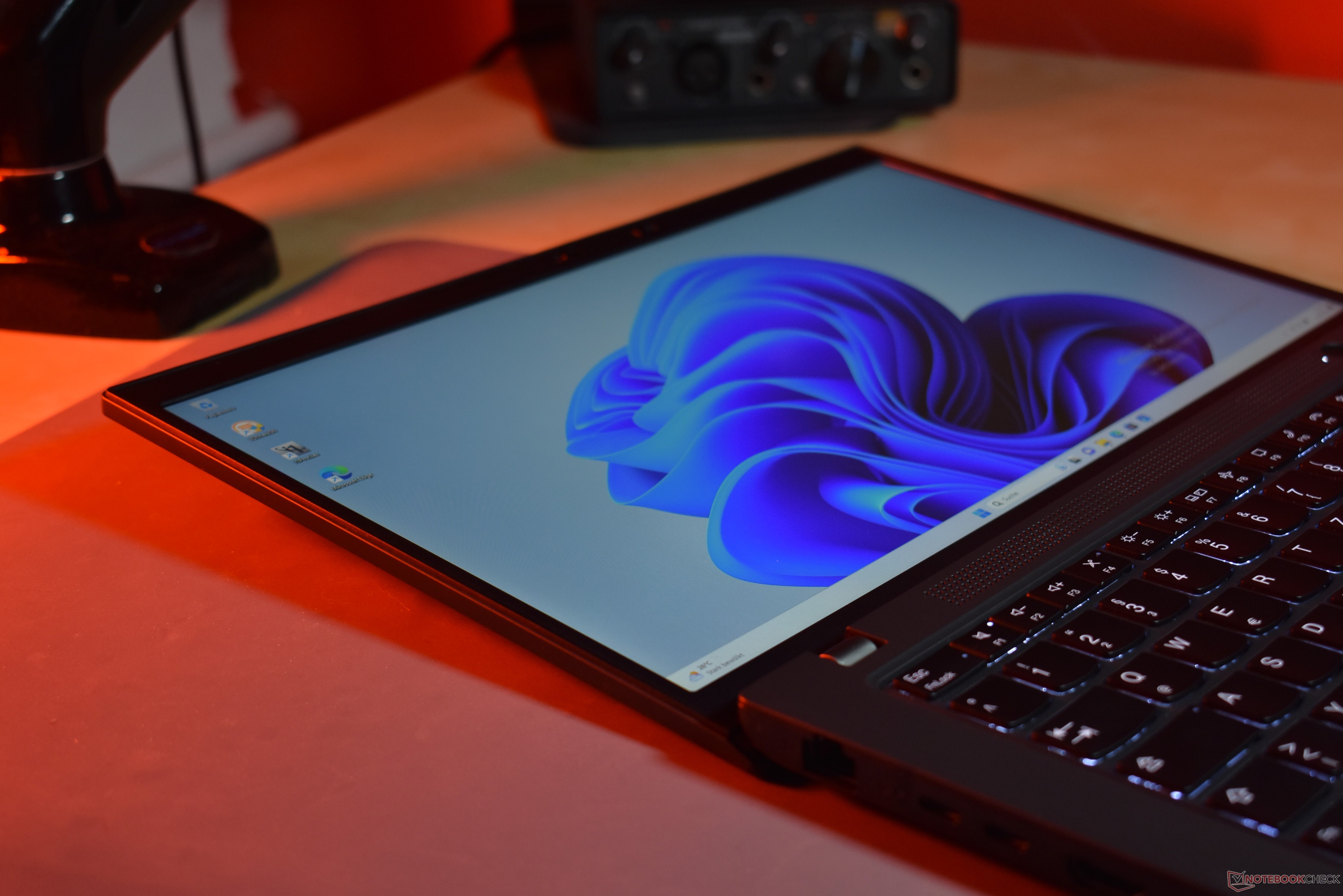

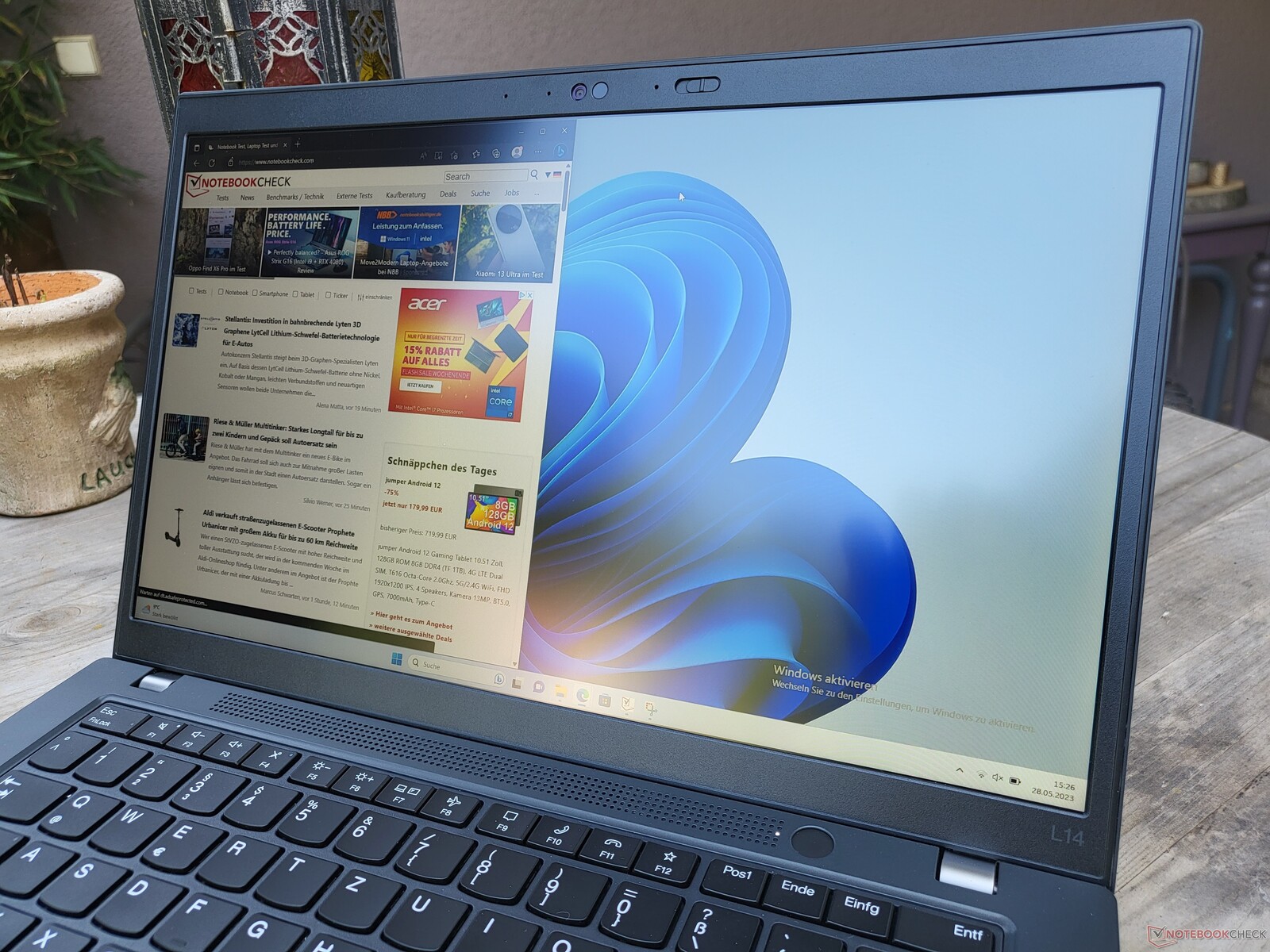

联想 ThinkPad L14 Gen 4 AMD 的屏幕亮度大约为 400 cd/m²，屏幕表面为磨砂材质，因此在户外也能使用。但应避免阳光直射。

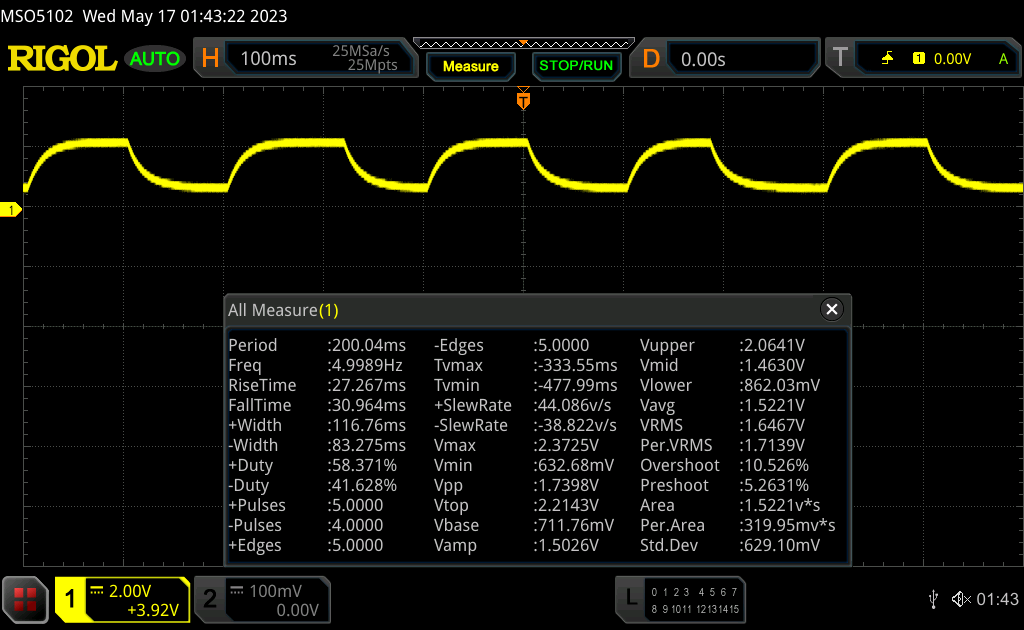

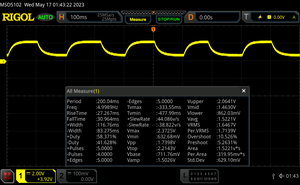

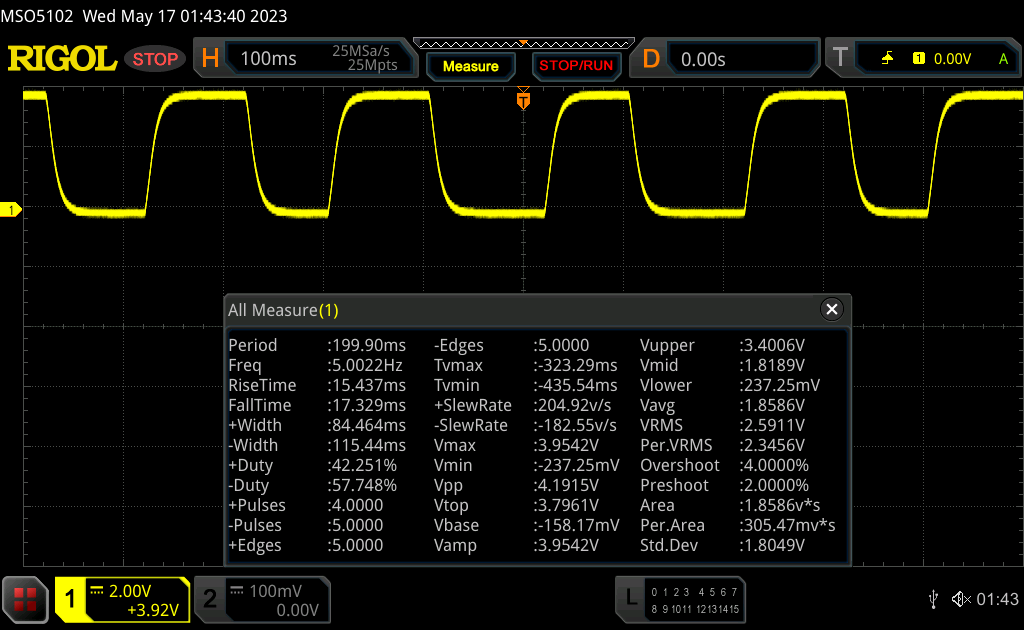

Display Response Times

ℹ

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

↔ Response Time Black to White
32.7 ms ... rise ↗ and fall ↘ combined	↗ 15.4 ms rise
32.7 ms ... rise ↗ and fall ↘ combined	↘ 17.3 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 87 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (20.9 ms).
↔ Response Time 50% Grey to 80% Grey
58.1 ms ... rise ↗ and fall ↘ combined	↗ 27.2 ms rise
58.1 ms ... rise ↗ and fall ↘ combined	↘ 30.9 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 94 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (32.8 ms).

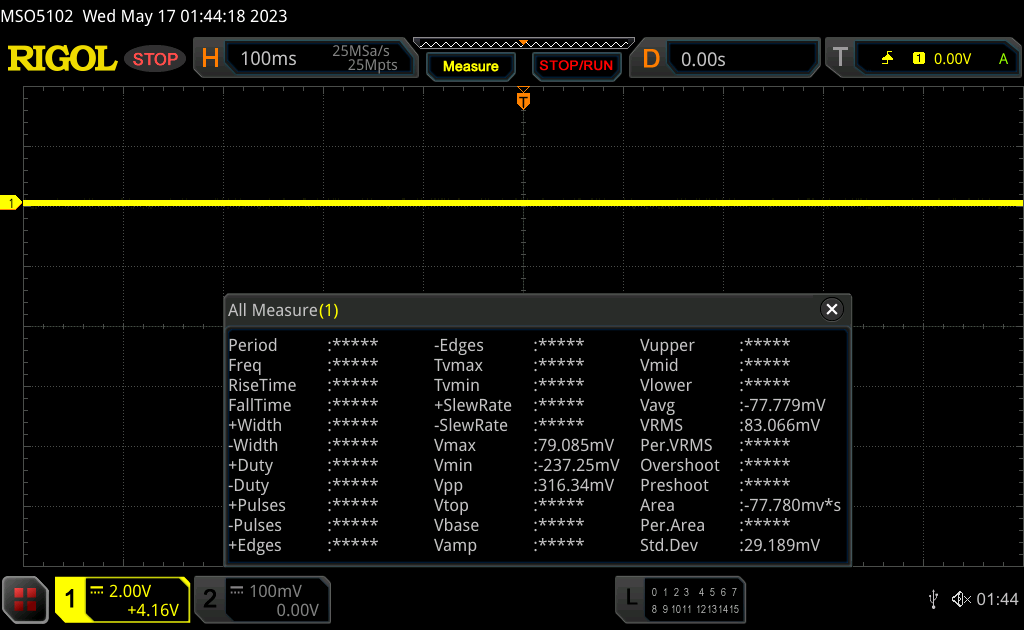

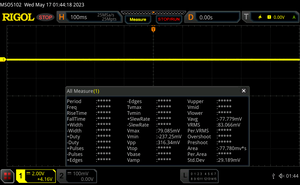

Screen Flickering / PWM (Pulse-Width Modulation)

ℹ

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.

Screen flickering / PWM not detected

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8702 (minimum: 5 - maximum: 343500) Hz was measured.

性能：只有 AMD Ryzen 7030U 而不是 Ryzen 7040U

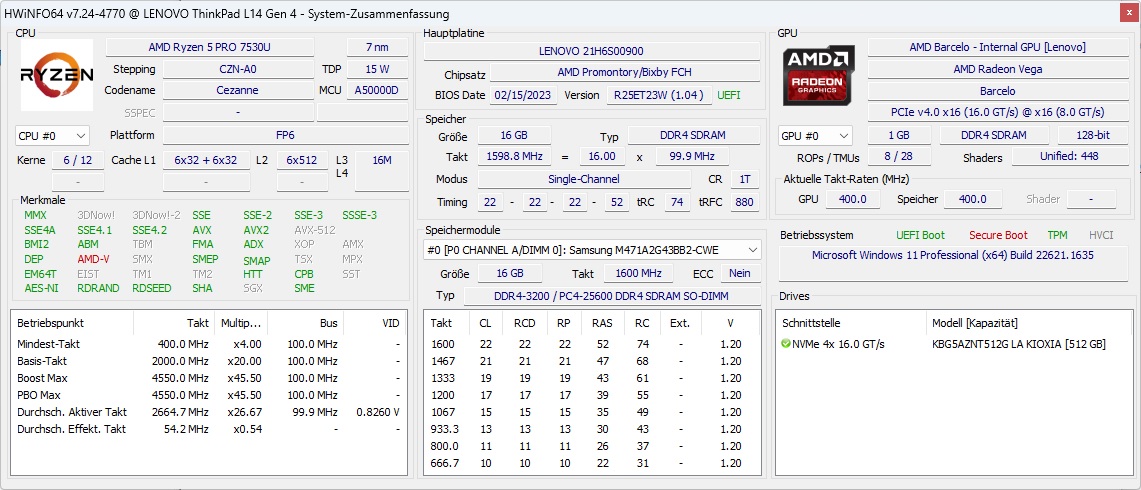

联想在 ThinkPad L14 Gen 4 AMD 的规格表中列出了三种不同的 CPU。它们都属于 Ryzen 7030 系列/Barcelo Refresh： AMD Ryzen 3 Pro 7330U, Ryzen 5 Pro 7530U和 Ryzen 7 Pro 7730U.我们认为主要提供 Ryzen 5 和 Ryzen 7。

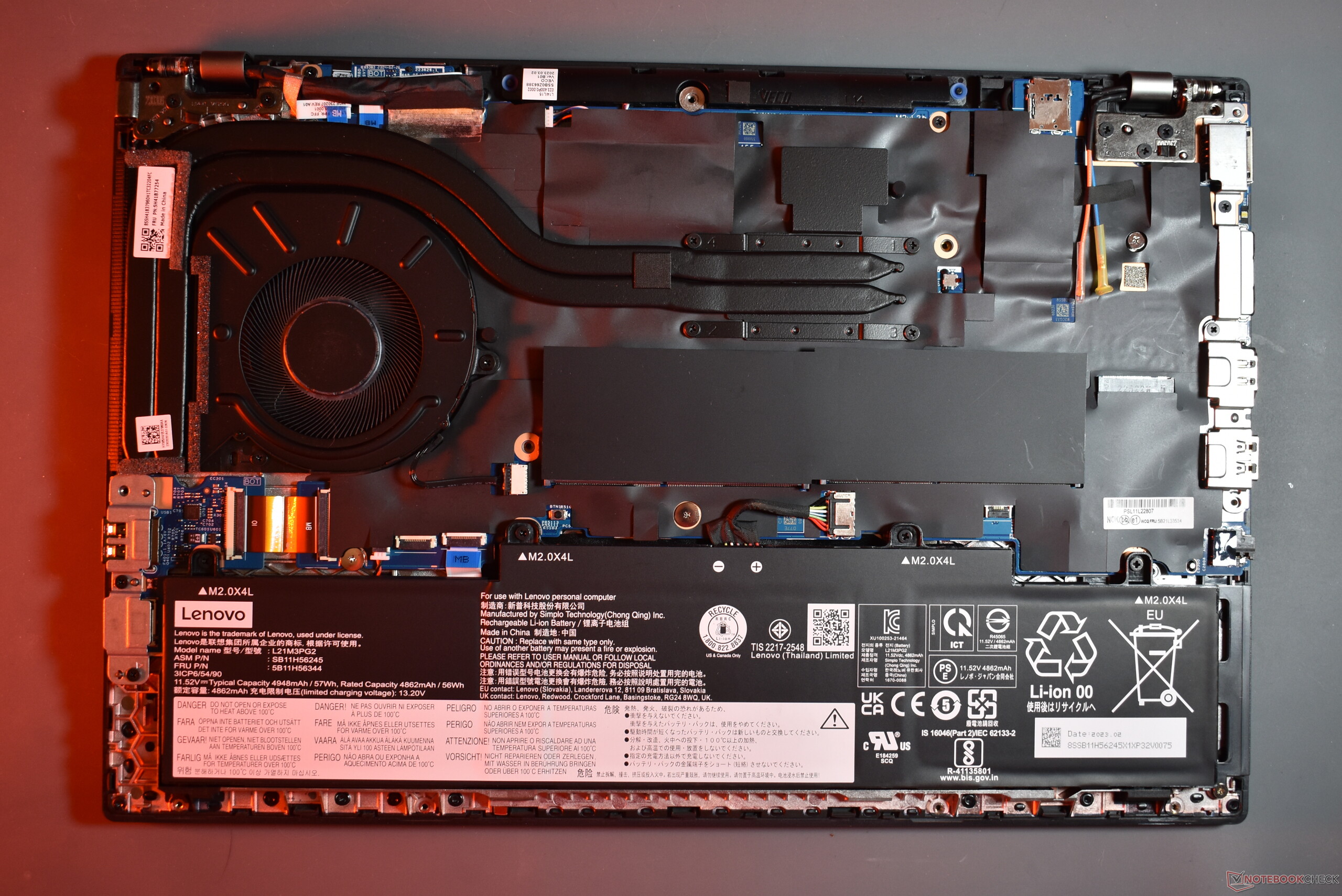

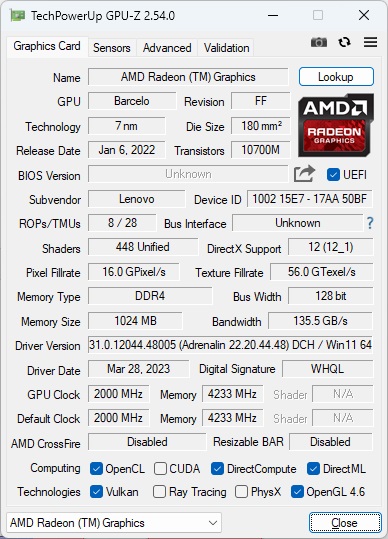

L14 G4 AMD 仅提供集成显卡，这意味着 Vega GPU 的确切类型取决于所选处理器。无论如何，ThinkPad L14 有两个 SO-DIMM 插槽，最多可支持 64 GB DDR4-3200 内存。在大容量存储方面，联想就没那么慷慨了，ThinkPad L14 G4 只有一个 M.2 2242 SSD 插槽。

测试条件

与联想ThinkPad的一贯做法一样，没有使用OEM软件来调节CPU性能和系统功耗。相反，联想使用的是 Windows 能源配置文件：

最佳性能：PL1 20.5 W / PL2 40 W
平衡：PL1 12 瓦 / PL2 15 瓦
最佳电池寿命PL1 10 瓦 / PL2 10 瓦

功率极限 1 (PL1) 描述的是 CPU 在持续负载下的功耗。而功耗限制 2 (PL2) 则是指短期提升性能时的最大功耗。

处理器

......（英文AMD Ryzen 5 Pro 7530U是 Ryzen 7000 系列的 "Barcelo Refresh "处理器。从该平台的代号就可以看出，它实际上并不是什么新技术，而只是去年 "Barcelo "平台的更新版--它本身已经是 Ryzen 5000 又名 "Cezanne "的更名。因此，这款六核芯片是两年前的处理器。时钟频率在 2 至 4.5 GHz 之间。名称中的 "Pro "表明这是一款具有商业功能的芯片，就像英特尔 vPro 一样。我们的处理器比较列表可用于与其他处理器进行更广泛的比较。

CPU 基准测试结果喜忧参半。在多核性能方面，联想 ThinkPad L14 G4 AMD 表现出色，因为它接近于惠普 EliteBook 645 G9及其 Ryzen 7 的性能相近。在持续负载下，多核性能有所下降，但仍高于英特尔的竞争对手。而在单核基准测试中，英特尔笔记本电脑的优势则恰恰相反。

在电池模式下，我们检测不到 CPU 有任何节流现象。

Cinebench R15 multi sustained loop test

Lenovo ThinkPad L14 G4 21H6S00900 AMD Ryzen 5 7530U: Ø1246 (1194.78-1499.93)

Lenovo ThinkPad L14 G3 21C50030GE AMD Ryzen 5 PRO 5675U: Ø1306 (1291.99-1365.51)

Dell Latitude 3440 Intel Core i5-1345U: Ø923 (844.18-1192.53)

HP EliteBook 645 G9, Ryzen 7 5825U AMD Ryzen 7 5825U: Ø1558 (1546.85-1575.36)

HP ProBook 440 G9-5Y3Z3EA Intel Core i7-1255U: Ø1166 (1136.78-1371.84)

Lenovo ThinkPad T14 G3-21CF004NGE AMD Ryzen 7 PRO 6850U: Ø1673 (1654.33-1766.16)

CPU Performance Rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

CPU Performance Rating
Lenovo ThinkPad T14 G3-21CF004NGE AMD Ryzen 7 PRO 6850U	80.3 pt
Average of class Office	72.7 pt
HP EliteBook 645 G9, Ryzen 7 5825U AMD Ryzen 7 5825U	70.9 pt
Dell Latitude 3440 Intel Core i5-1345U	69.1 pt
Average AMD Ryzen 5 7530U	69 pt
Lenovo ThinkPad L14 G4 21H6S00900 AMD Ryzen 5 7530U	68.7 pt
HP ProBook 440 G9-5Y3Z3EA Intel Core i7-1255U	66.6 pt
Lenovo ThinkPad L14 G3 21C50030GE AMD Ryzen 5 PRO 5675U	62.3 pt

Cinebench R23 / Multi Core
Lenovo ThinkPad T14 G3-21CF004NGE AMD Ryzen 7 PRO 6850U	10032 Points +21%
Average of class Office (1577 - 15743, n=90, last 2 years)	9406 Points +13%
HP EliteBook 645 G9, Ryzen 7 5825U AMD Ryzen 7 5825U	9339 Points +13%
Average AMD Ryzen 5 7530U (6931 - 9347, n=8)	8479 Points +2%
Lenovo ThinkPad L14 G4 21H6S00900 AMD Ryzen 5 7530U	8291 (7179.95^min - 8290.57^max) Points
Lenovo ThinkPad L14 G3 21C50030GE AMD Ryzen 5 PRO 5675U	7939 Points -4%
HP ProBook 440 G9-5Y3Z3EA Intel Core i7-1255U	7801 Points -6%
Dell Latitude 3440 Intel Core i5-1345U	7710 (5593.75^min - 7710.23^max) Points -7%

Cinebench R23 / Single Core
Dell Latitude 3440 Intel Core i5-1345U	1716 Points +19%
HP ProBook 440 G9-5Y3Z3EA Intel Core i7-1255U	1671 Points +16%
Average of class Office (618 - 1995, n=90, last 2 years)	1558 Points +8%
Lenovo ThinkPad T14 G3-21CF004NGE AMD Ryzen 7 PRO 6850U	1493 Points +4%
HP EliteBook 645 G9, Ryzen 7 5825U AMD Ryzen 7 5825U	1442 Points 0%
Lenovo ThinkPad L14 G4 21H6S00900 AMD Ryzen 5 7530U	1441 Points
Average AMD Ryzen 5 7530U (1371 - 1470, n=8)	1438 Points 0%
Lenovo ThinkPad L14 G3 21C50030GE AMD Ryzen 5 PRO 5675U	1393 Points -3%

Cinebench R20 / CPU (Multi Core)
Lenovo ThinkPad T14 G3-21CF004NGE AMD Ryzen 7 PRO 6850U	4203 Points +28%
Average of class Office (590 - 5980, n=89, last 2 years)	3647 Points +11%
HP EliteBook 645 G9, Ryzen 7 5825U AMD Ryzen 7 5825U	3645 Points +11%
Average AMD Ryzen 5 7530U (2833 - 3655, n=8)	3304 Points 0%
Lenovo ThinkPad L14 G4 21H6S00900 AMD Ryzen 5 7530U	3295 Points
Lenovo ThinkPad L14 G3 21C50030GE AMD Ryzen 5 PRO 5675U	3082 Points -6%
HP ProBook 440 G9-5Y3Z3EA Intel Core i7-1255U	2975 Points -10%
Dell Latitude 3440 Intel Core i5-1345U	2806 Points -15%

Cinebench R20 / CPU (Single Core)
Dell Latitude 3440 Intel Core i5-1345U	660 Points +17%
HP ProBook 440 G9-5Y3Z3EA Intel Core i7-1255U	643 Points +14%
Average of class Office (229 - 766, n=89, last 2 years)	604 Points +7%
Lenovo ThinkPad T14 G3-21CF004NGE AMD Ryzen 7 PRO 6850U	587 Points +4%
Lenovo ThinkPad L14 G4 21H6S00900 AMD Ryzen 5 7530U	564 Points
Average AMD Ryzen 5 7530U (528 - 574, n=8)	561 Points -1%
HP EliteBook 645 G9, Ryzen 7 5825U AMD Ryzen 7 5825U	547 Points -3%
Lenovo ThinkPad L14 G3 21C50030GE AMD Ryzen 5 PRO 5675U	540 Points -4%

Cinebench R15 / CPU Multi 64Bit
Lenovo ThinkPad T14 G3-21CF004NGE AMD Ryzen 7 PRO 6850U	1766 (1654.33^min - 1766.16^max) Points +18%
HP EliteBook 645 G9, Ryzen 7 5825U AMD Ryzen 7 5825U	1575 (1546.85^min - 1575.36^max) Points +5%
Average of class Office (246 - 2642, n=92, last 2 years)	1573 Points +5%
Lenovo ThinkPad L14 G4 21H6S00900 AMD Ryzen 5 7530U	1500 (1194.78^min - 1499.93^max) Points
Average AMD Ryzen 5 7530U (1289 - 1599, n=8)	1447 Points -4%
HP ProBook 440 G9-5Y3Z3EA Intel Core i7-1255U	1372 (1136.78^min - 1371.84^max) Points -9%
Lenovo ThinkPad L14 G3 21C50030GE AMD Ryzen 5 PRO 5675U	1366 (1291.99^min - 1365.51^max) Points -9%
Dell Latitude 3440 Intel Core i5-1345U	1193 (844.18^min - 1192.53^max) Points -20%

Cinebench R15 / CPU Single 64Bit
HP ProBook 440 G9-5Y3Z3EA Intel Core i7-1255U	238 Points +3%
HP ProBook 440 G9-5Y3Z3EA Intel Core i7-1255U	161 Points -30%
Lenovo ThinkPad T14 G3-21CF004NGE AMD Ryzen 7 PRO 6850U	237 Points +3%
Dell Latitude 3440 Intel Core i5-1345U	237 Points +3%
HP EliteBook 645 G9, Ryzen 7 5825U AMD Ryzen 7 5825U	232 Points +1%
Average of class Office (98 - 284, n=91, last 2 years)	231 Points 0%
Lenovo ThinkPad L14 G4 21H6S00900 AMD Ryzen 5 7530U	230 Points
Average AMD Ryzen 5 7530U (213 - 237, n=8)	230 Points 0%
Lenovo ThinkPad L14 G3 21C50030GE AMD Ryzen 5 PRO 5675U	222 Points -3%

Blender / v2.79 BMW27 CPU
Average of class Office (208 - 1956, n=91, last 2 years)	418 Seconds * -8%
Dell Latitude 3440 Intel Core i5-1345U	415 Seconds * -7%
HP ProBook 440 G9-5Y3Z3EA Intel Core i7-1255U	408 Seconds * -5%
Lenovo ThinkPad L14 G4 21H6S00900 AMD Ryzen 5 7530U	387 Seconds *
Lenovo ThinkPad L14 G3 21C50030GE AMD Ryzen 5 PRO 5675U	385 Seconds * +1%
Average AMD Ryzen 5 7530U (330 - 469, n=7)	377 Seconds * +3%
HP EliteBook 645 G9, Ryzen 7 5825U AMD Ryzen 7 5825U	322 Seconds * +17%
Lenovo ThinkPad T14 G3-21CF004NGE AMD Ryzen 7 PRO 6850U	297 Seconds * +23%

7-Zip 18.03 / 7z b 4
Lenovo ThinkPad T14 G3-21CF004NGE AMD Ryzen 7 PRO 6850U	49615 MIPS +34%
HP EliteBook 645 G9, Ryzen 7 5825U AMD Ryzen 7 5825U	42883 MIPS +16%
Average of class Office (7532 - 65460, n=92, last 2 years)	39132 MIPS +5%
Average AMD Ryzen 5 7530U (32204 - 42364, n=7)	37957 MIPS +2%
Lenovo ThinkPad L14 G4 21H6S00900 AMD Ryzen 5 7530U	37126 MIPS
Dell Latitude 3440 Intel Core i5-1345U	34915 MIPS -6%
Lenovo ThinkPad L14 G3 21C50030GE AMD Ryzen 5 PRO 5675U	33144 MIPS -11%
HP ProBook 440 G9-5Y3Z3EA Intel Core i7-1255U	30138 MIPS -19%

7-Zip 18.03 / 7z b 4 -mmt1
Dell Latitude 3440 Intel Core i5-1345U	5626 MIPS +5%
HP EliteBook 645 G9, Ryzen 7 5825U AMD Ryzen 7 5825U	5468 MIPS +2%
Lenovo ThinkPad L14 G4 21H6S00900 AMD Ryzen 5 7530U	5339 MIPS
Average AMD Ryzen 5 7530U (5113 - 5544, n=7)	5328 MIPS 0%
Lenovo ThinkPad T14 G3-21CF004NGE AMD Ryzen 7 PRO 6850U	5314 MIPS 0%
Average of class Office (2972 - 6687, n=91, last 2 years)	5257 MIPS -2%
HP ProBook 440 G9-5Y3Z3EA Intel Core i7-1255U	5218 MIPS -2%
Lenovo ThinkPad L14 G3 21C50030GE AMD Ryzen 5 PRO 5675U	5094 MIPS -5%

Geekbench 5.5 / Multi-Core
Lenovo ThinkPad T14 G3-21CF004NGE AMD Ryzen 7 PRO 6850U	7967 Points +46%
Average of class Office (1018 - 11980, n=91, last 2 years)	7562 Points +38%
Dell Latitude 3440 Intel Core i5-1345U	6300 Points +15%
HP ProBook 440 G9-5Y3Z3EA Intel Core i7-1255U	6209 Points +13%
Average AMD Ryzen 5 7530U (5475 - 6648, n=7)	6121 Points +12%
HP EliteBook 645 G9, Ryzen 7 5825U AMD Ryzen 7 5825U	5827 Points +6%
Lenovo ThinkPad L14 G4 21H6S00900 AMD Ryzen 5 7530U	5475 Points
Lenovo ThinkPad L14 G3 21C50030GE AMD Ryzen 5 PRO 5675U	4513 Points -18%

Geekbench 5.5 / Single-Core
Dell Latitude 3440 Intel Core i5-1345U	1653 Points +15%
Average of class Office (510 - 1995, n=92, last 2 years)	1583 Points +10%
HP ProBook 440 G9-5Y3Z3EA Intel Core i7-1255U	1566 Points +9%
Lenovo ThinkPad T14 G3-21CF004NGE AMD Ryzen 7 PRO 6850U	1514 Points +6%
Average AMD Ryzen 5 7530U (1393 - 1498, n=7)	1464 Points +2%
HP EliteBook 645 G9, Ryzen 7 5825U AMD Ryzen 7 5825U	1438 Points 0%
Lenovo ThinkPad L14 G4 21H6S00900 AMD Ryzen 5 7530U	1434 Points
Lenovo ThinkPad L14 G3 21C50030GE AMD Ryzen 5 PRO 5675U	1300 Points -9%

HWBOT x265 Benchmark v2.2 / 4k Preset
Lenovo ThinkPad T14 G3-21CF004NGE AMD Ryzen 7 PRO 6850U	13.3 fps +33%
HP EliteBook 645 G9, Ryzen 7 5825U AMD Ryzen 7 5825U	11.1 fps +11%
Average of class Office (1.72 - 18.7, n=89, last 2 years)	10.6 fps +6%
Average AMD Ryzen 5 7530U (8.17 - 11.6, n=7)	10.3 fps +3%
Lenovo ThinkPad L14 G4 21H6S00900 AMD Ryzen 5 7530U	10 fps
Lenovo ThinkPad L14 G3 21C50030GE AMD Ryzen 5 PRO 5675U	8.8 fps -12%
Dell Latitude 3440 Intel Core i5-1345U	8.78 fps -12%
HP ProBook 440 G9-5Y3Z3EA Intel Core i7-1255U	8.6 fps -14%

LibreOffice / 20 Documents To PDF
HP EliteBook 645 G9, Ryzen 7 5825U AMD Ryzen 7 5825U	66.6 s * -49%
Average of class Office (31.3 - 129.6, n=89, last 2 years)	53.6 s * -20%
Lenovo ThinkPad L14 G3 21C50030GE AMD Ryzen 5 PRO 5675U	53.4 s * -20%
HP ProBook 440 G9-5Y3Z3EA Intel Core i7-1255U	52 s * -17%
Average AMD Ryzen 5 7530U (44.6 - 58.1, n=7)	52 s * -17%
Lenovo ThinkPad T14 G3-21CF004NGE AMD Ryzen 7 PRO 6850U	51.4 s * -15%
Dell Latitude 3440 Intel Core i5-1345U	49.8 s * -12%
Lenovo ThinkPad L14 G4 21H6S00900 AMD Ryzen 5 7530U	44.6 s *

R Benchmark 2.5 / Overall mean
Lenovo ThinkPad L14 G3 21C50030GE AMD Ryzen 5 PRO 5675U	0.591 sec * -10%
Average of class Office (0.4244 - 1.135, n=88, last 2 years)	0.548 sec * -2%
Lenovo ThinkPad L14 G4 21H6S00900 AMD Ryzen 5 7530U	0.537 sec *
HP EliteBook 645 G9, Ryzen 7 5825U AMD Ryzen 7 5825U	0.535 sec * -0%
Average AMD Ryzen 5 7530U (0.515 - 0.567, n=7)	0.533 sec * +1%
Lenovo ThinkPad T14 G3-21CF004NGE AMD Ryzen 7 PRO 6850U	0.523 sec * +3%
HP ProBook 440 G9-5Y3Z3EA Intel Core i7-1255U	0.515 sec * +4%
Dell Latitude 3440 Intel Core i5-1345U	0.4979 sec * +7%

* ... smaller is better

Cinebench R15 CPU Multi 64Bit

1500 Points

Cinebench R15 OpenGL 64Bit

77.9 fps

Cinebench R15 Ref. Match 64Bit

97.9 %

Cinebench R15 CPU Single 64Bit

230 Points

Cinebench R20 CPU (Multi Core)

3295 Points

Cinebench R20 CPU (Single Core)

564 Points

Cinebench R23 Multi Core

8291 Points

Cinebench R23 Single Core

1441 Points

Help

... in comparison

Performance Rating
Lenovo ThinkPad T14 G3-21CF004NGE AMD Ryzen 7 PRO 6850U, Radeon 680M	94.9 pt
HP EliteBook 645 G9, Ryzen 7 5825U AMD Ryzen 7 5825U, Vega 8	82.3 pt
Average of class Office	77 pt
Average AMD Ryzen 5 7530U	76.8 pt
Lenovo ThinkPad L14 G4 21H6S00900 AMD Ryzen 5 7530U, Vega 7	75.4 pt
Lenovo ThinkPad L14 G3 21C50030GE AMD Ryzen 5 PRO 5675U, Vega 7	69.7 pt
Dell Latitude 3440 Intel Core i5-1345U, Iris Xe G7 80EUs	59.8 pt
HP ProBook 440 G9-5Y3Z3EA Intel Core i7-1255U, Iris Xe G7 96EUs	54.6 pt

AIDA64 / FP32 Ray-Trace
Lenovo ThinkPad T14 G3-21CF004NGE AMD Ryzen 7 PRO 6850U, Radeon 680M	12021 KRay/s +36%
HP EliteBook 645 G9, Ryzen 7 5825U AMD Ryzen 7 5825U, Vega 8	10886 KRay/s +23%
Average AMD Ryzen 5 7530U (8845 - 10970, n=7)	9684 KRay/s +9%
Average of class Office (763 - 24250, n=90, last 2 years)	9635 KRay/s +9%
Lenovo ThinkPad L14 G3 21C50030GE AMD Ryzen 5 PRO 5675U, Vega 7	9192 KRay/s +4%
Lenovo ThinkPad L14 G4 21H6S00900 AMD Ryzen 5 7530U, Vega 7	8845 KRay/s
Dell Latitude 3440 Intel Core i5-1345U, Iris Xe G7 80EUs	7101 KRay/s -20%
HP ProBook 440 G9-5Y3Z3EA Intel Core i7-1255U, Iris Xe G7 96EUs	6731 KRay/s -24%

AIDA64 / FPU Julia
Lenovo ThinkPad T14 G3-21CF004NGE AMD Ryzen 7 PRO 6850U, Radeon 680M	76396 Points +30%
HP EliteBook 645 G9, Ryzen 7 5825U AMD Ryzen 7 5825U, Vega 8	69640 Points +18%
Average AMD Ryzen 5 7530U (57481 - 68384, n=7)	61842 Points +5%
Lenovo ThinkPad L14 G3 21C50030GE AMD Ryzen 5 PRO 5675U, Vega 7	58983 Points 0%
Lenovo ThinkPad L14 G4 21H6S00900 AMD Ryzen 5 7530U, Vega 7	58914 Points
Average of class Office (4113 - 102228, n=90, last 2 years)	48471 Points -18%
Dell Latitude 3440 Intel Core i5-1345U, Iris Xe G7 80EUs	35329 Points -40%
HP ProBook 440 G9-5Y3Z3EA Intel Core i7-1255U, Iris Xe G7 96EUs	34037 Points -42%

AIDA64 / CPU SHA3
Lenovo ThinkPad T14 G3-21CF004NGE AMD Ryzen 7 PRO 6850U, Radeon 680M	2571 MB/s +25%
HP EliteBook 645 G9, Ryzen 7 5825U AMD Ryzen 7 5825U, Vega 8	2315 MB/s +12%
Average of class Office (287 - 4551, n=90, last 2 years)	2285 MB/s +11%
Average AMD Ryzen 5 7530U (1923 - 2323, n=7)	2088 MB/s +1%
Lenovo ThinkPad L14 G4 21H6S00900 AMD Ryzen 5 7530U, Vega 7	2060 MB/s
Lenovo ThinkPad L14 G3 21C50030GE AMD Ryzen 5 PRO 5675U, Vega 7	2019 MB/s -2%
Dell Latitude 3440 Intel Core i5-1345U, Iris Xe G7 80EUs	1902 MB/s -8%
HP ProBook 440 G9-5Y3Z3EA Intel Core i7-1255U, Iris Xe G7 96EUs	1786 MB/s -13%

AIDA64 / CPU Queen
Lenovo ThinkPad T14 G3-21CF004NGE AMD Ryzen 7 PRO 6850U, Radeon 680M	87263 Points +15%
HP EliteBook 645 G9, Ryzen 7 5825U AMD Ryzen 7 5825U, Vega 8	84150 Points +11%
Lenovo ThinkPad L14 G4 21H6S00900 AMD Ryzen 5 7530U, Vega 7	75683 Points
Average AMD Ryzen 5 7530U (68103 - 78105, n=7)	73792 Points -2%
Lenovo ThinkPad L14 G3 21C50030GE AMD Ryzen 5 PRO 5675U, Vega 7	70167 Points -7%
Average of class Office (8185 - 115197, n=90, last 2 years)	69770 Points -8%
HP ProBook 440 G9-5Y3Z3EA Intel Core i7-1255U, Iris Xe G7 96EUs	64367 Points -15%
Dell Latitude 3440 Intel Core i5-1345U, Iris Xe G7 80EUs	61382 Points -19%

AIDA64 / FPU SinJulia
Lenovo ThinkPad T14 G3-21CF004NGE AMD Ryzen 7 PRO 6850U, Radeon 680M	11321 Points +36%
HP EliteBook 645 G9, Ryzen 7 5825U AMD Ryzen 7 5825U, Vega 8	10550 Points +27%
Average AMD Ryzen 5 7530U (8277 - 9248, n=7)	8688 Points +5%
Lenovo ThinkPad L14 G3 21C50030GE AMD Ryzen 5 PRO 5675U, Vega 7	8482 Points +2%
Lenovo ThinkPad L14 G4 21H6S00900 AMD Ryzen 5 7530U, Vega 7	8303 Points
Average of class Office (404 - 14288, n=90, last 2 years)	6784 Points -18%
Dell Latitude 3440 Intel Core i5-1345U, Iris Xe G7 80EUs	4656 Points -44%
HP ProBook 440 G9-5Y3Z3EA Intel Core i7-1255U, Iris Xe G7 96EUs	4382 Points -47%

AIDA64 / FPU Mandel
Lenovo ThinkPad T14 G3-21CF004NGE AMD Ryzen 7 PRO 6850U, Radeon 680M	39609 Points +21%
HP EliteBook 645 G9, Ryzen 7 5825U AMD Ryzen 7 5825U, Vega 8	38353 Points +17%
Average AMD Ryzen 5 7530U (31632 - 37624, n=7)	34058 Points +4%
Lenovo ThinkPad L14 G4 21H6S00900 AMD Ryzen 5 7530U, Vega 7	32676 Points
Lenovo ThinkPad L14 G3 21C50030GE AMD Ryzen 5 PRO 5675U, Vega 7	32500 Points -1%
Average of class Office (2075 - 54365, n=90, last 2 years)	25350 Points -22%
Dell Latitude 3440 Intel Core i5-1345U, Iris Xe G7 80EUs	17651 Points -46%
HP ProBook 440 G9-5Y3Z3EA Intel Core i7-1255U, Iris Xe G7 96EUs	16371 Points -50%

AIDA64 / CPU AES
Lenovo ThinkPad L14 G4 21H6S00900 AMD Ryzen 5 7530U, Vega 7	83182 MB/s
Average AMD Ryzen 5 7530U (33314 - 92360, n=7)	56469 MB/s -32%
Average of class Office (7254 - 155900, n=90, last 2 years)	52257 MB/s -37%
Lenovo ThinkPad T14 G3-21CF004NGE AMD Ryzen 7 PRO 6850U, Radeon 680M	50859 MB/s -39%
HP EliteBook 645 G9, Ryzen 7 5825U AMD Ryzen 7 5825U, Vega 8	40933 MB/s -51%
Lenovo ThinkPad L14 G3 21C50030GE AMD Ryzen 5 PRO 5675U, Vega 7	40385 MB/s -51%
Dell Latitude 3440 Intel Core i5-1345U, Iris Xe G7 80EUs	36719 MB/s -56%
HP ProBook 440 G9-5Y3Z3EA Intel Core i7-1255U, Iris Xe G7 96EUs	34999 MB/s -58%

AIDA64 / CPU ZLib
Lenovo ThinkPad T14 G3-21CF004NGE AMD Ryzen 7 PRO 6850U, Radeon 680M	688 MB/s +36%
HP EliteBook 645 G9, Ryzen 7 5825U AMD Ryzen 7 5825U, Vega 8	621 MB/s +22%
Average of class Office (78 - 1018, n=90, last 2 years)	611 MB/s +21%
Dell Latitude 3440 Intel Core i5-1345U, Iris Xe G7 80EUs	556 MB/s +10%
Average AMD Ryzen 5 7530U (503 - 612, n=7)	545 MB/s +7%
Lenovo ThinkPad L14 G3 21C50030GE AMD Ryzen 5 PRO 5675U, Vega 7	535 MB/s +6%
HP ProBook 440 G9-5Y3Z3EA Intel Core i7-1255U, Iris Xe G7 96EUs	509 MB/s 0%
Lenovo ThinkPad L14 G4 21H6S00900 AMD Ryzen 5 7530U, Vega 7	507 MB/s

AIDA64 / FP64 Ray-Trace
Lenovo ThinkPad T14 G3-21CF004NGE AMD Ryzen 7 PRO 6850U, Radeon 680M	6259 KRay/s +36%
HP EliteBook 645 G9, Ryzen 7 5825U AMD Ryzen 7 5825U, Vega 8	5758 KRay/s +25%
Average of class Office (432 - 12755, n=90, last 2 years)	5103 KRay/s +11%
Average AMD Ryzen 5 7530U (4593 - 5738, n=7)	5059 KRay/s +10%
Lenovo ThinkPad L14 G3 21C50030GE AMD Ryzen 5 PRO 5675U, Vega 7	4797 KRay/s +4%
Lenovo ThinkPad L14 G4 21H6S00900 AMD Ryzen 5 7530U, Vega 7	4593 KRay/s
Dell Latitude 3440 Intel Core i5-1345U, Iris Xe G7 80EUs	3822 KRay/s -17%
HP ProBook 440 G9-5Y3Z3EA Intel Core i7-1255U, Iris Xe G7 96EUs	3659 KRay/s -20%

AIDA64 / CPU PhotoWorxx
Average of class Office (4814 - 54971, n=90, last 2 years)	28955 MPixel/s +194%
Lenovo ThinkPad T14 G3-21CF004NGE AMD Ryzen 7 PRO 6850U, Radeon 680M	25448 MPixel/s +159%
Dell Latitude 3440 Intel Core i5-1345U, Iris Xe G7 80EUs	22065 MPixel/s +124%
Average AMD Ryzen 5 7530U (9832 - 19525, n=7)	14538 MPixel/s +48%
HP ProBook 440 G9-5Y3Z3EA Intel Core i7-1255U, Iris Xe G7 96EUs	13899 MPixel/s +41%
Lenovo ThinkPad L14 G4 21H6S00900 AMD Ryzen 5 7530U, Vega 7	9832 MPixel/s
HP EliteBook 645 G9, Ryzen 7 5825U AMD Ryzen 7 5825U, Vega 8	9627 MPixel/s -2%
Lenovo ThinkPad L14 G3 21C50030GE AMD Ryzen 5 PRO 5675U, Vega 7	7035 MPixel/s -28%

系统性能

系统性能基准测试的结果可以接受。不过，单通道内存拖慢了 ThinkPad 的运行速度，因此仍有改进的余地。在日常使用中，这一点影响不大。对于使用图形处理器的应用程序来说，它的影响最大。

PCMark 10 / Score
Lenovo ThinkPad T14 G3-21CF004NGE Radeon 680M, R7 PRO 6850U, Kioxia BG5 KBG5AZNV512G	6060 Points +6%
Average AMD Ryzen 5 7530U, AMD Radeon RX Vega 7 (5686 - 6209, n=7)	5930 Points +3%
Lenovo ThinkPad L14 G4 21H6S00900 Vega 7, R5 7530U, Kioxia BG5 KBG5AZNT512G	5736 Points
Average of class Office (2463 - 7344, n=83, last 2 years)	5655 Points -1%
HP EliteBook 645 G9, Ryzen 7 5825U Vega 8, R7 5825U, Kioxia BG5 KBG50ZNV512G	5337 Points -7%
HP ProBook 440 G9-5Y3Z3EA Iris Xe G7 96EUs, i7-1255U, Samsung PM991 MZVLQ512HBLU	5325 Points -7%
Dell Latitude 3440 Iris Xe G7 80EUs, i5-1345U, Samsung PM9A1 MZVL2512HCJQ	5276 Points -8%
Lenovo ThinkPad L14 G3 21C50030GE Vega 7, R5 PRO 5675U, Kioxia BG5 KBG5AZNT256G	5198 Points -9%

PCMark 10 / Essentials
Lenovo ThinkPad L14 G4 21H6S00900 Vega 7, R5 7530U, Kioxia BG5 KBG5AZNT512G	10614 Points
Average AMD Ryzen 5 7530U, AMD Radeon RX Vega 7 (10016 - 11242, n=7)	10608 Points 0%
Dell Latitude 3440 Iris Xe G7 80EUs, i5-1345U, Samsung PM9A1 MZVL2512HCJQ	10550 Points -1%
Average of class Office (5575 - 20841, n=83, last 2 years)	10126 Points -5%
Lenovo ThinkPad T14 G3-21CF004NGE Radeon 680M, R7 PRO 6850U, Kioxia BG5 KBG5AZNV512G	9772 Points -8%
HP ProBook 440 G9-5Y3Z3EA Iris Xe G7 96EUs, i7-1255U, Samsung PM991 MZVLQ512HBLU	9724 Points -8%
Lenovo ThinkPad L14 G3 21C50030GE Vega 7, R5 PRO 5675U, Kioxia BG5 KBG5AZNT256G	9668 Points -9%
HP EliteBook 645 G9, Ryzen 7 5825U Vega 8, R7 5825U, Kioxia BG5 KBG50ZNV512G	9553 Points -10%

PCMark 10 / Productivity
Average AMD Ryzen 5 7530U, AMD Radeon RX Vega 7 (8983 - 9967, n=7)	9514 Points +2%
Lenovo ThinkPad L14 G4 21H6S00900 Vega 7, R5 7530U, Kioxia BG5 KBG5AZNT512G	9292 Points
HP EliteBook 645 G9, Ryzen 7 5825U Vega 8, R7 5825U, Kioxia BG5 KBG50ZNV512G	8717 Points -6%
Lenovo ThinkPad L14 G3 21C50030GE Vega 7, R5 PRO 5675U, Kioxia BG5 KBG5AZNT256G	8608 Points -7%
Lenovo ThinkPad T14 G3-21CF004NGE Radeon 680M, R7 PRO 6850U, Kioxia BG5 KBG5AZNV512G	8523 Points -8%
Average of class Office (3041 - 10415, n=83, last 2 years)	7790 Points -16%
HP ProBook 440 G9-5Y3Z3EA Iris Xe G7 96EUs, i7-1255U, Samsung PM991 MZVLQ512HBLU	7200 Points -23%
Dell Latitude 3440 Iris Xe G7 80EUs, i5-1345U, Samsung PM9A1 MZVL2512HCJQ	6832 Points -26%

PCMark 10 / Digital Content Creation
Lenovo ThinkPad T14 G3-21CF004NGE Radeon 680M, R7 PRO 6850U, Kioxia BG5 KBG5AZNV512G	7252 Points +40%
Average of class Office (2049 - 9773, n=83, last 2 years)	6395 Points +23%
HP ProBook 440 G9-5Y3Z3EA Iris Xe G7 96EUs, i7-1255U, Samsung PM991 MZVLQ512HBLU	5854 Points +13%
Average AMD Ryzen 5 7530U, AMD Radeon RX Vega 7 (4941 - 6093, n=7)	5626 Points +8%
Dell Latitude 3440 Iris Xe G7 80EUs, i5-1345U, Samsung PM9A1 MZVL2512HCJQ	5530 Points +6%
Lenovo ThinkPad L14 G4 21H6S00900 Vega 7, R5 7530U, Kioxia BG5 KBG5AZNT512G	5193 Points
HP EliteBook 645 G9, Ryzen 7 5825U Vega 8, R7 5825U, Kioxia BG5 KBG50ZNV512G	4954 Points -5%
Lenovo ThinkPad L14 G3 21C50030GE Vega 7, R5 PRO 5675U, Kioxia BG5 KBG5AZNT256G	4580 Points -12%

CrossMark / Overall
Dell Latitude 3440 Iris Xe G7 80EUs, i5-1345U, Samsung PM9A1 MZVL2512HCJQ	1416 Points +38%
Lenovo ThinkPad T14 G3-21CF004NGE Radeon 680M, R7 PRO 6850U, Kioxia BG5 KBG5AZNV512G	1401 Points +36%
Average of class Office (348 - 1891, n=86, last 2 years)	1401 Points +36%
HP ProBook 440 G9-5Y3Z3EA Iris Xe G7 96EUs, i7-1255U, Samsung PM991 MZVLQ512HBLU	1338 Points +30%
Average AMD Ryzen 5 7530U, AMD Radeon RX Vega 7 (1029 - 1336, n=6)	1228 Points +19%
Lenovo ThinkPad L14 G3 21C50030GE Vega 7, R5 PRO 5675U, Kioxia BG5 KBG5AZNT256G	1171 Points +14%
HP EliteBook 645 G9, Ryzen 7 5825U Vega 8, R7 5825U, Kioxia BG5 KBG50ZNV512G	1124 Points +9%
Lenovo ThinkPad L14 G4 21H6S00900 Vega 7, R5 7530U, Kioxia BG5 KBG5AZNT512G	1029 Points

CrossMark / Productivity
Dell Latitude 3440 Iris Xe G7 80EUs, i5-1345U, Samsung PM9A1 MZVL2512HCJQ	1420 Points +27%
Lenovo ThinkPad T14 G3-21CF004NGE Radeon 680M, R7 PRO 6850U, Kioxia BG5 KBG5AZNV512G	1399 Points +25%
Average of class Office (393 - 1870, n=86, last 2 years)	1396 Points +25%
HP ProBook 440 G9-5Y3Z3EA Iris Xe G7 96EUs, i7-1255U, Samsung PM991 MZVLQ512HBLU	1370 Points +23%
Average AMD Ryzen 5 7530U, AMD Radeon RX Vega 7 (1115 - 1370, n=6)	1275 Points +14%
Lenovo ThinkPad L14 G3 21C50030GE Vega 7, R5 PRO 5675U, Kioxia BG5 KBG5AZNT256G	1245 Points +12%
HP EliteBook 645 G9, Ryzen 7 5825U Vega 8, R7 5825U, Kioxia BG5 KBG50ZNV512G	1189 Points +7%
Lenovo ThinkPad L14 G4 21H6S00900 Vega 7, R5 7530U, Kioxia BG5 KBG5AZNT512G	1115 Points

CrossMark / Creativity
Lenovo ThinkPad T14 G3-21CF004NGE Radeon 680M, R7 PRO 6850U, Kioxia BG5 KBG5AZNV512G	1488 Points +50%
Dell Latitude 3440 Iris Xe G7 80EUs, i5-1345U, Samsung PM9A1 MZVL2512HCJQ	1482 Points +49%
Average of class Office (340 - 1982, n=86, last 2 years)	1462 Points +47%
HP ProBook 440 G9-5Y3Z3EA Iris Xe G7 96EUs, i7-1255U, Samsung PM991 MZVLQ512HBLU	1374 Points +39%
Average AMD Ryzen 5 7530U, AMD Radeon RX Vega 7 (992 - 1390, n=6)	1268 Points +28%
Lenovo ThinkPad L14 G3 21C50030GE Vega 7, R5 PRO 5675U, Kioxia BG5 KBG5AZNT256G	1172 Points +18%
HP EliteBook 645 G9, Ryzen 7 5825U Vega 8, R7 5825U, Kioxia BG5 KBG50ZNV512G	1169 Points +18%
Lenovo ThinkPad L14 G4 21H6S00900 Vega 7, R5 7530U, Kioxia BG5 KBG5AZNT512G	992 Points

CrossMark / Responsiveness
Average of class Office (258 - 2017, n=86, last 2 years)	1260 Points +40%
Dell Latitude 3440 Iris Xe G7 80EUs, i5-1345U, Samsung PM9A1 MZVL2512HCJQ	1226 Points +36%
Lenovo ThinkPad T14 G3-21CF004NGE Radeon 680M, R7 PRO 6850U, Kioxia BG5 KBG5AZNV512G	1174 Points +30%
HP ProBook 440 G9-5Y3Z3EA Iris Xe G7 96EUs, i7-1255U, Samsung PM991 MZVLQ512HBLU	1150 Points +28%
Average AMD Ryzen 5 7530U, AMD Radeon RX Vega 7 (900 - 1096, n=6)	996 Points +11%
Lenovo ThinkPad L14 G3 21C50030GE Vega 7, R5 PRO 5675U, Kioxia BG5 KBG5AZNT256G	970 Points +8%
Lenovo ThinkPad L14 G4 21H6S00900 Vega 7, R5 7530U, Kioxia BG5 KBG5AZNT512G	900 Points
HP EliteBook 645 G9, Ryzen 7 5825U Vega 8, R7 5825U, Kioxia BG5 KBG50ZNV512G	843 Points -6%

PCMark 10 Score		5736 points
Help

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Average of class Office (7158 - 108783, n=91, last 2 years)	49293 MB/s +145%
Lenovo ThinkPad T14 G3-21CF004NGE AMD Ryzen 7 PRO 6850U, Radeon 680M	48605 MB/s +141%
Dell Latitude 3440 Intel Core i5-1345U, Iris Xe G7 80EUs	38526 MB/s +91%
Average AMD Ryzen 5 7530U (20155 - 42853, n=7)	31487 MB/s +56%
HP ProBook 440 G9-5Y3Z3EA Intel Core i7-1255U, Iris Xe G7 96EUs	22846 MB/s +13%
HP EliteBook 645 G9, Ryzen 7 5825U AMD Ryzen 7 5825U, Vega 8	21188 MB/s +5%
Lenovo ThinkPad L14 G4 21H6S00900 AMD Ryzen 5 7530U, Vega 7	20155 MB/s
Lenovo ThinkPad L14 G3 21C50030GE AMD Ryzen 5 PRO 5675U, Vega 7	19363 MB/s -4%

AIDA64 / Memory Read
Average of class Office (7325 - 127282, n=91, last 2 years)	50257 MB/s +118%
Dell Latitude 3440 Intel Core i5-1345U, Iris Xe G7 80EUs	41894 MB/s +82%
Lenovo ThinkPad T14 G3-21CF004NGE AMD Ryzen 7 PRO 6850U, Radeon 680M	39883 MB/s +73%
Average AMD Ryzen 5 7530U (23068 - 40094, n=7)	34081 MB/s +48%
HP EliteBook 645 G9, Ryzen 7 5825U AMD Ryzen 7 5825U, Vega 8	24018 MB/s +4%
Lenovo ThinkPad L14 G4 21H6S00900 AMD Ryzen 5 7530U, Vega 7	23068 MB/s
HP ProBook 440 G9-5Y3Z3EA Intel Core i7-1255U, Iris Xe G7 96EUs	22877 MB/s -1%
Lenovo ThinkPad L14 G3 21C50030GE AMD Ryzen 5 PRO 5675U, Vega 7	21894 MB/s -5%

AIDA64 / Memory Write
Average of class Office (7579 - 117935, n=91, last 2 years)	53457 MB/s +133%
Lenovo ThinkPad T14 G3-21CF004NGE AMD Ryzen 7 PRO 6850U, Radeon 680M	50910 MB/s +122%
Dell Latitude 3440 Intel Core i5-1345U, Iris Xe G7 80EUs	44821 MB/s +95%
Average AMD Ryzen 5 7530U (22954 - 41838, n=7)	32074 MB/s +40%
HP EliteBook 645 G9, Ryzen 7 5825U AMD Ryzen 7 5825U, Vega 8	23602 MB/s +3%
Lenovo ThinkPad L14 G4 21H6S00900 AMD Ryzen 5 7530U, Vega 7	22954 MB/s
HP ProBook 440 G9-5Y3Z3EA Intel Core i7-1255U, Iris Xe G7 96EUs	22883 MB/s 0%
Lenovo ThinkPad L14 G3 21C50030GE AMD Ryzen 5 PRO 5675U, Vega 7	20979 MB/s -9%

AIDA64 / Memory Latency
Lenovo ThinkPad T14 G3-21CF004NGE AMD Ryzen 7 PRO 6850U, Radeon 680M	116.7 ns * -17%
Average AMD Ryzen 5 7530U (88.1 - 110.8, n=7)	101.4 ns * -2%
Lenovo ThinkPad L14 G3 21C50030GE AMD Ryzen 5 PRO 5675U, Vega 7	99.4 ns * -0%
Lenovo ThinkPad L14 G4 21H6S00900 AMD Ryzen 5 7530U, Vega 7	99.4 ns *
Average of class Office (6.9 - 185.2, n=90, last 2 years)	96.3 ns * +3%
HP EliteBook 645 G9, Ryzen 7 5825U AMD Ryzen 7 5825U, Vega 8	85.9 ns * +14%
HP ProBook 440 G9-5Y3Z3EA Intel Core i7-1255U, Iris Xe G7 96EUs	81.9 ns * +18%
Dell Latitude 3440 Intel Core i5-1345U, Iris Xe G7 80EUs	73.8 ns * +26%

* ... smaller is better

DPC 延迟

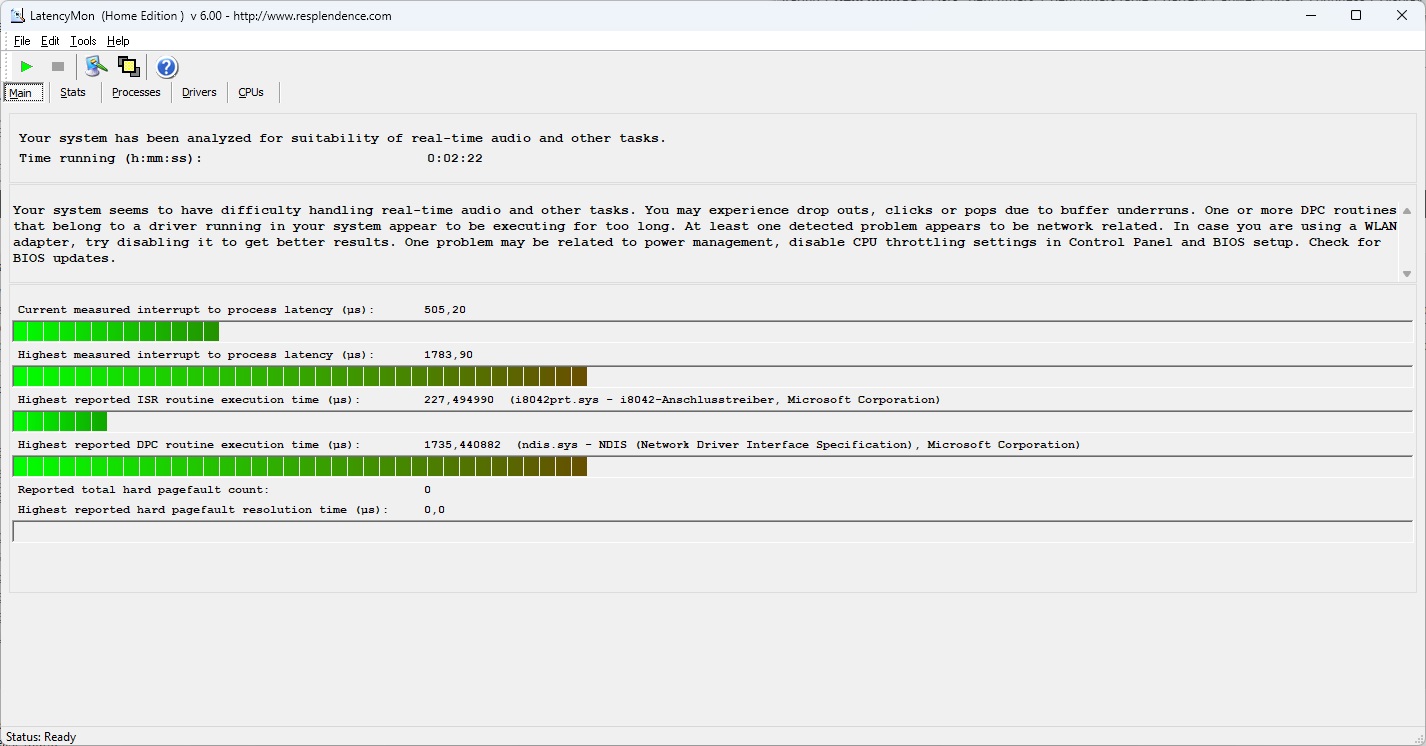

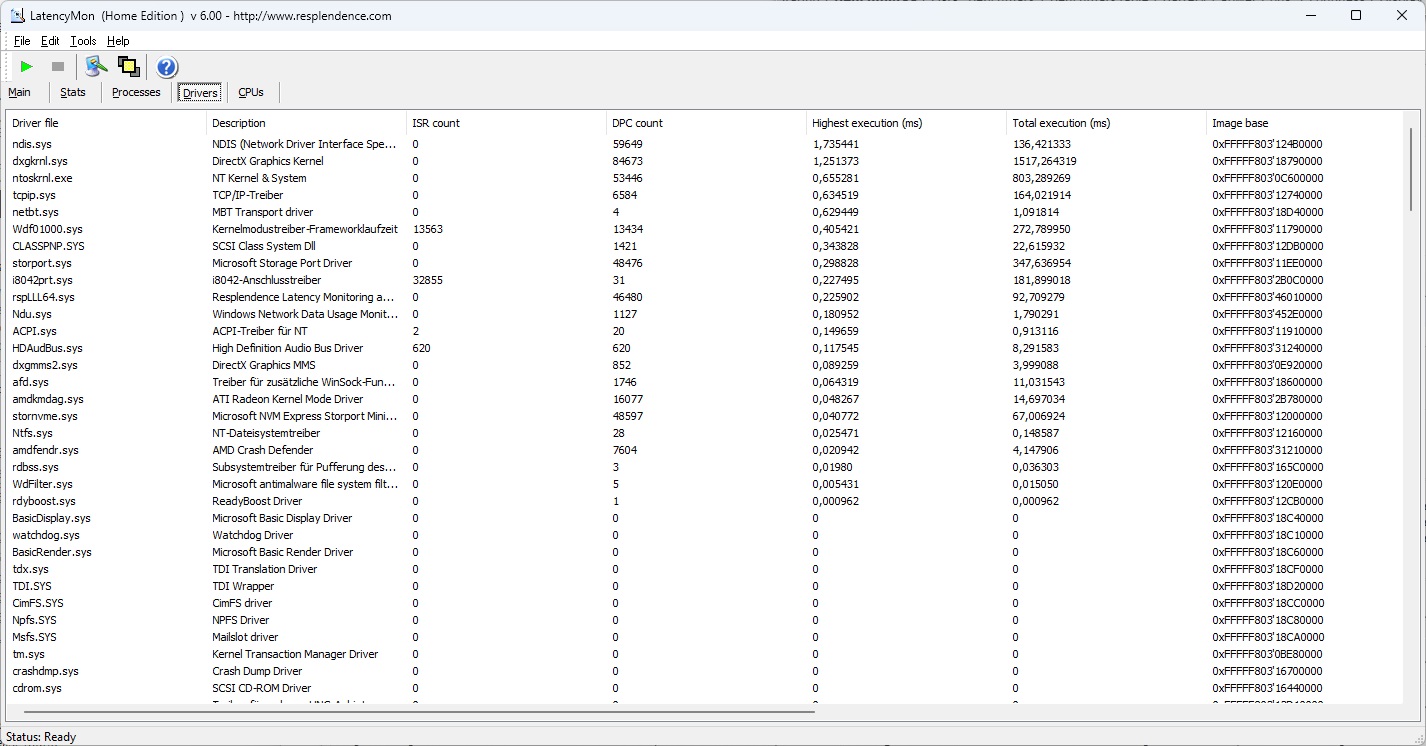

在我们的 LatencyMon 测试中，联想 ThinkPad L14 G4 AMD 出现了一些 DPC 延迟问题，显然是网络驱动程序造成的。要运行实时视频和音频，应禁用网络模块。当然，这种现状可以通过驱动程序和固件更新来修正。

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
HP ProBook 440 G9-5Y3Z3EA Iris Xe G7 96EUs, i7-1255U, Samsung PM991 MZVLQ512HBLU	2647 μs * -48%
Dell Latitude 3440 Iris Xe G7 80EUs, i5-1345U, Samsung PM9A1 MZVL2512HCJQ	1815.3 μs * -2%
Lenovo ThinkPad L14 G4 21H6S00900 Vega 7, R5 7530U, Kioxia BG5 KBG5AZNT512G	1783.9 μs *
Lenovo ThinkPad L14 G3 21C50030GE Vega 7, R5 PRO 5675U, Kioxia BG5 KBG5AZNT256G	1287 μs * +28%
HP EliteBook 645 G9, Ryzen 7 5825U Vega 8, R7 5825U, Kioxia BG5 KBG50ZNV512G	1229.7 μs * +31%
Lenovo ThinkPad T14 G3-21CF004NGE Radeon 680M, R7 PRO 6850U, Kioxia BG5 KBG5AZNV512G	731.7 μs * +59%

* ... smaller is better

大容量存储器

ThinkPad 笔记本电脑的存储空间是一块容量为 512 GB 的单面 M.2 2242 固态硬盘。固态硬盘由 Kioxia 制造，是 NVMe PCie 4.0 固态硬盘，不过由于 Ryzen 7030 平台过时，ThinkPad 只能在 PCIe 3.0 模式下使用。这意味着，虽然固态硬盘的速度并不慢，但还是损失了一些速度。与竞争对手相比，ThinkPad L14 第 4 代 AMD 表现出色，固态硬盘在负载情况下没有节流迹象。

AS SSD

DiskSpd

Kioxia BG5 KBG5AZNT512G

Sequential Read: 2289MB/s

Sequential Write: 2413MB/s

4K Read: 52.4MB/s

4K Write: 121.5MB/s

4K-64 Read: 1549MB/s

4K-64 Write: 996MB/s

Access Time Read: 0.159ms

Access Time Write: 0.033ms

Copy ISO: 1104.98MB/s

Copy Program: 595.99MB/s

Copy Game: 977.17MB/s

Score Read: 1831Points

Score Write: 1359Points

Score Total: 4138Points

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Dell Latitude 3440 Samsung PM9A1 MZVL2512HCJQ	80.3 pt
Average of class Office	77.7 pt
Average Kioxia BG5 KBG5AZNT512G	66 pt
Lenovo ThinkPad L14 G4 21H6S00900 Kioxia BG5 KBG5AZNT512G	65.7 pt
Lenovo ThinkPad T14 G3-21CF004NGE Kioxia BG5 KBG5AZNV512G	51.8 pt
HP ProBook 440 G9-5Y3Z3EA Samsung PM991 MZVLQ512HBLU	47.3 pt
HP EliteBook 645 G9, Ryzen 7 5825U Kioxia BG5 KBG50ZNV512G	44.6 pt
Lenovo ThinkPad L14 G3 21C50030GE Kioxia BG5 KBG5AZNT256G	43.6 pt

DiskSpd
seq read
Dell Latitude 3440 Samsung PM9A1 MZVL2512HCJQ	3743 (1397.54^min - 3742.93^max) MB/s +65%
Average of class Office (121 - 4554, n=87, last 2 years)	2697 MB/s +19%
Lenovo ThinkPad T14 G3-21CF004NGE Kioxia BG5 KBG5AZNV512G	2449 (2378.72^min - 2448.56^max) MB/s +8%
Average Kioxia BG5 KBG5AZNT512G (2271 - 2354, n=2)	2313 MB/s +2%
Lenovo ThinkPad L14 G4 21H6S00900 Kioxia BG5 KBG5AZNT512G	2271 (2228.17^min - 2270.87^max) MB/s
HP EliteBook 645 G9, Ryzen 7 5825U Kioxia BG5 KBG50ZNV512G	2253 (2219.38^min - 2252.76^max) MB/s -1%
Lenovo ThinkPad L14 G3 21C50030GE Kioxia BG5 KBG5AZNT256G	1820 (1795.76^min - 1819.7^max) MB/s -20%
HP ProBook 440 G9-5Y3Z3EA Samsung PM991 MZVLQ512HBLU	1509 (1241.55^min - 1508.61^max) MB/s -34%
seq write
Dell Latitude 3440 Samsung PM9A1 MZVL2512HCJQ	3209 (2978.58^min - 3209.14^max) MB/s +54%
Average of class Office (43 - 5842, n=87, last 2 years)	2629 MB/s +26%
Average Kioxia BG5 KBG5AZNT512G (2081 - 2226, n=2)	2154 MB/s +4%
Lenovo ThinkPad L14 G4 21H6S00900 Kioxia BG5 KBG5AZNT512G	2081 (1864.41^min - 2081.25^max) MB/s
Lenovo ThinkPad T14 G3-21CF004NGE Kioxia BG5 KBG5AZNV512G	2052 (1973.84^min - 2051.94^max) MB/s -1%
HP EliteBook 645 G9, Ryzen 7 5825U Kioxia BG5 KBG50ZNV512G	1917 (1855^min - 1917.22^max) MB/s -8%
Lenovo ThinkPad L14 G3 21C50030GE Kioxia BG5 KBG5AZNT256G	1541 (1270.45^min - 1540.99^max) MB/s -26%
HP ProBook 440 G9-5Y3Z3EA Samsung PM991 MZVLQ512HBLU	1229 (899.05^min - 1228.93^max) MB/s -41%
seq q8 t1 read
Dell Latitude 3440 Samsung PM9A1 MZVL2512HCJQ	6129 (435.96^min - 6128.93^max) MB/s +185%
Average of class Office (124.2 - 7120, n=87, last 2 years)	4475 MB/s +108%
HP EliteBook 645 G9, Ryzen 7 5825U Kioxia BG5 KBG50ZNV512G	3124 (3039.61^min - 3124.38^max) MB/s +45%
HP ProBook 440 G9-5Y3Z3EA Samsung PM991 MZVLQ512HBLU	3049 (2669.79^min - 3048.63^max) MB/s +42%
Lenovo ThinkPad T14 G3-21CF004NGE Kioxia BG5 KBG5AZNV512G	2836 (2244.5^min - 2835.56^max) MB/s +32%
Average Kioxia BG5 KBG5AZNT512G (2153 - 2726, n=2)	2440 MB/s +13%
Lenovo ThinkPad L14 G3 21C50030GE Kioxia BG5 KBG5AZNT256G	2237 (2043.26^min - 2236.96^max) MB/s +4%
Lenovo ThinkPad L14 G4 21H6S00900 Kioxia BG5 KBG5AZNT512G	2153 (1995.22^min - 2153.45^max) MB/s
seq q8 t1 write
Dell Latitude 3440 Samsung PM9A1 MZVL2512HCJQ	5006 (4859.17^min - 5005.96^max) MB/s +349%
Average of class Office (46.7 - 6791, n=87, last 2 years)	3473 MB/s +212%
Lenovo ThinkPad T14 G3-21CF004NGE Kioxia BG5 KBG5AZNV512G	2752 (2377.82^min - 2752.46^max) MB/s +147%
HP EliteBook 645 G9, Ryzen 7 5825U Kioxia BG5 KBG50ZNV512G	2692 (456.13^min - 2691.63^max) MB/s +142%
Lenovo ThinkPad L14 G3 21C50030GE Kioxia BG5 KBG5AZNT256G	1855 (359.78^min - 1854.51^max) MB/s +67%
Average Kioxia BG5 KBG5AZNT512G (1114 - 2560, n=2)	1837 MB/s +65%
HP ProBook 440 G9-5Y3Z3EA Samsung PM991 MZVLQ512HBLU	1620 (1138.72^min - 1620.26^max) MB/s +45%
Lenovo ThinkPad L14 G4 21H6S00900 Kioxia BG5 KBG5AZNT512G	1114 (738.82^min - 1113.8^max) MB/s
4k q1 t1 read
Dell Latitude 3440 Samsung PM9A1 MZVL2512HCJQ	83.8 (76.57^min - 83.77^max) MB/s +90%
Average of class Office (5.55 - 89.9, n=87, last 2 years)	58.1 MB/s +32%
HP ProBook 440 G9-5Y3Z3EA Samsung PM991 MZVLQ512HBLU	55 (54.07^min - 55.04^max) MB/s +25%
Lenovo ThinkPad T14 G3-21CF004NGE Kioxia BG5 KBG5AZNV512G	54.1 (53.19^min - 54.12^max) MB/s +23%
Average Kioxia BG5 KBG5AZNT512G (44.1 - 47.9, n=2)	46 MB/s +4%
Lenovo ThinkPad L14 G3 21C50030GE Kioxia BG5 KBG5AZNT256G	44.8 (44.11^min - 44.81^max) MB/s +2%
HP EliteBook 645 G9, Ryzen 7 5825U Kioxia BG5 KBG50ZNV512G	44.7 (43.35^min - 44.72^max) MB/s +1%
Lenovo ThinkPad L14 G4 21H6S00900 Kioxia BG5 KBG5AZNT512G	44.1 (43.66^min - 44.07^max) MB/s
4k q1 t1 write
Average of class Office (1.23 - 429, n=87, last 2 years)	163.9 MB/s +31%
Dell Latitude 3440 Samsung PM9A1 MZVL2512HCJQ	136.6 (136.11^min - 136.6^max) MB/s +9%
Lenovo ThinkPad T14 G3-21CF004NGE Kioxia BG5 KBG5AZNV512G	134.4 (132.52^min - 134.39^max) MB/s +7%
Average Kioxia BG5 KBG5AZNT512G (125.1 - 136.5, n=2)	130.8 MB/s +5%
Lenovo ThinkPad L14 G4 21H6S00900 Kioxia BG5 KBG5AZNT512G	125.1 (122.37^min - 125.09^max) MB/s
HP ProBook 440 G9-5Y3Z3EA Samsung PM991 MZVLQ512HBLU	117.8 (112.15^min - 117.79^max) MB/s -6%
Lenovo ThinkPad L14 G3 21C50030GE Kioxia BG5 KBG5AZNT256G	109.4 (101.14^min - 109.44^max) MB/s -13%
HP EliteBook 645 G9, Ryzen 7 5825U Kioxia BG5 KBG50ZNV512G	99.9 (98.65^min - 99.93^max) MB/s -20%
4k q32 t16 read
Average Kioxia BG5 KBG5AZNT512G (1730 - 1734, n=2)	1732 MB/s 0%
Lenovo ThinkPad L14 G4 21H6S00900 Kioxia BG5 KBG5AZNT512G	1730 (1720.68^min - 1730.47^max) MB/s
Average of class Office (7.49 - 4425, n=87, last 2 years)	1263 MB/s -27%
Lenovo ThinkPad T14 G3-21CF004NGE Kioxia BG5 KBG5AZNV512G	839 (823.21^min - 838.99^max) MB/s -52%
Lenovo ThinkPad L14 G3 21C50030GE Kioxia BG5 KBG5AZNT256G	699 (675.98^min - 698.92^max) MB/s -60%
HP EliteBook 645 G9, Ryzen 7 5825U Kioxia BG5 KBG50ZNV512G	637 (612.6^min - 637.06^max) MB/s -63%
HP ProBook 440 G9-5Y3Z3EA Samsung PM991 MZVLQ512HBLU	635 (580.48^min - 635.09^max) MB/s -63%
Dell Latitude 3440 Samsung PM9A1 MZVL2512HCJQ	477 (459.41^min - 476.64^max) MB/s -72%
4k q32 t16 write
Average of class Office (1.5 - 3254, n=87, last 2 years)	942 MB/s +60%
Average Kioxia BG5 KBG5AZNT512G (587 - 842, n=2)	715 MB/s +22%
Lenovo ThinkPad L14 G4 21H6S00900 Kioxia BG5 KBG5AZNT512G	587 (456.04^min - 586.76^max) MB/s
Lenovo ThinkPad T14 G3-21CF004NGE Kioxia BG5 KBG5AZNV512G	377 (357.55^min - 377.29^max) MB/s -36%
Dell Latitude 3440 Samsung PM9A1 MZVL2512HCJQ	364 (350.56^min - 364.21^max) MB/s -38%
HP ProBook 440 G9-5Y3Z3EA Samsung PM991 MZVLQ512HBLU	346 (333.11^min - 346^max) MB/s -41%
HP EliteBook 645 G9, Ryzen 7 5825U Kioxia BG5 KBG50ZNV512G	314 (306.3^min - 314.28^max) MB/s -47%
Lenovo ThinkPad L14 G3 21C50030GE Kioxia BG5 KBG5AZNT256G	275 (241.55^min - 275.47^max) MB/s -53%

AS SSD
Score Total
Average of class Office (704 - 9204, n=84, last 2 years)	4221 Points +2%
Lenovo ThinkPad L14 G4 21H6S00900 Kioxia BG5 KBG5AZNT512G	4138 Points
Average Kioxia BG5 KBG5AZNT512G (3826 - 4138, n=2)	3982 Points -4%
Dell Latitude 3440 Samsung PM9A1 MZVL2512HCJQ	3817 Points -8%
HP EliteBook 645 G9, Ryzen 7 5825U Kioxia BG5 KBG50ZNV512G	2462 Points -41%
HP ProBook 440 G9-5Y3Z3EA Samsung PM991 MZVLQ512HBLU	2355 Points -43%
Lenovo ThinkPad L14 G3 21C50030GE Kioxia BG5 KBG5AZNT256G	1997 Points -52%
Lenovo ThinkPad T14 G3-21CF004NGE Kioxia BG5 KBG5AZNV512G	1919 Points -54%
Score Read
Lenovo ThinkPad L14 G4 21H6S00900 Kioxia BG5 KBG5AZNT512G	1831 Points
Average Kioxia BG5 KBG5AZNT512G (1661 - 1831, n=2)	1746 Points -5%
Average of class Office (252 - 3364, n=84, last 2 years)	1477 Points -19%
Dell Latitude 3440 Samsung PM9A1 MZVL2512HCJQ	1126 Points -39%
Lenovo ThinkPad T14 G3-21CF004NGE Kioxia BG5 KBG5AZNV512G	932 Points -49%
Lenovo ThinkPad L14 G3 21C50030GE Kioxia BG5 KBG5AZNT256G	840 Points -54%
HP EliteBook 645 G9, Ryzen 7 5825U Kioxia BG5 KBG50ZNV512G	773 Points -58%
HP ProBook 440 G9-5Y3Z3EA Samsung PM991 MZVLQ512HBLU	756 Points -59%
Score Write
Dell Latitude 3440 Samsung PM9A1 MZVL2512HCJQ	2191 Points +61%
Average of class Office (247 - 4111, n=84, last 2 years)	2031 Points +49%
Lenovo ThinkPad L14 G4 21H6S00900 Kioxia BG5 KBG5AZNT512G	1359 Points
Average Kioxia BG5 KBG5AZNT512G (1350 - 1359, n=2)	1355 Points 0%
HP EliteBook 645 G9, Ryzen 7 5825U Kioxia BG5 KBG50ZNV512G	1330 Points -2%
HP ProBook 440 G9-5Y3Z3EA Samsung PM991 MZVLQ512HBLU	1279 Points -6%
Lenovo ThinkPad L14 G3 21C50030GE Kioxia BG5 KBG5AZNT256G	753 Points -45%
Lenovo ThinkPad T14 G3-21CF004NGE Kioxia BG5 KBG5AZNV512G	549 Points -60%
Seq Read
Dell Latitude 3440 Samsung PM9A1 MZVL2512HCJQ	4259.64 MB/s +86%
Average of class Office (508 - 5796, n=84, last 2 years)	3501 MB/s +53%
HP ProBook 440 G9-5Y3Z3EA Samsung PM991 MZVLQ512HBLU	2339 MB/s +2%
Average Kioxia BG5 KBG5AZNT512G (2289 - 2295, n=2)	2292 MB/s 0%
Lenovo ThinkPad L14 G4 21H6S00900 Kioxia BG5 KBG5AZNT512G	2289 MB/s
Lenovo ThinkPad T14 G3-21CF004NGE Kioxia BG5 KBG5AZNV512G	2117 MB/s -8%
Lenovo ThinkPad L14 G3 21C50030GE Kioxia BG5 KBG5AZNT256G	1796 MB/s -22%
HP EliteBook 645 G9, Ryzen 7 5825U Kioxia BG5 KBG50ZNV512G	1521.2 MB/s -34%
Seq Write
Lenovo ThinkPad L14 G4 21H6S00900 Kioxia BG5 KBG5AZNT512G	2413 MB/s
Average of class Office (294 - 5880, n=84, last 2 years)	2413 MB/s 0%
Dell Latitude 3440 Samsung PM9A1 MZVL2512HCJQ	2271.27 MB/s -6%
Average Kioxia BG5 KBG5AZNT512G (1470 - 2413, n=2)	1942 MB/s -20%
Lenovo ThinkPad L14 G3 21C50030GE Kioxia BG5 KBG5AZNT256G	1073 MB/s -56%
Lenovo ThinkPad T14 G3-21CF004NGE Kioxia BG5 KBG5AZNV512G	1059 MB/s -56%
HP ProBook 440 G9-5Y3Z3EA Samsung PM991 MZVLQ512HBLU	837 MB/s -65%
HP EliteBook 645 G9, Ryzen 7 5825U Kioxia BG5 KBG50ZNV512G	642.95 MB/s -73%
4K Read
Dell Latitude 3440 Samsung PM9A1 MZVL2512HCJQ	74.47 MB/s +42%
Average of class Office (18 - 91.1, n=84, last 2 years)	57.9 MB/s +10%
Lenovo ThinkPad L14 G4 21H6S00900 Kioxia BG5 KBG5AZNT512G	52.4 MB/s
Average Kioxia BG5 KBG5AZNT512G (51.7 - 52.4, n=2)	52.1 MB/s -1%
Lenovo ThinkPad T14 G3-21CF004NGE Kioxia BG5 KBG5AZNV512G	51.29 MB/s -2%
Lenovo ThinkPad L14 G3 21C50030GE Kioxia BG5 KBG5AZNT256G	41 MB/s -22%
HP ProBook 440 G9-5Y3Z3EA Samsung PM991 MZVLQ512HBLU	35.85 MB/s -32%
HP EliteBook 645 G9, Ryzen 7 5825U Kioxia BG5 KBG50ZNV512G	32.53 MB/s -38%
4K Write
Dell Latitude 3440 Samsung PM9A1 MZVL2512HCJQ	194.85 MB/s +60%
Average of class Office (28.2 - 350, n=84, last 2 years)	166.8 MB/s +37%
HP ProBook 440 G9-5Y3Z3EA Samsung PM991 MZVLQ512HBLU	124.4 MB/s +2%
Lenovo ThinkPad L14 G4 21H6S00900 Kioxia BG5 KBG5AZNT512G	121.5 MB/s
Average Kioxia BG5 KBG5AZNT512G (119.7 - 121.5, n=2)	120.6 MB/s -1%
Lenovo ThinkPad T14 G3-21CF004NGE Kioxia BG5 KBG5AZNV512G	110.24 MB/s -9%
Lenovo ThinkPad L14 G3 21C50030GE Kioxia BG5 KBG5AZNT256G	96 MB/s -21%
HP EliteBook 645 G9, Ryzen 7 5825U Kioxia BG5 KBG50ZNV512G	75.35 MB/s -38%
4K-64 Read
Lenovo ThinkPad L14 G4 21H6S00900 Kioxia BG5 KBG5AZNT512G	1549 MB/s
Average Kioxia BG5 KBG5AZNT512G (1380 - 1549, n=2)	1465 MB/s -5%
Average of class Office (182.3 - 2713, n=84, last 2 years)	1069 MB/s -31%
Lenovo ThinkPad T14 G3-21CF004NGE Kioxia BG5 KBG5AZNV512G	668.7 MB/s -57%
Dell Latitude 3440 Samsung PM9A1 MZVL2512HCJQ	625.54 MB/s -60%
Lenovo ThinkPad L14 G3 21C50030GE Kioxia BG5 KBG5AZNT256G	620 MB/s -60%
HP EliteBook 645 G9, Ryzen 7 5825U Kioxia BG5 KBG50ZNV512G	588.11 MB/s -62%
HP ProBook 440 G9-5Y3Z3EA Samsung PM991 MZVLQ512HBLU	485.8 MB/s -69%
4K-64 Write
Dell Latitude 3440 Samsung PM9A1 MZVL2512HCJQ	1768.73 MB/s +78%
Average of class Office (183.4 - 3394, n=84, last 2 years)	1623 MB/s +63%
HP EliteBook 645 G9, Ryzen 7 5825U Kioxia BG5 KBG50ZNV512G	1190.61 MB/s +20%
HP ProBook 440 G9-5Y3Z3EA Samsung PM991 MZVLQ512HBLU	1070 MB/s +7%
Average Kioxia BG5 KBG5AZNT512G (996 - 1083, n=2)	1040 MB/s +4%
Lenovo ThinkPad L14 G4 21H6S00900 Kioxia BG5 KBG5AZNT512G	996 MB/s
Lenovo ThinkPad L14 G3 21C50030GE Kioxia BG5 KBG5AZNT256G	550 MB/s -45%
Lenovo ThinkPad T14 G3-21CF004NGE Kioxia BG5 KBG5AZNV512G	332.54 MB/s -67%
Access Time Read
HP EliteBook 645 G9, Ryzen 7 5825U Kioxia BG5 KBG50ZNV512G	0.193 ms * -21%
Average Kioxia BG5 KBG5AZNT512G (0.159 - 0.16, n=2)	0.1595 ms * -0%
Lenovo ThinkPad L14 G4 21H6S00900 Kioxia BG5 KBG5AZNT512G	0.159 ms *
HP ProBook 440 G9-5Y3Z3EA Samsung PM991 MZVLQ512HBLU	0.152 ms * +4%
Lenovo ThinkPad L14 G3 21C50030GE Kioxia BG5 KBG5AZNT256G	0.133 ms * +16%
Average of class Office (0.022 - 0.302, n=84, last 2 years)	0.08102 ms * +49%
Lenovo ThinkPad T14 G3-21CF004NGE Kioxia BG5 KBG5AZNV512G	0.067 ms * +58%
Dell Latitude 3440 Samsung PM9A1 MZVL2512HCJQ	0.045 ms * +72%
Access Time Write
Average of class Office (0.016 - 0.625, n=84, last 2 years)	0.07108 ms * -115%
Dell Latitude 3440 Samsung PM9A1 MZVL2512HCJQ	0.062 ms * -88%
HP EliteBook 645 G9, Ryzen 7 5825U Kioxia BG5 KBG50ZNV512G	0.052 ms * -58%
Lenovo ThinkPad L14 G3 21C50030GE Kioxia BG5 KBG5AZNT256G	0.037 ms * -12%
Average Kioxia BG5 KBG5AZNT512G (0.033 - 0.038, n=2)	0.0355 ms * -8%
Lenovo ThinkPad T14 G3-21CF004NGE Kioxia BG5 KBG5AZNV512G	0.035 ms * -6%
Lenovo ThinkPad L14 G4 21H6S00900 Kioxia BG5 KBG5AZNT512G	0.033 ms *
HP ProBook 440 G9-5Y3Z3EA Samsung PM991 MZVLQ512HBLU	0.03 ms * +9%

* ... smaller is better

Sustained load read: DiskSpd Read Loop, Queue Depth 8

Lenovo ThinkPad L14 G4 21H6S00900 Kioxia BG5 KBG5AZNT512G: Ø2492 (1709.53-2748.06)

Lenovo ThinkPad L14 G3 21C50030GE Kioxia BG5 KBG5AZNT256G: Ø2368 (2231.79-2978.29)

Dell Latitude 3440 Samsung PM9A1 MZVL2512HCJQ: Ø4542 (3756.42-6679.22)

HP EliteBook 645 G9, Ryzen 7 5825U Kioxia BG5 KBG50ZNV512G: Ø2485 (2222.56-2824.86)

HP ProBook 440 G9-5Y3Z3EA Samsung PM991 MZVLQ512HBLU: Ø1586 (1371.34-3043.81)

Lenovo ThinkPad T14 G3-21CF004NGE Kioxia BG5 KBG5AZNV512G: Ø2929 (2396.45-3095.4)

GPU

迚ケ谿オ譎る俣 AMD Radeon RX Vega 7是一款过时的 GPU，已在 Ryzen 5000 系列中使用。在 ThinkPad L14 Gen 4 AMD 中，它还受到出厂单通道内存的限制，进一步限制了本已较低的性能。GPU 只能用于最简单的任务和基本游戏。如果安装第二个 SO-DIMM 模块，GPU 性能将得到改善，因为这意味着内存可以在更快的双通道模式下运行。

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Lenovo ThinkPad T14 G3-21CF004NGE AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	100 pt
Average of class Office	66.2 pt
Dell Latitude 3440 ^-1! Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1345U	51 pt
HP ProBook 440 G9-5Y3Z3EA Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1255U	47.7 pt
Average AMD Radeon RX Vega 7	47 pt
HP EliteBook 645 G9, Ryzen 7 5825U AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5825U	39.4 pt
Lenovo ThinkPad L14 G4 21H6S00900 AMD Radeon RX Vega 7, AMD Ryzen 5 7530U	36.8 pt
Lenovo ThinkPad L14 G3 21C50030GE AMD Radeon RX Vega 7, AMD Ryzen 5 PRO 5675U	28.8 pt

3DMark 11 - 1280x720 Performance GPU
Lenovo ThinkPad T14 G3-21CF004NGE AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	10343 Points +145%
Average of class Office (1468 - 13132, n=86, last 2 years)	6876 Points +63%
Dell Latitude 3440 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1345U	5214 Points +23%
HP ProBook 440 G9-5Y3Z3EA Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1255U	5125 Points +21%
Average AMD Radeon RX Vega 7 (3353 - 6249, n=58)	5054 Points +20%
HP EliteBook 645 G9, Ryzen 7 5825U AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5825U	4541 Points +8%
Lenovo ThinkPad L14 G4 21H6S00900 AMD Radeon RX Vega 7, AMD Ryzen 5 7530U	4224 Points
Lenovo ThinkPad L14 G3 21C50030GE AMD Radeon RX Vega 7, AMD Ryzen 5 PRO 5675U	3357 Points -21%

3DMark
1280x720 Cloud Gate Standard Graphics
Lenovo ThinkPad T14 G3-21CF004NGE AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	46247 Points +158%
Average of class Office (7982 - 58068, n=61, last 2 years)	27023 Points +51%
Average AMD Radeon RX Vega 7 (13713 - 31437, n=43)	23324 Points +30%
HP ProBook 440 G9-5Y3Z3EA Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1255U	19082 Points +7%
HP EliteBook 645 G9, Ryzen 7 5825U AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5825U	18755 Points +5%
Lenovo ThinkPad L14 G4 21H6S00900 AMD Radeon RX Vega 7, AMD Ryzen 5 7530U	17909 Points
Lenovo ThinkPad L14 G3 21C50030GE AMD Radeon RX Vega 7, AMD Ryzen 5 PRO 5675U	13898 Points -22%
1920x1080 Fire Strike Graphics
Lenovo ThinkPad T14 G3-21CF004NGE AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	7050 Points +196%
Average of class Office (736 - 9375, n=88, last 2 years)	4886 Points +105%
Dell Latitude 3440 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1345U	3653 Points +53%
Average AMD Radeon RX Vega 7 (1772 - 4037, n=62)	3189 Points +34%
HP ProBook 440 G9-5Y3Z3EA Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1255U	3137 Points +32%
HP EliteBook 645 G9, Ryzen 7 5825U AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5825U	2532 Points +6%
Lenovo ThinkPad L14 G4 21H6S00900 AMD Radeon RX Vega 7, AMD Ryzen 5 7530U	2384 Points
Lenovo ThinkPad L14 G3 21C50030GE AMD Radeon RX Vega 7, AMD Ryzen 5 PRO 5675U	1872 Points -21%
2560x1440 Time Spy Graphics
Lenovo ThinkPad T14 G3-21CF004NGE AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	2289 Points +195%
Average of class Office (313 - 4109, n=87, last 2 years)	1618 Points +109%
HP ProBook 440 G9-5Y3Z3EA Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1255U	1268 Points +64%
Dell Latitude 3440 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1345U	1162 Points +50%
Average AMD Radeon RX Vega 7 (496 - 1249, n=57)	991 Points +28%
HP EliteBook 645 G9, Ryzen 7 5825U AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5825U	854 Points +10%
Lenovo ThinkPad L14 G4 21H6S00900 AMD Radeon RX Vega 7, AMD Ryzen 5 7530U	775 Points
Lenovo ThinkPad L14 G3 21C50030GE AMD Radeon RX Vega 7, AMD Ryzen 5 PRO 5675U	597 Points -23%

3DMark 11 Performance		4281 points
3DMark Cloud Gate Standard Score		15595 points
3DMark Fire Strike Score		2145 points
3DMark Time Spy Score		885 points
Help

... in comparison

Blender
v3.3 Classroom HIP/AMD
Lenovo ThinkPad L14 G4 21H6S00900 AMD Radeon RX Vega 7, AMD Ryzen 5 7530U	1123 Seconds *
HP EliteBook 645 G9, Ryzen 7 5825U AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5825U	927 Seconds * +17%
Average AMD Radeon RX Vega 7 (570 - 1215, n=12)	791 Seconds * +30%
Average of class Office (298 - 1215, n=14, last 2 years)	739 Seconds * +34%
Lenovo ThinkPad T14 G3-21CF004NGE AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	335 Seconds * +70%
v3.3 Classroom CPU
Dell Latitude 3440 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1345U	813 Seconds * -7%
Lenovo ThinkPad L14 G4 21H6S00900 AMD Radeon RX Vega 7, AMD Ryzen 5 7530U	763 Seconds *
Average of class Office (343 - 3964, n=87, last 2 years)	743 Seconds * +3%
HP ProBook 440 G9-5Y3Z3EA Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1255U	741 Seconds * +3%
Lenovo ThinkPad L14 G3 21C50030GE AMD Radeon RX Vega 7, AMD Ryzen 5 PRO 5675U	702 Seconds * +8%
Average AMD Radeon RX Vega 7 (556 - 878, n=24)	702 Seconds * +8%
HP EliteBook 645 G9, Ryzen 7 5825U AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5825U	562 Seconds * +26%
Lenovo ThinkPad T14 G3-21CF004NGE AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	525 Seconds * +31%

* ... smaller is better

Performance Rating - Percent
Lenovo ThinkPad T14 G3-21CF004NGE AMD Ryzen 7 PRO 6850U, AMD Radeon 680M	100 pt
Average of class Office	71.8 pt
HP ProBook 440 G9-5Y3Z3EA ^-2! Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	56.2 pt
Dell Latitude 3440 Intel Core i5-1345U, Intel Iris Xe Graphics G7 80EUs	51.8 pt
HP EliteBook 645 G9, Ryzen 7 5825U AMD Ryzen 7 5825U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	42.6 pt
Lenovo ThinkPad L14 G4 21H6S00900 AMD Ryzen 5 7530U, AMD Radeon RX Vega 7	41.2 pt
Lenovo ThinkPad L14 G3 21C50030GE ^-1! AMD Ryzen 5 PRO 5675U, AMD Radeon RX Vega 7	36.4 pt

The Witcher 3 - 1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Lenovo ThinkPad T14 G3-21CF004NGE AMD Ryzen 7 PRO 6850U, AMD Radeon 680M	23.9 (21^min, 22^P1) fps +191%
Average of class Office (3.8 - 34, n=71, last 2 years)	15 fps +82%
Dell Latitude 3440 Intel Core i5-1345U, Intel Iris Xe Graphics G7 80EUs	9.9 (9^min) fps +20%
HP EliteBook 645 G9, Ryzen 7 5825U AMD Ryzen 7 5825U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	9.6 (8^min, 9^P1) fps +17%
HP ProBook 440 G9-5Y3Z3EA Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	9 fps +9%
Lenovo ThinkPad L14 G4 21H6S00900 AMD Ryzen 5 7530U, AMD Radeon RX Vega 7	8.22 (6^min) fps
Lenovo ThinkPad L14 G3 21C50030GE AMD Ryzen 5 PRO 5675U, AMD Radeon RX Vega 7	6.6 (5^min, 6^P1) fps -20%

GTA V - 1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x
Lenovo ThinkPad T14 G3-21CF004NGE AMD Ryzen 7 PRO 6850U, AMD Radeon 680M	22.2 (1.572^min, 15.4^P1) fps +220%
Average of class Office (3.35 - 47.8, n=77, last 2 years)	13.1 fps +89%
Lenovo ThinkPad L14 G4 21H6S00900 AMD Ryzen 5 7530U, AMD Radeon RX Vega 7	6.94 (1.624^min, 4.78^P1) fps
HP EliteBook 645 G9, Ryzen 7 5825U AMD Ryzen 7 5825U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	6.07 (1.339^min, 4.18^P1) fps -13%
Dell Latitude 3440 Intel Core i5-1345U, Intel Iris Xe Graphics G7 80EUs	5.97 (2.98^min, 3.75^P1) fps -14%

Final Fantasy XV Benchmark - 1920x1080 High Quality
Lenovo ThinkPad T14 G3-21CF004NGE AMD Ryzen 7 PRO 6850U, AMD Radeon 680M	23 fps +188%
Average of class Office (4.18 - 35.7, n=85, last 2 years)	16.3 fps +104%
Dell Latitude 3440 Intel Core i5-1345U, Intel Iris Xe Graphics G7 80EUs	12.5 fps +56%
HP ProBook 440 G9-5Y3Z3EA Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	10 fps +25%
HP EliteBook 645 G9, Ryzen 7 5825U AMD Ryzen 7 5825U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	8.56 fps +7%
Lenovo ThinkPad L14 G4 21H6S00900 AMD Ryzen 5 7530U, AMD Radeon RX Vega 7	8 fps
Lenovo ThinkPad L14 G3 21C50030GE AMD Ryzen 5 PRO 5675U, AMD Radeon RX Vega 7	6 fps -25%

Strange Brigade - 1920x1080 ultra AA:ultra AF:16
Lenovo ThinkPad T14 G3-21CF004NGE AMD Ryzen 7 PRO 6850U, AMD Radeon 680M	41 fps +218%
Average of class Office (9.6 - 56.5, n=69, last 2 years)	27.4 fps +112%
Dell Latitude 3440 Intel Core i5-1345U, Intel Iris Xe Graphics G7 80EUs	18.5 (5^min, 5^P1) fps +43%
HP EliteBook 645 G9, Ryzen 7 5825U AMD Ryzen 7 5825U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	13.7 (5.7^min, 7.06^P1) fps +6%
Lenovo ThinkPad L14 G4 21H6S00900 AMD Ryzen 5 7530U, AMD Radeon RX Vega 7	12.9 (8.6^min, 9.74^P1) fps
Lenovo ThinkPad L14 G3 21C50030GE AMD Ryzen 5 PRO 5675U, AMD Radeon RX Vega 7	10.3 (8.2^min, 8.41^P1) fps -20%

Dota 2 Reborn - 1920x1080 ultra (3/3) best looking
Lenovo ThinkPad T14 G3-21CF004NGE AMD Ryzen 7 PRO 6850U, AMD Radeon 680M	63.1 (53.8^min) fps +102%
Average of class Office (13.4 - 121.2, n=92, last 2 years)	51.6 fps +65%
Dell Latitude 3440 Intel Core i5-1345U, Intel Iris Xe Graphics G7 80EUs	45.4 (41.1^min) fps +45%
HP EliteBook 645 G9, Ryzen 7 5825U AMD Ryzen 7 5825U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	33.1 (30.7^min) fps +6%
HP ProBook 440 G9-5Y3Z3EA Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	32.3 (30.5^min) fps +3%
Lenovo ThinkPad L14 G4 21H6S00900 AMD Ryzen 5 7530U, AMD Radeon RX Vega 7	31.3 (29.7^min) fps
Lenovo ThinkPad L14 G3 21C50030GE AMD Ryzen 5 PRO 5675U, AMD Radeon RX Vega 7	24.2 (22.8^min) fps -23%

X-Plane 11.11 - 1920x1080 high (fps_test=3)
Lenovo ThinkPad T14 G3-21CF004NGE AMD Ryzen 7 PRO 6850U, AMD Radeon 680M	33.5 fps +52%
HP ProBook 440 G9-5Y3Z3EA Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	31 fps +40%
Average of class Office (8.88 - 92.6, n=88, last 2 years)	30.1 fps +36%
Dell Latitude 3440 Intel Core i5-1345U, Intel Iris Xe Graphics G7 80EUs	23.8 fps +8%
Lenovo ThinkPad L14 G4 21H6S00900 AMD Ryzen 5 7530U, AMD Radeon RX Vega 7	22.1 fps
Lenovo ThinkPad L14 G3 21C50030GE AMD Ryzen 5 PRO 5675U, AMD Radeon RX Vega 7	21.7 fps -2%
HP EliteBook 645 G9, Ryzen 7 5825U AMD Ryzen 7 5825U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	21.7 fps -2%

Witcher 3 FPS diagram

Lenovo ThinkPad L14 G4 21H6S00900 R5 7530U, Vega 7: Ø8.64 (8-10)

	low	med.	high	ultra
GTA V (2015)	63.6	56.5	15.6	6.94
The Witcher 3 (2015)	38.9	23.8	11.8	8.22
Dota 2 Reborn (2015)	97	69.6	33.5	31.3
Final Fantasy XV Benchmark (2018)	22.5	11.7	8
X-Plane 11.11 (2018)	31.9	24.7	22.1
Strange Brigade (2018)	44.6	17.1	14.9	12.9
F1 22 (2022)	23.4	20.9	16.5	12.1

排放：L14 G4 的风扇比 L14 G3 更活跃

噪音

与前代产品 ThinkPad L14 G3 AMD 相比，ThinkPad L14 G4 AMD 的最大风扇噪音有所降低，目前最高可达 38.3 dB(a)。设备空闲时，风扇基本处于关闭状态。正面：风扇噪音不是特别高，这在戴尔Latitude 3440.

在 ThinkPad L14 G3 AMD 上，我们可以检测到一些线圈啸叫。

Noise Level

Idle		25.2 / 25.2 / 27.3 dB(A)
Load		32.1 / 38.3 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Earthworks M23R, Arta (15 cm distance) environment noise: 25.2 dB(A)

	Lenovo ThinkPad L14 G4 21H6S00900 Vega 7, R5 7530U, Kioxia BG5 KBG5AZNT512G	Lenovo ThinkPad L14 G3 21C50030GE Vega 7, R5 PRO 5675U, Kioxia BG5 KBG5AZNT256G	Dell Latitude 3440 Iris Xe G7 80EUs, i5-1345U, Samsung PM9A1 MZVL2512HCJQ	HP EliteBook 645 G9, Ryzen 7 5825U Vega 8, R7 5825U, Kioxia BG5 KBG50ZNV512G	HP ProBook 440 G9-5Y3Z3EA Iris Xe G7 96EUs, i7-1255U, Samsung PM991 MZVLQ512HBLU	Lenovo ThinkPad T14 G3-21CF004NGE Radeon 680M, R7 PRO 6850U, Kioxia BG5 KBG5AZNV512G
Noise		7%	-1%	-0%	-2%	3%
off / environment *	25.2	24.2 4%	23.9 5%	27 -7%	27 -7%	24.2 4%
Idle Minimum *	25.2	24.2 4%	24.4 3%	27 -7%	27 -7%	24.2 4%
Idle Average *	25.2	24.2 4%	24.4 3%	27 -7%	27 -7%	24.2 4%
Idle Maximum *	27.3	28.6 -5%	24.4 11%	27 1%	27 1%	25.8 5%
Load Average *	32.1	28.6 11%	37.1 -16%	31 3%	31.5 2%	32.2 -0%
Witcher 3 ultra *	35.7	31.7 11%	38.2 -7%			34.1 4%
Load Maximum *	38.3	31.75 17%	40.2 -5%	32 16%	34.9 9%	38.8 -1%

* ... smaller is better

热量

说联想 ThinkPad L14 Gen 4 AMD "发热 "并不恰当。我们在键盘左上方的热点测得的最高温度为 46.3 摄氏度/115 华氏度。这个区域通常在高负荷使用时不会被频繁触碰。与笔记本空闲时的情况相比，掌托确实会发热，不过掌托温度始终保持在 30 摄氏度/86 华氏度以下。

压力测试可以用两个词来概括：无节流。即使在一小时后，CPU 功耗仍保持在 20 W。

Max. Load

Idle

Witcher 3


31.5 °C	38.4 °C	34.4 °C
34.6 °C	39 °C	34.3 °C
29.1 °C	29.1 °C	28.8 °C

Maximum: 39 °C
Average: 33.2 °C


46.3 °C	33.7 °C	30.6 °C
29.5 °C	37.4 °C	32 °C
26.3 °C	28.1 °C	28.2 °C

Maximum: 46.3 °C
Average: 32.5 °C

Power Supply (max.) 32.5 °C | Room Temperature 24.2 °C | Fluke 62 Max+

Max. Load

Idle

Witcher 3


24.8 °C	25.3 °C	25.4 °C
25.8 °C	26.3 °C	25.6 °C
24 °C	24.1 °C	24.4 °C

Maximum: 26.3 °C
Average: 25.1 °C


36 °C	28.4 °C	25.6 °C
25 °C	37.5 °C	28.2 °C
24.4 °C	24.5 °C	24.8 °C

Maximum: 37.5 °C
Average: 28.3 °C

Power Supply (max.) 25.5 °C | Room Temperature 23.6 °C | Fluke 62 Max+

Max. Load

Idle

Witcher 3


34 °C	40.1 °C	32.9 °C
35.6 °C	40.2 °C	30.2 °C
28.3 °C	30.3 °C	27.9 °C

Maximum: 40.2 °C
Average: 33.3 °C


45.5 °C	39.8 °C	30.5 °C
31.8 °C	43.6 °C	33 °C
27.9 °C	29.6 °C	28.8 °C

Maximum: 45.5 °C
Average: 34.5 °C

Power Supply (max.) 32.8 °C | Room Temperature 24.4 °C | Fluke 62 Max+

(±) The average temperature for the upper side under maximal load is 33.2 °C / 92 F, compared to the average of 29.5 °C / 85 F for the devices in the class Office.
(+) The maximum temperature on the upper side is 39 °C / 102 F, compared to the average of 34.3 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(-) The bottom heats up to a maximum of 46.3 °C / 115 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 25.1 °C / 77 F, compared to the device average of 29.5 °C / 85 F.
(±) Playing The Witcher 3, the average temperature for the upper side is 33.3 °C / 92 F, compared to the device average of 29.5 °C / 85 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 30.3 °C / 86.5 F and are therefore cool to the touch.
(-) The average temperature of the palmrest area of similar devices was 27.6 °C / 81.7 F (-2.7 °C / -4.8 F).

	Lenovo ThinkPad L14 G4 21H6S00900 AMD Ryzen 5 7530U, AMD Radeon RX Vega 7	Lenovo ThinkPad L14 G3 21C50030GE AMD Ryzen 5 PRO 5675U, AMD Radeon RX Vega 7	Dell Latitude 3440 Intel Core i5-1345U, Intel Iris Xe Graphics G7 80EUs	HP EliteBook 645 G9, Ryzen 7 5825U AMD Ryzen 7 5825U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	HP ProBook 440 G9-5Y3Z3EA Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	Lenovo ThinkPad T14 G3-21CF004NGE AMD Ryzen 7 PRO 6850U, AMD Radeon 680M
Heat		3%	6%	10%	11%	1%
Maximum Upper Side *	39	40.4 -4%	35.2 10%	38.1 2%	38.9 -0%	48.2 -24%
Maximum Bottom *	46.3	45.8 1%	41 11%	42.3 9%	37.4 19%	52.8 -14%
Idle Upper Side *	26.3	28.2 -7%	29.8 -13%	26.4 -0%	26.7 -2%	24.4 7%
Idle Bottom *	37.5	28.9 23%	32 15%	26.8 29%	27.8 26%	24.5 35%

* ... smaller is better

发言人

联想 ThinkPad L14 G4 AMD 的上扬声器发出的声音响度一般，缺乏底气。对于办公环境来说，它们是可以接受的扬声器，但仅此而已。

Frequency diagram (checkboxes can be checked and unchecked to compare devices)

Lenovo ThinkPad L14 G4 21H6S00900 audio analysis

(±) | speaker loudness is average but good (78.5 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 22% lower than median
(±) | linearity of bass is average (12% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 4.6% away from median
(+) | mids are linear (4.7% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2% away from median
(+) | highs are linear (4.4% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (20.1% difference to median)
Compared to same class
» 38% of all tested devices in this class were better, 11% similar, 51% worse
» The best had a delta of 7%, average was 21%, worst was 53%
Compared to all devices tested
» 48% of all tested devices were better, 8% similar, 43% worse
» The best had a delta of 4%, average was 25%, worst was 134%

HP EliteBook 645 G9, Ryzen 7 5825U audio analysis

(±) | speaker loudness is average but good (76 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 33.9% lower than median
(±) | linearity of bass is average (9.3% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 4.7% away from median
(±) | linearity of mids is average (7.5% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.4% away from median
(+) | highs are linear (3.8% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (24% difference to median)
Compared to same class
» 66% of all tested devices in this class were better, 10% similar, 24% worse
» The best had a delta of 7%, average was 21%, worst was 53%
Compared to all devices tested
» 69% of all tested devices were better, 7% similar, 24% worse
» The best had a delta of 4%, average was 25%, worst was 134%

能源管理：功耗低，电池寿命长

耗电量

与前代产品相比，至少在空转时耗电量较低。在负载情况下，情况则发生了逆转。总体而言，与其他经济型笔记本电脑相比，ThinkPad L14G4 AMD 的能效相当高，但与 ThinkPad T14 G3配备 Ryzen 7 Pro 6850U 的 ThinkPad T14 G3 的效率更高。

在最大功率下，ThinkPad L14G4 AMD 的耗电量为 61.3 W，对于 65 W 的充电器来说并不吃力。

Power Consumption

Off / Standby	0.5 / 0.6 Watt
Idle	3.5 / 7.2 / 7.6 Watt
Load	32.2 / 61.3 Watt


Key: min: , med: , max: Metrahit Energy

	Lenovo ThinkPad L14 G4 21H6S00900 R5 7530U, Vega 7, Kioxia BG5 KBG5AZNT512G, IPS LED, 1920x1080, 14"	Lenovo ThinkPad L14 G3 21C50030GE R5 PRO 5675U, Vega 7, Kioxia BG5 KBG5AZNT256G, IPS, 1920x1080, 14"	Dell Latitude 3440 i5-1345U, Iris Xe G7 80EUs, Samsung PM9A1 MZVL2512HCJQ, IPS, 1920x1080, 14"	HP EliteBook 645 G9, Ryzen 7 5825U R7 5825U, Vega 8, Kioxia BG5 KBG50ZNV512G, IPS, 1920x1080, 14"	HP ProBook 440 G9-5Y3Z3EA i7-1255U, Iris Xe G7 96EUs, Samsung PM991 MZVLQ512HBLU, , 1920x1080, 14"	Lenovo ThinkPad T14 G3-21CF004NGE R7 PRO 6850U, Radeon 680M, Kioxia BG5 KBG5AZNV512G, IPS, 1920x1200, 14"	Average AMD Radeon RX Vega 7	Average of class Office
Power Consumption		2%	-16%	8%	-19%	10%	-12%	-16%
Idle Minimum *	3.5	4.8 -37%	3.7 -6%	3.8 -9%	5.1 -46%	2.4 31%	4.66 ?(2.6 - 8.4, n=52) -33%	4.48 ?(2 - 13.8, n=90, last 2 years) -28%
Idle Average *	7.2	7.7 -7%	6.5 10%	5.3 26%	7.4 -3%	5.3 26%	7.56 ?(4.8 - 10.7, n=52) -5%	7.41 ?(3 - 14.9, n=90, last 2 years) -3%
Idle Maximum *	7.6	8.5 -12%	9.5 -25%	7 8%	8.4 -11%	5.6 26%	8.95 ?(5.6 - 13.8, n=52) -18%	8.86 ?(4.89 - 18.6, n=90, last 2 years) -17%
Load Average *	32.2	27.4 15%	46.9 -46%	34 -6%	42.6 -32%	39.7 -23%	38.7 ?(21.6 - 54.9, n=53) -20%	41.9 ?(8.7 - 77.9, n=85, last 2 years) -30%
Witcher 3 ultra *	35.7	32 10%	42.1 -18%	33.8 5%	42.3 -18%	42.8 -20%
Load Maximum *	61.3	36.5 40%	67 -9%	45.7 25%	64 -4%	50.6 17%	51.9 ?(31 - 73.4, n=52) 15%	61.7 ?(11.1 - 107, n=90, last 2 years) -1%

* ... smaller is better

Power consumption Witcher 3 / stress test

Lenovo ThinkPad L14 G4 21H6S00900; Witcher 3 ultra: Ø35.7 (34.4-38.8)

Lenovo ThinkPad L14 G4 21H6S00900; 1280x720 Prime95 28.10 and Furmark 1.25: Ø45.4 (37.9-61.3)

Lenovo ThinkPad L14 G4 21H6S00900; Idle 150cd/m2: Ø5.25 (4.9-6.87)

Power consumption with external monitor

Lenovo ThinkPad L14 G4 21H6S00900; Prime95 V2810 Stress (external Monitor): Ø41.8 (35.5-59.1)

Lenovo ThinkPad L14 G4 21H6S00900; Cinebench R23 Multi (external Monitor): Ø31.5 (28.7-43.1)

Lenovo ThinkPad L14 G4 21H6S00900; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø31.8 (30.9-35.1)

Lenovo ThinkPad L14 G4 21H6S00900; 1920x1080 The Witcher 3 ultra (external Monitor): Ø33.2 (31.5-35.2)

Lenovo ThinkPad L14 G4 21H6S00900; Idle 1min (external Monitor): Ø6.94 (6.2-8.15)

电池寿命

ThinkPad Gen 4 AMD 有三种内置电池可供选择。我们的设备配有 57 Wh 电池，这是中间的选项。此外，还有 46.5 Wh 和 63 Wh 电池可供选择。

结合低功耗屏幕，ThinkPad L14 第 4 代 AMD 的电池续航能力非常出色。在 WiFi 测试（屏幕亮度为 150 cd/m²）中，续航时间为 13 小时 34 分钟；在 WiFi 测试（屏幕亮度为最大值）中，续航时间为 11 小时 10 分钟。

Battery Runtime

WiFi Websurfing (Edge 114)		13h 34min
WiFi Websurfing max. Brightness (Edge 115)		11h 10min
Load (maximum brightness)		1h 16min

	Lenovo ThinkPad L14 G4 21H6S00900 R5 7530U, Vega 7, 57 Wh	Lenovo ThinkPad L14 G3 21C50030GE R5 PRO 5675U, Vega 7, 57 Wh	Dell Latitude 3440 i5-1345U, Iris Xe G7 80EUs, 54 Wh	HP EliteBook 645 G9, Ryzen 7 5825U R7 5825U, Vega 8, 51.3 Wh	HP ProBook 440 G9-5Y3Z3EA i7-1255U, Iris Xe G7 96EUs, 42 Wh	Lenovo ThinkPad T14 G3-21CF004NGE R7 PRO 6850U, Radeon 680M, 52.5 Wh	Average of class Office
Battery Runtime		16%	-35%	-3%	-58%	-3%	14%
WiFi v1.3	814	795 -2%	528 -35%	592 -27%	344 -58%	772 -5%	611 ?(230 - 1349, n=90, last 2 years) -25%
Load	76	101 33%		93 22%		76 0%	115.6 ?(56 - 218, n=56, last 2 years) 52%

Pros

+ 性能良好

+ 电池寿命超过 13 小时

+ 良好的可升级性和可维修性

+ 明亮的低功耗屏幕

+ 良好的输入设备和 TrackPoint

+ 广泛的端口选择，包括 RJ45

+ 比其他 ThinkPad 更经济实惠

+ 可升级的 WiFi 6E 网卡

+ 支持 WWAN

Cons

- 没有 Ryzen 7040

- 无 DDR5、PCIe 4.0 或 USB4

- 出厂时为单通道内存

- M.2 2242 SSD 升级性不理想

- 线圈啸叫

- 屏幕响应时间慢

- 16:9 宽高比

结论联想 ThinkPad L14 G4 AMD 是一款物美价廉的工作利器

评测中：联想 ThinkPad L14 Gen 4 AMD，评测样品由联想提供：

背光键盘、IPS 屏幕，这些功能在联想经济型 ThinkPad L 系列中已经很久没有出现过了。现在，它们成为了可选项，低功耗屏幕也是如此，作为经济型系列的首款产品，联想 ThinkPad L14 第 4 代 AMD 可以对其进行测试。

这就解决了前代产品的一个核心批评点，即屏幕不好，至少对于这个特定的变体来说是这样。不过，低功耗屏幕也并非完美无缺，它所使用的面板响应时间较差，但与低亮度或低色域相比，这对于办公笔记本电脑来说并不是什么大问题。

除了显示屏之外，ThinkPad L14 4 代 AMD 与ThinkPad L14 第 3 代 AMD.机箱、输入设备和连接选项没有变化，这三个方面都非常好（输入设备、连接）到不错（机箱）。与更昂贵的机型相比，机箱在材质和稳定性方面略有下降。ThinkPad L14 G4 AMD 的电池续航时间非常不错。

一个明显的弱点是平台过时。Ryzen 7030U 虽然有了新名字，但基本上还是 Ryzen 5000。这意味着没有 USB4、DDR5 内存和 PCIe 4.0。单通道内存也影响了性能，但用户可以通过添加第二个内存模块轻松解决这个问题。一个小问题是，L14 G4 使用的是 M.2 2242 SSD 尺寸，限制了升级选择。另一方面，两个内存插槽使 ThinkPad L14 默认成为可升级性最强的 14 英寸 ThinkPad。

电池续航时间长，可升级：联想ThinkPad L14 G4 AMD是低价位笔记本电脑中的佼佼者。

总而言之，我们认为联想ThinkPad L14 G4 AMD是一款非常可靠的工作设备，价格也比较实惠。较低的价格意味着它没有采用一些较新的技术，机箱所用材料也不如其他 ThinkPad 那样优质，但它在办公室里的表现还是不错的。

另一种选择是戴尔Latitude 3440.这款基于英特尔的竞争对手拥有更高的单核性能，但如果用户选择戴尔，就必须放弃第二个 USB C 端口和 microSD 插槽。

Download your licensed rating image as SVG / PNG

定价和可用性

我们评测过的联想 ThinkPad L14 Gen 4 AMD 型号 21H6S00900，是德国联想教育计划中针对学生的特别机型。它在 Campuspoint 的售价为 700 欧元。

Lenovo ThinkPad L14 G4 21H6S00900 - 08/09/2023 v7 ^(old)
Benjamin Herzig

Chassis

82 / 98 → 84%

Keyboard

89%

Pointing Device

89%

Connectivity

71 / 80 → 89%

Weight

69 / 20-75 → 89%

Battery

90%

Display

90%

Games Performance

53 / 78 → 68%

Application Performance

89 / 95 → 94%

Temperature

90%

Noise

95%

Audio

74%

Camera

42 / 85 → 49%

Average

79%

89%

Office - Weighted Average

Price comparison

Editor of the original article: Benjamin Herzig - Managing Editor - 1239 articles published on Notebookcheck since 2016

contact me via: LinkedIn

Translator: Ninh Ngoc Duy - Editorial Assistant - 472283 articles published on Notebookcheck since 2008

contact me via: Facebook

Please share our article, every link counts!

> Notebookcheck中文版（NBC中国） > 评测 > 联想 ThinkPad L14 G4 AMD 评测：经济实惠的笔记本电脑，具有良好的可升级性和电池续航能力

Benjamin Herzig, 2023-08-10 (Update: 2023-08-10)

联想 ThinkPad L14 G4 AMD 评测：经济实惠的笔记本电脑，具有良好的可升级性和电池续航能力

经济实惠的黑匣子

潜在的竞争对手比较

尺寸比较

连接性

显示屏：ThinkPad L 首次采用低功耗屏幕

Display Response Times

Screen Flickering / PWM (Pulse-Width Modulation)

性能：只有 AMD Ryzen 7030U 而不是 Ryzen 7040U

测试条件

处理器

Cinebench R15 multi sustained loop test

系统性能

DPC 延迟

大容量存储器

Sustained load read: DiskSpd Read Loop, Queue Depth 8

GPU

Witcher 3 FPS diagram

排放：L14 G4 的风扇比 L14 G3 更活跃

噪音

热量

发言人

Lenovo ThinkPad L14 G4 21H6S00900 audio analysis

HP EliteBook 645 G9, Ryzen 7 5825U audio analysis

能源管理：功耗低，电池寿命长

耗电量

Power consumption Witcher 3 / stress test

Power consumption with external monitor

电池寿命

Pros

Cons

结论联想 ThinkPad L14 G4 AMD 是一款物美价廉的工作利器

定价和可用性

More articles related to this device

Transparency

Price comparison
