联想ThinkPad P14s G2 AMD笔记本电脑评论。拥有哑光4K液晶显示器和Ryzen 5000
到目前为止，联想ThinkPad P系列一直是英特尔处理器的一个堡垒。不过有一个例外。14英寸的联想ThinkPad P14s是联想工作站中的移动入门级机型，从去年开始也有采用AMD Ryzen CPU的版本。虽然去年联想工作站笔记本电脑使用了AMD Ryzen Pro 4000，但随着ThinkPad P14s G2的推出，AMD Ryzen Pro 5000自然也随之而来。
该ThinkPad P14s AMD前辈已经提供了出色的CPU性能，但它缺乏一个专用的GPU。这种不寻常的缺乏也涉及到较新的模型，因此，看看它在与更多采用英特尔CPU和Nvidia GPU的传统工作站的比较中表现如何，将是很有趣的。
由于联想没有在机箱上做任何改变，我们请你参考我们对联想ThinkPad T490的评论，以了解有关设计、设备和输入设备的信息。
Possible Competitors in Comparison
Rating | Date | Model | Weight | Height | Size | Resolution | Price |
|---|---|---|---|---|---|---|---|
| 85.2 % v7 (old) | 09 / 2021 | Lenovo ThinkPad P14s G2 AMD R7 PRO 5850U, Vega 8 | 1.5 kg | 17.9 mm | 14.00" | 3840x2160 | |
| 83.8 % v7 (old) | Lenovo ThinkPad P14s Gen1-20Y10002GE R7 PRO 4750U, Vega 7 | 1.6 kg | 17.9 mm | 14.00" | 1920x1080 | ||
| 85.1 % v7 (old) | 06 / 2021 | Lenovo ThinkPad P14s Gen2-20VX000GGE i7-1185G7, T500 Laptop GPU | 1.5 kg | 18 mm | 14.00" | 1920x1080 | |
| 85.2 % v7 (old) | 09 / 2021 | HP ZBook Firefly 14 G8 2C9Q2EA i7-1165G7, T500 Laptop GPU | 1.4 kg | 17.9 mm | 14.00" | 1920x1080 |
| SD Card Reader | |
| average JPG Copy Test (av. of 3 runs) | |
| Average of class Workstation (49.6 - 200, n=14, last 2 years) | |
| Lenovo ThinkPad P14s Gen1-20Y10002GE (Toshiba Exceria Pro M501 64 GB UHS-II) | |
| Lenovo ThinkPad P14s Gen2-20VX000GGE (AV Pro V60) | |
| Lenovo ThinkPad P14s G2 AMD (AV PRO V60) | |
| maximum AS SSD Seq Read Test (1GB) | |
| Average of class Workstation (81.2 - 227, n=14, last 2 years) | |
| Lenovo ThinkPad P14s G2 AMD (AV PRO V60) | |
| Lenovo ThinkPad P14s Gen1-20Y10002GE (Toshiba Exceria Pro M501 64 GB UHS-II) | |
| Lenovo ThinkPad P14s Gen2-20VX000GGE (AV Pro V60) | |
| Networking | |
| iperf3 transmit AX12 | |
| Lenovo ThinkPad P14s Gen1-20Y10002GE | |
| HP ZBook Firefly 14 G8 2C9Q2EA | |
| Lenovo ThinkPad P14s Gen2-20VX000GGE | |
| Lenovo ThinkPad P14s G2 AMD | |
| Average RealTek Semiconductor RTL8852AE (424 - 928, n=20) | |
| iperf3 receive AX12 | |
| HP ZBook Firefly 14 G8 2C9Q2EA | |
| Lenovo ThinkPad P14s Gen1-20Y10002GE | |
| Lenovo ThinkPad P14s Gen2-20VX000GGE | |
| Average RealTek Semiconductor RTL8852AE (621 - 877, n=20) | |
| Lenovo ThinkPad P14s G2 AMD | |
ThinkPad笔记本电脑中的哑光UHD显示屏
对于使用与前代机型相同设计的笔记本电脑来说，其他方面的变化必须为购买提供论据。显示器就是这样一个领域。然而，在联想ThinkPad P14s G2 AMD中，大多数LCD选项仍然与上一代产品相同。 联想ThinkPad P14s G1前代机型，而且不幸的是，14英寸液晶显示器的16:9格式也没有改变。
新的变化是，基于AMD的机型首次也提供了4K超高清显示屏（3840 x 2160像素），这在去年还是保留给英特尔ThinkPad的。此外，UHD液晶显示器以前是光面的，但现在是哑光的。虽然我们能够测试新的、无光泽的UHD液晶显示器，以及全高清分辨率（1920 x 1080像素）的低功耗液晶显示器，但本评论的重点是带有4K UHD液晶显示器的型号。
UHD显示屏的亮度应该达到500cd/m²，这确实是最高值的情况。最高值确实是512 cd/m²，但联想笔记本电脑的平均亮度 "只有 "486 cd/m²。这使得它比能够在ThinkPad X1 Carbon Gen 8 中测试的光面UHD LCD略微暗一些。但与此相反，这里没有使用脉冲宽度调制（PWM）进行亮度控制。而与低功耗的FHD LCD相比，另一个突出的优势是UHD屏幕的响应时间明显更好。
Screen Flickering / PWM (Pulse-Width Modulation)
| Screen flickering / PWM not detected |  | ||
In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8710 (minimum: 5 - maximum: 343500) Hz was measured. | |||
| |||||||||||||||||||||||||

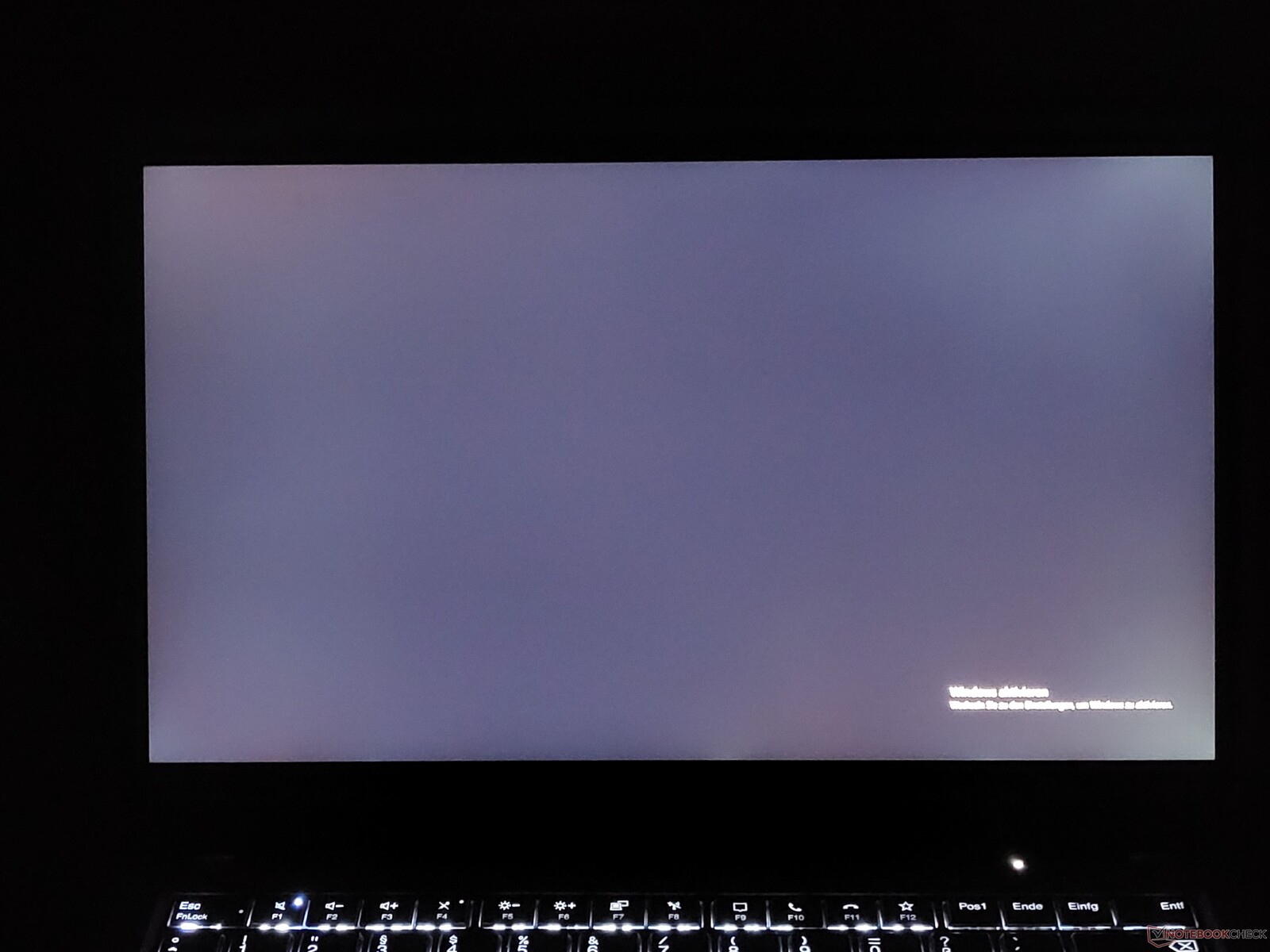

Brightness Distribution: 90 %
Center on Battery: 512 cd/m²
Contrast: 1463:1 (Black: 0.35 cd/m²)
ΔE Color 3.1 | 0.5-29.43 Ø4.91, calibrated: 0.4
ΔE Greyscale 5.5 | 0.5-98 Ø5.2
Gamma: 2.22
| Lenovo ThinkPad P14s G2 AMD MNE001EA1-5, IPS LED, 3840x2160, 14" | Lenovo ThinkPad P14s G2 AMD FHD NE140FHM-N61, IPS LED, 1920x1080, 14" | Lenovo ThinkPad P14s Gen1-20Y10002GE N140HCR-GL2, a-Si IPS LED, 1920x1080, 14" | Lenovo ThinkPad P14s Gen2-20VX000GGE B140HAN05.7, IPS, 1920x1080, 14" | HP ZBook Firefly 14 G8 2C9Q2EA AU Optronics AUO068B, IPS, 1920x1080, 14" | Lenovo ThinkPad X1 Carbon 2020-20U9003BGE NV140QUM-N53, , 3840x2160, 14" | |
|---|---|---|---|---|---|---|
| Display | -20% | -17% | -19% | -15% | -7% | |
| Display P3 Coverage | 96.8 | 68.1 -30% | 67.3 -30% | 65.4 -32% | 70 -28% | 82.4 -15% |
| sRGB Coverage | 99.9 | 91.1 -9% | 98.5 -1% | 96.6 -3% | 99.5 0% | 99.4 -1% |
| AdobeRGB 1998 Coverage | 85.8 | 66.6 -22% | 69.4 -19% | 66.5 -22% | 71.4 -17% | 82.7 -4% |
| Response Times | -55% | 20% | -15% | -14% | 23% | |
| Response Time Grey 50% / Grey 80% * | 52 ? | 72 ? -38% | 38.4 ? 26% | 58.8 ? -13% | 64.4 ? -24% | 47.2 ? 9% |
| Response Time Black / White * | 28 ? | 48 ? -71% | 24 ? 14% | 32.8 ? -17% | 29.2 ? -4% | 17.6 ? 37% |
| PWM Frequency | 200 ? | |||||
| Screen | -47% | 5% | -24% | -7% | -35% | |
| Brightness middle | 512 | 403 -21% | 430 -16% | 350 -32% | 461 -10% | 574 12% |
| Brightness | 487 | 395 -19% | 432 -11% | 348 -29% | 439 -10% | 540 11% |
| Brightness Distribution | 90 | 91 1% | 88 -2% | 94 4% | 89 -1% | 86 -4% |
| Black Level * | 0.35 | 0.25 29% | 0.27 23% | 0.14 60% | 0.24 31% | 0.36 -3% |
| Contrast | 1463 | 1612 10% | 1593 9% | 2500 71% | 1921 31% | 1594 9% |
| Colorchecker dE 2000 * | 3.1 | 4.4 -42% | 2.2 29% | 4.3 -39% | 2.6 16% | 4.7 -52% |
| Colorchecker dE 2000 max. * | 8.4 | 8.8 -5% | 4.4 48% | 6.7 20% | 5.8 31% | 8.8 -5% |
| Colorchecker dE 2000 calibrated * | 0.4 | 1.9 -375% | 0.7 -75% | 1.5 -275% | 1.1 -175% | 1.4 -250% |
| Greyscale dE 2000 * | 5.5 | 5.7 -4% | 3.3 40% | 5.3 4% | 4.4 20% | 7.2 -31% |
| Gamma | 2.22 99% | 2.18 101% | 2.21 100% | 2.42 91% | 2.29 96% | 2.04 108% |
| CCT | 6373 102% | 7375 88% | 6056 107% | 7631 85% | 6478 100% | 6886 94% |
| Color Space (Percent of AdobeRGB 1998) | 63 | 61.1 | 65.2 | 73.8 | ||
| Color Space (Percent of sRGB) | 98.5 | 96.4 | 99.4 | 99.4 | ||
| Total Average (Program / Settings) | -41% /
-43% | 3% /
3% | -19% /
-22% | -12% /
-10% | -6% /
-21% |
* ... smaller is better
尽管ThinkPad笔记本电脑在交付状态下应该已经被校准，但我们用X-Rite i1 Pro 2色度计和Calman进行的测量显示出一种红色色调。我们使用X-Rite i1Profiler进行的校准消除了这种色调。创建的色彩配置文件可供您免费下载（见上文 "下载ICC文件 "链接）。校准后，显示效果非常好，内容显示非常清晰，色彩鲜艳，这也是由于对比度值好。

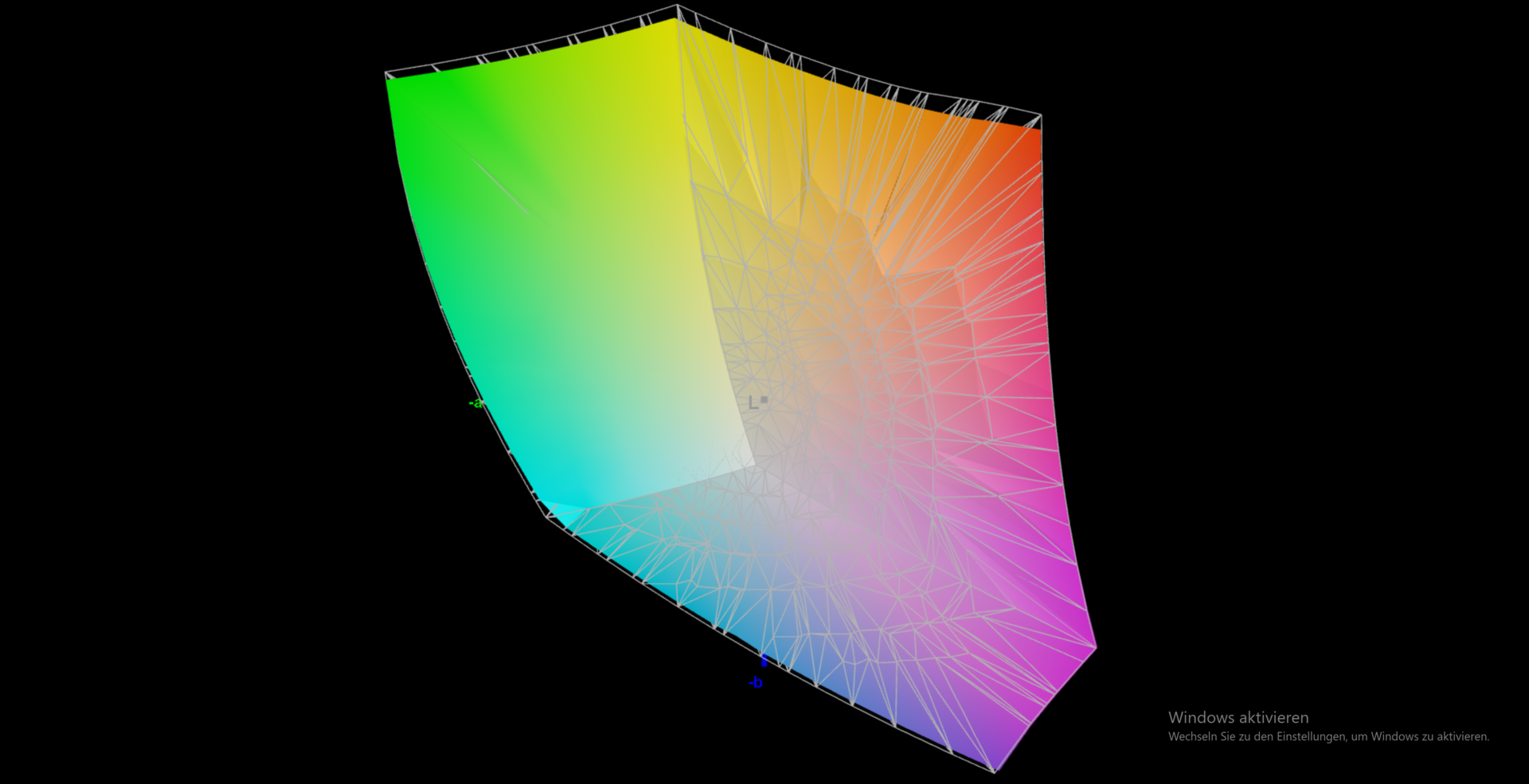

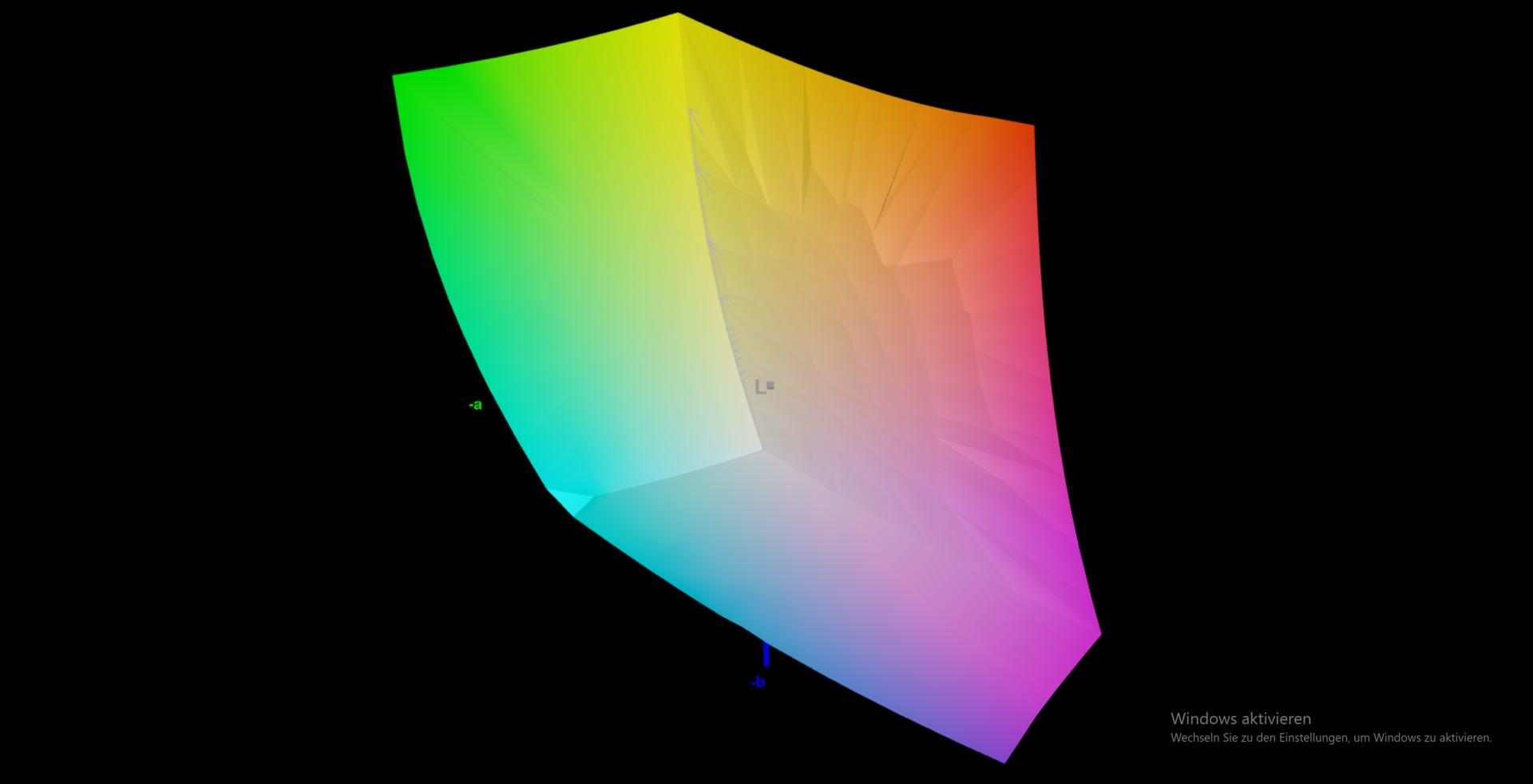

不仅完全覆盖了sRGB色彩空间，而且宽泛的DCI-P3色彩空间也几乎完全覆盖，达到96.8%。这意味着我们绝对可以想象使用联想ThinkPad P14s G2的超高清液晶显示器进行图像处理。

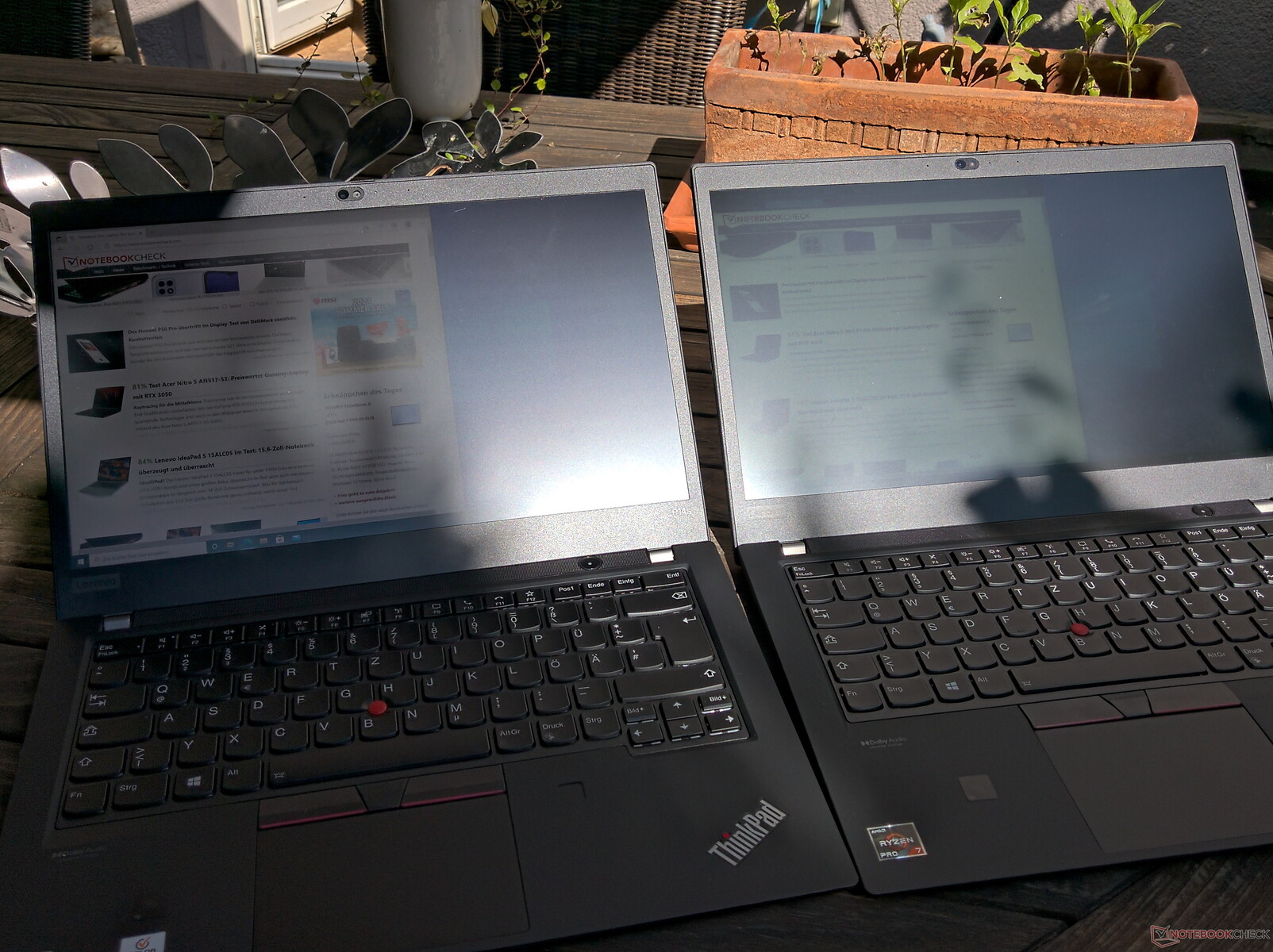

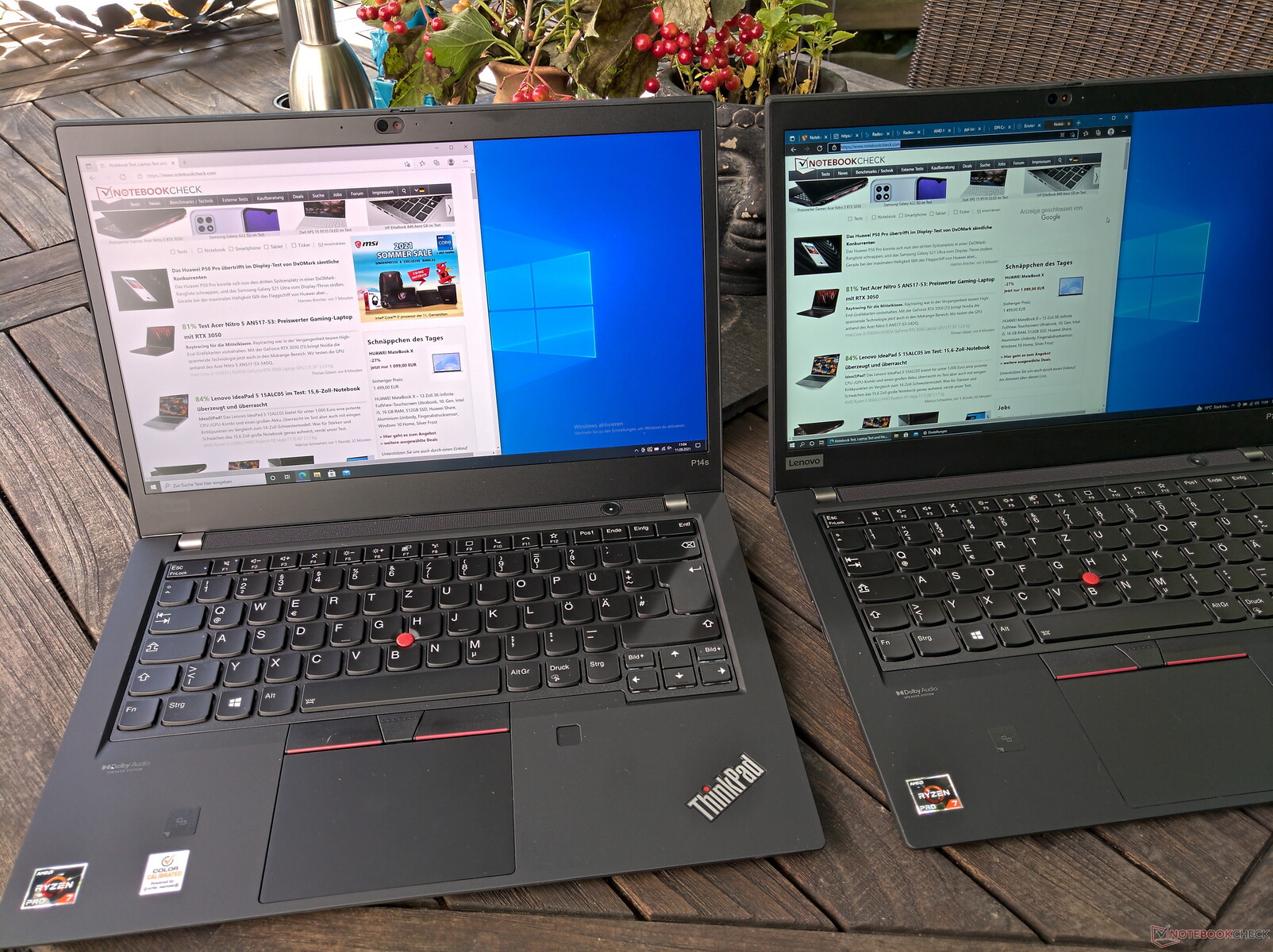

哑光表面是在户外使用笔记本电脑的一个巨大改进。你不必担心恼人的反射，而且高亮度使在户外工作时非常舒适。然而，阳光直射仍然造成一些困难。
Display Response Times

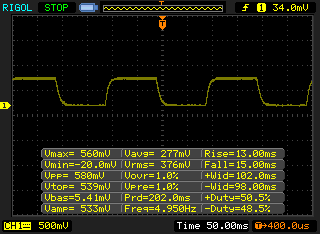

| ↔ Response Time Black to White | ||
|---|---|---|
| 28 ms ... rise ↗ and fall ↘ combined | ↗ 13 ms rise |  |
| ↘ 15 ms fall | ||
| The screen shows relatively slow response rates in our tests and may be too slow for gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 68 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (20.9 ms). | ||

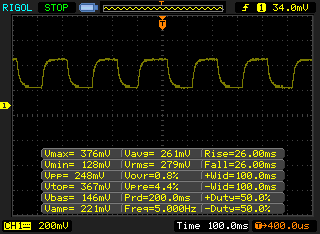

| ↔ Response Time 50% Grey to 80% Grey | ||
| 52 ms ... rise ↗ and fall ↘ combined | ↗ 26 ms rise |  |
| ↘ 26 ms fall | ||
| The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 87 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (32.8 ms). | ||

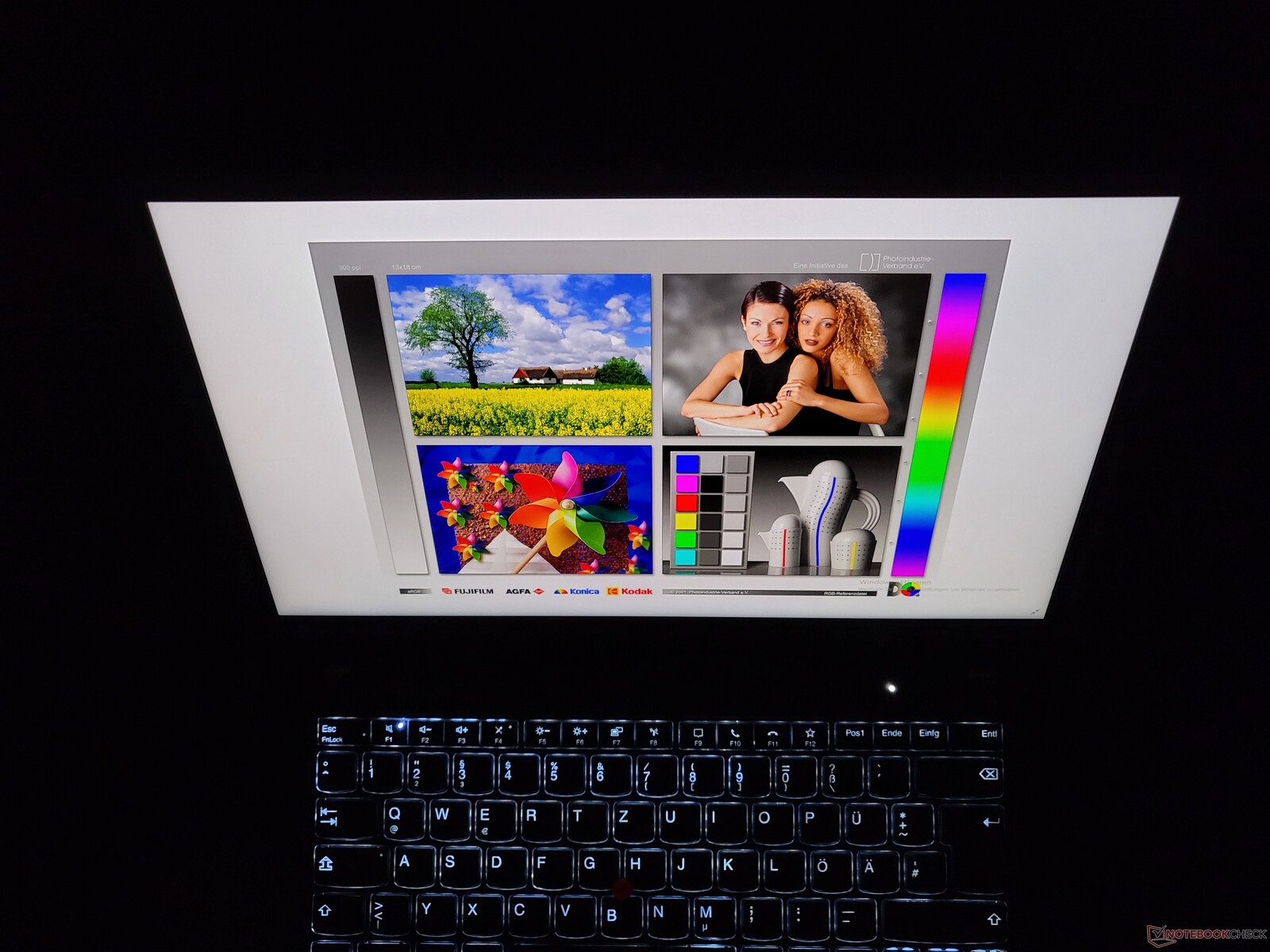

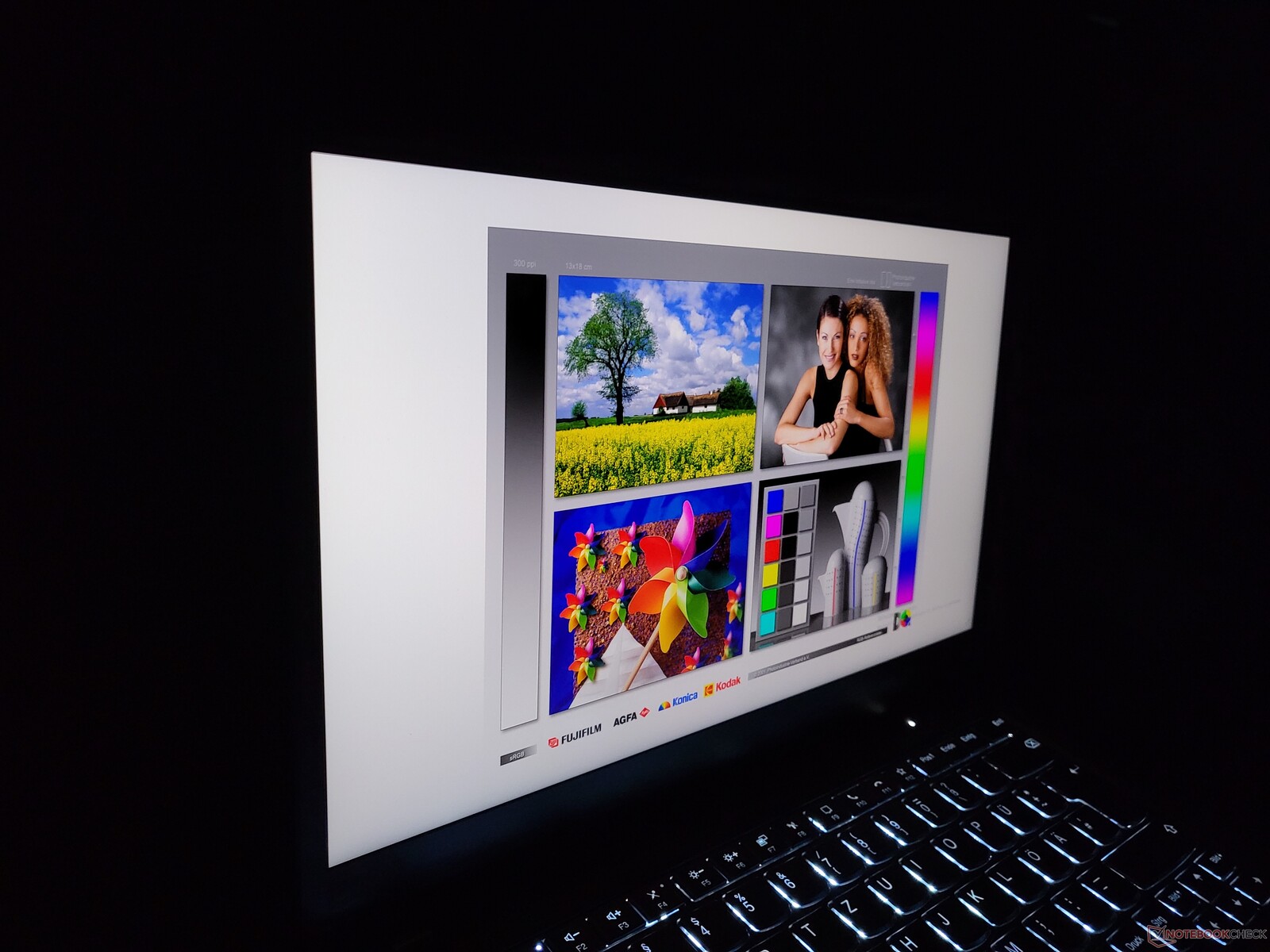

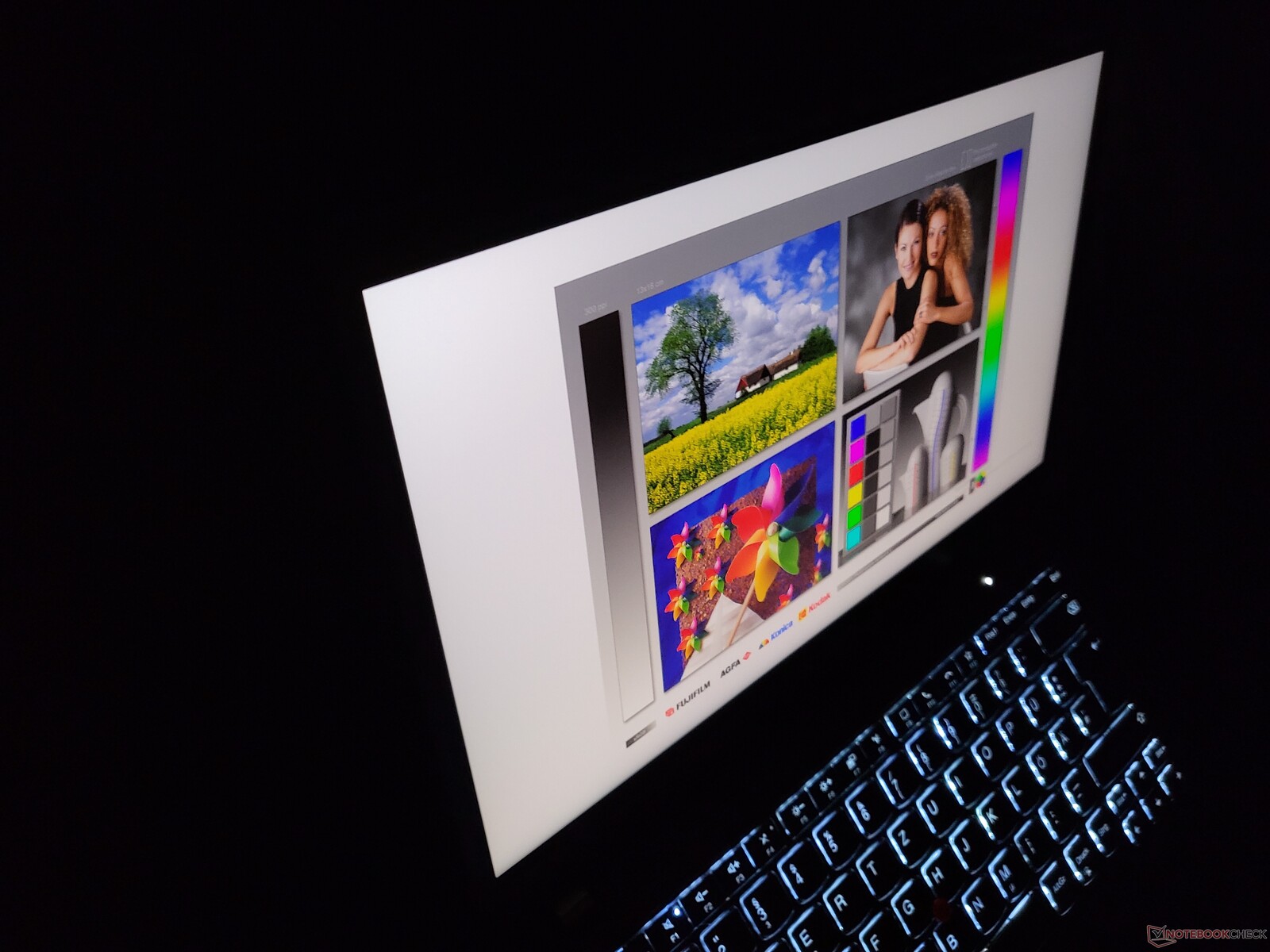

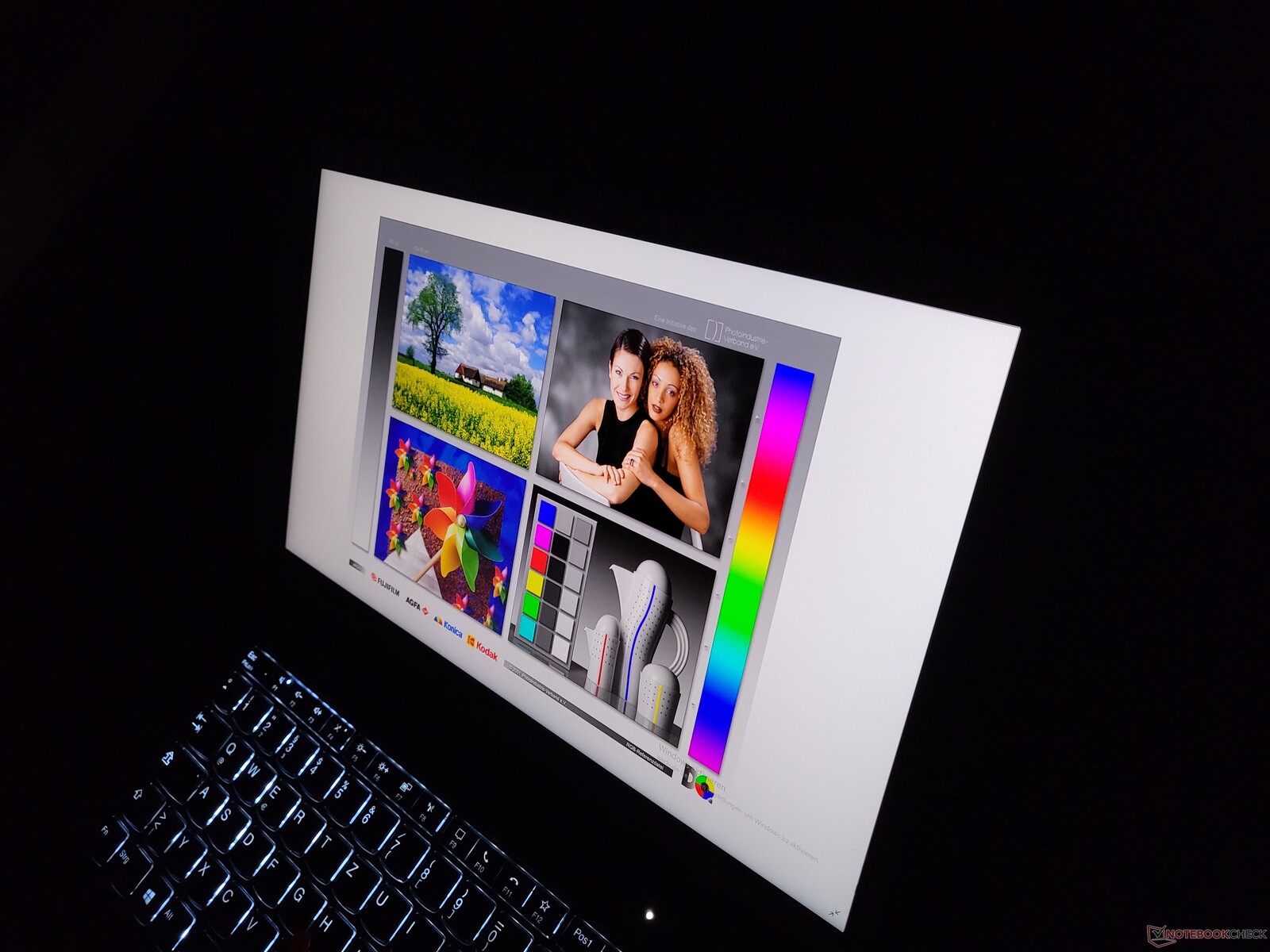

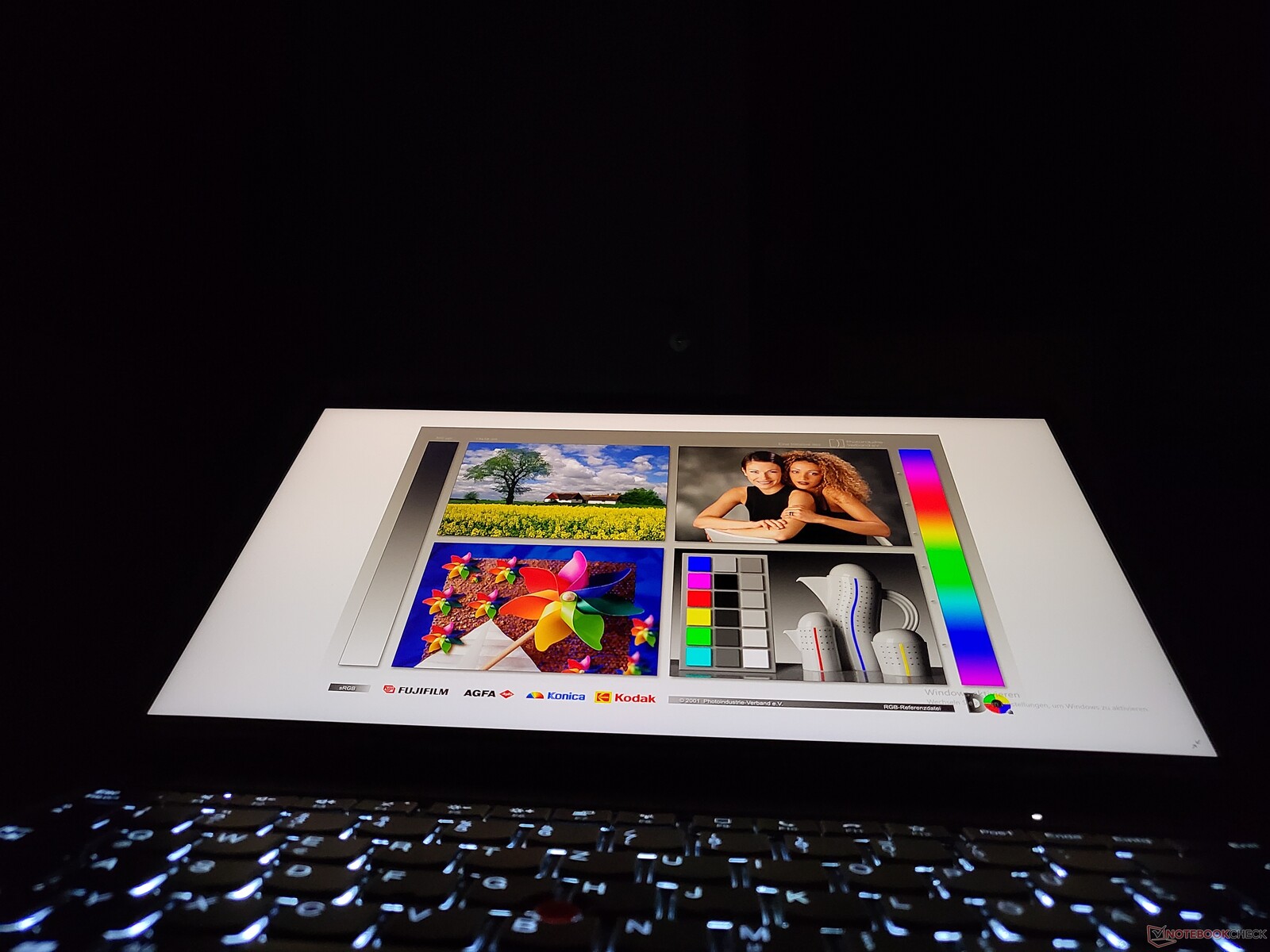

视角的稳定性？由于几乎所有的笔记本电脑都使用了IPS显示屏，这几乎不再是一个问题，联想ThinkPad P14s第二代AMD在这方面也表现得非常出色。
CPU性能。Ryzen 5000提高了联想笔记本电脑的单核性能

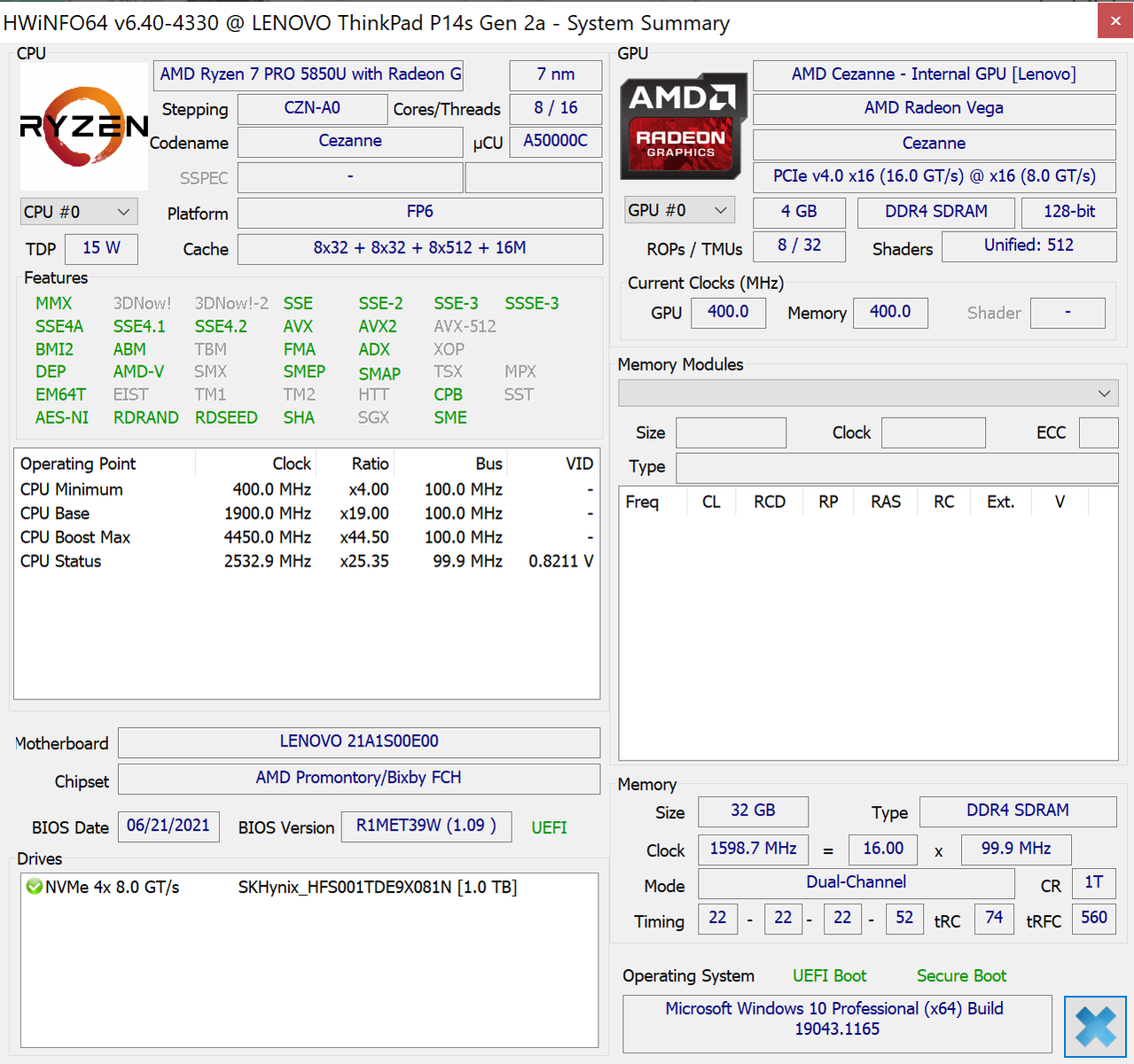

在联想ThinkPad P14s G2 AMD中，你可以在AMD的两款Ryzen Pro CPU中进行选择，分别是AMD Ryzen 5 Pro 5650U和AMD Ryzen 7 Pro 5850U.与其他工作站相比，P14s AMD没有配备专用GPU。这意味着，集成的AMD图形芯片必须完成这项工作。一块M.2-2280固态硬盘也完成了存储解决方案的工作。在内存方面，最大是48GB的DDR4-3200，其中16GB是焊接在一起的。单个SO-DIMM插槽最多能够接受32GB的模块。
处理器
实验结果AMD Ryzen 7 Pro 5850U是一个具有八个核心和十六个线程的处理器，基于Zen 3架构和Cezanne U系列。作为U系列的CPU，典型的TDP为15瓦，时钟频率在1.9和4.4GHz之间。你可以将该处理器与当前其他CPU进行比较，在我们的 CPU列表.
由于我们测试的是 ThinkPad P14s G1与 Ryzen 7 Pro 4750U，它是5850U处理器的直接前身，你可以很容易地看到Ryzen 5000与Ryzen 4000相比的优势。较新的联想ThinkPad P14s第二代AMD在多核基准测试中快10%左右。在单核测试中的优势甚至更大，5850U平均比前代机型快17%。另一个有趣的比较是与 P14s G2英特尔和ZBook Firefly 14 G8使用i7-1165G7。英特尔的CPU在几个核心的负载下明显较慢。他们只在单核性能上有一些部分优势。
在电池运行情况下，3DMark 11物理测试中的CPU性能会降低约28%。
Cinebench R15 Multi Constant Load Test
Cinebench R20: CPU (Single Core) | CPU (Multi Core)
Cinebench R15: CPU Single 64Bit | CPU Multi 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 -mmt1 | 7z b 4
Geekbench 5.5: Single-Core | Multi-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
| Cinebench R23 / Single Core | |
| Average of class Workstation (1469 - 2178, n=30, last 2 years) | |
| Lenovo ThinkPad P14s Gen2-20VX000GGE | |
| Average AMD Ryzen 7 PRO 5850U (1401 - 1431, n=3) | |
| Lenovo ThinkPad P14s G2 AMD | |
| Lenovo ThinkPad P14s Gen1-20Y10002GE | |
| Cinebench R23 / Multi Core | |
| Average of class Workstation (11026 - 30783, n=30, last 2 years) | |
| Lenovo ThinkPad P14s G2 AMD | |
| Average AMD Ryzen 7 PRO 5850U (8201 - 9111, n=3) | |
| Lenovo ThinkPad P14s Gen1-20Y10002GE | |
| Lenovo ThinkPad P14s Gen2-20VX000GGE | |
| Cinebench R20 / CPU (Single Core) | |
| Average of class Workstation (564 - 827, n=31, last 2 years) | |
| HP ZBook Firefly 14 G8 2C9Q2EA | |
| Average AMD Ryzen 7 PRO 5850U (543 - 558, n=3) | |
| Lenovo ThinkPad P14s G2 AMD | |
| Lenovo ThinkPad P14s Gen2-20VX000GGE | |
| Lenovo ThinkPad P14s Gen1-20Y10002GE | |
| Cinebench R20 / CPU (Multi Core) | |
| Average of class Workstation (2990 - 11924, n=31, last 2 years) | |
| Lenovo ThinkPad P14s G2 AMD | |
| Average AMD Ryzen 7 PRO 5850U (3184 - 3523, n=3) | |
| Lenovo ThinkPad P14s Gen1-20Y10002GE | |
| Lenovo ThinkPad P14s Gen2-20VX000GGE | |
| HP ZBook Firefly 14 G8 2C9Q2EA | |
| Cinebench R15 / CPU Single 64Bit | |
| Average of class Workstation (166.2 - 301, n=30, last 2 years) | |
| Average AMD Ryzen 7 PRO 5850U (225 - 227, n=3) | |
| HP ZBook Firefly 14 G8 2C9Q2EA | |
| Lenovo ThinkPad P14s G2 AMD | |
| Lenovo ThinkPad P14s Gen2-20VX000GGE | |
| Lenovo ThinkPad P14s Gen1-20Y10002GE | |
| Cinebench R15 / CPU Multi 64Bit | |
| Average of class Workstation (1863 - 5224, n=30, last 2 years) | |
| Lenovo ThinkPad P14s G2 AMD | |
| Average AMD Ryzen 7 PRO 5850U (1398 - 1527, n=3) | |
| Lenovo ThinkPad P14s Gen1-20Y10002GE | |
| Lenovo ThinkPad P14s Gen2-20VX000GGE | |
| HP ZBook Firefly 14 G8 2C9Q2EA | |
| Blender / v2.79 BMW27 CPU | |
| Lenovo ThinkPad P14s Gen2-20VX000GGE | |
| HP ZBook Firefly 14 G8 2C9Q2EA | |
| Lenovo ThinkPad P14s Gen1-20Y10002GE | |
| Average AMD Ryzen 7 PRO 5850U (331 - 364, n=3) | |
| Lenovo ThinkPad P14s G2 AMD | |
| Average of class Workstation (100 - 295, n=30, last 2 years) | |
| 7-Zip 18.03 / 7z b 4 -mmt1 | |
| Average of class Workstation (4981 - 7337, n=30, last 2 years) | |
| Lenovo ThinkPad P14s Gen2-20VX000GGE | |
| HP ZBook Firefly 14 G8 2C9Q2EA | |
| Lenovo ThinkPad P14s G2 AMD | |
| Average AMD Ryzen 7 PRO 5850U (5050 - 5300, n=3) | |
| Lenovo ThinkPad P14s Gen1-20Y10002GE | |
| 7-Zip 18.03 / 7z b 4 | |
| Average of class Workstation (47244 - 130368, n=30, last 2 years) | |
| Lenovo ThinkPad P14s G2 AMD | |
| Average AMD Ryzen 7 PRO 5850U (38553 - 45543, n=3) | |
| Lenovo ThinkPad P14s Gen1-20Y10002GE | |
| HP ZBook Firefly 14 G8 2C9Q2EA | |
| Lenovo ThinkPad P14s Gen2-20VX000GGE | |
| Geekbench 5.5 / Single-Core | |
| Average of class Workstation (1474 - 2095, n=30, last 2 years) | |
| Lenovo ThinkPad P14s Gen2-20VX000GGE | |
| HP ZBook Firefly 14 G8 2C9Q2EA | |
| Lenovo ThinkPad P14s G2 AMD | |
| Average AMD Ryzen 7 PRO 5850U (1354 - 1448, n=3) | |
| Lenovo ThinkPad P14s Gen1-20Y10002GE | |
| Geekbench 5.5 / Multi-Core | |
| Average of class Workstation (8050 - 19514, n=30, last 2 years) | |
| Lenovo ThinkPad P14s G2 AMD | |
| Average AMD Ryzen 7 PRO 5850U (5137 - 7039, n=3) | |
| Lenovo ThinkPad P14s Gen1-20Y10002GE | |
| Lenovo ThinkPad P14s Gen2-20VX000GGE | |
| HP ZBook Firefly 14 G8 2C9Q2EA | |
| HWBOT x265 Benchmark v2.2 / 4k Preset | |
| Average of class Workstation (12.7 - 34.3, n=30, last 2 years) | |
| Lenovo ThinkPad P14s G2 AMD | |
| Average AMD Ryzen 7 PRO 5850U (9.89 - 11.6, n=3) | |
| Lenovo ThinkPad P14s Gen1-20Y10002GE | |
| Lenovo ThinkPad P14s Gen2-20VX000GGE | |
| HP ZBook Firefly 14 G8 2C9Q2EA | |
| LibreOffice / 20 Documents To PDF | |
| Lenovo ThinkPad P14s Gen1-20Y10002GE | |
| HP ZBook Firefly 14 G8 2C9Q2EA | |
| Average AMD Ryzen 7 PRO 5850U (49.1 - 51.9, n=3) | |
| Lenovo ThinkPad P14s G2 AMD | |
| Average of class Workstation (36.5 - 95.2, n=30, last 2 years) | |
| Lenovo ThinkPad P14s Gen2-20VX000GGE | |
| R Benchmark 2.5 / Overall mean | |
| Lenovo ThinkPad P14s Gen1-20Y10002GE | |
| HP ZBook Firefly 14 G8 2C9Q2EA | |
| Lenovo ThinkPad P14s Gen2-20VX000GGE | |
| Average AMD Ryzen 7 PRO 5850U (0.536 - 0.557, n=3) | |
| Lenovo ThinkPad P14s G2 AMD | |
| Average of class Workstation (0.3825 - 0.54, n=30, last 2 years) | |
* ... smaller is better
系统性能
高的CPU性能也反映在一般的系统性能上。在PCMark 10基准测试中，前代产品的速度只有最低限度。在日常操作中，联想ThinkPad P14s第二代AMD的运行非常流畅。
| PCMark 10 / Score | |
| Average of class Workstation (5953 - 8587, n=30, last 2 years) | |
| Average AMD Ryzen 7 PRO 5850U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (5491 - 5933, n=3) | |
| Lenovo ThinkPad P14s Gen2-20VX000GGE | |
| Lenovo ThinkPad P14s G2 AMD | |
| HP ZBook Firefly 14 G8 2C9Q2EA | |
| Lenovo ThinkPad P14s Gen1-20Y10002GE | |
| PCMark 10 / Essentials | |
| Average of class Workstation (9151 - 12197, n=30, last 2 years) | |
| Average AMD Ryzen 7 PRO 5850U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (8772 - 10331, n=3) | |
| Lenovo ThinkPad P14s Gen2-20VX000GGE | |
| Lenovo ThinkPad P14s Gen1-20Y10002GE | |
| Lenovo ThinkPad P14s G2 AMD | |
| HP ZBook Firefly 14 G8 2C9Q2EA | |
| PCMark 10 / Productivity | |
| Average of class Workstation (7846 - 10820, n=30, last 2 years) | |
| Average AMD Ryzen 7 PRO 5850U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (8967 - 9512, n=3) | |
| Lenovo ThinkPad P14s Gen2-20VX000GGE | |
| Lenovo ThinkPad P14s G2 AMD | |
| HP ZBook Firefly 14 G8 2C9Q2EA | |
| Lenovo ThinkPad P14s Gen1-20Y10002GE | |
| PCMark 10 / Digital Content Creation | |
| Average of class Workstation (7417 - 15093, n=30, last 2 years) | |
| Lenovo ThinkPad P14s G2 AMD | |
| Lenovo ThinkPad P14s Gen2-20VX000GGE | |
| Average AMD Ryzen 7 PRO 5850U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (5141 - 5938, n=3) | |
| HP ZBook Firefly 14 G8 2C9Q2EA | |
| Lenovo ThinkPad P14s Gen1-20Y10002GE | |
| PCMark 10 Score | 5491 points | |
Help | ||

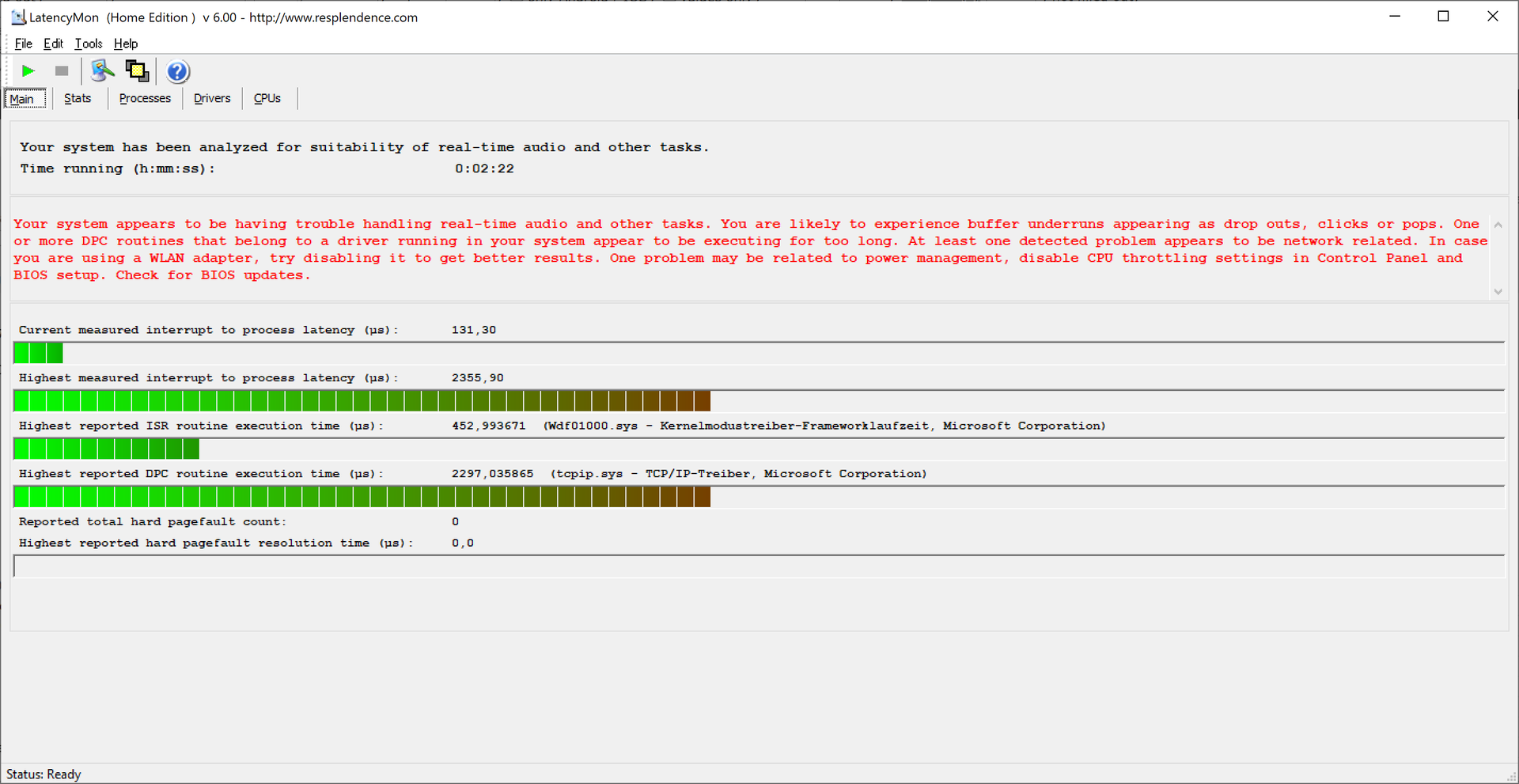

DPC延迟
不幸的是，联想ThinkPad P14s G2在DPC延迟方面有一些问题。显然，网络驱动是造成这种情况的原因。
| DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95 | |
| HP ZBook Firefly 14 G8 2C9Q2EA | |
| Lenovo ThinkPad P14s G2 AMD | |
| Lenovo ThinkPad P14s Gen2-20VX000GGE | |
* ... smaller is better
存储解决方案
这里使用的SK海力士PC711提供了1TB的容量，是一款M.2-2280格式的NVMe PCI-3.0固态硬盘。它运行速度快，并取得了良好的效果，即使PCIe 4.0 SSD能够带来更多的性能。
| Lenovo ThinkPad P14s G2 AMD SK Hynix PC711 1TB HFS001TDE9X081N | Lenovo ThinkPad P14s Gen1-20Y10002GE Samsung PM981a MZVLB1T0HBLR | Lenovo ThinkPad P14s Gen2-20VX000GGE Toshiba XG6 KXG6AZNV1T02 | HP ZBook Firefly 14 G8 2C9Q2EA Toshiba XG6 KXG60ZNV1T02 | Average SK Hynix PC711 1TB HFS001TDE9X081N | |
|---|---|---|---|---|---|
| AS SSD | -7% | 17% | -12% | 19% | |
| Seq Read | 2762 | 2579 -7% | 2632 -5% | 2674 -3% | 2818 ? 2% |
| Seq Write | 1712 | 1456 -15% | 2394 40% | 1289 -25% | 2028 ? 18% |
| 4K Read | 48.36 | 50.9 5% | 57 18% | 49.52 2% | 53.4 ? 10% |
| 4K Write | 126.4 | 115.7 -8% | 198.4 57% | 128 1% | 140 ? 11% |
| 4K-64 Read | 980 | 858 -12% | 1476 51% | 1113 14% | 1455 ? 48% |
| 4K-64 Write | 2179 | 2152 -1% | 1460 -33% | 1470 -33% | 2530 ? 16% |
| Access Time Read * | 0.05 | 0.053 -6% | 0.044 12% | 0.072 -44% | 0.041 ? 18% |
| Access Time Write * | 0.029 | 0.032 -10% | 0.021 28% | 0.032 -10% | 0.027 ? 7% |
| Score Read | 1304 | 1166 -11% | 1796 38% | 1430 10% | 1790 ? 37% |
| Score Write | 2477 | 2414 -3% | 1897 -23% | 1727 -30% | 2873 ? 16% |
| Score Total | 4405 | 4132 -6% | 4608 5% | 3827 -13% | 5545 ? 26% |
* ... smaller is better
Constant Performance Reading: DiskSpd Read Loop, Queue Depth 8
图形卡
ǞǞǞ AMD Radeon RX Vega 8作为单一的GPU。GPU-Z称其为 "AMD Radeon Pro Graphics"，这表明ThinkPad P14s第二代中使用了特殊的工作站驱动程序。
有了经过认证的驱动程序，使用CAD解决方案的客户，例如，将知道他们的软件可以在ThinkPad笔记本电脑上运行。然而，纯粹的性能和预期的一样弱。作为一个带有集成图形芯片的入门级工作站，没有自己的专用存储，其性能能力还不到工作站平均水平的一半。但至少性能比前代产品略好。另一方面， ThinkPad P14s英特尔和 ZBook Firefly 14 G8都以其专用GPU (Nvidia T500).
如果你用电池电源运行联想ThinkPad P14s G2 AMD，在3DMark 11 GPU测试中的GPU性能下降了约33%。
| 3DMark 11 - 1280x720 Performance GPU | |
| Average of class Workstation (9356 - 59715, n=31, last 2 years) | |
| HP ZBook Firefly 14 G8 2C9Q2EA | |
| Lenovo ThinkPad P14s Gen2-20VX000GGE | |
| Lenovo ThinkPad P14s G2 AMD | |
| Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (3459 - 7591, n=54) | |
| Lenovo ThinkPad P14s Gen1-20Y10002GE | |
| 3DMark | |
| 1920x1080 Fire Strike Graphics | |
| Average of class Workstation (6121 - 45600, n=31, last 2 years) | |
| HP ZBook Firefly 14 G8 2C9Q2EA | |
| Lenovo ThinkPad P14s G2 AMD | |
| Lenovo ThinkPad P14s Gen2-20VX000GGE | |
| Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (1694 - 5041, n=54) | |
| Lenovo ThinkPad P14s Gen1-20Y10002GE | |
| 2560x1440 Time Spy Graphics | |
| Average of class Workstation (1997 - 19741, n=31, last 2 years) | |
| HP ZBook Firefly 14 G8 2C9Q2EA | |
| Lenovo ThinkPad P14s Gen2-20VX000GGE | |
| Lenovo ThinkPad P14s G2 AMD | |
| Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (540 - 1557, n=54) | |
| Lenovo ThinkPad P14s Gen1-20Y10002GE | |
| 3DMark 11 Performance | 6342 points | |
| 3DMark Fire Strike Score | 3694 points | |
| 3DMark Time Spy Score | 1462 points | |
Help | ||
游戏性能
联想ThinkPad P14s G2 AMD几乎不适合游戏。虽然要求不高的游戏，如"Dota 2"很容易玩，但对性能要求较高的新游戏最多只能在最小的细节设置下顺利运行。
| The Witcher 3 - 1024x768 Low Graphics & Postprocessing | |
| Average of class Workstation (111.1 - 511, n=22, last 2 years) | |
| HP ZBook Firefly 14 G8 2C9Q2EA | |
| Lenovo ThinkPad P14s Gen2-20VX000GGE | |
| Lenovo ThinkPad P14s G2 AMD | |
| Lenovo ThinkPad P14s Gen1-20Y10002GE | |
| Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (27.2 - 89, n=47) | |
| low | med. | high | ultra | QHD | 4K | |
|---|---|---|---|---|---|---|
| GTA V (2015) | 29.1 | 13.3 | 9.13 | 8.82 | ||
| The Witcher 3 (2015) | 71.3 | 20.2 | 11.4 | |||
| Dota 2 Reborn (2015) | 119 | 100 | 59 | 55.6 | 21 | |
| Final Fantasy XV Benchmark (2018) | 36.5 | 17.4 | 12.3 | 8.33 | 4.64 | |
| X-Plane 11.11 (2018) | 45.9 | 36.7 | 31.7 | 17.6 | ||
| Strange Brigade (2018) | 88.3 | 33.8 | 28.6 | 24.5 | 16.4 | 8.6 |
The Witcher 3 FPS Chart
排放
噪声排放
当联想ThinkPad P14s AMD G2在空闲状态下运行时，无论选择何种性能模式，风扇都保持关闭。因此，它在日常冲浪和办公操作中也会保持安静。负载下的噪音水平会发生变化，但在我们用3DMark 06进行的中位测试中，风扇仍然非常安静地运行。28.19 dB(A)几乎听不到了。在压力测试的几分钟后，噪音水平增加到40.77 dB(A)，这是很明显的。然而，主动冷却从来没有变得令人讨厌的噪音。
如果你把耳朵贴在键盘上，你可以听到安静的嘶嘶声，但在与笔记本的正常工作距离内，你将无法再听到这种噪音。
Noise Level
| Idle |
| 24.04 / 24.04 / 24.04 dB(A) |
| Load |
| 28.19 / 40.77 dB(A) |
 | ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min:  , med:  , max:  Earthworks M23R, Arta (15 cm distance) environment noise: 24.04 dB(A) | ||
温度
在空闲运行期间，联想ThinkPad P14s第二代AMD几乎保持完全冷却。在Prime95和FurMark的压力测试中，机箱的升温相对均匀。底部的热点达到47.5 ºC（117.5ºF），顶部达到42.8ºC（109ºF）。这没有理由让人担心。不幸的是，掌托也明显升温，这可能导致一些手汗，特别是在夏天。
在压力测试中，CPU在开始时能够全速运行，但过了一会儿就会改变。在长达一小时的测试接近尾声时，联想笔记本电脑中的AMD处理器被限制在11瓦左右，这对于1.4GHz的时钟速度来说仍然足够。就在压力测试之后，ThinkPad达到了明显较低的3DMark 11成绩，只有5057分（-20%），因此CPU和iGPU都受到了节流的影响。
(±) The maximum temperature on the upper side is 42.8 °C / 109 F, compared to the average of 38.2 °C / 101 F, ranging from 22.2 to 69.8 °C for the class Workstation.
(-) The bottom heats up to a maximum of 47.5 °C / 118 F, compared to the average of 41.3 °C / 106 F
(+) In idle usage, the average temperature for the upper side is 25.3 °C / 78 F, compared to the device average of 32 °C / 90 F.
(+) The palmrests and touchpad are reaching skin temperature as a maximum (32.6 °C / 90.7 F) and are therefore not hot.
(-) The average temperature of the palmrest area of similar devices was 27.8 °C / 82 F (-4.8 °C / -8.7 F).
发言人
联想ThinkPad P14s AMD G2的立体声扬声器位于键盘和屏幕之间，将声音投射到用户身上。它们的音量是可以接受的，即使是缺乏低音频率的声音。因此，声音不是音乐的理想选择，但联想笔记本电脑的扬声器足以用于视频会议。
对于其他一切，建议使用可通过蓝牙或工作无误的3.5毫米音频端口连接的外部解决方案。
Lenovo ThinkPad P14s Gen2-20VX000GGE audio analysis
(±) | speaker loudness is average but good (75 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 18.6% lower than median
(±) | linearity of bass is average (10.1% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 6% higher than median
(+) | mids are linear (4.7% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.3% away from median
(+) | highs are linear (3.7% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (20.4% difference to median)
Compared to same class
» 69% of all tested devices in this class were better, 6% similar, 25% worse
» The best had a delta of 7%, average was 18%, worst was 35%
Compared to all devices tested
» 50% of all tested devices were better, 8% similar, 42% worse
» The best had a delta of 4%, average was 25%, worst was 134%
HP ZBook Firefly 14 G8 2C9Q2EA audio analysis
(±) | speaker loudness is average but good (80.2 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 13.5% lower than median
(±) | linearity of bass is average (10.6% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 4% away from median
(+) | mids are linear (3.2% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.1% away from median
(+) | highs are linear (3.1% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (15.2% difference to median)
Compared to same class
» 29% of all tested devices in this class were better, 9% similar, 63% worse
» The best had a delta of 7%, average was 18%, worst was 35%
Compared to all devices tested
» 19% of all tested devices were better, 4% similar, 77% worse
» The best had a delta of 4%, average was 25%, worst was 134%
电源管理。ThinkPad P14s G2 AMD的电池寿命比前代更好
消耗功率
由于我们也能够测试P14s G2 AMD与全高清低功耗液晶显示器几乎相同的配置，我们可以很容易地记录4K UHD显示器带来的更高功耗。在空闲运行期间，差异约为10%至24%，而低功耗显示器主要在最大亮度下具有优势。这意味着，这种配置提供了一个优势，特别是在户外使用时，因为你可以在最大亮度下运行更长时间。
在最大负荷下，与配备Nvidia GPU的英特尔型号相比，缺乏专用GPU导致联想ThinkPad P14s G2 AMD的消耗量更低。电源的性能为65瓦，没有完全使用到极限。
| Off / Standby | 0.385 / 0.837 Watt |
| Idle | 4.49 / 9.62 / 10.24 Watt |
| Load |
31.56 / 52.37 Watt |

| |
Key:
min: ,
med: ,
max: Metrahit Energy | |
| Lenovo ThinkPad P14s G2 AMD R7 PRO 5850U, Vega 8, SK Hynix PC711 1TB HFS001TDE9X081N, IPS LED, 3840x2160, 14" | Lenovo ThinkPad P14s G2 AMD FHD R7 PRO 5850U, Vega 8, WDC PC SN730 SDBQNTY-1T00, IPS LED, 1920x1080, 14" | Lenovo ThinkPad P14s Gen1-20Y10002GE R7 PRO 4750U, Vega 7, Samsung PM981a MZVLB1T0HBLR, a-Si IPS LED, 1920x1080, 14" | Lenovo ThinkPad P14s Gen2-20VX000GGE i7-1185G7, T500 Laptop GPU, Toshiba XG6 KXG6AZNV1T02, IPS, 1920x1080, 14" | HP ZBook Firefly 14 G8 2C9Q2EA i7-1165G7, T500 Laptop GPU, Toshiba XG6 KXG60ZNV1T02, IPS, 1920x1080, 14" | Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) | Average of class Workstation | |
|---|---|---|---|---|---|---|---|
| Power Consumption | 13% | -7% | -3% | -12% | -9% | -124% | |
| Idle Minimum * | 4.49 | 4.06 10% | 4.8 -7% | 4.5 -0% | 3.1 31% | 5.26 ? -17% | 8.87 ? -98% |
| Idle Average * | 9.62 | 7.27 24% | 8.8 9% | 7.1 26% | 4.7 51% | 7.78 ? 19% | 13.3 ? -38% |
| Idle Maximum * | 10.24 | 8.2 20% | 11.4 -11% | 9.7 5% | 8.6 16% | 9.18 ? 10% | 18.6 ? -82% |
| Load Average * | 31.56 | 29.4 7% | 45.2 -43% | 37.8 -20% | 64.8 -105% | 44.9 ? -42% | 92.8 ? -194% |
| Witcher 3 ultra * | 43.7 | 42.2 3% | 59.6 -36% | ||||
| Load Maximum * | 52.37 | 50.1 4% | 50 5% | 64.7 -24% | 68.5 -31% | 59.4 ? -13% | 160.8 ? -207% |
* ... smaller is better
Power Consumption The Witcher 3 / Stress Test
电池寿命
电池寿命仍然是联想ThinkPad P14s AMD前代产品的一个不好的弱点，我们曾将其主要归因于PrivacyGuard显示屏。幸运的是，联想从联想ThinkPad P14s G2 AMD的50瓦时电池中获得了明显更多的电池寿命。即使是4K UHD液晶显示器，它在150cd/m²显示亮度的Wi-Fi测试中仍然达到了8小时以上。采用全高清省电显示屏的配置持续了约10小时。对于4K液晶显示器，你只需记住，如果你将显示器亮度设置到最大水平，电池寿命就会明显变差。在这些条件下，在Wi-Fi测试中，电池只能勉强维持6小时。
| Lenovo ThinkPad P14s G2 AMD R7 PRO 5850U, Vega 8, 50 Wh | Lenovo ThinkPad P14s G2 AMD FHD R7 PRO 5850U, Vega 8, Wh | Lenovo ThinkPad P14s Gen1-20Y10002GE R7 PRO 4750U, Vega 7, 50 Wh | Lenovo ThinkPad P14s Gen2-20VX000GGE i7-1185G7, T500 Laptop GPU, 50 Wh | HP ZBook Firefly 14 G8 2C9Q2EA i7-1165G7, T500 Laptop GPU, 53 Wh | Average of class Workstation | |
|---|---|---|---|---|---|---|
| Battery Runtime | 22% | -24% | 11% | 133% | 1% | |
| H.264 | 637 | 494 -22% | 671 ? 5% | |||
| WiFi v1.3 | 498 | 607 22% | 350 -30% | 551 11% | 770 55% | 500 ? 0% |
| Load | 83 | 67 -19% | 257 210% | 80.3 ? -3% |
Pros
Cons
结论：ThinkPad P14s G2 AMD弥补了G1的弱点
我们已经评估了 第一代联想ThinkPad P14s AMD值得推荐，尽管它的PrivacyGuard显示屏不是很有吸引力，而且测试配置的电池寿命很低。因此，采用AMD Ryzen 5000的较新的联想ThinkPad P14s第二代也将获得推荐，这并不奇怪，因为电池寿命明显更好，而且新的ThinkPad笔记本电脑可以配置出色的哑光4K UHD显示屏。这个选项在前代产品中还没有。
有了这个，最糟糕的弱点得到了弥补，这使得联想ThinkPad P14s G2 AMD成为非常好的入门级工作站。它是一个非常好的选择，特别是对于那些注重CPU性能的应用。另一方面，在与其他工作站的比较中，GPU性能是一个弱点，就像缺乏Thunderbolt一样。此外，P14s没有提供全尺寸的SD读卡器，Realtek Wi-Fi卡是有限制的，如果它采用16:10格式，对目标群体来说会更好。
联想ThinkPad中的高分辨率显示屏和AMD Ryzen--联想ThinkPad P14s G2 AMD的确是第一款提供非常好的4K UHD显示屏的Ryzen ThinkPad。
虽然这代表了与一些较新的ThinkPad设计相比的劣势，如 联想ThinkPad X1 Carbon G9，具有1.8毫米键程的 "老 "键盘是这款ThinkPad笔记本电脑的重要优势之一。与惠普的 ZBook Firefly 14 G8，ThinkPad P14s G2 AMD提供了更好的CPU性能和工作内存的可扩展性作为重要优势，但ZBook提供的图形性能反而略高。
价格和可用性
联想目前提供各种配置的联想ThinkPad P14s G2 AMD，起价1136美元。在美国。然而，目前所有可用的配置似乎都使用了各种全高清显示屏版本，尽管页面上注明了显示屏 "高达14英寸4K UHD"。另一方面，亚马逊提供英特尔配置的4K UHD显示屏，起价2315美元.
Lenovo ThinkPad P14s G2 AMD
- 09/17/2021 v7 (old)
Benjamin Herzig
Price comparison
