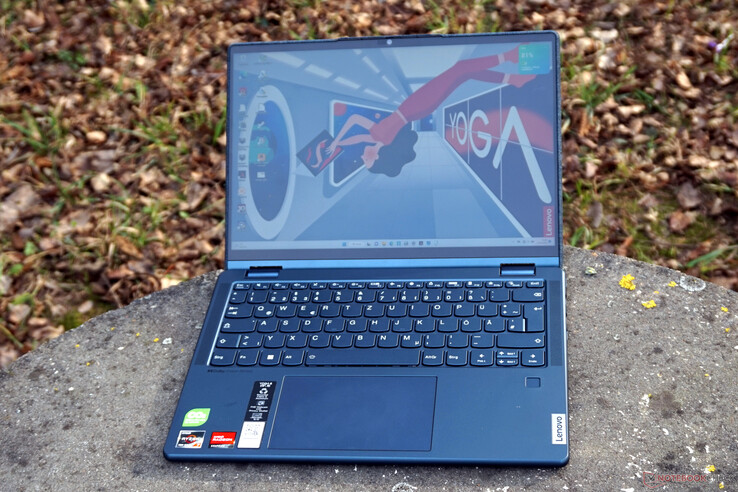

联想Yoga 6 Gen8评测。配备新的Ryzen 7-7730U和织物盖的可折叠机
联想Yoga 6,现在是第8代,有很多东西可以提供。这款平板电脑和笔记本的组合针对的是那些富有创造力的人,他们不仅想雄心勃勃地处理图形任务,而且还想为家庭购买稍微高档的设备。良好的,尽管不是杰出的16:10显示屏,实用的联想数字笔(不幸的是不包括在内)和令人信服的系统性能符合这一要求。
除了我们审查的变体,其 AMD Ryzen 7 7730U和16GB的内存,还有一个较小的型号,配备AMD Ryzen 5 7530U,也可以使用。有了这个,可以选择8GB或16GB的内存。经验表明,16GB是可取的,尽管附加费用过高。否则,你只能配置软件、配件和显示盖的材料。
凭借相对较新、最重要的是来自AMD的快速处理器,Yoga 6绝对能够与以下产品竞争 戴尔Inspiron 14 7420如果不是超越它的话。同时, 联想IdeaPad Flex 7具有相同的 英特尔酷睿i7-1255U是一个有趣的选择,尽管它不再与AMD的移动性调整的Ryzen CPU相提并论。
潜在的竞争对手比较
Rating | Date | Model | Weight | Height | Size | Resolution | Price |
---|---|---|---|---|---|---|---|
88 % v7 (old) | 03 / 2023 | Lenovo Yoga 6 13 83B2001SGE R7 7730U, Vega 8 | 1.4 kg | 18.6 mm | 13.30" | 1920x1200 | |
83.2 % v7 (old) | 12 / 2022 | Lenovo IdeaPad Flex 7i 14IAU7 i7-1255U, Iris Xe G7 96EUs | 1.5 kg | 18.9 mm | 14.00" | 2240x1400 | |
90.1 % v7 (old) | 11 / 2022 | Dell XPS 13 9315 2-in-1 Core i5-1230U i5-1230U, Iris Xe G7 80EUs | 764 g | 7.4 mm | 13.00" | 2880x1920 | |
83.7 % v7 (old) | 06 / 2022 | Dell Inspiron 14 7420 2-in-1 i7-1255U, Iris Xe G7 96EUs | 1.6 kg | 17.86 mm | 14.00" | 1920x1200 | |
85.7 % v7 (old) | 08 / 2021 | HP ProBook x360 435 G8 R7-5800U R7 5800U, Vega 8 | 1.5 kg | 18 mm | 13.30" | 1920x1080 | |
85.2 % v7 (old) | 02 / 2022 | Asus ExpertBook B3 Flip B3402FEA i7-1165G7, Iris Xe G7 96EUs | 1.6 kg | 19.5 mm | 14.00" | 1920x1080 |
» Notebookcheck多媒体笔记本电脑Top 10排名
» Notebookcheck游戏笔记本电脑Top 10排名
» Notebookcheck低价办公/商务笔记本电脑Top 10排名
» Notebookcheck高端办公/商务笔记本电脑Top 10排名
» Notebookcheck工作站笔记本电脑Top 10排名
» Notebookcheck亚笔记本电脑Top 10排名
» Notebookcheck超级本产品Top 10排名
» Notebookcheck变形本产品Top 10排名
» Notebookcheck平板电脑Top 10排名
» Notebookcheck智能手机Top 10排名
» Notebookcheck评测过最出色的笔记本电脑屏幕
» Notebookcheck售价500欧元以下笔记本电脑Top 10排名
» Notebookcheck售价300欧元以下笔记本电脑Top 10排名
外壳--联想瑜伽的面料使其与众不同
机箱(在我们的测试装置中为金属蓝色)在建造时足够稳定。它只在一个角上显示出轻微的弯曲。在这里,铝制键盘框架的缺失是明显的,这将使整个产品更加坚固。另一方面,显示屏似乎更加坚固。
这个模型的盖子是用织物包裹的,其质地让人想起花呢。从视觉上看,这绝对是一个亮点,让你一开始就充满热情。然而,细小的灰尘颗粒、碎屑等很快就会被抓住,有时只能艰难地取出。因此,人们可以合理地认为,边缘和角落在一两年内可能会被磨损。任何经常将敞篷车放在包里或背包里并经常旅行的人,最好使用铝制的盖子。

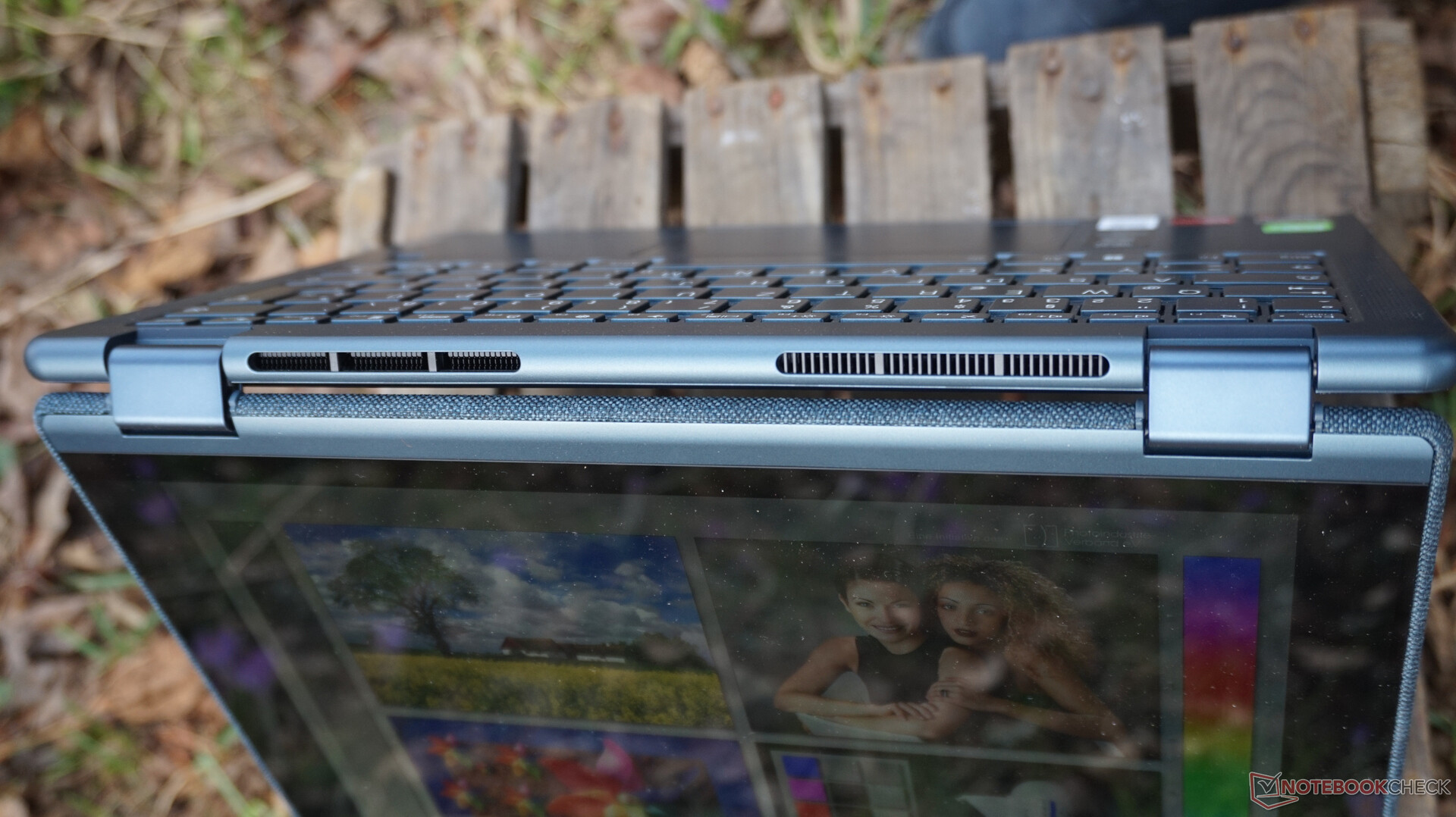

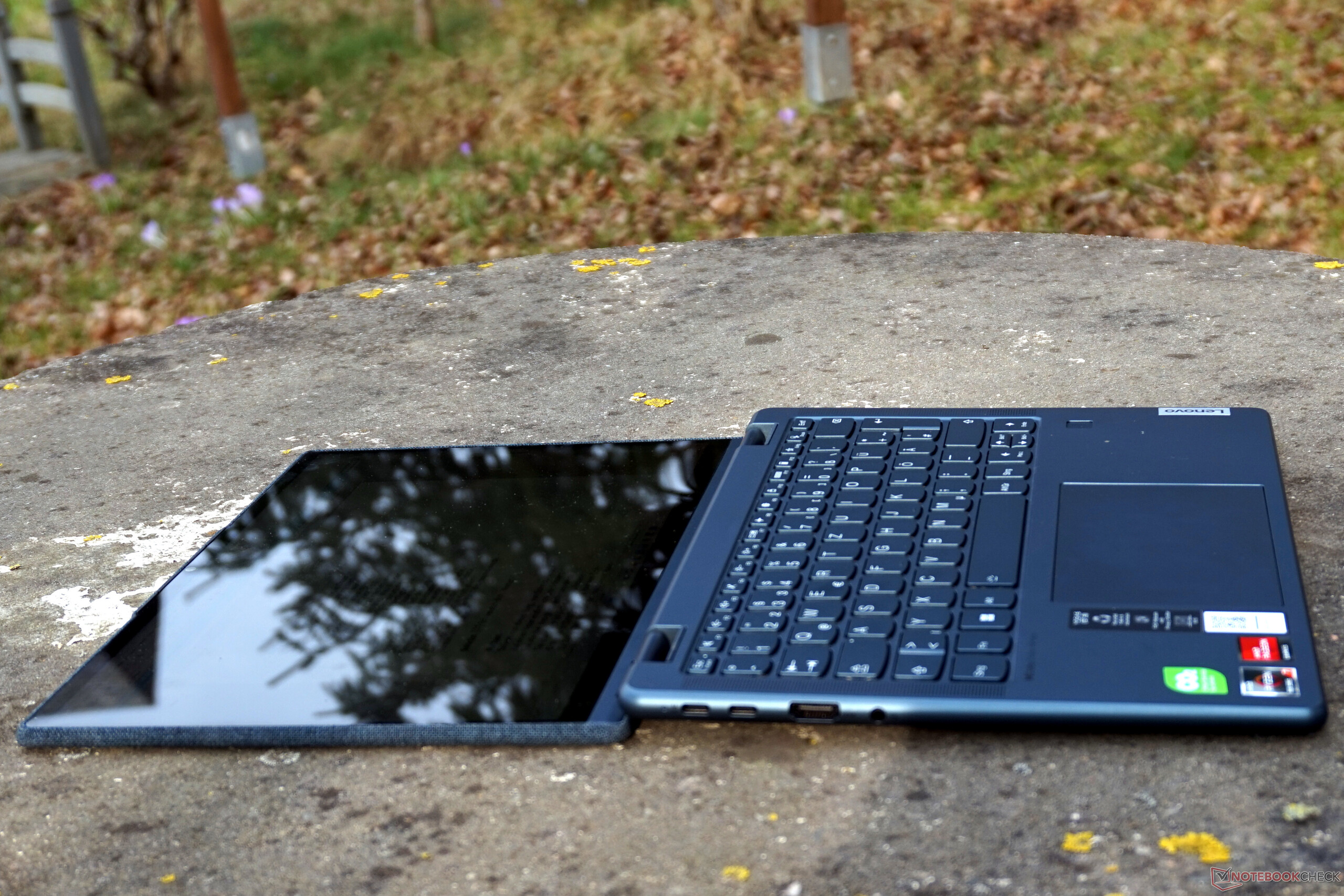

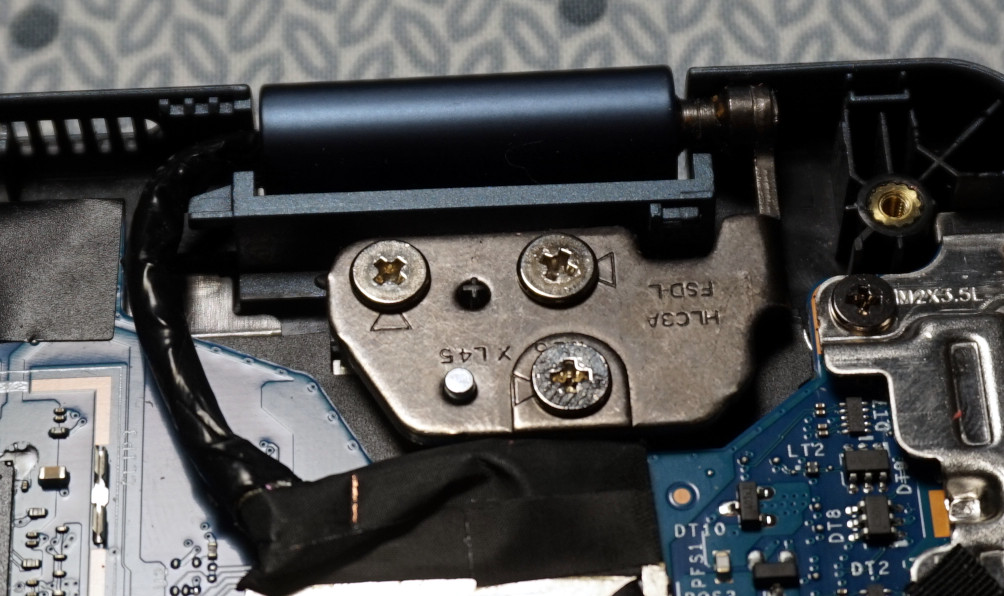

否则,良好的做工和紧密的铰链(只能用双手调整),以及便于操作的圆角边缘,给人留下了良好的第一印象。在外观上,Yoga 6显然将自己与灰银色的竞争对手区分开来。
屏幕对角线为13.3英寸,这款敞篷车的方向大致为DIN A4格式。这一尺寸确保它能很好地装入小型背包或肩包。约18毫米的厚度不是最好的价值,但对于一个具有可折叠触摸屏和高计算能力的模型,Yoga 6属于正常范围。
这也适用于重量:连同电源装置,它的重量不到2公斤。不是特别轻,但对于便携式使用来说足够轻了,特别是在评论的后面会发现,电源适配器不一定要带着。
装备--可转换的有限转移率

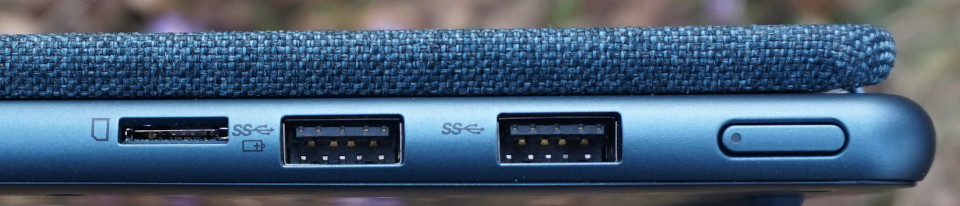

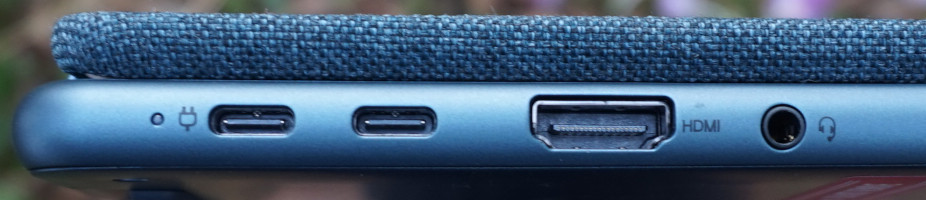

端口的范围和数量对于私人使用来说是完全足够的。一共有三个视频输出--一个通过HDMI,两个通过USB-C--只有在最罕见的情况下才会使用。在消极方面,所有的USB端口都只能达到5Gbit/s,这与USB 3.0的水平相当。然而,这应该足以传输更多的数据,而且4K的视频信号仍然可以被转发。
HDMI和耳机连接是通常的附加功能,而许多竞争对手都省略了卡槽。
缺乏的是,特别是在平板电脑模式下,音量摇杆,这是平板电脑的标准配置。如果没有专门的开关,在播放视频时调整音量就会变得非常乏味。
SD卡阅读器
使用我们的AV PRO microSD 128 GB V60参考卡,我们测得microSD卡槽的传输速度略高于平均水平。这是否与在联想IdeaPad Flex 7i是不确定的,但不能排除。
大约80MB/s意味着,在最好的情况下,一张32GB的microSD卡将在7分钟内复制完毕。该 戴尔 Inspiron 14 7420例如,这将需要半个小时。
SD Card Reader | |
average JPG Copy Test (av. of 3 runs) | |
Lenovo IdeaPad Flex 7i 14IAU7 (Toshiba Exceria Pro SDXC 64 GB UHS-II) | |
Lenovo Yoga 6 13 83B2001SGE (AV Pro SD microSD 128 GB V60) | |
Average of class Convertible (17.7 - 209, n=29, last 2 years) | |
HP ProBook x360 435 G8 R7-5800U (AV Pro UHS-II V60) | |
Asus ExpertBook B3 Flip B3402FEA (AV Pro SD microSD 128 GB V60) | |
Dell Inspiron 14 7420 2-in-1 (Toshiba Exceria Pro SDXC 64 GB UHS-II) | |
maximum AS SSD Seq Read Test (1GB) | |
Average of class Convertible (22.6 - 263, n=28, last 2 years) | |
Lenovo IdeaPad Flex 7i 14IAU7 (Toshiba Exceria Pro SDXC 64 GB UHS-II) | |
Lenovo Yoga 6 13 83B2001SGE (AV Pro SD microSD 128 GB V60) | |
HP ProBook x360 435 G8 R7-5800U (AV Pro UHS-II V60) | |
Dell Inspiron 14 7420 2-in-1 (Toshiba Exceria Pro SDXC 64 GB UHS-II) | |
Asus ExpertBook B3 Flip B3402FEA (AV Pro SD microSD 128 GB V60) |
沟通
WLAN模块既不是特别快也不是太慢。我们为同样的联发科插件卡确定的平均值甚至比我们的测量值低几个百分点。
因此,Yoga 6没有提供出色的速度,但它有足够的能力完成所有网络和互联网任务。蓝牙5.2也被集成。
网络摄像头

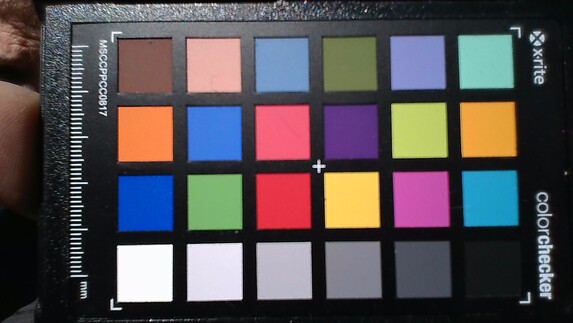

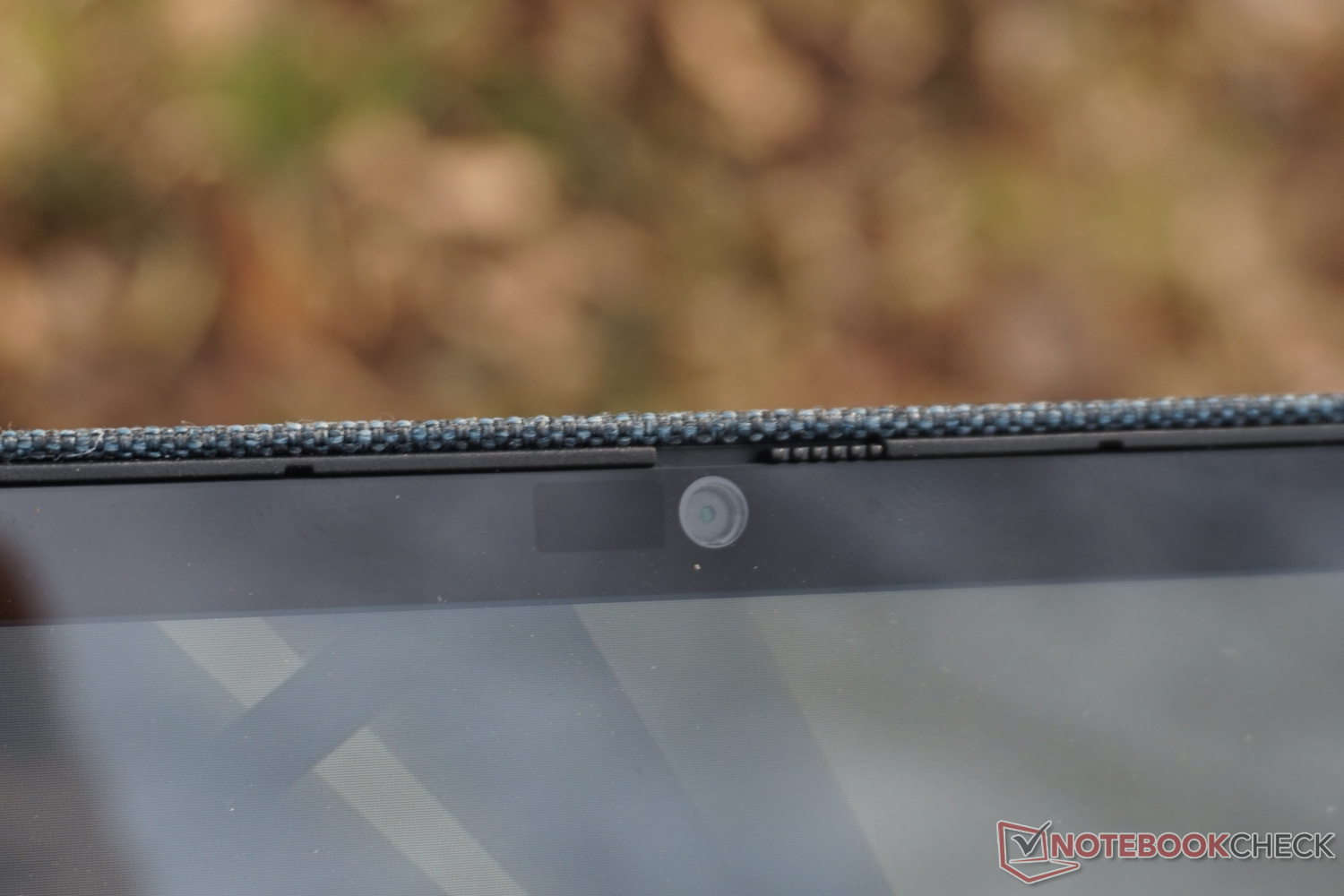

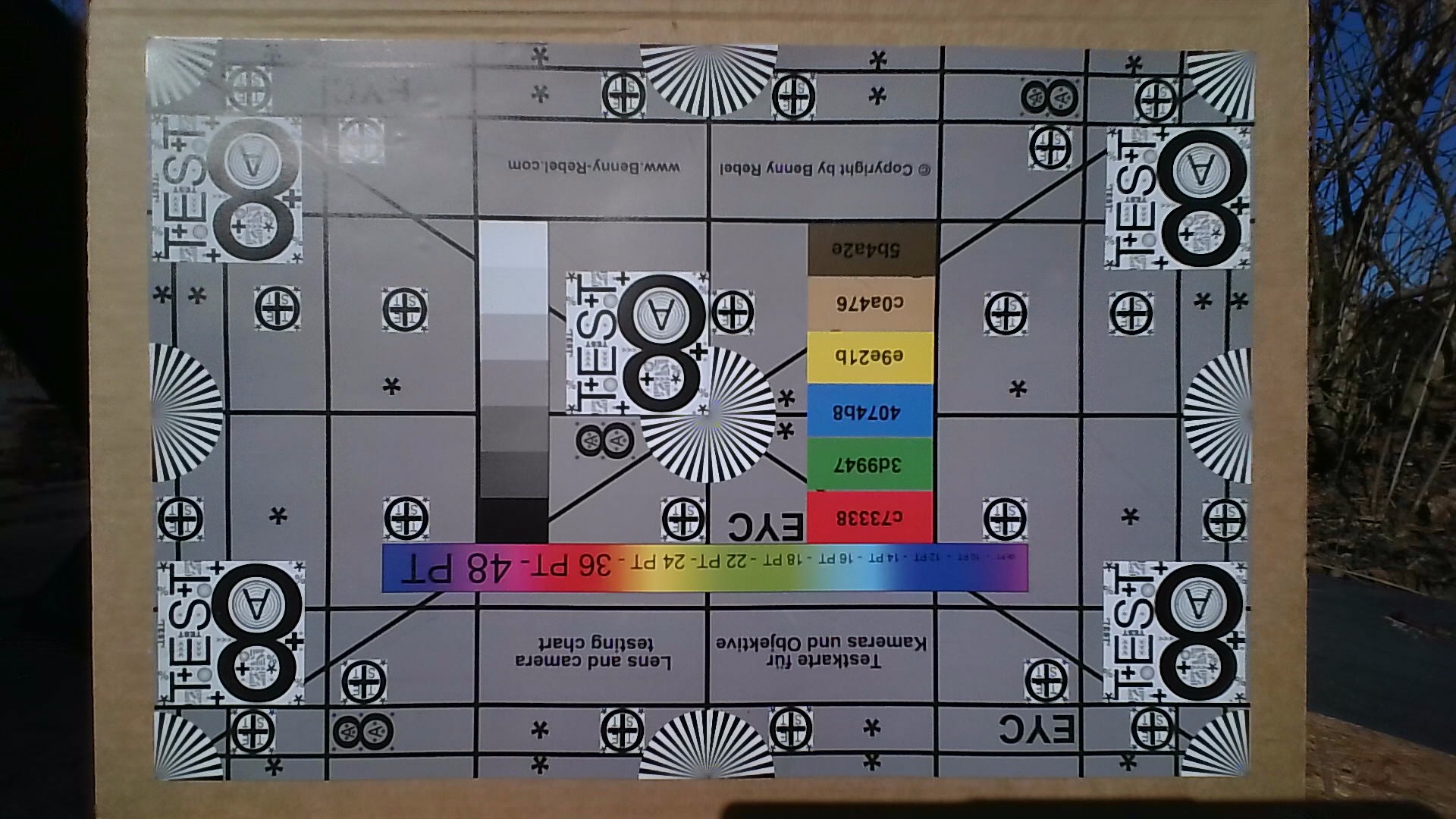

瑜伽6的全高清网络摄像头配备了所有重要的额外功能。除了机械盖之外,还安装了一个红外摄像头。图像质量令人满意,颜色偏差很明显,但绝不是特别明显。
即使在极少的室内光线下,图像仍能保持体面的照明,但显示出明显的明显的图像噪音。一旦打开昏暗或微弱的灯光,视频图像质量就没有理由抱怨了。
有了双阵列麦克风,语音录制的效果很好,音量相当稳定,即使是从不同的方向。然而,在2米以上的距离上,可以听到微弱的低音,而且声音质量明显下降。
维护

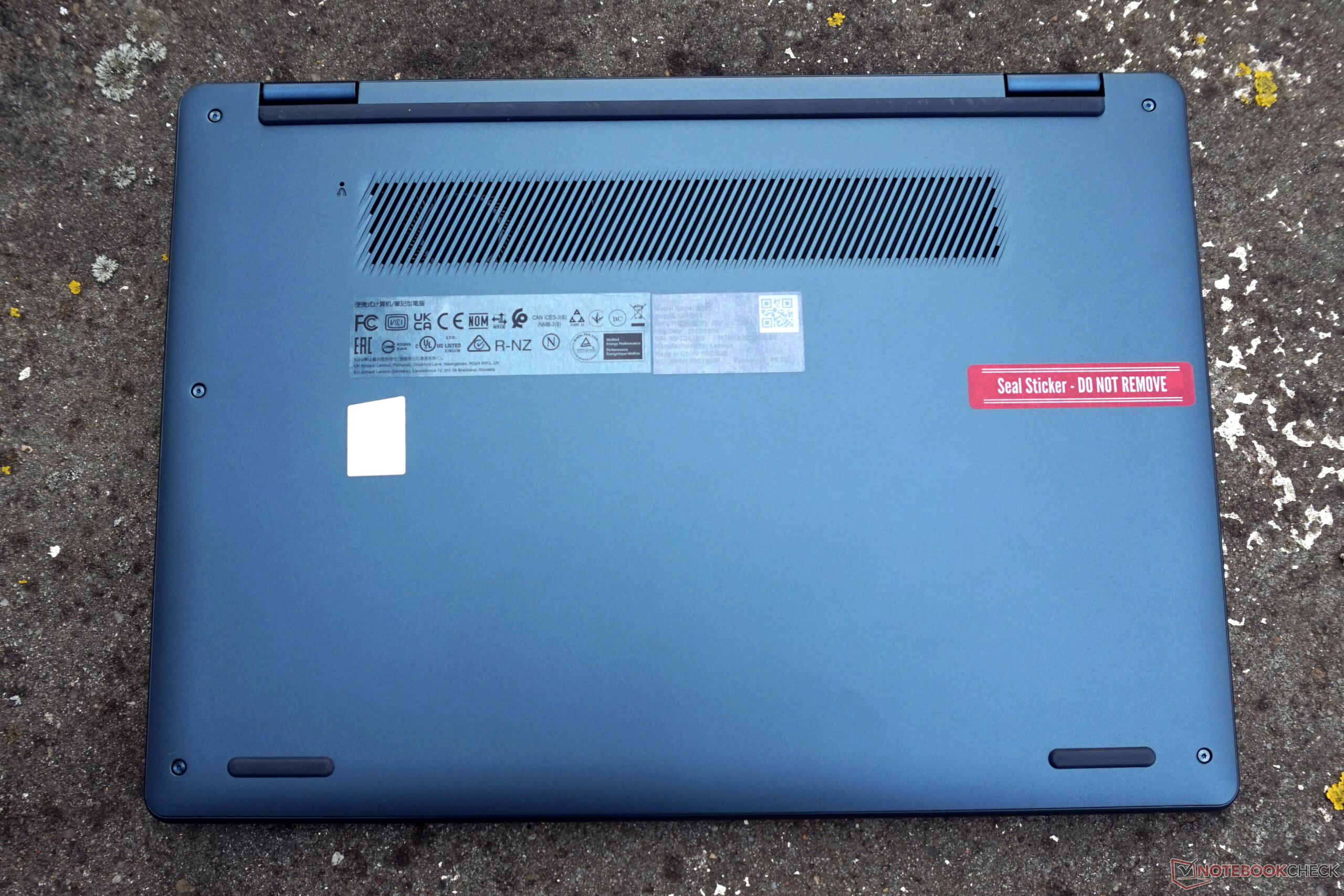

进入联想敞篷车的内部是密封的。这很好,因为在大多数情况下,它将保持密封,直到Yoga 6的寿命结束。然而,这个密封可以比一张几乎占整个设备四分之一长度的红色贴纸更隐蔽。
否则,那些想要进入内部的人将不会受到阻碍。必须松开六颗托克斯螺丝。然后,就像通常的情况一样,从铰链开始,不费吹灰之力就可以撬开底座。

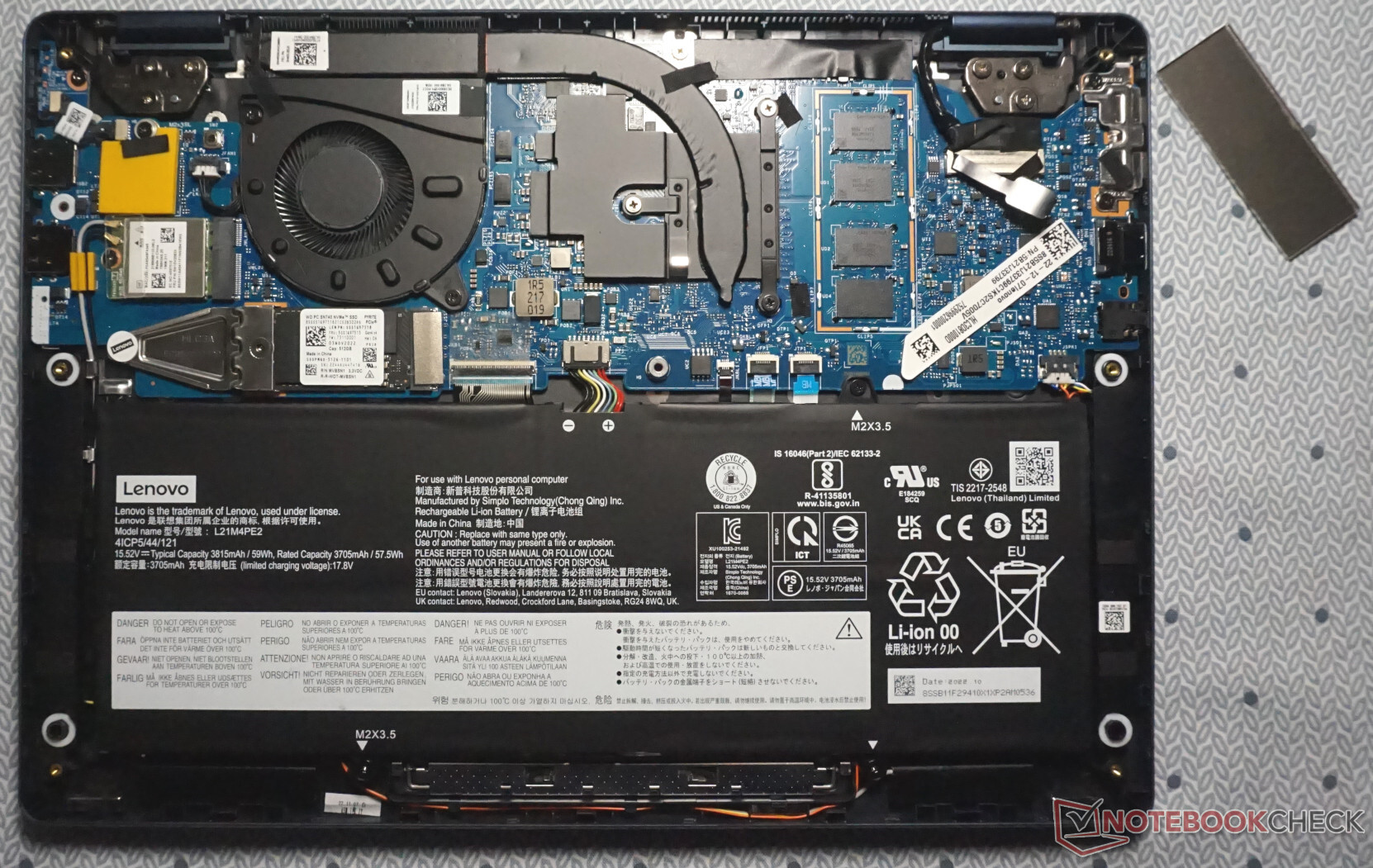

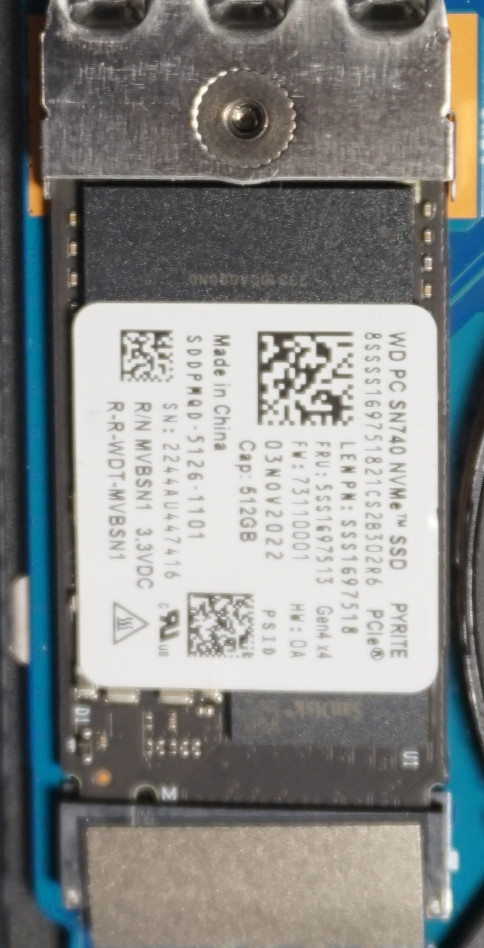

除了内存(不幸的是它是永久焊接的)之外,M.2固态硬盘、WLAN模块和电池都可以很容易地更换。风扇也很容易接触到,而且很容易清洁。
输入设备 - 可变的Yoga 6与舒适的控制装置

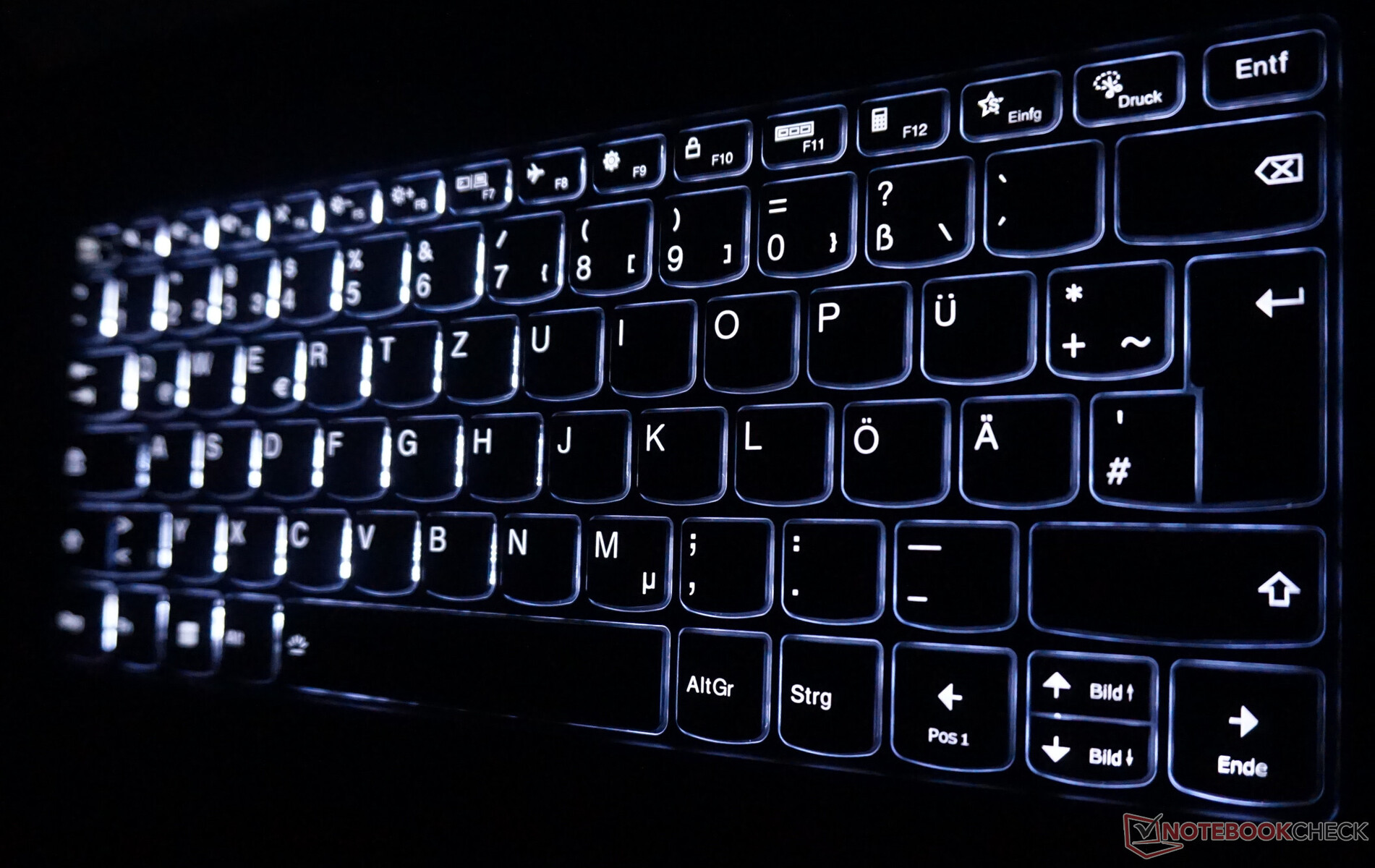

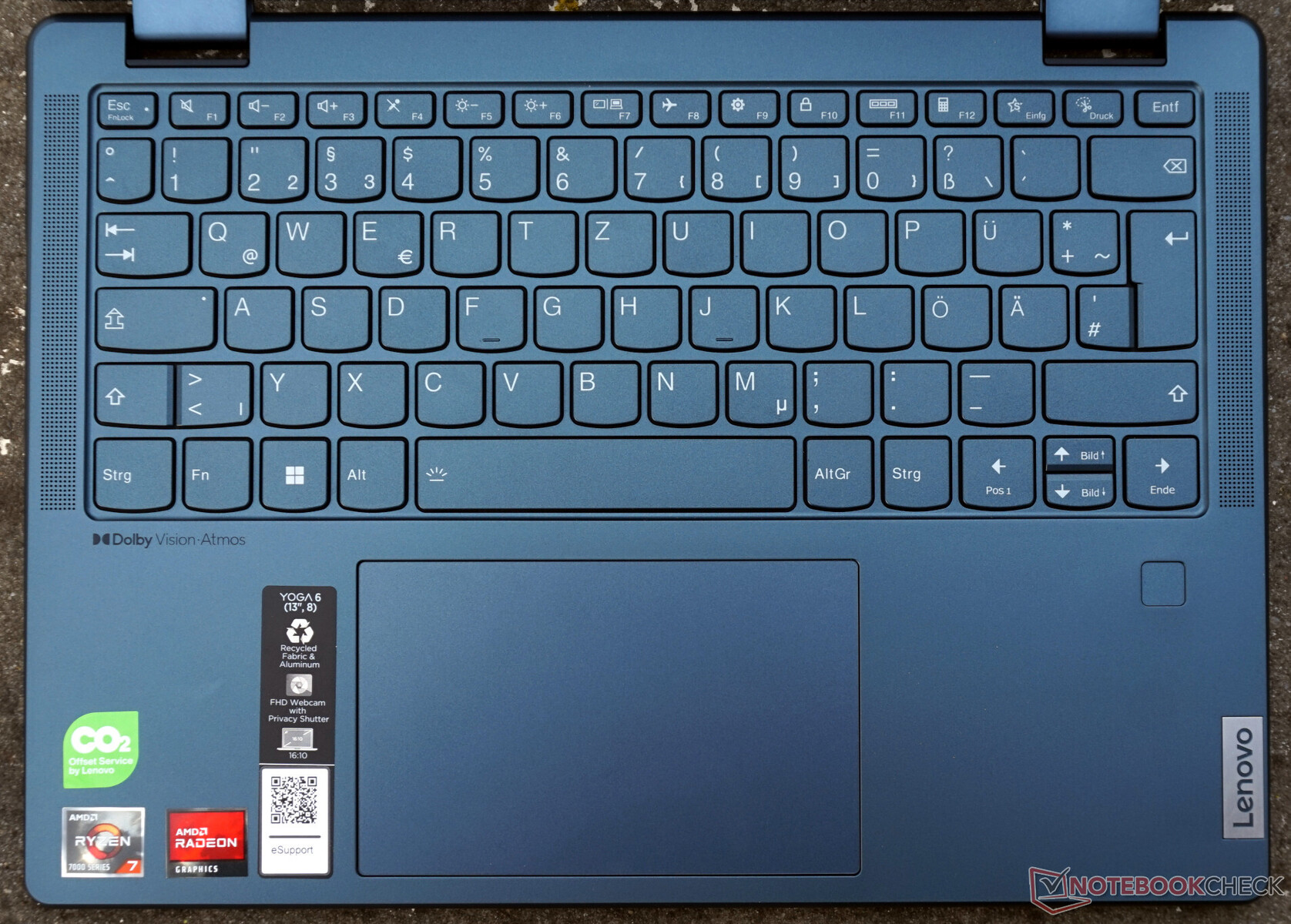

打字时,你会立即注意到,这款小型敞篷车有一个标准尺寸的键盘,所以它很适合经常打字和快速打字的人。最多,方向键的双键分配,被紧紧地推到角落里,需要稍加练习。对于平坦的笔记本键盘来说,略低于1毫米的键位落差是很典型的。然而,按键的反馈可以更坚定、更精确一些。
触摸板是令人愉快的大:它的尺寸几乎是12 x 8厘米。控制是非常精确的。隐藏的按钮也反应迅速,既不太牢固也不太容易按下。

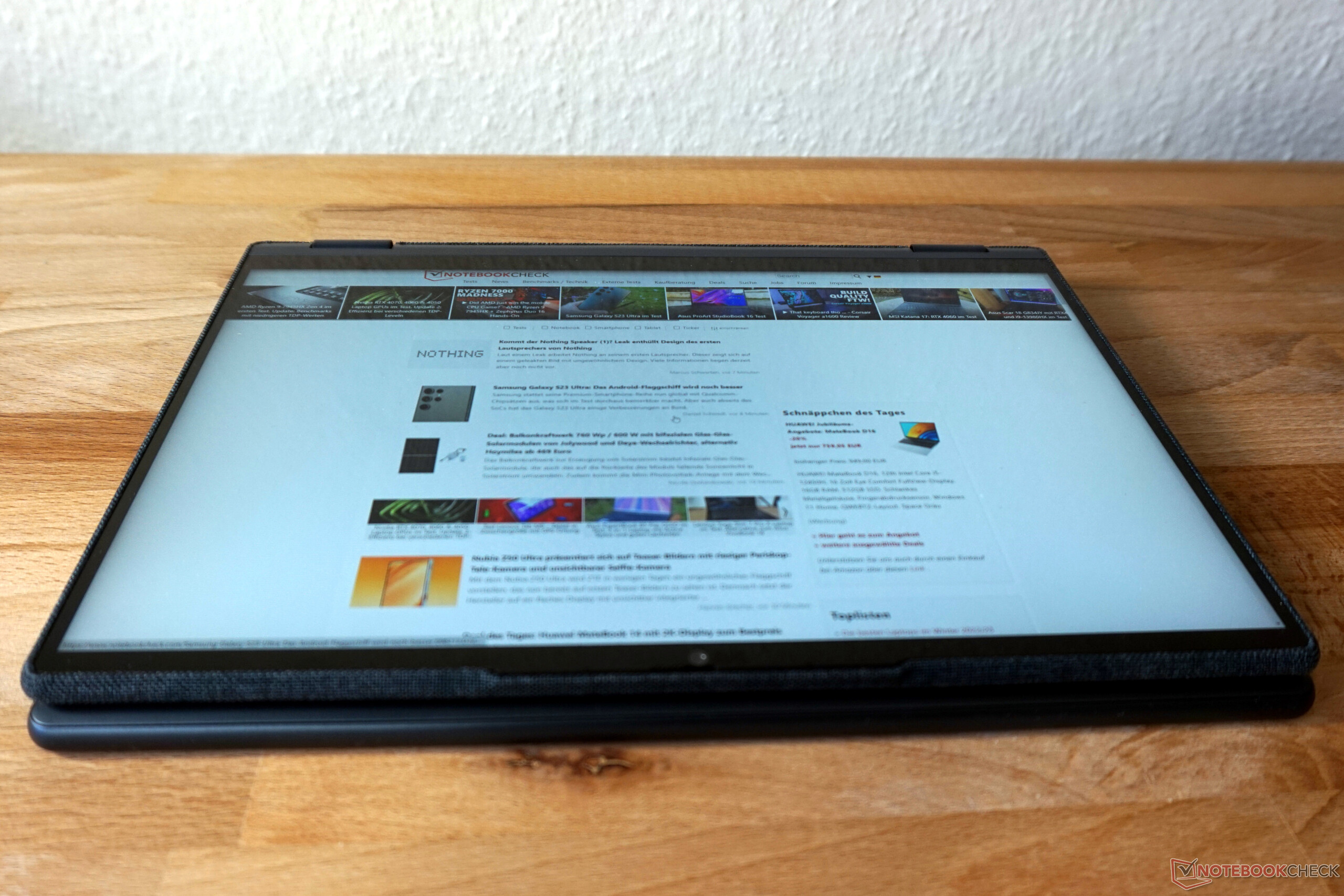

当然,还有触摸屏,这使得操作非常好,不仅是在平板电脑模式下。因为铰链足够牢固,你可以在屏幕设置为经典位置的情况下在显示屏上打字。由于Windows有广泛的有用的手势控制,因此在没有键盘和鼠标的情况下也可以有效地操作操作系统。
显示屏 - 低亮度的Yoga 6
16:10的长宽比和略高于全高清的分辨率相结合,使工作和冲浪非常舒适。显示屏提供了足够的空间,图像也很清晰。

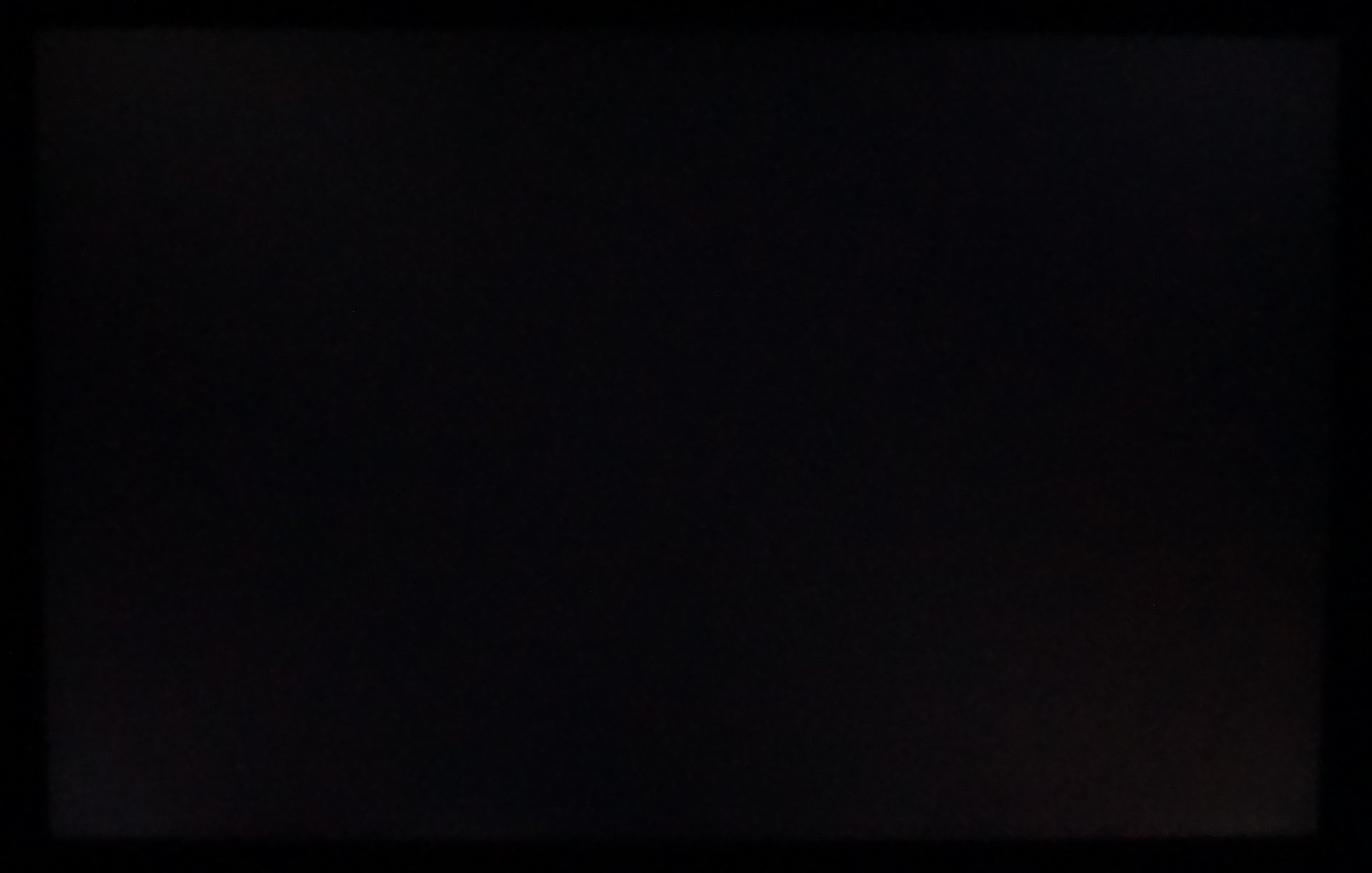

由于有一个非常好的黑值,对比度值也很好。此外,照明是均匀的。因此,在办公桌上和一般室内,完全看不出最大亮度低至280cd/m²。虽然这在电池模式下保持不变,但在有光线的情况下,这并没有什么帮助。结合触摸屏的反射表面,阳光下的房间或墙壁就足以降低可读性。
在低亮度水平下没有检测到闪烁。
|
Brightness Distribution: 94 %
Center on Battery: 280 cd/m²
Contrast: 1112:1 (Black: 0.25 cd/m²)
ΔE Color 3 | 0.5-29.43 Ø4.91, calibrated: 0.62
ΔE Greyscale 5.04 | 0.5-98 Ø5.2
70% AdobeRGB 1998 (Argyll 2.2.0 3D)
99.5% sRGB (Argyll 2.2.0 3D)
69.9% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.46
Lenovo Yoga 6 13 83B2001SGE LEN133WUXGA, IPS, 1920x1200, 13.3" | Lenovo IdeaPad Flex 7i 14IAU7 BOE CQ NV140DRM-162, IPS, 2240x1400, 14" | Dell XPS 13 9315 2-in-1 Core i5-1230U BOE NE13A1M, IPS, 2880x1920, 13" | Dell Inspiron 14 7420 2-in-1 BOE NV14N42, IPS, 1920x1200, 14" | HP ProBook x360 435 G8 R7-5800U AUO4B2D, IPS, 1920x1080, 13.3" | Asus ExpertBook B3 Flip B3402FEA AU Optronics B140HAN04.0, IPS, 1920x1080, 14" | |
---|---|---|---|---|---|---|
Display | 0% | 2% | -44% | -41% | -42% | |
Display P3 Coverage | 69.9 | 69.8 0% | 70.7 1% | 38.6 -45% | 40.1 -43% | 39.1 -44% |
sRGB Coverage | 99.5 | 98 -2% | 99.8 0% | 56.2 -44% | 59.9 -40% | 58.6 -41% |
AdobeRGB 1998 Coverage | 70 | 72.2 3% | 72.6 4% | 39.9 -43% | 41.4 -41% | 40.4 -42% |
Response Times | -269% | -212% | -127% | -253% | -216% | |
Response Time Grey 50% / Grey 80% * | 14 ? | 44.4 ? -217% | 44 ? -214% | 27.2 ? -94% | 42.8 ? -206% | 41 ? -193% |
Response Time Black / White * | 8 ? | 33.6 ? -320% | 24.8 ? -210% | 20.8 ? -160% | 32 ? -300% | 27 ? -238% |
PWM Frequency | ||||||
Screen | -3% | 30% | -89% | -75% | -9% | |
Brightness middle | 278 | 317.3 14% | 507 82% | 269.4 -3% | 304 9% | 265 -5% |
Brightness | 271 | 301 11% | 486 79% | 260 -4% | 292 8% | 247 -9% |
Brightness Distribution | 94 | 90 -4% | 87 -7% | 89 -5% | 89 -5% | 88 -6% |
Black Level * | 0.25 | 0.22 12% | 0.34 -36% | 0.41 -64% | 0.23 8% | 0.14 44% |
Contrast | 1112 | 1442 30% | 1491 34% | 657 -41% | 1322 19% | 1893 70% |
Colorchecker dE 2000 * | 3 | 3.99 -33% | 2.04 32% | 6.53 -118% | 5 -67% | 5.09 -70% |
Colorchecker dE 2000 max. * | 7.86 | 9.34 -19% | 3.1 61% | 19.76 -151% | 17.7 -125% | 19.84 -152% |
Colorchecker dE 2000 calibrated * | 0.62 | 0.6 3% | 0.86 -39% | 3.13 -405% | 4.2 -577% | |
Greyscale dE 2000 * | 5.04 | 6.9 -37% | 1.8 64% | 5.4 -7% | 2.1 58% | 2.33 54% |
Gamma | 2.46 89% | 2.19 100% | 2.12 104% | 2.05 107% | 2.03 108% | 2.42 91% |
CCT | 6068 107% | 6161 106% | 6561 99% | 6007 108% | 6443 101% | 6344 102% |
Total Average (Program / Settings) | -91% /
-40% | -60% /
-11% | -87% /
-85% | -123% /
-93% | -89% /
-49% |
* ... smaller is better

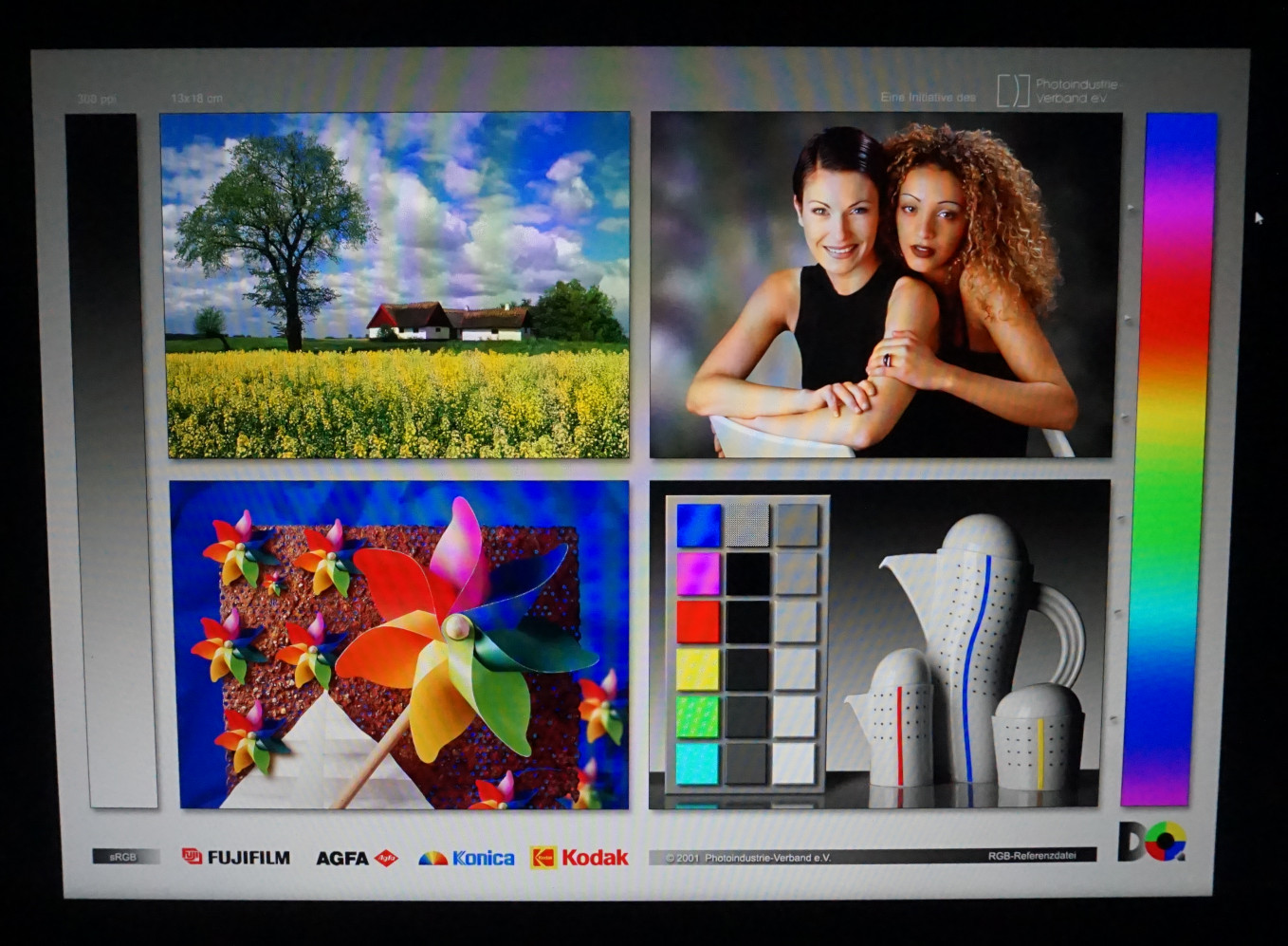

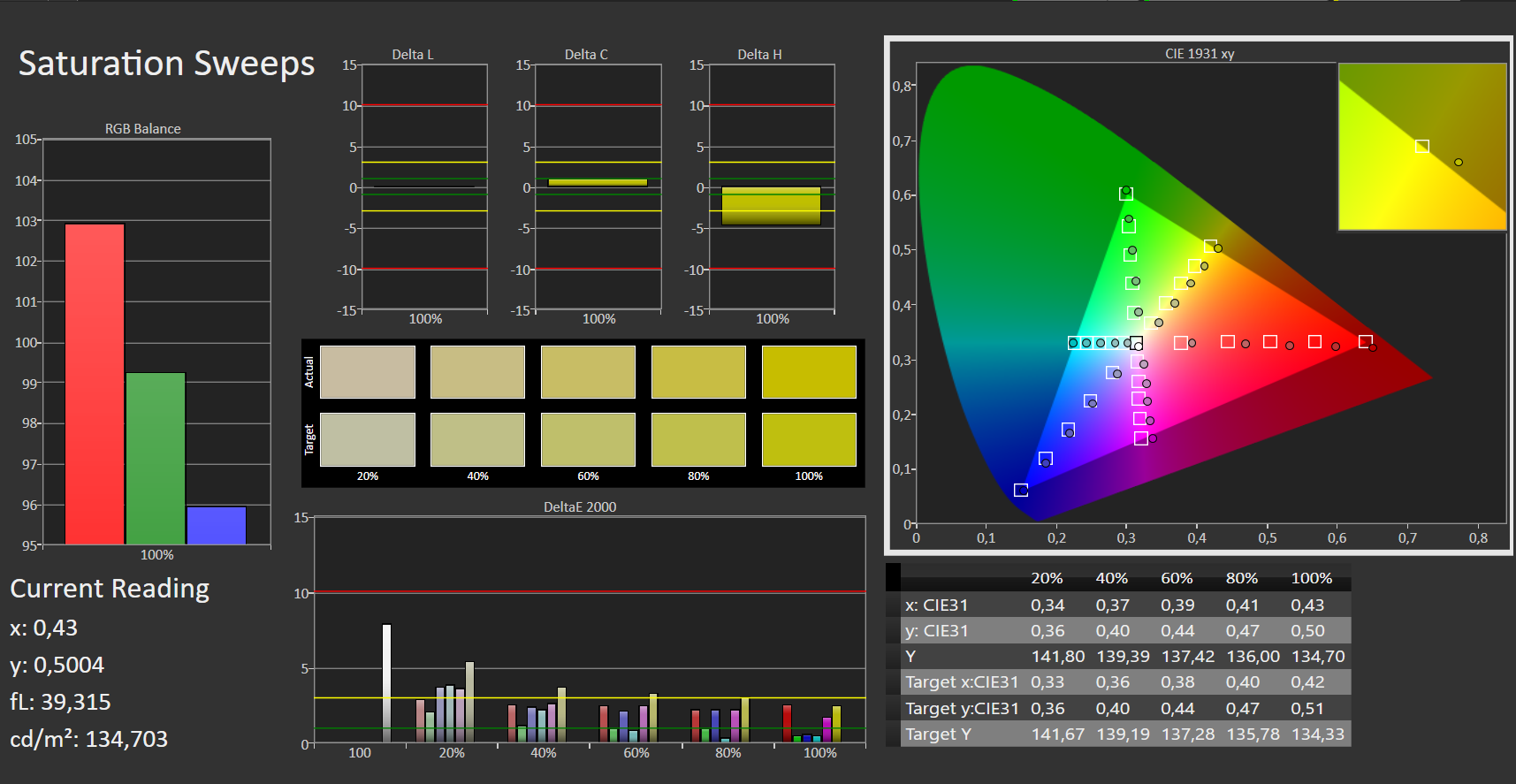

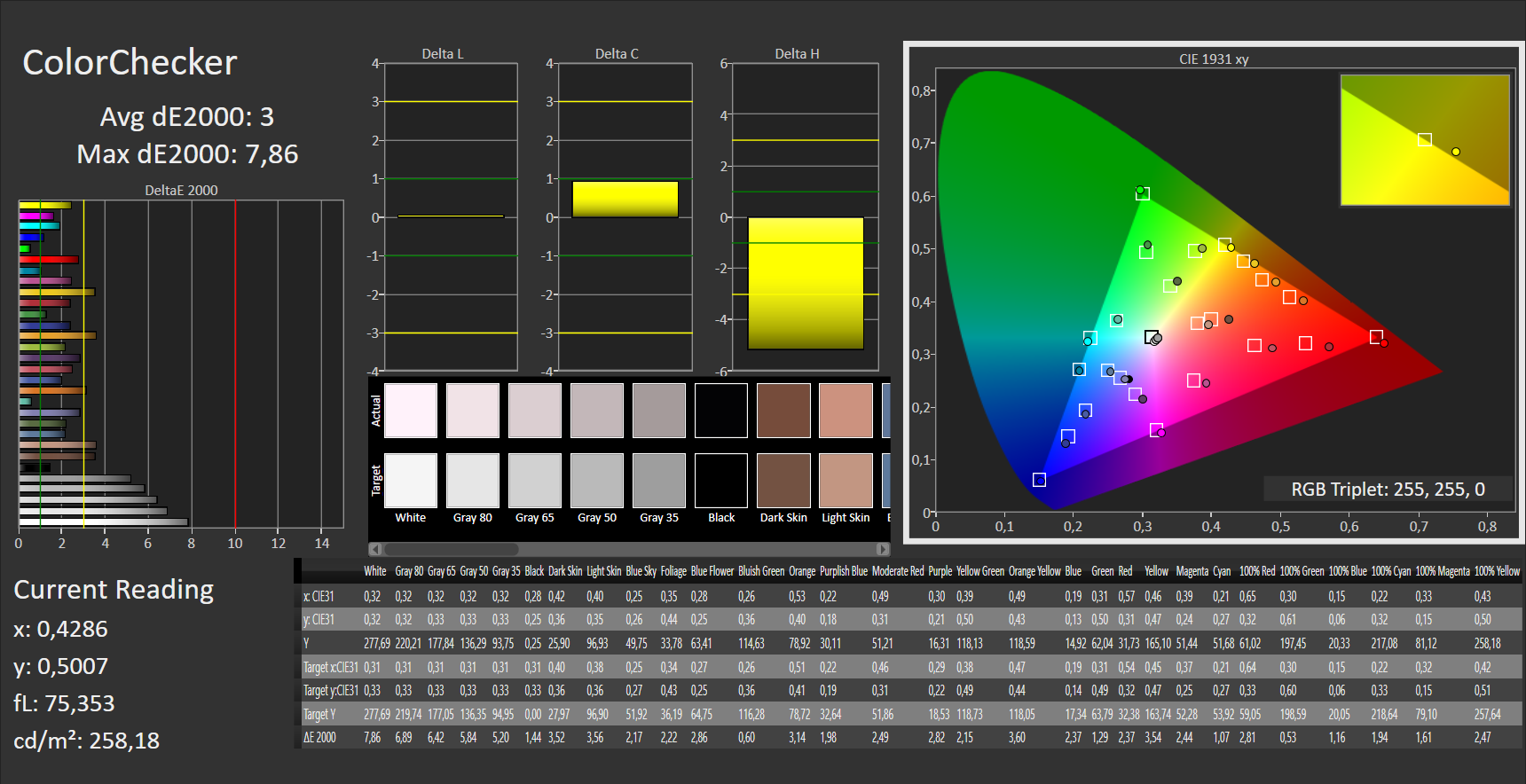

重现的色彩空间适合于允许密集图像编辑的显示器,至少对业余摄影师来说是如此。sRGB几乎完全覆盖,确保了强烈和生动的色彩。正如预期的那样,该面板无法处理专业媒体编辑所需的Display-P3和AdobeRGB,但它也没有必要这样。毕竟,众多系统或单反相机默认使用sRGB色彩空间拍摄照片。
在未校准的情况下,灰度的偏差特别明显,这绝对是在可见范围内。色彩表现处于一个良好的水平。

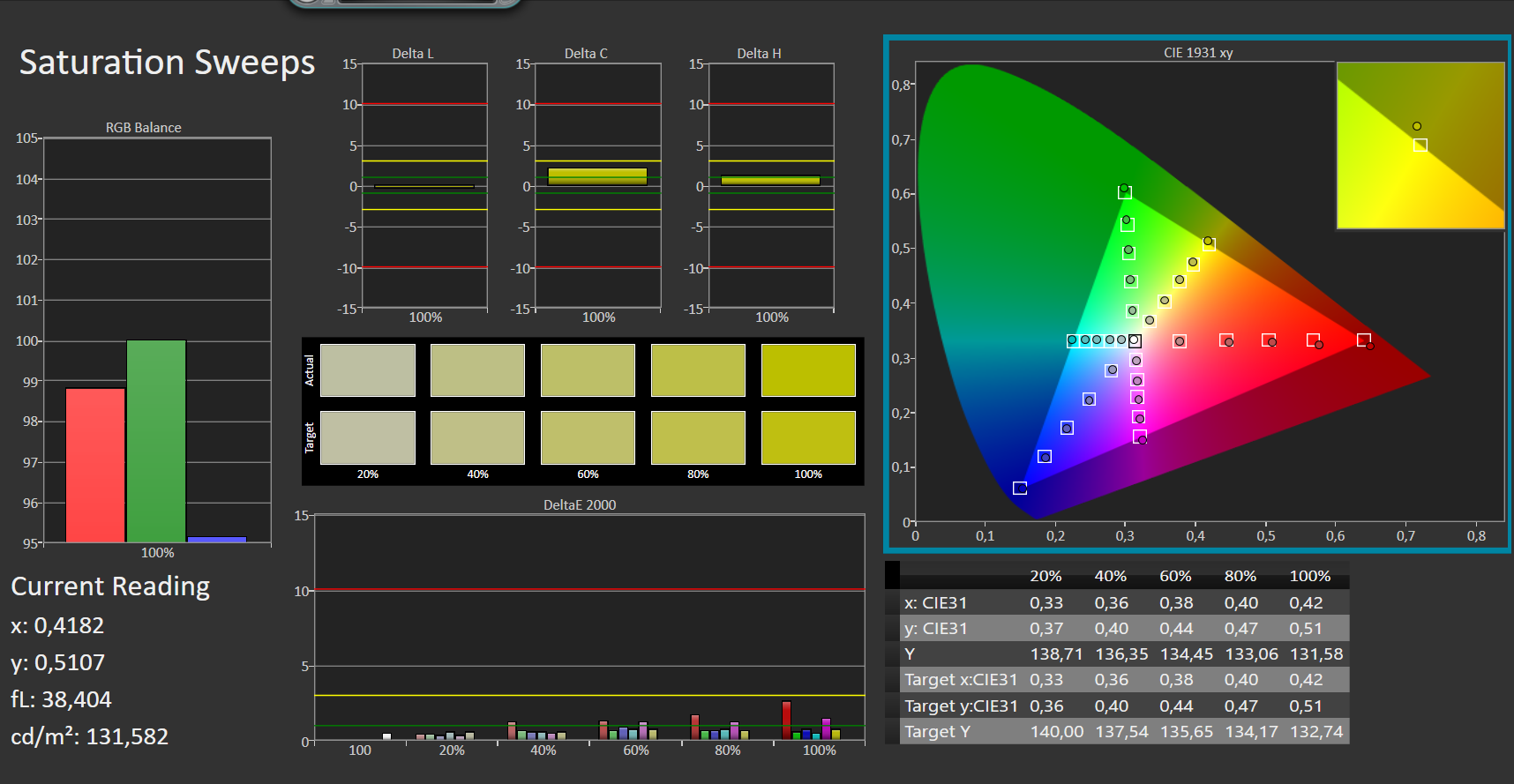

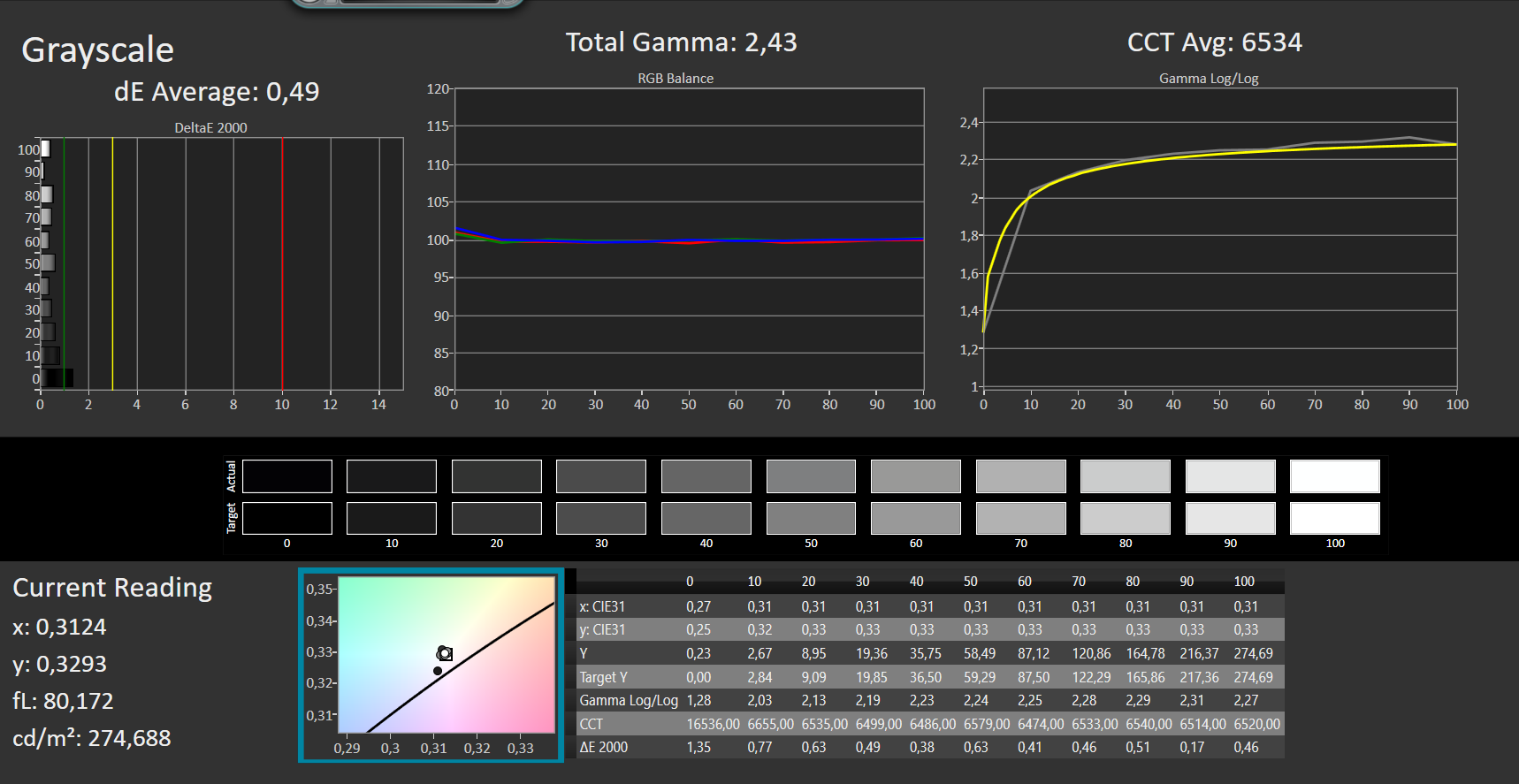

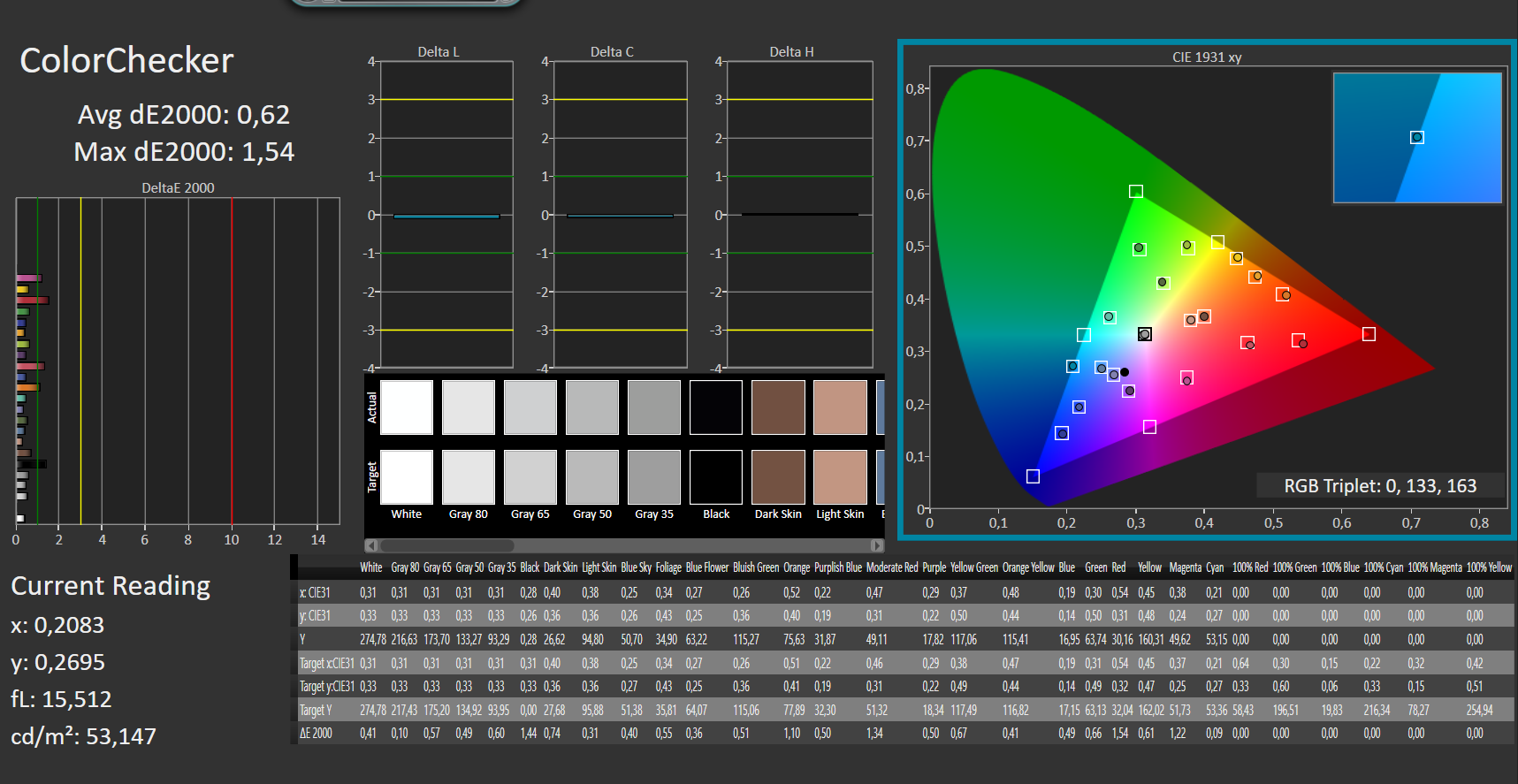

校准后,CalMAN显示出几乎完美的数值。色彩偏差的DeltaE值为0.62,远远低于可感知的极限,通常为3。 我们的配置文件可在上面下载。

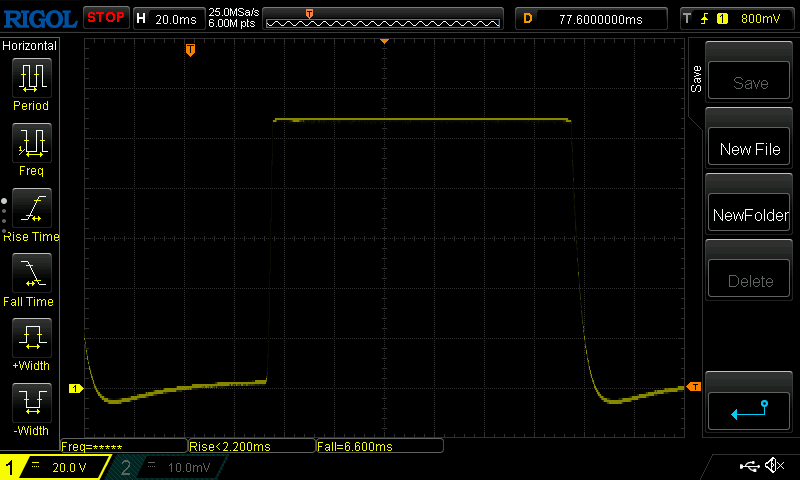

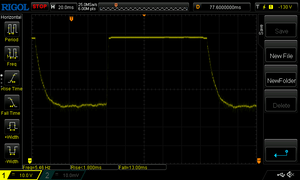

Display Response Times
↔ Response Time Black to White | ||
---|---|---|
8 ms ... rise ↗ and fall ↘ combined | ↗ 2 ms rise | |
↘ 6 ms fall | ||
The screen shows fast response rates in our tests and should be suited for gaming. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 18 % of all devices are better. This means that the measured response time is better than the average of all tested devices (20.9 ms). | ||

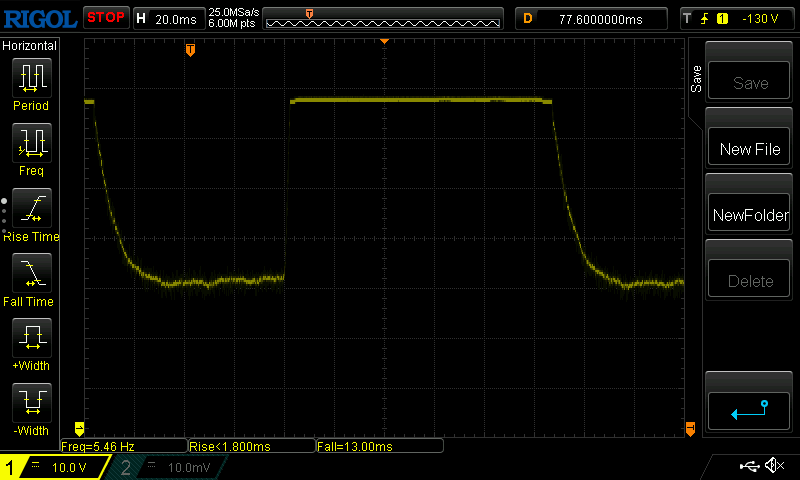

↔ Response Time 50% Grey to 80% Grey | ||
14 ms ... rise ↗ and fall ↘ combined | ↗ 1 ms rise | |
↘ 13 ms fall | ||
The screen shows good response rates in our tests, but may be too slow for competitive gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 24 % of all devices are better. This means that the measured response time is better than the average of all tested devices (32.8 ms). |

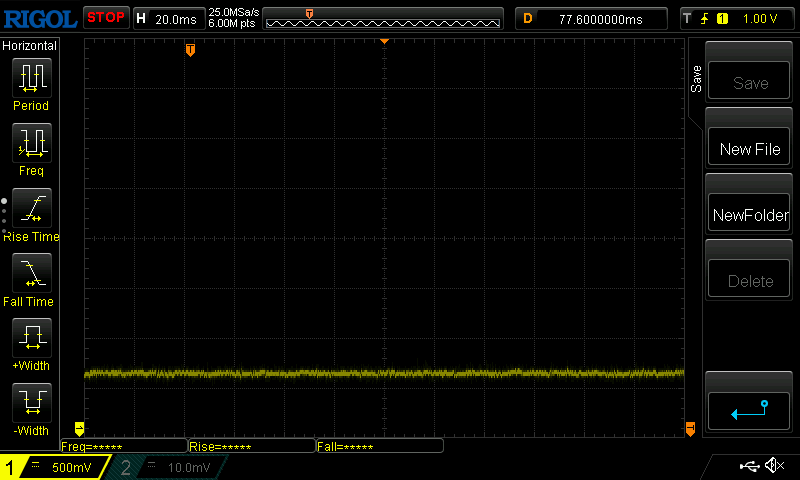

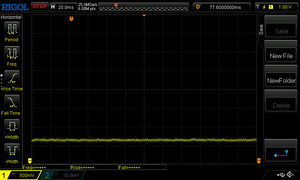

Screen Flickering / PWM (Pulse-Width Modulation)
Screen flickering / PWM not detected | |||
In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8710 (minimum: 5 - maximum: 343500) Hz was measured. |
由于光泽的表面和低亮度,在户外使用联想Yoga 6并不怎么有趣。如果你能以某种方式设法将身体直接放在显示屏前,内容仍然清晰可辨。然而,在大多数情况下,这是不可能的。
图片、视频,甚至文字都很难看清。

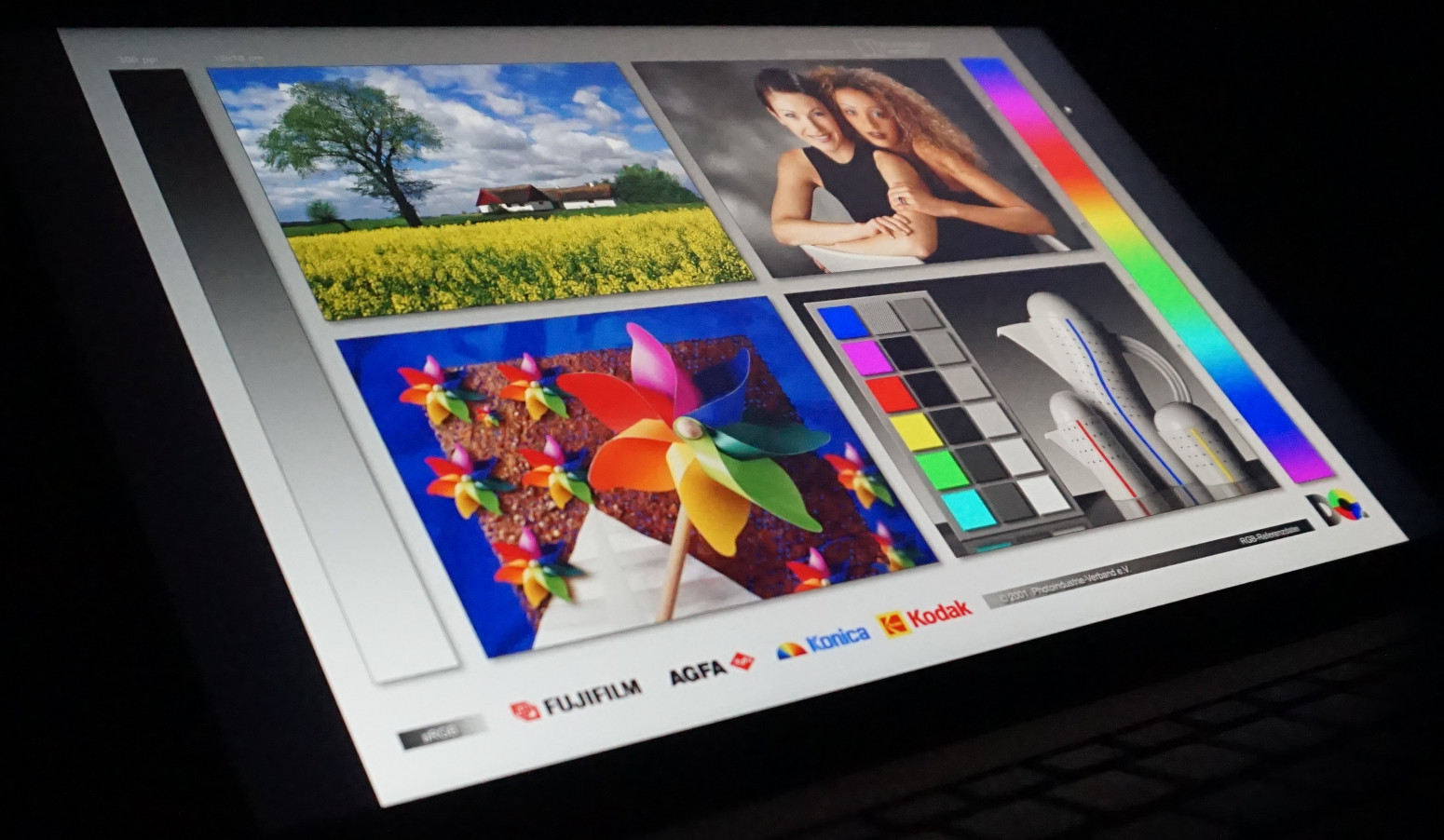

我们对可视角度的稳定性没有抱怨。无论可转换的角度如何,屏幕内容仍然清晰可辨,既不显示颜色变化,也不显示亮度的明显变化。这是对IPS面板的预期。
性能--Yoga 6中的Ryzen 7是高效和经济的。

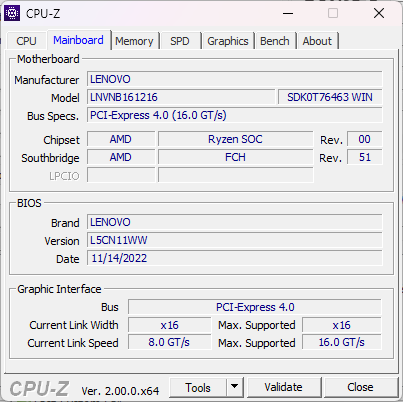

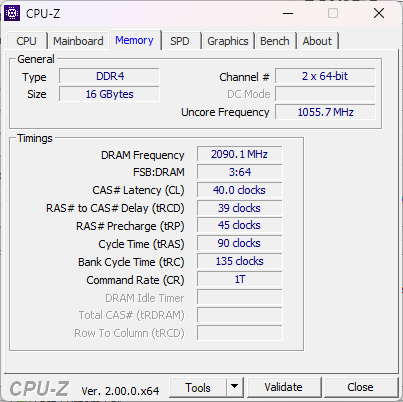

随着AMD Ryzen 7 7730U和16GB内存,联想的可折叠机可望提供高性能。这里仍然使用Zen3架构,因此内存是DDR4,但这并不带来任何明显的缺点。没有独立的图形芯片,在游戏中不能指望高帧率。
尽管如此,特别是一些AAA级的游戏将可以在较低的图形设置下播放。主要需要CPU的复杂任务可以得到非常快速的处理,甚至是并行处理。除了少数例外,这也适用于可选的 AMD Ryzen 5 7530U,它有相同数量的L3缓存和相同的最大时钟频率,但少了两个核心。
经验表明,只有8GB内存的型号在多任务和密集的浏览器使用方面会有问题。由于内存不能扩展,建议使用16GB的型号。
测试条件

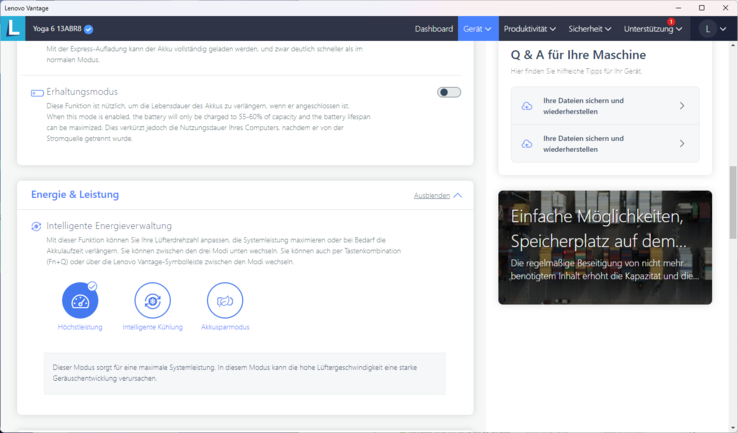

联想为Yoga 6提供了三种性能配置。"高性能 "为处理器提供短时间的30瓦和半分钟的25瓦。在 "智能冷却 "下,这些数值下降到25或22瓦。在 "节省电池 "模式下,消耗被限制在10瓦。
所有性能测试和基准测试都是在 "高性能 "下进行的。为了比较,我们在 "省电 "模式下重复了一些测量。
处理器

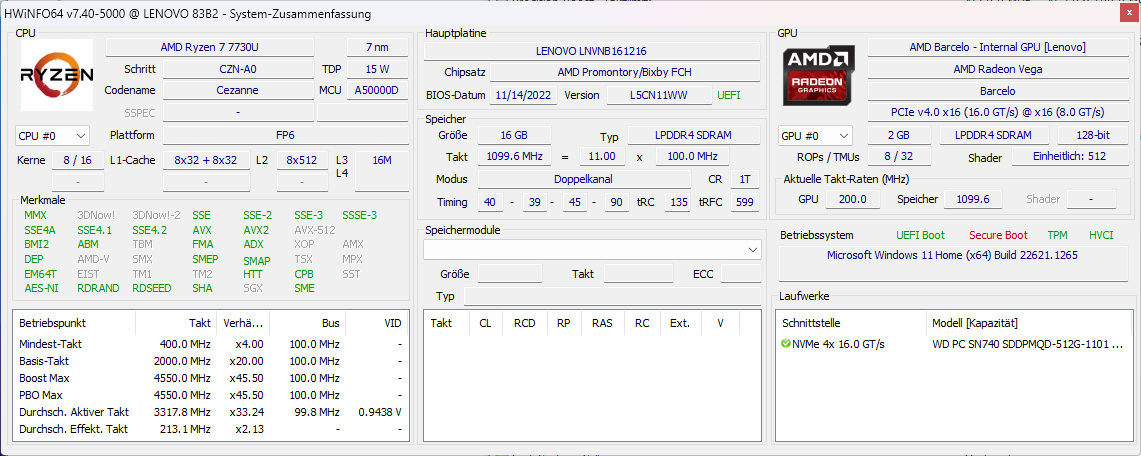

拥有8个内核,16个线程,16MB的L3缓存和4.5GHz的最大时钟速度。AMD Ryzen 7 7730U提供了令人印象深刻的关键数据。基本上,它是一个更苗条的 AMD Ryzen 7 5825U但是,这个型号的TDP不是25W,而是需要明显较低的冷却功率15W,因此,CPU可以安装在像Yoga 6这样的超薄和大部分安静的可折叠机中。

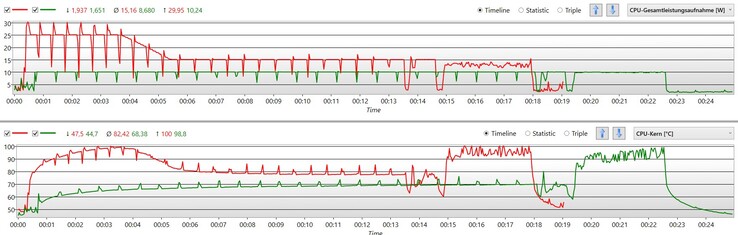

为了进行比较,我们将AMD R7-5825U列入下面的Cinebech R15循环图中。这显然使自己与众不同,但需要相当多的功率来做到这一点。
的英特尔酷睿i7-1255U,这是为类似的应用设计的,就像纤细的Ryzen 7一样,总是落后于人。它的上一代产品,代表是 英特尔酷睿i7-1165G7进一步落后,只达到Yoga 6提供的60%的数值。

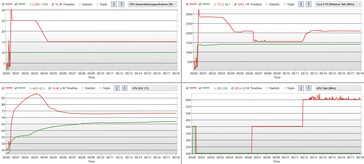

一段时间后,性能下降是可以预料的,对于一个可折叠的冷却器来说,它的性能是有限的,但即使如此,它仍然明显领先于一个戴尔Inspiron 14 7420.
在这一点上值得注意的是,在 "省电 "模式下,Yoga 6的性能几乎与i7-1255U持平,而功耗被限制在10瓦,冷却几乎不忙。
更多的基准测试和比较值可以在我们的 CPU基准测试列表.
Cinebench R15 Multi Sustained Load
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
CPU Performance Rating | |
Average of class Convertible | |
Average AMD Ryzen 7 7730U | |
Lenovo IdeaPad Flex 7i 14IAU7 | |
HP ProBook x360 435 G8 R7-5800U | |
Dell Inspiron 14 7420 2-in-1 | |
Lenovo Yoga 6 13 83B2001SGE | |
Dell XPS 13 9315 2-in-1 Core i5-1230U | |
Asus ExpertBook B3 Flip B3402FEA |
Cinebench R23 / Multi Core | |
Average of class Convertible (616 - 18698, n=63, last 2 years) | |
Average AMD Ryzen 7 7730U (7286 - 11490, n=6) | |
HP ProBook x360 435 G8 R7-5800U | |
Lenovo IdeaPad Flex 7i 14IAU7 | |
Dell Inspiron 14 7420 2-in-1 | |
Lenovo Yoga 6 13 83B2001SGE | |
Dell XPS 13 9315 2-in-1 Core i5-1230U | |
Asus ExpertBook B3 Flip B3402FEA |
Cinebench R23 / Single Core | |
Dell Inspiron 14 7420 2-in-1 | |
Lenovo IdeaPad Flex 7i 14IAU7 | |
Average of class Convertible (308 - 1980, n=63, last 2 years) | |
Dell XPS 13 9315 2-in-1 Core i5-1230U | |
Asus ExpertBook B3 Flip B3402FEA | |
Average AMD Ryzen 7 7730U (1335 - 1466, n=6) | |
HP ProBook x360 435 G8 R7-5800U | |
Lenovo Yoga 6 13 83B2001SGE |
Cinebench R20 / CPU (Multi Core) | |
Average of class Convertible (242 - 7303, n=63, last 2 years) | |
Average AMD Ryzen 7 7730U (2849 - 4267, n=6) | |
HP ProBook x360 435 G8 R7-5800U | |
Lenovo IdeaPad Flex 7i 14IAU7 | |
Dell Inspiron 14 7420 2-in-1 | |
Lenovo Yoga 6 13 83B2001SGE | |
Dell XPS 13 9315 2-in-1 Core i5-1230U | |
Asus ExpertBook B3 Flip B3402FEA |
Cinebench R20 / CPU (Single Core) | |
Dell Inspiron 14 7420 2-in-1 | |
Lenovo IdeaPad Flex 7i 14IAU7 | |
Average of class Convertible (149.8 - 781, n=62, last 2 years) | |
Dell XPS 13 9315 2-in-1 Core i5-1230U | |
Asus ExpertBook B3 Flip B3402FEA | |
Average AMD Ryzen 7 7730U (533 - 573, n=6) | |
HP ProBook x360 435 G8 R7-5800U | |
Lenovo Yoga 6 13 83B2001SGE |
Cinebench R15 / CPU Multi 64Bit | |
Average AMD Ryzen 7 7730U (1588 - 1942, n=6) | |
Average of class Convertible (110.1 - 2889, n=65, last 2 years) | |
HP ProBook x360 435 G8 R7-5800U | |
Lenovo Yoga 6 13 83B2001SGE | |
Lenovo IdeaPad Flex 7i 14IAU7 | |
Dell XPS 13 9315 2-in-1 Core i5-1230U | |
Dell Inspiron 14 7420 2-in-1 | |
Asus ExpertBook B3 Flip B3402FEA |
Cinebench R15 / CPU Single 64Bit | |
Dell Inspiron 14 7420 2-in-1 | |
Lenovo IdeaPad Flex 7i 14IAU7 | |
Average of class Convertible (68.6 - 302, n=62, last 2 years) | |
HP ProBook x360 435 G8 R7-5800U | |
Average AMD Ryzen 7 7730U (221 - 233, n=6) | |
Dell XPS 13 9315 2-in-1 Core i5-1230U | |
Lenovo Yoga 6 13 83B2001SGE | |
Asus ExpertBook B3 Flip B3402FEA |
Blender / v2.79 BMW27 CPU | |
Asus ExpertBook B3 Flip B3402FEA | |
Dell XPS 13 9315 2-in-1 Core i5-1230U | |
Dell Inspiron 14 7420 2-in-1 | |
Lenovo Yoga 6 13 83B2001SGE | |
Lenovo IdeaPad Flex 7i 14IAU7 | |
Average of class Convertible (175 - 1059, n=59, last 2 years) | |
HP ProBook x360 435 G8 R7-5800U | |
Average AMD Ryzen 7 7730U (277 - 374, n=5) |
7-Zip 18.03 / 7z b 4 | |
Average AMD Ryzen 7 7730U (40263 - 51898, n=6) | |
HP ProBook x360 435 G8 R7-5800U | |
Average of class Convertible (12977 - 72400, n=60, last 2 years) | |
Lenovo Yoga 6 13 83B2001SGE | |
Lenovo IdeaPad Flex 7i 14IAU7 | |
Dell XPS 13 9315 2-in-1 Core i5-1230U | |
Dell Inspiron 14 7420 2-in-1 | |
Asus ExpertBook B3 Flip B3402FEA |
7-Zip 18.03 / 7z b 4 -mmt1 | |
Dell Inspiron 14 7420 2-in-1 | |
HP ProBook x360 435 G8 R7-5800U | |
Average AMD Ryzen 7 7730U (5222 - 5426, n=6) | |
Lenovo IdeaPad Flex 7i 14IAU7 | |
Lenovo Yoga 6 13 83B2001SGE | |
Average of class Convertible (3672 - 6493, n=60, last 2 years) | |
Asus ExpertBook B3 Flip B3402FEA | |
Dell XPS 13 9315 2-in-1 Core i5-1230U |
Geekbench 5.5 / Multi-Core | |
Average of class Convertible (663 - 14016, n=63, last 2 years) | |
Lenovo IdeaPad Flex 7i 14IAU7 | |
Average AMD Ryzen 7 7730U (6747 - 8257, n=6) | |
Lenovo Yoga 6 13 83B2001SGE | |
Dell XPS 13 9315 2-in-1 Core i5-1230U | |
Dell Inspiron 14 7420 2-in-1 | |
HP ProBook x360 435 G8 R7-5800U | |
Asus ExpertBook B3 Flip B3402FEA |
Geekbench 5.5 / Single-Core | |
Average of class Convertible (319 - 2062, n=63, last 2 years) | |
Dell Inspiron 14 7420 2-in-1 | |
Lenovo IdeaPad Flex 7i 14IAU7 | |
Dell XPS 13 9315 2-in-1 Core i5-1230U | |
Asus ExpertBook B3 Flip B3402FEA | |
Average AMD Ryzen 7 7730U (1464 - 1500, n=6) | |
Lenovo Yoga 6 13 83B2001SGE | |
HP ProBook x360 435 G8 R7-5800U |
HWBOT x265 Benchmark v2.2 / 4k Preset | |
Average AMD Ryzen 7 7730U (9.91 - 13.7, n=6) | |
Average of class Convertible (0.73 - 22.4, n=62, last 2 years) | |
HP ProBook x360 435 G8 R7-5800U | |
Lenovo IdeaPad Flex 7i 14IAU7 | |
Lenovo Yoga 6 13 83B2001SGE | |
Dell Inspiron 14 7420 2-in-1 | |
Dell XPS 13 9315 2-in-1 Core i5-1230U | |
Asus ExpertBook B3 Flip B3402FEA |
LibreOffice / 20 Documents To PDF | |
HP ProBook x360 435 G8 R7-5800U | |
Average of class Convertible (42 - 121.5, n=59, last 2 years) | |
Dell XPS 13 9315 2-in-1 Core i5-1230U | |
Average AMD Ryzen 7 7730U (48.4 - 53.6, n=6) | |
Lenovo IdeaPad Flex 7i 14IAU7 | |
Dell Inspiron 14 7420 2-in-1 | |
Lenovo Yoga 6 13 83B2001SGE | |
Asus ExpertBook B3 Flip B3402FEA |
R Benchmark 2.5 / Overall mean | |
Asus ExpertBook B3 Flip B3402FEA | |
Lenovo Yoga 6 13 83B2001SGE | |
HP ProBook x360 435 G8 R7-5800U | |
Average AMD Ryzen 7 7730U (0.515 - 0.543, n=6) | |
Dell XPS 13 9315 2-in-1 Core i5-1230U | |
Average of class Convertible (0.4102 - 1.013, n=59, last 2 years) | |
Lenovo IdeaPad Flex 7i 14IAU7 | |
Dell Inspiron 14 7420 2-in-1 |
* ... smaller is better
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
Performance Rating | |
Average AMD Ryzen 7 7730U | |
Lenovo Yoga 6 13 83B2001SGE | |
Average of class Convertible | |
HP ProBook x360 435 G8 R7-5800U | |
Lenovo IdeaPad Flex 7i 14IAU7 | |
Asus ExpertBook B3 Flip B3402FEA | |
Dell XPS 13 9315 2-in-1 Core i5-1230U | |
Dell Inspiron 14 7420 2-in-1 |
AIDA64 / FP32 Ray-Trace | |
Average AMD Ryzen 7 7730U (11322 - 13069, n=6) | |
Lenovo Yoga 6 13 83B2001SGE | |
Average of class Convertible (468 - 29594, n=63, last 2 years) | |
HP ProBook x360 435 G8 R7-5800U | |
Lenovo IdeaPad Flex 7i 14IAU7 | |
Asus ExpertBook B3 Flip B3402FEA | |
Dell XPS 13 9315 2-in-1 Core i5-1230U | |
Dell Inspiron 14 7420 2-in-1 |
AIDA64 / FPU Julia | |
Average AMD Ryzen 7 7730U (72772 - 83307, n=6) | |
Lenovo Yoga 6 13 83B2001SGE | |
HP ProBook x360 435 G8 R7-5800U | |
Average of class Convertible (2644 - 114033, n=62, last 2 years) | |
Lenovo IdeaPad Flex 7i 14IAU7 | |
Dell XPS 13 9315 2-in-1 Core i5-1230U | |
Asus ExpertBook B3 Flip B3402FEA | |
Dell Inspiron 14 7420 2-in-1 |
AIDA64 / CPU SHA3 | |
Average AMD Ryzen 7 7730U (2424 - 2782, n=6) | |
Average of class Convertible (182 - 4841, n=62, last 2 years) | |
Lenovo Yoga 6 13 83B2001SGE | |
HP ProBook x360 435 G8 R7-5800U | |
Asus ExpertBook B3 Flip B3402FEA | |
Lenovo IdeaPad Flex 7i 14IAU7 | |
Dell XPS 13 9315 2-in-1 Core i5-1230U | |
Dell Inspiron 14 7420 2-in-1 |
AIDA64 / CPU Queen | |
Average AMD Ryzen 7 7730U (86118 - 95529, n=6) | |
Lenovo Yoga 6 13 83B2001SGE | |
HP ProBook x360 435 G8 R7-5800U | |
Average of class Convertible (10502 - 120368, n=62, last 2 years) | |
Lenovo IdeaPad Flex 7i 14IAU7 | |
Dell Inspiron 14 7420 2-in-1 | |
Dell XPS 13 9315 2-in-1 Core i5-1230U | |
Asus ExpertBook B3 Flip B3402FEA |
AIDA64 / FPU SinJulia | |
Average AMD Ryzen 7 7730U (10753 - 11716, n=6) | |
Lenovo Yoga 6 13 83B2001SGE | |
HP ProBook x360 435 G8 R7-5800U | |
Average of class Convertible (659 - 16315, n=62, last 2 years) | |
Lenovo IdeaPad Flex 7i 14IAU7 | |
Asus ExpertBook B3 Flip B3402FEA | |
Dell Inspiron 14 7420 2-in-1 | |
Dell XPS 13 9315 2-in-1 Core i5-1230U |
AIDA64 / FPU Mandel | |
Average AMD Ryzen 7 7730U (40080 - 45955, n=6) | |
Lenovo Yoga 6 13 83B2001SGE | |
HP ProBook x360 435 G8 R7-5800U | |
Average of class Convertible (1420 - 61249, n=62, last 2 years) | |
Lenovo IdeaPad Flex 7i 14IAU7 | |
Asus ExpertBook B3 Flip B3402FEA | |
Dell XPS 13 9315 2-in-1 Core i5-1230U | |
Dell Inspiron 14 7420 2-in-1 |
AIDA64 / CPU AES | |
Asus ExpertBook B3 Flip B3402FEA | |
Average of class Convertible (1279 - 169089, n=62, last 2 years) | |
Average AMD Ryzen 7 7730U (42560 - 56403, n=6) | |
Lenovo Yoga 6 13 83B2001SGE | |
HP ProBook x360 435 G8 R7-5800U | |
Lenovo IdeaPad Flex 7i 14IAU7 | |
Dell XPS 13 9315 2-in-1 Core i5-1230U | |
Dell Inspiron 14 7420 2-in-1 |
AIDA64 / CPU ZLib | |
Average AMD Ryzen 7 7730U (646 - 733, n=6) | |
Average of class Convertible (61.4 - 1243, n=62, last 2 years) | |
Lenovo Yoga 6 13 83B2001SGE | |
HP ProBook x360 435 G8 R7-5800U | |
Lenovo IdeaPad Flex 7i 14IAU7 | |
Dell Inspiron 14 7420 2-in-1 | |
Dell XPS 13 9315 2-in-1 Core i5-1230U | |
Asus ExpertBook B3 Flip B3402FEA |
AIDA64 / FP64 Ray-Trace | |
Average AMD Ryzen 7 7730U (5986 - 6886, n=6) | |
Lenovo Yoga 6 13 83B2001SGE | |
Average of class Convertible (254 - 16065, n=62, last 2 years) | |
HP ProBook x360 435 G8 R7-5800U | |
Lenovo IdeaPad Flex 7i 14IAU7 | |
Asus ExpertBook B3 Flip B3402FEA | |
Dell XPS 13 9315 2-in-1 Core i5-1230U | |
Dell Inspiron 14 7420 2-in-1 |
AIDA64 / CPU PhotoWorxx | |
Lenovo IdeaPad Flex 7i 14IAU7 | |
Dell XPS 13 9315 2-in-1 Core i5-1230U | |
Average of class Convertible (5136 - 53406, n=62, last 2 years) | |
Dell Inspiron 14 7420 2-in-1 | |
Lenovo Yoga 6 13 83B2001SGE | |
Average AMD Ryzen 7 7730U (13747 - 19447, n=6) | |
Asus ExpertBook B3 Flip B3402FEA | |
HP ProBook x360 435 G8 R7-5800U |
* ... smaller is better
系统性能
在竞争对手领域,Yoga 6在系统性能方面并不完全令人信服。只有在PCMark10的 "生产力 "得分中,由于强大的处理器性能,它才名列前茅。然而,对于所有其他数值,iGPU、内存和SSD也发挥了作用。所有组件都处于良好水平,但绝不是突出的。
这足以跟上大多数商务笔记本的步伐。特别是在PCMark 10中,Yoga 6明显高于可折叠机的平均水平。在使用过程中可以明显感觉到这种性能水平:程序立即启动,等待时间非常短。这也适用于同时运行几个应用程序的情况。
CrossMark: Overall | Productivity | Creativity | Responsiveness
PCMark 10 / Score | |
Average AMD Ryzen 7 7730U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (5285 - 6403, n=6) | |
Average of class Convertible (1486 - 7963, n=59, last 2 years) | |
Lenovo IdeaPad Flex 7i 14IAU7 | |
HP ProBook x360 435 G8 R7-5800U | |
Lenovo Yoga 6 13 83B2001SGE | |
Dell Inspiron 14 7420 2-in-1 | |
Asus ExpertBook B3 Flip B3402FEA | |
Dell XPS 13 9315 2-in-1 Core i5-1230U |
PCMark 10 / Essentials | |
Lenovo IdeaPad Flex 7i 14IAU7 | |
Average AMD Ryzen 7 7730U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (10084 - 11458, n=6) | |
Average of class Convertible (3975 - 12059, n=59, last 2 years) | |
Dell Inspiron 14 7420 2-in-1 | |
Dell XPS 13 9315 2-in-1 Core i5-1230U | |
Lenovo Yoga 6 13 83B2001SGE | |
Asus ExpertBook B3 Flip B3402FEA | |
HP ProBook x360 435 G8 R7-5800U |
PCMark 10 / Productivity | |
Average AMD Ryzen 7 7730U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (8443 - 9761, n=6) | |
Lenovo Yoga 6 13 83B2001SGE | |
HP ProBook x360 435 G8 R7-5800U | |
Average of class Convertible (2764 - 10800, n=59, last 2 years) | |
Lenovo IdeaPad Flex 7i 14IAU7 | |
Asus ExpertBook B3 Flip B3402FEA | |
Dell XPS 13 9315 2-in-1 Core i5-1230U | |
Dell Inspiron 14 7420 2-in-1 |
PCMark 10 / Digital Content Creation | |
Average of class Convertible (811 - 12360, n=59, last 2 years) | |
Average AMD Ryzen 7 7730U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (4705 - 6561, n=6) | |
Dell Inspiron 14 7420 2-in-1 | |
Lenovo IdeaPad Flex 7i 14IAU7 | |
Asus ExpertBook B3 Flip B3402FEA | |
HP ProBook x360 435 G8 R7-5800U | |
Dell XPS 13 9315 2-in-1 Core i5-1230U | |
Lenovo Yoga 6 13 83B2001SGE |
CrossMark / Overall | |
Average of class Convertible (310 - 1912, n=60, last 2 years) | |
Lenovo IdeaPad Flex 7i 14IAU7 | |
Dell Inspiron 14 7420 2-in-1 | |
Dell XPS 13 9315 2-in-1 Core i5-1230U | |
Asus ExpertBook B3 Flip B3402FEA | |
Lenovo Yoga 6 13 83B2001SGE | |
Average AMD Ryzen 7 7730U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (1296 - 1350, n=6) |
CrossMark / Productivity | |
Asus ExpertBook B3 Flip B3402FEA | |
Dell Inspiron 14 7420 2-in-1 | |
Average of class Convertible (389 - 1790, n=60, last 2 years) | |
Lenovo IdeaPad Flex 7i 14IAU7 | |
Dell XPS 13 9315 2-in-1 Core i5-1230U | |
Lenovo Yoga 6 13 83B2001SGE | |
Average AMD Ryzen 7 7730U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (1301 - 1354, n=6) |
CrossMark / Creativity | |
Lenovo IdeaPad Flex 7i 14IAU7 | |
Average of class Convertible (252 - 2183, n=60, last 2 years) | |
Dell Inspiron 14 7420 2-in-1 | |
Dell XPS 13 9315 2-in-1 Core i5-1230U | |
Average AMD Ryzen 7 7730U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (1372 - 1461, n=6) | |
Lenovo Yoga 6 13 83B2001SGE | |
Asus ExpertBook B3 Flip B3402FEA |
CrossMark / Responsiveness | |
Asus ExpertBook B3 Flip B3402FEA | |
Average of class Convertible (295 - 1868, n=60, last 2 years) | |
Dell Inspiron 14 7420 2-in-1 | |
Dell XPS 13 9315 2-in-1 Core i5-1230U | |
Lenovo IdeaPad Flex 7i 14IAU7 | |
Lenovo Yoga 6 13 83B2001SGE | |
Average AMD Ryzen 7 7730U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (955 - 1086, n=6) |
PCMark 10 Score | 5285 points | |
Help |
AIDA64 / Memory Copy | |
Average of class Convertible (16353 - 108544, n=62, last 2 years) | |
Lenovo IdeaPad Flex 7i 14IAU7 | |
Dell XPS 13 9315 2-in-1 Core i5-1230U | |
Lenovo Yoga 6 13 83B2001SGE | |
Average AMD Ryzen 7 7730U (34315 - 42873, n=6) | |
Dell Inspiron 14 7420 2-in-1 | |
HP ProBook x360 435 G8 R7-5800U | |
Asus ExpertBook B3 Flip B3402FEA |
AIDA64 / Memory Read | |
Lenovo IdeaPad Flex 7i 14IAU7 | |
Average of class Convertible (12706 - 125359, n=62, last 2 years) | |
Dell XPS 13 9315 2-in-1 Core i5-1230U | |
Dell Inspiron 14 7420 2-in-1 | |
Lenovo Yoga 6 13 83B2001SGE | |
Average AMD Ryzen 7 7730U (38520 - 39632, n=6) | |
HP ProBook x360 435 G8 R7-5800U | |
Asus ExpertBook B3 Flip B3402FEA |
AIDA64 / Memory Write | |
Dell XPS 13 9315 2-in-1 Core i5-1230U | |
Average of class Convertible (10177 - 117920, n=62, last 2 years) | |
Lenovo IdeaPad Flex 7i 14IAU7 | |
Dell Inspiron 14 7420 2-in-1 | |
Lenovo Yoga 6 13 83B2001SGE | |
Average AMD Ryzen 7 7730U (29984 - 41796, n=6) | |
HP ProBook x360 435 G8 R7-5800U | |
Asus ExpertBook B3 Flip B3402FEA |
AIDA64 / Memory Latency | |
Average of class Convertible (7.4 - 173, n=62, last 2 years) | |
Lenovo Yoga 6 13 83B2001SGE | |
Dell XPS 13 9315 2-in-1 Core i5-1230U | |
Average AMD Ryzen 7 7730U (94.4 - 110.6, n=6) | |
Lenovo IdeaPad Flex 7i 14IAU7 | |
Asus ExpertBook B3 Flip B3402FEA | |
HP ProBook x360 435 G8 R7-5800U | |
Dell Inspiron 14 7420 2-in-1 |
* ... smaller is better
DPC延时

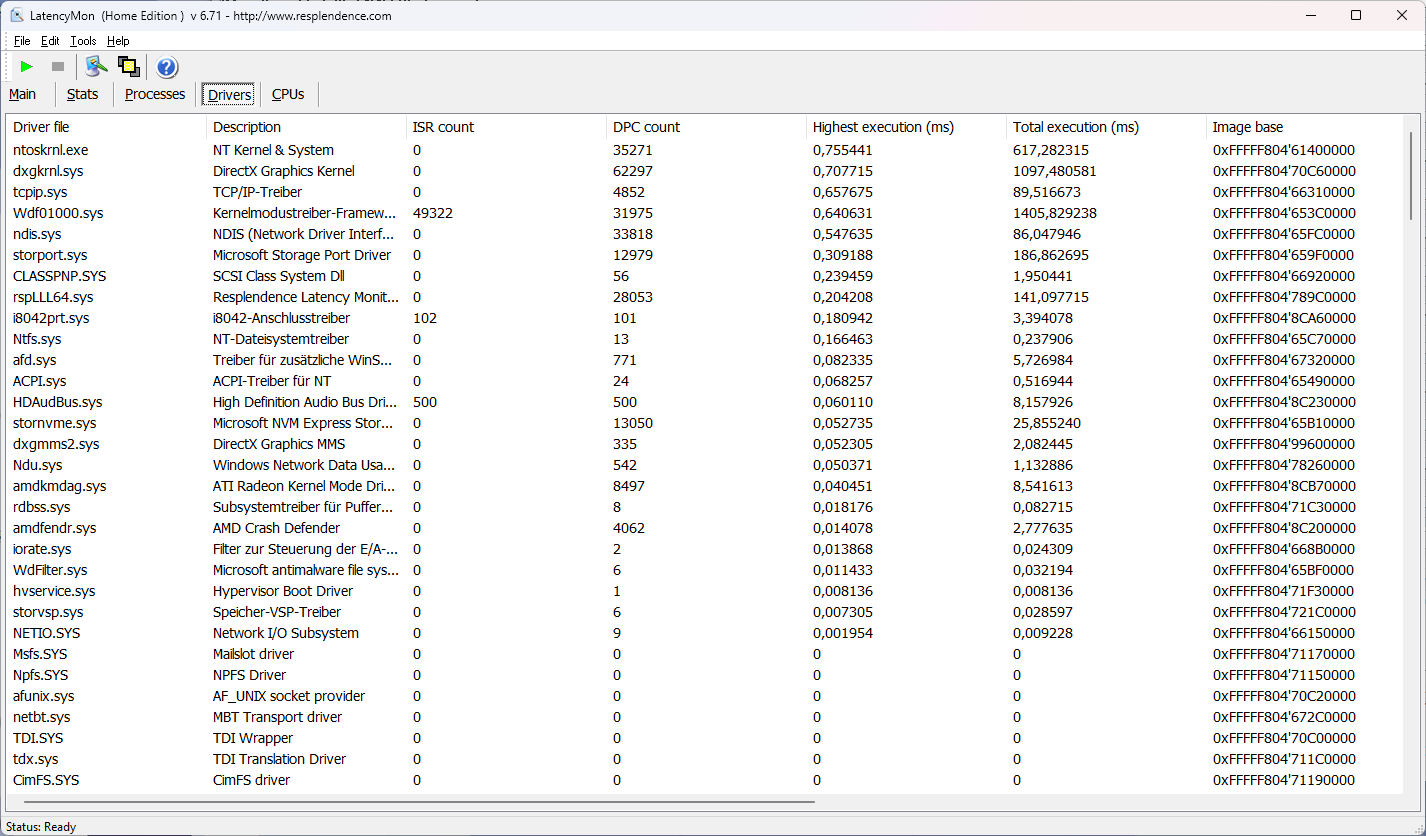

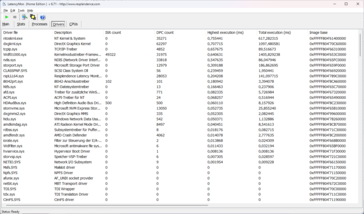

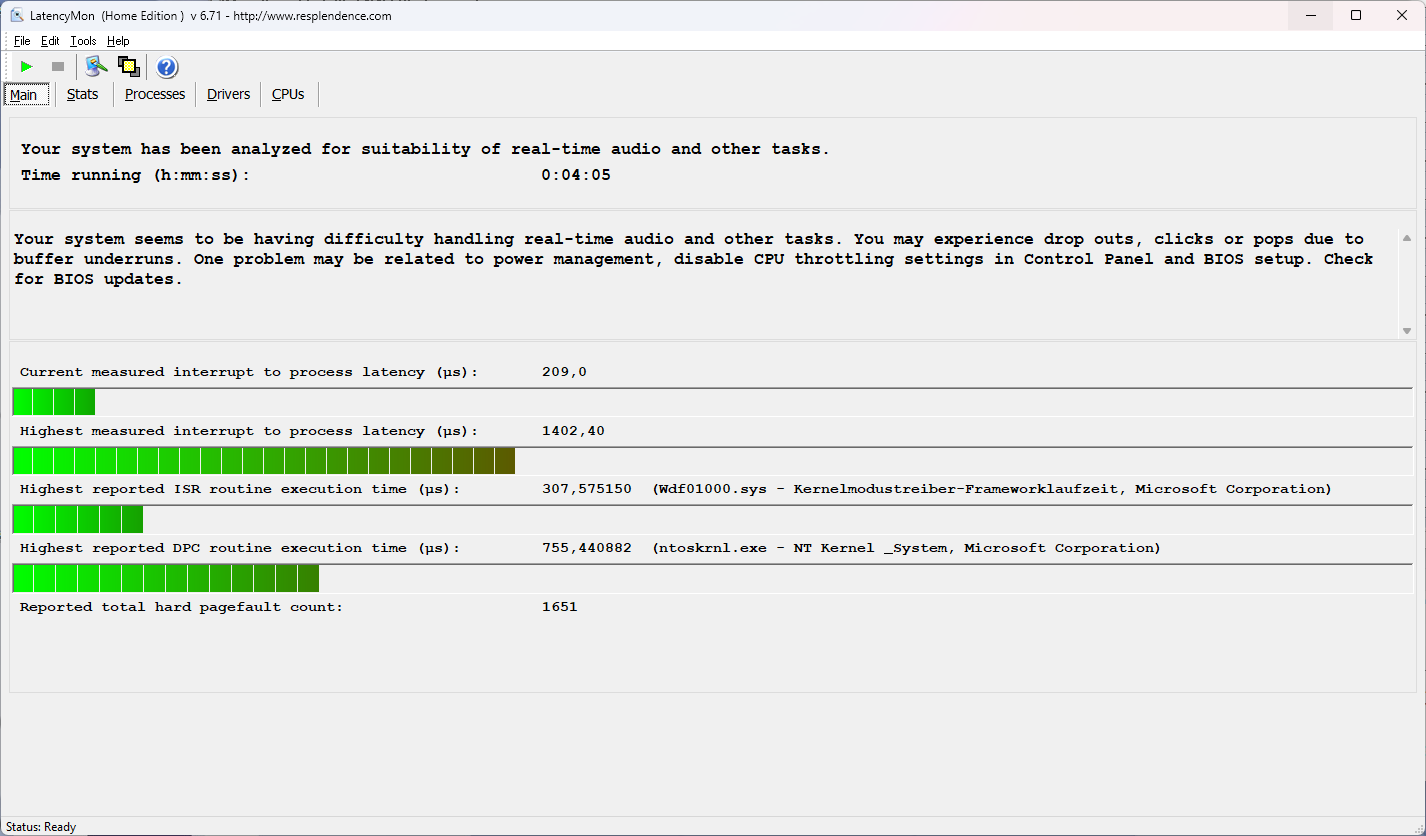

在冲浪、流媒体和CPU的短期负载期间,用LatencyMon没有发现异常。一个进程的最大测量延迟几乎为1.5毫秒。总而言之,在实时音频处理中可能会出现掉线现象,但这是不太可能的。

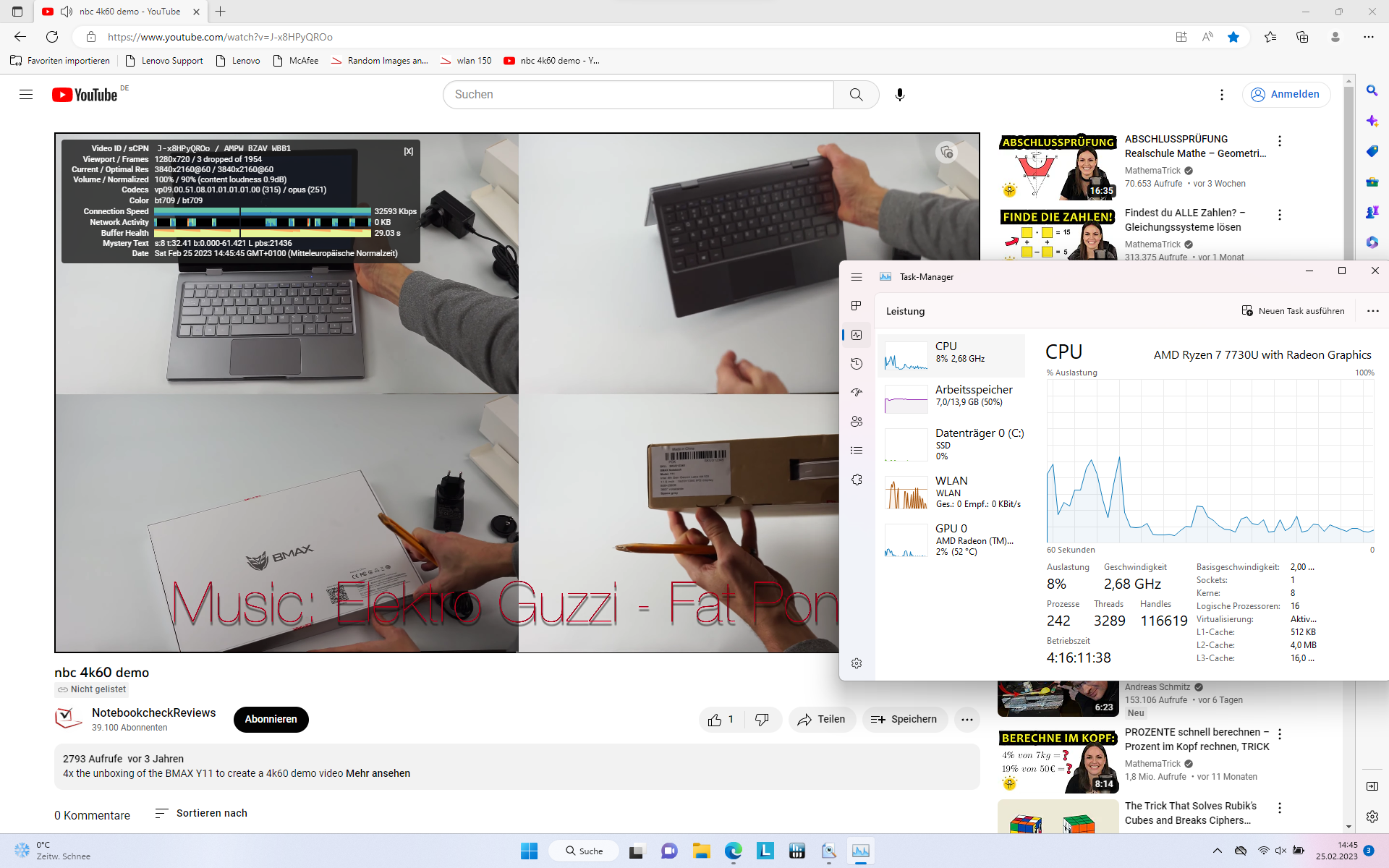

4K视频的播放并不十分完美。只有三个跳帧仍然是一个可敬的结果。两者都可以通过调整所使用的驱动程序而得到改善。
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95 | |
Dell XPS 13 9315 2-in-1 Core i5-1230U | |
Asus ExpertBook B3 Flip B3402FEA | |
Lenovo Yoga 6 13 83B2001SGE | |
Lenovo IdeaPad Flex 7i 14IAU7 | |
Dell Inspiron 14 7420 2-in-1 | |
HP ProBook x360 435 G8 R7-5800U |
* ... smaller is better
存储设备
2242格式的小型M.2固态硬盘表现得非常好。它几乎达到了连续读写的PCIe 3的最大值。Zen3架构还不支持PCIe 4。然而,许多竞争对手使用相当的内存,即使理论上更多是可能的。高的写入性能在敞篷车中很难发挥作用。
在任何情况下,固态硬盘的传输率都是足够的,特别是在没有额外冷却的情况下,它能提供完全稳定的数值。例如,这在IdeaPad Flex 7上是完全不同的情况,正如我们的测量值图所示。
西部数据的紧凑型固态硬盘也配备了一个占位符。因此,即使底部的密封被打破,以后也可以换成标准尺寸2280的型号。
* ... smaller is better
Sustained Read Performance: DiskSpd Read Loop, Queue Depth 8
图形卡
AMD Ryzen处理器的iGPU不是为了实现最高性能,而是为了实现基本功能。AMD Radeon图形处理器能够利用最多2GB RAM作为显存,时钟高达2,000 MHz。
在单独安装图形芯片的情况下,如果没有独占的显存和共享的冷却,iGPU无法跟上CPU的步伐。尽管如此,我们的基准测试处于良好水平,在某些情况下明显高于其他类似竞争对手。
在复杂的3D应用中,性能是有限的,尤其是游戏。另一方面,Yoga 6可以很好地处理私人用途的图像和视频编辑。这也适用于在 "电池模式 "下,CPU只接受最大10W的功率。
3DMark 06 Standard Score | 23639 points | |
3DMark 11 Performance | 5940 points | |
3DMark Cloud Gate Standard Score | 24556 points | |
3DMark Fire Strike Score | 3717 points | |

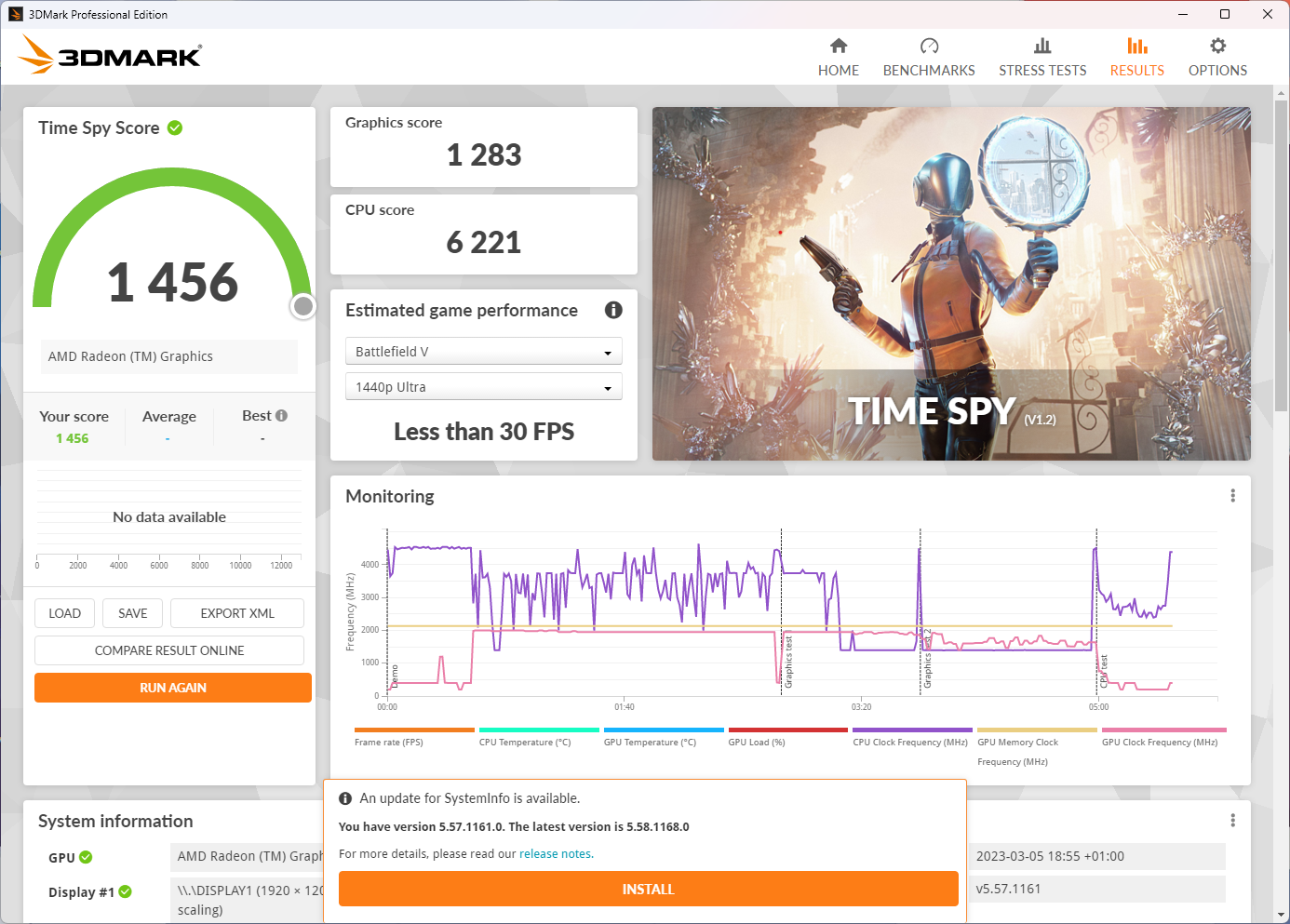

3DMark Time Spy Score | 1456 points | |
Help |
游戏性能
对于一个iGPU来说,我们测量的帧率是相当可观的。竞争对手的类似强大的转换器往往落后于Yoga 6。然而,只要将图形设置提高到最低值以上,复杂的游戏就会变得遥不可及。
轻度游戏当然没有挑战。而在老游戏中,图形性能也是可以接受的。然而,这只适用于降低分辨率和有限的细节。VRAM的缺乏在这里是很明显的。
The Witcher 3 - 1920x1080 Ultra Graphics & Postprocessing (HBAO+) | |
Average of class Convertible (10 - 123.3, n=47, last 2 years) | |
Lenovo IdeaPad Flex 7i 14IAU7 | |
Lenovo Yoga 6 13 83B2001SGE | |
Dell Inspiron 14 7420 2-in-1 | |
Asus ExpertBook B3 Flip B3402FEA | |
HP ProBook x360 435 G8 R7-5800U | |
Dell XPS 13 9315 2-in-1 Core i5-1230U |
GTA V - 1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x | |
Average of class Convertible (7.07 - 114.3, n=49, last 2 years) | |
Lenovo Yoga 6 13 83B2001SGE | |
Lenovo IdeaPad Flex 7i 14IAU7 | |
HP ProBook x360 435 G8 R7-5800U | |
Dell Inspiron 14 7420 2-in-1 | |
Dell XPS 13 9315 2-in-1 Core i5-1230U | |
Asus ExpertBook B3 Flip B3402FEA |
Final Fantasy XV Benchmark - 1920x1080 High Quality | |
Lenovo IdeaPad Flex 7i 14IAU7 | |
Average of class Convertible (4.48 - 107.1, n=60, last 2 years) | |
Lenovo Yoga 6 13 83B2001SGE | |
Dell Inspiron 14 7420 2-in-1 | |
Asus ExpertBook B3 Flip B3402FEA | |
HP ProBook x360 435 G8 R7-5800U |
Strange Brigade - 1920x1080 ultra AA:ultra AF:16 | |
Average of class Convertible (10.8 - 196.9, n=56, last 2 years) | |
Lenovo IdeaPad Flex 7i 14IAU7 | |
Lenovo Yoga 6 13 83B2001SGE | |
Dell Inspiron 14 7420 2-in-1 | |
Asus ExpertBook B3 Flip B3402FEA | |
HP ProBook x360 435 G8 R7-5800U |
Witcher 3 FPS-Diagramm
low | med. | high | ultra | |
---|---|---|---|---|
GTA V (2015) | 100.2 | 86.3 | 26.9 | 12.3 |
The Witcher 3 (2015) | 60 | 39 | 20 | 13 |
Dota 2 Reborn (2015) | 103.2 | 86.3 | 56.4 | 50.4 |
Final Fantasy XV Benchmark (2018) | 38.7 | 17.7 | 12.9 | |
X-Plane 11.11 (2018) | 39.5 | 30.4 | 26.7 | |
Far Cry 5 (2018) | 47 | 23 | 21 | 20 |
Strange Brigade (2018) | 86.4 | 33.8 | 27 | 22.7 |
F1 22 (2022) | 35.1 | 32.5 | 23.6 | 20.1 |
排放 - 安静和凉爽的敞篷车 - 有正确的设置
噪声
风扇的行为是不明显的,因此对用户非常友好。在大多数情况下,它在完全静止和背景嘶嘶声之间摇摆不定。只有在极端情况下,即在媒体消费、冲浪和办公应用中没有发生的情况下,风扇才会变得清晰可闻。
在测试过程中,没有观察到线圈啸叫或自发的速度变化。
Noise Level
Idle |
| 27 / 27 / 27 dB(A) |
Load |
| 37.6 / 37.6 dB(A) |
| ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min: , med: , max: Earthworks M23R, Arta (15 cm distance) environment noise: 27 dB(A) |
Lenovo Yoga 6 13 83B2001SGE Vega 8, R7 7730U, WD PC SN740 512GB SDDPMQD-512G-1101 | Lenovo IdeaPad Flex 7i 14IAU7 Iris Xe G7 96EUs, i7-1255U, Samsung PM9B1 512GB MZAL4512HBLU | Dell Inspiron 14 7420 2-in-1 Iris Xe G7 96EUs, i7-1255U, WDC PC SN530 SDBPMPZ-512G | HP ProBook x360 435 G8 R7-5800U Vega 8, R7 5800U, Samsung PM991 MZVLQ512HALU | Asus ExpertBook B3 Flip B3402FEA Iris Xe G7 96EUs, i7-1165G7, Micron 2210 MTFDHBA512QFD | |
---|---|---|---|---|---|
Noise | 11% | 8% | -1% | -6% | |
off / environment * | 27 | 23.3 14% | 23.1 14% | 23.7 12% | 25 7% |
Idle Minimum * | 27 | 23.3 14% | 24.7 9% | 23.7 12% | 25 7% |
Idle Average * | 27 | 23.3 14% | 24.7 9% | 27.5 -2% | 25 7% |
Idle Maximum * | 27 | 23.3 14% | 24.7 9% | 34.4 -27% | 32.3 -20% |
Load Average * | 37.6 | 34.3 9% | 27.7 26% | 36.2 4% | 44.1 -17% |
Load Maximum * | 37.6 | 37.8 -1% | 45.1 -20% | 38.7 -3% | 44.1 -17% |
Witcher 3 ultra * | 37.8 | 45.1 |
* ... smaller is better
温度

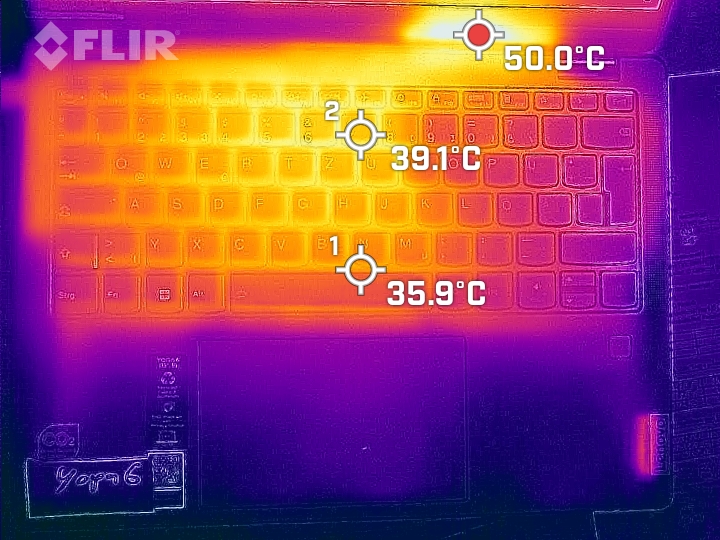

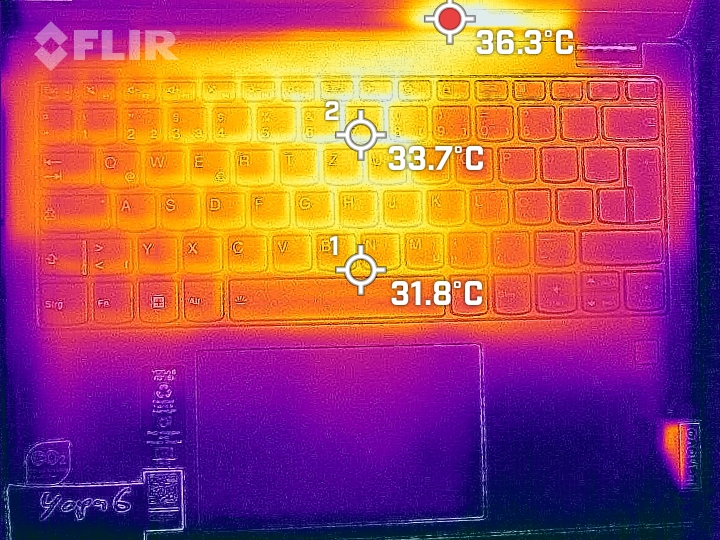

制冷越安静,键盘下的CPU活动就越容易被察觉。即使在没有明显的CPU负载的情况下,也能感觉到温度的轻微上升。Yoga 6不会变得令人不舒服的热,但机箱上50℃的绝对峰值是相当大的。
这种情况在使用 "省电 "模式时发生变化,该模式通常在电源适配器断开时开启。然后,简单任务和最大负载期间的温度都会明显下降。我们测得的温度比最大性能时略低5℃。因此,这款敞篷车可以安全地放在腿上或沙发等柔软表面上使用,特别是在平板电脑模式下。
(±) The maximum temperature on the upper side is 43.8 °C / 111 F, compared to the average of 35.4 °C / 96 F, ranging from 19.6 to 60 °C for the class Convertible.

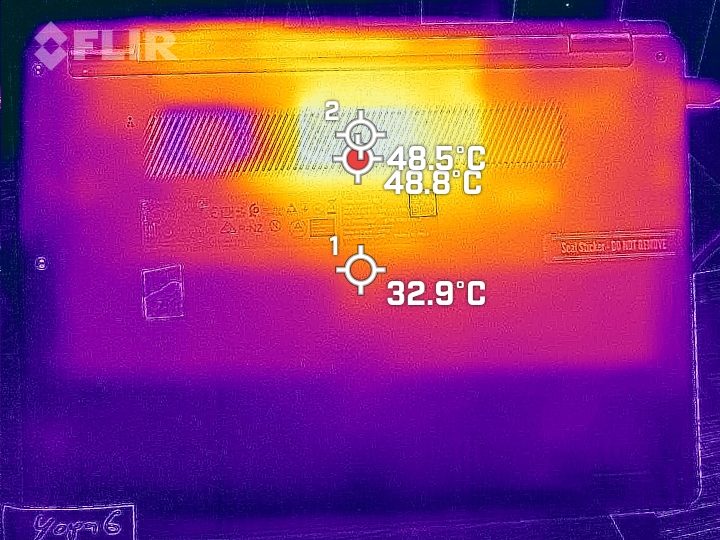

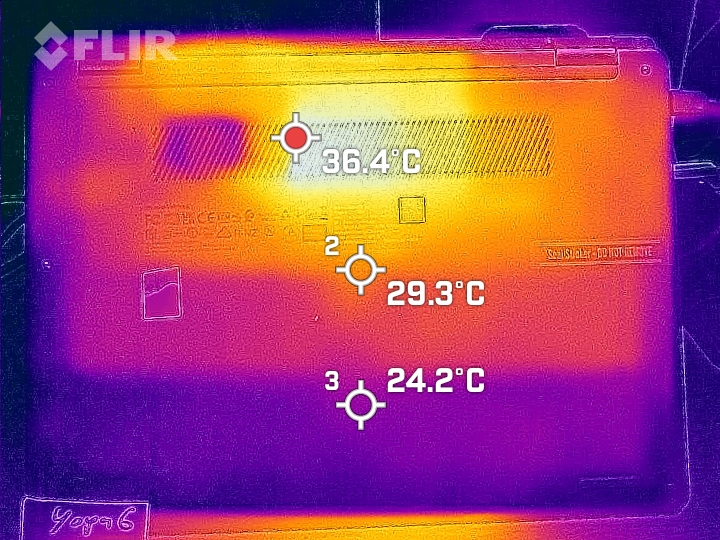

(-) The bottom heats up to a maximum of 48.2 °C / 119 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 26.8 °C / 80 F, compared to the device average of 30.3 °C / 87 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 24.2 °C / 75.6 F and are therefore cool to the touch.
(+) The average temperature of the palmrest area of similar devices was 28 °C / 82.4 F (+3.8 °C / 6.8 F).
Lenovo Yoga 6 13 83B2001SGE AMD Ryzen 7 7730U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) | Lenovo IdeaPad Flex 7i 14IAU7 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs | Dell XPS 13 9315 2-in-1 Core i5-1230U Intel Core i5-1230U, Intel Iris Xe Graphics G7 80EUs | Dell Inspiron 14 7420 2-in-1 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs | HP ProBook x360 435 G8 R7-5800U AMD Ryzen 7 5800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) | Asus ExpertBook B3 Flip B3402FEA Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs | |
---|---|---|---|---|---|---|
Heat | 25% | 16% | 13% | 13% | 4% | |
Maximum Upper Side * | 43.8 | 35.4 19% | 41.8 5% | 38.2 13% | 43.8 -0% | 43.6 -0% |
Maximum Bottom * | 48.2 | 38.8 20% | 38.2 21% | 45.6 5% | 47.4 2% | 55.4 -15% |
Idle Upper Side * | 32.9 | 22.6 31% | 27.4 17% | 27.4 17% | 24.6 25% | 28.1 15% |
Idle Bottom * | 34.1 | 24.2 29% | 27.2 20% | 28.4 17% | 25.2 26% | 28.4 17% |
* ... smaller is better
压力测试
在将近4分钟的时间里,Yoga 6能够提取其全部功率,并为处理器和集成图形单元提供预设的25W。一旦达到允许的峰值温度,时钟速度和电源就会下降以保持系统运行。
在 "节省电池 "模式下的行为对比很有趣:温度曲线仍然远离临界值。同时,系统最终被下调到几乎与最大性能时的时钟速率相同,因此,至少从长远来看,各自的处理性能值接近。
这里的AMD Ryzen 7 7730U显示,它可以极其有效地运行。如果不需要最高的处理能力,在 "省电 "模式下,你可以从联想的敞篷车的低排放中受益,而不会明显损失工作速度。
发言人
令人惊讶的深沉的低音(对笔记本来说),精确的高音和整体平衡的声音,都符合一台可用于媒体播放和高要求任务的敞篷车。电影、视频和其他内容的声音很好。
不幸的是,中低频缺乏。这些几乎无法察觉,这可能会在很多方面影响音乐的播放,因为吉他和其他乐器都在这个频率范围内演奏。
Lenovo Yoga 6 13 83B2001SGE audio analysis
(±) | speaker loudness is average but good (81.5 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 23.3% lower than median
(±) | linearity of bass is average (9.9% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.1% away from median
(+) | mids are linear (5.2% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.8% away from median
(+) | highs are linear (5.6% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (17% difference to median)
Compared to same class
» 28% of all tested devices in this class were better, 7% similar, 64% worse
» The best had a delta of 6%, average was 21%, worst was 57%
Compared to all devices tested
» 27% of all tested devices were better, 8% similar, 65% worse
» The best had a delta of 4%, average was 25%, worst was 134%
Apple MacBook Pro 16 2021 M1 Pro audio analysis
(+) | speakers can play relatively loud (84.7 dB)
Bass 100 - 315 Hz
(+) | good bass - only 3.8% away from median
(+) | bass is linear (5.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 1.3% away from median
(+) | mids are linear (2.1% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 1.9% away from median
(+) | highs are linear (2.7% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (4.6% difference to median)
Compared to same class
» 0% of all tested devices in this class were better, 0% similar, 100% worse
» The best had a delta of 5%, average was 18%, worst was 45%
Compared to all devices tested
» 0% of all tested devices were better, 0% similar, 100% worse
» The best had a delta of 4%, average was 25%, worst was 134%
能源管理 - 瑜伽6中的高效R7 7730U
消耗功率
功耗似乎有点高,即使CPU没有受到最大的压力。在最低9W的情况下,Yoga 6明显领先于竞争对手。另一方面,47瓦的最大功耗并不高,考虑到CPU的功耗只有30瓦,这是可以预期的。另一方面,戴尔Inspiron 7420二合一电脑的功耗远远超过60瓦,但只为CPU提供了最大39瓦。

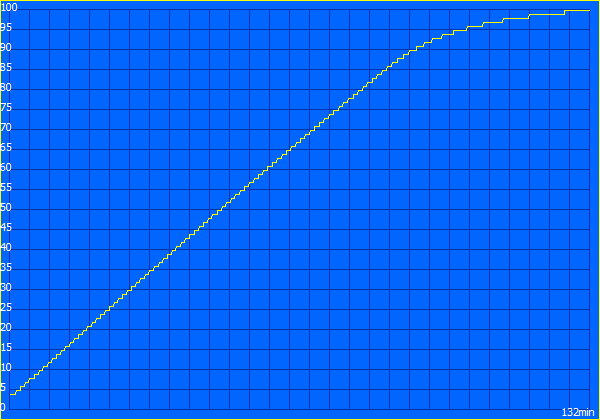

因此,45瓦的电源适配器的尺寸是适当的。在压力测试期间,没有观察到电池容量下降的情况。
Off / Standby | 0.3 / 0.6 Watt |
Idle | 9.3 / 11.6 / 15.7 Watt |
Load |
37 / 47.7 Watt |
Key:
min: ,
med: ,
max: Metrahit Energy |
Lenovo Yoga 6 13 83B2001SGE R7 7730U, Vega 8, WD PC SN740 512GB SDDPMQD-512G-1101, IPS, 1920x1200, 13.3" | Lenovo IdeaPad Flex 7i 14IAU7 i7-1255U, Iris Xe G7 96EUs, Samsung PM9B1 512GB MZAL4512HBLU, IPS, 2240x1400, 14" | Dell XPS 13 9315 2-in-1 Core i5-1230U i5-1230U, Iris Xe G7 80EUs, , IPS, 2880x1920, 13" | Dell Inspiron 14 7420 2-in-1 i7-1255U, Iris Xe G7 96EUs, WDC PC SN530 SDBPMPZ-512G, IPS, 1920x1200, 14" | HP ProBook x360 435 G8 R7-5800U R7 5800U, Vega 8, Samsung PM991 MZVLQ512HALU, IPS, 1920x1080, 13.3" | Asus ExpertBook B3 Flip B3402FEA i7-1165G7, Iris Xe G7 96EUs, Micron 2210 MTFDHBA512QFD, IPS, 1920x1080, 14" | Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) | Average of class Convertible | |
---|---|---|---|---|---|---|---|---|
Power Consumption | -1% | 28% | 11% | 31% | 16% | 14% | 7% | |
Idle Minimum * | 9.3 | 7.1 24% | 5.2 44% | 5.2 44% | 3.2 66% | 4.1 56% | 5.26 ? 43% | 5.18 ? 44% |
Idle Average * | 11.6 | 11 5% | 7.9 32% | 8.2 29% | 5.5 53% | 6.9 41% | 7.78 ? 33% | 8.18 ? 29% |
Idle Maximum * | 15.7 | 11.4 27% | 8 49% | 9.9 37% | 6.4 59% | 7.4 53% | 9.18 ? 42% | 11.1 ? 29% |
Load Average * | 37 | 43.7 -18% | 31.2 16% | 44.4 -20% | 35.5 4% | 39.8 -8% | 44.9 ? -21% | 46.8 ? -26% |
Witcher 3 ultra * | 37.4 | 35.1 6% | 28.2 25% | 35 6% | 36.4 3% | 39.7 -6% | ||
Load Maximum * | 47.7 | 71 -49% | 47.6 -0% | 62.5 -31% | 47.5 -0% | 66 -38% | 59.4 ? -25% | 67.2 ? -41% |
* ... smaller is better
Power Consumption Witcher 3 / Stres Test
Power Consumption with an External Monitor
电池寿命
联想Yoga 6 13 Gen8在电池测试中表现得非常好。在屏幕亮度为150cd/m²的情况下,模拟连续浏览不断变化的网站,12小时后结束。联想联想IdeaPad Flex 7具有相同的电池,但有一个 英特尔酷睿i7-1255U,持续时间少了4.5小时。即使是所有其他被评测的转换设备的平均值也比Yoga低3小时。
只有在视频测试中(1,080p的电影连续循环),Yoga才是最棒的。惠普ProBook x360 435处于领先地位。鉴于电池较小,耗电量应该是相当的。这是由于相关的iGPU具有相同的RDNA架构,这也被证明在其他笔记本中是非常有效的。只不过现在CPU的工作效率同样很高。
Lenovo Yoga 6 13 83B2001SGE R7 7730U, Vega 8, 59 Wh | Lenovo IdeaPad Flex 7i 14IAU7 i7-1255U, Iris Xe G7 96EUs, 59 Wh | Dell XPS 13 9315 2-in-1 Core i5-1230U i5-1230U, Iris Xe G7 80EUs, 49.5 Wh | Dell Inspiron 14 7420 2-in-1 i7-1255U, Iris Xe G7 96EUs, 54 Wh | HP ProBook x360 435 G8 R7-5800U R7 5800U, Vega 8, 45 Wh | Asus ExpertBook B3 Flip B3402FEA i7-1165G7, Iris Xe G7 96EUs, 50 Wh | Average of class Convertible | |
---|---|---|---|---|---|---|---|
Battery Runtime | -37% | -20% | -23% | -29% | -36% | -10% | |
H.264 | 714 | 619 -13% | 765 ? 7% | ||||
WiFi v1.3 | 724 | 453 -37% | 538 -26% | 455 -37% | 567 -22% | 460 -36% | 599 ? -17% |
Load | 140 | 121 -14% | 127 -9% | 68 -51% | 113.1 ? -19% |
Pros
Cons

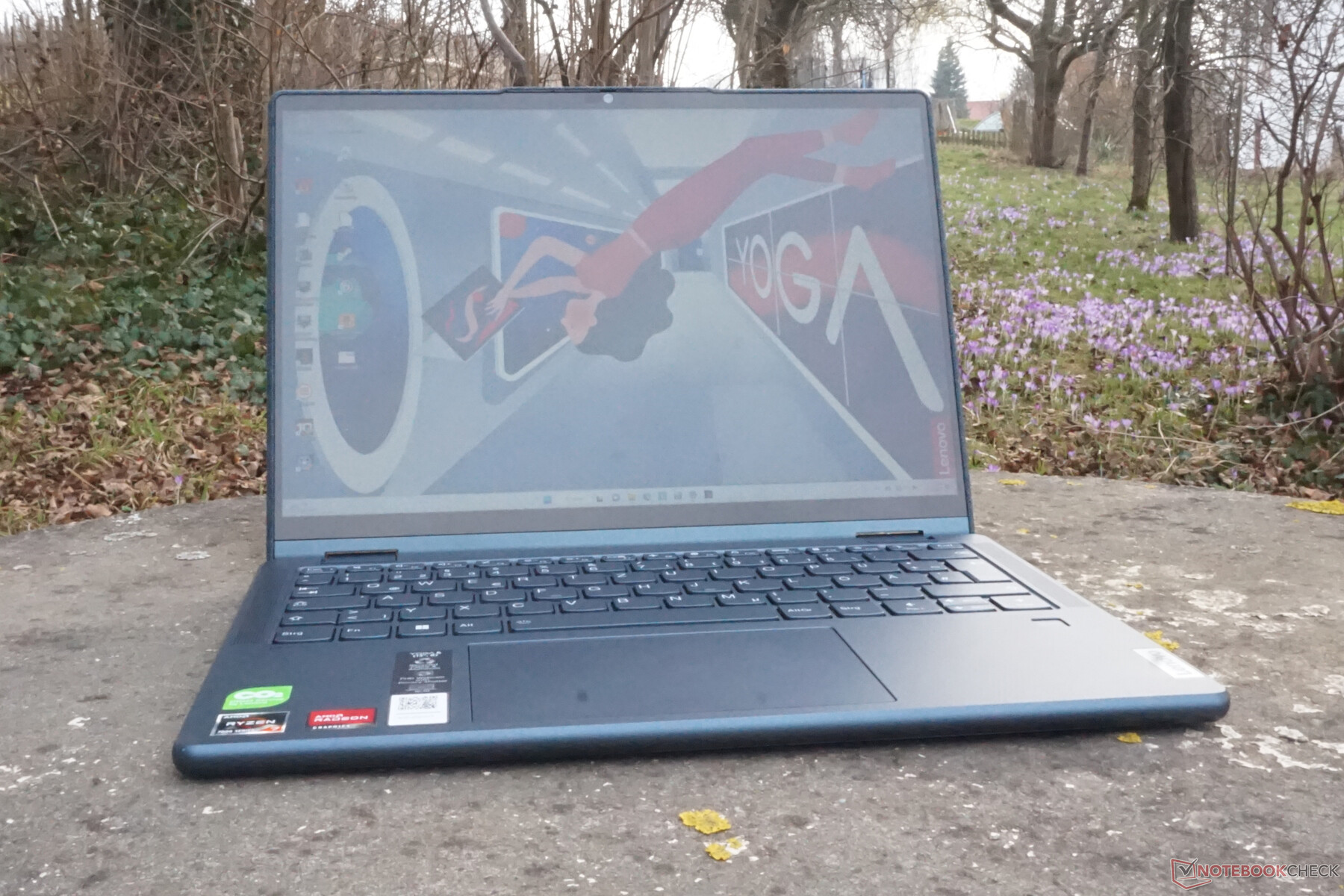

结论 - 瑜伽在这两个世界都有说服力
联想Yoga 6 13中的AMD R7-7730U为敞篷车的有限散热能力提供了一个合适的答案--尤其是在平板电脑模式下。它从相对有限的电源中获取高计算能力,因此在同一时间内需要耗散的热量较少。
此外,还有调整好的性能配置文件。Ryzen 7在最重要的时候达到了高速度,而不会运行得非常吵闹和热。因此,在白天使用它不会造成任何问题。另一方面,在省电模式下,计算能力下降了几个百分点,但舒适度大大增加。无论是作为平板电脑还是笔记本模式,Yoga 6都可以用于娱乐或简单的游戏,而且大多没有风扇噪音。
一个安静的平板电脑和一个日常使用的强大笔记本:联想Yoga 6可以同时做到这两点,而且看起来非常好。
然后是笔记本的视觉方面,它的机身颜色,尤其是织物封面,显然在竞争中脱颖而出。表面纹理提供了一种不寻常的温暖触感,几乎是家庭式的。不幸的是,在我们的测试中,它一再被证明是一个灰尘磁铁。
虽然位置不佳的端口几乎没有限制日常使用,因为其范围和数量绝对没有问题,但显示屏被证明是一个真正的弱点。分辨率、对比度和色彩表现都符合价格和预期目的。另一方面,显示屏的亮度太弱。这严重限制了在户外和阳光充足的房间里的使用性。这也是许多具有反射式触摸屏的同类机型的共同命运。
然而,这款可转换的产品因其极长的电池寿命而注定适合移动使用,在长时间使用后,甚至在晚上也可以进行几个小时的媒体消费,而无需在中间充电。
如果不需要R7-7730U的全部性能,因为Yoga 6的目的是安静和高效地使用,那么配备AMD Ryzen 5 7530U的变体肯定会很有趣。这款 联想IdeaPad Flex 7或 Flex 5配备英特尔酷睿处理器的产品也比较便宜,但相应的速度也比较慢。笔记本电脑 戴尔XPS 13 9315二合一例如,它有一个更明亮的显示屏,适合户外使用。
价格和可用性
在美国,我们评测的配置在联想的网上商店售价为949.99美元。.配备AMD Ryzen 5 7530U和8GB内存的较小版本售价749.99美元。
Lenovo Yoga 6 13 83B2001SGE
- 03/07/2023 v7 (old)
Mario Petzold
Transparency
The selection of devices to be reviewed is made by our editorial team. The test sample was provided to the author as a loan by the manufacturer or retailer for the purpose of this review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.
This is how Notebookcheck is testing
Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.
