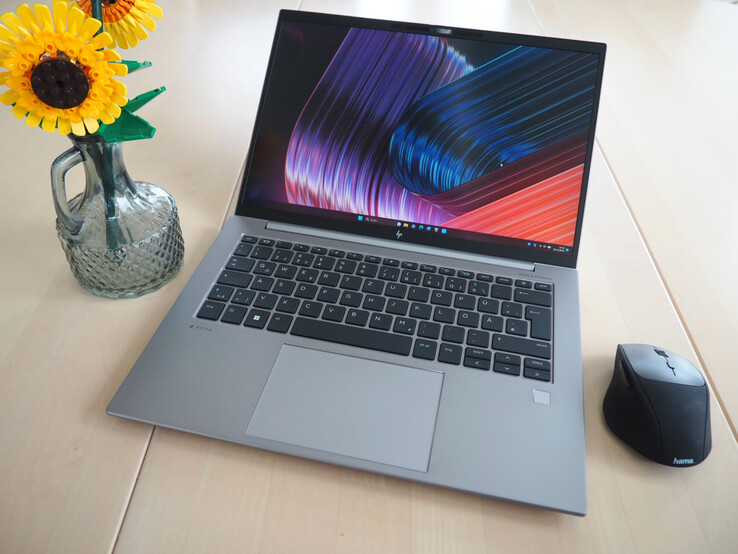

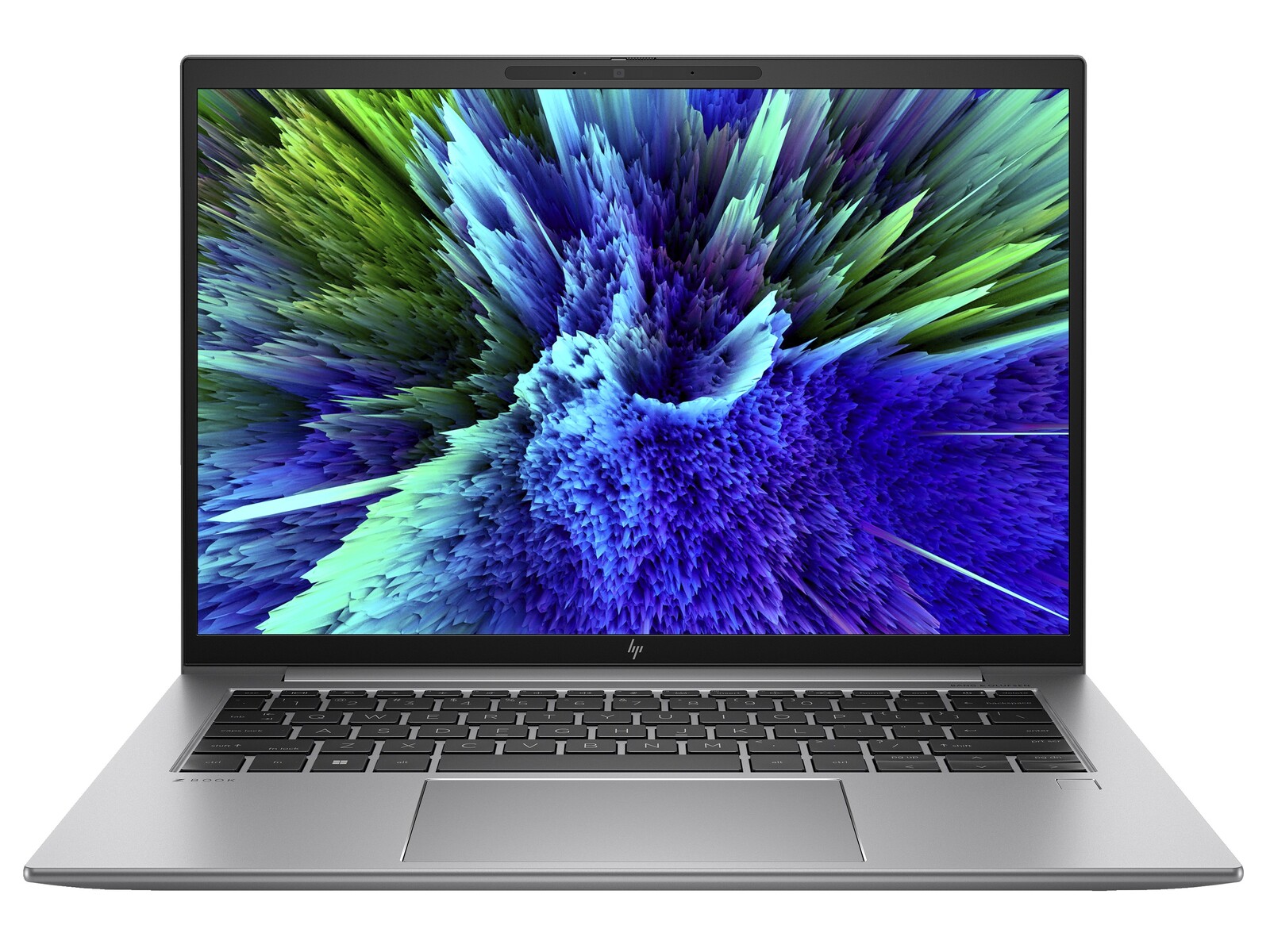

惠普 ZBook Firefly 14 G10 A 评测:依靠 Zen 4 的强大办公笔记本电脑
2023 年,萤火虫 14 提供了一系列配置供用户选择。英特尔爱好者可以选择 Raptor Lake 系列处理器,而 AMD 版本则配备 Zen 4 芯片。除了 Ryzen 7 7840HS之外,惠普还提供 Ryzen 5 Pro 7640HS,我们评测的机型采用的就是这款处理器。而不是 Radeon 780M而不是 Radeon 760M作为 iGPU,但与英特尔 iGPU 相比,后者的性能仍然可圈可点。目前的 5G3G5ES#ABD 型号在我们评估期间的售价约为 1260 美元至 1360 美元。该机型配备 16GB DDR5-5600 内存和 512GB NVMe 固态硬盘,采用 16:10 宽高比的雾面 IPS 面板,分辨率为 1920 x 1200 像素。显示屏亮度为 400 cd/m²,覆盖 100% sRGB 色彩空间(稍后将详细介绍)。Windows 11 Pro 版本完善了整套配置。
» Notebookcheck多媒体笔记本电脑Top 10排名
» Notebookcheck游戏笔记本电脑Top 10排名
» Notebookcheck低价办公/商务笔记本电脑Top 10排名
» Notebookcheck高端办公/商务笔记本电脑Top 10排名
» Notebookcheck工作站笔记本电脑Top 10排名
» Notebookcheck亚笔记本电脑Top 10排名
» Notebookcheck超级本产品Top 10排名
» Notebookcheck变形本产品Top 10排名
» Notebookcheck平板电脑Top 10排名
» Notebookcheck智能手机Top 10排名
» Notebookcheck评测过最出色的笔记本电脑屏幕
» Notebookcheck售价500欧元以下笔记本电脑Top 10排名
» Notebookcheck售价300欧元以下笔记本电脑Top 10排名
Firefly 14 面临着其他采用当前 AMD CPU 的办公笔记本(如联想 LOQ 15APH8 和惠普 EliteBook 845 G10)以及采用英特尔 CPU 的设备(如联想 Yoga 9 14IRP G8 和华为 MateBook X Pro)的竞争。这些设备都包含在我们的对比表中,以供参考。
潜在的竞争对手比较
Rating | Date | Model | Weight | Height | Size | Resolution | Price |
---|---|---|---|---|---|---|---|
87.4 % v7 (old) | 10 / 2023 | HP ZBook Firefly 14 G10 A R5 PRO 7640HS, Radeon 760M | 1.5 kg | 20 mm | 14.00" | 1920x1200 | |
v (old) | 08 / 2023 | Lenovo LOQ 15APH8 Ryzen 5 R5 7640HS, Radeon 760M | 2.5 kg | 25.2 mm | 15.60" | 1920x1080 | |
90.1 % v7 (old) | 08 / 2023 | HP EliteBook 845 G10 818N0EA R9 PRO 7940HS, Radeon 780M | 1.5 kg | 17.9 mm | 14.00" | 2560x1600 | |
89.3 % v7 (old) | 03 / 2023 | Lenovo Yoga 9 14IRP G8 i7-1360P, Iris Xe G7 96EUs | 1.4 kg | 15.25 mm | 14.00" | 2880x1800 | |
89.6 % v7 (old) | 06 / 2023 | Huawei MateBook X Pro 2023 i7-1360P, Iris Xe G7 96EUs | 1.3 kg | 15.6 mm | 14.20" | 3120x2080 |

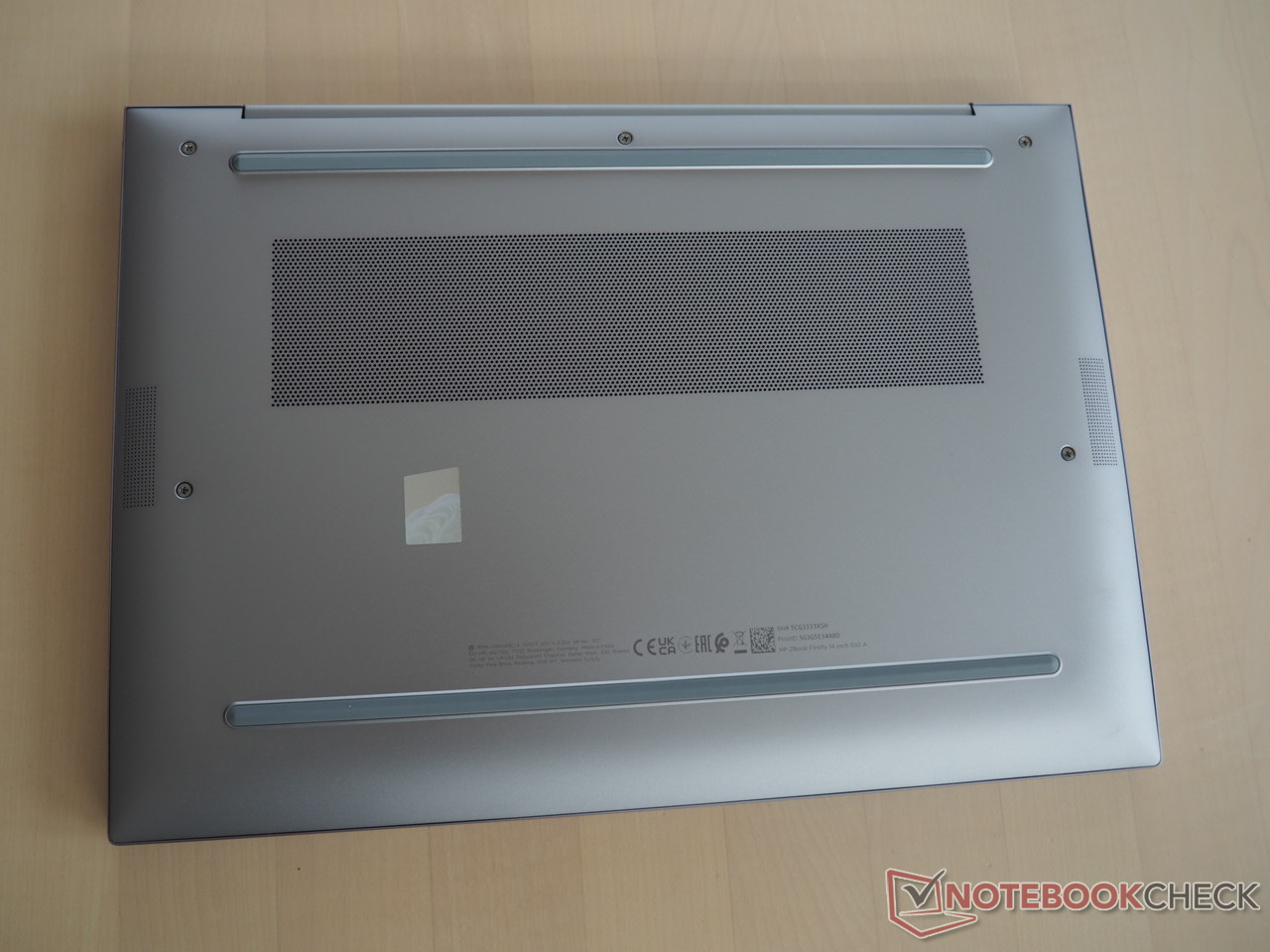

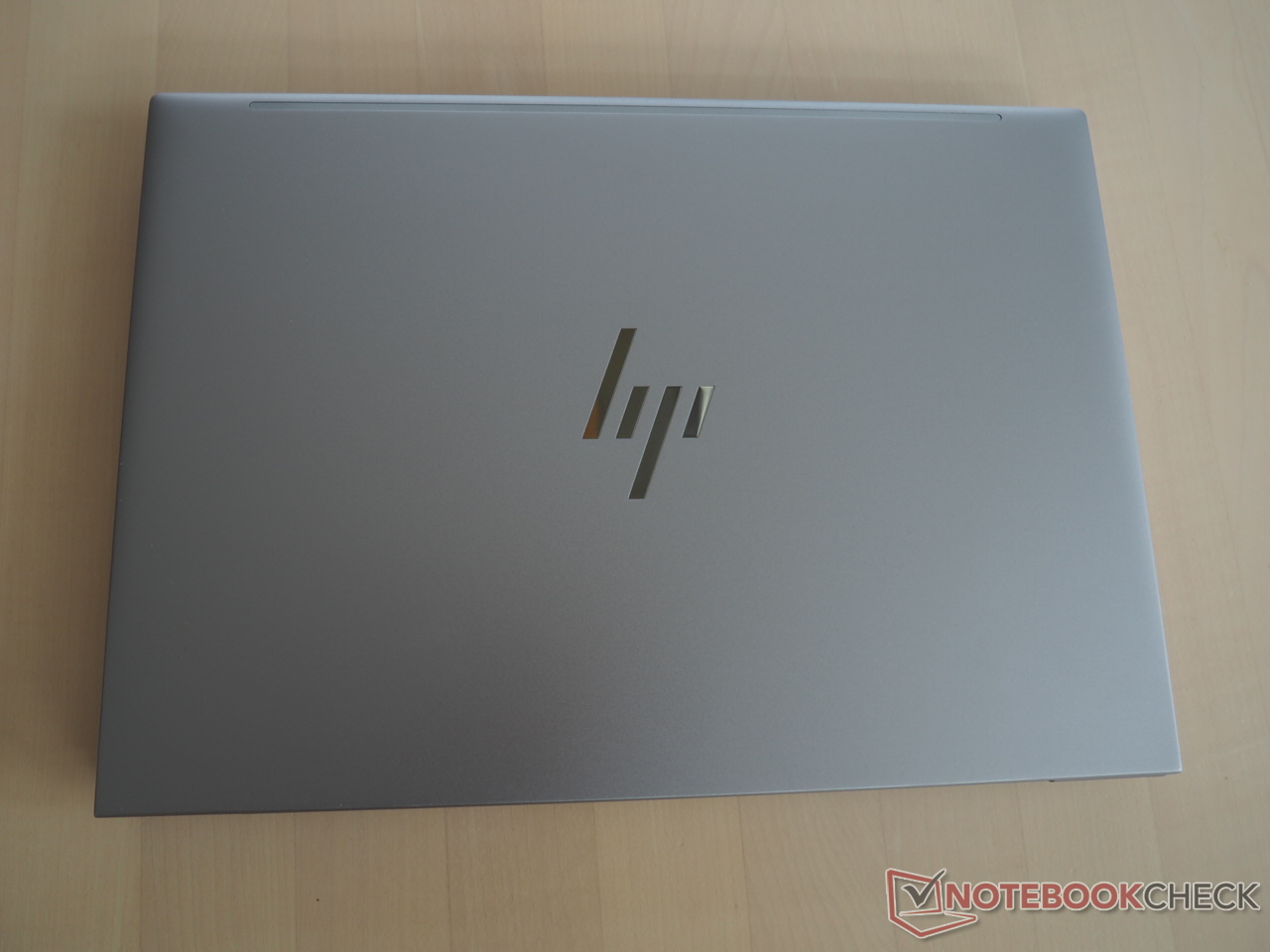

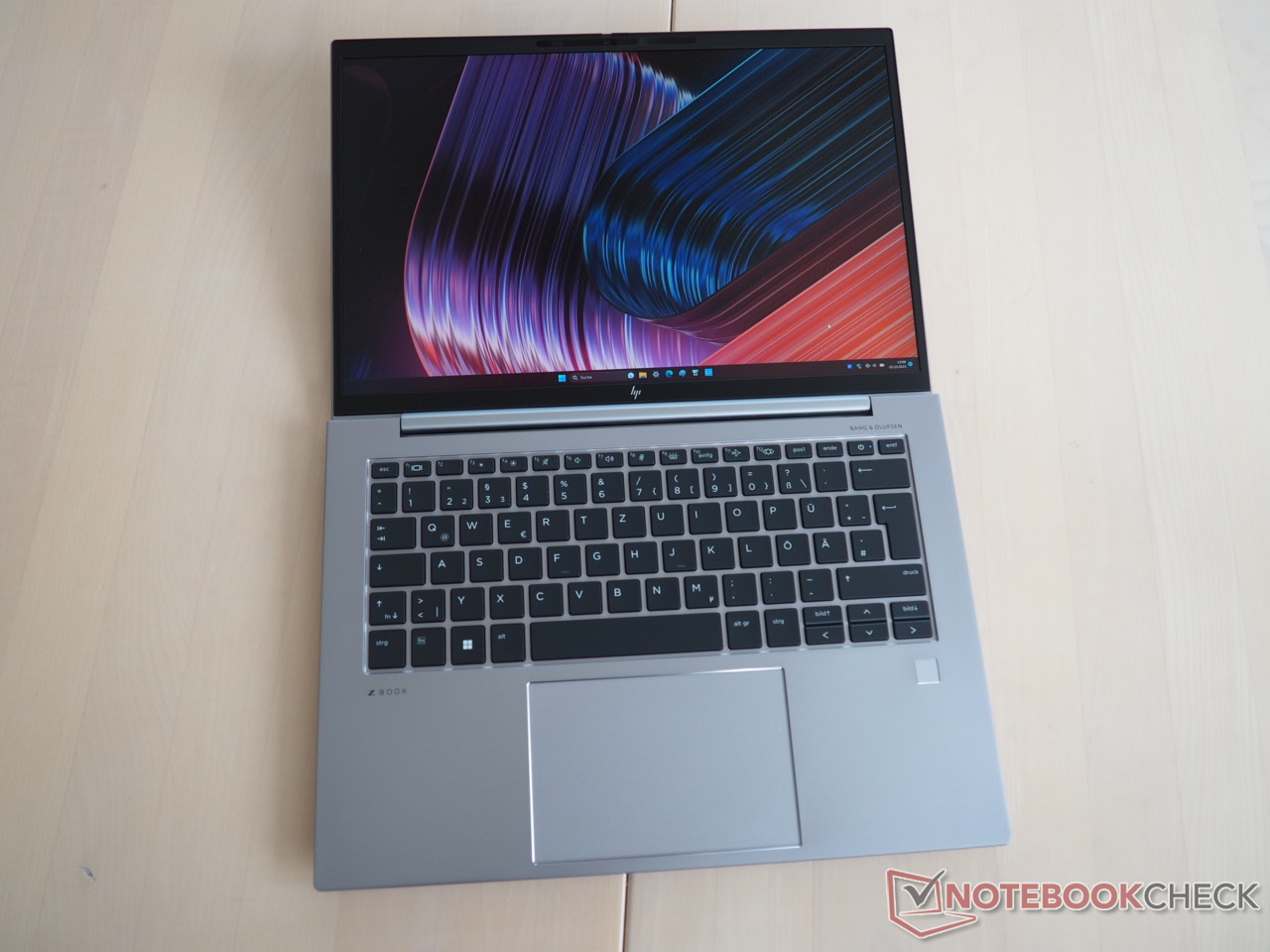

由于该机箱与 2022 年测试的 Firefly 14 G9 看起来完全相同,只是盖子上的标志有所变化(现在是 HP 而不是 Z),因此我们不会在本文中深入探讨机箱、设备(端口等)和输入设备。您可以参考 链接文章了解这些方面的详细信息。
交流
网络摄像头
显示屏

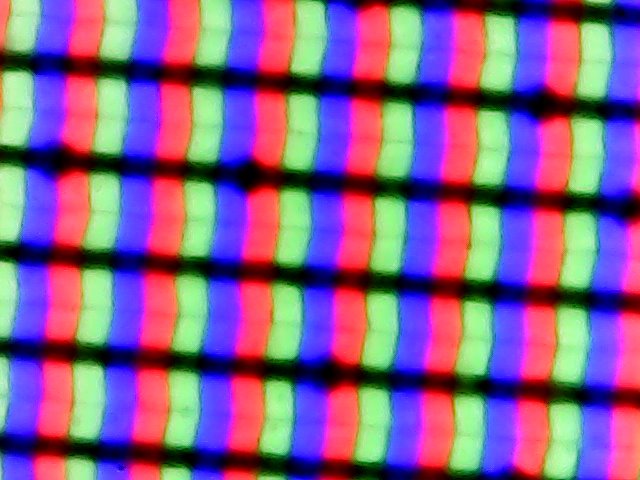

显示屏方面没有任何变化。惠普继续使用与前代机型相同的 IPS 面板(CMN1435)。与上次测试相比,显示屏的显示率略有偏差,部分原因是典型的系列变化。
|
Brightness Distribution: 86 %
Center on Battery: 397 cd/m²
Contrast: 1588:1 (Black: 0.25 cd/m²)

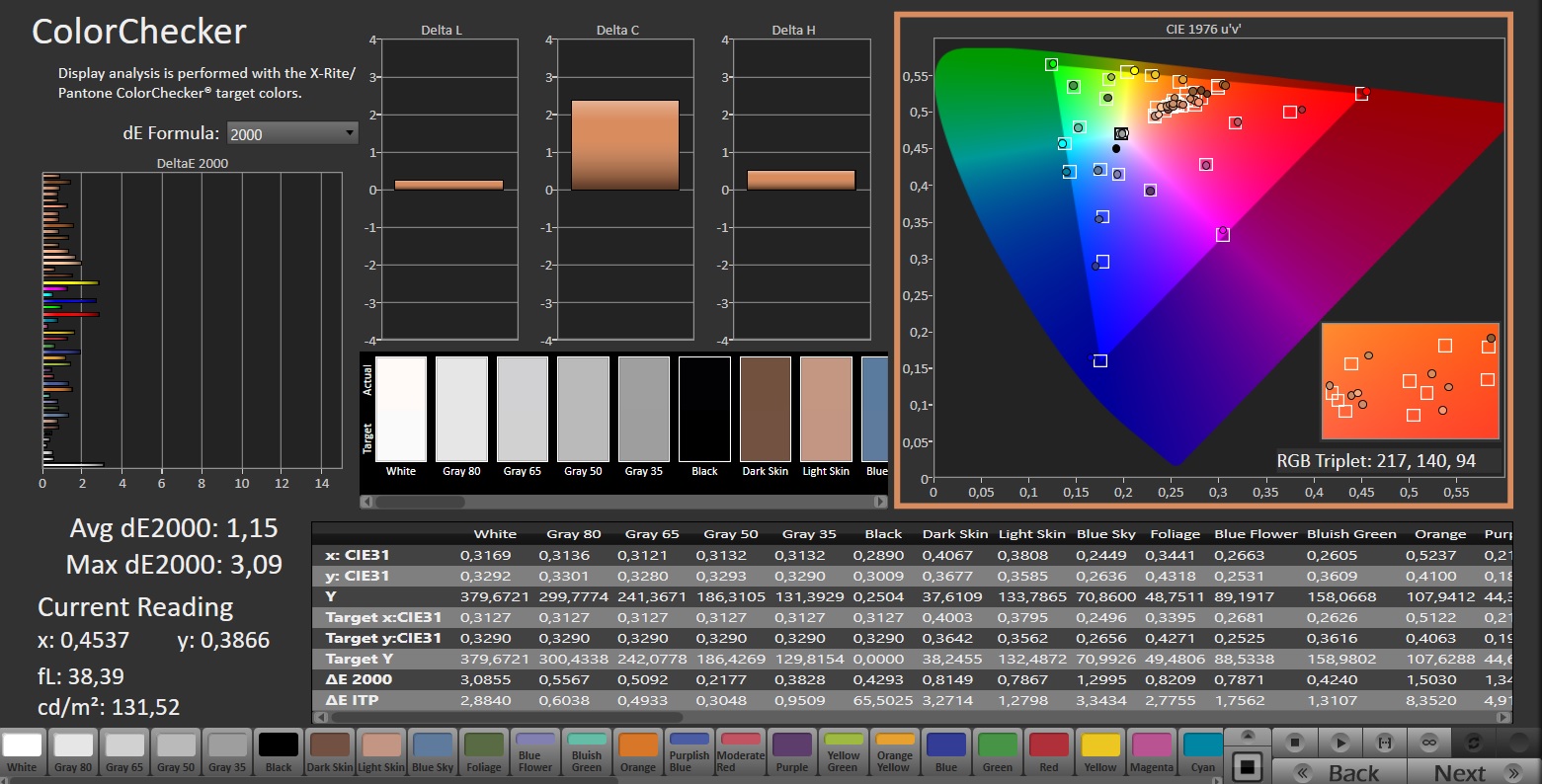

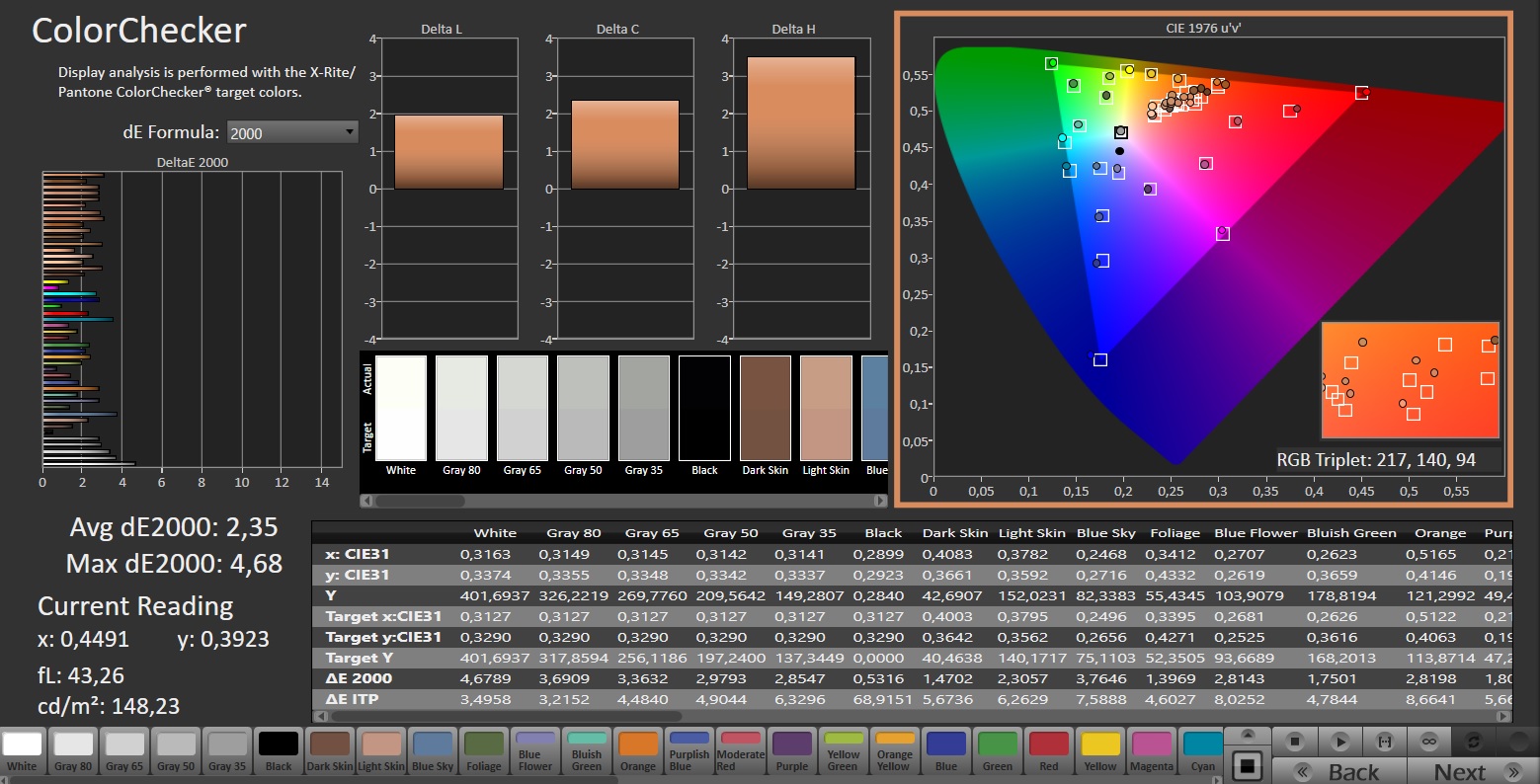

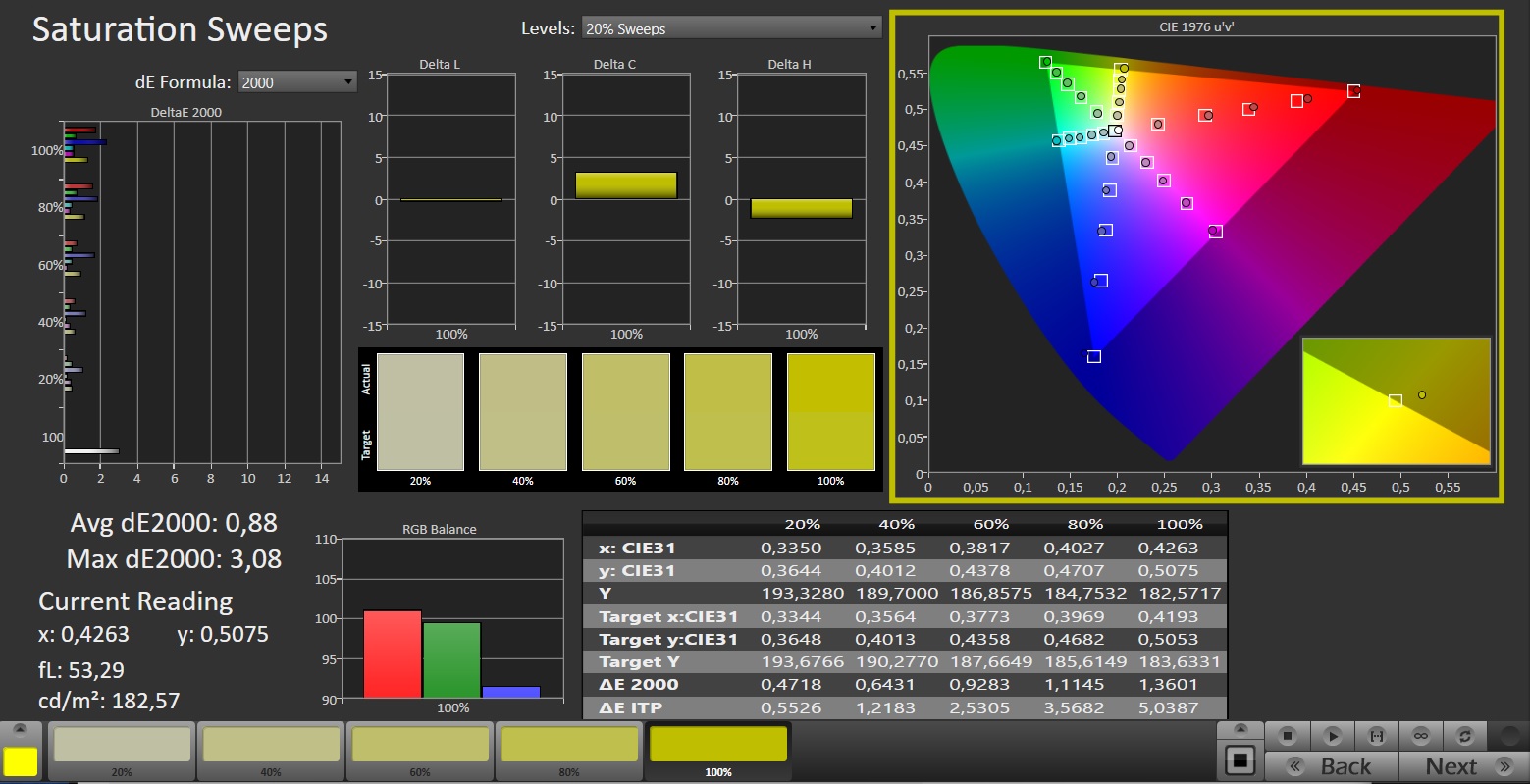

ΔE Color 2.35 | 0.5-29.43 Ø4.91, calibrated: 1.15

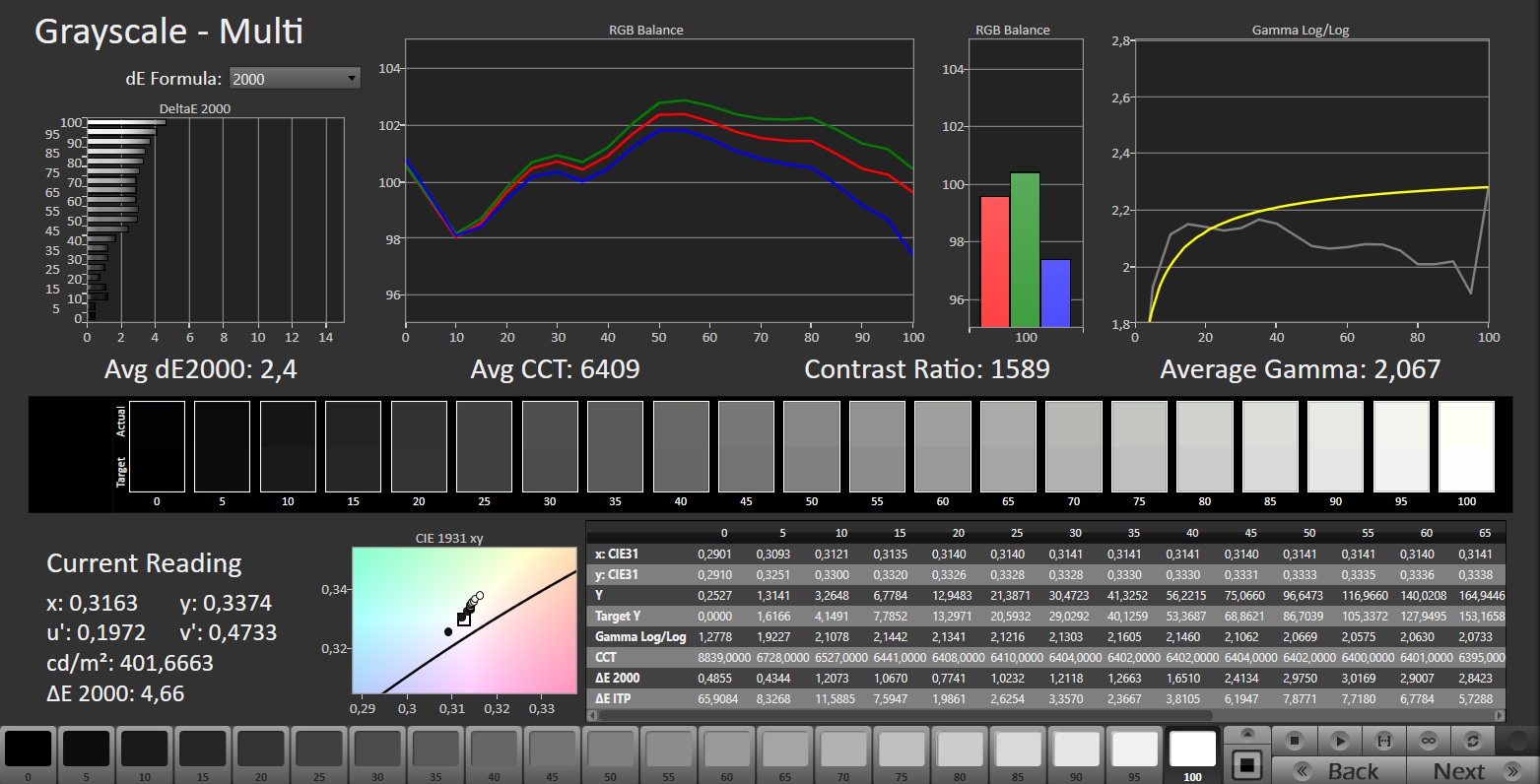

ΔE Greyscale 2.4 | 0.5-98 Ø5.2

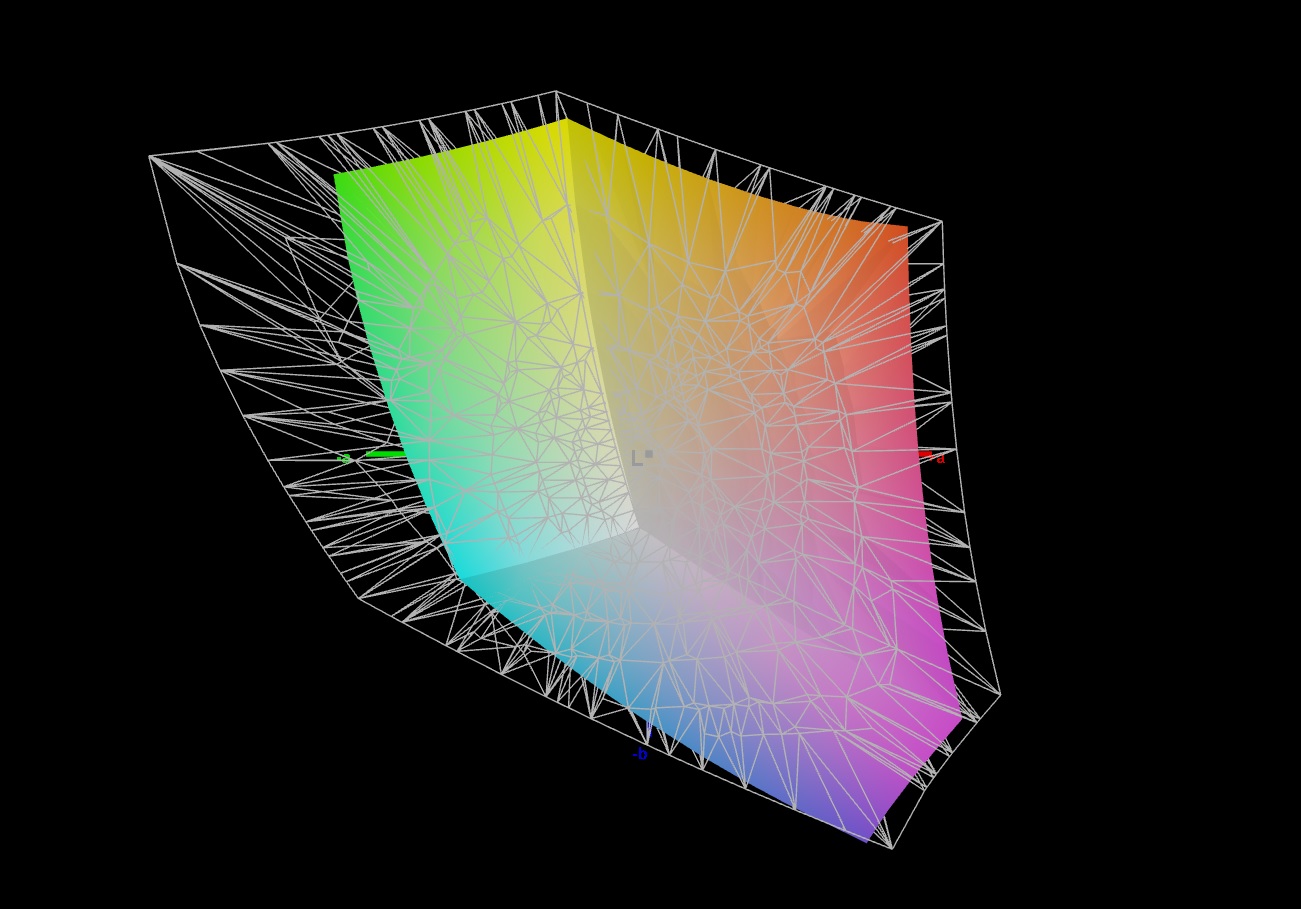

70.8% AdobeRGB 1998 (Argyll 2.2.0 3D)

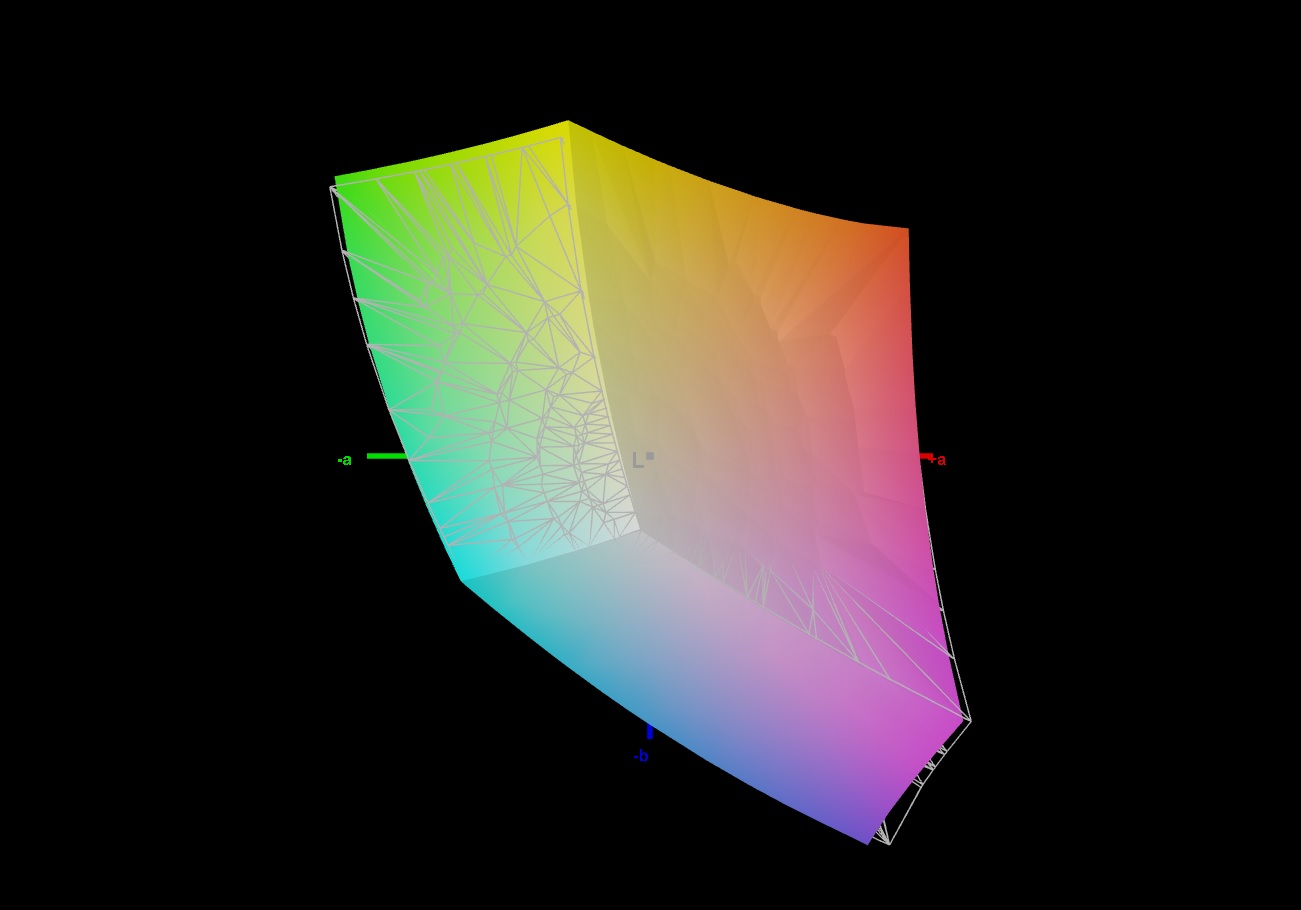

98.2% sRGB (Argyll 2.2.0 3D)

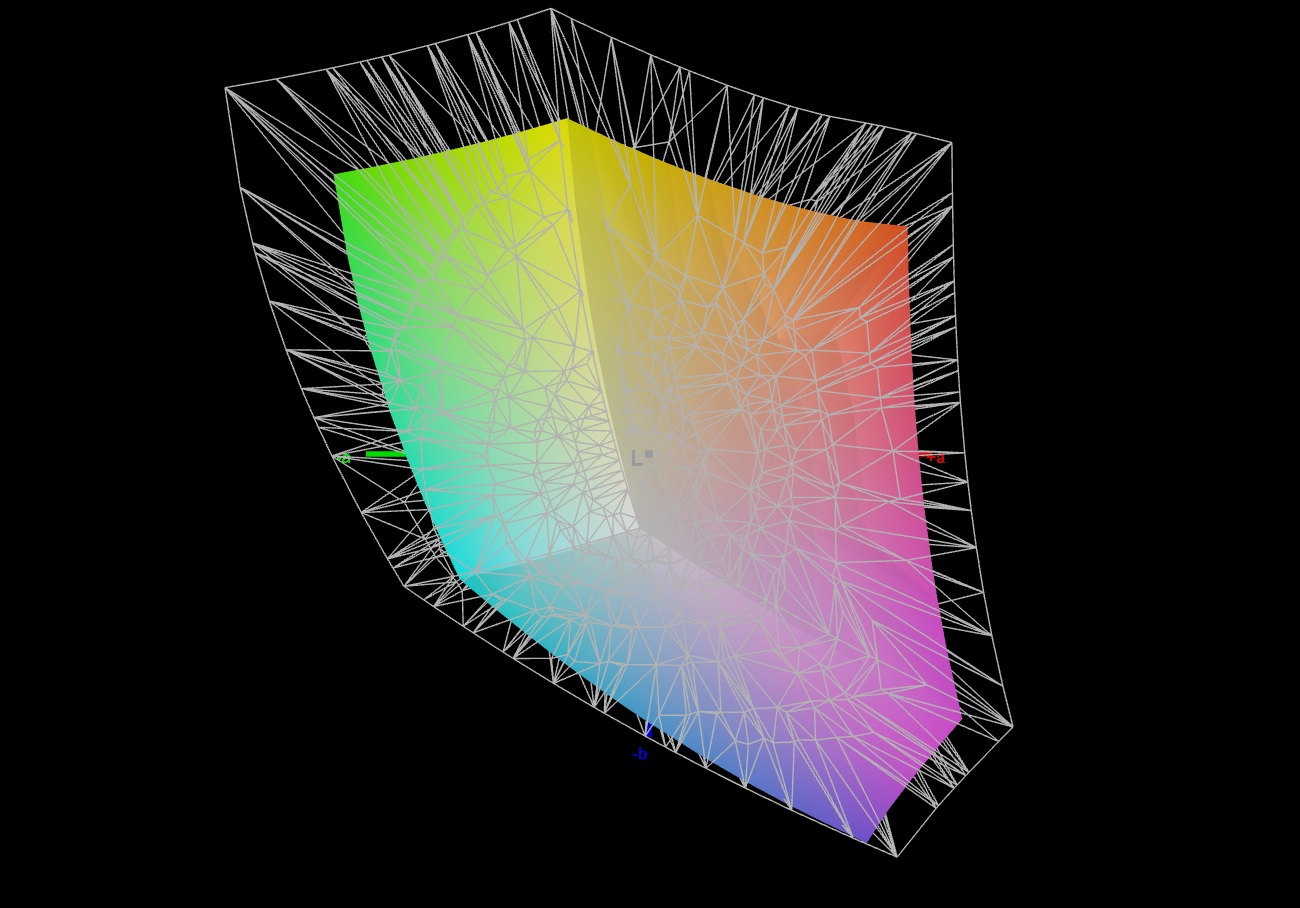

68.7% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.067
HP ZBook Firefly 14 G10 A CMN1435, IPS, 1920x1200, 14" | HP EliteBook 845 G10 818N0EA AUO6DA8, IPS, 2560x1600, 14" | Lenovo Yoga 9 14IRP G8 LEN140WQ+, OLED, 2880x1800, 14" | Huawei MateBook X Pro 2023 TMX1422, IPS, 3120x2080, 14.2" | |
---|---|---|---|---|
Display | 22% | 29% | 17% | |
Display P3 Coverage | 68.7 | 98.3 43% | 99.9 45% | 89.8 31% |
sRGB Coverage | 98.2 | 99.8 2% | 100 2% | 99.4 1% |
AdobeRGB 1998 Coverage | 70.8 | 86.2 22% | 98.3 39% | 84.2 19% |
Response Times | 73% | 97% | 68% | |
Response Time Grey 50% / Grey 80% * | 56.2 ? | 12.7 ? 77% | 1.04 ? 98% | 20 ? 64% |
Response Time Black / White * | 25.2 ? | 7.9 ? 69% | 0.95 ? 96% | 7 ? 72% |
PWM Frequency | 360 ? | 156000 ? | ||
Screen | 12% | 83% | 11% | |
Brightness middle | 397 | 546 38% | 378 -5% | 595 50% |
Brightness | 367 | 564 54% | 379 3% | 550 50% |
Brightness Distribution | 86 | 86 0% | 98 14% | 85 -1% |
Black Level * | 0.25 | 0.38 -52% | 0.03 88% | 0.25 -0% |
Contrast | 1588 | 1437 -10% | 12600 693% | 2380 50% |
Colorchecker dE 2000 * | 2.35 | 1.3 45% | 2.5 -6% | 2.01 14% |
Colorchecker dE 2000 max. * | 4.68 | 5.3 -13% | 4.7 -0% | 6.9 -47% |
Colorchecker dE 2000 calibrated * | 1.15 | 1.2 -4% | 1.9 -65% | 1.22 -6% |
Greyscale dE 2000 * | 2.4 | 1.1 54% | 1.9 21% | 2.74 -14% |
Gamma | 2.067 106% | 2.27 97% | 2.2 100% | 2.4 92% |
CCT | 6409 101% | 6463 101% | 6222 104% | 6319 103% |
Total Average (Program / Settings) | 36% /
23% | 70% /
73% | 32% /
20% |
* ... smaller is better
我们评测的样品亮度略低于宣传的 400 cd/m²,平均亮度为 367 cd/m²。虽然这个亮度值并不出众,但还是值得肯定的,毕竟 EliteBook 845 G10 和华为 MateBook X Pro 等竞争对手的亮度水平要高得多。不过,由于 0.25 cd/m² 的黑色值尚可接受,对比度仍达到 1,588:1,对于 IPS 面板来说相当不错。
另一方面,响应时间明显落后于竞争对手,从黑到白的转换时间为 25 毫秒,从灰到灰的变化时间为 56 毫秒,即使对于办公笔记本来说也是相当适中的。尽管如此,大多数买家还是会对色彩空间感到满意。虽然 Firefly 14 并不完全覆盖 DCI-P3 和 AdobeRGB(与某些竞争对手不同),但其约 98% 的 sRGB 覆盖率还是可圈可点的。 此外,它的色彩已经相当自然,无需校准。

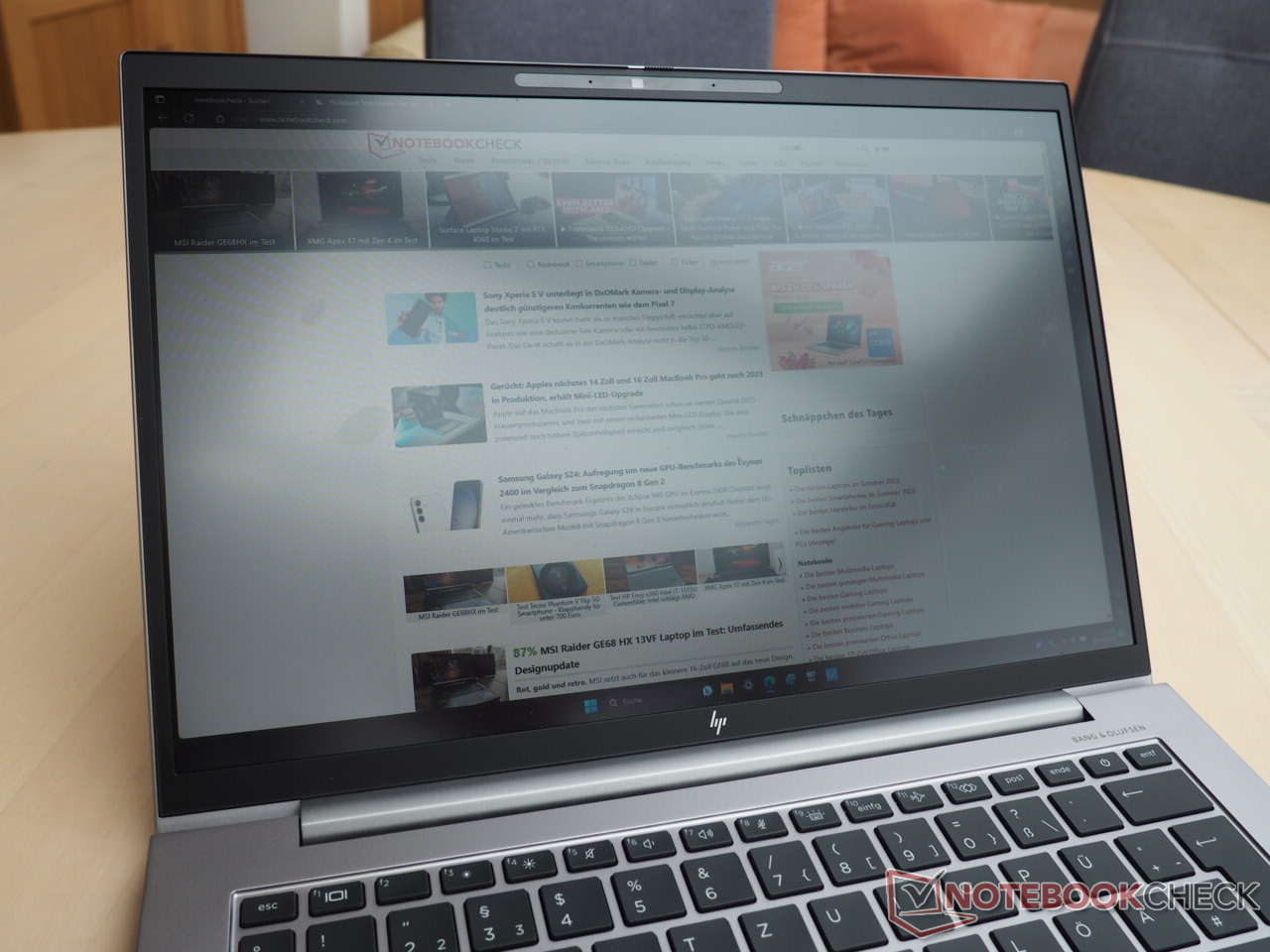

可视角度达到了通常的 IPS 水平,即使在倾斜位置也能确保相对良好的可视性。
Display Response Times

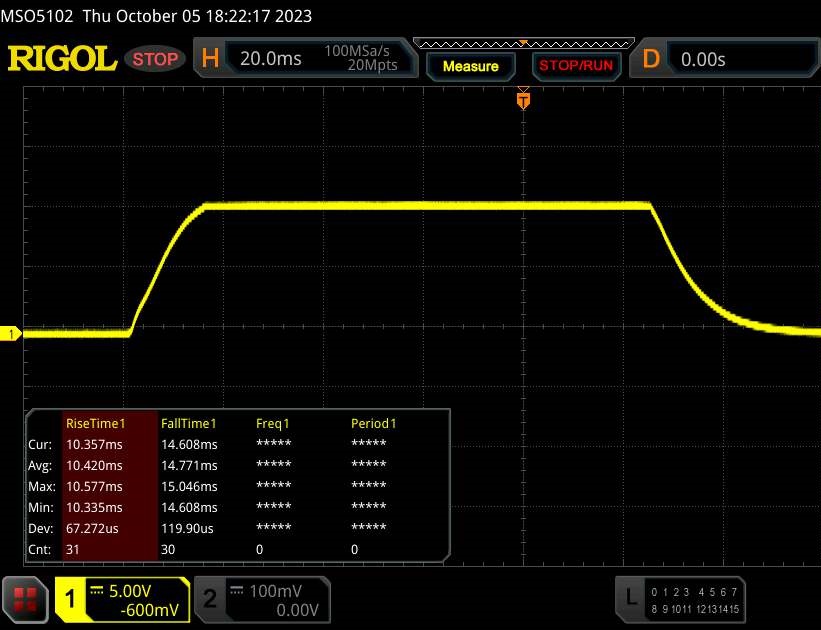

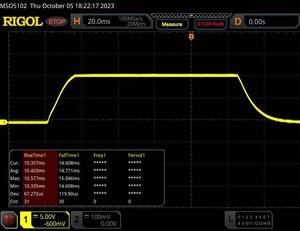

↔ Response Time Black to White | ||
---|---|---|
25.2 ms ... rise ↗ and fall ↘ combined | ↗ 10.4 ms rise | |
↘ 14.8 ms fall | ||
The screen shows relatively slow response rates in our tests and may be too slow for gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 57 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (20.9 ms). | ||

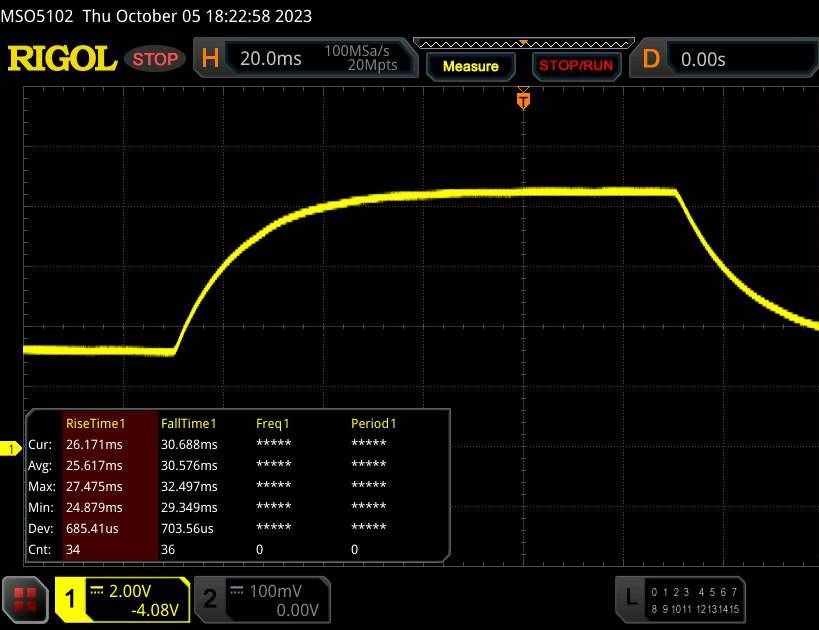

↔ Response Time 50% Grey to 80% Grey | ||
56.2 ms ... rise ↗ and fall ↘ combined | ↗ 25.6 ms rise | |
↘ 30.6 ms fall | ||
The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 93 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (32.8 ms). |

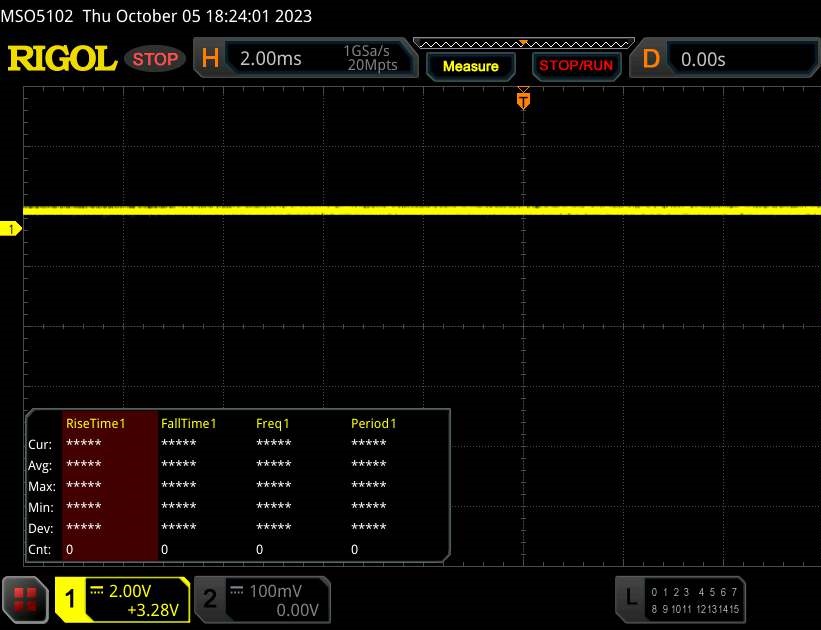

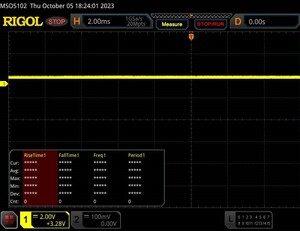

Screen Flickering / PWM (Pulse-Width Modulation)
Screen flickering / PWM not detected | |||
In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8705 (minimum: 5 - maximum: 343500) Hz was measured. |
性能
只要你不打算运行要求苛刻的 3D 应用程序,以目前的硬件配置,Firefly 14 的资源应该足以支撑未来几年的使用。唯一的缺点是 512 GB 的存储容量有些有限。如果需要,可以安装更大的 M.2 型号来解决这个问题。
处理器

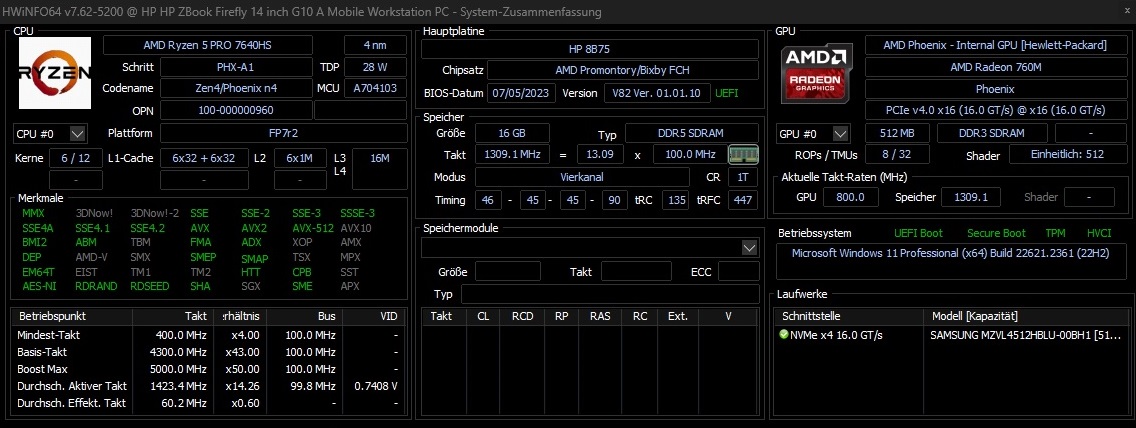

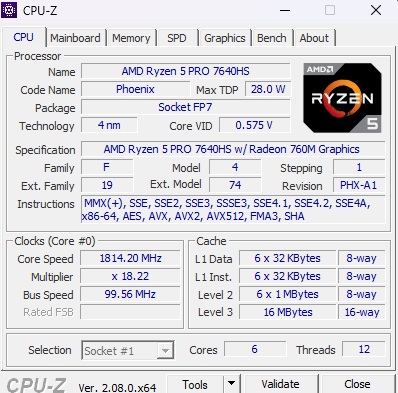

如前所述,Ryzen 5 Pro 7640HS 是 Zen 4 系列的最新成员,拥有 6 个内核,由于采用了 SMT 技术,最多可同时处理 12 个线程。在负载情况下,运行时钟频率在 4.3 至 5 GHz 之间,性能令人印象深刻。此外,该处理器还配备了 16 MB 三级缓存,进一步增强了其性能。
Ryzen 5 Pro 在基准测试中表现出强劲的性能。虽然联想 LOQ 中的 7640HS(非 Pro)计算速度稍快,但与 Ryzen 9 Pro 7940HS 的性能水平仍有差距。 Ryzen 9 Pro 7940HS的性能水平。英特尔的主要竞争对手之一 酷睿 i7-1360P在 Cinebench 循环中落后于英特尔,原因是其性能发展更为稳定。
Cinebench R15 Multi Loop
CPU Performance Rating - Percent | |
Average of class Workstation | |
Lenovo LOQ 15APH8 Ryzen 5 | |
HP EliteBook 845 G10 818N0EA | |
Lenovo Yoga 9 14IRP G8 | |
Huawei MateBook X Pro 2023 | |
HP ZBook Firefly 14 G10 A |
* ... smaller is better
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
Performance Rating | |
HP EliteBook 845 G10 818N0EA | |
Average of class Workstation | |
Lenovo LOQ 15APH8 Ryzen 5 | |
HP ZBook Firefly 14 G10 A | |
Huawei MateBook X Pro 2023 | |
Lenovo Yoga 9 14IRP G8 |
AIDA64 / FP32 Ray-Trace | |
HP EliteBook 845 G10 818N0EA | |
Lenovo LOQ 15APH8 Ryzen 5 | |
HP ZBook Firefly 14 G10 A | |
Average of class Workstation (10658 - 25776, n=29, last 2 years) | |
Lenovo Yoga 9 14IRP G8 | |
Huawei MateBook X Pro 2023 |
AIDA64 / FPU Julia | |
HP EliteBook 845 G10 818N0EA | |
Lenovo LOQ 15APH8 Ryzen 5 | |
Average of class Workstation (56664 - 113270, n=29, last 2 years) | |
HP ZBook Firefly 14 G10 A | |
Lenovo Yoga 9 14IRP G8 | |
Huawei MateBook X Pro 2023 |
AIDA64 / CPU SHA3 | |
HP EliteBook 845 G10 818N0EA | |
Average of class Workstation (2598 - 5598, n=29, last 2 years) | |
Lenovo LOQ 15APH8 Ryzen 5 | |
HP ZBook Firefly 14 G10 A | |
Huawei MateBook X Pro 2023 | |
Lenovo Yoga 9 14IRP G8 |
AIDA64 / CPU Queen | |
HP EliteBook 845 G10 818N0EA | |
Average of class Workstation (84022 - 144411, n=29, last 2 years) | |
Lenovo LOQ 15APH8 Ryzen 5 | |
Lenovo Yoga 9 14IRP G8 | |
Huawei MateBook X Pro 2023 | |
HP ZBook Firefly 14 G10 A |
AIDA64 / FPU SinJulia | |
HP EliteBook 845 G10 818N0EA | |
Average of class Workstation (7906 - 14742, n=29, last 2 years) | |
Lenovo LOQ 15APH8 Ryzen 5 | |
HP ZBook Firefly 14 G10 A | |
Lenovo Yoga 9 14IRP G8 | |
Huawei MateBook X Pro 2023 |
AIDA64 / FPU Mandel | |
HP EliteBook 845 G10 818N0EA | |
Lenovo LOQ 15APH8 Ryzen 5 | |
Average of class Workstation (27301 - 58181, n=29, last 2 years) | |
HP ZBook Firefly 14 G10 A | |
Lenovo Yoga 9 14IRP G8 | |
Huawei MateBook X Pro 2023 |
AIDA64 / CPU AES | |
Huawei MateBook X Pro 2023 | |
Average of class Workstation (45568 - 128243, n=29, last 2 years) | |
HP EliteBook 845 G10 818N0EA | |
HP ZBook Firefly 14 G10 A | |
Lenovo LOQ 15APH8 Ryzen 5 | |
Lenovo Yoga 9 14IRP G8 |
AIDA64 / CPU ZLib | |
Average of class Workstation (713 - 1691, n=29, last 2 years) | |
HP EliteBook 845 G10 818N0EA | |
Lenovo LOQ 15APH8 Ryzen 5 | |
HP ZBook Firefly 14 G10 A | |
Lenovo Yoga 9 14IRP G8 | |
Huawei MateBook X Pro 2023 |
AIDA64 / FP64 Ray-Trace | |
HP EliteBook 845 G10 818N0EA | |
Lenovo LOQ 15APH8 Ryzen 5 | |
HP ZBook Firefly 14 G10 A | |
Average of class Workstation (5580 - 13800, n=29, last 2 years) | |
Lenovo Yoga 9 14IRP G8 | |
Huawei MateBook X Pro 2023 |
AIDA64 / CPU PhotoWorxx | |
Huawei MateBook X Pro 2023 | |
Lenovo Yoga 9 14IRP G8 | |
Average of class Workstation (18157 - 51686, n=29, last 2 years) | |
HP ZBook Firefly 14 G10 A | |
Lenovo LOQ 15APH8 Ryzen 5 | |
HP EliteBook 845 G10 818N0EA |
系统性能
在系统性能方面,Firefly 14 在对比设备中排名第二。它在 PCMark 10 中的得分为 6336 分,以微弱劣势落后于 EliteBook 845 G10。
CrossMark: Overall | Productivity | Creativity | Responsiveness
PCMark 10 / Score | |
Average of class Workstation (5953 - 8587, n=29, last 2 years) | |
HP EliteBook 845 G10 818N0EA | |
HP ZBook Firefly 14 G10 A | |
Lenovo Yoga 9 14IRP G8 | |
Huawei MateBook X Pro 2023 |
PCMark 10 / Essentials | |
Lenovo Yoga 9 14IRP G8 | |
Average of class Workstation (9151 - 12197, n=29, last 2 years) | |
Huawei MateBook X Pro 2023 | |
HP ZBook Firefly 14 G10 A | |
HP EliteBook 845 G10 818N0EA |
PCMark 10 / Productivity | |
Average of class Workstation (7846 - 10820, n=29, last 2 years) | |
HP ZBook Firefly 14 G10 A | |
HP EliteBook 845 G10 818N0EA | |
Huawei MateBook X Pro 2023 | |
Lenovo Yoga 9 14IRP G8 |
PCMark 10 / Digital Content Creation | |
Average of class Workstation (7417 - 15093, n=29, last 2 years) | |
HP EliteBook 845 G10 818N0EA | |
HP ZBook Firefly 14 G10 A | |
Lenovo Yoga 9 14IRP G8 | |
Huawei MateBook X Pro 2023 |
CrossMark / Overall | |
Huawei MateBook X Pro 2023 | |
Lenovo Yoga 9 14IRP G8 | |
Average of class Workstation (1154 - 2037, n=27, last 2 years) | |
HP EliteBook 845 G10 818N0EA |
CrossMark / Productivity | |
Huawei MateBook X Pro 2023 | |
Average of class Workstation (1188 - 1902, n=27, last 2 years) | |
Lenovo Yoga 9 14IRP G8 | |
HP EliteBook 845 G10 818N0EA |
CrossMark / Creativity | |
Average of class Workstation (1180 - 2311, n=27, last 2 years) | |
Lenovo Yoga 9 14IRP G8 | |
Huawei MateBook X Pro 2023 | |
HP EliteBook 845 G10 818N0EA |
CrossMark / Responsiveness | |
Huawei MateBook X Pro 2023 | |
Lenovo Yoga 9 14IRP G8 | |
Average of class Workstation (990 - 1805, n=27, last 2 years) | |
HP EliteBook 845 G10 818N0EA |
PCMark 10 Score | 6336 points | |
Help |
AIDA64 / Memory Copy | |
Lenovo Yoga 9 14IRP G8 | |
Huawei MateBook X Pro 2023 | |
Average of class Workstation (30324 - 95718, n=29, last 2 years) | |
HP ZBook Firefly 14 G10 A | |
Lenovo LOQ 15APH8 Ryzen 5 | |
HP EliteBook 845 G10 818N0EA |
AIDA64 / Memory Read | |
Huawei MateBook X Pro 2023 | |
Average of class Workstation (30787 - 86584, n=29, last 2 years) | |
HP ZBook Firefly 14 G10 A | |
Lenovo Yoga 9 14IRP G8 | |
Lenovo LOQ 15APH8 Ryzen 5 | |
HP EliteBook 845 G10 818N0EA |
AIDA64 / Memory Write | |
Huawei MateBook X Pro 2023 | |
Lenovo LOQ 15APH8 Ryzen 5 | |
HP ZBook Firefly 14 G10 A | |
Lenovo Yoga 9 14IRP G8 | |
Average of class Workstation (32728 - 93871, n=29, last 2 years) | |
HP EliteBook 845 G10 818N0EA |
AIDA64 / Memory Latency | |
Huawei MateBook X Pro 2023 | |
Average of class Workstation (83.4 - 140.8, n=29, last 2 years) | |
HP EliteBook 845 G10 818N0EA | |
HP ZBook Firefly 14 G10 A | |
Lenovo Yoga 9 14IRP G8 | |
Lenovo LOQ 15APH8 Ryzen 5 |
* ... smaller is better
DPC 延迟

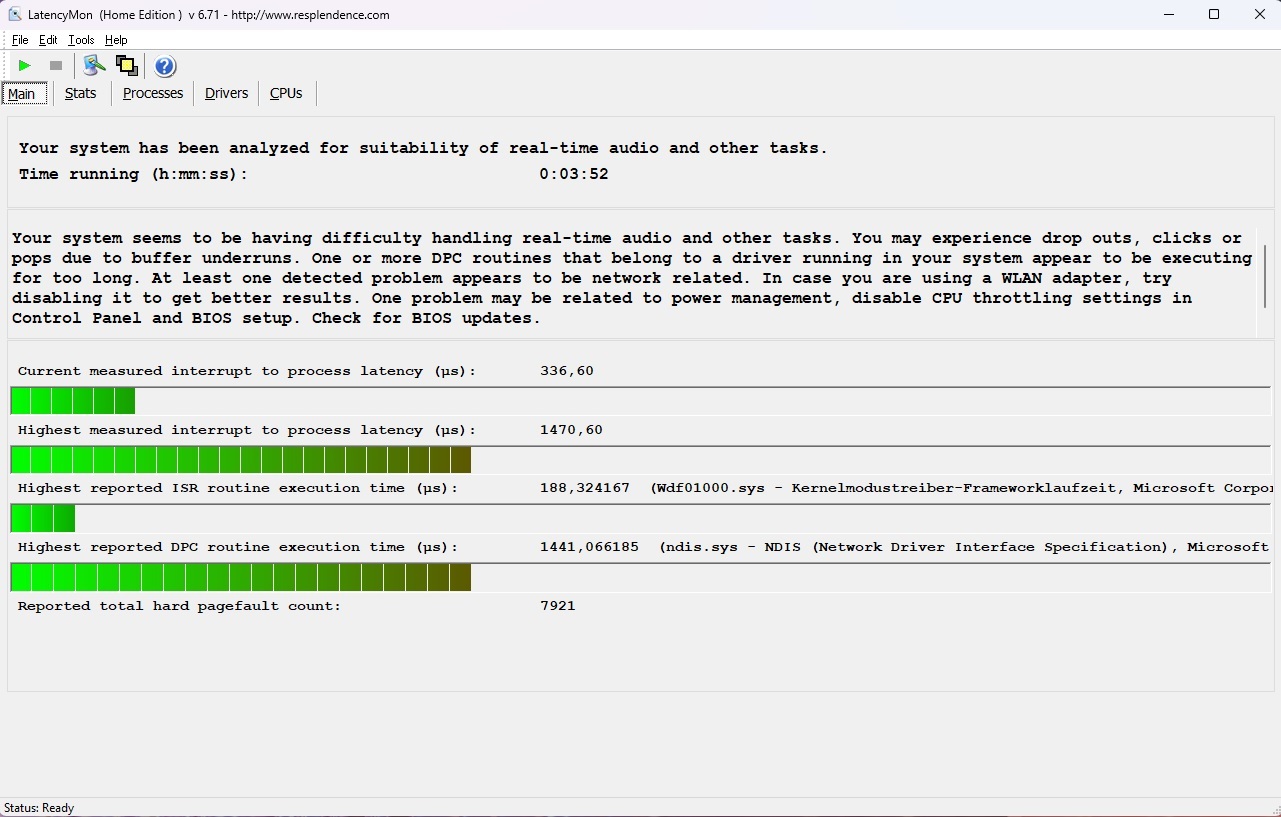

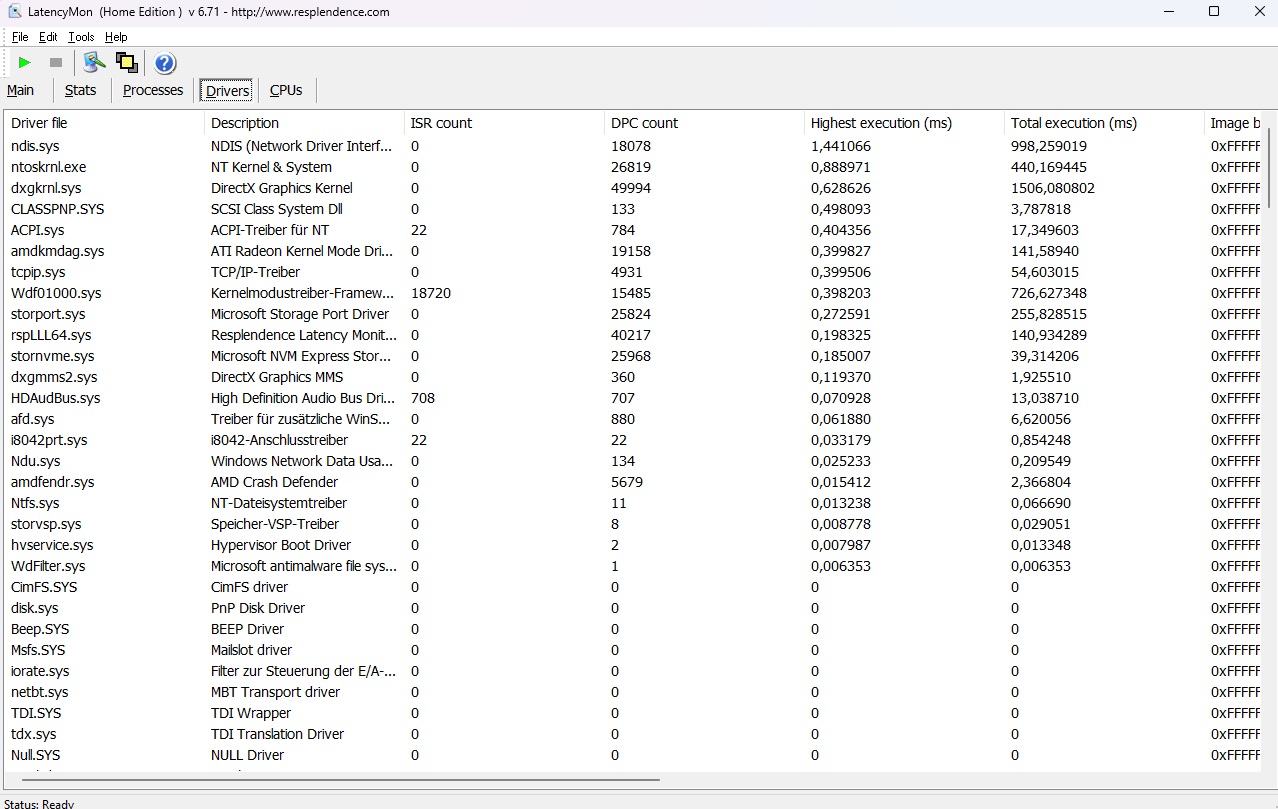

延迟值不是最佳值,这是许多设备的常见问题。根据 LatencyMon 工具,某些活动(如实时音频和视频编辑)可能会遇到问题。
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95 | |
Huawei MateBook X Pro 2023 | |
Lenovo Yoga 9 14IRP G8 | |
HP ZBook Firefly 14 G10 A | |
HP EliteBook 845 G10 818N0EA |
* ... smaller is better
存储设备
尽管系统性能名列前茅,但大容量存储设备在测试中却排名最后。512 GB 三星硬盘(PM9B1)的速度绝对不慢,但与竞争对手提供的速度更快的 NVMe 硬盘相比仍有差距。 至少,即使在长期负载的情况下,速度也能保持不变。
* ... smaller is better
Dauerleistung Lesen: DiskSpd Read Loop, Queue Depth 8
图形卡
Firefly 14 最大的亮点之一是相对较快的 iGPU。尽管与 Radeon 780M 的 768 个着色器单元相比,Radeon 760M 只有 512 个着色器单元,但其性能却超过了英特尔的同类产品、 Iris Xe Graphics G7在大多数情况下都优于英特尔同类产品 Iris Xe Graphics G7。这主要归功于 AMD 出色的图形驱动程序,尤其是在游戏支持方面。在 3DMarks 中,Firefly 14 的性能与同样配备 Radeon 760M 的联想 LOQ 相当。
3DMark Performance Rating - Percent | |
Average of class Workstation | |
Lenovo LOQ 15APH8 Ryzen 5 | |
HP ZBook Firefly 14 G10 A | |
Huawei MateBook X Pro 2023 | |
HP EliteBook 845 G10 818N0EA | |
Lenovo Yoga 9 14IRP G8 -1! |
3DMark 06 Standard Score | 35337 points | |
3DMark Vantage P Result | 32985 points | |
3DMark 11 Performance | 9564 points | |
3DMark Ice Storm Standard Score | 176563 points | |
3DMark Cloud Gate Standard Score | 27608 points | |
3DMark Fire Strike Score | 5724 points | |
3DMark Time Spy Score | 2244 points | |
Help |
* ... smaller is better
游戏性能
Performance Rating - Percent | |
Average of class Workstation | |
Lenovo LOQ 15APH8 Ryzen 5 | |
HP ZBook Firefly 14 G10 A | |
Lenovo Yoga 9 14IRP G8 | |
Huawei MateBook X Pro 2023 | |
HP EliteBook 845 G10 818N0EA |

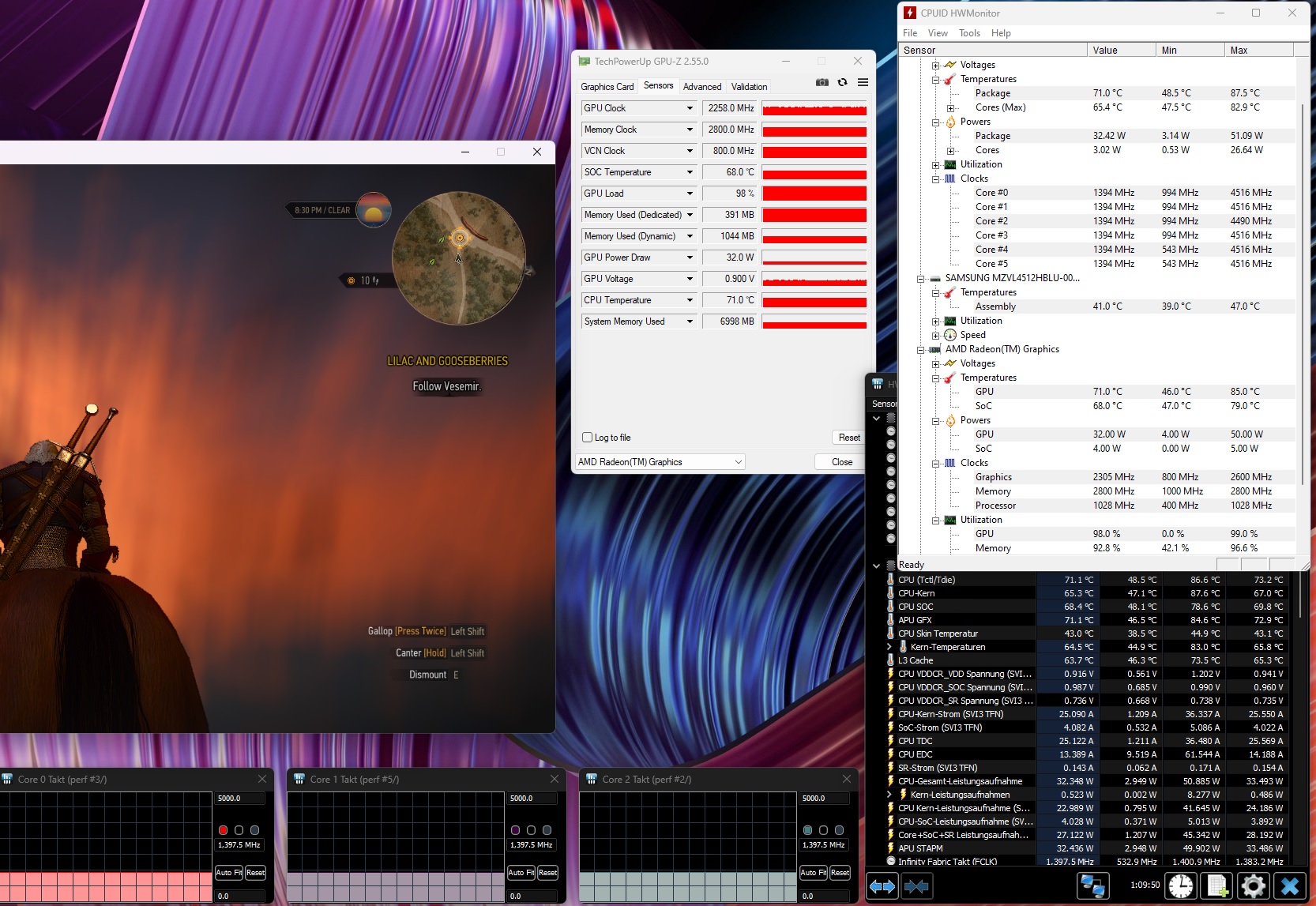

The Witcher 3 - 1920x1080 Ultra Graphics & Postprocessing (HBAO+) | |
Average of class Workstation (23.3 - 156.5, n=23, last 2 years) | |
HP ZBook Firefly 14 G10 A | |
Lenovo LOQ 15APH8 Ryzen 5 | |
Huawei MateBook X Pro 2023 | |
Lenovo Yoga 9 14IRP G8 | |
HP EliteBook 845 G10 818N0EA |
GTA V - 1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x | |
Average of class Workstation (18.3 - 126.7, n=26, last 2 years) | |
HP ZBook Firefly 14 G10 A | |
Lenovo LOQ 15APH8 Ryzen 5 | |
HP EliteBook 845 G10 818N0EA | |
Huawei MateBook X Pro 2023 | |
Lenovo Yoga 9 14IRP G8 |
Final Fantasy XV Benchmark - 1920x1080 High Quality | |
Average of class Workstation (21.2 - 174.6, n=30, last 2 years) | |
Lenovo Yoga 9 14IRP G8 | |
Lenovo LOQ 15APH8 Ryzen 5 | |
HP ZBook Firefly 14 G10 A | |
Huawei MateBook X Pro 2023 | |
HP EliteBook 845 G10 818N0EA |
Strange Brigade - 1920x1080 ultra AA:ultra AF:16 | |
Average of class Workstation (34.1 - 360, n=26, last 2 years) | |
Lenovo LOQ 15APH8 Ryzen 5 | |
HP ZBook Firefly 14 G10 A | |
Huawei MateBook X Pro 2023 | |
Lenovo Yoga 9 14IRP G8 | |
HP EliteBook 845 G10 818N0EA |
Dota 2 Reborn - 1920x1080 ultra (3/3) best looking | |
Average of class Workstation (57.8 - 178.4, n=30, last 2 years) | |
Lenovo LOQ 15APH8 Ryzen 5 | |
HP ZBook Firefly 14 G10 A | |
Lenovo Yoga 9 14IRP G8 | |
Huawei MateBook X Pro 2023 | |
HP EliteBook 845 G10 818N0EA |
X-Plane 11.11 - 1920x1080 high (fps_test=3) | |
Average of class Workstation (27.7 - 139.7, n=31, last 2 years) | |
Huawei MateBook X Pro 2023 | |
Lenovo Yoga 9 14IRP G8 | |
Lenovo LOQ 15APH8 Ryzen 5 | |
HP EliteBook 845 G10 818N0EA | |
HP ZBook Firefly 14 G10 A |
The Witcher 3 | |
1366x768 Medium Graphics & Postprocessing | |
Average of class Workstation (73.9 - 430, n=21, last 2 years) | |
Lenovo LOQ 15APH8 Ryzen 5 | |
Average AMD Radeon 760M (73.9 - 78, n=2) | |
HP ZBook Firefly 14 G10 A | |
Huawei MateBook X Pro 2023 | |
Lenovo Yoga 9 14IRP G8 | |
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off) | |
Average of class Workstation (34.9 - 298, n=22, last 2 years) | |
Lenovo LOQ 15APH8 Ryzen 5 | |
Lenovo Yoga 9 14IRP G8 | |
Average AMD Radeon 760M (34.9 - 38, n=2) | |
Huawei MateBook X Pro 2023 | |
HP ZBook Firefly 14 G10 A | |
HP EliteBook 845 G10 818N0EA | |
1920x1080 Ultra Graphics & Postprocessing (HBAO+) | |
Average of class Workstation (23.3 - 156.5, n=23, last 2 years) | |
HP ZBook Firefly 14 G10 A | |
Average AMD Radeon 760M (23 - 23.3, n=2) | |
Lenovo LOQ 15APH8 Ryzen 5 | |
Huawei MateBook X Pro 2023 | |
Lenovo Yoga 9 14IRP G8 | |
HP EliteBook 845 G10 818N0EA |
我们使用角色扮演游戏对 3D 性能进行了长时间测试 的 3D 性能进行了长时间测试。Witcher 3除了短暂的性能下降外,帧速率相当稳定。
Witcher 3 FPS chart
low | med. | high | ultra | |
---|---|---|---|---|
GTA V (2015) | 150.4 | 138.4 | 50.2 | 18.3 |
The Witcher 3 (2015) | 115 | 73.9 | 34.9 | 23.3 |
Dota 2 Reborn (2015) | 143.7 | 113.4 | 70.2 | 64.8 |
Final Fantasy XV Benchmark (2018) | 55.3 | 27.5 | 21.2 | |
X-Plane 11.11 (2018) | 45.1 | 33.1 | 27.7 | |
Strange Brigade (2018) | 121 | 50.2 | 42.8 | 35.8 |
A Plague Tale Requiem (2022) | 18.8 | 15.7 | 13.7 | |
High On Life (2023) | 50.6 | 28.8 | 23.5 | |
Hogwarts Legacy (2023) | 25.8 | 19.8 | 15.2 | |
Returnal (2023) | 20 | 19 | 17 | |
Atomic Heart (2023) | 38.6 | 28.8 | 16.7 | |
Company of Heroes 3 (2023) | 46.4 | 38.9 | 29.6 | |
Sons of the Forest (2023) | 32 | 19.6 | 19 | |
Resident Evil 4 Remake (2023) | 23.5 | 16.8 | 14.6 | |
Star Wars Jedi Survivor (2023) | 0 game wont start (crash) | 0 game wont start (crash) | 0 game wont start (crash) | |
Ratchet & Clank Rift Apart (2023) | 20.5 | 0 () | 0 () | |
Atlas Fallen (2023) | 31.1 | 29.2 | 24.2 | |
Immortals of Aveum (2023) | 15.4 | 13.3 | ||
Armored Core 6 (2023) | 0 game wont start (crash) | 0 game wont start (crash) | 0 game wont start (crash) | |
Starfield (2023) | 14.3 | 7.99 | 5.04 | |
The Crew Motorfest (2023) | 25 | 23 | 19 | |
Lies of P (2023) | 33.7 | 27.9 | 24 | |
Baldur's Gate 3 (2023) | 29.5 | 25 | 19.1 |
排放量
系统噪音
Firefly 14 是为数不多的理论上适合对噪音敏感的用户使用的笔记本之一,尤其是在执行简单任务时。虽然风扇在空闲模式和轻度活动(如办公、视频播放和网页浏览)时并不总是完全静音的,但它的运行频率很低,即使在安静的环境中也很难察觉。 唯一的问题是:我们的评测样本不得不面对明显的线圈啸叫,尤其是在空闲时,这可能会困扰一些用户。在负载情况下,它的表现一般不会太好。45 至 46 分贝(A)的噪音清晰可闻,尽管 CPU/GPU 性能较弱,但有时明显高于 EliteBook 845 G10(34 至 43 分贝)。
Noise Level
Idle |
| 25 / 26 / 27 dB(A) |
Load |
| 45 / 46 dB(A) |
| ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min: , med: , max: Earthworks M23R, Arta (15 cm distance) environment noise: 25 dB(A) |
HP ZBook Firefly 14 G10 A R5 PRO 7640HS, Radeon 760M | HP EliteBook 845 G10 818N0EA R9 PRO 7940HS, Radeon 780M | Lenovo Yoga 9 14IRP G8 i7-1360P, Iris Xe G7 96EUs | Huawei MateBook X Pro 2023 i7-1360P, Iris Xe G7 96EUs | |
---|---|---|---|---|
Noise | 6% | 5% | 1% | |
off / environment * | 25 | 25.3 -1% | 23.6 6% | 25.4 -2% |
Idle Minimum * | 25 | 25.3 -1% | 23.6 6% | 25.4 -2% |
Idle Average * | 26 | 25.3 3% | 23.6 9% | 25.4 2% |
Idle Maximum * | 27 | 25.3 6% | 24.6 9% | 29.6 -10% |
Load Average * | 45 | 34.4 24% | 45 -0% | 42 7% |
Witcher 3 ultra * | 45 | 43.4 4% | 45 -0% | |
Load Maximum * | 46 | 43.4 6% | 45 2% | 40.9 11% |
* ... smaller is better
温度

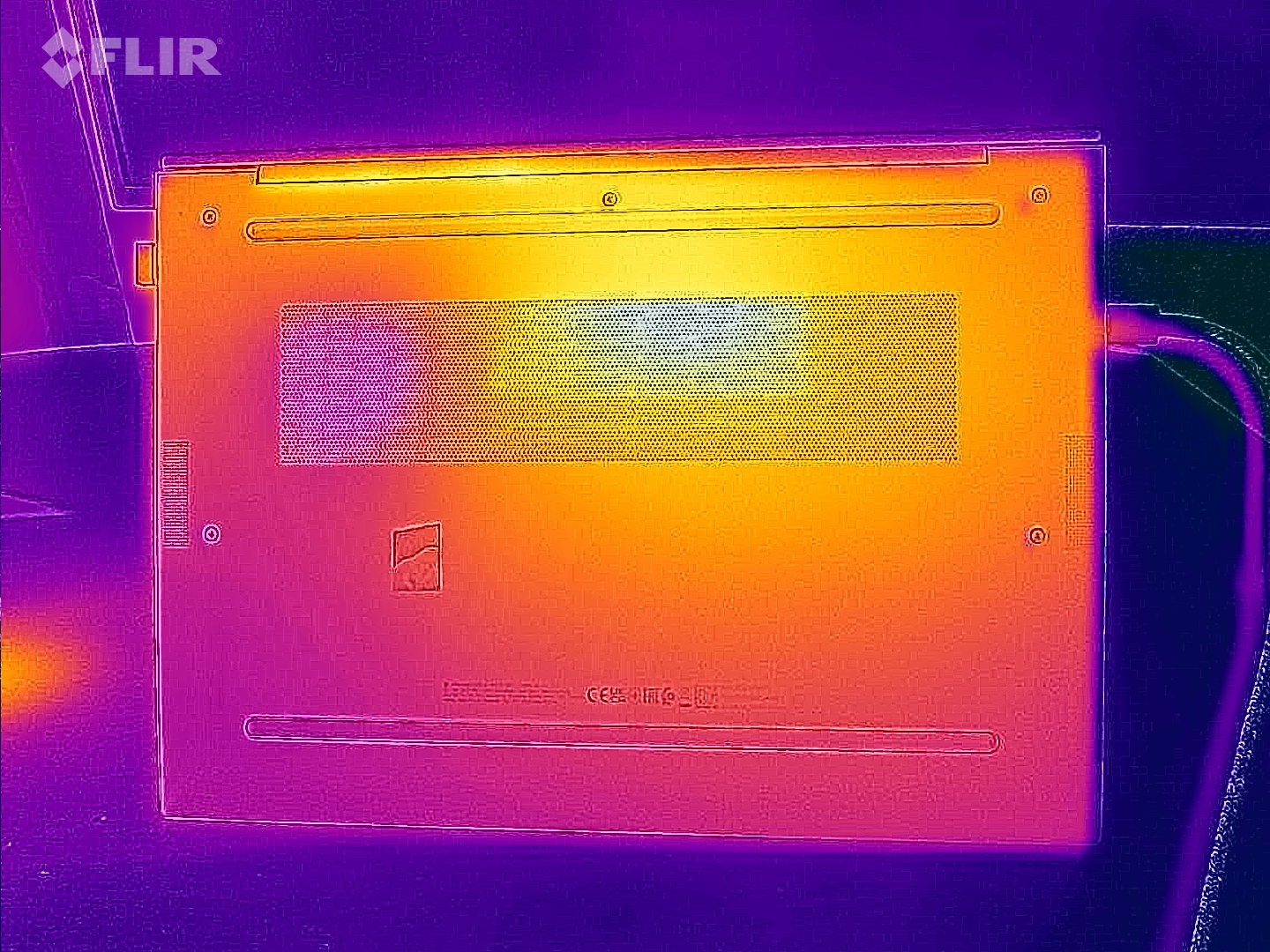

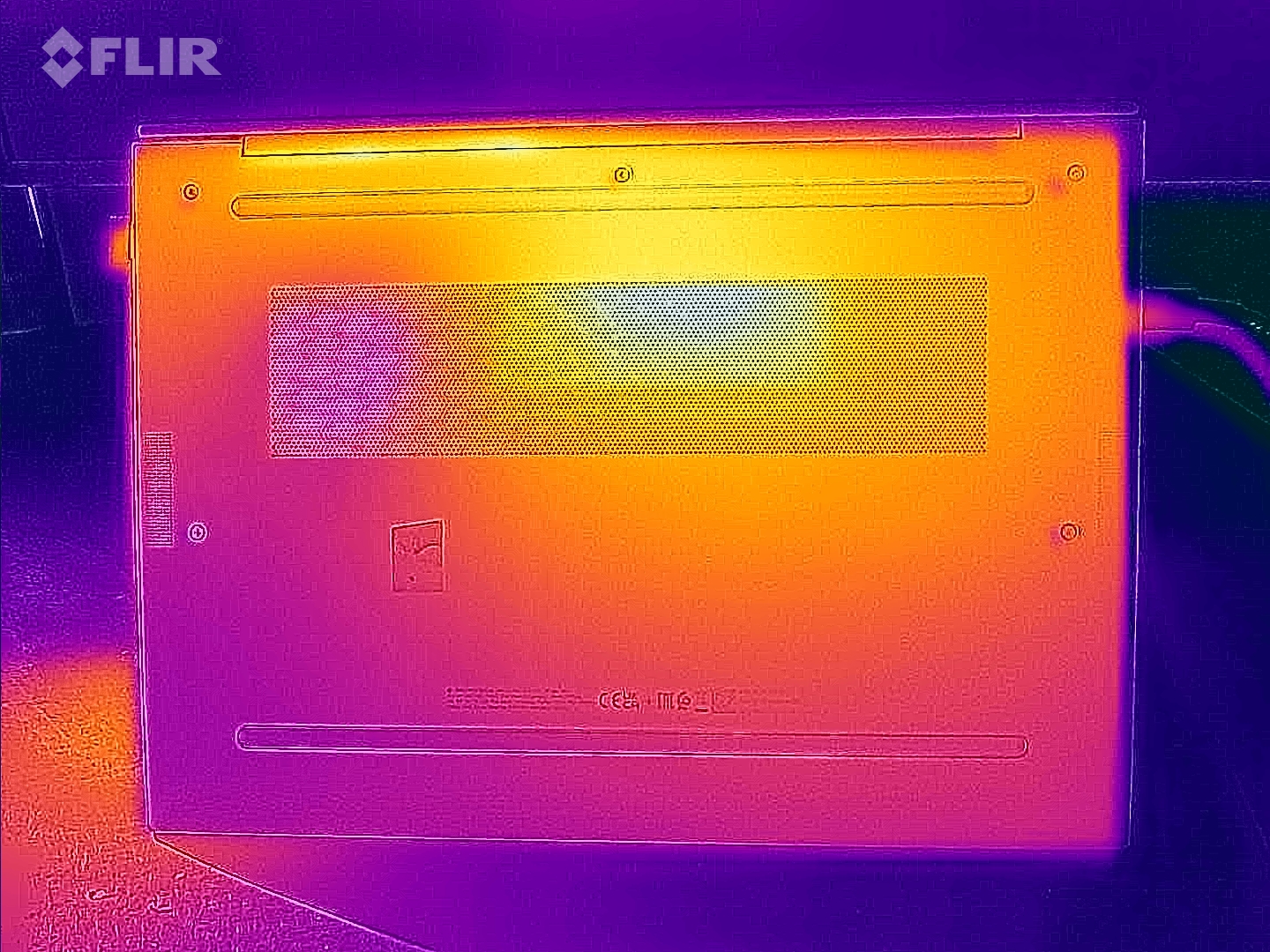

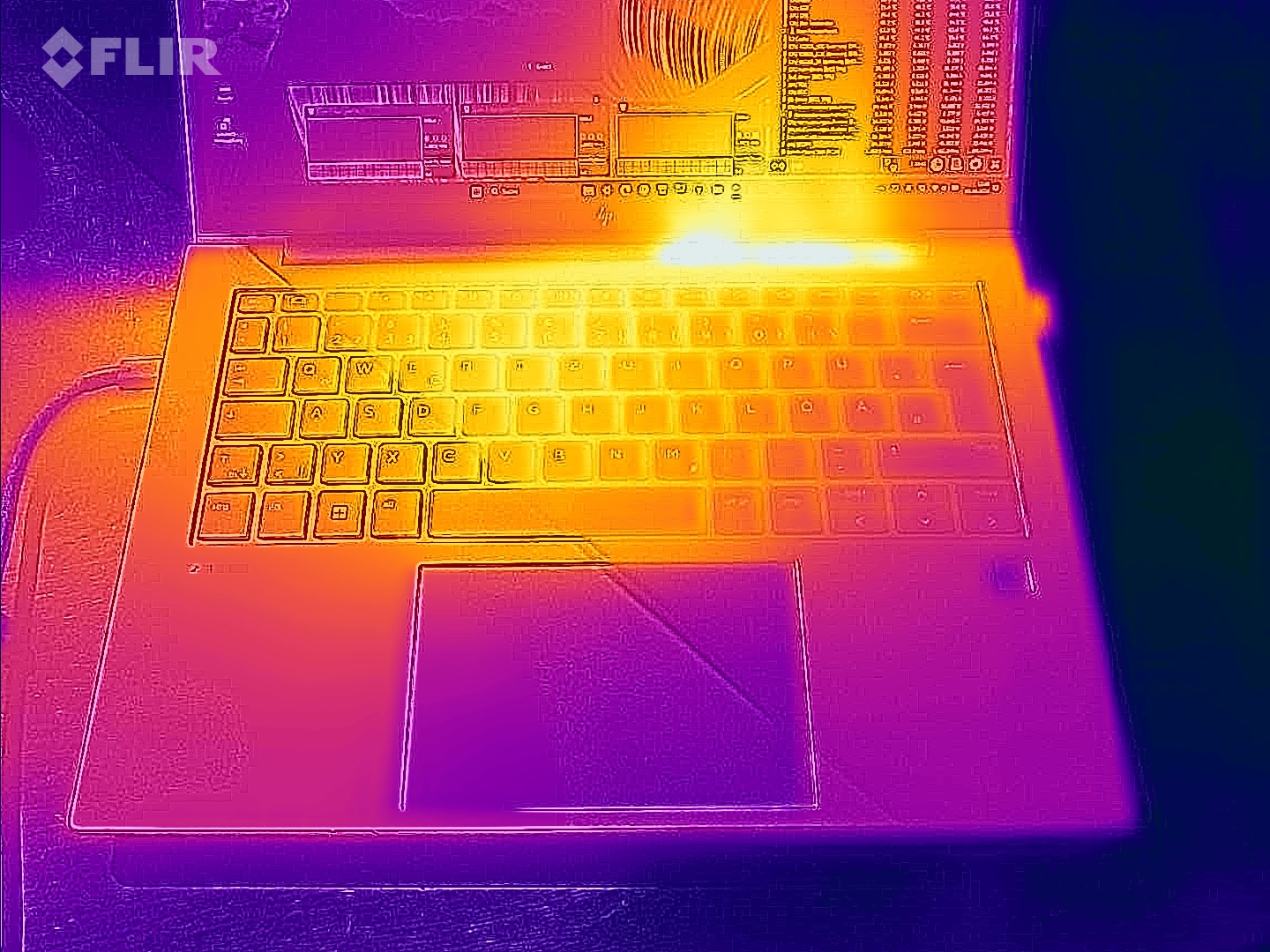

在温度方面,Firefly 14 的表现与其前代 EliteBook 相似。在空闲模式下,机箱表面的平均温度仅为 25°C,非常舒适。在 3D 模式下,我们的测试设备在机箱后三分之一处测得的温度高达 50°C(顶部)和 51°C(底部)。不过,42°C 的平均温度还是可以承受的,尽管其英特尔竞争对手联想 Yoga 9 和华为 Matebook X Pro 的温度更低。
(-) The maximum temperature on the upper side is 50 °C / 122 F, compared to the average of 38.2 °C / 101 F, ranging from 22.2 to 69.8 °C for the class Workstation.
(-) The bottom heats up to a maximum of 51 °C / 124 F, compared to the average of 41.3 °C / 106 F
(+) In idle usage, the average temperature for the upper side is 24.8 °C / 77 F, compared to the device average of 32 °C / 90 F.
(-) Playing The Witcher 3, the average temperature for the upper side is 40.8 °C / 105 F, compared to the device average of 32 °C / 90 F.
(±) The palmrests and touchpad can get very hot to the touch with a maximum of 38 °C / 100.4 F.
(-) The average temperature of the palmrest area of similar devices was 27.8 °C / 82 F (-10.2 °C / -18.4 F).
HP ZBook Firefly 14 G10 A R5 PRO 7640HS, Radeon 760M | HP EliteBook 845 G10 818N0EA R9 PRO 7940HS, Radeon 780M | Lenovo Yoga 9 14IRP G8 i7-1360P, Iris Xe G7 96EUs | Huawei MateBook X Pro 2023 i7-1360P, Iris Xe G7 96EUs | |
---|---|---|---|---|
Heat | 0% | 8% | -11% | |
Maximum Upper Side * | 50 | 45.6 9% | 39.7 21% | 46.5 7% |
Maximum Bottom * | 51 | 51.9 -2% | 45.4 11% | 44.7 12% |
Idle Upper Side * | 25 | 26.5 -6% | 25.7 -3% | 34.9 -40% |
Idle Bottom * | 27 | 27 -0% | 26.4 2% | 32.9 -22% |
* ... smaller is better
压力测试

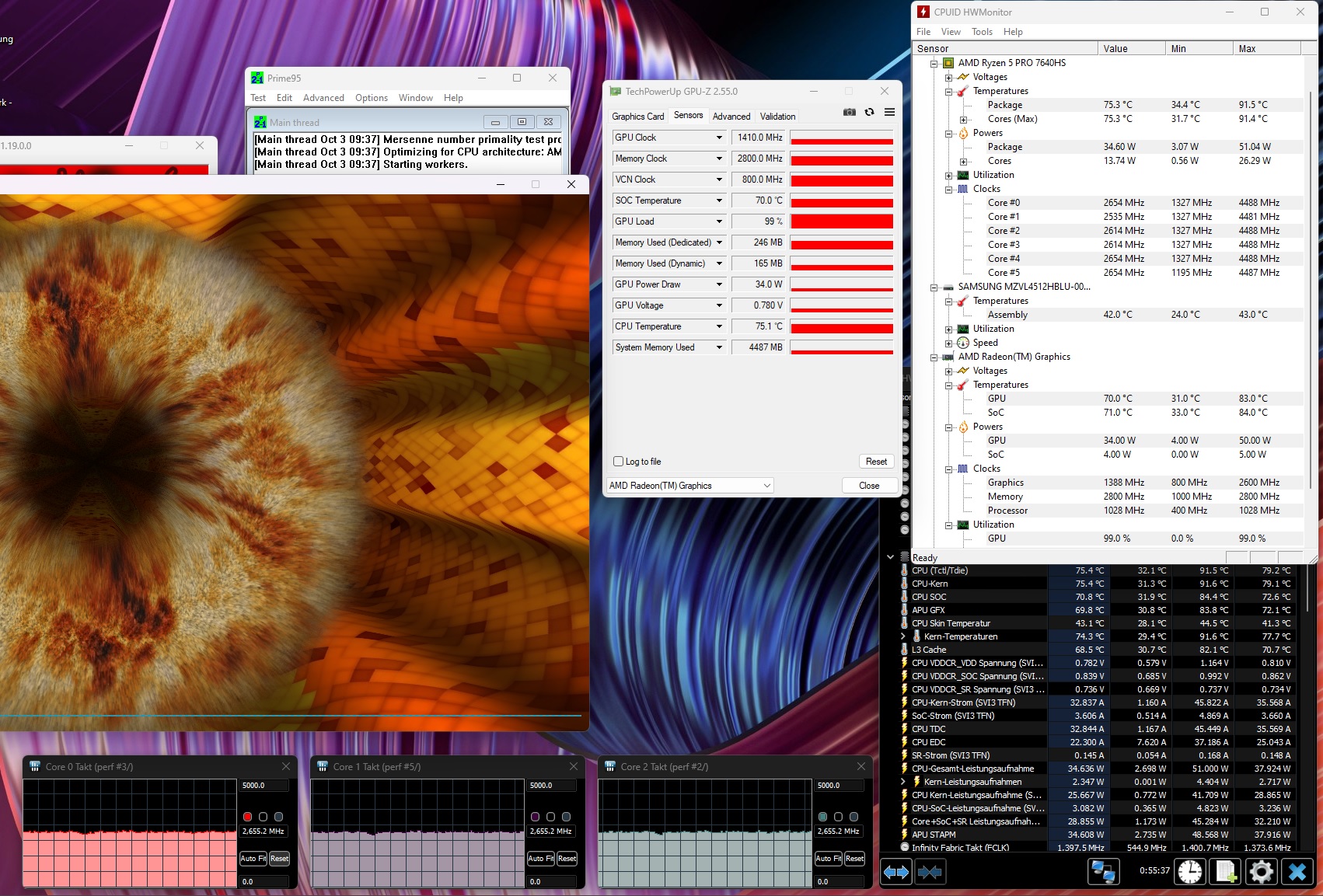

Furmark 和 Prime95 压力测试没有发现严重问题。CPU 的节流低于基本速率的情况并不少见(如截图所示),特别是考虑到 CPU 的平均温度约为 75°C,远远低于临界极限。游戏时的表现,尤其是在《Witcher 3 》中的表现,在测试中被证明是比较麻烦的。Radeon 760M 保持了较高的时钟频率,而 Ryzen 5 Pro 7640HS 却降到了 1.4 GHz。惠普应该考虑解决和改进这种做法。
发言人
HP ZBook Firefly 14 G10 A audio analysis
(±) | speaker loudness is average but good (78 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 12% lower than median
(±) | linearity of bass is average (12.8% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 4.7% away from median
(+) | mids are linear (5.6% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.2% away from median
(+) | highs are linear (5.1% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (14.2% difference to median)
Compared to same class
» 26% of all tested devices in this class were better, 3% similar, 71% worse
» The best had a delta of 7%, average was 18%, worst was 35%
Compared to all devices tested
» 15% of all tested devices were better, 4% similar, 82% worse
» The best had a delta of 4%, average was 25%, worst was 134%
HP EliteBook 845 G10 818N0EA audio analysis
(+) | speakers can play relatively loud (83.2 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 19.5% lower than median
(±) | linearity of bass is average (13.3% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.4% away from median
(+) | mids are linear (2.5% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.2% away from median
(+) | highs are linear (3.6% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (14.2% difference to median)
Compared to same class
» 7% of all tested devices in this class were better, 3% similar, 89% worse
» The best had a delta of 7%, average was 21%, worst was 53%
Compared to all devices tested
» 15% of all tested devices were better, 4% similar, 82% worse
» The best had a delta of 4%, average was 25%, worst was 134%
能源管理
耗电量
Firefly 14 的低功耗特别值得称赞。它的闲置功耗为 3 至 8 瓦,是测试领域中任何竞争对手都无法比拟的出色功耗。在负载情况下,鉴于设备的性能水平,56 至 66 瓦的功耗也值得称赞。此外,随附的 65 瓦电源足以支持该设备。
Off / Standby | 0.5 / Watt |
Idle | 3 / 4 / 8 Watt |
Load |
56 / 66 Watt |
Key:
min: ,
med: ,
max: Metrahit Energy |
HP ZBook Firefly 14 G10 A R5 PRO 7640HS, Radeon 760M | HP EliteBook 845 G10 818N0EA R9 PRO 7940HS, Radeon 780M | Lenovo Yoga 9 14IRP G8 i7-1360P, Iris Xe G7 96EUs | Huawei MateBook X Pro 2023 i7-1360P, Iris Xe G7 96EUs | Average of class Workstation | |
---|---|---|---|---|---|
Power Consumption | -42% | -59% | -24% | -141% | |
Idle Minimum * | 3 | 4.3 -43% | 7.8 -160% | 4.1 -37% | 8.1 ? -170% |
Idle Average * | 4 | 10.1 -153% | 9.3 -133% | 6.6 -65% | 12.4 ? -210% |
Idle Maximum * | 8 | 11.2 -40% | 9.8 -23% | 8 -0% | 17.8 ? -123% |
Load Average * | 56 | 64.4 -15% | 62.8 -12% | 61 -9% | 91.9 ? -64% |
Witcher 3 ultra * | 58.2 | 59.4 -2% | 46.5 20% | 56 4% | |
Load Maximum * | 66 | 66.7 -1% | 96 -45% | 90 -36% | 157.4 ? -138% |
* ... smaller is better
Power Consumption Witcher 3 / Stress test
Power consumption with external monitor
电池寿命
由于能耗低,这款笔记本电脑的电池续航时间非常出色。尽管在同类竞争产品中,它的电池性能不是最强劲的,但它的性能却是迄今为止测试阵容中最强的,在亮度为 150 cd/m2 的条件下,可以浏览约 13 个小时的互联网。
HP ZBook Firefly 14 G10 A R5 PRO 7640HS, Radeon 760M, 51 Wh | HP EliteBook 845 G10 818N0EA R9 PRO 7940HS, Radeon 780M, 51 Wh | Lenovo Yoga 9 14IRP G8 i7-1360P, Iris Xe G7 96EUs, 75 Wh | Huawei MateBook X Pro 2023 i7-1360P, Iris Xe G7 96EUs, 60 Wh | Average of class Workstation | |
---|---|---|---|---|---|
Battery Runtime | -40% | -40% | -26% | -35% | |
WiFi v1.3 | 782 | 471 -40% | 472 -40% | 580 -26% | 509 ? -35% |
H.264 | 557 | 651 | 527 | 671 ? | |
Load | 56 | 81 | 124 | 80.3 ? | |
Reader / Idle | 1292 | 927 ? |
Pros
Cons
判决
惠普的 Firefly 14 G10 A 是一款引人注目的办公笔记本电脑,配备 AMD 部件,具有类似工作站的功能。
测试机型配备了 Ryzen 5 Pro 7640HS的测试机型,不仅能效高,性能也令人印象深刻(尤其是 Radeon 760M集成图形处理器)。

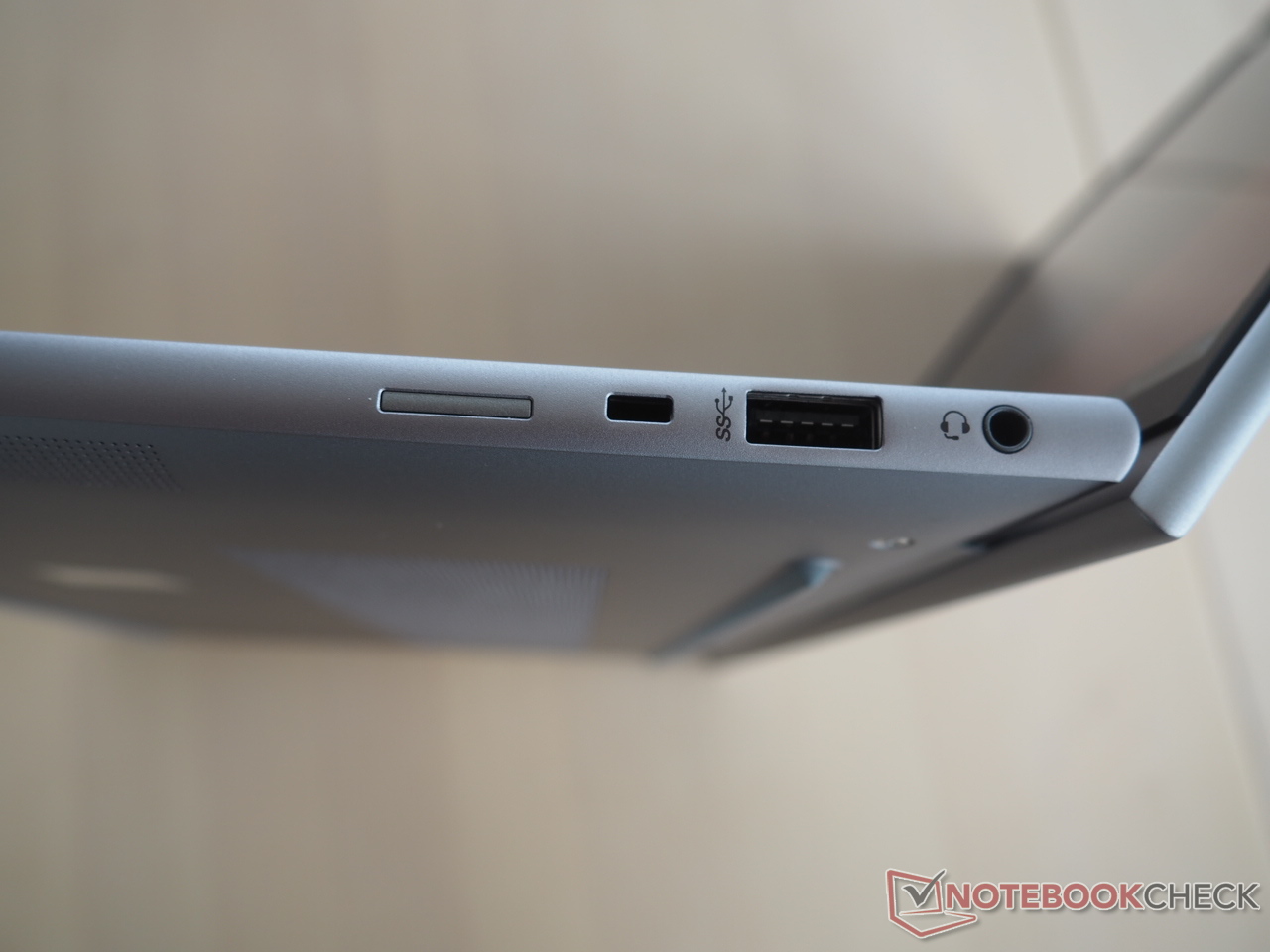

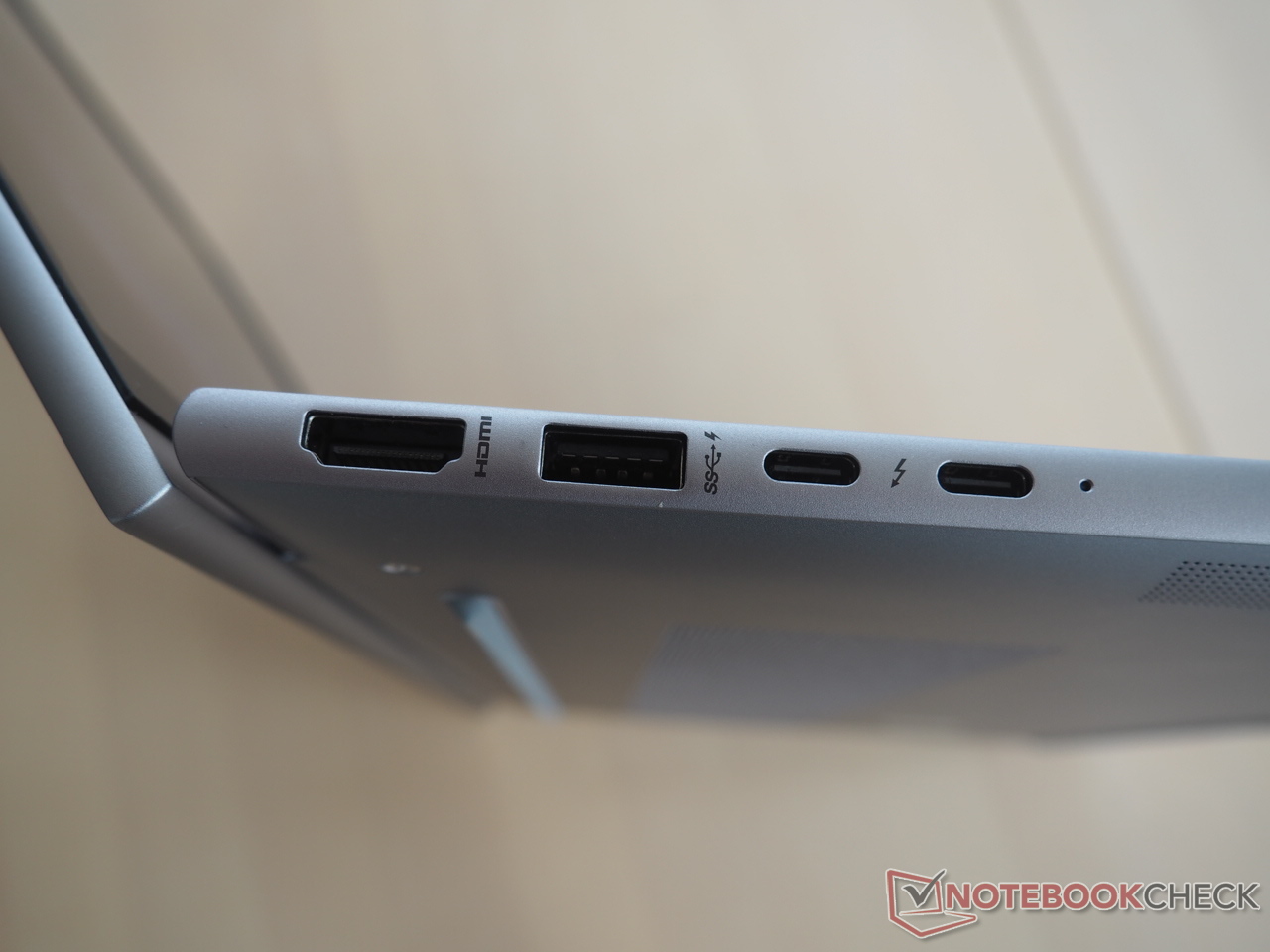

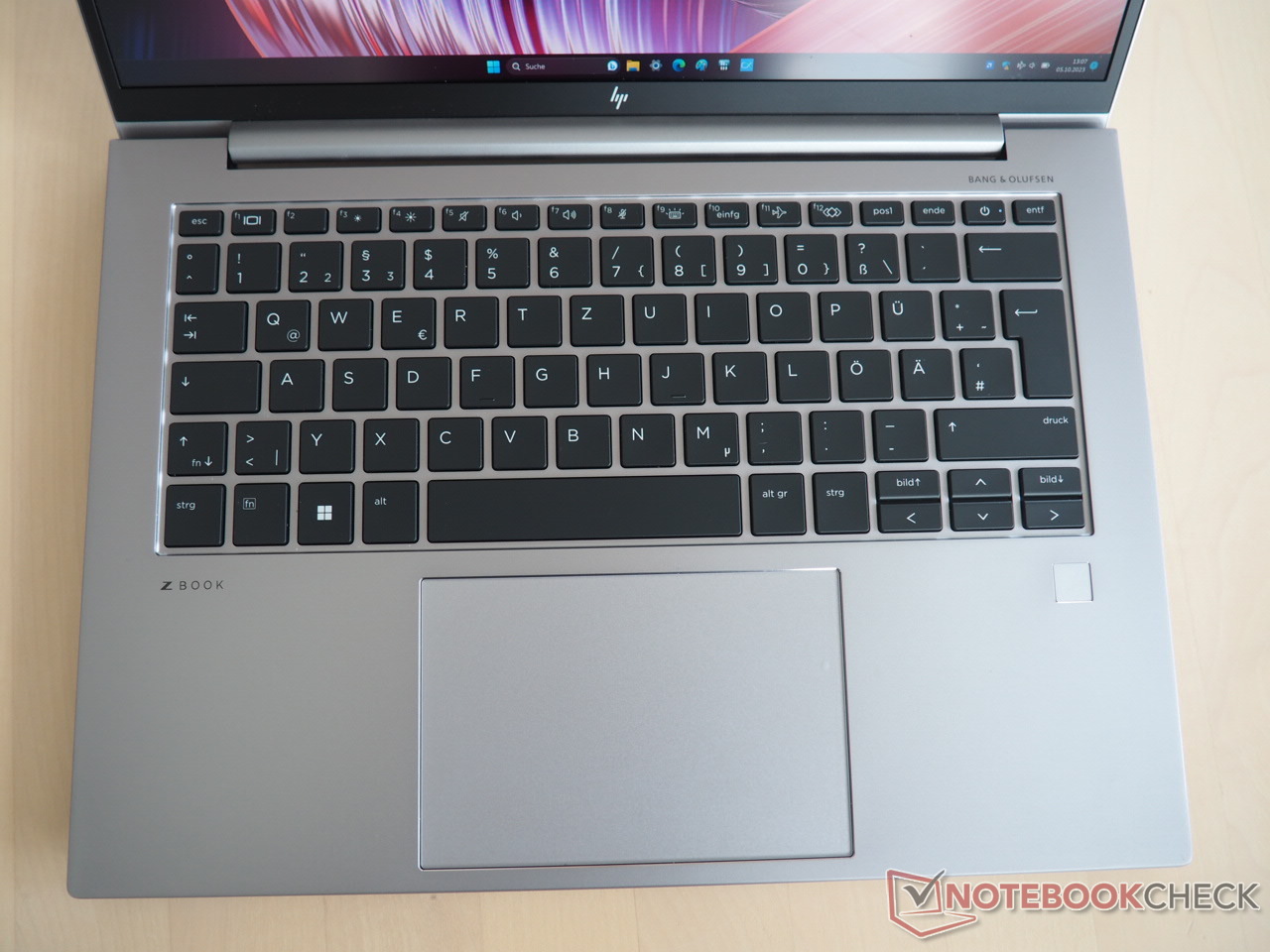

强大的硬件被包裹在优雅、坚固和高品质的机身中,机身拥有出色的输入设备和现代化的端口,包括 2x USB 4。其他显著特点还包括出色的电池续航时间和强劲的音频质量。
这款 14 英寸笔记本电脑的辐射会引起不同的反应。尽管线圈发出呜呜声,但在适度负载的情况下,它仍能保持非常安静和凉爽。但是,当负载较重时,小工具就会变得相对嘈杂和发热。此外,显示屏的响应时间还有待改进,这也是惠普可能改进的一个方面。
考虑到上述缺点,Firefly 14 G10 A 无疑是目前市场上最好的办公笔记本。但竞争依然存在,联想(Lenovo)的笔记本电脑就证明了这一点。Yoga 9 14IRP G8)和华为(MateBook X Pro)的竞争,尽管它们的价格略高。
价格和供应情况
经评测的配备 Ryzen 5 Pro 7640HS 的 HP ZBook Firefly 14 G10 A 目前可在多家在线零售商处购买,例如(Connection)。).
HP ZBook Firefly 14 G10 A
- 10/11/2023 v7 (old)
Florian Glaser
Transparency
The selection of devices to be reviewed is made by our editorial team. The test sample was provided to the author as a loan by the manufacturer or retailer for the purpose of this review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.
This is how Notebookcheck is testing
Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.
