华硕 ZenBook Duo OLED 评测--配备英特尔 Arrow Lake 处理器的多屏可转换产品

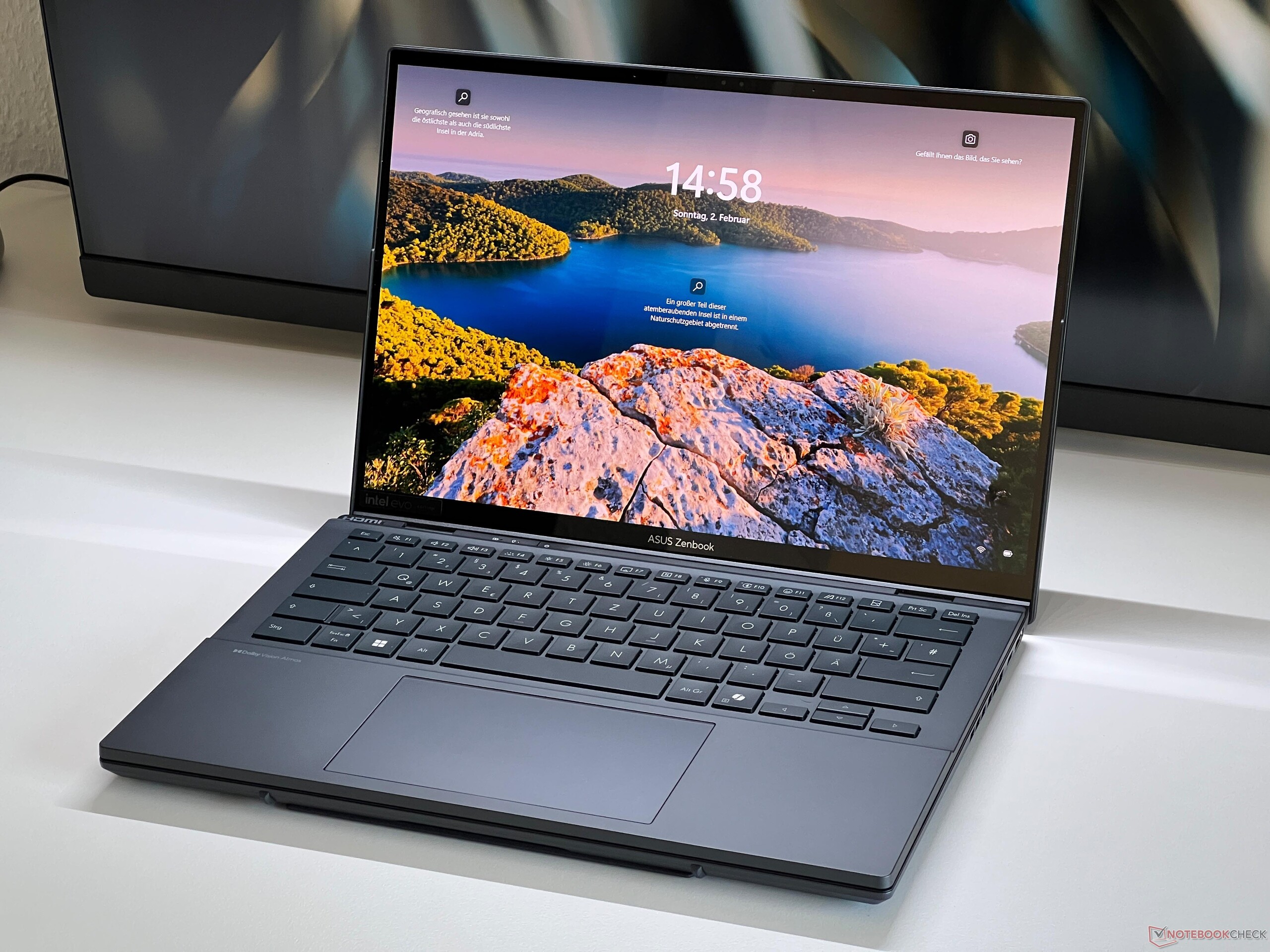

Name: Asus ZenBook Duo OLED UX8406CA
Brand: Asus

多任务怪物

Zenbook Duo 是首批配备英特尔新款 Arrow Lake 移动处理器的设备之一，由于采用了多屏概念，它仍然是一款非常有趣的设备。我们的测试设备安装了两块 14 英寸 FHD 分辨率的 OLED 屏幕，这尤其有助于延长电池寿命。
Andreas Osthoff, 👁 Andreas Osthoff (translated by DeepL / Ninh Duy) Published 02/11/2025 🇺🇸 🇩🇪 ...
Arrow Lake Convertible / 2-in-1 Intel Laptop / Notebook Thunderbolt Wi-Fi 7 Windows

结论 - 由于采用了 Arrow Lake 技术，Zenbook Duo 的 CPU/GPU 性能提高了约 20

2025 年，Zenbook Duo 凭借其两块 OLED 屏幕，继续成为一款极其令人兴奋的可折叠产品。由于两个屏幕提供相同的功能，因此高效工作不成问题，而且可以移动窗口，不会出现任何缩放问题。由于内置脚架和出色的可拆卸键盘，Zenbook Duo 有多种使用方式。其整体概念的缺点是重量较重，机身厚度不足 2 厘米。此外，它的维护选项非常有限，因为你必须拆开一半设备才能访问 M.2 2280 SSD。华硕还稍微改变了端口的分布，现在两侧都有一个 USB-C 端口，非常方便。

Test device courtesy of Asus Deutschland

Download your licensed rating image as PNG / SVG

Zenbook Duo 是首批使用英特尔全新 Arrow Lake H 移动处理器的设备之一。这些处理器是流星湖一代的直接后续产品，处理器和显卡的性能都提高了 20% 以上。不过，它的功耗限制仍然很低，尤其是在连续负载的情况下，而且笔记本电脑无法充分利用酷睿至尊 9 285H的性能潜力。与高效的 Lunar Lake 处理器不同，Arrow Lake 芯片使用的是较弱的 NPU，这也是该设备缺少 Copilot+ 官方认证的原因。即便如此，网络摄像头的 Studio Effects 或实时字幕等功能仍然可用，这意味着这对最终用户的影响并不大。

与去年的机型一样，你可以选择两种不同的 OLED 版本。120 Hz 的 2.8K 面板适用于最昂贵的版本，价格约为 2,600 美元，而我们的测试设备（价格约为 2,170 美元）配备的是 60 Hz 的 1200p 型号。频率较低是最明显的问题，但从主观上看，屏幕的画面仍然非常出色，而且除了分辨率和频率外，两种屏幕型号的规格也不相上下。笔记本电脑的功耗以及电池续航时间都得益于 1200p OLED 屏幕，这对于移动设备来说绝对是一个值得考虑的因素。

华硕 Zenbook Duo 仍然是无与伦比的，因为目前市场上没有任何其他设备可以在不做出任何真正妥协的情况下实现如此多功能的使用。联想的 Yoga Book但在这种情况下，它的无线键盘必须外置，打字感觉并不舒适，而且整体性能也明显较低。

Pros

+ 精心设计的操作理念

+ 两块色彩准确的优质 OLED 面板

+ 非常舒适的输入设备

+ 改进的 CPU/GPU 性能

+ 供货范围包括触控笔和袋子

+ 更长的电池寿命

+ Wi-Fi 7

Cons

- 复杂的组件/固化内存访问方式

- 比普通 14 英寸笔记本电脑更厚更重

- PWM 闪烁

- 无读卡器

价格和供应情况

新款 Zenbook Duo OLED 可能会在二月底上市。

可能的替代品比较

Image	Model / Review	Price	Weight	Height	Display
1. 86.5%	Asus ZenBook Duo OLED UX8406CA Intel Core Ultra 9 285H ⎘ Intel Arc Graphics 140T ⎘ 32 GB Memory, 1024 GB SSD	Amazon: 1. $1,499.99 ASUS Zenbook Duo Laptop, Dua... 2. $1,435.00 ASUS Zenbook Duo 2-in-1 Lapt... 3. $39.99 Smatree Hard EVA Protective ... List Price: 2099€	1.8 kg	19.9 mm	14.00" 1920x1200 162 PPI OLED
2. 87.8% ^{v7 (old)}	Asus Zenbook Duo OLED UX8406MA Intel Core Ultra 9 185H ⎘ Intel Arc 8-Core iGPU ⎘ 32 GB Memory, 2048 GB SSD	Amazon: $1,499.99 List Price: 2499€	1.7 kg	19.9 mm	14.00" 2880x1800 243 PPI OLED
3. 87% ^{v7 (old)}	Lenovo Yoga Book 9 13IMU9 Intel Core Ultra 7 155U ⎘ Intel Graphics 4-Core iGPU (Arc) ⎘ 16 GB Memory	Amazon: $2,119.99 List Price: 2000 USD	1.4 kg	15.95 mm	13.30" 2880x1800 255 PPI OLED
4. 85.9%	Samsung Galaxy Book5 Pro 360 Intel Core Ultra 5 226V ⎘ Intel Arc Graphics 130V ⎘ 16 GB Memory, 512 GB SSD	Amazon: 1. $1,549.99 SAMSUNG 16” Galaxy Book5 P... 2. $1,349.99 SAMSUNG 15.6” Galaxy Book5... 3. $1,349.99 SAMSUNG Galaxy Book3 Pro 360... List Price: 1799€	1.7 kg	12.8 mm	16.00" 2880x1800 212 PPI OLED
5. 90.5% ^{v7 (old)}	Lenovo Yoga 9 2-in-1 14IMH9 Intel Core Ultra 7 155H ⎘ Intel Arc 8-Core iGPU ⎘ 16 GB Memory, 1024 GB SSD	Amazon: $1,599.00 List Price: 1550 USD	1.3 kg	15.9 mm	14.00" 2880x1800 243 PPI OLED
6. 91.4% ^{v7 (old)}	HP Spectre x360 14-eu0078ng Intel Core Ultra 7 155H ⎘ Intel Arc 8-Core iGPU ⎘ 32 GB Memory, 2048 GB SSD	Amazon: List Price: 1899€	1.5 kg	16.9 mm	14.00" 2880x1800 243 PPI OLED

结论 - 由于采用了 Arrow Lake 技术，Zenbook Duo 的 CPU/GPU 性能提高了约 20
规格
外壳和连接
输入设备
显示屏 - 1200p 双 OLED
性能 - 箭湖-H
排放与能源
Notebookcheck 总评分

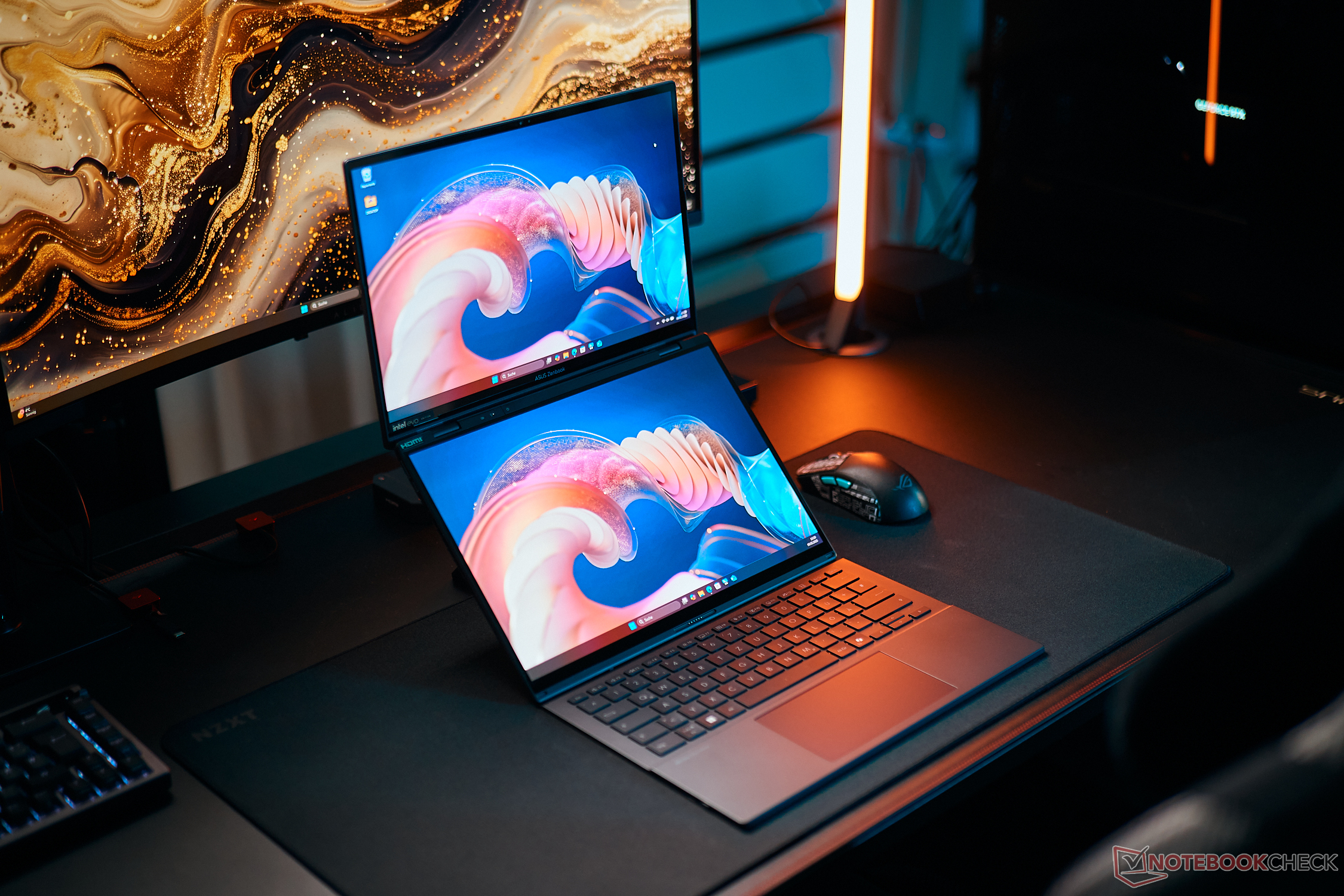

去年，华硕推出了 Zenbook Duo，这是一款有趣的可折叠产品，功能非常全面，配备了两个 14 英寸 OLED 面板和一个可拆卸的蓝牙键盘。最重要的是，两块相同的面板在使用过程中被证明是一大优势。当时，Zenbook Duo 配备了英特尔流星湖处理器（Meteor Lake Processor），而现在，2025 版 Zenbook Duo 是首批配备英特尔全新箭湖移动处理器的设备之一。在我们的测试设备（MRSP 约 2170 美元）中，全新的酷睿 Ultra 9 285H 与 32 GB 内存和 1 TB 固态硬盘配合使用。与去年的测试设备不同的是，现在安装了两块 60 Hz 的全高清 OLED 显示屏，这就是为什么它的画质会受到一定影响，但电池续航时间却更长的原因。价格约为 2,600 美元（32 GB 内存、2 TB 固态硬盘）的机型仍采用 120 Hz 的 3K OLED 显示屏。

规格

Asus ZenBook Duo OLED UX8406CA (Zenbook Duo OLED Series)

Processor

Intel Core Ultra 9 285H 16 x 4.5 - 5.4 GHz, 60 W PL2 / Short Burst, 35 W PL1 / Sustained, Arrow Lake-H

Graphics adapter

Intel Arc Graphics 140T, Core: 2250 MHz, 32.0.101.6104

Memory

32 GB

, LPDDR5x-7467, Dual-Channel, onboard

Display

14.00 inch 16:10, 1920 x 1200 pixel 162 PPI, capacitive, ATNA40CT02-0, OLED, glossy: yes, HDR, 60 Hz

Storage

Western Digital PC SN5000S SDEQNSJ-1T00, 1024 GB

, 870 GB free

Connections

1 USB 3.0 / 3.1 Gen1, 2 USB 4.0 40 Gbps, 2 Thunderbolt, USB-C Power Delivery (PD), 1 HDMI, 2 DisplayPort, Audio Connections: 3.5 mm, Brightness Sensor

Networking

Intel BE201 320MHz (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/ Wi-Fi 6E 6 GHz be = Wi-Fi 7), Bluetooth 5.4

Size

height x width x depth (in mm): 19.9 x 313.5 x 217.9

Battery

75 Wh, 4680 mAh Lithium-Polymer

Operating System

Microsoft Windows 11 Pro

Camera

Webcam: 1080p + IR
Primary Camera: 2 MPix

Additional features

Speakers: Stereo, Keyboard: Chiclet, Keyboard Light: yes, Asus Pen 2.0, My Asus, ScreenXpert, 24 Months Warranty

Weight

1.764 kg, Power Supply: 190 g

Price

2099 Euro

Links

Asus homepage
Asus notebook section

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

外壳和连接

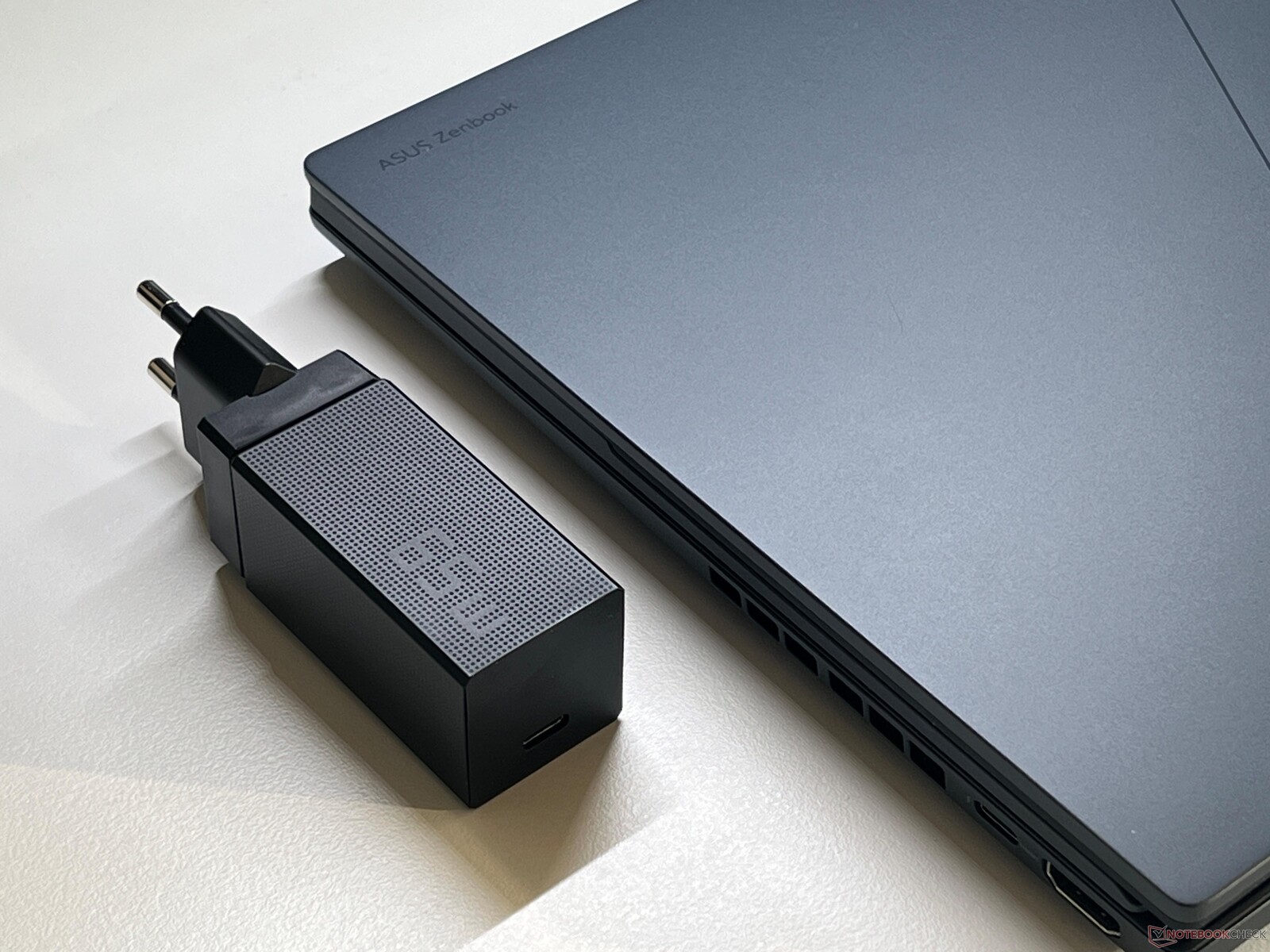

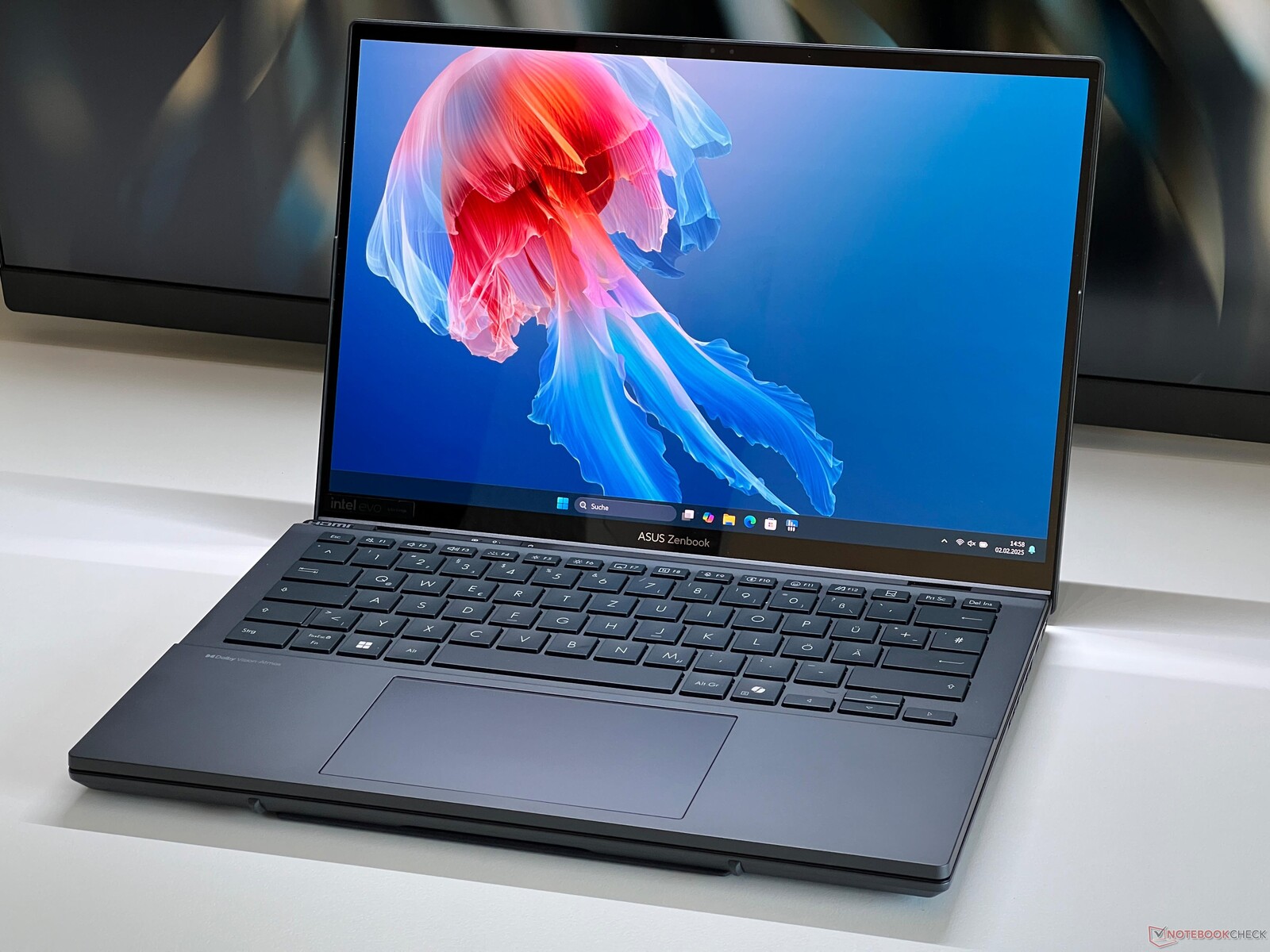

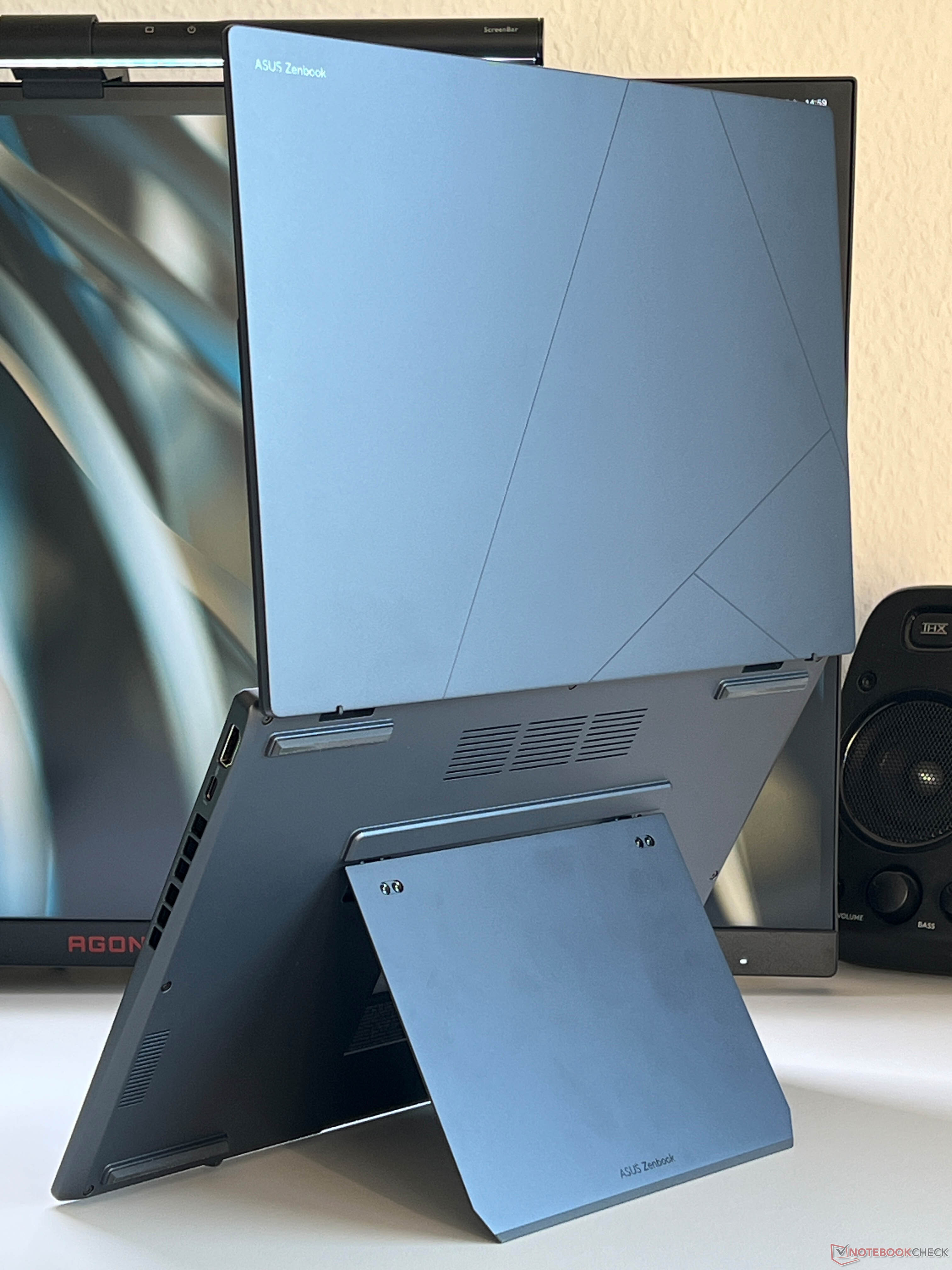

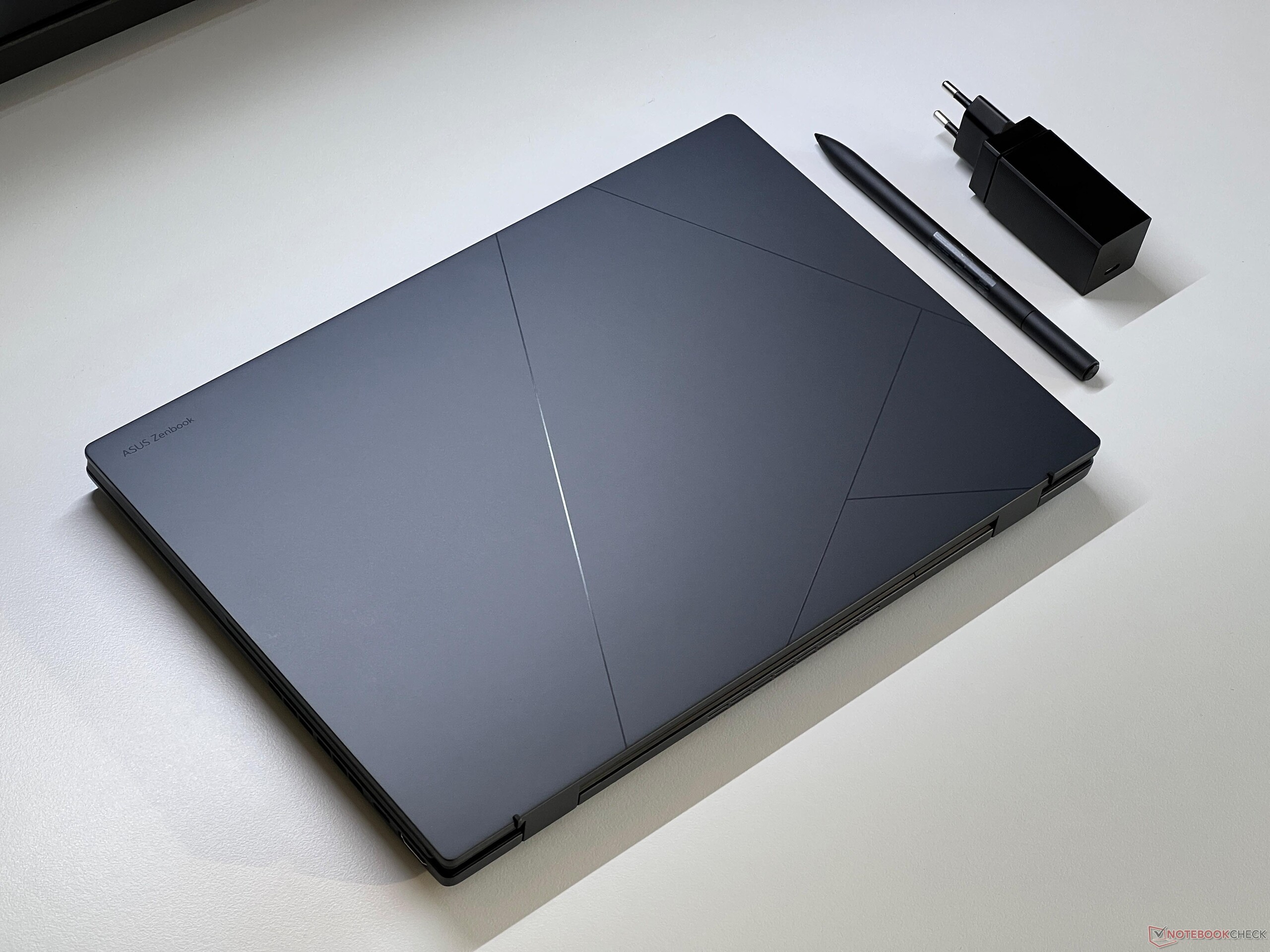

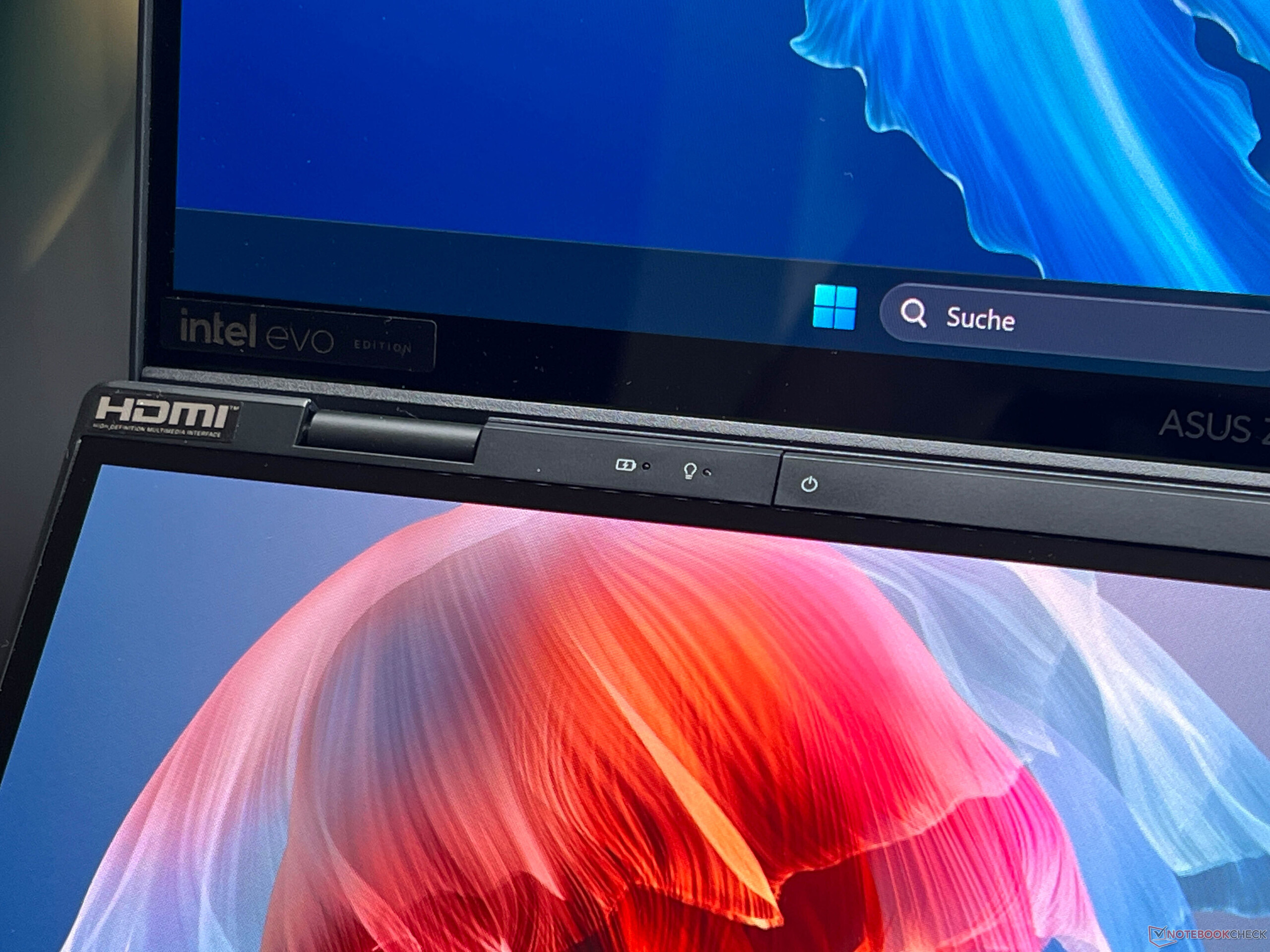

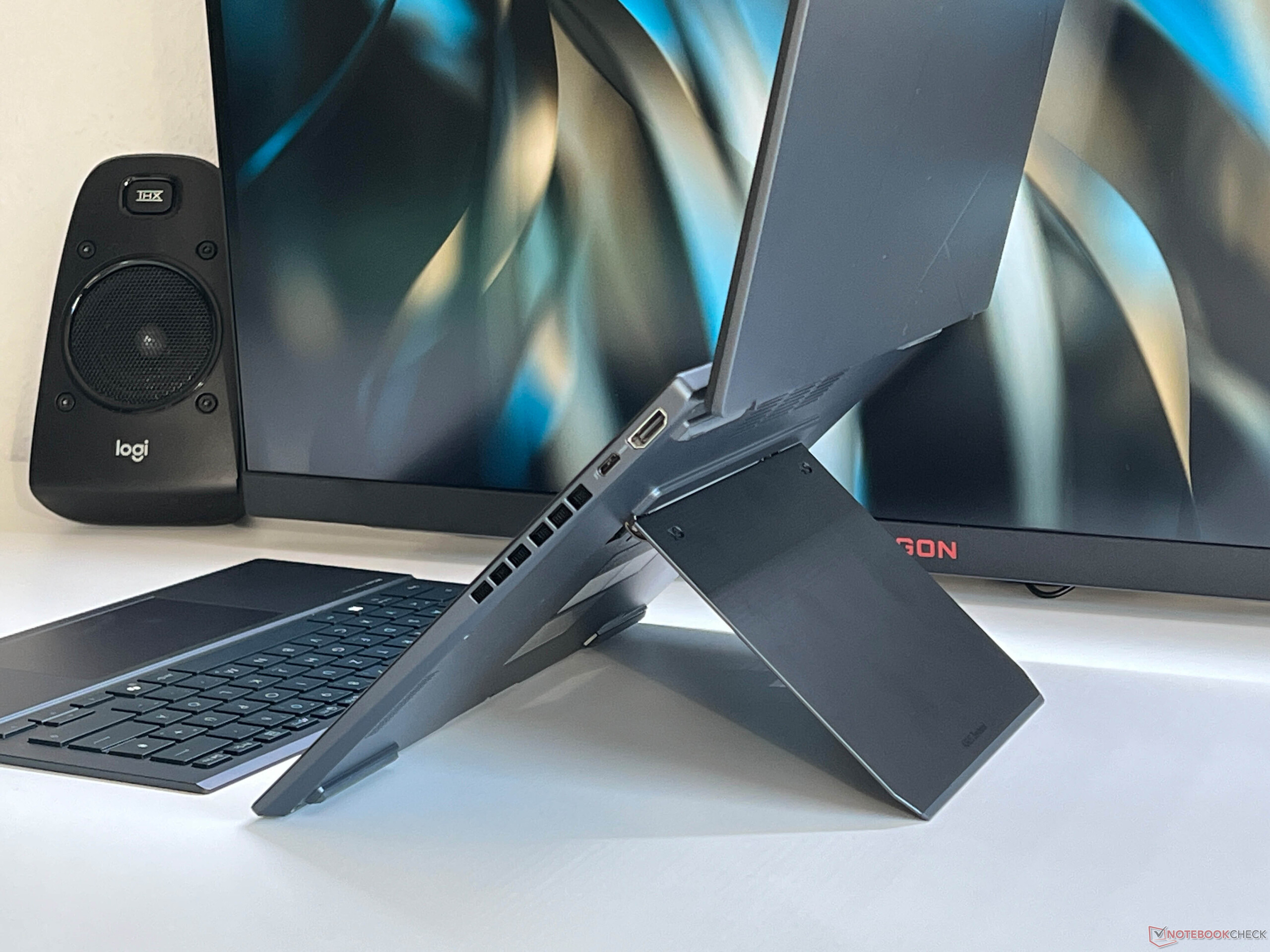

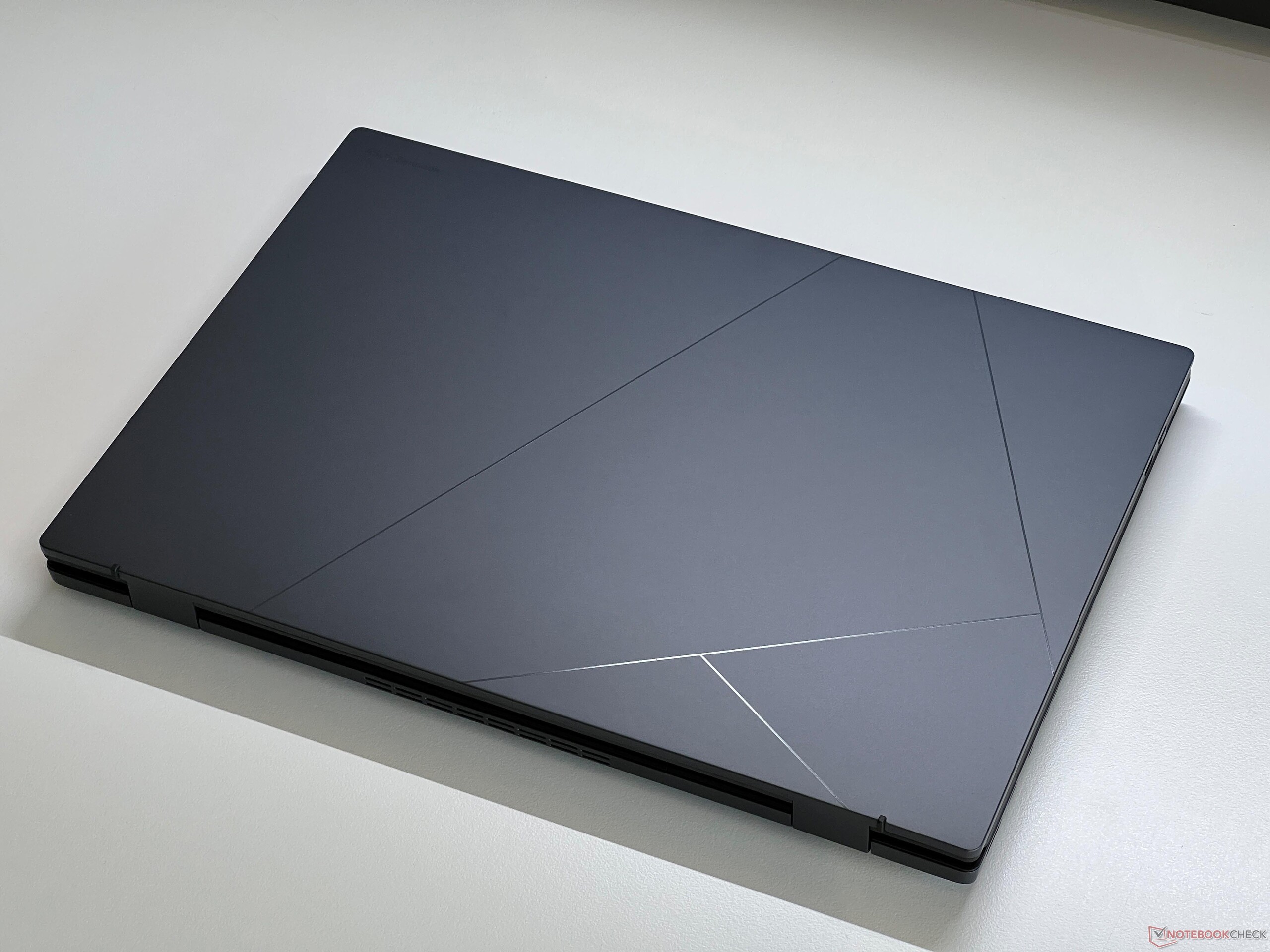

总体而言，新款 Zenbook Duo 的设计与前代产品并无不同。从外观上看，我们可以看到与普通 Zenbook 有很多相似之处，包括屏幕盖上的大型 ProArt 标志。外壳（镁合金）的制造质量和稳定性都非常好。除了普通屏幕外，Zenbook Duo 还在底座顶部配备了另一块 OLED 触摸屏。再加上可拆卸键盘，这就为您提供了一个用途广泛的可转换设备。为了支撑 Zenbook Duo，底部有一个内置脚架，一般来说效果不错。不过，如果你想在所谓的桌面模式下使用两个屏幕（就像一本打开的书），这个解决方案还是不太理想，因为主屏幕会稍微向后折叠。不过，总的来说，这个概念还是非常有效的。不过，它的厚度略低于 2 厘米，重量接近 1.8 千克（包括键盘），比普通的 14 英寸可折叠机要重得多，也厚得多。

在谈到笔记本的连接时，华硕已将我们的批评铭记于心，并改变了其布局，现在两侧都有一个 USB-C 端口（Thunderbolt 4）。此外，它现在还使用了现代 W-Fi 7 模块，在我们使用华硕参考路由器进行的测试中，其传输速率非常高。它的 1080p 网络摄像头也能正常工作，而且还支持高级 Studio 效果。不过，官方称新的 Arrow Lake 设备不是 Copilot+ 设备，因为 NPU 太弱。除了 Studio Effects，Zenbook 还支持 Windows live 字幕等功能。不过，由于采用了第二块屏幕，访问所有组件都比较困难。首先要通过底部的一个小挡板松开两个连接处，然后才能进一步拆开外壳。内部安装了一个 M.2 2280 固态硬盘，理论上可以更换，但这需要拆下天线电缆、连接电缆和部分主板。

尺寸比较

Samsung Galaxy Book5 Pro 360 Asus ZenBook Duo OLED UX8406CA Asus Zenbook Duo OLED UX8406MA Lenovo Yoga 9 2-in-1 14IMH9 HP Spectre x360 14-eu0078ng Lenovo Yoga Book 9 13IMU9 DIN A4 ❌

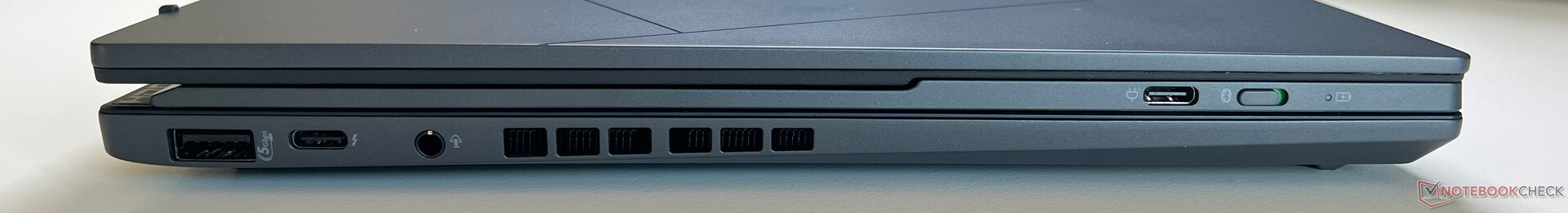

左：USB-A 3.2 Gen 1（5 Gbit/s）、带 Thunderbolt 4（40 GBit/s）的 USB-C 4.0、DisplayPort、Power Delivery、3.5 毫米音频、USB-C（为蓝牙键盘充电）

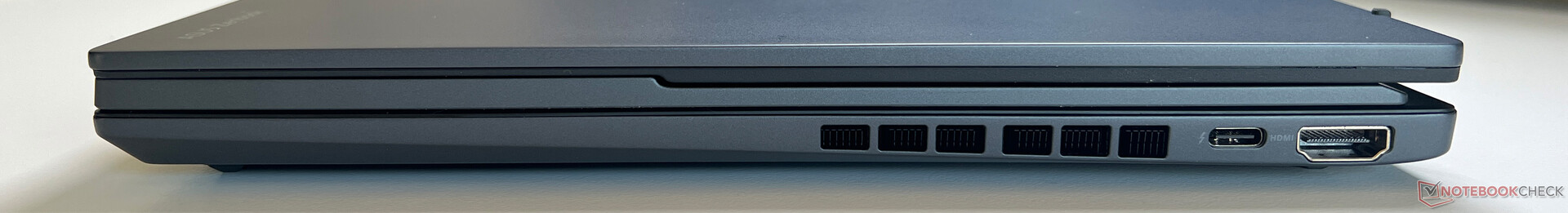

右侧USB-C 4.0 配有 Thunderbolt 4（40 GBit/s、DisplayPort、Power Delivery）、HDMI 2.1

Networking
Asus ZenBook Duo OLED UX8406CA Intel BE201 320MHz
iperf3 transmit AXE11000	1633 (min: 1496) MBit/s ∼99%
iperf3 receive AXE11000	1669 (min: 1612) MBit/s ∼95%
Asus Zenbook Duo OLED UX8406MA Intel Wi-Fi 6E AX211
iperf3 transmit AXE11000	1635 (min: 1533) MBit/s ∼99%
iperf3 receive AXE11000	1647 (min: 1591) MBit/s ∼94%
Lenovo Yoga Book 9 13IMU9 Intel Wi-Fi 6E AX211
iperf3 transmit AXE11000	807 (min: 591) MBit/s ∼49%
iperf3 receive AXE11000	1367 (min: 1203) MBit/s ∼78%
iperf3 transmit AXE11000 6GHz	815 (min: 660) MBit/s ∼67%
iperf3 receive AXE11000 6GHz	1010 (min: 911) MBit/s ∼68%
Samsung Galaxy Book5 Pro 360 Intel BE201 320MHz
iperf3 transmit AXE11000	1652 (min: 850) MBit/s ∼100%
iperf3 receive AXE11000	1755 (min: 1742) MBit/s ∼100%
Lenovo Yoga 9 2-in-1 14IMH9 Intel Wi-Fi 6E AX211
iperf3 transmit AXE11000	985 (min: 790) MBit/s ∼60%
iperf3 receive AXE11000	1486 (min: 1293) MBit/s ∼85%
iperf3 transmit AXE11000 6GHz	1216 (min: 1009) MBit/s ∼100%
iperf3 receive AXE11000 6GHz	1484 (min: 1381) MBit/s ∼100%
HP Spectre x360 14-eu0078ng Intel Wi-Fi 7 BE200 320MHz
iperf3 transmit AXE11000	1631 (min: 1520) MBit/s ∼99%
iperf3 receive AXE11000	1647 (min: 1625) MBit/s ∼94%

Asus ZenBook Duo OLED UX8406CA; iperf3 transmit AXE11000: Ø1633 (1496-1704)

Asus ZenBook Duo OLED UX8406CA; iperf3 receive AXE11000: Ø1669 (1612-1697)

ColorChecker Asus ZenBook Duo OLED UX8406CA: 10.32 ∆E min: 1.64 - max: 20.83 ∆E

可持续性

Zenbook Duo 的外壳由 90% 的可回收材料制成，包装则是 100% 的可回收材料。该设备还符合各种环保标准，如能源之星、EPEAT Gold 和 RoHS。没有提供生产过程中产生的_二氧化碳排放量的信息，也没有提供维修说明。

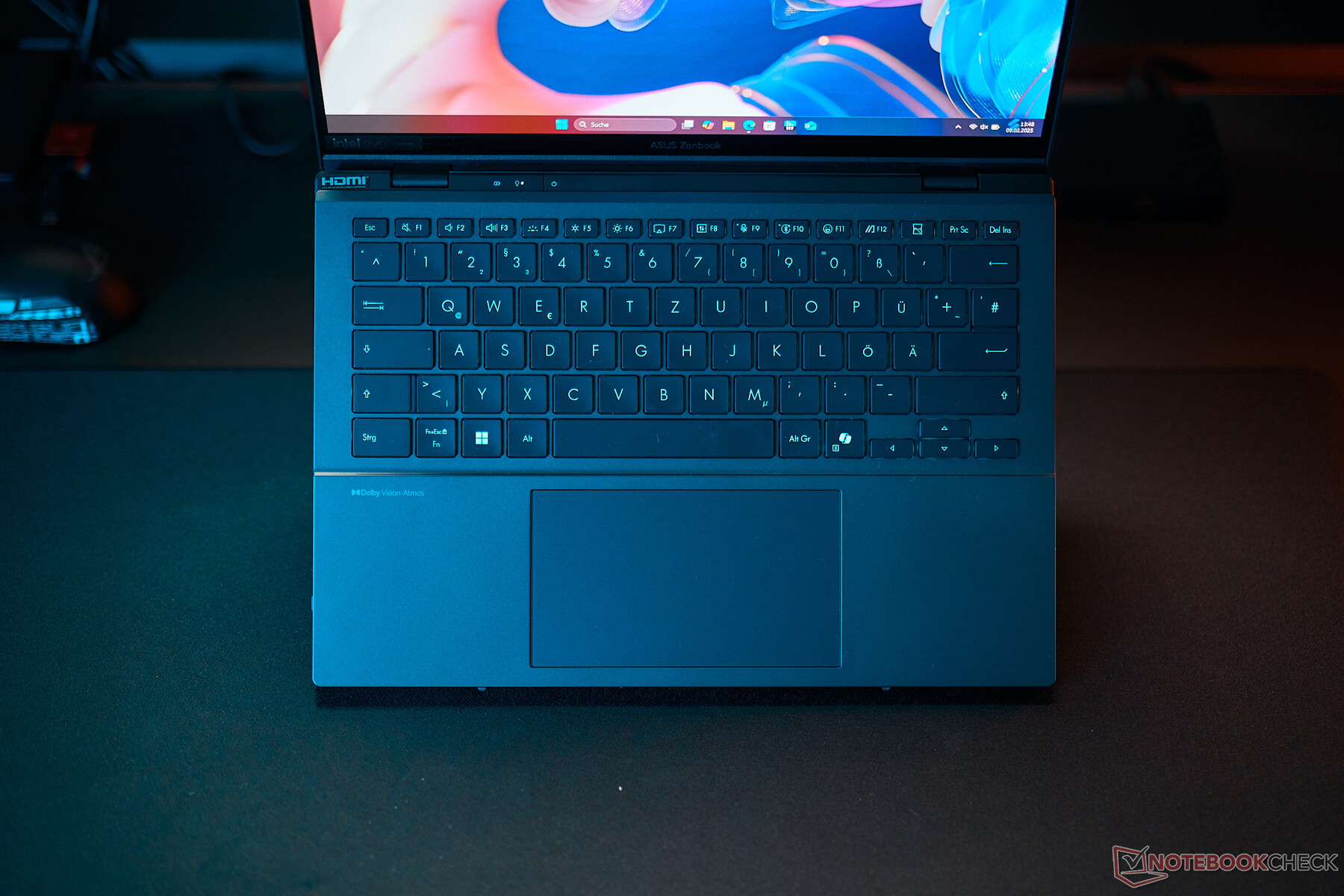

输入设备

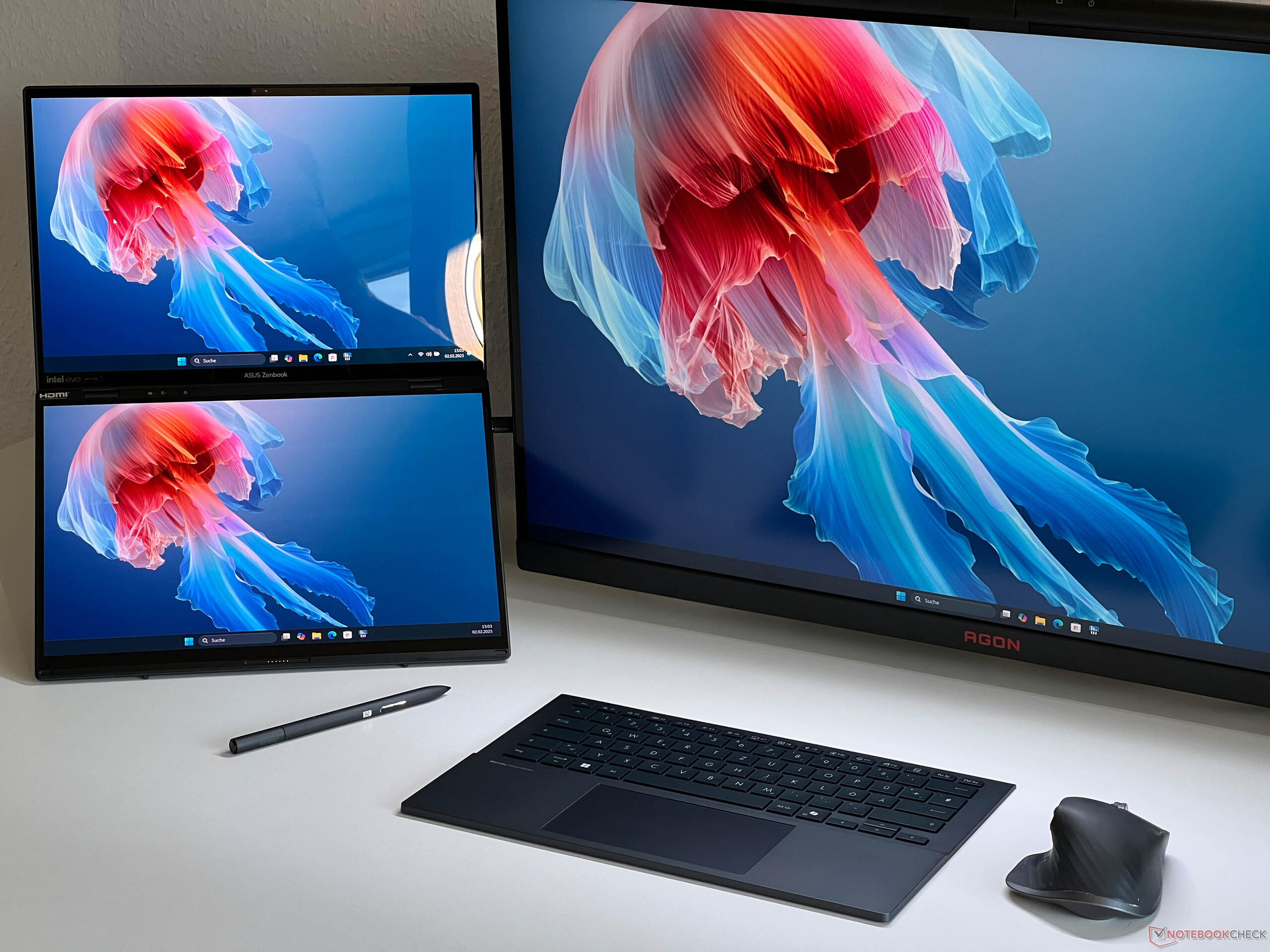

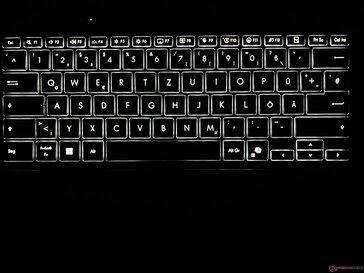

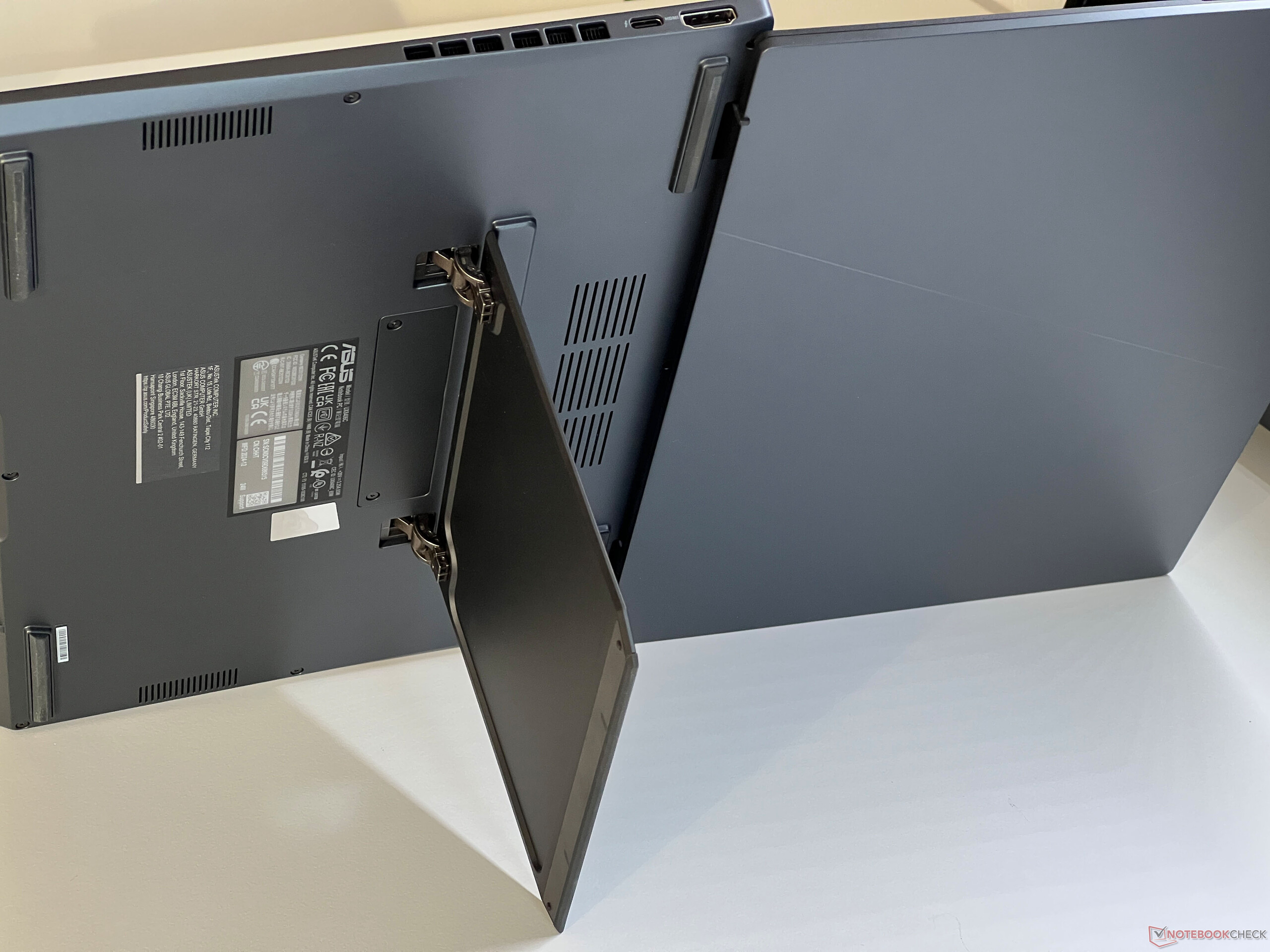

除了两个触摸屏外，该设备当然还支持使用附带的华硕笔 2.0 进行笔输入，而且效果非常好。不过，我们眼中真正的亮点是可拆卸的键盘装置，它通过磁铁牢固地吸附在外壳上。键盘的键程为 1.4 毫米，按键安静，而且具有很高的硬度，带来非常舒适的打字体验。在这方面，Zenbook Duo 甚至比一些普通笔记本电脑更具优势。ClickPad 也非常好用，能发出清脆的咔哒声。

蓝牙键盘配有电池，可以通过 USB-C 接口充电，但只要把它放在底座上，它就会连接到 pogo pins，键盘就会自动充电。据华硕称，键盘中的电池续航时间长达 24 小时。三级白色背光可通过传感器激活。

显示屏 - 1200p 双 OLED

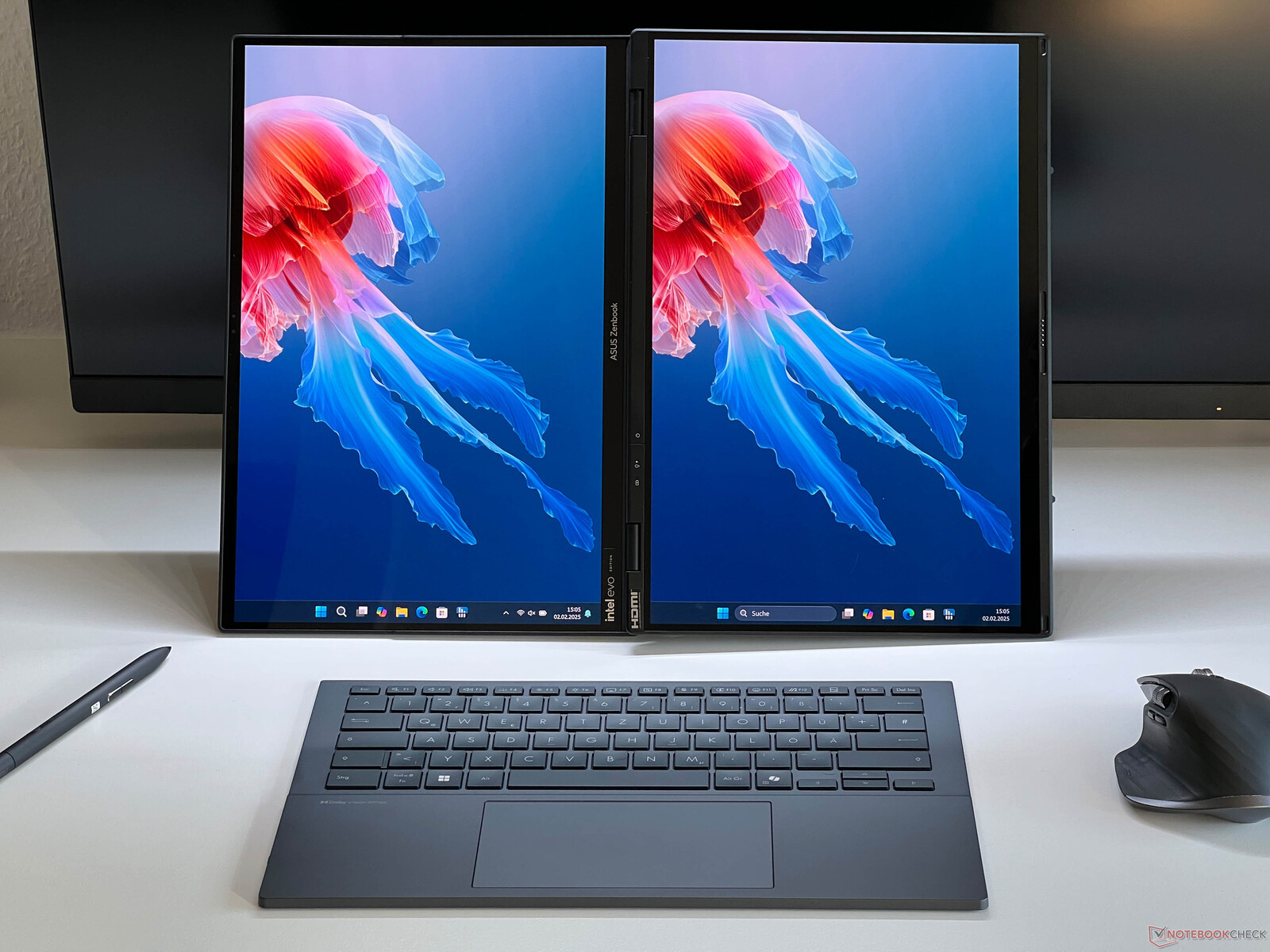

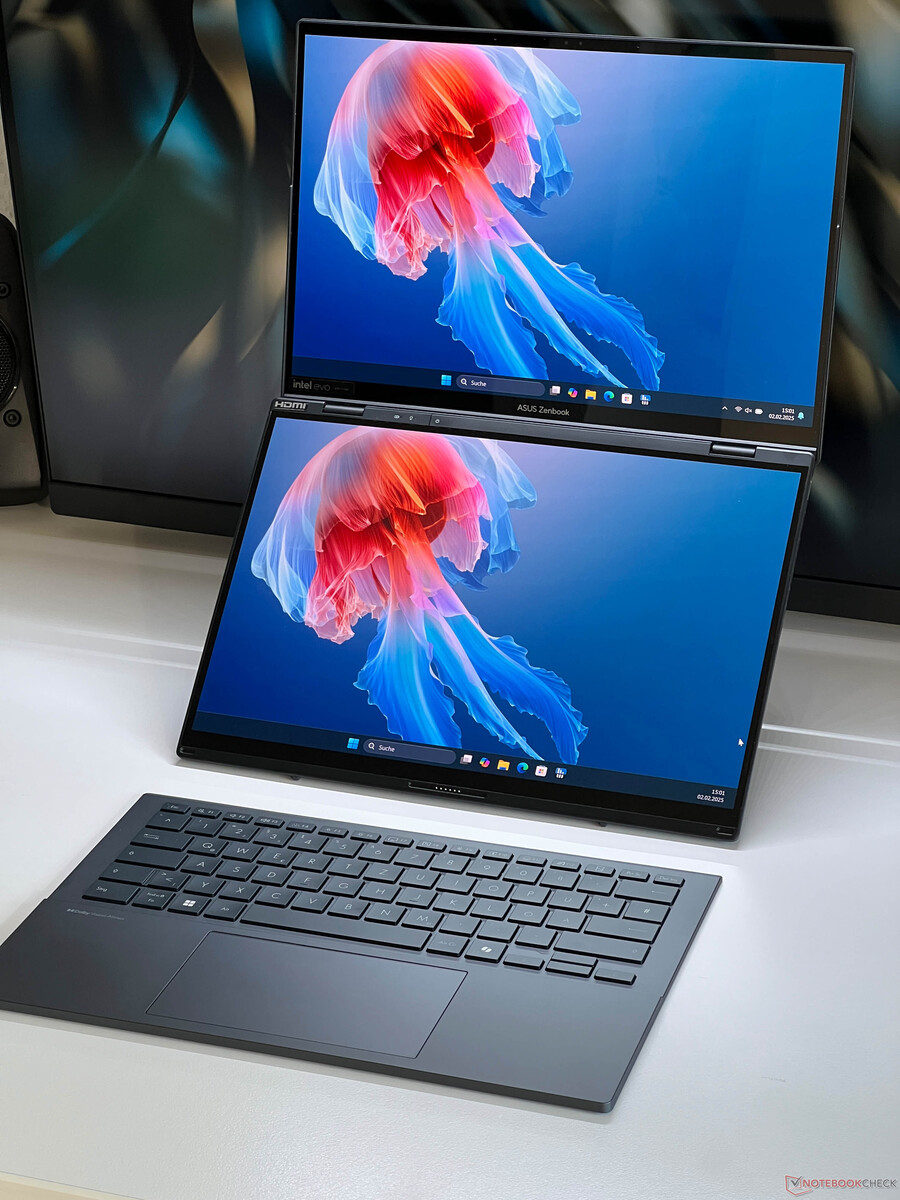

Zenbook Duo 配备了两块相同的 14 英寸 OLED 面板，因此可以同时使用两块屏幕而不会出现任何问题（画质相同，移动窗口时不会出现缩放问题）。去年的测试设备配备了两块高分辨率 OLED，分辨率为 2.8K，频率为 120 Hz，而我们目前的测试配置则是两块全高清 OLED，频率为 60 Hz。除此之外，其他功能都是一样的。屏幕的亮度可以通过传感器自动调节，但色温不能自动调节。

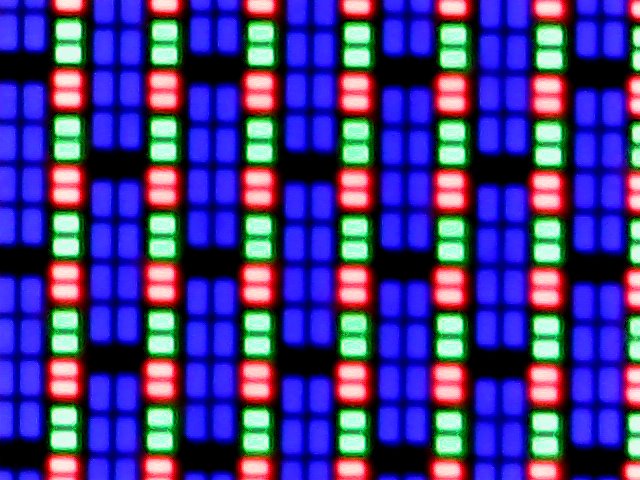

它们的画质总体上非常好，只有在明亮的内容上仔细观察才能看到轻微的光栅效应，但这在日常使用中应该不会很明显。我们测得的 SDR 最大亮度平均为 362 cd/m²，再加上低黑度，这就形成了 OLED 典型的高对比度。在 HDR 模式下（必须手动激活），我们发现在显示小幅图像时亮度最高可达 625 cd/m²，在显示几乎全白的图像时亮度最高可达 601 cd/m²。屏幕的响应速度非常快，而且没有背光出血现象，不过在亮度为 86% 或更低时，屏幕确实会以 480 Hz 的频率闪烁。


368 cd/m²	364 cd/m²	362 cd/m²
361 cd/m²	359 cd/m²	361 cd/m²
361 cd/m²	360 cd/m²	362 cd/m²

Distribution of brightness

ATNA40CT02-0 tested with X-Rite i1Pro 2

Maximum: 368 cd/m² (Nits) Average: 362 cd/m² Minimum: 4 cd/m²
Brightness Distribution: 98 %
Center on Battery: 359 cd/m²
Contrast: ∞:1 (Black: 0 cd/m²)
ΔE Color 1.2 | 0.5-29.43 Ø4.9
ΔE Greyscale 2.1 | 0.5-98 Ø5.2

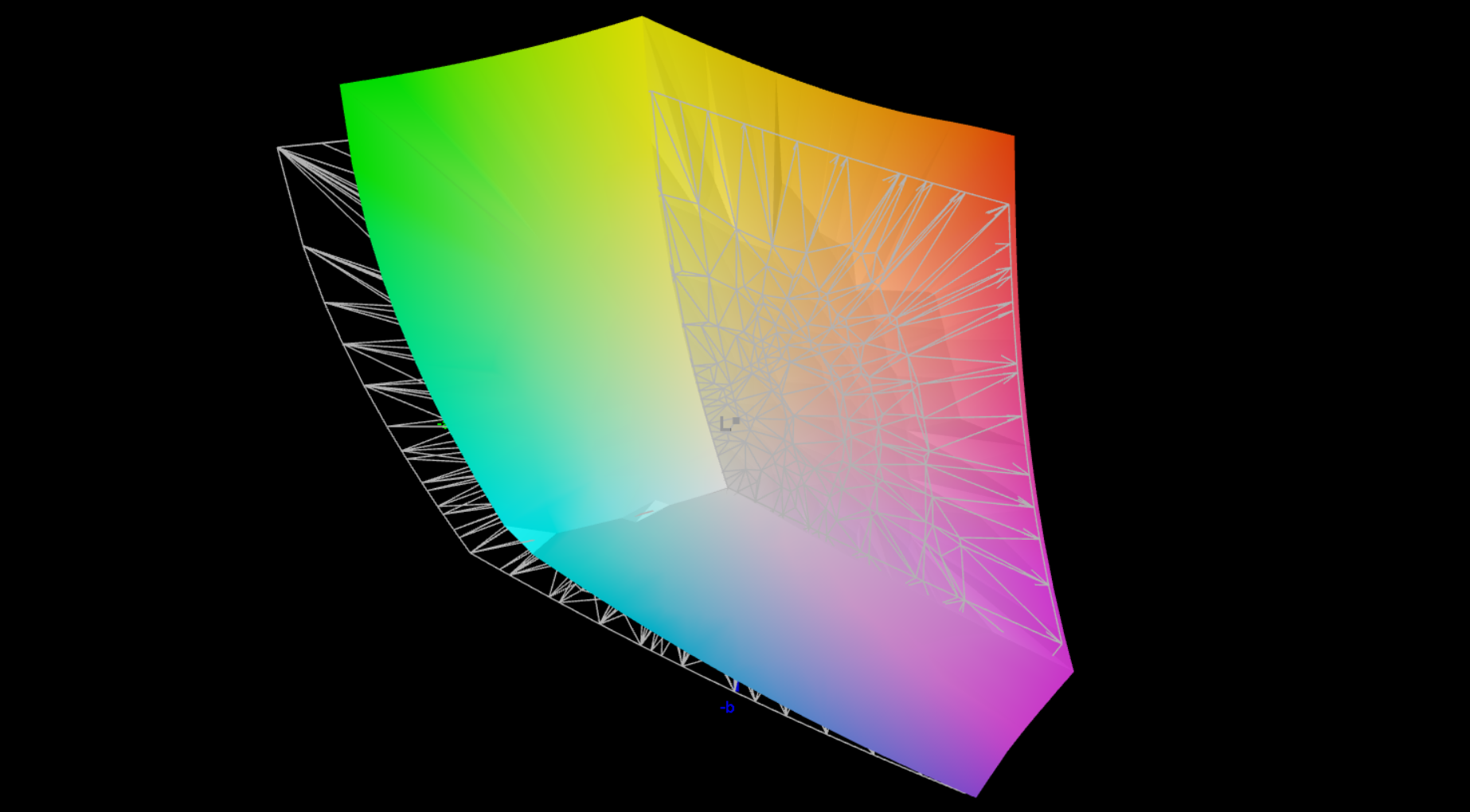

86.7% AdobeRGB 1998 (Argyll 2.2.0 3D)

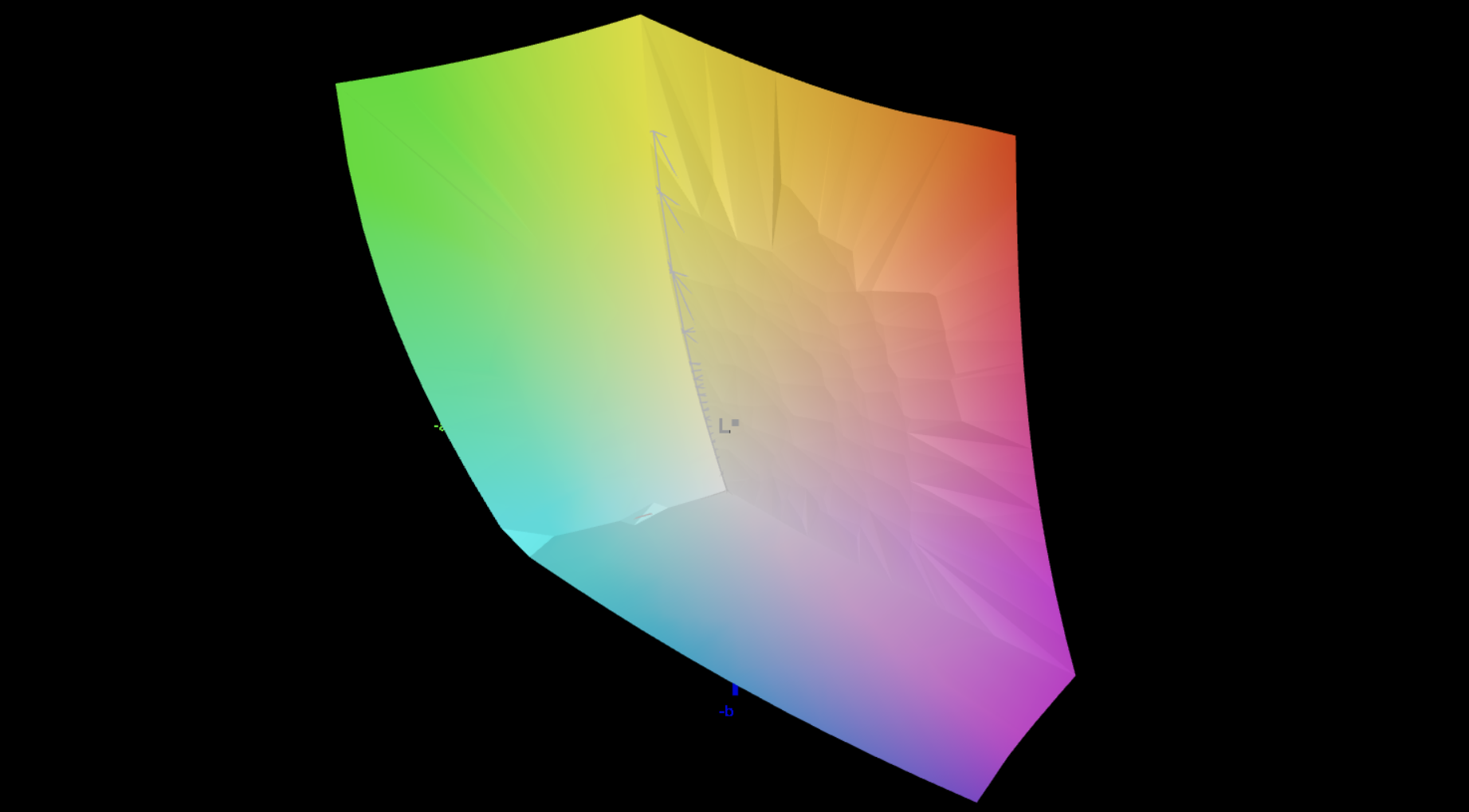

99.8% sRGB (Argyll 2.2.0 3D)

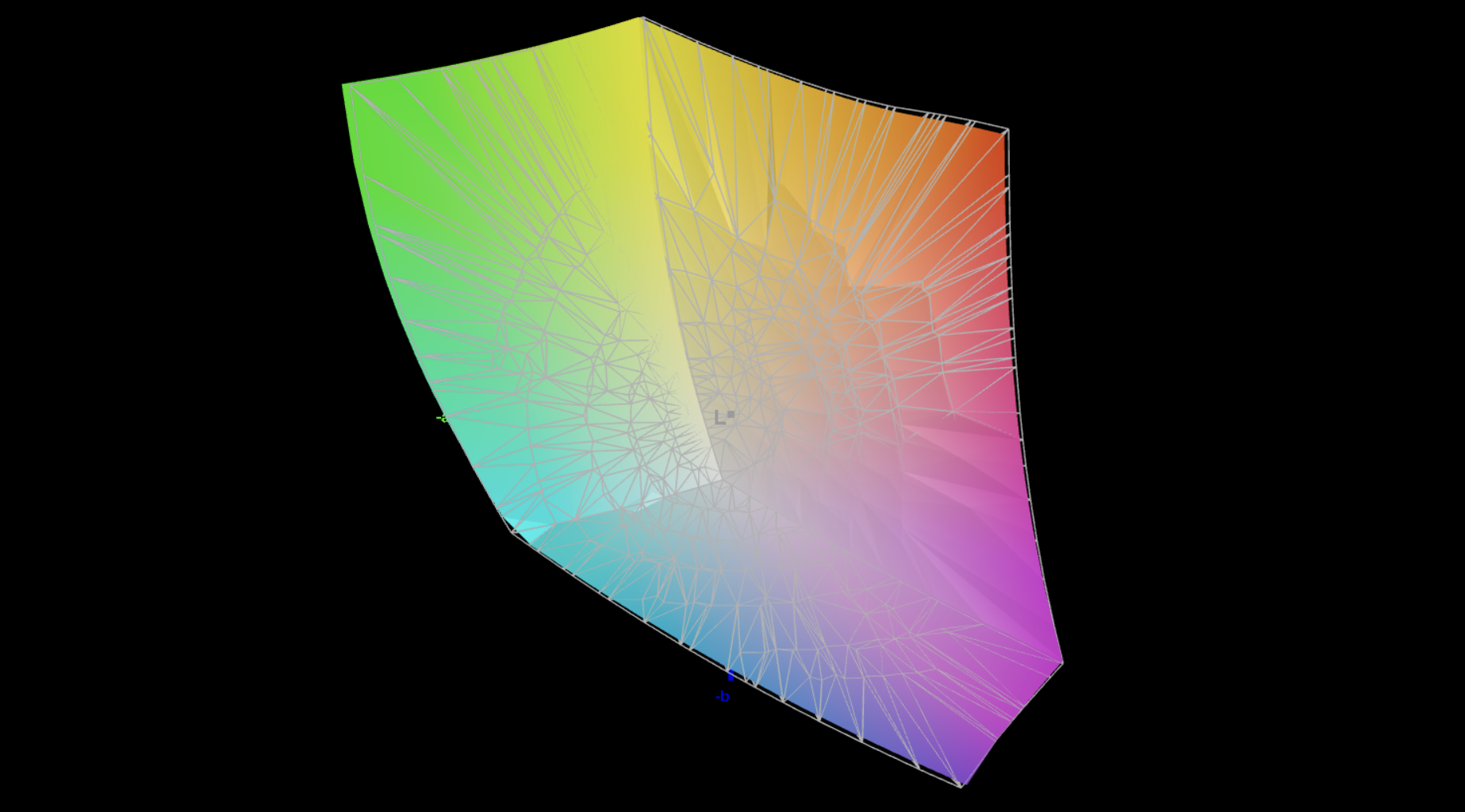

98.4% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.24

	Asus ZenBook Duo OLED UX8406CA ATNA40CT02-0, OLED, 1920x1200, 14", 60 Hz	Asus Zenbook Duo OLED UX8406MA SDC419D, OLED, 2880x1800, 14", 120 Hz	Lenovo Yoga Book 9 13IMU9 SDC ATNA33AA02-0, OLED, 2880x1800, 13.3", 60 Hz	Samsung Galaxy Book5 Pro 360 ATNA60CL09-0, OLED, 2880x1800, 16", 120 Hz	Lenovo Yoga 9 2-in-1 14IMH9 LEN140WQ+, OLED, 2880x1800, 14", 120 Hz	HP Spectre x360 14-eu0078ng SDC4197, OLED, 2880x1800, 14", 120 Hz
Display		2%	4%	4%	4%	1%
Display P3 Coverage	98.4	99.6 1%	99.7 1%	99.9 2%	99.8 1%	99.8 1%
sRGB Coverage	99.8	100 0%	100 0%	100 0%	100 0%	100 0%
AdobeRGB 1998 Coverage	86.7	91.8 6%	97 12%	96.6 11%	97.3 12%	89.3 3%
Response Times		31%	-55%	24%	8%	31%
Response Time Grey 50% / Grey 80% *	1.51 ?(0.81, 0.7)	0.77 ?(0.42, 0.35) 49%	1.88 ?(1, 0.88) -25%	0.48 ?(0.26, 0.22) 68%	0.8 ?(0.38, 0.42) 47%	0.77 ?(0.37, 0.4) 49%
Response Time Black / White *	1.36 ?(0.74, 0.62)	0.76 ?(0.41, 0.35) 44%	2.1 ?(0.9, 1.2) -54%	0.64 ?(0.37, 0.27) 53%	1 ?(0.43, 0.57) 26%	0.75 ?(0.4, 0.35) 45%
PWM Frequency	480 ?(86)	480 ?(80) 0%	60 ?(100) -87%	240 ?(100) -50%	240.5 ?(100) -50%	480 0%
Screen		-1%	-73%	16%	-78%	7%
Brightness middle	359	381 6%	362.6 1%	387 8%	371.6 4%	378 5%
Brightness	362	384 6%	368 2%	392 8%	373 3%	384 6%
Brightness Distribution	98	98 0%	97 -1%	98 0%	99 1%	97 -1%
Black Level *
Colorchecker dE 2000 *	1.2	1.6 -33%	4.66 -288%	1 17%	4.91 -309%	1.4 -17%
Colorchecker dE 2000 max. *	3.2	2 37%	7.25 -127%	1.9 41%	8.33 -160%	2.2 31%
Greyscale dE 2000 *	2.1	2.6 -24%	2.6 -24%	1.7 19%	2.2 -5%	1.7 19%
Gamma	2.24 ^98%	2.2 ^100%	2.2 ^100%	2.25 ^98%	2.25 ^98%	2.17 ^101%
CCT	6433 ^101%	6784 ^96%	6055 ^107%	6325 ^103%	6120 ^106%	6256 ^104%
Colorchecker dE 2000 calibrated *			0.56		1.59
Total Average (Program / Settings)		11% / 8%	-41% / -49%	15% / 15%	-22% / -36%	13% / 12%

* ... smaller is better

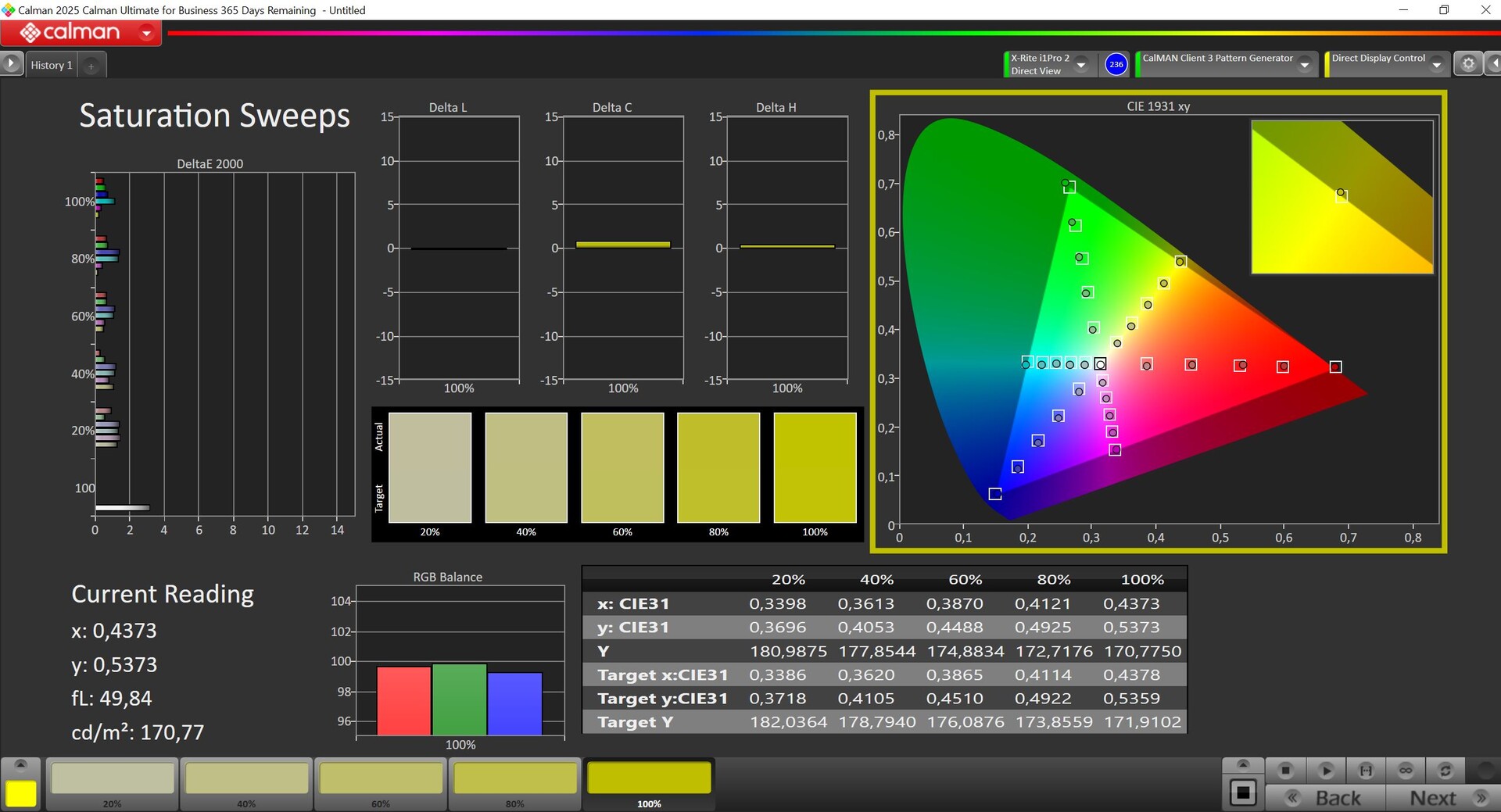

我们使用专业的 CalMAN 软件对笔记本的显示效果进行了分析。像往常一样，华硕提供了各种配置文件，默认情况下 "原生 "配置文件处于激活状态，但遗憾的是，该配置文件显示的色彩有些过饱和。开箱即用的 P3 配置文件非常准确。此外，还有一个 sRGB 配置文件，两种色彩空间都完全覆盖。我们使用自己的校准无法进一步改善其显示效果。

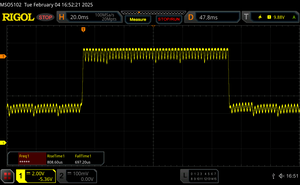

Display Response Times

ℹ

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

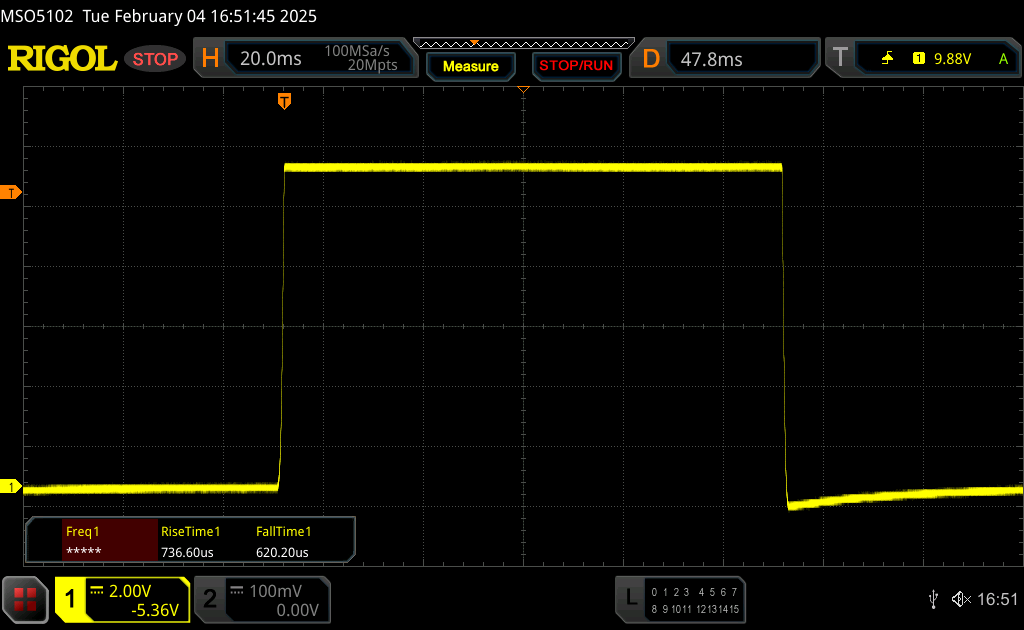

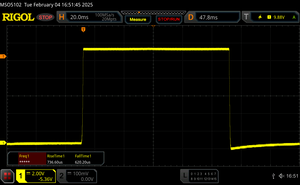

↔ Response Time Black to White
1.36 ms ... rise ↗ and fall ↘ combined	↗ 0.74 ms rise
1.36 ms ... rise ↗ and fall ↘ combined	↘ 0.62 ms fall
The screen shows very fast response rates in our tests and should be very well suited for fast-paced gaming. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 5 % of all devices are better. This means that the measured response time is better than the average of all tested devices (20.9 ms).

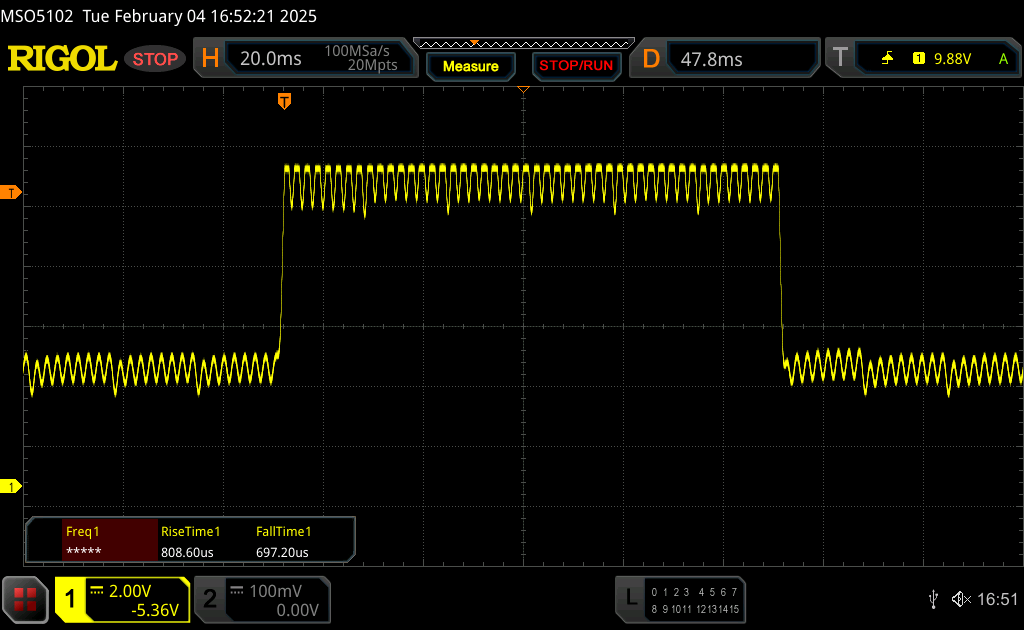

↔ Response Time 50% Grey to 80% Grey
1.51 ms ... rise ↗ and fall ↘ combined	↗ 0.81 ms rise
1.51 ms ... rise ↗ and fall ↘ combined	↘ 0.7 ms fall
The screen shows very fast response rates in our tests and should be very well suited for fast-paced gaming. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 5 % of all devices are better. This means that the measured response time is better than the average of all tested devices (32.7 ms).

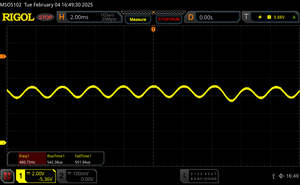

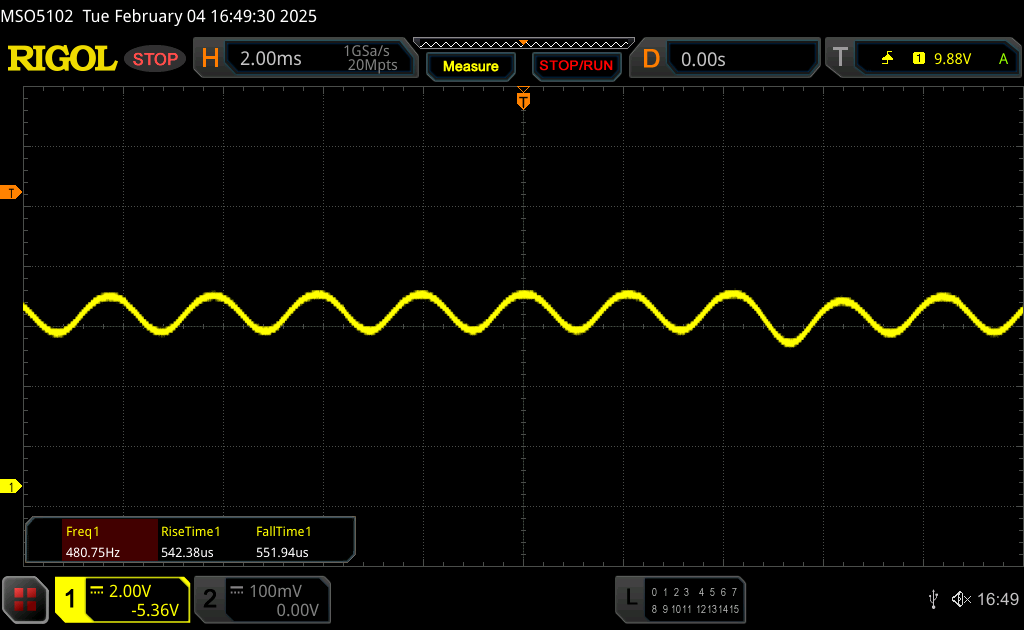

Screen Flickering / PWM (Pulse-Width Modulation)

ℹ

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.

Screen flickering / PWM detected

480 Hz
Amplitude: 14 %

≤ 86 % brightness setting

The display backlight flickers at 480 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 86 % and below. There should be no flickering or PWM above this brightness setting.

The frequency of 480 Hz is relatively high, so most users sensitive to PWM should not notice any flickering. However, there are reports that some users are still sensitive to PWM at 500 Hz and above, so be aware.

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8627 (minimum: 5 - maximum: 343500) Hz was measured.

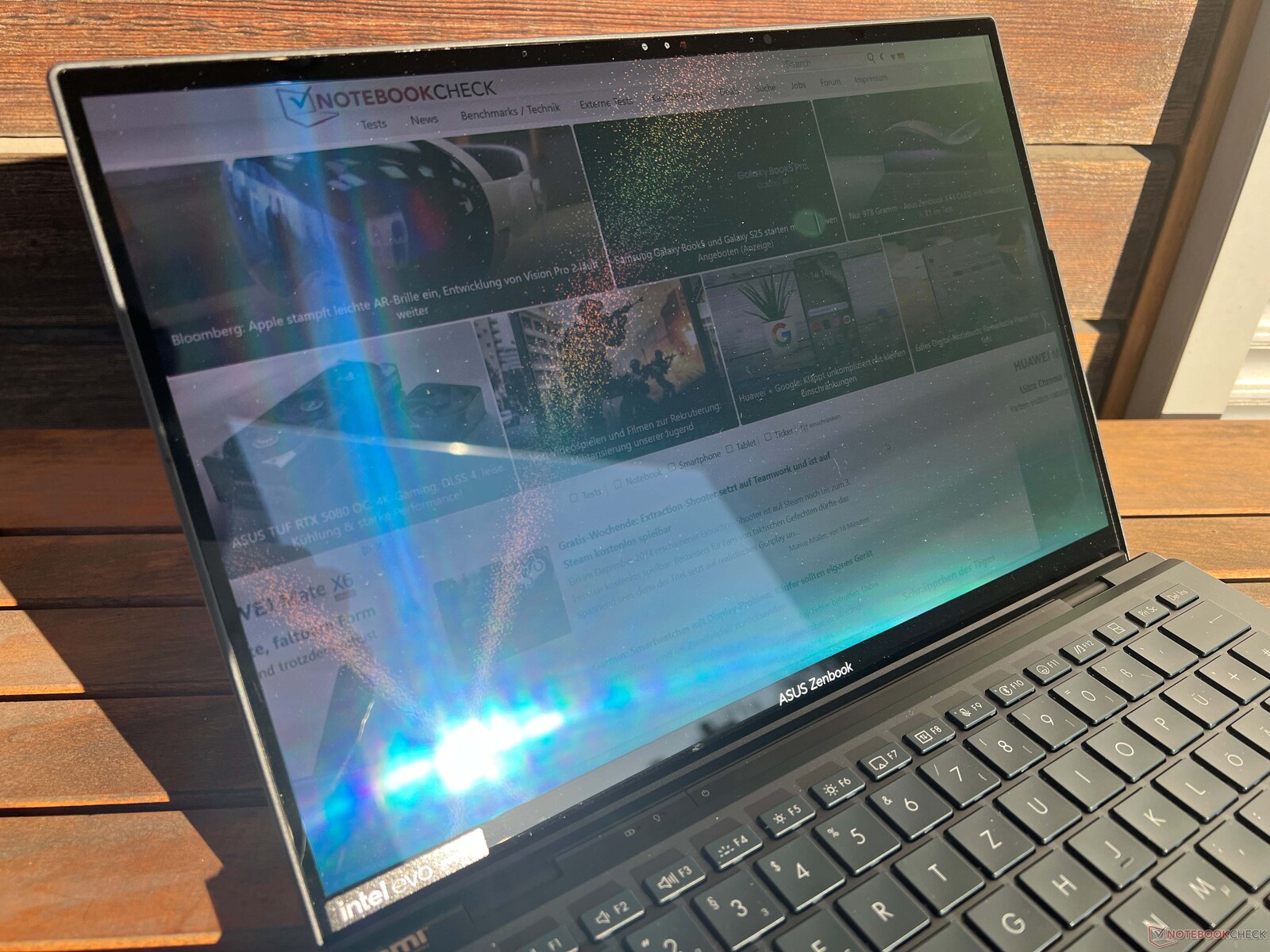

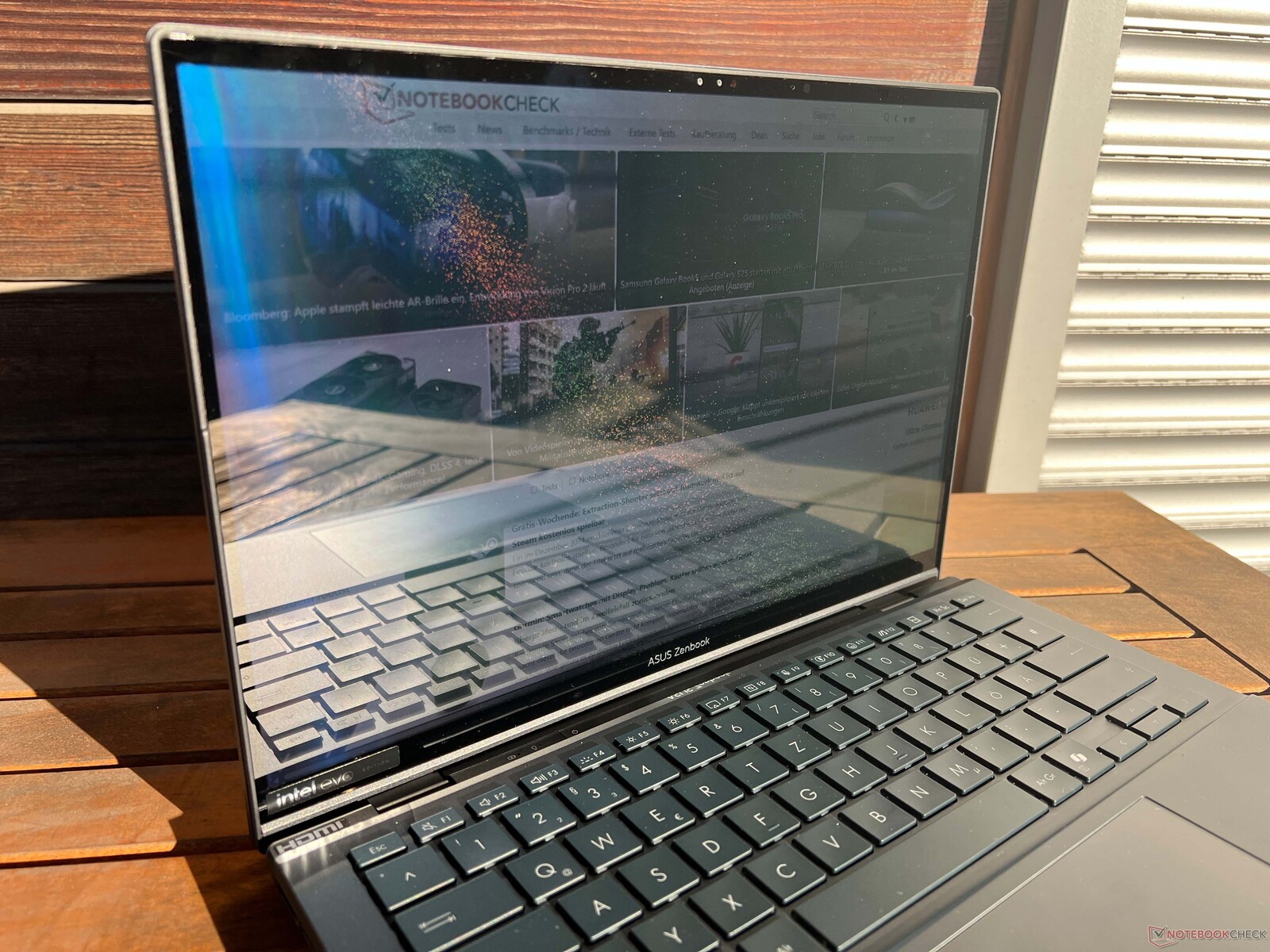

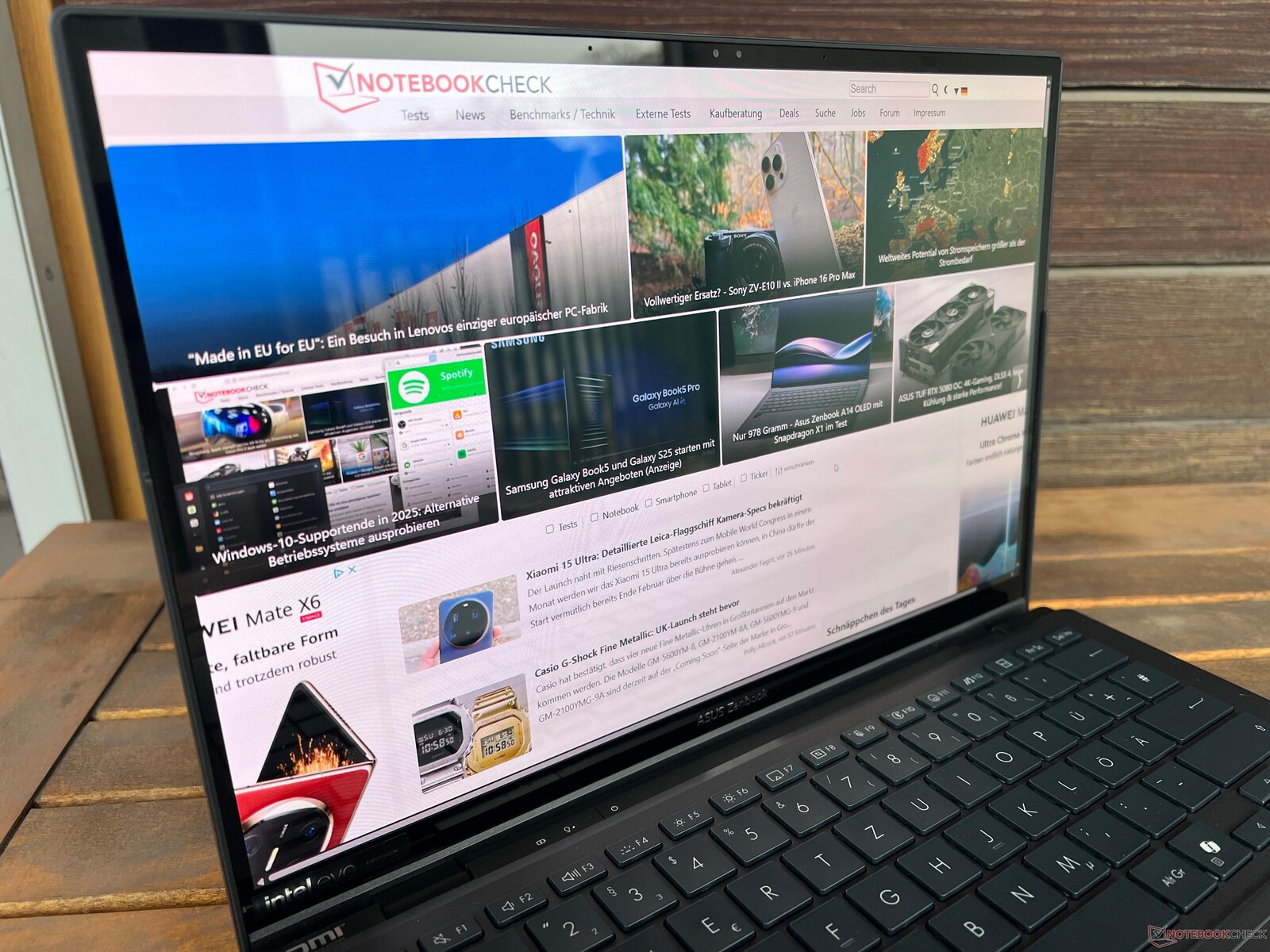

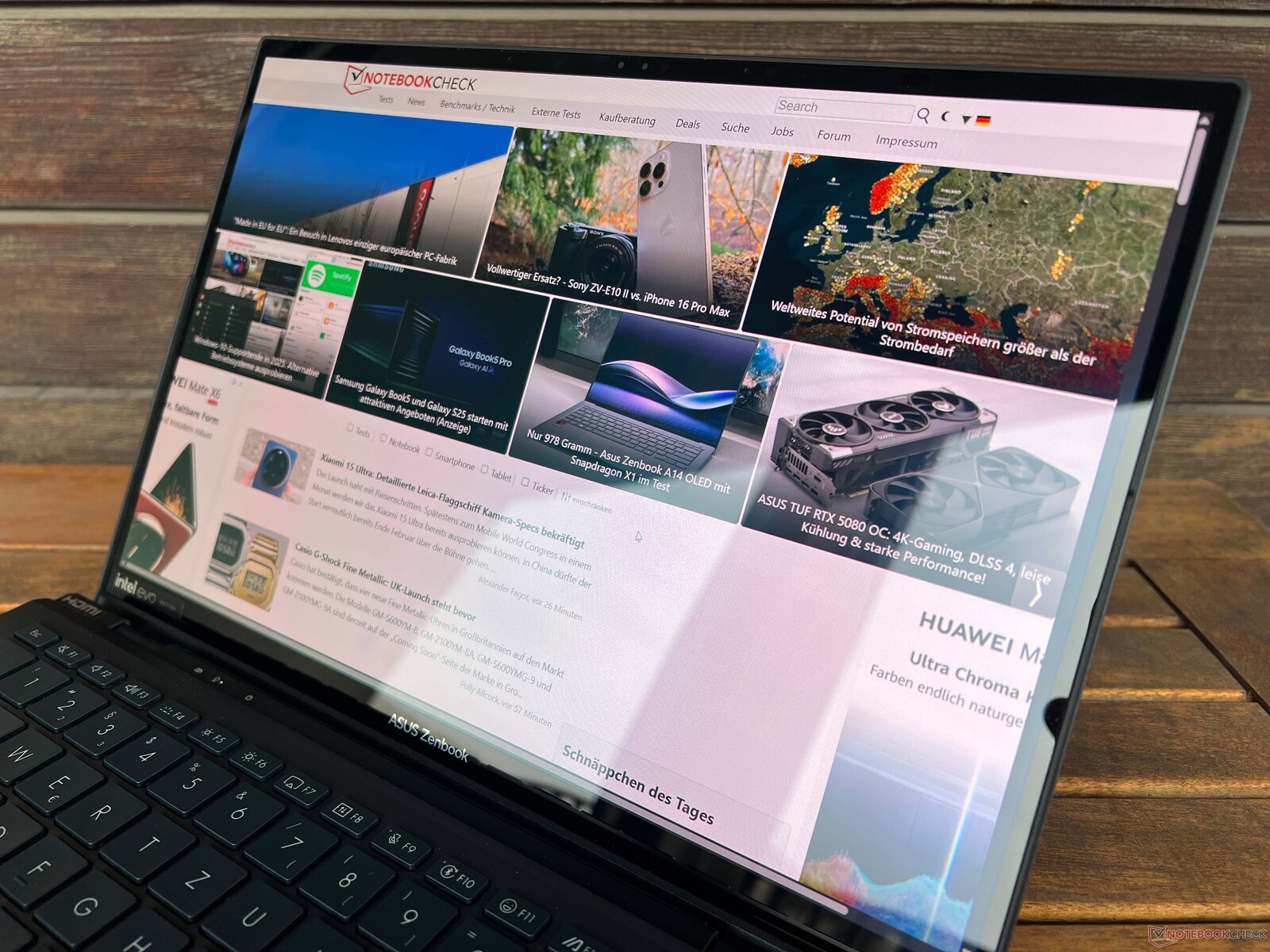

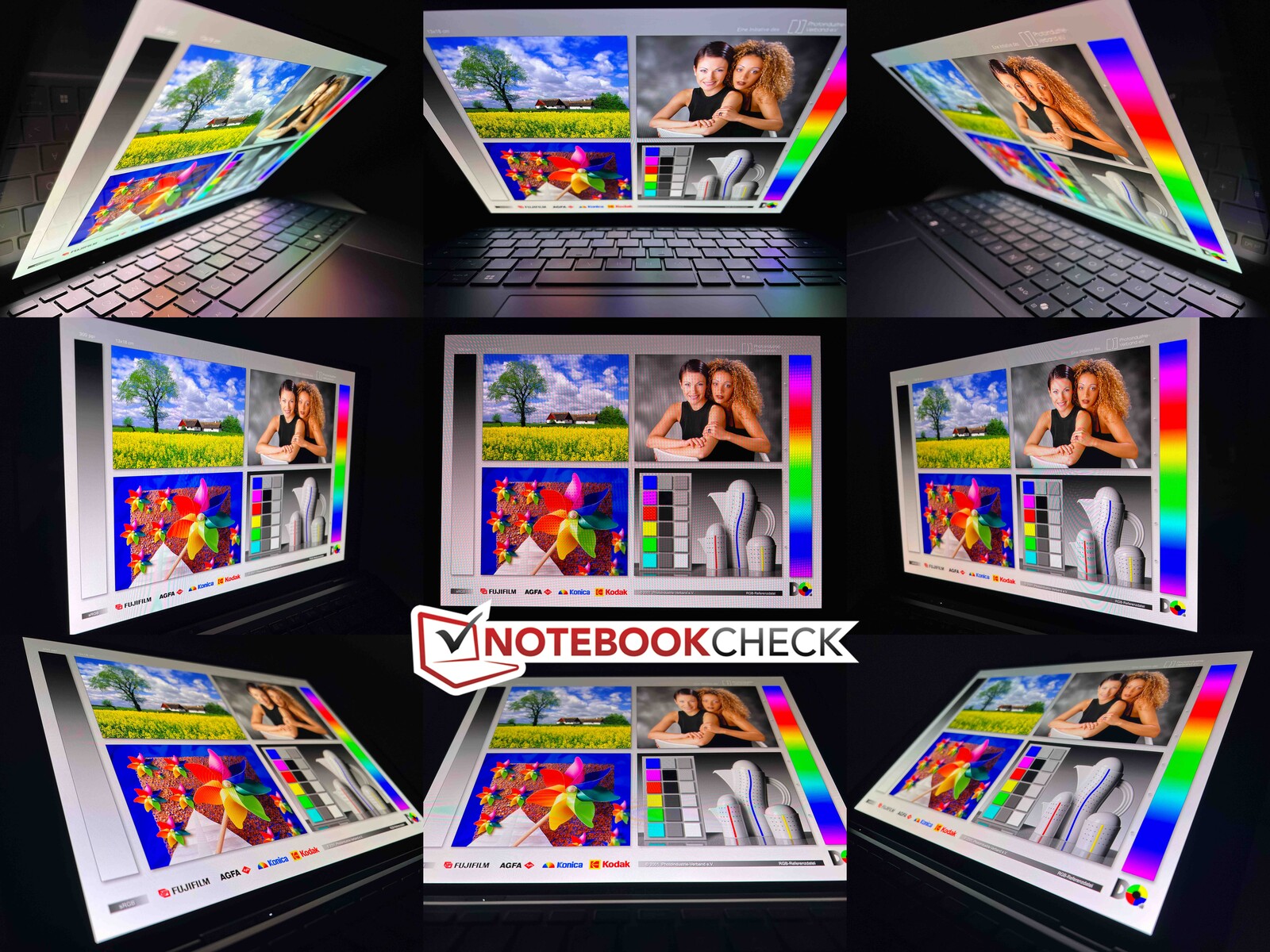

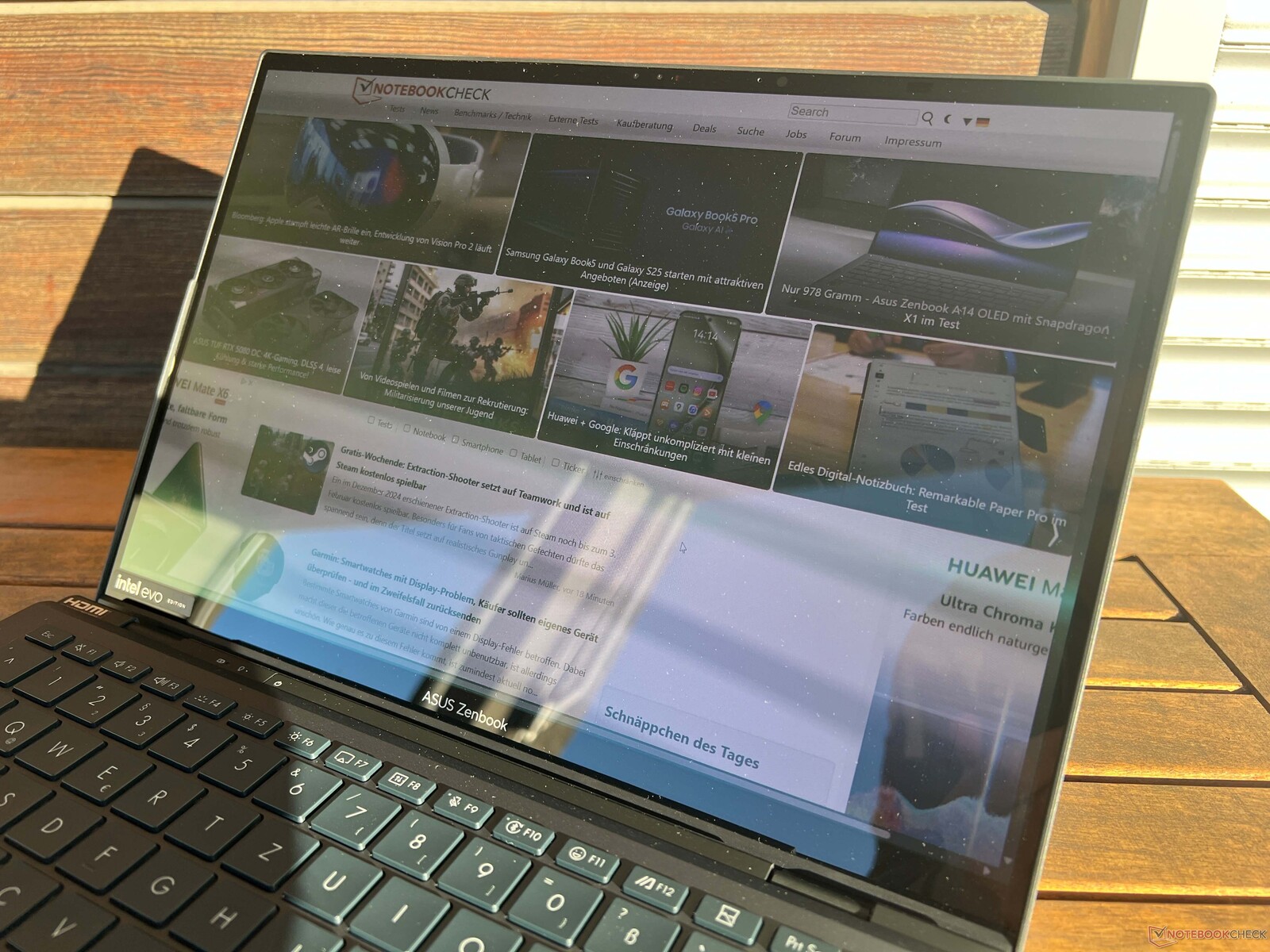

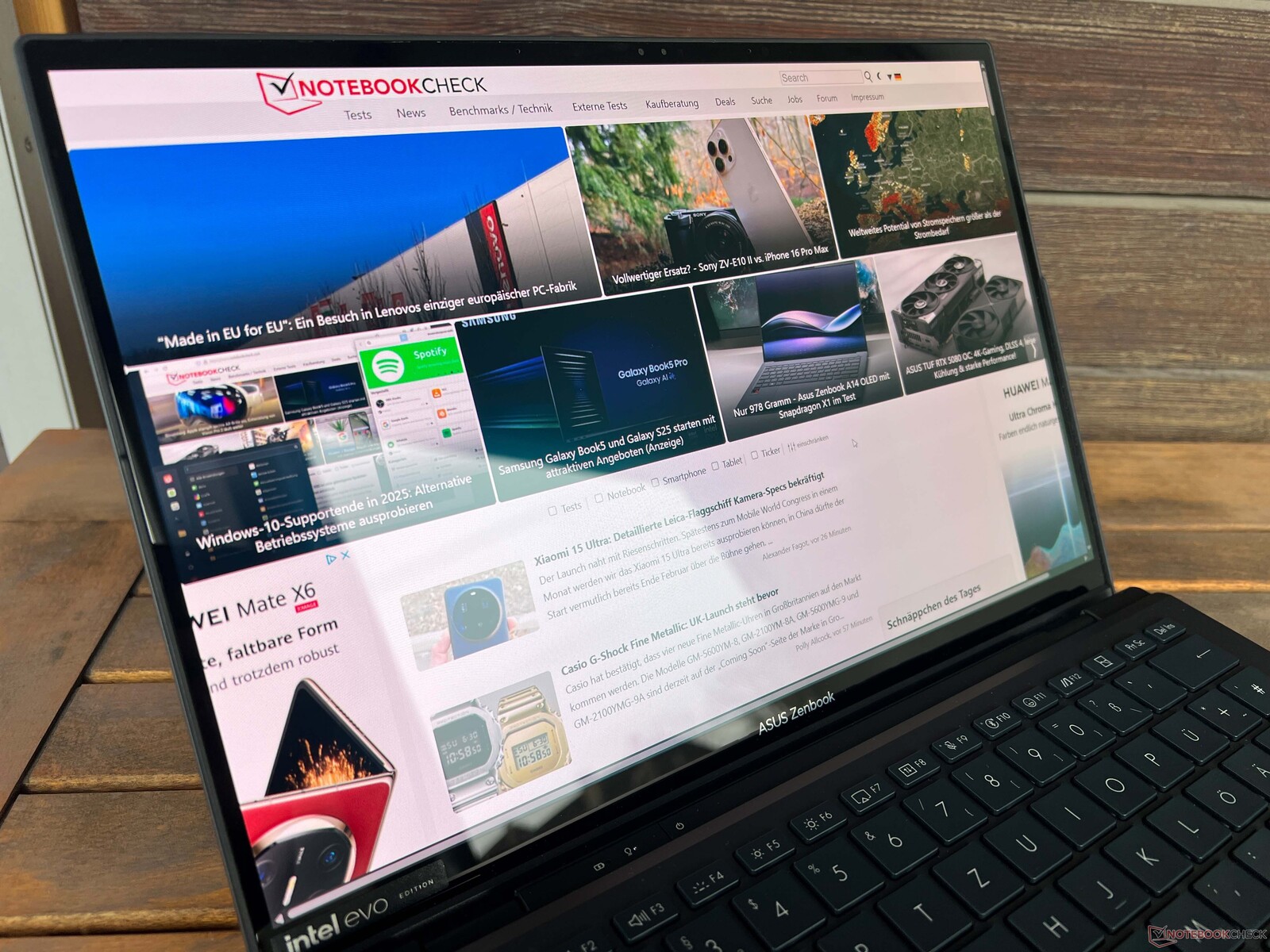

在室外，闪亮的屏幕在反光方面很吃力，尤其是在明亮的环境中。除了在广角时会有轻微的蓝色光泽（这是 OLED 的典型特征），我们在视角稳定性方面没有发现任何问题。

性能 - 箭湖-H

全新的 Zenbook Duo 只配备了英特尔全新的 Arrow Lake H 处理器（Core Ultra 7 或 Core Ultra 9），与 16 或 32 GB 内存（LPDDR5x-7467）组合在一起。内存是焊接在一起的，不能扩展。

测试条件

用户可以选择四种不同的能源配置文件，这些配置文件也与 Windows 设置相关联。我们在标准模式下进行了以下基准测试和测量。使用其他两种模式可以略微提高 CPU 性能，但这也会导致风扇噪音明显增大。

能源概况	TDP	CB 2024 Multi	Time Spy 图形	最大风扇噪音排放
Whisper	28 瓦	13,144 点	3,726 点	33.2 dB(A)
标准	60/35/24 瓦	16,632 点	4,074 点	39.8 dB(A)
性能	60/45/35 瓦	17,249 分	4,103 分	50.2 分贝(A)
全速	60/45/35 瓦	18,758 分	4,105 分	54.3 分贝(A)

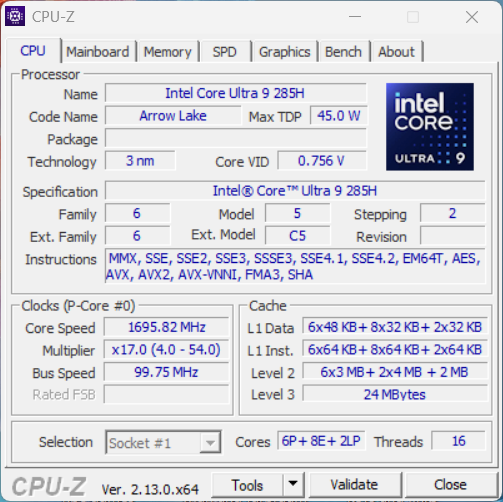

处理器 - Core Ultra 9 285H

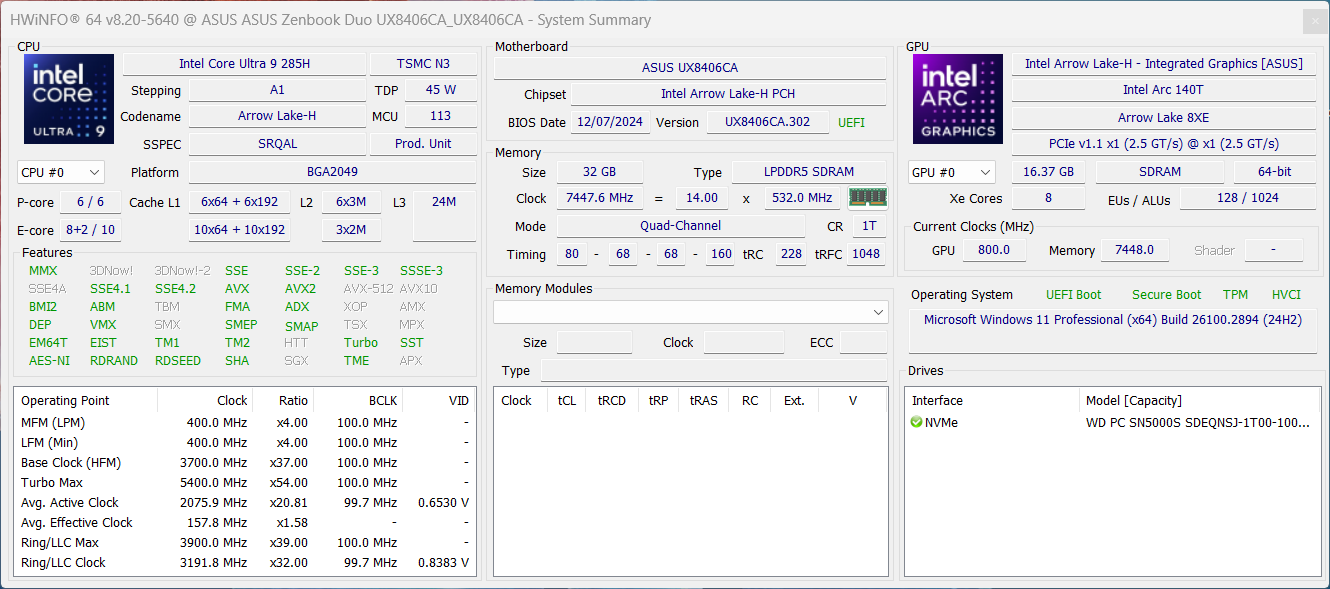

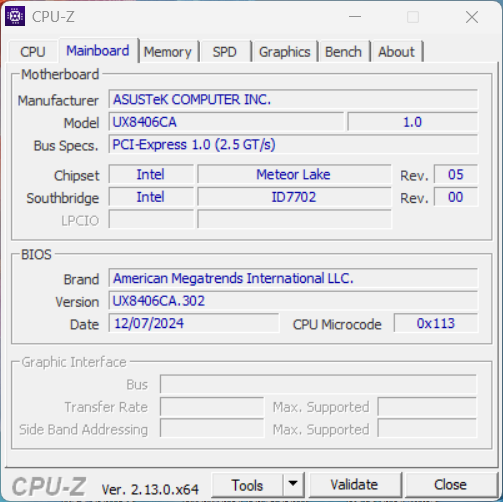

我们的测试设备配备了箭湖 H 系列的全新顶级型号，即英特尔酷睿至尊 9 285H.它是流星湖处理器的后继型号，共有 16 个 CPU 内核（6 倍性能、8 倍效率、2 倍低功耗效率）。有关新移动处理器的更多详情，请参阅我们的分析文章。根据英特尔的说法，Arrow Lake H 芯片的运行功耗再次达到 28-115 瓦，因此设备的功耗限制和散热再次对性能产生了重大影响。就 Zenbook Duo 而言，我们注意到它的功耗在短时间内高达 60 瓦，随后为 35 瓦，而在较长时间的负载情况下，其功耗趋于平稳，约为 24 瓦。因此，酷睿至尊 9 285H 的性能潜力无法得到充分发挥。

与旧版酷睿至尊 9 185H在所有基准测试中，我们测得的优势约为 20%，这是一个不错的结果。不过，它的性能下降很快，这在短时间运行的 CB-R15 循环中尤为明显。运行 25 次后，其多核性能骤降近 40%。在电池模式下，性能没有进一步下降。更多 CPU 基准测试此处.

Cinebench R15 Multi continuous test

Asus ZenBook Duo OLED UX8406CA Intel Core Ultra 9 285H: Ø1957 (1642.78-2796.81)

Asus Zenbook Duo OLED UX8406MA Intel Core Ultra 9 185H: Ø1522 (1302.59-2316.16)

Lenovo Yoga Book 9 13IMU9 Intel Core Ultra 7 155U: Ø1322 (1278.32-1504.72)

Samsung Galaxy Book5 Pro 360 Intel Core Ultra 5 226V: Ø1447 (1432.05-1482.96)

Lenovo Yoga 9 2-in-1 14IMH9 Intel Core Ultra 7 155H: Ø1966 (1893.49-2476.32)

HP Spectre x360 14-eu0078ng Intel Core Ultra 7 155H: Ø1426 (1363.09-2028.81)

CPU Performance Rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 6.3: Multi-Core | Single-Core
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

CPU Performance Rating
Average Intel Core Ultra 9 285H	86.2 pt
Asus ZenBook Duo OLED UX8406CA Intel Core Ultra 9 285H	81.6 pt
Lenovo ThinkPad T14s Gen 6 21M2S00G00 AMD Ryzen AI 7 PRO 360	71.4 pt
Asus Zenbook S 16 UM5606WA-RK052W AMD Ryzen AI 9 365	71.1 pt
Lenovo Yoga 9 2-in-1 14IMH9 Intel Core Ultra 7 155H	70.5 pt
Asus Zenbook Duo OLED UX8406MA Intel Core Ultra 9 185H	68.8 pt
HP Spectre x360 14-eu0078ng Intel Core Ultra 7 155H	62.7 pt
Samsung Galaxy Book5 Pro 360 Intel Core Ultra 5 226V	59.6 pt
Average of class Convertible	57.8 pt
Asus Zenbook S 14 UX5406 Intel Core Ultra 7 258V	57.2 pt
Lenovo Yoga Book 9 13IMU9 Intel Core Ultra 7 155U	55.7 pt

Cinebench R23 / Multi Core
Average Intel Core Ultra 9 285H (16632 - 20442, n=2)	18537 Points +11%
Asus ZenBook Duo OLED UX8406CA Intel Core Ultra 9 285H	16632 Points
Lenovo Yoga 9 2-in-1 14IMH9 Intel Core Ultra 7 155H	14380 (10957.3^min - 14379.9^max) Points -14%
Lenovo ThinkPad T14s Gen 6 21M2S00G00 AMD Ryzen AI 7 PRO 360	13794 Points -17%
Asus Zenbook Duo OLED UX8406MA Intel Core Ultra 9 185H	12688 Points -24%
Asus Zenbook S 16 UM5606WA-RK052W AMD Ryzen AI 9 365	11462 Points -31%
Average of class Convertible (2949 - 18698, n=60, last 2 years)	10635 Points -36%
HP Spectre x360 14-eu0078ng Intel Core Ultra 7 155H	10333 Points -38%
Samsung Galaxy Book5 Pro 360 Intel Core Ultra 5 226V	9827 Points -41%
Lenovo Yoga Book 9 13IMU9 Intel Core Ultra 7 155U	9385 (8670.97^min - 9384.63^max) Points -44%
Asus Zenbook S 14 UX5406 Intel Core Ultra 7 258V	9114 Points -45%

Cinebench R23 / Single Core
Asus ZenBook Duo OLED UX8406CA Intel Core Ultra 9 285H	2163 Points
Average Intel Core Ultra 9 285H (2126 - 2163, n=2)	2145 Points -1%
Lenovo ThinkPad T14s Gen 6 21M2S00G00 AMD Ryzen AI 7 PRO 360	1958 Points -9%
Asus Zenbook S 16 UM5606WA-RK052W AMD Ryzen AI 9 365	1942 Points -10%
Asus Zenbook S 14 UX5406 Intel Core Ultra 7 258V	1865 Points -14%
Asus Zenbook Duo OLED UX8406MA Intel Core Ultra 9 185H	1809 Points -16%
Lenovo Yoga 9 2-in-1 14IMH9 Intel Core Ultra 7 155H	1790 Points -17%
Samsung Galaxy Book5 Pro 360 Intel Core Ultra 5 226V	1749 Points -19%
HP Spectre x360 14-eu0078ng Intel Core Ultra 7 155H	1692 Points -22%
Lenovo Yoga Book 9 13IMU9 Intel Core Ultra 7 155U	1675 Points -23%
Average of class Convertible (914 - 2163, n=60, last 2 years)	1649 Points -24%

Cinebench R20 / CPU (Multi Core)
Average Intel Core Ultra 9 285H (6517 - 7920, n=2)	7219 Points +11%
Asus ZenBook Duo OLED UX8406CA Intel Core Ultra 9 285H	6517 Points
Lenovo Yoga 9 2-in-1 14IMH9 Intel Core Ultra 7 155H	5583 Points -14%
Lenovo ThinkPad T14s Gen 6 21M2S00G00 AMD Ryzen AI 7 PRO 360	5398 Points -17%
Asus Zenbook S 16 UM5606WA-RK052W AMD Ryzen AI 9 365	5247 Points -19%
Asus Zenbook Duo OLED UX8406MA Intel Core Ultra 9 185H	4843 Points -26%
Average of class Convertible (1124 - 7303, n=60, last 2 years)	4048 Points -38%
HP Spectre x360 14-eu0078ng Intel Core Ultra 7 155H	4016 Points -38%
Samsung Galaxy Book5 Pro 360 Intel Core Ultra 5 226V	3835 Points -41%
Lenovo Yoga Book 9 13IMU9 Intel Core Ultra 7 155U	3613 Points -45%
Asus Zenbook S 14 UX5406 Intel Core Ultra 7 258V	3530 Points -46%

Cinebench R20 / CPU (Single Core)
Asus ZenBook Duo OLED UX8406CA Intel Core Ultra 9 285H	827 Points
Average Intel Core Ultra 9 285H (810 - 827, n=2)	819 Points -1%
Lenovo ThinkPad T14s Gen 6 21M2S00G00 AMD Ryzen AI 7 PRO 360	766 Points -7%
Asus Zenbook S 16 UM5606WA-RK052W AMD Ryzen AI 9 365	758 Points -8%
Asus Zenbook Duo OLED UX8406MA Intel Core Ultra 9 185H	693 Points -16%
Lenovo Yoga 9 2-in-1 14IMH9 Intel Core Ultra 7 155H	682 Points -18%
Samsung Galaxy Book5 Pro 360 Intel Core Ultra 5 226V	674 Points -19%
Lenovo Yoga Book 9 13IMU9 Intel Core Ultra 7 155U	646 Points -22%
HP Spectre x360 14-eu0078ng Intel Core Ultra 7 155H	644 Points -22%
Asus Zenbook S 14 UX5406 Intel Core Ultra 7 258V	643 Points -22%
Average of class Convertible (348 - 827, n=59, last 2 years)	632 Points -24%

Cinebench R15 / CPU Multi 64Bit
Average Intel Core Ultra 9 285H (2797 - 3282, n=2)	3040 Points +9%
Asus ZenBook Duo OLED UX8406CA Intel Core Ultra 9 285H	2797 (1642.78^min - 2796.81^max) Points
Lenovo Yoga 9 2-in-1 14IMH9 Intel Core Ultra 7 155H	2476 (1893.49^min - 2476.32^max) Points -11%
Asus Zenbook Duo OLED UX8406MA Intel Core Ultra 9 185H	2316 (1302.59^min - 2316.16^max) Points -17%
HP Spectre x360 14-eu0078ng Intel Core Ultra 7 155H	2029 (1363.09^min - 2028.81^max) Points -27%
Lenovo ThinkPad T14s Gen 6 21M2S00G00 AMD Ryzen AI 7 PRO 360	2023 (1791.87^min - 2022.76^max) Points -28%
Asus Zenbook S 16 UM5606WA-RK052W AMD Ryzen AI 9 365	1950 (1686.84^min - 1949.7^max) Points -30%
Average of class Convertible (478 - 2889, n=62, last 2 years)	1763 Points -37%
Asus Zenbook S 14 UX5406 Intel Core Ultra 7 258V	1550 (1108.49^min - 1550.27^max) Points -45%
Lenovo Yoga Book 9 13IMU9 Intel Core Ultra 7 155U	1505 (1278.32^min - 1504.72^max) Points -46%
Samsung Galaxy Book5 Pro 360 Intel Core Ultra 5 226V	1483 (1432.05^min - 1482.96^max) Points -47%

Cinebench R15 / CPU Single 64Bit
Average Intel Core Ultra 9 285H (313 - 314, n=2)	314 Points 0%
Asus ZenBook Duo OLED UX8406CA Intel Core Ultra 9 285H	313 Points
Asus Zenbook S 16 UM5606WA-RK052W AMD Ryzen AI 9 365	293 Points -6%
Lenovo ThinkPad T14s Gen 6 21M2S00G00 AMD Ryzen AI 7 PRO 360	271 Points -13%
Samsung Galaxy Book5 Pro 360 Intel Core Ultra 5 226V	270 Points -14%
Lenovo Yoga 9 2-in-1 14IMH9 Intel Core Ultra 7 155H	264 Points -16%
Asus Zenbook Duo OLED UX8406MA Intel Core Ultra 9 185H	260 Points -17%
Asus Zenbook S 14 UX5406 Intel Core Ultra 7 258V	258 Points -18%
HP Spectre x360 14-eu0078ng Intel Core Ultra 7 155H	246 Points -21%
Average of class Convertible (149.8 - 313, n=59, last 2 years)	242 Points -23%
Lenovo Yoga Book 9 13IMU9 Intel Core Ultra 7 155U	230 Points -27%

Blender / v2.79 BMW27 CPU
Asus Zenbook S 14 UX5406 Intel Core Ultra 7 258V	414 Seconds * -76%
Average of class Convertible (175 - 1051, n=56, last 2 years)	361 Seconds * -54%
Lenovo Yoga Book 9 13IMU9 Intel Core Ultra 7 155U	353 Seconds * -50%
Samsung Galaxy Book5 Pro 360 Intel Core Ultra 5 226V	348 Seconds * -48%
HP Spectre x360 14-eu0078ng Intel Core Ultra 7 155H	316 Seconds * -34%
Asus Zenbook Duo OLED UX8406MA Intel Core Ultra 9 185H	285 Seconds * -21%
Asus Zenbook S 16 UM5606WA-RK052W AMD Ryzen AI 9 365	270 Seconds * -15%
Lenovo ThinkPad T14s Gen 6 21M2S00G00 AMD Ryzen AI 7 PRO 360	243 Seconds * -3%
Lenovo Yoga 9 2-in-1 14IMH9 Intel Core Ultra 7 155H	237 Seconds * -1%
Asus ZenBook Duo OLED UX8406CA Intel Core Ultra 9 285H	235 Seconds *
Average Intel Core Ultra 9 285H (197 - 235, n=2)	216 Seconds * +8%

7-Zip 18.03 / 7z b 4
Average Intel Core Ultra 9 285H (53335 - 60639, n=2)	56987 MIPS +7%
Asus ZenBook Duo OLED UX8406CA Intel Core Ultra 9 285H	53335 MIPS
Asus Zenbook Duo OLED UX8406MA Intel Core Ultra 9 185H	52522 MIPS -2%
Lenovo ThinkPad T14s Gen 6 21M2S00G00 AMD Ryzen AI 7 PRO 360	52491 MIPS -2%
Lenovo Yoga 9 2-in-1 14IMH9 Intel Core Ultra 7 155H	49244 MIPS -8%
Asus Zenbook S 16 UM5606WA-RK052W AMD Ryzen AI 9 365	47754 MIPS -10%
HP Spectre x360 14-eu0078ng Intel Core Ultra 7 155H	45570 MIPS -15%
Average of class Convertible (12977 - 72400, n=59, last 2 years)	42519 MIPS -20%
Lenovo Yoga Book 9 13IMU9 Intel Core Ultra 7 155U	38645 MIPS -28%
Samsung Galaxy Book5 Pro 360 Intel Core Ultra 5 226V	33110 MIPS -38%
Asus Zenbook S 14 UX5406 Intel Core Ultra 7 258V	32198 MIPS -40%

7-Zip 18.03 / 7z b 4 -mmt1
Asus ZenBook Duo OLED UX8406CA Intel Core Ultra 9 285H	6138 MIPS
Average Intel Core Ultra 9 285H (5999 - 6138, n=2)	6069 MIPS -1%
Asus Zenbook S 16 UM5606WA-RK052W AMD Ryzen AI 9 365	6012 MIPS -2%
Asus Zenbook Duo OLED UX8406MA Intel Core Ultra 9 185H	5595 MIPS -9%
Asus Zenbook S 14 UX5406 Intel Core Ultra 7 258V	5551 MIPS -10%
Lenovo Yoga 9 2-in-1 14IMH9 Intel Core Ultra 7 155H	5432 MIPS -12%
Lenovo ThinkPad T14s Gen 6 21M2S00G00 AMD Ryzen AI 7 PRO 360	5417 MIPS -12%
HP Spectre x360 14-eu0078ng Intel Core Ultra 7 155H	5401 MIPS -12%
Samsung Galaxy Book5 Pro 360 Intel Core Ultra 5 226V	5335 MIPS -13%
Average of class Convertible (3672 - 6493, n=58, last 2 years)	5215 MIPS -15%
Lenovo Yoga Book 9 13IMU9 Intel Core Ultra 7 155U	4855 MIPS -21%

Geekbench 6.3 / Multi-Core
Average Intel Core Ultra 9 285H (15330 - 17992, n=4)	16515 Points +7%
Asus ZenBook Duo OLED UX8406CA Intel Core Ultra 9 285H	15476 Points
Asus Zenbook Duo OLED UX8406MA Intel Core Ultra 9 185H	13351 Points -14%
Lenovo Yoga 9 2-in-1 14IMH9 Intel Core Ultra 7 155H	12765 Points -18%
Asus Zenbook S 16 UM5606WA-RK052W AMD Ryzen AI 9 365	12627 Points -18%
Lenovo ThinkPad T14s Gen 6 21M2S00G00 AMD Ryzen AI 7 PRO 360	12344 Points -20%
HP Spectre x360 14-eu0078ng Intel Core Ultra 7 155H	12156 Points -21%
Asus Zenbook S 14 UX5406 Intel Core Ultra 7 258V	10730 Points -31%
Average of class Convertible (2291 - 15476, n=46, last 2 years)	10160 Points -34%
Samsung Galaxy Book5 Pro 360 Intel Core Ultra 5 226V	9950 Points -36%
Lenovo Yoga Book 9 13IMU9 Intel Core Ultra 7 155U	9448 Points -39%

Geekbench 6.3 / Single-Core
Average Intel Core Ultra 9 285H (2665 - 3110, n=4)	2867 Points +3%
Asus ZenBook Duo OLED UX8406CA Intel Core Ultra 9 285H	2781 Points
Asus Zenbook S 16 UM5606WA-RK052W AMD Ryzen AI 9 365	2778 Points 0%
Lenovo ThinkPad T14s Gen 6 21M2S00G00 AMD Ryzen AI 7 PRO 360	2699 Points -3%
Asus Zenbook S 14 UX5406 Intel Core Ultra 7 258V	2679 Points -4%
Samsung Galaxy Book5 Pro 360 Intel Core Ultra 5 226V	2582 Points -7%
Asus Zenbook Duo OLED UX8406MA Intel Core Ultra 9 185H	2483 Points -11%
Lenovo Yoga 9 2-in-1 14IMH9 Intel Core Ultra 7 155H	2425 Points -13%
HP Spectre x360 14-eu0078ng Intel Core Ultra 7 155H	2378 Points -14%
Lenovo Yoga Book 9 13IMU9 Intel Core Ultra 7 155U	2324 Points -16%
Average of class Convertible (1003 - 2814, n=47, last 2 years)	2307 Points -17%

Geekbench 5.5 / Multi-Core
Average Intel Core Ultra 9 285H (14243 - 16626, n=2)	15435 Points +8%
Asus ZenBook Duo OLED UX8406CA Intel Core Ultra 9 285H	14243 Points
Lenovo Yoga 9 2-in-1 14IMH9 Intel Core Ultra 7 155H	12738 Points -11%
HP Spectre x360 14-eu0078ng Intel Core Ultra 7 155H	11217 Points -21%
Lenovo ThinkPad T14s Gen 6 21M2S00G00 AMD Ryzen AI 7 PRO 360	10661 Points -25%
Asus Zenbook Duo OLED UX8406MA Intel Core Ultra 9 185H	10441 Points -27%
Asus Zenbook S 16 UM5606WA-RK052W AMD Ryzen AI 9 365	9599 Points -33%
Asus Zenbook S 14 UX5406 Intel Core Ultra 7 258V	9330 Points -34%
Samsung Galaxy Book5 Pro 360 Intel Core Ultra 5 226V	8963 Points -37%
Average of class Convertible (2188 - 14243, n=58, last 2 years)	8927 Points -37%
Lenovo Yoga Book 9 13IMU9 Intel Core Ultra 7 155U	8409 Points -41%

Geekbench 5.5 / Single-Core
Asus Zenbook S 16 UM5606WA-RK052W AMD Ryzen AI 9 365	2065 Points +4%
Average Intel Core Ultra 9 285H (1982 - 2096, n=2)	2039 Points +3%
Lenovo ThinkPad T14s Gen 6 21M2S00G00 AMD Ryzen AI 7 PRO 360	1995 Points +1%
Asus ZenBook Duo OLED UX8406CA Intel Core Ultra 9 285H	1982 Points
Asus Zenbook S 14 UX5406 Intel Core Ultra 7 258V	1956 Points -1%
Samsung Galaxy Book5 Pro 360 Intel Core Ultra 5 226V	1878 Points -5%
Asus Zenbook Duo OLED UX8406MA Intel Core Ultra 9 185H	1811 Points -9%
HP Spectre x360 14-eu0078ng Intel Core Ultra 7 155H	1789 Points -10%
Lenovo Yoga 9 2-in-1 14IMH9 Intel Core Ultra 7 155H	1740 Points -12%
Lenovo Yoga Book 9 13IMU9 Intel Core Ultra 7 155U	1691 Points -15%
Average of class Convertible (806 - 2062, n=58, last 2 years)	1686 Points -15%

HWBOT x265 Benchmark v2.2 / 4k Preset
Average Intel Core Ultra 9 285H (18.8 - 23.6, n=2)	21.2 fps +13%
Asus ZenBook Duo OLED UX8406CA Intel Core Ultra 9 285H	18.8 fps
Asus Zenbook S 16 UM5606WA-RK052W AMD Ryzen AI 9 365	18.6 fps -1%
Lenovo ThinkPad T14s Gen 6 21M2S00G00 AMD Ryzen AI 7 PRO 360	17.2 fps -9%
Asus Zenbook Duo OLED UX8406MA Intel Core Ultra 9 185H	14.1 fps -25%
Lenovo Yoga 9 2-in-1 14IMH9 Intel Core Ultra 7 155H	13.4 fps -29%
Samsung Galaxy Book5 Pro 360 Intel Core Ultra 5 226V	12.7 fps -32%
Average of class Convertible (3.43 - 22.4, n=58, last 2 years)	11.8 fps -37%
Lenovo Yoga Book 9 13IMU9 Intel Core Ultra 7 155U	10.7 fps -43%
HP Spectre x360 14-eu0078ng Intel Core Ultra 7 155H	10.6 fps -44%
Asus Zenbook S 14 UX5406 Intel Core Ultra 7 258V	10.5 fps -44%

LibreOffice / 20 Documents To PDF
Asus Zenbook S 14 UX5406 Intel Core Ultra 7 258V	59.3 s * -14%
Asus Zenbook S 16 UM5606WA-RK052W AMD Ryzen AI 9 365	54.9 s * -5%
Lenovo ThinkPad T14s Gen 6 21M2S00G00 AMD Ryzen AI 7 PRO 360	54 s * -4%
Asus ZenBook Duo OLED UX8406CA Intel Core Ultra 9 285H	52.1 s *
Average of class Convertible (42.7 - 84.3, n=57, last 2 years)	51 s * +2%
Average Intel Core Ultra 9 285H (44 - 52.1, n=2)	48.1 s * +8%
Samsung Galaxy Book5 Pro 360 Intel Core Ultra 5 226V	45.2 s * +13%
Asus Zenbook Duo OLED UX8406MA Intel Core Ultra 9 185H	44.6 s * +14%
Lenovo Yoga 9 2-in-1 14IMH9 Intel Core Ultra 7 155H	44.5 s * +15%
Lenovo Yoga Book 9 13IMU9 Intel Core Ultra 7 155U	44.3 s * +15%
HP Spectre x360 14-eu0078ng Intel Core Ultra 7 155H	43.6 s * +16%

R Benchmark 2.5 / Overall mean
Average of class Convertible (0.4102 - 0.84, n=57, last 2 years)	0.512 sec * -20%
Lenovo Yoga Book 9 13IMU9 Intel Core Ultra 7 155U	0.508 sec * -19%
Samsung Galaxy Book5 Pro 360 Intel Core Ultra 5 226V	0.4808 sec * -13%
HP Spectre x360 14-eu0078ng Intel Core Ultra 7 155H	0.4773 sec * -12%
Lenovo Yoga 9 2-in-1 14IMH9 Intel Core Ultra 7 155H	0.4738 sec * -11%
Asus Zenbook Duo OLED UX8406MA Intel Core Ultra 9 185H	0.462 sec * -8%
Asus Zenbook S 14 UX5406 Intel Core Ultra 7 258V	0.4593 sec * -8%
Lenovo ThinkPad T14s Gen 6 21M2S00G00 AMD Ryzen AI 7 PRO 360	0.4541 sec * -6%
Average Intel Core Ultra 9 285H (0.427 - 0.4343, n=2)	0.4307 sec * -1%
Asus Zenbook S 16 UM5606WA-RK052W AMD Ryzen AI 9 365	0.4272 sec * -0%
Asus ZenBook Duo OLED UX8406CA Intel Core Ultra 9 285H	0.427 sec *

* ... smaller is better

Cinebench R15 CPU Multi 64Bit

2797 Points

Cinebench R15 OpenGL 64Bit

205 fps

Cinebench R15 Ref. Match 64Bit

97.8 %

Cinebench R15 CPU Single 64Bit

313 Points

Cinebench R20 CPU (Single Core)

827 Points

Cinebench R20 CPU (Multi Core)

6517 Points

Cinebench R23 Multi Core

16632 Points

Cinebench R23 Single Core

2163 Points

Cinebench 2024 CPU Single Core

127 Points

Cinebench 2024 CPU Multi Core

740 Points

Help

... in comparison

Performance Rating
Average Intel Core Ultra 9 285H	96.9 pt
Asus ZenBook Duo OLED UX8406CA Intel Core Ultra 9 285H, Arc 140T	90 pt
Lenovo Yoga 9 2-in-1 14IMH9 Intel Core Ultra 7 155H, Arc 8-Core	76.7 pt
Average of class Convertible	69.8 pt
Asus Zenbook Duo OLED UX8406MA Intel Core Ultra 9 185H, Arc 8-Core	68.4 pt
HP Spectre x360 14-eu0078ng Intel Core Ultra 7 155H, Arc 8-Core	68.3 pt
Samsung Galaxy Book5 Pro 360 Intel Core Ultra 5 226V, Arc 130V	65.6 pt
Lenovo Yoga Book 9 13IMU9 Intel Core Ultra 7 155U, Graphics 4-Core	58.9 pt

AIDA64 / FP32 Ray-Trace
Average Intel Core Ultra 9 285H (15160 - 18797, n=2)	16979 KRay/s +12%
Asus ZenBook Duo OLED UX8406CA Intel Core Ultra 9 285H, Arc 140T	15160 KRay/s
Samsung Galaxy Book5 Pro 360 Intel Core Ultra 5 226V, Arc 130V	12147 KRay/s -20%
Lenovo Yoga 9 2-in-1 14IMH9 Intel Core Ultra 7 155H, Arc 8-Core	10809 KRay/s -29%
Average of class Convertible (2179 - 29594, n=59, last 2 years)	10657 KRay/s -30%
Asus Zenbook Duo OLED UX8406MA Intel Core Ultra 9 185H, Arc 8-Core	9220 KRay/s -39%
HP Spectre x360 14-eu0078ng Intel Core Ultra 7 155H, Arc 8-Core	9015 KRay/s -41%
Lenovo Yoga Book 9 13IMU9 Intel Core Ultra 7 155U, Graphics 4-Core	8380 KRay/s -45%

AIDA64 / FPU Julia
Average Intel Core Ultra 9 285H (78572 - 93122, n=2)	85847 Points +9%
Asus ZenBook Duo OLED UX8406CA Intel Core Ultra 9 285H, Arc 140T	78572 Points
Samsung Galaxy Book5 Pro 360 Intel Core Ultra 5 226V, Arc 130V	60119 Points -23%
Lenovo Yoga 9 2-in-1 14IMH9 Intel Core Ultra 7 155H, Arc 8-Core	55492 Points -29%
Average of class Convertible (11392 - 114033, n=58, last 2 years)	52931 Points -33%
Asus Zenbook Duo OLED UX8406MA Intel Core Ultra 9 185H, Arc 8-Core	48865 Points -38%
HP Spectre x360 14-eu0078ng Intel Core Ultra 7 155H, Arc 8-Core	46620 Points -41%
Lenovo Yoga Book 9 13IMU9 Intel Core Ultra 7 155U, Graphics 4-Core	41991 Points -47%

AIDA64 / CPU SHA3
Average Intel Core Ultra 9 285H (3695 - 4281, n=2)	3988 MB/s +8%
Asus ZenBook Duo OLED UX8406CA Intel Core Ultra 9 285H, Arc 140T	3695 MB/s
Samsung Galaxy Book5 Pro 360 Intel Core Ultra 5 226V, Arc 130V	2551 MB/s -31%
Lenovo Yoga 9 2-in-1 14IMH9 Intel Core Ultra 7 155H, Arc 8-Core	2548 MB/s -31%
Average of class Convertible (797 - 4841, n=58, last 2 years)	2517 MB/s -32%
Asus Zenbook Duo OLED UX8406MA Intel Core Ultra 9 185H, Arc 8-Core	2394 MB/s -35%
Lenovo Yoga Book 9 13IMU9 Intel Core Ultra 7 155U, Graphics 4-Core	2252 MB/s -39%
HP Spectre x360 14-eu0078ng Intel Core Ultra 7 155H, Arc 8-Core	2181 MB/s -41%

AIDA64 / CPU Queen
HP Spectre x360 14-eu0078ng Intel Core Ultra 7 155H, Arc 8-Core	83869 Points +36%
Lenovo Yoga 9 2-in-1 14IMH9 Intel Core Ultra 7 155H, Arc 8-Core	83277 Points +35%
Average of class Convertible (22413 - 120368, n=58, last 2 years)	68569 Points +12%
Asus Zenbook Duo OLED UX8406MA Intel Core Ultra 9 185H, Arc 8-Core	66785 Points +9%
Average Intel Core Ultra 9 285H (61461 - 66818, n=2)	64140 Points +4%
Asus ZenBook Duo OLED UX8406CA Intel Core Ultra 9 285H, Arc 140T	61461 Points
Samsung Galaxy Book5 Pro 360 Intel Core Ultra 5 226V, Arc 130V	46991 Points -24%
Lenovo Yoga Book 9 13IMU9 Intel Core Ultra 7 155U, Graphics 4-Core	44936 Points -27%

AIDA64 / FPU SinJulia
Lenovo Yoga 9 2-in-1 14IMH9 Intel Core Ultra 7 155H, Arc 8-Core	8191 Points +13%
Average Intel Core Ultra 9 285H (7275 - 7852, n=2)	7564 Points +4%
HP Spectre x360 14-eu0078ng Intel Core Ultra 7 155H, Arc 8-Core	7333 Points +1%
Asus ZenBook Duo OLED UX8406CA Intel Core Ultra 9 285H, Arc 140T	7275 Points
Asus Zenbook Duo OLED UX8406MA Intel Core Ultra 9 185H, Arc 8-Core	7255 Points 0%
Average of class Convertible (1120 - 16315, n=58, last 2 years)	7052 Points -3%
Lenovo Yoga Book 9 13IMU9 Intel Core Ultra 7 155U, Graphics 4-Core	5540 Points -24%
Samsung Galaxy Book5 Pro 360 Intel Core Ultra 5 226V, Arc 130V	3918 Points -46%

AIDA64 / FPU Mandel
Average Intel Core Ultra 9 285H (40946 - 48804, n=2)	44875 Points +10%
Asus ZenBook Duo OLED UX8406CA Intel Core Ultra 9 285H, Arc 140T	40946 Points
Samsung Galaxy Book5 Pro 360 Intel Core Ultra 5 226V, Arc 130V	32239 Points -21%
Lenovo Yoga 9 2-in-1 14IMH9 Intel Core Ultra 7 155H, Arc 8-Core	27112 Points -34%
Average of class Convertible (5749 - 61249, n=58, last 2 years)	27086 Points -34%
Asus Zenbook Duo OLED UX8406MA Intel Core Ultra 9 185H, Arc 8-Core	24004 Points -41%
HP Spectre x360 14-eu0078ng Intel Core Ultra 7 155H, Arc 8-Core	22231 Points -46%
Lenovo Yoga Book 9 13IMU9 Intel Core Ultra 7 155U, Graphics 4-Core	21082 Points -49%

AIDA64 / CPU AES
Average Intel Core Ultra 9 285H (58110 - 67900, n=2)	63005 MB/s +8%
Asus ZenBook Duo OLED UX8406CA Intel Core Ultra 9 285H, Arc 140T	58110 MB/s
Lenovo Yoga 9 2-in-1 14IMH9 Intel Core Ultra 7 155H, Arc 8-Core	55011 MB/s -5%
Asus Zenbook Duo OLED UX8406MA Intel Core Ultra 9 185H, Arc 8-Core	53116 MB/s -9%
Average of class Convertible (21774 - 169089, n=58, last 2 years)	50596 MB/s -13%
HP Spectre x360 14-eu0078ng Intel Core Ultra 7 155H, Arc 8-Core	50440 MB/s -13%
Lenovo Yoga Book 9 13IMU9 Intel Core Ultra 7 155U, Graphics 4-Core	45243 MB/s -22%
Samsung Galaxy Book5 Pro 360 Intel Core Ultra 5 226V, Arc 130V	34238 MB/s -41%

AIDA64 / CPU ZLib
Average Intel Core Ultra 9 285H (886 - 1012, n=2)	949 MB/s +7%
Asus ZenBook Duo OLED UX8406CA Intel Core Ultra 9 285H, Arc 140T	886 MB/s
Lenovo Yoga 9 2-in-1 14IMH9 Intel Core Ultra 7 155H, Arc 8-Core	780 MB/s -12%
Average of class Convertible (218 - 1243, n=58, last 2 years)	690 MB/s -22%
Asus Zenbook Duo OLED UX8406MA Intel Core Ultra 9 185H, Arc 8-Core	678 MB/s -23%
HP Spectre x360 14-eu0078ng Intel Core Ultra 7 155H, Arc 8-Core	664 MB/s -25%
Lenovo Yoga Book 9 13IMU9 Intel Core Ultra 7 155U, Graphics 4-Core	657 MB/s -26%
Samsung Galaxy Book5 Pro 360 Intel Core Ultra 5 226V, Arc 130V	571 MB/s -36%

AIDA64 / FP64 Ray-Trace
Average Intel Core Ultra 9 285H (7741 - 9920, n=2)	8831 KRay/s +14%
Asus ZenBook Duo OLED UX8406CA Intel Core Ultra 9 285H, Arc 140T	7741 KRay/s
Samsung Galaxy Book5 Pro 360 Intel Core Ultra 5 226V, Arc 130V	6673 KRay/s -14%
Lenovo Yoga 9 2-in-1 14IMH9 Intel Core Ultra 7 155H, Arc 8-Core	5675 KRay/s -27%
Average of class Convertible (1169 - 16065, n=58, last 2 years)	5600 KRay/s -28%
HP Spectre x360 14-eu0078ng Intel Core Ultra 7 155H, Arc 8-Core	4533 KRay/s -41%
Asus Zenbook Duo OLED UX8406MA Intel Core Ultra 9 185H, Arc 8-Core	4428 KRay/s -43%
Lenovo Yoga Book 9 13IMU9 Intel Core Ultra 7 155U, Graphics 4-Core	4305 KRay/s -44%

AIDA64 / CPU PhotoWorxx
Asus ZenBook Duo OLED UX8406CA Intel Core Ultra 9 285H, Arc 140T	58848 MPixel/s
Average Intel Core Ultra 9 285H (58844 - 58848, n=2)	58846 MPixel/s 0%
Asus Zenbook Duo OLED UX8406MA Intel Core Ultra 9 185H, Arc 8-Core	50237 MPixel/s -15%
Samsung Galaxy Book5 Pro 360 Intel Core Ultra 5 226V, Arc 130V	50096 MPixel/s -15%
Lenovo Yoga 9 2-in-1 14IMH9 Intel Core Ultra 7 155H, Arc 8-Core	47645 MPixel/s -19%
HP Spectre x360 14-eu0078ng Intel Core Ultra 7 155H, Arc 8-Core	47311 MPixel/s -20%
Lenovo Yoga Book 9 13IMU9 Intel Core Ultra 7 155U, Graphics 4-Core	44831 MPixel/s -24%
Average of class Convertible (13761 - 58848, n=58, last 2 years)	38783 MPixel/s -34%

系统性能

与前代机型相比，它的系统基准也有所改进，但这在日常使用中并不明显，因为旧款 Zenbook Duo 已经是一款反应非常灵敏的设备。该系统还能很好地应对多屏操作，在我们的测试中也没有出现稳定性问题。

PCMark 10 / Score
Average Intel Core Ultra 9 285H, Intel Arc Graphics 140T (7514 - 7838, n=2)	7676 Points +2%
Lenovo Yoga Pro 7 14ASP G9 Radeon 880M, Ryzen AI 9 365, Micron 2550 1TB MTFDKCD1T0TGE	7641 Points +2%
Lenovo Yoga 9 2-in-1 14IMH9 Arc 8-Core, Ultra 7 155H, Samsung PM9C1a MZAL81T0HDLB	7529 Points 0%
Asus ZenBook Duo OLED UX8406CA Arc 140T, Ultra 9 285H, Western Digital PC SN5000S SDEQNSJ-1T00	7514 Points
Lenovo ThinkPad T14s Gen 6 21M2S00G00 Radeon 880M, Ryzen AI 7 PRO 360, Kioxia XG8 KXG8AZNV1T02	7147 Points -5%
Asus Zenbook S 16 UM5606WA-RK052W Radeon 880M, Ryzen AI 9 365, Micron 2400 MTFDKBA1T0QFM	7045 Points -6%
Asus Zenbook S 14 UX5406 Arc 140V, Core Ultra 7 258V, WD PC SN560 SDDPNQE-1T00	6868 Points -9%
HP Spectre x360 14-eu0078ng Arc 8-Core, Ultra 7 155H, Kioxia XG8 KXG80ZNV2T04	6782 Points -10%
Asus Zenbook Duo OLED UX8406MA Arc 8-Core, Ultra 9 185H, WD PC SN740 SDDPNQE-2T00	6771 Points -10%
Samsung Galaxy Book5 Pro 360 Arc 130V, Core Ultra 5 226V, Samsung PM9B1 512GB MZVL4512HBLU	6672 Points -11%
Average of class Convertible (3229 - 7963, n=56, last 2 years)	6157 Points -18%
Lenovo Yoga Book 9 13IMU9 Graphics 4-Core, Ultra 7 155U	6055 Points -19%

PCMark 10 / Essentials
Lenovo Yoga 9 2-in-1 14IMH9 Arc 8-Core, Ultra 7 155H, Samsung PM9C1a MZAL81T0HDLB	11214 Points +3%
Lenovo Yoga Pro 7 14ASP G9 Radeon 880M, Ryzen AI 9 365, Micron 2550 1TB MTFDKCD1T0TGE	11140 Points +2%
HP Spectre x360 14-eu0078ng Arc 8-Core, Ultra 7 155H, Kioxia XG8 KXG80ZNV2T04	11126 Points +2%
Lenovo Yoga Book 9 13IMU9 Graphics 4-Core, Ultra 7 155U	11088 Points +1%
Average Intel Core Ultra 9 285H, Intel Arc Graphics 140T (10931 - 11171, n=2)	11051 Points +1%
Asus ZenBook Duo OLED UX8406CA Arc 140T, Ultra 9 285H, Western Digital PC SN5000S SDEQNSJ-1T00	10931 Points
Asus Zenbook Duo OLED UX8406MA Arc 8-Core, Ultra 9 185H, WD PC SN740 SDDPNQE-2T00	10781 Points -1%
Lenovo ThinkPad T14s Gen 6 21M2S00G00 Radeon 880M, Ryzen AI 7 PRO 360, Kioxia XG8 KXG8AZNV1T02	10713 Points -2%
Average of class Convertible (7233 - 11912, n=56, last 2 years)	10683 Points -2%
Asus Zenbook S 16 UM5606WA-RK052W Radeon 880M, Ryzen AI 9 365, Micron 2400 MTFDKBA1T0QFM	10421 Points -5%
Samsung Galaxy Book5 Pro 360 Arc 130V, Core Ultra 5 226V, Samsung PM9B1 512GB MZVL4512HBLU	9995 Points -9%
Asus Zenbook S 14 UX5406 Arc 140V, Core Ultra 7 258V, WD PC SN560 SDDPNQE-1T00	9729 Points -11%

PCMark 10 / Productivity
Lenovo Yoga 9 2-in-1 14IMH9 Arc 8-Core, Ultra 7 155H, Samsung PM9C1a MZAL81T0HDLB	10591 Points +20%
Lenovo Yoga Pro 7 14ASP G9 Radeon 880M, Ryzen AI 9 365, Micron 2550 1TB MTFDKCD1T0TGE	10293 Points +17%
Asus Zenbook S 16 UM5606WA-RK052W Radeon 880M, Ryzen AI 9 365, Micron 2400 MTFDKBA1T0QFM	10150 Points +15%
Lenovo ThinkPad T14s Gen 6 21M2S00G00 Radeon 880M, Ryzen AI 7 PRO 360, Kioxia XG8 KXG8AZNV1T02	9805 Points +11%
Asus Zenbook S 14 UX5406 Arc 140V, Core Ultra 7 258V, WD PC SN560 SDDPNQE-1T00	9287 Points +5%
Average Intel Core Ultra 9 285H, Intel Arc Graphics 140T (8818 - 9594, n=2)	9206 Points +4%
Samsung Galaxy Book5 Pro 360 Arc 130V, Core Ultra 5 226V, Samsung PM9B1 512GB MZVL4512HBLU	8977 Points +2%
Asus Zenbook Duo OLED UX8406MA Arc 8-Core, Ultra 9 185H, WD PC SN740 SDDPNQE-2T00	8888 Points +1%
Asus ZenBook Duo OLED UX8406CA Arc 140T, Ultra 9 285H, Western Digital PC SN5000S SDEQNSJ-1T00	8818 Points
HP Spectre x360 14-eu0078ng Arc 8-Core, Ultra 7 155H, Kioxia XG8 KXG80ZNV2T04	8744 Points -1%
Average of class Convertible (4777 - 10800, n=56, last 2 years)	8229 Points -7%
Lenovo Yoga Book 9 13IMU9 Graphics 4-Core, Ultra 7 155U	7994 Points -9%

PCMark 10 / Digital Content Creation
Average Intel Core Ultra 9 285H, Intel Arc Graphics 140T (11948 - 12193, n=2)	12071 Points +1%
Asus ZenBook Duo OLED UX8406CA Arc 140T, Ultra 9 285H, Western Digital PC SN5000S SDEQNSJ-1T00	11948 Points
Lenovo Yoga Pro 7 14ASP G9 Radeon 880M, Ryzen AI 9 365, Micron 2550 1TB MTFDKCD1T0TGE	10559 Points -12%
Lenovo Yoga 9 2-in-1 14IMH9 Arc 8-Core, Ultra 7 155H, Samsung PM9C1a MZAL81T0HDLB	9752 Points -18%
Asus Zenbook S 14 UX5406 Arc 140V, Core Ultra 7 258V, WD PC SN560 SDDPNQE-1T00	9728 Points -19%
Lenovo ThinkPad T14s Gen 6 21M2S00G00 Radeon 880M, Ryzen AI 7 PRO 360, Kioxia XG8 KXG8AZNV1T02	9429 Points -21%
Samsung Galaxy Book5 Pro 360 Arc 130V, Core Ultra 5 226V, Samsung PM9B1 512GB MZVL4512HBLU	8983 Points -25%
Asus Zenbook S 16 UM5606WA-RK052W Radeon 880M, Ryzen AI 9 365, Micron 2400 MTFDKBA1T0QFM	8973 Points -25%
Asus Zenbook Duo OLED UX8406MA Arc 8-Core, Ultra 9 185H, WD PC SN740 SDDPNQE-2T00	8793 Points -26%
HP Spectre x360 14-eu0078ng Arc 8-Core, Ultra 7 155H, Kioxia XG8 KXG80ZNV2T04	8704 Points -27%
Average of class Convertible (2496 - 12360, n=56, last 2 years)	7368 Points -38%
Lenovo Yoga Book 9 13IMU9 Graphics 4-Core, Ultra 7 155U	6797 Points -43%

CrossMark / Overall
Average Intel Core Ultra 9 285H, Intel Arc Graphics 140T (1812 - 2173, n=2)	1993 Points +10%
Asus ZenBook Duo OLED UX8406CA Arc 140T, Ultra 9 285H, Western Digital PC SN5000S SDEQNSJ-1T00	1812 Points
Asus Zenbook Duo OLED UX8406MA Arc 8-Core, Ultra 9 185H, WD PC SN740 SDDPNQE-2T00	1711 Points -6%
Lenovo ThinkPad T14s Gen 6 21M2S00G00 Radeon 880M, Ryzen AI 7 PRO 360, Kioxia XG8 KXG8AZNV1T02	1676 Points -8%
Lenovo Yoga Pro 7 14ASP G9 Radeon 880M, Ryzen AI 9 365, Micron 2550 1TB MTFDKCD1T0TGE	1658 Points -8%
Asus Zenbook S 14 UX5406 Arc 140V, Core Ultra 7 258V, WD PC SN560 SDDPNQE-1T00	1654 Points -9%
Lenovo Yoga 9 2-in-1 14IMH9 Arc 8-Core, Ultra 7 155H, Samsung PM9C1a MZAL81T0HDLB	1634 Points -10%
Samsung Galaxy Book5 Pro 360 Arc 130V, Core Ultra 5 226V, Samsung PM9B1 512GB MZVL4512HBLU	1582 Points -13%
Average of class Convertible (524 - 1912, n=59, last 2 years)	1487 Points -18%
Lenovo Yoga Book 9 13IMU9 Graphics 4-Core, Ultra 7 155U	1467 Points -19%
HP Spectre x360 14-eu0078ng Arc 8-Core, Ultra 7 155H, Kioxia XG8 KXG80ZNV2T04	1366 Points -25%

CrossMark / Productivity
Average Intel Core Ultra 9 285H, Intel Arc Graphics 140T (1693 - 2050, n=2)	1872 Points +11%
Asus ZenBook Duo OLED UX8406CA Arc 140T, Ultra 9 285H, Western Digital PC SN5000S SDEQNSJ-1T00	1693 Points
Asus Zenbook Duo OLED UX8406MA Arc 8-Core, Ultra 9 185H, WD PC SN740 SDDPNQE-2T00	1626 Points -4%
Lenovo ThinkPad T14s Gen 6 21M2S00G00 Radeon 880M, Ryzen AI 7 PRO 360, Kioxia XG8 KXG8AZNV1T02	1610 Points -5%
Asus Zenbook S 14 UX5406 Arc 140V, Core Ultra 7 258V, WD PC SN560 SDDPNQE-1T00	1590 Points -6%
Lenovo Yoga 9 2-in-1 14IMH9 Arc 8-Core, Ultra 7 155H, Samsung PM9C1a MZAL81T0HDLB	1552 Points -8%
Samsung Galaxy Book5 Pro 360 Arc 130V, Core Ultra 5 226V, Samsung PM9B1 512GB MZVL4512HBLU	1539 Points -9%
Lenovo Yoga Pro 7 14ASP G9 Radeon 880M, Ryzen AI 9 365, Micron 2550 1TB MTFDKCD1T0TGE	1508 Points -11%
Average of class Convertible (554 - 1790, n=59, last 2 years)	1448 Points -14%
Lenovo Yoga Book 9 13IMU9 Graphics 4-Core, Ultra 7 155U	1443 Points -15%
HP Spectre x360 14-eu0078ng Arc 8-Core, Ultra 7 155H, Kioxia XG8 KXG80ZNV2T04	1291 Points -24%

CrossMark / Creativity
Average Intel Core Ultra 9 285H, Intel Arc Graphics 140T (2125 - 2377, n=2)	2251 Points +6%
Asus ZenBook Duo OLED UX8406CA Arc 140T, Ultra 9 285H, Western Digital PC SN5000S SDEQNSJ-1T00	2125 Points
Lenovo Yoga Pro 7 14ASP G9 Radeon 880M, Ryzen AI 9 365, Micron 2550 1TB MTFDKCD1T0TGE	2074 Points -2%
Asus Zenbook Duo OLED UX8406MA Arc 8-Core, Ultra 9 185H, WD PC SN740 SDDPNQE-2T00	1959 Points -8%
Asus Zenbook S 14 UX5406 Arc 140V, Core Ultra 7 258V, WD PC SN560 SDDPNQE-1T00	1882 Points -11%
Lenovo Yoga 9 2-in-1 14IMH9 Arc 8-Core, Ultra 7 155H, Samsung PM9C1a MZAL81T0HDLB	1830 Points -14%
Lenovo ThinkPad T14s Gen 6 21M2S00G00 Radeon 880M, Ryzen AI 7 PRO 360, Kioxia XG8 KXG8AZNV1T02	1786 Points -16%
Samsung Galaxy Book5 Pro 360 Arc 130V, Core Ultra 5 226V, Samsung PM9B1 512GB MZVL4512HBLU	1740 Points -18%
HP Spectre x360 14-eu0078ng Arc 8-Core, Ultra 7 155H, Kioxia XG8 KXG80ZNV2T04	1636 Points -23%
Average of class Convertible (550 - 2183, n=59, last 2 years)	1607 Points -24%
Lenovo Yoga Book 9 13IMU9 Graphics 4-Core, Ultra 7 155U	1566 Points -26%

CrossMark / Responsiveness
Average Intel Core Ultra 9 285H, Intel Arc Graphics 140T (1375 - 1981, n=2)	1678 Points +22%
Lenovo ThinkPad T14s Gen 6 21M2S00G00 Radeon 880M, Ryzen AI 7 PRO 360, Kioxia XG8 KXG8AZNV1T02	1562 Points +14%
Asus ZenBook Duo OLED UX8406CA Arc 140T, Ultra 9 285H, Western Digital PC SN5000S SDEQNSJ-1T00	1375 Points
Lenovo Yoga 9 2-in-1 14IMH9 Arc 8-Core, Ultra 7 155H, Samsung PM9C1a MZAL81T0HDLB	1356 Points -1%
Asus Zenbook Duo OLED UX8406MA Arc 8-Core, Ultra 9 185H, WD PC SN740 SDDPNQE-2T00	1329 Points -3%
Samsung Galaxy Book5 Pro 360 Arc 130V, Core Ultra 5 226V, Samsung PM9B1 512GB MZVL4512HBLU	1289 Points -6%
Lenovo Yoga Book 9 13IMU9 Graphics 4-Core, Ultra 7 155U	1266 Points -8%
Asus Zenbook S 14 UX5406 Arc 140V, Core Ultra 7 258V, WD PC SN560 SDDPNQE-1T00	1263 Points -8%
Average of class Convertible (381 - 1868, n=59, last 2 years)	1256 Points -9%
Lenovo Yoga Pro 7 14ASP G9 Radeon 880M, Ryzen AI 9 365, Micron 2550 1TB MTFDKCD1T0TGE	1124 Points -18%
HP Spectre x360 14-eu0078ng Arc 8-Core, Ultra 7 155H, Kioxia XG8 KXG80ZNV2T04	939 Points -32%

WebXPRT 3 / Overall
Lenovo Yoga Pro 7 14ASP G9 Radeon 880M, Ryzen AI 9 365, Micron 2550 1TB MTFDKCD1T0TGE	322 Points +15%
Average Intel Core Ultra 9 285H, Intel Arc Graphics 140T (280 - 358, n=2)	319 Points +14%
Lenovo ThinkPad T14s Gen 6 21M2S00G00 Radeon 880M, Ryzen AI 7 PRO 360, Kioxia XG8 KXG8AZNV1T02	300 Points +7%
HP Spectre x360 14-eu0078ng Arc 8-Core, Ultra 7 155H, Kioxia XG8 KXG80ZNV2T04	291 Points +4%
Asus Zenbook Duo OLED UX8406MA Arc 8-Core, Ultra 9 185H, WD PC SN740 SDDPNQE-2T00	291 Points +4%
Asus ZenBook Duo OLED UX8406CA Arc 140T, Ultra 9 285H, Western Digital PC SN5000S SDEQNSJ-1T00	280 Points
Average of class Convertible (171 - 426, n=60, last 2 years)	277 Points -1%
Lenovo Yoga Book 9 13IMU9 Graphics 4-Core, Ultra 7 155U	272 Points -3%
Samsung Galaxy Book5 Pro 360 Arc 130V, Core Ultra 5 226V, Samsung PM9B1 512GB MZVL4512HBLU	272 Points -3%
Lenovo Yoga 9 2-in-1 14IMH9 Arc 8-Core, Ultra 7 155H, Samsung PM9C1a MZAL81T0HDLB	268 Points -4%
Asus Zenbook S 14 UX5406 Arc 140V, Core Ultra 7 258V, WD PC SN560 SDDPNQE-1T00	260 Points -7%

WebXPRT 4 / Overall
Average Intel Core Ultra 9 285H, Intel Arc Graphics 140T (254 - 324, n=2)	289 Points +14%
Lenovo Yoga Pro 7 14ASP G9 Radeon 880M, Ryzen AI 9 365, Micron 2550 1TB MTFDKCD1T0TGE	263 Points +4%
Samsung Galaxy Book5 Pro 360 Arc 130V, Core Ultra 5 226V, Samsung PM9B1 512GB MZVL4512HBLU	259 Points +2%
HP Spectre x360 14-eu0078ng Arc 8-Core, Ultra 7 155H, Kioxia XG8 KXG80ZNV2T04	257 Points +1%
Asus Zenbook Duo OLED UX8406MA Arc 8-Core, Ultra 9 185H, WD PC SN740 SDDPNQE-2T00	257 Points +1%
Asus Zenbook S 16 UM5606WA-RK052W Radeon 880M, Ryzen AI 9 365, Micron 2400 MTFDKBA1T0QFM	255 Points 0%
Asus Zenbook S 16 UM5606WA-RK052W Radeon 880M, Ryzen AI 9 365, Micron 2400 MTFDKBA1T0QFM	255 Points 0%
Lenovo ThinkPad T14s Gen 6 21M2S00G00 Radeon 880M, Ryzen AI 7 PRO 360, Kioxia XG8 KXG8AZNV1T02	254 Points 0%
Asus ZenBook Duo OLED UX8406CA Arc 140T, Ultra 9 285H, Western Digital PC SN5000S SDEQNSJ-1T00	254 Points
Asus Zenbook S 14 UX5406 Arc 140V, Core Ultra 7 258V, WD PC SN560 SDDPNQE-1T00	251 Points -1%
Lenovo Yoga Book 9 13IMU9 Graphics 4-Core, Ultra 7 155U	250 Points -2%
Lenovo Yoga 9 2-in-1 14IMH9 Arc 8-Core, Ultra 7 155H, Samsung PM9C1a MZAL81T0HDLB	244 Points -4%
Average of class Convertible (91.2 - 314, n=57, last 2 years)	236 Points -7%

Mozilla Kraken 1.1 / Total
Average of class Convertible (407 - 1089, n=60, last 2 years)	562 ms * -21%
Asus Zenbook S 14 UX5406 Arc 140V, Core Ultra 7 258V, WD PC SN560 SDDPNQE-1T00	559 ms * -20%
Lenovo Yoga Book 9 13IMU9 Graphics 4-Core, Ultra 7 155U	548 ms * -18%
Lenovo Yoga 9 2-in-1 14IMH9 Arc 8-Core, Ultra 7 155H, Samsung PM9C1a MZAL81T0HDLB	542 ms * -17%
HP Spectre x360 14-eu0078ng Arc 8-Core, Ultra 7 155H, Kioxia XG8 KXG80ZNV2T04	534 ms * -15%
Samsung Galaxy Book5 Pro 360 Arc 130V, Core Ultra 5 226V, Samsung PM9B1 512GB MZVL4512HBLU	510 ms * -10%
Asus Zenbook Duo OLED UX8406MA Arc 8-Core, Ultra 9 185H, WD PC SN740 SDDPNQE-2T00	508 ms * -9%
Asus ZenBook Duo OLED UX8406CA Arc 140T, Ultra 9 285H, Western Digital PC SN5000S SDEQNSJ-1T00	464 ms *
Asus Zenbook S 16 UM5606WA-RK052W Radeon 880M, Ryzen AI 9 365, Micron 2400 MTFDKBA1T0QFM	456 ms * +2%
Asus Zenbook S 16 UM5606WA-RK052W Radeon 880M, Ryzen AI 9 365, Micron 2400 MTFDKBA1T0QFM	456 ms * +2%
Lenovo ThinkPad T14s Gen 6 21M2S00G00 Radeon 880M, Ryzen AI 7 PRO 360, Kioxia XG8 KXG8AZNV1T02	454 ms * +2%
Lenovo Yoga Pro 7 14ASP G9 Radeon 880M, Ryzen AI 9 365, Micron 2550 1TB MTFDKCD1T0TGE	445 ms * +4%
Average Intel Core Ultra 9 285H, Intel Arc Graphics 140T (422 - 464, n=2)	443 ms * +5%

* ... smaller is better

PCMark 10 Score		7514 points
Help

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Samsung Galaxy Book5 Pro 360 Intel Core Ultra 5 226V, Arc 130V	99512 MB/s +13%
HP Spectre x360 14-eu0078ng Intel Core Ultra 7 155H, Arc 8-Core	95631 MB/s +8%
Lenovo Yoga 9 2-in-1 14IMH9 Intel Core Ultra 7 155H, Arc 8-Core	92990 MB/s +5%
Average Intel Core Ultra 9 285H (88278 - 97612, n=2)	92945 MB/s +5%
Asus Zenbook Duo OLED UX8406MA Intel Core Ultra 9 185H, Arc 8-Core	91178 MB/s +3%
Asus ZenBook Duo OLED UX8406CA Intel Core Ultra 9 285H, Arc 140T	88278 MB/s
Lenovo Yoga Book 9 13IMU9 Intel Core Ultra 7 155U, Graphics 4-Core	77717 MB/s -12%
Average of class Convertible (29473 - 108544, n=58, last 2 years)	68590 MB/s -22%

AIDA64 / Memory Read
Lenovo Yoga 9 2-in-1 14IMH9 Intel Core Ultra 7 155H, Arc 8-Core	87812 MB/s +9%
HP Spectre x360 14-eu0078ng Intel Core Ultra 7 155H, Arc 8-Core	86442 MB/s +8%
Samsung Galaxy Book5 Pro 360 Intel Core Ultra 5 226V, Arc 130V	83885 MB/s +4%
Asus Zenbook Duo OLED UX8406MA Intel Core Ultra 9 185H, Arc 8-Core	83175 MB/s +4%
Asus ZenBook Duo OLED UX8406CA Intel Core Ultra 9 285H, Arc 140T	80277 MB/s
Average Intel Core Ultra 9 285H (79730 - 80277, n=2)	80004 MB/s 0%
Lenovo Yoga Book 9 13IMU9 Intel Core Ultra 7 155U, Graphics 4-Core	62523 MB/s -22%
Average of class Convertible (28905 - 126517, n=58, last 2 years)	62137 MB/s -23%

AIDA64 / Memory Write
Samsung Galaxy Book5 Pro 360 Intel Core Ultra 5 226V, Arc 130V	106434 MB/s +41%
Asus ZenBook Duo OLED UX8406CA Intel Core Ultra 9 285H, Arc 140T	75619 MB/s
Lenovo Yoga 9 2-in-1 14IMH9 Intel Core Ultra 7 155H, Arc 8-Core	74984 MB/s -1%
Asus Zenbook Duo OLED UX8406MA Intel Core Ultra 9 185H, Arc 8-Core	74571 MB/s -1%
HP Spectre x360 14-eu0078ng Intel Core Ultra 7 155H, Arc 8-Core	73168 MB/s -3%
Average Intel Core Ultra 9 285H (62446 - 75619, n=2)	69033 MB/s -9%
Average of class Convertible (30110 - 117920, n=58, last 2 years)	68546 MB/s -9%
Lenovo Yoga Book 9 13IMU9 Intel Core Ultra 7 155U, Graphics 4-Core	60520 MB/s -20%

AIDA64 / Memory Latency
Lenovo Yoga 9 2-in-1 14IMH9 Intel Core Ultra 7 155H, Arc 8-Core	173 ns * -32%
Asus Zenbook Duo OLED UX8406MA Intel Core Ultra 9 185H, Arc 8-Core	144.5 ns * -11%
HP Spectre x360 14-eu0078ng Intel Core Ultra 7 155H, Arc 8-Core	143.7 ns * -10%
Lenovo Yoga Book 9 13IMU9 Intel Core Ultra 7 155U, Graphics 4-Core	143.3 ns * -10%
Average Intel Core Ultra 9 285H (130.7 - 133.1, n=2)	131.9 ns * -1%
Asus ZenBook Duo OLED UX8406CA Intel Core Ultra 9 285H, Arc 140T	130.7 ns *
Average of class Convertible (7.4 - 173, n=58, last 2 years)	117.3 ns * +10%
Samsung Galaxy Book5 Pro 360 Intel Core Ultra 5 226V, Arc 130V	94.3 ns * +28%

* ... smaller is better

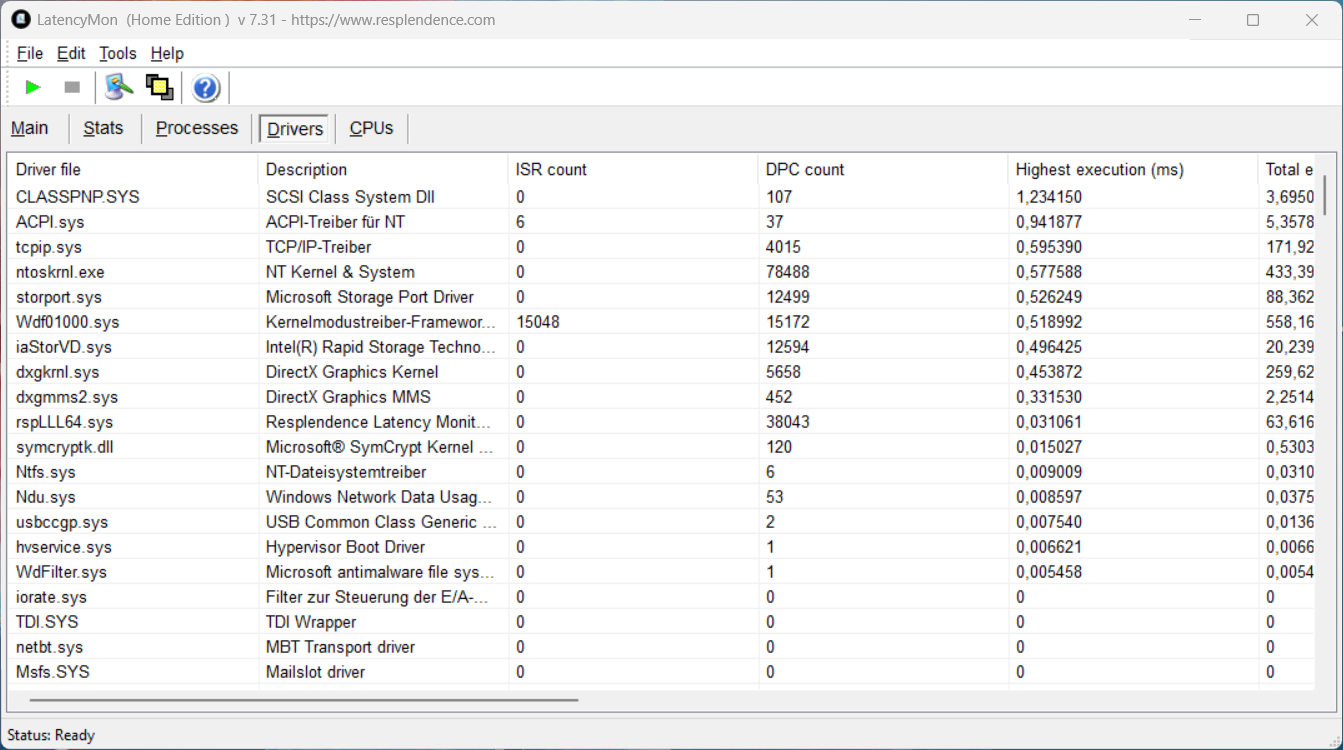

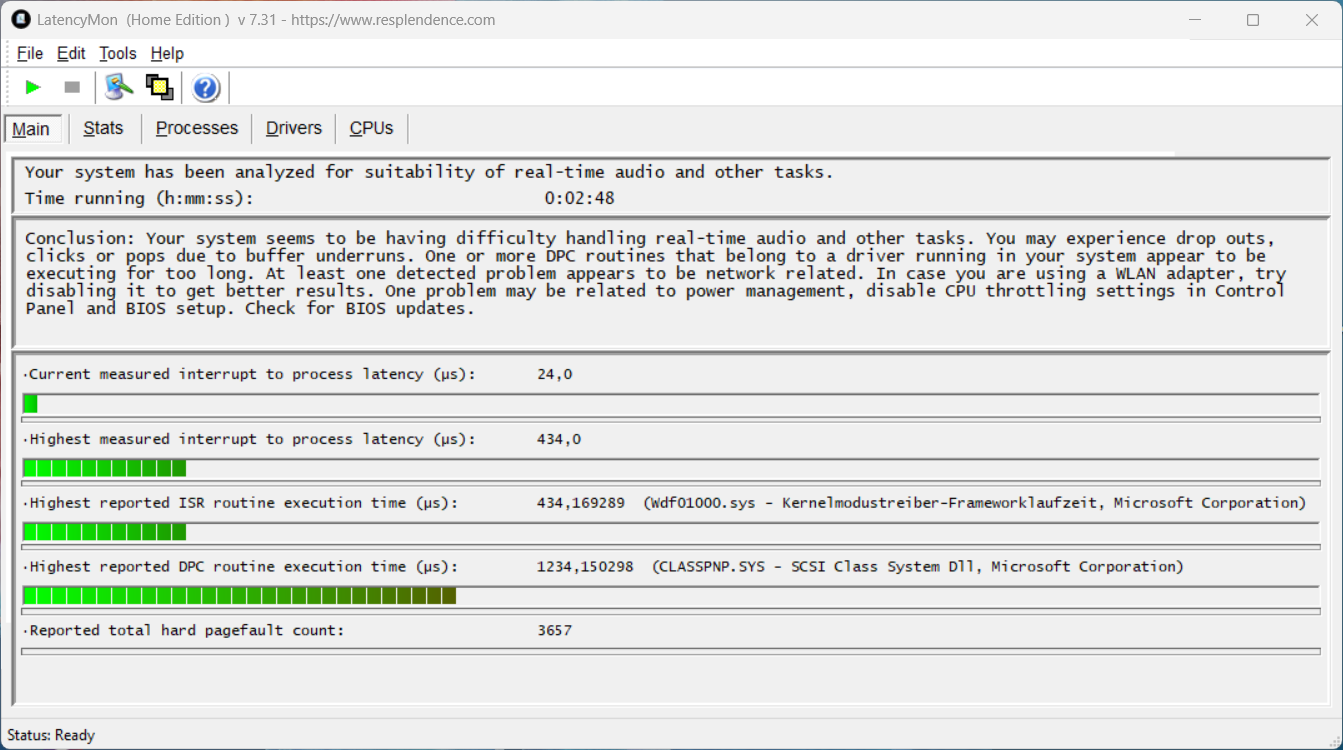

DPC 延迟

在我们的标准化延迟测试（上网、4K YouTube 播放、CPU 负载）中，我们的测试设备在当前 BIOS 版本下没有显示出任何限制。虽然有一个异常值，但重要的 "中断到进程延迟 "值非常低。

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Lenovo Yoga 9 2-in-1 14IMH9 Arc 8-Core, Ultra 7 155H, Samsung PM9C1a MZAL81T0HDLB	1636.1 μs * -277%
Lenovo Yoga Book 9 13IMU9 Graphics 4-Core, Ultra 7 155U	1577.5 μs * -263%
Samsung Galaxy Book5 Pro 360 Arc 130V, Core Ultra 5 226V, Samsung PM9B1 512GB MZVL4512HBLU	832.4 μs * -92%
HP Spectre x360 14-eu0078ng Arc 8-Core, Ultra 7 155H, Kioxia XG8 KXG80ZNV2T04	643.7 μs * -48%
Asus Zenbook Duo OLED UX8406MA Arc 8-Core, Ultra 9 185H, WD PC SN740 SDDPNQE-2T00	632.6 μs * -46%
Asus ZenBook Duo OLED UX8406CA Arc 140T, Ultra 9 285H, Western Digital PC SN5000S SDEQNSJ-1T00	434 μs *

* ... smaller is better

存储设备

我们的测试设备安装了 1 TB 版本的西部数据 SN5000S，用户在首次启动笔记本电脑后仍可使用 870 GB。在测试过程中，PCIe 4.0 固态硬盘的性能非常出色，即使在长时间负载的情况下也能保持稳定。因此，这方面没有任何问题。更多固态硬盘基准测试请参见技术部分.

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

Western Digital PC SN5000S SDEQNSJ-1T00

CDM 5/6 Read Seq Q32T1: 6383 MB/s

CDM 5/6 Write Seq Q32T1: 5654 MB/s

CDM 5/6 Read 4K Q32T1: 665 MB/s

CDM 5/6 Write 4K Q32T1: 423 MB/s

CDM 5/6 Read 4K: 81.6 MB/s

CDM 5/6 Write 4K: 141.1 MB/s

CDM 6 Write 4K Q8T8: 410 MB/s

CDM 6 Read 4K Q8T8: 1076 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Asus ZenBook Duo OLED UX8406CA Western Digital PC SN5000S SDEQNSJ-1T00	85 pt
Average Western Digital PC SN5000S SDEQNSJ-1T00	75.3 pt
Samsung Galaxy Book5 Pro 360 Samsung PM9B1 512GB MZVL4512HBLU	75.2 pt
HP Spectre x360 14-eu0078ng Kioxia XG8 KXG80ZNV2T04	69.9 pt
Lenovo Yoga 9 2-in-1 14IMH9 Samsung PM9C1a MZAL81T0HDLB	67.3 pt
Lenovo Yoga Book 9 13IMU9	65.7 pt
Average of class Convertible	65.3 pt
Asus Zenbook Duo OLED UX8406MA WD PC SN740 SDDPNQE-2T00	62.1 pt

DiskSpd
seq read
HP Spectre x360 14-eu0078ng Kioxia XG8 KXG80ZNV2T04	3539 (3485.73^min - 3538.94^max) MB/s +66%
Lenovo Yoga Book 9 13IMU9	3321 (3281.98^min - 3320.91^max) MB/s +56%
Lenovo Yoga 9 2-in-1 14IMH9 Samsung PM9C1a MZAL81T0HDLB	3272 (3255^min - 3272.4^max) MB/s +53%
Average of class Convertible (1617 - 4714, n=58, last 2 years)	2770 MB/s +30%
Samsung Galaxy Book5 Pro 360 Samsung PM9B1 512GB MZVL4512HBLU	2685 (2673.14^min - 2685.4^max) MB/s +26%
Average Western Digital PC SN5000S SDEQNSJ-1T00 (2134 - 2314, n=2)	2224 MB/s +4%
Asus ZenBook Duo OLED UX8406CA Western Digital PC SN5000S SDEQNSJ-1T00	2134 (1680.03^min - 2133.57^max) MB/s
Asus Zenbook Duo OLED UX8406MA WD PC SN740 SDDPNQE-2T00	1734 (1716.65^min - 1733.51^max) MB/s -19%
seq write
Asus ZenBook Duo OLED UX8406CA Western Digital PC SN5000S SDEQNSJ-1T00	3200 (2294.1^min - 3199.62^max) MB/s
Lenovo Yoga Book 9 13IMU9	2964 (2739.3^min - 2964.06^max) MB/s -7%
Average Western Digital PC SN5000S SDEQNSJ-1T00 (2590 - 3200, n=2)	2895 MB/s -10%
Lenovo Yoga 9 2-in-1 14IMH9 Samsung PM9C1a MZAL81T0HDLB	2894 (2826.12^min - 2894.2^max) MB/s -10%
Average of class Convertible (195.5 - 5301, n=58, last 2 years)	2655 MB/s -17%
HP Spectre x360 14-eu0078ng Kioxia XG8 KXG80ZNV2T04	2524 (2435.47^min - 2523.95^max) MB/s -21%
Samsung Galaxy Book5 Pro 360 Samsung PM9B1 512GB MZVL4512HBLU	2369 (2322.56^min - 2368.86^max) MB/s -26%
Asus Zenbook Duo OLED UX8406MA WD PC SN740 SDDPNQE-2T00	1597 (1562.38^min - 1597.14^max) MB/s -50%
seq q8 t1 read
HP Spectre x360 14-eu0078ng Kioxia XG8 KXG80ZNV2T04	6830 (6364.65^min - 6830.21^max) MB/s +8%
Asus ZenBook Duo OLED UX8406CA Western Digital PC SN5000S SDEQNSJ-1T00	6312 (5134.26^min - 6312.43^max) MB/s
Average Western Digital PC SN5000S SDEQNSJ-1T00 (6295 - 6312, n=2)	6304 MB/s 0%
Lenovo Yoga 9 2-in-1 14IMH9 Samsung PM9C1a MZAL81T0HDLB	6170 (4243.59^min - 6169.61^max) MB/s -2%
Lenovo Yoga Book 9 13IMU9	5234 (4365.43^min - 5234.3^max) MB/s -17%
Asus Zenbook Duo OLED UX8406MA WD PC SN740 SDDPNQE-2T00	5120 (4545.58^min - 5120.02^max) MB/s -19%
Average of class Convertible (2129 - 7152, n=58, last 2 years)	4861 MB/s -23%
Samsung Galaxy Book5 Pro 360 Samsung PM9B1 512GB MZVL4512HBLU	3618 (3185.57^min - 3617.59^max) MB/s -43%
seq q8 t1 write
Asus ZenBook Duo OLED UX8406CA Western Digital PC SN5000S SDEQNSJ-1T00	5619 (1000.76^min - 5618.9^max) MB/s
Average Western Digital PC SN5000S SDEQNSJ-1T00 (5192 - 5619, n=2)	5406 MB/s -4%
Lenovo Yoga 9 2-in-1 14IMH9 Samsung PM9C1a MZAL81T0HDLB	4600 (4540.12^min - 4600.08^max) MB/s -18%
Lenovo Yoga Book 9 13IMU9	4403 (4331.88^min - 4402.97^max) MB/s -22%
HP Spectre x360 14-eu0078ng Kioxia XG8 KXG80ZNV2T04	3980 (3966.13^min - 3980.4^max) MB/s -29%
Average of class Convertible (228 - 5667, n=58, last 2 years)	3577 MB/s -36%
Samsung Galaxy Book5 Pro 360 Samsung PM9B1 512GB MZVL4512HBLU	2492 (2474.85^min - 2491.89^max) MB/s -56%
Asus Zenbook Duo OLED UX8406MA WD PC SN740 SDDPNQE-2T00	1617 (1605.1^min - 1617.23^max) MB/s -71%
4k q1 t1 read
Samsung Galaxy Book5 Pro 360 Samsung PM9B1 512GB MZVL4512HBLU	74.4 (66.67^min - 74.35^max) MB/s +4%
Asus ZenBook Duo OLED UX8406CA Western Digital PC SN5000S SDEQNSJ-1T00	71.6 (71.22^min - 71.58^max) MB/s
Average Western Digital PC SN5000S SDEQNSJ-1T00 (68.2 - 71.6, n=2)	69.9 MB/s -2%
Lenovo Yoga 9 2-in-1 14IMH9 Samsung PM9C1a MZAL81T0HDLB	61.1 (60.51^min - 61.07^max) MB/s -15%
Lenovo Yoga Book 9 13IMU9	60.4 (57.59^min - 60.39^max) MB/s -16%
Average of class Convertible (31.1 - 81.6, n=58, last 2 years)	59.2 MB/s -17%
Asus Zenbook Duo OLED UX8406MA WD PC SN740 SDDPNQE-2T00	54.1 (52.3^min - 54.07^max) MB/s -24%
HP Spectre x360 14-eu0078ng Kioxia XG8 KXG80ZNV2T04	50.6 (50.33^min - 50.62^max) MB/s -29%
4k q1 t1 write
Samsung Galaxy Book5 Pro 360 Samsung PM9B1 512GB MZVL4512HBLU	164.8 (150.61^min - 164.77^max) MB/s +16%
Average of class Convertible (63.6 - 398, n=58, last 2 years)	144.1 MB/s +1%
Asus ZenBook Duo OLED UX8406CA Western Digital PC SN5000S SDEQNSJ-1T00	142.3 (75.51^min - 142.33^max) MB/s
Average Western Digital PC SN5000S SDEQNSJ-1T00 (116.6 - 142.3, n=2)	129.5 MB/s -9%
Lenovo Yoga Book 9 13IMU9	127.7 (123.8^min - 127.74^max) MB/s -10%
Lenovo Yoga 9 2-in-1 14IMH9 Samsung PM9C1a MZAL81T0HDLB	120.7 (116.51^min - 120.67^max) MB/s -15%
HP Spectre x360 14-eu0078ng Kioxia XG8 KXG80ZNV2T04	117.8 (116.96^min - 117.78^max) MB/s -17%
Asus Zenbook Duo OLED UX8406MA WD PC SN740 SDDPNQE-2T00	87.7 (85.6^min - 87.7^max) MB/s -38%
4k q32 t16 read
Samsung Galaxy Book5 Pro 360 Samsung PM9B1 512GB MZVL4512HBLU	1822 (1812.95^min - 1821.77^max) MB/s +141%
Average of class Convertible (308 - 3881, n=58, last 2 years)	1019 MB/s +35%
Lenovo Yoga 9 2-in-1 14IMH9 Samsung PM9C1a MZAL81T0HDLB	869 (699.62^min - 869.07^max) MB/s +15%
Asus ZenBook Duo OLED UX8406CA Western Digital PC SN5000S SDEQNSJ-1T00	757 (157.8^min - 756.94^max) MB/s
Average Western Digital PC SN5000S SDEQNSJ-1T00 (731 - 757, n=2)	744 MB/s -2%
Lenovo Yoga Book 9 13IMU9	705 (687.5^min - 705.08^max) MB/s -7%
HP Spectre x360 14-eu0078ng Kioxia XG8 KXG80ZNV2T04	405 (381.66^min - 405.28^max) MB/s -46%
Asus Zenbook Duo OLED UX8406MA WD PC SN740 SDDPNQE-2T00	308 (288.96^min - 308.08^max) MB/s -59%
4k q32 t16 write
Samsung Galaxy Book5 Pro 360 Samsung PM9B1 512GB MZVL4512HBLU	1544 (1519.93^min - 1543.59^max) MB/s +283%
Average of class Convertible (148.5 - 3537, n=58, last 2 years)	706 MB/s +75%
Asus ZenBook Duo OLED UX8406CA Western Digital PC SN5000S SDEQNSJ-1T00	403 (327.54^min - 403.31^max) MB/s
Average Western Digital PC SN5000S SDEQNSJ-1T00 (378 - 403, n=2)	391 MB/s -3%
Lenovo Yoga 9 2-in-1 14IMH9 Samsung PM9C1a MZAL81T0HDLB	385 (378.02^min - 385.27^max) MB/s -4%
Lenovo Yoga Book 9 13IMU9	358 (344.36^min - 358.28^max) MB/s -11%
Asus Zenbook Duo OLED UX8406MA WD PC SN740 SDDPNQE-2T00	209 (191.23^min - 209.17^max) MB/s -48%
HP Spectre x360 14-eu0078ng Kioxia XG8 KXG80ZNV2T04	185.8 (175.21^min - 185.76^max) MB/s -54%

AS SSD
Score Total
Asus ZenBook Duo OLED UX8406CA Western Digital PC SN5000S SDEQNSJ-1T00	5215 Points
Average Western Digital PC SN5000S SDEQNSJ-1T00 (3428 - 5215, n=2)	4322 Points -17%
Lenovo Yoga 9 2-in-1 14IMH9 Samsung PM9C1a MZAL81T0HDLB	4111 Points -21%
Asus Zenbook Duo OLED UX8406MA WD PC SN740 SDDPNQE-2T00	4065 Points -22%
HP Spectre x360 14-eu0078ng Kioxia XG8 KXG80ZNV2T04	3949 Points -24%
Average of class Convertible (1472 - 8028, n=57, last 2 years)	3850 Points -26%
Samsung Galaxy Book5 Pro 360 Samsung PM9B1 512GB MZVL4512HBLU	3706 Points -29%
Lenovo Yoga Book 9 13IMU9	3586 Points -31%
Score Read
Asus ZenBook Duo OLED UX8406CA Western Digital PC SN5000S SDEQNSJ-1T00	1544 Points
Samsung Galaxy Book5 Pro 360 Samsung PM9B1 512GB MZVL4512HBLU	1426 Points -8%
Average Western Digital PC SN5000S SDEQNSJ-1T00 (1227 - 1544, n=2)	1386 Points -10%
Average of class Convertible (525 - 3137, n=57, last 2 years)	1293 Points -16%
Lenovo Yoga Book 9 13IMU9	1171 Points -24%
HP Spectre x360 14-eu0078ng Kioxia XG8 KXG80ZNV2T04	1166 Points -24%
Lenovo Yoga 9 2-in-1 14IMH9 Samsung PM9C1a MZAL81T0HDLB	1084 Points -30%
Asus Zenbook Duo OLED UX8406MA WD PC SN740 SDDPNQE-2T00	872 Points -44%
Score Write
Asus ZenBook Duo OLED UX8406CA Western Digital PC SN5000S SDEQNSJ-1T00	2955 Points
Asus Zenbook Duo OLED UX8406MA WD PC SN740 SDDPNQE-2T00	2803 Points -5%
Lenovo Yoga 9 2-in-1 14IMH9 Samsung PM9C1a MZAL81T0HDLB	2476 Points -16%
HP Spectre x360 14-eu0078ng Kioxia XG8 KXG80ZNV2T04	2311 Points -22%
Average Western Digital PC SN5000S SDEQNSJ-1T00 (1628 - 2955, n=2)	2292 Points -22%
Average of class Convertible (244 - 3315, n=57, last 2 years)	1951 Points -34%
Lenovo Yoga Book 9 13IMU9	1885 Points -36%
Samsung Galaxy Book5 Pro 360 Samsung PM9B1 512GB MZVL4512HBLU	1579 Points -47%
Seq Read
HP Spectre x360 14-eu0078ng Kioxia XG8 KXG80ZNV2T04	5448 MB/s +11%
Asus ZenBook Duo OLED UX8406CA Western Digital PC SN5000S SDEQNSJ-1T00	4895 MB/s
Average Western Digital PC SN5000S SDEQNSJ-1T00 (4862 - 4895, n=2)	4879 MB/s 0%
Asus Zenbook Duo OLED UX8406MA WD PC SN740 SDDPNQE-2T00	4183 MB/s -15%
Lenovo Yoga Book 9 13IMU9	4133 MB/s -16%
Average of class Convertible (1913 - 5684, n=57, last 2 years)	3680 MB/s -25%
Samsung Galaxy Book5 Pro 360 Samsung PM9B1 512GB MZVL4512HBLU	3087 MB/s -37%
Lenovo Yoga 9 2-in-1 14IMH9 Samsung PM9C1a MZAL81T0HDLB	2678.01 MB/s -45%
Seq Write
Average Western Digital PC SN5000S SDEQNSJ-1T00 (3132 - 3434, n=2)	3283 MB/s +5%
Asus ZenBook Duo OLED UX8406CA Western Digital PC SN5000S SDEQNSJ-1T00	3132 MB/s
Asus Zenbook Duo OLED UX8406MA WD PC SN740 SDDPNQE-2T00	2768 MB/s -12%
HP Spectre x360 14-eu0078ng Kioxia XG8 KXG80ZNV2T04	2764 MB/s -12%
Lenovo Yoga Book 9 13IMU9	2415.77 MB/s -23%
Average of class Convertible (180 - 5229, n=57, last 2 years)	2334 MB/s -25%
Lenovo Yoga 9 2-in-1 14IMH9 Samsung PM9C1a MZAL81T0HDLB	2239.4 MB/s -28%
Samsung Galaxy Book5 Pro 360 Samsung PM9B1 512GB MZVL4512HBLU	2211 MB/s -29%
4K Read
Asus ZenBook Duo OLED UX8406CA Western Digital PC SN5000S SDEQNSJ-1T00	66 MB/s
Average Western Digital PC SN5000S SDEQNSJ-1T00 (61.6 - 66, n=2)	63.8 MB/s -3%
Lenovo Yoga 9 2-in-1 14IMH9 Samsung PM9C1a MZAL81T0HDLB	61.94 MB/s -6%
Samsung Galaxy Book5 Pro 360 Samsung PM9B1 512GB MZVL4512HBLU	61.1 MB/s -7%
Lenovo Yoga Book 9 13IMU9	58.39 MB/s -12%
Average of class Convertible (19.2 - 85.3, n=57, last 2 years)	55.5 MB/s -16%
Asus Zenbook Duo OLED UX8406MA WD PC SN740 SDDPNQE-2T00	50.2 MB/s -24%
HP Spectre x360 14-eu0078ng Kioxia XG8 KXG80ZNV2T04	46.4 MB/s -30%
4K Write
Asus ZenBook Duo OLED UX8406CA Western Digital PC SN5000S SDEQNSJ-1T00	194.7 MB/s
Lenovo Yoga Book 9 13IMU9	167.15 MB/s -14%
Average of class Convertible (72.1 - 347, n=57, last 2 years)	162.8 MB/s -16%
Average Western Digital PC SN5000S SDEQNSJ-1T00 (123.4 - 194.7, n=2)	159.1 MB/s -18%
Asus Zenbook Duo OLED UX8406MA WD PC SN740 SDDPNQE-2T00	152.4 MB/s -22%
Samsung Galaxy Book5 Pro 360 Samsung PM9B1 512GB MZVL4512HBLU	149.5 MB/s -23%
Lenovo Yoga 9 2-in-1 14IMH9 Samsung PM9C1a MZAL81T0HDLB	149.03 MB/s -23%
HP Spectre x360 14-eu0078ng Kioxia XG8 KXG80ZNV2T04	134.6 MB/s -31%
4K-64 Read
Samsung Galaxy Book5 Pro 360 Samsung PM9B1 512GB MZVL4512HBLU	1057 MB/s +7%
Asus ZenBook Duo OLED UX8406CA Western Digital PC SN5000S SDEQNSJ-1T00	988 MB/s
Average of class Convertible (214 - 2508, n=57, last 2 years)	871 MB/s -12%
Average Western Digital PC SN5000S SDEQNSJ-1T00 (679 - 988, n=2)	834 MB/s -16%
Lenovo Yoga 9 2-in-1 14IMH9 Samsung PM9C1a MZAL81T0HDLB	754.04 MB/s -24%
Lenovo Yoga Book 9 13IMU9	699.78 MB/s -29%
HP Spectre x360 14-eu0078ng Kioxia XG8 KXG80ZNV2T04	575 MB/s -42%
Asus Zenbook Duo OLED UX8406MA WD PC SN740 SDDPNQE-2T00	403 MB/s -59%
4K-64 Write
Asus ZenBook Duo OLED UX8406CA Western Digital PC SN5000S SDEQNSJ-1T00	2447 MB/s
Asus Zenbook Duo OLED UX8406MA WD PC SN740 SDDPNQE-2T00	2374 MB/s -3%
Lenovo Yoga 9 2-in-1 14IMH9 Samsung PM9C1a MZAL81T0HDLB	2103.1 MB/s -14%
HP Spectre x360 14-eu0078ng Kioxia XG8 KXG80ZNV2T04	1900 MB/s -22%
Average Western Digital PC SN5000S SDEQNSJ-1T00 (1162 - 2447, n=2)	1805 MB/s -26%
Average of class Convertible (93.1 - 2624, n=57, last 2 years)	1554 MB/s -36%
Lenovo Yoga Book 9 13IMU9	1476.23 MB/s -40%
Samsung Galaxy Book5 Pro 360 Samsung PM9B1 512GB MZVL4512HBLU	1209 MB/s -51%
Access Time Read
Average of class Convertible (0.026 - 0.244, n=57, last 2 years)	0.08618 ms * -153%
Lenovo Yoga 9 2-in-1 14IMH9 Samsung PM9C1a MZAL81T0HDLB	0.086 ms * -153%
Lenovo Yoga Book 9 13IMU9	0.084 ms * -147%
Average Western Digital PC SN5000S SDEQNSJ-1T00 (0.034 - 0.121, n=2)	0.0775 ms * -128%
HP Spectre x360 14-eu0078ng Kioxia XG8 KXG80ZNV2T04	0.041 ms * -21%
Samsung Galaxy Book5 Pro 360 Samsung PM9B1 512GB MZVL4512HBLU	0.038 ms * -12%
Asus ZenBook Duo OLED UX8406CA Western Digital PC SN5000S SDEQNSJ-1T00	0.034 ms *
Asus Zenbook Duo OLED UX8406MA WD PC SN740 SDDPNQE-2T00	0.028 ms * +18%
Access Time Write
Average of class Convertible (0.019 - 0.445, n=57, last 2 years)	0.089 ms * -271%
Lenovo Yoga 9 2-in-1 14IMH9 Samsung PM9C1a MZAL81T0HDLB	0.074 ms * -208%
Lenovo Yoga Book 9 13IMU9	0.066 ms * -175%
Samsung Galaxy Book5 Pro 360 Samsung PM9B1 512GB MZVL4512HBLU	0.031 ms * -29%
HP Spectre x360 14-eu0078ng Kioxia XG8 KXG80ZNV2T04	0.029 ms * -21%
Average Western Digital PC SN5000S SDEQNSJ-1T00 (0.024 - 0.031, n=2)	0.0275 ms * -15%
Asus Zenbook Duo OLED UX8406MA WD PC SN740 SDDPNQE-2T00	0.024 ms * -0%
Asus ZenBook Duo OLED UX8406CA Western Digital PC SN5000S SDEQNSJ-1T00	0.024 ms *

* ... smaller is better

Reading continuous performance: DiskSpd Read Loop, Queue Depth 8

Asus ZenBook Duo OLED UX8406CA; diskspd 2.0.17 f: Ø6261 (5324.09-6305.93)

图形卡

酷睿超 9 285H 的集成显卡名为 Intel Arc Graphics 140T，是带有 8 个 Xe 核心的旧版 Intel Arc Graphics 的改进版。它继续使用第一代产品的 Xe 核心，因此从技术上讲，与英特尔 Arc Graphics 140V 已经有了明显的区别。英特尔弧形显卡 140V的明显区别。所有其他技术细节请参见我们的 GPU 分析文章。

在合成基准测试中，新款 140T 比配备 8 个 Xe 核心的老款 Arc Graphics 领先约 20%，但 Arc Graphics 140V 几乎不相上下。但在实际游戏基准测试中，Lunar Lake GPU 在某些情况下优势明显。不过，与旧款 Zenbook Duo 相比，它的优势仍然超过 20%。英特尔 iGPU 现在还支持特定游戏中的帧生成功能，这一点带来了明显的不同，我们在 GPU 分析中对此进行了更深入的研究。无论是在电池模式下还是在长时间负载情况下，它的性能都保持稳定。

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Asus ZenBook Duo OLED UX8406CA Intel Arc Graphics 140T, Intel Core Ultra 9 285H	98.1 pt
Average Intel Arc Graphics 140T	94.1 pt
Lenovo Yoga Pro 7 14ASP G9 AMD Radeon 880M, AMD Ryzen AI 9 365	91.3 pt
Asus Zenbook S 14 UX5406 Intel Arc Graphics 140V, Intel Core Ultra 7 258V	83 pt
Asus Zenbook Duo OLED UX8406MA Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	80.3 pt
Lenovo Yoga 9 2-in-1 14IMH9 Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	79.2 pt
Samsung Galaxy Book5 Pro 360 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	75.1 pt
Asus Zenbook S 16 UM5606WA-RK052W AMD Radeon 880M, AMD Ryzen AI 9 365	74.9 pt
HP Spectre x360 14-eu0078ng Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	70.9 pt
Lenovo ThinkPad T14s Gen 6 21M2S00G00 AMD Radeon 880M, AMD Ryzen AI 7 PRO 360	68.9 pt
Average of class Convertible	60.4 pt
Lenovo Yoga Book 9 13IMU9 Intel Graphics 4-Core iGPU (Arc), Intel Core Ultra 7 155U	45.7 pt

3DMark 11 - 1280x720 Performance GPU
Lenovo Yoga Pro 7 14ASP G9 AMD Radeon 880M, AMD Ryzen AI 9 365	15589 Points +4%
Asus ZenBook Duo OLED UX8406CA Intel Arc Graphics 140T, Intel Core Ultra 9 285H	14932 Points
Lenovo Yoga 9 2-in-1 14IMH9 Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	13716 Points -8%
Average Intel Arc Graphics 140T (12445 - 14932, n=2)	13689 Points -8%
Asus Zenbook S 16 UM5606WA-RK052W AMD Radeon 880M, AMD Ryzen AI 9 365	12439 Points -17%
Lenovo ThinkPad T14s Gen 6 21M2S00G00 AMD Radeon 880M, AMD Ryzen AI 7 PRO 360	12321 Points -17%
Asus Zenbook Duo OLED UX8406MA Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	11725 Points -21%
Asus Zenbook S 14 UX5406 Intel Arc Graphics 140V, Intel Core Ultra 7 258V	10722 Points -28%
HP Spectre x360 14-eu0078ng Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	10270 Points -31%
Samsung Galaxy Book5 Pro 360 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	9610 Points -36%
Average of class Convertible (1505 - 40768, n=58, last 2 years)	9125 Points -39%
Lenovo Yoga Book 9 13IMU9 Intel Graphics 4-Core iGPU (Arc), Intel Core Ultra 7 155U	6741 Points -55%

3DMark
1920x1080 Fire Strike Graphics
Asus ZenBook Duo OLED UX8406CA Intel Arc Graphics 140T, Intel Core Ultra 9 285H	10299 Points
Average Intel Arc Graphics 140T (9173 - 10299, n=2)	9736 Points -5%
Asus Zenbook S 14 UX5406 Intel Arc Graphics 140V, Intel Core Ultra 7 258V	9414 Points -9%
Lenovo Yoga Pro 7 14ASP G9 AMD Radeon 880M, AMD Ryzen AI 9 365	9388 Points -9%
Asus Zenbook Duo OLED UX8406MA Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	8873 Points -14%
Samsung Galaxy Book5 Pro 360 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	8497 Points -17%
Lenovo Yoga 9 2-in-1 14IMH9 Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	8164 Points -21%
HP Spectre x360 14-eu0078ng Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	7708 Points -25%
Asus Zenbook S 16 UM5606WA-RK052W AMD Radeon 880M, AMD Ryzen AI 9 365	7538 Points -27%
Lenovo ThinkPad T14s Gen 6 21M2S00G00 AMD Radeon 880M, AMD Ryzen AI 7 PRO 360	7404 Points -28%
Average of class Convertible (1185 - 29684, n=59, last 2 years)	6697 Points -35%
Lenovo Yoga Book 9 13IMU9 Intel Graphics 4-Core iGPU (Arc), Intel Core Ultra 7 155U	5390 Points -48%
2560x1440 Time Spy Graphics
Average Intel Arc Graphics 140T (4074 - 4194, n=2)	4134 Points +1%
Asus ZenBook Duo OLED UX8406CA Intel Arc Graphics 140T, Intel Core Ultra 9 285H	4074 Points
Asus Zenbook S 14 UX5406 Intel Arc Graphics 140V, Intel Core Ultra 7 258V	3669 Points -10%
Lenovo Yoga Pro 7 14ASP G9 AMD Radeon 880M, AMD Ryzen AI 9 365	3423 Points -16%
Samsung Galaxy Book5 Pro 360 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	3352 Points -18%
Asus Zenbook Duo OLED UX8406MA Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	3283 Points -19%
HP Spectre x360 14-eu0078ng Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	2976 Points -27%
Asus Zenbook S 16 UM5606WA-RK052W AMD Radeon 880M, AMD Ryzen AI 9 365	2970 Points -27%
Lenovo Yoga 9 2-in-1 14IMH9 Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	2906 Points -29%
Average of class Convertible (327 - 11749, n=58, last 2 years)	2385 Points -41%
Lenovo ThinkPad T14s Gen 6 21M2S00G00 AMD Radeon 880M, AMD Ryzen AI 7 PRO 360	2300 Points -44%
Lenovo Yoga Book 9 13IMU9 Intel Graphics 4-Core iGPU (Arc), Intel Core Ultra 7 155U	1712 Points -58%

3DMark 11 Performance		14934 points
3DMark Fire Strike Score		9595 points
3DMark Time Spy Score		4330 points
3DMark Steel Nomad Score		834 points
3DMark Steel Nomad Light Score		3620 points
Help

... in comparison

Blender / v3.3 Classroom CPU
Average of class Convertible (269 - 2067, n=59, last 2 years)	677 Seconds * -62%
Lenovo Yoga Book 9 13IMU9 Intel Graphics 4-Core iGPU (Arc), Intel Core Ultra 7 155U	649 Seconds * -56%
HP Spectre x360 14-eu0078ng Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	577 Seconds * -38%
Samsung Galaxy Book5 Pro 360 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	561 Seconds * -35%
Asus Zenbook Duo OLED UX8406MA Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	538 Seconds * -29%
Lenovo Yoga 9 2-in-1 14IMH9 Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	497 Seconds * -19%
Asus ZenBook Duo OLED UX8406CA Intel Arc Graphics 140T, Intel Core Ultra 9 285H	417 Seconds *
Average Intel Arc Graphics 140T (341 - 417, n=2)	379 Seconds * +9%

* ... smaller is better

Performance Rating - Percent
Lenovo Yoga Pro 7 14ASP G9 AMD Ryzen AI 9 365, AMD Radeon 880M	92.9 pt
Asus Zenbook S 14 UX5406 Core Ultra 9 Intel Core Ultra 9 288V, Intel Arc Graphics 140V	92.5 pt
Asus ZenBook Duo OLED UX8406CA Intel Core Ultra 9 285H, Intel Arc Graphics 140T	80.1 pt
Samsung Galaxy Book5 Pro 360 Intel Core Ultra 5 226V, Intel Arc Graphics 130V	77.6 pt
Asus Zenbook S 16 UM5606WA-RK052W AMD Ryzen AI 9 365, AMD Radeon 880M	67.4 pt
Lenovo Yoga 9 2-in-1 14IMH9 Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	66.4 pt
Lenovo ThinkPad T14s Gen 6 21M2S00G00 ^-1! AMD Ryzen AI 7 PRO 360, AMD Radeon 880M	66 pt
Average of class Convertible	64.9 pt
HP Spectre x360 14-eu0078ng ^-2! Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	63.3 pt
Asus Zenbook Duo OLED UX8406MA ^-2! Intel Core Ultra 9 185H, Intel Arc 8-Core iGPU	61.5 pt
Lenovo Yoga Book 9 13IMU9 ^-2! Intel Core Ultra 7 155U, Intel Graphics 4-Core iGPU (Arc)	49.6 pt

Cyberpunk 2077 2.1 Phantom Liberty - 1920x1080 Ultra Preset (FSR off)
Asus Zenbook S 14 UX5406 Core Ultra 9 Intel Core Ultra 9 288V, Intel Arc Graphics 140V	30.1 (24.4^min) fps +25%
Samsung Galaxy Book5 Pro 360 Intel Core Ultra 5 226V, Intel Arc Graphics 130V	25.1 (20.6^min) fps +4%
Asus ZenBook Duo OLED UX8406CA Intel Core Ultra 9 285H, Intel Arc Graphics 140T	24.1 (20^min) fps
Lenovo Yoga Pro 7 14ASP G9 AMD Ryzen AI 9 365, AMD Radeon 880M	21 (17.6^min) fps -13%
Lenovo Yoga 9 2-in-1 14IMH9 Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	20.5 (4.09^min) fps -15%
Asus Zenbook S 16 UM5606WA-RK052W AMD Ryzen AI 9 365, AMD Radeon 880M	20 (16^min) fps -17%
Lenovo ThinkPad T14s Gen 6 21M2S00G00 AMD Ryzen AI 7 PRO 360, AMD Radeon 880M	19.4 (14.4^min) fps -20%
Average of class Convertible (8.2 - 83.5, n=30, last 2 years)	19.1 fps -21%
Lenovo Yoga Book 9 13IMU9 Intel Core Ultra 7 155U, Intel Graphics 4-Core iGPU (Arc)	13 (10.4^min) fps -46%

Baldur's Gate 3 - 1920x1080 Ultra Preset
Asus Zenbook S 14 UX5406 Core Ultra 9 Intel Core Ultra 9 288V, Intel Arc Graphics 140V	27.8 fps +14%
Lenovo Yoga Pro 7 14ASP G9 AMD Ryzen AI 9 365, AMD Radeon 880M	26.6 fps +9%
Asus ZenBook Duo OLED UX8406CA Intel Core Ultra 9 285H, Intel Arc Graphics 140T	24.4 fps
Samsung Galaxy Book5 Pro 360 Intel Core Ultra 5 226V, Intel Arc Graphics 130V	21.3 fps -13%
Average of class Convertible (9.2 - 63.1, n=20, last 2 years)	20.4 fps -16%
Lenovo ThinkPad T14s Gen 6 21M2S00G00 AMD Ryzen AI 7 PRO 360, AMD Radeon 880M	19.7 (16.9^min, 17^P0.1, 17.3^P1) fps -19%
Lenovo Yoga 9 2-in-1 14IMH9 Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	19 fps -22%
Asus Zenbook S 16 UM5606WA-RK052W AMD Ryzen AI 9 365, AMD Radeon 880M	17.6 (7.48^min, 8.78^P0.1, 12.3^P1) fps -28%

GTA V - 1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x
Lenovo Yoga Pro 7 14ASP G9 AMD Ryzen AI 9 365, AMD Radeon 880M	32.7 (2.22^min, 22.7^P1) fps +95%
Asus Zenbook S 14 UX5406 Core Ultra 9 Intel Core Ultra 9 288V, Intel Arc Graphics 140V	28.4 (3.12^min, 21.7^P1) fps +69%
Asus Zenbook S 16 UM5606WA-RK052W AMD Ryzen AI 9 365, AMD Radeon 880M	27.5 (1.477^min, 18.2^P1) fps +64%
Samsung Galaxy Book5 Pro 360 Intel Core Ultra 5 226V, Intel Arc Graphics 130V	23.9 (7.15^min, 18.9^P1) fps +42%
Lenovo ThinkPad T14s Gen 6 21M2S00G00 AMD Ryzen AI 7 PRO 360, AMD Radeon 880M	20.5 (1.424^min, 13.2^P1) fps +22%
Average of class Convertible (7.2 - 114.3, n=48, last 2 years)	18.1 fps +8%
Asus ZenBook Duo OLED UX8406CA Intel Core Ultra 9 285H, Intel Arc Graphics 140T	16.8 (3.75^min, 12.8^P1) fps
HP Spectre x360 14-eu0078ng Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	15.9 (1.337^min, 3.02^P1) fps -5%
Asus Zenbook Duo OLED UX8406MA Intel Core Ultra 9 185H, Intel Arc 8-Core iGPU	14.6 (0.635^min, 5.56^P1) fps -13%
Lenovo Yoga 9 2-in-1 14IMH9 Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	13.3 (1.703^min, 8^P1) fps -21%

Final Fantasy XV Benchmark - 1920x1080 High Quality
Asus Zenbook S 14 UX5406 Core Ultra 9 Intel Core Ultra 9 288V, Intel Arc Graphics 140V	34.2 fps +16%
Lenovo Yoga Pro 7 14ASP G9 AMD Ryzen AI 9 365, AMD Radeon 880M	32 fps +9%
Asus ZenBook Duo OLED UX8406CA Intel Core Ultra 9 285H, Intel Arc Graphics 140T	29.4 fps
Samsung Galaxy Book5 Pro 360 Intel Core Ultra 5 226V, Intel Arc Graphics 130V	29.2 fps -1%
Lenovo ThinkPad T14s Gen 6 21M2S00G00 AMD Ryzen AI 7 PRO 360, AMD Radeon 880M	27.8 fps -5%
Asus Zenbook S 16 UM5606WA-RK052W AMD Ryzen AI 9 365, AMD Radeon 880M	25.1 fps -15%
HP Spectre x360 14-eu0078ng Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	24.9 fps -15%
Lenovo Yoga 9 2-in-1 14IMH9 Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	24.1 fps -18%
Asus Zenbook Duo OLED UX8406MA Intel Core Ultra 9 185H, Intel Arc 8-Core iGPU	23.2 fps -21%
Average of class Convertible (4.48 - 107.1, n=58, last 2 years)	22.1 fps -25%
Lenovo Yoga Book 9 13IMU9 Intel Core Ultra 7 155U, Intel Graphics 4-Core iGPU (Arc)	16.3 fps -45%

Strange Brigade - 1920x1080 ultra AA:ultra AF:16
Asus ZenBook Duo OLED UX8406CA Intel Core Ultra 9 285H, Intel Arc Graphics 140T	61.2 (37.9^min, 48.3^P1) fps
Asus Zenbook S 14 UX5406 Core Ultra 9 Intel Core Ultra 9 288V, Intel Arc Graphics 140V	60.6 (39.9^min, 47.5^P1) fps -1%
Lenovo Yoga Pro 7 14ASP G9 AMD Ryzen AI 9 365, AMD Radeon 880M	55.7 (40.1^min, 43.3^P1) fps -9%
Samsung Galaxy Book5 Pro 360 Intel Core Ultra 5 226V, Intel Arc Graphics 130V	50.6 (21.7^min, 26.6^P1) fps -17%
Lenovo Yoga 9 2-in-1 14IMH9 Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	44.3 (5.6^min, 9.57^P1) fps -28%
Asus Zenbook S 16 UM5606WA-RK052W AMD Ryzen AI 9 365, AMD Radeon 880M	44.2 (7.8^min, 23^P1) fps -28%
Asus Zenbook Duo OLED UX8406MA Intel Core Ultra 9 185H, Intel Arc 8-Core iGPU	44 fps -28%
Average of class Convertible (10.8 - 196.9, n=53, last 2 years)	39.7 fps -35%
HP Spectre x360 14-eu0078ng Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	35 (7.1^min, 10.2^P1) fps -43%
Lenovo Yoga Book 9 13IMU9 Intel Core Ultra 7 155U, Intel Graphics 4-Core iGPU (Arc)	30.3 (7.5^min, 11.1^P1) fps -50%

Dota 2 Reborn - 1920x1080 ultra (3/3) best looking
Lenovo Yoga Pro 7 14ASP G9 AMD Ryzen AI 9 365, AMD Radeon 880M	90.5 (80.2^min) fps +30%
Asus Zenbook S 14 UX5406 Core Ultra 9 Intel Core Ultra 9 288V, Intel Arc Graphics 140V	81.1 (54.4^min) fps +17%
Samsung Galaxy Book5 Pro 360 Intel Core Ultra 5 226V, Intel Arc Graphics 130V	78.1 (52.8^min) fps +12%
Asus ZenBook Duo OLED UX8406CA Intel Core Ultra 9 285H, Intel Arc Graphics 140T	69.5 (31.7^min) fps
HP Spectre x360 14-eu0078ng Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	66.5 (48.2^min) fps -4%
Lenovo Yoga 9 2-in-1 14IMH9 Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	63.6 (41.5^min) fps -8%
Asus Zenbook Duo OLED UX8406MA Intel Core Ultra 9 185H, Intel Arc 8-Core iGPU	60.4 (38^min) fps -13%
Average of class Convertible (18.8 - 158.3, n=59, last 2 years)	59.9 fps -14%
Lenovo Yoga Book 9 13IMU9 Intel Core Ultra 7 155U, Intel Graphics 4-Core iGPU (Arc)	54.2 (41.9^min) fps -22%
Lenovo ThinkPad T14s Gen 6 21M2S00G00 AMD Ryzen AI 7 PRO 360, AMD Radeon 880M	41.3 (30.1^min) fps -41%
Asus Zenbook S 16 UM5606WA-RK052W AMD Ryzen AI 9 365, AMD Radeon 880M	29 (15.8^min) fps -58%

X-Plane 11.11 - 1920x1080 high (fps_test=3)
Lenovo Yoga Pro 7 14ASP G9 AMD Ryzen AI 9 365, AMD Radeon 880M	49.5 fps +28%
Asus Zenbook S 16 UM5606WA-RK052W AMD Ryzen AI 9 365, AMD Radeon 880M	39.8 fps +3%
Asus ZenBook Duo OLED UX8406CA Intel Core Ultra 9 285H, Intel Arc Graphics 140T	38.8 fps
Lenovo Yoga 9 2-in-1 14IMH9 Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	36.9 fps -5%
Asus Zenbook S 14 UX5406 Core Ultra 9 Intel Core Ultra 9 288V, Intel Arc Graphics 140V	35.8 fps -8%
Lenovo ThinkPad T14s Gen 6 21M2S00G00 AMD Ryzen AI 7 PRO 360, AMD Radeon 880M	35.3 fps -9%
Average of class Convertible (12.8 - 101.4, n=58, last 2 years)	32.8 fps -15%
HP Spectre x360 14-eu0078ng Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	32 fps -18%
Asus Zenbook Duo OLED UX8406MA Intel Core Ultra 9 185H, Intel Arc 8-Core iGPU	27.9 fps -28%
Samsung Galaxy Book5 Pro 360 Intel Core Ultra 5 226V, Intel Arc Graphics 130V	27.7 fps -29%
Lenovo Yoga Book 9 13IMU9 Intel Core Ultra 7 155U, Intel Graphics 4-Core iGPU (Arc)	23.6 fps -39%

Cyberpunk 2077 ultra FPS diagram

Asus ZenBook Duo OLED UX8406CA Ultra 9 285H, Arc 140T: Ø21 (16.5-22.2)

	low	med.	high	ultra
GTA V (2015)	172	161.1	41.7	16.8
Dota 2 Reborn (2015)	105.6	83.5	80.1	69.5
Final Fantasy XV Benchmark (2018)	80.6	46.9	29.4
X-Plane 11.11 (2018)	56.3	44.7	38.8
Far Cry 5 (2018)	80	48	45	38
Strange Brigade (2018)	200	90.2	75.1	61.2
Baldur's Gate 3 (2023)	39.4	30.7	25.7	24.4
Cyberpunk 2077 2.1 Phantom Liberty (2023)	37.6	32.3	27.7	24.1
F1 24 (2024)	77.7	69.5	56.6	19.3

排放与能源

噪音排放

两个风扇的整体噪音发展与前代机型相当。在标准模式下，执行简单任务时通常会完全停止散热。在较高负载情况下（如游戏、CPU 负载或压力测试），我们测得的最大噪音为 39.8 dB(A)，这当然清晰可闻，但还不至于令人讨厌。在耳语模式下（该模式也能为日常工作提供足够的性能），Zenbook Duo 仍然安静得多，最大噪音为 33.2 dB(A)。而在两种更快的模式（性能模式和全速模式）下，噪音则超过了 50 分贝（A），令人不快。在测试阶段，我们的测试设备没有发出其他电子噪音。

Noise Level

Idle		23.6 / 23.6 / 23.6 dB(A)
Load		39.8 / 39.8 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Earthworks M23R, Arta (15 cm distance) environment noise: 23.6 dB(A)

	Asus ZenBook Duo OLED UX8406CA Arc 140T, Ultra 9 285H, Western Digital PC SN5000S SDEQNSJ-1T00	Asus Zenbook Duo OLED UX8406MA Arc 8-Core, Ultra 9 185H, WD PC SN740 SDDPNQE-2T00	Lenovo Yoga Book 9 13IMU9 Graphics 4-Core, Ultra 7 155U	Samsung Galaxy Book5 Pro 360 Arc 130V, Core Ultra 5 226V, Samsung PM9B1 512GB MZVL4512HBLU	Lenovo Yoga 9 2-in-1 14IMH9 Arc 8-Core, Ultra 7 155H, Samsung PM9C1a MZAL81T0HDLB	HP Spectre x360 14-eu0078ng Arc 8-Core, Ultra 7 155H, Kioxia XG8 KXG80ZNV2T04
Noise		-3%	11%	3%	-1%	8%
off / environment *	23.6	24 -2%	23.3 1%	23.6 -0%	23.2 2%	23.4 1%
Idle Minimum *	23.6	24 -2%	23.3 1%	23.6 -0%	23.6 -0%	23.4 1%
Idle Average *	23.6	24 -2%	23.3 1%	23.6 -0%	23.6 -0%	23.4 1%
Idle Maximum *	23.6	26.7 -13%	24.6 -4%	23.6 -0%	25 -6%	25.6 -8%
Load Average *	39.8	39.4 1%	26.2 34%	29.4 26%	34.8 13%	25.6 36%
Cyberpunk 2077 ultra *	39.8			40.6 -2%
Load Maximum *	39.8	39.4 1%	27.3 31%	40.6 -2%	46.2 -16%	32.6 18%
Witcher 3 ultra *		39.4	27.3		37.7	30.9

* ... smaller is better

温度

与旧型号相比，其表面温度没有大的变化。在空闲模式和执行简单任务时，机箱保持非常凉爽。在负载情况下，我们注意到底部中上部区域有一个热点，但 47 °C绝非危急情况，您仍可将其放在大腿上而不受任何限制。键盘的温度仍然很低，不过由于它是一个独立的组件，因此自然会对你有所帮助。在压力测试中，处理器最初短暂达到 60 瓦，几分钟后稳定在 35 瓦，之后又降至 24 瓦左右（旧型号约为 20 瓦）。

Max. Load

Idle

Cyberpunk


35.3 °C	35 °C	33.4 °C
34.3 °C	34.3 °C	33.8 °C
27.7 °C	28.5 °C	27.8 °C

Maximum: 35.3 °C
Average: 32.2 °C


41.1 °C	47.2 °C	39.9 °C
40.7 °C	41.2 °C	40.1 °C
32.8 °C	33.9 °C	32.9 °C

Maximum: 47.2 °C
Average: 38.9 °C

Power Supply (max.) 51.5 °C | Room Temperature 21 °C | Fluke t3000FC (calibrated), Voltcraft IR-900

Max. Load

Idle

Cyberpunk


24.8 °C	24.5 °C	24.3 °C
24.2 °C	24.2 °C	24 °C
23.6 °C	23.9 °C	23.4 °C

Maximum: 24.8 °C
Average: 24.1 °C


25.6 °C	26.2 °C	26.2 °C
24.9 °C	24.6 °C	24.8 °C
23.9 °C	24.3 °C	24.2 °C

Maximum: 26.2 °C
Average: 25 °C

Power Supply (max.) 29.5 °C | Room Temperature 20.3 °C | Fluke t3000FC (calibrated), Voltcraft IR-900

Max. Load

Idle

Cyberpunk


34 °C	35 °C	33.2 °C
33.3 °C	34.3 °C	32.5 °C
26.6 °C	27.6 °C	27.1 °C

Maximum: 35 °C
Average: 31.5 °C


40.1 °C	46.3 °C	40.3 °C
39.4 °C	40.4 °C	39.9 °C
33 °C	32.5 °C	31.8 °C

Maximum: 46.3 °C
Average: 38.2 °C

Power Supply (max.) 50.4 °C | Room Temperature 21 °C | Fluke t3000FC (calibrated), Voltcraft IR-900

(±) The average temperature for the upper side under maximal load is 32.2 °C / 90 F, compared to the average of 30.2 °C / 86 F for the devices in the class Convertible.
(+) The maximum temperature on the upper side is 35.3 °C / 96 F, compared to the average of 35.3 °C / 96 F, ranging from 19.6 to 60 °C for the class Convertible.
(-) The bottom heats up to a maximum of 47.2 °C / 117 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 24.1 °C / 75 F, compared to the device average of 30.2 °C / 86 F.
(+) 3: The average temperature for the upper side is 31.5 °C / 89 F, compared to the average of 30.2 °C / 86 F for the class Convertible.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 28.5 °C / 83.3 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 28 °C / 82.4 F (-0.5 °C / -0.9 F).

	Asus ZenBook Duo OLED UX8406CA Intel Core Ultra 9 285H, Intel Arc Graphics 140T	Asus Zenbook Duo OLED UX8406MA Intel Core Ultra 9 185H, Intel Arc 8-Core iGPU	Lenovo Yoga Book 9 13IMU9 Intel Core Ultra 7 155U, Intel Graphics 4-Core iGPU (Arc)	Samsung Galaxy Book5 Pro 360 Intel Core Ultra 5 226V, Intel Arc Graphics 130V	Lenovo Yoga 9 2-in-1 14IMH9 Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	HP Spectre x360 14-eu0078ng Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU
Heat		-8%	-12%	1%	-17%	2%
Maximum Upper Side *	35.3	35.6 -1%	39.2 -11%	40.9 -16%	40 -13%	39.3 -11%
Maximum Bottom *	47.2	46.6 1%	41 13%	45.1 4%	43 9%	45 5%
Idle Upper Side *	24.8	27.1 -9%	32.2 -30%	23.8 4%	32 -29%	23.8 4%
Idle Bottom *	26.2	32.3 -23%	31.6 -21%	23.5 10%	35.2 -34%	24 8%

* ... smaller is better

发言人

立体声扬声器的性能依然非常出色，但对比设备的性能都差不多。

Frequency diagram (checkboxes can be checked and unchecked to compare devices)

Asus ZenBook Duo OLED UX8406CA audio analysis

(+) | speakers can play relatively loud (84.9 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 10% lower than median
(±) | linearity of bass is average (10% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.2% away from median
(+) | mids are linear (3.2% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.2% away from median
(+) | highs are linear (3.1% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (10.2% difference to median)
Compared to same class
» 5% of all tested devices in this class were better, 2% similar, 93% worse
» The best had a delta of 6%, average was 21%, worst was 57%
Compared to all devices tested
» 4% of all tested devices were better, 1% similar, 95% worse
» The best had a delta of 4%, average was 24%, worst was 134%

Lenovo Yoga Book 9 13IMU9 audio analysis

(+) | speakers can play relatively loud (84.1 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 8.2% lower than median
(±) | linearity of bass is average (7.5% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.3% away from median
(+) | mids are linear (3.4% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 1.3% away from median
(+) | highs are linear (2.4% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (7.4% difference to median)
Compared to same class
» 2% of all tested devices in this class were better, 1% similar, 98% worse
» The best had a delta of 6%, average was 21%, worst was 57%
Compared to all devices tested
» 1% of all tested devices were better, 0% similar, 99% worse
» The best had a delta of 4%, average was 24%, worst was 134%

Samsung Galaxy Book5 Pro 360 audio analysis

(+) | speakers can play relatively loud (82.3 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 14.1% lower than median
(±) | linearity of bass is average (8.4% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.8% away from median
(+) | mids are linear (3.6% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.3% away from median
(+) | highs are linear (4.9% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (11.9% difference to median)
Compared to same class
» 10% of all tested devices in this class were better, 3% similar, 87% worse
» The best had a delta of 6%, average was 21%, worst was 57%
Compared to all devices tested
» 7% of all tested devices were better, 2% similar, 90% worse
» The best had a delta of 4%, average was 24%, worst was 134%

Lenovo Yoga 9 2-in-1 14IMH9 audio analysis

(+) | speakers can play relatively loud (85.5 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 9.7% lower than median
(±) | linearity of bass is average (10.7% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 1.5% away from median
(+) | mids are linear (2.6% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2% away from median
(+) | highs are linear (2.2% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (7% difference to median)
Compared to same class
» 1% of all tested devices in this class were better, 0% similar, 98% worse
» The best had a delta of 6%, average was 21%, worst was 57%
Compared to all devices tested
» 1% of all tested devices were better, 0% similar, 99% worse
» The best had a delta of 4%, average was 24%, worst was 134%

HP Spectre x360 14-eu0078ng audio analysis

(+) | speakers can play relatively loud (84.4 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 10.1% lower than median
(±) | linearity of bass is average (10.3% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.6% away from median
(+) | mids are linear (3.1% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 1.8% away from median
(+) | highs are linear (5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (8.9% difference to median)
Compared to same class
» 3% of all tested devices in this class were better, 1% similar, 96% worse
» The best had a delta of 6%, average was 21%, worst was 57%
Compared to all devices tested
» 2% of all tested devices were better, 1% similar, 97% worse
» The best had a delta of 4%, average was 24%, worst was 134%

耗电量

功耗测量结果表明，全高清 OLED 显示屏比我们在前代机型上测试的 2.8K 机型更具优势。不过，在负载情况下，两款产品并无太大差异，这并不奇怪，因为它们的功率限制完全相同。在压力测试中，我们测得的最大功率为 65 瓦，很快就降到了 54 瓦，然后又降到了 45 瓦左右。因此，从原则上讲，65 瓦的紧凑型电源在体积上已经足够。不过，其 1.1 瓦的待机功耗略高，也高于旧型号（0.71 瓦）。

Power Consumption

Off / Standby	0.42 / 1.1 Watt
Idle	4.1 / 8.2 / 8.7 Watt
Load	56.7 / 65.1 Watt


Key: min: , med: , max: Metrahit Energy

	Asus ZenBook Duo OLED UX8406CA Arc 140T, Ultra 9 285H, Western Digital PC SN5000S SDEQNSJ-1T00	Asus Zenbook Duo OLED UX8406MA Arc 8-Core, Ultra 9 185H, WD PC SN740 SDDPNQE-2T00	Lenovo Yoga Book 9 13IMU9 Graphics 4-Core, Ultra 7 155U	Samsung Galaxy Book5 Pro 360 Arc 130V, Core Ultra 5 226V, Samsung PM9B1 512GB MZVL4512HBLU	Lenovo Yoga 9 2-in-1 14IMH9 Arc 8-Core, Ultra 7 155H, Samsung PM9C1a MZAL81T0HDLB	HP Spectre x360 14-eu0078ng Arc 8-Core, Ultra 7 155H, Kioxia XG8 KXG80ZNV2T04
Power Consumption		-23%	-37%	8%	-9%	28%
Idle Minimum *	4.1	6.9 -68%	7.1 -73%	5.3 -29%	4.2 -2%	3.2 22%
Idle Average *	8.2	10.2 -24%	9.1 -11%	6.7 18%	7.1 13%	4.2 49%
Idle Maximum *	8.7	10.9 -25%	18.4 -111%	7.3 16%	12.9 -48%	4.9 44%
Load Average *	56.7	52.8 7%	51.3 10%	37.6 34%	58.9 -4%	40.5 29%
Cyberpunk 2077 ultra *	48.7			44.6 8%
Cyberpunk 2077 ultra external monitor *	47			42.8 9%
Load Maximum *	65.1	67.1 -3%	65.5 -1%	64.1 2%	66.7 -2%	68.6 -5%
Witcher 3 ultra *		43.2	41.5		49.5	37.9

* ... smaller is better

Power consumption Cyberpunk / stress test

Asus ZenBook Duo OLED UX8406CA; 1280x720 Prime95 28.10 and Furmark 1.25: Ø56.8 (27.7-65.1)

Asus ZenBook Duo OLED UX8406CA; Idle 150cd/m2: Ø5.65 (4.54-7.32)

Asus ZenBook Duo OLED UX8406CA; Cyberpunk 2077 FHD ultra no FSR 150cd: Ø48.7 (45.8-54)

Power consumption with external monitor

Asus ZenBook Duo OLED UX8406CA; Prime95 V2810 Stress (external Monitor): Ø53.2 (47.8-67.8)

Asus ZenBook Duo OLED UX8406CA; Cinebench R15 Multi (external Monitor): Ø65.4 (65.4-65.5)

Asus ZenBook Duo OLED UX8406CA; Cinebench R23 Single (external Monitor): Ø30.9 (28.4-36.7)

Asus ZenBook Duo OLED UX8406CA; Cinebench R23 Multi (external Monitor): Ø56.7 (50.2-65.6)

Asus ZenBook Duo OLED UX8406CA; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø49.2 (46.8-51.5)

Asus ZenBook Duo OLED UX8406CA; Idle 1min (external Monitor): Ø6.47 (5.03-9.63)

Asus ZenBook Duo OLED UX8406CA; Cyberpunk 2077 FHD ultra no FSR (external Monitor): Ø47 (44.4-53.2)

运行时间

75 Wh 的电池没有任何变化，但屏幕分辨率/频率的降低对笔记本电脑的电池运行时间产生了积极影响。在 150 cd/m²（相当于我们测试设备最大 SDR 亮度的 70%）的 WLAN 测试中，在显示屏激活的情况下，其运行时间从略低于 9.5 小时增加到略高于 11 小时。在全亮度条件下，我们注意到它的运行时间略低于 8.5 小时，而上一代产品的运行时间为 7 小时。不出所料，在使用两个有源显示屏的情况下，其运行时间有所缩短，但在 150 cd/m² 下为 8:17 小时，在全亮度下为 6 小时，这样的成绩并不差。在 150 cd/m² 和单屏的视频测试中，我们甚至记录了近 17 个小时，比之前多了近 3.5 个小时。

不过，其更好的成绩主要归功于显示屏，而不是新的处理器。因此，如果您选择配备 2.8K OLED 显示屏，您可以使用我们的 2024 评测中的运行时间作为参考。在设备开启的情况下，充满电需要 110 分钟，大约 65 分钟后可恢复 80% 的电量。

Battery Runtime

WiFi Websurfing		11h 07min
WiFi Websurfing max. Brightness		8h 19min
Big Buck Bunny H.264 1080p		16h 55min

	Asus ZenBook Duo OLED UX8406CA Ultra 9 285H, Arc 140T, 75 Wh	Asus Zenbook Duo OLED UX8406MA Ultra 9 185H, Arc 8-Core, 75 Wh	Lenovo Yoga Book 9 13IMU9 Ultra 7 155U, Graphics 4-Core, 80 Wh	Samsung Galaxy Book5 Pro 360 Core Ultra 5 226V, Arc 130V, 76 Wh	Lenovo Yoga 9 2-in-1 14IMH9 Ultra 7 155H, Arc 8-Core, 75 Wh	HP Spectre x360 14-eu0078ng Ultra 7 155H, Arc 8-Core, 68 Wh	Average of class Convertible
Battery Runtime		-18%	-9%	7%	-10%	-10%	-13%
H.264	1015	820 -19%		1181 16%		999 -2%	837 ?(540 - 1181, n=15, last 2 years) -18%
WiFi v1.3	667	561 -16%	608 -9%	646 -3%	600 -10%	555 -17%	616 ?(305 - 981, n=59, last 2 years) -8%

Notebookcheck 总评分

Zenbook Duo 仍然是一款非常令人兴奋的多屏可转换产品。我们测试机型采用的 1200p OLED 屏幕虽然无法达到更昂贵配置的 2.8K 屏幕的画质，但却降低了功耗，从而延长了笔记本电脑的电池续航时间。新的 Arrow Lake 处理器的 CPU 性能比以前提高了约 20%，但总体而言，Zenbook Duo 的功耗限制仍然很低（尤其是在长时间负载的情况下），无法充分发挥酷睿至尊 9 285H 的性能潜力。

Back to the verdict

Asus ZenBook Duo OLED UX8406CA - 02/08/2025 v8
Andreas Osthoff

Chassis

84 / 98 → 86%

Keyboard

85%

Pointing Device

93%

Connectivity

69 / 74 → 93%

Weight

66 / 20-75 → 83%

Battery

89%

Display

82%

Games Performance

50 / 65 → 77%

Application Performance

82 / 92 → 89%

Temperature

91%

Noise

88%

Audio

89 / 91 → 98%

Camera

35 / 75 → 46%

Average

72%

87%

Convertible - Weighted Average

CO2 Emissions
No Data

Materials
50%

Packaging
100%

Power Use
79.5%

Repairability
40%

Software Updates
100%

Total Sustainability Score: 61.6%

▶ load Youtube video

Cinebench 2024 CPU Multi Core in comparison
Asus ExpertCenter PN42-BBN200MV (min) N200, UHD Graphics Xe 750 32EUs	91
...
Minisforum Mercury Series EM780 R7 7840U, Radeon 780M	730
Asus ZenBook 14 UX3405MA Ultra 7 155H, Arc 8-Core	733
Acemagic Tank03 i9-12900H, GeForce RTX 3080 Laptop GPU	734
Asus ZenBook Duo OLED UX8406CA Ultra 9 285H, Arc 140T	740
GMK NucBox M7 Pro R9 PRO 6950H, Radeon 680M	743
Lenovo ThinkBook 16 G7 QOY 21NH0005GE SD X Plus X1P-42-100, Adreno X1-45 1.7 TFLOPS	744
Minisforum Venus Series NAB9 i9-12900HK, Iris Xe G7 96EUs	746
...
(max) TR Pro 7995WX, RTX 6000 Ada Generation	5372

3DMark 11 in comparison
HP Stream 7 5700ng (min) Z3735G, HD Graphics (Bay Trail)	183
...
Asus ROG Flow Z13 GZ301ZE i9-12900H, GeForce RTX 3050 Ti Laptop GPU	14864
MSI Bravo 15 B5DD-010US R5 5600H, Radeon RX 5500M	14867
Asus Vivobook Pro 14 M3401QC-KM007T R5 5600H, GeForce RTX 3050 4GB Laptop GPU	14890
Asus ZenBook Duo OLED UX8406CA Ultra 9 285H, Arc 140T	14934
Lenovo ThinkBook 16 G7+ AMD Ryzen AI 9 365, Radeon 880M	14998
Asus ProArt PX13 HN7306 Ryzen AI 9 HX 370, Radeon 890M	15041
i9-14900K, Arc A380	15095
...
(max) R7 9800X3D, GeForce RTX 5090	82642

结论 - 由于采用了 Arrow Lake 技术，Zenbook Duo 的 CPU/GPU 性能提高了约 20

Pros

Cons

价格和供应情况

可能的替代品比较

Table of Contents

规格

外壳和连接

尺寸比较

可持续性

输入设备

显示屏 - 1200p 双 OLED

Display Response Times

Screen Flickering / PWM (Pulse-Width Modulation)

性能 - 箭湖-H

测试条件

处理器 - Core Ultra 9 285H

Cinebench R15 Multi continuous test

系统性能

DPC 延迟

存储设备

Reading continuous performance: DiskSpd Read Loop, Queue Depth 8

图形卡

Cyberpunk 2077 ultra FPS diagram

排放与能源

噪音排放

温度

发言人

Asus ZenBook Duo OLED UX8406CA audio analysis

Lenovo Yoga Book 9 13IMU9 audio analysis

Samsung Galaxy Book5 Pro 360 audio analysis

Lenovo Yoga 9 2-in-1 14IMH9 audio analysis

HP Spectre x360 14-eu0078ng audio analysis

耗电量

Power consumption Cyberpunk / stress test

Power consumption with external monitor

运行时间

Notebookcheck 总评分

More articles related to this device

Transparency
