华硕专家本 B5 Flip B5402F 评测--一款出色的可折叠便携本

出色的敞篷车,提供多种连接选项。

华硕更新了其 Expertbook B5 Flip,为其配备了新的第 13 代英特尔处理器。虽然其灵活性和构造与前代产品一样出色,但这款可折叠本的性能却得到了大幅提升,此外,它现在还拥有更好的连接选项。
Raptor Lake Intel Convertible / 2-in-1 Business Touchscreen
华硕 Expertbook B5 Flip B5402F 评测:商务可折叠全能本
华硕 Expertbook B5 Flip B5402F 评测:商务可折叠全能本

新款华硕 ExpertBook B5 Flip 已将过时的英特尔酷睿 i5-1135G7更新为更新型的英特尔酷睿 i7-1360P,从而在同样小巧的机身内实现了更高的性能。企业客户还可以为该机型配备英特尔第 10 代至第 14 代处理器。我们的测试机型主要供日常办公使用,具有一些实用功能,如显示屏盖上的 LED 灯可向同事提示您正在开会,还预装了 Windows 11 Pro。这款售价约为 1,700 美元的可折叠电脑绝不便宜,但它确实提供了一个真正出色的全套方案,几乎在每个领域都有出色的表现。我们在测试中发现,它的睡眠状态无法正常工作,如果不是这样就好了:它的节能模式只能偶尔起作用,而且很多时候,笔记本电脑会一直开着,只是关闭屏幕。值得庆幸的是 前代机型没有出现这个问题,希望华硕能尽快修复。

在这次评测中,除了前代机型外,我们还选择了一系列其他的可转换笔记本电脑与测试样本进行比较。联想 联想 ThinkPad X1 Nano Gen3联想 Yoga 9 14IRP G8采用了相同的英特尔处理器,而 联想 Yoga 6 13则代表 AMD 团队。此外,我们还比较了高端机型 惠普蜻蜓 G4华硕 ExpertBook B9.

Asus Expertbook B5 Flip B5402F, i7-1360P (ExpertBook B5 Flip Series)
Processor
Intel Core i7-1360P 12 x 1.6 - 5 GHz, 64 W PL2 / Short Burst, 35 W PL1 / Sustained, Raptor Lake-P
Graphics adapter
Intel Iris Xe Graphics G7 96EUs, Core: 1496 MHz, RAM: 2394 MHz
Memory
16 GB
, DDR5-4800
Display
14.00 inch 16:9, 1920 x 1080 pixel 157 PPI, yes, N140HCE-EN2, IPS, Matte, 60 Hz
Storage
Micron 2400 MTFDKBA1T0QFM, 1024 GB
, M.2 2280, PCIe-4 NVMe
Soundcard
Intel Raptor Lake-P/U/H PCH - cAVS
Connections
1 USB 3.0 / 3.1 Gen1, 1 USB 3.1 Gen2, 2 USB 4.0 40 Gbps, 2 Thunderbolt, USB-C Power Delivery (PD), 1 HDMI, 2 DisplayPort, 1 Kensington Lock, Audio Connections: 3.5mm, Card Reader: microSD, 1 Fingerprint Reader, RJ45 Gigabit Ethernet
Networking
Intel Wi-Fi 6E AX211 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/ Wi-Fi 6E 6 GHz), Bluetooth 5.3
Size
height x width x depth (in mm): 19.3 x 323 x 222
Battery
63 Wh Lithium-Ion
Operating System
Microsoft Windows 11 Pro
Camera
Webcam: 720p
Additional features
Speakers: Stereo, 65 W USB C charger, 24 Months Warranty
Weight
1.412 kg, Power Supply: 312 g
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



潜在的竞争对手比较

Rating
Date
Model
Weight
Height
Size
Resolution
Price
89.3 %
v7 (old)
03 / 2024
Asus Expertbook B5 Flip B5402F, i7-1360P
i7-1360P, Iris Xe G7 96EUs
1.4 kg19.3 mm14.00"1920x1080
91.9 %
v7 (old)
07 / 2023
HP Dragonfly G4
i7-1365U, Iris Xe G7 96EUs
1.1 kg16.3 mm13.50"1920x1280
91.5 %
v7 (old)
11 / 2023
Asus ExpertBook B9 B9403CVA-KM0153X
i7-1355U, Iris Xe G7 96EUs
1 kg17.6 mm14.00"2880x1800
89.5 %
v7 (old)
08 / 2023
Lenovo ThinkPad X1 Nano Gen 3
i7-1360P, Iris Xe G7 96EUs
989 g14.8 mm13.00"2160x1350
89.3 %
v7 (old)
03 / 2023
Lenovo Yoga 9 14IRP G8
i7-1360P, Iris Xe G7 96EUs
1.4 kg15.25 mm14.00"2880x1800
88 %
v7 (old)
03 / 2023
Lenovo Yoga 6 13 83B2001SGE
R7 7730U, Vega 8
1.4 kg18.6 mm13.30"1920x1200
88.3 %
v7 (old)
11 / 2021
Asus ExpertBook B5 Flip B5302FEA
i5-1135G7, Iris Xe G7 80EUs
1.3 kg16.9 mm13.30"1920x1080

外壳优质稳定的铝制外壳

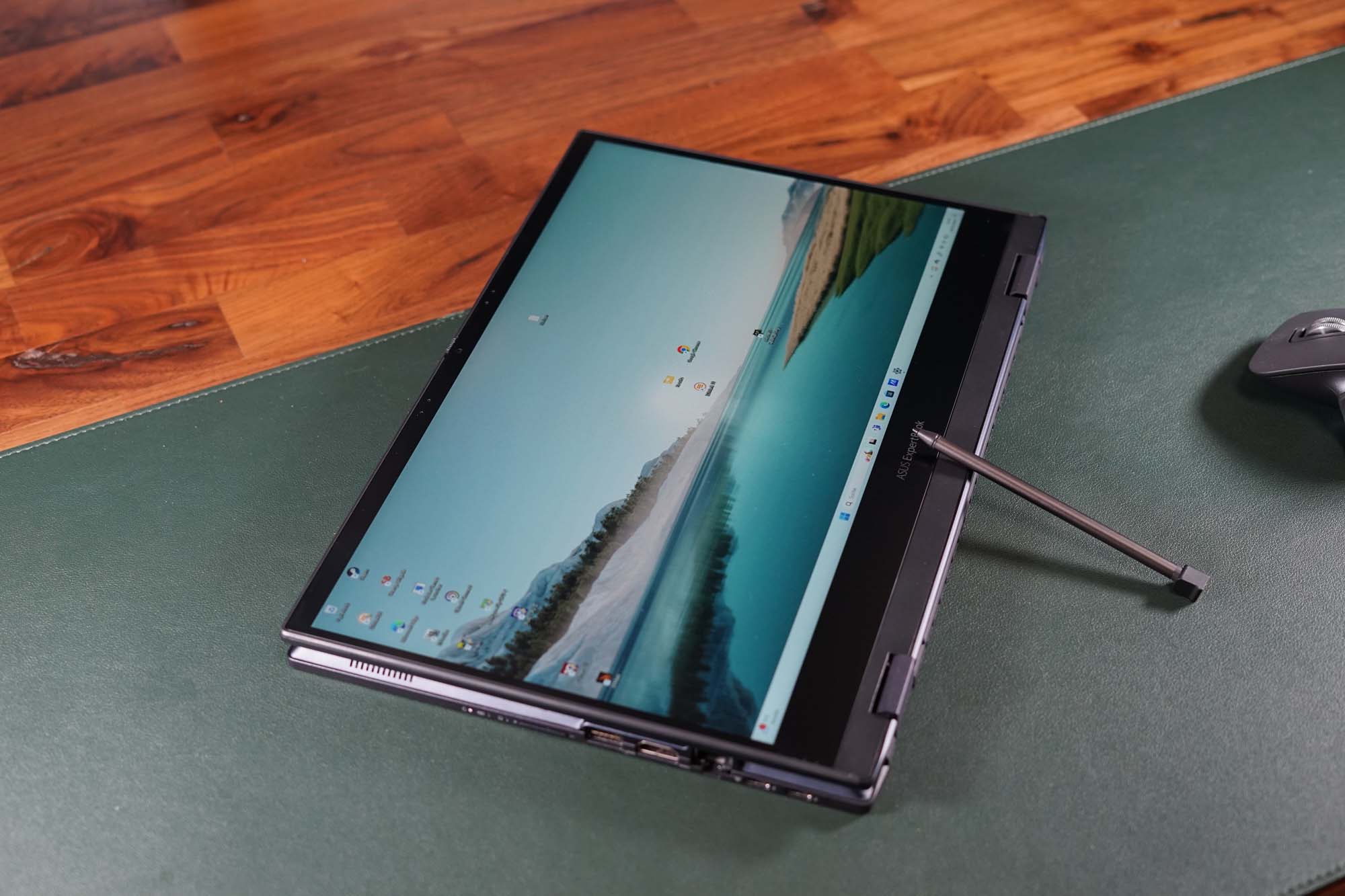

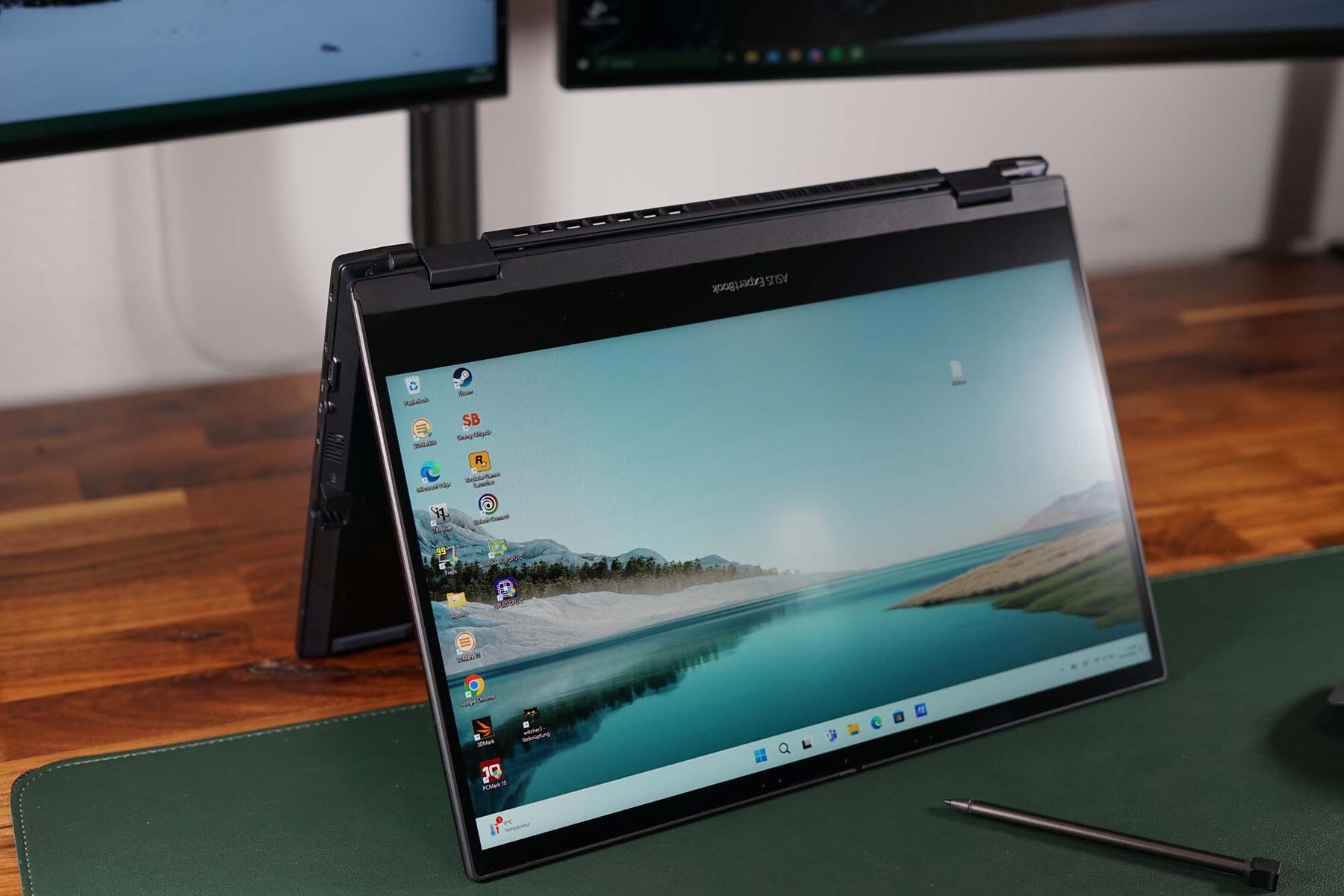

华硕专家本 B5 Flip B5402F 评测:帐篷模式
华硕专家本 B5 Flip B5402F 评测:帐篷模式

华硕 Expertbook B5402F 的外壳没有太大变化,仍然采用高品质的烟灰色铝合金外壳。外壳最大的变化是端口的改变。此外,它的触控笔现在直接集成到了可折叠本中--有一个专门的笔槽。它继续采用美国军用标准 MIL-STD 810H 认证,这意味着新机型可以经受住从 120 厘米高处跌落和严寒环境的考验。整个底座和盖子无法扭转,铰链几乎没有任何松动。不幸的是,这使得单手几乎无法打开盖子。键盘周围的区域也只能以最大压力推入。华硕还采用了更粗糙的表面,因此与机箱的其他部分相比,该区域更不容易留下指纹痕迹。

华硕专家本 B5 Flip B5402F 评测:平板模式

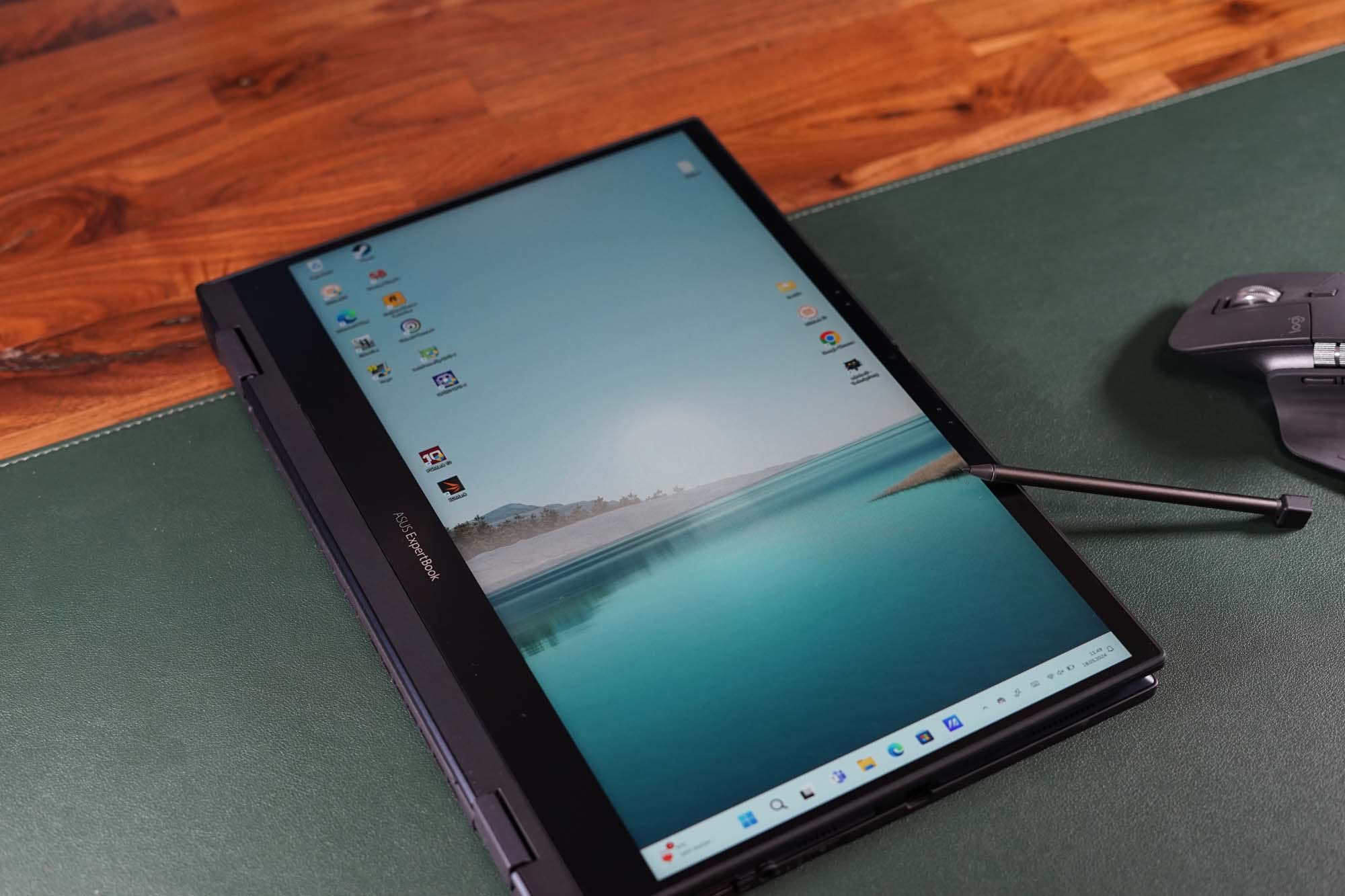

平板电脑模式

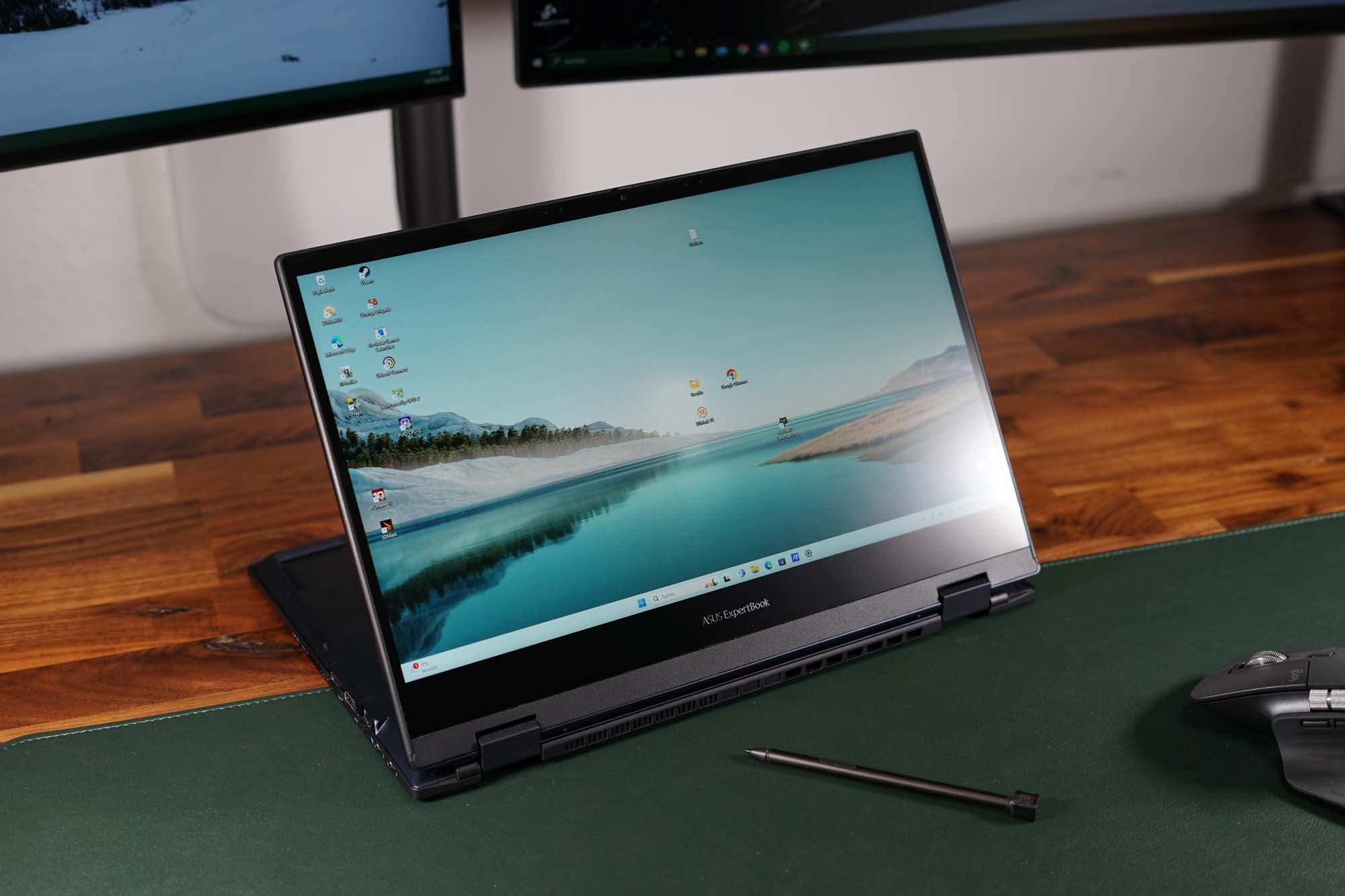

演示模式
集成 LED 状态指示灯,可显示同事正在进行的视频会议

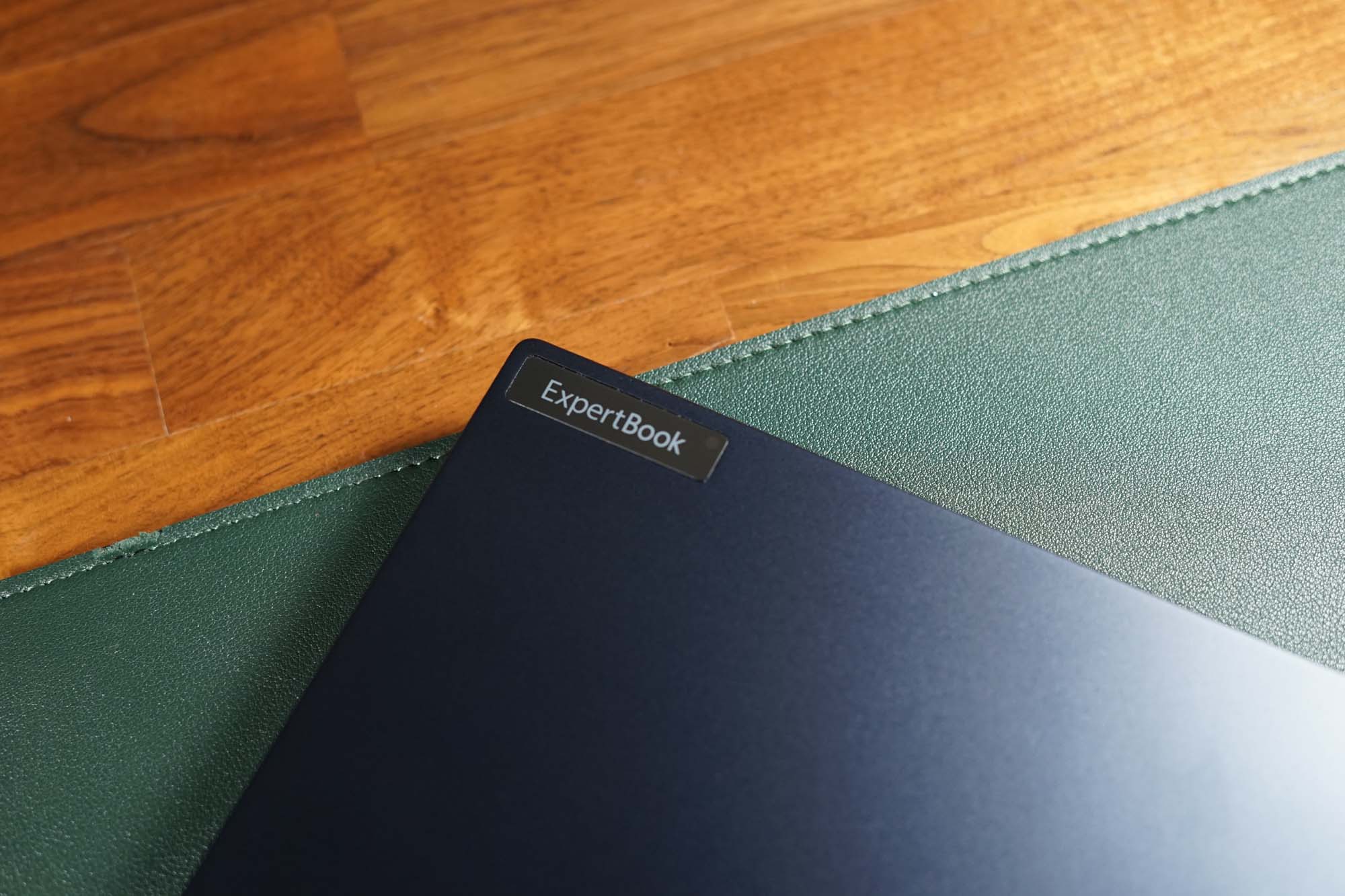

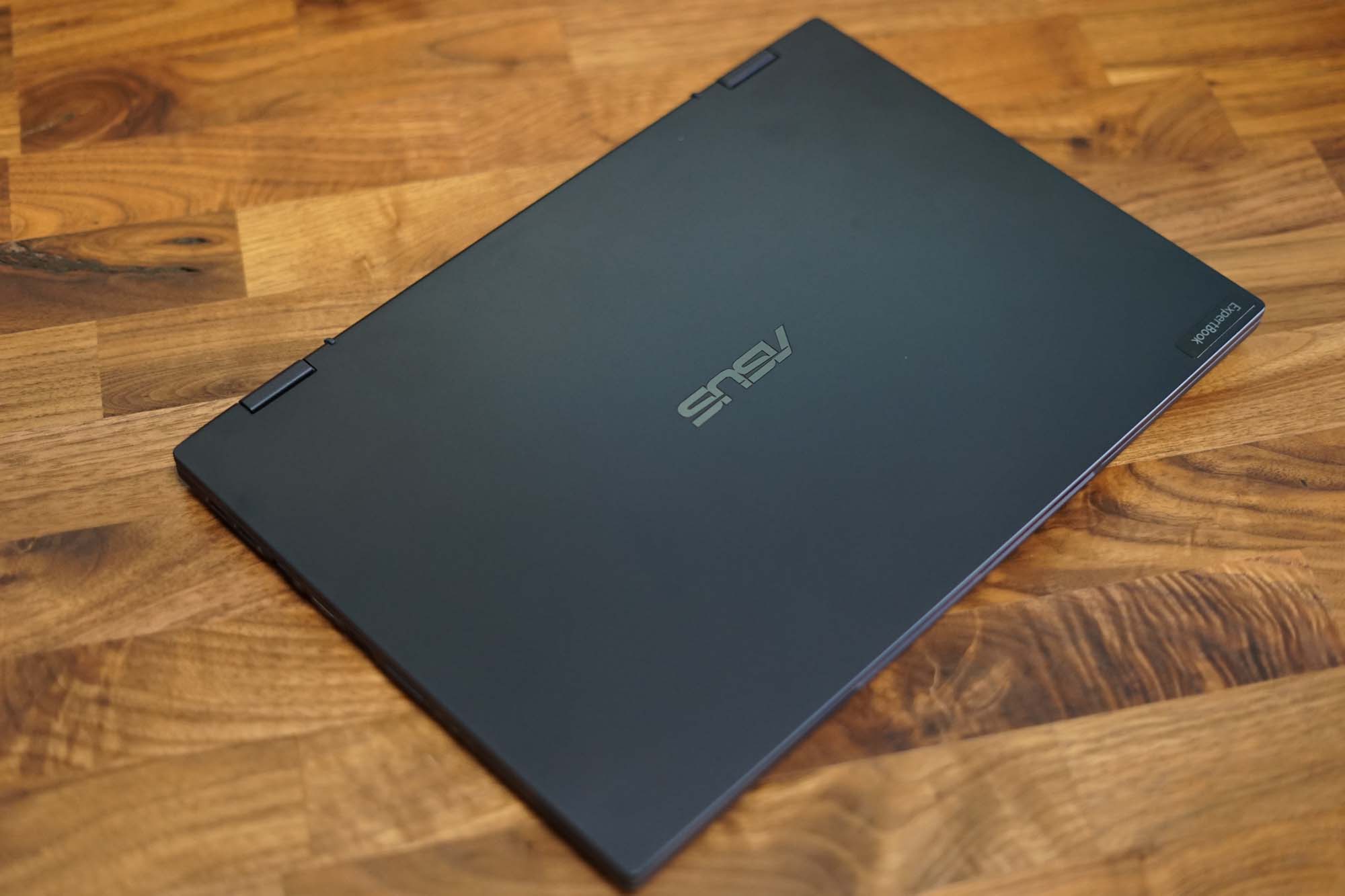

配备高品质铝合金外壳的华硕 Expertbook
配备高品质铝合金外壳的华硕 Expertbook

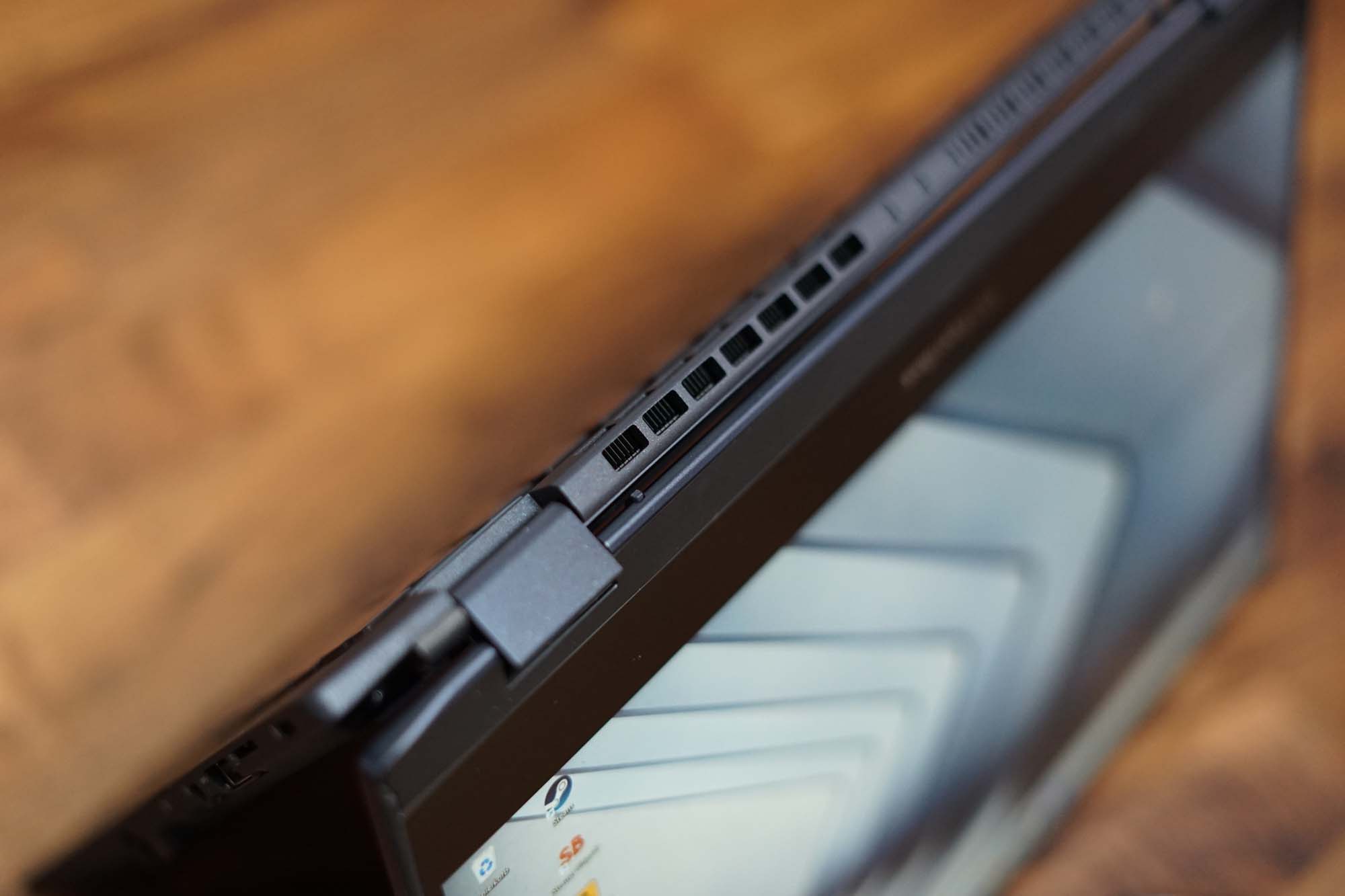

风扇出口位于显示屏正下方

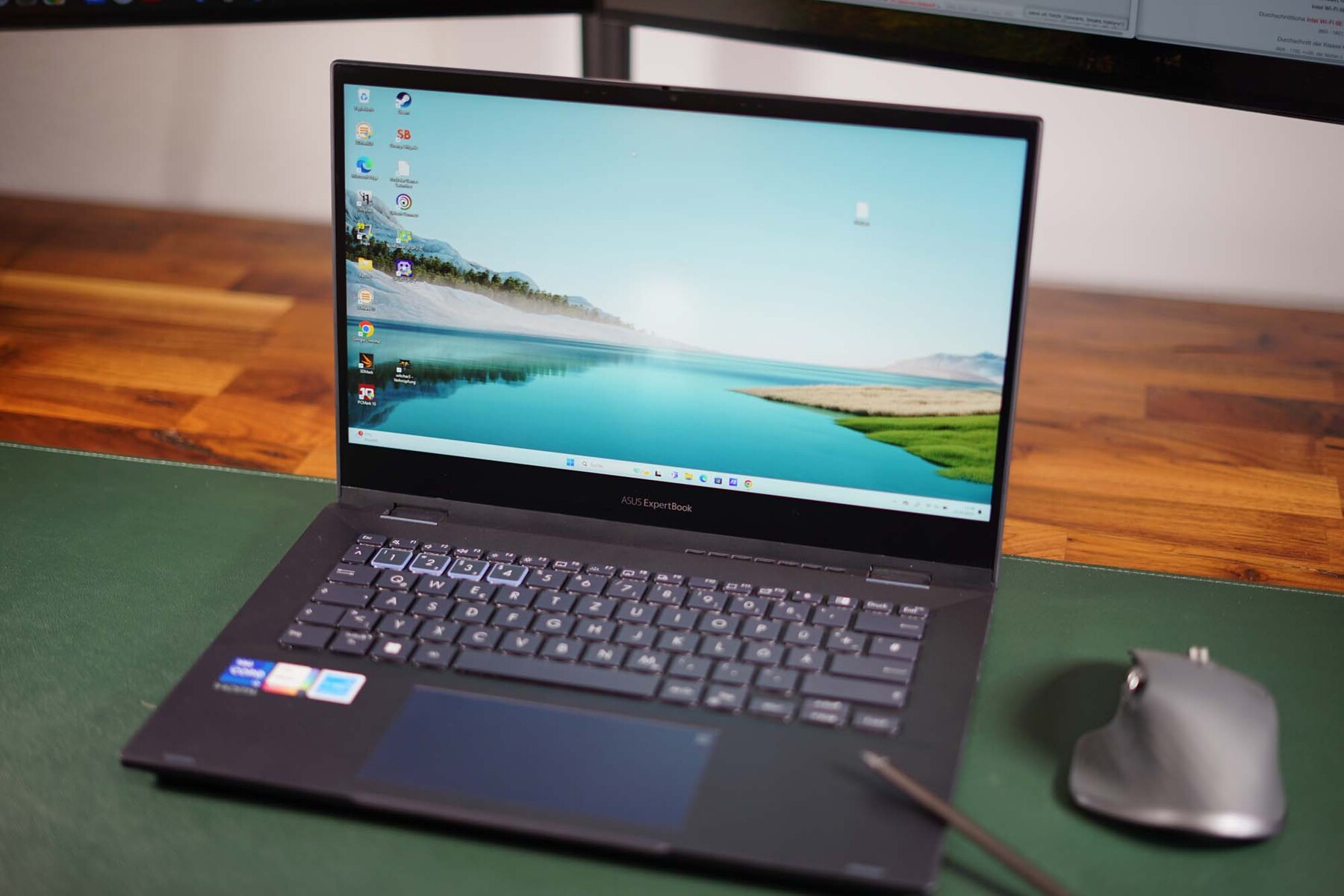

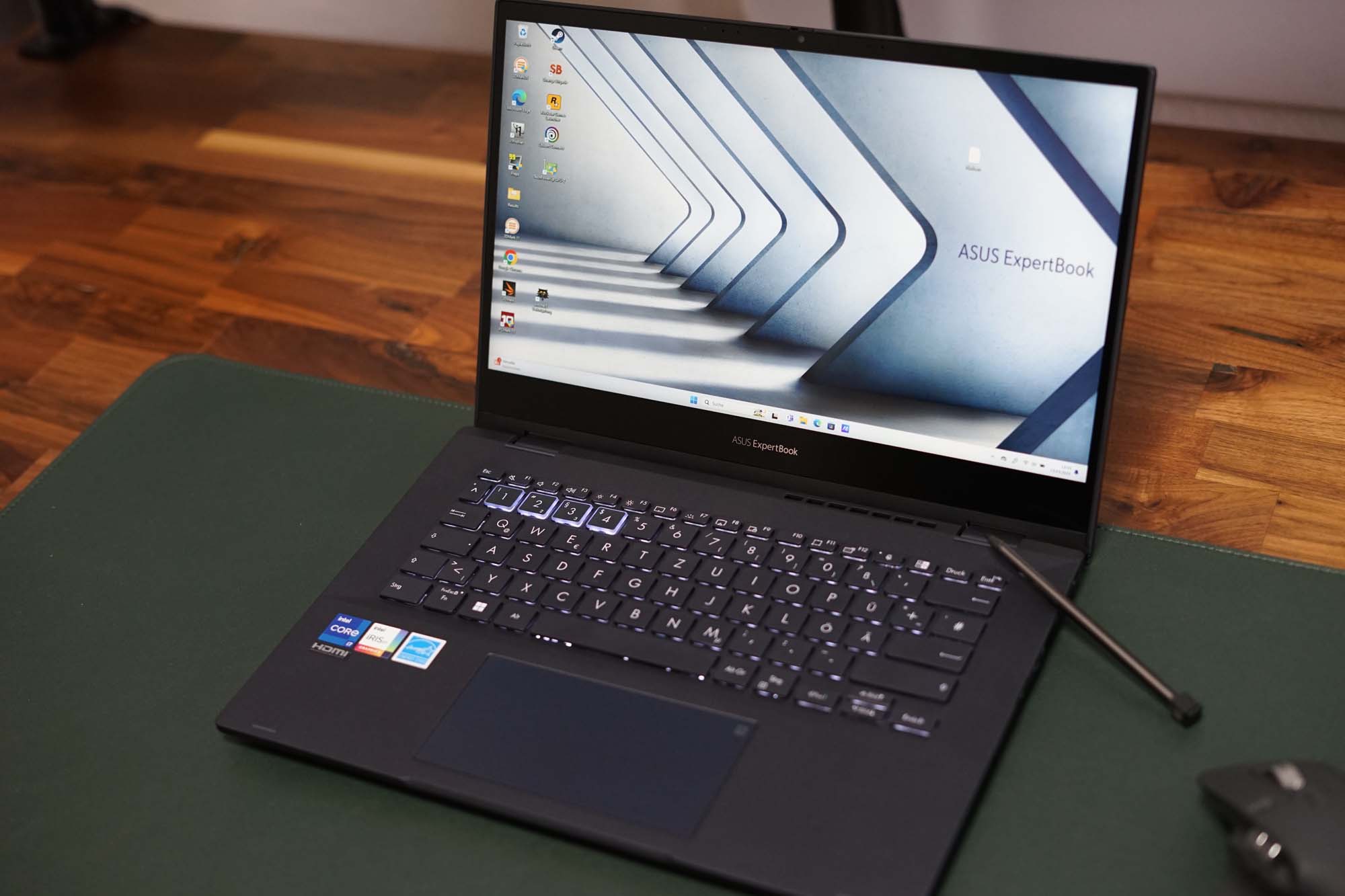

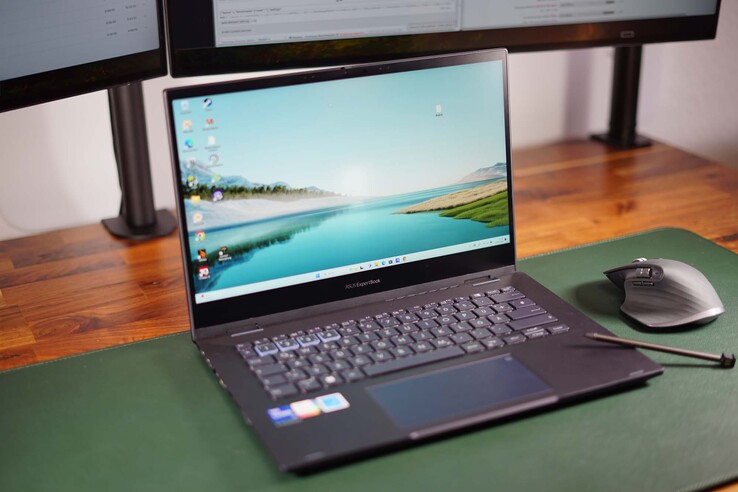

笔记本模式下的华硕 Expertbook B5 Flip B5402F

上一代机型重 1.3 千克,而新款华硕 ExpertBook B5 Flip 则略重一些,现在重约 1.4 千克。不过,这款可折叠设备的占地面积尚可,而且重量也不重,是日常生活中的理想伴侣。尽管体积小,但它并不是同类产品中最薄的,但即便如此,它的实用操作性还是给人留下了深刻印象,在背包中也丝毫不显眼。

尺寸比较

323 mm 222 mm 19.3 mm 1.4 kg318 mm 230 mm 15.25 mm 1.4 kg311 mm 215 mm 17.6 mm 1 kg309 mm 210.6 mm 16.9 mm 1.3 kg301 mm 218 mm 18.6 mm 1.4 kg297 mm 220 mm 16.3 mm 1.1 kg293.3 mm 208.1 mm 14.8 mm 989 g297 mm 210 mm 1 mm 5.7 g

连接性两次雷电 4 和 HDMI 2.1

虽然 前代机型的连接选项已经非常出色,但华硕对其进行了进一步改进。该机型的右侧仍然有两个 Thunderbolt 4 端口,但其 HDMI 2.0 连接已被功能更强大的 HDMI 2.1 所取代。此外,HDMI 端口也从设备的右侧移到了左侧。此外,用于局域网的微型 HDMI 端口已被全尺寸 RJ45 以太网连接所取代。此外,两侧都配备了 USB-A 端口,其中左侧为 USB 3.2 Gen 2,右侧为 USB 3.2 Gen 1。右侧的 3.5 毫米音频接口被保留了下来,但现在又增加了一个 microSD 读卡器,这使得新款 ExpertBook B5 Flip 的连接性几乎完美无缺。值得批评的一点是,如果两侧都有 Thunderbolt 端口就更实用了,这样就可以从两侧为设备充电。

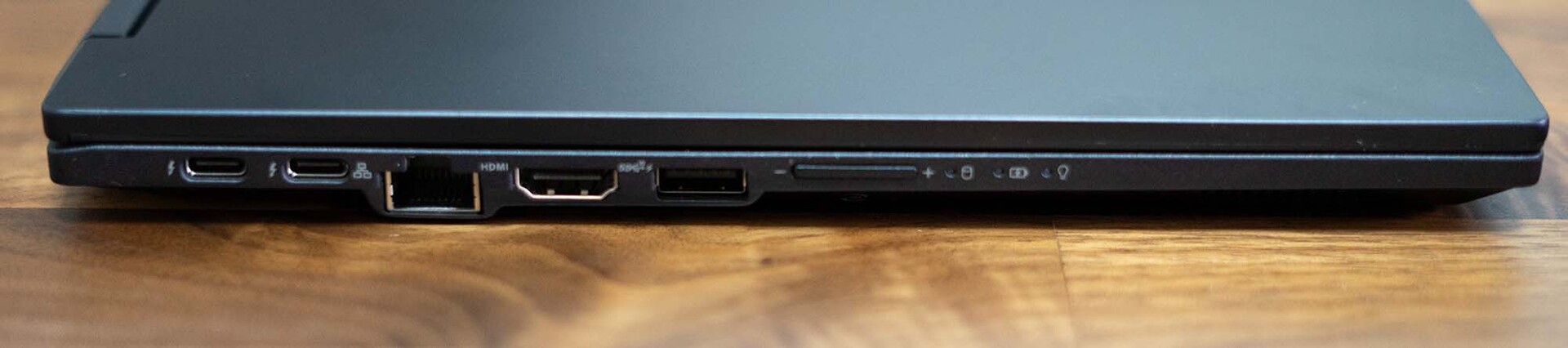

2x 雷电 4、RJ45 以太网、HDMI 2.1、USB 3.2 Gen 2、音量摇杆
2x 雷电 4、RJ45 以太网、HDMI 2.1、USB 3.2 Gen 2、音量摇杆

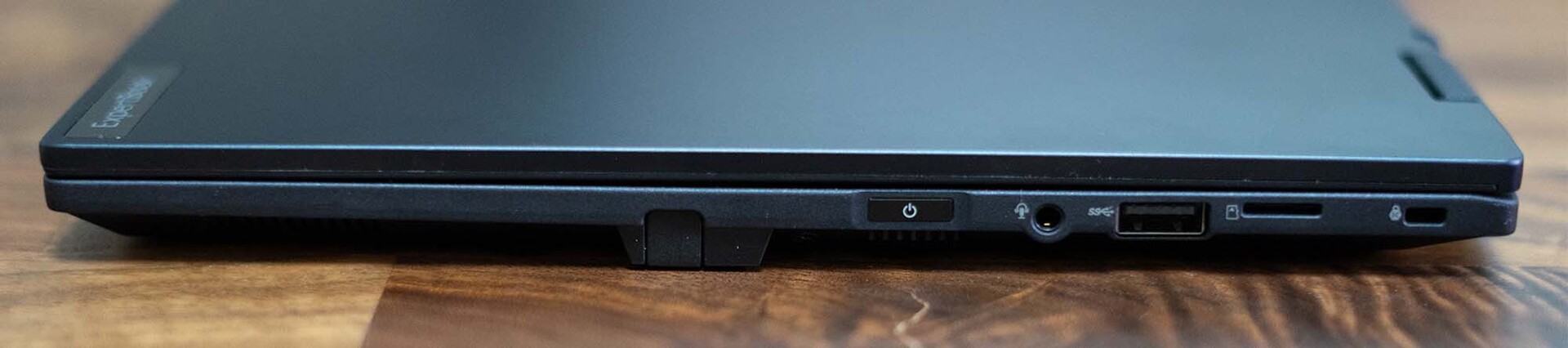

笔插槽、3.5 毫米音频插孔、USB 3.2 Gen 1、MicroSD 读卡器、Kensington 锁
笔插槽、3.5 毫米音频插孔、USB 3.2 Gen 1、MicroSD 读卡器、Kensington 锁

SD 读卡器

在我们的测试中,华硕 Expertbook B5 Flip B5402F 的 microSD 读卡器在与 AV PRO 128 GB V60 参考卡结合使用时没有显示出令人印象深刻的效果,并且落后于平均水平以及 联想 Yoga 6 13.其传输速度与 USB 2.0 不相上下。尽管如此,该读卡器还是很实用的,而且与同级别的其他可转换设备相比,它也很罕见。

SD Card Reader
average JPG Copy Test (av. of 3 runs)
Lenovo Yoga 6 13 83B2001SGE
AMD Ryzen 7 7730U (AV Pro SD microSD 128 GB V60)
81.4 MB/s +201%
Average of class Office
  (22.7 - 198.5, n=35, last 2 years)
58.4 MB/s +116%
Asus Expertbook B5 Flip B5402F, i7-1360P
Intel Core i7-1360P
27.02 MB/s
maximum AS SSD Seq Read Test (1GB)
Lenovo Yoga 6 13 83B2001SGE
AMD Ryzen 7 7730U (AV Pro SD microSD 128 GB V60)
88.7 MB/s +255%
Average of class Office
  (25 - 249, n=31, last 2 years)
73.6 MB/s +194%
Asus Expertbook B5 Flip B5402F, i7-1360P
Intel Core i7-1360P
25 MB/s

交流

新款华硕 Expertbook B5 Flip B5402F 安装了英特尔 Wi-Fi 6E AX211 模块,而不是前代机型的 Wi-Fi 6。该模块的速度不错,性能高于平均水平,尤其是在 6 GHz 范围内。

Networking
iperf3 transmit AXE11000
Lenovo Yoga 9 14IRP G8
Intel Wi-Fi 6E AX211
1584 (1475min, 1490.08P1 - 1736max) MBit/s +67%
Lenovo ThinkPad X1 Nano Gen 3
Intel Wi-Fi 6E AX211
1232 (966min - 1415max) MBit/s +30%
Average Intel Wi-Fi 6E AX211
  (64 - 1921, n=242)
1231 MBit/s +30%
Average of class Office
  (47.8 - 1793, n=89, last 2 years)
1118 MBit/s +18%
HP Dragonfly G4
Intel Wi-Fi 6E AX211
973 (879min - 1016max) MBit/s +3%
Asus Expertbook B5 Flip B5402F, i7-1360P
Intel Wi-Fi 6E AX211
949 (928min - 977max) MBit/s
Lenovo Yoga 6 13 83B2001SGE
MediaTek MT7921
940 (733min - 1062max) MBit/s -1%
Asus ExpertBook B9 B9403CVA-KM0153X
Intel Wi-Fi 6E AX211
858 (430min - 896max) MBit/s -10%
iperf3 receive AXE11000
Lenovo Yoga 9 14IRP G8
Intel Wi-Fi 6E AX211
1430 (1392min, 1397.22P1 - 1459max) MBit/s +53%
Average Intel Wi-Fi 6E AX211
  (582 - 1890, n=242)
1382 MBit/s +48%
Lenovo ThinkPad X1 Nano Gen 3
Intel Wi-Fi 6E AX211
1299 (1181min - 1400max) MBit/s +39%
Average of class Office
  (104.2 - 1775, n=89, last 2 years)
1290 MBit/s +38%
HP Dragonfly G4
Intel Wi-Fi 6E AX211
1200 (1059min - 1247max) MBit/s +29%
Asus Expertbook B5 Flip B5402F, i7-1360P
Intel Wi-Fi 6E AX211
933 (810min - 1013max) MBit/s
Lenovo Yoga 6 13 83B2001SGE
MediaTek MT7921
919 (908min - 927max) MBit/s -2%
Asus ExpertBook B9 B9403CVA-KM0153X
Intel Wi-Fi 6E AX211
866 (292min - 937max) MBit/s -7%
iperf3 transmit AXE11000 6GHz
Asus ExpertBook B9 B9403CVA-KM0153X
Intel Wi-Fi 6E AX211
1611 (1191min - 1682max) MBit/s +4%
Asus Expertbook B5 Flip B5402F, i7-1360P
Intel Wi-Fi 6E AX211
1542 (1192min - 1663max) MBit/s
Lenovo ThinkPad X1 Nano Gen 3
Intel Wi-Fi 6E AX211
1418 (937min - 1499max) MBit/s -8%
Average of class Office
  (385 - 1961, n=50, last 2 years)
1378 MBit/s -11%
Average Intel Wi-Fi 6E AX211
  (385 - 1851, n=214)
1368 MBit/s -11%
HP Dragonfly G4
Intel Wi-Fi 6E AX211
1243 (776min - 1326max) MBit/s -19%
iperf3 receive AXE11000 6GHz
Asus Expertbook B5 Flip B5402F, i7-1360P
Intel Wi-Fi 6E AX211
1673 (1380min - 1743max) MBit/s
Average of class Office
  (1065 - 1790, n=50, last 2 years)
1568 MBit/s -6%
Average Intel Wi-Fi 6E AX211
  (700 - 1857, n=213)
1493 MBit/s -11%
Asus ExpertBook B9 B9403CVA-KM0153X
Intel Wi-Fi 6E AX211
1458 (1223min - 1555max) MBit/s -13%
Lenovo ThinkPad X1 Nano Gen 3
Intel Wi-Fi 6E AX211
1302 (1171min - 1381max) MBit/s -22%
HP Dragonfly G4
Intel Wi-Fi 6E AX211
1234 (1042min - 1336max) MBit/s -26%
050100150200250300350400450500550600650700750800850900950100010501100115012001250130013501400145015001550160016501700Tooltip
Asus Expertbook B5 Flip B5402F, i7-1360P Intel Wi-Fi 6E AX211; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1542 (1192-1663)
HP Dragonfly G4 Intel Wi-Fi 6E AX211; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1243 (776-1326)
Asus Expertbook B5 Flip B5402F, i7-1360P Intel Wi-Fi 6E AX211; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1672 (1380-1743)
HP Dragonfly G4 Intel Wi-Fi 6E AX211; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1234 (1042-1336)
Asus Expertbook B5 Flip B5402F, i7-1360P Intel Wi-Fi 6E AX211; iperf3 transmit AXE11000; iperf 3.1.3: Ø949 (928-977)
HP Dragonfly G4 Intel Wi-Fi 6E AX211; iperf3 transmit AXE11000; iperf 3.1.3: Ø973 (879-1016)
Lenovo Yoga 6 13 83B2001SGE MediaTek MT7921; iperf3 transmit AXE11000; iperf 3.1.3: Ø940 (733-1062)
Asus Expertbook B5 Flip B5402F, i7-1360P Intel Wi-Fi 6E AX211; iperf3 receive AXE11000; iperf 3.1.3: Ø932 (810-1013)
HP Dragonfly G4 Intel Wi-Fi 6E AX211; iperf3 receive AXE11000; iperf 3.1.3: Ø1200 (1059-1247)
Lenovo Yoga 6 13 83B2001SGE MediaTek MT7921; iperf3 receive AXE11000; iperf 3.1.3: Ø919 (908-927)

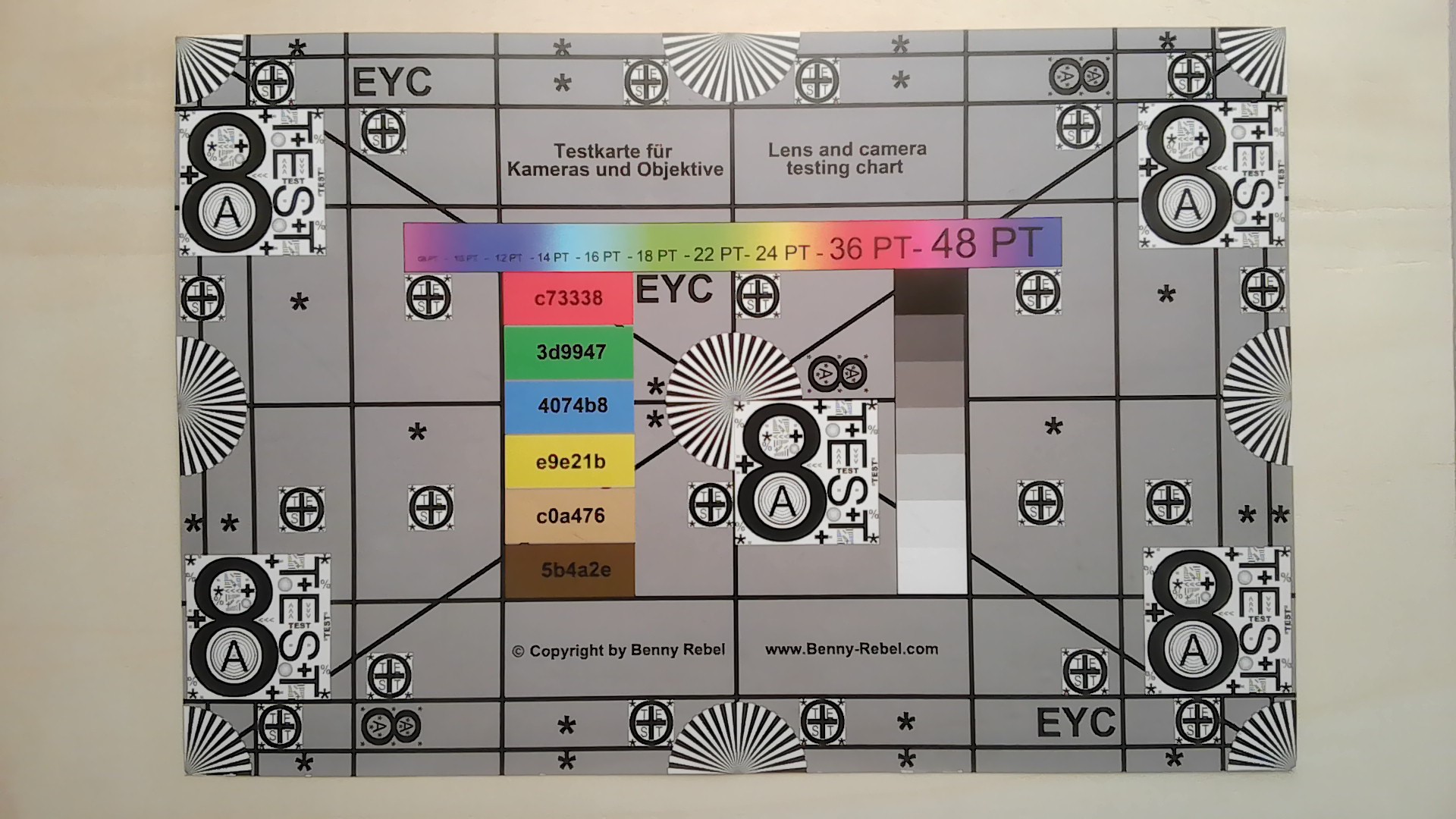

网络摄像头

从纸面上看,这款笔记本电脑的网络摄像头变化不大,仍然是 720p 高清型号。即便如此,网络摄像头的质量与前代产品相比还是有了很大的提高。 前代产品:上一代产品的 Delta-E 平均值为 8.29,而新产品的 Delta-E 值为 6.53。当然,你不应该期待任何奇迹,但由于采用了 3D 降噪技术和 AI 降噪双向音频技术,这款可转换摄像头完全足以满足会议和视频通话的需要。不过,你还是应该注意光线条件,否则网络摄像头不会带来任何好的效果。一个实用的功能是,由于该设备集成了红外传感器,因此现在可以支持 Windows Hello。摄像头还有自己的滑动物理盖。

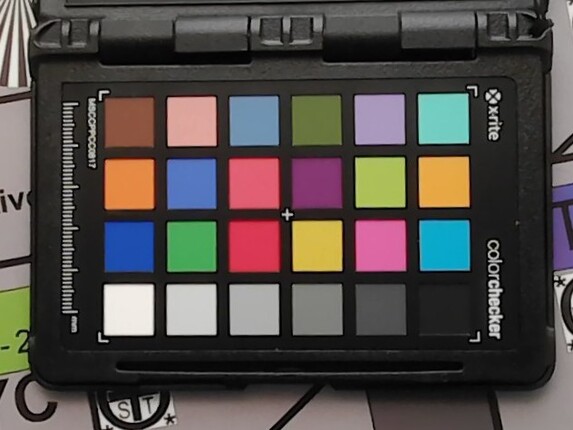

ColorChecker
7 ∆E
8.2 ∆E
9 ∆E
6.5 ∆E
10.5 ∆E
5.2 ∆E
5.1 ∆E
10.8 ∆E
6.7 ∆E
9.7 ∆E
3.3 ∆E
2.5 ∆E
7.6 ∆E
6.6 ∆E
10.2 ∆E
5.8 ∆E
8.9 ∆E
12.1 ∆E
3.9 ∆E
1.2 ∆E
4.1 ∆E
3.7 ∆E
1.6 ∆E
6.7 ∆E
ColorChecker Asus Expertbook B5 Flip B5402F, i7-1360P: 6.53 ∆E min: 1.19 - max: 12.07 ∆E

安全

除了 TPM 2.0 外,在可转换机身右侧的电源按钮上还配备了指纹传感器,以确保安全。指纹传感器的读取速度不错,我们在测试中没有遇到任何问题。此外,还有一个 Kensington 锁槽防盗功能。

配件

虽然 旧款在供货范围内,华硕新款 Expertbook B5 Flip B5402F 还配备了局域网适配器和触控笔,但却完全没有任何附加配件。不过,由于配备了全尺寸 RJ45 以太网端口,因此不再需要局域网适配器,而且手写笔直接集成在笔记本电脑中,这并不是什么缺点。不过,手写笔的尺寸因此缩小了,可能会使某些人使用起来不那么方便。另一方面,手写笔可以放置在一个指定的隔间里,这确实很方便,用户再也不用担心它的电池状态了。

维护

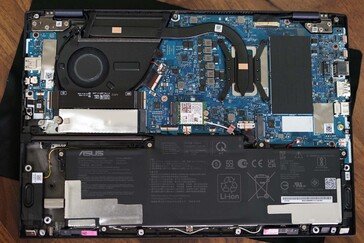

与前 它的内部结构发生了很大变化、它的内部构造发生了很大变化。它的内存现在完全焊接在一起,购买后无法更换。此外,前代机型还有一个额外的空内存插槽,可以插入一个 32 GB 的模块(总内存容量为 48 GB)。另一方面,它的电池和 M.2-2280 固态硬盘可以更换,如果需要,Wi-Fi 6E AX211 模块也可以更换。要进入可转换机的内部,必须卸下十颗小十字螺丝,其中底板中间的螺丝长度与其他螺丝不同。

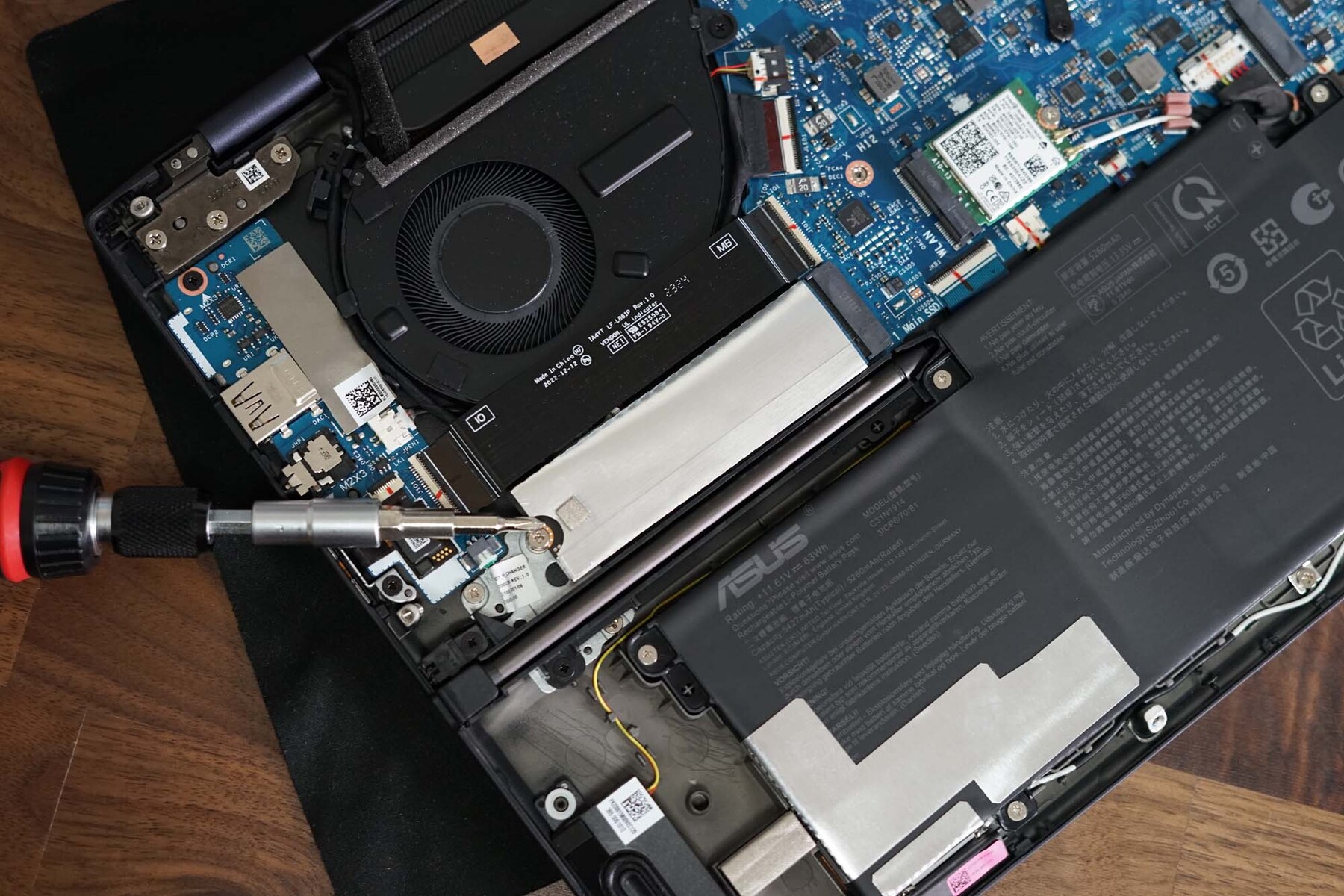

可轻松更换 M.2 固态硬盘和 Wi-Fi 模块

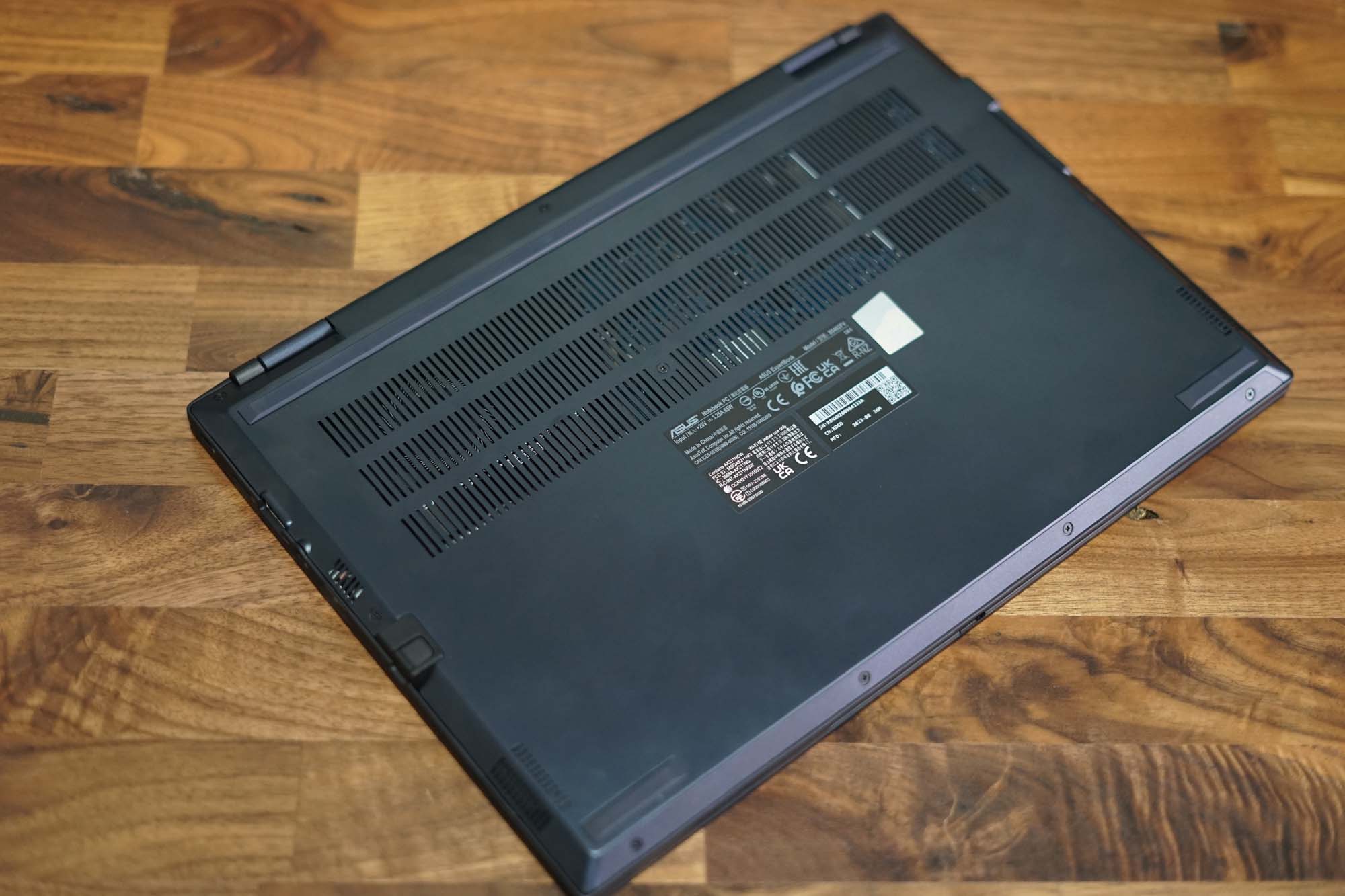

底板由十颗十字螺丝固定

保修

在美国,该设备享有 12 个月的标准保修期。有兴趣的用户可以通过华硕尊贵服务延长保修期。有关信息,包括条款、条件和价格,请访问华硕网站。

输入设备:非常好的防水键盘

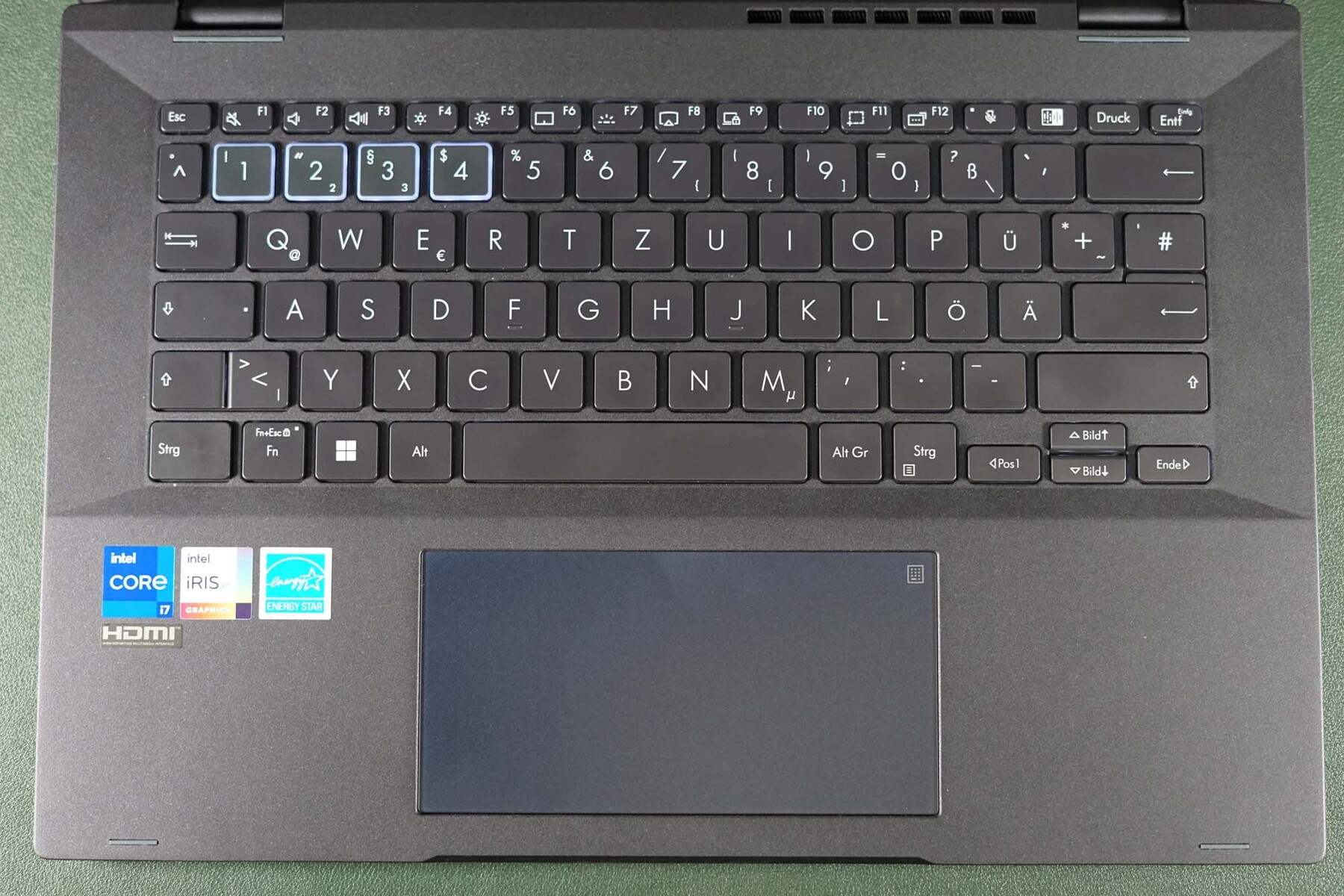

键盘

从外观上看,新款华硕 Expertbook B5 Flip B5402F 的键盘变化很大。它的回车键、散列键和右移键都变大了一些,而左移键则变小了一些。键盘上的可用空间得到了很好的利用,但在这种尺寸的设备上却没有专门的数字键盘空间。尽管如此,所有按键的大小都很合适。我们已经很喜欢在前代机型上打字的感觉了。 我们已经很喜欢在前代机型上打字的感觉了、不过,我们只是觉得按键的声音有点大。虽然新机型的按键并不是最安静的,但与旧机型相比确实有了很大改进,只有空格键的声音还可以再小一点。和以前一样,键盘背光只有一种强度设置,因此只能在开和关之间进行选择。

方便的是,F1 至 F12 键被分配了特殊功能,如剪切工具或麦克风开关。与前代机型一样,它的键盘也具有防溅功能,因此在办公室喝咖啡时发生意外也不会立即致命。

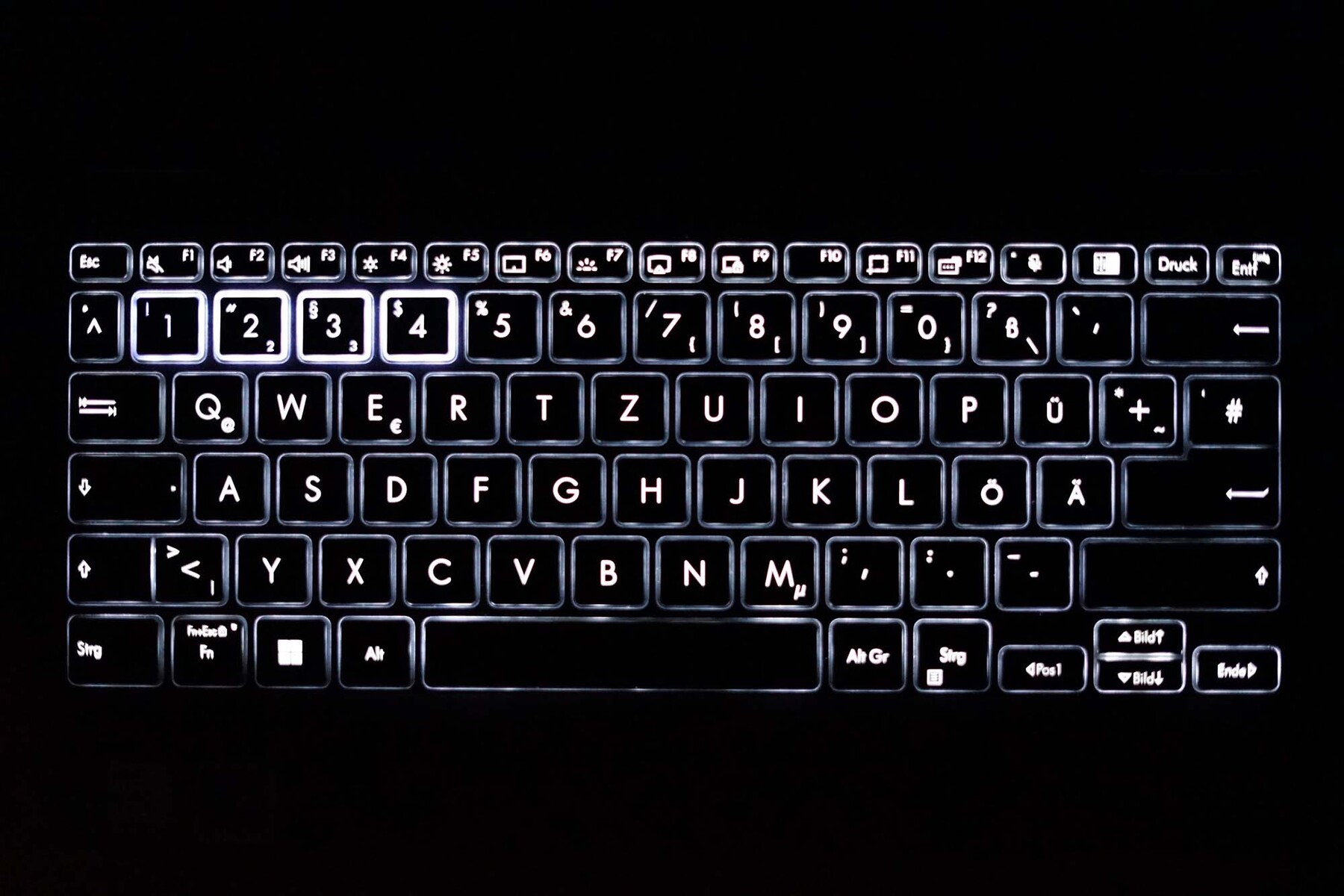

均匀的键盘背光(只有一个强度级别)
键盘区域不易留下指纹痕迹

触摸板

在输入设备方面,新款华硕 Expertbook B5 Flip B5402F 最大的变化之一是它的触摸板。虽然高度不变,但宽度增加了不少。由于这款可折叠本仍然采用 16:9 的宽高比,因此没有多少空间可以容纳一个舒适的大触摸板,但即便如此,华硕仍然没有完全充分利用这个空间。不过,额外的水平空间是我们欢迎的变化,它有助于从屏幕的一侧移动到另一侧的点击和拖放任务。此外,触摸板的表面也进行了调整,现在变得更加平滑,这也有助于获得更好的用户体验。

通过右上角的图标将触摸板转换成数字区域的选项仍然可用,对于经常使用 Excel 电子表格的用户来说尤其实用。

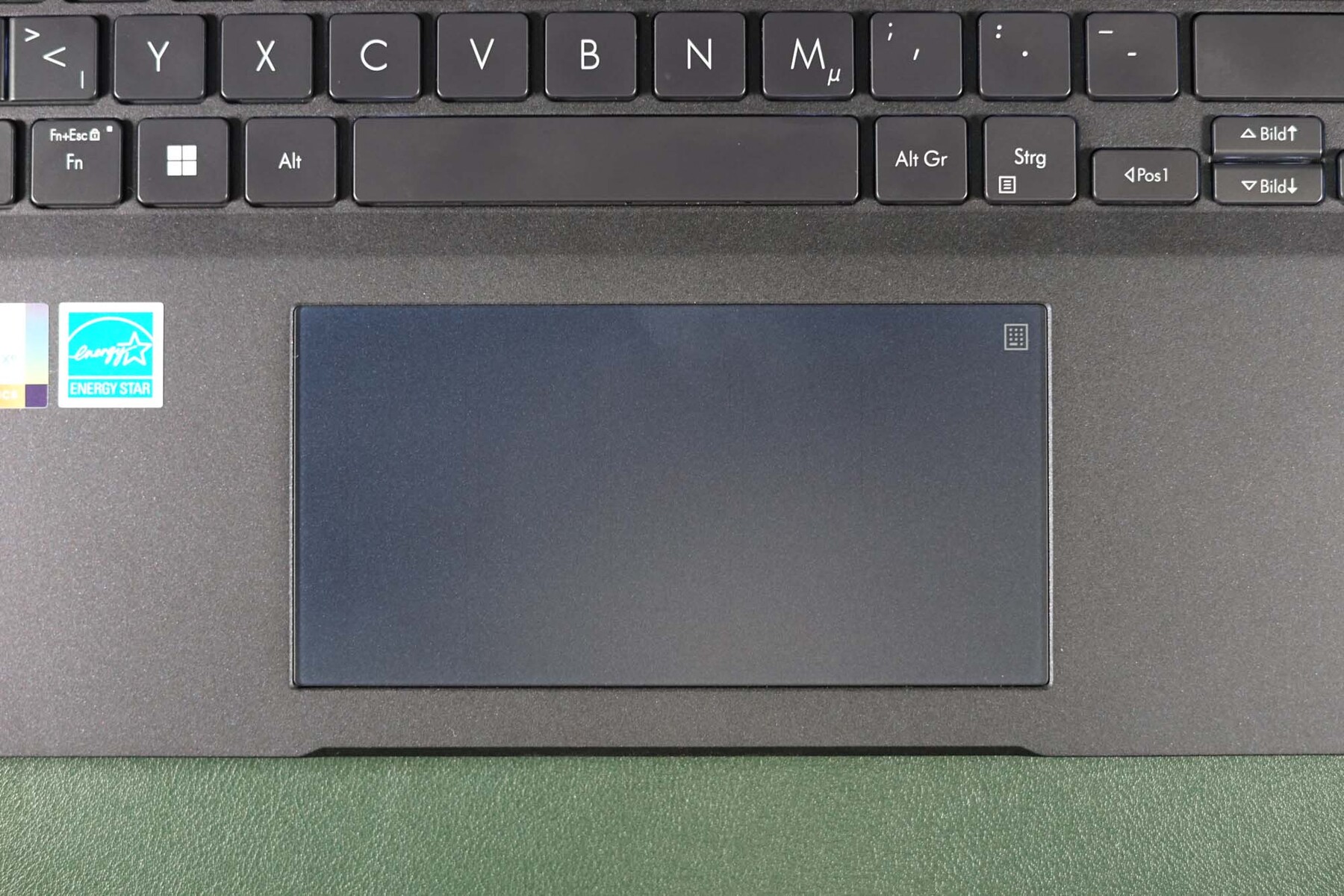

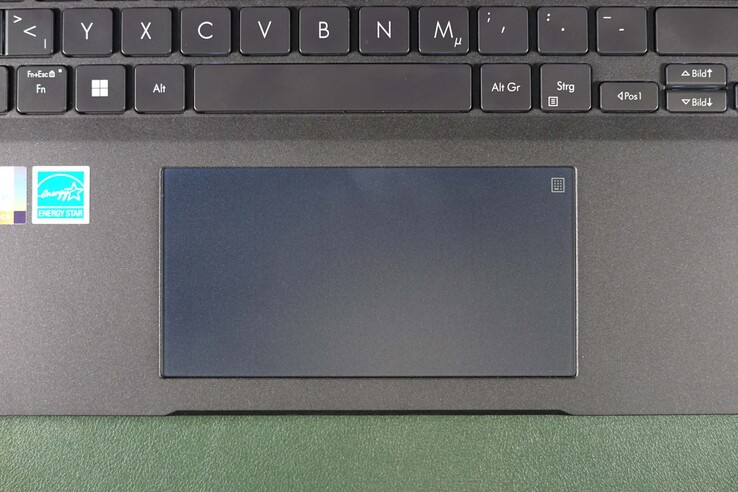

新触摸板更大,表面更光滑

显示屏:更亮,日常使用更方便

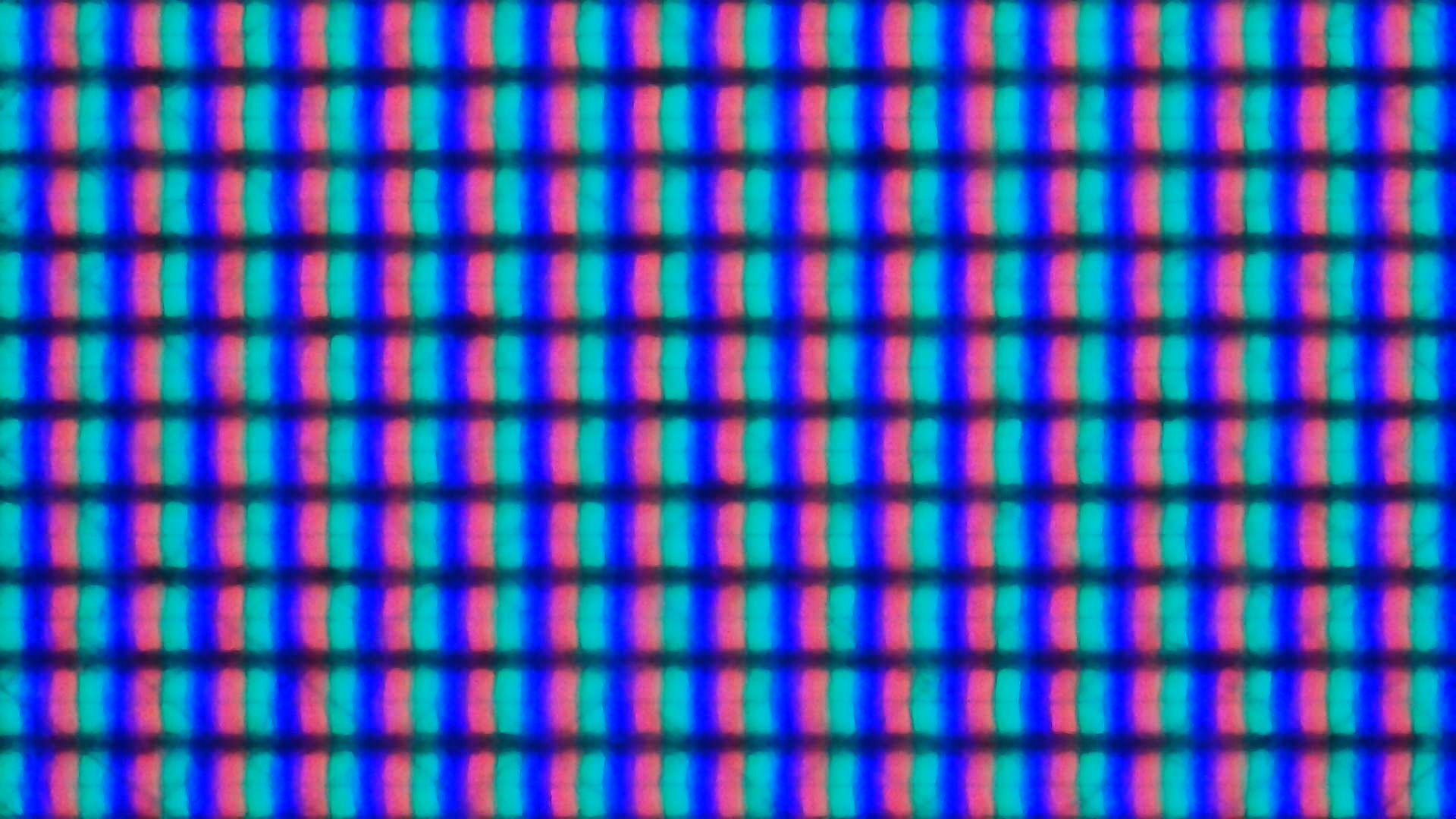

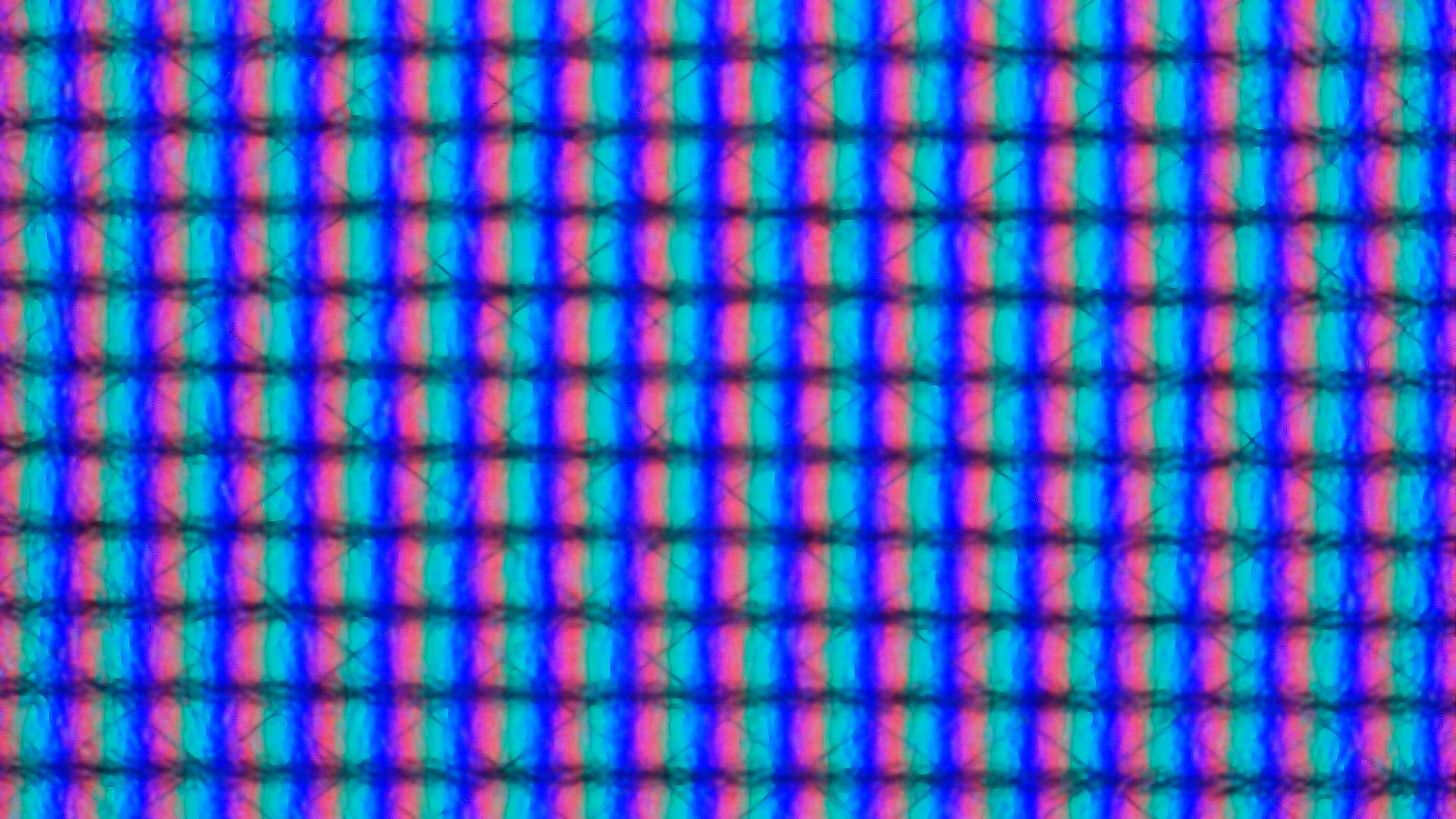

子像素阵列
数字化仪网格

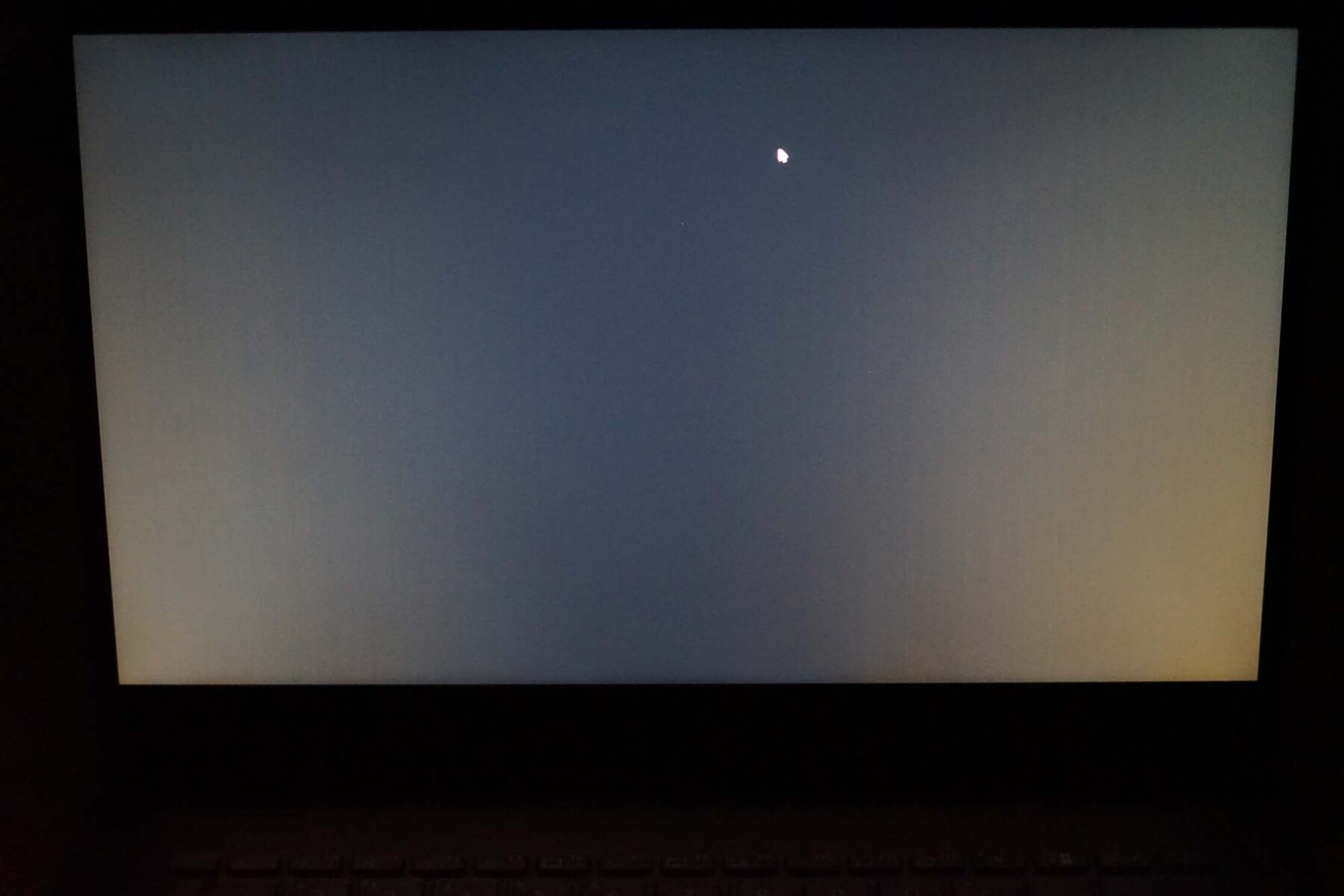

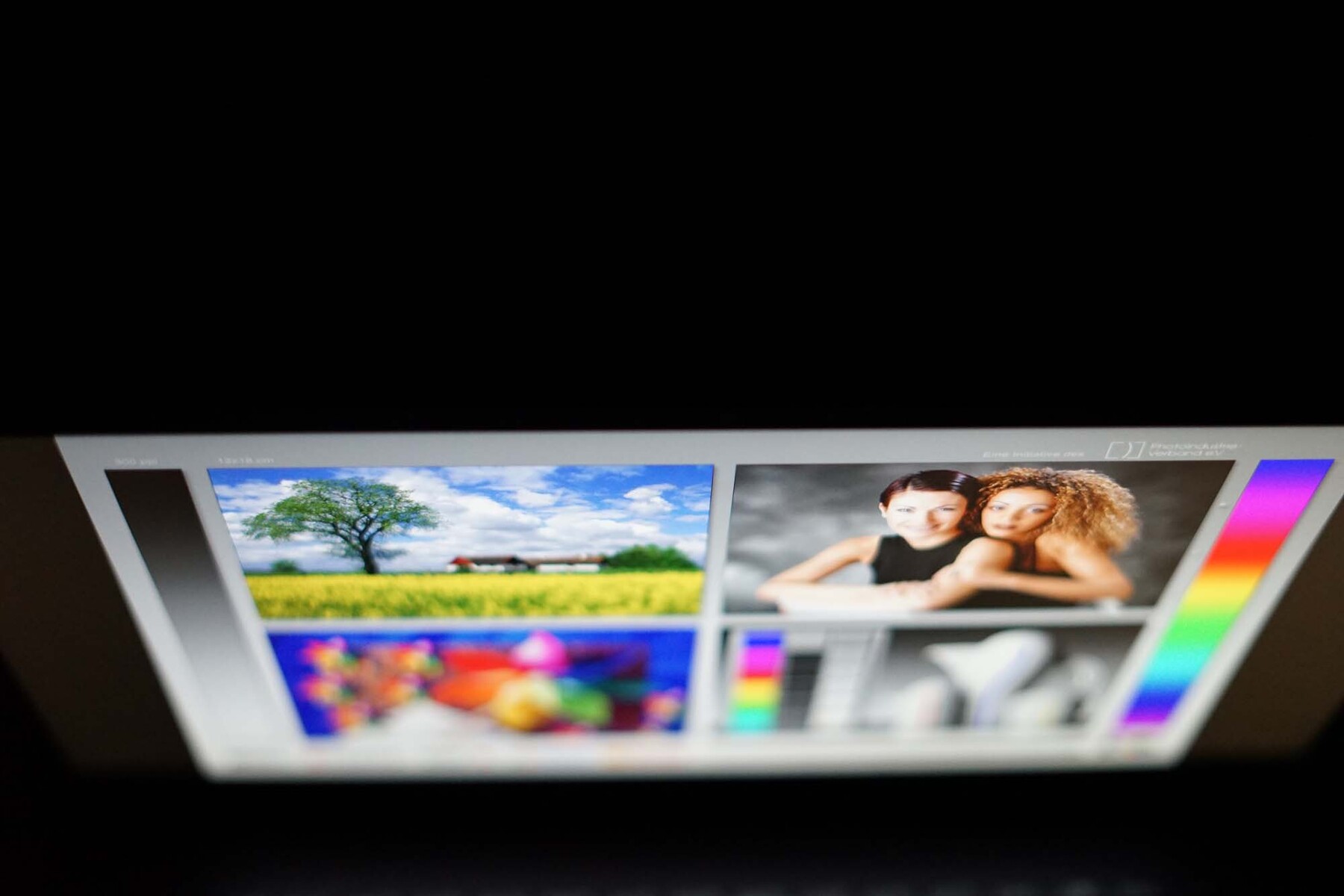

微妙的背光渗色(增强型描绘)

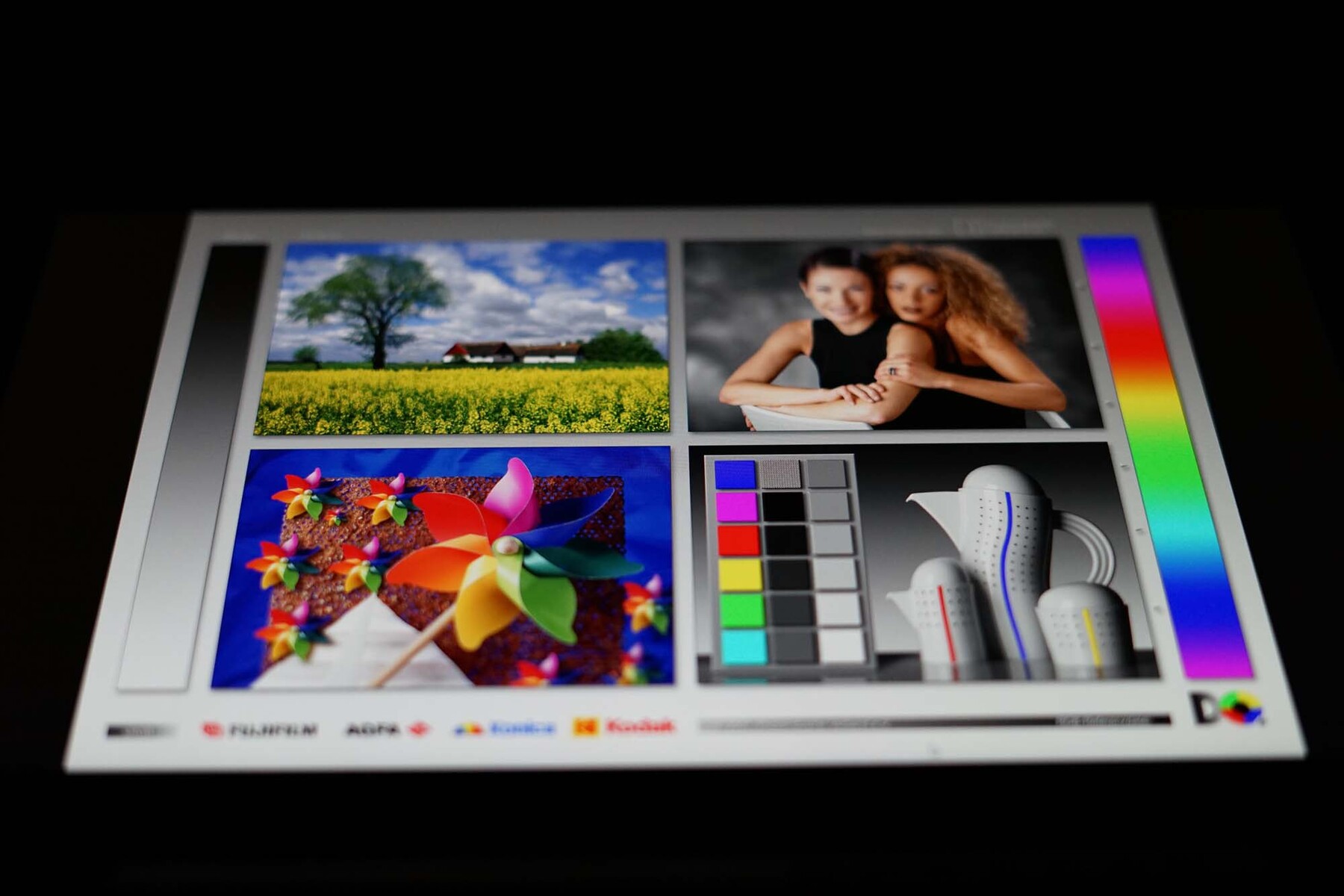

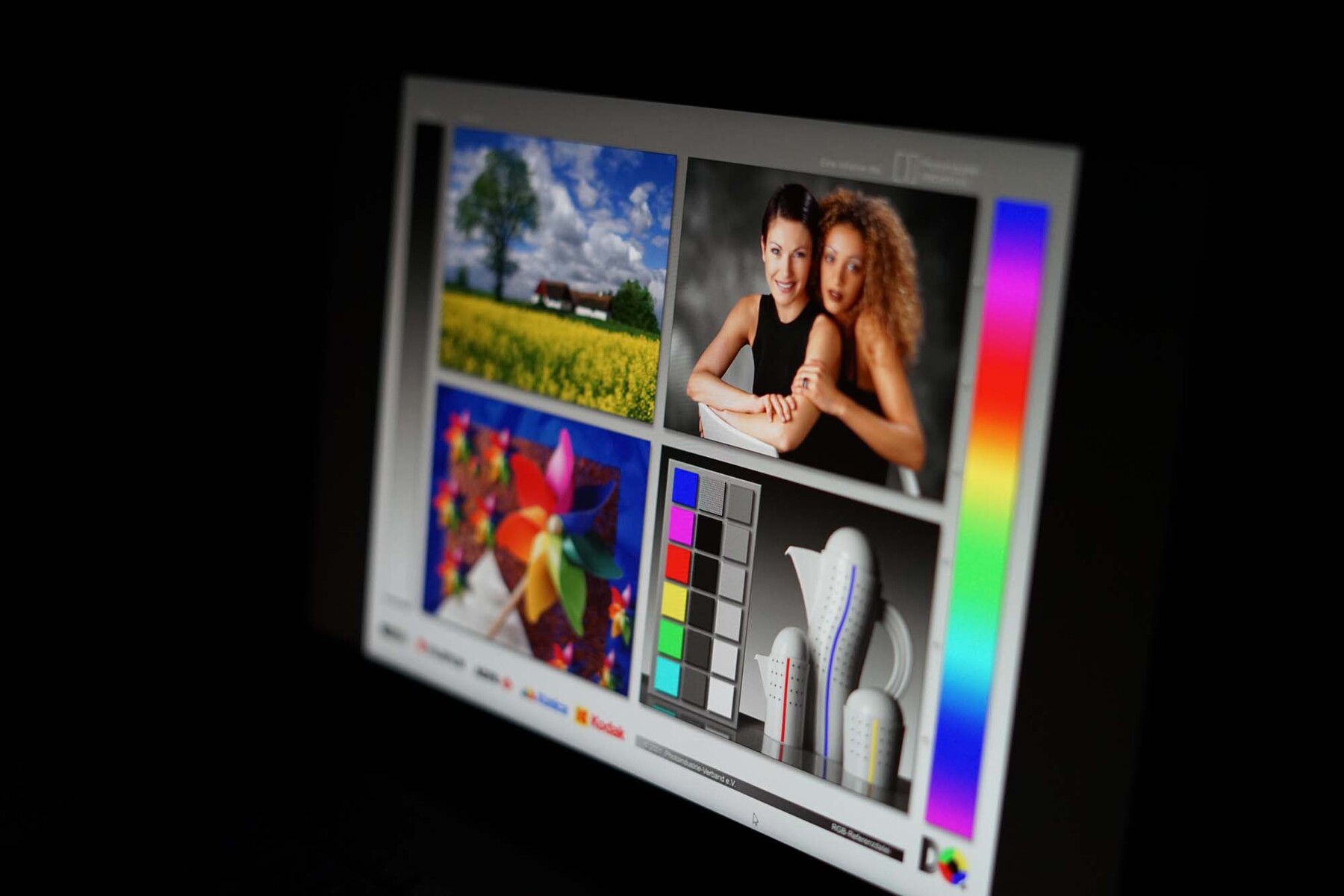

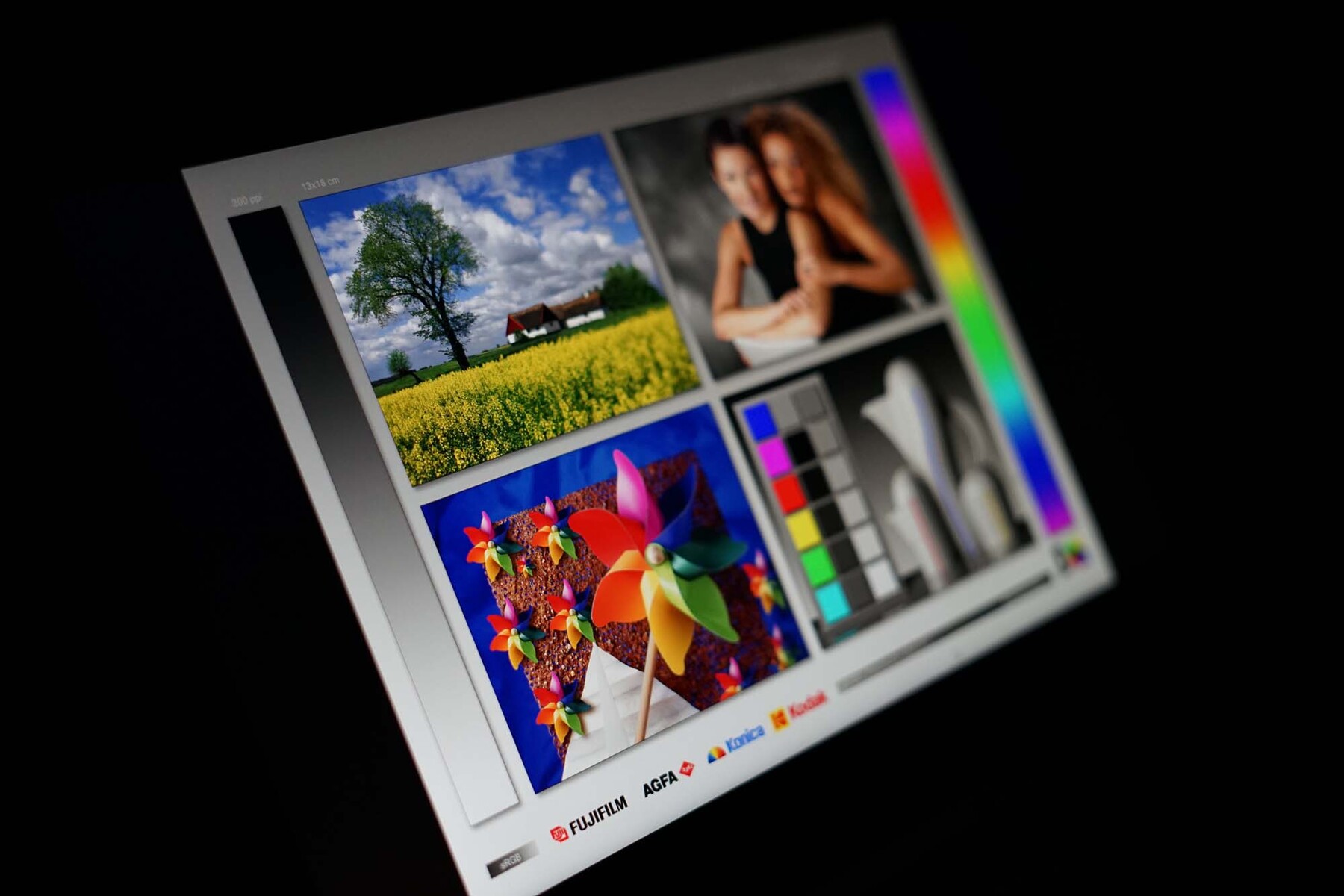

在显示屏方面也做了很多工作。虽然 前代机型华硕专家本 B5 Flip B5402F 的前代机型还可以选择 OLED 显示屏,而新版本似乎不再提供这种配置。不过,由于我们测试的最后一款机型采用的是 IPS 显示屏,因此我们更容易对两者进行比较。新款 ExpertBook 的平均亮度为 342.1 cd/m²,比上一代产品亮很多。这意味着新机型更适合在明亮的环境中工作。遗憾的是,亮度提高的代价是色彩空间覆盖率和对比度的下降。上一代产品的对比度为 1661:1,而新产品仅为 1297:1。在色彩空间覆盖率方面,sRGB 空间的劣势尤为明显,覆盖率从 98.9% 降至 92.5%。DCIP-3 和 AdobeRGB 色彩空间的覆盖率也略有下降,分别为 62% 和 64%。在日常使用中,这些较差的数值应该不会太明显,尤其是之前没有 OLED 面板的机型已经不适合专业应用。对于希望将这款可折叠笔记本电脑用作商务笔记本电脑的用户来说,亮度的提高应该还是一个进步。

317
cd/m²
339
cd/m²
333
cd/m²
346
cd/m²
373
cd/m²
339
cd/m²
349
cd/m²
355
cd/m²
328
cd/m²
Distribution of brightness

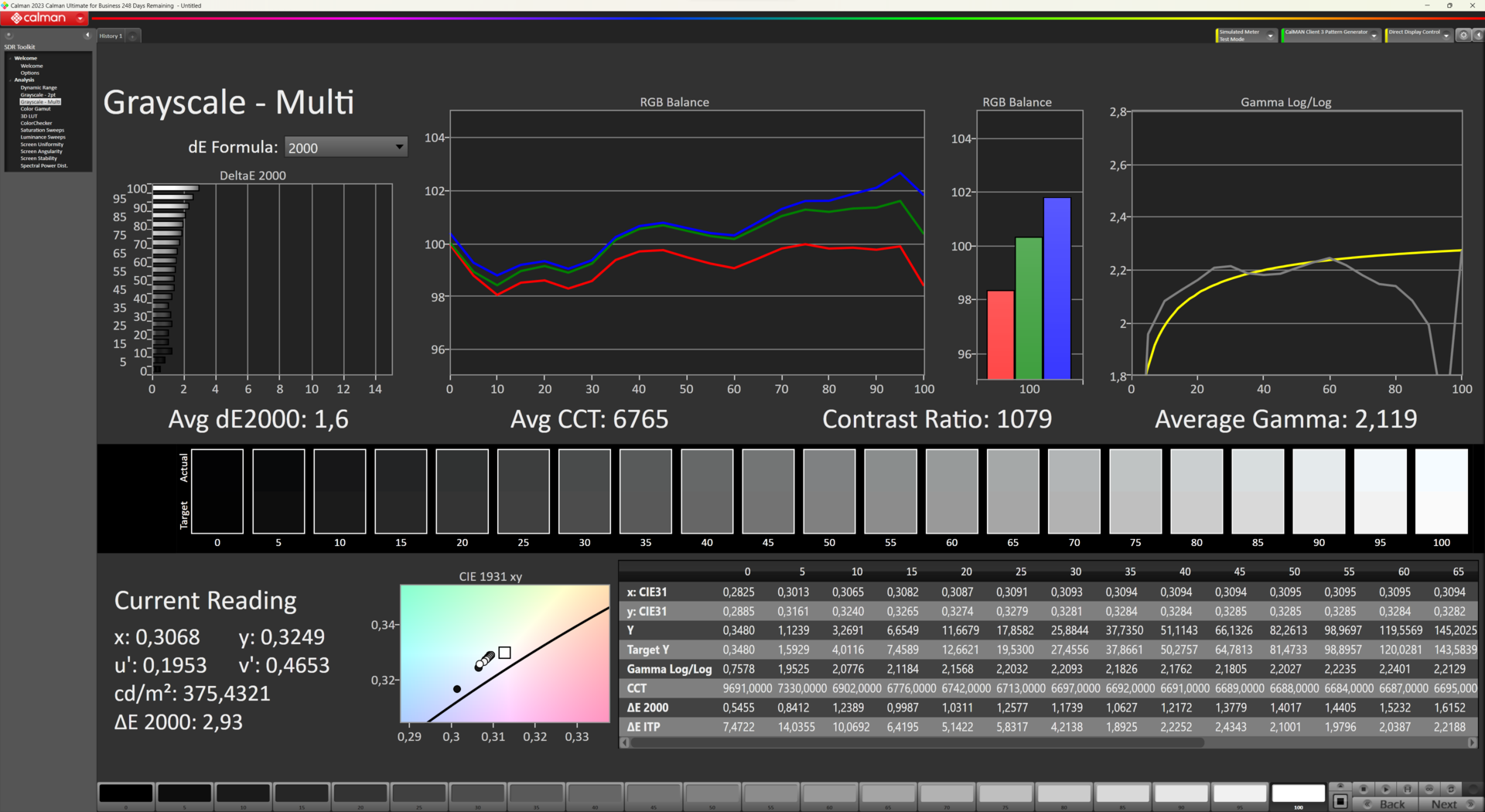

N140HCE-EN2 tested with X-Rite i1Pro 2
Maximum: 373 cd/m² (Nits) Average: 342.1 cd/m² Minimum: 21.6 cd/m²
Brightness Distribution: 85 %
Center on Battery: 370 cd/m²
Contrast: 1297:1 (Black: 0.2876 cd/m²)

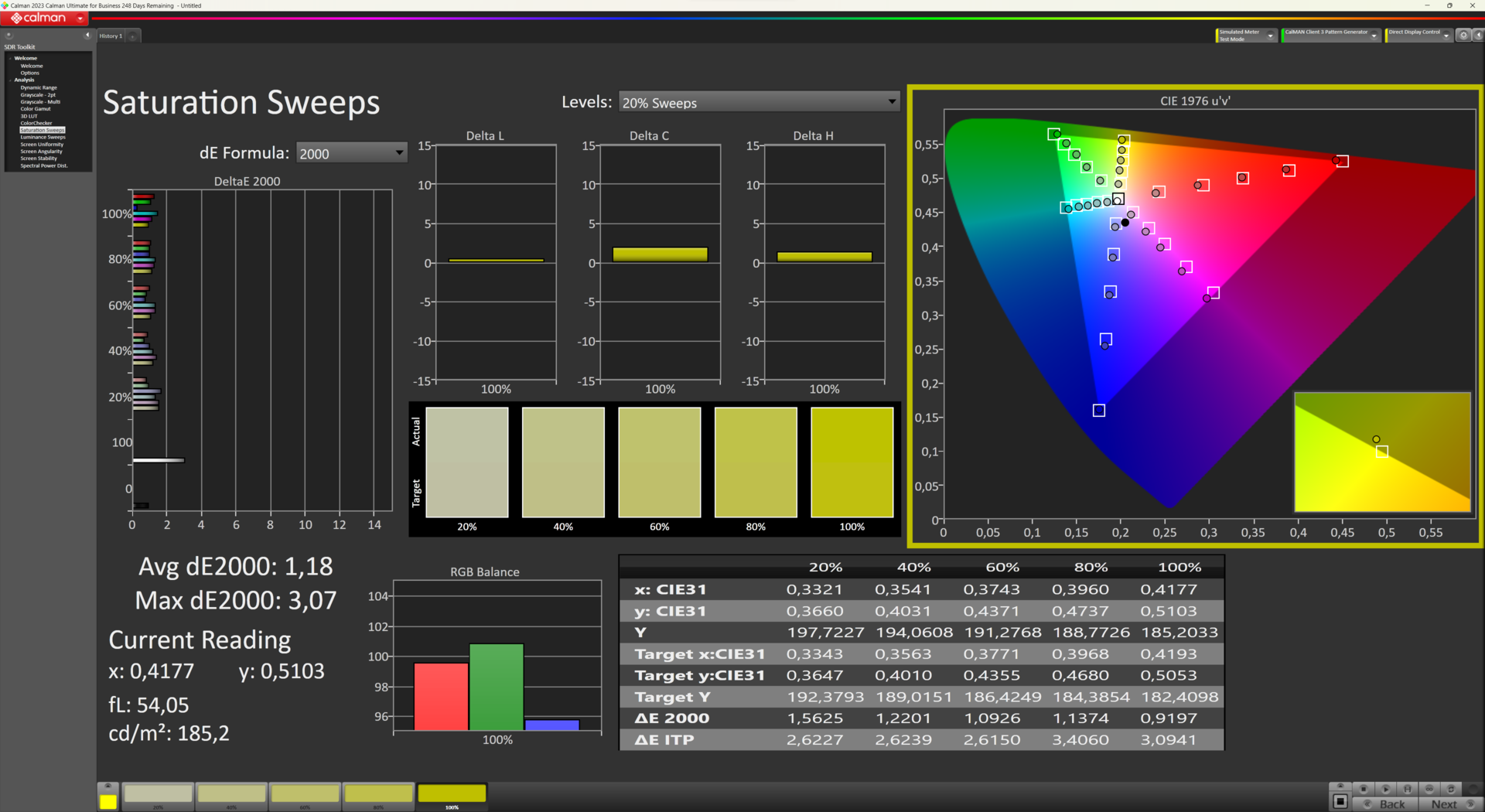

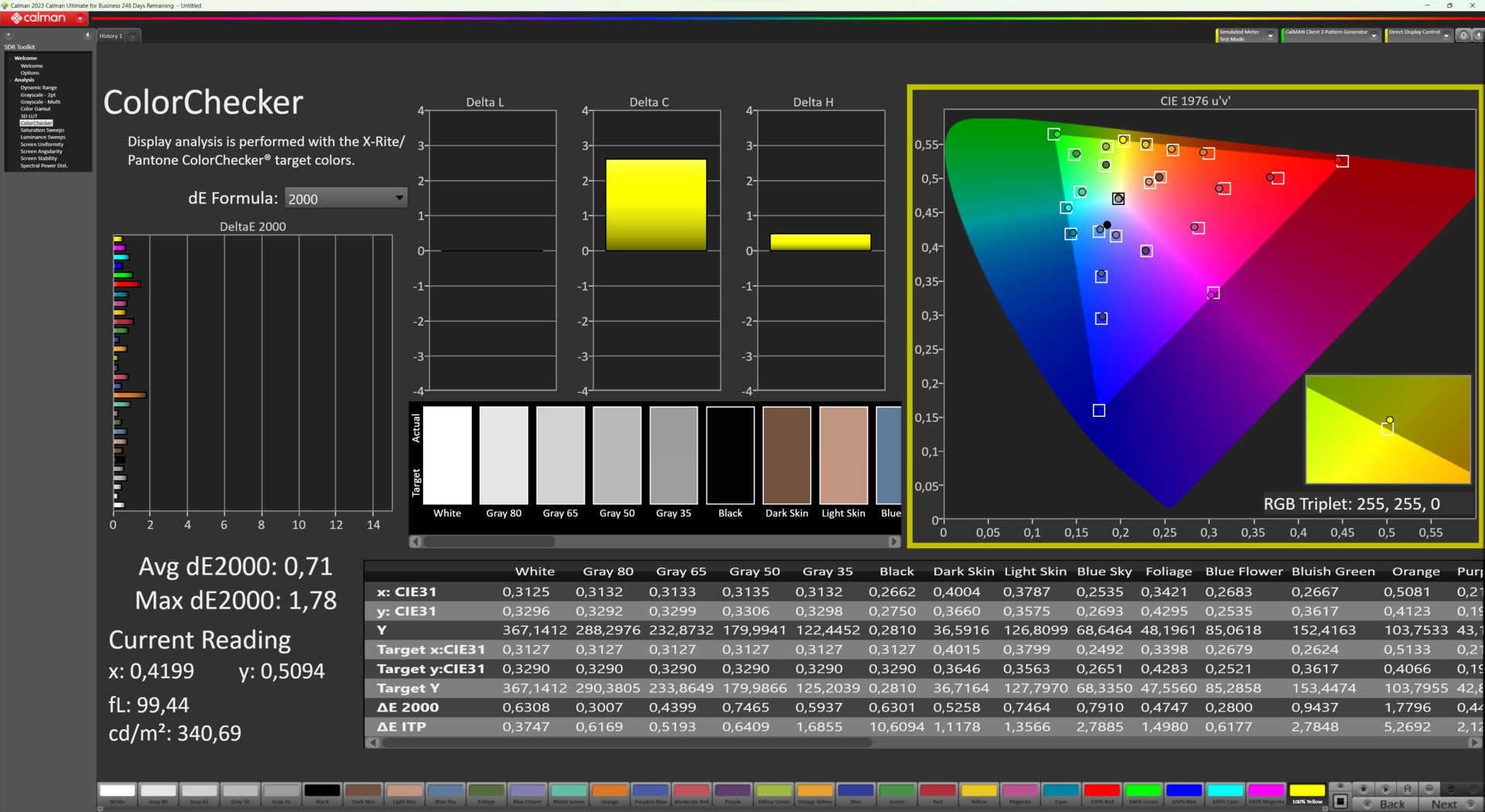

ΔE Color 1.7 | 0.5-29.43 Ø4.91, calibrated: 0.71

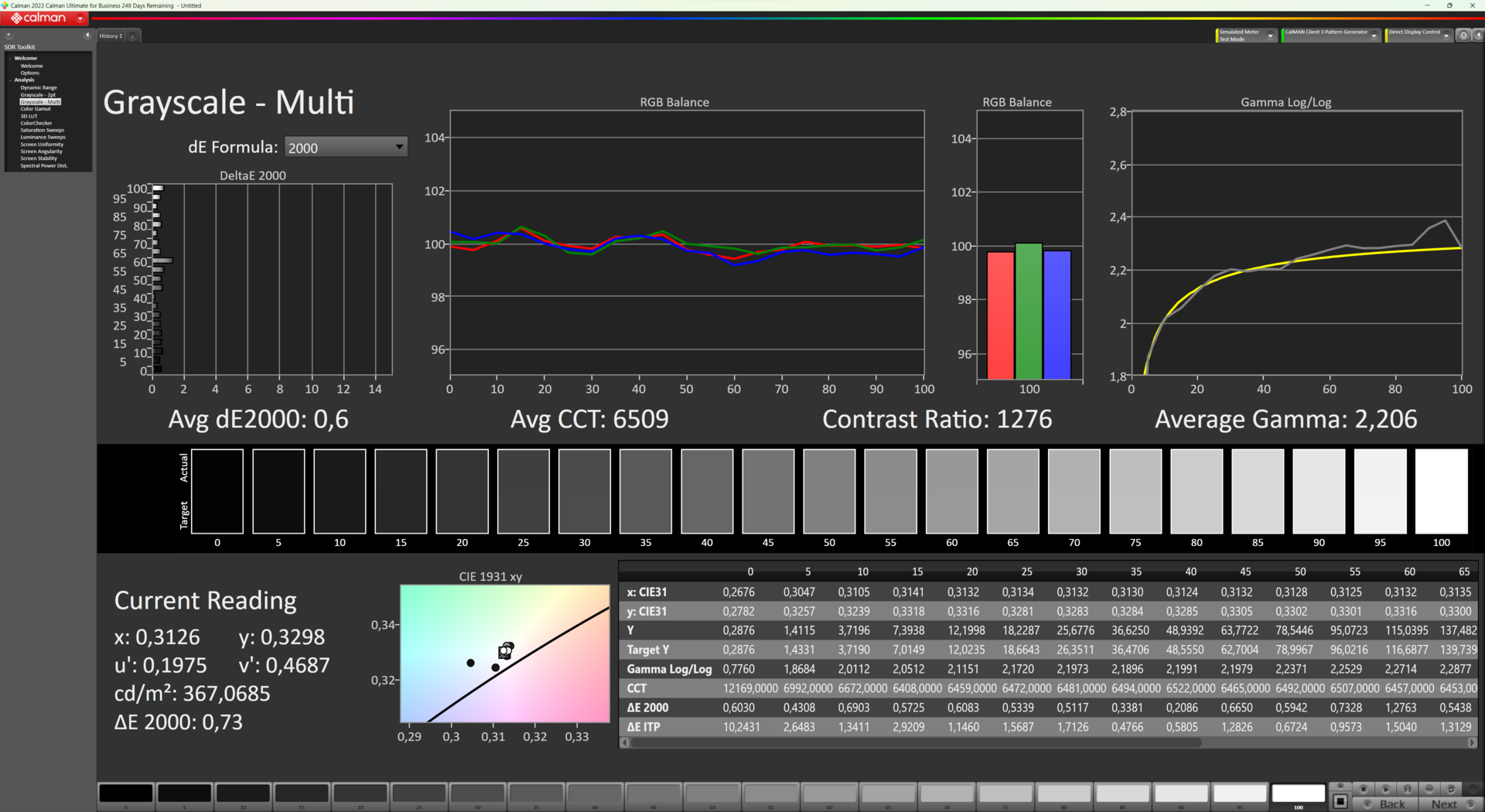

ΔE Greyscale 2.93 | 0.5-98 Ø5.2

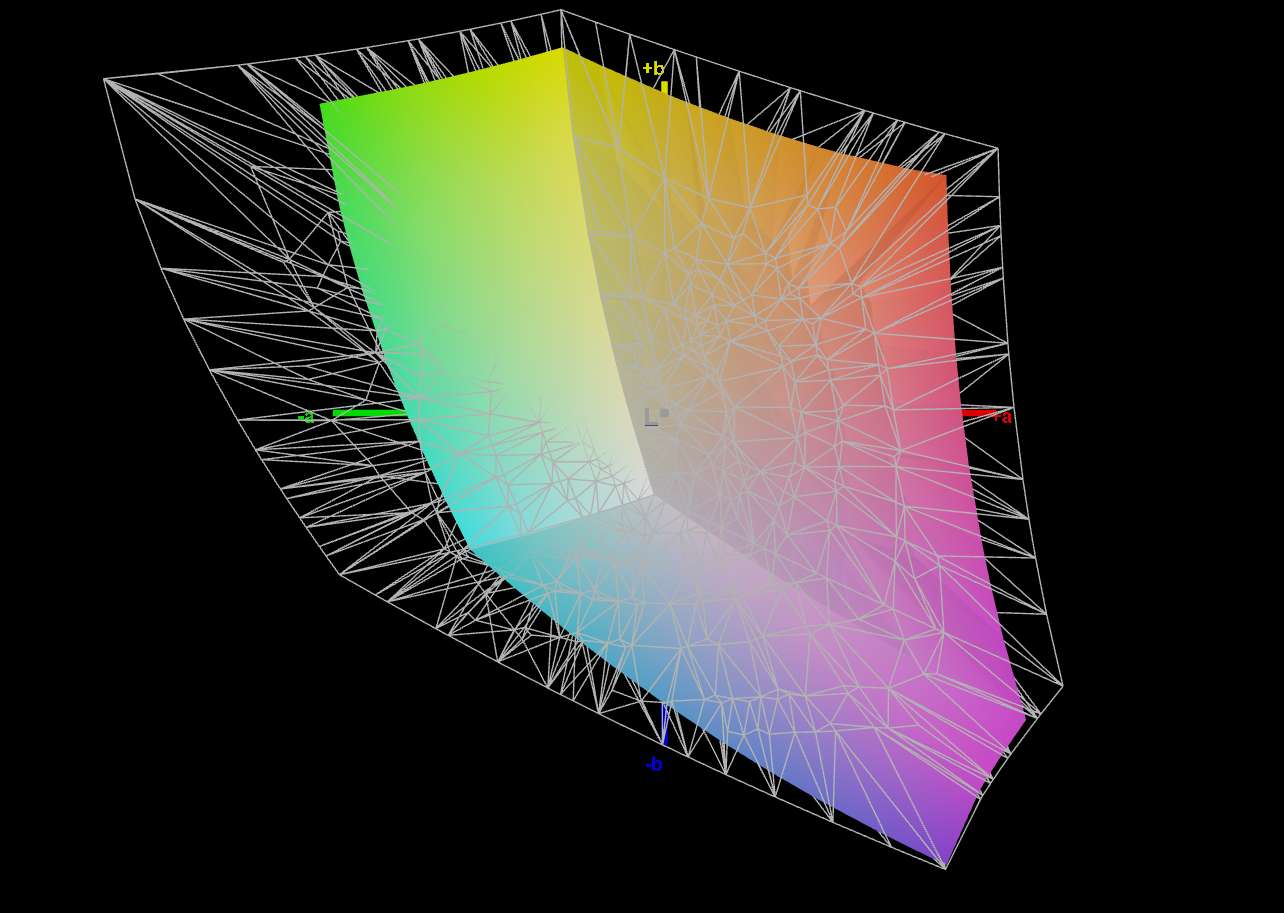

64% AdobeRGB 1998 (Argyll 2.2.0 3D)

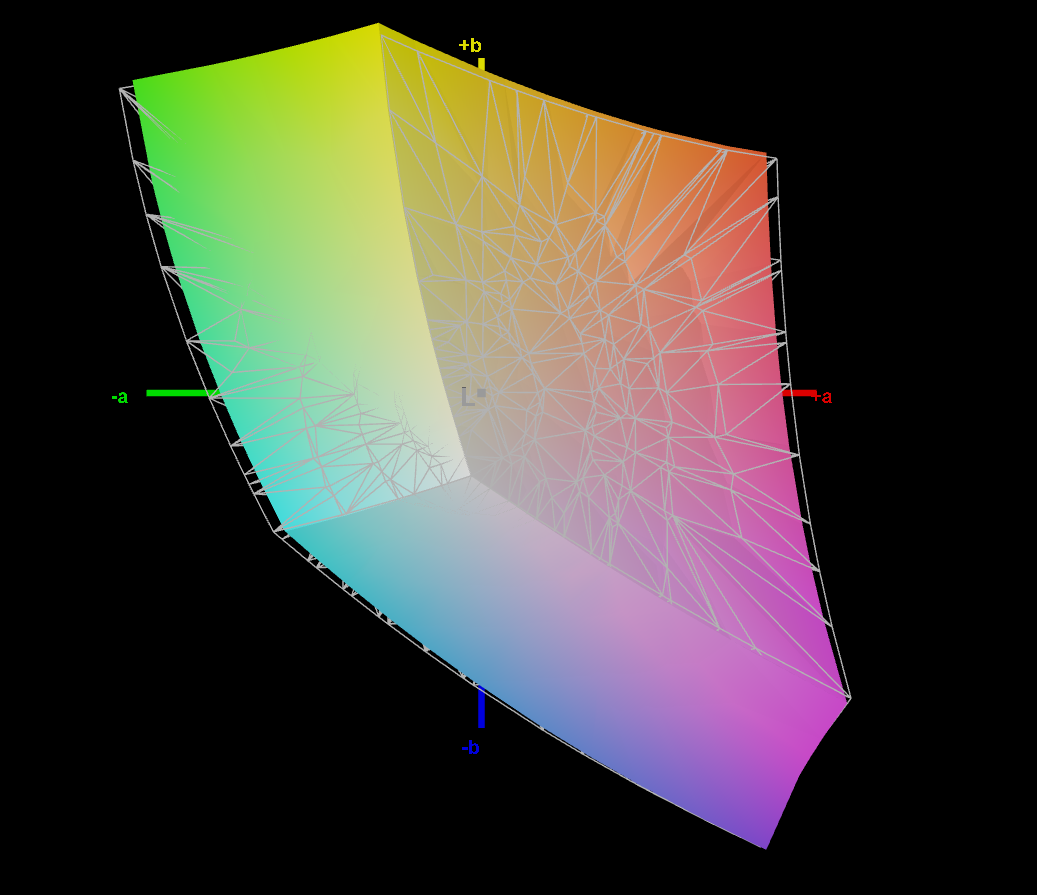

92.5% sRGB (Argyll 2.2.0 3D)

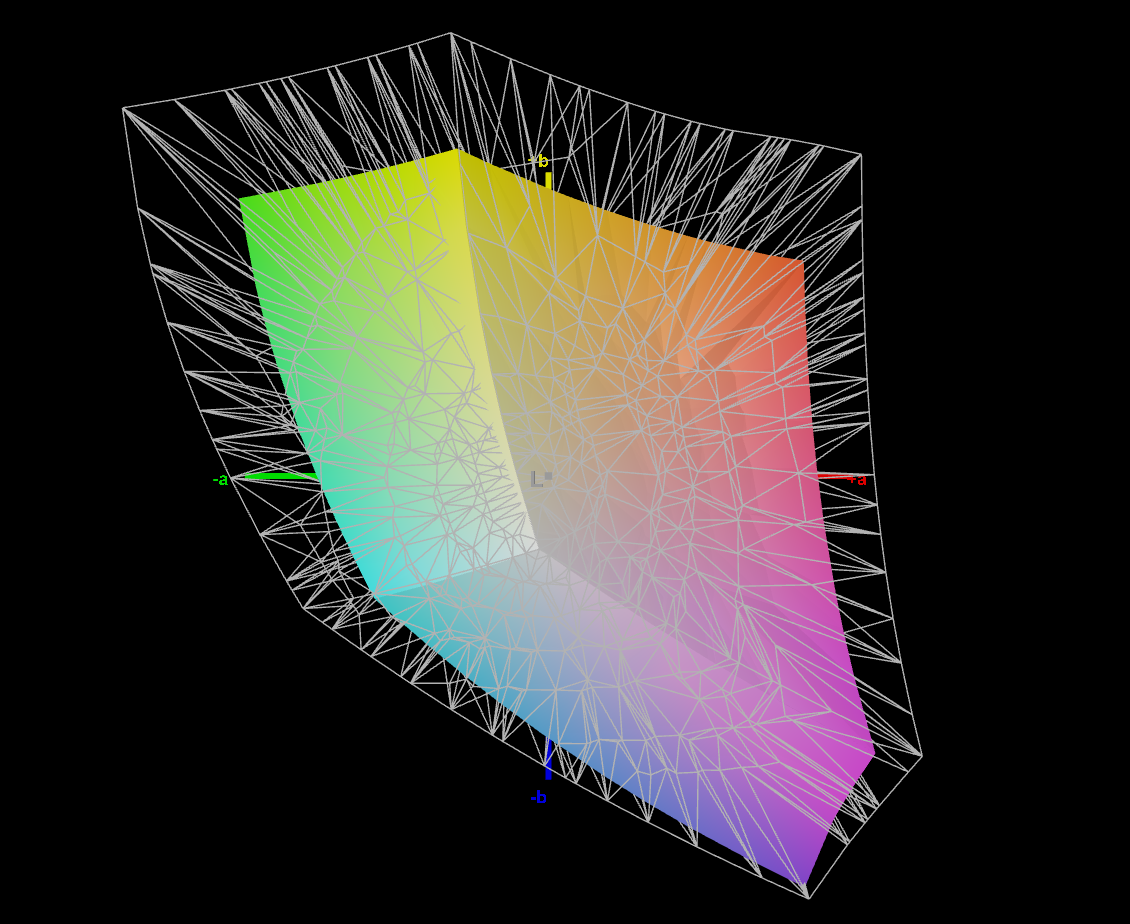

62% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.119
Asus Expertbook B5 Flip B5402F, i7-1360P
N140HCE-EN2, IPS, 1920x1080, 14"
HP Dragonfly G4
Chi Mei CMN13C0, IPS, 1920x1280, 13.5"
Asus ExpertBook B9 B9403CVA-KM0153X
ATNA40YK07-1 SDC4171, OLED, 2880x1800, 14"
Lenovo ThinkPad X1 Nano Gen 3
MND007ZA1-3, IPS, 2160x1350, 13"
Lenovo Yoga 9 14IRP G8
LEN140WQ+, OLED, 2880x1800, 14"
Lenovo Yoga 6 13 83B2001SGE
LEN133WUXGA, IPS, 1920x1200, 13.3"
Asus ExpertBook B5 Flip B5302FEA
N133HCE-EN2, IPS, 1920x1080, 13.3"
Display
9%
38%
9%
41%
10%
7%
Display P3 Coverage
62
68.4
10%
99.9
61%
68.5
10%
99.9
61%
69.9
13%
66.3
7%
sRGB Coverage
92.5
98.3
6%
100
8%
99.5
8%
100
8%
99.5
8%
98.9
7%
AdobeRGB 1998 Coverage
64
70.4
10%
93.6
46%
69.7
9%
98.3
54%
70
9%
68.5
7%

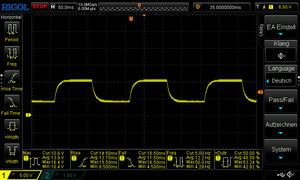

Response Times
-39%
93%
-14%
97%
62%
-4%

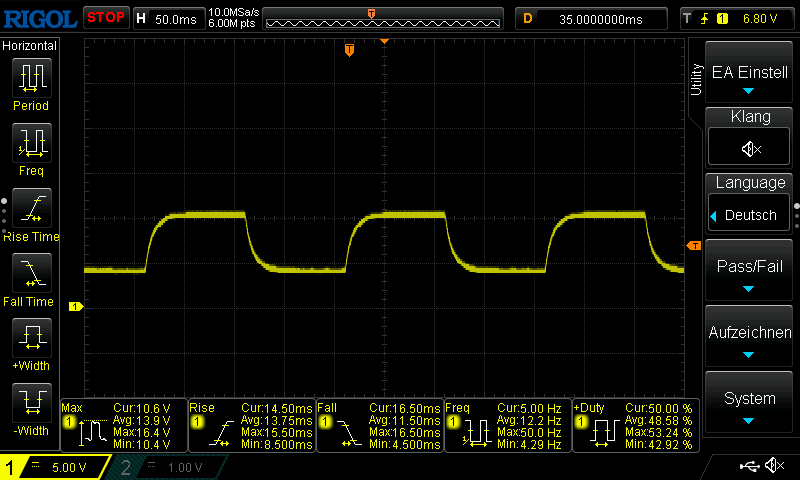

Response Time Grey 50% / Grey 80% *
31 ?(14.5, 16.5)
48.8 ?(22.9, 25.9)
-57%
2 ?(1, 1)
94%
39.9 ?(18.7, 21.2)
-29%
1.04 ?(0.57, 0.57)
97%
14 ?(1, 13)
55%
36 ?(17.2, 18.8)
-16%
Response Time Black / White *
26 ?(155, 10.5)
31.3 ?(16.3, 15)
-20%
2 ?(1, 1)
92%
25.8 ?(11.8, 14)
1%
0.95 ?(0.48, 0.47)
96%
8 ?(2, 6)
69%
23.6 ?(13.6, 10)
9%

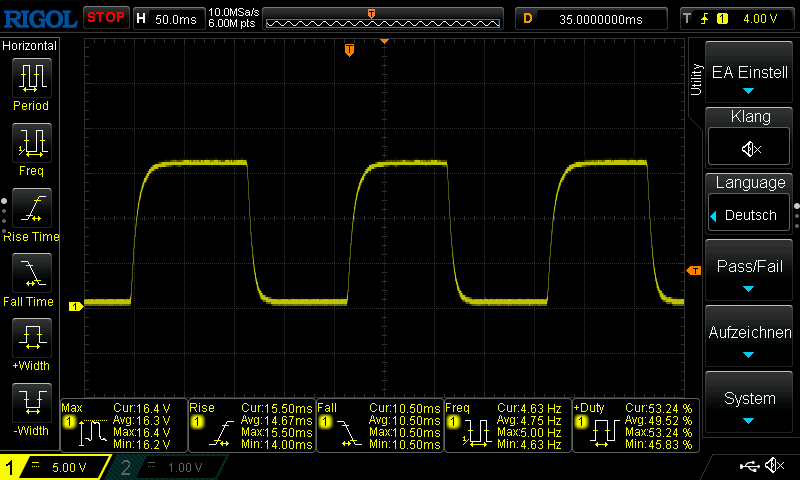

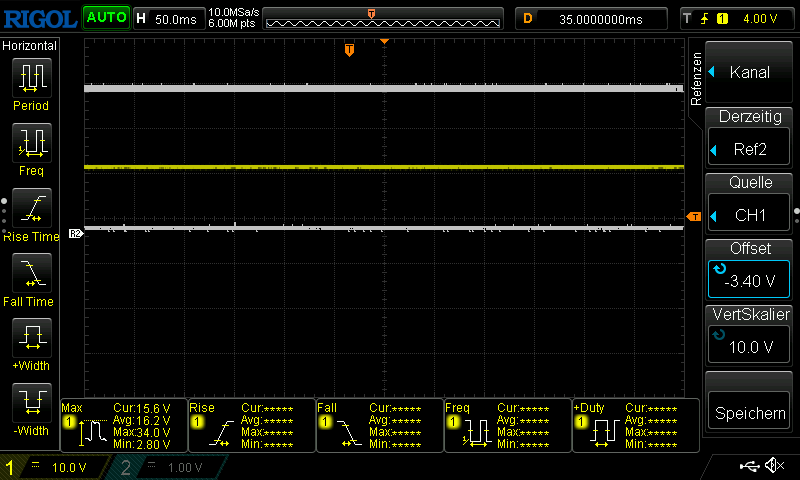

PWM Frequency
360 ?(100)
360 ?(86)
26600 ?(30)
Screen
3%
76%
16%
86%
-32%
1%
Brightness middle
373
408.8
10%
389.9
5%
461.2
24%
378
1%
278
-25%
299
-20%
Brightness
342
399
17%
390
14%
428
25%
379
11%
271
-21%
286
-16%
Brightness Distribution
85
90
6%
99
16%
86
1%
98
15%
94
11%
92
8%
Black Level *
0.2876
0.32
-11%
0.0497
83%
0.29
-1%
0.03
90%
0.25
13%
0.18
37%
Contrast
1297
1278
-1%
7845
505%
1590
23%
12600
871%
1112
-14%
1661
28%
Colorchecker dE 2000 *
1.7
2.02
-19%
2.22
-31%
1.79
-5%
2.5
-47%
3
-76%
1.9
-12%
Colorchecker dE 2000 max. *
3.55
3.84
-8%
3.75
-6%
3.3
7%
4.7
-32%
7.86
-121%
4.5
-27%
Colorchecker dE 2000 calibrated *
0.71
0.61
14%
0.47
34%
1.9
-168%
0.62
13%
0.6
15%
Greyscale dE 2000 *
2.93
2.3
22%
2.4
18%
1.8
39%
1.9
35%
5.04
-72%
3
-2%
Gamma
2.119 104%
2.2 100%
2.187 101%
2.24 98%
2.2 100%
2.46 89%
2.16 102%
CCT
6765 96%
6203 105%
6426 101%
6588 99%
6222 104%
6068 107%
6944 94%
Total Average (Program / Settings)
-9% / -2%
69% / 70%
4% / 10%
75% / 78%
13% / -10%
1% / 2%

* ... smaller is better

在我们使用 CalMAN 和 X-Rite i1 Pro 2 设备进行的测量中,我们测试的设备显示出较低的色彩偏差,这意味着它几乎可以完美地再现色彩。校准可以进一步减少这种轻微的色彩失真。您可以在上面免费下载我们的校准配置文件。

校准前的饱和度曲线
校准前的饱和度曲线
校准后的饱和度曲线
校准后的饱和度曲线
校准前的灰度曲线
校准前的灰度曲线
校准后的灰度曲线
校准后的灰度曲线
校准后的 ColorChecker
校准后的 ColorChecker

sRGB 色彩空间的覆盖率为 92.5%。
sRGB 色彩空间的覆盖率为 92.5%。
面板覆盖 64% 的 AdobeRGB 色彩空间。
面板覆盖 64% 的 AdobeRGB 色彩空间。
覆盖 62% 的 DCI-P3 色域。
覆盖 62% 的 DCI-P3 色域。

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.
       Response Time Black to White
26 ms ... rise ↗ and fall ↘ combined↗ 155 ms rise
↘ 10.5 ms fall
The screen shows relatively slow response rates in our tests and may be too slow for gamers.
In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 59 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (20.9 ms).
       Response Time 50% Grey to 80% Grey
31 ms ... rise ↗ and fall ↘ combined↗ 14.5 ms rise
↘ 16.5 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 38 % of all devices are better.
This means that the measured response time is similar to the average of all tested devices (32.8 ms).

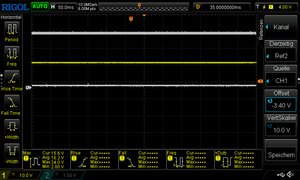

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM not detected

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8706 (minimum: 5 - maximum: 343500) Hz was measured.

如前所述,升级版的屏幕亮度有了显著提高,因此更适合户外使用。显示屏达到了 342.1 cd/m² 的极高亮度,亮度相对均匀地分布在整个屏幕区域。亮度的提高加上其抗反射表面,使该设备在强光下也能有效使用。我们曾希望上一代机型能提高显示屏亮度 上一个型号.

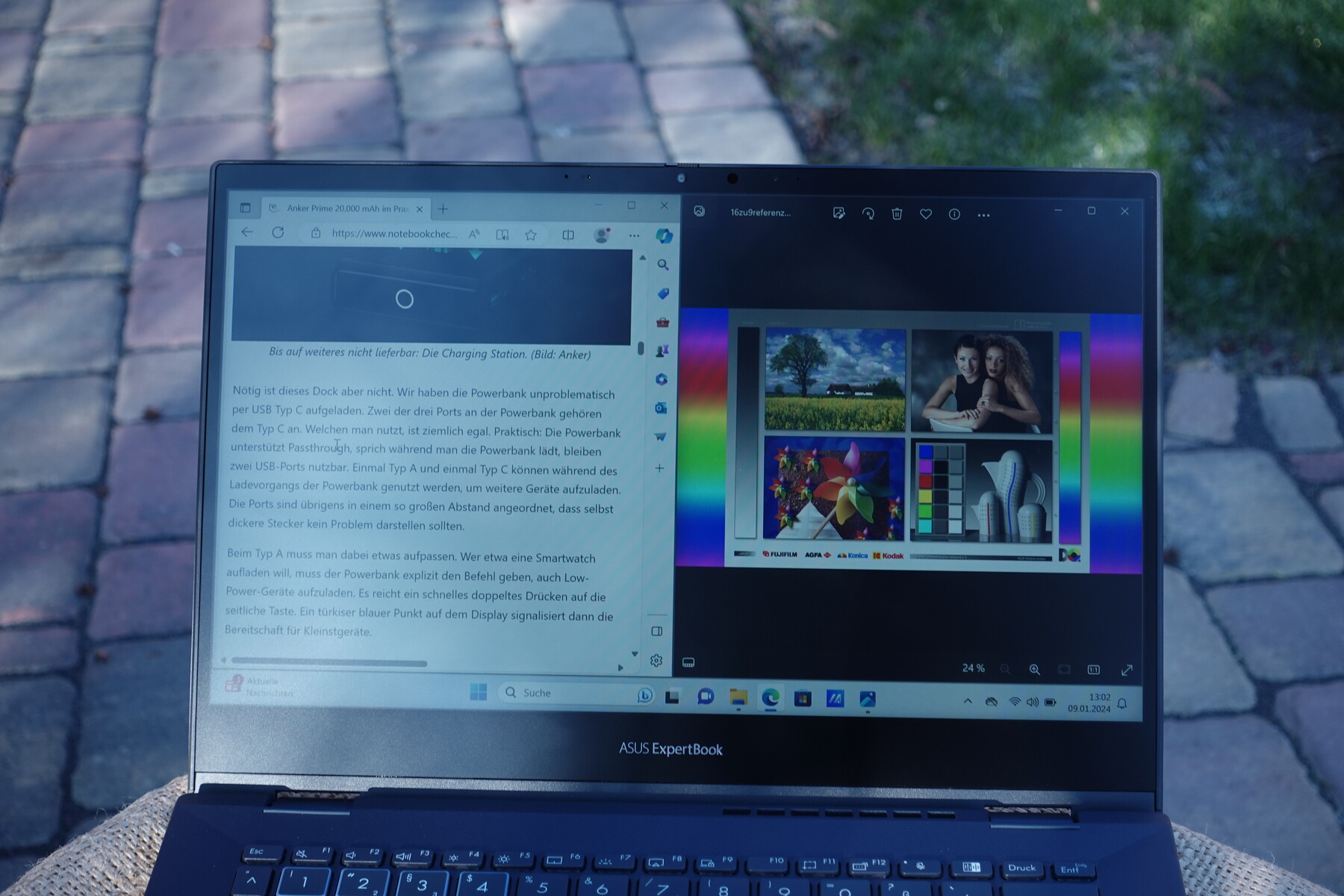

华硕专家本 B5 Flip B5402F 在户外使用时的情况
华硕专家本 B5 Flip B5402F 在户外使用时的情况

与 IPS 面板一样,它的可视角度即使大幅调整也能保持稳定。由于该机型的市场定位是商务笔记本电脑,还可以借助帐篷模式等功能在显示屏上向同事展示内容、统计数据或类似信息,因此屏幕的稳定视角是一个优势。

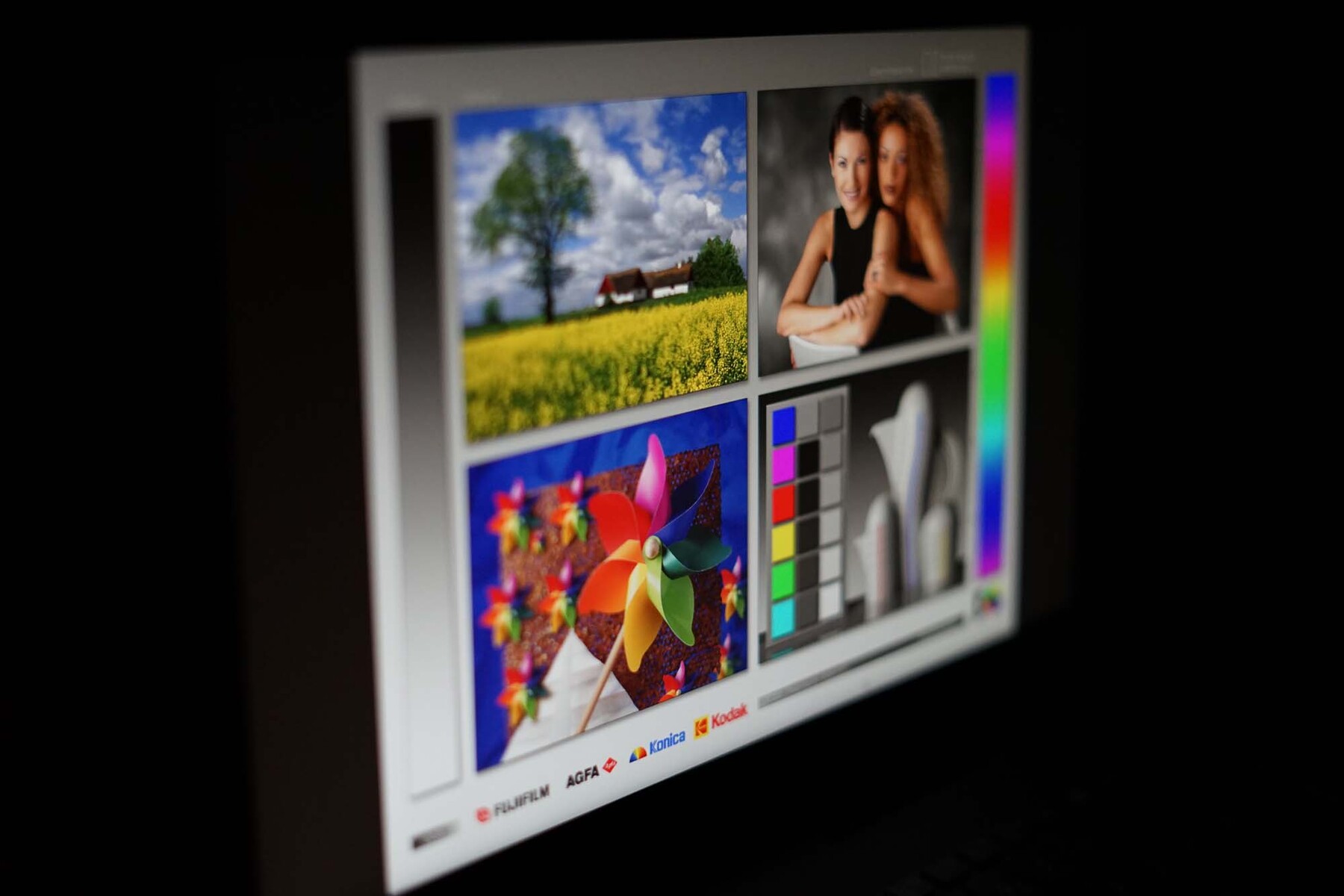

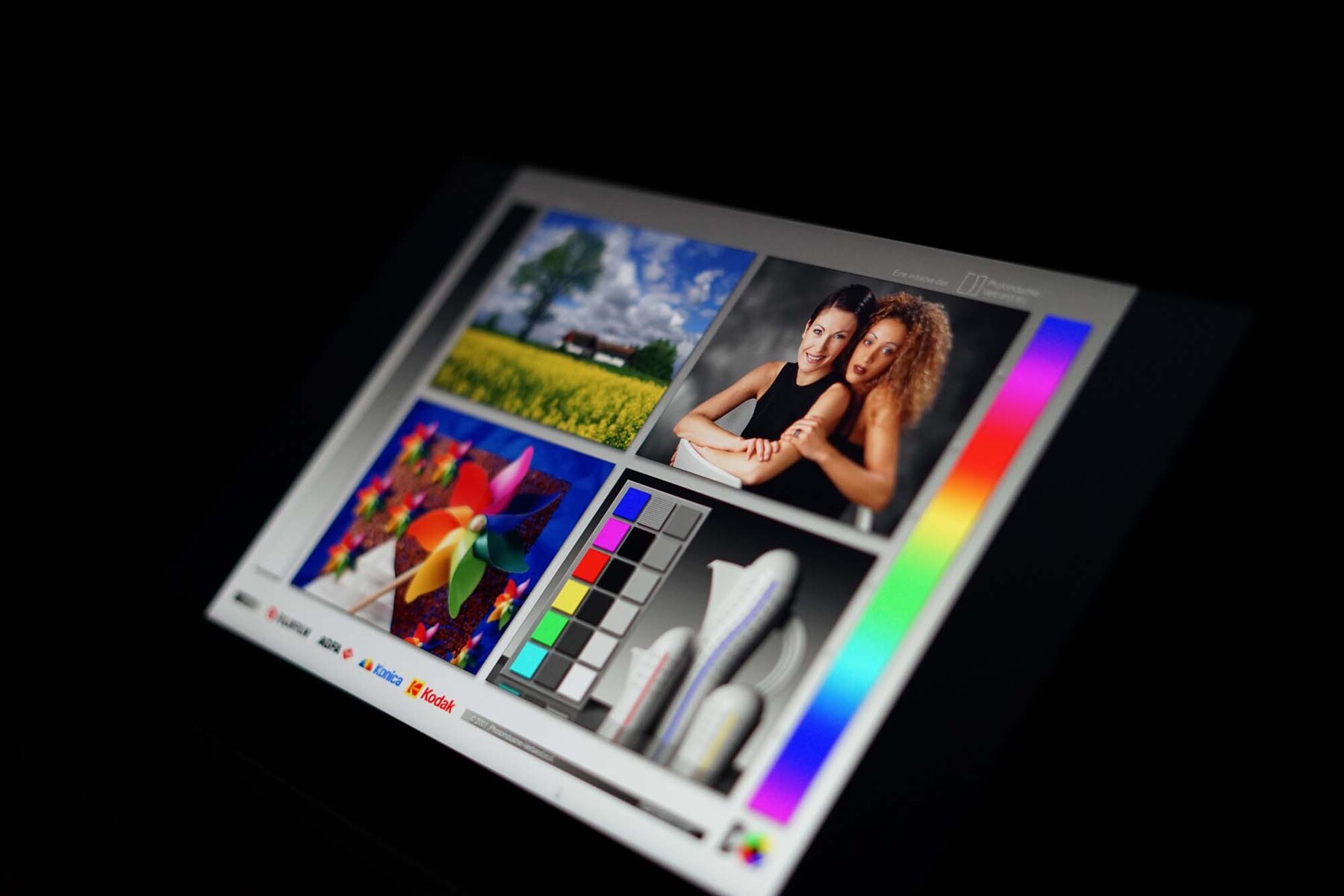

视角
视角
视角
视角
视角
视角

性能:始终保持稳健到非常好的结果

在测试过程中,与前代车型相比 相比新设备有了明显的改进。与竞争对手相比,只有 联想 Yoga 9 14IRP G8能取得更好的平均成绩。Cinebench 和 Geekbench 基准测试表明,华硕可折叠本在单核心和多核心性能方面与其他顶级产品并驾齐驱。因此,在这方面没有什么可抱怨的,ExpertBook B5 Flip B5402F 的性能通常优于 联想 ThinkPad X1 Nano Gen 3惠普蜻蜓 G4、华硕 华硕ExpertBook B9联想 Yoga 6 13.

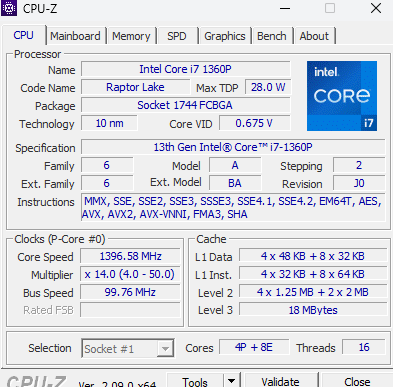

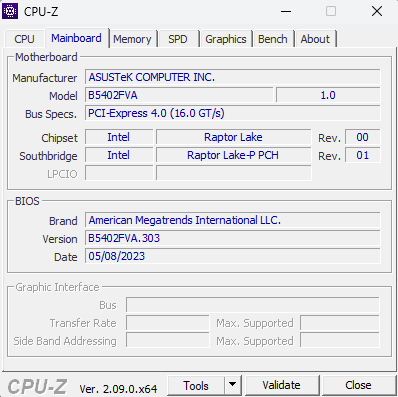

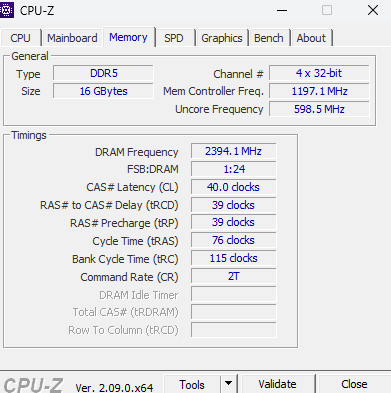

CPU-Z
CPU-Z
CPU-Z
CPU-Z

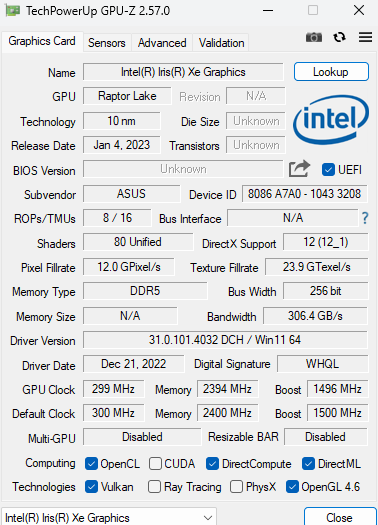

GPU-Z

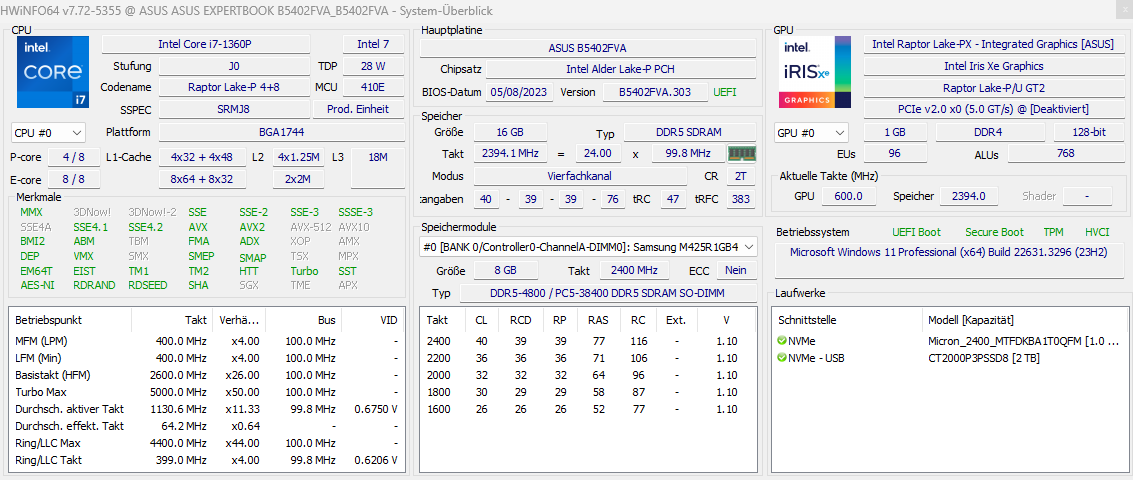

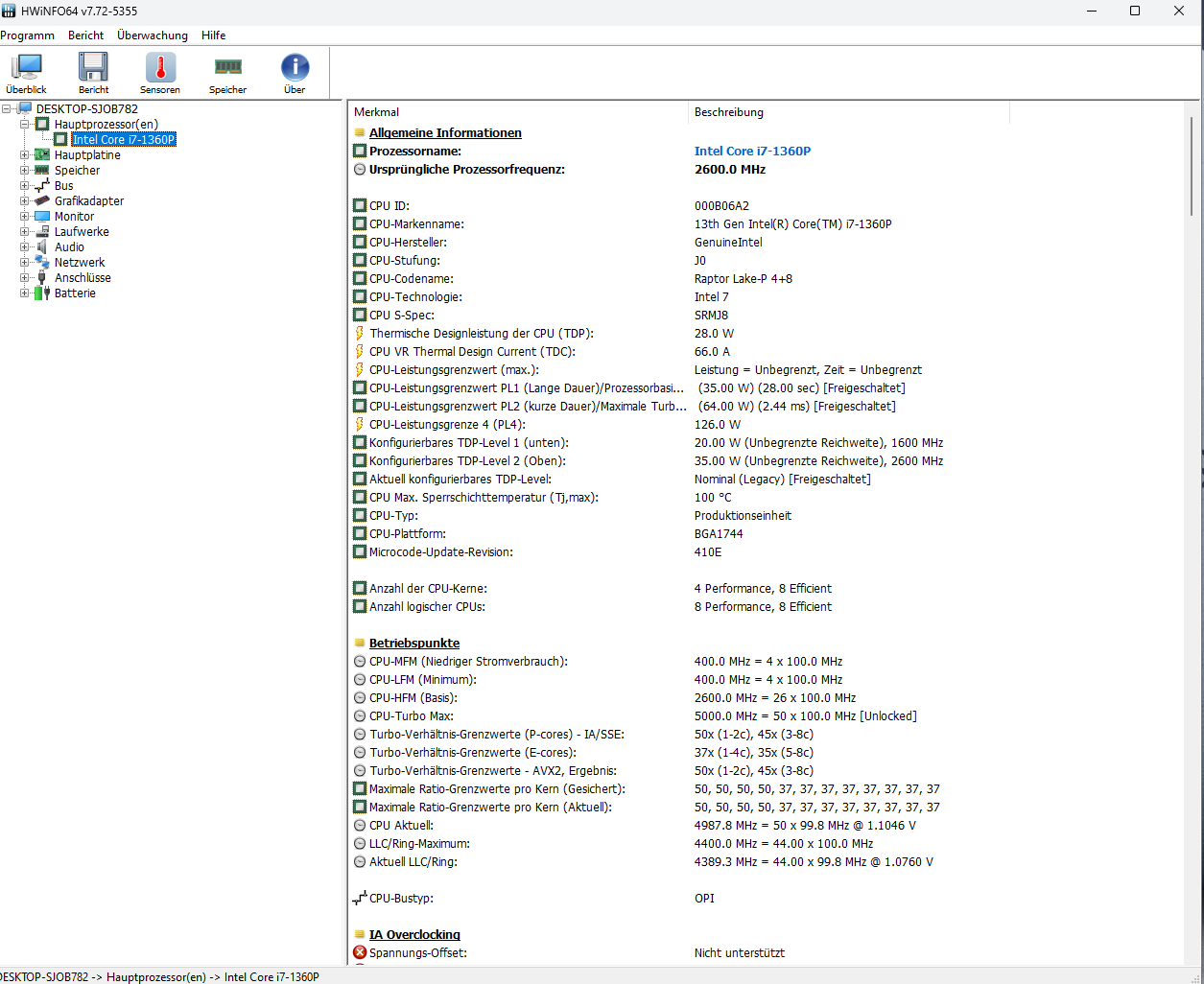

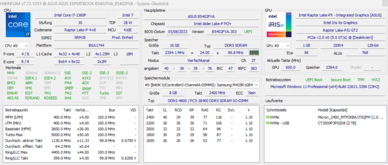

HWInfo
HWInfo


测试条件

用户无法调整其 TDP,My Asus 软件也只允许调整风扇转速。另外,只有各种 Windows 电源模式可用。TDP 分别为 18 瓦(PL1)和 65 瓦(PL2)。在性能模式下,风扇的声音会相对较大,因此建议在办公室使用节能模式或平衡模式。

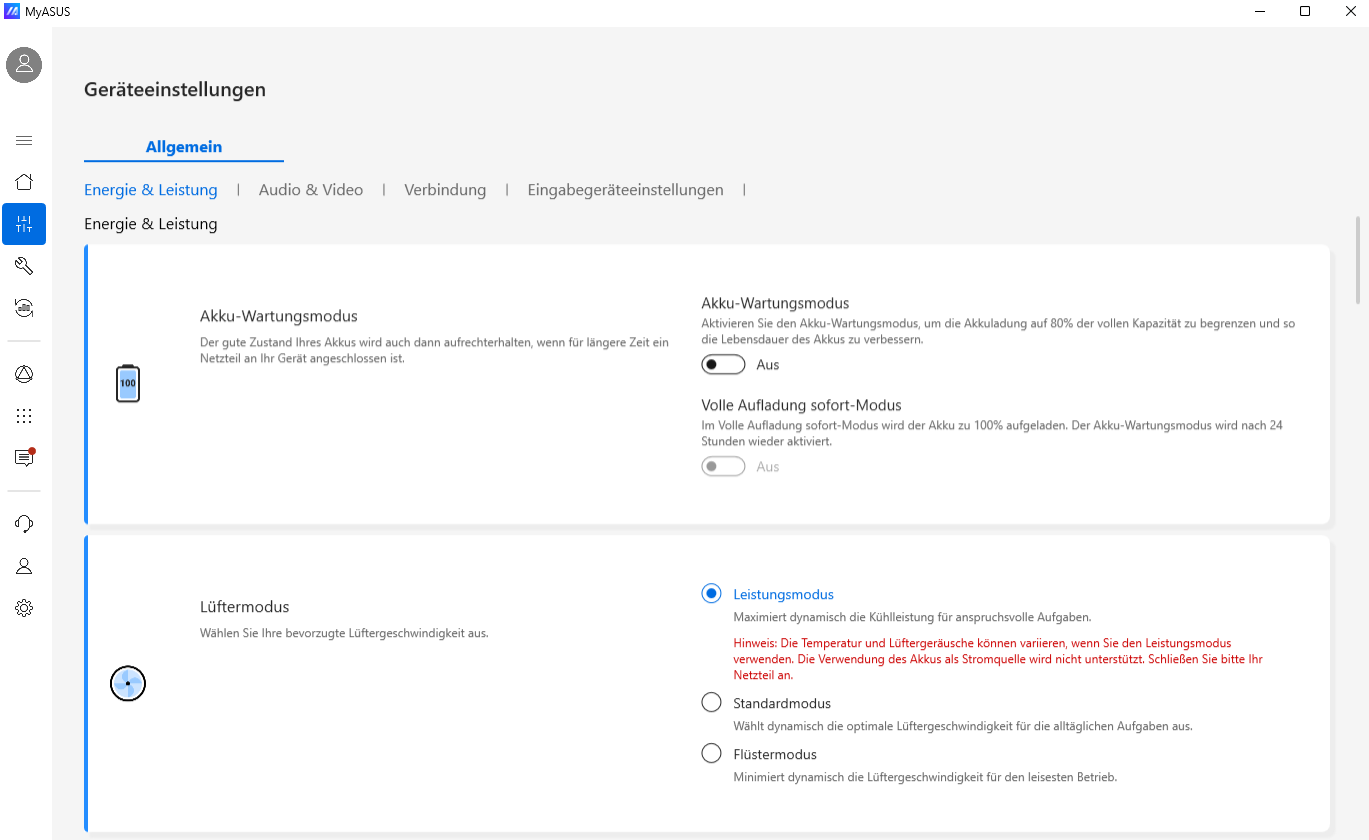

MyAsus 应用程序
MyAsus 应用程序

处理器

在目前的 Expertbook B5 Flip B5402F 中,华硕采用了英特尔酷睿 i7-1360P。这是一款来自 Raptor Lake P 系列的高端 CPU,拥有四个性能核心和八个效率核心。该机型没有安装专用显卡,而是依靠集成的Intel Iris Xe 96 EUs。.它配备 16GB DDR5-4800 内存。

Cinebench R15 Loop 显示,第四次运行后性能下降幅度较大,但随后保持稳定。与 联想 Yoga 9 14IRP G8进行比较,发现在这方面还可以做得更好。第四次运行后,其核心温度平均为 66°C,因此仍有一定的改进空间。与 联想 ThinkPad X1 Nano Gen 3相比,华硕 Expertbook B5 Flip 采用的相同处理器性能更好,但在第四次运行后性能仍不稳定。不过,采用AMD Ryzen 7 7730U 的 AMD 变体联想 Yoga 6 13在 Cinebench 循环中表现更好。

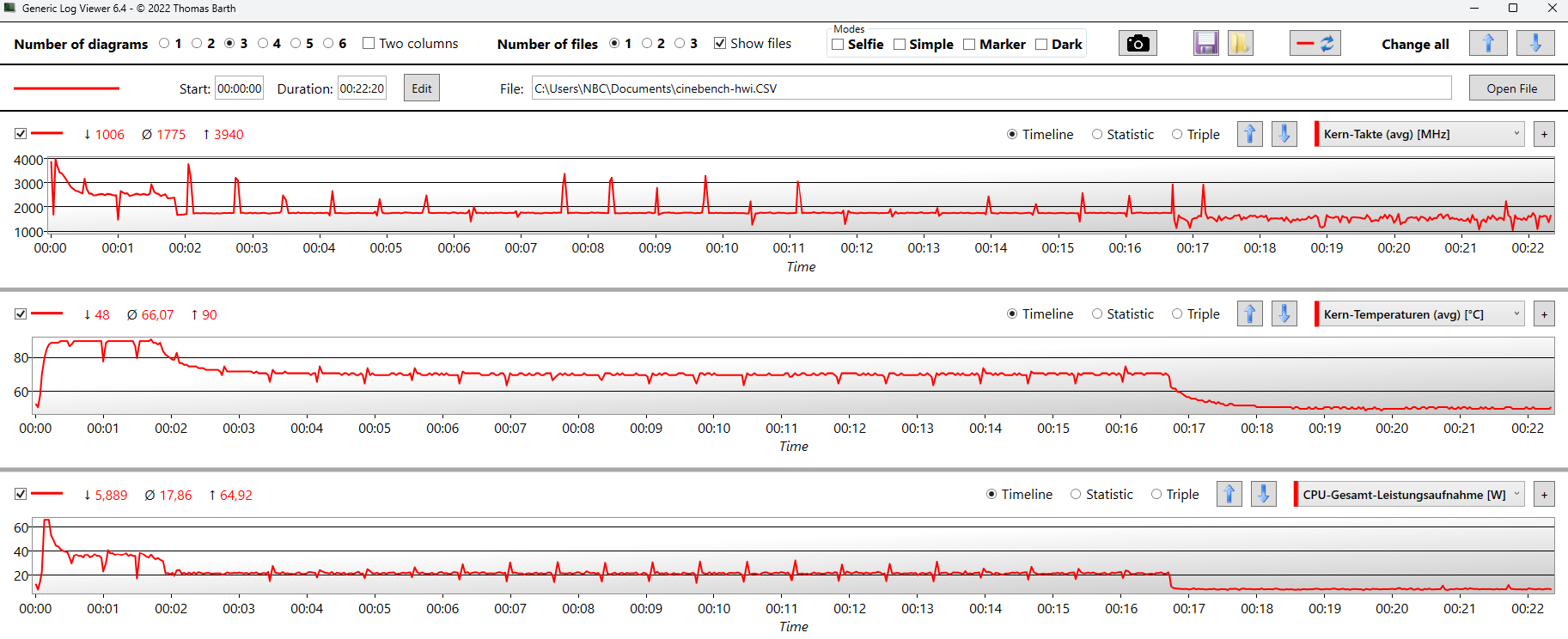

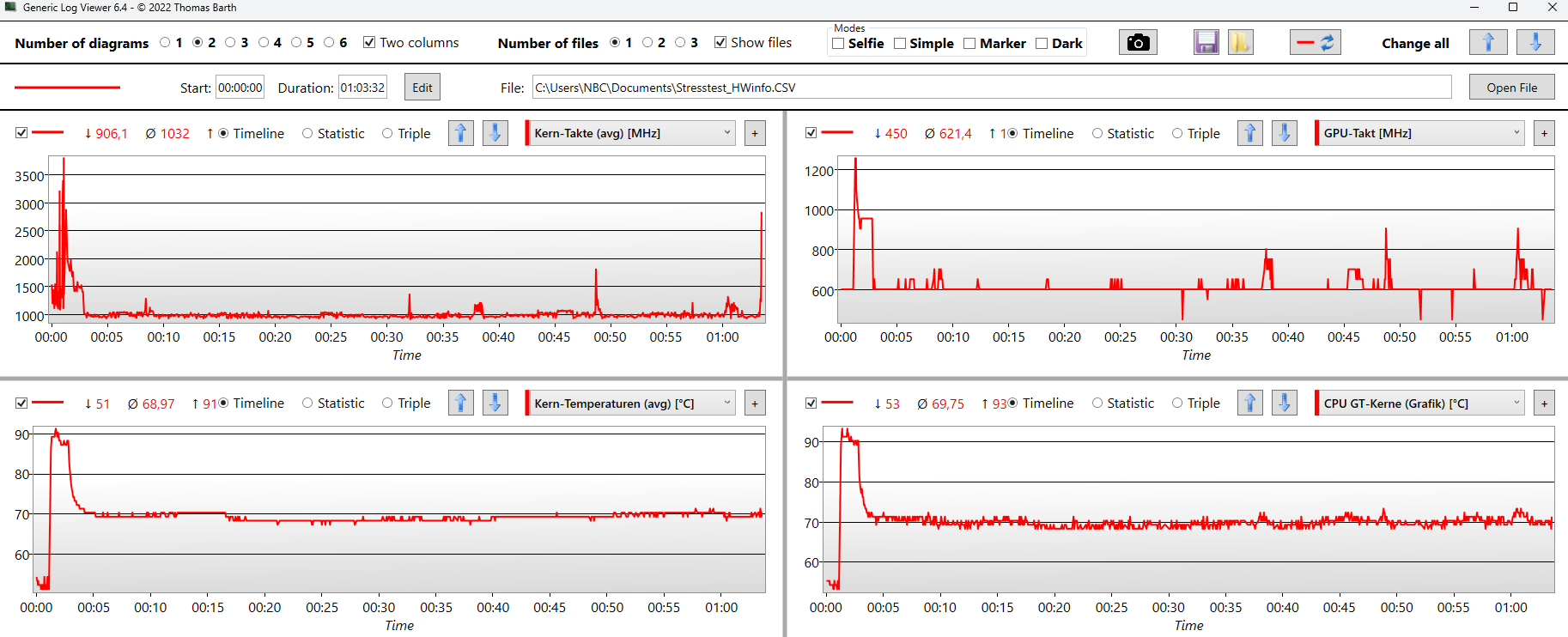

英特尔处理器的时钟频率在 Cinebench 运行开始时曾短暂达到 3.9 GHz,但随后迅速下降,在低于 1.8 GHz 时趋于平稳,偶尔会在 3.1 至 3.3 GHz 范围内达到峰值。

Cinebench R15 Multi continuous test

01102203304405506607708809901100121013201430154016501760187019802090Tooltip
Asus Expertbook B5 Flip B5402F, i7-1360P Intel Core i7-1360P: Ø1163 (1052.3-1797.03)
HP Dragonfly G4 Intel Core i7-1365U: Ø1060 (1014.74-1347.89)
Asus ExpertBook B9 B9403CVA-KM0153X Intel Core i7-1355U: Ø1148 (1115.36-1328.11)
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P: Ø1109 (808.08-1572.33)
Lenovo Yoga 9 14IRP G8 Intel Core i7-1360P: Ø1703 (1611.41-2114.84)
Lenovo Yoga 6 13 83B2001SGE AMD Ryzen 7 7730U: Ø1419 (1265.06-1588.12)
Asus ExpertBook B5 Flip B5302FEA Intel Core i5-1135G7: Ø750 (702.58-902.47)
CPU 数据 Cinebench R15 多回路
CPU 数据 Cinebench R15 多回路
CPU Performance Rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 6.3: Multi-Core | Single-Core
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
CPU Performance Rating
Lenovo Yoga 9 14IRP G8 -2!
Intel Core i7-1360P
84.4 pt
Asus Expertbook B5 Flip B5402F, i7-1360P
Intel Core i7-1360P
79.6 pt
Average Intel Core i7-1360P

79.4 pt
Lenovo ThinkPad X1 Nano Gen 3
Intel Core i7-1360P
73.8 pt
HP Dragonfly G4 -2!
Intel Core i7-1365U
69.4 pt
Average of class Office

68.1 pt
Asus ExpertBook B9 B9403CVA-KM0153X
Intel Core i7-1355U
67.8 pt
Lenovo Yoga 6 13 83B2001SGE -2!
AMD Ryzen 7 7730U
62.9 pt
Asus ExpertBook B5 Flip B5302FEA -2!
Intel Core i5-1135G7
45.9 pt
Cinebench R23 / Multi Core
Lenovo Yoga 9 14IRP G8
Intel Core i7-1360P
11922 Points +4%
Asus Expertbook B5 Flip B5402F, i7-1360P
Intel Core i7-1360P
11461 Points
Average Intel Core i7-1360P
  (6390 - 12637, n=16)
10472 Points -9%
Average of class Office
  (1577 - 15743, n=92, last 2 years)
9389 Points -18%
Lenovo ThinkPad X1 Nano Gen 3
Intel Core i7-1360P
8198 (6706.67min - 8197.58max) Points -28%
Asus ExpertBook B9 B9403CVA-KM0153X
Intel Core i7-1355U
7733 Points -33%
HP Dragonfly G4
Intel Core i7-1365U
7532 (5307.67min - 7531.78max) Points -34%
Lenovo Yoga 6 13 83B2001SGE
AMD Ryzen 7 7730U
7286 Points -36%
Asus ExpertBook B5 Flip B5302FEA
Intel Core i5-1135G7
5514 Points -52%
Cinebench R23 / Single Core
HP Dragonfly G4
Intel Core i7-1365U
1891 Points +4%
Lenovo Yoga 9 14IRP G8
Intel Core i7-1360P
1877 Points +4%
Asus Expertbook B5 Flip B5402F, i7-1360P
Intel Core i7-1360P
1810 Points
Average Intel Core i7-1360P
  (1596 - 1909, n=16)
1787 Points -1%
Lenovo ThinkPad X1 Nano Gen 3
Intel Core i7-1360P
1704 Points -6%
Asus ExpertBook B9 B9403CVA-KM0153X
Intel Core i7-1355U
1687 Points -7%
Average of class Office
  (618 - 1995, n=92, last 2 years)
1559 Points -14%
Asus ExpertBook B5 Flip B5302FEA
Intel Core i5-1135G7
1355 Points -25%
Lenovo Yoga 6 13 83B2001SGE
AMD Ryzen 7 7730U
1335 Points -26%
Cinebench R20 / CPU (Multi Core)
Lenovo Yoga 9 14IRP G8
Intel Core i7-1360P
4472 Points +8%
Asus Expertbook B5 Flip B5402F, i7-1360P
Intel Core i7-1360P
4131 Points
Average Intel Core i7-1360P
  (2474 - 4887, n=16)
4033 Points -2%
Average of class Office
  (590 - 5980, n=91, last 2 years)
3640 Points -12%
Lenovo ThinkPad X1 Nano Gen 3
Intel Core i7-1360P
3526 Points -15%
Asus ExpertBook B9 B9403CVA-KM0153X
Intel Core i7-1355U
2959 Points -28%
HP Dragonfly G4
Intel Core i7-1365U
2902 Points -30%
Lenovo Yoga 6 13 83B2001SGE
AMD Ryzen 7 7730U
2849 Points -31%
Asus ExpertBook B5 Flip B5302FEA
Intel Core i5-1135G7
2030 Points -51%
Cinebench R20 / CPU (Single Core)
Lenovo Yoga 9 14IRP G8
Intel Core i7-1360P
727 Points +1%
Asus Expertbook B5 Flip B5402F, i7-1360P
Intel Core i7-1360P
720 Points
HP Dragonfly G4
Intel Core i7-1365U
703 Points -2%
Average Intel Core i7-1360P
  (611 - 736, n=16)
689 Points -4%
Lenovo ThinkPad X1 Nano Gen 3
Intel Core i7-1360P
668 Points -7%
Asus ExpertBook B9 B9403CVA-KM0153X
Intel Core i7-1355U
660 Points -8%
Average of class Office
  (229 - 766, n=91, last 2 years)
604 Points -16%
Lenovo Yoga 6 13 83B2001SGE
AMD Ryzen 7 7730U
533 Points -26%
Asus ExpertBook B5 Flip B5302FEA
Intel Core i5-1135G7
522 Points -27%
Cinebench R15 / CPU Multi 64Bit
Lenovo Yoga 9 14IRP G8
Intel Core i7-1360P
2115 (1611.41min - 2114.84max) Points +18%
Asus Expertbook B5 Flip B5402F, i7-1360P
Intel Core i7-1360P
1797 (1052.3min - 1797.03max) Points
Average Intel Core i7-1360P
  (1079 - 2214, n=16)
1793 Points 0%
Lenovo Yoga 6 13 83B2001SGE
AMD Ryzen 7 7730U
1588 (1265.06min - 1588.12max) Points -12%
Lenovo ThinkPad X1 Nano Gen 3
Intel Core i7-1360P
1572 (808.08min - 1572.33max) Points -13%
Average of class Office
  (246 - 2642, n=94, last 2 years)
1572 Points -13%
HP Dragonfly G4
Intel Core i7-1365U
1348 (1014.74min - 1347.89max) Points -25%
Asus ExpertBook B9 B9403CVA-KM0153X
Intel Core i7-1355U
1328 (1115.36min - 1328.11max) Points -26%
Asus ExpertBook B5 Flip B5302FEA
Intel Core i5-1135G7
902 (702.58min - 902.47max) Points -50%
Cinebench R15 / CPU Single 64Bit
Lenovo Yoga 9 14IRP G8
Intel Core i7-1360P
271 Points +37%
HP Dragonfly G4
Intel Core i7-1365U
261 Points +32%
Average Intel Core i7-1360P
  (180 - 271, n=16)
248 Points +26%
Asus ExpertBook B9 B9403CVA-KM0153X
Intel Core i7-1355U
241 Points +22%
Lenovo ThinkPad X1 Nano Gen 3
Intel Core i7-1360P
239 Points +21%
Average of class Office
  (98 - 284, n=93, last 2 years)
230 Points +17%
Lenovo Yoga 6 13 83B2001SGE
AMD Ryzen 7 7730U
221 Points +12%
Asus ExpertBook B5 Flip B5302FEA
Intel Core i5-1135G7
201 Points +2%
Asus Expertbook B5 Flip B5402F, i7-1360P
Intel Core i7-1360P
197.3 Points
Blender / v2.79 BMW27 CPU
Asus ExpertBook B5 Flip B5302FEA
Intel Core i5-1135G7
595 Seconds * -64%
HP Dragonfly G4
Intel Core i7-1365U
430 Seconds * -18%
Average of class Office
  (208 - 1956, n=93, last 2 years)
419 Seconds * -15%
Asus ExpertBook B9 B9403CVA-KM0153X
Intel Core i7-1355U
411 Seconds * -13%
Lenovo ThinkPad X1 Nano Gen 3
Intel Core i7-1360P
381 Seconds * -5%
Lenovo Yoga 6 13 83B2001SGE
AMD Ryzen 7 7730U
374 Seconds * -3%
Asus Expertbook B5 Flip B5402F, i7-1360P
Intel Core i7-1360P
363 Seconds *
Average Intel Core i7-1360P
  (268 - 496, n=17)
331 Seconds * +9%
Lenovo Yoga 9 14IRP G8
Intel Core i7-1360P
289 Seconds * +20%
7-Zip 18.03 / 7z b 4
Lenovo Yoga 9 14IRP G8
Intel Core i7-1360P
47518 MIPS +16%
Average Intel Core i7-1360P
  (26534 - 52959, n=16)
42429 MIPS +3%
Asus Expertbook B5 Flip B5402F, i7-1360P
Intel Core i7-1360P
41045 MIPS
Lenovo Yoga 6 13 83B2001SGE
AMD Ryzen 7 7730U
40263 MIPS -2%
Average of class Office
  (7532 - 65460, n=94, last 2 years)
38993 MIPS -5%
Asus ExpertBook B9 B9403CVA-KM0153X
Intel Core i7-1355U
34784 MIPS -15%
HP Dragonfly G4
Intel Core i7-1365U
33476 MIPS -18%
Lenovo ThinkPad X1 Nano Gen 3
Intel Core i7-1360P
33022 MIPS -20%
Asus ExpertBook B5 Flip B5302FEA
Intel Core i5-1135G7
23822 MIPS -42%
7-Zip 18.03 / 7z b 4 -mmt1
Asus Expertbook B5 Flip B5402F, i7-1360P
Intel Core i7-1360P
5908 MIPS
Lenovo Yoga 9 14IRP G8
Intel Core i7-1360P
5863 MIPS -1%
HP Dragonfly G4
Intel Core i7-1365U
5835 MIPS -1%
Lenovo ThinkPad X1 Nano Gen 3
Intel Core i7-1360P
5756 MIPS -3%
Average Intel Core i7-1360P
  (4647 - 5973, n=16)
5625 MIPS -5%
Asus ExpertBook B9 B9403CVA-KM0153X
Intel Core i7-1355U
5393 MIPS -9%
Average of class Office
  (2972 - 6687, n=93, last 2 years)
5253 MIPS -11%
Lenovo Yoga 6 13 83B2001SGE
AMD Ryzen 7 7730U
5222 MIPS -12%
Asus ExpertBook B5 Flip B5302FEA
Intel Core i5-1135G7
4760 MIPS -19%
Geekbench 6.3 / Multi-Core
Asus Expertbook B5 Flip B5402F, i7-1360P
Intel Core i7-1360P
11781 Points
Lenovo ThinkPad X1 Nano Gen 3
Intel Core i7-1360P
11667 Points -1%
Average Intel Core i7-1360P
  (8909 - 11781, n=11)
10779 Points -9%
Asus ExpertBook B9 B9403CVA-KM0153X
Intel Core i7-1355U
8880 Points -25%
Average of class Office
  (662 - 14767, n=66, last 2 years)
8656 Points -27%
Geekbench 6.3 / Single-Core
Asus Expertbook B5 Flip B5402F, i7-1360P
Intel Core i7-1360P
2600 Points
Lenovo ThinkPad X1 Nano Gen 3
Intel Core i7-1360P
2528 Points -3%
Asus ExpertBook B9 B9403CVA-KM0153X
Intel Core i7-1355U
2500 Points -4%
Average Intel Core i7-1360P
  (2003 - 2646, n=11)
2497 Points -4%
Average of class Office
  (457 - 2769, n=65, last 2 years)
2172 Points -16%
Geekbench 5.5 / Multi-Core
Lenovo Yoga 9 14IRP G8
Intel Core i7-1360P
10785 Points +38%
Lenovo ThinkPad X1 Nano Gen 3
Intel Core i7-1360P
9678 Points +24%
Average Intel Core i7-1360P
  (7549 - 10817, n=17)
9644 Points +23%
HP Dragonfly G4
Intel Core i7-1365U
8778 Points +12%
Asus Expertbook B5 Flip B5402F, i7-1360P
Intel Core i7-1360P
7828 Points
Asus ExpertBook B9 B9403CVA-KM0153X
Intel Core i7-1355U
7635 Points -2%
Average of class Office
  (1018 - 11980, n=93, last 2 years)
7588 Points -3%
Lenovo Yoga 6 13 83B2001SGE
AMD Ryzen 7 7730U
7423 Points -5%
Asus ExpertBook B5 Flip B5302FEA
Intel Core i5-1135G7
4450 Points -43%
Geekbench 5.5 / Single-Core
HP Dragonfly G4
Intel Core i7-1365U
1902 Points +3%
Asus Expertbook B5 Flip B5402F, i7-1360P
Intel Core i7-1360P
1849 Points
Lenovo ThinkPad X1 Nano Gen 3
Intel Core i7-1360P
1804 Points -2%
Lenovo Yoga 9 14IRP G8
Intel Core i7-1360P
1790 Points -3%
Average Intel Core i7-1360P
  (1435 - 1871, n=17)
1788 Points -3%
Asus ExpertBook B9 B9403CVA-KM0153X
Intel Core i7-1355U
1740 Points -6%
Average of class Office
  (510 - 1995, n=94, last 2 years)
1584 Points -14%
Lenovo Yoga 6 13 83B2001SGE
AMD Ryzen 7 7730U
1471 Points -20%
Asus ExpertBook B5 Flip B5302FEA
Intel Core i5-1135G7
1369 Points -26%
HWBOT x265 Benchmark v2.2 / 4k Preset
Lenovo Yoga 9 14IRP G8
Intel Core i7-1360P
13 fps +6%
Asus Expertbook B5 Flip B5402F, i7-1360P
Intel Core i7-1360P
12.3 fps
Average Intel Core i7-1360P
  (6.9 - 14.2, n=16)
11.6 fps -6%
Average of class Office
  (1.72 - 18.7, n=91, last 2 years)
10.5 fps -15%
Lenovo ThinkPad X1 Nano Gen 3
Intel Core i7-1360P
10.1 fps -18%
Lenovo Yoga 6 13 83B2001SGE
AMD Ryzen 7 7730U
9.91 fps -19%
Asus ExpertBook B9 B9403CVA-KM0153X
Intel Core i7-1355U
8.88 fps -28%
HP Dragonfly G4
Intel Core i7-1365U
8.61 fps -30%
Asus ExpertBook B5 Flip B5302FEA
Intel Core i5-1135G7
5.83 fps -53%
LibreOffice / 20 Documents To PDF
Average of class Office
  (31.3 - 129.6, n=91, last 2 years)
53.5 s * -18%
Asus ExpertBook B5 Flip B5302FEA
Intel Core i5-1135G7
52.7 s * -17%
Asus ExpertBook B9 B9403CVA-KM0153X
Intel Core i7-1355U
52.3 s * -16%
Lenovo ThinkPad X1 Nano Gen 3
Intel Core i7-1360P
51.1 s * -13%
Lenovo Yoga 6 13 83B2001SGE
AMD Ryzen 7 7730U
48.4 s * -7%
Lenovo Yoga 9 14IRP G8
Intel Core i7-1360P
47.5 s * -5%
Average Intel Core i7-1360P
  (40.3 - 57.2, n=16)
45.8 s * -1%
HP Dragonfly G4
Intel Core i7-1365U
45.3 s * -0%
Asus Expertbook B5 Flip B5402F, i7-1360P
Intel Core i7-1360P
45.2 s *
R Benchmark 2.5 / Overall mean
Asus ExpertBook B5 Flip B5302FEA
Intel Core i5-1135G7
0.629 sec * -37%
Average of class Office
  (0.4244 - 1.135, n=90, last 2 years)
0.548 sec * -19%
Lenovo Yoga 6 13 83B2001SGE
AMD Ryzen 7 7730U
0.543 sec * -18%
Asus ExpertBook B9 B9403CVA-KM0153X
Intel Core i7-1355U
0.4896 sec * -6%
Lenovo ThinkPad X1 Nano Gen 3
Intel Core i7-1360P
0.4834 sec * -5%
Average Intel Core i7-1360P
  (0.445 - 0.583, n=16)
0.4805 sec * -4%
Asus Expertbook B5 Flip B5402F, i7-1360P
Intel Core i7-1360P
0.4608 sec *
Lenovo Yoga 9 14IRP G8
Intel Core i7-1360P
0.46 sec * -0%
HP Dragonfly G4
Intel Core i7-1365U
0.4586 sec * -0%

* ... smaller is better

Cinebench R15 CPU Multi 64Bit
1797 Points
Cinebench R15 OpenGL 64Bit
89.8 fps
Cinebench R15 Ref. Match 64Bit
97.8 %
Cinebench R15 CPU Single 64Bit
197.3 Points
Cinebench R20 CPU (Multi Core)
4131 Points
Cinebench R20 CPU (Single Core)
720 Points
Cinebench R23 Single Core
1810 Points
Cinebench R23 Multi Core
11461 Points
Help
Performance Rating
Lenovo Yoga 6 13 83B2001SGE
AMD Ryzen 7 7730U, Vega 8
90.2 pt
Lenovo Yoga 9 14IRP G8
Intel Core i7-1360P, Iris Xe G7 96EUs
85.7 pt
Average Intel Core i7-1360P

79.8 pt
Asus Expertbook B5 Flip B5402F, i7-1360P
Intel Core i7-1360P, Iris Xe G7 96EUs
77.4 pt
Average of class Office

76.9 pt
Lenovo ThinkPad X1 Nano Gen 3
Intel Core i7-1360P, Iris Xe G7 96EUs
69 pt
HP Dragonfly G4
Intel Core i7-1365U, Iris Xe G7 96EUs
61.6 pt
Asus ExpertBook B9 B9403CVA-KM0153X
Intel Core i7-1355U, Iris Xe G7 96EUs
61.5 pt
Asus ExpertBook B5 Flip B5302FEA
Intel Core i5-1135G7, Iris Xe G7 80EUs
56.8 pt
AIDA64 / FP32 Ray-Trace
Lenovo Yoga 6 13 83B2001SGE
AMD Ryzen 7 7730U, Vega 8
11322 KRay/s +55%
Lenovo Yoga 9 14IRP G8
Intel Core i7-1360P, Iris Xe G7 96EUs
10472 KRay/s +43%
Average of class Office
  (763 - 24250, n=92, last 2 years)
9568 KRay/s +31%
Average Intel Core i7-1360P
  (5610 - 11188, n=17)
8919 KRay/s +22%
Lenovo ThinkPad X1 Nano Gen 3
Intel Core i7-1360P, Iris Xe G7 96EUs
7483 KRay/s +2%
Asus Expertbook B5 Flip B5402F, i7-1360P
Intel Core i7-1360P, Iris Xe G7 96EUs
7317 KRay/s
Asus ExpertBook B5 Flip B5302FEA
Intel Core i5-1135G7, Iris Xe G7 80EUs
7072 KRay/s -3%
Asus ExpertBook B9 B9403CVA-KM0153X
Intel Core i7-1355U, Iris Xe G7 96EUs
7018 KRay/s -4%
HP Dragonfly G4
Intel Core i7-1365U, Iris Xe G7 96EUs
6720 KRay/s -8%
AIDA64 / FPU Julia
Lenovo Yoga 6 13 83B2001SGE
AMD Ryzen 7 7730U, Vega 8
72772 Points +44%
Asus Expertbook B5 Flip B5402F, i7-1360P
Intel Core i7-1360P, Iris Xe G7 96EUs
50643 Points
Lenovo Yoga 9 14IRP G8
Intel Core i7-1360P, Iris Xe G7 96EUs
50527 Points 0%
Average of class Office
  (4113 - 102228, n=92, last 2 years)
48217 Points -5%
Average Intel Core i7-1360P
  (29251 - 56942, n=16)
45807 Points -10%
Lenovo ThinkPad X1 Nano Gen 3
Intel Core i7-1360P, Iris Xe G7 96EUs
38303 Points -24%
Asus ExpertBook B9 B9403CVA-KM0153X
Intel Core i7-1355U, Iris Xe G7 96EUs
34456 Points -32%
HP Dragonfly G4
Intel Core i7-1365U, Iris Xe G7 96EUs
33777 Points -33%
Asus ExpertBook B5 Flip B5302FEA
Intel Core i5-1135G7, Iris Xe G7 80EUs
29750 Points -41%
AIDA64 / CPU SHA3
Asus Expertbook B5 Flip B5402F, i7-1360P
Intel Core i7-1360P, Iris Xe G7 96EUs
2433 MB/s
Lenovo Yoga 6 13 83B2001SGE
AMD Ryzen 7 7730U, Vega 8
2424 MB/s 0%
Lenovo Yoga 9 14IRP G8
Intel Core i7-1360P, Iris Xe G7 96EUs
2361 MB/s -3%
Average of class Office
  (287 - 4551, n=92, last 2 years)
2276 MB/s -6%
Average Intel Core i7-1360P
  (1444 - 2728, n=16)
2221 MB/s -9%
Asus ExpertBook B5 Flip B5302FEA
Intel Core i5-1135G7, Iris Xe G7 80EUs
1979 MB/s -19%
Asus ExpertBook B9 B9403CVA-KM0153X
Intel Core i7-1355U, Iris Xe G7 96EUs
1851 MB/s -24%
Lenovo ThinkPad X1 Nano Gen 3
Intel Core i7-1360P, Iris Xe G7 96EUs
1818 MB/s -25%
HP Dragonfly G4
Intel Core i7-1365U, Iris Xe G7 96EUs
1754 MB/s -28%
AIDA64 / CPU Queen
Lenovo Yoga 9 14IRP G8
Intel Core i7-1360P, Iris Xe G7 96EUs
89266 Points +1%
Asus Expertbook B5 Flip B5402F, i7-1360P
Intel Core i7-1360P, Iris Xe G7 96EUs
88325 Points
Lenovo Yoga 6 13 83B2001SGE
AMD Ryzen 7 7730U, Vega 8
87356 Points -1%
Lenovo ThinkPad X1 Nano Gen 3
Intel Core i7-1360P, Iris Xe G7 96EUs
84106 Points -5%
Average Intel Core i7-1360P
  (65324 - 89266, n=16)
80667 Points -9%
HP Dragonfly G4
Intel Core i7-1365U, Iris Xe G7 96EUs
69991 Points -21%
Average of class Office
  (8185 - 115197, n=92, last 2 years)
69720 Points -21%
Asus ExpertBook B9 B9403CVA-KM0153X
Intel Core i7-1355U, Iris Xe G7 96EUs
59506 Points -33%
Asus ExpertBook B5 Flip B5302FEA
Intel Core i5-1135G7, Iris Xe G7 80EUs
46641 Points -47%
AIDA64 / FPU SinJulia
Lenovo Yoga 6 13 83B2001SGE
AMD Ryzen 7 7730U, Vega 8
10753 Points +83%
Lenovo Yoga 9 14IRP G8
Intel Core i7-1360P, Iris Xe G7 96EUs
6996 Points +19%
Average of class Office
  (404 - 14288, n=92, last 2 years)
6740 Points +14%
Average Intel Core i7-1360P
  (4370 - 7269, n=16)
6097 Points +4%
Asus Expertbook B5 Flip B5402F, i7-1360P
Intel Core i7-1360P, Iris Xe G7 96EUs
5888 Points
Lenovo ThinkPad X1 Nano Gen 3
Intel Core i7-1360P, Iris Xe G7 96EUs
5361 Points -9%
HP Dragonfly G4
Intel Core i7-1365U, Iris Xe G7 96EUs
4589 Points -22%
Asus ExpertBook B9 B9403CVA-KM0153X
Intel Core i7-1355U, Iris Xe G7 96EUs
4502 Points -24%
Asus ExpertBook B5 Flip B5302FEA
Intel Core i5-1135G7, Iris Xe G7 80EUs
4443 Points -25%
AIDA64 / FPU Mandel
Lenovo Yoga 6 13 83B2001SGE
AMD Ryzen 7 7730U, Vega 8
40080 Points +67%
Lenovo Yoga 9 14IRP G8
Intel Core i7-1360P, Iris Xe G7 96EUs
25330 Points +5%
Average of class Office
  (2075 - 54365, n=92, last 2 years)
25190 Points +5%
Asus Expertbook B5 Flip B5402F, i7-1360P
Intel Core i7-1360P, Iris Xe G7 96EUs
24036 Points
Average Intel Core i7-1360P
  (14104 - 28019, n=16)
22464 Points -7%
Lenovo ThinkPad X1 Nano Gen 3
Intel Core i7-1360P, Iris Xe G7 96EUs
18819 Points -22%
Asus ExpertBook B5 Flip B5302FEA
Intel Core i5-1135G7, Iris Xe G7 80EUs
17771 Points -26%
Asus ExpertBook B9 B9403CVA-KM0153X
Intel Core i7-1355U, Iris Xe G7 96EUs
17408 Points -28%
HP Dragonfly G4
Intel Core i7-1365U, Iris Xe G7 96EUs
16808 Points -30%
AIDA64 / CPU AES
Asus ExpertBook B5 Flip B5302FEA
Intel Core i5-1135G7, Iris Xe G7 80EUs
62523 MB/s +27%
Average Intel Core i7-1360P
  (30391 - 99244, n=16)
60351 MB/s +23%
Average of class Office
  (7254 - 155900, n=92, last 2 years)
51938 MB/s +6%
Asus Expertbook B5 Flip B5402F, i7-1360P
Intel Core i7-1360P, Iris Xe G7 96EUs
49161 MB/s
Lenovo Yoga 9 14IRP G8
Intel Core i7-1360P, Iris Xe G7 96EUs
49062 MB/s 0%
Lenovo Yoga 6 13 83B2001SGE
AMD Ryzen 7 7730U, Vega 8
42697 MB/s -13%
Lenovo ThinkPad X1 Nano Gen 3
Intel Core i7-1360P, Iris Xe G7 96EUs
37413 MB/s -24%
HP Dragonfly G4
Intel Core i7-1365U, Iris Xe G7 96EUs
34968 MB/s -29%
Asus ExpertBook B9 B9403CVA-KM0153X
Intel Core i7-1355U, Iris Xe G7 96EUs
34515 MB/s -30%
AIDA64 / CPU ZLib
Lenovo Yoga 9 14IRP G8
Intel Core i7-1360P, Iris Xe G7 96EUs
696 MB/s 0%
Asus Expertbook B5 Flip B5402F, i7-1360P
Intel Core i7-1360P, Iris Xe G7 96EUs
696 MB/s
Average Intel Core i7-1360P
  (420 - 807, n=16)
647 MB/s -7%
Lenovo Yoga 6 13 83B2001SGE
AMD Ryzen 7 7730U, Vega 8
646 MB/s -7%
Average of class Office
  (78 - 1018, n=92, last 2 years)
610 MB/s -12%
Lenovo ThinkPad X1 Nano Gen 3
Intel Core i7-1360P, Iris Xe G7 96EUs
553 MB/s -21%
Asus ExpertBook B9 B9403CVA-KM0153X
Intel Core i7-1355U, Iris Xe G7 96EUs
520 MB/s -25%
HP Dragonfly G4
Intel Core i7-1365U, Iris Xe G7 96EUs
519 MB/s -25%
Asus ExpertBook B5 Flip B5302FEA
Intel Core i5-1135G7, Iris Xe G7 80EUs
366 MB/s -47%
AIDA64 / FP64 Ray-Trace
Lenovo Yoga 6 13 83B2001SGE
AMD Ryzen 7 7730U, Vega 8
5986 KRay/s +53%
Lenovo Yoga 9 14IRP G8
Intel Core i7-1360P, Iris Xe G7 96EUs
5716 KRay/s +46%
Average of class Office
  (432 - 12755, n=92, last 2 years)
5070 KRay/s +30%
Average Intel Core i7-1360P
  (2906 - 5957, n=16)
4802 KRay/s +23%
Lenovo ThinkPad X1 Nano Gen 3
Intel Core i7-1360P, Iris Xe G7 96EUs
3994 KRay/s +2%
Asus Expertbook B5 Flip B5402F, i7-1360P
Intel Core i7-1360P, Iris Xe G7 96EUs
3910 KRay/s
Asus ExpertBook B9 B9403CVA-KM0153X
Intel Core i7-1355U, Iris Xe G7 96EUs
3768 KRay/s -4%
Asus ExpertBook B5 Flip B5302FEA
Intel Core i5-1135G7, Iris Xe G7 80EUs
3754 KRay/s -4%
HP Dragonfly G4
Intel Core i7-1365U, Iris Xe G7 96EUs
3513 KRay/s -10%
AIDA64 / CPU PhotoWorxx
Lenovo ThinkPad X1 Nano Gen 3
Intel Core i7-1360P, Iris Xe G7 96EUs
44286 MPixel/s +22%
Lenovo Yoga 9 14IRP G8
Intel Core i7-1360P, Iris Xe G7 96EUs
42386 MPixel/s +17%
Average Intel Core i7-1360P
  (29108 - 49328, n=16)
40910 MPixel/s +13%
HP Dragonfly G4
Intel Core i7-1365U, Iris Xe G7 96EUs
37846 MPixel/s +4%
Asus ExpertBook B9 B9403CVA-KM0153X
Intel Core i7-1355U, Iris Xe G7 96EUs
37423 MPixel/s +3%
Asus Expertbook B5 Flip B5402F, i7-1360P
Intel Core i7-1360P, Iris Xe G7 96EUs
36308 MPixel/s
Average of class Office
  (4814 - 54971, n=92, last 2 years)
29244 MPixel/s -19%
Lenovo Yoga 6 13 83B2001SGE
AMD Ryzen 7 7730U, Vega 8
19414 MPixel/s -47%
Asus ExpertBook B5 Flip B5302FEA
Intel Core i5-1135G7, Iris Xe G7 80EUs
13211 MPixel/s -64%

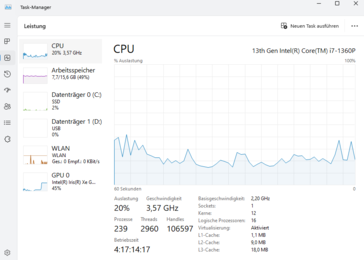

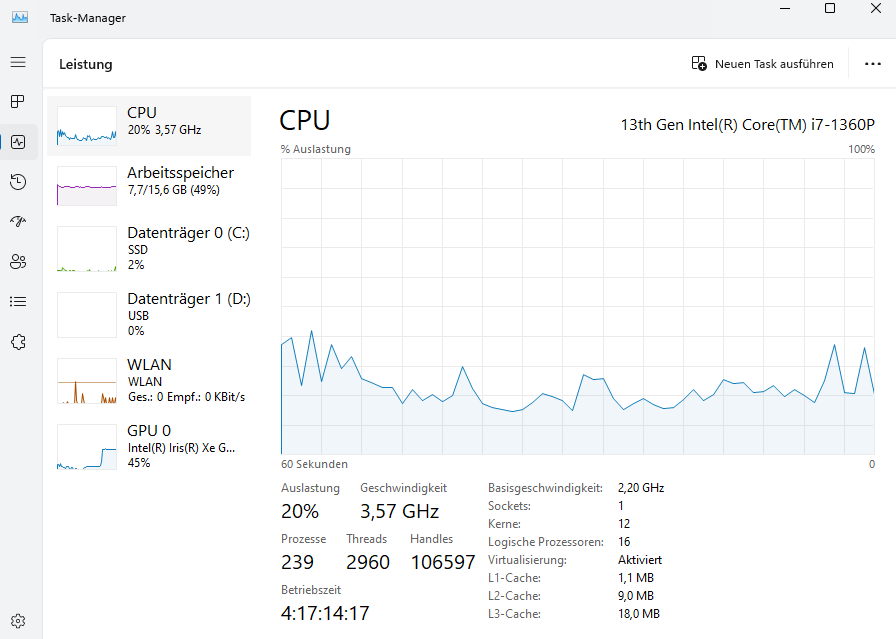

系统性能

在我们的测试中,新款 Expertbook B5 Flip B5402F 迅速而高效地执行命令,没有出现任何明显的延迟或中断,证实了它是一款响应速度极快的笔记本电脑。它在合成基准测试中的表现也非常出色,我们无法发现任何弱点或缺陷。在大多数方面,华硕便携式电脑都击败了所有选定的竞争对手。

PCMark 10 / Score
Asus Expertbook B5 Flip B5402F, i7-1360P
Iris Xe G7 96EUs, i7-1360P, Micron 2400 MTFDKBA1T0QFM
6212 Points
Lenovo Yoga 9 14IRP G8
Iris Xe G7 96EUs, i7-1360P, SK hynix PC801 HFS512GEJ9X101N BF
6195 Points 0%
Average Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs
  (5360 - 6281, n=14)
5863 Points -6%
Lenovo ThinkPad X1 Nano Gen 3
Iris Xe G7 96EUs, i7-1360P, Lenovo UMIS AM6A0 RPJTJ512MKP1QDQ
5796 Points -7%
Asus ExpertBook B9 B9403CVA-KM0153X
Iris Xe G7 96EUs, i7-1355U, Samsung PM9A1 MZVL21T0HCLR
5723 Points -8%
HP Dragonfly G4
Iris Xe G7 96EUs, i7-1365U, Micron 3400 MTFDKBA512TFH 512GB
5690 Points -8%
Average of class Office
  (2463 - 7344, n=85, last 2 years)
5645 Points -9%
Lenovo Yoga 6 13 83B2001SGE
Vega 8, R7 7730U, WD PC SN740 512GB SDDPMQD-512G-1101
5285 Points -15%
Asus ExpertBook B5 Flip B5302FEA
Iris Xe G7 80EUs, i5-1135G7, Samsung PM991 MZVLQ512HALU
4687 Points -25%
PCMark 10 / Essentials
Lenovo Yoga 9 14IRP G8
Iris Xe G7 96EUs, i7-1360P, SK hynix PC801 HFS512GEJ9X101N BF
12059 Points +7%
Asus Expertbook B5 Flip B5402F, i7-1360P
Iris Xe G7 96EUs, i7-1360P, Micron 2400 MTFDKBA1T0QFM
11296 Points
Average Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs
  (9883 - 12059, n=14)
11001 Points -3%
Asus ExpertBook B9 B9403CVA-KM0153X
Iris Xe G7 96EUs, i7-1355U, Samsung PM9A1 MZVL21T0HCLR
10871 Points -4%
HP Dragonfly G4
Iris Xe G7 96EUs, i7-1365U, Micron 3400 MTFDKBA512TFH 512GB
10853 Points -4%
Lenovo ThinkPad X1 Nano Gen 3
Iris Xe G7 96EUs, i7-1360P, Lenovo UMIS AM6A0 RPJTJ512MKP1QDQ
10611 Points -6%
Average of class Office
  (5575 - 20841, n=85, last 2 years)
10121 Points -10%
Lenovo Yoga 6 13 83B2001SGE
Vega 8, R7 7730U, WD PC SN740 512GB SDDPMQD-512G-1101
10084 Points -11%
Asus ExpertBook B5 Flip B5302FEA
Iris Xe G7 80EUs, i5-1135G7, Samsung PM991 MZVLQ512HALU
9365 Points -17%
PCMark 10 / Productivity
Lenovo Yoga 6 13 83B2001SGE
Vega 8, R7 7730U, WD PC SN740 512GB SDDPMQD-512G-1101
8443 Points +8%
Asus Expertbook B5 Flip B5402F, i7-1360P
Iris Xe G7 96EUs, i7-1360P, Micron 2400 MTFDKBA1T0QFM
7840 Points
Average of class Office
  (3041 - 10415, n=85, last 2 years)
7764 Points -1%
Asus ExpertBook B9 B9403CVA-KM0153X
Iris Xe G7 96EUs, i7-1355U, Samsung PM9A1 MZVL21T0HCLR
7452 Points -5%
Lenovo ThinkPad X1 Nano Gen 3
Iris Xe G7 96EUs, i7-1360P, Lenovo UMIS AM6A0 RPJTJ512MKP1QDQ
7430 Points -5%
Average Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs
  (6572 - 8161, n=14)
7254 Points -7%
HP Dragonfly G4
Iris Xe G7 96EUs, i7-1365U, Micron 3400 MTFDKBA512TFH 512GB
7206 Points -8%
Lenovo Yoga 9 14IRP G8
Iris Xe G7 96EUs, i7-1360P, SK hynix PC801 HFS512GEJ9X101N BF
7162 Points -9%
Asus ExpertBook B5 Flip B5302FEA
Iris Xe G7 80EUs, i5-1135G7, Samsung PM991 MZVLQ512HALU
6376 Points -19%
PCMark 10 / Digital Content Creation
Lenovo Yoga 9 14IRP G8
Iris Xe G7 96EUs, i7-1360P, SK hynix PC801 HFS512GEJ9X101N BF
7472 Points +2%
Asus Expertbook B5 Flip B5402F, i7-1360P
Iris Xe G7 96EUs, i7-1360P, Micron 2400 MTFDKBA1T0QFM
7347 Points
Average Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs
  (5723 - 7612, n=14)
6877 Points -6%
Lenovo ThinkPad X1 Nano Gen 3
Iris Xe G7 96EUs, i7-1360P, Lenovo UMIS AM6A0 RPJTJ512MKP1QDQ
6702 Points -9%
HP Dragonfly G4
Iris Xe G7 96EUs, i7-1365U, Micron 3400 MTFDKBA512TFH 512GB
6392 Points -13%
Average of class Office
  (2049 - 9773, n=85, last 2 years)
6382 Points -13%
Asus ExpertBook B9 B9403CVA-KM0153X
Iris Xe G7 96EUs, i7-1355U, Samsung PM9A1 MZVL21T0HCLR
5723 Points -22%
Lenovo Yoga 6 13 83B2001SGE
Vega 8, R7 7730U, WD PC SN740 512GB SDDPMQD-512G-1101
4705 Points -36%
Asus ExpertBook B5 Flip B5302FEA
Iris Xe G7 80EUs, i5-1135G7, Samsung PM991 MZVLQ512HALU
4682 Points -36%
CrossMark / Overall
Asus Expertbook B5 Flip B5402F, i7-1360P
Iris Xe G7 96EUs, i7-1360P, Micron 2400 MTFDKBA1T0QFM
1767 Points
Lenovo Yoga 9 14IRP G8
Iris Xe G7 96EUs, i7-1360P, SK hynix PC801 HFS512GEJ9X101N BF
1756 Points -1%
Lenovo ThinkPad X1 Nano Gen 3
Iris Xe G7 96EUs, i7-1360P, Lenovo UMIS AM6A0 RPJTJ512MKP1QDQ
1748 Points -1%
Average Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs
  (1527 - 1891, n=15)
1710 Points -3%
HP Dragonfly G4
Iris Xe G7 96EUs, i7-1365U, Micron 3400 MTFDKBA512TFH 512GB
1628 Points -8%
Asus ExpertBook B9 B9403CVA-KM0153X
Iris Xe G7 96EUs, i7-1355U, Samsung PM9A1 MZVL21T0HCLR
1551 Points -12%
Average of class Office
  (348 - 1891, n=87, last 2 years)
1402 Points -21%
Lenovo Yoga 6 13 83B2001SGE
Vega 8, R7 7730U, WD PC SN740 512GB SDDPMQD-512G-1101
1321 Points -25%
CrossMark / Productivity
Asus Expertbook B5 Flip B5402F, i7-1360P
Iris Xe G7 96EUs, i7-1360P, Micron 2400 MTFDKBA1T0QFM
1673 Points
Lenovo Yoga 9 14IRP G8
Iris Xe G7 96EUs, i7-1360P, SK hynix PC801 HFS512GEJ9X101N BF
1669 Points 0%
Lenovo ThinkPad X1 Nano Gen 3
Iris Xe G7 96EUs, i7-1360P, Lenovo UMIS AM6A0 RPJTJ512MKP1QDQ
1666 Points 0%
Average Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs
  (1503 - 1842, n=15)
1645 Points -2%
HP Dragonfly G4
Iris Xe G7 96EUs, i7-1365U, Micron 3400 MTFDKBA512TFH 512GB
1620 Points -3%
Asus ExpertBook B9 B9403CVA-KM0153X
Iris Xe G7 96EUs, i7-1355U, Samsung PM9A1 MZVL21T0HCLR
1521 Points -9%
Average of class Office
  (393 - 1870, n=87, last 2 years)
1397 Points -16%
Lenovo Yoga 6 13 83B2001SGE
Vega 8, R7 7730U, WD PC SN740 512GB SDDPMQD-512G-1101
1335 Points -20%
CrossMark / Creativity
Asus Expertbook B5 Flip B5402F, i7-1360P
Iris Xe G7 96EUs, i7-1360P, Micron 2400 MTFDKBA1T0QFM
1982 Points
Lenovo ThinkPad X1 Nano Gen 3
Iris Xe G7 96EUs, i7-1360P, Lenovo UMIS AM6A0 RPJTJ512MKP1QDQ
1951 Points -2%
Lenovo Yoga 9 14IRP G8
Iris Xe G7 96EUs, i7-1360P, SK hynix PC801 HFS512GEJ9X101N BF
1947 Points -2%
Average Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs
  (1558 - 2003, n=15)
1834 Points -7%
HP Dragonfly G4
Iris Xe G7 96EUs, i7-1365U, Micron 3400 MTFDKBA512TFH 512GB
1731 Points -13%
Asus ExpertBook B9 B9403CVA-KM0153X
Iris Xe G7 96EUs, i7-1355U, Samsung PM9A1 MZVL21T0HCLR
1670 Points -16%
Average of class Office
  (340 - 1982, n=87, last 2 years)
1464 Points -26%
Lenovo Yoga 6 13 83B2001SGE
Vega 8, R7 7730U, WD PC SN740 512GB SDDPMQD-512G-1101
1396 Points -30%
CrossMark / Responsiveness
Average Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs
  (1311 - 1899, n=15)
1561 Points +6%
Lenovo Yoga 9 14IRP G8
Iris Xe G7 96EUs, i7-1360P, SK hynix PC801 HFS512GEJ9X101N BF
1500 Points +2%
Asus Expertbook B5 Flip B5402F, i7-1360P
Iris Xe G7 96EUs, i7-1360P, Micron 2400 MTFDKBA1T0QFM
1476 Points
Lenovo ThinkPad X1 Nano Gen 3
Iris Xe G7 96EUs, i7-1360P, Lenovo UMIS AM6A0 RPJTJ512MKP1QDQ
1450 Points -2%
HP Dragonfly G4
Iris Xe G7 96EUs, i7-1365U, Micron 3400 MTFDKBA512TFH 512GB
1373 Points -7%
Asus ExpertBook B9 B9403CVA-KM0153X
Iris Xe G7 96EUs, i7-1355U, Samsung PM9A1 MZVL21T0HCLR
1314 Points -11%
Average of class Office
  (258 - 2017, n=87, last 2 years)
1260 Points -15%
Lenovo Yoga 6 13 83B2001SGE
Vega 8, R7 7730U, WD PC SN740 512GB SDDPMQD-512G-1101
1086 Points -26%
WebXPRT 3 / Overall
Lenovo Yoga 9 14IRP G8
Iris Xe G7 96EUs, i7-1360P, SK hynix PC801 HFS512GEJ9X101N BF
306 Points +2%
Lenovo ThinkPad X1 Nano Gen 3
Iris Xe G7 96EUs, i7-1360P, Lenovo UMIS AM6A0 RPJTJ512MKP1QDQ
306 Points +2%
HP Dragonfly G4
Iris Xe G7 96EUs, i7-1365U, Micron 3400 MTFDKBA512TFH 512GB
305 Points +1%
Asus Expertbook B5 Flip B5402F, i7-1360P
Iris Xe G7 96EUs, i7-1360P, Micron 2400 MTFDKBA1T0QFM
301 Points
Average Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs
  (249 - 316, n=14)
290 Points -4%
Asus ExpertBook B9 B9403CVA-KM0153X
Iris Xe G7 96EUs, i7-1355U, Samsung PM9A1 MZVL21T0HCLR
276 Points -8%
Average of class Office
  (121 - 455, n=85, last 2 years)
259 Points -14%
Lenovo Yoga 6 13 83B2001SGE
Vega 8, R7 7730U, WD PC SN740 512GB SDDPMQD-512G-1101
251 Points -17%
Asus ExpertBook B5 Flip B5302FEA
Iris Xe G7 80EUs, i5-1135G7, Samsung PM991 MZVLQ512HALU
226 Points -25%
WebXPRT 4 / Overall
Asus Expertbook B5 Flip B5402F, i7-1360P
Iris Xe G7 96EUs, i7-1360P, Micron 2400 MTFDKBA1T0QFM
328 Points
Lenovo ThinkPad X1 Nano Gen 3
Iris Xe G7 96EUs, i7-1360P, Lenovo UMIS AM6A0 RPJTJ512MKP1QDQ
267 Points -19%
HP Dragonfly G4
Iris Xe G7 96EUs, i7-1365U, Micron 3400 MTFDKBA512TFH 512GB
266 Points -19%
Lenovo Yoga 9 14IRP G8
Iris Xe G7 96EUs, i7-1360P, SK hynix PC801 HFS512GEJ9X101N BF
263 Points -20%
Average Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs
  (218 - 328, n=13)
256 Points -22%
Average of class Office
  (80 - 328, n=85, last 2 years)
218 Points -34%
Lenovo Yoga 6 13 83B2001SGE
Vega 8, R7 7730U, WD PC SN740 512GB SDDPMQD-512G-1101
191.5 Points -42%
Mozilla Kraken 1.1 / Total
Asus ExpertBook B5 Flip B5302FEA
Iris Xe G7 80EUs, i5-1135G7, Samsung PM991 MZVLQ512HALU
717 ms * -45%
Average of class Office
  (404 - 1966, n=93, last 2 years)
685 ms * -38%
Lenovo Yoga 6 13 83B2001SGE
Vega 8, R7 7730U, WD PC SN740 512GB SDDPMQD-512G-1101
649 ms * -31%
Asus ExpertBook B9 B9403CVA-KM0153X
Iris Xe G7 96EUs, i7-1355U, Samsung PM9A1 MZVL21T0HCLR
526 ms * -6%
Average Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs
  (494 - 633, n=15)
523 ms * -6%
Lenovo Yoga 9 14IRP G8
Iris Xe G7 96EUs, i7-1360P, SK hynix PC801 HFS512GEJ9X101N BF
501 ms * -1%
Lenovo ThinkPad X1 Nano Gen 3
Iris Xe G7 96EUs, i7-1360P, Lenovo UMIS AM6A0 RPJTJ512MKP1QDQ
498 ms * -1%
Asus Expertbook B5 Flip B5402F, i7-1360P
Iris Xe G7 96EUs, i7-1360P, Micron 2400 MTFDKBA1T0QFM
495 ms *
HP Dragonfly G4
Iris Xe G7 96EUs, i7-1365U, Micron 3400 MTFDKBA512TFH 512GB
494 ms * -0%

* ... smaller is better

PCMark 10 Score
6212 points
Help
AIDA64 / Memory Copy
Lenovo ThinkPad X1 Nano Gen 3
Intel Core i7-1360P, Iris Xe G7 96EUs
71500 MB/s +24%
Lenovo Yoga 9 14IRP G8
Intel Core i7-1360P, Iris Xe G7 96EUs
67015 MB/s +16%
Average Intel Core i7-1360P
  (44299 - 72748, n=16)
63486 MB/s +10%
Asus ExpertBook B9 B9403CVA-KM0153X
Intel Core i7-1355U, Iris Xe G7 96EUs
61561 MB/s +7%
HP Dragonfly G4
Intel Core i7-1365U, Iris Xe G7 96EUs
58331 MB/s +1%
Asus Expertbook B5 Flip B5402F, i7-1360P
Intel Core i7-1360P, Iris Xe G7 96EUs
57571 MB/s
Average of class Office
  (7158 - 108783, n=93, last 2 years)
49671 MB/s -14%
Lenovo Yoga 6 13 83B2001SGE
AMD Ryzen 7 7730U, Vega 8
42732 MB/s -26%
Asus ExpertBook B5 Flip B5302FEA
Intel Core i5-1135G7, Iris Xe G7 80EUs
21826 MB/s -62%
AIDA64 / Memory Read
Lenovo ThinkPad X1 Nano Gen 3
Intel Core i7-1360P, Iris Xe G7 96EUs
65355 MB/s 0%
Asus Expertbook B5 Flip B5402F, i7-1360P
Intel Core i7-1360P, Iris Xe G7 96EUs
65355 MB/s
Average Intel Core i7-1360P
  (44751 - 68945, n=16)
59126 MB/s -10%
Lenovo Yoga 9 14IRP G8
Intel Core i7-1360P, Iris Xe G7 96EUs
57493 MB/s -12%
Average of class Office
  (7325 - 127282, n=93, last 2 years)
50647 MB/s -23%
Asus ExpertBook B9 B9403CVA-KM0153X
Intel Core i7-1355U, Iris Xe G7 96EUs
49307 MB/s -25%
HP Dragonfly G4
Intel Core i7-1365U, Iris Xe G7 96EUs
49203 MB/s -25%
Lenovo Yoga 6 13 83B2001SGE
AMD Ryzen 7 7730U, Vega 8
39278 MB/s -40%
Asus ExpertBook B5 Flip B5302FEA
Intel Core i5-1135G7, Iris Xe G7 80EUs
24654 MB/s -62%
AIDA64 / Memory Write
Lenovo ThinkPad X1 Nano Gen 3
Intel Core i7-1360P, Iris Xe G7 96EUs
93331 MB/s +55%
Asus ExpertBook B9 B9403CVA-KM0153X
Intel Core i7-1355U, Iris Xe G7 96EUs
74968 MB/s +25%
Average Intel Core i7-1360P
  (45887 - 93331, n=16)
74804 MB/s +24%
Lenovo Yoga 9 14IRP G8
Intel Core i7-1360P, Iris Xe G7 96EUs
74086 MB/s +23%
HP Dragonfly G4
Intel Core i7-1365U, Iris Xe G7 96EUs
70434 MB/s +17%
Asus Expertbook B5 Flip B5402F, i7-1360P
Intel Core i7-1360P, Iris Xe G7 96EUs
60086 MB/s
Average of class Office
  (7579 - 117935, n=93, last 2 years)
53641 MB/s -11%
Lenovo Yoga 6 13 83B2001SGE
AMD Ryzen 7 7730U, Vega 8
40196 MB/s -33%
Asus ExpertBook B5 Flip B5302FEA
Intel Core i5-1135G7, Iris Xe G7 80EUs
23486 MB/s -61%
AIDA64 / Memory Latency
Lenovo Yoga 6 13 83B2001SGE
AMD Ryzen 7 7730U, Vega 8
110.6 ns * -25%
Lenovo Yoga 9 14IRP G8
Intel Core i7-1360P, Iris Xe G7 96EUs
98.7 ns * -12%
Average Intel Core i7-1360P
  (85 - 110.5, n=16)
97.4 ns * -10%
Average of class Office
  (6.9 - 185.2, n=92, last 2 years)
97.2 ns * -10%
Asus ExpertBook B9 B9403CVA-KM0153X
Intel Core i7-1355U, Iris Xe G7 96EUs
94.6 ns * -7%
Lenovo ThinkPad X1 Nano Gen 3
Intel Core i7-1360P, Iris Xe G7 96EUs
93.2 ns * -6%
HP Dragonfly G4
Intel Core i7-1365U, Iris Xe G7 96EUs
90.2 ns * -2%
Asus Expertbook B5 Flip B5402F, i7-1360P
Intel Core i7-1360P, Iris Xe G7 96EUs
88.3 ns *
Asus ExpertBook B5 Flip B5302FEA
Intel Core i5-1135G7, Iris Xe G7 80EUs
85.3 ns * +3%

* ... smaller is better

DPC 延迟

遗憾的是,华硕 Expertbook B5 Flip B5402F 在 DPC 延迟方面的表现不如竞争对手。只有 联想 ThinkPad X1 Nano Gen 3在这项测试中取得了更差的成绩。而 前代机型则在这方面遥遥领先,达到了最佳值。随着未来 BIOS 和驱动程序的更新,情况可能会随时发生变化,但目前并不建议使用 ExpertBook B5402F 进行实时音频和视频编辑。但在实际使用中,以及在播放 4K 画质的 YouTube 视频时,我们没有发现任何问题。

延迟监控器
延迟监控器
延迟监控器
延迟监控器
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Lenovo ThinkPad X1 Nano Gen 3
Iris Xe G7 96EUs, i7-1360P, Lenovo UMIS AM6A0 RPJTJ512MKP1QDQ
2122.6 μs * -6%
Asus Expertbook B5 Flip B5402F, i7-1360P
Iris Xe G7 96EUs, i7-1360P, Micron 2400 MTFDKBA1T0QFM
1996 μs *
Lenovo Yoga 9 14IRP G8
Iris Xe G7 96EUs, i7-1360P, SK hynix PC801 HFS512GEJ9X101N BF
1820.8 μs * +9%
Lenovo Yoga 6 13 83B2001SGE
Vega 8, R7 7730U, WD PC SN740 512GB SDDPMQD-512G-1101
1402 μs * +30%
HP Dragonfly G4
Iris Xe G7 96EUs, i7-1365U, Micron 3400 MTFDKBA512TFH 512GB
1181 μs * +41%
Asus ExpertBook B9 B9403CVA-KM0153X
Iris Xe G7 96EUs, i7-1355U, Samsung PM9A1 MZVL21T0HCLR
986 μs * +51%
Asus ExpertBook B5 Flip B5302FEA
Iris Xe G7 80EUs, i5-1135G7, Samsung PM991 MZVLQ512HALU
662 μs * +67%

* ... smaller is better

存储设备

AS 固态硬盘
AS 固态硬盘

华硕为新款 Expertbook B5 Flip B5402F 配备了 PCIe 4.0 固态硬盘。我们测试设备的型号是 美光 2400 MTFDKBA1T0QFM存储容量为 1 TB。集成的美光 2400 M.2 固态硬盘的性能可以接受,但无法与同类产品中的佼佼者相提并论。尽管如此,与上一代机型相比,它在这一领域还是有所改进。 前一个型号.

Micron 2400 MTFDKBA1T0QFM
Sequential Read: 3778.2MB/s
Sequential Write: 1945.9MB/s
4K Read: 55.6MB/s
4K Write: 226.57MB/s
4K-64 Read: 800.1MB/s
4K-64 Write: 1949.9MB/s
Access Time Read: 0.044ms
Access Time Write: 0.093ms
Score Read: 1234Points
Score Write: 2371Points
Score Total: 4159Points
Drive Performance Rating - Percent
Lenovo Yoga 9 14IRP G8
SK hynix PC801 HFS512GEJ9X101N BF
78.9 pt
Asus ExpertBook B9 B9403CVA-KM0153X
Samsung PM9A1 MZVL21T0HCLR
76.5 pt
Lenovo Yoga 6 13 83B2001SGE
WD PC SN740 512GB SDDPMQD-512G-1101
74.1 pt
HP Dragonfly G4
Micron 3400 MTFDKBA512TFH 512GB
72 pt
Average Micron 2400 MTFDKBA1T0QFM

68.9 pt
Average of class Office

68.7 pt
Asus Expertbook B5 Flip B5402F, i7-1360P
Micron 2400 MTFDKBA1T0QFM
63.7 pt
Lenovo ThinkPad X1 Nano Gen 3
Lenovo UMIS AM6A0 RPJTJ512MKP1QDQ
57.6 pt
Asus ExpertBook B5 Flip B5302FEA
Samsung PM991 MZVLQ512HALU
47.5 pt
DiskSpd
seq read
Lenovo Yoga 9 14IRP G8
SK hynix PC801 HFS512GEJ9X101N BF
3676 (3619.26min - 3676.31max) MB/s +91%
Asus ExpertBook B9 B9403CVA-KM0153X
Samsung PM9A1 MZVL21T0HCLR
3530 (2877.5min - 3530.42max) MB/s +84%
HP Dragonfly G4
Micron 3400 MTFDKBA512TFH 512GB
3312 (3304.27min - 3312.03max) MB/s +72%
Average of class Office
  (121 - 4554, n=89, last 2 years)
2701 MB/s +41%
Lenovo Yoga 6 13 83B2001SGE
WD PC SN740 512GB SDDPMQD-512G-1101
2574 (2756.5min - 2781.24max) MB/s +34%
Lenovo ThinkPad X1 Nano Gen 3
Lenovo UMIS AM6A0 RPJTJ512MKP1QDQ
2370 (2363.8min - 2369.99max) MB/s +23%
Average Micron 2400 MTFDKBA1T0QFM
  (1870 - 2660, n=17)
2289 MB/s +19%
Asus Expertbook B5 Flip B5402F, i7-1360P
Micron 2400 MTFDKBA1T0QFM
1922 (1906.31min - 1922.04max) MB/s
Asus ExpertBook B5 Flip B5302FEA
Samsung PM991 MZVLQ512HALU
1515 (1481.19min - 1515.4max) MB/s -21%
seq write
HP Dragonfly G4
Micron 3400 MTFDKBA512TFH 512GB
3342 (3270.72min - 3341.6max) MB/s +47%
Asus ExpertBook B9 B9403CVA-KM0153X
Samsung PM9A1 MZVL21T0HCLR
3136 (3111.33min - 3136.1max) MB/s +38%
Lenovo Yoga 6 13 83B2001SGE
WD PC SN740 512GB SDDPMQD-512G-1101
2718 (2573.82min - 2597.37max) MB/s +19%
Average Micron 2400 MTFDKBA1T0QFM
  (2138 - 3141, n=17)
2678 MB/s +18%
Average of class Office
  (43 - 5842, n=89, last 2 years)
2629 MB/s +16%
Lenovo ThinkPad X1 Nano Gen 3
Lenovo UMIS AM6A0 RPJTJ512MKP1QDQ
2508 (2487.22min - 2508max) MB/s +10%
Asus Expertbook B5 Flip B5402F, i7-1360P
Micron 2400 MTFDKBA1T0QFM
2275 (2214.59min - 2274.99max) MB/s
Lenovo Yoga 9 14IRP G8
SK hynix PC801 HFS512GEJ9X101N BF
1439 (1119.46min - 1438.8max) MB/s -37%
Asus ExpertBook B5 Flip B5302FEA
Samsung PM991 MZVLQ512HALU
1151 (1119.32min - 1150.71max) MB/s -49%
seq q8 t1 read
HP Dragonfly G4
Micron 3400 MTFDKBA512TFH 512GB
6628 (6115.78min - 6627.63max) MB/s +52%
Asus ExpertBook B9 B9403CVA-KM0153X
Samsung PM9A1 MZVL21T0HCLR
6619 (6058.46min - 6619.24max) MB/s +51%
Lenovo Yoga 9 14IRP G8
SK hynix PC801 HFS512GEJ9X101N BF
6592 (5400.38min - 6592.37max) MB/s +51%
Average Micron 2400 MTFDKBA1T0QFM
  (4239 - 5093, n=17)
4726 MB/s +8%
Average of class Office
  (124.2 - 7120, n=89, last 2 years)
4485 MB/s +3%
Asus Expertbook B5 Flip B5402F, i7-1360P
Micron 2400 MTFDKBA1T0QFM
4373 (3553.62min - 4372.56max) MB/s
Lenovo Yoga 6 13 83B2001SGE
WD PC SN740 512GB SDDPMQD-512G-1101
3717 (3356.07min - 3728.85max) MB/s -15%
Lenovo ThinkPad X1 Nano Gen 3
Lenovo UMIS AM6A0 RPJTJ512MKP1QDQ
3662 (2760.48min - 3662.26max) MB/s -16%
Asus ExpertBook B5 Flip B5302FEA
Samsung PM991 MZVLQ512HALU
2181 (1985.6min - 2180.66max) MB/s -50%
seq q8 t1 write
Asus ExpertBook B9 B9403CVA-KM0153X
Samsung PM9A1 MZVL21T0HCLR
4933 (4919.08min - 4933.34max) MB/s +71%
HP Dragonfly G4
Micron 3400 MTFDKBA512TFH 512GB
3965 (3820.5min - 3965.05max) MB/s +37%
Average of class Office
  (46.7 - 6791, n=89, last 2 years)
3478 MB/s +21%
Average Micron 2400 MTFDKBA1T0QFM
  (2884 - 3635, n=17)
3370 MB/s +17%
Lenovo ThinkPad X1 Nano Gen 3
Lenovo UMIS AM6A0 RPJTJ512MKP1QDQ
3350 (3300.4min - 3349.78max) MB/s +16%
Lenovo Yoga 6 13 83B2001SGE
WD PC SN740 512GB SDDPMQD-512G-1101
3077 (3209.06min - 3220.18max) MB/s +7%
Asus Expertbook B5 Flip B5402F, i7-1360P
Micron 2400 MTFDKBA1T0QFM
2884 (2782.71min - 2884max) MB/s
Lenovo Yoga 9 14IRP G8
SK hynix PC801 HFS512GEJ9X101N BF
2487 (1182.32min - 2486.59max) MB/s -14%
Asus ExpertBook B5 Flip B5302FEA
Samsung PM991 MZVLQ512HALU
1360 (1328.2min - 1360.43max) MB/s -53%
4k q1 t1 read
Asus ExpertBook B9 B9403CVA-KM0153X
Samsung PM9A1 MZVL21T0HCLR
79.3 (77.47min - 79.32max) MB/s +123%
HP Dragonfly G4
Micron 3400 MTFDKBA512TFH 512GB
67.2 (66.32min - 67.16max) MB/s +89%
Lenovo ThinkPad X1 Nano Gen 3
Lenovo UMIS AM6A0 RPJTJ512MKP1QDQ
64 (61.48min - 64.01max) MB/s +80%
Lenovo Yoga 9 14IRP G8
SK hynix PC801 HFS512GEJ9X101N BF
59.7 (58.73min - 59.66max) MB/s +68%
Average of class Office
  (5.55 - 89.9, n=89, last 2 years)
58.3 MB/s +64%
Asus ExpertBook B5 Flip B5302FEA
Samsung PM991 MZVLQ512HALU
56.4 (56.2min - 56.37max) MB/s +58%
Lenovo Yoga 6 13 83B2001SGE
WD PC SN740 512GB SDDPMQD-512G-1101
54 (56.47min - 57max) MB/s +52%
Asus Expertbook B5 Flip B5402F, i7-1360P
Micron 2400 MTFDKBA1T0QFM
35.6 (35.19min - 35.61max) MB/s
Average Micron 2400 MTFDKBA1T0QFM
  (14.6 - 40.3, n=17)
33.5 MB/s -6%
4k q1 t1 write
Average Micron 2400 MTFDKBA1T0QFM
  (75.9 - 286, n=17)
177.5 MB/s +9%
Average of class Office
  (1.23 - 429, n=89, last 2 years)
163.2 MB/s +1%
Asus Expertbook B5 Flip B5402F, i7-1360P
Micron 2400 MTFDKBA1T0QFM
162.3 (153.84min - 162.34max) MB/s
Asus ExpertBook B5 Flip B5302FEA
Samsung PM991 MZVLQ512HALU
156 (153.76min - 156.42max) MB/s -4%
Lenovo Yoga 9 14IRP G8
SK hynix PC801 HFS512GEJ9X101N BF
150.3 (141.14min - 150.34max) MB/s -7%
Lenovo ThinkPad X1 Nano Gen 3
Lenovo UMIS AM6A0 RPJTJ512MKP1QDQ
146.4 (142.83min - 146.41max) MB/s -10%
HP Dragonfly G4
Micron 3400 MTFDKBA512TFH 512GB
138.9 (137.35min - 138.92max) MB/s -14%
Asus ExpertBook B9 B9403CVA-KM0153X
Samsung PM9A1 MZVL21T0HCLR
129.7 (126.67min - 129.65max) MB/s -20%
Lenovo Yoga 6 13 83B2001SGE
WD PC SN740 512GB SDDPMQD-512G-1101
123.4 (113.69min - 120.08max) MB/s -24%
4k q32 t16 read
Lenovo Yoga 6 13 83B2001SGE
WD PC SN740 512GB SDDPMQD-512G-1101
1942 (1938.03min - 1946.49max) MB/s +225%
Average of class Office
  (7.49 - 4425, n=89, last 2 years)
1249 MB/s +109%
Average Micron 2400 MTFDKBA1T0QFM
  (283 - 2850, n=17)
1133 MB/s +89%
Lenovo Yoga 9 14IRP G8
SK hynix PC801 HFS512GEJ9X101N BF
777 (765.59min - 777.23max) MB/s +30%
Lenovo ThinkPad X1 Nano Gen 3
Lenovo UMIS AM6A0 RPJTJ512MKP1QDQ
752 (569.42min - 752max) MB/s +26%
Asus ExpertBook B5 Flip B5302FEA
Samsung PM991 MZVLQ512HALU
703 (697.35min - 703.06max) MB/s +18%
HP Dragonfly G4
Micron 3400 MTFDKBA512TFH 512GB
690 (550.07min - 689.62max) MB/s +15%
Asus ExpertBook B9 B9403CVA-KM0153X
Samsung PM9A1 MZVL21T0HCLR
643 (588.04min - 643.36max) MB/s +8%
Asus Expertbook B5 Flip B5402F, i7-1360P
Micron 2400 MTFDKBA1T0QFM
598 (559.54min - 597.85max) MB/s
4k q32 t16 write
Lenovo Yoga 6 13 83B2001SGE
WD PC SN740 512GB SDDPMQD-512G-1101
2123 (1682.73min - 1790.55max) MB/s +364%
Average Micron 2400 MTFDKBA1T0QFM
  (222 - 2635, n=17)
1028 MB/s +124%
Average of class Office
  (1.5 - 3254, n=89, last 2 years)
928 MB/s +103%
Asus Expertbook B5 Flip B5402F, i7-1360P
Micron 2400 MTFDKBA1T0QFM
458 (424.51min - 457.9max) MB/s
Asus ExpertBook B5 Flip B5302FEA
Samsung PM991 MZVLQ512HALU
449 (416.16min - 448.56max) MB/s -2%
Lenovo Yoga 9 14IRP G8
SK hynix PC801 HFS512GEJ9X101N BF
431 (416.68min - 431.09max) MB/s -6%
Lenovo ThinkPad X1 Nano Gen 3
Lenovo UMIS AM6A0 RPJTJ512MKP1QDQ
392 (315.08min - 391.78max) MB/s -14%
HP Dragonfly G4
Micron 3400 MTFDKBA512TFH 512GB
389 (345.44min - 388.55max) MB/s -15%
Asus ExpertBook B9 B9403CVA-KM0153X
Samsung PM9A1 MZVL21T0HCLR
351 (335.84min - 351.23max) MB/s -23%
AS SSD
Score Total
Lenovo Yoga 9 14IRP G8
SK hynix PC801 HFS512GEJ9X101N BF
5343 Points +28%
Lenovo Yoga 6 13 83B2001SGE
WD PC SN740 512GB SDDPMQD-512G-1101
5159 Points +24%
Asus ExpertBook B9 B9403CVA-KM0153X
Samsung PM9A1 MZVL21T0HCLR
4398 Points +6%
Average Micron 2400 MTFDKBA1T0QFM
  (2404 - 6406, n=17)
4298 Points +3%
Average of class Office
  (704 - 9204, n=86, last 2 years)
4228 Points +2%
HP Dragonfly G4
Micron 3400 MTFDKBA512TFH 512GB
4171 Points 0%
Asus Expertbook B5 Flip B5402F, i7-1360P
Micron 2400 MTFDKBA1T0QFM
4159 Points
Lenovo ThinkPad X1 Nano Gen 3
Lenovo UMIS AM6A0 RPJTJ512MKP1QDQ
3582 Points -14%
Asus ExpertBook B5 Flip B5302FEA
Samsung PM991 MZVLQ512HALU
2693 Points -35%
Score Read
Lenovo Yoga 6 13 83B2001SGE
WD PC SN740 512GB SDDPMQD-512G-1101
1905 Points +54%
Average Micron 2400 MTFDKBA1T0QFM
  (787 - 2482, n=17)
1507 Points +22%
Average of class Office
  (252 - 3364, n=86, last 2 years)
1473 Points +19%
Lenovo Yoga 9 14IRP G8
SK hynix PC801 HFS512GEJ9X101N BF
1389 Points +13%
Asus Expertbook B5 Flip B5402F, i7-1360P
Micron 2400 MTFDKBA1T0QFM
1234 Points
Asus ExpertBook B9 B9403CVA-KM0153X
Samsung PM9A1 MZVL21T0HCLR
1193 Points -3%
HP Dragonfly G4
Micron 3400 MTFDKBA512TFH 512GB
1169 Points -5%
Asus ExpertBook B5 Flip B5302FEA
Samsung PM991 MZVLQ512HALU
1097 Points -11%
Lenovo ThinkPad X1 Nano Gen 3
Lenovo UMIS AM6A0 RPJTJ512MKP1QDQ
1034 Points -16%
Score Write
Lenovo Yoga 9 14IRP G8
SK hynix PC801 HFS512GEJ9X101N BF
3348 Points +41%
Asus ExpertBook B9 B9403CVA-KM0153X
Samsung PM9A1 MZVL21T0HCLR
2662 Points +12%
HP Dragonfly G4
Micron 3400 MTFDKBA512TFH 512GB
2506 Points +6%
Asus Expertbook B5 Flip B5402F, i7-1360P
Micron 2400 MTFDKBA1T0QFM
2371 Points
Lenovo Yoga 6 13 83B2001SGE
WD PC SN740 512GB SDDPMQD-512G-1101
2290 Points -3%
Average Micron 2400 MTFDKBA1T0QFM
  (1086 - 2796, n=17)
2077 Points -12%
Average of class Office
  (247 - 4111, n=86, last 2 years)
2045 Points -14%
Lenovo ThinkPad X1 Nano Gen 3
Lenovo UMIS AM6A0 RPJTJ512MKP1QDQ
2042 Points -14%
Asus ExpertBook B5 Flip B5302FEA
Samsung PM991 MZVLQ512HALU
1076 Points -55%
Seq Read
Lenovo Yoga 9 14IRP G8
SK hynix PC801 HFS512GEJ9X101N BF
5226 MB/s +38%
Asus ExpertBook B9 B9403CVA-KM0153X
Samsung PM9A1 MZVL21T0HCLR
4630 MB/s +23%
HP Dragonfly G4
Micron 3400 MTFDKBA512TFH 512GB
4510.61 MB/s +19%
Average Micron 2400 MTFDKBA1T0QFM
  (3616 - 4177, n=17)
3850 MB/s +2%
Asus Expertbook B5 Flip B5402F, i7-1360P
Micron 2400 MTFDKBA1T0QFM
3778.2 MB/s
Average of class Office
  (508 - 5796, n=86, last 2 years)
3509 MB/s -7%
Lenovo Yoga 6 13 83B2001SGE
WD PC SN740 512GB SDDPMQD-512G-1101
3117 MB/s -18%
Lenovo ThinkPad X1 Nano Gen 3
Lenovo UMIS AM6A0 RPJTJ512MKP1QDQ
3043.79 MB/s -19%
Asus ExpertBook B5 Flip B5302FEA
Samsung PM991 MZVLQ512HALU
1928 MB/s -49%
Seq Write
Asus ExpertBook B9 B9403CVA-KM0153X
Samsung PM9A1 MZVL21T0HCLR
2892 MB/s +49%
Lenovo Yoga 6 13 83B2001SGE
WD PC SN740 512GB SDDPMQD-512G-1101
2870 MB/s +47%
Lenovo Yoga 9 14IRP G8
SK hynix PC801 HFS512GEJ9X101N BF
2759 MB/s +42%
Average Micron 2400 MTFDKBA1T0QFM
  (1946 - 3177, n=17)
2589 MB/s +33%
Average of class Office
  (294 - 5880, n=86, last 2 years)
2408 MB/s +24%
Lenovo ThinkPad X1 Nano Gen 3
Lenovo UMIS AM6A0 RPJTJ512MKP1QDQ
2285.6 MB/s +17%
HP Dragonfly G4
Micron 3400 MTFDKBA512TFH 512GB
2127.08 MB/s +9%
Asus Expertbook B5 Flip B5402F, i7-1360P
Micron 2400 MTFDKBA1T0QFM
1945.9 MB/s
Asus ExpertBook B5 Flip B5302FEA
Samsung PM991 MZVLQ512HALU
807 MB/s -59%
4K Read
Lenovo Yoga 9 14IRP G8
SK hynix PC801 HFS512GEJ9X101N BF
68.6 MB/s +23%
Asus ExpertBook B9 B9403CVA-KM0153X
Samsung PM9A1 MZVL21T0HCLR
67.86 MB/s +22%
HP Dragonfly G4
Micron 3400 MTFDKBA512TFH 512GB
61.53 MB/s +11%
Average of class Office
  (18 - 91.1, n=86, last 2 years)
58.2 MB/s +5%
Asus Expertbook B5 Flip B5402F, i7-1360P
Micron 2400 MTFDKBA1T0QFM
55.6 MB/s
Lenovo ThinkPad X1 Nano Gen 3
Lenovo UMIS AM6A0 RPJTJ512MKP1QDQ
55.28 MB/s -1%
Asus ExpertBook B5 Flip B5302FEA
Samsung PM991 MZVLQ512HALU
54.2 MB/s -3%
Lenovo Yoga 6 13 83B2001SGE
WD PC SN740 512GB SDDPMQD-512G-1101
49.1 MB/s -12%
Average Micron 2400 MTFDKBA1T0QFM
  (27.8 - 58.8, n=17)
47.9 MB/s -14%
4K Write
Asus Expertbook B5 Flip B5402F, i7-1360P
Micron 2400 MTFDKBA1T0QFM
226.57 MB/s
Lenovo Yoga 9 14IRP G8
SK hynix PC801 HFS512GEJ9X101N BF
217 MB/s -4%
Average Micron 2400 MTFDKBA1T0QFM
  (135.6 - 288, n=17)
202 MB/s -11%
Lenovo ThinkPad X1 Nano Gen 3
Lenovo UMIS AM6A0 RPJTJ512MKP1QDQ
197.06 MB/s -13%
HP Dragonfly G4
Micron 3400 MTFDKBA512TFH 512GB
185.58 MB/s -18%
Asus ExpertBook B5 Flip B5302FEA
Samsung PM991 MZVLQ512HALU
182.7 MB/s -19%
Asus ExpertBook B9 B9403CVA-KM0153X
Samsung PM9A1 MZVL21T0HCLR
175.3 MB/s -23%
Average of class Office
  (28.2 - 350, n=86, last 2 years)
167.3 MB/s -26%
Lenovo Yoga 6 13 83B2001SGE
WD PC SN740 512GB SDDPMQD-512G-1101
108.1 MB/s -52%
4K-64 Read
Lenovo Yoga 6 13 83B2001SGE
WD PC SN740 512GB SDDPMQD-512G-1101
1544 MB/s +93%
Average Micron 2400 MTFDKBA1T0QFM
  (349 - 2005, n=17)
1074 MB/s +34%
Average of class Office
  (182.3 - 2713, n=86, last 2 years)
1064 MB/s +33%
Asus ExpertBook B5 Flip B5302FEA
Samsung PM991 MZVLQ512HALU
850 MB/s +6%
Asus Expertbook B5 Flip B5402F, i7-1360P
Micron 2400 MTFDKBA1T0QFM
800.1 MB/s
Lenovo Yoga 9 14IRP G8
SK hynix PC801 HFS512GEJ9X101N BF
798 MB/s 0%
Lenovo ThinkPad X1 Nano Gen 3
Lenovo UMIS AM6A0 RPJTJ512MKP1QDQ
674.06 MB/s -16%
Asus ExpertBook B9 B9403CVA-KM0153X
Samsung PM9A1 MZVL21T0HCLR
661.8 MB/s -17%
HP Dragonfly G4
Micron 3400 MTFDKBA512TFH 512GB
656.17 MB/s -18%
4K-64 Write
Lenovo Yoga 9 14IRP G8
SK hynix PC801 HFS512GEJ9X101N BF
2855 MB/s +46%
Asus ExpertBook B9 B9403CVA-KM0153X
Samsung PM9A1 MZVL21T0HCLR
2197 MB/s +13%
HP Dragonfly G4
Micron 3400 MTFDKBA512TFH 512GB
2107.89 MB/s +8%
Asus Expertbook B5 Flip B5402F, i7-1360P
Micron 2400 MTFDKBA1T0QFM
1949.9 MB/s
Lenovo Yoga 6 13 83B2001SGE
WD PC SN740 512GB SDDPMQD-512G-1101
1895 MB/s -3%
Average of class Office
  (183.4 - 3394, n=86, last 2 years)
1637 MB/s -16%
Average Micron 2400 MTFDKBA1T0QFM
  (669 - 2255, n=17)
1619 MB/s -17%
Lenovo ThinkPad X1 Nano Gen 3
Lenovo UMIS AM6A0 RPJTJ512MKP1QDQ
1616.01 MB/s -17%
Asus ExpertBook B5 Flip B5302FEA
Samsung PM991 MZVLQ512HALU
812 MB/s -58%
Access Time Read
Lenovo Yoga 6 13 83B2001SGE
WD PC SN740 512GB SDDPMQD-512G-1101
0.087 ms * -98%
Asus ExpertBook B5 Flip B5302FEA
Samsung PM991 MZVLQ512HALU
0.08 ms * -82%
Average of class Office
  (0.022 - 0.302, n=86, last 2 years)
0.07978 ms * -81%
Lenovo ThinkPad X1 Nano Gen 3
Lenovo UMIS AM6A0 RPJTJ512MKP1QDQ
0.066 ms * -50%
HP Dragonfly G4
Micron 3400 MTFDKBA512TFH 512GB
0.055 ms * -25%
Average Micron 2400 MTFDKBA1T0QFM
  (0.021 - 0.116, n=17)
0.05359 ms * -22%
Asus ExpertBook B9 B9403CVA-KM0153X
Samsung PM9A1 MZVL21T0HCLR
0.053 ms * -20%
Asus Expertbook B5 Flip B5402F, i7-1360P
Micron 2400 MTFDKBA1T0QFM
0.044 ms *
Lenovo Yoga 9 14IRP G8
SK hynix PC801 HFS512GEJ9X101N BF
0.021 ms * +52%
Access Time Write
Lenovo ThinkPad X1 Nano Gen 3
Lenovo UMIS AM6A0 RPJTJ512MKP1QDQ
0.352 ms * -278%
Average Micron 2400 MTFDKBA1T0QFM
  (0.091 - 0.139, n=17)
0.1092 ms * -17%
Asus Expertbook B5 Flip B5402F, i7-1360P
Micron 2400 MTFDKBA1T0QFM
0.093 ms *
Average of class Office
  (0.016 - 0.625, n=86, last 2 years)
0.07 ms * +25%
HP Dragonfly G4
Micron 3400 MTFDKBA512TFH 512GB
0.067 ms * +28%
Lenovo Yoga 6 13 83B2001SGE
WD PC SN740 512GB SDDPMQD-512G-1101
0.035 ms * +62%
Asus ExpertBook B9 B9403CVA-KM0153X
Samsung PM9A1 MZVL21T0HCLR
0.024 ms * +74%
Asus ExpertBook B5 Flip B5302FEA
Samsung PM991 MZVLQ512HALU
0.02 ms * +78%
Lenovo Yoga 9 14IRP G8
SK hynix PC801 HFS512GEJ9X101N BF
0.017 ms * +82%

* ... smaller is better

Reading continuous performance: DiskSpd Read Loop, Queue Depth 8

03306609901320165019802310264029703300363039604290462049505280561059406270Tooltip
Asus Expertbook B5 Flip B5402F, i7-1360P Micron 2400 MTFDKBA1T0QFM; diskspd 2.0.17 f: Ø3946 (518.22-4340.06)
HP Dragonfly G4 Micron 3400 MTFDKBA512TFH 512GB: Ø6464 (5699.22-6570.45)
Asus ExpertBook B9 B9403CVA-KM0153X Samsung PM9A1 MZVL21T0HCLR: Ø6508 (6032.97-6557.58)
Lenovo ThinkPad X1 Nano Gen 3 Lenovo UMIS AM6A0 RPJTJ512MKP1QDQ: Ø3065 (1919.67-3668.13)
Lenovo Yoga 9 14IRP G8 SK hynix PC801 HFS512GEJ9X101N BF: Ø6514 (5471.68-6562.91)
Lenovo Yoga 6 13 83B2001SGE WD PC SN740 512GB SDDPMQD-512G-1101: Ø3694 (2779.98-3719.3)

图形卡

集成Intel Irix Xe G7 96 EU在新款华硕 Expertbook B5 Flip B5402F 中,集成显卡展现了其更出色的一面。平均而言,只有 联想 Yoga 9 14IRP G8在合成基准测试中表现更好。不过,从 3DMark 11 的结果来看,华硕可折叠电脑在这方面的性能较弱,而且还落后于英特尔 Irix Xe G7 96 EUs 的平均性能。第 13 代英特尔处理器仍然依赖于过时的英特尔 Iris Xe 显卡,遗憾的是,它尚未提供更新的ARC iGPU。而较新的处理器(如Core Ultra 7 155H)则配备了最新的 ARC iGPU。.

3DMark Performance Rating - Percent
Lenovo Yoga 9 14IRP G8 -1!
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P
100 pt
Asus Expertbook B5 Flip B5402F, i7-1360P
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P
94.5 pt
Asus ExpertBook B9 B9403CVA-KM0153X
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1355U
90.6 pt
HP Dragonfly G4 -1!
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1365U
89.7 pt
Average of class Office

87.5 pt
Average Intel Iris Xe Graphics G7 96EUs

84 pt
Lenovo ThinkPad X1 Nano Gen 3
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P
80.1 pt
Lenovo Yoga 6 13 83B2001SGE
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 7730U
78.1 pt
Asus ExpertBook B5 Flip B5302FEA
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
56.5 pt
3DMark 11 - 1280x720 Performance GPU
Lenovo Yoga 9 14IRP G8
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P
7222 Points +17%
Average of class Office
  (1468 - 13132, n=88, last 2 years)
6848 Points +11%
Lenovo ThinkPad X1 Nano Gen 3
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P
6568 Points +6%
HP Dragonfly G4
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1365U
6440 Points +4%
Asus ExpertBook B9 B9403CVA-KM0153X
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1355U
6377 Points +3%
Average Intel Iris Xe Graphics G7 96EUs
  (2867 - 7676, n=202)
6353 Points +3%
Asus Expertbook B5 Flip B5402F, i7-1360P
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P
6183 Points
Lenovo Yoga 6 13 83B2001SGE
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 7730U
5656 Points -9%
Asus ExpertBook B5 Flip B5302FEA
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
4963 Points -20%
3DMark
1280x720 Cloud Gate Standard Graphics
Asus Expertbook B5 Flip B5402F, i7-1360P
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P
34307 Points
Asus ExpertBook B9 B9403CVA-KM0153X
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1355U
31236 Points -9%
Lenovo Yoga 6 13 83B2001SGE
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 7730U
30501 Points -11%
Lenovo ThinkPad X1 Nano Gen 3
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P
29081 Points -15%
Average of class Office
  (7982 - 58068, n=62, last 2 years)
26994 Points -21%
Average Intel Iris Xe Graphics G7 96EUs
  (13162 - 38578, n=180)
26508 Points -23%
Asus ExpertBook B5 Flip B5302FEA
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
17180 Points -50%
1920x1080 Fire Strike Graphics
Lenovo Yoga 9 14IRP G8
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P
5601 Points +2%
Asus Expertbook B5 Flip B5402F, i7-1360P
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P
5508 Points
Asus ExpertBook B9 B9403CVA-KM0153X
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1355U
5364 Points -3%
HP Dragonfly G4
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1365U
5175 Points -6%
Average Intel Iris Xe Graphics G7 96EUs
  (2286 - 6482, n=215)
4920 Points -11%
Average of class Office
  (736 - 9375, n=90, last 2 years)
4883 Points -11%
Lenovo Yoga 6 13 83B2001SGE
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 7730U
4147 Points -25%
Lenovo ThinkPad X1 Nano Gen 3
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P
4136 Points -25%
Asus ExpertBook B5 Flip B5302FEA
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
2837 Points -48%
2560x1440 Time Spy Graphics
Lenovo Yoga 9 14IRP G8
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P
1805 Points +6%
Asus Expertbook B5 Flip B5402F, i7-1360P
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P
1697 Points
Average of class Office
  (313 - 4109, n=89, last 2 years)
1612 Points -5%
HP Dragonfly G4
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1365U
1579 Points -7%
Asus ExpertBook B9 B9403CVA-KM0153X
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1355U
1579 Points -7%
Average Intel Iris Xe Graphics G7 96EUs
  (707 - 1871, n=212)
1495 Points -12%
Lenovo Yoga 6 13 83B2001SGE
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 7730U
1283 Points -24%
Lenovo ThinkPad X1 Nano Gen 3
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P
1276 Points -25%
Asus ExpertBook B5 Flip B5302FEA
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
1020 Points -40%
3DMark 11 Performance
6515 points
3DMark Cloud Gate Standard Score
26449 points
3DMark Fire Strike Score
4903 points
3DMark Time Spy Score
1926 points
Help

游戏性能

尽管这款专门面向商务用户的可转换机绝对不是为游戏而设计的,但其游戏效果还是不错的。大多数游戏都可以在较低分辨率下轻松运行。当然,它赶不上目前 AMD iGPU 的效果,如AMD Radeon 780MIntel ARC iGPU等 AMD iGPU 的性能,而采用专用图形解决方案的机型通常性能更好。在我们的测试中,Witcher 3在最初的 40 分钟内运行稳定,然后性能才略有下降(但并不明显)。该设备不适合在高分辨率或高图形设置下玩游戏。

Performance Rating - Percent
Lenovo Yoga 9 14IRP G8
Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs
96.9 pt
Average of class Office

87 pt
Asus Expertbook B5 Flip B5402F, i7-1360P
Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs
82.7 pt
HP Dragonfly G4
Intel Core i7-1365U, Intel Iris Xe Graphics G7 96EUs
81.7 pt
Asus ExpertBook B9 B9403CVA-KM0153X
Intel Core i7-1355U, Intel Iris Xe Graphics G7 96EUs
79.1 pt
Lenovo Yoga 6 13 83B2001SGE
AMD Ryzen 7 7730U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
77.3 pt
Lenovo ThinkPad X1 Nano Gen 3 -1!
Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs
73.8 pt
Asus ExpertBook B5 Flip B5302FEA
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
46.8 pt
The Witcher 3 - 1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Average of class Office
  (3.8 - 34, n=73, last 2 years)
14.9 fps +3%
Lenovo Yoga 9 14IRP G8
Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs
14.8 (14min, 14P1) fps +2%
HP Dragonfly G4
Intel Core i7-1365U, Intel Iris Xe Graphics G7 96EUs
14.7 (13min) fps +1%
Asus Expertbook B5 Flip B5402F, i7-1360P
Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs
14.5 (10min, 12P1) fps
Asus ExpertBook B9 B9403CVA-KM0153X
Intel Core i7-1355U, Intel Iris Xe Graphics G7 96EUs
13.5 fps -7%
Lenovo Yoga 6 13 83B2001SGE
AMD Ryzen 7 7730U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
13 fps -10%
Lenovo ThinkPad X1 Nano Gen 3
Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs
12.6 (9min) fps -13%
Asus ExpertBook B5 Flip B5302FEA
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
8.97 (8min, 8P1) fps -38%
GTA V - 1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x
Average of class Office
  (3.35 - 47.8, n=78, last 2 years)
13 fps +33%
Lenovo Yoga 6 13 83B2001SGE
AMD Ryzen 7 7730U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
12.3 (1.009min, 8.2P1) fps +26%
Lenovo Yoga 9 14IRP G8
Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs
10.7 (4.92min, 7.09P1) fps +9%
HP Dragonfly G4
Intel Core i7-1365U, Intel Iris Xe Graphics G7 96EUs
10.1 (4.85min, 6.29P1) fps +3%
Asus ExpertBook B9 B9403CVA-KM0153X
Intel Core i7-1355U, Intel Iris Xe Graphics G7 96EUs
10.1 (4.55min, 8P1) fps +3%
Asus Expertbook B5 Flip B5402F, i7-1360P
Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs
9.8 fps
Asus ExpertBook B5 Flip B5302FEA
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
4.9 fps -50%
Final Fantasy XV Benchmark - 1920x1080 High Quality
Lenovo Yoga 9 14IRP G8
Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs
24.8 fps +66%
Asus ExpertBook B9 B9403CVA-KM0153X
Intel Core i7-1355U, Intel Iris Xe Graphics G7 96EUs
16.5 fps +11%
HP Dragonfly G4
Intel Core i7-1365U, Intel Iris Xe Graphics G7 96EUs
16.4 fps +10%
Average of class Office
  (4.18 - 35.7, n=86, last 2 years)
16.3 fps +9%
Asus Expertbook B5 Flip B5402F, i7-1360P
Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs
14.9 fps
Lenovo ThinkPad X1 Nano Gen 3
Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs
14.6 fps -2%
Lenovo Yoga 6 13 83B2001SGE
AMD Ryzen 7 7730U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
12.9 fps -13%
Asus ExpertBook B5 Flip B5302FEA
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
9.93 fps -33%
Asus ExpertBook B5 Flip B5302FEA
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
9.93 fps -33%
Strange Brigade - 1920x1080 ultra AA:ultra AF:16
Lenovo Yoga 9 14IRP G8
Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs
28.3 (5.4min, 9.07P1) fps +7%
Average of class Office
  (9.6 - 56.5, n=70, last 2 years)
27.3 fps +3%
Asus Expertbook B5 Flip B5402F, i7-1360P
Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs
26.5 fps
HP Dragonfly G4
Intel Core i7-1365U, Intel Iris Xe Graphics G7 96EUs
24.7 (5.3min, 6.86P1) fps -7%
Asus ExpertBook B9 B9403CVA-KM0153X
Intel Core i7-1355U, Intel Iris Xe Graphics G7 96EUs
24.3 (5min, 6.31P1) fps -8%
Lenovo Yoga 6 13 83B2001SGE
AMD Ryzen 7 7730U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
22.7 (5min, 5.54P1) fps -14%
Lenovo ThinkPad X1 Nano Gen 3
Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs
21 (5min, 5P1) fps -21%
Asus ExpertBook B5 Flip B5302FEA
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
14.3 (5min, 5P1) fps -46%
Dota 2 Reborn - 1920x1080 ultra (3/3) best looking
Lenovo Yoga 9 14IRP G8
Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs
62.7 (53.2min) fps +21%
Asus ExpertBook B9 B9403CVA-KM0153X
Intel Core i7-1355U, Intel Iris Xe Graphics G7 96EUs
54.9 (44.8min) fps +6%
HP Dragonfly G4
Intel Core i7-1365U, Intel Iris Xe Graphics G7 96EUs
53.3 (44.9min) fps +3%
Asus Expertbook B5 Flip B5402F, i7-1360P
Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs
52 (42.2min) fps
Average of class Office
  (13.4 - 121.2, n=94, last 2 years)
51.5 fps -1%
Lenovo Yoga 6 13 83B2001SGE
AMD Ryzen 7 7730U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
50.4 (44.6min) fps -3%
Lenovo ThinkPad X1 Nano Gen 3
Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs
45.7 (37.9min) fps -12%
Asus ExpertBook B5 Flip B5302FEA
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
28.7 (16.5min) fps -45%
X-Plane 11.11 - 1920x1080 high (fps_test=3)
Lenovo Yoga 9 14IRP G8
Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs
38.6 fps +15%
Asus Expertbook B5 Flip B5402F, i7-1360P
Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs
33.6 fps
Lenovo ThinkPad X1 Nano Gen 3
Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs
30.2 fps -10%
Average of class Office
  (8.88 - 92.6, n=90, last 2 years)
30 fps -11%
HP Dragonfly G4
Intel Core i7-1365U, Intel Iris Xe Graphics G7 96EUs
29.1 fps -13%
Lenovo Yoga 6 13 83B2001SGE
AMD Ryzen 7 7730U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
26.7 fps -21%
Asus ExpertBook B9 B9403CVA-KM0153X
Intel Core i7-1355U, Intel Iris Xe Graphics G7 96EUs
25.5 fps -24%
Asus ExpertBook B5 Flip B5302FEA
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
18 fps -46%

Witcher 3 FPS diagram

012345678910111213141516Tooltip
Asus Expertbook B5 Flip B5402F, i7-1360P i7-1360P, Iris Xe G7 96EUs: Ø14.2 (12-17)
Asus ExpertBook B9 B9403CVA-KM0153X i7-1355U, Iris Xe G7 96EUs: Ø11.8 (10-13)
Lenovo Yoga 9 14IRP G8 i7-1360P, Iris Xe G7 96EUs: Ø14.8 (14-17)
Lenovo Yoga 6 13 83B2001SGE R7 7730U, Vega 8: Ø13.7 (12-15)
Asus ExpertBook B5 Flip B5302FEA i5-1135G7, Iris Xe G7 80EUs: Ø8.97 (8-10)
lowmed.highultraQHD4K
GTA V (2015) 101.6 87.1 22.3 9.8
The Witcher 3 (2015) 91.3 57.5 32.5 14.5
Dota 2 Reborn (2015) 128.1 95.8 57.5 52
Final Fantasy XV Benchmark (2018) 39.8 20.6 14.9 10.5 6.3
X-Plane 11.11 (2018) 48 37.3 33.6
Far Cry 5 (2018) 52 26 24 22
Strange Brigade (2018) 104.4 44 36 26.5

废气排放:负载时声音略大

噪音排放

华硕 ExpertBook B5 Flip 的单风扇解决方案

尽管性能更高,但与前代产品相比,新款华硕 Expertbook B5 Flip B5402F 的风扇噪音排放并无太大变化。 前代产品.在闲置模式下,新机型仍然保持完全静音。但是,一旦这款可折叠本需要使用应用程序或玩游戏,风扇就会开始相对较快地转动。只有通过 "我的华硕 "应用程序使用静音模式,才能将这种现象降至最低。在最大负载情况下,这款可转换机的噪音高达 45 分贝,是同类产品中噪音最大的机型之一。值得注意的是 联想 Yoga 9 14IRP G8在大多数基准测试中,采用相同处理器和类似测试结果的联想 Yoga 9 14IRP G8 也有类似的噪音。

Noise Level

Idle
24.78 / 24.78 / 24.78 dB(A)
Load
37 / 45 dB(A)
  red to green bar


30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light   Earthworks M23R, Arta (15 cm distance)   environment noise: 24.78 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2042.138.839.140.9253431.331.538.73136.331.928.633.24034.431.232.536.35033.233.234.237.76331.233.133.631.48028.930.128.127.810028.122.819.22812520.419.916.121.916021.819.617.623.520024.219.314.724.92502619.313.526.131525.2191226.340027.421.912.625.750031.123.811.93063028.420.711.329.480030.622.411.630.4100030.922.311.330.9125032.721.611.732.4160034.324.911.734.6200034.624.712.234.425003525.112.534.8315035.225.312.735.2400032.623.313.232.750003324.313.332.9630035.121.813.335.1800034.317.413.333.81000026.816.213.226.81250020.614.413.320.71600017.313.912.417.2SPL45.235.224.845.2N4.720.54.7median 30.6median 21.8median 12.7median 30Delta4.82.31.14.139.739.639.338.439.83029.227.238.828.625.525.524.625.725.126.927.327.224.825.72625.826.324.922.321.923.524.62223.822.925.126.225.924.221.420.622.219.322.317.818.219.518.218.9171717.91618.217.815.416.213.716.918.61516.115.417.519.415.916.614.318.820.115.515.914.519.62115.715.114.120.320.816.41611.12019.715.815.110.119.419.213.513.19.51921.315.5159.920.823.217.5171022.521.615.815.410.221.822.61615.310.322.52215.314.710.722.121.314.814.411.221.520.314.213.611.520.317.31312.611.517.31612.111.911.515.71412.211.911.613.712.412.111.811.612.111.411.511.110.711.132.727.226.823.332.61.70.90.80.51.6median 19.7median 15.5median 15.1median 11.5median 19.42.31.41.61.92.136.637.135.433.737.328.929.63025.534.124.624.623.1222325.725.723.323.424.625.524.522.624.823.220.521.319.819.419.822.924.122.121.320.619.921.320.918.519.91818.11818.418.816.716.714.513.716.617.316.512.211.817.518.81814.212.919.720.217.513.213.120.220.11711.611.820.821.118.411.811.221.320.61810.510.120.421.217.8109.520.723.720.19.79.223.624.321.19.59.323.926.422.99.89.726.227.223.4109.926.826.823.110.310.326.926.822.610.910.826.728.322.211.211.12824.319.111.411.524.320.117.111.611.72019.213.211.611.619.914.112.111.711.71413.312.111.611.612.812.111.411.411.111.336.932.82322.936.82.31.60.40.42.3median 20.2median 18median 11.6median 11.5median 20.43.33.11.51.23.3hearing rangehide median Fan NoiseAsus Expertbook B5 Flip B5402F, i7-1360PHP Dragonfly G4Lenovo ThinkPad X1 Nano Gen 3
Asus Expertbook B5 Flip B5402F, i7-1360P
Iris Xe G7 96EUs, i7-1360P, Micron 2400 MTFDKBA1T0QFM
HP Dragonfly G4
Iris Xe G7 96EUs, i7-1365U, Micron 3400 MTFDKBA512TFH 512GB
Asus ExpertBook B9 B9403CVA-KM0153X
Iris Xe G7 96EUs, i7-1355U, Samsung PM9A1 MZVL21T0HCLR
Lenovo ThinkPad X1 Nano Gen 3
Iris Xe G7 96EUs, i7-1360P, Lenovo UMIS AM6A0 RPJTJ512MKP1QDQ
Lenovo Yoga 9 14IRP G8
Iris Xe G7 96EUs, i7-1360P, SK hynix PC801 HFS512GEJ9X101N BF
Lenovo Yoga 6 13 83B2001SGE
Vega 8, R7 7730U, WD PC SN740 512GB SDDPMQD-512G-1101
Asus ExpertBook B5 Flip B5302FEA
Iris Xe G7 80EUs, i5-1135G7, Samsung PM991 MZVLQ512HALU
Noise
9%
2%
10%
-1%
-4%
1%
off / environment *
24.78
23.3
6%
24.9
-0%
22.9
8%
23.6
5%
27
-9%
23.8
4%
Idle Minimum *
24.78
23.5
5%
24.9
-0%
23
7%
23.6
5%
27
-9%
23.8
4%
Idle Average *
24.78
23.5
5%
24.9
-0%
23
7%
23.6
5%
27
-9%
23.8
4%
Idle Maximum *
24.78
26.8
-8%
24.9
-0%
23
7%
24.6
1%
27
-9%
26
-5%
Load Average *
37
27.2
26%
33
11%
32.8
11%
45
-22%
37.6
-2%
37.6
-2%
Load Maximum *
45
35
22%
45
-0%
36.9
18%
45
-0%
37.6
16%
44.9
-0%
Witcher 3 ultra *
32.7
36.9
45
39.8

* ... smaller is better

温度

新款 ExpertBook B5 Flip 的温度比前代产品低得多。 的温度要低得多。旧机型的顶部和底部平均温度为 34°C,而新机型的温度要低得多,我们测得顶部温度为 28.8°C,底部温度为 30.7°C。屏幕正前方的热点也更低了。旧机型在这一区域测得的温度超过 45°C,而新机的峰值为 40°C。在闲置模式下,其温度很低,不会令人讨厌。

Max. Load
 28.1 °C42 °C26 °C
 27.5 °C37.9 °C23.8 °C
 27 °C25 °C22 °C
Maximum: 42 °C
Average: 28.8 °C
22.2 °C40 °C39.5 °C
22.2 °C33.8 °C33.6 °C
22.2 °C31.8 °C31.2 °C
Maximum: 40 °C
Average: 30.7 °C
Power Supply (max.)  49 °C | Room Temperature 22.1 °C | Fluke t3000FC (calibrated), FIRT 550-Pocket
(+) The average temperature for the upper side under maximal load is 28.8 °C / 84 F, compared to the average of 29.5 °C / 85 F for the devices in the class Office.
(±) The maximum temperature on the upper side is 42 °C / 108 F, compared to the average of 34.3 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(±) The bottom heats up to a maximum of 40 °C / 104 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 23.7 °C / 75 F, compared to the device average of 29.5 °C / 85 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 27 °C / 80.6 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 27.6 °C / 81.7 F (+0.6 °C / 1.1 F).
系统处于空闲模式(顶部)
系统处于空闲模式(顶部)
系统处于空闲模式(底部)
系统处于空闲模式(底部)
压力测试期间的系统(顶部)
压力测试期间的系统(顶部)
压力测试中的系统(底部)
压力测试中的系统(底部)
Asus Expertbook B5 Flip B5402F, i7-1360P
Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs
HP Dragonfly G4
Intel Core i7-1365U, Intel Iris Xe Graphics G7 96EUs
Asus ExpertBook B9 B9403CVA-KM0153X
Intel Core i7-1355U, Intel Iris Xe Graphics G7 96EUs
Lenovo ThinkPad X1 Nano Gen 3
Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs
Lenovo Yoga 9 14IRP G8
Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs
Lenovo Yoga 6 13 83B2001SGE
AMD Ryzen 7 7730U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
Asus ExpertBook B5 Flip B5302FEA
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
Heat
2%
-24%
2%
2%
-15%
3%
Maximum Upper Side *
42
38.6
8%
48.8
-16%
44
-5%
39.7
5%
43.8
-4%
42.6
-1%
Maximum Bottom *
40
40.4
-1%
56.5
-41%
43.2
-8%
45.4
-14%
48.2
-21%
45.1
-13%
Idle Upper Side *
25.8
28.2
-9%
33.3
-29%
25.6
1%
25.7
-0%
32.9
-28%
24.6
5%
Idle Bottom *
32
29
9%
35
-9%
25.6
20%
26.4
17%
34.1
-7%
24.8
22%

* ... smaller is better

压力测试

压力测试没有发现真正的异常。在短暂达到略低于 4 GHz 的性能峰值后,CPU 稳定在 1,000 MHz。其温度与 Cinebench 测试一样,保持在 69°C。GPU 最初的频率略低于 1.2 GHz,随后一直保持在 620 MHz,偶尔会出现 800 至 900 MHz 的性能峰值。没有出现节流现象,因此在日常使用中不会受到任何限制。

使用 Prime95 和 Furmark 进行压力测试
使用 Prime95 和 Furmark 进行压力测试

发言人

它的立体声扬声器性能完全一般,没有任何重大缺陷。因此,该扬声器完全适用于电话会议和偶尔观看视频,但在播放音乐时,建议使用外部解决方案,因为其非常微弱的低音尤其明显。

dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2038.539.139.22530.831.530.53129.928.630.8403432.531.45032.734.231.76331.933.629.98032.628.129.510034.219.22612541.116.132.916046.517.63720053.414.743.325051.213.542.131551.51242.140057.412.649.550065.611.956.263061.411.35280070.611.662.2100072.211.363.2125068.911.758.9160064.311.754.5200067.112.257250063.412.553.6315064.412.754.2400063.513.253.6500060.413.351.5630059.513.350800057.313.346.71000060.313.250.3125005613.347.11600045.512.436SPL77.924.868.5N37.90.521median 60.3median 12.7median 50.3Delta6.51.16.235.132.235.139.738.539.753.341.153.341.33641.330.428.430.427.528.627.526.71826.732.921.332.937.319.137.342.122.542.141.113.441.149.312.549.356.412.256.465.111.365.167.311.467.365.612.265.668.51268.569.212.269.267.511.767.568.81268.871.912.871.972.712.972.771.713.271.765.913.765.962.314.262.366.514.666.571.116.571.172.122.572.17023.17056.621.756.681.527.381.551.40.851.4median 66.5median 13.2median 66.5838hearing rangehide median Pink NoiseAsus Expertbook B5 Flip B5402F, i7-1360PLenovo Yoga 6 13 83B2001SGE
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
Asus Expertbook B5 Flip B5402F, i7-1360P audio analysis

(±) | speaker loudness is average but good (77.9 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 13.9% lower than median
(±) | linearity of bass is average (8.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 6.4% higher than median
(±) | linearity of mids is average (10.4% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.1% away from median
(+) | highs are linear (4.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (17.5% difference to median)
Compared to same class
» 24% of all tested devices in this class were better, 7% similar, 70% worse
» The best had a delta of 7%, average was 21%, worst was 53%
Compared to all devices tested
» 30% of all tested devices were better, 8% similar, 62% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Lenovo Yoga 6 13 83B2001SGE audio analysis

(±) | speaker loudness is average but good (81.5 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 23.3% lower than median
(±) | linearity of bass is average (9.9% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.1% away from median
(+) | mids are linear (5.2% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.8% away from median
(+) | highs are linear (5.6% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (17% difference to median)
Compared to same class
» 28% of all tested devices in this class were better, 7% similar, 64% worse
» The best had a delta of 6%, average was 21%, worst was 57%
Compared to all devices tested
» 27% of all tested devices were better, 8% similar, 65% worse
» The best had a delta of 4%, average was 25%, worst was 134%

电源管理:睡眠模式的问题

耗电量

当谈到 前代机型时时,我们曾将其电源管理描述为华硕 ExpertBook B5 Flip 的 "精华时刻"。遗憾的是,由于上述睡眠模式的错误操作,新机型的情况不再如此。很快我们就会发现,该设备往往在三到五分钟后才进入真正的睡眠模式,因此耗电量大大增加。由于这个问题,它在待机模式下的功耗短时间内可高达 9 瓦。在空闲模式和负载情况下,新款华硕 ExpertBook 的功耗也高于前代产品。与此同时,该设备的功率也明显增加。在最大功率下,其功耗升至 65 瓦,这意味着随机提供的 65 瓦电源几乎足够使用。

Power Consumption
Off / Standbydarklight 0.2 / 9 Watt
Idledarkmidlight 9.6 / 10.3 / 8.6 Watt
Load midlight 58.028 / 65.28 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Asus Expertbook B5 Flip B5402F, i7-1360P
i7-1360P, Iris Xe G7 96EUs, Micron 2400 MTFDKBA1T0QFM, IPS, 1920x1080, 14"
Average Intel Iris Xe Graphics G7 96EUs

Average of class Office

Power Consumption
11%
22%
Idle Minimum *
9.6
Idle Average *
10.3
8.55 ?(3.8 - 63, n=193)
17%
Idle Maximum *
8.6
10.8 ?(5.8 - 68.9, n=193)
-26%
Load Average *
58.028
Witcher 3 ultra *
39.6
Load Maximum *
65.28

* ... smaller is better

Power consumption Witcher 3 / stress test

05101520253035404550556065Tooltip
Asus Expertbook B5 Flip B5402F, i7-1360P; Witcher 3 ultra: Ø39.6 (36.1-65.3)
Asus Expertbook B5 Flip B5402F, i7-1360P; 1280x720 Prime95 28.10 and Furmark 1.25: Ø51.2 (48.1-65.3)
Asus Expertbook B5 Flip B5402F, i7-1360P; Idle 150cd/m2: Ø6.46 (5.85-8.71)

Power consumption with external monitor

05101520253035404550556065Tooltip
Asus Expertbook B5 Flip B5402F, i7-1360P; Prime95 V2810 Stress (external Monitor): Ø37.8 (31.6-65.4)
Asus Expertbook B5 Flip B5402F, i7-1360P; Cinebench R23 Single (external Monitor): Ø37.7 (33.6-59.9)
Asus Expertbook B5 Flip B5402F, i7-1360P; Cinebench R23 Multi (external Monitor): Ø57 (50.2-65.4)
Asus Expertbook B5 Flip B5402F, i7-1360P; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø36.5 (29.4-64.5)
Asus Expertbook B5 Flip B5402F, i7-1360P; 1920x1080 The Witcher 3 ultra (external Monitor): Ø37.7 (32.1-65.3)
Asus Expertbook B5 Flip B5402F, i7-1360P; Idle 1min (external Monitor): Ø5.45 (4.75-12.5)

运行时间

尽管其功耗比上一代 电池寿命新款华硕ExpertBook B5 Flip的电池续航时间仍然非常出色。63 瓦时的电池足够使用,我们在无线局域网测试中的续航时间略低于 11 小时。不过,它的前代产品在这方面的表现稍好一些,能达到 12 小时以下。与其他机型相比,这款商务可折叠手机的表现一般。有一些机型(如联想 Yoga 6 13)的表现更好,但也有一些机型的续航时间不长,如 联想 Yoga 9 14IRP G8.将我们的测试样品与后者进行比较尤其有趣,因为在大多数基准测试中,华硕可折叠笔记本与联想 Yoga 9 并驾齐驱。因此,尽管性能很高,但电池续航时间明显更长,可以被评为非常好。

Battery Runtime
WiFi Websurfing
10h 41min
Load (maximum brightness)
3h 38min
Asus Expertbook B5 Flip B5402F, i7-1360P
i7-1360P, Iris Xe G7 96EUs, 63 Wh
HP Dragonfly G4
i7-1365U, Iris Xe G7 96EUs, 68 Wh
Asus ExpertBook B9 B9403CVA-KM0153X
i7-1355U, Iris Xe G7 96EUs, 63 Wh
Lenovo ThinkPad X1 Nano Gen 3
i7-1360P, Iris Xe G7 96EUs, 49.5 Wh
Lenovo Yoga 9 14IRP G8
i7-1360P, Iris Xe G7 96EUs, 75 Wh
Lenovo Yoga 6 13 83B2001SGE
R7 7730U, Vega 8, 59 Wh
Asus ExpertBook B5 Flip B5302FEA
i5-1135G7, Iris Xe G7 80EUs, 66 Wh
Average of class Office

Battery Runtime
19%
-21%
-27%
-45%
-12%
-10%
-26%
WiFi v1.3
641
954
49%
614
-4%
465
-27%
472
-26%
724
13%
707
10%
Load
218
192
-12%
135
-38%
81
-63%
140
-36%
153
-30%
Reader / Idle
2550
H.264
606
651
714
669

Pros

+ 案件稳定性高于平均水平
+ 性能稳定
+ 出色的键盘
+ 集成手写笔
+ 指纹传感器和网络摄像头隐私快门
+ 良好的电池续航能力
+ 很好的连接选项

Cons

- 节能模式和静音模式不起作用
- 无 16:10 显示格式
- 显示屏不适合专业用途

评语令人印象深刻的全能选手,缺点也不少

ExpertBook B5 Flip B5402F 评测。测试样品由华硕提供
ExpertBook B5 Flip B5402F 评测。测试样品由华硕提供

在我们的测试过程中,华硕 ExpertBook B5 Flip B5402F 被证明是一款功能强大的可折叠电脑,具有许多专门用于商务领域的实用功能。它升级到了全新的英特尔酷睿 i7-1360P处理器,其性能令人印象深刻,通常可与其他顶级机型媲美。其出色的设计、MIL-STD 810H 认证以及实用的商务功能(如显示盖内的 LED 指示灯和集成的输入笔)都使该设备在竞争中脱颖而出。

在性能基准测试中,ExpertBook 的表现与其他顶级产品类似,如 联想 Yoga 9 14IRP G8尽管性能相似,但它拥有更长的运行时间。这使得这款可折叠本非常适合日常商务使用,在应对这一特定领域的需求时应该不会遇到任何问题。更高的显示亮度还能让你在光线不足的条件下更有效地工作,在这方面,它比 前代机型.不过,由于亮度更高,显示屏的色彩准确度会有所下降。

华硕 ExpertBook B5 Flip Convertible 是一款坚固耐用、灵活多变的日常办公伴侣,几乎没有任何不足之处。

尽管性能有所提高,显示屏亮度也有所改善,但笔记本电脑不正确的工作睡眠模式仍然令人失望。虽然敞篷版笔记本的电池续航时间在使用时还不错,但待机时的耗电量却远远超出了应有的水平,因为通常情况下,只有在关闭显示屏盖子三到五分钟后才会启动待机模式。反过来,这款可折叠手机的连接选项也近乎完美,你几乎永远不需要去拿加密狗。机箱的稳定性和出色的键盘也是这款商务笔记本电脑的优势所在,总的来说,这款笔记本电脑的整体性能非常出色,除了节能模式的问题外,其他方面几乎没有什么缺陷。

价格和供应情况

新款华硕 ExpertBook B5 目前可从华硕网站购买,售价为 1,629.99 美元。购买,价格为 1,629.99 美元。

Asus Expertbook B5 Flip B5402F, i7-1360P - 03/22/2024 v7 (old)
Philip Macdonald

Chassis
86 / 98 → 88%
Keyboard
91%
Pointing Device
94%
Connectivity
73 / 80 → 91%
Weight
70 / 20-75 → 91%
Battery
89%
Display
89%
Games Performance
66 / 78 → 84%
Application Performance
82 / 95 → 86%
Temperature
93%
Noise
91%
Audio
75%
Camera
46 / 85 → 54%
Average
80%
89%
Office - Weighted Average

Transparency

The selection of devices to be reviewed is made by our editorial team. The test sample was provided to the author as a loan by the manufacturer or retailer for the purpose of this review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.

This is how Notebookcheck is testing

Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.

Price comparison

Please share our article, every link counts!
Mail Logo
> Notebookcheck中文版(NBC中国) > 评测 > 华硕专家本 B5 Flip B5402F 评测--一款出色的可折叠便携本
Philip Macdonald, 2024-03-27 (Update: 2024-03-27)
