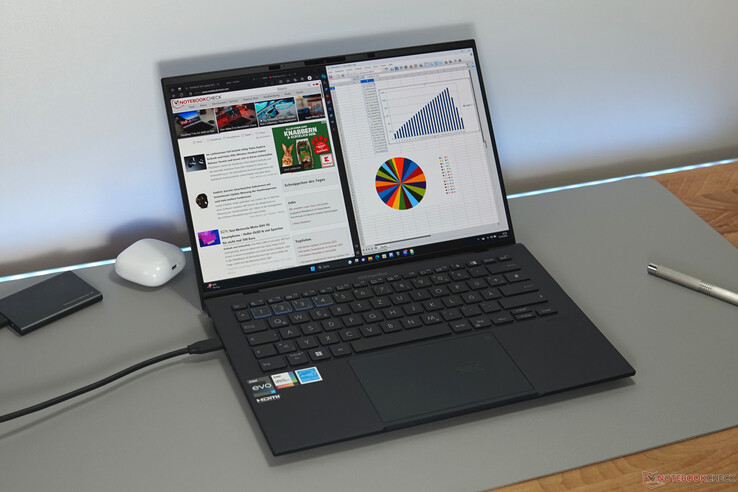

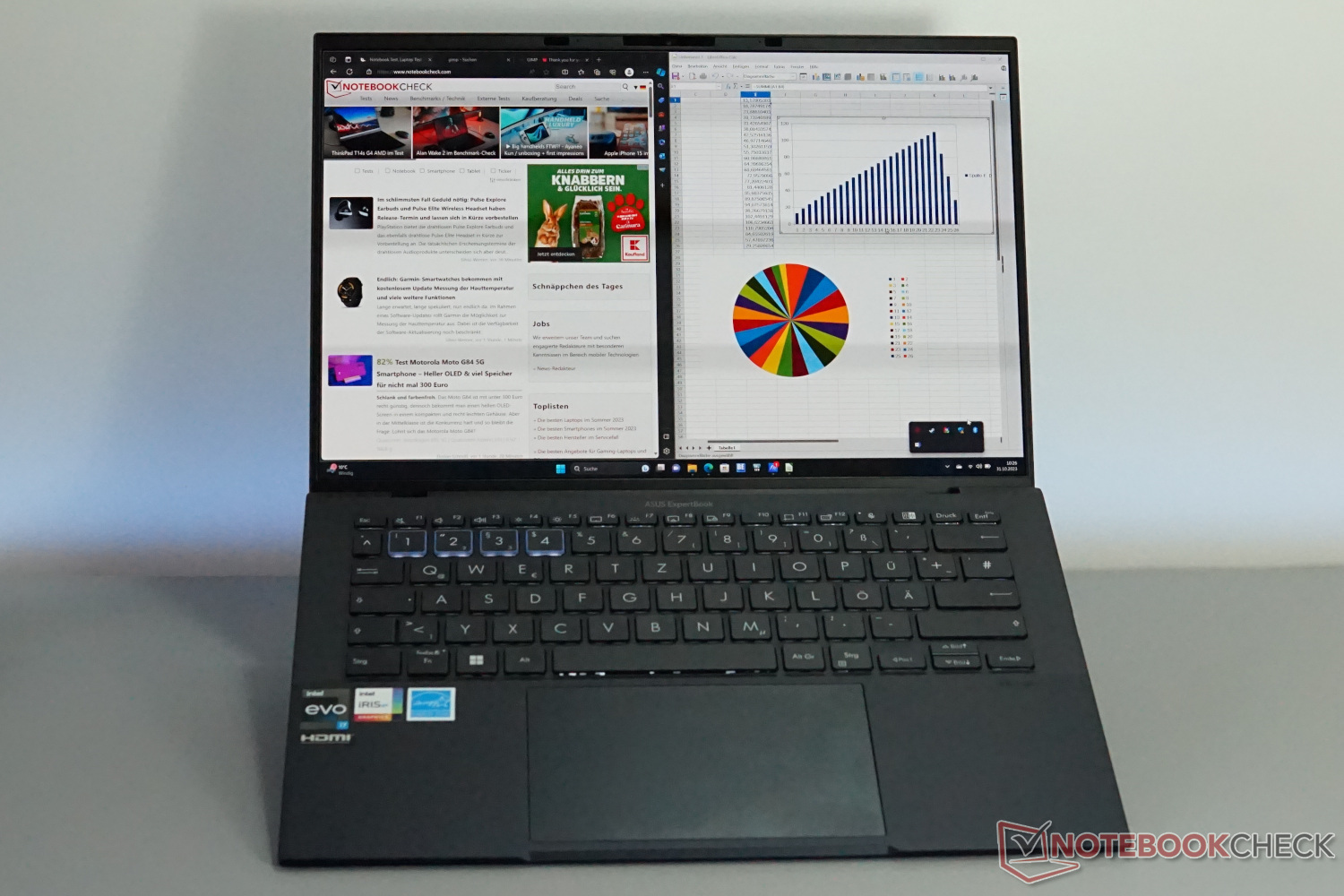

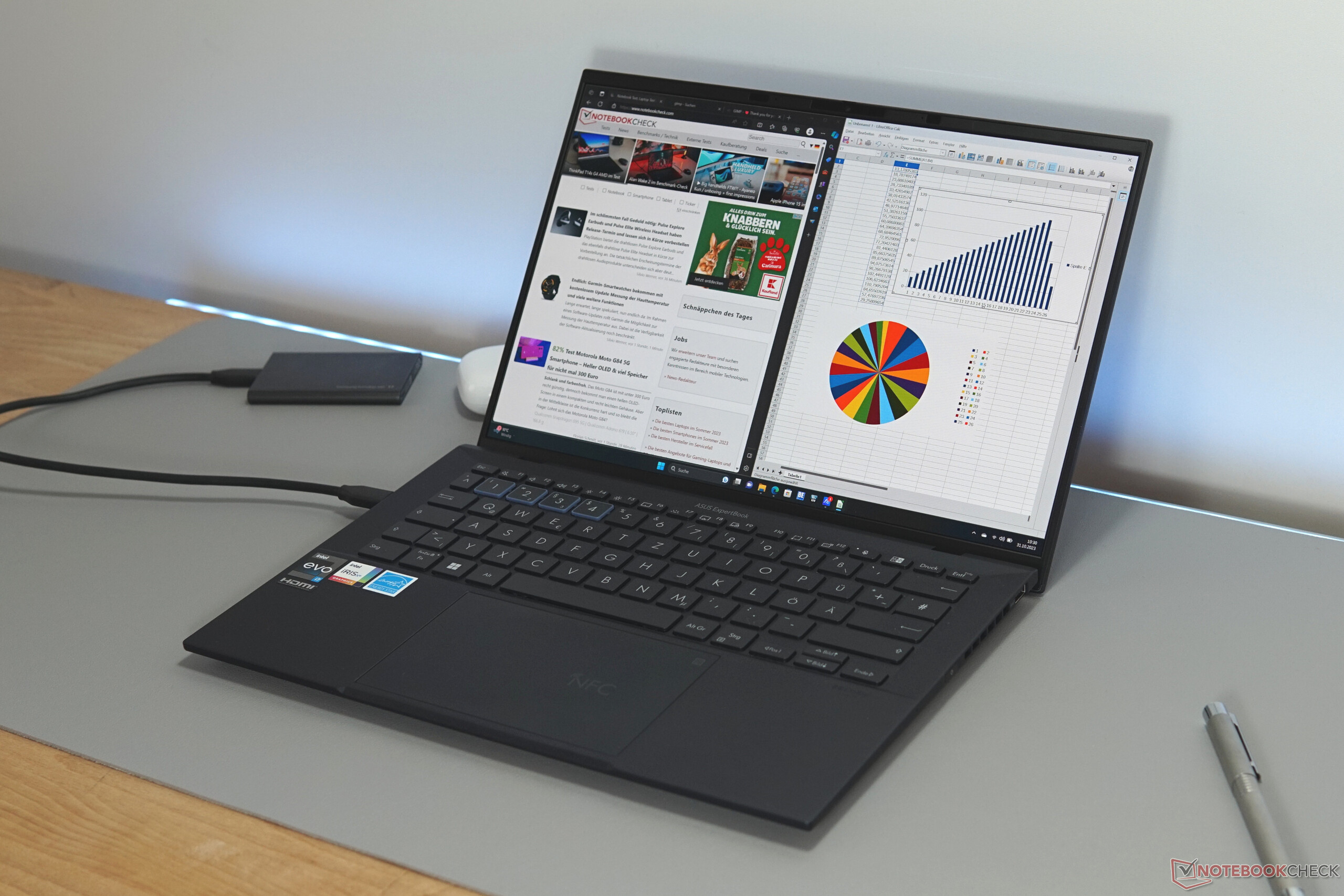

华硕 ExpertBook B9 OLED (2023) 评测：适合高要求用户的超薄商务笔记本
华硕 ExpertBook B9 OLED 是一款高端商务笔记本电脑，它采用了快速、经济的英特尔酷睿 i7-1355U华硕 ExpertBook B9 OLED 是一款高端商务笔记本，采用快速、经济的英特尔酷睿 i7-1355U 处理器，通过高对比度和高分辨率 OLED 显示屏显示内容，显示屏对角线为 14 英寸，重量仅为 1 千克。针对特殊需求，还可选配两款英特尔酷睿 i5-1345U vPro 和 i7-1365 vPro CPU，从而改进远程维护和诊断。
同级别的竞争对手包括ThinkPad X13 G4或 戴尔 XPS 13 Plus 9320。在重量和尺寸方面，只有 LG Gram Style 14不相上下。
潜在的竞争对手比较
Rating | Date | Model | Weight | Height | Size | Resolution | Price |
|---|---|---|---|---|---|---|---|
| 91.5 % v7 (old) | 11 / 2023 | Asus ExpertBook B9 B9403CVA-KM0153X i7-1355U, Iris Xe G7 96EUs | 1 kg | 17.6 mm | 14.00" | 2880x1800 | |
| 90 % v7 (old) | 08 / 2023 | LG Gram Style 14Z90RS-G.AD7AG i7-1360P, Iris Xe G7 96EUs | 987 g | 16.5 mm | 14.00" | 2880x1800 | |
| 89.7 % v7 (old) | 09 / 2023 | Lenovo ThinkPad X13 G4 21EX004QGE i7-1355U, Iris Xe G7 96EUs | 1.2 kg | 15.95 mm | 13.30" | 2880x1800 | |
| 87.4 % v7 (old) | 07 / 2023 | Dell XPS 13 Plus 9320 Core i7-1360P i7-1360P, Iris Xe G7 96EUs | 1.3 kg | 15.3 mm | 13.40" | 3456x2160 | |
| 85.4 % v7 (old) | 05 / 2023 | Asus ZenBook S13 OLED UX5304 i7-1355U, Iris Xe G7 96EUs | 1 kg | 11.8 mm | 13.30" | 2880x1800 | |
| 85.3 % v7 (old) | 06 / 2023 | Asus ZenBook 14 UM3402Y R7 7730U, Vega 8 | 1.4 kg | 16.9 mm | 14.00" | 2880x1800 |
外壳 - 小巧、坚固、简洁的商务笔记本

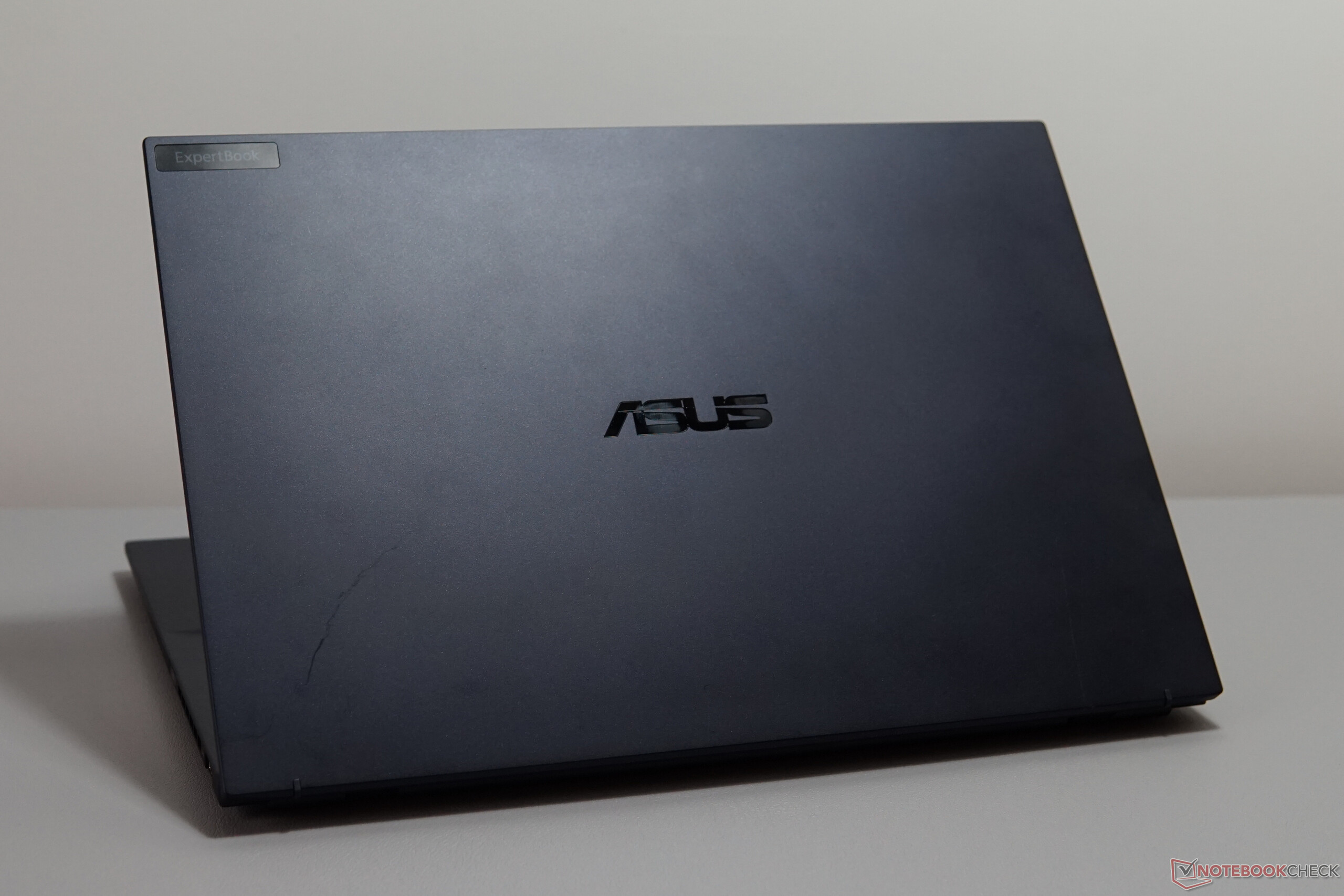

华硕在设计方面并没有特别的创新。近乎黑色的磨砂表面略显粗糙，具有典型的商务风格。键盘边框和显示屏盖子由镁锂合金制成，与简单的塑料材质的区别不仅是看得见的。ExpertBook B9 非常坚固，基本上无法扭转，由于重量很轻，这一点显得很奇怪，但这是好事。除此之外，它的制造质量绝对很高。所有边缘和接缝都非常平直。只有底板和塑料显示屏边框稍稍影响了强烈的印象。

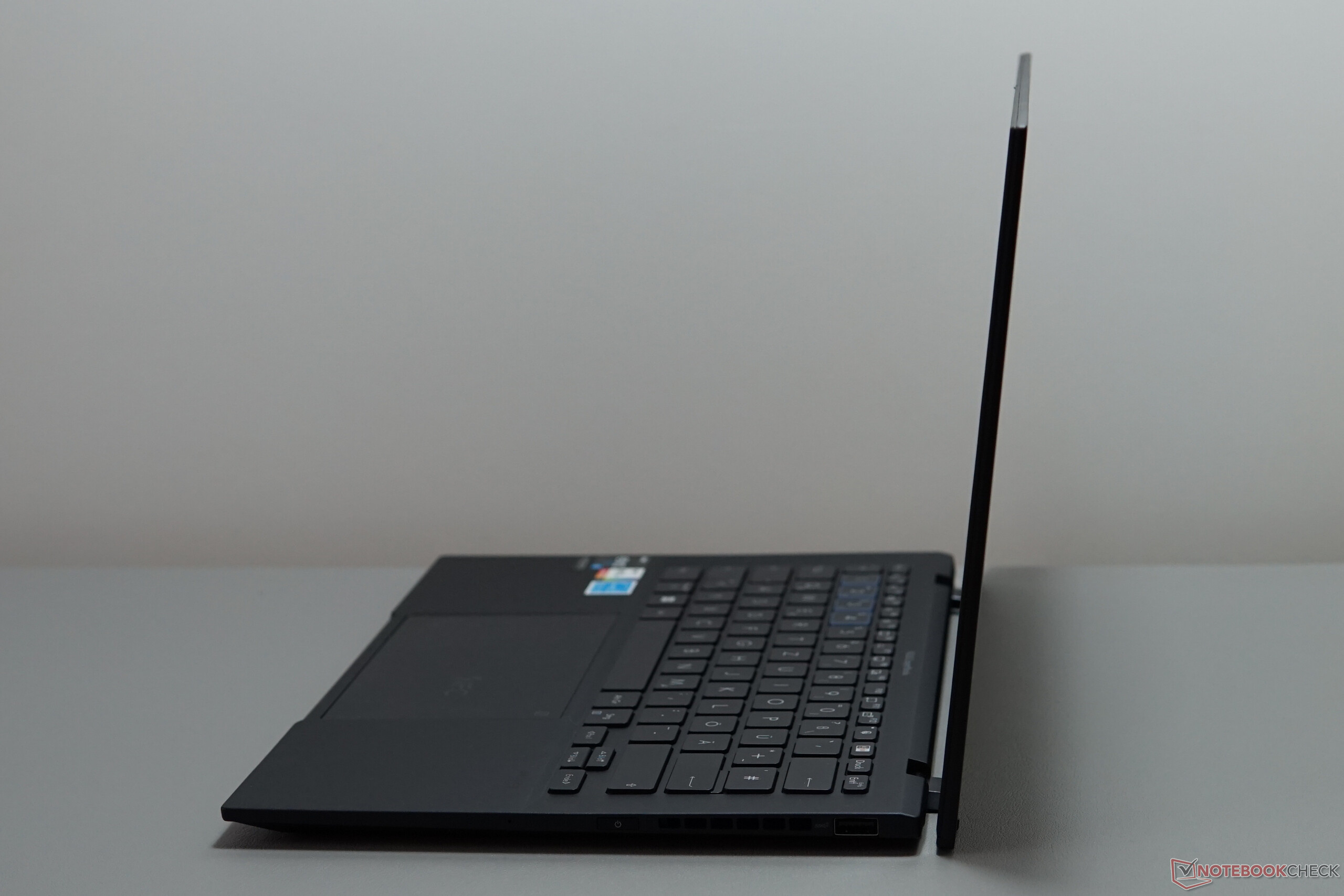

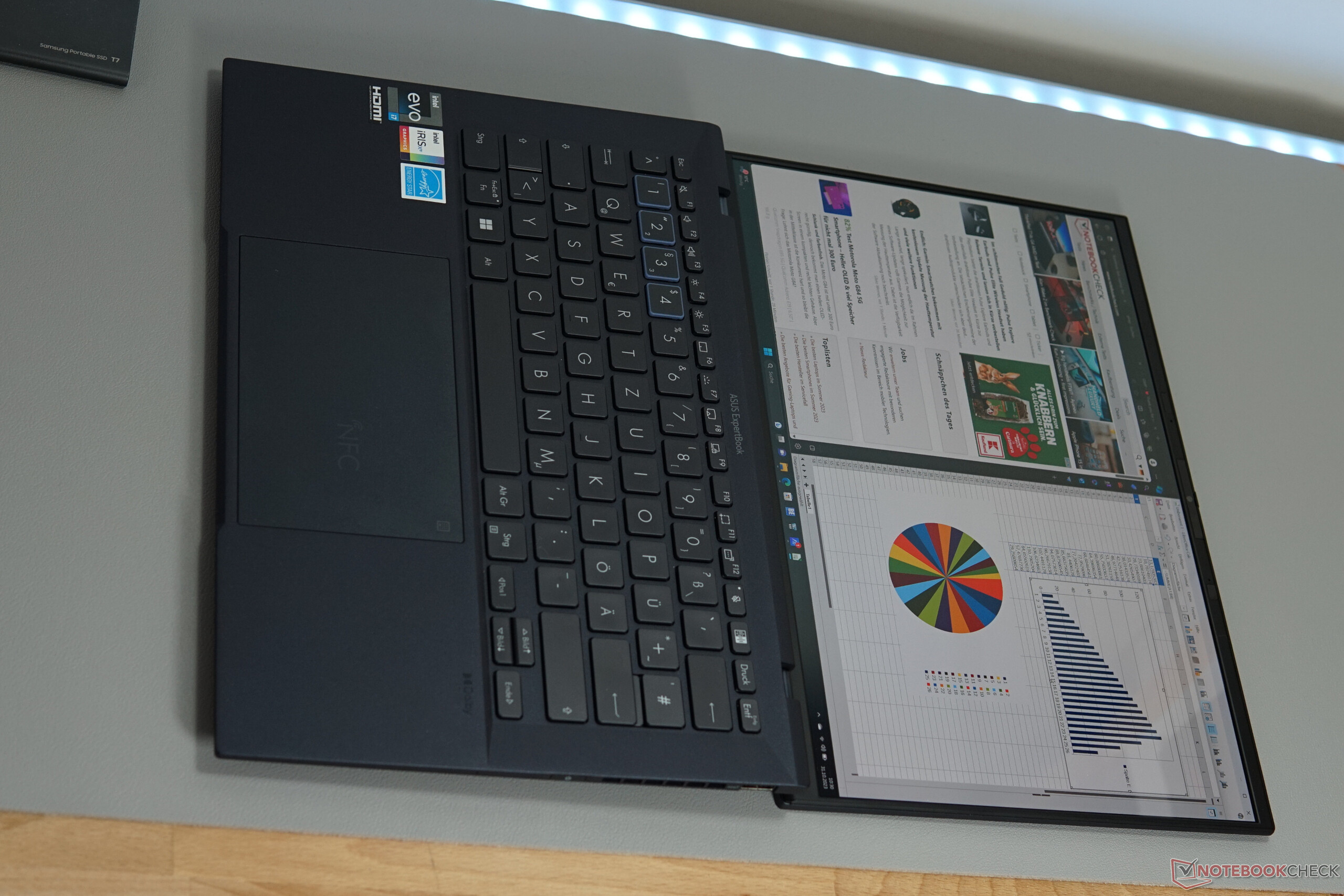

屏幕本身的厚度仅为 4 毫米，其硬度令人惊讶。单手即可轻松打开，因此铰链并不是特别紧，这也反映在明显的晃动上。最大开启角度为 180 度。
作为一款 14 英寸的笔记本电脑，华硕 ExpertBook 的重量非常轻。它的重量几乎刚好为 1 千克，与LG Gram Style 14一样轻巧。它的尺寸与竞争对手相仿。虽然 18 毫米的机身厚度似乎有点高，但这不太可能影响移动性。在打开笔记本电脑时，由于通风口和两个风扇的位置需要一定的空间，所以厚度也是合理的。更多信息请参见 "排放 "部分。
设备 - 专家本 B9 一应俱全

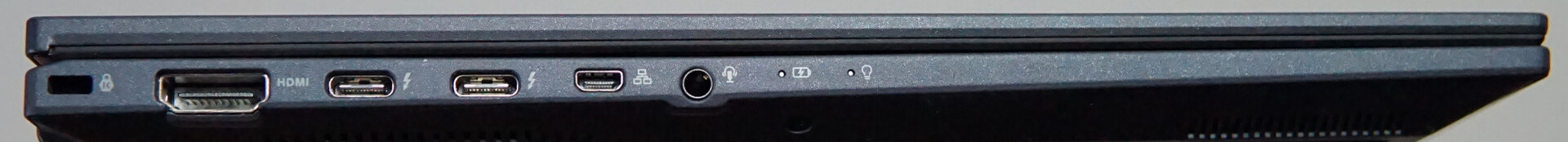

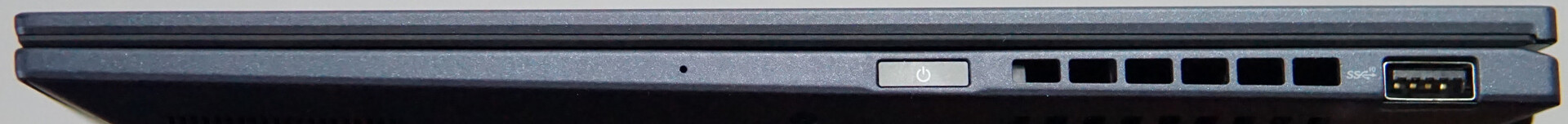

连接的选择和数量完全可以接受，特别是考虑到笔记本电脑的小巧尺寸。有三个视频输出接口，包括 HDMI 和两个 Thunderbolts。此外，TB 4 还可用于扩展坞，这大大增加了连接的选择。此外，还有一个典型的耳机连接插孔和一个 USB-A 端口，可以 10 Gbit/s 的速度传输数据。

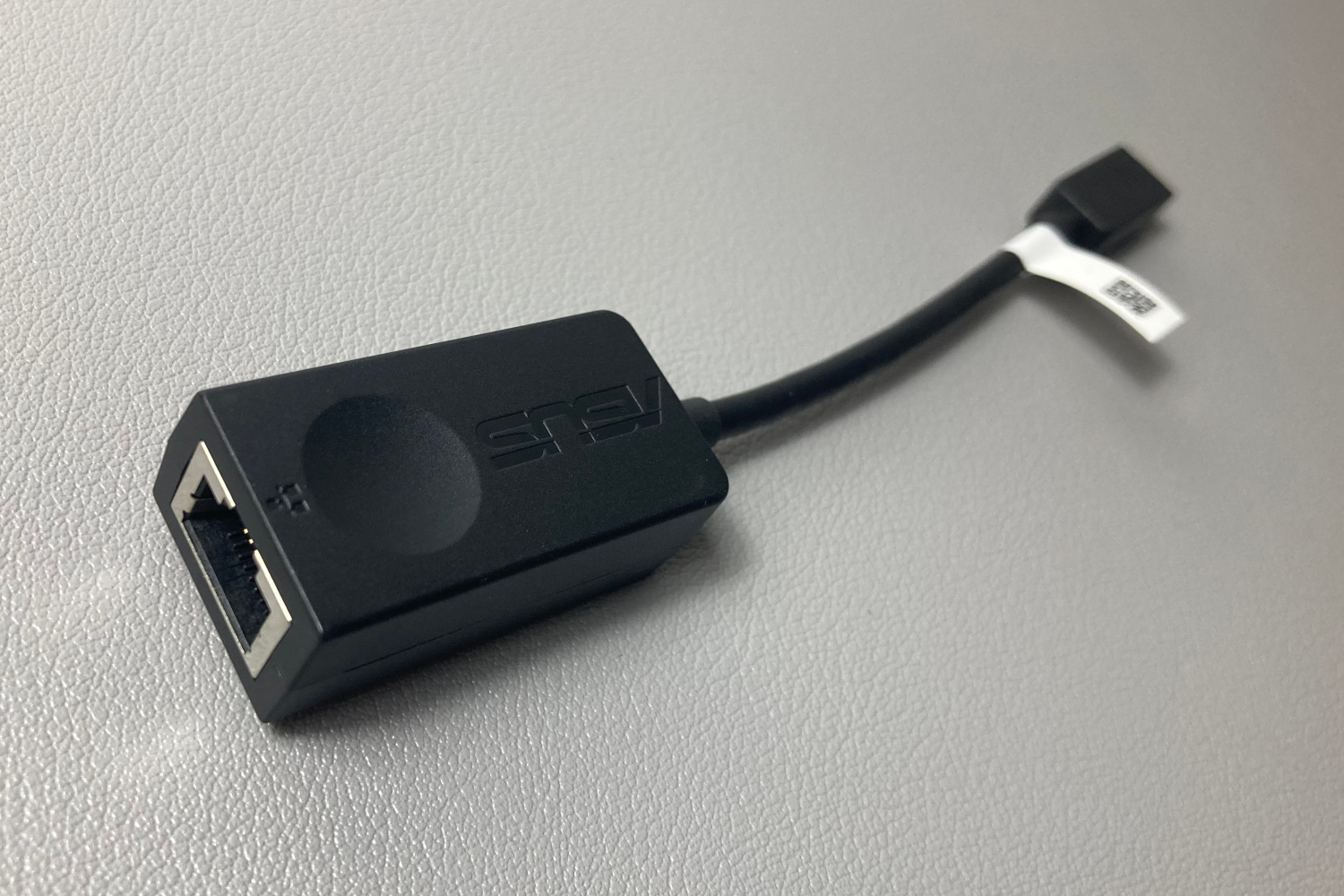

华硕将 ExpertBook 的电源按钮移到了侧面，指纹传感器也位于侧面。甚至还有一个局域网端口，可惜只有 1 千兆，采用迷你端口的形式。当然，这也为笔记本电脑的连接节省了空间。这意味着您必须使用附带的适配器，但至少用户在外出时仍可选择直接连接网线。没有读卡器。
交流
在测试中，英特尔 AX211 WLAN 模块在 6 GHz（WiFi 6E）频率下实现了 1 600 Mbit/s 的理想带宽。使用 WiFi 6 路由器时，近距离测量值仅为 1,000 Mbit/s，仍相当于千兆 LAN 网络连接。
有了合适的基础设施，数据就可以快速交换，从而可以在短时间内进行大量备份等工作。

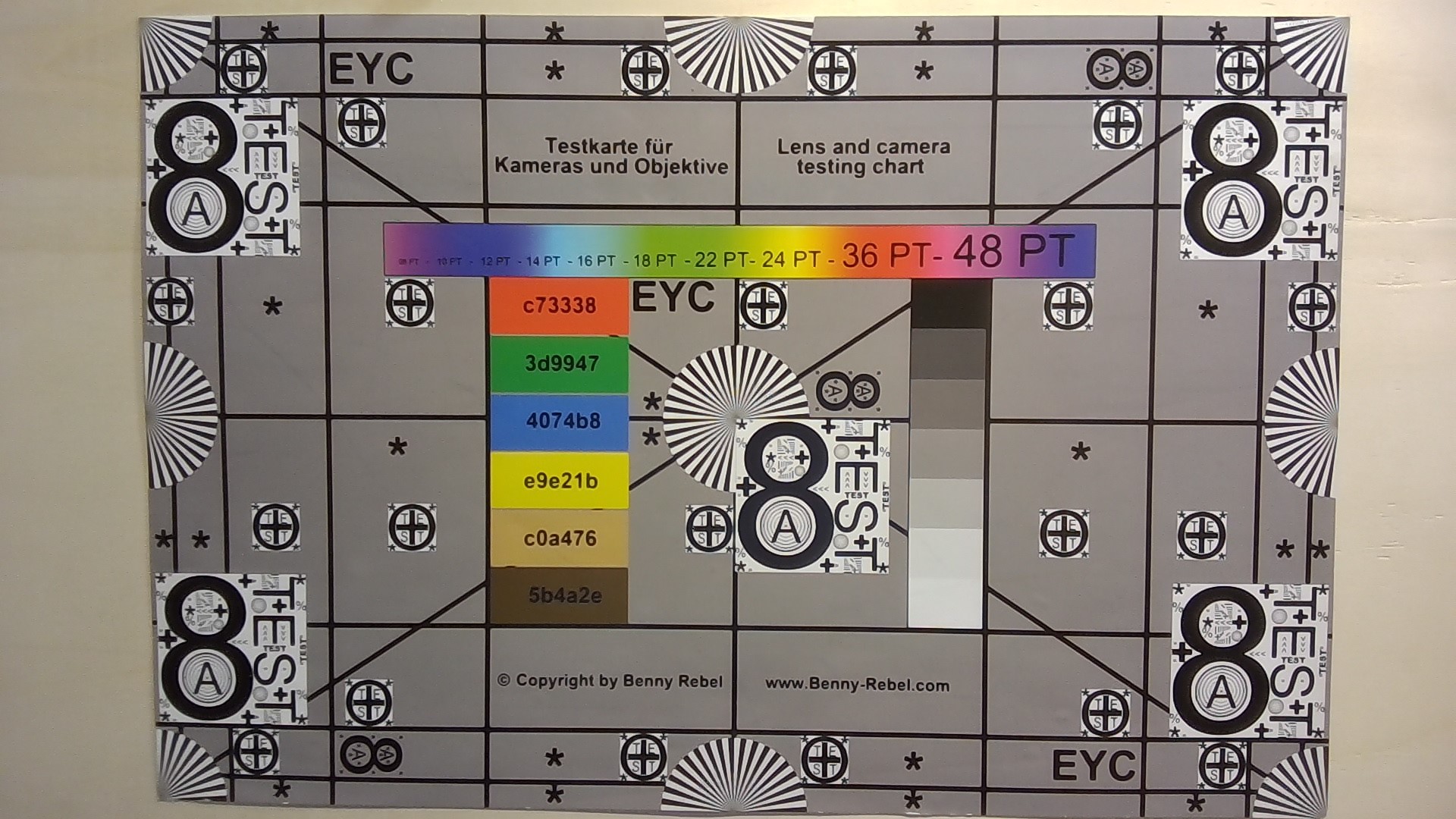

网络摄像头

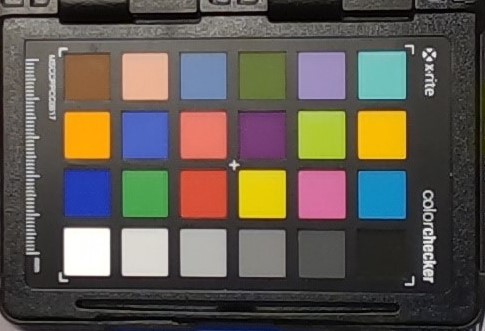

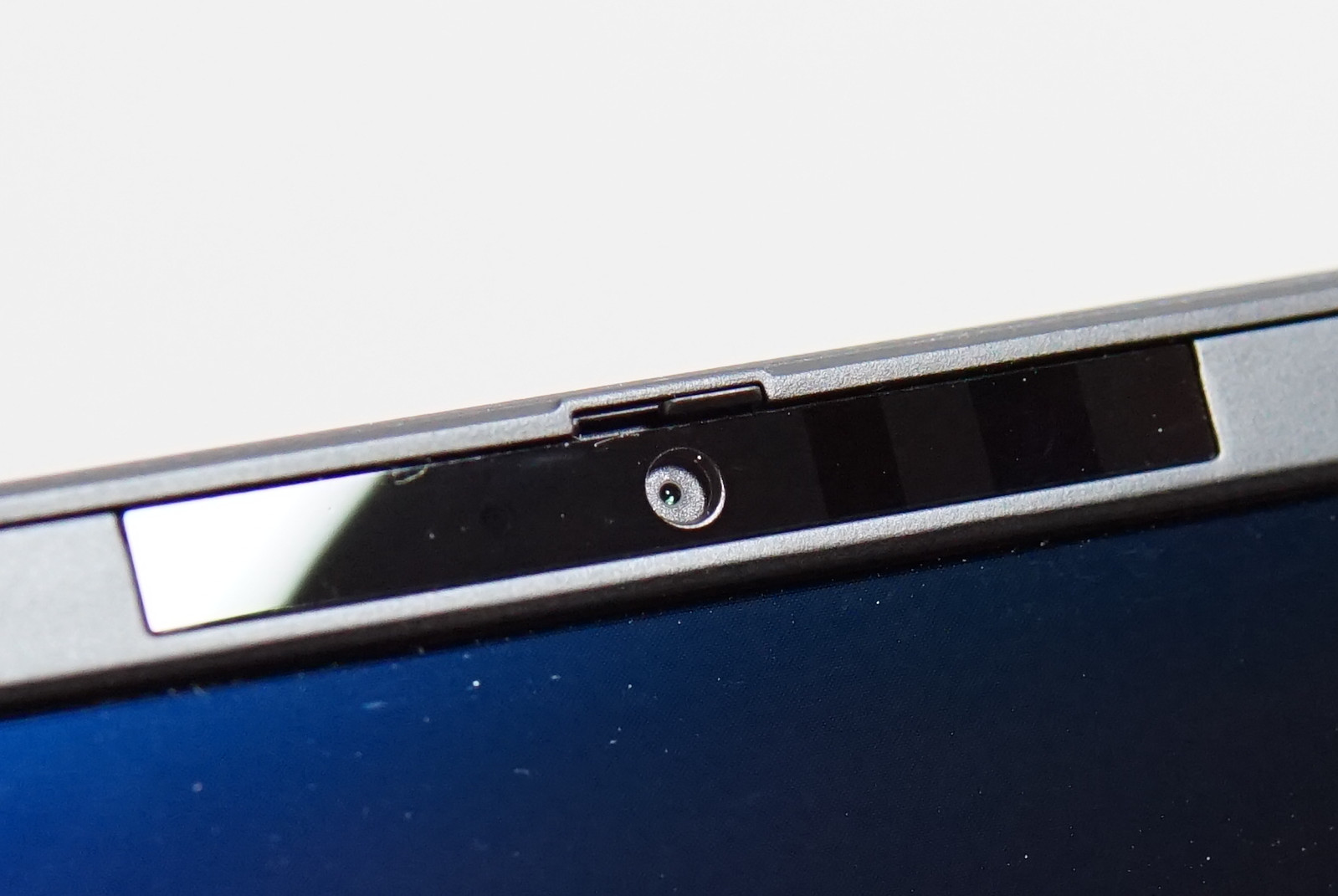

网络摄像头的功能无可挑剔。它的像素为 200 万像素，比高清摄像头的画质要细腻得多。为了保护隐私，还配备了一个机械盖板。摄像头还能通过面部识别登录。
此外，显示屏上方还装有运动传感器，在不活动时可将 ExpertBook 置于节能模式。检测到的移动会唤醒笔记本，如果面部识别成功，笔记本会立即重新解锁。这一点非常实用，尽管一开始有点不同寻常。软件还能在视频通话时跟踪面部。我们对暗光下的图像质量印象不深。即使是用台灯代替正常的室内照明，也会产生明显的图像噪点。
麦克风的表现值得称赞，因为录制的语音听起来很自然，而且无论距离麦克风多远和说话的方向如何，音量都几乎保持不变。
安全
没有智能卡插槽选项。除此之外，还安装了许多安全选项。Kensington 锁提供防盗保护。
可通过面部识别、指纹传感器或触摸板上的 NFC 进行登录。
配件

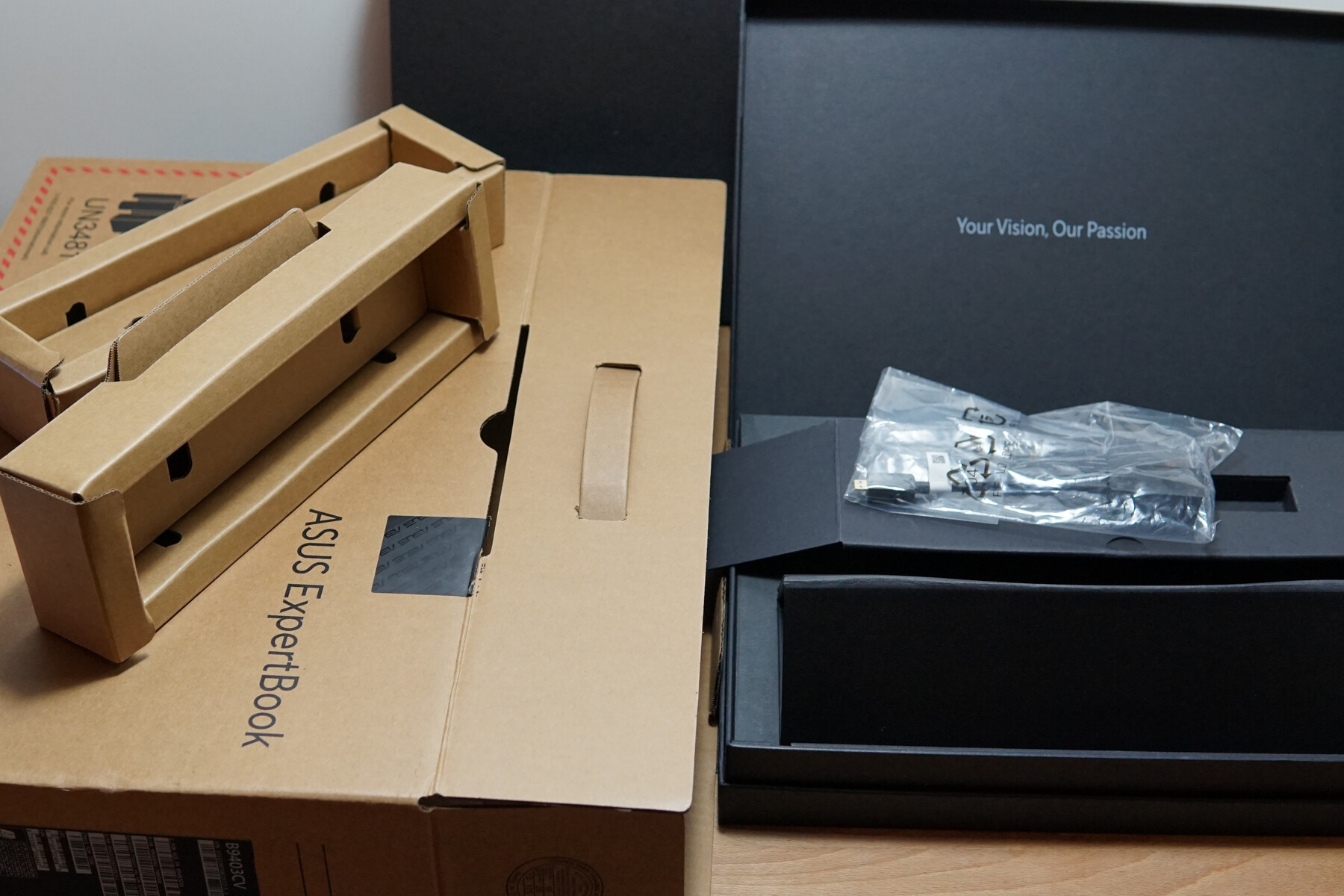

华硕 ExpertBook B9 的包装值得称赞。整个包装都使用了再生纸。没有使用塑料或彩色印刷品。遗憾的是，局域网适配器没有跟进。这有损于整体的环保印象，因为它是用 PE 箔包裹的，而且还是一个带有电缆、外壳等的附加设备。

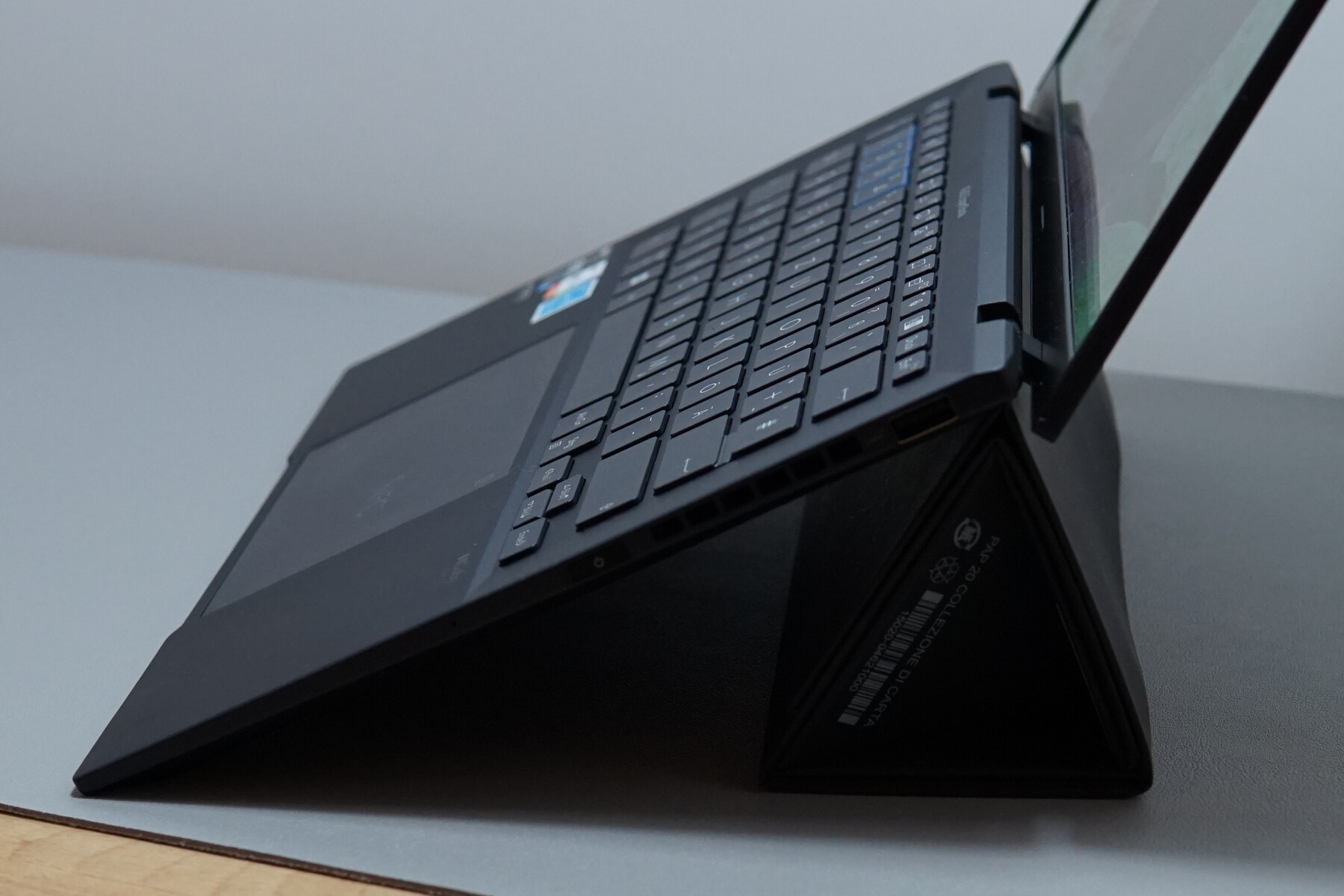

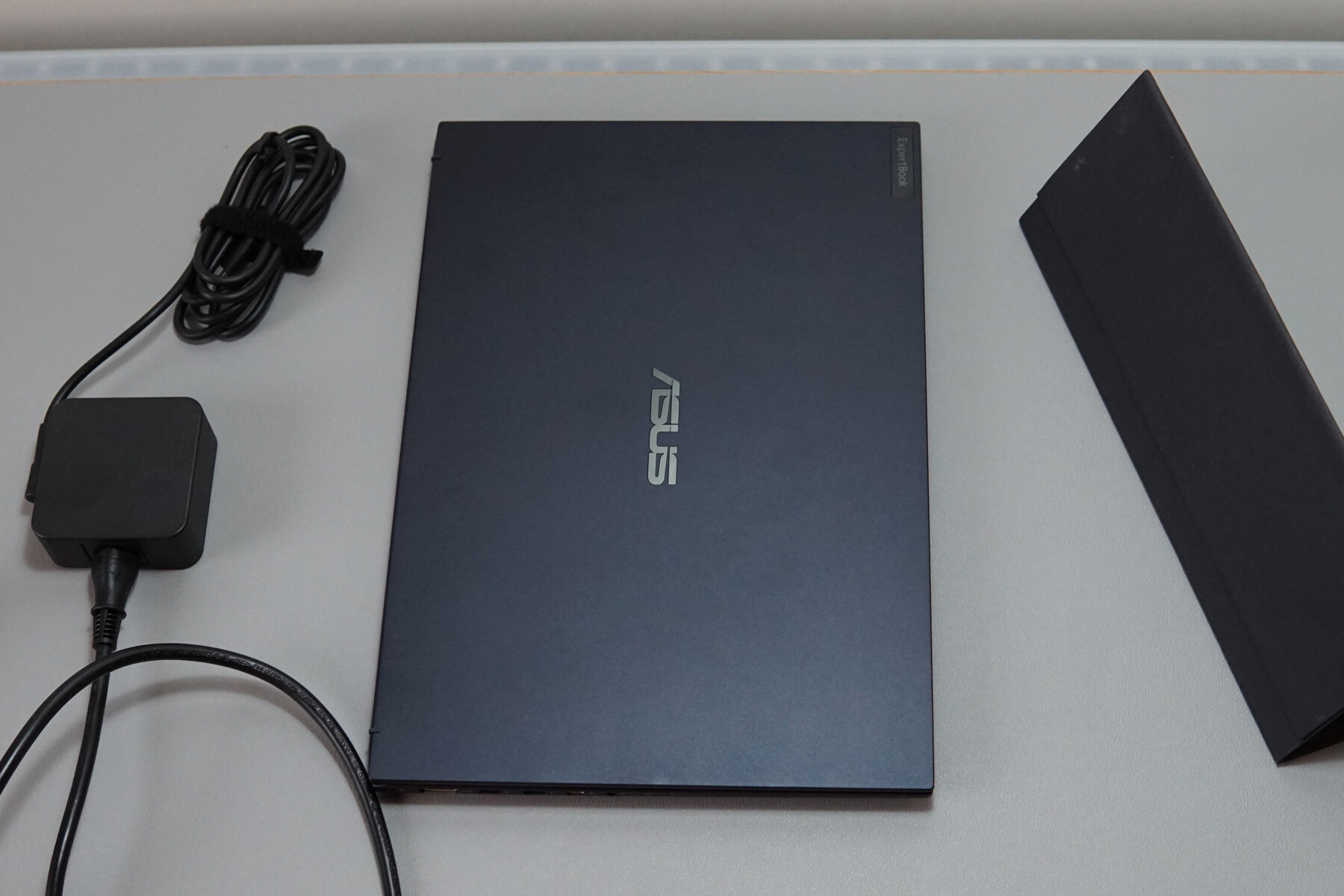

电源装置的外包装确实考虑周全。它的设计方式使其只需几个简单的步骤就能变身为一个坚固的笔记本电脑支架，尽管并不十分美观。这就意味着，包装之后仍能发挥作用。它运行良好，键盘角度舒适，笔记本底部通风良好。
维护

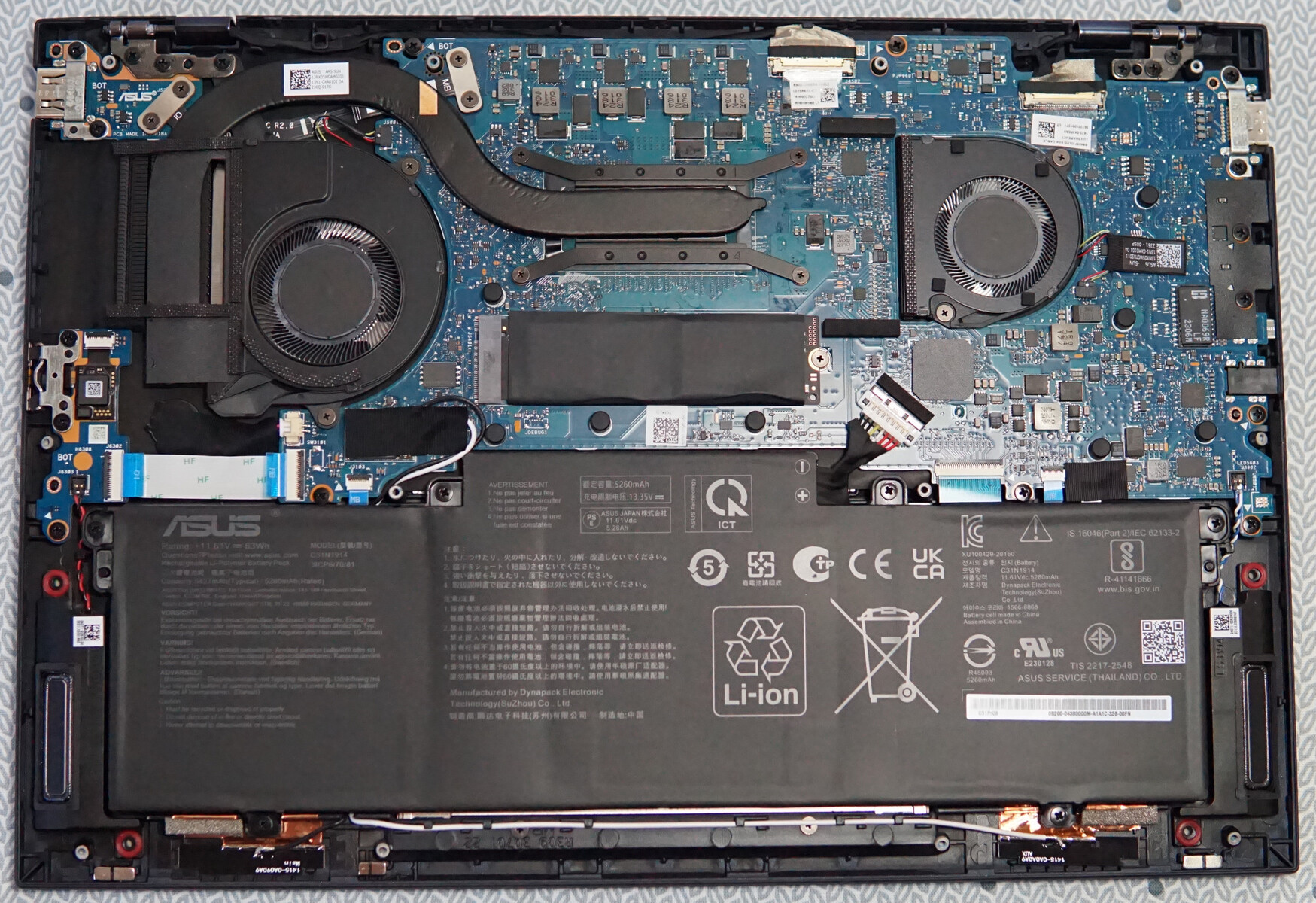

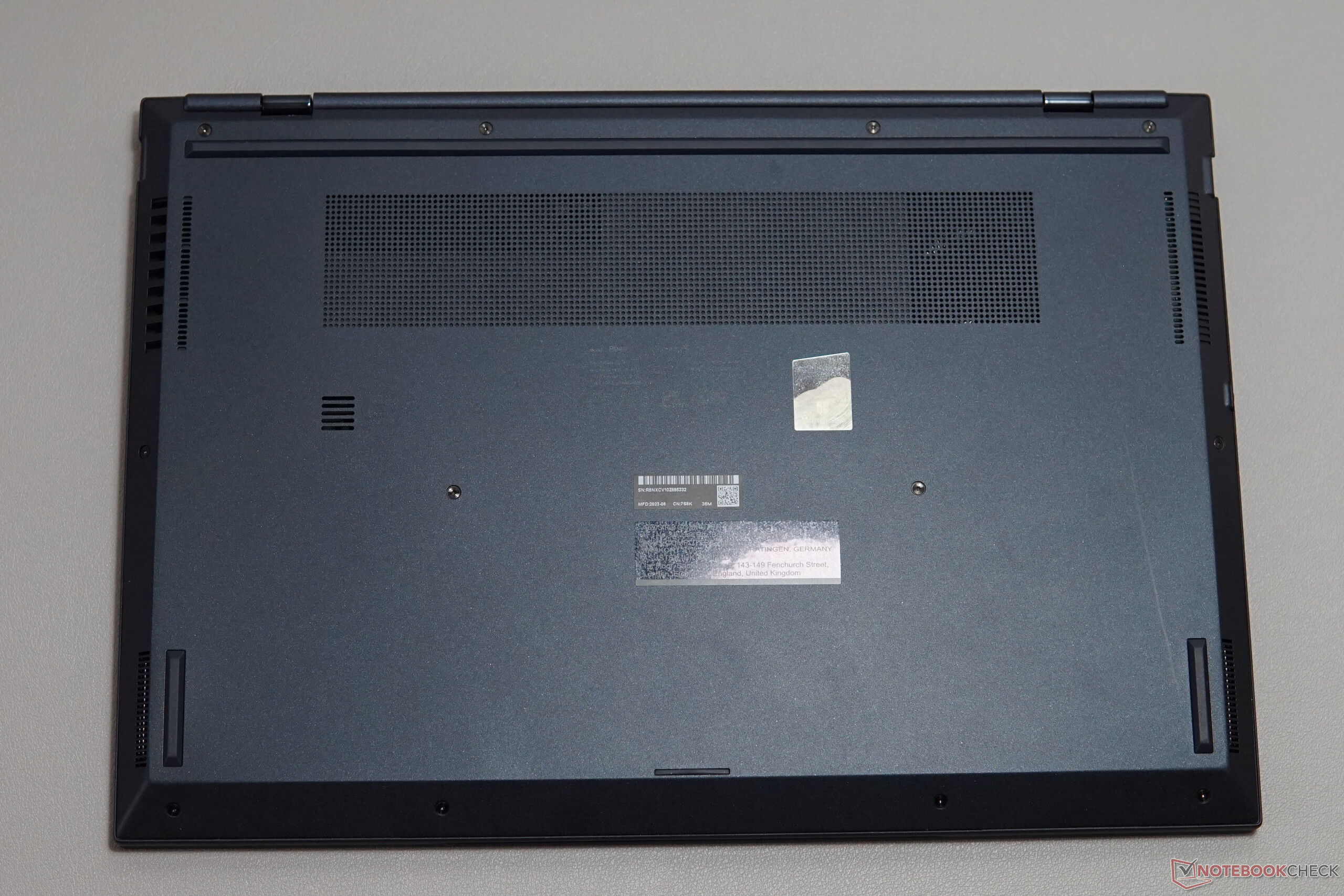

首先必须拧松 12 个相同的螺丝 (TX5)。之后，要找到拆卸底板的起始点并不容易，但可以通过背面边缘进行拆卸。至少不需要费多大力气，也不需要过度弯曲。

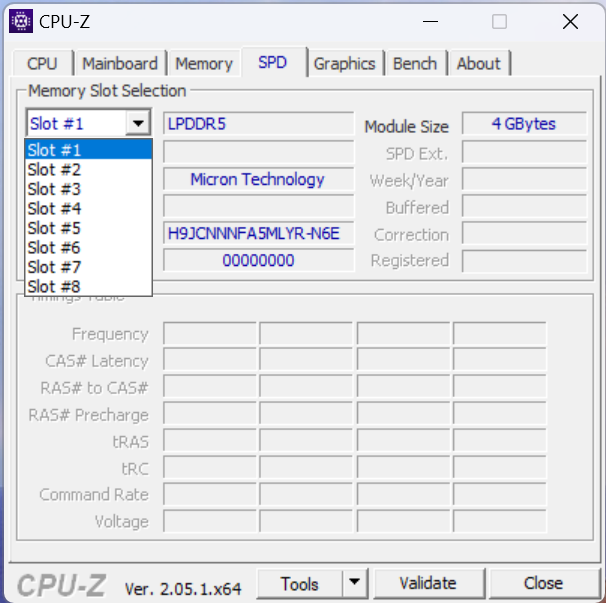

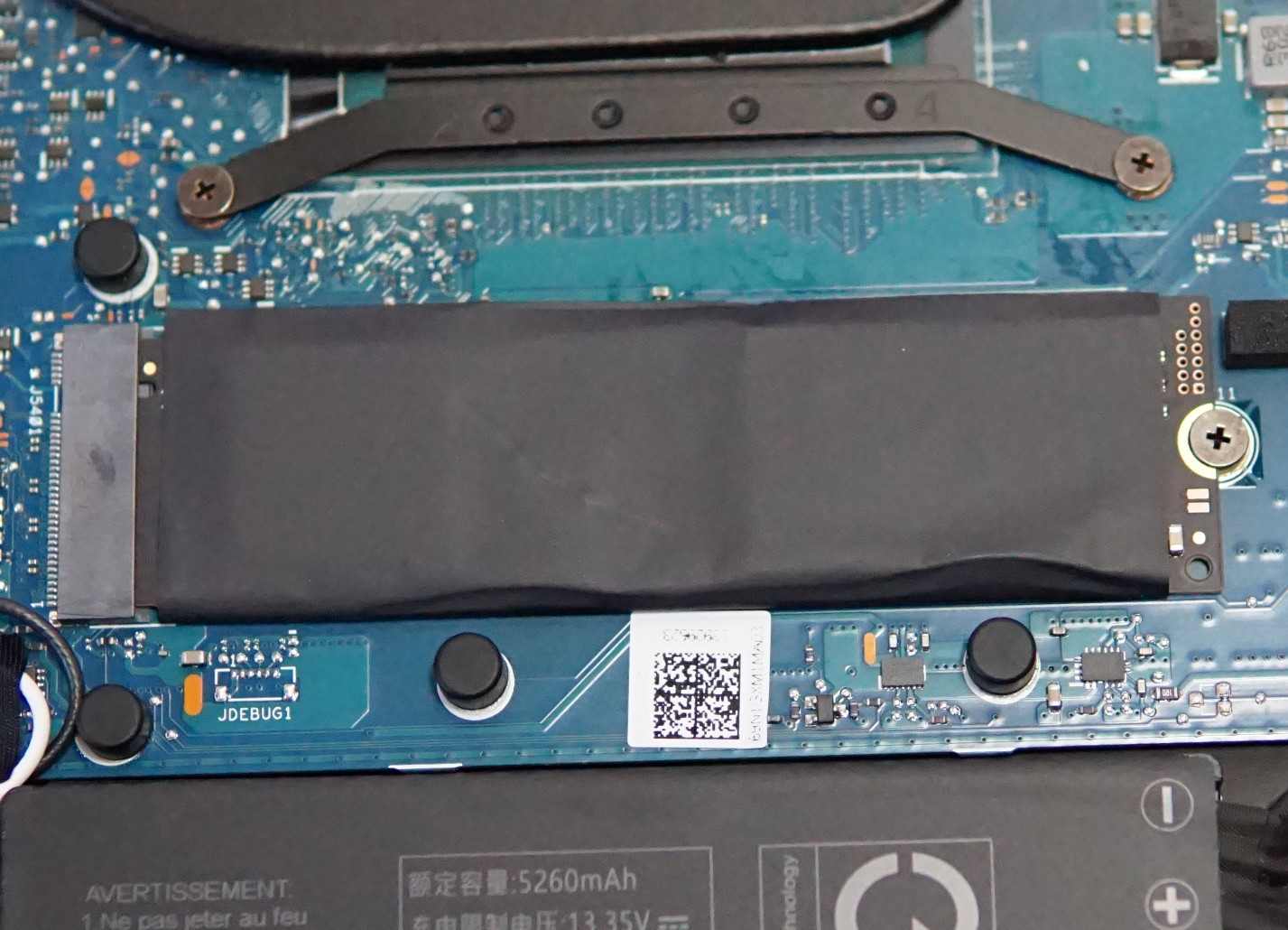

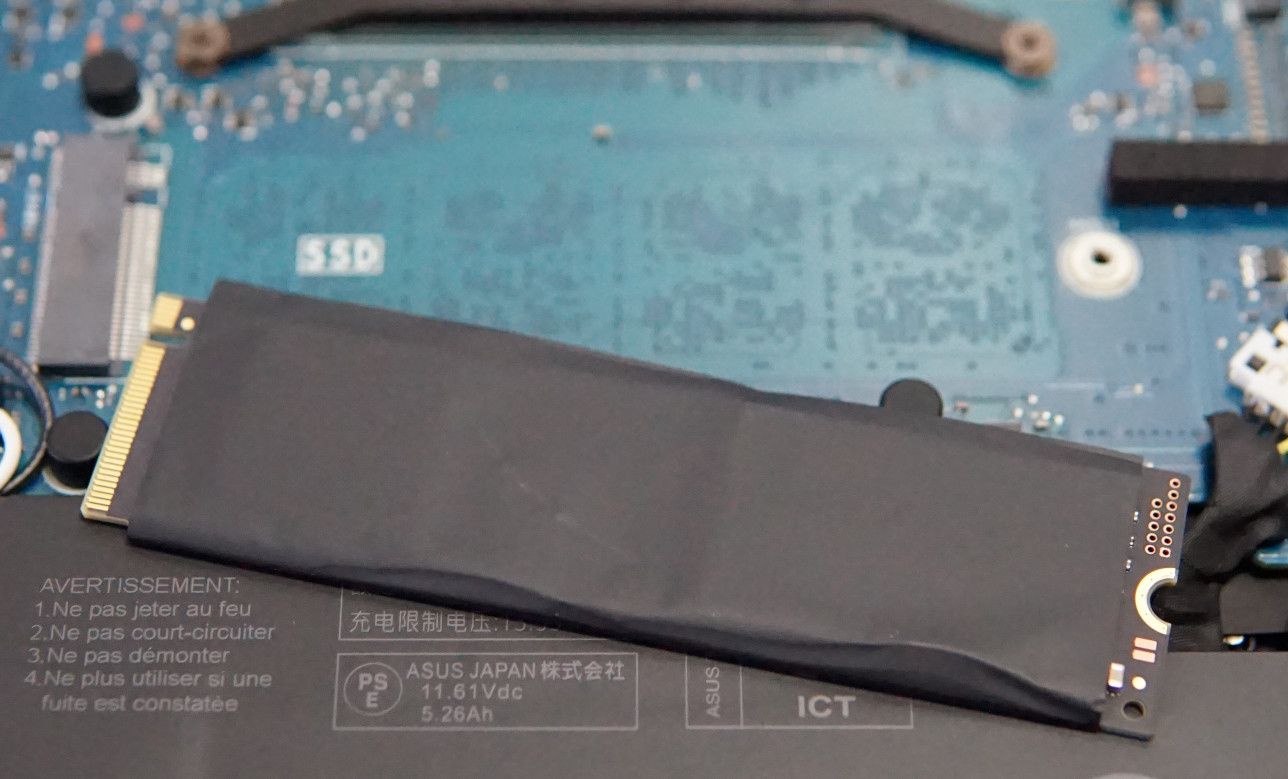

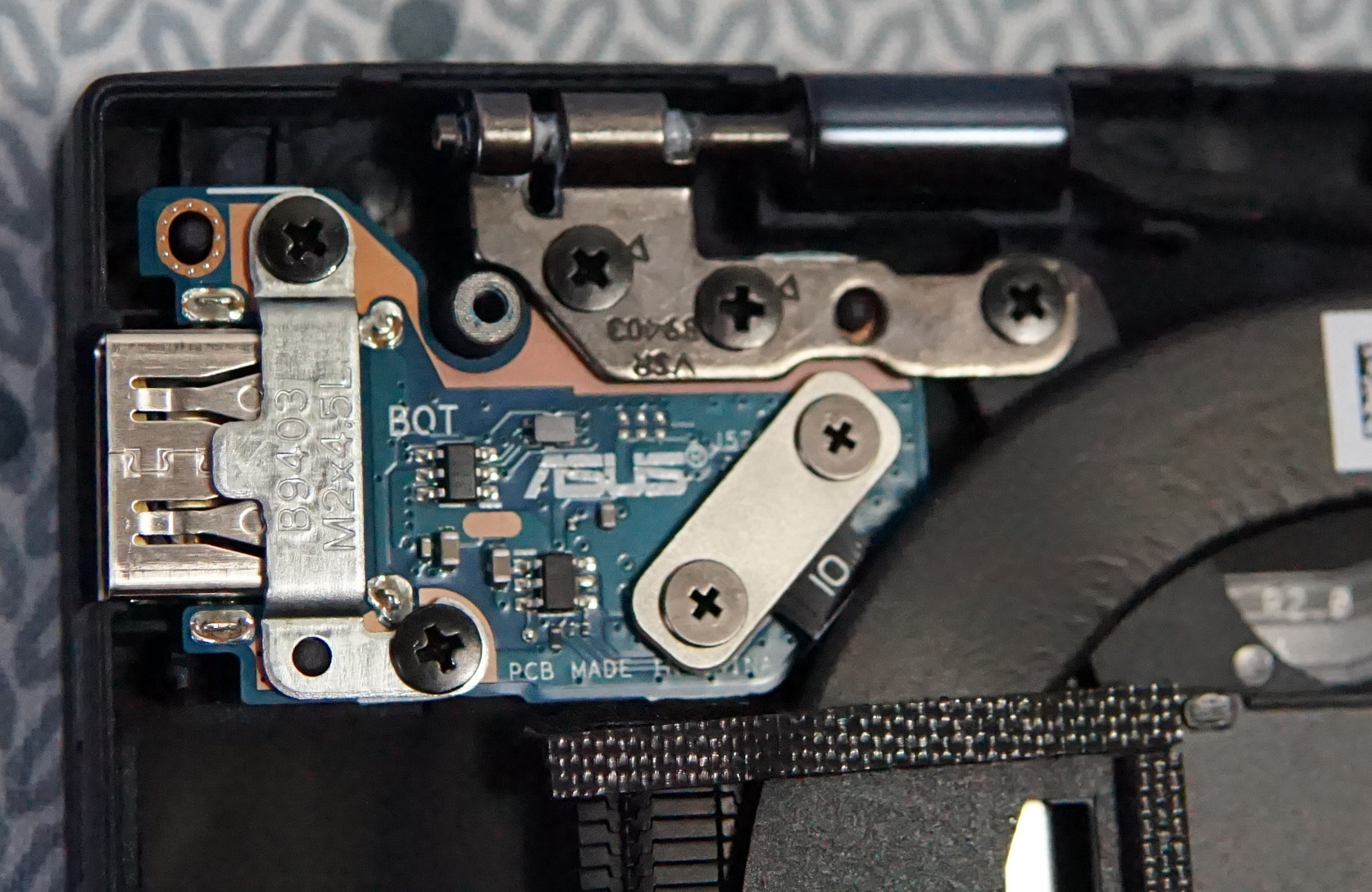

可以顺利更换固态硬盘。电池是旋入式的，也可以更换。内存和 WLAN 模块则是焊接的。同样引人注目的是非常精致的铰链，每个铰链都要拧上四次，但都位于非常小的底板上。因此，轻薄的显示屏没有太大的杠杆力量，会轻微震动。
保修
华硕为 ExpertBook 提供 36 个月的保修服务，这一点可以从笔记本背面的 "36M "标签看出。不过，制造商指出，电池寿命可能因产品系列而异，但至少为 12 个月。
保修条款和条件在德国以外的其他国家可能有所不同，因此买家在购买前应仔细确认。
输入设备 - 结构精密、功能多样

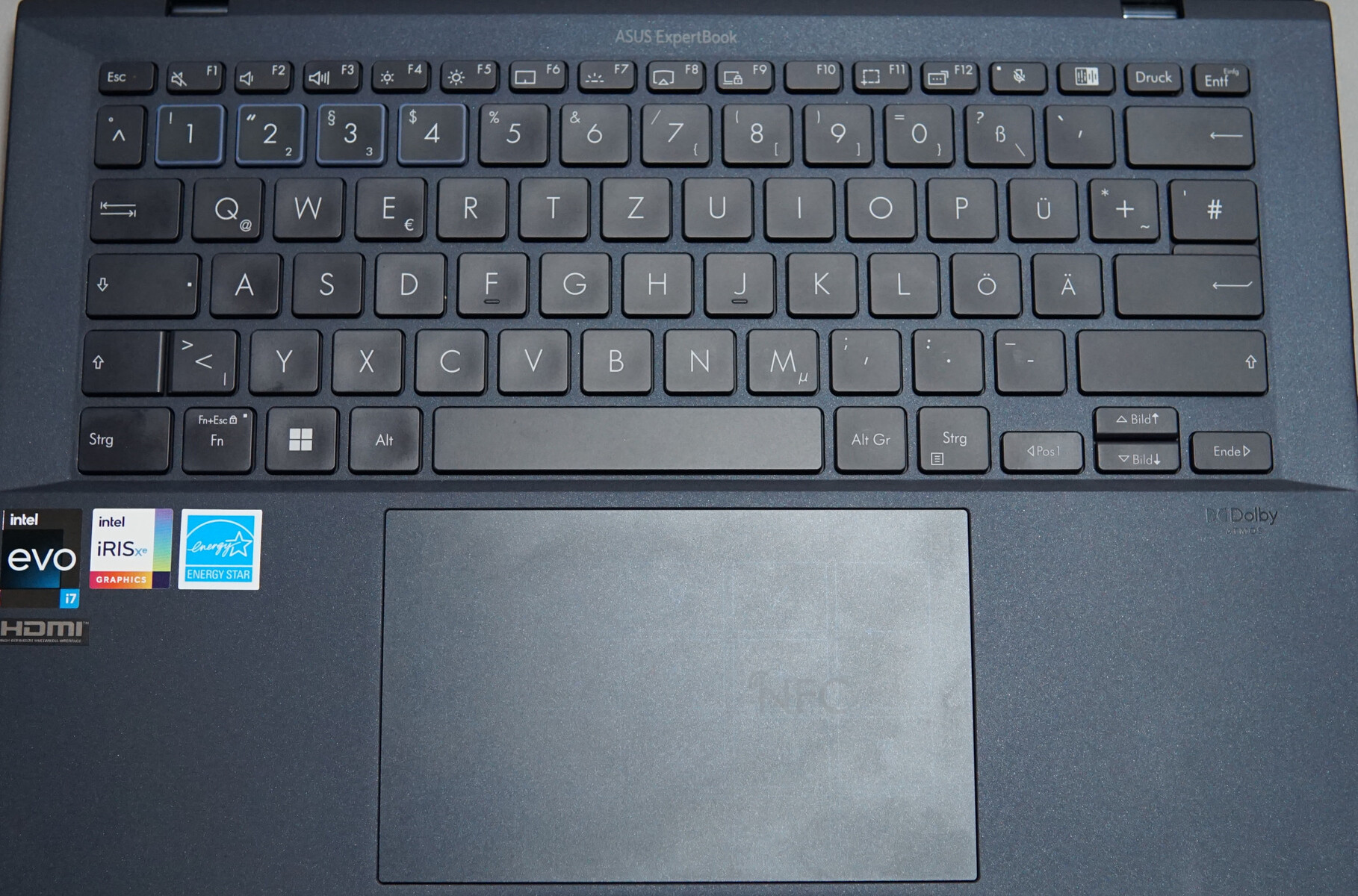

作为一款厚度仅为 17.6 毫米、重量如此之轻的商务笔记本电脑，键盘的表现非常出色。即使在用力的情况下，也只能观察到键盘边框有轻微的弯曲。按键本身具有令人愉悦的反压力，并以 1.5 毫米的行程（我们的测量值）提供了良好的键入感。

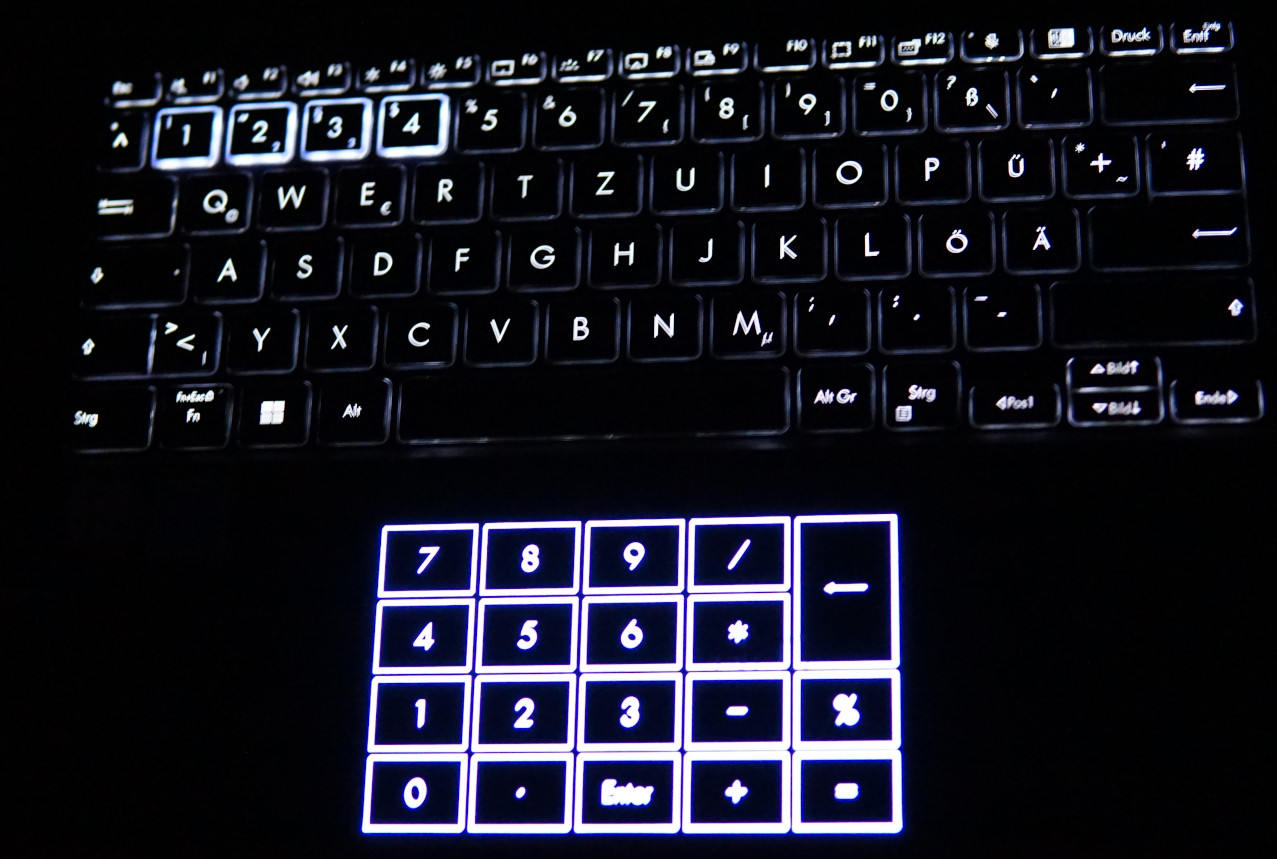

触摸板非常精确，可对快速输入和多指操作做出可靠响应。它的面积为 13 x 8 厘米，提供了足够的表面积。一个小亮点是叠加的数字键盘，只要允许键盘输入，它就会亮起，但仍可继续进行光标操作。
键盘背光只有一个亮度级别，整个亮度均匀一致，"1 "至 "4 "键的亮度很高。通过安装的 "Asus ExpertWidget "软件，可以在这里存储其他命令，这些命令几乎可以自由编程。
展示 - 具有强烈形象价值的专家手册

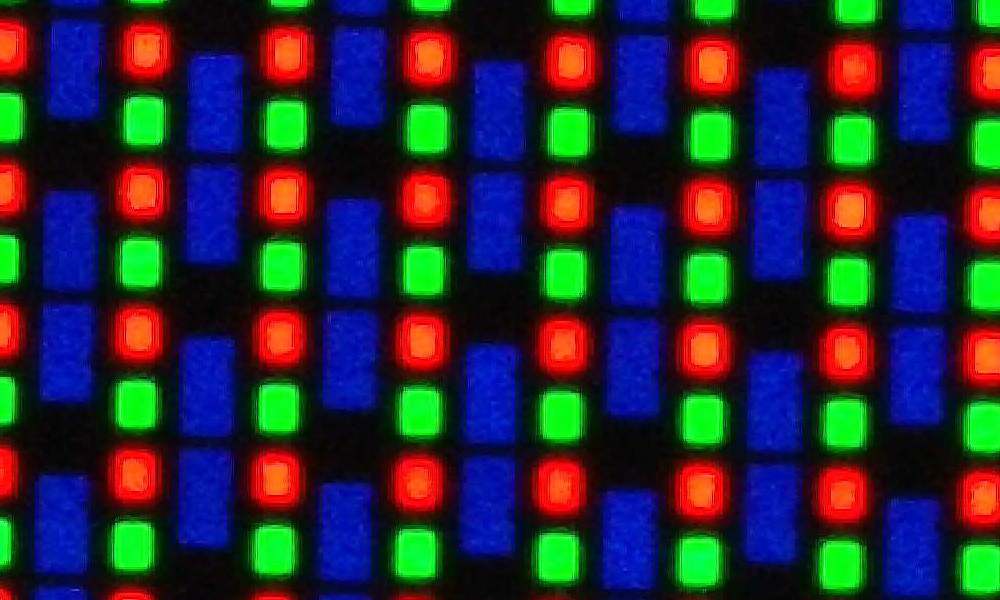

三星的 OLED 面板也被许多竞争对手采用，但在华硕 ExpertBook 上却表现出色。它具有强烈的对比度，因为黑色几乎是完美的。虽然 390 cd/m² 的亮度低于制造商的规格要求，但仍处于不错的水平。此外，亮度均匀，色彩还原非常逼真。屏幕没有明显的出血现象。屏幕消除了黑色区域，因此完全不会出现光晕。
3K 分辨率（准确地说是 2,880 x 1,800）可以显示高分辨率的照片。然而，在只有 14 英寸的屏幕上，几乎看不到字体的原始大小。即使是 150%，看起来也还是太小了。由于子像素排列的缘故，字体边缘会略显不平整，因此放大字体是完全合理的，而图形和图像则显示得非常细腻，尤其是在近距离显示时。

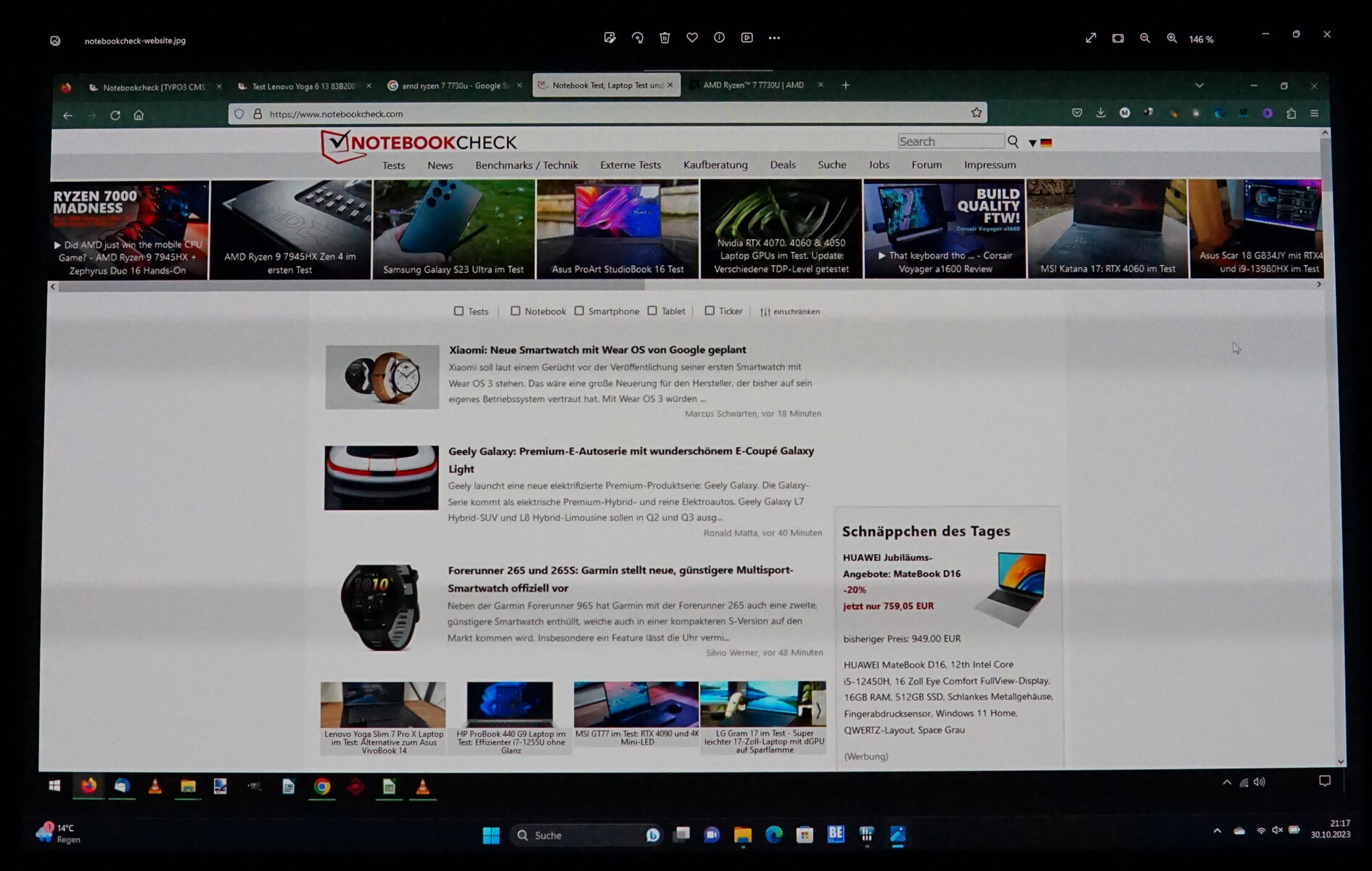

这些出色的图像值伴随着一些不便的因素。首先是 PWM 闪烁，尽管非常温和，无法与 TN 面板上整个区域的停用相提并论。任务栏也应该隐藏起来。此外，华硕的软件几乎难以察觉地将像素向左和向右轻微移动。所有这些程序都是为了防止烧毁，因为静态图像会导致 OLED 显示屏无法使用。
| |||||||||||||||||||||||||

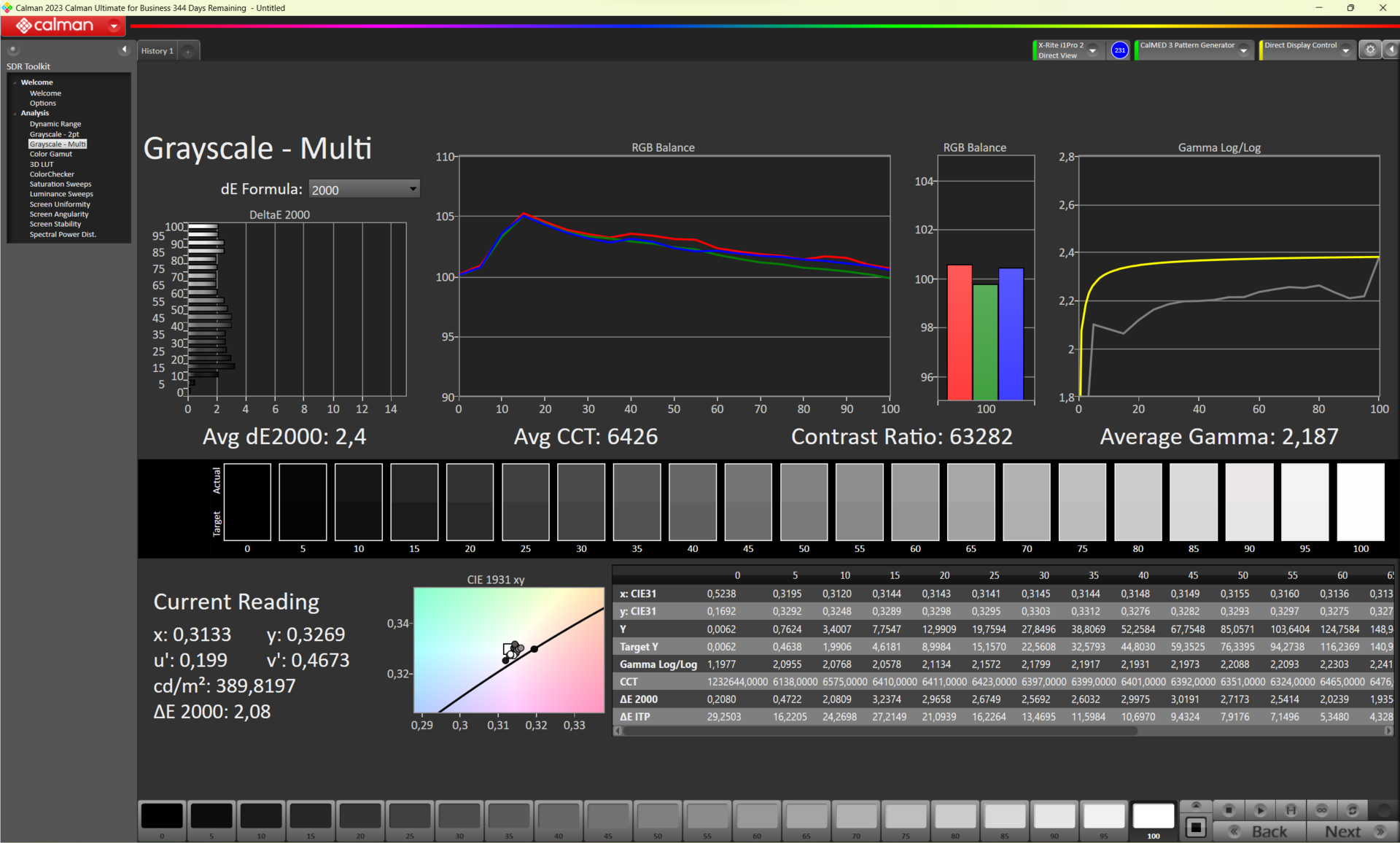

Brightness Distribution: 99 %
Center on Battery: 385.5 cd/m²
Contrast: 7845:1 (Black: 0.0497 cd/m²)
ΔE Color 2.22 | 0.5-29.43 Ø4.91
ΔE Greyscale 2.4 | 0.5-98 Ø5.2
93.6% AdobeRGB 1998 (Argyll 2.2.0 3D)
100% sRGB (Argyll 2.2.0 3D)
99.9% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.187
| Asus ExpertBook B9 B9403CVA-KM0153X ATNA40YK07-1 SDC4171, OLED, 2880x1800, 14" | Lenovo ThinkPad X13 G4 21EX004QGE ATNA33AA02-0, OLED, 2880x1800, 13.3" | Asus ZenBook S13 OLED UX5304 SDC417B, OLED, 2880x1800, 13.3" | LG Gram Style 14Z90RS-G.AD7AG Samsung SDC417F ATNA40YK10-1, OLED, 2880x1800, 14" | Dell XPS 13 Plus 9320 Core i7-1360P Samsung 134XK04, OLED, 3456x2160, 13.4" | Asus ZenBook 14 UM3402Y Samsung ATNA40YK07-1, OLED, 2880x1800, 14" | |
|---|---|---|---|---|---|---|
| Display | 1% | 1% | 0% | 1% | 2% | |
| Display P3 Coverage | 99.9 | 99.9 0% | 99.7 0% | 99.92 0% | 99.7 0% | 99.9 0% |
| sRGB Coverage | 100 | 100 0% | 100 0% | 100 0% | 100 0% | 100 0% |
| AdobeRGB 1998 Coverage | 93.6 | 96.2 3% | 96.9 4% | 94.71 1% | 96.8 3% | 98.3 5% |
| Response Times | -31% | -4% | -1% | -16% | 20% | |
| Response Time Grey 50% / Grey 80% * | 2 ? | 1.8 ? 10% | 2 ? -0% | 2 ? -0% | 2.18 ? -9% | 1.19 ? 40% |
| Response Time Black / White * | 2 ? | 2.4 ? -20% | 1.6 ? 20% | 2 ? -0% | 2.08 ? -4% | 1.62 ? 19% |
| PWM Frequency | 360 ? | 60 ? -83% | 240 ? -33% | 350 -3% | 238.6 ? -34% | 362.3 ? 1% |
| Screen | -38% | 22% | -7% | -43% | 16% | |
| Brightness middle | 389.9 | 383 -2% | 361 -7% | 384 -2% | 361.7 -7% | 336.6 -14% |
| Brightness | 390 | 386 -1% | 365 -6% | 388 -1% | 367 -6% | 339 -13% |
| Brightness Distribution | 99 | 98 -1% | 98 -1% | 97 -2% | 96 -3% | 98 -1% |
| Black Level * | 0.0497 | 0.054 -9% | ||||
| Contrast | 7845 | 7111 -9% | ||||
| Colorchecker dE 2000 * | 2.22 | 4.7 -112% | 1.2 46% | 2.47 -11% | 4.83 -118% | 0.84 62% |
| Colorchecker dE 2000 max. * | 3.75 | 9.4 -151% | 1.9 49% | 4.33 -15% | 9.34 -149% | 3.1 17% |
| Greyscale dE 2000 * | 2.4 | 1.5 37% | 1.2 50% | 2.63 -10% | 1.8 25% | 1.4 42% |
| Gamma | 2.187 101% | 2.18 101% | 2.27 97% | 2.18 101% | 2.33 94% | 2.24 98% |
| CCT | 6426 101% | 6328 103% | 6486 100% | 6279 104% | 6438 101% | 6439 101% |
| Colorchecker dE 2000 calibrated * | 4.6 | 2.81 | 3.97 | |||
| Total Average (Program / Settings) | -23% /
-27% | 6% /
10% | -3% /
-4% | -19% /
-25% | 13% /
13% |
* ... smaller is better

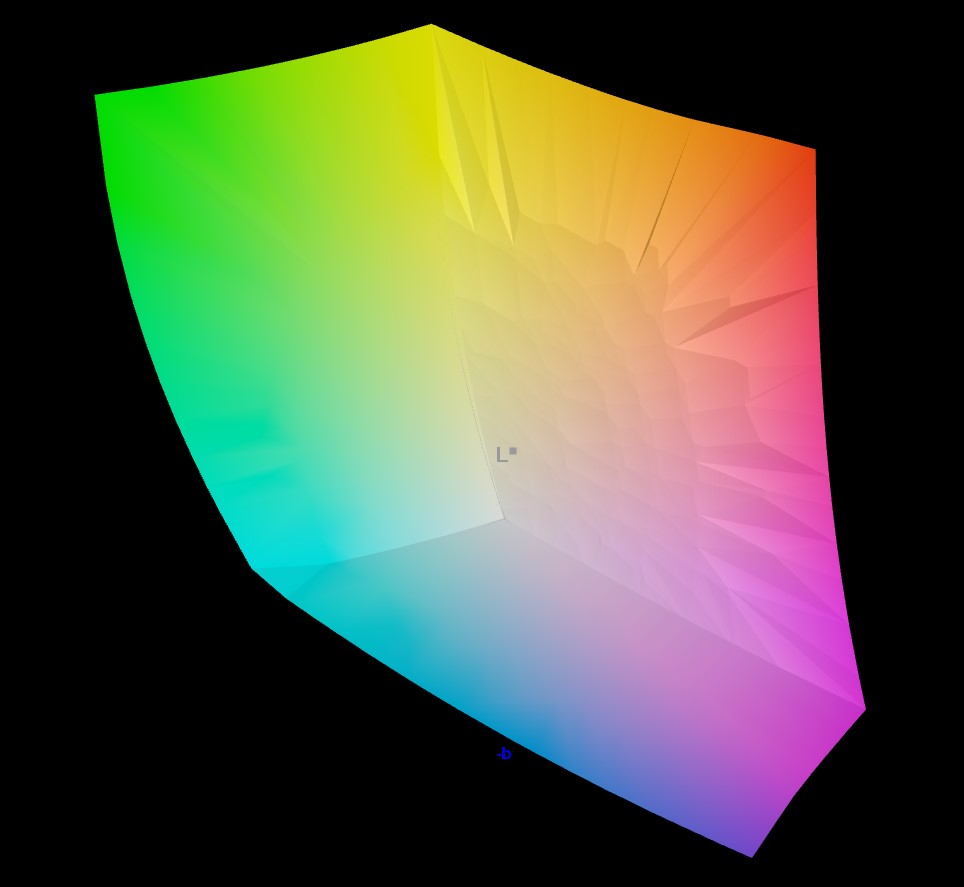

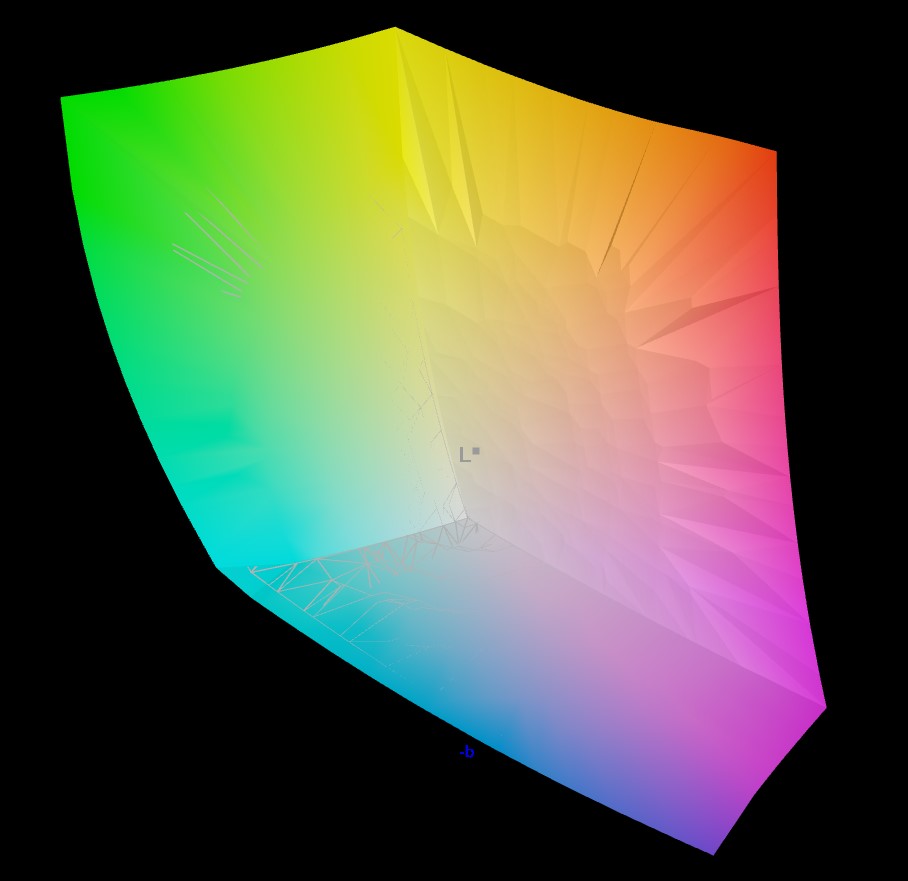

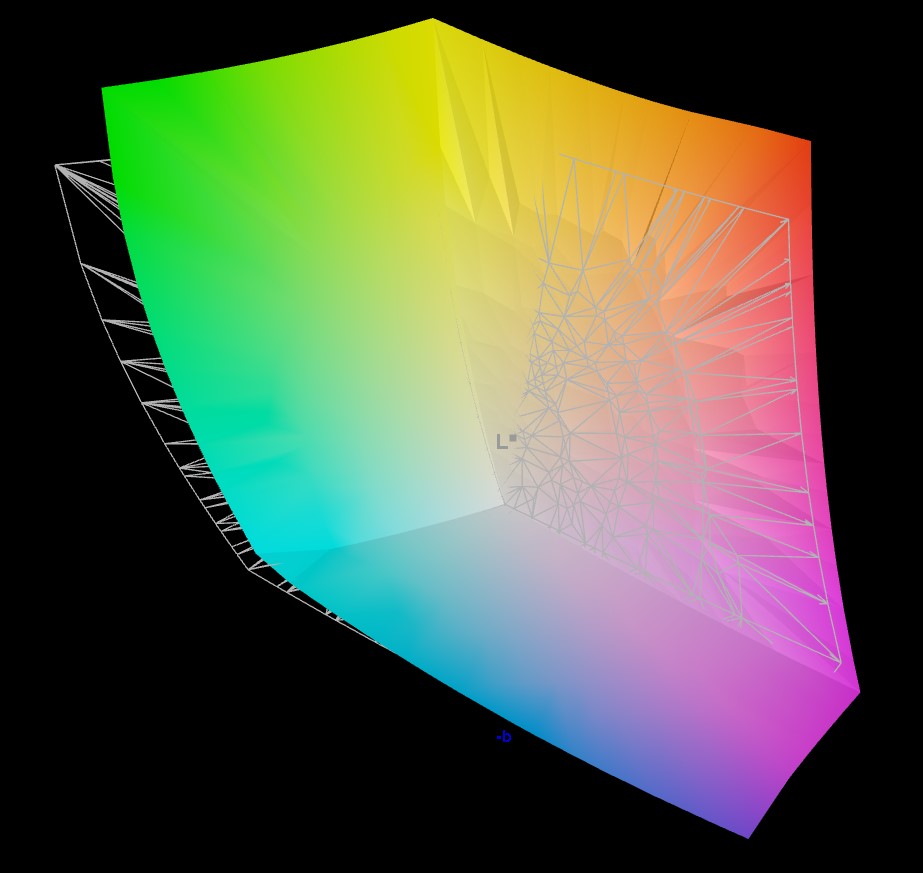

色彩空间的覆盖范围非常适合图形要求较高的任务。大多数情况下使用的 sRGB 色彩空间和 Display-P3 色彩空间都完全覆盖。因此可以进行高级照片和视频编辑。
专业图像编辑最多需要完全覆盖 AdobeRGB 色彩空间，但在 14 英寸商务笔记本上很少需要。

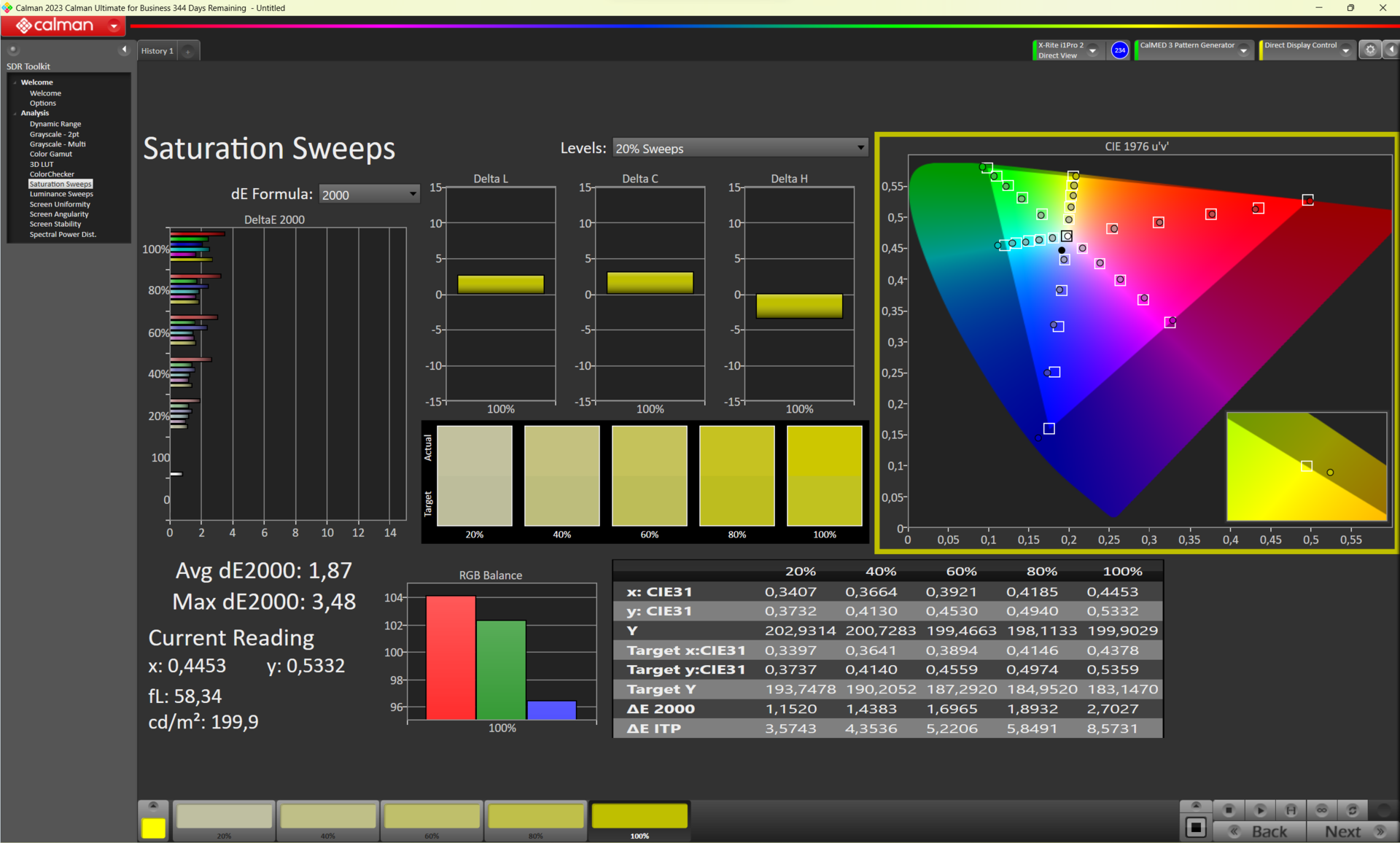

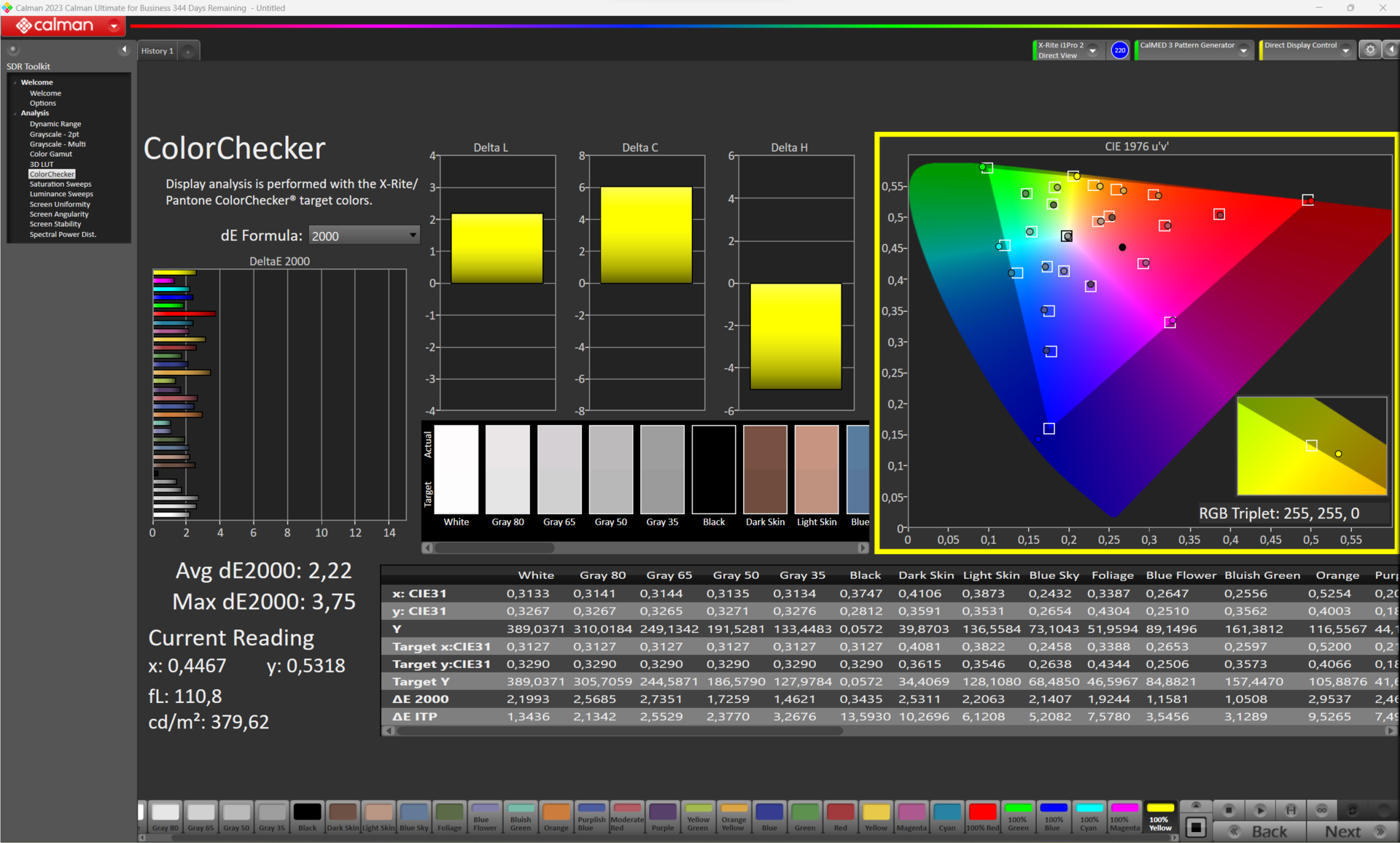

色彩还原非常准确。平均偏差低于可感知范围，DeltaE 为 2.2。只有在某些红色和黄色色调中，经验丰富的眼睛才会发现不准确的地方。除此之外，显示屏调整得非常好。我们进行的手动校准没有带来任何改善。

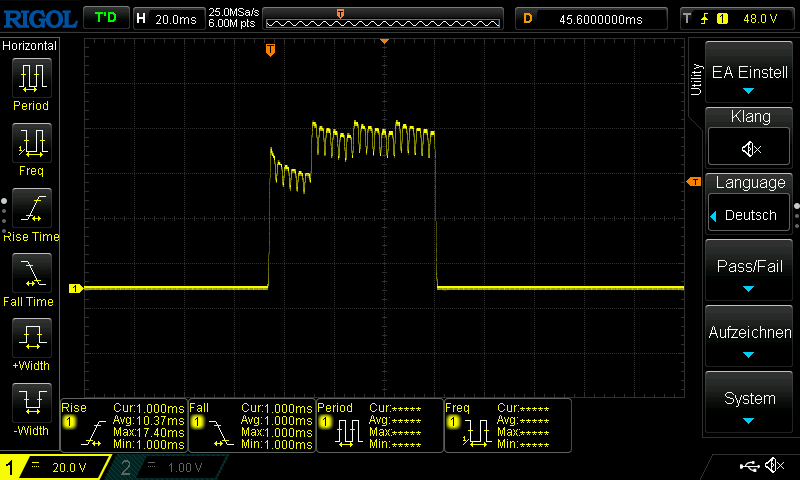

Display Response Times
| ↔ Response Time Black to White | ||
|---|---|---|
| 2 ms ... rise ↗ and fall ↘ combined | ↗ 1 ms rise |  |
| ↘ 1 ms fall | ||
| The screen shows very fast response rates in our tests and should be very well suited for fast-paced gaming. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 7 % of all devices are better. This means that the measured response time is better than the average of all tested devices (20.9 ms). | ||
| ↔ Response Time 50% Grey to 80% Grey | ||
| 2 ms ... rise ↗ and fall ↘ combined | ↗ 1 ms rise |  |
| ↘ 1 ms fall | ||
| The screen shows very fast response rates in our tests and should be very well suited for fast-paced gaming. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 6 % of all devices are better. This means that the measured response time is better than the average of all tested devices (32.8 ms). | ||

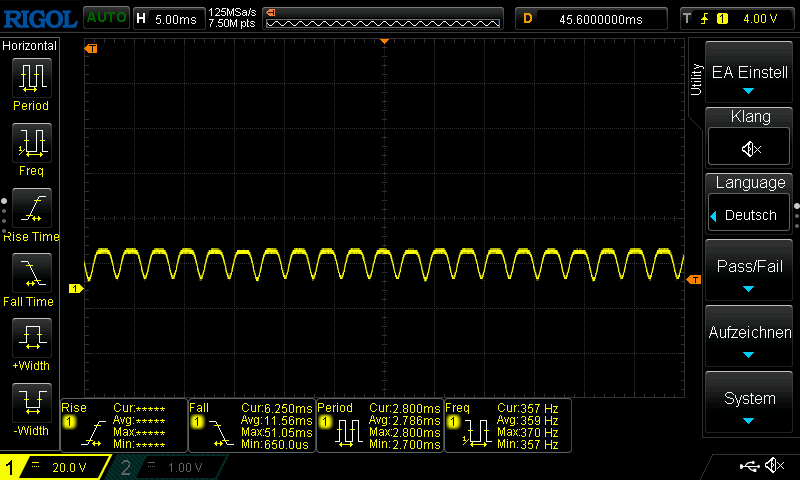

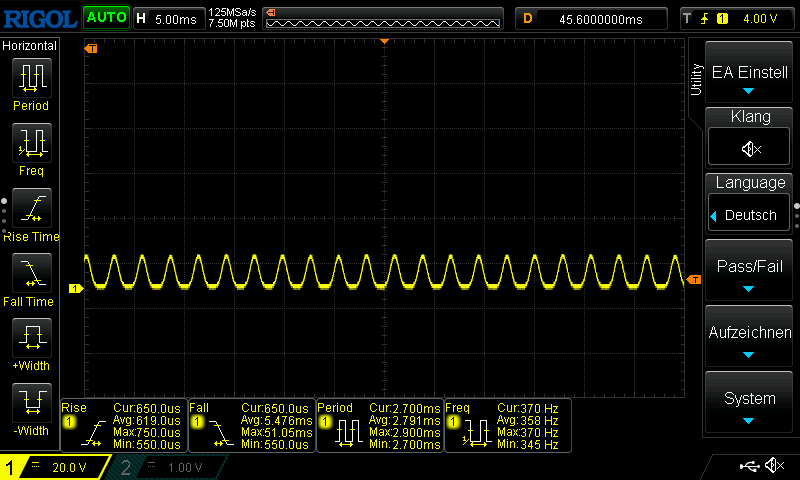

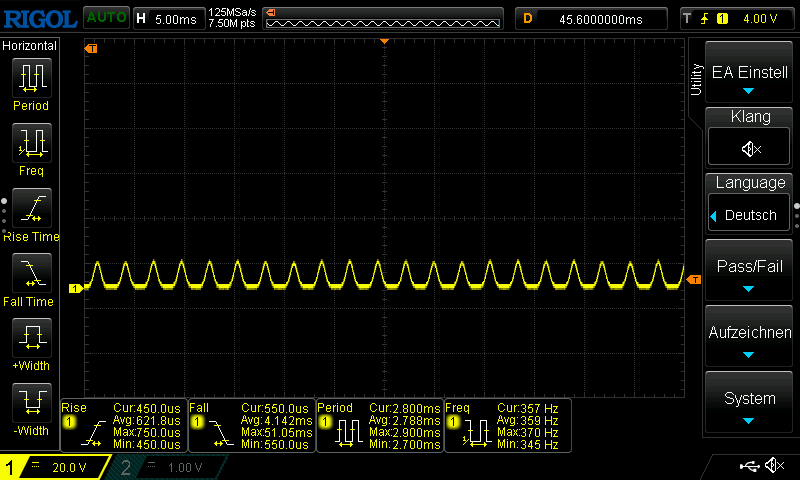

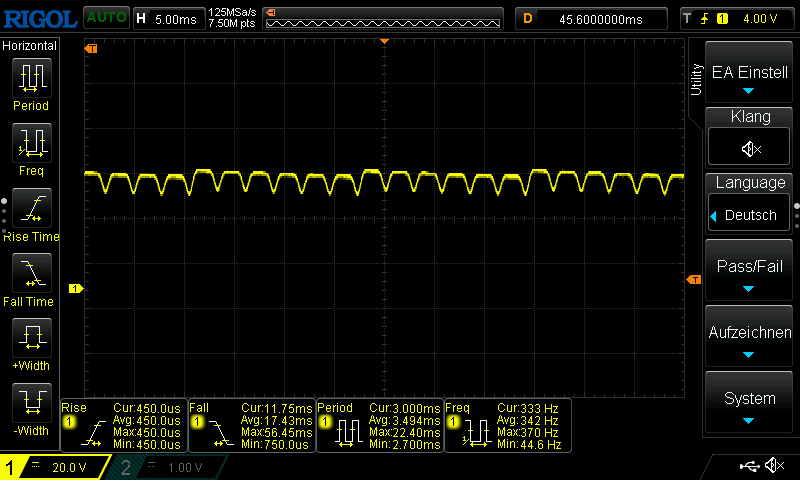

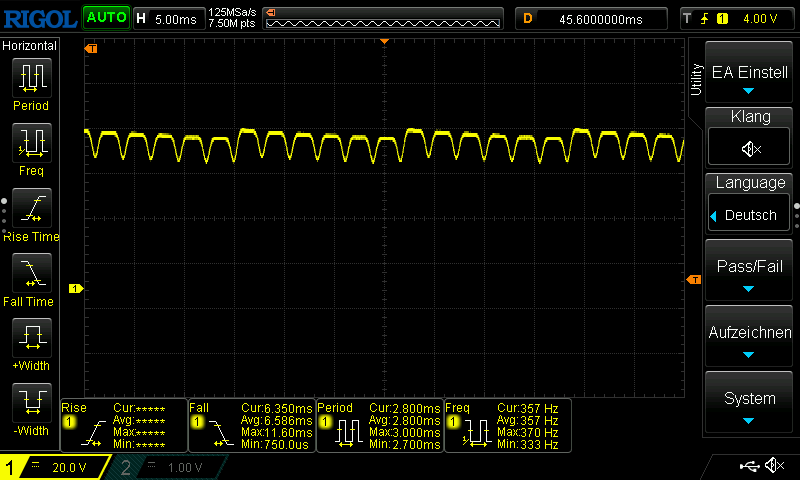

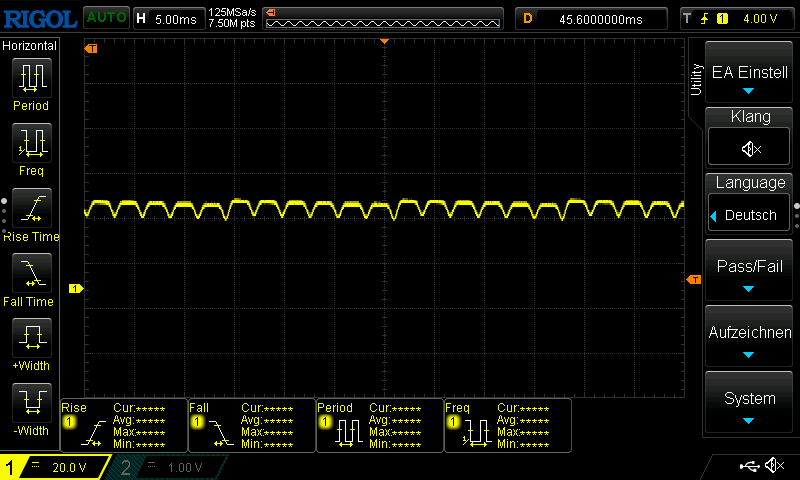

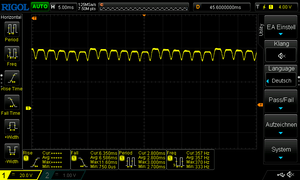

Screen Flickering / PWM (Pulse-Width Modulation)
| Screen flickering / PWM detected | 360 Hz | ≤ 100 % brightness setting |  |
The display backlight flickers at 360 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 100 % and below. There should be no flickering or PWM above this brightness setting. The frequency of 360 Hz is relatively high, so most users sensitive to PWM should not notice any flickering. However, there are reports that some users are still sensitive to PWM at 500 Hz and above, so be aware. In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8706 (minimum: 5 - maximum: 343500) Hz was measured. | |||

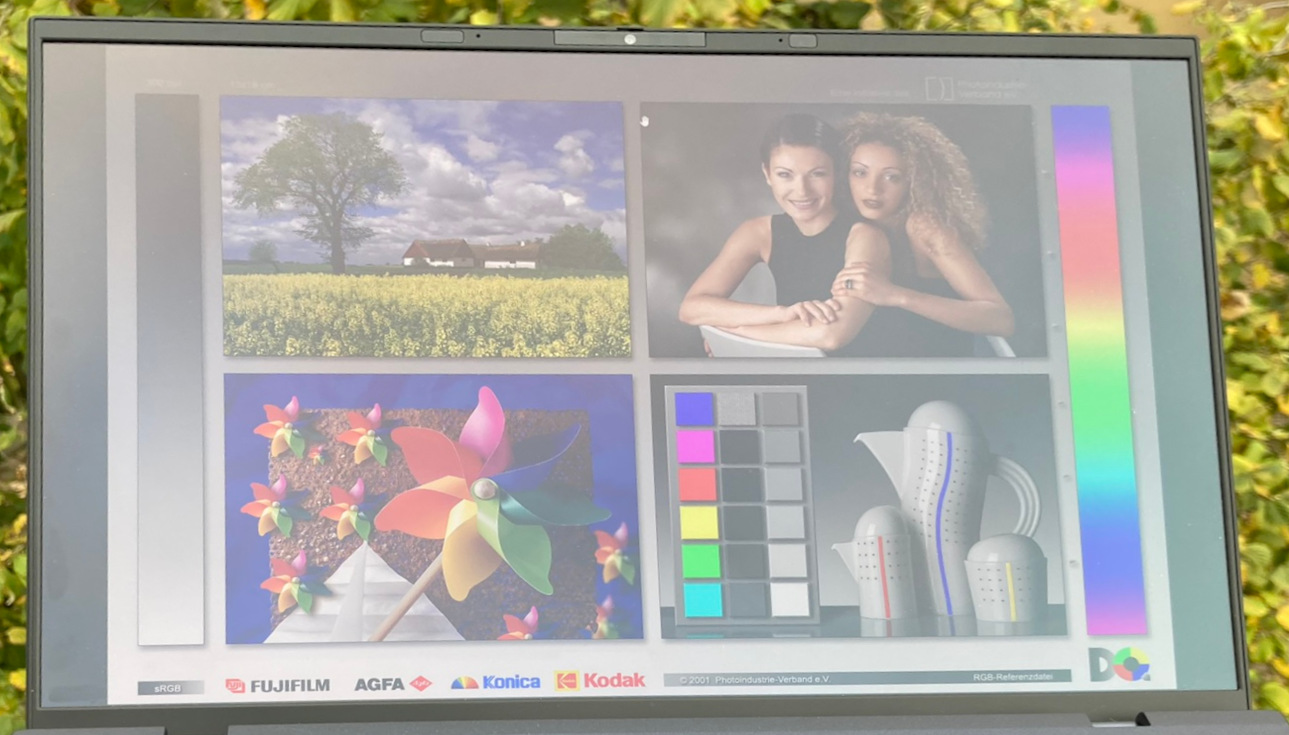

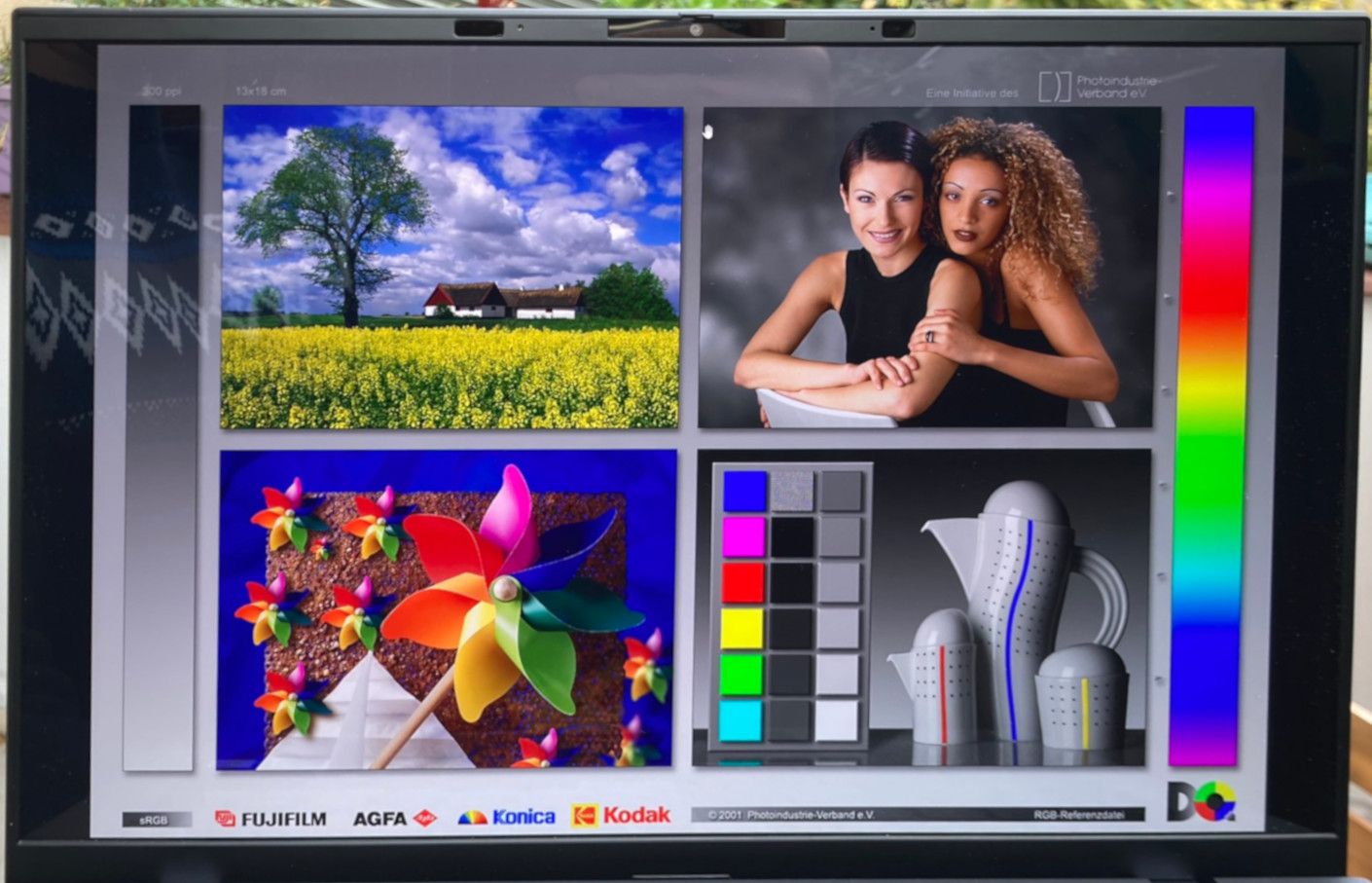

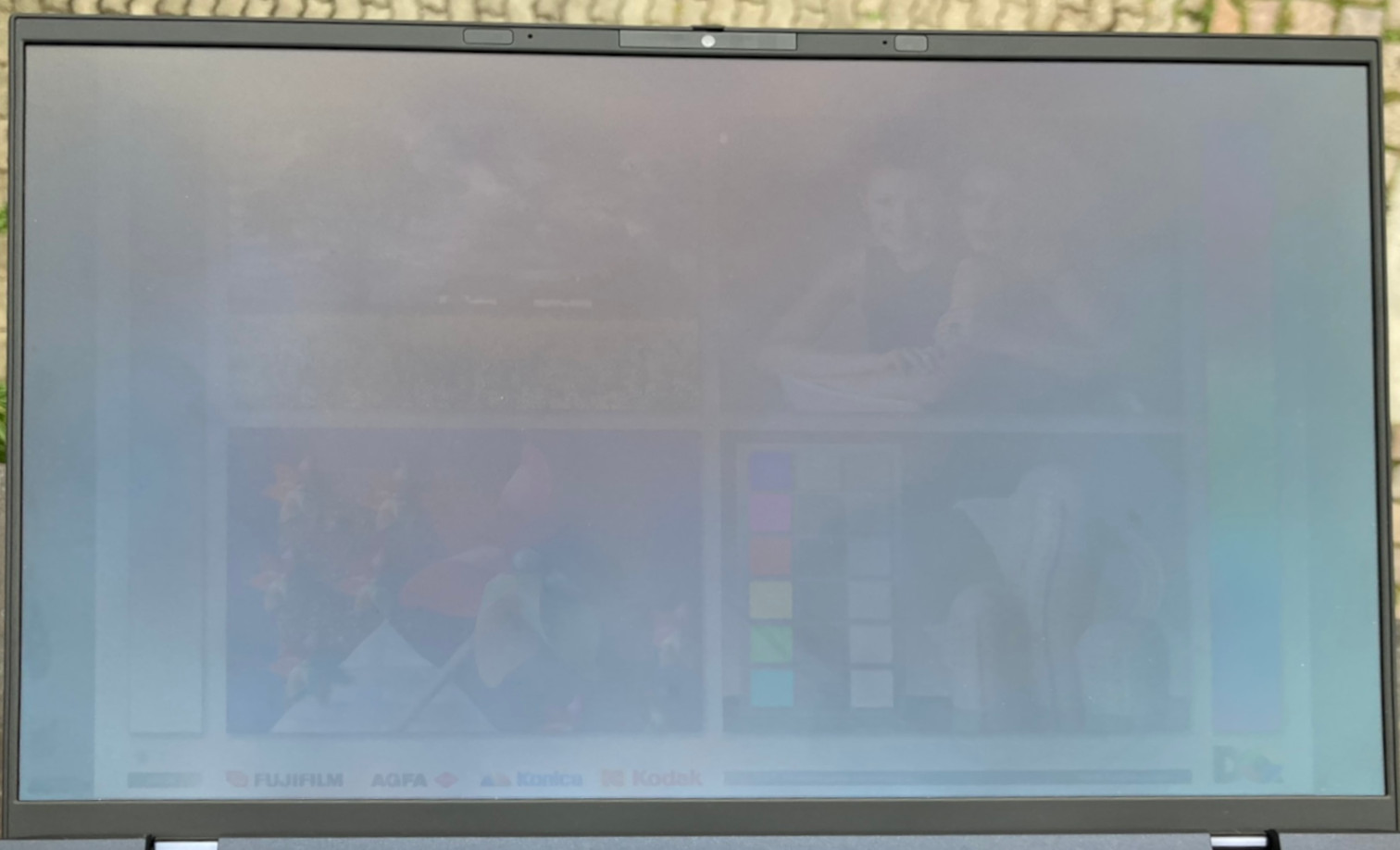

尽管对比度和亮度值都不错，但反光显示屏大大限制了户外使用。在阳台或花园的阴凉处，屏幕内容仍然清晰可见。只要背景是蓝天，反光就会使 ExpertBook B9 非常难用。

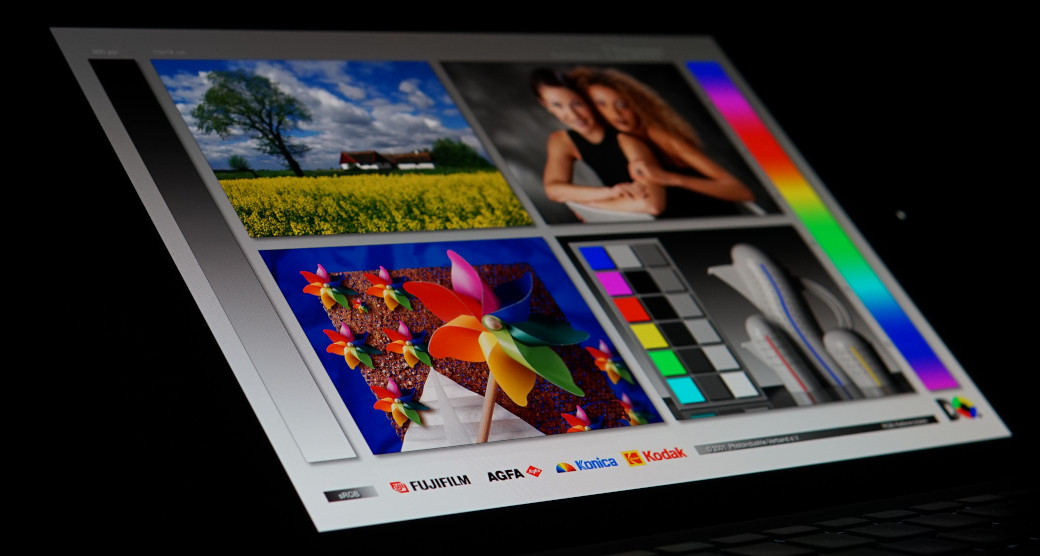

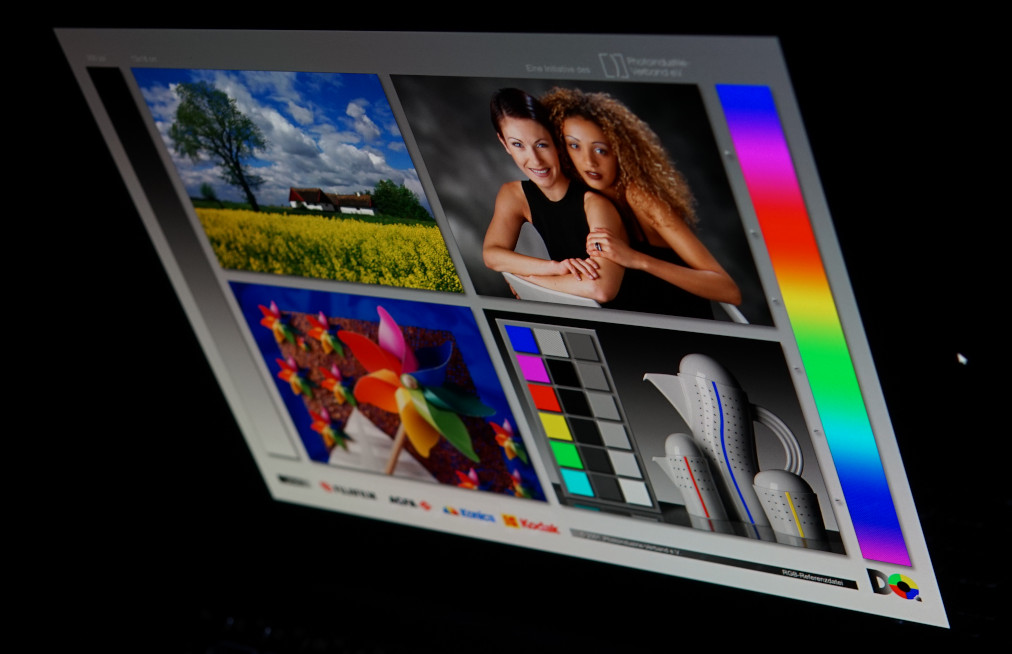

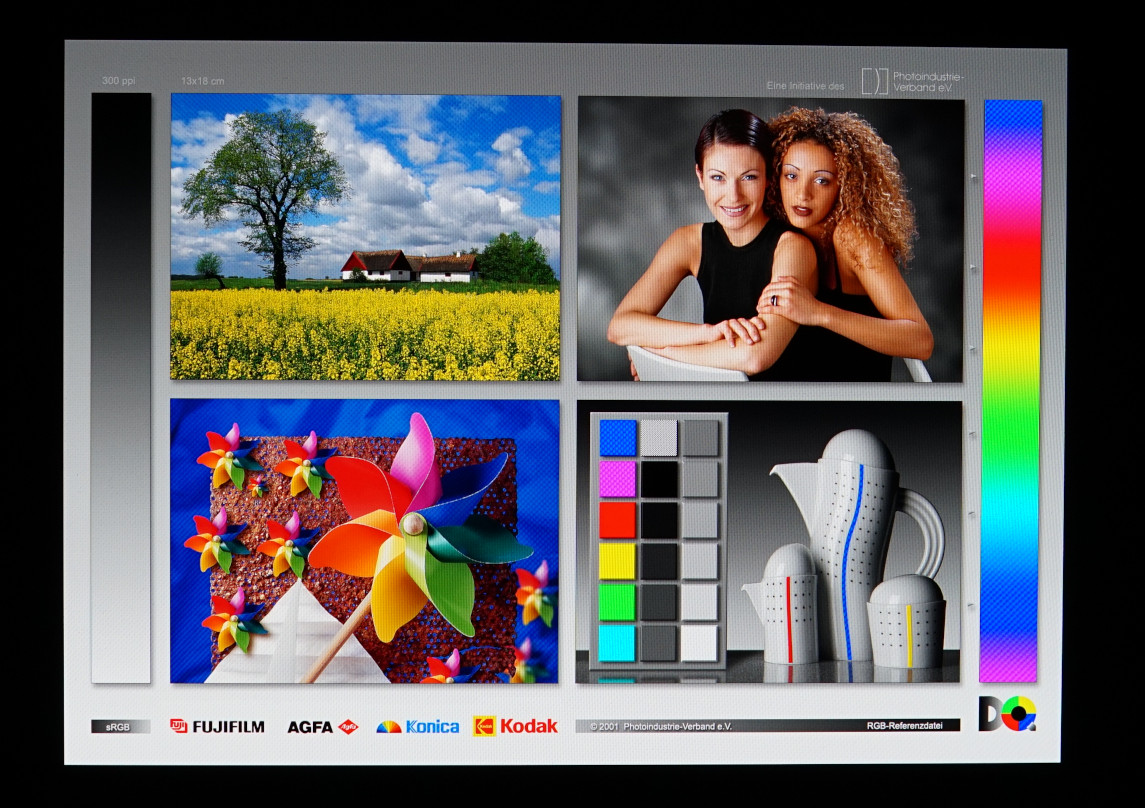

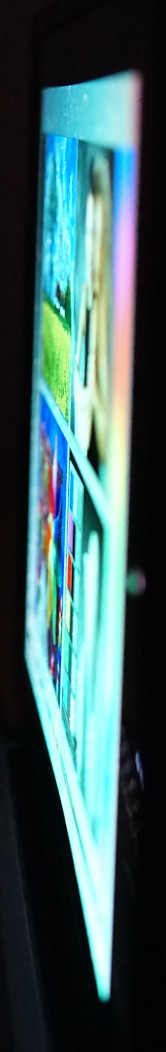

在不同的观看角度下，色彩不会发生变化，亮度也不会明显降低。无论是陡然向后折叠，还是以一定角度观看，内容都能保持真实的色彩和丰富的对比度。只有在 80 度左右，才会出现 OLED 显示屏的典型效果，出现明显的偏差。

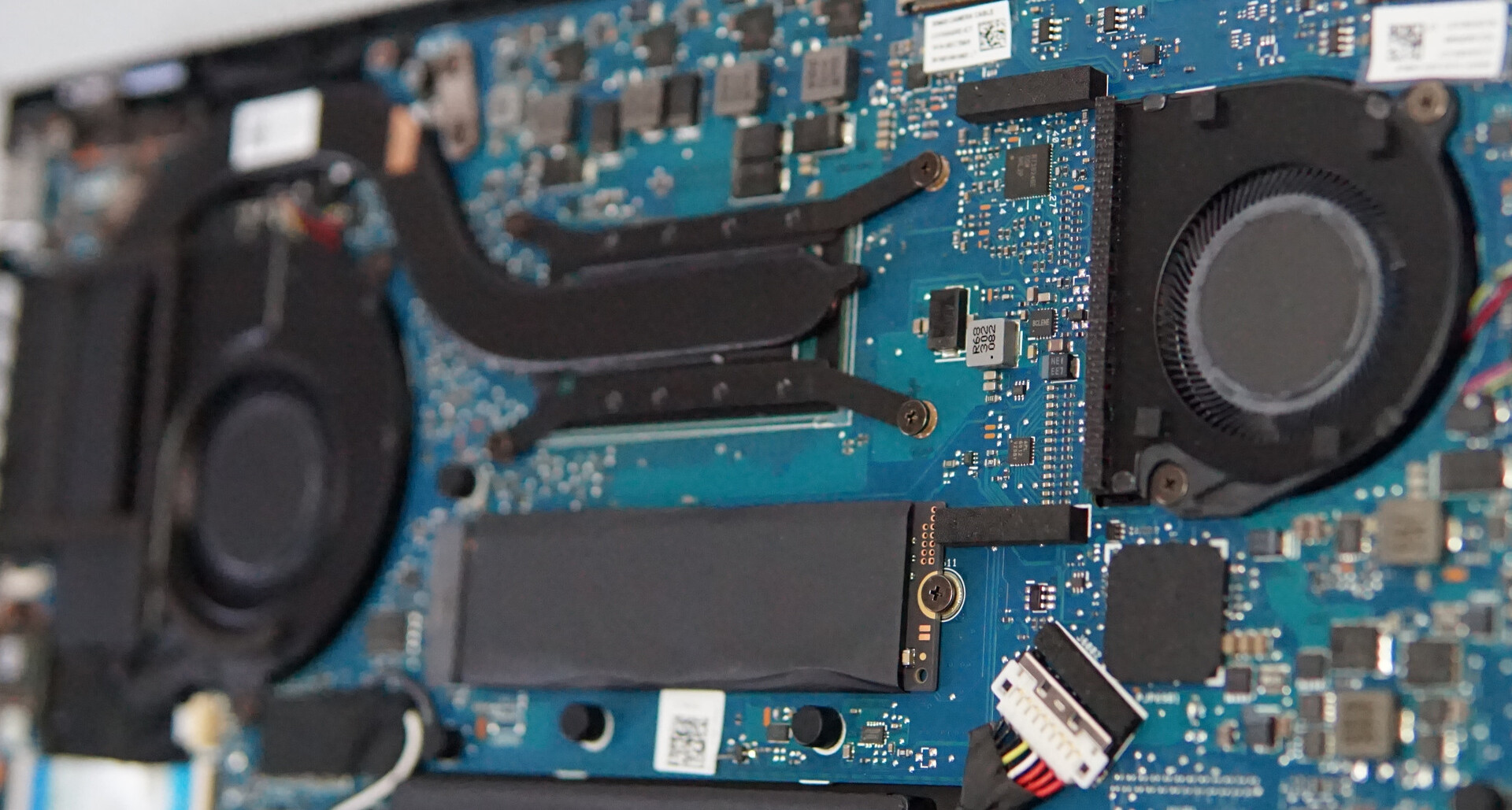

性能 - 经济型英特尔酷睿冷却系统

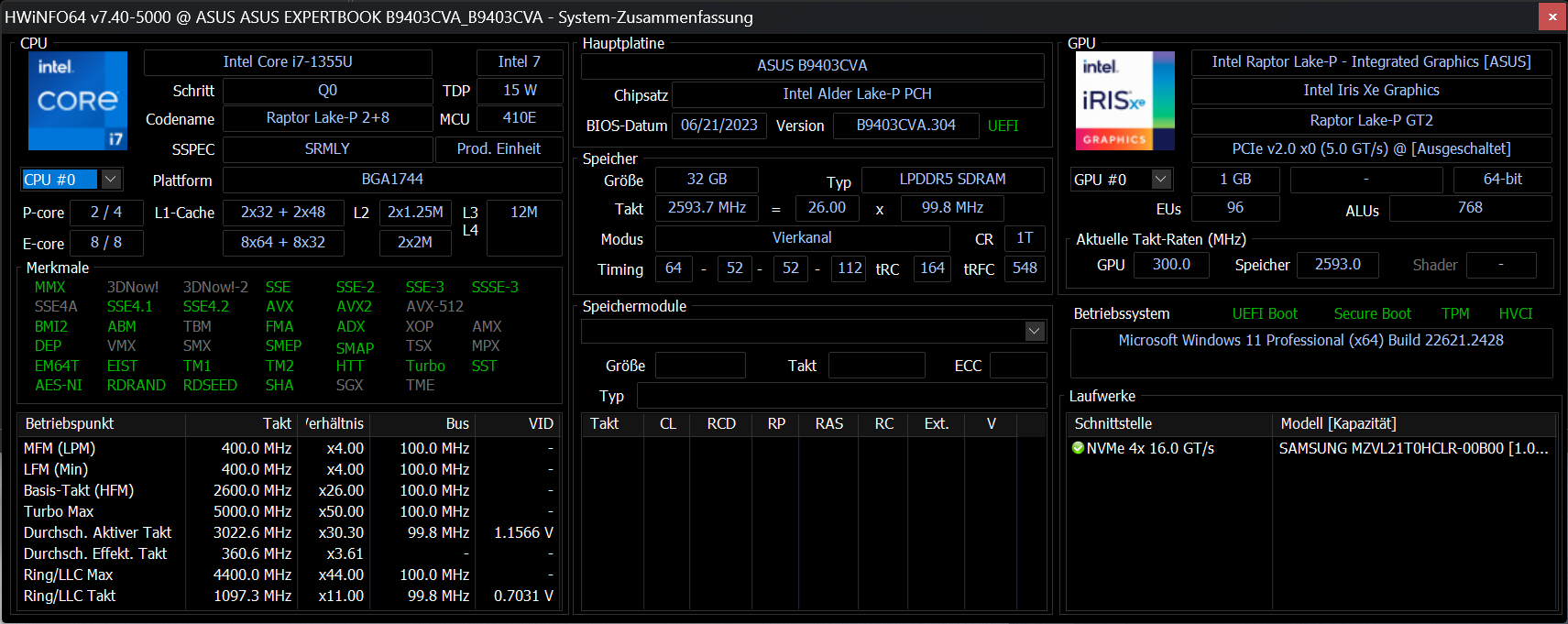

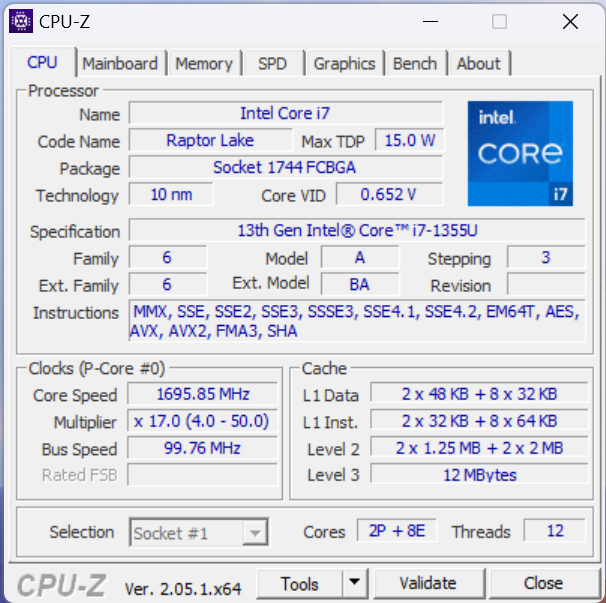

华硕 ExpertBook B9 OLED 配备了英特尔酷睿 i7-1355U该处理器专为要求苛刻的移动应用而设计。它的主频高达 5.0 GHz，功耗通常为 15 W。两款 vPro 处理器（也可选配）主要面向企业客户，性能相当。16 GB 和 32 GB LPDDR5 内存的频率为 5200 MHz，可确保快速数据交换。

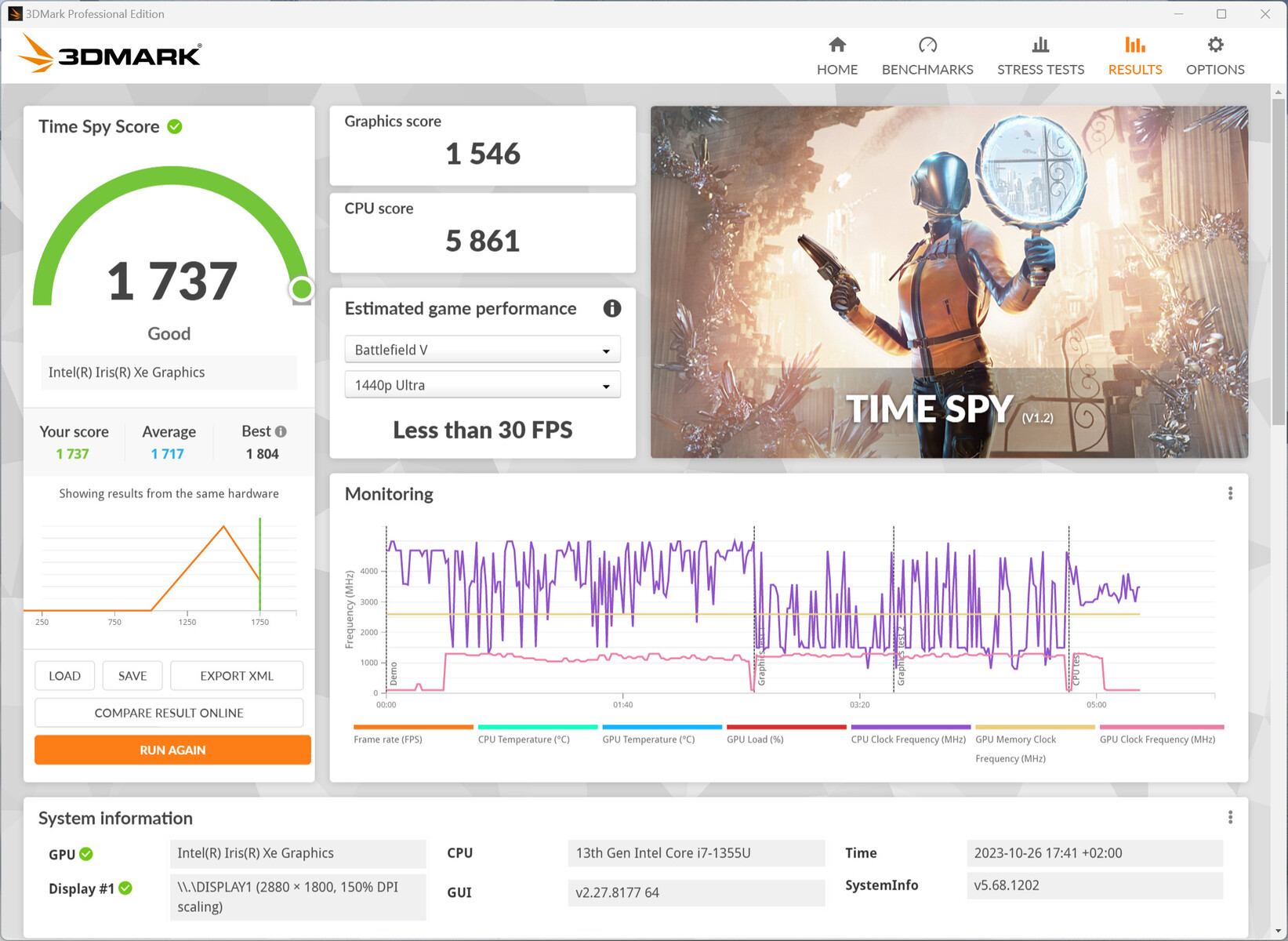

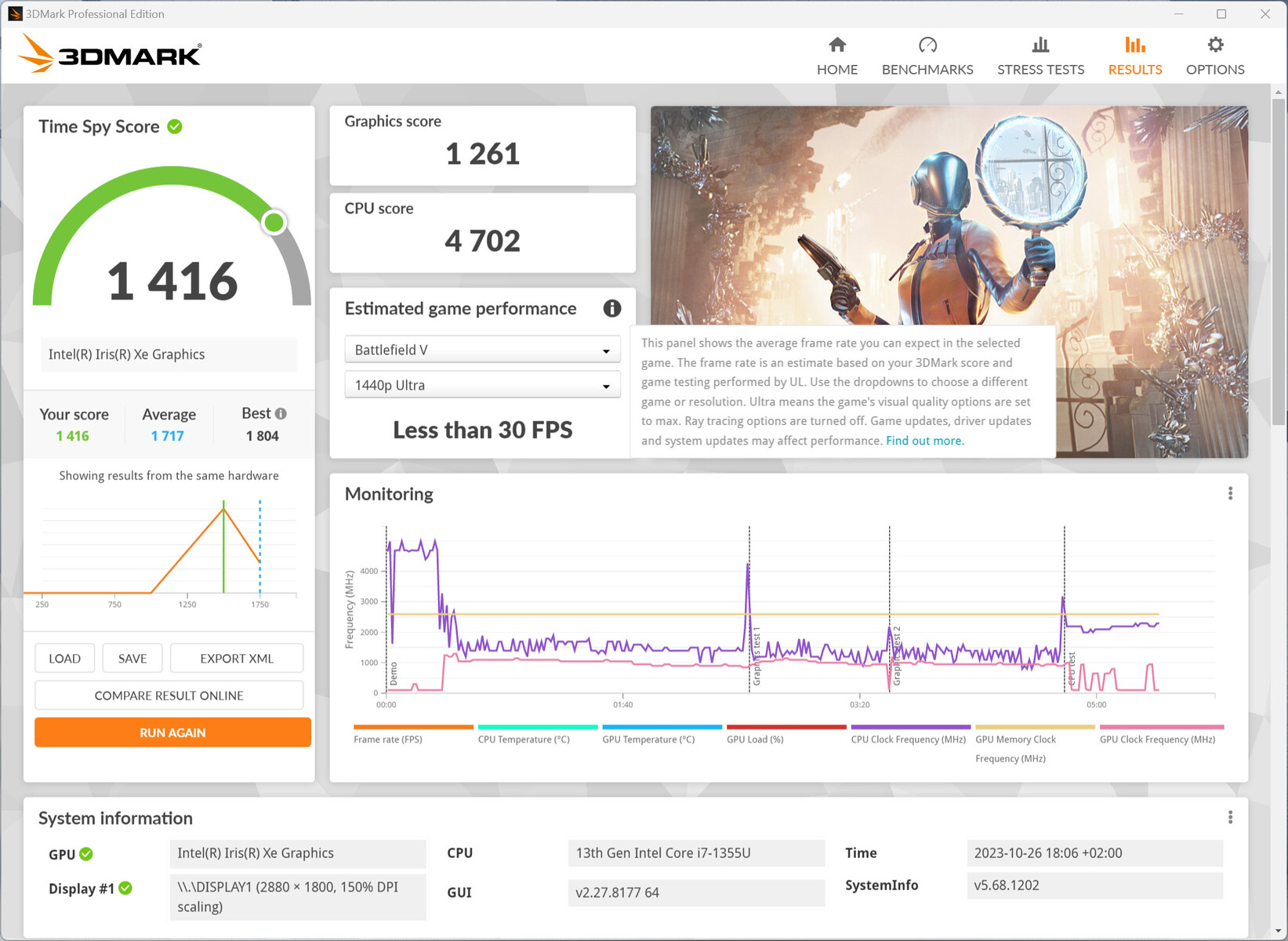

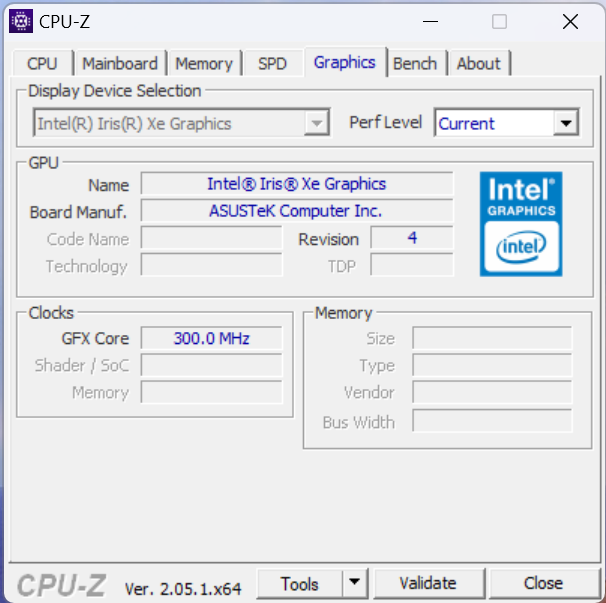

计算能力处于较高水平。多任务处理，特别是要求苛刻的应用程序和图像处理，完全没有问题。只是由于英特尔 iGPU 性能太弱，3D 应用程序才会使系统不堪重负。不过，对于较简单的图形任务和轻度游戏，iGPU 仍然足以胜任。同时，即使在满负荷运行的情况下，功耗也始终保持在中等水平，因此整个工作日的使用肯定是可行的。
测试条件

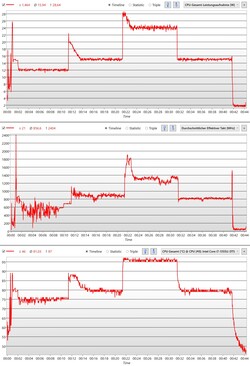

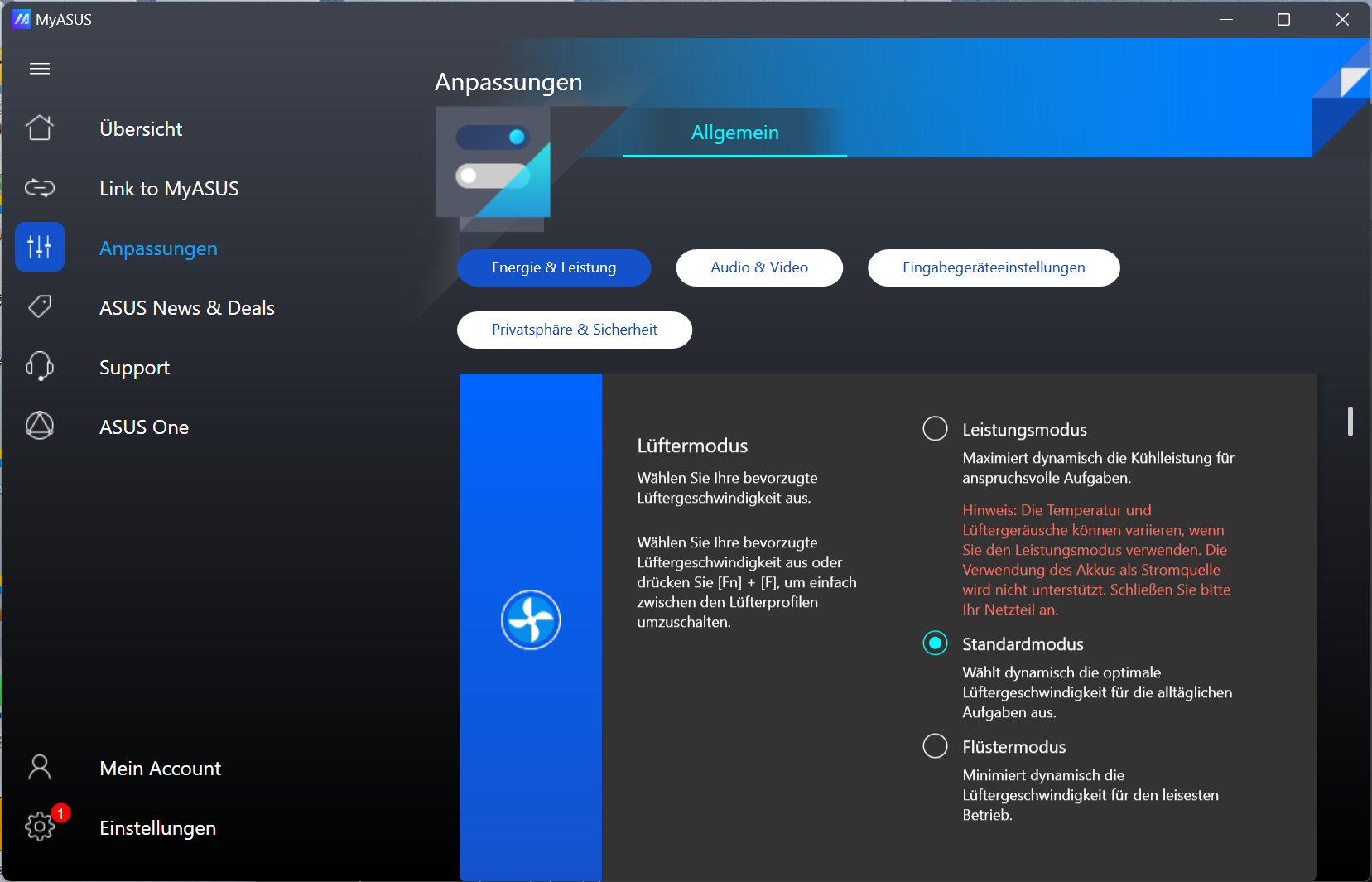

MyAsus 软件提供了一些设置。除了自定义按键分配和避免 OLED 显示屏烧毁的保护措施外，还可以通过 "Fn "+"F "组合键选择三种风扇配置文件。
这不仅改变了风扇噪音，还对处理器的供电进行了重大调整。具体数值如下。性能模式用于我们的基准测试。
| 风扇配置文件 | 性能 | 标准 | Whisper |
|---|---|---|---|
| CPU PL2 | 64 瓦 | 55 瓦 | 25 瓦 |
| CPU PL1 | 28 瓦 | 20 瓦 | 15 瓦 |
处理器
十个内核、十二个线程、最高 5.0 GHz 的频率和仅 15 瓦的 TDP 使其成为一款移动式英特尔酷睿 i7-1355U移动英特尔酷睿 i7-1355U 兼具经济性和高性能。例如，速度稍慢的 英特尔酷睿 i7-1360P在 LG Gram Style 14在所有基准测试中都略逊一筹。在前华硕 ExpertBook的 英特尔酷睿 i7-1165G7两代 CPU 的性能超出 30% 以上。

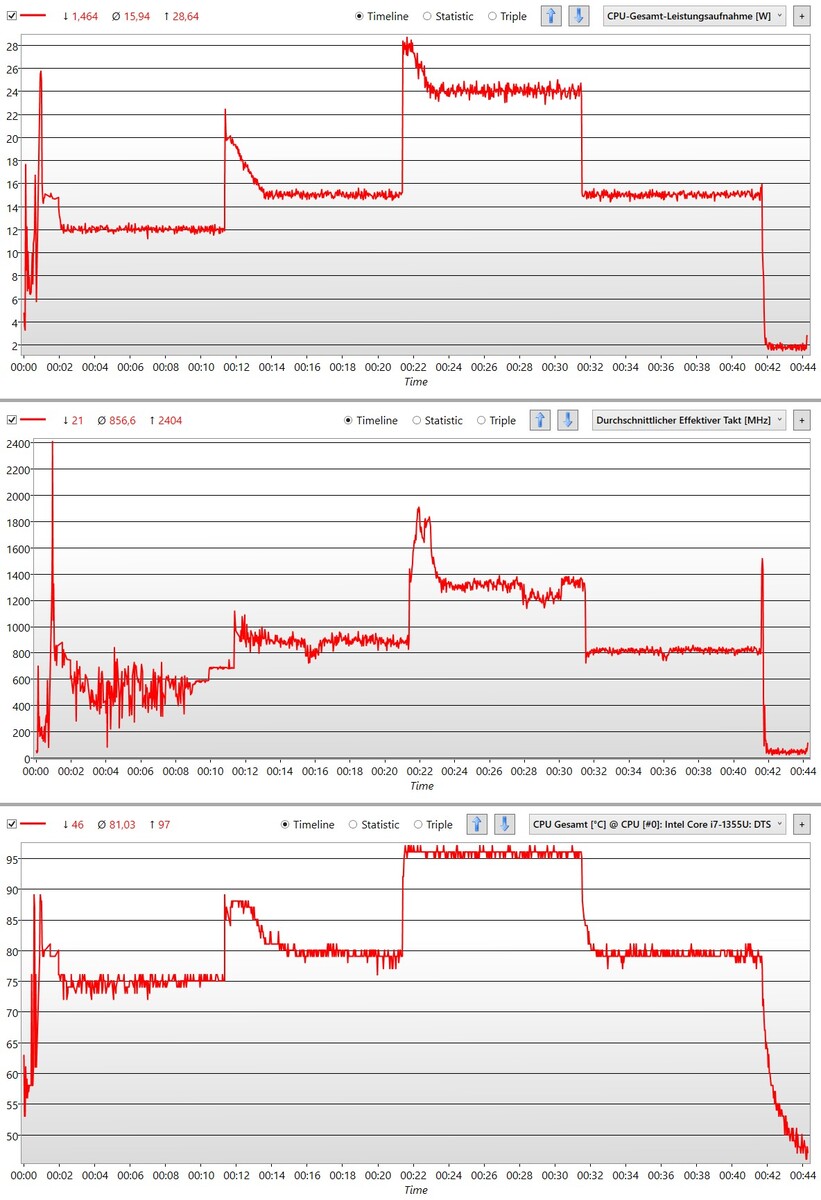

Cinebench R15 循环显示了一些有趣的东西，其中 ExpertBook B9 OLED 表现非常出色。联想联想 ThinkPad X13 G4和 华硕 ZenBook S13 OLED采用相同 CPU 的联想 ThinkPad X13 G4 和华硕 ZenBook S13 OLED 开始时得分相同，但随着时间的推移逐渐落后，最后分别落后 15%和 25%。因此，华硕的商务笔记本在应对持续负载时表现更好。
性能模式之间的差异明显小于 PL 值。即使在"耳语 "模式下，性能差异也不会超过 20%，风扇的声音也很小。标准 模式几乎不比性能 模式差，但明显降低了风扇噪音。
在电池模式下，计算能力仅限于"耳语 "模式，但仍令人印象深刻。
更多基准测试和其他信息，请参阅我们的CPU 基准测试列表.
Cinebench R15 Multi Sustained Load
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
| CPU Performance Rating | |
| Asus VivoBook 14X K3405 | |
| Dell XPS 13 Plus 9320 Core i7-1360P | |
| Average of class Subnotebook | |
| Asus ZenBook 14 UM3402Y -1! | |
| Lenovo ThinkPad T16 G2 21HH003AGE | |
| Average Intel Core i7-1355U | |
| Lenovo ThinkPad X13 G4 21EX004QGE | |
| Asus ZenBook S13 OLED UX5304 | |
| Asus ExpertBook B9 B9403CVA-KM0153X | |
| LG Gram Style 14Z90RS-G.AD7AG | |
| LG Gram 16Z90Q | |
| Asus ExpertBook B9 B9400CE-KC0166R | |
| Cinebench R23 / Multi Core | |
| Asus VivoBook 14X K3405 | |
| Average of class Subnotebook (1555 - 21812, n=63, last 2 years) | |
| Dell XPS 13 Plus 9320 Core i7-1360P | |
| Asus ZenBook 14 UM3402Y | |
| Lenovo ThinkPad T16 G2 21HH003AGE | |
| Average Intel Core i7-1355U (6936 - 10252, n=18) | |
| LG Gram Style 14Z90RS-G.AD7AG | |
| Lenovo ThinkPad X13 G4 21EX004QGE | |
| LG Gram 16Z90Q | |
| Asus ExpertBook B9 B9403CVA-KM0153X | |
| Asus ZenBook S13 OLED UX5304 | |
| Asus ExpertBook B9 B9400CE-KC0166R | |
| Cinebench R23 / Single Core | |
| Lenovo ThinkPad T16 G2 21HH003AGE | |
| Dell XPS 13 Plus 9320 Core i7-1360P | |
| Average Intel Core i7-1355U (1687 - 1889, n=18) | |
| Lenovo ThinkPad X13 G4 21EX004QGE | |
| Asus ZenBook S13 OLED UX5304 | |
| Asus VivoBook 14X K3405 | |
| Asus ExpertBook B9 B9403CVA-KM0153X | |
| Average of class Subnotebook (358 - 2001, n=63, last 2 years) | |
| LG Gram Style 14Z90RS-G.AD7AG | |
| LG Gram 16Z90Q | |
| Asus ZenBook 14 UM3402Y | |
| Asus ExpertBook B9 B9400CE-KC0166R | |
| Cinebench R20 / CPU (Multi Core) | |
| Asus VivoBook 14X K3405 | |
| Average of class Subnotebook (579 - 8541, n=59, last 2 years) | |
| Dell XPS 13 Plus 9320 Core i7-1360P | |
| Asus ZenBook 14 UM3402Y | |
| Lenovo ThinkPad T16 G2 21HH003AGE | |
| Average Intel Core i7-1355U (2849 - 3907, n=18) | |
| Lenovo ThinkPad X13 G4 21EX004QGE | |
| LG Gram Style 14Z90RS-G.AD7AG | |
| LG Gram 16Z90Q | |
| Asus ExpertBook B9 B9403CVA-KM0153X | |
| Asus ZenBook S13 OLED UX5304 | |
| Asus ExpertBook B9 B9400CE-KC0166R | |
| Cinebench R20 / CPU (Single Core) | |
| Lenovo ThinkPad T16 G2 21HH003AGE | |
| Dell XPS 13 Plus 9320 Core i7-1360P | |
| Average Intel Core i7-1355U (654 - 725, n=18) | |
| Asus ZenBook S13 OLED UX5304 | |
| Lenovo ThinkPad X13 G4 21EX004QGE | |
| Asus VivoBook 14X K3405 | |
| Asus ExpertBook B9 B9403CVA-KM0153X | |
| Average of class Subnotebook (128 - 790, n=59, last 2 years) | |
| LG Gram Style 14Z90RS-G.AD7AG | |
| LG Gram 16Z90Q | |
| Asus ZenBook 14 UM3402Y | |
| Asus ExpertBook B9 B9400CE-KC0166R | |
| Cinebench R15 / CPU Multi 64Bit | |
| Asus VivoBook 14X K3405 | |
| Average of class Subnotebook (327 - 3345, n=65, last 2 years) | |
| Dell XPS 13 Plus 9320 Core i7-1360P | |
| Asus ZenBook 14 UM3402Y | |
| Lenovo ThinkPad T16 G2 21HH003AGE | |
| LG Gram 16Z90Q | |
| LG Gram Style 14Z90RS-G.AD7AG | |
| Average Intel Core i7-1355U (1206 - 1735, n=18) | |
| Asus ZenBook S13 OLED UX5304 | |
| Asus ExpertBook B9 B9403CVA-KM0153X | |
| Lenovo ThinkPad X13 G4 21EX004QGE | |
| Asus ExpertBook B9 B9400CE-KC0166R | |
| Cinebench R15 / CPU Single 64Bit | |
| Dell XPS 13 Plus 9320 Core i7-1360P | |
| Lenovo ThinkPad T16 G2 21HH003AGE | |
| Average Intel Core i7-1355U (237 - 267, n=18) | |
| Average of class Subnotebook (72.4 - 307, n=60, last 2 years) | |
| Asus VivoBook 14X K3405 | |
| Asus ZenBook S13 OLED UX5304 | |
| Asus ExpertBook B9 B9403CVA-KM0153X | |
| Lenovo ThinkPad X13 G4 21EX004QGE | |
| Asus ZenBook 14 UM3402Y | |
| LG Gram 16Z90Q | |
| Asus ExpertBook B9 B9400CE-KC0166R | |
| LG Gram Style 14Z90RS-G.AD7AG | |
| Blender / v2.79 BMW27 CPU | |
| Asus ExpertBook B9 B9400CE-KC0166R | |
| Lenovo ThinkPad X13 G4 21EX004QGE | |
| LG Gram 16Z90Q | |
| Asus ZenBook S13 OLED UX5304 | |
| Asus ZenBook S13 OLED UX5304 | |
| Lenovo ThinkPad T16 G2 21HH003AGE | |
| Average Intel Core i7-1355U (328 - 503, n=18) | |
| Asus ExpertBook B9 B9403CVA-KM0153X | |
| LG Gram Style 14Z90RS-G.AD7AG | |
| Average of class Subnotebook (159 - 2271, n=63, last 2 years) | |
| Dell XPS 13 Plus 9320 Core i7-1360P | |
| Asus VivoBook 14X K3405 | |
| 7-Zip 18.03 / 7z b 4 -mmt1 | |
| Lenovo ThinkPad T16 G2 21HH003AGE | |
| Asus ZenBook S13 OLED UX5304 | |
| Asus VivoBook 14X K3405 | |
| Average Intel Core i7-1355U (5301 - 5911, n=18) | |
| Dell XPS 13 Plus 9320 Core i7-1360P | |
| Lenovo ThinkPad X13 G4 21EX004QGE | |
| Average of class Subnotebook (2669 - 6403, n=58, last 2 years) | |
| Asus ExpertBook B9 B9403CVA-KM0153X | |
| Asus ZenBook 14 UM3402Y | |
| Asus ExpertBook B9 B9400CE-KC0166R | |
| LG Gram 16Z90Q | |
| LG Gram Style 14Z90RS-G.AD7AG | |
| Geekbench 5.5 / Multi-Core | |
| Dell XPS 13 Plus 9320 Core i7-1360P | |
| Average of class Subnotebook (2557 - 14728, n=58, last 2 years) | |
| Asus VivoBook 14X K3405 | |
| LG Gram 16Z90Q | |
| LG Gram Style 14Z90RS-G.AD7AG | |
| Asus ZenBook 14 UM3402Y | |
| Average Intel Core i7-1355U (7507 - 9328, n=18) | |
| Asus ZenBook S13 OLED UX5304 | |
| Lenovo ThinkPad X13 G4 21EX004QGE | |
| Lenovo ThinkPad T16 G2 21HH003AGE | |
| Asus ExpertBook B9 B9403CVA-KM0153X | |
| Asus ExpertBook B9 B9400CE-KC0166R | |
| Geekbench 5.5 / Single-Core | |
| Lenovo ThinkPad T16 G2 21HH003AGE | |
| Dell XPS 13 Plus 9320 Core i7-1360P | |
| Average of class Subnotebook (621 - 2350, n=58, last 2 years) | |
| Average Intel Core i7-1355U (1678 - 1872, n=18) | |
| Asus ZenBook S13 OLED UX5304 | |
| Lenovo ThinkPad X13 G4 21EX004QGE | |
| Asus ExpertBook B9 B9403CVA-KM0153X | |
| Asus VivoBook 14X K3405 | |
| LG Gram 16Z90Q | |
| Asus ZenBook 14 UM3402Y | |
| LG Gram Style 14Z90RS-G.AD7AG | |
| Asus ExpertBook B9 B9400CE-KC0166R | |
| HWBOT x265 Benchmark v2.2 / 4k Preset | |
| Asus VivoBook 14X K3405 | |
| Asus ZenBook 14 UM3402Y | |
| Dell XPS 13 Plus 9320 Core i7-1360P | |
| Average of class Subnotebook (0.97 - 25.1, n=58, last 2 years) | |
| Lenovo ThinkPad T16 G2 21HH003AGE | |
| LG Gram Style 14Z90RS-G.AD7AG | |
| Average Intel Core i7-1355U (7.83 - 11.4, n=18) | |
| Lenovo ThinkPad X13 G4 21EX004QGE | |
| Asus ExpertBook B9 B9403CVA-KM0153X | |
| LG Gram 16Z90Q | |
| Asus ZenBook S13 OLED UX5304 | |
| Asus ExpertBook B9 B9400CE-KC0166R | |
| LibreOffice / 20 Documents To PDF | |
| LG Gram 16Z90Q | |
| Average of class Subnotebook (38.5 - 220, n=57, last 2 years) | |
| Asus ExpertBook B9 B9403CVA-KM0153X | |
| Average Intel Core i7-1355U (41.1 - 108.6, n=18) | |
| Asus ZenBook 14 UM3402Y | |
| Lenovo ThinkPad X13 G4 21EX004QGE | |
| LG Gram Style 14Z90RS-G.AD7AG | |
| Asus ExpertBook B9 B9400CE-KC0166R | |
| Asus VivoBook 14X K3405 | |
| Asus ZenBook S13 OLED UX5304 | |
| Dell XPS 13 Plus 9320 Core i7-1360P | |
| Lenovo ThinkPad T16 G2 21HH003AGE | |
| R Benchmark 2.5 / Overall mean | |
| Asus ExpertBook B9 B9400CE-KC0166R | |
| LG Gram Style 14Z90RS-G.AD7AG | |
| LG Gram 16Z90Q | |
| Asus ZenBook 14 UM3402Y | |
| Average of class Subnotebook (0.413 - 1.456, n=58, last 2 years) | |
| Average Intel Core i7-1355U (0.4481 - 0.832, n=18) | |
| Asus VivoBook 14X K3405 | |
| Asus ExpertBook B9 B9403CVA-KM0153X | |
| Lenovo ThinkPad T16 G2 21HH003AGE | |
| Lenovo ThinkPad X13 G4 21EX004QGE | |
| Asus ZenBook S13 OLED UX5304 | |
| Dell XPS 13 Plus 9320 Core i7-1360P | |
* ... smaller is better
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
| Performance Rating | |
| Asus ZenBook 14 UM3402Y | |
| Average of class Subnotebook | |
| Dell XPS 13 Plus 9320 Core i7-1360P | |
| LG Gram Style 14Z90RS-G.AD7AG | |
| Average Intel Core i7-1355U | |
| Lenovo ThinkPad X13 G4 21EX004QGE | |
| Asus ExpertBook B9 B9403CVA-KM0153X | |
| Asus ZenBook S13 OLED UX5304 | |
| AIDA64 / FP32 Ray-Trace | |
| Average of class Subnotebook (1141 - 32888, n=58, last 2 years) | |
| Asus ZenBook 14 UM3402Y | |
| Dell XPS 13 Plus 9320 Core i7-1360P | |
| LG Gram Style 14Z90RS-G.AD7AG | |
| Average Intel Core i7-1355U (5673 - 8424, n=18) | |
| Asus ExpertBook B9 B9403CVA-KM0153X | |
| Lenovo ThinkPad X13 G4 21EX004QGE | |
| Asus ZenBook S13 OLED UX5304 | |
| AIDA64 / FPU Julia | |
| Asus ZenBook 14 UM3402Y | |
| Average of class Subnotebook (6838 - 123315, n=58, last 2 years) | |
| Dell XPS 13 Plus 9320 Core i7-1360P | |
| LG Gram Style 14Z90RS-G.AD7AG | |
| Average Intel Core i7-1355U (29580 - 42706, n=18) | |
| Lenovo ThinkPad X13 G4 21EX004QGE | |
| Asus ExpertBook B9 B9403CVA-KM0153X | |
| Asus ZenBook S13 OLED UX5304 | |
| AIDA64 / CPU SHA3 | |
| Average of class Subnotebook (444 - 5287, n=58, last 2 years) | |
| Asus ZenBook 14 UM3402Y | |
| Dell XPS 13 Plus 9320 Core i7-1360P | |
| LG Gram Style 14Z90RS-G.AD7AG | |
| Average Intel Core i7-1355U (1529 - 2200, n=18) | |
| Asus ExpertBook B9 B9403CVA-KM0153X | |
| Lenovo ThinkPad X13 G4 21EX004QGE | |
| Asus ZenBook S13 OLED UX5304 | |
| AIDA64 / CPU Queen | |
| Asus ZenBook 14 UM3402Y | |
| Dell XPS 13 Plus 9320 Core i7-1360P | |
| Average of class Subnotebook (11579 - 115682, n=58, last 2 years) | |
| LG Gram Style 14Z90RS-G.AD7AG | |
| Asus ZenBook S13 OLED UX5304 | |
| Lenovo ThinkPad X13 G4 21EX004QGE | |
| Average Intel Core i7-1355U (21547 - 66907, n=18) | |
| Asus ExpertBook B9 B9403CVA-KM0153X | |
| AIDA64 / FPU SinJulia | |
| Asus ZenBook 14 UM3402Y | |
| Average of class Subnotebook (744 - 18418, n=58, last 2 years) | |
| Dell XPS 13 Plus 9320 Core i7-1360P | |
| LG Gram Style 14Z90RS-G.AD7AG | |
| Average Intel Core i7-1355U (4045 - 5426, n=18) | |
| Lenovo ThinkPad X13 G4 21EX004QGE | |
| Asus ExpertBook B9 B9403CVA-KM0153X | |
| Asus ZenBook S13 OLED UX5304 | |
| AIDA64 / FPU Mandel | |
| Asus ZenBook 14 UM3402Y | |
| Average of class Subnotebook (3366 - 65433, n=58, last 2 years) | |
| Dell XPS 13 Plus 9320 Core i7-1360P | |
| LG Gram Style 14Z90RS-G.AD7AG | |
| Average Intel Core i7-1355U (14596 - 21627, n=18) | |
| Asus ExpertBook B9 B9403CVA-KM0153X | |
| Lenovo ThinkPad X13 G4 21EX004QGE | |
| Asus ZenBook S13 OLED UX5304 | |
| AIDA64 / CPU AES | |
| Average of class Subnotebook (638 - 161430, n=58, last 2 years) | |
| Asus ZenBook 14 UM3402Y | |
| Dell XPS 13 Plus 9320 Core i7-1360P | |
| Average Intel Core i7-1355U (31432 - 75408, n=18) | |
| LG Gram Style 14Z90RS-G.AD7AG | |
| Lenovo ThinkPad X13 G4 21EX004QGE | |
| Asus ExpertBook B9 B9403CVA-KM0153X | |
| Asus ZenBook S13 OLED UX5304 | |
| AIDA64 / CPU ZLib | |
| Average of class Subnotebook (166.9 - 1379, n=58, last 2 years) | |
| Dell XPS 13 Plus 9320 Core i7-1360P | |
| Asus ZenBook 14 UM3402Y | |
| Average Intel Core i7-1355U (454 - 684, n=18) | |
| Lenovo ThinkPad X13 G4 21EX004QGE | |
| LG Gram Style 14Z90RS-G.AD7AG | |
| Asus ExpertBook B9 B9403CVA-KM0153X | |
| Asus ZenBook S13 OLED UX5304 | |
| AIDA64 / FP64 Ray-Trace | |
| Asus ZenBook 14 UM3402Y | |
| Average of class Subnotebook (610 - 17495, n=58, last 2 years) | |
| Dell XPS 13 Plus 9320 Core i7-1360P | |
| LG Gram Style 14Z90RS-G.AD7AG | |
| Asus ExpertBook B9 B9403CVA-KM0153X | |
| Average Intel Core i7-1355U (2991 - 4453, n=18) | |
| Lenovo ThinkPad X13 G4 21EX004QGE | |
| Asus ZenBook S13 OLED UX5304 | |
| AIDA64 / CPU PhotoWorxx | |
| Dell XPS 13 Plus 9320 Core i7-1360P | |
| LG Gram Style 14Z90RS-G.AD7AG | |
| Average of class Subnotebook (6569 - 54881, n=58, last 2 years) | |
| Asus ZenBook S13 OLED UX5304 | |
| Lenovo ThinkPad X13 G4 21EX004QGE | |
| Asus ExpertBook B9 B9403CVA-KM0153X | |
| Average Intel Core i7-1355U (21800 - 46154, n=18) | |
| Asus ZenBook 14 UM3402Y | |
* ... smaller is better
系统性能
总的来说，华硕笔记本电脑的运行速度很快。这适用于启动过程、程序启动、安装和卸载过程。即使同时运行大量打开的程序，对系统的高响应速度也几乎没有影响。对于 ExpertBook 来说，工作、冲浪等都不成问题。
英特尔 英特尔酷睿 i7-1355U英特尔酷睿i7-1355U散热良好，能够充分发挥其潜能，从不会被日常任务难倒，在处理复杂程序时也不会出现太多问题。对于一款快速商务笔记本来说，系统性能绝对够用。
CrossMark: Overall | Productivity | Creativity | Responsiveness
| PCMark 10 / Score | |
| Average of class Subnotebook (4993 - 7788, n=50, last 2 years) | |
| Asus ZenBook 14 UM3402Y | |
| Dell XPS 13 Plus 9320 Core i7-1360P | |
| Asus ExpertBook B9 B9403CVA-KM0153X | |
| Average Intel Core i7-1355U, Intel Iris Xe Graphics G7 96EUs (5455 - 5933, n=15) | |
| LG Gram Style 14Z90RS-G.AD7AG | |
| Asus ZenBook S13 OLED UX5304 | |
| Lenovo ThinkPad X13 G4 21EX004QGE | |
| PCMark 10 / Essentials | |
| Dell XPS 13 Plus 9320 Core i7-1360P | |
| Average Intel Core i7-1355U, Intel Iris Xe Graphics G7 96EUs (10203 - 11822, n=15) | |
| Asus ExpertBook B9 B9403CVA-KM0153X | |
| Lenovo ThinkPad X13 G4 21EX004QGE | |
| LG Gram Style 14Z90RS-G.AD7AG | |
| Asus ZenBook S13 OLED UX5304 | |
| Asus ZenBook 14 UM3402Y | |
| Average of class Subnotebook (9476 - 11331, n=50, last 2 years) | |
| PCMark 10 / Productivity | |
| Asus ZenBook 14 UM3402Y | |
| Average of class Subnotebook (6440 - 10623, n=50, last 2 years) | |
| Asus ExpertBook B9 B9403CVA-KM0153X | |
| Lenovo ThinkPad X13 G4 21EX004QGE | |
| Dell XPS 13 Plus 9320 Core i7-1360P | |
| LG Gram Style 14Z90RS-G.AD7AG | |
| Average Intel Core i7-1355U, Intel Iris Xe Graphics G7 96EUs (6763 - 7536, n=15) | |
| Asus ZenBook S13 OLED UX5304 | |
| PCMark 10 / Digital Content Creation | |
| Average of class Subnotebook (5305 - 10983, n=50, last 2 years) | |
| Dell XPS 13 Plus 9320 Core i7-1360P | |
| Average Intel Core i7-1355U, Intel Iris Xe Graphics G7 96EUs (5723 - 6712, n=15) | |
| LG Gram Style 14Z90RS-G.AD7AG | |
| Asus ZenBook S13 OLED UX5304 | |
| Asus ZenBook 14 UM3402Y | |
| Lenovo ThinkPad X13 G4 21EX004QGE | |
| Asus ExpertBook B9 B9403CVA-KM0153X | |
| CrossMark / Overall | |
| Dell XPS 13 Plus 9320 Core i7-1360P | |
| LG Gram Style 14Z90RS-G.AD7AG | |
| Asus ZenBook S13 OLED UX5304 | |
| Average of class Subnotebook (365 - 1971, n=56, last 2 years) | |
| Average Intel Core i7-1355U, Intel Iris Xe Graphics G7 96EUs (1478 - 1643, n=15) | |
| Lenovo ThinkPad X13 G4 21EX004QGE | |
| Asus ExpertBook B9 B9403CVA-KM0153X | |
| Asus ZenBook 14 UM3402Y | |
| CrossMark / Productivity | |
| Dell XPS 13 Plus 9320 Core i7-1360P | |
| LG Gram Style 14Z90RS-G.AD7AG | |
| Asus ZenBook S13 OLED UX5304 | |
| Average Intel Core i7-1355U, Intel Iris Xe Graphics G7 96EUs (1444 - 1665, n=15) | |
| Lenovo ThinkPad X13 G4 21EX004QGE | |
| Asus ExpertBook B9 B9403CVA-KM0153X | |
| Average of class Subnotebook (364 - 1875, n=56, last 2 years) | |
| Asus ZenBook 14 UM3402Y | |
| CrossMark / Creativity | |
| Dell XPS 13 Plus 9320 Core i7-1360P | |
| LG Gram Style 14Z90RS-G.AD7AG | |
| Average of class Subnotebook (385 - 2210, n=56, last 2 years) | |
| Asus ZenBook S13 OLED UX5304 | |
| Asus ExpertBook B9 B9403CVA-KM0153X | |
| Average Intel Core i7-1355U, Intel Iris Xe Graphics G7 96EUs (1563 - 1732, n=15) | |
| Lenovo ThinkPad X13 G4 21EX004QGE | |
| Asus ZenBook 14 UM3402Y | |
| CrossMark / Responsiveness | |
| Dell XPS 13 Plus 9320 Core i7-1360P | |
| LG Gram Style 14Z90RS-G.AD7AG | |
| Asus ZenBook S13 OLED UX5304 | |
| Average Intel Core i7-1355U, Intel Iris Xe Graphics G7 96EUs (1217 - 1681, n=15) | |
| Average of class Subnotebook (312 - 1899, n=56, last 2 years) | |
| Lenovo ThinkPad X13 G4 21EX004QGE | |
| Asus ExpertBook B9 B9403CVA-KM0153X | |
| Asus ZenBook 14 UM3402Y | |
| PCMark 10 Score | 5723 points | |
Help | ||
| AIDA64 / Memory Copy | |
| Dell XPS 13 Plus 9320 Core i7-1360P | |
| Average of class Subnotebook (14916 - 108756, n=58, last 2 years) | |
| LG Gram Style 14Z90RS-G.AD7AG | |
| Asus ExpertBook B9 B9403CVA-KM0153X | |
| Asus ZenBook S13 OLED UX5304 | |
| Lenovo ThinkPad X13 G4 21EX004QGE | |
| Average Intel Core i7-1355U (35017 - 71600, n=18) | |
| Asus ZenBook 14 UM3402Y | |
| AIDA64 / Memory Read | |
| Average of class Subnotebook (15948 - 122210, n=58, last 2 years) | |
| Dell XPS 13 Plus 9320 Core i7-1360P | |
| LG Gram Style 14Z90RS-G.AD7AG | |
| Lenovo ThinkPad X13 G4 21EX004QGE | |
| Average Intel Core i7-1355U (38551 - 73377, n=18) | |
| Asus ZenBook S13 OLED UX5304 | |
| Asus ExpertBook B9 B9403CVA-KM0153X | |
| Asus ZenBook 14 UM3402Y | |
| AIDA64 / Memory Write | |
| Dell XPS 13 Plus 9320 Core i7-1360P | |
| LG Gram Style 14Z90RS-G.AD7AG | |
| Asus ExpertBook B9 B9403CVA-KM0153X | |
| Average of class Subnotebook (16513 - 117898, n=58, last 2 years) | |
| Asus ZenBook S13 OLED UX5304 | |
| Lenovo ThinkPad X13 G4 21EX004QGE | |
| Average Intel Core i7-1355U (35910 - 93342, n=18) | |
| Asus ZenBook 14 UM3402Y | |
| AIDA64 / Memory Latency | |
| Average Intel Core i7-1355U (72.2 - 346, n=18) | |
| Lenovo ThinkPad X13 G4 21EX004QGE | |
| Average of class Subnotebook (7.2 - 187.8, n=58, last 2 years) | |
| Asus ZenBook 14 UM3402Y | |
| Dell XPS 13 Plus 9320 Core i7-1360P | |
| LG Gram Style 14Z90RS-G.AD7AG | |
| Asus ExpertBook B9 B9403CVA-KM0153X | |
| Asus ZenBook S13 OLED UX5304 | |
* ... smaller is better

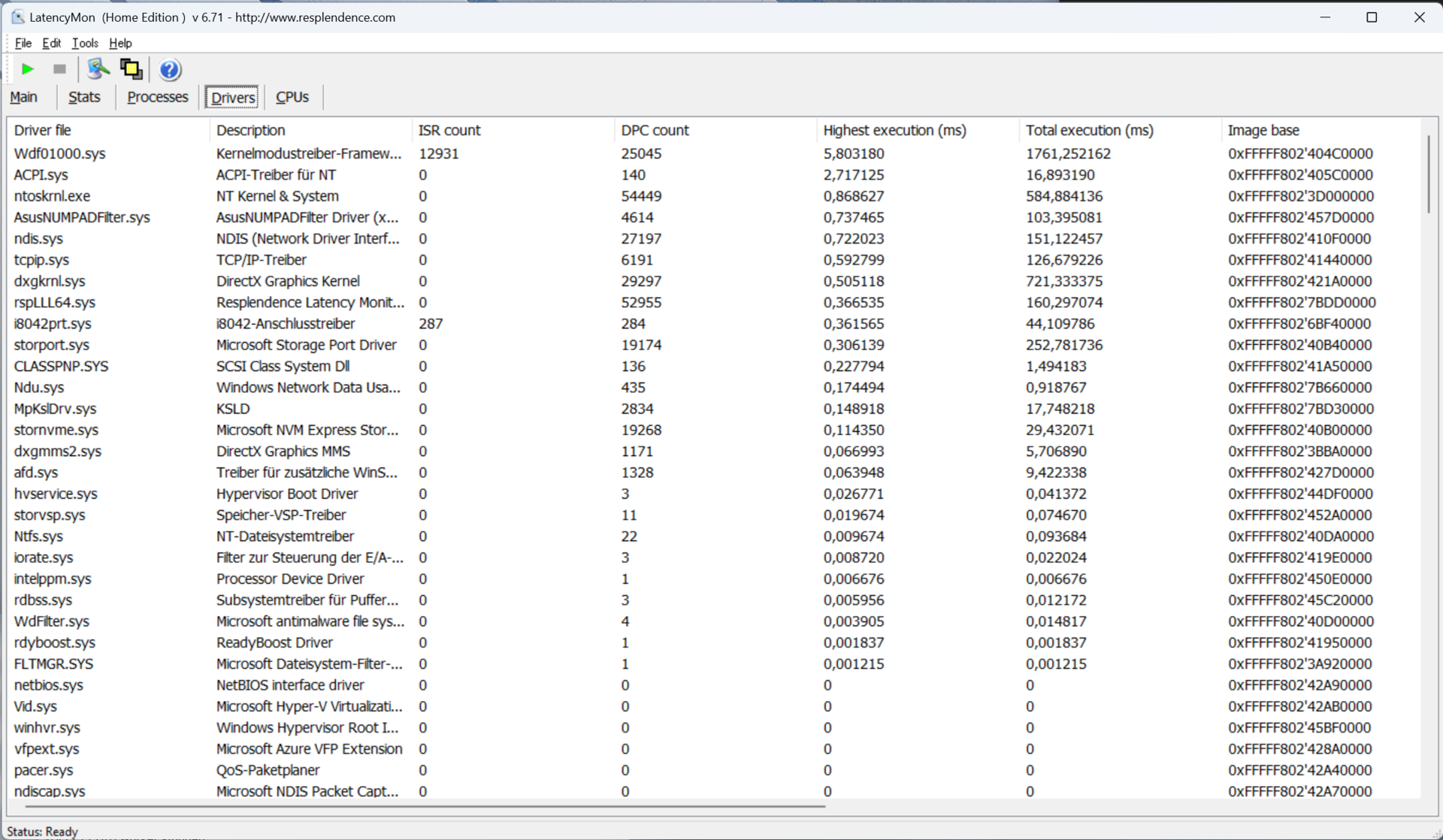

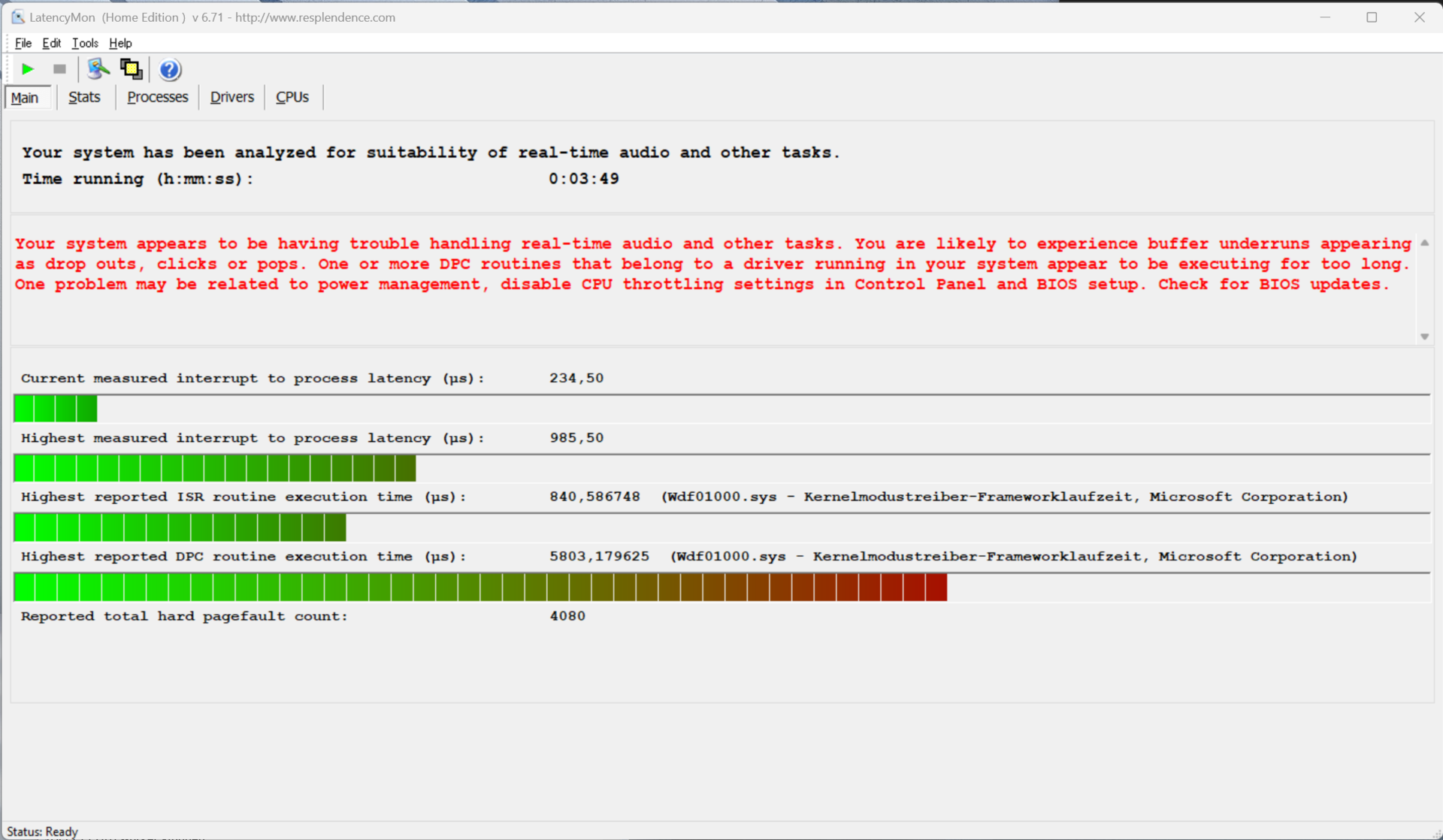

DPC 延迟
在启动 LatencyMon（包括冲浪、视频流和最大 CPU 负载）后，延迟立即增加，以至于无法进行真正的音频处理，而这在移动商务笔记本电脑中是不太可能需要的。不过，总的来说，这些数值还是令人满意的。我们数据库中技术水平相当的笔记本电脑性能甚至更差。更新驱动程序可能会大大改善这些数值。

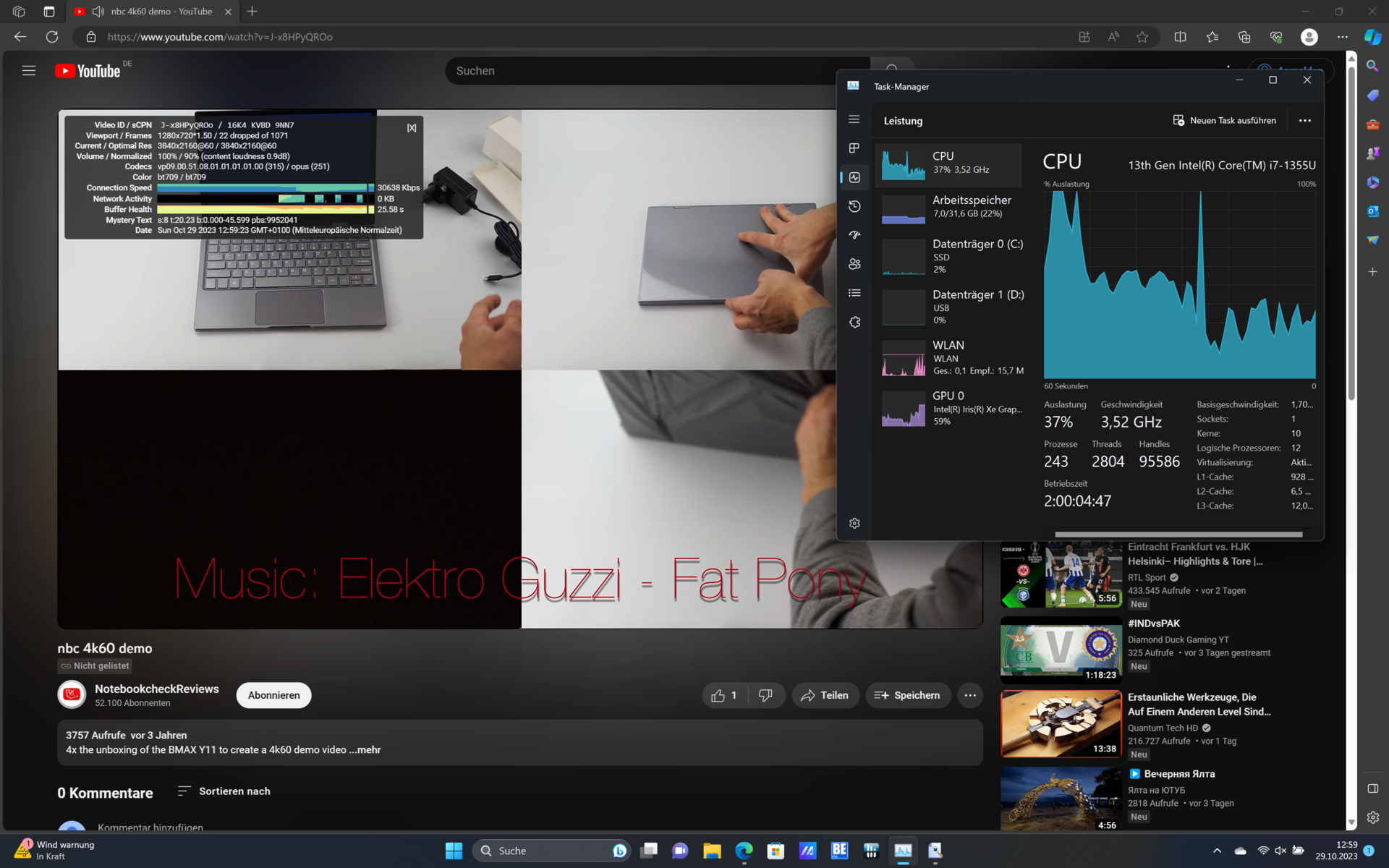

4K 视频流测试并不令人信服。总共漏掉了 70 个中间帧，几乎占 2%。测试时，华硕的所有驱动程序都是最新的。希望未来的更新能解决这个问题。
| DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95 | |
| Dell XPS 13 Plus 9320 Core i7-1360P | |
| Lenovo ThinkPad X13 G4 21EX004QGE | |
| Asus ZenBook 14 UM3402Y | |
| LG Gram Style 14Z90RS-G.AD7AG | |
| Asus ZenBook S13 OLED UX5304 | |
| Asus ExpertBook B9 B9403CVA-KM0153X | |
* ... smaller is better
存储设备
采用 PCIe 4.0 技术的三星固态硬盘的运行速度既不比同类功能强大的笔记本电脑快，也不比它们慢。在高达 6,600 MB/s 的速度下，它几乎可以充分利用其连接能力。在持续性能测试中，它也始终保持着较高的性能水平。用导热箔完全覆盖 SDD 的做法似乎正在取得成效。
* ... smaller is better
Sustained read performance: DiskSpd Read Loop, Queue Depth 8
图形卡

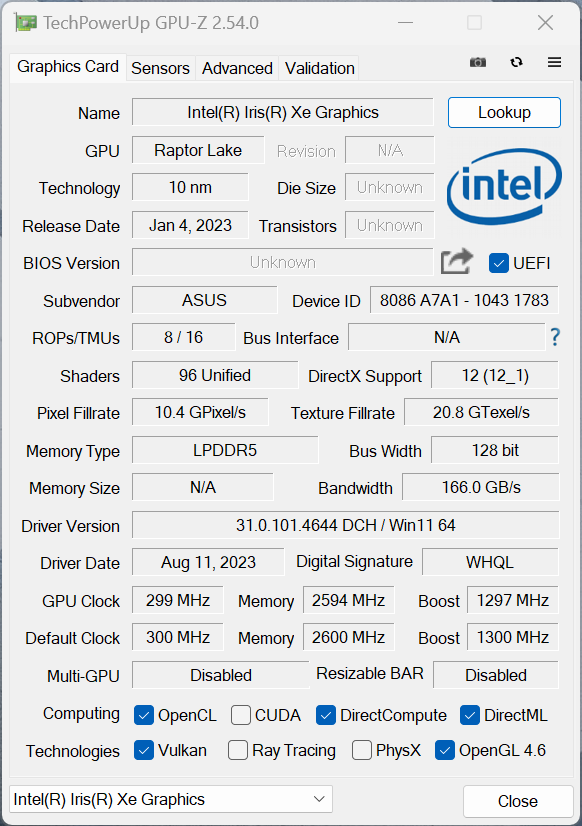

英特尔 英特尔 Iris Xeraphics 显卡是处理器内置的 iGPU，与处理器共享大部分基础架构。它的时钟频率高达 1.3 GHz，拥有 96 个 EU，可为所有预期任务提供足够的计算能力。视频和照片编辑也可以处理，但需要的等待时间比使用单独的 GPU 更长。即使是最小的型号，如 NvidiaGeForce RTX 3050、也能提供几乎两倍的性能。
更多基准和比较值，请参阅我们的GPU 基准列表.

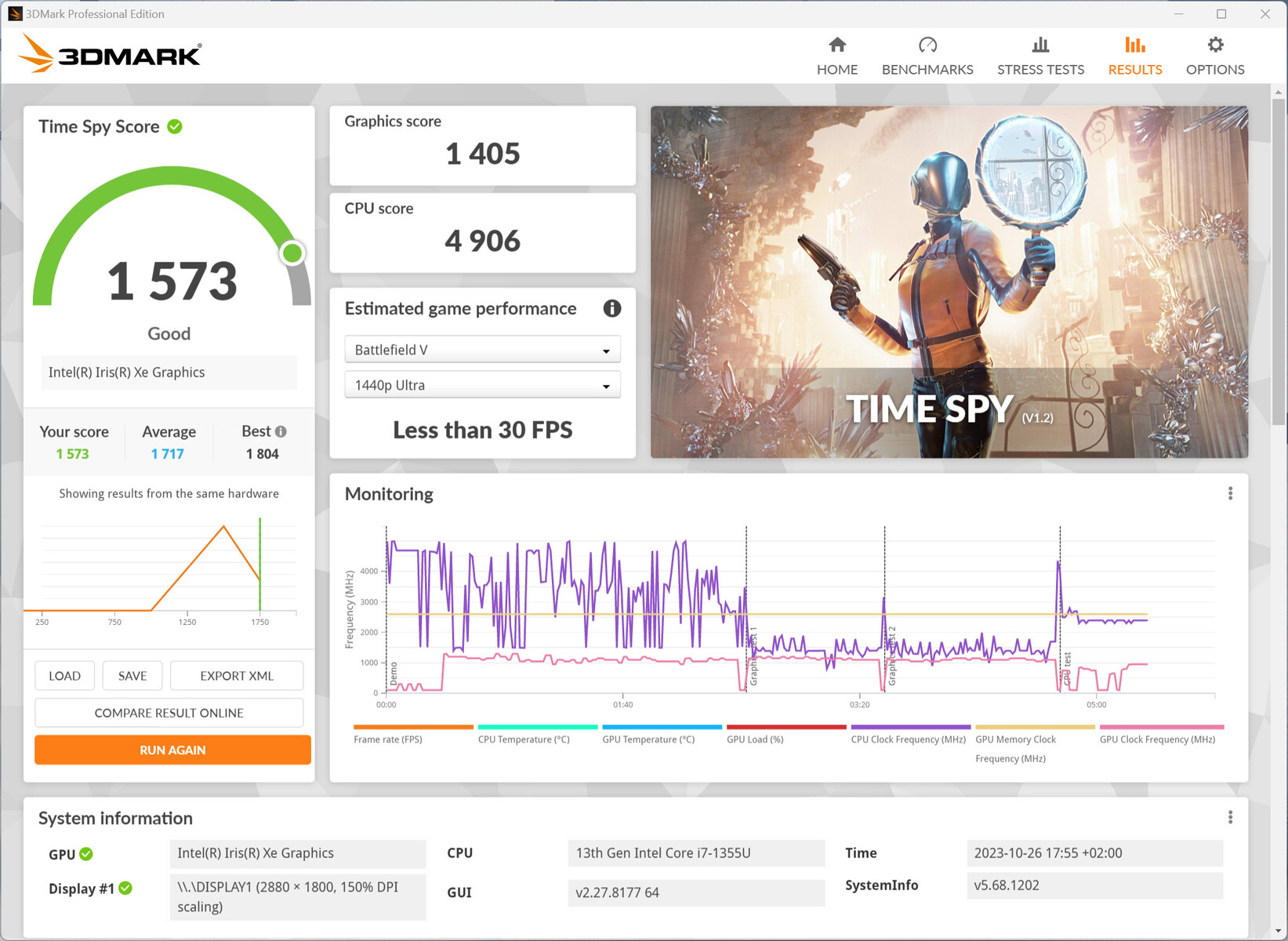

| 3DMark 11 Performance | 6903 points | |
| 3DMark Cloud Gate Standard Score | 21984 points | |
| 3DMark Fire Strike Score | 4916 points | |
| 3DMark Time Spy Score | 1774 points | |
Help | ||
游戏性能
华硕 ExpertBook B9 OLED 并不是用来玩游戏的。只要将细节设置为高，帧速率就会经常低于 30 FPS。这样就无法再玩游戏了。

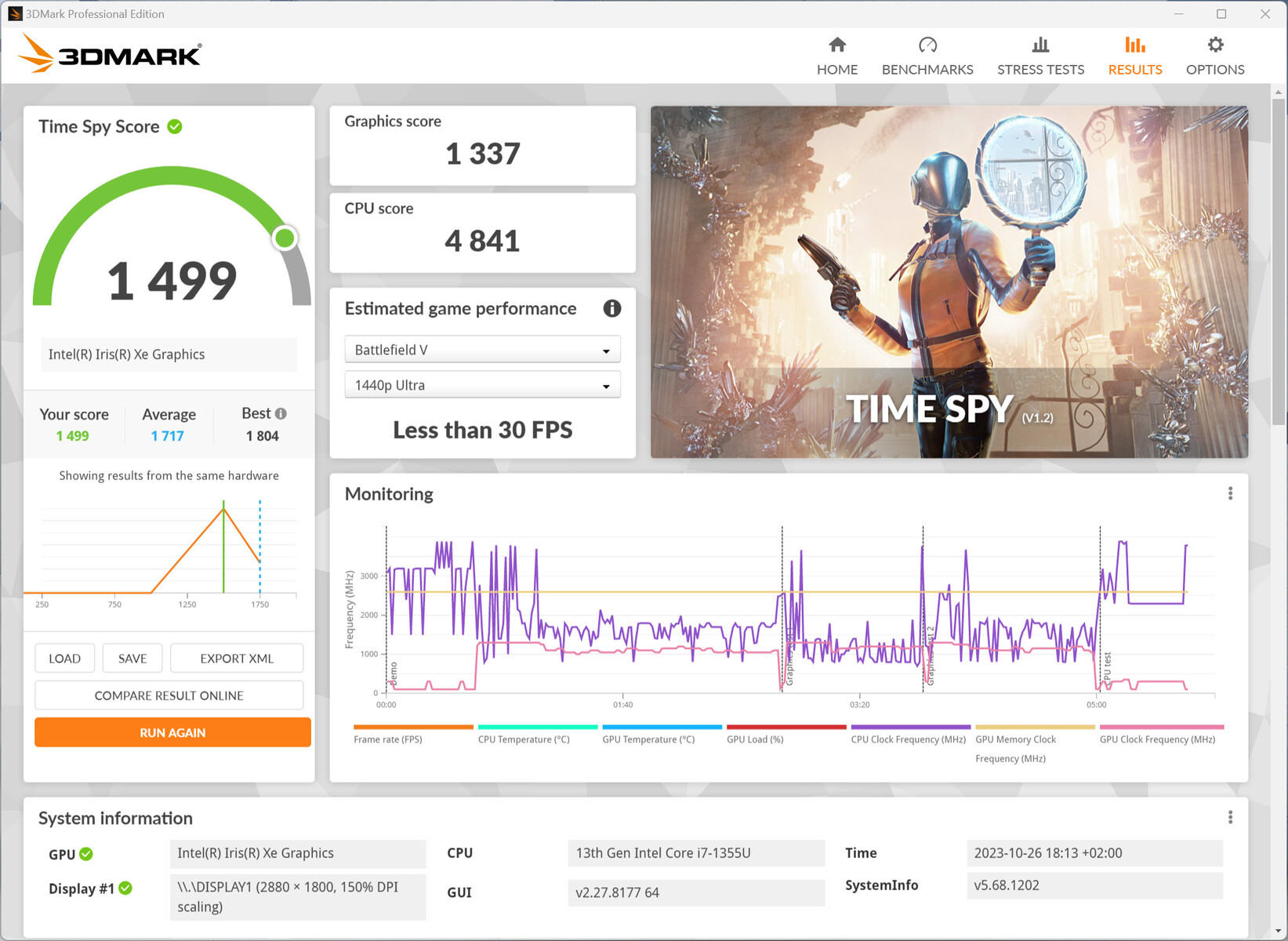

过时的游戏仍可在大幅降低图形设置的情况下玩，最好是在全高清或更低分辨率下玩。即使在Whisper 和电池模式下，图形性能也保持在可接受的水平，至少在Time Spy 基准测试中，图形性能甚至没有比我们的最佳记录值低 20%。
| The Witcher 3 - 1920x1080 Ultra Graphics & Postprocessing (HBAO+) | |
| Average of class Subnotebook (8.5 - 43.7, n=52, last 2 years) | |
| Dell XPS 13 Plus 9320 Core i7-1360P | |
| Asus ZenBook 14 UM3402Y | |
| Asus ExpertBook B9 B9403CVA-KM0153X | |
| Asus ZenBook S13 OLED UX5304 | |
| Lenovo ThinkPad X13 G4 21EX004QGE | |
| LG Gram Style 14Z90RS-G.AD7AG | |
| GTA V - 1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x | |
| Average of class Subnotebook (7.81 - 53, n=55, last 2 years) | |
| Asus ZenBook 14 UM3402Y | |
| Dell XPS 13 Plus 9320 Core i7-1360P | |
| LG Gram Style 14Z90RS-G.AD7AG | |
| Asus ExpertBook B9 B9403CVA-KM0153X | |
| Asus ZenBook S13 OLED UX5304 | |
| Lenovo ThinkPad X13 G4 21EX004QGE | |
| F1 23 | |
| 1920x1080 High Preset AA:T AF:16x | |
| Average of class Subnotebook (15.9 - 86.9, n=27, last 2 years) | |
| Average Intel Iris Xe Graphics G7 96EUs (15.9 - 33.3, n=17) | |
| Asus ExpertBook B9 B9403CVA-KM0153X | |
| LG Gram Style 14Z90RS-G.AD7AG | |
| 1920x1080 Ultra High Preset AA:T AF:16x | |
| Average Intel Iris Xe Graphics G7 96EUs (11.7 - 25, n=10) | |
| Asus ExpertBook B9 B9403CVA-KM0153X | |
| Average of class Subnotebook (7.45 - 20.5, n=22, last 2 years) | |
| LG Gram Style 14Z90RS-G.AD7AG | |
在Witcher 3 的续航测试中，ExpertBook 的性能稳定在较低水平，并持续在 12 FPS 左右波动。而LG Gram Style 14、例如，LG Gram Style 14 在这里的表现截然不同：我们在开始时记录到 14 FPS，但在接下来的过程中只有 8 到 9 FPS。与华硕笔记本电脑相比，它在连续负载下的表现要差得多。
Witcher 3 FPS chart
| low | med. | high | ultra | 4K DLSS | |
|---|---|---|---|---|---|
| GTA V (2015) | 106.9 | 89 | 24.7 | 10.1 | |
| The Witcher 3 (2015) | 81 | 52 | 29 | 13.5 | |
| Dota 2 Reborn (2015) | 105.2 | 77 | 64.6 | 54.9 | |
| Final Fantasy XV Benchmark (2018) | 43.6 | 22.9 | 16.5 | ||
| X-Plane 11.11 (2018) | 40.8 | 30.7 | 25.5 | ||
| Far Cry 5 (2018) | 48 | 27 | 26 | 23 | |
| Strange Brigade (2018) | 91.2 | 38.8 | 30.4 | 24.3 | |
| F1 23 (2023) | 40 | 36 | 25.1 | 18.8 | 7.7 |
排放 - 专家手册中的强通风系统
噪音
只有在极端情况下，风扇才会产生令人不快的干扰。即使在较高负载时，我们通常也能观察到 33 分贝的噪音。即使是安静的背景音乐也很容易被这一音量淹没。不过，即使在耳语 模式下，风扇的声音始终很小。
Noise Level
| Idle |
| 24.9 / 24.9 / 24.9 dB(A) |
| Load |
| 33 / 45 dB(A) |
 | ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min:  , med:  , max:  Earthworks M23R (15 cm distance) environment noise: 24.9 dB(A) | ||
| Asus ExpertBook B9 B9403CVA-KM0153X Iris Xe G7 96EUs, i7-1355U, Samsung PM9A1 MZVL21T0HCLR | Lenovo ThinkPad X13 G4 21EX004QGE Iris Xe G7 96EUs, i7-1355U, Kioxia XG8 KXG8AZNV1T02 | Asus ZenBook S13 OLED UX5304 Iris Xe G7 96EUs, i7-1355U, Samsung PM9A1 MZVL21T0HCLR | LG Gram Style 14Z90RS-G.AD7AG Iris Xe G7 96EUs, i7-1360P, SK hynix PC801 HFS001TEJ9X101N | Dell XPS 13 Plus 9320 Core i7-1360P Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ | Asus ZenBook 14 UM3402Y Vega 8, R7 7730U, Micron 2400 MTFDKBA512QFM | |
|---|---|---|---|---|---|---|
| Noise | 1% | 4% | -0% | 2% | -1% | |
| off / environment * | 24.9 | 23.2 7% | 23.3 6% | 25 -0% | 23.7 5% | 22.6 9% |
| Idle Minimum * | 24.9 | 23.2 7% | 23.3 6% | 25 -0% | 24 4% | 22.6 9% |
| Idle Average * | 24.9 | 23.2 7% | 23.3 6% | 25 -0% | 24 4% | 22.6 9% |
| Idle Maximum * | 24.9 | 27.4 -10% | 23.3 6% | 25 -0% | 24.4 2% | 22.6 9% |
| Load Average * | 33 | 38.1 -15% | 37.7 -14% | 37 -12% | 37 -12% | 40.7 -23% |
| Load Maximum * | 45 | 41.5 8% | 40.1 11% | 40.62 10% | 42 7% | 52.5 -17% |
| Witcher 3 ultra * | 41.4 | 40.1 | 37 | 42.1 | 46.6 |
* ... smaller is better

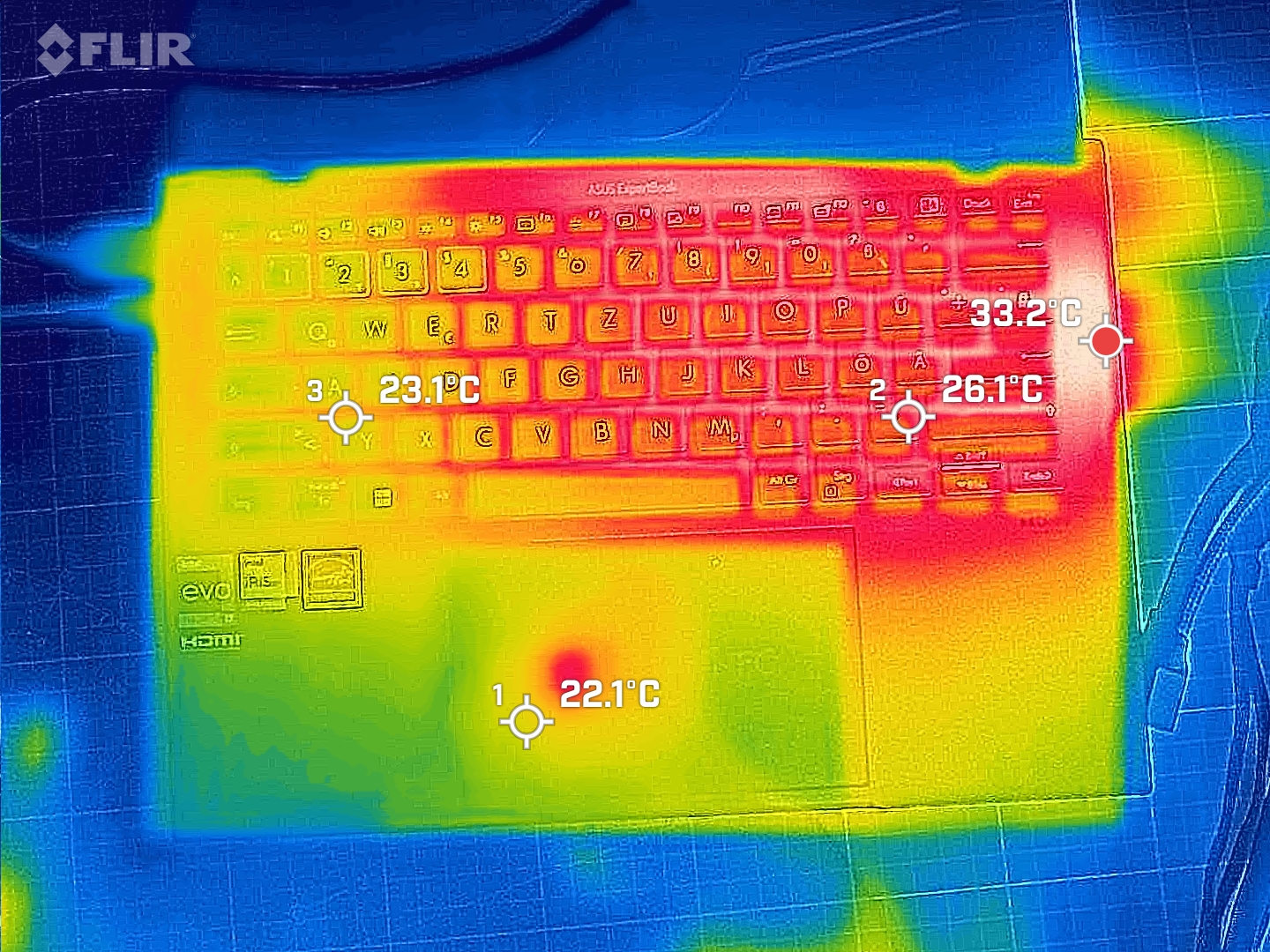

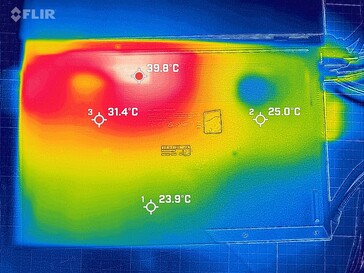

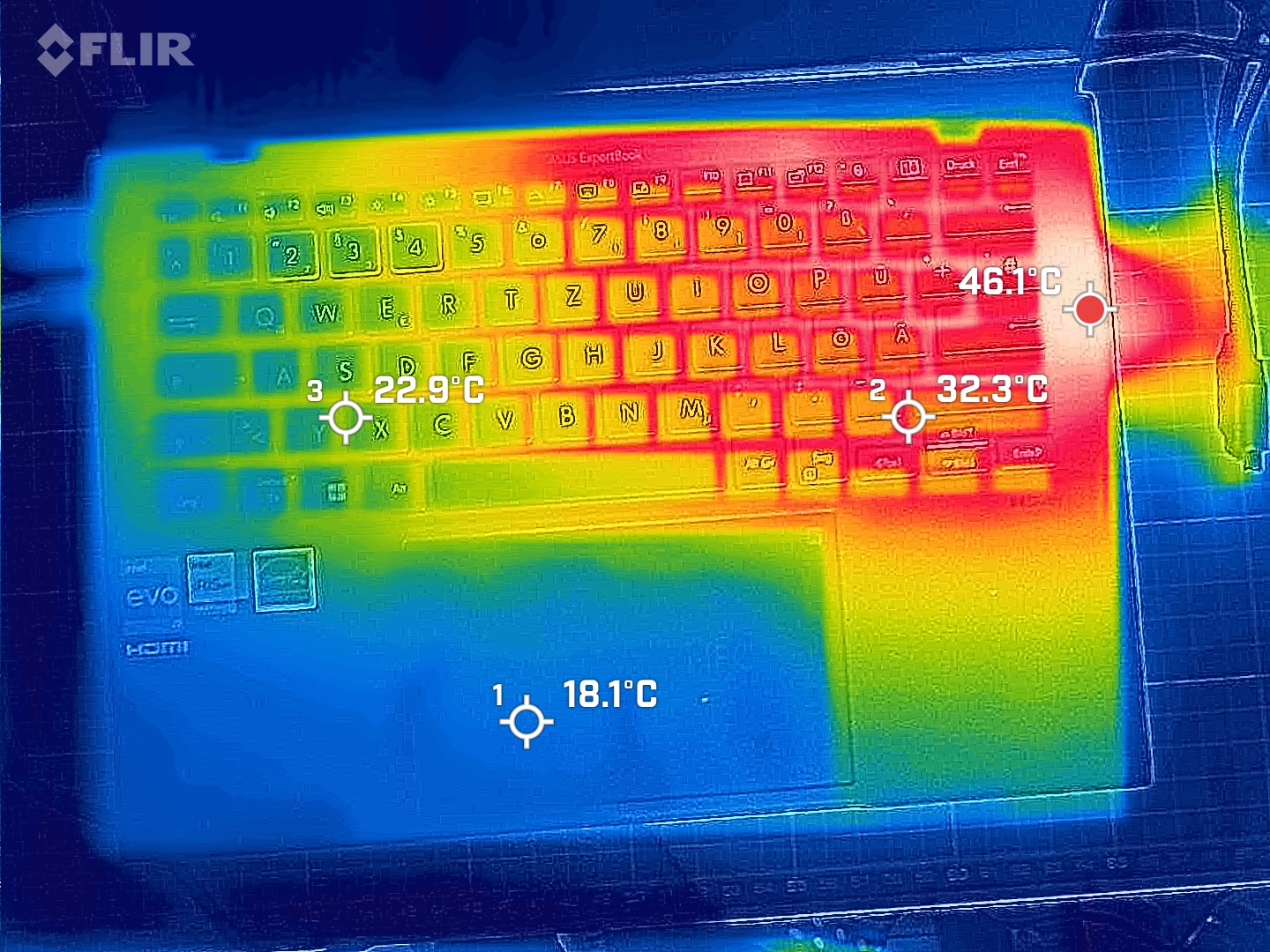

温度

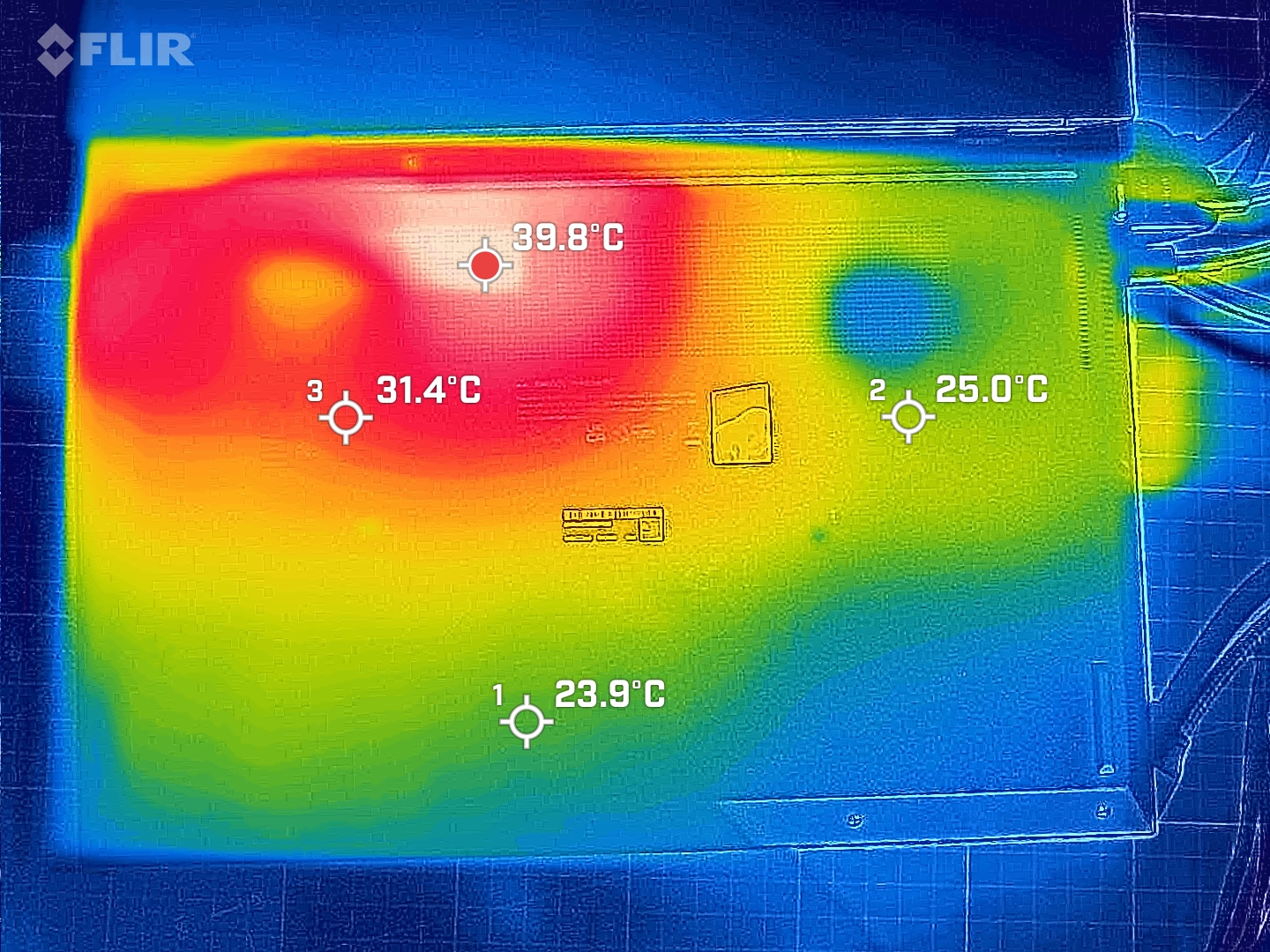

几乎总能感觉到明显的升温。考虑到其紧凑的设计和强大的处理器，这也就不足为奇了。此外，机箱主要由金属制成，也能有效地从内部散热。

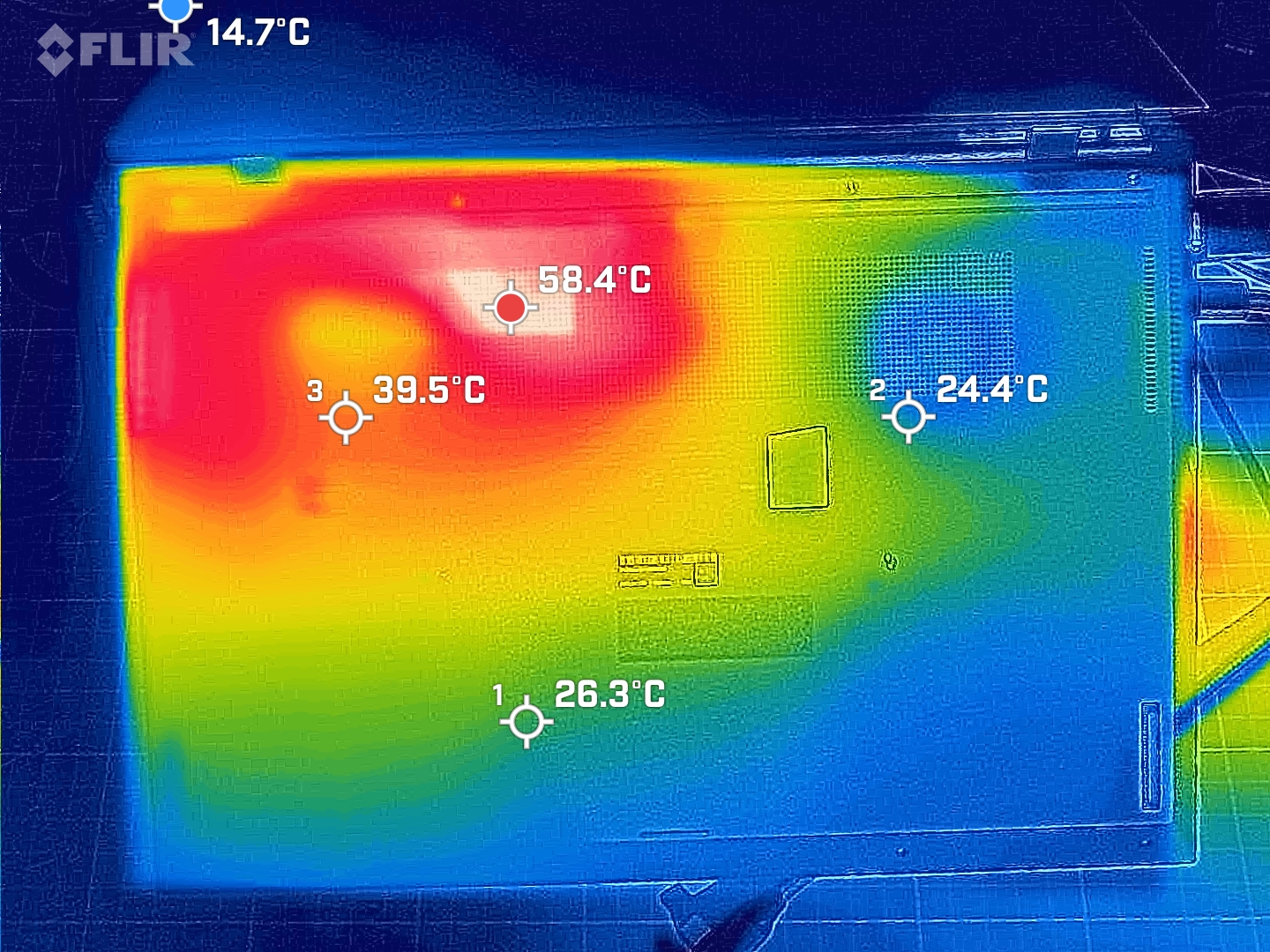

压力测试的测量值也相应较高，在 SoC 正上方的底板上几乎达到 60 °C。然而，这种情况与典型的使用情况并不相符。例如，在我们对固态硬盘进行的持续负载测试中，多次运行苛刻的基准测试或播放Witcher 3 ，ExpertBook B9 都能保持稳定的性能水平。因此，热量可以可靠地散发到室外。
(-) The maximum temperature on the upper side is 48.8 °C / 120 F, compared to the average of 35.9 °C / 97 F, ranging from 21.4 to 59 °C for the class Subnotebook.
(-) The bottom heats up to a maximum of 56.5 °C / 134 F, compared to the average of 39.4 °C / 103 F
(+) In idle usage, the average temperature for the upper side is 31.7 °C / 89 F, compared to the device average of 30.8 °C / 87 F.
(±) The palmrests and touchpad can get very hot to the touch with a maximum of 36.1 °C / 97 F.
(-) The average temperature of the palmrest area of similar devices was 28.3 °C / 82.9 F (-7.8 °C / -14.1 F).
| Asus ExpertBook B9 B9403CVA-KM0153X Intel Core i7-1355U, Intel Iris Xe Graphics G7 96EUs | Lenovo ThinkPad X13 G4 21EX004QGE Intel Core i7-1355U, Intel Iris Xe Graphics G7 96EUs | Asus ZenBook S13 OLED UX5304 Intel Core i7-1355U, Intel Iris Xe Graphics G7 96EUs | LG Gram Style 14Z90RS-G.AD7AG Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs | Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs | Asus ZenBook 14 UM3402Y AMD Ryzen 7 7730U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) | |
|---|---|---|---|---|---|---|
| Heat | 5% | 18% | 24% | 22% | 18% | |
| Maximum Upper Side * | 48.8 | 47.3 3% | 43.1 12% | 36.3 26% | 43.8 10% | 39.4 19% |
| Maximum Bottom * | 56.5 | 44.8 21% | 45 20% | 36.8 35% | 44.4 21% | 43.2 24% |
| Idle Upper Side * | 33.3 | 35 -5% | 27.3 18% | 29.2 12% | 24 28% | 28.6 14% |
| Idle Bottom * | 35 | 34.3 2% | 27.8 21% | 27.4 22% | 25.2 28% | 30.6 13% |
* ... smaller is better
压力测试
在之前的性能测试中已经证实，华硕商务笔记本在高负荷或最大负荷下几乎不会出现任何问题。处理器的有效时钟速度保持在稳定的高水平，尤其是在标准设置下。只有在 "性能 "模式下才能观察到微小的下降。
。
在标准设置和电池模式下运行时，CPU 可以可靠地处理 15 瓦的功耗。Intel Core i7-1355U 的有效时钟速度和温度始终保持恒定。

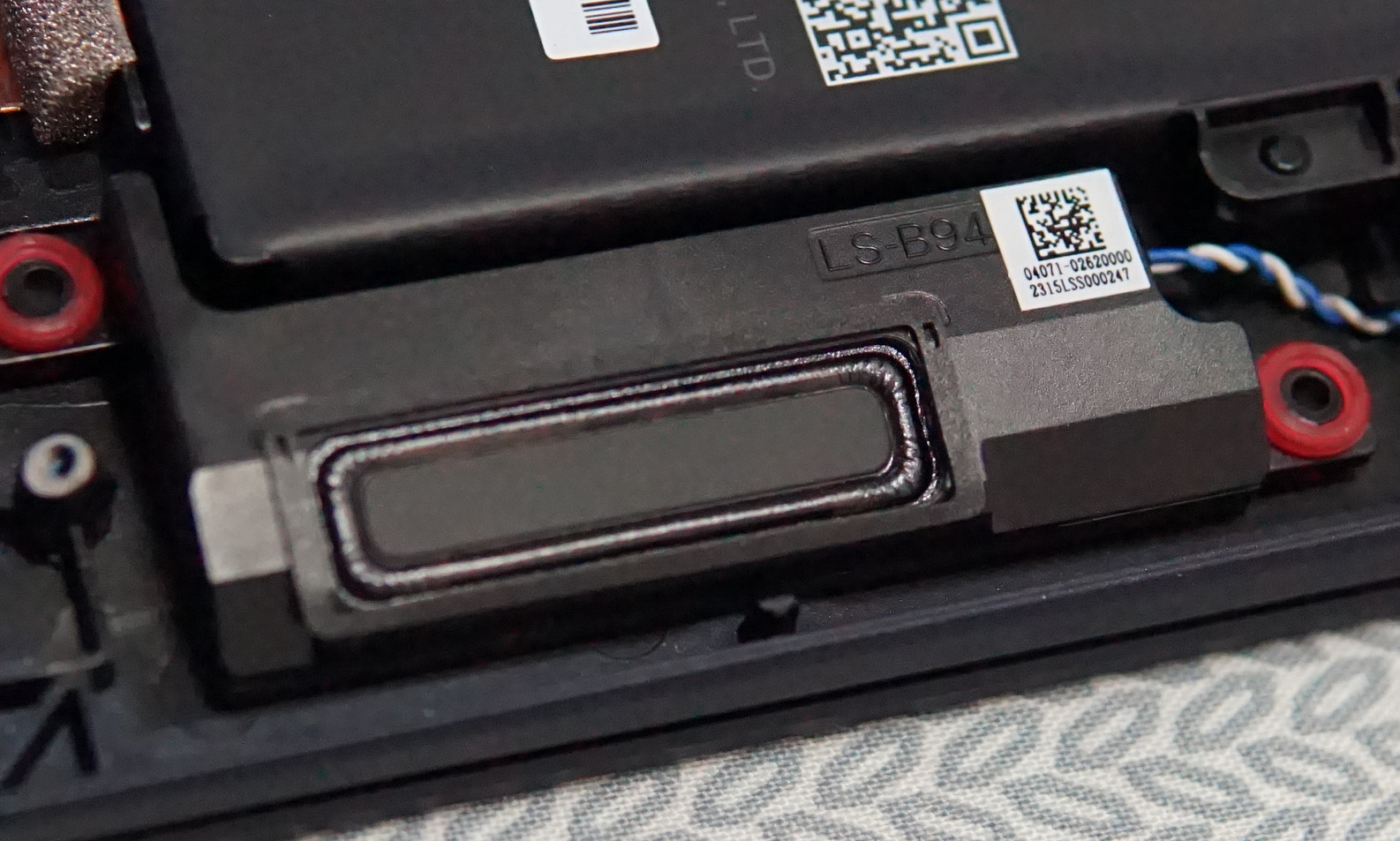

发言人
专家本上的扬声器音量不大。此外，它们在中低音方面也略显拘谨。
另一方面，完整的中音和高音令人信服。这一点在播放音乐时尤为明显。即使是复杂的乐曲也听起来很不错，尤其是人声的再现质量很高。对于笔记本扬声器来说，这是一个值得尊敬的结果，考虑到驱动器的尺寸，低音较弱是意料之中的。
Asus ExpertBook B9 B9403CVA-KM0153X audio analysis
(-) | not very loud speakers (70.45 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 12.4% lower than median
(±) | linearity of bass is average (12.1% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.1% away from median
(+) | mids are linear (4.9% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.2% away from median
(+) | highs are linear (5.6% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (12.9% difference to median)
Compared to same class
» 16% of all tested devices in this class were better, 4% similar, 79% worse
» The best had a delta of 5%, average was 19%, worst was 53%
Compared to all devices tested
» 10% of all tested devices were better, 3% similar, 87% worse
» The best had a delta of 4%, average was 25%, worst was 134%
Apple MacBook Pro 16 2021 M1 Pro audio analysis
(+) | speakers can play relatively loud (84.7 dB)
Bass 100 - 315 Hz
(+) | good bass - only 3.8% away from median
(+) | bass is linear (5.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 1.3% away from median
(+) | mids are linear (2.1% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 1.9% away from median
(+) | highs are linear (2.7% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (4.6% difference to median)
Compared to same class
» 0% of all tested devices in this class were better, 0% similar, 100% worse
» The best had a delta of 5%, average was 18%, worst was 45%
Compared to all devices tested
» 0% of all tested devices were better, 0% similar, 100% worse
» The best had a delta of 4%, average was 25%, worst was 134%
电源管理 - ExpertBook 可以更经济
耗电量
4.对于商务笔记本来说，9 瓦是一个可靠的最低值，但 LG Gram Style 14 配备了更大的处理器和几乎相同的显示屏，这表明它可以做得更好一些。就轻度使用时的平均耗电量而言，ExpertBook 最终远高于所选的同类竞争对手，后者至少比它省三分之一的电。
在峰值时，我们记录到短时间内的耗电量高达 69 瓦，这已经略高于随附的 65 瓦电源装置的能力。由于这只是测量峰值，因此电源的大小已经足够。
| Off / Standby | 0.07 / 0.76 Watt |
| Idle | 4.9 / 12.5 / 16.8 Watt |
| Load |
43.8 / 68.1 Watt |

| |
Key:
min: ,
med: ,
max: Metrahit Energy | |
| Asus ExpertBook B9 B9403CVA-KM0153X i7-1355U, Iris Xe G7 96EUs, Samsung PM9A1 MZVL21T0HCLR, OLED, 2880x1800, 14" | Lenovo ThinkPad X13 G4 21EX004QGE i7-1355U, Iris Xe G7 96EUs, Kioxia XG8 KXG8AZNV1T02, OLED, 2880x1800, 13.3" | Asus ZenBook S13 OLED UX5304 i7-1355U, Iris Xe G7 96EUs, Samsung PM9A1 MZVL21T0HCLR, OLED, 2880x1800, 13.3" | LG Gram Style 14Z90RS-G.AD7AG i7-1360P, Iris Xe G7 96EUs, SK hynix PC801 HFS001TEJ9X101N, OLED, 2880x1800, 14" | Dell XPS 13 Plus 9320 Core i7-1360P i7-1360P, Iris Xe G7 96EUs, Samsung PM9A1 MZVL2512HCJQ, OLED, 3456x2160, 13.4" | Asus ZenBook 14 UM3402Y R7 7730U, Vega 8, Micron 2400 MTFDKBA512QFM, OLED, 2880x1800, 14" | Average Intel Iris Xe Graphics G7 96EUs | Average of class Subnotebook | |
|---|---|---|---|---|---|---|---|---|
| Power Consumption | 26% | 21% | 22% | 2% | -5% | 11% | 17% | |
| Idle Minimum * | 4.9 | 4.8 2% | 5.8 -18% | 3.58 27% | 6.9 -41% | 7.9 -61% | 5.34 ? -9% | 4.43 ? 10% |
| Idle Average * | 12.5 | 6.2 50% | 8.5 32% | 7.125 43% | 7.4 41% | 8.8 30% | 8.55 ? 32% | 7.58 ? 39% |
| Idle Maximum * | 16.8 | 7.1 58% | 8.8 48% | 12.1 28% | 13.6 19% | 14.7 12% | 10.8 ? 36% | 9.43 ? 44% |
| Load Average * | 43.8 | 33.1 24% | 35.1 20% | 40.67 7% | 43.5 1% | 46.9 -7% | 45.3 ? -3% | 45.8 ? -5% |
| Witcher 3 ultra * | 41.2 | 35.8 13% | 27.6 33% | 48 -17% | 44.9 -9% | |||
| Load Maximum * | 68.1 | 62.8 8% | 59.5 13% | 64.2 6% | 63.3 7% | 65.2 4% | 67.5 ? 1% | 68.7 ? -1% |
* ... smaller is better
Power consumption Witcher 3 / Stress test
Power consumption with an external monitor
电池寿命
由于采用了相对较大的 63 Wh 电池，电池值非常令人满意。设定亮度为 150 cd/m²，笔记本在无线局域网测试中运行了 10 多个小时。视频播放也达到了类似的数值。屏幕对运行时间的影响非常大。在全亮度条件下，我们只用了不到 8 小时。另一方面，如果长期激活 Windows 的 "黑暗模式"，以及在冲浪时，运行时间可以延长 1 到 2 个小时。

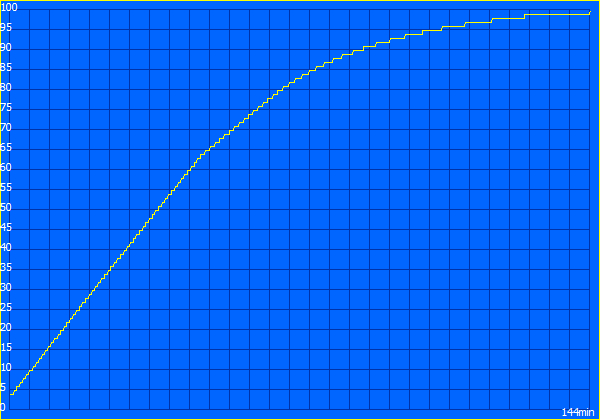

充电时间稍长。2 个多小时后，电池电量才恢复到 100%。但 1 个多小时后，电池电量通常就能达到 80%。
| Asus ExpertBook B9 B9403CVA-KM0153X i7-1355U, Iris Xe G7 96EUs, 63 Wh | Lenovo ThinkPad X13 G4 21EX004QGE i7-1355U, Iris Xe G7 96EUs, 54.7 Wh | Asus ZenBook S13 OLED UX5304 i7-1355U, Iris Xe G7 96EUs, 63 Wh | LG Gram Style 14Z90RS-G.AD7AG i7-1360P, Iris Xe G7 96EUs, 72 Wh | Dell XPS 13 Plus 9320 Core i7-1360P i7-1360P, Iris Xe G7 96EUs, 55 Wh | Asus ZenBook 14 UM3402Y R7 7730U, Vega 8, 75 Wh | Average of class Subnotebook | |
|---|---|---|---|---|---|---|---|
| Battery Runtime | -23% | 18% | 7% | -29% | 34% | 19% | |
| H.264 | 606 | 829 37% | 603 0% | 917 ? 51% | |||
| WiFi v1.3 | 614 | 438 -29% | 678 10% | 700 14% | 436 -29% | 725 18% | 729 ? 19% |
| Load | 135 | 114 -16% | 146 8% | 145 7% | 203 50% | 116.5 ? -14% |
Pros
Cons
结论 - 性能出众，价格合理
没有比这更好的了，至少在紧凑型商务笔记本电脑领域是如此。华硕 ExpertBook B9（2023）从移动式 i7-1355U并在需要时可靠地提供性能。显示屏以强烈的对比度、干净的色彩还原和高分辨率给人留下了深刻印象，数码照片也能正常显示。
此外，它的外壳坚固耐用，重量仅为 1 千克。它看起来有点保守，但这在商务领域肯定不是缺点。在使用过程中，高水平的稳定性确实体现了出来，键盘不会在任何地方出现不必要的松动，一切都感觉精确而牢固。
没有任何值得批评的地方。ExpertBook 速度快、重量轻、大部分时间都很安静，而且价格昂贵。
找到薄弱点需要花点时间。即使是摄像头和扬声器这些经常被吝啬的部件，也能很好地完成任务。特别是底板，在压力测试中温度有点过高。集成显卡也可以更快，但这更多是英特尔的责任。价格方面，2,149.99 美元的价格远远高于同类产品。但用户却因此获得了一台轻薄、配置齐全的强大设备。
如果你能接受更低的价格，那么 ThinkPad X13 G4可能是一个不错的选择。相同的处理器速度稍慢，显示屏不够细腻，电池续航时间较短，但售价为909.99 美元。戴尔 戴尔 XPS 13 Plus 9320在性能方面不相上下（CPU 性能更强），但网络摄像头较弱，电池续航时间较短，售价约为 1550 美元。
价格和供应情况
华硕 ExpertBook B9 B9403CVA 目前在亚马逊上有两种配置：1TB 固态硬盘和 16GB 内存或2TB 固态硬盘和 32GB 内存。其他规格完全相同。
Asus ExpertBook B9 B9403CVA-KM0153X
- 11/03/2023 v7 (old)
Mario Petzold
Transparency
The selection of devices to be reviewed is made by our editorial team. The test sample was provided to the author as a loan by the manufacturer or retailer for the purpose of this review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.
This is how Notebookcheck is testing
Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.
Price comparison
