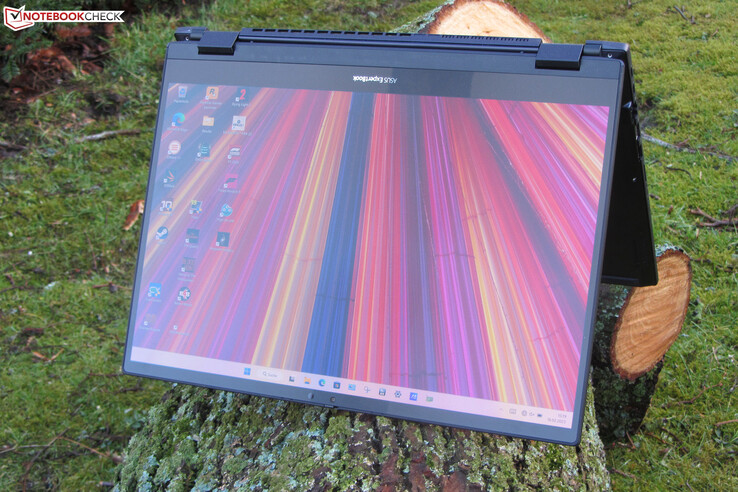

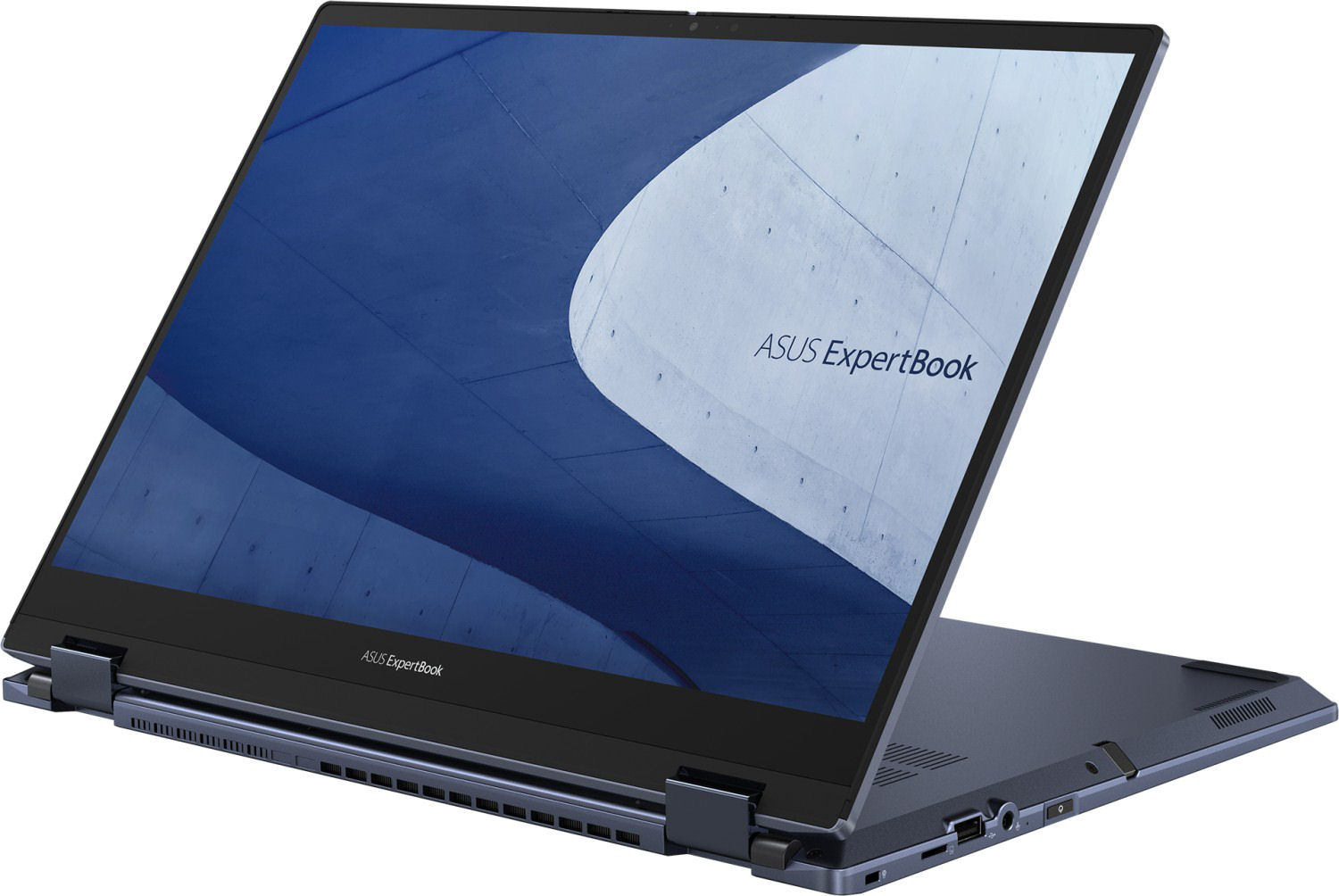

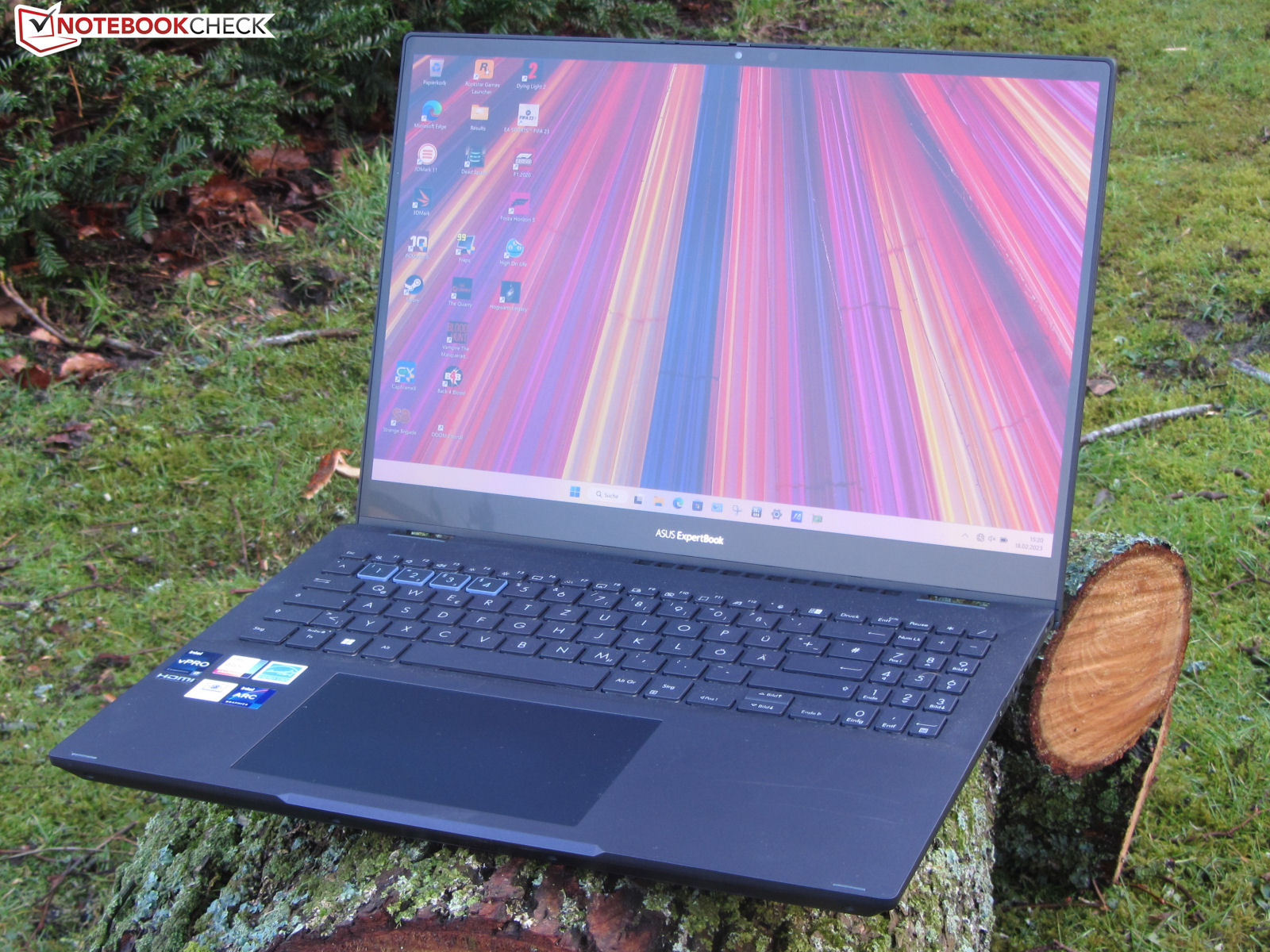

Magyar华硕ExpertBook B5 Flip OLED在审查中。带有主动式手写笔和良好运行时间的2合1笔记本电脑

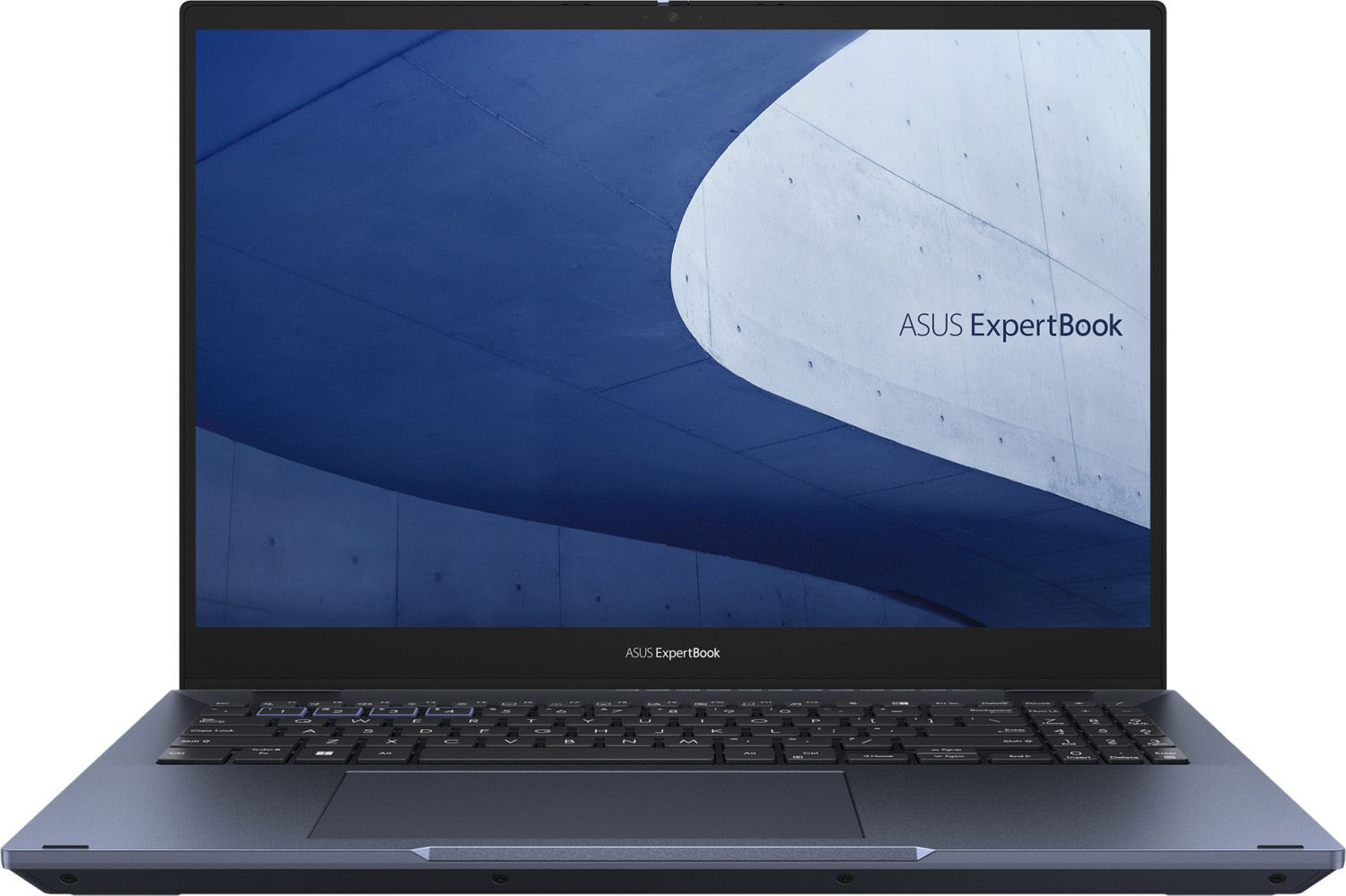

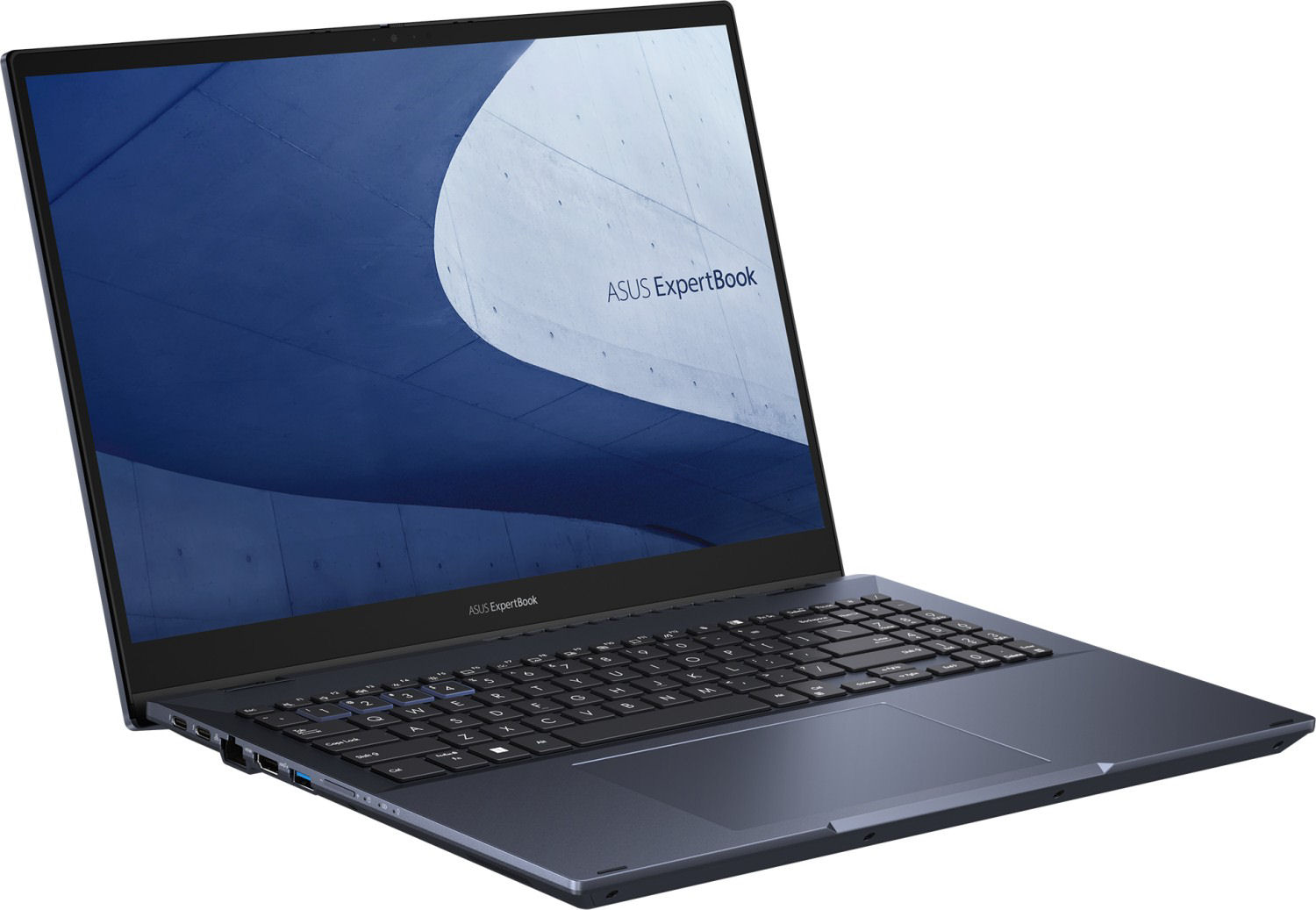

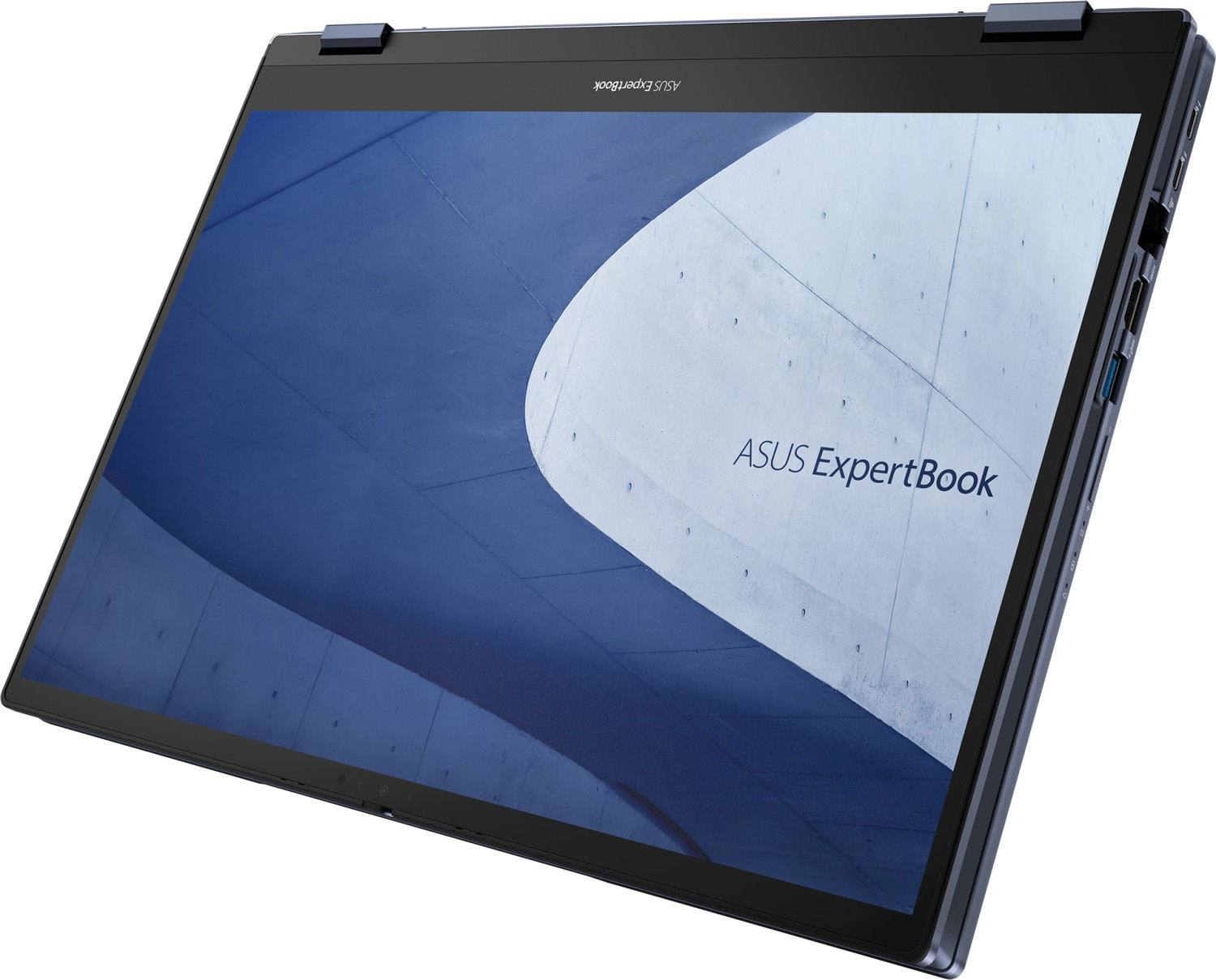

华硕ExpertBook B5 Flip OLED是一款来自商务领域的二合一笔记本，采用了 酷睿i5-1260PCPU和一个 Arc-A350MGPU--这两个部件都来自英特尔。积极的一面。这款16英寸的敞篷车配备了一支主动式手写笔，可在基本单元中存储和充电。竞争者包括以下设备 HP Spectre x360 16，以及 联想瑜伽7 16IAP7和 微星Summit E16 Flip.
潜在的竞争对手比较
Rating | Date | Model | Weight | Height | Size | Resolution | Price |
|---|---|---|---|---|---|---|---|
| 86.5 % v7 (old) | 03 / 2023 | Asus ExpertBook B5 Flip B5602FBN i7-1260P, A350M | 1.8 kg | 19.9 mm | 16.00" | 3840x2400 | |
| 88.7 % v7 (old) | 08 / 2022 | Lenovo Yoga 7 16IAP7 i7-1260P, Iris Xe G7 96EUs | 2 kg | 19.2 mm | 16.00" | 2560x1600 | |
| 87.3 % v7 (old) | 01 / 2023 | HP Spectre x360 2-in-1 16-f1075ng i7-12700H, Iris Xe G7 96EUs | 2 kg | 19.9 mm | 16.00" | 3072x1920 | |
| 84.2 % v7 (old) | 10 / 2022 | MSI Summit E16 Flip A12UDT-031 i7-1280P, GeForce RTX 3050 Ti Laptop GPU | 1.9 kg | 16.85 mm | 16.00" | 2560x1600 |

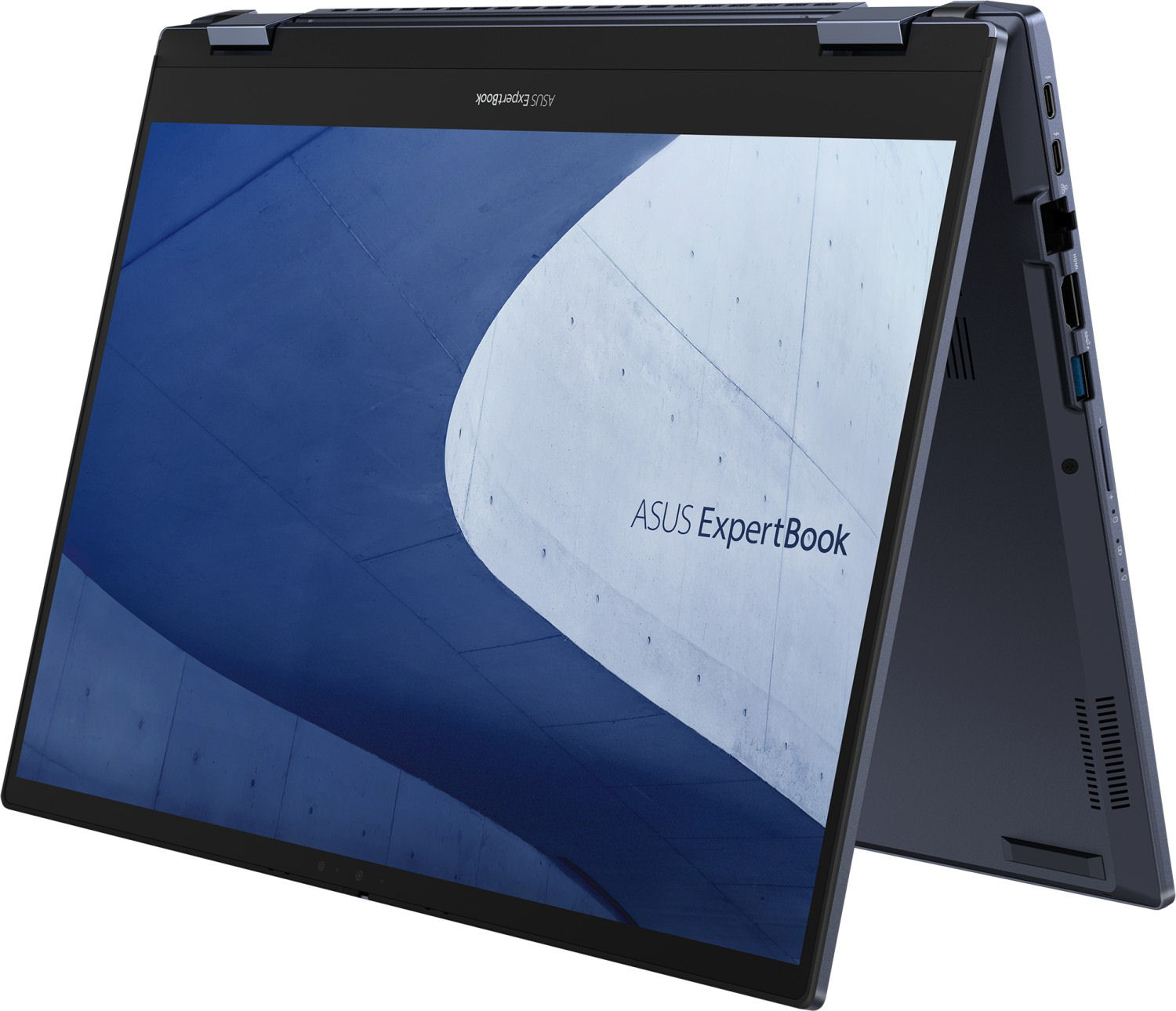

机箱和设备--商务敞篷车提供Thunderbolt 4

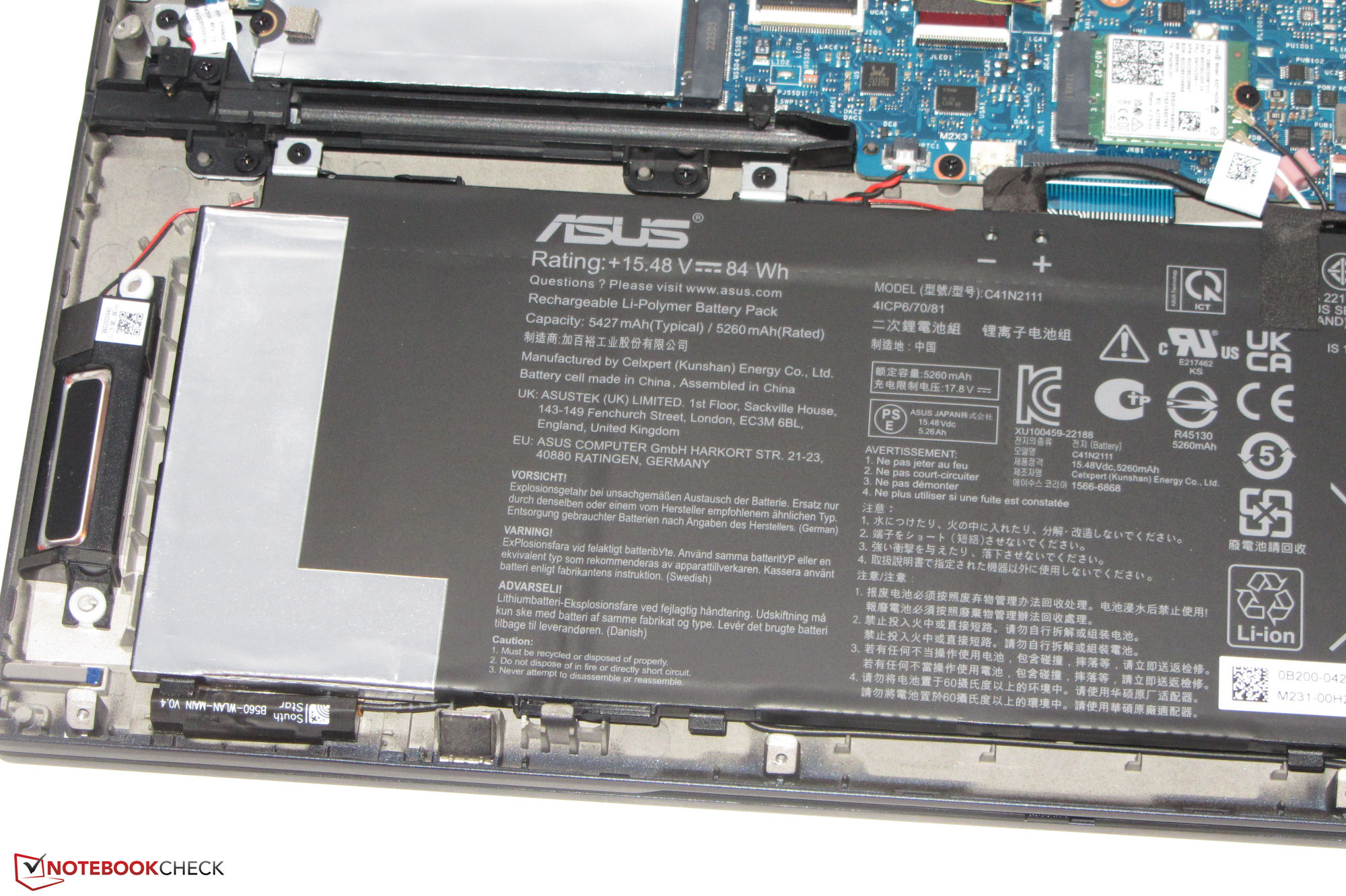

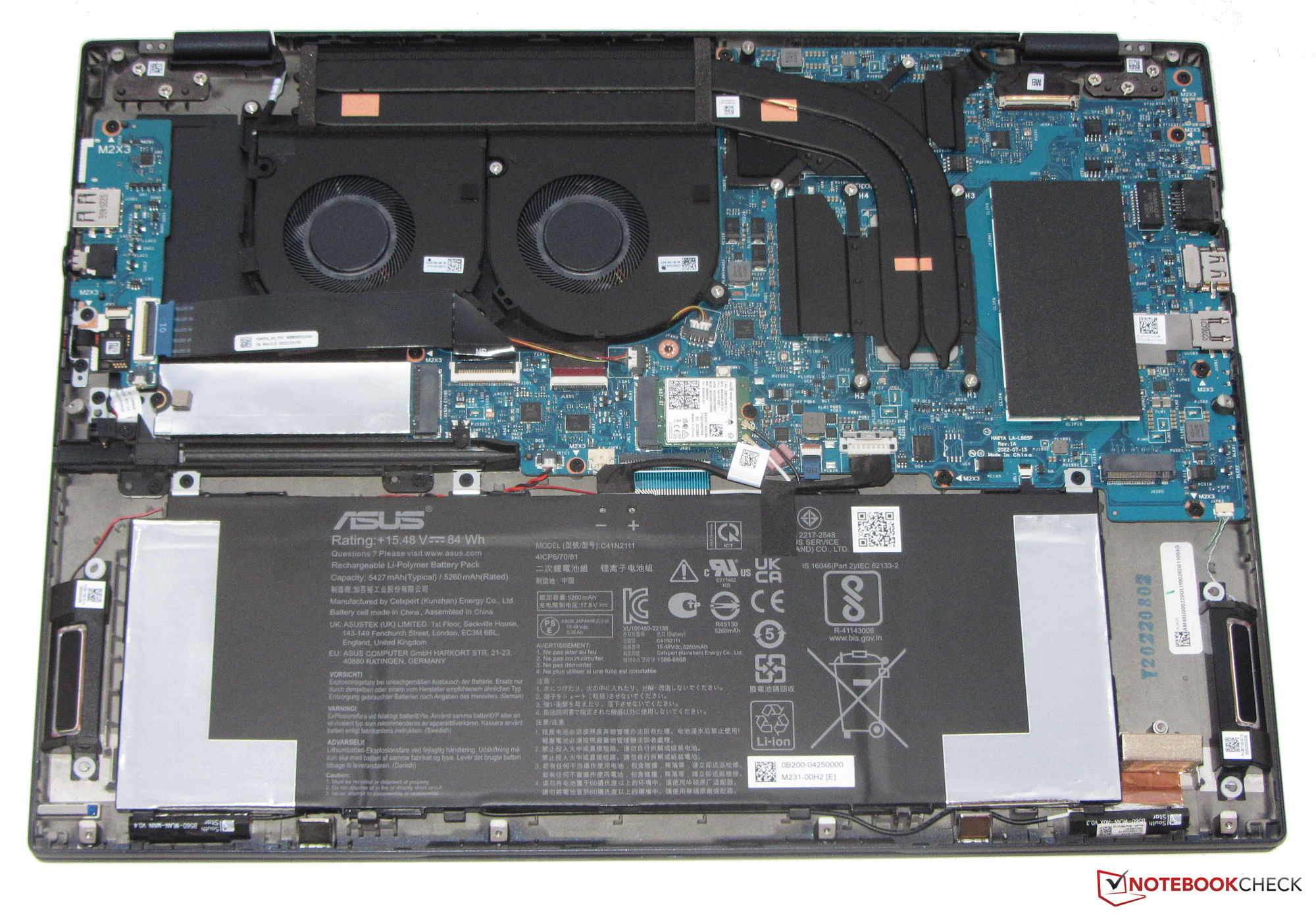

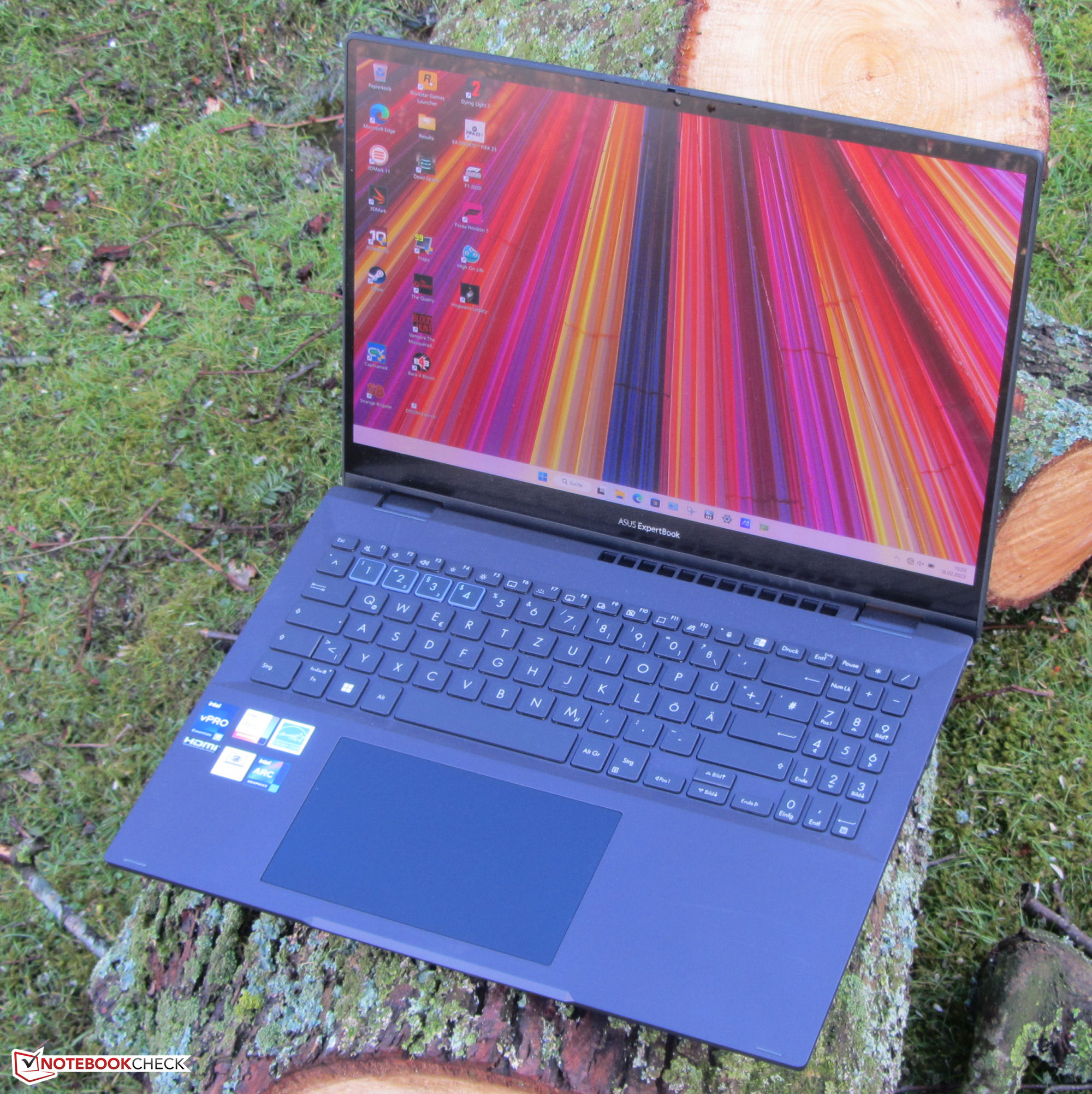

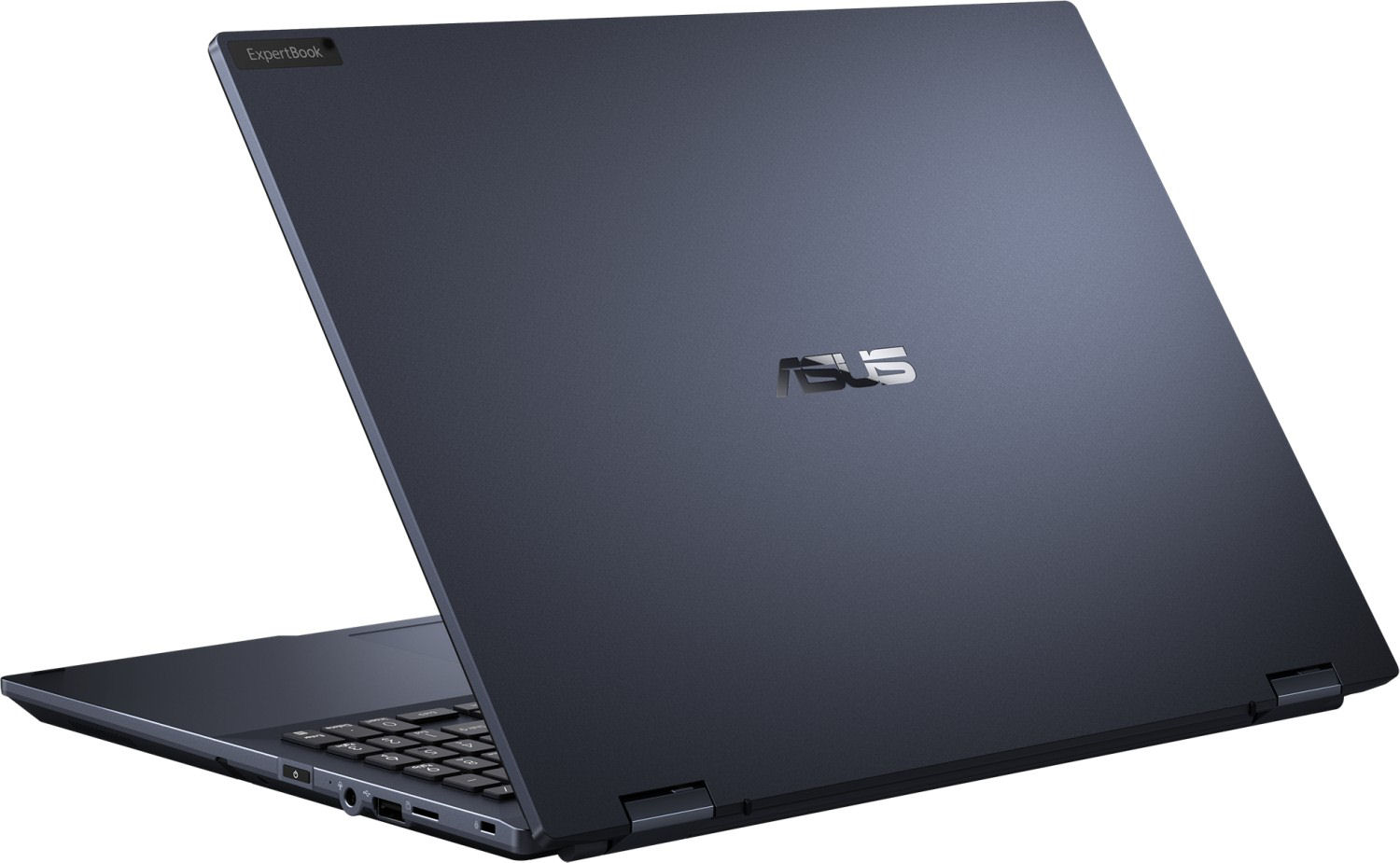

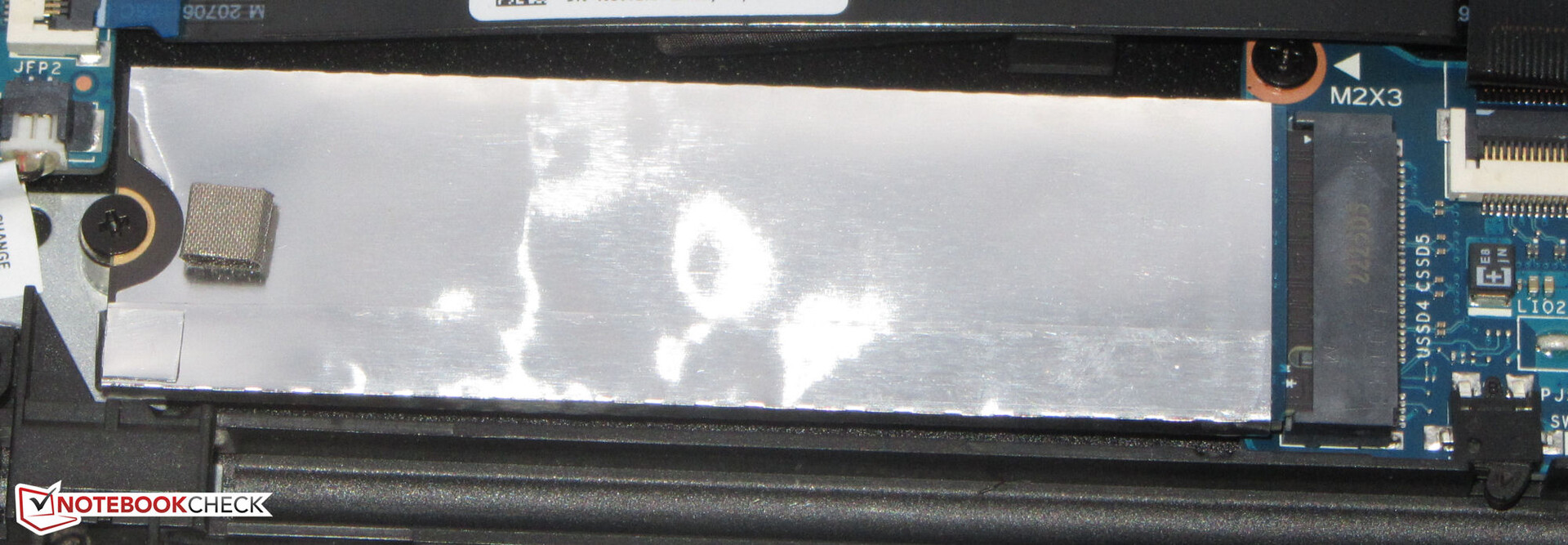

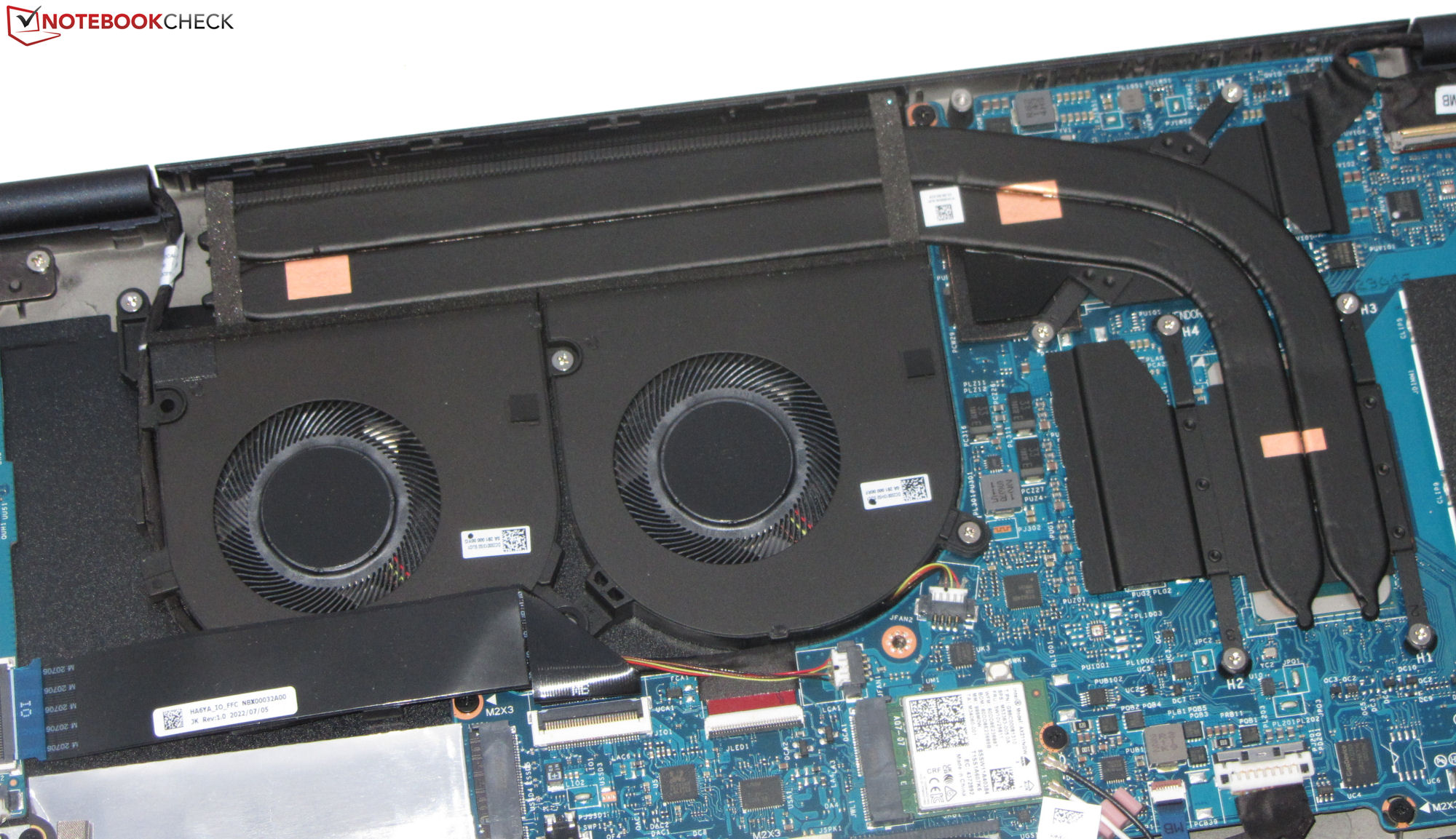

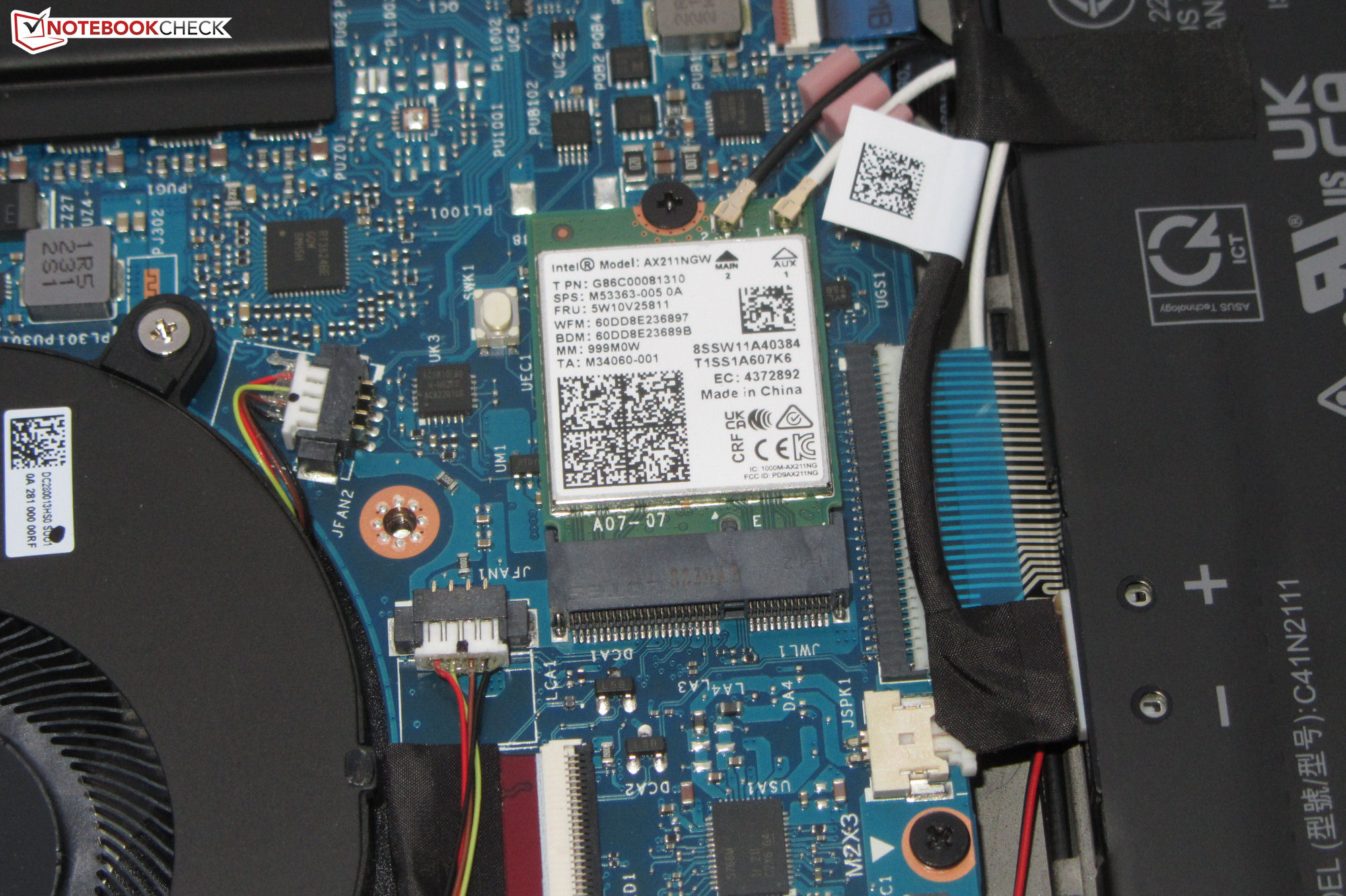

相当轻的笔记本（约1.8公斤/~4磅）没有显示出任何制造缺陷。笔记本的盖子和底座可以稍稍扭转--整个东西完全在限制范围之内。卸下底座后，可以接触到内部零件。华硕依靠哑光黑的金属底盘，表面无光泽。

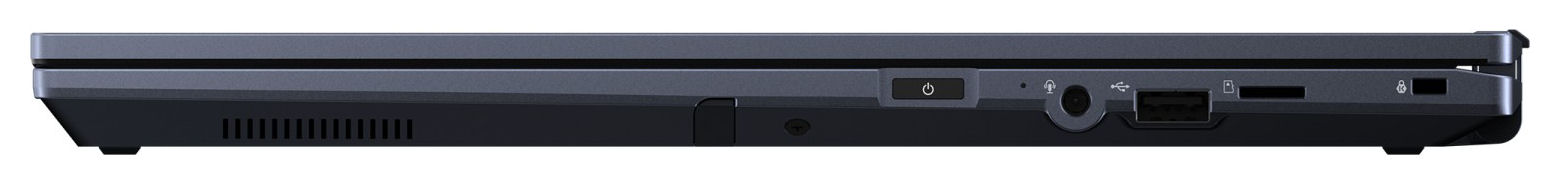

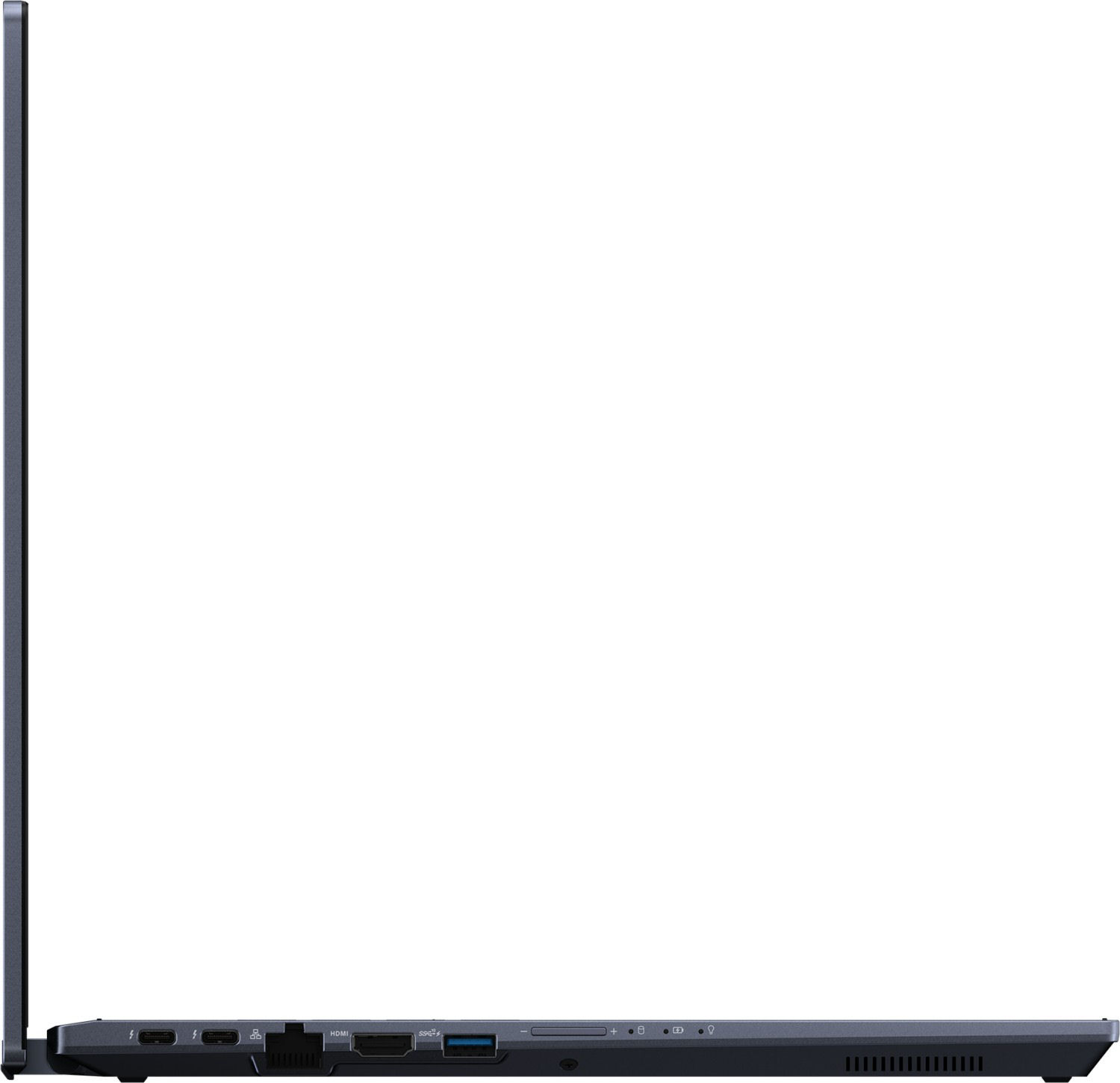

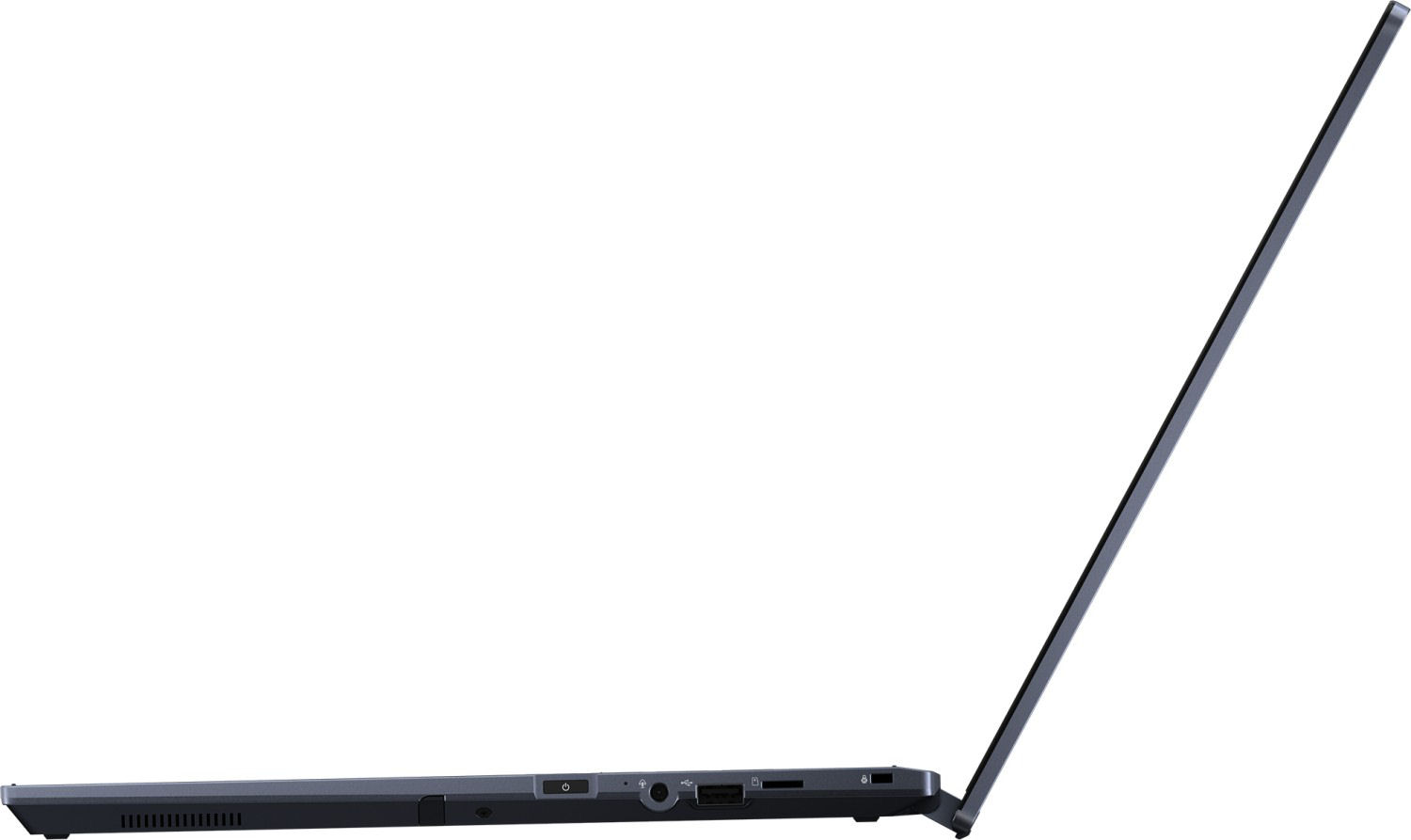

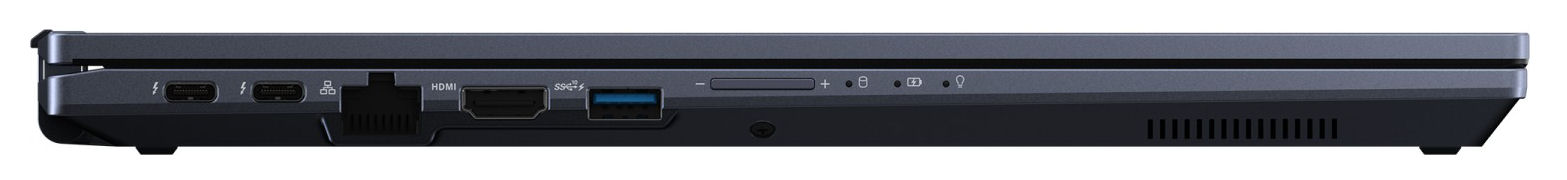

B5提供两个USB-A端口（1个USB 3.2 Gen 2，1个USB 2.0）和两个USB-C端口（2个Thunderbolt 4；Power Delivery，Displayport）。最多可以连接3个外部显示器（1个HDMI，2个DP）。microSD存储卡读卡器（参考卡：AV PRO microSD 128 GB V60）是慢速型号之一。不错。网络摄像头（210万像素，最大1,920 x 1,080像素）有一个机械盖。
在最佳条件下确定的WLAN传输率（附近没有其他WLAN设备，笔记本和服务器PC之间的距离较短）结果非常好。
| SD Card Reader | |
| average JPG Copy Test (av. of 3 runs) | |
| MSI Summit E16 Flip A12UDT-031 (AV Pro SD microSD 128 GB V60) | |
| HP Spectre x360 2-in-1 16-f1075ng | |
| Lenovo Yoga 7 16IAP7 (Toshiba Exceria Pro SDXC 64 GB UHS-II) | |
| Average of class Convertible (17.7 - 209, n=28, last 2 years) | |
| Asus ExpertBook B5 Flip B5602FBN (AV Pro SD microSD 128 GB V60) | |
| maximum AS SSD Seq Read Test (1GB) | |
| MSI Summit E16 Flip A12UDT-031 (AV Pro SD microSD 128 GB V60) | |
| HP Spectre x360 2-in-1 16-f1075ng | |
| Average of class Convertible (22.6 - 263, n=27, last 2 years) | |
| Lenovo Yoga 7 16IAP7 (Toshiba Exceria Pro SDXC 64 GB UHS-II) | |
| Asus ExpertBook B5 Flip B5602FBN (AV Pro SD microSD 128 GB V60) | |
输入设备--华硕为B5 Flip配备了主动式手写笔

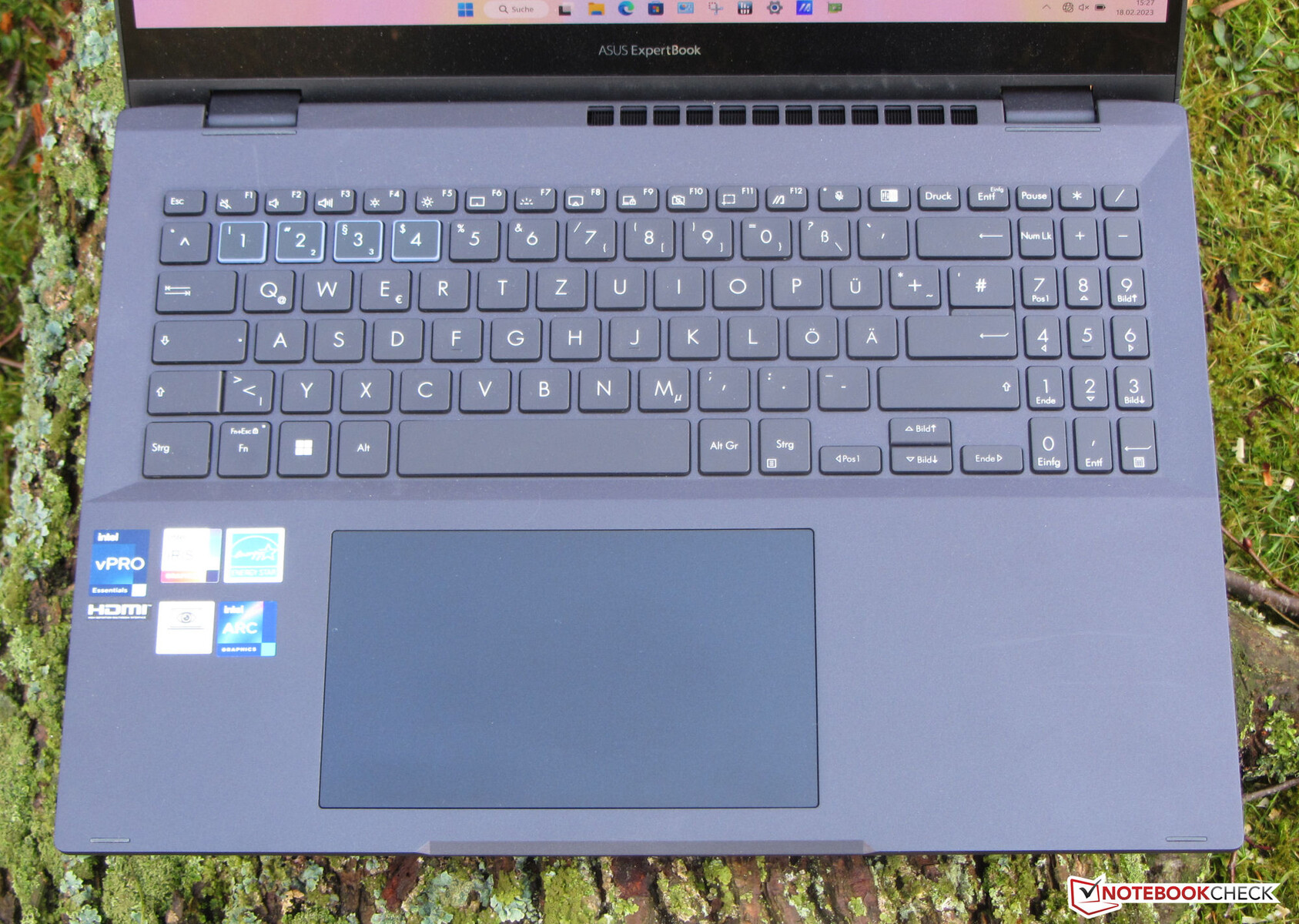

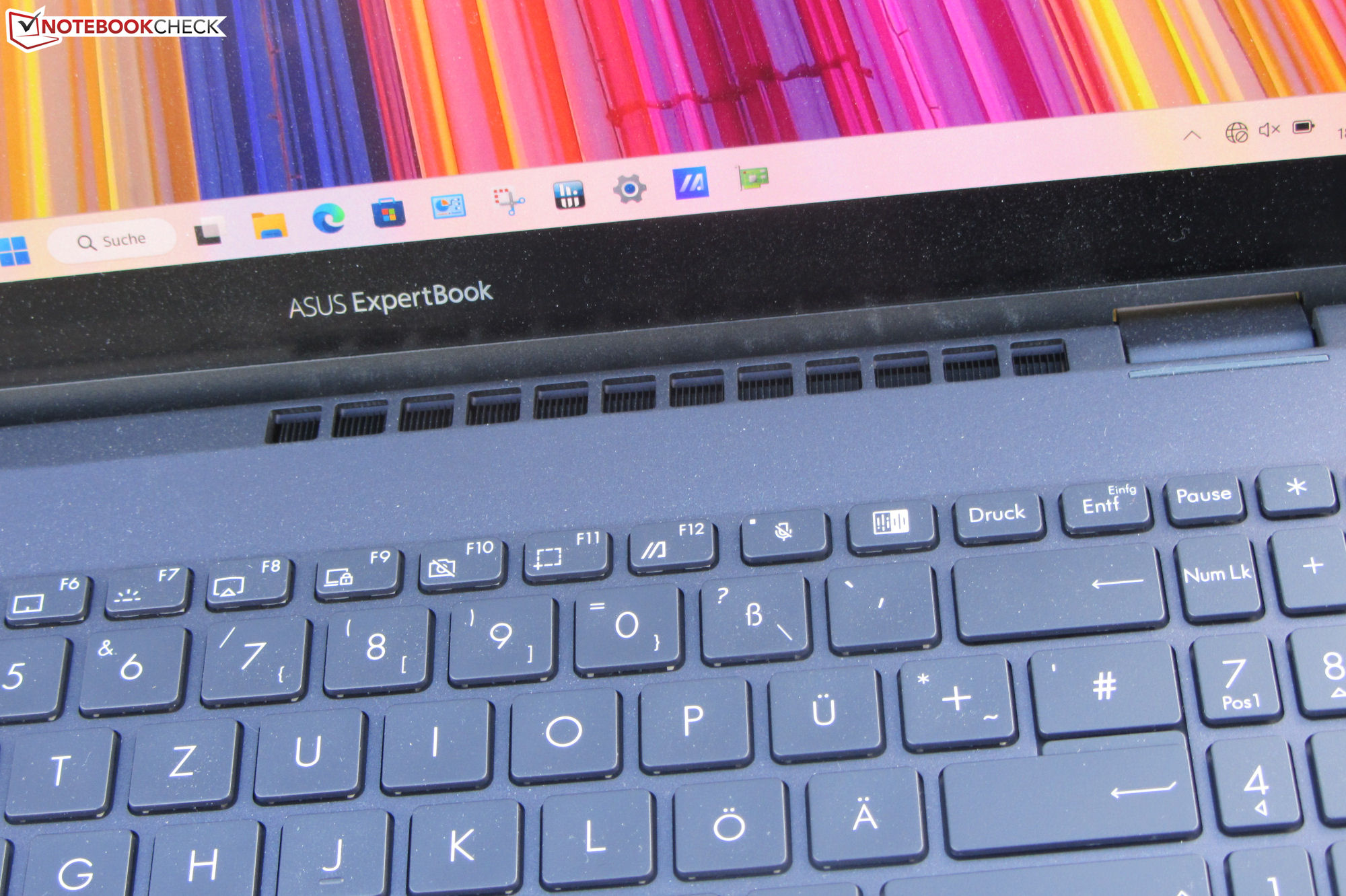

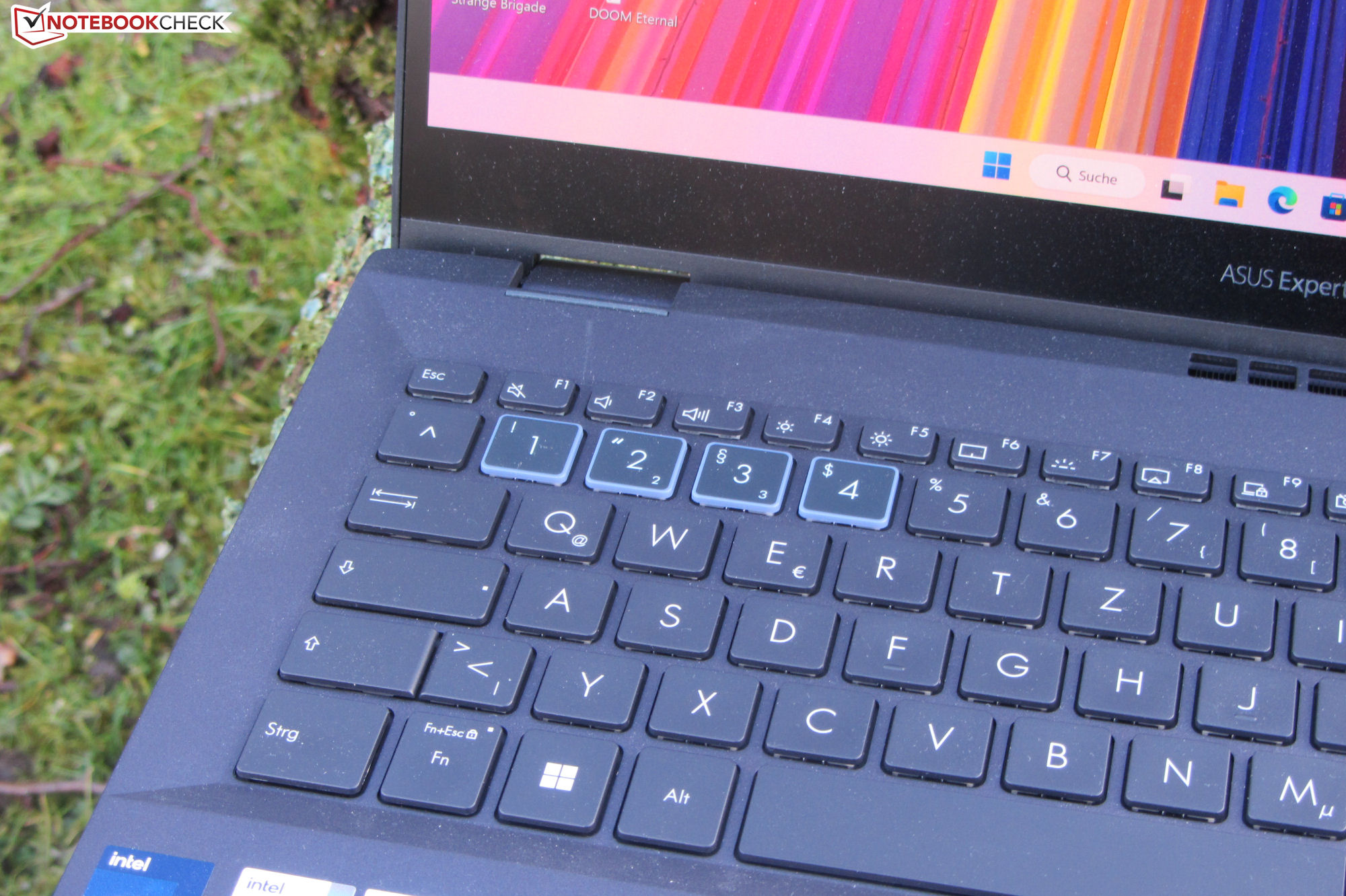

这款防泼溅、带照明的Chiclet键盘的按键行程适中，压力点明确。键的阻力还可以。键盘的最小屈服充其量没有被证明是令人讨厌的。总而言之，这是一个适合日常使用的键盘。

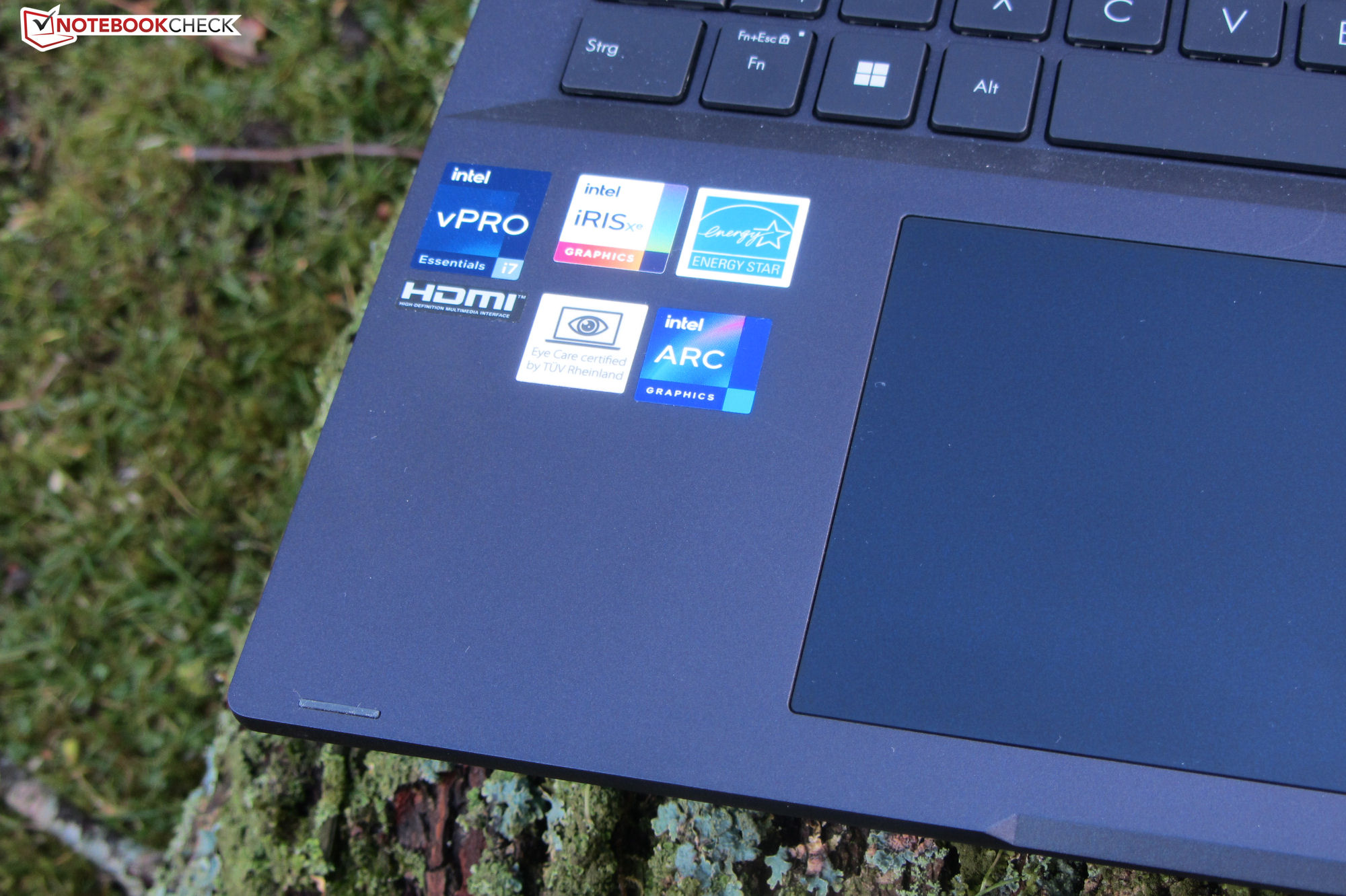

具有多点触控功能的点击板（约15 x 9.1厘米/~5.9 x 3.6英寸）的光滑表面使手指容易滑动。垫子对角落里的输入有反应，行程短，并提供一个清晰的压力点。

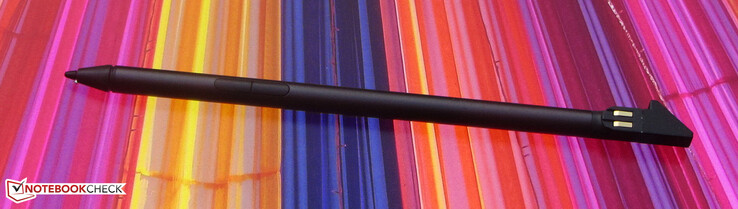

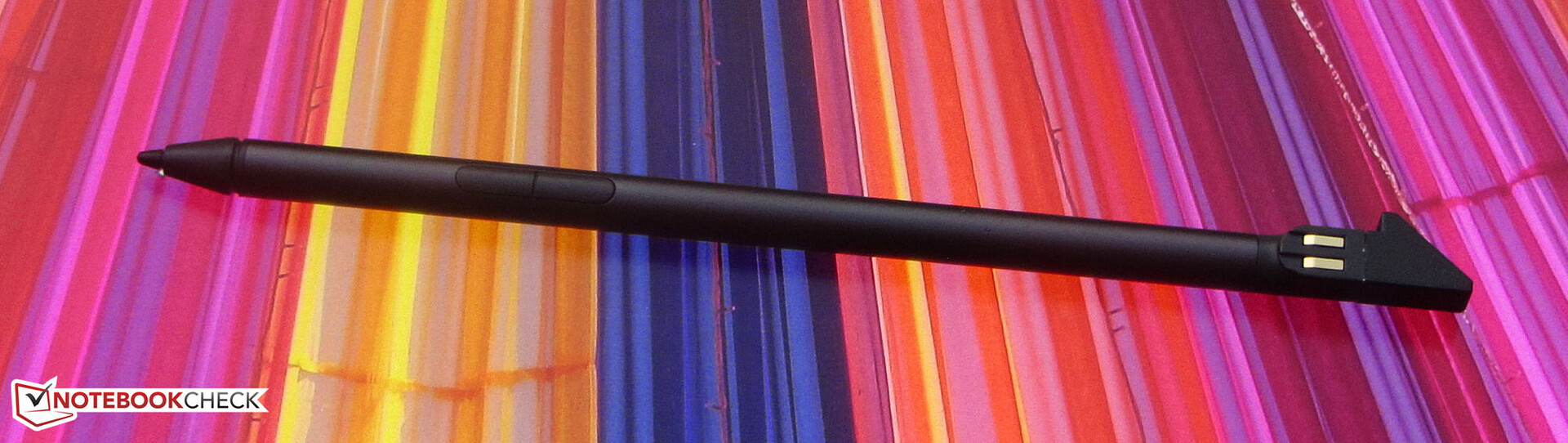

附带的手写笔（MPP 2.0）很适合拿在手里；笔尖在反应迅速的触摸屏（10个触摸点）上平稳地滑动。手写笔可以插入底座，也可以在那里充电。
显示屏 - 由于采用了OLED，黑值很高

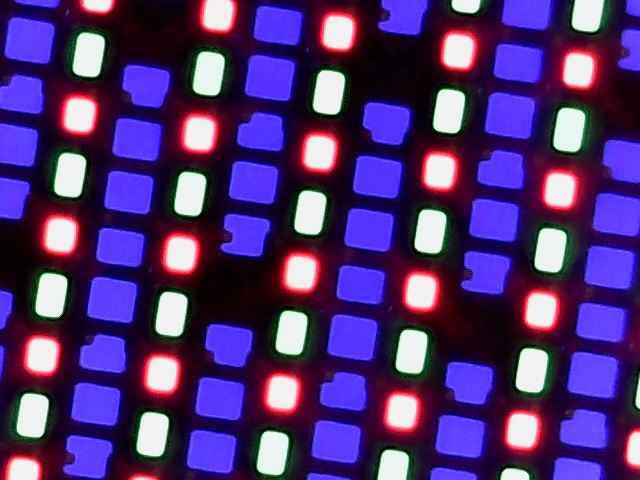

16英寸OLED触摸屏（3,840 x 2,400像素）的哑光反射表面（防眩光涂层）采用适合工作的16:10格式，大大减少了反射，但并没有完全防止反射。
作为典型的OLED，该面板以出色的对比度和黑值而闪耀。然而，它还具有较短的响应时间和相对较高的最大亮度。
亮度是由显示的屏幕内容中的个别条纹变暗来调节的。就B5面板而言，在亮度水平≤50%的情况下，这种情况发生的频率相当低，为240赫兹。这种效果类似于众所周知的PWM闪烁，但不能直接进行比较。
| |||||||||||||||||||||||||
Brightness Distribution: 98 %
Center on Battery: 380 cd/m²
Contrast: 37900:1 (Black: 0.01 cd/m²)
ΔE Color 2.79 | 0.5-29.43 Ø4.92, calibrated: 2.5
ΔE Greyscale 1.92 | 0.5-98 Ø5.2
97.1% AdobeRGB 1998 (Argyll 2.2.0 3D)
100% sRGB (Argyll 2.2.0 3D)
71.7% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.38
| Asus ExpertBook B5 Flip B5602FBN Samsung ATNA60YV02-0, OLED, 3840x2400, 16" | Lenovo Yoga 7 16IAP7 Lenovo LEN160WQXGA, IPS, 2560x1600, 16" | HP Spectre x360 2-in-1 16-f1075ng AU Optronics AUO50A3, IPS, 3072x1920, 16" | MSI Summit E16 Flip A12UDT-031 AU Optronics B16QAN02.N, IPS, 2560x1600, 16" | |
|---|---|---|---|---|
| Display | -13% | -5% | 9% | |
| Display P3 Coverage | 71.7 | 67 -7% | 75.6 5% | 98.9 38% |
| sRGB Coverage | 100 | 95.7 -4% | 100.2 0% | 100 0% |
| AdobeRGB 1998 Coverage | 97.1 | 69.3 -29% | 77.2 -20% | 86.5 -11% |
| Response Times | -1420% | -1900% | -450% | |
| Response Time Grey 50% / Grey 80% * | 2 ? | 36 ? -1700% | 52 ? -2500% | 13 ? -550% |
| Response Time Black / White * | 2 ? | 24.8 ? -1140% | 28 ? -1300% | 9 ? -350% |
| PWM Frequency | 240 ? | |||
| Screen | -413% | -330% | -323% | |
| Brightness middle | 379 | 393.7 4% | 425 12% | 314 -17% |
| Brightness | 382 | 367 -4% | 406 6% | 294 -23% |
| Brightness Distribution | 98 | 84 -14% | 78 -20% | 89 -9% |
| Black Level * | 0.01 | 0.38 -3700% | 0.24 -2300% | 0.28 -2700% |
| Contrast | 37900 | 1036 -97% | 1771 -95% | 1121 -97% |
| Colorchecker dE 2000 * | 2.79 | 1.97 29% | 5.8 -108% | 3.08 -10% |
| Colorchecker dE 2000 max. * | 5.29 | 5.46 -3% | 11.03 -109% | 5.49 -4% |
| Colorchecker dE 2000 calibrated * | 2.5 | 0.62 75% | 4.16 -66% | 0.88 65% |
| Greyscale dE 2000 * | 1.92 | 2.1 -9% | 7.57 -294% | 3.99 -108% |
| Gamma | 2.38 92% | 2.1 105% | 6600 0% | 2.3 96% |
| CCT | 6270 104% | 6461 101% | 6219 105% | |
| Total Average (Program / Settings) | -615% /
-471% | -745% /
-485% | -255% /
-270% |
* ... smaller is better

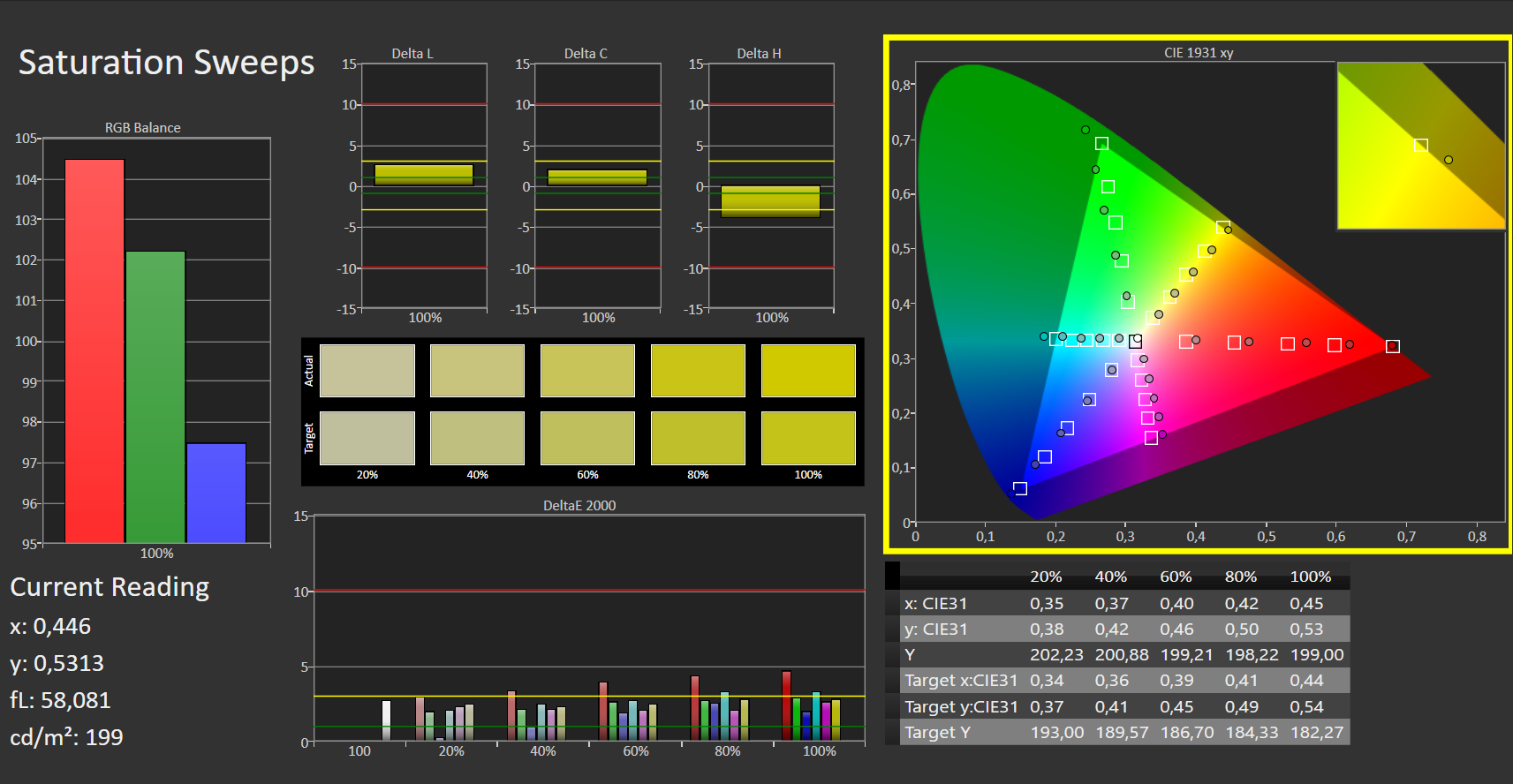

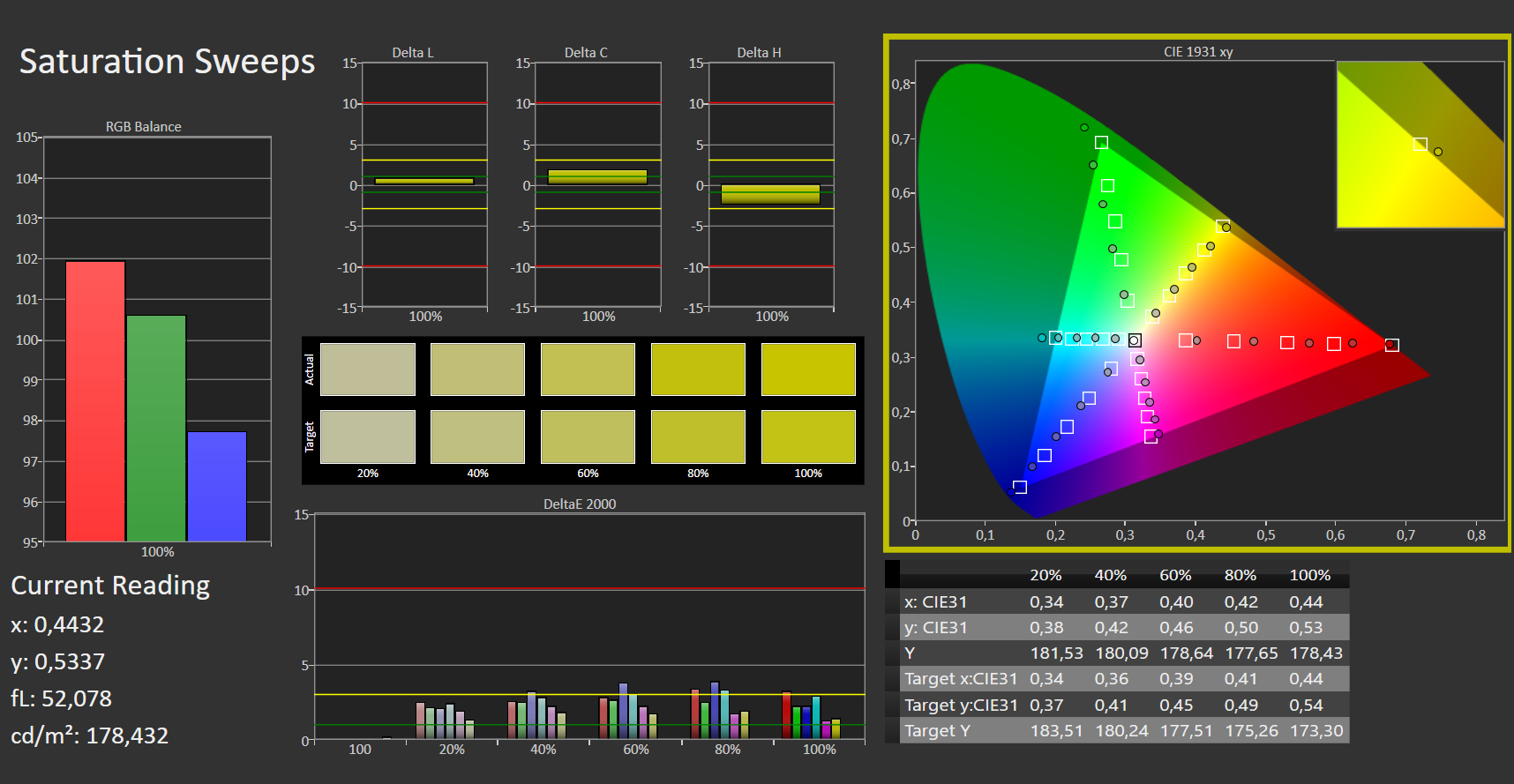

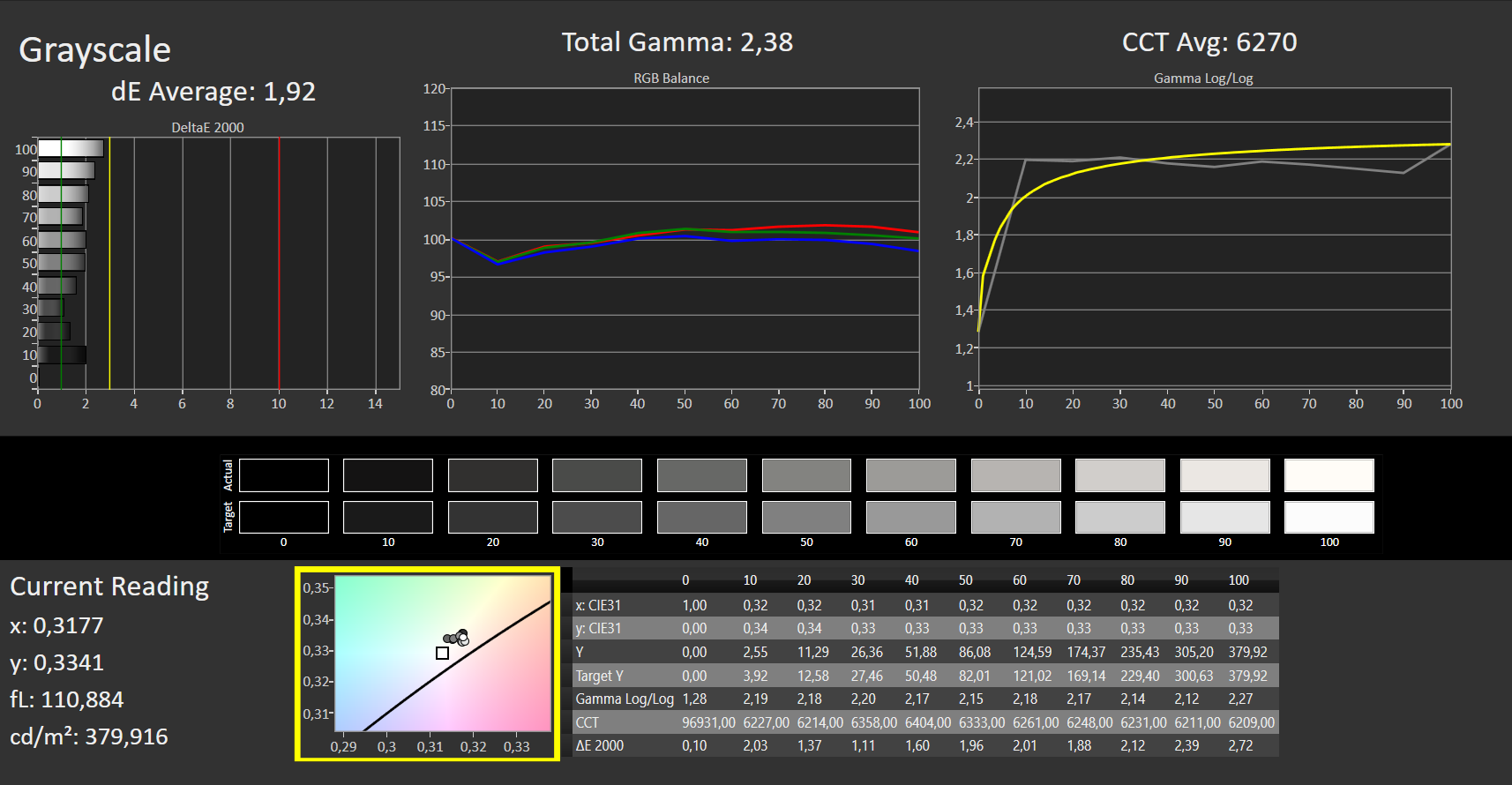

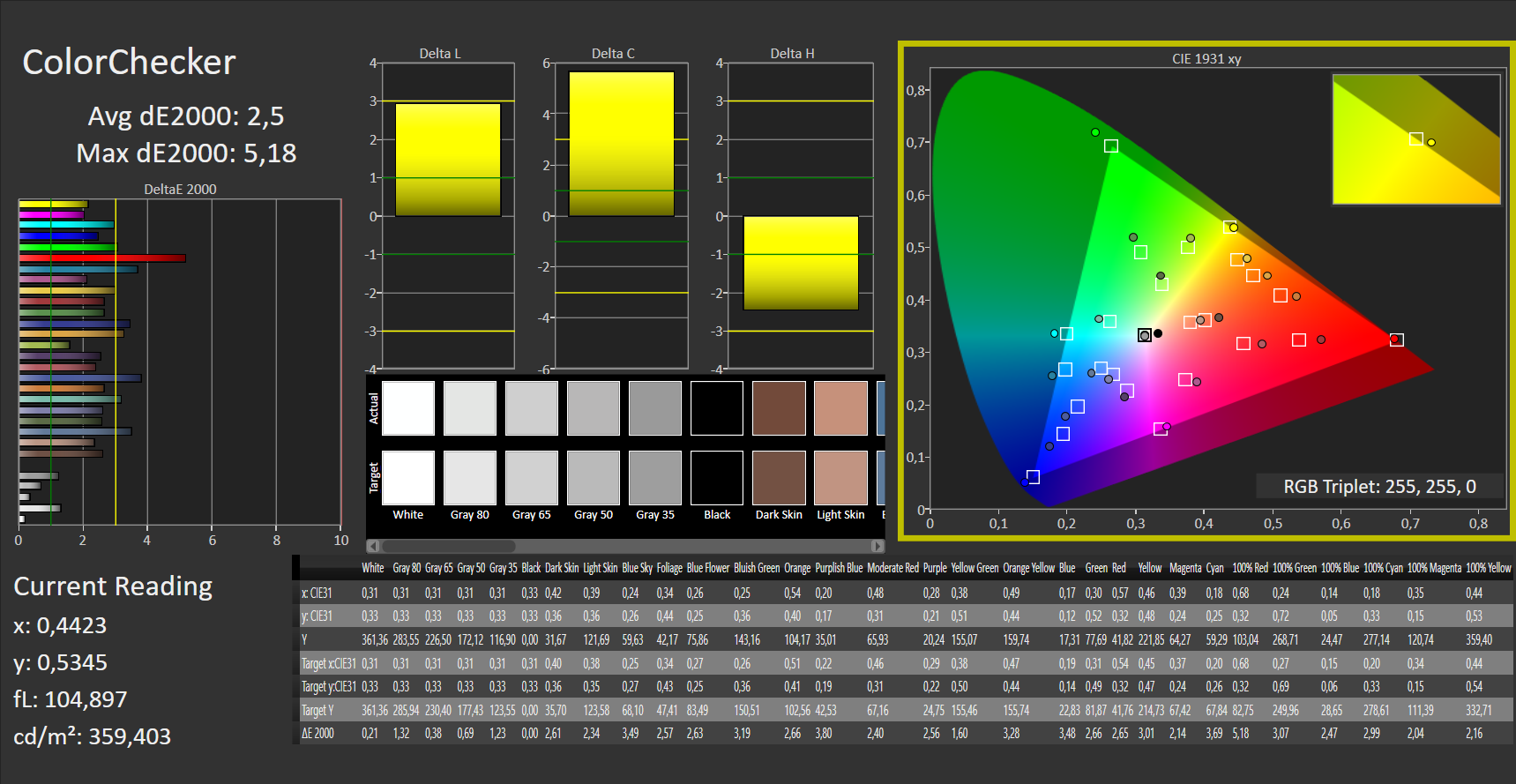

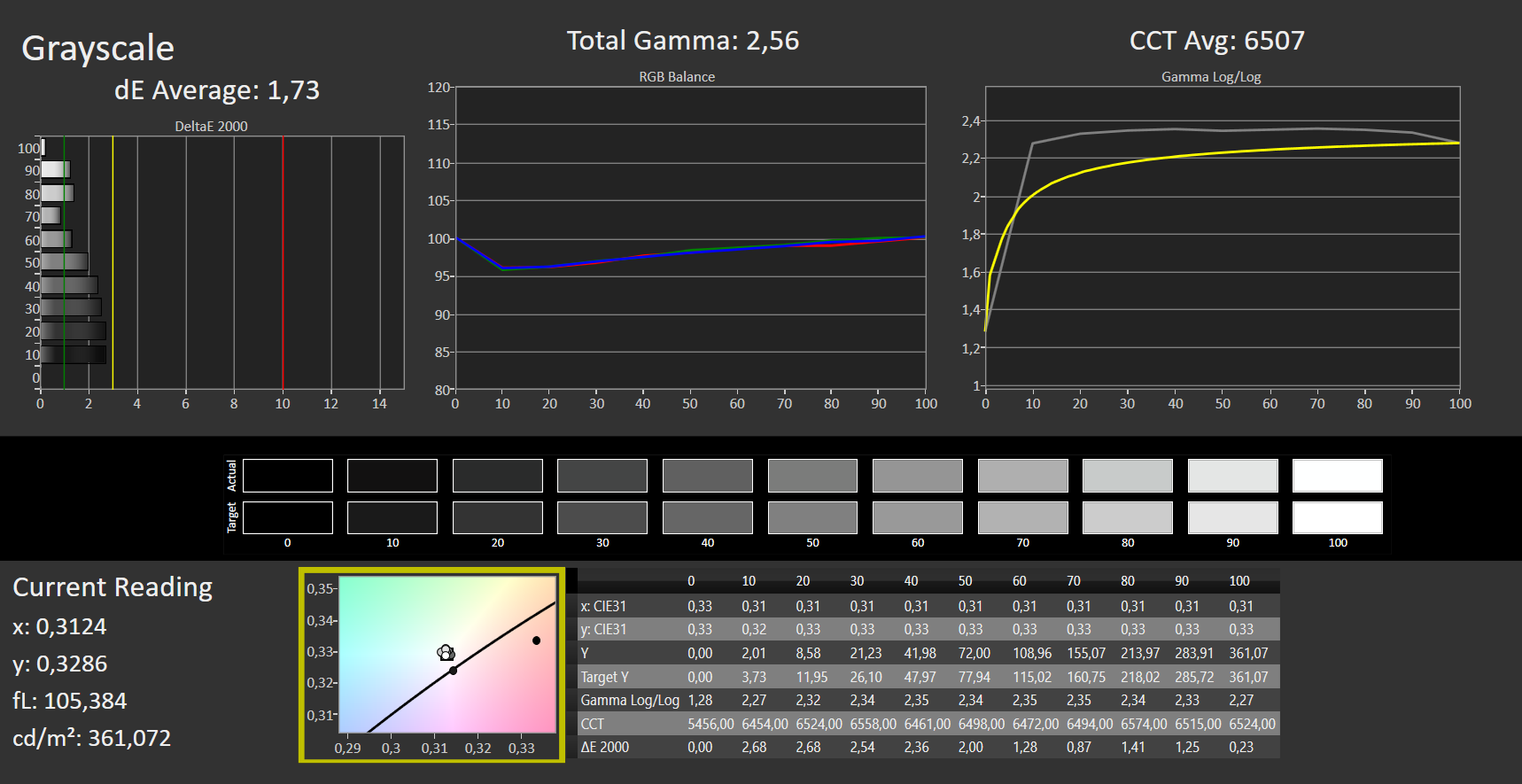

该面板的X-Rite Pantone认证确保了自然的色彩表现。偏差为2.8，在交付状态下已经达到目标（DeltaE < 3）。校准提供了微小的改进。该显示器可以完全或几乎完全再现sRGB和Adobe色彩空间，而DCI-P3色彩空间的再现率为72%。

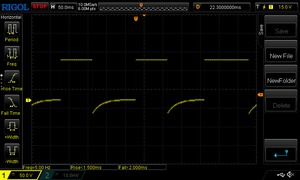

Display Response Times
| ↔ Response Time Black to White | ||
|---|---|---|
| 2 ms ... rise ↗ and fall ↘ combined | ↗ 1 ms rise |  |
| ↘ 1 ms fall | ||
| The screen shows very fast response rates in our tests and should be very well suited for fast-paced gaming. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 7 % of all devices are better. This means that the measured response time is better than the average of all tested devices (21 ms). | ||
| ↔ Response Time 50% Grey to 80% Grey | ||
| 2 ms ... rise ↗ and fall ↘ combined | ↗ 1 ms rise |  |
| ↘ 1 ms fall | ||
| The screen shows very fast response rates in our tests and should be very well suited for fast-paced gaming. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 6 % of all devices are better. This means that the measured response time is better than the average of all tested devices (32.9 ms). | ||

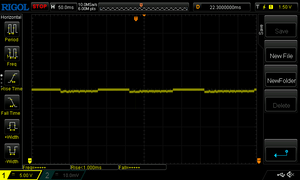

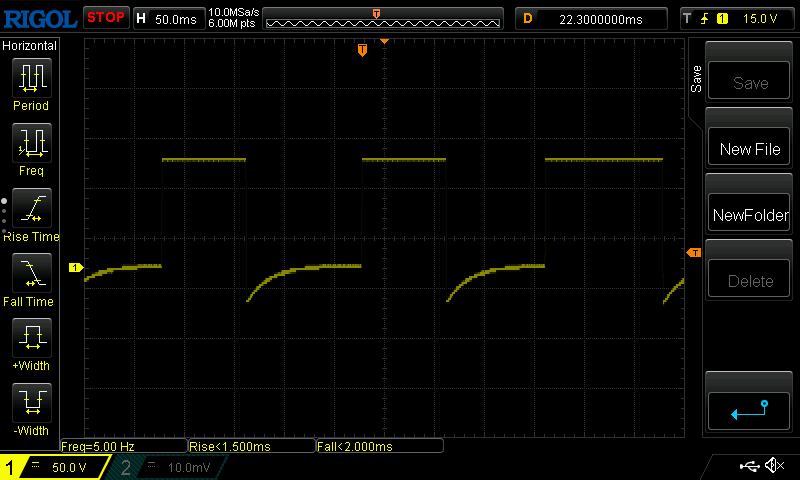

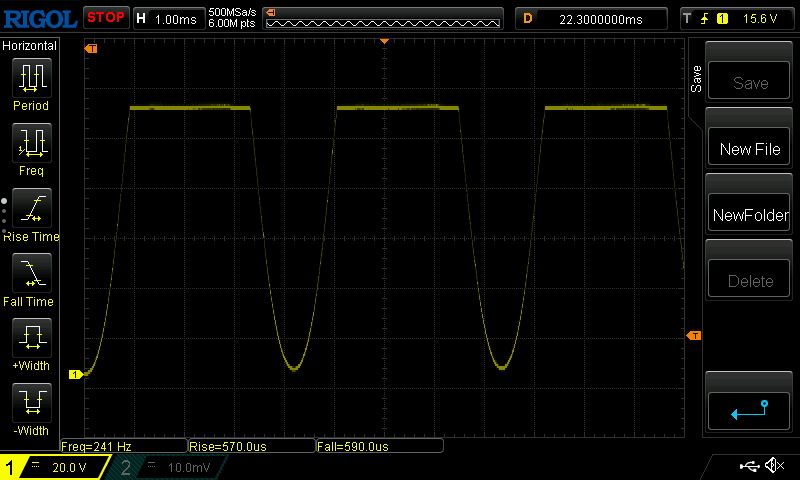

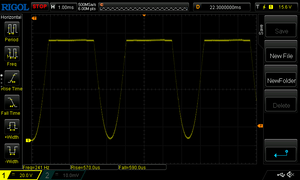

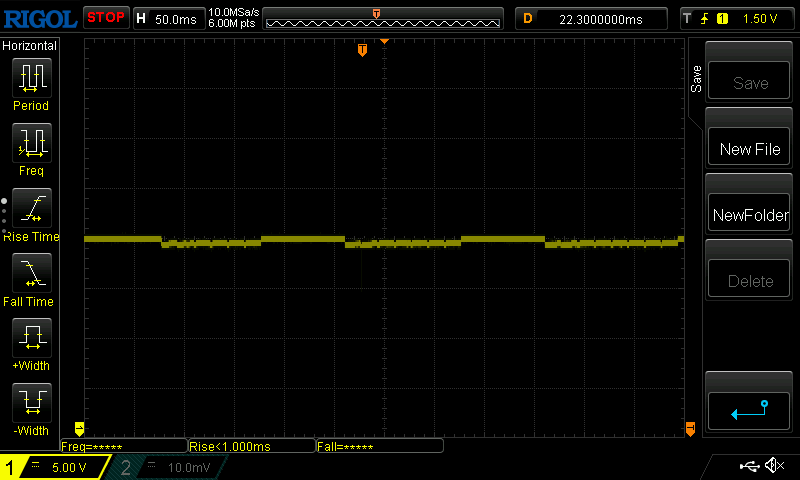

Screen Flickering / PWM (Pulse-Width Modulation)
| Screen flickering / PWM detected | 240 Hz | ≤ 50 % brightness setting |  |
The display backlight flickers at 240 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 50 % and below. There should be no flickering or PWM above this brightness setting. The frequency of 240 Hz is relatively low, so sensitive users will likely notice flickering and experience eyestrain at the stated brightness setting and below. In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8746 (minimum: 5 - maximum: 343500) Hz was measured. | |||

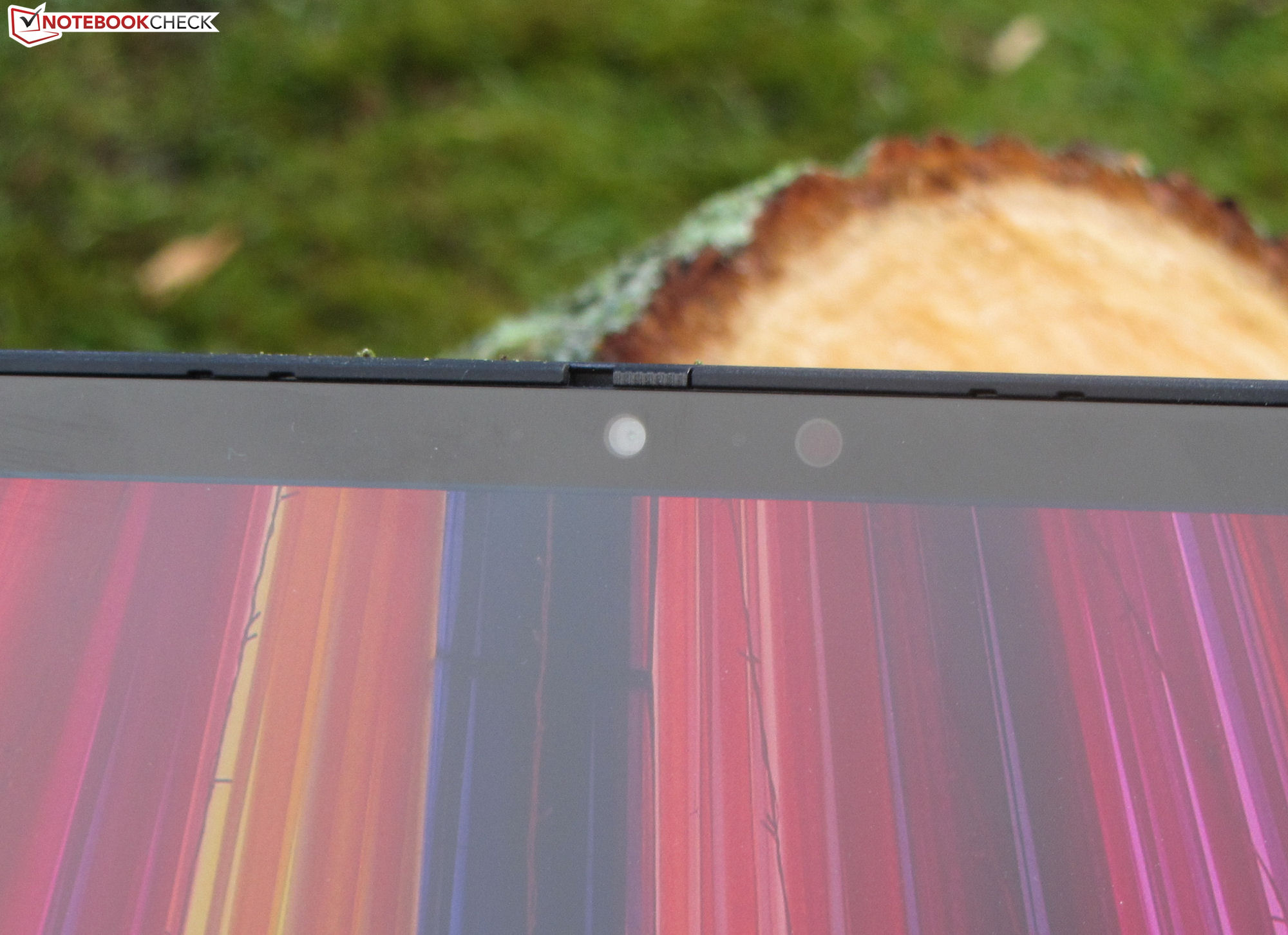

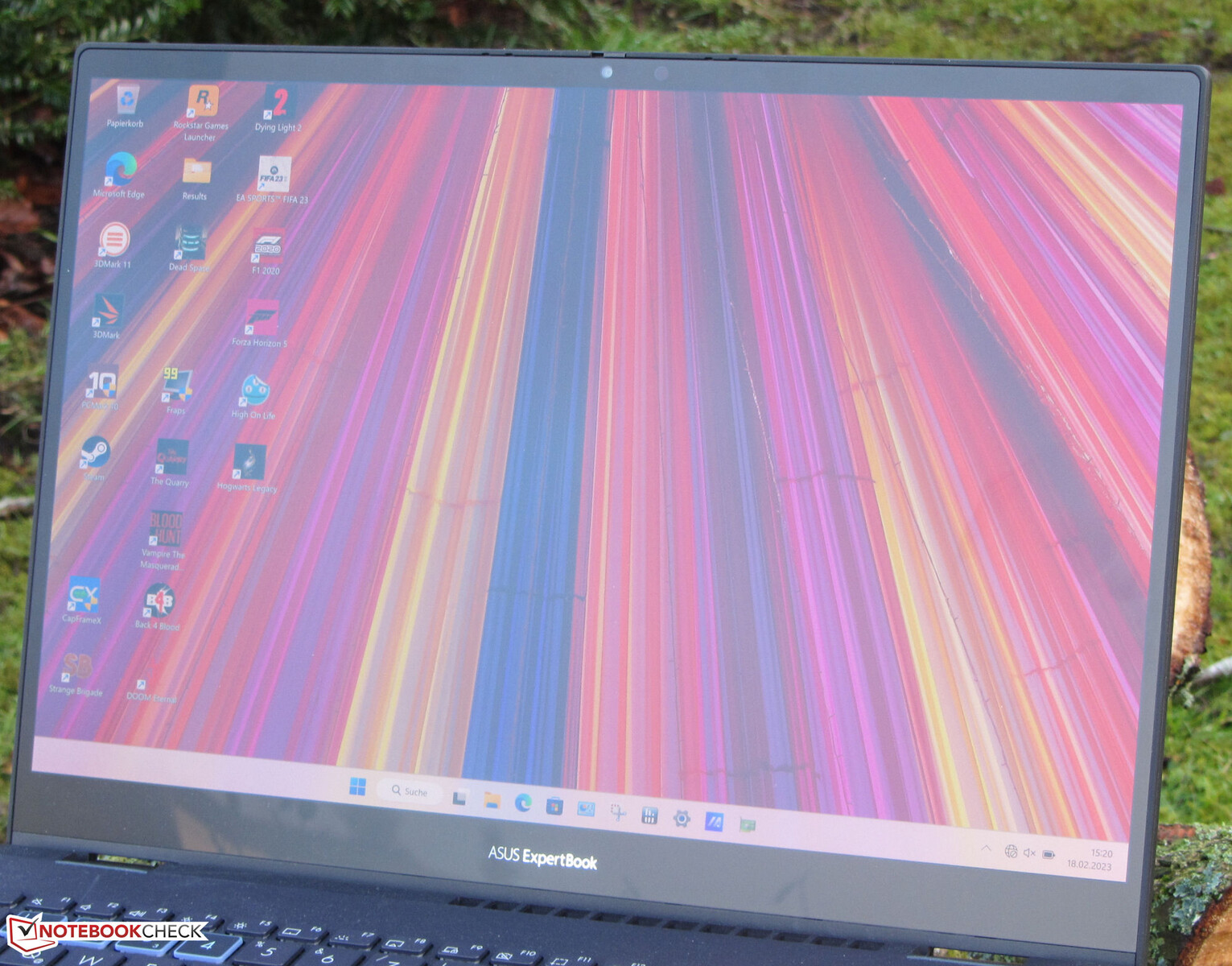

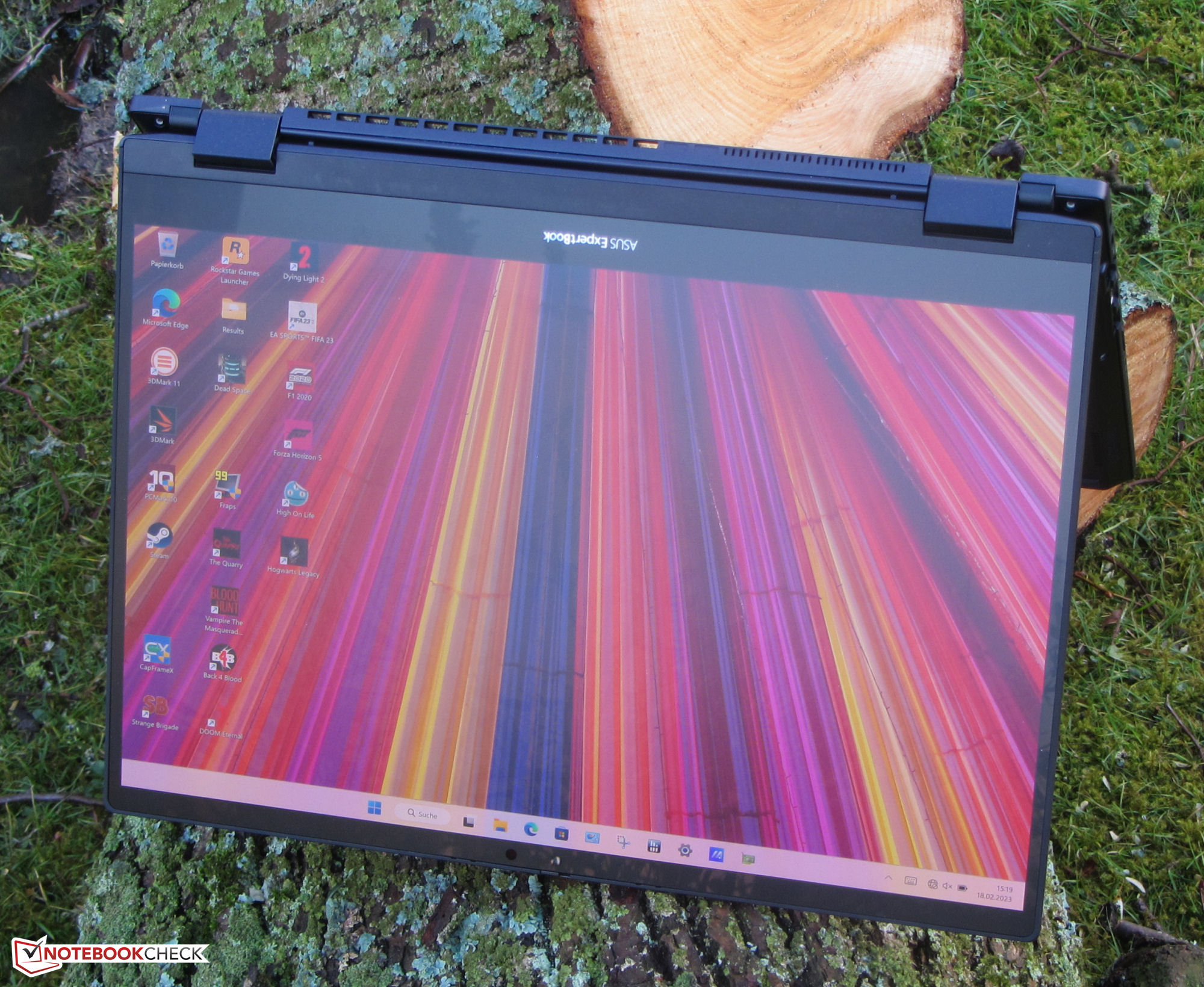

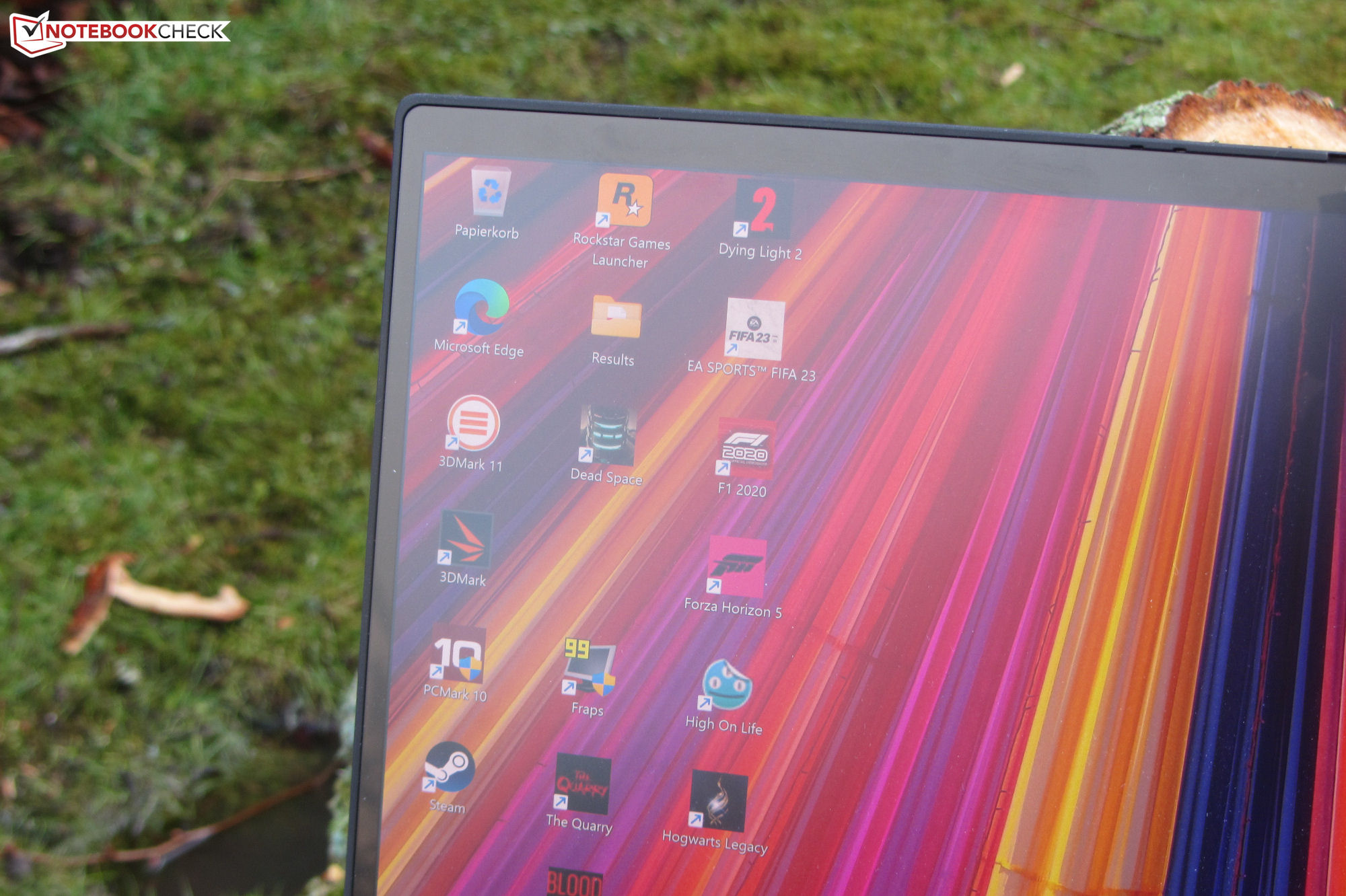

视角稳定的OLED面板可以从任何位置阅读。在户外，当阳光不太强烈时，可以阅读屏幕。
性能 - 华硕电脑运行在英特尔硬件上

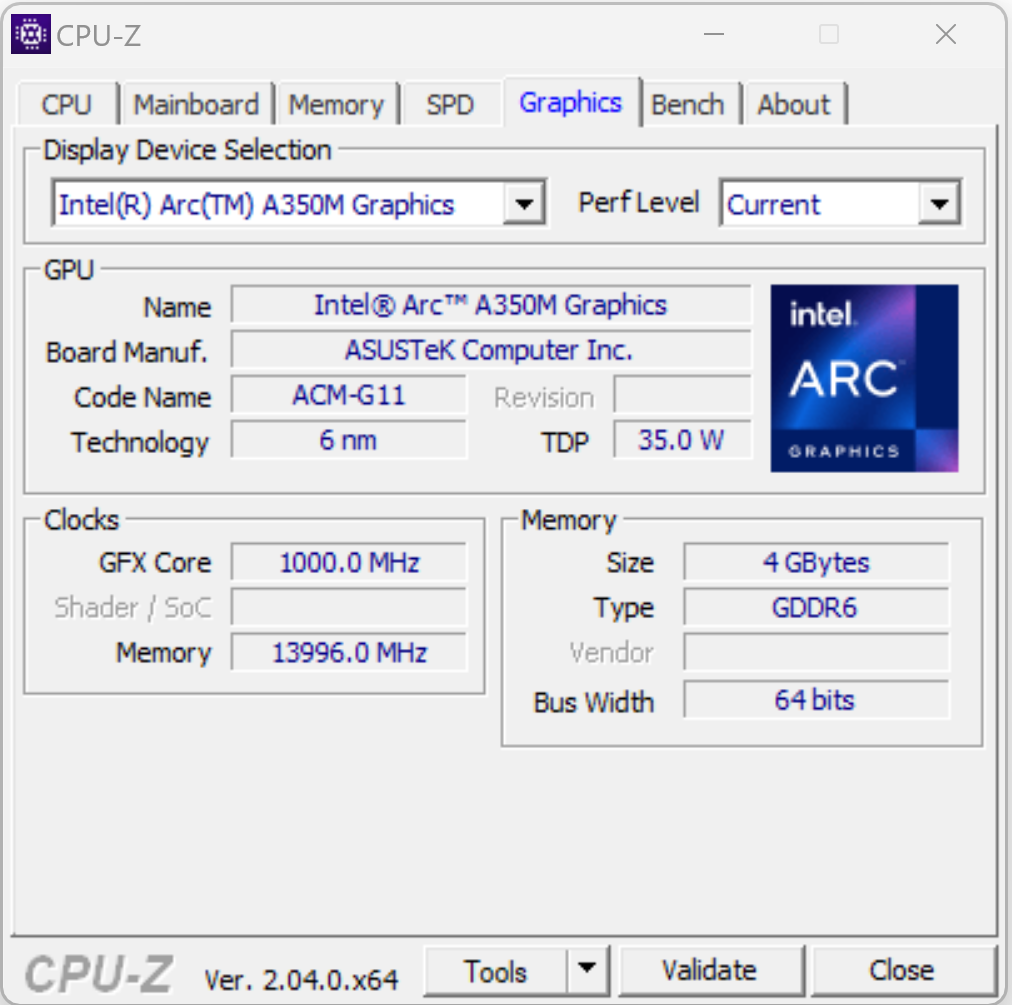

ExpertBook B5 Flip系列代表了商务领域的二合一笔记本电脑。该系列使用Alder Lake CPU。可选的是，带有专用英特尔Arc-A350MGPU--我们的评测样本就是其中之一。
测试条件
可以通过组合键 "Fn "+"F "在三个制造商特定的风扇模式之间进行切换（见表）。使用的是 "性能模式"（基准）和 "低声模式"（电池测试）。前者仅在主电源操作中可用。这些模式影响CPU和GPU的性能。
| 功率模式 | 标准模式 | 悄悄话模式 | |
|---|---|---|---|
| 功率限制1 | 35瓦 | 35瓦 | 18瓦 |
| 功率限制2 | 64瓦 | 64瓦 | 64瓦 |
处理器

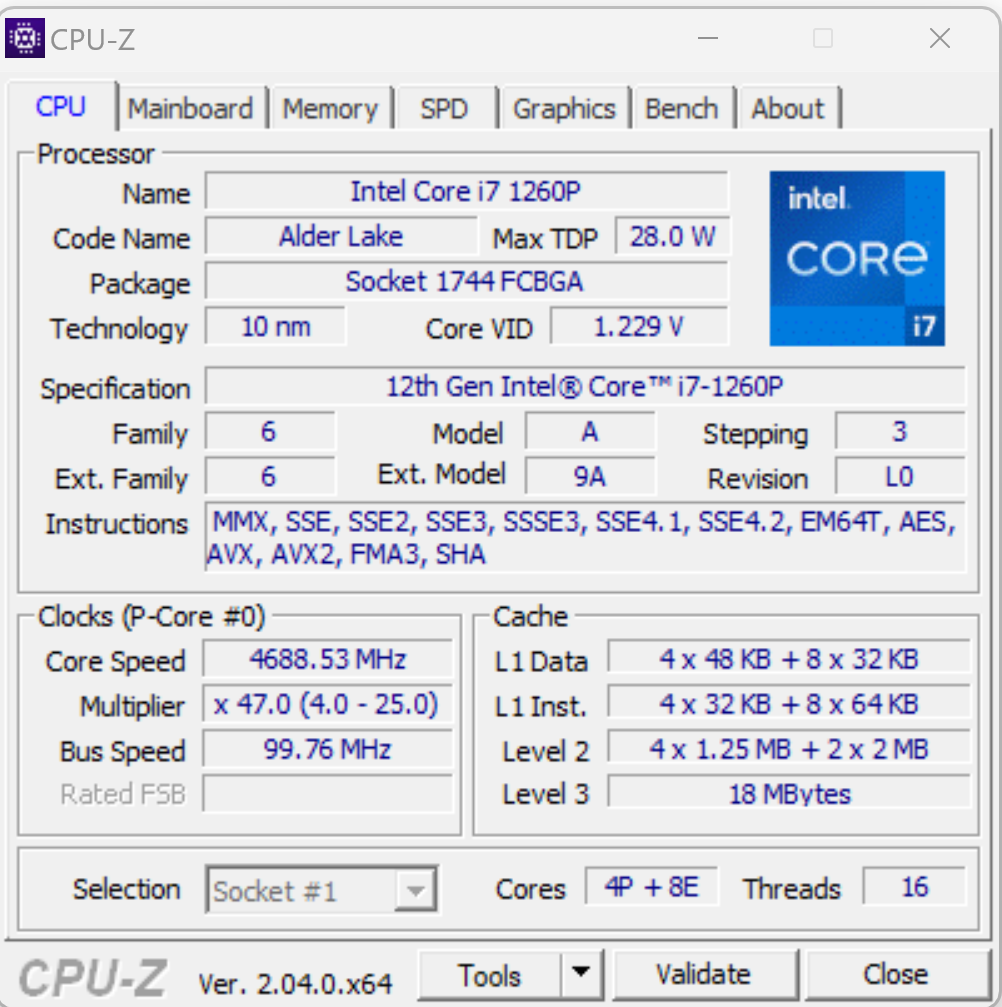

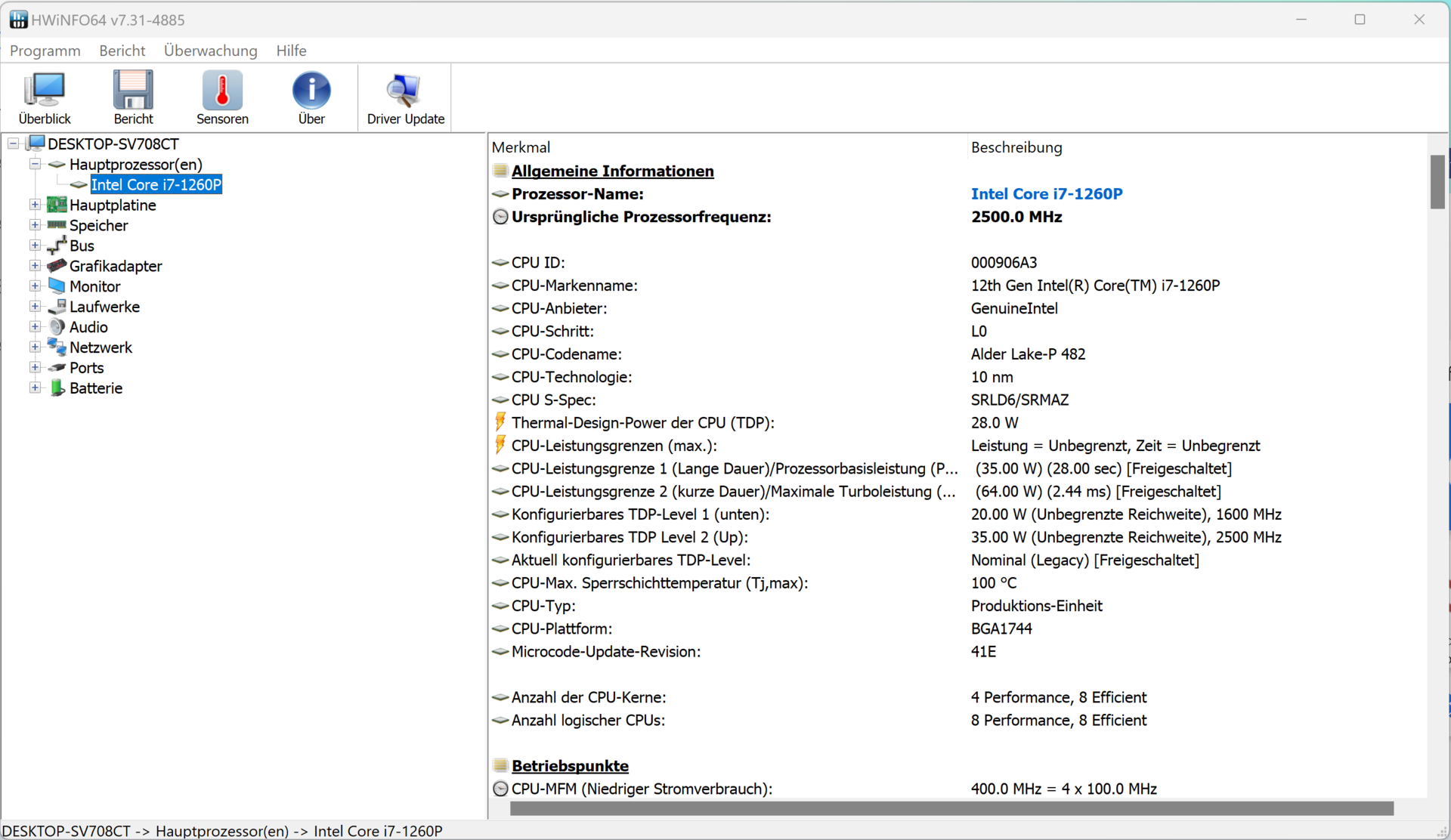

芯片 酷睿i7-1260P-处理器（Alder Lake）包括四个性能核心（超线程，2.1至4.7 GHz）和八个效率核心（无超线程，1.5至3.4 GHz）。总的来说，这导致了16个逻辑上的CPU核心。该CPU提供了高于平均水平的基准测试结果。

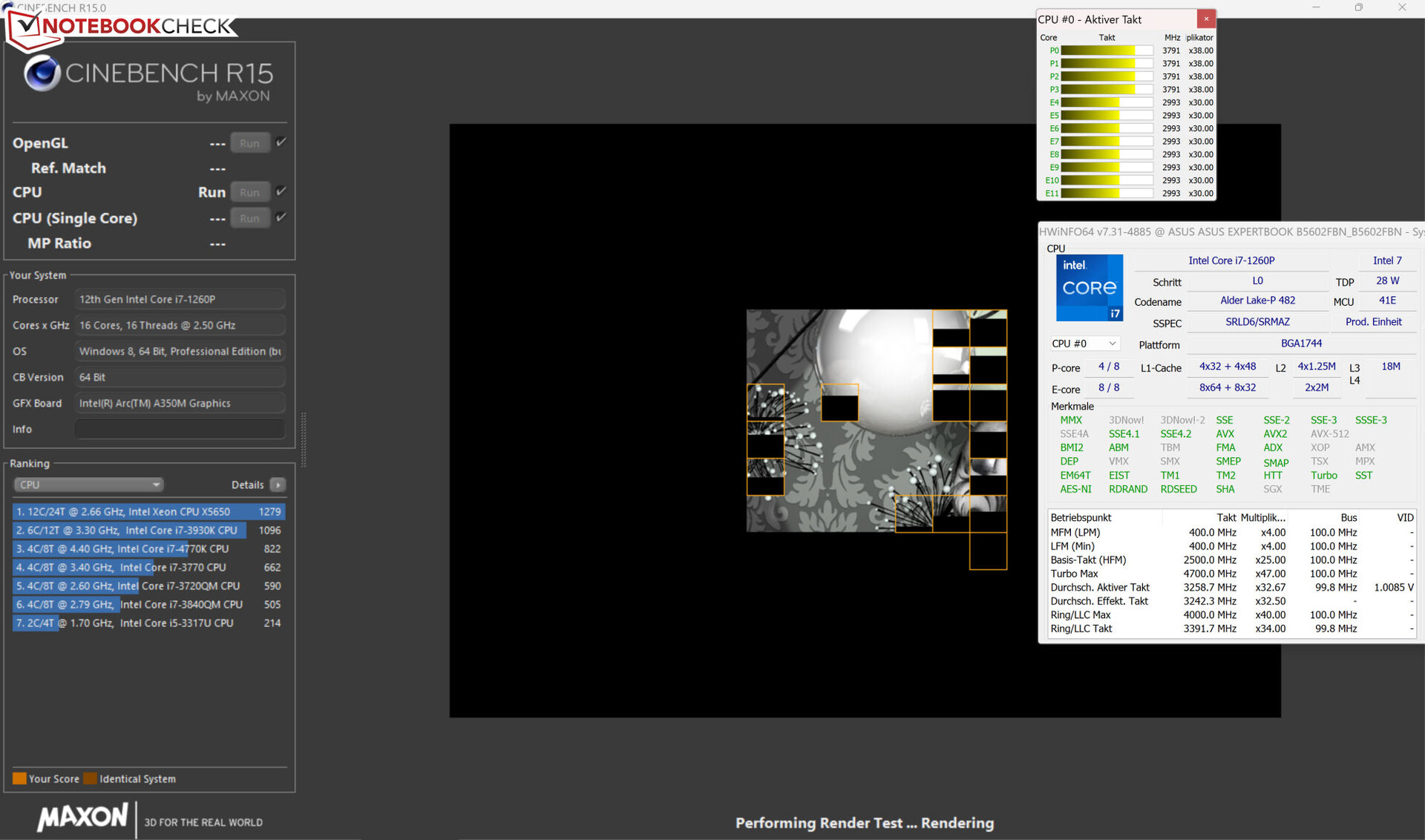

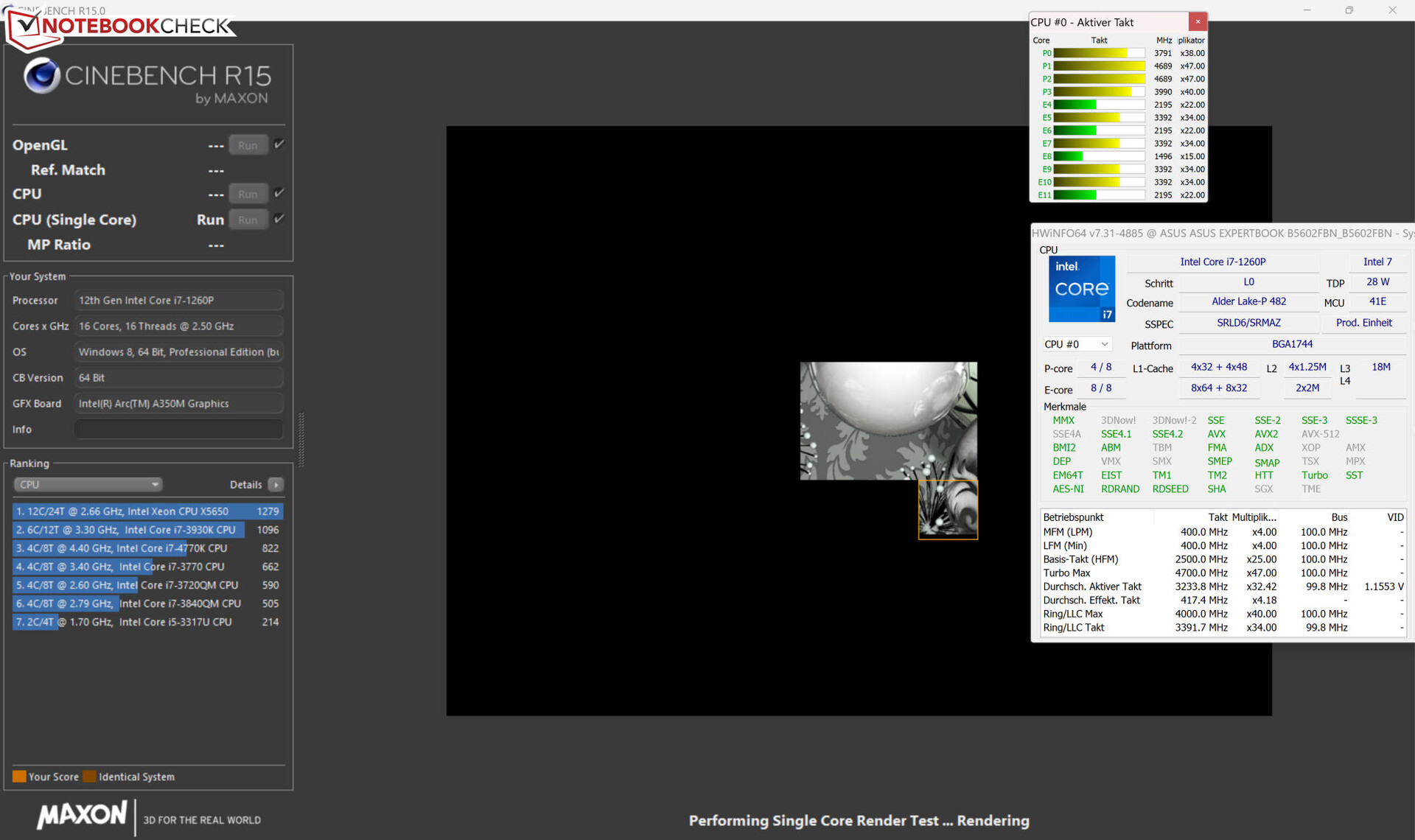

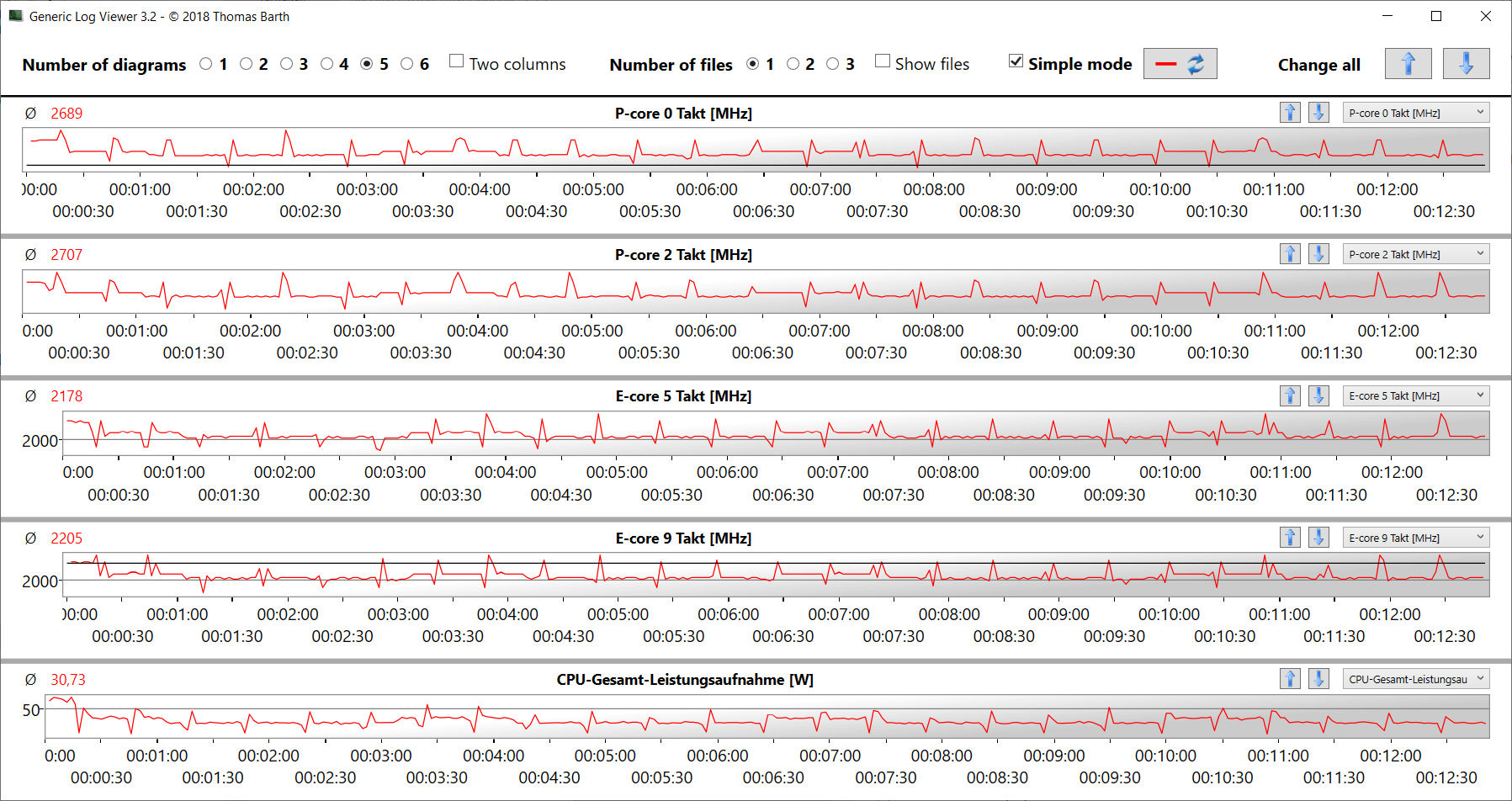

Cinebench R15基准的多线程测试分别以3.8 GHz（P核）和3 GHz（E核）处理。单线程测试以2.2至4.7GHz（P核）和1.5至3.4GHz（E核）运行。在电池模式下，时钟速率较低。CB15的循环测试显示。多线程负载只有在短时间内满足高Turbo时钟的要求。几秒钟后，速率最多下降到一个中等水平。

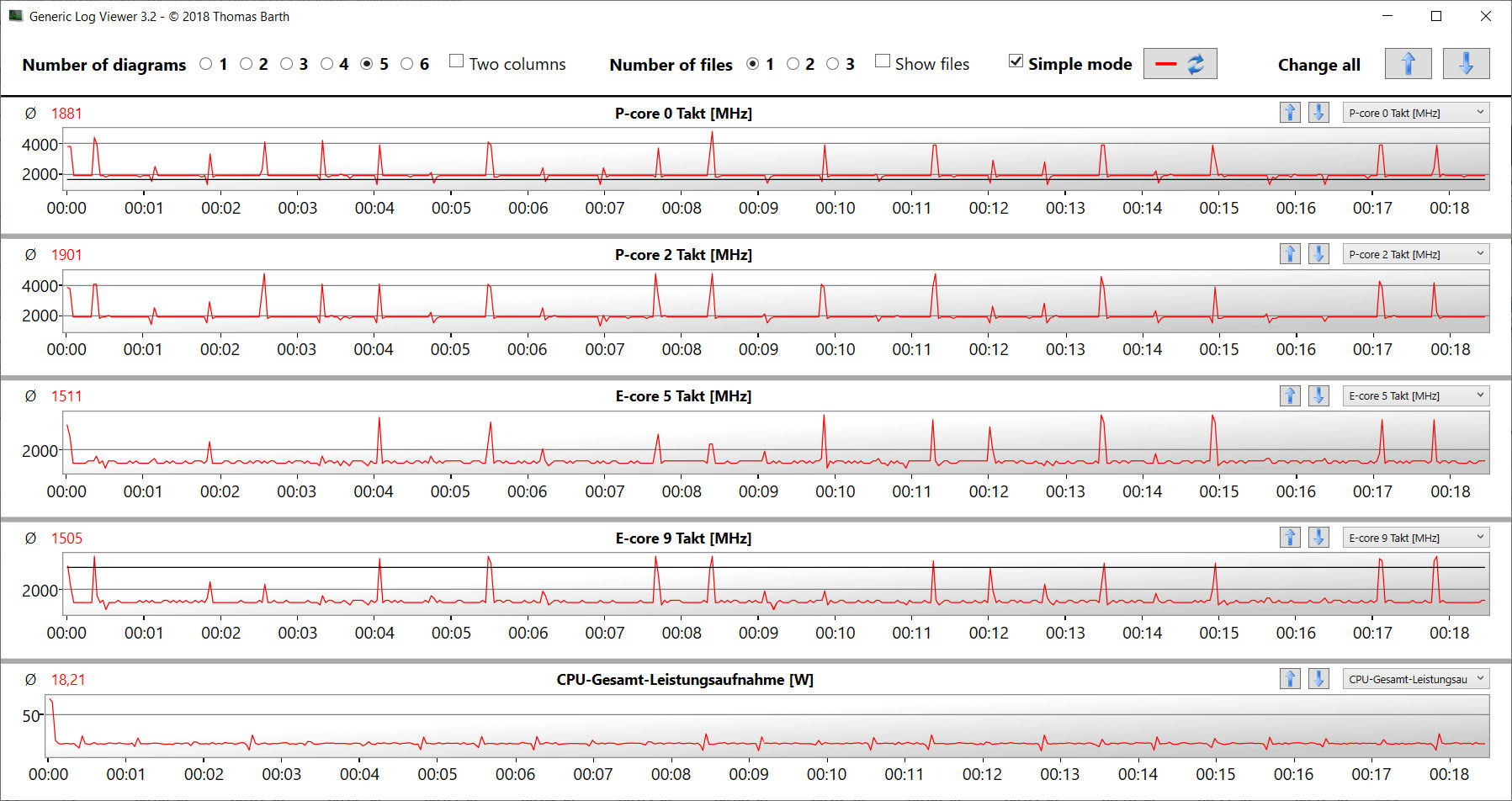

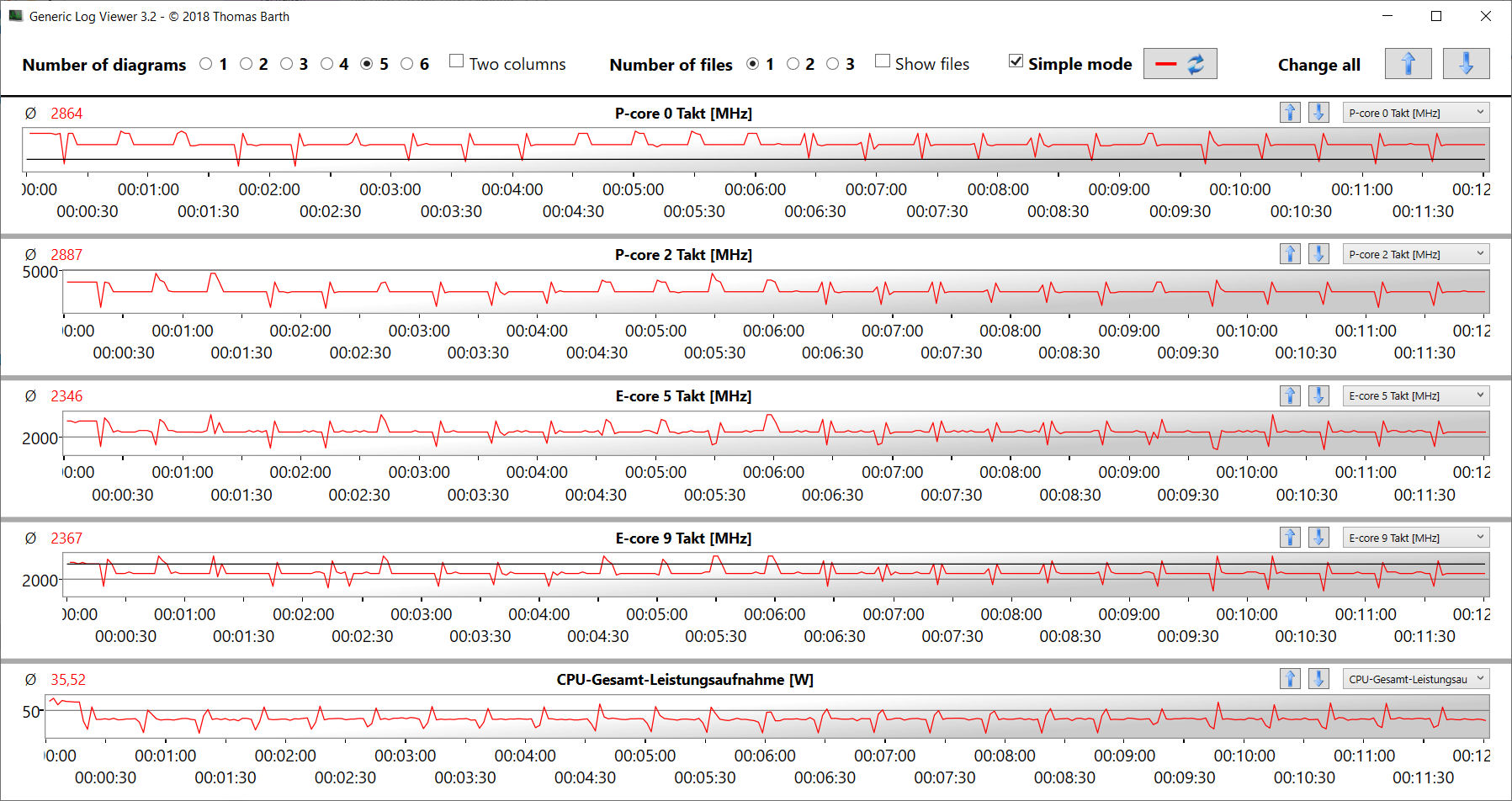

Cinebench R15 Multi Endurance test
* ... smaller is better
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
| Performance Rating | |
| MSI Summit E16 Flip A12UDT-031 | |
| HP Spectre x360 2-in-1 16-f1075ng | |
| Asus ExpertBook B5 Flip B5602FBN | |
| Average of class Convertible | |
| Lenovo Yoga 7 16IAP7 | |
| Average Intel Core i7-1260P | |
| AIDA64 / FP32 Ray-Trace | |
| MSI Summit E16 Flip A12UDT-031 | |
| HP Spectre x360 2-in-1 16-f1075ng | |
| Asus ExpertBook B5 Flip B5602FBN | |
| Average of class Convertible (468 - 25226, n=61, last 2 years) | |
| Lenovo Yoga 7 16IAP7 | |
| Average Intel Core i7-1260P (2176 - 10898, n=26) | |
| AIDA64 / FPU Julia | |
| MSI Summit E16 Flip A12UDT-031 | |
| HP Spectre x360 2-in-1 16-f1075ng | |
| Asus ExpertBook B5 Flip B5602FBN | |
| Average of class Convertible (2644 - 106512, n=60, last 2 years) | |
| Lenovo Yoga 7 16IAP7 | |
| Average Intel Core i7-1260P (11015 - 56906, n=26) | |
| AIDA64 / CPU SHA3 | |
| MSI Summit E16 Flip A12UDT-031 | |
| HP Spectre x360 2-in-1 16-f1075ng | |
| Asus ExpertBook B5 Flip B5602FBN | |
| Average of class Convertible (182 - 4764, n=60, last 2 years) | |
| Lenovo Yoga 7 16IAP7 | |
| Average Intel Core i7-1260P (669 - 2709, n=26) | |
| AIDA64 / CPU Queen | |
| MSI Summit E16 Flip A12UDT-031 | |
| HP Spectre x360 2-in-1 16-f1075ng | |
| Asus ExpertBook B5 Flip B5602FBN | |
| Lenovo Yoga 7 16IAP7 | |
| Average Intel Core i7-1260P (42571 - 82493, n=26) | |
| Average of class Convertible (10502 - 120368, n=60, last 2 years) | |
| AIDA64 / FPU SinJulia | |
| MSI Summit E16 Flip A12UDT-031 | |
| HP Spectre x360 2-in-1 16-f1075ng | |
| Asus ExpertBook B5 Flip B5602FBN | |
| Average of class Convertible (659 - 14835, n=60, last 2 years) | |
| Average Intel Core i7-1260P (2901 - 6975, n=26) | |
| Lenovo Yoga 7 16IAP7 | |
| AIDA64 / FPU Mandel | |
| MSI Summit E16 Flip A12UDT-031 | |
| HP Spectre x360 2-in-1 16-f1075ng | |
| Asus ExpertBook B5 Flip B5602FBN | |
| Average of class Convertible (1420 - 56839, n=60, last 2 years) | |
| Lenovo Yoga 7 16IAP7 | |
| Average Intel Core i7-1260P (5950 - 26376, n=26) | |
| AIDA64 / CPU AES | |
| HP Spectre x360 2-in-1 16-f1075ng | |
| MSI Summit E16 Flip A12UDT-031 | |
| Asus ExpertBook B5 Flip B5602FBN | |
| Average of class Convertible (1279 - 169089, n=60, last 2 years) | |
| Average Intel Core i7-1260P (16041 - 92356, n=26) | |
| Lenovo Yoga 7 16IAP7 | |
| AIDA64 / CPU ZLib | |
| MSI Summit E16 Flip A12UDT-031 | |
| HP Spectre x360 2-in-1 16-f1075ng | |
| Asus ExpertBook B5 Flip B5602FBN | |
| Average of class Convertible (61.4 - 1088, n=60, last 2 years) | |
| Lenovo Yoga 7 16IAP7 | |
| Average Intel Core i7-1260P (259 - 771, n=26) | |
| AIDA64 / FP64 Ray-Trace | |
| MSI Summit E16 Flip A12UDT-031 | |
| HP Spectre x360 2-in-1 16-f1075ng | |
| Asus ExpertBook B5 Flip B5602FBN | |
| Average of class Convertible (254 - 13175, n=60, last 2 years) | |
| Lenovo Yoga 7 16IAP7 | |
| Average Intel Core i7-1260P (1237 - 5858, n=26) | |
| AIDA64 / CPU PhotoWorxx | |
| Lenovo Yoga 7 16IAP7 | |
| MSI Summit E16 Flip A12UDT-031 | |
| Average of class Convertible (5136 - 53406, n=60, last 2 years) | |
| Asus ExpertBook B5 Flip B5602FBN | |
| Average Intel Core i7-1260P (13261 - 43652, n=26) | |
| HP Spectre x360 2-in-1 16-f1075ng | |
系统性能

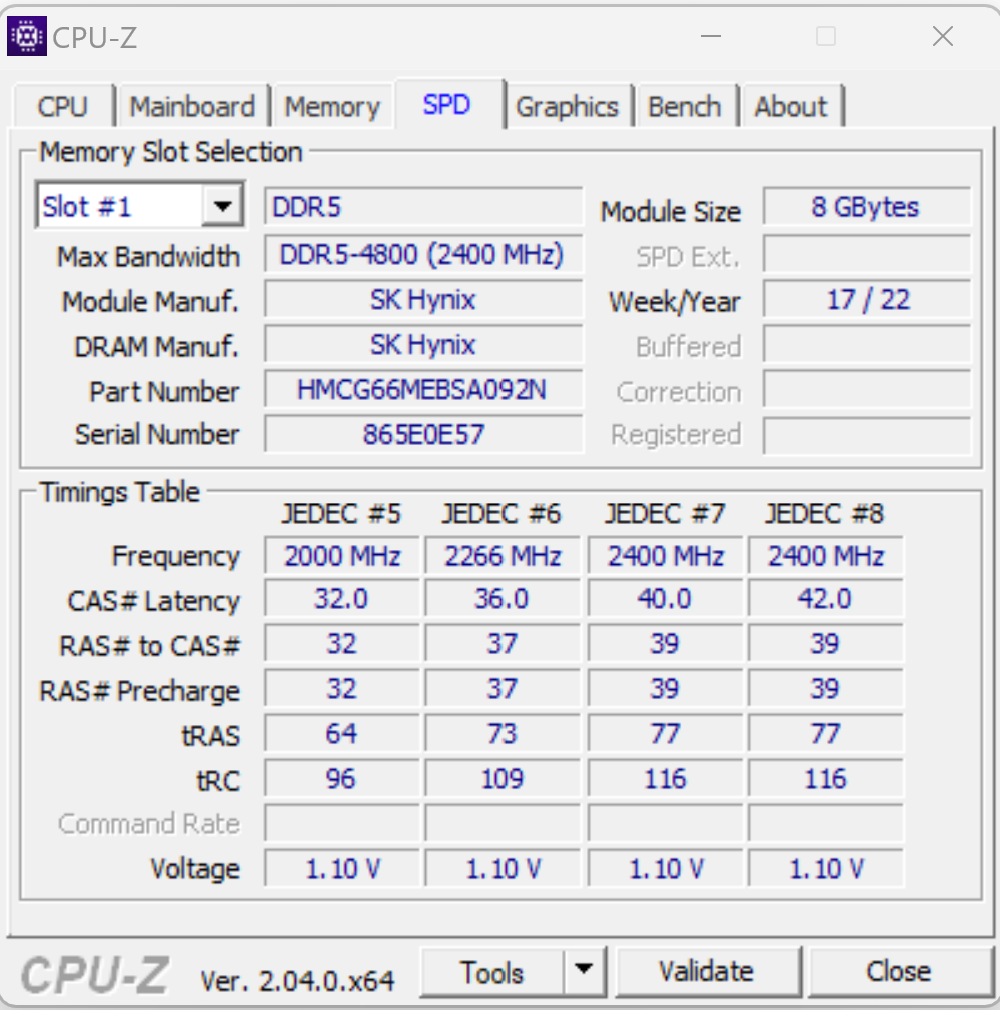

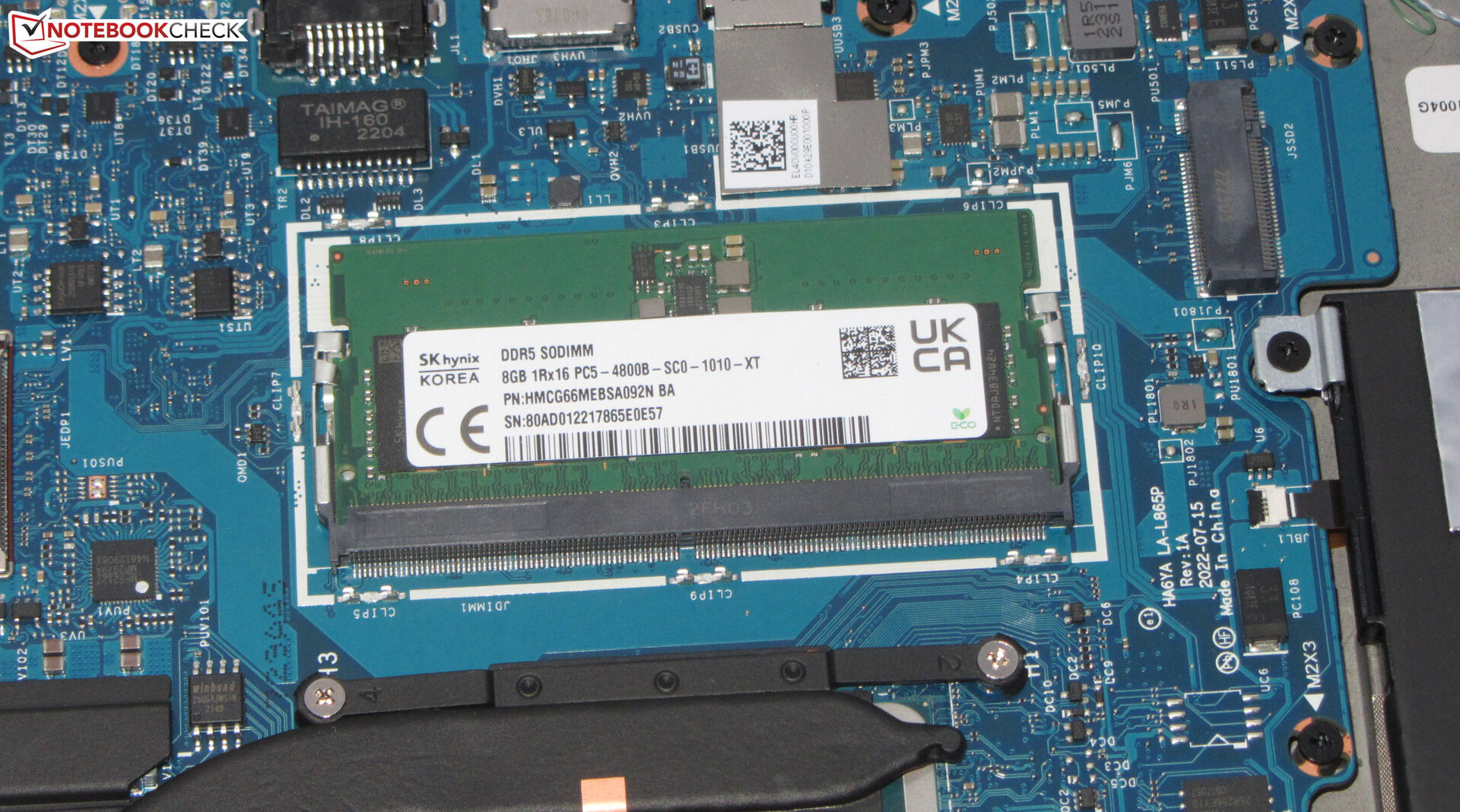

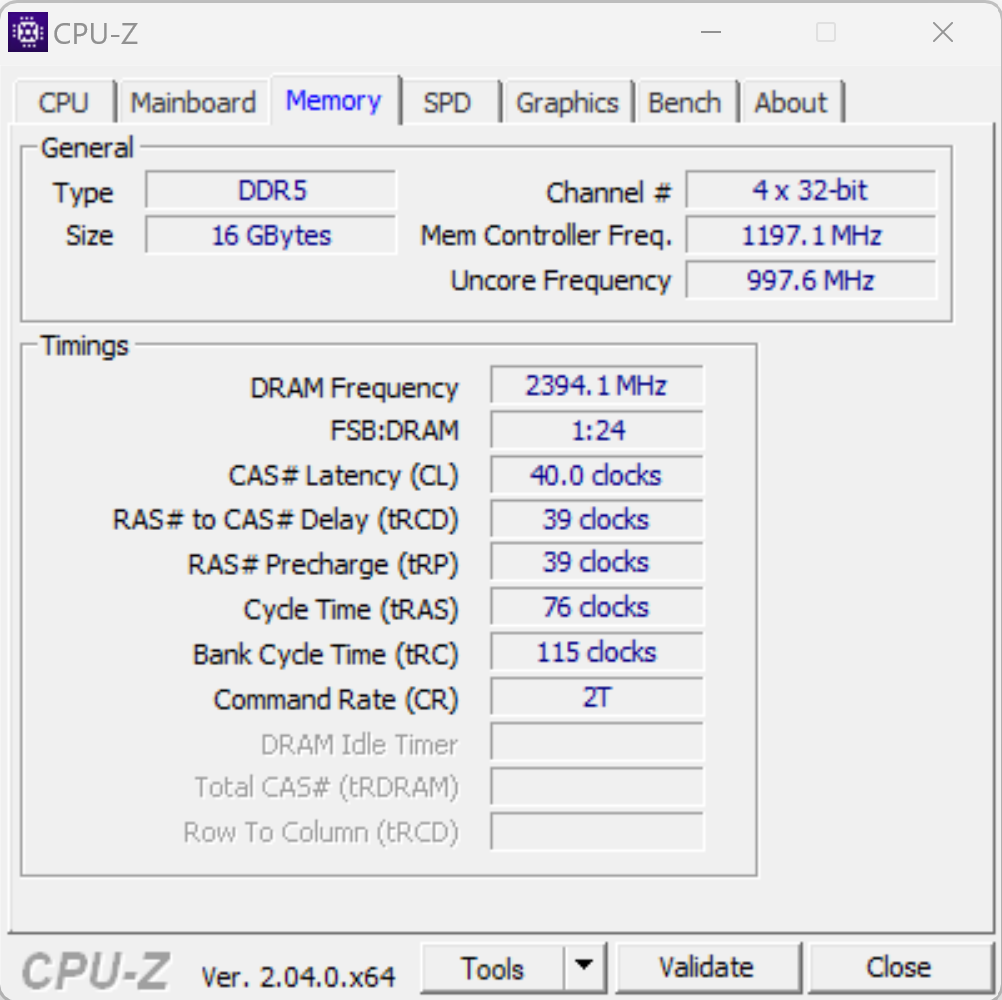

运行平稳的系统为办公和互联网应用以及游戏提供了足够的性能。GPU重度应用得益于专用图形核心。工作内存提供的传输率在DDR5-4800内存的正常水平上。此外，还有非常好的PCMark结果。
CrossMark: Overall | Productivity | Creativity | Responsiveness
| PCMark 10 / Score | |
| MSI Summit E16 Flip A12UDT-031 | |
| Average of class Convertible (1486 - 7963, n=57, last 2 years) | |
| HP Spectre x360 2-in-1 16-f1075ng | |
| Lenovo Yoga 7 16IAP7 | |
| Asus ExpertBook B5 Flip B5602FBN | |
| Average Intel Core i7-1260P, Intel Arc A350M (5486 - 5609, n=2) | |
| PCMark 10 / Essentials | |
| Lenovo Yoga 7 16IAP7 | |
| HP Spectre x360 2-in-1 16-f1075ng | |
| Average of class Convertible (3975 - 12059, n=57, last 2 years) | |
| Average Intel Core i7-1260P, Intel Arc A350M (9411 - 9997, n=2) | |
| MSI Summit E16 Flip A12UDT-031 | |
| Asus ExpertBook B5 Flip B5602FBN | |
| PCMark 10 / Productivity | |
| Average of class Convertible (2764 - 10800, n=57, last 2 years) | |
| MSI Summit E16 Flip A12UDT-031 | |
| HP Spectre x360 2-in-1 16-f1075ng | |
| Lenovo Yoga 7 16IAP7 | |
| Asus ExpertBook B5 Flip B5602FBN | |
| Average Intel Core i7-1260P, Intel Arc A350M (6714 - 6728, n=2) | |
| PCMark 10 / Digital Content Creation | |
| MSI Summit E16 Flip A12UDT-031 | |
| Asus ExpertBook B5 Flip B5602FBN | |
| HP Spectre x360 2-in-1 16-f1075ng | |
| Average Intel Core i7-1260P, Intel Arc A350M (6677 - 7562, n=2) | |
| Average of class Convertible (811 - 12360, n=57, last 2 years) | |
| Lenovo Yoga 7 16IAP7 | |
| CrossMark / Overall | |
| HP Spectre x360 2-in-1 16-f1075ng | |
| Asus ExpertBook B5 Flip B5602FBN | |
| Average Intel Core i7-1260P, Intel Arc A350M () | |
| Lenovo Yoga 7 16IAP7 | |
| MSI Summit E16 Flip A12UDT-031 | |
| Average of class Convertible (310 - 1912, n=58, last 2 years) | |
| CrossMark / Productivity | |
| HP Spectre x360 2-in-1 16-f1075ng | |
| Asus ExpertBook B5 Flip B5602FBN | |
| Average Intel Core i7-1260P, Intel Arc A350M () | |
| Lenovo Yoga 7 16IAP7 | |
| MSI Summit E16 Flip A12UDT-031 | |
| Average of class Convertible (389 - 1790, n=58, last 2 years) | |
| CrossMark / Creativity | |
| Lenovo Yoga 7 16IAP7 | |
| MSI Summit E16 Flip A12UDT-031 | |
| Asus ExpertBook B5 Flip B5602FBN | |
| Average Intel Core i7-1260P, Intel Arc A350M () | |
| HP Spectre x360 2-in-1 16-f1075ng | |
| Average of class Convertible (252 - 2183, n=58, last 2 years) | |
| CrossMark / Responsiveness | |
| HP Spectre x360 2-in-1 16-f1075ng | |
| Asus ExpertBook B5 Flip B5602FBN | |
| Average Intel Core i7-1260P, Intel Arc A350M () | |
| MSI Summit E16 Flip A12UDT-031 | |
| Lenovo Yoga 7 16IAP7 | |
| Average of class Convertible (295 - 1868, n=58, last 2 years) | |
| PCMark 10 Score | 5609 points | |
Help | ||
| AIDA64 / Memory Copy | |
| Lenovo Yoga 7 16IAP7 | |
| MSI Summit E16 Flip A12UDT-031 | |
| Average of class Convertible (16353 - 108544, n=60, last 2 years) | |
| Average Intel Core i7-1260P (25125 - 71544, n=25) | |
| Asus ExpertBook B5 Flip B5602FBN | |
| HP Spectre x360 2-in-1 16-f1075ng | |
| AIDA64 / Memory Read | |
| Lenovo Yoga 7 16IAP7 | |
| MSI Summit E16 Flip A12UDT-031 | |
| Average of class Convertible (12706 - 125359, n=60, last 2 years) | |
| Average Intel Core i7-1260P (24983 - 72065, n=25) | |
| Asus ExpertBook B5 Flip B5602FBN | |
| HP Spectre x360 2-in-1 16-f1075ng | |
| AIDA64 / Memory Write | |
| Average of class Convertible (10177 - 117920, n=60, last 2 years) | |
| Lenovo Yoga 7 16IAP7 | |
| MSI Summit E16 Flip A12UDT-031 | |
| Average Intel Core i7-1260P (23512 - 66799, n=25) | |
| Asus ExpertBook B5 Flip B5602FBN | |
| HP Spectre x360 2-in-1 16-f1075ng | |
| AIDA64 / Memory Latency | |
| MSI Summit E16 Flip A12UDT-031 | |
| Average of class Convertible (7.4 - 173, n=60, last 2 years) | |
| Lenovo Yoga 7 16IAP7 | |
| Asus ExpertBook B5 Flip B5602FBN | |
| Average Intel Core i7-1260P (77.9 - 118.4, n=21) | |
| HP Spectre x360 2-in-1 16-f1075ng | |
* ... smaller is better

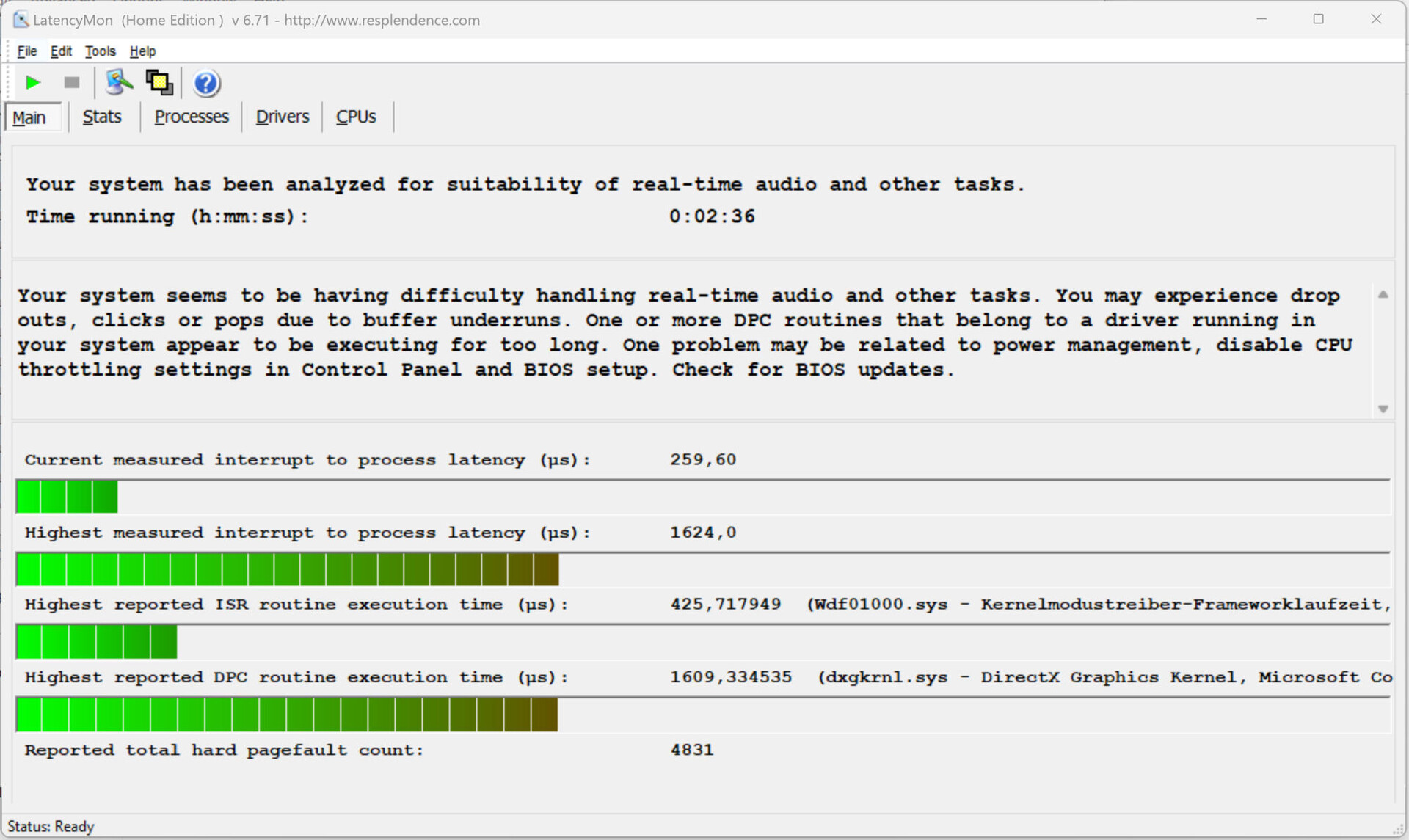

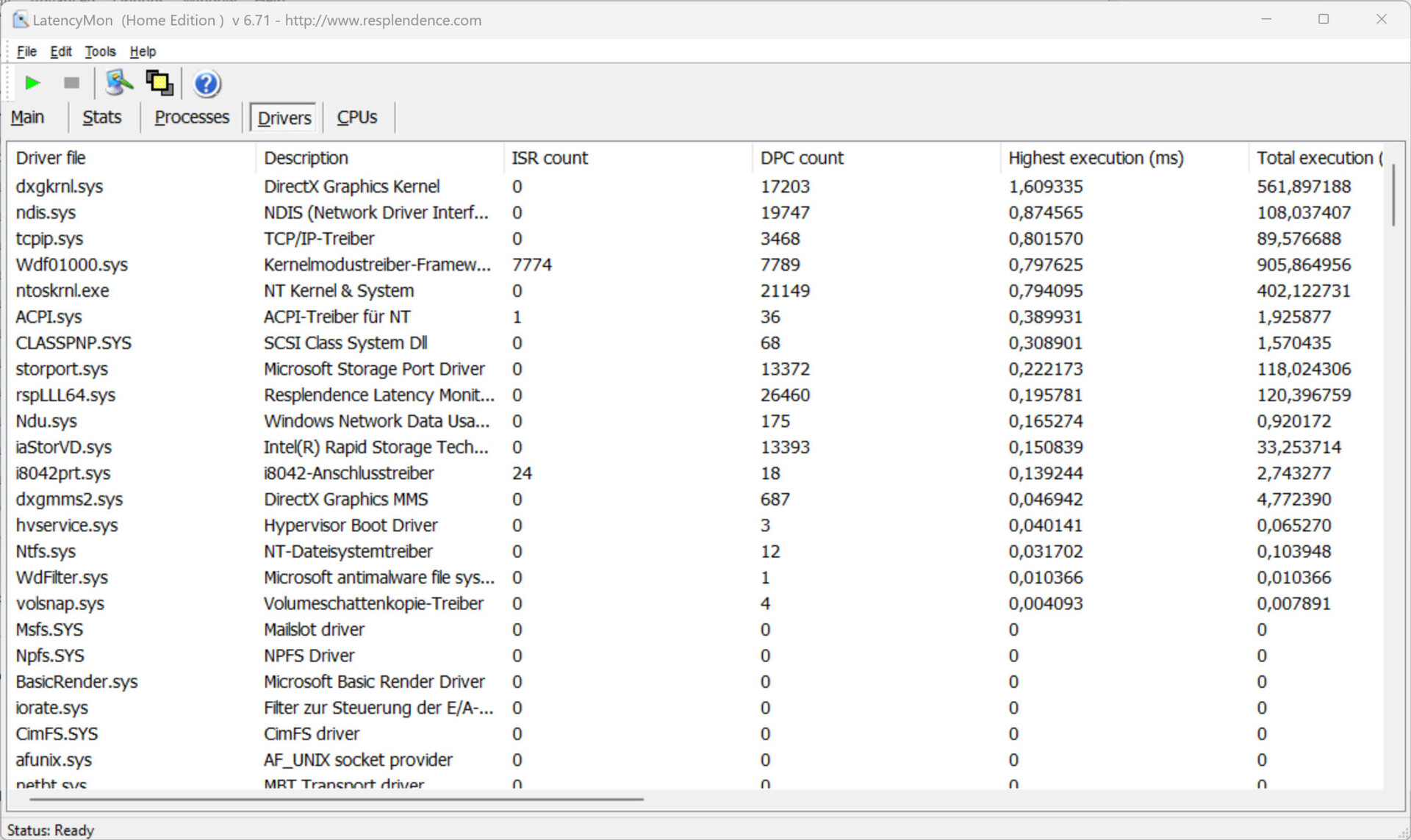

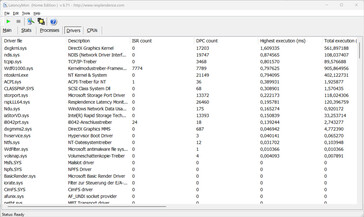

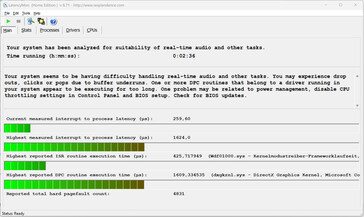

DPC延迟
| DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95 | |
| Asus ExpertBook B5 Flip B5602FBN | |
| HP Spectre x360 2-in-1 16-f1075ng | |
| MSI Summit E16 Flip A12UDT-031 | |
| Lenovo Yoga 7 16IAP7 | |
* ... smaller is better

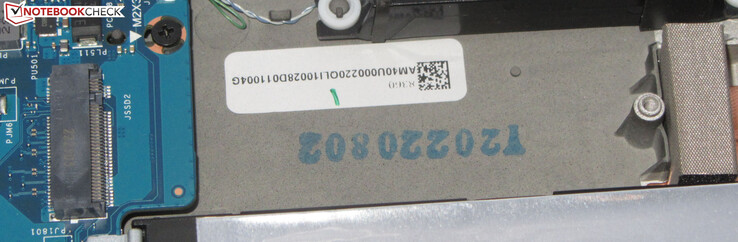

大容量存储
B5为两个M.2-2280格式的PCIe-4 SSD提供空间。支持RAID 0/1。安装的PCIe-4固态硬盘（1TB）提供良好的传输率，但它不是顶级的固态硬盘型号之一。由于热节流导致的性能下降并没有发生。
* ... smaller is better
Continuous Reading: DiskSpd Read Loop, Queue Depth 8
图形卡

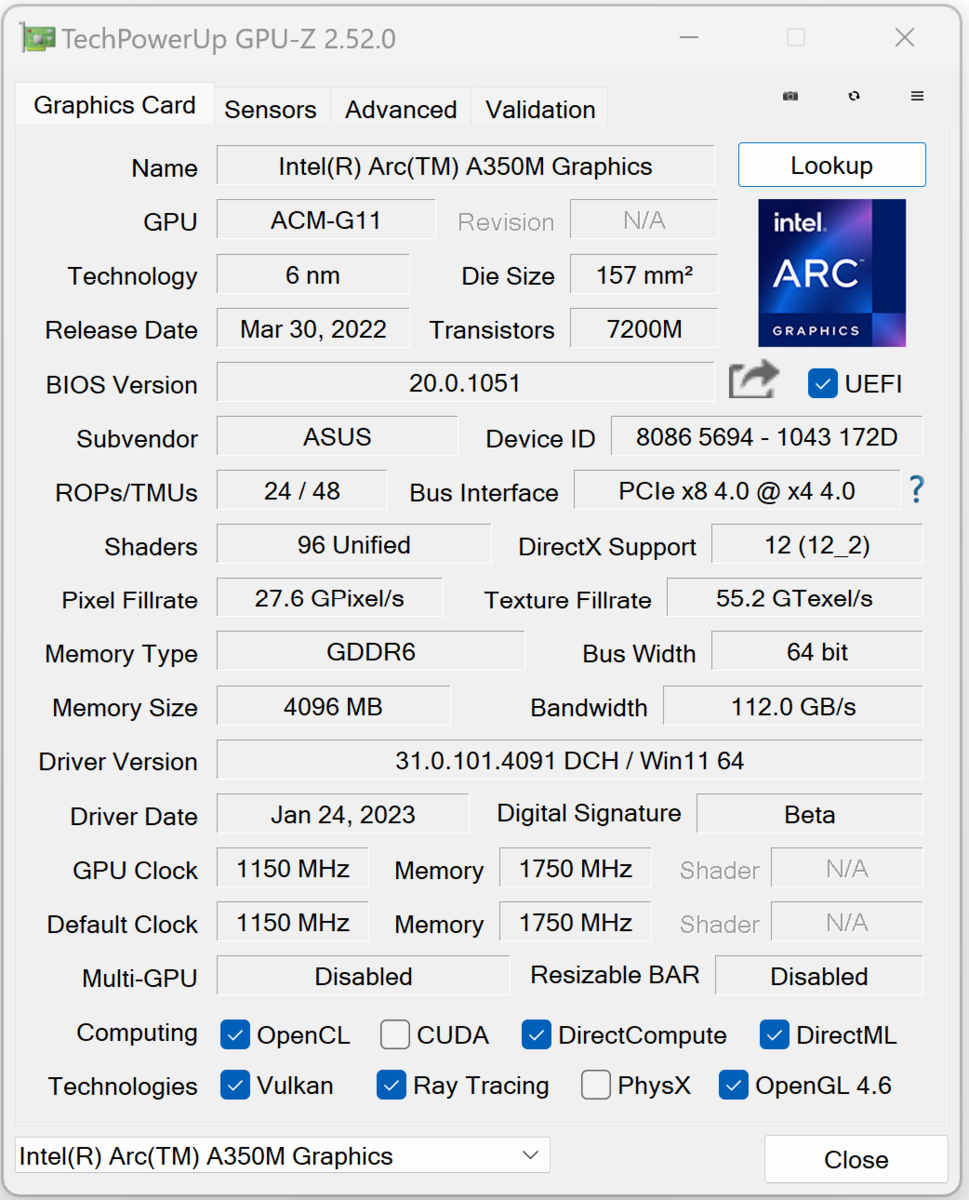

使用 弧形-A350MGPU，英特尔目前DGPU组合中最弱的代表已经找到了进入B5 Flip的方式。入门级型号的TGP为35瓦，可以依靠快速的GDDR6内存（4.096 GB），并达到2.2 GHz的最大时钟--根据测试，后者可以永久保持。 Witcher 3测试。
在合成基准测试中，A350M的得分往往比它的直接竞争对手要高(GeForce MX550, Radeon 680M)，但在游戏实践中往往处于劣势--能源需求较高。然而，该GPU适合在中等至部分高设置下进行游戏。
A350M的其他优势抵消了混合游戏性能，这些优势在像B5 Flip这样的笔记本电脑中应该更有需求：光线追踪核心、高OpenCL性能和对AV1编解码器的支持（去除和编码）。
关于Arc A350M的性能及其直接竞争对手的更多信息可以在一篇技术文章中找到。入门级GPU之战--测试中的NvidiaGeForce MX550和Intel Arc A350M 。
| 3DMark 11 Performance | 11409 points | |
| 3DMark Cloud Gate Standard Score | 23965 points | |

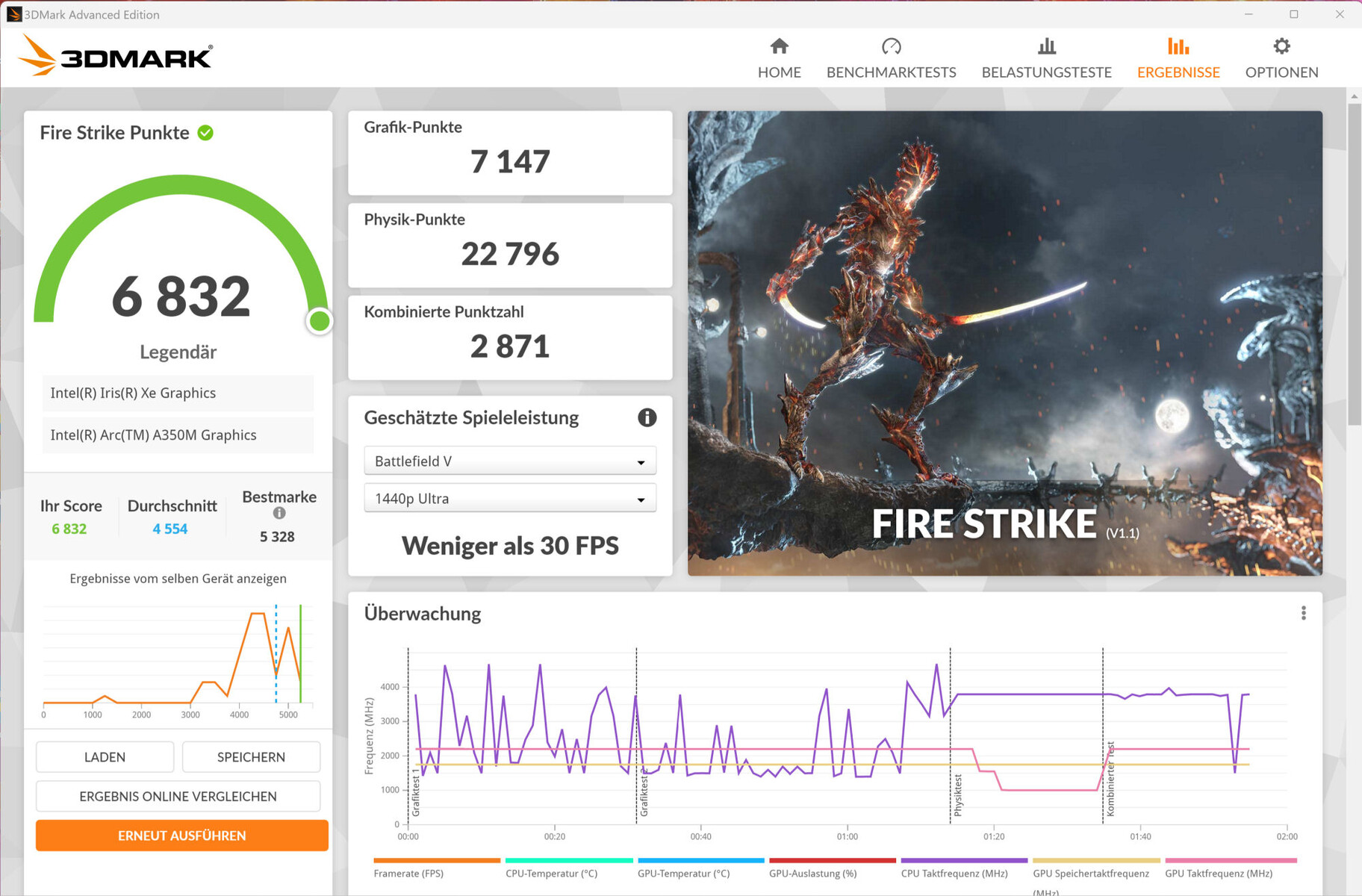

| 3DMark Fire Strike Score | 6832 points | |
| 3DMark Time Spy Score | 3397 points | |
Help | ||
| GPUScore: Sacred Path | |
| 2560x1440 Official VRS | |
| Average of class Convertible (12.5 - 122.8, n=140, last 2 years) | |
| Asus ExpertBook B5 Flip B5602FBN (0.9.0 Vulkan 1.3) | |
| Asus ExpertBook B5 Flip B5602FBN (0.9.0 DirectX 12) | |
| Average Intel Arc A350M (17.3 - 34, n=2) | |
| HP Spectre x360 2-in-1 16-f1075ng (0.9.0 Vulkan 1.3) | |
| 2560x1440 Official | |
| Average of class Convertible (3.65 - 139.5, n=170, last 2 years) | |
| Asus ExpertBook B5 Flip B5602FBN (0.9.0 Vulkan 1.3) | |
| Asus ExpertBook B5 Flip B5602FBN (0.9.0 DirectX 12) | |
| Average Intel Arc A350M (16.4 - 34.1, n=2) | |
| HP Spectre x360 2-in-1 16-f1075ng (0.9.0 DirectX 12) | |
| V-Ray 5 Benchmark | |
| GPU CUDA | |
| MSI Summit E16 Flip A12UDT-031 (5.0.1) | |
| Average of class Convertible (70 - 993, n=7, last 2 years) | |
| Minisforum Venus Series UM690 (5.0.1) | |
| Asus ExpertBook B5 Flip B5602FBN (5.0.1) | |
| Average Intel Arc A350M () | |
| CPU | |
| Minisforum Venus Series UM690 (5.0.1) | |
| Asus ExpertBook B5 Flip B5602FBN (5.0.1) | |
| Average Intel Arc A350M () | |
| MSI Summit E16 Flip A12UDT-031 (5.0.1) | |
| Lenovo Yoga 7 16IAP7 (5.0.1) | |
| Average of class Convertible (270 - 11415, n=36, last 2 years) | |
| V-Ray Benchmark Next 4.10 | |
| GPU | |
| MSI Summit E16 Flip A12UDT-031 (v4.10.07 ) | |
| Average of class Convertible (3 - 596, n=37, last 2 years) | |
| Minisforum Venus Series UM690 (v4.10.07 ) | |
| Lenovo IdeaCentre AIO 3 24IAP7 (v4.10.07 ) | |
| HP Spectre x360 2-in-1 16-f1075ng (v4.10.07 ) | |
| Asus ExpertBook B5 Flip B5602FBN (v4.10.07 ) | |
| Average Intel Arc A350M (56 - 64, n=2) | |
| CPU | |
| Minisforum Venus Series UM690 (v4.10.07 ) | |
| HP Spectre x360 2-in-1 16-f1075ng (v4.10.07 ) | |
| Lenovo IdeaCentre AIO 3 24IAP7 (v4.10.07 ) | |
| Asus ExpertBook B5 Flip B5602FBN (v4.10.07 ) | |
| MSI Summit E16 Flip A12UDT-031 (v4.10.07 ) | |
| Average Intel Arc A350M (10932 - 11372, n=2) | |
| Average of class Convertible (617 - 18048, n=37, last 2 years) | |
* ... smaller is better
| The Witcher 3 - 1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off) | |
| MSI Summit E16 Flip A12UDT-031 | |
| Lenovo IdeaCentre AIO 3 24IAP7 | |
| Asus ExpertBook B5 Flip B5602FBN | |
| Minisforum Venus Series UM690 | |
| Average of class Convertible (16 - 155.3, n=47, last 2 years) | |
| Lenovo Yoga 7 16IAP7 | |
| HP Spectre x360 2-in-1 16-f1075ng | |
| GTA V - 1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x | |
| MSI Summit E16 Flip A12UDT-031 | |
| Lenovo IdeaCentre AIO 3 24IAP7 | |
| Minisforum Venus Series UM690 | |
| Asus ExpertBook B5 Flip B5602FBN | |
| Average of class Convertible (6.88 - 172.7, n=46, last 2 years) | |
| Lenovo Yoga 7 16IAP7 | |
| HP Spectre x360 2-in-1 16-f1075ng | |

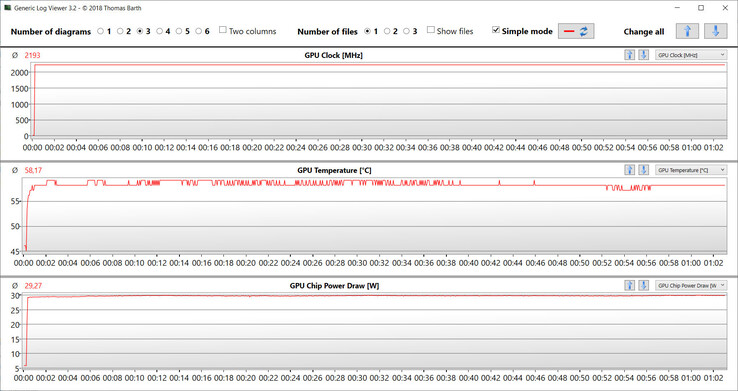

Witcher 3 FPS-Diagram
| low | med. | high | ultra | QHD | 4K | |
|---|---|---|---|---|---|---|
| GTA V (2015) | 170.7 | 156.3 | 38 | 15.2 | 10.1 | 11.1 |
| The Witcher 3 (2015) | 140.1 | 83.6 | 45 | 20.5 | 15.1 | |
| Dota 2 Reborn (2015) | 102.1 | 85.8 | 60.6 | 56.1 | ||
| Final Fantasy XV Benchmark (2018) | 64.8 | 33.2 | 18.2 | 13.6 | 7.33 | |
| X-Plane 11.11 (2018) | 43.9 | 32.2 | 27.9 | 19.6 | ||
| Far Cry 5 (2018) | 89 | 44 | 41 | 38 | 25 | 12 |
| Strange Brigade (2018) | 163.4 | 71.6 | 58.7 | 49.1 | 36.6 | 19.6 |
| The Division 2 (2019) | 92 | 46 | 37 | 27 | 17 | 7 |
| Doom Eternal (2020) | 113.4 | 55.6 | ||||
| Flight Simulator 2020 (2020) | 43.1 | |||||
| Assassin´s Creed Valhalla (2020) | 65 | 35 | 20 | 16 | 14 | |
| Back 4 Blood (2021) | 139.3 | 60.2 | 48.1 | 46 | 31 | 14.9 |
| Riders Republic (2021) | 60 | 32 | 25 | 21 | 12 | 7 |
| Forza Horizon 5 (2021) | 108 | 50 | 47 | 11 | 9 | 6 |
| Rainbow Six Extraction (2022) | 68 | 52 | 45 | 30 | 17 | 2.6 |
| Dying Light 2 (2022) | 26.7 | 21.9 | 17.8 | |||
| Vampire Bloodhunt (2022) | 80.6 | 64.7 | 54.9 | 49.9 | 30.6 | 10.8 |
| F1 22 (2022) | 52.1 | 51.4 | 35.5 | |||
| A Plague Tale Requiem (2022) | 29.9 | 24.3 | 20 | 13.1 | 6.4 | |
| Call of Duty Modern Warfare 2 2022 (2022) | 41 | 37 | 23 | 12 | 7 | 6 |
| Spider-Man Miles Morales (2022) | 41.5 | 33.2 | 25.4 | 20.4 | 14.7 | 7.22 |
| The Callisto Protocol (2022) | 42.1 | 28.3 | 12.3 | 13.9 | 8.3 | 3.1 |
| High On Life (2023) | 71.9 | 42.6 | 38.2 | 27.8 | 18.8 | 4.36 |
| The Witcher 3 v4.00 (2023) | 56.3 | 42.6 | 36.1 | 29.7 | 20.4 | |
| Hogwarts Legacy (2023) | 37.5 | 25 | 19.8 | 15.3 | 10.1 | 2.96 |
排放与能源--二合一笔记本具有良好的续航率
噪声排放
B5602FBN产生的噪音水平总体上是可以接受的。闲置和日常使用（办公室、互联网）往往是无声的。在满负荷的情况下（压力测试，Witcher 3 测试），声压级可以上升到53.6 dB (A) - 太高的数值。使用风扇配置文件 "耳语模式 "可以降低整体的噪音发展--以牺牲计算性能为代价。
Noise Level
| Idle |
| 27.5 / 27.5 / 28.3 dB(A) |
| Load |
| 40.7 / 53.6 dB(A) |
 | ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min:  , med:  , max:  Earthworks M23R, Arta (15 cm distance) environment noise: 27.5 dB(A) | ||
| Asus ExpertBook B5 Flip B5602FBN A350M, i7-1260P, WD PC SN735 SDBPNHH-1T00 | Lenovo Yoga 7 16IAP7 Iris Xe G7 96EUs, i7-1260P, Micron 2450 512GB MTFDKCD512TFK | HP Spectre x360 2-in-1 16-f1075ng Iris Xe G7 96EUs, i7-12700H, SK Hynix PC711 1TB HFS001TDE9X073N | MSI Summit E16 Flip A12UDT-031 GeForce RTX 3050 Ti Laptop GPU, i7-1280P, Samsung PM9A1 MZVL22T0HBLB | |
|---|---|---|---|---|
| Noise | 15% | 8% | 2% | |
| off / environment * | 27.5 | 23.6 14% | 26 5% | 25 9% |
| Idle Minimum * | 27.5 | 23.6 14% | 26 5% | 25 9% |
| Idle Average * | 27.5 | 23.6 14% | 26 5% | 25 9% |
| Idle Maximum * | 28.3 | 23.6 17% | 26 8% | 28.9 -2% |
| Load Average * | 40.7 | 37.7 7% | 42.9 -5% | 49.3 -21% |
| Load Maximum * | 53.6 | 40.2 25% | 39.1 27% | 48.2 10% |
| Witcher 3 ultra * | 40 | 42.9 |
* ... smaller is better

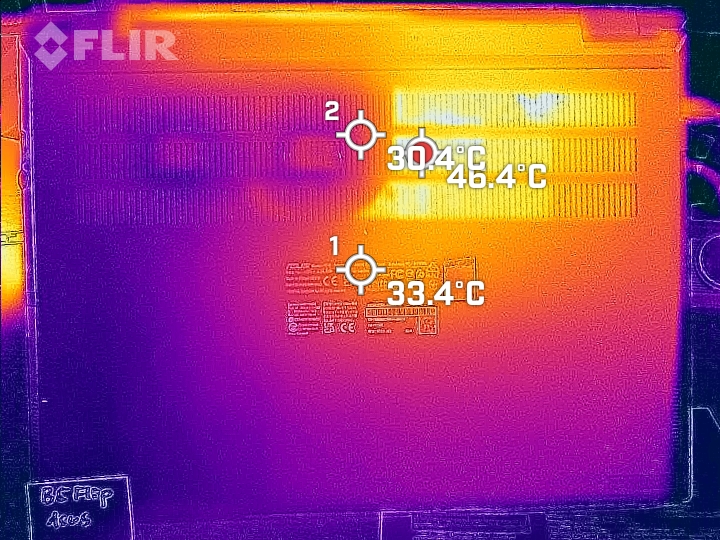

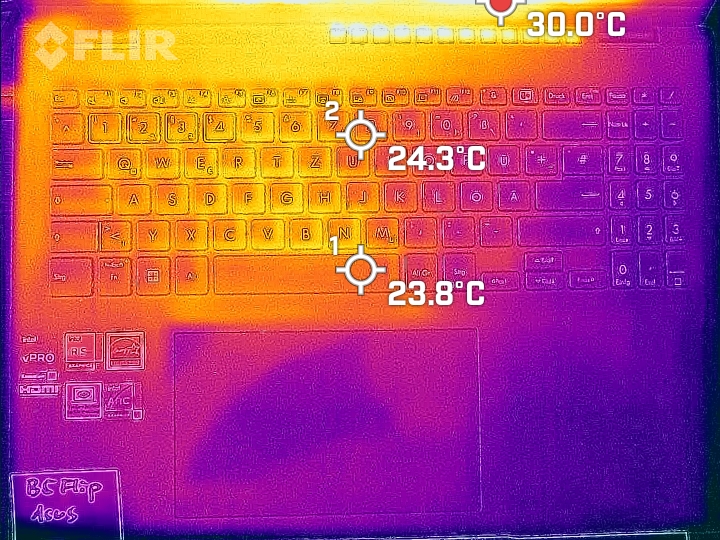

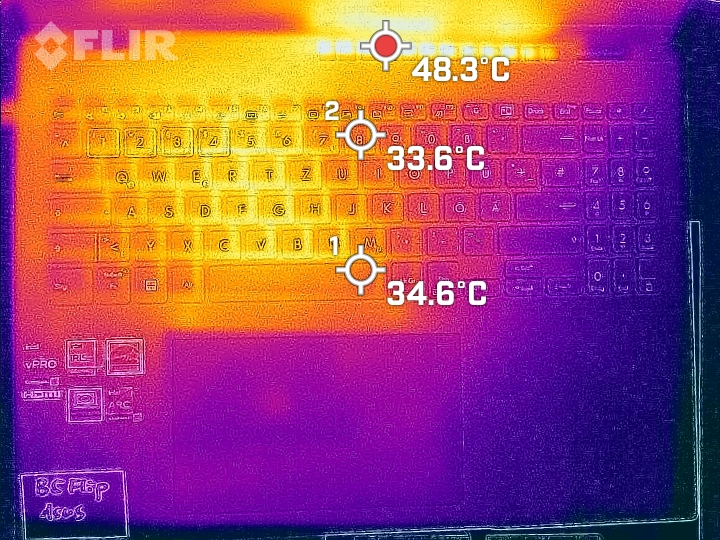

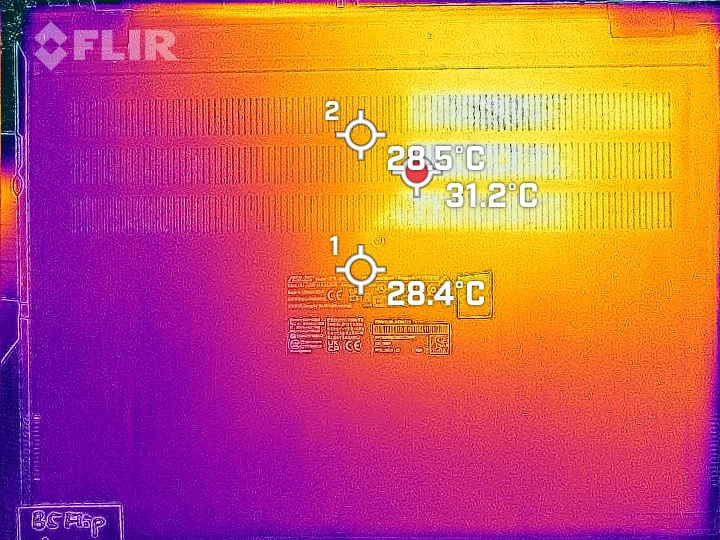

温度
风扇在整个负载范围内确保低至适度的温度。最高值（40至44 °C/104至111.2 F°）在测试期间达到 Witcher 3在三个测量点上达到最高值（40至44 °C/104至111.2 F°）。

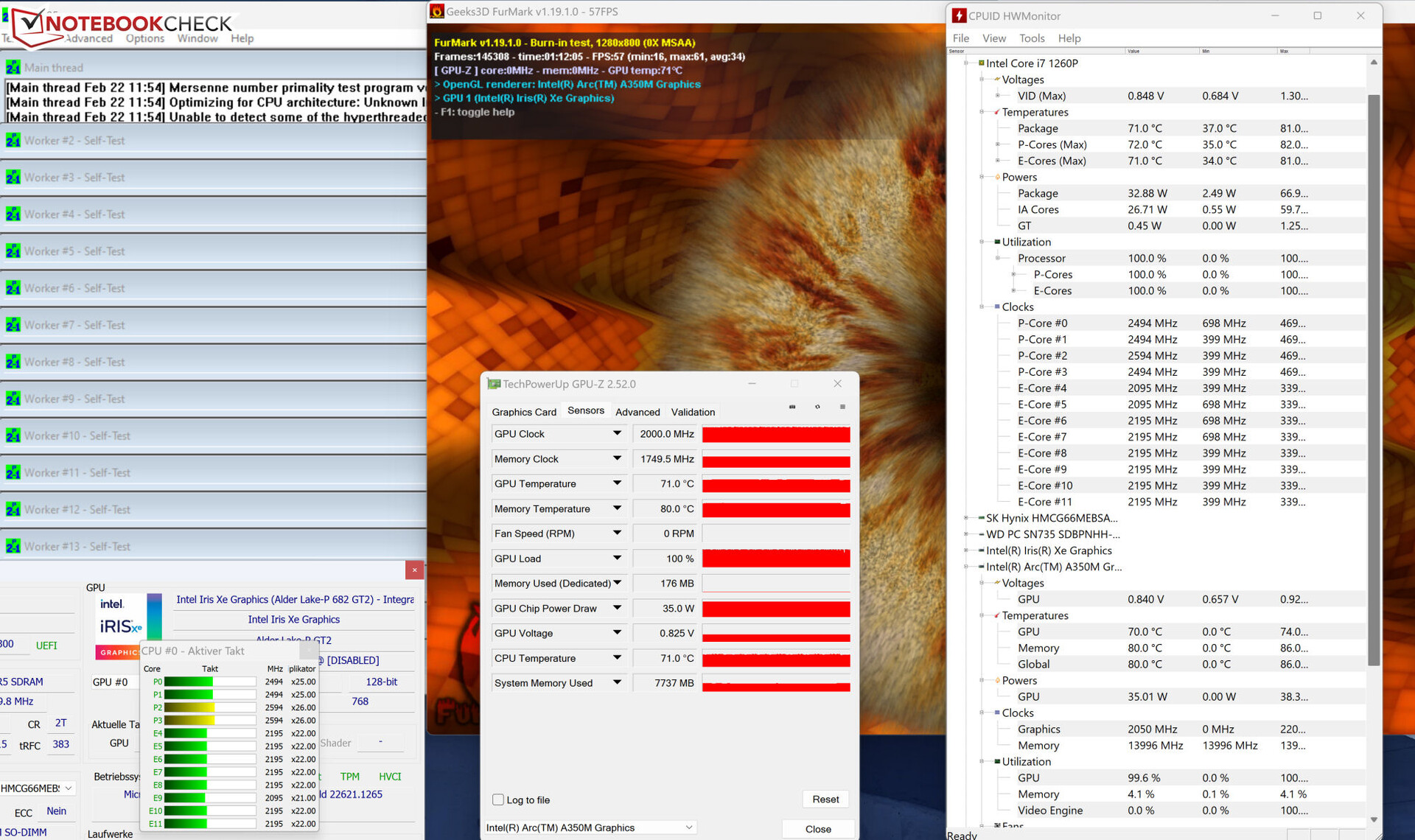

压力测试（Prime95和FurMark连续运行）是一个极端的场景，用于测试全负荷下的系统稳定性。CPU时钟保持在中等水平（P：2.5至2.6GHz；E：2至2.2GHz），GPU几乎以全功率工作（2至2.2GHz）。在这之间，CPU和GPU时不时地会短暂减速。
(+) The maximum temperature on the upper side is 37.9 °C / 100 F, compared to the average of 35.3 °C / 96 F, ranging from 19.6 to 60 °C for the class Convertible.
(+) The bottom heats up to a maximum of 39.4 °C / 103 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 26.4 °C / 80 F, compared to the device average of 30.3 °C / 87 F.
(+) Playing The Witcher 3, the average temperature for the upper side is 31.9 °C / 89 F, compared to the device average of 30.3 °C / 87 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 30 °C / 86 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 28.1 °C / 82.6 F (-1.9 °C / -3.4 F).
| Asus ExpertBook B5 Flip B5602FBN Intel Core i7-1260P, Intel Arc A350M | Lenovo Yoga 7 16IAP7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs | HP Spectre x360 2-in-1 16-f1075ng Intel Core i7-12700H, Intel Iris Xe Graphics G7 96EUs | MSI Summit E16 Flip A12UDT-031 Intel Core i7-1280P, NVIDIA GeForce RTX 3050 Ti Laptop GPU | |
|---|---|---|---|---|
| Heat | 16% | 5% | -16% | |
| Maximum Upper Side * | 37.9 | 39 -3% | 37.4 1% | 49.2 -30% |
| Maximum Bottom * | 39.4 | 34.2 13% | 39.1 1% | 50.2 -27% |
| Idle Upper Side * | 28.8 | 21.2 26% | 27.1 6% | 29.4 -2% |
| Idle Bottom * | 29.1 | 21.6 26% | 26.3 10% | 30 -3% |
* ... smaller is better
演讲者
立体声扬声器产生了体面的声音，但几乎没有任何低音。
Asus ExpertBook B5 Flip B5602FBN audio analysis
(+) | speakers can play relatively loud (86.6 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 25.1% lower than median
(±) | linearity of bass is average (12.5% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 6.3% higher than median
(±) | linearity of mids is average (7.4% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 5.6% higher than median
(+) | highs are linear (5.4% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (20.2% difference to median)
Compared to same class
» 49% of all tested devices in this class were better, 7% similar, 44% worse
» The best had a delta of 6%, average was 21%, worst was 57%
Compared to all devices tested
» 49% of all tested devices were better, 8% similar, 43% worse
» The best had a delta of 4%, average was 25%, worst was 134%
MSI Summit E16 Flip A12UDT-031 audio analysis
(±) | speaker loudness is average but good (79.8 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 23.6% lower than median
(-) | bass is not linear (15.1% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 5.6% higher than median
(±) | linearity of mids is average (7.4% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 5.6% higher than median
(+) | highs are linear (4.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (22.6% difference to median)
Compared to same class
» 66% of all tested devices in this class were better, 5% similar, 29% worse
» The best had a delta of 6%, average was 21%, worst was 57%
Compared to all devices tested
» 63% of all tested devices were better, 6% similar, 31% worse
» The best had a delta of 4%, average was 25%, worst was 134%
能源消耗
对于安装在这里的硬件来说，功耗是在预期的水平上。压力测试和Witcher 3 测试是以恒定的能耗运行的。附带的电源（90瓦）的大小足够了。
| Off / Standby | 0.35 / 6.3 Watt |
| Idle | 6.5 / 7.6 / 9.8 Watt |
| Load |
85 / 91 Watt |

| |
Key:
min: ,
med: ,
max: Metrahit Energy | |
Energy conosumption Witcher 3 / Stress test
Energy consumption with external Monitor
电池寿命
在实际的WLAN测试中，16英寸机达到了8:08小时的运行时间（通过脚本调用网站时的负载映射）--对于一台4k笔记本电脑来说，这是一个很好的速度。在比较领域内，只有 Spectre提供了更高的耐力。
Pros
Cons
结论 - 一个令人信服的商业伙伴
这款二合一笔记本电脑的旗舰产品是一个明亮、高对比度的OLED触摸屏（16英寸，4k，100% sRGB），采用适合工作的16：10格式。它的哑光表面以及附带的主动式手写笔（在外壳中）应该得到积极的强调。
华硕通过ExpertBook B5 Flip OLED提供了一个全面的商务敞篷车，并略微侧重于创意领域。
一个专门的英特尔Arc-A350M图形核心为屏幕提供内容。该GPU允许在中高设置下进行游戏，但主要是以其他优势来得分。雷电追踪核心、高OpenCL性能和AV1编解码器支持（去掉和编码）。
酷睿i7-1260P处理器可以用大量的计算能力来缓冲短期的负载高峰，但在长期的负载下不得不放慢速度--这不适用于GPU。计算机在负载下仅会适度升温，但在峰值负载下会产生相对较高的噪音。
并不缺乏耐力。一次电池充电足以让WLAN运行约8小时--这是一个很好的速率。这台电脑由一个USB-C电源适配器供电，可以插入两个Thunderbolt 4端口（Power Deliver，Displayport）。
B5的替代品将是 HP Spectre x360 16和 MSI Summit E16 Flip它们也都配备了16:10格式的16英寸触摸屏。惠普可折叠机提供更好的电池运行时间，但没有配备专用的GPU。微星的机器提供了明显更多的GPU性能，这得益于RTX-3050GPU，但在电池运行时间方面处于不利地位。
价格和可用性
华硕ExpertBook B5 Flip OLED在测试配置中的价格约为2,060欧元（约2,060美元），来自Easynotebooks.de。.
Asus ExpertBook B5 Flip B5602FBN
- 02/27/2023 v7 (old)
Sascha Mölck
Transparency
The selection of devices to be reviewed is made by our editorial team. The test sample was provided to the author as a loan by the manufacturer or retailer for the purpose of this review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.
This is how Notebookcheck is testing
Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.
Price comparison
