GMK NucBox K3 Pro 迷你电脑评测:NucBox K2 更出色

经典的 AMD 对英特尔。

NucBox K3 Pro 是 NucBox K2 的 AMD 替代产品,机箱设计相同,但内部结构不同。NucBox K3 Pro 的型号名称听起来更新、更快,但在性能方面显然不如 NucBox K2。
Mini PC Alder Lake Desktop

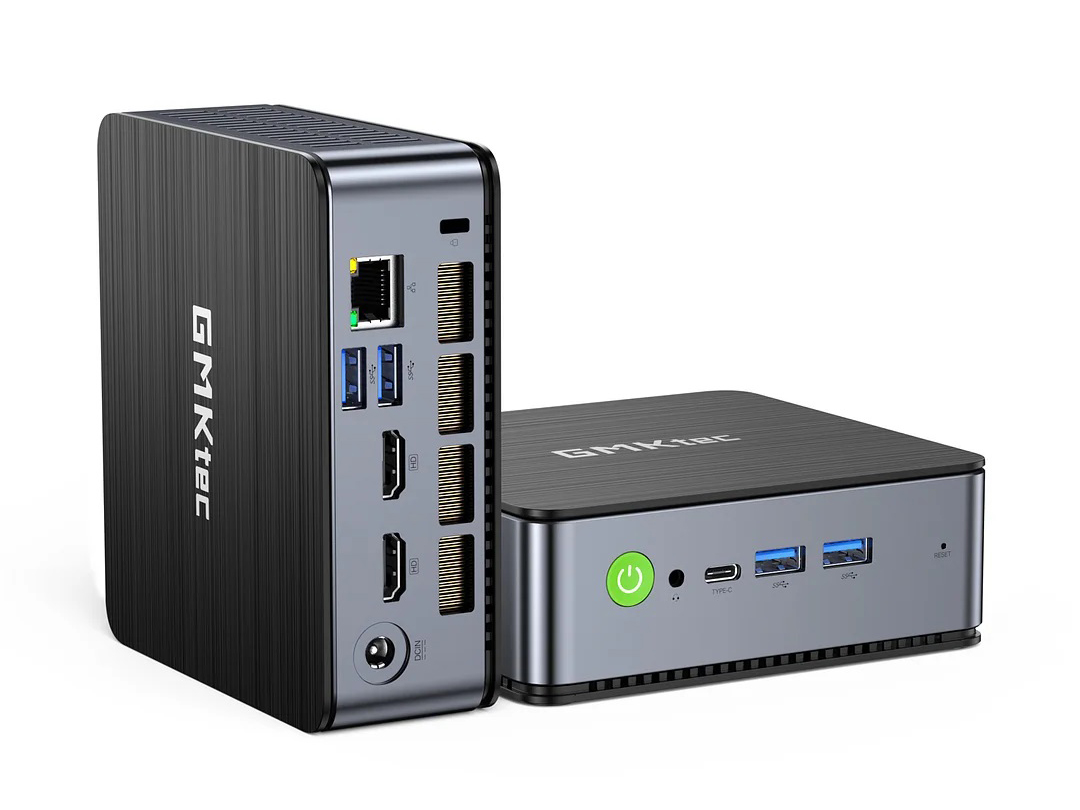

GMK NucBox K3 Pro
GMK NucBox K3 Pro

NucBox K3 Pro 迷你电脑是基于 AMD 的 NucBox K2 的英特尔版本。后者配备的是 Ryzen 7 Zen 3+ HS 系列 CPU,而我们的 NucBox K3 Pro 配备的是第 12 代酷睿 i7-12650U。两款机型在外观上完全相同,但有一些内部差异,我们将在评测中予以说明。我们建议查看我们对 NucBox K2 的评测 ,因为我们对其端口和物理特性的所有现有评论也适用于 NucBox K3 Pro。

NucBox K3 Pro 的替代产品包括其他集成显卡的迷你 PC,如Lenovo IdeaCentre Mini 01IRH8,Intel NUC 13, 或Beelink SEi12

更多 GMKtec 评论:

GMK NucBox K3 Pro
Processor
Intel Core i7-12650H 10 x 1.7 - 4.7 GHz, Alder Lake-H
Graphics adapter
Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Core: 1400 MHz, RAM: 2400 MHz, 52 W TDP ( including 35 W Dynamic Boost), LPDDR5, 31.0.101.4575
Memory
24 GB
, LPDDR5, 2400 MHz, Dual-Channel, Soldered
Mainboard
Intel Alder Lake-P PCH
Storage
Lexar NM610 Pro NM610P001T-HNNNG, 1024 GB
Soundcard
Intel Alder Lake-P PCH - cAVS (Audio, Voice, Speech)
Connections
2 USB 2.0, 2 USB 3.0 / 3.1 Gen1, 1 USB 4.0 40 Gbps, 1 Thunderbolt, 2 HDMI, 1 DisplayPort, 1 Kensington Lock, Audio Connections: 3.5 mm headset
Networking
Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit/s), Intel Wi-Fi 6 AX201 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/), Bluetooth 5.2
Size
height x width x depth (in mm): 43.2 x 123 x 112
Operating System
Microsoft Windows 11 Pro
Additional features
Keyboard Light: no, Mounting bravket with screws, AC power adapter, USB-C to USB-C cable, 12 Months Warranty

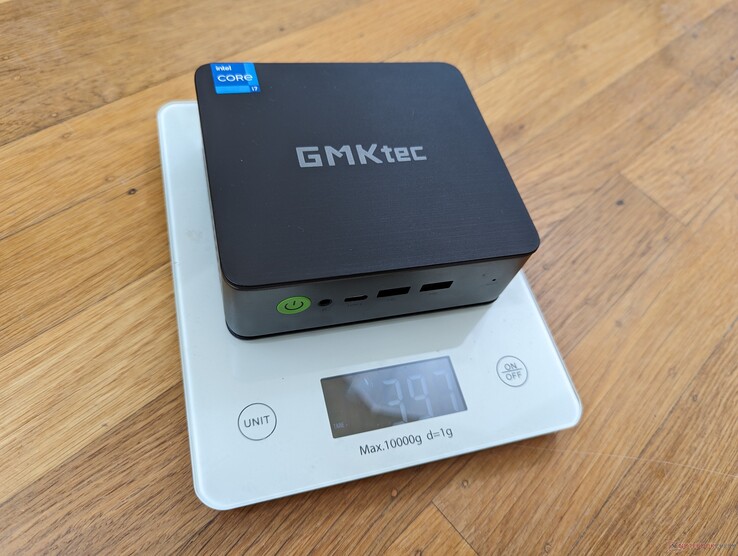

Weight
396 g, Power Supply: 516 g
Price
460 USD
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



潜在的竞争对手比较

Rating
Date
Model
Weight
Height
Size
Resolution
Price
82.8 %
v7 (old)
10 / 2023
GMK NucBox K3 Pro
i7-12650H, UHD Graphics 64EUs
396 g43.2 mmx
83 %
v7 (old)
09 / 2023
GMK NucBox K2
R7 7735HS, Radeon 680M
440 g43.2 mmx

v (old)
12 / 2022
Beelink SEi12 Core i5-1235U
i5-1235U, Iris Xe G7 80EUs
465 g42 mmx
86.3 %
v7 (old)
07 / 2023
Beelink GTR7 7840HS
R7 7840HS, Radeon 780M
890 g48.8 mmx
83.1 %
v7 (old)
08 / 2023
Intel NUC 13 Pro Desk Edition Kit
i7-1360P, Iris Xe G7 96EUs
558 g37 mmx
81 %
v7 (old)
09 / 2023
Lenovo IdeaCentre Mini 01IRH8
i7-13700H, Iris Xe G7 96EUs
1.8 kg39 mmx

尺寸比较

168 mm 120 mm 48.8 mm 890 g126 mm 113 mm 42 mm 465 g123 mm 112 mm 43.2 mm 396 g123 mm 112 mm 43.2 mm 440 g117 mm 112 mm 37 mm 558 g210 mm 148 mm 1 mm 2.9 g

交流

为了节省成本,该系统可能不包括 Wi-Fi 6E。

与 NucBox K2 不同,无线局域网模块不可拆卸
与 NucBox K2 不同,无线局域网模块不可拆卸
Networking
iperf3 transmit AXE11000
Beelink SEi12 Core i5-1235U
Intel Wi-Fi 6 AX201
1491 (1413min - 1572max) MBit/s +27%
Intel NUC 13 Pro Desk Edition Kit
Intel Wi-Fi 6E AX211
1301 (514min - 1422max) MBit/s +11%
GMK NucBox K3 Pro
Intel Wi-Fi 6 AX201
1171 (923min - 1342max) MBit/s
Beelink GTR7 7840HS
Intel Wi-Fi 6 AX200
1031 (961min - 1109max) MBit/s -12%
GMK NucBox K2
MediaTek RZ608
864 (682min - 951max) MBit/s -26%
Lenovo IdeaCentre Mini 01IRH8
Realtek RTL8852BE
803 (713min - 847max) MBit/s -31%
iperf3 receive AXE11000
Beelink SEi12 Core i5-1235U
Intel Wi-Fi 6 AX201
1384 (1200min - 1495max) MBit/s +7%
GMK NucBox K3 Pro
Intel Wi-Fi 6 AX201
1297 (1164min - 1393max) MBit/s
Beelink GTR7 7840HS
Intel Wi-Fi 6 AX200
1211 (1112min - 1284max) MBit/s -7%
Intel NUC 13 Pro Desk Edition Kit
Intel Wi-Fi 6E AX211
1117 (884min - 1368max) MBit/s -14%
GMK NucBox K2
MediaTek RZ608
865 (443min - 893max) MBit/s -33%
Lenovo IdeaCentre Mini 01IRH8
Realtek RTL8852BE
801 (656min - 887max) MBit/s -38%
iperf3 transmit AXE11000 6GHz
Intel NUC 13 Pro Desk Edition Kit
Intel Wi-Fi 6E AX211
1511 (1451min - 1552max) MBit/s
GMK NucBox K2
MediaTek RZ608
764 (524min - 875max) MBit/s
iperf3 receive AXE11000 6GHz
Intel NUC 13 Pro Desk Edition Kit
Intel Wi-Fi 6E AX211
1448 (1357min - 1490max) MBit/s
GMK NucBox K2
MediaTek RZ608
739 (709min - 762max) MBit/s
05010015020025030035040045050055060065070075080085090095010001050110011501200125013001350Tooltip
GMK NucBox K3 Pro; iperf3 transmit AXE11000; iperf 3.1.3: Ø1171 (923-1342)
GMK NucBox K3 Pro; iperf3 receive AXE11000; iperf 3.1.3: Ø1296 (1164-1393)

维护

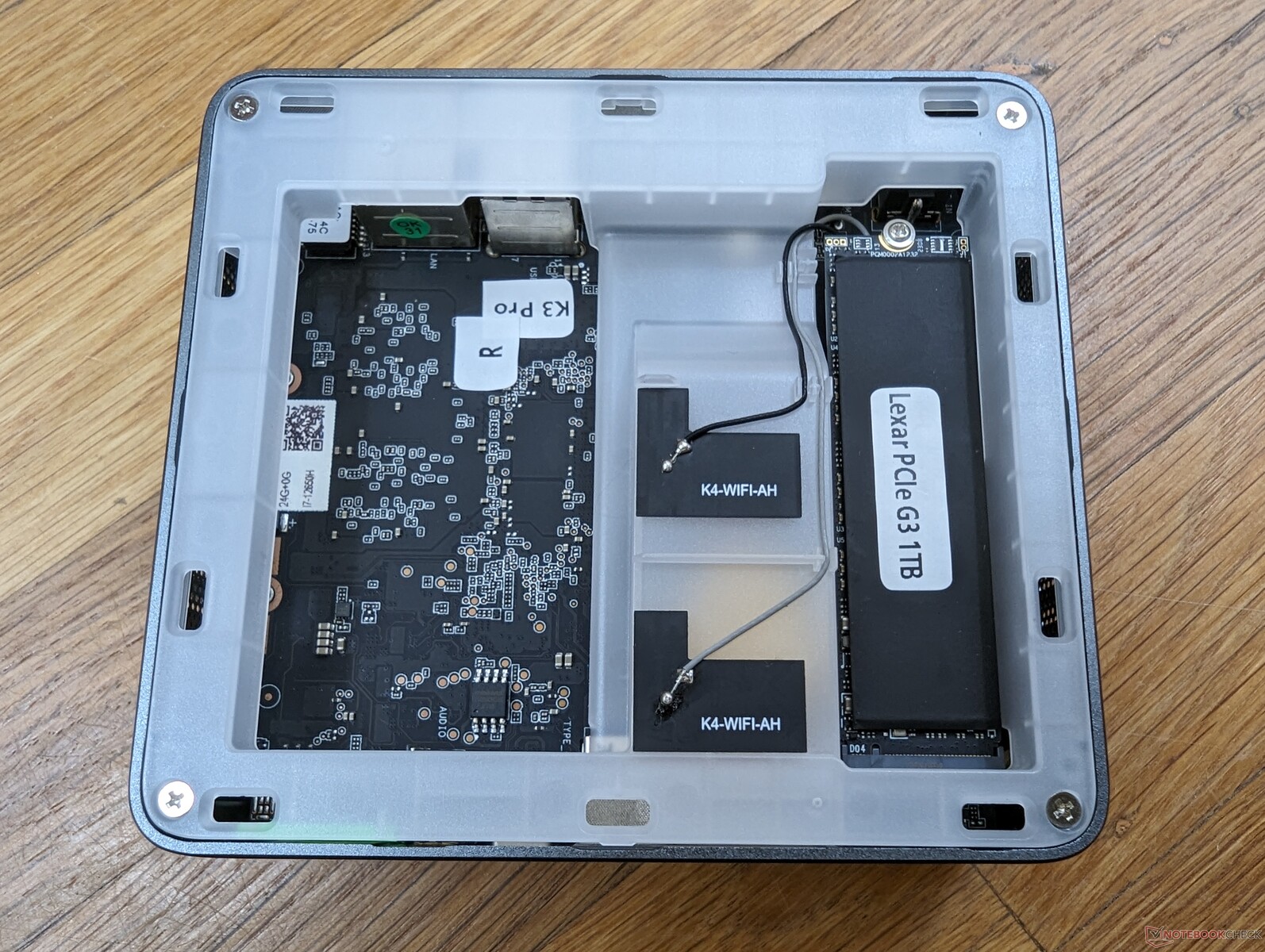

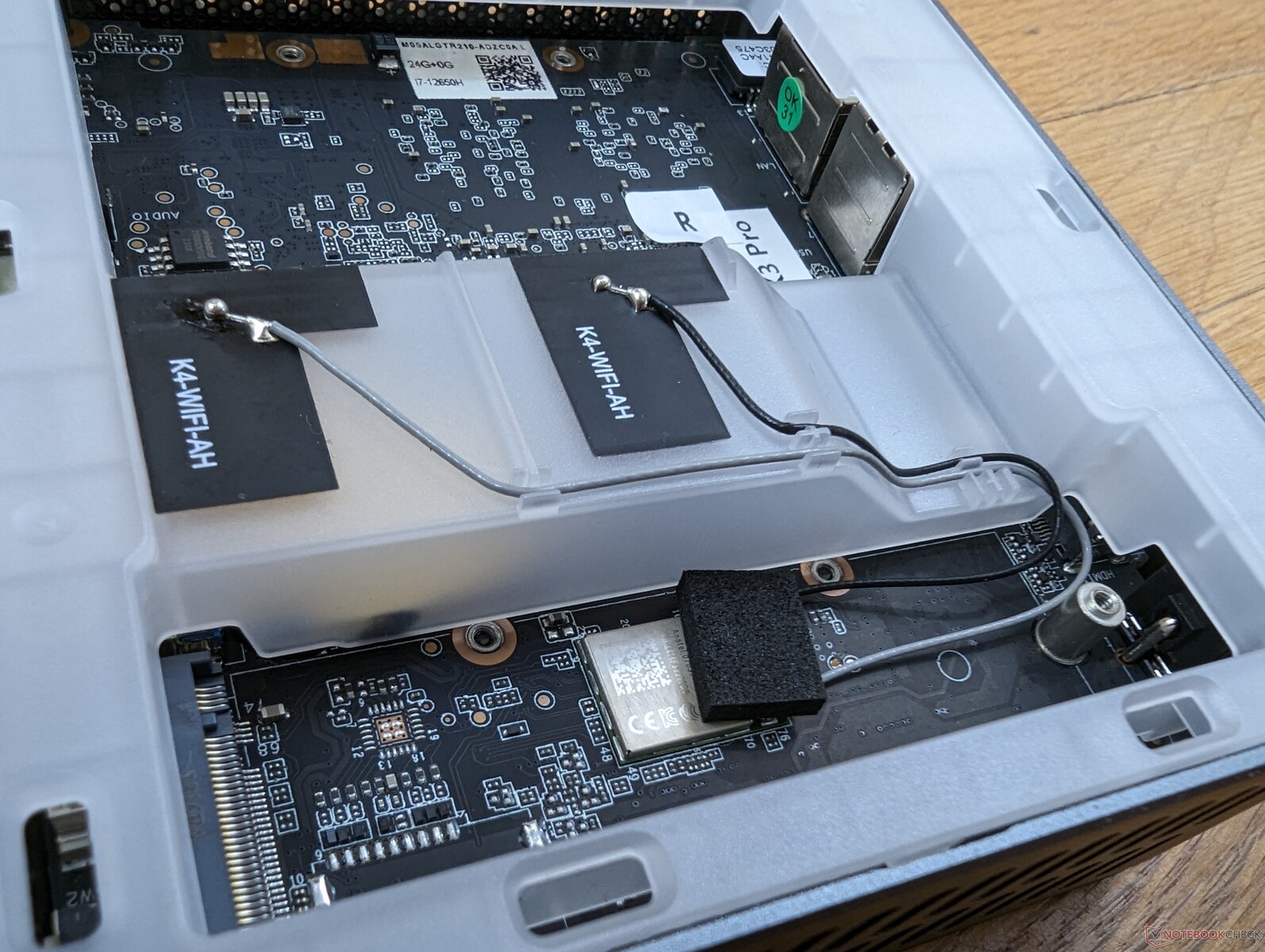

弹开顶部面板,可以看到单个 M.2 PCIe SSD 插槽。请注意,如下图所示,与 NucBox K2 相比,缺少了 SODIMM 插槽。

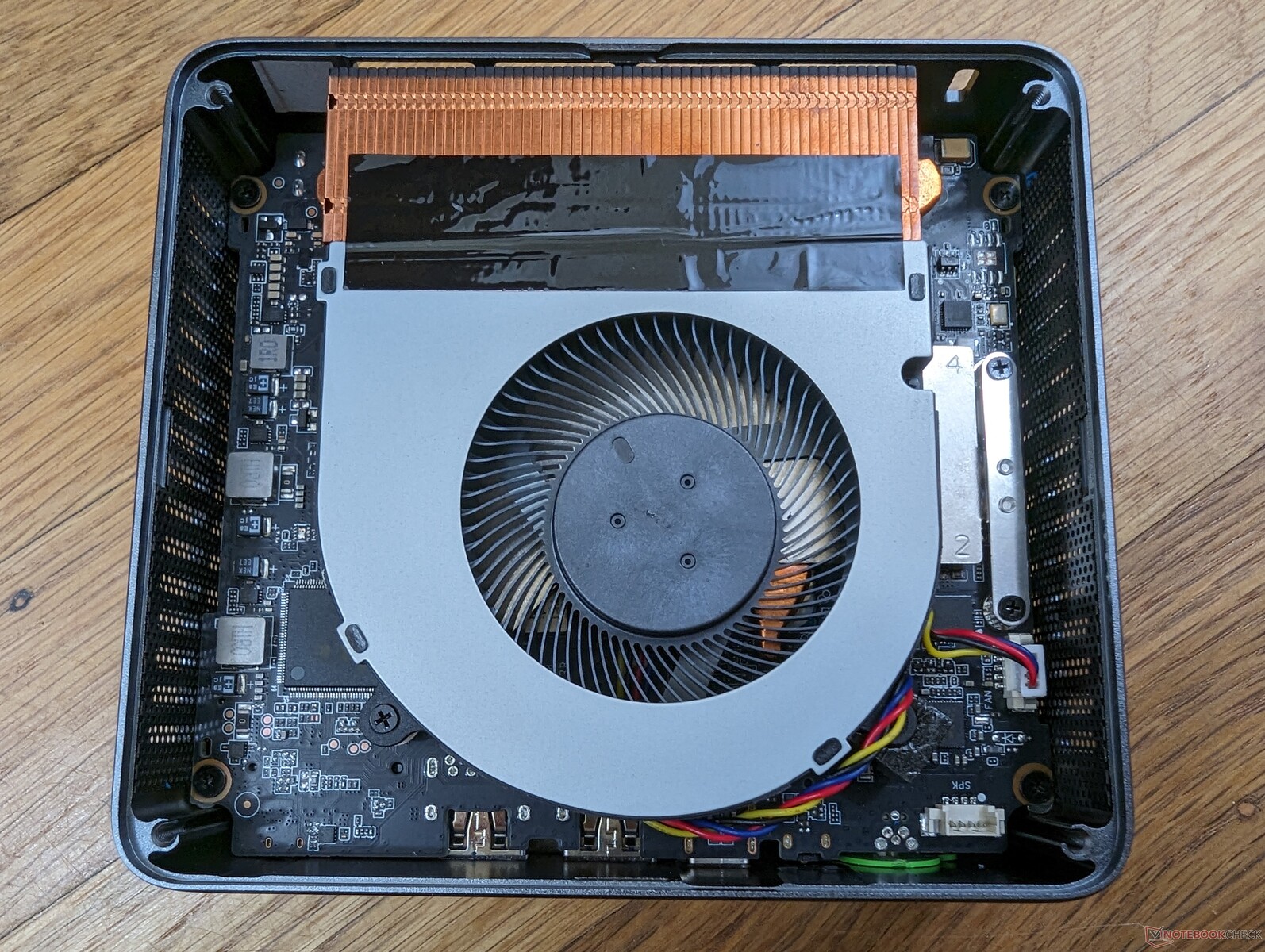

NucBox K3 Pro
NucBox K3 Pro

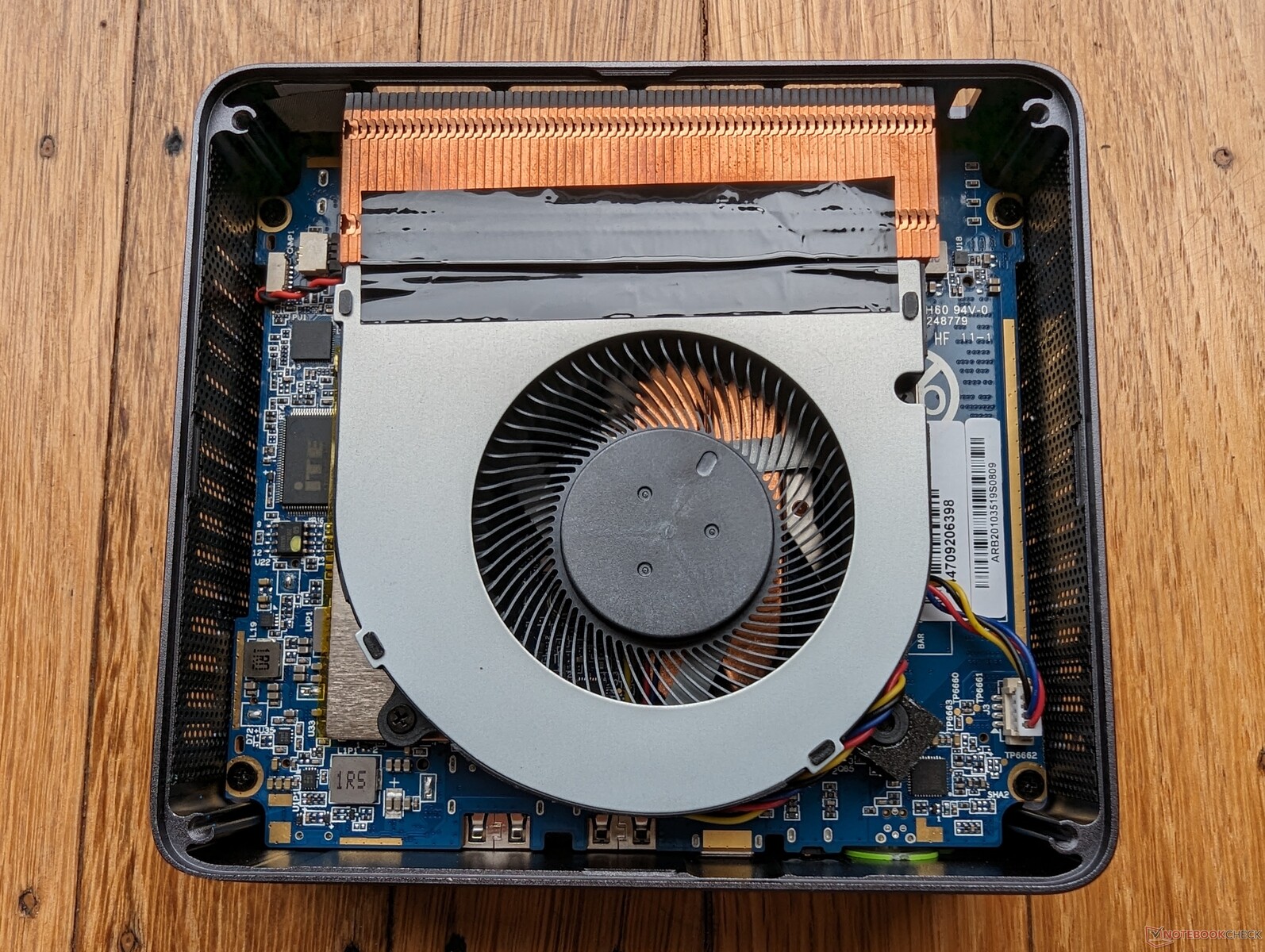

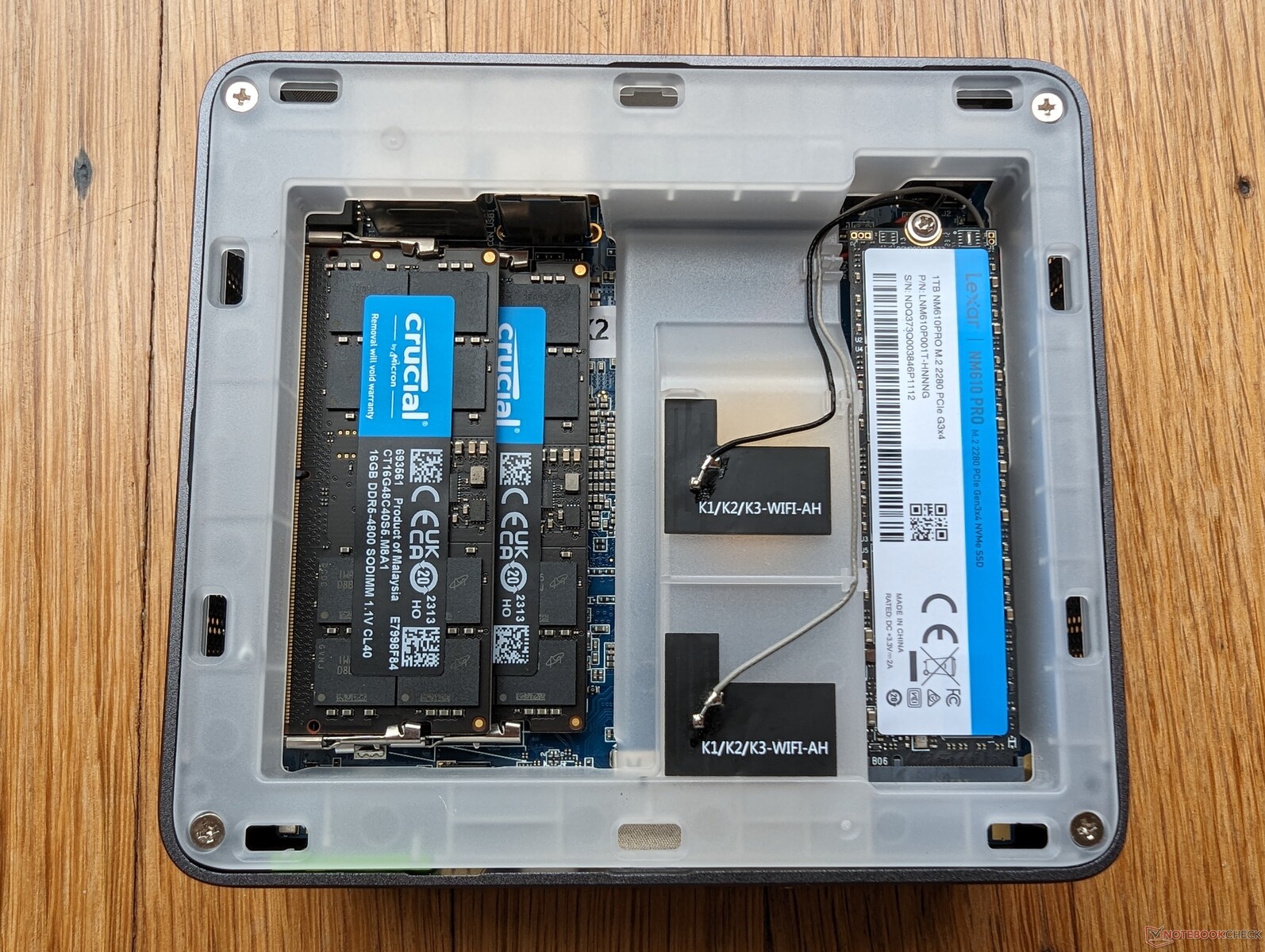

NucBox K2 比较
NucBox K2 比较

配件和保修

零售包装盒包括可拆卸的 VESA 安装支架、交流适配器、HDMI 线缆、文件,甚至还有一个红色塑料顶盖,供不喜欢默认灰色顶盖的用户使用。

如果在美国购买,制造商提供一年有限保修。

性能

测试条件

在运行以下基准测试之前,我们将 Windows 设置为性能模式。

处理器

酷睿 i7-12650H 酷睿 i7-12650H不如 酷睿 i7-12700H.由于 i7-12650H 的内核和线程数量较少,因此多线程性能比 i7-12700H 慢 35%。这一显著差距足以让 i7-12650H 与竞争对手 Ryzen 7 7735HSNucBox K2 中的竞争对手 Ryzen 7735HS。

在我们的 CineBench R15 xT 循环测试中,CPU 性能也会下降约 17%,而 NucBox K2 中的 AMD CPU 在时钟频率方面的表现则更为稳定。

Cinebench R15 Multi Loop

0135270405540675810945108012151350148516201755189020252160229524302565Tooltip
GMK NucBox K3 Pro Intel Core i7-12650H: Ø1420 (1391.69-1691.83)
GMK NucBox K2 AMD Ryzen 7 7735HS: Ø1907 (1875.64-1972)
Beelink SEi12 Core i5-1235U Intel Core i5-1235U: Ø1219 (1203.04-1409.15)
Beelink GTR7 7840HS AMD Ryzen 7 7840HS: Ø2669 (2587.99-2689.08)
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P: Ø1753 (1686.77-2083.33)
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H: Ø1926 (1862.02-2240.14)
CPU Performance Rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
CPU Performance Rating
Beelink GTR7 7840HS
AMD Ryzen 7 7840HS
82.7 pt
Intel NUC X15 LAPAC71H
Intel Core i7-12700H
81.2 pt
Lenovo IdeaCentre Mini 01IRH8
Intel Core i7-13700H
78.8 pt
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P
74.1 pt
Minisforum Venus Series NPB5
Intel Core i5-13500H
73.8 pt
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P
72.1 pt
Average Intel Core i7-12650H

67.9 pt
GMK NucBox K2
AMD Ryzen 7 7735HS
67.8 pt
GMK NucBox K3 Pro
Intel Core i7-12650H
67.2 pt
Acemagic AM20
AMD Ryzen 7 7735H
64.9 pt
Acemagic AD15
Intel Core i7-11800H
59.4 pt
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U
55.7 pt
BMAX B7 Power G7A2
Intel Core i7-11390H
39.9 pt
Cinebench R23 / Multi Core
Beelink GTR7 7840HS
AMD Ryzen 7 7840HS
17214 (17017.5min - 17213.9max) Points +61%
Intel NUC X15 LAPAC71H
Intel Core i7-12700H
16338 Points +53%
Lenovo IdeaCentre Mini 01IRH8
Intel Core i7-13700H
14465 (9293.64min - 14465.4max) Points +35%
Minisforum Venus Series NPB5
Intel Core i5-13500H
13542 Points +27%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P
12637 Points +18%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P
12155 Points +14%
GMK NucBox K2
AMD Ryzen 7 7735HS
11584 (11082.5min - 11584.2max) Points +8%
Average Intel Core i7-12650H
  (5362 - 15537, n=14)
11525 Points +8%
Acemagic AM20
AMD Ryzen 7 7735H
10920 Points +2%
GMK NucBox K3 Pro
Intel Core i7-12650H
10691 (9260.68min - 10691.5max) Points
Acemagic AD15
Intel Core i7-11800H
9503 Points -11%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U
8128 (7685.59min - 8128.32max) Points -24%
BMAX B7 Power G7A2
Intel Core i7-11390H
4570 Points -57%
Cinebench R23 / Single Core
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P
1909 Points +7%
Lenovo IdeaCentre Mini 01IRH8
Intel Core i7-13700H
1898 Points +6%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P
1878 Points +5%
Beelink GTR7 7840HS
AMD Ryzen 7 7840HS
1812 Points +1%
GMK NucBox K3 Pro
Intel Core i7-12650H
1792 Points
Intel NUC X15 LAPAC71H
Intel Core i7-12700H
1789 Points 0%
Minisforum Venus Series NPB5
Intel Core i5-13500H
1775 Points -1%
Average Intel Core i7-12650H
  (1428 - 1808, n=14)
1722 Points -4%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U
1610 Points -10%
Acemagic AM20
AMD Ryzen 7 7735H
1536 Points -14%
GMK NucBox K2
AMD Ryzen 7 7735HS
1499 Points -16%
Acemagic AD15
Intel Core i7-11800H
1496 Points -17%
BMAX B7 Power G7A2
Intel Core i7-11390H
1407 Points -21%
Cinebench R20 / CPU (Multi Core)
Beelink GTR7 7840HS
AMD Ryzen 7 7840HS
6744 Points +66%
Intel NUC X15 LAPAC71H
Intel Core i7-12700H
6338 Points +56%
Lenovo IdeaCentre Mini 01IRH8
Intel Core i7-13700H
5800 Points +43%
Minisforum Venus Series NPB5
Intel Core i5-13500H
5108 Points +26%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P
4887 Points +20%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P
4687 Points +16%
GMK NucBox K2
AMD Ryzen 7 7735HS
4533 Points +12%
Average Intel Core i7-12650H
  (2106 - 6009, n=14)
4459 Points +10%
Acemagic AM20
AMD Ryzen 7 7735H
4354 Points +7%
GMK NucBox K3 Pro
Intel Core i7-12650H
4058 Points
Acemagic AD15
Intel Core i7-11800H
3779 Points -7%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U
3111 Points -23%
BMAX B7 Power G7A2
Intel Core i7-11390H
1767 Points -56%
Cinebench R20 / CPU (Single Core)
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P
736 Points +7%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P
723 Points +5%
Lenovo IdeaCentre Mini 01IRH8
Intel Core i7-13700H
721 Points +4%
Beelink GTR7 7840HS
AMD Ryzen 7 7840HS
705 Points +2%
GMK NucBox K3 Pro
Intel Core i7-12650H
691 Points
Minisforum Venus Series NPB5
Intel Core i5-13500H
687 Points -1%
Intel NUC X15 LAPAC71H
Intel Core i7-12700H
687 Points -1%
Average Intel Core i7-12650H
  (552 - 696, n=14)
664 Points -4%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U
620 Points -10%
Acemagic AM20
AMD Ryzen 7 7735H
601 Points -13%
GMK NucBox K2
AMD Ryzen 7 7735HS
591 Points -14%
Acemagic AD15
Intel Core i7-11800H
574 Points -17%
BMAX B7 Power G7A2
Intel Core i7-11390H
550 Points -20%
Cinebench R15 / CPU Multi 64Bit
Beelink GTR7 7840HS
AMD Ryzen 7 7840HS
2689 (2587.99min - 2689.08max) Points +59%
Intel NUC X15 LAPAC71H
Intel Core i7-12700H
2506 Points +48%
Minisforum Venus Series NPB5
Intel Core i5-13500H
2304 Points +36%
Lenovo IdeaCentre Mini 01IRH8
Intel Core i7-13700H
2240 (1862.02min - 2240.14max) Points +32%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P
2030 Points +20%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P
1990 Points +18%
GMK NucBox K2
AMD Ryzen 7 7735HS
1972 (1875.64min - 1972max) Points +17%
Acemagic AM20
AMD Ryzen 7 7735H
1825 Points +8%
Average Intel Core i7-12650H
  (753 - 2253, n=14)
1770 Points +5%
GMK NucBox K3 Pro
Intel Core i7-12650H
1692 (1391.69min - 1691.83max) Points
Acemagic AD15
Intel Core i7-11800H
1591 Points -6%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U
1409 (1203.04min - 1409.15max) Points -17%
BMAX B7 Power G7A2
Intel Core i7-11390H
775 (685.89min - 775.39max) Points -54%
Cinebench R15 / CPU Single 64Bit
Beelink GTR7 7840HS
AMD Ryzen 7 7840HS
286 Points +12%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P
271 Points +6%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P
267 Points +4%
Lenovo IdeaCentre Mini 01IRH8
Intel Core i7-13700H
260 Points +2%
Intel NUC X15 LAPAC71H
Intel Core i7-12700H
257 Points 0%
GMK NucBox K3 Pro
Intel Core i7-12650H
256 Points
Minisforum Venus Series NPB5
Intel Core i5-13500H
255 Points 0%
Acemagic AM20
AMD Ryzen 7 7735H
246 Points -4%
Average Intel Core i7-12650H
  (206 - 261, n=14)
245 Points -4%
GMK NucBox K2
AMD Ryzen 7 7735HS
244 Points -5%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U
231 Points -10%
Acemagic AD15
Intel Core i7-11800H
226 Points -12%
BMAX B7 Power G7A2
Intel Core i7-11390H
209 Points -18%
Blender / v2.79 BMW27 CPU
BMAX B7 Power G7A2
Intel Core i7-11390H
665 Seconds * -102%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U
390 Seconds * -18%
GMK NucBox K3 Pro
Intel Core i7-12650H
330 Seconds *
Acemagic AD15
Intel Core i7-11800H
319 Seconds * +3%
Average Intel Core i7-12650H
  (222 - 553, n=15)
300 Seconds * +9%
Acemagic AM20
AMD Ryzen 7 7735H
280 Seconds * +15%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P
275 Seconds * +17%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P
268 Seconds * +19%
Minisforum Venus Series NPB5
Intel Core i5-13500H
260 Seconds * +21%
GMK NucBox K2
AMD Ryzen 7 7735HS
259 Seconds * +22%
Intel NUC X15 LAPAC71H
Intel Core i7-12700H
235 Seconds * +29%
Beelink GTR7 7840HS
AMD Ryzen 7 7840HS
229 Seconds * +31%
Lenovo IdeaCentre Mini 01IRH8
Intel Core i7-13700H
216 Seconds * +35%
7-Zip 18.03 / 7z b 4
Beelink GTR7 7840HS
AMD Ryzen 7 7840HS
65706 MIPS +53%
Intel NUC X15 LAPAC71H
Intel Core i7-12700H
61768 MIPS +44%
GMK NucBox K2
AMD Ryzen 7 7735HS
57785 MIPS +34%
Lenovo IdeaCentre Mini 01IRH8
Intel Core i7-13700H
54733 MIPS +27%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P
52959 MIPS +23%
Minisforum Venus Series NPB5
Intel Core i5-13500H
52630 MIPS +22%
Acemagic AM20
AMD Ryzen 7 7735H
52518 MIPS +22%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P
51340 MIPS +19%
Average Intel Core i7-12650H
  (27053 - 59034, n=14)
46612 MIPS +8%
Acemagic AD15
Intel Core i7-11800H
43146 MIPS 0%
GMK NucBox K3 Pro
Intel Core i7-12650H
43031 MIPS
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U
35580 MIPS -17%
BMAX B7 Power G7A2
Intel Core i7-11390H
20822 MIPS -52%
7-Zip 18.03 / 7z b 4 -mmt1
Beelink GTR7 7840HS
AMD Ryzen 7 7840HS
6749 MIPS +17%
Lenovo IdeaCentre Mini 01IRH8
Intel Core i7-13700H
6014 MIPS +4%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P
5961 MIPS +3%
Intel NUC X15 LAPAC71H
Intel Core i7-12700H
5878 MIPS +2%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P
5840 MIPS +1%
GMK NucBox K2
AMD Ryzen 7 7735HS
5790 MIPS 0%
GMK NucBox K3 Pro
Intel Core i7-12650H
5772 MIPS
Acemagic AD15
Intel Core i7-11800H
5732 MIPS -1%
Minisforum Venus Series NPB5
Intel Core i5-13500H
5695 MIPS -1%
Average Intel Core i7-12650H
  (5265 - 6116, n=14)
5635 MIPS -2%
Acemagic AM20
AMD Ryzen 7 7735H
5621 MIPS -3%
BMAX B7 Power G7A2
Intel Core i7-11390H
5539 MIPS -4%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U
5192 MIPS -10%
Geekbench 5.5 / Multi-Core
Intel NUC X15 LAPAC71H
Intel Core i7-12700H
12929 Points +32%
Minisforum Venus Series NPB5
Intel Core i5-13500H
11465 Points +17%
Beelink GTR7 7840HS
AMD Ryzen 7 7840HS
10752 Points +10%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P
10574 Points +8%
Lenovo IdeaCentre Mini 01IRH8
Intel Core i7-13700H
10361 Points +6%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P
10269 Points +5%
GMK NucBox K3 Pro
Intel Core i7-12650H
9810 Points
Average Intel Core i7-12650H
  (6478 - 11284, n=16)
9797 Points 0%
GMK NucBox K2
AMD Ryzen 7 7735HS
9436 Points -4%
Acemagic AM20
AMD Ryzen 7 7735H
8612 Points -12%
Acemagic AD15
Intel Core i7-11800H
7976 Points -19%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U
7804 Points -20%
BMAX B7 Power G7A2
Intel Core i7-11390H
4457 Points -55%
Geekbench 5.5 / Single-Core
Beelink GTR7 7840HS
AMD Ryzen 7 7840HS
2010 Points +12%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P
1850 Points +3%
Lenovo IdeaCentre Mini 01IRH8
Intel Core i7-13700H
1842 Points +3%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P
1832 Points +2%
GMK NucBox K3 Pro
Intel Core i7-12650H
1790 Points
Minisforum Venus Series NPB5
Intel Core i5-13500H
1762 Points -2%
Intel NUC X15 LAPAC71H
Intel Core i7-12700H
1756 Points -2%
Average Intel Core i7-12650H
  (1590 - 1797, n=16)
1743 Points -3%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U
1633 Points -9%
Acemagic AD15
Intel Core i7-11800H
1603 Points -10%
GMK NucBox K2
AMD Ryzen 7 7735HS
1564 Points -13%
Acemagic AM20
AMD Ryzen 7 7735H
1563 Points -13%
BMAX B7 Power G7A2
Intel Core i7-11390H
1486 Points -17%
HWBOT x265 Benchmark v2.2 / 4k Preset
Lenovo IdeaCentre Mini 01IRH8
Intel Core i7-13700H
17.6 fps +43%
Intel NUC X15 LAPAC71H
Intel Core i7-12700H
16.9 fps +37%
GMK NucBox K2
AMD Ryzen 7 7735HS
15.1 fps +23%
Minisforum Venus Series NPB5
Intel Core i5-13500H
14.6 fps +19%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P
14.2 fps +15%
Acemagic AM20
AMD Ryzen 7 7735H
14.1 fps +15%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P
13.9 fps +13%
Average Intel Core i7-12650H
  (6.62 - 17.4, n=16)
13.8 fps +12%
GMK NucBox K3 Pro
Intel Core i7-12650H
12.3 fps
Acemagic AD15
Intel Core i7-11800H
12 fps -2%
Beelink GTR7 7840HS
AMD Ryzen 7 7840HS
11.7 fps -5%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U
9.43 fps -23%
BMAX B7 Power G7A2
Intel Core i7-11390H
5.84 fps -53%
LibreOffice / 20 Documents To PDF
BMAX B7 Power G7A2
Intel Core i7-11390H
52.6 s * -32%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U
48.7 s * -22%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P
46.9 s * -17%
Acemagic AD15
Intel Core i7-11800H
46.3 s * -16%
Acemagic AM20
AMD Ryzen 7 7735H
46.1 s * -15%
GMK NucBox K2
AMD Ryzen 7 7735HS
46 s * -15%
Minisforum Venus Series NPB5
Intel Core i5-13500H
44 s * -10%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P
43.7 s * -9%
Average Intel Core i7-12650H
  (35.1 - 58.5, n=14)
42.9 s * -7%
GMK NucBox K3 Pro
Intel Core i7-12650H
40 s *
Beelink GTR7 7840HS
AMD Ryzen 7 7840HS
39 s * +2%
Lenovo IdeaCentre Mini 01IRH8
Intel Core i7-13700H
37.6 s * +6%
Intel NUC X15 LAPAC71H
Intel Core i7-12700H
37 s * +7%
R Benchmark 2.5 / Overall mean
BMAX B7 Power G7A2
Intel Core i7-11390H
0.571 sec * -21%
Acemagic AD15
Intel Core i7-11800H
0.559 sec * -19%
Acemagic AM20
AMD Ryzen 7 7735H
0.536 sec * -14%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U
0.512 sec * -9%
GMK NucBox K2
AMD Ryzen 7 7735HS
0.4924 sec * -5%
Average Intel Core i7-12650H
  (0.4584 - 0.515, n=14)
0.478 sec * -2%
Minisforum Venus Series NPB5
Intel Core i5-13500H
0.473 sec * -1%
GMK NucBox K3 Pro
Intel Core i7-12650H
0.4701 sec *
Intel NUC X15 LAPAC71H
Intel Core i7-12700H
0.4618 sec * +2%
Lenovo IdeaCentre Mini 01IRH8
Intel Core i7-13700H
0.4512 sec * +4%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P
0.45 sec * +4%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P
0.445 sec * +5%
Beelink GTR7 7840HS
AMD Ryzen 7 7840HS
0.4184 sec * +11%
CPU Performance Rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

* ... smaller is better

Cinebench R15 CPU Multi 64Bit
1692 Points
Cinebench R15 OpenGL 64Bit
109 fps
Cinebench R15 Ref. Match 64Bit
97.8 %
Cinebench R15 CPU Single 64Bit
256 Points
Cinebench R20 CPU (Multi Core)
4058 Points
Cinebench R20 CPU (Single Core)
691 Points
Cinebench R23 Multi Core
10691 Points
Cinebench R23 Single Core
1792 Points
Help
Performance Rating
Beelink GTR7 7840HS
AMD Ryzen 7 7840HS, Radeon 780M
99.2 pt
GMK NucBox K2
AMD Ryzen 7 7735HS, Radeon 680M
66.7 pt
Lenovo IdeaCentre Mini 01IRH8
Intel Core i7-13700H, Iris Xe G7 96EUs
58.3 pt
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, Iris Xe G7 96EUs
51.4 pt
GMK NucBox K3 Pro
Intel Core i7-12650H, UHD Graphics 64EUs
50 pt
Average Intel Core i7-12650H

49.7 pt
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U, Iris Xe G7 80EUs
38.4 pt
AIDA64 / FP32 Ray-Trace
Beelink GTR7 7840HS
AMD Ryzen 7 7840HS, Radeon 780M
27538 KRay/s +193%
GMK NucBox K2
AMD Ryzen 7 7735HS, Radeon 680M
13337 KRay/s +42%
Lenovo IdeaCentre Mini 01IRH8
Intel Core i7-13700H, Iris Xe G7 96EUs
13281 KRay/s +41%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, Iris Xe G7 96EUs
11188 KRay/s +19%
Average Intel Core i7-12650H
  (5422 - 15620, n=14)
10778 KRay/s +15%
GMK NucBox K3 Pro
Intel Core i7-12650H, UHD Graphics 64EUs
9406 KRay/s
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U, Iris Xe G7 80EUs
6784 KRay/s -28%
AIDA64 / FPU Julia
Beelink GTR7 7840HS
AMD Ryzen 7 7840HS, Radeon 780M
116903 Points +140%
GMK NucBox K2
AMD Ryzen 7 7735HS, Radeon 680M
84934 Points +74%
Lenovo IdeaCentre Mini 01IRH8
Intel Core i7-13700H, Iris Xe G7 96EUs
69808 Points +43%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, Iris Xe G7 96EUs
56942 Points +17%
Average Intel Core i7-12650H
  (26386 - 76434, n=14)
55072 Points +13%
GMK NucBox K3 Pro
Intel Core i7-12650H, UHD Graphics 64EUs
48790 Points
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U, Iris Xe G7 80EUs
34444 Points -29%
AIDA64 / CPU SHA3
Beelink GTR7 7840HS
AMD Ryzen 7 7840HS, Radeon 780M
5096 MB/s +143%
Lenovo IdeaCentre Mini 01IRH8
Intel Core i7-13700H, Iris Xe G7 96EUs
3190 MB/s +52%
GMK NucBox K2
AMD Ryzen 7 7735HS, Radeon 680M
2969 MB/s +42%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, Iris Xe G7 96EUs
2669 MB/s +27%
Average Intel Core i7-12650H
  (1479 - 3244, n=14)
2392 MB/s +14%
GMK NucBox K3 Pro
Intel Core i7-12650H, UHD Graphics 64EUs
2094 MB/s
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U, Iris Xe G7 80EUs
1884 MB/s -10%
AIDA64 / CPU Queen
Beelink GTR7 7840HS
AMD Ryzen 7 7840HS, Radeon 780M
117764 Points +51%
Lenovo IdeaCentre Mini 01IRH8
Intel Core i7-13700H, Iris Xe G7 96EUs
101624 Points +30%
GMK NucBox K2
AMD Ryzen 7 7735HS, Radeon 680M
95223 Points +22%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, Iris Xe G7 96EUs
86881 Points +11%
GMK NucBox K3 Pro
Intel Core i7-12650H, UHD Graphics 64EUs
78091 Points
Average Intel Core i7-12650H
  (59278 - 89537, n=14)
77353 Points -1%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U, Iris Xe G7 80EUs
59756 Points -23%
AIDA64 / FPU SinJulia
Beelink GTR7 7840HS
AMD Ryzen 7 7840HS, Radeon 780M
15525 Points +137%
GMK NucBox K2
AMD Ryzen 7 7735HS, Radeon 680M
12254 Points +87%
Lenovo IdeaCentre Mini 01IRH8
Intel Core i7-13700H, Iris Xe G7 96EUs
8851 Points +35%
Average Intel Core i7-12650H
  (4690 - 8726, n=14)
7255 Points +11%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, Iris Xe G7 96EUs
7246 Points +10%
GMK NucBox K3 Pro
Intel Core i7-12650H, UHD Graphics 64EUs
6561 Points
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U, Iris Xe G7 80EUs
4644 Points -29%
AIDA64 / FPU Mandel
Beelink GTR7 7840HS
AMD Ryzen 7 7840HS, Radeon 780M
62378 Points +164%
GMK NucBox K2
AMD Ryzen 7 7735HS, Radeon 680M
46670 Points +97%
Lenovo IdeaCentre Mini 01IRH8
Intel Core i7-13700H, Iris Xe G7 96EUs
32781 Points +39%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, Iris Xe G7 96EUs
28019 Points +19%
Average Intel Core i7-12650H
  (15001 - 37738, n=14)
26632 Points +13%
GMK NucBox K3 Pro
Intel Core i7-12650H, UHD Graphics 64EUs
23640 Points
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U, Iris Xe G7 80EUs
16394 Points -31%
AIDA64 / CPU AES
Beelink GTR7 7840HS
AMD Ryzen 7 7840HS, Radeon 780M
177158 MB/s +115%
GMK NucBox K2
AMD Ryzen 7 7735HS, Radeon 680M
120363 MB/s +46%
GMK NucBox K3 Pro
Intel Core i7-12650H, UHD Graphics 64EUs
82548 MB/s
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U, Iris Xe G7 80EUs
67140 MB/s -19%
Lenovo IdeaCentre Mini 01IRH8
Intel Core i7-13700H, Iris Xe G7 96EUs
65953 MB/s -20%
Average Intel Core i7-12650H
  (32702 - 92530, n=14)
59831 MB/s -28%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, Iris Xe G7 96EUs
53328 MB/s -35%
AIDA64 / CPU ZLib
Beelink GTR7 7840HS
AMD Ryzen 7 7840HS, Radeon 780M
1103 MB/s +84%
Lenovo IdeaCentre Mini 01IRH8
Intel Core i7-13700H, Iris Xe G7 96EUs
956 MB/s +59%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, Iris Xe G7 96EUs
775 MB/s +29%
GMK NucBox K2
AMD Ryzen 7 7735HS, Radeon 680M
751 MB/s +25%
Average Intel Core i7-12650H
  (443 - 891, n=14)
700 MB/s +16%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U, Iris Xe G7 80EUs
633 MB/s +5%
GMK NucBox K3 Pro
Intel Core i7-12650H, UHD Graphics 64EUs
601 MB/s
AIDA64 / FP64 Ray-Trace
Beelink GTR7 7840HS
AMD Ryzen 7 7840HS, Radeon 780M
14722 KRay/s +181%
GMK NucBox K2
AMD Ryzen 7 7735HS, Radeon 680M
7123 KRay/s +36%
Lenovo IdeaCentre Mini 01IRH8
Intel Core i7-13700H, Iris Xe G7 96EUs
7090 KRay/s +35%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, Iris Xe G7 96EUs
5957 KRay/s +14%
Average Intel Core i7-12650H
  (3096 - 8448, n=14)
5885 KRay/s +12%
GMK NucBox K3 Pro
Intel Core i7-12650H, UHD Graphics 64EUs
5237 KRay/s
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U, Iris Xe G7 80EUs
3532 KRay/s -33%
AIDA64 / CPU PhotoWorxx
GMK NucBox K3 Pro
Intel Core i7-12650H, UHD Graphics 64EUs
44164 MPixel/s
Beelink GTR7 7840HS
AMD Ryzen 7 7840HS, Radeon 780M
40726 MPixel/s -8%
Average Intel Core i7-12650H
  (22046 - 44164, n=14)
31632 MPixel/s -28%
GMK NucBox K2
AMD Ryzen 7 7735HS, Radeon 680M
30200 MPixel/s -32%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U, Iris Xe G7 80EUs
29523 MPixel/s -33%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, Iris Xe G7 96EUs
29263 MPixel/s -34%
Lenovo IdeaCentre Mini 01IRH8
Intel Core i7-13700H, Iris Xe G7 96EUs
19552 MPixel/s -56%

系统性能

PCMark 10 标准
PCMark 10 标准
PCMark 10 / Score
Beelink GTR7 7840HS
Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8
7453 Points +27%
GMK NucBox K2
Radeon 680M, R7 7735HS, Lexar NM610 Pro NM610P001T-HNNNG
7000 Points +20%
Lenovo IdeaCentre Mini 01IRH8
Iris Xe G7 96EUs, i7-13700H, Samsung PM9B1 512GB MZVL4512HBLU
6247 Points +7%
Intel NUC 13 Pro Desk Edition Kit
Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ
5882 Points 0%
GMK NucBox K3 Pro
UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG
5855 Points
Average Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)
  (5156 - 6057, n=5)
5690 Points -3%
Beelink SEi12 Core i5-1235U
Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN
5543 Points -5%
PCMark 10 / Essentials
Lenovo IdeaCentre Mini 01IRH8
Iris Xe G7 96EUs, i7-13700H, Samsung PM9B1 512GB MZVL4512HBLU
11401 Points +6%
Beelink GTR7 7840HS
Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8
11155 Points +3%
GMK NucBox K2
Radeon 680M, R7 7735HS, Lexar NM610 Pro NM610P001T-HNNNG
11040 Points +2%
Intel NUC 13 Pro Desk Edition Kit
Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ
11035 Points +2%
Beelink SEi12 Core i5-1235U
Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN
10845 Points 0%
GMK NucBox K3 Pro
UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG
10797 Points
Average Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)
  (9905 - 11395, n=5)
10573 Points -2%
PCMark 10 / Productivity
Beelink GTR7 7840HS
Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8
10702 Points +37%
GMK NucBox K2
Radeon 680M, R7 7735HS, Lexar NM610 Pro NM610P001T-HNNNG
9854 Points +26%
GMK NucBox K3 Pro
UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG
7803 Points
Average Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)
  (7167 - 8164, n=5)
7744 Points -1%
Lenovo IdeaCentre Mini 01IRH8
Iris Xe G7 96EUs, i7-13700H, Samsung PM9B1 512GB MZVL4512HBLU
7691 Points -1%
Beelink SEi12 Core i5-1235U
Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN
7354 Points -6%
Intel NUC 13 Pro Desk Edition Kit
Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ
6576 Points -16%
PCMark 10 / Digital Content Creation
Beelink GTR7 7840HS
Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8
9409 Points +45%
GMK NucBox K2
Radeon 680M, R7 7735HS, Lexar NM610 Pro NM610P001T-HNNNG
8556 Points +32%
Intel NUC 13 Pro Desk Edition Kit
Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ
7612 Points +18%
Lenovo IdeaCentre Mini 01IRH8
Iris Xe G7 96EUs, i7-13700H, Samsung PM9B1 512GB MZVL4512HBLU
7547 Points +17%
GMK NucBox K3 Pro
UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG
6468 Points
Average Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)
  (5242 - 6482, n=5)
6112 Points -6%
Beelink SEi12 Core i5-1235U
Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN
5798 Points -10%
CrossMark / Overall
Lenovo IdeaCentre Mini 01IRH8
Iris Xe G7 96EUs, i7-13700H, Samsung PM9B1 512GB MZVL4512HBLU
1723 Points +10%
GMK NucBox K2
Radeon 680M, R7 7735HS, Lexar NM610 Pro NM610P001T-HNNNG
1655 Points +5%
Beelink SEi12 Core i5-1235U
Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN
1644 Points +5%
Average Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)
  (1532 - 1875, n=5)
1638 Points +4%
Intel NUC 13 Pro Desk Edition Kit
Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ
1596 Points +1%
GMK NucBox K3 Pro
UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG
1573 Points
Beelink GTR7 7840HS
Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8
1566 Points 0%
CrossMark / Productivity
Lenovo IdeaCentre Mini 01IRH8
Iris Xe G7 96EUs, i7-13700H, Samsung PM9B1 512GB MZVL4512HBLU
1677 Points +12%
Beelink SEi12 Core i5-1235U
Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN
1676 Points +12%
GMK NucBox K2
Radeon 680M, R7 7735HS, Lexar NM610 Pro NM610P001T-HNNNG
1641 Points +9%
Average Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)
  (1503 - 1876, n=5)
1613 Points +7%
Beelink GTR7 7840HS
Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8
1559 Points +4%
Intel NUC 13 Pro Desk Edition Kit
Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ
1537 Points +2%
GMK NucBox K3 Pro
UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG
1503 Points
CrossMark / Creativity
Lenovo IdeaCentre Mini 01IRH8
Iris Xe G7 96EUs, i7-13700H, Samsung PM9B1 512GB MZVL4512HBLU
1872 Points +7%
Intel NUC 13 Pro Desk Edition Kit
Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ
1769 Points +1%
GMK NucBox K3 Pro
UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG
1753 Points
GMK NucBox K2
Radeon 680M, R7 7735HS, Lexar NM610 Pro NM610P001T-HNNNG
1720 Points -2%
Average Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)
  (1554 - 1811, n=5)
1695 Points -3%
Beelink GTR7 7840HS
Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8
1556 Points -11%
Beelink SEi12 Core i5-1235U
Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN
1546 Points -12%
CrossMark / Responsiveness
Beelink SEi12 Core i5-1235U
Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN
1867 Points +44%
Beelink GTR7 7840HS
Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8
1620 Points +25%
Average Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)
  (1301 - 2077, n=5)
1562 Points +20%
GMK NucBox K2
Radeon 680M, R7 7735HS, Lexar NM610 Pro NM610P001T-HNNNG
1515 Points +16%
Lenovo IdeaCentre Mini 01IRH8
Iris Xe G7 96EUs, i7-13700H, Samsung PM9B1 512GB MZVL4512HBLU
1456 Points +12%
Intel NUC 13 Pro Desk Edition Kit
Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ
1311 Points +1%
GMK NucBox K3 Pro
UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG
1301 Points

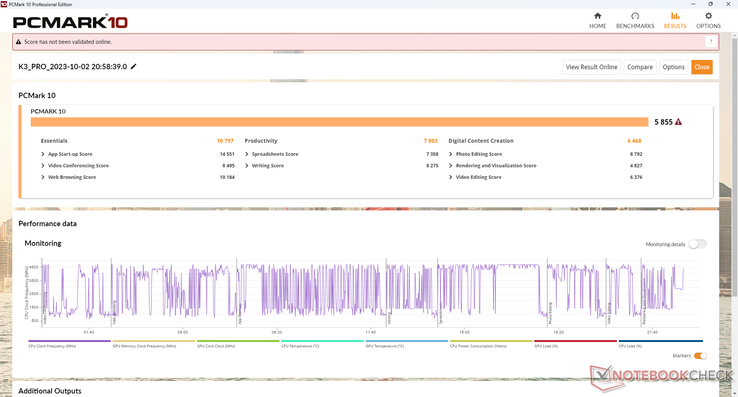

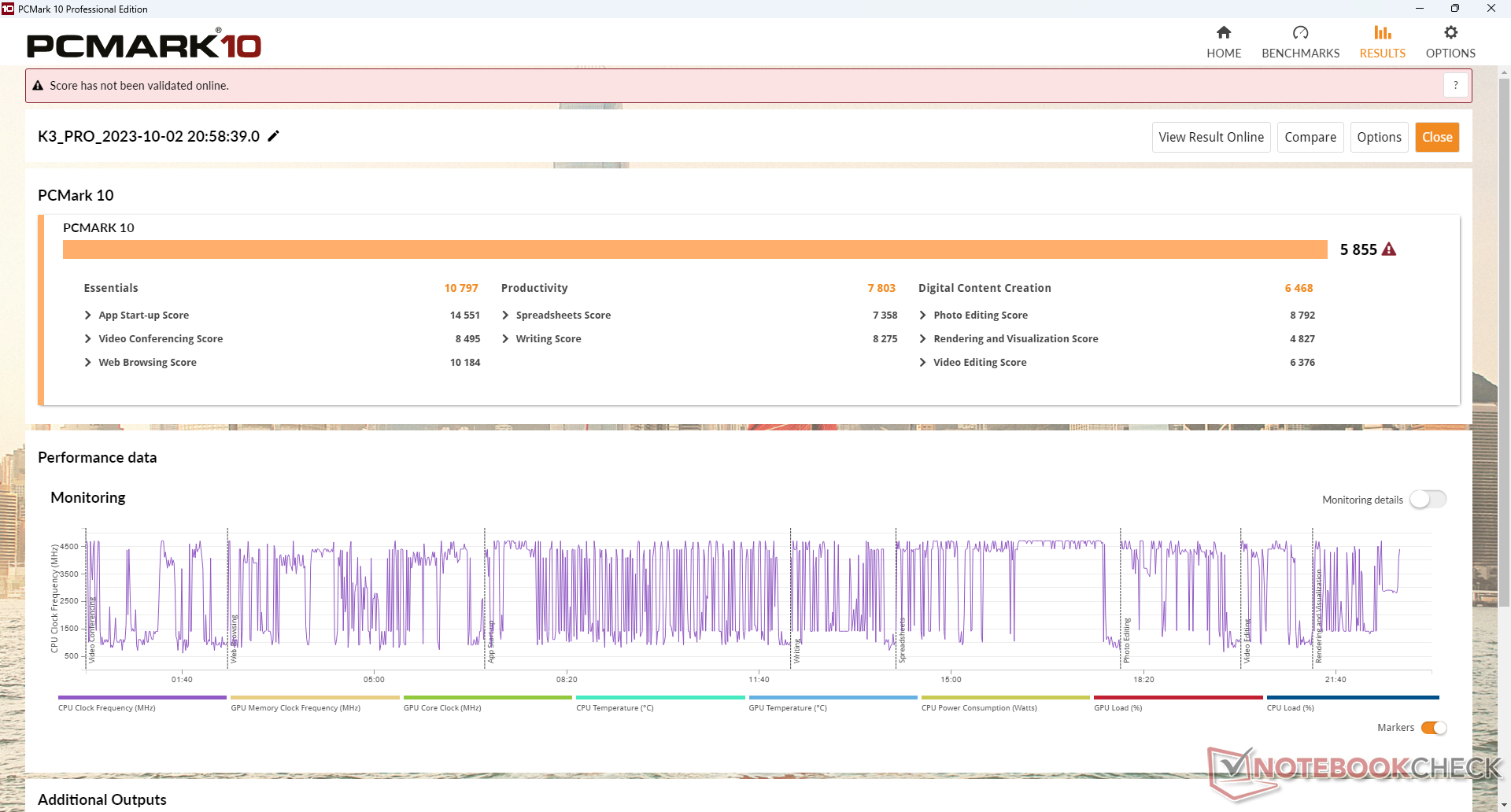

PCMark 10 Score
5855 points
Help
AIDA64 / Memory Copy
GMK NucBox K3 Pro
Intel Core i7-12650H, UHD Graphics 64EUs
69735 MB/s
Beelink GTR7 7840HS
AMD Ryzen 7 7840HS, Radeon 780M
69199 MB/s -1%
GMK NucBox K2
AMD Ryzen 7 7735HS, Radeon 680M
51223 MB/s -27%
Average Intel Core i7-12650H
  (43261 - 69735, n=14)
51052 MB/s -27%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, Iris Xe G7 96EUs
44299 MB/s -36%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U, Iris Xe G7 80EUs
43215 MB/s -38%
Lenovo IdeaCentre Mini 01IRH8
Intel Core i7-13700H, Iris Xe G7 96EUs
40018 MB/s -43%
AIDA64 / Memory Read
GMK NucBox K3 Pro
Intel Core i7-12650H, UHD Graphics 64EUs
67412 MB/s
Beelink GTR7 7840HS
AMD Ryzen 7 7840HS, Radeon 780M
61838 MB/s -8%
Average Intel Core i7-12650H
  (47313 - 67412, n=14)
55861 MB/s -17%
GMK NucBox K2
AMD Ryzen 7 7735HS, Radeon 680M
51734 MB/s -23%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U, Iris Xe G7 80EUs
46616 MB/s -31%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, Iris Xe G7 96EUs
44751 MB/s -34%
Lenovo IdeaCentre Mini 01IRH8
Intel Core i7-13700H, Iris Xe G7 96EUs
44583 MB/s -34%
AIDA64 / Memory Write
Beelink GTR7 7840HS
AMD Ryzen 7 7840HS, Radeon 780M
87226 MB/s +47%
GMK NucBox K3 Pro
Intel Core i7-12650H, UHD Graphics 64EUs
59361 MB/s
GMK NucBox K2
AMD Ryzen 7 7735HS, Radeon 680M
55242 MB/s -7%
Average Intel Core i7-12650H
  (45617 - 59361, n=14)
53407 MB/s -10%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U, Iris Xe G7 80EUs
46475 MB/s -22%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, Iris Xe G7 96EUs
45887 MB/s -23%
Lenovo IdeaCentre Mini 01IRH8
Intel Core i7-13700H, Iris Xe G7 96EUs
42710 MB/s -28%
AIDA64 / Memory Latency
GMK NucBox K3 Pro
Intel Core i7-12650H, UHD Graphics 64EUs
97.2 ns *
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, Iris Xe G7 96EUs
96.2 ns * +1%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U, Iris Xe G7 80EUs
91.6 ns * +6%
Beelink GTR7 7840HS
AMD Ryzen 7 7840HS, Radeon 780M
85.1 ns * +12%
Average Intel Core i7-12650H
  (71.6 - 103.9, n=14)
83.6 ns * +14%
Lenovo IdeaCentre Mini 01IRH8
Intel Core i7-13700H, Iris Xe G7 96EUs
82.4 ns * +15%
GMK NucBox K2
AMD Ryzen 7 7735HS, Radeon 680M
82.1 ns * +16%

* ... smaller is better

DPC 延迟

LatencyMon 显示,在打开我们主页的多个浏览器标签页时,会出现轻微的 DPC 问题。60 FPS 的 4K 视频回放也不完美,在 60 秒的测试视频中记录到 2 次丢帧。

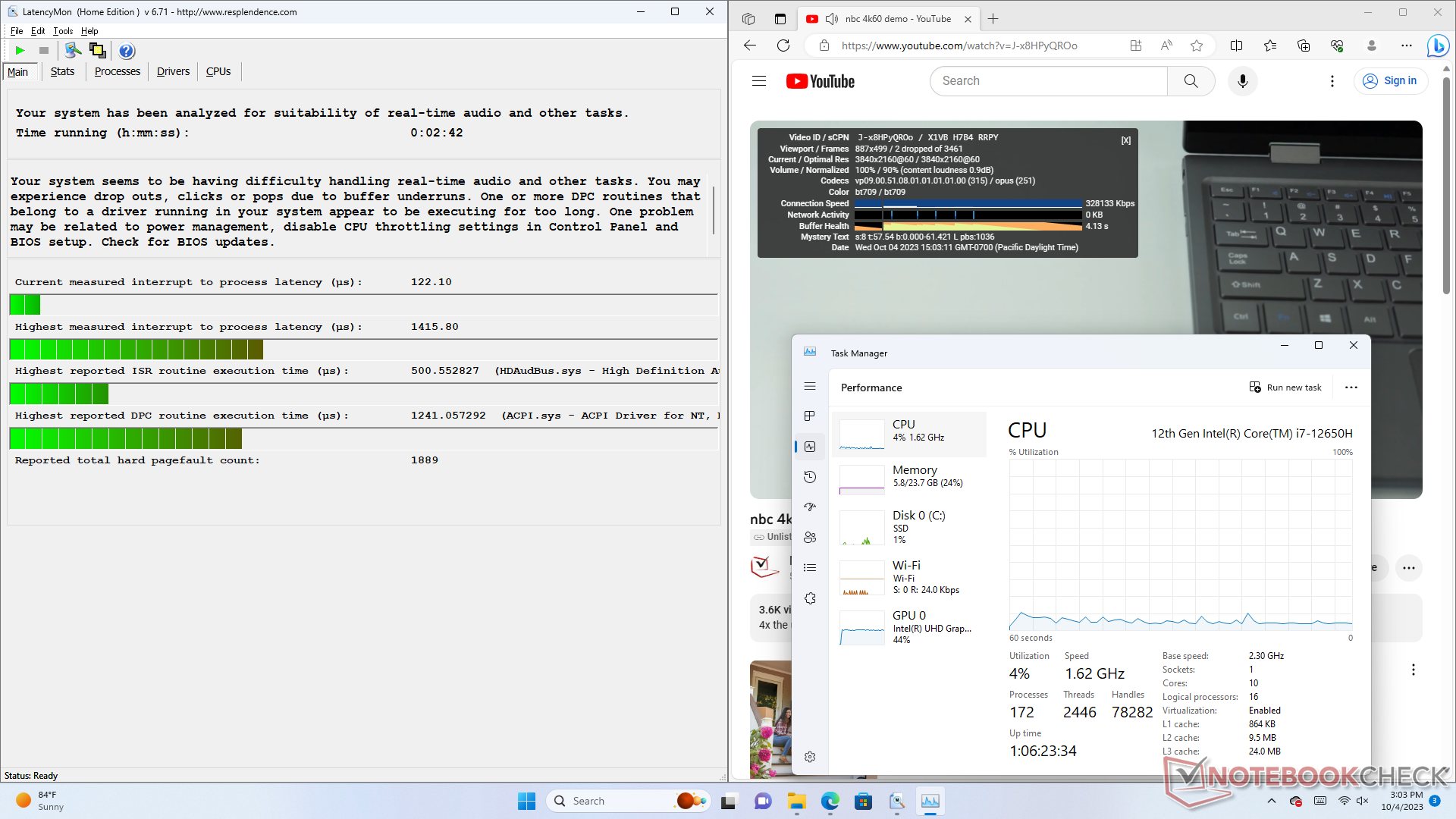

延迟监控
延迟监控

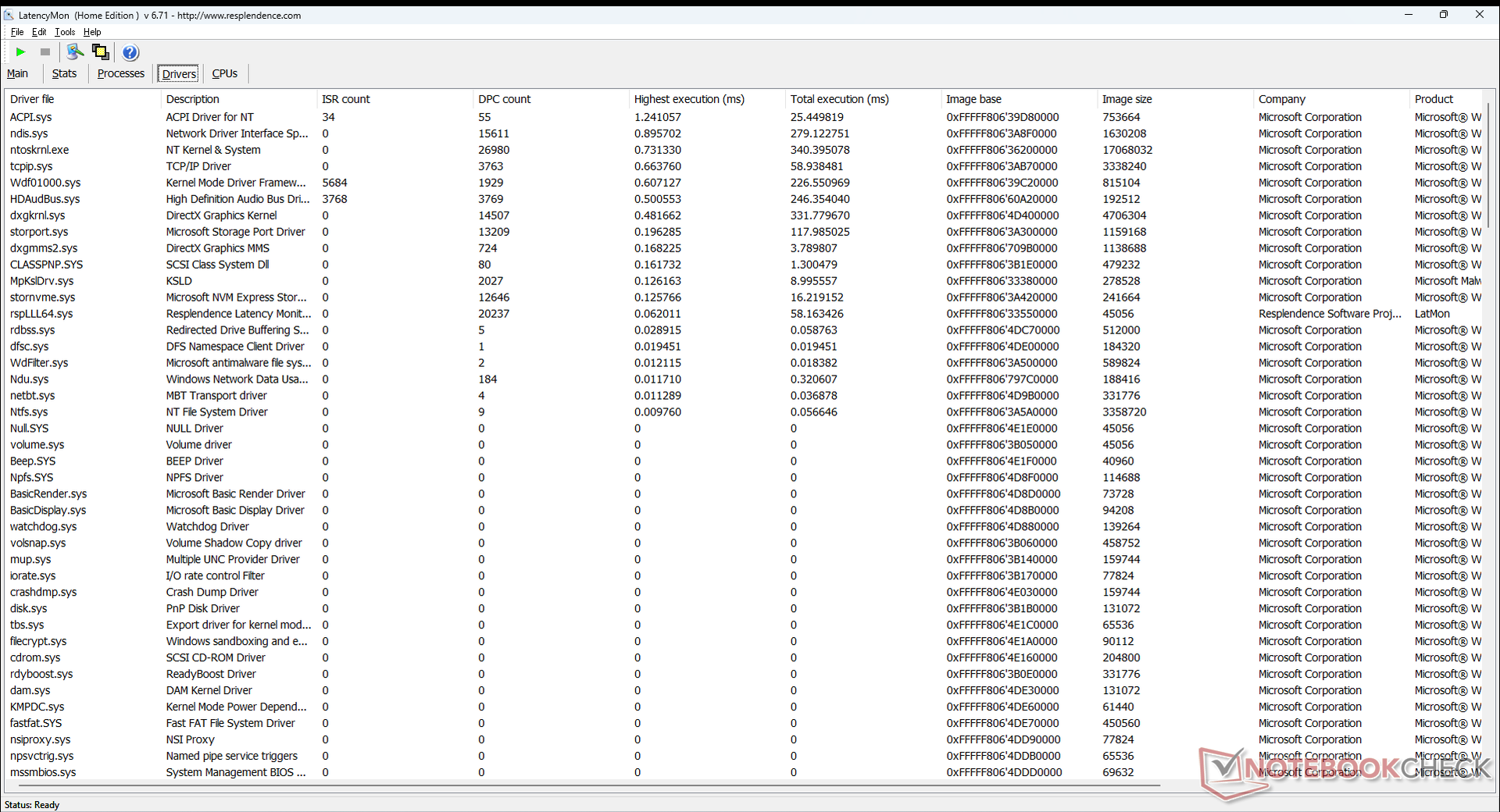

驱动程序列表
驱动程序列表
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Lenovo IdeaCentre Mini 01IRH8
Iris Xe G7 96EUs, i7-13700H, Samsung PM9B1 512GB MZVL4512HBLU
2372.9 μs * -68%
GMK NucBox K3 Pro
UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG
1415.8 μs *
GMK NucBox K2
Radeon 680M, R7 7735HS, Lexar NM610 Pro NM610P001T-HNNNG
1094.7 μs * +23%
Intel NUC 13 Pro Desk Edition Kit
Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ
1068.7 μs * +25%
Beelink SEi12 Core i5-1235U
Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN
830.3 μs * +41%
Beelink GTR7 7840HS
Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8
718.7 μs * +49%

* ... smaller is better

存储设备

GMK 采用与雷克沙 NM610 Pro 固态硬盘在我们的 K2 和 K3 Pro 测试装置之间采用了相同的 Lexar NM610 Pro SSD。

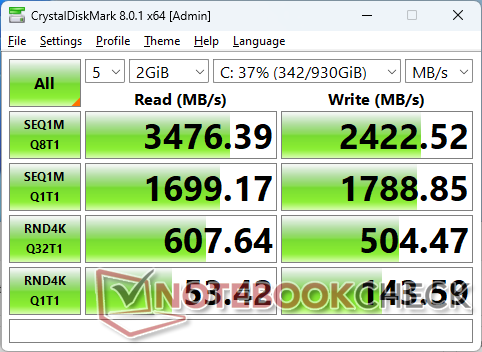

CDM 8
CDM 8

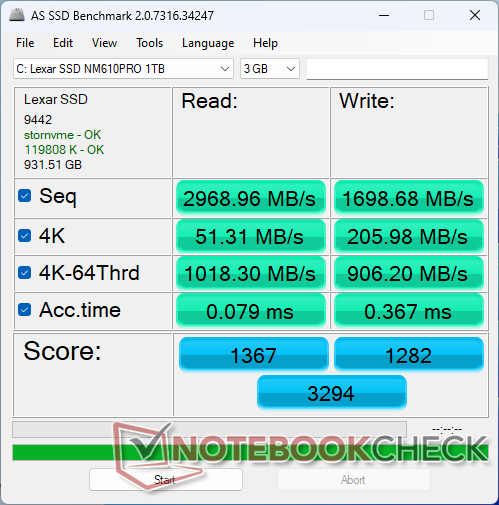

AS 固态硬盘
AS 固态硬盘
Lexar NM610 Pro NM610P001T-HNNNG
CDM 5/6 Read Seq Q32T1: 3484 MB/s
CDM 5/6 Write Seq Q32T1: 2429 MB/s
CDM 5/6 Read 4K Q32T1: 596.9 MB/s
CDM 5/6 Write 4K Q32T1: 511.3 MB/s
CDM 5 Read Seq: 1965 MB/s
CDM 5 Write Seq: 1783 MB/s
CDM 5/6 Read 4K: 53.88 MB/s
CDM 5/6 Write 4K: 164.1 MB/s
Drive Performance Rating - Percent
Beelink GTR7 7840HS
Crucial P3 Plus CT1000P3PSSD8
85.2 pt
Intel NUC 13 Pro Desk Edition Kit
Samsung PM9A1 MZVL2512HCJQ
78.4 pt
Beelink SEi12 Core i5-1235U
Kingston NV1 SNVS/500GCN
74.4 pt
GMK NucBox K2
Lexar NM610 Pro NM610P001T-HNNNG
57.5 pt
Lenovo IdeaCentre Mini 01IRH8
Samsung PM9B1 512GB MZVL4512HBLU
57.1 pt
GMK NucBox K3 Pro
Lexar NM610 Pro NM610P001T-HNNNG
50.2 pt
DiskSpd
seq read
Intel NUC 13 Pro Desk Edition Kit
Samsung PM9A1 MZVL2512HCJQ
3337 (3301.03min - 3337.16max) MB/s +67%
Beelink GTR7 7840HS
Crucial P3 Plus CT1000P3PSSD8
3033 (3026.64min - 3032.69max) MB/s +51%
Lenovo IdeaCentre Mini 01IRH8
Samsung PM9B1 512GB MZVL4512HBLU
2625 (2562.3min - 2625.21max) MB/s +31%
Beelink SEi12 Core i5-1235U
Kingston NV1 SNVS/500GCN
2512 (2493.51min - 2511.76max) MB/s +25%
GMK NucBox K2
Lexar NM610 Pro NM610P001T-HNNNG
2129 (2045.25min - 2129.3max) MB/s +6%
GMK NucBox K3 Pro
Lexar NM610 Pro NM610P001T-HNNNG
2003 (1792.88min - 2003.18max) MB/s
seq write
Beelink GTR7 7840HS
Crucial P3 Plus CT1000P3PSSD8
3591 (3535.23min - 3591.16max) MB/s +87%
Intel NUC 13 Pro Desk Edition Kit
Samsung PM9A1 MZVL2512HCJQ
3356 (3181.73min - 3356.49max) MB/s +75%
Beelink SEi12 Core i5-1235U
Kingston NV1 SNVS/500GCN
2848 (2821.72min - 2847.93max) MB/s +48%
GMK NucBox K2
Lexar NM610 Pro NM610P001T-HNNNG
2180 (2126.36min - 2180.16max) MB/s +14%
GMK NucBox K3 Pro
Lexar NM610 Pro NM610P001T-HNNNG
1919 (1852.07min - 1919.04max) MB/s
Lenovo IdeaCentre Mini 01IRH8
Samsung PM9B1 512GB MZVL4512HBLU
1773 (1718.7min - 1773.12max) MB/s -8%
seq q8 t1 read
Intel NUC 13 Pro Desk Edition Kit
Samsung PM9A1 MZVL2512HCJQ
5438 (4937.74min - 5438.31max) MB/s +56%
Beelink GTR7 7840HS
Crucial P3 Plus CT1000P3PSSD8
5174 (4541.87min - 5174.3max) MB/s +49%
Beelink SEi12 Core i5-1235U
Kingston NV1 SNVS/500GCN
3632 (3373.44min - 3632.06max) MB/s +4%
Lenovo IdeaCentre Mini 01IRH8
Samsung PM9B1 512GB MZVL4512HBLU
3582 (3101.69min - 3581.9max) MB/s +3%
GMK NucBox K3 Pro
Lexar NM610 Pro NM610P001T-HNNNG
3481 (3104.12min - 3480.68max) MB/s
GMK NucBox K2
Lexar NM610 Pro NM610P001T-HNNNG
3411 (3096.44min - 3410.5max) MB/s -2%
seq q8 t1 write
Intel NUC 13 Pro Desk Edition Kit
Samsung PM9A1 MZVL2512HCJQ
4955 (4929.56min - 4955.41max) MB/s +106%
Beelink GTR7 7840HS
Crucial P3 Plus CT1000P3PSSD8
3570 (3522.17min - 3569.77max) MB/s +48%
Beelink SEi12 Core i5-1235U
Kingston NV1 SNVS/500GCN
2841 (2828.64min - 2841.01max) MB/s +18%
GMK NucBox K3 Pro
Lexar NM610 Pro NM610P001T-HNNNG
2408 (2336.17min - 2407.96max) MB/s
GMK NucBox K2
Lexar NM610 Pro NM610P001T-HNNNG
2378 (2283.33min - 2377.68max) MB/s -1%
Lenovo IdeaCentre Mini 01IRH8
Samsung PM9B1 512GB MZVL4512HBLU
2291 (2242.9min - 2291.17max) MB/s -5%
4k q1 t1 read
Intel NUC 13 Pro Desk Edition Kit
Samsung PM9A1 MZVL2512HCJQ
84.5 (83.02min - 84.54max) MB/s +68%
Lenovo IdeaCentre Mini 01IRH8
Samsung PM9B1 512GB MZVL4512HBLU
80.5 (74.84min - 80.54max) MB/s +60%
Beelink SEi12 Core i5-1235U
Kingston NV1 SNVS/500GCN
79.3 (78.06min - 79.29max) MB/s +58%
Beelink GTR7 7840HS
Crucial P3 Plus CT1000P3PSSD8
62.6 (62.13min - 62.62max) MB/s +24%
GMK NucBox K2
Lexar NM610 Pro NM610P001T-HNNNG
51.8 (50.1min - 51.75max) MB/s +3%
GMK NucBox K3 Pro
Lexar NM610 Pro NM610P001T-HNNNG
50.3 (48.8min - 50.32max) MB/s
4k q1 t1 write
Beelink SEi12 Core i5-1235U
Kingston NV1 SNVS/500GCN
391 (374.32min - 390.86max) MB/s +139%
Beelink GTR7 7840HS
Crucial P3 Plus CT1000P3PSSD8
269 (266.85min - 269.05max) MB/s +65%
GMK NucBox K2
Lexar NM610 Pro NM610P001T-HNNNG
212 (203.51min - 212.25max) MB/s +30%
GMK NucBox K3 Pro
Lexar NM610 Pro NM610P001T-HNNNG
163.5 (154.58min - 163.51max) MB/s
Intel NUC 13 Pro Desk Edition Kit
Samsung PM9A1 MZVL2512HCJQ
144.6 (143.6min - 144.57max) MB/s -12%
Lenovo IdeaCentre Mini 01IRH8
Samsung PM9B1 512GB MZVL4512HBLU
140.4 (133.49min - 140.42max) MB/s -14%
4k q32 t16 read
Beelink GTR7 7840HS
Crucial P3 Plus CT1000P3PSSD8
2765 (2513.4min - 2765.45max) MB/s +144%
Beelink SEi12 Core i5-1235U
Kingston NV1 SNVS/500GCN
1942 (1940.61min - 1941.63max) MB/s +72%
GMK NucBox K2
Lexar NM610 Pro NM610P001T-HNNNG
1530 (1528.13min - 1529.56max) MB/s +35%
GMK NucBox K3 Pro
Lexar NM610 Pro NM610P001T-HNNNG
1132 (1079.47min - 1132.07max) MB/s
Lenovo IdeaCentre Mini 01IRH8
Samsung PM9B1 512GB MZVL4512HBLU
945 (935.84min - 944.53max) MB/s -17%
Intel NUC 13 Pro Desk Edition Kit
Samsung PM9A1 MZVL2512HCJQ
808 (792.58min - 807.51max) MB/s -29%
4k q32 t16 write
Beelink GTR7 7840HS
Crucial P3 Plus CT1000P3PSSD8
3254 (3139.57min - 3253.57max) MB/s +508%
Beelink SEi12 Core i5-1235U
Kingston NV1 SNVS/500GCN
2219 (2197.25min - 2218.83max) MB/s +315%
GMK NucBox K2
Lexar NM610 Pro NM610P001T-HNNNG
836 (794.23min - 835.97max) MB/s +56%
GMK NucBox K3 Pro
Lexar NM610 Pro NM610P001T-HNNNG
535 (489.88min - 535.49max) MB/s
Lenovo IdeaCentre Mini 01IRH8
Samsung PM9B1 512GB MZVL4512HBLU
505 (469.38min - 505.2max) MB/s -6%
Intel NUC 13 Pro Desk Edition Kit
Samsung PM9A1 MZVL2512HCJQ
454 (443.2min - 453.53max) MB/s -15%
AS SSD
Score Total
Intel NUC 13 Pro Desk Edition Kit
Samsung PM9A1 MZVL2512HCJQ
5249 Points +59%
Beelink GTR7 7840HS
Crucial P3 Plus CT1000P3PSSD8
5182 Points +57%
Beelink SEi12 Core i5-1235U
Kingston NV1 SNVS/500GCN
4619 Points +40%
GMK NucBox K2
Lexar NM610 Pro NM610P001T-HNNNG
4049 Points +23%
Lenovo IdeaCentre Mini 01IRH8
Samsung PM9B1 512GB MZVL4512HBLU
3692 Points +12%
GMK NucBox K3 Pro
Lexar NM610 Pro NM610P001T-HNNNG
3294 Points
Score Read
GMK NucBox K2
Lexar NM610 Pro NM610P001T-HNNNG
1800 Points +32%
Beelink GTR7 7840HS
Crucial P3 Plus CT1000P3PSSD8
1796 Points +31%
Beelink SEi12 Core i5-1235U
Kingston NV1 SNVS/500GCN
1633 Points +19%
GMK NucBox K3 Pro
Lexar NM610 Pro NM610P001T-HNNNG
1367 Points
Intel NUC 13 Pro Desk Edition Kit
Samsung PM9A1 MZVL2512HCJQ
1320 Points -3%
Lenovo IdeaCentre Mini 01IRH8
Samsung PM9B1 512GB MZVL4512HBLU
1257 Points -8%
Score Write
Intel NUC 13 Pro Desk Edition Kit
Samsung PM9A1 MZVL2512HCJQ
3326 Points +159%
Beelink GTR7 7840HS
Crucial P3 Plus CT1000P3PSSD8
2508 Points +96%
Beelink SEi12 Core i5-1235U
Kingston NV1 SNVS/500GCN
2278 Points +78%
Lenovo IdeaCentre Mini 01IRH8
Samsung PM9B1 512GB MZVL4512HBLU
1852 Points +44%
GMK NucBox K2
Lexar NM610 Pro NM610P001T-HNNNG
1357 Points +6%
GMK NucBox K3 Pro
Lexar NM610 Pro NM610P001T-HNNNG
1282 Points
Seq Read
Intel NUC 13 Pro Desk Edition Kit
Samsung PM9A1 MZVL2512HCJQ
4536 MB/s +53%
Beelink GTR7 7840HS
Crucial P3 Plus CT1000P3PSSD8
3786.44 MB/s +28%
Beelink SEi12 Core i5-1235U
Kingston NV1 SNVS/500GCN
3206.84 MB/s +8%
Lenovo IdeaCentre Mini 01IRH8
Samsung PM9B1 512GB MZVL4512HBLU
3048.92 MB/s +3%
GMK NucBox K2
Lexar NM610 Pro NM610P001T-HNNNG
2984.26 MB/s +1%
GMK NucBox K3 Pro
Lexar NM610 Pro NM610P001T-HNNNG
2968.96 MB/s
Seq Write
Beelink GTR7 7840HS
Crucial P3 Plus CT1000P3PSSD8
2799.85 MB/s +65%
Intel NUC 13 Pro Desk Edition Kit
Samsung PM9A1 MZVL2512HCJQ
2698 MB/s +59%
GMK NucBox K2
Lexar NM610 Pro NM610P001T-HNNNG
2339.34 MB/s +38%
GMK NucBox K3 Pro
Lexar NM610 Pro NM610P001T-HNNNG
1698.68 MB/s
Lenovo IdeaCentre Mini 01IRH8
Samsung PM9B1 512GB MZVL4512HBLU
1430.07 MB/s -16%
Beelink SEi12 Core i5-1235U
Kingston NV1 SNVS/500GCN
463.76 MB/s -73%
4K Read
Intel NUC 13 Pro Desk Edition Kit
Samsung PM9A1 MZVL2512HCJQ
72 MB/s +40%
Lenovo IdeaCentre Mini 01IRH8
Samsung PM9B1 512GB MZVL4512HBLU
70.4 MB/s +37%
Beelink GTR7 7840HS
Crucial P3 Plus CT1000P3PSSD8
59.79 MB/s +17%
Beelink SEi12 Core i5-1235U
Kingston NV1 SNVS/500GCN
59.54 MB/s +16%
GMK NucBox K3 Pro
Lexar NM610 Pro NM610P001T-HNNNG
51.31 MB/s
GMK NucBox K2
Lexar NM610 Pro NM610P001T-HNNNG
49.99 MB/s -3%
4K Write
Beelink SEi12 Core i5-1235U
Kingston NV1 SNVS/500GCN
280.94 MB/s +36%
Beelink GTR7 7840HS
Crucial P3 Plus CT1000P3PSSD8
210.95 MB/s +2%
GMK NucBox K3 Pro
Lexar NM610 Pro NM610P001T-HNNNG
205.98 MB/s
GMK NucBox K2
Lexar NM610 Pro NM610P001T-HNNNG
191.19 MB/s -7%
Lenovo IdeaCentre Mini 01IRH8
Samsung PM9B1 512GB MZVL4512HBLU
179.91 MB/s -13%
Intel NUC 13 Pro Desk Edition Kit
Samsung PM9A1 MZVL2512HCJQ
166.8 MB/s -19%
4K-64 Read
GMK NucBox K2
Lexar NM610 Pro NM610P001T-HNNNG
1451.2 MB/s +43%
Beelink GTR7 7840HS
Crucial P3 Plus CT1000P3PSSD8
1357.17 MB/s +33%
Beelink SEi12 Core i5-1235U
Kingston NV1 SNVS/500GCN
1252.33 MB/s +23%
GMK NucBox K3 Pro
Lexar NM610 Pro NM610P001T-HNNNG
1018.3 MB/s
Lenovo IdeaCentre Mini 01IRH8
Samsung PM9B1 512GB MZVL4512HBLU
882.05 MB/s -13%
Intel NUC 13 Pro Desk Edition Kit
Samsung PM9A1 MZVL2512HCJQ
794 MB/s -22%
4K-64 Write
Intel NUC 13 Pro Desk Edition Kit
Samsung PM9A1 MZVL2512HCJQ
2889 MB/s +219%
Beelink GTR7 7840HS
Crucial P3 Plus CT1000P3PSSD8
2017.38 MB/s +123%
Beelink SEi12 Core i5-1235U
Kingston NV1 SNVS/500GCN
1950.21 MB/s +115%
Lenovo IdeaCentre Mini 01IRH8
Samsung PM9B1 512GB MZVL4512HBLU
1529.03 MB/s +69%
GMK NucBox K2
Lexar NM610 Pro NM610P001T-HNNNG
931.89 MB/s +3%
GMK NucBox K3 Pro
Lexar NM610 Pro NM610P001T-HNNNG
906.2 MB/s
Access Time Read
Lenovo IdeaCentre Mini 01IRH8
Samsung PM9B1 512GB MZVL4512HBLU
0.099 ms * -25%
GMK NucBox K3 Pro
Lexar NM610 Pro NM610P001T-HNNNG
0.079 ms *
GMK NucBox K2
Lexar NM610 Pro NM610P001T-HNNNG
0.078 ms * +1%
Intel NUC 13 Pro Desk Edition Kit
Samsung PM9A1 MZVL2512HCJQ
0.06 ms * +24%
Beelink SEi12 Core i5-1235U
Kingston NV1 SNVS/500GCN
0.049 ms * +38%
Beelink GTR7 7840HS
Crucial P3 Plus CT1000P3PSSD8
0.047 ms * +41%
Access Time Write
GMK NucBox K3 Pro
Lexar NM610 Pro NM610P001T-HNNNG
0.367 ms *
GMK NucBox K2
Lexar NM610 Pro NM610P001T-HNNNG
0.358 ms * +2%
Lenovo IdeaCentre Mini 01IRH8
Samsung PM9B1 512GB MZVL4512HBLU
0.097 ms * +74%
Beelink SEi12 Core i5-1235U
Kingston NV1 SNVS/500GCN
0.07 ms * +81%
Beelink GTR7 7840HS
Crucial P3 Plus CT1000P3PSSD8
0.049 ms * +87%
Intel NUC 13 Pro Desk Edition Kit
Samsung PM9A1 MZVL2512HCJQ
0.024 ms * +93%

* ... smaller is better

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

017535052570087510501225140015751750192521002275245026252800297531503325Tooltip
GMK NucBox K3 Pro: Ø3380 (2828.02-3417.73)

图形处理器性能

与 NucBox K2 相比,图形性能是 NucBox K3 Pro 的最大弱点。集成的 UHD Graphics 64 EUs比已经很慢的 Iris Xe 96 EUs 还要慢,与竞争对手的 Radeon 680M.因此,该机型更适合游戏流媒体和 4K 视频播放,而不是原生图形渲染。

3DMark 11
3DMark 11
Fire Strike
Fire Strike
Time Spy
Time Spy
3DMark Performance Rating - Percent
Beelink GTR7 7840HS
AMD Radeon 780M, AMD Ryzen 7 7840HS
100 pt
Acemagic AM20
AMD Radeon 680M, AMD Ryzen 7 7735H
86.6 pt
GMK NucBox K2
AMD Radeon 680M, AMD Ryzen 7 7735HS
85.7 pt
Intel NUC 13 Pro Desk Edition Kit
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P
60.6 pt
Intel NUC 13 Pro Kit NUC13ANK
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P
59.1 pt
Minisforum Venus Series NPB5
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-13500H
55.3 pt
Lenovo IdeaCentre Mini 01IRH8
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-13700H
54.5 pt
GMK NucBox K3 Pro
Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H
47.4 pt
Beelink SEi12 Core i5-1235U
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1235U
41.9 pt
Average Intel UHD Graphics 64EUs (Alder Lake 12th Gen)

39.1 pt
BMAX B7 Power G7A2
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H
35.1 pt
Acemagic AD15
Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H
25.4 pt
3DMark 11 - 1280x720 Performance GPU
Beelink GTR7 7840HS
AMD Radeon 780M, AMD Ryzen 7 7840HS
12978 Points +133%
Acemagic AM20
AMD Radeon 680M, AMD Ryzen 7 7735H
11116 Points +100%
GMK NucBox K2
AMD Radeon 680M, AMD Ryzen 7 7735HS
10439 Points +88%
Intel NUC 13 Pro Desk Edition Kit
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P
7321 Points +32%
Intel NUC 13 Pro Kit NUC13ANK
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P
7143 Points +28%
Lenovo IdeaCentre Mini 01IRH8
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-13700H
6914 Points +24%
Minisforum Venus Series NPB5
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-13500H
6477 Points +16%
GMK NucBox K3 Pro
Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H
5566 Points
Beelink SEi12 Core i5-1235U
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1235U
5054 Points -9%
BMAX B7 Power G7A2
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H
4770 Points -14%
Average Intel UHD Graphics 64EUs (Alder Lake 12th Gen)
  (3886 - 5566, n=12)
4735 Points -15%
Acemagic AD15
Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H
3168 Points -43%
3DMark
1920x1080 Fire Strike Graphics
Beelink GTR7 7840HS
AMD Radeon 780M, AMD Ryzen 7 7840HS
7980 Points +75%
GMK NucBox K2
AMD Radeon 680M, AMD Ryzen 7 7735HS
7570 Points +66%
Acemagic AM20
AMD Radeon 680M, AMD Ryzen 7 7735H
7530 Points +65%
Intel NUC 13 Pro Desk Edition Kit
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P
5616 Points +23%
Minisforum Venus Series NPB5
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-13500H
5305 Points +16%
Intel NUC 13 Pro Kit NUC13ANK
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P
5229 Points +14%
Lenovo IdeaCentre Mini 01IRH8
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-13700H
4808 Points +5%
GMK NucBox K3 Pro
Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H
4567 Points
Beelink SEi12 Core i5-1235U
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1235U
3939 Points -14%
Average Intel UHD Graphics 64EUs (Alder Lake 12th Gen)
  (2592 - 4567, n=12)
3671 Points -20%
BMAX B7 Power G7A2
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H
2886 Points -37%
Acemagic AD15
Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H
2495 Points -45%
2560x1440 Time Spy Graphics
Beelink GTR7 7840HS
AMD Radeon 780M, AMD Ryzen 7 7840HS
2910 Points +126%
GMK NucBox K2
AMD Radeon 680M, AMD Ryzen 7 7735HS
2436 Points +89%
Acemagic AM20
AMD Radeon 680M, AMD Ryzen 7 7735H
2429 Points +89%
Intel NUC 13 Pro Kit NUC13ANK
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P
1673 Points +30%
Intel NUC 13 Pro Desk Edition Kit
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P
1672 Points +30%
Minisforum Venus Series NPB5
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-13500H
1508 Points +17%
Lenovo IdeaCentre Mini 01IRH8
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-13700H
1508 Points +17%
GMK NucBox K3 Pro
Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H
1288 Points
Beelink SEi12 Core i5-1235U
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1235U
1147 Points -11%
Average Intel UHD Graphics 64EUs (Alder Lake 12th Gen)
  (830 - 1336, n=12)
1067 Points -17%
BMAX B7 Power G7A2
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H
986 Points -23%
Acemagic AD15
Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H
658 Points -49%
2560x1440 Time Spy Score
Beelink GTR7 7840HS
AMD Radeon 780M, AMD Ryzen 7 7840HS
3274 Points +122%
GMK NucBox K2
AMD Radeon 680M, AMD Ryzen 7 7735HS
2738 Points +85%
Acemagic AM20
AMD Radeon 680M, AMD Ryzen 7 7735H
2712 Points +83%
Intel NUC 13 Pro Kit NUC13ANK
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P
1907 Points +29%
Intel NUC 13 Pro Desk Edition Kit
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P
1903 Points +29%
Minisforum Venus Series NPB5
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-13500H
1731 Points +17%
Lenovo IdeaCentre Mini 01IRH8
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-13700H
1724 Points +17%
GMK NucBox K3 Pro
Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H
1478 Points
Beelink SEi12 Core i5-1235U
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1235U
1311 Points -11%
Average Intel UHD Graphics 64EUs (Alder Lake 12th Gen)
  (935 - 1537, n=12)
1219 Points -18%
BMAX B7 Power G7A2
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H
1103 Points -25%
Acemagic AD15
Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H
763 Points -48%
3DMark 11 Performance
6259 points
3DMark Fire Strike Score
4318 points
3DMark Time Spy Score
1478 points
Help
Blender
v3.3 Classroom HIP/AMD
GMK NucBox K2
AMD Radeon 680M, AMD Ryzen 7 7735HS
270 Seconds *
v3.3 Classroom CPU
BMAX B7 Power G7A2
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H
1259 Seconds * -121%
Average Intel UHD Graphics 64EUs (Alder Lake 12th Gen)
  (494 - 1253, n=11)
760 Seconds * -33%
Beelink SEi12 Core i5-1235U
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1235U
707 Seconds * -24%
GMK NucBox K3 Pro
Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H
570 Seconds *
Acemagic AD15
Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H
559 Seconds * +2%
Intel NUC 13 Pro Desk Edition Kit
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P
477 Seconds * +16%
Intel NUC 13 Pro Kit NUC13ANK
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P
464 Seconds * +19%
Beelink GTR7 7840HS
AMD Radeon 780M, AMD Ryzen 7 7840HS
463 Seconds * +19%
Minisforum Venus Series NPB5
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-13500H
463 Seconds * +19%
Lenovo IdeaCentre Mini 01IRH8
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-13700H
441 Seconds * +23%
GMK NucBox K2
AMD Radeon 680M, AMD Ryzen 7 7735HS
438 Seconds * +23%

* ... smaller is better

Final Fantasy XV Benchmark
1280x720 Lite Quality
Beelink GTR7 7840HS
AMD Ryzen 7 7840HS, AMD Radeon 780M
77.6 fps +96%
Acemagic AM20
AMD Ryzen 7 7735H, AMD Radeon 680M
64.7 fps +63%
GMK NucBox K2
AMD Ryzen 7 7735HS, AMD Radeon 680M
63.4 fps +60%
Minisforum Venus Series NPB5
Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs
45.6 fps +15%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs
45.6 fps +15%
GMK NucBox K3 Pro
Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)
39.6 fps
Lenovo IdeaCentre Mini 01IRH8
Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs
37.4 fps -6%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs
35.7 fps -10%
Average Intel UHD Graphics 64EUs (Alder Lake 12th Gen)
  (21.9 - 39.9, n=11)
33.1 fps -16%
Acemagic AD15
Intel Core i7-11800H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)
23.6 fps -40%
BMAX B7 Power G7A2
Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs
22.1 fps -44%
1920x1080 Standard Quality
Beelink GTR7 7840HS
AMD Ryzen 7 7840HS, AMD Radeon 780M
38.7 fps +77%
Acemagic AM20
AMD Ryzen 7 7735H, AMD Radeon 680M
35.5 fps +62%
GMK NucBox K2
AMD Ryzen 7 7735HS, AMD Radeon 680M
33 fps +51%
Minisforum Venus Series NPB5
Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs
25.1 fps +15%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs
24.3 fps +11%
GMK NucBox K3 Pro
Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)
21.9 fps
Lenovo IdeaCentre Mini 01IRH8
Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs
20 fps -9%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs
19.3 fps -12%
Average Intel UHD Graphics 64EUs (Alder Lake 12th Gen)
  (12.4 - 21.9, n=11)
17.8 fps -19%
Acemagic AD15
Intel Core i7-11800H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)
12.4 fps -43%
BMAX B7 Power G7A2
Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs
10.5 fps -52%
1920x1080 High Quality
Beelink GTR7 7840HS
AMD Ryzen 7 7840HS, AMD Radeon 780M
28.9 fps +90%
Acemagic AM20
AMD Ryzen 7 7735H, AMD Radeon 680M
25.7 fps +69%
GMK NucBox K2
AMD Ryzen 7 7735HS, AMD Radeon 680M
24.8 fps +63%
Minisforum Venus Series NPB5
Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs
17.4 fps +14%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs
17.4 fps +14%
GMK NucBox K3 Pro
Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)
15.2 fps
Lenovo IdeaCentre Mini 01IRH8
Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs
14.6 fps -4%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs
13.5 fps -11%
Average Intel UHD Graphics 64EUs (Alder Lake 12th Gen)
  (8.38 - 21.4, n=11)
13.2 fps -13%
Acemagic AD15
Intel Core i7-11800H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)
8.57 fps -44%
BMAX B7 Power G7A2
Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs
8.15 fps -46%
The Witcher 3
1024x768 Low Graphics & Postprocessing
Beelink GTR7 7840HS
AMD Ryzen 7 7840HS, AMD Radeon 780M
148.9 (122min) fps +75%
GMK NucBox K2
AMD Ryzen 7 7735HS, AMD Radeon 680M
121.6 (89min) fps +43%
Acemagic AM20
AMD Ryzen 7 7735H, AMD Radeon 680M
116.4 (10.1min, 21.9P0.1, 75.6P1) fps +36%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs
102 fps +20%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs
101.7 fps +19%
Minisforum Venus Series NPB5
Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs
97.4 fps +14%
Lenovo IdeaCentre Mini 01IRH8
Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs
85.8 (61min) fps +1%
GMK NucBox K3 Pro
Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)
85.3 (69min) fps
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs
77.7 (46min) fps -9%
Average Intel UHD Graphics 64EUs (Alder Lake 12th Gen)
  (48 - 85.3, n=11)
67.5 fps -21%
BMAX B7 Power G7A2
Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs
48.4 fps -43%
Acemagic AD15
Intel Core i7-11800H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)
47.3 (4.78min, 19.9P0.1, 25.3P1) fps -45%
1366x768 Medium Graphics & Postprocessing
Beelink GTR7 7840HS
AMD Ryzen 7 7840HS, AMD Radeon 780M
101.5 (93min) fps +81%
GMK NucBox K2
AMD Ryzen 7 7735HS, AMD Radeon 680M
75.9 (71min) fps +36%
GMK NucBox K3 Pro
Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)
56 (53min) fps
Lenovo IdeaCentre Mini 01IRH8
Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs
54.3 (52min) fps -3%
Acemagic AM20
AMD Ryzen 7 7735H, AMD Radeon 680M
51.4 (16.6min, 27.5P0.1, 43.3P1) fps -8%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs
48.7 (43min) fps -13%
Average Intel UHD Graphics 64EUs (Alder Lake 12th Gen)
  (31 - 56, n=10)
43 fps -23%
BMAX B7 Power G7A2
Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs
31.3 fps -44%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Beelink GTR7 7840HS
AMD Ryzen 7 7840HS, AMD Radeon 780M
50.2 (45min) fps +67%
Acemagic AM20
AMD Ryzen 7 7735H, AMD Radeon 680M
40.2 (12.2min, 17.8P0.1, 30.7P1) fps +34%
GMK NucBox K2
AMD Ryzen 7 7735HS, AMD Radeon 680M
37.9 (35min) fps +26%
Minisforum Venus Series NPB5
Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs
33.5 fps +11%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs
33.5 fps +11%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs
31.1 fps +3%
GMK NucBox K3 Pro
Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)
30.1 (28min) fps
Lenovo IdeaCentre Mini 01IRH8
Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs
26.8 (26min) fps -11%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs
26 (23min) fps -14%
Average Intel UHD Graphics 64EUs (Alder Lake 12th Gen)
  (15 - 30.2, n=11)
23.3 fps -23%
Acemagic AD15
Intel Core i7-11800H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)
16.1 (8.34min, 8.6P0.1, 8.83P1) fps -47%
1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Beelink GTR7 7840HS
AMD Ryzen 7 7840HS, AMD Radeon 780M
31.5 (29min) fps +128%
Acemagic AM20
AMD Ryzen 7 7735H, AMD Radeon 680M
26.3 (13.4min, 14.2P0.1, 16.7P1) fps +91%
GMK NucBox K2
AMD Ryzen 7 7735HS, AMD Radeon 680M
22.7 (20min) fps +64%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs
16.9 fps +22%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs
16.3 fps +18%
Minisforum Venus Series NPB5
Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs
15.7 fps +14%
GMK NucBox K3 Pro
Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)
13.8 (12min) fps
Lenovo IdeaCentre Mini 01IRH8
Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs
12.4 (11min) fps -10%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs
12.2 (11min) fps -12%
Average Intel UHD Graphics 64EUs (Alder Lake 12th Gen)
  (7.06 - 13.8, n=11)
10.9 fps -21%
BMAX B7 Power G7A2
Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs
8.8 fps -36%
Acemagic AD15
Intel Core i7-11800H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)
8.22 (4.84min, 4.86P0.1, 5.03P1) fps -40%
Dota 2 Reborn
1280x720 min (0/3) fastest
Beelink GTR7 7840HS
AMD Ryzen 7 7840HS, AMD Radeon 780M
160.6 (139.7min) fps +34%
GMK NucBox K2
AMD Ryzen 7 7735HS, AMD Radeon 680M
141.2 (122.4min) fps +18%
Minisforum Venus Series NPB5
Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs
140.3 (102.2min) fps +17%
Acemagic AM20
AMD Ryzen 7 7735H, AMD Radeon 680M
125.7 (106.9min) fps +5%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs
123.8 (98min) fps +4%
GMK NucBox K3 Pro
Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)
119.5 (88.3min) fps
Acemagic AD15
Intel Core i7-11800H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)
116 (101.7min) fps -3%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs
113.8 (8.3min) fps -5%
Average Intel UHD Graphics 64EUs (Alder Lake 12th Gen)
  (76 - 134.7, n=12)
113.6 fps -5%
Lenovo IdeaCentre Mini 01IRH8
Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs
110.5 (89min) fps -8%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs
93.8 (8.8min) fps -22%
BMAX B7 Power G7A2
Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs
92.3 (83.6min) fps -23%
1366x768 med (1/3)
Beelink GTR7 7840HS
AMD Ryzen 7 7840HS, AMD Radeon 780M
123.9 (104.8min) fps +33%
GMK NucBox K2
AMD Ryzen 7 7735HS, AMD Radeon 680M
113.5 (96.1min) fps +22%
Acemagic AM20
AMD Ryzen 7 7735H, AMD Radeon 680M
102.8 (86.7min) fps +10%
Minisforum Venus Series NPB5
Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs
101.3 (78.4min) fps +8%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs
93.9 (77.2min) fps +1%
GMK NucBox K3 Pro
Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)
93.4 (69.8min) fps
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs
88.7 (71min) fps -5%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs
86.4 (68.3min) fps -7%
Average Intel UHD Graphics 64EUs (Alder Lake 12th Gen)
  (61.1 - 100.9, n=12)
82.9 fps -11%
Lenovo IdeaCentre Mini 01IRH8
Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs
82.8 (69min) fps -11%
Acemagic AD15
Intel Core i7-11800H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)
73.6 (65.4min) fps -21%
BMAX B7 Power G7A2
Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs
64.9 (55.9min) fps -31%
1920x1080 high (2/3)
Beelink GTR7 7840HS
AMD Ryzen 7 7840HS, AMD Radeon 780M
95.1 (84.3min) fps +52%
GMK NucBox K2
AMD Ryzen 7 7735HS, AMD Radeon 680M
84.2 (74.4min) fps +34%
Acemagic AM20
AMD Ryzen 7 7735H, AMD Radeon 680M
79.5 (69.9min) fps +27%
Minisforum Venus Series NPB5
Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs
70.7 (65.7min) fps +13%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs
67.6 (59.9min) fps +8%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs
67.6 (58.9min) fps +8%
GMK NucBox K3 Pro
Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)
62.7 (57.3min) fps
Lenovo IdeaCentre Mini 01IRH8
Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs
56.9 (52.4min) fps -9%
Average Intel UHD Graphics 64EUs (Alder Lake 12th Gen)
  (37.1 - 62.7, n=12)
50.3 fps -20%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs
45.5 (42.6min) fps -27%
Acemagic AD15
Intel Core i7-11800H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)
37.1 (33.3min) fps -41%
BMAX B7 Power G7A2
Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs
32.9 (30.6min) fps -48%
1920x1080 ultra (3/3) best looking
Beelink GTR7 7840HS
AMD Ryzen 7 7840HS, AMD Radeon 780M
85.5 (75.7min) fps +49%
GMK NucBox K2
AMD Ryzen 7 7735HS, AMD Radeon 680M
73.7 (65.4min) fps +28%
Acemagic AM20
AMD Ryzen 7 7735H, AMD Radeon 680M
69.2 (61min) fps +20%
Minisforum Venus Series NPB5
Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs
64.5 (58.2min) fps +12%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs
61.6 (54.6min) fps +7%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs
60.5 (52.3min) fps +5%
GMK NucBox K3 Pro
Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)
57.5 (52.3min) fps
Lenovo IdeaCentre Mini 01IRH8
Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs
52 (47.1min) fps -10%
Average Intel UHD Graphics 64EUs (Alder Lake 12th Gen)
  (34.4 - 57.5, n=12)
46.5 fps -19%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs
42.2 (39.3min) fps -27%
Acemagic AD15
Intel Core i7-11800H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)
33.8 (30.9min) fps -41%
BMAX B7 Power G7A2
Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs
29.6 (27.2min) fps -49%
X-Plane 11.11
1280x720 low (fps_test=1)
GMK NucBox K2
AMD Ryzen 7 7735HS, AMD Radeon 680M
66.7 fps +62%
Beelink GTR7 7840HS
AMD Ryzen 7 7840HS, AMD Radeon 780M
60.8 fps +47%
Acemagic AM20
AMD Ryzen 7 7735H, AMD Radeon 680M
56.7 fps +37%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs
54.6 fps +32%
Minisforum Venus Series NPB5
Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs
48.7 fps +18%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs
48.4 fps +17%
Lenovo IdeaCentre Mini 01IRH8
Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs
43.4 fps +5%
Average Intel UHD Graphics 64EUs (Alder Lake 12th Gen)
  (29.1 - 61, n=10)
43 fps +4%
GMK NucBox K3 Pro
Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)
41.3 fps
Acemagic AD15
Intel Core i7-11800H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)
38.4 fps -7%
BMAX B7 Power G7A2
Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs
38 fps -8%
1920x1080 med (fps_test=2)
GMK NucBox K2
AMD Ryzen 7 7735HS, AMD Radeon 680M
52.8 fps +60%
Beelink GTR7 7840HS
AMD Ryzen 7 7840HS, AMD Radeon 780M
44.1 fps +33%
Acemagic AM20
AMD Ryzen 7 7735H, AMD Radeon 680M
44 fps +33%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs
41 fps +24%
Minisforum Venus Series NPB5
Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs
34.4 fps +4%
GMK NucBox K3 Pro
Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)
33.1 fps
Lenovo IdeaCentre Mini 01IRH8
Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs
32.9 fps -1%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs
32.8 fps -1%
Average Intel UHD Graphics 64EUs (Alder Lake 12th Gen)
  (24.2 - 42.7, n=10)
31.4 fps -5%
BMAX B7 Power G7A2
Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs
30 fps -9%
Acemagic AD15
Intel Core i7-11800H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)
25.8 fps -22%
1920x1080 high (fps_test=3)
GMK NucBox K2
AMD Ryzen 7 7735HS, AMD Radeon 680M
42.4 fps +63%
Beelink GTR7 7840HS
AMD Ryzen 7 7840HS, AMD Radeon 780M
37.5 fps +44%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs
35.4 fps +36%
Acemagic AM20
AMD Ryzen 7 7735H, AMD Radeon 680M
35.4 fps +36%
Minisforum Venus Series NPB5
Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs
30.3 fps +17%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs
29.5 fps +13%
Lenovo IdeaCentre Mini 01IRH8
Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs
28.5 fps +10%
BMAX B7 Power G7A2
Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs
27.9 fps +7%
Average Intel UHD Graphics 64EUs (Alder Lake 12th Gen)
  (21.5 - 38, n=10)
27.5 fps +6%
GMK NucBox K3 Pro
Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)
26 fps
Acemagic AD15
Intel Core i7-11800H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)
22.5 fps -13%

Witcher 3 FPS Chart

0510152025303540455055606570758085Tooltip
GMK NucBox K3 Pro: Ø84.9 (80-89)
lowmed.highultra
The Witcher 3 (2015) 85.3 56 30.1 13.8
Dota 2 Reborn (2015) 119.5 93.4 62.7 57.5
Final Fantasy XV Benchmark (2018) 39.6 21.9 15.2
X-Plane 11.11 (2018) 41.3 33.1 26

排放量

系统噪音

在运行较低负载时,内部风扇不会像 K2 那样频繁跳动,这使得 NucBox K3 Pro 比 K2 更安静一些。此外,在运行游戏等高负载时,两者的最大噪音水平相近,都在 40 dB(A)左右。

风扇噪音曲线(白色:背景,红色:系统空闲,蓝色:3DMark 06,橙色: Witcher 3 极限性能,绿色:Prime95+FurMark 压力)
风扇噪音曲线(白色:背景,红色:系统空闲,蓝色:3DMark 06,橙色: Witcher 3 极限性能,绿色:Prime95+FurMark 压力)
NucBox K3 Pro
NucBox K3 Pro
NucBox K2 比较
NucBox K2 比较

Noise Level

Idle
25 / 25.5 / 25.5 dB(A)
Load
39.9 / 39.9 dB(A)
  red to green bar


30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light   Earthworks M23R, Arta (15 cm distance)   environment noise: 23.1 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2037.134.84135.233.72526.4273029.927.53124.32430282440252829.72424.65025.626.724.320.321.86325.925.225.626.226.78024.425.928.325.3231002322.122.322.421.71252322.919.919.122.116025.825.317.516.626.420025.32518.91624.425022.12318.414.622.231524.825.31914.72340021.62213.112.721.750024.224.614.210.223.863024.824.411.59.624.280026.826.610.49.527.7100028.327.510.99.127.4125027.427.811.59.526.8160029.830.211.19.729.7200028.428.611.310.127.9250030.130.411.410.529.4315032.23212.910.930.9400027.527.414.111.12650002726.713.611.326.1630022.722.712.711.522800016.516.412.911.715.41000015.215.313.211.814.21250013.713.91311.8131600012.112.2121111SPL39.939.92523.139.2N3.13.10.70.42.9median 24.8median 25median 13median 11.3median 24.2Delta3.43.42.62.33.8hearing rangehide median Fan NoiseGMK NucBox K3 Pro
GMK NucBox K3 Pro
UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG
GMK NucBox K2
Radeon 680M, R7 7735HS, Lexar NM610 Pro NM610P001T-HNNNG
Beelink SEi12 Core i5-1235U
Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN
Beelink GTR7 7840HS
Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8
Intel NUC 13 Pro Desk Edition Kit
Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ
Lenovo IdeaCentre Mini 01IRH8
Iris Xe G7 96EUs, i7-13700H, Samsung PM9B1 512GB MZVL4512HBLU
Noise
-8%
1%
-4%
-9%
-4%
off / environment *
23.1
24.1
-4%
23.3
-1%
25.6
-11%
25.2
-9%
23.4
-1%
Idle Minimum *
25
24.4
2%
27.8
-11%
28.1
-12%
28.1
-12%
30.4
-22%
Idle Average *
25.5
24.4
4%
27.8
-9%
28.1
-10%
28.2
-11%
30.4
-19%
Idle Maximum *
25.5
36.8
-44%
27.8
-9%
28.1
-10%
28.3
-11%
30.4
-19%
Load Average *
39.9
41.6
-4%
32
20%
34.9
13%
42
-5%
30.7
23%
Witcher 3 ultra *
39.9
41.7
-5%
34.1
15%
36.4
9%
33.9
15%
Load Maximum *
39.9
41.6
-4%
39.2
2%
42.4
-6%
42.1
-6%
41
-3%

* ... smaller is better

温度

系统空闲(前)
系统空闲(前)
系统空闲(背面)
系统空闲(背面)
Prime95+FurMark 压力(前部)
Prime95+FurMark 压力(前部)
Prime95+FurMark 压力(背面)
Prime95+FurMark 压力(背面)

压力测试

与 NucBox K2 相比,我们的 NucBox K3 Pro 的核心温度更稳定。在运行诸如 Witcher 3或 Prime95 等苛刻负载时,CPU 温度分别稳定在 80 C 和 83 C,而采用 AMD 处理器的 K2 仅为 67 C 和 79 C。

高 Turbo Core 时钟速率是不可持续的。例如,在运行 Prime95 时,时钟频率和主板功耗将分别飙升至 2.3 GHz 和 52 W,然后在大约 45 秒后降至 2.0 GHz 和 35 W。

系统空闲
系统空闲
Witcher 3 强调
Witcher 3 强调
Prime95 压力
Prime95 压力
Prime95+FurMark 压力
Prime95+FurMark 压力
CPU 时钟 (GHz) GPU 时钟 (MHz) CPU 平均温度 (°C)
系统闲置 -- -- 43
Prime95 压力 2.0 -- 83
Prime95 + FurMark 压力 ~1.3 948 78
Witcher 3 压力 ~0.8 1397 80

能源管理

耗电量

NucBox K2 比我们的 K3 Pro 要求略高,这可能是 K2 内部风扇更活跃的部分原因。尽管如此,每瓦性能仍明显优于 AMD。运行 Witcher 3例如,在 K2 上运行只需要多消耗 13% 的电力,而图形性能却大幅提升了 70% 至 90%。

3DMark 06 消耗量
3DMark 06 消耗量
Witcher 3 1080p 超高耗电量
Witcher 3 1080p 超高耗电量
启动 Prime95 压力时,耗电量会飙升至 76 W,然后在约 45 秒后急剧下降至 53 W。
启动 Prime95 压力时,耗电量会飙升至 76 W,然后在约 45 秒后急剧下降至 53 W。
Prime95+FurMark 压力
Prime95+FurMark 压力
Power Consumption
Off / Standbydarklight 0.58 / 0.79 Watt
Idledarkmidlight 7.1 / 10.1 / 18.6 Watt
Load midlight 45.3 / 52.9 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
GMK NucBox K3 Pro
i7-12650H, UHD Graphics 64EUs, Lexar NM610 Pro NM610P001T-HNNNG, , x,
GMK NucBox K2
R7 7735HS, Radeon 680M, Lexar NM610 Pro NM610P001T-HNNNG, , x,
Beelink SEi12 Core i5-1235U
i5-1235U, Iris Xe G7 80EUs, Kingston NV1 SNVS/500GCN, , x,
Beelink GTR7 7840HS
R7 7840HS, Radeon 780M, Crucial P3 Plus CT1000P3PSSD8, , x,
Intel NUC 13 Pro Desk Edition Kit
i7-1360P, Iris Xe G7 96EUs, Samsung PM9A1 MZVL2512HCJQ, , x,
Lenovo IdeaCentre Mini 01IRH8
i7-13700H, Iris Xe G7 96EUs, Samsung PM9B1 512GB MZVL4512HBLU, , x,
Power Consumption
-7%
-53%
-15%
-7%
-9%
Idle Minimum *
7.1
7.3
-3%
15.8
-123%
5.5
23%
7
1%
6.7
6%
Idle Average *
10.1
9.8
3%
16.8
-66%
5.8
43%
9.2
9%
6.7
34%
Idle Maximum *
18.6
10.5
44%
17
9%
7.7
59%
11.8
37%
7.1
62%
Load Average *
45.3
61.3
-35%
54.4
-20%
70.6
-56%
45
1%
68.5
-51%
Witcher 3 ultra *
55.2
62.2
-13%
50.7
8%
79.8
-45%
58.3
-6%
Load Maximum *
52.9
72.8
-38%
119.1
-125%
111.8
-111%
97.2
-84%
104.3
-97%

* ... smaller is better

Power Consumption Witcher 3 / Stresstest

05101520253035404550556065707580Tooltip
GMK NucBox K3 Pro i7-12650H, UHD Graphics 64EUs; Witcher 3 ultra: Ø55.2 (51.1-62.8)
GMK NucBox K2 R7 7735HS, Radeon 680M; Witcher 3 ultra: Ø62.2 (60.2-65.2)
GMK NucBox K3 Pro i7-12650H, UHD Graphics 64EUs; 1280x720 Prime95 28.10 and Furmark 1.25: Ø59.5 (51.7-80.2)
GMK NucBox K2 R7 7735HS, Radeon 680M; 1280x720 Prime95 28.10 and Furmark 1.25: Ø64.2 (62.8-72.8)

Power Consumption external Monitor

051015202530354045505560657075Tooltip
GMK NucBox K3 Pro i7-12650H, UHD Graphics 64EUs; Prime95 V2810 Stress (external Monitor): Ø58.1 (50-75.8)
GMK NucBox K2 R7 7735HS, Radeon 680M; Prime95 V2810 Stress (external Monitor): Ø63 (62.1-72.5)
GMK NucBox K3 Pro i7-12650H, UHD Graphics 64EUs; Cinebench R15 Multi (external Monitor): Ø69.9 (65.2-77.4)
GMK NucBox K2 R7 7735HS, Radeon 680M; Cinebench R15 Multi (external Monitor): Ø60.7 (57.3-67.4)
GMK NucBox K3 Pro i7-12650H, UHD Graphics 64EUs; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø54 (42.7-68.9)
GMK NucBox K2 R7 7735HS, Radeon 680M; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø63.2 (61.9-71)
GMK NucBox K3 Pro i7-12650H, UHD Graphics 64EUs; 1920x1080 The Witcher 3 ultra (external Monitor): Ø55.2 (51.1-62.8)
GMK NucBox K2 R7 7735HS, Radeon 680M; 1920x1080 The Witcher 3 ultra (external Monitor): Ø62.2 (60.2-65.2)
GMK NucBox K3 Pro i7-12650H, UHD Graphics 64EUs; Idle 1min (external Monitor): Ø6.83 (6.64-8.31)

Pros

+ 良好的 CPU 单线程性能
+ 支持 VESA 和 USB4
+ 小巧轻便
+ 易于维修

Cons

- 图形处理速度相对较慢
- 不配备 Wi-Fi 6E
- 内存不可升级
- 只有一个 USB-C 端口

结论 - AMD FTW

回顾GMKtec NucBox K3 Pro。设备由 GMK 提供
回顾GMKtec NucBox K3 Pro。设备由 GMK 提供

如果您要在 NucBox K3 Pro 和 NucBox K2 之间做出选择,不要只看 "Pro "这个名字,因为 K2 可以说是更优越的选择。搭载 AMD 处理器的 K2 具有相似的处理器性能、更快的图形处理性能、可移动 WLAN 和内存,而且在考虑到所有优惠券后,其售价甚至差不多。在这方面,选择英特尔 NucBox K3 Pro 的理由并不充分,除非你想在本已低廉的 500 美元价位上再节省 50 美元。

NucBox K3 Pro 的性能绝对不差,但在每美元性能和每瓦性能方面,它绝对被外观相同的 NucBox K2 所掩盖。

值得一提的是,与 K2 相比,K3 Pro 的风扇噪音要小一些,但在典型的办公室或 HTPC 环境中,它的噪音还不足以造成困扰。

价格和供应情况

亚马逊现在以 460 美元的价格销售 GNKtec NucBox K3 Pro,结账时使用 25 美元优惠券代码后则为 435 美元。此外,也可直接从制造商处购买.

GMK NucBox K3 Pro - 10/11/2023 v7 (old)
Allen Ngo

Chassis
79 / 98 → 80%
Connectivity
63 / 81 → 77%
Weight
85%
Display
83%
Games Performance
69%
Application Performance
93%
Noise
91%
Average
80%
83%
Mini PC - Weighted Average

Transparency

The selection of devices to be reviewed is made by our editorial team. The test sample was provided to the author as a loan by the manufacturer or retailer for the purpose of this review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.

This is how Notebookcheck is testing

Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.

Price comparison

Please share our article, every link counts!
Mail Logo
> Notebookcheck中文版(NBC中国) > 评测 > GMK NucBox K3 Pro 迷你电脑评测:NucBox K2 更出色
Allen Ngo, 2023-10- 9 (Update: 2023-10- 9)
