Name: Lenovo IdeaCentre Mini 01IRH8
Brand: Lenovo

联想提供多款 Think 品牌的迷你 PC，从 ThinkCentre 到 ThinkStation 都是针对办公室和专业环境的。为了与这些以商务为中心的机型形成对比，联想今年推出了以消费者为中心的 1 升 IdeaCentre Mini Gen 8，配备了最新的英特尔第 13 代 Raptor Lake-H CPU，与较大的 IdeaCentre 5i 形成互补。

我们的评测机是采用酷睿 i7-13700H 的高端配置，售价约为 688 美元，而低端酷睿 i5-13500H 的起价仅为 522 美元。所有 SKU 均配备 16 GB 内存、512 GB 至 1 TB 存储空间和 Windows 11 操作系统，这意味着没有裸机可供选择。

IdeaCentre Mini 与其他集成显卡的小型迷你 PC 竞争，如大多数英特尔 NUC 机型,Beelink GTR7,Geekom Mini IT11或Trigkey Speed S.

更多联想评论：

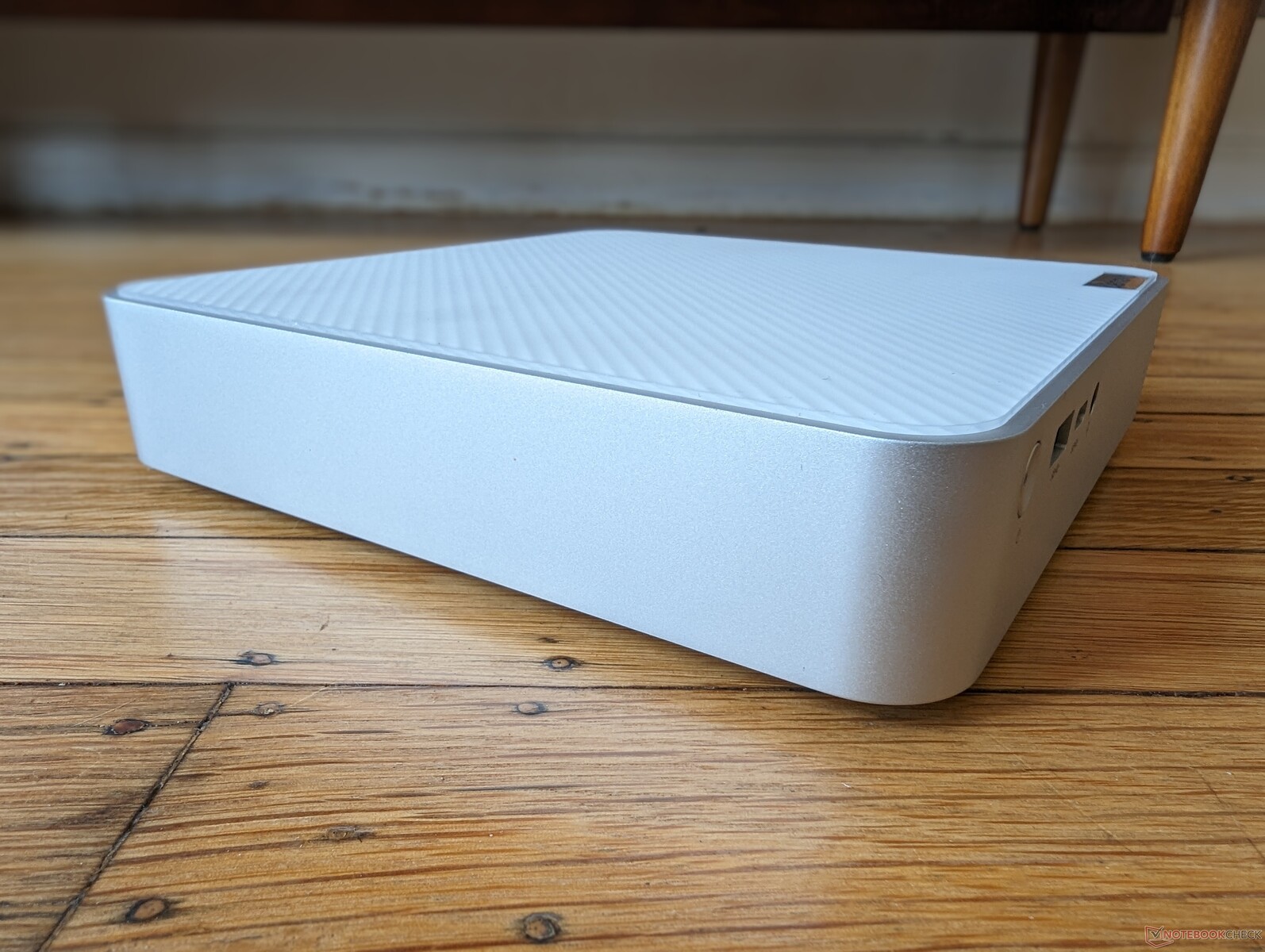

案例 - 建筑密集、结构合理

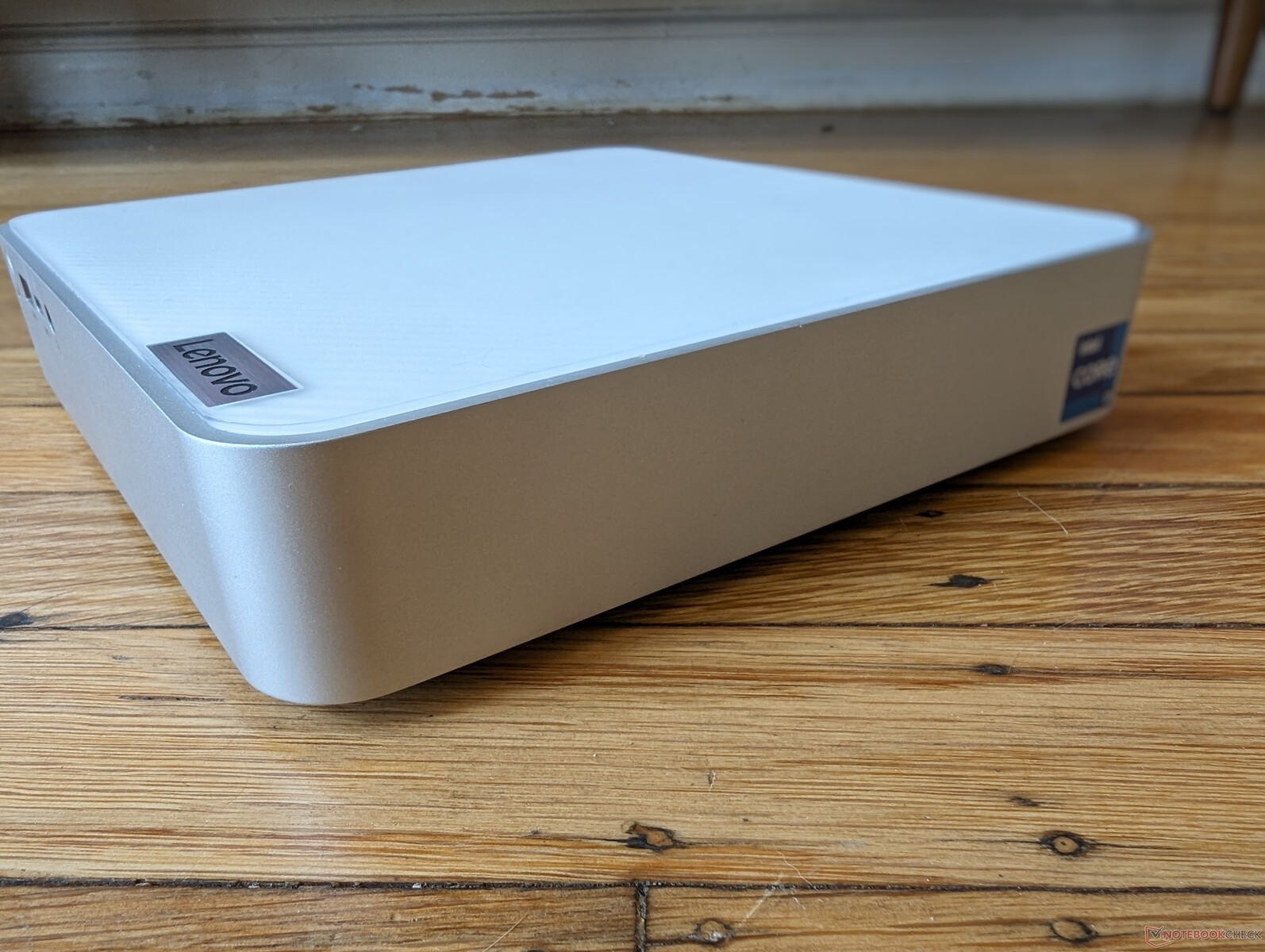

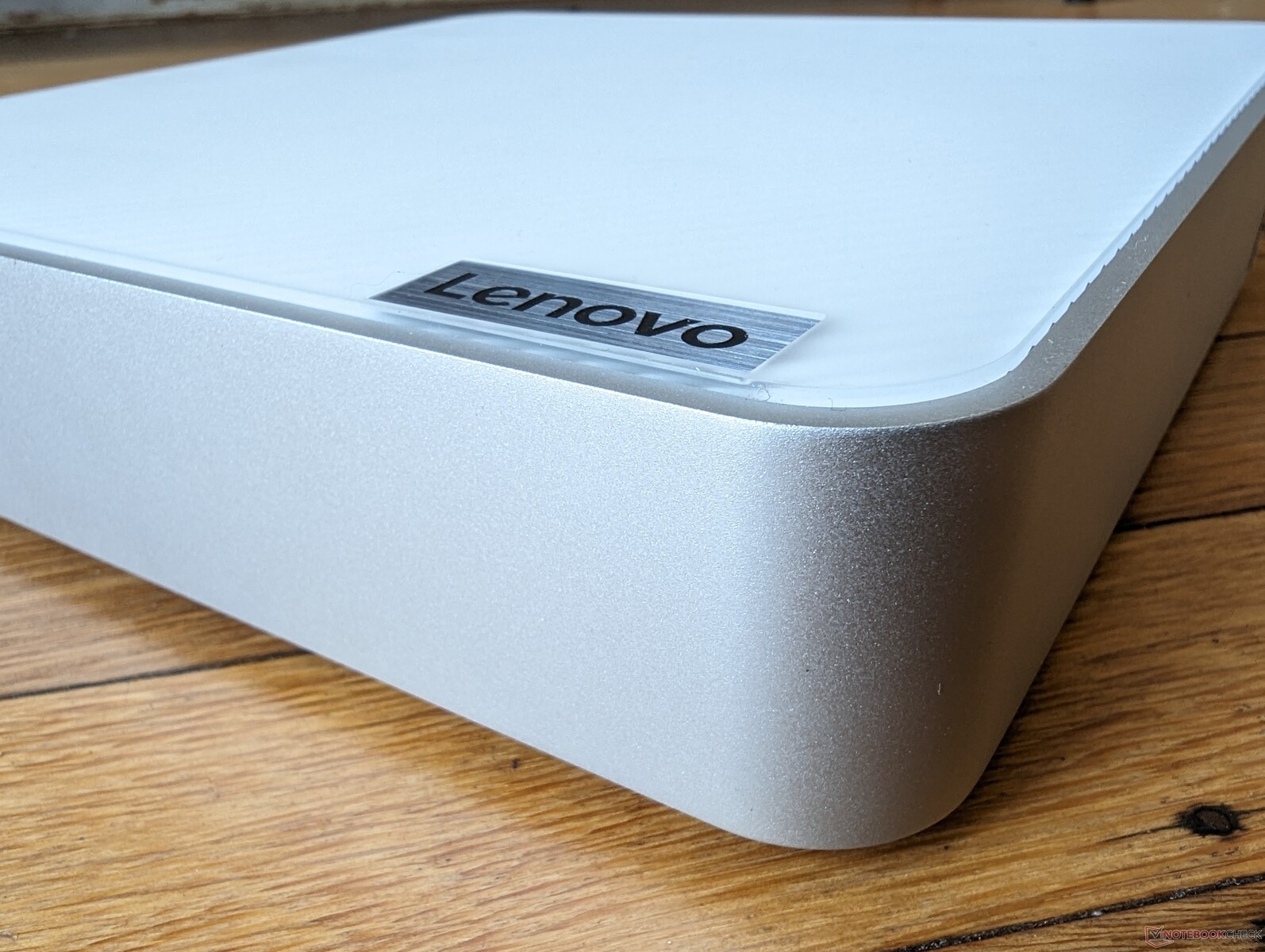

IdeaCentre 可能不是 ThinkCentre，但它的构造几乎与 ThinkCentre 相似。金属侧边、内部防滚架和集成 PSU 使其成为一台高密度的迷你 PC，尤其是对于消费类产品而言。向下按压外盖中央，几乎不会产生变形，不过会听到一些吱吱嘎嘎的声音。

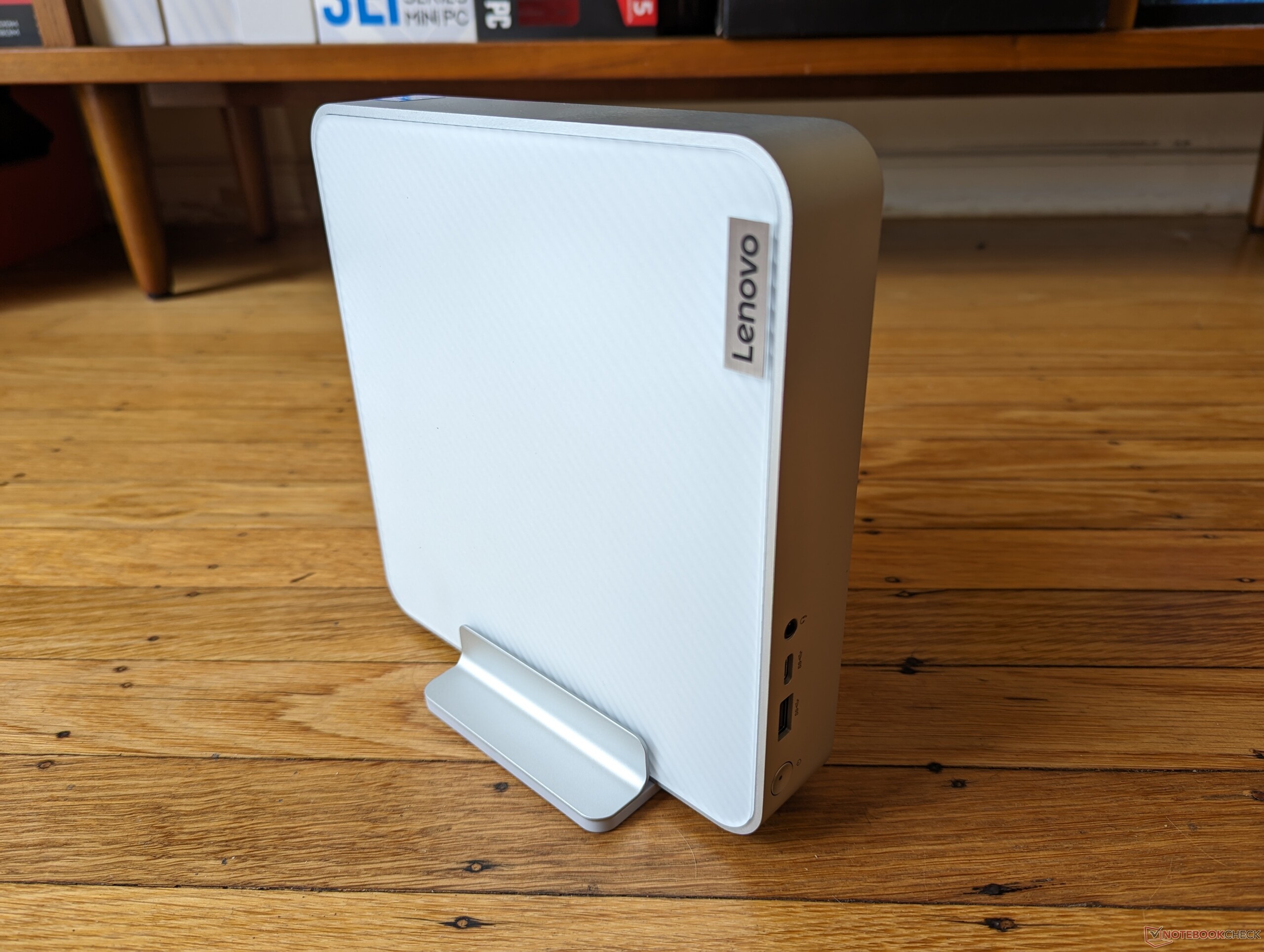

该设备可以垂直放置，例如放在书架上，而不会阻塞任何通风口。但值得注意的是，由于该设备非常重，因此不支持 VESA 安装。许多消费类迷你电脑（如 Beelink 的产品）甚至一些以办公室为中心的迷你电脑都可以安装在显示器后面，以节省桌面空间。

IdeaCentre Mini 比许多其他不带独立 GPU 的迷你 PC 要大得多、重得多。例如，英特尔 NUC 13 Pro 的重量几乎是它的 3 倍，占地面积也小得多。相反，IdeaCentre Mini 的主要优势在于其完全集成的 PSU，它摒弃了大多数迷你 PC 和笔记本电脑常见的难看的电源砖，机身更大但更方便。我们个人更喜欢集成 PSU 的优势，因为它意味着没有专有的电源砖，不会不小心丢失。

尺寸比较

Lenovo IdeaCentre Mini 01IRH8 Beelink GTR7 7840HS Trigkey Speed S Geekom Mini IT11, i7-11390H Intel NUC 12 Pro Kit NUC12WSBi5 Intel NUC 13 Pro Desk Edition Kit DIN A5 ❌

连接性

该机型集成了全尺寸 DisplayPort、2.5 Gbps RJ-45 和多个 USB-C 端口，共有三种不同的视频输出选项，因此端口选项非常丰富。需要注意的是，只有后置 USB-C 端口支持视频，因为前置 USB-C 端口仅用于数据和充电。

IdeaCentre Mini 没有 Kensington Lock 端口，因为它是为家庭而非公共办公空间设计的。

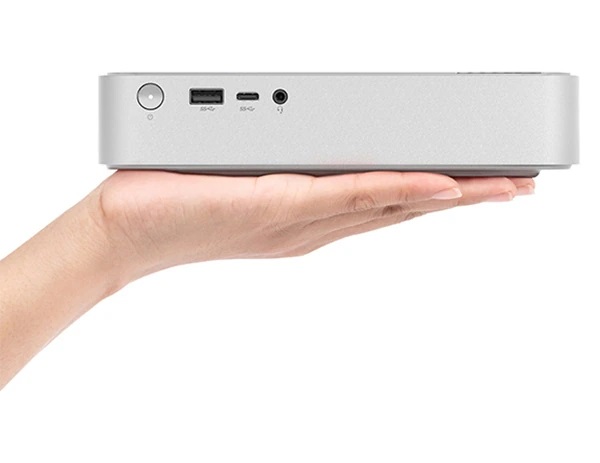

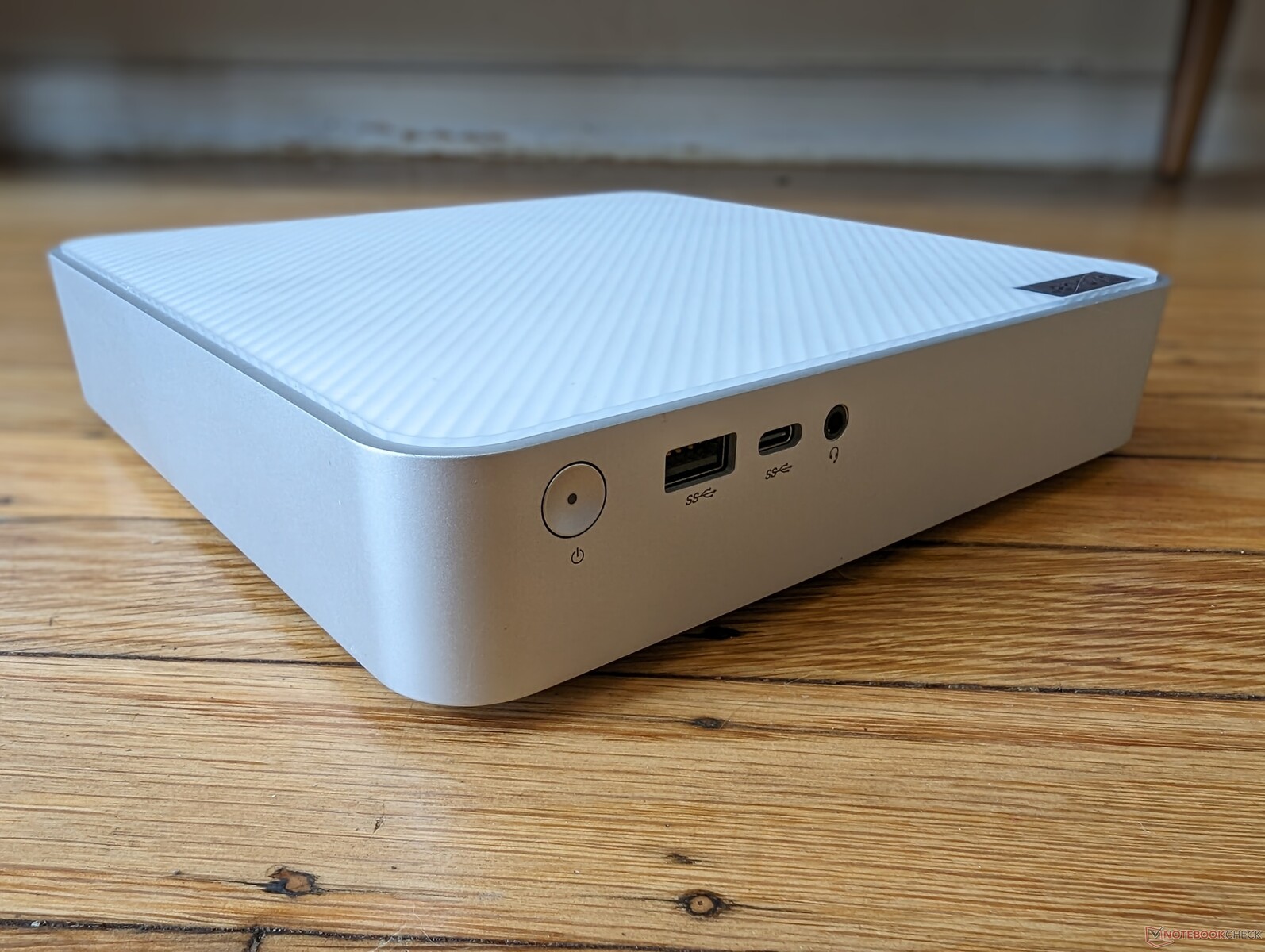

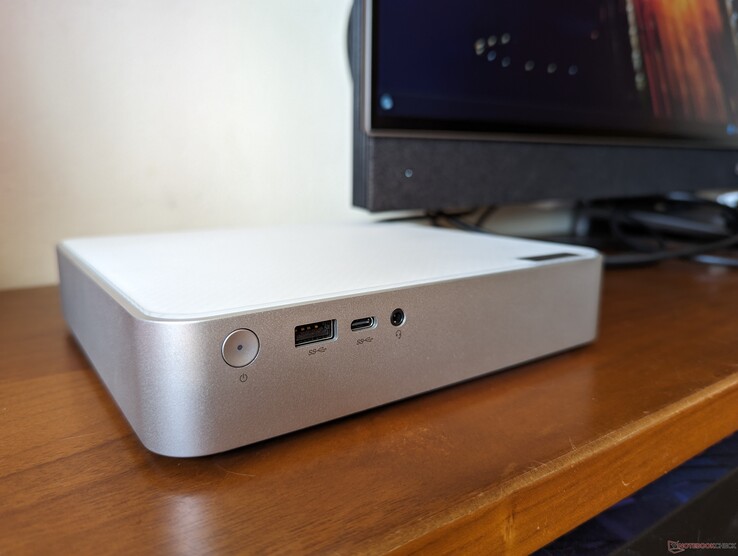

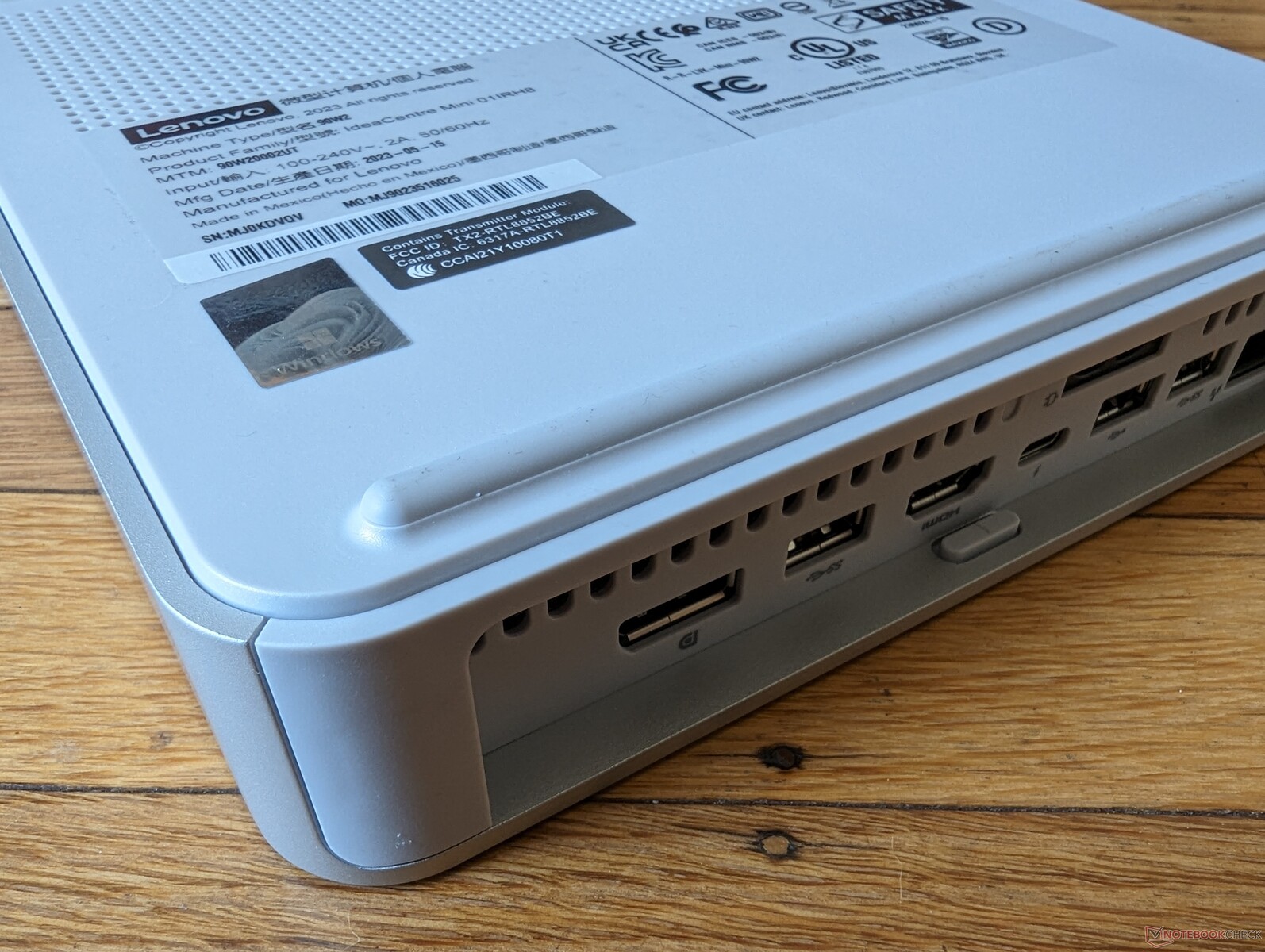

前置USB-A 3.2 Gen.2、USB-C 3.2 Gen.2、3.5 毫米耳机

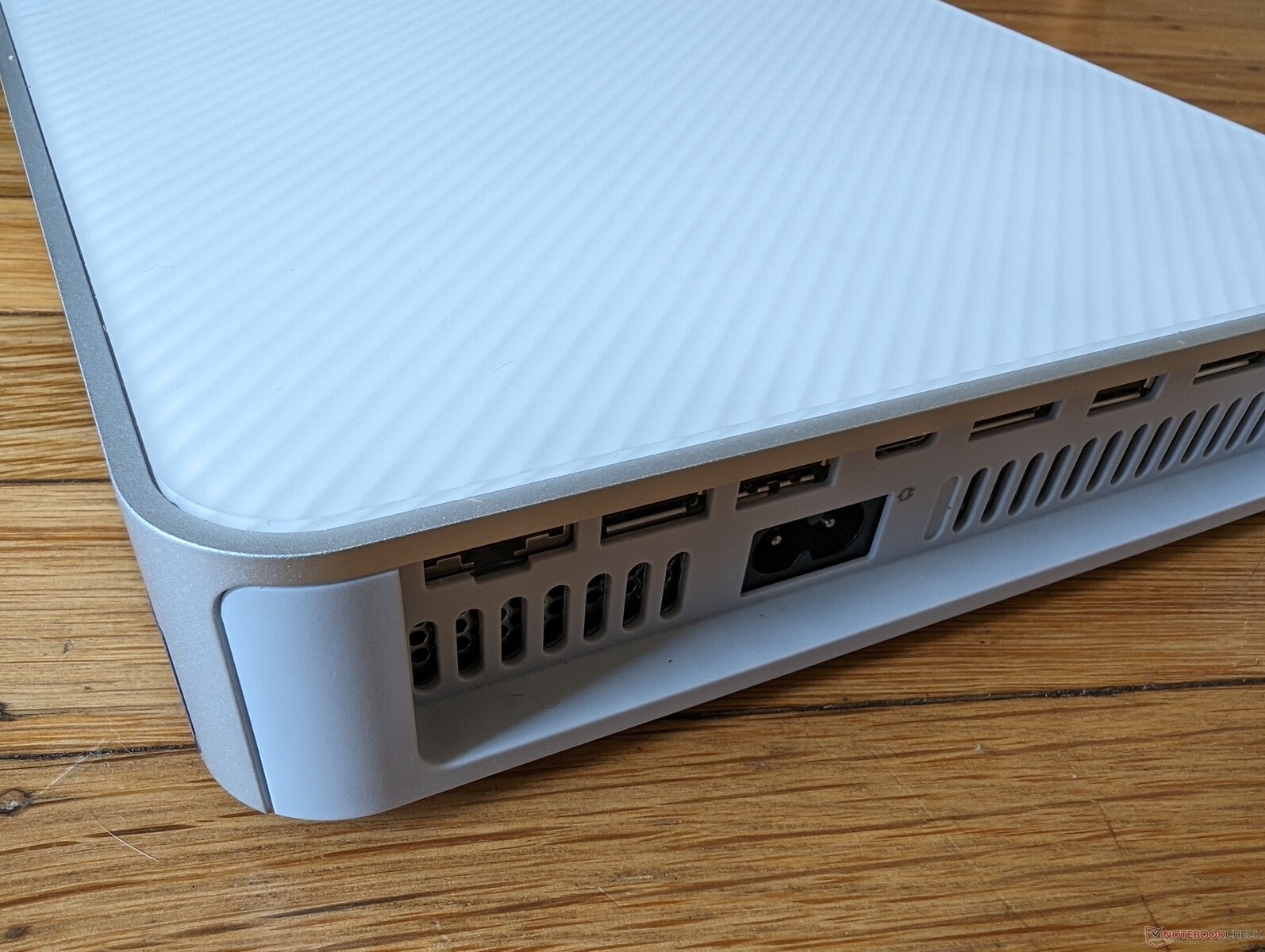

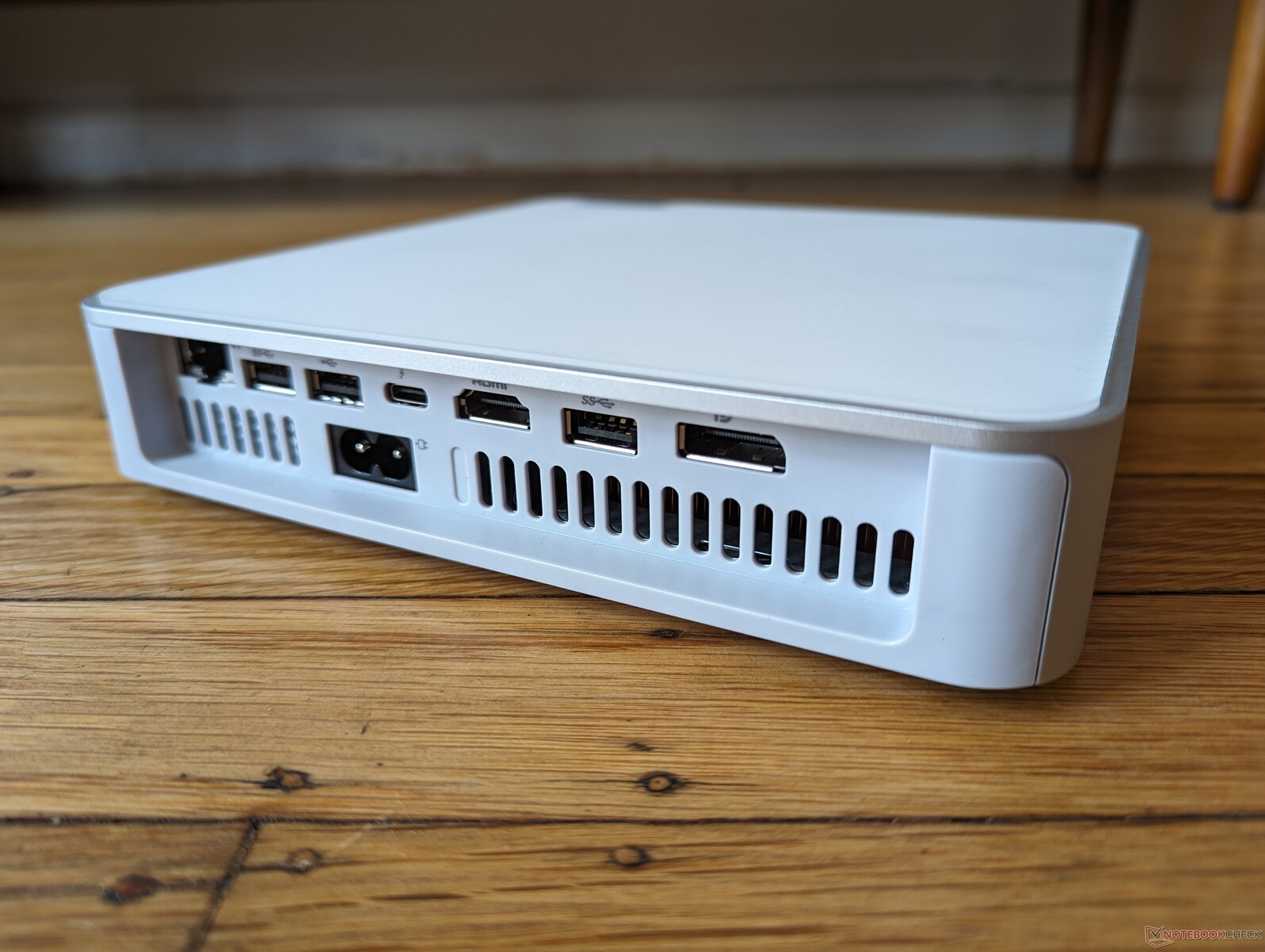

后部：2.5 Gbps RJ-45、USB-A 3.2 Gen.2、USB-A 2.0、电源线、HDMI 2.1 TMDS、USB-A 3.2 Gen.2、DisplayPort 1.4

交流

该机型配备了用于 Wi-Fi 6 和蓝牙 5.1 连接的 Realtek RTL8852BE。为了节省成本，它没有配备 Wi-Fi 6E，这有点遗憾，因为 Wi-Fi 6E 最适合 HTPC 游戏串流。不过，与我们的华硕 AXE11000 测试路由器配对后，性能还是稳定可靠的。

Networking
iperf3 transmit AXE11000
Intel NUC 13 Pro Desk Edition Kit Intel Wi-Fi 6E AX211	1301 (514^min - 1422^max) MBit/s +62%
Trigkey Speed S Intel Wi-Fi 6 AX201	1068 (610^min - 1322^max) MBit/s +33%
Beelink GTR7 7840HS Intel Wi-Fi 6 AX200	1031 (961^min - 1109^max) MBit/s +28%
Geekom Mini IT11, i7-11390H Intel Wi-Fi 6 AX201	845 (818^min - 879^max) MBit/s +5%
Lenovo IdeaCentre Mini 01IRH8 Realtek RTL8852BE	803 (713^min - 847^max) MBit/s
iperf3 receive AXE11000
Beelink GTR7 7840HS Intel Wi-Fi 6 AX200	1211 (1112^min - 1284^max) MBit/s +51%
Trigkey Speed S Intel Wi-Fi 6 AX201	1163 (815^min - 1422^max) MBit/s +45%
Intel NUC 13 Pro Desk Edition Kit Intel Wi-Fi 6E AX211	1117 (884^min - 1368^max) MBit/s +39%
Geekom Mini IT11, i7-11390H Intel Wi-Fi 6 AX201	958 (941^min - 967^max) MBit/s +20%
Lenovo IdeaCentre Mini 01IRH8 Realtek RTL8852BE	801 (656^min - 887^max) MBit/s
iperf3 transmit AXE11000 6GHz
Intel NUC 13 Pro Desk Edition Kit Intel Wi-Fi 6E AX211	1511 (1451^min - 1552^max) MBit/s
iperf3 receive AXE11000 6GHz
Intel NUC 13 Pro Desk Edition Kit Intel Wi-Fi 6E AX211	1448 (1357^min - 1490^max) MBit/s

Lenovo IdeaCentre Mini 01IRH8; iperf3 transmit AXE11000; iperf 3.1.3: Ø803 (713-847)

Lenovo IdeaCentre Mini 01IRH8; iperf3 receive AXE11000; iperf 3.1.3: Ø801 (656-887)

维护

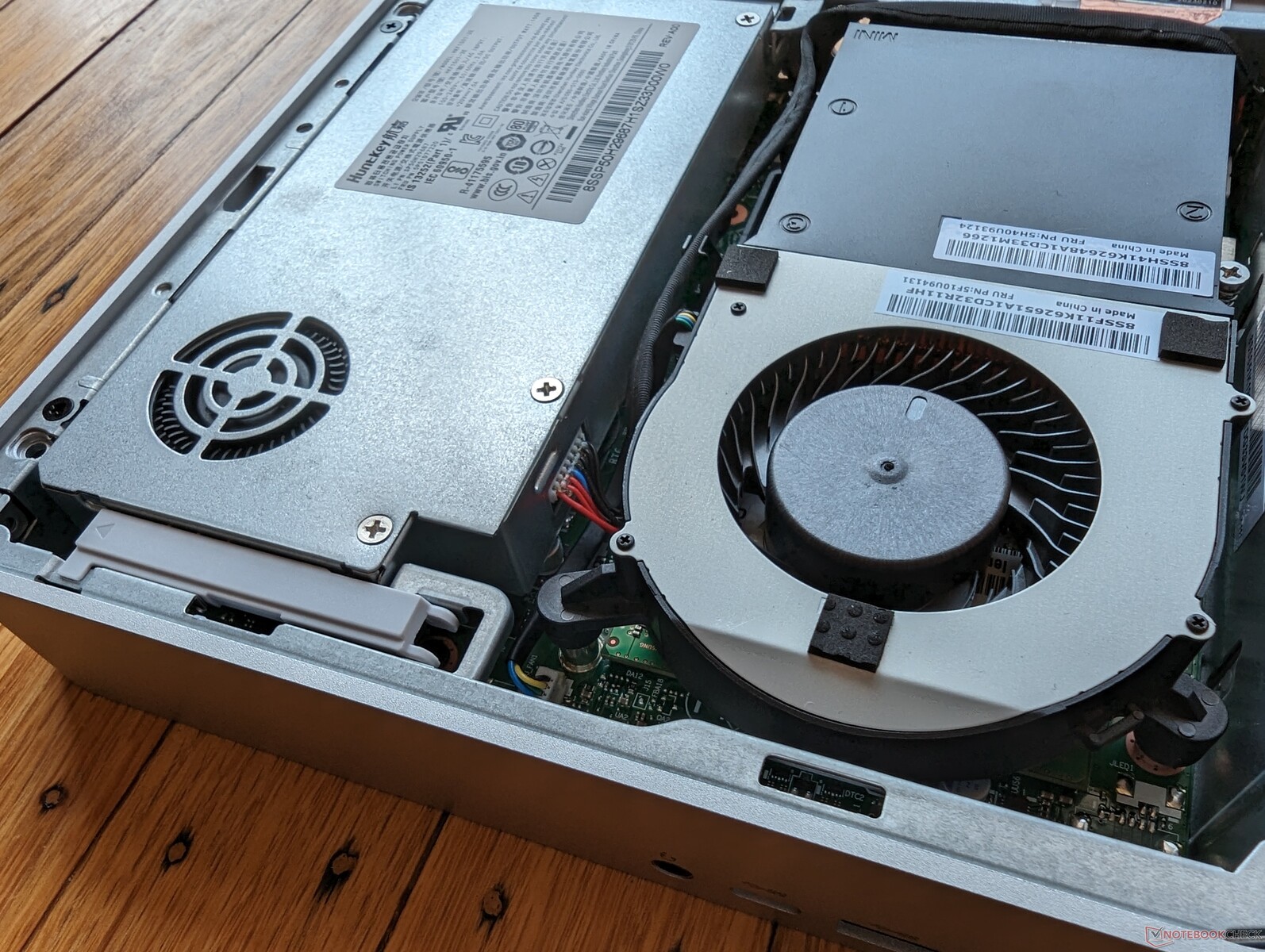

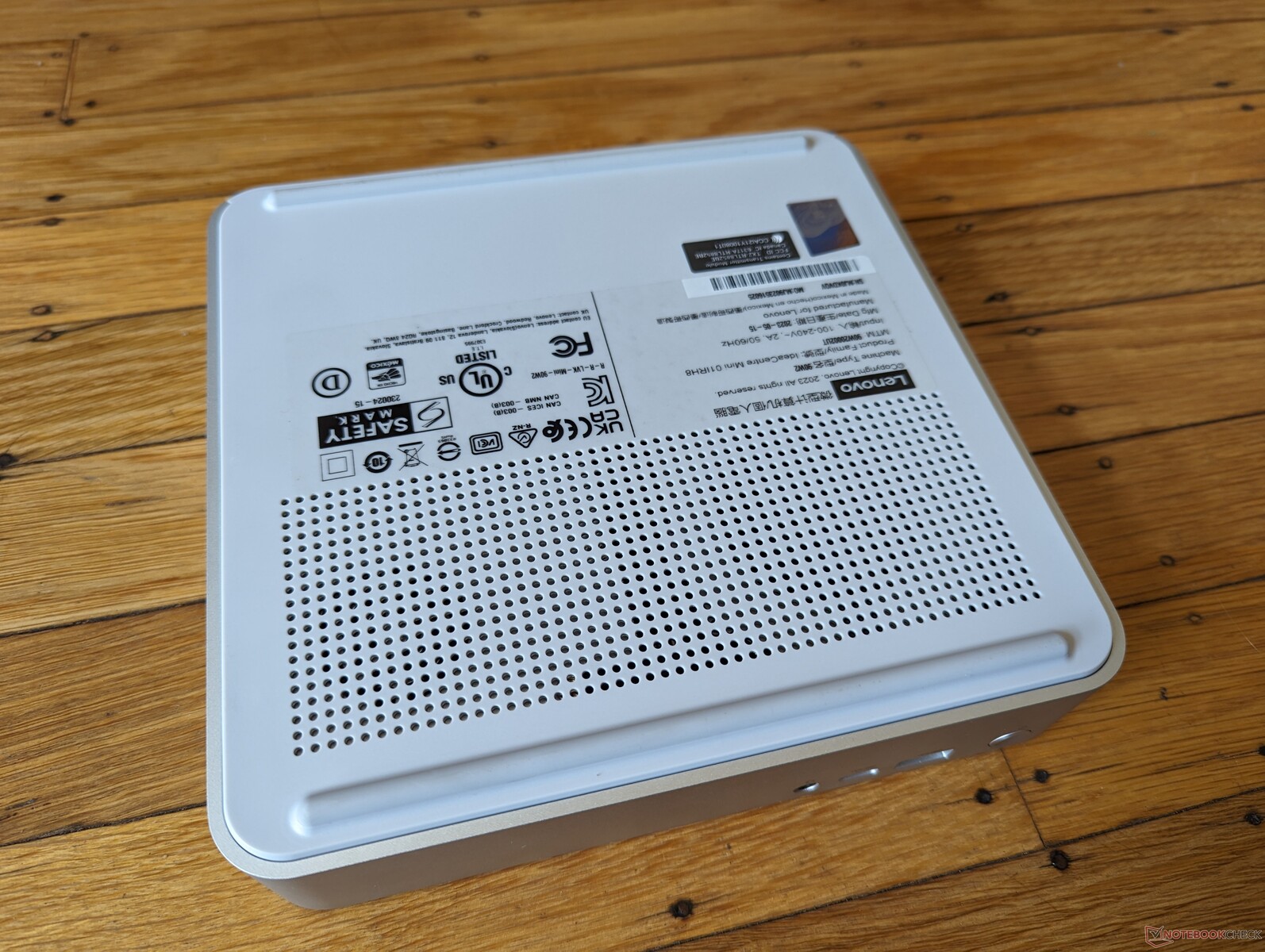

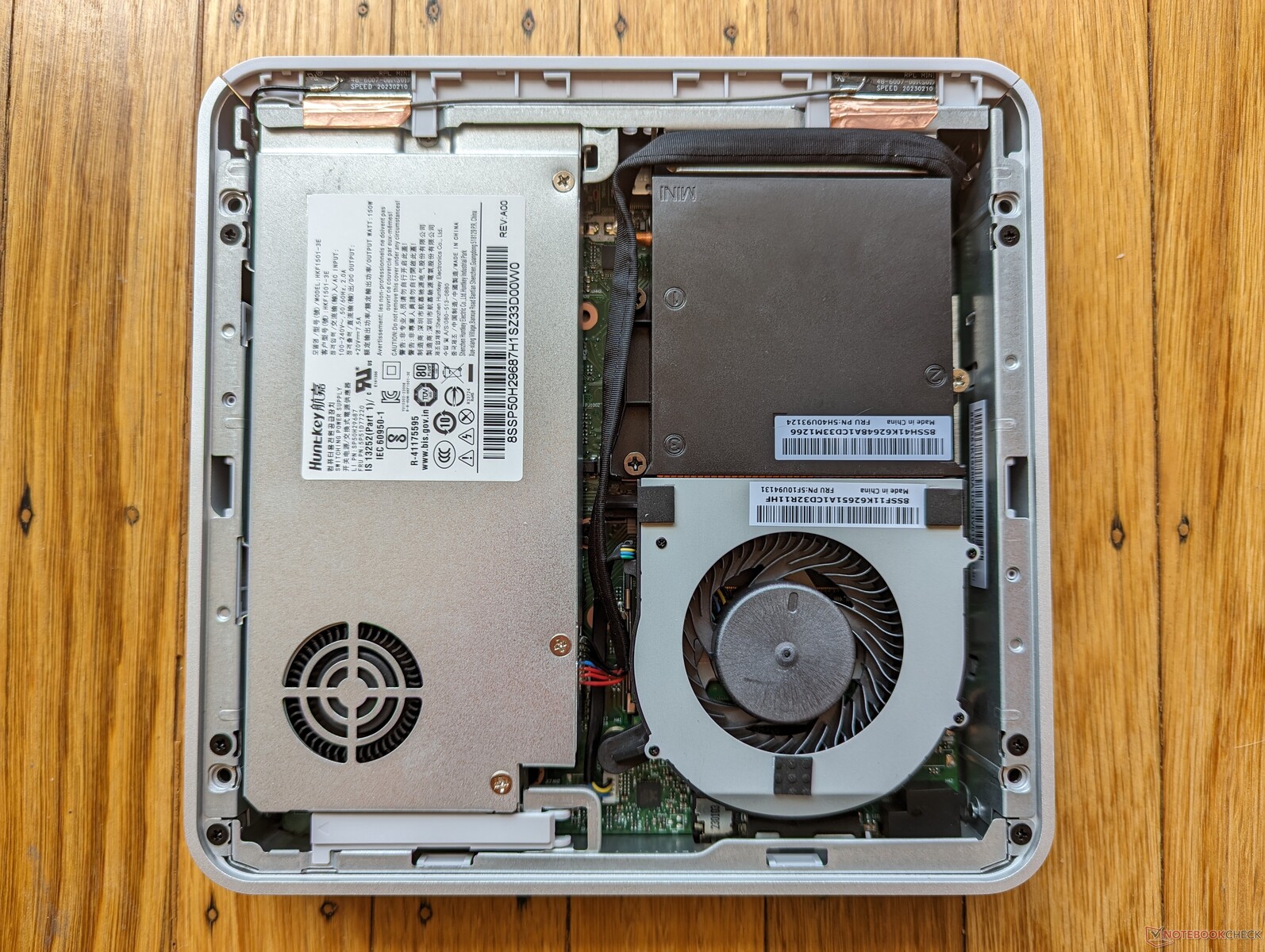

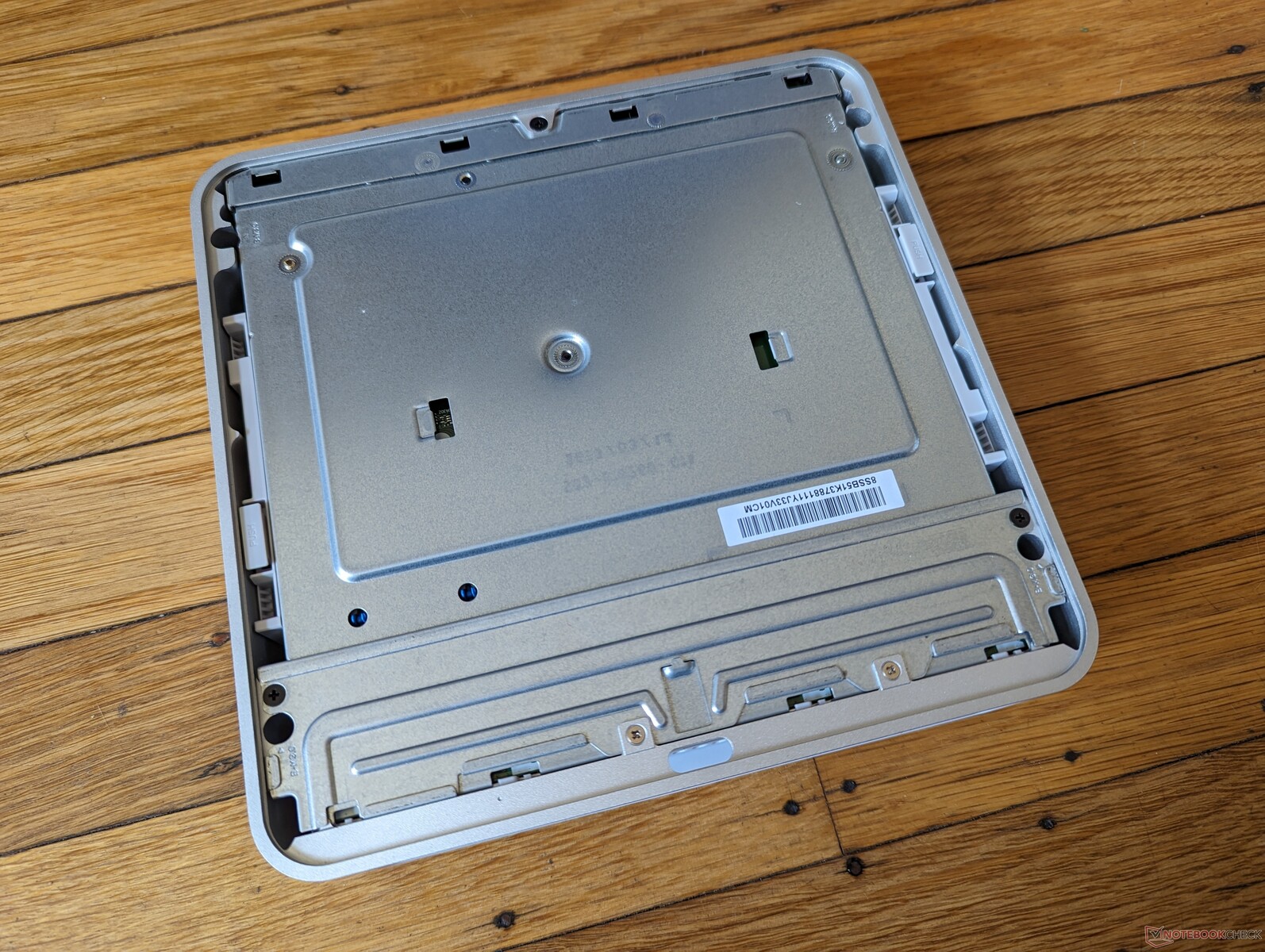

与英特尔 NUC 或 Beelink GTR/GTI 系列产品相比，由于集成了 PSU，因此维修起来需要更多的工作。首先，用户必须按下后部 HDMI 端口附近的按钮，取下设备的顶盖。顶盖取下后，用户必须取下固定底板的四颗十字螺丝。接下来，必须再按两个按钮，才能取下机箱底盖，露出风扇和集成 PSU。

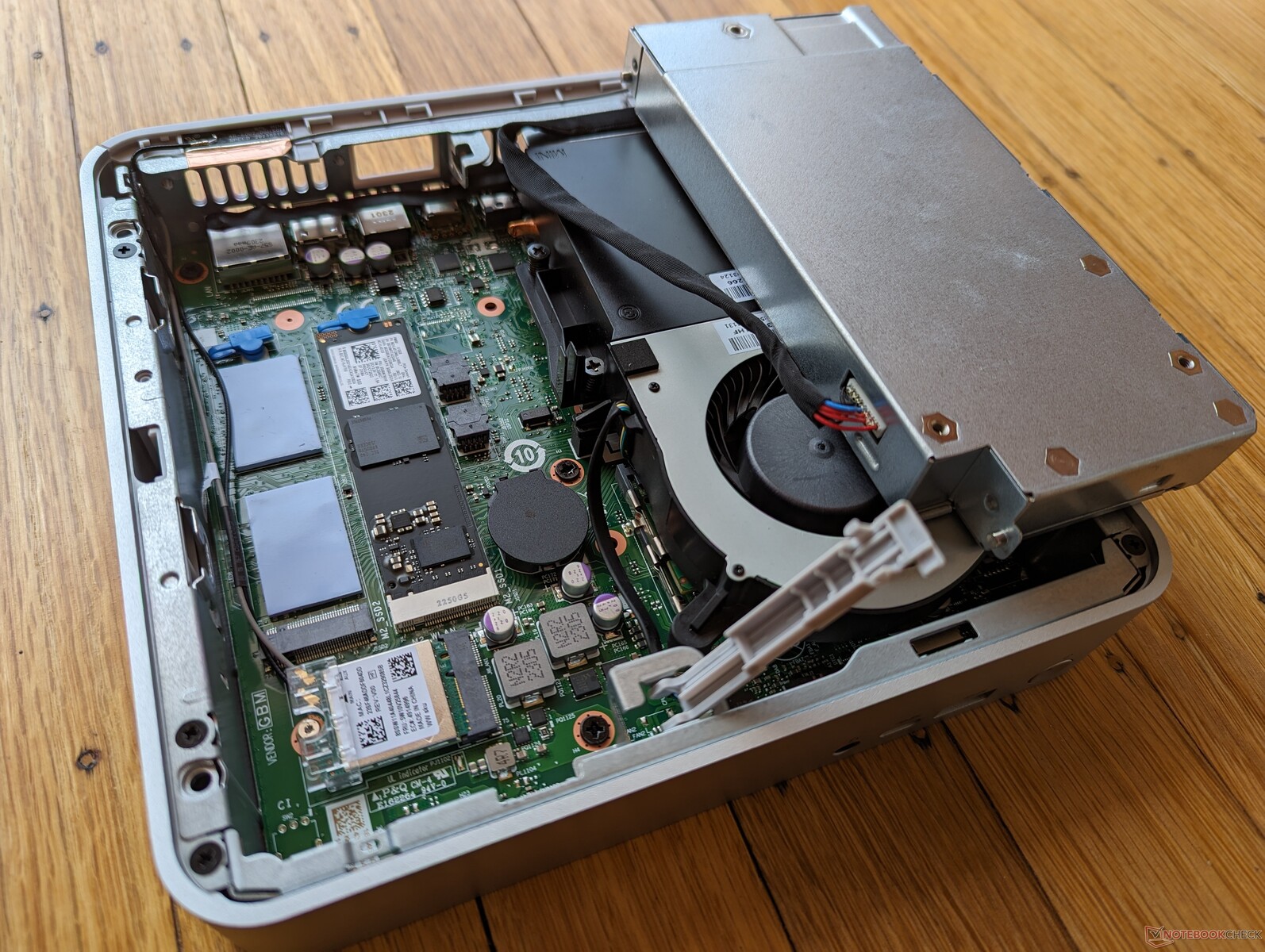

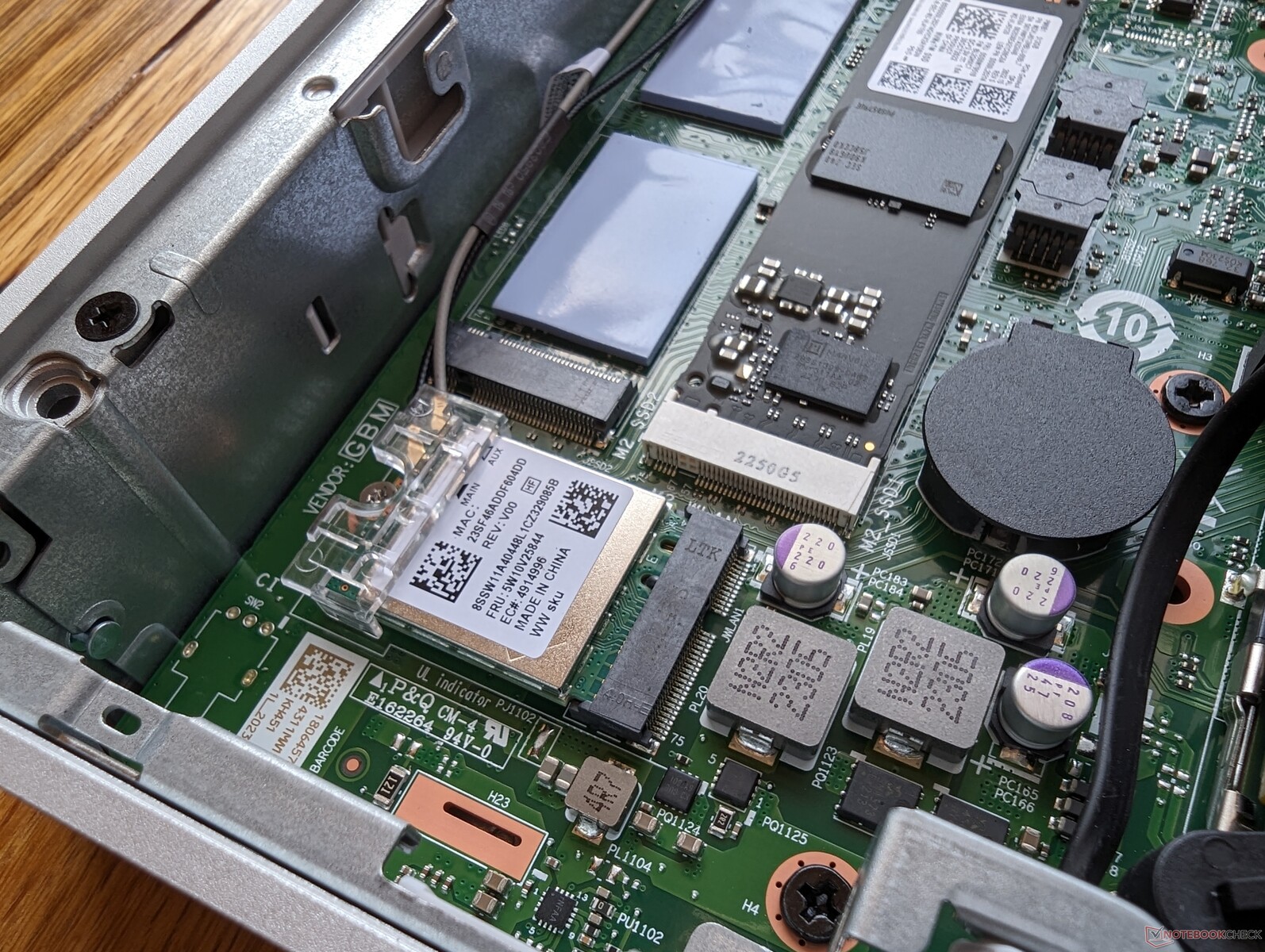

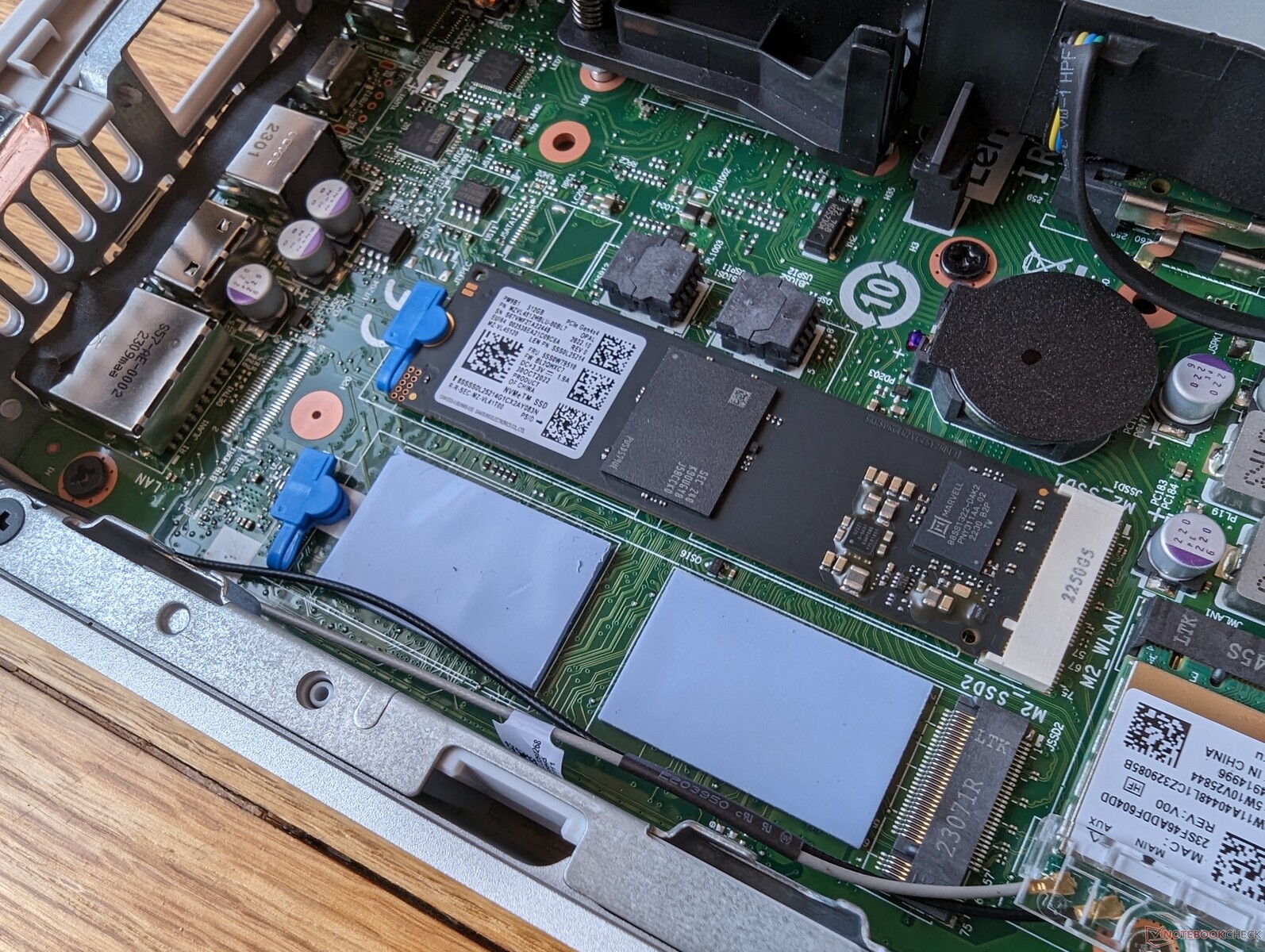

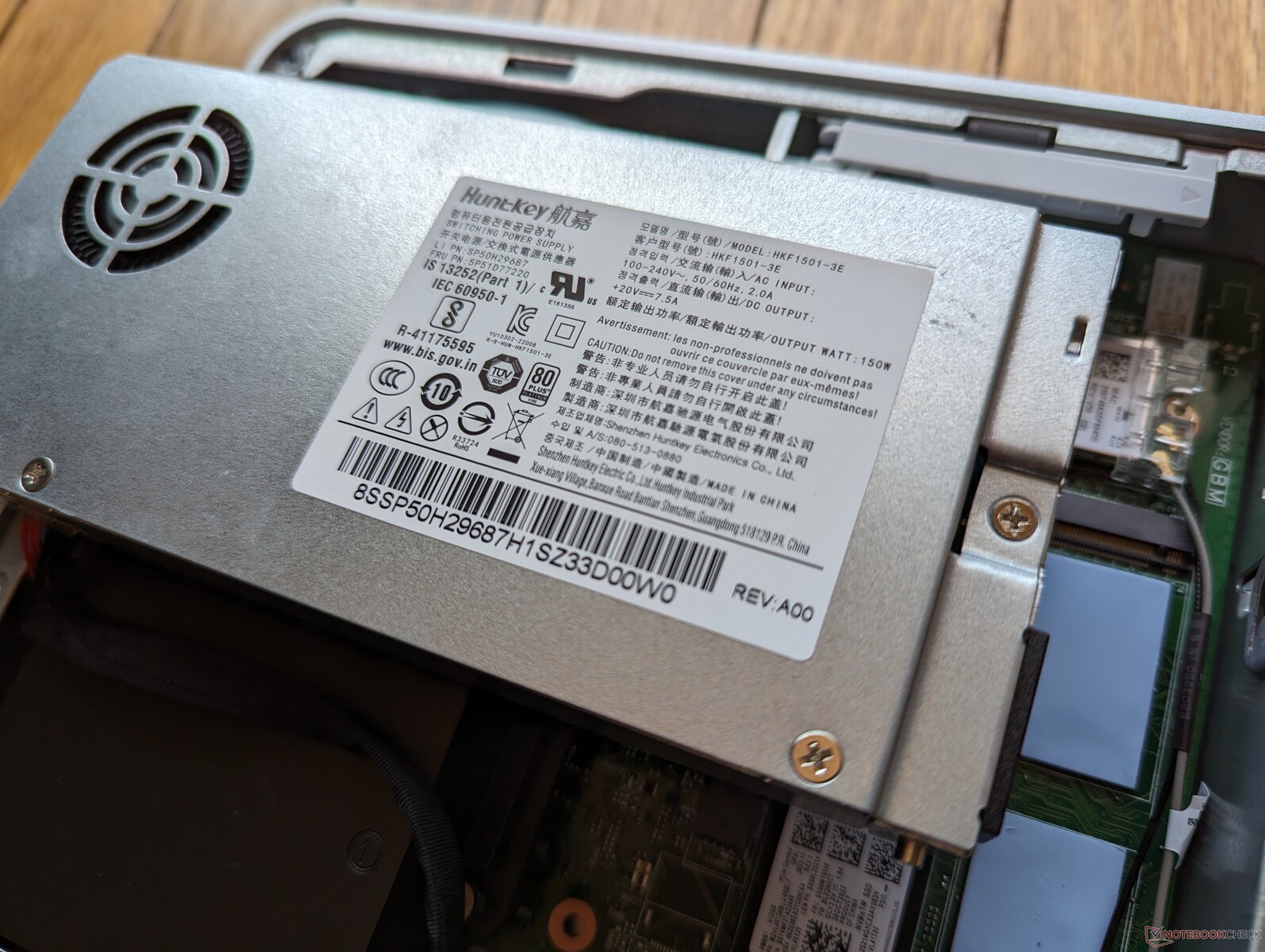

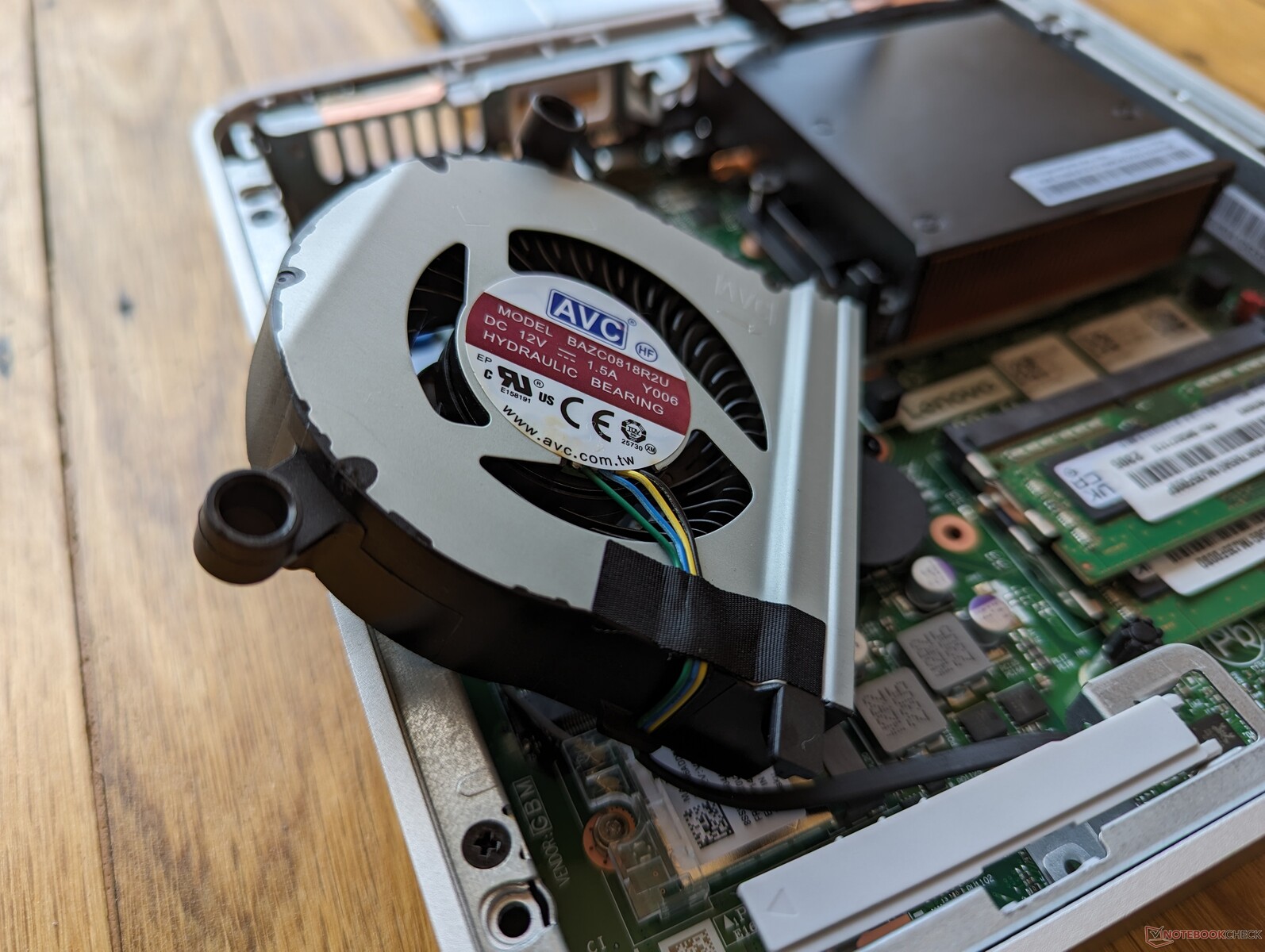

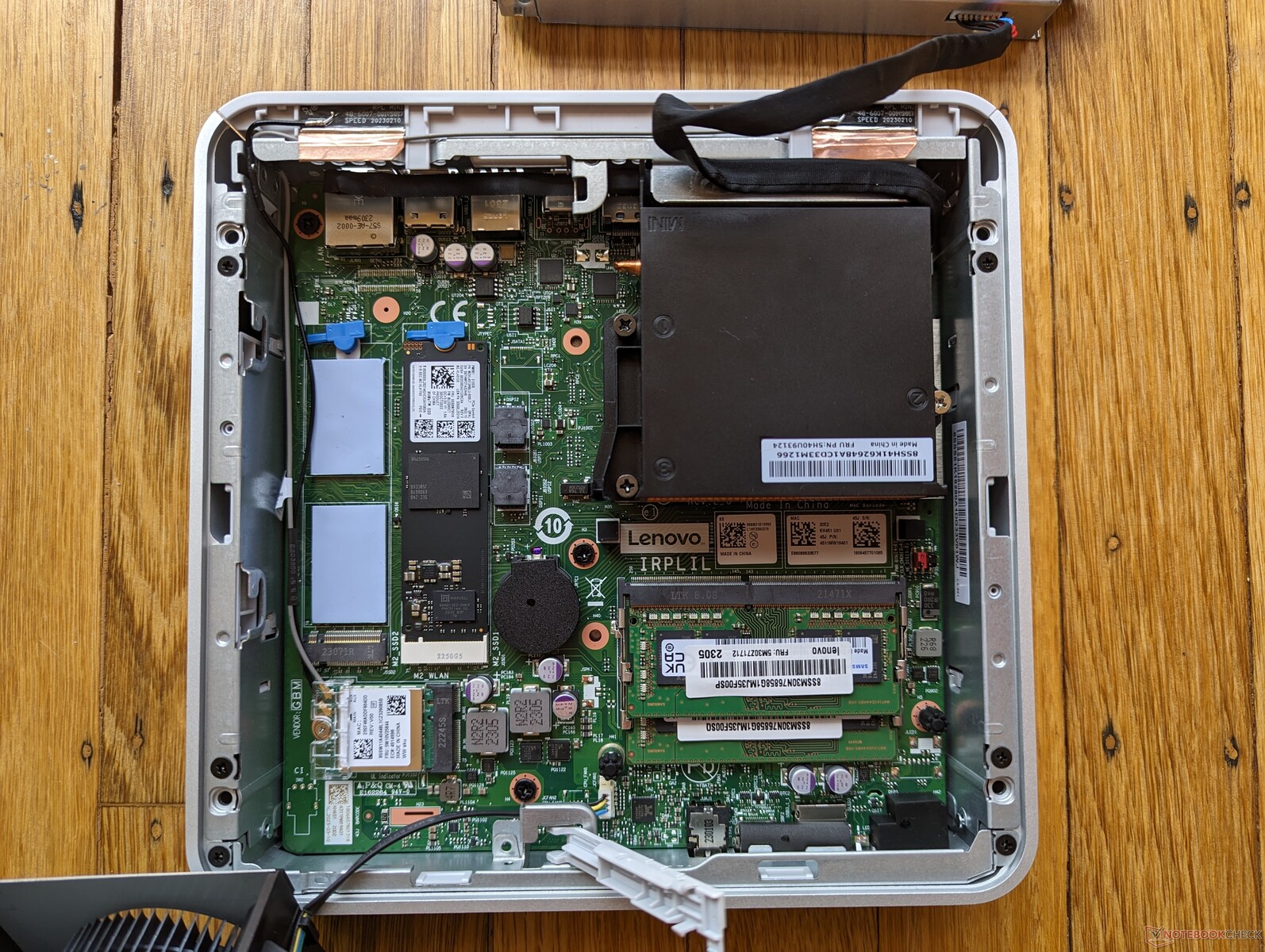

不过，要访问 2 个 SODIMM 插槽、2 个 M.2 固态硬盘插槽和 WLAN 模块，必须拆下风扇和 PSU，如下图所示。幸好这部分非常简单，因为风扇和 PSU 是通过锁扣而不是螺丝固定的。

值得庆幸的是，联想在线手册这里详细介绍了拆卸步骤。

配件和保修

标准零售包装盒包括文件、标准双芯交流电源线和一个可拆卸的垂直支架。制造商通常提供一年有限保修。

性能

测试条件

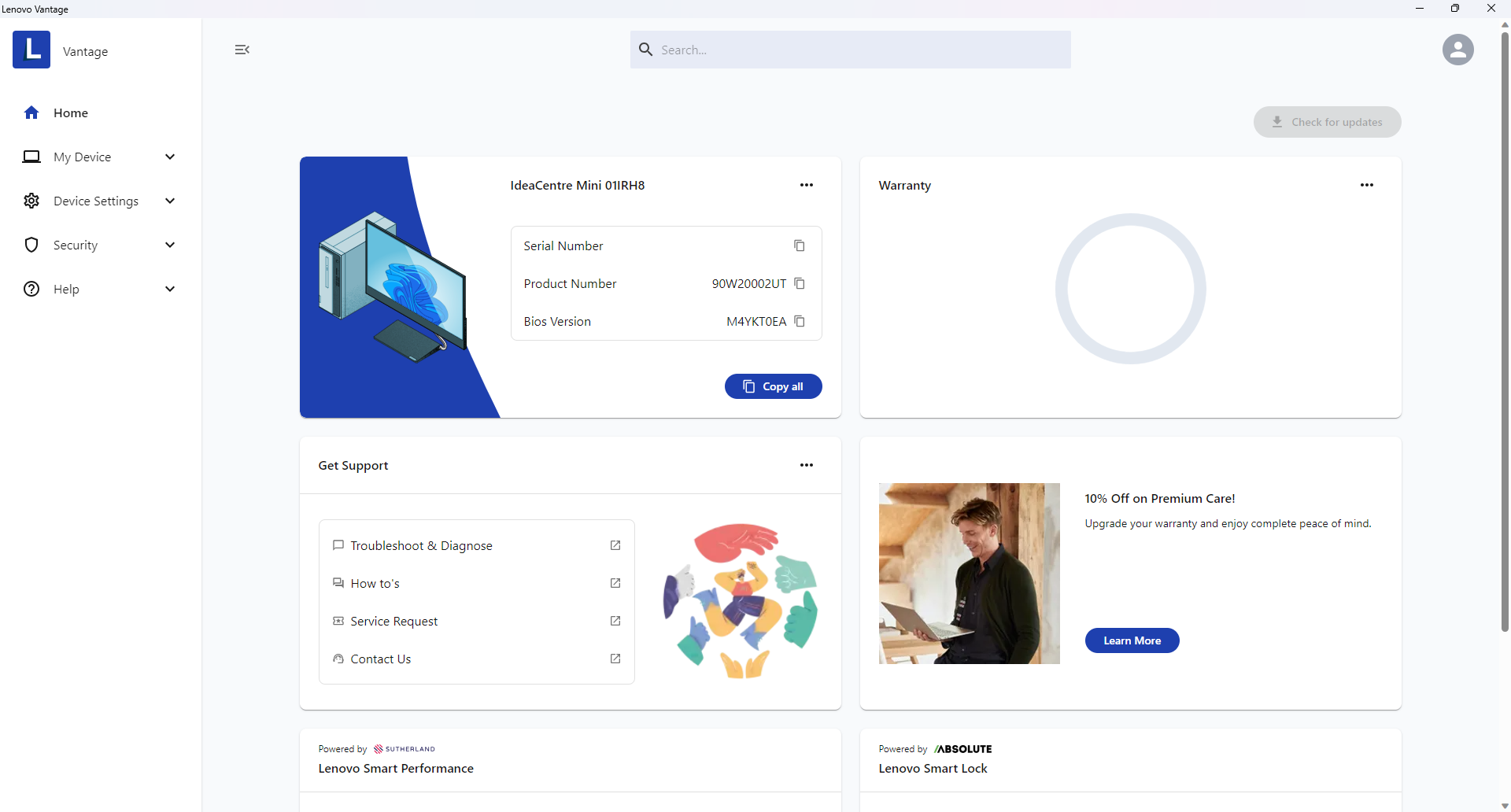

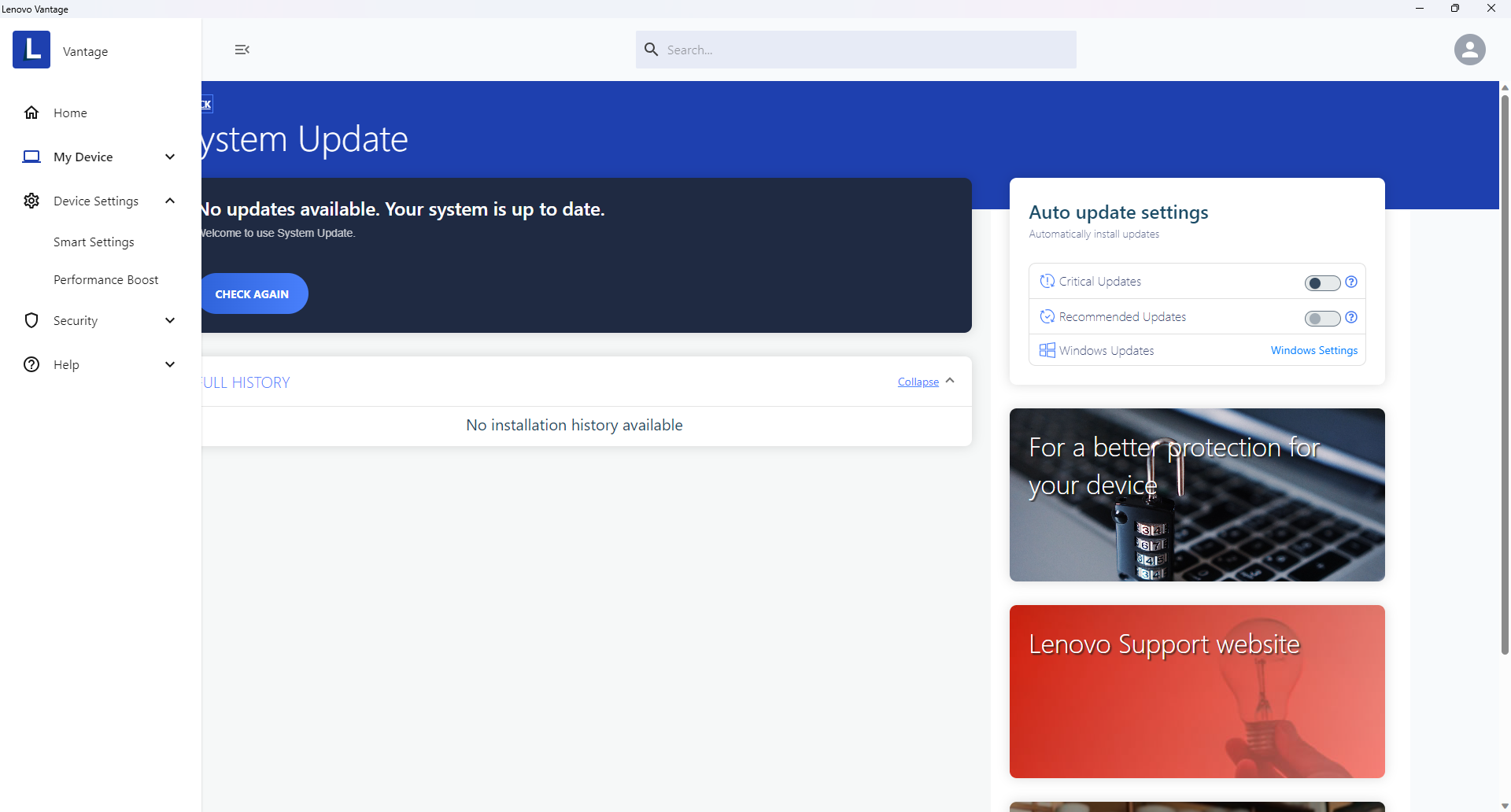

在运行下面的基准测试之前，我们将系统设置为默认的 "联想平衡 "模式。通过 Windows 或联想 Vantage 软件没有特定的性能模式。但用户仍应熟悉 Vantage，因为它是联想特定更新和安全设置的中心。

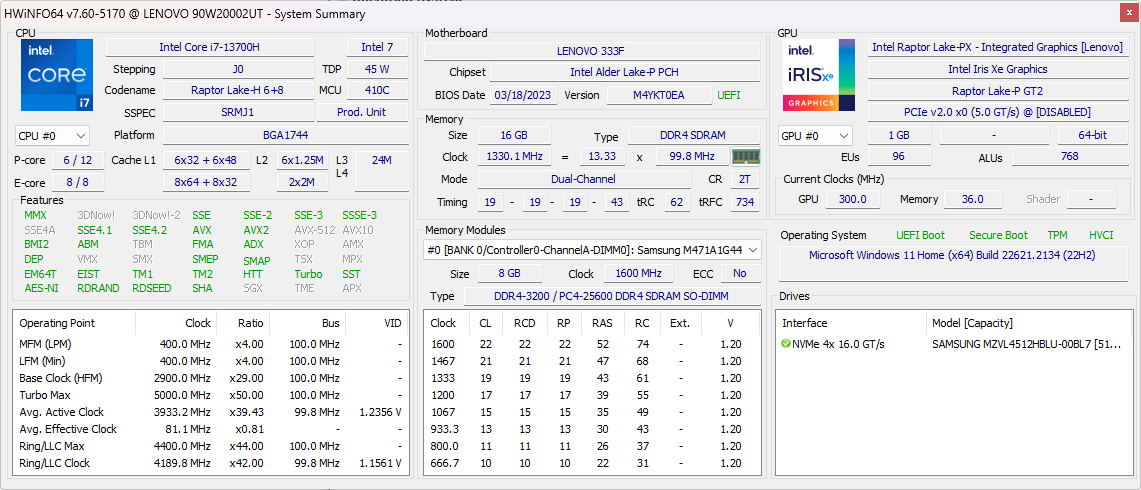

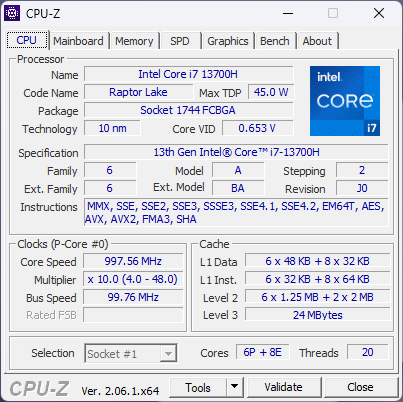

处理器

CPU 性能与我们数据库中配备相同酷睿 i7-13700H如果不是因为联想迷你 PC 的 Turbo Boost 功能有限而略低几个百分点的话。例如，在循环运行 CineBench R15 xT 时，最初的 2240 分会随着时间的推移下降 16%，而联想的 14 英寸宏碁掠夺者 Triton在使用相同处理器的情况下，可以长期保持更快的时钟频率。即便如此，IdeaCentre Mini 的速度仍然快于其他大多数使用较旧的第 12 代酷睿-H 或 AMD Zen 3+ CPU 的迷你 PC。用户必须考虑采用 Zen 4 处理器的迷你电脑，如 Beelink GTR7或其他酷睿-HX 处理器的迷你 PC，才能明显快于我们的联想电脑。

根据我们使用Minisforum Venus Series NPB5 的情况，降级到Core i5-13500H 配置预计会带来高达 10% 的性能损失。

Cinebench R15 Multi Loop

Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H: Ø1926 (1862.02-2240.14)

Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P: Ø1753 (1686.77-2083.33)

Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P: Ø1681 (1638.81-2006.82)

Beelink GTR7 7840HS AMD Ryzen 7 7840HS: Ø2669 (2587.99-2689.08)

Geekom Mini IT11, i7-11390H Intel Core i7-11390H: Ø946 (931.81-953.22)

Trigkey Speed S Intel Core i5-11320H: Ø854 (839.91-860.88)

CPU Performance Rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

CPU Performance Rating
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	86.1 pt
Beelink GTR7 7840HS AMD Ryzen 7 7840HS	82.9 pt
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	78.7 pt
Average Intel Core i7-13700H	78.3 pt
Minisforum Venus Series NPB5 Intel Core i5-13500H	74.1 pt
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	72.4 pt
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	69.2 pt
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS	68.1 pt
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U	62.2 pt
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	58.8 pt
Blackview MP200 Intel Core i5-11400H	52.4 pt
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	49 pt
Intel NUC11PAQi7 ^-1! Intel Core i7-1165G7	47.3 pt
Trigkey Speed S Intel Core i5-11320H	44.9 pt
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	43.5 pt

Cinebench R23 / Multi Core
Beelink GTR7 7840HS AMD Ryzen 7 7840HS	17214 (17017.5^min - 17213.9^max) Points +19%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	16985 Points +17%
Average Intel Core i7-13700H (5890 - 20034, n=28)	15266 Points +6%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	14465 (9293.64^min - 14465.4^max) Points
Minisforum Venus Series NPB5 Intel Core i5-13500H	13542 Points -6%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	12486 Points -14%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	12155 Points -16%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS	11626 (11015.5^min - 11625.6^max) Points -20%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U	11171 Points -23%
Blackview MP200 Intel Core i5-11400H	8451 Points -42%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	8342 Points -42%
Intel NUC11PAQi7 Intel Core i7-1165G7	6862 Points -53%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	5917 Points -59%
Trigkey Speed S Intel Core i5-11320H	5724 (5641.98^min - 5723.64^max) Points -60%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	5222 Points -64%

Cinebench R23 / Single Core
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	1898 Points
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	1878 Points -1%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	1813 Points -4%
Beelink GTR7 7840HS AMD Ryzen 7 7840HS	1812 Points -5%
Average Intel Core i7-13700H (1323 - 1914, n=28)	1797 Points -5%
Minisforum Venus Series NPB5 Intel Core i5-13500H	1775 Points -6%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	1713 Points -10%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	1602 Points -16%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	1550 Points -18%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS	1537 Points -19%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U	1506 Points -21%
Trigkey Speed S Intel Core i5-11320H	1465 Points -23%
Blackview MP200 Intel Core i5-11400H	1462 Points -23%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	1451 Points -24%

Cinebench R20 / CPU (Multi Core)
Beelink GTR7 7840HS AMD Ryzen 7 7840HS	6744 Points +16%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	6640 Points +14%
Average Intel Core i7-13700H (2322 - 7674, n=28)	5945 Points +3%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	5800 Points
Minisforum Venus Series NPB5 Intel Core i5-13500H	5108 Points -12%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	4776 Points -18%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	4687 Points -19%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS	4524 Points -22%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U	4386 Points -24%
Blackview MP200 Intel Core i5-11400H	3283 Points -43%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	3234 Points -44%
Intel NUC11PAQi7 Intel Core i7-1165G7	2657 Points -54%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	2284 Points -61%
Trigkey Speed S Intel Core i5-11320H	2216 Points -62%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	2027 Points -65%

Cinebench R20 / CPU (Single Core)
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	723 Points 0%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	721 Points
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	711 Points -1%
Beelink GTR7 7840HS AMD Ryzen 7 7840HS	705 Points -2%
Average Intel Core i7-13700H (508 - 741, n=28)	693 Points -4%
Minisforum Venus Series NPB5 Intel Core i5-13500H	687 Points -5%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	654 Points -9%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	620 Points -14%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	607 Points -16%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS	598 Points -17%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U	592 Points -18%
Intel NUC11PAQi7 Intel Core i7-1165G7	582 Points -19%
Trigkey Speed S Intel Core i5-11320H	567 Points -21%
Blackview MP200 Intel Core i5-11400H	560 Points -22%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	558 Points -23%

Cinebench R15 / CPU Multi 64Bit
Beelink GTR7 7840HS AMD Ryzen 7 7840HS	2689 (2587.99^min - 2689.08^max) Points +20%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	2663 Points +19%
Average Intel Core i7-13700H (905 - 2982, n=28)	2455 Points +10%
Minisforum Venus Series NPB5 Intel Core i5-13500H	2304 Points +3%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	2240 (1862.02^min - 2240.14^max) Points
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	2028 Points -9%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	1990 Points -11%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS	1953 (1862.98^min - 1952.55^max) Points -13%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U	1837 Points -18%
Blackview MP200 Intel Core i5-11400H	1378 Points -38%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	1320 Points -41%
Intel NUC11PAQi7 Intel Core i7-1165G7	986 (962.77^min - 985.76^max) Points -56%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	953 Points -57%
Trigkey Speed S Intel Core i5-11320H	861 (839.91^min - 860.88^max) Points -62%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	791 Points -65%

Cinebench R15 / CPU Single 64Bit
Beelink GTR7 7840HS AMD Ryzen 7 7840HS	286 Points +10%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	284 Points +9%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	267 Points +3%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	260 Points
Average Intel Core i7-13700H (213 - 278, n=28)	260 Points 0%
Minisforum Venus Series NPB5 Intel Core i5-13500H	255 Points -2%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	249 Points -4%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS	247 Points -5%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	245 Points -6%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U	243 Points -7%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	232 Points -11%
Intel NUC11PAQi7 Intel Core i7-1165G7	230 Points -12%
Blackview MP200 Intel Core i5-11400H	218 Points -16%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	215 Points -17%
Trigkey Speed S Intel Core i5-11320H	215 Points -17%

Blender / v2.79 BMW27 CPU
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	590 Seconds * -173%
Trigkey Speed S Intel Core i5-11320H	543 Seconds * -151%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	513 Seconds * -138%
Intel NUC11PAQi7 Intel Core i7-1165G7	468 Seconds * -117%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	380 Seconds * -76%
Blackview MP200 Intel Core i5-11400H	373 Seconds * -73%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U	282 Seconds * -31%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	268 Seconds * -24%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS	263 Seconds * -22%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	260 Seconds * -20%
Minisforum Venus Series NPB5 Intel Core i5-13500H	260 Seconds * -20%
Beelink GTR7 7840HS AMD Ryzen 7 7840HS	229 Seconds * -6%
Average Intel Core i7-13700H (169 - 555, n=28)	229 Seconds * -6%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	216 Seconds *
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	188 Seconds * +13%

7-Zip 18.03 / 7z b 4
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	70019 MIPS +28%
Beelink GTR7 7840HS AMD Ryzen 7 7840HS	65706 MIPS +20%
Average Intel Core i7-13700H (27322 - 76344, n=28)	61025 MIPS +11%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS	57693 MIPS +5%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	56930 MIPS +4%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	54733 MIPS
Minisforum Venus Series NPB5 Intel Core i5-13500H	52630 MIPS -4%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U	52046 MIPS -5%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	51340 MIPS -6%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	36343 MIPS -34%
Blackview MP200 Intel Core i5-11400H	34660 MIPS -37%
Intel NUC11PAQi7 Intel Core i7-1165G7	27203 MIPS -50%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	25876 MIPS -53%
Trigkey Speed S Intel Core i5-11320H	24718 MIPS -55%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	23471 MIPS -57%

7-Zip 18.03 / 7z b 4 -mmt1
Beelink GTR7 7840HS AMD Ryzen 7 7840HS	6749 MIPS +12%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	6683 MIPS +11%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	6014 MIPS
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	5895 MIPS -2%
Average Intel Core i7-13700H (4825 - 6238, n=28)	5858 MIPS -3%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	5840 MIPS -3%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS	5809 MIPS -3%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	5721 MIPS -5%
Minisforum Venus Series NPB5 Intel Core i5-13500H	5695 MIPS -5%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U	5433 MIPS -10%
Intel NUC11PAQi7 Intel Core i7-1165G7	5405 MIPS -10%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	5353 MIPS -11%
Blackview MP200 Intel Core i5-11400H	5343 MIPS -11%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	5235 MIPS -13%
Trigkey Speed S Intel Core i5-11320H	5119 MIPS -15%

Geekbench 5.5 / Multi-Core
Average Intel Core i7-13700H (6165 - 14215, n=28)	11777 Points +14%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	11564 Points +12%
Minisforum Venus Series NPB5 Intel Core i5-13500H	11465 Points +11%
Beelink GTR7 7840HS AMD Ryzen 7 7840HS	10752 Points +4%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	10361 Points
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	10269 Points -1%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS	9357 Points -10%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	9278 Points -10%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	8772 Points -15%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U	7986 Points -23%
Blackview MP200 Intel Core i5-11400H	6006 Points -42%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	5813 Points -44%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	5091 Points -51%
Intel NUC11PAQi7 Intel Core i7-1165G7	4975 Points -52%
Trigkey Speed S Intel Core i5-11320H	4927 Points -52%

Geekbench 5.5 / Single-Core
Beelink GTR7 7840HS AMD Ryzen 7 7840HS	2010 Points +9%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	1975 Points +7%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	1842 Points
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	1832 Points -1%
Average Intel Core i7-13700H (1362 - 1919, n=28)	1792 Points -3%
Minisforum Venus Series NPB5 Intel Core i5-13500H	1762 Points -4%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	1714 Points -7%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	1669 Points -9%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	1586 Points -14%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS	1580 Points -14%
Intel NUC11PAQi7 Intel Core i7-1165G7	1559 Points -15%
Trigkey Speed S Intel Core i5-11320H	1523 Points -17%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	1506 Points -18%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U	1499 Points -19%
Blackview MP200 Intel Core i5-11400H	1465 Points -20%

HWBOT x265 Benchmark v2.2 / 4k Preset
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	20.7 fps +18%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	17.6 fps
Average Intel Core i7-13700H (6.72 - 21.2, n=28)	16.7 fps -5%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	15.8 fps -10%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS	15.1 fps -14%
Minisforum Venus Series NPB5 Intel Core i5-13500H	14.6 fps -17%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	13.9 fps -21%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U	13.3 fps -24%
Beelink GTR7 7840HS AMD Ryzen 7 7840HS	11.7 fps -34%
Blackview MP200 Intel Core i5-11400H	10.2 fps -42%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	9.7 fps -45%
Intel NUC11PAQi7 Intel Core i7-1165G7	8.47 fps -52%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	7.61 fps -57%
Trigkey Speed S Intel Core i5-11320H	7.25 fps -59%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	6.55 fps -63%

LibreOffice / 20 Documents To PDF
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U	60.2 s * -60%
Blackview MP200 Intel Core i5-11400H	53 s * -41%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	48.9 s * -30%
Average Intel Core i7-13700H (31.3 - 62.4, n=28)	48.2 s * -28%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	47.2 s * -26%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	47.1 s * -25%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	46.9 s * -25%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	46.3 s * -23%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	46.1 s * -23%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS	44.3 s * -18%
Trigkey Speed S Intel Core i5-11320H	44 s * -17%
Minisforum Venus Series NPB5 Intel Core i5-13500H	44 s * -17%
Intel NUC11PAQi7 Intel Core i7-1165G7	42.2 s * -12%
Beelink GTR7 7840HS AMD Ryzen 7 7840HS	39 s * -4%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	37.6 s *

R Benchmark 2.5 / Overall mean
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	0.599 sec * -33%
Trigkey Speed S Intel Core i5-11320H	0.591 sec * -31%
Blackview MP200 Intel Core i5-11400H	0.581 sec * -29%
Intel NUC11PAQi7 Intel Core i7-1165G7	0.553 sec * -23%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	0.543 sec * -20%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U	0.525 sec * -16%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS	0.512 sec * -13%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	0.4856 sec * -8%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	0.4849 sec * -7%
Minisforum Venus Series NPB5 Intel Core i5-13500H	0.473 sec * -5%
Average Intel Core i7-13700H (0.4308 - 0.607, n=28)	0.4651 sec * -3%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	0.4512 sec *
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	0.45 sec * -0%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	0.4192 sec * +7%
Beelink GTR7 7840HS AMD Ryzen 7 7840HS	0.4184 sec * +7%

CPU Performance Rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

* ... smaller is better

Performance Rating
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	100 pt
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Iris Xe G7 96EUs	58.6 pt
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	52 pt
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P, Iris Xe G7 80EUs	42.1 pt
Trigkey Speed S Intel Core i5-11320H, Iris Xe G7 96EUs	35.2 pt
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	33.5 pt

AIDA64 / FP32 Ray-Trace
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	27538 KRay/s +107%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Iris Xe G7 96EUs	13281 KRay/s
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	11188 KRay/s -16%
Trigkey Speed S Intel Core i5-11320H, Iris Xe G7 96EUs	6976 KRay/s -47%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	6633 KRay/s -50%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P, Iris Xe G7 80EUs	6011 KRay/s -55%

AIDA64 / FPU Julia
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	116903 Points +67%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Iris Xe G7 96EUs	69808 Points
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	56942 Points -18%
Trigkey Speed S Intel Core i5-11320H, Iris Xe G7 96EUs	30000 Points -57%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P, Iris Xe G7 80EUs	27835 Points -60%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	27788 Points -60%

AIDA64 / CPU SHA3
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	5096 MB/s +60%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Iris Xe G7 96EUs	3190 MB/s
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	2669 MB/s -16%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P, Iris Xe G7 80EUs	2019 MB/s -37%
Trigkey Speed S Intel Core i5-11320H, Iris Xe G7 96EUs	1979 MB/s -38%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	1841 MB/s -42%

AIDA64 / CPU Queen
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	117764 Points +16%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Iris Xe G7 96EUs	101624 Points
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	86881 Points -15%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P, Iris Xe G7 80EUs	75592 Points -26%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	49399 Points -51%
Trigkey Speed S Intel Core i5-11320H, Iris Xe G7 96EUs	48734 Points -52%

AIDA64 / FPU SinJulia
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	15525 Points +75%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Iris Xe G7 96EUs	8851 Points
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	7246 Points -18%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P, Iris Xe G7 80EUs	6540 Points -26%
Trigkey Speed S Intel Core i5-11320H, Iris Xe G7 96EUs	4826 Points -45%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	4529 Points -49%

AIDA64 / FPU Mandel
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	62378 Points +90%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Iris Xe G7 96EUs	32781 Points
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	28019 Points -15%
Trigkey Speed S Intel Core i5-11320H, Iris Xe G7 96EUs	17951 Points -45%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	16652 Points -49%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P, Iris Xe G7 80EUs	16325 Points -50%

AIDA64 / CPU AES
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	177158 MB/s +169%
Trigkey Speed S Intel Core i5-11320H, Iris Xe G7 96EUs	68595 MB/s +4%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P, Iris Xe G7 80EUs	67922 MB/s +3%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Iris Xe G7 96EUs	65953 MB/s
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	57644 MB/s -13%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	53328 MB/s -19%

AIDA64 / CPU ZLib
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	1103 MB/s +15%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Iris Xe G7 96EUs	956 MB/s
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P, Iris Xe G7 80EUs	812 MB/s -15%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	775 MB/s -19%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	372 MB/s -61%
Trigkey Speed S Intel Core i5-11320H, Iris Xe G7 96EUs	362 MB/s -62%

AIDA64 / FP64 Ray-Trace
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	14722 KRay/s +108%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Iris Xe G7 96EUs	7090 KRay/s
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	5957 KRay/s -16%
Trigkey Speed S Intel Core i5-11320H, Iris Xe G7 96EUs	3761 KRay/s -47%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	3668 KRay/s -48%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P, Iris Xe G7 80EUs	3442 KRay/s -51%

AIDA64 / CPU PhotoWorxx
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	40726 MPixel/s +108%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	29263 MPixel/s +50%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P, Iris Xe G7 80EUs	27809 MPixel/s +42%
Trigkey Speed S Intel Core i5-11320H, Iris Xe G7 96EUs	25970 MPixel/s +33%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	25453 MPixel/s +30%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Iris Xe G7 96EUs	19552 MPixel/s

系统性能

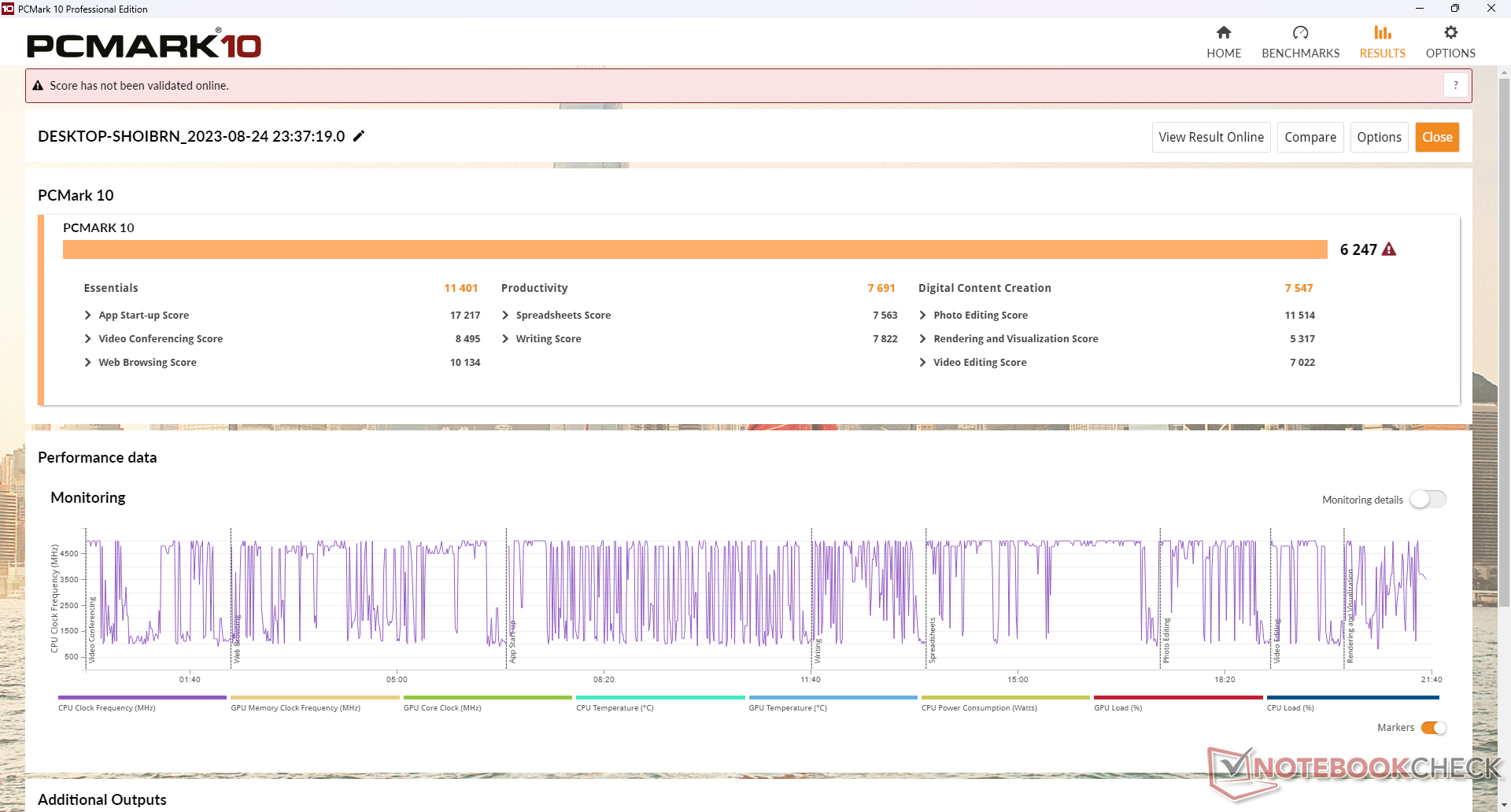

PCMark 分数高于其他许多采用第 12 代英特尔 CPU 或 Core-P 系列 CPU 的迷你 PC，如英特尔 NUC 13 Pro 或 Beelink GTi11.采用较新 AMD CPU 的迷你 PC，如 Beelink GTR7由于 IdeaCentre Mini 的多线程 CPU 性能和图形性能较慢，因此在生产力和数字内容创建子测试中，它的成绩可以轻松超过联想。

PCMark 10 / Score
Intel NUC13 Raptor Canyon NVIDIA GeForce RTX 3080 Ti, i9-13900K, Kingston Fury Renegade SFYRS1000G	9118 Points +46%
Beelink GTR7 7840HS Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	7453 Points +19%
Lenovo IdeaCentre Mini 01IRH8 Iris Xe G7 96EUs, i7-13700H, Samsung PM9B1 512GB MZVL4512HBLU	6247 Points
Average Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs (5531 - 6247, n=4)	5914 Points -5%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	5882 Points -6%
Intel NUC 12 Pro Kit NUC12WSBi5 Iris Xe G7 80EUs, i5-1240P, Lexar 512GB NM6A1 LNM6A1X512G-HNNG	5331 Points -15%
Trigkey Speed S Iris Xe G7 96EUs, i5-11320H, Intel SSD 670p SSDPEKNU512GZ	5302 Points -15%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	4914 Points -21%

PCMark 10 / Essentials
Intel NUC13 Raptor Canyon NVIDIA GeForce RTX 3080 Ti, i9-13900K, Kingston Fury Renegade SFYRS1000G	11598 Points +2%
Lenovo IdeaCentre Mini 01IRH8 Iris Xe G7 96EUs, i7-13700H, Samsung PM9B1 512GB MZVL4512HBLU	11401 Points
Beelink GTR7 7840HS Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	11155 Points -2%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	11035 Points -3%
Average Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs (9961 - 11401, n=4)	10669 Points -6%
Intel NUC 12 Pro Kit NUC12WSBi5 Iris Xe G7 80EUs, i5-1240P, Lexar 512GB NM6A1 LNM6A1X512G-HNNG	10652 Points -7%
Trigkey Speed S Iris Xe G7 96EUs, i5-11320H, Intel SSD 670p SSDPEKNU512GZ	10558 Points -7%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	9649 Points -15%

PCMark 10 / Productivity
Intel NUC13 Raptor Canyon NVIDIA GeForce RTX 3080 Ti, i9-13900K, Kingston Fury Renegade SFYRS1000G	10988 Points +43%
Beelink GTR7 7840HS Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	10702 Points +39%
Lenovo IdeaCentre Mini 01IRH8 Iris Xe G7 96EUs, i7-13700H, Samsung PM9B1 512GB MZVL4512HBLU	7691 Points
Average Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs (7072 - 7691, n=4)	7394 Points -4%
Intel NUC 12 Pro Kit NUC12WSBi5 Iris Xe G7 80EUs, i5-1240P, Lexar 512GB NM6A1 LNM6A1X512G-HNNG	7058 Points -8%
Trigkey Speed S Iris Xe G7 96EUs, i5-11320H, Intel SSD 670p SSDPEKNU512GZ	6963 Points -9%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	6788 Points -12%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	6576 Points -14%

PCMark 10 / Digital Content Creation
Intel NUC13 Raptor Canyon NVIDIA GeForce RTX 3080 Ti, i9-13900K, Kingston Fury Renegade SFYRS1000G	16145 Points +114%
Beelink GTR7 7840HS Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	9409 Points +25%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	7612 Points +1%
Lenovo IdeaCentre Mini 01IRH8 Iris Xe G7 96EUs, i7-13700H, Samsung PM9B1 512GB MZVL4512HBLU	7547 Points
Average Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs (6413 - 7727, n=4)	7123 Points -6%
Trigkey Speed S Iris Xe G7 96EUs, i5-11320H, Intel SSD 670p SSDPEKNU512GZ	5502 Points -27%
Intel NUC 12 Pro Kit NUC12WSBi5 Iris Xe G7 80EUs, i5-1240P, Lexar 512GB NM6A1 LNM6A1X512G-HNNG	5469 Points -28%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	4916 Points -35%

CrossMark / Overall
Intel NUC13 Raptor Canyon NVIDIA GeForce RTX 3080 Ti, i9-13900K, Kingston Fury Renegade SFYRS1000G	2263 Points +31%
Lenovo IdeaCentre Mini 01IRH8 Iris Xe G7 96EUs, i7-13700H, Samsung PM9B1 512GB MZVL4512HBLU	1723 Points
Average Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs (1548 - 1868, n=4)	1705 Points -1%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1596 Points -7%
Beelink GTR7 7840HS Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	1566 Points -9%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	1438 Points -17%
Trigkey Speed S Iris Xe G7 96EUs, i5-11320H, Intel SSD 670p SSDPEKNU512GZ	1371 Points -20%

CrossMark / Productivity
Intel NUC13 Raptor Canyon NVIDIA GeForce RTX 3080 Ti, i9-13900K, Kingston Fury Renegade SFYRS1000G	2059 Points +23%
Lenovo IdeaCentre Mini 01IRH8 Iris Xe G7 96EUs, i7-13700H, Samsung PM9B1 512GB MZVL4512HBLU	1677 Points
Average Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs (1500 - 1787, n=4)	1658 Points -1%
Beelink GTR7 7840HS Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	1559 Points -7%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1537 Points -8%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	1523 Points -9%
Trigkey Speed S Iris Xe G7 96EUs, i5-11320H, Intel SSD 670p SSDPEKNU512GZ	1456 Points -13%

CrossMark / Creativity
Intel NUC13 Raptor Canyon NVIDIA GeForce RTX 3080 Ti, i9-13900K, Kingston Fury Renegade SFYRS1000G	2625 Points +40%
Lenovo IdeaCentre Mini 01IRH8 Iris Xe G7 96EUs, i7-13700H, Samsung PM9B1 512GB MZVL4512HBLU	1872 Points
Average Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs (1620 - 2009, n=4)	1801 Points -4%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1769 Points -6%
Beelink GTR7 7840HS Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	1556 Points -17%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	1359 Points -27%
Trigkey Speed S Iris Xe G7 96EUs, i5-11320H, Intel SSD 670p SSDPEKNU512GZ	1255 Points -33%

CrossMark / Responsiveness
Intel NUC13 Raptor Canyon NVIDIA GeForce RTX 3080 Ti, i9-13900K, Kingston Fury Renegade SFYRS1000G	1929 Points +32%
Beelink GTR7 7840HS Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	1620 Points +11%
Average Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs (1456 - 1715, n=4)	1580 Points +9%
Trigkey Speed S Iris Xe G7 96EUs, i5-11320H, Intel SSD 670p SSDPEKNU512GZ	1494 Points +3%
Lenovo IdeaCentre Mini 01IRH8 Iris Xe G7 96EUs, i7-13700H, Samsung PM9B1 512GB MZVL4512HBLU	1456 Points
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	1434 Points -2%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1311 Points -10%

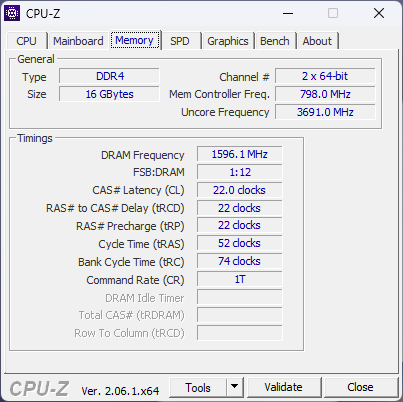

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	69199 MB/s +73%
Average Intel Core i7-13700H (24334 - 78081, n=28)	62480 MB/s +56%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	44299 MB/s +11%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P, Iris Xe G7 80EUs	43747 MB/s +9%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	41953 MB/s +5%
Trigkey Speed S Intel Core i5-11320H, Iris Xe G7 96EUs	41310 MB/s +3%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Iris Xe G7 96EUs	40018 MB/s

AIDA64 / Memory Read
Average Intel Core i7-13700H (23681 - 79656, n=28)	65892 MB/s +48%
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	61838 MB/s +39%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P, Iris Xe G7 80EUs	47347 MB/s +6%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	47290 MB/s +6%
Trigkey Speed S Intel Core i5-11320H, Iris Xe G7 96EUs	46709 MB/s +5%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	44751 MB/s 0%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Iris Xe G7 96EUs	44583 MB/s

AIDA64 / Memory Write
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	87226 MB/s +104%
Average Intel Core i7-13700H (22986 - 99898, n=28)	68690 MB/s +61%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	46860 MB/s +10%
Trigkey Speed S Intel Core i5-11320H, Iris Xe G7 96EUs	46778 MB/s +10%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P, Iris Xe G7 80EUs	46768 MB/s +10%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	45887 MB/s +7%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Iris Xe G7 96EUs	42710 MB/s

AIDA64 / Memory Latency
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	96.2 ns * -17%
Average Intel Core i7-13700H (82.4 - 136.8, n=28)	94.1 ns * -14%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P, Iris Xe G7 80EUs	90.3 ns * -10%
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	85.1 ns * -3%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Iris Xe G7 96EUs	82.4 ns *
Trigkey Speed S Intel Core i5-11320H, Iris Xe G7 96EUs	77.6 ns * +6%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	66.3 ns * +20%

* ... smaller is better

DPC 延迟

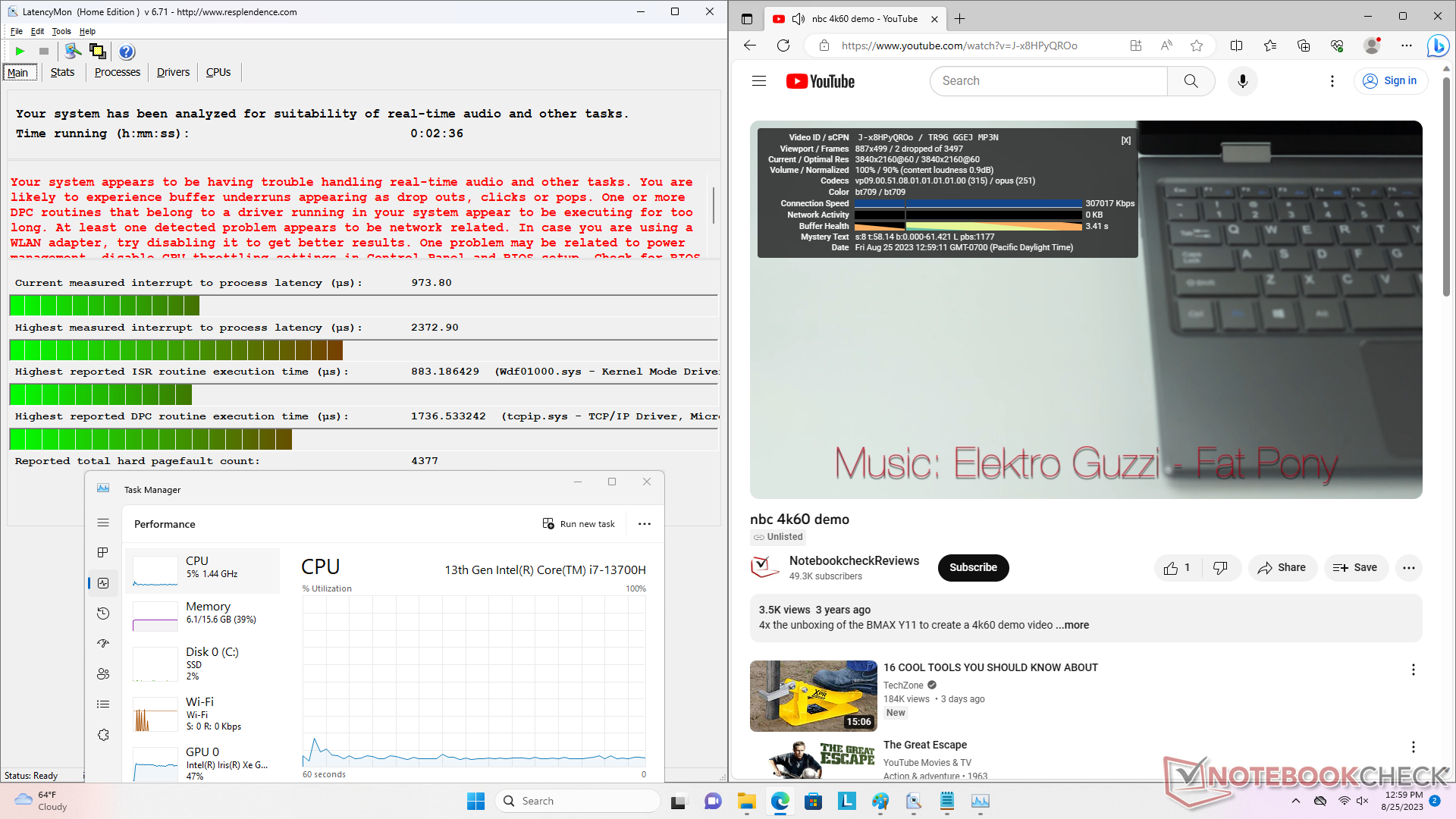

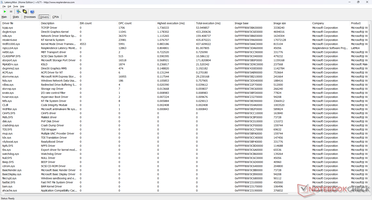

在打开主页的多个浏览器标签页时，LatencyMon 显示了 DPC 问题。此外，在以 60 FPS 播放 60 秒 4K 视频时，我们还能记录到 2 次丢帧。虽然 2 帧并不明显，但 0 掉帧才是理想状态，而且在其他 PC 上更为常见。

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Lenovo IdeaCentre Mini 01IRH8 Iris Xe G7 96EUs, i7-13700H, Samsung PM9B1 512GB MZVL4512HBLU	2372.9 μs *
Trigkey Speed S Iris Xe G7 96EUs, i5-11320H, Intel SSD 670p SSDPEKNU512GZ	1455.4 μs * +39%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1068.7 μs * +55%
Intel NUC 12 Pro Kit NUC12WSBi5 Iris Xe G7 80EUs, i5-1240P, Lexar 512GB NM6A1 LNM6A1X512G-HNNG	883.4 μs * +63%
Beelink GTR7 7840HS Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	718.7 μs * +70%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	466 μs * +80%

* ... smaller is better

存储设备

系统随附三星 PM9B1PCIe4 x4 NVMe 固态硬盘，它是更快的三星 PM9A1 的经济型版本，常见于高端迷你 PC 或游戏笔记本电脑。与英特尔 NUC 13 Pro 的 5500 MB/s 相比，该固态硬盘的最大传输速率稳定且可持续，为 3600 MB/s。英特尔 NUC 13 Pro则为 5500 MB/s。尽管如此，PM9B1 对于消费者的多媒体用途还是绰绰有余的，而且它与酷睿 i7-13700H 相得益彰。

最多可安装两个 PCIe4 x4 2280 SSD。

两个 PCIe4 x4 NVMe 插槽。散热垫触及 PSU 底部，以便在重新组装时散热

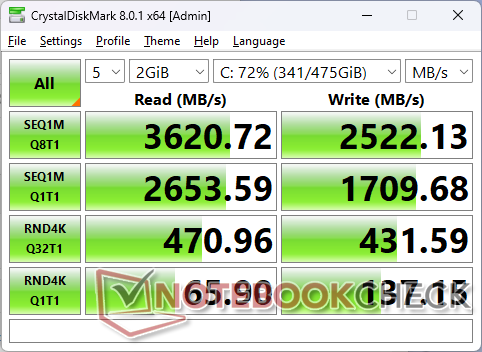

CrystalDiskMark 5.2 / 6

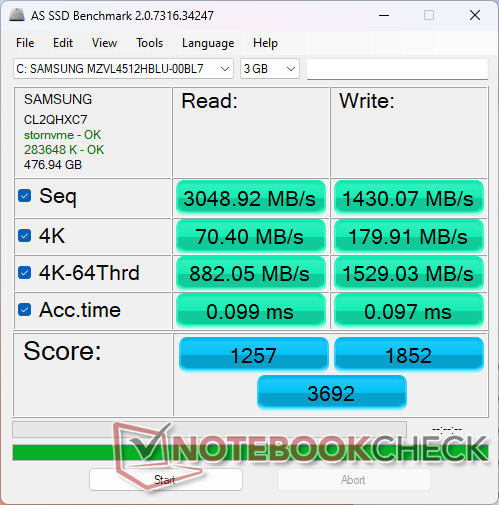

AS SSD

DiskSpd

Samsung PM9B1 512GB MZVL4512HBLU

CDM 5/6 Read Seq Q32T1: 3627 MB/s

CDM 5/6 Write Seq Q32T1: 2525 MB/s

CDM 5/6 Read 4K Q32T1: 467.9 MB/s

CDM 5/6 Write 4K Q32T1: 436.7 MB/s

CDM 5 Read Seq: 2649 MB/s

CDM 5 Write Seq: 1688 MB/s

CDM 5/6 Read 4K: 65.25 MB/s

CDM 5/6 Write 4K: 135.4 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	86.8 pt
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	79.5 pt
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	56.3 pt
Trigkey Speed S Intel SSD 670p SSDPEKNU512GZ	52.9 pt
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	51.6 pt
Intel NUC 12 Pro Kit NUC12WSBi5 Lexar 512GB NM6A1 LNM6A1X512G-HNNG	51.1 pt

DiskSpd
seq read
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	3337 (3301.03^min - 3337.16^max) MB/s +27%
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	3033 (3026.64^min - 3032.69^max) MB/s +16%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	2625 (2562.3^min - 2625.21^max) MB/s
Trigkey Speed S Intel SSD 670p SSDPEKNU512GZ	2433 (2411.3^min - 2433.16^max) MB/s -7%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	1684 (1646.89^min - 1684.01^max) MB/s -36%
Intel NUC 12 Pro Kit NUC12WSBi5 Lexar 512GB NM6A1 LNM6A1X512G-HNNG	938 (893.07^min - 938.27^max) MB/s -64%
seq write
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	3591 (3535.23^min - 3591.16^max) MB/s +103%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	3356 (3181.73^min - 3356.49^max) MB/s +89%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	2298 (1081.92^min - 2298.06^max) MB/s +30%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	1773 (1718.7^min - 1773.12^max) MB/s
Trigkey Speed S Intel SSD 670p SSDPEKNU512GZ	1625 (1475.57^min - 1625.19^max) MB/s -8%
Intel NUC 12 Pro Kit NUC12WSBi5 Lexar 512GB NM6A1 LNM6A1X512G-HNNG	1128 (693.82^min - 1128.11^max) MB/s -36%
seq q8 t1 read
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	5438 (4937.74^min - 5438.31^max) MB/s +52%
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	5174 (4541.87^min - 5174.3^max) MB/s +44%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	3582 (3101.69^min - 3581.9^max) MB/s
Intel NUC 12 Pro Kit NUC12WSBi5 Lexar 512GB NM6A1 LNM6A1X512G-HNNG	3508 (3328.18^min - 3507.7^max) MB/s -2%
Trigkey Speed S Intel SSD 670p SSDPEKNU512GZ	2909 (2628.77^min - 2908.96^max) MB/s -19%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	2223 (1765.77^min - 2223.4^max) MB/s -38%
seq q8 t1 write
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	4955 (4929.56^min - 4955.41^max) MB/s +116%
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	3570 (3522.17^min - 3569.77^max) MB/s +56%
Intel NUC 12 Pro Kit NUC12WSBi5 Lexar 512GB NM6A1 LNM6A1X512G-HNNG	2615 (711.82^min - 2614.74^max) MB/s +14%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	2494 (2222.35^min - 2493.51^max) MB/s +9%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	2291 (2242.9^min - 2291.17^max) MB/s
Trigkey Speed S Intel SSD 670p SSDPEKNU512GZ	1621 (1610.27^min - 1621.2^max) MB/s -29%
4k q1 t1 read
Trigkey Speed S Intel SSD 670p SSDPEKNU512GZ	86.1 (85.71^min - 86.12^max) MB/s +7%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	84.5 (83.02^min - 84.54^max) MB/s +5%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	80.5 (74.84^min - 80.54^max) MB/s
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	62.6 (62.13^min - 62.62^max) MB/s -22%
Intel NUC 12 Pro Kit NUC12WSBi5 Lexar 512GB NM6A1 LNM6A1X512G-HNNG	38.7 (22.67^min - 38.7^max) MB/s -52%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	38.1 (35.61^min - 38.07^max) MB/s -53%
4k q1 t1 write
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	269 (266.85^min - 269.05^max) MB/s +92%
Trigkey Speed S Intel SSD 670p SSDPEKNU512GZ	260 (257.62^min - 260.21^max) MB/s +85%
Intel NUC 12 Pro Kit NUC12WSBi5 Lexar 512GB NM6A1 LNM6A1X512G-HNNG	160.7 (123.92^min - 160.73^max) MB/s +14%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	144.6 (143.6^min - 144.57^max) MB/s +3%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	140.4 (133.49^min - 140.42^max) MB/s
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	120 (112.79^min - 120.03^max) MB/s -15%
4k q32 t16 read
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	2765 (2513.4^min - 2765.45^max) MB/s +193%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	945 (935.84^min - 944.53^max) MB/s
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	808 (792.58^min - 807.51^max) MB/s -14%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	639 (421.15^min - 639.47^max) MB/s -32%
Intel NUC 12 Pro Kit NUC12WSBi5 Lexar 512GB NM6A1 LNM6A1X512G-HNNG	569 (455.25^min - 568.93^max) MB/s -40%
Trigkey Speed S Intel SSD 670p SSDPEKNU512GZ	474 (472.39^min - 473.68^max) MB/s -50%
4k q32 t16 write
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	3254 (3139.57^min - 3253.57^max) MB/s +544%
Trigkey Speed S Intel SSD 670p SSDPEKNU512GZ	1258 (1245.8^min - 1257.91^max) MB/s +149%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	505 (469.38^min - 505.2^max) MB/s
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	454 (443.2^min - 453.53^max) MB/s -10%
Intel NUC 12 Pro Kit NUC12WSBi5 Lexar 512GB NM6A1 LNM6A1X512G-HNNG	446 (240.36^min - 445.56^max) MB/s -12%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	176.1 (168.14^min - 176.06^max) MB/s -65%

AS SSD
Score Total
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	5249 Points +42%
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	5182 Points +40%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	3887 Points +5%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	3692 Points
Intel NUC 12 Pro Kit NUC12WSBi5 Lexar 512GB NM6A1 LNM6A1X512G-HNNG	3592 Points -3%
Trigkey Speed S Intel SSD 670p SSDPEKNU512GZ	2595 Points -30%
Score Read
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	1796 Points +43%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	1513 Points +20%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	1320 Points +5%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	1257 Points
Intel NUC 12 Pro Kit NUC12WSBi5 Lexar 512GB NM6A1 LNM6A1X512G-HNNG	1233 Points -2%
Trigkey Speed S Intel SSD 670p SSDPEKNU512GZ	792 Points -37%
Score Write
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	3326 Points +80%
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	2508 Points +35%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	1852 Points
Intel NUC 12 Pro Kit NUC12WSBi5 Lexar 512GB NM6A1 LNM6A1X512G-HNNG	1784 Points -4%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	1632 Points -12%
Trigkey Speed S Intel SSD 670p SSDPEKNU512GZ	1442 Points -22%
Seq Read
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	4536 MB/s +49%
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	3786.44 MB/s +24%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	3048.92 MB/s
Intel NUC 12 Pro Kit NUC12WSBi5 Lexar 512GB NM6A1 LNM6A1X512G-HNNG	2902.75 MB/s -5%
Trigkey Speed S Intel SSD 670p SSDPEKNU512GZ	2714.84 MB/s -11%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	2268 MB/s -26%
Seq Write
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	2799.85 MB/s +96%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	2698 MB/s +89%
Intel NUC 12 Pro Kit NUC12WSBi5 Lexar 512GB NM6A1 LNM6A1X512G-HNNG	1486.78 MB/s +4%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	1430.07 MB/s
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	1318 MB/s -8%
Trigkey Speed S Intel SSD 670p SSDPEKNU512GZ	1287.68 MB/s -10%
4K Read
Trigkey Speed S Intel SSD 670p SSDPEKNU512GZ	73.17 MB/s +4%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	72 MB/s +2%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	70.4 MB/s
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	63.4 MB/s -10%
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	59.79 MB/s -15%
Intel NUC 12 Pro Kit NUC12WSBi5 Lexar 512GB NM6A1 LNM6A1X512G-HNNG	59.71 MB/s -15%
4K Write
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	225 MB/s +25%
Trigkey Speed S Intel SSD 670p SSDPEKNU512GZ	219.46 MB/s +22%
Intel NUC 12 Pro Kit NUC12WSBi5 Lexar 512GB NM6A1 LNM6A1X512G-HNNG	216.44 MB/s +20%
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	210.95 MB/s +17%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	179.91 MB/s
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	166.8 MB/s -7%
4K-64 Read
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	1357.17 MB/s +54%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	1223 MB/s +39%
Intel NUC 12 Pro Kit NUC12WSBi5 Lexar 512GB NM6A1 LNM6A1X512G-HNNG	883.18 MB/s 0%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	882.05 MB/s
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	794 MB/s -10%
Trigkey Speed S Intel SSD 670p SSDPEKNU512GZ	447.15 MB/s -49%
4K-64 Write
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	2889 MB/s +89%
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	2017.38 MB/s +32%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	1529.03 MB/s
Intel NUC 12 Pro Kit NUC12WSBi5 Lexar 512GB NM6A1 LNM6A1X512G-HNNG	1418.48 MB/s -7%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	1276 MB/s -17%
Trigkey Speed S Intel SSD 670p SSDPEKNU512GZ	1094.27 MB/s -28%
Access Time Read
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	0.1 ms * -1%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	0.099 ms *
Trigkey Speed S Intel SSD 670p SSDPEKNU512GZ	0.083 ms * +16%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	0.06 ms * +39%
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	0.047 ms * +53%
Intel NUC 12 Pro Kit NUC12WSBi5 Lexar 512GB NM6A1 LNM6A1X512G-HNNG	0.045 ms * +55%
Access Time Write
Intel NUC 12 Pro Kit NUC12WSBi5 Lexar 512GB NM6A1 LNM6A1X512G-HNNG	0.129 ms * -33%
Trigkey Speed S Intel SSD 670p SSDPEKNU512GZ	0.102 ms * -5%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	0.097 ms *
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	0.087 ms * +10%
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	0.049 ms * +49%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	0.024 ms * +75%

* ... smaller is better

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU: Ø3596 (3147.41-3611.18)

Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ: Ø5462 (4797.39-5479.86)

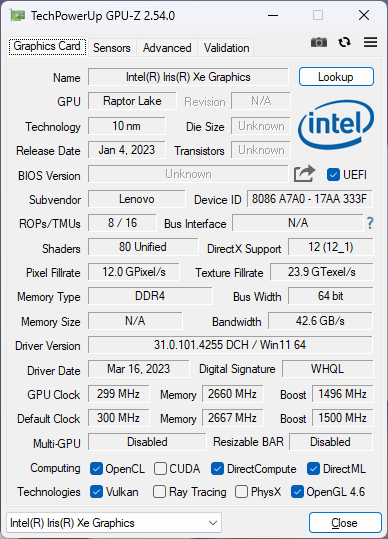

图形处理器性能

集成的 Iris Xe 96 EUs与 AMD 的最新产品相比，已经开始显出老态。Radeon 680M Radeon 680M为例，速度可提高 50% 至 60%，而较新的 Radeon 780M甚至更快。不过，对于 4K 播放和流媒体等非游戏应用，性能还是值得信赖的。

如果要玩游戏，建议安装 eGPU 或选择其他配备更强大 AMD Radeon 780M 显卡的迷你 PC，如 Beelink GTR7 或Minisforum Venus Series UM790 Pro 。否则，Iris Xe 96 EUs 的性能只能满足云流媒体或以非常低的设置和分辨率运行本地游戏（如DOTA 2 Reborn 等要求不高的游戏）的需要。

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Beelink GTR7 7840HS AMD Radeon 780M, AMD Ryzen 7 7840HS	100 pt
Minisforum Venus Series UM790 Pro AMD Radeon 780M, AMD Ryzen 9 7940HS	91.9 pt
Beelink SER6 Pro Ryzen 7 7735HS AMD Radeon 680M, AMD Ryzen 7 7735HS	84.3 pt
Geekom AS 6, R9 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	78.4 pt
Minisforum Mercury Series EM680 AMD Radeon 680M, AMD Ryzen 7 6800U	64.1 pt
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	60.6 pt
Minisforum Venus Series NPB5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-13500H	55.3 pt
Intel NUC Pro Chassis_i7_1185G7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7	55.2 pt
Lenovo IdeaCentre Mini 01IRH8 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-13700H	54.5 pt
Intel NUC Pro Chassis_i7_1265U Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1265U	54.1 pt
Average Intel Iris Xe Graphics G7 96EUs	53.3 pt
Trigkey Speed S Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	52.5 pt
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	45.4 pt
Intel NUC11PAQi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	43.4 pt
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	13 pt

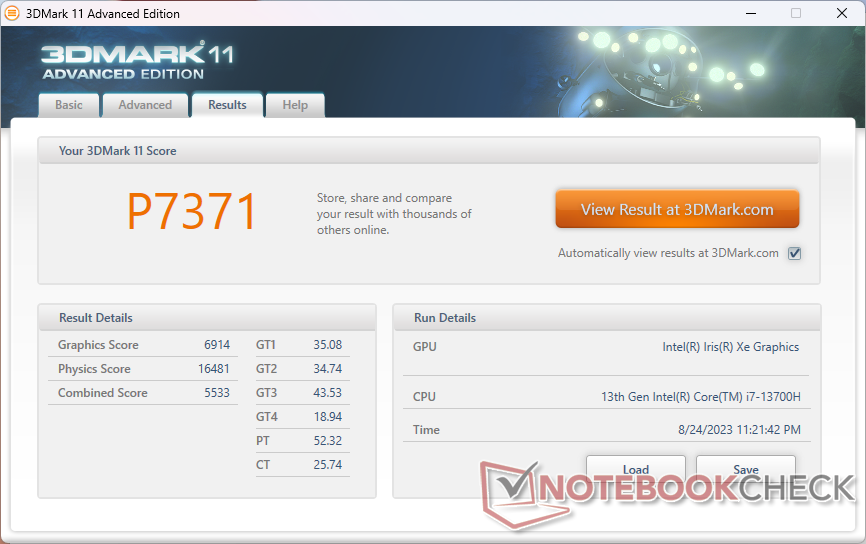

3DMark 11 - 1280x720 Performance GPU
Beelink GTR7 7840HS AMD Radeon 780M, AMD Ryzen 7 7840HS	12978 Points +88%
Minisforum Venus Series UM790 Pro AMD Radeon 780M, AMD Ryzen 9 7940HS	12384 Points +79%
Beelink SER6 Pro Ryzen 7 7735HS AMD Radeon 680M, AMD Ryzen 7 7735HS	10734 Points +55%
Geekom AS 6, R9 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	10399 Points +50%
Minisforum Mercury Series EM680 AMD Radeon 680M, AMD Ryzen 7 6800U	7718 Points +12%
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	7321 Points +6%
Lenovo IdeaCentre Mini 01IRH8 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-13700H	6914 Points
Intel NUC Pro Chassis_i7_1185G7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7	6676 Points -3%
Minisforum Venus Series NPB5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-13500H	6477 Points -6%
Trigkey Speed S Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	6423 Points -7%
Average Intel Iris Xe Graphics G7 96EUs (2867 - 7676, n=202)	6353 Points -8%
Intel NUC Pro Chassis_i7_1265U Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1265U	6210 Points -10%
Intel NUC11PAQi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	6027 Points -13%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	5413 Points -22%
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	1654 Points -76%

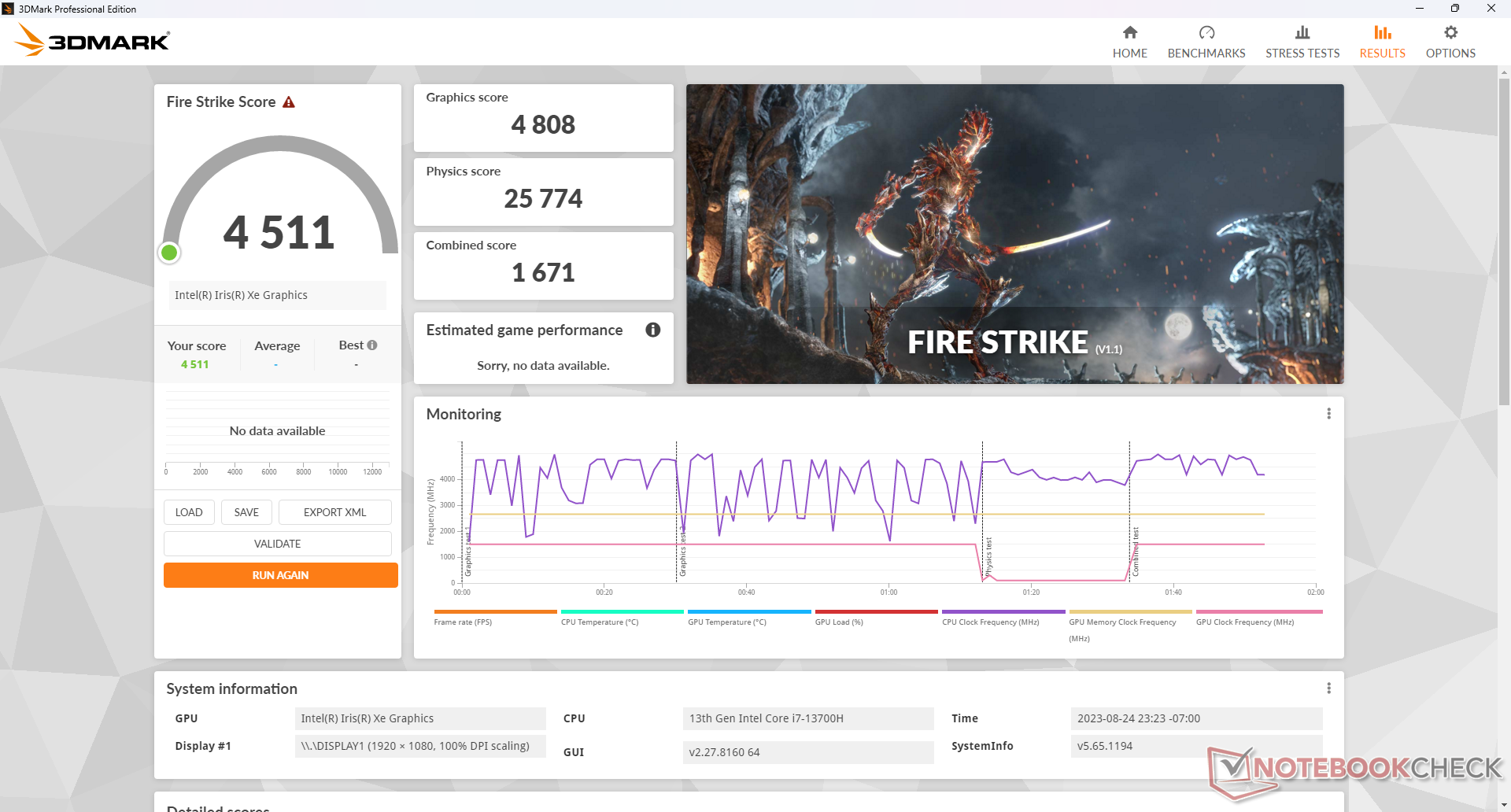

3DMark
1920x1080 Fire Strike Graphics
Beelink GTR7 7840HS AMD Radeon 780M, AMD Ryzen 7 7840HS	7980 Points +66%
Minisforum Venus Series UM790 Pro AMD Radeon 780M, AMD Ryzen 9 7940HS	7284 Points +51%
Beelink SER6 Pro Ryzen 7 7735HS AMD Radeon 680M, AMD Ryzen 7 7735HS	7180 Points +49%
Geekom AS 6, R9 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	6501 Points +35%
Minisforum Mercury Series EM680 AMD Radeon 680M, AMD Ryzen 7 6800U	5660 Points +18%
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	5616 Points +17%
Minisforum Venus Series NPB5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-13500H	5305 Points +10%
Intel NUC Pro Chassis_i7_1185G7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7	4959 Points +3%
Average Intel Iris Xe Graphics G7 96EUs (2286 - 6482, n=215)	4920 Points +2%
Intel NUC Pro Chassis_i7_1265U Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1265U	4902 Points +2%
Lenovo IdeaCentre Mini 01IRH8 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-13700H	4808 Points
Trigkey Speed S Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	4568 Points -5%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	4041 Points -16%
Intel NUC11PAQi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	3724 Points -23%
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	1203 Points -75%
2560x1440 Time Spy Graphics
Beelink GTR7 7840HS AMD Radeon 780M, AMD Ryzen 7 7840HS	2910 Points +93%
Minisforum Venus Series UM790 Pro AMD Radeon 780M, AMD Ryzen 9 7940HS	2632 Points +75%
Beelink SER6 Pro Ryzen 7 7735HS AMD Radeon 680M, AMD Ryzen 7 7735HS	2395 Points +59%
Geekom AS 6, R9 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	2210 Points +47%
Minisforum Mercury Series EM680 AMD Radeon 680M, AMD Ryzen 7 6800U	1838 Points +22%
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	1672 Points +11%
Intel NUC Pro Chassis_i7_1185G7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7	1570 Points +4%
Intel NUC Pro Chassis_i7_1265U Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1265U	1556 Points +3%
Trigkey Speed S Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	1508 Points 0%
Minisforum Venus Series NPB5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-13500H	1508 Points 0%
Lenovo IdeaCentre Mini 01IRH8 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-13700H	1508 Points
Average Intel Iris Xe Graphics G7 96EUs (707 - 1871, n=212)	1495 Points -1%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	1300 Points -14%
Intel NUC11PAQi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	1168 Points -23%
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	348 Points -77%
2560x1440 Time Spy Score
Beelink GTR7 7840HS AMD Radeon 780M, AMD Ryzen 7 7840HS	3274 Points +90%
Minisforum Venus Series UM790 Pro AMD Radeon 780M, AMD Ryzen 9 7940HS	2966 Points +72%
Beelink SER6 Pro Ryzen 7 7735HS AMD Radeon 680M, AMD Ryzen 7 7735HS	2693 Points +56%
Geekom AS 6, R9 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	2492 Points +45%
Minisforum Mercury Series EM680 AMD Radeon 680M, AMD Ryzen 7 6800U	2057 Points +19%
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	1903 Points +10%
Intel NUC Pro Chassis_i7_1265U Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1265U	1754 Points +2%
Intel NUC Pro Chassis_i7_1185G7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7	1738 Points +1%
Minisforum Venus Series NPB5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-13500H	1731 Points 0%
Lenovo IdeaCentre Mini 01IRH8 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-13700H	1724 Points
Trigkey Speed S Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	1680 Points -3%
Average Intel Iris Xe Graphics G7 96EUs (789 - 2133, n=209)	1675 Points -3%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	1456 Points -16%
Intel NUC11PAQi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	1316 Points -24%
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	404 Points -77%

3DMark Performance Rating | 3DMark 11 | 3DMark

Blender
v3.3 Classroom HIP/AMD
Minisforum Mercury Series EM680 AMD Radeon 680M, AMD Ryzen 7 6800U	504 Seconds *
Geekom AS 6, R9 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	347 Seconds *
Beelink SER6 Pro Ryzen 7 7735HS AMD Radeon 680M, AMD Ryzen 7 7735HS	314 Seconds *
v3.3 Classroom CPU
Intel NUC Pro Chassis_i7_1185G7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7	1099 Seconds * -149%
Trigkey Speed S Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	1010 Seconds * -129%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	943 Seconds * -114%
Intel NUC Pro Chassis_i7_1265U Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1265U	697 Seconds * -58%
Average Intel Iris Xe Graphics G7 96EUs (336 - 1259, n=101)	696 Seconds * -58%
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	662 Seconds * -50%
Minisforum Mercury Series EM680 AMD Radeon 680M, AMD Ryzen 7 6800U	479 Seconds * -9%
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	477 Seconds * -8%
Beelink GTR7 7840HS AMD Radeon 780M, AMD Ryzen 7 7840HS	463 Seconds * -5%
Minisforum Venus Series NPB5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-13500H	463 Seconds * -5%
Geekom AS 6, R9 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	451 Seconds * -2%
Beelink SER6 Pro Ryzen 7 7735HS AMD Radeon 680M, AMD Ryzen 7 7735HS	445 Seconds * -1%
Lenovo IdeaCentre Mini 01IRH8 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-13700H	441 Seconds *
Minisforum Venus Series UM790 Pro AMD Radeon 780M, AMD Ryzen 9 7940HS	305 Seconds * +31%

* ... smaller is better

Tiny Tina's Wonderlands
1280x720 Lowest Preset (DX12)
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	131.4 fps +142%
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, AMD Radeon 780M	128.4 fps +136%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	106.6 fps +96%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	59.3 fps +9%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	57.7 fps +6%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	57.2 fps +5%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	55 fps +1%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	54.3 fps
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	51.6 fps -5%
Average Intel Iris Xe Graphics G7 96EUs (25.9 - 67.3, n=31)	49.4 fps -9%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	35.9 fps -34%
1920x1080 Low Preset (DX12)
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, AMD Radeon 780M	72 fps +162%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	62.6 fps +128%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	60.3 fps +119%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	58.6 fps +113%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	39.3 fps +43%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	32.3 fps +17%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	30.3 fps +10%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	30.3 fps +10%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	30 fps +9%
Average Intel Iris Xe Graphics G7 96EUs (22.3 - 53, n=31)	29.7 fps +8%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	27.5 fps
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	22.3 fps -19%
1920x1080 Medium Preset (DX12)
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, AMD Radeon 780M	53.3 fps +155%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	46.8 fps +124%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	44.9 fps +115%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	44.4 fps +112%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	30.6 fps +46%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	25.4 fps +22%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	24.5 fps +17%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	23.9 fps +14%
Average Intel Iris Xe Graphics G7 96EUs (17 - 40.1, n=29)	23.4 fps +12%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	23.2 fps +11%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	20.9 fps
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	17 fps -19%
1920x1080 High Preset (DX12)
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, AMD Radeon 780M	37.1 fps +175%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	33.3 fps +147%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	30.2 fps +124%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	29.9 fps +121%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	21.8 fps +61%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	15.9 fps +18%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	15.5 fps +15%
Average Intel Iris Xe Graphics G7 96EUs (10.6 - 24.1, n=28)	15 fps +11%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	14.8 fps +10%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	14.7 fps +9%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	13.5 fps
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	10.7 fps -21%
1920x1080 Badass Preset (DX12)
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, AMD Radeon 780M	30.6 fps +189%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	27.1 fps +156%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	23.5 fps +122%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	23.1 fps +118%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	18.5 fps +75%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	13.5 fps +27%
Average Intel Iris Xe Graphics G7 96EUs (8.4 - 18.4, n=25)	11.8 fps +11%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	11.4 fps +8%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	10.6 fps
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	8.4 fps -21%

F1 22
1280x720 Ultra Low Preset AA:T AF:16x
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, AMD Radeon 780M	166.2 (135^min, 103^P1) fps +132%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	151.3 (123^min, 105^P1) fps +111%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	141.3 (116^min, 93^P1) fps +97%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	134.3 (108^min, 87^P1) fps +88%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	81 (63^min, 64^P1) fps +13%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	80.1 (65^min, 63^P1) fps +12%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	79.9 (65^min, 61^P1) fps +12%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	78.6 (62^min, 61^P1) fps +10%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	77.5 (64^min, 42^P1) fps +8%
Average Intel Iris Xe Graphics G7 96EUs (57.4 - 94.6, n=52)	75.8 fps +6%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	71.6 (59^min, 58^P1) fps
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	58.2 (44^min, 44^P1) fps -19%
1920x1080 Low Preset AA:T AF:16x
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, AMD Radeon 780M	99.8 (86^min, 74^P1) fps +155%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	82.6 (71^min, 56^P1) fps +111%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	80.2 (70^min, 61^P1) fps +105%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	80.1 (69^min, 55^P1) fps +104%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	49.7 (37^min, 25^P1) fps +27%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	47.6 (39^min, 39^P1) fps +21%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	46.6 (39^min, 39^P1) fps +19%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	45.9 (39^min, 38^P1) fps +17%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	45.4 (37^min, 36^P1) fps +16%
Average Intel Iris Xe Graphics G7 96EUs (33.3 - 57.2, n=57)	44.6 fps +14%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	39.2 (32^min, 31^P1) fps
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	33.3 (28^min, 27^P1) fps -15%
1920x1080 Medium Preset AA:T AF:16x
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, AMD Radeon 780M	88.4 (77^min, 69^P1) fps +141%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	72.9 (57^min, 45^P1) fps +99%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	70.4 (62^min, 51^P1) fps +92%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	69.5 (57^min, 49^P1) fps +89%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	46.1 (29^min, 22^P1) fps +26%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	43.4 (36^min, 36^P1) fps +18%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	42.5 (35^min, 35^P1) fps +16%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	42.5 (37^min, 34^P1) fps +16%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	40.9 (34^min, 33^P1) fps +11%
Average Intel Iris Xe Graphics G7 96EUs (28 - 52.3, n=57)	40.3 fps +10%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	36.7 (30^min, 30^P1) fps
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	30.6 (26^min, 25^P1) fps -17%
1920x1080 High Preset AA:T AF:16x
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, AMD Radeon 780M	66.3 (57^min, 54^P1) fps +146%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	55.2 (39^min, 36^P1) fps +104%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	52.9 (43^min, 38^P1) fps +96%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	51.7 (43^min, 39^P1) fps +91%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	34.8 (19^min, 17^P1) fps +29%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	31.7 (27^min, 26^P1) fps +17%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	30.7 (25^min, 25^P1) fps +14%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	29.8 (25^min, 24^P1) fps +10%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	29.8 (25^min, 23^P1) fps +10%
Average Intel Iris Xe Graphics G7 96EUs (21.7 - 37.1, n=57)	29.2 fps +8%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	27 (22^min, 22^P1) fps
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	21.7 (18^min, 18^P1) fps -20%
1920x1080 Ultra High Preset AA:T AF:16x
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	24 (20^min, 20^P1) fps +16%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	23.3 (19^min, 19^P1) fps +13%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	22.8 (19^min, 17^P1) fps +10%
Average Intel Iris Xe Graphics G7 96EUs (16.1 - 28, n=48)	22.2 fps +7%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	22.1 (18^min, 18^P1) fps +7%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	20.7 (17^min, 17^P1) fps
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, AMD Radeon 780M	18.2 (14^min, 14^P1) fps -12%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	16.5 (14^min, 13^P1) fps -20%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	13.9 (10^min, 9^P1) fps -33%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	11.9 fps -43%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	8.92 (2^min, 3^P1) fps -57%

The Witcher 3
1024x768 Low Graphics & Postprocessing
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, AMD Radeon 780M	148.9 (122^min) fps +74%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	135.1 fps +57%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	115.6 (84^min) fps +35%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	107.7 fps +26%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	102 fps +19%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	97.4 fps +14%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	90.7 (3.4^min, 21.9^P0.1, 53.7^P1) fps +6%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	89 (38.4^min, 43.3^P0.1, 52.8^P1) fps +4%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	87.8 (79^min) fps +2%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	85.8 (61^min) fps
Average Intel Iris Xe Graphics G7 96EUs (28.9 - 117.2, n=186)	84 fps -2%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	70.3 (63^min) fps -18%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	67.4 fps -21%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	63.3 fps -26%
Blackview MP200 Intel Core i5-11400H, Intel UHD Graphics Xe 16EUs (Tiger Lake-H)	24.5 fps -71%
1366x768 Medium Graphics & Postprocessing
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, AMD Radeon 780M	101.5 (93^min) fps +87%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	85.2 fps +57%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	79.8 (72^min) fps +47%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	65.8 fps +21%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	59.9 (15.7^min, 28.4^P0.1, 34^P1) fps +10%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	57.9 (25.7^min, 27.5^P0.1, 33^P1) fps +7%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	54.3 (52^min) fps
Average Intel Iris Xe Graphics G7 96EUs (21.4 - 77.8, n=184)	53.6 fps -1%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	53.5 (49^min) fps -1%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	47.7 fps -12%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	43.7 (40^min) fps -20%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, AMD Radeon 780M	50.2 (45^min) fps +87%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	43.3 fps +62%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	42.4 (38^min) fps +58%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	39.3 fps +47%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	33.5 (15.9^min, 16.8^P0.1, 18.7^P1) fps +25%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	33.5 fps +25%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	33.5 fps +25%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	32.1 fps +20%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	32 (14^min, 15.4^P0.1, 17.2^P1) fps +19%
Average Intel Iris Xe Graphics G7 96EUs (10.6 - 45.9, n=189)	28.7 fps +7%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	26.8 (26^min) fps
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	23.5 (22^min) fps -12%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	22.2 fps -17%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	20.7 (18^min) fps -23%
Blackview MP200 Intel Core i5-11400H, Intel UHD Graphics Xe 16EUs (Tiger Lake-H)	8.3 fps -69%
1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, AMD Radeon 780M	31.5 (29^min) fps +154%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	28.1 fps +127%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	25.2 (23^min) fps +103%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	23.5 fps +90%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	20.1 fps +62%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	16.9 fps +36%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	15.7 fps +27%
Average Intel Iris Xe Graphics G7 96EUs (8.79 - 20.1, n=179)	14 fps +13%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	13.1 (11^min) fps +6%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	12.4 (11^min) fps
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	11.4 fps -8%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	10.3 (9^min) fps -17%

GTA V
1024x768 Lowest Settings possible
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, AMD Radeon 780M	164.7 (4.69^min, 111.1^P1) fps +59%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	157.8 (4.54^min, 111.1^P1) fps +52%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	144.6 (8.46^min, 100^P1) fps +39%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	125.5 (11.9^min, 83.3^P1) fps +21%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	124.5 (12.7^min, 76.9^P1) fps +20%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	105.8 (17.8^min, 71.4^P1) fps +2%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	103.8 (6.31^min, 71.4^P1) fps
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	102.1 (19.6^min, 58.8^P1) fps -2%
Average Intel Iris Xe Graphics G7 96EUs (52 - 166.4, n=162)	98.5 fps -5%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	97.7 (25.6^min, 55.6^P1) fps -6%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	92.2 (30.2^min, 58.8^P1) fps -11%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	67.7 (4.02^min, 38.5^P1) fps -35%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	67.6 (16.5^min, 47.6^P1) fps -35%
Blackview MP200 Intel Core i5-11400H, Intel UHD Graphics Xe 16EUs (Tiger Lake-H)	59.3 (9.5^min, 33.3^P1) fps -43%
1920x1080 Lowest Settings possible
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, AMD Radeon 780M	125.4 (20.8^min, 90.9^P1) fps +94%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	113.4 (16.8^min, 76.9^P1) fps +76%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	98.1 (39.1^min, 71.4^P1) fps +52%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	97.4 (8.56^min, 66.7^P1) fps +51%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	88.4 (8.61^min, 58.8^P1) fps +37%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	87.6 (30.9^min, 58.8^P1) fps +36%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	80.4 (22.6^min, 52.6^P1) fps +24%
Average Intel Iris Xe Graphics G7 96EUs (34.7 - 132.1, n=136)	73.8 fps +14%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	68.9 (21.3^min, 45.5^P1) fps +7%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	66.4 (17.6^min, 43.5^P1) fps +3%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	64.6 (20.6^min, 45.5^P1) fps
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	56.9 (8.92^min, 35.7^P1) fps -12%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	40.7 (12.8^min, 27.8^P1) fps -37%
Blackview MP200 Intel Core i5-11400H, Intel UHD Graphics Xe 16EUs (Tiger Lake-H)	32.2 (11.4^min, 20.8^P1) fps -50%
1366x768 Normal/Off AF:4x
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, AMD Radeon 780M	156.1 (5.05^min, 111.1^P1) fps +86%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	146 (6.65^min, 100^P1) fps +74%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	133.8 (46.7^min, 83.3^P1) fps +59%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	115.4 (23.7^min, 71.4^P1) fps +37%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	101.9 (27.6^min, 62.5^P1) fps +21%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	95.2 (17.8^min, 58.8^P1) fps +13%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	87.4 (20.5^min, 50^P1) fps +4%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	84.7 (19.5^min, 47.6^P1) fps +1%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	84 (16.1^min, 55.6^P1) fps
Average Intel Iris Xe Graphics G7 96EUs (24.1 - 149.3, n=165)	83.1 fps -1%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	80.3 (25.9^min, 50^P1) fps -4%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	61.7 (8.03^min, 38.5^P1) fps -27%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	52.5 (13.6^min, 37^P1) fps -37%
Blackview MP200 Intel Core i5-11400H, Intel UHD Graphics Xe 16EUs (Tiger Lake-H)	46.9 (11.4^min, 27^P1) fps -44%
1920x1080 Normal/Off AF:4x
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, AMD Radeon 780M	128 (8.94^min, 90.9^P1) fps +123%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	117.6 (14.5^min, 83.3^P1) fps +105%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	97.2 (7.32^min, 66.7^P1) fps +69%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	96.3 (8.48^min, 62.5^P1) fps +67%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	78 (15.8^min, 50^P1) fps +36%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	74.8 (27^min, 47.6^P1) fps +30%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	71.3 (22.8^min, 45.5^P1) fps +24%
Average Intel Iris Xe Graphics G7 96EUs (20 - 119.3, n=137)	65.2 fps +13%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	60.6 (22.7^min, 41.7^P1) fps +5%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	59 (18^min, 35.7^P1) fps +3%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	57.5 (17.4^min, 38.5^P1) fps
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	54.9 (8.78^min, 33.3^P1) fps -5%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	35.3 (13.8^min, 23.8^P1) fps -39%
Blackview MP200 Intel Core i5-11400H, Intel UHD Graphics Xe 16EUs (Tiger Lake-H)	26.8 (10.6^min, 17.5^P1) fps -53%
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, AMD Radeon 780M	68.6 (4.91^min, 45.5^P1) fps +331%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	59.7 (4.52^min, 40^P1) fps +275%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	49.2 (13.3^min, 33.3^P1) fps +209%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	34 (1.184^min, 19.2^P1) fps +114%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	29.4 (12.5^min, 20.8^P1) fps +85%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	24.3 (8.65^min, 18.2^P1) fps +53%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	24.3 (14.7^min, 18.9^P1) fps +53%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	23.4 (9.03^min, 16.7^P1) fps +47%
Average Intel Iris Xe Graphics G7 96EUs (9.39 - 51.6, n=157)	22.8 fps +43%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	20.9 (10.5^min, 16.7^P1) fps +31%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	20.5 (8.17^min, 14.5^P1) fps +29%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	15.9 (6.66^min, 12.5^P1) fps
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	12.6 (5.49^min, 8.93^P1) fps -21%
Blackview MP200 Intel Core i5-11400H, Intel UHD Graphics Xe 16EUs (Tiger Lake-H)	8.59 (3.34^min, 6.21^P1) fps -46%
1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, AMD Radeon 780M	27.6 (3.56^min, 18.9^P1) fps +306%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	23.6 (2.03^min, 16.1^P1) fps +247%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	21.7 (12.7^min, 15.4^P1) fps +219%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	19.6 (0.569^min, 10.2^P1) fps +188%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	10.3 (4.68^min, 5.59^P1) fps +51%
Average Intel Iris Xe Graphics G7 96EUs (4.13 - 22.9, n=151)	9.48 fps +39%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	9.04 (4.64^min, 5.71^P1) fps +33%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	8.8 (4.66^min, 7.35^P1) fps +29%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	7.71 (3.66^min, 5.78^P1) fps +13%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	7.7 (3.58^min, 5.88^P1) fps +13%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	6.8 (3.29^min, 3.76^P1) fps
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	5.72 (2.43^min, 3.77^P1) fps -16%
Blackview MP200 Intel Core i5-11400H, Intel UHD Graphics Xe 16EUs (Tiger Lake-H)	3.55 (1.706^min, 2.11^P1) fps -48%
Blackview MP200 Intel Core i5-11400H, Intel UHD Graphics Xe 16EUs (Tiger Lake-H)	3.5 (1.639^min, 2.12^P1) fps -49%

Dota 2 Reborn
1280x720 min (0/3) fastest
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, AMD Radeon 780M	160.6 (139.7^min) fps +45%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	150.2 (132.8^min) fps +36%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	142.2 (123.6^min) fps +29%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	140.3 (102.2^min) fps +27%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	121 (109.7^min) fps +10%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	115.1 (96.2^min) fps +4%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	113.8 (8.3^min) fps +3%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	110.5 (93.1^min) fps 0%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	110.5 (89^min) fps
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	109 (85^min) fps -1%
Average Intel Iris Xe Graphics G7 96EUs (36 - 148, n=215)	100.3 fps -9%
Blackview MP200 Intel Core i5-11400H, Intel UHD Graphics Xe 16EUs (Tiger Lake-H)	98.7 (85.5^min) fps -11%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	95.8 (84.4^min) fps -13%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	78.8 (48.8^min) fps -29%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	62.4 (51.9^min) fps -44%
1366x768 med (1/3)
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, AMD Radeon 780M	123.9 (104.8^min) fps +50%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	116.1 (95.8^min) fps +40%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	113.5 (96.1^min) fps +37%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	105.8 (88^min) fps +28%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	101.3 (78.4^min) fps +22%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	91.4 (78.4^min) fps +10%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	86.4 (68.3^min) fps +4%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	85.7 (67^min) fps +4%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	82.8 (69^min) fps
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	79.4 (61.1^min) fps -4%
Average Intel Iris Xe Graphics G7 96EUs (31.6 - 108.5, n=215)	75.7 fps -9%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	66.6 (50^min) fps -20%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	61.8 (46.8^min) fps -25%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	57.3 (48.6^min) fps -31%
Blackview MP200 Intel Core i5-11400H, Intel UHD Graphics Xe 16EUs (Tiger Lake-H)	53.7 (47.9^min) fps -35%
1920x1080 high (2/3)
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, AMD Radeon 780M	95.1 (84.3^min) fps +67%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	89.9 (78.3^min) fps +58%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	89.1 (74.5^min) fps +57%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	70.7 (65.7^min) fps +24%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	69.6 (59.3^min) fps +22%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	68.4 (57.5^min) fps +20%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	67.6 (58.9^min) fps +19%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	67.4 (60.9^min) fps +18%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	56.9 (52.4^min) fps
Average Intel Iris Xe Graphics G7 96EUs (23.2 - 88.1, n=215)	54.2 fps -5%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	50.6 (42.5^min) fps -11%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	45.2 (38.5^min) fps -21%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	44.8 (38.3^min) fps -21%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	37.7 (26.8^min) fps -34%
Blackview MP200 Intel Core i5-11400H, Intel UHD Graphics Xe 16EUs (Tiger Lake-H)	22.6 (20.6^min) fps -60%
1920x1080 ultra (3/3) best looking
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, AMD Radeon 780M	85.5 (75.7^min) fps +64%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	80.3 (71.5^min) fps +54%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	72.8 (65.3^min) fps +40%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	64.5 (58.2^min) fps +24%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	62.2 (53.4^min) fps +20%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	61.9 (52.7^min) fps +19%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	60.5 (52.3^min) fps +16%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	59.8 (52.4^min) fps +15%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	52.3 (43.7^min) fps +1%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	52 (47.1^min) fps
Average Intel Iris Xe Graphics G7 96EUs (20.6 - 78.5, n=215)	49.4 fps -5%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	42 (36.8^min) fps -19%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	42 (37.8^min) fps -19%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	35 (25.8^min) fps -33%
Blackview MP200 Intel Core i5-11400H, Intel UHD Graphics Xe 16EUs (Tiger Lake-H)	20.9 (19^min) fps -60%

Final Fantasy XV Benchmark
1280x720 Lite Quality
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, AMD Radeon 780M	77.6 fps +107%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	69.7 fps +86%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	63.1 fps +69%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	62.2 fps +66%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	47.5 fps +27%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	45.7 fps +22%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	45.6 fps +22%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	45.6 fps +22%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	43.6 fps +17%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	39.8 fps +6%
Average Intel Iris Xe Graphics G7 96EUs (14.9 - 56.5, n=183)	39.4 fps +5%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	37.4 fps
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	30.3 fps -19%
Blackview MP200 Intel Core i5-11400H, Intel UHD Graphics Xe 16EUs (Tiger Lake-H)	14 fps -63%
1920x1080 Standard Quality
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, AMD Radeon 780M	38.7 fps +94%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	35.2 fps +76%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	33.1 fps +66%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	33 fps +65%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	28.9 fps +45%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	25.1 fps +26%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	25 fps +25%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	24.9 fps +25%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	24.3 fps +22%
Average Intel Iris Xe Graphics G7 96EUs (10.5 - 31.2, n=179)	21.8 fps +9%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	21.3 fps +7%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	20 fps
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	15.6 fps -22%
Blackview MP200 Intel Core i5-11400H, Intel UHD Graphics Xe 16EUs (Tiger Lake-H)	6.55 fps -67%
1920x1080 High Quality
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, AMD Radeon 780M	28.9 fps +98%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	26 fps +78%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	25 fps +71%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	24.7 fps +69%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	23.6 fps +62%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	20.9 fps +43%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	18.1 fps +24%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	17.4 fps +19%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	17.4 fps +19%
Average Intel Iris Xe Graphics G7 96EUs (8.15 - 27.8, n=172)	16.8 fps +15%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	15.4 fps +5%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	14.6 fps
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	12.7 fps -13%
Blackview MP200 Intel Core i5-11400H, Intel UHD Graphics Xe 16EUs (Tiger Lake-H)	4.66 fps -68%

X-Plane 11.11
1280x720 low (fps_test=1)
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	65.2 fps +50%
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, AMD Radeon 780M	60.8 fps +40%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	60.3 fps +39%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	55.3 fps +27%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	54.6 fps +26%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	51.1 fps +18%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	48.7 fps +12%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	44.5 fps +3%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	43.4 fps
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	42.3 fps -3%
Average Intel Iris Xe Graphics G7 96EUs (13.4 - 88.4, n=212)	41.5 fps -4%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	37.9 fps -13%
Blackview MP200 Intel Core i5-11400H, Intel UHD Graphics Xe 16EUs (Tiger Lake-H)	29.1 fps -33%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	26.8 fps -38%
1920x1080 med (fps_test=2)
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	52.3 fps +59%
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, AMD Radeon 780M	44.1 fps +34%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	43.7 fps +33%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	43.7 fps +33%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	43 fps +31%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	41 fps +25%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	35.8 fps +9%
Average Intel Iris Xe Graphics G7 96EUs (11.6 - 69.5, n=213)	35.2 fps +7%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	34.9 fps +6%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	34.4 fps +5%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	32.9 fps
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	32.7 fps -1%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	21.1 fps -36%
Blackview MP200 Intel Core i5-11400H, Intel UHD Graphics Xe 16EUs (Tiger Lake-H)	17.2 fps -48%
1920x1080 high (fps_test=3)
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	42.2 fps +48%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	38.7 fps +36%
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, AMD Radeon 780M	37.5 fps +32%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	36.5 fps +28%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	35.5 fps +25%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	35.4 fps +24%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	32.9 fps +15%
Average Intel Iris Xe Graphics G7 96EUs (11.1 - 59.8, n=212)	31.6 fps +11%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	30.4 fps +7%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	30.3 fps +6%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	28.8 fps +1%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	28.5 fps
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	16.6 fps -42%
Blackview MP200 Intel Core i5-11400H, Intel UHD Graphics Xe 16EUs (Tiger Lake-H)	15.8 fps -45%

Far Cry 5
1280x720 Low Preset AA:T
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	80 (69^min) fps +78%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	68 (58^min) fps +51%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	63 (57^min) fps +40%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	52 (46^min) fps +16%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	52 (41^min) fps +16%
Average Intel Iris Xe Graphics G7 96EUs (23 - 75, n=92)	46.5 fps +3%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	45 (40^min) fps 0%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	45 (41^min) fps
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	41 (35^min) fps -9%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	40 (35^min) fps -11%
Blackview MP200 Intel Core i5-11400H, Intel UHD Graphics Xe 16EUs (Tiger Lake-H)	16 (14^min) fps -64%
1920x1080 Medium Preset AA:T
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	45 (40^min) fps +105%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	41 (35^min) fps +86%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	31 (27^min) fps +41%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	30 (26^min) fps +36%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	29 (27^min) fps +32%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	28 (24^min) fps +27%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	26 (23^min) fps +18%
Average Intel Iris Xe Graphics G7 96EUs (14 - 39, n=90)	25.5 fps +16%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	22 (20^min) fps
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	20 (18^min) fps -9%
Blackview MP200 Intel Core i5-11400H, Intel UHD Graphics Xe 16EUs (Tiger Lake-H)	7 (6^min) fps -68%
1920x1080 High Preset AA:T
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	41 (36^min) fps +95%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	38 (32^min) fps +81%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	29 (25^min) fps +38%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	28 (24^min) fps +33%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	27 (25^min) fps +29%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	25 (23^min) fps +19%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	24 (21^min) fps +14%
Average Intel Iris Xe Graphics G7 96EUs (10 - 35, n=88)	23.8 fps +13%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	21 (19^min) fps
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	19 (17^min) fps -10%
Blackview MP200 Intel Core i5-11400H, Intel UHD Graphics Xe 16EUs (Tiger Lake-H)	7 (6^min) fps -67%
1920x1080 Ultra Preset AA:T
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	39 (35^min) fps +95%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	36 (29^min) fps +80%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	27 (24^min) fps +35%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	26 (23^min) fps +30%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	23 (20^min) fps +15%
Average Intel Iris Xe Graphics G7 96EUs (11 - 33, n=74)	22.6 fps +13%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	20 (18^min) fps
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	17 (15^min) fps -15%

Strange Brigade
1280x720 lowest AF:1
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, AMD Radeon 780M	162.3 (84.5^min, 138^P1) fps +82%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	148.8 (53.7^min, 130^P1) fps +67%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	137.8 (107.9^min, 119.9^P1) fps +54%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	132.2 (72.4^min, 110.3^P1) fps +48%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	99 (21.7^min, 36.5^P1) fps +11%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	98.7 (21.2^min, 36.7^P1) fps +11%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	89.9 (20^min, 32.7^P1) fps +1%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	89.2 (21.3^min, 32.1^P1) fps
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	87.6 (11.7^min, 31^P1) fps -2%
Average Intel Iris Xe Graphics G7 96EUs (48.5 - 115.1, n=168)	84.8 fps -5%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	84.5 (32.3^min, 62.9^P1) fps -5%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	80.1 (18.9^min, 25.5^P1) fps -10%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	68.6 (15.6^min, 21.8^P1) fps -23%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	66.2 (14^min, 22.8^P1) fps -26%
Blackview MP200 Intel Core i5-11400H, Intel UHD Graphics Xe 16EUs (Tiger Lake-H)	31.5 (7.3^min, 9.39^P1) fps -65%
1920x1080 medium AA:medium AF:4
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, AMD Radeon 780M	65.4 (53.3^min, 56.4^P1) fps +88%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	59.8 (35.1^min, 52^P1) fps +72%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	56.4 (47.8^min, 49^P1) fps +63%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	55.2 (43.9^min, 48.5^P1) fps +59%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	46.2 (28.6^min, 35^P1) fps +33%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	40.9 (10.8^min, 22.7^P1) fps +18%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	39.4 (14.1^min, 23^P1) fps +14%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	38.3 (10.4^min, 17.6^P1) fps +10%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	38.1 (8.7^min, 14.5^P1) fps +10%
Average Intel Iris Xe Graphics G7 96EUs (18.2 - 51.4, n=166)	36.5 fps +5%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	34.7 (12.5^min, 20^P1) fps
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	34.5 (12.4^min, 19.8^P1) fps -1%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	29 (13.9^min, 17.8^P1) fps -16%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	23.8 (5.4^min, 6.17^P1) fps -31%
Blackview MP200 Intel Core i5-11400H, Intel UHD Graphics Xe 16EUs (Tiger Lake-H)	11.7 (5^min, 5^P1) fps -66%
1920x1080 high AA:high AF:8
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, AMD Radeon 780M	55.8 (41.7^min, 43.2^P1) fps +91%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	50.7 (14.7^min, 38.5^P1) fps +74%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	47.1 (35.1^min, 37.2^P1) fps +61%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	46 (33.6^min, 36.3^P1) fps +58%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	39.4 (9.7^min, 22.8^P1) fps +35%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	32.3 (8.2^min, 17^P1) fps +11%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	32 (8.4^min, 15.8^P1) fps +10%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	30.4 (6.3^min, 11.4^P1) fps +4%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	29.7 (7.4^min, 10.7^P1) fps +2%
Average Intel Iris Xe Graphics G7 96EUs (15.4 - 39.8, n=165)	29.3 fps 0%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	29.2 (9^min, 13.5^P1) fps
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	28.5 (7.8^min, 15.4^P1) fps -2%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	23.3 (6.2^min, 12.7^P1) fps -20%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	20.1 (5^min, 5.19^P1) fps -31%
Blackview MP200 Intel Core i5-11400H, Intel UHD Graphics Xe 16EUs (Tiger Lake-H)	11.9 (5^min, 5^P1) fps -59%
1920x1080 ultra AA:ultra AF:16
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, AMD Radeon 780M	48.2 (36.6^min, 37.7^P1) fps +110%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	43.3 (11.1^min, 16.3^P1) fps +89%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	40.7 (31.5^min, 32.4^P1) fps +78%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	39.9 (27.9^min, 32^P1) fps +74%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	34.2 (6.7^min, 10.3^P1) fps +49%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	26.2 (5.2^min, 9.1^P1) fps +14%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	26.1 (5.3^min, 8.13^P1) fps +14%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	24.5 (5^min, 6.62^P1) fps +7%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	23.7 (5^min, 6.21^P1) fps +3%
Average Intel Iris Xe Graphics G7 96EUs (13.2 - 31.7, n=163)	23.7 fps +3%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	22.9 (6.4^min, 8.1^P1) fps 0%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	22.9 (5^min, 5.96^P1) fps
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	19.1 (5^min, 5.1^P1) fps -17%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	16.9 (5^min, 5^P1) fps -26%
Blackview MP200 Intel Core i5-11400H, Intel UHD Graphics Xe 16EUs (Tiger Lake-H)	15 (5^min, 5^P1) fps -34%

Cyberpunk 2077 1.6
1280x720 Low Preset
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, AMD Radeon 780M	88.6 (45.6^min) fps +218%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	75 (48.8^min) fps +169%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	69.2 (26.3^min) fps +148%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	55.9 (21^min) fps +100%
Average Intel Iris Xe Graphics G7 96EUs (20.6 - 44.7, n=17)	30.4 fps +9%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	27.9 (19.9^min) fps
1920x1080 Low Preset
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, AMD Radeon 780M	53.3 (35^min) fps +225%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	44.6 (33.4^min) fps +172%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	40.8 (19.7^min) fps +149%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	31.4 (16.4^min) fps +91%
Average Intel Iris Xe Graphics G7 96EUs (13 - 25.9, n=42)	19 fps +16%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	16.4 (7.3^min) fps
1920x1080 Medium Preset
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, AMD Radeon 780M	42 (30.4^min) fps +216%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	36.3 (27.9^min) fps +173%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	31.8 (20.6^min) fps +139%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	24.4 (12.3^min) fps +83%
Average Intel Iris Xe Graphics G7 96EUs (10.8 - 21.7, n=37)	16.1 fps +21%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	13.3 (10.5^min) fps
1920x1080 High Preset
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, AMD Radeon 780M	30.5 (34^min) fps +180%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	28.6 (21.3^min) fps +162%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	21.8 (6.2^min) fps +100%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	19 (11.3^min) fps +74%
Average Intel Iris Xe Graphics G7 96EUs (9.8 - 16.9, n=34)	12.7 fps +17%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	10.9 (8.7^min) fps
1920x1080 Ultra Preset
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	26 (18.8^min) fps +152%
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, AMD Radeon 780M	25.2 (18.1^min) fps +145%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	17.6 (9.8^min) fps +71%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	17.5 (3.4^min) fps +70%
Average Intel Iris Xe Graphics G7 96EUs (7.4 - 16.8, n=32)	10.6 fps +3%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	10.3 fps

Witcher 3 FPS Chart

Lenovo IdeaCentre Mini 01IRH8: Ø85.9 (70-92)

	low	med.	high	ultra
GTA V (2015)	103.8	84	15.9	6.8
The Witcher 3 (2015)	85.8	54.3	26.8	12.4
Dota 2 Reborn (2015)	110.5	82.8	56.9	52
Final Fantasy XV Benchmark (2018)	37.4	20	14.6
X-Plane 11.11 (2018)	43.4	32.9	28.5
Far Cry 5 (2018)	45	22	21	20
Strange Brigade (2018)	89.2	34.7	29.2	22.9
Cyberpunk 2077 1.6 (2022)	16.4	13.3	10.9	10.3
Tiny Tina's Wonderlands (2022)	27.5	20.9	13.5	10.6
F1 22 (2022)	39.2	36.7	27	20.7

排放量

系统噪音

在 24 分贝（A）的静音背景下，内部风扇无论在多大的音量下都能保持 30 分贝（A）的运转。在非常安静的房间里，这个噪音足以让人听到嗡嗡声，但值得庆幸的是，在玩游戏或看电影时，这个噪音还不足以让人分心。在中低负载运行时，风扇也很少以更高转速运转，因此 30 分贝（A）的最低值相当稳定。

当长时间运行要求较高的负载（如游戏或 Prime95）时，我们能记录到最高 41 dB(A) 的风扇噪音，与 Beelink GTR7 不相上下。Beelink GTR7或 NUC 13 Pro 在类似条件下的噪音相当。

冷却解决方案包括一个用于 CPU 的 60 毫米大风扇和一个用于 PSU 的小风扇

风扇噪音曲线（白色：背景，红色：系统空闲，蓝色：3DMark 06，橙色：3DMark 06，绿色：3DMark 06，橙色：3DMark 06Witcher 3绿色Prime95+FurMark 压力）

Noise Level

Idle		30.4 / 30.4 / 30.4 dB(A)
Load		30.7 / 41 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Earthworks M23R, Arta (15 cm distance) environment noise: 23.4 dB(A)

温度

当长时间运行高负载时，设备顶部的热点温度可达 40 摄氏度，比我们在 Beelink GTR7 上记录的温度高出近 12 度。表面温度普遍较高可能有两个原因：集成 PSU 和缺少上部通风栅，这导致整体温度较高。与大多数其他迷你 PC 不同，冷空气从机身底部进入。

压力测试

当运行 Prime95 对 CPU 施加压力时，时钟频率和封装功耗将分别飙升至 3.3 GHz 和 80 W，在 95 C 的核心温度下仅持续数分钟。

在搭载 Ryzen 7 7840HS 的 Beelink GTR7和搭载酷睿 i5-1235U 的 Beelink SEi12尽管 IdeaCentre Mini 更大、更重，但其核心温度分别为 76 C 和 67 C。

能源管理

耗电量

即使与采用相同酷睿 i7-13700H CPU 的正式笔记本电脑相比，联想迷你 PC 也相当耗电。联想申克 Vision 16运行时，耗电量减少了 15%。 Witcher 3.英特尔 NUC 13 Pro 和 Beelink SEi12 也更省电，但它们分别配备了较慢的酷睿-P 和酷睿-U CPU。

当 CPU 使用率达到 100%时，我们能记录到 105 W 的临时最大功耗。如上文压力测试部分所述，由于 Turbo Boost 的潜力有限，因此功耗会很快下降。

值得注意的是，虽然该机型不需要外接电源线，但随机附带的电源线非常短，只有 3 英尺多长。

在启动 Prime95 压力时，功耗将飙升至 101 W，而在时钟频率开始稳定时，功耗将最终降至 65 W。

Power Consumption

Off / Standby	0.68 / 1.1 Watt
Idle	6.7 / 6.7 / 7.1 Watt
Load	68.5 / 104.3 Watt


Key: min: , med: , max: Metrahit Energy

	Lenovo IdeaCentre Mini 01IRH8 i7-13700H, Iris Xe G7 96EUs, Samsung PM9B1 512GB MZVL4512HBLU, , x,	Intel NUC 13 Pro Desk Edition Kit i7-1360P, Iris Xe G7 96EUs, Samsung PM9A1 MZVL2512HCJQ, , x,	Beelink SEi12 Core i5-1235U i5-1235U, Iris Xe G7 80EUs, Kingston NV1 SNVS/500GCN, , x,	Beelink GTR7 7840HS R7 7840HS, Radeon 780M, Crucial P3 Plus CT1000P3PSSD8, , x,	Trigkey Speed S i5-11320H, Iris Xe G7 96EUs, Intel SSD 670p SSDPEKNU512GZ, , x,	SCHENKER Vision 16 PH6PRX1 i7-13700H, Iris Xe G7 96EUs, Samsung 990 Pro 1 TB, IPS, 2560x1600, 16"
Power Consumption		-13%	-68%	-4%	11%	-29%
Idle Minimum *	6.7	7 -4%	15.8 -136%	5.5 18%	6.7 -0%	6.3 6%
Idle Average *	6.7	9.2 -37%	16.8 -151%	5.8 13%	8 -19%	14.4 -115%
Idle Maximum *	7.1	11.8 -66%	17 -139%	7.7 -8%	8.1 -14%	16.2 -128%
Load Average *	68.5	45 34%	54.4 21%	70.6 -3%	47.6 31%	46.2 33%
Witcher 3 ultra *	58.3		50.7 13%	79.8 -37%	47.5 19%	49.4 15%
Load Maximum *	104.3	97.2 7%	119.1 -14%	111.8 -7%	56.3 46%	85.2 18%

* ... smaller is better

Power Consumption Witcher 3 / Stresstest

Lenovo IdeaCentre Mini 01IRH8 i7-13700H, Iris Xe G7 96EUs; Witcher 3 ultra: Ø58.3 (54.8-71.2)

Beelink SER6 Pro Ryzen 7 7735HS R7 7735HS, Radeon 680M; Witcher 3 ultra: Ø62.6 (60.9-64.9)

Lenovo IdeaCentre Mini 01IRH8 i7-13700H, Iris Xe G7 96EUs; 1280x720 Prime95 28.10 and Furmark 1.25: Ø85.5 (63.1-104.3)

Beelink SER6 Pro Ryzen 7 7735HS R7 7735HS, Radeon 680M; 1280x720 Prime95 28.10 and Furmark 1.25: Ø65 (63.6-80.1)

Power Consumption external Monitor

Lenovo IdeaCentre Mini 01IRH8 i7-13700H, Iris Xe G7 96EUs; Prime95 V2810 Stress (external Monitor): Ø84.4 (63.2-100.7)

Beelink SER6 Pro Ryzen 7 7735HS R7 7735HS, Radeon 680M; Prime95 V2810 Stress (external Monitor): Ø63.6 (62.6-72)

Lenovo IdeaCentre Mini 01IRH8 i7-13700H, Iris Xe G7 96EUs; Cinebench R15 Multi (external Monitor): Ø125.4 (111.7-137.8)

Beelink SER6 Pro Ryzen 7 7735HS R7 7735HS, Radeon 680M; Cinebench R15 Multi (external Monitor): Ø62.7 (55.1-67.9)

Lenovo IdeaCentre Mini 01IRH8 i7-13700H, Iris Xe G7 96EUs; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø61.1 (57.6-65.1)

Beelink SER6 Pro Ryzen 7 7735HS R7 7735HS, Radeon 680M; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø63.9 (62.7-67.8)

Lenovo IdeaCentre Mini 01IRH8 i7-13700H, Iris Xe G7 96EUs; 1920x1080 The Witcher 3 ultra (external Monitor): Ø58.3 (54.8-71.2)

Beelink SER6 Pro Ryzen 7 7735HS R7 7735HS, Radeon 680M; 1920x1080 The Witcher 3 ultra (external Monitor): Ø62.6 (60.9-64.9)

Lenovo IdeaCentre Mini 01IRH8 i7-13700H, Iris Xe G7 96EUs; Idle 1min (external Monitor): Ø6.97 (5.24-21.1)

Beelink SER6 Pro Ryzen 7 7735HS R7 7735HS, Radeon 680M; Idle 1min (external Monitor): Ø9.2 (8.79-12.5)

结论 - 专为家庭多媒体多任务处理者设计

与其他迷你 PC 相比，选择 IdeaCentre Mini 的主要原因是其集成的 PSU 和快速的酷睿 H 系列 CPU。如果你喜欢运行 CPU 密集型任务，又讨厌处理电源模块，那么这款联想解决方案将比使用酷睿 U CPU 的众多小型替代产品快得多。

IdeaCentre Mini 最显著的缺点是，相对于所获得的性能而言，它又大又重。Geekom Mini iiT13 或 Beelink SER7 等体积更小、重量更轻的替代产品配备了完全相同的处理器或类似的 AMD 选项，同时还提供可升级的内存和存储空间。没有 VESA 安装也限制了联想迷你电脑的摆放位置。当然，如果你打算把它平放在家里的书桌或桌子上，那么重量重、占地面积大、没有 VESA 安装或 Kenginton 锁等问题都不会影响你的使用。

IdeaCentre Mini 比看上去要结实得多，在需要更高的处理能力时，它还具有酷睿 H 的性能。虽然有一些小麻烦，但相对容易克服。

值得一提的是，3 英尺长的电源线是我们见过的笔记本电脑或迷你电脑中最短的电源线之一。考虑到大多数办公桌距离地面约 30 英寸，该系统必须放置在电源插座的正上方，否则电源线将无法触及。您可能需要投资购买更长的电源线，这取决于您的设置。

对于未来的型号，我们希望看到 Wi-Fi 6E、更快的内存和免工具维修，以最大限度地发挥游戏串流的潜力，并使升级更容易一些。目前不到 700 美元的价格与其他迷你电脑相比很有竞争力，特别是因为联想解决方案包括 Windows 11、内存、存储和酷睿 H 系列 CPU，而不是较慢的酷睿 U 或酷睿 P。

价格和供应情况

联想的 IdeaCentre Mini Gen 8现已上市，酷睿 i7 配置的售价为 688 美元，酷睿 i5 基础配置的售价仅为 560 美元。另外，百思买（Best Buy）也以 850 美元的高价出售酷睿 i7 配置。

Lenovo IdeaCentre Mini 01IRH8 - 09/01/2023 v7 ^(old)
Allen Ngo

Chassis

0 / 98 → 0%

Connectivity

61 / 81 → 76%

Weight

66%

Games Performance

66%

Application Performance

95%

Noise

85%

Average

75%

81%

Mini PC - Weighted Average

Transparency

The selection of devices to be reviewed is made by our editorial team. The test sample was provided to the author as a loan by the manufacturer or retailer for the purpose of this review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.

This is how Notebookcheck is testing

Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.

Rating	Date	Model	Weight	Height	Resolution
81 % v7 ^(old)	09 / 2023	Lenovo IdeaCentre Mini 01IRH8 i7-13700H, Iris Xe G7 96EUs	1.8 kg	39 mm	x
83.1 % v7 ^(old)	08 / 2023	Intel NUC 13 Pro Desk Edition Kit i7-1360P, Iris Xe G7 96EUs	558 g	37 mm	x
v ^(old)	03 / 2023	Intel NUC 12 Pro Kit NUC12WSBi5 i5-1240P, Iris Xe G7 80EUs	549 g	45.6 mm	x
86.3 % v7 ^(old)	07 / 2023	Beelink GTR7 7840HS R7 7840HS, Radeon 780M	890 g	48.8 mm	x
80.6 % v7 ^(old)	07 / 2023	Geekom Mini IT11, i7-11390H i7-11390H, Iris Xe G7 96EUs	536 g	48 mm	x
v ^(old)	03 / 2023	Trigkey Speed S i5-11320H, Iris Xe G7 96EUs	415 g	40.7 mm	x

3DMark 11 Performance		7371 points
3DMark Fire Strike Score		4511 points
3DMark Time Spy Score		1724 points
Help

联想 IdeaCentre Mini 01IRH8 评测：英特尔 NUC 的挑战者即将登场

妈，没有电砖！

潜在的竞争对手比较

案例 - 建筑密集、结构合理

尺寸比较

连接性

交流

维护

配件和保修

性能

测试条件

处理器

Cinebench R15 Multi Loop

系统性能

DPC 延迟

存储设备

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

图形处理器性能

Witcher 3 FPS Chart

排放量

系统噪音

温度

压力测试

能源管理

耗电量

Power Consumption Witcher 3 / Stresstest

Power Consumption external Monitor

Pros

Cons

结论 - 专为家庭多媒体多任务处理者设计

价格和供应情况

More articles related to this device

Transparency

Price comparison

	Lenovo IdeaCentre Mini 01IRH8 Iris Xe G7 96EUs, i7-13700H, Samsung PM9B1 512GB MZVL4512HBLU	Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	Beelink GTR7 7840HS Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	Trigkey Speed S Iris Xe G7 96EUs, i5-11320H, Intel SSD 670p SSDPEKNU512GZ
Noise		-4%	4%	-1%	-0%	10%
off / environment *	23.4	25.2 -8%	23.3 -0%	25.6 -9%	29.7 -27%	23.5 -0%
Idle Minimum *	30.4	28.1 8%	27.8 9%	28.1 8%	30.2 1%	24.1 21%
Idle Average *	30.4	28.2 7%	27.8 9%	28.1 8%	30.2 1%	24.1 21%
Idle Maximum *	30.4	28.3 7%	27.8 9%	28.1 8%	30.2 1%	26.6 12%
Load Average *	30.7	42 -37%	32 -4%	34.9 -14%	30.6 -0%	30.4 1%
Witcher 3 ultra *	33.9		34.1 -1%	36.4 -7%	30.5 10%	30.4 10%
Load Maximum *	41	42.1 -3%	39.2 4%	42.4 -3%	36.4 11%	38.1 7%

	CPU 时钟 (GHz)	GPU 时钟 (MHz)	CPU 平均温度 (°C)
系统闲置	--	--	38
Prime95 压力	2.4 - 2.7	--	81
Prime95 + FurMark 压力	2.0 - 2.3	1197	80
Witcher 3 压力	0.7	1493	84
