英特尔 NUC 13 Pro 套件 - Vivid Canyon 评测：最后一款英特尔 NUC 采用新外壳和酷睿 i7-1360P 处理器

Name: Intel NUC 13 Pro Desk Edition Kit
Brand: Intel

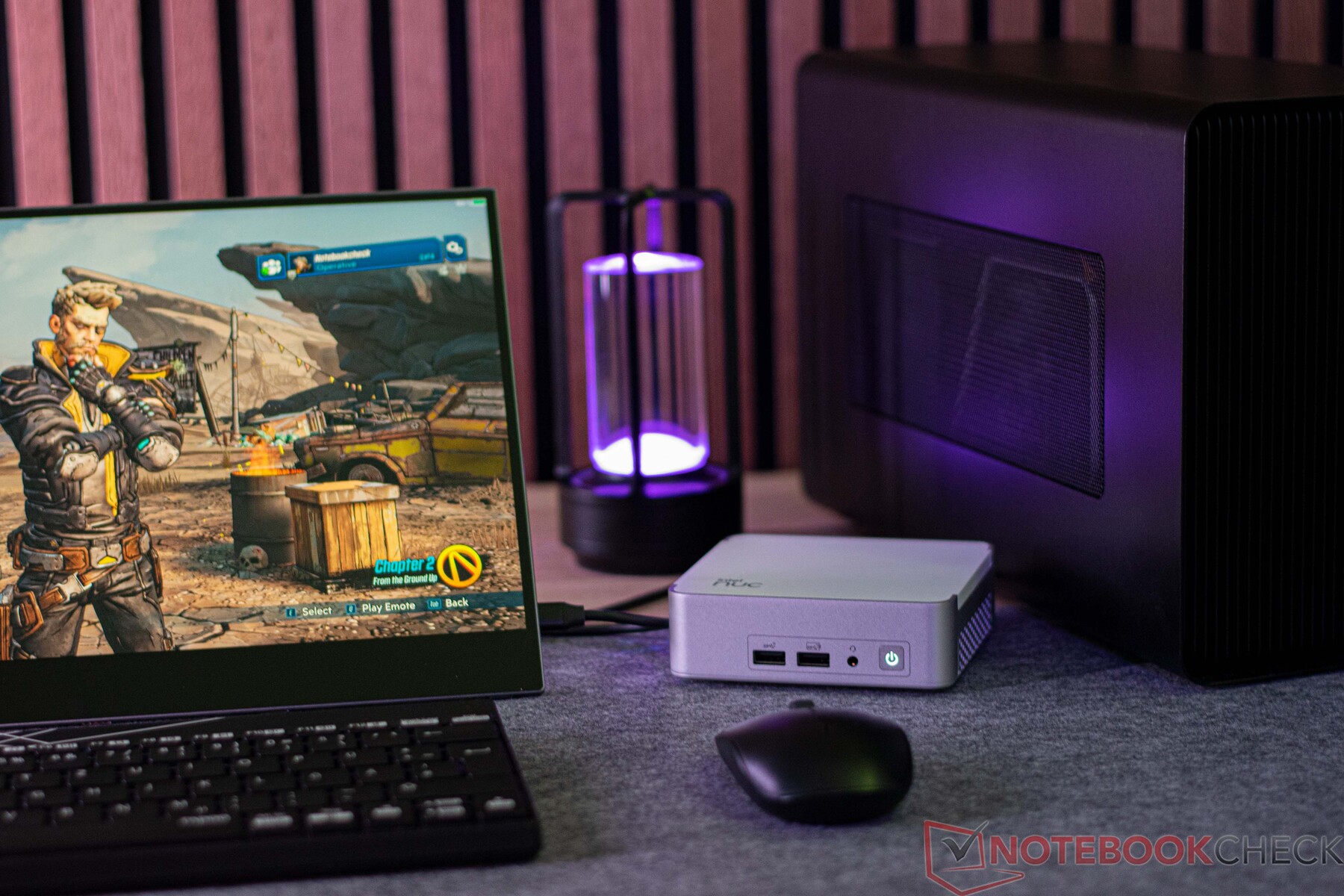

装有新外壳的 NUC

英特尔 NUC 13 Pro 桌面版套件（又名 Vivid Canyon）的发布，大概是英特尔在迷你 PC 领域的最后一个分支。从外观上看，英特尔为该设备画上了点睛之笔，纠正了前代产品的大部分诟病之处。在这篇评测中，你可以了解到英特尔基于英特尔酷睿 i7-1360P 的最后一款 NUC 还有哪些亮点。

Sebastian Bade (translated by DeepL / Ninh Duy), Published 08/16/2023 🇺🇸 🇩🇪 ...

Mini PC Intel Desktop Raptor Lake Thunderbolt

英特尔 NUC 13 Pro 桌面版套件直接继承了英特尔 NUC 13 Pro 套件.从技术上看，这两款产品非常相似，因为我们测试的英特尔 NUC 13 Pro 桌面版套件还配备了英特尔酷睿 i7-1360P32 GB DDR4 内存和 512GB 固态硬盘。从外观上看，英特尔对其最终发布的 NUC 进行了全面改造，因此变化很大。正如已经宣布英特尔在此次发布后将不再销售其 NUC 设备。

这意味着我们手中的这款产品可能是英特尔在该系列中的最后一款迷你 PC。多年来，这些微型计算天才一直以性能卓越、排放低而著称。当然，迷你 PC 在过去一年中的蓬勃发展也导致大量制造商将类似设备推向市场。我们之前已经测试过不少这样的产品。其竞争对手（大多是从远东运来的）往往能与之抗衡，同时，它们有时也被证明更物有所值。在本次评测中，英特尔 NUC 13 Pro 桌面版套件将再次与 Minisforum、Geekom 和 Morefine 的设备展开竞争。你可以在下面的概述中找到所有这些设备的清单。

Test device courtesy of Intel

Download your licensed rating image as PNG / SVG

Intel NUC 13 Pro Desk Edition Kit

Processor

Intel Core i7-1360P 12 x 1.6 - 5 GHz, 64 W PL2 / Short Burst, 40 W PL1 / Sustained, Raptor Lake-P

Graphics adapter

Intel Iris Xe Graphics G7 96EUs

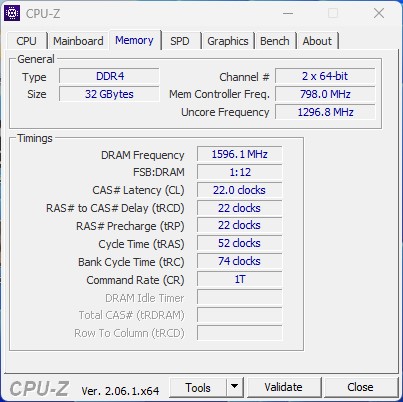

Memory

32 GB

, DDR4-3200, 2 of 2 occupied, max. 64 GB

Mainboard

Intel Alder Lake-P PCH

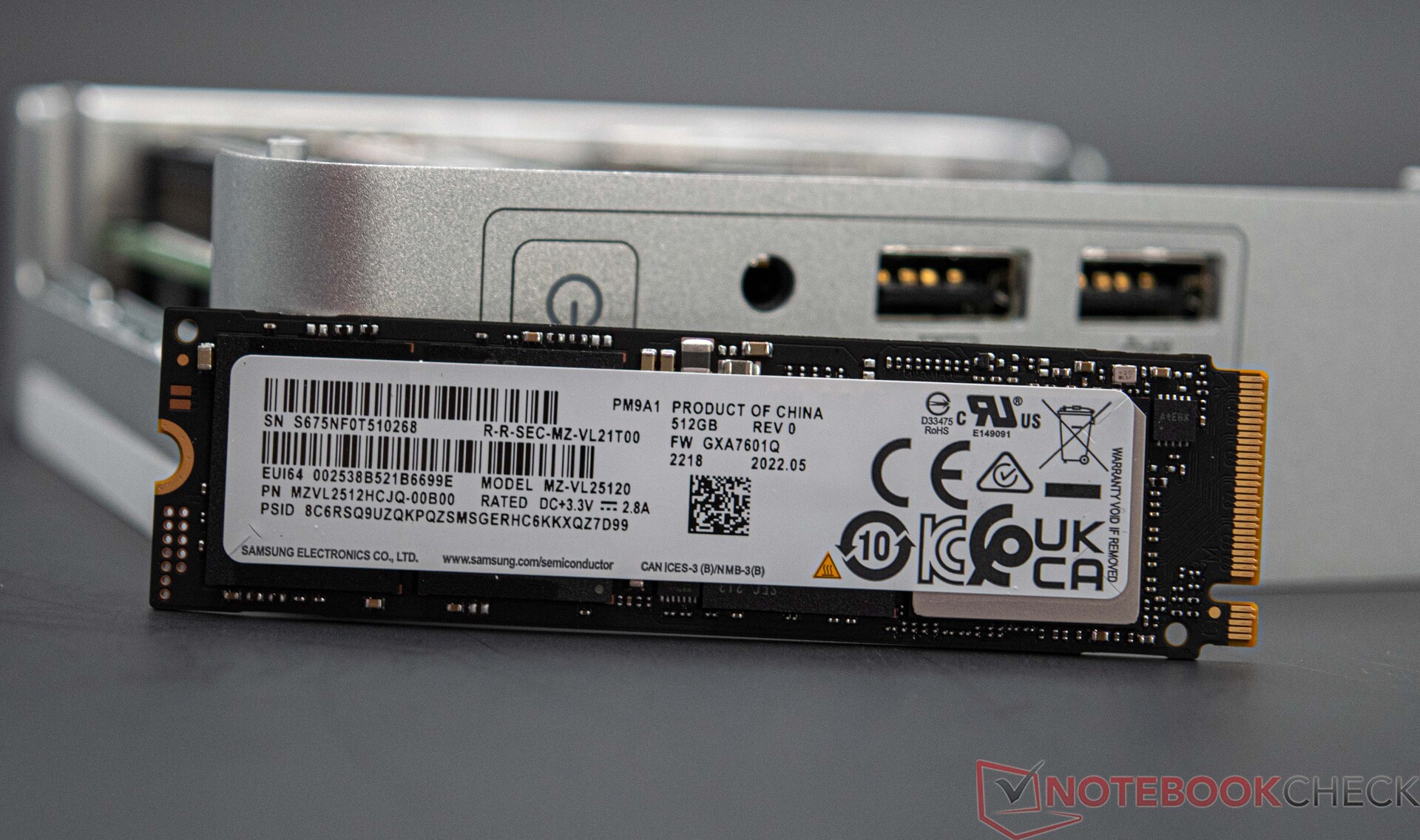

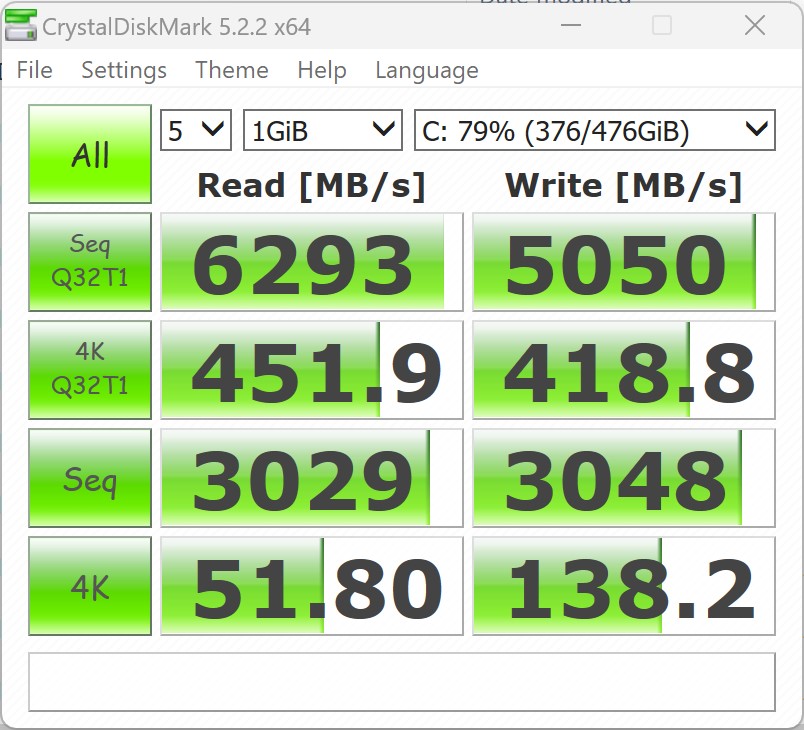

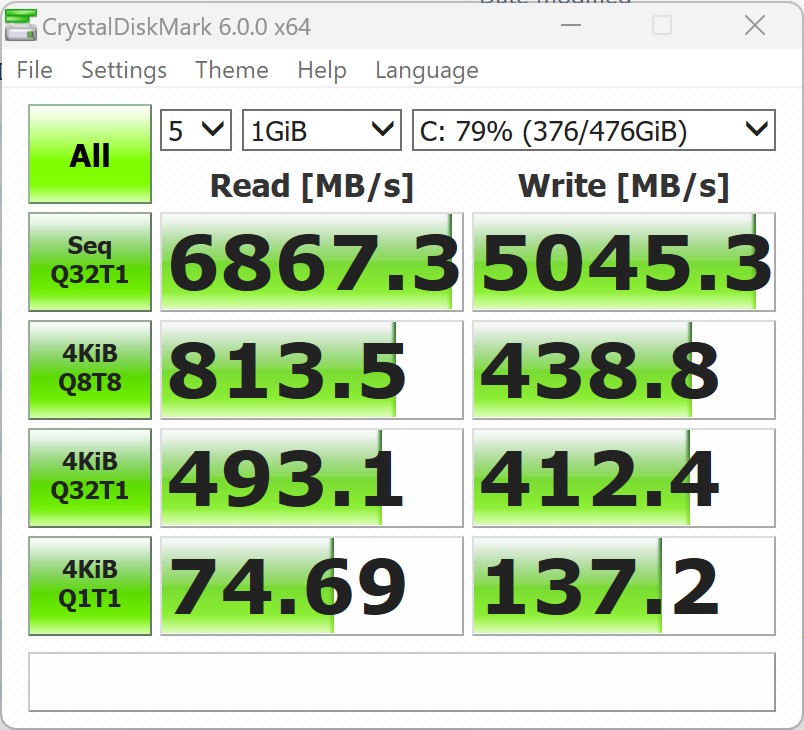

Storage

Samsung PM9A1 MZVL2512HCJQ, 512 GB

, M.2 2280, NVMe, 420 GB free

Soundcard

Intel Alder Lake-P PCH - cAVS (Audio, Voice, Speech)

Connections

1 USB 2.0, 3 USB 3.1 Gen2, 2 USB 4.0 40 Gbps, 2 Thunderbolt, 2 HDMI, 2 DisplayPort, 1 Kensington Lock, Audio Connections: 3.5mm Klinke

Networking

Intel Ethernet Controller I226-V (10/2500MBit/s), Intel Wi-Fi 6E AX211 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/ Wi-Fi 6E 6 GHz), Bluetooth 5.3

Size

height x width x depth (in mm): 37 x 117 x 112

Operating System

Microsoft Windows 11 Pro

Weight

558 g, Power Supply: 216 g

Price

800 Euro

Links

Intel homepage

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

潜在的竞争对手比较

Rating	Date	Model	Weight	Height
83.1 % v7 ^(old)	08 / 2023	Intel NUC 13 Pro Desk Edition Kit i7-1360P, Iris Xe G7 96EUs	558 g	37 mm
85.1 % v7 ^(old)	01 / 2023	Minisforum Neptune Series NAD9 i9-12900H, Iris Xe G7 96EUs	1.2 kg	66 mm
85.5 % v7 ^(old)	03 / 2023	Morefine M600, 6900HX R9 6900HX, Radeon 680M	779 g	40.6 mm
82.8 % v7 ^(old)	07 / 2023	Geekom AS 6, R9 6900HX R9 6900HX, Radeon 680M	753 g	58 mm
82.3 % v7 ^(old)	05 / 2023	Geekom Mini IT12 i7-1260P, Iris Xe G7 96EUs	572 g	45.6 mm
80.8 % v7 ^(old)	04 / 2023	Intel NUC 13 Pro Kit NUC13ANK i7-1360P, Iris Xe G7 96EUs	538 g	37 mm
78.9 % v7 ^(old)	11 / 2022	Intel NUC 12 Pro Kit NUC12WSKi7 i7-1260P, Iris Xe G7 96EUs	511 g	37 mm
78.8 % v7 ^(old)	08 / 2023	Khadas Mind i7-1360P, Iris Xe G7 96EUs	438 g	20 mm

Intel NUC 13 Pro 桌面版套件 - Vivid Canyon 详细信息

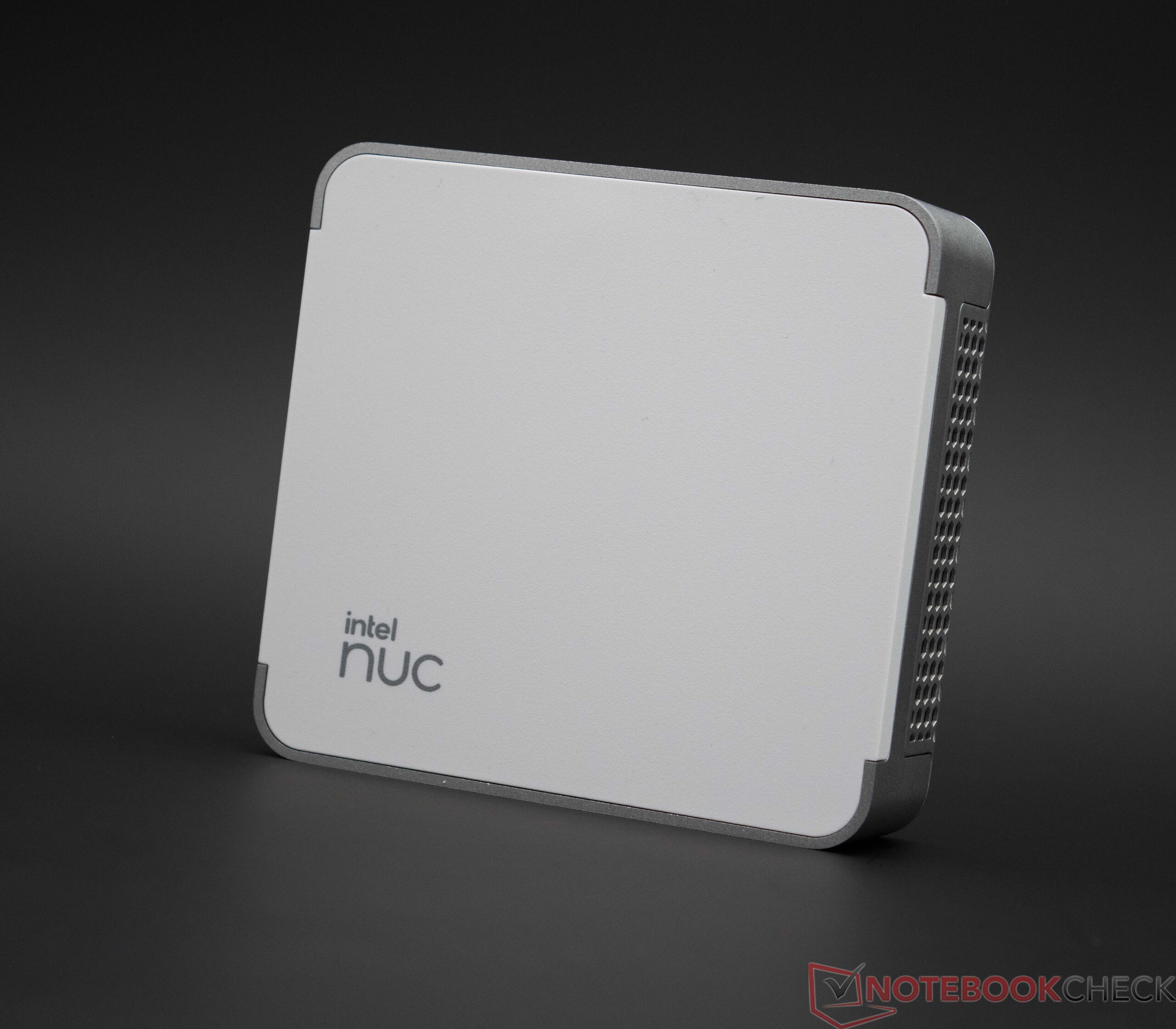

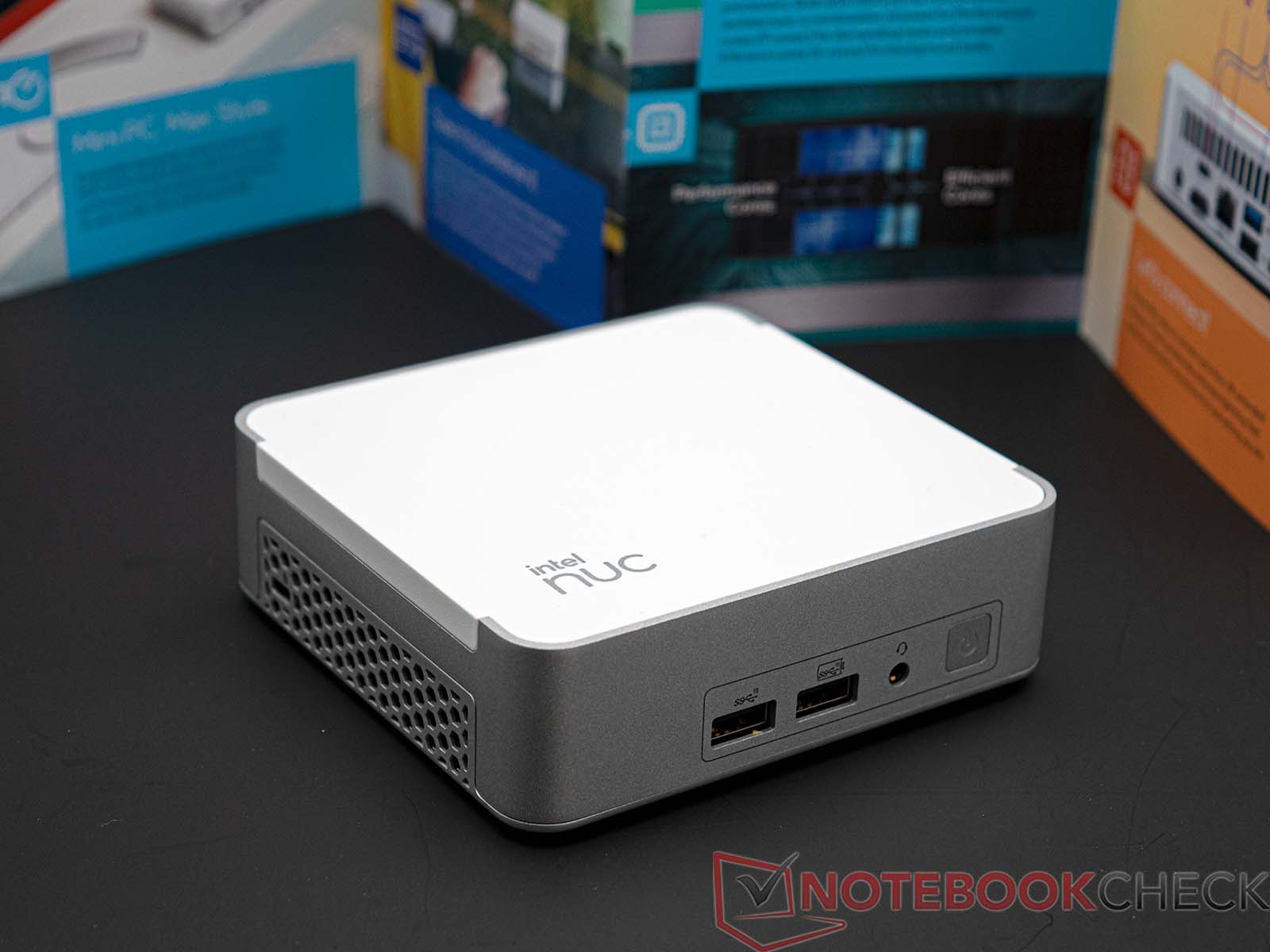

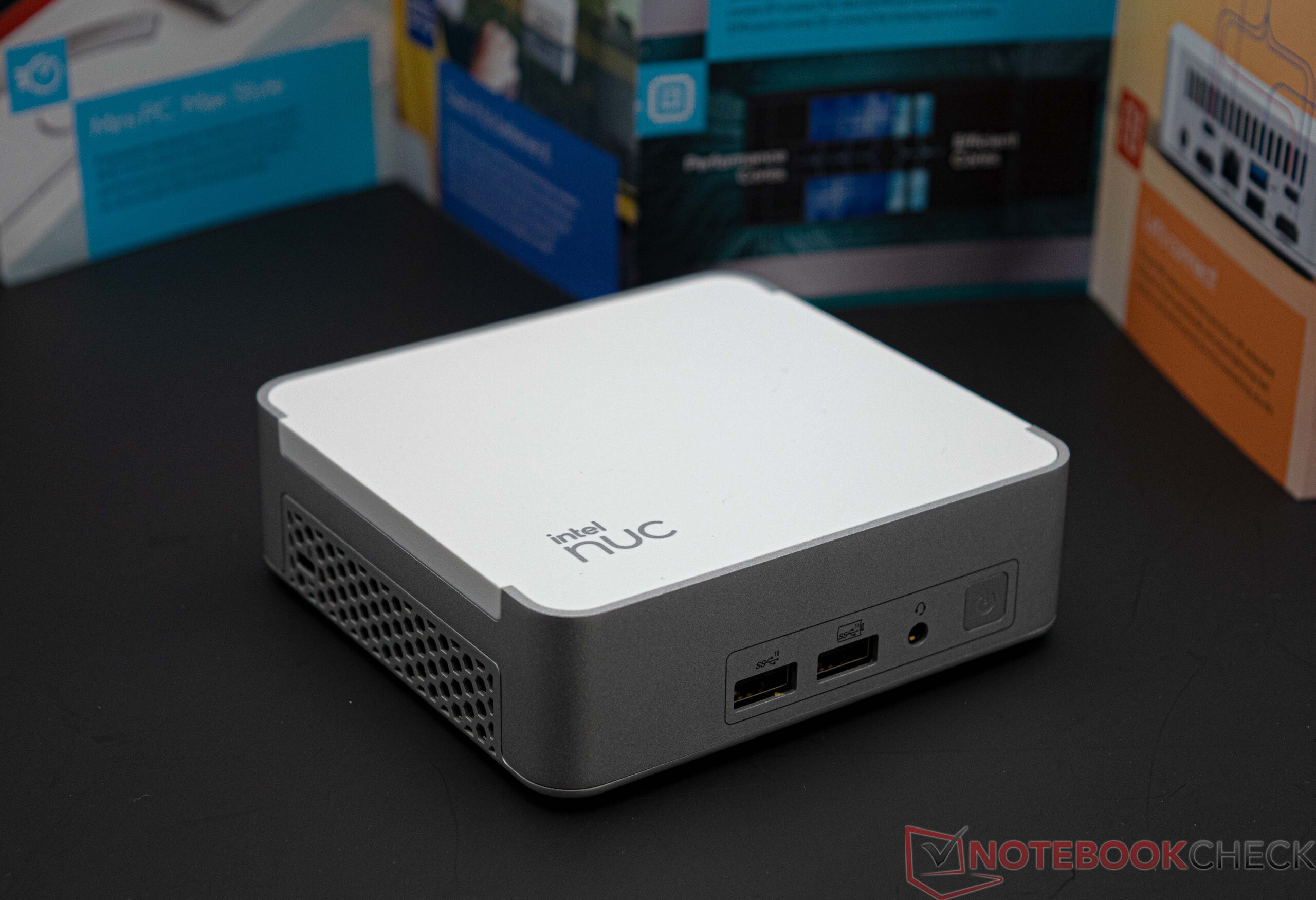

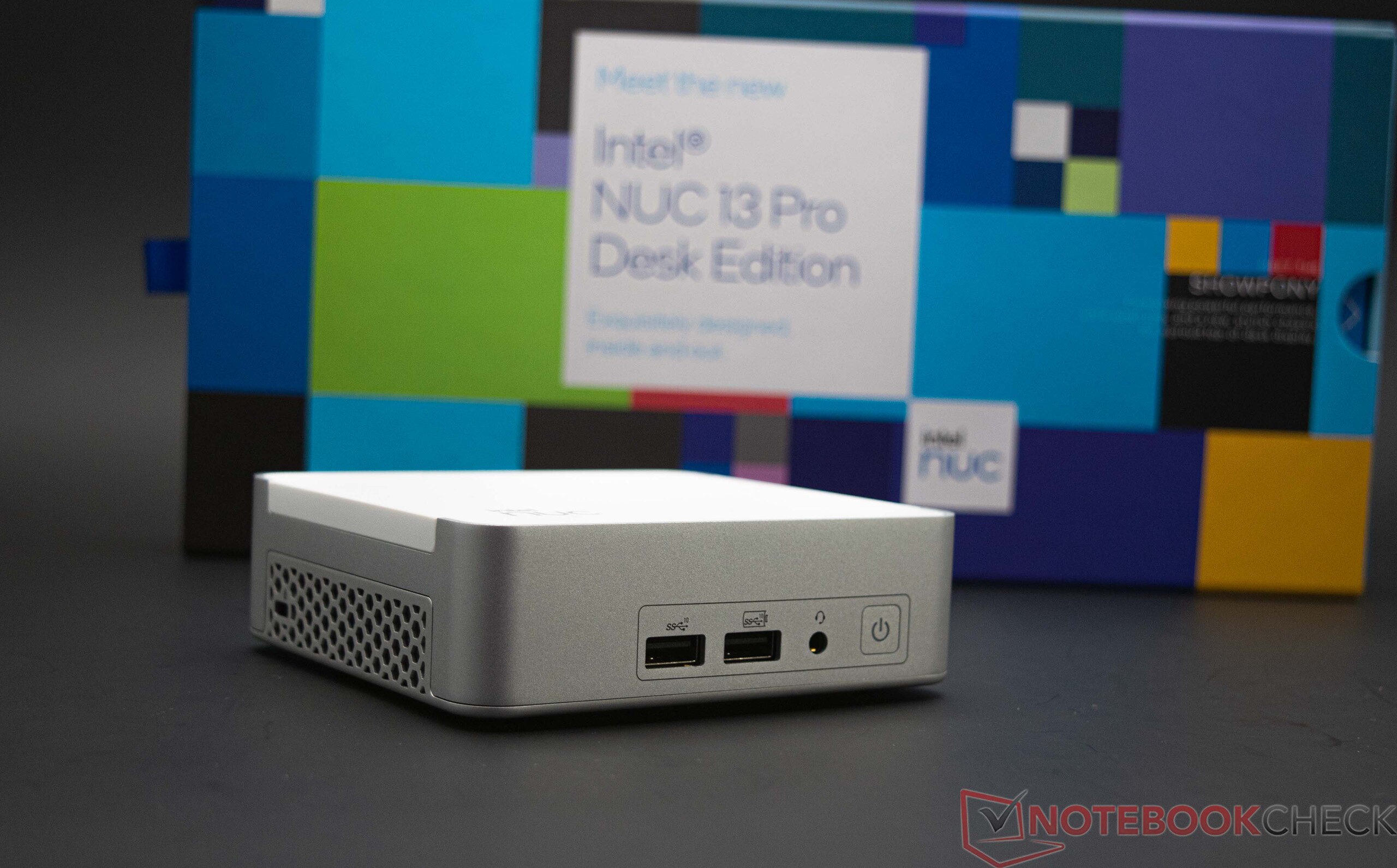

外壳 - 用金属代替塑料

英特尔终于敢于将硬件安装到金属外壳中。以前的塑料外壳已经成为过去。新的设计给人一种现代、清新的感觉，而且无论从哪个层面来看，都给人留下了深刻的印象--就连设备的触感也是如此优质。同时，电脑的尺寸也没有任何变化。英特尔 NUC 13 Pro Desk Edition 套件的尺寸为 11.7 x 11.2 厘米，仍然是最小巧的迷你电脑之一，但仍能提供极佳的性能水平。

从颜色上看，英特尔对 NUC 13 Pro Desk Edition Kit 的设计更加大胆--它现在是银色和白色的组合。白色部分位于正面，也仍然由塑料覆盖。即便如此，整体概念给人的感觉还是很棒的，英特尔继续提供了我们所习惯的完美制造质量。遗憾的是，英特尔 NUC 13 Pro 桌面版套件没有 VESA 支架。

尺寸比较

Minisforum Neptune Series NAD9 Geekom AS 6, R9 6900HX Morefine M600, 6900HX Khadas Mind Geekom Mini IT12 Intel NUC 13 Pro Desk Edition Kit Intel NUC 13 Pro Kit NUC13ANK Intel NUC 12 Pro Kit NUC12WSKi7 DIN A4 ❌

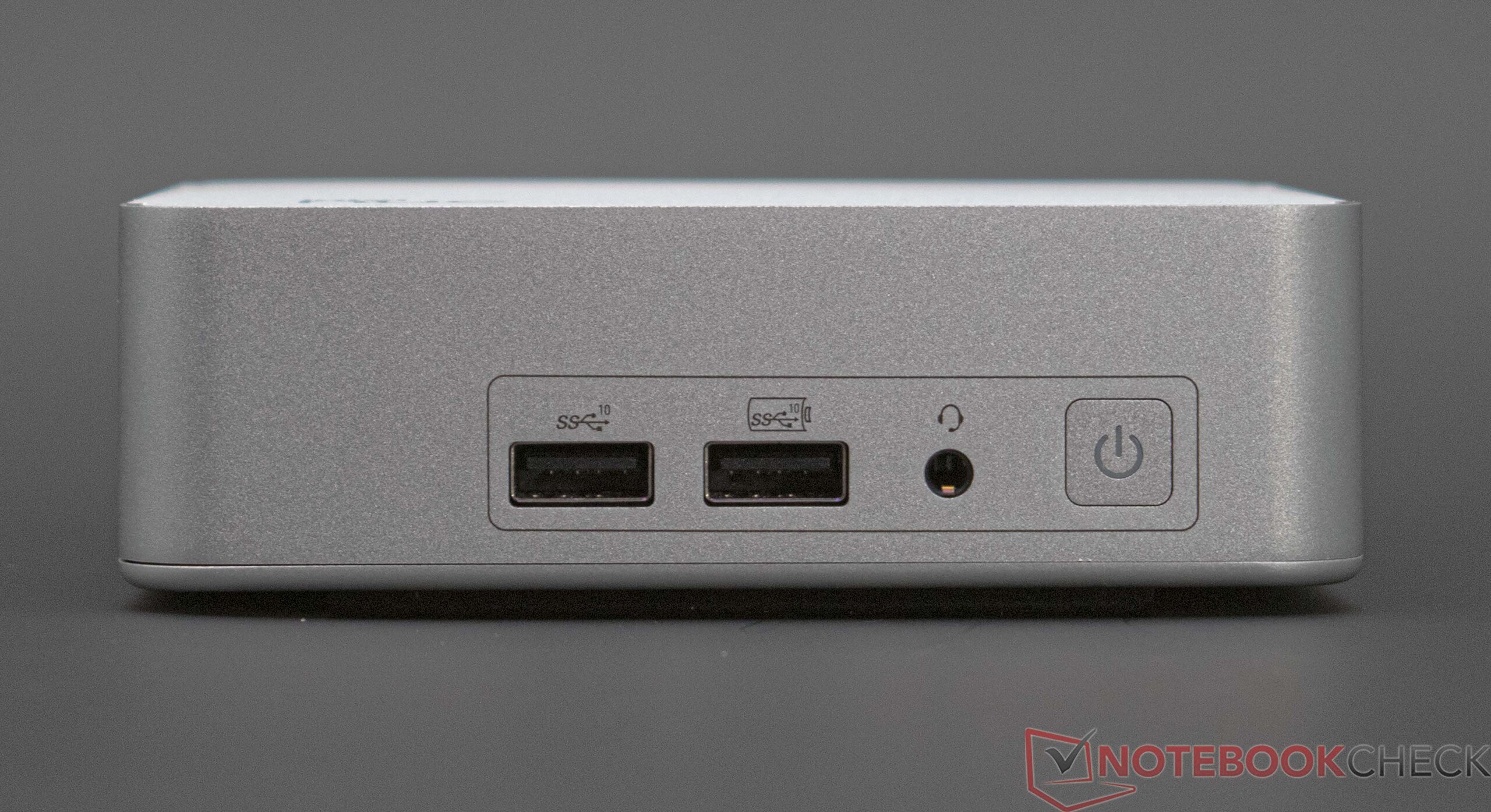

连接性

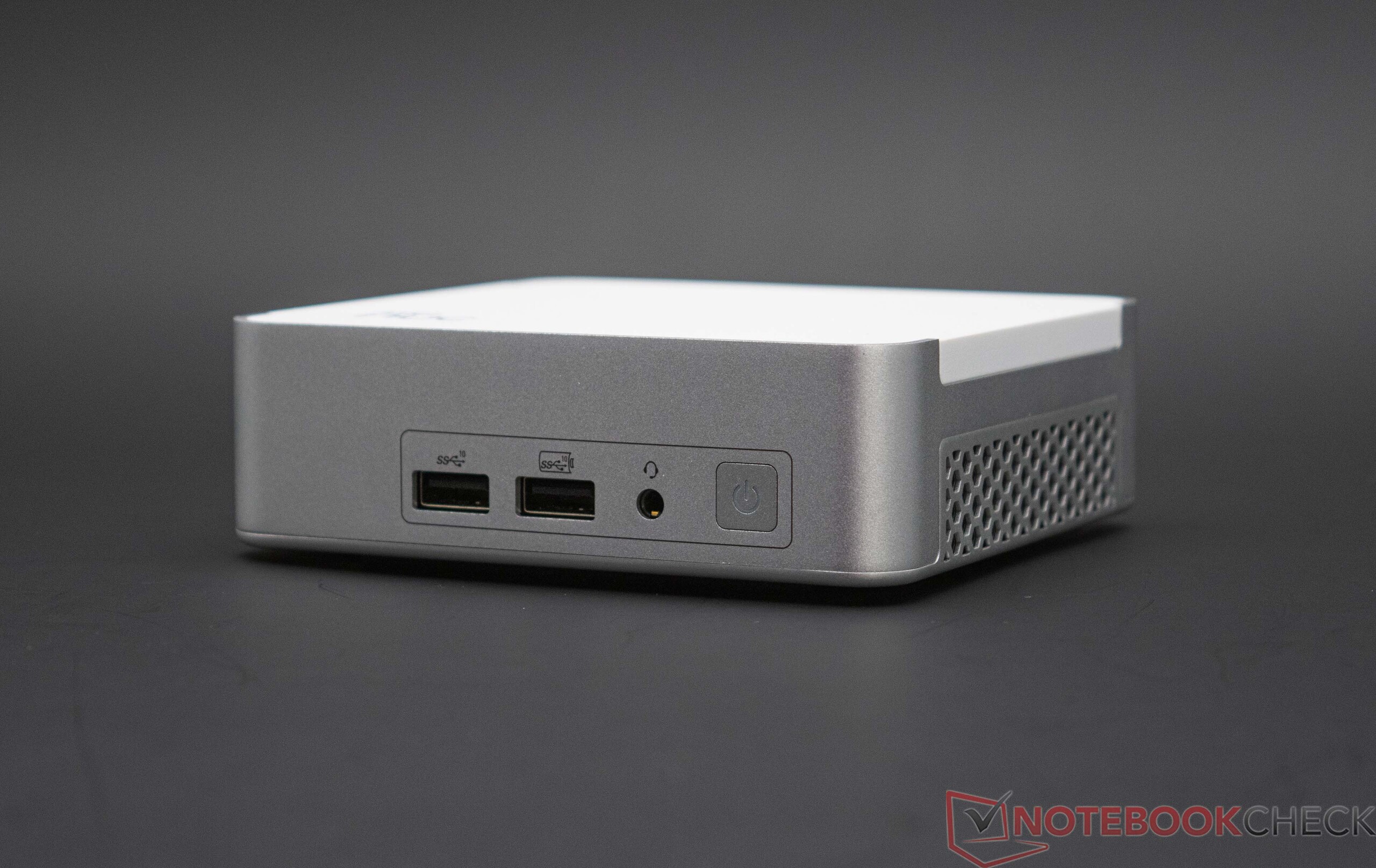

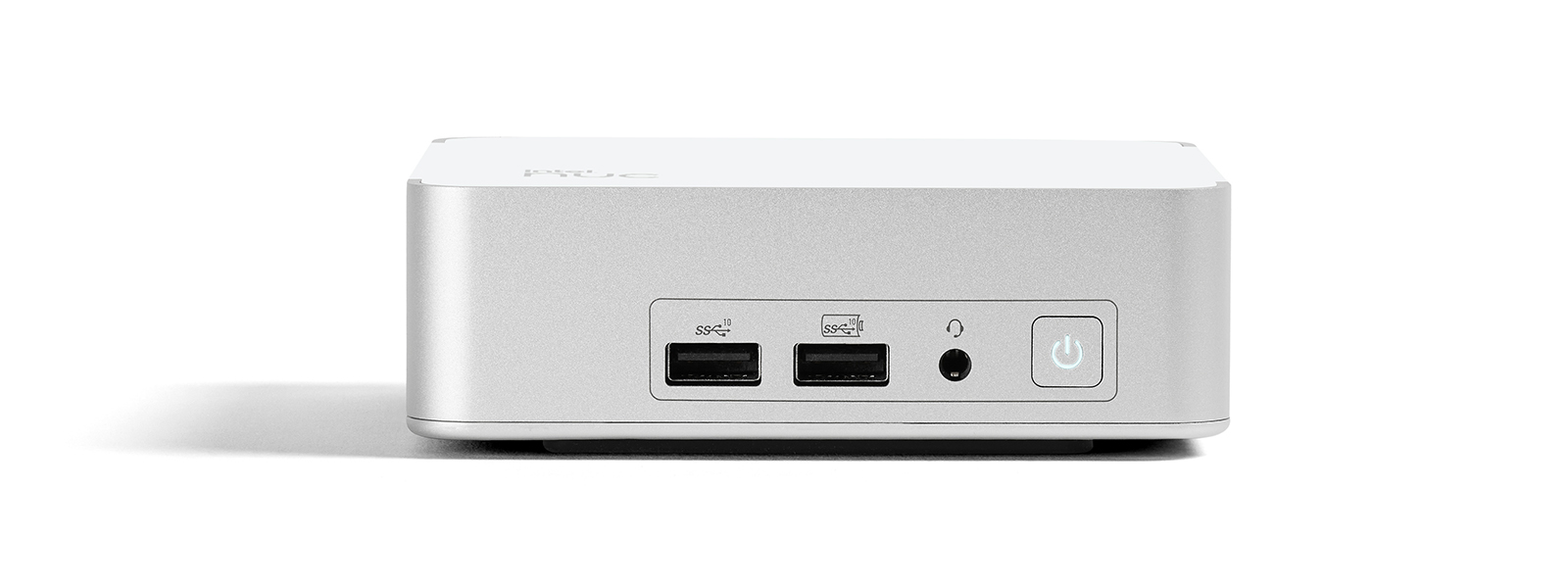

英特尔一直坚持其连接选项，为 NUC 13 Pro Desk Edition 套件提供了与英特尔 NUC 13 Pro 套件相同的外部端口。这些接口分布在设备的正面和背面。它总共有 6 个 USB 端口，其中 2 个支持 Thunderbolt 4 - 在合适配件的帮助下，这可以大大拓宽电脑的使用范围。显示器可通过 HMDI 或 Thunderbolt 直接连接，此外，它还具有 2.5G 网络连接。

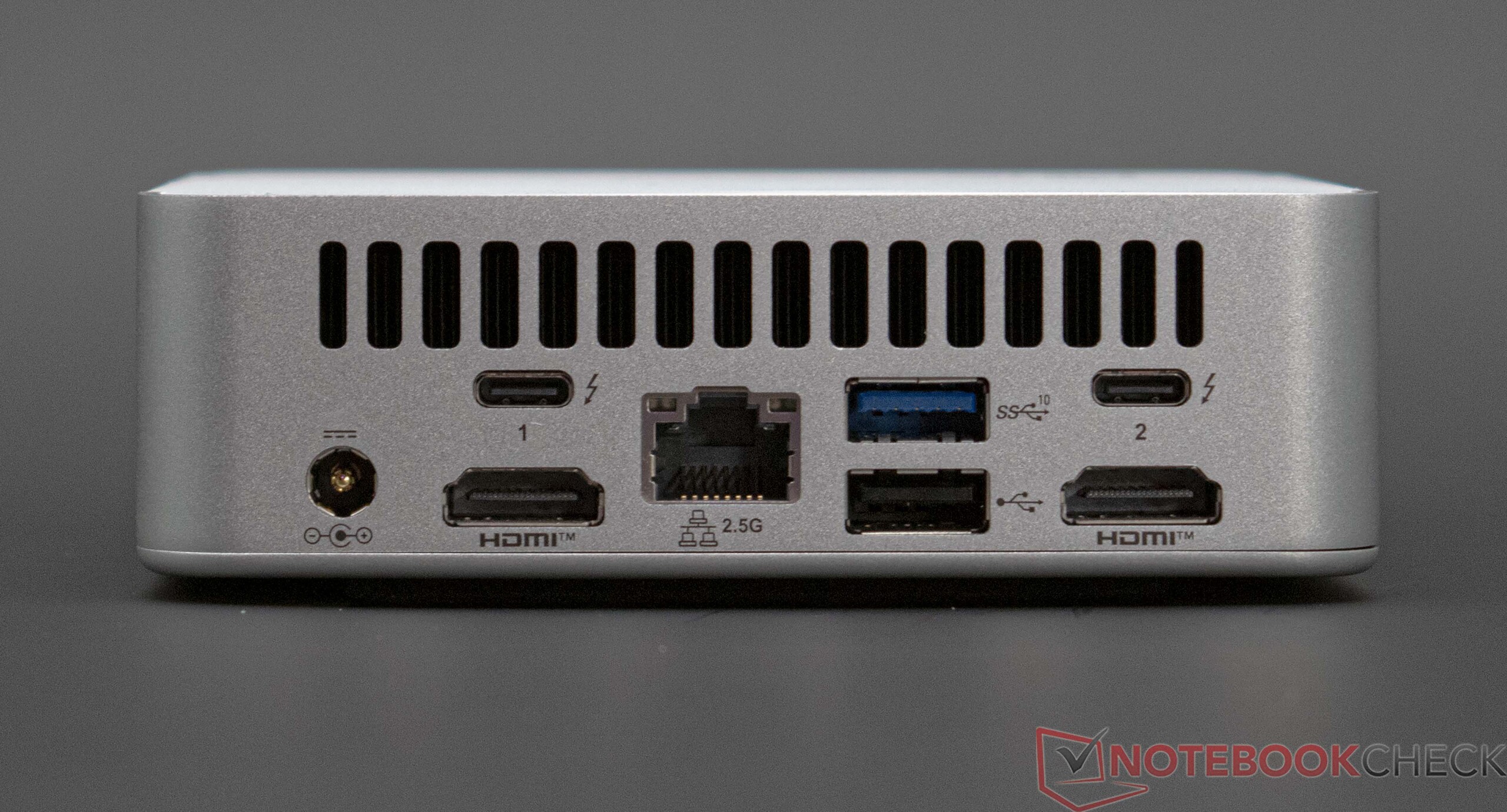

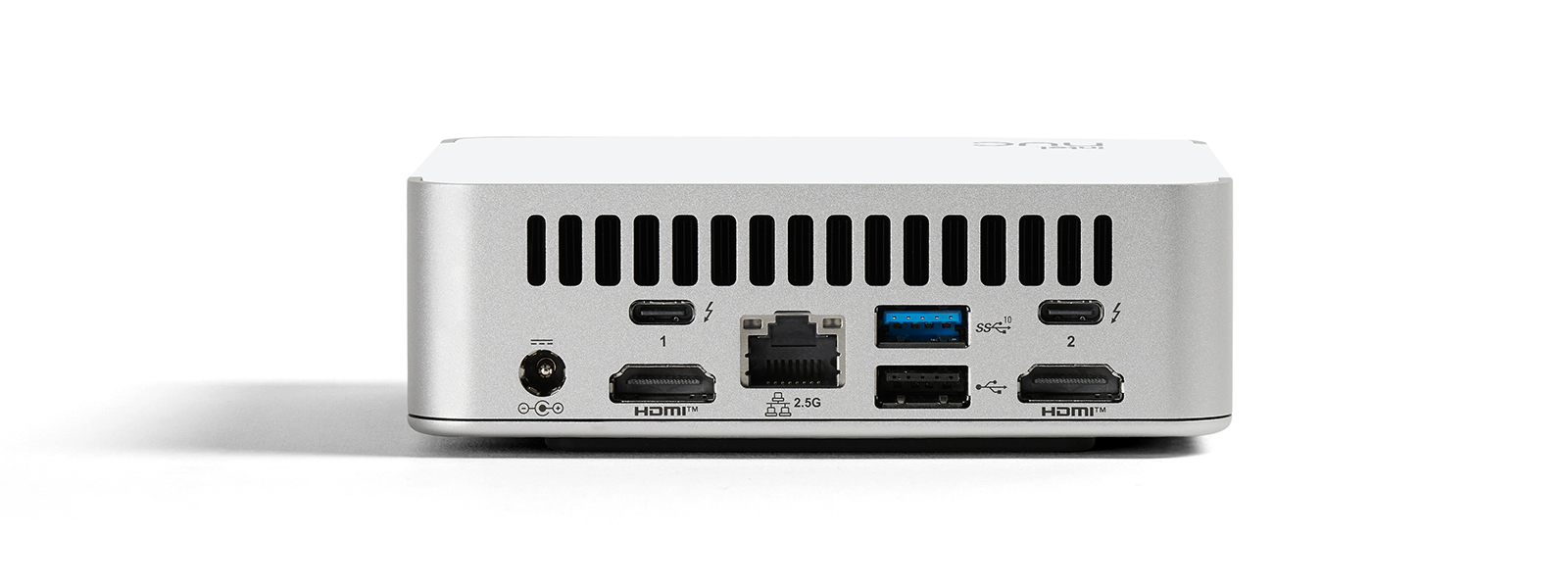

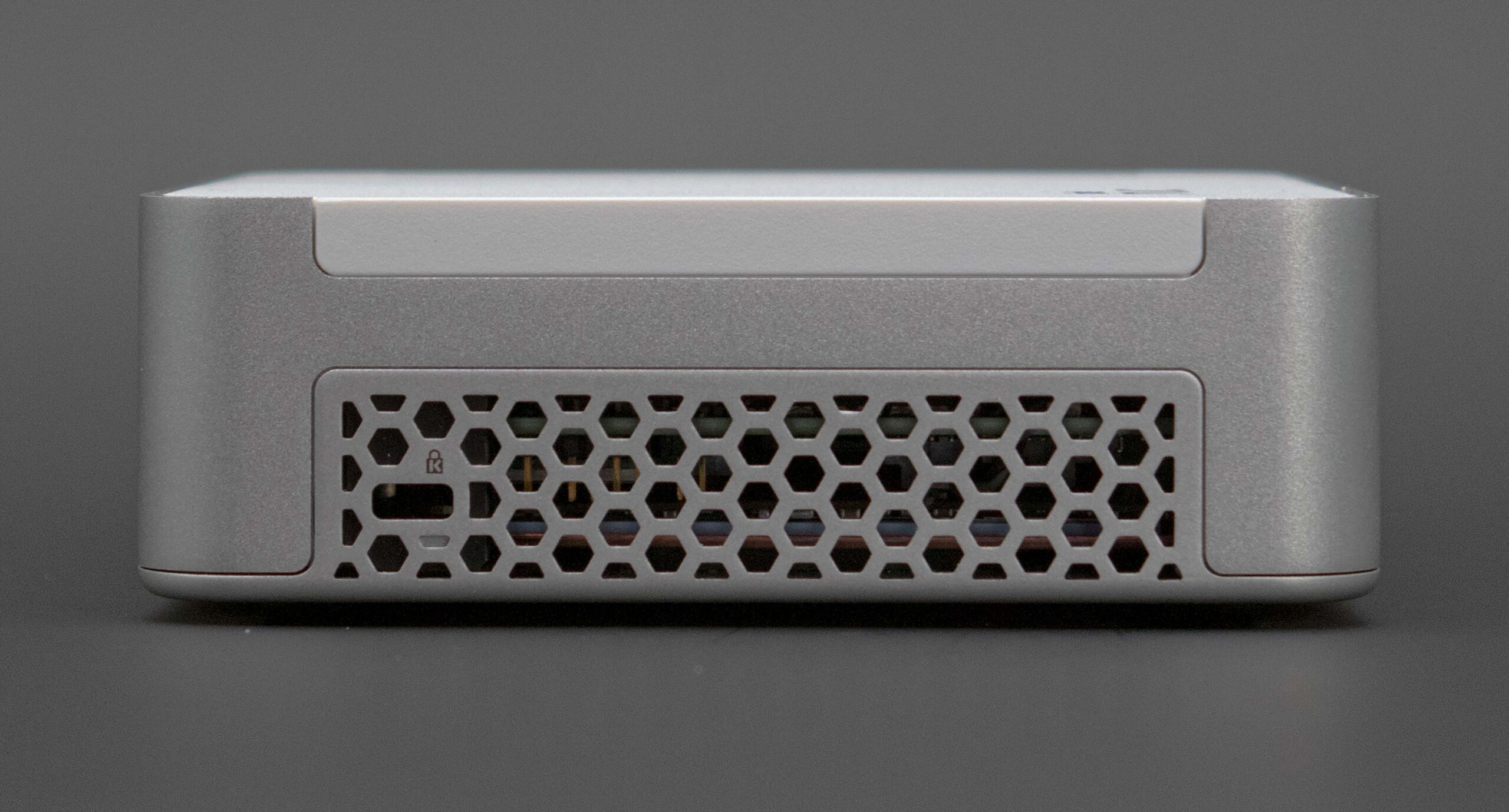

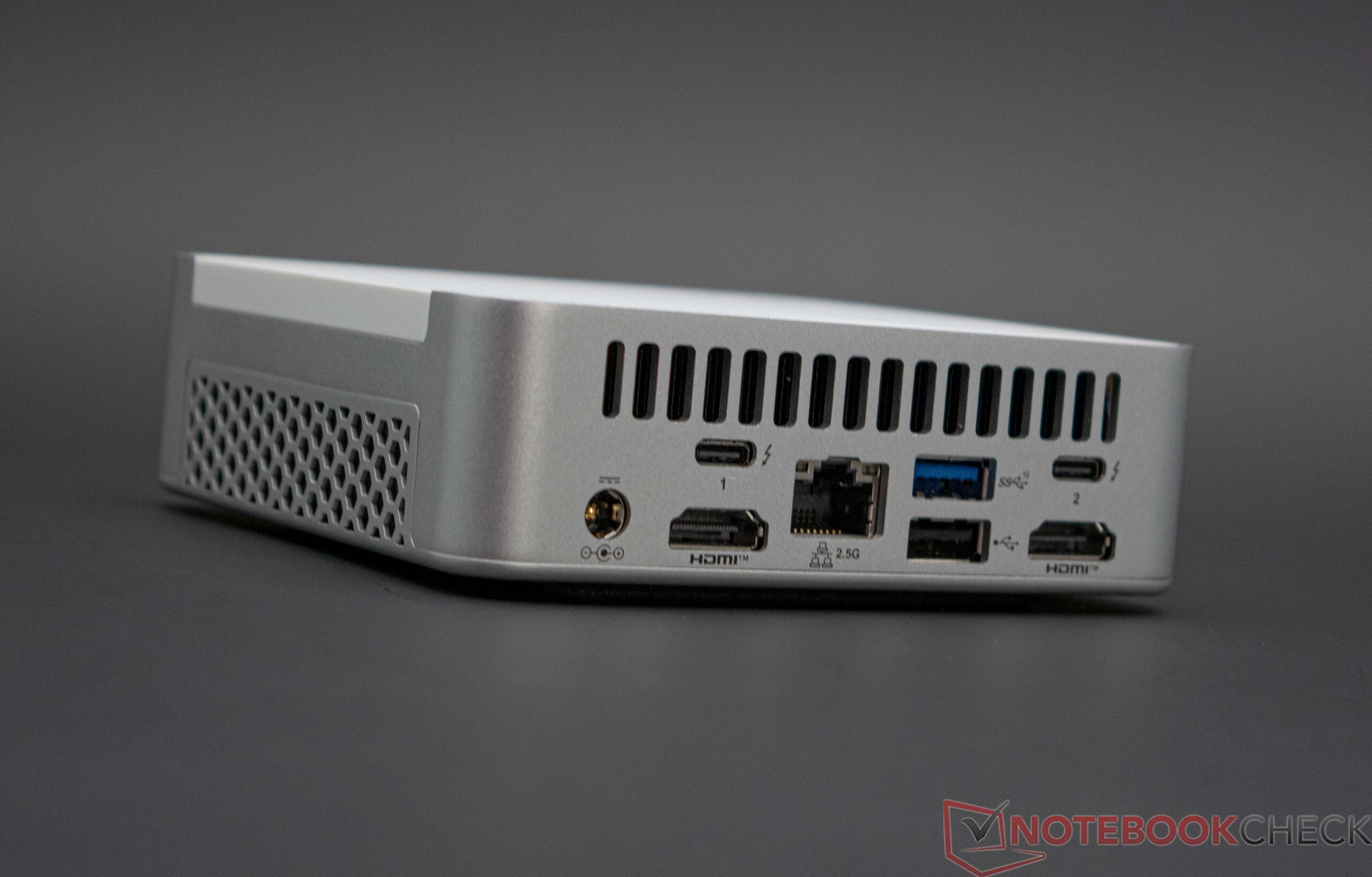

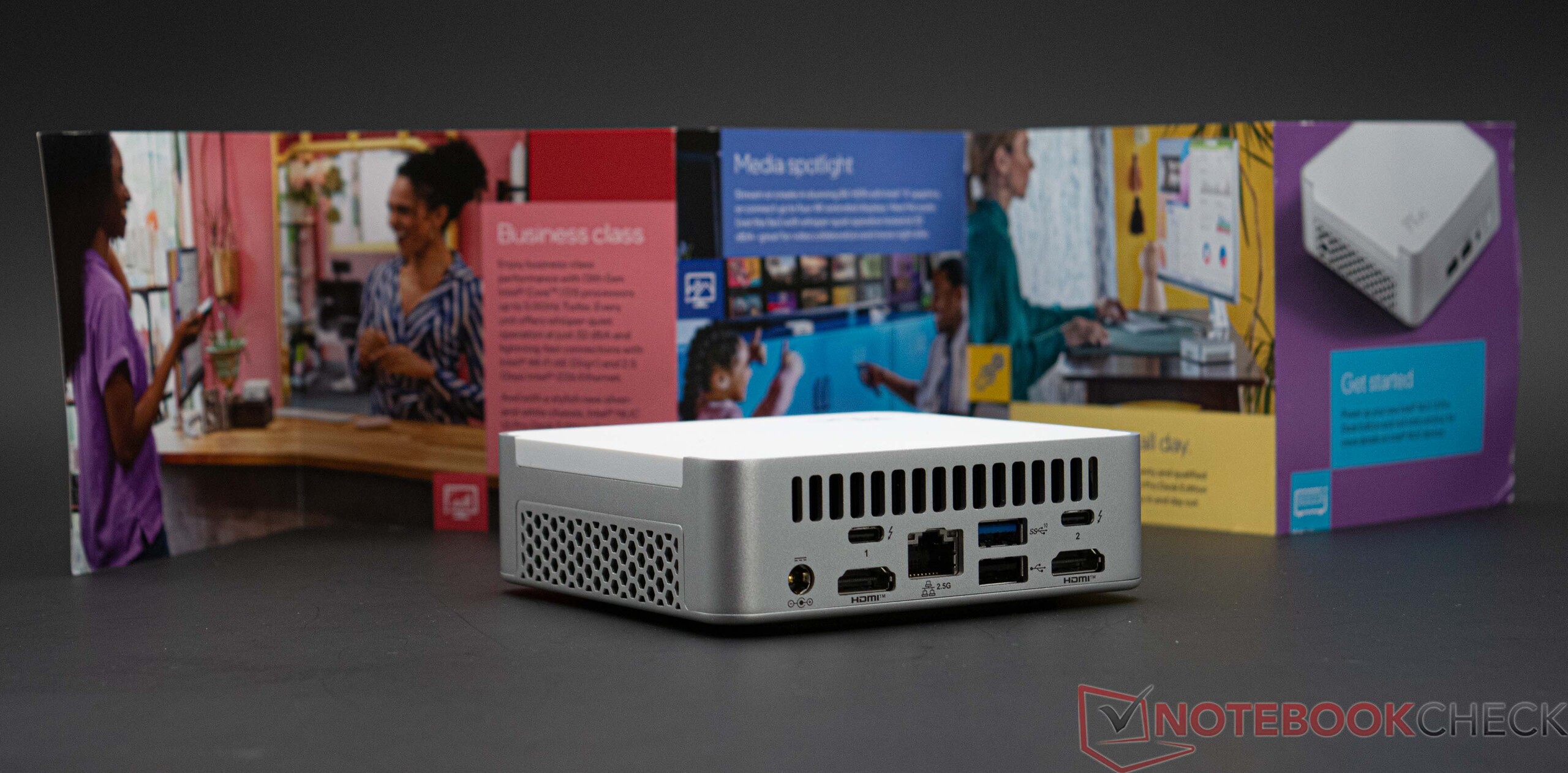

背面：电源接口、2 个 Thunderbolt 4、1 个 USB 3.1、1 个 USB 2.0、2.5G LAN、2 个 HDMI 2.1（图片来源：英特尔）

交流

英特尔 NUC 13 Pro 桌面版套件 - Vivid Canyon 配备了内部 Wi-Fi 6E AX211 模块。该模块还支持 6 GHz 频段。在我们的 WLAN 测试中，所有设备都提供了快速的传输速率，没有出现任何实际错误。我们的测试样品也是如此，尽管它在 6 GHz 频段的测量中稍有落后。我们使用华硕 ROG Rapture GT-AXE11000 作为测试路由器。

Networking
iperf3 receive AXE11000 6GHz
Geekom AS 6, R9 6900HX MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1719 (1695^min - 1733^max) MBit/s +19%
Intel NUC 13 Pro Kit NUC13ANK Intel Wi-Fi 6E AX211	1668 (1467^min - 1725^max) MBit/s +15%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Wi-Fi 6E AX211	1530 (1509^min - 1551^max) MBit/s +6%
Geekom Mini IT12 Intel Wi-Fi 6E AX211	1519 (1392^min - 1699^max) MBit/s +5%
Average Intel Wi-Fi 6E AX211 (700 - 1857, n=210)	1493 MBit/s +3%
Intel NUC 13 Pro Desk Edition Kit Intel Wi-Fi 6E AX211	1448 (1357^min - 1490^max) MBit/s
Khadas Mind Intel Wi-Fi 6E AX211	1445 (1342^min - 1468^max) MBit/s 0%
Average of class Mini PC (684 - 1771, n=53, last 2 years)	1381 MBit/s -5%
iperf3 transmit AXE11000 6GHz
Geekom Mini IT12 Intel Wi-Fi 6E AX211	1622 (1561^min - 1670^max) MBit/s +7%
Geekom AS 6, R9 6900HX MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1611 (1514^min - 1705^max) MBit/s +7%
Intel NUC 13 Pro Desk Edition Kit Intel Wi-Fi 6E AX211	1511 (1451^min - 1552^max) MBit/s
Intel NUC 13 Pro Kit NUC13ANK Intel Wi-Fi 6E AX211	1445 (736^min - 1476^max) MBit/s -4%
Average Intel Wi-Fi 6E AX211 (632 - 1851, n=211)	1372 MBit/s -9%
Khadas Mind Intel Wi-Fi 6E AX211	1348 (1293^min - 1402^max) MBit/s -11%
Average of class Mini PC (394 - 1800, n=53, last 2 years)	1328 MBit/s -12%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Wi-Fi 6E AX211	919 (458^min - 982^max) MBit/s -39%
iperf3 receive AXE11000
Average Intel Wi-Fi 6E AX211 (582 - 1890, n=239)	1379 MBit/s +23%
Minisforum Neptune Series NAD9 Intel Wi-Fi 6E AX210	1318 (663^min - 1363^max) MBit/s +18%
Intel NUC 13 Pro Desk Edition Kit Intel Wi-Fi 6E AX211	1117 (884^min - 1368^max) MBit/s
Khadas Mind Intel Wi-Fi 6E AX211	1059 (937^min - 1173^max) MBit/s -5%
Geekom AS 6, R9 6900HX MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	959 (947^min - 969^max) MBit/s -14%
Geekom Mini IT12 Intel Wi-Fi 6E AX211	943 (923^min - 960^max) MBit/s -16%
Intel NUC 13 Pro Kit NUC13ANK Intel Wi-Fi 6E AX211	939 (921^min - 952^max) MBit/s -16%
Average of class Mini PC (192.9 - 1796, n=113, last 2 years)	932 MBit/s -17%
Morefine M600, 6900HX MediaTek RZ608	929 (874^min - 946^max) MBit/s -17%
iperf3 transmit AXE11000
Minisforum Neptune Series NAD9 Intel Wi-Fi 6E AX210	1320 (1165^min - 1353^max) MBit/s +1%
Intel NUC 13 Pro Desk Edition Kit Intel Wi-Fi 6E AX211	1301 (514^min - 1422^max) MBit/s
Average Intel Wi-Fi 6E AX211 (464 - 1921, n=239)	1234 MBit/s -5%
Khadas Mind Intel Wi-Fi 6E AX211	1108 (703^min - 1199^max) MBit/s -15%
Morefine M600, 6900HX MediaTek RZ608	964 (924^min - 990^max) MBit/s -26%
Geekom Mini IT12 Intel Wi-Fi 6E AX211	918 (892^min - 938^max) MBit/s -29%
Average of class Mini PC (184.1 - 1776, n=113, last 2 years)	864 MBit/s -34%
Geekom AS 6, R9 6900HX MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	834 (769^min - 893^max) MBit/s -36%
Intel NUC 13 Pro Kit NUC13ANK Intel Wi-Fi 6E AX211	833 (805^min - 866^max) MBit/s -36%

Intel NUC 13 Pro Desk Edition Kit Intel Wi-Fi 6E AX211; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1511 (1451-1552)

Geekom Mini IT12 Intel Wi-Fi 6E AX211; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1622 (1561-1670)

Intel NUC 13 Pro Desk Edition Kit Intel Wi-Fi 6E AX211; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1448 (1357-1490)

Geekom Mini IT12 Intel Wi-Fi 6E AX211; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1519 (1392-1699)

Intel NUC 13 Pro Desk Edition Kit Intel Wi-Fi 6E AX211; iperf3 receive AXE11000; iperf 3.1.3: Ø1117 (884-1368)

Geekom Mini IT12 Intel Wi-Fi 6E AX211; iperf3 receive AXE11000; iperf 3.1.3: Ø943 (923-960)

Intel NUC 13 Pro Desk Edition Kit Intel Wi-Fi 6E AX211; iperf3 transmit AXE11000; iperf 3.1.3: Ø1284 (514-1422)

Geekom Mini IT12 Intel Wi-Fi 6E AX211; iperf3 transmit AXE11000; iperf 3.1.3: Ø918 (892-938)

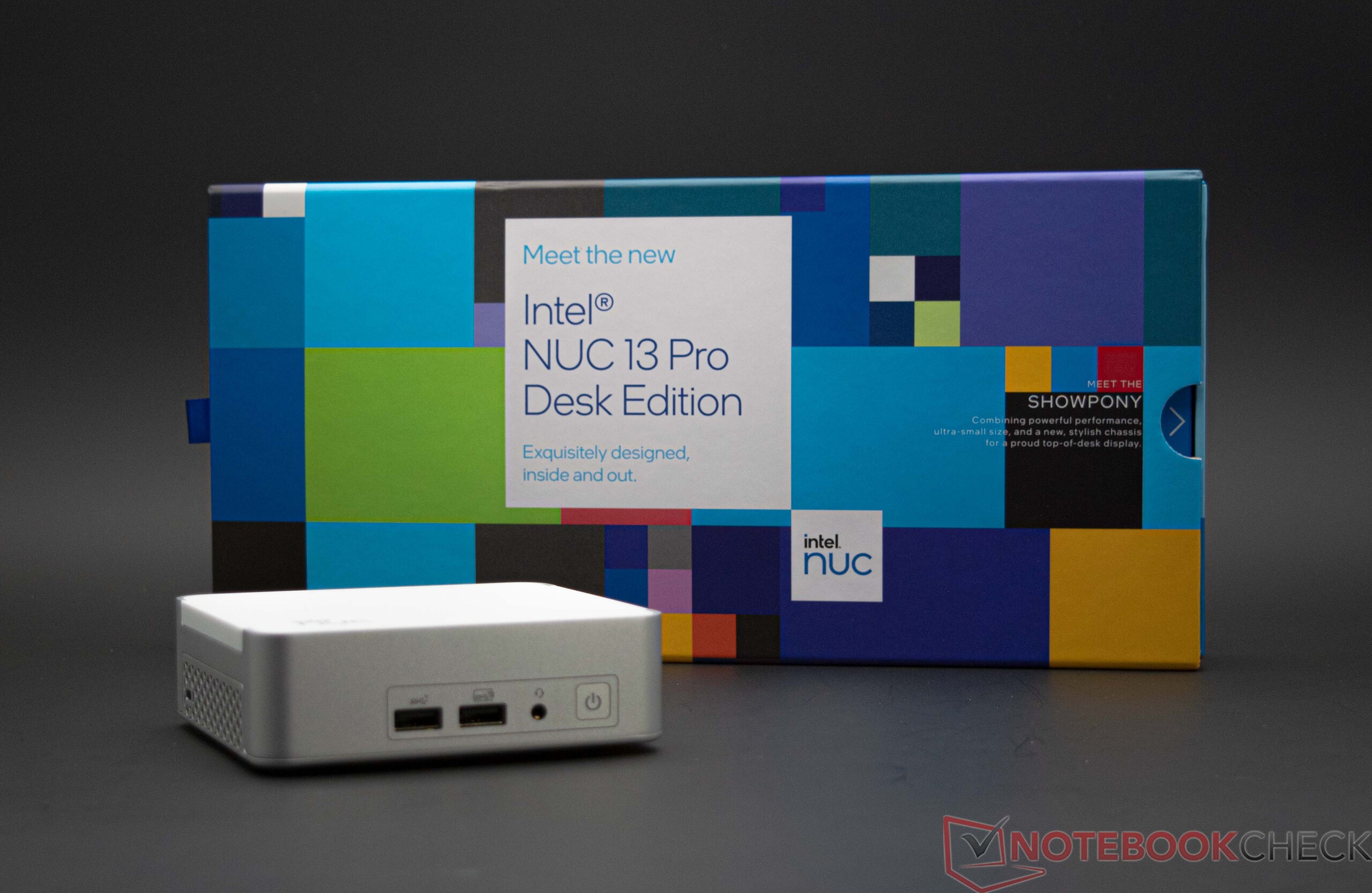

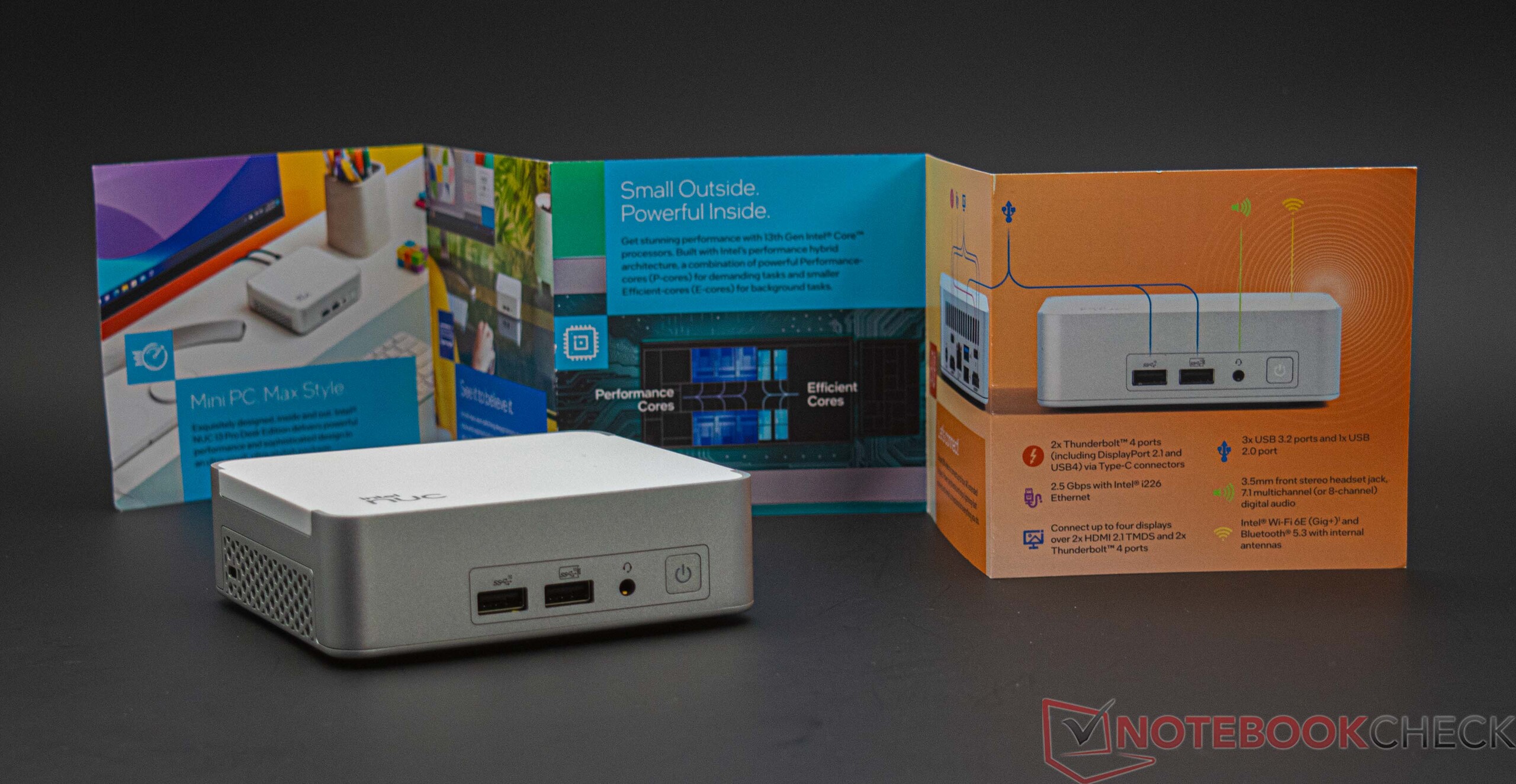

配件

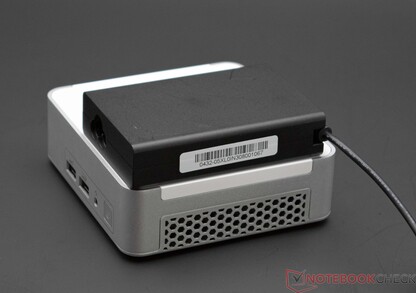

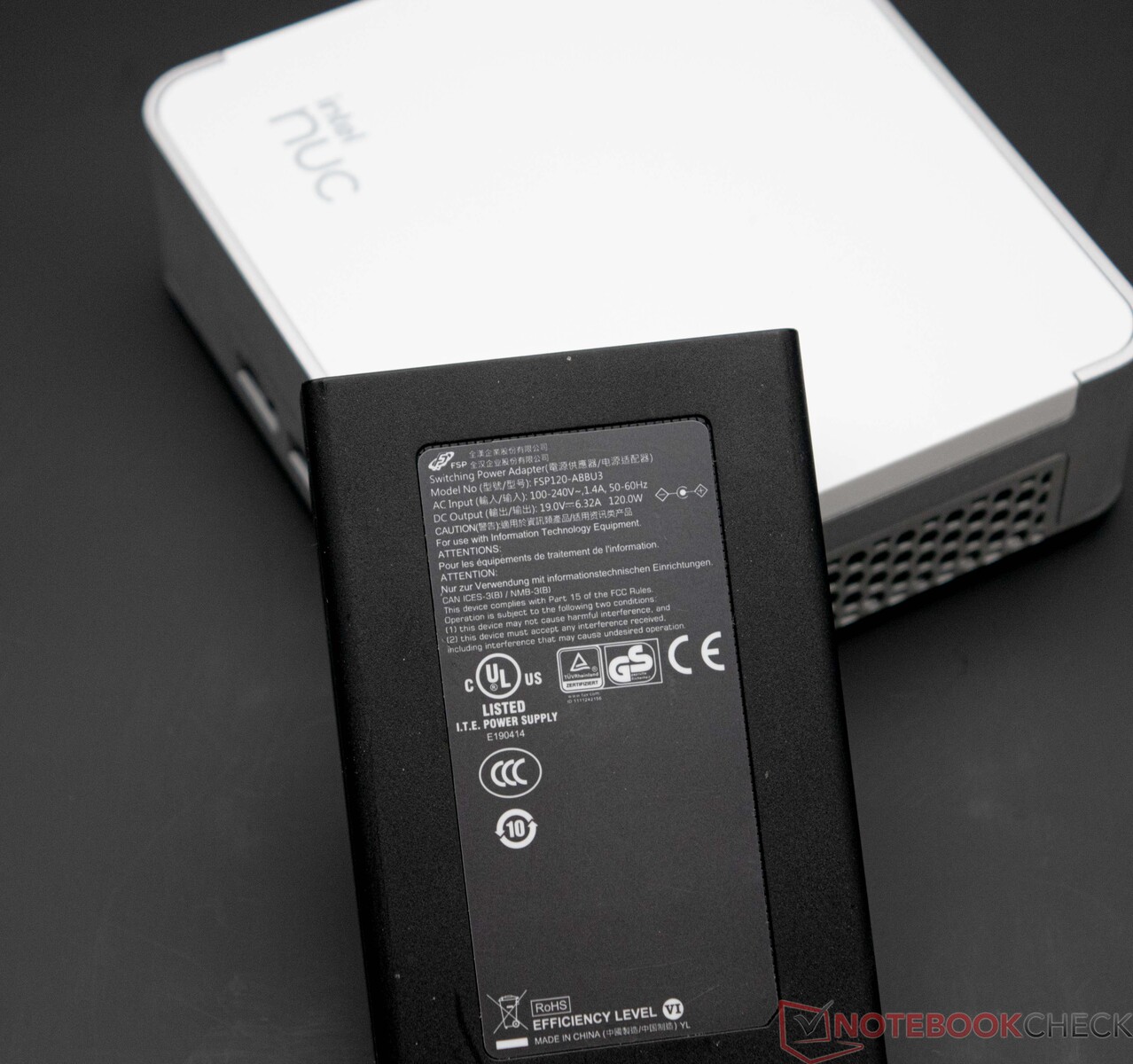

供货范围被压缩到最低限度。除了设备本身，英特尔只提供了一个 120 瓦的电源。

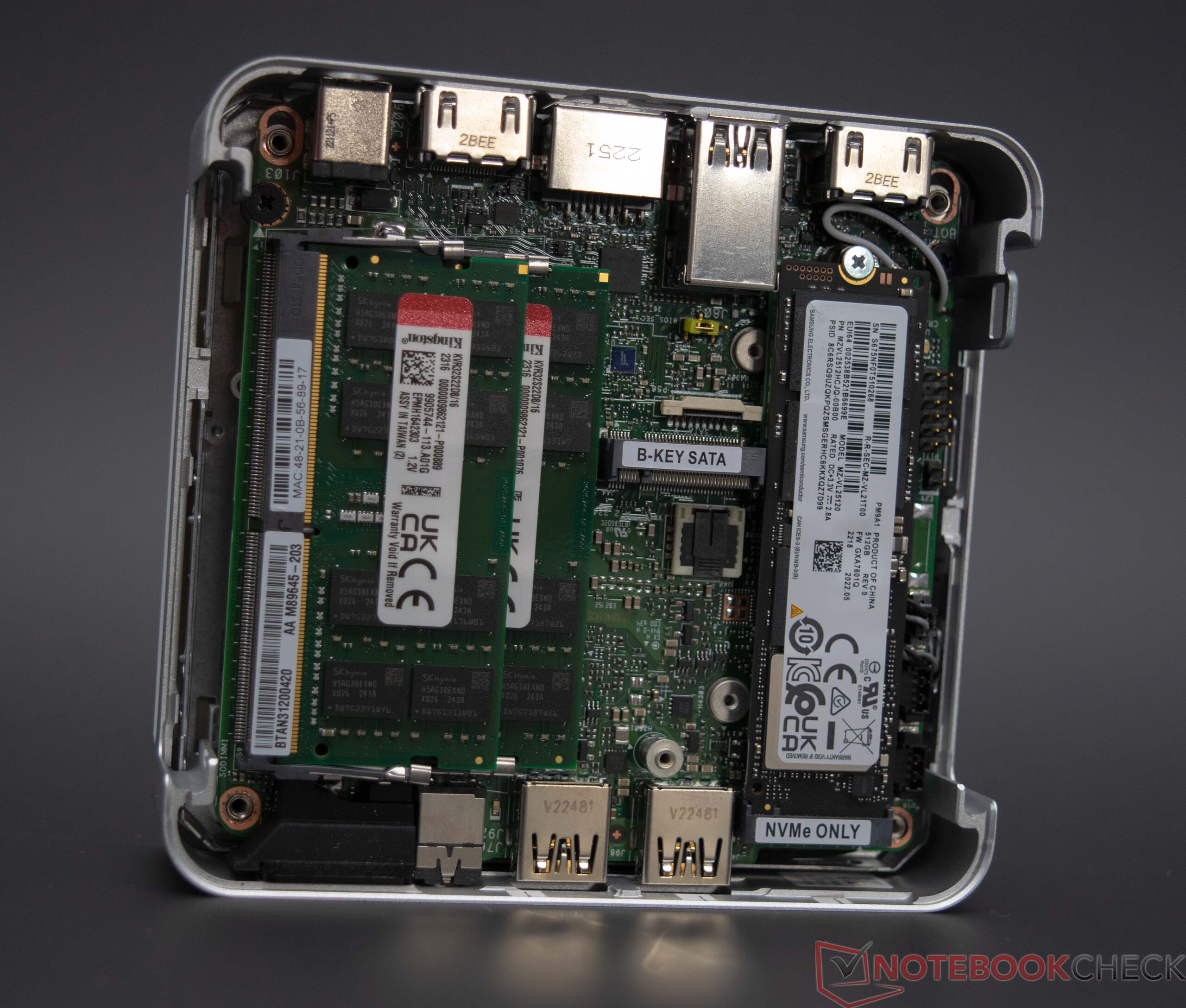

维护

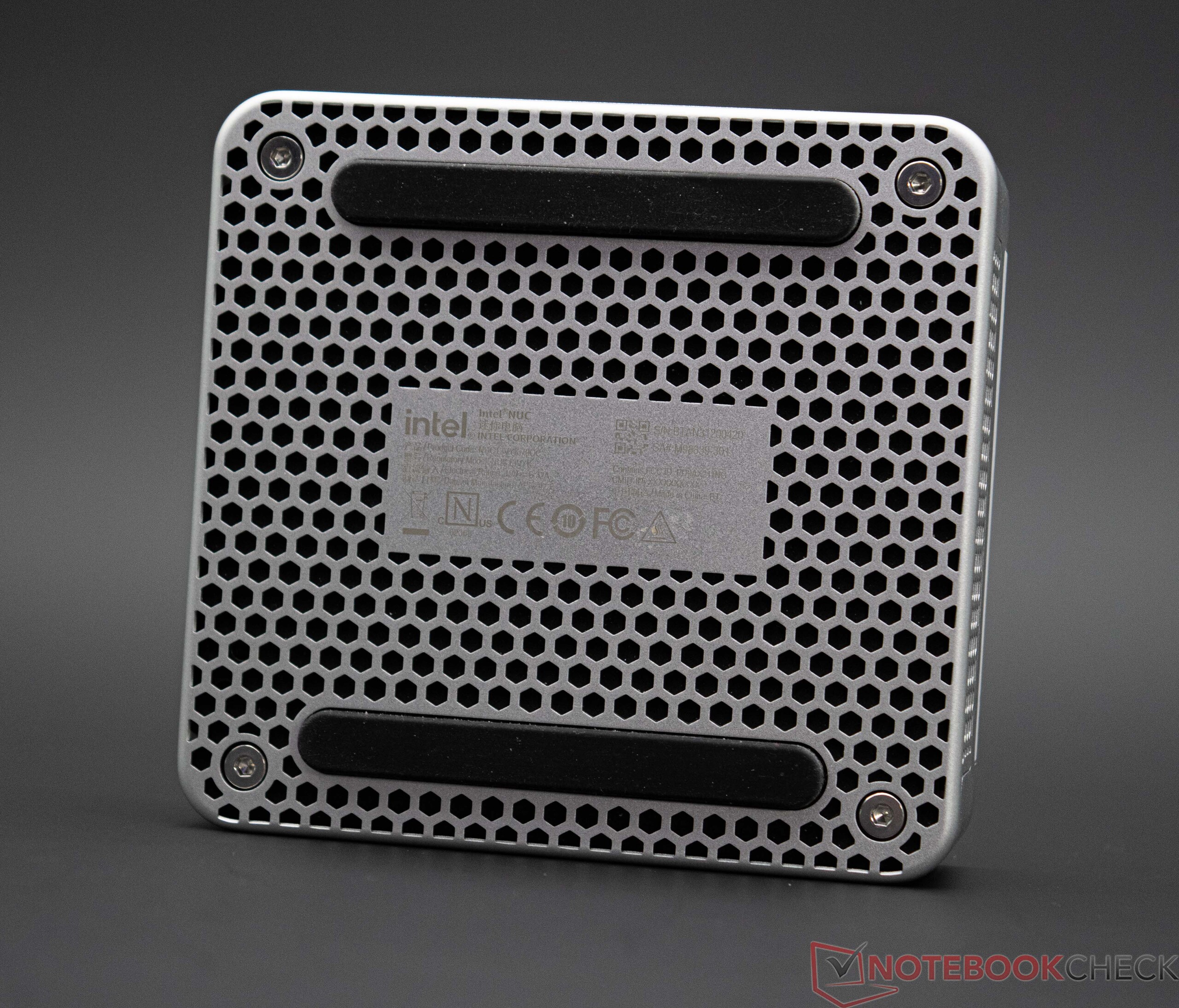

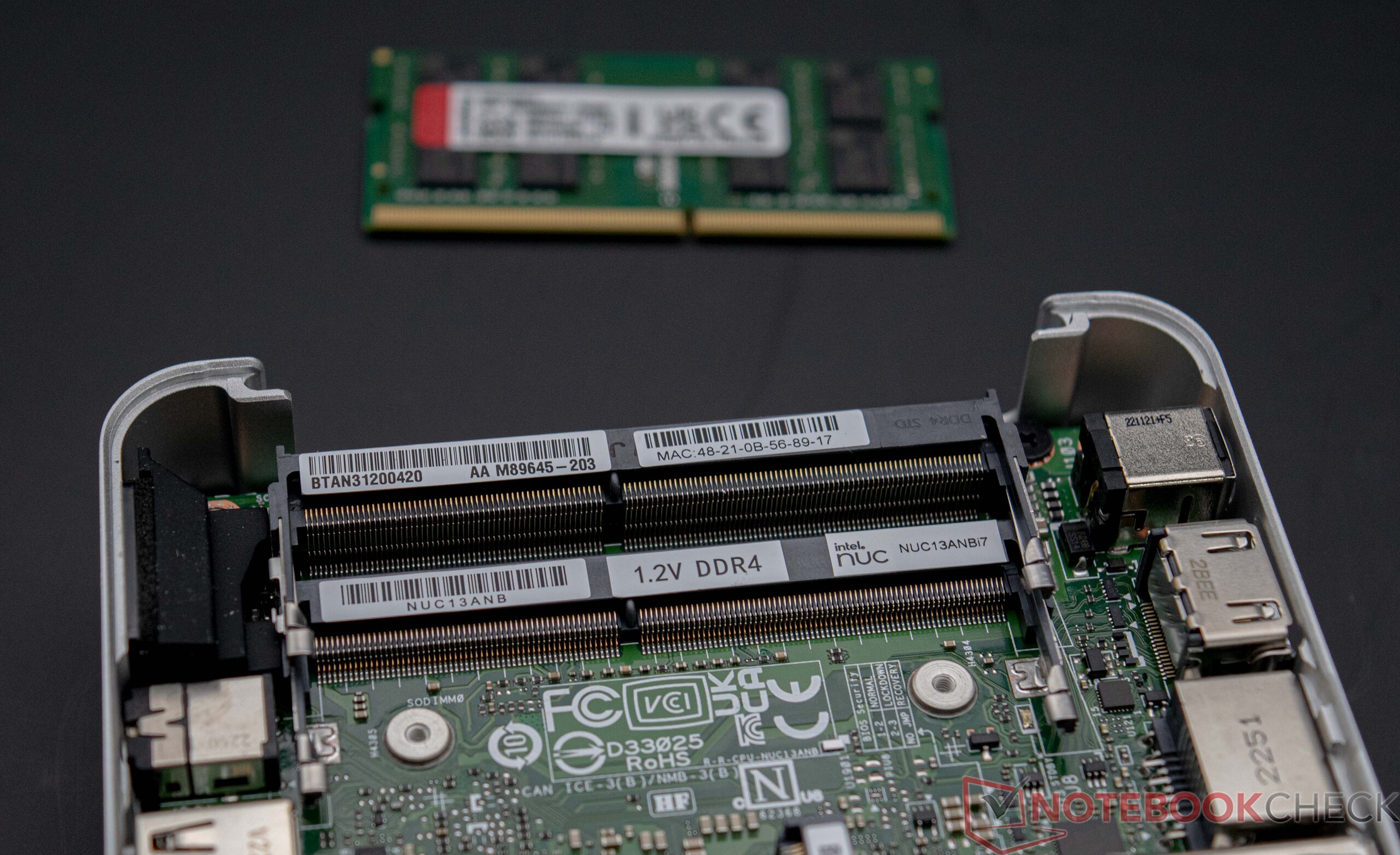

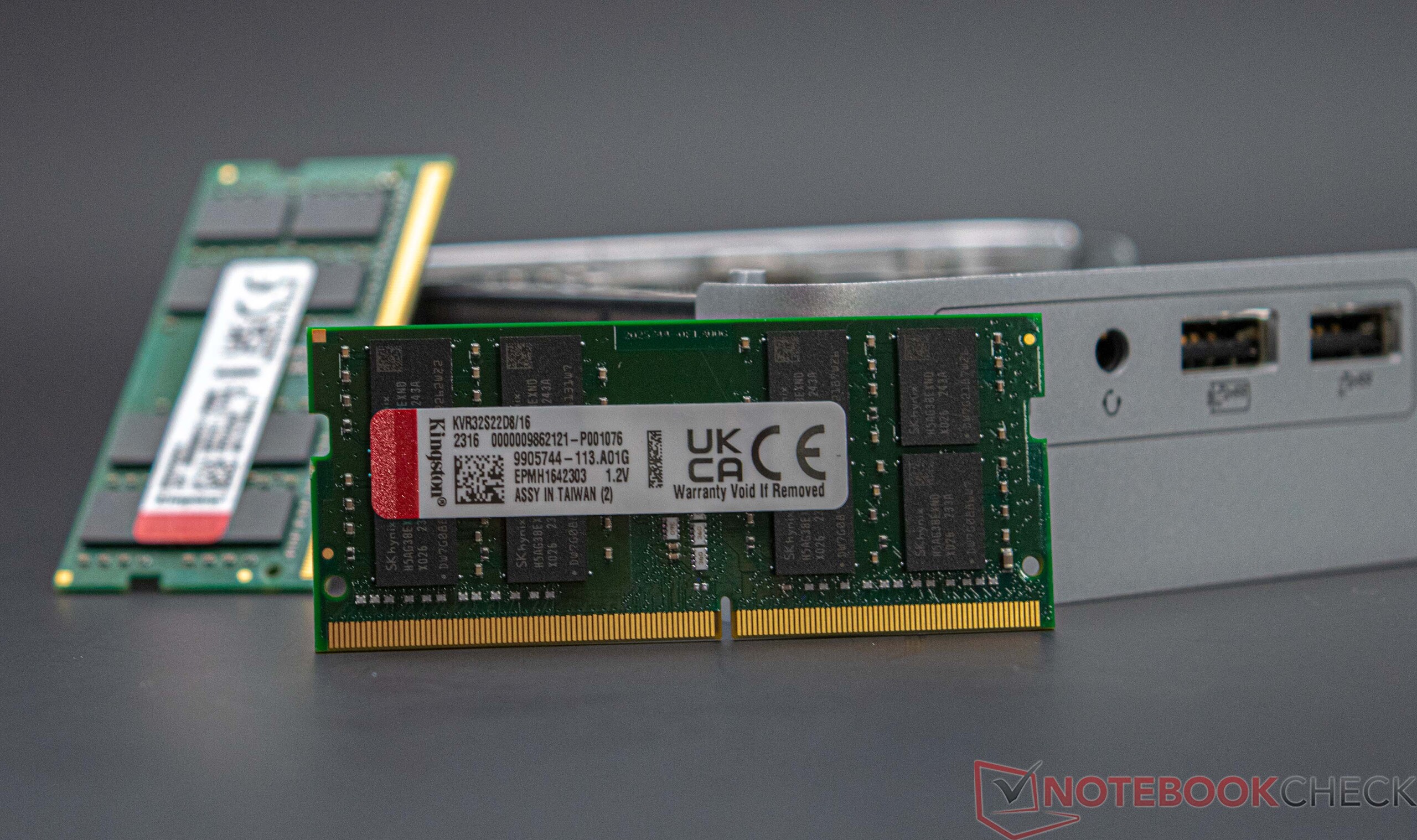

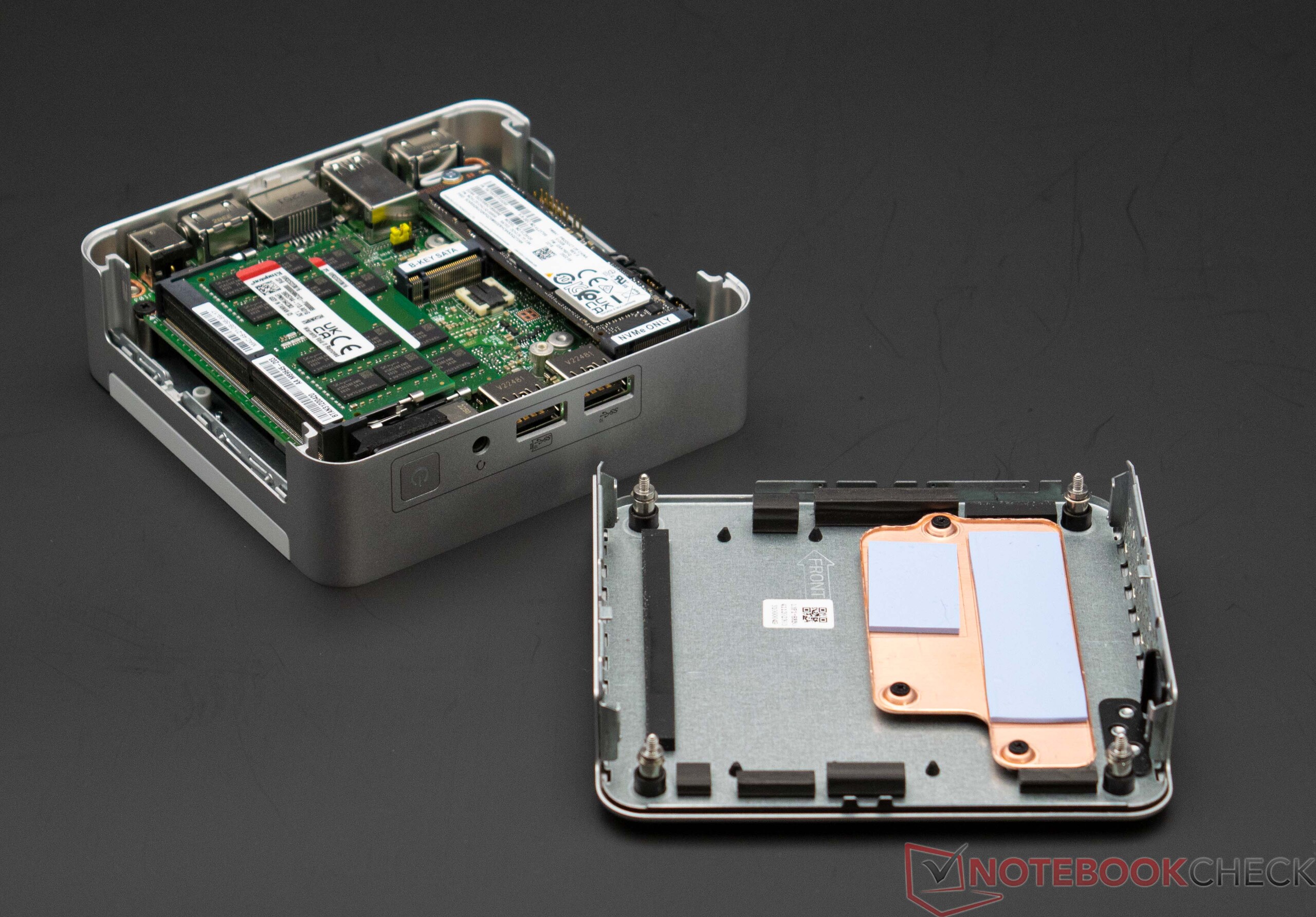

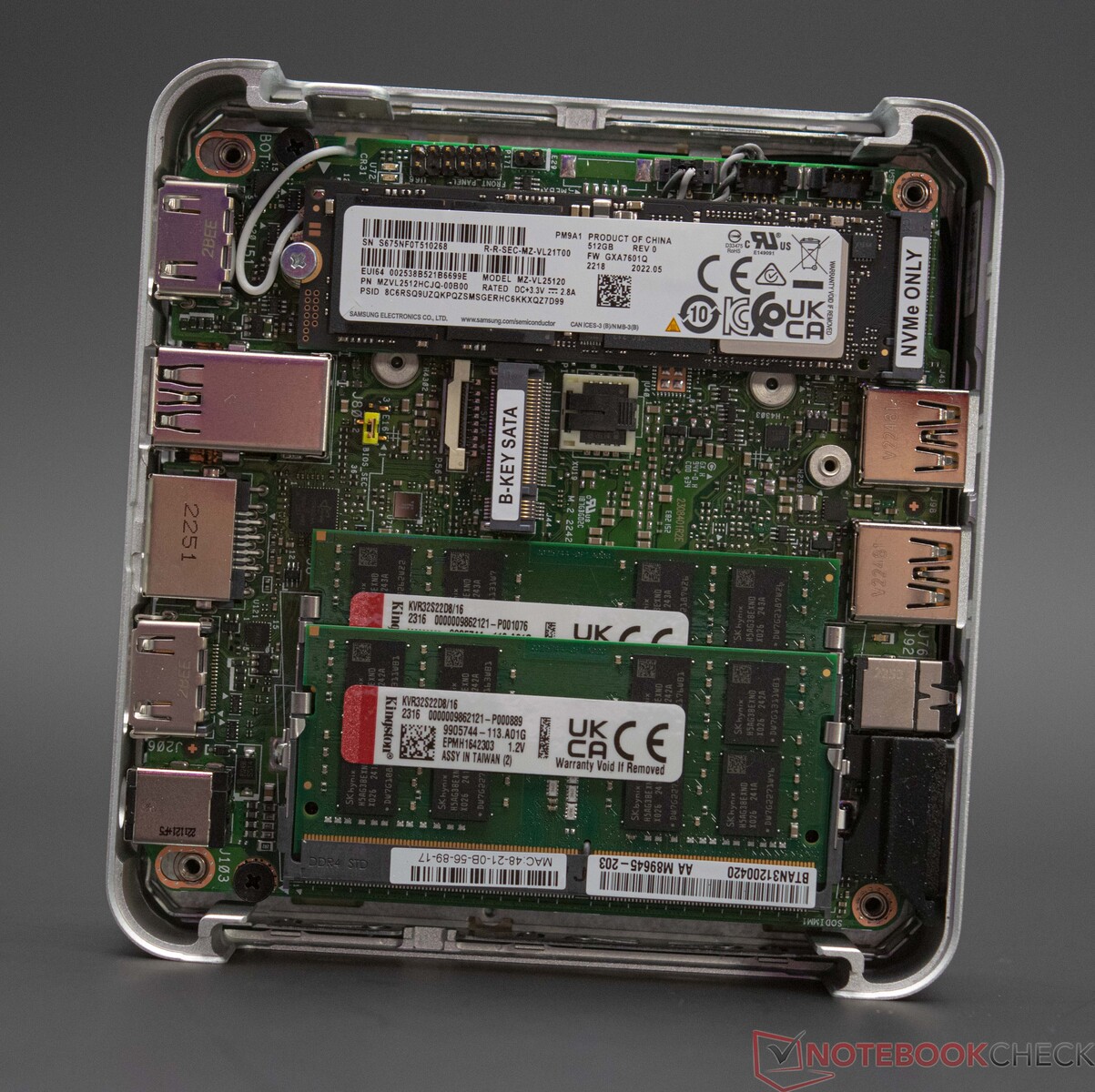

尽管采用了新的外壳设计，但英特尔 NUC 13 Pro 桌面版套件仍然超级容易打开。只需用四颗螺丝固定底板。取下这些螺丝后，你就可以轻松访问内存和固态硬盘。这一点非常重要，因为英特尔 NUC 13 Pro Desk Edition 套件是作为裸机系统出售的。我们的测试系统几乎配备齐全，你可以清楚地看到。只能再安装一个存储设备。你必须注意连接，因为除了已经安装的 NVMe M.2 固态硬盘外，第二个 M.2 插槽只支持 SATA 速度的 M.2 固态硬盘，长度不超过 42 毫米。

性能 - 拥有 12 个内核和 16 个线程的现代 SoC

测试条件

我们使用 "平衡 "能源配置文件进行了所有性能测试。我们的系统无法使用其他能源配置文件。我们没有改变 SoC 的性能，而是根据 BIOS 设置让它处于自动模式。

处理器

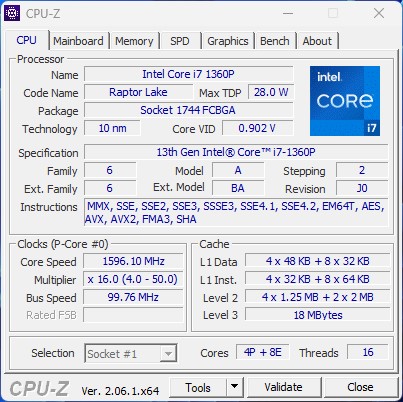

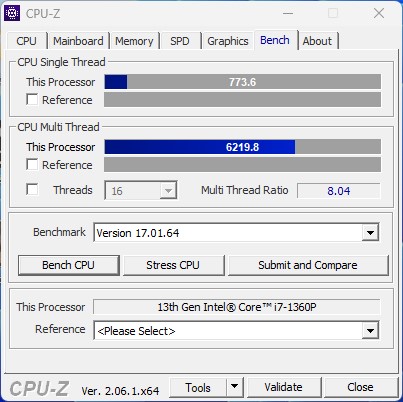

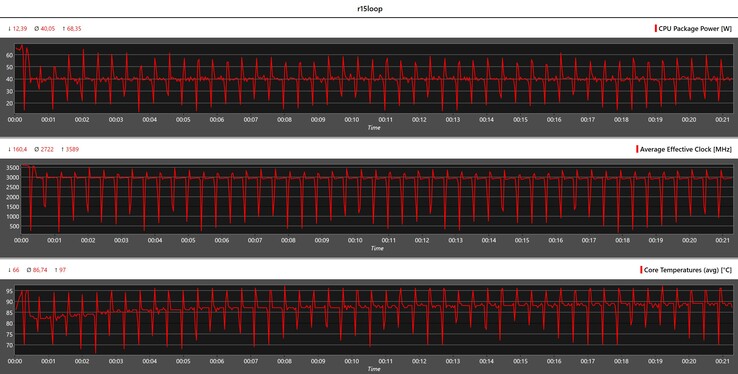

电脑的英特尔酷睿 i7-1360P是英特尔当前 Raptor Lake P 系列中非常现代和节俭的 SoC。制造商没有限制该设备可能的功耗，这意味着它可以在短时间内获得高达 64 瓦的功耗。虽然在连续负载情况下，它只能获得 40 瓦的功率，但这一数值已经达到。在我们的测试中，我们看到该值在较长时间内也能保持不变。

英特尔 NUC 13 Pro 桌面版套件在测试过程中表现出色，甚至略微领先于英特尔 NUC 13 Pro 套件.从主观上看，两款系统的性能没有明显差异。

有关进一步的比较和基准测试，请访问CPU 对照表。

Performance Rating - Percent
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, 1600 MHz	51.5 pt
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	51.1 pt
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	50.1 pt
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	49.4 pt
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	48.5 pt
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	48.4 pt
Khadas Mind Intel Core i7-1360P, 1600 MHz	48.3 pt
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	45.8 pt

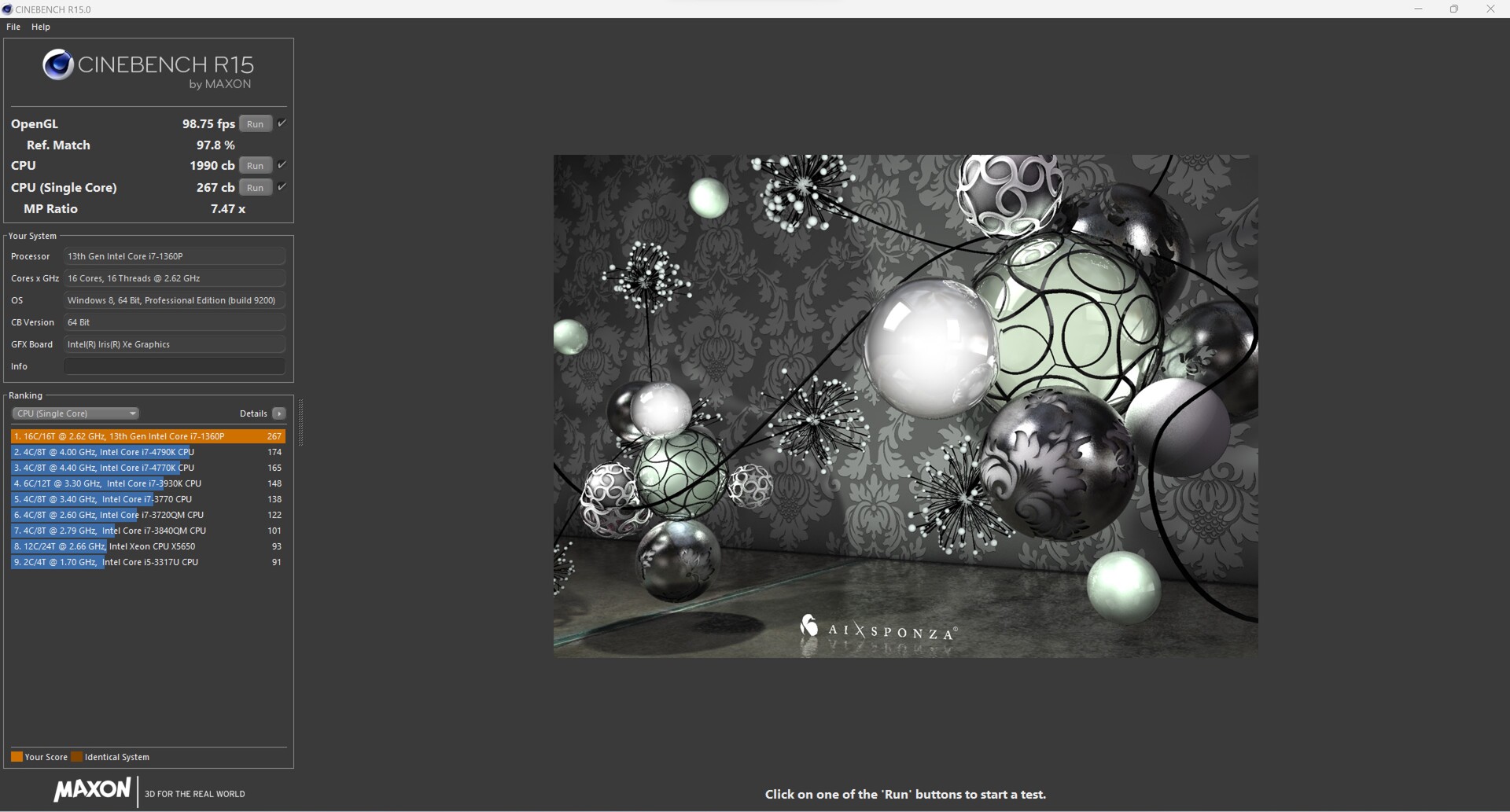

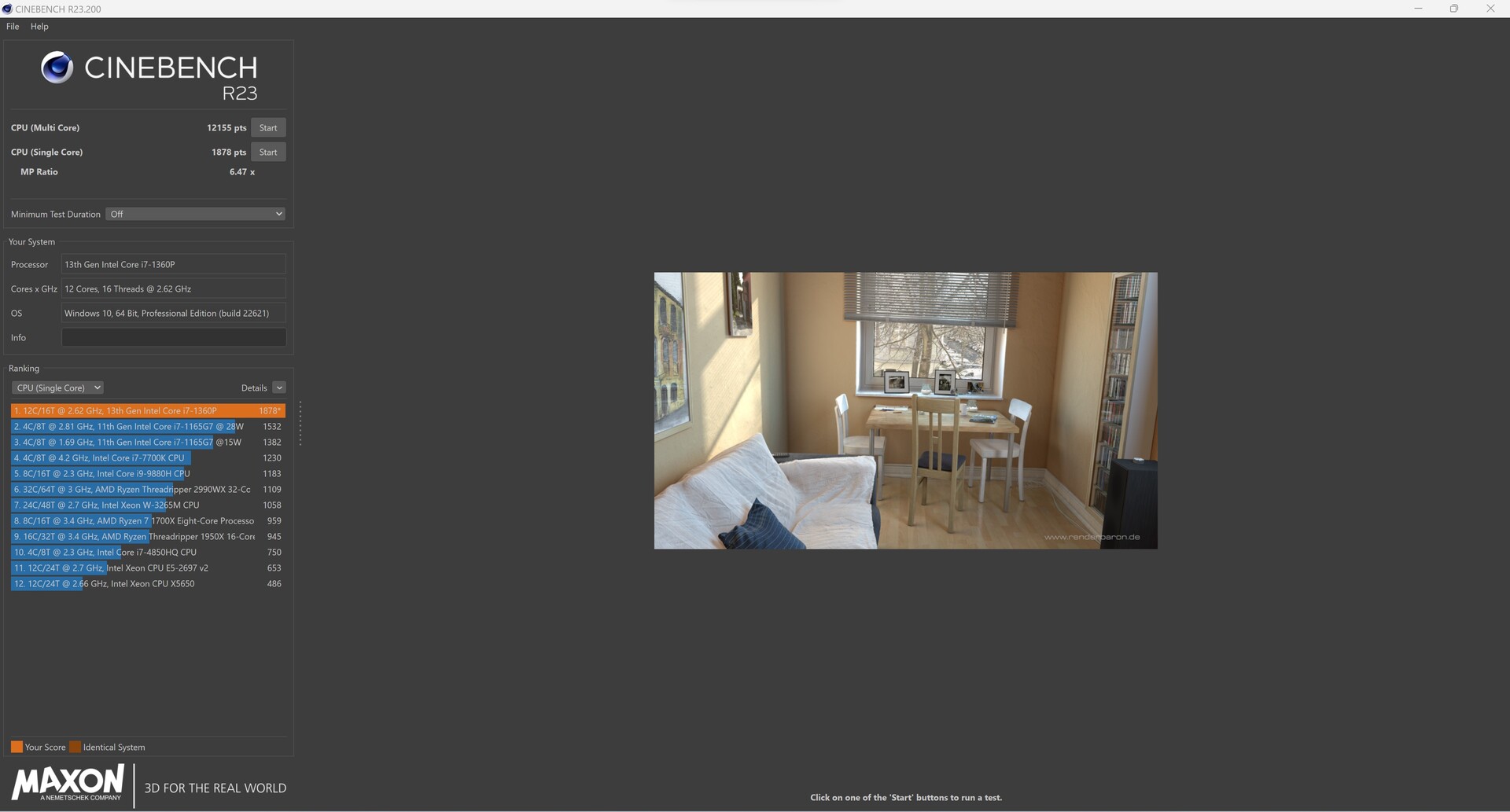

Cinebench R15
CPU Single 64Bit
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	271 Points +1%
Khadas Mind Intel Core i7-1360P, 1600 MHz	270 Points +1%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, 1600 MHz	267 Points
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	260 Points -3%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	249 Points -7%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	247 Points -7%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	244 Points -9%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	241 Points -10%
CPU Multi 64Bit
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	2067 Points +4%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	2030 Points +2%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	2028 Points +2%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, 1600 MHz	1990 Points
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1920 Points -4%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	1879 Points -6%
Khadas Mind Intel Core i7-1360P, 1600 MHz	1642 Points -17%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	1565 Points -21%

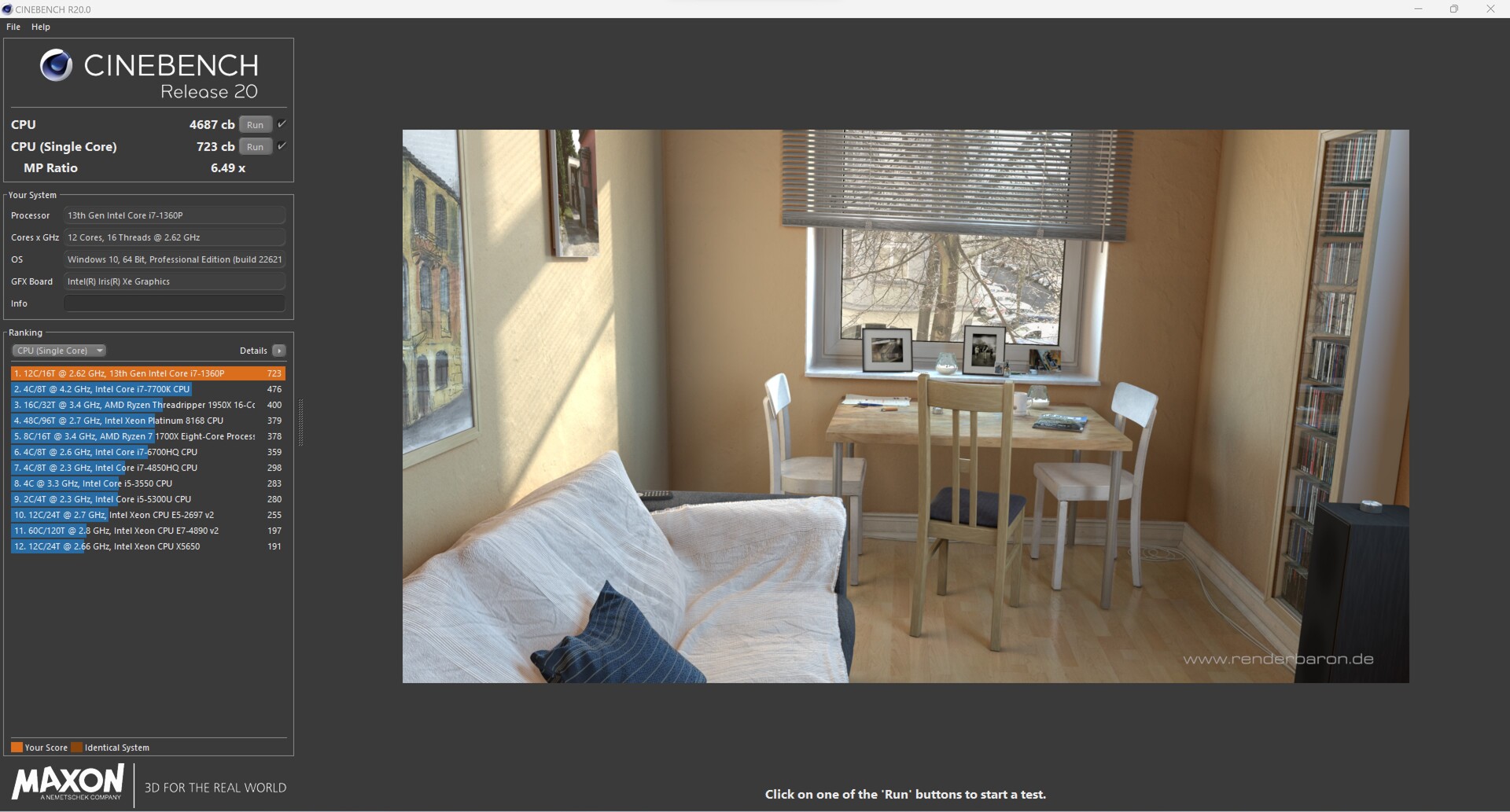

Cinebench R20
CPU (Single Core)
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	736 Points +2%
Khadas Mind Intel Core i7-1360P, 1600 MHz	724 Points 0%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, 1600 MHz	723 Points
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	698 Points -3%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	682 Points -6%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	652 Points -10%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	607 Points -16%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	600 Points -17%
CPU (Multi Core)
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	4941 Points +5%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	4887 Points +4%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	4788 Points +2%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	4776 Points +2%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, 1600 MHz	4687 Points
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	4578 Points -2%
Khadas Mind Intel Core i7-1360P, 1600 MHz	3820 Points -18%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	3427 Points -27%

Cinebench R11.5
CPU Single 64Bit
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	3.3 Points +2%
Khadas Mind Intel Core i7-1360P, 1600 MHz	3.27 Points +1%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, 1600 MHz	3.25 Points
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	3.15 Points -3%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	2.94 Points -10%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	2.93 Points -10%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	2.88 Points -11%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	2.86 Points -12%
CPU Multi 64Bit
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	25.96 Points +5%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	25.12 Points +2%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, 1600 MHz	24.69 Points
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	23.66 Points -4%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	23.6 Points -4%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	23.48 Points -5%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	20.06 Points -19%
Khadas Mind Intel Core i7-1360P, 1600 MHz	19.54 Points -21%

Cinebench R10
Rendering Single CPUs 64Bit
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	15471 Points +2%
Khadas Mind Intel Core i7-1360P, 1600 MHz	15227 Points 0%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, 1600 MHz	15176 Points
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	14504 Points -4%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	13568 Points -11%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	12846 Points -15%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	12185 Points -20%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	12133 Points -20%
Rendering Multiple CPUs 64Bit
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	77409 Points +5%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	76744 Points +4%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	73492 Points 0%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, 1600 MHz	73480 Points
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	69797 Points -5%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	68188 Points -7%
Khadas Mind Intel Core i7-1360P, 1600 MHz	61639 Points -16%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	53950 Points -27%

Blender - v2.79 BMW27 CPU
Khadas Mind Intel Core i7-1360P, 1600 MHz	324 Seconds * -21%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	280 Seconds * -4%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	279 Seconds * -4%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	275 Seconds * -3%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	273 Seconds * -2%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, 1600 MHz	268 Seconds *
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	260 Seconds * +3%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	231 Seconds * +14%

wPrime 2.10
32m
Khadas Mind Intel Core i7-1360P, 1600 MHz	4.957 s * -32%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	4.485 s * -19%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	3.765 s * -0%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, 1600 MHz	3.754 s *
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	3.735 s * +1%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	3.642 s * +3%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	3.641 s * +3%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	3.421 s * +9%
1024m
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, 1600 MHz	304.68 s *
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	277.01 s * +9%
Khadas Mind Intel Core i7-1360P, 1600 MHz	240.083 s * +21%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	237.123 s * +22%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	235.874 s * +23%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	189.07 s * +38%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	104.788 s * +66%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	103.226 s * +66%

X264 HD Benchmark 4.0
Pass 1
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, 1600 MHz	312.5 (304^min - 328^max) fps
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	312 (305^min - 331^max) fps 0%
Khadas Mind Intel Core i7-1360P, 1600 MHz	273 (264^min - 275^max) fps -13%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	266 (264^min - 271^max) fps -15%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	258.5 (256^min - 268^max) fps -17%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	249 (246^min - 255^max) fps -20%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	245 (239^min - 261^max) fps -22%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	224 (222^min - 258^max) fps -28%
Pass 2
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	125.25 (105.2^min - 130^max) fps +9%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	116.4 (108.5^min - 128.8^max) fps +1%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, 1600 MHz	114.95 (107^min - 127.4^max) fps
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	114.45 (113.9^min - 116.5^max) fps 0%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	114 (111.2^min - 119.4^max) fps -1%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	110.5 (101.7^min - 125.3^max) fps -4%
Khadas Mind Intel Core i7-1360P, 1600 MHz	94.7 (87.4^min - 101.7^max) fps -18%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	77.75 (77.6^min - 113.9^max) fps -32%

WinRAR - Result
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	7937 KB/s +61%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	7200 KB/s +46%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	6980 KB/s +41%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	6795 KB/s +38%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	6559 KB/s +33%
Khadas Mind Intel Core i7-1360P, 1600 MHz	6079 KB/s +23%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	5759 KB/s +17%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, 1600 MHz	4933 KB/s

TrueCrypt
AES Mean 100MB
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	12.5 GB/s +2%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, 1600 MHz	12.3 GB/s
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	12.1 GB/s -2%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	11.8 GB/s -4%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	11.6 GB/s -6%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	10.4 GB/s -15%
Khadas Mind Intel Core i7-1360P, 1600 MHz	9.5 GB/s -23%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	8.6 GB/s -30%
Twofish Mean 100MB
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, 1600 MHz	2.3 GB/s
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	2.2 GB/s -4%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	2 GB/s -13%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	1.9 GB/s -17%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	1.8 GB/s -22%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1.7 GB/s -26%
Khadas Mind Intel Core i7-1360P, 1600 MHz	1.7 GB/s -26%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1.6 GB/s -30%
Serpent Mean 100MB
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	1.2 GB/s 0%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, 1600 MHz	1.2 GB/s
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	1.1 GB/s -8%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1.1 GB/s -8%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1.1 GB/s -8%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	1 GB/s -17%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	0.974 GB/s -19%
Khadas Mind Intel Core i7-1360P, 1600 MHz	0.935 GB/s -22%

Geekbench 5.5
Multi-Core
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	10574 Points +3%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, 1600 MHz	10269 Points
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	9935 Points -3%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	9695 Points -6%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	9278 Points -10%
Khadas Mind Intel Core i7-1360P, 1600 MHz	9159 Points -11%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	9151 Points -11%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	8918 Points -13%
Single-Core
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	1861 Points +2%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	1850 Points +1%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, 1600 MHz	1832 Points
Khadas Mind Intel Core i7-1360P, 1600 MHz	1824 Points 0%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	1782 Points -3%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	1715 Points -6%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1586 Points -13%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1547 Points -16%

Geekbench 5.0
5.0 Multi-Core
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	10249 Points 0%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	10249 Points 0%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	10249 Points 0%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, 1600 MHz	10213 Points
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	9817 Points -4%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	9663 Points -5%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	9351 Points -8%
Khadas Mind Intel Core i7-1360P, 1600 MHz	9000 Points -12%
5.0 Single-Core
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	1838 Points +3%
Khadas Mind Intel Core i7-1360P, 1600 MHz	1826 Points +2%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, 1600 MHz	1784 Points
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	1694 Points -5%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1557 Points -13%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	1557 Points -13%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	1557 Points -13%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1538 Points -14%

Geekbench 4.4
64 Bit Single-Core Score
Khadas Mind Intel Core i7-1360P, 1600 MHz	8084 Points +2%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	8015 Points +1%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, 1600 MHz	7950 Points
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	7554 Points -5%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	6698 Points -16%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	6698 Points -16%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	6698 Points -16%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	6648 Points -16%
64 Bit Multi-Core Score
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	39852 Points +2%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	39852 Points +2%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	39852 Points +2%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, 1600 MHz	39116 Points
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	36974 Points -5%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	36780 Points -6%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	36692 Points -6%
Khadas Mind Intel Core i7-1360P, 1600 MHz	33052 Points -16%

3DMark 11 - 1280x720 Performance Physics
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, 1600 MHz	18679 Points
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	18382 Points -2%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	18044 Points -3%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	17973 Points -4%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	17810 Points -5%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	15855 Points -15%
Khadas Mind Intel Core i7-1360P, 1600 MHz	15245 Points -18%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	13067 Points -30%

7-Zip 18.03
7z b 4
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	56930 MIPS +11%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	56923 MIPS +11%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	52959 MIPS +3%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, 1600 MHz	51340 MIPS
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	51151 MIPS 0%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	47064 MIPS -8%
Khadas Mind Intel Core i7-1360P, 1600 MHz	43201 MIPS -16%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	37570 MIPS -27%
7z b 4 -mmt1
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	6019 MIPS +3%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	5961 MIPS +2%
Khadas Mind Intel Core i7-1360P, 1600 MHz	5904 MIPS +1%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, 1600 MHz	5840 MIPS
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	5738 MIPS -2%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	5721 MIPS -2%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	5591 MIPS -4%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	5577 MIPS -5%

HWBOT x265 Benchmark v2.2 - 4k Preset
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	15.8 fps +14%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	15.4 fps +11%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	14.2 fps +2%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	14.1 fps +1%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, 1600 MHz	13.9 fps
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	13.2 fps -5%
Khadas Mind Intel Core i7-1360P, 1600 MHz	11.4 fps -18%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	10.1 fps -27%

R Benchmark 2.5 - Overall mean
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	0.4881 sec * -8%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	0.4849 sec * -8%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	0.4787 sec * -6%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	0.4718 sec * -5%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	0.4641 sec * -3%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, 1600 MHz	0.45 sec *
Khadas Mind Intel Core i7-1360P, 1600 MHz	0.4463 sec * +1%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	0.445 sec * +1%

LibreOffice - 20 Documents To PDF
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	53.4 s * -14%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	48.1 s * -3%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	47.1 s * -0%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, 1600 MHz	46.9 s *
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	45 s * +4%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	43.7 s * +7%
Khadas Mind Intel Core i7-1360P, 1600 MHz	40.9 s * +13%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	38 s * +19%

WebXPRT 3 - Overall
Khadas Mind Intel Core i7-1360P, 1600 MHz	316 Points +5%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	311 Points +3%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	305 Points +1%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, 1600 MHz	301 Points
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	292 Points -3%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	287 Points -5%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	285 Points -5%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	268 Points -11%

Mozilla Kraken 1.1 - Total
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	605 ms * -22%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	600 ms * -21%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	577 ms * -16%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	539 ms * -9%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	534 ms * -8%
Khadas Mind Intel Core i7-1360P, 1600 MHz	502 ms * -1%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, 1600 MHz	496 ms *
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	494 ms * -0%

3DMark
3840x2160 Fire Strike Ultra Physics
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, 1600 MHz	24226 Points
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	22441 Points -7%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	22237 Points -8%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	21422 Points -12%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	20158 Points -17%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	19357 Points -20%
Khadas Mind Intel Core i7-1360P, 1600 MHz	17786 Points -27%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	15903 Points -34%
1920x1080 Fire Strike Physics
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, 1600 MHz	25349 Points
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	22740 Points -10%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	22426 Points -12%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	22244 Points -12%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	21523 Points -15%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	20684 Points -18%
Khadas Mind Intel Core i7-1360P, 1600 MHz	18564 Points -27%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	16568 Points -35%
2560x1440 Time Spy CPU
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	10539 Points +19%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	9334 Points +6%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	9004 Points +2%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, 1600 MHz	8845 Points
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	8622 Points -3%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	8393 Points -5%
Khadas Mind Intel Core i7-1360P, 1600 MHz	7942 Points -10%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	6487 Points -27%

* ... smaller is better

Performance Rating
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	92.1 pt
Average of class Mini PC	80.9 pt
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	76.8 pt
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	74.8 pt
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	74.6 pt
Khadas Mind Intel Core i7-1360P, Iris Xe G7 96EUs	70.5 pt
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	68.2 pt
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	65.5 pt
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	43.3 pt

AIDA64 / FP32 Ray-Trace
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	13757 KRay/s +23%
Average of class Mini PC (561 - 51004, n=119, last 2 years)	12449 KRay/s +11%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	11188 KRay/s
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	10952 KRay/s -2%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	10351 KRay/s -7%
Khadas Mind Intel Core i7-1360P, Iris Xe G7 96EUs	9567 KRay/s -14%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	9406 KRay/s -16%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	9086 KRay/s -19%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	5612 KRay/s -50%

AIDA64 / FPU Julia
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	87663 Points +54%
Average of class Mini PC (3604 - 214250, n=119, last 2 years)	62645 Points +10%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	60111 Points +6%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	57375 Points +1%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	56942 Points
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	55221 Points -3%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	52136 Points -8%
Khadas Mind Intel Core i7-1360P, Iris Xe G7 96EUs	47763 Points -16%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	24138 Points -58%

AIDA64 / CPU SHA3
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	2931 MB/s +10%
Average of class Mini PC (225 - 9399, n=119, last 2 years)	2760 MB/s +3%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	2669 MB/s
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	2590 MB/s -3%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	2558 MB/s -4%
Khadas Mind Intel Core i7-1360P, Iris Xe G7 96EUs	2430 MB/s -9%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	2065 MB/s -23%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	1971 MB/s -26%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	1649 MB/s -38%

AIDA64 / CPU Queen
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	100293 Points +15%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	86881 Points
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	85240 Points -2%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	82493 Points -5%
Average of class Mini PC (8172 - 184747, n=119, last 2 years)	77998 Points -10%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	70563 Points -19%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	67224 Points -23%
Khadas Mind Intel Core i7-1360P, Iris Xe G7 96EUs	65324 Points -25%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	46646 Points -46%

AIDA64 / FPU SinJulia
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	12396 Points +71%
Average of class Mini PC (408 - 29064, n=119, last 2 years)	8538 Points +18%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	8507 Points +17%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	8294 Points +14%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	7548 Points +4%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	7246 Points
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	6728 Points -7%
Khadas Mind Intel Core i7-1360P, Iris Xe G7 96EUs	5734 Points -21%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	3964 Points -45%

AIDA64 / FPU Mandel
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	44629 Points +59%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	33084 Points +18%
Average of class Mini PC (1958 - 113499, n=119, last 2 years)	32689 Points +17%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	31389 Points +12%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	28159 Points 0%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	28019 Points
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	25996 Points -7%
Khadas Mind Intel Core i7-1360P, Iris Xe G7 96EUs	22832 Points -19%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	14905 Points -47%

AIDA64 / CPU AES
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	99521 MB/s +87%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	92356 MB/s +73%
Average of class Mini PC (3691 - 325960, n=119, last 2 years)	85358 MB/s +60%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	82315 MB/s +54%
Khadas Mind Intel Core i7-1360P, Iris Xe G7 96EUs	80041 MB/s +50%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	78211 MB/s +47%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	58910 MB/s +10%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	56199 MB/s +5%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	53328 MB/s

AIDA64 / CPU ZLib
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	775 MB/s
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	745 MB/s -4%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	732 MB/s -6%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	722 MB/s -7%
Average of class Mini PC (74.8 - 2039, n=119, last 2 years)	714 MB/s -8%
Khadas Mind Intel Core i7-1360P, Iris Xe G7 96EUs	671 MB/s -13%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	531 MB/s -31%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	505 MB/s -35%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	265 MB/s -66%

AIDA64 / FP64 Ray-Trace
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	7288 KRay/s +22%
Average of class Mini PC (308 - 26952, n=119, last 2 years)	6658 KRay/s +12%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	5957 KRay/s
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	5777 KRay/s -3%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	5613 KRay/s -6%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	5024 KRay/s -16%
Khadas Mind Intel Core i7-1360P, Iris Xe G7 96EUs	4975 KRay/s -16%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	4636 KRay/s -22%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	2997 KRay/s -50%

AIDA64 / CPU PhotoWorxx
Khadas Mind Intel Core i7-1360P, Iris Xe G7 96EUs	43544 MPixel/s +49%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	29765 MPixel/s +2%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	29263 MPixel/s
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	28377 MPixel/s -3%
Average of class Mini PC (4408 - 50500, n=119, last 2 years)	27805 MPixel/s -5%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	26959 MPixel/s -8%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	24323 MPixel/s -17%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	19395 MPixel/s -34%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	17803 MPixel/s -39%

英特尔 NUC 13 Pro 桌面版套件 - Arena Canyon 与 Cinebench R15 多循环对比

通过 Cinebench R15 连续循环测试，我们可以初步了解所安装的冷却装置的工作情况。第一次运行后，设备的 CPU 性能下降了约 10%。第二次运行后，SoC 显示出相对稳定的性能，50 次运行后平均达到 1753 分。这比我们在英特尔 NUC 13 Pro 套件.

Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Core i7-1360P: Ø1753 (1686.77-2083.33)

Minisforum Neptune Series NAD9 Intel Core i9-12900H, Intel Core i9-12900H: Ø1703 (1657.14-2261.04)

Morefine M600, 6900HX AMD Ryzen 9 6900HX, AMD Ryzen 9 6900HX: Ø1900 (1863.93-2044.26)

Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Ryzen 9 6900HX: Ø1878 (1825.15-2068.58)

Geekom Mini IT12 Intel Core i7-1260P, Intel Core i7-1260P: Ø1280 (1241-1619.37)

Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Core i7-1360P: Ø1825 (1794.93-2181.38)

Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Core i7-1260P: Ø1702 (1671.26-2063.13)

Khadas Mind Intel Core i7-1360P, Intel Core i7-1360P: Ø1443 (1386.82-1627.54)

系统性能

在合成基准测试中，英特尔 NUC 13 Pro Desk Edition 套件的系统性能跟不上其 CPU 性能结果。我们的测试样本最终只取得了平均成绩，在 PCMark10 中，它与英特尔 NUC 12 Pro 套件和 Geekom Mini IT12 处于同一水平。Crossmark 也没有取得更好的成绩。在内存测试中，我们的测试样品也不得不多次认输。NUC 13 Pro Desk Edition Kit 确实应该配备速度更快的 DDR5 内存，这样才能大放异彩。制造商也应该这样做，这样电脑才能与英特尔 NUC 13 Pro 套件.的Khadas Mind向我们展示了更快的内存所能带来的效果。

PCMark 10: Score | Essentials | Productivity

PCMark 10 / Score
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	6654 Points +13%
Geekom AS 6, R9 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston NV2 1000GB SNV2S/1000G	6653 Points +13%
Intel NUC 13 Pro Kit NUC13ANK, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ	6281 Points +7%
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	6187 Points +5%
Khadas Mind, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, WD PC SN740 SDDPTQD-1T00	5937 Points +1%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S	5915 Points +1%
Intel NUC 13 Pro Desk Edition Kit, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ	5882 Points
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	5658 Points -4%

PCMark 10 / Essentials
Intel NUC 13 Pro Kit NUC13ANK, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ	11596 Points +5%
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	11217 Points +2%
Intel NUC 13 Pro Desk Edition Kit, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ	11035 Points
Khadas Mind, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, WD PC SN740 SDDPTQD-1T00	10761 Points -2%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S	10661 Points -3%
Geekom AS 6, R9 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston NV2 1000GB SNV2S/1000G	10504 Points -5%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	10390 Points -6%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	10139 Points -8%

PCMark 10 / Productivity
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	9817 Points +49%
Geekom AS 6, R9 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston NV2 1000GB SNV2S/1000G	9550 Points +45%
Khadas Mind, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, WD PC SN740 SDDPTQD-1T00	8161 Points +24%
Intel NUC 13 Pro Kit NUC13ANK, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ	7893 Points +20%
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	7673 Points +17%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S	7626 Points +16%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	7427 Points +13%
Intel NUC 13 Pro Desk Edition Kit, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ	6576 Points

CrossMark: Overall | Responsiveness | Creativity | Productivity

CrossMark / Overall
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	1894 Points +19%
Intel NUC 13 Pro Kit NUC13ANK, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ	1810 Points +13%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	1738 Points +9%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S	1679 Points +5%
Intel NUC 13 Pro Desk Edition Kit, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ	1596 Points
Khadas Mind, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, WD PC SN740 SDDPTQD-1T00	1564 Points -2%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	1517 Points -5%
Geekom AS 6, R9 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston NV2 1000GB SNV2S/1000G	1476 Points -8%

CrossMark / Responsiveness
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	2116 Points +61%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	1734 Points +32%
Intel NUC 13 Pro Kit NUC13ANK, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ	1578 Points +20%
Khadas Mind, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, WD PC SN740 SDDPTQD-1T00	1528 Points +17%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S	1476 Points +13%
Intel NUC 13 Pro Desk Edition Kit, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ	1311 Points
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	1238 Points -6%
Geekom AS 6, R9 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston NV2 1000GB SNV2S/1000G	1060 Points -19%

CrossMark / Creativity
Intel NUC 13 Pro Kit NUC13ANK, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ	1970 Points +11%
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	1800 Points +2%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S	1785 Points +1%
Intel NUC 13 Pro Desk Edition Kit, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ	1769 Points
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	1749 Points -1%
Geekom AS 6, R9 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston NV2 1000GB SNV2S/1000G	1675 Points -5%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	1652 Points -7%
Khadas Mind, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, WD PC SN740 SDDPTQD-1T00	1600 Points -10%

CrossMark / Productivity
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	1921 Points +25%
Intel NUC 13 Pro Kit NUC13ANK, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ	1740 Points +13%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	1729 Points +12%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S	1649 Points +7%
Khadas Mind, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, WD PC SN740 SDDPTQD-1T00	1541 Points 0%
Intel NUC 13 Pro Desk Edition Kit, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ	1537 Points
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	1491 Points -3%
Geekom AS 6, R9 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston NV2 1000GB SNV2S/1000G	1451 Points -6%

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Khadas Mind Intel Core i7-1360P, Iris Xe G7 96EUs	65299 MB/s +47%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, Radeon 680M	50714 MB/s +14%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	50228 MB/s +13%
Average of class Mini PC (6481 - 89287, n=119, last 2 years)	47585 MB/s +7%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	45941 MB/s +4%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	44892 MB/s +1%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	44726 MB/s +1%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	44661 MB/s +1%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	44299 MB/s

AIDA64 / Memory Read
Khadas Mind Intel Core i7-1360P, Iris Xe G7 96EUs	60668 MB/s +36%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, Radeon 680M	51580 MB/s +15%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	51077 MB/s +14%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	49559 MB/s +11%
Average of class Mini PC (6914 - 99171, n=119, last 2 years)	48328 MB/s +8%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	47491 MB/s +6%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	46644 MB/s +4%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	45196 MB/s +1%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	44751 MB/s

AIDA64 / Memory Write
Khadas Mind Intel Core i7-1360P, Iris Xe G7 96EUs	74777 MB/s +63%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	55194 MB/s +20%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, Radeon 680M	55128 MB/s +20%
Average of class Mini PC (6862 - 98583, n=119, last 2 years)	52056 MB/s +13%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	46815 MB/s +2%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	46785 MB/s +2%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	46223 MB/s +1%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	46179 MB/s +1%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	45887 MB/s

AIDA64 / Memory Latency
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	100 ns * -4%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	96.2 ns *
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	96.1 ns * -0%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	92.7 ns * +4%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	92.4 ns * +4%
Average of class Mini PC (44.9 - 184.8, n=119, last 2 years)	91.9 ns * +4%
Khadas Mind Intel Core i7-1360P, Iris Xe G7 96EUs	90.5 ns * +6%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, Radeon 680M	89.9 ns * +7%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	80.2 ns * +17%

* ... smaller is better

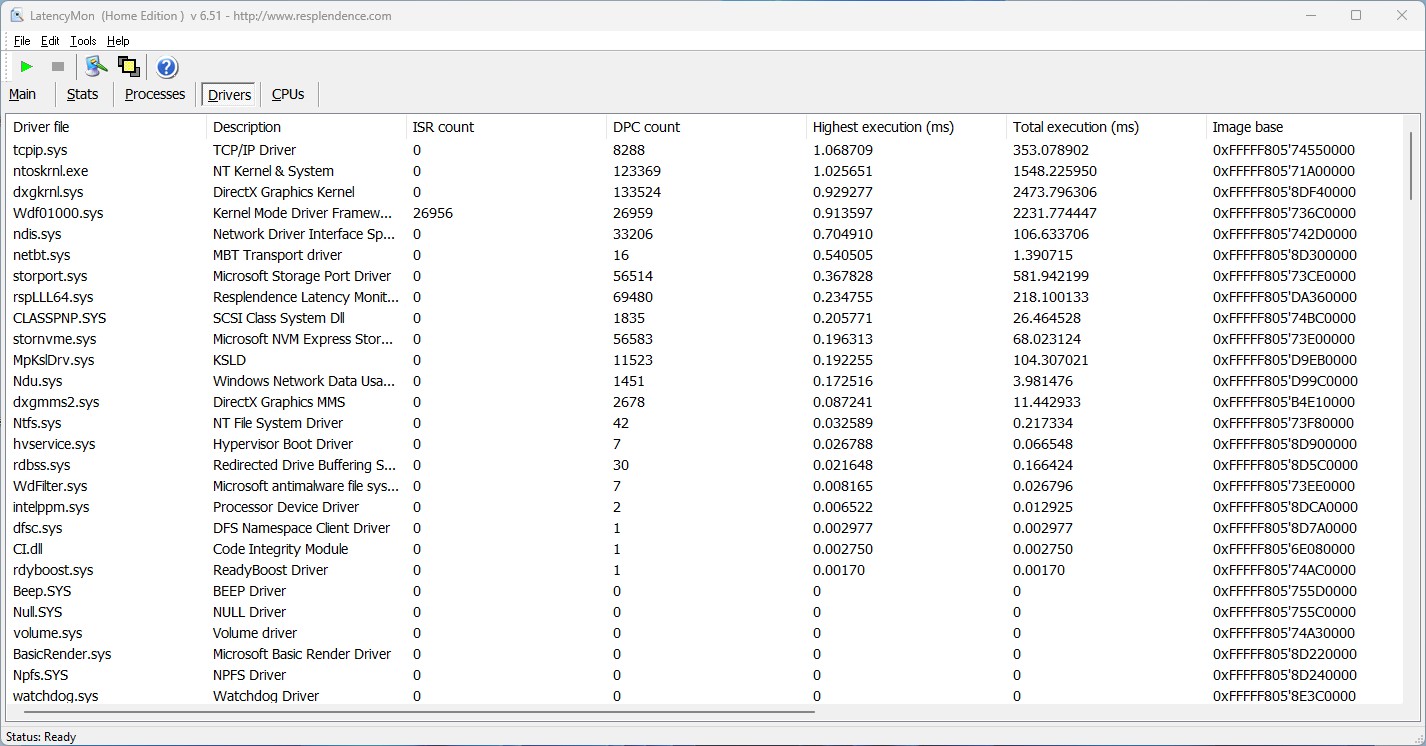

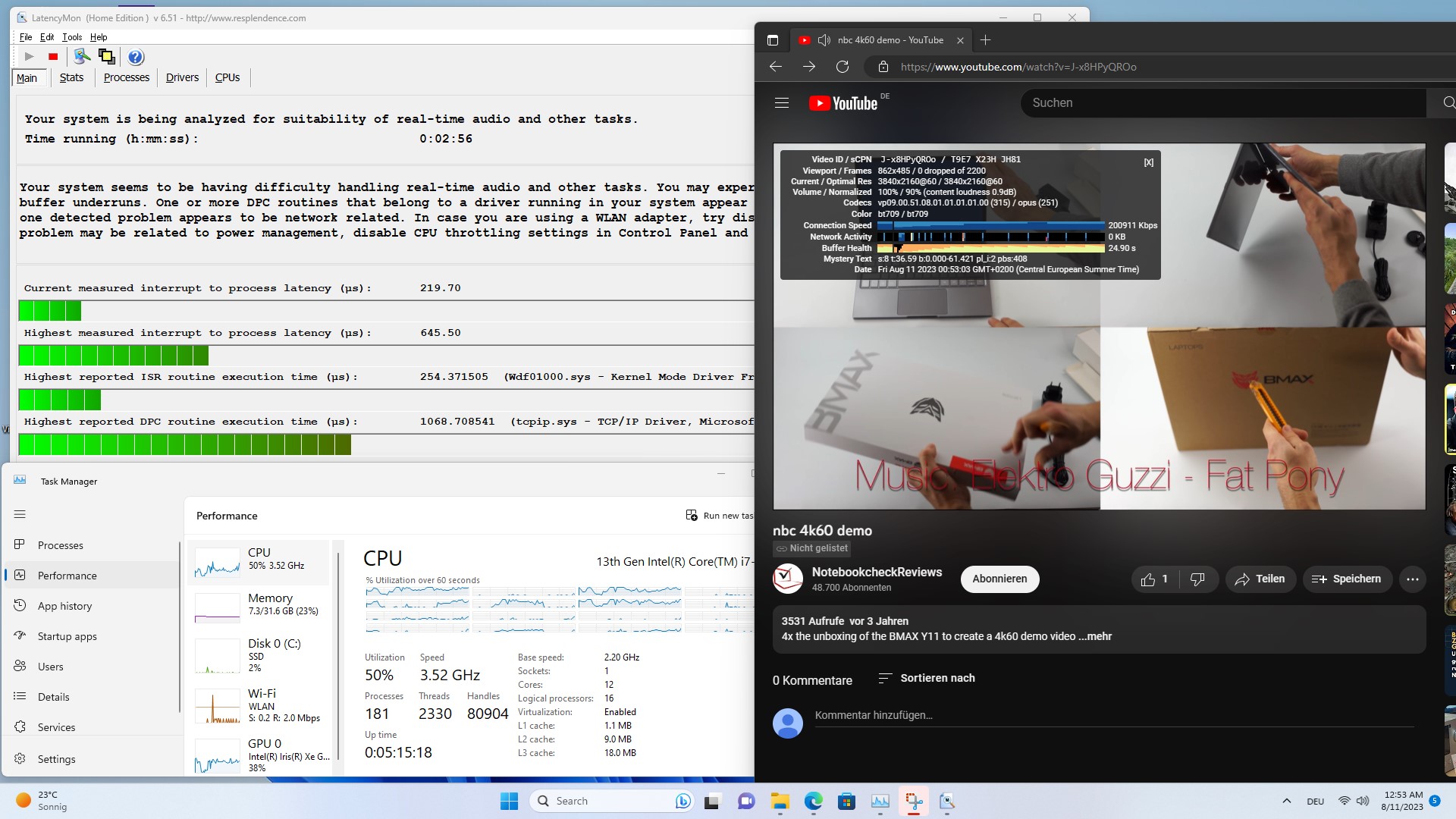

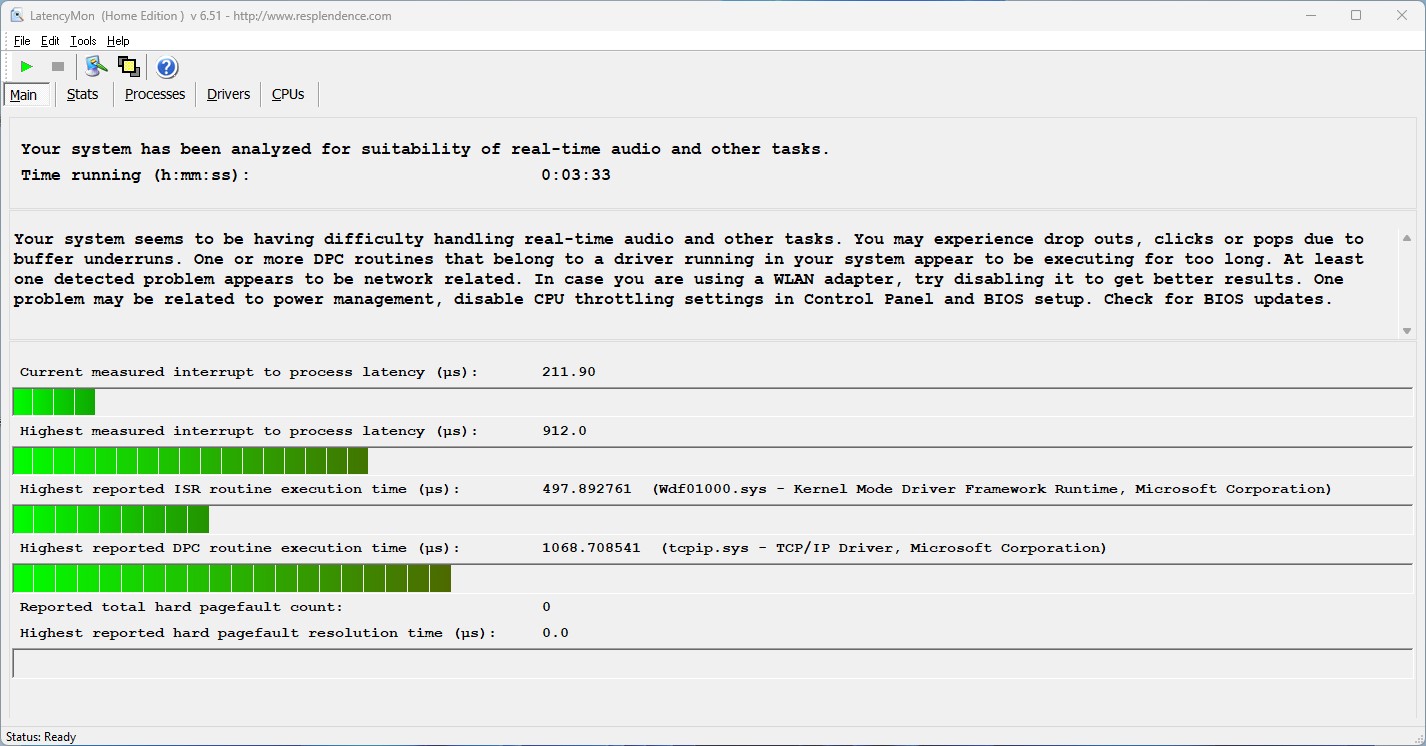

DPC 延迟

我们在浏览互联网时并没有注意到延迟的增加。只有在我们开始播放 4K 测试视频后，延迟才变得明显。启动 Prime95 后，这些延迟没有进一步增加。

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	1588.3 μs * -49%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	1317 μs * -23%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	1113.9 μs * -4%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1087 μs * -2%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1068.7 μs *
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	985.8 μs * +8%
Khadas Mind Iris Xe G7 96EUs, i7-1360P, WD PC SN740 SDDPTQD-1T00	962 μs * +10%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	779 μs * +27%

* ... smaller is better

存储设备

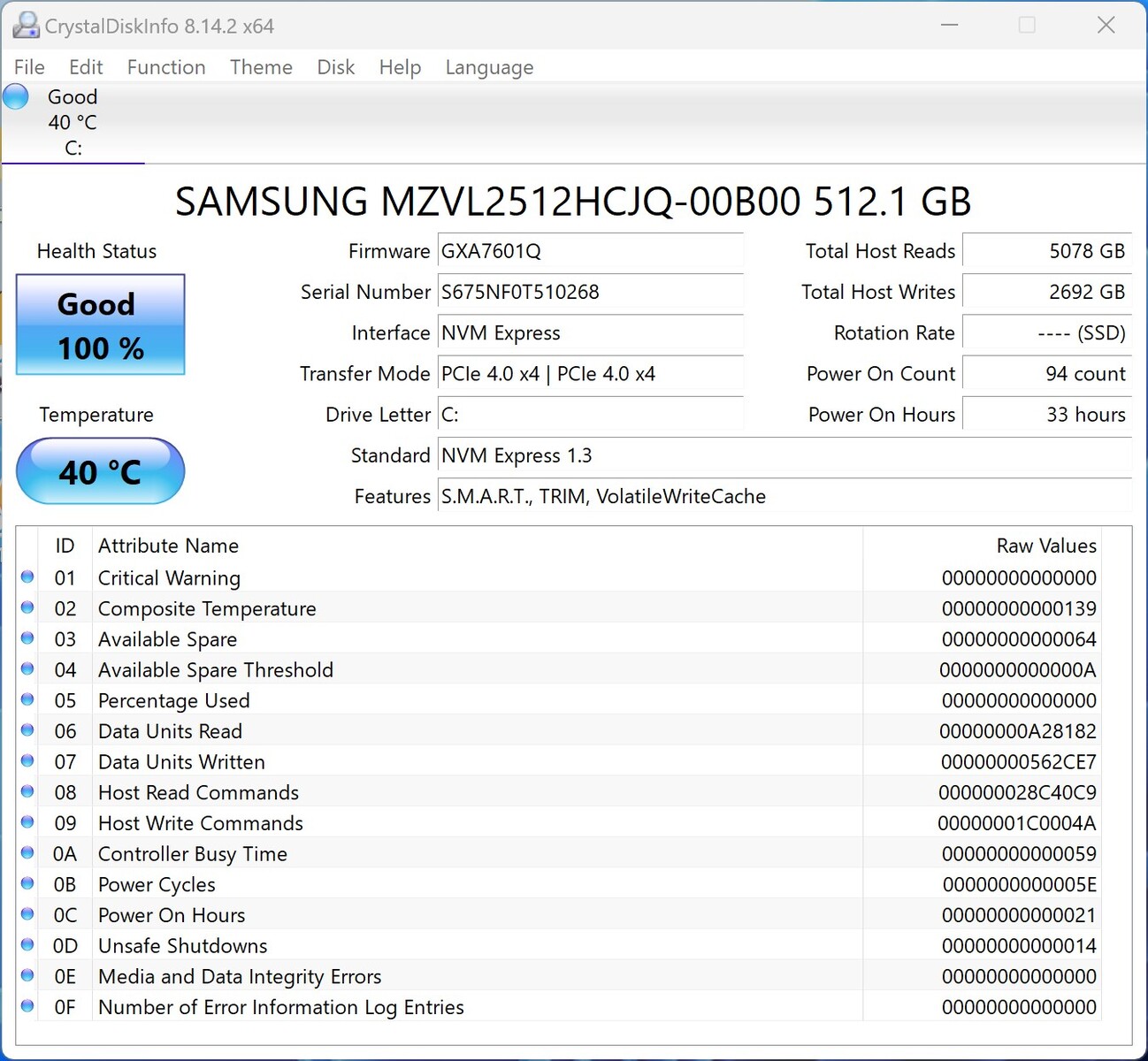

我们的英特尔 NUC 13 Pro Desk Edition 套件测试样品配备了一块来自三星的 512GB NVMe 固态硬盘。在英特尔 NUC 13 Pro 套件.由于使用了相同的存储设备，我们注意到在性能方面的基准测试结果几乎完全相同。我们只注意到了连续负载下读取率的差异。在这方面，英特尔 NUC 13 Pro 套件的性能普遍更好，尽管英特尔 NUC 13 Pro Desk Edition 套件在保持性能水平稳定时从未出现过任何问题。英特尔 NUC 13 Pro Desk Edition 套件总共可以安装两个存储设备。需要注意的是，第二个插槽只能安装 M.2 SSD 2242。此外，该连接仅支持 SATA 速度，这一点也必须牢记。

有关进一步的比较和基准测试，请查看我们的比较表.

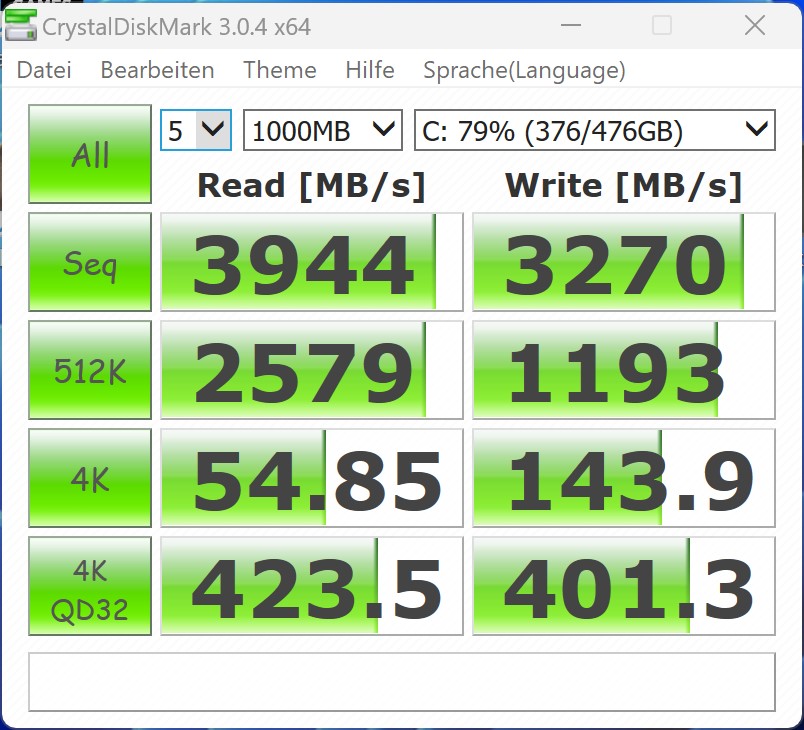

CrystalDiskMark 3.0

CrystalDiskMark 5.2 / 6

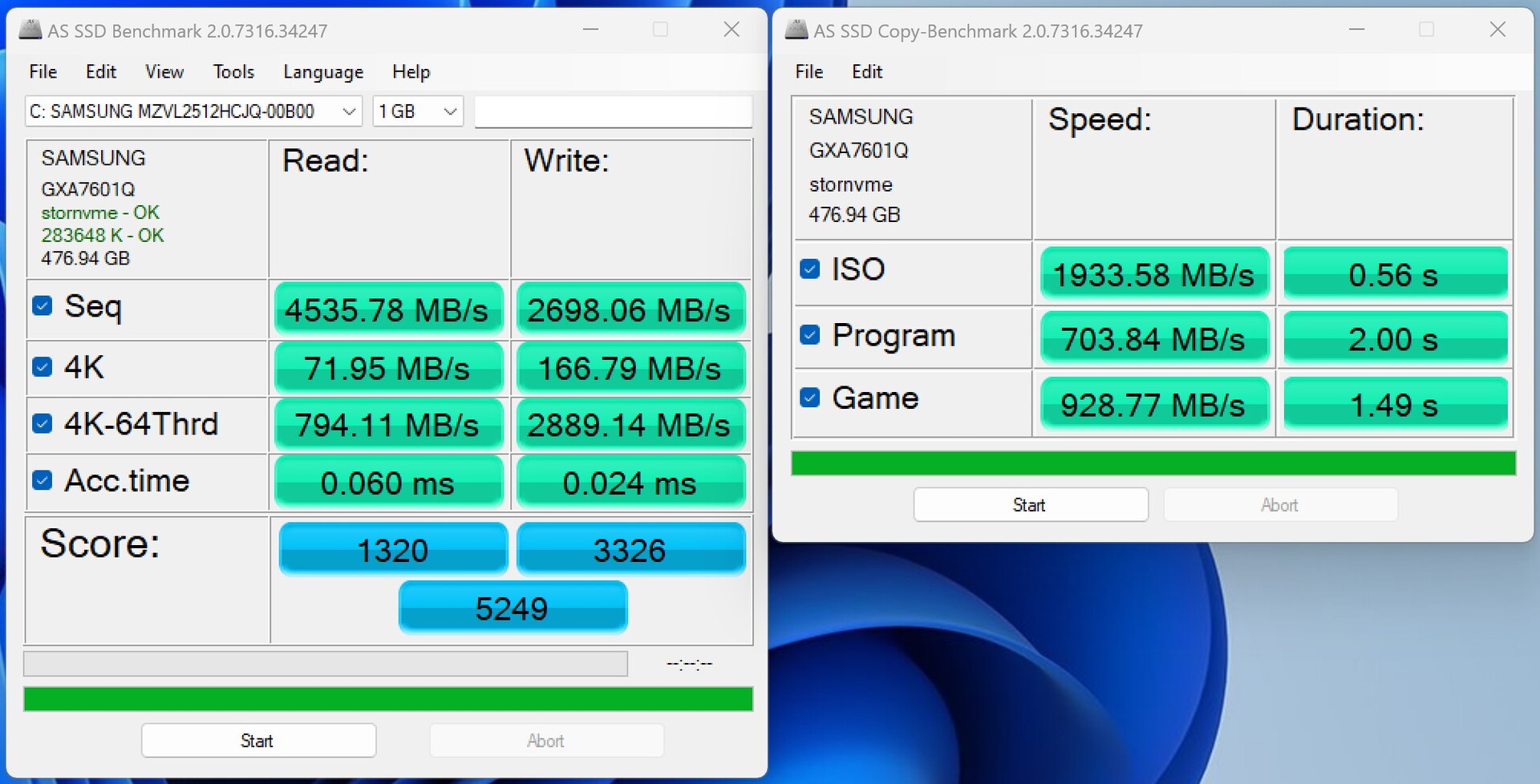

AS SSD

DiskSpd

Samsung PM9A1 MZVL2512HCJQ

Sequential Read: 3944 MB/s

Sequential Write: 3270 MB/s

512K Read: 2579 MB/s

512K Write: 1193 MB/s

4K Read: 54.85 MB/s

4K Write: 143.9 MB/s

4K QD32 Read: 423.5 MB/s

4K QD32 Write: 401.3 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	82.4 pt
Khadas Mind WD PC SN740 SDDPTQD-1T00	80.3 pt
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	68.5 pt
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	66.3 pt
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	65.2 pt
Average of class Mini PC	51.7 pt
Geekom Mini IT12 Kingston OM8SEP4512N-A0	38.4 pt
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	33.4 pt
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	19.4 pt

DiskSpd
seq read
Khadas Mind WD PC SN740 SDDPTQD-1T00	3628 (3596.13^min - 3627.65^max) MB/s +9%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	3375 (3310.44^min - 3375.33^max) MB/s +1%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	3337 (3301.03^min - 3337.16^max) MB/s
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	2815 (2802.79^min - 2814.97^max) MB/s -16%
Average of class Mini PC (233 - 4357, n=119, last 2 years)	2288 MB/s -31%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	1790 (1744.2^min - 1789.7^max) MB/s -46%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1451 (1441.37^min - 1451.23^max) MB/s -57%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	1414 (1406.14^min - 1414.43^max) MB/s -58%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	1176 (1169.13^min - 1175.87^max) MB/s -65%
seq write
Khadas Mind WD PC SN740 SDDPTQD-1T00	4121 (3696.6^min - 4120.84^max) MB/s +23%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	3402 (3372.67^min - 3402.21^max) MB/s +1%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	3360 (1416.73^min - 3360.47^max) MB/s 0%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	3356 (3181.73^min - 3356.49^max) MB/s
Average of class Mini PC (222 - 5595, n=119, last 2 years)	2448 MB/s -27%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	1530 (603.77^min - 1530.08^max) MB/s -54%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1203 (1169.58^min - 1202.51^max) MB/s -64%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	984 (154.77^min - 984.48^max) MB/s -71%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	259 (255.55^min - 258.69^max) MB/s -92%
seq q8 t1 read
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	6729 (6134.8^min - 6728.5^max) MB/s +24%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	5438 (4937.74^min - 5438.31^max) MB/s
Khadas Mind WD PC SN740 SDDPTQD-1T00	5168 (4831.21^min - 5167.59^max) MB/s -5%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	4801 (4506.78^min - 4800.59^max) MB/s -12%
Average of class Mini PC (236 - 8430, n=119, last 2 years)	3706 MB/s -32%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	2273 (1501.91^min - 2273.31^max) MB/s -58%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	1987 (1409.4^min - 1987.27^max) MB/s -63%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	1976 (1110.86^min - 1975.52^max) MB/s -64%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1694 (1415.05^min - 1693.87^max) MB/s -69%
seq q8 t1 write
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	4955 (4929.56^min - 4955.41^max) MB/s
Khadas Mind WD PC SN740 SDDPTQD-1T00	4212 (3767.95^min - 4212.34^max) MB/s -15%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	3402 (3374.28^min - 3401.67^max) MB/s -31%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	2830 (1138.15^min - 2830.32^max) MB/s -43%
Average of class Mini PC (228 - 6669, n=119, last 2 years)	2743 MB/s -45%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	1758 (161.06^min - 1758.04^max) MB/s -65%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1213 (1155.74^min - 1212.78^max) MB/s -76%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	1084 (553.02^min - 1084.16^max) MB/s -78%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	271 (261.51^min - 270.62^max) MB/s -95%
4k q1 t1 read
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	84.5 (83.02^min - 84.54^max) MB/s
Khadas Mind WD PC SN740 SDDPTQD-1T00	83.7 (81.47^min - 83.67^max) MB/s -1%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	82.1 (81.4^min - 82.09^max) MB/s -3%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	63 (57.2^min - 63.02^max) MB/s -25%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	55.6 (54.87^min - 55.6^max) MB/s -34%
Average of class Mini PC (5.67 - 86.6, n=119, last 2 years)	54.7 MB/s -35%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	51.8 (51.62^min - 51.84^max) MB/s -39%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	48.5 (48.27^min - 48.47^max) MB/s -43%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	27.7 (27.3^min - 27.66^max) MB/s -67%
4k q1 t1 write
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	425 (415.92^min - 425.01^max) MB/s +194%
Khadas Mind WD PC SN740 SDDPTQD-1T00	301 (296.91^min - 301.44^max) MB/s +108%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	276 (193.9^min - 275.81^max) MB/s +91%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	220 (212.2^min - 220.15^max) MB/s +52%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	199.5 (150.75^min - 199.48^max) MB/s +38%
Average of class Mini PC (30.4 - 435, n=119, last 2 years)	194.7 MB/s +35%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	177.7 (176.17^min - 177.7^max) MB/s +23%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	144.6 (143.6^min - 144.57^max) MB/s
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	88 (84.11^min - 87.99^max) MB/s -39%
4k q32 t16 read
Khadas Mind WD PC SN740 SDDPTQD-1T00	2300 (2238.78^min - 2299.5^max) MB/s +185%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	1944 (1936.89^min - 1943.53^max) MB/s +141%
Average of class Mini PC (26.1 - 4158, n=119, last 2 years)	1360 MB/s +68%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	1225 (1194.7^min - 1224.8^max) MB/s +52%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	808 (792.58^min - 807.51^max) MB/s
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	740 (734.91^min - 739.88^max) MB/s -8%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	420 (418.45^min - 419.54^max) MB/s -48%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	354 (11.43^min - 353.56^max) MB/s -56%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	350 (213.46^min - 349.65^max) MB/s -57%
4k q32 t16 write
Khadas Mind WD PC SN740 SDDPTQD-1T00	2441 (2189.1^min - 2441.28^max) MB/s +438%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	2396 (2376.28^min - 2396.46^max) MB/s +428%
Average of class Mini PC (30.2 - 4288, n=119, last 2 years)	1287 MB/s +183%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	942 (402.72^min - 941.71^max) MB/s +107%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	893 (601.78^min - 892.97^max) MB/s +97%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	626 (605.6^min - 625.63^max) MB/s +38%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	561 (408.83^min - 561.15^max) MB/s +24%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	454 (443.2^min - 453.53^max) MB/s
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	210 (203.49^min - 210.22^max) MB/s -54%

AS SSD
Score Total
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	9030 Points +72%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	7134 Points +36%
Khadas Mind WD PC SN740 SDDPTQD-1T00	6460 Points +23%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	6005 Points +14%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	5249 Points
Average of class Mini PC (181.5 - 10021, n=117, last 2 years)	4121 Points -21%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	2491 Points -53%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	1602 Points -69%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	1340 Points -74%
Score Read
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	3635 Points +175%
Khadas Mind WD PC SN740 SDDPTQD-1T00	2658 Points +101%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	2391 Points +81%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	1673 Points +27%
Average of class Mini PC (61 - 3741, n=117, last 2 years)	1534 Points +16%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	1320 Points
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	910 Points -31%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	725 Points -45%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	655 Points -50%
Score Write
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	3615 Points +9%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	3574 Points +7%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	3538 Points +6%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	3326 Points
Khadas Mind WD PC SN740 SDDPTQD-1T00	2447 Points -26%
Average of class Mini PC (88 - 4371, n=117, last 2 years)	1851 Points -44%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1457 Points -56%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	406 Points -88%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	325 Points -90%
Seq Read
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	5338 MB/s +18%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	4767 MB/s +5%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	4536 MB/s
Khadas Mind WD PC SN740 SDDPTQD-1T00	4496 MB/s -1%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	4147 MB/s -9%
Average of class Mini PC (291 - 6620, n=117, last 2 years)	3161 MB/s -30%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	2789 MB/s -39%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	2723 MB/s -40%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	2302 MB/s -49%
Seq Write
Khadas Mind WD PC SN740 SDDPTQD-1T00	4258 MB/s +58%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	3927 MB/s +46%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	3292 MB/s +22%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	2698 MB/s
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	2442 MB/s -9%
Average of class Mini PC (240 - 5783, n=117, last 2 years)	2212 MB/s -18%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	1405 MB/s -48%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1232 MB/s -54%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	277 MB/s -90%
4K Read
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	103.66 MB/s +44%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	78.3 MB/s +9%
Khadas Mind WD PC SN740 SDDPTQD-1T00	76.3 MB/s +6%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	72 MB/s
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	66.6 MB/s -7%
Average of class Mini PC (6.08 - 104.3, n=117, last 2 years)	58.9 MB/s -18%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	48.9 MB/s -32%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	34.41 MB/s -52%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	27 MB/s -62%
4K Write
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	365.87 MB/s +119%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	273 MB/s +64%
Khadas Mind WD PC SN740 SDDPTQD-1T00	258 MB/s +55%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	209 MB/s +25%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	209 MB/s +25%
Average of class Mini PC (30.9 - 366, n=117, last 2 years)	175.1 MB/s +5%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	166.8 MB/s
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	150.4 MB/s -10%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	100.35 MB/s -40%
4K-64 Read
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	3035 MB/s +282%
Khadas Mind WD PC SN740 SDDPTQD-1T00	2132 MB/s +169%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	1872.82 MB/s +136%
Average of class Mini PC (23.4 - 3220, n=117, last 2 years)	1159 MB/s +46%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	1118 MB/s +41%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	794 MB/s
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	653 MB/s -18%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	397 MB/s -50%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	348.68 MB/s -56%
4K-64 Write
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	3120 MB/s +8%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	3013 MB/s +4%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	2889 MB/s
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	2842.9 MB/s -2%
Khadas Mind WD PC SN740 SDDPTQD-1T00	1763 MB/s -39%
Average of class Mini PC (32.8 - 3731, n=117, last 2 years)	1455 MB/s -50%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1060 MB/s -63%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	164.61 MB/s -94%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	146.7 MB/s -95%
Access Time Read
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	0.141 ms * -135%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	0.098 ms * -63%
Average of class Mini PC (0.022 - 0.489, n=117, last 2 years)	0.09726 ms * -62%
Khadas Mind WD PC SN740 SDDPTQD-1T00	0.094 ms * -57%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	0.084 ms * -40%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	0.074 ms * -23%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	0.066 ms * -10%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	0.06 ms *
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	0.045 ms * +25%
Access Time Write
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	0.263 ms * -996%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	0.118 ms * -392%
Average of class Mini PC (0.014 - 0.765, n=117, last 2 years)	0.1153 ms * -380%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	0.035 ms * -46%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	0.031 ms * -29%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	0.024 ms *
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	0.02 ms * +17%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	0.018 ms * +25%
Khadas Mind WD PC SN740 SDDPTQD-1T00	0.016 ms * +33%

* ... smaller is better

Reading continuous performance: DiskSpd Read Loop, Queue Depth 8

Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ: Ø5462 (4797.39-5479.86)

Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0: Ø3302 (1830.49-4799.45)

Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G: Ø1770 (1505.89-1954.62)

Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G: Ø1820 (713.49-2039.48)

Geekom Mini IT12 Kingston OM8SEP4512N-A0: Ø2178 (1555.46-2595.65)

Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ: Ø6536 (5743.42-6561.78)

Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S: Ø2242 (1995.64-2278.98)

Khadas Mind WD PC SN740 SDDPTQD-1T00: Ø5222 (4952.01-5235.75)

图形卡

一个英特尔 Iris Xe 图形 G7作为设备的集成显卡。它作为英特尔酷睿 i7-1360P系统芯片的一部分。与英特尔 NUC 13 Pro 套件，两款 iGPU 的功率输出水平完全相同。不过，英特尔 NUC 13 Pro Desk Edition 套件还是略胜一筹。遗憾的是，英特尔仍然无法赶上 AMD 当前的 iGPU。根据不同的应用场景，英特尔AMD Radeon 680M性能要高出约 30% 至 60%。

更多比较和基准测试请参见我们的G PU 对比表.

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	99.9 pt
Geekom AS 6, R9 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	96.1 pt
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	75.4 pt
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	73.9 pt
Khadas Mind Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	71.5 pt
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	71.1 pt
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	64.9 pt
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	64.2 pt

3DMark 11 - 1280x720 Performance GPU
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	11055 Points +51%
Geekom AS 6, R9 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	10399 Points +42%
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	7321 Points
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	7143 Points -2%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	7057 Points -4%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	6840 Points -7%
Khadas Mind Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	6722 Points -8%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	6599 Points -10%

3DMark
1280x720 Cloud Gate Standard Graphics
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	41124 Points +27%
Geekom AS 6, R9 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	39814 Points +23%
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	32427 Points
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	30434 Points -6%
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	27511 Points -15%
Khadas Mind Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	25496 Points -21%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	22570 Points -30%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	21114 Points -35%
1920x1080 Fire Strike Graphics
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	6644 Points +18%
Geekom AS 6, R9 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	6501 Points +16%
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	5616 Points
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	5526 Points -2%
Khadas Mind Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	5461 Points -3%
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	5229 Points -7%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	4883 Points -13%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	4860 Points -13%
2560x1440 Time Spy Graphics
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	2408 Points +44%
Geekom AS 6, R9 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	2210 Points +32%
Khadas Mind Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	1680 Points 0%
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	1673 Points 0%
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	1672 Points
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	1658 Points -1%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	1630 Points -3%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	1528 Points -9%
Fire Strike Extreme Graphics
Geekom AS 6, R9 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	3088 Points +28%
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	3066 Points +27%
Khadas Mind Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	2560 Points +6%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	2455 Points +2%
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	2415 Points
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	2340 Points -3%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	2161 Points -11%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	2150 Points -11%

Performance Rating | Unigine Superposition | Unigine Valley 1.0 | Unigine Heaven 4.0 | ComputeMark v2.1

Performance Rating - Percent
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	98.5 pt
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	98.2 pt
Khadas Mind Iris Xe G7 96EUs, i7-1360P, WD PC SN740 SDDPTQD-1T00	73.7 pt
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	67.5 pt
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	67.5 pt
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	62.7 pt
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	60.9 pt

Unigine Superposition
1280x720 720p Low
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	10118 Points +58%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	9915 Points +55%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	6384 Points
Khadas Mind Iris Xe G7 96EUs, i7-1360P, WD PC SN740 SDDPTQD-1T00	6265 Points -2%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	5662 Points -11%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	5141 Points -19%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	4088 Points -36%
1920x1080 1080p High
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	3014 Points +40%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	2916 Points +36%
Khadas Mind Iris Xe G7 96EUs, i7-1360P, WD PC SN740 SDDPTQD-1T00	2279 Points +6%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	2146 Points
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	2095 Points -2%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	2062 Points -4%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	1923 Points -10%
1920x1080 1080p Extreme
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	1394 Points +26%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	1358 Points +23%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1108 Points
Khadas Mind Iris Xe G7 96EUs, i7-1360P, WD PC SN740 SDDPTQD-1T00	1101 Points -1%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	1076 Points -3%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1069 Points -4%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	992 Points -10%

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	21 fps +40%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	21 fps +40%
Khadas Mind Iris Xe G7 96EUs, i7-1360P, WD PC SN740 SDDPTQD-1T00	17.2 fps +15%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	15.1 fps +1%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	15 fps
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	14.3 fps -5%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	13.2 fps -12%
1920x1080 Extreme HD Preset OpenGL AA:x8
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	22.9 fps +48%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	22.8 fps +47%
Khadas Mind Iris Xe G7 96EUs, i7-1360P, WD PC SN740 SDDPTQD-1T00	20.4 fps +32%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	17.7 fps +14%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	16.1 fps +4%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	15.5 fps
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	15.2 fps -2%

Unigine Heaven 4.0
Extreme Preset OpenGL
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	34.2 fps +44%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	33.6 fps +41%
Khadas Mind Iris Xe G7 96EUs, i7-1360P, WD PC SN740 SDDPTQD-1T00	25.2 fps +6%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	23.8 fps
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	23.6 fps -1%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	23.3 fps -2%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	21 fps -12%
Extreme Preset DX11
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	32.2 fps +31%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	32 fps +31%
Khadas Mind Iris Xe G7 96EUs, i7-1360P, WD PC SN740 SDDPTQD-1T00	25.6 fps +4%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	24.5 fps 0%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	24.5 fps
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	24 fps -2%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	21.7 fps -11%

ComputeMark v2.1
1024x600 Normal, Score
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	5813 Points +62%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	5602 Points +56%
Khadas Mind Iris Xe G7 96EUs, i7-1360P, WD PC SN740 SDDPTQD-1T00	3605 Points 0%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	3603 Points 0%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	3590 Points
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	3390 Points -6%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	3308 Points -8%
1024x600 Normal, Fluid 3DTex
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	393 Points +43%
Khadas Mind Iris Xe G7 96EUs, i7-1360P, WD PC SN740 SDDPTQD-1T00	385 Points +40%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	371 Points +35%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	284 Points +3%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	275 Points
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	237 Points -14%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	234 Points -15%
1024x600 Normal, Fluid 2DTexArr
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	400 Points +43%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	367 Points +32%
Khadas Mind Iris Xe G7 96EUs, i7-1360P, WD PC SN740 SDDPTQD-1T00	354 Points +27%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	279 Points
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	277 Points -1%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	249 Points -11%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	237 Points -15%
1024x600 Normal, Mandel Vector
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	1677 Points +93%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	1582 Points +82%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	911 Points +5%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	869 Points
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	851 Points -2%
Khadas Mind Iris Xe G7 96EUs, i7-1360P, WD PC SN740 SDDPTQD-1T00	830 Points -4%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	827 Points -5%
1024x600 Normal, Mandel Scalar
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	1473 Points +66%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	1451 Points +63%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	888 Points
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	865 Points -3%
Khadas Mind Iris Xe G7 96EUs, i7-1360P, WD PC SN740 SDDPTQD-1T00	864 Points -3%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	862 Points -3%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	834 Points -6%
1024x600 Normal, QJuliaRayTrace
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	1924 Points +54%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	1776 Points +42%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1268 Points +1%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1253 Points
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	1191 Points -5%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	1174 Points -6%
Khadas Mind Iris Xe G7 96EUs, i7-1360P, WD PC SN740 SDDPTQD-1T00	1174 Points -6%

3DMark 06 Standard Score		34030 points
3DMark Vantage P Result		28462 points
3DMark 11 Performance		7957 points
3DMark Ice Storm Standard Score		133288 points
3DMark Cloud Gate Standard Score		27068 points
3DMark Fire Strike Score		5172 points
3DMark Fire Strike Extreme Score		2407 points
3DMark Time Spy Score		1903 points
Help

... in comparison

游戏性能

该 PC 的 iGPU 并非用作游戏解决方案。英特尔 NUC 13 Pro 桌面版套件的实测性能略高于英特尔 NUC 13 Pro 套件略好，但比 Morefine M600 差很多。如果你正在寻找主打游戏的产品，那么你最好去看看配备专用显卡的迷你 PC。例如微型论坛 HX99G.英特尔 NUC 12 Serpent Canyon的英特尔 Arc A770M也具有良好的游戏性能。

The Witcher 3
1024x768 Low Graphics & Postprocessing
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	113.9 fps +12%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	107.7 fps +6%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	102 fps
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	101.7 fps 0%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	97.2 fps -5%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	88.1 (3.39^min, 21.4^P0.1, 52.9^P1) fps -14%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	86.9 fps -15%
Khadas Mind Iris Xe G7 96EUs, i7-1360P, WD PC SN740 SDDPTQD-1T00	85.9 fps -16%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	39.4 fps +18%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	39.3 fps +17%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	33.5 fps
Khadas Mind Iris Xe G7 96EUs, i7-1360P, WD PC SN740 SDDPTQD-1T00	32.3 fps -4%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	32 fps -4%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	31.1 fps -7%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	28.9 fps -14%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	15.2 (8.49^min, 8.73^P0.1, 9.27^P1) fps -55%

Borderlands 3
1280x720 Very Low Overall Quality (DX11)
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	90.7 fps +66%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	66.4 fps +22%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	59.1 fps +8%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	55.5 fps +2%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	54.5 fps
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	52.4 fps -4%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	51.8 fps -5%
Khadas Mind Iris Xe G7 96EUs, i7-1360P, WD PC SN740 SDDPTQD-1T00	50.7 fps -7%
1920x1080 High Overall Quality (DX11)
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	26.2 fps +63%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	24.1 fps +50%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	16.2 fps +1%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	16.2 fps +1%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	16.1 fps
Khadas Mind Iris Xe G7 96EUs, i7-1360P, WD PC SN740 SDDPTQD-1T00	15.3 fps -5%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	15 fps -7%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	14.8 fps -8%

GTA V
1024x768 Lowest Settings possible
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	152.1 (2.73^min, 100^P1) fps +22%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	135.3 (26.7^min, 90.9^P1) fps +9%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	126.2 (50.6^min, 76.9^P1) fps +1%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	125.5 (11.9^min, 83.3^P1) fps +1%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	124.5 (12.7^min, 76.9^P1) fps
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	119.3 (25.1^min, 76.9^P1) fps -4%
Khadas Mind Iris Xe G7 96EUs, i7-1360P, WD PC SN740 SDDPTQD-1T00	112.7 (9.9^min, 71.4^P1) fps -9%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	108.6 (21.4^min, 71.4^P1) fps -13%
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	53.5 (3.46^min, 38.5^P1) fps +156%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	49.2 (13.3^min, 33.3^P1) fps +135%
Khadas Mind Iris Xe G7 96EUs, i7-1360P, WD PC SN740 SDDPTQD-1T00	23.6 (10.9^min, 18.2^P1) fps +13%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	21 (8.15^min, 16.1^P1) fps 0%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	20.9 (10.5^min, 16.7^P1) fps
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	20.7 (9.05^min, 15.9^P1) fps -1%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	19.4 (8.25^min, 15.2^P1) fps -7%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	18.6 (8^min, 14.3^P1) fps -11%

Far Cry 5
1280x720 Low Preset AA:T
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	75 (60^min) fps +67%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	68 (58^min) fps +51%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	57 (49^min) fps +27%
Khadas Mind Iris Xe G7 96EUs, i7-1360P, WD PC SN740 SDDPTQD-1T00	54 (44^min) fps +20%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	52 (45^min) fps +16%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	50 (41^min) fps +11%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	46 (37^min) fps +2%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	45 (40^min) fps
1920x1080 High Preset AA:T
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	38 (32^min) fps +41%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	34 (30^min) fps +26%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	27 (24^min) fps 0%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	27 (25^min) fps
Khadas Mind Iris Xe G7 96EUs, i7-1360P, WD PC SN740 SDDPTQD-1T00	26 (23^min) fps -4%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	25 (23^min) fps -7%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	25 (22^min) fps -7%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	25 (22^min) fps -7%

Far Cry New Dawn
1280x720 Low Preset
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	66 (50^min) fps +27%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	58 (46^min) fps +12%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	52 (31^min) fps 0%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	52 (34^min) fps 0%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	52 (36^min) fps
Khadas Mind Iris Xe G7 96EUs, i7-1360P, WD PC SN740 SDDPTQD-1T00	49 (32^min) fps -6%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	47 (30^min) fps -10%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	46 (28^min) fps -12%
1920x1080 High Preset
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	37 (29^min) fps +32%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	36 (29^min) fps +29%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	28 (21^min) fps 0%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	28 (22^min) fps 0%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	28 (21^min) fps
Khadas Mind Iris Xe G7 96EUs, i7-1360P, WD PC SN740 SDDPTQD-1T00	27 (20^min) fps -4%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	26 (19^min) fps -7%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	25 (19^min) fps -11%

Dota 2 Reborn
1280x720 min (0/3) fastest
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	136.9 (106.8^min) fps +20%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	133.4 (119^min) fps +17%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	123.8 (98^min) fps +9%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	116.4 (93.7^min) fps +2%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	113.8 (8.3^min) fps
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	110.5 (93.1^min) fps -3%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	108.1 (86.6^min) fps -5%
Khadas Mind Iris Xe G7 96EUs, i7-1360P, WD PC SN740 SDDPTQD-1T00	104.2 (79.7^min) fps -8%
1920x1080 high (2/3)
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	82.2 (71.4^min) fps +22%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	69.6 (59.3^min) fps +3%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	68 (62.7^min) fps +1%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	67.6 (59.9^min) fps 0%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	67.6 (58.9^min) fps
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	63.1 (57.2^min) fps -7%
Khadas Mind Iris Xe G7 96EUs, i7-1360P, WD PC SN740 SDDPTQD-1T00	61.7 (51.7^min) fps -9%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	60.9 (55.7^min) fps -10%

	low	med.	high	ultra
GTA V (2015)	124.5	101.9	20.9	8.8
The Witcher 3 (2015)	102		33.5	16.9
Dota 2 Reborn (2015)	113.8	86.4	67.6	60.5
Final Fantasy XV Benchmark (2018)	45.6	24.3	17.4
X-Plane 11.11 (2018)	54.6	41	35.4
Far Cry 5 (2018)	45	29	27	26
Strange Brigade (2018)	99	39.4	32	26.1
Shadow of the Tomb Raider (2018)	45.5	24.8	23.4	20
Far Cry New Dawn (2019)	52	30	28	26
Metro Exodus (2019)	45.5	32.2	21.9	15.5
Borderlands 3 (2019)	54.5	25.2	16.1	12.3
God of War (2022)	21.4	18.2	14.7	10.6
Tiny Tina's Wonderlands (2022)	32.3	25.4	15.9	13.5
F1 22 (2022)	47.6	43.4	31.7	24
F1 23 (2023)	44	39.7	27.5	20.5

通过配备 NvidiaGeForce RTX 3060 Ti 的 eGPU 底座提升 3D 性能

由于英特尔 NUC 13 Pro 桌面版套件配备了 Thunderbolt 端口，我们现在可以借助 Razer Core X 和英伟达GeForce RTX 3060 Ti.在实际使用中，这一组合配合默契。虽然，竞争对手在这项测试中的表现并不出色。即便如此，在游戏测试中你还是可以看出，当涉及到英特尔 SoC 时，这种组合似乎能产生更好的效果。游戏Minisforum UM790 Pro,Minisforum UM690和 M600都只能落在后面。

请注意

由于 Thunderbolt 接口的带宽限制，您不能期望看到外置显卡的全部性能。在传统 PC 中，显卡可以通过全部 16 个 PCIe 通道进行通信，性能水平会更高。不过，这项测试表明，借助该附件，你可以快速、轻松地显著提高 3D 性能。

配备 Razer Core X 和 NvidiaGeForce RTX 3060 Ti 的英特尔 NUC 13 Pro 桌面版套件

Performance Rating - Percent
Minisforum Venus Series NPB5 (Nvidia GeForce RTX 3060 Ti FE) Intel Core i5-13500H	99.2 pt
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	99.1 pt
Intel NUC 13 Pro Desk Edition Kit (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	98.9 pt
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	96.9 pt
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	96.7 pt
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	96.5 pt

3DMark 11 - 1280x720 Performance GPU
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	33577 Points +359%
Intel NUC 13 Pro Desk Edition Kit (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	33229 Points +354%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	33147 Points +353%
Minisforum Venus Series NPB5 (Nvidia GeForce RTX 3060 Ti FE) Intel Core i5-13500H	33095 Points +352%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	32915 Points +350%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	32726 Points +347%
	7321 Points

3DMark
2560x1440 Time Spy Graphics
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	11031 Points +560%
Intel NUC 13 Pro Desk Edition Kit (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	11014 Points +559%
Minisforum Venus Series NPB5 (Nvidia GeForce RTX 3060 Ti FE) Intel Core i5-13500H	10891 Points +551%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	10777 Points +545%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	10764 Points +544%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	10717 Points +541%
	1672 Points
1920x1080 Fire Strike Graphics
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	25669 Points +357%
Intel NUC 13 Pro Desk Edition Kit (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	25468 Points +353%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	24905 Points +343%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	24452 Points +335%
Minisforum Venus Series NPB5 (Nvidia GeForce RTX 3060 Ti FE) Intel Core i5-13500H	24396 Points +334%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	24360 Points +334%
	5616 Points
3840x2160 Fire Strike Ultra Graphics
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	7076 Points +489%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	7036 Points +485%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	6996 Points +482%
Intel NUC 13 Pro Desk Edition Kit (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	6993 Points +482%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	6967 Points +480%
Minisforum Venus Series NPB5 (Nvidia GeForce RTX 3060 Ti FE) Intel Core i5-13500H	6875 Points +472%
	1202 Points

Unigine Superposition
1280x720 720p Low
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	33051 Points +418%
Minisforum Venus Series NPB5 (Nvidia GeForce RTX 3060 Ti FE) Intel Core i5-13500H	32114 Points +403%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	31403 Points +392%
Intel NUC 13 Pro Desk Edition Kit (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	30568 Points +379%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	28235 Points +342%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	27313 Points +328%
	6384 Points
1920x1080 1080p High
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	15114 Points +604%
Intel NUC 13 Pro Desk Edition Kit (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	15105 Points +604%
Minisforum Venus Series NPB5 (Nvidia GeForce RTX 3060 Ti FE) Intel Core i5-13500H	15073 Points +602%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	14751 Points +587%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	14698 Points +585%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	14362 Points +569%
	2146 Points
1920x1080 1080p Extreme
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	7129 Points +543%
Intel NUC 13 Pro Desk Edition Kit (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	7129 Points +543%
Minisforum Venus Series NPB5 (Nvidia GeForce RTX 3060 Ti FE) Intel Core i5-13500H	7115 Points +542%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	7036 Points +535%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	7035 Points +535%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	6894 Points +522%
	1108 Points
3840x2160 4k Optimized
Minisforum Venus Series NPB5 (Nvidia GeForce RTX 3060 Ti FE) Intel Core i5-13500H	9368 Points
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	9308 Points
Intel NUC 13 Pro Desk Edition Kit (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	9282 Points
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	9193 Points
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	9152 Points
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	8782 Points
7680x4320 8k Optimized
Minisforum Venus Series NPB5 (Nvidia GeForce RTX 3060 Ti FE) Intel Core i5-13500H	4054 Points
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	4050 Points
Intel NUC 13 Pro Desk Edition Kit (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	4041 Points
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	4036 Points
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	3989 Points
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	3910 Points

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Minisforum Venus Series NPB5 (Nvidia GeForce RTX 3060 Ti FE) Intel Core i5-13500H	144.1 fps +861%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	143.1 fps +854%
Intel NUC 13 Pro Desk Edition Kit (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	142.2 fps +848%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	134.2 fps +795%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	133 fps +787%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	131.7 fps +778%
	15 fps
1920x1080 Extreme HD Preset OpenGL AA:x8
Intel NUC 13 Pro Desk Edition Kit (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	127.6 fps +723%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	125.8 fps +712%
Minisforum Venus Series NPB5 (Nvidia GeForce RTX 3060 Ti FE) Intel Core i5-13500H	124.7 fps +705%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	122.7 fps +692%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	122.2 fps +688%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	119.2 fps +669%
	15.5 fps

Unigine Heaven 4.0
Extreme Preset OpenGL
Minisforum Venus Series NPB5 (Nvidia GeForce RTX 3060 Ti FE) Intel Core i5-13500H	170.6 fps +617%
Intel NUC 13 Pro Desk Edition Kit (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	169.7 fps +613%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	169.6 fps +613%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	167.3 fps +603%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	167.3 fps +603%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	160.7 fps +575%
	23.8 fps
Extreme Preset DX11
Minisforum Venus Series NPB5 (Nvidia GeForce RTX 3060 Ti FE) Intel Core i5-13500H	165.1 fps +574%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	164.8 fps +573%
Intel NUC 13 Pro Desk Edition Kit (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	163 fps +565%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	154.5 fps +531%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	154.3 fps +530%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	147.7 fps +503%
	24.5 fps

ComputeMark v2.1
1024x600 Normal, Score
Minisforum Venus Series NPB5 (Nvidia GeForce RTX 3060 Ti FE) Intel Core i5-13500H	28209 Points +686%
Intel NUC 13 Pro Desk Edition Kit (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	27970 Points +679%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	27847 Points +676%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	27842 Points +676%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	27811 Points +675%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	27740 Points +673%
	3590 Points
1024x600 Normal, Fluid 3DTex
Minisforum Venus Series NPB5 (Nvidia GeForce RTX 3060 Ti FE) Intel Core i5-13500H	2712 Points +886%
Intel NUC 13 Pro Desk Edition Kit (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	2697 Points +881%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	2691 Points +879%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	2689 Points +878%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	2681 Points +875%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	2679 Points +874%
	275 Points
1024x600 Normal, Fluid 2DTexArr
Minisforum Venus Series NPB5 (Nvidia GeForce RTX 3060 Ti FE) Intel Core i5-13500H	2647 Points +849%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	2622 Points +840%
Intel NUC 13 Pro Desk Edition Kit (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	2622 Points +840%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	2619 Points +839%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	2619 Points +839%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	2614 Points +837%
	279 Points
1024x600 Normal, Mandel Vector
Minisforum Venus Series NPB5 (Nvidia GeForce RTX 3060 Ti FE) Intel Core i5-13500H	5817 Points +569%
Intel NUC 13 Pro Desk Edition Kit (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	5738 Points +560%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	5726 Points +559%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	5694 Points +555%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	5689 Points +555%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	5655 Points +551%
	869 Points
1024x600 Normal, Mandel Scalar
Minisforum Venus Series NPB5 (Nvidia GeForce RTX 3060 Ti FE) Intel Core i5-13500H	6392 Points +620%
Intel NUC 13 Pro Desk Edition Kit (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	6321 Points +612%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	6306 Points +610%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	6275 Points +607%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	6253 Points +604%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	6251 Points +604%
	888 Points
1024x600 Normal, QJuliaRayTrace
Minisforum Venus Series NPB5 (Nvidia GeForce RTX 3060 Ti FE) Intel Core i5-13500H	10642 Points +749%
Intel NUC 13 Pro Desk Edition Kit (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	10592 Points +745%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	10555 Points +742%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	10548 Points +742%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	10539 Points +741%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	10536 Points +741%
	1253 Points

Performance Rating - Percent
Minisforum Venus Series NPB5 (Nvidia GeForce RTX 3060 Ti FE) Intel Core i5-13500H	100 pt
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	93.2 pt
Intel NUC 13 Pro Desk Edition Kit (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	91.5 pt
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	86.9 pt
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	82.3 pt
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	80.8 pt

GTA V - 1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x
Minisforum Venus Series NPB5 (Nvidia GeForce RTX 3060 Ti FE) Intel Core i5-13500H	111.9 (15.9^min, 71.4^P1 - 206^max) fps +1172%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	100.6 (9.76^min, 66.7^P1 - 197.6^max) fps +1043%
Intel NUC 13 Pro Desk Edition Kit (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	96.2 (18^min, 62.5^P1 - 182.6^max) fps +993%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	90.5 (15.8^min, 62.5^P1 - 187.2^max) fps +928%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	89.5 (16.6^min, 58.8^P1 - 175.8^max) fps +917%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	88.7 (13.3^min, 22.2^P1 - 196.2^max) fps +908%
	8.8 (4.66^min, 7.35^P1 - 30.8^max) fps

The Witcher 3 - 1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Minisforum Venus Series NPB5 (Nvidia GeForce RTX 3060 Ti FE) Intel Core i5-13500H	75.4 fps +346%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	74.8 fps +343%
Intel NUC 13 Pro Desk Edition Kit (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	74.6 fps +341%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	58.4 fps +246%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	57.9 fps +243%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	56.3 fps +233%
	16.9 fps

Dota 2 Reborn - 1920x1080 ultra (3/3) best looking
Minisforum Venus Series NPB5 (Nvidia GeForce RTX 3060 Ti FE) Intel Core i5-13500H	143.3 (121^min) fps +137%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	128.3 (106.8^min) fps +112%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	127.5 (110.1^min) fps +111%
Intel NUC 13 Pro Desk Edition Kit (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	121.7 (105.5^min) fps +101%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	113.3 (94.8^min) fps +87%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	111.7 (92.8^min) fps +85%
	60.5 (52.3^min) fps

Final Fantasy XV Benchmark - 1920x1080 High Quality
Minisforum Venus Series NPB5 (Nvidia GeForce RTX 3060 Ti FE) Intel Core i5-13500H	99.8 fps +474%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	98.5 fps +466%
Intel NUC 13 Pro Desk Edition Kit (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	96.9 fps +457%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	93.5 fps +437%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	92.2 fps +430%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	91.5 fps +426%
	17.4 fps

Strange Brigade - 1920x1080 ultra AA:ultra AF:16
Minisforum Venus Series NPB5 (Nvidia GeForce RTX 3060 Ti FE) Intel Core i5-13500H	159.2 (21.7^min, 103.6^P1 - 296^max) fps +510%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	150 (76.6^min, 93.3^P1 - 295^max) fps +475%
Intel NUC 13 Pro Desk Edition Kit (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	149.1 (62.7^min, 89^P1 - 302^max) fps +471%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	138.4 (68^min, 84.1^P1 - 279^max) fps +430%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	131.1 (68.1^min, 78.3^P1 - 270^max) fps +402%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	127.4 (45.3^min, 77.9^P1 - 260^max) fps +388%
	26.1 (5.3^min, 8.13^P1 - 232^max) fps

Far Cry 5 - 1920x1080 Ultra Preset AA:T
Minisforum Venus Series NPB5 (Nvidia GeForce RTX 3060 Ti FE) Intel Core i5-13500H	130 (108^min - 164^max) fps +400%
Intel NUC 13 Pro Desk Edition Kit (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	119 (92^min - 154^max) fps +358%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	117 (88^min - 156^max) fps +350%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	116 (88^min - 153^max) fps +346%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	107 (72^min - 143^max) fps +312%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	104 (77^min - 138^max) fps +300%
	26 (23^min - 30^max) fps

Far Cry New Dawn - 1920x1080 Ultra Preset
Minisforum Venus Series NPB5 (Nvidia GeForce RTX 3060 Ti FE) Intel Core i5-13500H	112 (85^min - 152^max) fps +331%
Intel NUC 13 Pro Desk Edition Kit (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	100 (73^min - 146^max) fps +285%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	99 fps +281%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	97 (69^min - 141^max) fps +273%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	88 (63^min - 132^max) fps +238%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	87 (62^min - 135^max) fps +235%
	26 (19^min - 32^max) fps

Borderlands 3 - 1920x1080 Badass Overall Quality (DX11)
Minisforum Venus Series NPB5 (Nvidia GeForce RTX 3060 Ti FE) Intel Core i5-13500H	86 fps +599%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	82.8 fps +573%
Minisforum Venus Series UM790 Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 7940HS	79.5 fps +546%
Intel NUC 13 Pro Desk Edition Kit (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	77.8 fps +533%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	76.4 fps +521%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	69.8 fps +467%
	12.3 fps

	low	med.	high	ultra	QHD	4K DLSS	4K
GTA V (2015)	177	170.3	159.4	96.2	89.1		102.1
The Witcher 3 (2015)	296.7	207.4	153.6	74.6	62.8		71.9
Dota 2 Reborn (2015)	153.3	139.8	133.3	121.7			104.4
Final Fantasy XV Benchmark (2018)	167.6	136.7	96.9		76.4		47.6
X-Plane 11.11 (2018)	120.7	108.4	86.4				76.4
Far Cry 5 (2018)	154	133	126	119	99		58
Strange Brigade (2018)	199.7	155.8	153.4	149.1	128.9		84.7
Shadow of the Tomb Raider (2018)	137.3	95.5	93.6	85.9	72.1		49.1
Far Cry New Dawn (2019)	134	116	110	100	92		60
Metro Exodus (2019)	142.7	91.7	70.1	53.1	46.4		34
Borderlands 3 (2019)	116.7	100.8	90.5	77.8	62.7		38
Far Cry 6 (2021)	75.3	63.3	52	45.3	44.5
God of War (2022)	108.1	95.2	79.7	60.4	53.1		39.3
GRID Legends (2022)	107.6	95.2	80.3	69.3	62.9		50.3
Tiny Tina's Wonderlands (2022)	169.1	136.2	98.4	80.1	61.2		36
F1 22 (2022)	60.4	55.2	42.8	27.6	26.7		20.5
F1 23 (2023)	66.3	64.4	53.6	33.8	31.2	32.8	15

排放 - 性能良好，依然节俭

噪音排放

在噪音测试中，英特尔 NUC 13 Desk Edition 套件在空闲模式下相当安静。该设备不可能完全静音运行。在负载情况下，风扇必须频繁转动才能输送足够的空气。在平均负载下，我们注意到了几乎最高的数值，即 42 dB(A)。在压力测试中，我们测试设备的噪音为 42.1 dB(A)，几乎没有提高。

Noise Level

Idle		28.1 / 28.2 / 28.3 dB(A)
Load		42 / 42.1 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Earthworks M23R, Arta (15 cm distance) environment noise: 25.2 dB(A)

	Intel NUC 13 Pro Desk Edition Kit i7-1360P, Iris Xe G7 96EUs	Minisforum Neptune Series NAD9 i9-12900H, Iris Xe G7 96EUs	Morefine M600, 6900HX R9 6900HX, Radeon 680M	Geekom AS 6, R9 6900HX R9 6900HX, Radeon 680M	Geekom Mini IT12 i7-1260P, Iris Xe G7 96EUs	Intel NUC 13 Pro Kit NUC13ANK i7-1360P, Iris Xe G7 96EUs	Intel NUC 12 Pro Kit NUC12WSKi7 i7-1260P, Iris Xe G7 96EUs	Khadas Mind i7-1360P, Iris Xe G7 96EUs
Noise		2%	-4%	-10%	2%	-7%	-11%	-15%
off / environment *	25.2	30.2 -20%	30.4 -21%	30 -19%	29.8 -18%	29.8 -18%	30.4 -21%	25.2 -0%
Idle Minimum *	28.1	30.5 -9%	30.9 -10%	33.2 -18%	29.9 -6%	30.2 -7%	33.1 -18%	34.4 -22%
Idle Average *	28.2	30.5 -8%	31.5 -12%	33.6 -19%	30.1 -7%	31.1 -10%	33.1 -17%	34.4 -22%
Idle Maximum *	28.3	30.5 -8%	31.5 -11%	33.6 -19%	30.2 -7%	31.9 -13%	33.1 -17%	34.5 -22%
Load Average *	42	30.5 27%	37.5 11%	36.8 12%	32.1 24%	40 5%	38.1 9%	44.7 -6%
Load Maximum *	42.1	30.5 28%	34.1 19%	39.8 5%	32.5 23%	40.5 4%	43.6 -4%	50.4 -20%
Witcher 3 ultra *								49

* ... smaller is better

温度

在空闲模式下，英特尔 NUC 13 Desk Edition 套件的机箱仅有轻微发热。安装的散热器通过两侧吸入空气，并将其导出设备背面，从而冷却内存和固态硬盘等组件。

在 Prime95 的压力测试中，我们还查看了英特尔酷睿 i7-1360P 的温度。在这里，SoC 在测试开始后立即达到了 100 °C，这意味着其性能并没有额外节流。在接下来的压力测试过程中，CPU 温度平均保持在 83 ℃ 左右。

耗电量

一般来说，许多迷你 PC 在能源消耗方面都相当节俭。英特尔 NUC 13 Desk Edition 套件也不例外。在空闲模式下，我们记录的功耗仅为 7 - 11.8 瓦，大大低于 Minisforum 或 Morefine 的竞争对手。我们注意到最大功耗仅为 97.2 瓦，比英特尔 NUC 13 Pro 套件节俭得多。随机提供的电源适配器体积小巧，最大功率可达 120 瓦。我们从未发现电源超载。

Power Consumption

Off / Standby	1.1 / 2.1 Watt
Idle	7 / 9.2 / 11.8 Watt
Load	45 / 97.2 Watt


Key: min: , med: , max: Metrahit Energy

	Intel NUC 13 Pro Desk Edition Kit i7-1360P, Iris Xe G7 96EUs	Minisforum Neptune Series NAD9 i9-12900H, Iris Xe G7 96EUs	Morefine M600, 6900HX R9 6900HX, Radeon 680M	Geekom AS 6, R9 6900HX R9 6900HX, Radeon 680M	Geekom Mini IT12 i7-1260P, Iris Xe G7 96EUs	Intel NUC 13 Pro Kit NUC13ANK i7-1360P, Iris Xe G7 96EUs	Intel NUC 12 Pro Kit NUC12WSKi7 i7-1260P, Iris Xe G7 96EUs	Khadas Mind i7-1360P, Iris Xe G7 96EUs	Average Intel Iris Xe Graphics G7 96EUs	Average of class Mini PC
Power Consumption		-48%	-25%	-3%	13%	3%	-31%	1%	14%	-23%
Idle Minimum *	7	12.1 -73%	9.9 -41%	6.8 3%	5 29%	5.1 27%	12.1 -73%	7.8 -11%	5.34 ?(2.2 - 46.5, n=193) 24%	9.48 ?(1.9 - 45.7, n=119, last 2 years) -35%
Idle Average *	9.2	13 -41%	11 -20%	9.4 -2%	7 24%	5.8 37%	12.2 -33%	10.9 -18%	8.55 ?(3.8 - 63, n=193) 7%	11.5 ?(1.9 - 47.5, n=117, last 2 years) -25%
Idle Maximum *	11.8	18.2 -54%	11.2 5%	13.7 -16%	10.7 9%	10.2 14%	12.3 -4%	11.8 -0%	10.8 ?(5.8 - 68.9, n=193) 8%	14.9 ?(2.6 - 57.1, n=119, last 2 years) -26%
Load Average *	45	70.6 -57%	74.2 -65%	45.3 -1%	50.3 -12%	68.1 -51%	64 -42%	39.2 13%	45.3 ?(12.5 - 87.3, n=193) -1%	57.4 ?(11.3 - 170.6, n=119, last 2 years) -28%
Load Maximum *	97.2	113 -16%	103.2 -6%	94.8 2%	82 16%	108.3 -11%	98.8 -2%	76.4 21%	67.5 ?(30.1 - 123.3, n=193) 31%	97.5 ?(18.1 - 423, n=119, last 2 years) -0%

* ... smaller is better

Power consumption with external monitor

Intel NUC 13 Pro Desk Edition Kit; Prime95 V2810 Stress (external Monitor): Ø67.4 (59.5-97.2)

Intel NUC 13 Pro Desk Edition Kit; Cinebench R15 Multi (external Monitor): Ø92.2 (90.9-95.1)

Intel NUC 13 Pro Desk Edition Kit; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø61.5 (58.5-92.3)

Intel NUC 13 Pro Desk Edition Kit; Idle 1min (external Monitor): Ø9.2 (7.45-11.9)

Intel NUC 13 Pro Desk Edition Kit; Cinebench R23 Single (external Monitor): Ø39.2 (36.6-60)

Intel NUC 13 Pro Desk Edition Kit; Cinebench R23 Multi (external Monitor): Ø70.8 (58-93.7)

Pros

+ 稳定而紧凑的机箱

+ 现代设计和高品质金属表面

+ 配备 P 核和 E 核的现代快速 SoC

+ 良好的系统性能

+ 易于打开

+ 2x Thunderbolt

+ 快速 Wi-Fi 6E

+ 性能稳定的快速固态硬盘

Cons

- 负载时有声音

- 速度不比英特尔 NUC 13 Pro 套件快

- 无 DDR5

评价 - 外观更漂亮，性能水平几乎保持不变

英特尔 NUC 13 Pro 桌面版套件 - Vivid Canyon 评测 - 测试样品由英特尔德国公司提供

英特尔 NUC 13 Pro 桌面版套件并不是完全的革新，但即便如此，它仍是英特尔 NUC 系列中颇具吸引力的一款机型。这些设备要求采用金属外壳已有一段时间了，但直到英特尔 NUC 13 Pro 套件之前，英特尔一直坚持塑料外壳的旧概念。虽然从技术上看，并没有什么进步。英特尔 Raptor Lake-P 继续在引擎盖下工作，其 DDR4 内存也是我们在英特尔 NUC 13 Pro 套件中已经看到的较慢的型号之一。英特尔确实应该采取步骤安装 DDR5 内存，以便与英特尔酷睿 i7-1360P.

英特尔 NUC 13 Pro 桌面版套件是一款视觉上美轮美奂的英特尔 NUC，遗憾的是其性能却停滞不前。它的各种积极功能（如出色的连接选项）依然如故。

在我们的测试中，英特尔 NUC 13 Desk Edition 套件表现出色。SoC 在工作时没有任何 TDP 限制，这不是每台迷你 PC 都能做到的。在 3D 性能方面，它最大的弱点是 iGPU。反过来，这也是目前所有英特尔 SoC 似乎都存在的普遍问题。在这方面，AMD 的 Ryzen SoC 具有很大的优势。由于英特尔 NUC 13 Desk Edition Kit 是一款用于办公的迷你 PC，因此其游戏性能并不是重中之重。即便如此，您也可以借助外置显卡来实现这一目标。其良好的连接选项使这成为可能。

从外观上看，英特尔 NUC 13 Pro Desk Edition 套件变化很大。我们接受这个决定，总的来说，它的设计看起来很现代，金属表面给人感觉很好。在尺寸方面，英特尔 PC 保持了该系列的原貌，尽管它没有 VESA 安装选项。其竞争对手以高品质金属外壳取胜的论点现在失效了。这意味着，现在必须将视觉效果和性能结合起来，才有理由购买这款设备。英特尔 NUC "的名字也是购买该品牌的一个理由，因为在过去，"英特尔 NUC "一直是优秀迷你 PC 的代名词。此外，许多买家在购买时仍持保留意见，因为许多竞争对手只能在中国购买。这些 PC 只能慢慢运抵海外仓库，而且通常只能通过亚马逊等网站与消费者见面。英特尔的 NUC 设备则不同，因为许多知名的网上商店都有这种设备出售。

价格和供应情况

英特尔 NUC 13 Pro 桌面版套件可在亚马逊上以裸机形式购买，售价 719 美元。

Transparency

The selection of devices to be reviewed is made by our editorial team. The test sample was provided to the author as a loan by the manufacturer or retailer for the purpose of this review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.

This is how Notebookcheck is testing

Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.

Intel NUC 13 Pro Desk Edition Kit - 04/25/2024 v7 ^(old)
Sebastian Bade

Chassis

88 / 98 → 89%

Connectivity

62 / 81 → 76%

Weight

Games Performance

70%

Application Performance

95%

Workstation

60%

Noise

84%

Average

76%

83%

Mini PC - Weighted Average

潜在的竞争对手比较

Intel NUC 13 Pro 桌面版套件 - Vivid Canyon 详细信息

外壳 - 用金属代替塑料

尺寸比较

连接性

交流

配件

维护

性能 - 拥有 12 个内核和 16 个线程的现代 SoC

测试条件

处理器

英特尔 NUC 13 Pro 桌面版套件 - Arena Canyon 与 Cinebench R15 多循环对比

系统性能

DPC 延迟

存储设备

Reading continuous performance: DiskSpd Read Loop, Queue Depth 8

图形卡

游戏性能

通过配备 NvidiaGeForce RTX 3060 Ti 的 eGPU 底座提升 3D 性能

排放 - 性能良好，依然节俭

噪音排放

温度

耗电量

Power consumption with external monitor

Pros

Cons

评价 - 外观更漂亮，性能水平几乎保持不变

价格和供应情况

Transparency

More articles related to this device
